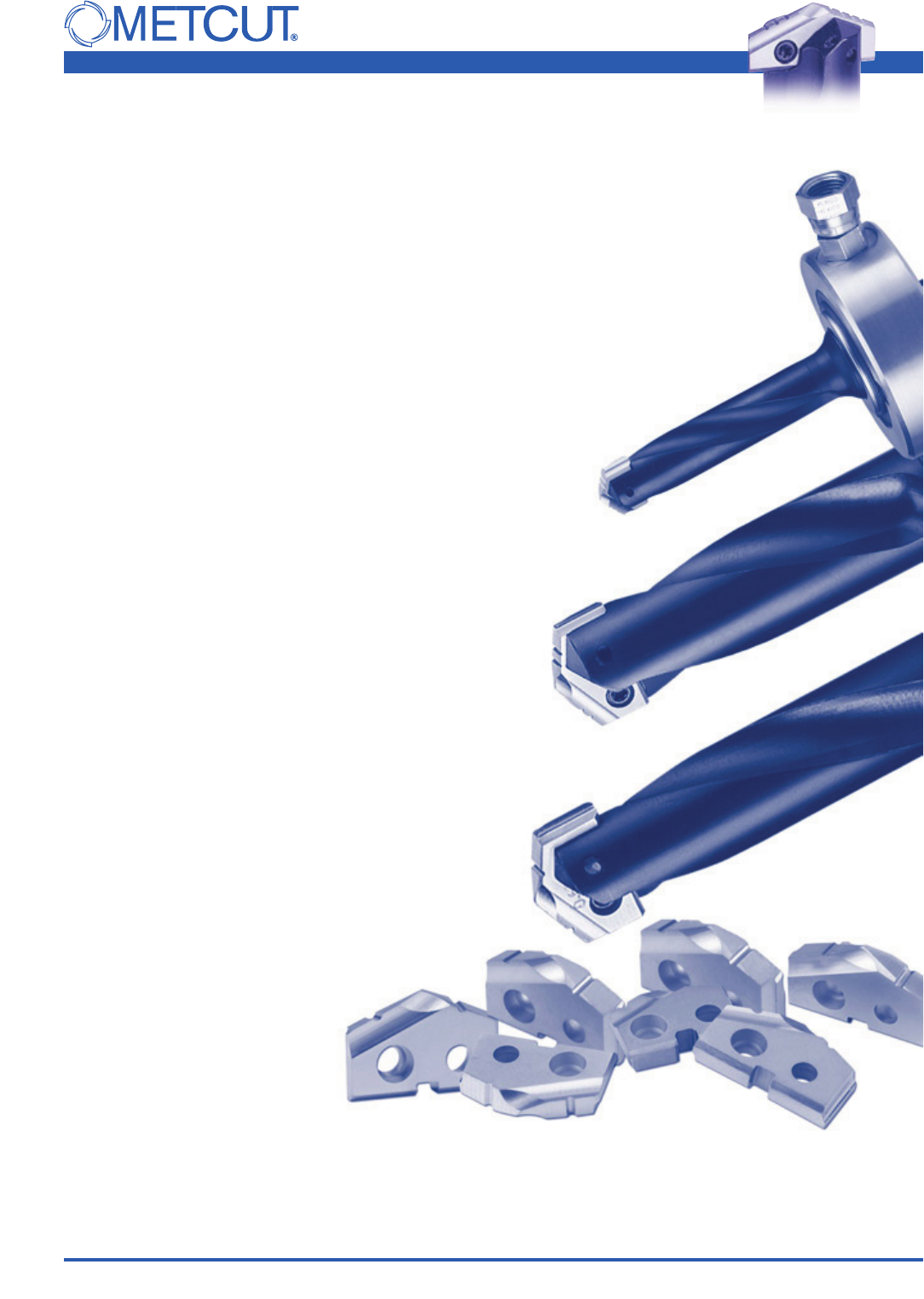

Premium blade construction:
• Unique cutting geometry protected under Kennametal Inc. US Patent
Number 63701702 (April 16, 2002)
"Spade Blade Drill and Method
of Making"
.
• Fabricated from a pressed and HIP sintered powder metal T-15 alloy,
yielding a more uniform and consistent metallurgical structure
provides lower variability than competing blades.
Premium service and support:
• A specials program that delivers custom engineered spade
blade and spade blade holder sizes and geometries to fulfill
every customer requirement.
• A complete line of straight and helical fluted holders offered
with both straight and taper shank styles; all holders are
engineered to accommodate the option of a coolant gland for
use where coolant through the spindle is lacking.
Premium Coatings:
• TiN (Titanium Nitride) gives longer tool life and added lubric-
ity, while allowing more aggressive machining of steels.
• TiCN (Titanium Carbonitride) is a general purpose coating
well suited to machining of mild steel, ductile cast iron and
nonferrous materials such as aluminum and copper alloys.
TiCN is superior in preventing excessive BUE (built-up edge).
• “G” is comprised of more than 20 layers of TiCN and
TiAlN with an overcoat of TiN optimized for drilling
mild steel and ductile cast iron.
• TiAlN (Titanium Aluminum Nitride) a
multilayer, mixed phase coating
designed for high-speed machining
in alloy steels, high temp alloys,
gray cast iron and titanium. Perfor-
mance advantages require TiALN
coated tools to be operated at rela-
tively high speeds, typically 50% greater than other PVD coatings such
as TiN.
• CX-H is a proprietary coating designed for optimal drilling of abrasive,
short chipping nonferrous alloys (e.g. red brass, Al-Si alloys).
• Diamond coating is designed for abrasive nonferrous alloys.

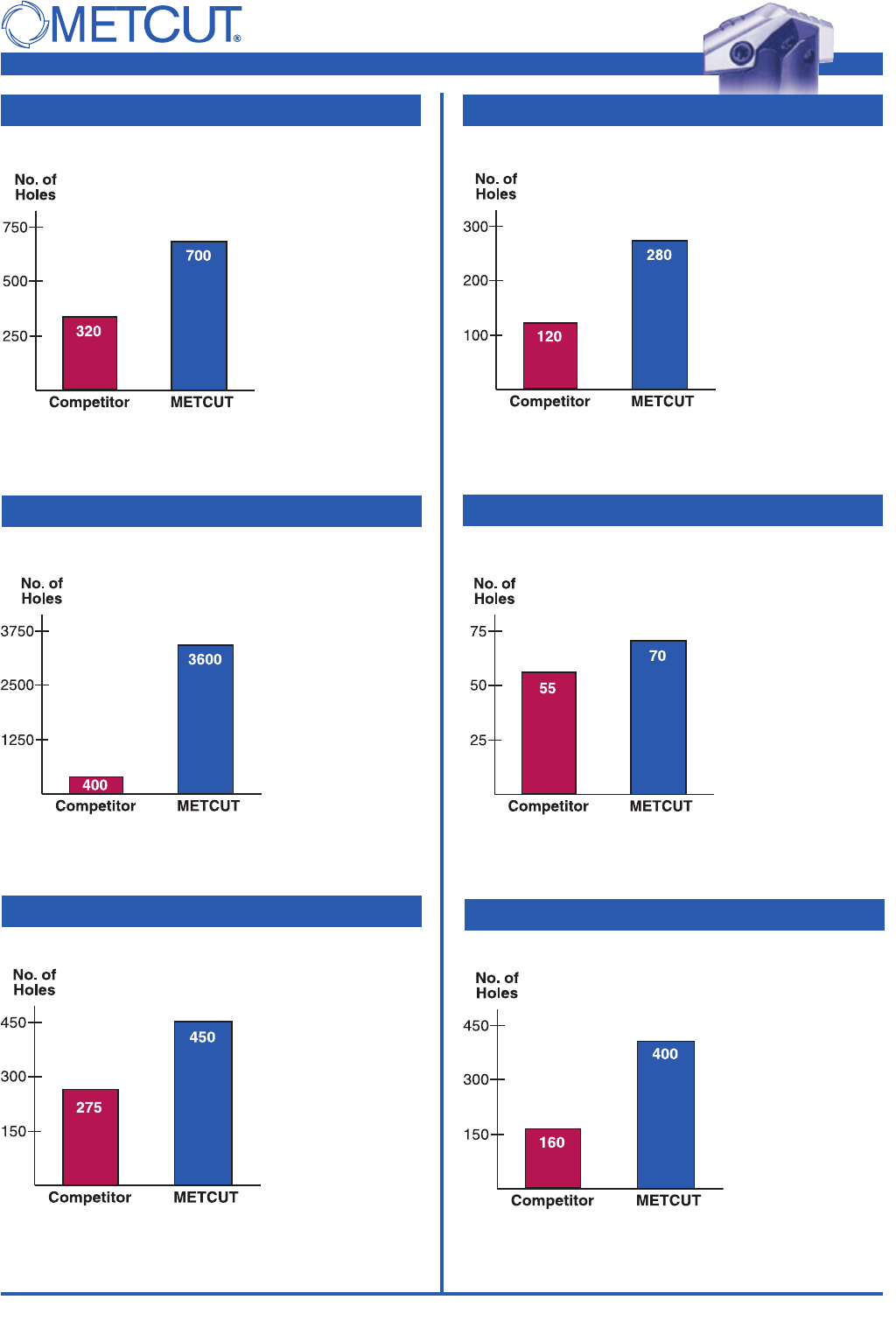

Metcut spade blades give you the edge!
• Highest performance in the industry
• Faster penetration rates – 35% to 100% higher "in-feed" rates than competitors' blades
• More holes per blade – 25% to 50% wear-life improvement over competitors' blades
• Less down time
• Interchangeable with other conventional spade blades
• Improved surface finish – elimination of secondary operations
• Complete standard and specials drill body / holder offering.
• Lower variability
2
Application Information
T-15 HSS spade blades are recommended:
s For replacing steel twist drills resulting in 2X to 3X
higher penetration rates and up to 4X to 5X longer
wearlife.
s For providing straighter and more consistent holes
with superior surface finishes than can be produced
using either HSS twist drills or carbide indexable
drills.
s When rigidity of the machine or the fixture requires
a more forgiving, durable and tougher tool; T-15 steel
possesses a higher transverse rupture strength and is
more impact-resistant than comparable carbide
spade blades and/or carbide indexable drills.
s In applications requiring hole depths up through 15X
to 20X diameter; pecking may be required for depths
above 7X diameter for some materials.
s As a more cost effective alternative to carbide
indexable drills since T-15 steel spade blades operate
at comparable penetration rates to single-effective
indexable drills in materials <35 Rc, and one spade
blade holder accommodates multiple diameter
blades.
Carbide spade blades are recommended:
s For high productivity applications in which wearlife
must be maximized; typically limited to hole depths
less than 5X diameter.
s For use in highly abrasive materals such as cast iron,
cast aluminum, etc.; or in harder steel alloys, typi-
cally 30 to 45 Rc.
s To exceed the performance of single-effective
indexable drills by 20% to 50% in materials <45 Rc.
s To get improved productivity in contrast to T-15
steel spade blades by allowing 50% to 100% higher
speeds; operational parameters of carbide blades
recommend hole depths < 5X diameter, rigid set-ups,
and 50% to 100% higher coolant pressures.
Spade blade holders generally can accommodate a
range of blade sizes up to 1.30 to 1.35 times the
smallest blade size. It is therefore possible to cover the
entire range of hole sizes with just a few spade drill
holders. Contrast this with the inventories required for
indexable drills and steel taper shank drills.
Technical Data
Straight fluted spade blade holders are recommended
for horizontal machining center applications to
maximize chip evacuation given their inherent open
flute construction.
Helical fluted spade blade holders may be necessary
for vertical machining center applications to break
chips, enhancing chip removal.
R-8 (Bridgeport) holders and blades are used in
Bridgeport machines that require a R-8 taper holder.
Through coolant via the spindle cooling is preferable
for optimal drilling with spade blades. However, if
spindle cooling is unavailable, then coolant glands or
inducers should be used to provide through coolant
capability. All METCUT spade blade holders are
manufactured with both the option of through the
spindle cooling or with a rotary coolant gland. Flood
coolant is not recommended, but can be used for very
short hole depths, less than one diameter. Through
coolant
must
be used with spade drill depths greater
than one diameter.
Half-size spade blade holders (see pages 16–20) may
be required where the penetration rate (in-feed)
exceeds the recommended values by more than 25%.
They are also recommended for use in gummy materi-
als (e.g., aluminum, copper alloys) where torque
forces can exceed the yield strength of the spade
blade holder, typically where the spade blade diam-
eter exceeds the spade blade body diameter by more
than 25%. Without half-size holders, the spade blade’s
excessive overhang can expose it to premature failure
and the holder to potential catastrophic break-up.
Series 0, 1 and 2 spade blade diameters have both full
size and half size holders that provide proper support
to the blade under most circumstances. Standard full-
size holders can accommodate the full diameter range
for a given spade blade series. Half-size holders
should be used only for blade diameters that exceed
the half-size spade blade holder body diameter by at
least 0.010".
3

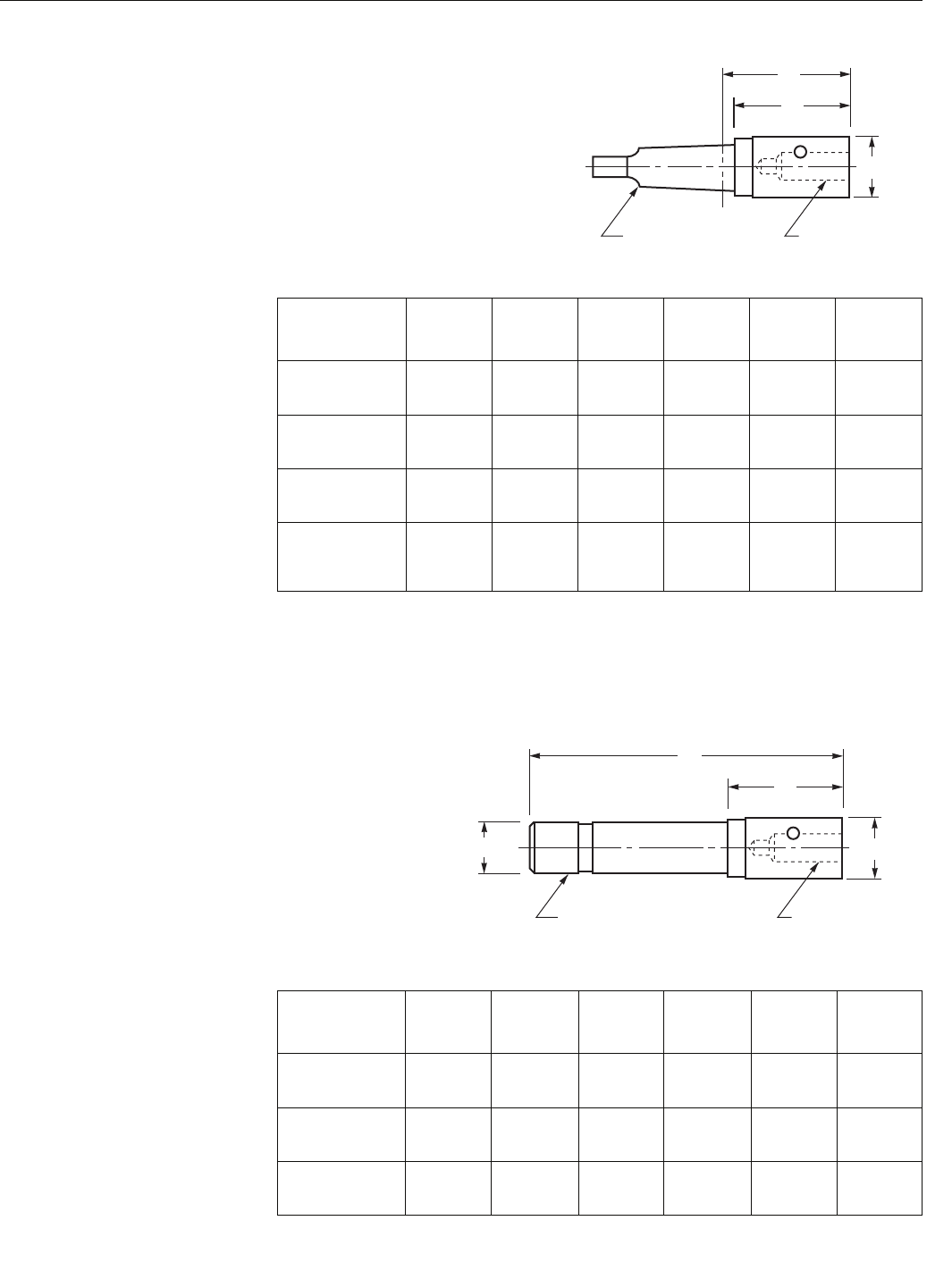

Spade Blade Holder Cross-Reference
Upgrade your tool crib with METCUT Spade Blade Holders
Taper Shank, Straight Flute Holders
Short Length Standard Length Long Length
Universal METCUT Blade Morse Max. Max. Max.
Type Blade Diameter Taper Drill METCUT Drill METCUT Drill METCUT
Series Series Range No. Depth OAL Holder Depth OAL Holder Depth OAL Holder
A 2 31/32"-1-3/8" 3 3.07 9.44 7S2S 7.82 14.19 7S2L 10.89 17.26 7S2E
AA 2 1-1/8"-1-3/8" 3 2.88 9.44 7S2.5S 7.63 15.19 *
7S2.5L-4M
———
B 3 1-3/8"-1-7/8" 4 4.33 12.13 7S3S 8.43 16.13 7S3M 13.18 20.38 7S3L
C,D 4 1-7/8"-2-9/16" 4 5.90 13.62 7S4S 9.90 17.63 7S4M 16.02 23.75 7S4L
E,F 5,6 2-1/2"-3-1/2" 5 6.24 15.38 7S5S 11.99 21.13 7S5M 17.74 26.88 7S5L
G 7,8 3-1/2"-4-1/2" 5 6.88 16.28 7S7S 12.25 22.28 7S7M 19.45 30.53 7S7L
*#4 Morse Taper
Straight Shank, Straight Flute Holders
Short Length Standard Length Long Length
Universal METCUT Blade Max. Max. Max.
Type Blade Diameter Shank Drill METCUT Drill METCUT Drill METCUT
Series Series Range Dia. Depth OAL Holder Depth OAL Holder Depth OAL Holder
A 2 31/32"-1-3/8" 1.25 3.07 8.00 7S2SS 7.82 12.75 7S2SL 10.89 15.92 7S2SE
AA 2 1-1/8"-1-3/8" 1.25 2.88 8.00 7S2.5SS 7.63 12.75 7S2.5SL ———
B 3 1-3/8"-1-7/8" 1.50 4.33 9.88 7S3SS 8.43 13.88 7S3SM 13.18 18.63 7S3SL
C,D 4 1-7/8"-2-9/16" 1.50 5.90 11.38 7S4SS 9.90 15.38 7S4SM 16.02 21.50 7S4SL
E,F 5,6 2-1/2"-3-1/2" 2.00 6.24 12.50 7S5SS 11.99 18.25 7S5SM 17.74 24.00 7S5SL
G 7,8 3-1/2"-4-1/2" 3.00 6.88 15.25 7S7SS 12.25 21.25 7S7SM 19.45 29.50 7S7SL
You’ve heard about the performance advantages of
METCUT spade blades and you want to try them. But
you’ve got an investment in tool holders. How can you
make a cost effective switch? Let us prove the value
of genuine METCUT spade blades and holders.
Why settle for universal-style
toolholders?
UPGRADE TO METCUT!
Superior hole making solutions by design.™
METCUT spade blade inserts:
• Increase average wear life by up to 2.5 times over
coated universal-style blades
• Increase productivity (ipm) by as much as 50% over
universal-style blades
• Cost up to 50% less than same substrate material
universal-style blades
Universal-style spade blade inserts:
• Lower wear life which means costly tool change-
outs and machine down time
• Lower ipm which gives fewer parts per machine-
hour, less productivity
• Higher investment costs in blade inventory without
higher return on investment
4
X & Z 0 1 2 3 4 & 5 6, 7 & 8
Holder* .
375" - .508" .509" - .690" .691" - .960" .961" - 1.380" 1.381" - 1.879" 1.880" - 3.000" 3.001" - 4.500"
Length Low High Low High Low High Low High Low High Low High Low High
Low Carbon Steel 1010, 1020, 1025, 1522, etc.
T-15 HSS
Flow (GPM) S/M 2.4 2.6 2.4 2.6 3.7 4.2 6.0 7.0 11.0 12.0 26.0 30.0 36.0 40.0
L 2.8 3.0 2.8 3.0 4.3 4.8 6.9 8.1 12.7 13.8 29.9 34.5 41.4 46.0
E 3.1 3.4 3.1 3.4 4.8 5.5 7.8 9.1 14.3 15.6 33.8 39.0 46.8 52.0
Pressure (PSI) S/M 160.0 170.0 75.0 90.0 75.0 95.0 60.0 80.0 55.0 75.0 30.0 40.0 >50.0
L 184.0 195.5 86.3 103.5 86.3 109.3 69.0 92.0 63.3 86.3 34.5 46.0 >57.5
E 208.0 221.0 97.5 117.0 97.5 123.5 78.0 104.0 71.5 97.5 39.0 52.0 >65.0
Carbide
Flow (GPM) S/M 2.6 2.9 2.9 3.1 4.4 5.0 7.5 8.8 15.4 16.8
Pressure (PSI) S/M 200.0 212.5 105.0 126.0 105.0 133.0 96.0 128.0 104.5 142.5
Free Machining Steel 1118, 1215, 12L14, etc.
T-15 HSS
Flow (GPM) S/M 2.5 2.7 2.8 3.0 4.4 5.2 7.0 8.0 12.0 14.0 30.0 33.0 37.0 41.0
L 2.9 3.1 3.2 3.5 5.1 6.0 8.1 9.2 13.8 16.1 34.5 38.0 42.6 47.2
E 3.3 3.5 3.6 3.9 5.7 6.8 9.1 10.4 15.6 18.2 39.0 42.9 48.1 53.3
Pressure (PSI) S/M 175.0 185.0 100.0 120.0 105.0 140.0 80.0 115.0 75.0 100.0 40.0 50.0 >60.0
L 201.3 212.8 115.0 138.0 120.8 161.0 92.0 132.3 86.3 115.0 46.0 57.5 >69.0
E 227.5 240.5 130.0 156.0 136.5 182.0 104.0 149.5 97.5 130.0 52.0 65.0 >78.0
Carbide
Flow (GPM) S/M 2.8 3.0 3.4 3.6 5.3 6.2 8.8 10.0 16.8 19.6
Pressure (PSI) S/M 218.8 231.3 140.0 168.0 147.0 196.0 128.0 184.0 142.5 190.0
Medium Carbon Steel 1040, 1050, 1527, 1144, etc.
T-15 HSS
Flow (GPM) S/M 2.3 2.5 2.3 2.6 3.6 4.1 5.0 6.0 10.0 12.0 26.0 30.0 36.0 40.0
L 2.6 2.9 2.6 3.0 4.1 4.7 5.8 6.9 11.5 13.8 29.9 34.5 41.4 46.0
E 3.0 3.3 3.0 3.4 4.7 5.3 6.5 7.8 13.0 15.6 33.8 39.0 46.8 52.0
Pressure (PSI) S/M 155.0 165.0 70.0 85.0 70.0 90.0 55.0 75.0 50.0 70.0 30.0 40.0 >50.0
L 178.3 189.8 80.5 97.8 80.5 103.5 63.3 86.3 57.5 80.5 34.5 46.0 >57.5
E 201.5 214.5 91.0 110.5 91.0 117.0 71.5 97.5 65.0 91.0 39.0 52.0 >65.0
Carbide
Flow (GPM) S/M 2.5 2.8 2.8 3.1 4.3 4.9 6.3 7.5 14.0 16.8
Pressure (PSI) S/M 193.8 206.3 98.0 119.0 98.0 126.0 88.0 120.0 95.0 133.0
Alloy Steel 4140, 5140, 8640, etc.
T-15 HSS
Flow (GPM) S/M 2.2 2.4 2.2 2.4 3.5 3.9 5.0 6.0 10.0 11.0 26.0 28.0 31.0 36.0
L 2.5 2.8 2.5 2.8 4.0 4.5 5.8 6.9 11.5 12.7 29.9 32.2 35.7 41.4
E 2.9 3.1 2.9 3.1 4.6 5.1 6.5 7.8 13.0 14.3 33.8 36.4 40.3 46.8
Pressure (PSI) S/M 155.0 165.0 65.0 75.0 65.0 80.0 50.0 70.0 45.0 60.0 30.0 35.0 >40.0
L 178.3 189.8 74.8 86.3 74.8 92.0 57.5 80.5 51.8 69.0 34.5 40.3 >46.0
E 201.5 214.5 84.5 97.5 84.5 104.0 65.0 91.0 58.5 78.0 39.0 45.5 >52.0
Carbide
Flow (GPM) S/M 2.4 2.6 2.6 2.9 4.2 4.7 6.3 7.5 14.0 15.4
Pressure (PSI) S/M 193.8 206.3 91.0 105.0 91.0 112.0 80.0 112.0 85.5 114.0
High Strength Alloy 4340, 4330V, 300M, etc.
T-15 HSS
Flow (GPM) S/M 2.2 2.4 2.2 2.4 2.9 3.1 4.0 5.0 7.0 8.0 21.0 23.0 27.0 30.0
L 2.5 2.8 2.5 2.8 3.3 3.6 4.6 5.8 8.1 9.2 24.2 26.5 31.1 34.5
E 2.9 3.1 2.9 3.1 3.8 4.0 5.2 6.5 9.1 10.4 27.3 29.9 35.1 39.0
Pressure (PSI) S/M 150.0 160.0 55.0 60.0 45.0 50.0 25.0 30.0 25.0 30.0 20.0 25.0 >30.0
L 172.5 184.0 63.3 69.0 51.8 57.5 28.8 34.5 28.8 34.5 23.0 28.8 >34.5
E 195.0 208.0 71.5 78.0 58.5 65.0 32.5 39.0 32.5 39.0 26.0 32.5 >39.0
Carbide
Flow (GPM) S/M 2.4 2.6 2.6 2.9 3.5 3.7 5.0 6.3 9.8 11.2
Pressure (PSI) S/M 187.5 200.0 77.0 84.0 63.0 70.0 40.0 48.0 47.5 57.0
Minimum Coolant Volumetric Flow Rate and Coolant Pressure
for T-15 HSS and Carbide Spade Blades
Note:These flow rates and coolant pressures are general
recommendations for water-based coolants. They are
guidelines for achieving maximum tool life and chip
evacuation at the recommended speeds and feeds.
Technical Data
The table recommends adjusted flow and pressure rates for
blade size, blade material, and holder length (short, medium,
long, extended length). Since carbide blades are normally
used in applications 5 x diameter or less, the long and
extended length holders are not listed.
* See holder dimensions in holder listings pp 16–20
5
Structural Steel A36, A285, A516, etc.
T-15 HSS
Flow (GPM) S/M 2.3 2.5 2.4 2.6 3.5 3.9 5.0 6.0 9.0 10.0 23.0 26.0 31.0 35.0
L 2.6 2.9 2.8 3.0 4.0 4.5 5.8 6.9 10.4 11.5 26.5 29.9 35.7 40.3
E 3.0 3.3 3.1 3.4 4.6 5.1 6.5 7.8 11.7 13.0 29.9 33.8 40.3 45.5
Pressure (PSI) S/M 155.0 165.0 75.0 85.0 65.0 80.0 40.0 55.0 40.0 50.0 25.0 30.0 >40.0
L 178.3 189.8 86.3 97.8 74.8 92.0 46.0 63.3 46.0 57.5 28.8 34.5 >46.0
E 201.5 214.5 97.5 110.5 84.5 104.0 52.0 71.5 52.0 65.0 32.5 39.0 >52.0
Carbide
Flow (GPM) S/M 2.5 2.8 2.9 3.1 4.2 4.7 6.3 7.5 12.6 14.0
Pressure (PSI) S/M 193.8 206.3 105.0 119.0 91.0 112.0 64.0 88.0 76.0 95.0
Tool Steel H-13, H-21, A-4, 0-2, etc.
T-15 HSS
Flow (GPM) S/M 2.3 2.5 2.3 2.5 2.9 3.1 4.0 5.0 7.0 8.0 21.0 23.0 27.0 30.0
L 2.6 2.9 2.6 2.9 3.3 3.6 4.6 5.8 8.1 9.2 24.2 26.5 31.1 34.5
E 3.0 3.3 3.0 3.3 3.8 4.0 5.2 6.5 9.1 10.4 27.3 29.9 35.1 39.0
Pressure (PSI) S/M 145.0 155.0 55.0 60.0 45.0 50.0 25.0 30.0 25.0 30.0 20.0 25.0 >30.0
L 166.8 178.3 63.3 69.0 51.8 57.5 28.8 34.5 28.8 34.5 23.0 28.8 >34.5
E 188.5 201.5 71.5 78.0 58.5 65.0 32.5 39.0 32.5 39.0 26.0 32.5 >39.0
Carbide
Flow (GPM) S/M 2.5 2.8 2.8 3.0 3.5 3.7 5.0 6.3 9.8 11.2
Pressure (PSI) S/M 181.3 193.8 77.0 84.0 63.0 70.0 40.0 48.0 47.5 57.0
Stainless Steel 303, 416, 420, 17-4PH, etc.
T-15 HSS
Flow (GPM) S/M 2.3 2.5 2.3 2.6 3.5 3.7 5.0 6.0 9.0 10.0 23.0 26.0 33.0 37.0
L 2.6 2.9 2.6 3.0 4.0 4.3 5.8 6.9 10.4 11.5 26.5 29.9 38.0 42.6
E 3.0 3.3 3.0 3.4 4.6 4.8 6.5 7.8 11.7 13.0 29.9 33.8 42.9 48.1
Pressure (PSI) S/M 160.0 170.0 70.0 85.0 65.0 75.0 40.0 55.0 40.0 50.0 25.0 30.0 >35.0
L 184.0 195.5 80.5 97.8 74.8 86.3 46.0 63.3 46.0 57.5 28.8 34.5 >40.3
E 208.0 221.0 91.0 110.5 84.5 97.5 52.0 71.5 52.0 65.0 32.5 39.0 >45.5
Carbide
Flow (GPM) S/M 2.5 2.8 2.8 3.1 4.2 4.4 6.3 7.5 12.6 14.0
Pressure (PSI) S/M 200.0 212.5 98.0 119.0 91.0 105.0 64.0 88.0 76.0 95.0
Cast Iron Gray, Ductile, Nodular
T-15 HSS
Flow (GPM) S/M 2.2 2.4 2.2 2.4 3.1 3.3 4.0 5.0 8.0 9.0 23.0 26.0 27.0 30.0
L 2.5 2.8 2.5 2.8 3.6 3.8 4.6 5.8 9.2 10.4 26.5 29.9 31.1 34.5
E 2.9 3.1 2.9 3.1 4.0 4.3 5.2 6.5 10.4 11.7 29.9 33.8 35.1 39.0
Pressure (PSI) S/M 155.0 165.0 60.0 65.0 50.0 60.0 30.0 40.0 30.0 35.0 25.0 30.0 >30.0
L 178.3 189.8 69.0 74.8 57.5 69.0 34.5 46.0 34.5 40.3 28.8 34.5 >34.5
E 201.5 214.5 78.0 84.5 65.0 78.0 39.0 52.0 39.0 45.5 32.5 39.0 >39.0
Carbide
Flow (GPM) S/M 2.4 2.6 2.6 2.9 3.7 4.0 5.0 6.3 11.2 12.6
Pressure (PSI) S/M 193.8 206.3 84.0 91.0 70.0 84.0 48.0 64.0 57.0 66.5
Aluminum
T-15 HSS
Flow (GPM) S/M 2.6 2.8 3.3 3.7 5.3 6.1 8.0 9.0 14.0 16.0 30.0 33.0 37.0 41.0
L 3.0 3.2 3.8 4.3 6.1 7.0 9.2 10.4 16.1 18.4 34.5 38.0 42.6 47.2
E 3.4 3.6 4.3 4.8 6.9 7.9 10.4 11.7 18.2 20.8 39.0 42.9 48.1 53.3
Pressure (PSI) S/M 185.0 200.0 140.0 180.0 150.0 200.0 115.0 160.0 90.0 125.0 40.0 50.0 >60.0
L 212.8 230.0 161.0 207.0 172.5 230.0 132.3 184.0 103.5 143.8 46.0 57.5 >69.0
E 240.5 260.0 182.0 234.0 195.0 260.0 149.5 208.0 117.0 162.5 52.0 65.0 >78.0
Carbide
Flow (GPM) S/M 2.9 3.1 4.0 4.4 6.4 7.3 10.0 11.3 19.6 22.4
Pressure (PSI) S/M 231.3 250.0 196.0 252.0 210.0 280.0 184.0 256.0 171.0 237.5
High Temp. Alloy Hastelloy B, Inconel 600, etc.
T-15 HSS
Flow (GPM) S/M 2.2 2.4 2.2 2.4 3.1 3.2 4.0 5.0 7.0 8.0 23.0 26.0 27.0 30.0
L 2.5 2.8 2.5 2.8 3.6 3.7 4.6 5.8 8.1 9.2 26.5 29.9 31.1 34.5
E 2.9 3.1 2.9 3.1 4.0 4.2 5.2 6.5 9.1 10.4 29.9 33.8 35.1 39.0
Pressure (PSI) S/M 150.0 160.0 60.0 65.0 50.0 55.0 30.0 35.0 25.0 30.0 25.0 30.0 >30.0
L 172.5 184.0 69.0 74.8 57.5 63.3 34.5 40.3 28.8 34.5 28.8 34.5 >34.5
E 195.0 208.0 78.0 84.5 65.0 71.5 39.0 45.5 32.5 39.0 32.5 39.0 >39.0
Carbide
Flow (GPM) S/M 2.4 2.6 2.6 2.9 3.7 3.8 5.0 6.3 9.8 11.2
Pressure (PSI) S/M 187.5 200.0 84.0 91.0 70.0 77.0 48.0 56.0 47.5 57.0
continued from previous page
Technical Data
X & Z 0 1 2 3 4 & 5 6, 7 & 8
Holder* .
375" - .508" .509" - .690" .691" - .960" .961" - 1.380" 1.381" - 1.879" 1.880" - 3.000" 3.001" - 4.500"
Length Low High Low High Low High Low High Low High Low High Low High
* See holder dimensions in holder listings pp 16–20
6
Recommended Starting Speeds (SFM) and Feeds (IPR) — T-15 HSS Blades
MATERIAL SPEEDS (SFM) FEED (IPR)
Coatings Series/Diameters
Y & Z0123456, 7, 8
Hardness TiCN .375 .509 .691 .961 1.381 1.880 2.571 3.001
or to to to to to to to to
Bhn TiN "G" TiAlN CX-H Diamond .508 .690 .960 1.380 1.879 2.570 3.000 4.500
Low Carbon Steel 85 – 125 175 225 NR 240 NR .008 .011 .013 .016 .020 .023 .025 .028
1010, 1020, 1025, 125 – 175 165 210 NR 230 NR .007 .010 .012 .016 .020 .022 .024 .027
1522, etc. 175 – 225 155 200 NR 215 NR .006 .009 .011 .015 .019 .021 .023 .026
225 – 275 145 185 225 NR NR .006 .008 .010 .014 .018 .021 .023 .025
Free Machining Steel 100 – 150 200 260 NR NR NR .008 .011 .014 .017 .021 .025 .026 .028
1118, 1215, 12L14, etc. 150 – 200 180 240 NR NR NR .007 .010 .013 .016 .020 .023 .024 .026
200 – 250 160 220 250 230 NR .006 .010 .013 .016 .020 .023 .024 .026
Medium Carbon Steel 125 – 175 165 210 NR NR NR .007 .009 .012 .016 .020 .023 .025 .027
1030, 1040, 1050, 1527, 175 – 225 155 190 NR NR NR .006 .008 .011 .015 .019 .022 .023 .025
1140, 1144, 1151, etc. 225 – 275 145 170 215 NR NR .006 .008 .010 .014 .018 .021 .022 .024
275 – 325 135 160 200 NR NR .005 .007 .009 .012 .016 .019 .021 .023
Alloy Steel 125 – 175 150 195 NR 200 NR .007 .009 .011 .015 .018 .021 .023 .025
4140, 5140, 8640, etc. 175 – 225 140 180 NR 185 NR .007 .009 .010 .014 .017 .019 .021 .023
225 – 275 130 165 185 NR NR .006 .008 .010 .013 .016 .019 .020 .021
275 – 325 120 150 170 NR NR .005 .007 .009 .012 .015 .017 .018 .020
325 – 375 110 140 155 NR NR .004 .006 .009 .012 .015 .017 .018 .020
High Strength Alloy 225 – 300 90 105 130 NR NR .006 .008 .010 .012 .015 .017 .019 .021
4340, 4330V, etc. 300 – 350 70 85 100 NR NR .005 .007 .009 .011 .014 .016 .018 .021
350 – 400 NR NR 80 NR NR .004 .006 .008 .010 .012 .014 .016 .019
Structural Steel 100 – 150 150 180 NR NR NR .007 .010 .012 .015 .018 .021 .023 .026
A36, A285, A516, etc. 150 – 250 125 160 190 NR NR .006 .009 .011 .013 .016 .019 .021 .024
250 – 350 100 135 160 NR NR .005 .008 .009 .011 .014 .017 .019 .022
Tool Steel 150 – 200 85 105 NR NR NR .007 .008 .009 .011 .013 .015 .016 .018
H-13, H-21, 200 – 250 75 90 110 NR NR .006 .007 .008 .011 .013 .015 .016 .018
A-4, O-2, S-3, etc 250 – 350 45 NR 70 NR NR .005 .006 .007 .009 .011 .013 .014 .016
350 – 400 NR NR 50 NR NR .004 .005 .006 .007 .009 .012 .013 .014
Stainless Steel 135 – 185 80 100 120 100 NR .007 .008 .010 .012 .015 .017 .019 .021
416, 420, 17-4PH, etc. 185 – 275 NR 85 105 95 NR .006 .007 .009 .011 .013 .015 .017 .019
275 – 350 NR 75 90 80 NR .005 .006 .007 .009 .011 .013 .015 .017
Cast Iron 120 – 150 180 225 270 250 225 .008 .013 .017 .020 .024 .027 .029 .031
Gray, Ductile, 150 – 200 160 200 240 220 200 .007 .011 .014 .018 .022 .025 .027 .029
Nodular 200 – 220 140 175 210 190 175 .006 .009 .012 .016 .018 .021 .023 .025
220 – 260 120 150 180 165 150 .005 .007 .010 .012 .014 .017 .019 .021
260 – 320 100 125 150 135 125 .004 .006 .007 .009 .012 .014 .016 .018
Aluminum - Wrought — NR 700 NR 750 750 .007 .012 .015 .019 .021 .024 .025 .026
Cast — NR 400 NR 500 500 .008 .013 .016 .020 .022 .025 .026 .027
Copper Alloys — NR 450 NR 550 600 .007 .012 .015 .019 .021 .024 .025 .026
High Temp. Alloy 140 – 210 NR 35 45 NR NR .006 .007 .008 .010 .013 .015 .016 .017
Hastelloy B, 210 – 280 NR 30 40 NR NR .005 .006 .007 .008 .010 .012 .013 .014
Inconel 600, etc. 280 – 340 NR 25 35 NR NR .004 .006 .007 .008 .009 .011 .012 .013
Titanium Alloys — NR 40 50 45 NR .005 .007 .008 .010 .012 .015 .016 .017
NR = Not Recommended
Formulas: IPM = RPM x IPR ★ SFM = .262 x RPM x Diameter ★ RPM = SFM x 3.82 ÷ Diameter
Technical Data: T-15 HSS Blades
Premium Coatings:
• TiN (Titanium Nitride) gives longer tool life and added
lubricity, while allowing more aggressive machining of steels.
• TiCN (Titanium Carbonitride) is a general purpose coating well
suited to machining of mild steel, ductile cast iron and
nonferrous materials such as aluminum and copper alloys. TiCN
is superior in preventing excessive BUE (built-up edge).
• “G” is comprised of more than 20 layers of TiCN and TiAlN
with an overcoat of TiN optimized for drilling mild steel and
ductile cast iron.
• TiAlN (Titanium Aluminum Nitride) a multilayer, mixed phase
coating designed for high-speed machining in alloy steels, high
temp alloys, gray cast iron and titanium. Performance advan-
tages require TiALN coated tools to be operated at relatively high
speeds, typically 50% greater than other PVD coatings such as
TiN.
• CX-H is a proprietary coating designed for optimal drilling of
abrasive, short chipping nonferrous alloys (e.g. red brass, Al-Si
alloys).
• Diamond coating is designed for abrasive nonferrous alloys.
7
T-15 HSS Spade Blades
continued on next page
Decimal Inch Metric TiN Coated TiCN Coated TiAlN Coated
Size Size Size EDP Number EDP Number EDP Number
Series X: .375" through .436"
.3740 — 9,5 7FX-0374T 7FX-0374N 7FX-0374A
.3750 3/8 — 7FX-0375T 7FX-0375N 7FX-0375A
.3860 W — 7FX-0386T 7FX-0386N 7FX-0386A
.3890 SAE #4 — 7FX-0389T 7FX-0389N 7FX-0389A
.3906 25/64 — 7FX-0391T 7FX-0391N 7FX-0391A
.3937 — 10,0 7FX-0394T 7FX-0394N 7FX-0394A
.4016 — 10,2 7FX-0402T 7FX-0402N 7FX-0402A
.4063 13/32 — 7FX-0406T 7FX-0406N 7FX-0406A
.4134 — 10,5 7FX-0413T 7FX-0413N 7FX-0413A
.4219 27/64 — 7FX-0422T 7FX-0422N 7FX-0422A
.4252 — 10,8 7FX-0425T 7FX-0425N 7FX-0425A
.4331 — 11,0 7FX-0433T 7FX-0433N 7FX-0433A
Series Z: .437" through .508"
.4375 7/16 — 7FZ-0438T 7FZ-0438N 7FZ-0438A
.4520 SAE #5 — 7FZ-0452T 7FZ-0452N 7FZ-0452A
.4531 29/64 — 7FZ-0453T 7FZ-0453N 7FZ-0453A
.4646 — 11,8 7FZ-0465T 7FZ-0465N 7FZ-0465A
.4688 15/32 — 7FZ-0469T 7FZ-0469N 7FZ-0469A
.4724 — 12,0 7FZ-0472T 7FZ-0472N 7FZ-0472A
.4844 31/64 — 7FZ-0484T 7FZ-0484N 7FZ-0484A
.4921 — 12,5 7FZ-0492T 7FZ-0492N 7FZ-0492A
.5000 1/2 — 7FZ-0500T 7FZ-0500N 7FZ-0500A
Series 0: .509" through .690"
.5090 SAE #6 — 7F0-0509T 7F0-0509N 7F0-0509A
.5118 — 13,0 7F0-0512T 7F0-0512N 7F0-0512A
.5156 33/64 — 7F0-0516T 7F0-0516N 7F0-0516A
.5313 17/32 — 7F0-0531T 7F0-0531N 7F0-0531A
.5469 35/64 — 7F0-0547T 7F0-0547N 7F0-0547A
.5512 — 14,0 7F0-0551T 7F0-0551N 7F0-0551A
.5625 9/16 — 7F0-0563T 7F0-0563N 7F0-0563A
.5709 — 14,5 7F0-0571T 7F0-0571N 7F0-0571A
.5781 37/64 — 7F0-0578T 7F0-0578N 7F0-0578A
.5906 — 15,0 7F0-0591T 7F0-0591N 7F0-0591A
.5938 19/32 — 7F0-0594T 7F0-0594N 7F0-0594A
.6094 39/64 — 7F0-0609T 7F0-0609N 7F0-0609A
.6102 — 15,5 7F0-0610T 7F0-0610N 7F0-0610A
.6250 5/8 — 7F0-0625T 7F0-0625N 7F0-0625A
.6299 — 16,0 7F0-0630T 7F0-0630N 7F0-0630A
.6406 41/64 — 7F0-0641T 7F0-0641N 7F0-0641A
.6496 — 16,5 7F0-0650T 7F0-0650N 7F0-0650A
.6563 21/32 — 7F0-0656T 7F0-0656N 7F0-0656A
.6611 — 16,8 7F0-0661T 7F0-0661N 7F0-0661A
.6693 — 17,0 7F0-0669T 7F0-0669N 7F0-0669A
.6719 43/64 — 7F0-0672T 7F0-0672N 7F0-0672A
.6875 11/16 — 7F0-0688T 7F0-0688N 7F0-0688A
.6890 SAE #8 17,5 7F0-0689T 7F0-0689N 7F0-0689A
Series 1: .691" through .960"
.7031 45/64 — 7F1-0703T 7F1-0703N 7F1-0703A
.7087 — 18,0 7F1-0709T 7F1-0709N 7F1-0709A
.7188 23/32 — 7F1-0719T 7F1-0719N 7F1-0719A
.7283 — 18,5 7F1-0728T 7F1-0728N 7F1-0728A
.7344 47/64 — 7F1-0734T 7F1-0734N 7F1-0734A
.7480 — 19,0 7F1-0748T 7F1-0748N 7F1-0748A
8
Decimal Inch Metric TiN Coated TiCN Coated TiAlN Coated
Size Size Size EDP Number EDP Number EDP Number
T-15 HSS Spade Blades
continued on next page
(continued) Series 1: .691" through .960"
.7500 3/4 7F1-0750T 7F1-0750N 7F1-0750A
.7580 — 19,25 7F1-0758T 7F1-0758N 7F1-0758A
.7656 49/64 — 7F1-0766T 7F1-0766N 7F1-0766A
.7677 — 19,5 7F1-0768T 7F1-0768N 7F1-0768A
.7813 25/32 — 7F1-0781T 7F1-0781N 7F1-0781A
.7874 — 20,0 7F1-0787T 7F1-0787N 7F1-0787A
.7969 51/64 — 7F1-0797T 7F1-0797N 7F1-0797A
.8060 SAE #10 — 7F1-0806T 7F1-0806N 7F1-0806A
.8071 — 20,5 7F1-0807T 7F1-0807N 7F1-0807A
.8125 13/16 — 7F1-0813T 7F1-0813N 7F1-0813A
.8268 — 21,0 7F1-0827T 7F1-0827N 7F1-0827A
.8281 53/64 — 7F1-0828T 7F1-0828N 7F1-0828A
.8438 27/32 — 7F1-0844T 7F1-0844N 7F1-0844A
.8594 55/64 — 7F1-0859T 7F1-0859N 7F1-0859A
.8661 — 22,0 7F1-0866T 7F1-0866N 7F1-0866A
.8750 7/8 — 7F1-0875T 7F1-0875N 7F1-0875A
.8906 57/64 — 7F1-0891T 7F1-0891N 7F1-0891A
.9063 29/32 — 7F1-0906T 7F1-0906N 7F1-0906A
.9219 59/64 — 7F1-0922T 7F1-0922N 7F1-0922A
.9375 15/16 — 7F1-0938T 7F1-0938N 7F1-0938A
.9449 — 24,0 7F1-0945T 7F1-0945N 7F1-0945A
.9531 61/64 — 7F1-0953T 7F1-0953N 7F1-0953A
.9600 — 24,4 7F1-0960T 7F1-0960N 7F1-0960A
Series 2: .961" through 1.380"
.9688 31/32 — 7F2-0969T 7F2-0969N 7F2-0969A
.9810 SAE #12 — 7F2-0981T 7F2-0981N 7F2-0981A
.9843 — 25,0 7F2-0984T 7F2-0984N 7F2-0984A
1.0000 1 — 7F2-1000T 7F2-1000N 7F2-1000A
1.0156 1-1/64 — 7F2-1016T 7F2-1016N 7F2-1016A
1.0236 — 26,0 7F2-1024T 7F2-1024N 7F2-1024A
1.0313 1-1/32 — 7F2-1031T 7F2-1031N 7F2-1031A
1.0469 1-3/64 — 7F2-1047T 7F2-1047N 7F2-1047A
1.0625 1-1/16 — 7F2-1063T 7F2-1063N 7F2-1063A
1.0781 1-5/64 — 7F2-1078T 7F2-1078N 7F2-1078A
1.0938 1-3/32 — 7F2-1094T 7F2-1094N 7F2-1094A
1.1024 — 28,0 7F2-1102T 7F2-1102N 7F2-1102A
1.1060 SAE #14 — 7F2-1106T 7F2-1106N 7F2-1106A
1.1094 1-7/64 — 7F2-1109T 7F2-1109N 7F2-1109A
1.1250 1-1/8 — 7F2-1125T 7F2-1125N 7F2-1125A
1.1310 — — 7F2-1131T 7F2-1131N 7F2-1131A
1.1406 1-9/64 — 7F2-1141T 7F2-1141N 7F2-1141A
1.1417 — 29,0 7F2-1142T 7F2-1142N 7F2-1142A
1.1563 1-5/32 — 7F2-1156T 7F2-1156N 7F2-1156A
1.1614 — 29,5 7F2-1161T 7F2-1161N 7F2-1161A
1.1811 — 30,0 7F2-1181T 7F2-1181N 7F2-1181A
1.1875 1-3/16 — 7F2-1188T 7F2-1188N 7F2-1188A
1.1929 — 30,3 7F2-1193T 7F2-1193N 7F2-1193A
1.2031 1-13/64 — 7F2-1203T 7F2-1203N 7F2-1203A
1.2188 1-7/32 — 7F2-1219T 7F2-1219N 7F2-1219A
1.2205 — 31,0 7F2-1221T 7F2-1221N 7F2-1221A
1.2310 SAE #16 — 7F2-1231T 7F2-1231N 7F2-1231A
1.2344 1-15/64 — 7F2-1234T 7F2-1234N 7F2-1234A
1.2500 1-1/4 — 7F2-1250T 7F2-1250N 7F2-1250A
1.2598 — 32,0 7F2-1260T 7F2-1260N 7F2-1260A
9
T-15 HSS Spade Blades
continued on next page
Decimal Inch Metric TiN Coated TiCN Coated TiAlN Coated
Size Size Size EDP Number EDP Number EDP Number
1.2656 1-17/64 — 7F2-1266T 7F2-1266N 7F2-1266A
1.2813 1-9/32 — 7F2-1281T 7F2-1281N 7F2-1281A
1.2992 — 33,0 7F2-1299T 7F2-1299N 7F2-1299A
1.3125 1-5/16 — 7F2-1313T 7F2-1313N 7F2-1313A
1.3281 1-21/64 — 7F2-1328T 7F2-1328N 7F2-1328A
1.3386 — 34,0 7F2-1339T 7F2-1339N 7F2-1339A
1.3438 1-11/32 — 7F2-1344T 7F2-1344N 7F2-1344A
1.3594 1-23/64 — 7F2-1359T 7F2-1359N 7F2-1359A
1.3750 1-3/8 — 7F2-1375T 7F2-1375N 7F2-1375A
1.3780 — 35,0 7F2-1378T 7F2-1378N 7F2-1378A
Series 3: 1.381" through 1.879"
1.3906 1-25/64 — 7F3-1391T 7F3-1391N 7F3-1391A
1.4063 1-13/32 — 7F3-1406T 7F3-1406N 7F3-1406A
1.4173 — 36,0 7F3-1417T 7F3-1417N 7F3-1417A
1.4375 1-7/16 — 7F3-1438T 7F3-1438N 7F3-1438A
1.4531 1-29/64 — 7F3-1453T 7F3-1453N 7F3-1453A
1.4567 — 37,0 7F3-1457T 7F3-1457N 7F3-1457A
1.4688 1-15/32 — 7F3-1469T 7F3-1469N 7F3-1469A
1.4844 1-31/64 — 7F3-1484T 7F3-1484N 7F3-1484A
1.4961 — 38,0 7F3-1496T 7F3-1496N 7F3-1496A
1.5000 1-1/2 — 7F3-1500T 7F3-1500N 7F3-1500A
1.5156 1-33/64 — 7F3-1516T 7F3-1516N 7F3-1516A
1.5250 — 38,74 7F3-1525T 7F3-1525N 7F3-1525A
1.5313 1-17/32 — 7F3-1531T 7F3-1531N 7F3-1531A
1.5354 — 39,0 7F3-1535T 7F3-1535N 7F3-1535A
1.5430 SAE #20 — 7F3-1543T 7F3-1543N 7F3-1543A
1.5625 1-9/16 — 7F3-1563T 7F3-1563N 7F3-1563A
1.5748 — 40,0 7F3-1575T 7F3-1575N 7F3-1575A
1.5781 1-37/64 — 7F3-1578T 7F3-1578N 7F3-1578A
1.5938 1-19/32 — 7F3-1594T 7F3-1594N 7F3-1594A
1.6142 — 41,0 7F3-1614T 7F3-1614N 7F3-1614A
1.6250 1-5/8 — 7F3-1625T 7F3-1625N 7F3-1625A
1.6535 — 42,0 7F3-1654T 7F3-1654N 7F3-1654A
1.6563 1-21/32 — 7F3-1656T 7F3-1656N 7F3-1656A
1.6875 1-11/16 — 7F3-1688T 7F3-1688N 7F3-1688A
1.6929 — 43,0 7F3-1693T 7F3-1693N 7F3-1693A
1.7031 1-45/64 — 7F3-1703T 7F3-1703N 7F3-1703A
1.7188 1-23/32 — 7F3-1719T 7F3-1719N 7F3-1719A
1.7323 — 44,0 7F3-1732T 7F3-1732N 7F3-1732A
1.7500 1-3/4 — 7F3-1750T 7F3-1750N 7F3-1750A
1.7656 1-49/64 — 7F3-1766T 7F3-1766N 7F3-1766A
1.7717 — 45,0 7F3-1772T 7F3-1772N 7F3-1772A
1.7813 1-25/32 — 7F3-1781T 7F3-1781N 7F3-1781A
1.7930 SAE #24 — 7F3-1793T 7F3-1793N 7F3-1793A
1.8110 — 46,0 7F3-1811T 7F3-1811N 7F3-1811A
1.8125 1-13/16 — 7F3-1813T 7F3-1813N 7F3-1813A
1.8281 1-53/64 — 7F3-1828T 7F3-1828N 7F3-1828A
1.8438 1-27/32 — 7F3-1844T 7F3-1844N 7F3-1844A
1.8504 — 47,0 7F3-1850T 7F3-1850N 7F3-1850A
1.8750 1-7/8 — 7F3-1875T 7F3-1875N 7F3-1875A
Series 4: 1.880" through 2.570"
1.8800 — — 7F4-1880T 7F4-1880N 7F4-1880A
1.8898 — 48,0 7F4-1890T 7F4-1890N 7F4-1890A
1.9063 1-29/32 — 7F4-1906T 7F4-1906N 7F4-1906A
1.9291 — 49,0 7F4-1929T 7F4-1929N 7F4-1929A
10
Decimal Inch Metric TiN Coated TiCN Coated TiAlN Coated
Size Size Size EDP Number EDP Number EDP Number
T-15 HSS Spade Blades
continued on next page
(continued) Series 4: 1.880" through 2.570"
1.9375 1-15/16 — 7F4-1938T 7F4-1938N 7F4-1938A
1.9688 1-31/32 — 7F4-1969T 7F4-1969N 7F4-1969A
2.0000 2 — 7F4-2000T 7F4-2000N 7F4-2000A
2.0079 — 51,0 7F4-2008T 7F4-2008N 7F4-2008A
2.0156 2-1/64 — 7F4-2016T 7F4-2016N 7F4-2016A
2.0313 2-1/32 — 7F4-2031T 7F4-2031N 7F4-2031A
2.0472 — 52,0 7F4-2047T 7F4-2047N 7F4-2047A
2.0625 2-1/16 — 7F4-2063T 7F4-2063N 7F4-2063A
2.0866 — 53,0 7F4-2087T 7F4-2087N 7F4-2087A
2.0938 2-3/32 — 7F4-2094T 7F4-2094N 7F4-2094A
2.1250 2-1/8 — 7F4-2125T 7F4-2125N 7F4-2125A
2.1260 — 54,0 7F4-2126T 7F4-2126N 7F4-2126A
2.1563 2-5/32 — 7F4-2156T 7F4-2156N 7F4-2156A
2.1654 — 55,0 7F4-2165T 7F4-2165N 7F4-2165A
2.1875 2-3/16 — 7F4-2188T 7F4-2188N 7F4-2188A
2.2047 — 56,0 7F4-2205T 7F4-2205N 7F4-2205A
2.2188 2-7/32 — 7F4-2219T 7F4-2219N 7F4-2219A
2.2441 — 57,0 7F4-2244T 7F4-2244N 7F4-2244A
2.2500 2-1/4 — 7F4-2250T 7F4-2250N 7F4-2250A
2.2559 — 57,3 7F4-2256T 7F4-2256N 7F4-2256A
2.2813 2-9/32 — 7F4-2281T 7F4-2281N 7F4-2281A
2.2835 — 58,0 7F4-2284T 7F4-2284N 7F4-2284A
2.3125 2-5/16 — 7F4-2313T 7F4-2313N 7F4-2313A
2.3228 — 59,0 7F4-2323T 7F4-2323N 7F4-2323A
2.3438 2-11/32 — 7F4-2344T 7F4-2344N 7F4-2344A
2.3622 — 60,0 7F4-2362T 7F4-2362N 7F4-2362A
2.3750 2-3/8 — 7F4-2375T 7F4-2375N 7F4-2375A
2.3906 2-25/64 — 7F4-2391T 7F4-2391N 7F4-2391A
2.4016 — 61,0 7F4-2402T 7F4-2402N 7F4-2402A
2.4063 2-13/32 — 7F4-2406T 7F4-2406N 7F4-2406A
2.4375 2-7/16 — 7F4-2438T 7F4-2438N 7F4-2438A
2.4409 — 62,0 7F4-2441T 7F4-2441N 7F4-2441A
2.4688 2-15/32 — 7F4-2469T 7F4-2469N 7F4-2469A
2.4803 — 63,0 7F4-2480T 7F4-2480N 7F4-2480A
2.5000 2-1/2 — 7F4-2500T 7F4-2500N 7F4-2500A
2.5197 — 64,0 7F4-2520T 7F4-2520N 7F4-2520A
2.5313 2-17/32 — 7F4-2531T 7F4-2531N 7F4-2531A
2.5591 — 65,0 7F4-2559T 7F4-2559N 7F4-2559A
2.5625 2-9/16 — 7F4-2563T 7F4-2563N 7F4-2563A
Series 5: 2.500" through 3.000"
2.5000 2-1/2 — 7F5-2500T 7F5-2500N 7F5-2500A
2.5197 — 64,0 7F5-2520T 7F5-2520N 7F5-2520A
2.5313 2-17/32 — 7F5-2531T 7F5-2531N 7F5-2531A
2.5625 2-9/16 — 7F5-2563T 7F5-2563N 7F5-2563A
2.5984 — 66,0 7F5-2598T 7F5-2598N 7F5-2598A
2.6250 2-5/8 — 7F5-2625T 7F5-2625N 7F5-2625A
2.6563 2-21/32 — 7F5-2656T 7F5-2656N 7F5-2656A
2.6772 — 68,0 7F5-2677T 7F5-2677N 7F5-2677A
2.6875 2-11/16 — 7F5-2688T 7F5-2688N 7F5-2688A
2.7188 2-23/32 — 7F5-2719T 7F5-2719N 7F5-2719A
2.7500 2-3/4 — 7F5-2750T 7F5-2750N 7F5-2750A
2.7559 — 70,0 7F5-2756T 7F5-2756N 7F5-2756A
2.7813 2-25/32 — 7F5-2781T 7F5-2781N 7F5-2781A
2.8125 2-13/16 — 7F5-2813T 7F5-2813N 7F5-2813A
11
Decimal Inch Metric TiN Coated TiCN Coated TiAlN Coated
Size Size Size EDP Number EDP Number EDP Number
T-15 HSS Spade Blades
2.8346 — 72,0 7F5-2835T 7F5-2835N 7F5-2835A
2.8438 2-27/32 — 7F5-2844T 7F5-2844N 7F5-2844A
2.8750 2-7/8 — 7F5-2875T 7F5-2875N 7F5-2875A
2.9063 2-29/32 — 7F5-2906T 7F5-2906N 7F5-2906A
2.9134 — 74,0 7F5-2913T 7F5-2913N 7F5-2913A
2.9375 2-15/16 — 7F5-2938T 7F5-2938N 7F5-2938A
2.9688 2-31/32 — 7F5-2969T 7F5-2969N 7F5-2969A
2.9921 — 76,0 7F5-2992T 7F5-2992N 7F5-2992A
3.0000 3 — 7F5-3000T 7F5-3000N 7F5-3000A
Series 6: 3.001" through 3.500"
3.0625 3-1/16 — 7F6-3063T 7F6-3063N 7F6-3063A
3.0709 — 78,0 7F6-3071T 7F6-3071N 7F6-3071A
3.1250 3-1/8 — 7F6-3125T 7F6-3125N 7F6-3125A
3.1496 — 80,0 7F6-3150T 7F6-3150N 7F6-3150A
3.1875 3-3/16 — 7F6-3188T 7F6-3188N 7F6-3188A
3.2283 — 82,0 7F6-3228T 7F6-3228N 7F6-3228A
3.2500 3-1/4 — 7F6-3250T 7F6-3250N 7F6-3250A
3.3071 — 84,0 7F6-3307T 7F6-3307N 7F6-3307A
3.3125 3-5/16 — 7F6-3313T 7F6-3313N 7F6-3313A
3.3750 3-3/8 — 7F6-3375T 7F6-3375N 7F6-3375A
3.3858 — 86,0 7F6-3386T 7F6-3386N 7F6-3386A
3.4375 3-7/16 — 7F6-3438T 7F6-3438N 7F6-3438A
3.4646 — 88,0 7F6-3465T 7F6-3465N 7F6-3465A
3.5000 3-1/2 — 7F6-3500T 7F6-3500N 7F6-3500A
Series 7: 3.501" through 4.000"
3.5433 — 90,0 7F7-3543T 7F7-3543N 7F7-3543A
3.5625 3-9/16 — 7F7-3563T 7F7-3563N 7F7-3563A
3.6250 3-5/8 — 7F7-3625T 7F7-3625N 7F7-3625A
3.6875 3-11/16 — 7F7-3688T 7F7-3688N 7F7-3688A
3.7008 — 94,0 7F7-3701T 7F7-3701N 7F7-3701A
3.7500 3-3/4 — 7F7-3750T 7F7-3750N 7F7-3750A
3.7795 — 96,0 7F7-3780T 7F7-3780N 7F7-3780A
3.8125 3-13/16 — 7F7-3813T 7F7-3813N 7F7-3813A
3.8583 — 98,0 7F7-3858T 7F7-3858N 7F7-3858A
3.8750 3-7/8 — 7F7-3875T 7F7-3875N 7F7-3875A
3.9375 3-15/16 — 7F7-3938T 7F7-3938N 7F7-3938A
4.0000 4 — 7F7-4000T 7F7-4000N 7F7-4000A
Series 8: 4.001" through 4.500"
4.0625 4-1/16 — 7F8-4063T 7F8-4063N 7F8-4063A
4.0945 — 104,0 7F8-4095T 7F8-4095N 7F8-4095A
4.1250 4-1/8 — 7F8-4125T 7F8-4125N 7F8-4125A
4.1875 4-3/16 — 7F8-4188T 7F8-4188N 7F8-4188A
4.2500 4-1/4 — 7F8-4250T 7F8-4250N 7F8-4250A
4.3125 4-5/16 — 7F8-4313T 7F8-4313N 7F8-4313A
4.3750 4-3/8 — 7F8-4375T 7F8-4375N 7F8-4375A
4.4094 — 112,0 7F8-4409T 7F8-4409N 7F8-4409A
4.4375 4-7/16 — 7F8-4438T 7F8-4438N 7F8-4438A
4.5000 4-1/2 — 7F8-4500T 7F8-4500N 7F8-4500A
Blade Sets for R-8 (Bridgeport) Holders
Series 0 TiN Coated Spade Blade Set C53100
10 sizes: 33/64, 17/32, 35/64, 9/16, 37/64, 19/32, 39/64, 5/8, 21/32, 11/16
Series 1 TiN Coated Spade Blade Set C53101
10 sizes: 45/64, 23/32, 3/4, 49/64, 25/32, 13/16, 27/32, 7/8, 29/32, 15/16
Series 2 TiN Coated Spade Blade Set C53102
10 sizes: 31/32, 63/64, 1, 1-1/32, 1-1/16, 1-1/8, 1-5/32, 1-3/16, 1-1/4, 1-3/8
12
Recommended Starting Speeds (SFM) and Feeds (IPR) — Carbide Blades
MATERIAL SPEEDS (SFM) FEED (IPR)
Coatings Series/Diameters
Y & Z 0 1 2 3
Hardness 0.375 0.509 0.691 0.961 1.381
TiCN or to to to to to
Bhn TiN TiN/TiCN TiAlN CX-H Diamond 0.508 0.690 0.960 1.380 1.879
Low Carbon Steel 85 – 125 300 375 NR 375 NR .009 .011 .014 .017 .020
1010, 1020, 1025, 125 – 175 275 325 NR 325 NR .008 .010 .014 .016 .019
1522, etc. 175 – 225 225 275 NR NR NR .007 .010 .013 .016 .018
225 – 275 190 240 275 NR NR .006 .009 .012 .014 .017
Free Machining Steel 100 – 150 325 375 NR NR NR .010 .012 .016 .019 .023
1118, 1215, 12L14, etc. 150 – 200 275 350 NR NR NR .009 .011 .014 .018 .021
200 – 250 250 325 NR NR NR .008 .010 .013 .017 .020
Medium Carbon Steel 125 – 175 250 300 NR NR NR .008 .010 .013 .016 .019
1030, 1040, 1050, 1527, 175 – 225 210 260 NR NR NR .007 .009 .012 .015 .019
1140, 1144, 1151, etc. 225 – 275 175 230 275 NR NR .007 .009 .011 .014 .018
275 – 325 150 200 240 NR NR .006 .008 .010 .013 .016
Alloy Steel 125 – 175 250 275 NR NR NR .008 .009 .012 .015 .018
4140, 5140, 8640, etc. 175 – 225 225 250 NR NR NR .007 .009 .012 .014 .017
225 – 275 200 230 275 NR NR .006 .008 .011 .014 .016
275 – 325 190 220 260 NR NR .005 .007 .010 .013 .015
325 – 375 160 NR 225 NR NR .005 .007 .009 .012 .015
High Strength Alloy 225 – 300 150 175 200 NR NR .006 .009 .010 .012 .015
4340, 4330V, etc. 300 – 350 125 150 175 NR NR .005 .008 .009 .011 .014
350 – 400 NR NR 150 NR NR .004 .007 .008 .010 .012
Structural Steel 100 – 150 250 275 325 NR NR .008 .011 .013 .015 .018
A36, A285, A516, etc. 150 – 250 200 230 265 NR NR .007 .009 .012 .013 .016
250 – 350 175 200 225 NR NR .006 .008 .010 .012 .014
Tool Steel 150 – 200 160 190 NR NR NR .007 .008 .009 .011 .013
H-13, H-21, 200 – 250 110 150 175 NR NR .006 .007 .008 .011 .013
A-4, O-2, S-3, etc 250 – 350 75 NR 135 NR NR .005 .006 .007 .009 .011
350 – 400 NR NR 95 NR NR .004 .005 .006 .007 .009
Stainless Steel 135 – 185 150 175 250 NR NR .009 .010 .013 .014 .016
416, 420, 17-4PH, etc. 185 – 275 NR 150 200 NR NR .008 .009 .012 .013 .015
275 – 350 NR 100 150 NR NR .007 .008 .011 .012 .014
Cast Iron 120 – 150 300 400 450 400 NR .009 .013 .017 .020 .024
Gray, Ductile, 150 – 200 275 350 400 350 NR .008 .012 .016 .019 .022
Nodular 200 – 220 225 300 350 300 NR .008 .011 .014 .018 .020
220 – 260 200 275 325 300 NR .007 .011 .013 .016 .018
260 – 320 175 225 275 250 NR .006 .009 .011 .014 .016
Aluminum - Wrought — NR 1300 NR 1300 1450 .010 .014 .018 .022 .024
Cast — NR 850 NR 900 1000 .008 .013 .016 .020 .022
Copper Alloys — NR 750 NR 900 800 .009 .012 .015 .019 .021
High Temp. Alloy 140 – 210 NR 85 100 90 NR .005 .007 .008 .010 .012
Hastelloy B, 210 – 280 NR 70 85 NR NR .005 .006 .007 .010 .012
Inconel 600, etc. 280 – 340 NR 55 70 NR NR .004 .005 .006 .008 .010
NR = Not Recommended
Formulas: IPM = RPM x IPR ★ SFM = .262 x RPM x Diameter ★ RPM = SFM x 3.82 ÷ Diameter
Technical Data: Carbide Blades
Premium Coatings:
• TiN (Titanium Nitride) gives longer tool life and added
lubricity, while allowing more aggressive machining of steels.
• TiCN (Titanium Carbonitride) is a general purpose coating well
suited to machining of mild steel, ductile cast iron and
nonferrous materials such as aluminum and copper alloys. TiCN
is superior in preventing excessive BUE (built-up edge).
• “G” is comprised of more than 20 layers of TiCN and TiAlN
with an overcoat of TiN optimized for drilling mild steel and
ductile cast iron.
• TiAlN (Titanium Aluminum Nitride) a multilayer, mixed phase
coating designed for high-speed machining in alloy steels, high
temp alloys, gray cast iron and titanium. Performance advan-
tages require TiALN coated tools to be operated at relatively high
speeds, typically 50% greater than other PVD coatings such as
TiN.
• CX-H is a proprietary coating designed for optimal drilling of
abrasive, short chipping nonferrous alloys (e.g. red brass, Al-Si
alloys).
• Diamond coating is designed for abrasive nonferrous alloys.
13
Carbide Spade Blades
continued on next page
Decimal Inch Metric TiN Coating TiCN Coating TiAlN Coating
Size Size Size EDP Number EDP Number EDP Number
Series Y: .375 through .436
.3740 — 9,50 9CY-0374T 9CY-0374N 9CY-0374A
.3750 3/8 — 9CY-0375T 9CY-0375N 9CY-0375A
.3860 W — 9CY-0386T 9CY-0386N 9CY-0386A
.3890 SAE #4 — 9CY-0389T 9CY-0389N 9CY-0389A
.3906 25/64 — 9CY-0391T 9CY-0391N 9CY-0391A
.3937 — 10,0 9CY-0394T 9CY-0394N 9CY-0394A
.4016 — 10,2 9CY-0402T 9CY-0402N 9CY-0402A
.4063 13/32 — 9CY-0406T 9CY-0406N 9CY-0406A
.4134 — 10,5 9CY-0413T 9CY-0413N 9CY-0413A
.4219 27/64 — 9CY-0422T 9CY-0422N 9CY-0422A
.4252 — 10,8 9CY-0425T 9CY-0425N 9CY-0425A
.4313 — 11,0 9CY-0433T 9CY-0433N 9CY-0433A
Series Z: .437 through .508
.4375 7/16 — 9CZ-0438T 9CZ-0438N 9CZ-0438A
.4520 SAE #5 — 9CZ-0452T 9CZ-0452N 9CZ-0452A
.4531 29/64 — 9CZ-0453T 9CZ-0453N 9CZ-0453A
.4688 15/32 — 9CZ-0469T 9CZ-0469N 9CZ-0469A
.4724 — 12,0 9CZ-0472T 9CZ-0472N 9CZ-0472A
.4844 31/64 — 9CZ-0484T 9CZ-0484N 9CZ-0484A
.4921 — 12,5 9CZ-0492T 9CZ-0492N 9CZ-0492A
.5000 1/2 — 9CZ-0500T 9CZ-0500N 9CZ-0500A
Series 0: .509 through .690
.5090 SAE #6 — 9C0-0509T 9C0-0509N 9C0-0509A
.5118 — 13,0 9C0-0512T 9C0-0512N 9C0-0512A
.5156 33/64 — 9C0-0516T 9C0-0516N 9C0-0516A
.5313 17/32 — 9C0-0531T 9C0-0531N 9C0-0531A
.5469 35/64 — 9C0-0547T 9C0-0547N 9C0-0547A
.5512 — 14,0 9C0-0551T 9C0-0551N 9C0-0551A
.5625 9/16 — 9C0-0563T 9C0-0563N 9C0-0563A
.5706 — 14,5 9C0-0571T 9C0-0571N 9C0-0571A
.5781 37/64 — 9C0-0578T 9C0-0578N 9C0-0578A
.5909 — 15,0 9C0-0591T 9C0-0591N 9C0-0591A
.5938 19/32 — 9C0-0594T 9C0-0594N 9C0-0594A
.6094 39/64 — 9C0-0609T 9C0-0609N 9C0-0609A
.6102 — 15,5 9C0-0610T 9C0-0610N 9C0-0610A
.6250 5/8 — 9C0-0625T 9C0-0625N 9C0-0625A
.6299 — 16,0 9C0-0630T 9C0-0630N 9C0-0630A
.6406 41/64 — 9C0-0641T 9C0-0641N 9C0-0641A
.6496 — 16,5 9C0-0650T 9C0-0650N 9C0-0650A
.6563 21/32 — 9C0-0656T 9C0-0656N 9C0-0656A
.6693 — 17,0 9C0-0669T 9C0-0669N 9C0-0669A
.6719 43/64 — 9C0-0672T 9C0-0672N 9C0-0672A
.6875 11/16 — 9C0-0688T 9C0-0688N 9C0-0688A
.6890 SAE #8 17,5 9C0-0689T 9C0-0689N 9C0-0689A
Series 1: .691 through .960
.7031 45/64 — 9C1-0703T 9C1-0703N 9C1-0703A
.7087 — 18,0 9C1-0709T 9C1-0709N 9C1-0709A
.7188 23/32 — 9C1-0719T 9C1-0719N 9C1-0719A
.7283 — 18,5 9C1-0728T 9C1-0728N 9C1-0728A
.7344 47/64 — 9C1-0734T 9C1-0734N 9C1-0734A
.7480 — 19,0 9C1-0748T 9C1-0748N 9C1-0748A
.7500 3/4 — 9C1-0750T 9C1-0750N 9C1-0750A
.7656 49/64 — 9C1-0766T 9C1-0766N 9C1-0766A
14
Carbide Spade Blades
Decimal Inch Metric TiN Coating TiCN Coating TiAlN Coating
Size Size Size EDP Number EDP Number EDP Number
(continued) Series 1: .691" through .960"
.7677 — 19,5 9C1-0768T 9C1-0768N 9C1-0768A
.7813 25/32 — 9C1-0781T 9C1-0781N 9C1-0781A
.7874 — 20,0 9C1-0787T 9C1-0787N 9C1-0787A
.7969 51/64 — 9C1-0797T 9C1-0797N 9C1-0797A
.8060 SAE #10 — 9C1-0806T 9C1-0806N 9C1-0806A
.8071 — 20,5 9C1-0807T 9C1-0807N 9C1-0807A
.8125 13/16 — 9C1-0813T 9C1-0813N 9C1-0813A
.8268 — 21,0 9C1-0827T 9C1-0827N 9C1-0827A
.8438 27/32 — 9C1-0844T 9C1-0844N 9C1-0844A
.8594 55/64 — 9C1-0859T 9C1-0859N 9C1-0859A
.8661 — 22,0 9C1-0866T 9C1-0866N 9C1-0866A
.8750 7/8 — 9C1-0875T 9C1-0875N 9C1-0875A
.8906 57/64 — 9C1-0891T 9C1-0891N 9C1-0891A
.9063 29/32 — 9C1-0906T 9C1-0906N 9C1-0906A
.9219 59/64 — 9C1-0922T 9C1-0922N 9C1-0922A
.9375 15/16 — 9C1-0938T 9C1-0938N 9C1-0938A
.9449 — 24,0 9C1-0945T 9C1-0945N 9C1-0945A
Series 2: .961" through 1.380"
.9688 31/32 — 9C2-0969T 9C2-0969N 9C2-0969A
.9810 SAE #12 — 9C2-0981T 9C2-0981N 9C2-0981A
.9843 — 25,0 9C2-0984T 9C2-0984N 9C2-0984A
1.0000 1 — 9C2-1000T 9C2-1000N 9C2-1000A
1.0156 1-1/64 — 9C2-1016T 9C2-1016N 9C2-1016A
1.0236 — 26,0 9C2-1024T 9C2-1024N 9C2-1024A
1.0313 1-1/32 — 9C2-1031T 9C2-1031N 9C2-1031A
1.0625 1-1/16 — 9C2-1063T 9C2-1063N 9C2-1063A
1.0938 1-3/32 — 9C2-1094T 9C2-1094N 9C2-1094A
1.1024 — 28,0 9C2-1102T 9C2-1102N 9C2-1102A
1.1060 SAE #14 — 9C2-1106T 9C2-1106N 9C2-1106A
1.1250 1-1/8 — 9C2-1125T 9C2-1125N 9C2-1125A
1.1417 — 29,0 9C2-1142T 9C2-1142N 9C2-1142A
1.1563 1-5/32 — 9C2-1156T 9C2-1156N 9C2-1156A
1.1614 — 29,5 9C2-1161T 9C2-1161N 9C2-1161A
1.1811 — 30,0 9C2-1181T 9C2-1181N 9C2-1181A
1.1875 1-3/16 — 9C2-1188T 9C2-1188N 9C2-1188A
1.2008 — 30,5 9C2-1201T 9C2-1201N 9C2-1201A
1.2188 1-7/32 — 9C2-1219T 9C2-1219N 9C2-1219A
1.2205 — 31,0 9C2-1221T 9C2-1221N 9C2-1221A
1.2310 SAE #16 — 9C2-1231T 9C2-1231N 9C2-1231A
1.2500 1-1/4 — 9C2-1250T 9C2-1250N 9C2-1250A
1.2598 — 32,0 9C2-1260T 9C2-1260N 9C2-1260A
1.2813 1-9/32 — 9C2-1281T 9C2-1281N 9C2-1281A
1.2992 — 33,0 9C2-1299T 9C2-1299N 9C2-1299A
1.3125 1-5/16 — 9C2-1313T 9C2-1313N 9C2-1313A
1.3386 — 34,0 9C2-1339T 9C2-1339N 9C2-1339A
1.3438 1-11/32 — 9C2-1344T 9C2-1344N 9C2-1344A
1.3750 1-3/8 — 9C2-1375T 9C2-1375N 9C2-1375A
1.3780 — 35,0 9C2-1378T 9C2-1378N 9C2-1378A
Series 3: 1.381" through 1.879"
1.5430 SAE #20 — 9C3-1543T 9C3-1543N 9C3-1543A
1.7930 SAE #24 — 9C3-1793T 9C3-1793N 9C3-1793A
15
Spade Blade Holders
Max/ Body Overall Shank Shank Pipe Straight Flute Helical Flute
Drill Depth Length Length Diameter Length Tap EDP Number EDP Number
Holders with Straight Shanks
Series X: .375" through .436"
1.09 1.59 3.97 0.75 2.375 1/8 7SXSS —
2.19 2.68 5.06 0.75 2.375 1/8 7SXSM —
4.38 4.87 7.25 0.75 2.375 1/8 7SXSE —
Series Z: .437" through .508"
1.58 3.37 5.75 0.75 2.375 1/8 7SZSS 7HZSS
2.59 4.38 6.76 0.75 2.375 1/8 7SZSM 7HZSM
3.59 5.38 7.76 0.75 2.375 1/8 7SZSL 7HZSL
4.46 6.25 8.63 0.75 2.375 1/8 7SZSE 7HZSE
Series 0: .509" through .690"
2.18 3.97 6.35 0.75 2.375 1/8 7S0SS 7H0SS
3.44 5.33 7.71 0.75 2.375 1/8 7S0SM 7H0SM
4.86 6.75 9.13 0.75 2.375 1/8 7S0SL 7H0SL
7.90 9.80 12.17 0.75 2.375 1/8 7S0SE 7H0SE
Series 0.5: .609" through .690"
1.98 3.97 6.35 0.75 2.375 1/4 7S0.5SS 7H0.5SS
3.34 5.33 7.71 0.75 2.375 1/4 7S0.5SM 7H0.5SM
4.76 6.75 9.13 0.75 2.375 1/4 7S0.5SL 7H0.5SL
7.80 9.80 12.17 0.75 2.375 1/4 7S0.5SE 7H0.5SE
Series 1: .690" through .960"
2.76 4.85 7.23 1.00 2.375 1/4 7S1SS 7H1SS
4.71 6.80 9.18 1.00 2.375 1/4 7S1SM 7H1SM
6.63 8.72 11.10 1.00 2.375 1/4 7S1SL 7H1SL
10.66 12.75 15.12 1.00 2.375 1/4 7S1SE 7H1SE
Series 1.5: .859" through .960"
2.55 4.85 7.22 1.00 2.375 1/4 7S1.5SS 7H1.5SS
4.80 6.80 9.18 1.00 2.375 1/4 7S1.5SM 7H1.5SM
6.42 8.72 11.10 1.00 2.375 1/4 7S1.5SL 7H1.5SL
10.45 12.75 15.12 1.00 2.375 1/4 7S1.5SE 7H1.5SE
Series 2: .961" through 1.380"
3.07 5.56 8.00 1.25 2.437 1/4 7S2SS 7H2SS
5.45 7.94 10.38 1.25 2.437 1/4 7S2SM 7H2SM
7.82 10.31 12.75 1.25 2.437 1/4 7S2SL 7H2SL
10.89 13.38 15.82 1.25 2.437 1/4 7S2SE 7H2SE
Series 2.5: 1.187" through 1.380"
2.88 5.56 8.00 1.25 2.437 1/4 7S2.5SS 7H2.5SS
5.26 5.56 8.00 1.25 2.437 1/4 7S2.5SM 7H2.5SM
7.63 10.31 12.75 1.25 2.437 1/4 7S2.5SL 7H2.5SL
10.70 13.38 15.82 1.25 2.437 1/4 7S2.5SE 7H2.5SE
Series 3: 1.381" through 1.879"
4.43 7.25 9.88 1.50 2.625 1/4 7S3SS 7H3SS
8.43 11.25 13.88 1.50 2.625 1/4 7S3SM 7H3SM
13.18 16.00 18.63 1.50 2.625 1/4 7S3SL 7H3SL
16
Spade Blade Holders
Max/ Body Overall Shank Shank Pipe Straight Flute Helical Flute
Drill Depth Length Length Diameter Length Tap EDP Number EDP Number
continued on next page
Holders with Straight Shanks (continued)
Series 4: 1.880" through 2.570"
5.90 8.75 11.38 1.50 2.625 1/4 7S4SS 7H4SS
9.90 12.75 15.38 1.50 2.625 1/4 7S4SM 7H4SM
16.02 18.87 21.50 1.50 2.625 1/4 7S4SL 7H4SL
Series 5: 2.500" through 3.500" holds series 5 + series 6 blades
6.24 9.25 12.50 2.00 3.250 1/4 7S5SS —
11.99 15.00 18.25 2.00 3.250 1/4 7S5SM 7H5SM
17.74 20.75 24.00 2.00 3.250 1/4 7S5SL 7H5SL
Series 7: 3.501 through 4.500" holds series 7 + series 8 blades
6.88 8.63 15.25 3.00 6.625 1/4 7S7SS —
12.25 14.63 21.25 3.00 6.625 1/4 7S7SM —
19.45 22.86 29.50 3.00 6.625 1/4 7S7SL —
Metric Size Holders with Straight Shanks
Series Y: 9,50 through 11,07
31,75 69,45 119,45 20,00 50,00 1/8-28 BSP 8SYSS
60,33 98,03 148,03 20,00 50,00 1/8-28 BSP 8SYSM
111,13 148,83 198,83 20,00 50,00 1/8-28 BSP 8SYSL
Series Z: 11,10 through 12,90
31,75 69,45 119,45 20,00 50,00 1/8-28 BSP 8SZSS
60,33 98,03 148,03 20,00 50,00 1/8-28 BSP 8SZSM
111,13 148,83 198,83 20,00 50,00 1/8-28 BSP 8SZSL
Series 0: 12,93 through 17,53
34,93 73,03 123,03 20,00 50,00 1/8-28 BSP 8S0SS
63,50 101,60 151,60 20,00 50,00 1/8-28 BSP 8S0SM
114,30 152,40 202,40 20,00 50,00 1/8-28 BSP 8S0SL
Series 0.5: 15,47 through 17,53
34,93 73,03 123,03 20,00 50,00 1/8-28 BSP 8S0.5SS
63,50 101,60 151,60 20,00 50,00 1/8-28 BSP 8S0.5SM
114,30 152,40 202,40 20,00 50,00 1/8-28 BSP 8S0.5SL
Series 1: 17,54 through 24,38
66,68 109,93 165,93 25,00 56,00 1/4-19 BSP 8S1SS
117,48 160,73 216,73 25,00 56,00 1/4-19 BSP 8S1SM
168,28 211,53 267,53 25,00 56,00 1/4-19 BSP 8S1SL
269,88 313,13 369,13 25,00 56,00 1/4-19 BSP 8S1SE
Series 1.5: 21,82 through 24,38
66,68 109,93 165,93 25,00 56,00 1/4-19 BSP 8S1.5SS
117,48 160,73 216,73 25,00 56,00 1/4-19 BSP 8S1.5SM
168,28 211,53 267,53 25,00 56,00 1/4-19 BSP 8S1.5SL
269,88 313,13 369,13 25,00 56,00 1/4-19 BSP 8S1.5SE
17
Max/ Body Overall Shank Shank Pipe Straight Flute Helical Flute
Drill Depth Length Length Diameter Length Tap EDP Number EDP Number
Spade Blade Holders
7H0SR8
7H1SR8 with coolant gland
7H2SR8
Metric Size Holders with Straight Shanks
(continued)
Series 2: 24,41 through 35,05
85,73 130,18 190,19 32,00 60,00 1/4-19 BSP 8S2SS
136,53 180,98 240,98 32,00 60,00 1/4-19 BSP 8S2SM
187,33 231,78 291,78 32,00 60,00 1/4-19 BSP 8S2SL
288,93 333,38 393,38 32,00 60,00 1/4-19 BSP 8S2SE
Series 2.5: 30,15 through 35,05
85,73 132,16 192,16 32,00 60,00 1/4-19 BSP 8S2.5SS
136,53 183,36 243,36 32,00 60,00 1/4-19 BSP 8S2.5SM
187,33 234,16 294,16 32,00 60,00 1/4-19 BSP 8S2.5SL
288,93 335,76 395,76 32,00 60,00 1/4-19 BSP 8S2.5SE
Series 3: 35,08 through 47,73
120,65 173,04 243,04 40,00 70,00 1/4-19 BSP 8S3SS
158,75 211,14 281,14 40,00 70,00 1/4-19 BSP 8S3SM
209,55 261,94 331,94 40,00 70,00 1/4-19 BSP 8S3SL
Series 4: 47,95 through 65,28
130,18 184,94 254,94 40,00 70,00 1/4-19 BSP 8S4SS
180,98 235,74 305,74 40,00 70,00 1/4-19 BSP 8S4SM
231,78 286,54 356,54 40,00 70,00 1/4-19 BSP 8S4SL
Series 5: 63,50 through 88,90 holds series 5 + series 6
171,45 227,01 307,01 50,00 80,00 1/4-19 BSP 8S5SS
222,25 277,81 357,81 50,00 80,00 1/4-19 BSP 8S5SM
273,05 328,61 408,61 50,00 80,00 1/4-19 BSP 8S5SL
Series 7: 88,93 through 114,30 holds series 7 + series 8
171,45 238,13 328,13 63,00 90,00 1/4-19 BSP 8S7SS
222,25 288,93 378,93 63,00 90,00 1/4-19 BSP 8S7SM
273,05 339,73 429,73 63,00 90,00 1/4-19 BSP 8S7SL
Holders for R-8 (Bridgeport) Applications
Max/ Gage Overall Morse Pipe Straight Flute Helical Flute
Drill Depth Length Length Taper Tap EDP Number EDP Number
Series 0: .509" through .690"
3.29 5.19 9.19 R8 (16°50') 1/16-27 — 7H0SR8
Series 1: .691" through .960"
3.34 5.19 9.19 R8 (16°50') 1/16-27 — 7H1SR8
Series 2: .961" through 1.380"
3.32 5.19 9.19 R8 (16°50') 1/16-27 — 7H2SR8
18
Spade Blade Holders
Max/ Gage Overall Morse Pipe Straight Flute Helical Flute
Drill Depth Length Length Taper Tap EDP Number EDP Number
continued on next page
Holders with Taper Shanks
Series Y: .375" through .436"
1.39 3.37 6.31 2 1/8 7SYTS 7HYTS
2.27 4.25 7.19 2 1/8 7SYTM 7HYTM
3.15 5.13 8.07 2 1/8 7SYTL 7HYTL
4.46 6.44 9.38 2 1/8 7SYTE 7HYTE
Series Z: .437" through .508"
1.58 3.56 6.50 2 1/8 7SZTS 7HZTS
2.59 4.56 7.50 2 1/8 7SZTM 7HZTM
3.59 5.57 8.51 2 1/8 7SZTL 7HZTL
4.46 6.44 9.38 2 1/8 7SZTE 7HZTE
Series 0: .509" through .695"
2.18 4.16 7.10 2 1/8 7S0TS 7H0TS
3.44 5.52 8.46 2 1/8 7S0TM 7H0TM
4.86 6.94 9.88 2 1/8 7S0TL 7H0TL
7.90 10.00 12.93 2 1/8 7S0TE 7H0TE
Series 0.5: .609" through .695"
1.98 4.16 7.10 2 1/8 — —
3.34 5.52 8.46 2 1/8 — 7H0.5TM
4.76 6.94 9.88 2 1/8 7S0.5TL 7H0.5TL
7.80 10.00 12.93 2 1/8 7S0.5TE 7H0.5TE
Series 1: .690" through .960"
2.76 5.04 8.73 3 1/4 7S1TS 7H1TS
4.71 6.99 10.68 3 1/4 7S1TM 7H1TM
6.63 8.91 12.60 3 1/4 7S1TL 7H1TL
10.66 12.94 16.63 3 1/4 7S1TE 7H1TE
Series 1.5: .859" through .960"
2.55 5.04 8.73 3 1/4 7S1.5TS —
4.80 6.99 10.68 3 1/4 7S1.5TM —
6.42 8.91 12.60 3 1/4 — 7H1.5TL
10.45 12.94 16.63 3 1/4 — 7H1.5TE
Series 2: .961" through 1.380"
3.07 5.75 9.44 3 1/4 7S2TS 7H2TS
5.45 8.13 11.82 3 1/4 7S2TM 7H2TM
7.82 10.50 14.19 3 1/4 7S2TL 7H2TL
10.89 13.57 17.26 3 1/4 7S2TE 7H2TE
Series 2.5: 1.187" through 1.380"
2.88 5.75 9.44 3 1/4 7S2.5TS 7H2.5TS
2.88 5.75 9.44 4 1/4 7S2.5TS-4MT —
5.26 8.13 11.82 3 1/4 — 7H2.5TM
5.26 8.13 11.82 4 1/4 7S2.5TM-4MT —
7.63 10.50 14.19 3 1/4 7S2.5TL 7H2.5TL
7.63 10.50 14.19 4 1/4 7S2.5TL-4MT —
10.70 13.57 17.26 3 1/4 7S2.5TE 7H2.5TE
19
Max/ Gage Overall Morse Pipe Straight Flute Helical Flute
Drill Depth Length Length Taper Tap EDP Number EDP Number
Spade Blade Holders
Holders with Taper Shanks
(continued)
Series 3: 1.381" through 1.879"
4.43 7.50 12.13 4 1/4 7S3TS 7H3TS
8.43 11.50 16.13 4 1/4 7S3TM 7H3TM
13.18 16.25 20.88 4 1/4 7S3TL 7H3TL
Series 4: 1.880" through 2.570"
5.90 9.00 13.62 4 1/4 7S4TS 7H4TS
9.90 13.00 17.63 4 1/4 7S4TM 7H4TM
16.02 19.12 23.75 4 1/4 7S4TL 7H4TL
Series 5: 2.500" through 3.500" holds series 5 + series 6 blades
6.24 9.50 15.38 5 1/4 7S5TS —
11.99 15.25 21.13 5 1/4 7S5TM 7H5TM
17.74 21.00 26.88 5 1/4 7S5TL 7H5TL
Series 7: 3.501 through 4.500" holds series 7 + series 8 blades
6.88 10.41 16.28 5 1/4 7S7TS —
12.25 16.41 22.28 5 1/4 7S7TM —
19.45 24.65 30.53 5 1/4 7S7TL —
ACCESSORIES
Holder Coolant Gland Locating Pin Torx Screw Torx Wrench
Series Number EDP Number EDP Number EDP Number EDP Number
X — — MS-1454 56-2025
Y 290-1100 SP-1 56-1013 56-2017
Z 290-1100 SP-1 56-1015 56-2026
0, 0.5 290-1100 SP-2 56-1014 56-2017
290-1075A*
1, 1.5 290-1125 SP-3 56-1020 56-2028
290-1100A*
2, 2.5 290-1150 SP-4 56-1018 56-2015
290-1100A*
3, 4 290-1175 SP-5 56-1585 56-2020
5 290-1250 SP-6 56-1025 56-2125
7 290-1300 SP-6 56-1025 56-2125
* R-8 (Bridgeport) holders only
20

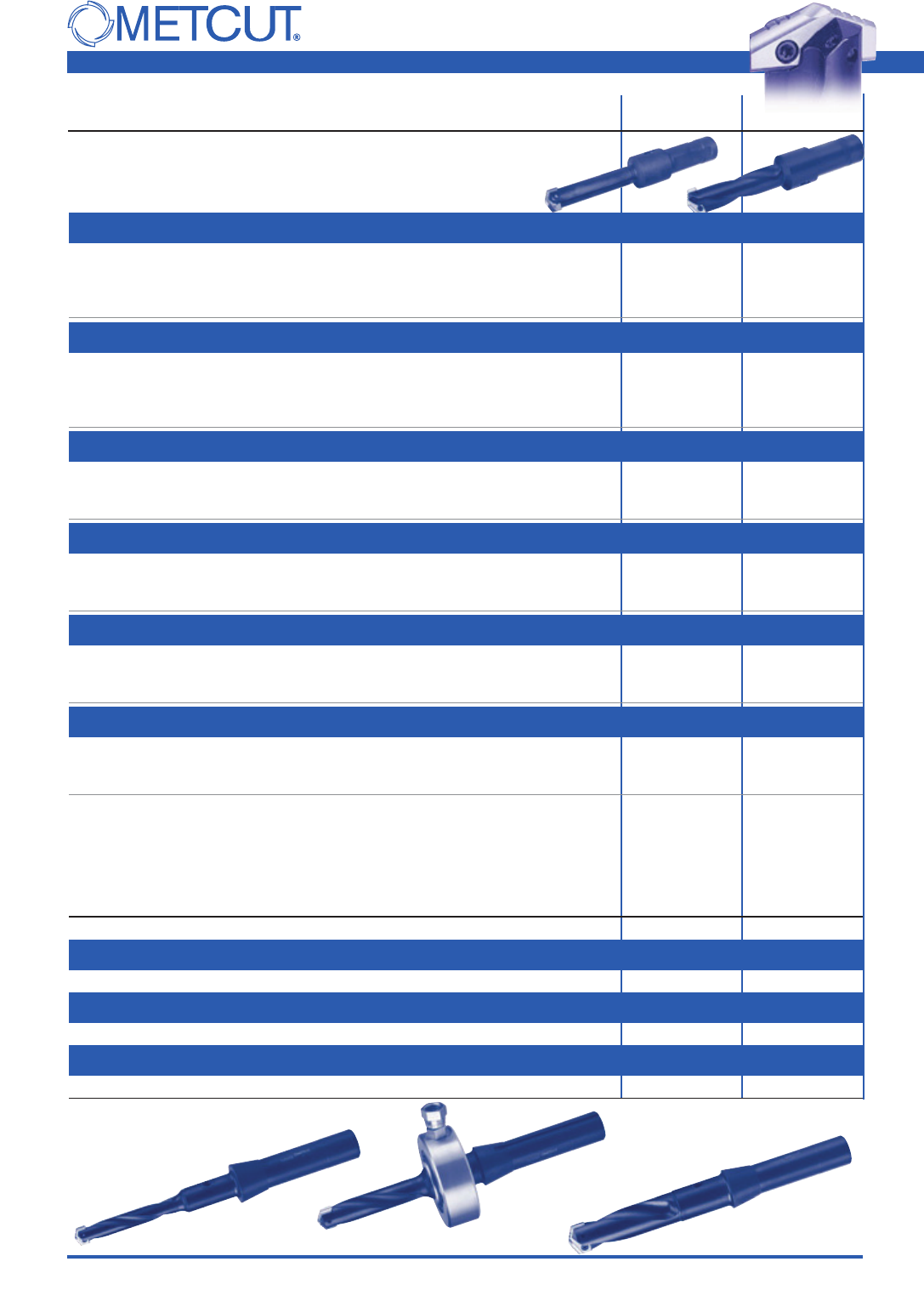

1010 Carbon Steel 25 Rc
Drill diameter: 7/16” (.4375”) Hole depth: 1.000”
40%
higher productivity
120%
more holes per blade
30%
lower cost per
machined part
TiAlN coated TiAlN coated
super cobalt blade T-15 HSS blade
150 sfm 181 sfm
.006 ipr .007 ipr
7.86 ipm 11.05 ipm
A-36 Structural Steel 38 Rc
Drill diameter: 1-31/32”(1.9688”) Hole depth: 0.6250”
45%
higher productivity
133%
more holes per blade
45%
lower cost per
machined part
TiAlN coated M42 TiN coated
cobalt steel blade T-15 HSS blade
140 sfm 140 sfm
.011 ipr .016 ipr
3.00 ipm 4.35 ipm
Red Brass 150 Bhn
Drill diameter: 3/4” (.7500”) Hole depth: 1.000”
50%
higher productivity
800%
more holes per blade
60%
lower cost per
machined part
TiN coated CX-H coated
T-15 steel blade T-15 steel blade
300 sfm 450 sfm
.014 ipr .014 ipr
21.4 ipm 32.1 ipm
15-5 PH Stainless Steel 35 to 38 Rc
Drill diameter: 0.9843” (25,00mm) Hole depth: 5.20”
10%
higher productivity
25%
more holes per blade
10%
lower cost per
machined part
TiCN coated TiCN coated
T-15 HSS blade T-15 HSS blade
71 sfm 71 sfm
.0045 ipr .005 ipr
1.24 ipm 1.38 ipm
Structural Iron
Drill diameter: 15/16” (.9375”) Hole depth: 2.500”
140%
higher productivity
60%
more holes per blade
55%
lower cost per
machined part
Black Oxide TiCN coated
M-7 HSS TS drill T-15 HSS blade
100 sfm 160 sfm
.008 ipr .012 ipr
3.25 ipm 7.80 ipm
Performance Comparisons
6061-T6 Aluminum Alloy
Drill diameter: 17,00mm (.6692”) Hole depth: 2.00”
10%
higher productivity
150%
more holes per blade
50%
lower cost per
machined part
TiCN coated TiCN coated
blade blade
1000 sfm 600 sfm
.007 ipr .013 ipr
39.9 ipm 44.5 ipm
21
METCUT
®

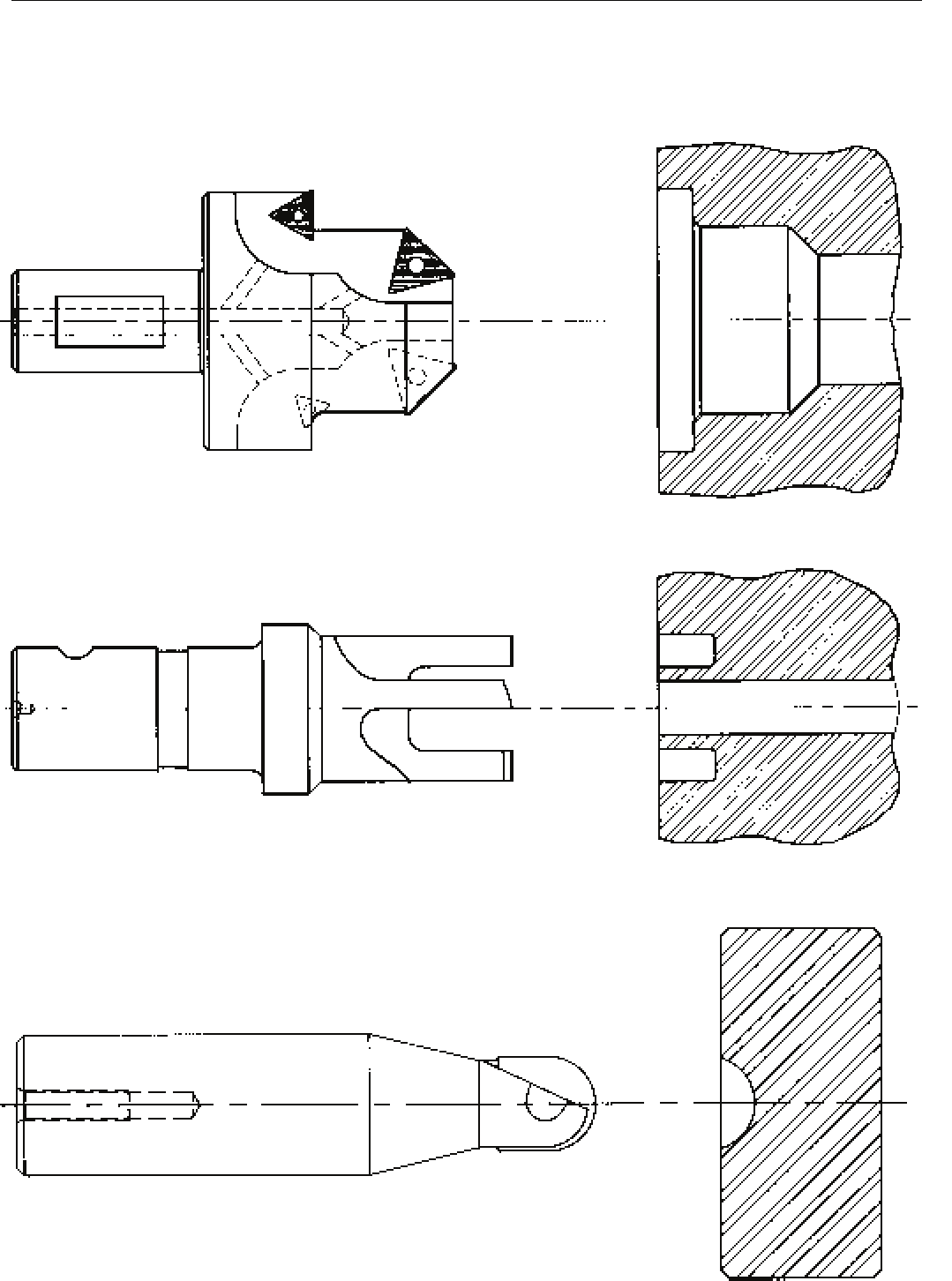

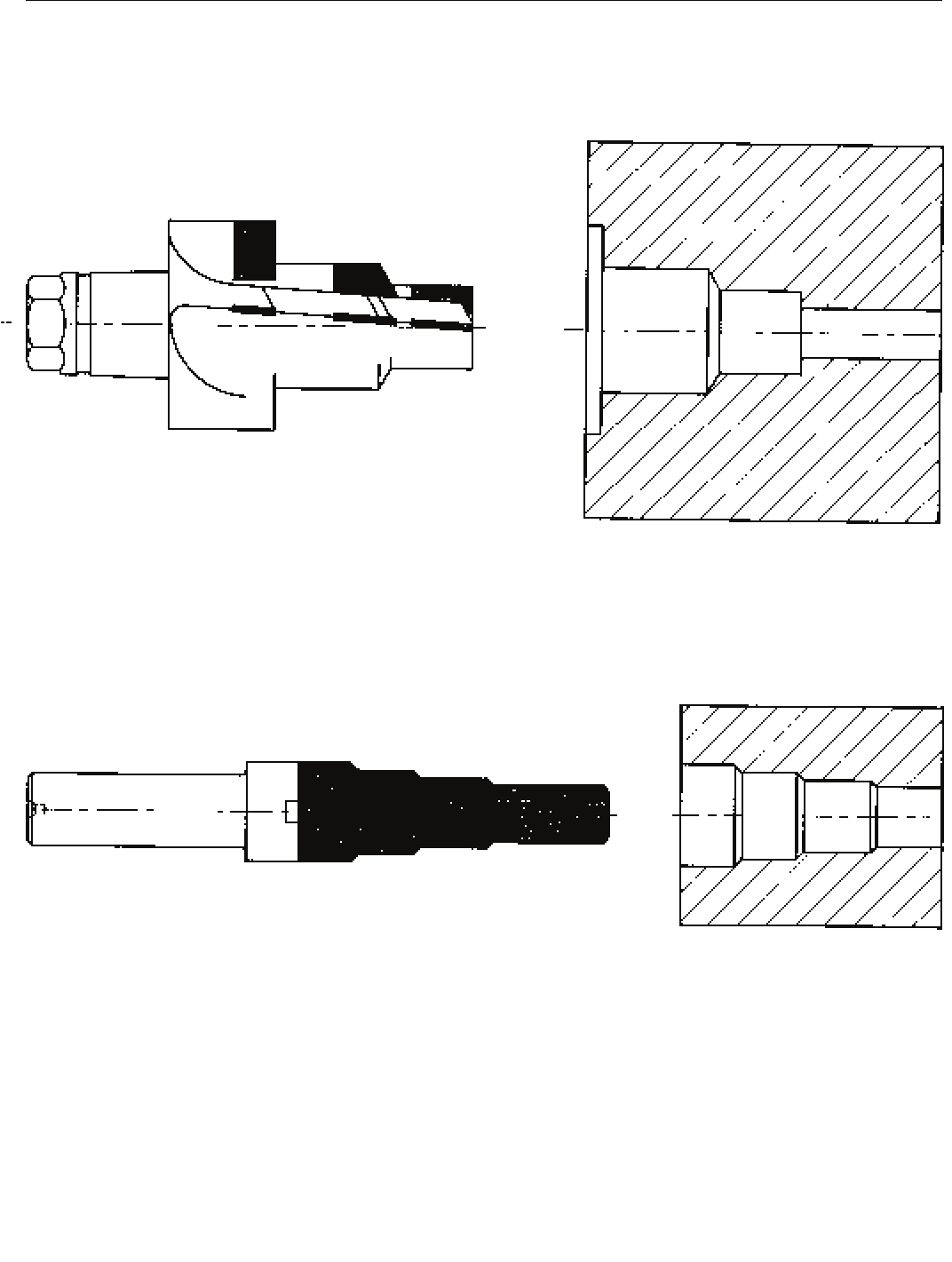

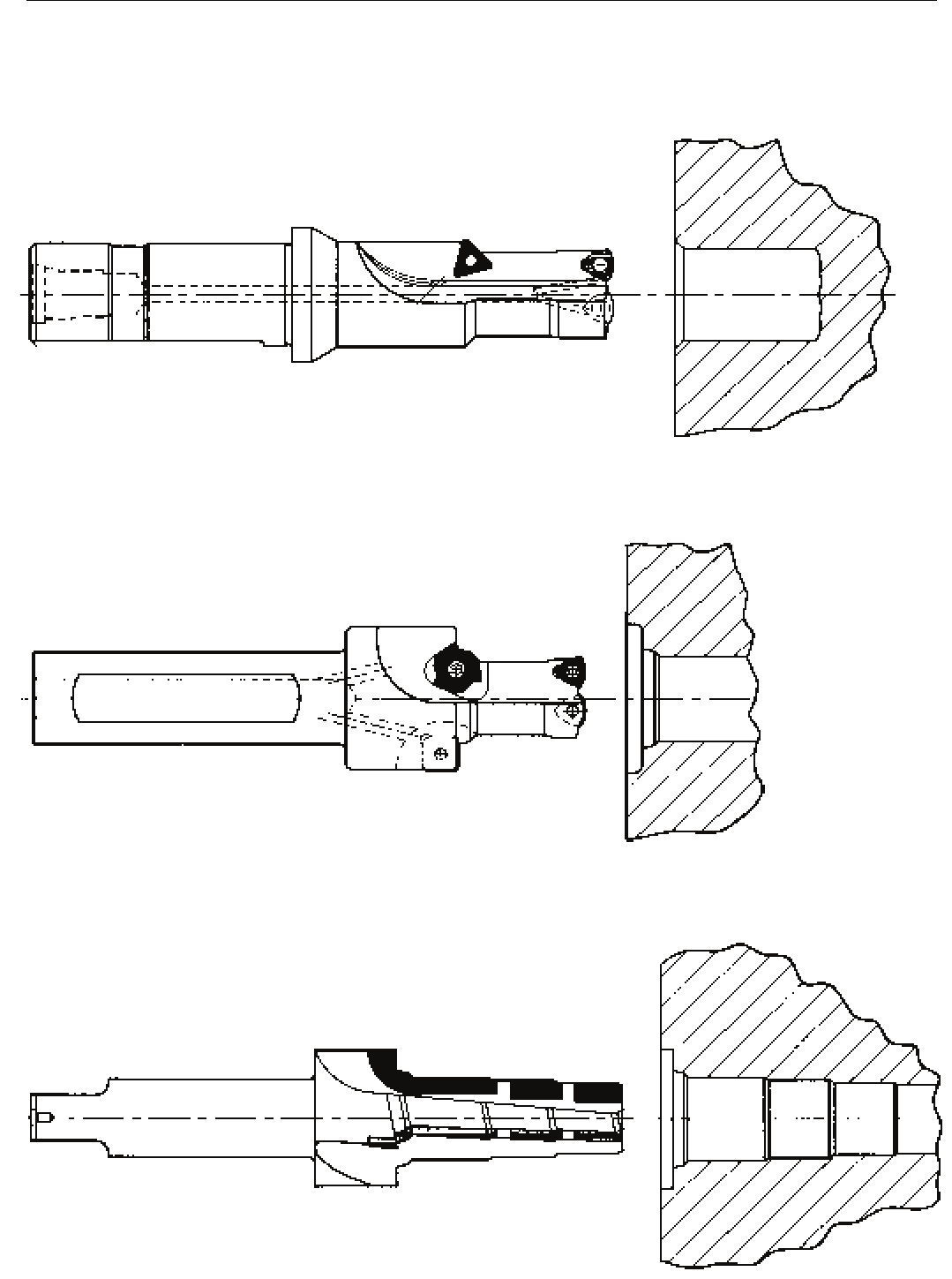

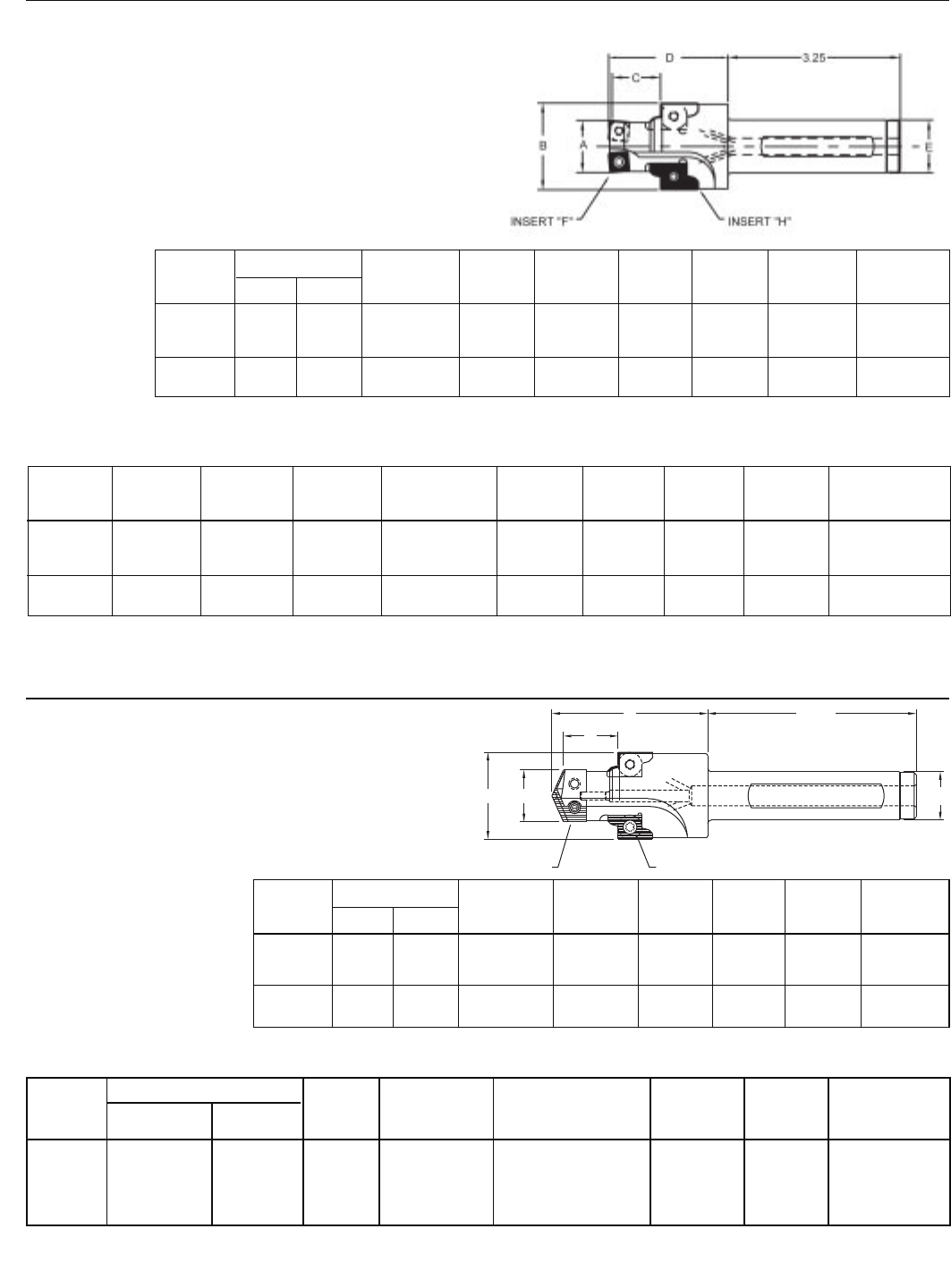

Examples of Special Drilling and Port Contour Cutting Tools
Drill from Solid and Chamfer Tool
Drill from Solid and SAE Port Contour Tool
SAE Port Contour Cutter with Two Extra Bore Diameters
22
METCUT

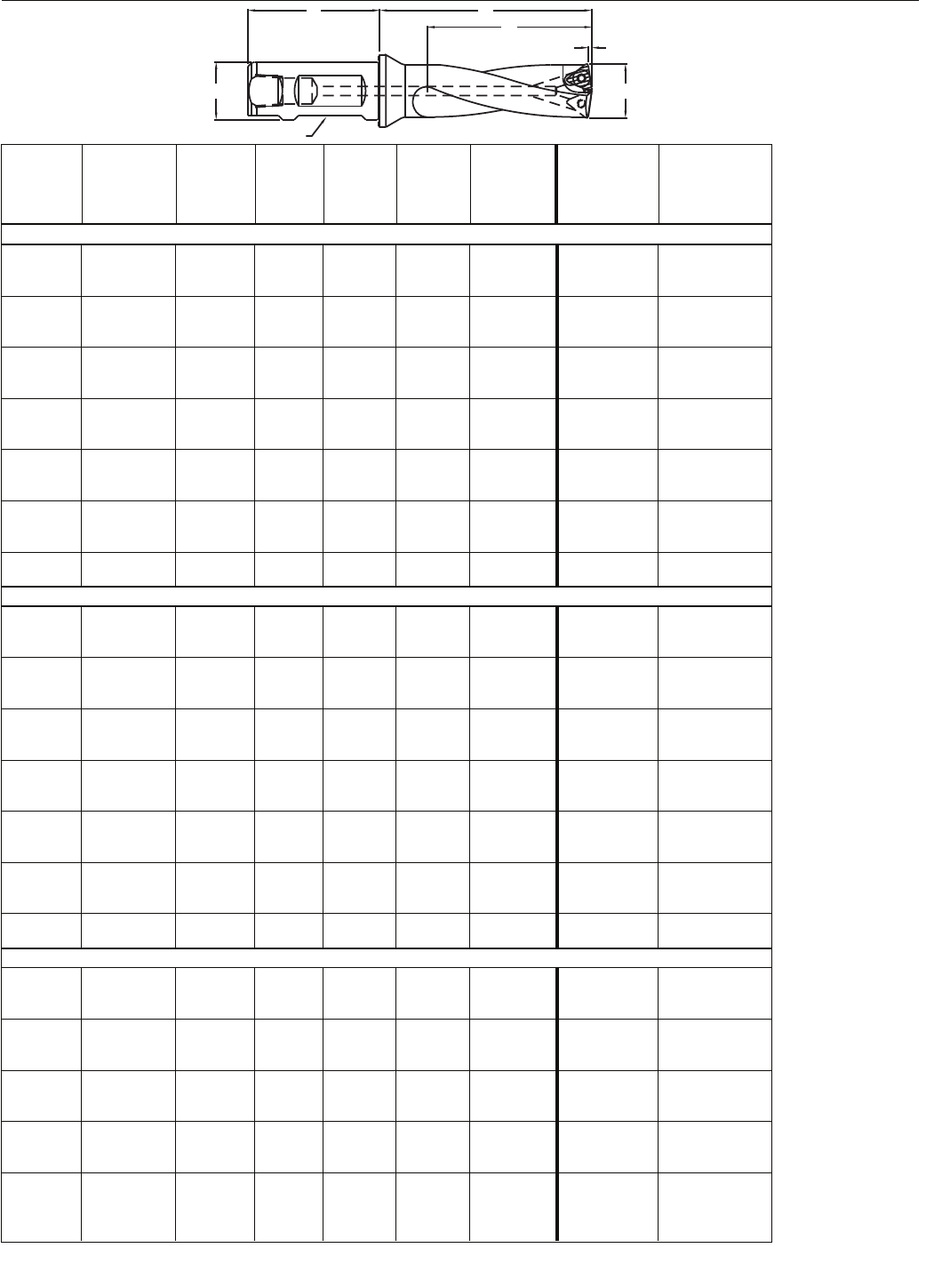

LIST #277
L
A
C
H
DIA.
±.005
S
WELDON FLATS
Indexable Drills
Double-Feed Drills
3:1 Depth To Diameter Ratio
.8125 277-3081 1.000 2.281 3.38 2.44 .08 H-081-HJ 056-1016
.8268 277-3082 1.000 2.281 3.50 2.56 .08 H-082-HJ 056-1016
.8661 277-3086 1.000 2.281 3.60 2.68 .08 H-086-HJ 056-1016
.8750 277-3087 1.000 2.281 3.54 2.63 .08 H-087-HJ 056-1016
.9375 277-3093 1.000 2.281 3.71 2.81 .09 H-093-HJ 056-1016
.9449 277-3094 1.000 2.281 3.82 2.92 .09 H-094-HJ 056-1016
1.0000 277-3100 1.000 2.281 3.87 3.00 .09 H-100-HJ 056-1020
1.0625 277-3106 1.250 2.281 4.28 3.19 .10 H-106-HJ 056-1020
1.1024 277-3110 1.250 2.281 4.45 3.41 .10 H-110-HJ 056-1020
1.1250 277-3112 1.250 2.281 4.42 3.38 .10 H-112-HJ 056-1020
1.1875 277-3118 1.250 2.281 4.61 3.56 .11 H-118-HJ 056-1020
1.2500 277-3125 1.250 2.281 4.75 3.75 .11 H-125-HJ 056-1833
1.3125 277-3131 1.500 2.688 5.16 3.94 .13 H-131-HJ 056-1833
1.3750 277-3137 1.500 2.688 5.29 4.13 .13 H-137-HJ 056-1833
1.4375 277-3143 1.500 2.688 5.49 4.31 .14 H-143-HJ 056-1833
1.5000 277-3150 1.500 2.688 5.62 4.50 .14 H-150-HJ 056-1833
1.6250 277-3162 1.500 2.688 6.01 4.88 .15 H-162-HJ 056-1834
1.7500 277-3175 2.000 3.250 6.71 5.25 .16 H-175-HJ 056-1834
1.8750 277-3187 2.000 3.250 7.11 5.63 .17 H-187-HJ 056-1834
2.0000 277-3200 2.000 3.250 7.37 6.00 .18 H-200-HJ 056-1585
5:1 Depth To Diameter Ratio
.8125 277-5081 1.000 2.281 5.00 4.06 .08 H-081-HJ 056-1016
.8268 277-5082 1.000 2.281 5.15 4.21 .08 H-082-HJ 056-1016
.8661 277-5086 1.000 2.281 5.33 4.41 .08 H-086-HJ 056-1016
.8750 277-5087 1.000 2.281 5.29 4.38 .08 H-087-HJ 056-1016
.9375 277-5093 1.000 2.281 5.58 4.69 .09 H-093-HJ 056-1016
.9449 277-5094 1.000 2.281 5.71 4.81 .09 H-094-HJ 056-1016
1.0000 277-5100 1.000 2.281 5.87 5.00 .09 H-100-HJ 056-1020
1.0625 277-5106 1.250 2.281 6.41 5.31 .10 H-106-HJ 056-1020
1.1024 277-5110 1.250 2.281 6.65 5.61 .10 H-110-HJ 056-1020
1.1250 277-5112 1.250 2.281 6.67 5.63 .10 H-112-HJ 056-1020
1.1875 277-5118 1.250 2.281 6.99 5.94 .11 H-118-HJ 056-1020
1.2500 277-5125 1.250 2.281 7.25 6.25 .11 H-125-HJ 056-1833
1.3125 277-5131 1.500 2.688 7.78 6.56 .13 H-131-HJ 056-1833
1.3750 277-5137 1.500 2.688 8.80 6.88 .13 H-137-HJ 056-1833
1.4375 277-5143 1.500 2.688 8.36 7.19 .14 H-143-HJ 056-1833
1.5000 277-5150 1.500 2.688 8.62 7.50 .14 H-150-HJ 056-1833
1.6250 277-5162 1.500 2.688 9.26 8.13 .15 H-162-HJ 056-1834
1.7500 277-5175 2.000 3.250 10.21 8.75 .16 H-175-HJ 056-1834
1.8750 277-5187 2.000 3.250 10.86 9.38 .17 H-187-HJ 056-1834
2.0000 277-5200 2.000 3.250 11.37 10.00 .18 H-200-HJ 056-1585
7:1 Depth To Diameter Ratio
0.8125 277-7081 1.000 2.281 6.63 5.69 .08 H-081-HJ 056-1016
0.8750 277-7087 1.000 2.281 7.04 6.13 .08 H-087-HJ 056-1016
0.9375 277-7093 1.000 2.281 7.46 6.56 .09 H-093-HJ 056-1016
1.0000 277-7100 1.000 2.281 7.87 7.00 .09 H-100-HJ 056-1020
1.0625 277-7106 1.250 2.281 8.53 7.44 .10 H-106-HJ 056-1020
1.1250 277-7112 1.250 2.281 8.92 7.88 .10 H-112-HJ 056-1020
1.1875 277-7118 1.250 2.281 9.36 8.31 .11 H-118-HJ 056-1020
1.2500 277-7125 1.250 2.281 9.75 8.75 .11 H-125-HJ 056-1833
1.3125 277-7131 1.500 2.688 10.41 9.19 .13 H-131-HJ 056-1833
1.3750 277-7137 1.500 2.688 10.79 9.63 .13 H-137-HJ 056-1833
1.4375 277-7143 1.500 2.688 11.24 10.06 .14 H-143-HJ 056-1833
1.5000 277-7150 1.500 2.688 11.62 10.50 .14 H-150-HJ 056-1833
1.6250 277-7162 1.500 2.688 12.51 11.38 .15 H-162-HJ 056-1834
1.7500 277-7175 2.000 3.250 13.71 12.25 .16 H-175-HJ 056-1834
1.8750 277-7187 2.000 3.250 14.61 13.13 .17 H-187-HJ 056-1834
2.0000 277-7200 2.000 3.250 15.37 14.00 .18 H-200-HJ 056-1585
ATorx
S L C Effective H Inserts Screws
Part Shank Shank Body Drilling Arc (2 req’d) (2 req’d)
Diameter Number Diameter Length Length Depth Projection Part Number Part Number
Note: Inserts must be ordered separately. Note: Chip disposal will be impaired if hole depth exceeds effective drilling depth.
23

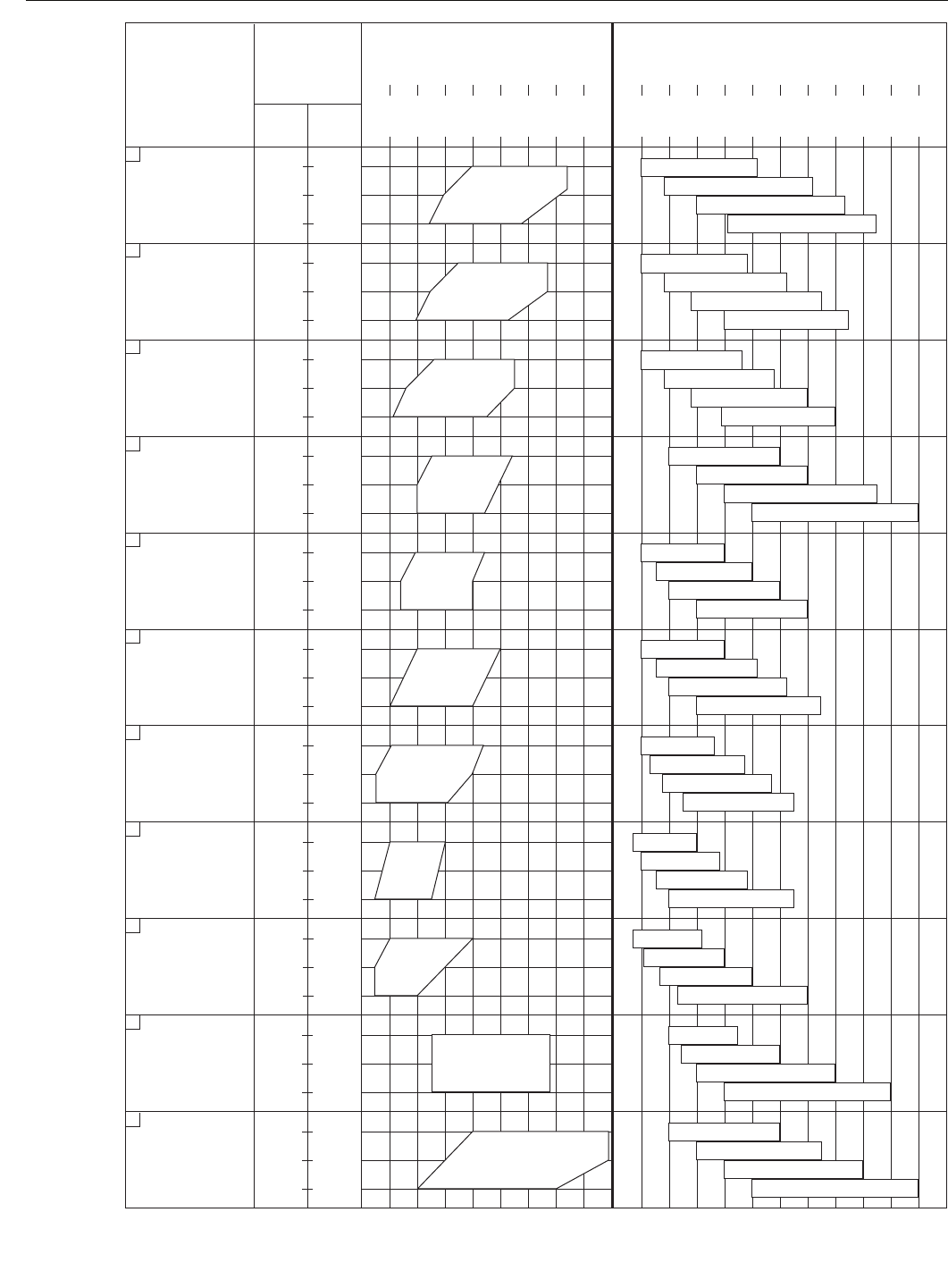

Application Information
Material
Group
Hardness
BHN
Rock-
well
Cutting Speed*
SFM
Feed Rate**
m/min.
30
Low Carbon
Steels
1018, 12L14
8620, 11L17
125
200
275 28 Rc
Medium
Carbon Steels
1045, 4140
1030, 86L40
125
225
325 35 Rc
AF BDHJ
HJ BDAF
Alloy Steels
& Tool Steel
4340, H13
P20, 52100
225
325
425 45 Rc
BD HJAF
1st 2nd 3rd
35 Rc
1st 2nd 3rd
1st 2nd 3rd
61 91 122 152 183 274 366
100 200 300 400 500 600 900 1200
Cast Irons
Ductile, Gray
Nodular
Malleable
125
225
325 35 Rc
AF
1st
AE
2nd
HJ
3rd
Austenitic
Stainless Steel
304, 316
Nitronic 40
125
250
375 40 Rc
BE
1st
BF
2nd
AF
3rd
24 Rc
Martensitic
Stainless Steel
410, 414
502, 440A
125
275
425 45 Rc
BE
1st
BF
2nd
AF
3rd
28 Rc
Precipitation
Hardening
Stainless Steel
17-4PH, PH15-7MO
150
285
440 47 Rc
BE
1st
17
BF
2nd
AF
3rd
30 Rc
High Temp.
Alloys
75
275
475 50 Rc
BE
1st
BF
2nd
AF
3rd
28 Rc
Monel, Inconel
Hastelloy, Rene
Titanium
Alloys
100
220
440 47 Rc
BE
1st
BF
2nd
AF
3rd
Copper
Alloys
BE
1st
AE
2nd
Brass, Bronze
Aluminum
HJ
1st
AE
2nd
IPR
mm/min.
.025 0.05 0.1 0.15
.001 .002 .004 .006
0.2
.008
0.25
.010
* Recommended insert grades are labeled in order of preference (1st, 2nd, 3rd).
** Feed rates shown can be increased by up to 50% when using square negative rake drills, and increased up to 100% when using double-feed drills.
.50–.70 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
2.51–3.50 Dia.
.50–.70 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
2.51–3.50 Dia.
2.51–3.50 Dia.
.50–.70 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
2.51–3.50 Dia.
.50–.70 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
.50–.70 Dia.
2.51–3.50 Dia.
.71–1.50 Dia.
1.51–2.50 Dia.
18
19
20
21
16
15
14
13
12
11
24

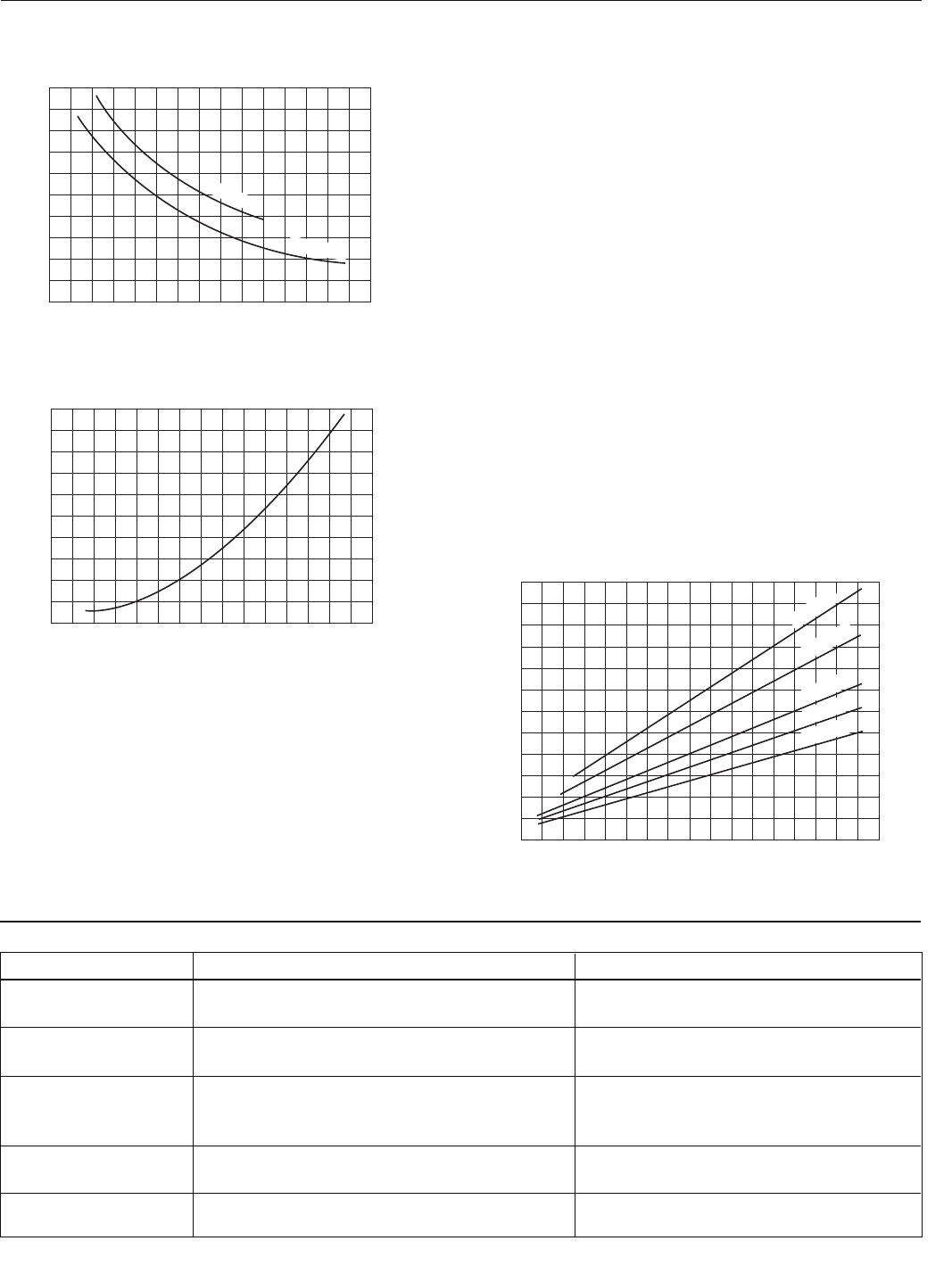

Application Information
Application Guidelines
Concentricity
On live spindle applications such as boring mills and machining
centers, it is necessary to have a rigid and true running spindle.
Spindle runout must be no more than .004" TIR.
On turning machine applications, it is necessary that the drill be
on center or concentric with the spindle centerline within .004"
TIR. Angularity must not exceed .003" in 6". Both of these
conditions are easily checked with an indicator magnetically
mounted on the face of the spindle. Another way to check
concentricity is to drill a hole and measure size. Then rotate the
drill 180°, drill a hole, and measure size. One quarter of the
difference between the two hole sizes is the distance the drill is
off center.
Starting Feed Rate
In some extremely tough materials, it may be advisable to reduce
the feed to about 30% per revolution until the full diameter of the
drill is in the cut. The same procedure may be necessary when
using extra length drills.
Coolant
In steel cutting applications, coolant should be fed through the
tool to insure maximum cooling at the cutting edge and to flush
chips out of the hole. Shallow holes may be drilled in steel with
a well-directed flow of flood coolant. Cast iron can be run dry or
with flood coolant, but through-the-tool coolant is preferable.
Troubleshooting Guide
Problem Cause Solution
Drill body rubbing in 1. Drill is off-center and cutting a small hole 1. Correct the off-center condition
the hole 2. Drill is deflecting 2. Reduce penetration rate
Center insert chipping 1. Drill is off-center 1. Correct off-center condition
2. Improper grade selection 2. See insert grade selection chart
Chips snarling and 1. Feed is too light to break chips 1. Increase feed rate
clogging 2. RPM too slow 2. Increase RPM
3. Insufficient coolant 3. Use coolant pressure booster pump
Chatter or vibration 1. Too much overhang 1. Reduce overhang
2. Lack of rigidity in the machine tool or the set-up 2. Take appropriate corrective measures
Severe retract marks 1. Excessive penetration rate causes drill to 1. Reduce penetration rate
deflect and cut undersize
Horsepower
60
50
40
30
20
10
3/4 1 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2
.004 IPR
.005 IPR
.006 IPR
.008 IPR
.010 IPR
Spindle HP
Drill Diameter
Based on 4140 Alloy Steel; 240 BHN Hardness; 400 SFM
1/
2
1 1-1/2 2 2-1/2 3 3-1/2
20
25
30
35
Coolant Pressure (psi)
Drilling Diameter (inches)
Pressure (psi)
2.5 x DIA.
4.5 x DIA.
10
15
20
25
Coolant Volume (gpm)
Drilling Diameter (inches)
Volume (gpm)
1/
2
1 1-1/2 2 2-1/2 3 3-1/2
25

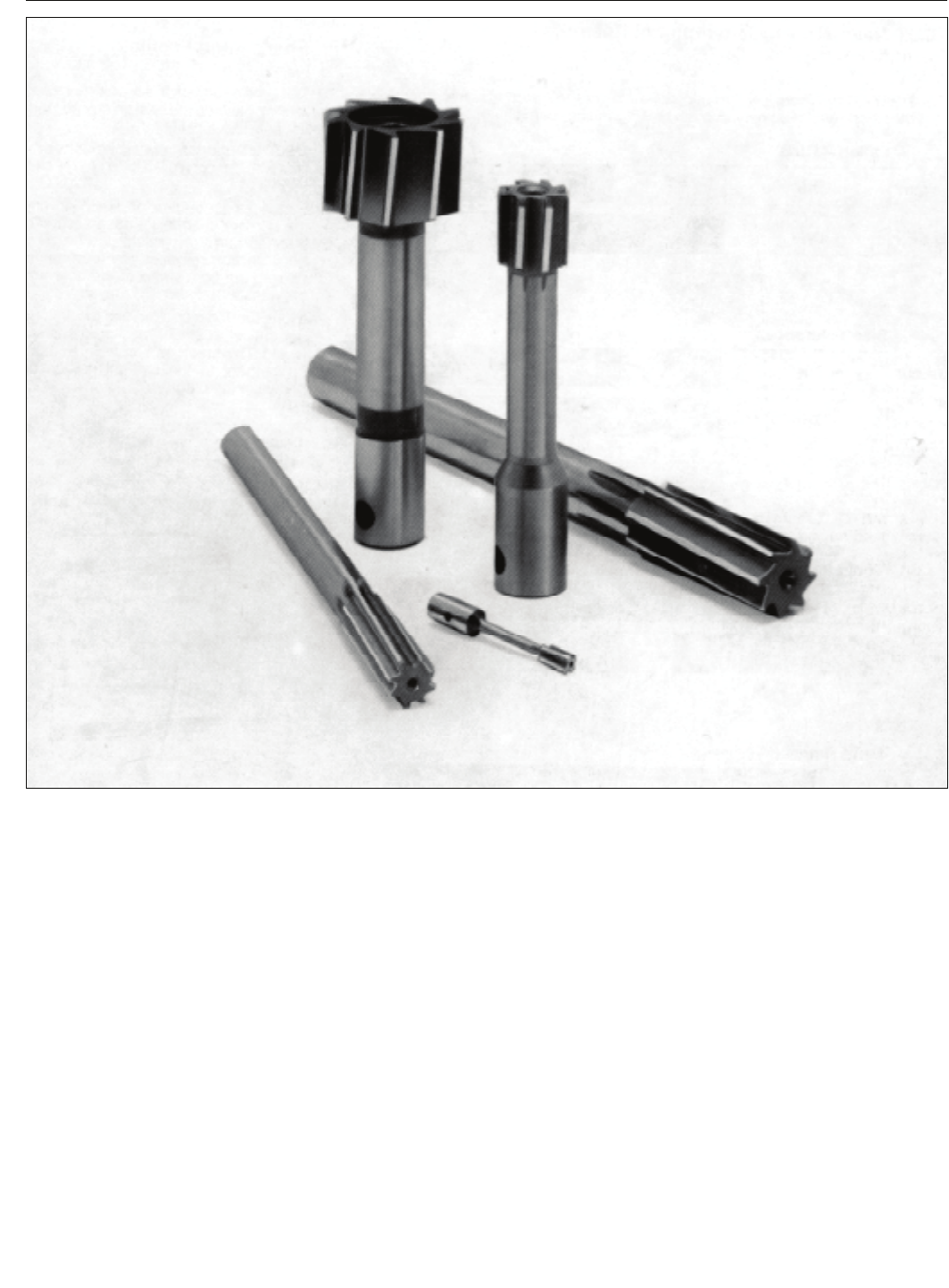

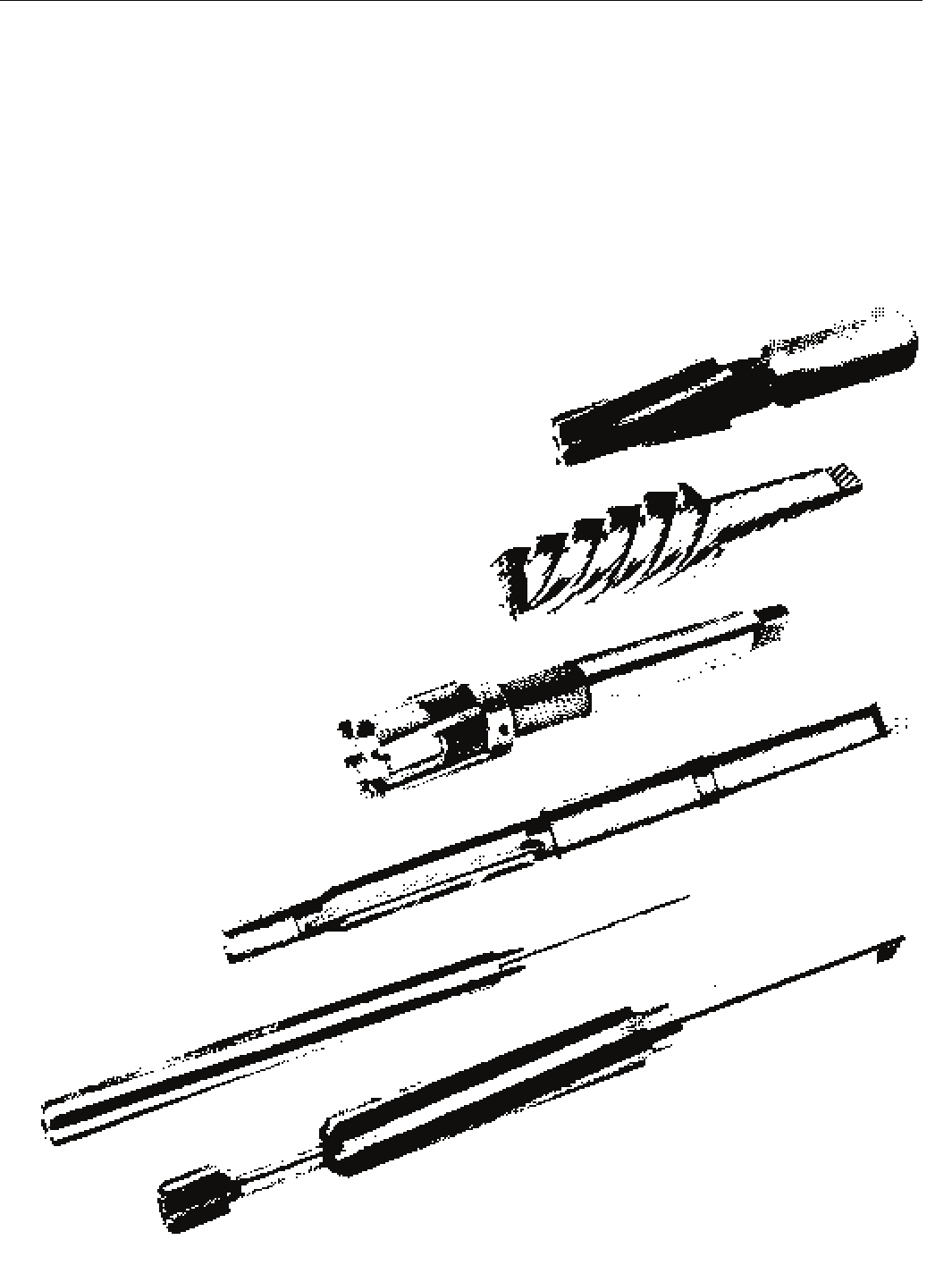

Reamers
Higher Feed Rates, Longer Tool Life
METCUT
®
reamers are designed to operate at feed rates up to
twice conventional reamer feed rates, resulting in higher pro-
ductivity. And METCUT
®
reamers last longer, which means less
machine downtime due to tool changes, and more production
per tool. The net result is that METCUT
®
reamers provide the
lowest cost per hole.
Surface Finishes of 25 RMS or Better
The use of METCUT
®
reamers can eliminate the need for some
subsequent grinding, honing or burnishing operations by pro-
ducing surface finishes of 25 RMS or better in free-machining
materials. Hole-finishing accuracy and repeatability are un-
matched:
• Roundness accuracy to within 0.0001".
• Hole size accuracy to within 0.0003".
• Straightness accuracy to within 0.0002".
• Higher depth-to-diameter ratios at above tolerances.
• Technical assistance available to achieve 16RMS or better,
and consistently hold hole size to less than .0003"
26
Reamers

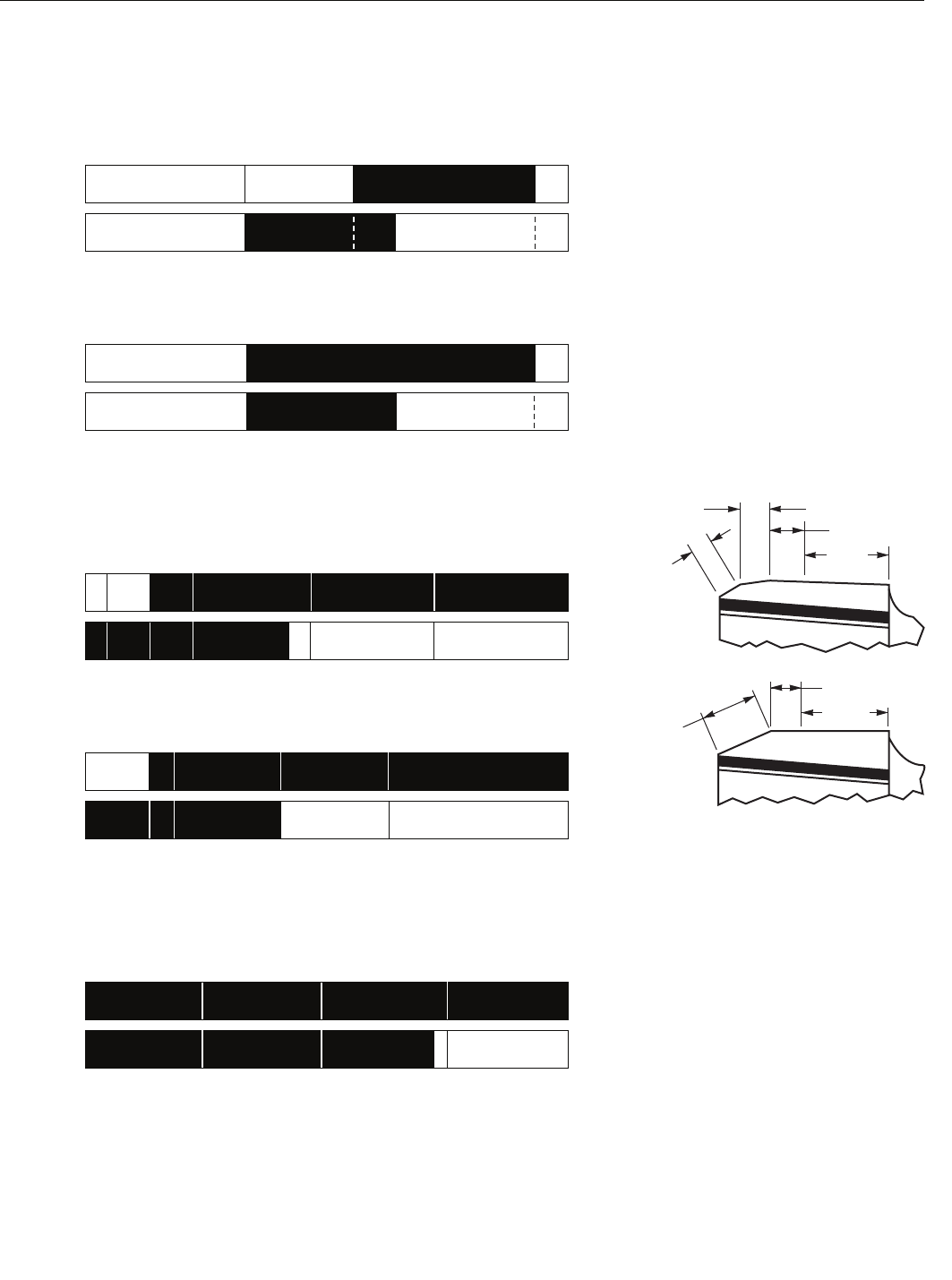

METCUT Reamers vs. Conventional Reamers –
Performance Overview
METCUT reamers can produce surface finishes and size tolerances
otherwise achieved only through finish grinding, burnishing, or honing.
Finish – RMS
Drill
Size Tolerances
METCUT reamers provide significantly increased tool life and higher
feed rates.
Tool Life – Number of Holes
Feed Rate – IPR
METCUT reamers offer higher depth-to-diameter ratios at stated size,
straightness and roundness tolerances.
Depth-to-Diameter Ratio
Drill Ream
METCUT
METCUT
METCUT
METCUT
METCUT
63 40 8
Grind
Drill
125
Conventional
Ream
0.001"
0.0003"
Grind
Drill
0.003"
Conventional
Ream
Ream
5000 10,000 50,000+500 1000 2000
Conventional
.008 .010 .020 .030 .060+.002
Conventional
2:1 4:11:1 3:1
Conventional
Straight Portion
Nose
Primary
Chamfer
Chamfer
Back
Portion
Straight Portion
Single Lead
Double Lead
Back
Taper
Sharpening Profile
The profile form on the reamer is impor-
tant in obtaining the best finish and
longest possible tool life.
METCUT offers two basic types of pro-
files with our controlled CNC form type
sharpening methods.
I. The Double Lead Profile for enhanced
surface finish. Following the primary
chamfer, a nose section is blended into
the straight portion. The nose section
removes the feed marks prior to the final
sizing of the hole and provides a 25 to
50 RMS finish.
II. Single Lead Profile for enhanced tool
life where finish is not as critical. This
provides a profile of a chamfer tangent
to the straight portion as shown in the
diagram.
27
Reamers
What Makes METCUT Reamers Better?
Custom Sharpened
For Your Application
Our application engineers will select a
sharpening profile best suited to accom-
plish your specific hole finishing and
production objectives. Significant vari-
ables include the material you are ream-
ing, the surface finish you require, and
the tool life you require. Generally, there
is a trade-off between degree of surface
finish and tool life (the finer the finish
required, the shorter the tool life).
METCUT engineers will work to optimize
the variables to best meet your quality,
productivity, and cost objectives.
When ordering, please provide the fol-
lowing information:
• Roundness, size and straightness
tolerances.
• Finish requirement.
• Material to be reamed.
• Stationary or rotating work piece.
• Diameter of bushing (if applicable).
• Floating or fixed tool holder.
• Blind hole clearance.
• Any other special feature of the applica-
tion, such as cross holes, intersection
holes, etc.

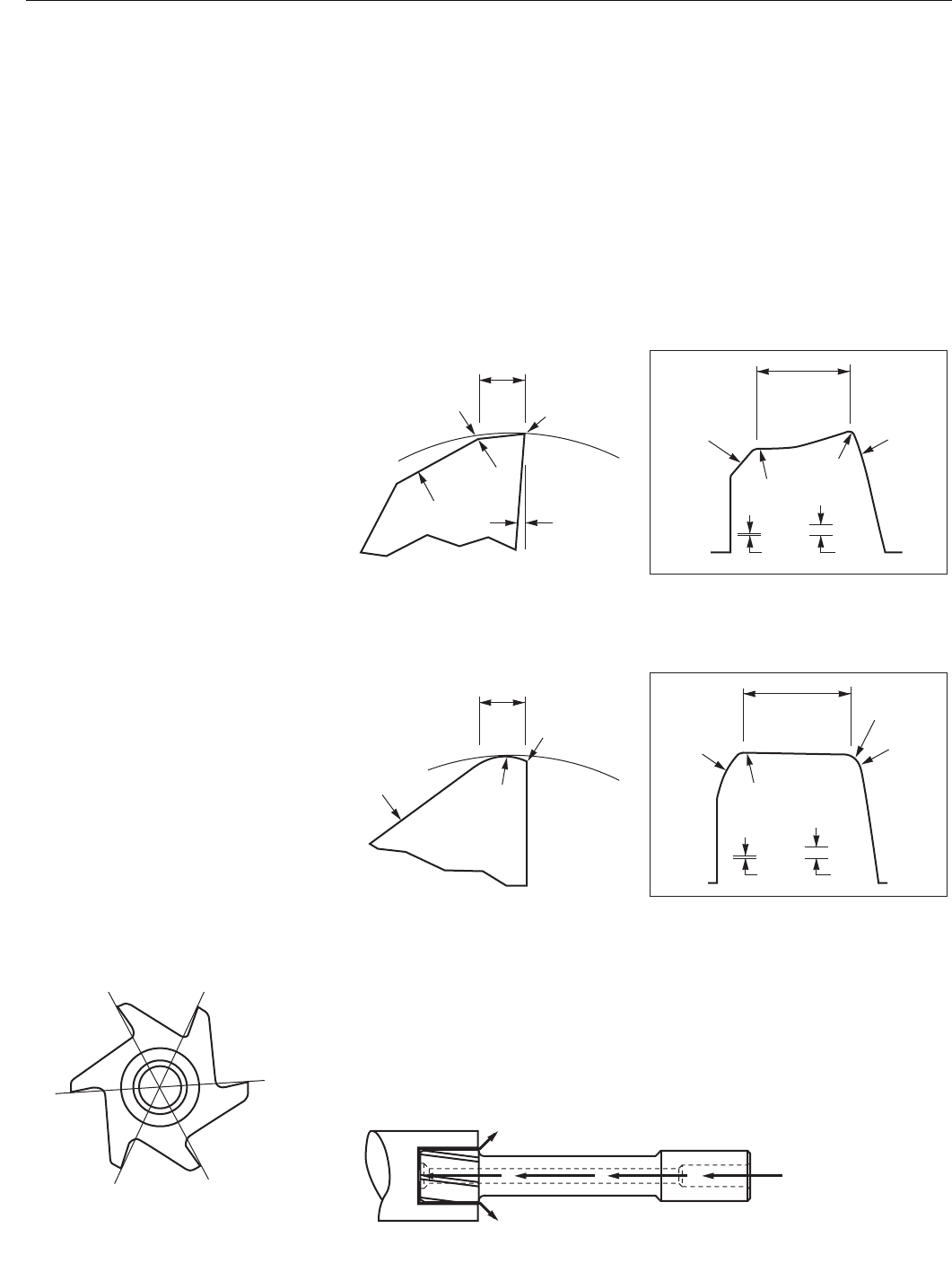

Unique Cutting-Edge Geometry Ensures “Free Cutting Action”
A precise combination of positive clearance angles, sharp cutting edges, and
irregularly spaced flutes serves to minimize friction, harmonics, chatter, welts, and
galling – common problems that diminish the life and performance of conventional
reamers.
This unique cutting-edge design is produced on the most sophisticated CNC
production equipment, ensuring that each cutting edge is accurately ground. All of
the reamers produced to a particular set of specifications are virtually identical
providing maximum tool-to-tool repeatability. State-of-the-art electronic gaging
equipment ensures that flute height variation, land width, and clearance angles are
being held to allowable limits.
Designed for Effective Chip Disposal
Coolant-Feed reamers provide maximum chip-flushing action in blind-hole reaming
applications. The coolant is fed through the reamer body; it hits the end of the blind
hole and is forced back through the flutes, flushing the chips from the cutting area
while lubricating and cooling the cutting edges.
Primary-Land Width
Sharp,
Acute-Angle
Cutting Edge
METCUT Tooth Profile
Primary-Land
Clearance
Positive
Face-Rake
Angle
Secondary
Relief
Only the sharp cutting edge is in contact
with the workpiece.
Primary-Land
Width
Secondary
Relief
Primary-Land
Clearance
Cutting Edge
Face of
Tooth
.00002" .0001"
METCUT tooth profile as measured and graphed
by our electronic gaging equipment
Conventional Tooth Profile
Primary-Land with
No Clearance
Obtuse-Angle
Cutting Edge
The back of the tooth is in greater contact
with the work than the cutting edge.
Primary
Relief
Negative
Dub
Radial Land
with No
Clearance
Primary
Relief
Negative
Dub
Cutting
Edge
Face of
Tooth
.00002" .0001"
Conventional tooth profile as measured and graphed
by our electronic gaging equipment
Oil Flow in Coolant-Feed Reamer Application
Irregularly-Spaced Flutes
Irregular spacing is a standard feature
of all METCUT oil-feed reamers. This
type of spacing provides a controlled
cutting action that resists chatter and the
formation of “welts.” This flute spacing
design, combined with the oil-feed and
cam-controlled sharpening features al-
lows these reamers to produce surface
finishes which do not require additional
finishing operations. The teeth are
spaced diametrically opposite each
other for easy and accurate inspection.
28
Custom Sharpened Reamers – Coolant Feed
Carbide
ABCD
Number
of Flutes
4
4
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
10
10
10
10
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.625
3.500
3.750
4.250
4.750
5.500
6.000
6.000
6.000
6.000
6.000
6.000
6.000
6.000
All dimensions shown in inches. Diameter Tolerance: ±.0001
Solid
Carbide
Carbide
Tipped
Diameter
.0930 to .125
.1251 to .157
.1571 to .175
.1751 to .210
.2101 to .255
.2551 to .286
.2861 to .318
.3181 to .380
.3801 to .436
.4361 to .505
.5051 to .630
.6301 to .755
.7551 to .880
.8801 to 1.005
1.0051 to 1.130
1.1301 to 1.255
1.2551 to 1.380
1.3801 to 1.505
1.5051 to 1.630
1.6301 to 1.755
1.7551 to 1.880
1.8801 to 2.015
Part
Number
SOFC0125
SOFC0157
SOFC0175
SOFC0210
SOFC0255
SOFC0286
SOFC0318
SOFC0380
OFC0436
OFC0505
OFC0630
OFC0755
OFC0880
OFC1005
OFC1130
OFC1255
OFC1380
OFC1505
OFC1630
OFC1755
OFC1880
OFC2015
.375
.375
.375
.375
.500
.500
.500
.500
.500
.625
.750
.750
.875
1.000
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
.250
.250
.250
.375
.375
.375
.375
.375
.375
.625
.625
.625
.625
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
.750
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
Coolant
Feed
29

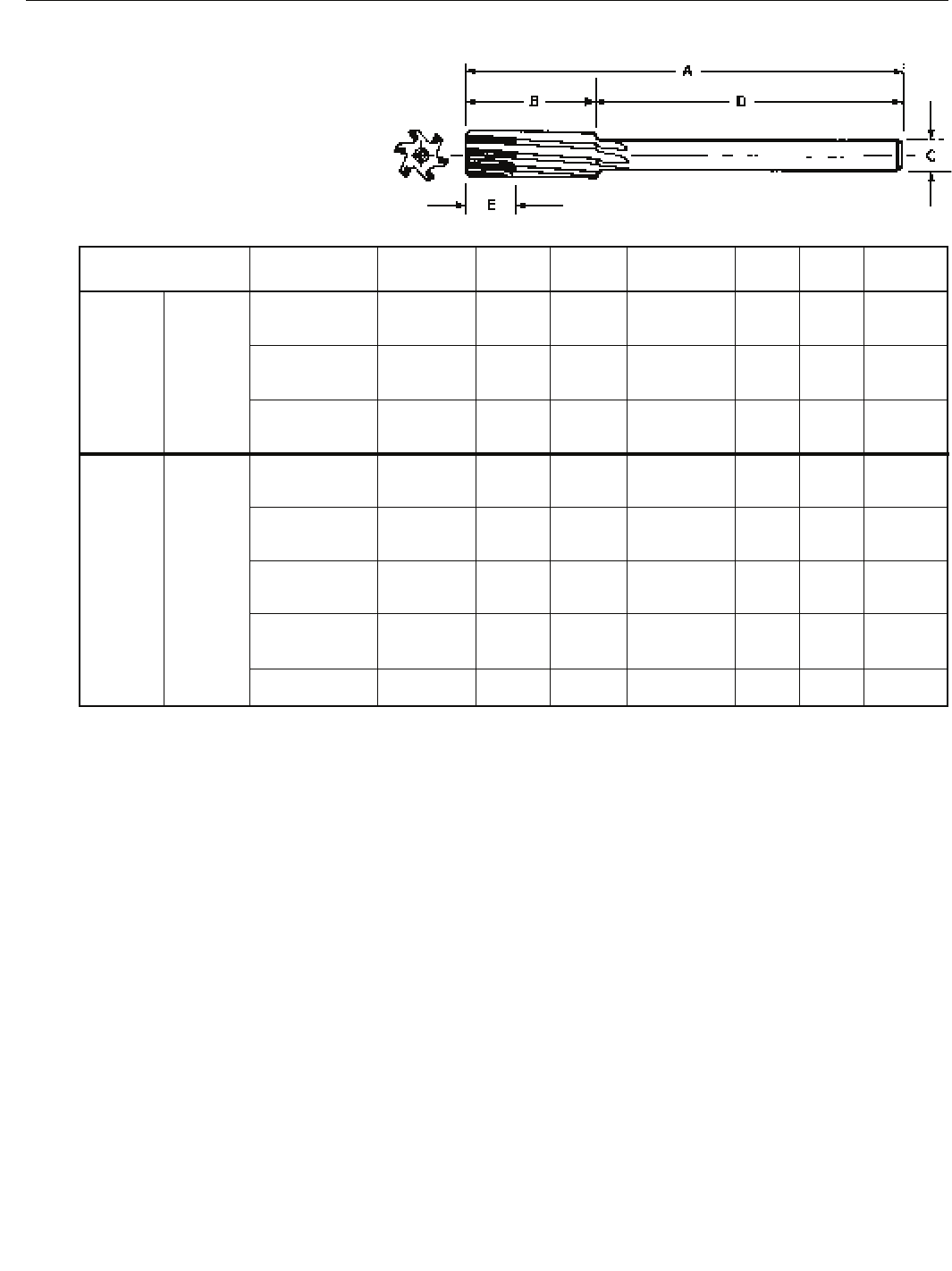

Custom Sharpened Reamers – Chucking
Carbide
Number
of Flutes
E
4
4
6
6
6
6
6
6
6
4
6
6
6
6
6
6
6
6
8
8
8
8
8
.625
.750
.875
1.000
1.000
1.125
1.125
1.250
1.250
.500
.500
.500
.500
.625
.625
.750
.750
.875
.875
.875
.875
.875
.875
D
1.625
1.750
1.875
2.000
2.000
2.125
2.125
2.250
2.250
4.500
4.500
5.250
5.250
6.000
6.000
6.750
7.000
7.375
7.750
8.125
8.500
8.750
9.000
.0880/.0870
.1190/.1180
.1510/.1500
.1805/.1795
.2075/.2065
.2485/.2475
.2792/.2782
.2792/.2782
.3105/.3095
.2485/.2475
.2792/.2782
.3105/.3095
.3730/.3720
.4355/.4345
.4355/.4345
.5620/.5605
.6245/.6230
.7495/.7480
.8745/.8730
.9995/.9980
.9995/.9980
.9995/.9980
.9995/.9980
CB
.625
.750
.875
1.000
1.000
1.125
1.125
1.250
1.250
1.500
1.500
1.750
1.750
2.000
2.000
2.250
2.500
2.625
2.750
2.875
3.000
3.250
3.500
A
2.250
2.500
2.750
3.000
3.000
3.250
3.250
3.500
3.500
6.000
6.000
7.000
7.000
8.000
8.000
9.000
9.500
10.000
10.500
11.000
11.500
12.000
12.500
SCRC0125
SCRC0157
SCRC0187
SCRC0218
SCRC0250
SCRC0281
SCRC0312
SCRC0343
SCRC0375
CRC0296
CRC0343
CRC0406
CRC0468
CRC0531
CRC0593
CRC0687
CRC0812
CRC0937
CRC1031
CRC1156
CRC1281
CRC1406
CRC1531
Part
Number
Diameter
.0930 to .1250
.1251 to .1570
.1571 to .1875
.1876 to .2188
.2189 to .2500
.2501 to .2812
.2813 to .3125
.3126 to .3437
.3438 to .3750
.2550 to .2969
.2970 to .3438
.3439 to .4062
.4063 to .4688
.4689 to .5312
.5313 to .5938
.5939 to .6875
.6876 to .8125
.8126 to .9375
.9376 to 1.0313
1.0314 to 1.1560
1.1561 to 1.2810
1.2811 to 1.4060
1.4061 to 1.5310
Solid
Carbide
Carbide
Tipped
Coolant
Feed
Non
Coolant
Feed
All dimensions shown in inches. Diameter Tolerance: ±.0001
30

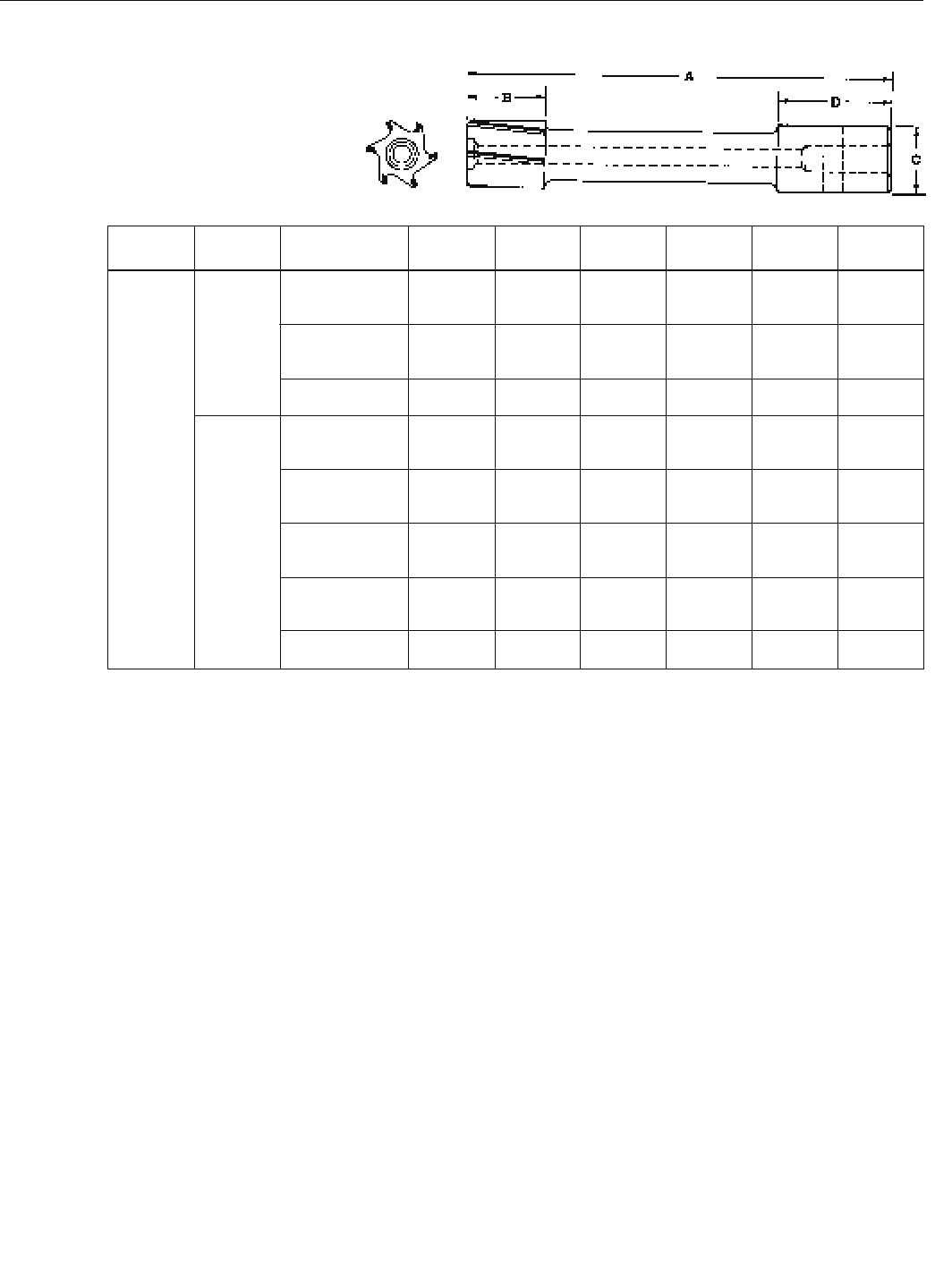

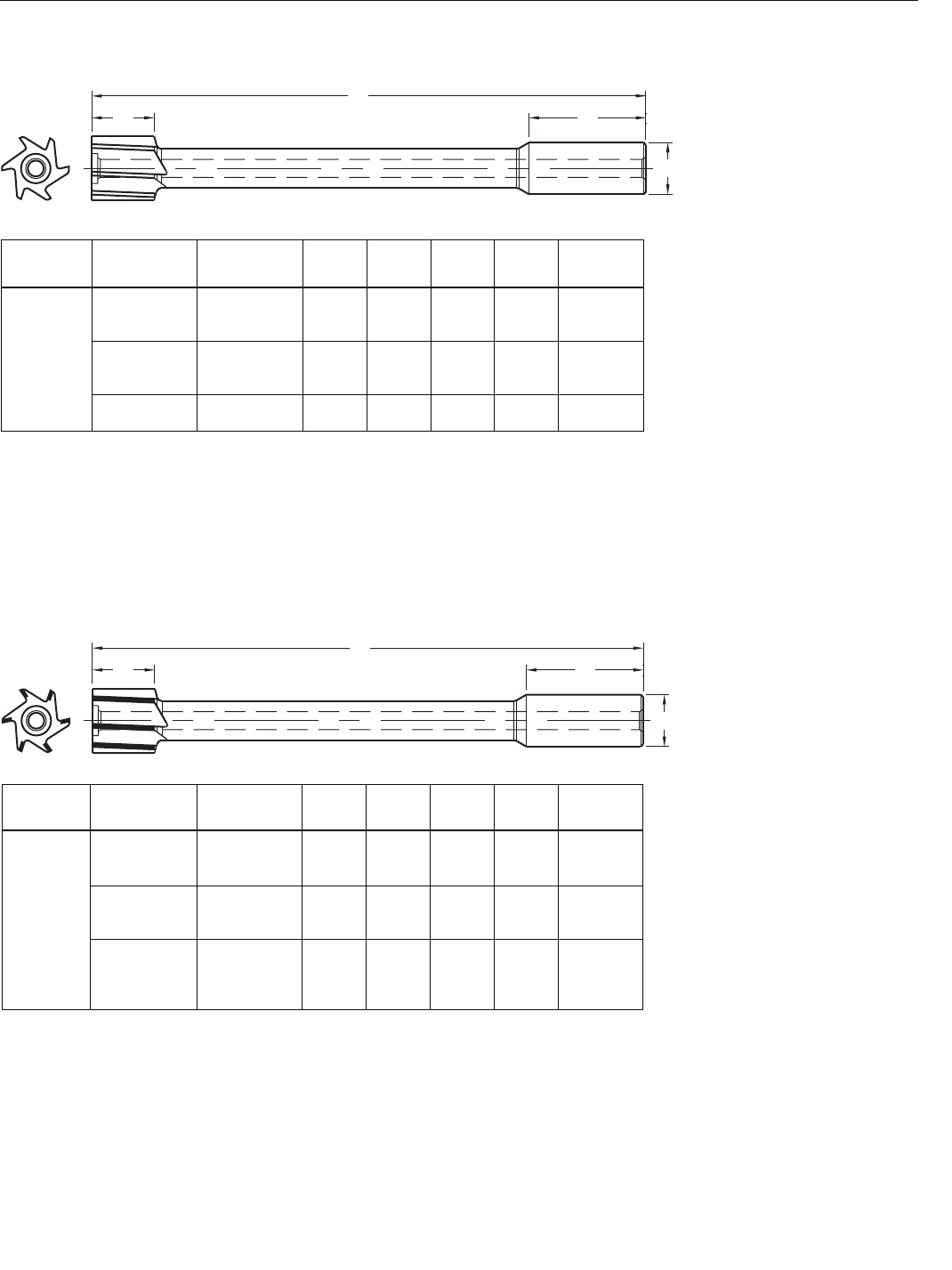

Chucking Coolant-Feed Reamers
High Speed Steel
Carbide
Diameter
.2500–.3120
.3121–.3750
.3751–.5000
.5001–.6250
.6251–.7500
.7501–.8750
.8751–1.0000
1.0001–1.1250
1.1251–1.2500
1.2501–1.5000
A
5.500
5.500
8.000
8.000
8.000
10.000
10.000
10.000
10.000
10.000
B
.500
.500
.625
.625
.750
.875
1.000
1.000
1.000
1.000
C
.312
.625
.625
.625
.625
1.000
1.000
1.000
1.000
1.000
D
6
6
6
6
6
6
8
8
8
8
Number
of Flutes
1.500
1.500
1.500
1.500
1.500
2.500
2.500
2.500
2.500
2.500
All dimensions shown in inches. Diameter Tolerance: ±.0001
COFC-0312
COFC-0375
COFC-0500
COFC-0625
COFC-0750
COFC-0875
COFC-1000
COFC-1125
COFC-1250
COFC-1500
Part
Number
B
C
A
D
Diameter
.2500–.3120
.3121–.3750
.3751–.5000
.5001–.6250
.6251–.7500
.7501–.8750
.8751–1.0000
1.0001–1.1250
A
5.500
5.500
8.000
8.000
8.000
10.000
10.000
10.000
B
.500
.500
.625
.625
.750
.875
1.000
1.000
C
.312
.625
.625
.625
.625
1.000
1.000
1.000
D
6
6
6
6
6
6
8
8
Number
of Flutes
1.500
1.500
1.500
1.500
1.500
2.500
2.500
2.500
All dimensions shown in inches. Diameter Tolerance: ±.0001
COF-0312
COF-0375
COF-0500
COF-0625
COF-0750
COF-0875
COF-1000
COF-1125
Part
Number
B
C
A
D
Coolant
Feed
Coolant
Feed
31

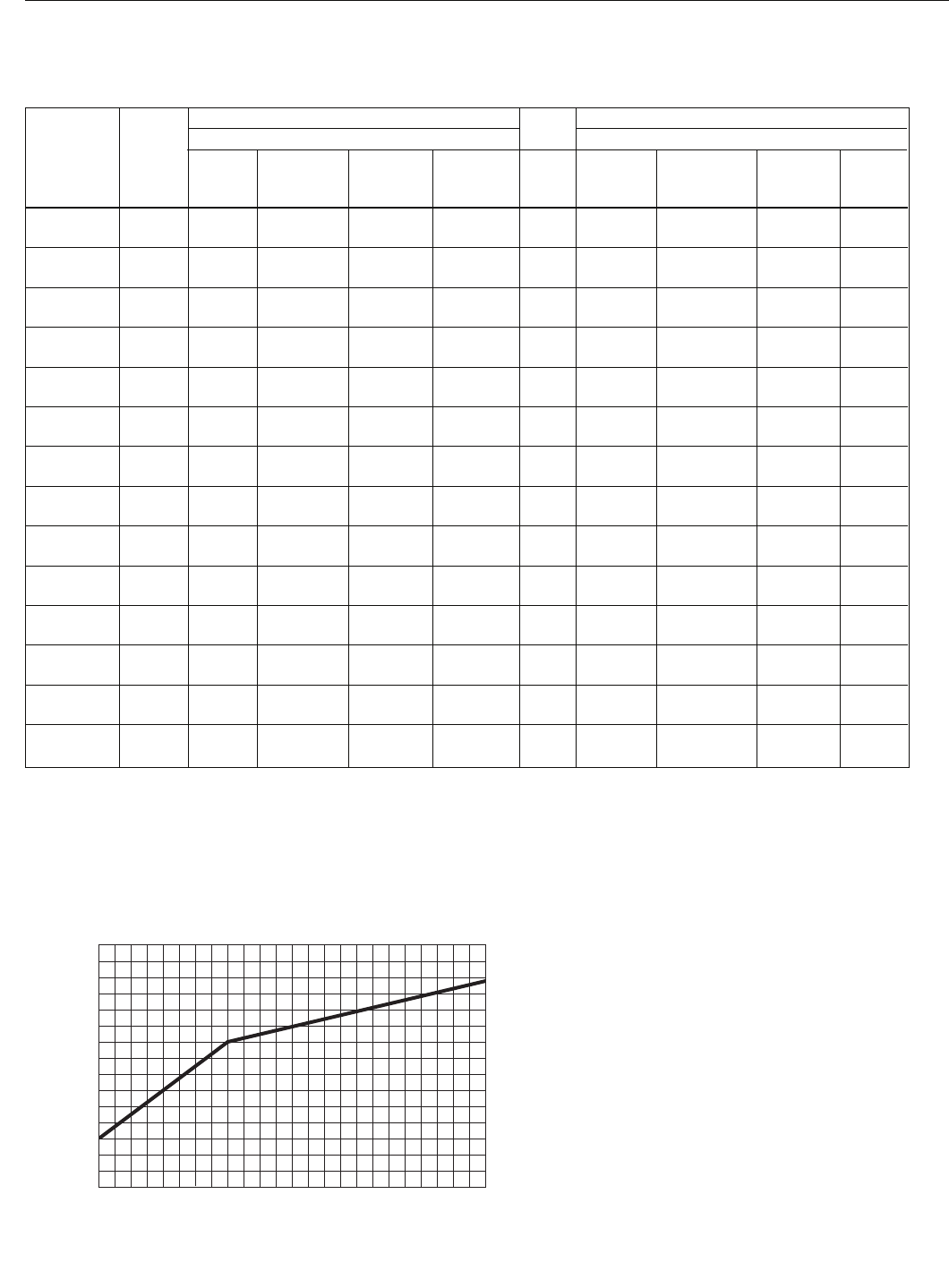

Application Information
Recommended Feed & Speed Rates for Reamers
TCT Reamers HSS Reamers
Recommended Starting Feed Rate in ( IPR ) Recommended Starting Feed Rate in ( IPR )
TCT 4-Flute HSS 4-Flute
Speed Below 6-Flute 8-Flute 10-Flute Speed Below 6-Flute 8-Flute 10-Flute
Material (SFM) .1875" .1875"-.875" .875"-1.5" 1.5"-2" (SFM) .1875" .1875"-.5625" .5625"-1.5" 1.5"-2"
Aluminum 160 .006 .012 .016 .020 100 .006 .012 .016 .020
180 .012 .018 .024 .030 150 .012 .018 .024 .030
Brass 70 .006 .012 .016 .020 45 .006 .012 .016 .020
90 .012 .018 .024 .030 65 .012 .018 .024 .030
Bronze 50 .006 .012 .016 .020 40 .006 .012 .016 .020
70 .012 .018 .024 .030 60 .012 .018 .024 .030
Grey 55 .006 .012 .016 .020 40 .006 .012 .016 .020
Cast Iron 75 .012 .018 .024 .030 60 .012 .018 .024 .030
Ductile 45 .006 .012 .016 .020 35 .006 .012 .016 .020
Cast Iron 65 .012 .018 .024 .030 55 .012 .018 .024 .030
Malleable 60 .006 .012 .016 .020 40 .006 .012 .016 .020
Cast Iron 80 .012 .018 .024 .030 60 .012 .018 .024 .030
Inconel 20 .004 .010 .016 .020 10 .004 .010 .016 .020
30 .010 .014 .020 .030 15 .010 .014 .020 .030
Low Carbon 60 .006 .012 .016 .020 40 .006 .012 .016 .020
Steel 80 .012 .018 .024 .030 60 .012 .018 .024 .030
Med. Carbon 50 .006 .012 .016 .020 30 .006 .012 .016 .020
Steel 70 .012 .018 .024 .030 50 .012 .018 .024 .030
High Carbon 35 .006 .012 .016 .020 30 .006 .012 .016 .020
Steel 55 .012 .018 .024 .030 50 .012 .012 .016 .020
Alloy Steel 35 .006 .012 .016 .020 25 .006 .012 .016 .020
55 .012 .018 .024 .030 40 .012 .018 .024 .030
Monel 35 .006 .012 .016 .020 25 .006 .012 .016 .020
45 .012 .018 .024 .030 35 .012 .018 .024 .030
Stainless 50 .004 .010 .016 .020 30 .004 .010 .016 .025
Steel 70 .010 .014 .020 .025 40 .010 .014 .020 .025
Titanium 40 .004 .010 .016 .020 30 .004 .010 .016 .020
60 .010 .014 .020 .025 40 .010 .014 .020 .025
Stock Removal
Stock removal depends on work piece material and finish
required. This graph shows starting points for various diameters.
.030
.020
.010
Stock Removal
.25
.50
1.0
1.25
1.50 1.75.75
2.0
2.25
2.50
2.75 3.0
Diameter
METCUT coated reamers should be run at 10-25% faster speeds.
32
Bell Mouth
Chatter
Oversized
Undersized
(Tight Hole)
Lobing
Rough Finish
Reverse Bell
Mouth
(Bottom of Hole)
Tapered Bore
Application Information
Troubleshooting Guide
A. Reset alignment
B. Use floating holder.
A. Leave more stock in hole from preceding operation.
B. Increase feed rate.
A. See Recommended Feed & Speed Rates and Stock
Removal, page 34.
A. Reset. Eliminate any looseness that allows vibration during
operation.
B. Check operations occurring at same time as reaming for
harmonics.
A. Chamfer I.D. of work piece bore entrance.
B. Reamer may require long lead in chamfers or front pilot.
A. Contact METCUT application engineers.
A. Replace with correct size reamer.
B. Return to METCUT for resharpening to proper diameter.
A. See problem: “Chatter.”
A. Reset alignment.
A. Reset chuck, or change jaws.
A. Reset stroke length.
B. Have leads of reamer shortened.
A. Replace with correct size reamer.
B. Return to METCUT for correction.
A. Check coolant flow and mix.
B. Check feeds, speeds and stock allowance.
A. Reset.
A. Contact METCUT application engineers.
A. Leave less stock in hole from preceding operation.
A. Increase stock in hole from preceding operation.
B. Check for marks in bore left from preceding operation that
are too deep for reamer to clean.
A. Check stock allowance, feed, speed, coolant mix and
additives.
B. May need surface treatment on reamer.
C. Reamer dull.
A. Reset alignment.
B. Use floating holder.
A. See problem: “Chatter.”
A. Return to METCUT for resharpening or retipping.
A. Reset.
A. Contact METCUT application engineers. Be sure to specify
finish required when ordering reamer.
A. Reset.
A. Reset stroke length.
A. Check stock allowance for reamer.
B. Reduce/increase stock allowance.
C. Increase coolant amount and pressure.
D. Wrong profile on reamer. Contact METCUT application
engineers.
A. Reset.
A. Reset stroke length. Taper will only be at bottom of bore.
A. Check tool on comparator. Contact METCUT application
engineers.
A. Contact METCUT application engineers.
Cause Solution
1. Misalignment; Reamer axis angular to work piece axis.
1. Not enough material being removed by reamer.
2. Speed too high and/or feed rate too low.
3. Set-up not rigid enough.
4. Lead-in on work piece too blunt.
5. Excessive clearance in primary land of reamer.
1. Reamer too big.
2. Chatter.
3. Reamer axis not centered with work piece axis.
4. Excessive chuck pressure.
5. Bottoming out reamer.
1. Reamer too small.
2. Thermal contraction of bore.
3. Misalignment.
1. Incorrect clearance.
1. Too much material being removed.
2. Too little material being removed.
3. Build-up of material on reamer.
4. Misalignment.
5. Chatter.
6. Dull Reamer.
7. Feed rate and/or speed settings improper.
8. Improper sharpening or wrong axial profile on reamer.
1. Misalignment.
2. Straight portions of reamer went past end of part.
Reamer dropped into its back taper prior to retraction.
3. Chips packing in flutes.
1. Misalignment.
2. Leads of reamer not put completely through work piece.
3. Reamer straight portions ground with front taper.
4. Not enough back taper.
Problem
33
Application Information
Application Histories

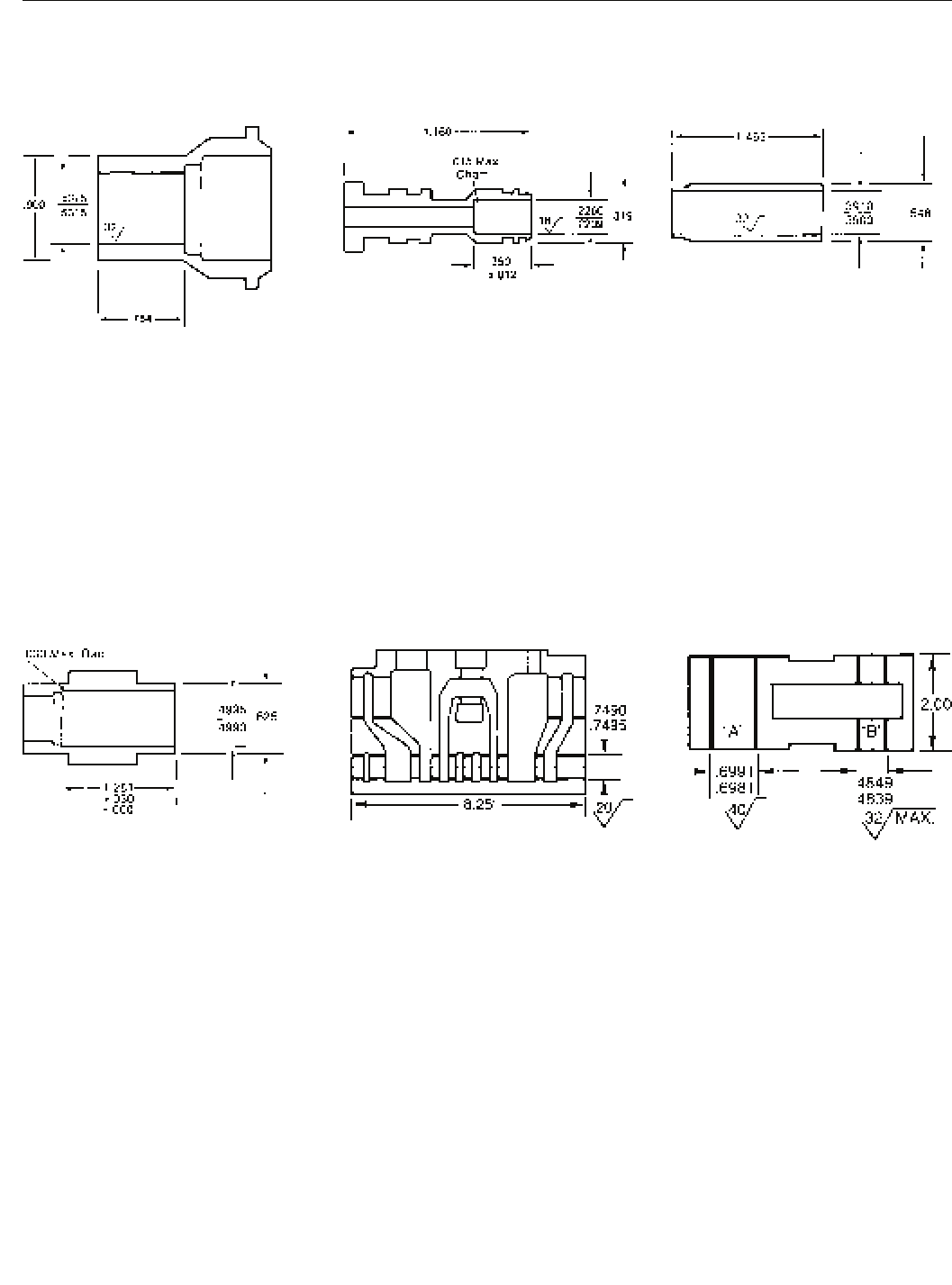

METCUT Reamers in Use – Actual Application Histories
Material: Ledloy Ax
Machining
Feed: .008/Rev.
Speed: 652 RPM, 95 SFM
Life: 50,000 Low/100,000 High
Model 62 New Britain
Reamer
OF 567 (.532 Dia.)
.00004/.00010 Clearance
#18 Profile
.006/Inch B.T.
Material: M354 Brass
Machining
Feed: .0024/Rev.
Speed: 2534 RPM, 268 SFM
Life: 5000 Test Pieces
Cycle: 7.1 Sec. (507/Hr.)
Wickman 1-8 Stopper
Reamer
OFC 255 (.233 Dia.)
.00000/.00004 Clearance
End Cutting
#54 Profile
Replaced Roller Burnish Operation
Material: C 12L14 CDS
Machining
Feed: .010/Rev.
Speed: 165 SFM
Life: 100,000+ Pieces/Rmr.
Model 51 New Britain
Reamer
OF 436 (.3910 Dia.)
.00004/.00010 Clearance
#57 Profile
.012/Inch B.T.
Material: Lasalle Stress-Proof
Machining
Feed: .0077/Rev.
Speed: 60 SFM
Life: 1500
Acme–Gridley
Reamer
OFC 505 (.4993 Dia.)
.00000/.00004 Clearance
#18 Profile
.006/Inch B.T.
.020±.005 Chamfer
Material: Meehanite Cast Iron
Machining
Feed: .010/Rev.
Speed: 75 SFM
Life: 280 Spool Bores
Stock Allowance: .015/.020 on Dia.
Special Gun Drilling Machine/
CNC Horzontal Boring Machine
Reamer
Coolant-Feed, Carbide Tipped
.7492/.7493 Diameter
.00003/.00008 Primary Clearance
#18 Profile
Replaced Honing Operation
Material: Malleable Iron
Machining
Feed: .010/Rev.
Speed: 191 SFM
Life: 4000 Holes Per Sharpening
Stock Allowance: .012 on Dia.
Bore Depth: A = 1.375
B = 1.375 with .625 wide interruption
Kingsbury Transfer Machine
Reamer
Coolant-Feed, Carbide Tipped
Rear Pilot for Guide Bushing
.6986/.6988 Diameter A
.4844/.4846 Diameter B
.00004/.00010 Primary Clearance
#18 Profile
Finished Hole Cost Savings: 50%
34
Reamer Reconditioning & Special Designs
Reamer Reconditioning
All METCUT reamers can be returned for
reconditioning. We offer three basic services,
all of which result in re-establishment of the
original, precisely controlled cutting edge.
For high speed steel, solid carbide, and
carbide-tipped tools that are not badly worn,
a lead sharpening is a very economical way
to regain the fine finish and precise sizing
these tools provide. If the reamer is badly
worn or is undersize, we can resize it to a
smaller diameter within its range; or, for
carbide tipped reamers, we can replace the
carbide and size the reamer to its original
diameter.
A record is kept of the tool size and profile of
each new order so it can be precisely
duplicated on any recondition order.
Special Designs
In addition to the standard reamers listed
in this catalog, special designs can be
furnished while still utilizing our special
features.
Upon inquiry and/or submission of part
data, our engineering department will
quote your special application, whether it
be a “stub” type reamer, extra length
shank, taper design, or larger diameter
than offered within our stock line.
Inserted blade reamers are also available
by special order, as are multi-diameter,
front-piloted, rear-piloted and jig bore
styles.
35
Reamer Questionnaire
To help us provide you with the best reamer for your application
please complete this questionnaire and include a copy of it with your inquiry or order.
Your Name:
Your Title:
Company: Phone:
Size & Tolerance of Hole:
Material: Brinell Hardness at Ream:
Machine:
Blind or Through Hole:
Amount of Blind Hole Clearance:
Speed: RPM:
SFM: Feed:
Does Machine have Accelerated Feed Attachment?
Previous Operation (does reamer follow drill, boring bar, or rough reamer?)
Finish Stock Removal:
Reamer Floated? Holder Shank Diameter:
Coolant (available to reamer):
Coolant Type (oil, synthetic):
Finish Requirement:
Work Piece Stationary or Rotating:
Depth of Bore: Length of Cut:
Comments or Sketch of Bore:
36

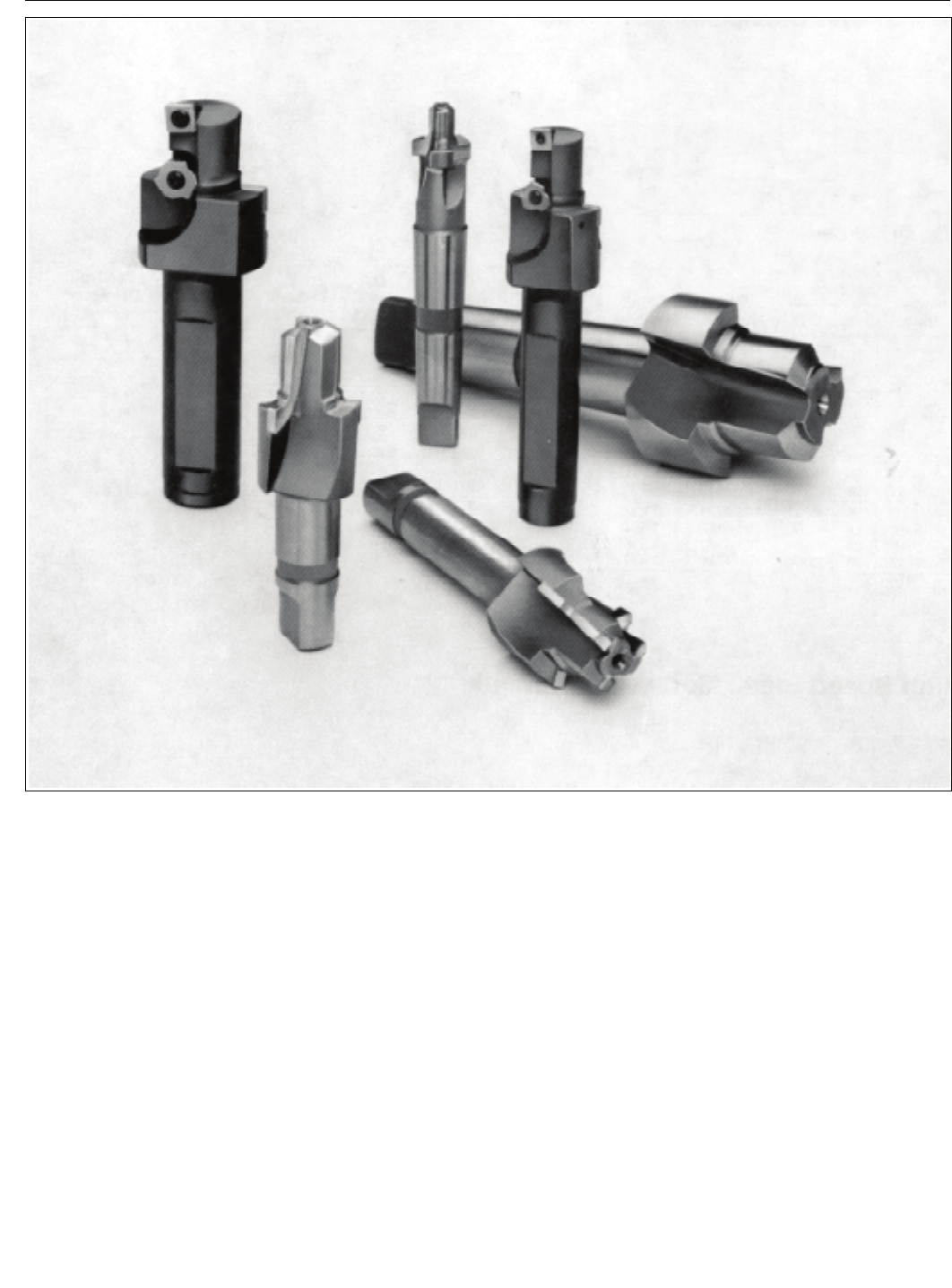

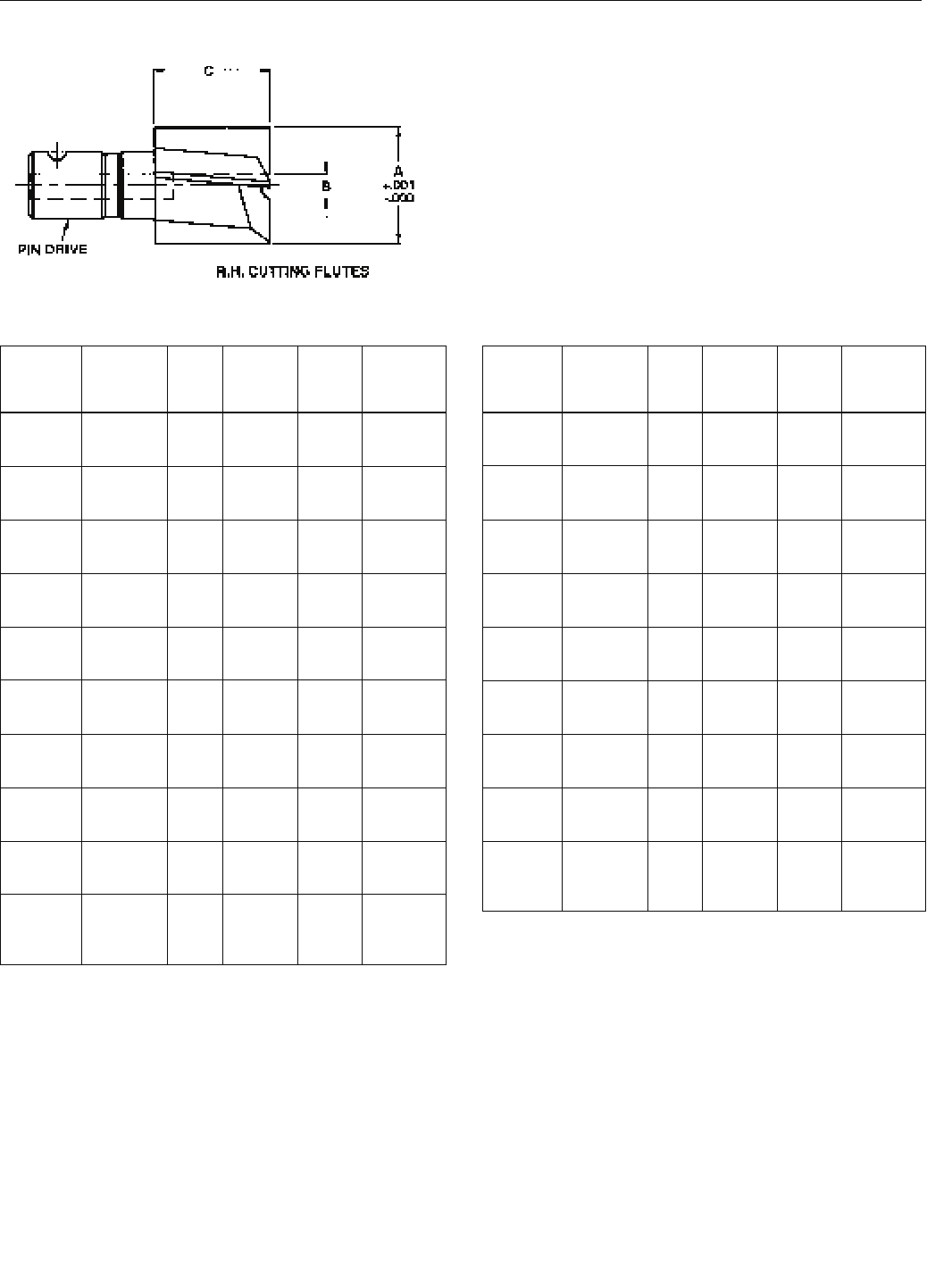

Counterbores – Pin Drive (can be used as a straight shank counterbore)
High Speed Steel
All dimensions shown in inches.
*Non-stocked.
Use with 400 Series Pilots (Pages 48–49) and 300 & 303 Series Holders (Page 45)
All dimensions shown in inches.
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
C
Head
Length
B
Pilot
Hole
No.
of
Flutes
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
Pin
Drive
No.
1.5000
1.5625
1.6250
1.6875
1.7500
1.6875
1.7500
1.8125
1.8750
2.0000
2.1250
2.2500
2.3750
2.5000
2.6250
2.7500
2.8750
3.0000
3.1250
3.0000
3.1250
3.2500
3.3750
3.5000
3.6250
3.7500
3.8750
4.0000
A
Cutter
Diameter
100-2150
100-2156
100-2162
100-2168
100-2175
100-3168
100-3175
100-3181
100-3187
100-3200
100-3212
100-3225
100-3237
100-3250
100-3262
100-3275
100-3287
100-3300
100-3312
100-4300
100-4312
100-4325
100-4337
100-4350
100-4362
100-4375
100-4387
100-4400
Part
Number
*
*
*
*
B
Pilot
Hole
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
No.
of
Flutes
1.125
1.125
1.125
1.125
1.125
1.125
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
C
Head
Length
Pin
Drive
No.
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
.0937
.1250
.1250
.1250
.1250
.1250
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
A
Cutter
Diameter
Part
Number
100-0025
100-0031
100-0034
100-0037
100-0040
100-0043
100-1043
100-1046
100-1050
100-1053
100-1056
100-1059
100-1062
100-1065
100-1068
100-1071
100-1075
100-1078
100-1081
100-1087
100-1093
100-1100
100-1106
100-1112
100-2106
100-2112
100-2118
100-2125
100-2131
100-2137
100-2143
.2500
.3125
.3438
.3750
.4063
.4375
.4375
.4688
.5000
.5313
.5625
.5938
.6250
.6563
.6875
.7188
.7500
.7813
.8125
.8750
.9375
1.0000
1.0625
1.1250
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
37

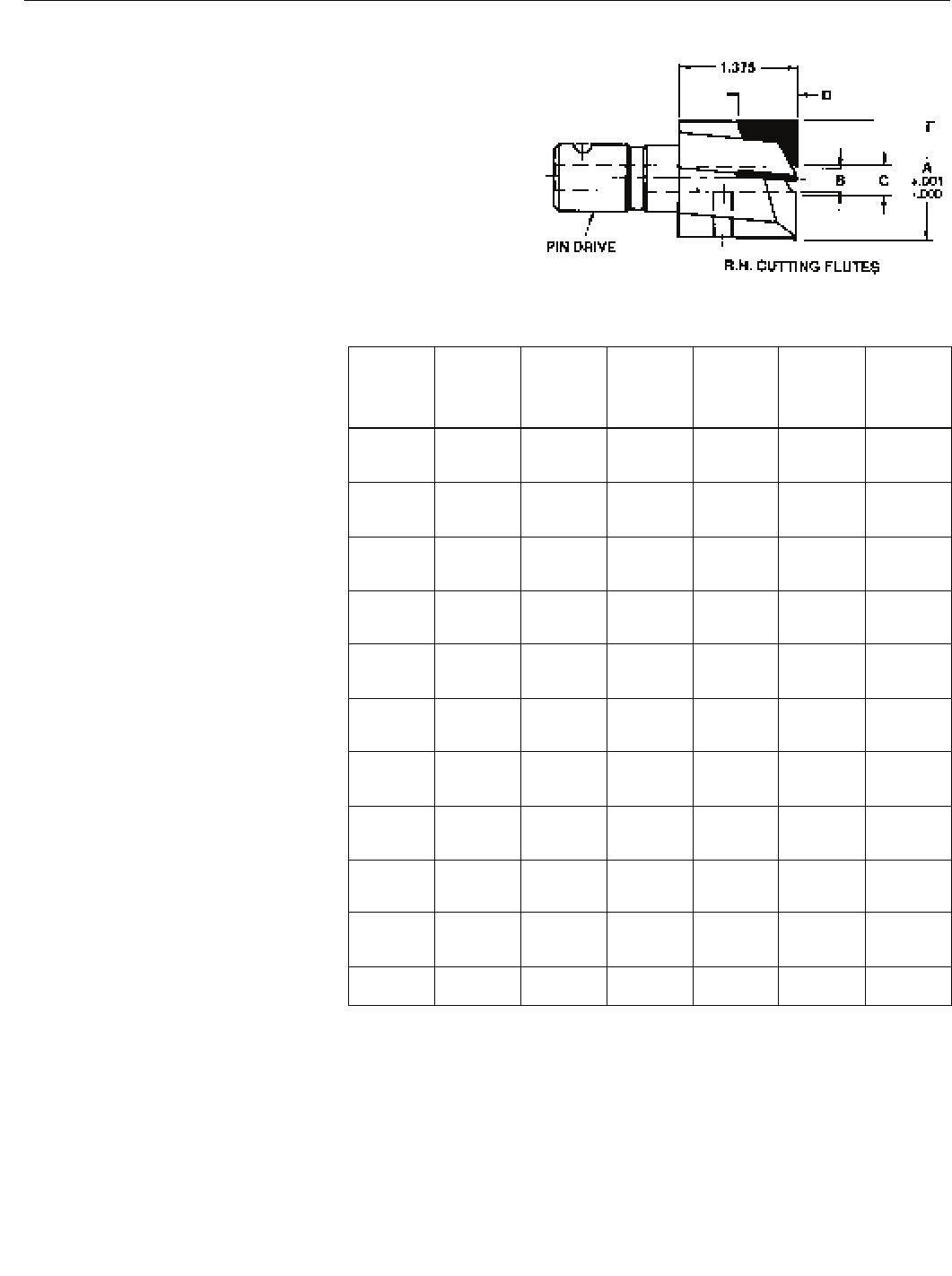

Counterbores – Pin Drive (can be used as a straight shank counterbore)
Tungsten Carbide Tipped
Use with 400 & 410 Series Pilots (Pages 48–50) and 300 & 303 Series Holders (Page 45)
.219
.219
.219
.313
.313
.313
.313
.313
.313
.313
.313
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.500
.500
.500
.500
.500
.500
.563
.563
.563
C
Minimum
Cutting
Diameter
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
D
Length of
Carbide
Number
of Flutes
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
B
Pilot Hole
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
Pin Drive
Number
Part
Number
200-1050
200-1056
200-1062
200-1068
200-1075
200-1081
200-1087
200-1093
200-1100
200-1106
200-1112
200-2106
200-2112
200-2118
200-2125
200-2131
200-2137
200-2143
200-2150
200-2156
200-2162
200-2168
200-2175
200-3175
200-3187
200-3200
200-3212
200-3225
200-3237
200-3250
200-3275
200-3300
A
Cutter
Diameter
All dimensions shown in inches.
*Non-stocked.
.5000
.5625
.6250
.6875
.7500
.8125
.8750
.9375
1.0000
1.0625
1.1250
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.7500
1.8750
2.0000
2.1250
2.2500
2.3750
2.5000
2.7500
3.0000
*
38

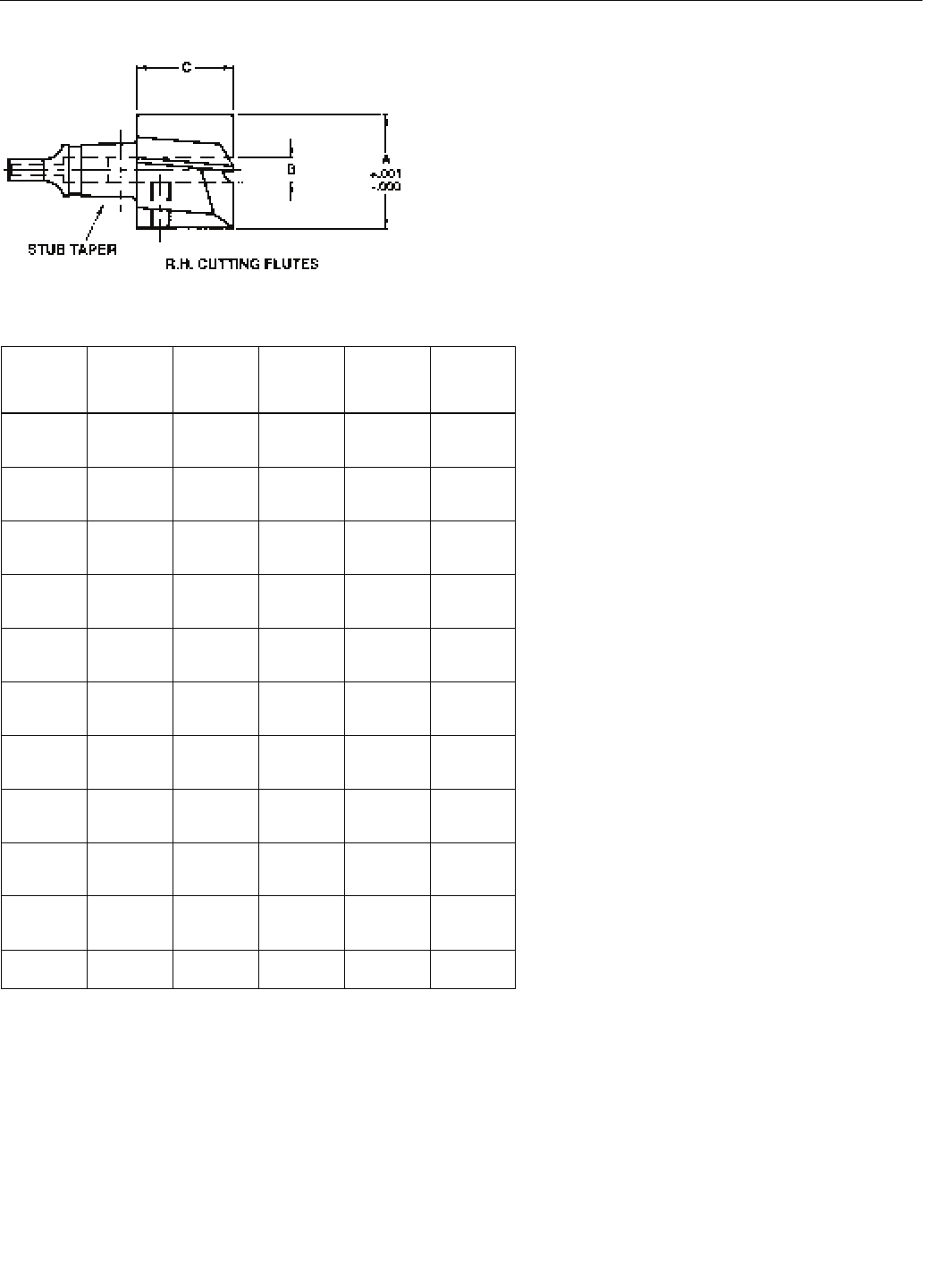

Counterbores – Stub Taper
High Speed Steel
Use with 410 Series Pilots (Page 50) & 310 Series Holders (Page 46)
A
Cutter
Diameter
All dimensions shown in inches.
110-1043
110-1050
110-1056
110-1062
110-1068
110-2075
110-2081
110-2087
110-2093
110-2100
110-2106
110-2112
110-2118
110-2125
110-2131
110-2137
110-2143
110-2150
110-3156
110-3162
110-3168
110-3175
110-3181
110-3187
110-3193
110-4200
110-4212
110-4225
110-4237
110-4250
110-4275
110-4300
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
Stub
Taper
Drive No.
B
Pilot Hole
.1875
.1875
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.5000
Number
of Flutes
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.500
1.500
1.500
1.500
1.500
1.500
1.500
C
Head
Length
Part
Number
.4375
.5000
.5625
.6250
.6875
.7500
.8125
.8750
.9375
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
2.1250
2.2500
2.3750
2.5000
2.7500
3.0000
39

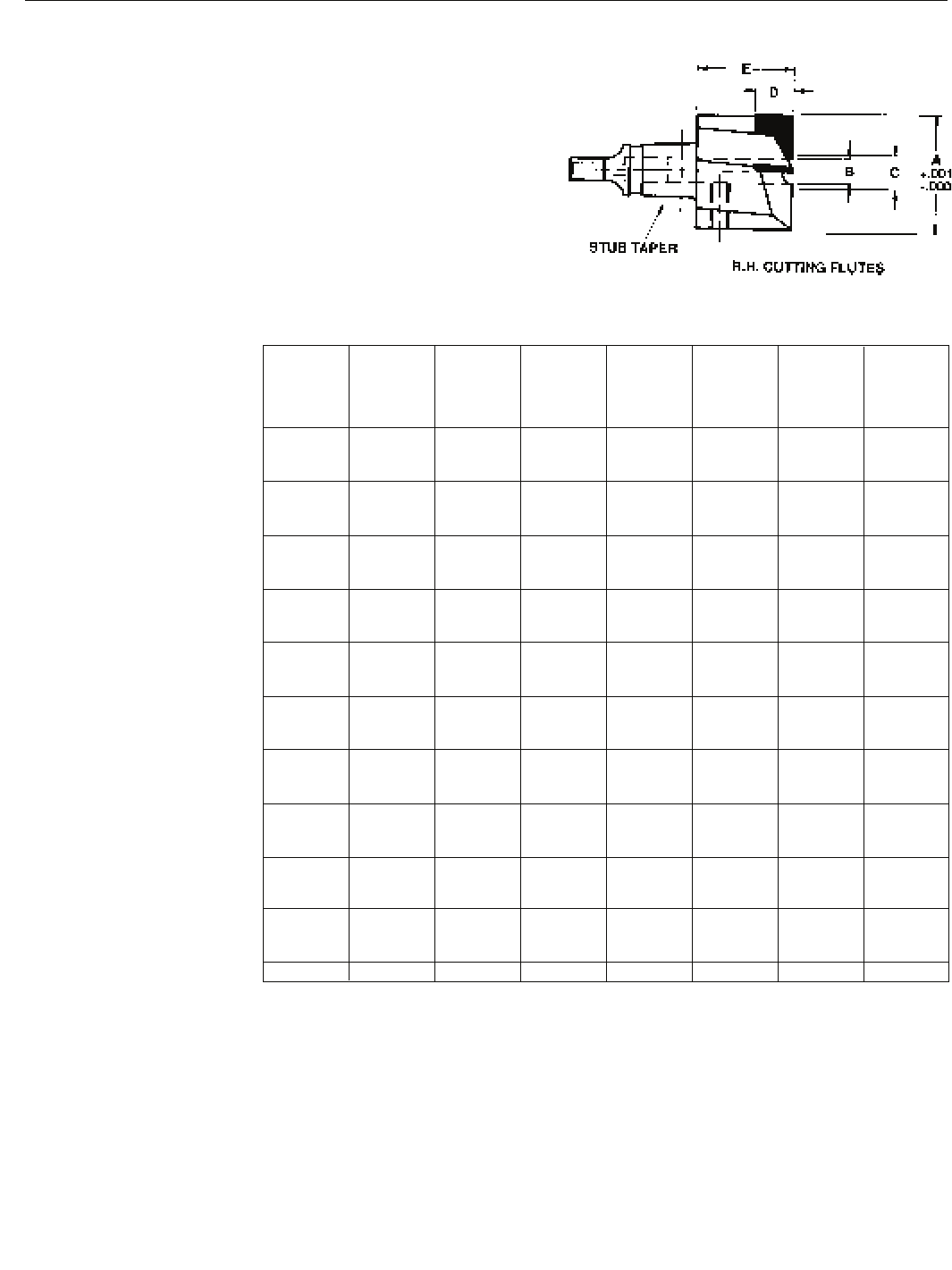

Counterbores – Stub Taper
Tungsten Carbide Tipped
Use with 410 Series Pilots (Page 50) & 310 Series Holders (Page 46)
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.500
1.500
1.500
1.500
1.500
1.500
1.500
E
Head
Length
.219
.219
.219
.219
.313
.313
.313
.313
.375
.375
.375
.375
.375
.375
.375
.375
.375
.500
.500
.500
.500
.500
.500
.500
.563
.563
.563
.563
.563
.563
.563
C
Minimum
Cutting
Diameter
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
D
Length of
Carbide
Number
of Flutes
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
B
Pilot Hole
.1875
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.5000
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
Stub
Taper
Drive No.
210-1050
210-1056
210-1062
210-1068
210-2075
210-2081
210-2087
210-2093
210-2100
210-2106
210-2112
210-2118
210-2125
210-2131
210-2137
210-2143
210-2150
210-3156
210-3162
210-3168
210-3175
210-3181
210-3187
210-3193
210-4200
210-4212
210-4225
210-4237
210-4250
210-4275
210-4300
Part
Number
A
Cutter
Diameter
All dimensions shown in inches.
.5000
.5625
.6250
.6875
.7500
.8125
.8750
.9375
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
2.1250
2.2500
2.3750
2.5000
2.7500
3.0000
40

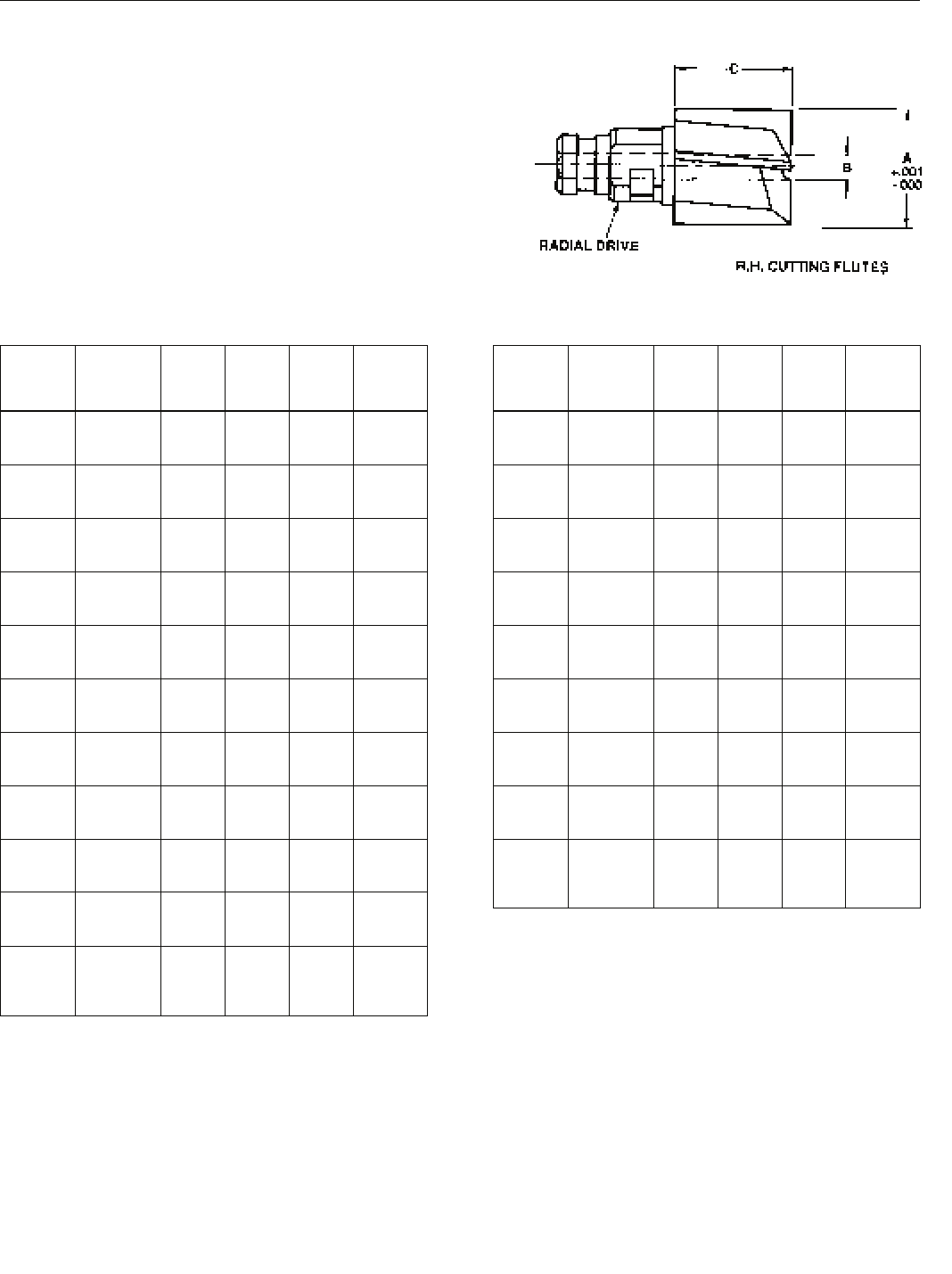

Counterbores – Radial Drive
High Speed Steel
Use with 400 Series Pilots (Pages 48–49) and 320, 321 & 323 Series Holders (Pages 46–47)
A
Cutter
Diameter
Part
Number
RA
RA
RA
RA
RA
RA
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RC
RC
RC
RC
RC
RC
RC
RC
RE
RE
RE
RE
Radial
Drive
No.
.0937
.1250
.1250
.1250
.1250
.1250
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
B
Pilot
Hole
120-1025
120-1031
120-1034
120-1037
120-1040
120-1043
120-2043
120-2046
120-2050
120-2053
120-2056
120-2059
120-2062
120-2065
120-2068
120-2071
120-2075
120-2078
120-2081
120-2087
120-2093
120-2100
120-3093
120-3100
120-3106
120-3112
120-3118
120-3125
120-3131
120-3137
120-4131
120-4137
120-4143
120-4150
.2500
.3125
.3438
.3750
.4063
.4375
.4375
.4688
.5000
.5313
.5625
.5938
.6250
.6563
.6875
.7188
.7500
.7813
.8125
.8750
.9375
1.0000
.9375
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.3125
1.3750
1.4375
1.5000
No.
of
Flutes
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
1.250
1.250
1.250
1.250
1.250
1.250
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
C
Head
Length
A
Cutter
Diameter
Part
Number
RE
RE
RF
RF
RF
RF
RF
RF
RF
RF
RF
RJ
RJ
RJ
RJ
RJ
RJ
RJ
RS
RS
RS
RS
RS
RS
RS
RS
RS
RS
Radial
Drive
No.
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
B
Pilot
Hole
120-4156
120-4162
120-5150
120-5156
120-5162
120-5168
120-5175
120-5181
120-5187
120-5193
120-5200
120-6200
120-6206
120-6212
120-6225
120-6237
120-6250
120-6262
120-7275
120-7287
120-7300
120-7312
120-7325
120-7337
120-7350
120-7362
120-7375
120-7400
All dimensions shown in inches.
No.
of
Flutes
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
1.500
C
Head
Length
1.5625
1.6250
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
2.0000
2.0625
2.1250
2.2500
2.3750
2.5000
2.6250
2.7500
2.8750
3.0000
3.1250
3.2500
3.3750
3.5000
3.6250
3.7500
4.0000
41

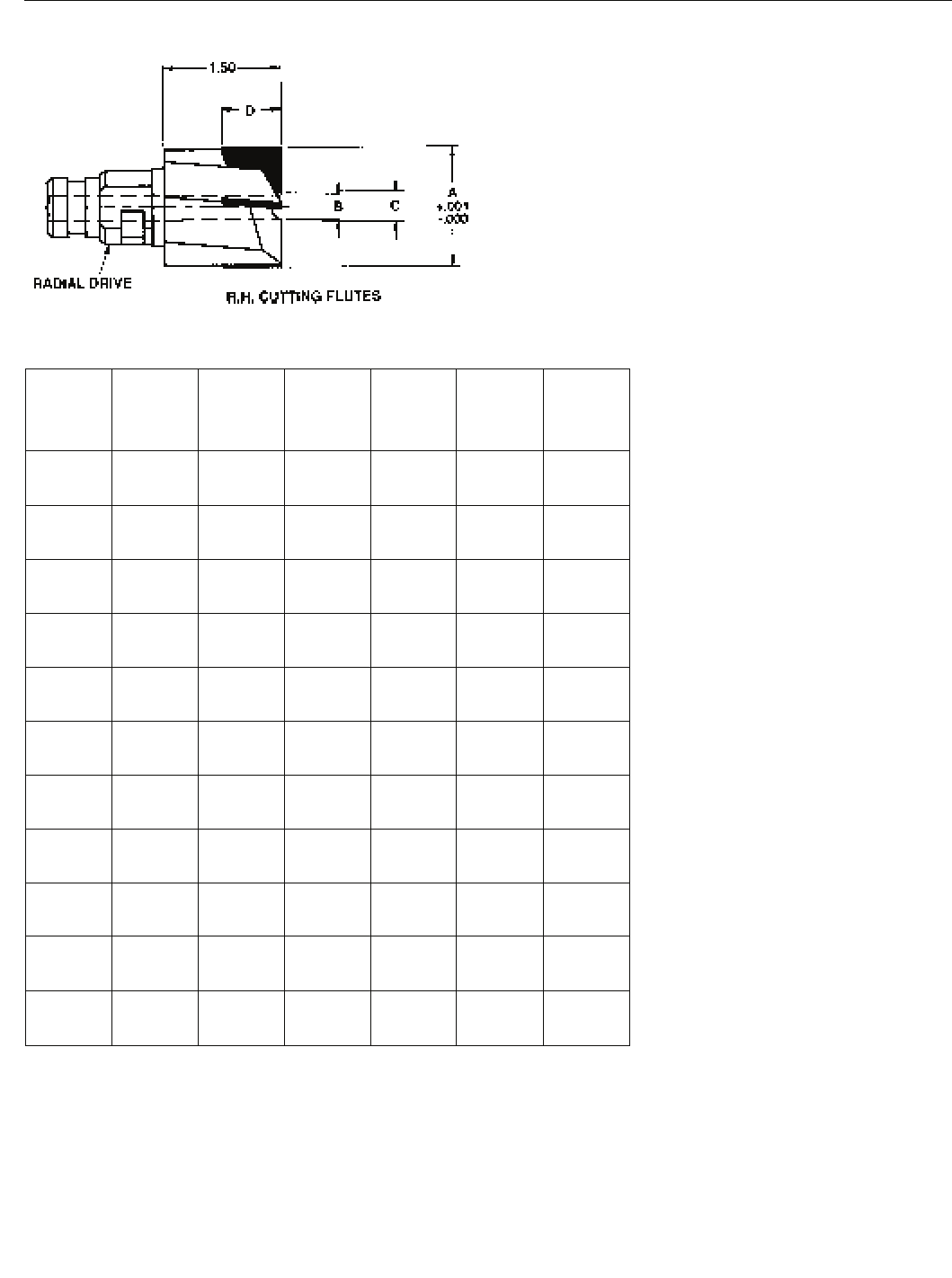

Counterbores – Radial Drive
Tungsten Carbide Tipped
Use with 400 Series Pilots (Pages 48–49) and 320, 321 & 323 Series Holders (Pages 46–47)
.219
.219
.219
.313
.313
.313
.313
.313
.313
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.500
.500
.500
.500
.500
.563
.563
.563
.563
.563
.563
.563
.563
.563
C
Minimum
Cutting
Diameter
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
D
Length of
Carbide
Number
of Flutes
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
B
Pilot Hole
.1875
.1875
.1875
.2500
.2500
.2500
.2500
.2500
.2500
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
RB
RB
RB
RB
RB
RB
RB
RB
RB
RC
RC
RC
RC
RC
RC
RC
RE
RE
RE
RF
RF
RF
RF
RF
RJ
RJ
RJ
RJ
RJ
RJ
RS
RS
RS
Part
Number
220-2050
220-2056
220-2062
220-2068
220-2075
220-2081
220-2087
220-2093
220-2100
220-3100
220-3106
220-3112
220-3118
220-3125
220-3131
220-3137
220-4137
220-4150
220-4162
220-5150
220-5162
220-5175
220-5187
220-5200
220-6200
220-6212
220-6225
220-6237
220-6250
220-6262
220-7275
220-7287
220-7300
A
Cutter
Diameter
Radial
Drive
Number
All dimensions shown in inches.
.5000
.5625
.6250
.6875
.7500
.8125
.8750
.9375
1.0000
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.3750
1.5000
1.6250
1.5000
1.6250
1.7500
1.8750
2.0000
2.0000
2.1250
2.2500
2.3750
2.5000
2.6250
2.7500
2.8750
3.0000
42

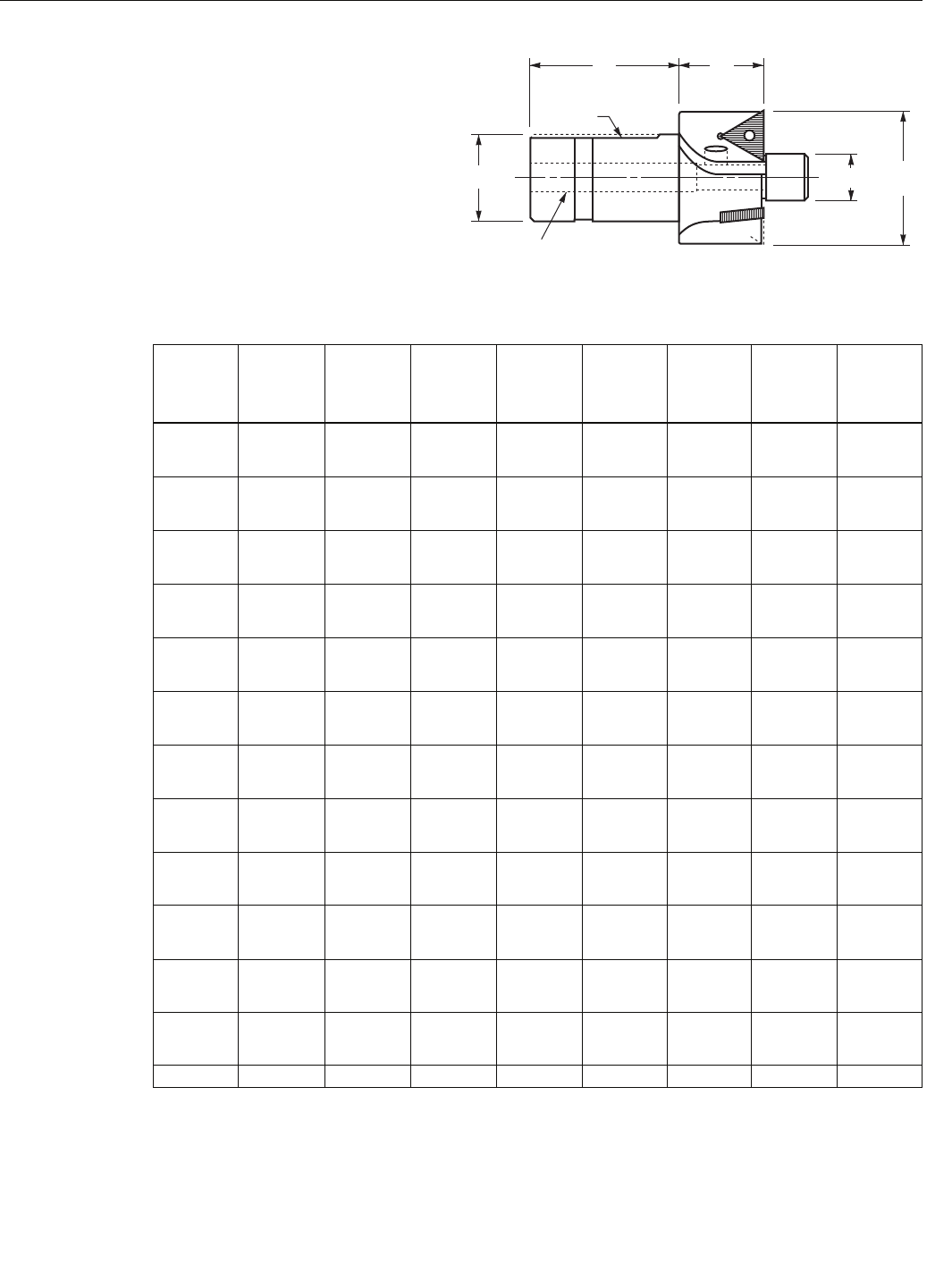

Counterbores – Straight Shank
Indexable
Use with 410 Series Pilots (Page 50)
DF
FLAT
E
C
A
±.005
(3) R.H. CUTTING FLUTES
B
All dimensions shown in inches. *These sizes use Positive Rake Inserts. Note: Inserts must be ordered separately.
-CVD Tri-phase TiCN/TiC/TiN Coated Inserts
*.7500
*.8120
*.8750
*.9380
*1.000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
2.0625
2.1250
2.1875
2.2500
2.3125
2.3750
2.4375
2.5000
2.5625
2.6250
2.6875
2.7500
2.8125
2.8750
2.9375
3.0000
A
Cutting
Diameter
7810-0048
7810-0052
7810-0056
7810-0060
7810-0100
7810-0104
7810-0108
7810-0112
7810-0116
7810-0120
7810-0124
7810-0128
7810-0132
7810-0136
7810-0140
7810-0144
7810-0148
7810-0152
7810-0156
7810-0160
7810-0200
7810-0204
7810-0208
7810-0212
7810-0216
7810-0220
7810-0224
7810-0228
7810-0232
7810-0236
7810-0240
7810-0244
7810-0248
7810-0252
7810-0256
7810-0260
7810-0300
Part
Number
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.1875
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.4375
.4375
.4375
.4375
.4375
.4375
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
B
Pilot Hole
Diameter
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
1.750
D
Head
Length
C
Minimum
Pilot
Diameter
.310
.340
.310
.340
.400
.335
.385
.440
.500
.555
.615
.675
.735
.795
.540
.595
.650
.710
.770
.830
.890
.950
1.010
1.070
.720
.780
.835
.895
.955
1.015
1.075
1.140
.940
1.000
1.060
1.120
1.180
F-156-BD
F-156-BD
F-218-BD
F-218-BD
F-218-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-250-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-375-BD
G-500-BD
G-500-BD
G-500-BD
G-500-BD
G-500-BD
G-500-BD
G-500-BD
G-500-BD
G-625-BD
G-625-BD
G-625-BD
G-625-BD
G-625-BD
Standard
Insert
Number
056-1010
056-1010
056-1012
056-1012
056-1012
053-0231
053-0231
053-0231
053-0231
053-0231
053-0231
053-0231
053-0231
053-0231
053-0331
053-0331
053-0331
053-0331
053-0331
053-0331
053-0331
053-0331
053-0331
053-0331
053-0440
053-0440
053-0440
053-0440
053-0440
053-0440
053-0440
053-0440
053-0541
053-0541
053-0541
053-0541
053-0541
Lock
Pin
Number
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
2.000
2.000
2.000
E
Shank
Diameter
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.375
2.625
2.625
2.625
2.625
2.625
2.625
2.625
2.625
2.625
2.625
2.625
2.625
3.250
3.250
3.250
F
Shank
Length
43
Counterbores Application Information
Counterboring—Surface Feet Per Minute (SFPM)
The table below lists starting SFPM rates for certain materials using carbide
or high speed steel cutters. These speeds are starting recommendations
only. There are many variables, such as machine and spindle condition,
available power, fixturing, tool holding, spindle deflection, tooling and produc-
tion expectations, etc. Some adjustments may be required for your specific
operation. METCUT’s experienced sales engineers will be happy to help you
attain the highest efficiency possible in your application.
Since counterboring is often a secondary operation, it is sometimes per-
formed on machines that are quite worn, with excessive run-out and
insufficient power. When trouble is encountered, the condition of the ma-
chine, as well as the cutter, should be considered.
Converting SFPM to Revolutions Per Minute (RPM): RPM =
3.82 x SFPM
Cutter Diameter
Aluminum
Alloy Steels
(Chrome–Molybdenum)
Brass
Carbon Steel
Cast Iron
Forgings
(Heat Treated)
Magnesium
Malleable Iron
Monel
Stainless Steel
Tool Steel
(Annealed)
Material
Soft
Hard
Soft
Hard
Soft
Hard
200 Brinnell
300 Brinnell
350 Brinnell
HSS
Carbide
1000
250
180
500
400
270
400
300
220
180
240
1400
300
160
200
160
600
60
45
250
110
70
100
70
55
40
30
600
70
30
40
40
Feed on 4-Fluted Counterbores is approximately .008—.012 FPR (Feed Per Revolution).
44
Holders for Counterbores & Countersinks
Pin Drive Holders with Straight Shank
Pin Drive Holders with Taper Shank
Use with 100 & 200 Series Cutters (Pages 37–38)
Use with 100 & 200 Series Cutters (Pages 37–38)
C
B
A
PIN DRIVEMORSE TAPER
+.000
Ð.001
D
B
A
PIN DRIVESTRAIGHT SHANK
C
+.000
Ð.001
All dimensions shown in inches.
2.250
2.250
3.000
3.000
3.000
3.250
3.000
3.000
3.313
3.000
3.000
3.500
3.000
B
Head
Length
1
2
1
2
3
2
3
4
3
4
5
4
5
Pin
Drive
0
0
1
1
1
2
2
2
3
3
3
4
4
Morse
Taper
A
Body
Diameter
All dimensions shown in inches.
.3125 to .4375
.3125 to .4375
.4375 to 1.1250
.4375 to 1.1250
.4375 to 1.1250
1.0625 to 1.7500
1.0625 to 1.7500
1.0625 to 1.7500
1.6875 to 3.1250
1.6875 to 3.1250
1.6875 to 3.1250
3.0000 to 4.0000
3.0000 to 4.0000
300-0107
300-0207
300-1110
300-1210
300-1310
300-2215
300-2315
300-2415
300-3320
300-3420
300-3520
300-4430
300-4530
Part
NumberCutter Range
.7500
.7500
1.0625
1.0625
1.0625
1.5000
1.5000
1.5000
2.0000
2.0000
2.0000
3.0000
3.0000
C
Projection
2.375
2.437
3.375
3.187
3.187
3.437
3.187
3.250
3.500
3.250
3.250
3.750
3.250
5.250
6.000
6.000
7.000
7.000
7.000
7.000
7.000
7.500
C
Overall
Length
2.250
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
Pin
Drive
0
1
1
2
2
3
3
3
4
B
Head
Length
A
Body
Diameter
D
Shank
Diameter
Cutter Range
303-0007
303-1010
303-1110
303-2115
303-2215
303-3220
303-3320
303-3423
303-4530
Part
Number
.2500 to .4375
.4375 to 1.1250
.4375 to 1.1250
1.0625 to 1.7500
1.0625 to 1.7500
1.6875 to 3.1250
1.6875 to 3.1250
1.6875 to 3.1250
3.0000 to 4.0000
.500
.500
.750
.750
1.000
1.000
1.250
1.500
2.000
.7500
1.0625
1.0625
1.5000
1.5000
2.0000
2.0000
2.3750
3.0000
45

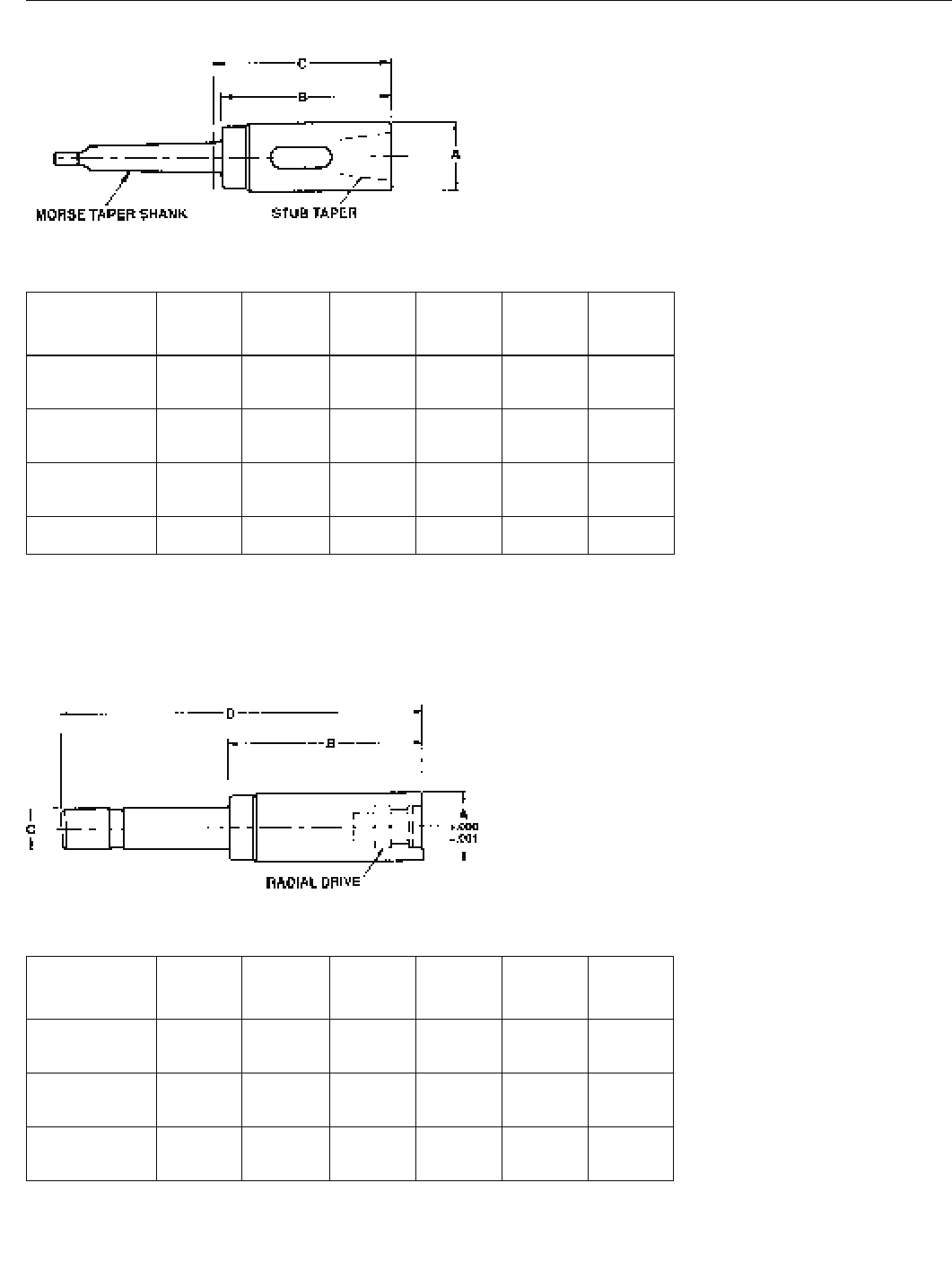

Holders for Counterbores & Countersinks
Stub Taper with Taper Shank
Use with 110 & 210 Series Cutters (Pages 39–40)
Radial Drive with Straight Shank
Use with 120 & 220 Series Cutters (Pages 41–42)
2
2
3
4
2
3
4
3
4
5
5
1
2
2
2
3
3
3
4
4
4
5
1.750
2.188
2.188
2.188
2.563
2.563
2.563
3.000
3.000
3.000
3.750
1.938
2.375
2.375
2.438
2.750
2.750
2.813
3.188
3.250
3.250
4.000
All dimensions shown in inches.
.4375 to .6875
.7500 to 1.5625
.7500 to 1.5625
.7500 to 1.5625
1.5625 to 2.0625
1.5625 to 2.0625
1.5625 to 2.0625
2.0000 to 3.0000
2.0000 to 3.0000
2.0000 to 3.0000
2.8750 to 3.0000
310-1208
310-2211
310-2311
310-2411
310-3214
310-3314
310-3414
310-4318
310-4418
310-4518
310-5527
A
Body
Diameter
Morse
Taper
Stub
Taper
Part
NumberCutter Range
B
Body
Length
C
Projection
.8750
1.1875
1.1875
1.1875
1.4375
1.4375
1.4375
1.8750
1.8750
1.8750
2.7500
RA
RB
RC
RC
RE
RF
RF
RJ
RS
2.250
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
5.25
6.00
6.00
7.00
7.00
7.00
7.50
7.50
7.50
.2500 to .4375
.4375 to 1.0000
.9375 to 1.1250
.9375 to 1.3750
1.3125 to 1.6250
1.5000 to 2.0000
1.5000 to 2.0000
2.0000 to 2.6875
2.7500 to 4.5000
323-1107
323-2210
323-3310
323-3410
323-4415
323-5515
323-5615
323-6620
323-7727
B
Body
Length
Radial
Drive
Part
NumberCutter Range
C
Shank
Dia.
A
Body
Dia.
All dimensions shown in inches.
D
Overall
Length
.7500
1.0625
1.0625
1.0625
1.5000
1.5000
1.5000
2.0000
2.7500
.5000
.6250
.7500
1.0000
1.0000
1.2500
1.5000
1.5000
2.0000
46

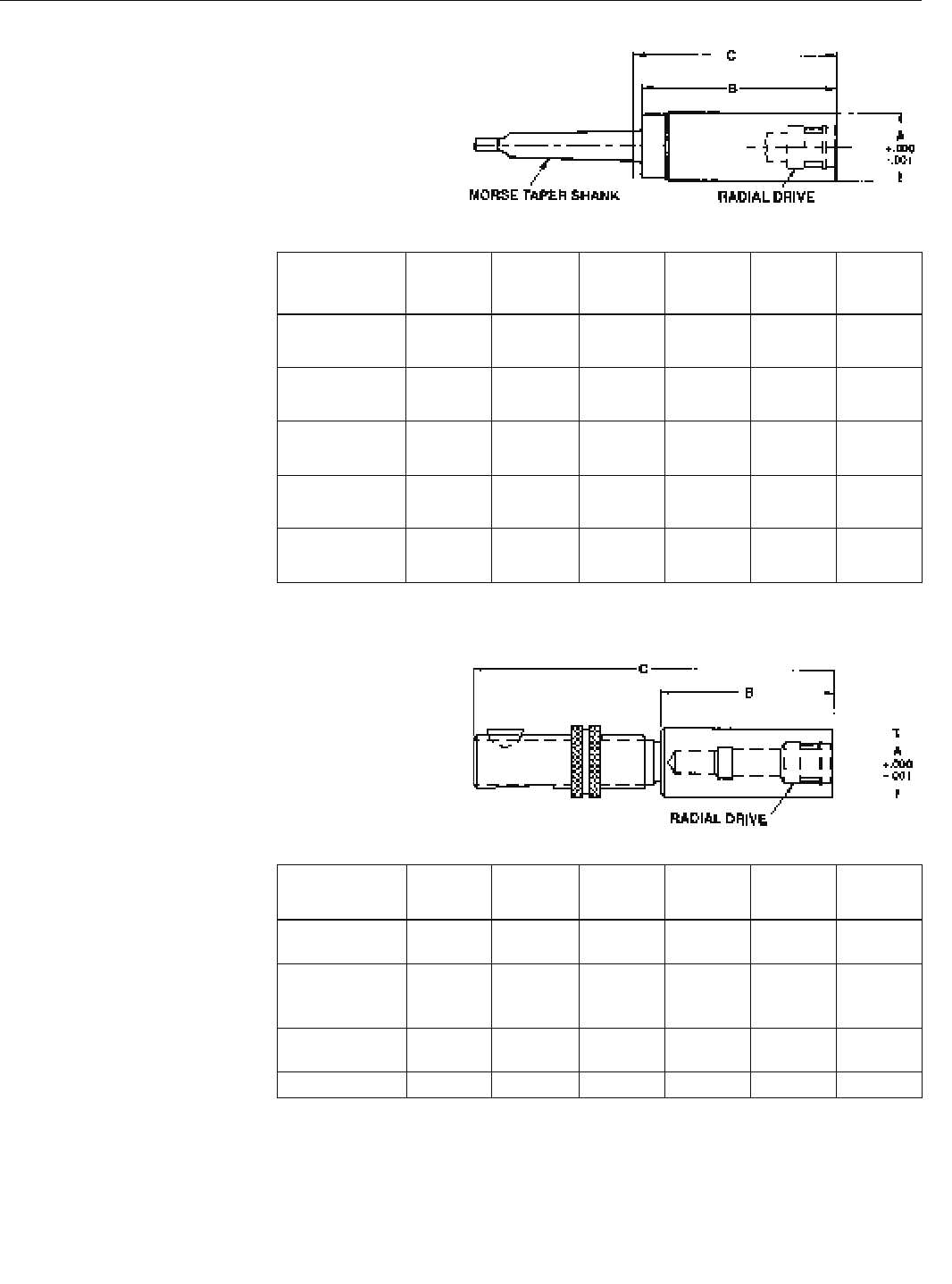

Holders for Counterbores & Countersinks
Radial Drive with Morse Taper Shank
Radial Drive with Acme Threaded Shank
Use with 120, 160, 220 & 260 Series Cutters (Pages 41–42, 58, 60)
Use with 120, 160, 220 & 260 Series Cutters (Pages 41–42, 58, 60)
1
2
1
2
2
3
3
4
3
4
3
4
5
4
5
RA
RA
RB
RB
RC
RC
RE
RE
RF
RF
RJ
RJ
RJ
RS
RS
2.250
2.250
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
2.375
2.438
3.125
3.188
3.188
3.188
3.188
3.250
3.188
3.250
3.188
3.250
3.250
3.250
3.250
Radial
Drive
Morse
Taper
All dimensions shown in inches.
C
Projection
B
Body
Length
A
Body
DiameterCutter Range
.2500 to .4375
.2500 to .4375
.4375 to 1.0000
.4375 to 1.0000
.9375 to 1.3750
.9375 to 1.3750
1.3125 to 1.6250
1.3125 to 1.6250
1.5000 to 2.0000
1.5000 to 2.0000
2.0000 to 2.6250
2.0000 to 2.6250
2.0000 to 2.6250
2.7500 to 4.5000
2.7500 to 4.5000
Part
Number
320-1107
320-1207
320-2108
320-2208
320-3210
320-3310
320-4313
320-4413
320-5315
320-5415
320-6320
320-6420
320-6520
320-7427
320-7527
.7500
.7500
1.0625
1.0625
1.0625
1.0625
1.5000
1.5000
1.5000
1.5000
2.0000
2.0000
2.0000
2.7500
2.7500
All dimensions shown in inches.
ABC
Cutter Part Radial Acme Body Body Overall
Range Number Drive Shank Diameter Length Length
.4375 to 1.0000 321-2109 RB 5/8–16 .9375 3.000 6.000
.4375 to 1.0000 321-2309 RB 7/8–12 .9375 3.000 6.630
.9375 to 1.3750 321-3310 RC 7/8–12 1.0625 3.000 6.630
.9375 to 1.3750 321-3510 RC 1-1/16–12 1.0625 3.000 6.630
.9375 to 1.3750 321-3610 RC 1-3/8–12 1.0625 3.000 7.630
1.3125 to 1.6250 321-4313 RE 7/8–12 1.3750 3.000 6.630
1.3125 to 1.6250 321-4513 RE 1-1/16–12 1.3750 3.000 6.630
1.5000 to 2.0000 321-5615 RF 1-3/8–12 1.5000 3.000 7.630
47

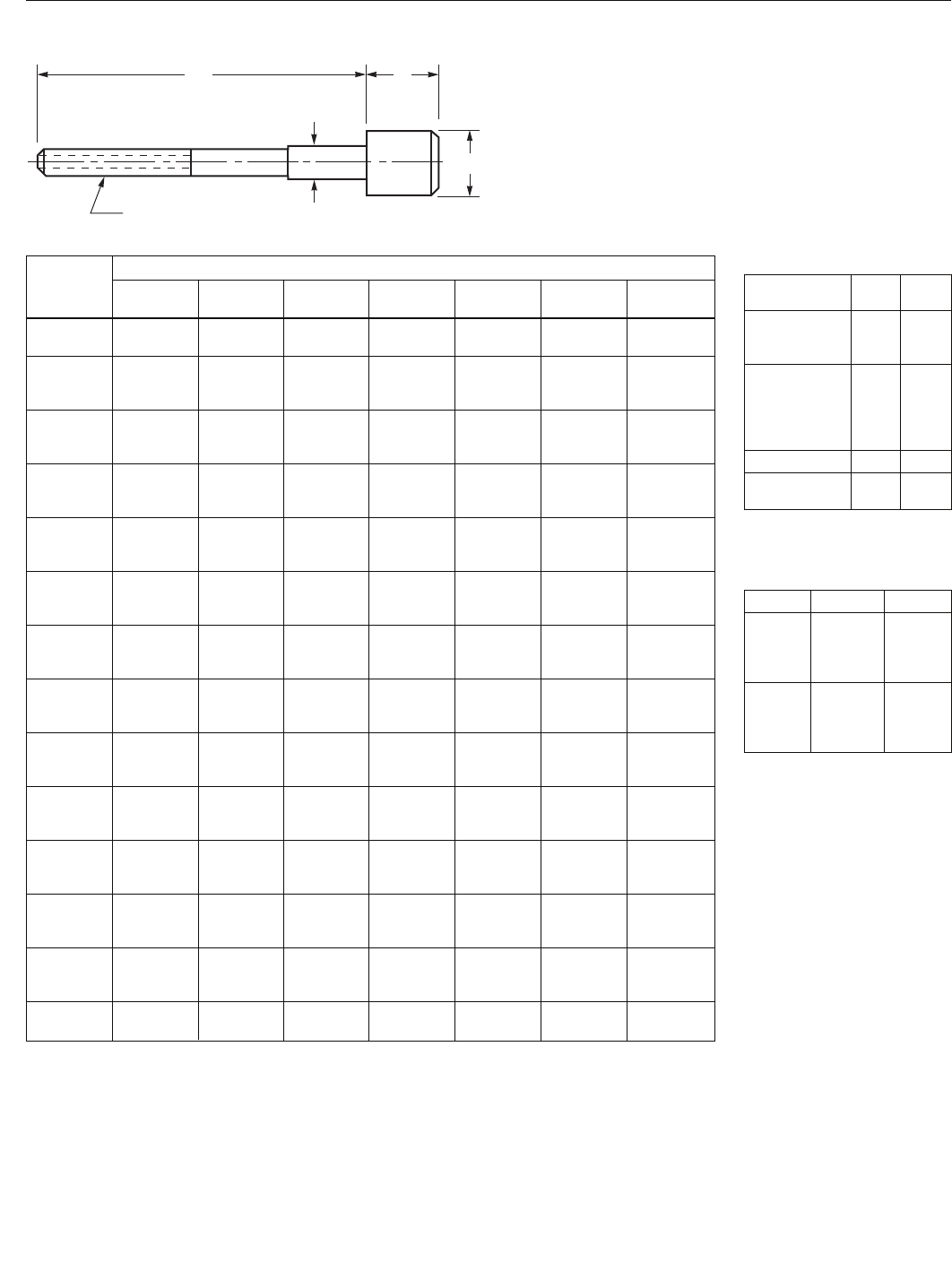

Pilots for Counterbores & Countersinks
Long Pilots for Pin Drive & Radial Drive
A
Head
Diameter
Shank Diameter & Part Number
E
A
B
C
D THREAD SIZE
.1875
Shank
.2500
Shank
.3125
Shank
.4375
Shank
.5000
Shank
.1250
Shank
B
A
Less
A
Head Dimension
.0938
Shank
All dimensions shown in inches.
.125–.1875
.2031–.2500
.2656–2813
.2969–.3750
.3906–.4375
.4531–.5625
.5781–.6875
.7031–.8750
.8906–1.2500
1.3125–2.0000
2.1250–2.6250
.006
.004
.002
.007
.25
.25
.38
.38
.44
.62
.62
.75
.75
1.00
1.25
Shank Dimension
.0938
.1250
.1875
.2500
.3125
.4375
.5000
.7500
C D
#3–48
#5–40
10–24
1/4–20
5/16–18
7/16–14
1/2–13
3/4–10
2.31
2.31
3.19
3.19
3.38
3.44
3.44
3.62
E
All dimensions shown in inches.
.1250 400-0012
.1563 400-0015 400-1015
.1719 400-1017
.1875 400-0018 400-1018
.2031 400-0020 400-1020 400-2020
.2188 400-0021 400-1021 400-2021
.2344 400-1023 400-2023
.2500 400-0025 400-1025 400-2025
.2656 400-1026 400-2026 400-3026
.2813 400-1028 400-2028 400-3028
.2969 400-2029 400-3029
.3125 400-1031 400-2031 400-3031
.3281 400-1032 400-2032 400-3032 400-4032
.3438 400-1034 400-2034 400-3034 400-4034
.3594 400-2035 400-3035 400-4035
.3750 400-1037 400-2037 400-3037 400-4037
.3906 400-2039 400-3039 400-4039
.4063 400-2040 400-3040 400-4040
.4219 400-2042 400-3042 400-4042
.4375 400-2043 400-3043 400-4043
.4531 400-2045 400-3045 400-4045
.4688 400-2046 400-3046 400-4046
.4844 400-2048 400-3048 400-4048
.5000 400-2050 400-3050 400-4050 400-5050
.5156 400-2051 400-3051 400-4051
.5313 400-2053 400-3053 400-4053 400-5053
.5469 400-3054 400-4054
.5625 400-2056 400-3056 400-4056 400-5056 400-6056
.5781 400-3057 400-4057
.5938 400-3059 400-4059 400-5059 400-6059
.6094 400-3060 400-4060
.6250 400-3062 400-4062 400-5062 400-6062
.6406 400-3064 400-4064 400-5064
.6563 400-3065 400-4065 400-5065 400-6065
.6719 400-3067 400-4067 400-5067
.6875 400-3068 400-4068 400-5068 400-6068
.7031 400-4070 400-5070
.7188 400-3071 400-4071 400-5071 400-6071
.7344 400-4073
.7500 400-3075 400-4075 400-5075 400-6075
48
Pilots for Counterbores & Countersinks
Long Pilots – Continued
400-3078
400-3081
400-3087
400-3093
400-3100
A
Head
Diameter
.2500
Shank
Shank Diameter & Part Number
.3125
Shank
.4375
Shank
.5000
Shank
.7500
Shank
All dimensions shown in inches.
400-4076
400-4078
400-4079
400-4081
400-4082
400-4084
400-4085
400-4087
400-4089
400-4090
400-4092
400-4093
400-4095
400-4096
400-4098
400-4100
400-4106
400-4112
400-4118
400-4125
400-4131
400-4137
400-4143
400-5076
400-5078
400-5079
400-5081
400-5082
400-5084
400-5085
400-5087
400-5089
400-5090
400-5092
400-5093
400-5095
400-5096
400-5098
400-5100
400-5106
400-5112
400-5118
400-5125
400-5131
400-5137
400-5143
400-5150
400-5156
400-5162
400-5168
400-5175
400-5181
400-5187
400-6078
400-6081
400-6084
400-6087
400-6090
400-6093
400-6096
400-6100
400-6106
400-6112
400-6118
400-6125
400-6131
400-6137
400-6143
400-6150
400-6156
400-6162
400-6168
400-6175
400-6181
400-6187
400-6193
400-6200
400-6212
400-6225
400-7125
400-7131
400-7137
400-7143
400-7150
400-7156
400-7162
400-7168
400-7175
400-7181
400-7187
400-7193
400-7200
400-7212
400-7225
400-7237
400-7250
400-7262
.7656
.7813
.7969
.8125
.8281
.8438
.8594
.8750
.8906
.9063
.9219
.9375
.9531
.9688
.9845
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
2.1250
2.2500
2.3750
2.5000
2.6250
49

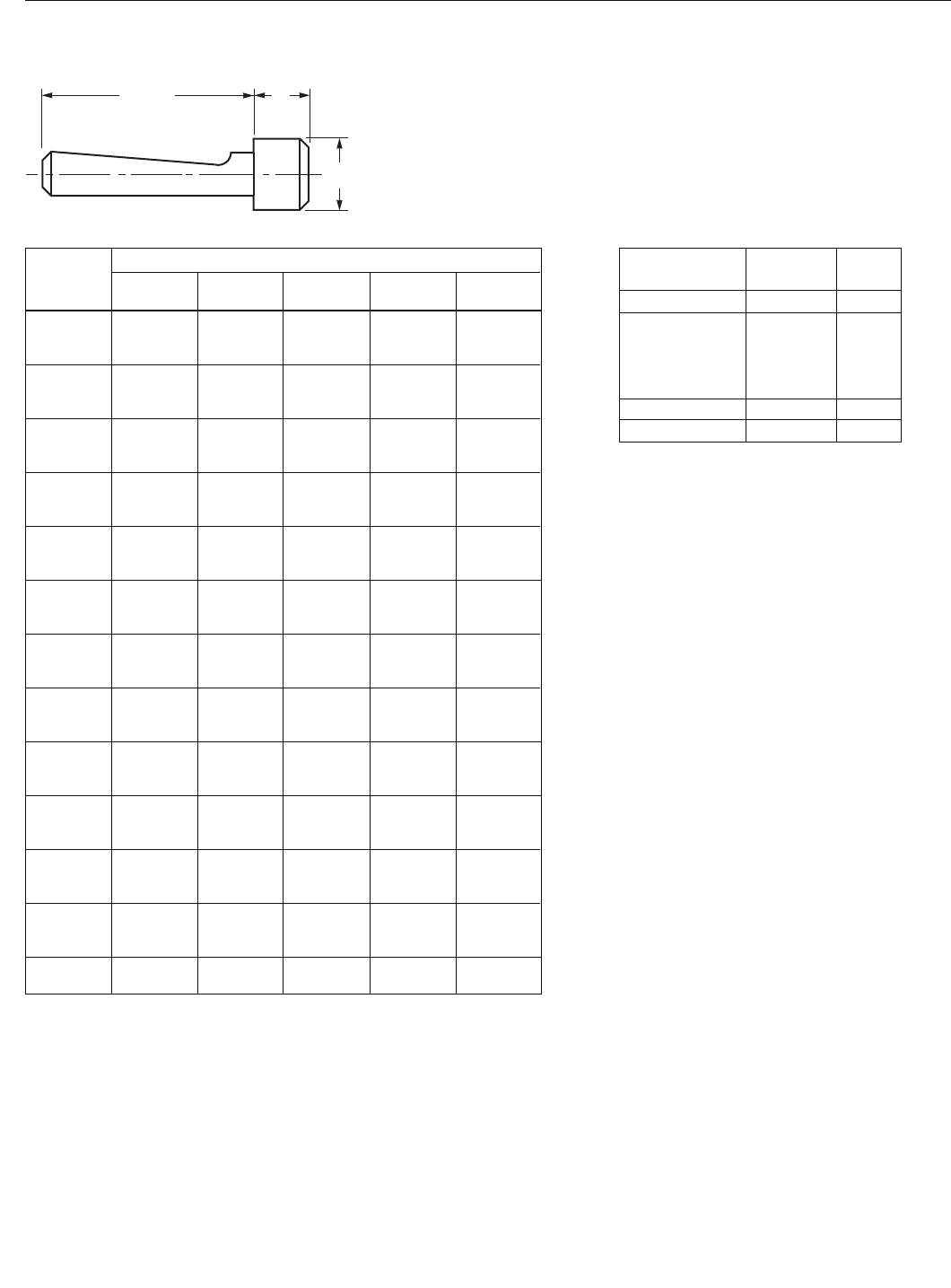

Pilots for Counterbores & Countersinks
Short Pilots for Stub Taper, Indexable,
& TCT Pin Drive, & Piloted Counterbores
410-2025
410-2028
410-2031
410-2034
410-2037
410-2040
410-2043
410-2046
410-2050
410-2053
410-2056
A
Head
Diameter
Shank Diameter & Part Number
.2500
Shank
.3125
Shank
.4375
Shank
.5000
Shank
.1875
Shank
410-3028
410-3031
410-3034
410-3037
410-3040
410-3043
410-3046
410-3050
410-3053
410-3056
410-3059
410-3062
410-3065
410-3068
410-3081
410-3087
410-4034
410-4037
410-4040
410-4043
410-4046
410-4050
410-4053
410-4056
410-4059
410-4062
410-4064
410-4065
410-4068
410-4071
410-4075
410-4076
410-4078
410-4081
410-4087
410-4093
410-4096
410-4100
410-4106
410-4112
410-5050
410-5053
410-5056
410-5059
410-5062
410-5068
410-5071
410-5075
410-5078
410-5081
410-5087
410-5093
410-5100
410-5106
410-5112
410-5118
410-5125
410-5143
410-6056
410-6059
410-6071
410-6075
410-6078
410-6081
410-6087
410-6093
410-6100
410-6106
410-6112
410-6118
410-6125
410-6131
410-6137
410-6143
410-6150
410-6156
410-6162
410-6168
410-6175
410-6187
.2500–.2813
.3125–.3750
.4063–.4375
.4688–.5625
.5938–.6875
.7188–.8750
.9375–1.2500
1.3125–1.8750
B
Length
A
Head Diameter
A
Less
.002
.004
.006
.007
All dimensions shown in inches.
1.250
A
B
.2500
.2813
.3125
.3438
.3750
.4063
.4375
.4688
.5000
.5313
.5625
.5938
.6250
.6406
.6563
.6875
.7188
.7500
.7656
.7813
.8125
.8750
.9375
.9687
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8750
.438
.438
.438
.620
.656
.750
.750
1.000
All dimensions shown in inches.
50

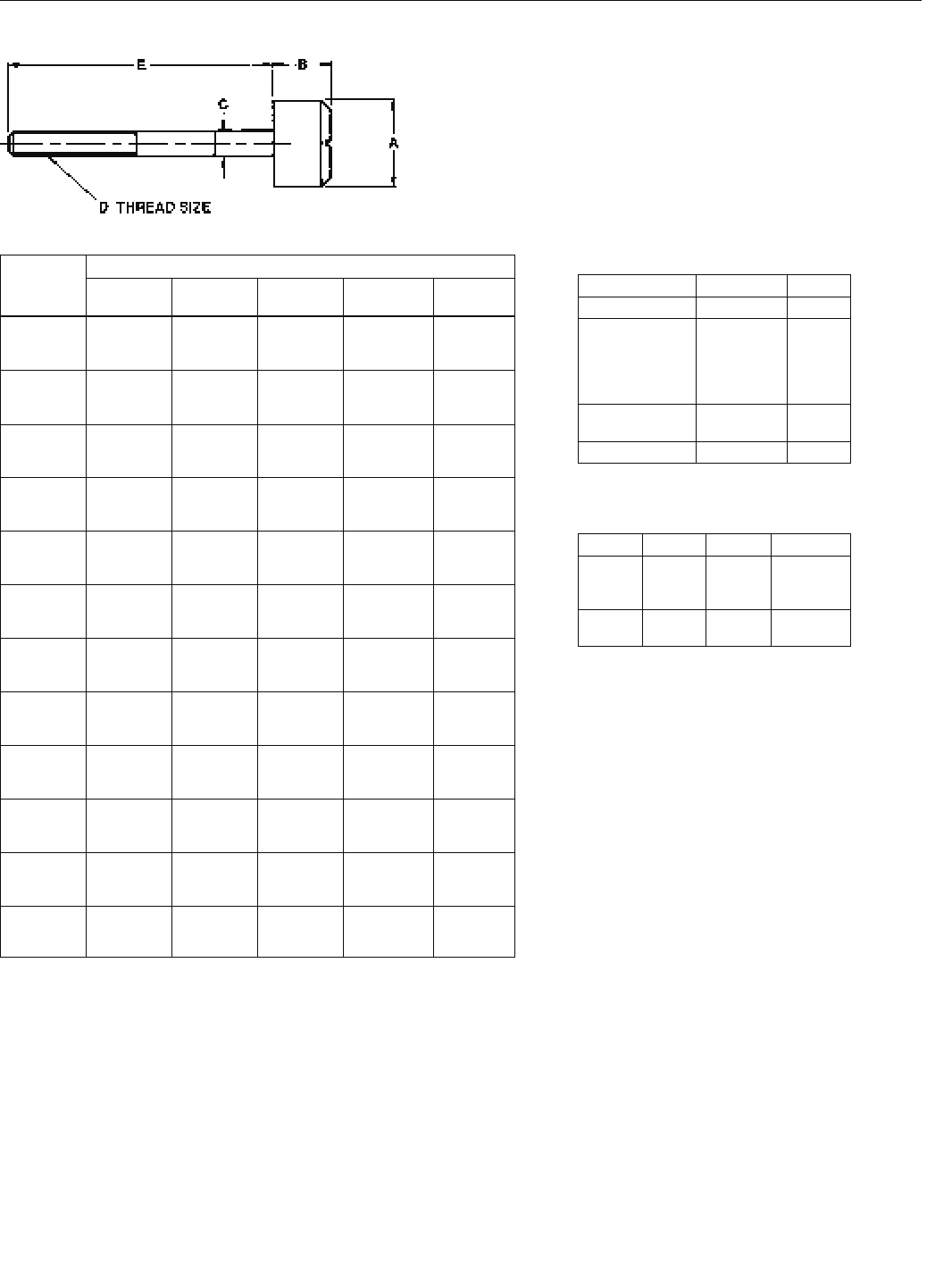

Pilots for Counterbores
for HEX Drive Type C HSS Counterbores
5021-0010
5021-0012
5021-0014
5021-0016
5021-0018
5021-0020
5021-0022
5021-0024
A
Head
Diameter
#5–40
Shank
Shank Diameter & Part Number
1/4–20
Shank
5022-0018
5022-0020
5022-0022
5022-0024
5022-0026
5022-0028
5022-0030
5022-0032
5022-0036
5022-0040
5022-0044
5022-0048
5022-0056
5/16–18
Shank
5023-0022
5023-0024
5023-0026
5023-0028
5023-0030
5023-0032
5023-0036
5023-0040
5023-0044
5023-0048
5023-0052
5023-0056
5023-0060
5023-0100
5023-0104
5023-0108
5023-0112
5023-0116
7/16–14
Shank
5024-0044
5024-0048
5024-0052
5024-0056
5024-0060
5024-0100
5024-0104
5024-0108
5024-0112
5024-0116
5024-0120
5024-0124
5024-0128
5024-0132
5024-0136
5/8–11
Shank
5025-0120
5025-0124
5025-0128
5025-0132
5025-0136
5025-0140
5025-0144
5025-0148
5025-0160
5025-0200
All dimensions shown in inches.
.1563
.1875
.2188
.2500
.2813
.3125
.3438
.3750
.4063
.4375
.4688
.5000
.5625
.6250
.6875
.7500
.8125
.8750
.9375
1.0000
1.0625
1.1250
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.9375
2.0000
.1562–.2812
.3125–.3750
.4062–.4375
.4688–.5625
.6250
.6875–.8750
.9375–1.0000
1.0600–1.1875
1.2500–2.000
A A Less B
Head Dimension
.002
.004
.006
.007
.38
.38
.44
.56
.62
.75
.75
1.00
1.250
.1250
.2500
.3125
.4375
.6250
#5–40
1/4–20
5/16–18
7/16–14
5/8–11
2.625
2.875
3.438
4.625
5.688
C-11
C-12
C-13
C-14
C-15
C D E Used On
All dimensions shown in inches.
Shank Dimension
51

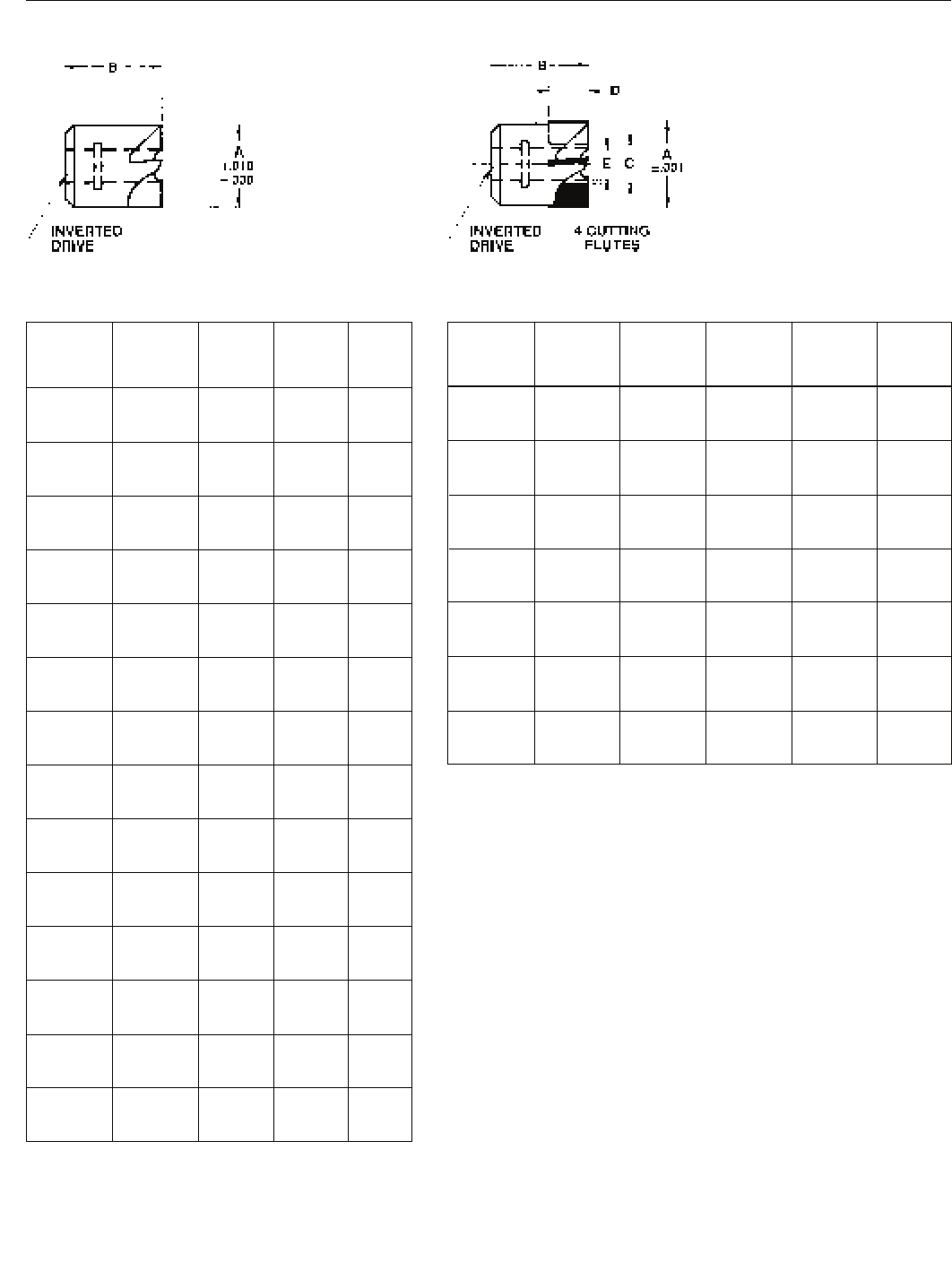

Back Spotfacers – Balanced Drive
Tungsten Carbide Tipped
Use with 450 Series & 453 Series Pilots (Page 54)
250-1062
250-1068
250-1075
250-2075
250-2081
250-2087
250-2093
250-2100
250-3100
250-3106
250-3112
250-3118
250-3125
250-3137
250-3150
250-4137
250-4150
250-4162
250-4175
250-4187
250-4200
Part
Number
All dimensions shown in inches.
NOTE: For 250 Series Back Spotfacers, the pilot diameter must be greater than the carbide
root diameter
.
A
Diameter
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.343
.343
.343
.405
.405
.405
.405
.405
.530
.530
.530
.530
.530
.530
.530
.782
.782
.782
.782
.782
.782
B
Overall
Length
C
Carbide
Root Dia.
.312
.312
.375
.312
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
D
Carbide
Length
.3125
.3125
.3125
.3750
.3750
.3750
.3750
.3750
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
E
Drive
Size
.625
.688
.750
.750
.813
.875
.938
1.000
1.000
1.063
1.125
1.188
1.250
1.375
1.500
1.375
1.500
1.625
1.750
1.875
2.000
High Speed Steel
150-1050
150-1056
150-1062
150-1068
150-1075
150-2075
150-2081
150-2087
150-2093
150-2100
150-3100
150-3106
150-3112
150-3118
150-3125
150-3131
150-3137
150-3143
150-3150
150-4137
150-4143
150-4150
150-4156
150-4162
150-4168
150-4175
150-4181
150-4187
150-4193
150-4200
150-5200
150-5206
150-5212
150-5218
150-5225
150-5237
150-5250
150-5262
150-5275
150-5287
150-5300
150-5325
Part
Number
Drive
Size
All dimensions shown in inches.
A
Diameter
.500
.563
.625
.688
.750
.750
.813
.875
.938
1.000
1.000
1.063
1.125
1.188
1.250
1.313
1.375
1.438
1.500
1.375
1.438
1.500
1.563
1.625
1.688
1.750
1.813
1.875
1.938
2.000
2.000
2.063
2.125
2.188
2.250
2.375
2.500
2.625
2.750
2.875
3.000
3.250
.3125
.3125
.3125
.3125
.3125
.3750
.3750
.3750
.3750
.3750
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
B
Overall
Length
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
No. of
Flutes
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
Use with 450 & 453 Series Pilots
(Page 54)
52
Back Counterbores – Balanced Drive
High Speed Steel
Use with 450 & 453 Series Pilots (Page 54)
C
Overall
Length
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
Number
of
Flutes
Part
Number
151-1075
151-1081
151-1087
151-1093
151-2093
151-2100
151-2106
151-2112
151-2118
151-3112
151-3118
151-3125
151-3131
151-3137
151-3143
151-3150
151-3156
151-3162
151-4162
151-4168
151-4175
151-4181
151-4187
151-4193
151-4200
151-4206
151-5200
151-5206
151-5212
151-5225
151-5237
B
Drive
Size
A
Diameter
All dimensions shown in inches.
.750
.813
.875
.938
.938
1.000
1.063
1.125
1.188
1.125
1.187
1.250
1.313
1.375
1.438
1.500
1.563
1.625
1.625
1.688
1.750
1.813
1.875
1.938
2.000
2.063
2.000
2.063
2.125
2.250
2.375
.313
.313
.313
.313
.375
.375
.375
.375
.375
.500
.500
.500
.500
.500
.500
.500
.500
.500
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.000
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.000
53

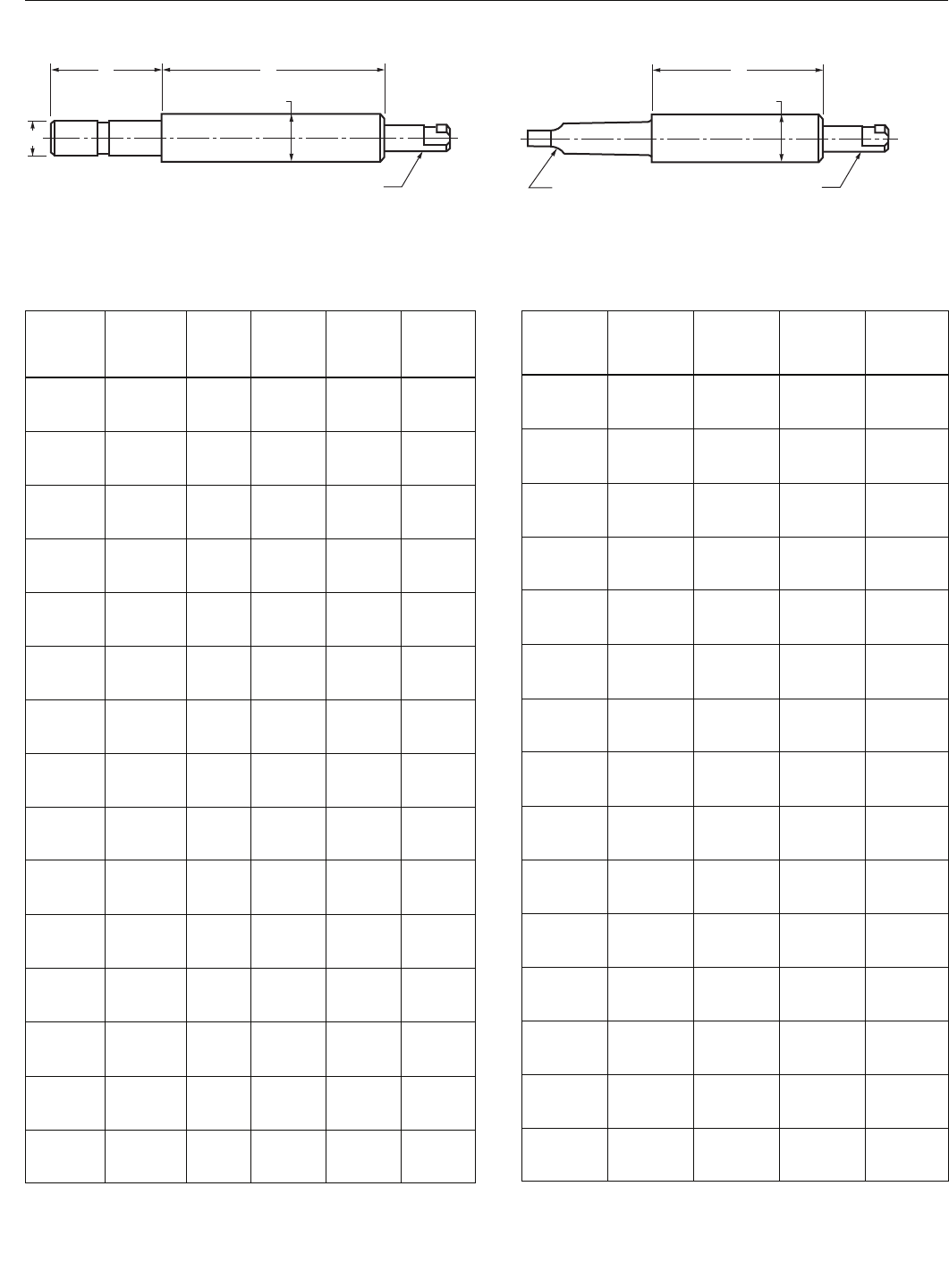

Pilots for Balanced Drive Back Spotfacers & Back Counterbores
with Straight Shank
A
Pilot
Diameter*
C
Body
Length
D
Inverted
Drive
Part
Number
453-1031
453-1034
453-1037
453-1040
453-1043
453-1046
453-1050
453-1053
453-2037
453-2040
453-2043
453-2046
453-2050
453-2053
453-2056
453-2059
453-2062
453-2065
453-3050
453-3053
453-3056
453-3059
453-3062
453-3065
453-3068
453-3075
453-3078
453-3081
453-3087
453-3090
453-3103
453-4075
453-4081
453-4087
453-4093
453-4100
453-4112
453-4125
453-4137
453-5100
453-5112
453-5125
453-5137
453-5150
453-5162
B
Shank
Dia.
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
5.000
5.000
All dimensions shown in inches.
*Finish ground for running fit in nominal size hole.
.3125
.3438
.3750
.4063
.4375
.4688
.5000
.5313
.3750
.4063
.4375
.4688
.5000
.5313
.5625
.5938
.6250
.6563
.5000
.5313
.5625
.5938
.6250
.6563
.6875
.7500
.7813
.8125
.8750
.9063
1.0313
.7500
.8125
.8750
.9375
1.0000
1.1250
1.2500
1.3750
1.0000
1.1250
1.2500
1.3750
1.5000
1.6250
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.750
.750
.750
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.000
1.000
1.000
Use with 150 & 250 Series Back Spotfacers
(Page 52)
and 151 Series Back Counterbores
(Page 53)
with Taper Shank
A
C
B
E
D DRIVE SIZE
Use with 150 & 250 Series Back Spotfacers
(Page 52)
and 151 Series Back Counterbores
(Page 53)
450-1031
450-1034
450-1037
450-1040
450-1043
450-1046
450-1050
450-1053
450-2037
450-2040
450-2043
450-2046
450-2050
450-2053
450-2056
450-2059
450-2062
450-2065
450-3050
450-3053
450-3056
450-3059
450-3062
450-3065
450-3068
450-3075
450-3078
450-3081
450-3087
450-3090
450-3103
450-4075
450-4081
450-4087
450-4093
450-4100
450-4112
450-4125
450-4137
450-5100
450-5112
450-5125
450-5137
450-5150
450-5162
Part
Number
A
Pilot
Diameter*
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3.500
5.000
5.000
Morse
Taper
Shank
B
Body
Length
C
Inverted
Drive
.3125
.3438
.3750
.4063
.4375
.4688
.5000
.5313
.3750
.4063
.4375
.4688
.5000
.5313
.5625
.5938
.6250
.6563
.5000
.5313
.5625
.5938
.6250
.6563
.6875
.7500
.7813
.8125
.8750
.9063
1.0313
.7500
.8125
.8750
.9375
1.0000
1.1250
1.2500
1.3750
1.0000
1.1250
1.2500
1.3750
1.5000
1.6250
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3125
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.3750
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.5000
.7500
.7500
.7500
.7500
.7500
.7500
.7500
.7500
1.0000
1.0000
1.0000
1.0000
1.0000
1.0000
All dimensions shown in inches.
*Finish ground for running fit in nominal size hole.
A
B
MORSE TAPER SHANK C DRIVE SIZE
E
Shank
Length
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.250
2.250
2.250
2.250
2.250
2.250
2.250
2.250
2.500
2.500
2.500
2.500
2.500
2.500
54

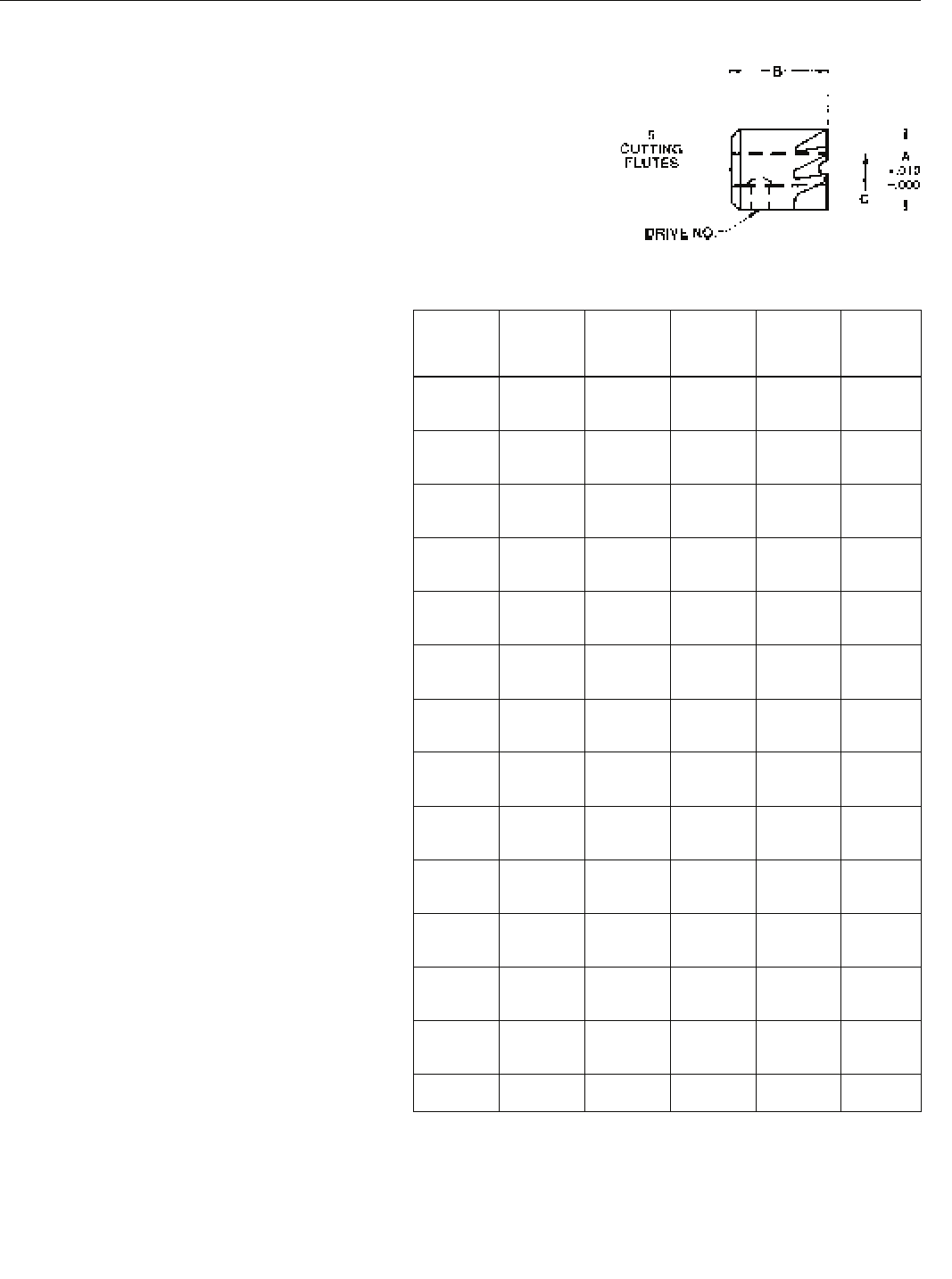

Back Spotfacers – Ball Pin Drive, D Style
High Speed Steel
Use with 3571, 3572, 3573, 3574, 3575 & 3576 Series Pilots
3511-0032
3511-0036
3511-0040
3511-0044
3511-0048
3512-0048
3512-0052
3512-0056
3512-0060
3512-0100
3513-0060
3513-0100
3513-0104
3513-0108
3513-0112
3513-0116
3514-0112
3514-0116
3514-0120
3514-0124
3514-0128
3514-0132
3514-0136
3514-0140
3515-0128
3515-0132
3515-0136
3515-0140
3515-0144
3515-0148
3515-0152
3515-0156
3516-0136
3516-0140
3516-0144
3516-0148
3516-0152
3516-0156
3516-0200
3516-0208
3516-0212
Part
Number
D-1
D-1
D-1
D-1
D-1
D-2
D-2
D-2
D-2
D-2
D-3
D-3
D-3
D-3
D-3
D-3
D-4
D-4
D-4
D-4
D-4
D-4
D-4
D-4
D-5
D-5
D-5
D-5
D-5
D-5
D-5
D-5
D-6
D-6
D-6
D-6
D-6
D-6
D-6
D-6
D-6
Drive
Number
.250
.250
.250
.250
.250
.375
.375
.375
.375
.375
.500
.500
.500
.500
.500
.500
.625
.625
.625
.625
.625
.625
.625
.625
.750
.750
.750
.750
.750
.750
.750
.750
.875
.875
.875
.875
.875
.875
.875
.875
.875
3500-9001
3500-9001
3500-9001
3500-9001
3500-9001
3500-9002
3500-9002
3500-9002
3500-9002
3500-9002
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9003
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
3500-9004
Drive Pin
Number
All dimensions shown in inches.
A
Diameter
B
Overall
Length
C
Hole I.D.
.5000
.5625
.6250
.6875
.7500
.7500
.8125
.8750
.9375
1.0000
.9375
1.0000
1.0625
1.1250
1.1875
1.2500
1.1875
1.2500
1.3125
1.3750
1.4375
1.5000
1.5625
1.6250
1.4375
1.5000
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
1.5625
1.6250
1.6875
1.7500
1.8125
1.8750
2.0000
2.1250
2.1875
.625
.625
.625
.625
.625
.688
.688
.688
.688
.688
.750
.750
.750
.750
.750
.750
.875
.875
.875
.875
.875
.875
.875
.875
1.063
1.063
1.063
1.063
1.063
1.063
1.063
1.063
1.125
1.125
1.125
1.125
1.125
1.125
1.125
1.125
1.125
55
Port Contour Cutters
A Full Range of Porting Tools for SAE, ISO,
BSPP/BSPF & NASA Specifications
METCUT Port Contour Cutters produce the form and finish
required on internal straight thread o-ring ports in a single
operation. Straight thread ports usually are required for high-
pressure hydraulic fittings, which must be in compliance with
automotive, military, aerospace and commercial specifica-
tions.
METCUT porting tools are form-relief ground and designed so
that a simple face grinding reconditions the tool with no
dimensional loss.
METCUT produces the most complete line of Port Contour
Cutters in the industry. High speed steel and carbide tipped are
standard in all sizes. Straight, morse taper and radial drive
shank styles are available on all size tools. Indexable porting
tools are available for meeting SAE and military specifications.
56

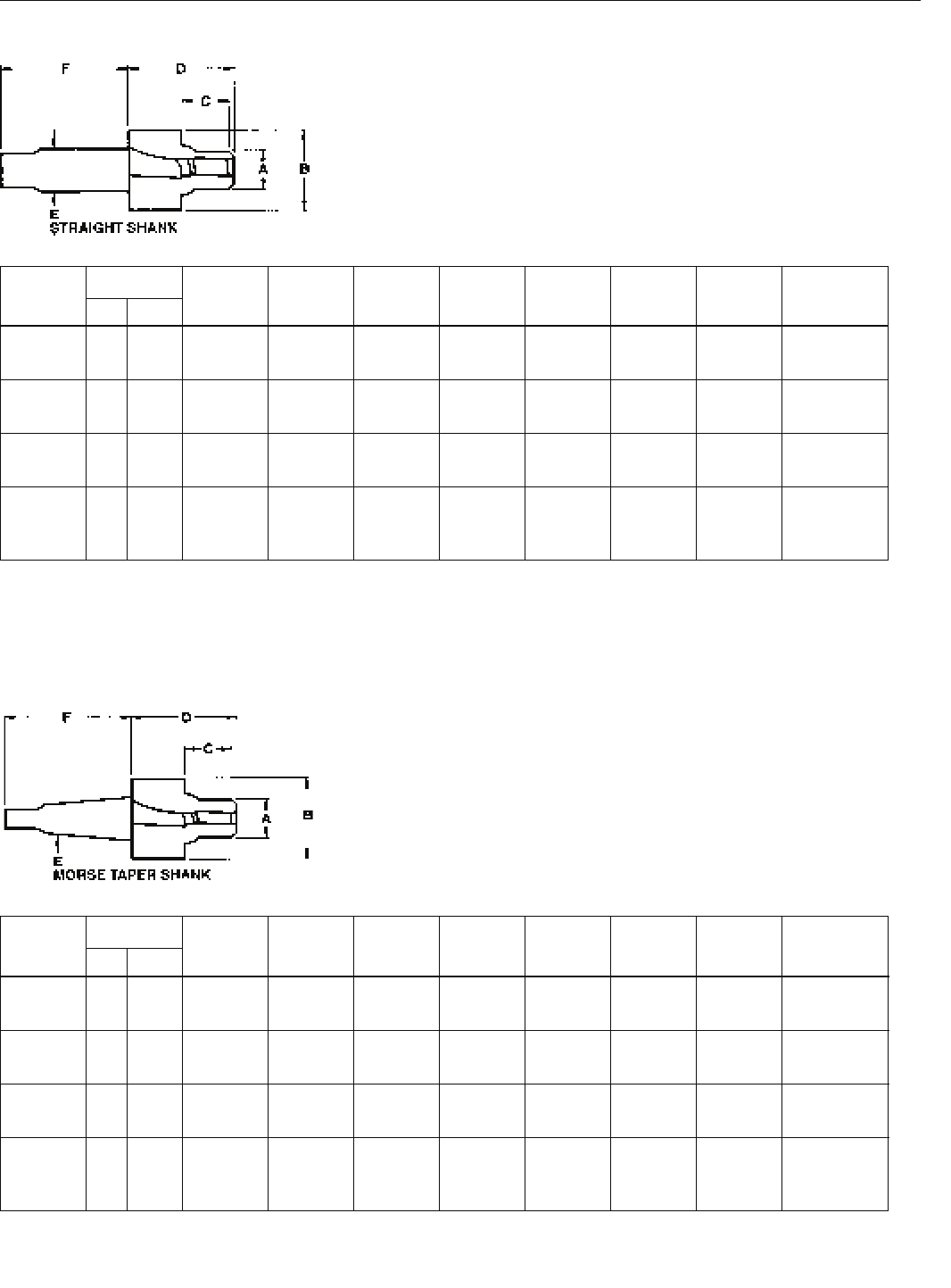

Port Contour Cutters – SAE J1926, MS 16142
High Speed Steel, Straight Shank
High Speed Steel, Morse Taper Shank
All dimensions shown in inches.
All dimensions shown in inches.
Tube A C D E F Pre-Drill
Thread Part Small B Bore Head Shank Shank Diameter/
Size No. O.D. Number Diameter Spotface Length Length Diameter Length Length
5/16–24 2 .125 163-2031 .272 .682 .473 1.625 .500 3.125 F x .688
3/8–24 3 .187 163-2037 .335 .760 .473 1.625 .500 3.125 O x .688
7/16–20 4 .250 163-2043 .389 .838 .552 1.625 .500 3.125 U x .812
1/2–20 5 .312 163-2050 .452 .916 .552 1.625 .500 3.125 .44 x .812
9/16–18 6 .375 163-2056 .509 .994 .614 1.625 .500 3.125 .48 x .875
3/4–16 8 .500 163-3075 .689 1.198 .693 1.875 .750 3.875 .67 x .937
7/8–14 10 .625 163-3087 .806 1.354 .786 1.875 .750 3.875 .78 x 1.062
1-1/16–12 12 .750 163-3106 .981 1.635 .911 2.125 .750 3.875 .95 x 1.250
1-3/16–12 14 .875 163-3118 1.106 1.775 .911 2.125 .750 3.875 1.09 x 1.250
1-5/16–12 16 1.000 163-3131 1.231 1.939 .911 2.125 .750 3.875 1.21 x 1.250
1-5/8–12 20 1.250 163-4162 1.544 2.280 .911 2.375 1.000 4.875 1.53 x 1.250
1-7/8–12 24 1.500 163-4187 1.794 2.570 .911 2.375 1.000 4.875 1.78 x 1.250
2-1/2–12 32 2.000 163-4250 2.419 3.490 .911 2.375 1.000 4.875 2.41 x 1.250
Tube A C D E F Pre-Drill
Thread Part Small B Bore Head Shank Shank Diameter/
Size No. O.D. Number Diameter Spotface Length Length Diameter Length Length
5/16–24 2 .125 163-2031 .272 .682 .473 1.625 .500 3.125 F x .688
3/8–24 3 .187 163-2037 .335 .760 .473 1.625 .500 3.125 O x .688
7/16–20 4 .250 163-2043 .389 .838 .552 1.625 .500 3.125 U x .812
1/2–20 5 .312 163-2050 .452 .916 .552 1.625 .500 3.125 .44 x .812
9/16–18 6 .375 163-2056 .509 .994 .614 1.625 .500 3.125 .48 x .875
3/4–16 8 .500 163-3075 .689 1.198 .693 1.875 .750 3.875 .67 x .937
7/8–14 10 .625 163-3087 .806 1.354 .786 1.875 .750 3.875 .78 x 1.062
1-1/16–12 12 .750 163-3106 .981 1.635 .911 2.125 .750 3.875 .95 x 1.250
1-3/16–12 14 .875 163-3118 1.106 1.775 .911 2.125 .750 3.875 1.09 x 1.250
1-5/16–12 16 1.000 163-3131 1.231 1.939 .911 2.125 .750 3.875 1.21 x 1.250
1-5/8–12 20 1.250 163-4162 1.544 2.280 .911 2.375 1.000 4.875 1.53 x 1.250
1-7/8–12 24 1.500 163-4187 1.794 2.570 .911 2.375 1.000 4.875 1.78 x 1.250
2-1/2–12 32 2.000 163-4250 2.419 3.490 .911 2.375 1.000 4.875 2.41 x 1.250
57

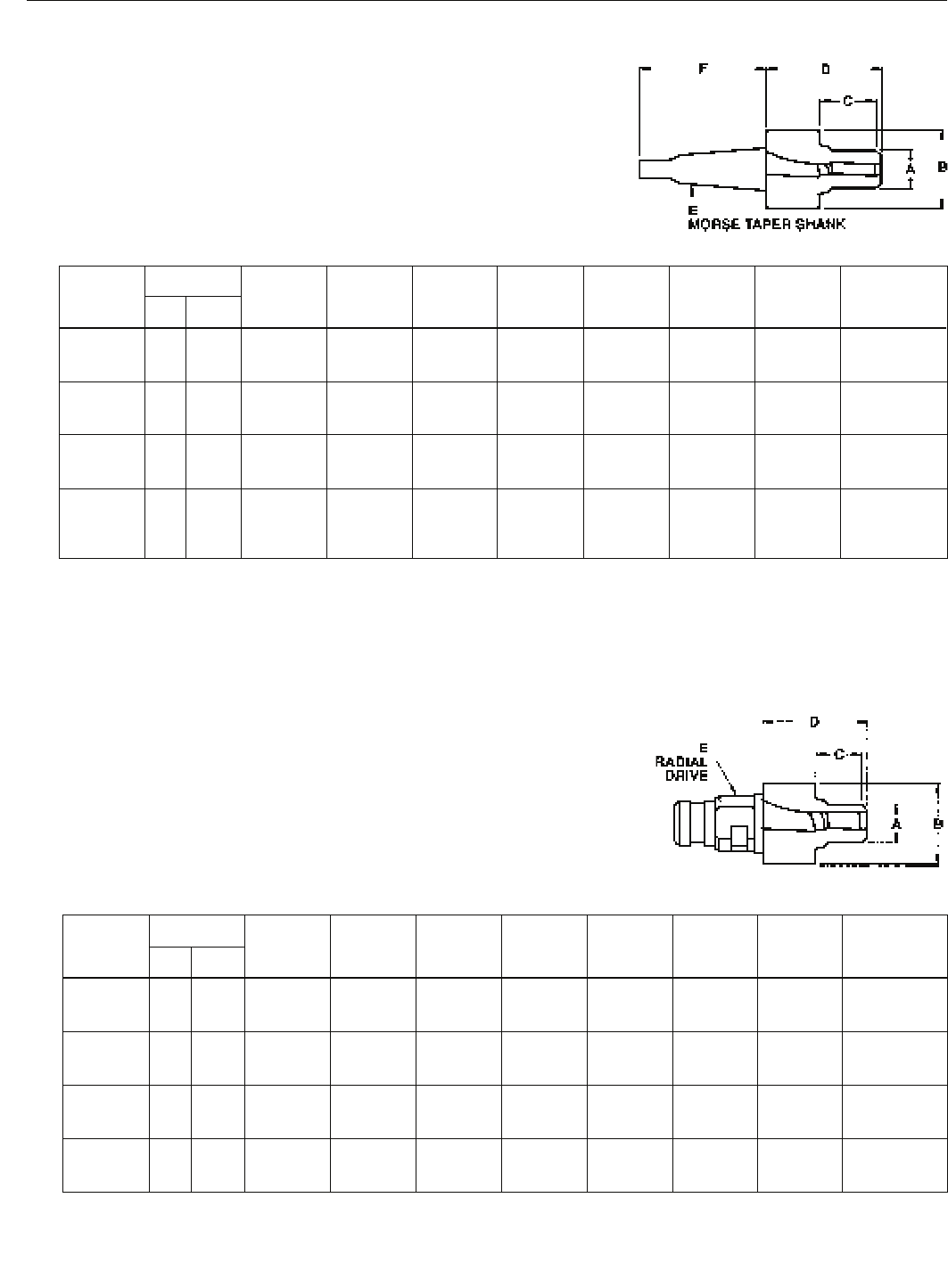

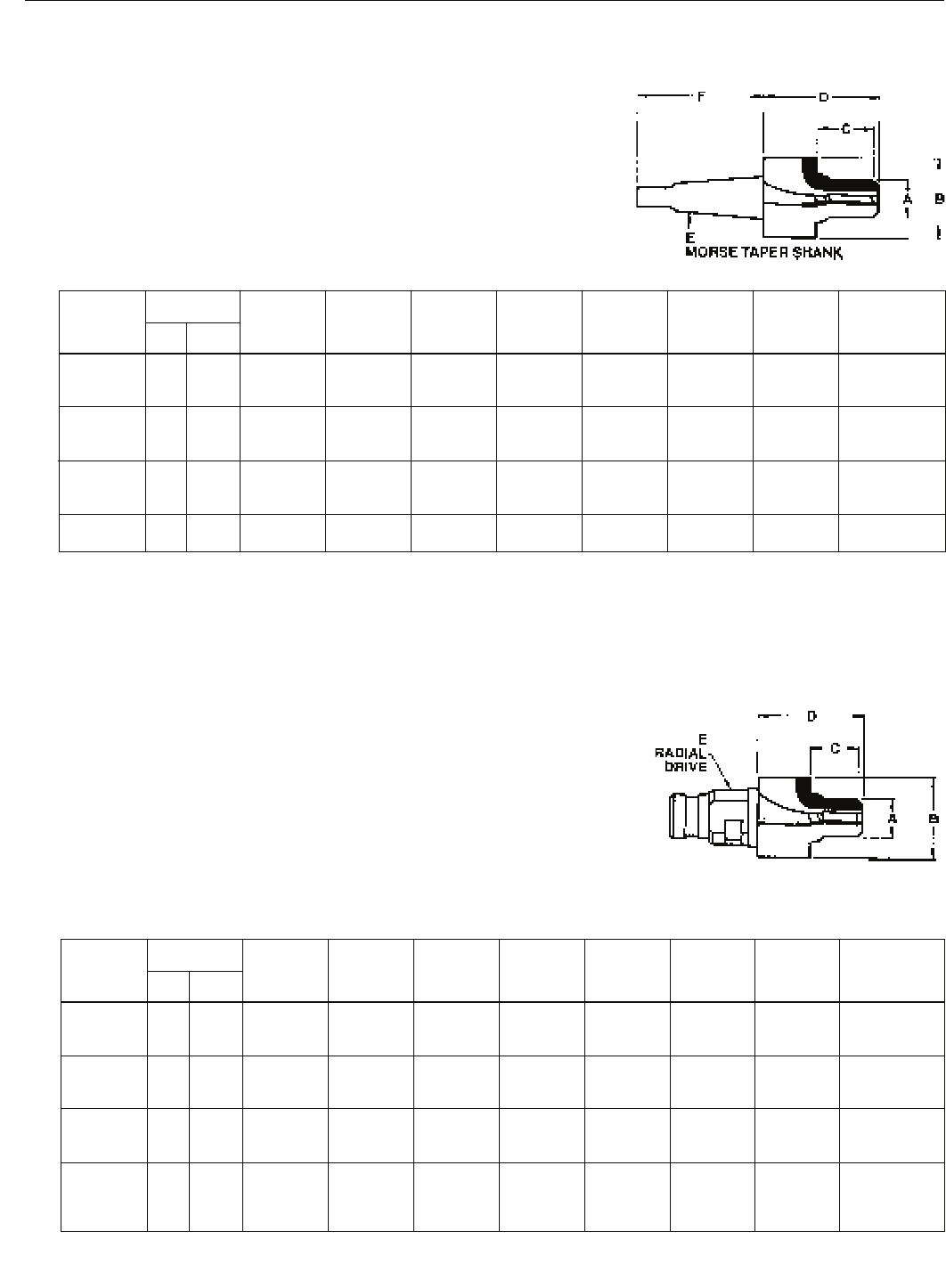

Port Contour Cutters – SAE J1926, MS 16142
High Speed Steel, Taper Shank with Extra Length Reamer
High Speed Steel, Radial Drive
Thread
Size
No. O.D.
Tube
160-2031
160-2037
160-2043
160-2050
160-2056
160-3075
160-3087
160-4106
160-5118
160-5131
160-6162
160-6187
Part
Number
A
Small
Diameter
C
Bore
Length
D
Head
Length
B
Spotface
Diameter
3
3
3
3
3
3
4
4
4
4
4
4
Pre-Drill
Diameter/
Length
Number
of
Flutes
F x .687
O x .687
U x .812
.44 x .812
.48 x .875
.67 x .937
.78 x 1.062
.95 x 1.250
1.09 x 1.250
1.21 x 1.250
1.53 x 1.250
1.78 x 1.250
.473
.473
.552
.552
.614
.693
.786
.911
.911
.911
.911
.911
2
3
4
5
6
8
10
12
14
16
20
24
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
RB
RB
RB
RB
RB
RC
RC
RE
RF
RF
RJ
RJ
1.50
1.50
1.50
1.50
1.63
1.63
1.75
1.88
1.88
1.88
1.88
1.88
All dimensions shown in inches.
.125
.188
.250
.313
.375
.500
.625
.750
.875
1.000
1.250
1.500
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
.875
.875
.875
.938
1.000
1.219
1.375
1.656
1.813
2.000
2.313
2.563
All dimensions shown in inches.
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
2-1/2–12
Thread
Size
No. O.D.
2
3
4
5
6
8
10
12
14
16
20
24
32
Tube
161-2031
161-2037
161-2043
161-2050
161-2056
161-3075
161-3087
161-3106
161-3118
161-3131
161-4162
161-4187
161-4250
Part
Number
3.125
3.125
3.125
3.125
3.125
3.875
3.875
3.875
3.875
3.875
4.875
4.875
4.875
2
2
2
2
2
3
3
3
3
3
4
4
4
1.750
1.750
1.750
1.750
1.750
2.000
2.000
2.250
2.250
2.250
2.250
2.250
2.250
F
Shank
Length
E
Morse
Taper
D
Head
Length
C
Bore
Length
A
Small
Diameter
B
Spotface
Diameter
.125
.187
.250
.312
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
2.419
.682
.760
.838
.916
.979
1.198
1.354
1.635
1.775
1.920
2.280
2.570
3.490
.580
.580
.690
.690
.750
.840
.970
1.125
1.125
1.125
1.125
1.125
1.125
Pre-Drill
Diameter/
Length
F x .812
O x .812
U x .937
.44 x .937
.48 x .968
.67 x 1.090
.78 x 1.220
.95 x 1.470
1.09 x 1.470
1.21 x 1.470
1.53 x 1.470
1.78 x 1.470
2.41 x 1.470
E
Radial
Drive
58

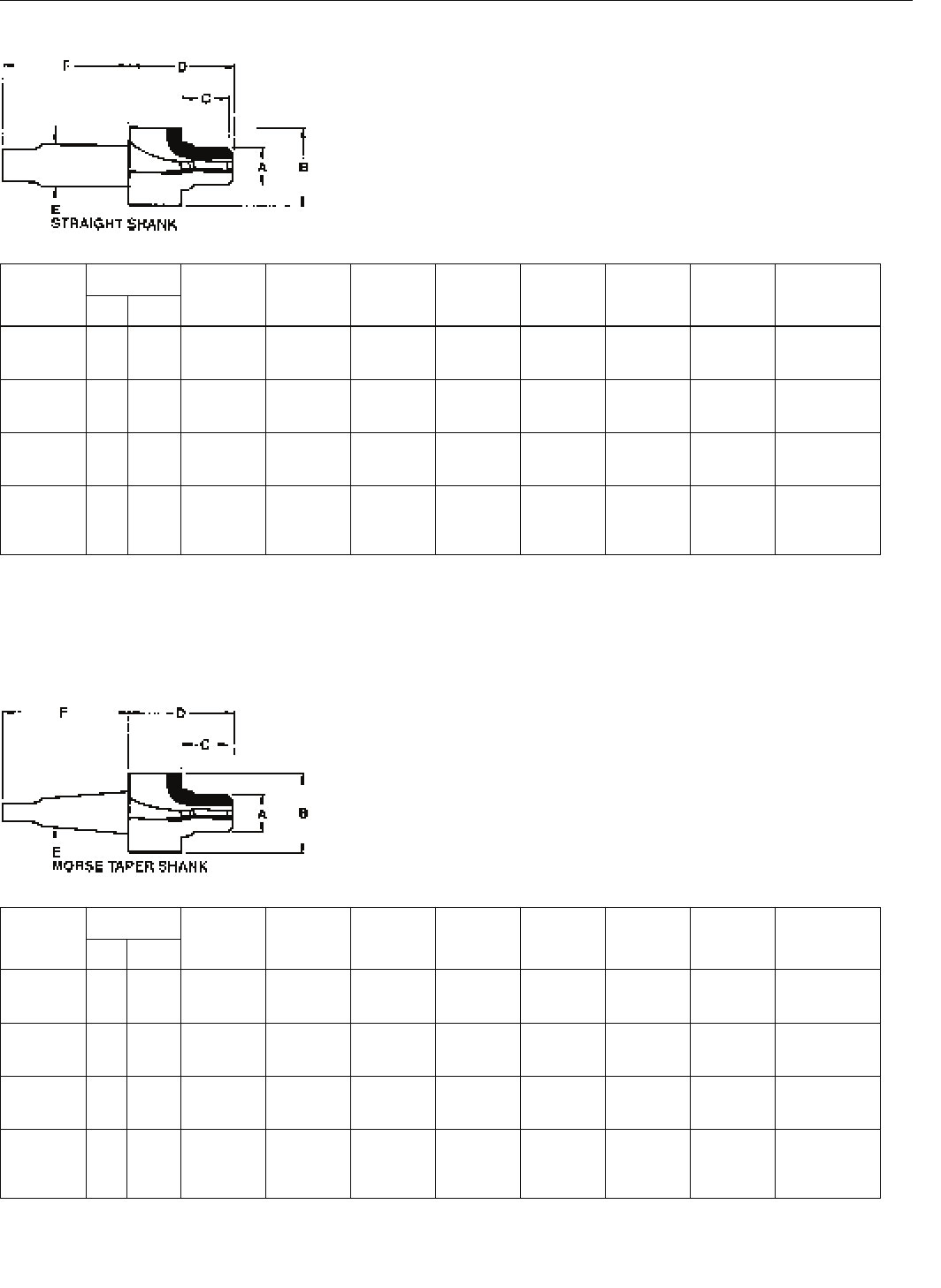

Port Contour Cutters – SAE J1926, MS 16142
Tungsten Carbide Tipped, Straight Shank
Tungsten Carbide Tipped, Morse Taper Shank
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
2-1/2–12
Thread
Size
No. O.D.
2
3
4
5
6
8
10
12
14
16
20
24
32
Tube
263-2031
263-2037
263-2043
263-2050
263-2056
263-3075
263-3087
263-3106
263-3118
263-3131
263-4162
263-4187
263-4250
Part
Number
A
Small
Diameter
F x .688
O x .688
U x .812
.44 x .812
.48 x .875
.67 x .937
.78 x 1.062
.95 x 1.250
1.09 x 1.250
1.21 x 1.250
1.53 x 1.250
1.78 x 1.250
2.41 x 1.250
Pre-Drill
Diameter/
Length
3.125
3.125
3.125
3.125
3.125
3.875
3.875
3.875
3.875
3.875
4.875
4.875
4.875
1.625
1.625
1.625
1.625
1.625
1.875
1.875
2.125
2.125
2.125
2.125
2.125
2.125
.473
.473
.552
.552
.614
.693
.786
.911
.911
.911
.911
.911
.911
C
Bore
Length
F
Shank
Length
E
Shank
Diameter
D
Head
Length
B
Spotface
Diameter
.125
.187
.250
.312
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
2.419
.682
.760
.838
.916
.994
1.198
1.354
1.635
1.775
1.920
2.280
2.570
3.490
.500
.500
.500
.500
.500
.750
.750
.750
.750
.750
1.000
1.000
1.000
All dimensions shown in inches.
Special carbide grades and coatings available upon request. Call quotations for price and availability.
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
2-1/2–12
Thread
Size
No. O.D.
2
3
4
5
6
8
10
12
14
16
20
24
32
Tube
F x .688
O x .688
U x .812
.44 x .812
.48 x .875
.67 x .937
.78 x 1.062
.95 x 1.250
1.09 x 1.250
1.21 x 1.250
1.53 x 1.250
1.78 x 1.250
2.41 x 1.250
Pre-Drill
Diameter/
Length
3.125
3.125
3.125
3.125
3.125
3.875
3.875
3.875
3.875
3.875
4.875
4.875
4.875
2
2
2
2
2
3
3
3
3
3
4
4
4
1.625
1.625
1.625
1.625
1.625
1.875
1.875
2.125
2.125
2.125
2.125
2.125
2.125
F
Shank
Length
E
Morse
Taper
D
Head
Length
.473
.473
.552
.552
.614
.693
.786
.911
.911
.911
.911
.911
.911
C
Bore
Length
B
Spotface
Diameter
A
Small
Diameter
262-2031
262-2037
262-2043
262-2050
262-2056
262-3075
262-3087
262-3106
262-3118
262-3131
262-4162
262-4187
262-4250
Part
Number
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
2.419
.682
.760
.838
.916
.979
1.198
1.354
1.635
1.775
1.920
2.280
2.570
3.490
.125
.187
.250
.312
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
All dimensions shown in inches.
Special carbide grades and coatings available upon request. Call quotations for price and availability.
59
Port Contour Cutters – SAE J1926, MS 16142
Tungsten Carbide Tipped
Taper Shank with Extra Length Reamer
Tungsten Carbide Tipped, Radial Drive
Use with 320, 321 & 323 Series Holders (Pages 46–47)
3.125
3.125
3.125
3.125
3.125
3.875
3.875
3.875
3.875
3.875
4.875
2
2
2
2
2
3
3
3
3
3
4
F
Shank
Length
E
Morse
Taper
1.750
1.750
1.750
1.750
1.750
2.000
2.000
2.250
2.250
2.250
2.250
D
Head
Length
C
Bore
Length
A
Small
Diameter
B
Spotface
Diameter
261-2031
261-2037
261-2043
261-2050
261-2056
261-3075
261-3087
261-3106
261-3118
261-3131
261-4162
Part
NumberNo. O.D.
2
3
4
5
6
8
10
12
14
16
20
Tube
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
Thread
Size
.125
.187
.250
.312
.375
.500
.625
.750
.875
1.000
1.250
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
.682
.760
.838
.916
.979
1.198
1.354
1.635
1.775
1.920
2.280
.580
.580
.690
.690
.750
.840
.970
1.125
1.125
1.125
1.125
Pre-Drill
Diameter/
Length
F x .812
O x .812
U x .937
.44 x .937
.48 x .968
.67 x 1.090
.78 x 1.220
.95 x 1.470
1.09 x 1.470
1.21 x 1.470
1.53 x 1.470
Thread
Size
No. O.D.
Tube
260-2031
260-2037
260-2043
260-2050
260-2056
260-3075
260-3087
260-4106
260-5118
260-5131
260-6162
260-6187
260-7250
Part
Number
A
Small
Diameter
C
Bore
Length
D
Head
Length
B
Spotface
Diameter
3
3
3
3
3
3
4
4
4
4
4
4
4
Pre-Drill
Diameter/
Length
Number
of
Flutes
F x .687
O x .687
U x .812
.44 x .812
.48 x .875
.67 x .937
.78 x 1.062
.95 x 1.250
1.09 x 1.250
1.21 x 1.250
1.53 x 1.250
1.78 x 1.250
2.41 x 1.250
.473
.473
.552
.552
.614
.693
.786
.911
.911
.911
.911
.911
.911
2
3
4
5
6
8
10
12
14
16
20
24
32
5/16–24
3/8–24
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
2-1/2–12
RB
RB
RB
RB
RB
RC
RC
RE
RF
RF
RJ
RJ
RS
1.50
1.50
1.50
1.50
1.63
1.63
1.75
1.88
1.88
1.88
1.88
1.88
1.88
.125
.188
.250
.313
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
.272
.335
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
2.419
.875
.875
.875
.938
1.000
1.219
1.375
1.656
1.813
2.000
2.313
2.563
3.500
E
Radial
Drive
All dimensions shown in inches.
Special carbide grades and coatings available upon request. Call quotations for price and availability.
All dimensions shown in inches.
Special carbide grades and coatings available upon request. Call quotations for price and availability.
60

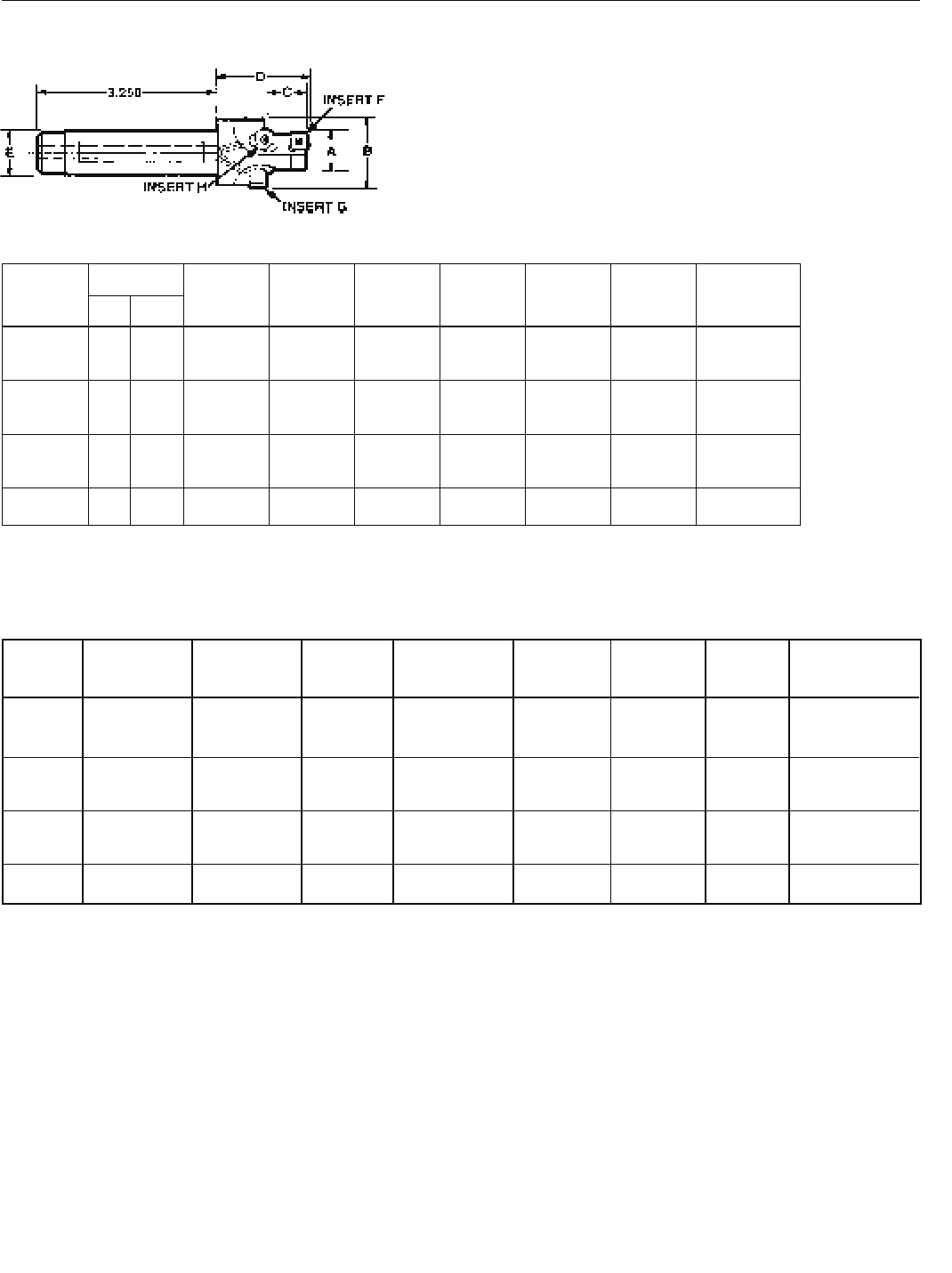

Port Contour Cutters – SAE J1926, MS 16142
Indexable, Straight Shank - Through Coolant
Inserts & Accessories for Indexable, Straight Shank Port Contour Cutters
7/16–20
1/2–20
9/16–18
3/4–16
7/8–14
1-1/16–12
1-3/16–12
1-5/16–12
1-5/8–12
1-7/8–12
2-1/2–12
Thread
Size
No. O.D.
4
5
6
8
10
12
14
16
20
24
32
Tube
267-3043
267-3050
267-3056
267-3075
267-3087
267-4106
267-4118
267-4131
267-5162
267-5187
267-8250
Part
Number
A
Small
Diameter
1.389
1.389
1.819
1.654
1.874
2.014
2.014
2.014
2.275
2.275
2.685
.552
.552
.614
.693
.786
.911
.911
.911
.911
.911
.911
C
Bore
Length
E
Shank
Diameter
D
Head
Length
B
Spotface
DIameter
Pre-Drill
Diameter/
Length
All dimensions shown in inches. Inserts included with tool.
.250
.312
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
.389
.452
.509
.689
.806
.981
1.106
1.231
1.544
1.794
2.419
.875
.916
.979
1.198
1.354
1.635
1.775
1.920
2.280
2.570
3.490
.750
.750
.750
.750
.750
1.000
1.000
1.000
1.250
1.250
2.000
U x .812
.44 x .812
.48 x .875
.67 x .937
.78 x 1.062
.95 x 1.250
1.09 x 1.250
1.21 x 1.250
1.53 x 1.250
1.78 x 1.250
2.41 x 1.250
NOTE: Sizes not listed, and special configurations available on request.
NOTE: Insert G is available with 1/64" nose radius (e.g. C-251-BD, C-313-BD, C-376-BD, C-501-BD). Prices on request.
NOTE: Insert H is available with a ‘HF’ chip breaker for long chipping materials such as 300 series stainless steel (e.g., D-375-HF)
Insert “F&G” Insert “F&G” Insert “H” Insert “H”
Tool Honed Unhoned Torx Torx Honed Unhoned Torx Torx
Number Coated Uncoated Screw Wrench Coated Uncoated Screw Wrench
267-3043 C-250-BD C-250-CC 056-1017 056-2017 T-7 D-312-GF D-312-FE 056-1017 056-2017 T-7
267-3050 C-250-BD C-250-CC 056-1017 056-2017 T-7 D-312-GF D-312-FE 056-1017 056-2017 T-7
267-3056 C-250-BD C-250-CC 056-1017 056-2017 T-7 D-312-GF D-312-FE 056-1017 056-2017 T-7
267-3075 C-312-BD C-312-CC 056-1020 056-2028 T-8 D-375-GF D-375-FE 056-1033 056-2033 T-10
267-3087 C-312-BD C-312-CC 056-1020 056-2028 T-8 D-375-GF D-375-FE 056-1033 056-2033 T-10
267-4106 C-375-BD C-375-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
267-4118 C-375-BD C-375-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
267-4131 C-375-BD C-375-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
267-5162 C-500-BD C-500-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
267-5187 C-500-BD C-500-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
267-8250 C-502-BD C-502-CC 056-1018 056-2015 T-15 D-500-GF D-500-FE 056-1018 056-2015 T-15
61
Port Contour Cutters – SAE J1926, MS 16142
Double Feed Indexable Porting Tools (Two Effective Flutes)
9/16-18 6 .375 367-3056 .509 .979 .614 2.000 .750 .41 x .875
3/4-16 8 .500 367-3075 .689 1.297 .693 2.250 .750 .53 x .937
7/8-14 10 .625 367-3087 .806 1.348 .786 2.250 .750 .65 x 1.062
1-1/16-12 12 .750 367-4106 .981 1.642 .911 2.500 1.000 .81 x 1.250
1-5/16-12 16 1.000 367-4131 1.231 1.939 .911 2.500 1.000 1.05 x 1.250
Tube A B C D E Pre-Drill
Thread Part Small Spotface Bore Head Shank Diameter/
Size No. O.D. Number Diameter Diameter Length Length Diameter Length
Inserts & Accessories for Double Feed Indexable Porting Tools
367-3056 C-187-BD C-187-CC 056-1115 056-2025 T-5 J-312-FF J-312-FE J-312-GF 056-1020 056-2028 T-8
367-3075 C-250-BD C-250-CC 056-1017 056-2017 T-7 J-375-FF J-375-FE J-375-GF 056-1033 056-2033 T-10
367-3087 C-312-BD C-312-CC 056-1020 056-2028 T-8 J-375-FF J-375-FE J-375-GF 056-1033 056-2033 T-10
367-4106 C-375-BD C-375-CC 056-1018 056-2015 T-15 J-500-FF J-500-FE J-500-GF 056-1834 056-2015 T-15
367-4131 C-375-BD C-375-CC 056-1018 056-2015 T-15 J-501-FF J-501-FE J-501-GF 056-1834 056-2015 T-15
Insert “H” Insert “H” Insert “H”
Part Insert “F” Insert “F” Torx Torx Unhoned Unhoned Honed Torx Torx
Number Standard Unhoned Screw Wrench Coated Uncoated Coated Screw Wrench
Sizes and special configurations not listed call 1-888-434-4370 for price and availability.
Protected under Greenfield Industries US Patent No. 5957633, "Multiple Function Inserts for Port Cutting Tool".
Protected under Greenfield Industries US Patent No. 5816753, "Port Cutting Tool with Multiple Function Inserts".
Double Feed Indexable Porting Tool with Spade Blade Insert
Tube A B C D E
Thread Part Small Spotface Bore Head Shank
No. O.D. Number Diameter Diameter Length Length Diameter
9/16-18 6 .375 467-3056 .509 .979 .628 2.09 .750
3/4-16 8 .500 467-3075 .689 1.297 .736 2.38 .750
7/8-14 10 .625 467-3087 .806 1.348 .851 2.43 .750
1-1/16-12 12 .750 467-4106 .981 1.642 .954 2.44 1.000
1-5/16-12 16 1.000 467-4131 1.231 1.939 .954 2.75 1.000
Spade Blades, Inserts & Accessories for Double Feed Indexable Porting
Application information can be found on METCUT's Spade Blade Brochure.
D 3.25
E
B
A
C
BLADE
INSERT "H"
Sizes and special configurations not listed call 1-888-434-4370 for price and availability.
Protected under Greenfield Industries US Patent No. 5957633, "Multiple Function Inserts for Port Cutting Tool".
Blade
Part Multi Layer Locating Torx Torx Seat Torx Torx
Number (TiN/TiCN) TiALN Pin Screw Wrench Insert “H” Screw Wrench
467-3056 7F0-0509G 7F0-0509A SP-2 056-1014 056-2017 T-7 J312-FF 056-1020 056-2028 T-8
467-3075 7F0-0689G 7F0-0689A SP-2 056-1014 056-2017 T-7 J375-FF 056-1033 056-2033 T-10
467-3087 7F1-0806G 7F1-0806A SP-3 056-1020 056-2028 T-8 J375-FF 056-1033 056-2033 T-10
467-4106 7F2-0981G 7F2-0981A SP-4 056-1018 056-2015 T-15 J500-FF 056-1834 056-2015 T-15
467-4131 7F2-1231G 7F2-1231A SP-4 056-1018 056-2015 T-15 J501-FF 056-1834 056-2015 T-15
62

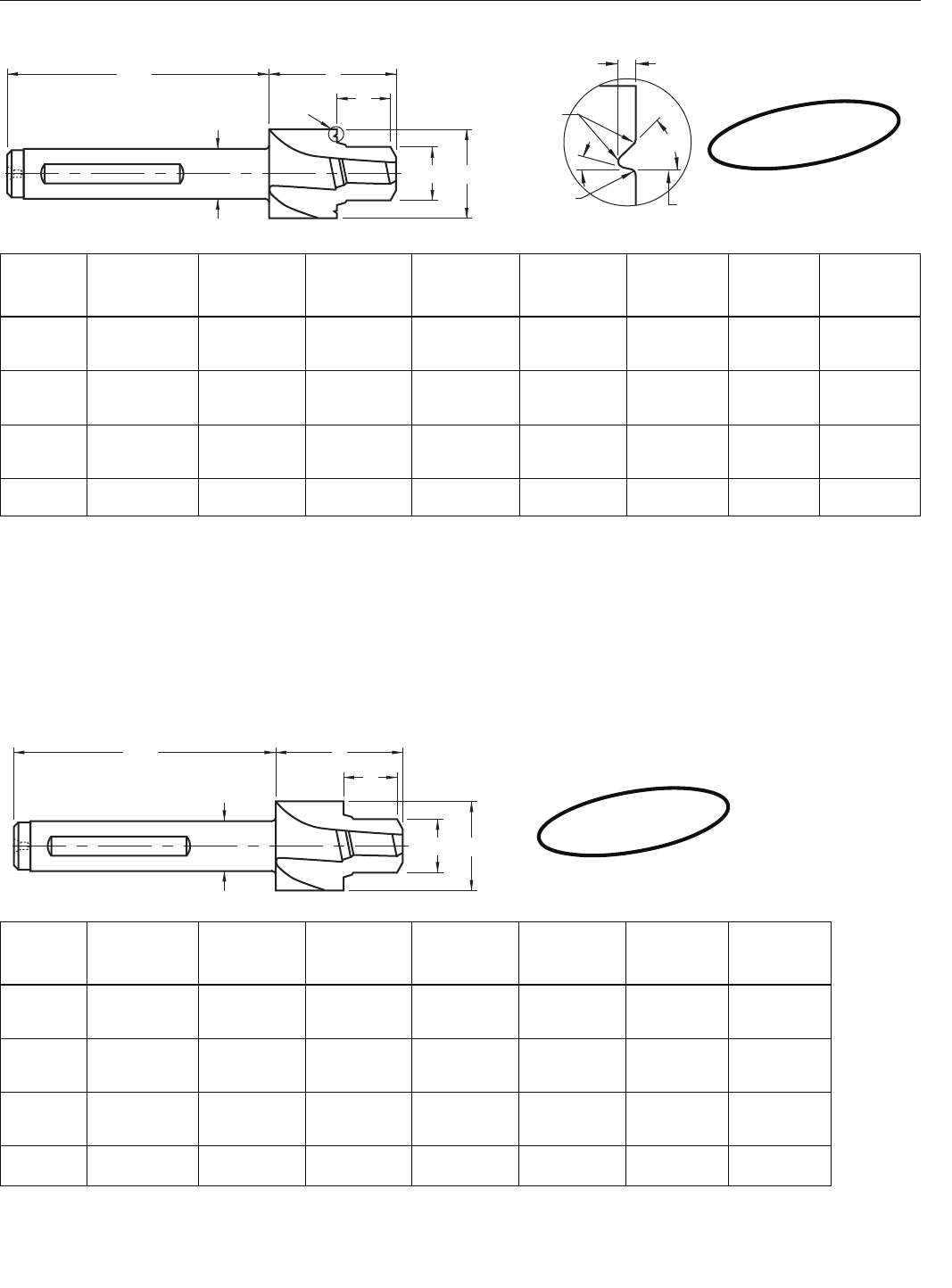

Port Contour Cutters in Metric Sizes – ISO 6149-1, SAE J2244/1
High Speed Steel, Straight Shank,
With Groove
14 (.551)
16 (.6299)
19 (.748)
21 (.8268)
24 (.9449)
26 (1.0236)
29 (1.1417)
34 (1.3386)
43 (1.6929)
52 (2.0472)
57 (2.2441)
Pre-Drill
Diameter/
Length
(D x .589)
(P x .589)
(W x .681)
(.45 x .681)
(.54 x .740)
(.62 x .809)
(.78 x .849)
(.95 x 1.01)
(1.17 x 1.01)
(1.54 x 1.03)
(1.78 x 1.13)
A
Small
Diameter
7.035 (.277)
9.042 (.356)
10.541 (.415)
12.522 (.493)
14.528 (.572)
16.535 (.651)
20.523 (.808)
25.019 (.985)
31.013 (1.221)
40.030 (1.576)
46.025 (1.812)
Part
Number
169-0008
169-0010
169-0012
169-0014
169-0016
169-0018
169-0022
169-0027
169-0033
169-0042
169-0048
M 8 x 1
M 10 x 1
M 12 x 1.5
M 14 x 1.5
M 16 x 1.5
M 18 x 1.5
M 22 x 1.5
M 27 x 2
M 33 x 2
M 42 x 2
M 48 x 2
Thread
Size
17 (.669)
20 (.787)
23 (.9055)
25 (.9843)
28 (1.1024)
30 (1.1811)
34 (1.3386)
40 (1.578)
49 (1.9291)
60 (2.3622)
66 (2.5984)
B
Spotface
Diameter*
C
Bore
Length
11.5 (.4528)
11.5 (.4528)
14 (.5512)
14 (.5512)
15.5 (.6102)
17 (.6693)
18 (.7087)
22 (.8661)
22 (.8661)
22.5 (.8858)
25 (.9843)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
50.8 (2.00)
50.8 (2.00)
50.8 (2.00)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
D
Head
Length
E
Shank
Dia.
12.7 (.500)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
25.4 (1.00)
25.4 (1.00)
31.75 (1.25)
31.75 (1.25)
F
Groove
Diameter
A B
C
D3.25
E
High Speed Steel, Straight Shank, without Groove
A B
C
D3.25
E
DETAIL
A
DETAIL A
.6 mm
.024"
R .15 mm
.006"
R .2 mm
.0079"
F
45°
15°
MAX
Inches are shown in parentheses; all other dimensions are in millimeters.
* Includes groove.
Metric Sizes
Metric Sizes
A
Small
Diameter
7.035 (.277)
9.042 (.356)
10.541 (.415)
12.522 (.493)
14.528 (.572)
16.535 (.651)
20.523 (.808)
25.019 (.985)
31.013 (1.221)
40.030 (1.576)
46.025 (1.812)
Part
Number
169-1008
169-1010
169-1012
169-1014
169-1016
169-1018
169-1022
169-1027
169-1033
169-1042
169-1048
M 8 x 1
M 10 x 1
M 12 x 1.5
M 14 x 1.5
M 16 x 1.5
M 18 x 1.5
M 22 x 1.5
M 27 x 2
M 33 x 2
M 42 x 2
M 48 x 2
Thread
Size
14 (.5512)
16 (.6299)
19 (.748)
21 (.8268)
24 (.9449)
26 (1.0236)
29 (1.1417)
34 (1.3386)
43 (1.6929)
52 (2.0472)
57 (2.2441)
B
Spotface
Diameter
C
Bore
Length
11.5 (.4528)
11.5 (.4528)
14 (.5512)
14 (.5512)
15.5 (.6102)
17 (.6693)
18 (.7087)
22 (.8661)
22 (.8661)
22.5 (.8858)
25 (.9843)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
50.8 (2.00)
50.8 (2.00)
50.8 (2.00)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
D
Head
Length
E
Shank
Dia.
12.7 (.500)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
25.4 (1.00)
25.4 (1.00)
31.75 (1.25)
31.75 (1.25)
Pre-Drill
Diameter/
Length
(D x .589)
(P x .589)
(W x .681)
(.45 x .681)
(.54 x .740)
(.62 x .809)
(.78 x .849)
(.95 x 1.01)
(1.17 x 1.01)
(1.54 x 1.03)
(1.78 x 1.13)
Inches are shown in parentheses; all other dimensions are in millimeters.
Metric Indexable models are available price on application (POA)
ISO-6149 & SAE J2444 (1980-1993) Specifications available as (POA)
63

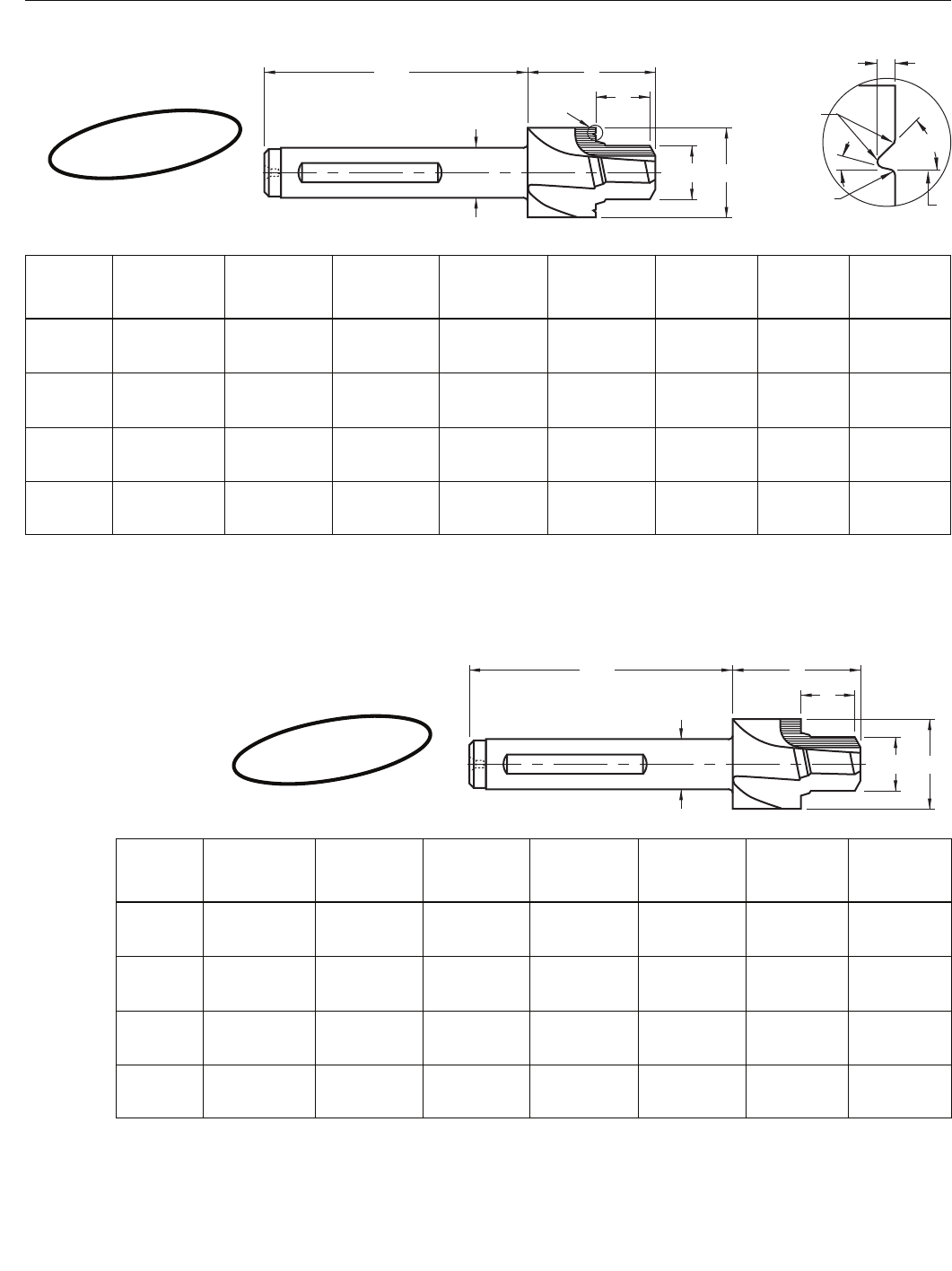

Port Contour Cutters in Metric Sizes – ISO 6149-1, SAE J2244/1
Tungsten Carbide Tipped, Straight Shank,
With Groove
14 (.5512)
16 (.6299)
19 (.7480)
21 (.8268)
24 (.9449)
26 (1.0236)
29 (1.1417)
34 (1.3386)
43 (1.6929)
52 (2.0472)
57 (2.2441)
67 (2.6378)
Pre-Drill
Diameter/
Length
(D x .589)
(P x .589)
(W x .681)
(.45 x .681)
(.54 x .740)
(.62 x .809)
(.78 x .849)
(.95 x 1.01)
(1.17 x 1.01)
(1.54 x 1.03)
(1.78 x 1.13)
(2.25 x 1.22)
A
Small
Diameter
7.035 (.277)
9.042 (.356)
10.541 (.415)
12.522 (.493)
14.528 (.572)
16.535 (.651)
20.523 (.808)
25.019 (.985)
31.013 (1.221)
40.030 (1.576)
46.025 (1.812)
58.013 (2.284)
Part
Number
269-0008
269-0010
269-0012
269-0014
269-0016
269-0018
269-0022
269-0027
269-0033
269-0042
269-0048
269-0060
M 8 x 1
M 10 x 1
M 12 x 1.5
M 14 x 1.5
M 16 x 1.5
M 18 x 1.5
M 22 x 1.5
M 27 x 2
M 33 x 2
M 42 x 2
M 48 x 2
M 60 x 2
Thread
Size
Inches are shown in parentheses; all other dimensions are in millimeters.
* Includes groove.
17 (.669)
20 (.787)
23 (.9055)
25 (.9843)
28 (1.1024)
30 (1.1811)
34 (1.3386)
40 (1.578)
49 (1.9291)
60 (2.3622)
66 (2.5984)
79 (2.9921)
B
Spotface
Diameter*
C
Bore
Length
11.5 (.4528)
11.5 (.4528)
14 (.5512)
14 (.5512)
15.5 (.6102)
17 (.6693)
18 (.7087)
22 (.8661)
22 (.8661)
22.5 (.8858)
25 (.9843)
27.5 (1.0827)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
50.8 (2.00)
50.8 (2.00)
50.8 (2.00)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
D
Head
Length
E
Shank
Dia.
12.7 (.500)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
25.4 (1.00)
25.4 (1.00)
31.75 (1.25)
31.75 (1.25)
38.1 (1.50)
F
Groove
Diameter
Tungsten Carbide Tipped, Straight Shank,
Without
Groove
A B
C
D3.25
E
A B
C
D3.25
E
DETAIL
A
DETAIL A
R .2 mm
.0079"
F
45°
MAX
.6 mm
.024"
R .15 mm
.006"
15°
Metric Sizes
A
Small
Diameter
7.035 (.277)
9.042 (.356)
10.541 (.415)
12.522 (.493)
14.528 (.572)
16.535 (.651)
20.523 (.808)
25.019 (.985)
31.013 (1.221)
40.030 (1.576)
46.025 (1.812)
58.013 (2.284)
Part
Number
269-1008
269-1010
269-1012
269-1014
269-1016
269-1018
269-1022
269-1027
269-1033
269-1042
269-1048
269-1060
M 8 x 1
M 10 x 1
M 12 x 1.5
M 14 x 1.5
M 16 x 1.5
M 18 x 1.5
M 22 x 1.5
M 27 x 2
M 33 x 2
M 42 x 2
M 48 x 2
M 60 x 2
Thread
Size
Inches shown in parentheses; all other dimensions are in millimeters.
14 (.5512)
16 (.6299)
19 (.748)
21 (.8268)
24 (.9449)
26 (1.0236)
29 (1.1417)
34 (1.3386)
43 (1.6929)
52 (2.0472)
57 (2.2441)
67 (2.6378)
B
Spotface
Diameter
C
Bore
Length
11.5 (.4528)
11.5 (.4528)
14 (.5512)
14 (.5512)
15.5 (.6102)
17 (.6693)
18 (.7087)
22 (.8661)
22 (.8661)
22.5 (.8858)
25 (.9843)
27.5 (1.0827)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
44.45 (1.75)
50.8 (2.00)
50.8 (2.00)
50.8 (2.00)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
57.15 (2.25)
D
Head
Length
E
Shank
Dia.
12.7 (.500)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
19.05 (.750)
25.4 (1.00)
25.4 (1.00)
31.75 (1.25)
31.75 (1.25)
38.1 (1.50)
Pre-Drill
Diameter/
Length
(D x .589)
(P x .589)
(W x .681)
(.45 x .681)
(.54 x .740)
(.62 x .809)
(.78 x .849)
(.95 x 1.01)
(1.17 x 1.01)
(1.54 x 1.03)
(1.78 x 1.13)
(2.25 x 1.22)
Metric Indexable models are available price on application (POA)
ISO-6149 & SAE J2444 (1980-1993) Specifications available as (POA)
Metric Sizes
64

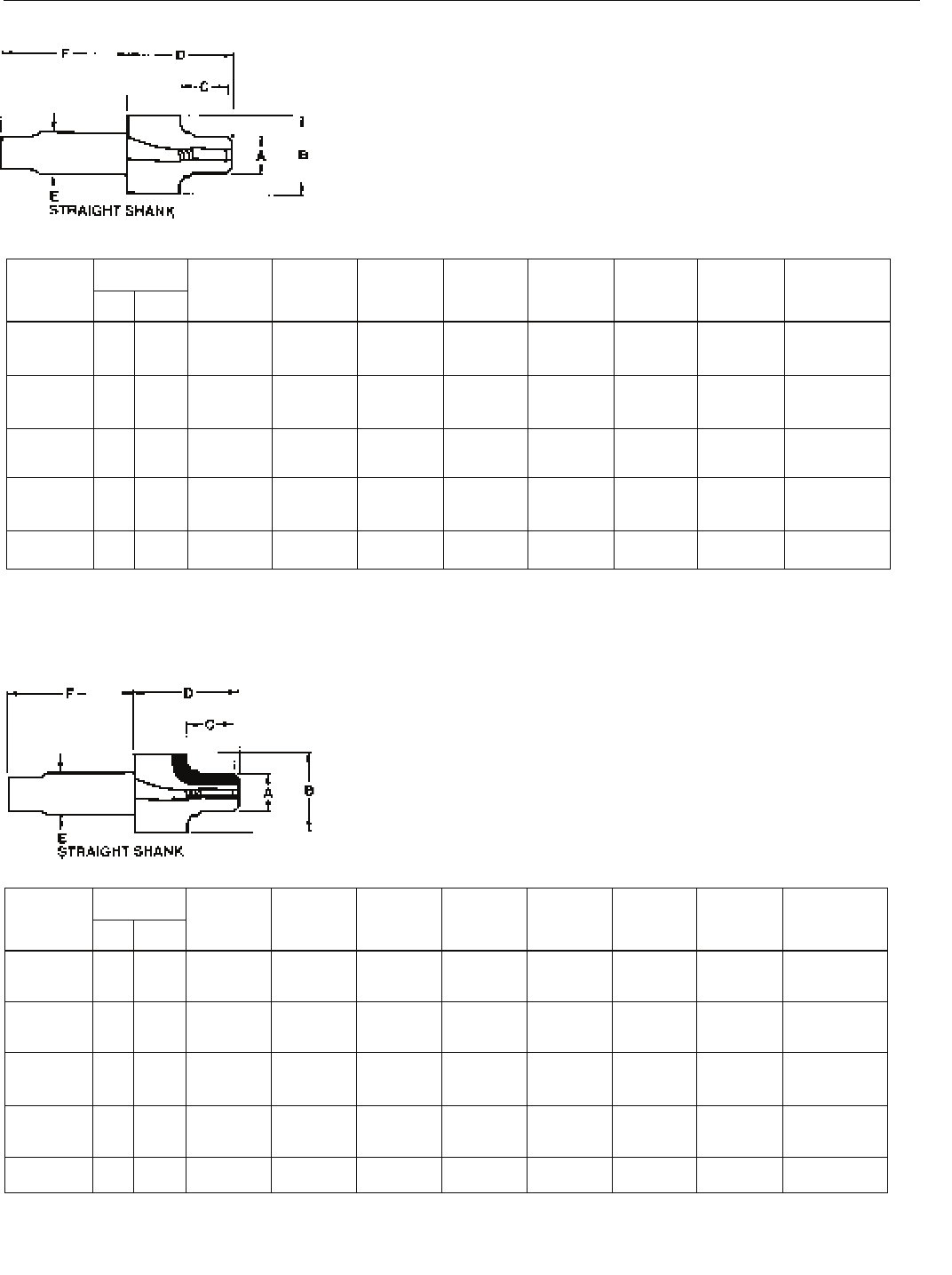

Port Contour Cutters – MS 33649, NASA MC 240
High Speed Steel, Straight Shank
Tungsten Carbide Tipped, Straight Shank
All dimensions shown in inches.
**MIL-S-8879C UNJF Class 3B
All dimensions shown in inches.
**MIL-S-8879C UNJF Class 3B
Pre-Drill
Diameter/
Length
F
Shank
Length
E
Shank
Diameter
D
Head
Length
C
Bore
Length
B
Spotface
Diameter
A**
Small
Diameter
Part
NumberNo. O.D.
Tube
Thread
Size
5/16 - 24 2 .125 164-0031 .276 .682 .582 1.750 .500 2.00 F x .812
3/8 - 24 3 .187 164-0037 .338 .760 .588 1.750 .500 2.00 O x .812
7/16 - 20 4 .250 164-0043 .393 .838 .661 1.750 .500 2.00 U x .937
1/2 - 20 5 .312 164-0050 .455 .916 .661 1.750 .500 2.00 .44 x .937
9/16 - 18 6 .375 164-0056 .513 .979 .714 1.750 .500 2.00 .48 x .968
5/8 - 18 7 .438 164-0062 .575 1.105 .745 1.750 .500 2.00 .55 x 1.030
3/4 - 16 8 .500 164-0075 .693 1.198 .839 2.000 .750 2.00 .67 x 1.090
7/8 - 14 10 .625 164-0087 .810 1.354 .935 2.000 .750 2.00 .78 x 1.220
1 - 12 11 .688 164-0100 .924 1.500 1.080 2.000 .750 2.00 .90 x 1.410
1 1/16 - 12 12 .750 164-0106 .986 1.635 1.069 2.250 .750 2.00 .95 x 1.410
1 3/16 - 12 14 .875 164-0118 1.111 1.790 1.080 2.250 .750 2.00 1.09 x 1.410
1 5/16 - 12 16 1.000 164-0131 1.236 1.920 1.069 2.250 .750 2.00 1.22 x 1.410
1 5/8 - 12 20 1.250 164-0162 1.549 2.280 1.121 2.250 1.000 2.25 1.53 x 1.470
1 7/8 - 12 24 1.500 164-0187 1.799 2.570 1.132 2.250 1.000 2.25 1.78 x 1.470
Pre-Drill
Diameter/
Length
F
Shank
Length
E
Shank
Diameter
D
Head
Length
C
Bore
Length
B
Spotface
Diameter
A**
Small
Diameter
Part
NumberNo. O.D.
Tube
Thread
Size
5/16 - 24 2 .125 264-0031 .276 .682 .582 1.750 .500 2.00 F x .812
3/8 - 24 3 .187 264-0037 .338 .760 .588 1.750 .500 2.00 O x .812
7/16 - 20 4 .250 264-0043 .393 .838 .661 1.750 .500 2.00 U x .937
1/2 - 20 5 .312 264-0050 .455 .916 .661 1.750 .500 2.00 .44 x .937
9/16 - 18 6 .375 264-0056 .513 .979 .714 1.750 .500 2.00 .48 x .968
5/8 - 18 7 .438 264-0062 .575 1.105 .745 1.750 .500 2.00 .55 x 1.030
3/4 - 16 8 .500 264-0075 .693 1.198 .839 2.000 .750 2.00 .67 x 1.090
7/8 - 14 10 .625 264-0087 .810 1.354 .935 2.000 .750 2.00 .78 x 1.220
1-12 11 .688 264-0100 .924 1.500 1.080 2.000 .750 2.00 .90 x 1.410
1 1/16 - 12 12 .750 264-0106 .985 1.635 1.069 2.250 .750 2.00 .95 x 1.410
1 3/16 - 12 14 .875 264-0118 1.111 1.790 1.080 2.250 .750 2.00 1.09 x 1.410
1 5/16 - 12 16 1.000 264-0131 1.236 1.920 1.069 2.250 .750 2.00 1.22 x 1.410
1 5/8 - 12 20 1.250 264-0162 1.549 2.280 1.121 2.250 1.000 2.25 1.53 x 1.470
1 7/8 - 12 24 1.500 264-0187 1.799 2.570 1.132 2.250 1.000 2.25 1.78 x 1.470
65

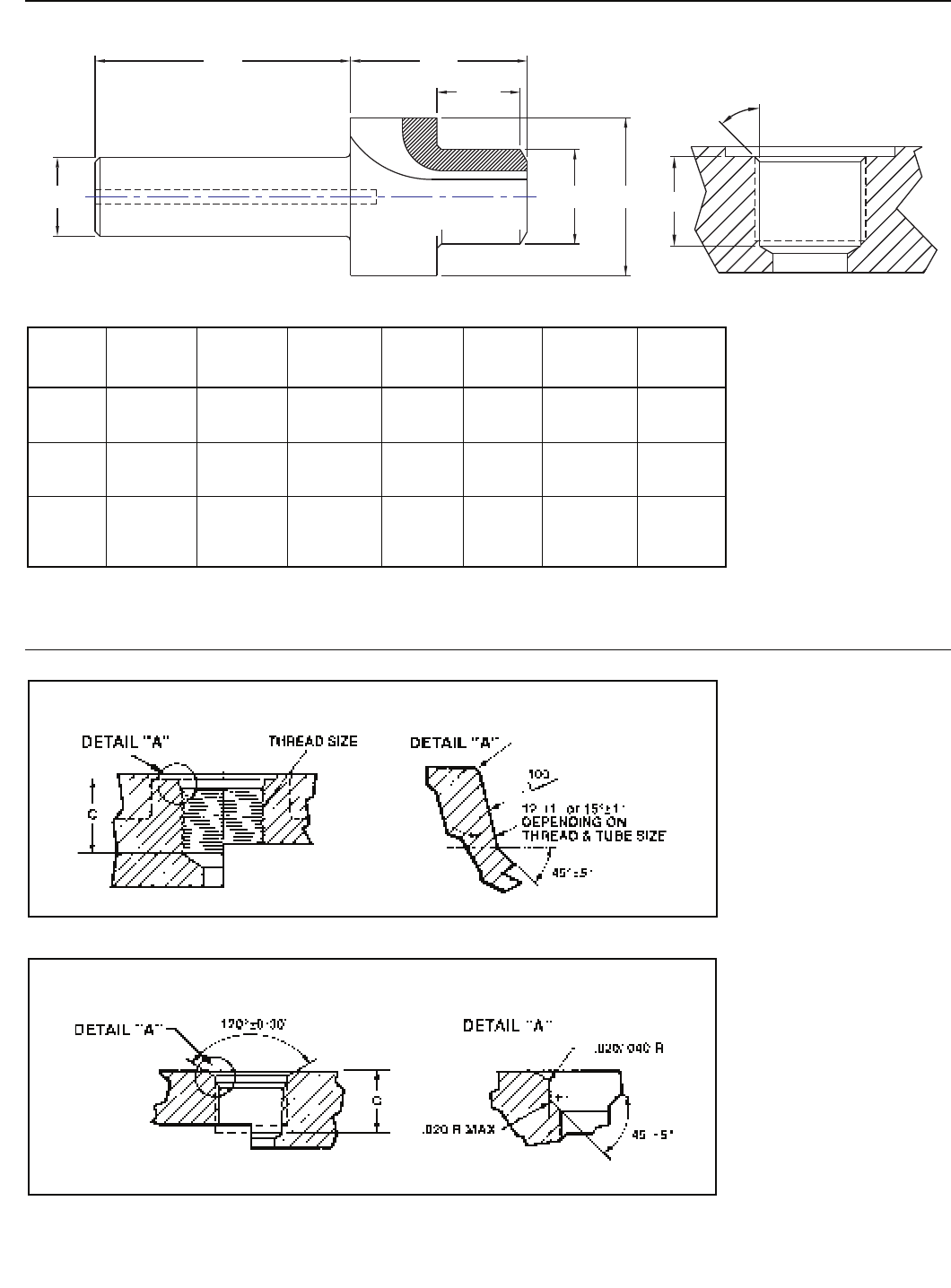

BSPP/BSPF (Rp) BSI BS21
Tungsten Carbide Tipped, Straight Shank
ABCDE F
Thread Part Small Spotface Bore Head Shank Shank
Size Number Diameter Diameter Length Length Diameter Length
1/8-28 265-2012 .346 .694 .625 1.750 .500 2.500
1/4-19 265-2025 .465 .891 .830 1.750 .500 2.500
3/8-19 265-2037 .600 1.009 .880 2.000 .500 2.500
1/2-14 265-3050 .748 1.186 1.066 2.250 .750 2.500
3/4-14 265-3075 .964 1.452 1.066 2.250 .750 3.000
1-11 265-3100 1.210 1.820 1.255 2.750 .750 3.000
1-1/4-11 265-4125 1.554 2.249 1.375 3.000 1.000 3.000
1-1/2-11 265-4150 1.771 2.505 1.375 3.000 1.000 3.000
2-11 265-4200 2.249 3.000 1.567 3.250 1.000 3.000
2-1/2-11 265-4250 2.874 3.500 1.849 3.500 1.000 3.250
Port Details
SAE J1926, MS 16142 & ISO 6149 (Metric) Port Detail
MS 33649, NASA MC 240 Port Detail
F
E
D
BA
C
45°
C
.004/.008 R
66
Port Contour Cutters Application Information
Surface Feet Per Minute and Feet Per Revolution
Aluminum
Cast Iron
Mild Steel
Material
HSS Cutters
SFM* IPR**
.009–.012
.009–.012
.006–.009
200
60
50
* Based on Small Diameter. ** Based on 3-fluted tool.
All feed and speeds based on uncoated tools.
Aluminum
Cast Iron
Mild Steel
Material
TCT Cutters
SFM* IPR**
.009–.012
.009–.012
.006–.009
400
150
140
Recommended Speeds and Feeds
For 267 and 268 Series Indexable Port Contour Cutters
The following speed and feed table should be used only as a starting point. Ultimate speeds
and feeds depend upon the machine, the set-up, and material conditions
Note: All indexable tooling should be run on rigid spindle machines.
Part Mild Steel Cast Iron Aluminum
Number Size RPM IPR RPM IPR RPM IPR
367-3056 9/16 – 18 2900–3100 .006–.010 2900–3100 .006–.010 4900–5100 .006–.010
367-3075 3/4 – 16 2100–2300 .006–.010 1900–2100 .008–.012 4900–5100 .006–.010
367-3087 7/8 – 14 1700–1900 .006–.010 1500–1700 .008–.012 4400–4600 .006–.010
367-4106 1 1/16 – 12 1500–1700 .008–.012 1300–1500 .010–.014 3700–3900 .008–.012
367-4118 1 3/16 – 12 1300–1500 .008–.012 1100–1300 .010–.014 3300–3500 .008–.012
For 367 Series Double Feed Indexable Porting Tools
For 467 Series Porting Tools
Please refer to the above 367 series chart for specifying the feed only.
Please refer to the application chart in the Spade Blade Brochure for the speed only.
300 Series
Part Mild Steel Stainless Steel Cast Iron Aluminum
Number Size RPM IPR RPM IPR RPM IPR RPM IPR
267-3043
7/16 – 20 2900-3100 .003-.005 2600-2700 .003-.004 2900-3100 .003-.005 4900-5100 .003-.005
268-3043
267-3050
1/2 – 20 2900-3100 .003-.005 2600-2700 .003-.004 2900-3100 .003-.005 4900-5100 .003-.005
268-3050
267-3056
9/16 – 18 2900-3100 .003-.005 2600-2700 .003-.004 2900-3100 .003-.005 4900-5100 .003-.005
268-3056
267-3075
3/4 – 16 2100-2300 .003-.005 1900-2000 .003-.004 1900-2100 .004-.006 4900-5100 .003-.005
268-3075
267-3087
7/8 – 14 1700-1900 .003-.005 1500-1600 .003-.004 1500-1700 .004-.006 4400-4600 .003-.005
268-3087
267-4106
1-1/16 – 12 1500-1700 .004-.006 1350-1450 .004-.005 1300-1500 .005-.007 3700-3900 .004-.006
268-4106
267-4118
1-3/16 – 12 1300-1500 .004-.006 1150-1250 .004-.005 1100-1300 .005-.007 3300-3500 .004-.006
268-4118
267-4131
1-5/16 – 12 1100-1300 .004-.006 1000-1100 .004-.005 900-1100 .005-.007 2900-3100 .004-.006
268-4131
267-5162
1-5/8 – 12 900-1100 .005-.007 800-900 .005-.006 700-900 .006-.008 2400-2600 .005-.007
268-5162
267-5187
1-7/8 – 12 700-900 .005-.007 600-700 .005-.006 500-700 .007-.009 1900-2100 .005-.007
268-5187
267-8250
2-1/2 – 12 500-700 .005-.007 450-550 .005-.006 400-600 .007-.009 1500-1700 .005-.007
268-8225
67

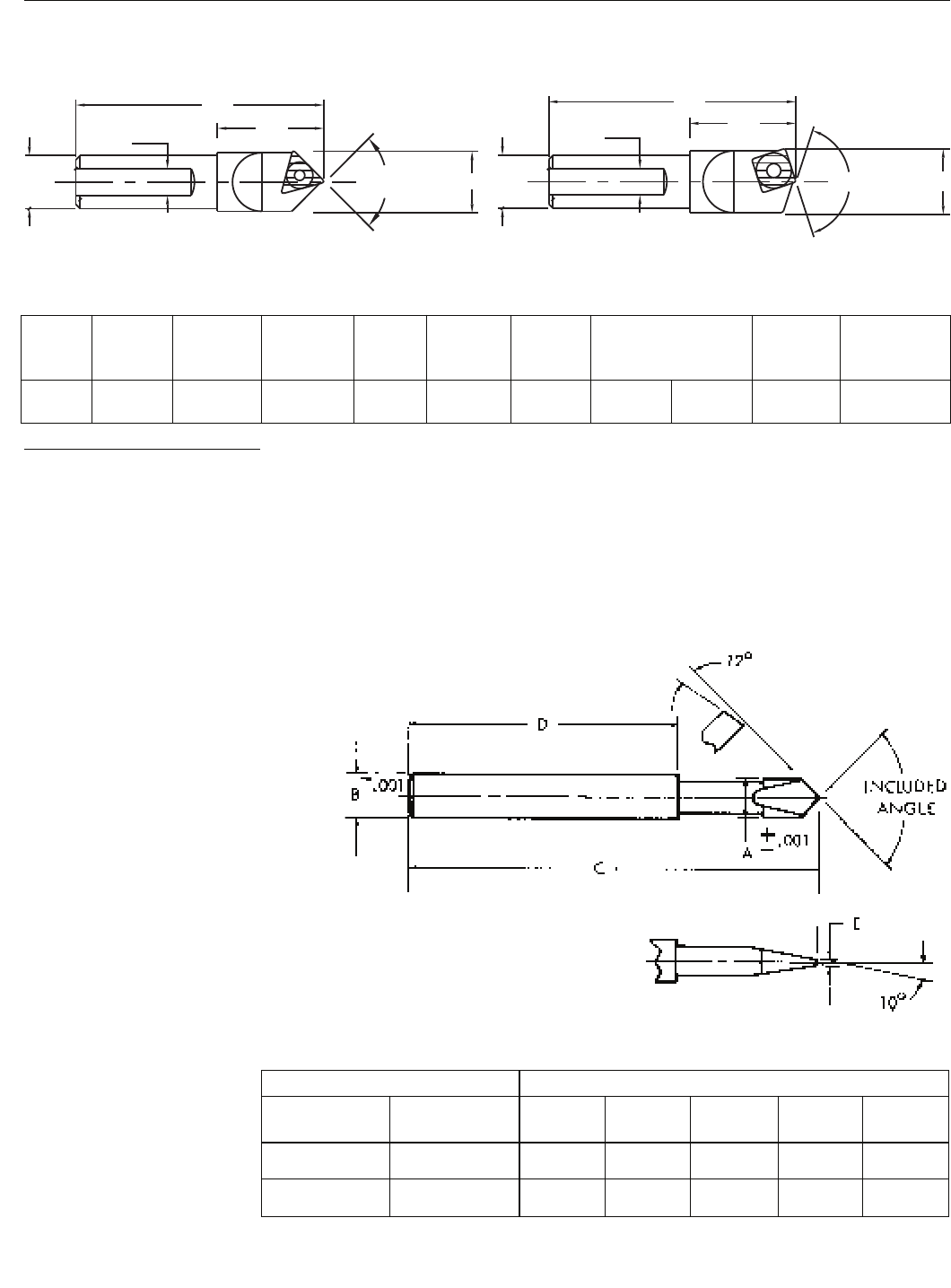

184-3037
184-3050
184-3075
184-3100
90°
Included Angle
184-2037
184-2050
184-2075
184-2100
118°
Included Angle
7.800
7.800
7.800
7.800
6.500
—
—
—
BCAD
.031
.031
.063
.063
E
Part Numbers Dimensions
All dimensions shown in inches.
.375
.500
.750
1.000
.500
.500
.750
1.000
High Speed Steel
Spot and Chamfer Drills
Indexable
Carbide Grade Descriptions:
M A CVD tri-phase coated tough carbide grade for steels, stainless steel and high temp alloys (HM, BM inserts).
L A PVD coated micrograin carbide for cast iron, nonferrous metals, nonmetals, austenitic stainless steels and titanium (HL, BL inserts).
NOTE: Inserts available in a ‘H’ grade - a PVD coated micrograin carbide for abrasive nonferrous alloys (HH, BH inserts). Prices on request.
A B C D Torx Torx
Part Included Maximum Extension Overall Shank Effective Insert Screw Wrench
Number Angle Diameter Length Length Diameter Inserts Number Part No. Part No.
284-0900 90° .625 1.50 3.50 .750 1 T-375-HM T-375-HL 056-1020 056-2028 T-8
284-1200 120° .812 1.50 3.50 .750 1 S-500-BM S-500-BL 056-1834 056-2015 T-15
90° Included Angle
REF.
DIA.
OVER INS.
A
B
C
D
ANGLE
FLAT
120° Included Angle
FLAT
REF.
DIA.
OVER INS.
A
B
C
D
ANGLE
68
Technical Reference
Fraction Inches
mm
33/64
17/32
35/64
9/16
37/64
19/32
39/64
5/8
41/64
21/32
43/64
11/16
45/64
23/32
47/64
3/4
49/64
25/32
51/64
13/16
53/64
27/32
55/64
7/8
57/64
29/32
59/64
15/16
61/64
31/32
63/64
1
.5156
.5313
.5469
.5625
.5781
.5938
.6094
.6250
.6406
.6563
.6719
.6875
.7031
.7188
.7344
.7500
.7656
.7813
.7969
.8125
.8281
.8438
.8594
.8750
.8906
.9063
.9219
.9375
.9531
.9688
.9844
1.0000
Decimal & Metric Equivalents
Fraction Inches
1/64
1/32
3/64
1/16
5/64
3/32
7/64
1/8
9/64
5/32
11/64
3/16
13/64
7/32
15/64
1/4
17/64
9/32
19/64
5/16
21/64
11/32
23/64
3/8
25/64
13/32
27/64
7/16
29/64
15/32
31/64
1/2
.0156
.0313
.0469
.0625
.0781
.0938
.1094
.1250
.1406
.1563
.1719
.1875
.2031
.2188
.2344
.2500
.2656
.2813
.2969
.3125
.3281
.3438
.3594
.3750
.3906
.4063
.4219
.4375
.4531
.4688
.4844
.5000
mm
0.397
0.794
1.191
1.588
1.984
2.381
2.778
3.175
3.572
3.979
4.366
4.763
5.159
5.556
5.953
6.350
6.747
7.144
7.541
7.938
8.334
8.731
9.128
9.525
9.922
10.319
10.716
11.113
11.509
11.906
12.303
12.700
13.097
13.494
13.891
14.288
14.684
15.081
15.478
15.875
16.272
16.669
17.066
17.463
17.859
18.256
18.653
19.050
19.447
19.844
20.241
20.638
21.034
21.431
21.838
22.225
22.622
23.019
23.416
23.813
23.852
24.606
25.003
25.400
69

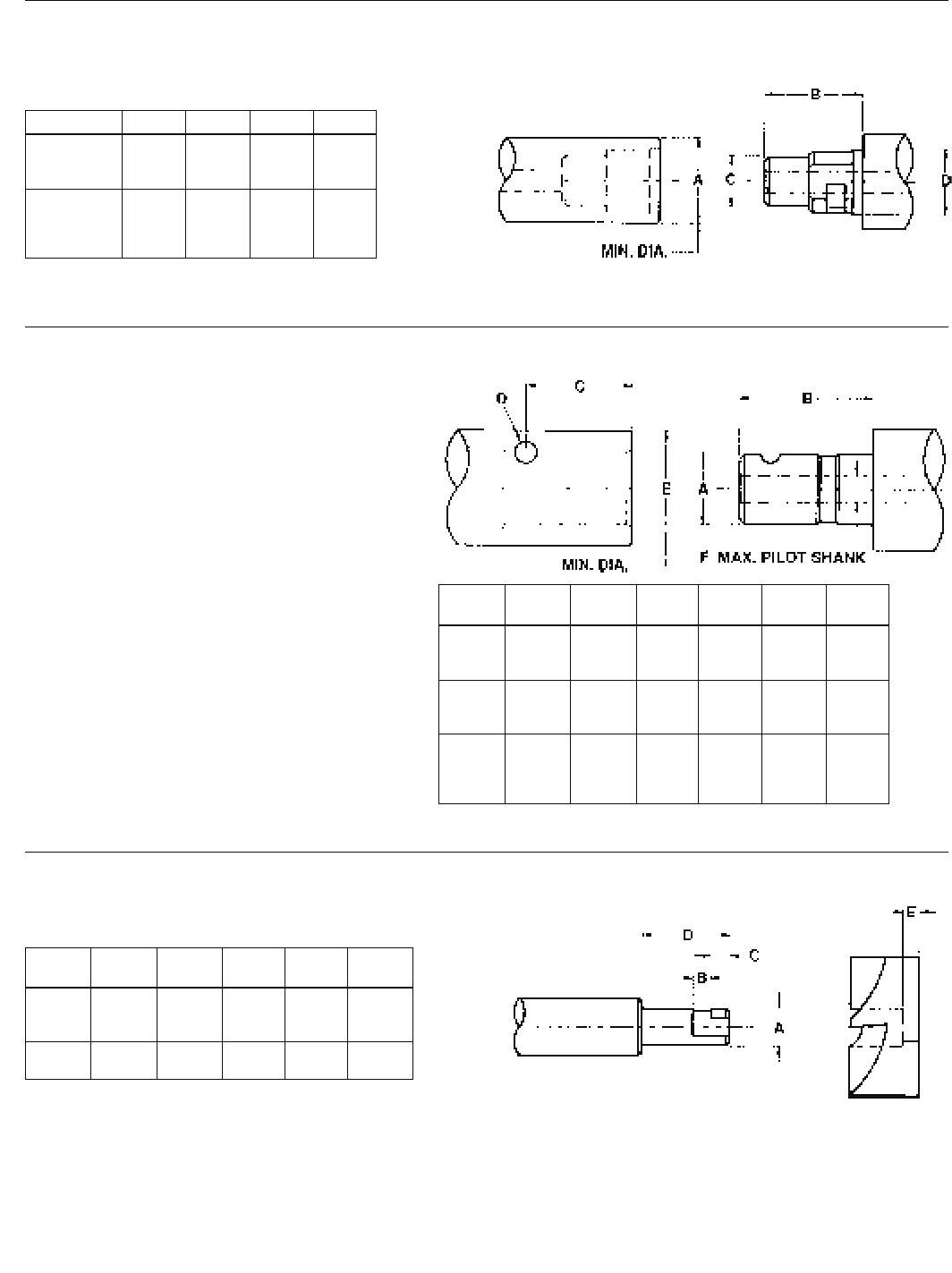

Radial Drive
Technical Reference
Shank Details
Pin Drive
Inverted Drive
Drive No.
RA
RB
RC
RE
RF
RJ
RS
.7500
.8750
1.0625
1.3750
1.5000
2.0000
2.7500
AB
.3750
.4375
.5625
.7500
.8125
1.0000
1.3750
.938
1.375
1.375
1.500
1.563
1.563
1.625
C
.5000
.6250
.7500
1.0000
1.1250
1.3750
1.7500
D
Pin
Drive
0
0A
1
1C
1A
1B
2
2A
3
4
D
.1250
.1250
.1875
.2188
.2500
.2500
.2500
.3125
.3125
.3750
F
.1250
.1875
.2500
.2500
.3125
.3125
.3125
.3125
.5000
.3750
.3750
.4375
.5625
.6250
.6875
.7500
.8750
1.0000
1.2500
1.7500
.938
1.500
1.500
1.625
1.625
1.625
1.625
1.625
1.688
1.750
.7500
1.2500
1.2500
1.2500
1.2500
1.2500
1.2500
1.2500
1.2500
1.2500
AB
C
.7500
.8750
1.0625
1.1250
1.2500
1.3750
1.5000
1.7500
2.0000
3.0000
E
Note: Can be used as a straight shank counterbore.
B
.197
.197
.197
.260
.260
C
.250
.250
.250
.313
.375
D
1.063
1.063
1.063
1.125
1.438
E
.177
.177
.177
.240
.240
.3125
.3750
.5000
.7500
1.0000
.3125
.3750
.5000
.7500
1.0000
A
Drive
No.
70

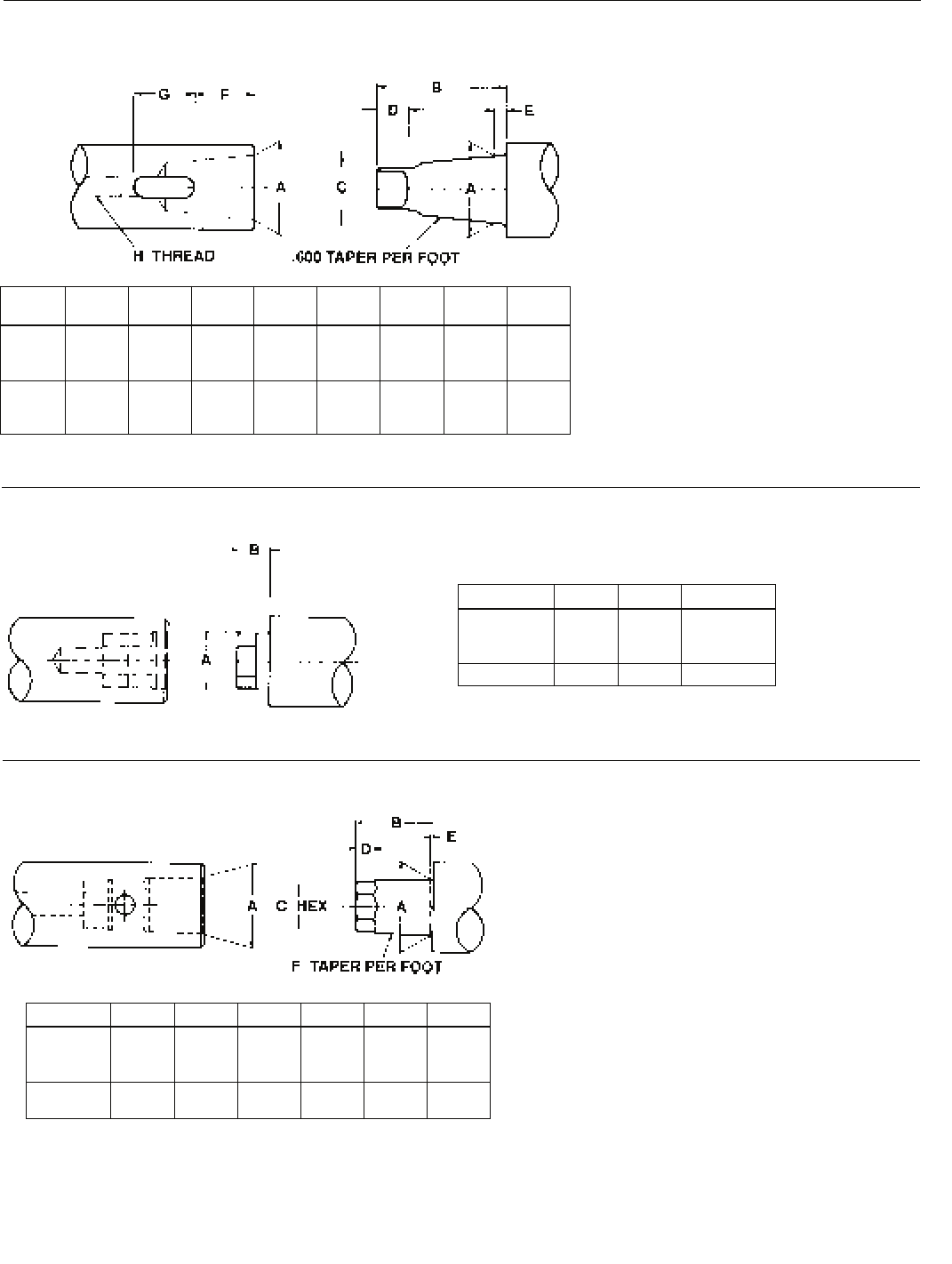

Technical Reference
Shank Details
HEX Drive Type A
HEX Drive Type C
Square Drive
D
.406
.500
.531
.563
.625
.750
E
.0625
.0625
.0625
.0625
.0625
.0938
F
1.375
1.375
1.375
1.563
1.625
2.313
H
#10–24
1/4–20
1/4–20
5/16–18
5/16–18
5/16–18
B
1.625
1.625
1.688
1.875
2.000
2.750
Square
Drive
53
61
71
87
92
112
.688
.750
.875
.875
.875
1.000
G
.469
.672
.781
.906
1.031
1.344
C
.7500
.9375
1.1250
1.3125
1.5000
2.0000
A
B
.410
.470
.530
.720
.3750
.5625
.8750
1.2500
A
HEX Size
.306
.495
.718
1.110
HEX Drive
A-1
A-2
A-3
A-4
D
.280
.280
.340
.410
.560
E
.060
.060
.060
.060
.090
HEX Drive
C-11
C-12
C-13
C-14
C-15
F
.600
.600
.623
.623
.630
.306
.495
.745
.988
1.488
C
.781
.906
1.313
1.719
2.469
B
.4375
.5938
.9063
1.2500
1.8125
A
71
Technical Reference
Shank Details

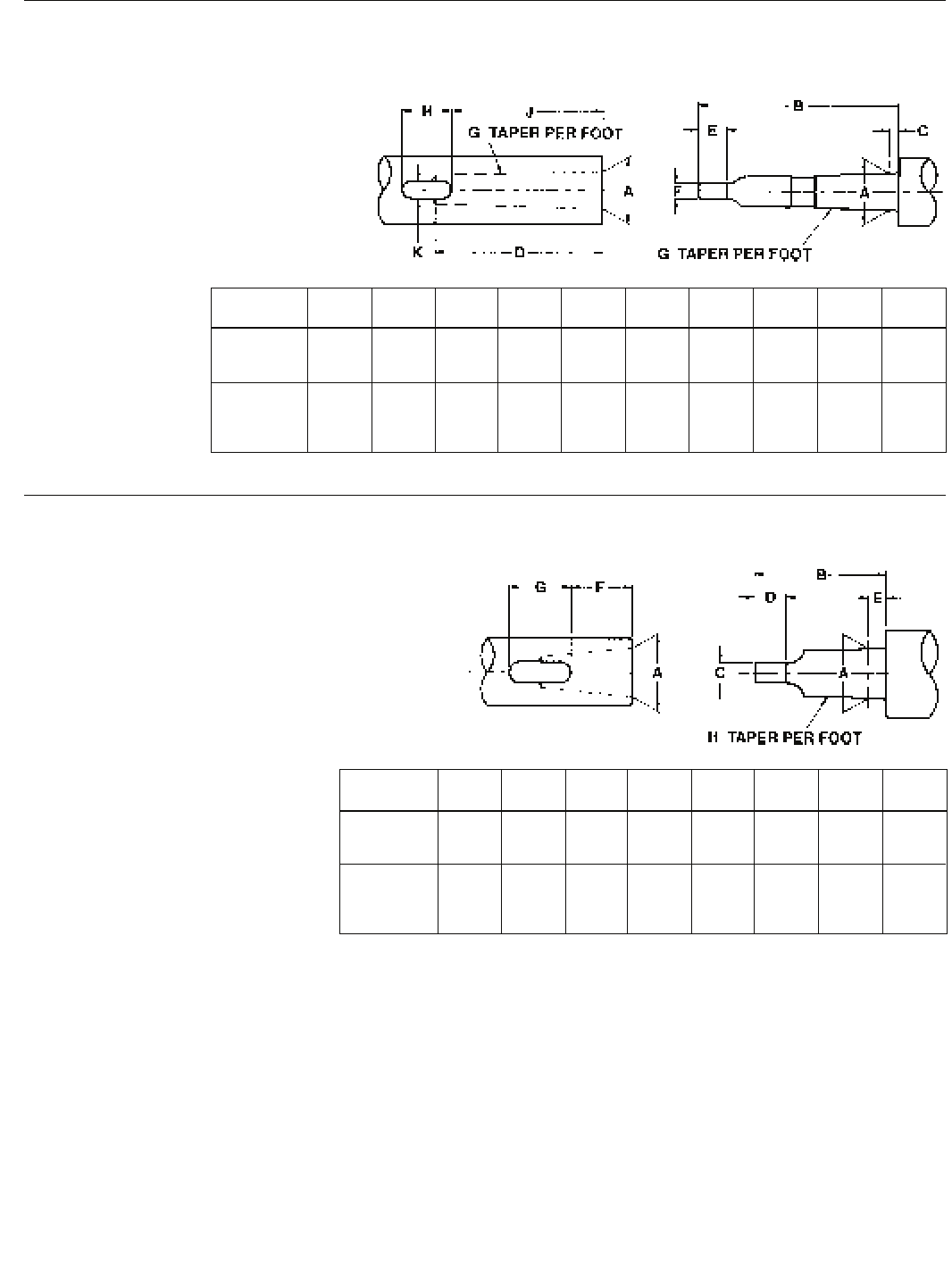

Morse Taper
Stub Taper
B
2.344
2.563
3.125
3.875
4.875
6.125
8.563
K
.160
.213
.260
.322
.478
.635
.760
Morse
Taper No.
0
1
2
3
4
5
6
C
.125
.125
.188
.188
.250
.250
.313
D
2.031
2.188
2.625
3.250
4.125
5.250
7.375
F
.156
.203
.250
.313
.469
.625
.750
G
.624
.599
.599
.602
.623
.632
.626
J
1.938
2.063
2.500
3.063
3.875
4.938
7.000
.356
.475
.700
.938
1.231
1.748
2.494
A
.250
.375
.438
.563
.625
.750
1.125
E
.563
.750
.875
1.188
1.250
1.500
1.750
H
C
.156
.201
.294
.388
.513
.641
.750
D
.250
.313
.438
.563
.688
.813
.938
E
.188
.188
.188
.188
.188
.313
.313
H
.600
.600
.602
.602
.623
.623
.630
B
1.156
1.313
1.625
1.938
2.250
2.688
3.000
Stub
Taper No.
0
1
2
3
4
4, 5
5
.594
.719
.938
1.125
1.375
1.563
1.750
G
.656
.781
.938
1.063
1.188
1.313
1.438
F
.375
.475
.700
.938
1.231
1.500
1.748
A
72
METCUT
®

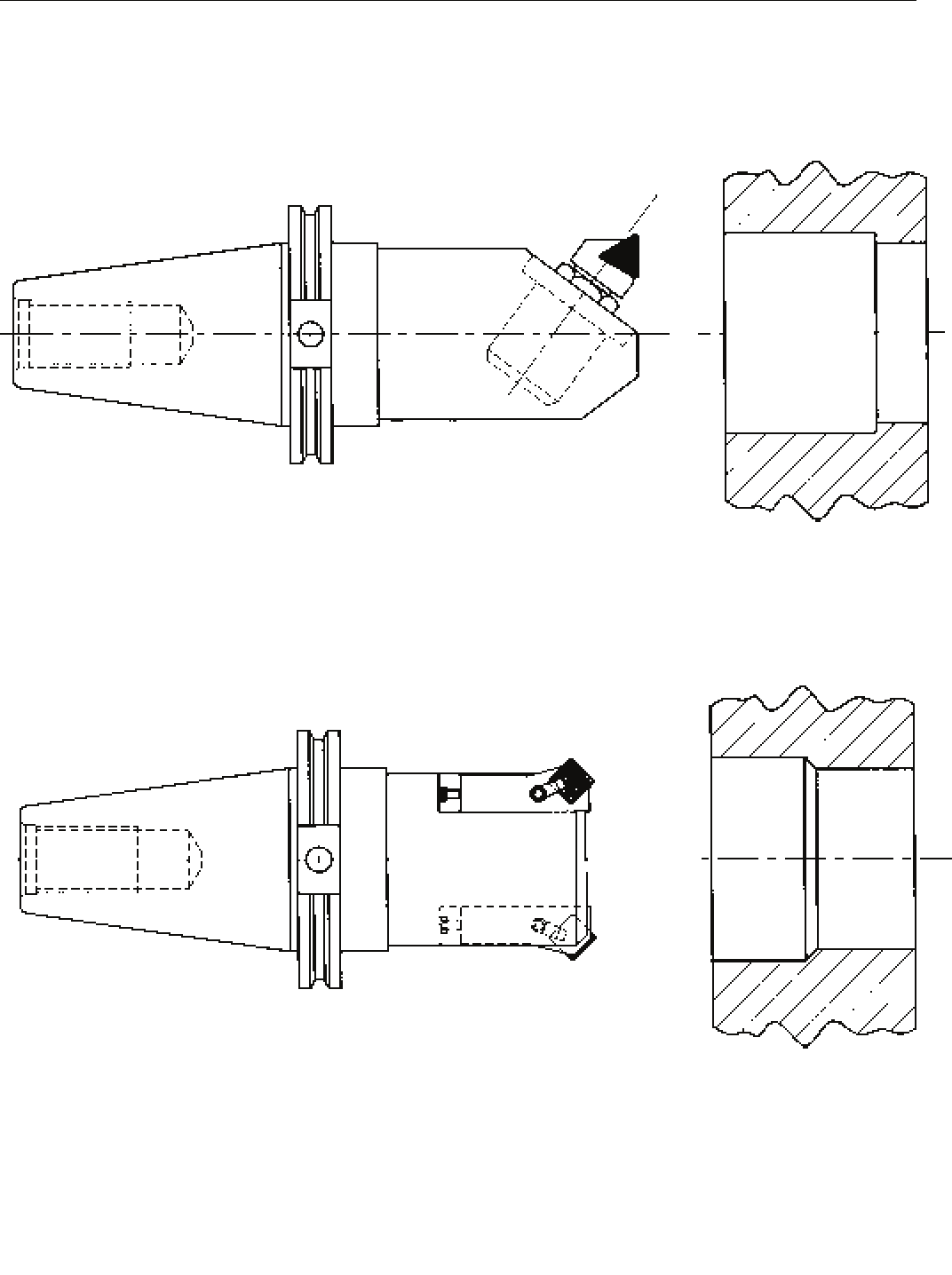

Examples of Special Boring Tools
V Flange Shank Boring Bar with Precision Boring Unit
V Flange Shank Cartridge Bar with Adjustable Boring Cartridges
73
Carbide-Tipped, Stepped Multi-Diameter Boring Tool
Solid Carbide Head Multi-Diameter Boring Tool
METCUT
®
Examples of Special Boring Tools
74
Examples of Special Boring, Spotface, Trepanning & Ball Nose Tools
Body Mount Insert Tool: Bore, Chamfer and Spotface
METCUT
®
HSS Trepanning Tool
Ball Nose
75

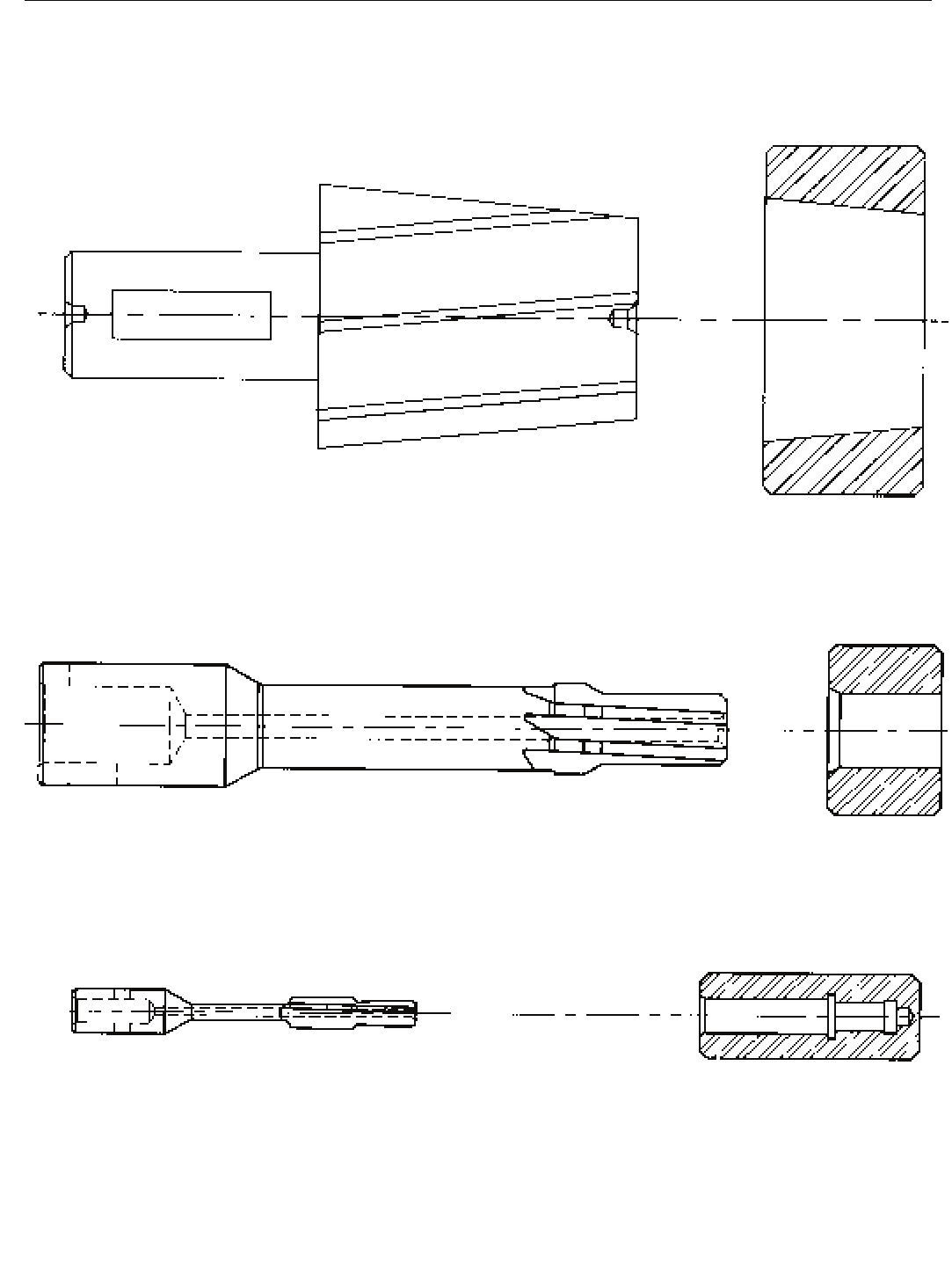

Shank Type Taper Reamer
HSS Reamer and Chamfer Tool
HSS Coolant-Feed Step Reamer
METCUT
®
Examples of Special Reaming Tools
76
Metalcutting Safety
IMPORTANT SAFETY INSTRUCTIONS
Read before using the tools in this catalog!
Projectile and Fragmentation Hazards
Modern metalcutting operations involve high spindle and cutter speeds and high temperatures and cutting forces. Hot metal chips
may fly off the workpiece during metalcutting. Although cutting tools are designed and manufactured to withstand high cutting forces
and temperatures, they can sometimes fragment, particularly if they are subjected to over-stress, severe impact, or other abuse.
To avoid injury:
• Always wear appropriate personal protective equipment, including safety goggles, when operating metalcutting machines
or working nearby.
• Always make sure all machine guards are in place.
Breathing and Skin Contact Hazards:
Grinding carbide or other advanced cutting tool materials produce dust or mist containing metallic particles. Breathing this dust
or mist — especially over an extended period — can cause temporary or permanent lung disease or make existing medical conditions
worse. Contact with this dust or mist can irritate eyes, skin, and mucous membranes and may make existing skin conditions worse.
To avoid injury:
• Always wear breathing protection and safety goggles when grinding.
• Provide ventilation control and collect and properly dispose of dust, mist, or sludge from grinding.
• Avoid skin contact with dust or mist.
For more information, read the applicable Material Safety Data Sheet provided by Kennametal and consult General Industry Safety
and Health Regulations, Part 1910, Title 29 of the Code of Federal Regulations.
These safety instructions are general guidelines. Many variables affect machining operations. It is impossible to cover every specific
situation. The technical information included in this catalog and recommendations on machining practices may not apply to your particular
operation. For more information, consult Kennametal’s Metalcutting Safety booklet, available free from Kennametal at 724.539.5747 or fax
724.539.5439. For specific product safety and environmental questions, contact our Corporate Environmental Health and Safety Office
at 724.539.5066 or fax 724.539.5372.
METCUT, WIDIA, and Superior holemaking solutions by design are trademarks of Kennametal and are used as such herein. The absence of a product, service name,
or logo from this list does not constitute a waiver of Kennametal’s trademark or other intellectual property rights concerning that name or logo.
©201 Kennametal Inc. All rights reserved.
