HT 800 WP
The interchangeable insert drilling system
for extreme process reliability •
from hole diameter 11 to 25.5 mm•
for drilling depths 1.5xD, 3xD, 5xD, 7xD and 10xD•
with interchangeable inserts for steel, cast iron and Al•
holders/interchangeable inserts for pilot drilling/countersinking•
ISSUE 2010
HT 800 WP and power engineering
The ideal drilling system for the production of large,
highly-accurate holes in a variety of materials for wind
and water power stations, engine plants or gas/steam
turbines
3HT 800 WP
39
5
6
6
8
36
5
7
13
26
28
28
30
32
34
24
HT 800 WP - Overview
QUESTIONNAIRE
SPECIAL TOOLS
INSERTS
INSERT HOLDERS
ACCESSORIES
TROUBLESHOOTING
GÜHRINGNAVIGATOR
Page
• Technical features Page
• Application recommendations Page
• Notes regarding application Page
• Program and prices Page
Page
• Technical features Page
• Selected machining results Page
• Program and prices Page
• up to drilling depth 1 x D Page
• up to drilling depth 1.5 x D Page
• up to drilling depth 3 x D Page
• up to drilling depth 5 x D Page
• up to drilling depth 7 x D Page
• up to drilling depth 10 x D Page
• Program and prices Page
4HT 800 WP
A D
C
B
A
B
C
D
HT 800 WP - Technology and Advantages
With the new HT 800 WP interchangeable drilling system Guhring provides high-perform-
ance and cost-efficient holders for holes in the diameter range from 11.00 to 25.5 mm that
excell thanks to the following advantages:
Extended tool life
Thanks to special, micro-machined cutting edges and the application oriented surface finish the interchangeable
inserts of the HT 800 WP drilling system are especially wear resistant.
The holders of the HT 800 WP drilling system also possess a very high wear resistance. This is based on the
optimised holder material with nickel plated surface as well as incremental holder sizes in steps of 0.5 mm. This
leads to less wear on the holder body.
Optimised chip flow
Thanks to their flute cross section the holders of the HT 800 WP drilling system ensure optimal chip evacuation from
the hole even with larger drilling depths.

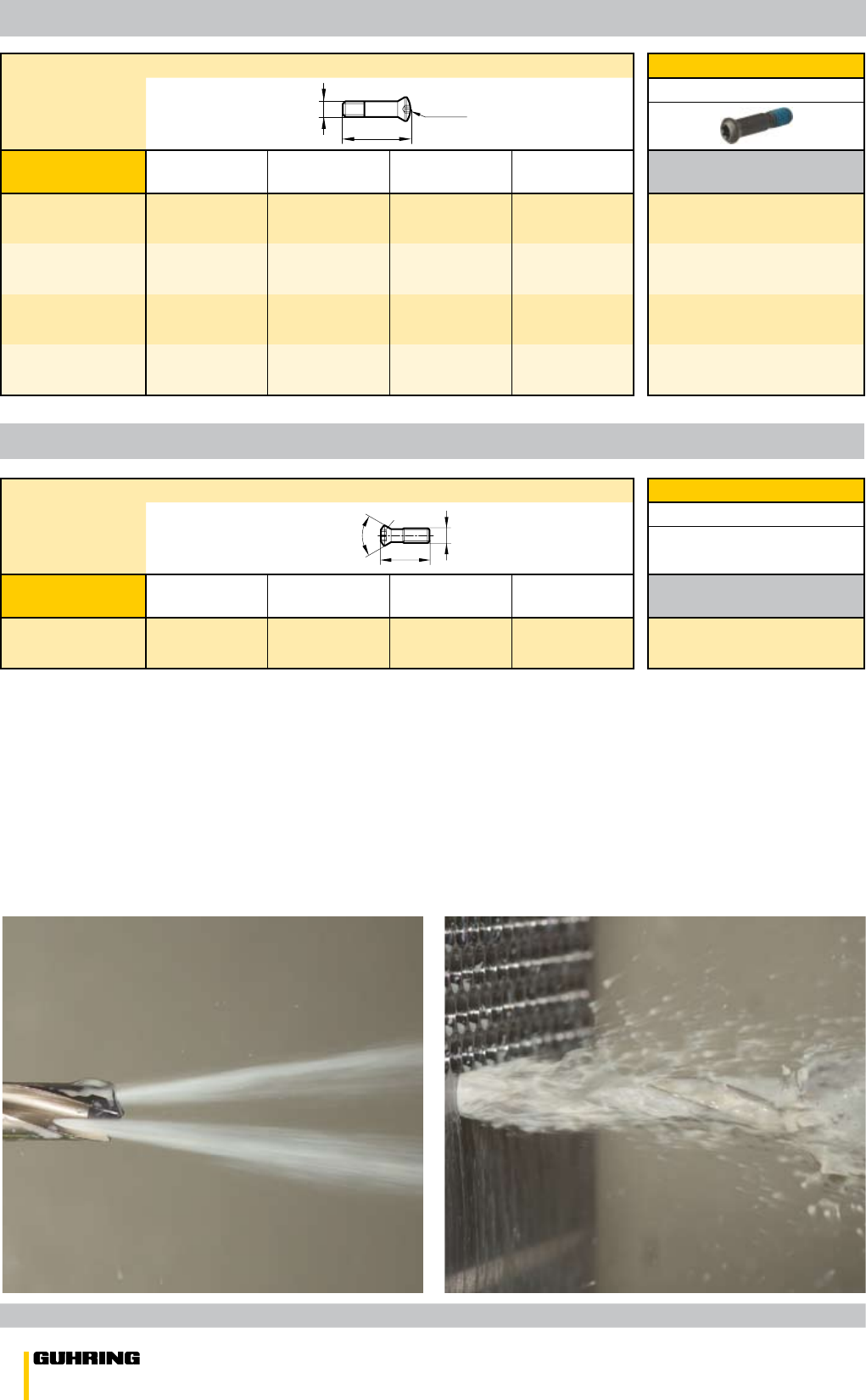

Perfect cooling lubrication
A perfect cooling lubrication is ensured by coolant ducts with maximum cross section, exiting in the flute. Thereby
enabling an optimal cooling lubrication of the cutting edges and additionally support the chip evacuation from the
hole.
Highly accurate and rigid insert seat
The accurate insert seat enables the insert change in the machine in only a few, simple steps with a standard Torx
screw driver. Thanks to the optimised material for the holders of the HT 800 WP drilling system, the insert can be
changed more frequently than with conventional systems before the holder needs to be replaced due to wear of the
insert seat.
The clamping screws with screw lock ensure a secure holding of the interchangeable insert in the holder even with
machines subject to high levels of vibrations.
Rigid holders
The close stepped diameter jumps of 0.5 mm with the holder sizes not only reduce wear. Through the better guid-
ance of the tool in the hole they also increase the rigidity of the HT 800 WP drilling system. Subsequently, resulting
in longer tool life as well as improved workpiece surfaces.
5HT 800 WP
HT 800 WP - Application Tips
Please observe the following notes and recommendations for the application of Guhring‘s HT 800 WP tools:
We recommend when changing the insert to also replace the clamping screw!
Therefore, every holder is supplied with a clamping screw, Guhring no. 4071, and screwdriver, Guhring no. 1612. Every
interchangeable insert is also supplied with a clamping screw, Guhring no. 4071.
When changing the insert please observe the following tightening torques for the clamping screw. Adhering to them is
absolutely necessary for optimal machining results!
Diameter range 11.0 - 12.99 13.0 - 13.99 14.0 - 15.99 16.0 - 17.99 18.0 - 19.99 20.0 - 21.99 22.0 - 25.99
Thread M2.2 M2.5 M3 M3.5 M4 M4.5 M5
Torx size T7 T8 T9 T10 T15 T15 T20
Tightening torque[Ncm] 80 100 170 270 400 580 810
Details apply to thread locking (Loctite)!
Selected machining results
Guhring no. 4107 + 4112 4109 + 4112 4109 + 4112 4107 + 4113 4108 + 4113
Diameter 17.5 17.5 17.5 17.5 14.1
Coating nanoFIRE nanoFIRE nanoFIRE FIRE FIRE
Material group alloyed
heat-treatable steel
alloyed
heat-treatable steel
general
structural steels cast iron cast iron
Material
description
42CrMo4/
1.7275
42CrMo4/
1.7275
St52-3/
1.0570
GG25/
0.6025
GGG40/
0.7040
Drill. depth [mm] 50 122,5 122,5 50 70
Hole type blind hole blind hole blind hole blind hole blind hole
Cooling IC 40 bar IC 40 bar IC 40 bar IC 40 bar IC 55 bar
Coolant soluble oil soluble oil soluble oil soluble oil soluble oil
Machine type machining centre machining centre machining centre machining centre machining centre
vc [mm/min] 100 85 130 80 160
fz [mm] 0,28 0,25 0,15 0,30 0,60
Tool life [m] 50 30 35 250 120
6HT 800 WP
4112 4113 4114 4111
7645 7632 7635
HT 800 WP interchangeable inserts are in respect of tool material, geometry and surface finish perfectly adapted to
your specific range of application. Subsequently, you will always achieve optimal machining results with maximum
performance and highest economic efficiency.
The insert change with HT 800 WP can be performed in the machine problem-free, the interchangeable insert always
sits perfectly clamped and positioned in the holder.
Guhring no.
Tool material solid carbide solid carbide solid carbide solid carbide
Surface nanoFIRE FIRE bright nanoA
Point geometry 2-facet 2-facet relieved cone relieved cone
Point angle 140° 140° 140° 150°
Tolerance h7 m7 h7 m7
Diameter 11.0 - 25.5 11.0 - 25.5 11.0 - 25.5 11.0 - 25.5
Application steel cast iron aluminium pilot drilling
Application group Material examples
Psteel, cast steel, stainless steel
(ferritic and martensitic)
Mstainless steel and cast steel
(austenitic and austenitic/ferritic)
Kgrey cast iron, spheroidal graphite und
malleable cast iron
Naluminium and other
non-ferrous metals
SSpecial, Super- and Ti-alloys
HHardened steels and chilled cast iron
optimal suitability
limited suitability
optimal suitability
limited suitability
HT 800 WP Interchangeable Inserts
Complete compatibility
The new interchangeable inserts as well as the new holders of the HT 800 WP system are fully compatible with the
conventional HT 800 WP interchangeable inserts and holders. You can, therefore, apply the new interchangeable
inserts in the already existing HT 800 WP holders or combine new holders with existing interchangeable inserts.
Drilling tests with both combination possibilities have shown that the efficiency of each package lies above the values
of the old HT 800 WP system. You will definitely benefit!
The pilot insert 4111 can be combined with any holder, if the application requires a 150º point angle.
Technical features and
application recommendations

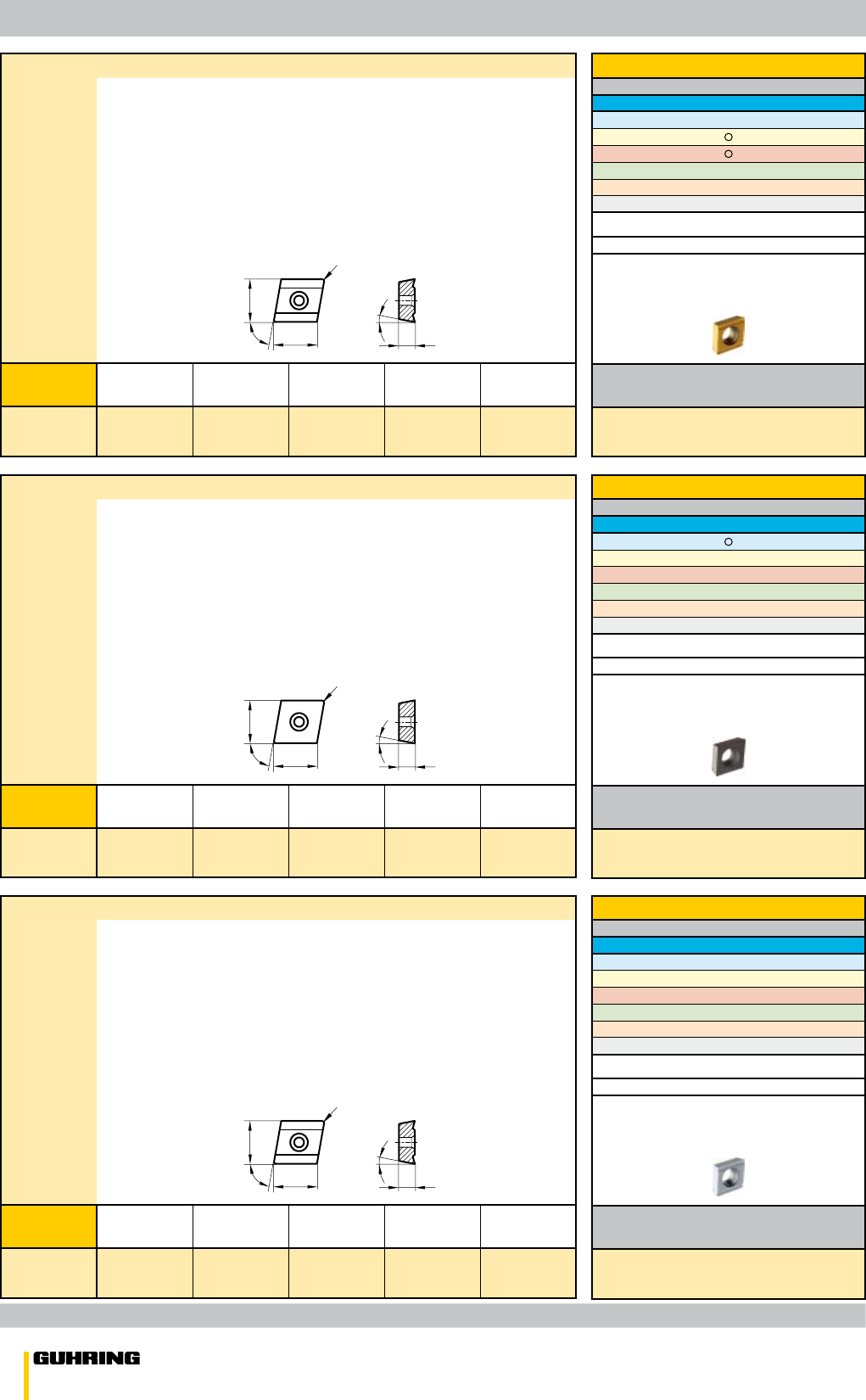

Guhring no.
Tool material solid carbide solid carbide solid carbide
Surface TiN TiAlN bright
Type CPGT ... R CPGW ... R CPGT ... R
Application steel cast iron aluminium
Application group Material examples
Psteel, cast steel, stainless steel
(ferritic and martensitic)
Mstainless steel and cast steel
(austenitic and austenitic/ferritic)
Kgrey cast iron, spheroidal graphite und
malleable cast iron
Naluminium and other
non-ferrous metals
SSpecial, Super- and Ti-alloys
HHardened steels and chilled cast iron
7HT 800 WP
4105 4106 4107 4108 4109 4110
HT 800 WP holders offer highest accuracy and rigidity. The open flute together with internal cooling guarantees an
optimal chip evacuation particularly from deeper holes. The reinforced shank to DIN 6535 HE ensures the strong and
accurate clamping of the holder in the tool holder. As it meets the DIN standard for solid carbide monoblock tools, a
problem-free changeover to the HT 800 WP system in production is possible at any time.

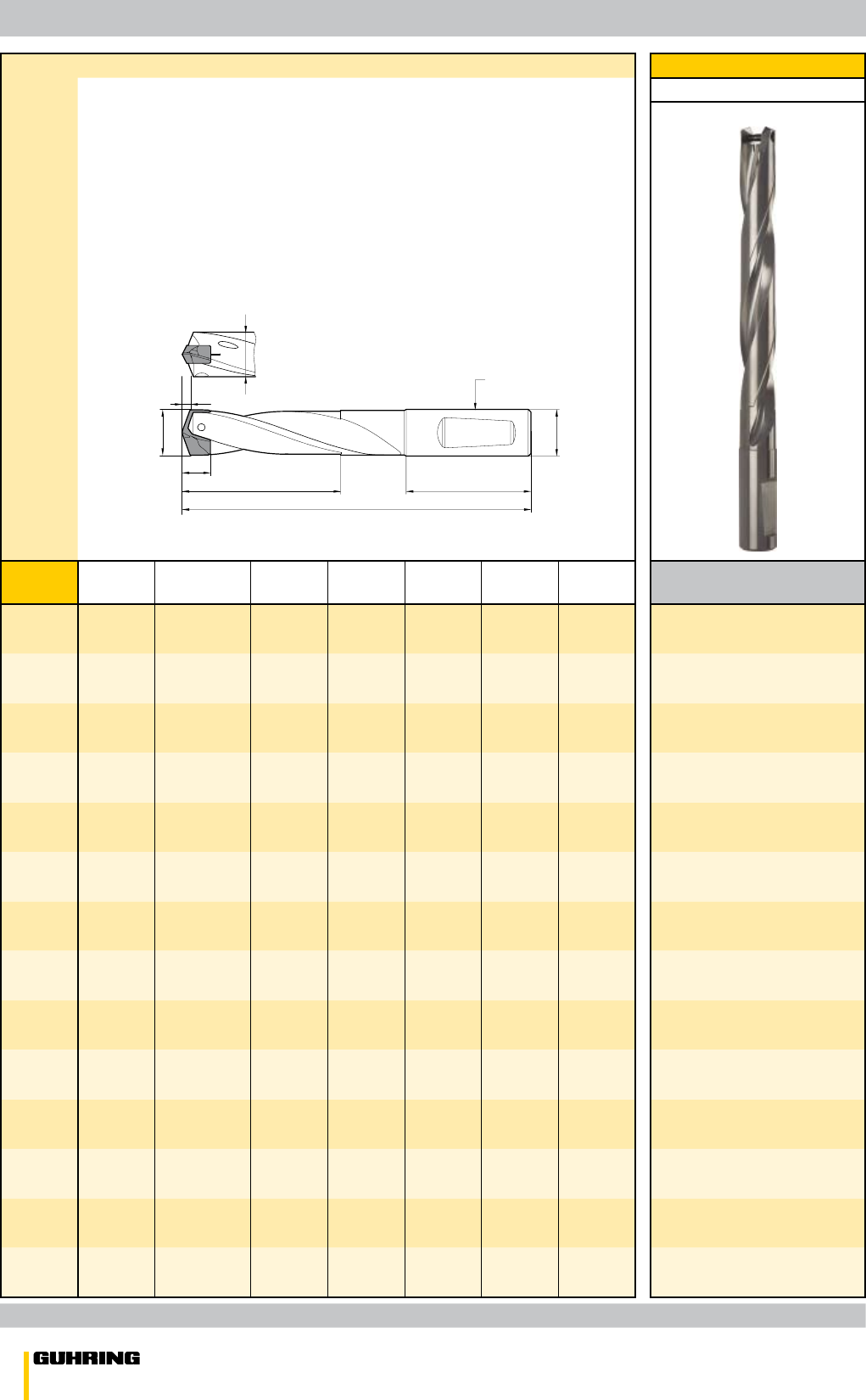

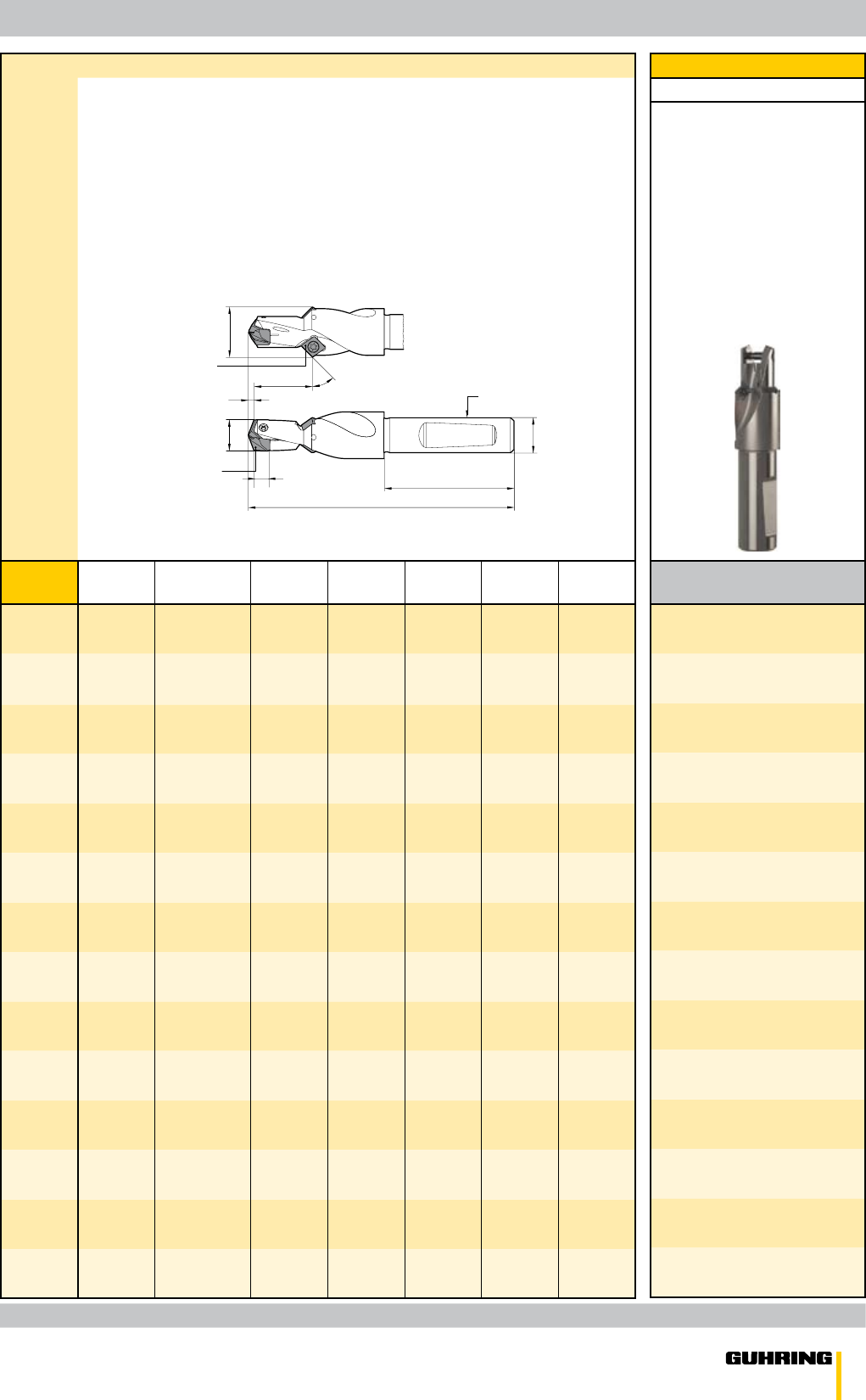

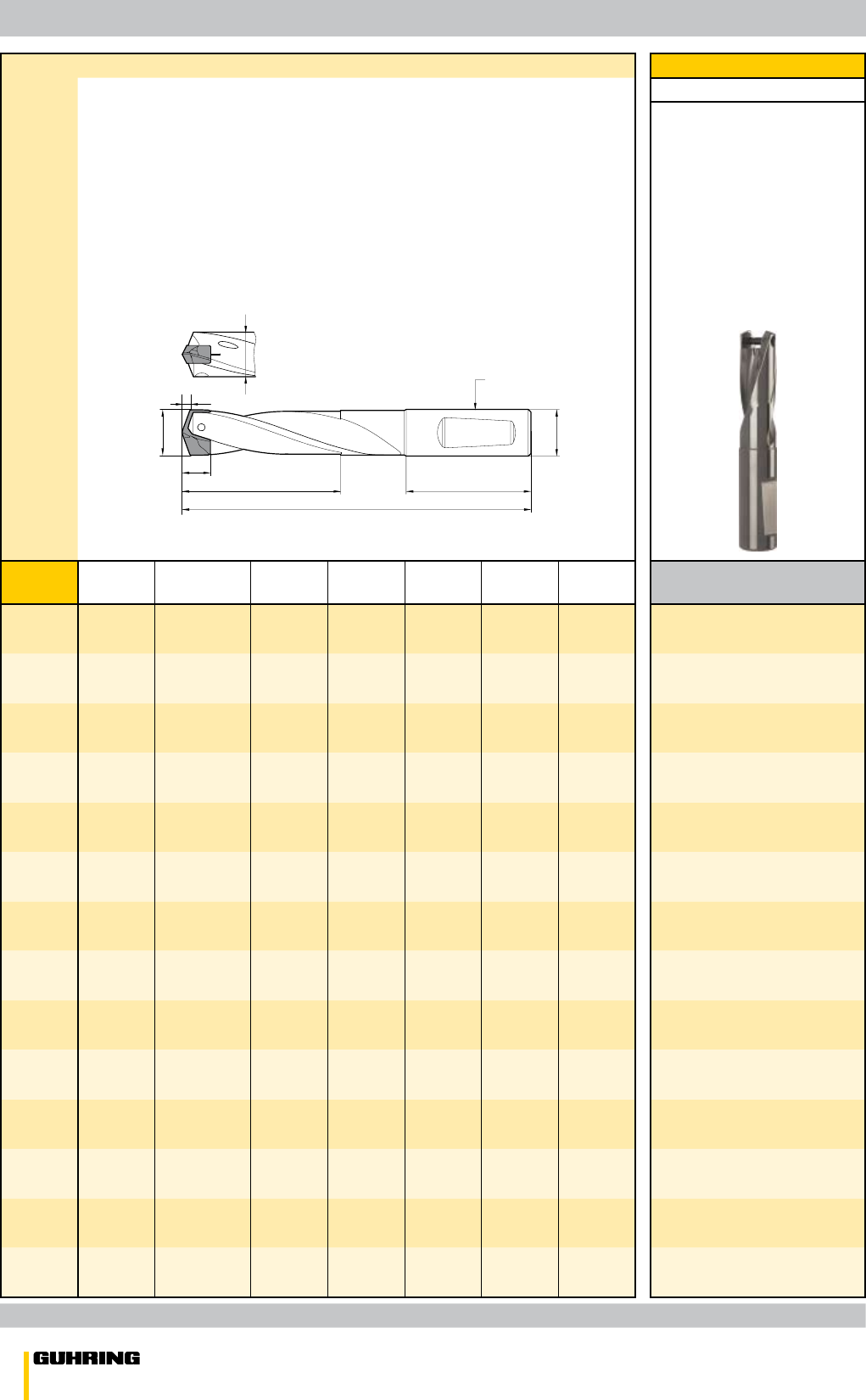

HT 800 WP Interchangeable Insert Holders
Special tools
In addition to our HT 800 WP standard tools we also supply HT 800 WP stepped
tools as well as alternative coatings for HT 800 WP interchangeable inserts as
special solutions. Special sizes up to ø 40.00 mm are available on request.
Please note our questionnaire on page 39.
Guhring no.
Drilling depth 1 x D 1.5 x D 3 x D 5 x D 7 x D 10 x D
Diameter 11.0 - 25.99 11.0 - 25.99 11.0 - 25.99 11.0 - 25.99 11.0 - 25.99 11.0 - 25.99
Shank DIN 6535-HE DIN 6535-HE DIN 6535-HE DIN 6535-HE DIN 6535-HE DIN 6535-HE
45º pilot drilling/
countersinking
8HT 800 WP
•
nanoFIRE
•
nanoFIRE
l4
h
d1 h7
b
l4
h
d1 h7
b

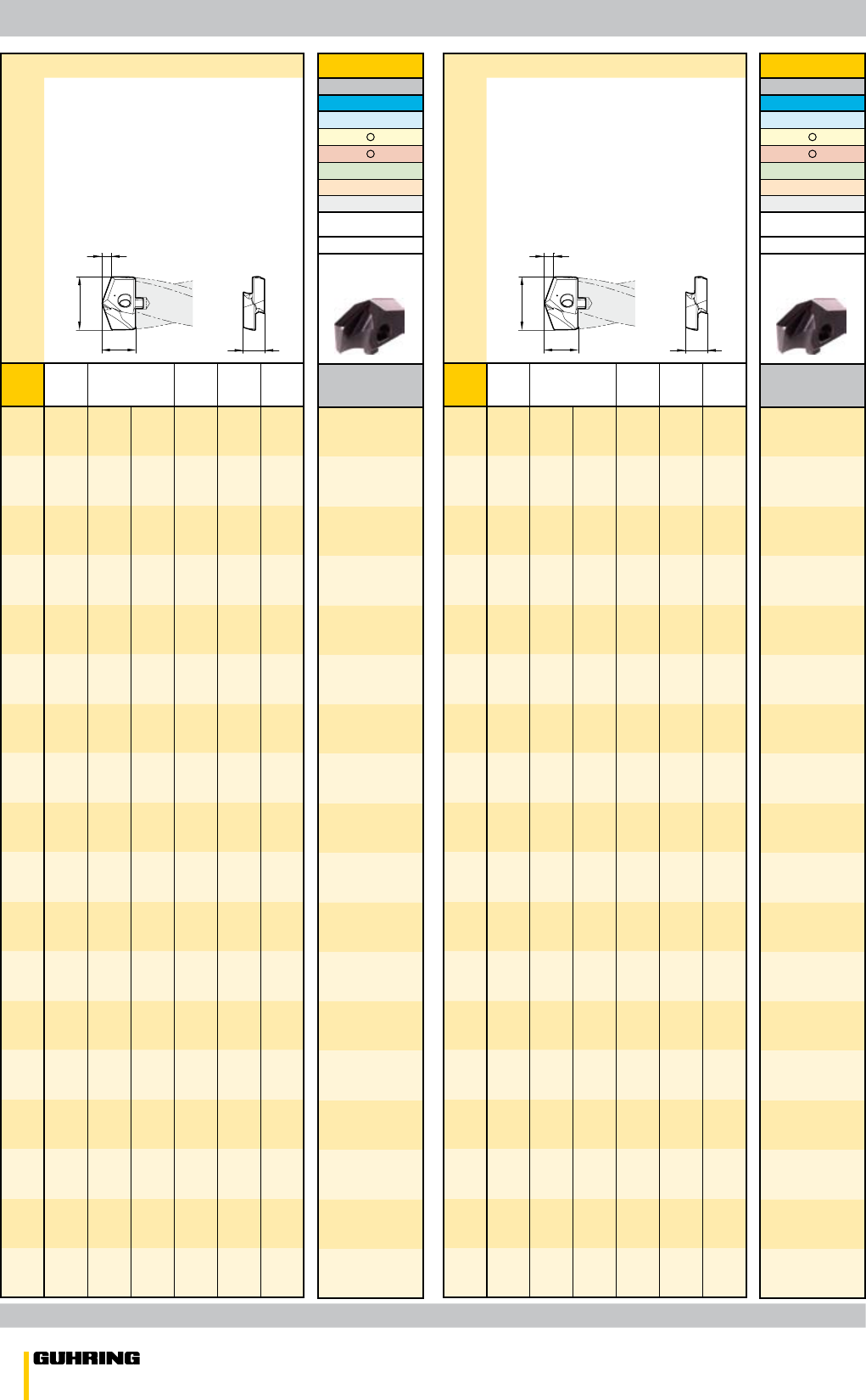

HT 800 WP Interchangeable Inserts For Machining Steel
11.000 110 11.00 2.1 4.5 7.5
11.200 110 11.20 2.1 4.5 7.5
11.500 115 11.50 2.1 4.5 7.5
11.510 115 29/64 11.51 2.1 4.5 7.5
11.700 115 11.70 2.1 4.5 7.5
11.800 115 11.80 2.1 4.5 7.5
11.910 115 15/32 11.91 2.2 4.5 7.5
12.000 120 12.00 2.2 5.0 7.8
12.100 120 12.10 2.2 5.0 7.8
12.200 120 12.20 2.2 5.0 7.8
12.300 120 31/64 12.30 2.2 5.0 7.8
12.500 125 12.50 2.3 5.0 7.8
12.600 125 12.60 2.3 5.0 7.8
12.700 125 1/2 12.70 2.3 5.0 7.8
12.800 125 12.80 2.3 5.0 7.8
12.900 125 12.90 2.3 5.0 7.8
13.000 130 13.00 2.4 5.5 8.6
13.100 130 33/64 13.10 2.4 5.5 8.6
13.490 130 17/32 13.49 2.4 5.5 8.6
13.500 135 13.50 2.4 5.5 8.6
13.600 135 13.60 2.4 5.5 8.6
13.700 135 13.70 2.4 5.5 8.6
13.800 135 13.80 2.5 5.5 8.6
13.890 135 35/64 13.89 2.5 5.5 8.6
14.000 140 14.00 2.5 6.0 9.7
14.100 140 14.10 2.5 6.0 9.7
14.290 140 9/16 14.29 2.6 6.0 9.7
14.400 140 14.40 2.6 6.0 9.7
14.500 145 14.50 2.6 6.0 9.7
14.600 145 14.60 2.7 6.0 9.7
14.680 145 37/64 14.68 2.7 6.0 9.7
14.700 145 14.70 2.7 6.0 9.7
14.800 145 14.80 2.7 6.0 9.7
15.000 150 15.00 2.7 6.0 9.9
15.080 150 19/32 15.08 2.7 6.0 9.9
15.100 150 15.10 2.7 6.0 9.9
15.200 150 15.20 2.8 6.0 9.9
15.300 150 15.30 2.8 6.0 9.9
15.480 150 39/64 15.48 2.8 6.0 9.9
15.500 155 15.50 2.8 6.0 9.9
15.600 155 15.60 2.9 6.0 9.9
15.700 155 15.70 2.9 6.0 9.9
15.800 155 15.80 2.9 6.0 9.9
15.870 155 5/8 15.87 2.9 6.0 9.9
16.000 160 16.00 2.9 7.0 11.1
16.270 160 41/64 16.27 3.0 7.0 11.1
16.500 165 16.50 3.0 7.0 11.1
16.670 165 21/32 16.67 3.0 7.0 11.1
17.000 170 17.00 3.1 7.0 11.1
17.070 170 43/64 17.07 3.1 7.0 11.1
17.460 170 11/16 17.46 3.1 7.0 11.1
17.500 175 17.50 3.2 7.0 11.1
17.600 175 17.60 3.2 7.0 11.1
17.860 175 45/64 17.86 3.3 7.0 11.1
18.000 180 18.00 3.3 8.0 12.5
18.260 180 23/32 18.26 3.3 8.0 12.5
18.500 185 18.50 3.4 8.0 12.5
18.650 185 47/64 18.65 3.4 8.0 12.5
19.000 190 19.00 3.5 8.0 12.5
19.050 190 3/4 19.05 3.5 8.0 12.5
19.450 190 49/64 19.45 3.5 8.0 12.5
19.500 195 19.50 3.5 8.0 12.5
19.600 195 19.60 3.6 8.0 12.5
19.840 195 25/32 19.84 3.6 8.0 12.5
20.000 200 20.00 3.6 9.0 13.8
20.240 200 51/64 20.24 3.6 9.0 13.8
20.500 205 20.50 3.7 9.0 13.8
20.640 205 13/16 20.64 3.8 9.0 13.8
21.000 210 21.00 3.8 9.0 13.8
21.030 210 53/64 21.03 3.8 9.0 13.8
21.100 210 21.10 3.9 9.0 13.8
21.430 210 27/32 21.43 3.9 9.0 13.8
21.500 215 21.50 3.9 9.0 13.8
21.830 215 55/64 21.83 4.0 9.0 13.8
22.000 220 22.00 4.0 10.0 15.2
22.220 220 7/8 22.22 4.0 10.0 15.2
22.500 225 22.50 4.1 10.0 15.2
22.620 225 57/64 22.62 4.1 10.0 15.2
23.000 230 23.00 4.2 10.0 15.2
23.020 230 29/32 23.02 4.2 10.0 15.2
23.420 230 59/64 23.42 4.3 10.0 15.2
23.500 235 23.50 4.3 10.0 15.2
23.810 235 15/16 23.81 4.3 10.0 15.2
24.000 240 24.00 4.4 11.0 15.7
24.100 240 24.10 4.4 11.0 15.7
24.210 240 61/64 24.21 4.4 11.0 15.7
24.500 245 24.50 4.5 11.0 15.7
24.610 245 31/32 24.61 4.5 11.0 15.7
25.000 250 25.00 4.5 11.0 15.7
25.400 250 1 25.40 4.6 11.0 15.7
25.500 255 25.50 4.6 11.0 15.7
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Inserts are always supplied with clamping screw, Guhring no. 4071.
4112
Guhring std.
Solid carbide
141
Availability
4112
Guhring std.
Solid carbide
141
Availability
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 h7
inch mm
l4
mm
b
mm
h
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 h7
inch mm
l4
mm
b
mm
h
mm
9HT 800 WP
•
FIRE
•
FIRE
l4
h
d1 m7
b
R
l4
h
d1 m7
b
R

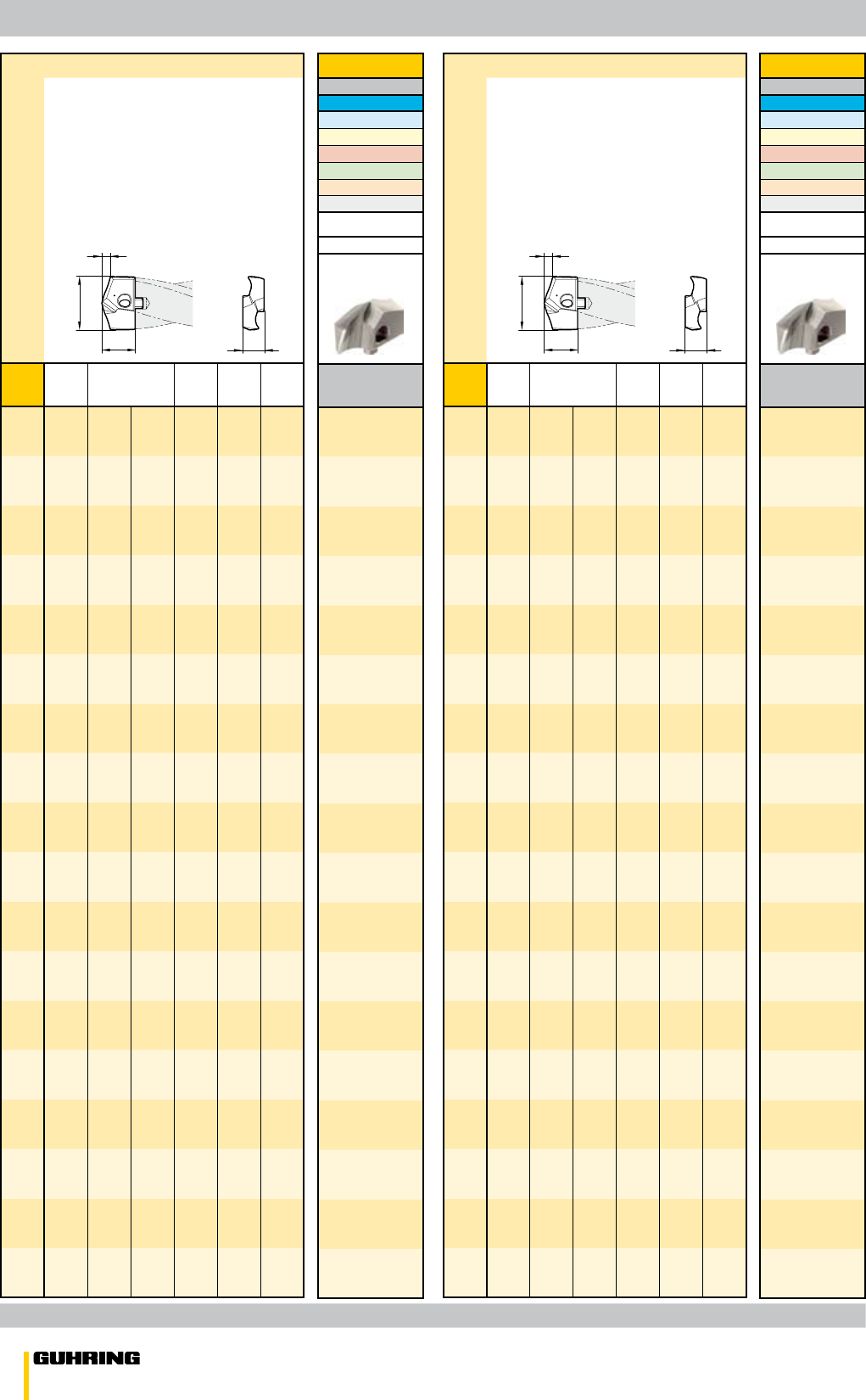

HT 800 WP Interchangeable Inserts For Machining Cast Iron
11.000 110 11.00 2.1 4.5 7.5
11.200 110 11.20 2.1 4.5 7.5
11.500 115 11.50 2.1 4.5 7.5
11.510 115 29/64 11.51 2.1 4.5 7.5
11.700 115 11.70 2.1 4.5 7.5
11.800 115 11.80 2.1 4.5 7.5
11.910 115 15/32 11.91 2.2 4.5 7.5
12.000 120 12.00 2.2 5.0 7.8
12.100 120 12.10 2.2 5.0 7.8
12.200 120 12.20 2.2 5.0 7.8
12.300 120 31/64 12.30 2.2 5.0 7.8
12.500 125 12.50 2.3 5.0 7.8
12.600 125 12.60 2.3 5.0 7.8
12.700 125 1/2 12.70 2.3 5.0 7.8
12.800 125 12.80 2.3 5.0 7.8
12.900 125 12.90 2.3 5.0 7.8
13.000 130 13.00 2.4 5.5 8.6
13.100 130 33/64 13.10 2.4 5.5 8.6
13.490 130 17/32 13.49 2.4 5.5 8.6
13.500 135 13.50 2.4 5.5 8.6
13.600 135 13.60 2.4 5.5 8.6
13.700 135 13.70 2.4 5.5 8.6
13.800 135 13.80 2.5 5.5 8.6
13.890 135 35/64 13.89 2.5 5.5 8.6
14.000 140 14.00 2.5 6.0 9.7
14.100 140 14.10 2.5 6.0 9.7
14.290 140 9/16 14.29 2.6 6.0 9.7
14.400 140 14.40 2.6 6.0 9.7
14.500 145 14.50 2.6 6.0 9.7
14.600 145 14.60 2.7 6.0 9.7
14.680 145 37/64 14.68 2.7 6.0 9.7
14.700 145 14.70 2.7 6.0 9.7
14.800 145 14.80 2.7 6.0 9.7
15.000 150 15.00 2.7 6.0 9.9
15.080 150 19/32 15.08 2.7 6.0 9.9
15.100 150 15.10 2.7 6.0 9.9
15.200 150 15.20 2.8 6.0 9.9
15.300 150 15.30 2.8 6.0 9.9
15.480 150 39/64 15.48 2.8 6.0 9.9
15.500 155 15.50 2.8 6.0 9.9
15.600 155 15.60 2.9 6.0 9.9
15.700 155 15.70 2.9 6.0 9.9
15.800 155 15.80 2.9 6.0 9.9
15.870 155 5/8 15.87 2.9 6.0 9.9
16.000 160 16.00 2.9 7.0 11.1
16.270 160 41/64 16.27 3.0 7.0 11.1
16.500 165 16.50 3.0 7.0 11.1
16.670 165 21/32 16.67 3.0 7.0 11.1
17.000 170 17.00 3.1 7.0 11.1
17.070 170 43/64 17.07 3.1 7.0 11.1
17.460 170 11/16 17.46 3.1 7.0 11.1
17.500 175 17.50 3.2 7.0 11.1
17.600 175 17.60 3.2 7.0 11.1
17.860 175 45/64 17.86 3.3 7.0 11.1
18.000 180 18.00 3.3 8.0 12.5
18.260 180 23/32 18.26 3.3 8.0 12.5
18.500 185 18.50 3.4 8.0 12.5
18.650 185 47/64 18.65 3.4 8.0 12.5
19.000 190 19.00 3.5 8.0 12.5
19.050 190 3/4 19.05 3.5 8.0 12.5
19.450 190 49/64 19.45 3.5 8.0 12.5
19.500 195 19.50 3.5 8.0 12.5
19.600 195 19.60 3.6 8.0 12.5
19.840 195 25/32 19.84 3.6 8.0 12.5
20.000 200 20.00 3.6 9.0 13.8
20.240 200 51/64 20.24 3.6 9.0 13.8
20.500 205 20.50 3.7 9.0 13.8
20.640 205 13/16 20.64 3.8 9.0 13.8
21.000 210 21.00 3.8 9.0 13.8
21.030 210 53/64 21.03 3.8 9.0 13.8
21.100 210 21.10 3.9 9.0 13.8
21.430 210 27/32 21.43 3.9 9.0 13.8
21.500 215 21.50 3.9 9.0 13.8
21.830 215 55/64 21.83 4.0 9.0 13.8
22.000 220 22.00 4.0 10.0 15.2
22.220 220 7/8 22.22 4.0 10.0 15.2
22.500 225 22.50 4.1 10.0 15.2
22.620 225 57/64 22.62 4.1 10.0 15.2
23.000 230 23.00 4.2 10.0 15.2
23.020 230 29/32 23.02 4.2 10.0 15.2
23.420 230 59/64 23.42 4.3 10.0 15.2
23.500 235 23.50 4.3 10.0 15.2
23.810 235 15/16 23.81 4.3 10.0 15.2
24.000 240 24.00 4.4 11.0 15.7
24.100 240 24.10 4.4 11.0 15.7
24.210 240 61/64 24.21 4.4 11.0 15.7
24.500 245 24.50 4.5 11.0 15.7
24.610 245 31/32 24.61 4.5 11.0 15.7
25.000 250 25.00 4.5 11.0 15.7
25.400 250 1 25.40 4.6 11.0 15.7
25.500 255 25.50 4.6 11.0 15.7
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Inserts are always supplied with clamping screw, Guhring no. 4071.
4113
Guhring std.
Solid carbide
141
Availability
4113
Guhring std.
Solid carbide
141
Availability
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 m7
inch mm
l4
mm
b
mm
h
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 m7
inch mm
l4
mm
b
mm
h
mm
10 HT 800 WP
• •
l4
h
d1 h7
b
l4
h
d1 h7
b
HT 800 WP Interchangeable Inserts For Machining Aluminium
11.000 110 11.00 2.1 4.5 7.5
11.200 110 11.20 2.1 4.5 7.5
11.500 115 11.50 2.1 4.5 7.5
11.510 115 29/64 11.51 2.1 4.5 7.5
11.700 115 11.70 2.1 4.5 7.5
11.800 115 11.80 2.1 4.5 7.5
11.910 115 15/32 11.91 2.2 4.5 7.5
12.000 120 12.00 2.2 5.0 7.8
12.100 120 12.10 2.2 5.0 7.8
12.200 120 12.20 2.2 5.0 7.8
12.300 120 31/64 12.30 2.2 5.0 7.8
12.500 125 12.50 2.3 5.0 7.8
12.600 125 12.60 2.3 5.0 7.8
12.700 125 1/2 12.70 2.3 5.0 7.8
12.800 125 12.80 2.3 5.0 7.8
12.900 125 12.90 2.3 5.0 7.8
13.000 130 13.00 2.4 5.5 8.6
13.100 130 33/64 13.10 2.4 5.5 8.6
13.490 130 17/32 13.49 2.4 5.5 8.6
13.500 135 13.50 2.4 5.5 8.6
13.600 135 13.60 2.4 5.5 8.6
13.700 135 13.70 2.4 5.5 8.6
13.800 135 13.80 2.5 5.5 8.6
13.890 135 35/64 13.89 2.5 5.5 8.6
14.000 140 14.00 2.5 6.0 9.7
14.100 140 14.10 2.5 6.0 9.7
14.290 140 9/16 14.29 2.6 6.0 9.7
14.400 140 14.40 2.6 6.0 9.7
14.500 145 14.50 2.6 6.0 9.7
14.600 145 14.60 2.7 6.0 9.7
14.680 145 37/64 14.68 2.7 6.0 9.7
14.700 145 14.70 2.7 6.0 9.7
14.800 145 14.80 2.7 6.0 9.7
15.000 150 15.00 2.7 6.0 9.9
15.080 150 19/32 15.08 2.7 6.0 9.9
15.100 150 15.10 2.7 6.0 9.9
15.200 150 15.20 2.8 6.0 9.9
15.300 150 15.30 2.8 6.0 9.9
15.480 150 39/64 15.48 2.8 6.0 9.9
15.500 155 15.50 2.8 6.0 9.9
15.600 155 15.60 2.9 6.0 9.9
15.700 155 15.70 2.9 6.0 9.9
15.800 155 15.80 2.9 6.0 9.9
15.870 155 5/8 15.87 2.9 6.0 9.9
16.000 160 16.00 2.9 7.0 11.1
16.270 160 41/64 16.27 3.0 7.0 11.1
16.500 165 16.50 3.0 7.0 11.1
16.670 165 21/32 16.67 3.0 7.0 11.1
17.000 170 17.00 3.1 7.0 11.1
17.070 170 43/64 17.07 3.1 7.0 11.1
17.460 170 11/16 17.46 3.1 7.0 11.1
17.500 175 17.50 3.2 7.0 11.1
17.600 175 17.60 3.2 7.0 11.1
17.860 175 45/64 17.86 3.3 7.0 11.1
18.000 180 18.00 3.3 8.0 12.5
18.260 180 23/32 18.26 3.3 8.0 12.5
18.500 185 18.50 3.4 8.0 12.5
18.650 185 47/64 18.65 3.4 8.0 12.5
19.000 190 19.00 3.5 8.0 12.5
19.050 190 3/4 19.05 3.5 8.0 12.5
19.450 190 49/64 19.45 3.5 8.0 12.5
19.500 195 19.50 3.5 8.0 12.5
19.600 195 19.60 3.6 8.0 12.5
19.840 195 25/32 19.84 3.6 8.0 12.5
20.000 200 20.00 3.6 9.0 13.8
20.240 200 51/64 20.24 3.6 9.0 13.8
20.500 205 20.50 3.7 9.0 13.8
20.640 205 13/16 20.64 3.8 9.0 13.8
21.000 210 21.00 3.8 9.0 13.8
21.030 210 53/64 21.03 3.8 9.0 13.8
21.100 210 21.10 3.9 9.0 13.8
21.430 210 27/32 21.43 3.9 9.0 13.8
21.500 215 21.50 3.9 9.0 13.8
21.830 215 55/64 21.83 4.0 9.0 13.8
22.000 220 22.00 4.0 10.0 15.2
22.220 220 7/8 22.22 4.0 10.0 15.2
22.500 225 22.50 4.1 10.0 15.2
22.620 225 57/64 22.62 4.1 10.0 15.2
23.000 230 23.00 4.2 10.0 15.2
23.020 230 29/32 23.02 4.2 10.0 15.2
23.420 230 59/64 23.42 4.3 10.0 15.2
23.500 235 23.50 4.3 10.0 15.2
23.810 235 15/16 23.81 4.3 10.0 15.2
24.000 240 24.00 4.4 11.0 15.7
24.100 240 24.10 4.4 11.0 15.7
24.210 240 61/64 24.21 4.4 11.0 15.7
24.500 245 24.50 4.5 11.0 15.7
24.610 245 31/32 24.61 4.5 11.0 15.7
25.000 250 25.00 4.5 11.0 15.7
25.400 250 1 25.40 4.6 11.0 15.7
25.500 255 25.50 4.6 11.0 15.7
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Inserts are always supplied with clamping screw, Guhring no. 4071.
4114
Guhring std.
Solid carbide
bright
141
Availability
4114
Guhring std.
Solid carbide
bright
141
Availability
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 h7
inch mm
l4
mm
b
mm
h
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 h7
inch mm
l4
mm
b
mm
h
mm
11HT 800 WP
4111 4111
l4
h
d1 m7
b
l4
h
d1 m7
b
HT 800 WP Interchangeable Inserts For Pilot Holes
11.000 110 11.00 1.5 4.5 6.9
11.200 110 11.20 1.5 4.5 6.9
11.500 115 11.50 1.5 4.5 6.9
11.510 115 29/64 11.51 1.5 4.5 6.9
11.700 115 11.70 1.6 4.5 6.9
11.800 115 11.80 1.6 4.5 6.9
11.910 115 15/32 11.91 1.6 4.5 6.9
12.000 120 12.00 1.6 5.0 7.1
12.100 120 12.10 1.6 5.0 7.1
12.200 120 12.20 1.6 5.0 7.1
12.300 120 31/64 12.30 1.6 5.0 7.1
12.500 125 12.50 1.7 5.0 7.1
12.600 125 12.60 1.7 5.0 7.1
12.700 125 1/2 12.70 1.7 5.0 7.1
12.800 125 12.80 1.7 5.0 7.1
12.900 125 12.90 1.7 5.0 7.1
13.000 130 13.00 1.7 5.5 7.9
13.100 130 33/64 13.10 1.7 5.5 7.9
13.490 130 17/32 13.49 1.8 5.5 7.9
13.500 135 13.50 1.8 5.5 7.9
13.600 135 13.60 1.8 5.5 7.9
13.700 135 13.70 1.8 5.5 7.9
13.800 135 13.80 1.9 5.5 7.9
13.890 135 35/64 13.89 1.9 5.5 7.9
14.000 140 14.00 1.9 6.0 9.1
14.100 140 14.10 1.9 6.0 9.1
14.290 140 9/16 14.29 1.9 6.0 9.1
14.400 140 14.40 1.9 6.0 9.1
14.500 145 14.50 1.9 6.0 9.1
14.600 145 14.60 2.0 6.0 9.1
14.680 145 37/64 14.68 2.0 6.0 9.1
14.700 145 14.70 2.0 6.0 9.1
14.800 145 14.80 2.0 6.0 9.1
15.000 150 15.00 2.0 6.0 9.1
15.080 150 19/32 15.08 2.0 6.0 9.1
15.100 150 15.10 2.0 6.0 9.1
15.200 150 15.20 2.0 6.0 9.1
15.300 150 15.30 2.1 6.0 9.1
15.480 150 39/64 15.48 2.1 6.0 9.1
15.500 155 15.50 2.1 6.0 9.1
15.600 155 15.60 2.1 6.0 9.1
15.700 155 15.70 2.1 6.0 9.1
15.800 155 15.80 2.1 6.0 9.1
15.870 155 5/8 15.87 2.1 6.0 9.1
16.000 160 16.00 2.1 7.0 10.2
16.270 160 41/64 16.27 2.2 7.0 10.2
16.500 165 16.50 2.2 7.0 10.2
16.670 165 21/32 16.67 2.2 7.0 10.2
17.000 170 17.00 2.3 7.0 10.2
17.070 170 43/64 17.07 2.3 7.0 10.2
17.460 170 11/16 17.46 2.3 7.0 10.2
17.500 175 17.50 2.3 7.0 10.2
17.600 175 17.60 2.3 7.0 10.2
17.860 175 45/64 17.86 2.4 7.0 10.2
18.000 180 18.00 2.4 8.0 11.7
18.260 180 23/32 18.26 2.4 8.0 11.7
18.500 185 18.50 2.5 8.0 11.7
18.650 185 47/64 18.65 2.5 8.0 11.7
19.000 190 19.00 2.5 8.0 11.7
19.050 190 3/4 19.05 2.5 8.0 11.7
19.450 190 49/64 19.45 2.6 8.0 11.7
19.500 195 19.50 2.6 8.0 11.7
19.600 195 19.60 2.6 8.0 11.7
19.840 195 25/32 19.84 2.7 8.0 11.7
20.000 200 20.00 2.7 9.0 12.9
20.240 200 51/64 20.24 2.7 9.0 12.9
20.500 205 20.50 2.7 9.0 12.9
20.640 205 13/16 20.64 2.8 9.0 12.9
21.000 210 21.00 2.8 9.0 12.9
21.030 210 53/64 21.03 2.8 9.0 12.9
21.100 210 21.10 2.8 9.0 12.9
21.430 210 27/32 21.43 2.9 9.0 12.9
21.500 215 21.50 2.9 9.0 12.9
21.830 215 55/64 21.83 2.9 9.0 12.9
22.000 220 22.00 3.0 10.0 14.3
22.220 220 7/8 22.22 3.0 10.0 14.3
22.500 225 22.50 3.0 10.0 14.3
22.620 225 57/64 22.62 3.0 10.0 14.3
23.000 230 23.00 3.1 10.0 14.3
23.020 230 29/32 23.02 3.1 10.0 14.3
23.420 230 59/64 23.42 3.1 10.0 14.3
23.500 235 23.50 3.1 10.0 14.3
23.810 235 15/16 23.81 3.2 10.0 14.3
24.000 240 24.00 3.2 11.0 14.7
24.100 240 24.10 3.2 11.0 14.7
24.210 240 61/64 24.21 3.2 11.0 14.7
24.500 245 24.50 3.3 11.0 14.7
24.610 245 31/32 24.61 3.3 11.0 14.7
25.000 250 25.00 3.4 11.0 14.7
25.400 250 1 25.40 3.4 11.0 14.7
25.500 255 25.50 3.4 11.0 14.7
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Inserts are always supplied with clamping screw, Guhring no. 4071.
Guhring std.
Solid carbide
nanoA
141
Availability
Guhring std.
Solid carbide
nanoA
141
Availability
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 m7
inch mm
l4
mm
b
mm
h
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code
no.
Holder
size
d1 m7
inch mm
l4
mm
b
mm
h
mm
12 HT 800 WP
7635
•
7632
•
7645
•
l
R
d
s
80
o
11
o
l
R
d
s
80o
11
o
l
R
d
s
80
o
11
o
HT 800 WP Countersink Inserts For Pilot and Countersink Holders
52,040 CPGT050204R 5.56 2.38 0.4 5.64
62,040 CPGT060204R 6.35 2.38 0.4 6.45
52,040 CPGW050204 5.56 2.38 0.4 5.6
62,040 CPGW060204 6.35 2.38 0.4 6.4
52,040 CPGT050204R 5.56 2.38 0.4 5.64
62,040 CPGT060204R 6.35 2.38 0.4 6.45
l
l
l
l
l
l
Guhring std.
Solid carbide
bright
142
Availability
Guhring std.
Solid carbide
TiAlN
142
Availability
Guhring std.
Solid carbide
TiN
142
Availability
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code no. size d
mm
s
mm
R
mm
l
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code no. size d
mm
s
mm
R
mm
l
mm
Order no. = Guhring no. + Code-no.
Guhring no
DIN
Tool material
P
M
K
N
S
H
Surface nish
Discount group
Code no. size d
mm
s
mm
R
mm
l
mm
13HT 800 WP

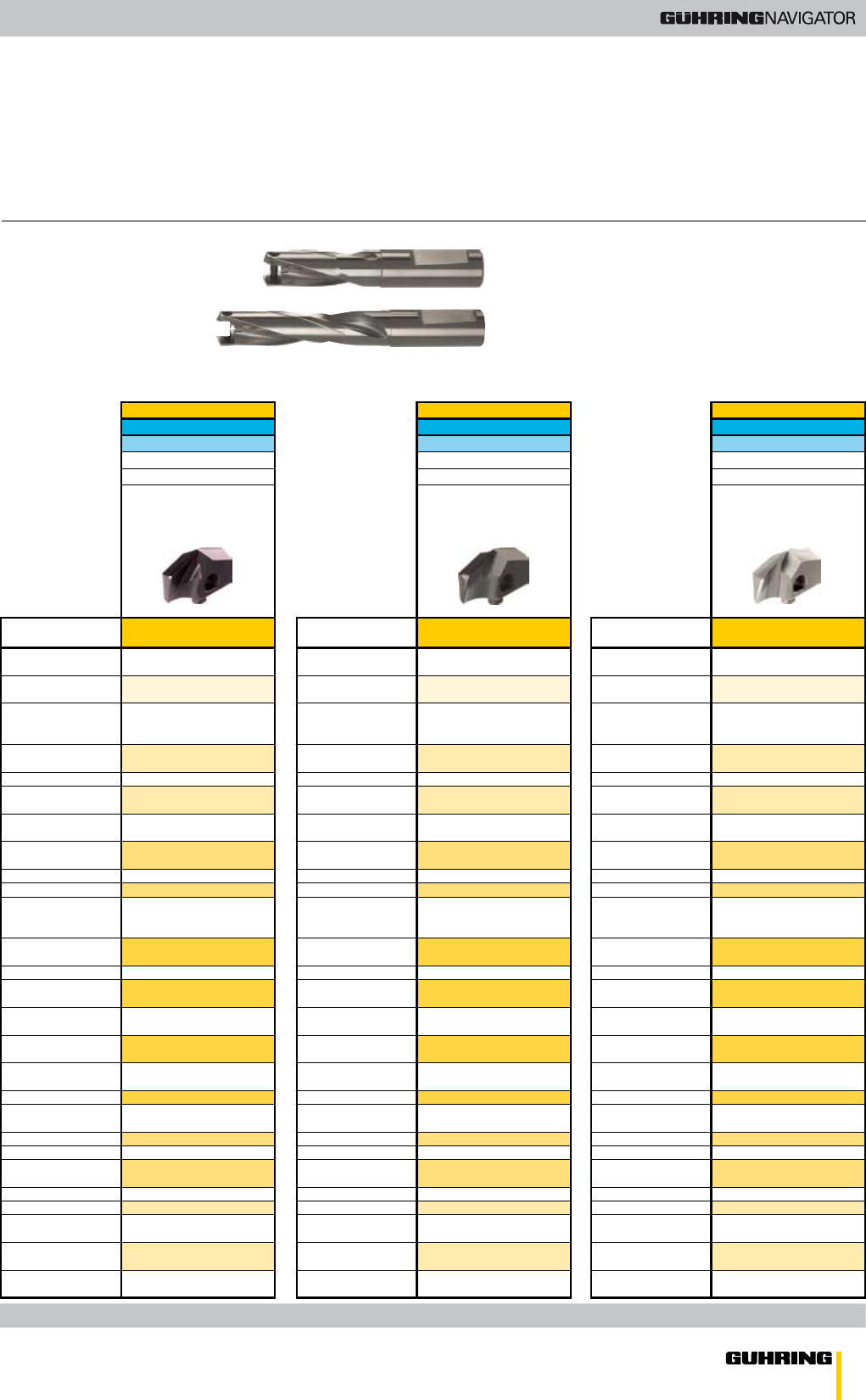

HT 800 WP Interchangeable Insert Holders 1 x D For Pilot Drilling and Countersinking
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4105
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with pilot insert Guhring no. 4111only. With drilling insert Guhring no. 4112, 4113
or 4114, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
insert HT
no. 4111
2 x interchangeable
Insert
11,000 110 11,00-11,99 12,00 17,00 81,00 14,80 45,00
11,005 110 11,00-11,99 12,70 17,00 81,00 14,80 45,00
12,000 120 12,00-12,99 12,00 18,00 84,00 15,80 45,00
12,005 120 12,00-12,99 12,70 18,00 84,00 15,80 45,00
13,000 130 13,00-13,99 14,00 18,00 86,00 16,30 45,00
13,005 130 13,00-13,99 15,875 18,00 86,00 16,30 45,00
14,000 140 14,00-15,99 14,00 18,00 93,00 17,40 48,00
14,005 140 14,00-15,99 15,875 18,00 93,00 17,40 48,00
16,000 160 16,00-17,99 16,00 20,00 99,00 19,40 48,00
16,005 160 16,00-17,99 15,875 20,00 99,00 19,40 48,00
18,000 180 18,00-19,99 18,00 22,00 106,00 21,40 50,00
18,005 180 18,00-19,99 19,05 22,00 106,00 21,40 50,00
20,000 200 20,00-21,99 25,00 24,00 117,00 23,40 56,00
20,005 200 20,00-21,99 25,40 24,00 117,00 23,40 56,00
22,000 220 22,00-23,99 25,00 26,00 122,00 25,40 56,00
22,005 220 22,00-23,99 25,40 26,00 122,00 25,40 56,00
24,000 240 24,00-25,99 25,00 28,00 128,00 27,40 56,00
24,005 240 24,00-25,99 25,40 28,00 128,00 27,40 56,00
14 HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2
l4
l3
l1

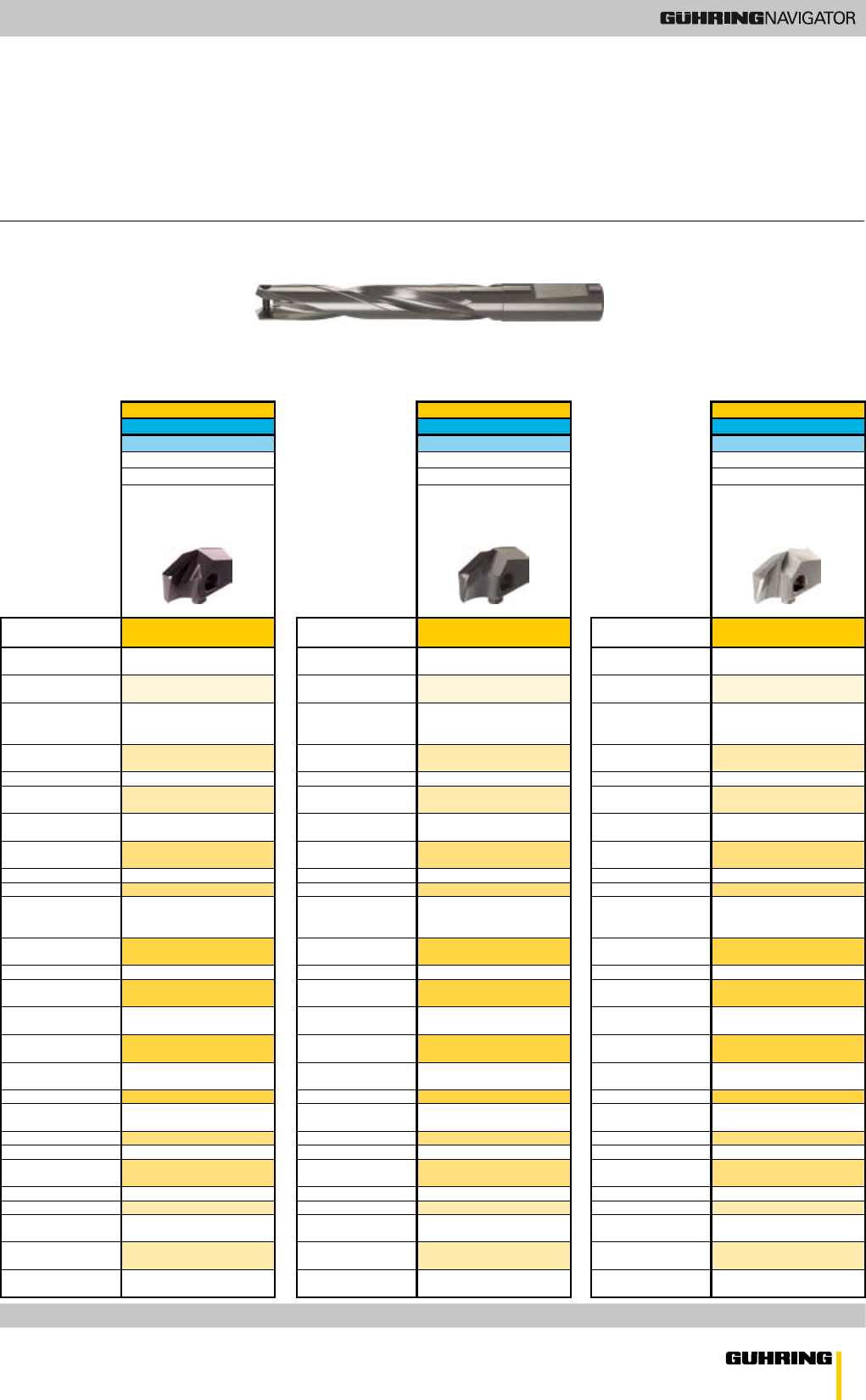

HT 800 WP Interchangeable Insert Holders 1.5 x D
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4106
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
11,000 110 11.00 - 11.49 12.00 10.70 84.00 19.30 45.00
11,005 110 11.00 - 11.49 12.70 10.70 84.00 19.30 45.00
11,500 115 11.50 - 11.99 12.00 11.20 85.00 20.10 45.00
11,505 115 11.50 - 11.99 12.70 11.20 85.00 20.10 45.00
12,000 120 12.00 - 12.49 12.00 11.70 87.00 21.00 45.00
12,005 120 12.00 - 12.49 12.70 11.70 87.00 21.00 45.00
12,500 125 12.50 - 12.99 14.00 12.20 89.00 21.90 45.00
12,505 125 12.50 - 12.99 15.875 12.20 89.00 21.90 45.00
13,000 130 13.00 - 13.49 14.00 12.70 90.00 22.60 45.00
13,005 130 13.00 - 13.49 15.875 12.70 90.00 22.60 45.00
13,500 135 13.50 - 13.99 14.00 13.20 92.00 23.60 45.00
13,505 135 13.50 - 13.99 15.875 13.20 92.00 23.60 45.00
14,000 140 14.00 - 14.49 14.00 13.70 93.00 24.50 45.00
14,005 140 14.00 - 14.49 15.875 13.70 93.00 24.50 45.00
14,500 145 14.50 - 14.99 16.00 14.20 98.00 25.30 48.00
14,505 145 14.50 - 14.99 15.875 14.20 98.00 25.30 48.00
15,000 150 15.00 - 15.49 16.00 14.70 100.00 26.10 48.00
15,005 150 15.00 - 15.49 15.875 14.70 100.00 26.10 48.00
15,500 155 15.50 - 15.99 16.00 15.20 101.00 27.00 48.00
15,505 155 15.50 - 15.99 15.875 15.20 101.00 27.00 48.00
16,000 160 16.00 - 16.49 16.00 15.70 102.00 27.80 48.00
16,005 160 16.00 - 16.49 15.875 15.70 102.00 27.80 48.00
16,500 165 16.50 - 16.99 18.00 16.20 105.00 28.70 48.00
16,505 165 16.50 - 16.99 19.05 16.20 105.00 28.70 48.00
17,000 170 17.00 - 17.49 18.00 16.70 106.00 29.60 48.00
17,005 170 17.00 - 17.49 19.05 16.70 106.00 29.60 48.00
17,500 175 17.50 - 17.99 18.00 17.20 107.00 30.40 48.00
17,505 175 17.50 - 17.99 19.05 17.20 107.00 30.40 48.00
18,000 180 18.00 - 18.49 18.00 17.70 109.00 31.20 48.00
18,005 180 18.00 - 18.49 19.05 17.70 109.00 31.20 48.00
18,500 185 18.50 - 18.99 20.00 18.20 113.00 32.10 50.00
18,505 185 18.50 - 18.99 19.05 18.20 113.00 32.10 50.00
19,000 190 19.00 - 19.49 20.00 18.70 114.00 32.90 50.00
19,005 190 19.00 - 19.49 19.05 18.70 114.00 32.90 50.00
19,500 195 19.50 - 19.99 20.00 19.20 116.00 33.70 50.00
19,505 195 19.50 - 19.99 19.05 19.20 116.00 33.70 50.00
20,000 200 20.00 - 20.49 20.00 19.70 117.00 34.60 50.00
20,005 200 20.00 - 20.49 19.05 19.70 117.00 34.60 50.00
20,500 205 20.50 - 20.99 25.00 20.20 128.00 35.50 56.00
20,505 205 20.50 - 20.99 25.40 20.20 128.00 35.50 56.00
21,000 210 21.00 - 21.49 25.00 20.70 129.00 36.40 56.00
21,005 210 21.00 - 21.49 25.40 20.70 129.00 36.40 56.00
15HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2
l4
l3
l1
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
HT 800 WP Interchangeable Insert Holders 1.5 x D
4106
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
21,500 215 21.50 - 21.99 25.00 21.20 130.00 37.20 56.00
21,505 215 21.50 - 21.99 25.40 21.20 130.00 37.20 56.00
22,000 220 22.00 - 22.49 25.00 21.70 131.00 38.00 56.00
22,005 220 22.00 - 22.49 25.40 21.70 131.00 38.00 56.00
22,500 225 22.50 - 22.99 25.00 22.20 134.00 38.90 56.00
22,505 225 22.50 - 22.99 25.40 22.20 134.00 38.90 56.00
23,000 230 23.00 - 23.49 25.00 22.70 135.00 39.80 56.00
23,005 230 23.00 - 23.49 25.40 22.70 135.00 39.80 56.00
23,500 235 23.50 - 23.99 25.00 23.20 137.00 40.60 56.00
23,505 235 23.50 - 23.99 25.40 23.20 137.00 40.60 56.00
24,000 240 24.00 - 24.49 25.00 23.70 138.00 41.50 56.00
24,005 240 24.00 - 24.49 25.40 23.70 138.00 41.50 56.00
24,500 245 24.50 - 24.99 25.00 24.20 140.00 42.30 56.00
24,505 245 24.50 - 24.99 25.40 24.20 140.00 42.30 56.00
25,000 250 25.00 - 25.49 25.00 24.70 142.00 43.20 56.00
25,005 250 25.00 - 25.49 25.40 24.70 142.00 43.20 56.00
25,500 255 25.50 - 25.99 32.00 25.20 148.00 44.00 60.00
25,505 255 25.50 - 25.99 31.75 25.20 148.00 44.00 60.00
16 HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2
l4
l3
l1

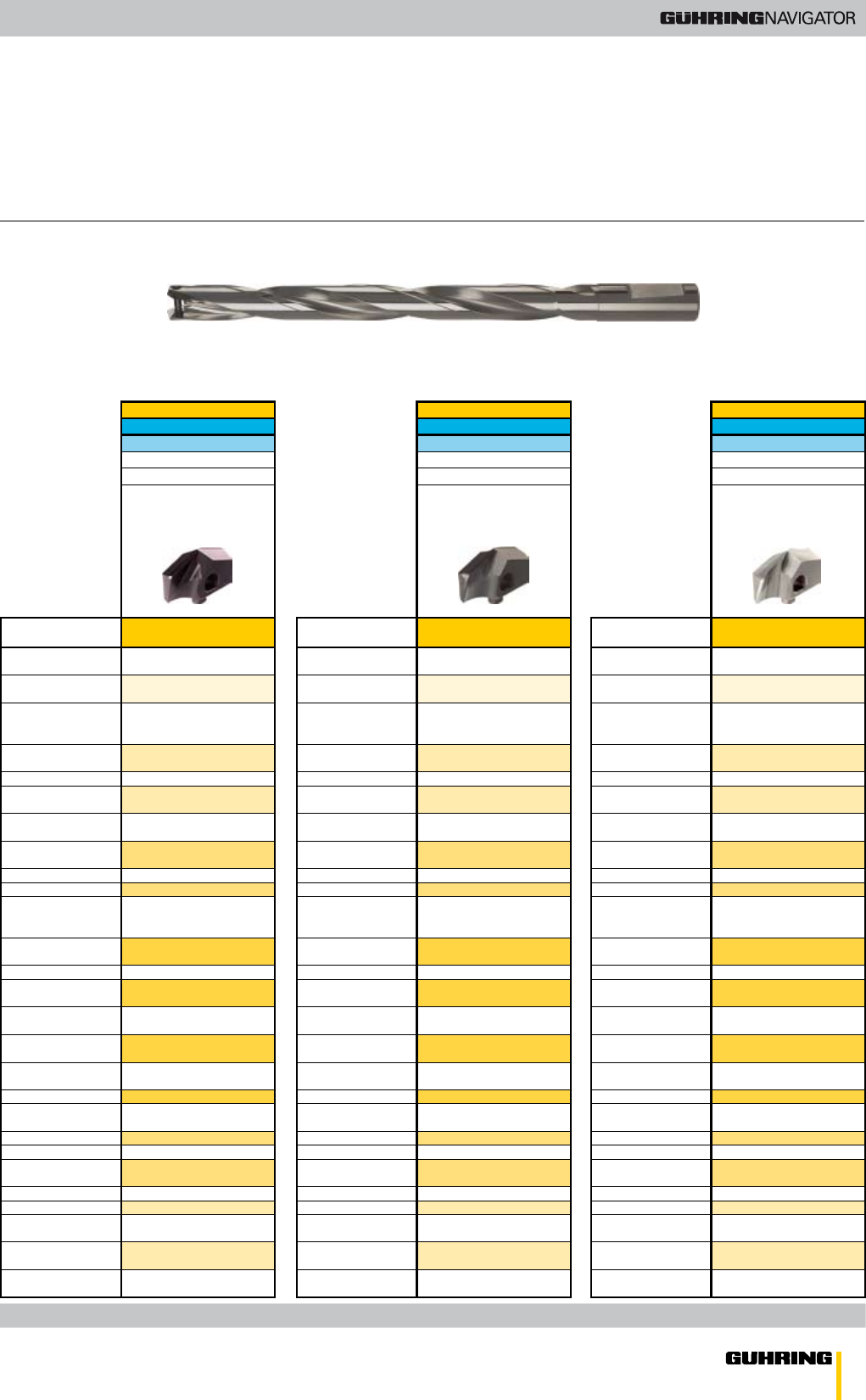

HT 800 WP Interchangeable Insert Holders 3 x D
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4107
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
11,000 110 11.00 - 11.49 12.00 10.70 101.00 36.60 45.00
11,005 110 11.00 - 11.49 12.70 10.70 101.00 36.60 45.00
11,500 115 11.50 - 11.99 12.00 11.20 103.00 38.10 45.00
11,505 115 11.50 - 11.99 12.70 11.20 103.00 38.10 45.00
12,000 120 12.00 - 12.49 12.00 11.70 106.00 39.70 45.00
12,005 120 12.00 - 12.49 12.70 11.70 106.00 39.70 45.00
12,500 125 12.50 - 12.99 14.00 12.20 108.00 41.30 45.00
12,505 125 12.50 - 12.99 15.875 12.20 108.00 41.30 45.00
13,000 130 13.00 - 13.49 14.00 12.70 110.00 42.90 45.00
13,005 130 13.00 - 13.49 15.875 12.70 110.00 42.90 45.00
13,500 135 13.50 - 13.99 14.00 13.20 113.00 44.60 45.00
13,505 135 13.50 - 13.99 15.875 13.20 113.00 44.60 45.00
14,000 140 14.00 - 14.49 14.00 13.70 115.00 46.20 45.00
14,005 140 14.00 - 14.49 15.875 13.70 115.00 46.20 45.00
14,500 145 14.50 - 14.99 16.00 14.20 120.00 47.80 48.00
14,505 145 14.50 - 14.99 15.875 14.20 120.00 47.80 48.00
15,000 150 15.00 - 15.49 16.00 14.70 123.00 49.30 48.00
15,005 150 15.00 - 15.49 15.875 14.70 123.00 49.30 48.00
15,500 155 15.50 - 15.99 16.00 15.20 125.00 50.90 48.00
15,505 155 15.50 - 15.99 15.875 15.20 125.00 50.90 48.00
16,000 160 16.00 - 16.49 16.00 15.70 127.00 52.90 48.00
16,005 160 16.00 - 16.49 15.875 15.70 127.00 52.90 48.00
16,500 165 16.50 - 16.99 18.00 16.20 130.00 54.10 48.00
16,505 165 16.50 - 16.99 19.05 16.20 130.00 54.10 48.00
17,000 170 17.00 - 17.49 18.00 16.70 132.00 55.80 48.00
17,005 170 17.00 - 17.49 19.05 16.70 132.00 55.80 48.00
17,500 175 17.50 - 17.99 18.00 17.20 134.00 57.40 48.00
17,505 175 17.50 - 17.99 19.05 17.20 134.00 57.40 48.00
18,000 180 18.00 - 18.49 18.00 17.70 137.00 58.90 48.00
18,005 180 18.00 - 18.49 19.05 17.70 137.00 58.90 48.00
18,500 185 18.50 - 18.99 20.00 18.20 141.00 60.50 50.00
18,505 185 18.50 - 18.99 19.05 18.20 141.00 60.50 50.00
19,000 190 19.00 - 19.49 20.00 18.70 143.00 62.10 50.00
19,005 190 19.00 - 19.49 19.05 18.70 143.00 62.10 50.00
19,500 195 19.50 - 19.99 20.00 19.20 146.00 63.70 50.00
19,505 195 19.50 - 19.99 19.05 19.20 146.00 63.70 50.00
20,000 200 20.00 - 20.49 20.00 19.70 148.00 65.30 50.00
20,005 200 20.00 - 20.49 19.05 19.70 148.00 65.30 50.00
20,500 205 20.50 - 20.99 25.00 20.20 159.00 67.00 56.00
20,505 205 20.50 - 20.99 25.40 20.20 159.00 67.00 56.00
21,000 210 21.00 - 21.49 25.00 20.70 161.00 68.60 56.00
21,005 210 21.00 - 21.49 25.40 20.70 161.00 68.60 56.00
17HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2
l4
l3
l1
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
HT 800 WP Interchangeable Insert Holders 3 x D
4107
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
21,500 215 21.50 - 21.99 25.00 21.20 163.00 70.10 56.00
21,505 215 21.50 - 21.99 25.40 21.20 163.00 70.10 56.00
22,000 220 22.00 - 22.49 25.00 21.70 165.00 71.70 56.00
22,005 220 22.00 - 22.49 25.40 21.70 165.00 71.70 56.00
22,500 225 22.50 - 22.99 25.00 22.20 168.00 73.30 56.00
22,505 225 22.50 - 22.99 25.40 22.20 168.00 73.30 56.00
23,000 230 23.00 - 23.49 25.00 22.70 170.00 74.90 56.00
23,005 230 23.00 - 23.49 25.40 22.70 170.00 74.90 56.00
23,500 235 23.50 - 23.99 25.00 23.20 173.00 76.50 56.00
23,505 235 23.50 - 23.99 25.40 23.20 173.00 76.50 56.00
24,000 240 24.00 - 24.49 25.00 23.70 175.00 78.10 56.00
24,005 240 24.00 - 24.49 25.40 23.70 175.00 78.10 56.00
24,500 245 24.50 - 24.99 25.00 24.20 177.00 79.70 56.00
24,505 245 24.50 - 24.99 25.40 24.20 177.00 79.70 56.00
25,000 250 25.00 - 25.49 25.00 24.70 180.00 81.30 56.00
25,005 250 25.00 - 25.49 25.40 24.70 180.00 81.30 56.00
25,500 255 25.50 - 25.99 32.00 25.20 187.00 82.90 60.00
25,505 255 25.50 - 25.99 31.75 25.20 187.00 82.90 60.00
18 HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
HT 800 WP Interchangeable Insert Holders 5 x D
4108
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
11,000 110 11.00 - 11.49 12.00 10.70 124.00 59.60 45.00
11,005 110 11.00 - 11.49 12.70 10.70 124.00 59.60 45.00
11,500 115 11.50 - 11.99 12.00 11.20 127.00 62.10 45.00
11,505 115 11.50 - 11.99 12.70 11.20 127.00 62.10 45.00
12,000 120 12.00 - 12.49 12.00 11.70 131.00 64.70 45.00
12,005 120 12.00 - 12.49 12.70 11.70 131.00 64.70 45.00
12,500 125 12.50 - 12.99 14.00 12.20 134.00 67.30 45.00
12,505 125 12.50 - 12.99 15.875 12.20 134.00 67.30 45.00
13,000 130 13.00 - 13.49 14.00 12.70 137.00 69.90 45.00
13,005 130 13.00 - 13.49 15.875 12.70 137.00 69.90 45.00
13,500 135 13.50 - 13.99 14.00 13.20 141.00 72.60 45.00
13,505 135 13.50 - 13.99 15.875 13.20 141.00 72.60 45.00
14,000 140 14.00 - 14.49 14.00 13.70 144.00 75.20 45.00
14,005 140 14.00 - 14.49 15.875 13.70 144.00 75.20 45.00
14,500 145 14.50 - 14.99 16.00 14.20 150.00 77.80 48.00
14,505 145 14.50 - 14.99 15.875 14.20 150.00 77.80 48.00
15,000 150 15.00 - 15.49 16.00 14.70 154.00 80.30 48.00
15,005 150 15.00 - 15.49 15.875 14.70 154.00 80.30 48.00
15,500 155 15.50 - 15.99 16.00 15.20 157.00 82.90 48.00
15,505 155 15.50 - 15.99 15.875 15.20 157.00 82.90 48.00
16,000 160 16.00 - 16.49 16.00 15.70 160.00 85.90 48.00
16,005 160 16.00 - 16.49 15.875 15.70 160.00 85.90 48.00
16,500 165 16.50 - 16.99 18.00 16.20 164.00 88.10 48.00
16,505 165 16.50 - 16.99 19.05 16.20 164.00 88.10 48.00
17,000 170 17.00 - 17.49 18.00 16.70 167.00 90.80 48.00
17,005 170 17.00 - 17.49 19.05 16.70 167.00 90.80 48.00
17,500 175 17.50 - 17.99 18.00 17.20 170.00 93.40 48.00
17,505 175 17.50 - 17.99 19.05 17.20 170.00 93.40 48.00
18,000 180 18.00 - 18.49 18.00 17.70 174.00 95.90 48.00
18,005 180 18.00 - 18.49 19.05 17.70 174.00 95.90 48.00
18,500 185 18.50 - 18.99 20.00 18.20 179.00 98.50 50.00
18,505 185 18.50 - 18.99 19.05 18.20 179.00 98.50 50.00
19,000 190 19.00 - 19.49 20.00 18.70 182.00 101.10 50.00
19,005 190 19.00 - 19.49 19.05 18.70 182.00 101.10 50.00
19,500 195 19.50 - 19.99 20.00 19.20 186.00 103.70 50.00
19,505 195 19.50 - 19.99 19.05 19.20 186.00 103.70 50.00
20,000 200 20.00 - 20.49 20.00 19.70 189.00 106.30 50.00
20,005 200 20.00 - 20.49 19.05 19.70 189.00 106.30 50.00
20,500 205 20.50 - 20.99 25.00 20.20 201.00 109.00 56.00
20,505 205 20.50 - 20.99 25.40 20.20 201.00 109.00 56.00
21,000 210 21.00 - 21.49 25.00 20.70 204.00 111.60 56.00
21,005 210 21.00 - 21.49 25.40 20.70 204.00 111.60 56.00
19HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
HT 800 WP Interchangeable Insert Holders 5 x D
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4108
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
21,500 215 21.50 - 21.99 25.00 21.20 207.00 114.10 56.00
21,505 215 21.50 - 21.99 25.40 21.20 207.00 114.10 56.00
22,000 220 22.00 - 22.49 25.00 21.70 210.00 116.70 56.00
22,005 220 22.00 - 22.49 25.40 21.70 210.00 116.70 56.00
22,500 225 22.50 - 22.99 25.00 22.20 214.00 119.30 56.00
22,505 225 22.50 - 22.99 25.40 22.20 214.00 119.30 56.00
23,000 230 23.00 - 23.49 25.00 22.70 217.00 121.90 56.00
23,005 230 23.00 - 23.49 25.40 22.70 217.00 121.90 56.00
23,500 235 23.50 - 23.99 25.00 23.20 221.00 124.50 56.00
23,505 235 23.50 - 23.99 25.40 23.20 221.00 124.50 56.00
24,000 240 24.00 - 24.49 25.00 23.70 224.00 127.10 56.00
24,005 240 24.00 - 24.49 25.40 23.70 224.00 127.10 56.00
24,500 245 24.50 - 24.99 25.00 24.20 227.00 129.70 56.00
24,505 245 24.50 - 24.99 25.40 24.20 227.00 129.70 56.00
25,000 250 25.00 - 25.49 25.00 24.70 231.00 132.30 56.00
25,005 250 25.00 - 25.49 25.40 24.70 231.00 132.30 56.00
25,500 255 25.50 - 25.99 32.00 25.20 239.00 134.90 60.00
25,505 255 25.50 - 25.99 31.75 25.20 239.00 134.90 60.00
20 HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
HT 800 WP Interchangeable Insert Holders 7 x D
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4109
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
11,000 110 11.00 - 11.49 12.00 10.70 147.00 82.60 45.00
11,005 110 11.00 - 11.49 12.70 10.70 147.00 82.60 45.00
11,500 115 11.50 - 11.99 12.00 11.20 151.00 86.10 45.00
11,505 115 11.50 - 11.99 12.70 11.20 151.00 86.10 45.00
12,000 120 12.00 - 12.49 12.00 11.70 156.00 89.70 45.00
12,005 120 12.00 - 12.49 12.70 11.70 156.00 89.70 45.00
12,500 125 12.50 - 12.99 14.00 12.20 160.00 93.30 45.00
12,505 125 12.50 - 12.99 15.875 12.20 160.00 93.30 45.00
13,000 130 13.00 - 13.49 14.00 12.70 164.00 96.90 45.00
13,005 130 13.00 - 13.49 15.875 12.70 164.00 96.90 45.00
13,500 135 13.50 - 13.99 14.00 13.20 169.00 100.60 45.00
13,505 135 13.50 - 13.99 15.875 13.20 169.00 100.60 45.00
14,000 140 14.00 - 14.49 14.00 13.70 173.00 104.20 45.00
14,005 140 14.00 - 14.49 15.875 13.70 173.00 104.20 45.00
14,500 145 14.50 - 14.99 16.00 14.20 180.00 107.80 48.00
14,505 145 14.50 - 14.99 15.875 14.20 180.00 107.80 48.00
15,000 150 15.00 - 15.49 16.00 14.70 185.00 111.30 48.00
15,005 150 15.00 - 15.49 15.875 14.70 185.00 111.30 48.00
15,500 155 15.50 - 15.99 16.00 15.20 189.00 114.90 48.00
15,505 155 15.50 - 15.99 15.875 15.20 189.00 114.90 48.00
16,000 160 16.00 - 16.49 16.00 15.70 193.00 118.90 48.00
16,005 160 16.00 - 16.49 15.875 15.70 193.00 118.90 48.00
16,500 165 16.50 - 16.99 18.00 16.20 198.00 122.10 48.00
16,505 165 16.50 - 16.99 19.05 16.20 198.00 122.10 48.00
17,000 170 17.00 - 17.49 18.00 16.70 202.00 125.80 48.00
17,005 170 17.00 - 17.49 19.05 16.70 202.00 125.80 48.00
17,500 175 17.50 - 17.99 18.00 17.20 206.00 129.40 48.00
17,505 175 17.50 - 17.99 19.05 17.20 206.00 129.40 48.00
18,000 180 18.00 - 18.49 18.00 17.70 211.00 132.90 48.00
18,005 180 18.00 - 18.49 19.05 17.70 211.00 132.90 48.00
18,500 185 18.50 - 18.99 20.00 18.20 217.00 136.50 50.00
18,505 185 18.50 - 18.99 19.05 18.20 217.00 136.50 50.00
19,000 190 19.00 - 19.49 20.00 18.70 221.00 140.10 50.00
19,005 190 19.00 - 19.49 19.05 18.70 221.00 140.10 50.00
19,500 195 19.50 - 19.99 20.00 19.20 226.00 143.70 50.00
19,505 195 19.50 - 19.99 19.05 19.20 226.00 143.70 50.00
20,000 200 20.00 - 20.49 20.00 19.70 230.00 147.30 50.00
20,005 200 20.00 - 20.49 19.05 19.70 230.00 147.30 50.00
20,500 205 20.50 - 20.99 25.00 20.20 243.00 151.00 56.00
20,505 205 20.50 - 20.99 25.40 20.20 243.00 151.00 56.00
21,000 210 21.00 - 21.49 25.00 20.70 247.00 154.60 56.00
21,005 210 21.00 - 21.49 25.40 20.70 247.00 154.60 56.00
21HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
HT 800 WP Interchangeable Insert holders 7 x D
4109
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
21,500 215 21.50 - 21.99 25.00 21.20 251.00 158.10 56.00
21,505 215 21.50 - 21.99 25.40 21.20 251.00 158.10 56.00
22,000 220 22.00 - 22.49 25.00 21.70 255.00 161.70 56.00
22,005 220 22.00 - 22.49 25.40 21.70 255.00 161.70 56.00
22,500 225 22.50 - 22.99 25.00 22.20 260.00 165.30 56.00
22,505 225 22.50 - 22.99 25.40 22.20 260.00 165.30 56.00
23,000 230 23.00 - 23.49 25.00 22.70 264.00 168.90 56.00
23,005 230 23.00 - 23.49 25.40 22.70 264.00 168.90 56.00
23,500 235 23.50 - 23.99 25.00 23.20 269.00 172.50 56.00
23,505 235 23.50 - 23.99 25.40 23.20 269.00 172.50 56.00
24,000 240 24.00 - 24.49 25.00 23.70 273.00 176.10 56.00
24,005 240 24.00 - 24.49 25.40 23.70 273.00 176.10 56.00
24,500 245 24.50 - 24.99 25.00 24.20 277.00 179.70 56.00
24,505 245 24.50 - 24.99 25.40 24.20 277.00 179.70 56.00
25,000 250 25.00 - 25.49 25.00 24.70 282.00 183.30 56.00
25,005 250 25.00 - 25.49 25.40 24.70 282.00 183.30 56.00
25,500 255 25.50 - 25.99 32.00 25.20 291.00 186.90 60.00
25,505 255 25.50 - 25.99 31.75 25.20 291.00 186.90 60.00
22 HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
HT 800 WP Interchangeable Insert Holders 10 x D
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
4110
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
11,000 110 11.00 - 11.49 12.00 10.70 182.00 117.10 45.00
11,005 110 11.00 - 11.49 12.70 10.70 182.00 117.10 45.00
11,500 115 11.50 - 11.99 12.00 11.20 187.00 122.10 45.00
11,505 115 11.50 - 11.99 12.70 11.20 187.00 122.10 45.00
12,000 120 12.00 - 12.49 12.00 11.70 194.00 127.20 45.00
12,005 120 12.00 - 12.49 12.70 11.70 194.00 127.20 45.00
12,500 125 12.50 - 12.99 14.00 12.20 199.00 132.30 45.00
12,505 125 12.50 - 12.99 15.875 12.20 199.00 132.30 45.00
13,000 130 13.00 - 13.49 14.00 12.70 205.00 137.50 45.00
13,005 130 13.00 - 13.49 15.875 12.70 205.00 137.50 45.00
13,500 135 13.50 - 13.99 14.00 13.20 211.00 142.50 45.00
13,505 135 13.50 - 13.99 15.875 13.20 211.00 142.50 45.00
14,000 140 14.00 - 14.49 14.00 13.70 217.00 147.70 45.00
14,005 140 14.00 - 14.49 15.875 13.70 217.00 147.70 45.00
14,500 145 14.50 - 14.99 16.00 14.20 225.00 152.80 48.00
14,505 145 14.50 - 14.99 15.875 14.20 225.00 152.80 48.00
15,000 150 15.00 - 15.49 16.00 14.70 232.00 157.80 48.00
15,005 150 15.00 - 15.49 15.875 14.70 232.00 157.80 48.00
15,500 155 15.50 - 15.99 16.00 15.20 237.00 162.90 48.00
15,505 155 15.50 - 15.99 15.875 15.20 237.00 162.90 48.00
16,000 160 16.00 - 16.49 16.00 15.70 243.00 168.00 48.00
16,005 160 16.00 - 16.49 15.875 15.70 243.00 168.00 48.00
16,500 165 16.50 - 16.99 18.00 16.20 249.00 173.10 48.00
16,505 165 16.50 - 16.99 19.05 16.20 249.00 173.10 48.00
17,000 170 17.00 - 17.49 18.00 16.70 255.00 178.30 48.00
17,005 170 17.00 - 17.49 19.05 16.70 255.00 178.30 48.00
17,500 175 17.50 - 17.99 18.00 17.20 260.00 183.50 48.00
17,505 175 17.50 - 17.99 19.05 17.20 260.00 183.50 48.00
18,000 180 18.00 - 18.49 18.00 17.70 267.00 188.40 48.00
18,005 180 18.00 - 18.49 19.05 17.70 267.00 188.40 48.00
18,500 185 18.50 - 18.99 20.00 18.20 274.00 193.50 50.00
18,505 185 18.50 - 18.99 19.05 18.20 274.00 193.50 50.00
19,000 190 19.00 - 19.49 20.00 18.70 280.00 198.70 50.00
19,005 190 19.00 - 19.49 19.05 18.70 280.00 198.70 50.00
19,500 195 19.50 - 19.99 20.00 19.20 286.00 203.70 50.00
19,505 195 19.50 - 19.99 19.05 19.20 286.00 203.70 50.00
23HT 800 WP
h
d1
d3
d2 h6
Zylinderschaft
DIN 6535-HE
l2l3
l1
l4
4110
140
Availability
Order no. = Guhring no. + Code-no.
Guhring no.
Discount group
*l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring
no. 4111, see h and l4 dimensions page 8 to 11!
Code no. Holder size d1
mm
d2h6
mm
d3
mm
incl. WP
l1*
mm
l2 max
mm
l3
mm
Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612.
HT 800 WP Interchangeable Insert holders 10 x D
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
straight shank
DIN 6535 HE
20,000 200 20.00 - 20.49 20.00 19.70 292.00 208.90 50.00
20,005 200 20.00 - 20.49 19.05 19.70 292.00 208.90 50.00
20,500 205 20.50 - 20.99 25.00 20.20 306.00 214.00 56.00
20,505 205 20.50 - 20.99 25.40 20.20 306.00 214.00 56.00
21,000 210 21.00 - 21.49 25.00 20.70 312.00 219.10 56.00
21,005 210 21.00 - 21.49 25.40 20.70 312.00 219.10 56.00
21,500 215 21.50 - 21.99 25.00 21.20 317.00 224.20 56.00
21,505 215 21.50 - 21.99 25.40 21.20 317.00 224.20 56.00
22,000 220 22.00 - 22.49 25.00 21.70 323.00 229.30 56.00
22,005 220 22.00 - 22.49 25.40 21.70 323.00 229.30 56.00
22,500 225 22.50 - 22.99 25.00 22.20 329.00 234.40 56.00
22,505 225 22.50 - 22.99 25.40 22.20 329.00 234.40 56.00
23,000 230 23.00 - 23.49 25.00 22.70 335.00 239.50 56.00
23,005 230 23.00 - 23.49 25.40 22.70 335.00 239.50 56.00
23,500 235 23.50 - 23.99 25.00 23.20 341.00 244.60 56.00
23,505 235 23.50 - 23.99 25.40 23.20 341.00 244.60 56.00
24,000 240 24.00 - 24.49 25.00 23.70 347.00 249.70 56.00
24,005 240 24.00 - 24.49 25.40 23.70 347.00 249.70 56.00
24,500 245 24.50 - 24.99 25.00 24.20 352.00 254.80 56.00
24,505 245 24.50 - 24.99 25.40 24.20 352.00 254.80 56.00
25,000 250 25.00 - 25.49 25.00 24.70 359.00 259.90 56.00
25,005 250 25.00 - 25.49 25.40 24.70 359.00 259.90 56.00
25,500 255 25.50 - 25.99 32.00 25.20 369.00 265.00 60.00
25,505 255 25.50 - 25.99 31.75 25.20 369.00 265.00 60.00
24 HT 800 WP
Torx
l1
G
60o
Torx
l1
G
4071
140
Availability
6128
122
Availability
Order no. = Guhring
no. + Code-no.
Guhring no.
Discount group
Code no. Holder size G l1
mm
with
Torx
2.200 115 M2.2 10.0 T7
2.201 120/125 M2.2 11.0 T7
2.500 130/135 M2.5 12.0 T8
3.000 140/145 M3 12.85 T9
3.001 150/155 M3 13.85 T9
3.500 160/170 M3.5 15.0 T10
4.000 180/190 M4 17.0 T15
4.500 200/210 M4.5 19.0 T15
5.000 220/230 M5 21.0 T20
5.001 240/250 M5 23.0 T20
Order no. = Guhring
no. + Code-no.
Guhring no.
Discount group
Code no. Holder size G l1
mm
with
Torx
2,000 110 - 140 M2.0 5.5 T6
2,500 160 - 240 M2.5 5.3 T7
Clamping screws
Clamping screws
l
l
l
l
l
l
l
l
l
l
l
l
Cooling lubricant exit Steel
25HT 800 WP
l1
Screwdriver
Torque key
Torx-Bits
Order no. = Guhring
no. + Code-no.
Guhring no. 1612
Discount group 140
Code no. Holder size for
Torx Availability
7.001 115-125 T7
8.001 130/135 T8
9.001 140-155 T9
10.001 160/170 T10
15.001 180-210 T15
20.001 220-250 T20
Order no. = Guhring
no. + Code-no.
Guhring no. 4915
Discount group 114
Code no. Type Drive l1
mm
Torque
Nm Availability
2.000 A 1/4“ 131 0.8-2 l
8.000 A 1/4“ 142 2-8 l
Order no. = Guhring
no. + Code-no.
Guhring no. 4917
Discount group 114
Code no. for Torx Drive l1
mm Availability
7.000 T7 1/4“ 25 l
8.000 T8 1/4“ 25 l
9.000 T9 1/4“ 25 l
10.000 T10 1/4“ 25 l
15.000 T15 1/4“ 25 l
20.000 T20 1/4“ 25 l
l
l
l
l
l
l
Cast iron Aluminium
26 HT 800 WP

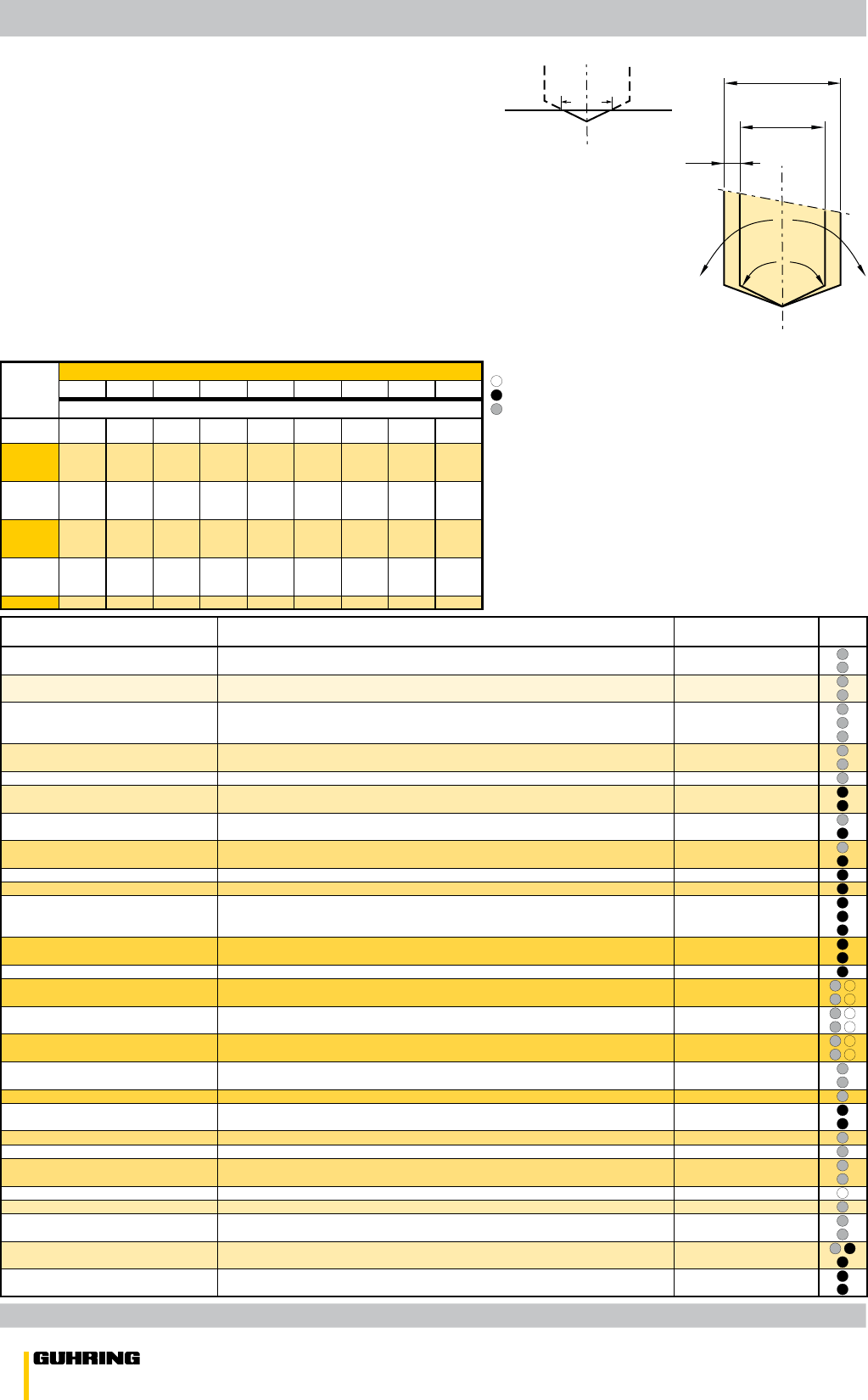

≤500
>500-850
≤850
850-1000
≤ 700
700-850
850-1000
850-≤1000
1000-1200
≤750
850-≤1000
1000-1200
≥850-≤1000
>1000-1200
≤850
>850-1000
≥650-1000
≤330 HB
≤850
≤850
≤850
≤40-48 HRC
>48-60 HRC
≤1200
≤240 HB
<300 HB
≤220 HB
<300 HB
800-1000
1200-1400
≤240 HB
<300 HB
≤350 HB
≤850
>850-1200
≤400
≤450
≤600
≤600
≤450
≤400
≤600
≤600
≤600
>600-850
≤850
>850-1000
150°
140°
~0,01
# 4111 Tol. m7
# 4112/4113/4114
2/3 xd1
HT 800 WP Application Recommendations
Coolant:
air
neat oil
soluble oil
All data are approximate values. The actually achievable cutting speeds and feed
rates depend on the respective machining conditions.
We recommend suitable drilling trials.
For selecting the optimal tool and the recommended cutting parameters for your
application there is also an electronic version of GühringNavigator available at www.
guehring.de
• for through holes supporting lands must remain in permanent contact.
• don‘t apply drilling tool without trial for interrupted cutting (grooves, transverse
holes). For interrupted cutting (max. 0.2 x D) it is recommended to reduce the feed
rate whenever possible.
• in contrast to conventional indexable inserts, HT 800 tools are also suitable for the
drilling of stacked sheets.
• on a lathe (stationary tool) it must be ensured that the tool is accurately centred.
• pre-condition for optimal machining results is a sufficient cooling lubricant supply
with soluble or neat oil.
• the tool is only of limited suitability for dry machining or MQL. For MQL application
we recommend the use of the conical MQL shank end as well as Guhring MQL
components. Please contact our Sales Management.
Material group Material examples, new description (old description in brackets)
Figures in bold = material no. to DIN EN
Tensile strength Hard-
MPa (N/mm2) ness
Cool-
ant
Common structural steels 1.0035 S185(St33),1.0486 P275N(StE285),1.0345 P235GH(H1),1.0425 P265GH(H2)
1.0050 E295 (St50-2), 1.0070 E360 (St70-2), 1.8937 P500NH (WStE500)
Free-cutting steels 1.0718 11SMnPb30 (9SMnPb28), 1.0736 11SMn37 (9SMn36)
1.0727 46S20 (45S20), 1.0728 (60S20), 1.0757 46SPb20 (45SPb20)
Unalloyed heat-treatable steels 1.0402 C22, 1.1178 C30E (Ck30)
1.0503 C45, 1.1191 C45E (Ck45)
1.0601 C60, 1.1221 C60E (Ck60)
Alloyed heat-treatable steels 1.5131 50MnSi4, 1.7003 38Cr2, 1.7030 28Cr4
1.5710 36NiCr6, 1.7035 41Cr4, 1.7225 42CrMo4
Unalloyed case hardened steels 1.0301 (C10), 1.1121 C10E (Ck10)
Alloyed case hardened steels 1.7043 38Cr4
1.5752 15NiCr13 (15NiCr13), 1.7131 16MnCr5, 1.7264 20CrMo5
Nitriding steels 1.8504 34CrAl6
1.8519 31CrMoV9, 1.8550 34CrAlNi7
Tool steels 1.1750 C75W, 1.2067 102Cr6, 1.2307 29CrMoV9
1.2080 X210Cr12, 1.2083 X42Cr13, 1.2419 105WCr6, 1.2767 X45NiCrMo4
High speed steels 1.3243 S 6-5-2-5, 1.3343 S 6-5-2, 1.3344 S 6-5-3
Spring steels 1.5026 55Si7, 1.7176 55Cr3, 1.8159 51CrV4 (51CrV4)
Stainless steels, sulphured 1.4005 X12CrS13, 1.4104 X14CrMoS17, 1.4105 X6CrMoS17, 1.4305 X8CrNiS18-9
austenitic 1.4301 X5CrNi18-10 (V2A), 1.4541 X6CrNiTi18-10, 1.4571 X6CrNiMoTi 17-12-2 (V4A)
martensitic
1.4057 X20CrNi 17 2 (X17CrNi16-2), 1.4122 X39CrMo17-1, 1.4521 X2CrMoTi18-2
Hardened steels –
Special alloys Nimonic, Inconel, Monel, Hastelloy
Cast iron 0.6010 EN-GJL-100(GG10), 0.6020 EN-GJL-200(GG20)
0.6025 EN-GJL-250(GG25), 0.6035 EN-GJL-350(GG35)
New cast materials CGI EN-GJV250 (GGV25), EN-GJV350 (GGV35)
EN-GJV400 (GGV40), EN-GJV500 (GGV50), SiMo 6
New cast materials ADI EN-GJS-800-8 (ADI800), EN-GJS-1000-5 (ADI1000)
EN-GJS-1200-2 (ADI1200), EN-GJS-1400-1 (ADI1400)
Spheroidal graphite iron and 0.7050 EN-GJS-500-7(GGG50), 0.8035 EN-GJMW-350-4(GTW35)
malleable cast iron 0.7070 EN-GJS-700-2(GGG70), 0.8170 EN-GJMB-700-2(GTS70)
Chilled cast iron –
Ti and Ti-alloys 3.7024 Ti99,5, 3.7114 TiAl5Sn2,5, 3.7124 TiCu2
3.7154 TiAl6Zr5, 3.7165 TiAl6V4, 3.7184 TiAl4Mo4Sn2,5, - TiAl8Mo1V1
Aluminium and Al-alloys 3.0255 Al99,5, 3.2315 AlMgSi1, 3.3515 AlMg1
Al wrought alloys 3.0615 AlMgSiPb, 3.1325 AlCuMg1, 3.3245 AlMg3Si, 3.4365 AlZnMgCu1,5
Al cast alloys ≤ 10 % Si 3.2131 G-AlSi5Cu1, 3.2153 G-AlSi7Cu3, 3.2573 G-AlSi9
> 10 % Si 3.2581 G-AlSi12, 3.2583 G-AlSi12Cu, - G-AlSi12CuNiMg
Magnesium alloys 3.5200 MgMn2, 3.5812.05 G-MgAl8Zn1, 3.5612.05 G-MgAl6Zn1
Copper, low-alloyed 2.0070 SE-Cu, 2.1020 CuSn6, 2.1096 G-CuSn5ZnPb
Brass, short-chipping 2.0380 CuZn39Pb2, 2.0401 CuZn39Pb3, 2.0410 CuZn43Pb2
long-chipping 2.0250 CuZn20, 2.0280 CuZn33, 2.0332 CuZn37Pb0,5
Bronze, short-chipping 2.1090 CuSn7ZnPb, 2.1170 CuPb5Sn5, 2.1176 CuPb10Sn
2.0790 CuNi18Zn19Pb
Bronze, long-chipping 2.0916 CuAl5, 2.0960 CuAl9Mn, 2.1050 CuSn10
2.0980 CuAl11Ni, 2.1247 CuBe2
Drill-Ø
mm
Feed column no.
123456789
f (mm/rev.)
0.50 0.004 0.006 0.007 0.008 0.010 0.012 0.014 0.016 0.019
1.00 0.006 0.008 0.012 0.014 0.016 0.018 0.020 0.023 0.025
2.00 0.020 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125
2.50 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160
3.15 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.160
4.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.200
5.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250
6.30 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315
8.00 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.315
10.00 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.400
12.50 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500
16.00 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630
20.00 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.630
25.00 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 0.800
31.50 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 1.000
27HT 800 WP
4113
K/P
FIRE
vc
m/min
4112
K/P
nanoFIRE
vc
m/min
4111
K/P
nanoA
vc
m/min
4114
K
vc
m/min
10 0 6
90 6
80 5
80 5
80 5
80 5
120 7
10 0 6
90 6
7
7
7
7
7
6
7
6
6
6
6
5
130 6
110 5
130 7
110 6
130 6
125 6
110 5
110 6
90 5
130 7
110 6
70 4
105 5
70 4
60 5
55 4
55 3
50 2
55 3
40 3
35 3
25 2
25 2
40 3
35 2
130 6
110 5
130 7
110 6
130 6
125 6
110 5
110 6
90 5
130 7
110 6
70 4
105 5
70 4
60 5
55 4
55 3
50 2
55 3
40 3
35 3
25 2
25 2
10 0 6
90 6
80 5
80 5
80 5
80 5
120 7
10 0 6
90 6
40 3
35 2
200 7
180 7
150 7
120 7
180 7
70 6
180 7
120 6
70 6
50 6
45 6
35 5
200 7
180 7
150 7
120 7
180 7
70 6
180 7
120 6
70 6
50 6
45 6
35 5
Feed column no.Feed column no.Feed column no.
Tool holders ≤1×D, Guhring no. 4105 for pilot drilling/countersinking
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Solid carbide
steel
Solid carbide
cast iron
Solid carbide
Al and Al-alloys
bright
Feed column no.
Solid carbide
pilot drilling/countersinking
28 HT 800 WP
≤500
>500-850
≤850
850-1000
≤ 700
700-850
850-1000
850-≤1000
1000-1200
≤750
850-≤1000
1000-1200
≥850-≤1000
>1000-1200
≤850
>850-1000
≥650-1000
≤330 HB
≤850
≤850
≤850
≤40-48 HRC
>48-60 HRC
≤1200
≤240 HB
<300 HB
≤220 HB
<300 HB
800-1000
1200-1400
≤240 HB
<300 HB
≤350 HB
≤850
>850-1200
≤400
≤450
≤600
≤600
≤450
≤400
≤600
≤600
≤600
>600-850
≤850
>850-1000
HT 800 WP Application Recommendations
Coolant:
air
neat oil
soluble oil
All data are approximate values. The actually achievable cutting speeds and feed
rates depend on the respective machining conditions.
We recommend suitable drilling trials.
For selecting the optimal tool and the recommended cutting parameters for your
application there is also an electronic version of GühringNavigator available at www.
guehring.de
• for through holes supporting lands must remain in permanent contact.
• don‘t apply drilling tool without trial for interrupted cutting (grooves, transverse
holes). For interrupted cutting (max. 0.2 x D) it is recommended to reduce the feed
rate whenever possible.
• in contrast to conventional indexable inserts, HT 800 tools are also suitable for the
drilling of stacked sheets.
• on a lathe (stationary tool) it must be ensured that the tool is accurately centred.
• pre-condition for optimal machining results is a sufficient cooling lubricant supply
with soluble or neat oil.
• the tool is only of limited suitability for dry machining or MQL. For MQL application
we recommend the use of the conical MQL shank end as well as Guhring MQL
components. Please contact our Sales Management.
Material group Material examples, new description (old description in brackets)
Figures in bold = material no. to DIN EN
Tensile strength Hard-
MPa (N/mm2) ness
Cool-
ant
Common structural steels 1.0035 S185(St33),1.0486 P275N(StE285),1.0345 P235GH(H1),1.0425 P265GH(H2)
1.0050 E295 (St50-2), 1.0070 E360 (St70-2), 1.8937 P500NH (WStE500)
Free-cutting steels 1.0718 11SMnPb30 (9SMnPb28), 1.0736 11SMn37 (9SMn36)
1.0727 46S20 (45S20), 1.0728 (60S20), 1.0757 46SPb20 (45SPb20)
Unalloyed heat-treatable steels 1.0402 C22, 1.1178 C30E (Ck30)
1.0503 C45, 1.1191 C45E (Ck45)
1.0601 C60, 1.1221 C60E (Ck60)
Alloyed heat-treatable steels 1.5131 50MnSi4, 1.7003 38Cr2, 1.7030 28Cr4
1.5710 36NiCr6, 1.7035 41Cr4, 1.7225 42CrMo4
Unalloyed case hardened steels 1.0301 (C10), 1.1121 C10E (Ck10)
Alloyed case hardened steels 1.7043 38Cr4
1.5752 15NiCr13 (15NiCr13), 1.7131 16MnCr5, 1.7264 20CrMo5
Nitriding steels 1.8504 34CrAl6
1.8519 31CrMoV9, 1.8550 34CrAlNi7
Tool steels 1.1750 C75W, 1.2067 102Cr6, 1.2307 29CrMoV9
1.2080 X210Cr12, 1.2083 X42Cr13, 1.2419 105WCr6, 1.2767 X45NiCrMo4
High speed steels 1.3243 S 6-5-2-5, 1.3343 S 6-5-2, 1.3344 S 6-5-3
Spring steels 1.5026 55Si7, 1.7176 55Cr3, 1.8159 51CrV4 (51CrV4)
Stainless steels, sulphured 1.4005 X12CrS13, 1.4104 X14CrMoS17, 1.4105 X6CrMoS17, 1.4305 X8CrNiS18-9
austenitic 1.4301 X5CrNi18-10 (V2A), 1.4541 X6CrNiTi18-10, 1.4571 X6CrNiMoTi 17-12-2 (V4A)
martensitic
1.4057 X20CrNi 17 2 (X17CrNi16-2), 1.4122 X39CrMo17-1, 1.4521 X2CrMoTi18-2
Hardened steels –
Special alloys Nimonic, Inconel, Monel, Hastelloy
Cast iron 0.6010 EN-GJL-100(GG10), 0.6020 EN-GJL-200(GG20)
0.6025 EN-GJL-250(GG25), 0.6035 EN-GJL-350(GG35)
New cast materials CGI EN-GJV250 (GGV25), EN-GJV350 (GGV35)
EN-GJV400 (GGV40), EN-GJV500 (GGV50), SiMo 6
New cast materials ADI EN-GJS-800-8 (ADI800), EN-GJS-1000-5 (ADI1000)
EN-GJS-1200-2 (ADI1200), EN-GJS-1400-1 (ADI1400)
Spheroidal graphite iron and 0.7050 EN-GJS-500-7(GGG50), 0.8035 EN-GJMW-350-4(GTW35)
malleable cast iron 0.7070 EN-GJS-700-2(GGG70), 0.8170 EN-GJMB-700-2(GTS70)
Chilled cast iron –
Ti and Ti-alloys 3.7024 Ti99,5, 3.7114 TiAl5Sn2,5, 3.7124 TiCu2
3.7154 TiAl6Zr5, 3.7165 TiAl6V4, 3.7184 TiAl4Mo4Sn2,5, - TiAl8Mo1V1
Aluminium and Al-alloys 3.0255 Al99,5, 3.2315 AlMgSi1, 3.3515 AlMg1
Al wrought alloys 3.0615 AlMgSiPb, 3.1325 AlCuMg1, 3.3245 AlMg3Si, 3.4365 AlZnMgCu1,5
Al cast alloys ≤ 10 % Si 3.2131 G-AlSi5Cu1, 3.2153 G-AlSi7Cu3, 3.2573 G-AlSi9
> 10 % Si 3.2581 G-AlSi12, 3.2583 G-AlSi12Cu, - G-AlSi12CuNiMg
Magnesium alloys 3.5200 MgMn2, 3.5812.05 G-MgAl8Zn1, 3.5612.05 G-MgAl6Zn1
Copper, low-alloyed 2.0070 SE-Cu, 2.1020 CuSn6, 2.1096 G-CuSn5ZnPb
Brass, short-chipping 2.0380 CuZn39Pb2, 2.0401 CuZn39Pb3, 2.0410 CuZn43Pb2
long-chipping 2.0250 CuZn20, 2.0280 CuZn33, 2.0332 CuZn37Pb0,5
Bronze, short-chipping 2.1090 CuSn7ZnPb, 2.1170 CuPb5Sn5, 2.1176 CuPb10Sn
2.0790 CuNi18Zn19Pb
Bronze, long-chipping 2.0916 CuAl5, 2.0960 CuAl9Mn, 2.1050 CuSn10
2.0980 CuAl11Ni, 2.1247 CuBe2
Drill-Ø
mm
Feed column no.
123456789
f (mm/rev.)
0.50 0.004 0.006 0.007 0.008 0.010 0.012 0.014 0.016 0.019
1.00 0.006 0.008 0.012 0.014 0.016 0.018 0.020 0.023 0.025
2.00 0.020 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125
2.50 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160
3.15 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.160
4.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.200
5.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250
6.30 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315
8.00 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.315
10.00 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.400
12.50 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500
16.00 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630
20.00 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.630
25.00 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 0.800
31.50 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 1.000
29HT 800 WP
4114
K
vc
m/min
4113
K/P
FIRE
vc
m/min
4112
K/P
nanoFIRE
vc
m/min
200 7
180 7
150 7
120 7
180 7
70 6
180 7
120 6
70 6
50 6
45 6
35 5
10 0 6
90 6
80 5
80 5
80 5
80 5
120 7
10 0 6
90 6
130 6
110 5
130 7
110 6
130 6
125 6
110 5
110 6
90 5
130 7
110 6
70 4
105 5
70 4
60 5
55 4
55 3
50 2
55 3
40 3
35 3
25 2
25 2
40 3
35 2
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Feed column no.Feed column no.Feed column no.
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Solid carbide Solid carbide Solid carbide
bright
Tool holders
steel cast iron Al and Al-alloys
≤1.5×D, Guhring no. 4106
≤3×D, Guhring no. 4107
30 HT 800 WP
≤500
>500-850
≤850
850-1000
≤ 700
700-850
850-1000
850-≤1000
1000-1200
≤750
850-≤1000
1000-1200
≥850-≤1000
>1000-1200
≤850
>850-1000
≥650-1000
≤330 HB
≤850
≤850
≤850
≤40-48 HRC
>48-60 HRC
≤1200
≤240 HB
<300 HB
≤220 HB
<300 HB
800-1000
1200-1400
≤240 HB
<300 HB
≤350 HB
≤850
>850-1200
≤400
≤450
≤600
≤600
≤450
≤400
≤600
≤600
≤600
>600-850
≤850
>850-1000
150°
140°
~0,01
# 4111 Tol. m7
# 4112/4113/4114
2/3 xd1
HT 800 WP Application Recommendations
Material group Material examples, new description (old description in brackets)
Figures in bold = material no. to DIN EN
Tensile strength Hard-
MPa (N/mm2) ness
Cool-
ant
Common structural steels 1.0035 S185(St33),1.0486 P275N(StE285),1.0345 P235GH(H1),1.0425 P265GH(H2)
1.0050 E295 (St50-2), 1.0070 E360 (St70-2), 1.8937 P500NH (WStE500)
Free-cutting steels 1.0718 11SMnPb30 (9SMnPb28), 1.0736 11SMn37 (9SMn36)
1.0727 46S20 (45S20), 1.0728 (60S20), 1.0757 46SPb20 (45SPb20)
Unalloyed heat-treatable steels 1.0402 C22, 1.1178 C30E (Ck30)
1.0503 C45, 1.1191 C45E (Ck45)
1.0601 C60, 1.1221 C60E (Ck60)
Alloyed heat-treatable steels 1.5131 50MnSi4, 1.7003 38Cr2, 1.7030 28Cr4
1.5710 36NiCr6, 1.7035 41Cr4, 1.7225 42CrMo4
Unalloyed case hardened steels 1.0301 (C10), 1.1121 C10E (Ck10)
Alloyed case hardened steels 1.7043 38Cr4
1.5752 15NiCr13 (15NiCr13), 1.7131 16MnCr5, 1.7264 20CrMo5
Nitriding steels 1.8504 34CrAl6
1.8519 31CrMoV9, 1.8550 34CrAlNi7
Tool steels 1.1750 C75W, 1.2067 102Cr6, 1.2307 29CrMoV9
1.2080 X210Cr12, 1.2083 X42Cr13, 1.2419 105WCr6, 1.2767 X45NiCrMo4
High speed steels 1.3243 S 6-5-2-5, 1.3343 S 6-5-2, 1.3344 S 6-5-3
Spring steels 1.5026 55Si7, 1.7176 55Cr3, 1.8159 51CrV4 (51CrV4)
Stainless steels, sulphured 1.4005 X12CrS13, 1.4104 X14CrMoS17, 1.4105 X6CrMoS17, 1.4305 X8CrNiS18-9
austenitic 1.4301 X5CrNi18-10 (V2A), 1.4541 X6CrNiTi18-10, 1.4571 X6CrNiMoTi 17-12-2 (V4A)
martensitic
1.4057 X20CrNi 17 2 (X17CrNi16-2), 1.4122 X39CrMo17-1, 1.4521 X2CrMoTi18-2
Hardened steels –
Special alloys Nimonic, Inconel, Monel, Hastelloy
Cast iron 0.6010 EN-GJL-100(GG10), 0.6020 EN-GJL-200(GG20)
0.6025 EN-GJL-250(GG25), 0.6035 EN-GJL-350(GG35)
New cast materials CGI EN-GJV250 (GGV25), EN-GJV350 (GGV35)
EN-GJV400 (GGV40), EN-GJV500 (GGV50), SiMo 6
New cast materials ADI EN-GJS-800-8 (ADI800), EN-GJS-1000-5 (ADI1000)
EN-GJS-1200-2 (ADI1200), EN-GJS-1400-1 (ADI1400)
Spheroidal graphite iron and 0.7050 EN-GJS-500-7(GGG50), 0.8035 EN-GJMW-350-4(GTW35)
malleable cast iron 0.7070 EN-GJS-700-2(GGG70), 0.8170 EN-GJMB-700-2(GTS70)
Chilled cast iron –
Ti and Ti-alloys 3.7024 Ti99,5, 3.7114 TiAl5Sn2,5, 3.7124 TiCu2
3.7154 TiAl6Zr5, 3.7165 TiAl6V4, 3.7184 TiAl4Mo4Sn2,5, - TiAl8Mo1V1
Aluminium and Al-alloys 3.0255 Al99,5, 3.2315 AlMgSi1, 3.3515 AlMg1
Al wrought alloys 3.0615 AlMgSiPb, 3.1325 AlCuMg1, 3.3245 AlMg3Si, 3.4365 AlZnMgCu1,5
Al cast alloys ≤ 10 % Si 3.2131 G-AlSi5Cu1, 3.2153 G-AlSi7Cu3, 3.2573 G-AlSi9
> 10 % Si 3.2581 G-AlSi12, 3.2583 G-AlSi12Cu, - G-AlSi12CuNiMg
Magnesium alloys 3.5200 MgMn2, 3.5812.05 G-MgAl8Zn1, 3.5612.05 G-MgAl6Zn1
Copper, low-alloyed 2.0070 SE-Cu, 2.1020 CuSn6, 2.1096 G-CuSn5ZnPb
Brass, short-chipping 2.0380 CuZn39Pb2, 2.0401 CuZn39Pb3, 2.0410 CuZn43Pb2
long-chipping 2.0250 CuZn20, 2.0280 CuZn33, 2.0332 CuZn37Pb0,5
Bronze, short-chipping 2.1090 CuSn7ZnPb, 2.1170 CuPb5Sn5, 2.1176 CuPb10Sn
2.0790 CuNi18Zn19Pb
Bronze, long-chipping 2.0916 CuAl5, 2.0960 CuAl9Mn, 2.1050 CuSn10
2.0980 CuAl11Ni, 2.1247 CuBe2
Coolant:
air
neat oil
soluble oil
Drill-Ø
mm
Feed column no.
123456789
f (mm/rev.)
0.50 0.004 0.006 0.007 0.008 0.010 0.012 0.014 0.016 0.019
1.00 0.006 0.008 0.012 0.014 0.016 0.018 0.020 0.023 0.025
2.00 0.020 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125
2.50 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160
3.15 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.160
4.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.200
5.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250
6.30 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315
8.00 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.315
10.00 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.400
12.50 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500
16.00 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630
20.00 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.630
25.00 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 0.800
31.50 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 1.000
All data are approximate values. The actually achievable cutting speeds and feed
rates depend on the respective machining conditions.
We recommend suitable drilling trials.
For selecting the optimal tool and the recommended cutting parameters for your
application there is also an electronic version of GühringNavigator available at www.
guehring.de
• for through holes supporting lands must remain in permanent contact. In addition, we recommend reducing
the feed rate prior to exiting.
• for drilling depths from 5xD we generally recommend centring or pilot drilling with holder, Guhring no.
4105, and pilot insert, Guhring no. 4111. Alternatively – depending on the material to be machined – Ratio
drills type RT 100 U or RT 100VA can be applied.
• for drilling without centring we recommend reducing the feed rate at the start of the hole.
• don‘t apply drilling tool without trial for interrupted cutting (grooves, transverse holes). For interrupted
cutting (max. 0.2 x D) it is recommended to reduce the feed rate whenever possible.
• in contrast to conventional indexable inserts, HT 800 tools are also suitable for the drilling of stacked sheets.
• on a lathe (stationary tool) it must be ensured that the tool is accurately centred.
• pre-condition for optimal machining results is a sufficient cooling lubricant supply with soluble or neat oil.
• the tool is only of limited suitability for dry machining or MQL. For MQL application we recommend the use
of the conical MQL shank end as well as Guhring MQL components. Please contact our Sales Management.
31HT 800 WP
4114
K
vc
m/min
4113
K/P
FIRE
vc
m/min
4112
K/P
nanoFIRE
vc
m/min
180 7
180 7
140 7
110 7
180 7
70 6
180 7
120 6
70 6
50 6
45 6
35 5
10 0 6
90 6
80 5
80 5
80 5
80 5
120 7
10 0 6
90 6
125 6
105 5
125 7
105 6
125 6
120 6
105 5
105 6
85 5
125 7
105 6
70 4
105 5
70 4
55 5
50 4
55 3
50 2
55 3
40 3
35 3
25 2
25 2
40 3
35 2
Tool holders ≤5×D, Guhring no. 4108
Feed column no.Feed column no.Feed column no.
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Solid carbide Solid carbide Solid carbide
bright
steel cast iron Al and Al-alloys
32 HT 800 WP
≤500
>500-850
≤850
850-1000
≤ 700
700-850
850-1000
850-≤1000
1000-1200
≤750
850-≤1000
1000-1200
≥850-≤1000
>1000-1200
≤850
>850-1000
≥650-1000
≤330 HB
≤850
≤850
≤850
≤40-48 HRC
>48-60 HRC
≤1200
≤240 HB
<300 HB
≤220 HB
<300 HB
800-1000
1200-1400
≤240 HB
<300 HB
≤350 HB
≤850
>850-1200
≤400
≤450
≤600
≤600
≤450
≤400
≤600
≤600
≤600
>600-850
≤850
>850-1000
150°
140°
~0,01
# 4111 Tol. m7
# 4112/4113/4114
2/3 xd1
HT 800 WP Application Recommendations
• for through holes supporting lands must remain in permanent contact. In addition, we recommend reducing
the feed rate prior to exiting.
• for drilling depths from 5xD we generally recommend centring or pilot drilling with holder, Guhring no.
4105, and pilot insert, Guhring no. 4111. Alternatively – depending on the material to be machined – Ratio
drills type RT 100 U or RT 100VA can be applied.
• for drilling without centring we recommend reducing the feed rate at the start of the hole.
• don‘t apply drilling tool without trial for interrupted cutting (grooves, transverse holes). For interrupted
cutting (max. 0.2 x D) it is recommended to reduce the feed rate whenever possible.
• in contrast to conventional indexable inserts, HT 800 tools are also suitable for the drilling of stacked sheets.
• on a lathe (stationary tool) it must be ensured that the tool is accurately centred.
• pre-condition for optimal machining results is a sufficient cooling lubricant supply with soluble or neat oil.
• the tool is only of limited suitability for dry machining or MQL. For MQL application we recommend the use
of the conical MQL shank end as well as Guhring MQL components. Please contact our Sales Management.
Material group Material examples, new description (old description in brackets)
Figures in bold = material no. to DIN EN
Tensile strength Hard-
MPa (N/mm2) ness
Cool-
ant
Common structural steels 1.0035 S185(St33),1.0486 P275N(StE285),1.0345 P235GH(H1),1.0425 P265GH(H2)
1.0050 E295 (St50-2), 1.0070 E360 (St70-2), 1.8937 P500NH (WStE500)
Free-cutting steels 1.0718 11SMnPb30 (9SMnPb28), 1.0736 11SMn37 (9SMn36)
1.0727 46S20 (45S20), 1.0728 (60S20), 1.0757 46SPb20 (45SPb20)
Unalloyed heat-treatable steels 1.0402 C22, 1.1178 C30E (Ck30)
1.0503 C45, 1.1191 C45E (Ck45)
1.0601 C60, 1.1221 C60E (Ck60)
Alloyed heat-treatable steels 1.5131 50MnSi4, 1.7003 38Cr2, 1.7030 28Cr4
1.5710 36NiCr6, 1.7035 41Cr4, 1.7225 42CrMo4
Unalloyed case hardened steels 1.0301 (C10), 1.1121 C10E (Ck10)
Alloyed case hardened steels 1.7043 38Cr4
1.5752 15NiCr13 (15NiCr13), 1.7131 16MnCr5, 1.7264 20CrMo5
Nitriding steels 1.8504 34CrAl6
1.8519 31CrMoV9, 1.8550 34CrAlNi7
Tool steels 1.1750 C75W, 1.2067 102Cr6, 1.2307 29CrMoV9
1.2080 X210Cr12, 1.2083 X42Cr13, 1.2419 105WCr6, 1.2767 X45NiCrMo4
High speed steels 1.3243 S 6-5-2-5, 1.3343 S 6-5-2, 1.3344 S 6-5-3
Spring steels 1.5026 55Si7, 1.7176 55Cr3, 1.8159 51CrV4 (51CrV4)
Stainless steels, sulphured 1.4005 X12CrS13, 1.4104 X14CrMoS17, 1.4105 X6CrMoS17, 1.4305 X8CrNiS18-9
austenitic 1.4301 X5CrNi18-10 (V2A), 1.4541 X6CrNiTi18-10, 1.4571 X6CrNiMoTi 17-12-2 (V4A)
martensitic
1.4057 X20CrNi 17 2 (X17CrNi16-2), 1.4122 X39CrMo17-1, 1.4521 X2CrMoTi18-2
Hardened steels –
Special alloys Nimonic, Inconel, Monel, Hastelloy
Cast iron 0.6010 EN-GJL-100(GG10), 0.6020 EN-GJL-200(GG20)
0.6025 EN-GJL-250(GG25), 0.6035 EN-GJL-350(GG35)
New cast materials CGI EN-GJV250 (GGV25), EN-GJV350 (GGV35)
EN-GJV400 (GGV40), EN-GJV500 (GGV50), SiMo 6
New cast materials ADI EN-GJS-800-8 (ADI800), EN-GJS-1000-5 (ADI1000)
EN-GJS-1200-2 (ADI1200), EN-GJS-1400-1 (ADI1400)
Spheroidal graphite iron and 0.7050 EN-GJS-500-7(GGG50), 0.8035 EN-GJMW-350-4(GTW35)
malleable cast iron 0.7070 EN-GJS-700-2(GGG70), 0.8170 EN-GJMB-700-2(GTS70)
Chilled cast iron –
Ti and Ti-alloys 3.7024 Ti99,5, 3.7114 TiAl5Sn2,5, 3.7124 TiCu2
3.7154 TiAl6Zr5, 3.7165 TiAl6V4, 3.7184 TiAl4Mo4Sn2,5, - TiAl8Mo1V1
Aluminium and Al-alloys 3.0255 Al99,5, 3.2315 AlMgSi1, 3.3515 AlMg1
Al wrought alloys 3.0615 AlMgSiPb, 3.1325 AlCuMg1, 3.3245 AlMg3Si, 3.4365 AlZnMgCu1,5
Al cast alloys ≤ 10 % Si 3.2131 G-AlSi5Cu1, 3.2153 G-AlSi7Cu3, 3.2573 G-AlSi9
> 10 % Si 3.2581 G-AlSi12, 3.2583 G-AlSi12Cu, - G-AlSi12CuNiMg
Magnesium alloys 3.5200 MgMn2, 3.5812.05 G-MgAl8Zn1, 3.5612.05 G-MgAl6Zn1
Copper, low-alloyed 2.0070 SE-Cu, 2.1020 CuSn6, 2.1096 G-CuSn5ZnPb
Brass, short-chipping 2.0380 CuZn39Pb2, 2.0401 CuZn39Pb3, 2.0410 CuZn43Pb2
long-chipping 2.0250 CuZn20, 2.0280 CuZn33, 2.0332 CuZn37Pb0,5
Bronze, short-chipping 2.1090 CuSn7ZnPb, 2.1170 CuPb5Sn5, 2.1176 CuPb10Sn
2.0790 CuNi18Zn19Pb
Bronze, long-chipping 2.0916 CuAl5, 2.0960 CuAl9Mn, 2.1050 CuSn10
2.0980 CuAl11Ni, 2.1247 CuBe2
Coolant:
air
neat oil
soluble oil
Drill-Ø
mm
Feed column no.
123456789
f (mm/rev.)
0.50 0.004 0.006 0.007 0.008 0.010 0.012 0.014 0.016 0.019
1.00 0.006 0.008 0.012 0.014 0.016 0.018 0.020 0.023 0.025
2.00 0.020 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125
2.50 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160
3.15 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.160
4.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.200
5.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250
6.30 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315
8.00 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.315
10.00 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.400
12.50 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500
16.00 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630
20.00 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.630
25.00 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 0.800
31.50 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 1.000
All data are approximate values. The actually achievable cutting speeds and feed
rates depend on the respective machining conditions.
We recommend suitable drilling trials.
For selecting the optimal tool and the recommended cutting parameters for your
application there is also an electronic version of GühringNavigator available at www.
guehring.de
33HT 800 WP
4114
K
vc
m/min
4113
K/P
FIRE
vc
m/min
4112
K/P
nanoFIRE
vc
m/min
180 6
180 6
140 6
110 6
180 6
70 5
180 6
120 5
70 5
50 5
45 5
35 4
80 6
70 6
60 5
60 5
60 5
60 5
10 0 7
80 6
70 6
120 5
105 4
120 6
105 5
120 5
110 5
10 0 4
10 0 5
85 4
120 6
10 0 5
70 4
105 4
70 3
55 4
50 3
55 2
50 2
55 2
40 2
35 2
25 1
25 1
40 2
35 1
Tool holders ≤7×D, Guhring no. 4109
Feed column no.Feed column no.Feed column no.
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Solid carbide Solid carbide Solid carbide
bright
steel cast iron Al and Al-alloys
34 HT 800 WP
≤500
>500-850
≤850
850-1000
≤ 700
700-850
850-1000
850-≤1000
1000-1200
≤750
850-≤1000
1000-1200
≥850-≤1000
>1000-1200
≤850
>850-1000
≥650-1000
≤330 HB
≤850
≤850
≤850
≤40-48 HRC
>48-60 HRC
≤1200
≤240 HB
<300 HB
≤220 HB
<300 HB
800-1000
1200-1400
≤240 HB
<300 HB
≤350 HB
≤850
>850-1200
≤400
≤450
≤600
≤600
≤450
≤400
≤600
≤600
≤600
>600-850
≤850
>850-1000
150°
140°
~0,01
# 4111 Tol. m7
# 4112/4113/4114
2/3 xd1
HT 800 WP Application Recommendations
• for through holes supporting lands must remain in permanent contact. In addition, we recommend reducing
the feed rate prior to exiting.
• for drilling depths from 5xD we generally recommend centring or pilot drilling with holder, Guhring no.
4105, and pilot insert, Guhring no. 4111. Alternatively – depending on the material to be machined – Ratio
drills type RT 100 U or RT 100VA can be applied.
• for drilling without centring we recommend reducing the feed rate at the start of the hole.
• don‘t apply drilling tool without trial for interrupted cutting (grooves, transverse holes). For interrupted
cutting (max. 0.2 x D) it is recommended to reduce the feed rate whenever possible.
• in contrast to conventional indexable inserts, HT 800 tools are also suitable for the drilling of stacked sheets.
• on a lathe (stationary tool) it must be ensured that the tool is accurately centred.
• pre-condition for optimal machining results is a sufficient cooling lubricant supply with soluble or neat oil.
• the tool is only of limited suitability for dry machining or MQL. For MQL application we recommend the use
of the conical MQL shank end as well as Guhring MQL components. Please contact our Sales Management.
Material group Material examples, new description (old description in brackets)
Figures in bold = material no. to DIN EN
Tensile strength Hard-
MPa (N/mm2) ness
Cool-
ant
Common structural steels 1.0035 S185(St33),1.0486 P275N(StE285),1.0345 P235GH(H1),1.0425 P265GH(H2)
1.0050 E295 (St50-2), 1.0070 E360 (St70-2), 1.8937 P500NH (WStE500)
Free-cutting steels 1.0718 11SMnPb30 (9SMnPb28), 1.0736 11SMn37 (9SMn36)
1.0727 46S20 (45S20), 1.0728 (60S20), 1.0757 46SPb20 (45SPb20)
Unalloyed heat-treatable steels 1.0402 C22, 1.1178 C30E (Ck30)
1.0503 C45, 1.1191 C45E (Ck45)
1.0601 C60, 1.1221 C60E (Ck60)
Alloyed heat-treatable steels 1.5131 50MnSi4, 1.7003 38Cr2, 1.7030 28Cr4
1.5710 36NiCr6, 1.7035 41Cr4, 1.7225 42CrMo4
Unalloyed case hardened steels 1.0301 (C10), 1.1121 C10E (Ck10)
Alloyed case hardened steels 1.7043 38Cr4
1.5752 15NiCr13 (15NiCr13), 1.7131 16MnCr5, 1.7264 20CrMo5
Nitriding steels 1.8504 34CrAl6
1.8519 31CrMoV9, 1.8550 34CrAlNi7
Tool steels 1.1750 C75W, 1.2067 102Cr6, 1.2307 29CrMoV9
1.2080 X210Cr12, 1.2083 X42Cr13, 1.2419 105WCr6, 1.2767 X45NiCrMo4
High speed steels 1.3243 S 6-5-2-5, 1.3343 S 6-5-2, 1.3344 S 6-5-3
Spring steels 1.5026 55Si7, 1.7176 55Cr3, 1.8159 51CrV4 (51CrV4)
Stainless steels, sulphured 1.4005 X12CrS13, 1.4104 X14CrMoS17, 1.4105 X6CrMoS17, 1.4305 X8CrNiS18-9
austenitic 1.4301 X5CrNi18-10 (V2A), 1.4541 X6CrNiTi18-10, 1.4571 X6CrNiMoTi 17-12-2 (V4A)
martensitic
1.4057 X20CrNi 17 2 (X17CrNi16-2), 1.4122 X39CrMo17-1, 1.4521 X2CrMoTi18-2
Hardened steels –
Special alloys Nimonic, Inconel, Monel, Hastelloy
Cast iron 0.6010 EN-GJL-100(GG10), 0.6020 EN-GJL-200(GG20)
0.6025 EN-GJL-250(GG25), 0.6035 EN-GJL-350(GG35)
New cast materials CGI EN-GJV250 (GGV25), EN-GJV350 (GGV35)
EN-GJV400 (GGV40), EN-GJV500 (GGV50), SiMo 6
New cast materials ADI EN-GJS-800-8 (ADI800), EN-GJS-1000-5 (ADI1000)
EN-GJS-1200-2 (ADI1200), EN-GJS-1400-1 (ADI1400)
Spheroidal graphite iron and 0.7050 EN-GJS-500-7(GGG50), 0.8035 EN-GJMW-350-4(GTW35)
malleable cast iron 0.7070 EN-GJS-700-2(GGG70), 0.8170 EN-GJMB-700-2(GTS70)
Chilled cast iron –
Ti and Ti-alloys 3.7024 Ti99,5, 3.7114 TiAl5Sn2,5, 3.7124 TiCu2
3.7154 TiAl6Zr5, 3.7165 TiAl6V4, 3.7184 TiAl4Mo4Sn2,5, - TiAl8Mo1V1
Aluminium and Al-alloys 3.0255 Al99,5, 3.2315 AlMgSi1, 3.3515 AlMg1
Al wrought alloys 3.0615 AlMgSiPb, 3.1325 AlCuMg1, 3.3245 AlMg3Si, 3.4365 AlZnMgCu1,5
Al cast alloys ≤ 10 % Si 3.2131 G-AlSi5Cu1, 3.2153 G-AlSi7Cu3, 3.2573 G-AlSi9
> 10 % Si 3.2581 G-AlSi12, 3.2583 G-AlSi12Cu, - G-AlSi12CuNiMg
Magnesium alloys 3.5200 MgMn2, 3.5812.05 G-MgAl8Zn1, 3.5612.05 G-MgAl6Zn1
Copper, low-alloyed 2.0070 SE-Cu, 2.1020 CuSn6, 2.1096 G-CuSn5ZnPb
Brass, short-chipping 2.0380 CuZn39Pb2, 2.0401 CuZn39Pb3, 2.0410 CuZn43Pb2
long-chipping 2.0250 CuZn20, 2.0280 CuZn33, 2.0332 CuZn37Pb0,5
Bronze, short-chipping 2.1090 CuSn7ZnPb, 2.1170 CuPb5Sn5, 2.1176 CuPb10Sn
2.0790 CuNi18Zn19Pb
Bronze, long-chipping 2.0916 CuAl5, 2.0960 CuAl9Mn, 2.1050 CuSn10
2.0980 CuAl11Ni, 2.1247 CuBe2
Coolant:
air
neat oil
soluble oil
Drill-Ø
mm
Feed column no.
123456789
f (mm/rev.)
0.50 0.004 0.006 0.007 0.008 0.010 0.012 0.014 0.016 0.019
1.00 0.006 0.008 0.012 0.014 0.016 0.018 0.020 0.023 0.025
2.00 0.020 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125
2.50 0.025 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160
3.15 0.032 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.160
4.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.200
5.00 0.040 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250
6.30 0.050 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315
8.00 0.063 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.315
10.00 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.400
12.50 0.080 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500
16.00 0.100 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630
20.00 0.125 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.630
25.00 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 0.800
31.50 0.160 0.200 0.250 0.315 0.400 0.500 0.630 0.800 1.000
All data are approximate values. The actually achievable cutting speeds and feed
rates depend on the respective machining conditions.
We recommend suitable drilling trials.
For selecting the optimal tool and the recommended cutting parameters for your
application there is also an electronic version of GühringNavigator available at www.
guehring.de
35HT 800 WP
4114
K
vc
m/min
4113
K/P
FIRE
vc
m/min
4112
K/P
nanoFIRE
vc
m/min
150 6
150 6
130 6
105 6
150 6
70 5
150 6
110 5
70 5
50 5
45 5
35 4
80 6
70 6
60 5
60 5
60 5
60 5
10 0 7
80 6
70 6
10 0 5
95 4
10 0 6
95 5
10 0 5
95 5
90 4
90 5
85 4
10 0 6
90 5
70 4
95 4
70 3
55 4
50 3
55 2
50 2
55 2
40 2
35 2
25 1
25 1
40 2
35 1
Feed column no.Feed column no.Feed column no.
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Guhring no.
Tool material
Carbide grade
Surface finish
Application
Solid carbide Solid carbide Solid carbide
bright
steel cast iron Al and Al-alloys
Tool holders ≤10×D, Guhring no. 4110
36 HT 800 WP
Troubleshooting
12 tips to help diagnose problems
Cutting edge build up low cutting speed increase cutting speed
excessive honing of cutting lip reduce cutting lip honing
bright finish cutting lip have tool coated
Crumbling of outer corners non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
deviation from concentricity too large check and correct concentricity if possible
interrupted cut reduce feed
Heavy wear at flank cutting speed too high reduce cutting speed
feed too low increase feed
clearance angle too small increase clearance angle
Crumbling on cutting lips non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
interrupted cut reduce feed
max. wear values exceeded reduce tool change intervals
incorrect tool type apply suitable tool
Land wear non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
deviation from concentricity too large check and correct concentricity if possible
back taper too small increase back taper
incorrect coolant (oil), coolant too weak increase strength of coolant or use neat oil
Scoring on tool body non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
deviation from concentricity too large check and correct concentricity if possible
interrupted cut reduce feed
abrasive workpiece material increase strength of coolant or use neat oil
Problem Cause Remedy
37HT 800 WP
Ra
Troubleshooting
12 tips to help diagnose problems
Heavy chisel edge wear cutting speed too low increase cutting speed
feed too high reduce feed
excessive honing of cutting lip reduce cutting lip honing
Crumbling at intersection,
web thinning and cutting lip
clearance angle too small increase clearance angle
excessive honing of cutting lip reduce cutting lip honing
incorrect tool type apply suitable tool
Plastic deformation of outer
corner
cutting speed too high reduce cutting speed
insufficient coolant volume increase volume/pressure
incorrect or no honing at corner correct honing
Misalignment non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
deviation from concentricity too large check and correct concentricity if possible
spotting area transverse use milling cutter (2-fluted) for spotting
chisel edge too large reduce chisel edge
Heavy burring on break-
through
feed too high reduce feed
max. wear values exceeded reduce tool change intervals
excessive honing of cutting lip reduce cutting lip honing
Unsatisfactory surface quality non rigid conditions, insufficient workpiece
clamping
rigid clamping of workpiece
deviation from concentricity too large check and correct concentricity if possible
insufficient coolant volume increase volume/pressure
Problem Cause Remedy
