2

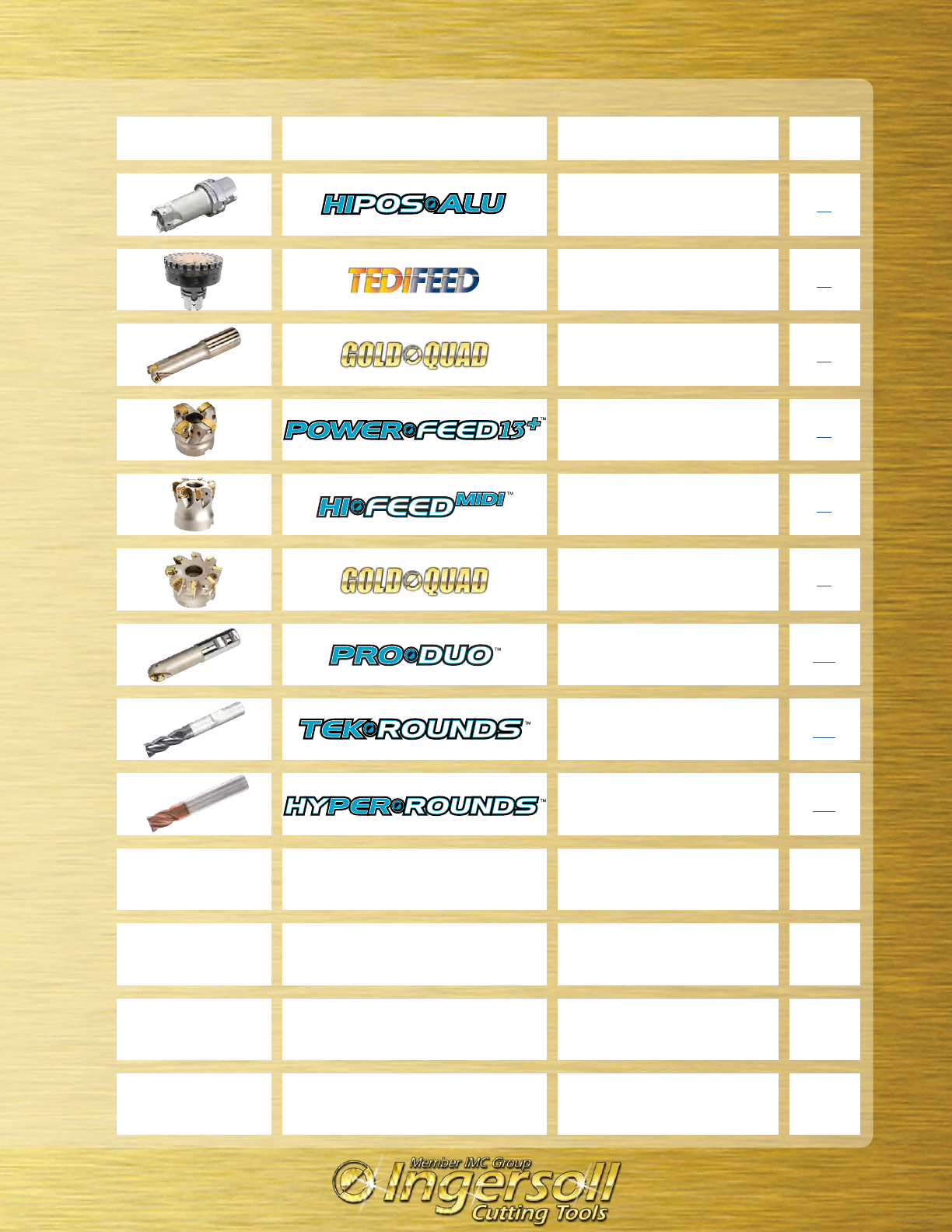

MILLING DESCRIPTION SERIES PAGE
MILLING DESCRIPTION SERIES PAGE
9M2L
1TJ1C, 1TJ1D
Extended Flute - 9M2L
3VJ4V
1WJ1F, WJ5F
Plunging - FHU
1DD1H, DD6H
12N1A, 9N6A
DJ6T, DJ5T, DL6T, DL5T
DN6H, DN5H, DL6H, DL5H
5C2M
90° Shoulder - 9M2L
Plunging - QHU
8
20
40
12
32
56
10
30
44
18
36
58
60
3
MILLING DESCRIPTION SERIES PAGE
MILLING DESCRIPTION SERIES PAGE
1AX2K, AX2K, 1AX2Q, AX2Q
TG1G,TG2G,TG3G,TG4G, 1TG1G

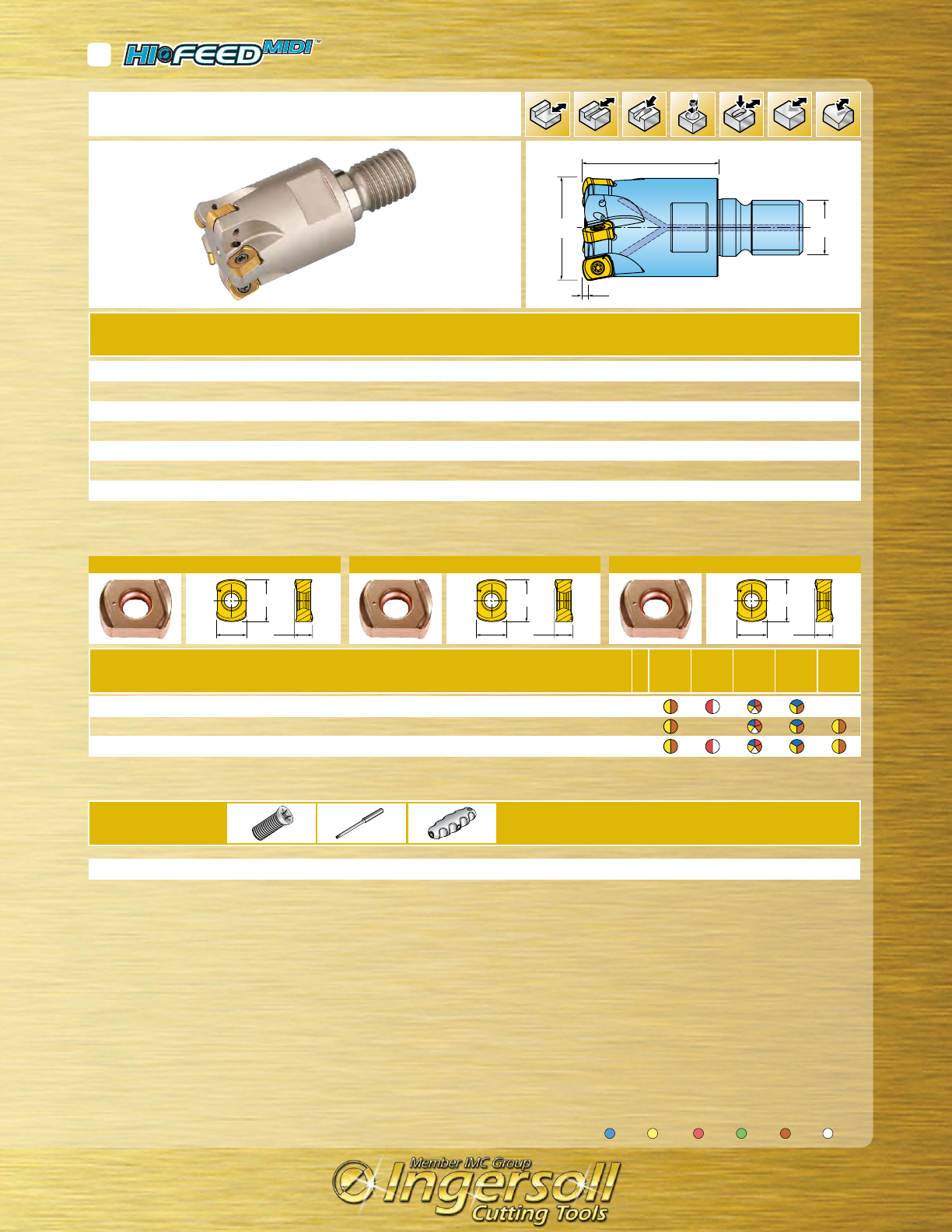

Hi-Feed: 15M1P
5G6M, 5M5M, 5M6M, 5M5P,
5M6P, 5G5F, 5G6F, 15G1F
1TW7
TRGSC, TRGSM
DG6P, DG5P, 1DG1P
47CRQ, 48/49CRQ
47DRX
63
86
102
90
104
80
72
82
100
4

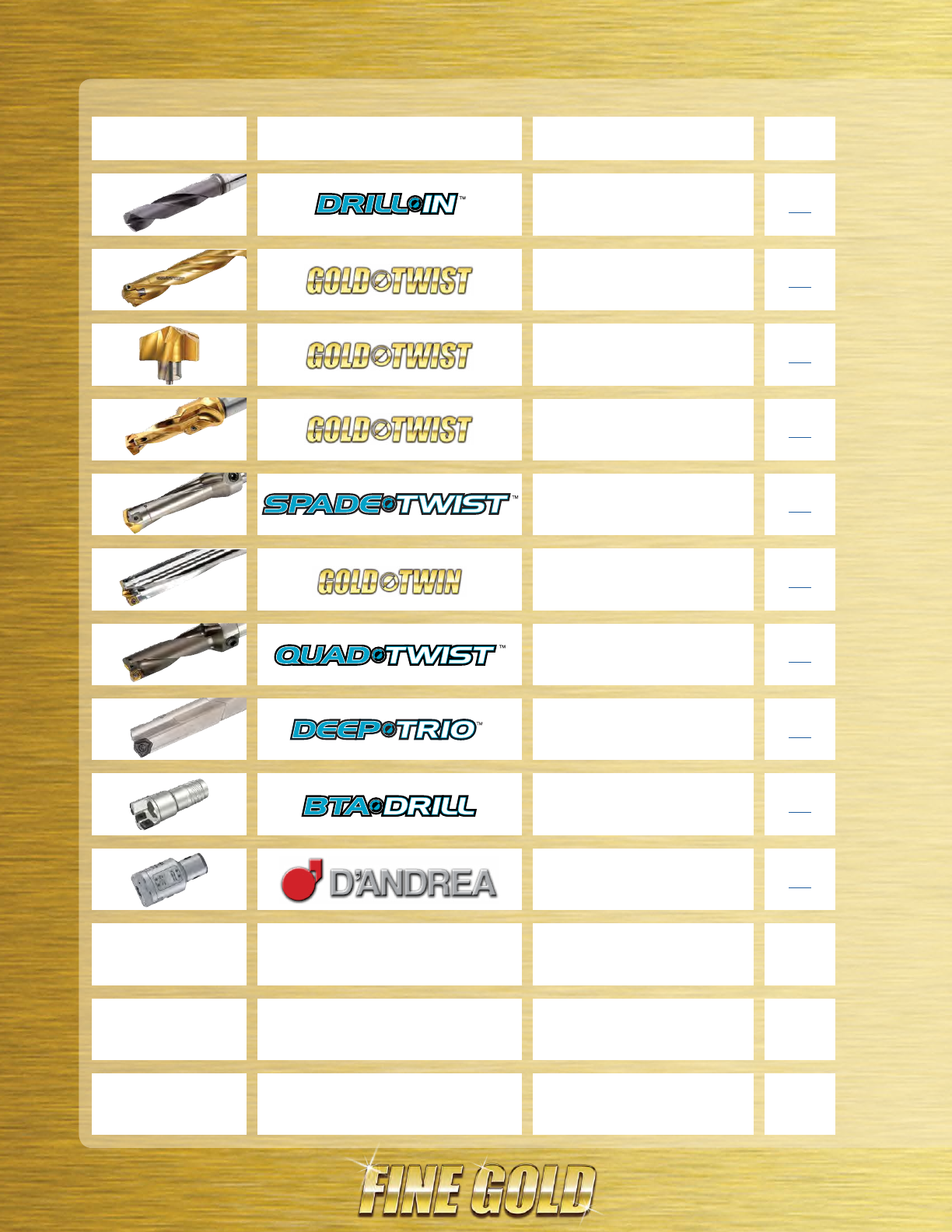

HOLEMAKING DESCRIPTION SERIES PAGE
HOLEMAKING DESCRIPTION SERIES PAGE
Solid Carbide DRills - DH, DJ
Large Dia. Indexable Spade
Drills - LD
Digital Heads - TRE
Replaceable Tips - TPA, TPA-M2,
TMA, TKA, TNA, TPF
Large Dia. with Quick-Change Tip
and Indexable Inserts - CD

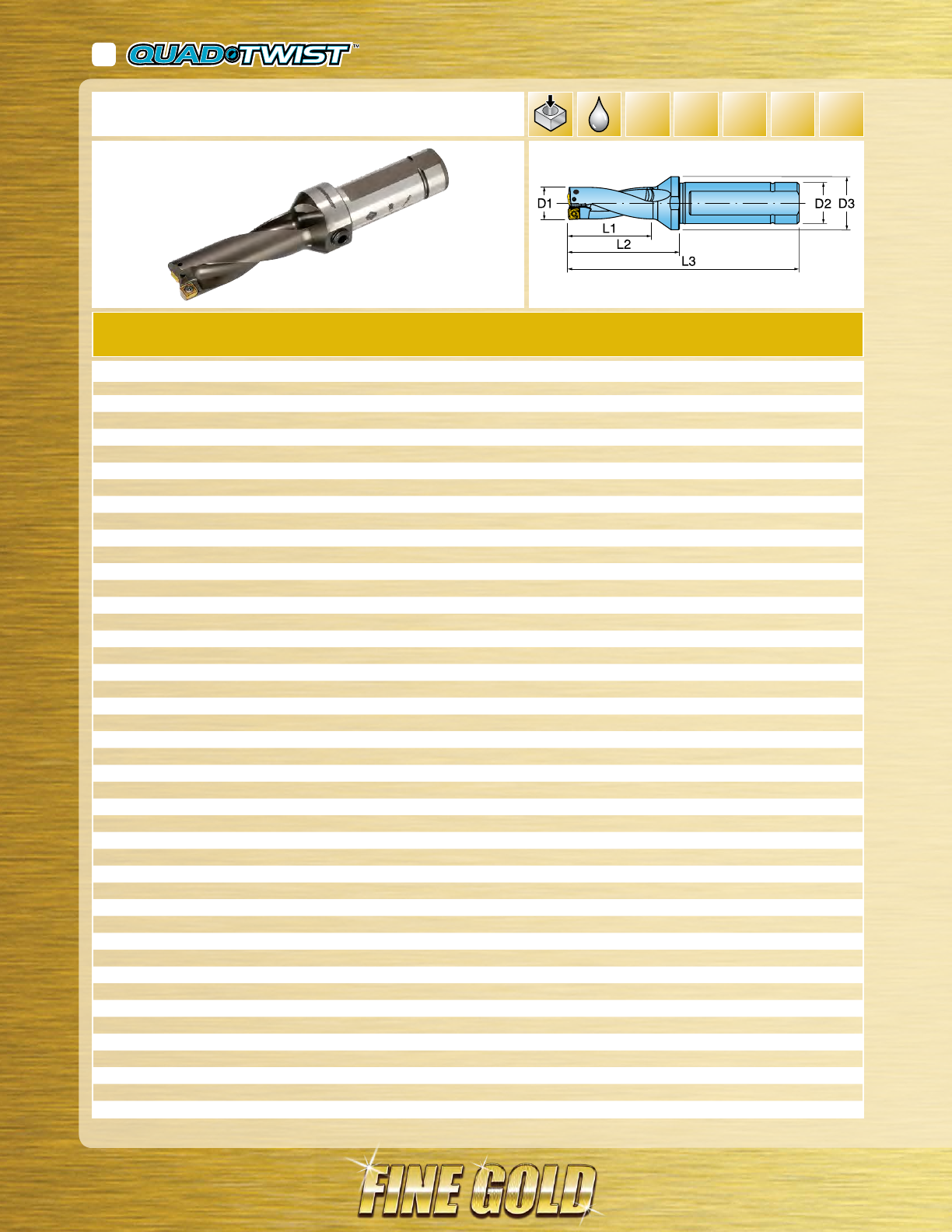

Indexable Drills - QR
Replaceable Tip Drill Bodies - TD
Tap Drill/Chamfer - TC

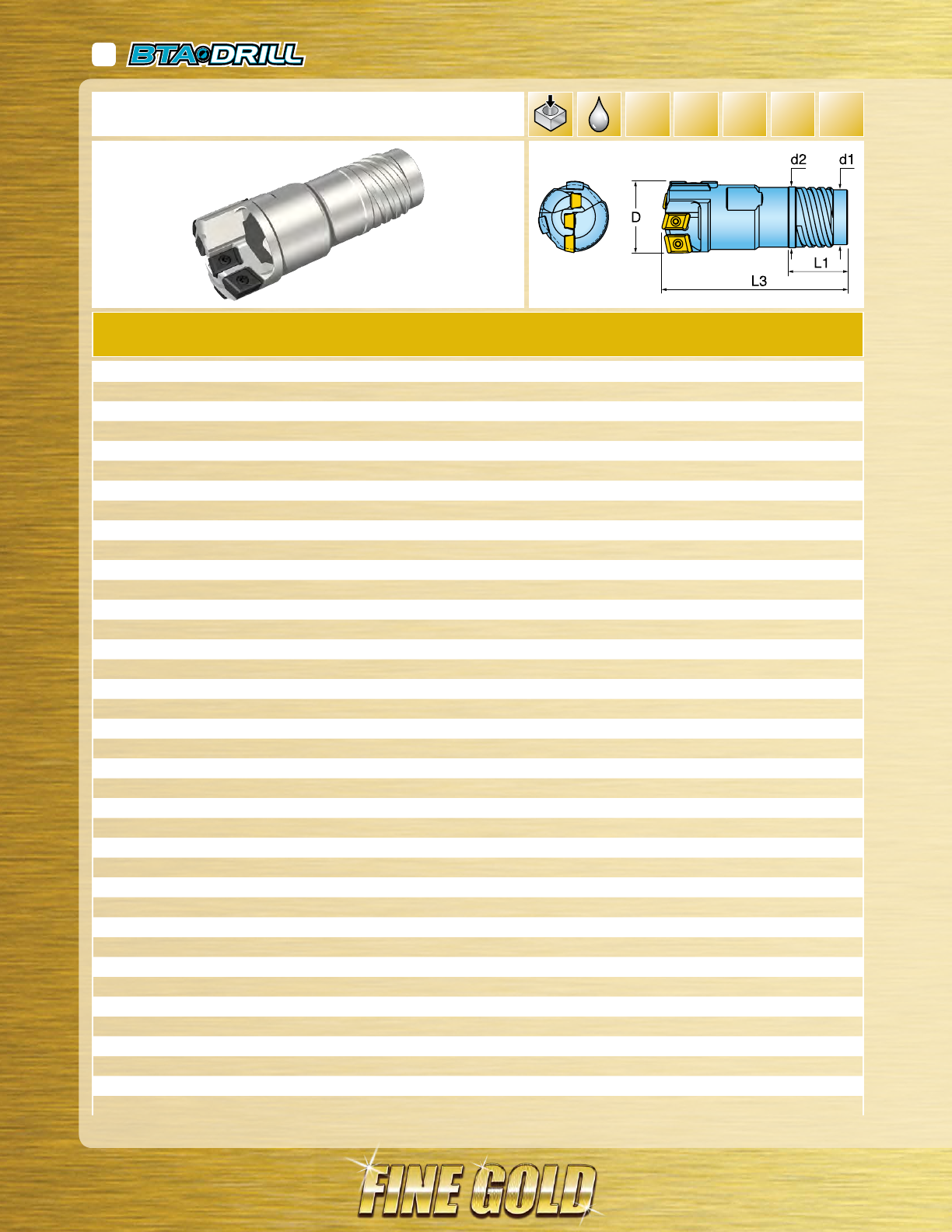

Improved BTA-Style Heads - TBTA-H

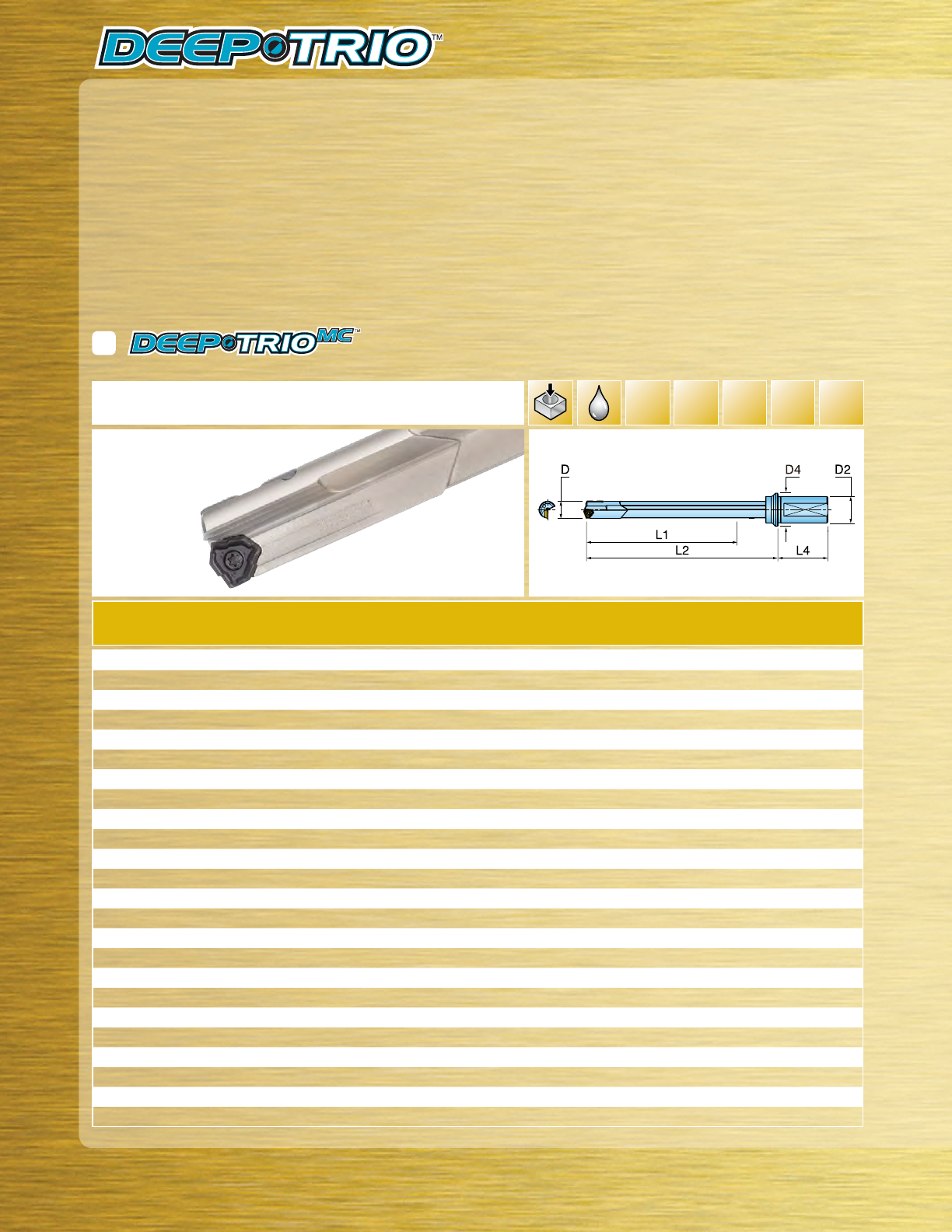

Deep-Hole Drills - GT, TBTA-DT
108
146
168
134
154
116
150
172
142
164
5
HOLEMAKING DESCRIPTION SERIES PAGE
HOLEMAKING DESCRIPTION SERIES PAGE
6

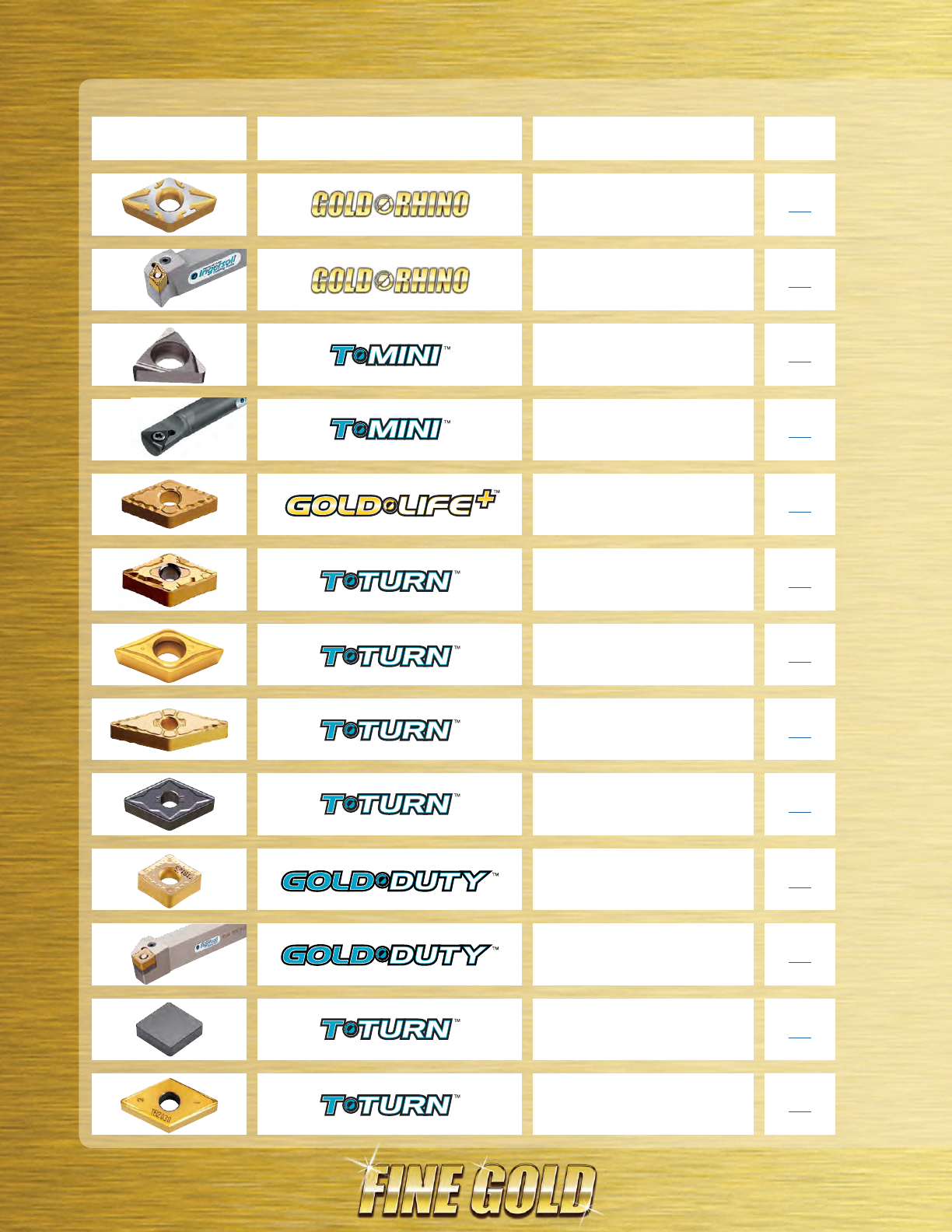

TURNING DESCRIPTION SERIES PAGE
TURNING DESCRIPTION SERIES PAGE
“Size Technology” Turning Inserts
Grade TT8105 for High Speed
Turning in Steels
CNMX Holders
Inserts for Small Dia. Boring Bars
“FA” Chipbreaker for Super Finishing
“FX” Chipbreaker for Ball Stud and
Pulley Turning

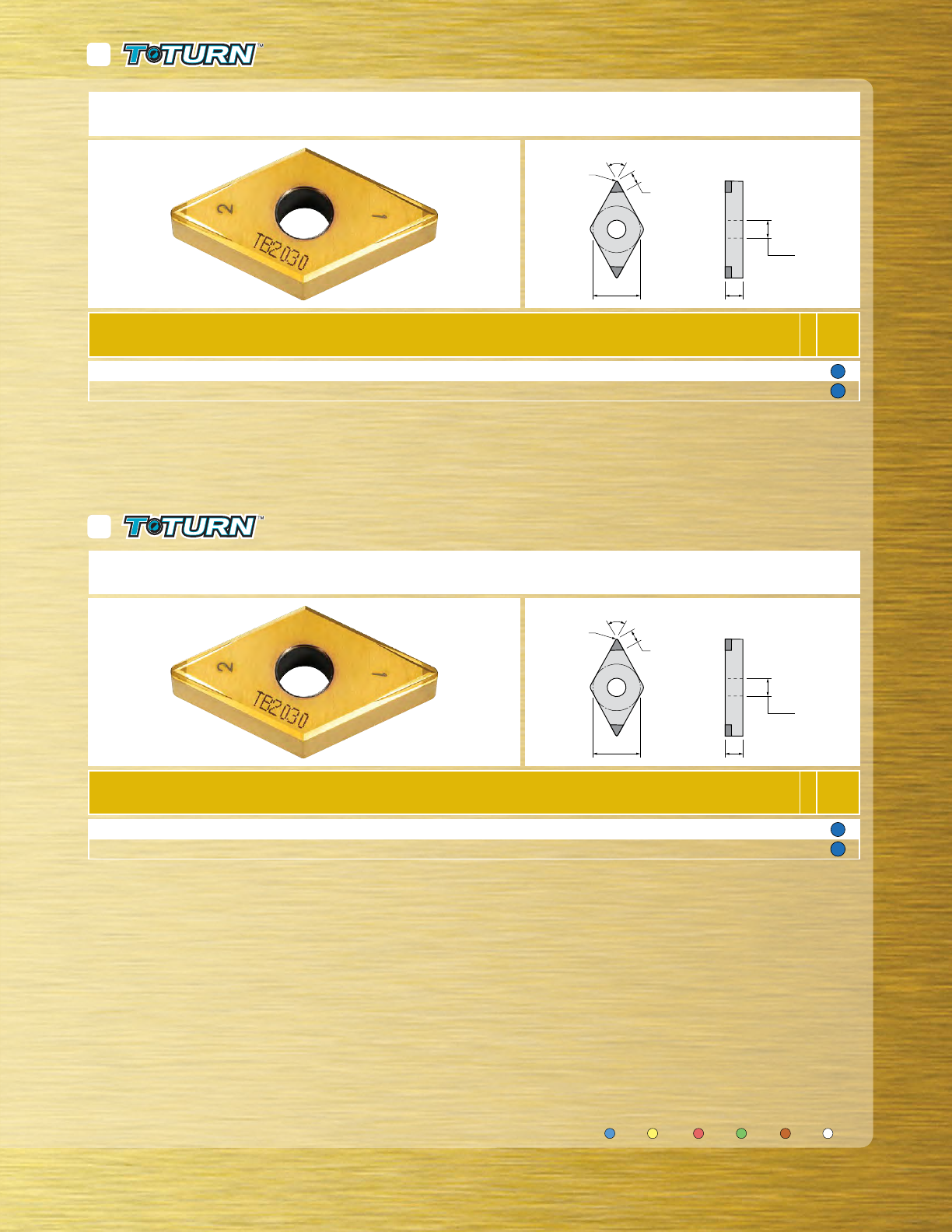

CBN Grade with Chipbreaker -
TB2030
“Size Technology” Turning Holders
Grade TT8080 for Stainless and High
Temperature Alloys
Ceramic Grades TC3020, TC3030 for
Turning High-Temperature Alloys

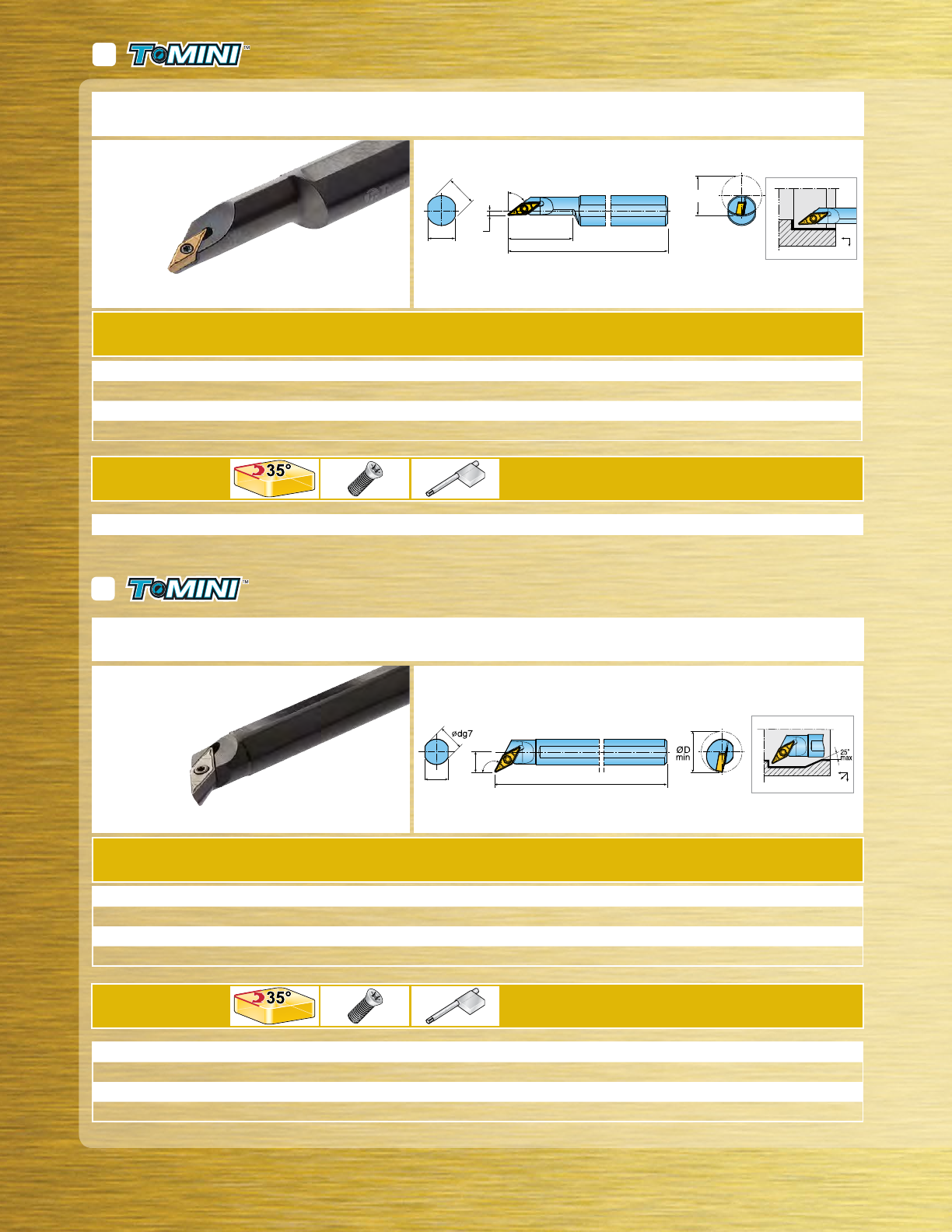

Small Dia. Boring Bars
CNMX Inserts with “HB” Chipbreaker
“KT” Chipbreaker for Rough Turning
Cast Iron
174
242
250
232
246
254
210
244
253
235
249
256
260
7
TURNING DESCRIPTION SERIES PAGE
TURNING DESCRIPTION SERIES PAGE

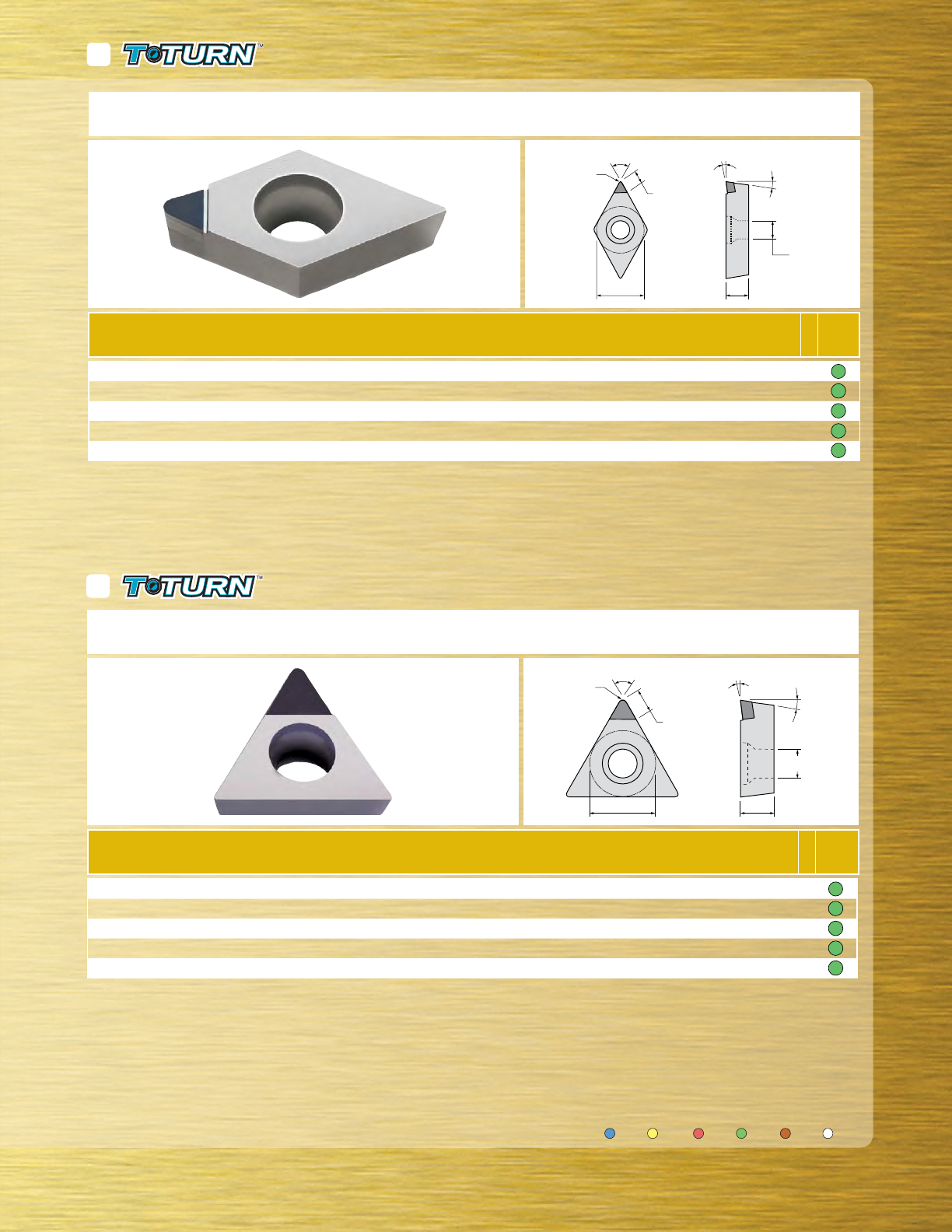

PCD Grade TD810 for Turning in
Aluminum and Non-Ferrous Mat’ls

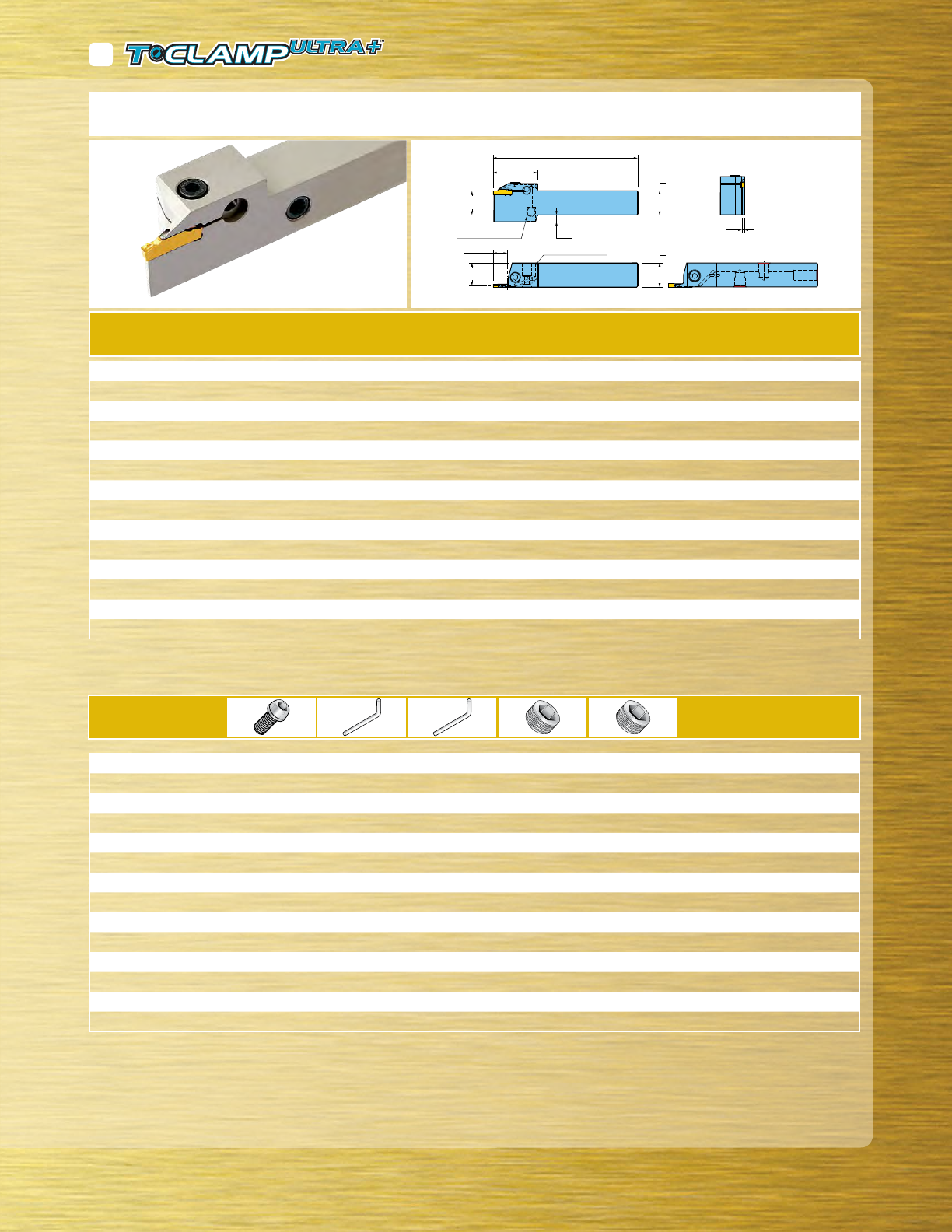

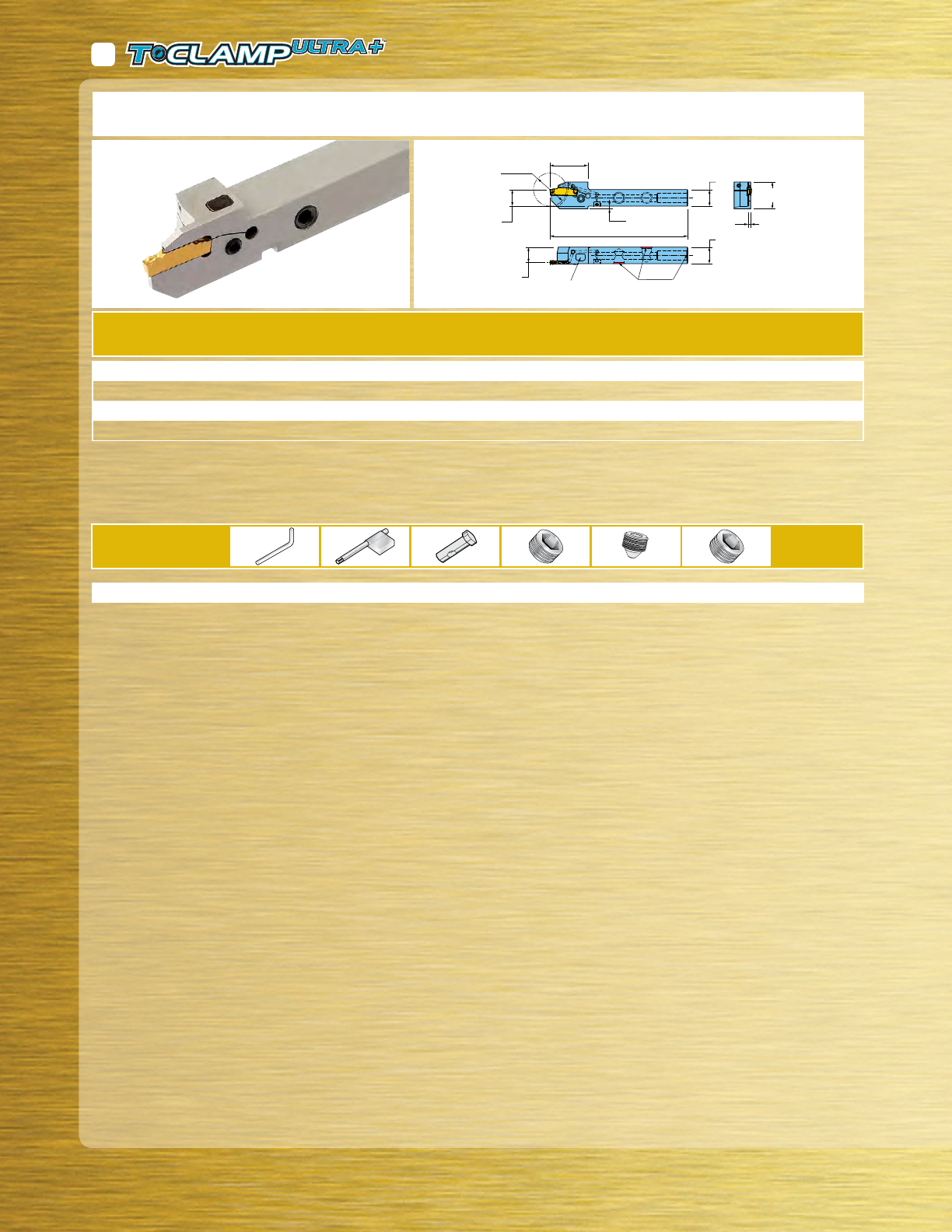

Coolant-Thru Turn/Groove Holders
Coolant-Thru Turn/Groove Holders
Internal Face Grooving Holders
Special Form Grooving Inserts
Full Radius Turn/Groove Inserts
Holders for Special Form Grooving
Inserts
4-Edge Inserts for Precision
Grooving, Parting, Recessing and
Threading
264
284
287
286
272
270
280
276

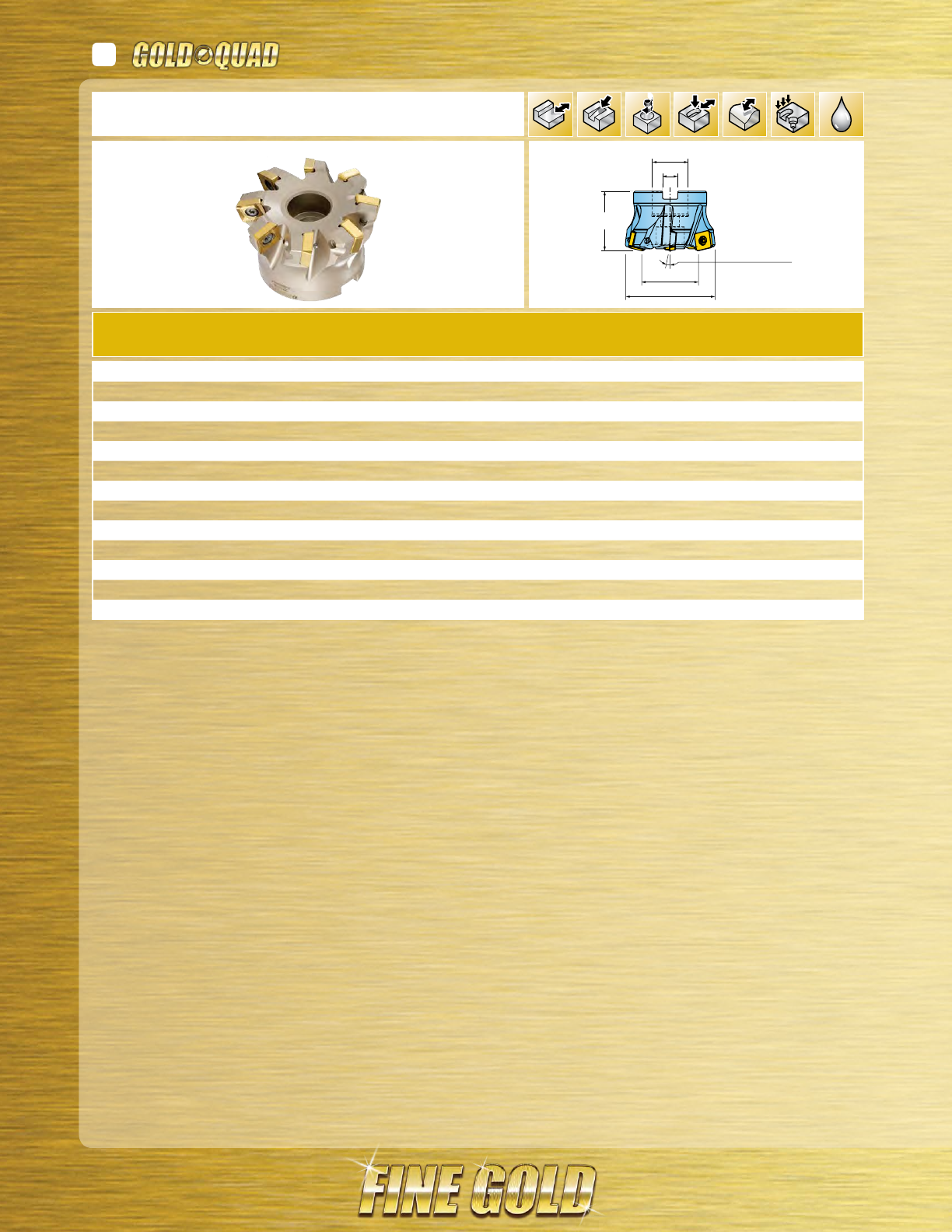

SERIES 9M2L
8
HEAVY DUTY 60° FACE MILL WITH 4 INDEXES
Cutter Number
D1
Effective
Diameter
D3
Max. Dia.
D4
Body O.D.
A
Angle
H
Height
D2
Bore Dia.
K
Keyway
Bolt
Circle
Number
of Inserts
D2
K
A
D1
D4
D3
H
9M2L-04R01 4.000 4.90 5.66 30.0 3.000 1.500 0.625 NA 5
9M2L-06R01 6.000 6.90 7.66 30.0 3.000 1.500 0.625 NA 6
9M2L-08R01 8.000 8.90 9.66 30.0 3.000 2.500 1.000 4.00 8
9M2L-10R01 10.000 10.90 11.66 30.0 3.000 2.500 1.000 4.00 10
9M2L-12R01 12.000 12.90 13.66 30.0 3.000 2.500 1.000 4.00, 4.75, 7.00 12
Features & Benefits:
• Extreme Duty In a 30° Lead Facemill
• 4.000” to 12.000” Diameters Standard
• .750” Depth Of Cut Performance
• Well Equipped For Massive Chip Loads in Cast, Forged and Rolled Steels, Irons and
Stainless Steels
• Three Inserts, Each Capable Of Powerful Performance
9
= P = M = K = N = S = H
1.125
.375
.657
LPE546R001-S
.603 .375
1.125
LSE546R001-S
.375
1.125
.603
ZSE546R001-S
Part Number Application
Grades
IN2530 IN4030 IN4040
LPE546R001-S Multi-Purpose - 0.059“ Wiper
LSE546R001-S Heavy-Duty - 0.090“ R w/.022“ Wiper
ZSE546R001-S Serrated - 0.090“ R w/.022“ Wiper
HARDWARE
SM50-160-R0 SE-03-65 NE143R13 DS-A00T DS-T206B
Insert Screw Screw L-Nest Driver Handle Screw Driver Blade
10
= P = M = K = N = S = H

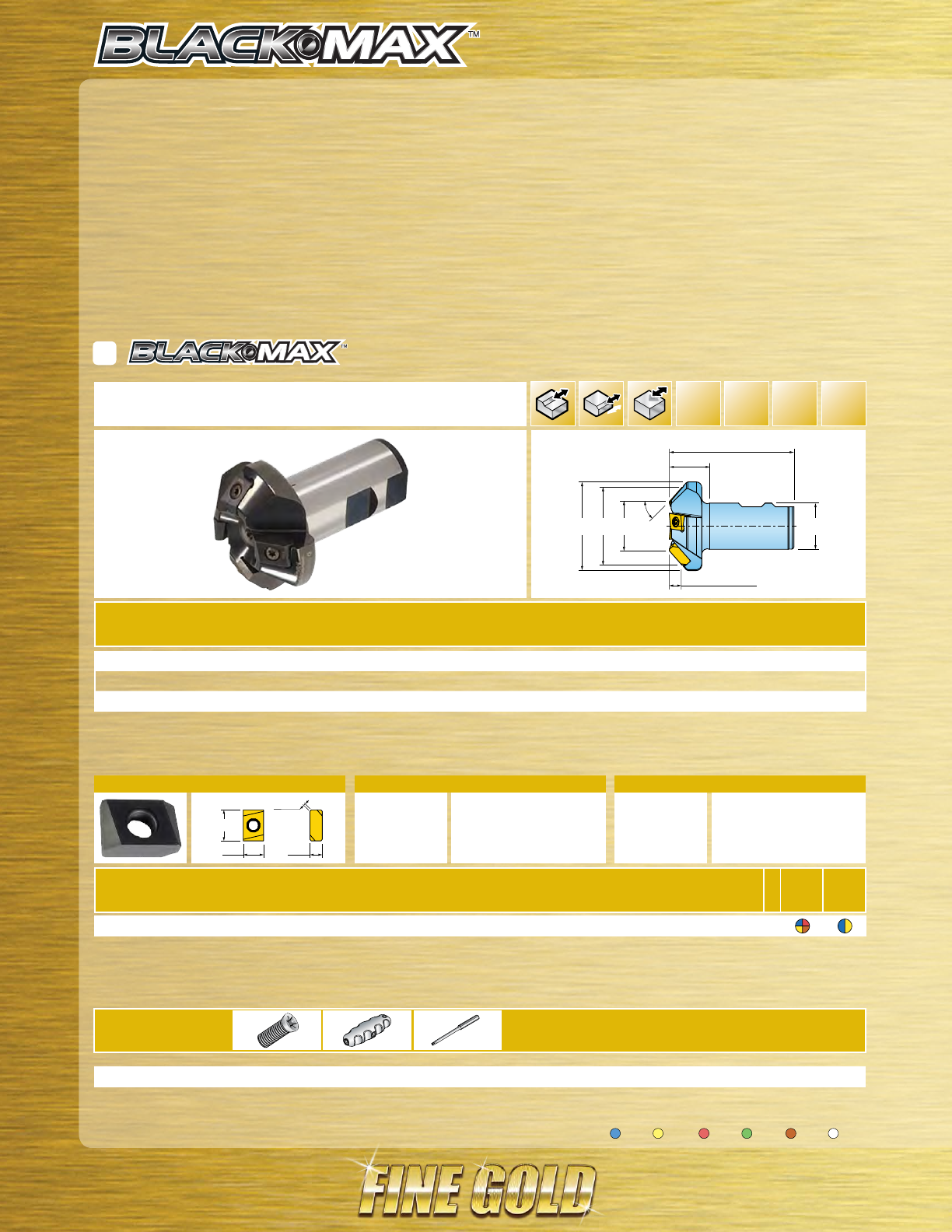

SERIES 19N1A
.625
.410 .250
.038
Wiper
LSE324R045-S
Part Number Application
Grades
IN4030 IN4040
LSE324R045-S Multi-Purpose - 0.038“ Chamfer
45° END MILL WITH 4 INDEXES
Cutter Number
D1
Minor
Dia.
D3
Major
Dia.
D4
Body O.D.
A
Angle
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Inserts
L3
L2
D2
.31 max DOC
A
D1
D3D4
19N1A-1001180R01 1.000 1.560 1.84 47.8 1.13 3.38 1.000“ Weldon 4
19N1A-1501181R01 1.500 2.120 2.40 45.1 1.13 3.38 1.250“ Weldon 4
19N1A-2001181R01 2.000 2.640 2.90 44.1 1.13 3.38 1.250“ Weldon 6
HARDWARE
SM40-140-R0 DS-A00T DS-T156B
Screw Driver Handle Screw Driver Blade
Features & Benefits:
• Heavy Duty 45 degree lead Facemill series is ideally suited for massive chip-loads in
forged steels, cast steels and irons
• Ingersoll’s “Shear-Clear” combines an extremely strong insert with high axial shear, “a
unique combination of insert strength and shear.”
• High insert-to-pocket preload provides stable chip formation in the most demanding
applications.
• Integral and ground wiping flats deliver exceptional surface finishes
11
= P = M = K = N = S = H
SERIES 9N6A
.625
.410 .250
.038
Wiper
LSE324R045-S
Part Number Application
Grades
IN4030 IN4040
LSE324R045-S Multi-Purpose - 0.038“ Chamfer
45° FACE MILL WITH 4 INDEXES
Cutter Number
D1
Effective
Diameter
D3
Max. Dia.
D4
Body O.D.
A
Angle
H
Height
D2
Bore Dia.
K
Keyway
Number
of Inserts
K
D2
AH
.31 max DOC
D1
D3
D4
9N6A-02R01 2.000 2.64 2.90 44.1 1.750 0.750 0.312 4
9N6A-02R02 2.000 2.64 2.90 44.1 1.750 1.000 0.375 6
9N6A-03R01 3.000 3.66 3.95 43.3 1.750 1.000 0.375 6
9N6A-04R01 4.000 4.67 4.95 42.9 2.375 1.500 0.625 8
9N6A-06R01 6.000 6.68 7.00 42.5 2.375 1.500 0.625 8
HARDWARE
9N6A-02R01 SM40-140-R0 SD-06-46 DS-A00T DS-T156B
9N6A-02R02 SM40-140-R0 SD-08-46 DS-A00T DS-T156B
9N6A-03R01 SM40-140-R0 SD-08-46 DS-A00T DS-T156B
9N6A-04R01 SM40-140-R0 SD-12-82 DS-A00T DS-T156B
9N6A-06R01 SM40-140-R0 SD12-01 DS-A00T DS-T156B
Screw Retention Bolt Driver Handle Screw Driver Blade
D3
K
W2
D2
W1
D1
3VJ4V-03012AF-01 0.125 3.000 1.000 0.375 1.56 0.250 10 5 IXH211
3VJ4V-04012AF-01 0.125 4.000 1.000 0.375 1.75 0.250 14 7 IXH211
3VJ4V-03015AF-01 0.156 3.000 1.000 0.375 1.56 0.250 10 5 IXH311
3VJ4V-04015AF-01 0.156 4.000 1.000 0.375 1.75 0.250 12 6 IXH311
3VJ4V-06015AG-01 0.156 6.000 1.250 0.375 1.87 0.312 18 9 IXH311
3VJ4V-03018AF-01 0.187 3.000 1.000 0.375 1.56 0.250 10 5 IXH312
3VJ4V-04018AF-01 0.187 4.000 1.000 0.375 1.75 0.250 12 6 IXH312
3VJ4V-05018AG-01 0.187 5.000 1.250 0.375 1.87 0.312 14 7 IXH312
3VJ4V-06018AG-01 0.187 6.000 1.250 0.375 1.87 0.312 18 9 IXH312
3VJ4V-04025AF-01 0.250 4.000 1.000 0.375 1.75 0.250 10 5 IXH412
3VJ4V-05025AF-01 0.250 5.000 1.000 0.375 1.87 0.250 12 6 IXH412
3VJ4V-06025AG-01 0.250 6.000 1.250 0.375 1.87 0.312 14 7 IXH412
3VJ4V-08025AH-01 0.250 8.000 1.500 0.375 2.75 0.375 18 9 IXH412
3VJ4V-04031AG-01 0.312 4.000 1.250 0.375 1.87 0.312 10 5 IXH413
3VJ4V-06031AG-01 0.312 6.000 1.250 0.375 1.87 0.312 14 7 IXH413
3VJ4V-08031AH-01 0.312 8.000 1.500 0.375 2.75 0.375 18 9 IXH413
3VJ4V-04037AG-01 0.375 4.000 1.250 0.375 1.87 0.312 10 5 IXH414
3VJ4V-06037AG-01 0.375 6.000 1.250 0.375 1.87 0.312 14 7 IXH414
3VJ4V-08037AH-01 0.375 8.000 1.500 0.375 2.75 0.375 18 9 IXH414
3VJ4V-04050AG-01 0.500 4.000 1.250 0.375 1.75 0.312 10 5 IXH415
3VJ4V-05050AH-01 0.500 5.000 1.500 0.375 2.25 0.375 12 6 IXH415
3VJ4V-06050AH-01 0.500 6.000 1.500 0.375 1.87 0.375 14 7 IXH415
3VJ4V-08050AK-01 0.500 8.000 2.000 0.375 3.07 0.500 14 7 IXH415
Cutter Number
W1
Cutter
Width
D1
Nom. Dia.
D2
Bore Dia.
W2
Hub
Width
D3
Hub
Diameter
K
Keyway
Total
No. of
Inserts
No. of
Effective
Inserts
Insert
Series

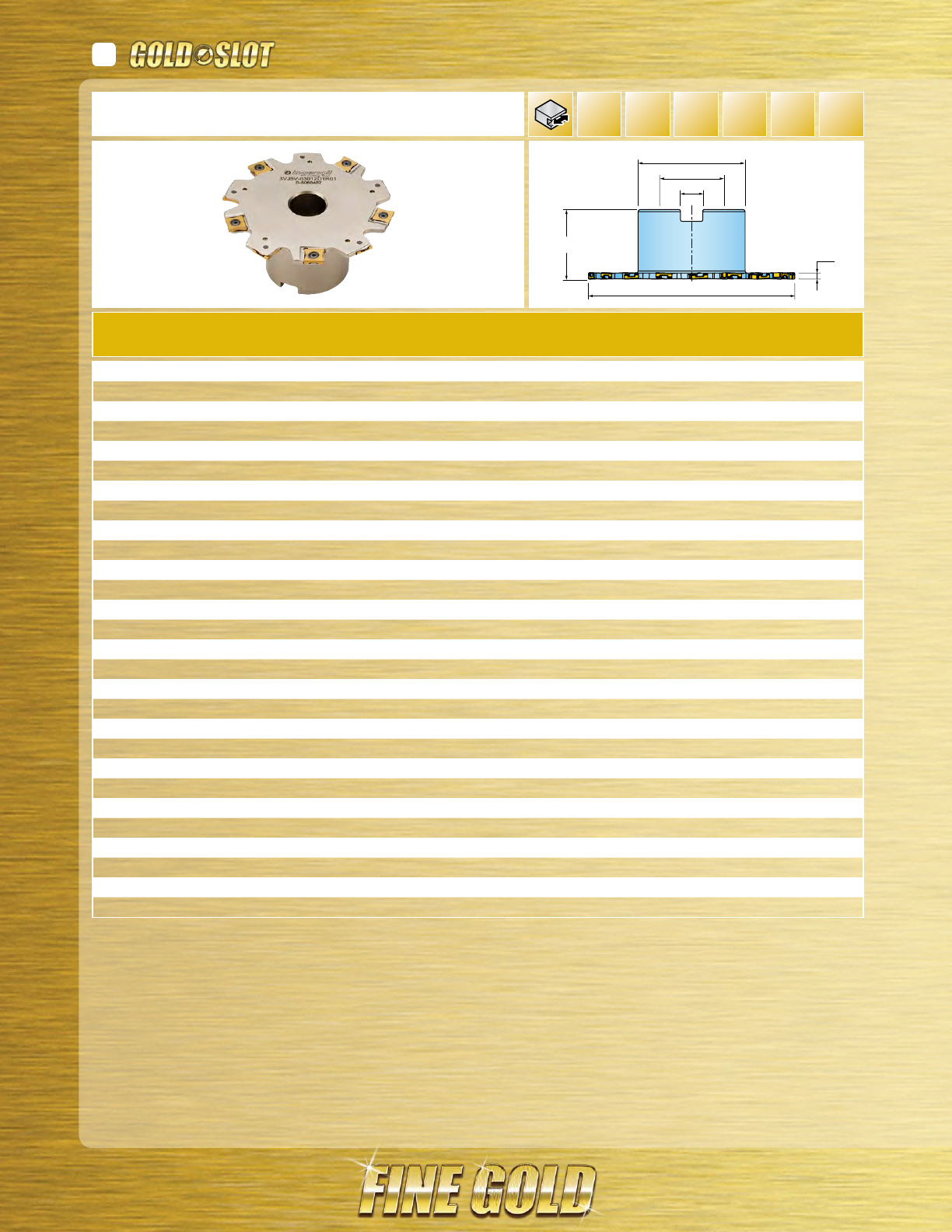

LIGHT - MEDIUM DUTY SLOTTERS
12
SERIES 3VJ4V (AXIAL DRIVE)
Features & Benefits:
• Fastened-Up For Reliable Accuracy In a Thin Slotter
• Slotter Diameters From 1.500” to 8.000”
• Slotter Widths From .125” to .500”
• 4 Edge Economy (2RH + 2LH per Insert)
• Significant Advances in Durability, Accuracy & Rigidity
See Page 11 for insert options.
HARDWARE
Driver HandleScrew Driver BladeDriverScrew
3VJ4V-03012AF-01 SM25-025-80 DS-T06F - -
3VJ4V-04012AF-01 SM25-025-80 DS-T06F - -
3VJ4V-03015AF-01 SM35-034-50 DS-T09W - -
3VJ4V-04015AF-01 SM35-034-50 DS-T09W - -
3VJ4V-06015AG-01 SM35-034-50 DS-T09W - -
3VJ4V-03018AF-01 SM35-042-50 DS-T09W - -
3VJ4V-04018AF-01 SM35-042-50 DS-T09W - -
3VJ4V-05018AG-01 SM35-042-50 DS-T09W - -
3VJ4V-06018AG-01 SM35-042-50 DS-T09W - -
3VJ4V-04025AF-01 SM40-055-50 - DS-T156B DS-A00T
3VJ4V-05025AF-01 SM40-055-50 - DS-T156B DS-A00T
3VJ4V-06025AG-01 SM40-055-50 - DS-T156B DS-A00T
3VJ4V-08025AH-01 SM40-055-50 - DS-T156B DS-A00T
3VJ4V-04031AG-01 SM40-070-50 - DS-T156B DS-A00T
3VJ4V-06031AG-01 SM40-070-50 - DS-T156B DS-A00T
3VJ4V-08031AH-01 SM40-070-50 - DS-T156B DS-A00T
3VJ4V-04037AG-01 SM40-080-50 - DS-T156B DS-A00T
3VJ4V-06037AG-01 SM40-080-50 - DS-T156B DS-A00T
3VJ4V-08037AH-01 SM40-080-50 - DS-T156B DS-A00T
3VJ4V-04050AG-01 SM40-100-00 - DS-T156B DS-A00T
3VJ4V-05050AH-01 SM40-100-00 - DS-T156B DS-A00T
3VJ4V-06050AH-01 SM40-100-00 - DS-T156B DS-A00T
3VJ4V-08050AK-01 SM40-100-00 - DS-T156B DS-A00T
13
W2
K
D2
D3
D1
W1
3VJ4V-02012D1R01 0.125 2.500 0.750 1.375 1.18 0.312 8 4 IXH211
3VJ4V-03012D1R01 0.125 3.000 0.750 1.500 1.50 0.312 10 5 IXH211
3VJ4V-04012D3R01 0.125 4.000 1.000 1.500 1.75 0.375 14 7 IXH211
3VJ4V-02015D1R01 0.156 2.500 0.750 1.375 1.18 0.312 8 4 IXH311
3VJ4V-03015D1R01 0.156 3.000 0.750 1.500 1.50 0.312 10 5 IXH311
3VJ4V-04015D3R01 0.156 4.000 1.000 1.500 1.75 0.375 12 6 IXH311
3VJ4V-0601558R01 0.156 6.000 1.500 2.000 3.07 0.625 18 9 IXH311
3VJ4V-02018D1R01 0.187 2.500 0.750 1.375 1.18 0.312 8 4 IXH312
3VJ4V-03018D1R01 0.187 3.000 0.750 1.500 1.50 0.312 10 5 IXH312
3VJ4V-04018D3R01 0.187 4.000 1.000 1.500 1.75 0.375 12 6 IXH312
3VJ4V-05018D3R01 0.187 5.000 1.000 1.500 2.25 0.375 14 7 IXH312
3VJ4V-0601858R01 0.187 6.000 1.500 2.000 3.07 0.625 18 9 IXH312
3VJ4V-02025D1R01 0.250 2.500 0.750 1.500 1.18 0.312 6 3 IXH412
3VJ4V-03025D1R01 0.250 3.000 0.750 1.500 1.50 0.312 8 4 IXH412
3VJ4V-04025D3R01 0.250 4.000 1.000 1.500 1.75 0.375 10 5 IXH412
3VJ4V-05025D3R01 0.250 5.000 1.000 1.500 2.25 0.375 12 6 IXH412
3VJ4V-0602558R01 0.250 6.000 1.500 2.000 3.07 0.625 14 7 IXH412
3VJ4V-04031D3R01 0.312 4.000 1.000 1.500 1.75 0.375 10 5 IXH413
3VJ4V-0603158R01 0.312 6.000 1.500 2.000 3.07 0.625 14 7 IXH413
3VJ4V-0803158R01 0.312 8.000 1.500 2.000 3.80 0.625 18 9 IXH413
3VJ4V-04037D3R01 0.375 4.000 1.000 1.500 1.75 0.375 10 5 IXH414
3VJ4V-05037D3R01 0.375 5.000 1.000 1.500 2.25 0.375 12 6 IXH414
3VJ4V-0603758R01 0.375 6.000 1.500 2.000 3.07 0.625 14 7 IXH414
3VJ4V-0803758R01 0.375 8.000 1.500 2.000 3.80 0.625 18 9 IXH414
3VJ4V-04050D3R01 0.500 4.000 1.000 1.500 1.75 0.375 10 5 IXH415
3VJ4V-05050D3R01 0.500 5.000 1.000 1.500 2.25 0.375 12 6 IXH415
3VJ4V-0605058R01 0.500 6.000 1.500 2.000 3.07 0.625 14 7 IXH415
3VJ4V-0805058R01 0.500 8.000 1.500 2.000 3.80 0.625 18 9 IXH415
Cutter Number
W1
Cutter
Width
D1
Nom. Dia.
D2
Bore Dia.
W2
Hub
Width
D3
Hub
Diameter
K
Keyway
Total
No. of
Inserts
No. of
Effective
Inserts
Insert
Series
LIGHT - MEDIUM DUTY SLOTTERS
14
SERIES 3VJ4V (RADIAL DRIVE)
See Page 11 for insert options.
HARDWARE
Driver HandleScrew Driver BladeRetention BoltDriverScrew
3VJ4V-02012D1R01 SM25-025-80 DS-T06F SD-06-46 - -
3VJ4V-03012D1R01 SM25-025-80 DS-T06F SD-06-46 - -
3VJ4V-04012D3R01 SM25-025-80 DS-T06F SD-08-46 - -
3VJ4V-02015D1R01 SM35-034-50 DS-T09W SD-06-46 - -
3VJ4V-03015D1R01 SM35-034-50 DS-T09W SD-06-46 - -
3VJ4V-04015D3R01 SM35-034-50 DS-T09W SD-08-46 - -
3VJ4V-0601558R01 SM35-034-50 DS-T09W - - -
3VJ4V-02018D1R01 SM35-042-50 DS-T09W SD-06-46 - -
3VJ4V-03018D1R01 SM35-042-50 DS-T09W SD-06-46 - -
3VJ4V-04018D3R01 SM35-042-50 DS-T09W SD-08-46 - -
3VJ4V-05018D3R01 SM35-042-50 DS-T09W SD-08-46 - -
3VJ4V-0601858R01 SM35-042-50 DS-T09W - - -
3VJ4V-02025D1R01 SM40-055-50 - SD-06-46 DS-T156B DS-A00T
3VJ4V-03025D1R01 SM40-055-50 - SD-06-46 DS-T156B DS-A00T
3VJ4V-04025D3R01 SM40-055-50 - SD-08-46 DS-T156B DS-A00T
3VJ4V-05025D3R01 SM40-055-50 - - DS-T156B DS-A00T
3VJ4V-0602558R01 SM40-055-50 - - DS-T156B DS-A00T
3VJ4V-04031D3R01 SM40-070-50 - SD-08-46 DS-T156B DS-A00T
3VJ4V-0603158R01 SM40-070-50 - - DS-T156B DS-A00T
3VJ4V-0803158R01 SM40-070-50 - - DS-T156B DS-A00T
3VJ4V-04037D3R01 SM40-080-50 - SD-08-46 DS-T156B DS-A00T
3VJ4V-05037D3R01 SM40-080-50 - SD-08-46 DS-T156B DS-A00T
3VJ4V-0603758R01 SM40-080-50 - - DS-T156B DS-A00T
3VJ4V-0803758R01 SM40-080-50 - - DS-T156B DS-A00T
3VJ4V-04050D3R01 SM40-100-00 - SD-08-46 DS-T156B DS-A00T
3VJ4V-05050D3R01 SM40-100-00 - SD-08-46 DS-T156B DS-A00T
3VJ4V-0605058R01 SM40-100-00 - - DS-T156B DS-A00T
3VJ4V-0805058R01 SM40-100-00 - - DS-T156B DS-A00T
15
HARDWARE
Driver HandleScrew Driver BladeDriverScrew
3VJ4V-01512X5R01 SM25-025-80 DS-T06F - -
3VJ4V-02012X6R01 SM25-025-80 DS-T06F - -
3VJ4V-02512X6R01 SM25-025-80 DS-T06F - -
3VJ4V-02015X6R01 SM35-034-50 DS-T09W - -
3VJ4V-02515X6R01 SM35-034-50 DS-T09W - -
3VJ4V-02018X6R01 SM35-042-50 DS-T09W - -
3VJ4V-02518X6R01 SM35-042-50 DS-T09W - -
3VJ4V-02525X6R01 SM40-055-50 - DS-T156B DS-A00T
T1
L2
D4
W1
D1
3VJ4V-01512X5R01 1.500 0.125 0.80 M08 10mm 0.50 6 3 IXH211
3VJ4V-02012X6R01 2.000 0.125 0.80 M10 15mm 0.70 8 4 IXH211
3VJ4V-02512X6R01 2.500 0.125 0.80 M10 15mm 0.70 10 5 IXH211
3VJ4V-02015X6R01 2.000 0.156 1.00 M10 15mm 0.70 6 3 IXH311
3VJ4V-02515X6R01 2.500 0.156 1.00 M10 15mm 0.70 8 4 IXH311
3VJ4V-02018X6R01 2.000 0.187 1.20 M10 15mm 0.70 6 3 IXH312
3VJ4V-02518X6R01 2.500 0.187 1.20 M10 15mm 0.70 8 4 IXH312
3VJ4V-02525X6R01 2.500 0.250 1.40 M10 15mm 0.70 10 5 IXH412
Cutter Number
D1
Nom.
Diam.
W
Width
of Cut
L1
Exten.
T1
Thread
Size
Wrench
Size
D4
Neck
Dia.
Total
No. of
Inserts
No. of
Effective
Inserts
Insert
Series
LIGHT - MEDIUM DUTY SLOTTERS
16

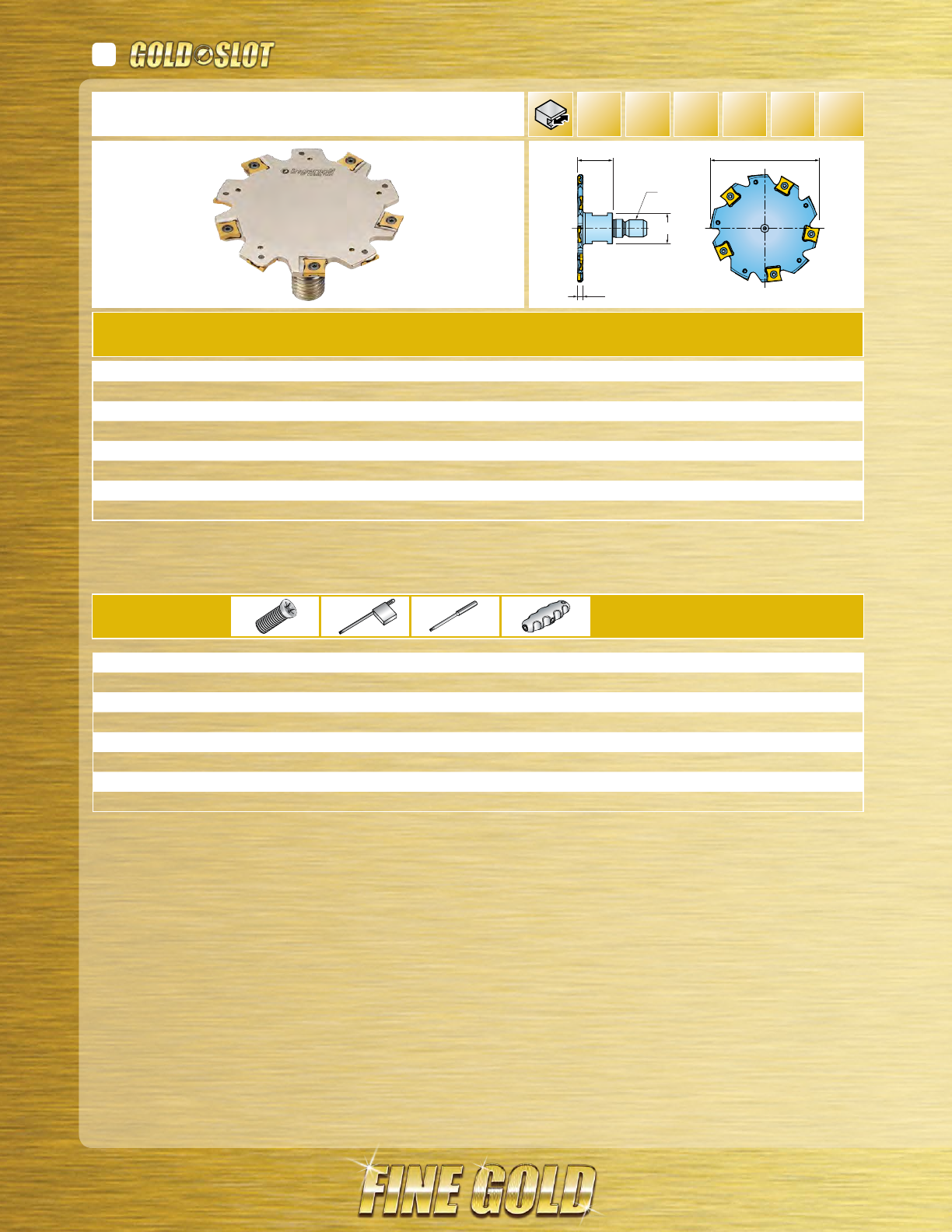

SERIES 3VJ4V (TOP-ON DRIVE)
See Page 11 for insert options.
17

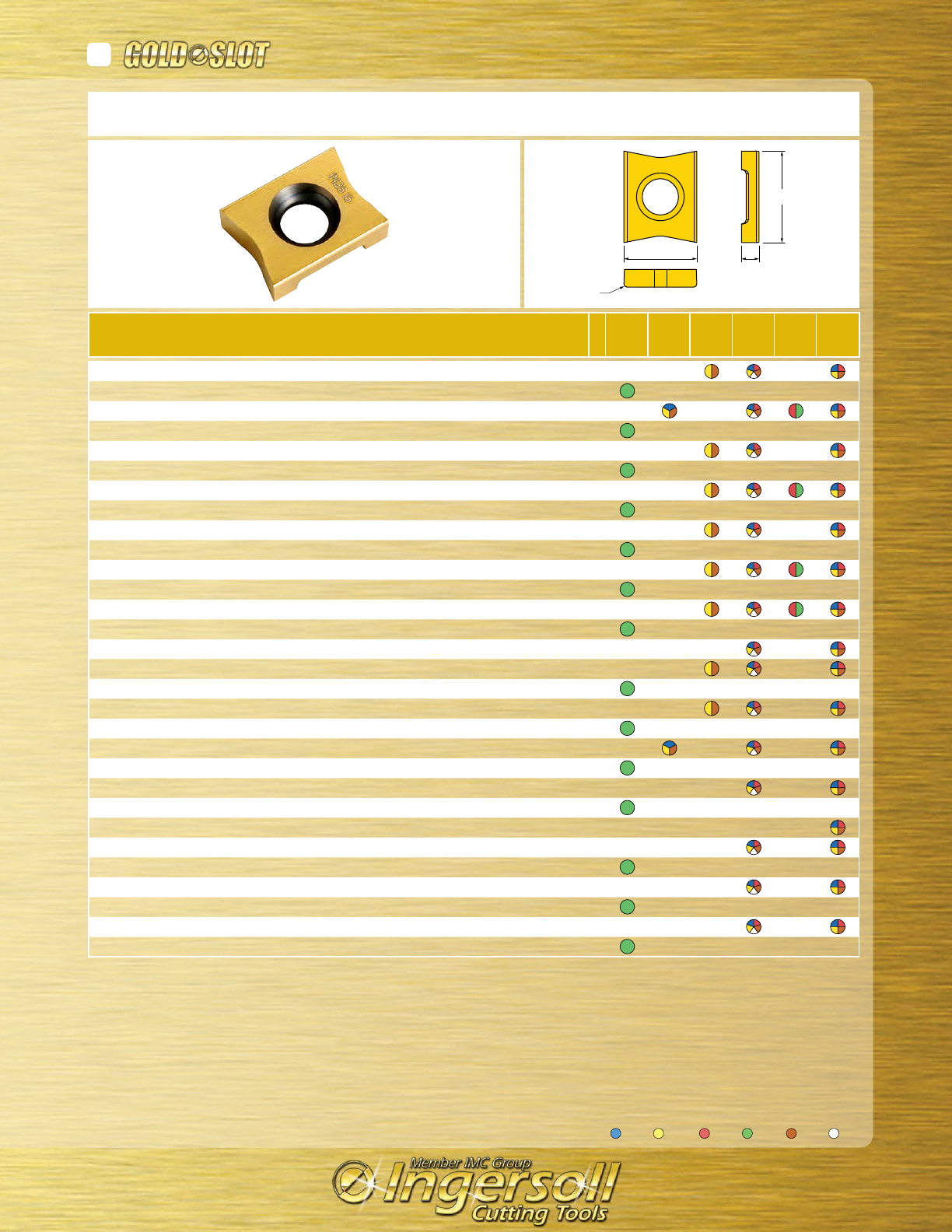

WT
L
C
= P = M = K = N = S = H
IXH211-G01 0.330 0.310 0.070 0.015 R Neutral
IXH211-G01-P 0.330 0.310 0.070 0.015 R Neutral
IXH311-G01 0.440 0.350 0.085 0.015 R Neutral
IXH311-G01-P 0.440 0.350 0.085 0.015 R Neutral
IXH311-G02 0.440 0.350 0.085 0.031 R Neutral
IXH311-G02-P 0.440 0.350 0.085 0.031 R Neutral
IXH312-G01 0.468 0.350 0.124 0.015 R Neutral
IXH312-G01-P 0.468 0.350 0.124 0.015 R Neutral
IXH312-G02 0.468 0.350 0.124 0.031 R Neutral
IXH312-G02-P 0.440 0.350 0.085 0.031 R Neutral
IXH412-G01 0.550 0.420 0.162 0.015 R Neutral
IXH412-G01-P 0.550 0.420 0.162 0.015 R Neutral
IXH412-G02 0.550 0.420 0.162 0.031 R Neutral
IXH412-G02-P 0.550 0.420 0.162 0.031 R Neutral
IXH412-G03 0.550 0.420 0.162 0.062 R Neutral
IXH413-G01 0.551 0.420 0.200 0.015 R Neutral
IXH413-G01-P 0.551 0.420 0.200 0.015 R Neutral
IXH413-G02 0.551 0.420 0.200 0.031 R Neutral
IXH413-G02-P 0.551 0.420 0.200 0.031 R Neutral
IXH414-G01 0.551 0.426 0.240 0.015 R Neutral
IXH414-G01-P 0.551 0.426 0.240 0.015 R Neutral
IXH414-G02 0.551 0.426 0.240 0.031 R Neutral
IXH414-G02-P 0.551 0.426 0.240 0.031 R Neutral
IXH414-G03 0.551 0.426 0.240 0.062 R Neutral
IXH415-G01 0.555 0.428 0.300 0.015 R Neutral
IXH415-G01-P 0.555 0.428 0.300 0.015 R Neutral
IXH415-G02 0.555 0.428 0.300 0.031 R Neutral
IXH415-G02-P 0.555 0.428 0.300 0.031 R Neutral
IXH415-G03 0.555 0.428 0.300 0.062 R Neutral
IXH415-G03-P 0.555 0.428 0.300 0.062 R Neutral
Part
Number
L
Length
W
Width
T
Thickness
C
Corner Hand
Grades
IN05S IN2530 IN2535 IN4005 IN4015 IN4030
MILLING INSERT
SERIES IXH
= P = M = K = N = S = H

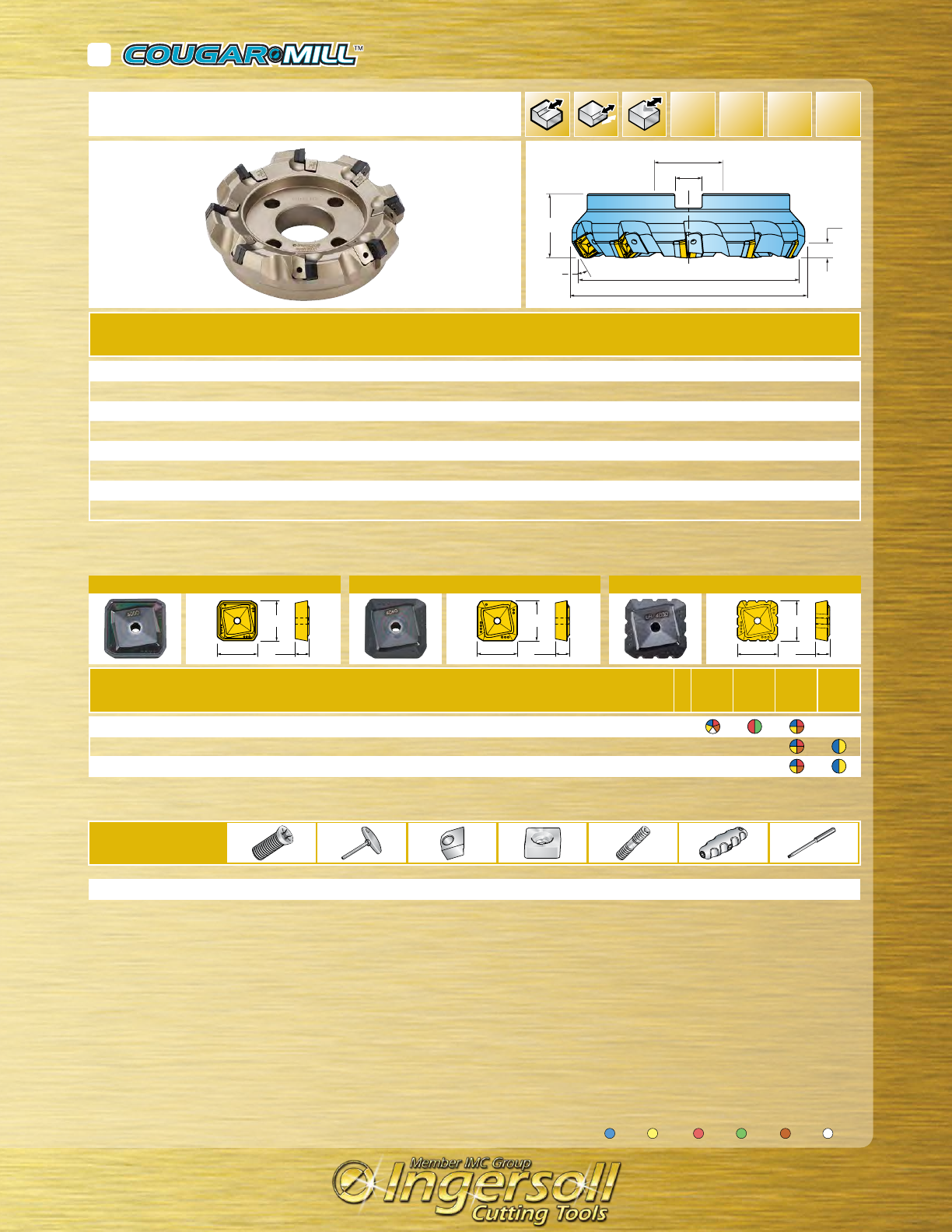

SERIES 5C2M_R
18
.794
.794
.276
SPEN2007DPTR-MR
.787 .275
.787
SPKN2007DPTR-HD
.787
.787
.275
ZPKN2007DPTR-HD
Part Number Application
Grades
IN4005 IN4015 IN4030 IN4040
SPEN2007DPTR-MR Multi-Purpose - 0.090“ Wiper w/Radius
SPKN2007DPTR-HD Heavy-Duty - 0.090“ Wiper w/Radius
ZPKN2007DPTR-HD Serrated - 0.090“ Wiper w/Radius

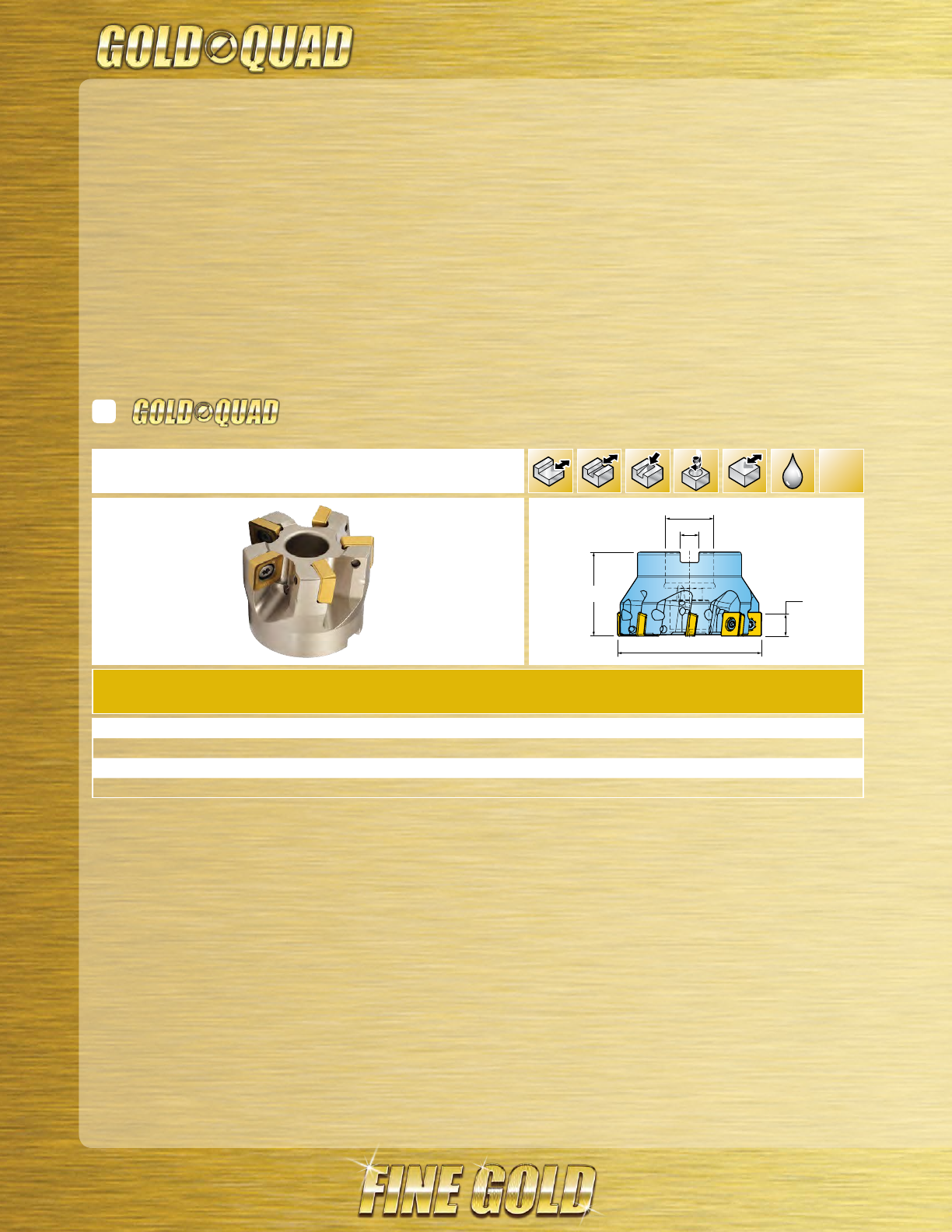

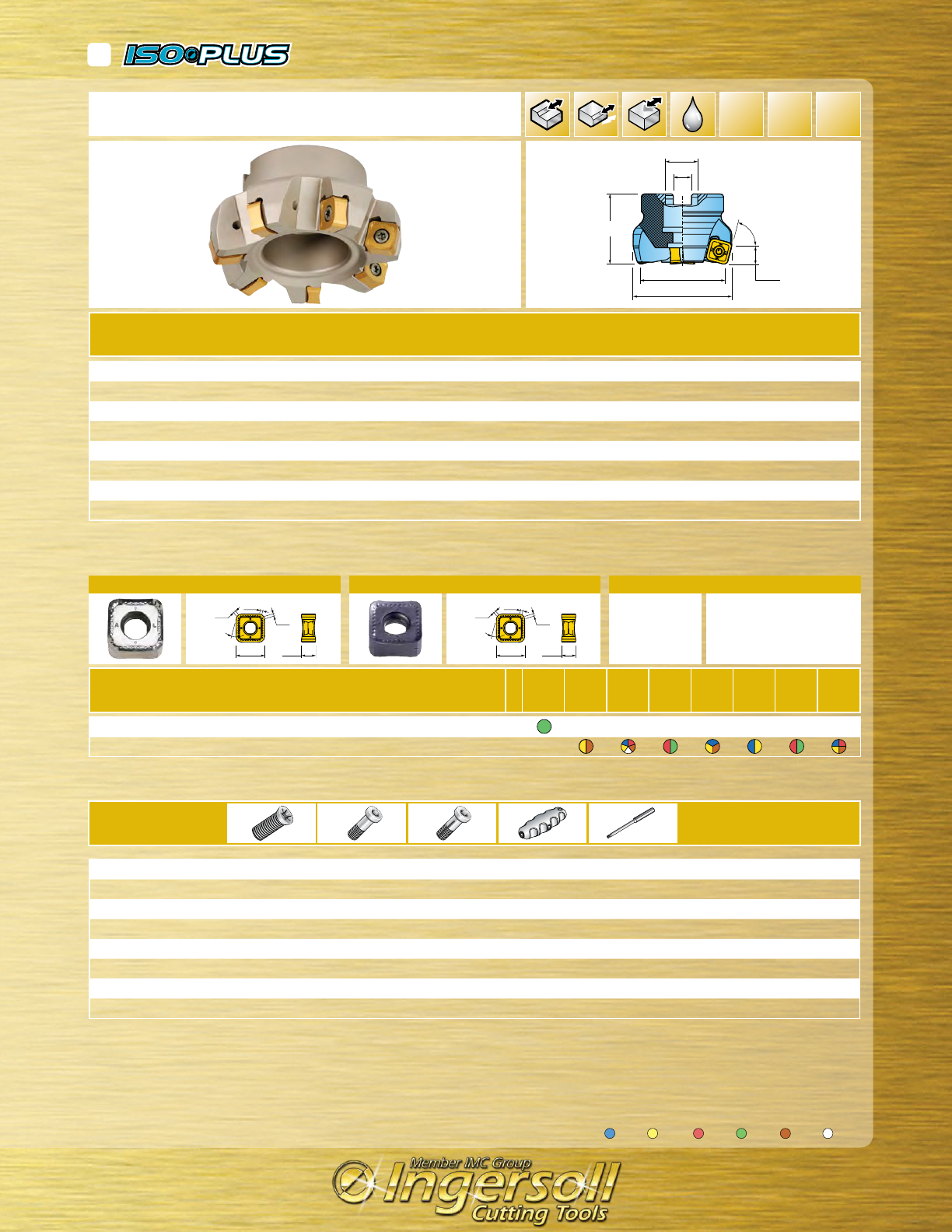

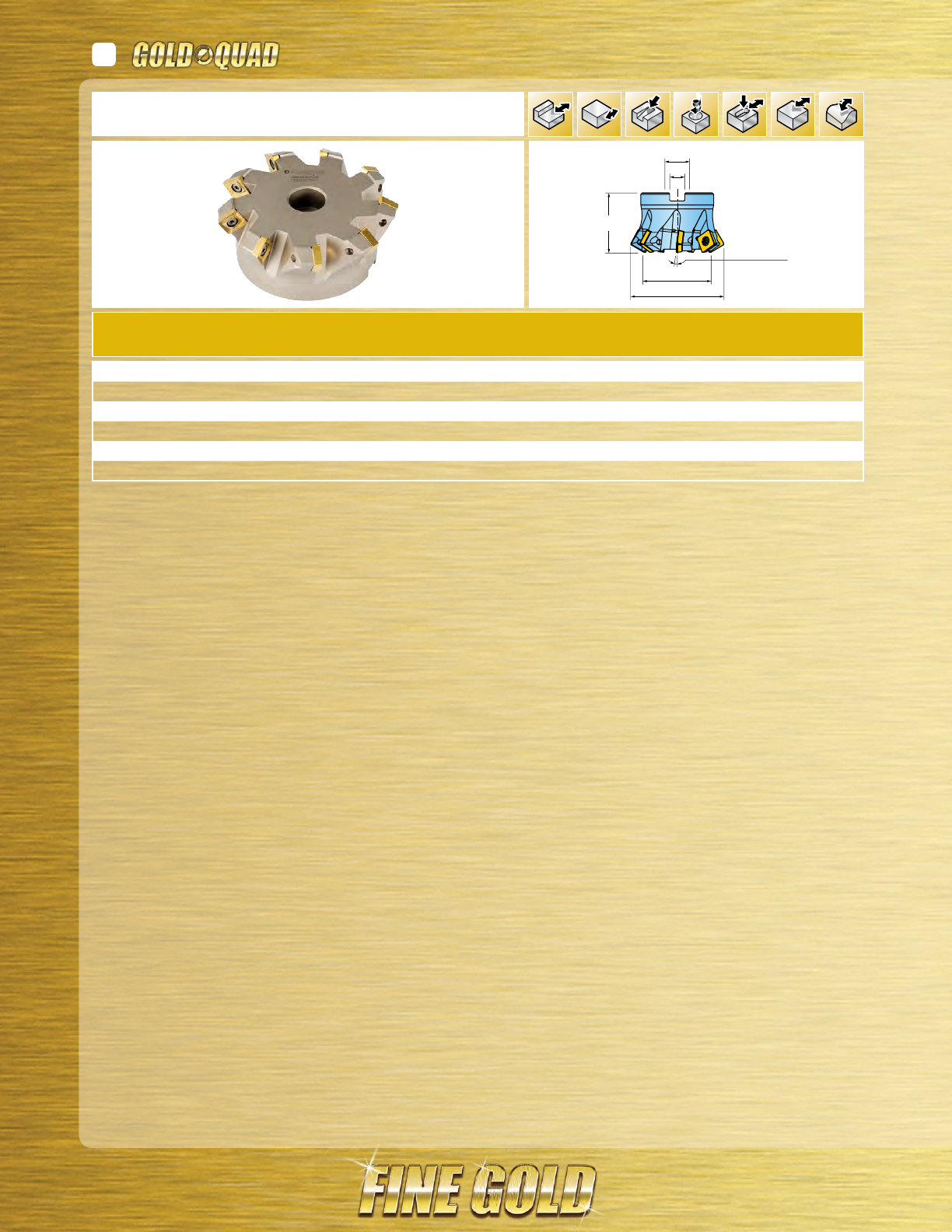

HEAVY DUTY 60° SHEAR CLEAR FACE MILL RH
Cutter Number
D1
Effective
Diameter
D3
Overall
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Bolt
Circle
D2
K
H
D1
D3
30°
.51
5C2M-04R01 4.000 4.67 6 2.500 1.500 0.625 NA
5C2M-06R01 6.000 6.67 6 2.375 1.500 0.625 NA
5C2M-06R02 6.000 6.67 8 2.375 1.500 0.625 NA
5C2M-08R01 8.000 8.67 8 2.375 2.500 1.000 4.00
5C2M-08R02 8.000 8.67 10 2.375 2.500 1.000 4.00
5C2M-10R01 10.000 10.67 10 2.375 2.500 1.000 4.00
5C2M-10R02 10.000 10.67 12 2.375 2.500 1.000 4.00, 7.00
5C2M-12R01 12.000 12.67 12 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-12R02 12.000 12.67 14 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-14R01 14.000 14.67 14 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-14R02 14.000 14.67 16 2.375 2.500 1.000 4.00, 4.75, 7.00
HARDWARE
SM50-130-R0 DS-H04T WSC8R-21 PAR0748 TS80200W DS-A00T DS-T206B
Screw Driver Wedge Seat Wedge Screw Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES 5C2M_L
19
.794
.794 .275
SPEN2007DPTL-MR
.787
.787
.275
SPKN2007DPTL-HD
.787
.787
.275
ZPKN2007DPTL-HD
Part Number Application
Grades
IN4005 IN4015 IN4030 IN4040
SPEN2007DPTL-MR Multi-Purpose - 0.090“ Wiper w/Radius
SPKN2007DPTL-HD Heavy-Duty - 0.090“ Wiper w/Radius
ZPKN2007DPTL-HD Serrated - 0.090“ Wiper w/Radius
HEAVY DUTY 60° SHEAR CLEAR FACE MILL LH
Cutter Number
D1
Effective
Diameter
D3
Overall
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Bolt
Circle
D2
K
H
30° D1
D3
.51
5C2M-08L01 8.000 8.67 8 2.375 2.500 1.000 4.00
5C2M-08L02 8.000 8.67 10 2.375 2.500 1.000 4.00
5C2M-10L01 10.000 10.67 10 2.375 2.500 1.000 4.00
5C2M-10L02 10.000 10.67 12 2.375 2.500 1.000 4.00, 7.00
5C2M-12L01 12.000 12.67 12 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-12L02 12.000 12.67 14 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-14L01 14.000 14.67 14 2.375 2.500 1.000 4.00, 4.75, 7.00
5C2M-14L02 14.000 14.67 16 2.375 2.500 1.000 4.00, 4.75, 7.00
HARDWARE
SM50-130-R0 DS-H04T WSC8L-21 PAL0748 TS80200W DS-A00T DS-T206B
Screw Driver Wedge Seat Wedge Screw Driver Handle Screw Driver Blade
= P = M = K = N = S = H
20

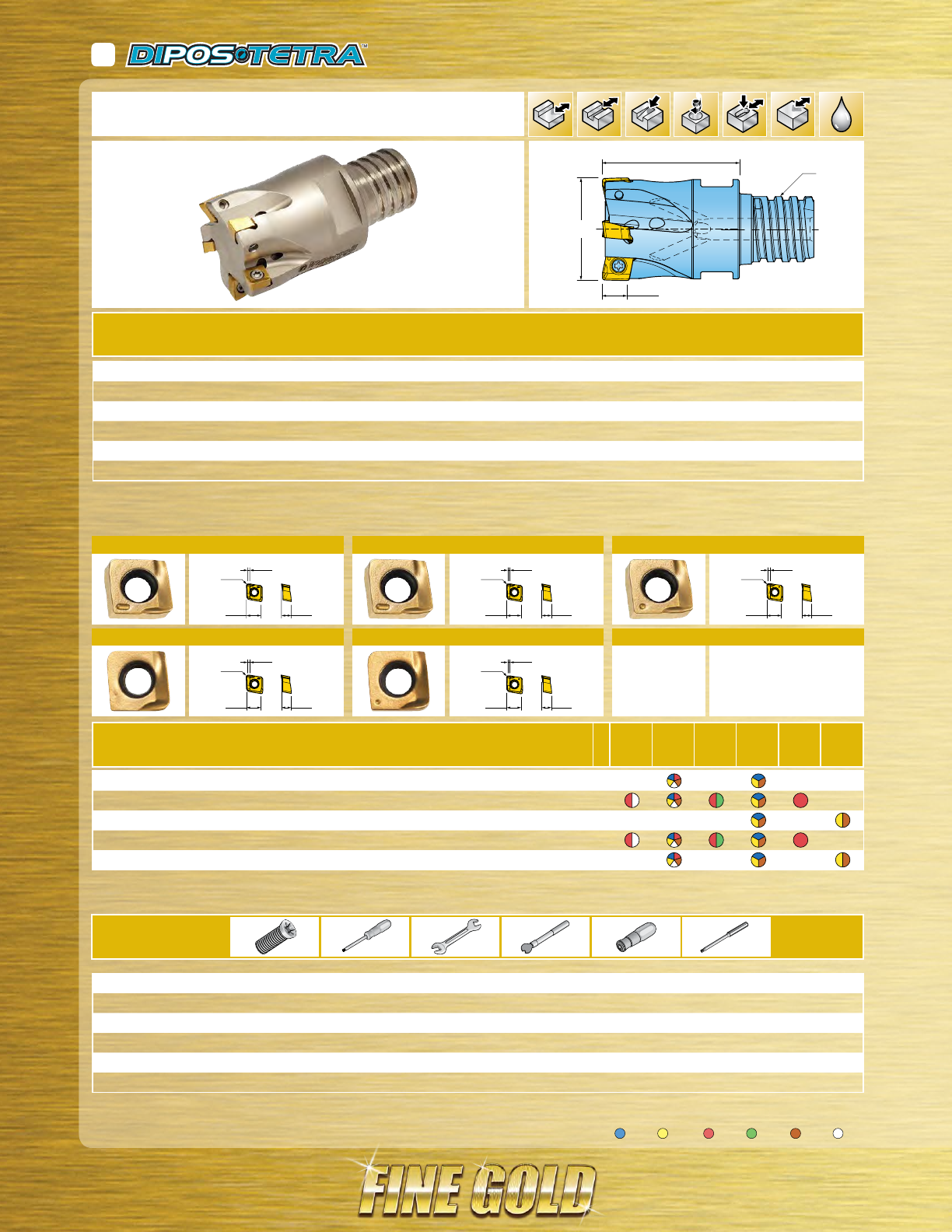

SERIES 1TJ1C (5MM INSERT)
.030
.008
.200 .130
ENHU050302R
.030
.015
.200 .130
ENHU050304R
.030
.015
.200 .130
ENHU050304R-PH
.030
.031
.200 .130
ENHU050308R
.030
.031
.200 .130
ENHU050308R-PH
Part Number Application
Grades
IN2504 IN2505 IN2510 IN2530 IN6515 IN7035
ENHU050302R Multi-Purpose - 0.008“ R
ENHU050304R Multi-Purpose - 0.015“ R
ENHU050304R-PH SS/Hi-Temp/Ti - 0.015“ R
ENHU050308R Multi-Purpose - 0.031“ R
ENHU050308R-PH SS/Hi-Temp/Ti - 0.031“ R
90° END MILL WITH 2 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D1
L4
L2
L3
D2
.186
1TJ1C-05012S4R01 0.500 1.22 3.00 0.75 .500“ Cylind. 2 6.9
1TJ1C-0600779R01 0.625 0.75 2.66 0.72 .625“ Weldon 3 4.4
1TJ1C-06020S6R01 0.625 2.09 4.00 1.25 .625“ Cylind. 3 4.4
1TJ1C-0701284R01 0.750 1.25 3.25 1.22 .750“ Weldon 4 3.3
1TJ1C-07030S7R01 0.750 3.00 5.00 1.25 .750“ Cylind. 4 3.3
1TJ1C-1001780R01 1.000 1.75 4.00 1.72 1.000“ Weldon 6 2.2
1TJ1C-1001784R01 1.000 1.75 3.75 1.75 .750“ Weldon 5 2.2
1TJ1C-10037S1R01 1.000 3.75 6.00 1.25 1.000“ Cylind. 5 2.2
HARDWARE
SM20-043-00 DS-TP06S-NEU DTN005S DS-TP06TB
Insert Screw Driver Torque Driver Handle (Optional) Torque Driver Blade (Optional)
= P = M = K = N = S = H
21
SERIES 1TJ1C (5MM INSERT)
.030
.008
.200 .130
ENHU050302R
.030
.015
.200 .130
ENHU050304R
.030
.015
.200 .130
ENHU050304R-PH
.030
.031
.200 .130
ENHU050308R
.030
.031
.200 .130
ENHU050308R-PH
Part Number Application
Grades
IN2504 IN2505 IN2510 IN2530 IN6515 IN7035
ENHU050302R Multi-Purpose - 0.008“ R
ENHU050304R Multi-Purpose - 0.015“ R
ENHU050304R-PH SS/Hi-Temp/Ti - 0.015“ R
ENHU050308R Multi-Purpose - 0.031“ R
ENHU050308R-PH SS/Hi-Temp/Ti - 0.031“ R
90° END MILL WITH 2 INDEXES (SHANK FOR LIVE TOOLING & SWISS)
Cutter Number
D1
Nominal
Diameter
L1
Extension
Length
L2
Overall
Length
D2
Shank
Size/Style
Number
of
Inserts
Ramp
Angle
L1
D1
.22
1.00
D2
1TJ1C-0700777R01 0.750 0.75 1.75 .375“ Cylind. 4 3.3
1TJ1C-1000777R01 1.000 0.75 1.75 .375“ Cylind. 5 2.2
1TJ1C-15007S4R01 1.500 0.75 1.75 .500“ Cylind. 7 1.3
1TJ1C-20007S6R01 2.000 0.75 1.75 .625“ Cylind. 7 .9
HARDWARE
SM20-043-00 DS-TP06S-NEU DTN005S DS-TP06TB
Insert Screw Driver Torque Driver Handle (Optional) Torque Driver Blade (Optional)
= P = M = K = N = S = H
22
SERIES 1TJ1C (5MM INSERT)
.030
.008
.200 .130
ENHU050302R
.030
.015
.200 .130
ENHU050304R
.030
.015
.200 .130
ENHU050304R-PH
.030
.031
.200 .130
ENHU050308R
.030
.031
.200 .130
ENHU050308R-PH
Part Number Application
Grades
IN2504 IN2505 IN2510 IN2530 IN6515 IN7035
ENHU050302R Multi-Purpose - 0.008“ R
ENHU050304R Multi-Purpose - 0.015“ R
ENHU050304R-PH SS/Hi-Temp/Ti - 0.015“ R
ENHU050308R Multi-Purpose - 0.031“ R
ENHU050308R-PH SS/Hi-Temp/Ti - 0.031“ R
90° END MILL WITH 2 INDEXES (CHIP-SURFER STYLE)
Cutter Number
T1
Thread
Size
D1
Nominal
Diameter
Number
of
Inserts
L2
Extension
Length
Ramp
Angle
L2
D1
.186
T1
1TJ1C-05006T8R01 T08 0.500 2 0.65 6.9
1TJ1C-06008TRR01 T10 0.625 3 0.80 4.4
1TJ1C-07007T8R01 T08 0.750 4 0.75 3.3
1TJ1C-07010TSR01 T12 0.750 4 1.00 3.3
1TJ1C-10007T8R01 T08 1.000 5 0.75 2.2
1TJ1C-10012TUR01 T15 1.000 5 1.25 2.2
HARDWARE
1TJ1C-05006T8R01 SM20-043-00 DS-TP06S-NEU WS-0030 DT-130-10 DTN005S DS-TP06TB
1TJ1C-06008TRR01 SM20-043-00 DS-TP06S-NEU WS-0044 DT-250-13 DTN005S DS-TP06TB
1TJ1C-07007T8R01 SM20-043-00 DS-TP06S-NEU WS-0030 - DTN005S DS-TP06TB
1TJ1C-07010TSR01 SM20-043-00 DS-TP06S-NEU WS-0059 DT-250-16 DTN005S DS-TP06TB
1TJ1C-10007T8R01 SM20-043-00 DS-TP06S-NEU WS-0059 - DTN005S DS-TP06TB
1TJ1C-10012TUR01 SM20-043-00 DS-TP06S-NEU WS-0061 - DTN005S DS-TP06TB
Insert Screw Driver Thin Wrench Torque Wrench (Optional) Torque Driver Handle (Optional) Torque Driver Blade (Optional)
= P = M = K = N = S = H
23
SERIES 1TJ1C (5MM INSERT)
.030
.008
.200 .130
ENHU050302R
.030
.015
.200 .130
ENHU050304R
.030
.015
.200 .130
ENHU050304R-PH
.030
.031
.200 .130
ENHU050308R
.030
.031
.200 .130
ENHU050308R-PH
Part Number Application
Grades
IN2504 IN2505 IN2510 IN2530 IN6515 IN7035
ENHU050302R Multi-Purpose - 0.008“ R
ENHU050304R Multi-Purpose - 0.015“ R
ENHU050304R-PH SS/Hi-Temp/Ti - 0.015“ R
ENHU050308R Multi-Purpose - 0.031“ R
ENHU050308R-PH SS/Hi-Temp/Ti - 0.031“ R

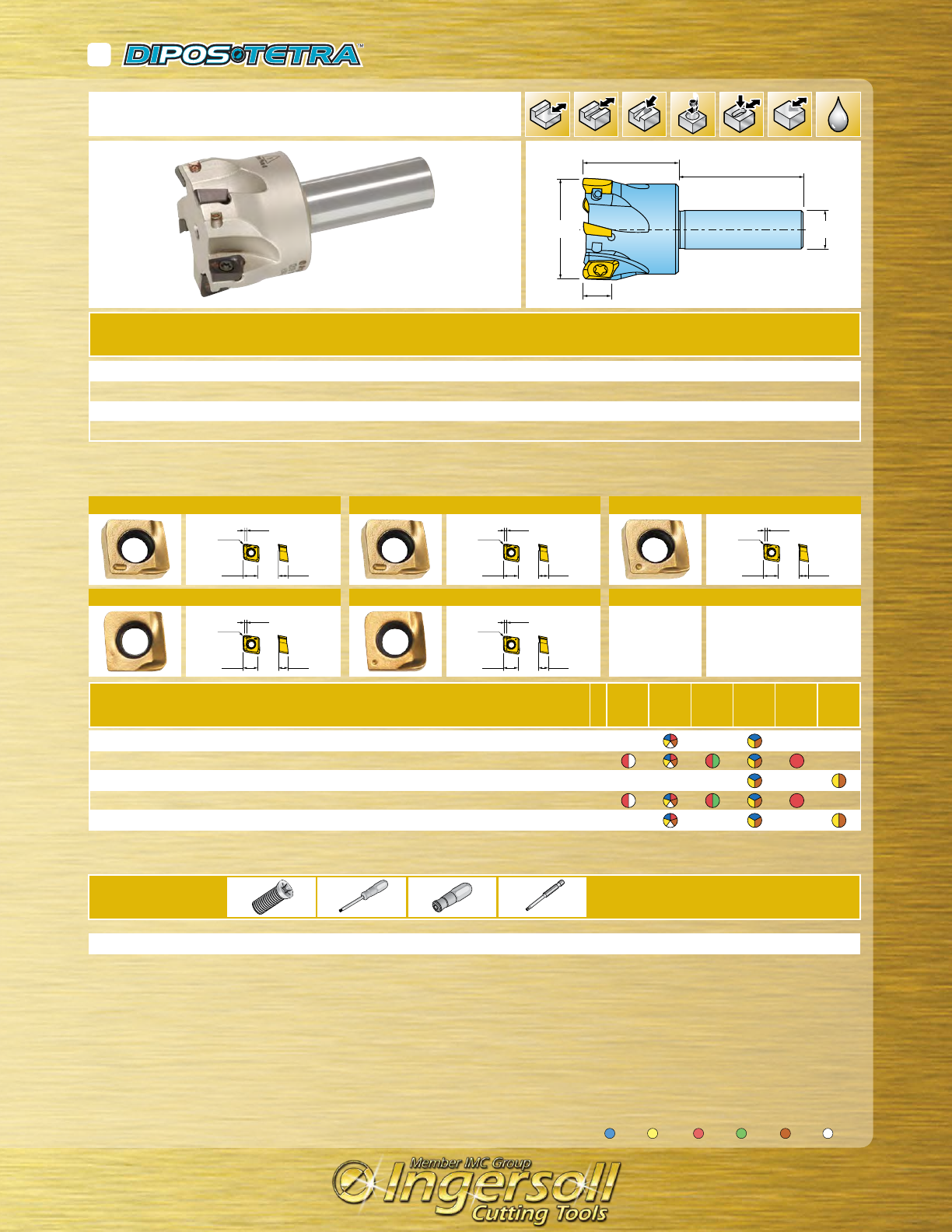

90° END MILL WITH 2 INDEXES (TOP-ON STYLE)
Cutter Number
D1
Nom. Dia.
T1
Adaption
L2
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
L2
T1
D1
.186
1TJ1C-06010X5R01 0.625 M8 1.00 3 10mm 4.4
1TJ1C-07015X6R01 0.750 M10 1.50 4 15mm 3.3
1TJ1C-10015X7R01 1.000 M12 1.50 5 17mm 2.1
HARDWARE
1TJ1C-06010X5R01 SM20-043-00 DS-TP06S-NEU 610MM DTN005S DS-TP06TB
1TJ1C-07015X6R01 SM20-043-00 DS-TP06S-NEU 615MM DTN005S DS-TP06TB
1TJ1C-10015X7R01 SM20-043-00 DS-TP06S-NEU 617MM DTN005S DS-TP06TB
Insert Screw Driver Wrench (Optional) Torque Driver Handle (Optional) Torque Driver Blade (Optional)
= P = M = K = N = S = H
24
SERIES TJ1C (5MM INSERT)
.030
.008
.200 .130
ENHU050302R
.030
.015
.200 .130
ENHU050304R
.030
.015
.200 .130
ENHU050304R-PH
.030
.031
.200 .130
ENHU050308R
.030
.031
.200 .130
ENHU050308R-PH
Part Number Application
Grades
IN2504 IN2505 IN2510 IN2530 IN6515 IN7035
ENHU050302R Multi-Purpose - 0.008“ R
ENHU050304R Multi-Purpose - 0.015“ R
ENHU050304R-PH SS/Hi-Temp/Ti - 0.015“ R
ENHU050308R Multi-Purpose - 0.031“ R
ENHU050308R-PH SS/Hi-Temp/Ti - 0.031“ R
90° FACE MILL WITH 2 INDEXES
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle
D2
K
H
D1
.186
TJ1C-15R01 1.500 8 1.570 0.500 0.250 1.3
TJ1C-20R01 2.000 9 1.570 0.750 0.312 .9
HARDWARE
TJ1C-15R01 SM20-043-00 DS-TP06S-NEU SD-04-46 DTN005S DS-TP06TB –
TJ1C-20R01 SM20-043-00 DS-TP06S-NEU SD-06-46 DTN005S DS-TP06TB SD-06-89
Insert Screw Driver Retention Bolt Torque Driver Handle (Optional) Torque Driver Blade (Optional) Coolant Bolt (Optional)
= P = M = K = N = S = H
25

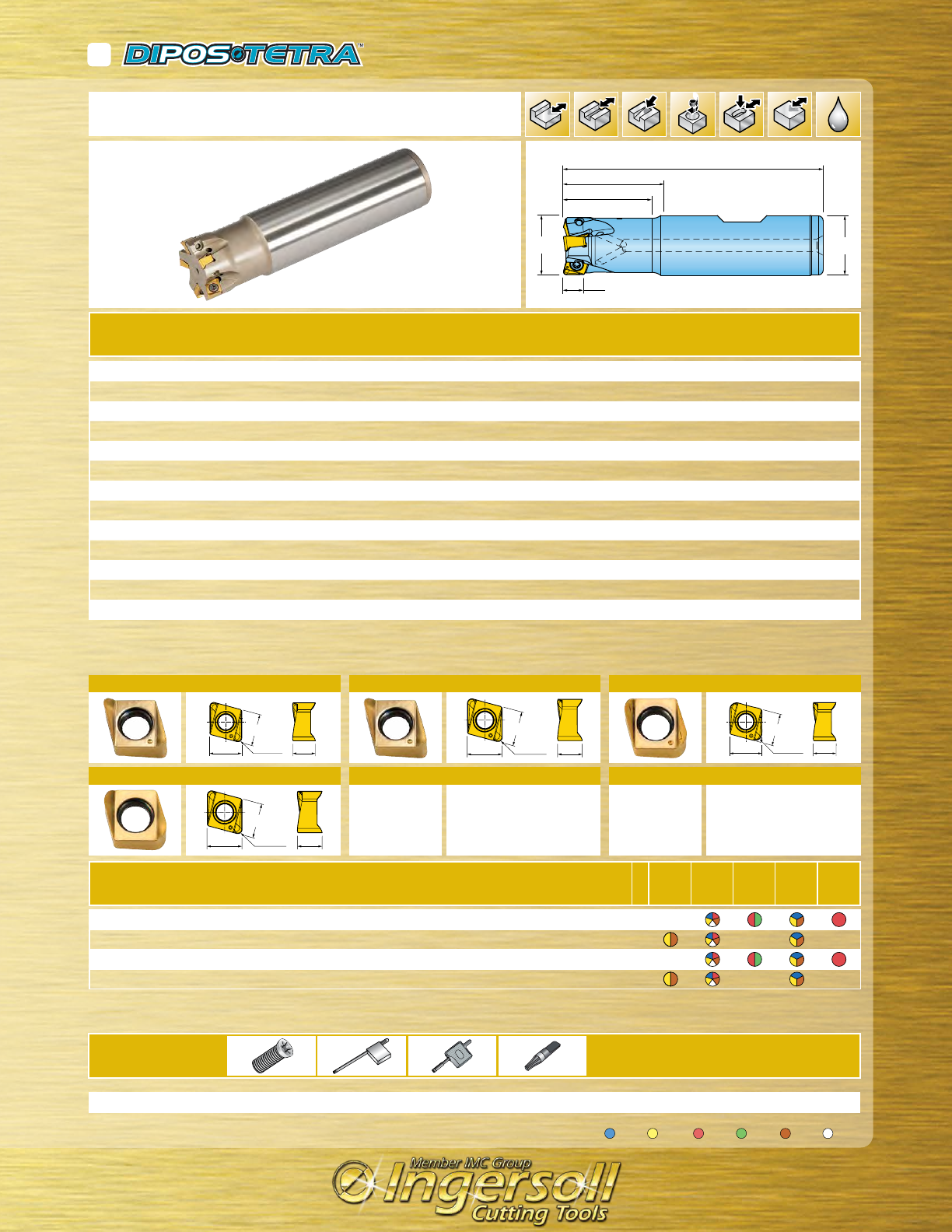

SERIES 1TJ1D (6MM INSERT)
R.031 .18
.26
.26
MNHU060308R
R.031 .18
.26
.26
MNHU060308R-PH
R.062 .18
.26
.26
MNHU060316R
R.062 .18
.26
.26
MNHU060316R-PH
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN6515
MNHU060308R Multi-Purpose - 0.031“ R
MNHU060308R-PH SS/Hi-Temp/Ti - 0.031“ R
MNHU060316R Multi-Purpose - 0.062“ R
MNHU060316R-PH SS/Hi-Temp/Ti - 0.062“ R

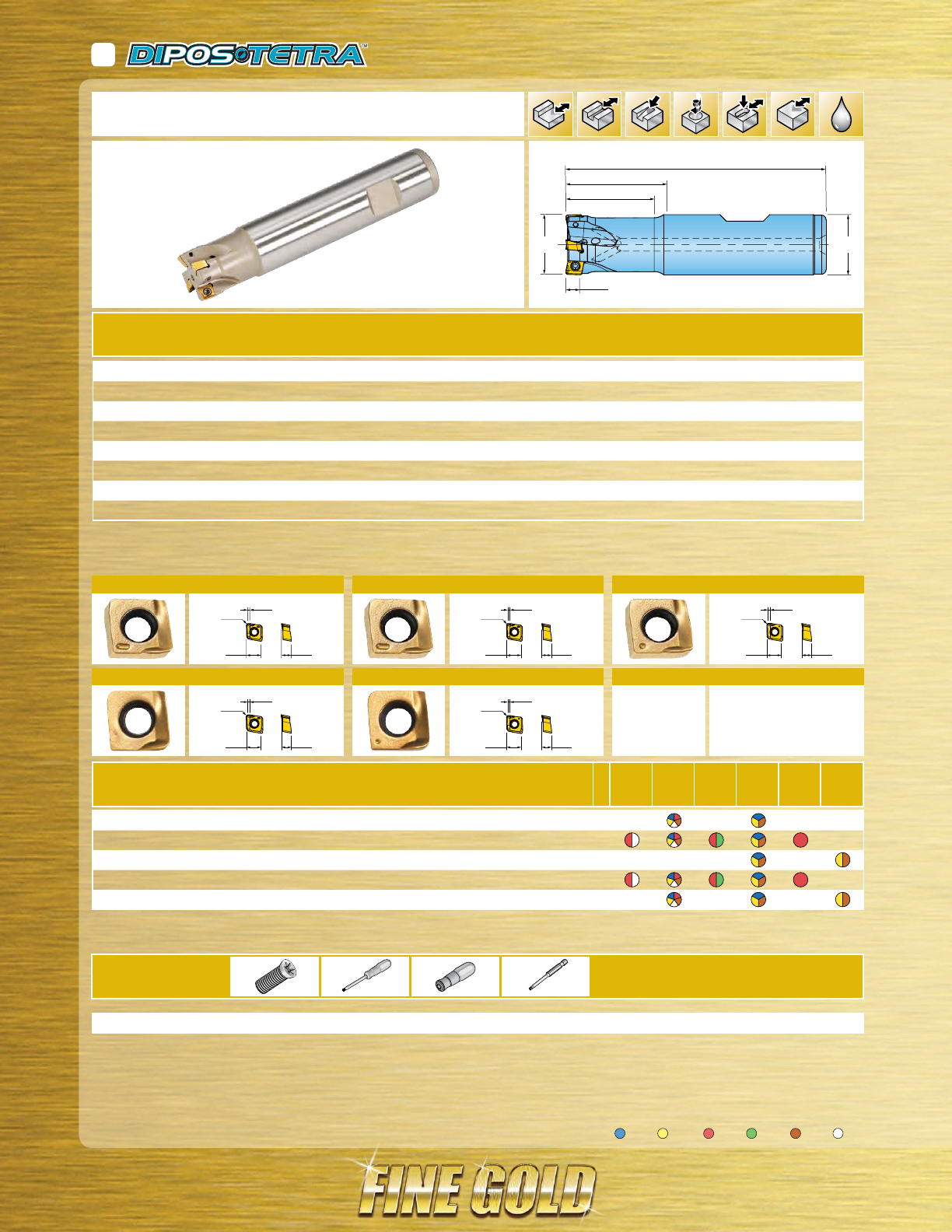

90° ROUGH & RAMP END MILL WITH 4 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D1
L4
L2
L3
D2
.24
1TJ1D-0600779R01 0.625 0.75 2.66 0.72 .625“ Weldon 2 3.1
1TJ1D-06020S6R01 0.625 2.09 4.00 1.25 .625“ Cylind. 2 3.1
1TJ1D-0701284R01 0.750 1.25 3.25 1.20 .750“ Weldon 3 4.1
1TJ1D-07030S7R01 0.750 3.00 5.00 1.25 .750“ Cylind. 3 4.1
1TJ1D-1001780R01 1.000 1.75 4.00 1.72 1.000“ Weldon 4 4.8
1TJ1D-1001784R01 1.000 1.75 3.75 1.72 .750“ Weldon 4 4.8
1TJ1D-10037S1R01 1.000 3.75 6.00 1.25 1.000“ Cylind. 4 4.8
1TJ1D-1201781R01 1.250 1.75 4.00 1.72 1.250“ Weldon 5 3.6
1TJ1D-1201784R01 1.250 1.75 3.75 1.75 .750“ Weldon 5 3.6
1TJ1D-12042S9R01 1.250 4.25 6.50 1.25 1.250“ Cylind. 5 3.6
1TJ1D-1501784R01 1.500 1.75 3.75 1.75 .750“ Weldon 6 2.8
1TJ1D-1502281R01 1.500 2.25 4.50 2.25 1.250“ Weldon 6 2.8
1TJ1D-15047S5R01 1.500 4.75 7.00 1.25 1.500“ Cylind. 6 2.8
HARDWARE
SM30-068-30 DS-T08W DTQ-18W DS-T08QB
Screw Screw Driver Torque Driver Handle (Optional) Driver Bit (Optional)
= P = M = K = N = S = H
26

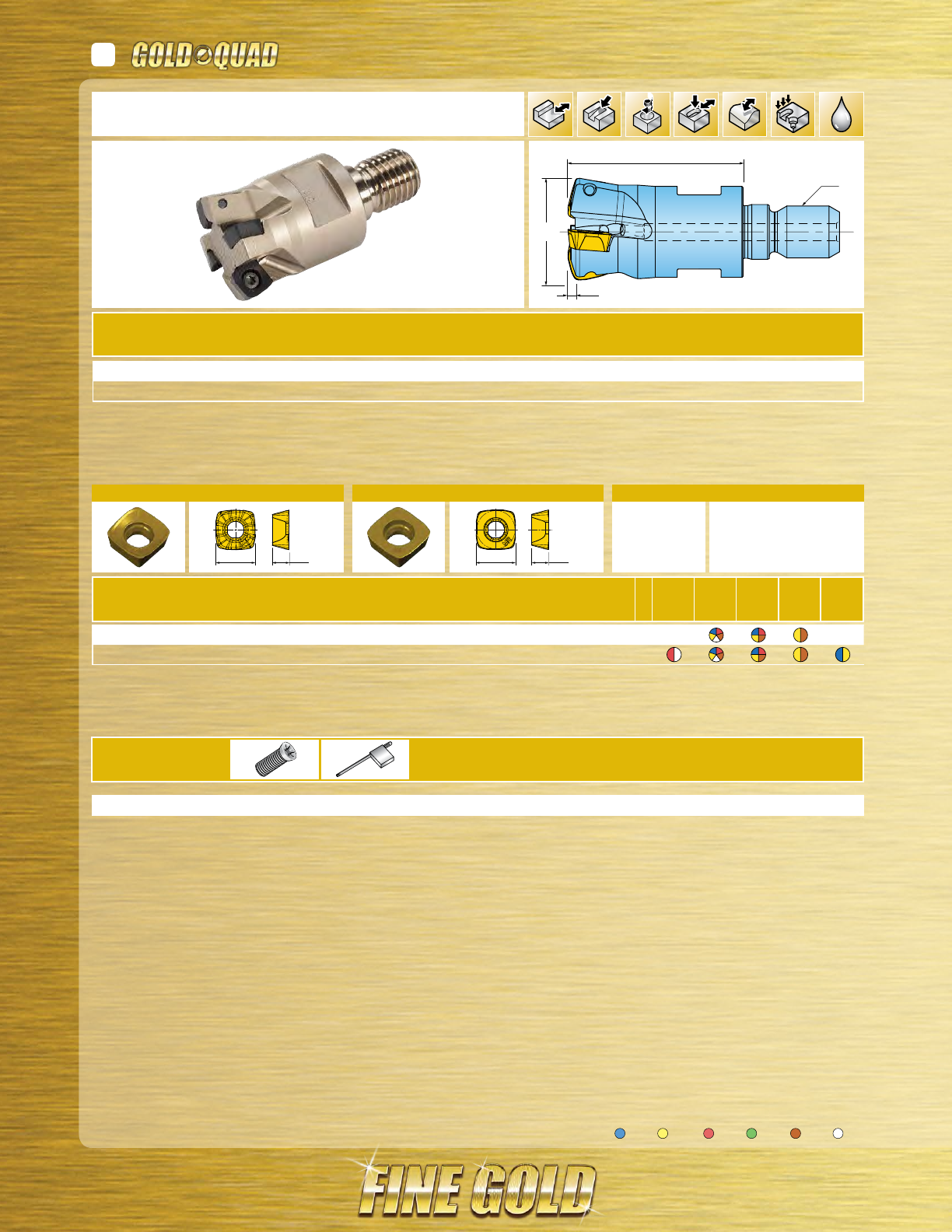

SERIES 1TJ1D (6MM INSERT)
R.031 .18
.26
.26
MNHU060308R
R.031 .18
.26
.26
MNHU060308R-PH
R.062 .18
.26
.26
MNHU060316R
R.062 .18
.26
.26
MNHU060316R-PH
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN6515
MNHU060308R Multi-Purpose - 0.031“ R
MNHU060308R-PH SS/Hi-Temp/Ti - 0.031“ R
MNHU060316R Multi-Purpose - 0.062“ R
MNHU060316R-PH SS/Hi-Temp/Ti - 0.062“ R
90° ROUGH & RAMP END MILL WITH 4 INDEXES (CHIP SURFER STYLE)
Cutter Number
T1
Thread
Size
D1
Nominal
Diameter
#
Effective
L2
Extension
Length
Ramp
Angle
L2
D1
.24
T1
1TJ1D-06008TRR01 T10 0.625 2 0.80 3.1
1TJ1D-07010TSR01 T12 0.750 3 1.00 4.1
1TJ1D-10012TUR01 T15 1.000 4 1.25 4.8
HARDWARE
1TJ1D-06008TRR01 SM30-068-30 DS-T08W WS-0044 DT-250-13 DTQ-18W DS-T08QB
1TJ1D-07010TSR01 SM30-068-30 DS-T08W WS-0059 DT-250-16 DTQ-18W DS-T08QB
1TJ1D-10012TUR01 SM30-068-30 DS-T08W WS-0061 - DTQ-18W DS-T08QB
Screw Screw Driver Thin Wrench Torque Wrench (Optional) Torque Driver Handle (Optional) Driver Bit (Optional)
= P = M = K = N = S = H
27
SERIES 1TV1D (6MM INSERT)
R.031 .18
.26
.26
MNHU060308R
R.031 .18
.26
.26
MNHU060308R-PH
R.062 .18
.26
.26
MNHU060316R
R.062 .18
.26
.26
MNHU060316R-PH
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN6515
MNHU060308R Multi-Purpose - 0.031“ R
MNHU060308R-PH SS/Hi-Temp/Ti - 0.031“ R
MNHU060316R Multi-Purpose - 0.062“ R
MNHU060316R-PH SS/Hi-Temp/Ti - 0.062“ R

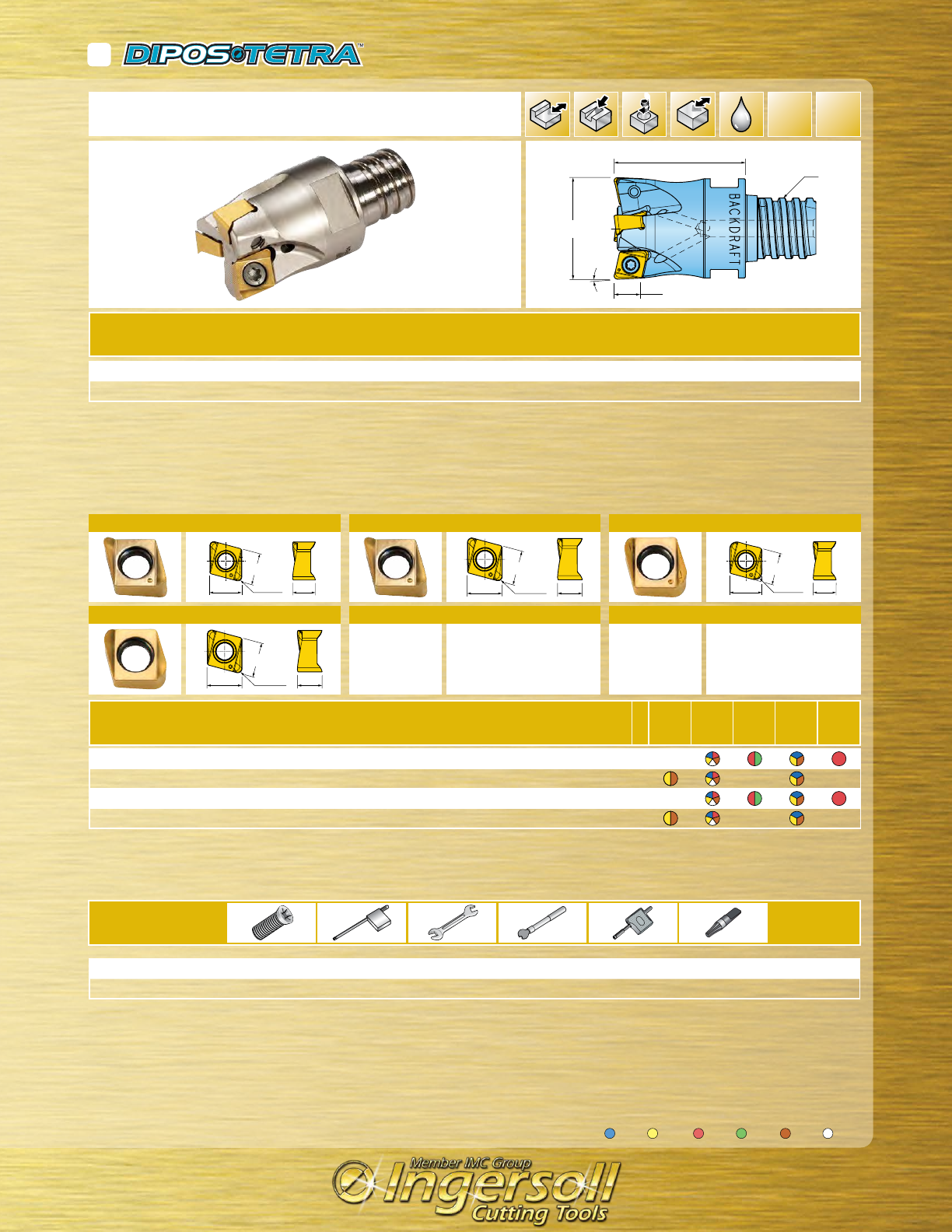

BACKDRAFT ROUGH & FINISH END MILL WITH 4 INDEXES (CHIP SURFER STYLE)
Cutter Number
T1
Thread
Size
D1
Nominal
Diameter
#
Effective
L2
Extension
Length
Ramp
Angle
L2
T1
.24
3°
D1
1TV1D-07010TSR02 T12 0.750 3 1.00 4.7
1TV1D-10012TUR02 T15 1.000 4 1.25 3.9
Recommend .020“ max axial step down on straight wall finish applications.
Well suited for long reach applications.
HARDWARE
1TV1D-07010TSR02 SM30-068-30 DS-T08W WS-0059 DT-250-16 DTQ-18W DS-T08QB
1TV1D-10012TUR02 SM30-068-30 DS-T08W WS-0061 - DTQ-18W DS-T08QB
Screw Screw Driver Thin Wrench Torque Wrench (Optional) Torque Driver Handle (Optional) Driver Bit (Optional)
= P = M = K = N = S = H
28
SERIES 1TJ1D (6MM INSERT)
R.031 .18
.26
.26
MNHU060308R
R.031 .18
.26
.26
MNHU060308R-PH
R.062 .18
.26
.26
MNHU060316R
R.062 .18
.26
.26
MNHU060316R-PH
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN6515
MNHU060308R Multi-Purpose - 0.031“ R
MNHU060308R-PH SS/Hi-Temp/Ti - 0.031“ R
MNHU060316R Multi-Purpose - 0.062“ R
MNHU060316R-PH SS/Hi-Temp/Ti - 0.062“ R

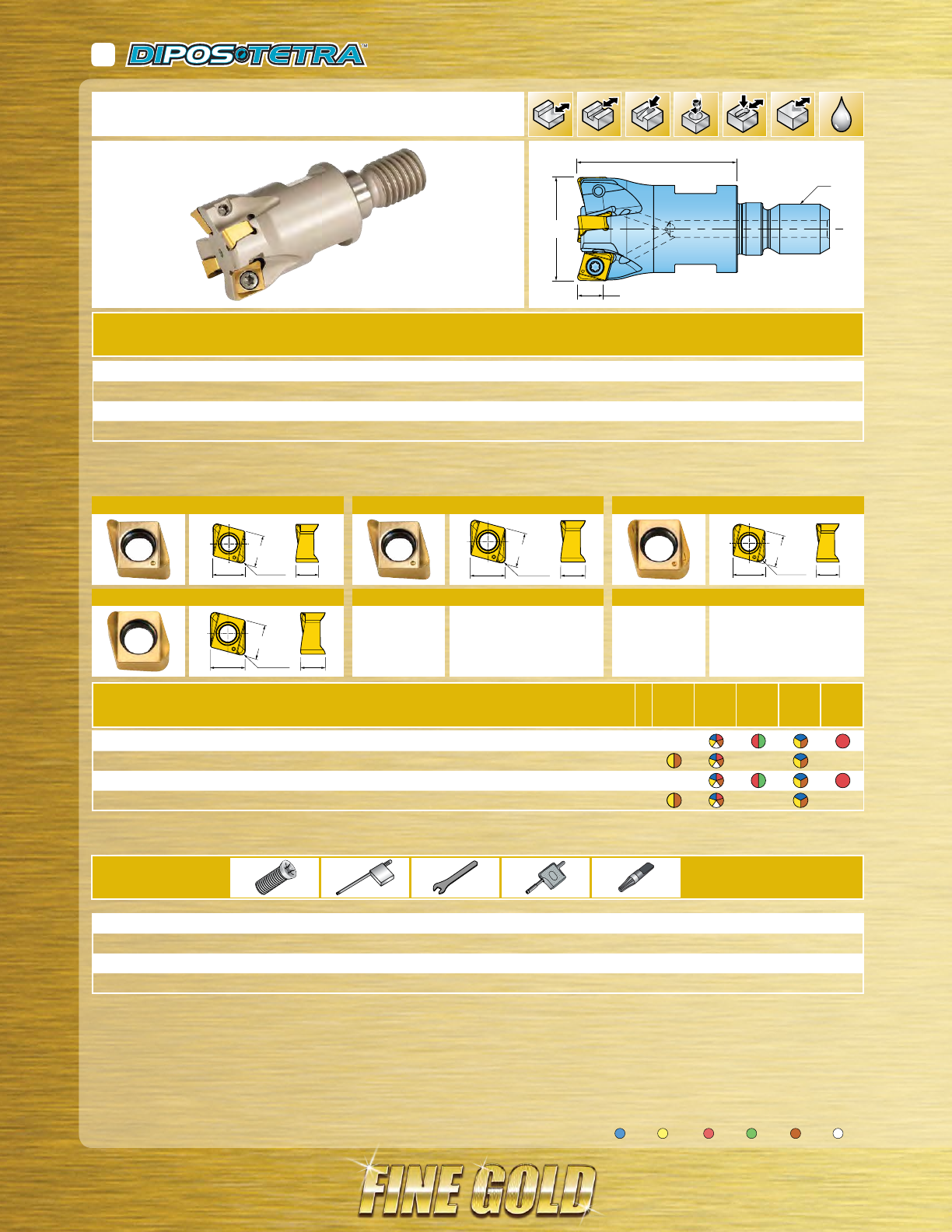

90° ROUGH & RAMP END MILL WITH 4 INDEXES (TOPON STYLE)
Cutter Number
D1
Nom. Dia.
T1
Adaption
L2
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
D1
L2
T1
.24
1TJ1D-07015X6R01 0.750 M10 1.50 3 15mm 4.1
1TJ1D-10015X7R01 1.000 M12 1.50 4 17mm 4.8
1TJ1D-12017X8R01 1.250 M16 1.75 5 22mm 3.6
1TJ1D-15017X8R01 1.500 M16 1.75 6 22mm 2.8
HARDWARE
1TJ1D-07015X6R01 SM30-068-30 DS-T08W 615MM DTQ-18W DS-T08QB
1TJ1D-10015X7R01 SM30-068-30 DS-T08W 617MM DTQ-18W DS-T08QB
1TJ1D-12017X8R01 SM30-068-30 DS-T08W 622MM DTQ-18W DS-T08QB
1TJ1D-15017X8R01 SM30-068-30 DS-T08W 622MM DTQ-18W DS-T08QB
Screw Screw Driver Wrench (Optional) Torque Driver Handle (Optional) Driver Bit (Optional)
= P = M = K = N = S = H
29
SERIES TJ1D (6MM INSERT)
R.031 .18
.26
.26
MNHU060308R
R.031 .18
.26
.26
MNHU060308R-PH
R.062 .18
.26
.26
MNHU060316R
R.062 .18
.26
.26
MNHU060316R-PH
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN6515
MNHU060308R Multi-Purpose - 0.031“ R
MNHU060308R-PH SS/Hi-Temp/Ti - 0.031“ R
MNHU060316R Multi-Purpose - 0.062“ R
MNHU060316R-PH SS/Hi-Temp/Ti - 0.062“ R
90° ROUGH & RAMP FACE MILL WITH 4 INDEXES
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle
D2
K
H
D1 .24
TJ1D-15R01 1.500 6 1.570 0.500 0.250 2.8
TJ1D-20R01 2.000 7 1.570 0.750 0.312 2.0
HARDWARE
TJ1D-15R01 SM30-068-30 SD-04-46 DS-T08W DTQ-18W DS-T08QB -
TJ1D-20R01 SM30-068-30 SD-06-46 DS-T08W DTQ-18W DS-T08QB SD-06-89
Screw Retention Bolt Screw Driver Torque Driver Handle (Optional) Driver Bit (Optional) Coolant Bolt (Optional)
= P = M = K = N = S = H

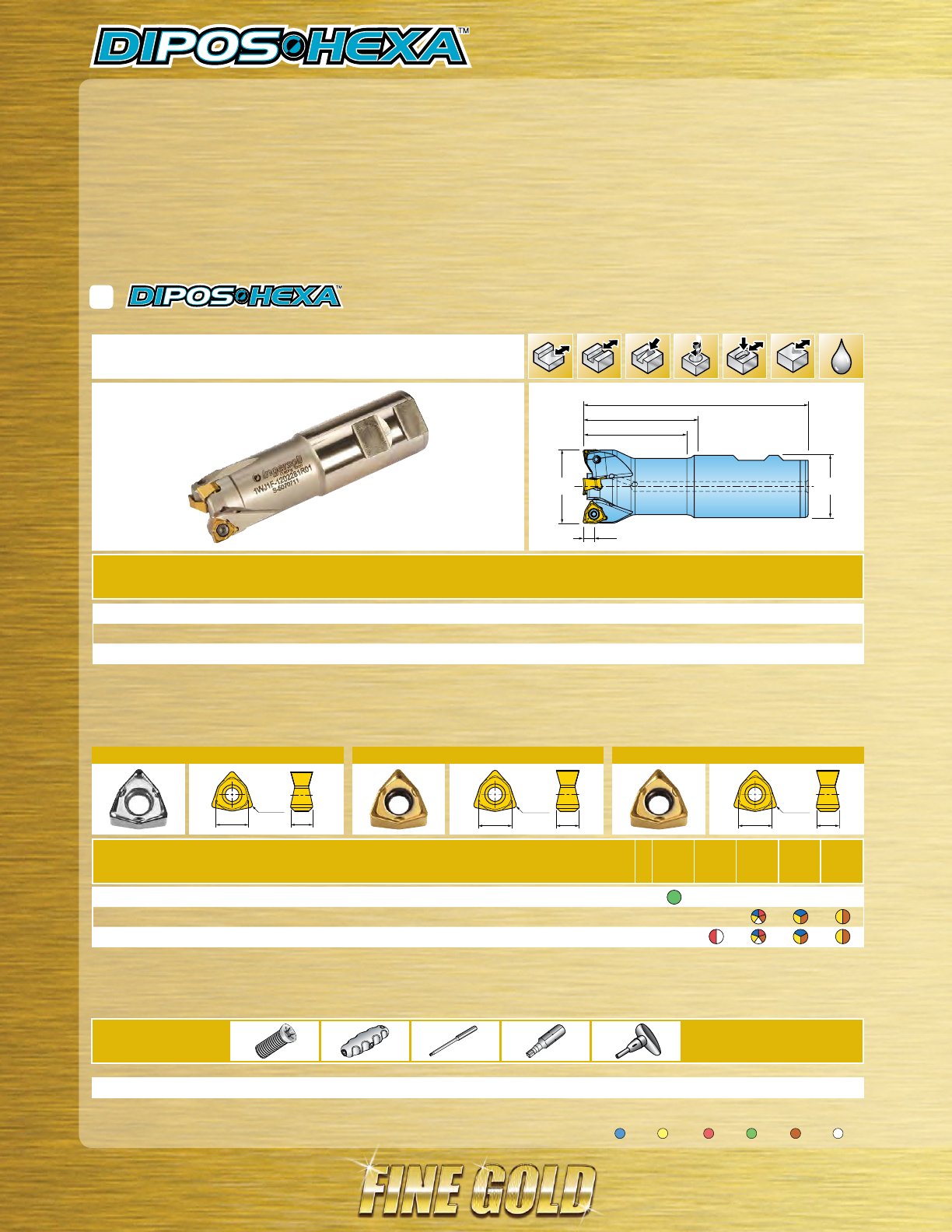

SERIES 1WJ1F (6MM INSERT)
30
.370
R.015
.250
WNCU060608FN-P
.370
R.015
.250
WNMU060604N
.370
R.031
.250
WNMU060608N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU060608FN-P Aluminum - 0.031“ R
WNMU060604N Multi-Purpose - 0.015“ R
WNMU060608N Multi-Purpose - 0.031“ R

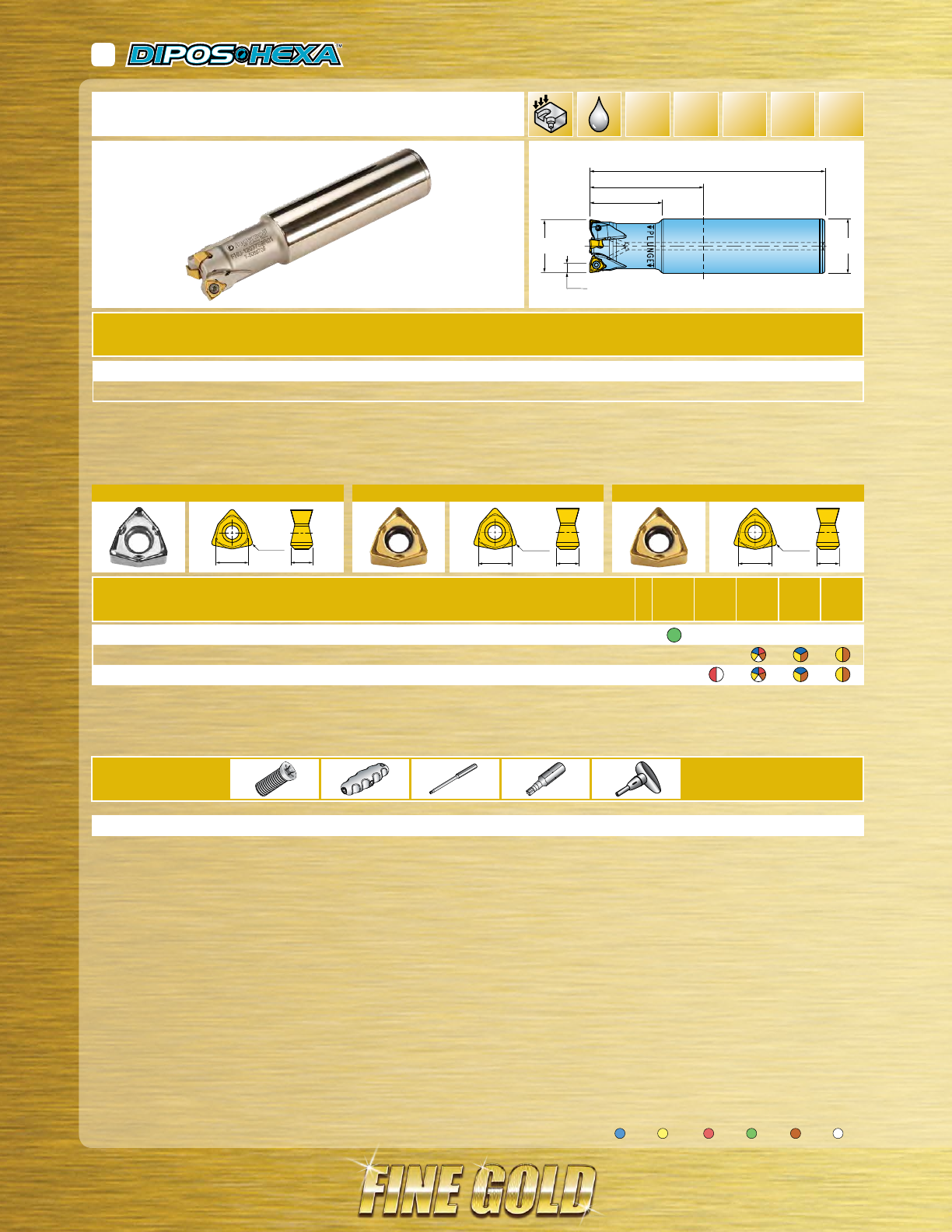

90° ROUGH & RAMP END MILL WITH 6 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D2
.23
D1
L4
L2
L3
1WJ1F-1001780R01 1.000 1.75 4.00 1.72 1.000“ Weldon 2 2.7
1WJ1F-1202281R01 1.250 2.25 4.50 2.22 1.250“ Weldon 3 2.0
1WJ1F-1502281R01 1.500 2.25 4.50 2.22 1.250“ Weldon 4 1.6
HARDWARE
SM35-088-60 DS-A00T DS-T106B DS-T10B DT-28-01
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
Features & Benefits:
• Economical and free-cutting 90 degree shoulder milling geometry
• 2-side technology applied with 6 cutting edges (3+3)
• Aggressive roughing and ramping capabilities at .230 depth of cut
• Equipped with fine pitched densities for high productivity machining
• Surface finishes between 63 – 125+ Ra (dependant upon corner radius & feed rate)
= P = M = K = N = S = H
SERIES WJ5F (6MM INSERT)
31
.370
R.015
.250
WNCU060608FN-P
.370
R.015
.250
WNMU060604N
.370
R.031
.250
WNMU060608N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU060608FN-P Aluminum - 0.031“ R
WNMU060604N Multi-Purpose - 0.015“ R
WNMU060608N Multi-Purpose - 0.031“ R
90° ROUGH & RAMP FACE MILL WITH 6 INDEXES
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle
D2
K
H
D1 .23
WJ5F-20R01 2.000 6 1.570 0.750 0.312 1.4
WJ5F-25R01 2.500 7 1.570 0.750 0.312 1.8
WJ5F-30R01 3.000 9 1.750 1.000 0.375 2.1
WJ5F-40R01 4.000 11 2.375 1.500 0.625 2.2
HARDWARE
WJ5F-20R01 SM35-088-60 SD-06-46 SD-06-89 DS-A00T DS-T106B DS-T10B DT-28-01
WJ5F-25R01 SM35-088-60 SD-06-46 SD-06-89 DS-A00T DS-T106B DS-T10B DT-28-01
WJ5F-30R01 SM35-088-60 SD-08-46 SD-08-92 DS-A00T DS-T106B DS-T10B DT-28-01
WJ5F-40R01 SM35-088-60 SD-12-82 SD-12-99 DS-A00T DS-T106B DS-T10B DT-28-01
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
= P = M = K = N = S = H
SERIES FHU (4MM INSERT)
32
.246
R.015
.157
WNCU04T304FN-P
.246
R.015
.157
WNMU04T304N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU04T304FN-P Aluminum - 0.015“ R
WNMU04T304N Multi-Purpose - 0.015“ R

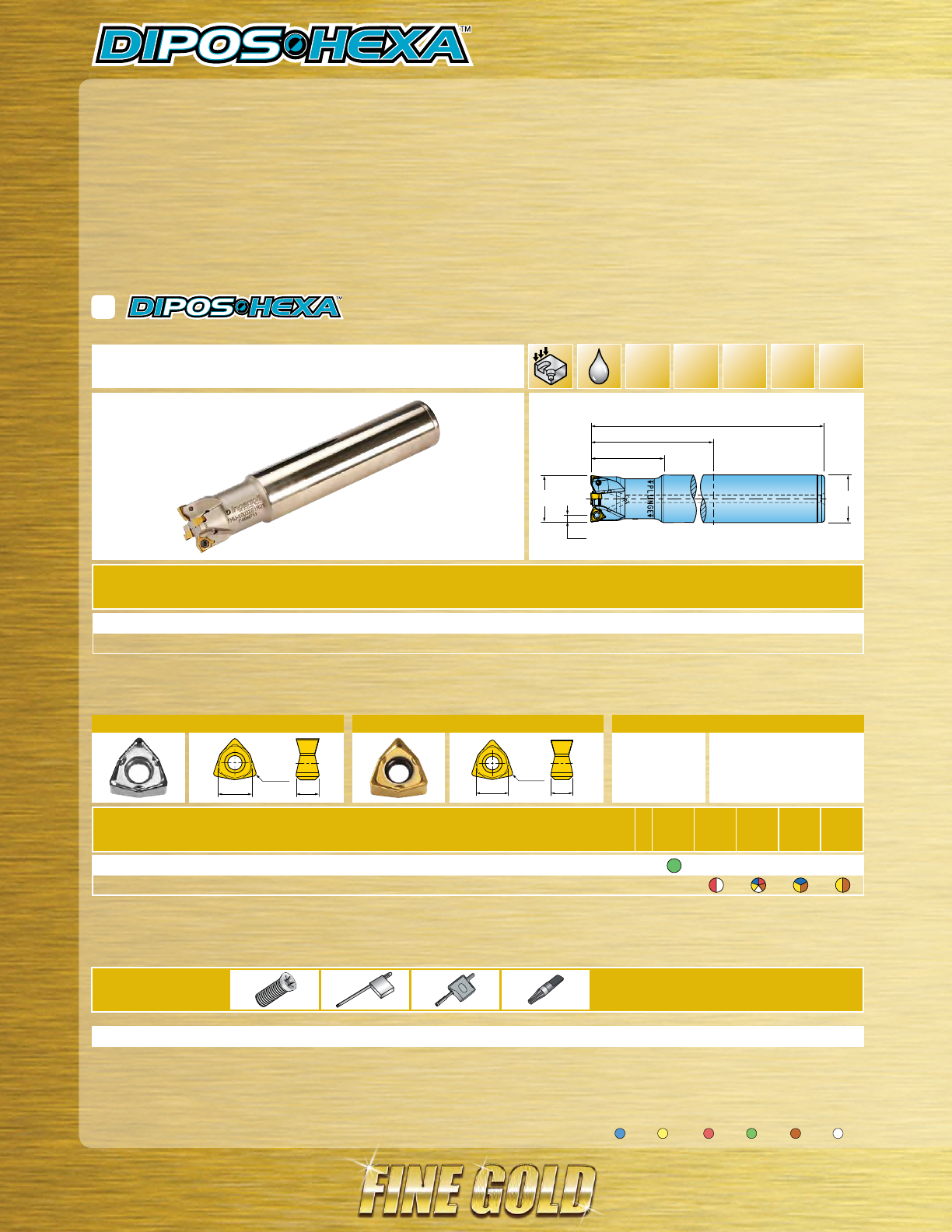

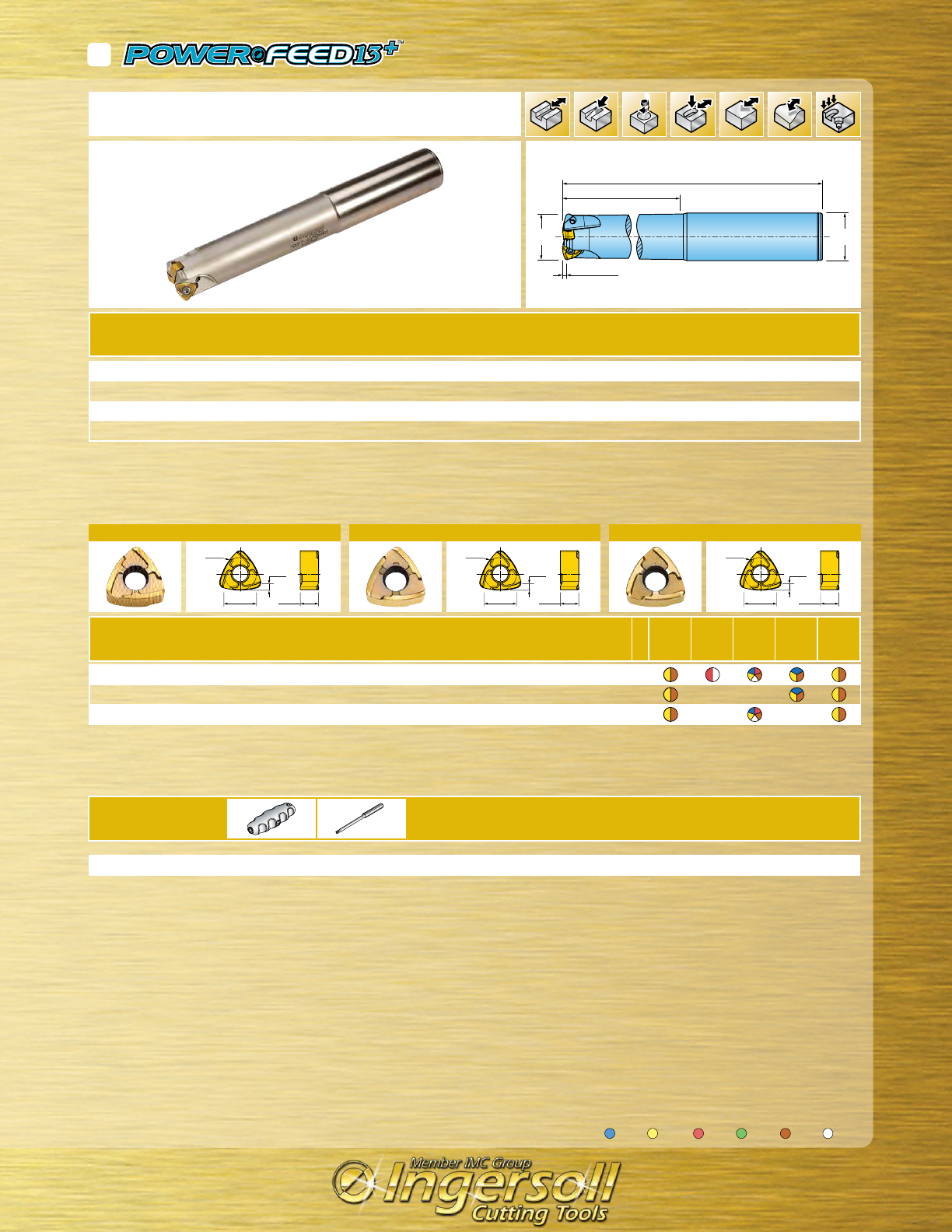

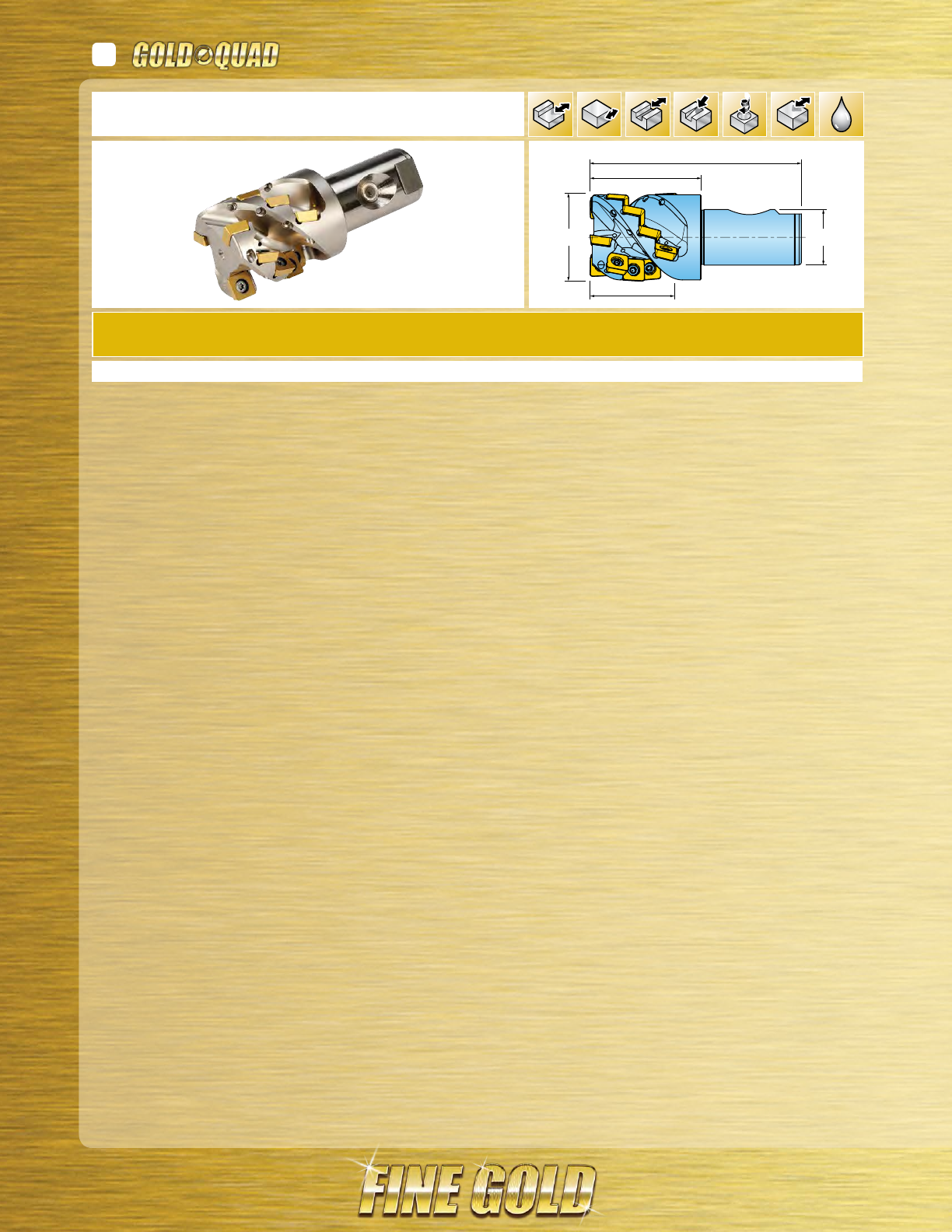

FLAT BOTTOM PLUNGE ROUGHING MILLS WITH 6 INDEXES (STRAIGHT SHANK STYLE)
Cutter Number
D1
Eff. Dia.
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of Inserts
L3
L2
L4
D1
.15
D2
FHU-07030S7R01 0.750 3.00 5.00 1.50 .750“ Cylind. 3
FHU-10032S1R01 1.000 3.25 5.50 1.50 1.000“ Cylind. 4
Cutter body can be modified; shorten by cutting off back end or add projection length by turning back neck diameter.
HARDWARE
SM25-064-00 DS-T08W DTQ-11W DTQ-11WK
Screw Screw Driver Torque Driver Handle (Optional) Torque Driver Bit (Optional)
Features & Benefits:
• 6 smooth cutting edges (3+3)
• Geometry produces a Flat Bottom on the piece part
• Multiple corner radii, grades and geometries for all materials
• Ideal for roughing in unstable conditions
• Same insert used with end mills and face mills
= P = M = K = N = S = H
SERIES FHU (4MM INSERT)
33
.246
R.015
.157
WNCU04T304FN-P
.246
R.015
.157
WNMU04T304N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU04T304FN-P Aluminum - 0.015“ R
WNMU04T304N Multi-Purpose - 0.015“ R

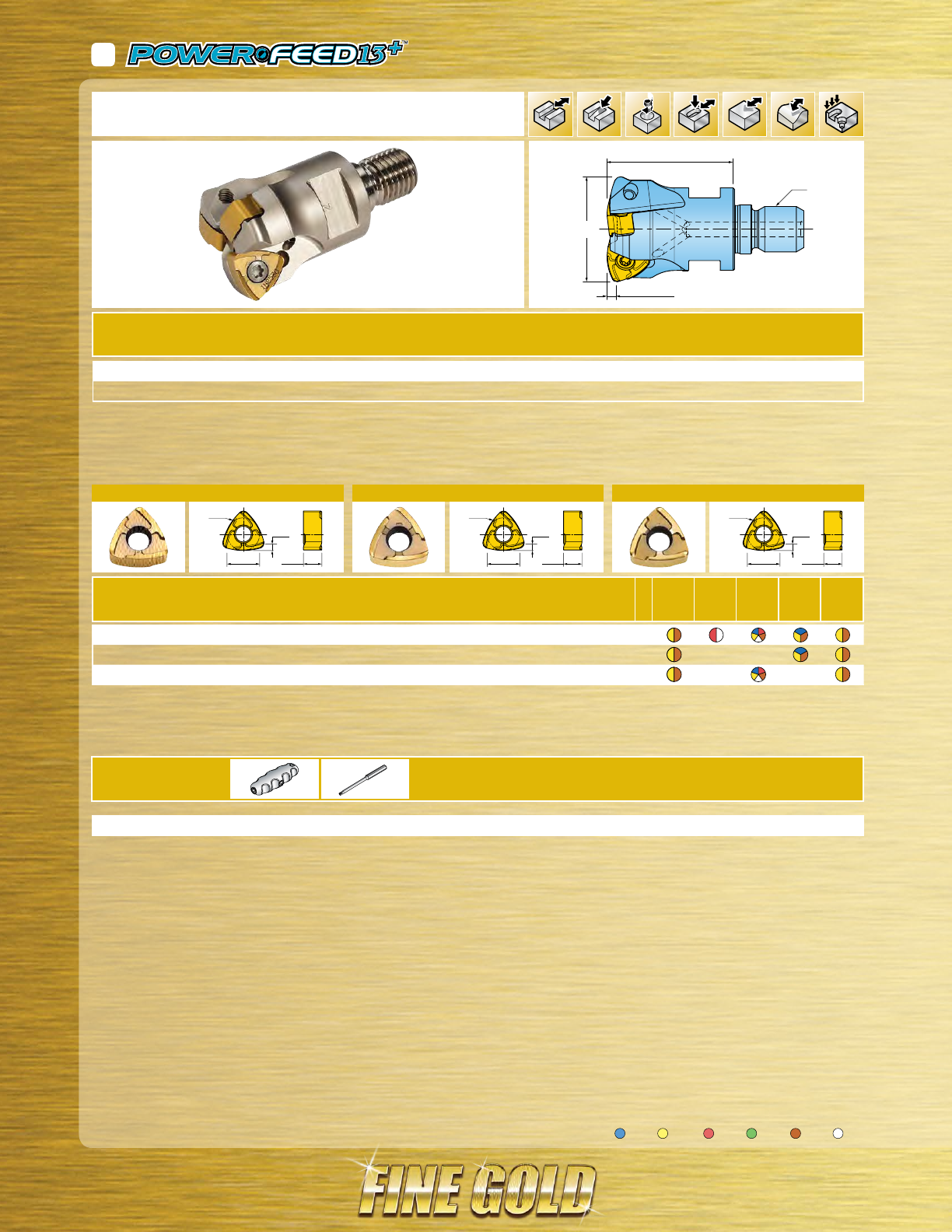

FLAT BOTTOM MODULAR PLUNGE ROUGHING MILLS WITH 6 INDEXES (TOPON STYLE)
Cutter Number
D1
Nominal
Diameter
T1
Adaption
L2
Extension
Length
Number
of
Inserts
Wrench
Size
L2
T1
D1
.15
FHU-07012X6R01 0.750 M10 1.25 3 15mm
FHU-10015X7R01 1.000 M12 1.50 4 17mm
HARDWARE
FHU-07012X6R01 SM25-064-00 DS-T08W 615MM DTQ-11W DTQ-11WK
FHU-10015X7R01 SM25-064-00 DS-T08W 617MM DTQ-11W DTQ-11WK
Screw Screw Driver Wrench (Optional) Torque Driver Handle (Optional) Torque Driver Bit (Optional)
= P = M = K = N = S = H
SERIES FHU (6MM INSERT)
34
.370
R.015
.250
WNCU060608FN-P
.370
R.015
.250
WNMU060604N
.370
R.031
.250
WNMU060608N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU060608FN-P Aluminum - 0.031“ R
WNMU060604N Multi-Purpose - 0.015“ R
WNMU060608N Multi-Purpose - 0.031“ R
FLAT BOTTOM PLUNGE ROUGHING MILLS WITH 6 INDEXES (STRAIGHT SHANK STYLE)
Cutter Number
D1
Eff. Dia.
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of Inserts
L3
L2
L4
D1
.23
D2
FHU-12037S9R01 1.250 3.75 6.00 2.00 1.250“ Cylind. 3
FHU-15038S5R01 1.500 3.84 6.50 2.00 1.500“ Cylind. 4
Cutter body can be modified; shorten by cutting off back end or add projection length by turning back neck diameter.
HARDWARE
SM35-088-60 DS-A00T DS-T106B DS-T10B DT-28-01
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
= P = M = K = N = S = H

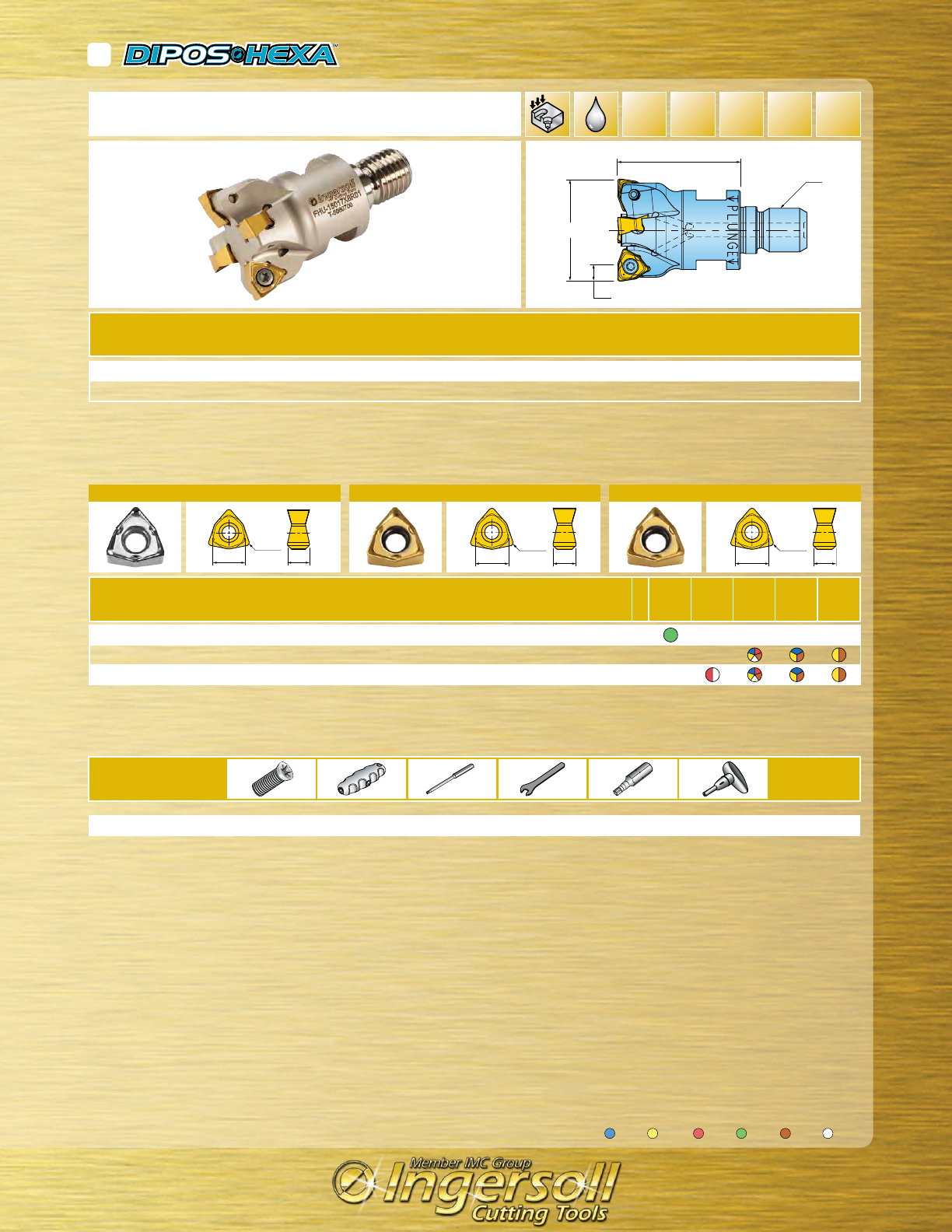

SERIES FHU (6MM INSERT)
35
.370
R.015
.250
WNCU060608FN-P
.370
R.015
.250
WNMU060604N
.370
R.031
.250
WNMU060608N
Part Number Application
Grades
IN10K IN2504 IN2505 IN2530 IN6535
WNCU060608FN-P Aluminum - 0.031“ R
WNMU060604N Multi-Purpose - 0.015“ R
WNMU060608N Multi-Purpose - 0.031“ R
FLAT BOTTOM MODULAR PLUNGE ROUGHING MILLS WITH 6 INDEXES (TOPON STYLE)
Cutter Number
D1
Nominal
Diameter
T1
Adaption
L2
Extension
Length
Number
of
Inserts
Wrench
Size
L2
T1
.23
D1
FHU-12017X8R01 1.250 M16 1.75 3 22mm
FHU-15017X8R01 1.500 M16 1.75 4 22mm
HARDWARE
SM35-088-60 DS-A00T DS-T106B 622MM DS-T10B DT-28-01
Screw Driver Handle Screw Driver Blade Wrench (Optional) Driver Bit (Optional) Torque Driver Handle (Optional)
D2
K
H
D1
.45 2°
QHU-20015D1R01 2.000 5 0.750 0.312 1.570
QHU-20015D1R02 2.000 4 0.750 0.312 1.570
QHU-25015D1R01 2.500 5 0.750 0.312 1.570
QHU-30017D3R01 3.000 7 1.000 0.375 1.750
QHU-30017D3R02 3.000 5 1.000 0.375 1.750
QHU-40023D5R01 4.000 9 1.500 0.625 2.375
QHU-40023D5R02 4.000 7 1.500 0.625 2.375
Cutter Number
D1
Effective
Diameter
Number
of Inserts
D2
Bore Dia.
K
Keyway
H
Height

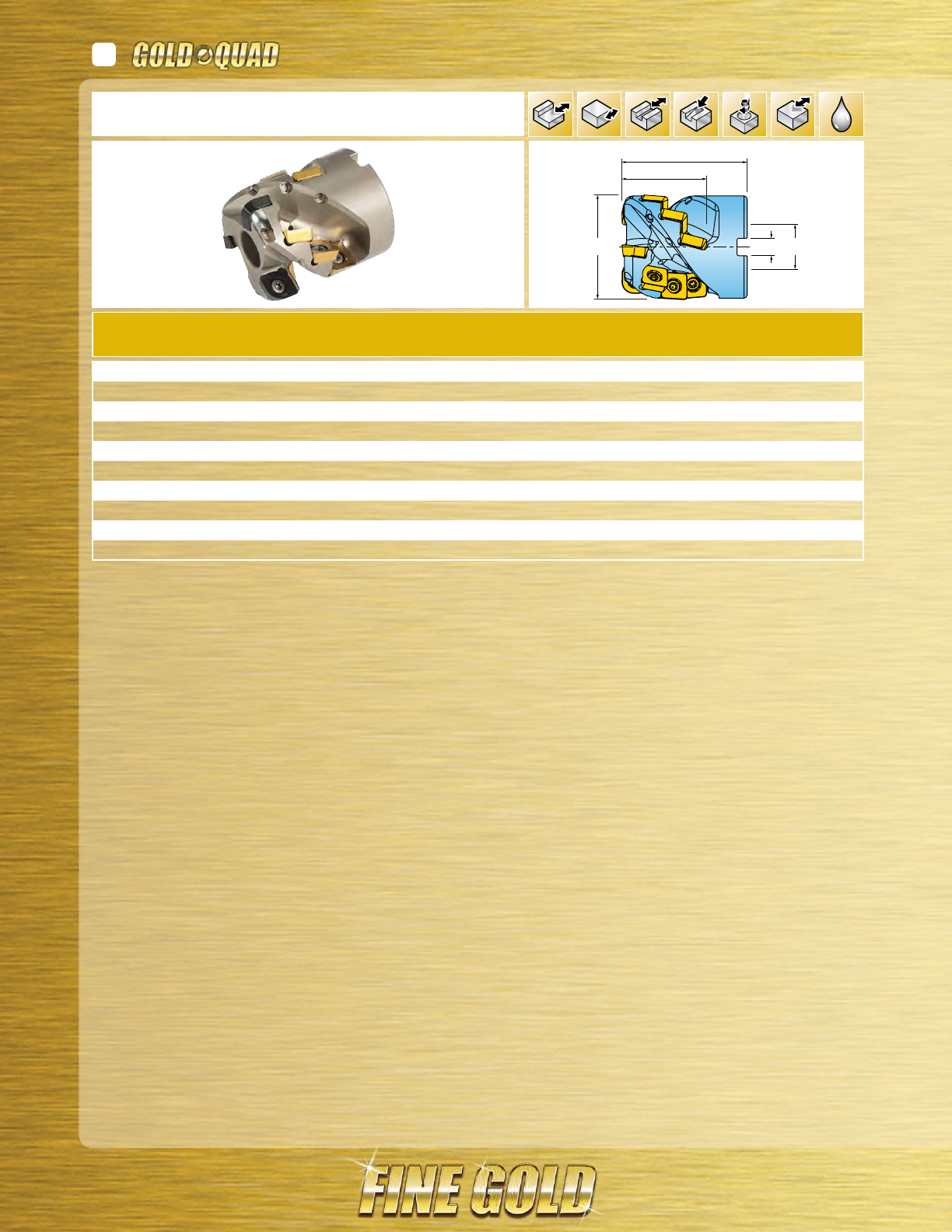

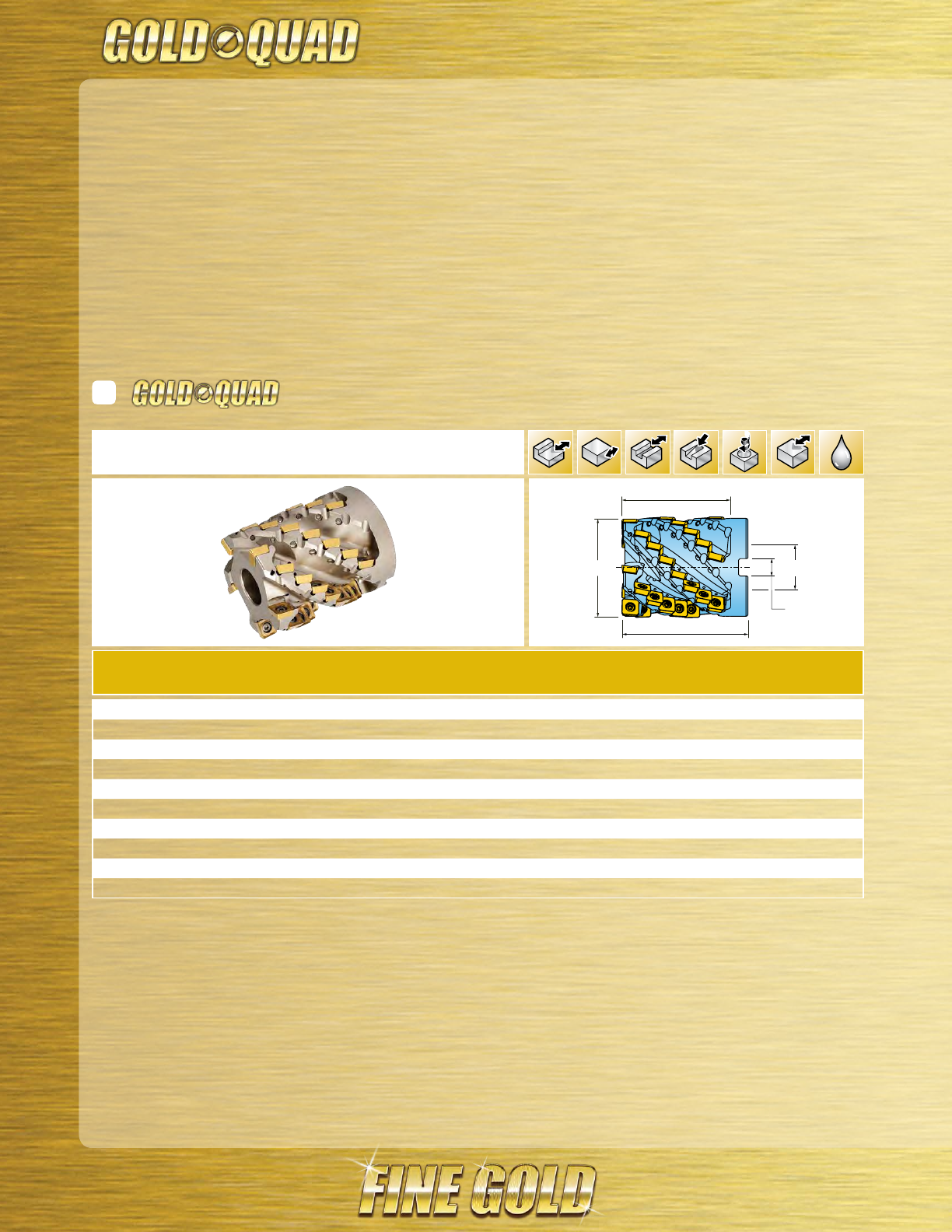

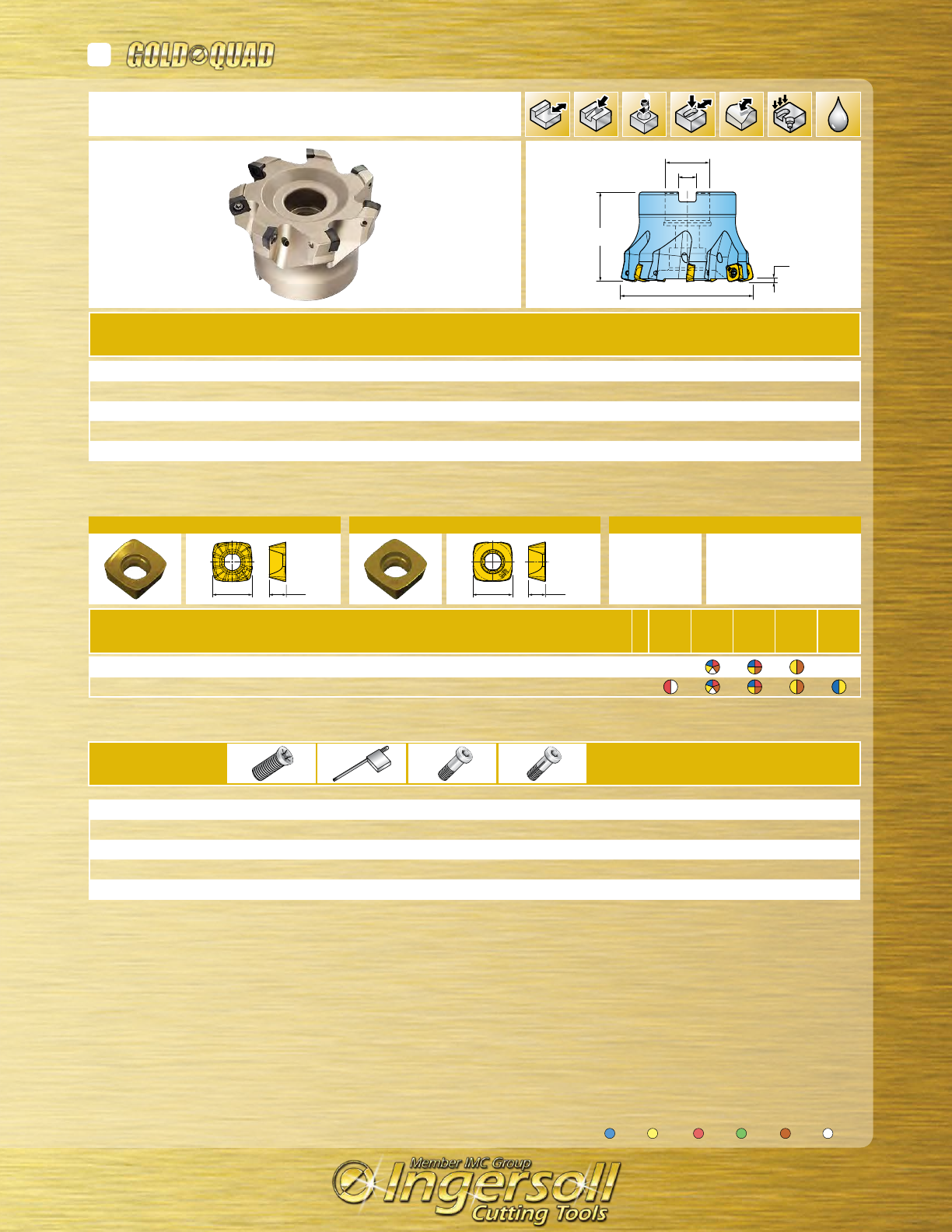

PLUNGE ROUGHING MILL (SHELL MILL STYLE)
SERIES QHU (13MM INSERT)
36
Features & Benefits:
• .45” max. radial depth of cut capability (depending on corner radius)
• Excels in general purpose roughing and long reach plunge applications
• Perfect for roughing on small spindle machines
• Inserts offered with clean shearing Hi-Temp Alloy geometry and strong Flat Top
geometry
• Internal coolant supply (face mills only)
Plunging
= P = M = K = N = S = H
37
HARDWARE
QHU-20015D1R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-20015D1R02 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-25015D1R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-30017D3R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
QHU-30017D3R02 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
QHU-40023D5R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
QHU-40023D5R02 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade

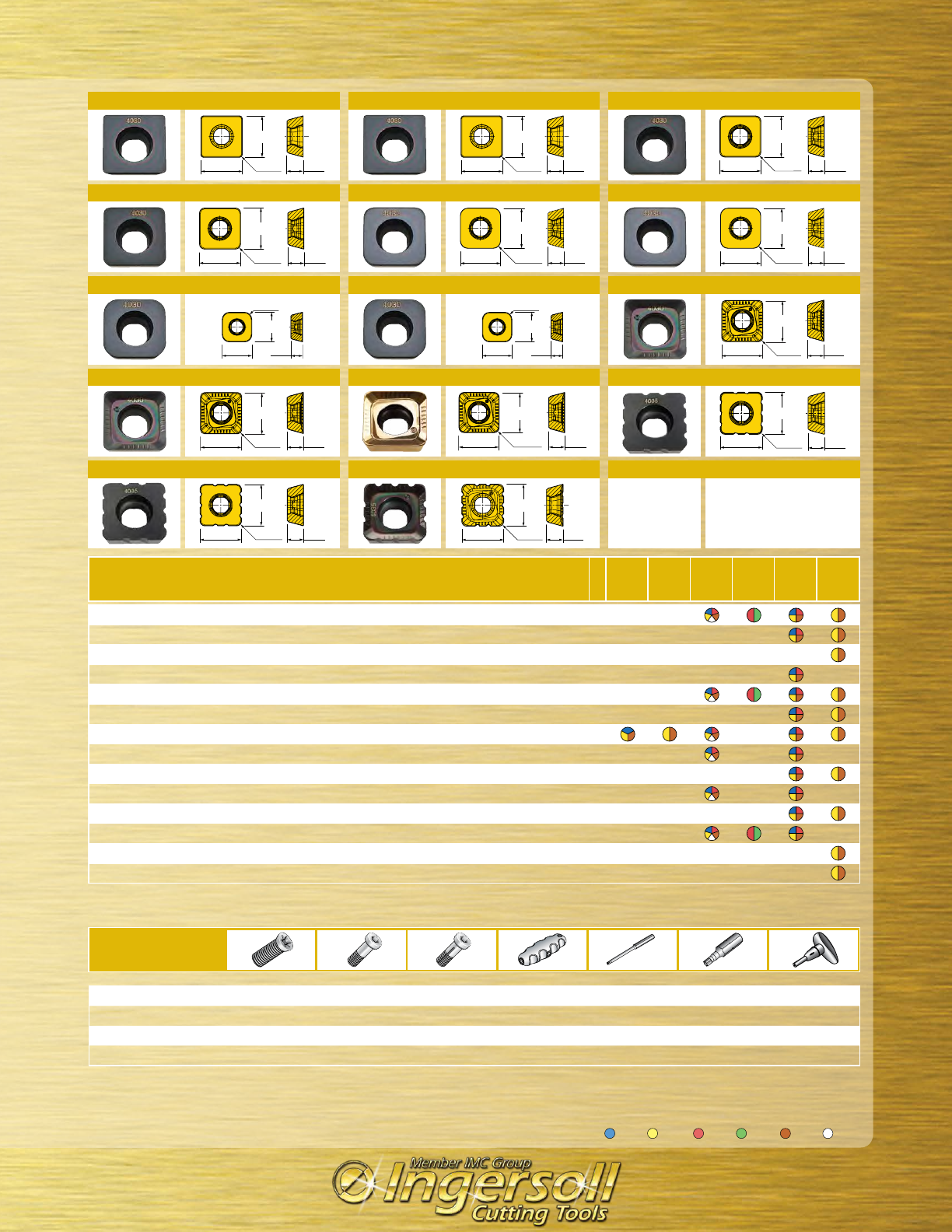

R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF
SDES130532N-PF
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF1
SDES130532N-PF1
R.062
.510
.510 .200
R.031.512 .200
.512
SDES130516N-PF
SDMS130508R-PP
R.062
.510
.510 .200
.512 R.047 .200
.512
SDES130516N-PF1
SDMS130512R-PP
.510 R.093 .200
.510
R.062.512 .200
.512
SDES130524N-PF
SDMS130516R-PP
.510 R.093 .200
.510
SDES130524N-PF1
Part Number Application
Grades
IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDMS130516R-PP Positive Geometry - 0.062“ R
= P = M = K = N = S = H
38
SERIES QHU (13MM INSERT)
HARDWARE
SM40-100-R0 DS-A00T DS-T156B
Screw Driver Handle Screw Driver Blade
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF
SDES130532N-PF
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF1
SDES130532N-PF1
R.062
.510
.510 .200
R.031.512 .200
.512
SDES130516N-PF
SDMS130508R-PP
R.062
.510
.510 .200
.512 R.047 .200
.512
SDES130516N-PF1
SDMS130512R-PP
.510 R.093 .200
.510
R.062.512 .200
.512
SDES130524N-PF
SDMS130516R-PP
.510 R.093 .200
.510
SDES130524N-PF1
Part Number Application
Grades
IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDMS130516R-PP Positive Geometry - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R

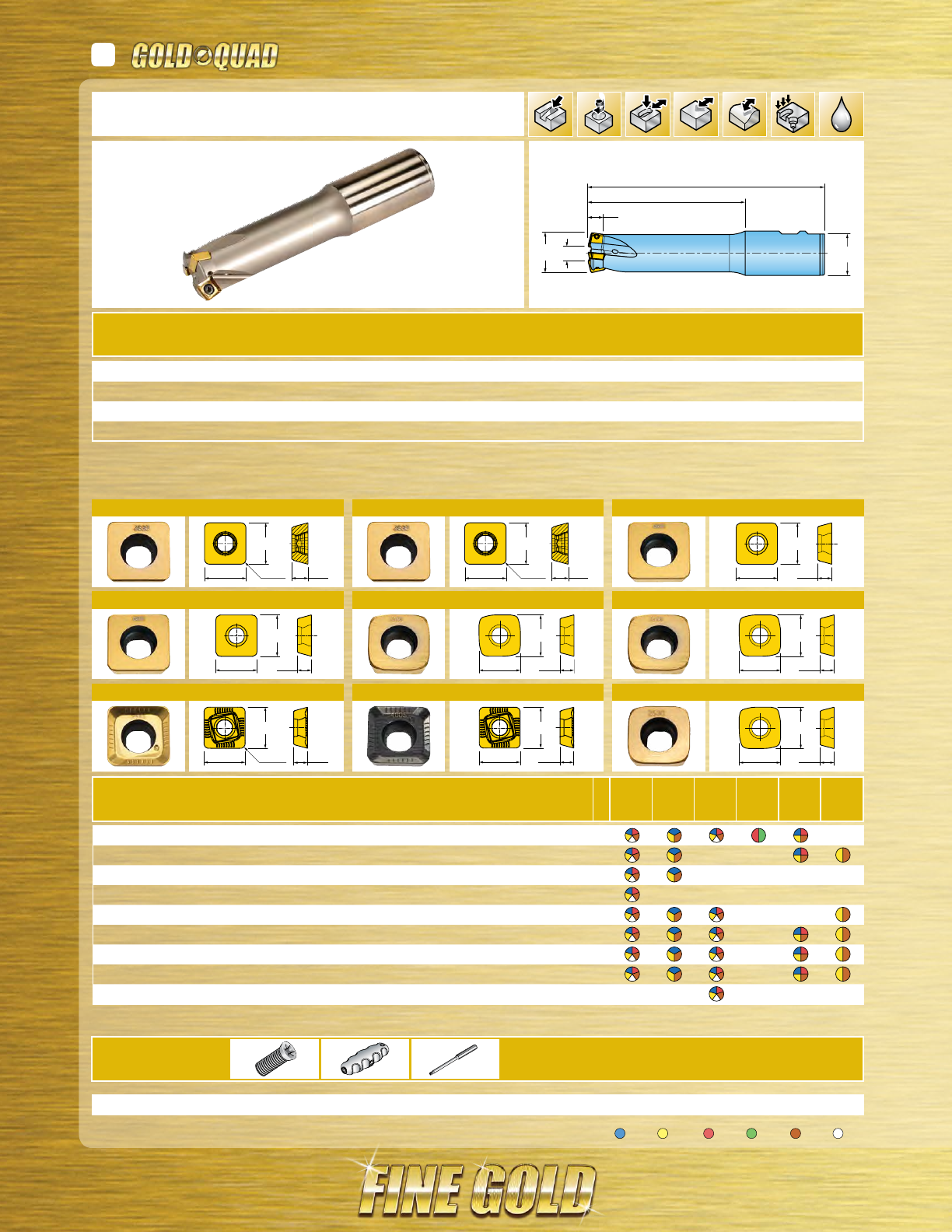

PLUNGE ROUGHING MILL (STRAIGHT SHANK STYLE)
Cutter Number
D1
Eff. Dia.
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of Inserts
L3
L2
L4
D1
.47 max 2°
D2
QHU-15073S5R01 1.500 7.34 10.00 3.00 1.500“ Cylind. 3
Cutter body can be modified; shorten by cutting off back end or add projection length by turning back neck diameter.
= P = M = K = N = S = H
39
SERIES QHU (13MM INSERT)
HARDWARE
SM40-100-R0 DS-A00T DS-T156B 622MM
Screw Driver Handle Screw Driver Blade
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF
SDES130532N-PF
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF1
SDES130532N-PF1
R.062
.510
.510 .200
R.031.512 .200
.512
SDES130516N-PF
SDMS130508R-PP
R.062
.510
.510 .200
.512 R.047 .200
.512
SDES130516N-PF1
SDMS130512R-PP
.510 R.093 .200
.510
R.062.512 .200
.512
SDES130524N-PF
SDMS130516R-PP
.510 R.093 .200
.510
SDES130524N-PF1
Part Number Application
Grades
IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDMS130516R-PP Positive Geometry - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R
MODULAR PLUNGE ROUGHING MILL (TOPON STYLE)
Cutter Number
D1
Nominal
Diameter
T1
Adaption
L2
Extension
Length
Number
of
Inserts
Wrench
Size
T1
L2
D1
.47 max 2°
QHU-15017X8R01 1.500 M16 1.75 3 22mm
Wrench (Optional)
D2
K
H
D1
.45
5J5P-20R01 2.000 5 1.570 0.750 0.312 3.0
5J5P-25R01 2.500 6 1.570 0.750 0.312 2.0
5J5P-30R01 3.000 8 1.750 1.000 0.375 1.5
5J5P-40R01 4.000 10 2.375 1.500 0.625 1.0
Cutter Number
D1
Effective
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle

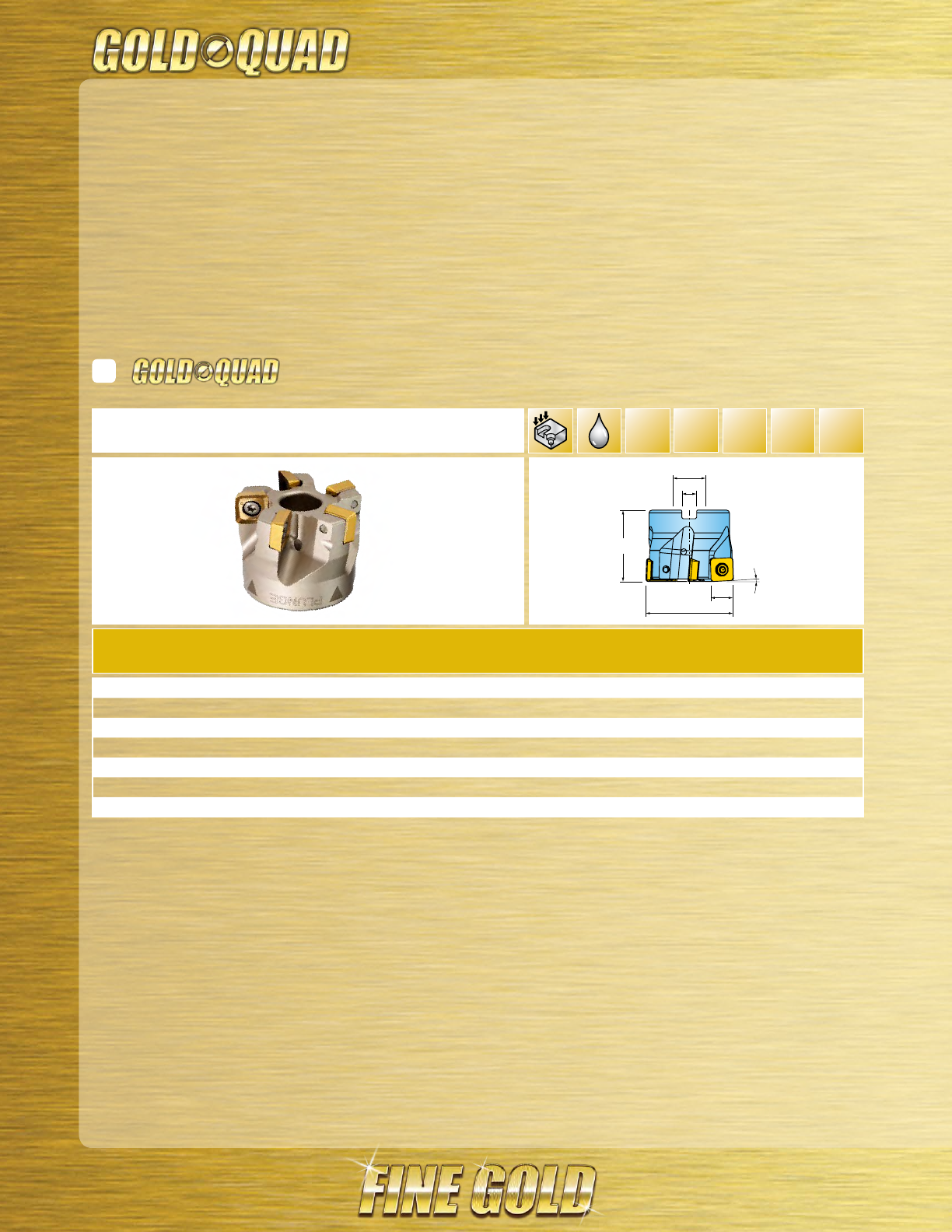

90° FACE MILL
SERIES 5J5P (13MM INSERT)
40
Features & Benefits:
• 90° shoulder milling geometry with 4 indexes
• .45” depth of cut availability
• Corner radius options R.031”, .047”, .062”, .093”, .125”, & .250”
• Rake face insert geometries for hi-shear and hi-efficiency
• Flat-top insert geometries for edge strength
• Chip splitter geometry available
• Utilizes same insert pocket as GOLD•QUAD long edge, plunge and hi-feed lines
• Coolant through the tool
90° Shoulders
= P = M = K = N = S = H
41
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF
SDES130532N-PF
R.031 .200
.510
.510
R.125
.510
.510
.200
SDES130508N-PF1
SDES130532N-PF1
R.062
.510
.510 .200
R.031.512 .200
.512
SDES130516N-PF
SDMS130508R-PP
R.062
.510
.510 .200
.512 R.047 .200
.512
R.060 .200.510
.510
SDES130516N-PF1
SDMS130512R-PP
ZDES130515R-001
.510 R.093 .200
.510
R.062.512 .200
.512
R.060.512
.512
.200
SDES130524N-PF
SDMS130516R-PP
ZDMS130515R-PH
.510 R.093 .200
.510
R.060
.510
.510
.200
SDES130524N-PF1
ZDES130515R
Part Number Application
Grades
IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDMS130516R-PP Positive Geometry - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R
ZDMS130515R-PH Positive - Splitters - 0.060“ R
HARDWARE
5J5P-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-25R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
D2
K
H
D1
.45
5J5P-20R01-R 2.000 5 1.570 0.750 0.312 3.0
5J5P-25R01-R 2.500 6 1.570 0.750 0.312 2.0
5J5P-30R01-R 3.000 8 1.750 1.000 0.375 1.5
5J5P-40R01-R 4.000 10 2.375 1.500 0.625 1.0
Recommend .125“ or less depth of cut increments
Cutter Number
D1
Effective
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle
90° FACE MILL FOR LARGE CORNER RADIUS
42
SERIES 5J5P-R (13MM INSERT)
= P = M = K = N = S = H
43
HARDWARE
5J5P-20R01-R SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-25R01-R SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-30R01-R SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B DS-T15B1 DT-35-02
5J5P-40R01-R SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
R.250
.512
.512 .200
SDES130563R
R.250
.512
.512 .200
SDES130563R-001
Part Number Application
Grades
IN4005 IN4030 IN4035
SDES130563R Flat Top - Landed Edge - 0.250“ R
SDES130563R-001 Flat Top - Keen Edge - 0.250“ R
L1
D1
H
K
D2
25J3P-20023D1R01 2.000 1.53 2.35 0.750 0.312 3 3 12
25J3P-20023D1R02 2.000 1.53 2.35 0.750 0.312 4 4 16
25J3P-20030D1R01 2.000 1.90 3.00 0.750 0.312 3 3 15
25J3P-20030D1R02 2.000 1.90 3.00 0.750 0.312 4 4 20
25J3P-20035D1R01 2.000 2.60 3.50 0.750 0.312 3 3 21
25J3P-20035D1R02 2.000 2.60 3.50 0.750 0.312 4 4 28
25J3P-25040D3R01 2.500 3.00 4.00 1.000 0.375 4 4 32
25J3P-30037D4R01 3.000 3.00 3.75 1.250 0.500 5 5 40
25J3P-30050D4R10 3.000 4.08 5.00 1.250 0.500 5 5 55
25J3P-40050D5R01 4.000 4.08 5.00 1.500 0.625 5 5 55
2.00 diameter x 4 flute cutters must use ZDES/ZDMS (chip splitters) if radial width of cut is over .50“.
Nose insert is tipped on a slight angle and may fall outside true form up to .010“, depending on insert corner radius.
Cutter Number
D1
Nom. Dia.
L1
Length
of Cut
H
Height
D2
Bore Dia.
Keyway
Width
No. of
Flutes
Effective
No. of
Flutes
Total
Total
Inserts
90° HIGH SHEAR EXTENDED FLUTE MILL (SHELL MILL STYLE)
SERIES 25J3P (13MM INSERT)
44
Features & Benefits:
• Extreme geometry promotes high-shearing action for efficient cutting of Stainless Steels
and Nickel Alloys
• Corner radius offerings of .031”, .060”, .125” & .250”
• R.031 & R.060 inserts may be used in both end and side stations
• Rake face insert geometry for optimum shear
• Flat top insert geometry for strength & durability
• Chip splitter insert geometry for vibration resistance & channel cut efficiency
• Internal coolant supply
Extended Flute
= P = M = K = N = S = H
45
R.031 .200
.510
.510
R.031.512 .200
.512
SDES130508N
SDMS130508R-PH
R.031 .200
.510
.510
.512 R.060 .200
.512
SDES130508N-001
SDMS130515R-PH
.200
R.060
.510
.510
.532 R.031 .239
SDES130515N
SDMS130608N-FL
.200
R.060
.510
.510
.239
R.060
.523
R.060.512
.512
.200
SDES130515N-001
SDMS130615N-FL
ZDMS130515R-PH
R.125
.200
.512
.512
R.060
.510
.510
.200
SDES130532R
ZDES130515R
R.125
.200
.512
.512
R.060 .200.510
.510
SDES130532R-001
ZDES130515R-001
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130508N Flat Top - Landed Edge - 0.031“ R End & Side
SDES130508N-001 Flat Top - Keen Edge - 0.031“ R End & Side
SDMS130508R-PH Positive Geometry - 0.031“ R End & Side
SDMS130608N-FL Positive Geometry - 0.031“ R End: True 90
SDES130515N Flat Top - Landed Edge - 0.060“ R End & Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R End & Side
SDMS130515R-PH Positive Geometry - 0.060“ R End & Side
SDMS130615N-FL Positive Geometry - 0.060“ R End: True 90
SDES130532R Flat Top - Landed Edge - 0.125“ R End
SDES130532R-001 Flat Top - Keen Edge - 0.125“ R End
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R End & Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R End & Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R End & Side
HARDWARE
25J3P-20023D1R01 SM40-100-R0 SD-06-50 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20023D1R02 SM40-100-R0 SD-06-50 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20030D1R01 SM40-100-R0 SD-06-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20030D1R02 SM40-100-R0 SD-06-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20035D1R01 SM40-100-R0 SD-06-B2 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20035D1R02 SM40-100-R0 SD-06-B2 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-25040D3R01 SM40-100-R0 SD-08-D3 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-30037D4R01 SM40-100-R0 SD-10-54 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-30050D4R10 SM40-100-R0 SD-10-04 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-40050D5R01 SM40-100-R0 SD-12-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Retention Bolt Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
H
L1
KD2D1
25J3P-20023D1R01-R 2.000 1.53 2.35 0.750 0.312 3 3 12
25J3P-20023D1R02-R 2.000 1.53 2.35 0.750 0.312 4 4 16
25J3P-20030D1R01-R 2.000 1.90 3.00 0.750 0.312 3 3 15
25J3P-20030D1R02-R 2.000 1.90 3.00 0.750 0.312 4 4 20
25J3P-20035D1R01-R 2.000 2.60 3.50 0.750 0.312 3 3 21
25J3P-20035D1R02-R 2.000 2.60 3.50 0.750 0.312 4 4 28
25J3P-25040D3R01-R 2.500 3.00 4.00 1.000 0.375 4 4 32
25J3P-30037D4R01-R 3.000 3.00 3.75 1.250 0.500 5 5 40
25J3P-30050D4R10-R 3.000 4.08 5.00 1.250 0.500 5 5 55
25J3P-40050D5R01-R 4.000 4.08 5.00 1.500 0.625 5 5 55
Cutter Number
D1
Nom. Dia.
L1
Length
of Cut
H
Height
D2
Bore Dia.
Keyway
Width
No. of
Flutes
Effective
No. of
Flutes
Total
Total
Inserts
90° HIGH SHEAR EXTENDED FLUTE MILL, FOR LARGE CORNER RADIUS (SHELL MILL
STYLE)
SERIES 25J3P-R (13MM INSERT)
46
= P = M = K = N = S = H
47
HARDWARE
25J3P-20023D1R01-R SM40-100-R0 SD-06-50 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20023D1R02-R SM40-100-R0 SD-06-50 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20030D1R01-R SM40-100-R0 SD-06-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20030D1R02-R SM40-100-R0 SD-06-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20035D1R01-R SM40-100-R0 SD-06-B2 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-20035D1R02-R SM40-100-R0 SD-06-B2 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-25040D3R01-R SM40-100-R0 SD-08-D3 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-30037D4R01-R SM40-100-R0 SD-10-54 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-30050D4R10-R SM40-100-R0 SD-10-04 DS-A00T DS-T156B DS-T15B1 DT-35-02
25J3P-40050D5R01-R SM40-100-R0 SD-12-79 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Retention Bolt Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
.200
R.060
.510
.510
R.060
.510
.510
.200
SDES130515N
ZDES130515R
.200
R.060
.510
.510
R.060 .200.510
.510
SDES130515N-001
ZDES130515R-001
R.250
.512
.512 .200
R.060.512
.512
.200
SDES130563R
ZDMS130515R-PH
R.250
.512
.512 .200
SDES130563R-001
R.031.512 .200
.512
SDMS130508R-PH
.512 R.060 .200
.512
SDMS130515R-PH
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130515N Flat Top - Landed Edge - 0.060“ R Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R Side
SDES130563R Flat Top - Landed Edge - 0.250“ R End
SDES130563R-001 Flat Top - Keen Edge - 0.250“ R End
SDMS130508R-PH Positive Geometry - 0.031“ R Side
SDMS130515R-PH Positive Geometry - 0.060“ R Side
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R Side
D2
L3
L2
D1
L1
25J3P-2002581R01 2.000 1.90 2.50 4.75 1.000“ Weldon w/Flange 3 3 15
Nose insert is tipped on a slight angle and may fall outside true form up to .010“, depending on insert corner radius.
Cutter Number
D1
Nom. Dia.
L1
Length
of Cut
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Effective
Flutes
Number
of Flutes
Total
Number
of Inserts
90° HIGH SHEAR EXTENDED FLUTE END MILL (STRAIGHT SHANK STYLE)
SERIES 25J3P (13MM INSERT)
48
= P = M = K = N = S = H
49
R.031 .200
.510
.510
R.031.512 .200
.512
SDES130508N
SDMS130508R-PH
R.031 .200
.510
.510
.512 R.060 .200
.512
SDES130508N-001
SDMS130515R-PH
.200
R.060
.510
.510
.532 R.031 .239
SDES130515N
SDMS130608N-FL
.200
R.060
.510
.510
.239
R.060
.523
R.060.512
.512
.200
SDES130515N-001
SDMS130615N-FL
ZDMS130515R-PH
R.125
.200
.512
.512
R.060
.510
.510
.200
SDES130532R
ZDES130515R
R.125
.200
.512
.512
R.060 .200.510
.510
SDES130532R-001
ZDES130515R-001
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130508N Flat Top - Landed Edge - 0.031“ R End & Side
SDES130508N-001 Flat Top - Keen Edge - 0.031“ R End & Side
SDES130515N Flat Top - Landed Edge - 0.060“ R End & Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R End & Side
SDES130532R Flat Top - Landed Edge - 0.125“ R End
SDES130532R-001 Flat Top - Keen Edge - 0.125“ R End
SDMS130508R-PH Positive Geometry - 0.031“ R End & Side
SDMS130515R-PH Positive Geometry - 0.060“ R End & Side
SDMS130608N-FL Positive Geometry - 0.031“ R End: True 90
SDMS130615N-FL Positive Geometry - 0.060“ R End: True 90
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R End & Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R End & Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R End & Side
HARDWARE
SM40-100-R0 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)

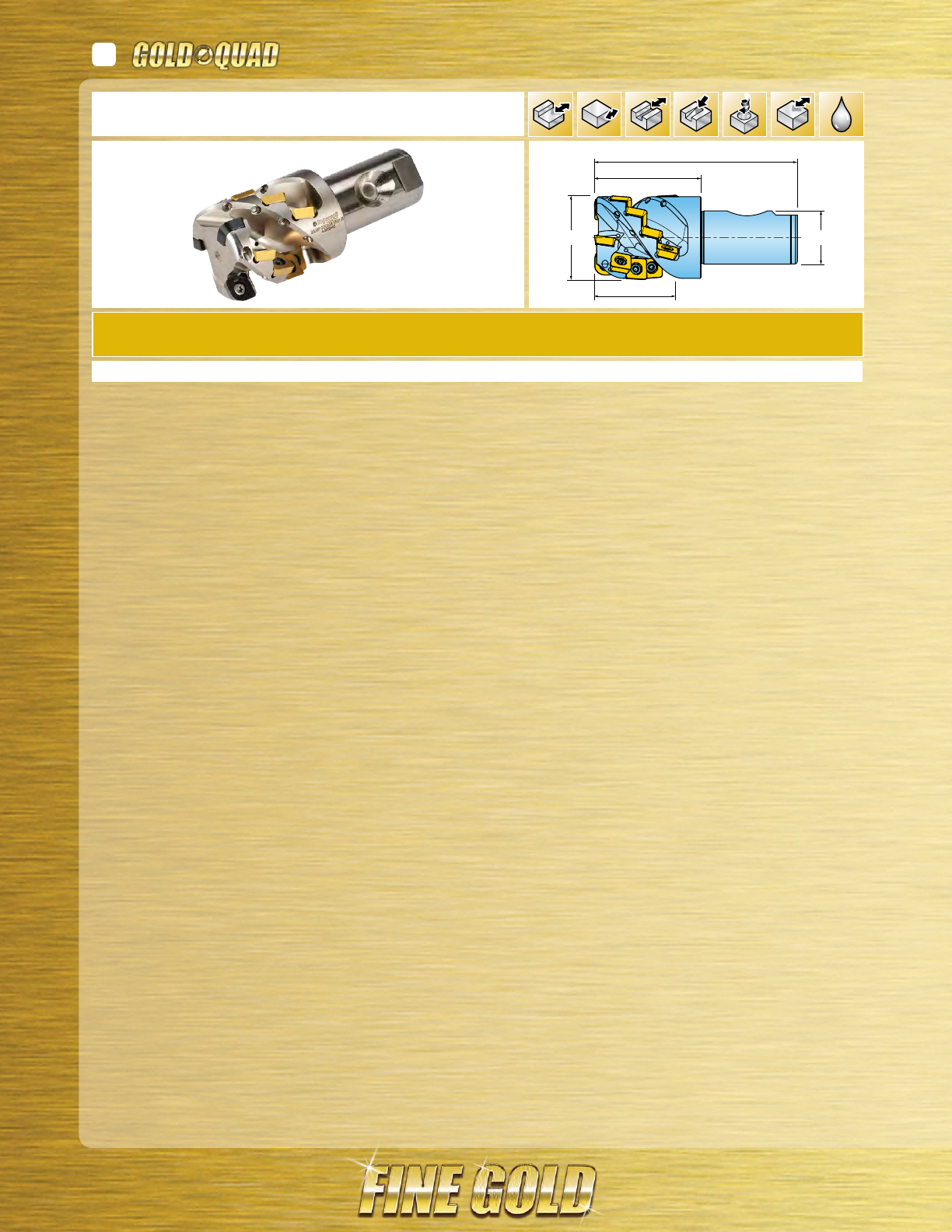

L3
L2
D1
L1
D2
25J3P-2002581R01-R 2.000 1.90 2.50 4.75 1.000“ Weldon w/Flange 3 3 15
Nose insert is tipped on a slight angle and may fall outside true form up to .010“, depending on insert corner radius.
Cutter Number
D1
Nom. Dia.
L1
Length
of Cut
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Effective
Flutes
Number
of Flutes
Total
Number
of Inserts
90° HIGH SHEAR EXTENDED FLUTE END MILL FOR LARGE CORNER RADIUS (STRAIGHT
SHANK STYLE)
SERIES 25J3P-R (13MM INSERT)
50
= P = M = K = N = S = H
51
HARDWARE
SM40-100-R0 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
.200
R.060
.510
.510
R.060
.510
.510
.200
SDES130515N
ZDES130515R
.200
R.060
.510
.510
R.060 .200.510
.510
SDES130515N-001
ZDES130515R-001
R.250
.512
.512 .200
R.060.512
.512
.200
SDES130563R
ZDMS130515R-PH
R.250
.512
.512 .200
SDES130563R-001
R.031.512 .200
.512
SDMS130508R-PH
.512 R.060 .200
.512
SDMS130515R-PH
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130515N Flat Top - Landed Edge - 0.060“ R Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R Side
SDES130563R Flat Top - Landed Edge - 0.250“ R End
SDES130563R-001 Flat Top - Keen Edge - 0.250“ R End
SDMS130508R-PH Positive Geometry - 0.031“ R Side
SDMS130515R-PH Positive Geometry - 0.060“ R Side
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R Side

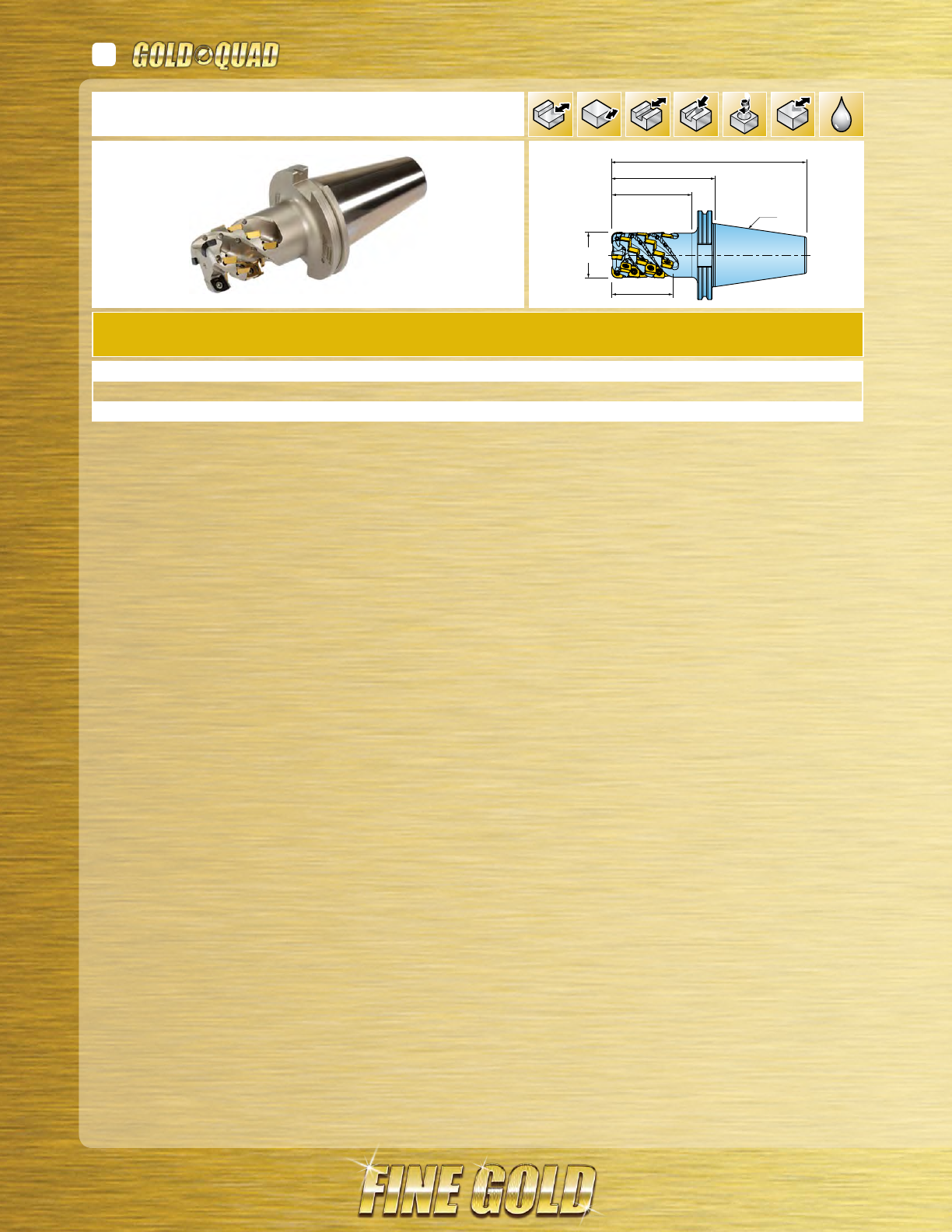

D1
L1
L4
L2
L3
D2
25J3P-2004548R01 2.000 2.62 4.50 8.50 3.12 ICT #50 V-Flange 3 3 21
25J3P-2004548R02 2.000 2.62 4.50 8.50 3.37 ICT #50 V-Flange 4 4 28
25J3P-2006248R01 2.000 4.08 6.25 10.25 5.12 ICT #50 V-Flange 3 3 33
2.00 diameter x 4 flute cutters must use ZDES/ZDMS (chip splitters) if radial width of cut is over .50“.
Nose insert is tipped on a slight angle and may fall outside true form up to .010“, depending on insert corner radius.
Cutter Number
D1
Effective
Dia.
L1
Length
of Cut
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Adaption
Style
Number
of Effective
Flutes
Number
of Total
Flutes
Number
of Inserts
90° HIGH SHEAR EXTENDED FLUTE END MILL (TAPERED SHANK STYLE)
SERIES 25J3P (13MM INSERT)
52
= P = M = K = N = S = H
53
R.031 .200
.510
.510
R.031.512 .200
.512
SDES130508N
SDMS130508R-PH
R.031 .200
.510
.510
.512 R.060 .200
.512
SDES130508N-001
SDMS130515R-PH
.200
R.060
.510
.510
.532 R.031 .239
SDES130515N
SDMS130608N-FL
.200
R.060
.510
.510
.239
R.060
.523
R.060.512
.512
.200
SDES130515N-001
SDMS130615N-FL
ZDMS130515R-PH
R.125
.200
.512
.512
R.060
.510
.510
.200
SDES130532R
ZDES130515R
R.125
.200
.512
.512
R.060 .200.510
.510
SDES130532R-001
ZDES130515R-001
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130508N Flat Top - Landed Edge - 0.031“ R End & Side
SDES130508N-001 Flat Top - Keen Edge - 0.031“ R End & Side
SDES130515N Flat Top - Landed Edge - 0.060“ R End & Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R End & Side
SDES130532R Flat Top - Landed Edge - 0.125“ R End
SDES130532R-001 Flat Top - Keen Edge - 0.125“ R End
SDMS130508R-PH Positive Geometry - 0.031“ R End & Side
SDMS130515R-PH Positive Geometry - 0.060“ R End & Side
SDMS130608N-FL Positive Geometry - 0.031“ R End: True 90
SDMS130615N-FL Positive Geometry - 0.060“ R End: True 90
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R End & Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R End & Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R End & Side
HARDWARE
SM40-100-R0 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
L3
L2
L4
D2
D1
L1
25J3P-2004548R01-R 2.000 2.62 4.50 8.50 3.12 ICT #50 V-Flange 3 3 21
25J3P-2004548R02-R 2.000 2.62 4.50 8.50 3.12 ICT #50 V-Flange 4 4 28
25J3P-2006248R01-R 2.000 4.08 6.25 10.25 5.12 ICT #50 V-Flange 3 3 33
2.00 diameter x 4 flute cutters must use ZDES/ZDMS (chip splitters) if radial width of cut is over .50“
Cutter Number
D1
Effective
Dia.
L1
Length
of Cut
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Adaption
Style
Number
of Effective
Flutes
Number
of Total
Flutes
Number
of Inserts
90° HIGH SHEAR EXTENDED FLUTE END MILL FOR LARGE CORNER RADIUS (TAPERED
SHANK STYLE)
SERIES 25J3P-R (13MM INSERT)
54
= P = M = K = N = S = H
55
HARDWARE
SM40-100-R0 DS-A00T DS-T156B DS-T15B1 DT-35-02
Screw Driver Handle Screw Driver Blade Driver Bit (Optional) Torque Driver Handle (Optional)
.200
R.060
.510
.510
R.060
.510
.510
.200
SDES130515N
ZDES130515R
.200
R.060
.510
.510
R.060 .200.510
.510
SDES130515N-001
ZDES130515R-001
R.250
.512
.512 .200
R.060.512
.512
.200
SDES130563R
ZDMS130515R-PH
R.250
.512
.512 .200
SDES130563R-001
R.031.512 .200
.512
SDMS130508R-PH
.512 R.060 .200
.512
SDMS130515R-PH
Part Number Application Station
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130515N Flat Top - Landed Edge - 0.060“ R Side
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R Side
SDES130563R Flat Top - Landed Edge - 0.250“ R End
SDES130563R-001 Flat Top - Keen Edge - 0.250“ R End
SDMS130508R-PH Positive Geometry - 0.031“ R Side
SDMS130515R-PH Positive Geometry - 0.060“ R Side
ZDES130515R Flat Top - Splitters - Landed Edge - 0.060“ R Side
ZDES130515R-001 Flat Top - Splitters - Keen Edge - 0.060“ R Side
ZDMS130515R-PH Positive - Splitters - 0.060“ R Side
= P = M = K = N = S = H
SERIES DN6H DN5H (12 MM INSERT)
56
.500
.273
.250
SNGS1205ANN-W
.500
.05
15°
.250
.05
.05
SNGU1205EFN-P
.500
.05
15°
.250
.05
.05
SNGU1205ENN
Part Number Application
Grades
IN10K IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030
SNGS1205ANN-W Wiper - Wiper
SNGU1205EFN-P Grd/Pol for Aluminum
SNGU1205ENN Multi-Purpose
45° FACE MILL WITH 8 INDEXES
Cutter Number
D1
Nominal
Diameter
D3
Overall
Diameter
D2
Bore Dia.
K
Keyway
H
Height
Number
of Inserts Coolant
D2
K
45°
.235
D1
D3
H
DN5H-20R01 2.000 2.57 0.750 0.312 1.750 6 Yes
DN6H-20R01 2.000 2.57 0.750 0.312 1.750 4 Yes
DN6H-25R01 2.500 3.07 1.000 0.375 1.750 6 Yes
DN5H-30R01 3.000 3.57 1.000 0.375 1.750 10 Yes
DN6H-30R01 3.000 3.57 1.000 0.375 1.750 7 Yes
DN5H-40R01 4.000 4.57 1.500 0.625 2.375 12 Yes
DN6H-40R01 4.000 4.57 1.500 0.625 2.375 8 Yes
DN6H-50R01 5.000 5.57 1.500 0.625 2.375 9 Yes
DN5H-60R01 6.000 6.57 1.500 0.625 2.000 20 No
DN6H-60R01 6.000 6.57 1.500 0.625 2.000 12 No
HARDWARE
DN5H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DN6H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DN6H-25R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DN5H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DN6H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DN5H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DN6H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DN6H-50R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DN5H-60R01 SM40-100-R0 - - DS-A00T DS-T156B
DN6H-60R01 SM40-100-R0 - - DS-A00T DS-T156B
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES DL6H DL5H (12 MM INSERT)
57
.500
.05
15°
.250
.05
.05
SNGU1205EFN-P
.500
.05
15°
.250
.05
.05
SNGU1205ENN
Part Number Application
Grades
IN10K IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030
SNGU1205EFN-P Grd/Pol for Aluminum
SNGU1205ENN Multi-Purpose
75° FACE MILL WITH 8 INDEXES
Cutter Number
D1
Nominal
Diameter
D3
Overall
Diameter
D2
Bore Dia.
K
Keyway
H
Height
Number
of Inserts Coolant
D2
K
75°
.355D1
D3
H
DL5H-20R01 2.000 2.30 0.750 0.310 1.750 6 Yes
DL6H-20R01 2.000 2.30 0.750 0.310 1.750 4 Yes
DL6H-25R01 2.500 2.80 1.000 0.370 1.750 6 Yes
DL6H-30R01 3.000 3.30 1.000 0.370 1.750 7 No
DL6H-40R01 4.000 4.30 1.500 0.620 2.000 8 No
DL6H-50R01 5.000 5.30 1.500 0.620 2.000 10 No
DL5H-60R01 6.000 6.30 1.500 0.620 2.000 20 No
DL6H-60R01 6.000 6.30 1.500 0.620 2.000 12 No
HARDWARE
DL5H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DL6H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DL6H-25R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DL6H-30R01 SM40-100-R0 - - DS-A00T DS-T156B
DL6H-40R01 SM40-100-R0 - - DS-A00T DS-T156B
DL6H-50R01 SM40-100-R0 - - DS-A00T DS-T156B
DL5H-60R01 SM40-100-R0 - - DS-A00T DS-T156B
DL6H-60R01 SM40-100-R0 - - DS-A00T DS-T156B
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade
SERIES 1DD1H (12 MM INSERT)
58
HIGH FEED END MILL WITH 8 INDEXES
Cutter Number
D1
Nom.
Dia.
D3
Min.
Dia.
D2
Adaption
L4
Projection
Length
L2
Extension
Length
L3
Overall
Length
Number
of Inserts
Ramp
Angle
.050
Wiper
Flat
L3
L2
L4
.064 Max DOC
D3
D1 D2
1DD1H-1502586R01 1.500 0.773 1.500“ Weldon 2.50 3.75 6.00 3 0
Features & Benefits:
• Value with 8 strong cutting edges (4 + 4).
• Near net shape flexibility with .065” axial depth of cut capability.
• Chip evacuation via coolant through the tool capability.
• Deck surface finish capability with .050” integrated wiper flat.
• Clearance angles for corkscrew and ramping applications.
• Utilizes the same insert used on our 45º lead (series DN6H) and
15º lead (series DL6H) cutters.
.050
Wiper Flat L2
D4
T1
.064 Max DOC
D3
D1
Cutter Number
D1
Eff.
Dia.
D3
Minor
Dia.
T1
Adaption
D4
Neck
Diameter
L2
Exten.
Length
Number
of Inserts
Ramp
Angle
Wrench
Size
HIGH FEED MODULAR END MILL WITH 8 INDEXES (TOPON STYLE)
SERIES 1DD1H (12 MM INSERT)
1DD1H-15015X8R01 1.500 0.773 M16 1.13 1.50 3 0 22mm
= P = M = K = N = S = H
59
SERIES DD6H (12 MM INSERT)
.500
.05
15°
.250
.05
.05
SNGU1205ENN
Part Number Application
Grades
IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030
SNGU1205ENN Multi-Purpose
HIGH FEED FACE MILL WITH 8 INDEXES
Cutter Number
D1
Effective
Diameter
D3
Inner
Diameter
D2
Bore Dia.
H
Height
Number
Effective
Inserts
K
Keyway
Ramp
Angle
D2
K
H
D3
D1
.050
Wiper Flat
.065
DD6H-20R01 2.000 1.250 0.750 1.650 5 0.312 1.14
DD6H-25R01 2.500 1.750 0.750 1.650 6 0.312 .86
DD6H-30R01 3.000 2.250 1.000 1.750 7 0.375 .66
DD6H-40R01 4.000 3.250 1.500 2.375 9 0.625 .45
DD6H-50R01 5.000 4.250 1.500 2.375 11 0.625 .34
DD6H-60R01 6.000 5.250 1.500 2.375 13 0.625 .27
HARDWARE
1DD1H-1502586R01 SM40-100-R0 - - DS-A00T DS-T156B -
1DD1H-15015X8R01 SM40-100-R0 - - DS-A00T DS-T156B 622MM
DD6H-20R01 SM40-100-R0 SD-06-47 SD-06-A6 DS-A00T DS-T156B -
DD6H-25R01 SM40-100-R0 SD-06-47 SD-06-A6 DS-A00T DS-T156B -
DD6H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B -
DD6H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B -
DD6H-50R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B -
DD6H-60R01 SM40-100-R0 - - DS-A00T DS-T156B -
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade Wrench (Optional)

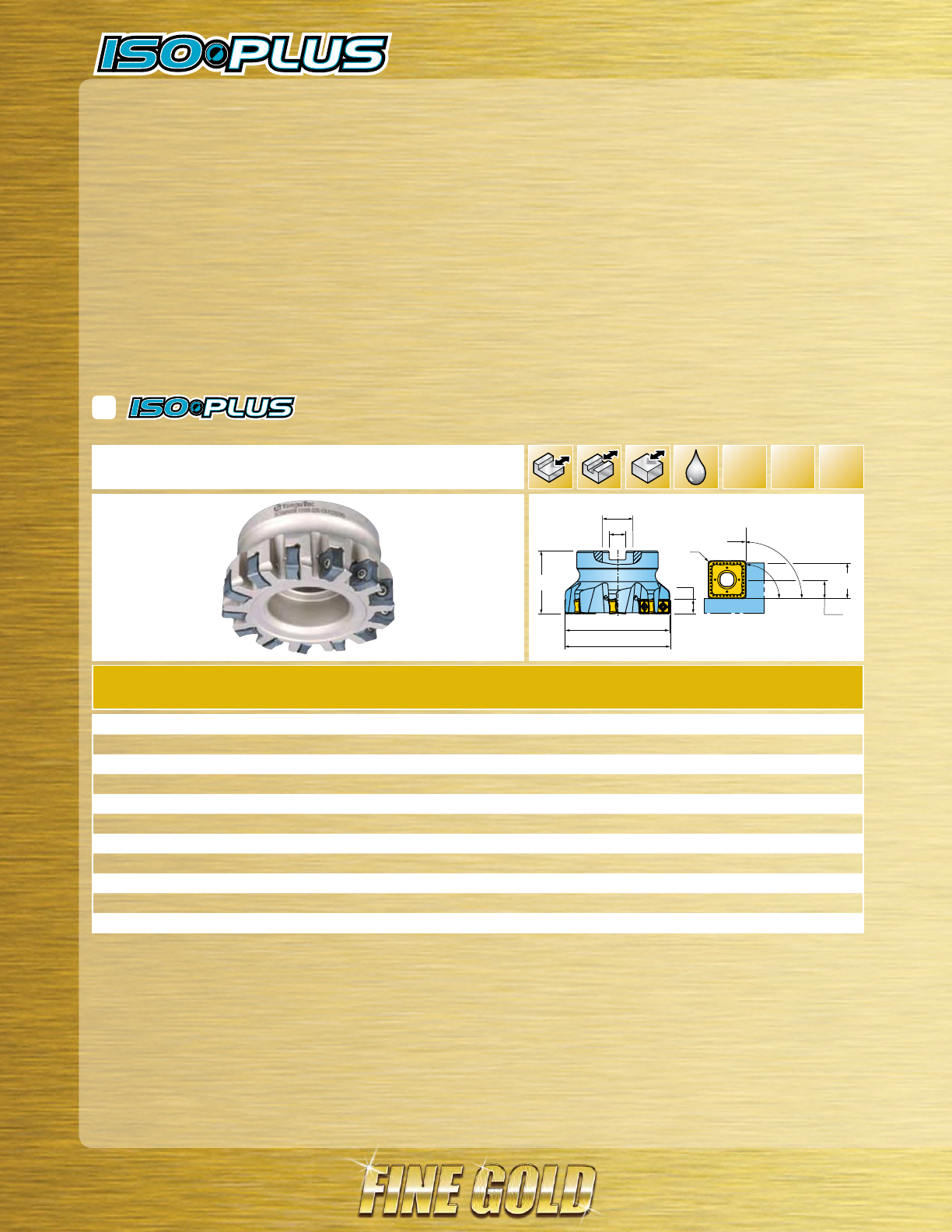

D2
K
H
D1
D3
.47
RD3
90°
87°
.47
.24
DJ6T-20R01 2.000 2.025 5 1.570 0.750 0.312 NA Yes
DJ6T-25R01 2.500 2.523 6 1.570 0.750 0.312 NA Yes
DJ5T-30R01 3.000 3.021 8 1.750 1.000 0.375 NA Yes
DJ6T-30R01 3.000 3.021 7 1.750 1.000 0.375 NA Yes
DJ5T-40R01 4.000 4.020 10 2.375 1.500 0.625 NA Yes
DJ6T-40R01 4.000 4.020 8 2.375 1.500 0.625 NA Yes
DJ6T-50R01 5.000 5.018 10 2.375 1.500 0.625 NA Yes
DJ5T-60R01 6.000 6.016 17 2.375 1.500 0.625 NA No
DJ6T-60R01 6.000 6.018 12 2.375 1.500 0.625 NA No
DJ5T-80R01 8.000 8.016 21 2.375 2.500 1.000 4.00 No
DJ6T-80R01 8.000 8.016 14 2.375 2.500 1.000 4.00 No
Cutter Number
D1
Nominal
Diameter
D3
Overall
Dia.
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Bolt
Circle Coolant
90° ROUGH & FINISH FACE MILL WITH 8 INDEXES
SERIES DJ6T, DJ5T (13 MM INSERT)
60
Features & Benefits:
• 90° face mill for roughing and finishing
• 85° face mill for roughing with less face contact
• 8 positive cutting edges
• .50” max depth of cut, .24” depth of cut along shoulder
• Medium and high density cutter offerings
• 2.00 – 8.00” diameter range
= P = M = K = N = S = H
61
HARDWARE
DJ6T-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DJ6T-25R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
DJ5T-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DJ6T-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
DJ5T-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DJ6T-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DJ6T-50R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
DJ5T-60R01 SM40-100-R0 - - DS-A00T DS-T156B
DJ6T-60R01 SM40-100-R0 - - DS-A00T DS-T156B
DJ5T-80R01 SM40-100-R0 - - DS-A00T DS-T156B
DJ6T-80R01 SM40-100-R0 - - DS-A00T DS-T156B
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade
R.015.47 .26
SNGU130604N
R.031
.47 .26
SNGU130608N SNGU130608TN
.273
.532 R.047
SNGU130612N
.47 .26
R.062
SNGU130616N SNGU1306ANTN
Part Number Application
Grades
IN2505 IN2510 IN2530 IN2540 IN4015 IN4030 IN71N
SNGU130604N Positive Geometry - 0.015“ R
SNGU130608N Positive Geometry - 0.031“ R
SNGU130608TN Positive Geometry - 0.031" R w/.047" Wiper
SNGU130612N Positive Geometry - 0.047" R
SNGU130616N Positive Geometry - 0.062" R
SNGU1306ANTN Positive Geometry - 0.031" Chamfer 45 deg. Wiper
Insert screw torque for carbide: 30-35 in lbs. Use Torque wrench DT-35-02 with DS-T15B1 bit.
Insert screw torque for SiNi: 28 in lbs. Use Torque wrench DT-28-01 with DS-T15B1 bit.
= P = M = K = N = S = H
62
SERIES DL6T, DL5T (13MM INSERT)
R.015.47 .26
SNGU130604N
R.031
.47 .26
SNGU130608N SNGU130612N
.47 .26
R.062
SNGU130616N
Part Number Application
Grades
IN2505 IN2510 IN2530 IN2540 IN4015 IN71N
SNGU130604N Positive Geometry - 0.015“ R
SNGU130608N Positive Geometry - 0.031“ R
SNGU130612N Positive Geometry - 0.047“ R
SNGU130616N Positive Geometry - 0.062“ R
85° ROUGHING FACE MILL WITH 8 INDEXES
Cutter Number
D1
Nominal
Diameter
D3
Overall
Diameter
Number
of Inserts
D2
Bore Dia.
H
Height
K
Keyway
D2
K
H
D1
D3
.49
R82°
85° .49
.21
DL6T-20R01 2.000 2.11 5 0.750 1.570 0.312
DL6T-25R01 2.500 2.61 6 0.750 1.570 0.312
DL5T-30R01 3.000 3.11 8 1.000 1.750 0.375
DL5T-40R01 4.000 4.11 10 1.500 2.375 0.625
DL5T-50R01 5.000 5.11 13 1.500 2.375 0.625
DL5T-60R01 6.000 6.11 17 1.500 2.375 0.625
HARDWARE
DL6T-20R01 SM40-100-R0 SD-06-46 DS-A00T DS-T156B
DL6T-25R01 SM40-100-R0 SD-06-46 DS-A00T DS-T156B
DL5T-30R01 SM40-100-R0 SD-08-46 DS-A00T DS-T156B
DL5T-40R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B
DL5T-50R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B
DL5T-60R01 SM40-100-R0 - DS-A00T DS-T156B
Screw Retention Bolt Driver Handle Screw Driver Blade
.273
.532 R.047
Insert screw torque for carbide: 30-35 in lbs. Use Torque wrench DT-35-02 with DS-T15B1 bit.
Insert screw torque for SiNi: 28 in lbs. Use Torque wrench DT-28-01 with DS-T15B1 bit.
63
= P = M = K = N = S = H

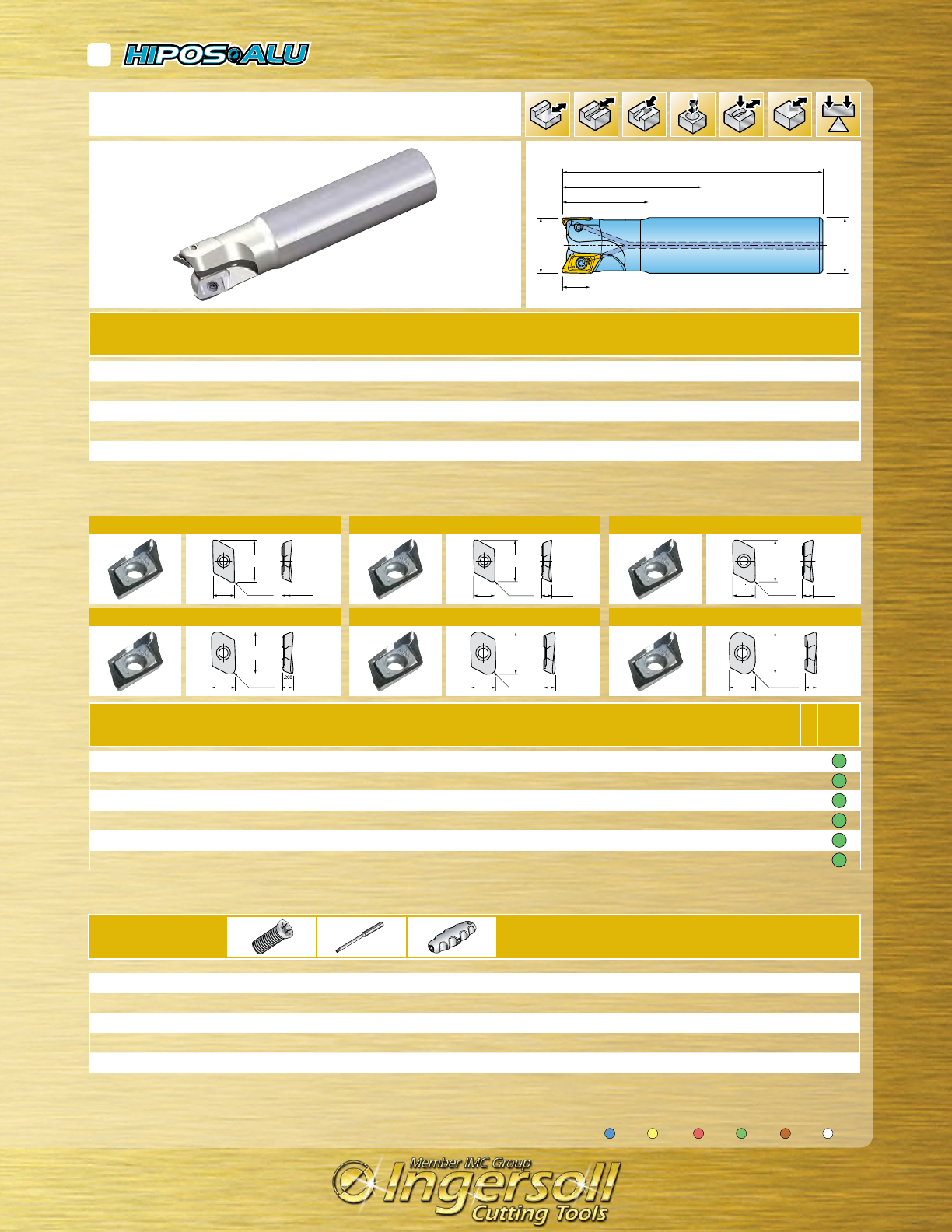

SERIES 1AX2K
R.015 .220.452
.881
XEVT160504FR-P
R.031
.881
.220.452
XEVT160508FR-P
R.062 .216.448
.838
XEVT160516FR-P
R.093 .208.448
.795
XEVT160524FR-P
R.125.448
.755
.204
XEVT160532FR-P
R5mm
.720
.200.444
XEVT160550FR-P
Part Number Application
Grades
IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015" R
XEVT160508FR-P Ground/Polished for Aluminum - 0.031" R
XEVT160516FR-P Ground/Polished for Aluminum - 0.062" R
XEVT160524FR-P Ground/Polished for Aluminum - 0.093" R
XEVT160532FR-P Ground/Polished for Aluminum - 0.125" R
XEVT160550FR-P Ground/Polished for Aluminum - 0.197" R
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
Cutter Number
D1
Nominal
Diameter
L1
Extension
Length
L2
Overall
Length
D2
Shank
Size/Style
Number
of
Inserts
Ramp
Angle
L1
D1
L4
L2
L3
D2
1AX2K-10022S1R01 1.000 2.20 6.00 1.000“ Cylind. 2 22.0
1AX2K-10032S1R01 1.000 3.20 8.00 1.000“ Cylind. 2 22.0
1AX2K-12022S9R01 1.250 2.20 6.00 1.250“ Cylind. 3 16.5
1AX2K-12032S9R01 1.250 3.20 8.00 1.250“ Cylind. 3 16.5
1AX2K-15032S9R01 1.500 3.20 10.00 1.250“ Cylind. 3 11.5
Ramp angle measured using insert XEVT160508FR-P.
HARDWARE
1AX2K-10022S1R01 SM40-079-20 DS-T156B DS-A00T
1AX2K-10032S1R01 SM40-079-20 DS-T156B DS-A00T
1AX2K-12022S9R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-12032S9R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-15032S9R01 SM40-093-20 DS-T156B DS-A00T
Insert Screw Screw Driver Blade Driver Handle
64
L1
D1
L4
L2
L3
HSK
1AX2K-10032H5R01 1.000 3.25 2.00 4.50 HSK-63-A 2 22.0
1AX2K-10032HQR01 1.000 3.25 2.00 4.50 HSK-80-F 2 22.0
1AX2K-10042H5R01 1.000 4.25 3.00 5.50 HSK-63-A 2 22.0
1AX2K-10042HQR01 1.000 4.25 3.00 5.50 HSK-80-F 2 22.0
1AX2K-12032H5R01 1.250 3.25 2.00 4.50 HSK-63-A 3 16.5
1AX2K-12042H5R01 1.250 4.25 3.00 5.50 HSK-63-A 2 16.5
1AX2K-15042H5R01 1.500 4.25 3.00 5.50 HSK-63-A 3 11.5
1AX2K-20042H5R01 2.000 4.25 3.00 5.50 HSK-63-A 4 9.5
1AX2K-20042HQR01 2.000 4.25 3.00 5.50 HSK-80-F 3 9.5
1AX2K-20052H5R01 2.000 5.25 4.00 6.50 HSK-63-A 3 9.5
1AX2K-20052HQR01 2.000 5.25 4.00 6.50 HSK-80-F 3 9.5
Cutter Number
D1
Nom. Dia.
L1
Extension
Length
L2
Projection
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Inserts
Ramp
Angle
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
SERIES 1AX2K (HSK ADAPTION)
65
= P = M = K = N = S = H

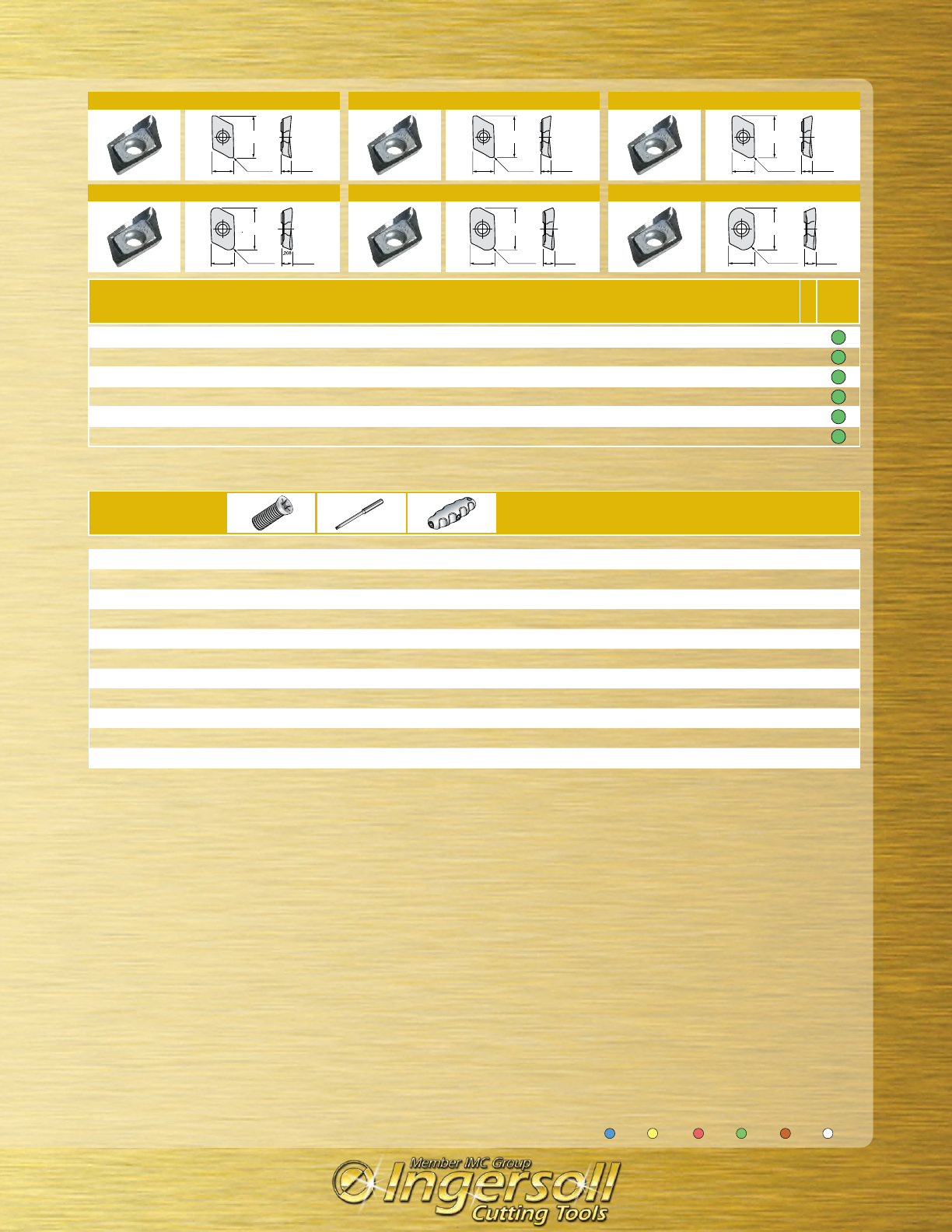

HARDWARE
1AX2K-10032H5R01 SM40-079-20 DS-T156B DS-A00T
1AX2K-10032HQR01 SM40-079-20 DS-T156B DS-A00T
1AX2K-10042H5R01 SM40-079-20 DS-T156B DS-A00T
1AX2K-10042HQR01 SM40-079-20 DS-T156B DS-A00T
1AX2K-12032H5R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-12042H5R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-15042H5R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-20042H5R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-20042HQR01 SM40-093-20 DS-T156B DS-A00T
1AX2K-20052H5R02 SM40-093-20 DS-T156B DS-A00T
1AX2K-20052HQR01 SM40-093-20 DS-T156B DS-A00T
Insert Screw Screw Driver Blade Driver Handle
R.015 .220.452
.881
XEVT160504FR-P
R.031
.881
.220.452
XEVT160508FR-P
R.062 .216.448
.838
XEVT160516FR-P
R.093 .208.448
.795
XEVT160524FR-P
R.125.448
.755
.204
XEVT160532FR-P
R5mm
.720
.200.444
XEVT160550FR-P
Part Number Application
Grades
IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT160508FR-P Ground/Polished for Aluminum- 0.031“ R
XEVT160516FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT160524FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT160532FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT160550FR-P Ground/Polished for Aluminum - 0.197“ R
66
= P = M = K = N = S = H

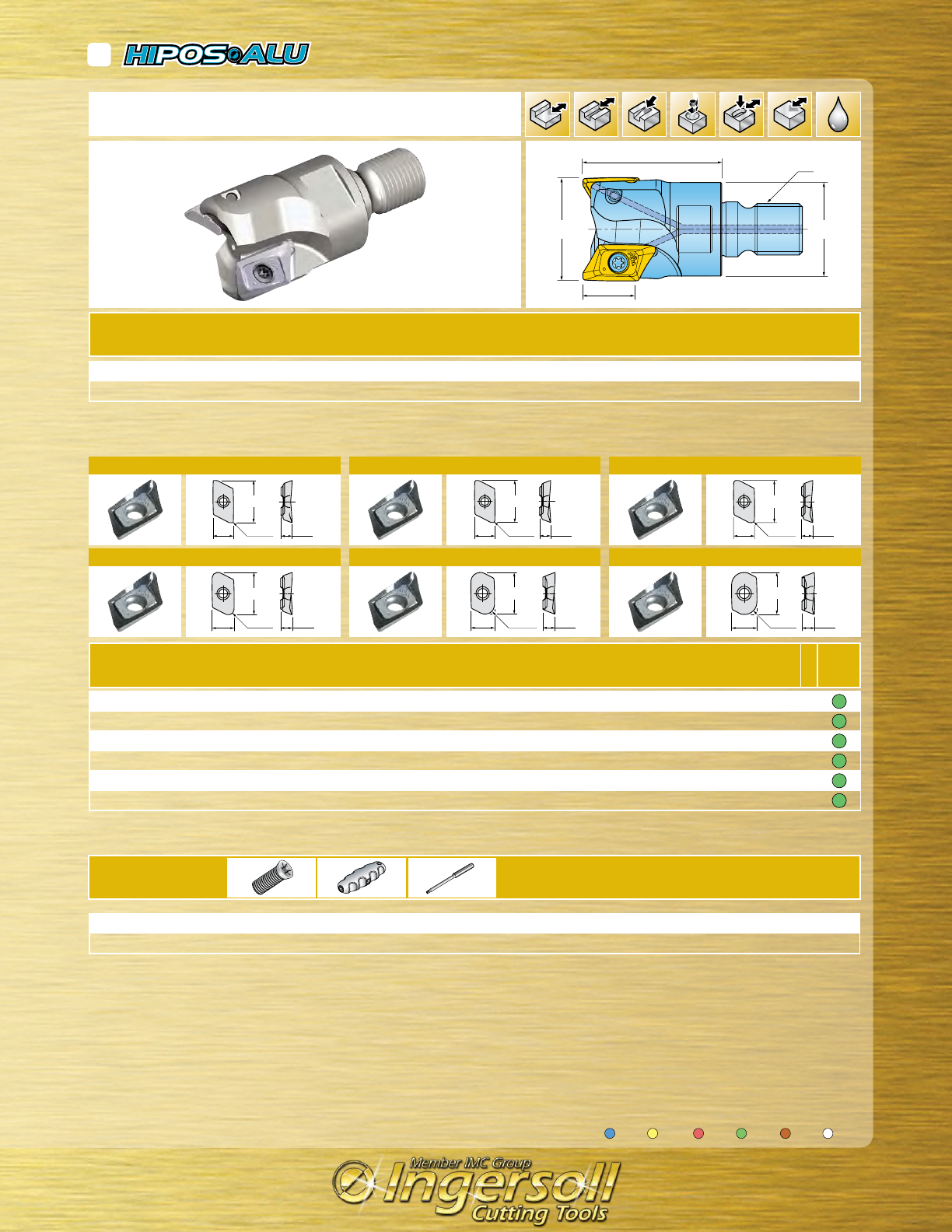

SERIES 1AX2K (TOP-ON STYLE)
R.015 .220.452
.881
XEVT160504FR-P
R.031
.881
.220.452
XEVT160508FR-P
R.062 .216.448
.838
XEVT160516FR-P
R.093 .208.448
.795
XEVT160524FR-P
R.125.448
.755
.204
XEVT160532FR-P
R5mm
.720
.200.444
XEVT160550FR-P
Part Number Application
Grades
IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT160508FR-P Ground/Polished for Aluminum - 0.031“ R
XEVT160516FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT160524FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT160532FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT160550FR-P Ground/Polished for Aluminum - 0.197“ R
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
Cutter Number
D1
Nom. Dia.
T1
Adaption
L1
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
D1
L2 T1
D1
L1
1AX2K-10017X7R01 1.000 M12 1.75 2 17mm 22.0
1AX2K-12017X8R01 1.250 M16 1.75 2 22mm 16.5
1AX2K-12017X8R02 1.250 M16 1.75 3 22mm 16.5
1AX2K-15017X8R01 1.500 M16 1.75 2 22mm 11.5
1AX2K-15017X8R02 1.500 M16 1.75 3 22mm 11.5
HARDWARE
1AX2K-10017X7R01 SM40-079-20 DS-T156B DS-A00T
1AX2K-12017X8R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-12017X8R02 SM40-093-20 DS-T156B DS-A00T
1AX2K-15017X8R01 SM40-093-20 DS-T156B DS-A00T
1AX2K-15017X8R02 SM40-093-20 DS-T156B DS-A00T
Insert Screw Screw Driver Blade Driver Handle
67
= P = M = K = N = S = H
SERIES AX2K
R.015 .220.452
.881
XEVT160504FR-P
R.031
.881
.220.452
XEVT160508FR-P
R.062 .216.448
.838
XEVT160516FR-P
R.093 .208.448
.795
XEVT160524FR-P
R.125.448
.755
.204
XEVT160532FR-P
R5mm
.720
.200.444
XEVT160550FR-P
Part Number Application
Grades
IN10K
XEVT160504FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT160508FR-P Ground/Polished for Aluminum - 0.031“ R
XEVT160516FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT160524FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT160532FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT160550FR-P Ground/Polished for Aluminum - 0.197“ R
90° HIGH SPEED ROUTER FACE MILL (ALUMINUM)L
Cutter Number
D1
Nominal
Diameter
D2
Bore Size
K
Keyway
H
Height
#Flutes
Effective
Ramp
Angle
D2
K
H
D1
L1
AX2K-20R01 2.000 0.750 0.312 2.000 2 9.5
AX2K-20R02 2.000 0.750 0.312 2.000 3 9.5
AX2K-25R01 2.500 1.000 0.375 2.000 3 7.0
AX2K-30R01 3.000 1.000 0.375 2.000 3 5.0
AX2K-30R02 3.000 1.000 0.375 2.000 5 5.0
AX2K-40R01 4.000 1.500 0.625 2.375 5 3.5
AX2K-60R01 6.000 1.500 0.625 2.375 7 1.5
HARDWARE
AX2K-20R01 SM40-093-20 SD-06-47 DS-A00T DS-T156B
AX2K-20R02 SM40-093-20 SD-06-46 DS-A00T DS-T156B
AX2K-25R01 SM40-093-20 SD-08-47 DS-A00T DS-T156B
AX2K-30R01 SM40-093-20 SD-08-47 DS-A00T DS-T156B
AX2K-30R02 SM40-093-20 SD-08-47 DS-A00T DS-T156B
AX2K-40R01 SM40-093-20 SD-12-82 DS-A00T DS-T156B
AX2K-60R01 SM40-093-20 SD-12-82 DS-A00T DS-T156B
Insert Screw Retention Bolt Driver Handle Screw Driver Blade
68
= P = M = K = N = S = H

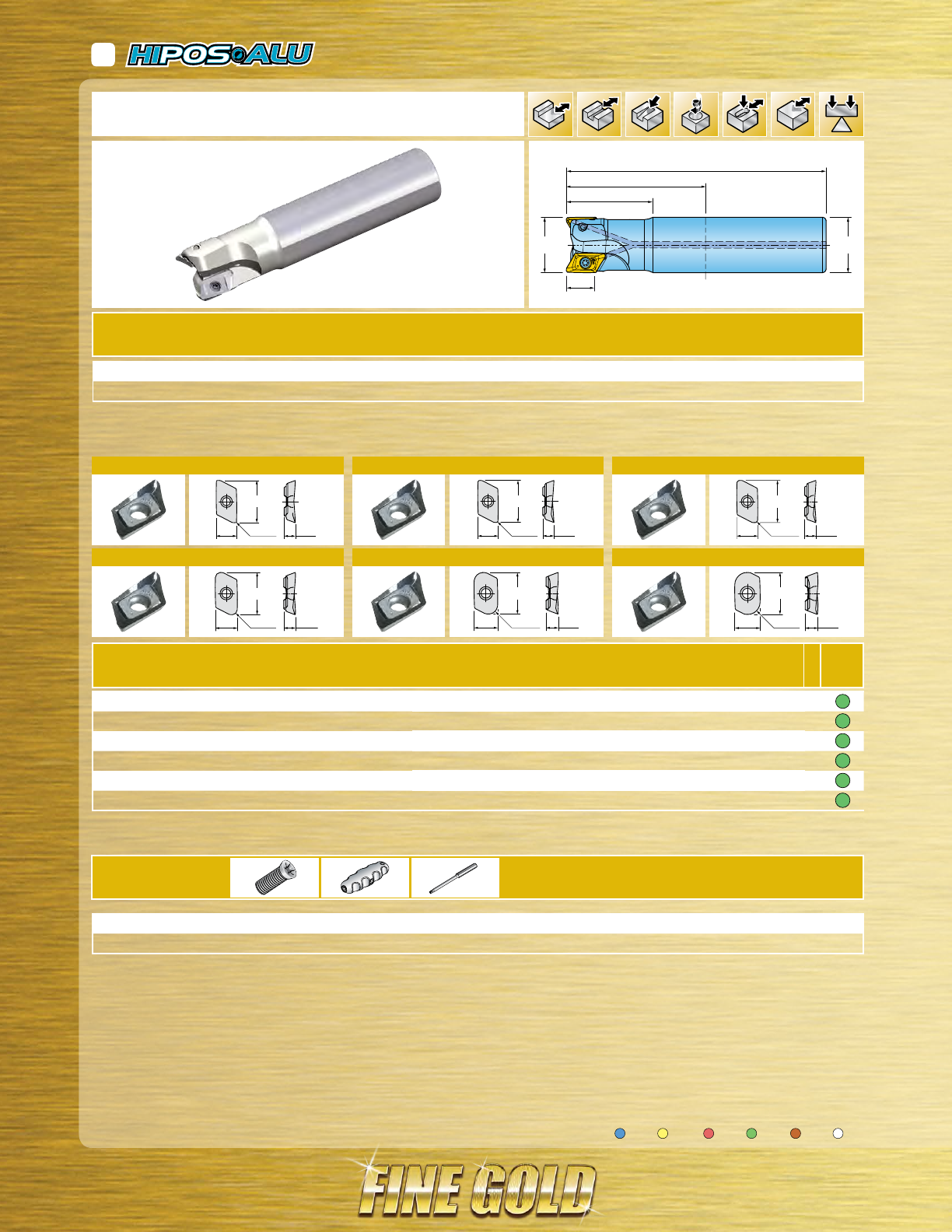

SERIES 1AX2Q
R.020
1.106
.291.539
XEVT220605FR-P
R.031 .291.539
1.106
XEVT220608FR-P
R.062 .287
1.074
.535
XEVT220616FR-P
R.125 .283.535
1.023
XEVT220632FR-P
.937
.275
R5mm
.535
XEVT220650FR-P
R.250 .271
.535
.881
XEVT220664FR-P
Part Number Application
Grades
IN10K
XEVT220605FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT220608FR-P Ground/Polished for Aluminum - 0.031“ R
XEVT220616FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT220632FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT220650FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT220664FR-P Ground/Polished for Aluminum - 0.197“ R
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
Cutter Number
D1
Nominal
Diameter
L1
Extension
Length
L2
Overall
Length
D2
Shank
Size/Style
Number
of
Inserts
Ramp
Angle
L3
L2
L4
D1
L1
D2
1AX2Q-12020S9R01 1.250 2.00 8.00 1.250“ Cylind. 2 16.9
1AX2Q-15020S9R01 1.500 2.00 10.00 1.250“ Cylind. 3 12.4
Ramp angle measured using insert XEVT220608FR-P.
HARDWARE
1AX2Q-12020S9R01 SM50-096-20 DS-A00T DS-T206B
1AX2Q-15020S9R01 SM50-113-20 DS-A00T DS-T206B
Screw Driver Handle Screw Driver Blade
69
= P = M = K = N = S = H
SERIES 1AX2Q (TOP-ON STYLE)
R.020
1.106
.291.539
XEVT220605FR-P
R.031 .291.539
1.106
XEVT220608FR-P
R.062 .287
1.074
.535
XEVT220616FR-P
R.125 .283.535
1.023
XEVT220632FR-P
.937
.275
R5mm
.535
XEVT220650FR-P
R.250 .271
.535
.881
XEVT220664FR-P
Part Number Application
Grades
IN10K
XEVT220605FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT220608FR-P Ground/Polished for Aluminum - 0.031“ R
XEVT220616FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT220632FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT220650FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT220664FR-P Ground/Polished for Aluminum - 0.197“ R
90° HIGH-SPEED ROUTER END MILL (ALUMINUM)
Cutter Number
D1
Nom. Dia.
T1
Adaption
L1
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
L1
D1
L2 T1
D4
1AX2Q-12017X8R01 1.250 M16 1.75 2 22mm 16.9
1AX2Q-15018X8R01 1.500 M16 1.88 2 22mm 12.4
HARDWARE
1AX2Q-12017X8R01 SM50-096-20 DS-A00T DS-T206B
1AX2Q-15018X8R01 SM50-113-20 DS-A00T DS-T206B
Screw Driver Handle Screw Driver Blade
70
D2
K
H
D1
L1
AX2Q-20R01 2.000 0.750 0.312 2.000 2 8.1
AX2Q-20R02 2.000 0.750 0.312 2.000 3 8.1
AX2Q-25R01 2.500 1.000 0.375 2.000 3 6.0
AX2Q-25R02 2.500 1.000 0.375 2.000 4 6.0
AX2Q-30R01 3.000 1.000 0.375 2.000 3 5.0
AX2Q-30R02 3.000 1.000 0.375 2.000 5 5.0
AX2Q-40R01 4.000 1.500 0.625 2.375 3 3.0
AX2Q-40R02 4.000 1.500 0.625 2.375 5 3.0
AX2Q-60R01 6.000 1.500 0.625 2.375 3 2.0
AX2Q-60R02 6.000 1.500 0.625 2.375 7 2.0
Cutter Number
D1
Nominal
Diameter
D2
Bore Size
K
Keyway
H
Height
#Flutes
Effective
Ramp
Angle
90° HIGH SPEED ROUTER FACE MILL (ALUMINUM)L
SERIES AX2Q
71
= P = M = K = N = S = H
HARDWARE
AX2Q-20R01 SM50-113-20 SD-06-47 DS-A00T DS-T206B
AX2Q-20R02 SM50-113-20 SD-06-47 DS-A00T DS-T206B
AX2Q-25R01 SM50-113-20 SD-08-47 DS-A00T DS-T206B
AX2Q-25R02 SM50-113-20 SD-08-47 DS-A00T DS-T206B
AX2Q-30R01 SM50-113-20 SD-08-47 DS-A00T DS-T206B
AX2Q-30R02 SM50-113-20 SD-08-47 DS-A00T DS-T206B
AX2Q-40R01 SM50-113-20 SD-12-82 DS-A00T DS-T206B
AX2Q-40R02 SM50-113-20 SD-12-82 DS-A00T DS-T206B
AX2Q-60R01 SM50-113-20 SD-12-82 DS-A00T DS-T206B
AX2Q-60R02 SM50-113-20 SD-12-82 DS-A00T DS-T206B
Screw Retention Bolt Driver Handle Screw Driver Blade
R.020
1.106
.291.539
XEVT220605FR-P
R.031 .291.539
1.106
XEVT220608FR-P
R.062 .287
1.074
.535
XEVT220616FR-P
R.125 .283.535
1.023
XEVT220632FR-P
.937
.275
R5mm
.535
XEVT220650FR-P
R.250 .271
.535
.881
XEVT220664FR-P
Part Number Application
Grades
IN10K
XEVT220605FR-P Ground/Polished for Aluminum - 0.015“ R
XEVT220608FR-P Ground/Polished for Aluminum - 0.031“ R
XEVT220616FR-P Ground/Polished for Aluminum - 0.062“ R
XEVT220632FR-P Ground/Polished for Aluminum - 0.093“ R
XEVT220650FR-P Ground/Polished for Aluminum - 0.125“ R
XEVT220664FR-P Ground/Polished for Aluminum - 0.197“ R
72
Features & Benefits:
• Suitable for high feed machining
• Low cutting forces
• Insert available with single tip, double tip and full edge
• High number of cutting edges for high productivity
= P = M = K = N = S = H

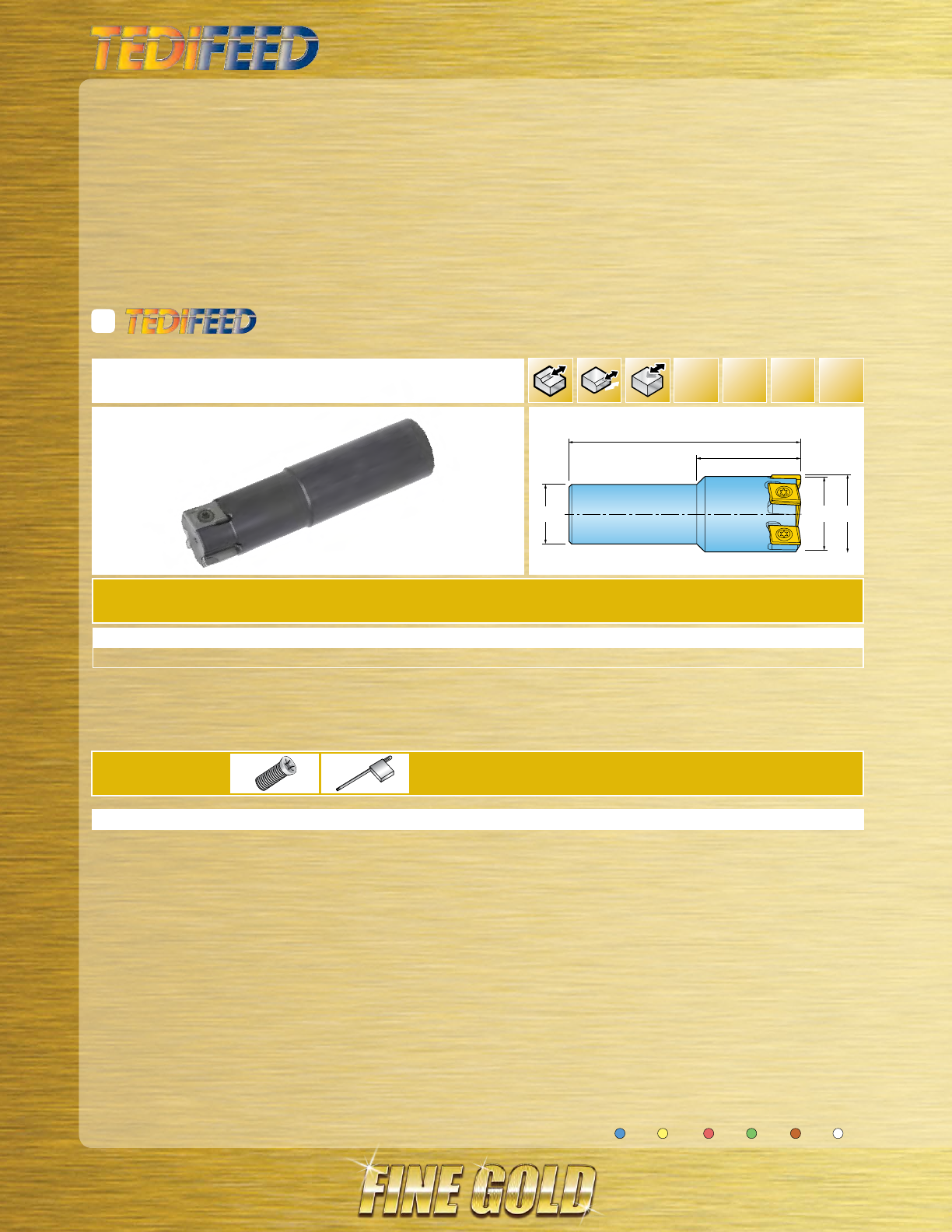

SERIES TRGSC
PCD/CBN END MILL
Cutter Number
D1
Nominal
Diameter
D3
Minor
Diameter“
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Inserts
D2
L3
L2
D3 D1
TRGSC25D025N03-00 25.000 23.600 50.00 100.00 25mm Cylind. 3
TRGSC01I010N03-00 1.000 0.995 2.00 4.00 1.000“ Cylind. 3
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
HARDWARE
VX040024A TEDIFEED KIT
Insert Screw Wrench Kit
73
= P = M = K = N = S = H

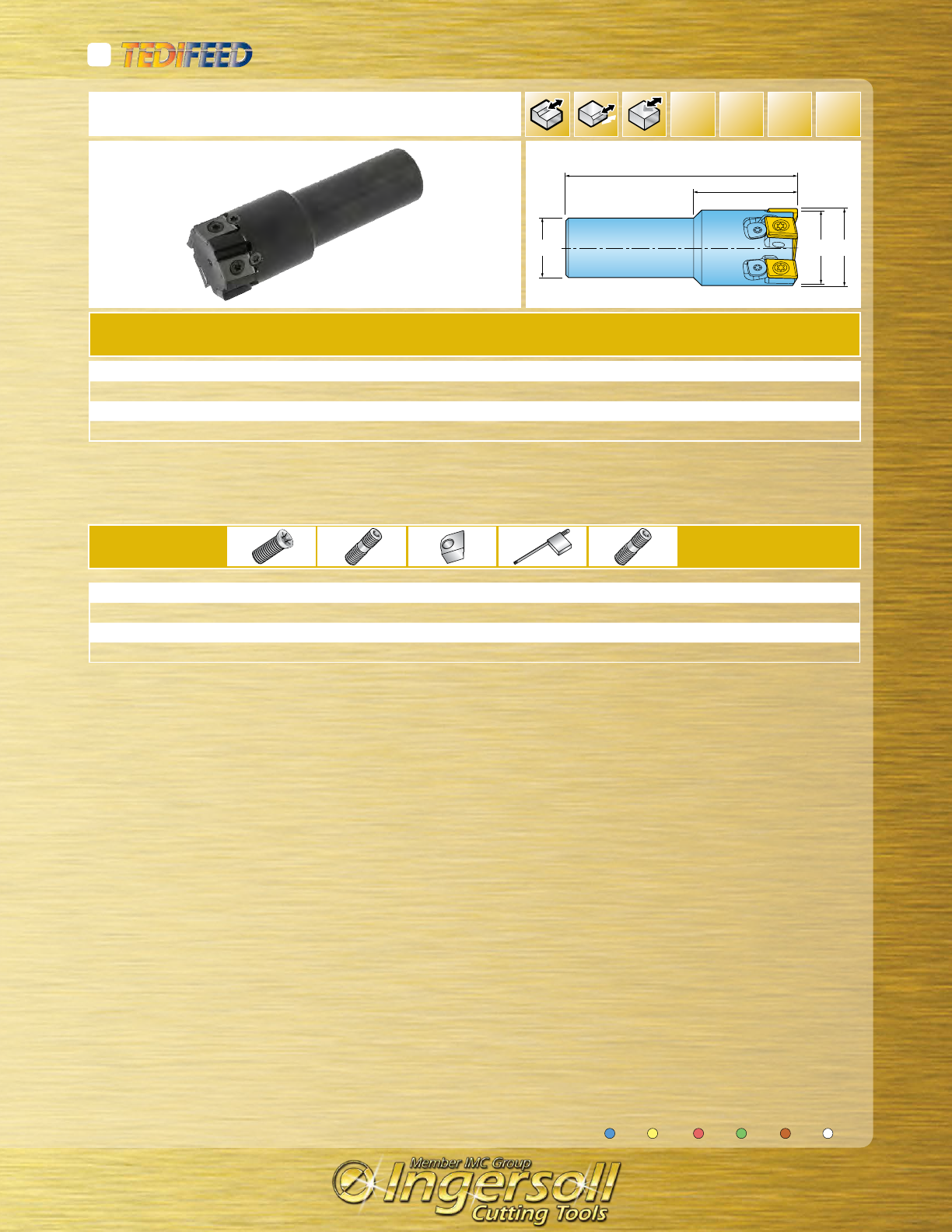

SERIES TRGSC-AXIAL ADJ
PCD/CBN END MILL WITH AXIAL ADJUSTMENT
Cutter Number
D1
Nominal
Diameter
D3
Minor
Diameter“
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
Number
of Inserts
D2
L3
L2
D3 D1
TRGSC25D025-03-00 25.000 23.600 50.00 100.00 25mm Cylind. 3
TRGSC01I010-03-00 1.000 0.995 2.00 4.00 1.000“ Cylind. 3
TRGSC01I012-05-00 1.250 1.200 2.00 4.00 1.000“ Cylind. 5
TRGSC25D032-05-00 32.000 30.600 50.00 100.00 25mm Cylind. 5
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
HARDWARE
TRGSC25D025-03-00 VX040024A VX040028A RSFTC1011 TEDIFEED KIT -
TRGSC01I010-03-00 VX040024A VX040028A RSFTC1011 TEDIFEED KIT -
TRGSC01I012-05-00 VX040024A - RSFTC1009 TEDIFEED KIT RSRGR5M40
TRGSC25D032-05-00 VX040024A - RSFTC1009 TEDIFEED KIT -
Insert Screw Wedge Screw Adjusting Wedge Wrench Kit Wedge screw
74
H
D2 D3 D1
K
TRGSM16D040-06-00 40mm 38.600 55mm 6 NA NA
TRGSM16I015-06-00 1.500 1.450 2.165 6 NA NA
TRGSM22D050-08-00 50mm 48.600 55mm 8 22mm 10.4mm
TRGSM22D063-10-00 63mm 61.600 55mm 10 22mm 10.4mm
TRGSM22I020-08-00 2.000 1.950 2.165 8 22mm 10.4mm
TRGSM22I025-10-00 2.500 2.450 2.165 10 22mm 10.4mm
TRGSM27D080-12-00 80mm 78.600 58mm 12 27mm 12.4mm
TRGSM27I030-12-00 3.000 2.950 2.283 12 27mm 12.4mm
TRGSM32D100-16-00 100mm 98.600 58mm 16 32mm 14.0mm
TRGSM32I040-16-00 4.000 3.950 2.283 16 32mm 14.0mm
TRGSM40D125-20-00 125mm 123.600 58mm 20 40mm 16.0mm
TRGSM40D160-26-00 160mm 158.600 58mm 26 40mm 16.0mm
TRGSM40I050-20-00 5.000 4.950 2.283 20 40mm 16.0mm
TRGSM40I060-24-00 6.000 5.950 2.283 24 40mm 16.0mm
TRGSM60D200-30-00 200mm 198.600 63mm 30 60mm 25.7mm
TRGSM60D250-34-00 250mm 248.600 63mm 34 60mm 25.7mm
TRGSM60I080-30-00 8.000 7.950 2.480 30 60mm 25.7mm
TRGSM60I100-34-00 10.000 9.950 2.480 34 60mm 25.7mm
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
Cutter Number
D1
Nominal
Diameter
D3
Minor
Diameter*
H
Height
Number
of Inserts
D2
Bore Dia.
K
Keyway

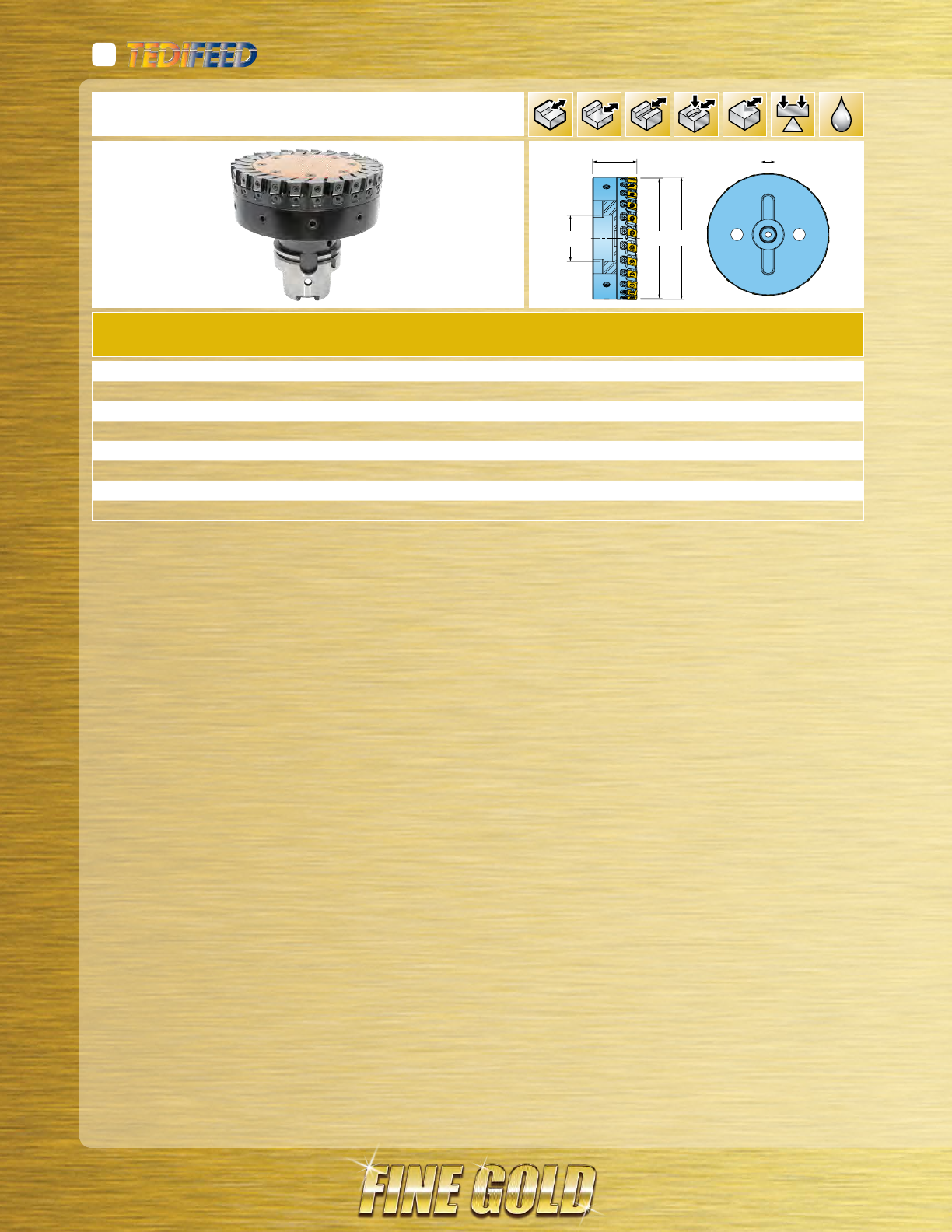

PCD/CBN FACE MILL WITH AXIAL ADJUSTMENT
SERIES TRGSM
75
HARDWARE
FaceplateWrench KitWedge screwClamping BoltAdjusting WedgeInsert Screw
TRGSM16D040-06-00 VX040024A RSFTC1009 VC004762I06035 RSRGR5M40 TEDIFEED KIT -
TRGSM16I015-06-00 VX040024A RSFTC1009 VC004762I06035 RSRGR5M40 TEDIFEED KIT -
TRGSM22D050-08-00 VX040024A RSFTC1008 RSFTS4050M RSRGR5M40 TEDIFEED KIT -
TRGSM22D063-10-00 VX040024A RSFTC1008 VC004762I10035F RSRGR5M40 TEDIFEED KIT RSFTS4063M
TRGSM22I020-08-00 VX040024A RSFTC1008 RSFTS4050M RSRGR5M40 TEDIFEED KIT -
TRGSM22I025-10-00 VX040024A RSFTC1008 VC004762I10035F RSRGR5M40 TEDIFEED KIT RSFTS4063M
TRGSM27D080-12-00 VX040024A RSFTC1008 VC00TEDI12040F RSRGR5M40 TEDIFEED KIT RSFTS4080
TRGSM27I030-12-00 VX040024A RSFTC1008 VC00TEDI12040F RSRGR5M40 TEDIFEED KIT RSFTS4080
TRGSM32D100-16-00 VX040024A RSFTC1008 VC00TANG16040F RSRGR5M40 TEDIFEED KIT RSFTS4100
TRGSM32I040-16-00 VX040024A RSFTC1008 VC00TANG16040F RSRGR5M40 TEDIFEED KIT RSFTS4100
TRGSM40D125-20-00 VX040024A RSFTC1008 VC00TEDI20040F RSRGR5M40 TEDIFEED KIT RSFTS4125
TRGSM40D160-26-00 VX040024A RSFTC1008 VC004762I12050 RSRGR5M40 TEDIFEED KIT RSFTS4160
TRGSM40I050-20-00 VX040024A RSFTC1008 VC00TEDI20040F RSRGR5M40 TEDIFEED KIT RSFTS4125
TRGSM40I060-24-00 VX040024A RSFTC1008 VC004762I12050 RSRGR5M40 TEDIFEED KIT RSFTS4160
TRGSM60D200-30-00 VX040024A RSFTC1008 VC004762I16060 RSRGR5M40 TEDIFEED KIT RSFTS4200
TRGSM60D250-34-00 VX040024A RSFTC1008 VC004762I16060 RSRGR5M40 TEDIFEED KIT RSFTS4250
TRGSM60I080-30-00 VX040024A RSFTC1008 VC004762I16060 RSRGR5M40 TEDIFEED KIT RSFTS4200
TRGSM60I100-34-00 VX040024A RSFTC1008 VC004762I16060 RSRGR5M40 TEDIFEED KIT RSFTS4250
76
H
D2 D3 D1
K
TRGSM40D125-18-02 125mm 123.600 58mm 20 40mm 16.0mm
TRGSM40D160-24-02 160mm 158.600 58mm 26 40mm 16.0mm
TRGSM40I050-18-02 5.000 4.950 2.283 20 40mm 16.0mm
TRGSM40I060-22-02 6.000 5.950 2.283 24 40mm 16.0mm
TRGSM60D200-28-02 200mm 198.600 63mm 30 60mm 25.7mm
TRGSM60D250-32-02 250mm 248.600 63mm 34 60mm 25.7mm
TRGSM60I080-28-02 8.000 7.950 2.480 24 60mm 25.7mm
TRGSM60I100-32-02 10.000 9.950 2.480 34 60mm 25.7mm
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
Cutter Number
D1
Nominal
Diameter
D3
Minor
Diameter*
H
Height
Number
of Inserts
D2
Bore Dia.
K
Keyway
PCD/CBN FACE MILL WITH AXIAL ADJUSTMENT
SERIES TRGSM-WIPER
77
HARDWARE
Wrench KitWedge screwClamping BoltFaceplateAdjusting wedgeInsert Screw
TRGSM40D125-18-02 VX040024A RSFTC1008 RSFTS4125W VC00TEDI20040F RSRGR5M40 TEDIFEED KIT
TRGSM40D160-24-02 VX040024A RSFTC1008 RSFTS4160W VC004762I12050 RSRGR5M40 TEDIFEED KIT
TRGSM40I050-18-02 VX040024A RSFTC1008 RSFTS4125W VC00TEDI20040F RSRGR5M40 TEDIFEED KIT
TRGSM40I060-22-02 VX040024A RSFTC1008 RSFTS4160W VC004762I12050 RSRGR5M40 TEDIFEED KIT
TRGSM60D200-28-02 VX040024A RSFTC1008 RSFTS4200W VC004762I16060 RSRGR5M40 TEDIFEED KIT
TRGSM60D250-32-02 VX040024A RSFTC1008 - VC004762I16060 RSRGR5M40 TEDIFEED KIT
TRGSM60I080-28-02 VX040024A RSFTC1008 RSFTS4200W VC004762I16060 RSRGR5M40 TEDIFEED KIT
TRGSM60I100-32-02 VX040024A RSFTC1008 - VC004762I16060 RSRGR5M40 TEDIFEED KIT
78
= P = M = K = N = S = H

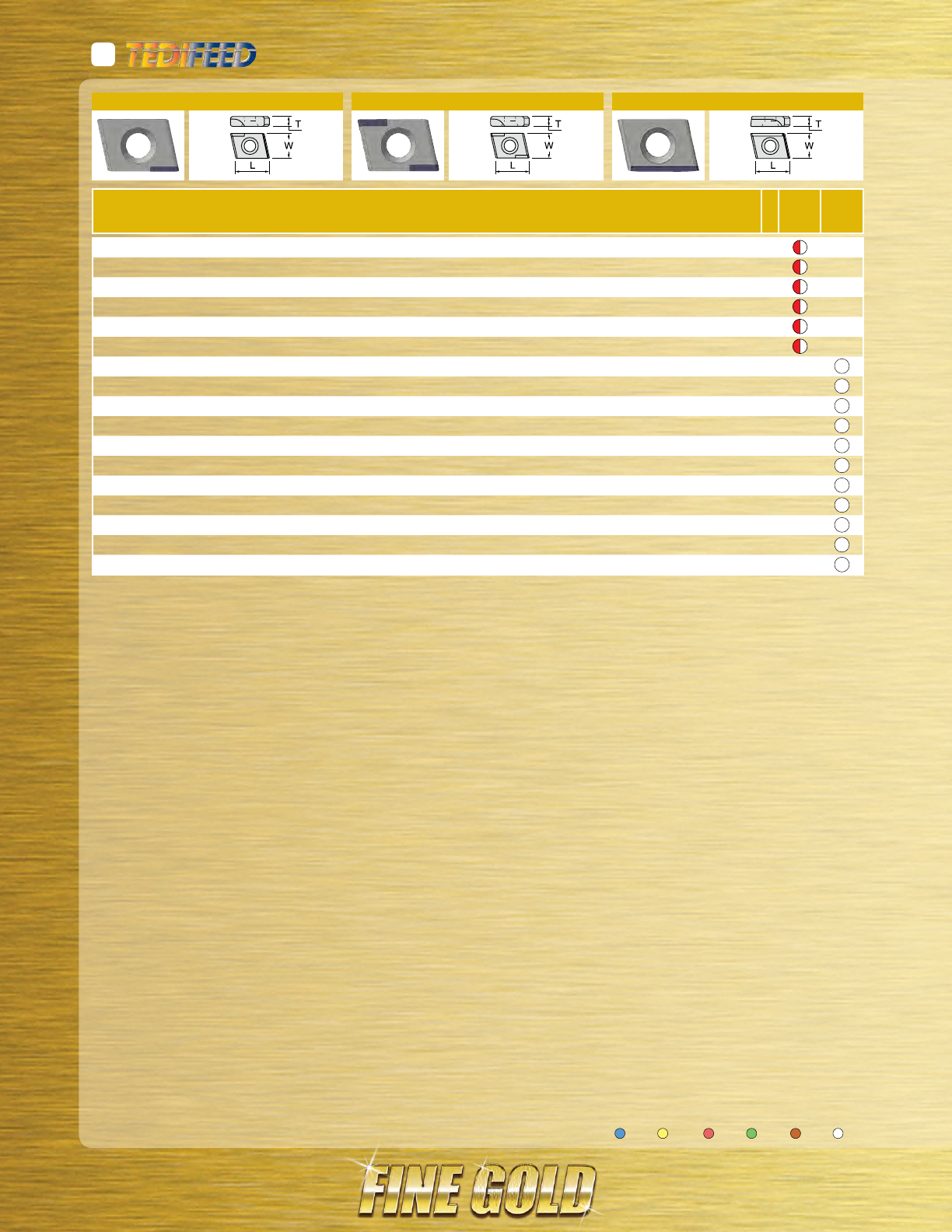

SERIES TRG INSERTS FOR CUTTERS ≤50MM IN DIAMETER
TRG_M Single-Tip TRG_B Double--Tip TRG_T Full Edge
TRGCP05BRCH 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGCP05MRCH 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGCP91BRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCP91MRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCP92BRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCP92MRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP01BRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP01MRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP01TRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP02BRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP02MRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPP05BRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPP05MRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPP05TRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPP07BRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPP07MRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPP07TRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
Part
Number
L
Length
W
Width
T
Thickness
C
Corner Hand
Grades
CH PB
79

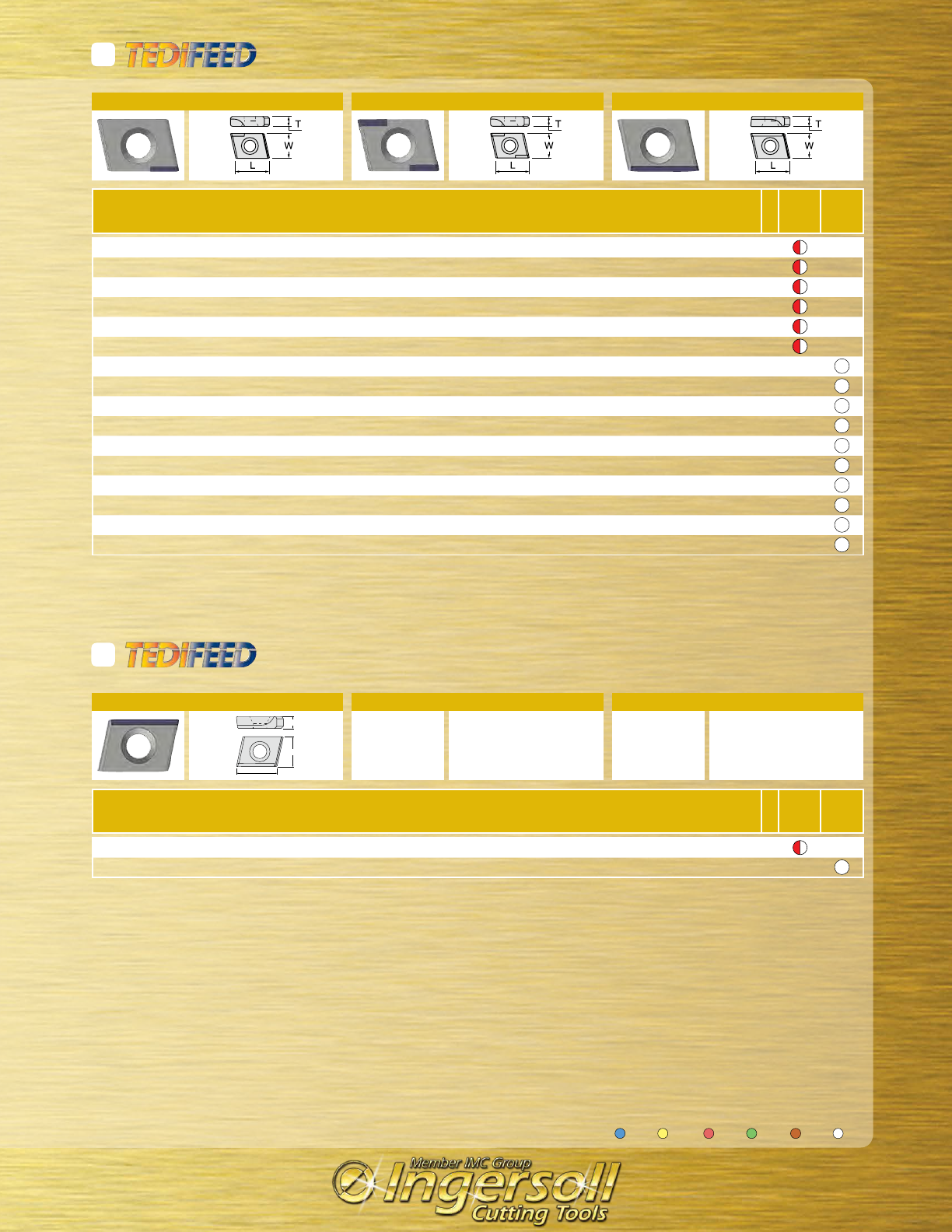

SERIES TRG INSERTS FOR CUTTERS >50MM IN DIAMETER
TRG_M Single-Tip TRG_B Double--Tip TRG_T Full Edge
TRGCA05BRCH 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGCA05MRCH 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGCA91BRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCA91MRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCA92BRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGCA92MRCH 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPA01BRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPA01MRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPA02BRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPA02MRPB 0.500 0.375 0.125 0.016 Cham 45deg w/Wip Right
TRGPA05BRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPA05MRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPA05TRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPA07BRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPA07MRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
TRGPA07TRPB 0.500 0.375 0.125 0.016 R w/.047“ Wiper Right
Part
Number
L
Length
W
Width
T
Thickness
C
Corner Hand
Grades
CH PB
= P = M = K = N = S = H
SERIES TRG WIPER INSERTS
W
L
T
TRGPR Wiper Insert
TRGCR92TRCH 0.500 0.375 0.125 0.016 Crowned Wiper Right
TRGPR02TRPB 0.500 0.375 0.125 0.016 Crowned Wiper Right
Part
Number
L
Length
W
Width
T
Thickness
C
Corner Hand
Grades
CH PB
= P = M = K = N = S = H
80
SERIES 15M1P (13MM INSERT)
HARDWARE
SM40-100-R0 DS-A00T DS-T156B
Screw Driver Handle Screw Driver Blade
.200
R.060
.510
.510
.512 R.060 .200
.512
SDES130515N
SDMS130515R-PH
.200
R.060
.510
.510
.512
.512 .200
SDES130515N-001
SDMS1305MDR-PH
.512
.512
.200
.505
.505
.200
SDES1305MDR
SDXS1305MPR-MR
.512
.512
.200
SDES1305MDR-001
.505
.505
.200
SDES1305MPR
.505
.505
.200
SDES1305MPR-001
SDES130515N Flat Top - Landed Edge - 0.060“ R
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R
SDES1305MDR Flat Top - Landed Edge - 0.033“ Wiper
SDES1305MDR-001 Flat Top - Keen Edge - 0.033“ Wiper
SDES1305MPR High Feed, Heavy-Duty
SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge
SDMS130515R-PH Positive Geometry - 0.060“ R
SDMS1305MDR-PH Positive Geometry - 0.033“ Wiper
SDXS1305MPR-MR Utility Insert - Heavy Duty
Part Number Application
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
HIGH FEED END MILL WITH 4 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D1 D3
L1
L2
L3
D2
15M1P-1202781R01 1.250 2.75 5.00 2.19 1.250“ Weldon 2 4.7
15M1P-12047S9R01 1.250 4.75 8.00 4.18 1.250“ Cylind. 2 4.7
15M1P-1502786R01 1.500 2.75 5.41 2.18 1.500“ Weldon 3 2.8
15M1P-1505386R01 1.500 5.34 8.00 4.77 1.500“ Weldon 3 2.8
Refer to the new product announcement for detailed programming information. Note, when using inserts SDES1305MPR, SDES1305MPR-001 or SDES1305MPR-MR
the nominal diameter is reduced .030 inch.
= P = M = K = N = S = H
81

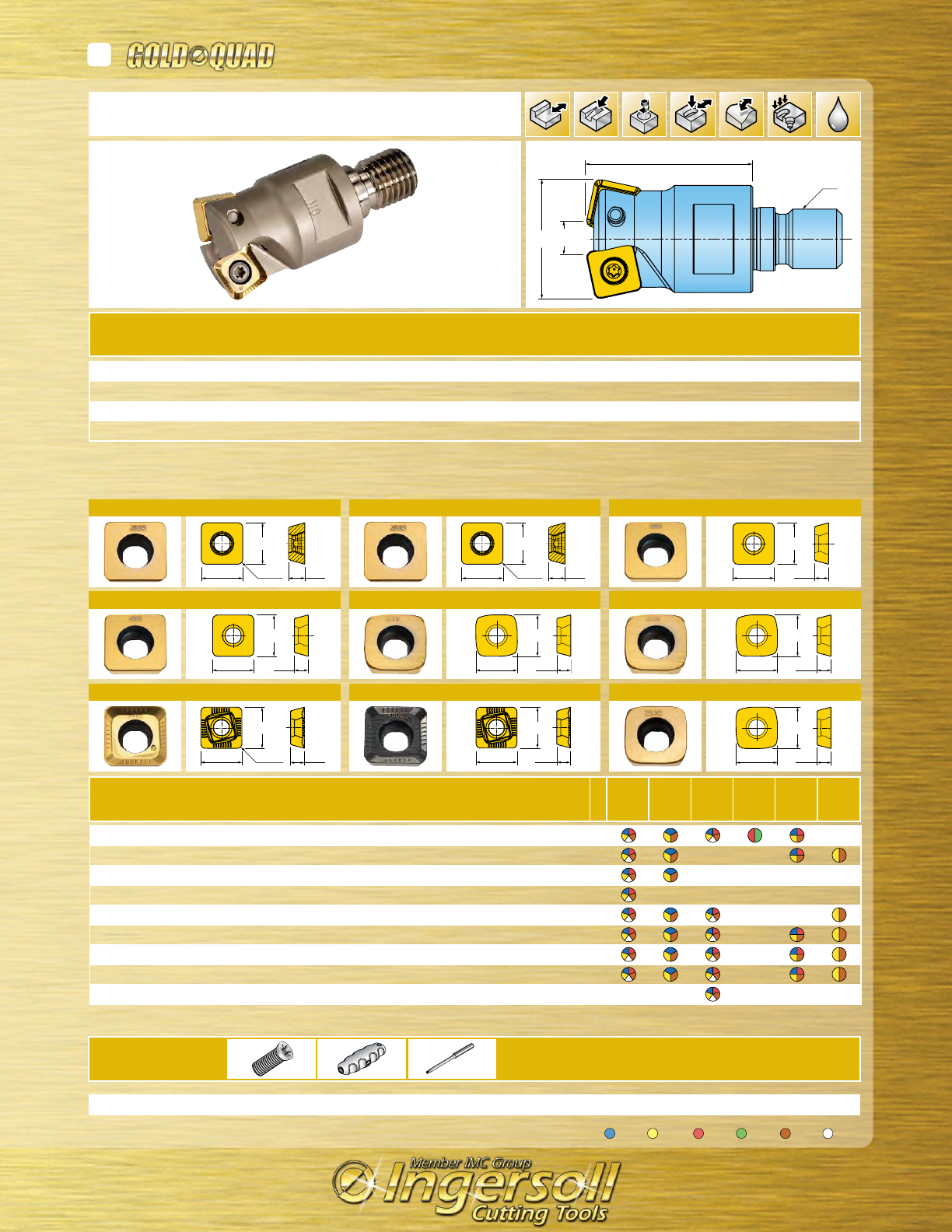

SERIES 15M1P (13MM INSERT)
HARDWARE
SM40-100-R0 DS-A00T DS-T156B
Screw Driver Handle Screw Driver Blade
.200
R.060
.510
.510
.512 R.060 .200
.512
SDES130515N
SDMS130515R-PH
.200
R.060
.510
.510
.512
.512 .200
SDES130515N-001
SDMS1305MDR-PH
.512
.512
.200
.505
.505
.200
SDES1305MDR
SDXS1305MPR-MR
.512
.512
.200
SDES1305MDR-001
.505
.505
.200
SDES1305MPR
.505
.505
.200
SDES1305MPR-001
SDES130515N Flat Top - Landed Edge - 0.060“ R
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R
SDES1305MDR Flat Top - Landed Edge - 0.033“ Wiper
SDES1305MDR-001 Flat Top - Keen Edge - 0.033“ Wiper
SDES1305MPR High Feed, Heavy-Duty
SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge
SDMS130515R-PH Positive Geometry - 0.060“ R
SDMS1305MDR-PH Positive Geometry - 0.033“ Wiper
SDXS1305MPR-MR Utility Insert - Heavy Duty
Part Number Application
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
HIGH FEED MODULAR END MILL, 4 INDEXES,
INCH & METRIC CUTTER DIAMETERS (TOPON STYLE)
Cutter Number
D1
Nom. Dia.
T1
Adaption
L2
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
L2
T1
D1 D5
15M1P032043X8R00 32mm M16 43mm 2 22mm 5.0
15M1P035043X8R00 35mm M16 43mm 2 22mm 4.0
15M1P040043X8R00 40mm M16 43mm 3 22mm 2.7
15M1P-12017X8R01 1.250 M16 1.75 2 22mm 4.7
Refer to the new product announcement for detailed programming information. Note, when using inserts SDES1305MPR, SDES1305MPR-001 or SDES1305MPR-MR
the nominal diameter is reduced .030 inch.
= P = M = K = N = S = H

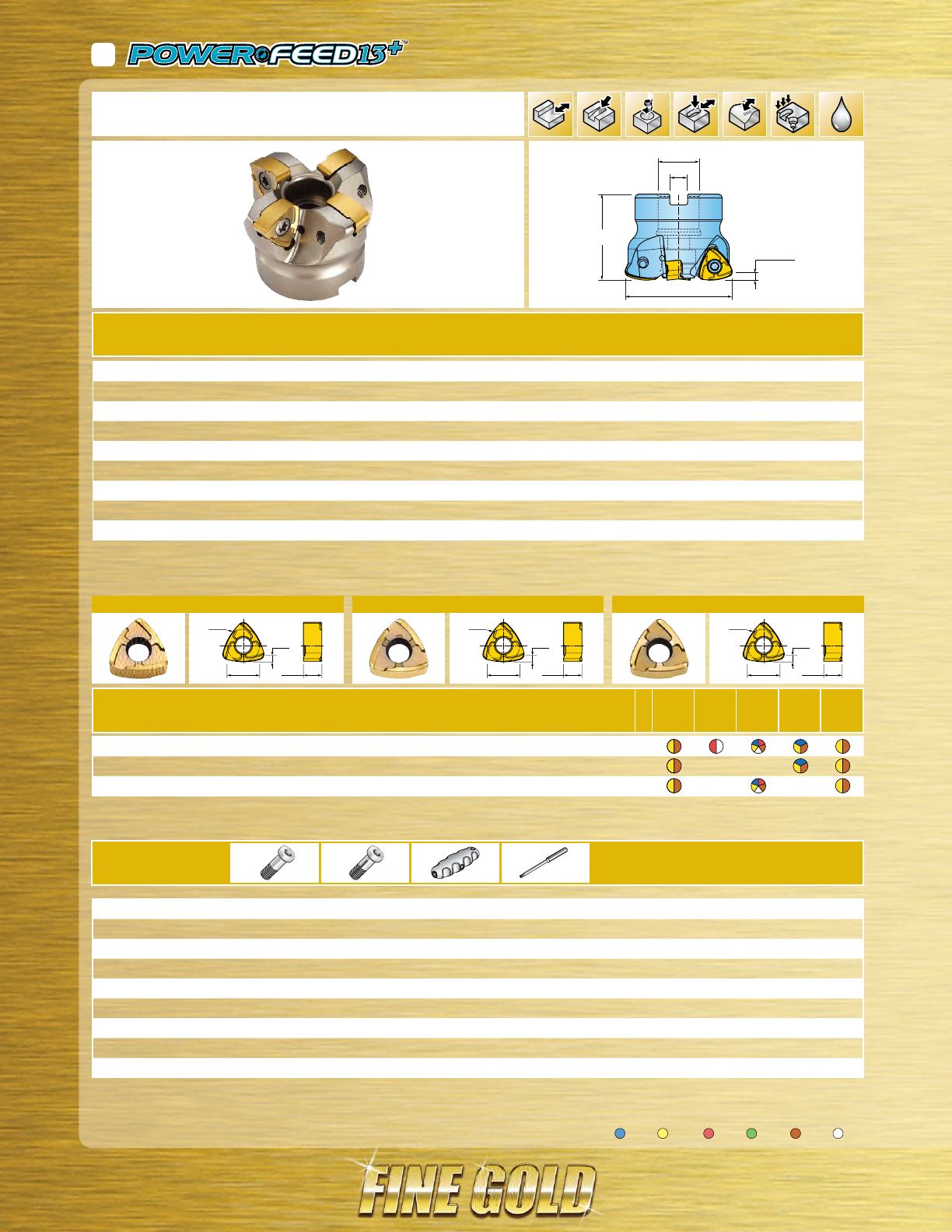

SERIES DG6P - DG5P
82
.866
.078
.275.484
UNEU1307R-M
.866
.078
.275.484
UNEU1307R-MM
.866
.078
.275.484
UNEU1307R-MR
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner)
UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner)
UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner)
HIGH FEED FACE MILL WITH 6 INDEXES
Cutter Number
D1
Effective
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle
D2
K
AP Max
D1
H
DG5P-20R01 2.000 4 1.570 0.750 0.312 .8
DG6P-20R01 2.000 3 1.570 0.750 0.312 .8
DG5P-25R01 2.500 5 1.570 0.750 0.312 .6
DG6P-25R01 2.500 4 1.570 0.750 0.312 .6
DG6P-30R01 3.000 5 1.570 1.000 0.375 .4
DG6P-30R02 3.000 5 1.570 1.250 0.500 .4
DG5P-40R01 4.000 7 2.375 1.500 0.625 .3
DG6P-40R01 4.000 6 2.375 1.500 0.625 .3
DG6P-60R01 6.000 7 2.375 1.500 0.625 .2
Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch
HARDWARE
DG5P-20R01 SD-06-46 SD-06-89 DS-A00T DS-T206B
DG6P-20R01 SD-06-46 SD-06-89 DS-A00T DS-T206B
DG5P-25R01 SD-06-46 SD-06-89 DS-A00T DS-T206B
DG6P-25R01 SD-06-46 SD-06-89 DS-A00T DS-T206B
DG6P-30R01 SD-08-46 SD-08-92 DS-A00T DS-T206B
DG6P-30R02 SD-10-47 SD-08-92 DS-A00T DS-T206B
DG5P-40R01 SD-12-82 SD-12-99 DS-A00T DS-T206B
DG6P-40R01 SD-12-82 SD-12-99 DS-A00T DS-T206B
DG6P-60R01 SD-12-82 SD-12-99 DS-A00T DS-T206B
Retention Bolt Coolant Bolt Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES 1DG1P
83
.866
.078
.275.484
UNEU1307R-M
.866
.078
.275.484
UNEU1307R-MM
.866
.078
.275.484
UNEU1307R-MR
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner)
UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner)
UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner)
HIGH FEED END MILL WITH 6 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D1
L1
L2
D2
AP Max.
1DG1P-1202781R01 1.250 2.75 5.00 0.83 1.250“ Weldon 2 .7
1DG1P-12047S9R01 1.250 4.75 8.00 0.83 1.250“ Cylind. 2 .7
1DG1P-1503386R01 1.500 3.34 6.00 0.83 1.500“ Weldon 3 1.5
1DG1P-15073S5R01 1.500 7.34 10.00 0.83 1.500“ Cylind. 3 1.5
Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch
HARDWARE
DS-A00T DS-T206B
Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES 1DG1P (TOP-ON STYLE)
84
.866
.078
.275.484
UNEU1307R-M
.866
.078
.275.484
UNEU1307R-MM
.866
.078
.275.484
UNEU1307R-MR
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner)
UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner)
UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner)
HIGH FEED MODULAR END MILL WITH 6 INDEXES
Cutter Number
D1
Nom. Dia.
T1
Adaption
L2
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
L1
T1
AP Max
D1
1DG1P-12017X8R01 1.250 M16 1.75 2 22mm .7
1DG1P-15017X8R01 1.500 M16 1.75 3 22mm 1.5
Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch
HARDWARE
DS-A00T DS-T206B
Driver Handle Screw Driver Blade
85
SERIES TG1G,TG2G,TG3G,TG4G
HIGH FEED FACE MILL, 4 INDEXES
Cutter Number
D1
Effective
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Max
Ramp
Angle
D2
K
H
ap
D1
TG1G050R00 50mm 7 50mm 22mm 10.4mm 1
TG2G050R00 50mm 6 50mm 22mm 10.4mm 1
TG3G050R00 50mm 5 50mm 22mm 10.4mm 1
TG1G-20R01 2.000 7 1.970 0.750 0.312 1
TG2G-20R01 2.000 6 1.970 0.750 0.312 1
TG1G052R00 52mm 7 50mm 22mm 10.4mm 1
TG2G052R00 52mm 6 50mm 22mm 10.4mm 1
TG1G063R00 63mm 8 50mm 22mm 10.4mm .8
TG2G063R00 63mm 7 50mm 22mm 10.4mm .8
TG3G063R00 63mm 6 50mm 22mm 10.4mm .8
TG1G-25R01 2.500 8 1.970 0.750 0.312 .75
TG1G-30R01 3.000 9 1.750 1.000 0.375 .6
TG2G-30R01 3.000 7 1.750 1.000 0.375 .6
TG1G080R00 80mm 10 50mm 27mm 12.4mm .75
TG2G080R00 80mm 9 50mm 27mm 12.4mm .75
TG3G080R00 80mm 8 50mm 27mm 12.4mm .75
TG4G080R00 80mm 7 50mm 27mm 12.4mm .75
Refer to the new product announcement for detailed programming information. Note, AP Max. = .060 inch
86
Features & Benefits:
• Available in end mill, modular head and face mill type
• .060” (1.5mm) DOC capability, equals increased productivity
• 4 indexes provide for cost effective machining
• Strong positive insert rake face angles for efficient milling.
• Rigid clamping with unique pocket design & high tensile clamping screw, M3.5
• High-Density cutters
• Through coolant, face mills and end mills
= P = M = K = N = S = H
87

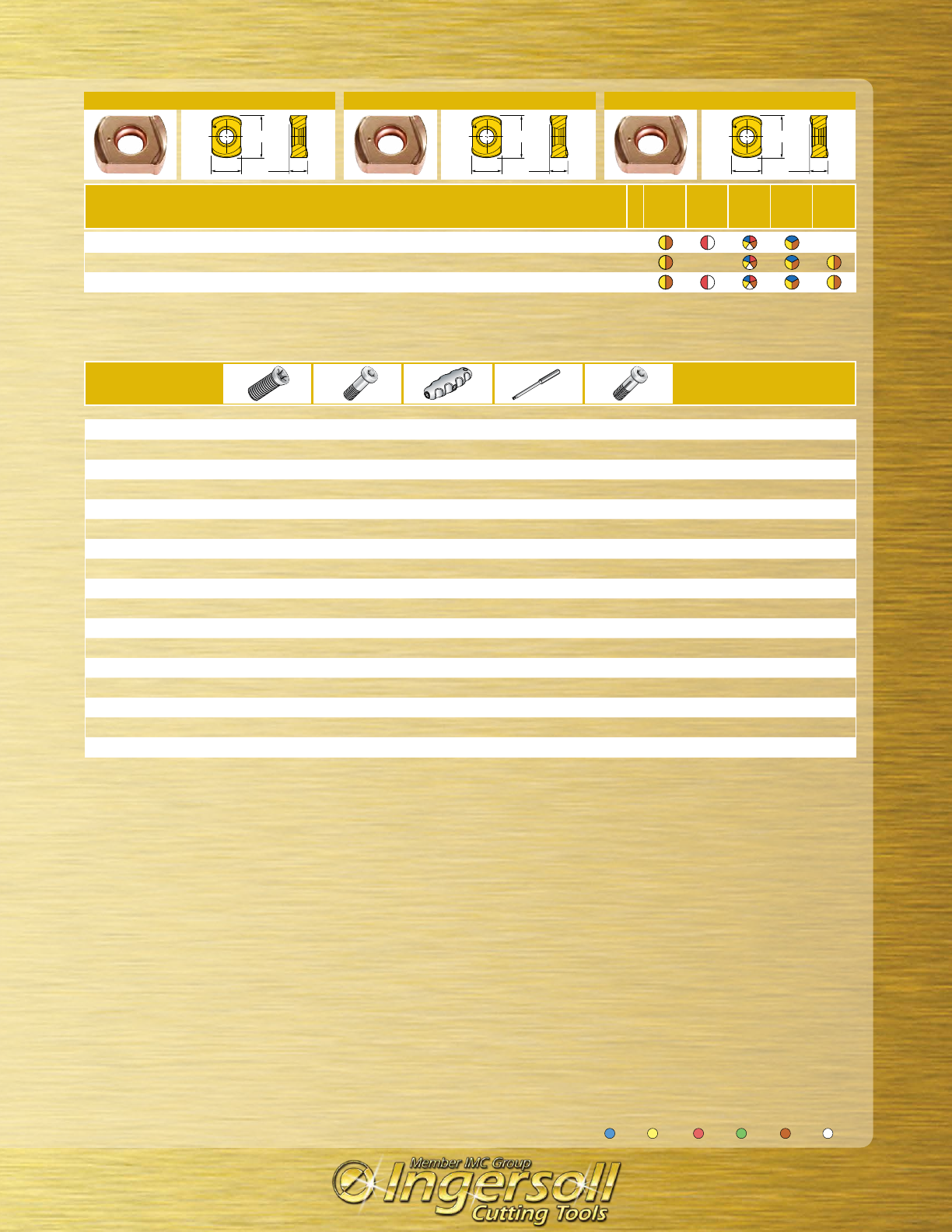

.361
.469
.189
UNLU0904M0TR
.361
.469
.189
UNLU0904M0TR-ML
.361
.469
.189
UNLU0904M0TR-MM
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNLU0904M0TR Multi-Purpose - 0.094“ R
UNLU0904M0TR-ML Precision - 0.094“ R
UNLU0904M0TR-MM Positive Geometry - 0.094“ R
HARDWARE
TG1G050R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG2G050R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG3G050R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG1G-20R01 SM35-088-10 SD-06-48 DS-A00T DS-T106B SD-06-A6
TG2G-20R01 SM35-088-10 SD-06-48 DS-A00T DS-T106B SD-06-A6
TG1G052R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG2G052R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG1G063R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG2G063R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG3G063R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG1G-25R01 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG1G-30R01 SM35-088-10 SD-08-46 DS-A00T DS-T106B -
TG2G-30R01 SM35-088-10 SD-08-46 DS-A00T DS-T106B -
TG1G080R00 - - - - -
TG2G080R00 - - - - -
TG3G080R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
TG4G080R00 SM35-088-10 SD-06-48 DS-A00T DS-T106B -
Screw Retention Bolt Driver Handle Screw Driver Blade Coolant Bolt
= P = M = K = N = S = H

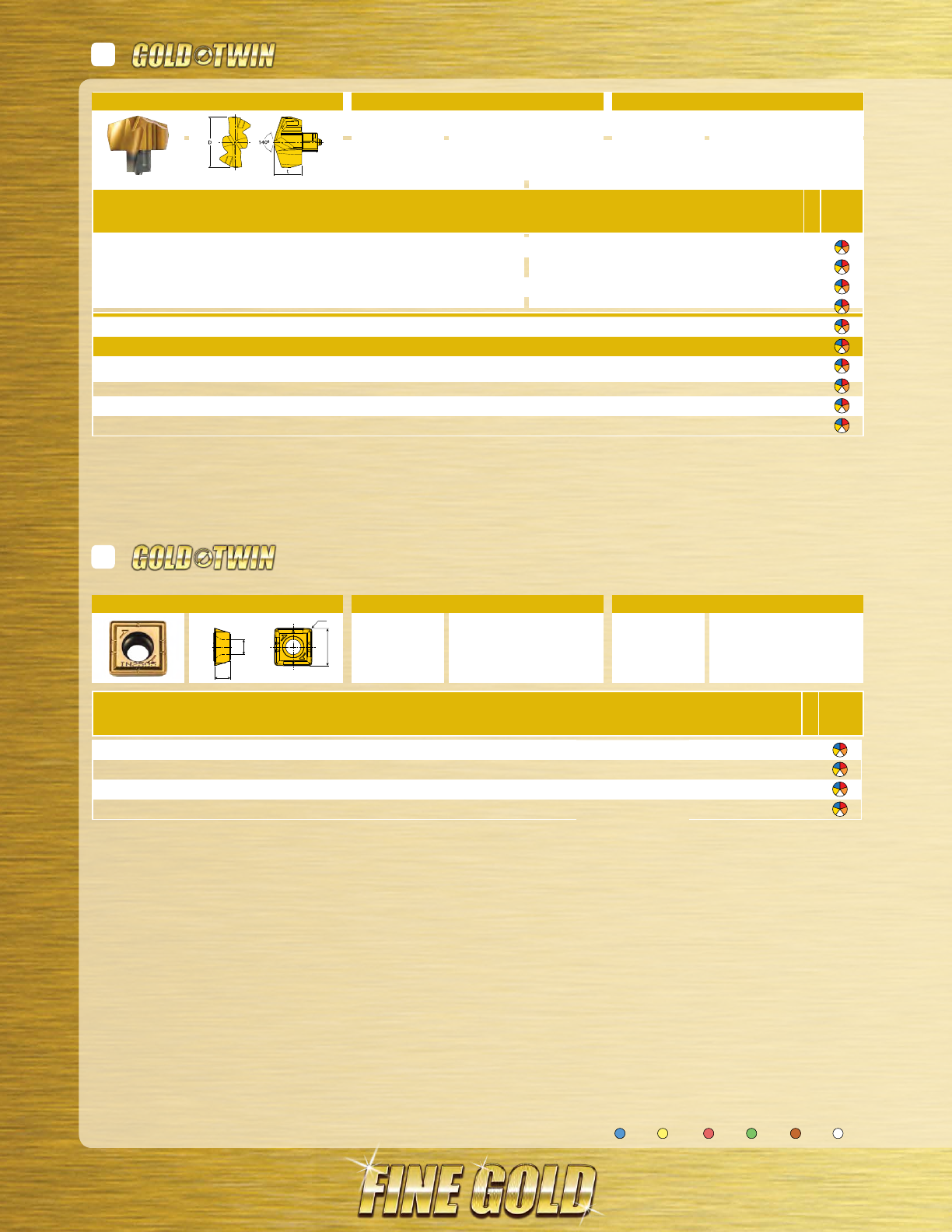

SERIES 1TG1G
88
.361
.469
.189
UNLU0904M0TR
.361
.469
.189
UNLU0904M0TR-ML
.361
.469
.189
UNLU0904M0TR-MM
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNLU0904M0TR Multi-Purpose - 0.094“ R
UNLU0904M0TR-ML Precision - 0.094“ R
UNLU0904M0TR-MM Positive Geometry - 0.094“ R
HIGH FEED END MILL, 4 INDEXES
Cutter Number
D1
Nominal
Diameter
L2
Extension
Length
L3
Overall
Length
L4
Projection
Length
D2
Shank
Size/Style
Number
of
Inserts Ramp Angle
D1
ap
L1
L2
D5
1TG1G025070T5R00 25.000 70.00 150.00 - 25mm Cylind. 2 2
1TG1G025070T5R01 25.000 70.00 150.00 - 25mm Cylind. 3 2
1TG1G025110T5R01 25.000 110.00 200.00 - 25mm Cylind. 3 2
1TG1G-10019S1R03 1.000 1.97 7.00 1.80 1.000“ Cylind. 3 3
1TG1G-10020S1R03 1.000 2.00 10.00 1.83 1.000“ Cylind. 3 3
1TG1G-12027E2R03 1.250 2.75 5.75 2.57 1.250“ Weldon 3 2
1TG1G-12027E2R04 1.250 2.75 5.75 2.57 1.250“ Weldon 4 2
1TG1G-12047E2R03 1.250 4.75 7.75 4.57 1.250“ Weldon 3 2
1TG1G032070U7R00 32.000 100.06 160.00 70.00 32mm Cylind. 3 2
1TG1G032070U7R02 32.000 100.06 160.00 70.00 32mm Cylind. 4 2
1TG1G032120U7R00 32.000 120.00 220.00 - 32mm Cylind. 3 2
1TG1G032120U7R02 32.000 160.00 220.00 120.00 32mm Cylind. 4 2
1TG1G-15016E2R04 1.500 1.69 6.00 1.45 1.250“ Weldon 4 1.5
1TG1G-15016E2R05 1.500 1.69 6.00 1.45 1.250“ Weldon 5 1.5
Refer to the new product announcement for detailed programming information. Note, AP Max. = .060 inch
HARDWARE
SM35-088-10 DS-A00T DS-T106B
Screw Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES 1TG1G (TOP-ON STYLE)
89
.361
.469
.189
UNLU0904M0TR
.361
.469
.189
UNLU0904M0TR-ML
.361
.469
.189
UNLU0904M0TR-MM
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN7035
UNLU0904M0TR Multi-Purpose - 0.094“ R
UNLU0904M0TR-ML Precision - 0.094“ R
UNLU0904M0TR-MM Positive Geometry - 0.094“ R
HIGH FEED MODULAR END MILL, 4 INDEXES
Cutter Number
D1
Nom. Dia.
T1
Adaption
L2
Extension
Length
Number
of Inserts
Wrench
Size
Ramp
Angle
L2
D1
ap
T1
1TG1G025035X7R00 25mm M12 35mm 2 17mm 2
1TG1G025035X7R01 25mm M12 35mm 3 17mm 2
1TG1G032043X8R00 32mm M16 43mm 3 22mm 2
1TG1G032043X8R01 32mm M16 43mm 4 22mm 2
1TG1G035043X8R00 35mm M16 43mm 4 22mm 2
1TG1G-10015X7R03 1.000 M12 1.57 3 17mm 3
1TG1G-12015X8R04 1.250 M16 1.57 4 22mm 2
Refer to the new product announcement for detailed programming information. Note, AP Max. = .060 inch
HARDWARE
SM35-088-10 DS-T106B DS-A00T
Screw Screw Driver Blade Driver Handle
POSITIVE
AXIAL RAKE
K
D2
H
D5
D1
5G5M-30R01 3.000 6 2.000 1.000 0.375 1.2 Yes
5G6M-30R01 3.000 5 2.000 1.000 0.375 1.2 No
5G6M080R00 80mm 5 55mm 27mm 12mm Yes
5G6M100R00 100mm 6 55mm 32mm 14mm Yes
5G5M-40R01 4.000 8 2.500 1.500 0.625 .8 Yes
5G6M-40R01 4.000 6 2.500 1.500 0.625 .8 No
5G6M125R00 125mm 7 63mm 40mm 16mm Yes
5G5M-50R01 5.000 9 2.500 1.500 0.625 .6 Yes
5G6M-50R01 5.000 7 2.500 1.500 0.625 .6 No
5G5M-60R01 6.000 10 2.500 1.500 0.625 .4 No
5G6M-60R01 6.000 8 2.500 1.500 0.625 .4 No
5G5M160R00 160mm 10 63mm 40mm 16mm Yes
5G6M160R00 160mm 8 63mm 40mm 16mm Yes
Refer to the new product announcement for detailed programming information.
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle Coolant
HIGH FEED FACE MILL WITH 4 INDEXES, INCH & METRIC CUTTER DIAMETERS
SERIES 5G5M 5G6M (19MM INSERT)
90
= P = M = K = N = S = H
91
HARDWARE
5G5M-30R01 SM60-135-R0 SD-08-47 SD08-C9 DS-A00T DS-T256B
5G6M-30R01 SM60-135-R0 SD-08-47 - DS-A00T DS-T256B
5G6M080R00 SM60-135-R0 - - DS-A00T DS-T256B
5G6M100R00 SM60-135-R0 - - - -
5G5M-40R01 SM60-135-R0 SD-12-82 SD-12-99 DS-A00T DS-T256B
5G6M-40R01 SM60-135-R0 SD-12-82 SD-12-99 DS-A00T DS-T256B
5G6M125R00 SM60-135-R0 - - - -
5G5M-50R01 SM60-135-R0 SD-12-82 SD-08-92 DS-A00T DS-T256B
5G6M-50R01 SM60-135-R0 SD-12-82 - DS-A00T DS-T256B
5G5M-60R01 SM60-135-R0 SD-12-82 - DS-A00T DS-T256B
5G6M-60R01 SM60-135-R0 SD-12-82 - DS-A00T DS-T256B
5G5M160R00 SM60-135-R0 - - - -
5G6M160R00 SM60-135-R0 - - - -
Insert Screw Retention Bolt Coolant Bolt Driver Handle Screw Driver Blade
.746 R.078 .250
.746
PGM .200
.748
.748
SDES190620N
SDMS1906MDR-PH
R.078
.746
.746
.250
SDES190620N-001
.746
.746
R.030 .250
SDES1906MDR
.742
.742
R.125 R.078 .250
SDES1906MPR
.742
.742
R.125 R.078 .250
SDES1906MPR-001
.748 .250
.748
SDMS190620R-PH
Part Number Application
Grades
IN2505 IN2530 IN4005 IN4030 IN4035
SDES190620N High-Feed - 0.178“ R
SDES190620N-001 High-Feed - 0.148“ R
SDES1906MDR High-Feed - 0.178“ R
SDES1906MPR High Feed, Heavy-Duty - 0.210“ R
SDES1906MPR-001 High Feed, Heavy-Duty Keen Edge - 0.210“ R
SDMS190620R-PH High-Feed - 0.178“ R
SDMS1906MDR-PH High-Feed - 0.178“ R
D2
K
H
D5
D1
Positive
Axial Rake
5M5M-40R30 4.000 7 2.500 1.500 0.625 n/a Yes
5M6M-40R30 4.000 6 2.500 1.500 0.625 n/a Yes
5M5M-50R30 5.000 8 2.500 1.500 0.625 n/a No
5M6M-50R30 5.000 7 2.500 1.500 0.625 n/a No
5M5M-60R30 6.000 9 2.500 1.500 0.625 n/a No
5M6M-60R30 6.000 8 2.500 1.500 0.625 n/a No
Refer to the new product announcement for detailed programming information.
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle Coolant
HIGH FEED FACE MILL, 30° BEVEL ANGLE
SERIES 5M5M, 5M6M (19MM INSERT)
92
= P = M = K = N = S = H
93
HARDWARE
SM60-135-R0 SD-12-82 DS-A00T DS-T256B
Insert Screw Retention Bolt Driver Handle Screw Driver Blade
.746 R.078 .250
.746
.748
.748
.250
SDES190620N
SDMS1906ZPR-PP
R.078
.746
.746
.250
SDES190620N-001
.742
.742
R.125 R.078 .250
SDES1906MPR
.742
.742
R.125 R.078 .250
SDES1906MPR-001
.250
.746
.746
SDES1906ZPR-PF
.748 .250
.748
SDMS190620R-PH
Part Number Application
Grades
IN2505 IN2530 IN4005 IN4030 IN4035
SDES190620N High-Feed - 0.178“ R
SDES190620N-001 High-Feed - 0.148“ R
SDES1906MPR High Feed, Heavy-Duty - 0.210“ R
SDES1906MPR-001 High Feed, Heavy-Duty Keen Edge - 0.210“ R
SDES1906ZPR-PF High-Feed - Wiper
SDMS190620R-PH High-Feed - 0.178“ R
SDMS1906ZPR-PP High-Feed - Wiper
D2
K
H
D5
D1
Positive
Axial Rake
5M5P050R00 50mm 5 50mm 22mm 10mm 1.5 Yes
5M5P-20R01 2.000 5 2.000 0.750 0.312 1.5 Yes
5M6P-20R01 2.000 4 2.000 0.750 0.312 1.5 Yes
5M5P052R00 52mm 5 50mm 22mm 10mm 1.5 Yes
5M6P052R00 52mm 4 2.000 22mm 10mm 1.5 Yes
5M5P063R00 63mm 6 50mm 22mm 10mm 1.0 Yes
5M6P063R00 63mm 5 50mm 22mm 10mm 1.0 Yes
5M5P-25R01 2.500 6 2.000 0.750 0.312 1.5 Yes
5M6P-25R01 2.500 5 2.000 0.750 0.312 1.1 Yes
5M5P066R00 66mm 6 50mm 27mm 12mm 1.0 Yes
5M6P050R00 66mm 4 50mm 22mm 10mm 1.0 Yes
5M6P066R00 66mm 5 50mm 27mm 12mm 1.0 Yes
5M5P-30R01 3.000 8 2.000 1.000 0.375 .8 Yes
5M5P-30R02 3.000 8 2.000 1.250 0.500 .8 Yes
5M6P-30R01 3.000 6 2.000 1.000 0.375 .8 Yes
5M6P-30R02 3.000 6 2.000 1.250 0.500 .8 Yes
5M5P080R00 80mm 8 50mm 27mm 12mm 1.0 Yes
5M6P080R00 80mm 6 50mm 27mm 12mm 1.0 Yes
5M5P100R00 100mm 9 60mm 32mm 14mm .5 Yes
5M6P100R00 100mm 7 60mm 32mm 14mm .5 Yes
5M5P-40R01 4.000 10 2.500 1.500 0.625 .6 Yes
5M6P-40R01 4.000 8 2.500 1.500 0.625 .6 Yes
5M5P-50R01 5.000 11 2.500 1.500 0.625 .4 Yes
5M6P-50R01 5.000 9 2.500 1.500 0.625 .6 Yes
Refer to the new product announcement for detailed programming information. Note, when using inserts SDES1305MPR, SDES1305MPR-001 or SDES1305MPR-MR
the nominal diameter is reduced .030 inch.
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle Coolant
HIGH FEED FACE MILL, 4 INDEXES, INCH & METRIC CUTTER DIAMETERS
SERIES 5M5P 5M6P (13MM INSERT)
94
= P = M = K = N = S = H
95

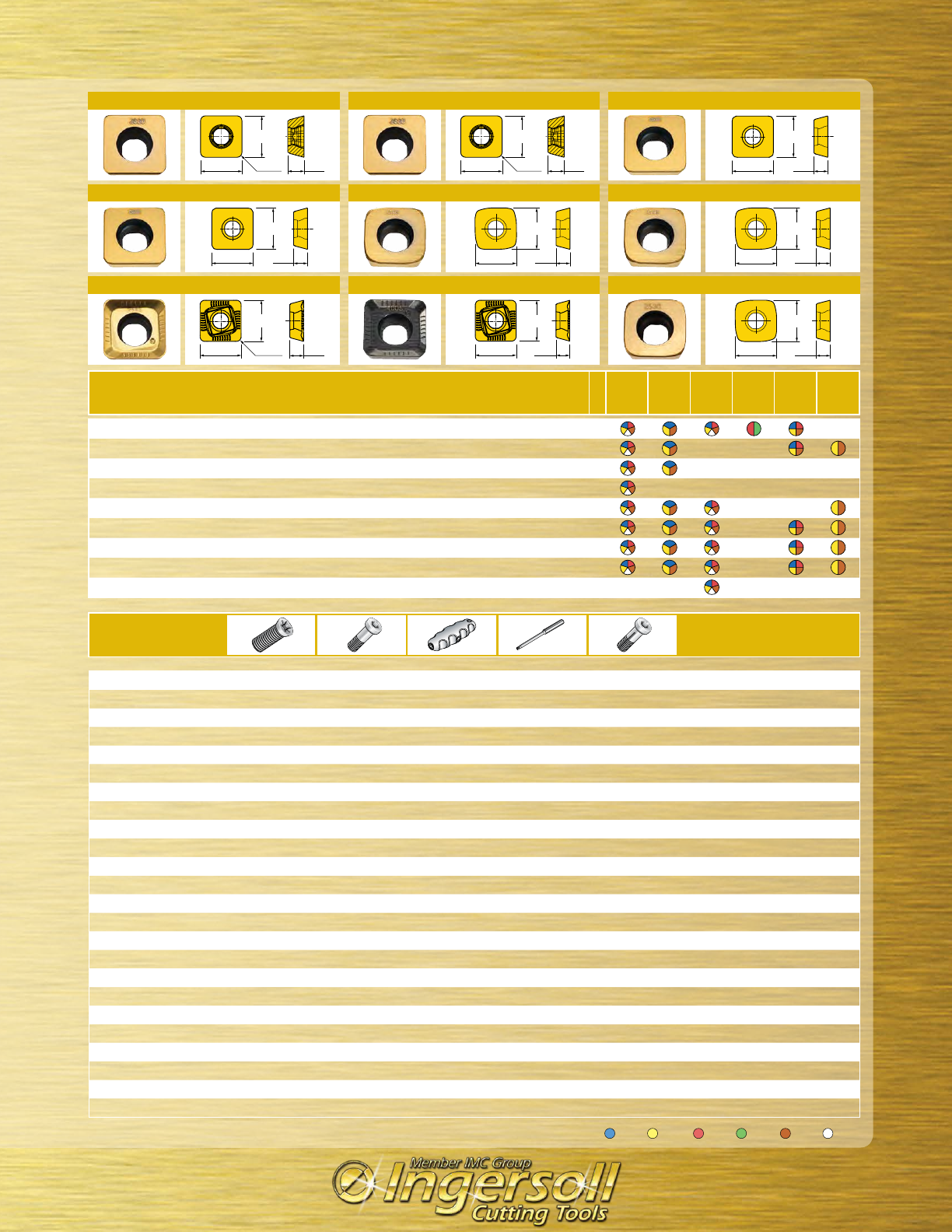

HARDWARE
5M5P050R00 SM40-100-R0 - DS-A00T DS-T156B -
5M5P-20R01 SM40-100-R0 SD-06-48 DS-A00T DS-T156B SD-06-A6
5M6P-20R01 SM40-100-R0 SD-06-48 DS-A00T DS-T156B SD-06-A6
5M5P052R00 SM40-100-R0 - DS-A00T DS-T156B -
5M6P052R00 SM40-100-R0 - DS-A00T DS-T156B -
5M5P063R00 SM40-100-R0 - DS-A00T DS-T156B -
5M6P063R00 SM40-100-R0 - DS-A00T DS-T156B -
5M5P-25R01 SM40-100-R0 SD-06-48 DS-A00T DS-T156B SD-06-A6
5M6P-25R01 SM40-100-R0 SD-06-48 DS-A00T DS-T156B SD-06-A6
5M5P066R00 SM40-100-R0 - DS-A00T DS-T156B -
5M6P050R00 - - - - -
5M6P066R00 - - - - -
5M5P-30R01 SM40-100-R0 SD-08-47 DS-A00T DS-T156B SD08-C9
5M5P-30R02 SM40-100-R0 SD-10-47 DS-A00T DS-T156B SD-10-99
5M6P-30R01 SM40-100-R0 SD-08-47 DS-A00T DS-T156B SD08-C9
5M6P-30R02 SM40-100-R0 SD-10-47 DS-A00T DS-T156B SD-10-99
5M5P080R00 - - - - -
5M6P080R00 SM40-100-R0 - DS-A00T DS-T156B -
5M5P100R00 SM40-100-R0 SD-10-89 DS-A00T DS-T156B -
5M6P100R00 SM40-100-R0 SD-10-89 DS-A00T DS-T156B -
5M5P-40R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B SD-10-99
5M6P-40R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B SD-10-99
5M5P-50R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B SD-10-99
5M6P-50R01 SM40-100-R0 SD-12-82 DS-A00T DS-T156B SD-10-99
Screw Retention Bolt Driver Handle Screw Driver Blade Coolant Bolt
.200
R.060
.510
.510
.512 R.060 .200
.512
SDES130515N
SDMS130515R-PH
.200
R.060
.510
.510
.512
.512 .200
SDES130515N-001
SDMS1305MDR-PH
.512
.512
.200
.505
.505
.200
SDES1305MDR
SDXS1305MPR-MR
.512
.512
.200
SDES1305MDR-001
.505
.505
.200
SDES1305MPR
.505
.505
.200
SDES1305MPR-001
Part Number Application
Grades
IN2505 IN2530 IN4005 IN4015 IN4030 IN4035
SDES130515N Flat Top - Landed Edge - 0.060“ R
SDES130515N-001 Flat Top - Keen Edge - 0.060“ R
SDES1305MDR Flat Top - Landed Edge - 0.033“ Wiper
SDES1305MDR-001 Flat Top - Keen Edge - 0.033“ Wiper
SDES1305MPR High Feed, Heavy-Duty - n/a
SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge - n/a
SDMS130515R-PH Positive Geometry - 0.060“ R
SDMS1305MDR-PH Positive Geometry - 0.033“ Wiper
SDXS1305MPR-MR Utility Insert - Heavy Duty - n/a
= P = M = K = N = S = H
96
SERIES 5M5P, 5M6P (13MM INSERT)
R.062
.510
.510 .200
SDES130516N-PF
R.062
.510
.510 .200
SDES130516N-PF1
.505
.505
.200
SDES1305MPR
.505
.505
.200
SDES1305MPR-001
R.062.512 .200
.512
SDMS130516R-PP
Part Number Application
Grades
IN2505 IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDES1305MPR High Feed, Heavy-Duty - n/a
SDES1305MPR-001 High Feed, Heavy-Duty Keen Edge - n/a
SDMS130516R-PP Positive Geometry - 0.062“ R
HIGH FEED FACE MILL, 30° BEVEL ANGLE
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle Coolant
D2
K
H
D5
D1
Positive
Axial Rake
5M5P-20R30 2.000 5 2.000 0.750 0.312 n/a Yes
5M6P-20R30 2.000 4 2.000 0.750 0.312 n/a Yes
5M5P-25R30 2.500 6 2.000 0.750 0.312 n/a Yes
5M6P-25R30 2.500 5 2.000 0.750 0.312 n/a Yes
5M5P-30R30 3.000 7 2.000 1.000 0.375 n/a Yes
5M6P-30R30 3.000 6 2.000 1.000 0.375 n/a Yes
Refer to the new product announcement for detailed programming information.
HARDWARE
5M5P-20R30 SM40-100-R0 - DS-A00T DS-T156B
5M6P-20R30 SM40-100-R0 - DS-A00T DS-T156B
5M5P-25R30 SM40-100-R0 SD-06-48 DS-A00T DS-T156B
5M6P-25R30 SM40-100-R0 SD-06-48 DS-A00T DS-T156B
5M5P-30R30 SM40-100-R0 SD-08-47 DS-A00T DS-T156B
5M6P-30R30 SM40-100-R0 SD-08-47 DS-A00T DS-T156B
Screw Retention Bolt Driver Handle Screw Driver Blade
= P = M = K = N = S = H
SERIES 5G5F 5G6F (9MM INSERT)
97
.370 .158
SDXS0904MPR-MM
.370 .158
SDXS0904MPR-MR
Part Number Application
Grades
IN2504 IN4005 IN4030 IN4035 IN4040
SDXS0904MPR-MM Positive Geometry - R
SDXS0904MPR-MR Flat Top - Landed Edge - R
HIGH FEED FACE MILL, 4 INDEXES
Cutter Number
D1
Nominal
Diameter
Number
of Inserts
H
Height
D2
Bore Dia.
K
Keyway
Ramp
Angle Coolant
H
K
D2
AP
D1
5G5F-20R01 2.000 7 1.970 0.750 0.312 n/a Yes
5G6F-20R01 2.000 6 1.970 0.750 0.312 n/a Yes
5G5F-25R01 2.500 8 1.970 0.750 0.312 n/a Yes
5G5F-30R01 3.000 9 2.000 1.000 0.375 n/a Yes
5G6F-30R01 3.000 7 2.000 1.000 0.375 n/a Yes
Refer to the new product announcement for detailed programming information.
HARDWARE
5G5F-20R01 SM30-075-R0 DS-T09W SD-06-48 SD-06-A6
5G6F-20R01 SM30-075-R0 DS-T09W SD-06-48 SD-06-A6
5G5F-25R01 SM30-075-R0 DS-T09W SD-06-48 SD-06-A6
5G5F-30R01 SM30-075-R0 DS-T09W SD-08-47 SD08-C9
5G6F-30R01 SM30-075-R0 DS-T09W SD-08-47 SD08-C9
Screw Driver Retention Bolt Coolant Bolt
= P = M = K = N = S = H
SERIES 15G1F (9MM INSERT)
98
.370 .158
SDXS0904MPR-MM
.370 .158
SDXS0904MPR-MR
Part Number Application
Grades
IN2504 IN4005 IN4030 IN4035 IN4040
SDXS0904MPR-MM Positive Geometry - R
SDXS0904MPR-MR Flat Top - Landed Edge - R
HIGH FEED MODULAR END MILL, 4 INDEXES, INCH CUTTER DIAMETERS (TOPON STYLE)
Cutter Number
D1
Nom. Dia.
Number
of Inserts
L1
Extension
Length
T1
Adaption
Max.
Ramp
Angle
Wrench
Size
D1
AP
L2
T1
15G1F-10015X7R01 1.000 3 1.57 M12 5.5 NA
15G1F-12015X8R02 1.250 4 1.57 M16 3.3 NA
Refer to the new product announcement for detailed programming information.
HARDWARE
SM30-075-R0 DS-T09W
Screw Driver
= P = M = K = N = S = H
SERIES 15G1F (9MM INSERT)
99
.370 .158
SDXS0904MPR-MM
.370 .158
SDXS0904MPR-MR
Part Number Application
Grades
IN2504 IN4005 IN4030 IN4035 IN4040
SDXS0904MPR-MM Positive Geometry - R
SDXS0904MPR-MR Flat Top - Landed Edge - R
HIGH FEED END MILL WITH 4 INDEXES
Cutter Number
D1
Nom. Dia.
L1
Extension
Length
L2
Overall
Length
D2
Shank
Size/Style
Number
of Inserts
Coolant
Thru
Max.
Ramp
Angle
D1
L2
D2
L3
AP
15G1F-10019S1R01 1.000 1.970 7.00 1.000“ Cylind. 3 Yes 5.5
15G1F-10020S1R01 1.000 2.000 10.00 1.000“ Cylind. 3 Yes 5.5
15G1F-12027E2R01 1.250 2.750 5.75 1.250“ Weldon 3Yes 3.3
15G1F-12027E2R02 1.250 2.750 5.75 1.250“ Weldon 4Yes 3.3
15G1F-12047E2R01 1.250 4.750 7.75 1.250“ Weldon 3Yes 3.3
15G1F-15016E2R01 1.500 1.690 6.00 1.250“ Weldon 4Yes 2.3
15G1F-15016E2R02 1.500 1.690 6.00 1.250“ Weldon 5Yes 2.3
Refer to the new product announcement for detailed programming information.
HARDWARE
SM30-075-R0 DS-T09W
Screw Driver
= P = M = K = N = S = H
SERIES 1TW7, 1TW8
100
.269
.118
.586
NBEU1603R
.307
.146
.648
NBEU1904R
.402
.177
.865
NBEU25T4R
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN4005 IN4030
NBEU1603R Center Cutting - n/a
NBEU1904R Center Cutting - n/a
NBEU25T4R Center Cutting - n/a
HEAVY DUTY ROUGHING
Cutter Number
D1
Nom.
Dia.
L1
Max. Depth
of Cut
L2
Extension
Length
L3
Overall
Length
D2
Shank
Size/Style
No. of
Effective
Flutes
Insert
Series
L2
L1
D1
L3
D2
1TW7Q-0601379R01 0.625 0.47 1.38 4.75 .625“ Weldon 2 NBEU16
1TW8Q-06013S7R01 0.625 0.47 1.38 5.00 .750“ Cylind. 2 NBEU16
1TW8Q-06013S7R02 0.625 0.47 1.38 6.00 .750“ Cylind. 2 NBEU16
1TW7J-0702084R01 0.750 0.51 2.00 4.00 .750“ Weldon 2 NBEU19
1TW7J-0702084R02 0.750 0.51 2.00 6.00 .750“ Weldon 2 NBEU19
1TW8J-0701580R01 0.750 0.51 2.00 6.00 1.000“ Weldon 2 NBEU19
1TW8J-0701580R02 0.750 0.51 2.00 7.00 1.000“ Weldon 2 NBEU19
1TW7K-1002780R01 1.000 0.69 2.64 5.00 1.000“ Weldon 2 NBEU25
1TW7K-1002780R02 1.000 0.69 2.64 6.00 1.000“ Weldon 2 NBEU25
1TW8K-1001981R01 1.000 0.69 2.75 6.00 1.250“ Weldon 2 NBEU25
1TW8K-1001981R02 1.000 0.69 2.75 7.00 1.250“ Weldon 2 NBEU25
HARDWARE
1TW7Q-0601379R01 SM25-064-00 DS-T08S - -
1TW8Q-06013S7R01 SM25-064-00 DS-T08S - -
1TW8Q-06013S7R02 SM25-064-00 DS-T08S - -
1TW7J-0702084R01 SM30-072-00 - DS-T09W -
1TW7J-0702084R02 SM30-072-00 - DS-T09W -
1TW8J-0701580R01 SM30-072-00 - DS-T09W -
1TW8J-0701580R02 SM30-072-00 - DS-T09W -
1TW7K-1002780R01 SM35-087-70 - - DS-T15T
1TW7K-1002780R02 SM35-087-70 - - DS-T15T
1TW8K-1001981R01 SM35-087-70 - - DS-T15T
1TW8K-1001981R02 SM35-087-70 - - DS-T15T
Screw Driver Driver Torx Driver
= P = M = K = N = S = H
SERIES 1TW7 (TOP-ON STYLE)
101
.269
.118
.586
NBEU1603R
.307
.146
.648
NBEU1904R
.402
.177
.865
NBEU25T4R
Part Number Application
Grades
IN2035 IN2504 IN2505 IN2530 IN4005 IN4030
NBEU1603R Center Cutting - n/a
NBEU1904R Center Cutting - n/a
NBEU25T4R Center Cutting - n/a
HEAVY DUTY ROUGHING
Cutter Number
T1
Adaption
D1
Nom. Dia.
L1
Extension
Length
L2
Max. Depth
of Cut
#
Effective
Accepts
Inserts
D1
L1
L2
T1
1TW7Q-06012X5R01 M8 0.625 1.00 0.48 2 NBEU16
1TW7J-07014X6R01 M10 0.750 1.18 0.52 2 NBEU19
1TW7K-10017X7R01 M12 1.000 1.38 0.68 2 NBEU25
HARDWARE
1TW7Q-06012X5R01 SM25-064-00 DS-T08S - -
1TW7J-07014X6R01 SM30-072-00 - DS-T09W -
1TW7K-10017X7R01 - - - DS-T15T
Screw Driver Driver
102

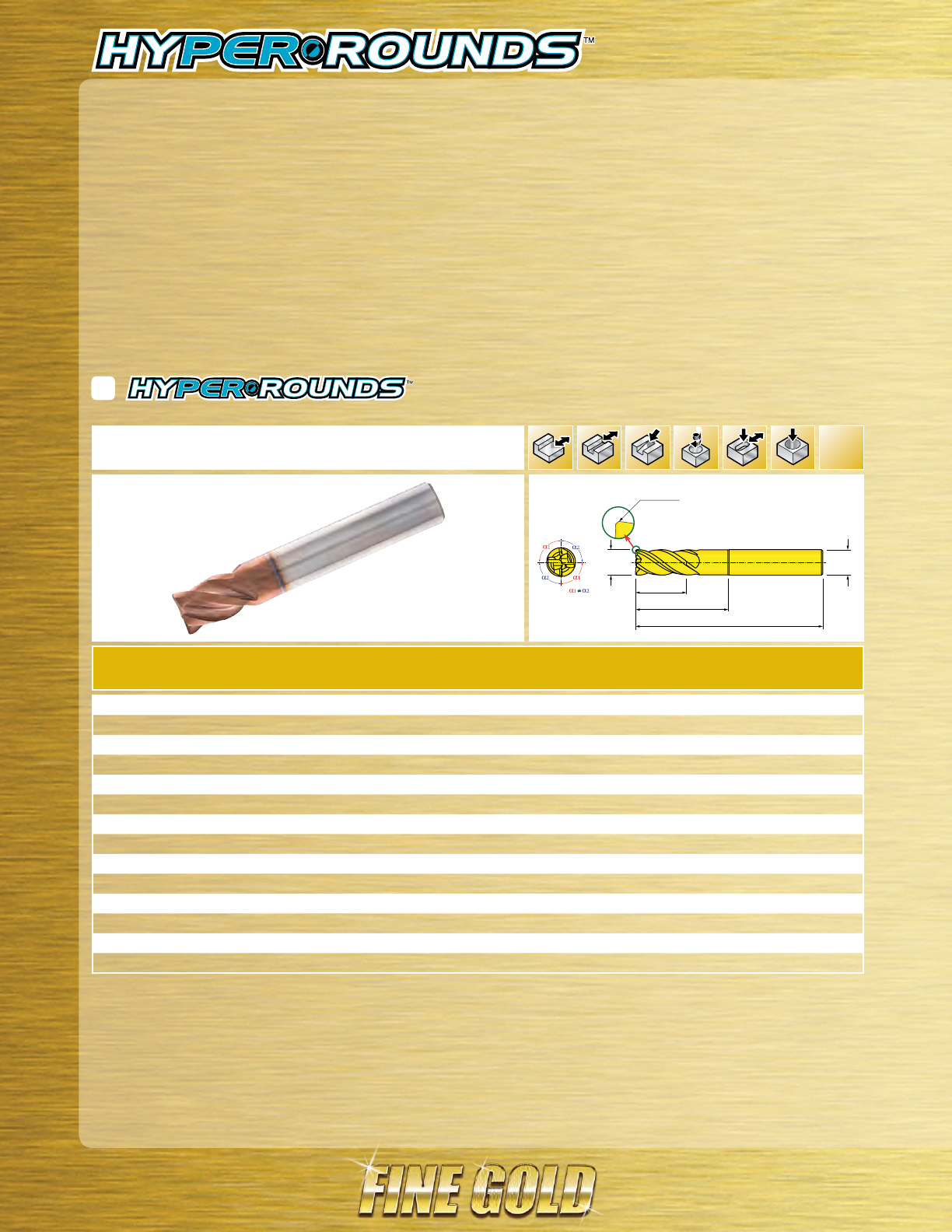

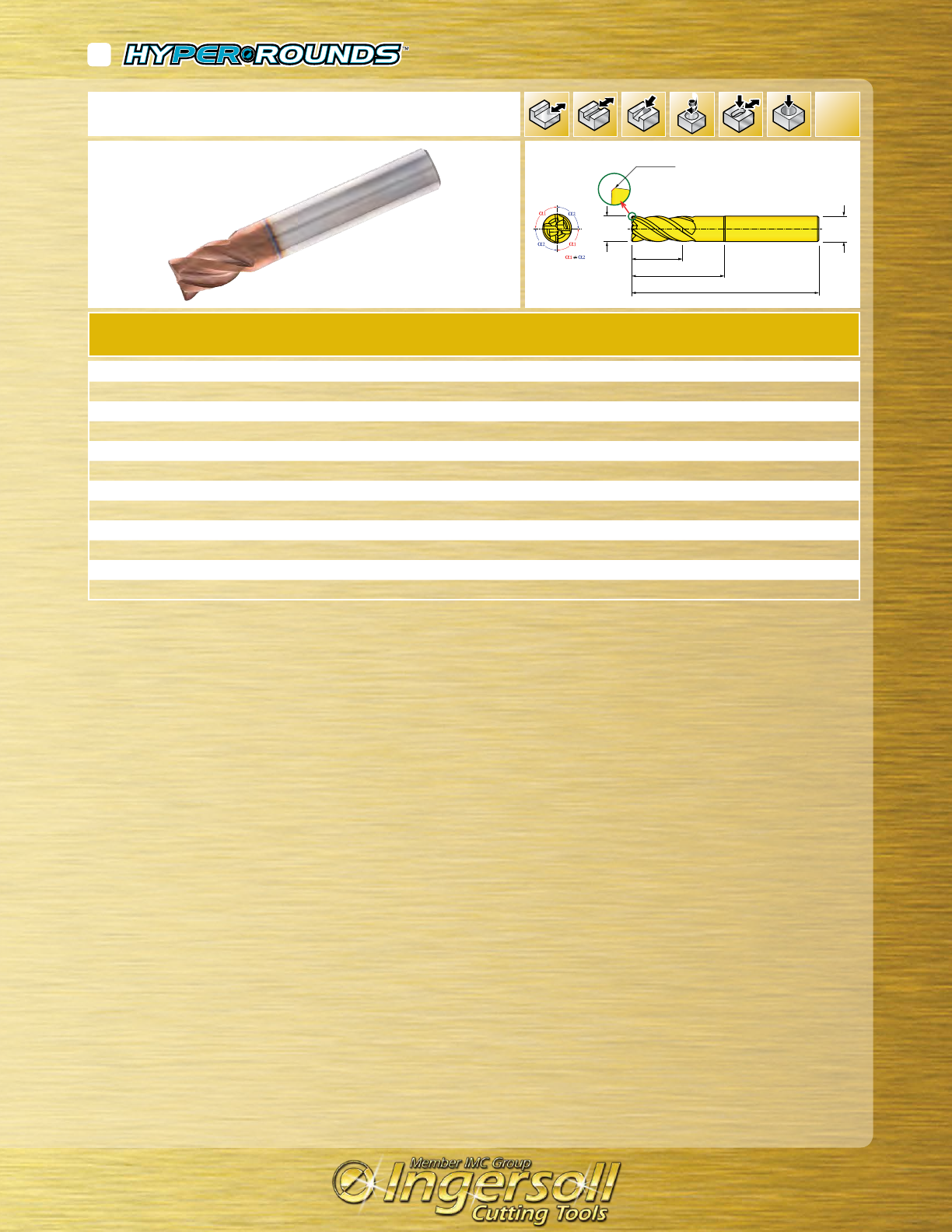

SERIES 47DRX
4-FLUTE ENDMILLS FOR MACHINING TITANIUM WITH DIFFERENT HELIX, CHAMFERED
CUTTING EDGES & VARIABLE PITCH FOR CHATTER DAMPENING.
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
R
Radius
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
37°
35°
R
D2
L3
L1
D1
47D00408T7RX570 IN2005 35-37 4mm 4 0.200 57mm 8mm 6mm Cylind.
47D00510T7RX570 IN2005 35-37 5mm 4 0.200 57mm 10mm 6mm Cylind.
47D00612T7RX570 IN2005 35-37 6mm 4 0.200 57mm 12mm 6mm Cylind.
47D00612WERX570 IN2005 35-37 6mm 4 0.200 57mm 12mm 6mm Weldon
47D00816WSRX630 IN2005 35-37 8mm 4 0.400 63mm 16mm 8mm Cylind.
47D00816ZSRX630 IN2005 35-37 8mm 4 0.400 63mm 16mm 8mm Weldon
47D01020T1RX720 IN2005 35-37 10mm 4 0.500 72mm 20mm 10mm Cylind.
47D01020W1RX720 IN2005 35-37 10mm 4 0.500 72mm 20mm 10mm Weldon
47D01224T2RX830 IN2005 35-37 12mm 4 0.600 73mm 24mm 12mm Cylind.
47D01224W2RX830 IN2005 35-37 12mm 4 0.600 73mm 24mm 12mm Weldon
47D01632T3RX920 IN2005 35-37 16mm 4 0.800 92mm 32mm 16mm Cylind.
47D01632W3RX920 IN2005 35-37 16mm 4 0.800 92mm 32mm 16mm Weldon
47D02040T4RX104 IN2005 35-37 20mm 4 1.000 104mm 40mm 20mm Cylind.
47D02040W4RX104 IN2005 35-37 20mm 4 1.000 104mm 40mm 20mm Weldon
Features & Benefits:
• Unique geometry
• Best chatter free tools for high removal rates when machining titanium
(up to 2xD full slotting)
• 4 flute endmills with differential helix and variable pitch
• Large variety of corner radii
103
SERIES 47D_RX
4-FLUTE ENDMILLS FOR MACHINING TITANIUM WITH DIFFERENT HELIX, CHAMFERED
CUTTING EDGES & VARIABLE PITCH FOR CHATTER DAMPENING.
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
R
Radius
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
37°
35°
R
D2
L3
L1
D1
47D-3775R8RX02 IN2005 35-37 0.375 4 0.020 3.00 0.75 .375“ Cylind.
47D-377577RX02 IN2005 35-37 0.375 4 0.020 3.00 0.75 .375“ Weldon
47D-3775R8RX09 IN1005 35-37 0.375 4 0.090 3.00 0.75 .375“ Cylind.
47D-5010S4RX02 IN2005 35-37 0.500 4 0.023 3.00 1.00 .500“ Cylind.
47D-501078RX02 IN2005 35-37 0.500 4 0.023 3.00 1.00 .500“ Weldon
47D-5010S4RX12 IN1005 35-37 0.500 4 0.120 3.00 1.00 .500“ Cylind.
47D-6212S6RX02 IN2005 35-37 0.625 4 0.030 3.50 1.25 .625“ Cylind.
47D-621279RX02 IN2005 35-37 0.625 4 0.030 3.50 1.25 .625“ Weldon
47D-6212S6RX12 IN1005 35-37 0.625 4 0.120 3.00 1.25 .625“ Cylind.
47D-6212S6RX25 IN1005 35-37 0.625 4 0.250 3.00 1.25 .625“ Cylind.
47D-7515S7RX04 IN2005 35-37 0.750 4 0.040 4.00 1.50 .750“ Cylind.
47D-751584RX04 IN2005 35-37 0.750 4 0.040 4.00 1.50 .750“ Weldon
47D-7515S7RX06 IN1005 35-37 0.750 4 0.060 4.00 1.50 .750“ Cylind.
47D-7515S7RX12 IN1005 35-37 0.750 4 0.120 4.00 1.50 .750“ Cylind.
47D-7515S7RX25 IN1005 35-37 0.750 4 0.250 4.00 1.50 .750“ Cylind.
104
SERIES 47C_RQ
ECO SHORT, 4 FLUTE ENDMILLS WITH DIFFERENT HELIX (35° & 37°) AND VARIABLE
PITCH FOR CHATTER DAMPENING. USED FOR VERY HIGH MATERIAL REMOVAL RATES.
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
C
Chamfer
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
C x 45°
D1
L1
L2
L3
D2
47C-1212R4RQ00 IN2505 35-37 0.125 4 .006x45deg 1.50 0.125 .125“ Cylind.
47C-1818R5RQ00 IN2505 35-37 0.187 4 .008x45deg 2.00 0.188 .188“ Cylind.
47C-2525R6RQ01 IN2505 35-37 0.250 4 .010x45deg 2.00 0.250 .250“ Cylind.
47C-3131R7RQ01 IN2505 35-37 0.312 4 .012x45deg 2.00 0.312 .312“ Cylind.
47C-3737R8RQ01 IN2505 35-37 0.375 4 .016x45deg 2.00 0.375 .375“ Cylind.
47C-373777RQ01 IN2505 35-37 0.375 4 .016x45deg 2.00 0.375 .375“ Weldon
47C-5050S4RQ02 IN2505 35-37 0.500 4 .020x45deg 3.00 0.500 .500“ Cylind.
47C-505078RQ02 IN2505 35-37 0.500 4 .020x45deg 3.00 0.500 .500“ Weldon
47C-6262S6RQ02 IN2505 35-37 0.625 4 .023x45deg 3.00 0.625 .625“ Cylind.
47C-626279RQ02 IN2505 35-37 0.625 4 .023x45deg 3.00 0.625 .625“ Weldon
47C-7575S7RQ02 IN2505 35-37 0.750 4 .023x45deg 4.00 0.750 .750“ Cylind.
47C-757584RQ02 IN2505 35-37 0.750 4 .023x45deg 4.00 0.750 .750“ Weldon
47C-1010S1RQ02 IN2505 35-37 1.000 4 .023x45deg 4.00 1.000 1.000“ Cylind.
47C-101080RQ02 IN2505 35-37 1.000 4 .023x45deg 4.00 1.000 1.000“ Weldon
Features & Benefits:
• Designed for very high material removal rates and roughing and finishing operations
• Capable of machining full slots of up to 1xD
• Tough submicron substrate with a hard PVD coating that provides substantially
improved tool life and reliability
• Recommended for hardened steel and milling alloy steel at moderate to high cutting
speeds
105

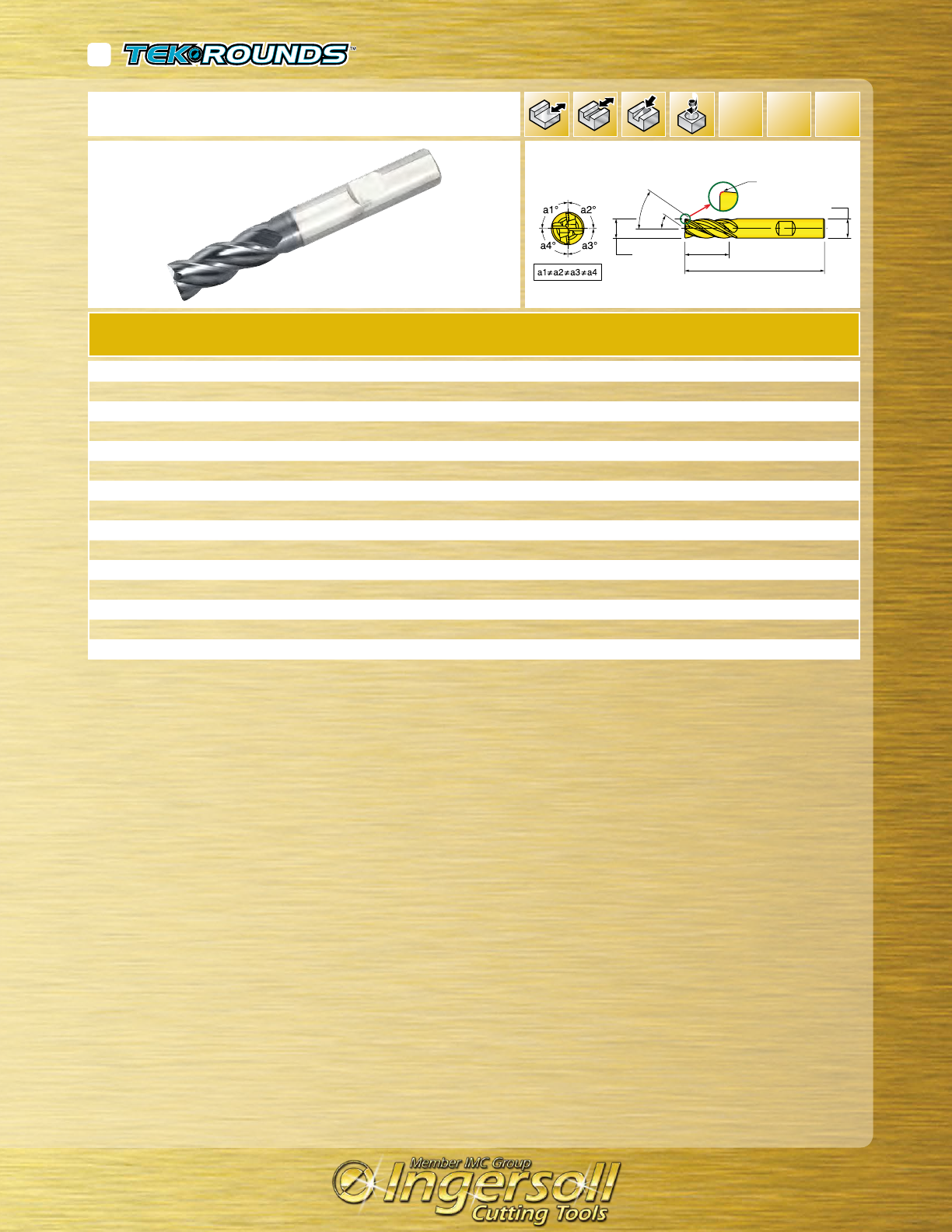

SERIES 47CRQ
ECO SHORT, 4 METRIC FLUTE ENDMILLS WITH DIFFERENT HELIX (35° & 37°) AND
VARIABLE PITCH. USED FOR VERY HIGH MATERIAL REMOVAL RATES.
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
C
Chamfer
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
C x 45°
D1
L1
L2
L3
D2
47C00606T7RQ25 IN2505 35-37 6mm 4 .25x45deg 50.00 6.000 6mm Cylind.
47C00606WERQ25 IN2505 35-37 6mm 4 .25x45deg 50.00 6.000 6mm Weldon
47C00808T0RQ30 IN2505 35-37 8mm 4 .3x45deg 63.00 8.000 8mm Cylind.
47C00808W0RQ30 IN2505 35-37 8mm 4 .3x45deg 63.00 8.000 8mm Weldon
47C01010T1RQ40 IN2505 35-37 10mm 4 .4x45deg 66.00 10.000 10mm Cylind.
47C01010W1RQ40 IN2505 35-37 10mm 4 .4x45deg 66.00 10.000 10mm Weldon
47C01212T2RQ50 IN2505 35-37 12mm 4 .5x45deg 73.00 12.000 12mm Cylind.
47C01212W2RQ50 IN2505 35-37 12mm 4 .5x45deg 73.00 12.000 12mm Weldon
47C01616T3RQ60 IN2505 35-37 16mm 4 .6x45deg 82.00 16.000 16mm Cylind.
47C01616W3RQ60 IN2505 35-37 16mm 4 .6x45deg 82.00 16.000 16mm Weldon
47C02020T4RQ60 IN2505 35-37 20mm 4 .6x45deg 92.00 20.000 20mm Cylind.
47C02020W4RQ60 IN2505 35-37 20mm 4 .6x45deg 92.00 20.000 20mm Weldon
106

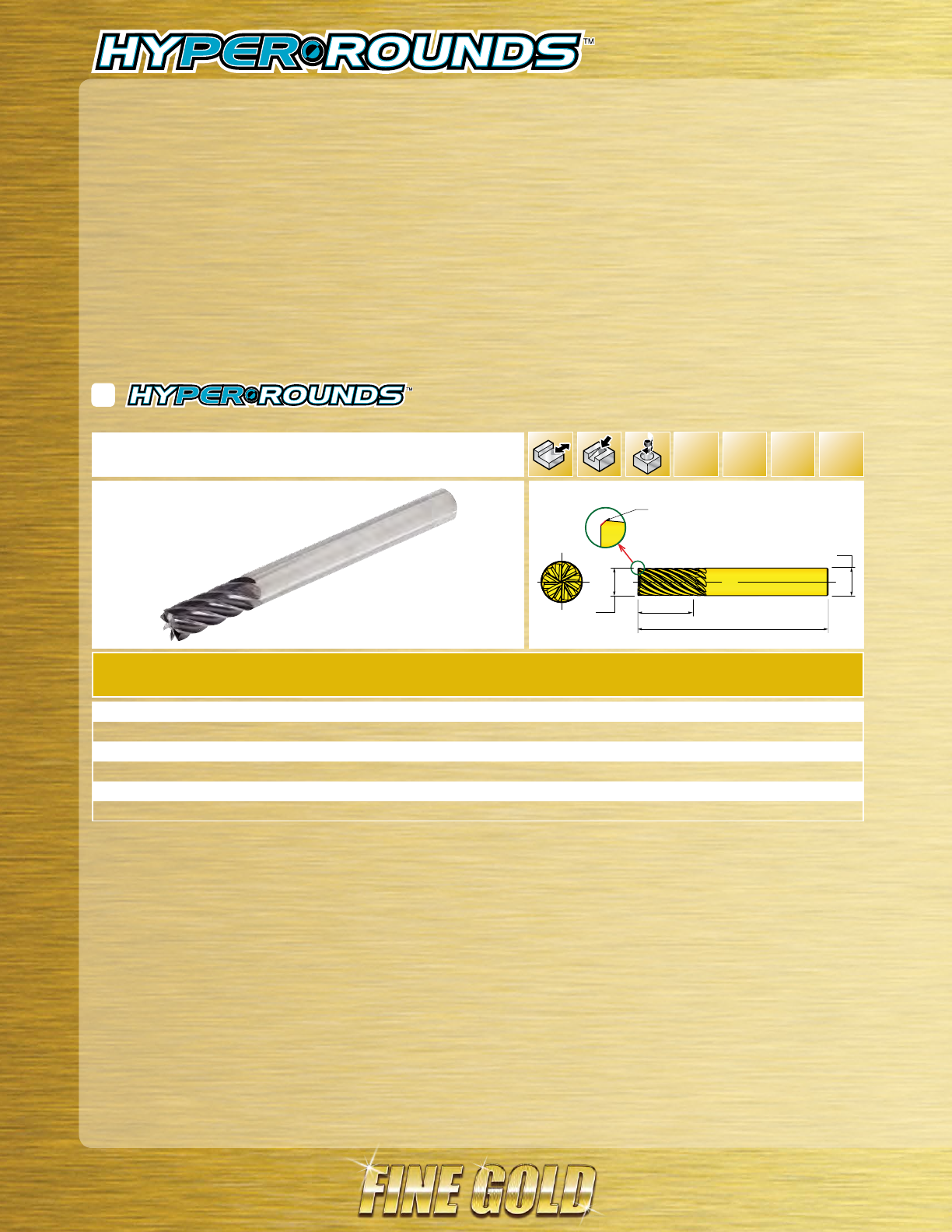

SERIES 48/49C_RQ
6- 20 FLUTE SOLID CARBIDE ENDMILLS WITH DIFFERENT HELIX AND VARIABLE PITCH,
FOR CHATTERFREE HIGH SPEED FINISH MILLING
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
C
Corner
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
D1 L1
L3
D2
C
48C-2550R6RQ00 IN2003 45 0.250 6 .007x45deg 2.10 0.50 .250“ Cylind.
49C-3163R7RQ00 IN2003 45 0.312 8 .007x45deg 2.50 0.63 .312“ Cylind.
49C-3775R8RQ00 IN2003 35 0.375 10 .007x45deg 3.00 0.75 .375“ Cylind.
49C-5010S4RQ00 IN2003 35 0.500 12 .011x45deg 3.50 1.00 .500“ Cylind.
49C-6212S6RQ00 IN2003 35 0.625 16 .011x45deg 4.00 1.25 .625“ Cylind.
49C-7515S7RQ00 IN2003 35 0.750 20 .015x45deg 5.00 1.50 .750“ Cylind.
Features & Benefits:
• Different helix and variable pitch, for a chatter free effect
• Special geometry - most recommended for high speed / trochoidal machining
on most material types
• Low cutting forces
• Excellent for finishing operations
• Unique flute geometry provides good surface finish
107
SERIES 48C/49CRQ
6- 20 FLUTE SOLID CARBIDE ENDMILLS WITH DIFFERENT HELIX AND VARIABLE PITCH,
FOR CHATTERFREE HIGH SPEED FINISH MILLING
Cutter Number
Helix
(deg)
D1
Diameter
Z
Flutes
C
Corner
L3
Overall
Length
L1
Cut
Length
D2
Shank
Size/Style
D1 L1
L3
D2
C
48C00612T7RQ00 IN2003 45 6mm 6 .25x45deg 57.00 12.00 6mm Cylind.
49C00816T0RQ00 IN2003 45 8mm 8 .25x45deg 63.00 16.00 8mm Cylind.
49C01020T1RQ00 IN2003 45 10mm 10 .3x45deg 72.00 20.00 10mm Cylind.
49C01224T2RQ00 IN2003 45 12mm 12 .3x45deg 83.00 24.00 12mm Cylind.
49C01632T3RQ00 IN2003 45 16mm 16 .3x45deg 92.00 32.00 16mm Cylind.
49C02040T4RQ00 IN2003 45 20mm 20 .4x45deg 104.00 40.00 20mm Cylind.
PART SERIES
108
PART SERIES
Placeholder
DH0300014T7R01 IN2005 0.118 3.00mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DH0310014T7R01 IN2005 0.122 3.10mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DH0320014T7R01 IN2005 0.126 3.20mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DH0330014T7R01 IN2005 0.130 3.30mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DH0340014T7R01 IN2005 0.134 3.40mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DH0350014T7R01 IN2005 0.138 3.50mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DH0360014T7R01 IN2005 0.142 3.60mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DH0370017T7R01 IN2005 0.146 3.70mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DH0380017T7R01 IN2005 0.150 3.80mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DH0390017T7R01 IN2005 0.154 3.90mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DH0400017T7R01 IN2005 0.157 4.00mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DH0410017T7R01 IN2005 0.161 4.10mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0420017T7R01 IN2005 0.165 4.20mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0430017T7R01 IN2005 0.169 4.30mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0440017T7R01 IN2005 0.173 4.40mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0450017T7R01 IN2005 0.177 4.50mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0460017T7R01 IN2005 0.181 4.60mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DH0470017T7R01 IN2005 0.185 4.70mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm
DH0480020T7R01 IN2005 0.189 4.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0490020T7R01 IN2005 0.193 4.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0500020T7R01 IN2005 0.197 5.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0510020T7R01 IN2005 0.201 5.10mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0520020T7R01 IN2005 0.205 5.20mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0530020T7R01 IN2005 0.209 5.30mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0540020T7R01 IN2005 0.213 5.40mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DH0550020T7R01 IN2005 0.217 5.50mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0560020T7R01 IN2005 0.220 5.60mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0570020T7R01 IN2005 0.224 5.70mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0580020T7R01 IN2005 0.228 5.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0590020T7R01 IN2005 0.232 5.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0600020T7R01 IN2005 0.236 6.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DH0610024T0R01 IN2005 0.240 6.10mm 8mm Cylind. 24.00mm 24.00mm 79.00mm 1.00mm
DH0620024T0R01 IN2005 0.244 6.20mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DH0630024T0R01 IN2005 0.248 6.30mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DH0640024T0R01 IN2005 0.252 6.40mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DH0650024T0R01 IN2005 0.256 6.50mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DH0660024T0R01 IN2005 0.260 6.60mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DH0670024T0R01 IN2005 0.264 6.70mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DH0680024T0R01 IN2005 0.268 6.80mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DH0690024T0R01 IN2005 0.272 6.90mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5

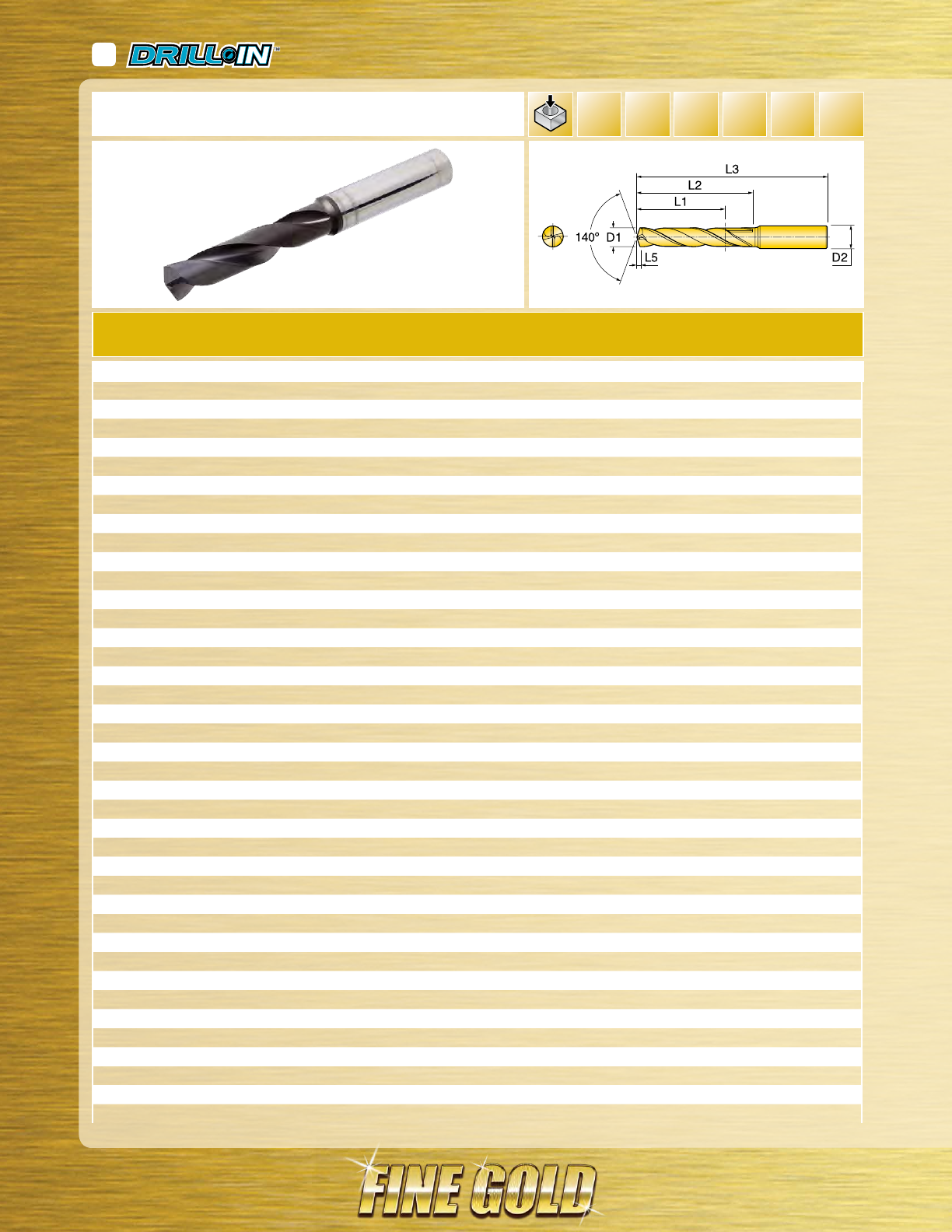

SOLID CARBIDE DRILLS 3:1 GEOMETRY WITH INTERNAL COOLANT
108
SERIES DH 3:1
109109
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
DH0700024T0R01 IN2005 0.276 7.00mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DH0710029T0R01 IN2005 0.280 7.10mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DH0720029T0R01 IN2005 0.283 7.20mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DH0730029T0R01 IN2005 0.287 7.30mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DH0740029T0R01 IN2005 0.291 7.40mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DH0750029T0R01 IN2005 0.295 7.50mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DH0760029T0R01 IN2005 0.299 7.60mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DH0770029T0R01 IN2005 0.303 7.70mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DH0780029T0R01 IN2005 0.307 7.80mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DH0790029T0R01 IN2005 0.311 7.90mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.30mm
DH0800029T0R01 IN2005 0.315 8.00mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.30mm
DH0810035T1R01 IN2005 0.319 8.10mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DH0820035T1R01 IN2005 0.323 8.20mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DH0830035T1R01 IN2005 0.327 8.30mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DH0840035T1R01 IN2005 0.331 8.40mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DH0850035T1R01 IN2005 0.335 8.50mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DH0860035T1R01 IN2005 0.339 8.60mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0870035T1R01 IN2005 0.343 8.70mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0880035T1R01 IN2005 0.346 8.80mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0890035T1R01 IN2005 0.350 8.90mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0900035T1R01 IN2005 0.354 9.00mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0910035T1R01 IN2005 0.358 9.10mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0920035T1R01 IN2005 0.362 9.20mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DH0930035T1R01 IN2005 0.366 9.30mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DH0940035T1R01 IN2005 0.370 9.40mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DH0950035T1R01 IN2005 0.374 9.50mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DH0960035T1R01 IN2005 0.378 9.60mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DH0970035T1R01 IN2005 0.382 9.70mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DH0980035T1R01 IN2005 0.386 9.80mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DH0990035T1R01 IN2005 0.390 9.90mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DH1000035T1R01 IN2005 0.394 10.00mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DH1010040T2R01 IN2005 0.398 10.10mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.60mm
DH1020040T2R01 IN2005 0.402 10.20mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.60mm
DH1030040T2R01 IN2005 0.406 10.30mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.60mm
DH1040040T2R01 IN2005 0.409 10.40mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.60mm
DH1050040T2R01 IN2005 0.413 10.50mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.60mm
DH1060040T2R01 IN2005 0.417 10.60mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1070040T2R01 IN2005 0.421 10.70mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1080040T2R01 IN2005 0.425 10.80mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1090040T2R01 IN2005 0.429 10.90mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1100040T2R01 IN2005 0.433 11.00mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1110040T2R01 IN2005 0.437 11.10mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.70mm
DH1120040T2R01 IN2005 0.441 11.20mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.80mm
DH1130040T2R01 IN2005 0.445 11.30mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.80mm
DH1140040T2R01 IN2005 0.449 11.40mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.80mm
DH1150040T2R01 IN2005 0.453 11.50mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.80mm
DH1160040T2R01 IN2005 0.457 11.60mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.80mm
DH1170040T2R01 IN2005 0.461 11.70mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.90mm
DH1180040T2R01 IN2005 0.465 11.80mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.90mm
DH1190040T2R01 IN2005 0.469 11.90mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.90mm
DH1200040T2R01 IN2005 0.472 12.00mm 12mm Cylind. 40.00mm 55.00mm 102.00mm 1.90mm
Metric Standard - (dimensions in mm unless noted)
PART SERIES
110
PART SERIES
Placeholder
DH0300023T7R01 IN2005 0.118 3.00mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DH0310023T7R01 IN2005 0.122 3.10mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DH0320023T7R01 IN2005 0.126 3.20mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DH0330023T7R01 IN2005 0.130 3.30mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DH0340023T7R01 IN2005 0.134 3.40mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DH0350023T7R01 IN2005 0.138 3.50mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DH0360023T7R01 IN2005 0.142 3.60mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DH0370023T7R01 IN2005 0.146 3.70mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DH0380029T7R01 IN2005 0.150 3.80mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DH0390029T7R01 IN2005 0.154 3.90mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DH0400029T7R01 IN2005 0.157 4.00mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DH0410029T7R01 IN2005 0.161 4.10mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0420029T7R01 IN2005 0.165 4.20mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0430029T7R01 IN2005 0.169 4.30mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0440029T7R01 IN2005 0.173 4.40mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0450029T7R01 IN2005 0.177 4.50mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0460029T7R01 IN2005 0.181 4.60mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DH0470029T7R01 IN2005 0.185 4.70mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.80mm
DH0480035T7R01 IN2005 0.189 4.80mm 6mm Cylind. 35.00mm 44.00mm 74.00mm 0.80mm
DH0490035T7R01 IN2005 0.193 4.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0500035T7R01 IN2005 0.197 5.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0510035T7R01 IN2005 0.201 5.10mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0520035T7R01 IN2005 0.209 5.20mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0535035T7R01 IN2005 0.205 5.30mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0540035T7R01 IN2005 0.213 5.40mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DH0550035T7R01 IN2005 0.217 5.50mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0560035T7R01 IN2005 0.220 5.60mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0570035T7R01 IN2005 0.224 5.70mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0580035T7R01 IN2005 0.228 5.80mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0590035T7R01 IN2005 0.232 5.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0600035T7R01 IN2005 0.236 6.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DH0610043T0R01 IN2005 0.240 6.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0620043T0R01 IN2005 0.244 6.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0630043T0R01 IN2005 0.248 6.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0640043T0R01 IN2005 0.252 6.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0650043T0R01 IN2005 0.256 6.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0660043T0R01 IN2005 0.260 6.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DH0670043T0R01 IN2005 0.264 6.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0680043T0R01 IN2005 0.268 6.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0690043T0R01 IN2005 0.272 6.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
SOLID CARBIDE DRILLS 5:1 GEOMETRY WITH INTERNAL COOLANT
110
SERIES DH 5:1
111111
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
DH0700043T0R01 IN2005 0.276 7.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0710043T0R01 IN2005 0.280 7.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0720043T0R01 IN2005 0.283 7.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0730043T0R01 IN2005 0.287 7.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DH0740043T0R01 IN2005 0.291 7.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DH0750043T0R01 IN2005 0.295 7.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DH0760043T0R01 IN2005 0.299 7.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DH0770043T0R01 IN2005 0.303 7.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DH0780043T0R01 IN2005 0.307 7.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DH0790043T0R01 IN2005 0.311 7.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm
DH0800043T0R01 IN2005 0.315 8.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm
DH0810049T1R01 IN2005 0.319 8.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DH0820049T1R01 IN2005 0.323 8.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DH0830049T1R01 IN2005 0.327 8.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DH0840049T1R01 IN2005 0.331 8.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DH0850049T1R01 IN2005 0.335 8.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DH0860049T1R01 IN2005 0.339 8.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0870049T1R01 IN2005 0.343 8.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0880049T1R01 IN2005 0.346 8.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0890049T1R01 IN2005 0.350 8.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0900049T1R01 IN2005 0.354 9.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0910049T1R01 IN2005 0.358 9.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0920049T1R01 IN2005 0.362 9.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DH0930049T1R01 IN2005 0.366 9.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DH0940049T1R01 IN2005 0.370 9.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DH0950049T1R01 IN2005 0.374 9.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DH0960049T1R01 IN2005 0.378 9.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DH0970049T1R01 IN2005 0.382 9.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DH0980049T1R01 IN2005 0.386 9.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DH0990049T1R01 IN2005 0.390 9.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DH1000049T1R01 IN2005 0.394 10.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DH1010056T2R01 IN2005 0.398 10.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DH1020056T2R01 IN2005 0.402 10.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DH1030056T2R01 IN2005 0.406 10.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DH1050056T2R01 IN2005 0.413 10.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DH1056056T2R01 IN2005 0.409 10.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DH1060056T2R01 IN2005 0.417 10.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1070056T2R01 IN2005 0.421 10.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1080056T2R01 IN2005 0.425 10.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1090056T2R01 IN2005 0.429 10.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1100056T2R01 IN2005 0.433 11.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1110056T2R01 IN2005 0.437 11.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DH1120056T2R01 IN2005 0.441 11.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DH1130056T2R01 IN2005 0.445 11.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DH1140056T2R01 IN2005 0.453 11.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DH1156056T2R01 IN2005 0.449 11.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DH1160056T2R01 IN2005 0.457 11.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DH1170056T2R01 IN2005 0.461 11.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DH1180056T2R01 IN2005 0.465 11.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DH1190056T2R01 IN2005 0.469 11.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DH1200056T2R01 IN2005 0.472 12.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
Metric Standard - (dimensions in mm unless noted)
PART SERIES
112
PART SERIES
Placeholder
DJ0300014T7R01 IN2005 0.118 3.00mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DJ0310014T7R01 IN2005 0.122 3.10mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DJ0320014T7R01 IN2005 0.126 3.20mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DJ0330014T7R01 IN2005 0.130 3.30mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DJ0340014T7R01 IN2005 0.134 3.40mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm
DJ0350014T7R01 IN2005 0.138 3.50mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DJ0360014T7R01 IN2005 0.142 3.60mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DJ0370017T7R01 IN2005 0.146 3.70mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm
DJ0380017T7R01 IN2005 0.150 3.80mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DJ0390017T7R01 IN2005 0.154 3.90mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DJ0400017T7R01 IN2005 0.157 4.00mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm
DJ0410017T7R01 IN2005 0.161 4.10mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DJ0420017T7R01 IN2005 0.165 4.20mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DJ0430017T7R01 IN2005 0.169 4.30mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DJ0440017T7R01 IN2005 0.173 4.40mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DJ0450017T7R01 IN2005 0.177 4.50mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm
DJ0460017T7R01 IN2005 0.181 4.60mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm
DJ0470017T7R01 IN2005 0.185 4.70mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm
DJ0480020T7R01 IN2005 0.189 4.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0490020T7R01 IN2005 0.193 4.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0500020T7R01 IN2005 0.197 5.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0510020T7R01 IN2005 0.201 5.10mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0520020T7R01 IN2005 0.205 5.20mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0530020T7R01 IN2005 0.209 5.30mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0540020T7R01 IN2005 0.213 5.40mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm
DJ0550020T7R01 IN2005 0.217 5.50mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0560020T7R01 IN2005 0.220 5.60mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0570020T7R01 IN2005 0.224 5.70mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0580020T7R01 IN2005 0.228 5.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0590020T7R01 IN2005 0.232 5.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0610020T7R01 IN2005 0.236 6.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm
DJ0610024T0R01 IN2005 0.240 6.10mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0620024T0R01 IN2005 0.244 6.20mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0630024T0R01 IN2005 0.248 6.30mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0640024T0R01 IN2005 0.252 6.40mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0650024T0R01 IN2005 0.256 6.50mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0660024T0R01 IN2005 0.260 6.60mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm
DJ0670024T0R01 IN2005 0.264 6.70mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DJ0680024T0R01 IN2005 0.268 6.80mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DJ0690024T0R01 IN2005 0.272 6.90mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
SOLID CARBIDE DRILLS 3:1 GEOMETRY WITH EXTERNAL COOLANT
112
SERIES DJ 3:1
113113
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
DJ0700024T0R01 IN2005 0.276 7.00mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm
DJ0710029T0R01 IN2005 0.280 7.10mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DJ0720029T0R01 IN2005 0.283 7.20mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DJ0730029T0R01 IN2005 0.287 7.30mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.10mm
DJ0740029T0R01 IN2005 0.291 7.40mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DJ0750029T0R01 IN2005 0.295 7.50mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DJ0760029T0R01 IN2005 0.299 7.60mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DJ0770029T0R01 IN2005 0.303 7.70mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DJ0780029T0R01 IN2005 0.307 7.80mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.20mm
DJ0790029T0R01 IN2005 0.311 7.90mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.30mm
DJ0800029T0R01 IN2005 0.315 8.00mm 8mm Cylind. 29.00mm 41.00mm 79.00mm 1.30mm
DJ0810035T1R01 IN2005 0.319 8.10mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DJ0820035T1R01 IN2005 0.323 8.20mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DJ0830035T1R01 IN2005 0.327 8.30mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DJ0840035T1R01 IN2005 0.331 8.40mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DJ0850035T1R01 IN2005 0.335 8.50mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.30mm
DJ0860035T1R01 IN2005 0.339 8.60mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0870035T1R01 IN2005 0.343 8.70mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0880035T1R01 IN2005 0.346 8.80mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0890035T1R01 IN2005 0.350 8.90mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0900035T1R01 IN2005 0.354 9.00mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0910035T1R01 IN2005 0.358 9.10mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0920035T1R01 IN2005 0.362 9.20mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.40mm
DJ0930035T1R01 IN2005 0.366 9.30mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DJ0940035T1R01 IN2005 0.370 9.40mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DJ0950035T1R01 IN2005 0.374 9.50mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DJ0960035T1R01 IN2005 0.378 9.60mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DJ0970035T1R01 IN2005 0.382 9.70mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.50mm
DJ0980035T1R01 IN2005 0.386 9.80mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DJ0990035T1R01 IN2005 0.390 9.90mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DJ1000035T1R01 IN2005 0.394 10.00mm 10mm Cylind. 35.00mm 47.00mm 89.00mm 1.60mm
DJ1010040T2R01 IN2005 0.398 10.10mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.60mm
DJ1020040T2R01 IN2005 0.402 10.20mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.60mm
DJ1030040T2R01 IN2005 0.406 10.30mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.60mm
DJ1040040T2R01 IN2005 0.409 10.40mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.60mm
DJ1050040T2R01 IN2005 0.413 10.50mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.60mm
DJ1060040T2R01 IN2005 0.417 10.60mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1070040T2R01 IN2005 0.421 10.70mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1080040T2R01 IN2005 0.425 10.80mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1090040T2R01 IN2005 0.429 10.90mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1100040T2R01 IN2005 0.433 11.00mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1110040T2R01 IN2005 0.437 11.10mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.70mm
DJ1120040T2R01 IN2005 0.441 11.20mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.80mm
DJ1130040T2R01 IN2005 0.445 11.30mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.80mm
DJ1140040T2R01 IN2005 0.449 11.40mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.80mm
DJ1150040T2R01 IN2005 0.453 11.50mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.80mm
DJ1160040T2R01 IN2005 0.457 11.60mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.80mm
DJ1170040T2R01 IN2005 0.461 11.70mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.90mm
DJ1180040T2R01 IN2005 0.465 11.80mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.90mm
DJ1190040T2R01 IN2005 0.469 11.90mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.90mm
DJ1200040T2R01 IN2005 0.472 12.00mm 12mm Cylind. 40.00mm 55.00mm 101.00mm 1.90mm
Metric Standard - (dimensions in mm unless noted)
PART SERIES
114
PART SERIES
Placeholder
DJ0300023T7R01 IN2005 0.118 3.00mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DJ0310023T7R01 IN2005 0.122 3.10mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DJ0320023T7R01 IN2005 0.126 3.20mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DJ0330023T7R01 IN2005 0.130 3.30mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DJ0340023T7R01 IN2005 0.134 3.40mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm
DJ0350023T7R01 IN2005 0.138 3.50mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DJ0360023T7R01 IN2005 0.142 3.60mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DJ0370023T7R01 IN2005 0.146 3.70mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm
DJ0380029T7R01 IN2005 0.150 3.80mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DJ0390029T7R01 IN2005 0.154 3.90mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DJ0400029T7R01 IN2005 0.157 4.00mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm
DJ0410029T7R01 IN2005 0.161 4.10mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0420029T7R01 IN2005 0.165 4.20mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0430029T7R01 IN2005 0.169 4.30mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0440029T7R01 IN2005 0.173 4.40mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0450029T7R01 IN2005 0.177 4.50mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0460029T7R01 IN2005 0.181 4.60mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm
DJ0470029T7R01 IN2005 0.185 4.70mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.80mm
DJ0480035T7R01 IN2005 0.189 4.80mm 6mm Cylind. 35.00mm 44.00mm 74.00mm 0.80mm
DJ0490035T7R01 IN2005 0.193 4.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0500035T7R01 IN2005 0.197 5.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0510035T7R01 IN2005 0.201 5.10mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0520035T7R01 IN2005 0.209 5.20mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0535035T7R01 IN2005 0.205 5.30mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0540035T7R01 IN2005 0.213 5.40mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm
DJ0550035T7R01 IN2005 0.217 5.50mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0560035T7R01 IN2005 0.220 5.60mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0570035T7R01 IN2005 0.224 5.70mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0580035T7R01 IN2005 0.228 5.80mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0590035T7R01 IN2005 0.232 5.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0610035T7R01 IN2005 0.236 6.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm
DJ0610043T0R01 IN2005 0.240 6.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0620043T0R01 IN2005 0.244 6.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0630043T0R01 IN2005 0.248 6.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0640043T0R01 IN2005 0.252 6.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0650043T0R01 IN2000 0.256 6.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0660043T0R01 IN2005 0.260 6.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm
DJ0670043T0R01 IN2005 0.264 6.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0680043T0R01 IN2005 0.268 6.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0690043T0R01 IN2005 0.272 6.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
SOLID CARBIDE DRILLS 5:1 GEOMETRY WITH EXTERNAL COOLANT
114
SERIES DJ 5:1
115115
Part Number
D1
Max. Diam.
Of Spot (inch)
D1
Max. Diam.
Of Spot (mm)
D2
Shank
Size/Style
L1
Maximum
Depth of Cut
L2
Flute
Length
L3
Overall
Length
L5
DJ0700043T0R01 IN2005 0.276 7.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0710043T0R01 IN2005 0.280 7.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0720043T0R01 IN2005 0.283 7.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0730043T0R01 IN2005 0.287 7.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm
DJ0740043T0R01 IN2005 0.291 7.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DJ0750043T0R01 IN2005 0.295 7.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DJ0760043T0R01 IN2005 0.299 7.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DJ0770043T0R01 IN2005 0.303 7.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DJ0780043T0R01 IN2005 0.307 7.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.20mm
DJ0790043T0R01 IN2005 0.311 7.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm
DJ0800043T0R01 IN2005 0.315 8.00mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.30mm
DJ0810049T1R01 IN2005 0.319 8.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DJ0820049T1R01 IN2005 0.323 8.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DJ0830049T1R01 IN2005 0.327 8.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DJ0840049T1R01 IN2005 0.331 8.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DJ0850049T1R01 IN2005 0.335 8.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.30mm
DJ0860049T1R01 IN2005 0.339 8.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0870049T1R01 IN2005 0.343 8.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0880049T1R01 IN2005 0.346 8.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0890049T1R01 IN2005 0.350 8.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0900049T1R01 IN2005 0.354 9.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0910049T1R01 IN2005 0.358 9.10mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0920049T1R01 IN2005 0.362 9.20mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.40mm
DJ0930049T1R01 IN2005 0.366 9.30mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DJ0940049T1R01 IN2005 0.370 9.40mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DJ0950049T1R01 IN2005 0.374 9.50mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DJ0960049T1R01 IN2005 0.378 9.60mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DJ0970049T1R01 IN2005 0.382 9.70mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.50mm
DJ0980049T1R01 IN2005 0.386 9.80mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DJ0990049T1R01 IN2005 0.390 9.90mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DJ1000049T1R01 IN2005 0.394 10.00mm 10mm Cylind. 49.00mm 61.00mm 103.00mm 1.60mm
DJ1010056T2R01 IN2005 0.398 10.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DJ1020056T2R01 IN2005 0.402 10.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DJ1030056T2R01 IN2005 0.406 10.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DJ1040056T2R01 IN2005 0.413 10.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DJ1056056T2R01 IN2005 0.409 10.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.60mm
DJ1060056T2R01 IN2005 0.417 10.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1070056T2R01 IN2005 0.421 10.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1080056T2R01 IN2005 0.425 10.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1090056T2R01 IN2005 0.429 10.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1100056T2R01 IN2005 0.433 11.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1110056T2R01 IN2005 0.437 11.10mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.70mm
DJ1120056T2R01 IN2005 0.441 11.20mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DJ1130056T2R01 IN2005 0.445 11.30mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DJ1150056T2R01 IN2005 0.453 11.50mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DJ1156056T2R01 IN2005 0.449 11.40mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DJ1160056T2R01 IN2005 0.457 11.60mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.80mm
DJ1170056T2R01 IN2005 0.461 11.70mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DJ1180056T2R01 IN2005 0.465 11.80mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DJ1190056T2R01 IN2005 0.469 11.90mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
DJ1200056T2R01 IN2005 0.472 12.00mm 12mm Cylind. 56.00mm 71.00mm 118.00mm 1.90mm
Metric Standard - (dimensions in mm unless noted)
PART SERIES
116
PART SERIES
Placeholder
.2362-.2520 6.0-6.4 TD0600009S4R01 0.35 0.91 2.67 .500“ Cylind. 6 Yes
.2560-.2717 6.5-6.9 TD0650010S4R01 0.39 0.95 2.72 .500“ Cylind. 6.5 Yes
.2756-.2913 7.0-7.4 TD0700010S4R01 0.43 0.99 2.76 .500“ Cylind. 7.0 Yes
.2953-.3110 7.5-7.9 TD0750011S4R01 0.44 1.02 2.79 .500“ Cylind. 7.5 Yes
.3150-.3504 8.0-8.9 TD0800012S4R01 0.47 1.10 2.87 .500“ Cylind. 8 Yes
.3543-.3898 9.0-9.9 TD0900013S4R01 0.55 1.15 2.92 .500“ Cylind. 9 Yes
.3937-.4291 10.0-10.9 TD1000015S6R01 0.59 1.23 3.12 .625“ Cylind. 10 Yes
.4331-.4685 11.0-11.9 TD1100016S6R01 0.67 1.30 3.19 .625“ Cylind. 11 Yes
.4724-.5079 12.0-12.9 TD1200018S6R01 0.71 1.38 3.27 .625“ Cylind. 12 Yes
.5118-.5472 13.0-13.9 TD1300019S6R01 0.79 1.46 3.35 .625“ Cylind. 13 Yes
.5512-.5866 14.0-14.9 TD1400021S6R01 0.83 1.62 3.51 .625“ Cylind. 14 Yes
.5906-.6260 15.0-15.9 TD1500022S7R01 0.91 1.82 3.79 .750“ Cylind. 15 Yes
.6299-.6654 16.0-16.9 TD1600024S7R01 0.94 1.94 3.91 .750“ Cylind. 16 Yes
.6693-.7047 17.0-17.9 TD1700025S7R01 1.02 2.06 4.03 .750“ Cylind. 17 Yes
.7087-.7441 18.0-18.9 TD1800027S1R01 1.06 2.19 4.39 1.000“ Cylind. 18 Yes
.7480-.7835 19.0-19.9 TD1900028S1R01 1.14 2.30 4.50 1.000“ Cylind. 19 Yes
.7874-.8228 20.0-20.9 TD2000030S1R01 1.18 2.43 4.63 1.000“ Cylind. 20 Yes
.8268-.8622 21.0-21.9 TD2100031S1R01 1.26 2.55 4.75 1.000“ Cylind. 21 Yes
.8661-.9016 22.0-22.9 TD2200033S1R01 1.30 2.67 4.87 1.000“ Cylind. 22 Yes
.9055-.9409 23.0-23.9 TD2300034S9R01 1.38 2.79 5.15 1.250“ Cylind. 23 Yes
.9449-.9803 24.0-24.9 TD2400036S9R01 1.42 2.91 5.27 1.250“ Cylind. 24 Yes
.9843-1.0197 25.0-25.9 TD2500037S9R01 1.50 3.03 5.39 1.250“ Cylind. 25 Yes
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
Pocket
Size
Coolant
Thru Point

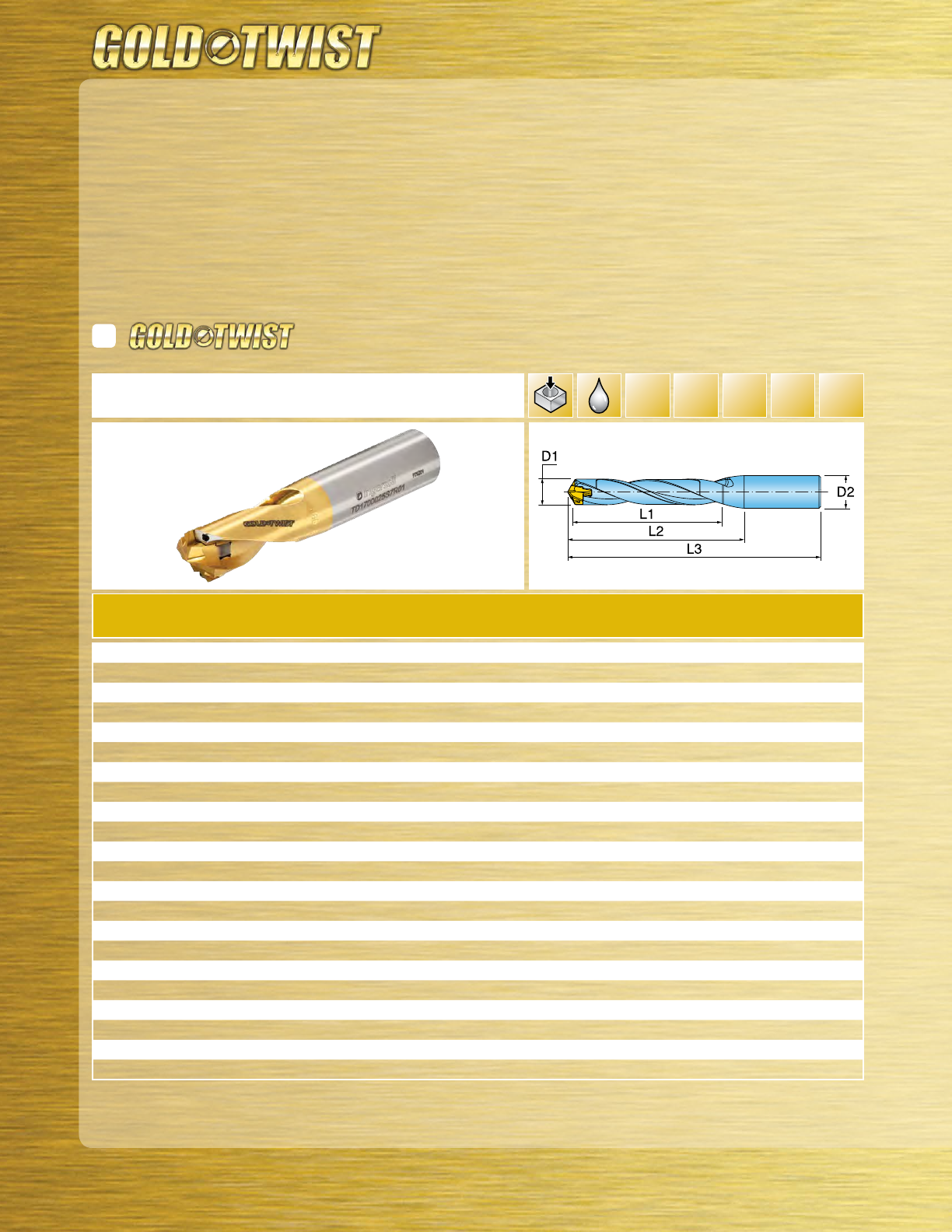

REPLACEABLE TIPPED DRILL BODIES
116
SERIES TD 1.5:1 CYLINDRICAL SHANK (INCH)
*Do not mount a smaller drill point than the one listed with the tool.
Features & Benefits:
• Twisted coolant hole with optimum flute design
• Polished flute for smooth chip evacuation
• PVD coated body for prolonged body life
• Innovative quick change system
• IN2505 and IN05S grades - Long tool life
• One drill body can cover 5-10 different tip diameters
HARDWARE
117
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600009S4R01 KTD6.0-D9.9 DL-12
TD0650010S4R01 KTD6.0-D9.9 DL-12
TD0700010S4R01 KTD6.0-D9.9 DL-12
TD0750011S4R01 KTD6.0-D9.9 DL-12
TD0800012S4R01 KTD6.0-D9.9 DL-12
TD0900013S4R01 KTD6.0-D9.9 DL-12
TD1000015S6R01 KTD10.0-19.9 DL-16
TD1100016S6R01 KTD10.0-19.9 DL-16
TD1200018S6R01 KTD10.0-19.9 DL-16
TD1300019S6R01 KTD10.0-19.9 DL-16
TD1400021S6R01 KTD10.0-19.9 DL-16
TD1500022S7R01 KTD10.0-19.9 DL-20
TD1600024S7R01 KTD10.0-19.9 DL-20
TD1700025S7R01 KTD10.0-19.9 DL-20
TD1800027S1R01 KTD10.0-19.9 DL-25
TD1900028S1R01 KTD10.0-19.9 DL-25
TD2000030S1R01 KTD20.0-D26.9 DL-25
TD2100031S1R01 KTD20.0-D26.9 DL-25
TD2200033S1R01 KTD20.0-D26.9 DL-25
TD2300034S9R01 KTD20.0-D26.9 DL-32
TD2400036S9R01 KTD20.0-D26.9 DL-32
TD2500037S9R01 KTD20.0-D26.9 DL-32
117
PART SERIES
118
PART SERIES

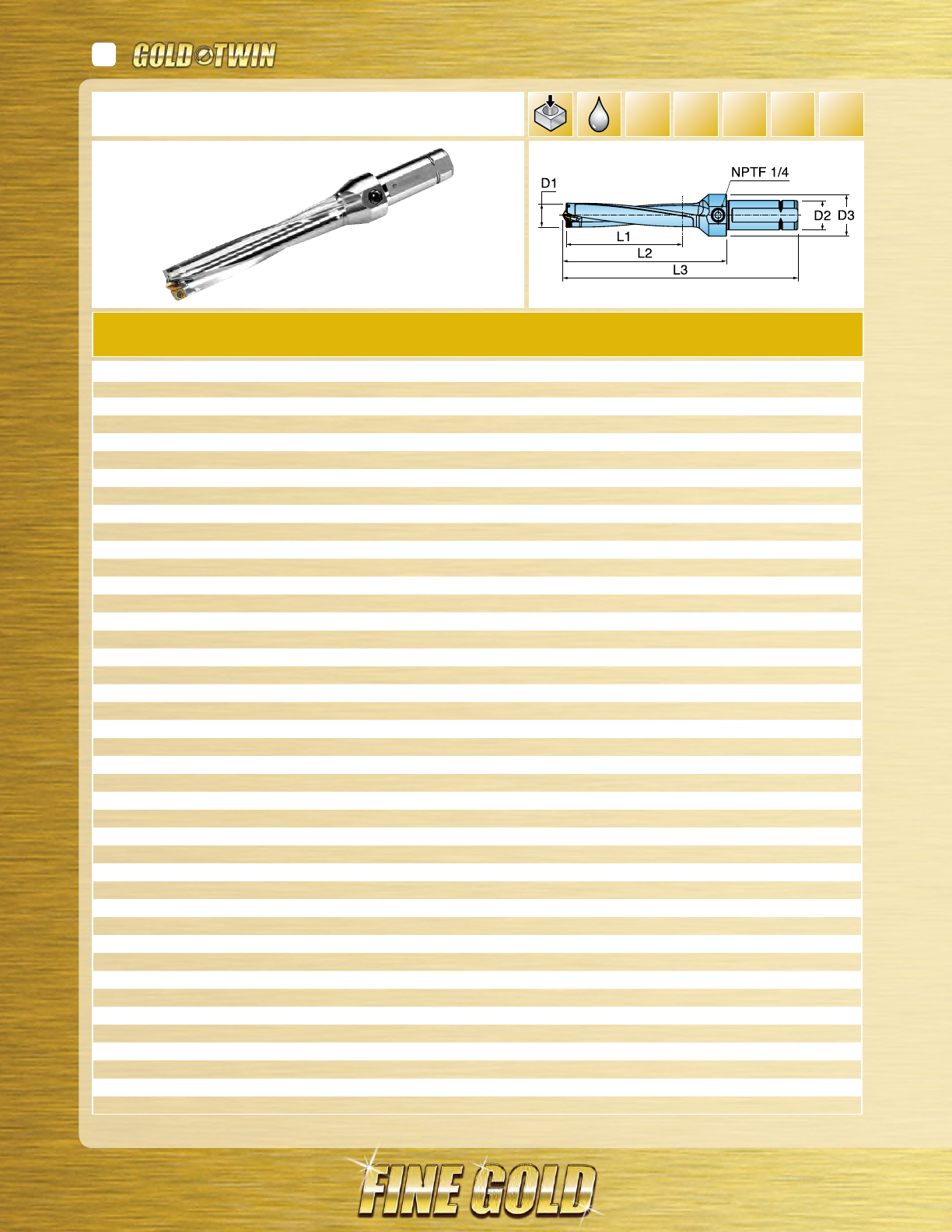

Placeholder
.2362-.2520 6.0-6.4 TD0600009B9R01 0.35 0.91 2.67 .500“ Univ. 0.63 6 Yes
.2560-.2717 6.5-6.9 TD0650010B9R01 0.39 0.95 2.72 .500“ Univ. 0.63 6.5 Yes
.2756-.2913 7.0-7.4 TD0700010B9R01 0.43 0.99 2.76 .500“ Univ. 0.63 7.0 Yes
.2953-.3110 7.5-7.9 TD0750011B9R01 0.44 1.02 2.79 .500“ Univ. 0.63 7.5 Yes
.3150-.3504 8.0-8.9 TD0800012B9R01 0.47 1.10 2.87 .500“ Univ. 0.63 8 Yes
.3543-.3898 9.0-9.9 TD0900013B9R01 0.55 1.15 2.92 .500“ Univ. 0.63 9 Yes
.3937-.4291 10.0-10.9 TD1000015C0R01 0.59 1.23 3.12 .625“ Univ. 0.79 10 Yes
.4331-.4685 11.0-11.9 TD1100016C0R01 0.67 1.30 3.19 .625“ Univ. 0.79 11 Yes
.4724-.5079 12.0-12.9 TD1200018C0R01 0.71 1.38 3.27 .625“ Univ. 0.79 12 Yes
.5118-.5472 13.0-13.9 TD1300019C0R01 0.79 1.46 3.35 .625“ Univ. 0.79 13 Yes
.5512-.5866 14.0-14.9 TD1400021C0R01 0.83 1.62 3.51 .625“ Univ. 0.79 14 Yes
.5906-.6260 15.0-15.9 TD150002218R01 0.91 1.82 3.79 .750“ Univ. 0.98 15 Yes
.6299-.6654 16.0-16.9 TD160002418R01 0.94 1.94 3.91 .750“ Univ. 0.98 16 Yes
.6693-.7047 17.0-17.9 TD170002518R01 1.02 2.06 4.03 .750“ Univ. 0.98 17 Yes
.7087-.7441 18.0-18.9 TD1800027C8R01 1.06 2.19 4.39 1.000“ Univ. 1.26 18 Yes
.7480-.7835 19.0-19.9 TD1900028C8R01 1.14 2.30 4.50 1.000“ Univ. 1.26 19 Yes
.7874-.8228 20.0-20.9 TD2000030C8R01 1.18 2.43 4.63 1.000“ Univ. 1.26 20 Yes
.8268-.8622 21.0-21.9 TD2100031C8R01 1.26 2.55 4.75 1.000“ Univ. 1.26 21 Yes
.8661-.9016 22.0-22.9 TD2200033C8R01 1.30 2.67 4.87 1.000“ Univ. 1.26 22 Yes
.9055-.9409 23.0-23.9 TD2300034B7R01 1.38 2.79 5.15 1.250“ Univ. 1.65 23 Yes
.9449-.9803 24.0-24.9 TD2400036B7R01 1.42 2.91 5.27 1.250“ Univ. 1.65 24 Yes
.9843-1.0197 25.0-25.9 TD2500037B7R01 1.50 3.03 5.39 1.250“ Univ. 1.65 25 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standard.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange
Dia.
Pocket
Size
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
118
SERIES TD 1.5:1 UNIVERSAL SHANK (INCH)
HARDWARE
119
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600009B9R01 KTD6.0-D9.9 DL-12
TD0650010B9R01 KTD6.0-D9.9 DL-12
TD0700010B9R01 KTD6.0-D9.9 DL-12
TD0750011B9R01 KTD6.0-D9.9 DL-12
TD0800012B9R01 KTD6.0-D9.9 DL-12
TD0900013B9R01 KTD6.0-D9.9 DL-12
TD1000015C0R01 KTD10.0-19.9 DL-16
TD1100016C0R01 KTD10.0-19.9 DL-16
TD1200018C0R01 KTD10.0-19.9 DL-16
TD1300019C0R01 KTD10.0-19.9 DL-16
TD1400021C0R01 KTD10.0-19.9 DL-16
TD150002218R01 KTD10.0-19.9 DL-20
TD160002418R01 KTD10.0-19.9 DL-20
TD170002518R01 KTD10.0-19.9 DL-20
TD1800027C8R01 KTD10.0-19.9 DL-25
TD1900028C8R01 KTD10.0-19.9 DL-25
TD2000030C8R01 KTD20.0-D26.9 DL-25
TD2100031C8R01 KTD20.0-D26.9 DL-25
TD2200033C8R01 KTD20.0-D26.9 DL-25
TD2300034B7R01 KTD20.0-D26.9 DL-32
TD2400036B7R01 KTD20.0-D26.9 DL-32
TD2500037B7R01 KTD20.0-D26.9 DL-32
119
PART SERIES
120
PART SERIES
Placeholder
.2362-.2520 6.0-6.4 TD0600018S4R01 0.71 1.26 3.03 .500“ Cylind. 6 NA Yes
.2560-.2717 6.5-6.9 TD0650020S4R01 0.79 1.33 3.10 .500“ Cylind. 6.5 NA Yes
.2756-.2913 7.0-7.4 TD0700021S4R01 0.83 1.40 3.17 .500“ Cylind. 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750022S4R01 0.89 1.46 3.23 .500“ Cylind. 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800024S4R01 0.94 1.55 3.32 .500“ Cylind. 8 NA Yes
.3346-.3504 8.5-8.9 TD0850025S4R01 1.00 1.61 3.38 .500“ Cylind. 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900027S4R01 1.06 1.69 3.46 .500“ Cylind. 9 NA Yes
.3740-.3898 9.5-9.9 TD0950028S4R01 1.12 1.74 3.51 .500“ Cylind. 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000030S6R01 1.18 1.82 3.71 .625“ Cylind. 10 NA Yes
.4134-.4291 10.5-10.9 TD1050031S6R01 1.26 1.88 3.77 .625“ Cylind. 10.5 NA Yes
.4331-.4488 11.0-11.4 TD1100033S6R01 1.30 1.95 3.84 .625“ Cylind. 11 NA Yes
.4528-.4685 11.5-11.9 TD1150034S6R01 1.38 2.01 3.90 .625“ Cylind. 11.5 NA Yes
.4724-.4882 12.0-12.4 TD1200036S6R01 1.42 2.09 3.98 .625“ Cylind. 12 NA Yes
.4912-.5079 12.5-12.9 TD1250037S6R01 1.46 2.15 4.04 .625“ Cylind. 12.5 NA Yes
.5118-.5276 13.0-13.4 TD1300039S6R01 1.54 2.23 4.12 .625“ Cylind. 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350040S6R01 1.61 2.29 4.18 .625“ Cylind. 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400042S6R01 1.65 2.44 4.33 .625“ Cylind. 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450043S6R01 1.73 2.50 4.39 .625“ Cylind. 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD1500045S7R01 1.77 2.70 4.67 .750“ Cylind. 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD1600048S7R01 1.89 2.89 4.86 .750“ Cylind. 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD1700051S7R01 2.01 3.07 5.04 .750“ Cylind. 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800054S1R01 2.13 3.25 5.45 1.000“ Cylind. 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900057S1R01 2.24 3.43 5.63 1.000“ Cylind. 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000060S1R01 2.36 3.61 5.81 1.000“ Cylind. 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100063S1R01 2.48 3.79 5.99 1.000“ Cylind. 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200066S1R01 2.60 3.97 6.17 1.000“ Cylind. 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300069S9R01 2.72 4.15 6.51 1.250“ Cylind. 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400072S9R01 2.83 4.33 6.69 1.250“ Cylind. 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500075S9R01 2.95 4.51 6.87 1.250“ Cylind. 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
Pocket
Size
Chamfer
Ring
Coolant
Thru Point

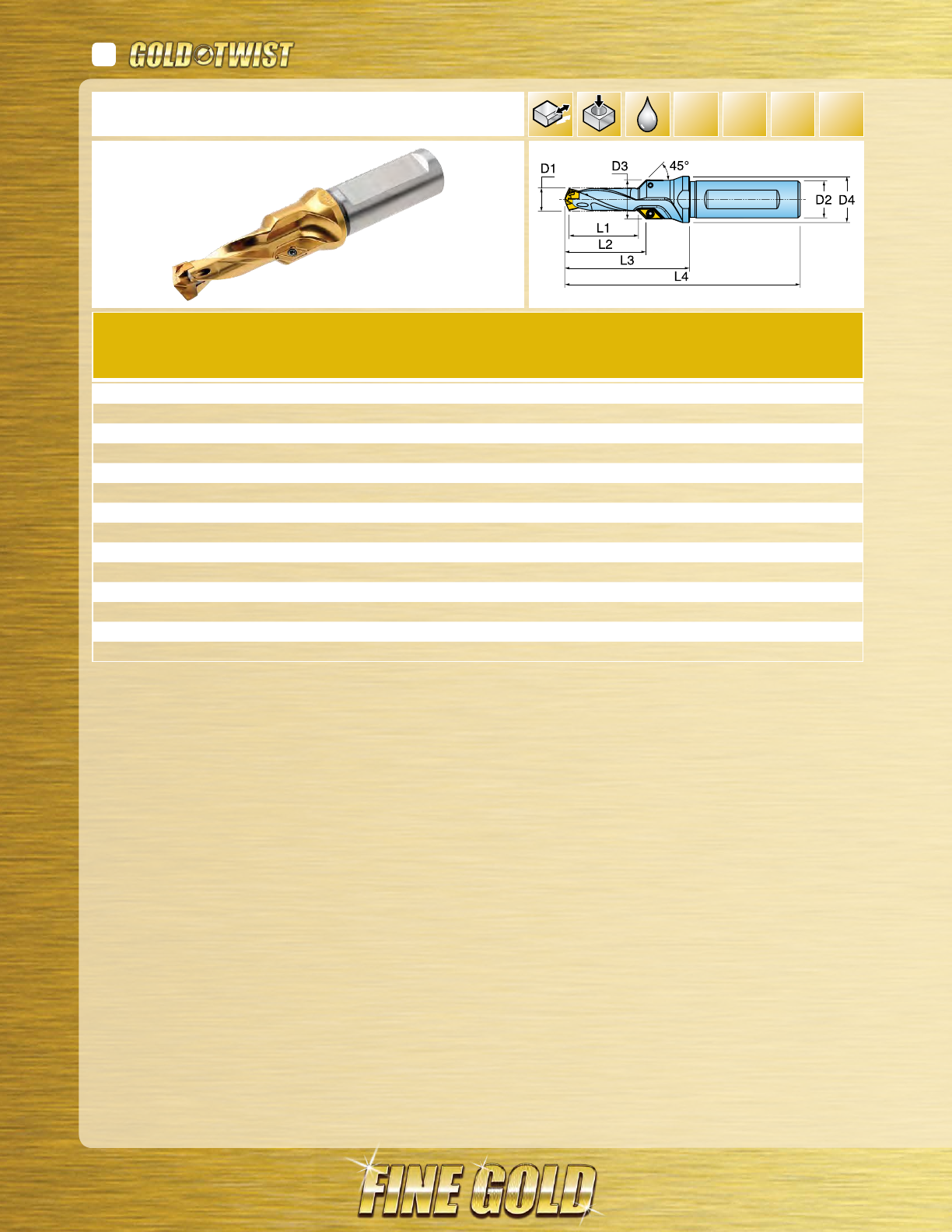

REPLACEABLE TIPPED DRILL BODIES
120
SERIES TD 3:1 CYLINDRICAL SHANK (INCH)
HARDWARE
121
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600018S4R01 KTD6.0-D9.9 DL-12
TD0650020S4R01 KTD6.0-D9.9 DL-12
TD0700021S4R01 KTD6.0-D9.9 DL-12
TD0750022S4R01 KTD6.0-D9.9 DL-12
TD0800024S4R01 KTD6.0-D9.9 DL-12
TD0850025S4R01 KTD6.0-D9.9 DL-12
TD0900027S4R01 KTD6.0-D9.9 DL-12
TD0950028S4R01 KTD6.0-D9.9 DL-12
TD1000030S6R01 KTD10.0-19.9 DL-16
TD1050031S6R01 KTD10.0-19.9 DL-16
TD1100033S6R01 KTD10.0-19.9 DL-16
TD1150034S6R01 KTD10.0-19.9 DL-16
TD1200036S6R01 KTD10.0-19.9 DL-16
TD1250037S6R01 KTD10.0-19.9 DL-16
TD1300039S6R01 KTD10.0-19.9 DL-16
TD1350040S6R01 KTD10.0-19.9 DL-16
TD1400042S6R01 KTD10.0-19.9 DL-16
TD1450043S6R01 KTD10.0-19.9 DL-16
TD1500045S7R01 KTD10.0-19.9 DL-20
TD1600048S7R01 KTD10.0-19.9 DL-20
TD1700051S7R01 KTD10.0-19.9 DL-20
TD1800054S1R01 KTD10.0-19.9 DL-25
TD1900057S1R01 KTD10.0-19.9 DL-25
TD2000060S1R01 KTD20.0-D26.9 DL-25
TD2100063S1R01 KTD20.0-D26.9 DL-25
TD2200066S1R01 KTD20.0-D26.9 DL-25
TD2300069S9R01 KTD20.0-D26.9 DL-32
TD2400072S9R01 KTD20.0-D26.9 DL-32
TD2500075S9R01 KTD20.0-D26.9 DL-32
121
PART SERIES
122
PART SERIES
Placeholder
.2362-.2520 6.0-6.4 TD0600018B9R01 0.71 1.26 3.03 .500“ Univ. 0.63 6 NA Yes
.2560-.2717 6.5-6.9 TD0650020B9R01 0.79 1.33 3.10 .500“ Univ. 0.63 6.5 NA Yes
.2756-.2913 7.0-7.4 TD0700021B9R01 0.83 1.40 3.17 .500“ Univ. 0.63 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750022B9R01 0.89 1.46 3.23 .500“ Univ. 0.63 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800024B9R01 0.94 1.55 3.32 .500“ Univ. 0.63 8 NA Yes
.3346-.3504 8.5-8.9 TD0850025B9R01 1.00 1.61 3.38 .500“ Univ. 0.63 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900027B9R01 1.06 1.69 3.46 .500“ Univ. 0.63 9 NA Yes
.3740-.3898 9.5-9.9 TD0950028B9R01 1.12 1.74 3.51 .500“ Univ. 0.63 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000030C0R01 1.18 1.82 3.71 .625“ Univ. 0.79 10 NA Yes
.4134-.4291 10.5-10.9 TD1050031C0R01 1.26 1.90 3.79 .625“ Univ. 0.79 10.5 NA Yes
.4331-.4488 11.0-11.4 TD1100033C0R01 1.30 1.95 3.84 .625“ Univ. 0.79 11 NA Yes
.4528-.4685 11.5-11.9 TD1150034C0R01 1.38 2.01 3.90 .625“ Univ. 0.79 11.5 NA Yes
.4724-.4882 12.0-12.4 TD1200036C0R01 1.42 2.09 3.98 .625“ Univ. 0.79 12 NA Yes
.4912-.5079 12.5-12.9 TD1250037C0R01 1.46 2.15 4.04 .625“ Univ. 0.79 12.5 NA Yes
.5118-.5276 13.0-13.4 TD1300039C0R01 1.54 2.23 4.12 .625“ Univ. 0.79 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350040C0R01 1.61 2.30 4.19 .625“ Univ. 0.79 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400042C0R01 1.65 2.44 4.33 .625“ Univ. 0.79 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450043C0R01 1.73 2.50 4.39 .625“ Univ. 0.79 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD150004518R01 1.77 2.70 4.67 .750“ Univ. 0.98 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD160004818R01 1.89 2.89 4.86 .750“ Univ. 0.98 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD170005118R01 2.01 3.07 5.04 .750“ Univ. 0.98 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800054C8R01 2.13 3.25 5.45 1.000“ Univ. 1.26 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900057C8R01 2.24 3.43 5.63 1.000“ Univ. 1.26 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000060C8R01 2.36 3.61 5.81 1.000“ Univ. 1.26 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100063C8R01 2.48 3.79 5.99 1.000“ Univ. 1.26 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200066C8R01 2.60 3.97 6.17 1.000“ Univ. 1.26 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300069B7R01 2.72 4.15 6.51 1.250“ Univ. 1.65 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400072B7R01 2.83 4.33 6.69 1.250“ Univ. 1.65 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500075B7R01 2.95 4.51 6.87 1.250“ Univ. 1.65 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standard.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange
Dia.
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
122
SERIES TD 3:1 UNIVERSAL SHANK (INCH)
HARDWARE
123
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600018B9R01 KTD6.0-D9.9 DL-12
TD0650020B9R01 KTD6.0-D9.9 DL-12
TD0700021B9R01 KTD6.0-D9.9 DL-12
TD0750022B9R01 KTD6.0-D9.9 DL-12
TD0800024B9R01 KTD6.0-D9.9 DL-12
TD0850025B9R01 KTD6.0-D9.9 DL-12
TD0900027B9R01 KTD6.0-D9.9 DL-12
TD0950028B9R01 KTD6.0-D9.9 DL-12
TD1000030C0R01 KTD10.0-19.9 DL-16
TD1050031C0R01 KTD10.0-19.9 DL-16
TD1100033C0R01 KTD10.0-19.9 DL-16
TD1150034C0R01 KTD10.0-19.9 DL-16
TD1200036C0R01 KTD10.0-19.9 DL-16
TD1250037C0R01 KTD10.0-19.9 DL-16
TD1300039C0R01 KTD10.0-19.9 DL-16
TD1350040C0R01 KTD10.0-19.9 DL-16
TD1400042C0R01 KTD10.0-19.9 DL-16
TD1450043C0R01 KTD10.0-19.9 DL-16
TD150004518R01 KTD10.0-19.9 DL-20
TD160004818R01 KTD10.0-19.9 DL-20
TD170005118R01 KTD10.0-19.9 DL-20
TD1800054C8R01 KTD10.0-19.9 DL-25
TD1900057C8R01 KTD10.0-19.9 DL-25
TD2000060C8R01 KTD20.0-D26.9 DL-25
TD2100063C8R01 KTD20.0-D26.9 DL-25
TD2200066C8R01 KTD20.0-D26.9 DL-25
TD2300069B7R01 KTD20.0-D26.9 DL-32
TD2400072B7R01 KTD20.0-D26.9 DL-32
TD2500075B7R01 KTD20.0-D26.9 DL-32
123
PART SERIES
124
PART SERIES
Placeholder
.2362-.2520 6.0-6.4 TD0600030S4R01 1.18 1.73 3.50 .500“ Cylind. 6 NA Yes
.2560-.2717 6.5-6.9 TD0650033S4R01 1.30 1.84 3.61 .500“ Cylind. 6.5 NA Yes
.2756-.2913 7.0-7.4 TD0700035S4R01 1.38 1.95 3.72 .500“ Cylind. 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750037S4R01 1.48 2.05 3.82 .500“ Cylind. 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800040S4R01 1.57 2.18 3.95 .500“ Cylind. 8 NA Yes
.3346-.3504 8.5-8.9 TD0850042S4R01 1.67 2.28 4.05 .500“ Cylind. 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900045S4R01 1.77 2.39 4.16 .500“ Cylind. 9 NA Yes
.3740-.3898 9.5-9.9 TD0950047S4R01 1.87 2.49 4.26 .500“ Cylind. 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000050S6R01 1.97 2.61 4.50 .625“ Cylind. 10 CB100R02 Yes
.4134-.4291 10.5-10.9 TD1050052S6R01 2.09 2.70 4.59 .625“ Cylind. 10.5 CB105R02 Yes
.4331-.4488 11.0-11.4 TD1100055S6R01 2.17 2.82 4.71 .625“ Cylind. 11 CB110R02 Yes
.4528-.4685 11.5-11.9 TD1150057S6R01 2.28 2.92 4.81 .625“ Cylind. 11.5 CB115R02 Yes
.4724-.4882 12.0-12.4 TD1200060S6R01 2.36 3.03 4.92 .625“ Cylind. 12 CB120R02 Yes
.4912-.5079 12.5-12.9 TD1250062S6R01 2.44 3.13 5.02 .625“ Cylind. 12.5 CB125R02 Yes
.5118-.5276 13.0-13.4 TD1300065S6R01 2.56 3.25 5.14 .625“ Cylind. 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350067S6R01 2.68 3.35 5.24 .625“ Cylind. 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400070S6R01 2.76 3.55 5.44 .625“ Cylind. 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450072S6R01 2.87 3.65 5.54 .625“ Cylind. 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD1500075S7R01 2.95 3.89 5.86 .750“ Cylind. 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD1600080S7R01 3.15 4.15 6.12 .750“ Cylind. 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD1700085S7R01 3.35 4.41 6.38 .750“ Cylind. 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800090S1R01 3.54 4.67 6.87 1.000“ Cylind. 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900095S1R01 3.74 4.92 7.12 1.000“ Cylind. 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000100S1R01 3.94 5.18 7.38 1.000“ Cylind. 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100105S1R01 4.13 5.44 7.64 1.000“ Cylind. 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200110S1R01 4.33 5.70 7.90 1.000“ Cylind. 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300115S9R01 4.53 5.96 8.32 1.250“ Cylind. 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400120S9R01 4.72 6.22 8.58 1.250“ Cylind. 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500125S9R01 4.92 6.48 8.84 1.250“ Cylind. 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
124
SERIES TD 5:1 CYLINDRICAL SHANK (INCH)
HARDWARE
125
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600030S4R01 KTD6.0-D9.9 DL-12
TD0650033S4R01 KTD6.0-D9.9 DL-12
TD0700035S4R01 KTD6.0-D9.9 DL-12
TD0750037S4R01 KTD6.0-D9.9 DL-12
TD0800040S4R01 KTD6.0-D9.9 DL-12
TD0850042S4R01 KTD6.0-D9.9 DL-12
TD0900045S4R01 KTD6.0-D9.9 DL-12
TD0950047S4R01 KTD6.0-D9.9 DL-12
TD1000050S6R01 KTD10.0-19.9 DL-16
TD1050052S6R01 KTD10.0-19.9 DL-16
TD1100055S6R01 KTD10.0-19.9 DL-16
TD1150057S6R01 KTD10.0-19.9 DL-16
TD1200060S6R01 KTD10.0-19.9 DL-16
TD1250062S6R01 KTD10.0-19.9 DL-16
TD1300065S6R01 KTD10.0-19.9 DL-16
TD1350067S6R01 KTD10.0-19.9 DL-16
TD1400070S6R01 KTD10.0-19.9 DL-16
TD1450072S6R01 KTD10.0-19.9 DL-16
TD1500075S7R01 KTD10.0-19.9 DL-20
TD1600080S7R01 KTD10.0-19.9 DL-20
TD1700085S7R01 KTD10.0-19.9 DL-20
TD1800090S1R01 KTD10.0-19.9 DL-25
TD1900095S1R01 KTD10.0-19.9 DL-25
TD2000100S1R01 KTD20.0-D26.9 DL-25
TD2100105S1R01 KTD20.0-D26.9 DL-25
TD2200110S1R01 KTD20.0-D26.9 DL-25
TD2300115S9R01 KTD20.0-D26.9 DL-32
TD2400120S9R01 KTD20.0-D26.9 DL-32
TD2500125S9R01 KTD20.0-D26.9 DL-32
125
PART SERIES
126
PART SERIES
Placeholder
.2362-.2520 6.0-6.4 TD0600030B9R01 1.18 1.73 3.50 .500“ Univ. 0.63 6 NA Yes
.2560-.2717 6.5-6.9 TD0650033B9R01 1.30 1.84 3.61 .500“ Univ. 0.63 6.5 NA Yes
.2756-.2913 7.0-7.4 TD0700035B9R01 1.38 1.95 3.72 .500“ Univ. 0.63 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750037B9R01 1.48 2.05 3.82 .500“ Univ. 0.63 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800040B9R01 1.57 2.18 3.95 .500“ Univ. 0.63 8 NA Yes
.3346-.3504 8.5-8.9 TD0850042B9R01 1.67 2.28 4.05 .500“ Univ. 0.63 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900045B9R01 1.77 2.39 4.16 .500“ Univ. 0.63 9 NA Yes
.3740-.3898 9.5-9.9 TD0950047B9R01 1.87 2.49 4.26 .500“ Univ. 0.63 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000050C0R01 1.97 2.61 4.50 .625“ Univ. 0.79 10 CB100R02 Yes
.4134-.4291 10.5-10.9 TD1050052C0R01 2.09 2.70 4.59 .625“ Univ. 0.79 10.5 CB105R02 Yes
.4331-.4488 11.0-11.4 TD1100055C0R01 2.17 2.82 4.71 .625“ Univ. 0.79 11 CB110R02 Yes
.4528-.4685 11.5-11.9 TD1150057C0R01 2.28 2.92 4.81 .625“ Univ. 0.79 11.5 CB115R02 Yes
.4724-.4882 12.0-12.4 TD1200060C0R01 2.36 3.03 4.92 .625“ Univ. 0.79 12 CB120R02 Yes
.4912-.5079 12.5-12.9 TD1250062C0R01 2.44 3.13 5.02 .625“ Univ. 0.79 12.5 CB125R02 Yes
.5118-.5276 13.0-13.4 TD1300065C0R01 2.56 3.25 5.14 .625“ Univ. 0.79 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350067C0R01 2.68 3.35 5.24 .625“ Univ. 0.79 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400070C0R01 2.76 3.55 5.44 .625“ Univ. 0.79 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450072C0R01 2.87 3.65 5.54 .625“ Univ. 0.79 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD150007518R01 2.95 3.89 5.86 .750“ Univ. 0.98 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD160008018R01 3.15 4.15 6.12 .750“ Univ. 0.98 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD170008518R01 3.35 4.41 6.38 .750“ Univ. 0.98 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800090C8R01 3.54 4.67 6.87 1.000“ Univ. 1.26 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900095C8R01 3.74 4.92 7.12 1.000“ Univ. 1.26 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000100C8R01 3.94 5.18 7.38 1.000“ Univ. 1.26 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100105C8R01 4.13 5.44 7.64 1.000“ Univ. 1.26 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200110C8R01 4.33 5.70 7.90 1.000“ Univ. 1.26 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300115B7R01 4.53 5.96 8.32 1.250“ Univ. 1.65 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400120B7R01 4.72 6.22 8.58 1.250“ Univ. 1.65 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500125B7R01 4.92 6.48 8.84 1.250“ Univ. 1.65 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standard.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange
Dia.
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
126
SERIES TD 5:1 UNIVERSAL SHANK (INCH)
HARDWARE
127
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0600030B9R01 KTD6.0-D9.9 DL-12
TD0650033B9R01 KTD6.0-D9.9 DL-12
TD0700035B9R01 KTD6.0-D9.9 DL-12
TD0750037B9R01 KTD6.0-D9.9 DL-12
TD0800040B9R01 KTD6.0-D9.9 DL-12
TD0850042B9R01 KTD6.0-D9.9 DL-12
TD0900045B9R01 KTD6.0-D9.9 DL-12
TD0950047B9R01 KTD6.0-D9.9 DL-12
TD1000050C0R01 KTD10.0-19.9 DL-16
TD1050052C0R01 KTD10.0-19.9 DL-16
TD1100055C0R01 KTD10.0-19.9 DL-16
TD1150057C0R01 KTD10.0-19.9 DL-16
TD1200060C0R01 KTD10.0-19.9 DL-16
TD1250062C0R01 KTD10.0-19.9 DL-16
TD1300065C0R01 KTD10.0-19.9 DL-16
TD1350067C0R01 KTD10.0-19.9 DL-16
TD1400070C0R01 KTD10.0-19.9 DL-16
TD1450072C0R01 KTD10.0-19.9 DL-16
TD150007518R01 KTD10.0-19.9 DL-20
TD160008018R01 KTD10.0-19.9 DL-20
TD170008518R01 KTD10.0-19.9 DL-20
TD1800090C8R01 KTD10.0-19.9 DL-25
TD1900095C8R01 KTD10.0-19.9 DL-25
TD2000100C8R01 KTD20.0-D26.9 DL-25
TD2100105C8R01 KTD20.0-D26.9 DL-25
TD2200110C8R01 KTD20.0-D26.9 DL-25
TD2300115B7R01 KTD20.0-D26.9 DL-32
TD2400120B7R01 KTD20.0-D26.9 DL-32
TD2500125B7R01 KTD20.0-D26.9 DL-32
127
PART SERIES
128
PART SERIES
Placeholder
.2756-.2913 7.0-7.4 TD0700056S4R01 2.20 2.78 4.55 .500“ Cylind. 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750060S4R01 2.28 2.94 4.71 .500“ Cylind. 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800064S4R01 2.52 3.13 4.90 .500“ Cylind. 8 NA Yes
.3346-.3504 8.5-8.9 TD0850068S4R01 2.68 3.32 5.09 .500“ Cylind. 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900072S4R01 2.83 3.46 5.23 .500“ Cylind. 9 NA Yes
.3740-.3898 9.5-9.9 TD0950076S4R01 2.99 3.65 5.42 .500“ Cylind. 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000080S6R01 3.15 3.79 5.68 .625“ Cylind. 10 CB100R02 Yes
.4134-.4291 10.5-10.9 TD1050084S6R01 3.31 3.94 5.83 .625“ Cylind. 10.5 CB105R02 Yes
.4331-.4488 11.0-11.4 TD1100088S6R01 3.46 4.12 6.01 .625“ Cylind. 11 CB110R02 Yes
.4528-.4685 11.5-11.9 TD1150092S6R01 3.62 4.28 6.17 .625“ Cylind. 11.5 CB115R02 Yes
.4724-.4882 12.0-12.4 TD1200096S6R01 3.78 4.45 6.34 .625“ Cylind. 12 CB120R02 Yes
.4912-.5079 12.5-12.9 TD1250100S6R01 3.94 4.61 6.50 .625“ Cylind. 12.5 CB125R02 Yes
.5118-.5276 13.0-13.4 TD1300104S6R01 4.09 4.79 6.68 .625“ Cylind. 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350108S6R01 4.25 4.94 6.83 .625“ Cylind. 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400112S6R01 4.41 5.20 7.09 .625“ Cylind. 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450116S6R01 4.57 5.36 7.25 .625“ Cylind. 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD1500120S7R01 4.72 5.66 7.63 .750“ Cylind. 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD1600128S7R01 5.04 6.04 8.01 .750“ Cylind. 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD1700136S7R01 5.35 6.41 8.38 .750“ Cylind. 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800144S1R01 5.67 6.79 8.99 1.000“ Cylind. 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900152S1R01 5.98 7.17 9.37 1.000“ Cylind. 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000160S1R01 6.30 7.54 9.74 1.000“ Cylind. 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100168S1R01 6.61 7.92 10.12 1.000“ Cylind. 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200176S1R01 6.93 8.30 10.50 1.000“ Cylind. 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300184S9R01 7.24 8.68 11.04 1.250“ Cylind. 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400192S9R01 7.56 9.06 11.42 1.250“ Cylind. 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500200S9R01 7.87 9.43 11.79 1.250“ Cylind. 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standards.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
128
SERIES TD 8:1 CYLINDRICAL SHANK (INCH)
HARDWARE
129
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0700056S4R01 KTD6.0-D9.9 DL-12
TD0750060S4R01 KTD6.0-D9.9 DL-12
TD0800064S4R01 KTD6.0-D9.9 DL-12
TD0850068S4R01 KTD6.0-D9.9 DL-12
TD0900072S4R01 KTD6.0-D9.9 DL-12
TD0950076S4R01 KTD6.0-D9.9 DL-12
TD1000080S6R01 KTD10.0-19.9 DL-16
TD1050084S6R01 KTD10.0-19.9 DL-16
TD1100088S6R01 KTD10.0-19.9 DL-16
TD1150092S6R01 KTD10.0-19.9 DL-16
TD1200096S6R01 KTD10.0-19.9 DL-16
TD1250100S6R01 KTD10.0-19.9 DL-16
TD1300104S6R01 KTD10.0-19.9 DL-16
TD1350108S6R01 KTD10.0-19.9 DL-16
TD1400112S6R01 KTD10.0-19.9 DL-16
TD1450116S6R01 KTD10.0-19.9 DL-16
TD1500120S7R01 KTD10.0-19.9 DL-20
TD1600128S7R01 KTD10.0-19.9 DL-20
TD1700136S7R01 KTD10.0-19.9 DL-20
TD1800144S1R01 KTD10.0-19.9 DL-25
TD1900152S1R01 KTD10.0-19.9 DL-25
TD2000160S1R01 KTD20.0-D26.9 DL-25
TD2100168S1R01 KTD20.0-D26.9 DL-25
TD2200176S1R01 KTD20.0-D26.9 DL-25
TD2300184S9R01 KTD20.0-D26.9 DL-32
TD2400192S9R01 KTD20.0-D26.9 DL-32
TD2500200S9R01 KTD20.0-D26.9 DL-32
129
PART SERIES
130
PART SERIES
Placeholder
.2756-.2913 7.0-7.4 TD0700056B9R01 2.20 2.78 4.55 .500“ Univ. 0.63 7.0 NA Yes
.2953-.3110 7.5-7.9 TD0750060B9R01 2.28 2.94 4.71 .500“ Univ. 0.63 7.5 NA Yes
.3150-.3307 8.0-8.4 TD0800064B9R01 2.52 3.13 4.90 .500“ Univ. 0.63 8 NA Yes
.3346-.3504 8.5-8.9 TD0850068B9R01 2.68 3.32 5.09 .500“ Univ. 0.63 8.5 NA Yes
.3543-.3701 9.0-9.4 TD0900072B9R01 2.83 3.46 5.23 .500“ Univ. 0.63 9 NA Yes
.3740-.3898 9.5-9.9 TD0950076B9R01 2.99 3.65 5.42 .500“ Univ. 0.63 9.5 NA Yes
.3937-.4094 10.0-10.4 TD1000080C0R01 3.15 3.79 5.68 .625“ Univ. 0.79 10 CB100R02 Yes
.4134-.4291 10.5-10.9 TD1050084C0R01 3.31 3.94 5.83 .625“ Univ. 0.79 10.5 CB105R02 Yes
.4331-.4488 11.0-11.4 TD1100088C0R01 3.46 4.12 6.01 .625“ Univ. 0.79 11 CB110R02 Yes
.4528-.4685 11.5-11.9 TD1150092C0R01 3.62 4.28 6.17 .625“ Univ. 0.79 11.5 CB115R02 Yes
.4724-.4882 12.0-12.4 TD1200096C0R01 3.78 4.45 6.34 .625“ Univ. 0.79 12 CB120R02 Yes
.4912-.5079 12.5-12.9 TD1250100C0R01 3.94 4.61 6.50 .625“ Univ. 0.79 12.5 CB125R02 Yes
.5118-.5276 13.0-13.4 TD1300104C0R01 4.09 4.79 6.68 .625“ Univ. 0.79 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350108C0R01 4.25 4.94 6.83 .625“ Univ. 0.79 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400112C0R01 4.41 5.20 7.09 .625“ Univ. 0.79 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450116C0R01 4.57 5.36 7.25 .625“ Univ. 0.79 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD150012018R01 4.72 5.66 7.63 .750“ Univ. 0.98 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD160012818R01 5.04 6.04 8.01 .750“ Univ. 0.98 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD170013618R01 5.35 6.41 8.38 .750“ Univ. 0.98 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800144C8R01 5.67 6.79 8.99 1.000“ Univ. 1.26 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900152C8R01 5.98 7.17 9.37 1.000“ Univ. 1.26 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000160C8R01 6.30 7.54 9.74 1.000“ Univ. 1.26 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100168C8R01 6.61 7.92 10.12 1.000“ Univ. 1.26 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200176C8R01 6.93 8.30 10.50 1.000“ Univ. 1.26 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300184B7R01 7.24 8.68 11.04 1.250“ Univ. 1.65 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400192B7R01 7.56 9.06 11.42 1.250“ Univ. 1.65 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500200B7R01 7.87 9.43 11.79 1.250“ Univ. 1.65 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standards.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange
Dia.
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
130
SERIES TD 8:1 UNIVERSAL SHANK (INCH)
HARDWARE
131
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD0700056B9R01 KTD6.0-D9.9 DL-12
TD0750060B9R01 KTD6.0-D9.9 DL-12
TD0800064B9R01 KTD6.0-D9.9 DL-12
TD0850068B9R01 KTD6.0-D9.9 DL-12
TD0900072B9R01 KTD6.0-D9.9 DL-12
TD0950076B9R01 KTD6.0-D9.9 DL-12
TD1000080C0R01 KTD10.0-19.9 DL-16
TD1050084C0R01 KTD10.0-19.9 DL-16
TD1100088C0R01 KTD10.0-19.9 DL-16
TD1150092C0R01 KTD10.0-19.9 DL-16
TD1200096C0R01 KTD10.0-19.9 DL-16
TD1250100C0R01 KTD10.0-19.9 DL-16
TD1300104C0R01 KTD10.0-19.9 DL-16
TD1350108C0R01 KTD10.0-19.9 DL-16
TD1400112C0R01 KTD10.0-19.9 DL-16
TD1450116C0R01 KTD10.0-19.9 DL-16
TD150012018R01 KTD10.0-19.9 DL-20
TD160012818R01 KTD10.0-19.9 DL-20
TD170013618R01 KTD10.0-19.9 DL-20
TD1800144C8R01 KTD10.0-19.9 DL-25
TD1900152C8R01 KTD10.0-19.9 DL-25
TD2000160C8R01 KTD20.0-D26.9 DL-25
TD2100168C8R01 KTD20.0-D26.9 DL-25
TD2200176C8R01 KTD20.0-D26.9 DL-25
TD2300184B7R01 KTD20.0-D26.9 DL-32
TD2400192B7R01 KTD20.0-D26.9 DL-32
TD2500200B7R01 KTD20.0-D26.9 DL-32
131
PART SERIES
132
PART SERIES
Placeholder
.4724-.4882 12.0-12.4 TD1200144S6R01 5.67 6.34 8.23 .625“ Cylind. 12 CB120R02 Yes
.4912-.5079 12.5-12.9 TD1250150S6R01 5.91 6.57 8.46 .625“ Cylind. 12.5 CB125R02 Yes
.5118-.5276 13.0-13.4 TD1300156S6R01 6.14 6.81 8.70 .625“ Cylind. 13 CB130R02 Yes
.5315-.5472 13.5-13.9 TD1350162S6R01 6.38 7.05 8.94 .625“ Cylind. 13.5 CB135R02 Yes
.5512-.5669 14.0-14.4 TD1400168S6R01 6.61 7.40 9.29 .625“ Cylind. 14 CB140R02 Yes
.5709-.5866 14.5-14.9 TD1450174S6R01 6.85 7.64 9.53 .625“ Cylind. 14.5 CB145R02 Yes
.5906-.6260 15.0-15.9 TD1500180S7R01 7.09 8.27 10.24 .750“ Cylind. 15 CB150R02 Yes
.6299-.6654 16.0-16.9 TD1600192S7R01 7.56 8.82 10.79 .750“ Cylind. 16 CB160R02 Yes
.6693-.7047 17.0-17.9 TD1700204S7R01 8.03 9.37 11.34 .750“ Cylind. 17 CB170R02 Yes
.7087-.7441 18.0-18.9 TD1800216S1R01 8.50 9.92 12.13 1.000“ Cylind. 18 CB180R02 Yes
.7480-.7835 19.0-19.9 TD1900228S1R01 8.98 10.47 12.68 1.000“ Cylind. 19 CB190R02 Yes
.7874-.8228 20.0-20.9 TD2000240S1R01 9.45 11.02 13.23 1.000“ Cylind. 20 CB200R02 Yes
.8268-.8622 21.0-21.9 TD2100252S1R01 9.92 11.57 13.78 1.000“ Cylind. 21 CB210R02 Yes
.8661-.9016 22.0-22.9 TD2200264S1R01 10.39 12.13 14.33 1.000“ Cylind. 22 CB220R02 Yes
.9055-.9409 23.0-23.9 TD2300276S9R01 10.87 12.68 15.04 1.250“ Cylind. 23 CB230R02 Yes
.9449-.9803 24.0-24.9 TD2400288S9R01 11.34 13.23 15.59 1.250“ Cylind. 24 CB240R02 Yes
.9843-1.0197 25.0-25.9 TD2500300S9R01 11.81 13.78 16.14 1.250“ Cylind. 25 CB250R02 Yes
*Do not mount a smaller drill point than the one listed with the tool.
Metric shanks available as non-stock standard.
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
Pocket
Size
Chamfer
Ring
Coolant
Thru Point
REPLACEABLE TIPPED DRILL BODIES
132
SERIES TD 12:1 CYLINDRICAL SHANK (INCH)
HARDWARE
133
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant PlugClamping Key
TD1200144S6R01 KTD10.0-19.9 DL-16
TD1250150S6R01 KTD10.0-19.9 DL-16
TD1300156S6R01 KTD10.0-19.9 DL-16
TD1350162S6R01 KTD10.0-19.9 DL-16
TD1400168S6R01 KTD10.0-19.9 DL-16
TD1450174S6R01 KTD10.0-19.9 DL-16
TD1500180S7R01 KTD10.0-19.9 DL-20
TD1600192S7R01 KTD10.0-19.9 DL-20
TD1700204S7R01 KTD10.0-19.9 DL-20
TD1800216S1R01 KTD10.0-19.9 DL-25
TD1900228S1R01 KTD10.0-19.9 DL-25
TD2000240S1R01 KTD20.0-D26.9 DL-25
TD2100252S1R01 KTD20.0-D26.9 DL-25
TD2200264S1R01 KTD20.0-D26.9 DL-25
TD2300276S9R01 KTD20.0-D26.9 DL-25
TD2400288S9R01 KTD20.0-D26.9 DL-25
TD2500300S9R01 KTD20.0-D26.9 DL-25
133
134

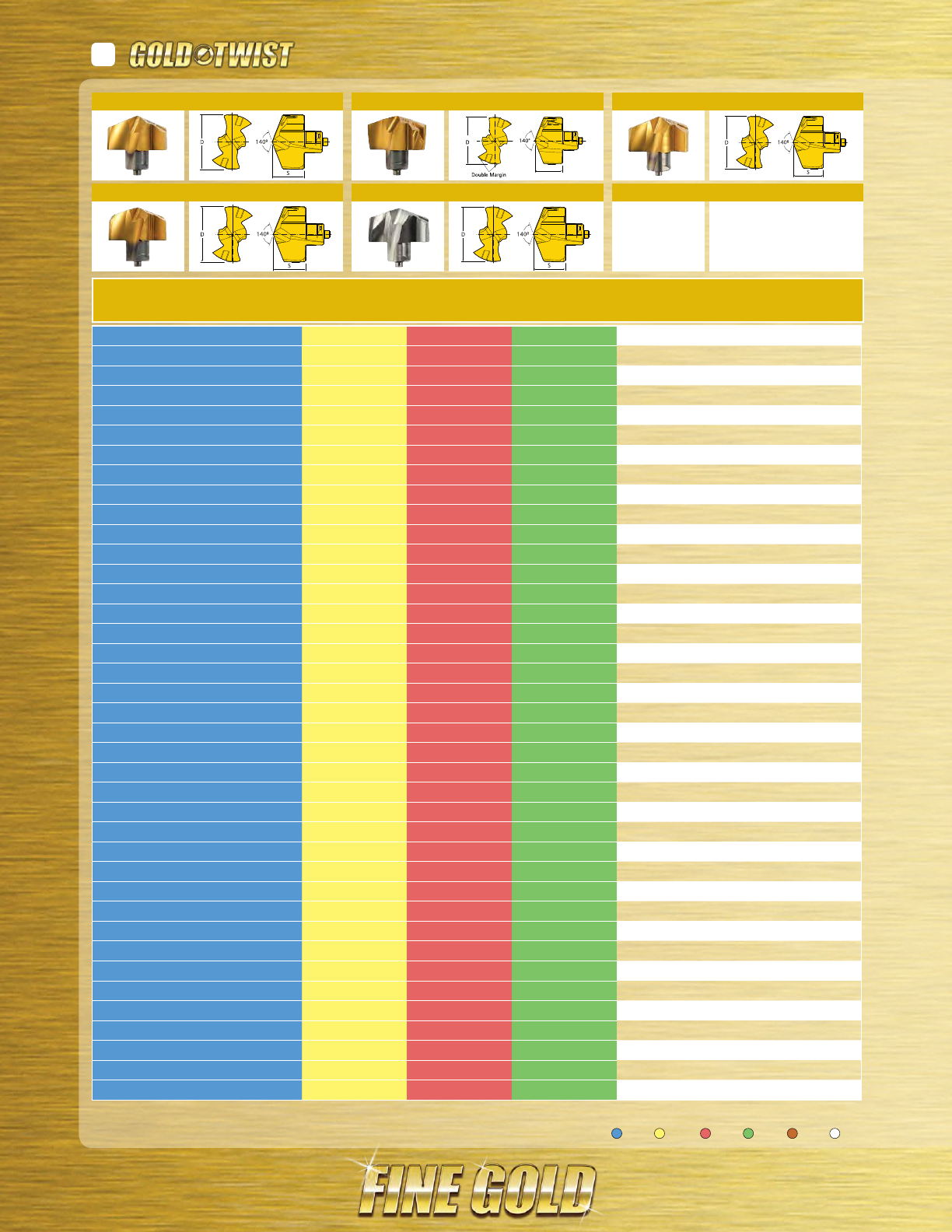

TPA for Steels & General Purpose
S
TPA-M2 Double-Margin for "P" Steels TMA for Stainless Steels & Exotics
TKA for Cast Iron TNA for Non-Ferrous
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
TPA0600R01 TMA0600R01 TKA0600R01 6.00 0.2362 0.157 6.0
TPA0610R01 TMA0610R01 TKA0610R01 6.10 0.2402 0.157 6.0
TPA0620R01 TMA0620R01 TKA0620R01 6.20 0.2441 0.157 6.0
TPA0630R01 TMA0630R01 TKA0630R01 6.30 0.2480 0.157 6.0
TNA0635R01 6.35 0.2500 0.157 6.0
TPA0640R01 TMA0640R01 TKA0640R01 6.40 0.2520 0.157 6.0
TPA0650R01 TMA0650R01 TKA0650R01 6.50 0.2559 0.169 6.5
TPA0660R01 TMA0660R01 TKA0660R01 6.60 0.2598 0.169 6.5
TPA0670R01 TMA0670R01 TKA0670R01 6.70 0.2638 0.169 6.5
TPA0680R01 TMA0680R01 TKA0680R01 6.80 0.2677 0.169 6.5
TPA0690R01 TMA0690R01 TKA0690R01 6.90 0.2717 0.169 6.5
TPA0700R01 TMA0700R01 TKA0700R01 7.00 0.2756 0.181 7.0
TPA0710R01 TMA0710R01 TKA0710R01 7.10 0.2795 0.181 7.0
TNA0714R01 7.14 0.2812 0.181 7.0
TPA0720R01 TMA0720R01 TKA0720R01 7.20 0.2835 0.181 7.0
TPA0730R01 TMA0730R01 TKA0730R01 7.30 0.2874 0.181 7.0
TPA0740R01 TMA0740R01 TKA0740R01 7.40 0.2913 0.181 7.0
TPA0750R01 TMA0750R01 TKA0750R01 7.50 0.2953 0.181 7.5
TPA0760R01 TMA0760R01 TKA0760R01 7.60 0.2992 0.181 7.5
TPA0770R01 TMA0770R01 TKA0770R01 7.70 0.3031 0.181 7.5
TPA0780R01 TMA0780R01 TKA0780R01 7.80 0.3071 0.181 7.5
TPA0790R01 TMA0790R01 TKA0790R01 7.90 0.3110 0.181 7.5
TNA0794R01 7.94 0.3125 0.181 7.5
TPA0800R01 TPA0800R01-M2 TMA0800R01 TKA0800R01 TNA0800R01 8.00 0.3150 0.213 8.0
TPA0810R01 TMA0810R01 TKA0810R01 8.10 0.3189 0.213 8.0
TPA0820R01 TMA0820R01 TKA0820R01 8.20 0.3228 0.213 8.0
TPA0830R01 TMA0830R01 TKA0830R01 8.30 0.3268 0.213 8.0
TPA0840R01 TMA0840R01 TKA0840R01 8.40 0.3307 0.213 8.0
TPA0850R01 TPA0850R01-M2 TMA0850R01 TKA0850R01 TNA0850R01 8.50 0.3346 0.213 8.5
TPA0860R01 TMA0860R01 TKA0860R01 8.60 0.3386 0.213 8.5
TPA0870R01 TMA0870R01 TKA0870R01 TNA0870R01 8.70 0.3425 0.213 8.5
TPA0873R01-M2 TNA0873R01 8.73 0.3437 0.213 8.5
TPA0880R01 TMA0880R01 TKA0880R01 8.80 0.3465 0.213 8.5
TPA0890R01 TMA0890R01 TKA0890R01 8.90 0.3504 0.213 8.5
TPA0900R01 TPA0900R01-M2 TMA0900R01 TKA0900R01 TNA0900R01 9.00 0.3543 0.228 9.0
TPA0910R01 TMA0910R01 TKA0910R01 9.10 0.3583 0.228 9.0
TPA0920R01 TMA0920R01 TKA0920R01 9.20 0.3622 0.228 9.0
TPA0930R01 TMA0930R01 TKA0930R01 9.30 0.3661 0.228 9.0
TPA0940R01 TMA0940R01 TKA0940R01 TNA0940R01 9.40 0.3701 0.228 9.0
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
REPLACEABLE TIPS: 6MM-13.8MM DIA.
135
TPA0950R01 TPA0950R01-M2 TMA0950R01 TKA0950R01 TNA0950R01 9.50 0.3740 0.228 9.5
TNA0953R01 9.53 0.3750 0.228 9.5
TPA0960R01 TMA0960R01 TKA0960R01 9.60 0.3780 0.228 9.5
TPA0970R01 TMA0970R01 TKA0970R01 9.70 0.3819 0.228 9.5
TPA0980R01 TMA0980R01 TKA0980R01 9.80 0.3858 0.228 9.5
TPA0990R01 TMA0990R01 TKA0990R01 TNA0990R01 9.90 0.3898 0.228 9.5
TPA1000R01 TPA1000R01-M2 TMA1000R01 TKA1000R01 TNA1000R01 10.00 0.3937 0.244 10.0
TPA1010R01 TMA1010R01 TKA1010R01 10.10 0.3976 0.244 10.0
TPA1020R01 TMA1020R01 TKA1020R01 TNA1020R01 10.20 0.4016 0.244 10.0
TPA1030R01 TMA1030R01 TKA1030R01 10.30 0.4055 0.244 10.0
TPA1032R01-M2 TNA1032R01 10.32 0.4062 0.244 10.0
TPA1040R01 TMA1040R01 TKA1040R01 10.40 0.4094 0.244 10.0
TPA1050R01 TPA1050R01-M2 TMA1050R01 TKA1050R01 TNA1050R01 10.50 0.4134 0.244 10.5
TPA1060R01 TMA1060R01 TKA1060R01 10.60 0.4173 0.244 10.5
TPA1070R01 TMA1070R01 TKA1070R01 10.70 0.4213 0.244 10.5
TPA1080R01 TMA1080R01 TKA1080R01 TNA1080R01 10.80 0.4252 0.244 10.5
TPA1090R01 TMA1090R01 TKA1090R01 10.90 0.4291 0.244 10.5
TPA1100R01 TPA1100R01-M2 TMA1100R01 TKA1100R01 TNA1100R01 11.00 0.4331 0.260 11.0
TPA1110R01 TMA1110R01 TKA1110R01 11.10 0.4370 0.260 11.0
TPA1111R01-M2 TNA1111R01 11.11 0.4375 0.260 11.0
TPA1120R01 TMA1120R01 TKA1120R01 11.20 0.4409 0.260 11.0
TPA1130R01 TMA1130R01 TKA1130R01 11.30 0.4449 0.260 11.0
TPA1140R01 TMA1140R01 TKA1140R01 11.40 0.4488 0.260 11.0
TPA1150R01 TPA1150R01-M2 TMA1150R01 TKA1150R01 TNA1150R01 11.50 0.4528 0.260 11.5
TPA1160R01 TMA1160R01 TKA1160R01 11.60 0.4567 0.260 11.5
TPA1170R01 TMA1170R01 TKA1170R01 11.70 0.4606 0.260 11.5
TPA1180R01 TMA1180R01 TKA1180R01 11.80 0.4646 0.260 11.5
TPA1190R01 TMA1190R01 TKA1190R01 TNA1190R01 11.90 0.4685 0.260 11.5
TPA1191R01-M2 11.91 0.4689 0.260 11.5
TPA1200R01 TPA1200R01-M2 TMA1200R01 TKA1200R01 TNA1200R01 12.00 0.4724 0.275 12.0
TPA1210R01 TMA1210R01 TKA1210R01 12.10 0.4764 0.275 12.0
TPA1220R01 TMA1220R01 TKA1220R01 12.20 0.4803 0.275 12.0
TPA1230R01 TMA1230R01 TKA1230R01 TNA1230R01 12.30 0.4843 0.275 12.0
TPA1240R01 TMA1240R01 TKA1240R01 12.40 0.4882 0.275 12.0
TPA1250R01 TPA1250R01-M2 TMA1250R01 TKA1250R01 TNA1250R01 12.50 0.4921 0.275 12.5
TPA1260R01 TMA1260R01 TKA1260R01 12.60 0.4961 0.275 12.5
TPA1270R01 TPA1270R01-M2 TMA1270R01 TKA1270R01 TNA1270R01 12.70 0.5000 0.275 12.5
TPA1280R01 TMA1280R01 TKA1280R01 12.80 0.5039 0.275 12.5
TPA1290R01 TPA1290R01-M2 TMA1290R01 TKA1290R01 12.90 0.5079 0.275 12.5
TPA1300R01 TPA1300R01-M2 TMA1300R01 TKA1300R01 TNA1300R01 13.00 0.5118 0.299 13.0
TPA1310R01 TMA1310R01 TKA1310R01 13.10 0.5157 0.299 13.0
TPA1320R01 TMA1320R01 TKA1320R01 13.20 0.5197 0.299 13.0
TPA1330R01 TMA1330R01 TKA1330R01 13.30 0.5236 0.299 13.0
TPA1340R01 TMA1340R01 TKA1340R01 13.40 0.5276 0.299 13.0
TPA1350R01 TPA1350R01-M2 TMA1350R01 TKA1350R01 TNA1350R01 13.50 0.5315 0.299 13.5
TPA1360R01 TMA1360R01 TKA1360R01 13.60 0.5354 0.299 13.5
TPA1370R01 TMA1370R01 TKA1370R01 TNA1370R01 13.70 0.5394 0.299 13.5
TPA1380R01 TMA1380R01 TKA1380R01 13.80 0.5433 0.299 13.5
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
136
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
TPA1390R01 TMA1390R01 TKA1390R01 13.90 0.5472 0.299 13.5
TPA1400R01 TPA1400R01-M2 TMA1400R01 TKA1400R01 TNA1400R01 14.00 0.5512 0.321 14.0
TPA1410R01 TMA1410R01 TKA1410R01 14.10 0.5551 0.321 14.0
TPA1420R01 TMA1420R01 TKA1420R01 14.20 0.5591 0.321 14.0
TPA1429R01-M2 TNA1429R01 14.29 0.5625 0.321 14.0
TPA1430R01 TMA1430R01 TKA1430R01 14.30 0.5630 0.321 14.0
TPA1440R01 TMA1440R01 TKA1440R01 14.40 0.5669 0.321 14.0
TPA1450R01 TPA1450R01-M2 TMA1450R01 TKA1450R01 TNA1450R01 14.50 0.5709 0.321 14.5
TPA1460R01 TMA1460R01 TKA1460R01 14.60 0.5748 0.321 14.5
TPA1470R01 TMA1470R01 TKA1470R01 14.70 0.5787 0.321 14.5
TPA1480R01 TMA1480R01 TKA1480R01 14.80 0.5827 0.321 14.5
TPA1490R01 TMA1490R01 TKA1490R01 14.90 0.5866 0.321 14.5
TPA1500R01 TPA1500R01-M2 TMA1500R01 TKA1500R01 TNA1500R01 15.00 0.5906 0.344 15.0
TNA1508R01 15.08 0.5937 0.344 15.0
TPA1510R01 TMA1510R01 TKA1510R01 15.10 0.5945 0.344 15.0
TPA1520R01 TMA1520R01 TKA1520R01 15.20 0.5984 0.344 15.0
TPA1530R01 TMA1530R01 TKA1530R01 15.30 0.6024 0.344 15.0
TPA1540R01 TMA1540R01 TKA1540R01 15.40 0.6063 0.344 15.0
TPA1550R01 TPA1550R01-M2 TMA1550R01 TKA1550R01 15.50 0.6102 0.344 15.0
TPA1560R01 TMA1560R01 TKA1560R01 15.60 0.6142 0.344 15.0
TPA1570R01 TMA1570R01 TKA1570R01 15.70 0.6181 0.344 15.0
TPA1580R01 TMA1580R01 TKA1580R01 15.80 0.6220 0.344 15.0
TPA1588R01-M2 TNA1588R01 15.88 0.6250 0.344 15.0
TPA1590R01 TPA1590R01-M2 TMA1590R01 TKA1590R01 15.90 0.6260 0.344 15.0
TPA1600R01 TPA1600R01-M2 TMA1600R01 TKA1600R01 TNA1600R01 16.00 0.6299 0.366 16.0
TPA1610R01 TMA1610R01 TKA1610R01 16.10 0.6339 0.366 16.0
TPA1620R01 TMA1620R01 TKA1620R01 16.20 0.6378 0.366 16.0
TPA1630R01 TMA1630R01 TKA1630R01 16.30 0.6417 0.366 16.0
TPA1640R01 TMA1640R01 TKA1640R01 16.40 0.6457 0.366 16.0
TPA1650R01 TPA1650R01-M2 TMA1650R01 TKA1650R01 TNA1650R01 16.50 0.6496 0.366 16.0
TPA1660R01 TMA1660R01 TKA1660R01 16.60 0.6535 0.366 16.0
TNA1667R01 16.67 0.6562 0.366 16.0
TPA1670R01 TPA1670R01-M2 TMA1670R01 TKA1670R01 TNA1670R01 16.70 0.6575 0.366 16.0
TPA1680R01 TMA1680R01 TKA1680R01 16.80 0.6614 0.366 16.0
TPA1690R01 TMA1690R01 TKA1690R01 16.90 0.6654 0.366 16.0
TPA1700R01 TPA1700R01-M2 TMA1700R01 TKA1700R01 TNA1700R01 17.00 0.6693 0.390 17.0
TPA1710R01 TMA1710R01 TKA1710R01 17.10 0.6732 0.390 17.0
TPA1720R01 TMA1720R01 TKA1720R01 17.20 0.6772 0.390 17.0
TPA1730R01 TMA1730R01 TKA1730R01 17.30 0.6811 0.390 17.0
TPA for Steels & General Purpose
S
TPA-M2 Double-Margin for "P" Steels TMA for Stainless Steels & Exotics
TKA for Cast Iron TNA for Non-Ferrous
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
REPLACEABLE TIPS (CONT.): 13.9MM-21.43MM DIA.
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
137
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
TPA1740R01 TMA1740R01 TKA1740R01 17.40 0.6850 0.390 17.0
TNA1746R01 17.46 0.6875 0.390 17.0
TPA1750R01 TPA1750R01-M2 TMA1750R01 TKA1750R01 TNA1750R01 17.50 0.6890 0.390 17.0
TPA1760R01 TMA1760R01 TKA1760R01 17.60 0.6929 0.390 17.0
TPA1770R01 TMA1770R01 TKA1770R01 17.70 0.6968 0.390 17.0
TPA1780R01 TMA1780R01 TKA1780R01 17.80 0.7008 0.390 17.0
TPA1790R01 TMA1790R01 TKA1790R01 17.90 0.7047 0.390 17.0
TPA1800R01 TPA1800R01-M2 TMA1800R01 TKA1800R01 TKA1800R01 18.00 0.7087 0.413 18.0
TPA1810R01 TMA1810R01 TKA1810R01 18.10 0.7126 0.413 18.0
TPA1820R01 TMA1820R01 TKA1820R01 18.20 0.7165 0.413 18.0
TNA1826R01 18.26 0.7188 0.413 18.0
TPA1830R01 TMA1830R01 TKA1830R01 18.30 0.7205 0.413 18.0
TPA1840R01 TMA1840R01 TKA1840R01 18.40 0.7244 0.413 18.0
TPA1850R01 TPA1850R01-M2 TMA1850R01 TKA1850R01 TNA1850R01 18.50 0.7283 0.413 18.0
TPA1860R01 TMA1860R01 TKA1860R01 18.60 0.7323 0.413 18.0
TPA1870R01 TMA1870R01 TKA1870R01 18.70 0.7362 0.413 18.0
TPA1880R01 TMA1880R01 TKA1880R01 18.80 0.7402 0.413 18.0
TPA1890R01 TMA1890R01 TKA1890R01 18.90 0.7441 0.413 18.0
TPA1900R01 TPA1900R01-M2 TMA1900R01 TKA1900R01 TNA1900R01 19.00 0.7480 0.433 19.0
TPA1905R01 TNA1905R01-M2 TMA1905R01 TKA1905R01 TNA1905R01 19.05 0.7500 0.433 19.0
TPA1910R01 TMA1910R01 TKA1910R01 19.10 0.7520 0.433 19.0
TPA1920R01 TMA1920R01 TKA1920R01 19.20 0.7559 0.433 19.0
TPA1926R01-M2 19.26 0.7559 0.433 19.0
TPA1930R01 TPA1930R01-M2 TMA1930R01 TKA1930R01 19.30 0.7598 0.433 19.0
TPA1940R01 TMA1940R01 TKA1940R01 19.40 0.7638 0.433 19.0
TPA1950R01 TPA1950R01-M2 TMA1950R01 TKA1950R01 TNA1950R01 19.50 0.7677 0.433 19.0
TPA1960R01 TMA1960R01 TKA1960R01 19.60 0.7717 0.433 19.0
TPA1970R01 TMA1970R01 TKA1970R01 19.70 0.7756 0.433 19.0
TPA1980R01 TMA1980R01 TKA1980R01 19.80 0.7795 0.433 19.0
TNA1984R01 19.84 0.7795 0.433 19.0
TPA1990R01 TMA1990R01 TKA1990R01 19.90 0.7835 0.433 19.0
TPA2000R01 TMA2000R01 TKA2000R01 TNA2000R01 20.00 0.7874 0.344 20.0
TPA2010R01 TMA2010R01 TKA2010R01 20.10 0.7913 0.344 20.0
TPA2020R01 TMA2020R01 TKA2020R01 20.20 0.7953 0.344 20.0
TPA2030R01 TMA2030R01 TKA2030R01 20.30 0.7992 0.344 20.0
TPA2040R01 TMA2040R01 TKA2040R01 20.40 0.8031 0.344 20.0
TPA2050R01 TMA2050R01 TKA2050R01 TNA2050R01 20.50 0.8071 0.344 20.0
TPA2060R01 TMA2060R01 TKA2060R01 20.60 0.8110 0.344 20.0
TNA2064R01 20.64 0.8125 0.344 20.0
TPA2070R01 TMA2070R01 TKA2070R01 20.70 0.8150 0.344 20.0
TPA2080R01 TMA2080R01 TKA2080R01 20.80 0.8189 0.344 20.0
TPA2090R01 TMA2090R01 TKA2090R01 20.90 0.8228 0.344 20.0
TPA2100R01 TMA2100R01 TKA2100R01 TNA2100R01 21.00 0.8268 0.366 21.0
TPA2110R01 TMA2110R01 TKA2110R01 21.10 0.8307 0.366 21.0
TPA2120R01 TMA2120R01 TKA2120R01 21.20 0.8346 0.366 21.0
TPA2130R01 TMA2130R01 TKA2130R01 21.30 0.8386 0.366 21.0
TPA2140R01 TMA2140R01 TKA2140R01 21.40 0.8425 0.366 21.0
TNA2143R01 21.43 0.8437 0.366 21.0
138
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
TPA2150R01 TMA2150R01 TKA2150R01 21.50 0.8465 0.366 21.0
TPA2160R01 TMA2160R01 TKA2160R01 21.60 0.8504 0.366 21.0
TPA2170R01 TMA2170R01 TKA2170R01 21.70 0.8543 0.366 21.0
TPA2180R01 TMA2180R01 TKA2180R01 21.80 0.8583 0.366 21.0
TPA2190R01 TMA2190R01 TKA2190R01 21.90 0.8622 0.366 21.0
TPA2200R01 TMA2200R01 TKA2200R01 TNA2200R01 22.00 0.8661 0.390 22.0
TPA2210R01 TMA2210R01 TKA2210R01 22.10 0.8701 0.390 22.0
TPA2220R01 TMA2220R01 TKA2220R01 22.20 0.8740 0.390 22.0
TPA2222R01 TMA2222R01 TKA2222R01 TNA2222R01 22.22 0.8750 0.390 22.0
TPA2230R01 TMA2230R01 TKA2230R01 22.30 0.8780 0.390 22.0
TPA2240R01 TMA2240R01 TKA2240R01 22.40 0.8819 0.390 22.0
TPA2250R01 TMA2250R01 TKA2250R01 22.50 0.8858 0.390 22.0
TPA2260R01 TMA2260R01 TKA2260R01 22.60 0.8898 0.390 22.0
TPA2270R01 TMA2270R01 TKA2270R01 22.70 0.8937 0.390 22.0
TPA2280R01 TMA2280R01 TKA2280R01 22.80 0.8976 0.390 22.0
TPA2290R01 TMA2290R01 TKA2290R01 22.90 0.9016 0.390 22.0
TPA2300R01 TMA2300R01 TKA2300R01 TNA2300R01 23.00 0.9055 0.413 23.0
TPA2310R01 TMA2310R01 TKA2310R01 23.10 0.9094 0.413 23.0
TPA2320R01 TMA2320R01 TKA2320R01 23.20 0.9134 0.413 23.0
TPA2330R01 TMA2330R01 TKA2330R01 23.30 0.9173 0.413 23.0
TPA2340R01 TMA2340R01 TKA2340R01 23.40 0.9213 0.413 23.0
TPA2350R01 TMA2350R01 TKA2350R01 23.50 0.9252 0.413 23.0
TPA2360R01 TMA2360R01 TKA2360R01 23.60 0.9291 0.413 23.0
TPA2370R01 TMA2370R01 TKA2370R01 23.70 0.9331 0.413 23.0
TPA2380R01 TMA2380R01 TKA2380R01 TNA2380R01 23.80 0.9370 0.413 23.0
TPA2390R01 TMA2390R01 TKA2390R01 23.90 0.9409 0.413 23.0
TPA2400R01 TMA2400R01 TKA2400R01 TNA2400R01 24.00 0.9449 0.433 24.0
TPA2410R01 TMA2410R01 TKA2410R01 24.10 0.9488 0.433 24.0
TPA2420R01 TMA2420R01 TKA2420R01 24.20 0.9528 0.433 24.0
TPA2430R01 TMA2430R01 TKA2430R01 24.30 0.9567 0.433 24.0
TPA2440R01 TMA2440R01 TKA2440R01 24.40 0.9606 0.433 24.0
TPA2450R01 TMA2450R01 TKA2450R01 TNA2450R01 24.50 0.9646 0.433 24.0
TPA2460R01 TMA2460R01 TKA2460R01 TNA2460R01 24.60 0.9685 0.433 24.0
TPA2470R01 TMA2470R01 TKA2470R01 24.70 0.9724 0.433 24.0
TPA2480R01 TMA2480R01 TKA2480R01 24.80 0.9764 0.433 24.0
TPA2490R01 TMA2490R01 TKA2490R01 24.90 0.9803 0.433 24.0
TPA2500R01 TMA2500R01 TKA2500R01 TNA2500R01 25.00 0.9843 0.433 25.0
TPA2510R01 TMA2510R01 TKA2510R01 25.10 0.9882 0.433 25.0
TPA2520R01 TMA2520R01 TKA2520R01 25.20 0.9921 0.433 25.0
TPA for Steels & General Purpose
S
TPA-M2 Double-Margin for "P" Steels TMA for Stainless Steels & Exotics
TKA for Cast Iron TNA for Non-Ferrous
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
REPLACEABLE TIPS (CONT.): 21.5MM-25.9MM DIA.
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
139
= P = M = K = N = S = H
*** Grade IN2505 for ISO P, P-M2, M and K Geometries/Materials
*** Grade IN05S for ISO N Geometry/Materials
TPA2530R01 TMA2530R01 TKA2530R01 25.30 0.9961 0.433 25.0
TPA2540R01 TMA2540R01 TKA2540R01 IN2540R01 25.40 1.0000 0.433 25.0
TPA2550R01 TMA2550R01 TKA2550R01 25.50 1.0039 0.433 25.0
TPA2560R01 TMA2560R01 TKA2560R01 25.60 1.0079 0.433 25.0
TPA2570R01 TMA2570R01 TKA2570R01 25.70 1.0118 0.433 25.0
TPA2580R01 TMA2580R01 TKA2580R01 25.80 1.0157 0.433 25.0
TPA2590R01 TMA2590R01 TKA2590R01 25.90 1.0197 0.433 25.0
140
TPF Flat Bottom for Steel & General Purpose
TPF
Steel & GP
D Diameter TTc Dp
Point Dia.
Pocket
Size
in mm
REPLACEABLE TIPS: FLAT BOTTOM
TPF0794R01 7.94 0.3125 0.157 0.015 0.091 7.5
TPF0800R01 8.00 0.3150 0.157 0.015 0.091 8.0
TPF0850R01 8.50 0.3346 0.157 0.015 0.091 8.5
TPF0900R01 9.00 0.3543 0.165 0.016 0.090 9.0
TPF0930R01 9.30 0.3661 0.165 0.016 0.090 9.0
TPF0950R01 9.50 0.3740 0.165 0.016 0.090 9.5
TPF1000R01 10.00 0.3937 0.173 0.018 0.096 10.0
TPF1020R01 10.20 0.4016 0.173 0.018 0.096 10.0
TPF1050R01 10.50 0.4134 0.173 0.018 0.096 10.5
TPF1070R01 10.70 0.4213 0.173 0.018 0.096 10.5
TPF1100R01 11.00 0.4331 0.177 0.021 0.122 11.0
TPF1110R01 11.10 0.4370 0.177 0.021 0.122 11.0
TPF1150R01 11.50 0.4528 0.177 0.021 0.122 11.5
TPF1200R01 12.00 0.4724 0.189 0.022 0.116 12.0
TPF1230R01 12.30 0.4843 0.189 0.022 0.116 12.0
TPF1250R01 12.50 0.4921 0.189 0.022 0.116 12.5
TPF1270R01 12.70 0.5000 0.189 0.022 0.116 12.5
TPF1300R01 13.00 0.5118 0.201 0.023 0.120 13.0
TPF1350R01 13.50 0.5315 0.201 0.023 0.120 13.5
TPF1400R01 14.00 0.5512 0.217 0.024 0.130 14.0
TPF1429R01 14.29 0.5620 0.217 0.024 0.130 14.0
TPF1450R01 14.50 0.5709 0.217 0.024 0.130 14.5
TPF1500R01 15.00 0.5906 0.233 0.026 0.139 15.0
TPF1550R01 15.50 0.6102 0.233 0.026 0.139 15.0
TPF1588R01 15.88 0.6250 0.233 0.026 0.139 15.0
TPF1600R01 16.00 0.6299 0.248 0.027 0.147 16.0
TPF1650R01 16.50 0.6496 0.248 0.027 0.147 16.0
TPF1670R01 16.70 0.6575 0.248 0.027 0.147 16.0
TPF1700R01 17.00 0.6693 0.260 0.028 0.148 17.0
TPF1750R01 17.50 0.6890 0.260 0.028 0.148 17.0
TPF1800R01 18.00 0.7087 0.271 0.028 0.151 18.0
TPF1830R01 18.30 0.7205 0.271 0.028 0.151 18.0
TPF1850R01 18.50 0.7283 0.271 0.028 0.151 18.0
TPF1900R01 19.00 0.7480 0.283 0.029 0.152 19.0
TPF1905R01 19.05 0.7500 0.283 0.029 0.152 19.0
TPF1930R01 19.30 0.7598 0.283 0.029 0.152 19.0
TPF1950R01 19.50 0.7677 0.283 0.029 0.152 19.0
TPF2000R01 20.00 0.7874 0.323 0.042 0.266 20.0
TPF2050R01 20.50 0.8071 0.323 0.042 0.266 20.0
TPF2060R01 20.60 0.8110 0.323 0.042 0.266 20.0
TPF2100R01 21.00 0.8268 0.339 0.043 0.276 21.0
TPF2150R01 21.50 0.8465 0.339 0.043 0.276 21.0
TPF2200R01 22.00 0.8661 0.350 0.044 0.292 22.0
TPF2222R01 22.22 0.8750 0.350 0.044 0.292 22.0
= P = M = K = N = S = H
*** All FlatBottom Tips Available in Grade IN2505
141
TPA
Steels & GP
TPA-M2
"P" Steels
TMA
Stainless & Exotics
TKA
Cast Iron
TNA
Non-Ferrous
D Diameter SPocket
Size
in mm
TPF2250R01 22.50 0.8858 0.350 0.044 0.292 22.0
TPF2300R01 23.00 0.9055 0.366 0.045 0.299 23.0
TPF2350R01 23.50 0.9252 0.366 0.045 0.299 23.0
TPF2381R01 23.81 0.9375 0.366 0.045 0.299 23.0
TFP2400R01 24.00 0.9449 0.382 0.046 0.320 24.0
TPF2450R01 24.50 0.9646 0.382 0.046 0.320 24.0
TPF2500R01 25.00 0.9843 0.398 0.047 0.321 25.0
TPF2540R01 25.40 1.0000 0.398 0.047 0.321 25.0
TPF2550R01 25.50 1.0039 0.398 0.047 0.321 25.0
TPF2570R01 25.70 1.0118 0.398 0.047 0.321 25.0
= P = M = K = N = S = H
*** All FlatBottom Tips Available in Grade IN2505
PART SERIES
142
PART SERIES
Placeholder
TC0790025B9R01 3/8 UNC 0.311“, 7.90mm .2953-.3110 1.000 1.180 1.970 3.74 12.00mm, 0.472“ 0.590 0.63 7.5
TC0850025B9R01 3/8 UNF 0.335“, 8.50mm .3346-.3504 1.000 1.180 2.010 3.78 12.70mm, 0.500“ 0.610 0.63 8.5
TC0940026B9R01 7/16 UNC 0.370“, 9.40mm .3543-.3701 1.059 1.240 2.130 3.90 12.70mm, 0.500“ 0.650 0.63 9
TC0990026B9R01 7/16 UNF 0.390“, 9.90mm .3740-.3898 1.059 1.240 2.130 3.90 12.70mm, 0.500“ 0.669 0.63 9.5
TC1080026C0R01 1/2 UNC 0.425“, 10.80mm .4134-.4291 1.059 1.240 2.170 4.06 15.88mm, 0.625“ 0.709 0.79 10.5
TC1150026C0R01 1/2 UNF 0.453“, 11.50mm .4528-.4685 1.059 1.240 2.200 4.09 15.88mm, 0.625“ 0.728 0.79 11.5
TC1230026C0R01 9/16 UNC 0.484“, 12.30mm .4724-.4882 1.059 1.240 2.240 4.13 15.88mm, 0.625“ 0.768 0.79 12
TC1300026C0R01 9/16 UNF 0.512“, 13.00mm .5118-.5276 1.059 1.240 2.280 4.17 15.88mm, 0.625“ 0.787 0.79 13
TC137003018R01 5/8 UNC 0.539“, 13.70mm .5315-.5472 1.201 1.380 2.400 4.37 19.05mm, 0.750“ 0.807 0.98 13.5
TC146003018R01 5/8 UNF 0.575“, 14.60mm .5709-.5866 1.201 1.380 2.440 4.41 19.05mm, 0.750“ 0.827 0.98 14.5
TC167003518R01 3/4 UNC 0.658“, 16.70mm .6299-.6654 1.402 1.580 2.760 4.73 19.05mm, 0.750“ 0.925 0.98 16
TC175003518R01 3/4 UNF 0.689“, 17.50mm .6693-.7047 1.402 1.580 2.830 4.80 19.05mm, 0.750“ 0.965 0.98 17
TC1950041C8R01 7/8 UNC 0.768“, 19.50mm .7480-.7835 1.650 1.830 3.150 5.35 25.40mm, 1.000“ 1.043 1.26 19
TC2050041C8R01 7/8 UNF 0.807“, 20.50mm .7874-.8228 1.650 1.830 3.230 5.43 25.40mm, 1.000“ 1.083 1.26 20
Body Number Thread
Size
D1
Nominal
Point Size
(inch, mm)
D1
Point
Range
L1
Full Dia.
to Chamfer
L2
Full Dia.
to Top of
Chamfer
L3
Ext.
L4
OAL
D2
Shank Dia.
(mm, inch)
D3
Chamfer
Dia.
D4
Flange
Dia.
Pocket
Size
TAP DRILL/CHAMFER REPLACEABLE TIPPED BODIES
142
SERIES TC TAP DRILL/CHAMFER BODIES INCH SHANK
HARDWARE
143
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Clamping KeyTorx KeyScrew
TC0790025B9R01 SM22-046-00 T7 KTD6.0-D9.9
TC0850025B9R01 SM22-046-00 T7 KTD6.0-D9.9
TC0940026B9R01 SM22-046-00 T7 KTD6.0-D9.9
TC0990026B9R01 SM22-046-00 T7 KTD6.0-D9.9
TC1080026C0R01 SM22-046-00 T7 KTD10.0-19.9
TC1150026C0R01 SM22-046-00 T7 KTD10.0-19.9
TC1230026C0R01 SM22-046-00 T7 KTD10.0-19.9
TC1300026C0R01 SM22-046-00 T7 KTD10.0-19.9
TC137003018R01 SM22-046-00 T7 KTD10.0-19.9
TC146003018R01 SM22-046-00 T7 KTD10.0-19.9
TC167003518R01 SM22-046-00 T7 KTD10.0-19.9
TC175003518R01 SM22-046-00 T7 KTD10.0-19.9
TC1950041C8R01 SM22-046-00 T7 KTD10.0-19.9
TC2050041C8R01 SM22-046-00 T7 KTD20.0-D26.9
143
PART SERIES
144
PART SERIES
Placeholder
TC0680021JCR01 M08 0.268“, 6.80mm .2560-.2717 0.827 1.050 1.772 3.75 12.00mm, 0.472“ 0.532 0.63 6.5
TC0850026JCR01 M10 0.335“, 8.50mm .3346-.3504 1.024 1.200 1.960 3.73 12.00mm, 0.472“ 0.610 0.63 8.5
TC1020030JDR01 M12 0.402“, 10.20mm .3937-.4094 1.181 1.360 2.130 4.02 16.00mm, 0.630“ 0.669 0.787 10
TC1200035JDR01 M14 0.472“, 12.00mm .4724-.4882 1.378 1.560 2.400 4.29 16.00mm, 0.630“ 0.748 0.787 12
TC1400039JER01 M16 0.551“, 14.00mm .5512-.5669 1.535 1.710 2.720 4.69 20.00mm, 0.787“ 0.827 0.984 14
TC1750042JER01 M20 0.689“, 17.50mm .6693-.7047 1.653 1.830 2.830 4.80 20.00mm, 0.787“ 0.965 0.984 17
TC2100048JFR01 M24 0.827“, 21.00mm .8268-.8622 1.890 2.070 3.150 5.35 25.00mm, 0.984“ 1.102 1.259 21
TAP DRILL/CHAMFER REPLACEABLE TIPPED BODIES
144
SERIES TC TAP DRILL/CHAMFER BODIES METRIC SHANK
Body Number Thread
Size
D1
Nominal
Point Size
(inch, mm)
D1
Point
Range
L1
Full Dia.
to Chamfer
L2
Full Dia.
to Top of
Chamfer
L3
Ext.
L4
OAL
D2
Shank Dia.
(mm, inch)
D3
Chamfer
Dia.
D4
Flange
Dia.
Pocket
Size
HARDWARE
145
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Clamping KeyTorx KeyScrew
TC0680021JCR01 SM22-046-00 T7 KTD6.0-D9.9
TC0850026JCR01 SM22-046-00 T7 KTD6.0-D9.9
TC1020030JDR01 SM22-046-00 T7 KTD6.0-D9.9
TC1200035JDR01 SM22-046-00 T7 KTD10.0-19.9
TC1400039JER01 SM22-046-00 T7 KTD10.0-19.9
TC1750042JER01 SM22-046-00 T7 KTD10.0-19.9
TC2100048JFR01 SM22-046-00 T7 KTD20.0-D26.9
145
PART SERIES
146
PART SERIES
Placeholder
1.0236-1.0590 26-26.9 LD2600078N6R01 3.07 5.32 8.47 1.250 Univ 1.77 26 Yes
1.0630-1.0984 27-27.9 LD2700081N6R01 3.19 5.45 8.60 1.250 Univ 1.77 27 Yes
1.1024-1.1378 28-28.9 LD2800084N6R01 3.31 5.61 8.76 1.250 Univ 1.77 28 Yes
1.1417-1.1772 29-29.9 LD2900087N6R01 3.43 5.74 8.90 1.250 Univ 1.77 29 Yes
1.1811-1.2165 30-30.9 LD3000090N6R01 3.54 5.89 9.04 1.250 Univ 1.77 30 Yes
1.2205-1.2559 31-31.9 LD3100093N6R01 3.66 6.03 9.18 1.250 Univ 1.77 31 Yes
1.2598-1.2953 32-32.9 LD3200096N6R01 3.78 6.38 9.53 1.250 Univ 2.17 32 Yes
1.2992-1.3346 33-33.9 LD3300099N6R01 3.90 6.52 9.67 1.250 Univ 2.17 33 Yes
1.3386-1.3740 34-34.9 LD3400102N6R01 4.02 6.65 9.80 1.250 Univ 2.17 34 Yes
1.3780-1.4134 35-35.9 LD3500105N6R01 4.13 6.81 9.96 1.250 Univ 2.17 35 Yes
1.4173-1.4528 36-36.9 LD3600108N6R01 4.25 6.94 10.10 1.250 Univ 2.17 36 Yes
1.4567-1.4921 37-37.9 LD3700111N6R01 4.30 7.08 10.23 1.250 Univ 2.17 37 Yes
1.4961-1.5315 38-38.9 LD3800114N6R01 4.49 7.24 10.39 1.250 Univ 2.17 38 Yes
1.5354-1.5709 39-39.9 LD3900117N6R01 4.61 7.38 10.53 1.250 Univ 2.17 39 Yes
1.5748-1.6496 40-41.9 LD4000120N6R01 4.72 7.52 10.67 1.250 Univ 2.17 40-41 Yes
*Do not mount a smaller drill point than the one listed with the tool.
REPLACEABLE TIPPED DRILL BODIES
146
SERIES LD UNIV EXT LGTH INCH SHK 3:1
Features & Benefits:
• Unique quick-change clamping system
• 2-effective cutting edges for higher productivity
• Self-centering design means no need for a pilot hole
• Easier replacement of the drill head in the machine
• Asymmetrical pocket design for error proof mounting, close tolerance and
excellent surface finish
• Stronger rigidity of the unique screw clamp design means improved productivity
• Through coolant hole
• Drill Body(L/D) : 3xD, 5xD
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange Dia.
Pocket
Size
Coolant
Thru Point
HARDWARE
147
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Screw Driver BladeDriver HandleLock ScrewCoolant Fitting
LD2600078N6R01 PF-0013 TS50230D3 SW6-T DS-T206B
LD2700081N6R01 PF-0013 TS50230D3 SW6-T DS-T206B
LD2800084N6R01 PF-0013 TS50250D35 SW6-T DS-T256B
LD2900087N6R01 PF-0013 TS50250D35 SW6-T DS-T256B
LD3000090N6R01 PF-0013 TS60265D4 SW6-T DS-T256B
LD3100093N6R01 PF-0013 TS60265D4 SW6-T DS-T256B
LD3200096N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3300099N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3400102N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3500105N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3600108N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3700111N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3800114N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
LD3900117N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
LD4000120N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
147
PART SERIES
148
PART SERIES
Placeholder
1.0236-1.0590 26-26.9 LD2600130N6R01 5.12 7.36 10.51 1.250 Univ 1.77 26 Yes
1.0630-1.0984 27-27.9 LD2700135N6R01 5.32 7.58 10.73 1.250 Univ 1.77 27 Yes
1.1024-1.1378 28-28.9 LD2800140N6R01 5.51 7.81 10.96 1.250 Univ 1.77 28 Yes
1.1417-1.1772 29-29.9 LD2900145N6R01 5.71 8.03 11.18 1.250 Univ 1.77 29 Yes
1.1811-1.2165 30-30.9 LD3000150N6R01 5.91 8.26 11.41 1.250 Univ 1.77 30 Yes
1.2205-1.2559 31-31.9 LD3100155N6R01 6.10 8.47 11.62 1.250 Univ 1.77 31 Yes
1.2598-1.2953 32-32.9 LD3200160N6R01 6.20 8.90 12.05 1.250 Univ 2.17 32 Yes
1.2992-1.3346 33-33.9 LD3300165N6R01 6.50 9.11 12.26 1.250 Univ 2.17 33 Yes
1.3386-1.3740 34-34.9 LD3400170N6R01 6.70 9.33 12.48 1.250 Univ 2.17 34 Yes
1.3780-1.4134 35-35.9 LD3500175N6R01 6.9 9.56 12.71 1.250 Univ 2.17 35 Yes
1.4173-1.4528 36-36.9 LD3600180N6R01 7.09 9.78 12.93 1.250 Univ 2.17 36 Yes
1.4567-1.4921 37-37.9 LD3700185N6R01 7.28 10.00 13.15 1.250 Univ 2.17 37 Yes
1.4961-1.5315 38-38.9 LD3800190N6R01 7.48 10.23 13.38 1.250 Univ 2.17 38 Yes
1.5354-1.5709 39-39.9 LD3900195N6R01 7.68 10.45 13.60 1.250 Univ 2.17 39 Yes
1.5748-1.6496 40-41.9 LD4000200N6R01 7.88 10.67 13.82 1.250 Univ 2.17 40-41 Yes
*Do not mount a smaller drill point than the one listed with the tool.
REPLACEABLE TIPPED DRILL BODIES
148
SERIES LD UNIV EXT LGTH INCH SHK 5:1
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm Body Number
L1
DOC
L2
Ext.
L3
Overall
D2
Shank
Size/Style
D3
Flange Dia.
Pocket
Size
Coolant
Thru Point
HARDWARE
149
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Screw Driver BladeDriver HandleLock ScrewCoolant Fitting
LD2600130N6R01 PF-0013 TS50230D3 SW6-T DS-T206B
LD2700135N6R01 PF-0013 TS50230D3 SW6-T DS-T206B
LD2800140N6R01 PF-0013 TS50250D35 SW6-T DS-T256B
LD2900145N6R01 PF-0013 TS50250D35 SW6-T DS-T256B
LD3000150N6R01 PF-0013 TS60265D4 SW6-T DS-T256B
LD3100155N6R01 PF-0013 TS60265D4 SW6-T DS-T256B
LD3200160N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3300165N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3400170N6R01 PF-0013 TS60285D42 SW6-T DS-T256B
LD3500175N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3600180N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3700185N6R01 PF-0013 TS60320D5 SW6-T DS-T256B
LD3800190N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
LD3900195N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
LD4000200N6R01 PF-0013 TS80340D6 SW6-T DS-T256B
149
PART SERIES
150
PART SERIES
Placeholder
CD2600130N6R01 1.024 26.0mm 5.12 7.23 10.38 1.250 Univ 1.772 3.16 SPGX06_ TPA15_-C
CD2620131N6R01 1.032 26.2mm 5.16 7.23 10.38 1.250 Univ 1.772 3.16 SPGX06_ TPA15_-C
CD2700135N6R01 1.063 27.0mm 5.32 7.47 10.62 1.250 Univ 1.772 3.16 SPGX06_ TPA16_-C
CD2780139N6R01 1.095 27.8mm 5.47 7.47 10.62 1.250 Univ 1.772 3.16 SPGX06_ TPA16_-C
CD2800140N6R01 1.102 28.0mm 5.51 7.71 10.86 1.250 Univ 1.772 3.16 SPGX06_ TPA17_-C
CD2860143N6R01 1.126 28.6mm 5.63 7.71 10.86 1.250 Univ 1.772 3.16 SPGX06_ TPA17_-C
CD2900145N6R01 1.142 29.0mm 5.71 7.88 11.03 1.250 Univ 2.165 3.16 SPGX07_ TPA15_-C
CD2940147N6R01 1.158 29.4mm 5.79 7.88 11.03 1.250 Univ 2.165 3.16 SPGX07_ TPA15_-C
CD3000150N6R01 1.181 30.0mm 5.91 8.12 11.27 1.250 Univ 2.165 3.16 SPGX07_ TPA16_-C
CD3020151N6R01 1.189 30.2mm 5.95 8.12 11.27 1.250 Univ 2.165 3.16 SPGX07_ TPA16_-C
CD3100155N6R01 1.221 31.0mm 6.10 8.36 11.51 1.250 Univ 2.165 3.16 SPGX07_ TPA17_-C
CD3180159N6R01 1.252 31.8mm 6.26 8.36 11.51 1.250 Univ 2.165 3.16 SPGX07_ TPA17_-C
CD3200160N6R01 1.260 32.0mm 6.30 8.60 11.75 1.250 Univ 2.165 3.16 SPGX07_ TPA18_-C
CD3250163N6R01 1.280 32.5mm 6.42 8.60 11.75 1.250 Univ 2.165 3.16 SPGX07_ TPA18_-C
CD3300165N6R01 1.299 33.0mm 6.50 7.93 10.61 1.250 Univ 2.165 3.16 SPGX09_ TPA15_-C
CD3330167N6R01 1.311 33.3mm 6.58 8.87 12.02 1.250 Univ 2.165 3.16 SPGX09_ TPA15_-C
CD3400170N6R01 1.339 34.0mm 6.69 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C
CD3410171N6R01 1.343 34.1mm 6.73 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C
CD3490175N6R01 1.374 34.9mm 6.89 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C
CD3500175N6R01 1.378 35.0mm 6.89 9.35 12.50 1.250 Univ 2.165 3.16 SPGX09_ TPA17_-C
CD3570179N6R01 1.406 35.7mm 7.05 9.35 12.50 1.250 Univ 2.165 3.16 SPGX09_ TPA17_-C
CD3600180N6R01 1.417 36.0mm 7.09 9.59 12.74 1.250 Univ 2.165 3.16 SPGX09_ TPA18_-C
CD3650182N6R01 1.437 36.5mm 7.17 9.59 12.74 1.250 Univ 2.165 3.16 SPGX09_ TPA18_-C
CD3700185N6R01 1.457 37.0mm 7.28 9.76 12.91 1.250 Univ 2.165 3.16 SPGX11_ TPA16_-C
CD3730186N6R01 1.469 37.3mm 7.32 9.76 12.91 1.250 Univ 2.165 3.16 SPGX11_ TPA16_-C
CD3800190N6R01 1.496 38.0mm 7.48 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C
CD3810191N6R01 1.500 38.1mm 7.52 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C
CD3890194N6R01 1.532 38.9mm 7.64 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C
CD3900195N6R01 1.535 39.0mm 7.68 10.24 13.39 1.250 Univ 2.165 3.16 SPGX11_ TPA18_-C
CD3970198N6R01 1.563 39.7mm 7.80 10.24 13.39 1.250 Univ 2.165 3.16 SPGX11_ TPA18_-C
CD4000200N6R01 1.575 40.0mm 7.87 10.47 13.62 1.250 Univ 2.165 3.16 SPGX11_ TPA19_-C
CD4050202N6R01 1.595 40.5mm 7.95 10.47 13.62 1.250 Univ 2.165 3.16 SPGX11_ TPA19_-C
CD4100205N6R01 1.614 41.0mm 8.07 10.71 13.86 1.250 Univ 2.165 3.16 SPGX11_ TPA20_-C
CD4130206N6R01 1.626 41.3mm 8.11 10.71 13.86 1.250 Univ 2.165 3.16 SPGX11_ TPA20_-C
CD4200210N6R01 1.654 42.0mm 8.27 10.95 14.10 1.250 Univ 2.165 3.16 SPGX11_ TPA21_-C
CD4280214N6R01 1.685 42.8mm 8.43 10.95 14.10 1.250 Univ 2.165 3.16 SPGX11_ TPA21_-C
CD4300215N7R01 1.693 43.0mm 8.47 11.19 14.34 1.500 Univ 2.362 3.16 SPGX11_ TPA22_-C
CD4370218N7R01 1.720 43.7mm 8.58 11.19 14.34 1.500 Univ 2.362 3.16 SPGX11_ TPA22_-C
CD4400220N7R01 1.732 44.0mm 8.66 11.43 14.58 1.500 Univ 2.362 3.16 SPGX11_ TPA23_-C
CD4450222N7R01 1.752 44.5mm 8.74 11.43 14.58 1.500 Univ 2.362 3.16 SPGX11_ TPA23_-C
CD4500225N7R01 1.772 45.0mm 8.86 11.67 14.82 1.500 Univ 2.362 3.16 SPGX11_ TPA24_-C
CD4520226N7R01 1.780 45.2mm 8.90 11.67 14.82 1.500 Univ 2.362 3.16 SPGX11_ TPA24_-C
Do not mount a smaller drill point than the one listed with the tool. Standard Gold-Twist tips do not fit in the Gold Twin. Gold-Twin use a modified standard Gold-Twist tip,
designation R01-C.
Part Number
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm
L1
Drilling
Length
L2
Ext. frm
Holder
L3
Overall
Length
D2
Shank
Style/Size
D3
Flange
Diameter
L4
Shank
Length
Insert
Series
Tip
Series
COMBINATION REPLACEABLE TIP & INDEXABLE INSERT DRILL
150
SERIES CD UNIV EXT LENGTH INCH SHANK 5:1
HARDWARE
151
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Torx DriverLocking KeyCoolant FittingInsert Screw
CD2600130N6R01 TS22052I/HG PF-0013 KTD15.0-15.9-C DS-T07S
CD2620131N6R01 TS22052I/HG PF-0013 KTD15.0-15.9-C DS-T07S
CD2700135N6R01 TS22052I/HG PF-0013 KTD16.0-16.9-C DS-T07S
CD2780139N6R01 TS22052I/HG PF-0013 KTD16.0-16.9-C DS-T07S
CD2800140N6R01 TS22052I/HG PF-0013 KTD17.0-17.9-C DS-T07S
CD2860143N6R01 TS22052I/HG PF-0013 KTD17.0-17.9-C DS-T07S
CD2900145N6R01 TS25064I PF-0013 KTD15.0-15.9-C TD8
CD2940147N6R01 TS25064I PF-0013 KTD15.0-15.9-C TD8
CD3000150N6R01 TS25064I PF-0013 KTD16.0-16.9-C TD8
CD3020151N6R01 TS25064I PF-0013 KTD16.0-16.9-C TD8
CD3100155N6R01 TS25064I PF-0013 KTD17.0-17.9-C TD8
CD3180159N6R01 TS25064I PF-0013 KTD17.0-17.9-C TD8
CD3200160N6R01 TS25064I PF-0013 KTD18.0-18.9-C TD8
CD3250163N6R01 TS25064I PF-0013 KTD18.0-18.9-C TD8
CD3300165N6R01 SM35-088-60 PF-0013 KTD15.0-15.9-C TD10
CD3330167N6R01 SM35-088-60 PF-0013 KTD15.0-15.9-C TD10
CD3400170N6R01 SM35-088-60 PF-0013 KTD16.0-16.9-C TD10
CD3410171N6R01 SM35-088-60 PF-0013 KTD16.0-16.9-C TD10
CD3490175N6R01 SM35-088-60 PF-0013 KTD16.0-16.9-C TD10
CD3500175N6R01 SM35-088-60 PF-0013 KTD17.0-17.9-C TD10
CD3570179N6R01 SM35-088-60 PF-0013 KTD17.0-17.9-C TD10
CD3600180N6R01 SM35-088-60 PF-0013 KTD18.0-18.9-C TD10
CD3650182N6R01 SM35-088-60 PF-0013 KTD18.0-18.9-C TD10
CD3700185N6R01 SM40-093-20 PF-0013 KTD16.0-16.9-C TD15
CD3730186N6R01 SM40-093-20 PF-0013 KTD16.0-16.9-C TD15
CD3800190N6R01 SM40-093-20 PF-0013 KTD17.0-17.9-C TD15
CD3810191N6R01 SM40-093-20 PF-0013 KTD17.0-17.9-C TD15
CD3890194N6R01 SM40-093-20 PF-0013 KTD17.0-17.9-C TD15
CD3900195N6R01 SM40-093-20 PF-0013 KTD18.0-18.9-C TD15
CD3970198N6R01 SM40-093-20 PF-0013 KTD18.0-18.9-C TD15
CD4000200N6R01 SM40-093-20 PF-0013 KTD19.0-19.9-C TD15
CD4050202N6R01 SM40-093-20 PF-0013 KTD19.0-19.9-C TD15
CD4100205N6R01 SM40-093-20 PF-0013 KTD20.0-20.9-C TD15
CD4130206N6R01 SM40-093-20 PF-0013 KTD20.0-20.9-C TD15
CD4200210N6R01 SM40-093-20 PF-0013 KTD21.0-21.9-C TD15
CD4280214N6R01 SM40-093-20 PF-0013 KTD21.0-21.9-C TD15
CD4300215N7R01 SM40-093-20 PF-0015 KTD22.0-22.9-C TD15
CD4370218N7R01 SM40-093-20 PF-0015 KTD22.0-22.9-C TD15
CD4400220N7R01 SM40-093-20 PF-0015 KTD23.0-23.9-C TD15
CD4450222N7R01 SM40-093-20 PF-0015 KTD23.0-23.9-C TD15
CD4500225N7R01 SM40-093-20 PF-0015 KTD24.0-24.9-C TD15
CD4520226N7R01 SM40-093-20 PF-0015 KTD24.0-24.9-C TD15
151
152
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
TPA1590R01-C 15.9mm 0.626 0.344 15
TPA1690R01-C 16.9mm 0.665 0.366 16
TPA1790R01-C 17.9mm 0.705 0.390 17
TPA1890R01-C 18.9mm 0.744 0.413 18
TPA1990R01-C 19.9mm 0.784 0.433 19
TPA2090R01-C 20.9mm 0.823 0.344 20
TPA2190R01-C 21.9mm 0.862 0.366 21
TPA2290R01-C 22.9mm 0.902 0.390 22
TPA2390R01-C 23.9mm 0.941 0.413 23
TPA2490R01-C 24.9mm 0.980 0.433 24
Modified -C Tip is NOT interchangeable with the Standard Gold-Twist Tip.
SPGX060204WG 6.0mm .239" .094" .016"
6
SPGX07T308WG 8.0mm .316" .156" .031"
7
SPGX090408WG 10.0mm .390" .169" .031"
9
SPGX110408WG 11.6mm .457" .190" .031"
11
Part
Number
D
Diameter (mm)
D
Diameter (in)
t
Length Pocket Size
Grades
IN2505
Part
Number
D
Diameter (mm)
D
Diameter (in)
T
Thickness
R
Radius Pocket Size
Grades
IN2505
SERIES TPA -C TIPS
SERIES SPGX...WG
152
D
1
d
r
t
TPA-C Replaceable Tip for Gold-Twin
SPGX...WG Peripheral Inserts for Gold-Twin
153
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
153
HARDWARE Torque Spec
(in.lbs.)
Torx KeyScrew
SPGX060204WG TS22052I/HG
(M2.2X5.2MM) HZS.0004 7-11
SPGX07T308WG TS25064I
(M2.5X6.4MM) TD 8
10-15
SPGX090408WG SM35-088-60
(M3.5X8.75MM) TD 10
25-30
SPGX110408WG SE02-82
(M4X9.3MM) TD 15
30-35
PART SERIES
154
PART SERIES
Placeholder
QR0143029N5R02 0.563 14.3mm 1.10 2.13 4.33 1.000 Univ 2 1.26 3.16 SOMT05_
QR0150030N5R02 0.591 15.0mm 1.19 2.24 5.39 1.000 Univ 2 1.26 3.16 SOMT05_
QR0159032N5R02 0.626 15.9mm 1.25 2.36 5.51 1.000 Univ 2 1.26 3.16 SOMT05_
QR0167033N5R02 0.658 16.7mm 1.31 2.44 5.59 1.000 Univ 2 1.26 3.16 SOMT06_
QR0175035N5R02 0.689 17.5mm 1.38 2.56 5.71 1.000 Univ 2 1.26 3.16 SOMT06_
QR0183037N5R02 0.721 18.3mm 1.44 2.56 5.71 1.000 Univ 2 1.26 3.16 SOMT06_
QR0191038N5R02 0.750 19.1mm 1.50 2.64 5.79 1.000 Univ 2 1.26 3.16 SOMT06_
QR0198040N5R02 0.780 19.8mm 1.56 2.80 5.94 1.000 Univ 2 1.26 3.16 SOMT07_
QR0206041N5R02 0.811 20.6mm 1.63 2.87 6.02 1.000 Univ 2 1.26 3.16 SOMT07_
QR0214042N5R02 0.843 21.4mm 1.69 2.95 6.10 1.000 Univ 2 1.26 3.16 SOMT07_
QR0222044N5R02 0.874 22.2mm 1.75 2.95 6.10 1.000 Univ 2 1.26 3.16 SOMT07_
QR0230046N6R02 0.906 23.0mm 1.81 3.19 6.34 1.250 Univ 2 1.77 3.16 SOMT08_
QR0238048N6R02 0.937 23.8mm 1.88 3.31 6.46 1.250 Univ 2 1.77 3.16 SOMT08_
QR0246049N6R02 0.969 24.6mm 1.94 3.43 6.57 1.250 Univ 2 1.77 3.16 SOMT08_
QR0250050N6R02 0.984 25.0mm 1.97 3.43 6.58 1.250 Univ 2 1.77 3.16 SOMT08_
QR0254051N6R02 1.000 25.4mm 2.00 3.50 6.65 1.250 Univ 2 1.77 3.16 SOMT08_
QR0262052N6R02 1.031 26.2mm 2.06 3.50 6.65 1.250 Univ 2 1.77 3.16 SOMT08_
QR0270054N6R02 1.063 27.0mm 2.13 3.58 6.73 1.250 Univ 2 1.77 3.16 SOMT09_
QR0278056N6R02 1.094 27.8mm 2.19 3.70 6.85 1.250 Univ 2 1.77 3.16 SOMT09_
QR0286057N6R02 1.125 28.6mm 2.25 3.78 6.93 1.250 Univ 2 1.77 3.16 SOMT09_
QR0294059N6R02 1.156 29.4mm 2.31 3.98 7.13 1.250 Univ 2 2.17 3.16 SOMT09_
QR0302060N6R02 1.187 30.2mm 2.37 3.98 7.13 1.250 Univ 2 2.17 3.16 SOMT09_
QR0310062N6R02 1.219 31.0mm 2.44 4.09 7.24 1.250 Univ 2 2.17 3.16 SOMT09_
QR0318063N6R02 1.250 31.8mm 2.50 4.17 7.32 1.250 Univ 2 2.17 3.16 SOMT11_
QR0325065N6R02 1.281 32.5mm 2.56 4.29 7.44 1.250 Univ 2 2.17 3.16 SOMT11_
QR0333067N6R02 1.312 33.3mm 2.62 4.29 7.44 1.250 Univ 2 2.17 3.16 SOMT11_
QR0341068N6R02 1.343 34.1mm 2.69 4.37 7.52 1.250 Univ 2 2.17 3.16 SOMT11_
QR0349070N6R02 1.375 34.9mm 2.75 4.49 7.64 1.250 Univ 2 2.17 3.16 SOMT11_
QR0357071N6R02 1.406 35.7mm 2.81 4.61 7.76 1.250 Univ 2 2.17 3.16 SOMT11_
QR0365073N6R02 1.437 36.5mm 2.87 4.72 7.87 1.250 Univ 2 2.17 3.16 SOMT13_
QR0373075N6R02 1.468 37.3mm 2.94 4.72 7.87 1.250 Univ 2 2.17 3.16 SOMT13_
QR0381076N6R02 1.500 38.1mm 3.00 4.84 7.99 1.250 Univ 2 2.17 3.16 SOMT13_
QR0389078N6R02 1.531 38.9mm 3.06 4.92 8.07 1.250 Univ 2 2.17 3.16 SOMT13_
QR0397079N6R02 1.562 39.7mm 3.12 5.04 8.19 1.250 Univ 2 2.36 3.16 SOMT13_
QR0405081N6R02 1.594 40.5mm 3.12 5.16 8.31 1.250 Univ 2 2.36 3.16 SOMT13_
QR0413083N6R02 1.625 41.3mm 3.25 5.16 8.31 1.250 Univ 2 2.36 3.16 SOMT13_
QR0428086N6R02 1.687 42.8mm 3.37 5.35 8.50 1.250 Univ 2 2.36 3.16 SOMT13_
QR0437087N7R02 1.719 43.7mm 3.44 5.43 8.58 1.500 Univ 2 2.36 3.16 SOMT15_
QR0445089N7R02 1.750 44.5mm 3.50 5.59 8.74 1.500 Univ 2 2.36 3.16 SOMT15_
QR0452090N7R02 1.781 45.2mm 3.56 5.59 8.74 1.500 Univ 2 2.36 3.16 SOMT15_
QR0460092N7R02 1.813 46.0mm 3.63 5.71 8.86 1.500 Univ 2 2.36 3.16 SOMT15_
QR0476095N7R02 1.875 47.6mm 3.75 5.91 9.06 1.500 Univ 2 2.36 3.16 SOMT15_
QR0492098N7R02 1.937 49.2mm 3.87 5.98 9.13 1.500 Univ 2 2.36 3.16 SOMT15_
QR0500100N7R02 1.969 50.0mm 3.94 6.10 9.25 1.500 Univ 2 2.36 3.16 SOMT15_
QR0508102N7R02 2.000 50.8mm 4.00 6.22 9.37 1.500 Univ 2 2.36 3.16 SOMT15_
For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015.
Part Number
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm
L1
Drilling
Length
L2
Ext. frm
Holder
L3
Overall
Length
D2
Shank
Style/Size
Num
of
Inserts
D3
Flange
Diameter
L4
Shank
Length
Insert
Series
SQUARE INSERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH
154
SERIES QR INDEXABLE DRILL INCH 2:1
HARDWARE
155
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant FittingDriverInsert Screw
QR0143029N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0150030N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0159032N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0167033N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0175035N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0183037N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0191038N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0198040N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0206041N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0214042N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0222044N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0230046N6R02 SM25-065-70 DS-T07S PF-0013
QR0238048N6R02 SM25-065-70 DS-T07S PF-0013
QR0246049N6R02 SM25-065-70 DS-T07S PF-0013
QR0250050N6R02 SM25-065-70 DS-T07S PF-0013
QR0254051N6R02 SM25-065-70 DS-T07S PF-0013
QR0262052N6R02 SM25-065-70 DS-T07S PF-0013
QR0270054N6R02 SM35-088-60 TD10 PF-0013
QR0278056N6R02 SM35-088-60 TD10 PF-0013
QR0286057N6R02 SM35-088-60 TD10 PF-0013
QR0294059N6R02 SM35-088-60 TD10 PF-0013
QR0302060N6R02 SM35-088-60 TD10 PF-0013
QR0310062N6R02 SM35-088-60 TD10 PF-0013
QR0318063N6R02 SM35-088-60 TD10 PF-0013
QR0325065N6R02 SM35-088-60 TD10 PF-0013
QR0333067N6R02 SM35-088-60 TD10 PF-0013
QR0341068N6R02 SM35-088-60 TD10 PF-0013
QR0349070N6R02 SM35-088-60 TD10 PF-0013
QR0357071N6R02 SM35-088-60 TD10 PF-0013
QR0365073N6R02 SM40-093-20 TD15 PF-0013
QR0373075N6R02 SM40-093-20 TD15 PF-0013
QR0381076N6R02 SM40-093-20 TD15 PF-0013
QR0389078N6R02 SM40-093-20 TD15 PF-0013
QR0397079N6R02 SM40-093-20 TD15 PF-0013
QR0405081N6R02 SM40-093-20 TD15 PF-0013
QR0413083N6R02 SM40-093-20 TD15 PF-0013
QR0428086N6R02 SM40-093-20 TD15 PF-0013
QR0437087N7R02 SM50-113-20 DS-T20T PF-0015
QR0445089N7R02 SM50-113-20 DS-T20T PF-0015
QR0452090N7R02 SM50-113-20 DS-T20T PF-0015
QR0460092N7R02 SM50-113-20 DS-T20T PF-0015
QR0476095N7R02 SM50-113-20 DS-T20T PF-0015
QR0492098N7R02 SM50-113-20 DS-T20T PF-0015
QR0500100N7R02 SM50-113-20 DS-T20T PF-0015
QR0508102N7R02 SM50-113-20 DS-T20T PF-0015
155
PART SERIES
156
PART SERIES
Placeholder
QR0143043N5R02 0.563 14.3mm 1.69 2.68 5.83 1.000 Univ 2 1.26 3.16 SOMT05_ CB140R02
QR0150045N5R02 0.591 15.0mm 1.78 2.83 5.98 1.000 Univ 2 1.26 3.16 SOMT05_ CB150R02
QR0159048N5R02 0.626 15.9mm 1.87 2.99 6.14 1.000 Univ 2 1.26 3.16 SOMT05_ CB160R02
QR0167050N5R02 0.658 16.7mm 1.97 3.11 6.26 1.000 Univ 2 1.26 3.16 SOMT06_ CB170R02
QR0175053N5R02 0.689 17.5mm 2.06 3.27 6.42 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0183055N5R02 0.721 18.3mm 2.16 3.27 6.42 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0191057N5R02 0.750 19.1mm 2.25 3.39 6.54 1.000 Univ 2 1.26 3.16 SOMT06_ CB190R02
QR0198059N5R02 0.780 19.8mm 2.34 3.58 6.73 1.000 Univ 2 1.26 3.16 SOMT07_ CB200R02
QR0206062N5R02 0.811 20.6mm 2.44 3.70 6.85 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0214064N5R02 0.843 21.4mm 2.53 3.82 6.97 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0222067N5R02 0.874 22.2mm 2.63 3.82 6.97 1.000 Univ 2 1.26 3.16 SOMT07_ CB220R02
QR0230069N6R02 0.906 23.0mm 2.72 4.09 7.24 1.250 Univ 2 1.77 3.16 SOMT08_ CB230R02
QR0238071N6R02 0.937 23.8mm 2.81 4.25 7.40 1.250 Univ 2 1.77 3.16 SOMT08_ CB240R02
QR0246074N6R02 0.969 24.6mm 2.91 4.41 7.56 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0250075N6R02 0.984 25.0mm 2.95 4.41 7.56 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0254076N6R02 1.000 25.4mm 3.00 4.53 7.68 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0262079N6R02 1.031 26.2mm 3.09 4.53 7.68 1.250 Univ 2 1.77 3.16 SOMT08_ NA
QR0270081N6R02 1.063 27.0mm 3.19 4.65 7.80 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0278083N6R02 1.094 27.8mm 3.28 4.80 7.95 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0286086N6R02 1.125 28.6mm 3.38 4.92 8.07 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0294088N6R02 1.156 29.4mm 3.47 5.16 8.30 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0302090N6R02 1.187 30.2mm 3.56 5.16 8.30 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0310093N6R02 1.219 31.0mm 3.66 5.31 8.46 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0318095N6R02 1.250 31.8mm 3.75 5.43 8.58 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0325098N6R02 1.281 32.5mm 3.84 5.59 8.74 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0333100N6R02 1.312 33.3mm 3.94 5.59 8.74 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0341102N6R02 1.343 34.1mm 4.03 5.71 8.86 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0349105N6R02 1.375 34.9mm 4.13 5.87 9.02 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0357107N6R02 1.406 35.7mm 4.22 6.02 9.17 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0365110N6R02 1.437 36.5mm 4.31 6.18 9.33 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0373112N6R02 1.468 37.3mm 4.41 6.18 9.33 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0381114N6R02 1.500 38.1mm 4.50 6.34 9.49 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0389117N6R02 1.531 38.9mm 4.59 6.46 9.61 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0397119N6R02 1.562 39.7mm 4.69 6.61 9.76 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0405122N6R02 1.594 40.5mm 4.69 6.77 9.92 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0413124N6R02 1.625 41.3mm 4.87 6.77 9.92 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0428128N6R02 1.687 42.8mm 5.06 7.05 10.20 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0437131N7R02 1.719 43.7mm 5.16 7.17 10.31 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0445134N7R02 1.750 44.5mm 5.25 7.36 10.51 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0452136N7R02 1.781 45.2mm 5.34 7.36 10.51 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0460138N7R02 1.813 46.0mm 5.44 7.52 10.67 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0476143N7R02 1.875 47.6mm 5.63 7.80 10.94 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0492148N7R02 1.937 49.2mm 5.81 7.91 11.06 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0500150N7R02 1.969 50.0mm 5.91 8.07 11.22 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0508152N7R02 2.000 50.8mm 6.00 8.23 11.38 1.500 Univ 2 2.36 3.16 SOMT15_ NA
SQUARE INSERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH
156
SERIES QR INDEXABLE DRILL INCH 3:1
For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015.
Part Number
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm
L1
Drilling
Length
L2
Ext. frm
Holder
L3
Overall
Length
D2
Shank
Style/Size
Num
of
Inserts
D3
Flange
Dia.
L4
Shank
Length
Insert
Series
Chamfer
Ring
HARDWARE
157
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant FittingDriverInsert Screw
QR0143043N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0150045N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0159048N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0167050N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0175053N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0183055N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0191057N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0198059N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0206062N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0214064N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0222067N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0230069N6R02 SM25-065-70 DS-T07S PF-0013
QR0238071N6R02 SM25-065-70 DS-T07S PF-0013
QR0246074N6R02 SM25-065-70 DS-T07S PF-0013
QR0250075N6R02 SM25-065-70 DS-T07S PF-0013
QR0254076N6R02 SM25-065-70 DS-T07S PF-0013
QR0262079N6R02 SM25-065-70 DS-T07S PF-0013
QR0270081N6R02 SM35-088-60 TD10 PF-0013
QR0278083N6R02 SM35-088-60 TD10 PF-0013
QR0286086N6R02 SM35-088-60 TD10 PF-0013
QR0294088N6R02 SM35-088-60 TD10 PF-0013
QR0302090N6R02 SM35-088-60 TD10 PF-0013
QR0310093N6R02 SM35-088-60 TD10 PF-0013
QR0318095N6R02 SM35-088-60 TD10 PF-0013
QR0325098N6R02 SM35-088-60 TD10 PF-0013
QR0333100N6R02 SM35-088-60 TD10 PF-0013
QR0341102N6R02 SM35-088-60 TD10 PF-0013
QR0349105N6R02 SM35-088-60 TD10 PF-0013
QR0357107N6R02 SM35-088-60 TD10 PF-0013
QR0365110N6R02 SM40-093-20 TD15 PF-0013
QR0373112N6R02 SM40-093-20 TD15 PF-0013
QR0381114N6R02 SM40-093-20 TD15 PF-0013
QR0389117N6R02 SM40-093-20 TD15 PF-0013
QR0397119N6R02 SM40-093-20 TD15 PF-0013
QR0405122N6R02 SM40-093-20 TD15 PF-0013
QR0413124N6R02 SM40-093-20 TD15 PF-0013
QR0428128N6R02 SM40-093-20 TD15 PF-0013
QR0437131N7R02 SM50-113-20 DS-T20T PF-0015
QR0445134N7R02 SM50-113-20 DS-T20T PF-0015
QR0452136N7R02 SM50-113-20 DS-T20T PF-0015
QR0460138N7R02 SM50-113-20 DS-T20T PF-0015
QR0476143N7R02 SM50-113-20 DS-T20T PF-0015
QR0492148N7R02 SM50-113-20 DS-T20T PF-0015
QR0500150N7R02 SM50-113-20 DS-T20T PF-0015
QR0508152N7R02 SM50-113-20 DS-T20T PF-0015
157
PART SERIES
158
PART SERIES
Placeholder
QR0143057N5R02 0.563 14.3mm 2.25 3.23 6.38 1.000 Univ 2 1.26 3.16 SOMT05_ CB140R02
QR0150060N5R02 0.591 15.0mm 2.37 3.43 6.57 1.000 Univ 2 1.26 3.16 SOMT05_ CB150R02
QR0159064N5R02 0.626 15.9mm 2.50 3.62 6.77 1.000 Univ 2 1.26 3.16 SOMT05_ CB160R02
QR0167067N5R02 0.658 16.7mm 2.63 3.78 6.93 1.000 Univ 2 1.26 3.16 SOMT06_ CB170R02
QR0175070N5R02 0.689 17.5mm 2.75 3.98 7.13 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0183073N5R02 0.721 18.3mm 2.87 3.98 7.13 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0191076N5R02 0.750 19.1mm 3.00 4.13 7.28 1.000 Univ 2 1.26 3.16 SOMT06_ CB190R02
QR0198079N5R02 0.780 19.8mm 3.13 4.37 7.52 1.000 Univ 2 1.26 3.16 SOMT07_ CB200R02
QR0206082N5R02 0.811 20.6mm 3.25 4.53 7.68 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0214086N5R02 0.843 21.4mm 3.37 4.69 7.83 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0222089N5R02 0.874 22.2mm 3.50 4.69 7.83 1.000 Univ 2 1.26 3.16 SOMT07_ CB220R02
QR0230092N6R02 0.906 23.0mm 3.62 5.00 8.15 1.250 Univ 2 1.77 3.16 SOMT08_ CB230R02
QR0238095N6R02 0.937 23.8mm 3.75 5.20 8.35 1.250 Univ 2 1.77 3.16 SOMT08_ CB240R02
QR0246098N6R02 0.969 24.6mm 3.87 5.39 8.54 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0250100N6R02 0.984 25.0mm 3.94 5.39 8.54 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0254102N6R02 1.000 25.4mm 4.00 5.55 8.70 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0262105N6R02 1.031 26.2mm 4.13 5.55 8.70 1.250 Univ 2 1.77 3.16 SOMT08_ NA
QR0270108N6R02 1.063 27.0mm 4.25 5.71 8.86 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0278111N6R02 1.094 27.8mm 4.38 5.91 9.06 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0286114N6R02 1.125 28.6mm 4.50 6.06 9.21 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0294118N6R02 1.156 29.4mm 4.62 6.34 9.49 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0302120N6R02 1.187 30.2mm 4.75 6.34 9.49 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0310124N6R02 1.219 31.0mm 4.87 6.54 9.69 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0318127N6R02 1.250 31.8mm 5.00 6.69 9.84 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0325130N6R02 1.281 32.5mm 5.13 6.89 10.04 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0333133N6R02 1.312 33.3mm 5.25 6.89 10.04 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0341136N6R02 1.343 34.1mm 5.37 7.05 10.20 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0349140N6R02 1.375 34.9mm 5.50 7.24 10.39 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0357143N6R02 1.406 35.7mm 5.62 7.44 10.59 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0365146N6R02 1.437 36.5mm 5.75 7.64 10.79 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0373149N6R02 1.468 37.3mm 5.87 7.64 10.79 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0381152N6R02 1.500 38.1mm 6.00 7.83 10.98 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0389156N6R02 1.531 38.9mm 6.13 7.99 11.14 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0397159N6R02 1.562 39.7mm 6.25 8.19 11.34 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0405162N6R02 1.594 40.5mm 6.25 8.39 11.54 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0413165N6R02 1.625 41.3mm 6.50 8.39 11.54 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0428171N6R02 1.687 42.8mm 6.75 8.74 11.89 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0437175N7R02 1.719 43.7mm 6.87 8.90 12.05 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0445178N7R02 1.750 44.5mm 7.00 9.13 12.28 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0452181N7R02 1.781 45.2mm 7.13 9.13 12.28 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0460184N7R02 1.813 46.0mm 7.25 9.33 12.48 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0476190N7R02 1.875 47.6mm 7.50 9.69 12.83 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0492197N7R02 1.937 49.2mm 7.75 9.84 12.99 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0500200N7R02 1.969 50.0mm 7.87 10.04 13.19 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0508203N7R02 2.000 50.8mm 8.00 10.24 13.39 1.500 Univ 2 2.36 3.16 SOMT15_ NA
SQUARE INSERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH
158
SERIES QR INDEXABLE DRILL INCH 4:1
For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015.
Part Number
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm
L1
Drilling
Length
L2
Ext. frm
Holder
L3
Overall
Length
D2
Shank
Style/Size
Num
of
Inserts
D3
Flange
Dia.
L4
Shank
Length
Insert
Series
Chamfer
Ring
HARDWARE
159
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant FittingDriverInsert Screw
QR0143057N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0150060N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0159064N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0167067N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0175070N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0183073N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0191076N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0198079N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0206082N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0214086N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0222089N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0230092N6R02 SM25-065-70 DS-T07S PF-0013
QR0238095N6R02 SM25-065-70 DS-T07S PF-0013
QR0246098N6R02 SM25-065-70 DS-T07S PF-0013
QR0250100N6R02 SM25-065-70 DS-T07S PF-0013
QR0254102N6R02 SM25-065-70 DS-T07S PF-0013
QR0262105N6R02 SM25-065-70 DS-T07S PF-0013
QR0270108N6R02 SM35-088-60 TD10 PF-0013
QR0278111N6R02 SM35-088-60 TD10 PF-0013
QR0286114N6R02 SM35-088-60 TD10 PF-0013
QR0294118N6R02 SM35-088-60 TD10 PF-0013
QR0302120N6R02 SM35-088-60 TD10 PF-0013
QR0310124N6R02 SM35-088-60 TD10 PF-0013
QR0318127N6R02 SM35-088-60 TD10 PF-0013
QR0325130N6R02 SM35-088-60 TD10 PF-0013
QR0333133N6R02 SM35-088-60 TD10 PF-0013
QR0341136N6R02 SM35-088-60 TD10 PF-0013
QR0349140N6R02 SM35-088-60 TD10 PF-0013
QR0357143N6R02 SM35-088-60 TD10 PF-0013
QR0365146N6R02 SM40-093-20 TD15 PF-0013
QR0373149N6R02 SM40-093-20 TD15 PF-0013
QR0381152N6R02 SM40-093-20 TD15 PF-0013
QR0389156N6R02 SM40-093-20 TD15 PF-0013
QR0397159N6R02 SM40-093-20 TD15 PF-0013
QR0405162N6R02 SM40-093-20 TD15 PF-0013
QR0413165N6R02 SM40-093-20 TD15 PF-0013
QR0428171N6R02 SM40-093-20 TD15 PF-0013
QR0437175N7R02 SM50-113-20 DS-T20T PF-0015
QR0445178N7R02 SM50-113-20 DS-T20T PF-0015
QR0452181N7R02 SM50-113-20 DS-T20T PF-0015
QR0460184N7R02 SM50-113-20 DS-T20T PF-0015
QR0476190N7R02 SM50-113-20 DS-T20T PF-0015
QR0492197N7R02 SM50-113-20 DS-T20T PF-0015
QR0500200N7R02 SM50-113-20 DS-T20T PF-0015
QR0508203N7R02 SM50-113-20 DS-T20T PF-0015
159
PART SERIES
160
PART SERIES
Placeholder
QR0143072N5R02 0.563 14.3mm 2.81 3.78 6.94 1.000 Univ 2 1.26 3.16 SOMT05_ CB140R02
QR0150075N5R02 0.591 15.0mm 2.96 4.02 7.17 1.000 Univ 2 1.26 3.16 SOMT05_ CB150R02
QR0159080N5R02 0.626 15.9mm 3.13 4.25 7.40 1.000 Univ 2 1.26 3.16 SOMT05_ CB160R02
QR0167084N5R02 0.658 16.7mm 3.29 4.45 7.60 1.000 Univ 2 1.26 3.16 SOMT06_ CB170R02
QR0175088N5R02 0.689 17.5mm 3.44 4.69 7.84 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0183092N5R02 0.721 18.3mm 3.59 4.69 7.84 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02
QR0191095N5R02 0.750 19.1mm 3.75 4.88 8.03 1.000 Univ 2 1.26 3.16 SOMT06_ CB190R02
QR0198099N5R02 0.780 19.8mm 3.91 5.16 8.31 1.000 Univ 2 1.26 3.16 SOMT07_ CB200R02
QR0206103N5R02 0.811 20.6mm 4.07 5.35 8.50 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0214107N5R02 0.843 21.4mm 4.22 5.55 8.70 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02
QR0222111N5R02 0.874 22.2mm 4.38 5.55 8.70 1.000 Univ 2 1.26 3.16 SOMT07_ CB220R02
QR0230115N6R02 0.906 23.0mm 4.53 5.91 9.06 1.250 Univ 2 1.77 3.16 SOMT08_ CB230R02
QR0238119N6R02 0.937 23.8mm 4.69 6.14 9.29 1.250 Univ 2 1.77 3.16 SOMT08_ CB240R02
QR0246123N6R02 0.969 24.6mm 4.85 6.38 9.53 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0250125N6R02 0.984 25.0mm 4.85 6.38 9.53 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0254127N6R02 1.000 25.4mm 5.00 6.57 9.72 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02
QR0262131N6R02 1.031 26.2mm 5.16 6.57 9.72 1.250 Univ 2 1.77 3.16 SOMT08_ NA
QR0270135N6R02 1.063 27.0mm 5.31 6.77 9.92 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0278139N6R02 1.094 27.8mm 5.47 7.01 10.15 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0286143N6R02 1.125 28.6mm 5.63 7.20 10.34 1.250 Univ 2 1.77 3.16 SOMT09_ NA
QR0294147N6R02 1.156 29.4mm 5.78 7.52 10.64 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0302151N6R02 1.187 30.2mm 5.94 7.52 10.68 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0310155N6R02 1.219 31.0mm 6.09 7.76 10.90 1.250 Univ 2 2.17 3.16 SOMT09_ NA
QR0318159N6R02 1.250 31.8mm 6.25 7.95 11.09 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0325163N6R02 1.281 32.5mm 6.41 8.19 11.32 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0333167N6R02 1.312 33.3mm 6.56 8.19 11.35 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0341171N6R02 1.343 34.1mm 6.72 8.39 11.54 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0349175N6R02 1.375 34.9mm 6.88 8.62 11.77 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0357179N6R02 1.406 35.7mm 7.03 8.86 12.00 1.250 Univ 2 2.17 3.16 SOMT11_ NA
QR0365182N6R02 1.437 36.5mm 7.19 9.09 12.24 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0373186N6R02 1.468 37.3mm 7.34 9.09 12.24 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0381191N6R02 1.500 38.1mm 7.50 9.33 12.26 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0389194N6R02 1.531 38.9mm 7.66 9.53 12.67 1.250 Univ 2 2.17 3.16 SOMT13_ NA
QR0397198N6R02 1.562 39.7mm 7.81 9.76 12.91 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0405202N6R02 1.594 40.5mm 7.81 10.00 13.15 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0413206N6R02 1.625 41.3mm 8.13 10.00 13.15 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0428214N6R02 1.687 42.8mm 8.59 10.24 13.07 1.250 Univ 2 2.36 3.16 SOMT13_ NA
QR0437218N7R02 1.719 43.7mm 8.59 10.24 13.07 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0445222N7R02 1.750 44.5mm 8.75 10.24 13.39 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0452226N7R02 1.781 45.2mm 8.91 10.43 13.58 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0460230N7R02 1.813 46.0mm 9.06 10.63 13.78 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0476238N7R02 1.875 47.6mm 7.50 11.02 14.17 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0492246N7R02 1.937 49.2mm 9.69 11.22 14.37 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0500250N7R02 1.969 50.0mm 9.84 11.42 14.57 1.500 Univ 2 2.36 3.16 SOMT15_ NA
QR0508254N7R02 2.000 50.8mm 10.00 11.61 14.76 1.500 Univ 2 2.36 3.16 SOMT15_ NA
SQUARE INSERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH
160
SERIES QR INDEXABLE DRILL INCH 5:1
Part Number
D1
Nom. Dia.
inch
D1
Nom. Dia.
mm
L1
Drilling
Length
L2
Ext. frm
Holder
L3
Overall
Length
D2
Shank
Style/Size
Num
of
Inserts
D3
Flange
Dia.
L4
Shank
Length
Insert
Series
Chamfer
Ring
For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015.
HARDWARE
161
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Coolant FittingDriverInsert Screw
QR0143072N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0150075N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0159080N5R02 SM20-043-00 DS-TP06S-NEU PF-0012
QR0167084N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0175088N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0183092N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0191095N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0198099N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0206103N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0214107N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0222111N5R02 TS22052I/HG-P DS-TP07S PF-0012
QR0230115N6R02 SM25-065-70 DS-T07S PF-0013
QR0238119N6R02 SM25-065-70 DS-T07S PF-0013
QR0246123N6R02 SM25-065-70 DS-T07S PF-0013
QR0250125N6R02 SM25-065-70 DS-T07S PF-0013
QR0254127N6R02 SM25-065-70 DS-T07S PF-0013
QR0262131N6R02 SM25-065-70 DS-T07S PF-0013
QR0270135N6R02 SM35-088-60 TD10 PF-0013
QR0278139N6R02 SM35-088-60 TD10 PF-0013
QR0286143N6R02 SM35-088-60 TD10 PF-0013
QR0294147N6R02 SM35-088-60 TD10 PF-0013
QR0302151N6R02 SM35-088-60 TD10 PF-0013
QR0310155N6R02 SM35-088-60 TD10 PF-0013
QR0318159N6R02 SM35-088-60 TD10 PF-0013
QR0325163N6R02 SM35-088-60 TD10 PF-0013
QR0333167N6R02 SM35-088-60 TD10 PF-0013
QR0341171N6R02 SM35-088-60 TD10 PF-0013
QR0349175N6R02 SM35-088-60 TD10 PF-0013
QR0357179N6R02 SM35-088-60 TD10 PF-0013
QR0365182N6R02 SM40-093-20 TD15 PF-0013
QR0373186N6R02 SM40-093-20 TD15 PF-0013
QR0381191N6R02 SM40-093-20 TD15 PF-0013
QR0389194N6R02 SM40-093-20 TD15 PF-0013
QR0397198N6R02 SM40-093-20 TD15 PF-0013
QR0405202N6R02 SM40-093-20 TD15 PF-0013
QR0413206N6R02 SM40-093-20 TD15 PF-0013
QR0428214N6R02 SM40-093-20 TD15 PF-0013
QR0437218N7R02 SM50-113-20 DS-T20T PF-0015
QR0445222N7R02 SM50-113-20 DS-T20T PF-0015
QR0452226N7R02 SM50-113-20 DS-T20T PF-0015
QR0460230N7R02 SM50-113-20 DS-T20T PF-0015
QR0476238N7R02 SM50-113-20 DS-T20T PF-0015
QR0492246N7R02 SM50-113-20 DS-T20T PF-0015
QR0500250N7R02 SM50-113-20 DS-T20T PF-0015
QR0508254N7R02 SM50-113-20 DS-T20T PF-0015
161
162
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES SOMT-NG
162
SOMT050204NG 0.193 0.094 0.016 Full Radius
SOMT060204NG 0.224 0.094 0.016 Full Radius
SOMT070306NG 0.268 0.110 0.024 Full Radius
SOMT08T306NG 0.311 0.156 0.024 Full Radius
SOMT09T308NG 0.362 0.156 0.031 Full Radius
SOMT11T308NG 0.433 0.156 0.031 Full Radius
SOMT130408NG 0.504 0.173 0.031 Full Radius
SOMT150510NG 0.590 0.189 0.039 Full Radius
SOMT050204SK 0.193 0.094 0.016 Full Radius
SOMT060204SK 0.224 0.094 0.016 Full Radius
SOMT070306SK 0.268 0.110 0.024 Full Radius
SOMT08T306SK 0.311 0.156 0.024 Full Radius
SOMT09T308SK 0.362 0.156 0.031 Full Radius
SOMT11T308SK 0.433 0.156 0.031 Full Radius
SOMT130408SK 0.504 0.173 0.031 Full Radius
SOMT150510SK 0.590 0.189 0.039 Full Radius
SOMT050204HP 0.193 0.094 0.016 Full Radius
SOMT060204HP 0.224 0.094 0.016 Full Radius
SOMT070306HP 0.268 0.110 0.024 Full Radius
SOMT08T306HP 0.311 0.156 0.024 Full Radius
SOMT09T308HP 0.362 0.156 0.031 Full Radius
SOMT11T308HP 0.433 0.156 0.031 Full Radius
SOMT130408HP 0.504 0.173 0.031 Full Radius
SOMT150510HP 0.590 0.189 0.039 Full Radius
* Grade IN6505 is only for use in the outer (peripheral) insert station.
Part
Number
d t C
Corner
Grades
IN10K IN1030 IN2505 IN2510 IN6505
*
Series SOMT-NG Series SOMT-SK Series SOMT-HP
163
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
163
164
PART SERIES
PART SERIES
Placeholder
GT17450175N5R01 0.687 17.5mm 7.09 9.25 2.21 1.000 Univ 1.26
GT17450262N5R01 0.687 17.5mm 10.63 12.80 2.21 1.000 Univ 1.26
GT17450436N5R01 0.687 17.5mm 17.72 19.88 2.21 1.000 Univ 1.26
GT18240182N5R01 0.718 18.2mm 7.48 9.65 2.21 1.000 Univ 1.26
GT18240274N5R01 0.718 18.2mm 11.22 13.39 2.21 1.000 Univ 1.26
GT18240456N5R01 0.718 18.2mm 18.70 20.87 2.21 1.000 Univ 1.26
GT18640186N5R01 0.734 18.6mm 7.48 9.65 2.21 1.000 Univ 1.26
GT18640280N5R01 0.734 18.6mm 11.22 13.39 2.21 1.000 Univ 1.26
GT18640466N5R01 0.734 18.6mm 18.70 20.87 2.21 1.000 Univ 1.26
GT19050191N5R01 0.750 19.1mm 7.87 10.04 2.21 1.000 Univ 1.26
GT19050286N5R01 0.750 19.1mm 11.81 13.98 2.21 1.000 Univ 1.26
GT19050476N5R01 0.750 19.1mm 19.69 21.85 2.21 1.000 Univ 1.26
GT20620206N6R01 0.812 20.6mm 8.27 10.43 2.36 1.250 Univ 1.77
GT20620309N6R01 0.812 20.6mm 12.40 14.57 2.36 1.250 Univ 1.77
GT20620516N6R01 0.812 20.6mm 20.67 22.84 2.36 1.250 Univ 1.77
GT22230222N6R01 0.875 22.2mm 8.66 10.83 2.36 1.250 Univ 1.77
GT22230333N6R01 0.875 22.2mm 13.58 16.54 2.36 1.250 Univ 1.77
GT22230556N6R01 0.875 22.2mm 22.64 25.59 2.36 1.250 Univ 1.77
GT23800238N6R01 0.937 23.8mm 9.84 12.80 2.36 1.250 Univ 1.77
GT23800357N6R01 0.937 23.8mm 14.76 17.72 2.36 1.250 Univ 1.77
GT23800595N6R01 0.937 23.8mm 24.61 27.56 2.36 1.250 Univ 1.77
GT25400254N6R01 1.000 25.4mm 11.35 13.73 2.36 1.250 Univ 1.77
GT25400381N6R01 1.000 25.4mm 15.35 18.31 2.36 1.250 Univ 1.77
GT25400635N6R01 1.000 25.4mm 27.56 28.54 2.36 1.250 Univ 1.77
Part Number
D
Diameter
(inch)
D
Diameter
(mm)
L1
DOC
L2
Ext
Length
L4
Shank
Length
D2
Shank
Style/Size
D4
Flange
Dia
DEEP TRIO MC INDEXABLE DEEP DRILL
SERIES DEEP TRIO MC
164
Features & Benefits:
• Indexable, 3-Edge Insert for Deep Hole Drilling
• Excellent Hole Accuracy (IT10) and Surface Finish
• Very High Feed
• Wide range of applications
• Extremely long life (3 corner insert)
• No Diameter setting necessary
• No Regrinding
165
asdf
= P = M = K = N = S = H
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
= P = M = K = N = S = H
165
HARDWARE
GT17450175N5R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB
GT17450262N5R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB
GT17450436N5R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB
GT18240182N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT18240274N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT18240456N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT18640186N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT18640280N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT18640466N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT19050191N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT19050286N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT19050476N5R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT20620206N6R01 SR34-506 SR34-508 PAD-GO06-085CD-SB
GT20620309N6R01 SR34-506 SR34-508 PAD-GO06-085CD-SB
GT20620516N6R01 SR34-506 SR34-508 PAD-GO06-085CD-SB
GT22230222N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT22230333N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT22230556N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT23800238N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT23800357N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT23800595N6R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT25400254N6R01 SR14-506 SR34-508 PAD-GO06CD-SB
GT25400381N6R01 SR14-506 SR34-508 PAD-GO06CD-SB
GT25400635N6R01 SR14-506 SR34-508 PAD-GO06CD-SB
Insert Screw Guide Pad Screw Guide Pad
TPHT080305R TPHT090305R TPHT100305R
TPHT110405R TPHT120405R
Part Number Application
Grades
IN2005
TPHT080305R Multi-Purpose - 0.020“ R
TPHT090305R Multi-Purpose - 0.020“ R
TPHT100305R Multi-Purpose - 0.020“ R
TPHT110405R Multi-Purpose - 0.020“ R
TPHT120405R Multi-Purpose - 0.020“ R
PART SERIES
166
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
asdf
= P = M = K = N = S = H
= P = M = K = N = S = H
166
SERIES DEEP TRIO GD
TPHT080305R TPHT090305R TPHT100305R
TPHT110405R TPHT120405R
Part Number Application
Grades
IN2005
TPHT080305R Multi-Purpose - 0.020“ R
TPHT090305R Multi-Purpose - 0.020“ R
TPHT100305R Multi-Purpose - 0.020“ R
TPHT110405R Multi-Purpose - 0.020“ R
TPHT120405R Multi-Purpose - 0.020“ R
DEEP TRIO GD INDEXABLE GUN DRILL
Part Number
D
Diameter
(inch)
D
Diameter
(mm)
L1
DOC
(mm)
L2
Ext
Length
D2
Shank
Style/Size
L4
Shank
Length
GT-1600-0800-58-R01 0.630 16.0mm 28.34 29.29 1.000 Universal 2.21
GT-1745-1500-58-R01 0.687 17.5mm 55.81 56.79 1.000 Universal 2.21
GT-1824-1500-58-R01 0.718 18.2mm 55.81 56.73 1.000 Universal 2.21
GT-1864-1500-58-R01 0.734 18.6mm 55.81 55.73 1.000 Universal 2.21
GT-1905-1500-58-R01 0.750 19.1mm 55.69 55.73 1.000 Universal 2.21
GT-2062-1500-59-R01 0.812 20.6mm 55.46 55.73 1.250 Universal 2.36
GT-2223-1500-59-R01 0.875 22.2mm 55.34 55.73 1.250 Universal 2.36
GT-2380-1500-59-R01 0.937 23.8mm 55.30 55.73 1.250 Universal 2.36
GT-2540-1500-59-R01 1.000 25.4mm 55.18 55.73 1.250 Universal 2.36
GT-1600-0800-58-R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB
GT-1745-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB
GT-1824-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT-1864-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT-1905-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB
GT-2062-1500-59-R01 SR34-506 SR34-508 PAD-GO06-085CD-SB
GT-2223-1500-59-R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT-2380-1500-59-R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB
GT-2540-1500-59-R01 SR14-506 SR34-508 PAD-GO06CD-SB
Insert Screw Guide Pad Screw Guide Pad
HARDWARE
PART SERIES
167
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
asdf
= P = M = K = N = S = H = P = M = K = N = S = H
167
SERIES DEEP TRIO BTA - SE4
TPHT080305R TPHT090305R TPHT100305R
TPHT110405R TPHT120405R
Part Number Application
Grades
IN2005
TPHT080305R Multi-Purpose - 0.020“ R
TPHT090305R Multi-Purpose - 0.020“ R
TPHT100305R Multi-Purpose - 0.020“ R
TPHT110405R Multi-Purpose - 0.020“ R
TPHT120405R Multi-Purpose - 0.020“ R
DEEP TRIO BTA INDEXABLE DRILL HEAD
Part Number
D
Diameter
(inch)
D
Diameter
(mm)
L3
Overall
Length
L1
Thread
Length
d1
Pilot
Dia
d2
Pilot
Dia 2 Tube
Tube
Dia
TBTA-DT.630SE4-14 0.630 16.0mm 2.17 0.79 0.43 0.50 BTSI014 0.55
TBTA-DT.687SE4-15 0.687 17.5mm 2.17 0.79 0.47 0.54 BTSI015 0.59
TBTA-DT.718SE4-16 0.718 18.2mm 2.21 0.85 0.49 0.57 BTSI016 0.63
TBTA-DT.734SE4-16 0.734 18.6mm 2.21 0.85 0.49 0.57 BTSI016 0.63
TBTA-DT.750SE4-17 0.750 19.1mm 2.32 0.85 0.53 0.61 BTSI017 0.67
TBTA-DT.812SE4-18 0.812 20.6mm 2.36 0.85 0.55 0.63 BTSI018 0.71
TBTA-DT.813SE4-18 0.813 20.7mm 2.36 0.85 0.55 0.63 BTSI018 0.71
TBTA-DT.875SE4-20 0.875 22.2mm 2.58 0.85 0.63 0.71 BTSI020 0.79
TBTA-DT.937SE4-20 0.937 23.8mm 2.58 0.85 0.63 0.71 BTSI020 0.79
TBTA-DT1.000SE4-22 1.000 25.4mm 2.58 0.85 0.59 0.77 BTSI022 0.87
TBTA-DT.630SE4-14 SR14-560/S SR34-508 PAD-GO06-075CD-SB
TBTA-DT.687SE4-15 SR14-560/S SR34-508 PAD-GO06-075CD-SB
TBTA-DT.718SE4-16 SR14-560/S SR34-508 PAD-GO06-085CD-SB
TBTA-DT.734SE4-16 SR14-560/S SR34-508 PAD-GO06-085CD-SB
TBTA-DT.750SE4-17 SR14-560/S SR34-508 PAD-GO06-085CD-SB
TBTA-DT.812SE4-18 SR34-506 SR34-508 PAD-GO06-085CD-SB
TBTA-DT.813SE4-18 SR34-506 SR34-508 PAD-GO06-085CD-SB
TBTA-DT.875SE4-20 SR14-571/S SR34-508 PAD-GO06-100CD-SB
TBTA-DT.937SE4-20 SR14-571/S SR34-508 PAD-GO06-100CD-SB
TBTA-DT1.000SE4-22 SR14-506 SR34-508 PAD-GO06CD-SB
Insert Screw Guide Pad Screw Guide Pad
HARDWARE
168
PART SERIES
PART SERIES
Placeholder
TBTA-H.984SE4-22 0.984 25.0mm 2.76 0.85 0.69 0.77 BTSI022 0.87
TBTA-H1.000SE4-22 1.000 25.4mm 2.76 0.85 0.69 0.77 BTSI022 0.87
TBTA-H1.024SE4-22 1.024 26.0mm 2.76 0.85 0.69 0.77 BTSI022 0.87
TBTA-H1.062SE4-24 1.062 27.0mm 2.76 0.85 0.75 0.83 BTSI024 0.95
TBTA-H1.102SE4-24 1.102 28.0mm 2.76 0.85 0.75 0.83 BTSI024 0.95
TBTA-H1.114SE4-24 1.114 28.3mm 2.76 0.85 0.75 0.83 BTSI024 0.95
TBTA-H1.125SE4-24 1.125 28.6mm 2.76 0.85 0.75 0.83 BTSI024 0.95
TBTA-H1.156SE4-26 1.156 29.4mm 2.95 0.96 0.83 0.93 BTSI026 1.02
TBTA-H1.187SE4-26 1.187 30.2mm 2.95 0.96 0.83 0.93 BTSI026 1.02
TBTA-H1.193SE4-26 1.193 30.3mm 2.95 0.96 0.83 0.93 BTSI026 1.02
TBTA-H1.218SE4-26 1.218 30.9mm 2.95 0.96 0.83 0.93 BTSI026 1.02
TBTA-H1.235SE4-28 1.235 31.4mm 2.95 0.96 0.91 1.00 BTSI028 1.10
TBTA-H1.245SE4-28 1.245 31.6mm 2.95 0.96 0.91 1.00 BTSI028 1.10
TBTA-H1.250SE4-28 1.250 31.8mm 2.95 0.96 0.91 1.00 BTSI028 1.10
TBTA-H1.260SE4-28 1.260 32.0mm 2.95 0.96 0.91 1.00 BTSI028 1.10
TBTA-H1.299SE4-28 1.299 33.0mm 2.95 0.96 0.91 1.00 BTSI028 1.10
TBTA-H1.312SE4-30 1.312 33.3mm 3.15 0.96 1.00 1.10 BTSI030 1.18
TBTA-H1.375SE4-30 1.375 34.9mm 3.15 0.96 1.00 1.10 BTSI030 1.18
TBTA-H1.378SE4-30 1.378 35.0mm 3.15 0.96 1.00 1.10 BTSI030 1.18
TBTA-H1.417SE4-30 1.417 36.0mm 3.15 0.96 1.00 1.10 BTSI030 1.18
TBTA-H1.437SE4-33 1.437 36.5mm 3.54 1.20 1.06 1.18 BTSI033 1.30
TBTA-H1.496SE4-33 1.496 38.0mm 3.54 1.20 1.06 1.18 BTSI033 1.30
TBTA-H1.500SE4-33 1.500 38.1mm 3.54 1.20 1.06 1.18 BTSI033 1.30
TBTA-H1.562SE4-36 1.562 39.7mm 3.74 1.20 1.18 1.30 BTSI036 1.42
TBTA-H1.575SE4-36 1.575 40.0mm 3.74 1.20 1.18 1.30 BTSI036 1.42
TBTA-H1.594SE4-36 1.594 40.5mm 3.74 1.20 1.18 1.30 BTSI036 1.42
TBTA-H1.625SE4-36 1.625 41.3mm 3.74 1.20 1.18 1.30 BTSI036 1.42
TBTA-H1.687SE4-36 1.687 42.9mm 3.74 1.20 1.18 1.30 BTSI036 1.42
TBTA-H1.725SE4-39 1.725 43.8mm 3.94 1.20 1.30 1.42 BTSI039 1.54
TBTA-H1.732SE4-39 1.732 44.0mm 3.94 1.20 1.30 1.42 BTSI039 1.54
TBTA-H1.750SE4-39 1.750 44.5mm 3.94 1.20 1.30 1.42 BTSI039 1.54
TBTA-H1.812SE4-39 1.812 46.0mm 3.94 1.20 1.30 1.42 BTSI039 1.54
TBTA-H1.875SE4-43 1.875 47.6mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.890SE4-43 1.890 48.0mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.905SE4-43 1.905 48.4mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.929SE4-43 1.929 49.0mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.937SE4-43 1.937 49.2mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.940SE4-43 1.940 49.3mm 3.94 1.20 1.42 1.54 BTSI043 1.69
Part Number
D
Diameter
(inch)
D
Diameter
(mm)
L3
Overall
Length
L1
Thread
Length
d1
Pilot
Dia
d2
Pilot
Dia 2 Tube
Tube
Dia
BTA INDEXABLE
SERIES TBTA-H...SE4
168
169
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
asdf
= P = M = K = N = S = H
169
Part Number
D
Diameter
(inch)
D
Diameter
(mm)
L
Overall
Length
L1
Thread
Length
d1
Pilot
Dia
d2
Pilot
Dia 2 Tube
Tube
Dia
TBTA-H1.945SE4-43 1.945 49.4mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.949SE4-43 1.949 49.5mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.965SE4-43 1.965 49.9mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.969SE4-43 1.969 50.0mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H1.985SE4-43 1.985 50.4mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H2.000SE4-43 2.000 50.8mm 3.94 1.20 1.42 1.54 BTSI043 1.69
TBTA-H2.062SE4-47 2.062 52.4mm 4.33 1.36 1.56 1.69 BTSI047 1.85
TBTA-H2.125SE4-47 2.125 54.0mm 4.33 1.36 1.56 1.69 BTSI047 1.85
TBTA-H2.126SE4-47 2.126 54.0mm 4.33 1.36 1.56 1.69 BTSI047 1.85
TBTA-H2.187SE4-47 2.187 55.6mm 4.33 1.36 1.56 1.69 BTSI047 1.85
TBTA-H2.250SE4-51 2.250 57.2mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.283SE4-51 2.283 58.0mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.312SE4-51 2.312 58.7mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.335SE4-51 2.335 59.3mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.350SE4-51 2.350 59.7mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.362SE4-51 2.362 60.0mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.375SE4-51 2.375 60.3mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.380SE4-51 2.380 60.5mm 4.53 1.36 1.71 1.85 BTSI051 2.01
TBTA-H2.405SE4-56A 2.405 61.1mm 4.53 1.36 1.87 2.01 BTSI056A 2.21
TBTA-H2.437SE4-56A 2.437 61.9mm 4.53 1.36 1.87 2.01 BTSI056A 2.21
TBTA-H2.441SE4-56A 2.441 62.0mm 4.53 1.36 1.87 2.01 BTSI056A 2.21
TBTA-H2.500SE4-56A 2.500 63.5mm 4.53 1.36 1.87 2.01 BTSI056A 2.21
TBTA-H2.559SE4-56A 2.559 65.0mm 4.53 1.36 1.87 2.01 BTSI056A 2.21
PART SERIES
170
PART SERIES
Placeholder
170
SERIES NPHT, NPMT INSERTS
= P = M = K = N = S = H
.236
.315
.118
.217
.315
.118
NPHT06003RG
NPMT05503RG
.295
.394
.157
.256
.394
.157
NPHT07504RG
NPMT06504LG
.354
.394
.157
.256
.394
.157
NPHT09004RG
NPMT06504RG
.433
.394
.157
.315
.394
.157
.374
.394
.157
NPHT11004RG
NPMT08004LG
NPMT09504RG
.512
.394
.157
.315
.394
.157
.492
.394
.157
NPHT13004RG
NPMT08004RG
NPMT12504LG
.217
.315
.118
.374
.394
.157
.492
.394
.157
NPMT05503LG
NPMT09504LG
NPMT12504RG
Part Number Application Station
Grades
IN1510 IN2005 IN6542
NPHT06003RG Multi-Purpose Outer
NPMT05503LG Multi-Purpose Center
NPMT05503RG Multi-Purpose Inner
NPMT06504LG Multi-Purpose Center
NPHT07504RG Multi-Purpose Outer
NPMT06504RG Multi-Purpose Inner
NPMT08004LG Multi-Purpose Center
NPHT09004RG Multi-Purpose Outer
NPMT08004RG Multi-Purpose Inner
NPMT09504LG Multi-Purpose Center
NPHT11004RG Multi-Purpose Outer
NPMT09504RG Multi-Purpose Inner
NPMT12504LG Multi-Purpose Center
NPHT13004RG Multi-Purpose Outer
NPMT12504RG Multi-Purpose Inner
HARDWARE
TBTA-H.984SE4-22 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.000SE4-22 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.024SE4-22 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.062SE4-24 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.102SE4-24 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.114SE4-24 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.125SE4-24 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
Insert Screw Guide Pad Screw Guide Pad
171171
TBTA-H1.156SE4-26 CSTB2.2 CSTB2.2S PAD-GO06CD-SB
TBTA-H1.187SE4-26 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.193SE4-26 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.218SE4-26 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.235SE4-28 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.245SE4-28 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.250SE4-28 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.260SE4-28 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.299SE4-28 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.312SE4-30 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.375SE4-30 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.378SE4-30 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.417SE4-30 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.437SE4-33 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.496SE4-33 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.500SE4-33 CSTB2.5 CSTB3S PAD-GO07CD-SB
TBTA-H1.562SE4-36 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.575SE4-36 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.594SE4-36 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.625SE4-36 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.687SE4-36 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.725SE4-39 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.732SE4-39 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.750SE4-39 CSTB2.5 CSTB3S
PAD-GO08CD-SB-FB
TBTA-H1.812SE4-39 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.875SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.890SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.905SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.929SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.937SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.940SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.945SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.949SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.965SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.969SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H1.985SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.000SE4-43 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.062SE4-47 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.125SE4-47 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.126SE4-47 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.187SE4-47 CSTB2.5 CSTB3.5 PAD-GO10CD-SB
TBTA-H2.250SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.283SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.312SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.335SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.350SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.362SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.375SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.380SE4-51 CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.405SE4-56A CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.437SE4-56A CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.441SE4-56A CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.500SE4-56A CSTB2.5 CSTB3.5 PAD-GO12CD-SB
TBTA-H2.559SE4-56A CSTB2.5 CSTB3.5 PAD-GO12CD-SB
HARDWARE
Insert Screw Guide Pad Screw Guide Pad
PART SERIES
172
PART SERIES
Placeholder
172
TRE50 455200500500 .098“ - 4.330“ 50 2.401 0.197 SF.. 50 Yes Yes 2.425
TRE63 455200630630 .236“ - 4.921“ 63 2.736 0.197 SF.. 50 Yes Yes 4.850
TRE80 455200800800 .236“ - 7.874“ 80 3.327 0.197 SF.. 50 Yes Yes 8.600
Item
Description
1
Item
Description
2
Bore Dia
Range MHD D1 L C
Cartridge
Type
Accepts
SFTP
Cart
Accepts
SFCC
Cart
Weight
(lb)
DIGITAL DISPLAY FINE BORING HEAD
SERIES TRE
Features & Benefits:
• Zero backlash compensation
• Single button operation for functions ‘On’, ‘Reset’, and to change between
inch and metric
• Display resolution .0001” (.002mm)
• Energy saving function. Display switches off automatically after 30 seconds
and stores last display value
• Internal coolant thru
• High level of resistance to dust and water rated at IP67
Digital Fine Boring Heads
PART SERIES
173
PART SERIES
Placeholder
173
174
clamping structure
Multi-directional clamping forces
SMALL inserts with superior durability and
the SAME THICKNESS as ISO inserts
Current trends in manufacturing feature work piece components with reduced stock conditions due to improved
casting and forging technology. In these cases, depths of cut in rough turning are predominantly in the range of
.040”~.080” per side, rendering conventional ISO turning inserts with .500” long cutting edges inefficient due to
their disproportionate size. With an eye toward cost reduction, Ingersoll is pleased to launch Gold-Rhino, a series of
smaller, but robust, ISO turning inserts to meet the manufacturing industry’s needs of reduced machining costs and
increased competitiveness.
Same Performance at a Lower Price!
Clamp Features
•
Exceptionally stable machining due to multi-directional clamping forces over the existing conventional ISO
lever holder’s single direction clamping force
•
Excellent productivity and longer, stable tool life in high feed turning applications
•
Optimal performance in interrupted cutting on weak/old machine set-ups
Conventional ISO clamping structure
Single directional clamping force
175
Geometry recommendations for (Negative)
FinishingFinishing MediumMediumMediumRoughing
FinishingMediumMedium
WA FS
PC
FG FM FT
MTMM
EA
EM MK MM
EA
EM MK MMGG-ML
MG-
MA-
GG-ML
Steel
Stainless Steel
Cast Iron
High Temp. Alloys
Non-ferrous
Stable
Stable Stable
Unstable
Unstable Unstable
Stable StableUnstable Unstable
INSERT SELECTION GUIDE
Same Performance at a Lower Price!
176
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
176
NEGATIVE 80° RHOMBIC INSERTS FOR SUPER FINISHING
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
CNMG331EA CNMG090404EA .002 .012 .012 .060 .362 .375 .187 .016
CNMG332EA CNMG090408EA .003 .020 .012 .060 .346 .375 .187 .031
NEGATIVE 80° RHOMBIC FLAT TOP INSERTS FOR ROUGHING
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
CNMA332 CNMA090408 .006 .024 .039 .157 .346 .375 .187 .031
CNMA333 CNMA090412 .006 .028 .039 .157 .332 .375 .187 .047
SERIES CNMA FLAT TOP
SERIES CNMG EA CHIPBREAKER
177
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
177
NEGATIVE 80° RHOMBIC INSERTS FOR FINISHING
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100 TT8115 TT8125
CNMG331FG CNMG090404FG .003 .012 .008 .080 .362 .375 .187 .016
CNMG332FG CNMG090408FG .004 .014 .020 .080 .346 .375 .187 .031
CNMG333FG CNMG090412FG .006 .016 .020 .080 .332 .375 .187 .047
NEGATIVE 80° RHOMBIC INSERTS FOR SUPER FINISHING
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT8115
TT8125
CNMG330.5FS CNMG090402FS .002 .010 .008 .060 .374 .375 .187 .008
CNMG331FS CNMG090404FS .003 .012 .012 .060 .362 .375 .187 .016
CNMG332FS CNMG090408FS .004 .012 .020 .060 .346 .375 .187 .031
SERIES CNMG FS CHIPBREAKER
SERIES CNMG FG CHIPBREAKER
178
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
178
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8105
TT8115
TT8125
TT8135
CNMG331FT CNMG090404FT .003 .012 .016 .125 .362 .375 .187 .016
CNMG332FT CNMG090408FT .004 .016 .020 .125 .346 .375 .187 .031
CNMG333FT CNMG090412FT .006 .020 .024 .125 .332 .375 .187 .047
NEGATIVE 80° RHOMBIC INSERTS FOR FINISHING
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8105
TT8115
TT8125
TT8135
CNMG331FM CNMG090404FM .003 .012 .010 .080 .362 .375 .187 .016
CNMG332FM CNMG090408FM .004 .014 .012 .080 .346 .375 .187 .031
CNMG333FM CNMG090412FM .006 .016 .014 .080 .332 .375 .187 .047
SERIES CNMG FM CHIPBREAKER
SERIES CNMG FT CHIPBREAKER
179
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
179
NEGATIVE 80° RHOMBIC GROUND INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
K10 TT5080
CNGG330ML CNGG090401ML .001 .004 .004 .040 .378 .375 .187 .004
CNGG330.5ML CNGG090402ML .002 .006 .008 .047 .374 .375 .187 .008
CNGG331ML CNGG090404ML .004 .012 .031 .118 .362 .375 .187 .016
CNGG332ML CNGG090408ML .005 .014 .039 .118 .346 .375 .187 .031
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8105
TT8115
TT8125
TT8135
CNMG331PC CNMG090404PC .004 .012 .016 .125 .362 .375 .187 .016
CNMG332PC CNMG090408PC .006 .016 .020 .125 .346 .375 .187 .031
CNMG333PC CNMG090412PC .007 .020 .024 .125 .332 .375 .187 .047
SERIES CNMG PC CHIPBREAKER
SERIES CNGG ML CHIPBREAKER
180
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
180
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT8020
TT9080
TT9225
TT9235
CNMG331MK CNMG090404MK .006 .016 .028 .125 .362 .375 .187 .016
CNMG332MK CNMG090408MK .008 .018 .040 .125 .346 .375 .187 .031
CNMG333MK CNMG090412MK .009 .020 .060 .125 .332 .375 .187 .047
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
CNMG332EM CNMG090408EM .005 .020 .020 .125 .346 .375 .187 .031
CNMG333EM CNMG090412EM .006 .020 .028 .125 .332 .375 .187 .047
SERIES CNMG EM CHIPBREAKER
SERIES CNMG MK CHIPBREAKER
181
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
181
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8105
TT8115
TT8125
TT8135
CNMG331MT CNMG090404MT .004 .014 .031 .125 .362 .375 .187 .016
CNMG332MT CNMG090408MT .006 .018 .039 .125 .346 .375 .187 .031
CNMG333MT CNMG090412MT .008 .022 .047 .125 .332 .375 .187 .047
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TT9215
TT9225
TT9235
CNMG331MM CNMG090404MM .006 .018 .016 .125 .362 .375 .187 .016
CNMG332MM CNMG090408MM .008 .020 .020 .125 .346 .375 .187 .031
CNMG333MM CNMG090412MM .009 .020 .028 .125 .332 .375 .187 .047
SERIES CNMG MM CHIPBREAKER
SERIES CNMG MT CHIPBREAKER
182
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
182
NEGATIVE 80° RHOMBIC INSERTS FOR FINISHING TO MEDIUM WIPER
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
CNMG331WA CNMG090404WA .003 .010 .010 .098 .362 .375 .187 .016
CNMG332WA CNMG090408WA .004 .016 .010 .118 .346 .375 .187 .031
CNMG333WA CNMG090412WA .008 .020 .016 .118 .332 .375 .187 .047
NEGATIVE 80° RHOMBIC COMMON TYPE INSERTS WITH CHIPBREAKER FOR MEDIUM
RLT
D
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
CNMG331 CNMG090404 .004 .018 .020 .125 .362 .375 .187 .016
CNMG332 CNMG090408 .004 .020 .020 .125 .346 .375 .187 .031
CNMG333 CNMG090412 .004 .022 .020 .125 .332 .375 .187 .047
SERIES CNMG COMMON CHIPBREAKER
SERIES CNMG WA CHIPBREAKER
183
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
183
NEGATIVE 55° RHOMBIC INSERTS FOR SUPER FINISHING
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT8115
TT8125
DNMG3.53.50.5FS DNMG130502FS .002 .010 .008 .080 .523 .438 .219 .008
DNMG3.53.51FS DNMG130504FS .003 .012 .012 .080 .511 .438 .219 .016
DNMG3.53.52FS DNMG130508FS .004 .012 .020 .080 .489 .438 .219 .031
NEGATIVE 55° RHOMBIC INSERTS FOR SUPER FINISHING
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
DNMG3.53.51EA DNMG130504EA .002 .012 .005 .059 .511 .438 .219 .016
DNMG3.53.52EA DNMG130508EA .003 .016 .006 .059 .489 .438 .219 .031
SERIES DNMG EA CHIPBREAKER
SERIES DNMG FS CHIPBREAKER
184
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
184
NEGATIVE 55° RHOMBIC INSERTS FOR FINISHING
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8115
TT8125
TT8135
DNMG3.53.51FM DNMG130504FM .003 .012 .010 .079 .511 .438 .219 .016
DNMG3.53.52FM DNMG130508FM .004 .014 .012 .079 .489 .438 .219 .031
DNMG3.53.53FM DNMG130512FM .006 .016 .014 .079 .466 .438 .219 .047
NEGATIVE 55° RHOMBIC INSERTS FOR FINISHING
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100 TT8115 TT8125
DNMG3.53.51FG DNMG130504FG .003 .012 .008 .079 .511 .438 .219 .016
DNMG3.53.52FG DNMG130508FG .004 .014 .020 .079 .489 .438 .219 .031
DNMG3.53.53FG DNMG130512FG .006 .016 .020 .079 .466 .438 .219 .047
SERIES DNMG FG CHIPBREAKER
SERIES DNMG FM CHIPBREAKER
185
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
185
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
DNMG3.53.51PC DNMG130504PC .004 .012 .016 .157 .511 .438 .219 .016
DNMG3.53.52PC DNMG130508PC .006 .016 .020 .157 .489 .438 .219 .031
DNMG3.53.53PC DNMG130512PC .007 .020 .024 .157 .466 .438 .219 .047
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
DNMG3.53.51FT DNMG130504FT .003 .012 .010 .138 .511 .438 .219 .016
DNMG3.53.52FT DNMG130508FT .004 .016 .012 .138 .489 .438 .219 .031
DNMG3.53.53FT DNMG130512FT .006 .020 .014 .138 .466 .438 .219 .047
SERIES DNMG FT CHIPBREAKER
SERIES DNMG PC CHIPBREAKER
186
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
186
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
DNMG3.53.52EM DNMG130508EM .005 .016 .020 .157 .489 .438 .219 .031
DNMG3.53.53EM DNMG130512EM .006 .016 .028 .157 .466 .438 .219 .047
NEGATIVE 55° RHOMBIC GROUND INSERT FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
K10 TT5080
DNGG3.53.50ML DNGG130501ML .001 .004 .004 .040 .528 .437 .219 .004
DNGG3.53.50.5ML DNGG130502ML .002 .006 .008 .047 .523 .437 .219 .008
DNGG3.53.51ML DNGG130504ML .004 .012 .031 .138 .511 .437 .219 .016
DNGG3.53.52ML DNGG130508ML .005 .014 .039 .138 .489 .437 .219 .031
SERIES DNGG ML CHIPBREAKER
SERIES DNMG EM CHIPBREAKER
187
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
187
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT5100
TT8115
TT8125
TT8135
TT9080
TT9215
TT9225
TT9235
DNMG3.53.51MM DNMG130504MM .006 .016 .016 .177 .511 .438 .219 .016
DNMG3.53.52MM DNMG130508MM .008 .020 .020 .177 .489 .438 .219 .031
DNMG3.53.53MM DNMG130512MM .009 .020 .028 .177 .466 .438 .219 .047
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9225
TT9235
DNMG3.53.51MK DNMG130504MK .006 .016 .028 .157 .511 .438 .219 .016
DNMG3.53.52MK DNMG130508MK .008 .018 .040 .157 .489 .438 .219 .031
DNMG3.53.53MK DNMG130512MK .009 .020 .060 .157 .466 .438 .219 .047
SERIES DNMG MK CHIPBREAKER
SERIES DNMG MM CHIPBREAKER
188
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
188
NEGATIVE 55° RHOMBIC COMMON TYPE WITH CHIPBREAKER FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
DNMG3.53.51 DNMG130504 .004 .018 .020 .157 .511 .438 .219 .016
DNMG3.53.52 DNMG130508 .004 .020 .020 .157 .489 .438 .219 .031
DNMG3.53.53 DNMG130512 .004 .022 .020 .157 .466 .438 .219 .047
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
DNMG3.53.51MT DNMG130504MT .004 .014 .031 .177 .511 .438 .219 .016
DNMG3.53.52MT DNMG130508MT .006 .018 .039 .177 .489 .438 .219 .031
DNMG3.53.53MT DNMG130512MT .008 .022 .047 .177 .466 .438 .219 .047
SERIES DNMG MT CHIPBREAKER
SERIES DNMG COMMON CHIPBREAKER
189
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
189
NEGATIVE 55° RHOMBIC INSERTS FOR MEDIUM
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT9080
TT9225
DNUX3.53.51L11 DNUX130504L11 .006 .014 .060 .200 - .438 .219 .016
DNUX3.53.51R11 DNUX130504R11 .006 .014 .060 .200 - .438 .219 .016
DNUX3.53.52L11 DNUX130508L11 .008 .018 .080 .200 - .438 .219 .031
DNUX3.53.52R11 DNUX130508R11 .008 .018 .080 .200 - .438 .219 .031
NEGATIVE 55° RHOMBIC INSERTS FOR FINISHING TO MEDIUM WIPER
RL
D
T
55°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
DNMG3.53.51WA DNMG130504WA .003 .010 .010 .098 .511 .438 .219 .016
DNMG3.53.52WA DNMG130508WA .004 .014 .010 .118 .489 .438 .219 .031
DNMG3.53.53WA DNMG130512WA .006 .018 .016 .138 .466 .438 .219 .047
SERIES DNMG WA CHIPBREAKER
SERIES DNUX R/L 11 CHIPBREAKER
190
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
190
NEGATIVE SQUARE INSERTS FOR FINISHING
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8115
TT8125
SNMG331FG SNMG090404FG .003 .012 .008 .079 .358 .375 .187 .016
SNMG332FG SNMG090408FG .004 .014 .020 .079 .343 .375 .187 .031
SNMG333FG SNMG090412FG .006 .016 .020 .079 .328 .375 .187 .047
NEGATIVE SQUARE INSERTS FOR FINISHING
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
SNMG331EA SNMG090404EA .002 .012 .005 .059 .358 .375 .187 .016
SNMG332EA SNMG090408EA .003 .016 .006 .059 .343 .375 .187 .031
SERIES SNMG EA CHIPBREAKER
SERIES SNMG FG CHIPBREAKER
191
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
191
NEGATIVE SQUARE INSERTS FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
SNMG331PC SNMG090404PC .004 .012 .016 .125 .358 .375 .187 .016
SNMG332PC SNMG090408PC .006 .016 .020 .125 .343 .375 .187 .031
SNMG333PC SNMG090412PC .007 .020 .024 .125 .328 .375 .187 .047
NEGATIVE SQUARE INSERTS FOR FINISHING
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8115
TT8125
TT8135
SNMG331FM SNMG090404FM .003 .012 .010 .079 .358 .375 .187 .016
SNMG332FM SNMG090408FM .004 .014 .012 .079 .343 .375 .187 .031
SNMG333FM SNMG090412FM .006 .016 .014 .079 .328 .375 .187 .047
SERIES SNMG FM CHIPBREAKER
SERIES SNMG PC CHIPBREAKER
192
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
192
NEGATIVE SQUARE INSERTS FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9225
TT9235
SNMG331MK SNMG090404MK .006 .016 .028 .125 .358 .375 .187 .016
SNMG332MK SNMG090408MIK .008 .018 .040 .125 .343 .375 .187 .031
SNMG333MK SNMG090412MK .009 .020 .060 .125 .328 .375 .187 .047
NEGATIVE SQUARE INSERTS FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
SNMG332EM SNMG090408EM .005 .016 .020 .125 .343 .375 .187 .031
SNMG333EM SNMG090412EM .006 .016 .028 .125 .328 .375 .187 .047
SERIES SNMG EM CHIPBREAKER
SERIES SNMG MK CHIPBREAKER
193
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
193
NEGATIVE SQUARE INSERTS FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
SNMG331MT SNMG090404MT .004 .014 .031 .125 .358 .375 .187 .016
SNMG332MT SNMG090408MT .006 .018 .039 .125 .343 .375 .187 .031
SNMG333MT SNMG0904012MT .008 .022 .047 .125 .328 .375 .187 .047
NEGATIVE SQUARE INSERTS FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TT9215
TT9225
TT9235
SNMG331MM SNMG090404MM .006 .018 .016 .125 .358 .375 .187 .016
SNMG332MM SNMG090408MM .008 .020 .020 .125 .343 .375 .187 .031
SNMG333MM SNMG109412MM .009 .020 .028 .125 .328 .375 .187 .047
SERIES SNMG MM CHIPBREAKER
SERIES SNMG MT CHIPBREAKER
194
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES SNMG COMMON CHIPBREAKER
194
NEGATIVE TRIANGULAR GROUND INSERTS FOR MEDIUM
SERIES TNGG R/L HOOK CHIPBREAKER
60°
R
D
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TNGG2.531L TNGG130404L .005 .012 .039 .125 .518 .313 .187 .016
TNGG2.531R TNGG130404R .005 .012 .039 .125 .518 .313 .187 .016
TNGG2.532L TNGG130408L .006 .014 .051 .125 .495 .313 .187 .031
TNGG2.532R TNGG130408R .006 .014 .051 .125 .495 .313 .187 .031
NEGATIVE SQUARE COMMON-TYPE INSERTS WITH CHIPBREAKER FOR MEDIUM
90°
D
T
LR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000 TT7005 TT7015
SNMG331 SNMG090404 .004 .018 .020 .125 .358 .375 .187 .016
SNMG332 SNMG090408 .004 .020 .020 .125 .343 .375 .187 .031
SNMG333 SNMG090412 .004 .022 .020 .125 .328 .375 .187 .047
195
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG COMMON CHIPBREAKER
195
NEGATIVE TRIANGULAR INSERTS FOR SUPER FINISHING
SERIES TNMG EA CHIPBREAKER
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
TNMG2.531EA TNMG130404EA .002 .012 .008 .059 .518 .313 .187 .016
TNMG2.532EA TNMG130408EA .003 .016 .012 .059 .495 .313 .187 .031
NEGATIVE TRIANGULAR COMMON-TYPE INSERTS WITH CHIPBREAKER FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
TNMG2.531 TNMG130404 .004 .018 .020 .138 .518 .313 .187 .016
TNMG2.532 TNMG130408 .004 .020 .020 .138 .495 .313 .187 .031
TNMG2.533 TNMG130412 .004 .022 .020 .138 .473 .313 .187 .047
196
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG-FS CHIPBREAKER
196
NEGATIVE TRIANGULAR INSERTS FOR FINISHING
SERIES TNMG FG CHIPBREAKER
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100 TT8115 TT8125
TNMG2.531FG TNMG130404FG .003 .012 .010 .059 .518 .313 .187 .016
TNMG2.532FG TNMG130408FG .004 .014 .012 .059 .495 .313 .187 .031
TNMG2.533FG TNMG130412FG .006 .016 .014 .059 .473 .313 .187 .047
NEGATIVE TRIANGULAR INSERTS FOR FINE-FINISHING
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT8115
TT8125
TNMG2.530.5FS TNMG130402FS .002 .010 .008 .040 .530 .313 .187 .008
TNMG2.531FS TNMG130404FS .003 .012 .012 .040 .518 .313 .187 .016
TNMG2.532FS TNMG130408FS .004 .012 .020 .040 .495 .313 .187 .031
197
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG FM CHIPBREAKER
197
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
SERIES TNMG FT CHIPBREAKER
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TNMG2.531FT TNMG130404FT .003 .012 .010 .098 .518 .313 .187 .016
TNMG2.532FT TNMG130408FT .004 .016 .012 .098 .495 .313 .187 .031
TNMG2.533FT TNMG130412FT .006 .020 .014 .098 .473 .313 .187 .047
NEGATIVE TRIANGULAR INSERTS FOR FINISHING
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8115
TT8125
TT8135
TNMG2.531FM TNMG130404FM .003 .012 .010 .059 .518 .313 .187 .016
TNMG2.532FM TNMG130408FM .004 .014 .012 .059 .495 .313 .187 .031
TNMG2.533FM TNMG130412FM .006 .016 .014 .059 .473 .313 .187 .047
198
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG PC CHIPBREAKER
198
SERIES TNMG EM CHIPBREAKER
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
TNMG2.532EM TNMG130408EM .005 .016 .020 .125 .495 .313 .187 .031
TNMG2.533EM TNMG130412EM .006 .016 .028 .125 .473 .313 .187 .047
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TNMG2.531PC TNMG130404PC .004 .012 .016 .118 .518 .313 .187 .016
TNMG2.532PC TNMG130408PC .006 .016 .020 .118 .495 .313 .187 .031
TNMG2.533PC TNMG130412PC .007 .020 .024 .118 .473 .313 .187 .047
199
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG MK CHIPBREAKER
199
SERIES TNMG MM CHIPBREAKER
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TT9215
TT9225
TT9235
TNMG2.531MM TNMG130404MM .006 .018 .016 .125 .518 .313 .187 .016
TNMG2.532MM TNMG130408MM .008 .020 .020 .125 .495 .313 .187 .031
TNMG2.533MM TNMG130412MM .009 .020 .028 .125 .473 .313 .187 .047
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9225
TT9235
TNMG2.531MK TNMG130404MK .006 .016 .028 .118 .518 .313 .187 .016
TNMG2.532MK TNMG130408MK .008 .018 .040 .118 .495 .313 .187 .031
TNMG2.533MK TNMG130412MK .009 .020 .060 .118 .473 .313 .187 .047
200
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG MT CHIPBREAKER
200
SERIES TNMG WA CHIPBREAKER
NEGATIVE TRIANGULAR INSERTS FOR FINISHING TO MEDIUM WIPER
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
TNMG2.531WA TNMG130404WA .003 .010 .010 .098 .518 .313 .187 .016
TNMG2.532WA TNMG130408WA .004 .014 .010 .118 .495 .313 .187 .031
TNMG2.533WA TNMG130412WA .006 .018 .016 .138 .473 .313 .187 .047
NEGATIVE TRIANGULAR INSERTS FOR MEDIUM
T
L
60°
D
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5100
TT8115
TT8125
TT8135
TNMG2.531MT TNMG130404MT .004 .014 .031 .125 .518 .313 .187 .016
TNMG2.532MT TNMG130408MT .006 .018 .040 .125 .495 .313 .187 .031
TNMG2.533MT TNMG130412MT .008 .022 .047 .125 .473 .313 .187 .047
201
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VNMX FG CHIPBREAKER
201
NEGATIVE 35° RHOMBIC INSERTS FOR SUPER-FINISHING
SERIES VNMX FS CHIPBREAKER
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5080
TT8105
TT8115
TT8125
VNMX2.530.5FS VNMX130402FS .002 .010 .008 .039 .505 .313 .187 .008
VNMX2.531FS VNMX130404FS .003 .012 .012 .039 .465 .313 .187 .016
VNMX2.532FS VNMX130408FS .004 .012 .020 .039 .425 .313 .187 .031
NEGATIVE 35° RHOMBIC INSERTS FOR FINISHING
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5080
TT5100
TT8115
TT8125
TT9080
VNMX2.531FG VNMX130404FG .003 .008 .002 .079 .465 .313 .187 .016
VNMX2.532FG VNMX130408FG .004 .009 .002 .079 .425 .313 .187 .031
202
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VNMX FM CHIPBREAKER
202
NEGATIVE 35° RHOMBIC INSERTS FOR MEDIUM
SERIES VNMX PC CHIPBREAKER
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT5100
TT8105
TT8115
TT8125
TT8135
TT9080
VNMX2.531PC VNMX130404PC .006 .014 .016 .118 .465 .313 .187 .016
VNMX2.532PC VNMX130408PC .007 .014 .020 .118 .425 .313 .187 .031
VNMX2.533PC VNMX130412PC .008 .016 .039 .118 .385 .313 .187 .047
NEGATIVE 35° RHOMBIC INSERTS FOR FINISHING
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5080
TT5100
TT8105
TT8115
TT8125
TT8135
TT9080
VNMX2.531FM VNMX130404FM .003 .012 .010 .059 .465 .313 .187 .016
VNMX2.532FM VNMX130408FM .004 .014 .012 .059 .425 .313 .187 .031
203
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VNMX MK CHIPBREAKER
203
NEGATIVE 35° RHOMBIC INSERTS FOR MEDIUM
SERIES VNMX MT CHIPBREAKER
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5080
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
TT8135
TT9080
VNMX2.531MT VNMX130404MT .006 .014 .031 .118 .465 .313 .187 .016
VNMX2.532MT VNMX130408MT .007 .014 .040 .118 .425 .313 .187 .031
VNMX2.533MT VNMX130412MT .008 .016 .059 .118 .385 .313 .187 .047
NEGATIVE 35° RHOMBIC INSERTS FOR MEDIUM
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9225
TT9235
VNMX2.531MK VNMX130404MK .007 .014 .028 .118 .465 .313 .187 .016
VNMX2.532MK VNMX130408MK .008 .016 .039 .118 .425 .313 .187 .031
204
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES WNMX FS CHIPBREAKER
204
NEGATIVE 80° TRIGON INSERTS FOR FINISHING
SERIES WNMX FG CHIPBREAKER
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5080
TT5100
TT8115
TT8125
WNMX331FG WNMX060404FG .003 .012 .008 .079 .244 .375 .187 .016
WNMX332FG WNMX060408FG .004 .014 .020 .079 .240 .375 .187 .031
NEGATIVE 80° TRIGON INSERTS FOR SUPER FINISHING
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT8115
TT8125
WNMX331FS WNMX060404FS .003 .012 .012 .060 .244 .375 .187 .016
WNMX332FS WNMX060408FS .004 .012 .020 .060 .240 .375 .187 .031
205
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES WNMX FM CHIPBREAKER
205
NEGATIVE 80° TRIGON INSERTS FOR MEDIUM
SERIES WNMX PC CHIPBREAKER
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT8105
TT8115
TT8125
TT9080
WNMX331PC WNMX060404PC .004 .012 .016 .125 .240 .375 .187 .016
WNMX332PC WNMX060408PC .006 .016 .020 .125 .240 .375 .187 .031
WNMX333PC WNMX060412PC .007 .020 .024 .125 .236 .375 .187 .047
NEGATIVE 80° TRIGON INSERTS FOR FINISHING
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
TT5100
TT8105
TT8115
TT8125
WNMX331FM WNMX060404FM .003 .012 .010 .079 .244 .375 .187 .016
WNMX332FM WNMX060408FM .004 .014 .012 .079 .240 .375 .187 .031
WNMX333FM WNMX060412FM .006 .016 .014 .079 .236 .375 .187 .047
206
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES WNMX EM CHIPBREAKER
206
NEGATIVE 80° TRIGON INSERTS FOR MEDIUM
SERIES WNMX MK CHIPBREAKER
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9225
TT9235
WNMX331MK WNMX060404MK .006 .016 .028 .118 .244 .375 .187 .016
WNMX332MK WNMX060408MK .008 .018 .040 .118 .240 .375 .187 .031
WNMX333MK WNMX060412MK .009 .020 .060 .118 .236 .375 .187 .047
NEGATIVE 80° RHOMBIC INSERTS FOR MEDIUM
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT9080
TT9215
TT9225
TT9235
WNMX331EM WNMX060404EM .004 .014 .016 .125 .244 .375 .187 .016
WNMX332EM WNMX060408EM .005 .016 .020 .125 .240 .375 .187 .031
WNMX333EM WNMG060412EM .006 .016 .028 .125 .236 .375 .187 .047
207
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES WNMX MM CHIPBREAKER
207
NEGATIVE 80° TRIGON INSERTS FOR MEDIUM
SERIES WNMX MT CHIPBREAKER
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
TT9215
TT9225
TT9235
WNMX331MT WNMX060404MT .004 .014 .031 .125 .244 .375 .187 .016
WNMX332MT WNMX060408MT .006 .018 .039 .125 .240 .375 .187 .031
WNMX333MT WNMX060412MT .008 .022 .047 .125 .236 .375 .187 .047
NEGATIVE 80° TRIGON INSERTS FOR MEDIUM
R
DT
L
80°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT5100
TT8020
TT8125
TT9080
TT9215
TT9225
TT9235
WNMX331MM WNMX060404MM .006 .018 .016 .125 .244 .375 .187 .016
WNMX332MM WNMX060408MM .008 .020 .020 .125 .240 .375 .187 .031
WNMX333MM WNMX060412MM .009 .020 .028 .125 .236 .375 .187 .047
208
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
R
DT
L
80°
= P = M = K = N = S = H
WNMX331WA WNMX060404WA .003 .010 .010 .098 .244 .375 .187 .016
WNMX332WA WNMX060408WA .004 .016 .010 .118 .240 .375 .187 .031
WNMX333WA WNMX060412WA .008 .020 .016 .118 .236 .375 .187 .047
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5100
TT7005
TT7015
TT8105
TT8115
TT8125
NEGATIVE 80° TRIGON INSERTS FOR FINISHING TO MEDIUM WIPER
SERIES WNMX WA CHIPBREAKER
208
209
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
R
L
35° 25°
DT
= P = M = K = N = S = H
YNMG2.531FS YNMG130404FS .003 .008 .012 .039 .185 .313 .187 .016
YNMG2.532FS YNMG130408FS .003 .010 .020 .059 .165 .313 .187 .031
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT5080
TT8105
TT8115
TT9080
NEGATIVE 25° RHOMBIC INSERTS FOR SUPER-FINISHING
SERIES YNMG FS CHIPBREAKER
209
210
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES HCLNR/L
210
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC INSERTS
Designation H B L L1 F
H
F
95°
L1
L
B
H
HCLNL08-33C-SH 0.500 0.500 6.000 0.708 0.500
HCLNR08-33C-SH 0.500 0.500 6.000 0.708 0.500
HCLNL10-33C-SH 0.625 0.625 6.000 0.787 0.625
HCLNR10-33C-SH 0.625 0.625 6.000 0.787 0.625
HCLNL10-33A 0.625 0.625 4.000 0.870 0.750
HCLNR10-33A 0.625 0.625 4.000 0.870 0.750
HCLNL12-33B 0.750 0.750 4.500 0.870 1.000
HCLNR12-33B 0.750 0.750 4.500 0.870 1.000
HCLNL16-33D 1.000 1.000 6.000 0.870 1.250
HCLNR16-33D 1.000 1.000 6.000 0.870 1.250
HCLNL20-33D 1.250 1.250 6.000 0.870 1.375
HCLNR20-33D 1.250 1.250 6.000 0.870 1.375
HARDWARE
HCLNR/L08 CN_ _33_ LCL09B-NX LCS3B - - L-W2 -
HCLNR/L10 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4
HCLNR/L12 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4
HCLNR/L16 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4
HCLNR/L20 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4
Insert Reference Lever Lever Screw Seat Seat Pin Lever Screw Wrench Seat Pin Punch
211
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES HDJNR/L
211
HOOK-LEVER-HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS
Designation H B L L1 F
H
B
L
L1
93°
F
H
HDJNL12-3.53.5B 0.750 0.750 4.500 1.340 1.000
HDJNR12-3.53.5B 0.750 0.750 4.500 1.340 1.000
HDJNL16-3.53.5D 1.000 1.000 6.000 1.340 1.250
HDJNR16-3.53.5D 1.000 1.000 6.000 1.340 1.250
HDJNL20-3.53.5D 1.250 1.250 6.000 1.340 1.500
HDJNR20-3.53.5D 1.250 1.250 6.000 1.340 1.500
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4 LSP4 L-W3 LSD3.52 SPP3-4
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Seat Pin Punch
212
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HDQNR/L
SERIES HDNNR/L
212
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS
Designation H B L L1 F
H
F
107.5°
L1
L
B
H
HDQNL12-3.53.5B 0.750 0.750 4.500 1.220 1.000
HDQNR12-3.53.5B 0.750 0.750 4.500 1.220 1.000
HDQNL16-3.53.5D 1.000 1.000 6.000 1.220 1.250
HDQNR16-3.53.5D 1.000 1.000 6.000 1.220 1.250
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4 LSP4 L-W3 LSD3.52 SPP3-4
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Seat Pin Punch
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS
Designation H B L L1 F
H
F
62.5° L1
L
B
H
HDNNL12-3.53.5B 0.750 0.750 4.500 1.440 0.375
HDNNR12-3.53.5B 0.750 0.750 4.500 1.440 0.375
HDNNL16-3.53.5D 1.000 1.000 6.000 1.440 0.500
HDNNR16-3.53.5D 1.000 1.000 6.000 1.440 0.500
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4 LSP4 L-W3 LSD3.52 SPP3-4
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Seat Pin Punch
213
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HSBNR/L
SERIES HDUNR/L
213
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE SQUARE INSERTS
Designation H B L L1 F
H
F
75°
L1
L
B
H
HSBNL12-33B 0.750 0.750 4.500 0.910 0.691
HSBNR12-33B 0.750 0.750 4.500 0.910 0.691
HSBNL16-33D 1.000 1.000 6.000 0.910 0.941
HSBNR16-33D 1.000 1.000 6.000 0.910 0.941
HARDWARE
SN_ _33_ LCL09-NX LCS3 LSP3A LSS32A L-W2.5 SPP3-3L
Insert Reference Lever Lever Screw Seat Pin Seat Lever Screw Wrench Seat Pin Punch
HOOK-LEVER-HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS
Designation H B L L1 F
H
F93°
L1
L
B
H
HDUNL16-3.53.5D 1.000 1.000 6.000 1.100 1.365
HDUNR16-3.53.5D 1.000 1.000 6.000 1.100 1.365
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4 LSP4 L-W3 LSD3.52 SPP3-4
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Seat Pin Punch
214
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HSKNR/L
SERIES HSDNN
214
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE SQUARE INSERTS
Designation H B L L1 F
H
F75°
L1
L
B
H
HSKNL12-33B 0.750 0.750 4.500 0.750 1.000
HSKNR12-33B 0.750 0.750 4.500 0.750 1.000
HSKNL16-33D 1.000 1.000 6.000 0.750 1.250
HSKNR16-33D 1.000 1.000 6.000 0.750 1.250
HARDWARE
SN_ _33_ LCL09-NX LCS3 LSP3A LSS32A L-W2.5 SPP3-3L
Insert Reference Lever Lever Screw Seat Pin Seat Lever Screw Wrench Seat Pin Punch
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE SQUARE INSERTS
Designation H B L L1 F
H
F
45°
L1
L
B
H
HSDNN12-33B 0.750 0.750 4.500 0.980 0.375
HSDNN16-33D 1.000 1.000 6.000 0.980 0.500
HARDWARE
SN_ _33_ LCL09-NX LCS3 LSP3A LSS32A L-W2.5 SPP3-3L
Turning Holder Insert Reference Lever Lever Screw Seat Pin Seat Lever Screw Wrench Seat Pin Punch
215
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HTFNR/L
SERIES HSSNR/L
215
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE TRIANGULAR INSERTS
Designation H B L L1 F
H
91°
F
L1
L
B
H
HTFNL12-2.53B 0.750 0.750 4.500 0.790 1.000
HTFNR12-2.53B 0.750 0.750 4.500 0.790 1.000
HTFNL16-2.53D 1.000 1.000 6.000 0.790 1.250
HTFNR16-2.53D 1.000 1.000 6.000 0.790 1.250
HARDWARE
TN_ _2.53_ LCL08-NX LCS3-NX LSP3B L-W2.5 SPP3-3L LST2.51.8
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE SQUARE INSERTS
Designation H B L L1 F
H
F
45°
L1
L
B
H
HSSNL12-33B 0.750 0.750 4.500 0.850 1.000
HSSNR12-33B 0.750 0.750 4.500 0.850 1.000
HSSNL16-33D 1.000 1.000 6.000 1.140 1.250
HSSNR16-33D 1.000 1.000 6.000 1.140 1.250
HARDWARE
SN_ _33_ LCL09-NX LCS3 LSP3A LSS32A L-W2.5 SPP3-3L
Insert Reference Lever Lever Screw Seat Pin Seat Lever Screw Wrench Seat Pin Punch
216
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HVJNR/L
SERIES HTGNR/L
216
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 25° & 35° RHOMBIC INSERTS
Designation H B L L1 F
H
.197” (only for .625” size shank)
f
93°
L1
L
B
H
44° max.
HVJNL10-2.53A 0.625 0.625 4.000 1.180 0.750
HVJNR10-2.53A 0.625 0.625 4.000 1.180 0.750
HVJNL12-2.53B 0.750 0.750 4.500 1.380 1.000
HVJNR12-2.53B 0.750 0.750 4.500 1.380 1.000
HVJNL16-2.53D 1.000 1.000 6.000 1.690 1.250
HVJNR16-2.53D 1.000 1.000 6.000 1.690 1.250
HVJNL20-2.53D 1.250 1.250 6.000 1.970 1.500
HVJNR20-2.53D 1.250 1.250 6.000 1.970 1.500
HARDWARE
VN_ X2.53_ LCL08-NX LCS4-DH LSP3B L-W2.5 SPP3-3L LSV2.51.8H
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE TRIANGULAR INSERTS
Designation H B L L1 F
H
F
91°
L1
L
B
H
HTGNL10-2.53A 0.625 0.625 4.000 0.870 0.750
HTGNR10-2.53A 0.625 0.625 4.000 0.870 0.750
HTGNL12-2.53B 0.750 0.750 4.500 0.870 1.000
HTGNR12-2.53B 0.750 0.750 4.500 0.870 1.000
HTGNL16-2.53D 1.000 1.000 6.000 0.870 1.250
HTGNR16-2.53D 1.000 1.000 6.000 0.870 1.250
HARDWARE
TN_ _2.53_ LCL08-NX LCS3-NX LSP3B L-W2.5 SPP3-3L LST2.51.8
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
217
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES HWLNR/L
SERIES HVQNR/L
217
HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° TRIGON INSERTS
Designation H B L L1 F
h
f
95°
L1
L
h
b
HWLNL10-33A 0.625 0.625 4.000 1.023 0.750
HWLNR10-33A 0.625 0.625 4.000 1.023 0.750
HWLNL12-33B 0.750 0.750 4.500 1.023 1.000
HWLNR12-33B 0.750 0.750 4.500 1.023 1.000
HWLNL16-33D 1.000 1.000 6.000 1.023 1.250
HWLNR16-33D 1.000 1.000 6.000 1.023 1.250
HARDWARE
WN_X33_ LCL09-NX LCS3 LSP3A LSW32A L-W2.5 SPP3-4
Insert Reference Lever Lever Screw Seat Pin Seat Lever Screw Wrench Seat Pin Punch
HOOK LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 25° & 35° RHOMBIC INSERTS
Designation H B L L1 F
H
F
117.5°
L1
L
B
H
HVQNL12-2.53B 0.750 0.750 4.500 1.380 1.000
HVQNR12-2.53B 0.750 0.750 4.500 1.380 1.000
HVQNL16-2.53D 1.000 1.000 6.000 1.380 1.250
HVQNR16-2.53D 1.000 1.000 6.000 1.380 1.250
HARDWARE
VN_ X2.53_ LCL08-NX LCS4-DH LSP3B L-W2.5 SPP3-3L LSV2.51.8H
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
218
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES TVJNR/L
SERIES TCLNR/L
218
T-TYPE HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 35° RHOMBIC INSERTS
Designation H B L L1 F
H
F
93°
L1
L
B
H
44° max.
TVJNL12-2.53B 0.750 0.750 4.500 1.380 1.000
TVJNR12-2.53B 0.750 0.750 4.500 1.380 1.000
TVJNL16-2.53D 1.000 1.000 6.000 1.690 1.250
TVJNR16-2.53D 1.000 1.000 6.000 1.690 1.250
TVJNL20-2.53D 1.250 1.250 6.000 1.970 1.500
TVJNR20-2.53D 1.250 1.250 6.000 1.970 1.500
HDWR
VN_ X2.53_ DLM2.5V-NX DSP4 SO40085I T15 DLS4 L-W3 MSVI2.522
Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Clamp Screw Wrench
T-TYPE HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC INSERTS
Designation H B L L1 F
F95°
L
L1
B
H
H
TCLNL12-33B 0.750 0.750 4.500 0.980 1.000
TCLNR12-33B 0.750 0.750 4.500 0.980 1.000
TCLNL16-33D 1.000 1.000 6.000 0.980 1.250
TCLNR16-33D 1.000 1.000 6.000 0.980 1.250
TCLNL20-33D 1.250 1.250 6.000 0.980 1.375
TCLNR20-33D 1.250 1.250 6.000 0.980 1.375
HARDWARE
CN_ _33_ DLM3-NX DSP3 SO40085I T15 DLS3 LSC32A
Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Seat
Seat
219
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES TVVNN
SERIES TVQNR/L
219
T-TYPE HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 35° RHOMBIC INSERTS
Designation H B L L1 F
H
F
72.5°
L1
L
B
H
60° max.
TVVNN12-2.53B 0.750 0.750 4.500 1.654 0.375
TVVNN16-2.53D 1.000 1.000 6.000 1.654 0.500
T-TYPE HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 35° RHOMBIC INSERTS
Designation H B L L1 F B1
H
B1
F117.5°
L1
L
B
H
TVQNL12-2.53B 0.750 0.750 4.500 1.380 1.000 -
TVQNR12-2.53B 0.750 0.750 4.500 1.380 1.000 -
TVQNL16-2.53D 1.000 1.000 6.000 1.380 1.250 -
TVQNR16-2.53D 1.000 1.000 6.000 1.380 1.250 -
HDWR
VN_ X2.53_ DLM2.5V-NX DSP4 SO40085I T15 DLS4 L-W3 MSVI2.522
Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Clamp Screw Wrench Seat
HDWR
VN_ X2.53_ DLM2.5V-NX DSP4 SO40085I T15 DLS4 L-W3 MSVI2.522
Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Clamp Screw Wrench Seat
220
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES TWLNR/L
220
T-TYPE HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° TRIGON INSERTS
Designation H B L L1 F
H
F
95°
L1
L
B
H
TWLNL12-33B 0.750 0.750 4.500 1.020 1.000
TWLNR12-33B 0.750 0.750 4.500 1.020 1.000
TWLNL16-33D 1.000 1.000 6.000 1.020 1.250
TWLNR16-33D 1.000 1.000 6.000 1.020 1.250
TWLNL20-33D 1.250 1.250 6.000 1.020 1.375
TWLNR20-33D 1.250 1.250 6.000 1.020 1.375
HDWR
WN_X33_ DLM3-NX DSP3 SO40085I T15 DLS3 LSW32A
Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Seat
221
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES A-HDUNR/L
221
HOOK-LEVER-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
93°
FL
Dmin 30°
max.
A20U-HDUNL-3.53.5 1.250 1.750 14.00 1.000
A20U-HDUNR-3.53.5 1.250 1.750 14.00 1.000
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4S LSP4 L-W3 SPP3-4 LSD3.52B
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
SERIES A-HCLNR/L
HOOK-LEVER BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
95°
F
L
Dmin
A10R-HCLNL-33 0.625 0.750 8.00 0.406
A10R-HCLNR-33 0.625 0.750 8.00 0.406
A12S-HCLNL-33 0.750 1.000 10.00 0.500
A12S-HCLNR-33 0.750 1.000 10.00 0.500
A16T-HCLNL-33 1.000 1.250 12.00 0.640
A16T-HCLNR-33 1.000 1.250 12.00 0.640
A20U-HCLNL-33 1.250 1.500 14.00 0.765
A20U-HCLNR-33 1.250 1.500 14.00 0.765
HDWR
A10R CN_ _33_ LCL09B-NX LCS3B L-W2 LSR3B - - -
A12S CN_ _33_ LCL09B-NX LCS3B L-W2 LSR3B - - -
A16T CN_ _33_ LCL09B-NX LCS3B L-W2 LSR3B - - -
A20U CN_ _33_ LCL09-NX LCS3 L-W2.5 - LSC32 SPP3-4 LSP3A
Insert Reference Lever Lever Screw Lever Screw Wrench Lever Clip Seat Seat Pin Punch Seat Pin
222
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES A-HSKNR/L
222
HOOK-LEVER BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE SQUARE INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
75°
F
L
Dmin
A16T-HSKNL-33 1.000 1.250 12.00 0.640
A16T-HSKNR-33 1.000 1.250 12.00 0.640
A20U-HSKNL-33 1.250 1.500 14.00 0.765
A20U-HSKNR-33 1.250 1.500 14.00 0.765
HDWR
A16T SN_ _33_ LCL09B-NX LCS3B L-W2 LSR3B - - -
A20U SN_ _33_ LCL09-NX LCS3 L-W2.5 - LSP3A LSS32 SPP3-4
Insert Reference Lever Lever Screw Lever Screw Wrench Lever Clip Seat Pin Seat Seat Pin Punch
SERIES A-HDZNR/L
HOOK-LEVER-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 55° RHOMBIC INSERTS, COOLANT THRU
Designation D Dmin L F F1
Ødg7
F
.787
3°
L
F1
Dmin
30°
max.
A20U-HDZNL-3.53.5 1.250 1.750 14.00 1.000 .413
A20U-HDZNR-3.53.5 1.250 1.750 14.00 1.000 .413
HARDWARE
DN_ _3.53.5_ LCL11-NX LCS4S LSP4 L-W3 SPP3-4 LSD3.52B
Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
223
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES A-HTFNR/L
223
HOOK-LEVER-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE TRIANGULAR INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
91°
F
L
Dmin
A10R-HTFNL-2.53 0.625 0.750 8.00 0.406
A10R-HTFNR-2.53 0.625 0.750 8.00 0.406
A12S-HTFNL-2.53 0.750 1.000 10.00 0.500
A12S-HTFNR-2.53 0.750 1.000 10.00 0.500
A16T-HTFNL-2.53 1.000 1.250 12.00 0.640
A16T-HTFNR-2.53 1.000 1.250 12.00 0.640
A20U-HTFNL-2.53 1.250 1.500 14.00 0.765
A20U-HTFNR-2.53 1.250 1.500 14.00 0.765
HDWR
A10R TN_ _2.53_ LCL08B-NX LCS3B L-W2 LSR3B - - -
A12S TN_ _2.53_ LCL08B-NX LCS3B L-W2 LSR3B - - -
A16T TN_ _2.53_ LCL08B-NX LCS3B L-W2 LSR3B - - -
A20U TN_ _2.53_ LCL08-NX LCS3-NX L-W2.5 - LS3PB LST2.51.8B SPP3-3L
Insert Reference Lever Lever Screw Lever Screw Wrench Lever Clip Seat Pin Seat Seat Pin Punch
224
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES A-SVQNR/L
224
SCREW-CLAMP BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 35° RHOMBIC INSERTS, COOLANT THRU
Designation D Dmin L F
107.5°
F
L
Dmin
25°
max.
Ødg7
A16T-SVQNL-2.53 1.000 1.300 12.00 0.750
A16T-SVQNR-2.53 1.000 1.300 12.00 0.750
A20U-SVQNL-2.53 1.250 1.650 14.00 0.875
A20U-SVQNR-2.53 1.250 1.650 14.00 0.875
HARDWARE
VN_ X2.53_ TS30120I/HG TS5030062S T9 L-W3.5 SSVN2.523
Insert Reference Insert Screw Seat Screw Insert Screw Wrench Seat Screw Wrench Seat
225
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES A-SVUNR/L
225
SCREW-CLAMP-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 35° RHOMBIC INSERTS, COOLANT THRU
Designation D Dmin L F
50°
max.
93°
F
L
Dmin
Ødg7
A16T-SVUNL-2.53 1.000 1.250 12.00 0.625
A16T-SVUNR-2.53 1.000 1.250 12.00 0.625
A20U-SVUNL-2.53 1.250 1.500 14.00 0.750
A20U-SVUNR-2.53 1.250 1.500 14.00 0.750
HARDWARE
VN_ X2.53_ TS30120I/HG TS5030062S T9 L-W3.5 SSVN2.523
Insert Reference Insert Screw Seat Screw Insert Screw Wrench Seat Screw Wrench Seat
226
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES A-HWLNR/L
226
HOOK-LEVER BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 80° TRIGON INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
95°
FL
Dmin
A10R-HWLNL-33 0.625 0.750 8.00 0.406
A10R-HWLNR-33 0.625 0.750 8.00 0.406
A12S-HWLNL-33 0.750 1.000 10.00 0.500
A12S-HWLNR-33 0.750 1.000 10.00 0.500
A16T-HWLNL-33 1.000 1.250 12.00 0.640
A16T-HWLNR-33 1.000 1.250 12.00 0.640
A20U-HWLNL-33 1.250 1.500 14.00 0.765
A20U-HWLNR-33 1.250 1.500 14.00 0.765
HDWR
A10R WN_X33_ LCL09B-NX LCS3B LSR3B L-W2 - - -
A12S WN_X33_ LCL09B-NX LCS3B LSR3B L-W2 - - -
A16T WN_X33_ LCL09B-NX LCS3B LSR3B L-W2 - - -
A20U WN_X33_ LCL09-NX LCS3 - L-W2.5 LSW32 SPP3-4 LSP3A
Insert Reference Lever Lever Screw Lever Clip Lever Screw Wrench Seat Seat Pin Punch Seat Pin
227
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES C_ -HCLNR/L
227
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS 80° RHOMBIC INSERTS
Designation D L F
F
95°
L
D
C4-HCLNL27050-0904 40mm 50mm 27mm
C4-HCLNR27050-0904 40mm 50mm 27mm
HDWR
CN_ _33_ LCL09-NX LCS3 NZ83 LSC32 LSP3A L-W2.5 SPP3-4
Insert Reference Lever Lever Screw Coolant Nozzle Seat Seat Pin Lever Screw Wrench Seat Pin Punch
228
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES C_-HSSNR/L
SERIES C_-HDJNR/L
228
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS SQUARE INSERTS
Designation D L F
F
45°
L
D
C4-HSSNL27042-0904 40mm 44mm 27mm
C4-HSSNR27042-0904 40mm 44mm 27mm
HDWR
SN_ _33_ LCL09-NX LCS3 NZ83 LSP3A LSS32A L-W2.5 SPP3-4
Insert Reference Lever Lever Screw Coolant Nozzle Seat Pin Seat Lever Screw Wrench
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS 55° RHOMBIC INSERTS
Designation D L F
F
93°
L
D
27° max.
C4-HDJNL27055-1305 40mm 55mm 27mm
C4-HDJNL27055-1305 40mm 55mm 27mm
HDWR
DN_ _3.53.5_ LCL11-NX LCS4 NZ83 LSP4 L-W3 SPP3-4 LSD3.52
Insert Reference Lever Lever Screw Coolant Nozzle Seat Pin Lever Screw Wrench Seat Pin Punch
Seat Pin Punch
Seat
229
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES C_-HTJNR/L
SERIES C_-HTGNR/L
229
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS TRIANGULAR INSERTS
Designation D L F
F
93°
L
D
C4-HTJNL27050-1304 40mm 50mm 27mm
C4-HTJNR27050-1304 40mm 50mm 27mm
HDWR
TN_ _2.53_ LCL08-NX LCS3-NX NZ83 LSP3B L-W2.5 SPP3-3L LST2.51.8
Insert Reference Lever Lever Screw Coolant Nozzle Seat Pin Lever Screw Wrench Seat Pin Punch
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS TRIANGULAR INSERTS
Designation D L F
F
91°
L
D
C4-HTGNL27050-1304 40mm 50mm 27mm
C4-HTGNR27050-1304 40mm 50mm 27mm
HDWR
TN_ _2.53_ LCL08-NX LCS3-NX NZ83 LSP3B L-W2.5 SPP3-3L LST2.51.8
Insert Reference Lever Lever Screw Coolant Nozzle Seat Pin Lever Screw Wrench Seat Pin Punch Seat
Seat
230
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES C_ -HWLNR/L
230
QUICK CHANGE (ISO 26623) H-TYPE HOLDER FOR ISO TURNING ACCEPTS 80° TRIGON INSERTS
Designation D L F
L
95°
F
D
C4-HWLNL27050-0604 40mm 50mm 27mm
C4-HWLNR27050-0604 40mm 50mm 27mm
HDWR
WN_X33_ LCL09-NX LCS3 NZ83 LSP3A LSW32A L-W2.5 SPP3-4
Insert Reference Lever Lever Screw Coolant Nozzle Seat Pin Seat Lever Screw Wrench Seat Pin Punch
231
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES
231
232
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES CCGT R/L FF CHIPBREAKER
232
POSITIVE 5° CLEARANCE TRIANGULAR GROUND INSERTS FOR SMALL BORING
SERIES TBGT R/L FF CHIPBREAKER
90°
D
RT
5°
D1
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
D T R D1
Grades
CT3000 TT9020
TBGT1.21X0L-FF TBGT0601003L-FF 0.001 0.004 0.002 0.012 0.156 0.094 0.001 0.090
TBGT1.21X0R-FF TBGT0601003R-FF 0.001 0.004 0.002 0.012 0.156 0.094 0.001 0.090
TBGT1.210L-FF TBGT060101L-FF 0.001 0.005 0.003 0.016 0.156 0.094 0.004 0.090
TBGT1.210R-FF TBGT060101R-FF 0.001 0.005 0.003 0.016 0.156 0.094 0.004 0.090
TBGT1.210.5L-FF TBGT060102L-FF 0.001 0.006 0.004 0.016 0.156 0.094 0.008 0.090
TBGT1.210.5R-FF TBGT060102R-FF 0.001 0.006 0.004 0.016 0.156 0.094 0.008 0.090
TBGT1.211L-FF TBGT060104L-FF 0.002 0.008 0.004 0.016 0.156 0.094 0.016 0.090
TBGT1.211R-FF TBGT060104R-FF 0.002 0.008 0.004 0.016 0.156 0.094 0.016 0.090
POSITIVE 7° CLEARANCE 80° RHOMBIC GROUND INSERTS FOR SMALL BORING
R
D
80°
ØD1
7°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
D T R D1
Grades
CT3000 TT9020
CCGT1.10.9X0L-FF CCGT0301003L-FF 0.001 0.004 0.002 0.012 0.138 0.055 0.001 0.079
CCGT1.10.9X0R-FF CCGT0301003R-FF 0.001 0.004 0.002 0.012 0.138 0.055 0.001 0.079
CCGT1.10.90L-FF CCGT030101L-FF 0.001 0.005 0.003 0.016 0.138 0.055 0.004 0.079
CCGT1.10.90R-FF CCGT030101R-FF 0.001 0.005 0.003 0.016 0.138 0.055 0.004 0.079
CCGT1.10.90.5L-FF CCGT030102L-FF 0.001 0.006 0.004 0.016 0.138 0.055 0.008 0.079
CCGT1.10.90.5R-FF CCGT030102R-FF 0.001 0.006 0.004 0.016 0.138 0.055 0.008 0.079
CCGT1.10.91L-FF CCGT030104L-FF 0.002 0.008 0.004 0.016 0.138 0.055 0.016 0.079
CCGT1.10.91R-FF CCGT030104R-FF 0.002 0.008 0.004 0.016 0.138 0.055 0.016 0.079
CCGT1.41.1X0L-FF CCGT0401003L-FF 0.001 0.004 0.002 0.016 0.169 0.071 0.001 0.090
CCGT1.41.1X0R-FF CCGT0401003R-FF 0.001 0.004 0.002 0.016 0.169 0.071 0.001 0.090
CCGT1.41.10L-FF CCGT040101L-FF 0.001 0.005 0.004 0.020 0.169 0.071 0.004 0.090
CCGT1.41.10R-FF CCGT040101R-FF 0.001 0.005 0.004 0.020 0.169 0.071 0.004 0.090
CCGT1.41.10.5L-FF CCGT040102L-FF 0.001 0.005 0.004 0.020 0.169 0.071 0.008 0.090
CCGT1.41.10.5R-FF CCGT040102R-FF 0.001 0.005 0.004 0.020 0.169 0.071 0.008 0.090
CCGT1.41.11L-FF CCGT040104L-FF 0.002 0.008 0.004 0.020 0.169 0.071 0.016 0.090
CCGT1.41.11R-FF CCGT040104R-FF 0.002 0.008 0.004 0.020 0.169 0.071 0.016 0.090
233
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VCGT SA CHIPBREAKER
233
POSITIVE 7° CLEARANCE 35° RHOMBIC INSERTS FOR SEMI-FINISH AND MEDIUM MACHINING
SERIES VCMT PC CHIPBREAKER
R
D
35°
T
7°
D1
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
D T R D1
Grades
CT3000
PV3010
TT8105
TT8115
TT8125
TT9080
TT9215
TT9225
VCMT1.51.50.5PC VCMT080202PC 0.001 0.006 0.008 0.059 0.188 0.094 0.008 -
VCMT1.51.51PC VCMT080204PC 0.002 0.008 0.008 0.059 0.188 0.094 0.016 -
VCMT221PC VCMT110304PC 0.002 0.008 0.004 0.067 0.250 0.125 0.016 0.094
VCMT331PC VCMT160404PC 0.002 0.008 0.012 0.079 0.375 0.187 0.016 0.094
VCMT332PC VCMT160408PC 0.003 0.008 0.012 0.079 0.375 0.187 0.031 0.094
POSITIVE 7° CLEARANCE 35° RHOMBIC GROUND INSERTS FOR PRECISION FINISHING
R
D
35°
T
7°
D1
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
D T R D1
Grades
TT5080 TT9020
VCGT220SA VCGT110301SA 0.001 0.003 0.004 0.060 0.250 0.125 0.004 0.094
VCGT220.5SA VCGT110302SA 0.001 0.003 0.008 0.060 0.250 0.125 0.008 0.094
VCGT221SA VCGT110304SA 0.001 0.004 0.008 0.060 0.250 0.125 0.016 0.094
234
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
80°
RD
D1
T5°
= P = M = K = N = S = H
WBGT1.21X0L-FF WBGT0601003L-FF 0.001 0.004 0.002 0.012 0.156 0.063 0.001 0.090
WBGT1.21X0R-FF WBGT0601003R-FF 0.001 0.004 0.002 0.012 0.156 0.063 0.001 0.090
WBGT1.210L-FF WBGT060101L-FF 0.001 0.005 0.003 0.016 0.156 0.063 0.004 0.090
WBGT1.210R-FF WBGT060101R-FF 0.001 0.005 0.003 0.016 0.156 0.063 0.004 0.090
WBGT1.210.5L-FF WBGT060102L-FF 0.001 0.006 0.004 0.016 0.156 0.063 0.008 0.090
WBGT1.210.5R-FF WBGT060102R-FF 0.001 0.006 0.004 0.016 0.156 0.063 0.008 0.090
WBGT1.211L-FF WBGT060104L-FF 0.002 0.008 0.004 0.016 0.156 0.063 0.016 0.090
WBGT1.211R-FF WBGT060104R-FF 0.002 0.008 0.004 0.016 0.156 0.063 0.016 0.090
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
D T R D1
Grades
CT3000 TT9020
POSITIVE 5° CLEARANCE 80° TRIGON GROUND INSERTS FOR SMALL BORING
SERIES WBGT R/L FF CHIPBREAKER
234
235
= P = M = K = N = S = H = P = M = K = N = S = H
235
HARDWARE
Insert Screw WrenchInsert ScrewInsert Reference
S04F-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6
S04F-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6
S05G-SCLCL03-D06 CC_T 1.10.9_ TS16031I T6
S05G-SCLCR03-D06 CC_T 1.10.9_ TS16031I T6
S06H-SCLCL04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P
S06H-SCLCR04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P
S07J-SCLCL04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P
S07J-SCLCR04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P
S10H-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6
S10H-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6
Fig. 1
Fig. 2
HF
95°
F
95°
Ødg7
L
L1
L
D
min
S04F-SCLCL03-D05 0.157 0.197 3.15 - 0.098 Fig. 1
S04F-SCLCR03-D05 0.157 0.197 3.15 - 0.098 Fig. 1
S05G-SCLCL03-D06 0.197 0.236 3.54 - 0.118 Fig. 1
S05G-SCLCR03-D06 0.197 0.236 3.54 - 0.118 Fig. 1
S06H-SCLCL04-D07 0.236 0.276 3.94 - 0.138 Fig. 1
S06H-SCLCR04-D07 0.236 0.276 3.94 - 0.138 Fig. 1
S07J-SCLCL04-D08 0.276 0.315 4.33 - 0.157 Fig. 1
S07J-SCLCR04-D08 0.276 0.315 4.33 - 0.157 Fig. 1
S10H-SCLCL03-D05 0.394 0.197 3.94 0.591 0.098 Fig. 2
S10H-SCLCR03-D05 0.394 0.197 3.94 0.591 0.098 Fig. 2
Designation D Dmin L L1 F Shape
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 80° RHOMBIC INSERTS
SERIES S-SCLCR/L
PART SERIES
PART SERIES
Placeholder
236
HARDWARE
Insert Screw WrenchInsert ScrewInsert Reference
C04G-SCLCL03-D05 CC_T 1.10.9_ TS16031I T6
C04G-SCLCR03-D05 CC_T 1.10.9_ TS16031I T6
C05H-SCLCL03-D06 CC_T 1.10.9_ TS16031I T6
C05H-SCLCR03-D06 CC_T 1.10.9_ TS16031I T6
C06J-SCLCL04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P
C06J-SCLCR04-D07 CC_T 1.41.1_ TS20038I/HG-P T6P
C07K-SCLCL04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P
C07K-SCLCR04-D08 CC_T 1.41.1_ TS20038I/HG-P T6P
D
min
L
F
H
95°
Ødg7
236
C04G-SCLCL03-D05 0.157 0.197 3.54 0.098
C04G-SCLCR03-D05 0.157 0.197 3.54 0.098
C05H-SCLCL03-D06 0.197 0.236 3.94 0.118
C05H-SCLCR03-D06 0.197 0.236 3.94 0.118
C06J-SCLCL04-D07 0.236 0.276 4.33 0.133
C06J-SCLCR04-D07 0.236 0.276 4.33 0.133
C07K-SCLCL04-D08 0.276 0.315 4.92 0.157
C07K-SCLCR04-D08 0.276 0.315 4.92 0.157
Designation D Dmin L F
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 80° RHOMBIC INSERTS
SERIES C-SCLCR/L (CARBIDE)
237
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
237
SERIES C-STUBR/L (CARBIDE)
SERIES S-STUBR/L
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE TRIANGULAR INSERTS
Designation D Dmin L F
Ødg7
93°
HFLØD min
C06J-STUBL06-D08 0.236 0.315 4.33 0.157
C06J-STUBR06-D08 0.236 0.315 4.33 0.157
HARDWARE
TB_T1.21 _ SM20-043-00 T6P
Insert Reference Insert Screw Insert Screw Wrench
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE TRIANGULAR INSERTS
Designation D Dmin L F
Ødg7
93°
HFLØD min
S06H-STUBL06-D08 0.236 0.315 3.94 0.157
S06H-STUBR06-D08 0.236 0.315 3.94 0.157
HARDWARE
TB_T1.21 _ SM20-043-00 T6P
Insert Reference Insert Screw Insert Screw Wrench
238
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES S-SVPCR/L
SERIES S-SVJCR/L
SCREW-HELD BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 35° RHOMBIC INSERTS
Designation D Dmin L F
S10K-SVPCL08-D16 0.394 0.630 4.92 0.236
S10K-SVPCR08-D16 0.394 0.630 4.92 0.236
S12M-SVPCL11-D20 0.472 0.787 5.91 0.394
S12M-SVPCR11-D20 0.472 0.787 5.91 0.394
HARDWARE
S10K-SVPCL08-D16 VC_T1.51.5_ TS20038I/HG-P T6P
S10K-SVPCR08-D16 VC_T1.51.5_ TS20038I/HG-P T6P
S12M-SVPCL11-D20 VC_T22_ SM25-065-70 T7
S12M-SVPCR11-D20 VC_T22_ SM25-065-70 T7
Insert Reference Insert Screw Insert Screw Wrench
SCREW-HELD BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 35° RHOMBIC INSERTS
Designation D Dmin L L1 F
Ødg7
HF
52°
L1
L
ØD min
S12M-SVJCL08-D16 0.472 0.630 5.91 1.020 0.079
S12M-SVJCR08-D16 0.472 0.630 5.91 1.020 0.079
S16Q-SVJCL08-D20 0.630 0.787 7.09 1.420 0.079
S16Q-SVJCR08-D20 0.630 0.787 7.09 1.420 0.079
HARDWARE
VC_T1.51.5_ TS20038I/HG-P T6P
Insert Reference Insert Screw Insert Screw Wrench
238
117.5°
L
F
H
239
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
239
SERIES S-SVUCR/L
SCREW-HELD BORING BAR ACCEPTS POSITIVE 7° CLEARANCE 35° RHOMBIC INSERTS
Designation D Dmin L L1 F
93°
L
F
HL1
S12M-SVUCR08-D16 0.472 0.630 5.91 1.020 0.433
S12M-SVUCL08-D16 0.472 0.630 5.91 1.020 0.433
S16Q-SVUCR11-D20 0.630 0.787 7.09 1.260 0.610
S16Q-SVUCL11-D20 0.630 0.787 7.09 1.260 0.610
S20R-SVUCR11-D25 0.787 0.984 7.87 1.570 0.689
S20R-SVUCL11-D25 0.787 0.984 7.87 1.570 0.689
HARDWARE
S12M-SVUCR/L VC_T1.51.5_ TS20038I/HG-P T6P
S16Q-SVUCR/L VC_T22_ SO 25065I T 7
S20R-SVUCR/L VC_T22_ SO 25065I T 7
Insert Reference Insert Screw Insert Screw Wrench
240
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
240
SERIES C-SWUBR/L (CARBIDE)
SERIES S-SWUBR/L
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE 80° TRIGON INSERTS
Designation D Dmin L F
Ødg7
93°
hf L1 ØD min
C05H-SWUBL06-D06 0.197 0.236 3.94 0.118
C05H-SWUBR06-D06 0.197 0.236 3.94 0.118
C06J-SWUBL06-D07 0.236 0.276 4.33 0.133
C06J-SWUBR06-D07 0.236 0.276 4.33 0.133
C07K-SWUBL06-D08 0.276 0.315 4.92 0.157
C07K-SWUBR06-D08 0.276 0.315 4.92 0.157
HARDWARE
WB_T1.21_ TS20038I/HG-P T6P
Insert Reference Insert Screw Insert Screw Wrench
SCREW-CLAMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE 80° TRIGON INSERTS
Designation D Dmin L L1 F Shape
HF
Ødg7
93°
93°
FL1
L
LØD min
Fig. 1
Fig. 2
S05G-SWUBL06-D06 0.197 0.236 3.94 - 0.118 Fig. 1
S05G-SWUBR06-D06 0.197 0.236 3.94 - 0.118 Fig. 1
S06H-SWUBL06-D07 0.236 0.276 4.33 - 0.138 Fig. 1
S06H-SWUBR06-D07 0.236 0.276 4.33 - 0.138 Fig. 1
S07J-SWUBL06-D08 0.276 0.315 4.92 - 0.157 Fig. 1
S07J-SWUBR06-D08 0.276 0.315 4.92 - 0.157 Fig. 1
S10H-SWUBL06-D06 0.394 0.236 3.94 0.709 0.118 Fig. 2
S10H-SWUBR06-D06 0.394 0.236 3.94 0.709 0.118 Fig. 2
HARDWARE
WB_T1.21_ TS20038I/HG-P T6P
Insert Reference Insert Screw Insert Screw Wrench
241
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
PART SERIES
Placeholder
SERIES TSL T-MINI-I
SERIES TSL T-MINI-M
241
SLEEVES FOR T-MINI BORING BARS INCH TO METRIC
Designation D
(inch)
D1
(mm)
L
(inch)
L
D1
H
D
TSL15.88-04-MINI 0.625 4mm 3.940
TSL15.88-05-MINI 0.625 5mm 3.940
TSL15.88-06-MINI 0.625 6mm 3.940
TSL15.88-07-MINI 0.625 7mm 3.940
TSL19.05-04-MINI 0.750 4mm 3.940
TSL19.05-05-MINI 0.750 5mm 3.940
TSL19.05-06-MINI 0.750 6mm 3.940
TSL19.05-07-MINI 0.750 7mm 3.940
TSL19.05-10-MINI 0.750 10mm 3.940
TSL19.05-12-MINI 0.750 12mm 3.940
HARDWARE
L-W2 SS-M4X0.7X4
Set Screw Wrench Set Screw
SLEEVES FOR T-MINI BORING BARS METRIC TO METRIC
Designation D
(mm)
D1
(mm)
L
(mm)
L
D1
H
D
TSL16-04 16mm 4mm 100mm
TSL16-05 16mm 5mm 100mm
TSL16-06 16mm 6mm 100mm
TSL16-07 16mm 7mm 100mm
HARDWARE
L-W2 SS-M4X0.7X4
Set Screw Wrench Set Screw
TT8105: A New Grade for Turning Steel at High Speeds
Features & Benefits:
• Gold-Life+ structured coating technology
• High-speed turning of steel in continuous
cutting applications
• Maximum wear-resistant carbide grade
• Gold-Rush treatment provides smooth &
stable cutting edge
• Expands our existing TT81xx series
grades to a broader range of applications
= P = M = K = N = S = H
242
Designation
ANSI
Designation
ISO
Grades
TT8105 Designation
ANSI
Designation
ISO
Grades
TT8105
CCMT21.51MT CCMT060204MT
CCMT21.51PC CCMT060204PC
CCMT32.51MT CCMT09T304MT
CCMT32.52MT CCMT09T308MT
CCMT32.52PC CCMT09T308PC
CCMT432MT CCMT120408MT
CNMG431FC CNMG120404FC
CNMG431FG CNMG120404FG
CNMG431MC CNMG120404MC
CNMG431MT CNMG120404MT
CNMG431PC CNMG120404PC
CNMG432FC CNMG120408FC
CNMG432FG CNMG120408FG
CNMG432MC CNMG120408MC
CNMG432MT CNMG120408MT
CNMG432PC CNMG120408PC
CNMG432RT CNMG120408RT
CNMG433FC CNMG120412FC
CNMG433MC CNMG120412MC
CNMG433MT CNMG120412MT
CNMG433PC CNMG120412PC
CNMG433RT CNMG120412RT
CNMG434RT CNMG120416RT
CNMG542MT CNMG160608MT
CNMG543MT CNMG160612MT
CNMG543PC CNMG160612PC
CNMG543RT CNMG160612RT
CNMG544MT CNMG160616MT
CNMG544RT CNMG160616RT
CNMG642MT CNMG190608MT
CNMG642RT CNMG190608RT
CNMG643MT CNMG190612MT
CNMG643RT CNMG190612RT
CNMG644MT CNMG190616MT
CNMG644RT CNMG190616RT
CNMG866RT CNMG250924RT
CNMX43.52HB CNMX120508HB
CNMX43.53HB CNMX120512HB
CNMX553HB CNMX160712HB
CNMX554HB CNMX160716HB
DCMT21.51FG DCMT070204FG
DCMT32.51FG DCMT11T304FG
DCMT32.51MT DCMT11T304MT
DCMT32.52FG DCMT11T308FG
DNMG431FC DNMG150404FC
DNMG431FG DNMG150404FG
DNMG431MT DNMG150404MT
DNMG431PC DNMG150404PC
DNMG432FC DNMG150408FC
DNMG432FG DNMG150408FG
DNMG432MC DNMG150408MC
DNMG432MT DNMG150408MT
CVD Coating Application Range
Cutting speed
Feed rate
TT8135
TT8125
TT8115
TT8105
P01 P15
P05
P15
P25
P20
P30
P40
243
Designation
ANSI
Designation
ISO
Grades
TT8105 Designation
ANSI
Designation
ISO
Grades
TT8105
DNMG432PC DNMG150408PC
DNMG432RT DNMG150408RT
DNMG433FC DNMG150412FC
DNMG433FG DNMG150412FG
DNMG433MC DNMG150412MC
DNMG433MT DNMG150412MT
DNMG433PC DNMG150412PC
DNMG433RT DNMG150412RT
DNMG442FC DNMG150608FC
DNMG442PC DNMG150608PC
DNMG443PC DNMG150612PC
SCMT32.51MT SCMT09T304MT
SCMT433MT SCMT120412MT
SNMG431MT SNMG120404MT
SNMG432FG SNMG120408FG
SNMG432MC SNMG120408MC
SNMG432MT SNMG120408MT
SNMG432PC SNMG120408PC
SNMG432RT SNMG120408RT
SNMG433MC SNMG120412MC
SNMG433PC SNMG120412PC
SNMG433RT SNMG120412RT
SNMG434RT SNMG120416RT
SNMG543MT SNMG150612MT
SNMG543RT SNMG150612RT
SNMG643RT SNMG190612RT
SNMG644RT SNMG190616RT
TCMT32.52MT TCMT16T308MT
TNMG331FC TNMG160404FC
TNMG331FG TNMG160404FG
TNMG331MT TNMG160404MT
TNMG332FC TNMG160408FC
TNMG332FG TNMG160408FG
TNMG332MC TNMG160408MC
TNMG332MT TNMG160408MT
TNMG332PC TNMG160408PC
TNMG331PC TNMG16040PC
TNMG333FC TNMG160412FC
TNMG333FG TNMG160412FG
TNMG333MT TNMG160412MT
TNMG333PC TNMG160412PC
TNMG431MT TNMG220404MT
TNMG432FG TNMG220408FG
TNMG432MT TNMG220408MT
TNMG432PC TNMG220408PC
TNMG432RT TNMG220408RT
TNMG433MT TNMG220412MT
TNMG433PC TNMG220412PC
TNMG433RT TNMG220412RT
VBMT331FG VBMT160404FG
VBMT331MT VBMT160404MT
VBMT331PC VBMT160404PC
VBMT332FG VBMT160408FG
VBMT332FX VBMT160408FX
VBMT332MT VBMT160408MT
VBMT332PC VBMT160408PC
VBMT333FC VBMT160412FC
VCMT332PC VCMT160408PC
VNMG331FG VNMG160404FG
VNMG331FX VNMG160404FX
VNMG331MT VNMG160404MT
VNMG332FG VNMG160408FG
VNMG332FX VNMG160408FX
VNMG332MT VNMG160408MT
VNMG332PC VNMG160408PC
WNMG431FC WNMG080404FC
WNMG431FG WNMG080404FG
WNMG431MT WNMG080404MT
WNMG432FC WNMG080408FC
WNMG432FG WNMG080408FG
WNMG432MC WNMG080408MC
WNMG432MT WNMG080408MT
WNMG432PC WNMG080408PC
WNMG432RT WNMG080408RT
WNMG433MC WNMG080412MC
WNMG433MT WNMG080412MT
WNMG433PC WNMG080412PC
WNMG433RT WNMG080412RT
WNMG434MT WNMG080416MT
WNMG434RT WNMG080416RT
= P = M = K = N = S = H
TT8080: Superior Performance in Stainless and
High Temperature Alloys
Features & Benefits:
• Excellent performance in stainless steel under low cutting speed and interrupted
cutting conditions.
• Improved coating technology with enhanced wear resistance for long tool life.
• Very strong coating adhesion eliminates coating layer delamination.
• Features post-coat Gold-Rush treatment for reduced build-up and
more stable cutting edge.
Designation
ANSI
Designation
ISO
Grades
TT8080
CNMG431EA CNMG120404EA
CNMG431EM CNMG120404EM
CNMG431ML CNMG120404ML
CNMG431MP CNMG120404MP
CNMG432EM CNMG120408EM
CNMG432ML CNMG120408ML
CNMG432MP CNMG120408MP
CNMG433ML CNMG120412ML
DNMG431EA DNMG150404EA
DNMG431ML DNMG150404ML
DNMG432EM DNMG150408EM
DNMG432ML DNMG150408ML
TNMG331EA TNMG160404EA
TNMG332EM TNMG160408EM
TNMG331ML TNMG160404ML
TNMG332ML TNMG160408ML
WNMG332EM WNMG060408EM
WNMG431EA WNMG080404EA
WNMG431EM WNMG080404EM
WNMG432EM WNMG080408EM
WNMG432ML WNMG080408ML
= P = M = K = N = S = H
Crack resistant coating
Prevents occurrence of
built-up-edge due to
special surface treatment
Toughened substrate
Toughness
Wear resistance
PVD Coating Application Range
TT5080
TT9080
TT8020
TT8080
M30-M50
S30-S50
244
245
246
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES CCMT FA CHIPBREAKER
246
POSITIVE 7° CLEARANCE 55° RHOMBIC INSERTS FOR SUPER FINISHING
SERIES DCMT FA CHIPBREAKER
RL
D
55°
D1
7°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT5080
TT5100
TT8115
TT8125
TT9080
TT9215
DCMT21.50.5FA DCMT070202FA 0.002 0.006 0.006 0.060 0.295 0.250 0.094 0.008 0.110
DCMT21.51FA DCMT070204FA 0.002 0.008 0.008 0.060 0.287 0.250 0.094 0.016 0.110
DCMT32.50.5FA DCMT11T302FA 0.002 0.006 0.006 0.060 0.445 0.375 0.156 0.008 0.173
DCMT32.51FA DCMT11T304FA 0.002 0.008 0.008 0.080 0.441 0.375 0.156 0.016 0.173
DCMT32.52FA DCMT11T308FA 0.003 0.010 0.012 0.080 0.425 0.375 0.156 0.031 0.173
POSITIVE 7° CLEARANCE 80° RHOMBIC INSERTS FOR SUPER FINISHING
R
D
80°
ØD1
7°
TL
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT5080
TT5100
TT8020
TT8125
CCMT21.50.5FA CCMT060202FA 0.002 0.006 0.004 0.059 0.244 0.250 0.094 0.008 0.110
CCMT21.51FA CCMT060204FA 0.002 0.006 0.004 0.059 0.236 0.250 0.094 0.016 0.110
CCMT32.50.5FA CCMT09T302FA 0.002 0.006 0.004 0.079 0.370 0.375 0.156 0.008 0.173
CCMT32.51FA CCMT09T304FA 0.002 0.008 0.004 0.079 0.362 0.375 0.156 0.016 0.173
CCMT32.52FA CCMT09T308FA 0.004 0.010 0.008 0.079 0.346 0.375 0.156 0.031 0.173
247
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TCMT FA CHIPBREAKER
247
POSITIVE 11° CLEARANCE TRIANGULAR INSERTS FOR SUPER FINISHING
SERIES TPMT FA CHIPBREAKER
60°
L
D
RT11°
D1
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT5080
TT5100
TT8020
TT8115
TT8125
TPMT730.5FA TPMT090202FA 0.001 0.006 0.004 0.047 0.376 0.219 0.094 0.008 0.098
TPMT731FA TPMT090204FA 0.002 0.008 0.008 0.047 0.339 0.219 0.094 0.016 0.098
TPMT32.51FA TPMT16T304FA 0.002 0.008 0.008 0.079 0.610 0.375 0.156 0.016 0.173
TPMT32.52FA TPMT16T308FA 0.003 0.010 0.012 0.079 0.571 0.375 0.156 0.031 0.173
POSITIVE 7° CLEARANCE TRIANGULAR INSERTS FOR SUPER FINISHING
60°
L
DR
D1
7°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT5080
TT5100
TT8125
TT9080
TCMT21.50.5FA TCMT110202FA 0.001 0.006 0.004 0.059 0.433 0.250 0.094 0.008 0.110
TCMT21.51FA TCMT110204FA 0.002 0.006 0.004 0.059 0.394 0.250 0.094 0.016 0.110
248
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VBMT FA CHIPBREAKER
248
POSITIVE 5° CLEARANCE 35° RHOMBIC INSERTS FOR SUPER FINISHING
RL
D
35° D1
5°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT5080
TT5100
TT8115
TT8125
VBMT221FA VBMT110304FA 0.002 0.008 0.008 0.060 0.390 0.250 0.125 0.016 0.110
VBMT331FA VBMT160404FA 0.002 0.008 0.008 0.080 0.614 0.375 0.187 0.016 0.173
VBMT332FA VBMT160408FA 0.003 0.010 0.012 0.080 0.575 0.375 0.187 0.031 0.173
249
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VBMT FX CHIPBREAKER
SERIES VNMG FX CHIPBREAKER
249
NEGATIVE 35° RHOMBIC INSERTS FOR BALL STUD AND PULLEY MACHINING
RLT
D
35°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
CT3000
PV3010
TT8105
TT8115
TT8125
VNMG331FX VNMG160404FX .002 .008 .008 .080 .614 .375 .187 .016
VNMG332FX VNMG160408FX .003 .008 .008 .080 .575 .375 .187 .031
POSITIVE 5° CLEARANCE 35° RHOMBIC INSERTS FOR BALL STUD AND PULLEY MACHINING
RL
D
35° D1
5°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R D1
Grades
CT3000
PV3010
TT8115
TT8125
VBMT331FX VBMT160404FX 0.002 0.008 0.008 0.080 0.614 0.375 0.187 0.016 0.173
VBMT332FX VBMT160408FX 0.003 0.008 0.008 0.080 0.575 0.375 0.187 0.031 0.173
250
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES DNMG KT CHIPBREAKER
250
NEGATIVE 55° RHOMBIC INSERTS FOR ROUGHING
RL
D
55°
T
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
DNMG432KT DNMG150408KT .007 .019 .015 .276 .579 .500 .187 .031
DNMG433KT DNMG150412KT .009 .025 .020 .276 .567 .500 .187 .047
DNMG442KT DNMG150608KT .007 .019 .015 .276 .579 .500 .250 .031
DNMG443KT DNMG150612KT .009 .025 .020 .276 .567 .500 .250 .047
NEGATIVE 80° RHOMBIC INSERTS FOR ROUGHING
SERIES CNMG KT CHIPBREAKER
80°
D
TL
R
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
CNMG432KT CNMG120408KT .007 .021 .015 .276 .472 .500 .187 .031
CNMG433KT CNMG120412KT .010 .028 .020 .276 .457 .500 .187 .047
CNMG434KT CNMG120416KT .011 .033 .030 .276 .441 .500 .187 .063
CNMG543KT CNMG160612KT .010 .028 .030 .354 .583 .625 .250 .047
CNMG544KT CNMG160616KT .012 .033 .040 .354 .567 .625 .250 .063
CNMG643KT CNMG190612KT .010 .028 .040 .551 .713 .750 .375 .047
CNMG644KT CNMG190616KT .012 .033 .060 .551 .697 .750 .375 .063
251
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNMG KT CHIPBREAKER
251
NEGATIVE TRIANGULAR INSERTS FOR ROUGHING
60°
D
TLR
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
TNMG332KT TNMG160408KT .007 .017 .013 .244 .571 .375 .187 .031
TNMG333KT TNMG160412KT .008 .022 .018 .248 .531 .375 .187 .047
TNMG432KT TNMG220408KT .007 .021 .015 .276 .787 .500 .187 .031
TNMG433KT TNMG220412KT .010 .028 .020 .276 .748 .500 .187 .047
NEGATIVE SQUARE INSERTS FOR ROUGHING
SERIES SNMG KT CHIPBREAKER
L
RT
D
90°
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
SNMG432KT SNMG120408KT .007 .021 .015 .276 .469 .500 .187 .031
SNMG433KT SNMG120412KT .011 .028 .020 .276 .453 .500 .187 .047
SNMG434KT SNMG120416KT .012 .030 .030 .276 .437 .500 .187 .063
SNMG543KT SNMG150612KT .012 .030 .024 .335 .575 .625 .250 .047
SNMG544KT SNMG150616KT .012 .033 .035 .355 .559 .625 .250 .063
SNMG644KT SNMG190616KT .012 .033 .051 .472 .685 .750 .313 .063
252
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
252
NEGATIVE 80° TRIGON INSERTS FOR ROUGHING
SERIES WNMG KT CHIPBREAKER
R
80°
L
DT
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT7005 TT7015
WNMG432KT WNMG080408KT .007 .019 .011 .217 .327 .500 .187 .031
WNMG433KT WNMG080412KT .009 .025 .015 .217 .323 .500 .187 .047
WNMG434KT WNMG080416KT .010 .024 .020 .217 .319 .500 .187 .063
253
= P = M = K = N = S = H = P = M = K = N = S = H
253
RL T
D
80°
CNMX43.52HB CNMX120508HB .010 .031 .060 .236 .472 .500 .219 .031
CNMX43.53HB CNMX120512HB .010 .031 .060 .236 .457 .500 .219 .047
CNMX553HB CNMX160712HB .012 .031 .060 .315 .583 .625 .272 .047
CNMX554HB CNMX160716HB .012 .031 .060 .315 .567 .625 .272 .063
ANSI
Number
ISO
Number
feed
min
feed
max
ap
min
ap
max
L D T R
Grades
TT5080
TT8105
TT8115
TT8125
TT8135
TT9080
NEGATIVE 80° RHOMBIC INSERTS WITH HB CHIPBREAKER FOR SEMI HEAVY TURNING
SERIES CNMX HB
254
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES HCLNR/L
254
HOOK-LEVER-HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC CNMX HB INSERTS
Designation H B L F
H
F
95° L
B
H
HCLNL12-43.5B 0.750 0.750 4.500 1.000
HCLNR12-43.5B 0.750 0.750 4.500 1.000
HCLNL16-43.5D 1.000 1.000 6.000 1.250
HCLNL16-55D 1.000 1.000 6.000 1.250
HCLNR16-43.5D 1.000 1.000 6.000 1.250
HCLNR16-55D 1.000 1.000 6.000 1.250
HCLNL20-43.5E 1.250 1.250 7.000 1.500
HCLNL20-55E 1.250 1.250 7.000 1.500
HCLNR20-43.5E 1.250 1.250 7.000 1.500
HCLNR20-55E 1.250 1.250 7.000 1.500
HCLNL24-55E 1.500 1.500 7.000 1.750
HCLNR24-55E 1.500 1.500 7.000 1.750
HARDWARE
HCLNL12-43.5B CN_ X 43.5_ LCL12-NX LCS5-L21 LSC43-NX LSP4 SPP3-4 L-W3
HCLNR12-43.5B CN_ X 43.5_ LCL12-NX LCS5-L21 LSC43-NX LSP4 SPP3-4 L-W3
HCLNL16-43.5D CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3
HCLNL16-55D CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
HCLNR16-43.5D CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3
HCLNR16-55D CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
HCLNL20-43.5E CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3
HCLNL20-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
HCLNR20-43.5E CN_ X 43.5_ LCL12-NX LCS5 LSC43-NX LSP4 SPP3-4 L-W3
HCLNR20-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
HCLNL24-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
HCLNR24-55E CN_ X 55_ LCL16-NX LCS5-L25.5 LSC54-NX LSP5 SPP5-6 L-W3
Turning Holder Insert Reference Lever Lever Screw Seat Seat Pin Seat Pin Punch Lever Screw Wrench
255
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES A-HCLNR/L
255
HOOK-LEVER-BORING BAR FOR INTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC CNMX HB INSERTS, COOLANT THRU
Designation D Dmin L F
Ødg7
95°
F
L
Dmin
A20U-HCLNL-43.5 1.250 1.500 14.00 0.765
A20U-HCLNR-43.5 1.250 1.500 14.00 0.765
A24U-HCLNL-43.5 1.500 1.750 14.00 0.890
A24U-HCLNR-43.5 1.500 1.750 14.00 0.890
HARDWARE
A20U-HCLNL-43.5 LCL12-NX LCS5-L21 LSP4 L-W3 SPP3-4 LSC42-NXS
A20U-HCLNR-43.5 LCL12-NX LCS5-L21 LSP4 L-W3 SPP3-4 LSC42-NXS
A24U-HCLNL-43.5 LCL12-NX LCS5 LSP4 L-W3 SPP3-4 LSC42-NXS
A24U-HCLNR-43.5 LCL12-NX LCS5 LSP4 L-W3 SPP3-4 LSC42-NXS
Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat
256
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
RL
D
T
80°
= P = M = K = N = S = H
CNG432E CNGN120408E 0.472 0.500 0.187 0.031
CNG432T6 CNGN120408T6 0.500 0.500 0.187 0.031
CNG433E CNGN120412E 0.500 0.500 0.187 0.047
CNG433T6 CNGN120412T6 0.500 0.500 0.187 0.047
CNG452E CNGN120708E 0.472 0.500 0.313 0.031
CNG452T6 CNGN120708T6 0.500 0.500 0.312 0.031
CNG453E CNGN120712E 0.457 0.500 0.313 0.047
CNG453T6 CNGN120712T6 0.500 0.500 0.312 0.047
CNG454T6 CNGN120716T6 0.500 0.500 0.312 0.047
ANSI
Number
ISO
Number
L D T R
Grades
TC3020
TC3030
TC430
80° RHOMBIC CERAMIC INSERTS, NO HOLE
SERIES CNG
256
TC3020 & TC3030: New Ceramic Grades for
High Temperature Alloy Machining
Features & Benefits:
• TC430: Whisker -
Maximum wear resistance
• TC3020: SiAlON -
Highly wear resistant
• TC3030: SiAlON -
Extremely tough grade TC3020
Cutting speed
Feed rate
TC3030
Application Range for High-Temp
257
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
DT
= P = M = K = N = S = H
RNG32T6 RNGN090300T6 0.375 0.125
RNG43T6 RNGN120400T6 0.500 0.187
RNG45E04 RNGN120700E04 0.500 0.313
RNG45T6 RNGN120700T6 0.500 0.313
RNG65T6 RNGN190700T6 0.750 0.312
ANSI
Number
ISO
Number
D T
Grades
TC3020 TC3030 TC430
ROUND CERAMIC INSERTS
SERIES RNG
257
T6 = .004" @ 20°
E04 = .002" hone
258
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
DT
11°
120°
= P = M = K = N = S = H
RPGX35E04 RPGX090700E04 0.375 0.312
RPGX35T6 RPGX090700T6 0.375 0.312
RPGX45E04 RPGX120700E04 0.500 0.312
RPGX45T6 RPGX120700T6 0.500 0.312
ANSI
Number
ISO
Number
D T
Grades
TC3020 TC3030 TC430
POSITIVE 11° CLEARANCE ROUND V-BOTTOM CERAMIC INSERTS
SERIES RPGX
258
T6 = .004" @ 20°
E04 = .002" hone
259
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
RL
D
T
90°
= P = M = K = N = S = H
SNG432T6 SNGN120408T6 0.500 0.500 0.187 0.031
SNG433T6 SNGN120412T6 0.500 0.500 0.187 0.047
SNG452T6 SNGN120708T6 0.500 0.500 0.312 0.031
SNG453T6 SNGN120712T6 0.500 0.500 0.312 0.047
ANSI
Number
ISO
Number
L D T R
Grades
TC3020
TC3030
TC430
SQUARE CERAMIC INSERTS, NO HOLE
SERIES SNG
259
T6 = .004" @ 20°
260
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES CNGM CF-LS2
260
80° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR MEDIUM APPLICATIONS
SERIES CNGM CM-LS2
r
80°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
CNGM432CM-LS2 CNGM120408CM-LS2 0.086 0.500 0.187 0.031 0.203
CNGM433CM-LS2 CNGM120412CM-LS2 0.094 0.500 0.187 0.047 0.203
LS2 - Double tip
80° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR FINISHING APPLICATIONS
r
80°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
CNGM432CF-LS2 CNGM120408CF-LS2 0.086 0.500 0.187 0.031 0.203
CNGM433CF-LS2 CNGM120412CF-LS2 0.094 0.500 0.187 0.047 0.203
LS2 - Double tip
TB2030: Coated CBN Inserts with Chipbreakers for
Turning Carburized and Hardened Steel
Chipbreakers:
• CM - Medium Applications
• CF - Finishing Applications
261
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES DNGM-CF-LS2
261
55° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR MEDIUM APPLICATIONS
SERIES DNGM-CM-LS2
ØD1
t
d
l
55°
r
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
DNGM432CM-LS2 DNGM150408CM-LS2 0.082 0.500 0.187 0.031 0.203
DNGM433CM-LS2 DNGM150412CM-LS2 0.078 0.500 0.187 0.047 0.203
LS2 - Double tip
55° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR FINISHING APPLICATIONS
ØD1
t
d
l
55°
r
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
DNGM432CF-LS2 DNGM150408CF-LS2 0.082 0.500 0.187 0.031 0.203
DNGM433CF-LS2 DNGM150412CF-LS2 0.078 0.500 0.187 0.047 0.203
LS2 - Double tip
262
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TNGM CF-LS3
262
TRIANGULAR CBN-TIPPED INSERTS WITH CHIPBREAKER FOR MEDIUM APPLICATIONS
SERIES TNGM CM-LS3
r
60°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
TNGM332CM-LS3 TNGM160408CM-LS3 0.074 0.375 0.187 0.031 0.150
TNGM333CM-LS3 TNGM160412CM-LS3 0.094 0.375 0.187 0.047 0.150
LS3 - Triple tip
TRIANGULAR CBN-TIPPED INSERTS WITH CHIPBREAKER FOR FINISHING APPLICATIONS
r
60°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
TNGM332CF-LS3 TNGM160408CF-LS3 0.074 0.375 0.187 0.031 0.150
TNGM333CF-LS3 TNGM160412CF-LS3 0.094 0.375 0.187 0.047 0.150
LS3 - Triple tip
263
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VNGM CF-LS2
263
35° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR MEDIUM APPLICATIONS
SERIES VNGM CM-LS2
r
35°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
VNGM332CM-LS2 VNGM160408CM-LS2 0.086 0.375 0.187 0.031 0.150
LS2 - Double tip
35° RHOMBIC CBN-TIPPED INSERTS WITH CHIPBREAKER FOR FINISHING APPLICATIONS
r
35°
l
dt
ØD1
ANSI
Number
ISO
Number
l d t R D1
Grades
TB2030
VNGM332CF-LS2 VNGM160408CF-LS2 0.086 0.375 0.187 0.031 0.150
LS2 - Double tip
264
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
264
SERIES CNMA LN-10
80° RHOMBIC PCD-TIPPED INSERTS
80°
L
R
DT
D1
10°
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
CNMA431LN-10 CNMA120404LN-10 0.157 0.500 0.187 0.016 0.203
CNMA432LN-10 CNMA120408LN-10 0.154 0.500 0.187 0.031 0.203
TD810: New PCD Hybrid Grade for Aluminum and
Non-Ferrous Materials
265
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES DNMA LN-10
SERIES TNMA LN-10
265
TRIANGULAR PCD-TIPPED INSERTS
R60°
L
10°
D1
T
D
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
TNMA331LN-10 TNMA160404LN-10 0.169 0.375 0.187 0.016 0.150
55° RHOMBIC PCD-TIPPED INSERTS
R55°
L
DT
D1
10°
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
DNMA431LN-10 DNMA150404LN-10 0.157 0.500 0.187 0.016 0.203
DNMA432LN-10 DNMA150408LN-10 0.146 0.500 0.187 0.031 0.203
DNMA441LN-10 DNMA150604LN-10 0.157 0.500 0.250 0.016 0.203
DNMA442LN-10 DNMA150608LN-10 0.146 0.500 0.250 0.031 0.203
266
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VNGA LN-10
266
POSITIVE 7° CLEARANCE 80° RHOMBIC PCD-TIPPED INSERTS
SERIES CCGW LN7
R80°
L
7°
7°
ØD1
DT
ANSI
Number
ISO
Number
L D T R
Grades
TD810
CCGW21.50.5LN-7 CCGW060202LN-7 0.122 0.250 0.094 0.008
CCGW21.51LN-7 CCGW060204LN-7 0.122 0.250 0.094 0.016
CCGW32.51LN-7 CCGW09T304LN-7 0.157 0.375 0.156 0.016
CCGW32.52LN-7 CCGW09RT308LN-7 0.154 0.375 0.156 0.031
CCGW431LN-7 CCGW120404LN-7 0.157 0.500 0.187 0.016
CCGW432LN-7 CCGW120408LN-7 0.154 0.500 0.187 0.031
35° RHOMBIC PCD-TIPPED INSERTS
R35°
L
10°
ØD1
T
D
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
VNGA331LN-10 VNGA160404LN-10 0.197 0.375 0.187 0.016 0.150
VNGA332LN-10 VNGA160408LN-10 0.161 0.375 0.187 0.031 0.150
267
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES DCGW LN-7
267
POSITIVE 7° CLEARANCE TRIANGULAR PCD-TIPPED INSERTS
SERIES TCGW LN-7
60°
L
R
DT
D1
7°
7°
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
TCGW21.51LN-7 TCGW110204LN-7 0.150 0.250 0.094 0.016 0.110
TCGW32.51LN-7 TCGW16T304LN-7 0.150 0.375 0.156 0.016 0.173
TCGW32.52LN-7 TCGW16T308LN-7 0.138 0.375 0.156 0.031 0.173
TCGW731LN-7 TCGW090204LN-7 0.130 0.219 0.094 0.016 0.098
TCGW732LN-7 TCGW090208LN-7 0.118 0.219 0.094 0.031 0.098
POSITIVE 7° CLEARANCE 55° RHOMBIC PCD-TIPPED INSERTS
R
55°
L
DT
7°
7°
D1
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
DCGW21.50.5LN-7 DCGW070202LN-7 0.134 0.250 0.094 0.008 0.110
DCGW21.51LN-7 DCGW070204LN-7 0.130 0.250 0.094 0.016 0.110
DCGW32.50.5LN-7 DCGW11T302LN-7 0.154 0.375 0.156 0.008 0.173
DCGW32.51LN-7 DCGW11T304LN-7 0.146 0.375 0.156 0.016 0.173
DCGW32.52LN-7 DCGW11T308LN-7 0.130 0.375 0.156 0.031 0.173
268
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES VBGW LN-7
268
POSITIVE 7° CLEARANCE 35° RHOMBIC PCD-TIPPED INSERTS
SERIES VCGW LN-7
R35°
L
7°
7°
D1
T
D
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
VCGW331LN-7 VCGW160404LN-7 0.197 0.375 0.187 0.016 0.173
VCGW332LN-7 VCGW160408LN-7 0.165 0.375 0.187 0.031 0.173
POSITIVE 5° CLEARANCE 35° RHOMBIC PCD-TIPPED INSERTS
R35°
L
DT
7°
5°
D1
ANSI
Number
ISO
Number
L D T R D1
Grades
TD810
VBGW330.5LN-7 VBGW160402LN-7 0.205 0.375 0.187 0.008 0.173
VBGW331LN-7 VBGW160404LN-7 0.197 0.375 0.187 0.016 0.173
VBGW332LN-7 VBGW160408LN-7 0.165 0.375 0.187 0.031 0.173
269
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
269
270
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
270
SERIES TST-E
DOUBLE-END FULL-RADIUS PRECISION INSERTS FOR ALUMINUM MACHINING
SERIES TDA
R
W
H7° L
B
Designation
Insert
Seat
Size
W
(inch)
R
(inch)
L
(inch)
H
(inch)
Grades
K10
TDA3.00-1.50 3 0.118 0.059 0.79 0.185
TDA4.00-2.00 4 0.157 0.079 0.79 0.185
TDA4.78-2.39 5 0.188 0.094 0.98 0.205
TDA5.00-2.50 5 0.197 0.098 0.98 0.205
TDA6.00-3.00 6 0.236 0.118 0.98 0.205
TDA8.00-4.00 8 0.315 0.157 1.18 0.252
SINGLE-END FULL-RADIUS PRECISION INSERTS FOR EXTERNAL TURNING, GROOVING AND PROFILING
R
W
7°
H
L
B
Designation
Insert
Seat
Size
W
(inch)
R
(inch)
L
(inch)
H
(inch)
Grades
TT9080
TST2.39E-1.19 2 0.094 0.047 0.79 0.185
TST3.00E-1.50 3 0.118 0.059 0.79 0.185
TST3.18E-1.59 3 0.125 0.062 0.79 0.185
TST4.78E-2.39 5 0.188 0.094 0.98 0.205
271
= P = M = K = N = S = H = P = M = K = N = S = H
271
R
W
H7° L
B
TSA4.78-2.39 6 0.188 0.094 0.98 0.205
TSA6.35-3.18 6 0.250 0.125 0.98 0.205
Designation
Insert
Seat
Size
W
±.0008
R
±.002
L
(inch)
H
(inch)
Grades
K10
SINGLE END FULL-RADIUS PRECISION INSERTS FOR ALUMINUM MACHINING
SERIES TSA
272
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES TTER/L-SH-TB
272
EXTERNAL TURNING AND GROOVING HOLDERS FOR SWISS AUTOMATICS, HIGH PRESSURE COOLANT
Designation
Ins.
Seat
Size
H
(inch)
B
(inch)
L
(inch)
E
(inch)
F
(inch)
A
(inch)
H1
(inch)
H2
(inch)
Dmax
(inch)
Dmax L2
H
F
Clamping Pin Coolant Inlet
H4
L1 B
A
H
H2
TTEL12.7-24-3SH-TB 3 0.500 0.500 5.00 1.080 0.453 0.094 0.795 0.079 0.940
TTER12.7-24-3SH-TB 3 0.500 0.500 5.00 1.080 0.453 0.094 0.795 0.079 0.940
TTEL15.9-32-3SH-TB 3 0.625 0.625 5.00 1.240 0.579 0.094 0.843 - 1.260
TTER15.9-32-3SH-TB 3 0.625 0.625 5.00 1.240 0.579 0.094 0.843 - 1.260
HARDWARE
L-W4 L-W2.5F PIN-SH-TB PT5/16UNF SSM5-24145
SSM5X3.5ULTEM2300
Inlet Plug Wrench Clamp Screw & Pin Plug Wrench Clamping Pin Inlet Plug Clamp Screw Pin Plug
273
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES TTER/L-TB
273
MIDDLE TMAX HOLDERS FOR EXTERNAL TURNING AND GROOVING, HIGH PRESSURE COOLANT
Designation
Insert
Seat
Size
F
(inch)
L
(inch)
H
(inch)
H4
(inch)
B
(inch)
L2
(inch)
Tmax
(inch)
A
(inch)
L1
L2
H
1/8-27 NPTF
Tmax
f
H4
1/8-27 NPTF B
H
A
TTEL19-3-TB 3 0.703 5.00 0.750 0.157 0.750 1.690 0.472 0.094
TTER19-3-TB 3 0.703 5.00 0.750 0.157 0.750 1.690 0.472 0.094
TTEL25.4-3-TB 3 0.953 6.00 1.000 0.157 1.000 1.690 0.472 0.094
TTER25.4-3-TB 3 0.953 6.00 1.000 0.157 1.000 1.690 0.472 0.094
TTEL19-4-TB 4 0.690 5.00 0.750 0.157 0.750 1.810 0.590 0.118
TTER19-4-TB 4 0.690 5.00 0.750 0.157 0.750 1.810 0.590 0.118
TTEL25.4-4-TB 4 0.940 6.00 1.000 0.157 1.000 1.810 0.590 0.118
TTER25.4-4-TB 4 0.940 6.00 1.000 0.157 1.000 1.810 0.590 0.118
TTEL25.4-5-TB 5 0.925 6.00 1.000 - 1.000 1.930 0.787 0.157
TTER25.4-5-TB 5 0.925 6.00 1.000 - 1.000 1.930 0.787 0.157
TTEL25.4-6-TB 6 0.906 6.00 1.000 0.276 1.000 2.050 0.787 0.197
TTER25.4-6-TB 6 0.906 6.00 1.000 0.276 1.000 2.050 0.787 0.197
TTEL25.4-8-TB 8 0.886 6.00 1.000 0.276 1.000 2.280 0.787 0.236
TTER25.4-8-TB 8 0.886 6.00 1.000 0.276 1.000 2.280 0.787 0.236
HARDWARE
TTEL19-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER19-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-3-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL19-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER19-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-4-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-5-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-5-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-6-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-6-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-8-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-8-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
Insert Clamp Screw Clamp Screw Wrench Inlet Plug Wrench Inlet Plug Sealing Screw
Note: .750" holder has 3 coolant inlets.
PART SERIES
PART SERIES
Placeholder
274
HARDWARE
Sealing ScrewInlet PlugInlet Plug WrenchClamp Screw WrenchInsert Clamp Screw
TTEL25.4-3T25-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-3T25-TB SHM5X0.8X20 L-W4 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-4T25-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-4T25-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-5T32-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-5T32-TB SHM6X1X20 L-W5 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTEL25.4-6T32-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
TTER25.4-6T32-TB SHM8X1.25X20 L-W6 L-W3/16 NPTF1/8 SS-M4X0.7X4
L1
L2
H
1/8-27 NPTF
Tmax
f
H4
1/8-27 NPTF B
H
A
274
TTEL25.4-3T25-TB 3 0.953 6.00 1.000 0.157 1.000 2.000 0.980 0.094
TTER25.4-3T25-TB 3 0.953 6.00 1.000 0.157 1.000 2.000 0.980 0.094
TTEL25.4-4T25-TB 4 0.940 6.00 1.000 0.157 1.000 2.165 0.980 0.118
TTER25.4-4T25-TB 4 0.940 6.00 1.000 0.157 1.000 2.165 0.980 0.118
TTEL25.4-5T32-TB 5 0.925 6.00 1.000 - 1.000 2.322 1.260 0.156
TTER25.4-5T32-TB 5 0.925 6.00 1.000 - 1.000 2.322 1.260 0.156
TTEL25.4-6T32-TB 6 0.906 6.00 1.000 0.276 1.000 2.441 1.260 0.197
TTER25.4-6T32-TB 6 0.906 6.00 1.000 0.276 1.000 2.441 1.260 0.197
Designation
Insert
Seat
Size
F
(inch)
L
(inch)
H
(inch)
H4
(inch)
B
(inch)
L2
(inch)
Tmax
(inch)
A
(inch)
LONG TMAX HOLDERS FOR EXTERNAL TURNING AND GROOVING, HIGH PRESSURE COOLANT
SERIES TTER/L-TB
275
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
275
PART SERIES
PART SERIES
Placeholder
276
Dmin
F
Dmax
L
Tmax
H1 L1
Coolant
Seal
Thread
ØDmax
dg7
ØDmin
276
TTFIL25.4-3T12-20-33 3 1.000 0.453 0.516 8.000 1.220 0.472 0.787 1.300
TTFIL25.4-3T12-26-39 3 1.000 0.453 0.516 8.000 1.220 0.472 1.024 1.535
TTFIL25.4-3T12-33-48 3 1.000 0.453 0.516 8.000 1.220 0.472 1.300 1.889
TTFIL25.4-3T12-42-60 3 1.000 0.453 0.516 8.000 1.220 0.472 1.650 2.362
TTFIL25.4-3T12-54-85 3 1.000 0.453 0.516 8.000 1.220 0.472 2.126 3.346
TTFIL25.4-3T12-79-150 3 1.000 0.453 0.516 8.000 1.220 0.472 3.110 5.905
TTFIR25.4-3T12-20-33 3 1.000 0.453 0.516 8.000 1.220 0.472 0.787 1.300
TTFIR25.4-3T12-26-39 3 1.000 0.453 0.516 8.000 1.220 0.472 1.024 1.535
TTFIR25.4-3T12-33-48 3 1.000 0.453 0.516 8.000 1.220 0.472 1.300 1.889
TTFIR25.4-3T12-42-60 3 1.000 0.453 0.516 8.000 1.220 0.472 1.650 2.362
TTFIR25.4-3T12-54-85 3 1.000 0.453 0.516 8.000 1.220 0.472 2.126 3.346
TTFIR25.4-3T12-79-150 3 1.000 0.453 0.516 8.000 1.220 0.472 3.110 5.905
TTFIL25.4-4T12-18-34 4 1.000 0.453 0.508 8.000 1.220 0.472 0.709 1.338
TTFIL25.4-4T12-26-42 4 1.000 0.453 0.508 8.000 1.220 0.472 1.024 1.653
TTFIL25.4-4T12-34-55 4 1.000 0.453 0.508 8.000 1.220 0.472 1.339 2.165
TTFIR25.4-4T12-18-34 4 1.000 0.453 0.508 8.000 1.220 0.472 0.709 1.338
TTFIR25.4-4T12-26-42 4 1.000 0.453 0.508 8.000 1.220 0.472 1.024 1.653
TTFIR25.4-4T12-34-55 4 1.000 0.453 0.508 8.000 1.220 0.472 1.339 2.165
TTFIL31.7-4T12-47-70 4 1.250 0.571 0.646 10.000 1.220 0.472 1.850 2.756
TTFIL31.7-4T12-62-100 4 1.250 0.571 0.646 10.000 1.220 0.472 2.441 3.937
TTFIL31.7-4T12-92-180 4 1.250 0.571 0.646 10.000 1.220 0.472 3.622 7.087
TTFIR31.7-4T12-47-70 4 1.250 0.571 0.646 10.000 1.220 0.472 1.850 2.756
TTFIR31.7-4T12-62-100 4 1.250 0.571 0.646 10.000 1.220 0.472 2.441 3.937
TTFIR31.7-4T12-92-180 4 1.250 0.571 0.646 10.000 1.220 0.472 3.622 7.087
Designation
Insert
Seat
Size
d
(inch)
H1
(inch)
F
(inch)
L
(inch)
L1
(inch)
Tmax
(inch)
Dmin
(inch)
Dmax
(inch)
INTERNAL FACE GROOVING AND FACE TURNING HOLDERS
SERIES TTFIR/L
277
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
HARDWARE
Clamp Screw WrenchSealScrew
TTFIL25.4-3T12-20-33 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-3T12-26-39 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-3T12-33-48 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-3T12-42-60 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-3T12-54-85 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-3T12-79-150 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-20-33 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-26-39 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-33-48 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-42-60 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-54-85 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-3T12-79-150 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-4T12-18-34 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-4T12-26-42 SHM5X0.8X16 PL100 L-W4
TTFIL25.4-4T12-34-55 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-4T12-18-34 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-4T12-26-42 SHM5X0.8X16 PL100 L-W4
TTFIR25.4-4T12-34-55 SHM5X0.8X16 PL100 L-W4
TTFIL31.7-4T12-47-70 SHM5X0.8X16 PL125 L-W4
TTFIL31.7-4T12-62-100 SHM5X0.8X16 PL125 L-W4
TTFIL31.7-4T12-92-180 SHM5X0.8X16 PL125 L-W4
TTFIR31.7-4T12-47-70 SHM5X0.8X16 PL125 L-W4
TTFIR31.7-4T12-62-100 SHM5X0.8X16 PL125 L-W4
TTFIR31.7-4T12-92-180 SHM5X0.8X16 PL125 L-W4
277
PART SERIES
PART SERIES
Placeholder
278
L
H
dg
7
F
Tmax
HARDWARE
Insert Clamp ScrewSealWrench
TGIFL25.4-4C-T5.5 L-W5 PL100 SHM6X1X16
TGIFR25.4-4C-T5.5 L-W5 PL100 SHM6X1X16
TGIFL31.7-4C-T5.5 L-W5 PL125 SHM6X1X20
TGIFR31.7-4C-T5.5 L-W5 PL125 SHM6X1X20
TGIFL25.4-6C-T5.5 L-W5 PL100 SHM6X1X16
TGIFR25.4-6C-T5.5 L-W5 PL100 SHM6X1X16
TGIFL31.7-6C-T5.5 L-W5 PL125 SHM6X1X20
TGIFR31.7-6C-T5.5 L-W5 PL125 SHM6X1X20
278
TGIFL25.4-4C-T5.5 3, 4 1.000 0.453 0.453 8.000 0.216
TGIFR25.4-4C-T5.5 3, 4 1.000 0.453 0.453 8.000 0.216
TGIFL31.7-4C-T5.5 3, 4 1.250 0.571 0.579 10.000 0.216
TGIFR31.7-4C-T5.5 3, 4 1.250 0.571 0.579 10.000 0.216
TGIFL25.4-6C-T5.5 5, 6 1.000 0.453 0.413 8.000 0.216
TGIFR25.4-6C-T5.5 5, 6 1.000 0.453 0.413 8.000 0.216
TGIFL31.7-6C-T5.5 5, 6 1.250 0.571 0.539 10.000 0.216
TGIFR31.7-6C-T5.5 5, 6 1.250 0.571 0.539 10.000 0.216
Designation
Insert
Seat
Size
D
(inch)
H
(inch)
F
(inch)
L
(inch)
Tmax
(inch)
SHALLOW INTERNAL FACE GROOVING AND FACE TURNING HOLDERS
SERIES TGIFR/L
279
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
279
280
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
TQC27-1.50-0.10 0.059 0.002 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.50-0.20 0.059 0.008 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.50-15L 0.059 0.004 0.197 15 N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.50-15R 0.059 0.004 0.197 15 N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.50-6L 0.059 0.004 0.197 6 N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.50-6L 0.059 0.004 0.197 6 N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-1.57-0.79 0.062 0.031 0.118 - N.L. - - - - - - - -
TQC27-1.57-0.79 0.062 0.031 0.118 - N.L. - - - - - - - -
TQC27-1.75-0.10 0.069 0.004 0.118 - N.L. - - - - - - - -
TQC27-1.75-0.20 0.069 0.008 0.118 - N.L. - - - - - - - -
TQC27-1.78-0.18 0.070 0.007 0.118 - N.L. - - - - - - - -
TQC27-1.85-0.20 0.073 0.008 0.118 - N.L. - - - - - - - -
TQC27-1.96-0.15 0.077 0.006 0.118 - N.L. - - - - - - - -
TQC27-2.00-0.10 0.079 0.004 0.252 - N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.00-0.20 0.079 0.008 0.252 - N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.00-1.00 0.079 0.039 0.118 - N.L. - - - - - - - -
TQC27-2.00-15L 0.079 0.004 0.252 15 N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.00-15R 0.079 0.004 0.252 15 N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.00-6L 0.079 0.004 0.252 6 N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.00-6R 0.079 0.004 0.252 6 N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQC27-2.22-0.15 0.087 0.006 0.138 - N.L. 23.62 - - - - - - -
TQC27-2.30-0.20 0.091 0.008 0.138 - N.L. 23.62 - - - - - - -
TQC27-2.39-0.15 0.094 0.006 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-2.39-1.20 0.094 0.047 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-2.47-0.20 0.097 0.008 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-2.50-0.10 0.098 0.004 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-2.50-0.30 0.098 0.012 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQC27-2.70-0.10 0.106 0.004 0.224 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 -
TQC27-2.87-0.20 0.113 0.008 0.224 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 -
TQC27-3.00-0.00 0.118 - 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
TQC27-3.00-0.20 0.118 0.008 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
TQC27-3.00-0.30 0.118 0.012 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
TQC27-3.00-0.40 0.118 0.016 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
TQC27-3.00-1.50 0.118 0.059 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
TQC27-3.15-0.15 0.124 0.006 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.68
TQC27-3.18-0.20 0.125 0.008 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.68
Designation W R
(inch)
Tmax
(inch) K° Dmax
≤.118
Dmax
≤.138
Dmax
≤.157
Dmax
≤.177
Dmax
≤.197
Dmax
≤.217
Dmax
≤.236
Dmax
≤.244
Dmax
≤.252
Grades
TT9080
FOUR CORNER CARBIDE INSERT FOR PARTING & GROOVING @ HIGH FEED RATES
SERIES TQC27
280
W±.0008"
Ø1.063"
Repeatability
±.001"
.157"
281
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
W±.0008"
Ø1.063"
Repeatability
±.001"
.157"
= P = M = K = N = S = H
TQS27-1.50-0.20 0.059 0.008 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQS27-2.00-0.20 0.079 0.008 0.252 - N.L. 23.62 11.02 7.09 5.12 4.13 2.36 1.97 1.18
TQS27-2.39-0.15 0.094 0.006 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQS27-2.50-0.20 0.098 0.008 0.197 - N.L. 23.62 11.02 7.09 5.12 - - - -
TQS27-3.00-0.20 0.118 0.008 0.252 - N.L. 23.62 11.02 7.09 5.31 4.13 3.35 3.07 2.17
Designation W R
(inch)
Tmax
(inch) K° Dmax
≤.118
Dmax
≤.138
Dmax
≤.157
Dmax
≤.177
Dmax
≤.197
Dmax
≤.217
Dmax
≤.236
Dmax
≤.244
Dmax
≤.252
Grades
CT3000
TT9080
FOUR CORNER CARBIDE OR CERMET INSERT WITH FLAT CUTTING EDGE FOR HIGH QUALITY SURFACE FINISH
SERIES TQS27
281
282
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TQS27 THREADING - 55°
282
FOUR CORNER INSERT FOR PRECISION THREADING - PARTIAL PROFILE
SERIES TQS27 THREADING - 60°
Ø 1.063” (27mm)
Repeatability
±.001” L
A°
R±.001”
P
Designation R A
(Deg)
P L Pitch
Min
Pitch
Max
TPI
Min
TPI
Max
Grades
TT9080
TQS27-4MT-0.05 0.002 60 0.157 0.110 0.45 .175xD 5.7 / D 56
TQS27-4MT-0.14 0.005 60 0.157 0.106 1.11 .175xD 5.7 / D 23
TQS27-5MT-0.15 0.006 60 0.197 0.122 1.25 .175xD 5.7 / D 20
TQS27-5MT-0.20 0.008 60 0.197 0.122 1.63 .175xD 5.7 / D 16
TQS27-6MT-0.25 0.010 60 0.236 0.142 1.94 .175xD 5.7 / D 13
D: Diameter
TPI: Threads / Inch
FOUR CORNER INSERT FOR PRECISION THREADING - PARTIAL PROFILE
Ø 1.063” (27mm)
Repeatability
±.001” L
A°
R±.001”
P
Designation R A
(Deg)
P L TPI
Min
TPI
Max
Grades
TT9080
TQS27-4WT-0.05 0.002 55 0.157 0.114 6.4 / D 54
TQS27-5WT-0.15 0.006 55 0.197 0.130 6.4 / D 19
TQS27-6WT-0.25 0.010 55 0.236 0.154 6.4 / D 12
D: Diameter
TPI: Threads / Inch
283
PART SERIES
PART SERIES
asdf
Placeholder
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H = P = M = K = N = S = H
SERIES TQS27 THREADING - ISO
283
FOUR CORNER INSERT FOR PRECISION THREADING - FULL PROFILE
SERIES TQS27 THREADING - UN
Ø 1.063” (27mm)
Repeatability
±.001” L
A°
R±.001”
P
Designation RTPI
Grades
TT9080
TQS27-12-UN 0.010 12
TQS27-14-UN 0.009 14
TQS27-16-UN 0.008 16
TQS27-18-UN 0.007 18
TQS27-20-UN 0.006 20
TQS27-24-UN 0.005 24
TPI: Threads / Inch
FOUR CORNER INSERT FOR PRECISION THREADING - FULL PROFILE
Ø 1.063” (27mm)
Repeatability
±.001” L
A°
R±.001”
P
Designation R ISO
Pitch
Grades
TT9080
TQS27-0.5-ISO 0.003 0.50
TQS27-0.75-ISO 0.004 0.75
TQS27-0.8-ISO 0.005 0.80
TQS27-1.0-ISO 0.006 1.00
TQS27-1.25-ISO 0.007 1.25
TQS27-1.5-ISO 0.009 1.50
TQS27-1.75-ISO 0.010 1.75
TQS27-2.0-ISO 0.011 2.00
ISO Pitch: mm
284
PART SERIES
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
SERIES TQHR/L-TB
284
GOLD FLEX INTEGRAL TOOL HOLDERS FOR PARTING AND GROOVING (INCH), HIGH PRESSURE COOLANT
Designation H B
(inch)
F
(inch)
L
(inch)
L2
(inch)
H4
(inch)
.906”
L
.335”
HL2
F
Coolant Outlet Coolant Inlet
H4 B
H
TQHL12.7-27-TB 0.500 0.500 0.441 5.00 0.944 0.287
TQHR12.7-27-TB 0.500 0.500 0.441 5.00 0.944 0.287
TQHL16-27-TB 0.630 0.630 0.571 4.72 0.944 0.236
TQHR16-27-TB 0.630 0.630 0.571 4.72 0.944 0.236
TQHL19-27-TB 0.750 0.750 0.691 5.00 0.944 0.118
TQHR19-27-TB 0.750 0.750 0.691 5.00 0.944 0.118
TQHL25.4-27-TB 1.000 1.000 0.941 5.50 - -
TQHR25.4-27-TB 1.000 1.000 0.941 5.50 - -
HARDWARE
TQHL12.7-27-TB TS50125I PT5/16UNF L-W4 TQ_ 27 T-2010/5
TQHR12.7-27-TB TS50125IL - L-W4 TQ_ 27 T-2010/5
TQHL16-27-TB TS50125I PT5/16UNF L-W4 TQ_ 27 T-2010/5
TQHR16-27-TB TS50125IL PT5/16UNF L-W4 TQ_ 27 T-2010/5
TQHL19-27-TB TS50125I NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5
TQHR19-27-TB TS50125IL NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5
TQHL25.4-27-TB TS50125I NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5
TQHR25.4-27-TB TS50125IL NPTF1/8-TQ19 L-W3/16 TQ_ 27 T-2010/5
Insert Screw Inlet Plug Inlet Plug Wrench Insert Reference Torx Driver
285
HARDWARE
hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7
PART SERIES
Placeholder
PART SERIES SERIES TQCL
285
ADAPTER FOR GOLD FLEX (LEFT HAND)
Designation F
(inch)
L
(inch)
Width
Min
Width
Max
F
H1
A1
L
TQCL27 0.346 2.09 0.020 0.255
HARDWARE
TS50125I T-2010/5
Insert Screw Torx Driver
SERIES TQCR
ADAPTER FOR GOLD FLEX (RIGHT HAND)
Designation F
(inch)
L
(inch)
Width
Min
Width
Max
F
H1
LA1
TQCR27 0.346 2.09 0.020 0.255
HARDWARE
TS50125IL T-2010/5
Insert Screw Torx Driver
286
PART SERIES
PART SERIES
asdf
Placeholder
= P = M = K = N = S = H
W
10°
L
Ød1
55°
T
= P = M = K = N = S = H
TGUX1004 0.402 0.23 0.188 0.217
TGUX1504 0.598 0.23 0.188 0.217
TGUX2004 0.795 0.37 0.250 0.236
TGUX2506 0.992 0.36 0.250 0.236
Designation WLT D1
Grades
K10 P40
INSERTS FOR WIDE GROOVING APPLICATIONS
SERIES TGUX
286
287
= P = M = K = N = S = H = P = M = K = N = S = H
287
SERIES TTLEN
T-GROOVE HOLDERS FOR EXTERNAL GROOVING
Designation H
(inch)
B
(inch)
F
(inch)
Tmax
(inch)
L
(inch)
A
(inch)
H
F
WT
L
B
H
TTLEN12.7K10 0.500 0.500 0.450 0.790 5.00 0.394
TTLEN15.9K10 0.625 0.625 0.510 0.790 5.00 0.394
TTLEN15.9K15 0.625 0.625 0.610 0.790 5.00 0.591
TTLEN19M10 0.750 0.750 0.570 0.790 6.00 0.394
TTLEN19M15 0.750 0.750 0.670 0.790 6.00 0.591
TTLEN19K20 0.750 0.750 0.770 1.380 5.00 0.787
TTLEN19K25 0.750 0.750 0.870 1.380 5.00 0.984
TTLEN25.4M10 1.000 1.000 0.700 0.790 6.00 0.394
TTLEN25.4M15 1.000 1.000 0.800 0.790 6.00 0.591
TTLEN25.4M20 1.000 1.000 0.890 1.380 6.00 0.787
TTLEN25.4M25 1.000 1.000 0.990 1.380 6.00 0.984
TTLEN31.8P20 1.250 1.250 1.020 1.380 7.00 0.787
TTLEN31.8P25 1.250 1.250 1.120 1.380 7.00 0.984
HARDWARE
TTLEN12.7K10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T
TTLEN15.9K10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T
TTLEN15.9K15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T
TTLEN19K20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T
TTLEN19K25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T
TTLEN19M10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T
TTLEN19M15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T
TTLEN25.4M10 TGUX1004 SM40-100-R0 DS-T156B DS-A00T
TTLEN25.4M15 TGUX1504 SM40-100-R0 DS-T156B DS-A00T
TTLEN25.4M20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T
TTLEN25.4M25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T
TTLEN31.8P20 TGUX2006 SM45-120-R0 DS-T206B DS-A00T
TTLEN31.8P25 TGUX2506 SM45-120-R0 DS-T206B DS-A00T
Insert Reference Insert Screw Screw Driver Blade Driver HandleTurning Holder
