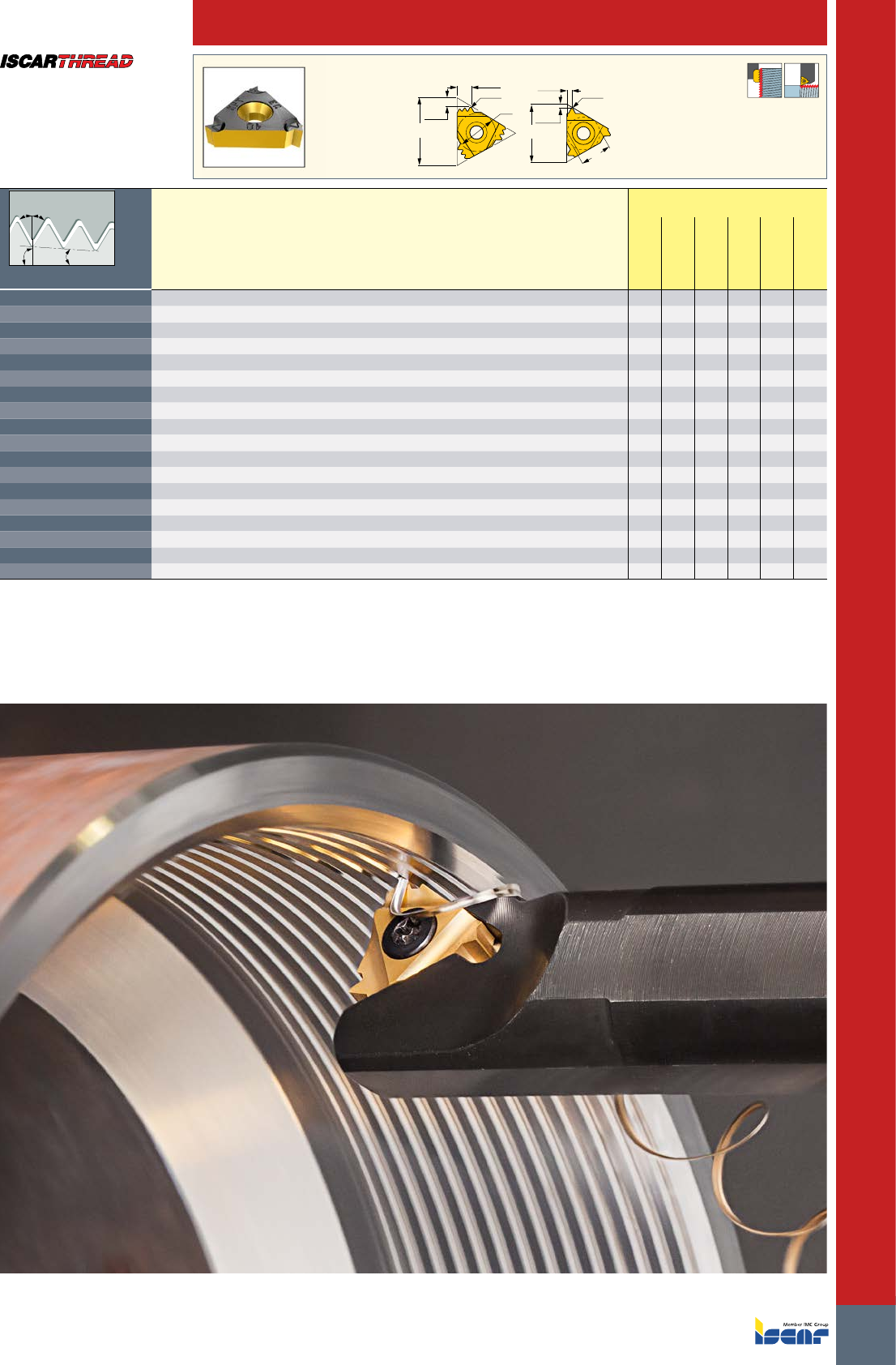

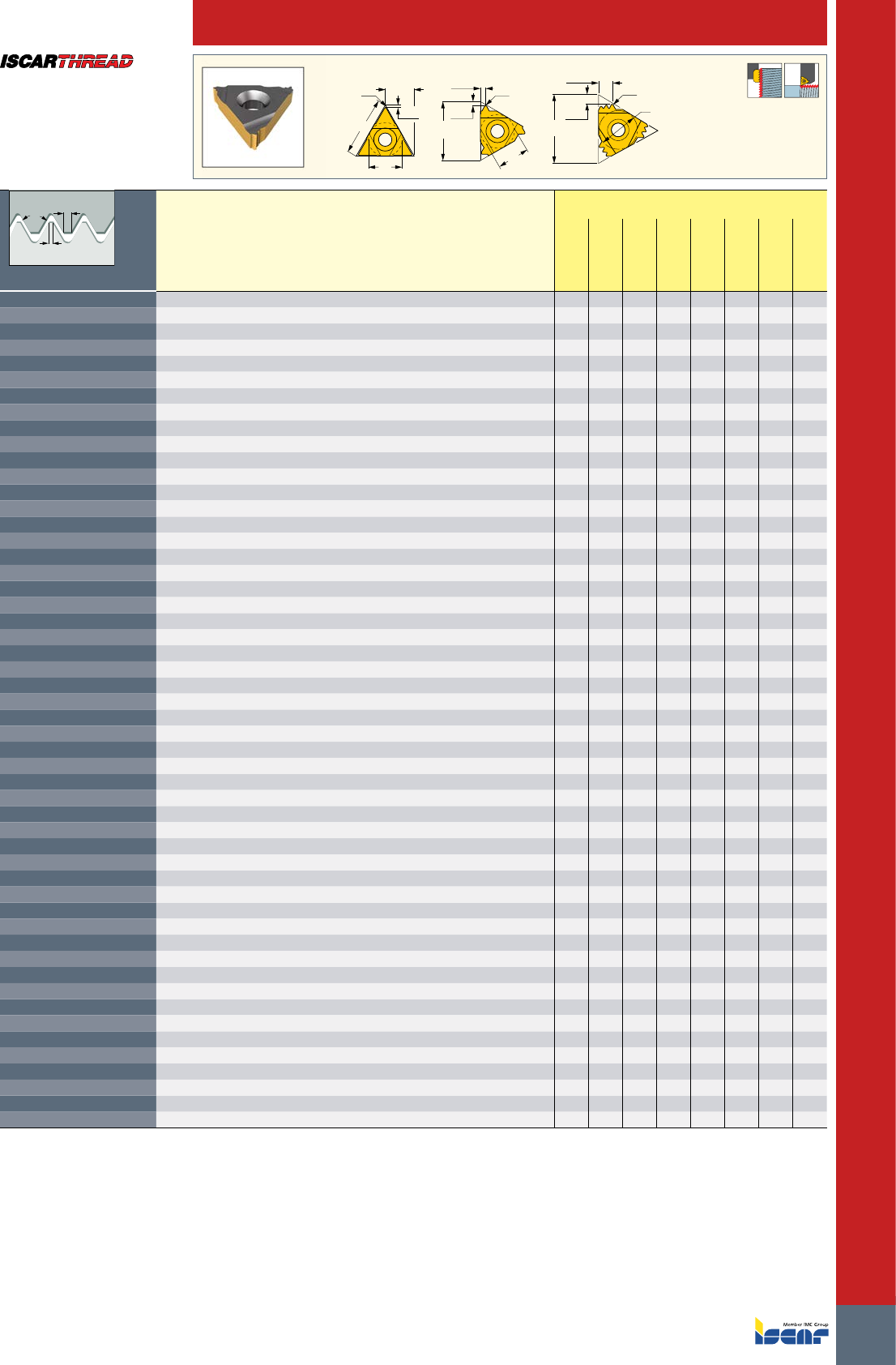

THREADING INSERTS
ISCAR
638
THREADING

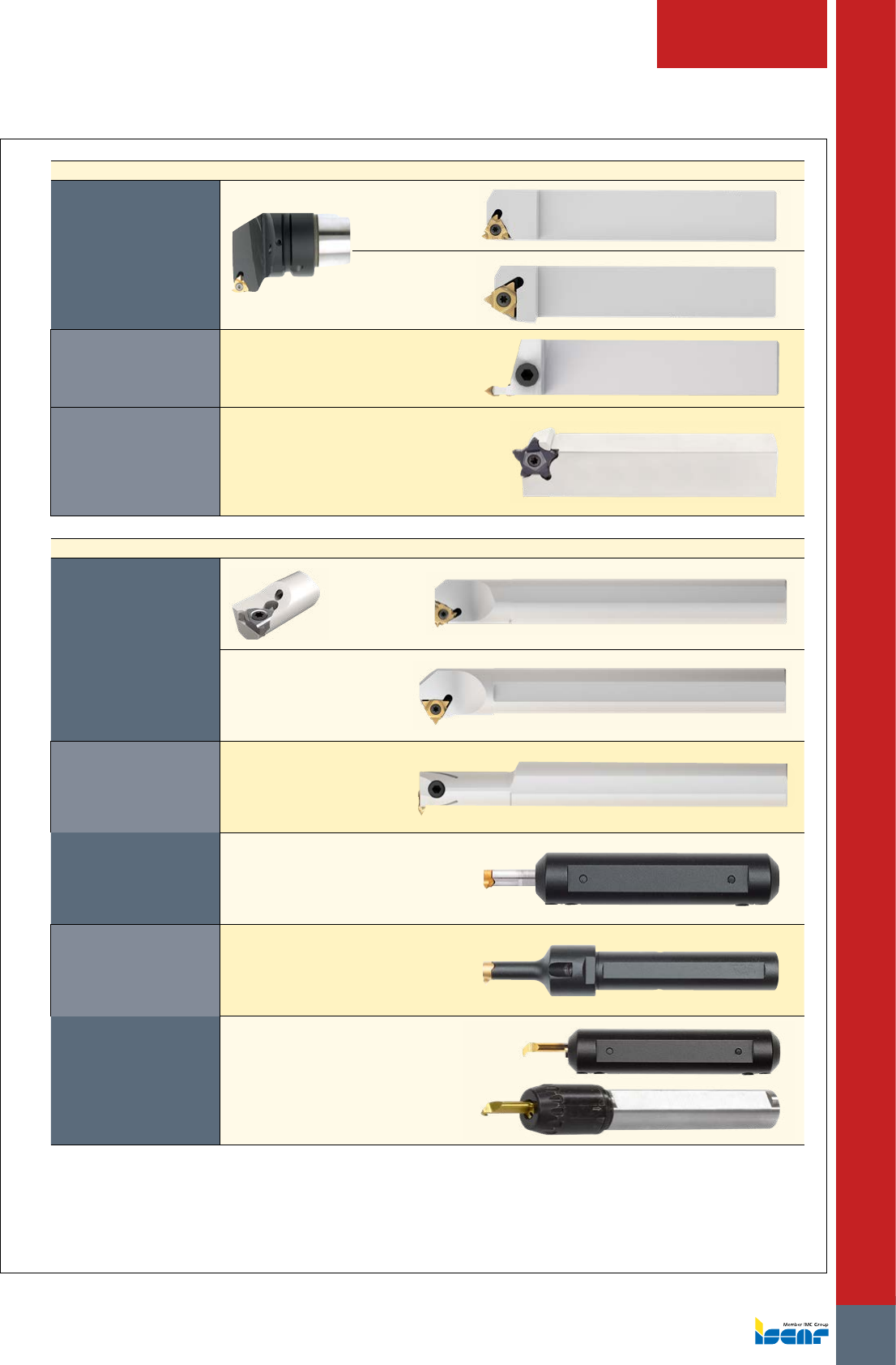

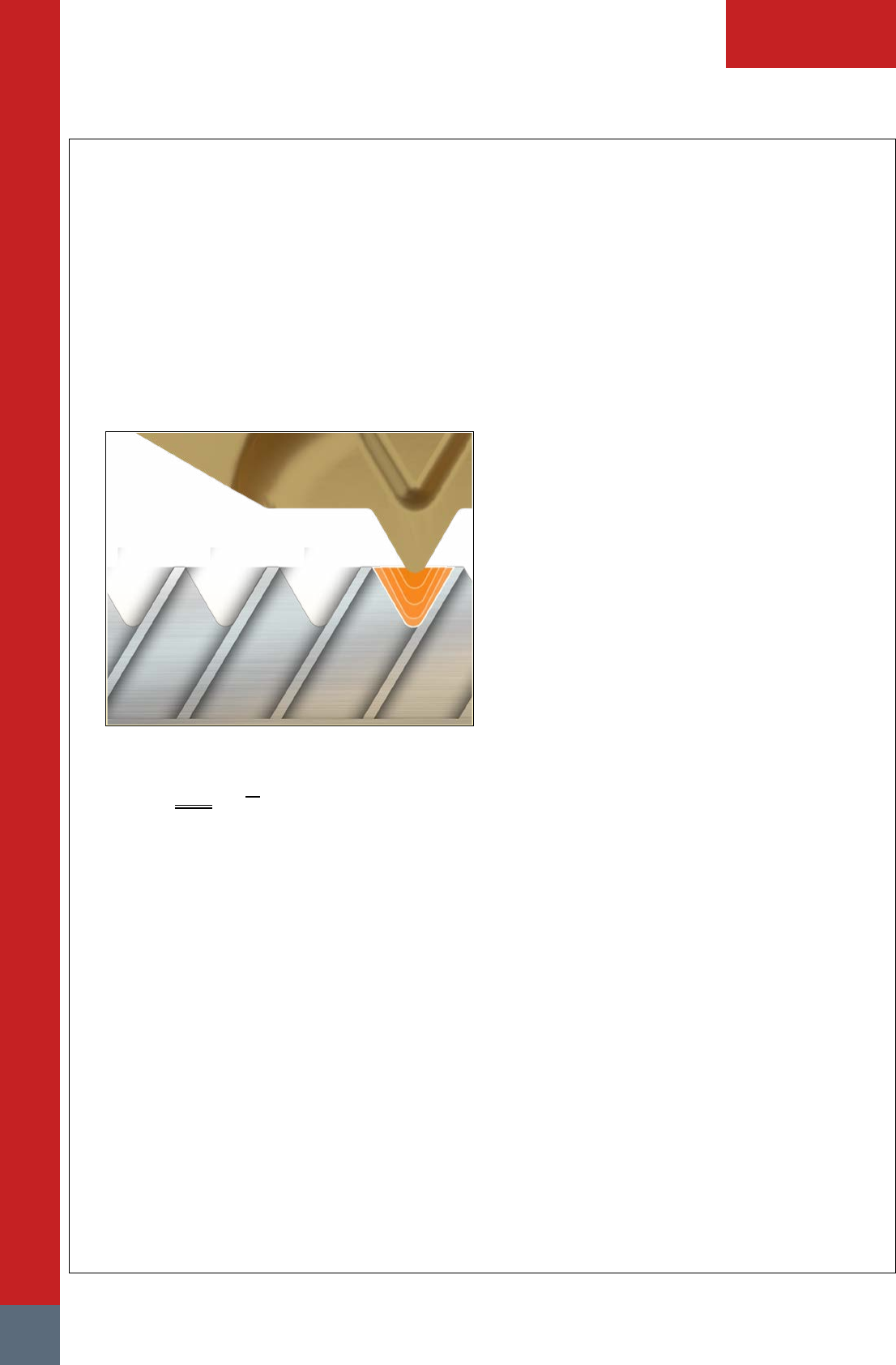

THREADING SYSTEMS

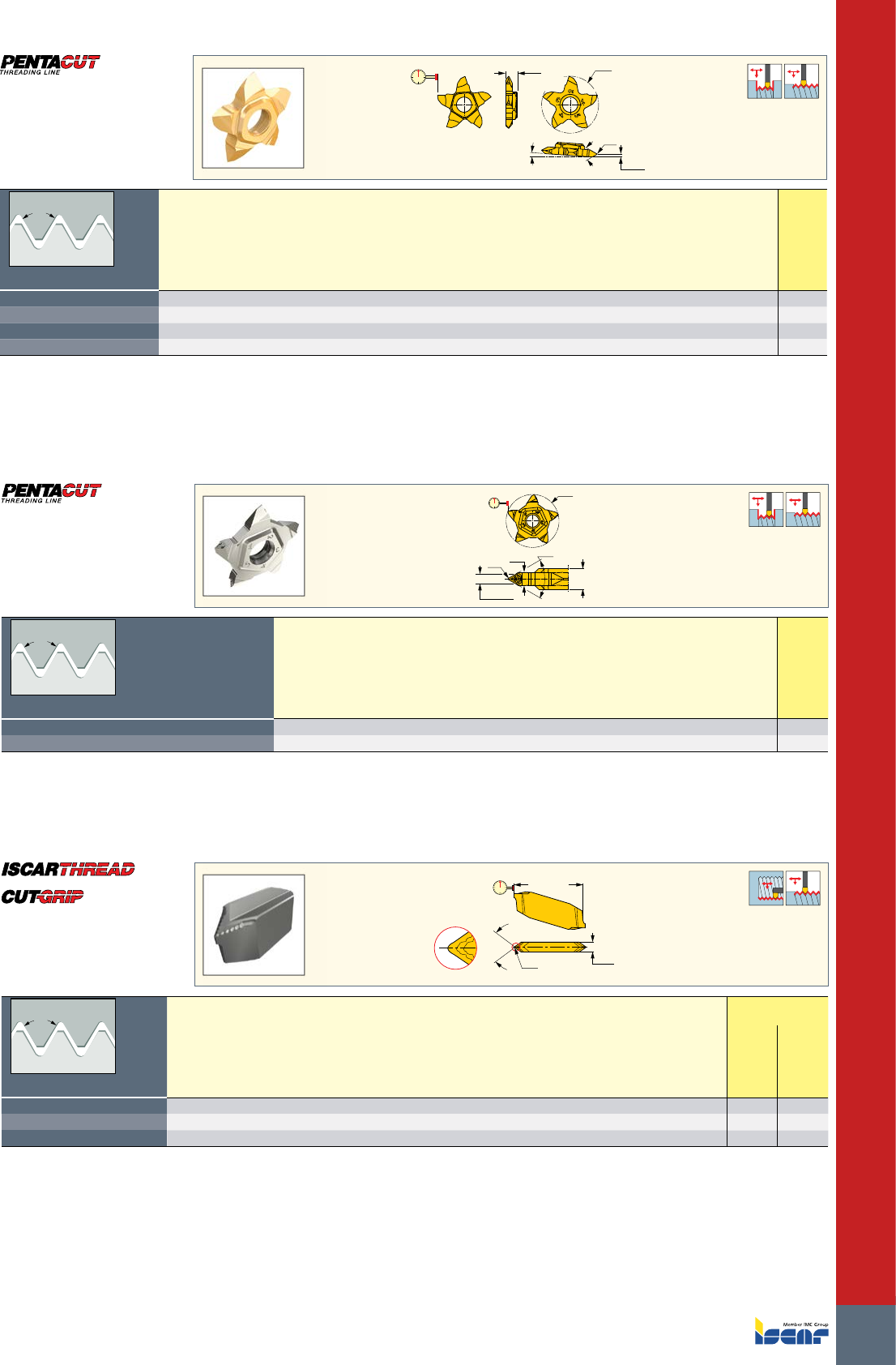

Additional Threading Systems
External

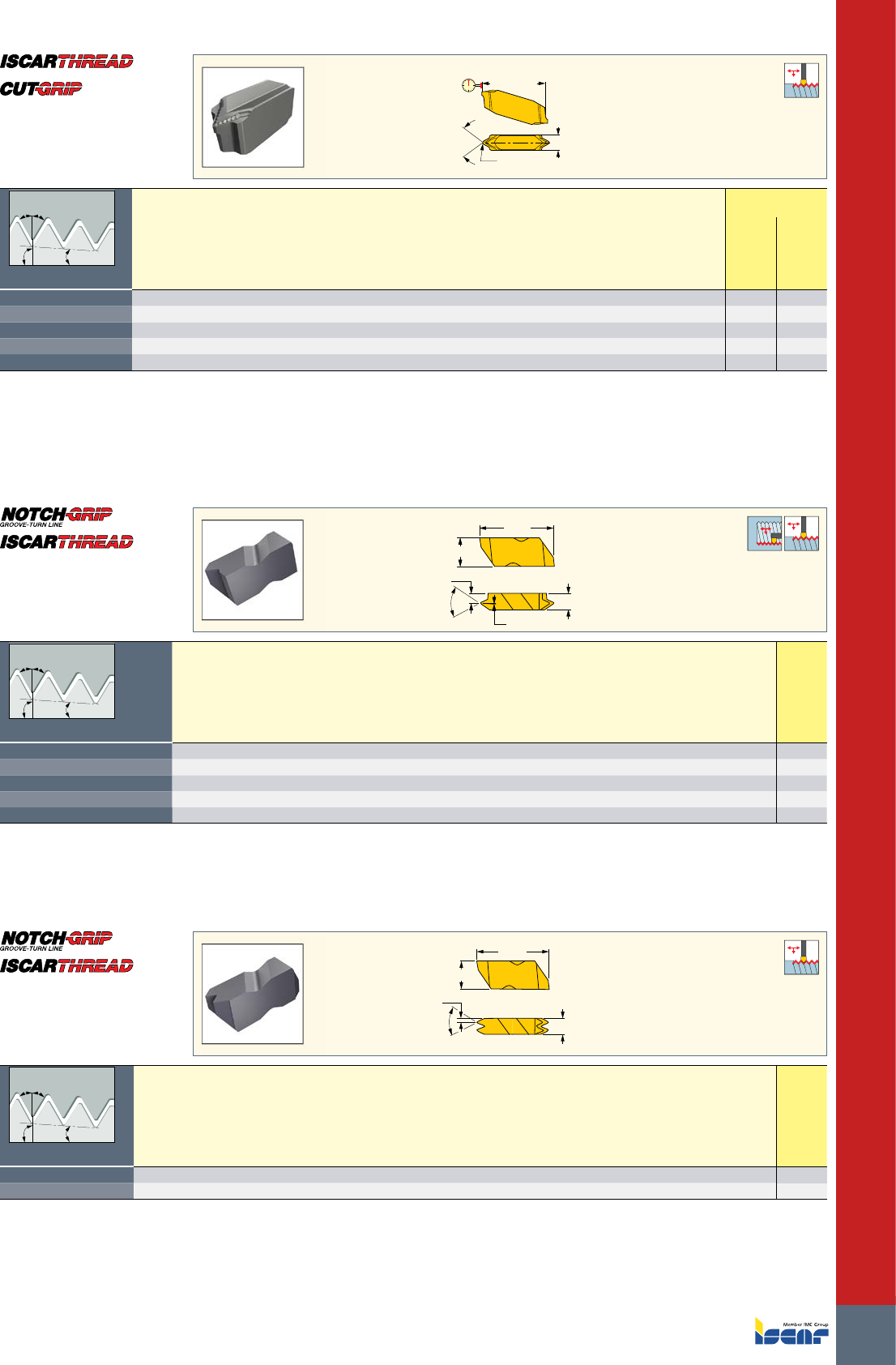

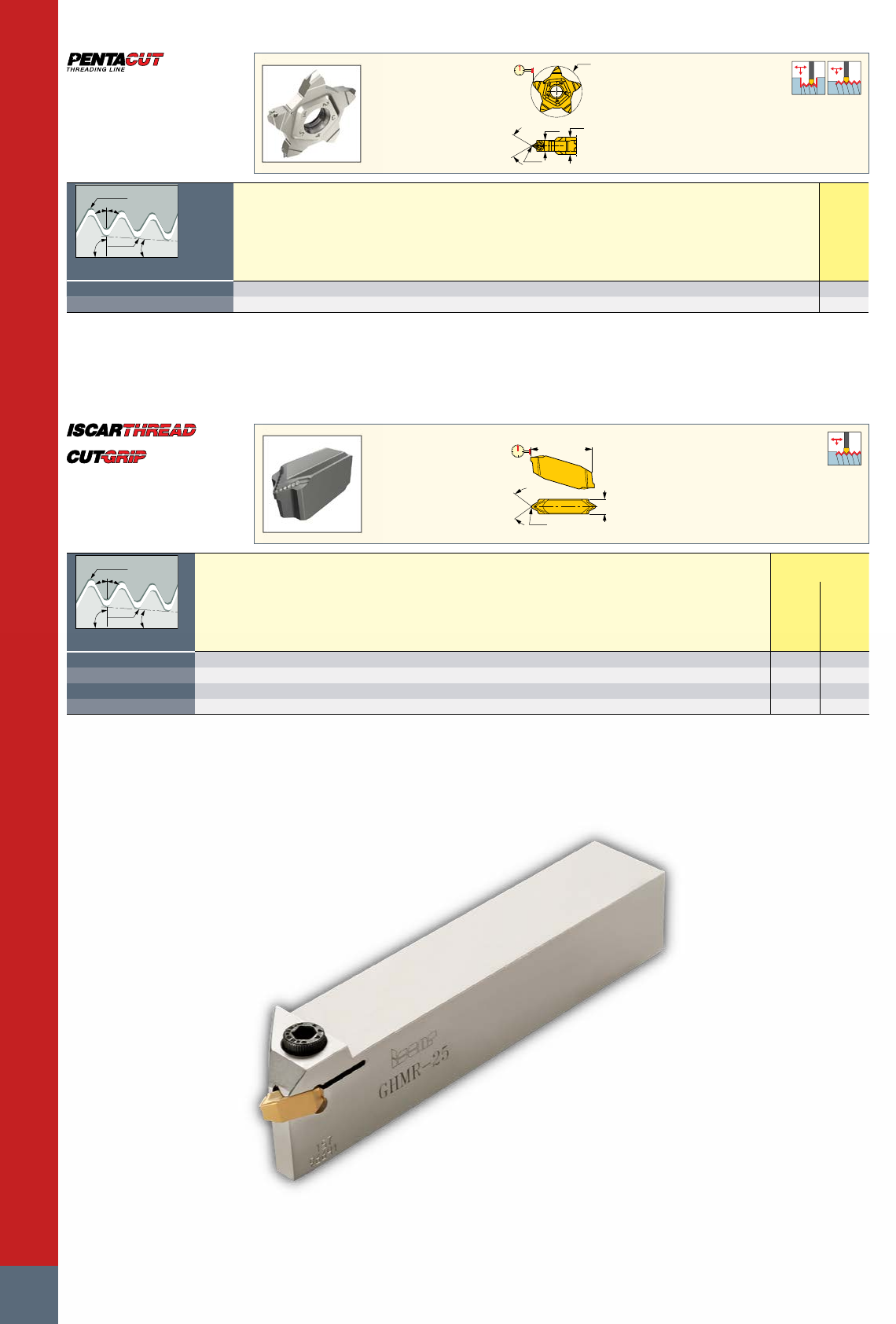

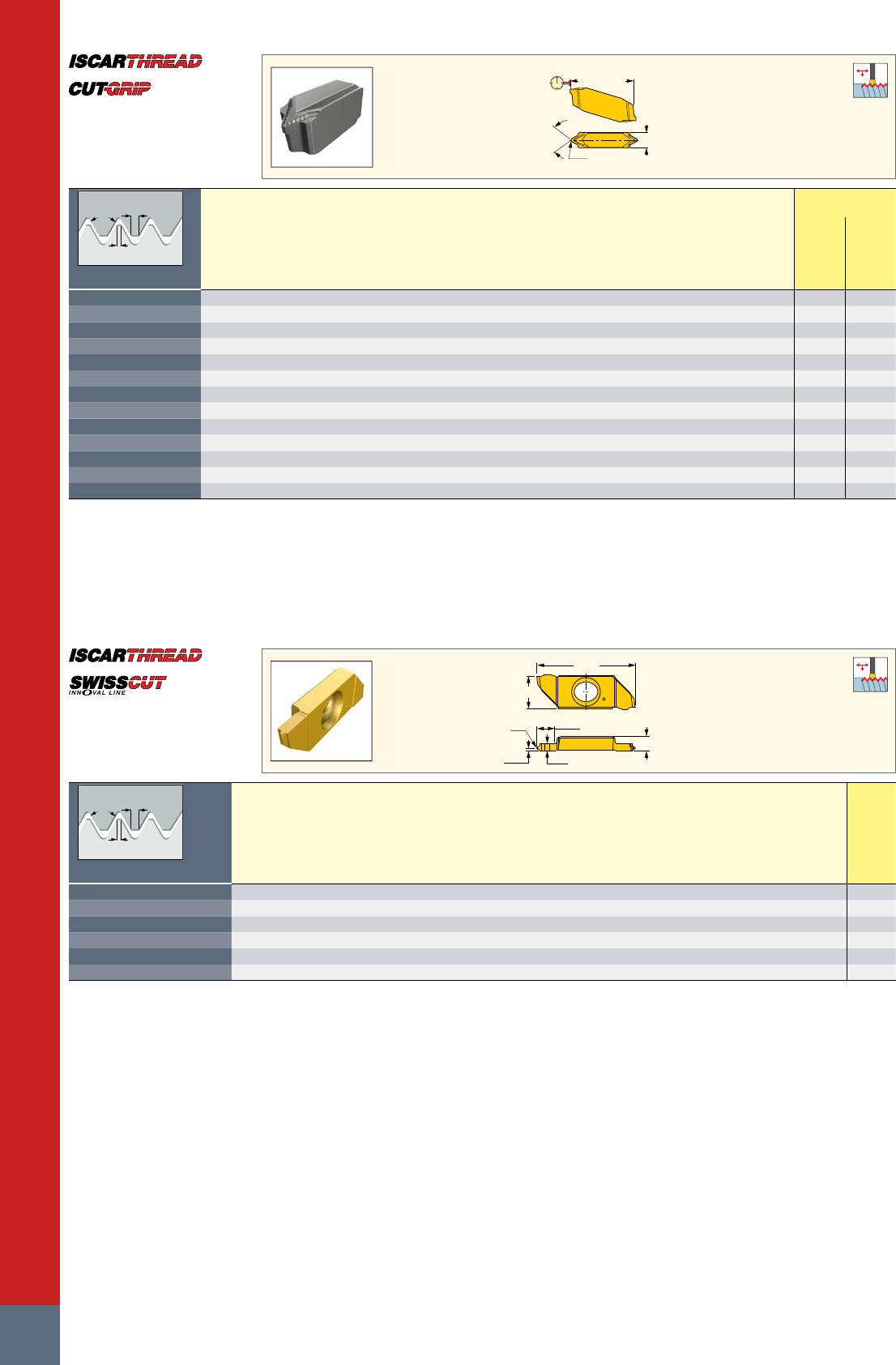

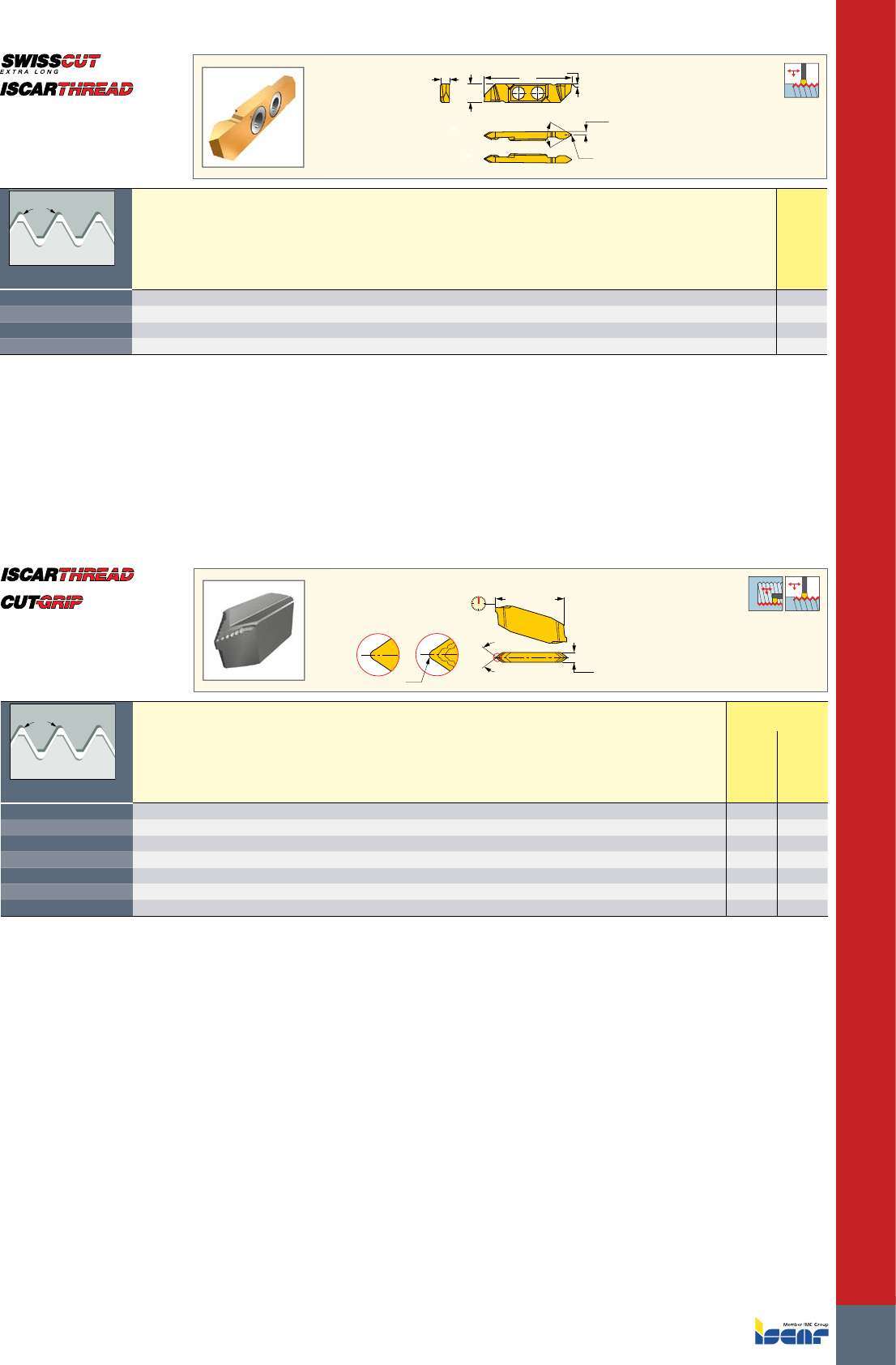

CUT-GRIP External
SWISSCUT External

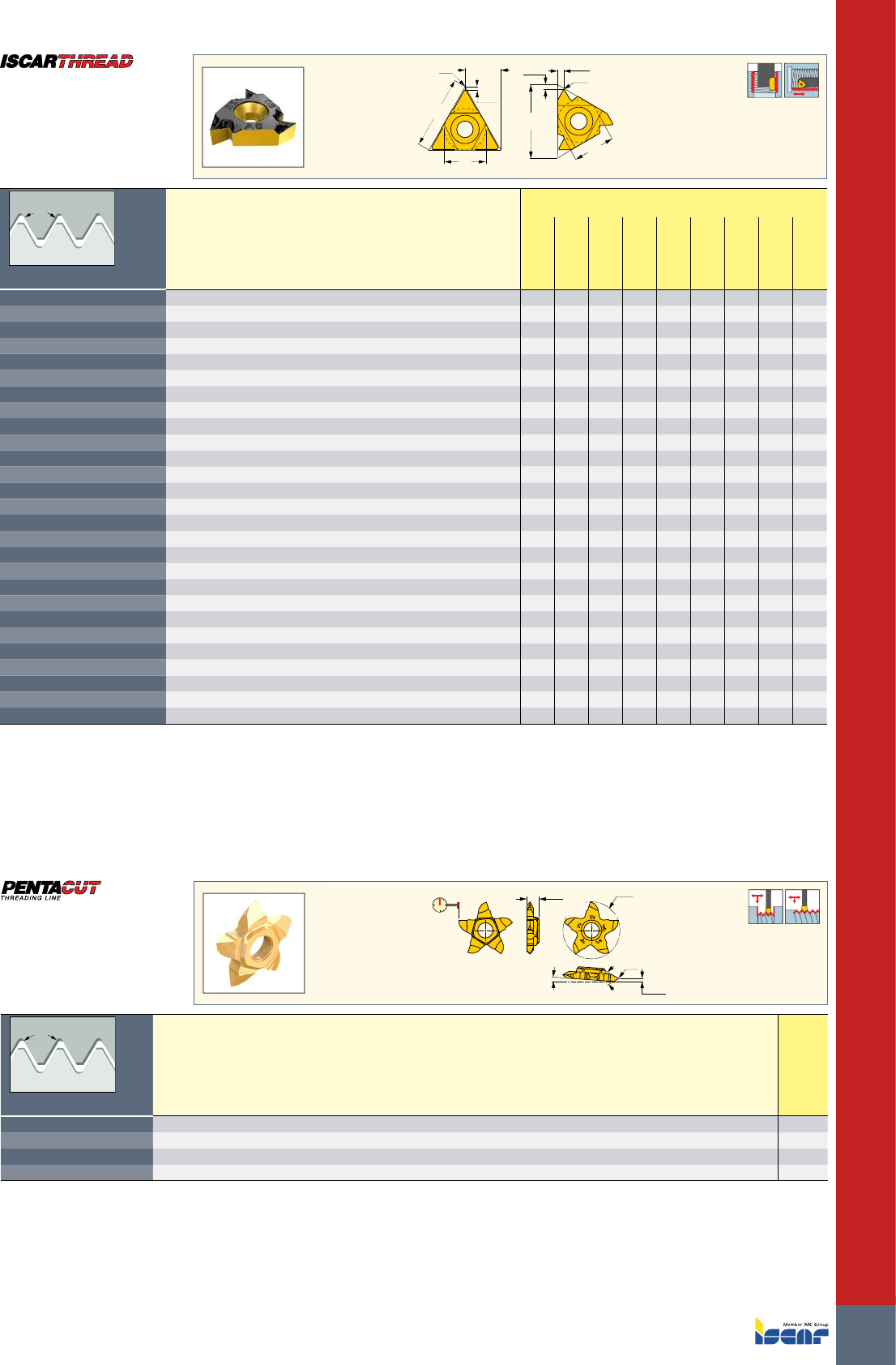

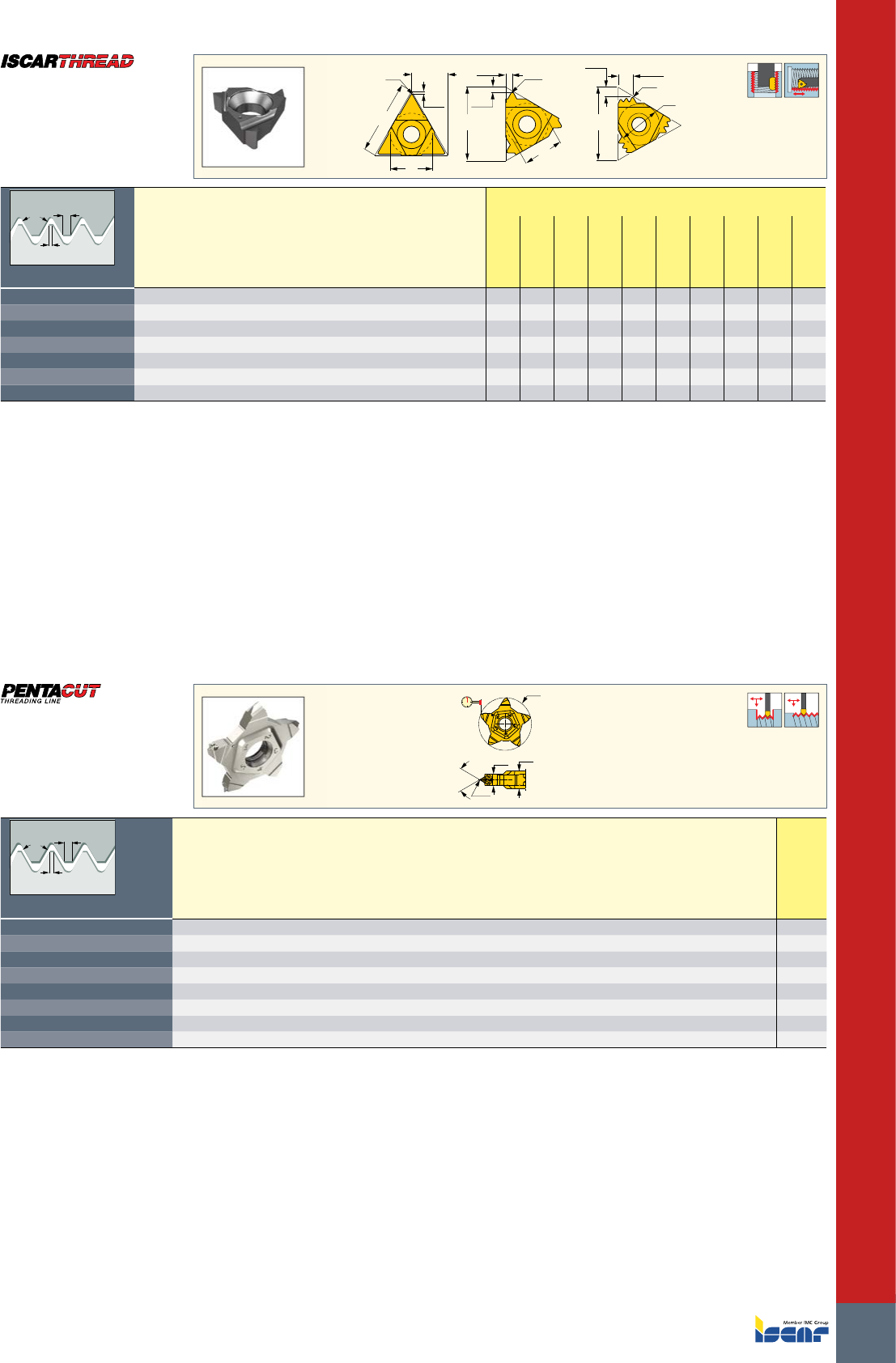

PENTACUT External
Partial profile
Full profile
Internal
MINICHAM Internal
Minimum bore dia. 4 mm

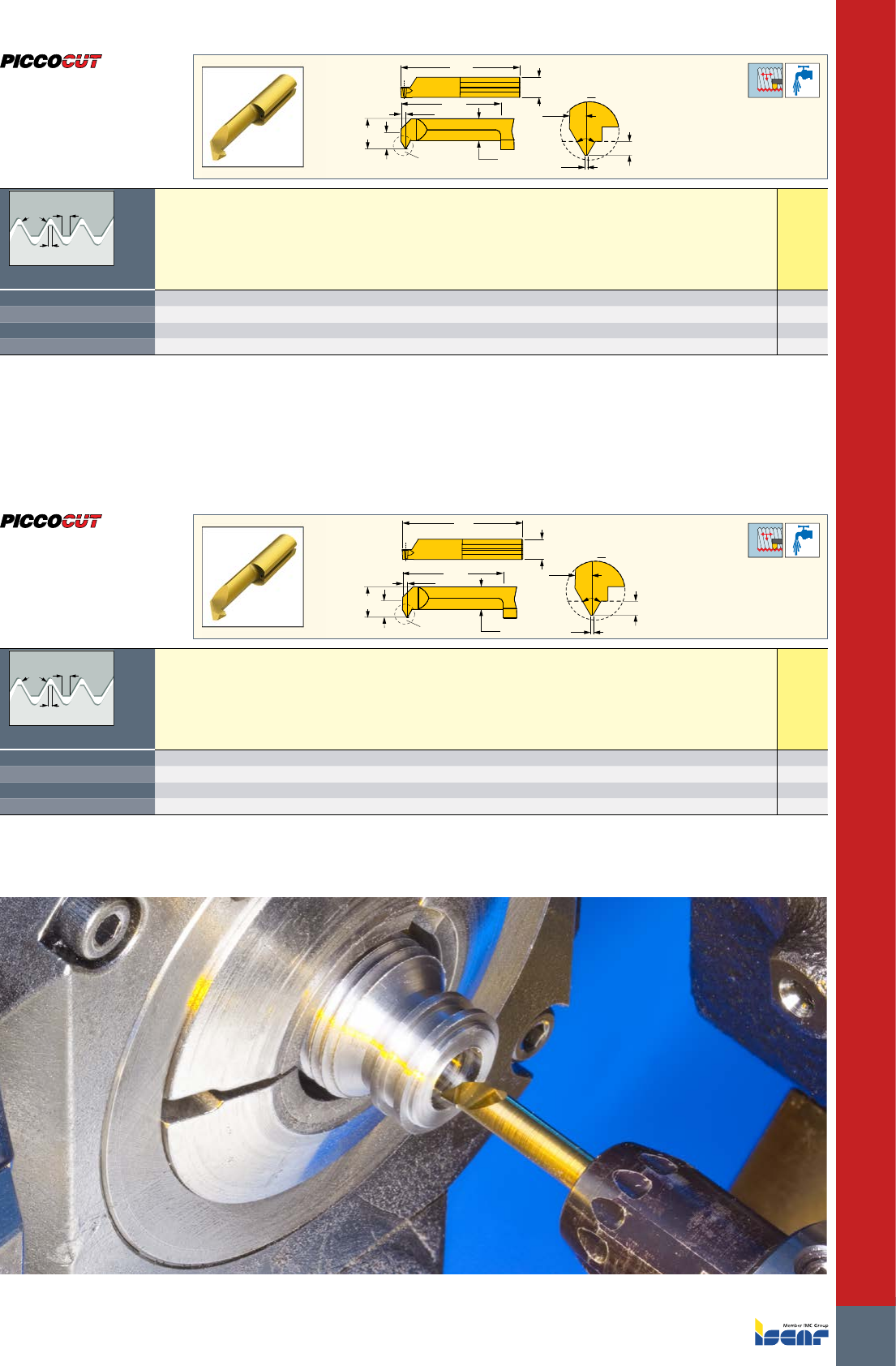

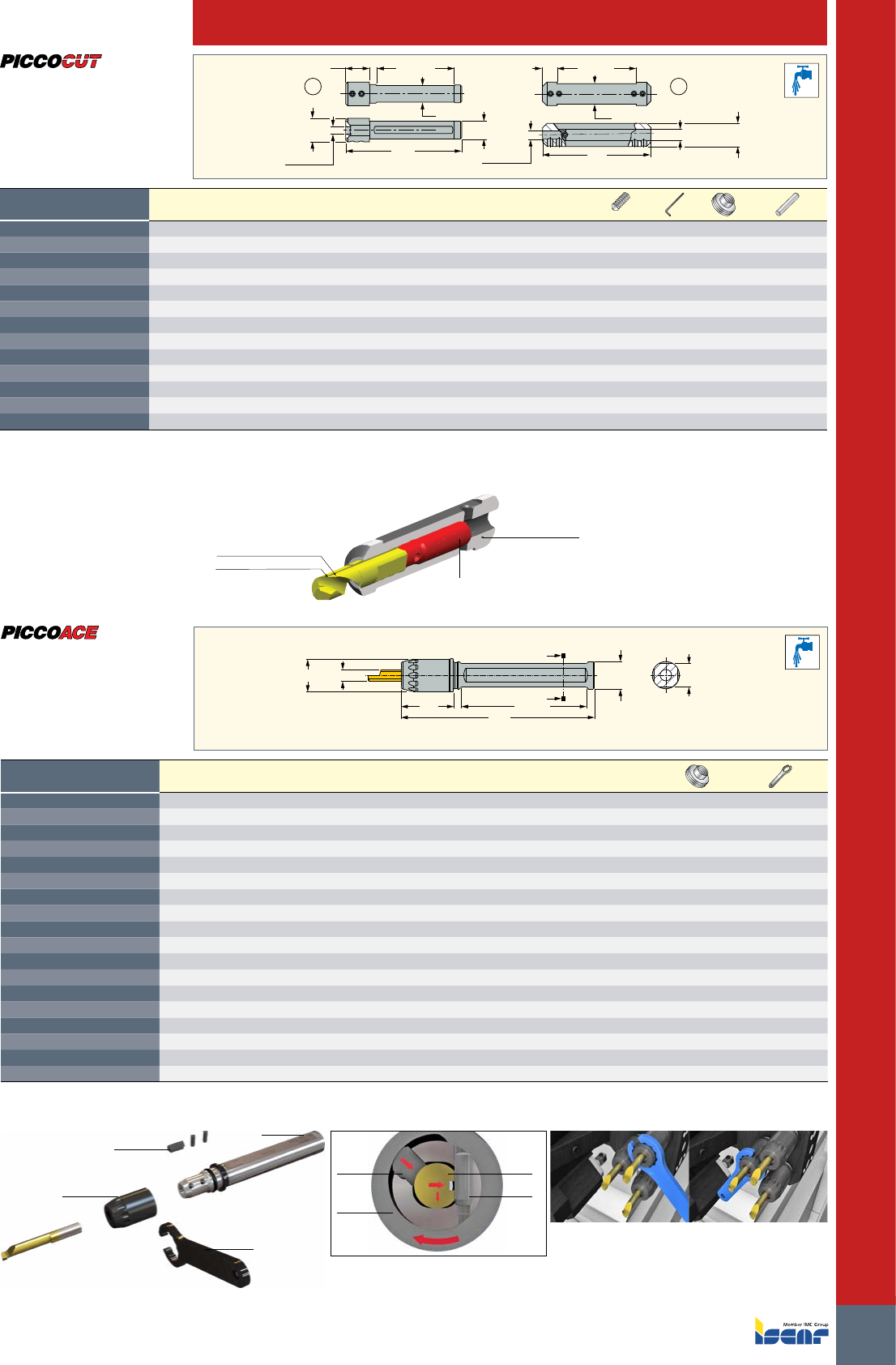

PICCOCUT Mini-Bar
Minimum bore dia. 2.4 mm

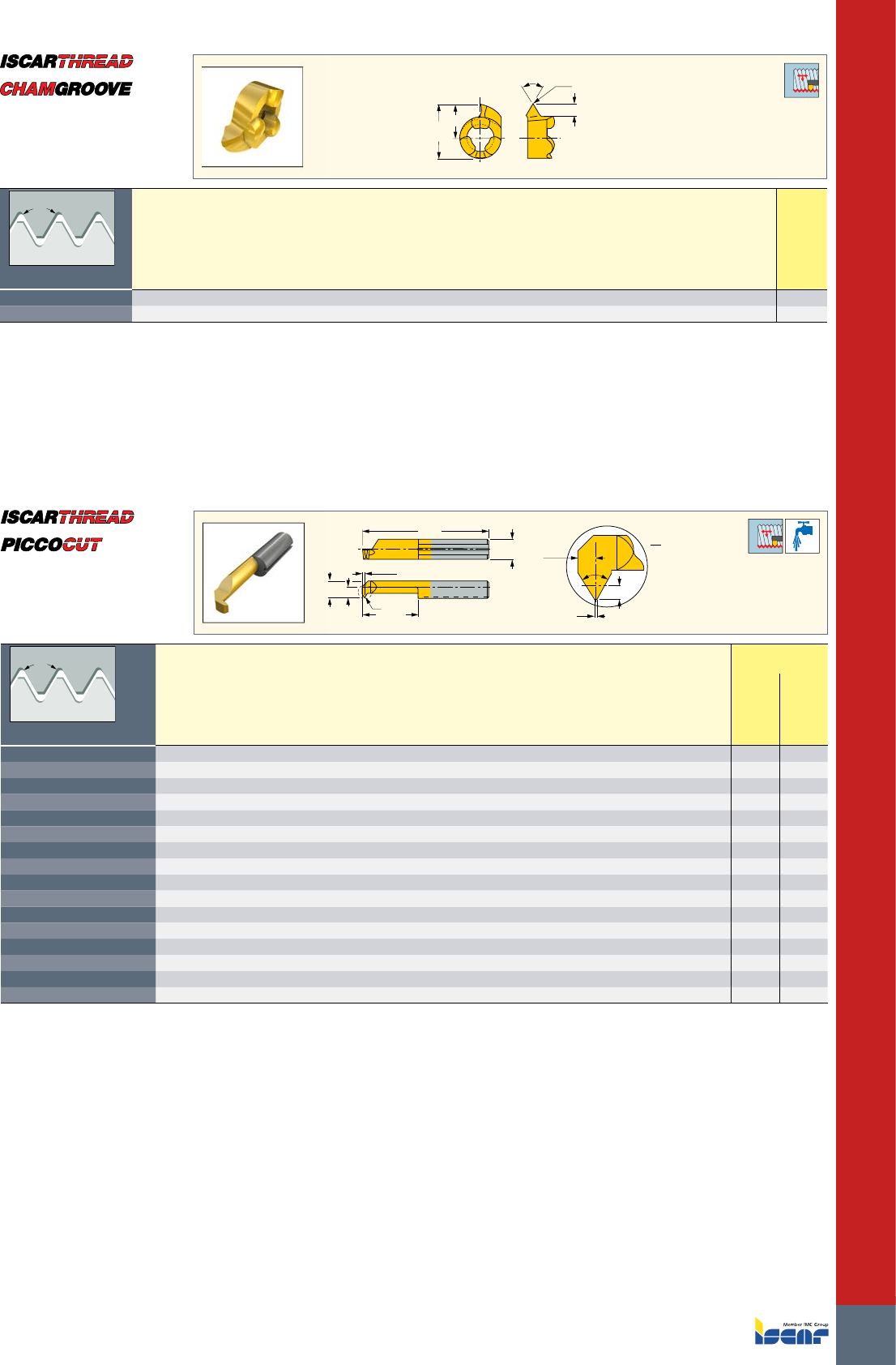

CHAMGROOVE Internal
Minimum bore dia. 8.0 mm
CUT-GRIP Internal
Minimum bore dia. 12.5 mm
Minimum bore dia. 20 mm
Partial profile
Full profile

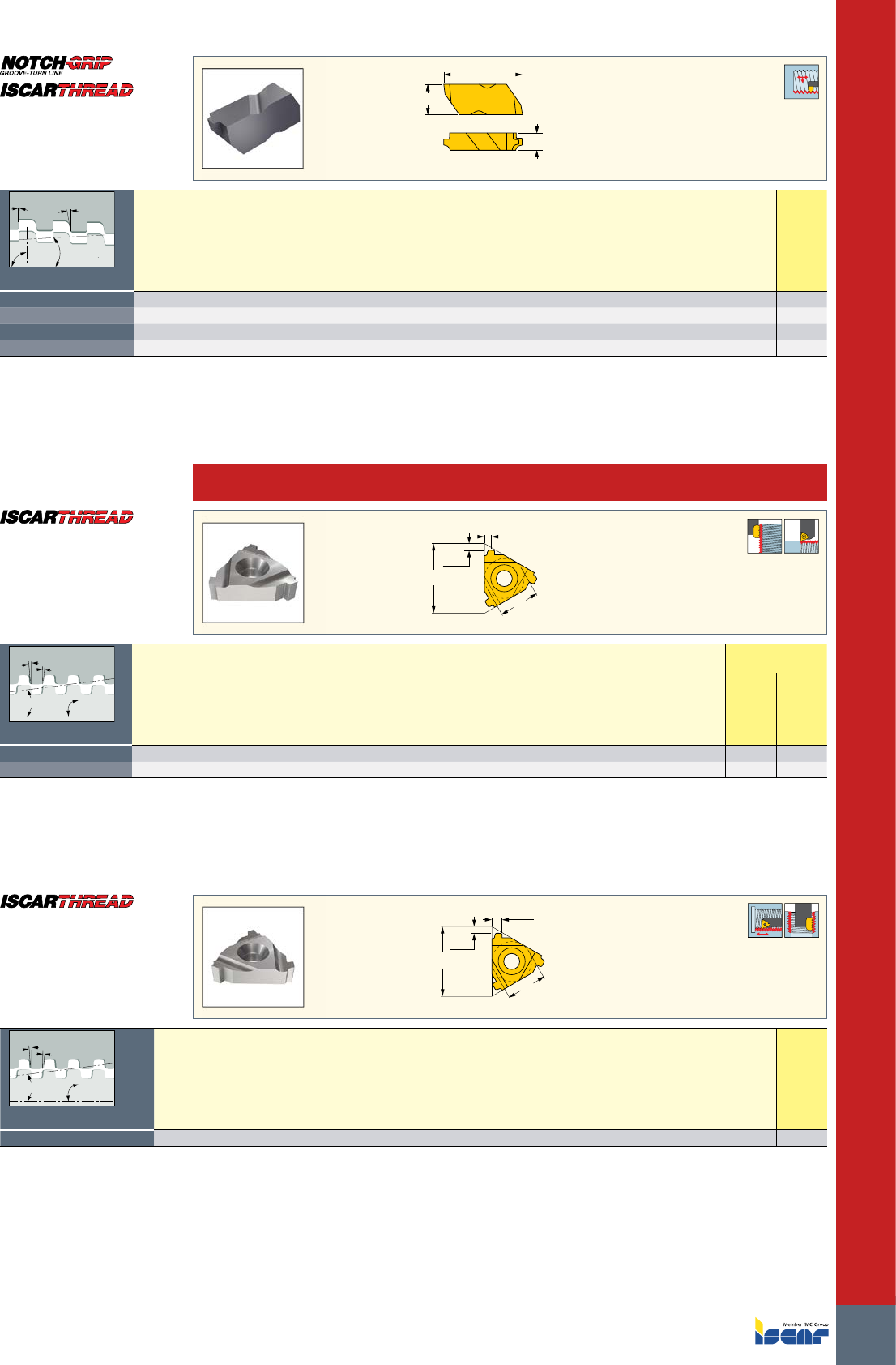

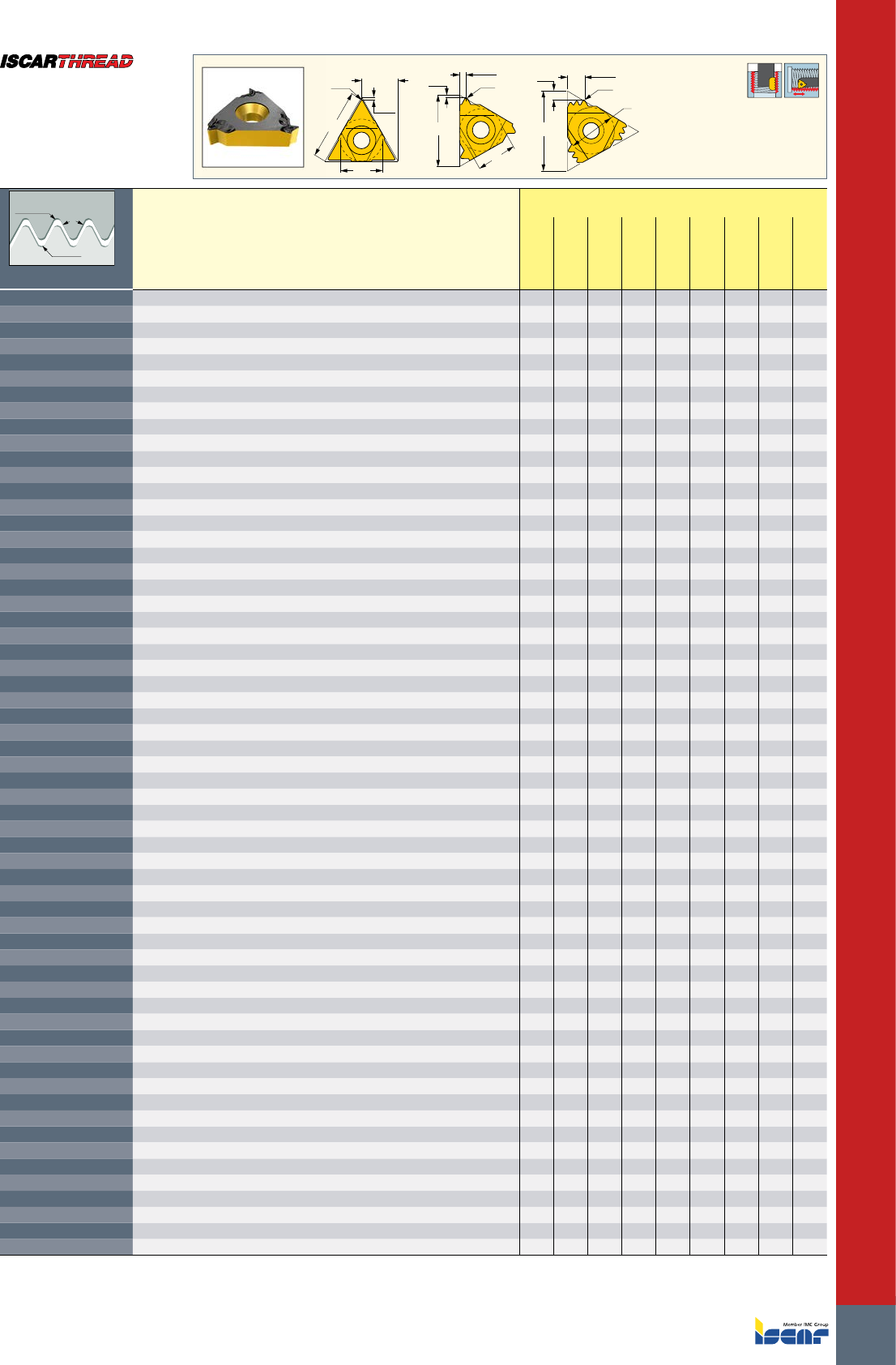

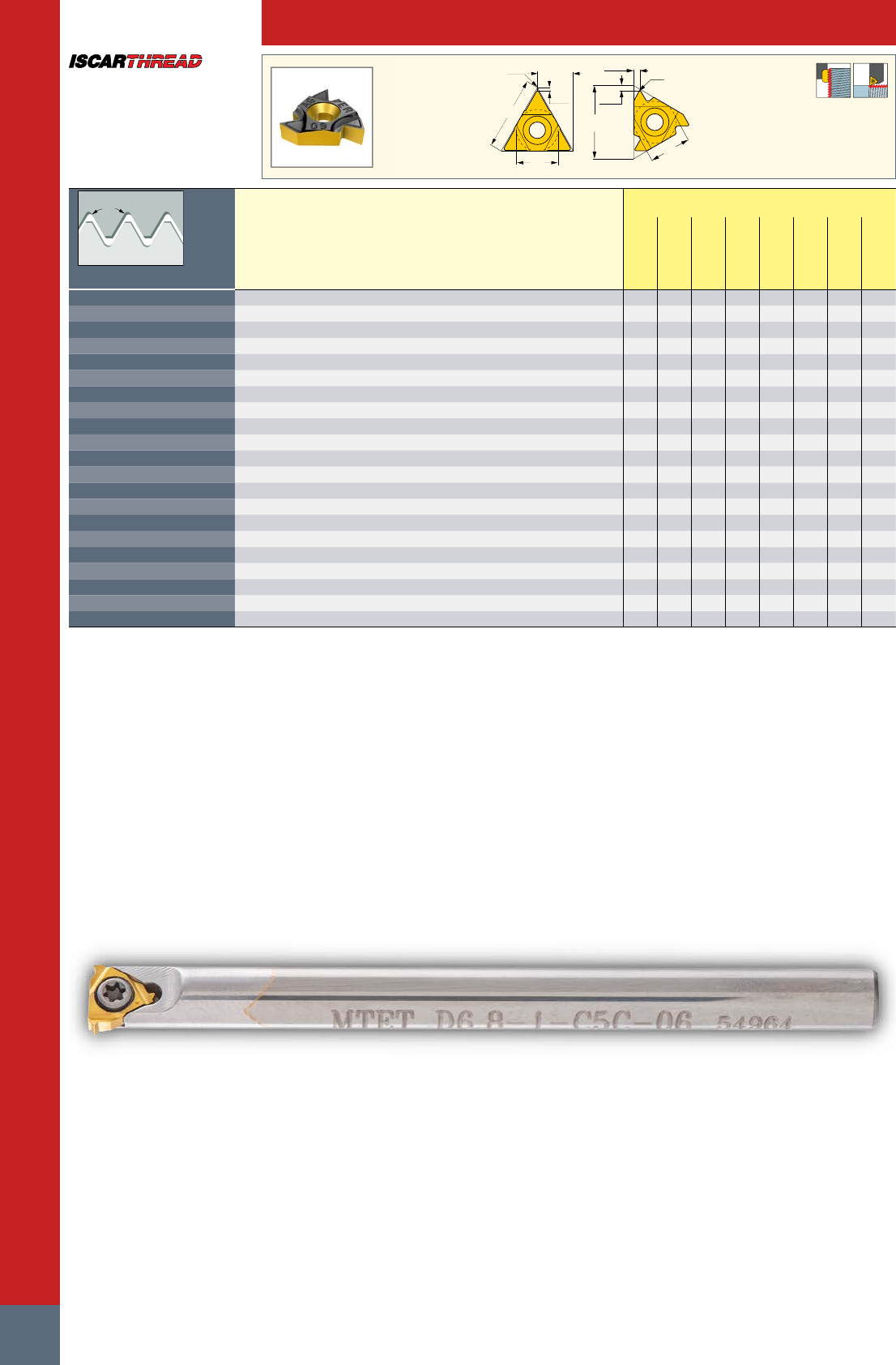

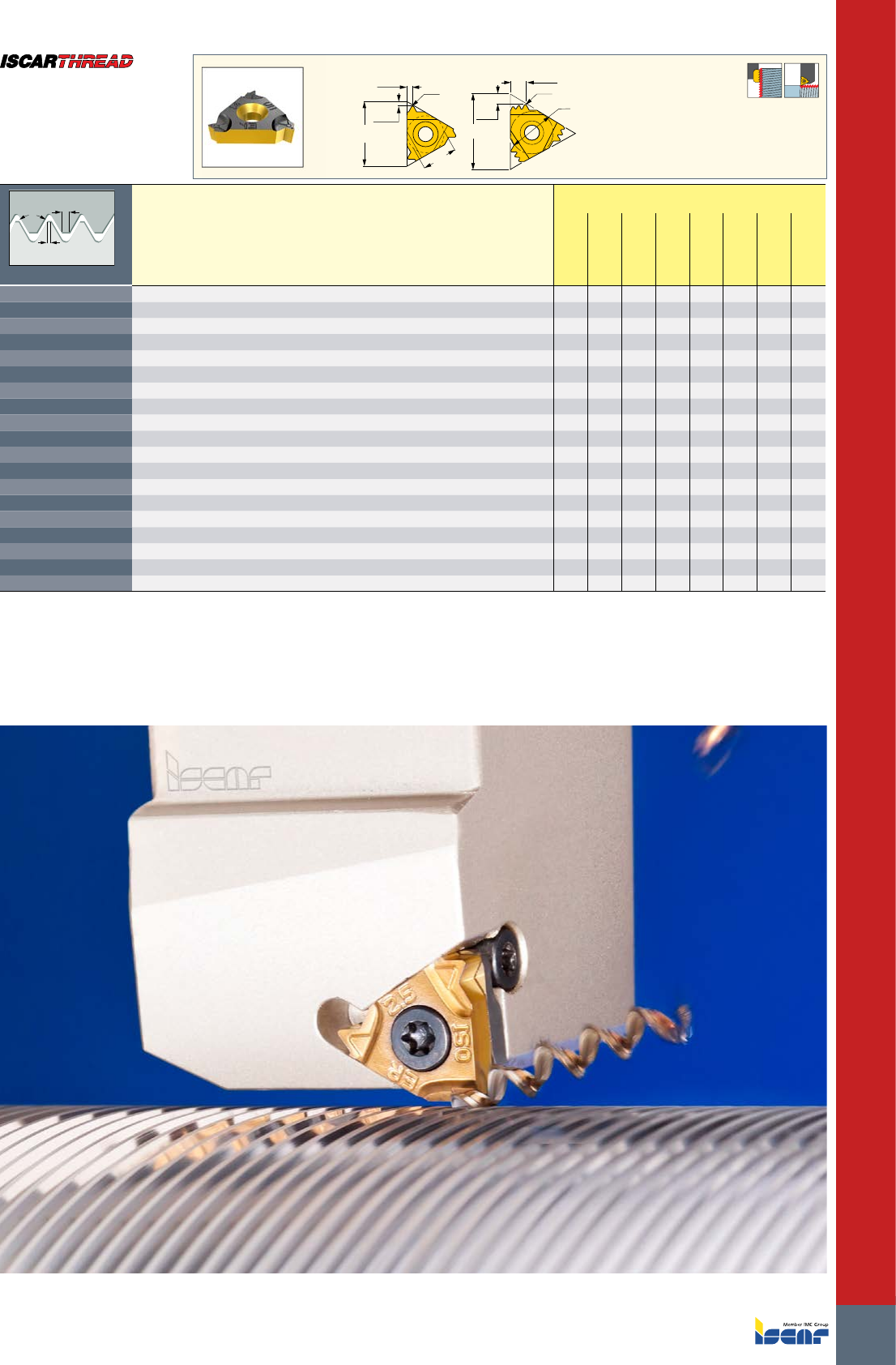

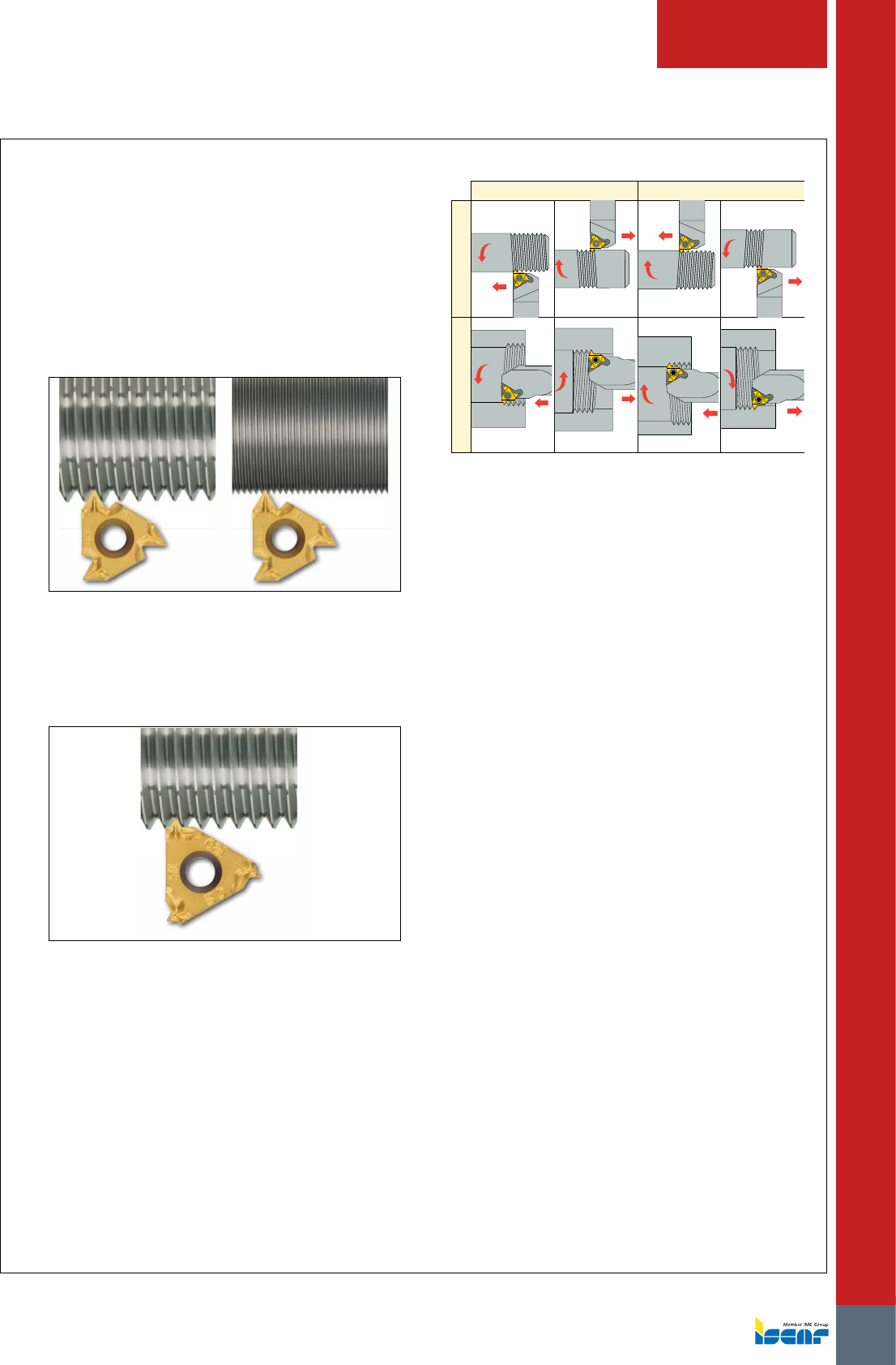

Main Types of Laydown Inserts
B/M-TYPE U-TYPE REGULAR TYPE MULTI-TOOTH
639
THREADING

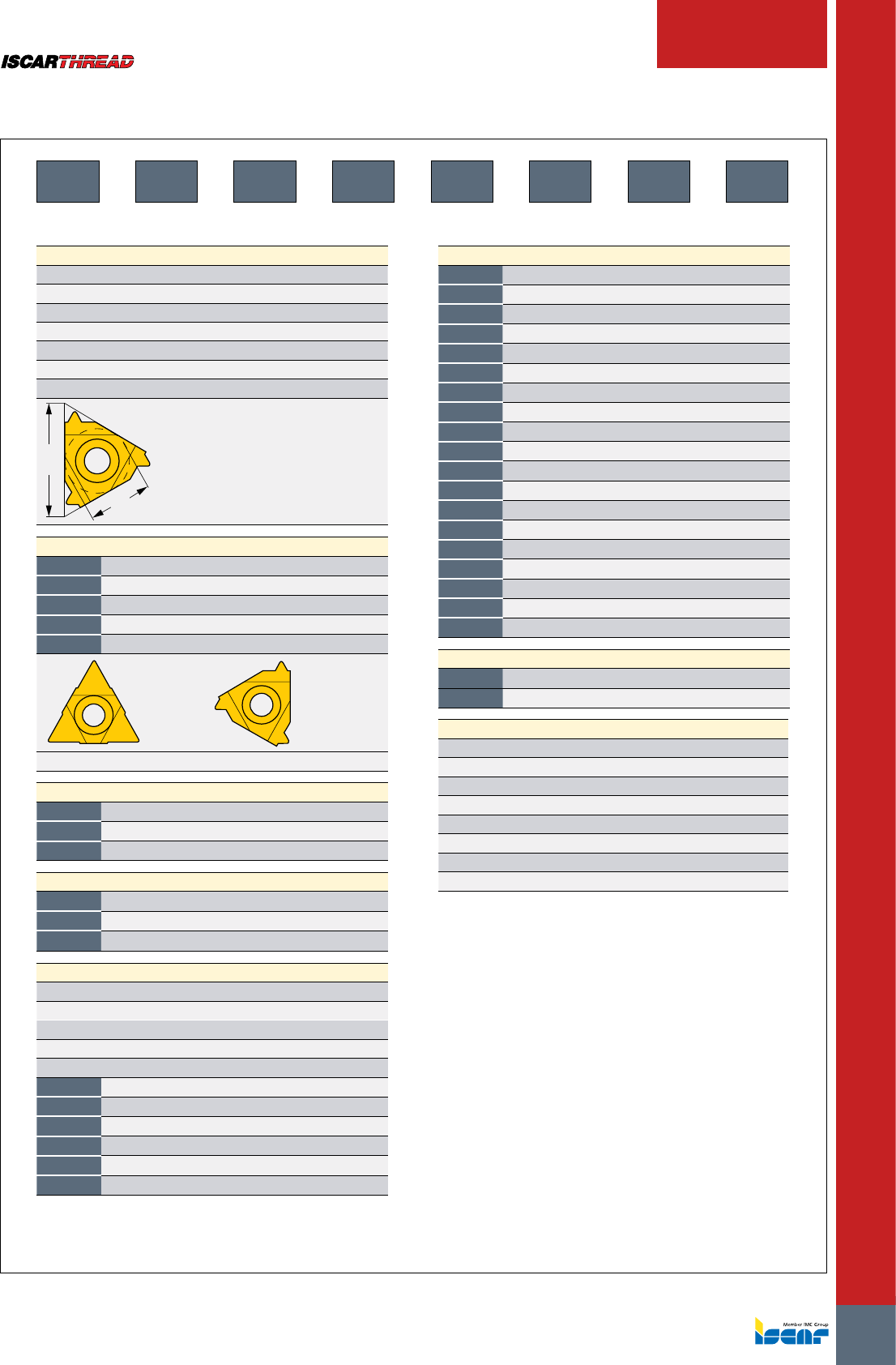

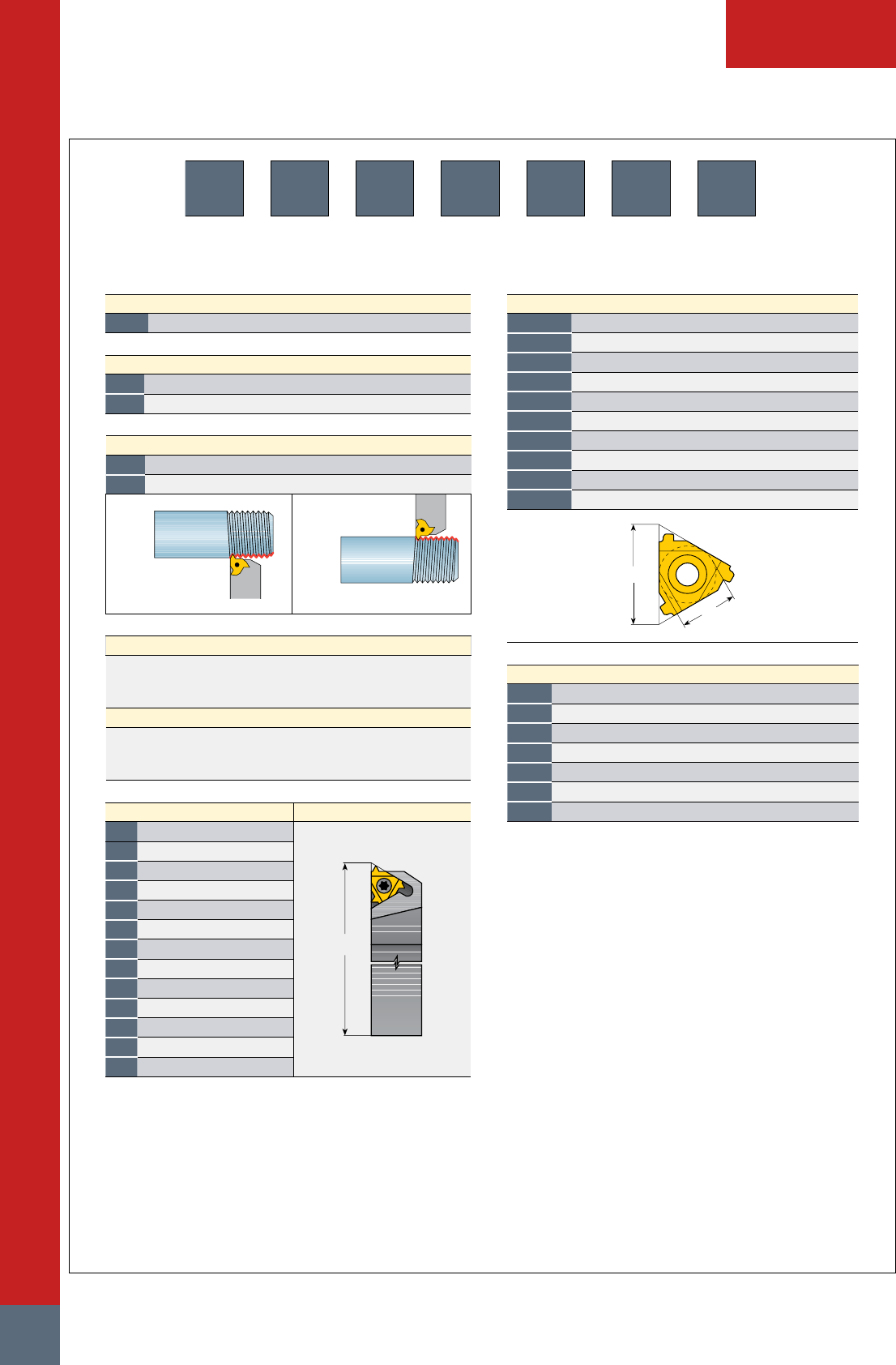

INSERT IDENTIFICATION
SYSTEM
16 E R M 1.50 ISO 2M IC808
12345678
1. Insert Size
I (mm) IC
06 5/32"
08 3/16"
11 1/4"
16 3/8"
22 1/2"
27 5/8"
IC
I
2. Application
EExternal
IInternal
UE U-type, External
UI U-type, Internal
UEI U-type, External and Internal
U-type Regular Type

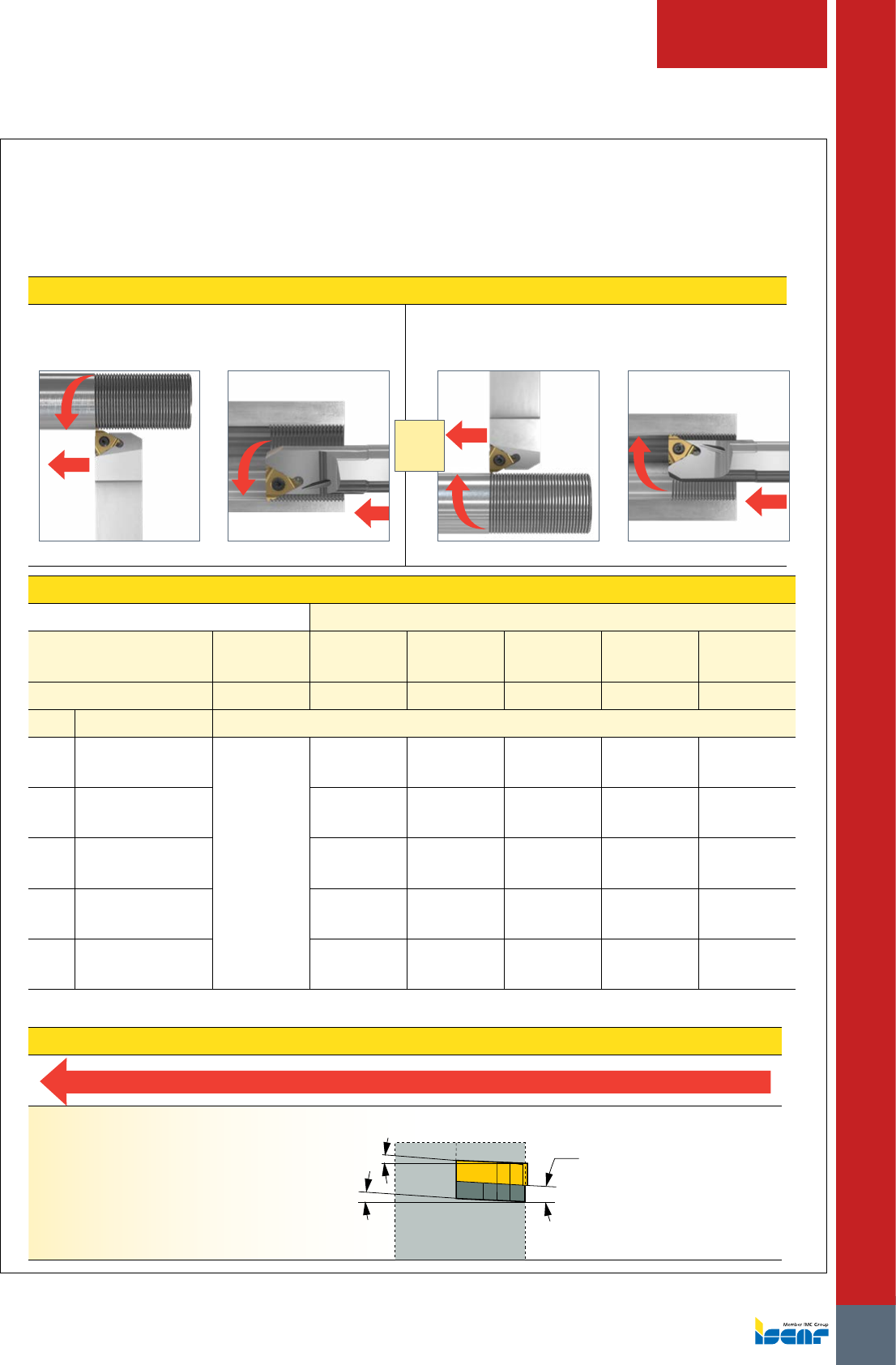

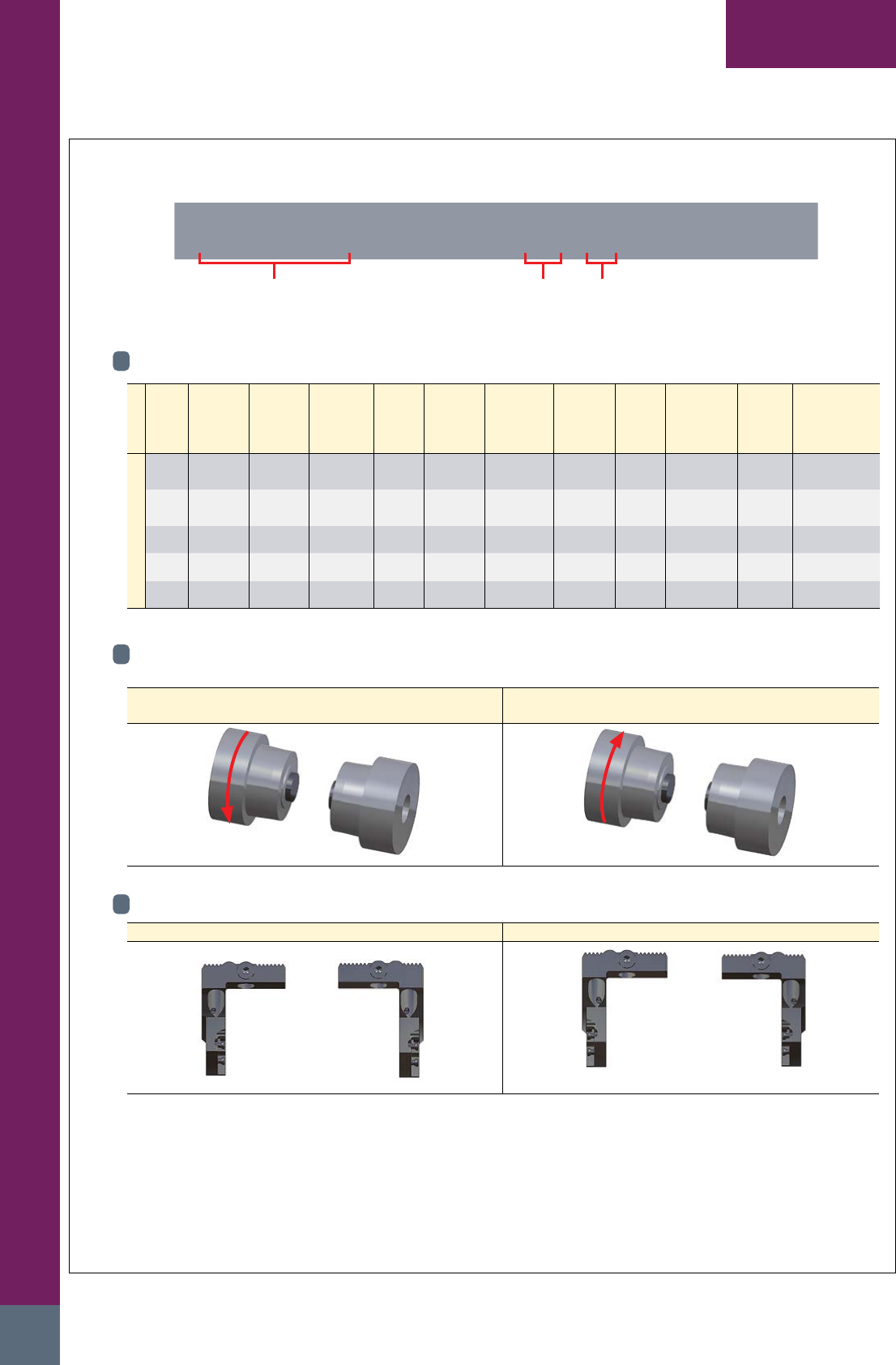

3. Hand of Tool
RRight-hand
LLeft-hand
RL Right- and Left-hand
4. Type
BPeripherally ground & chipformer
MPress to size with a chipformer
No indication regular type
5. Pitch
Full Profile (value by number)
0.35-9.0 mm
72-2 TPI
Partial Profile (range by letter)
mm TPI
A0.5-1.5 48-16
AG 0.5-3.0 48-8
G1.75-3.0 14-8
N3.5-5.0 7-5
Q5.5-6.0 4.5-4
U5.5-9.0 4.5-2.75
6. Thread Standard
60 Partial Profile 60º
55 Partial Profile 55º
ISO ISO Metric
UN American UN
WWhitworth
BSPT British BSPT
RND Round DIN 405
TR Trapeze DIN 103
ACME ACME
STACME Stub ACME
ABUT American Buttress
UNJ UNJ
NPT NPT
API RD API Round
BUT API Buttress Casing
API API
H90 H-90
EL Extreme Line Casing
MJ ISO 5855
7. No. of Teeth (Optional)
2M 2 teeth
3M 3 teeth
8. Grade
IC1007
IC908
IC808
IC508
IC250
IC228
IC50M
IC806
Insert Identification System
ISCAR

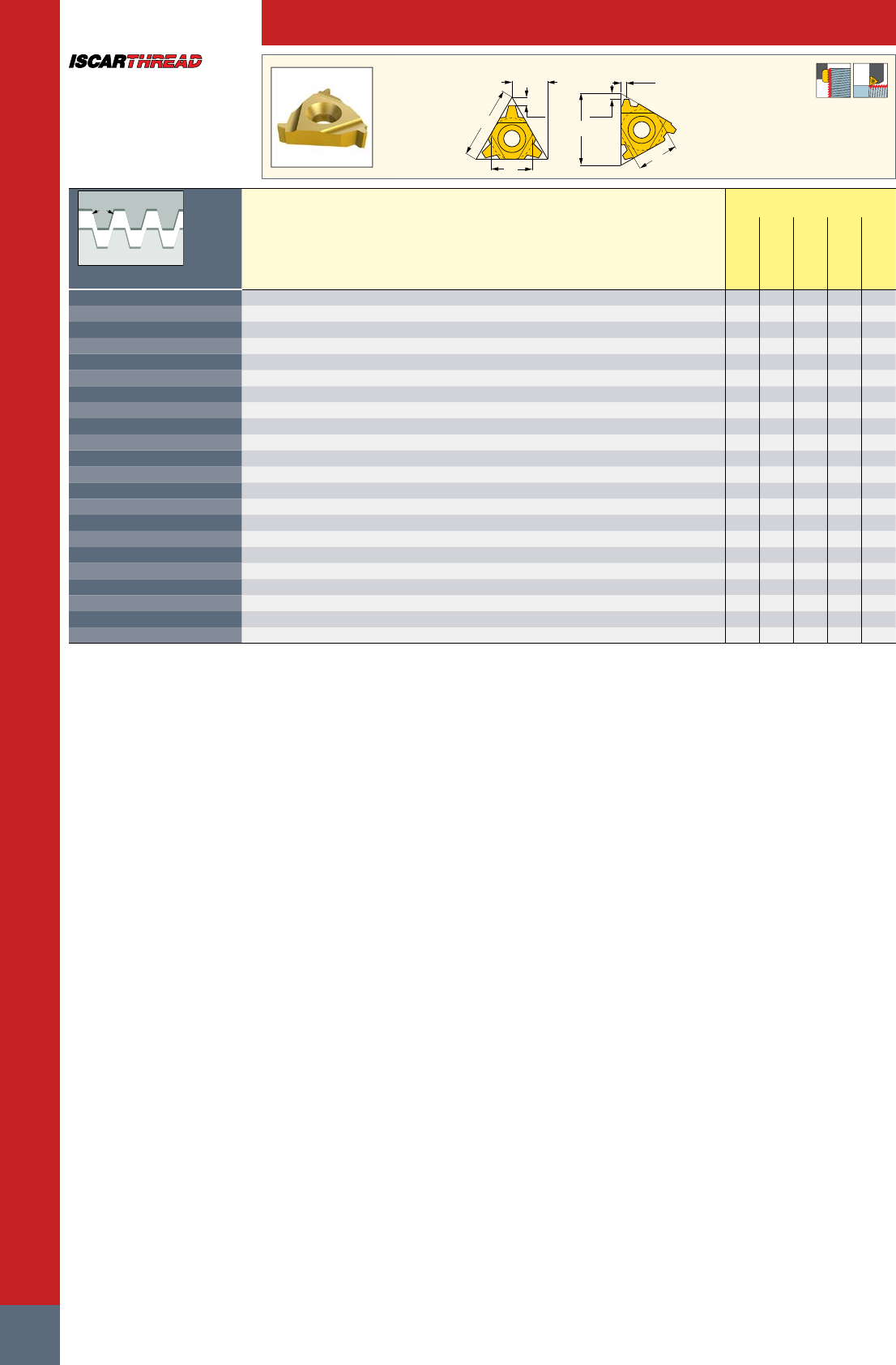

640

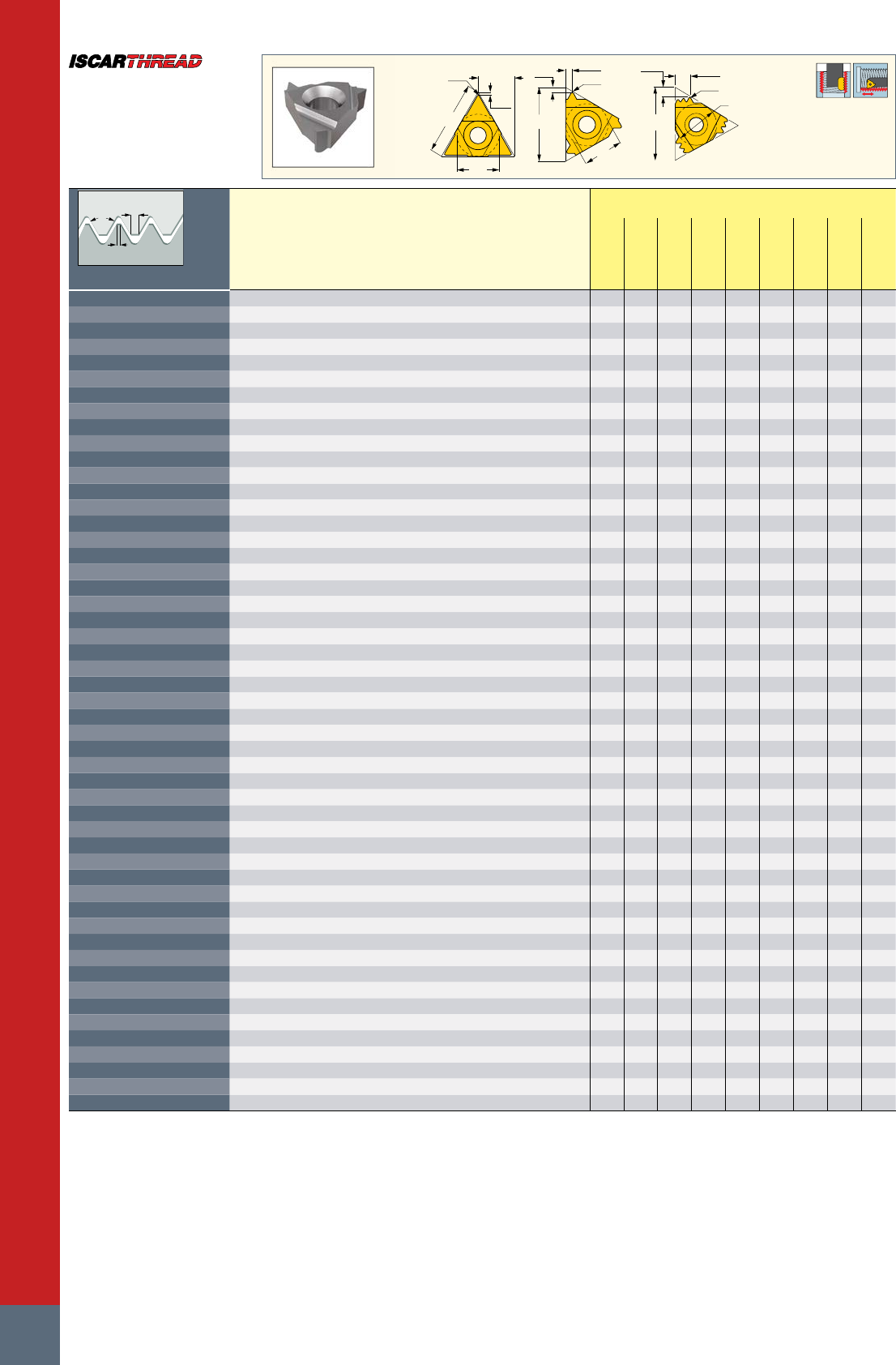

THREADING

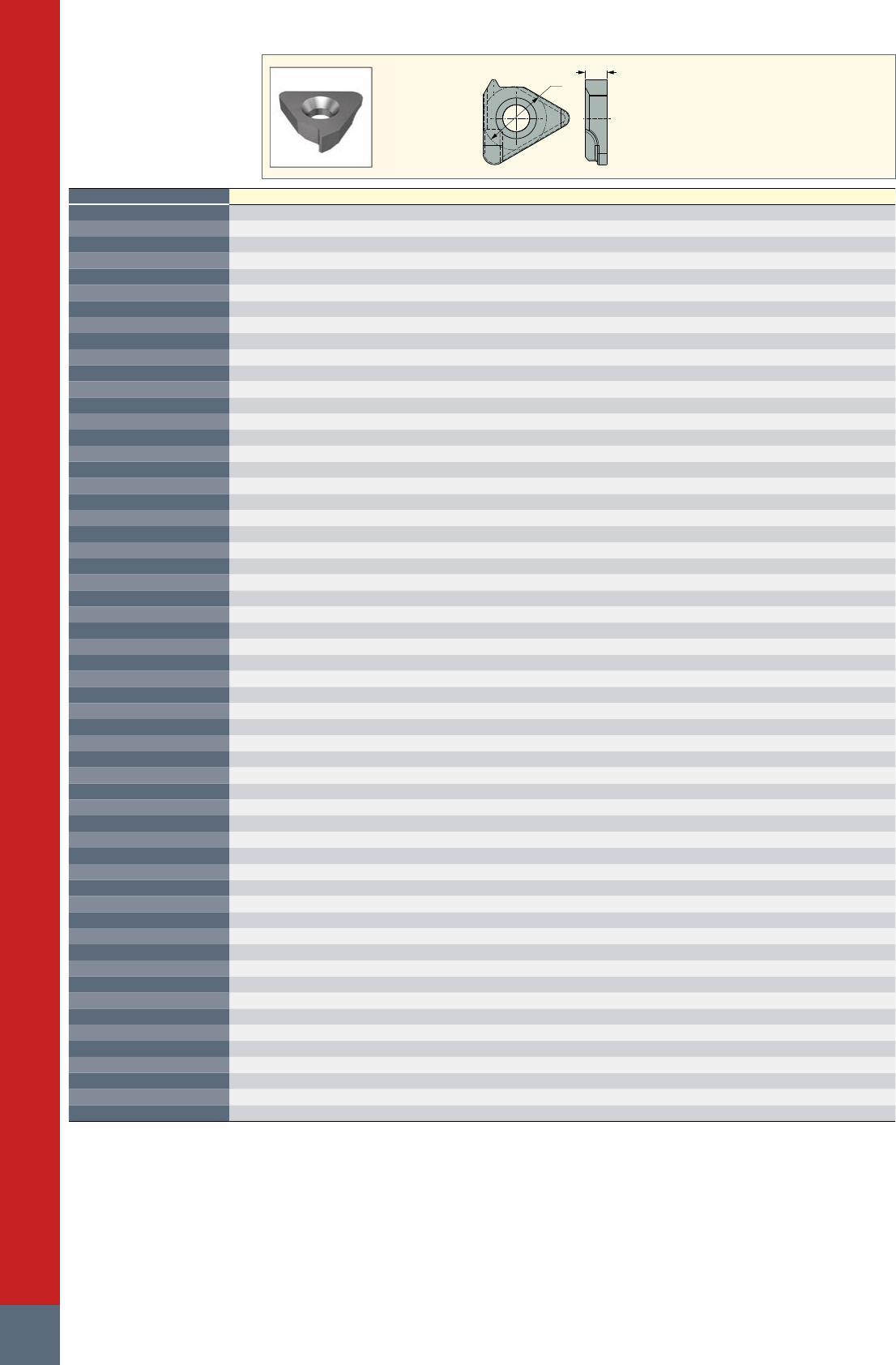

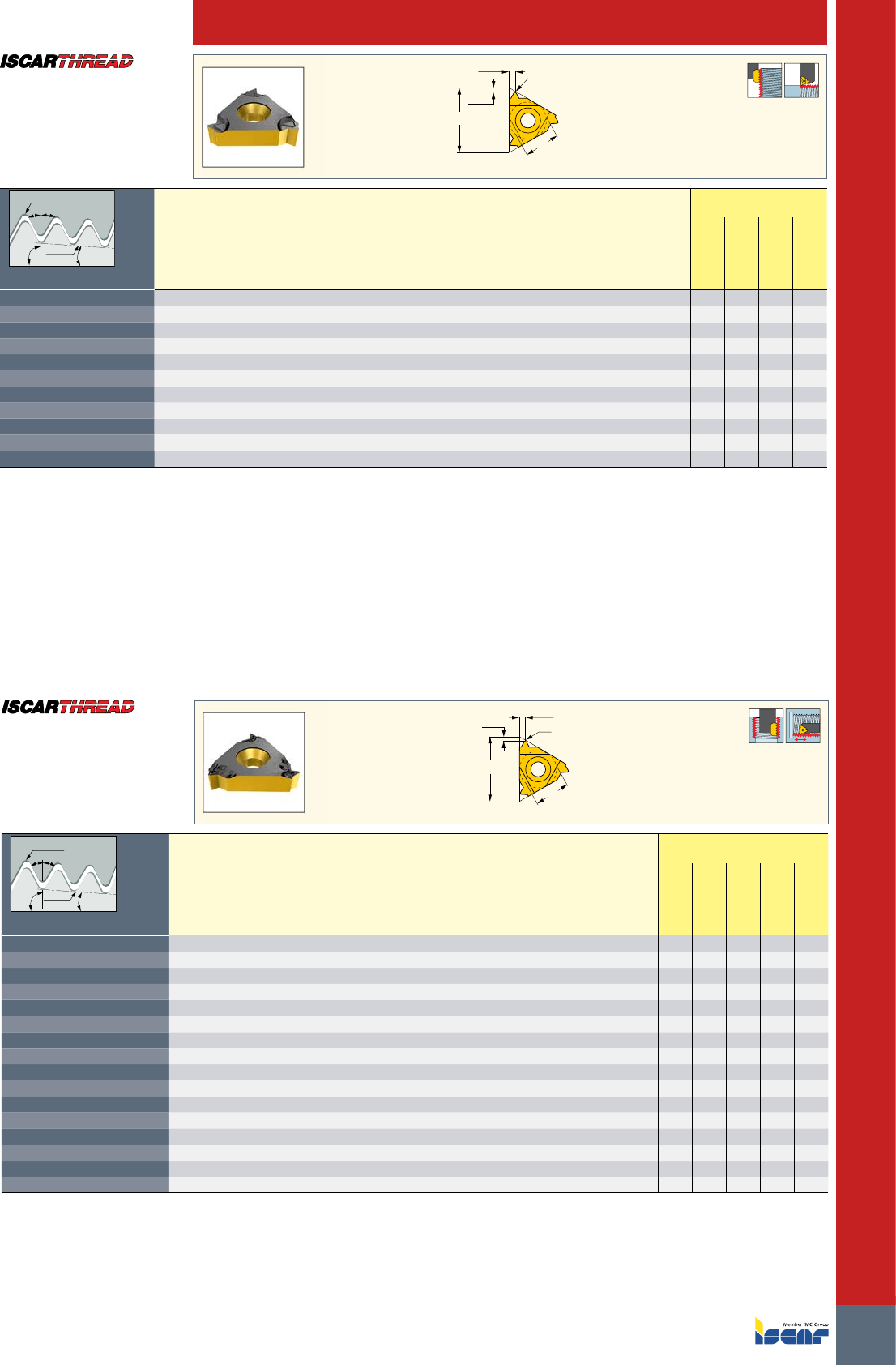

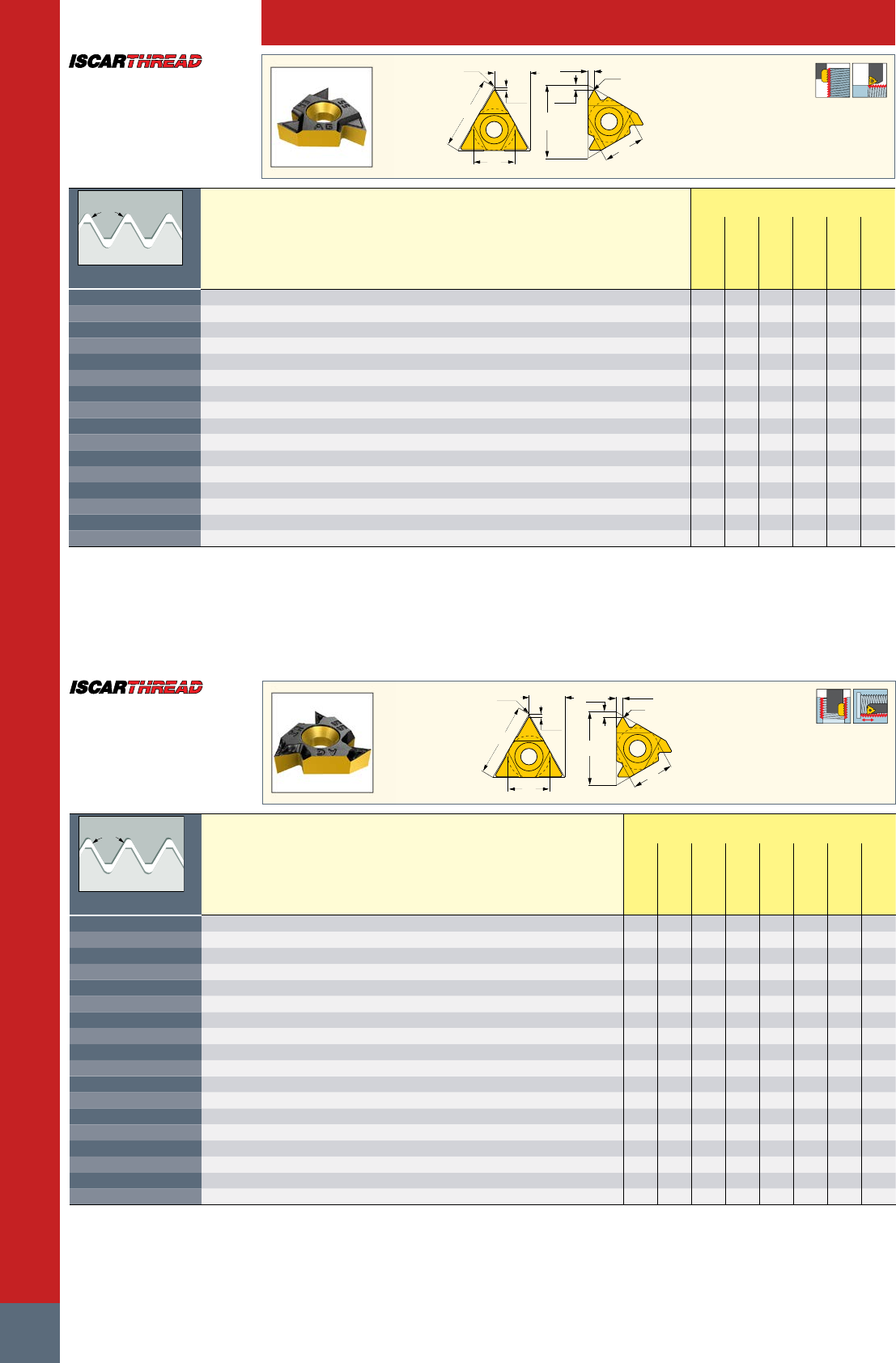

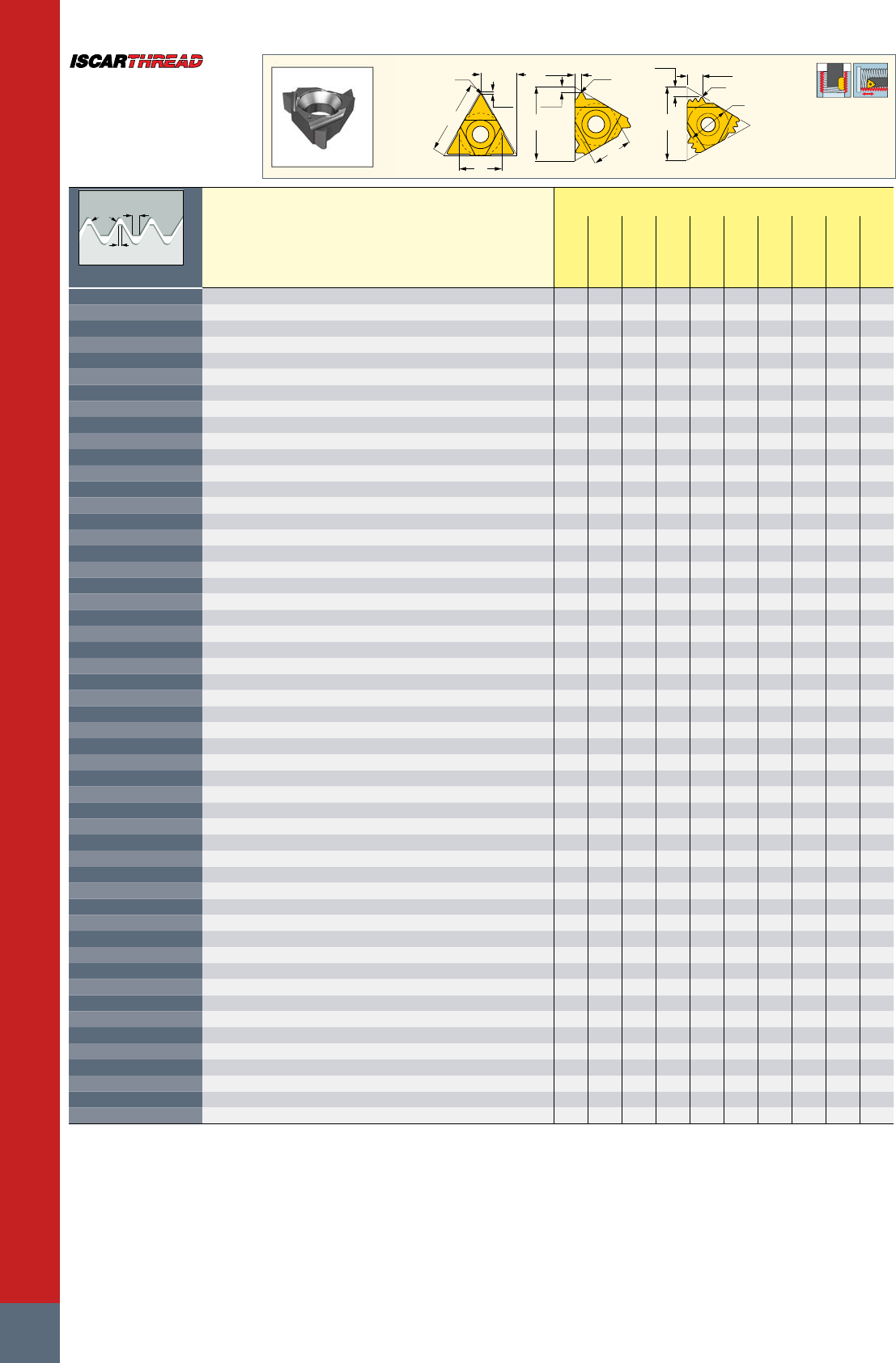

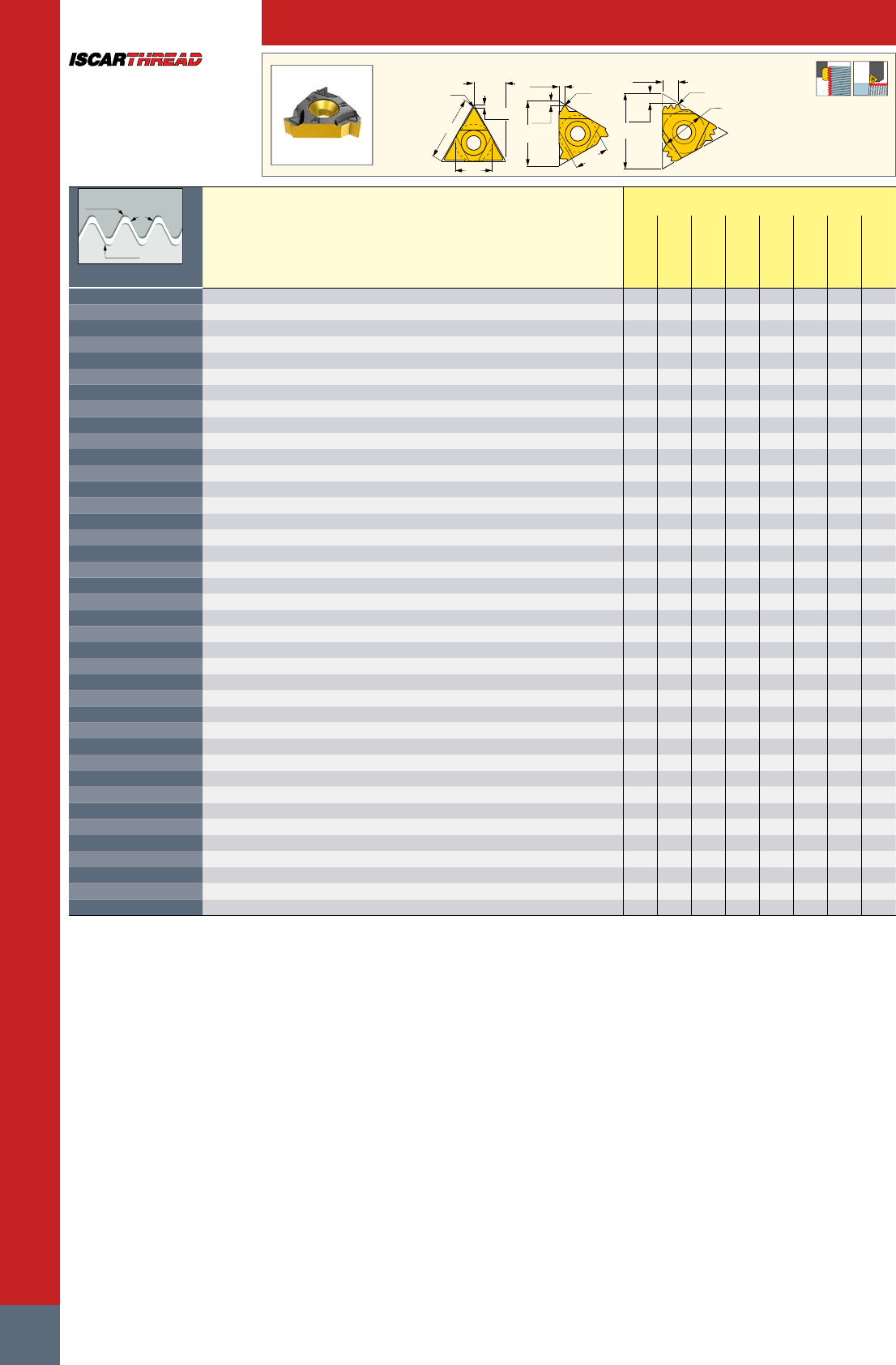

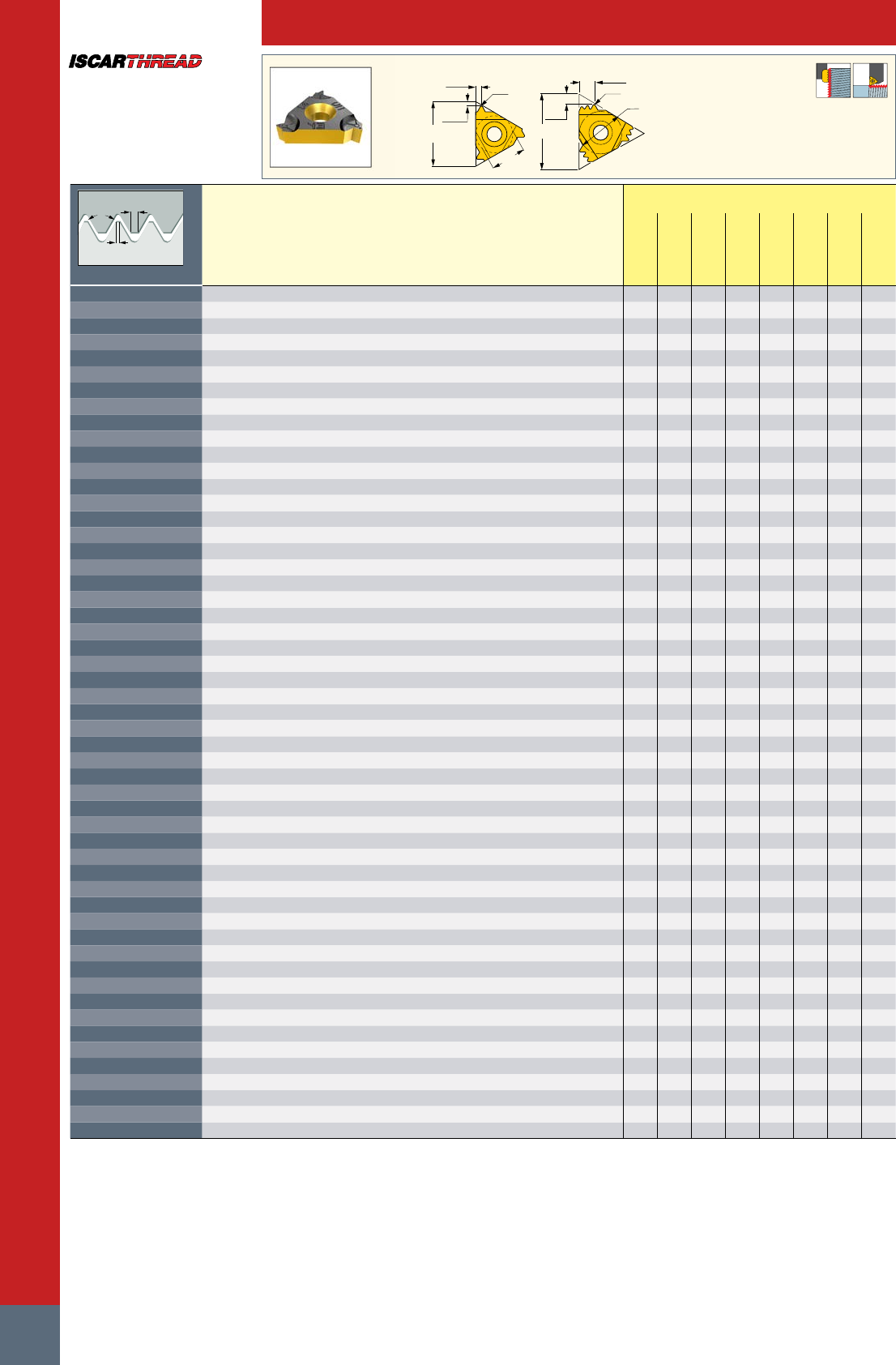

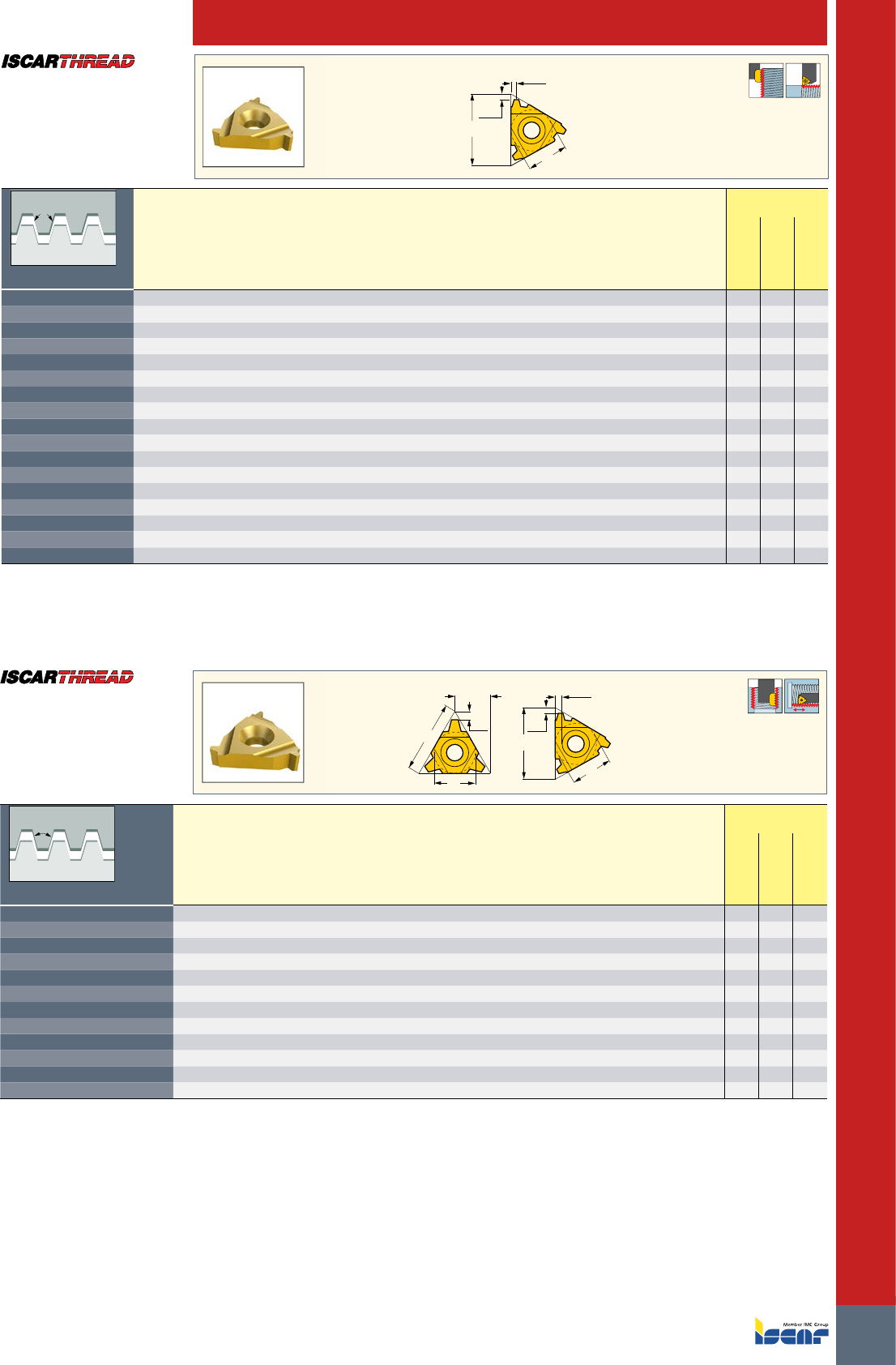

PDX PDX
RE RE
INSL INSL
IC
IC
PDY PDY
External right-hand shown
Dimensions Tough
1
Hard
Designation
IC TPN(2) TPX(3) TPIX(4) TPIN(5) INSL RE PDY PDX
IC228
IC50M
IC250
IC808
IC908
IC1007
11ER A 55
6.35 0.500 1.500 48.00 16.00 11.00 0.05 0.8 0.9
• •
16EL A 55
9.52 0.500 1.500 48.00 16.00 16.49 0.05 0.8 0.9
• •
16ER A 55
9.52 0.500 1.500 48.00 16.00 16.49 0.05 0.8 0.9
• • •
16EL AG 55
9.52 0.500 3.000 48.00 8.00 16.49 0.07 1.2 1.7
• •
16ER AG 55
9.52 0.500 3.000 48.00 8.00 16.49 0.07 1.2 1.7
• • • •
16ERB AG 55 (1)
9.52 0.500 3.000 48.00 8.00 16.49 0.07 1.2 1.7
•
16ERM AG 55 (1)
9.52 0.500 3.000 48.00 8.00 16.49 0.07 1.2 1.7
•••••
16EL G 55
9.52 1.750 3.000 14.00 8.00 16.49 0.20 1.2 1.7
•
16ER G 55
9.52 1.750 3.000 14.00 8.00 16.49 0.23 1.2 1.7
• •
16ERB G 55 (1)
9.52 1.750 3.000 14.00 8.00 16.49 0.23 1.2 1.7
•
16ERM G 55 (1)
9.52 1.750 3.000 14.00 8.00 16.49 0.23 1.2 1.7
• • • •
22EL N 55
12.70 3.500 5.000 7.00 5.00 22.00 0.42 1.7 2.5
•
22ER N 55
12.70 3.500 5.000 7.00 5.00 22.00 0.48 1.7 2.5
• •
22UEIRL U 55
12.70 5.500 8.000 4.50 3.25 22.00 0.60 0.9 11.0
• •
27ER Q 55
15.88 5.500 6.000 4.50 4.00 27.50 0.60 2.0 2.9
• •
27UEIRL U 55
15.88 6.500 9.000 4.00 2.75 27.50 0.81 1.2 13.7
•
• For insert identification system, see pages 638-639 • For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT
• For detailed cutting data, see page 711
(1) With pressed chipformer
(2) Threads per inch maximum
(3) Threads per inch minimum
(4) Threads per inch maximum
(5) Threads per inch minimum

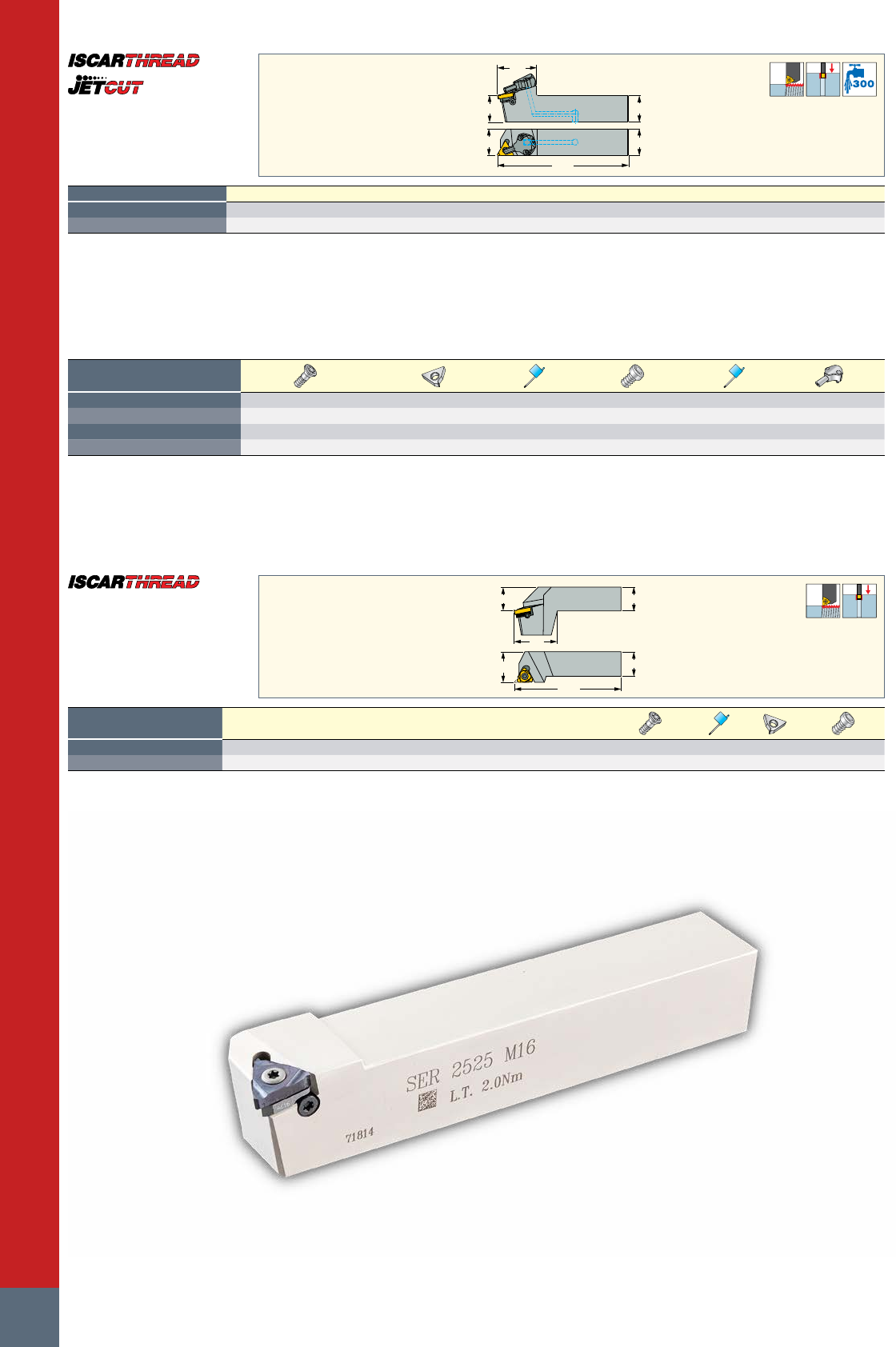

For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700)

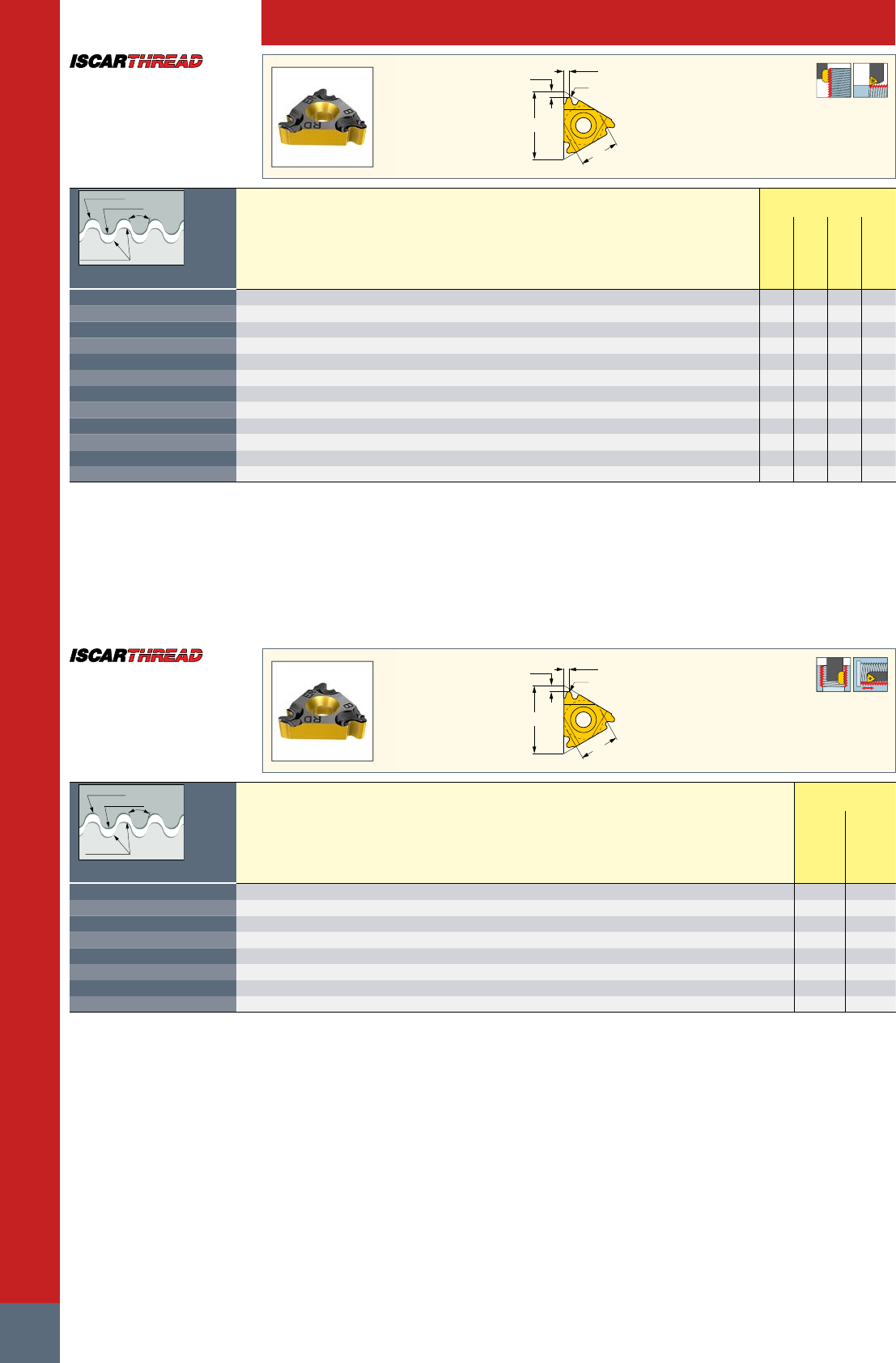

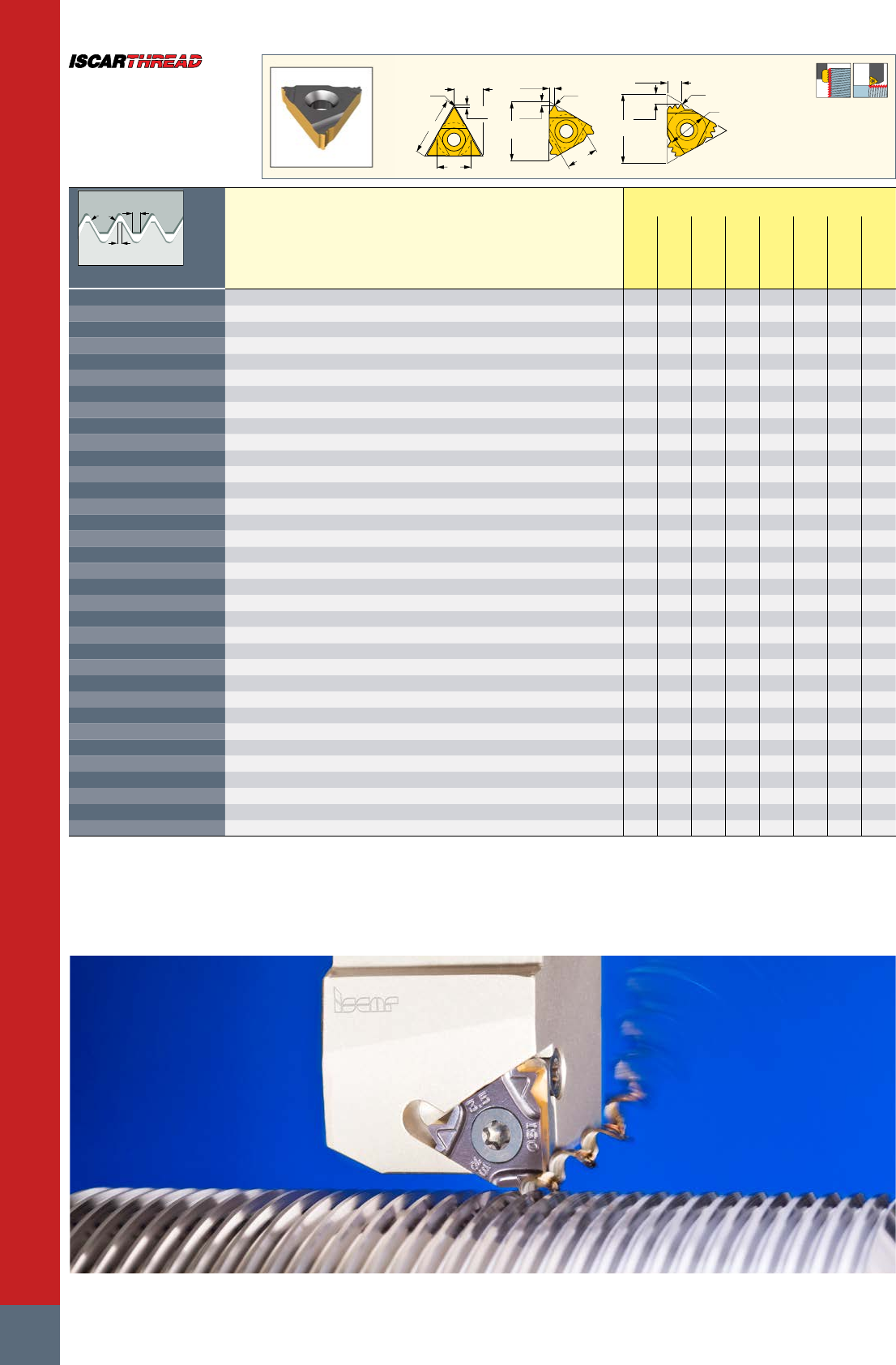

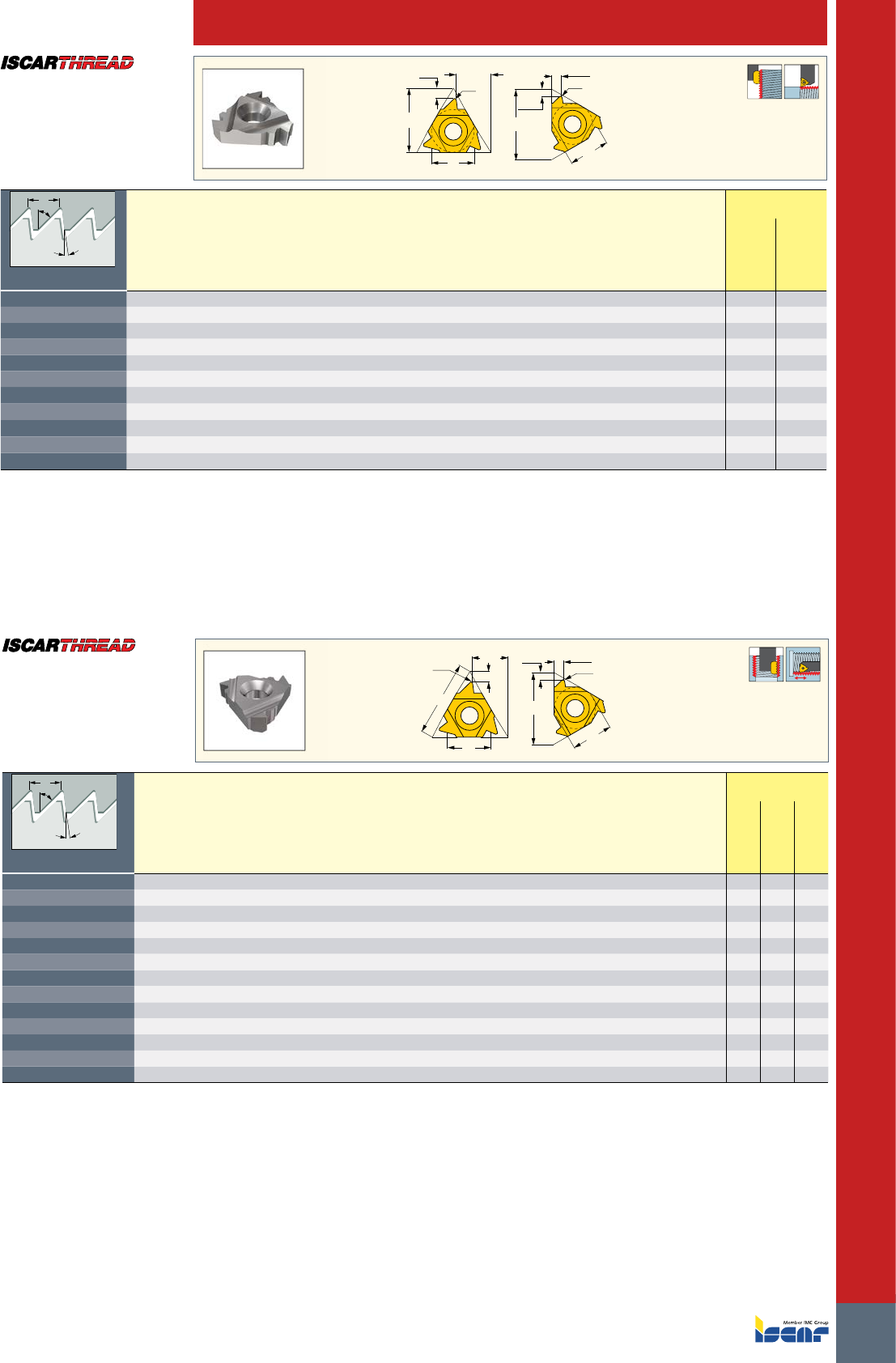

ER/L-55°
External Laydown Threading
Inserts with a 55° Partial
Profile for General Industry
55°
NUT
SCREW
PDX
PDY
PDY PDX
RE
RE
lNSL lNSL
IC
IC
U-Type
Internal left-hand shown
Dimensions Tough
1
Hard
Designation
IC TPIX(2) TPIN(3) INSL RE PDY PDX
IC228
IC928
IC50M
IC250
IC508
IC808
IC908
IC1007
06IL A 55
4.00 48.00 20.00 6.88 0.07 0.6 0.6
•
06IR A 55
4.00 48.00 20.00 6.88 0.08 0.6 0.6
•
08IL A 55
5.00 48.00 16.00 8.24 0.08 0.6 0.7
•
08IR A 55
5.00 48.00 16.00 8.24 0.08 0.6 0.7
• • •
08UIRL U 55
5.00 18.00 12.00 8.24 0.10 0.9 4.0
•
11IL A 55
6.35 48.00 16.00 11.00 0.05 0.8 0.9
• •
11IR A 55
6.35 48.00 16.00 11.00 0.05 0.8 0.9
• • • •
16IR A 55
9.52 48.00 16.00 16.49 0.05 0.8 0.9
• •
16IL AG 55
9.52 48.00 8.00 16.49 0.07 1.2 1.7
•
16IR AG 55
9.52 48.00 8.00 16.49 0.07 1.2 1.7
• •
16IRB AG 55 (1)
9.52 48.00 8.00 16.49 0.07 1.2 1.7
•
16IRM AG 55 (1)
9.52 48.00 8.00 16.49 0.05 1.2 1.7
• • • •
16IL G 55
9.52 14.00 8.00 16.49 0.20 1.2 1.7
•
16IR G 55
9.52 14.00 8.00 16.49 0.23 1.2 1.7
• • •
16IRB G 55 (1)
9.52 14.00 8.00 16.49 0.23 1.2 1.7
•
16IRM G 55 (1)
9.52 14.00 8.00 16.49 0.20 1.2 1.7
• • • •
22IR N 55
12.70 7.00 5.00 22.00 0.42 1.7 2.5
• • •
27IR Q 55
15.88 4.00 4.00 27.50 0.60 2.0 2.9
•
• For insert identification system, see pages 638-639 • For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT.
• For detailed cutting data, see page 711
(1) With pressed chipformer
(2) Threads per inch maximum
(3) Threads per inch minimum

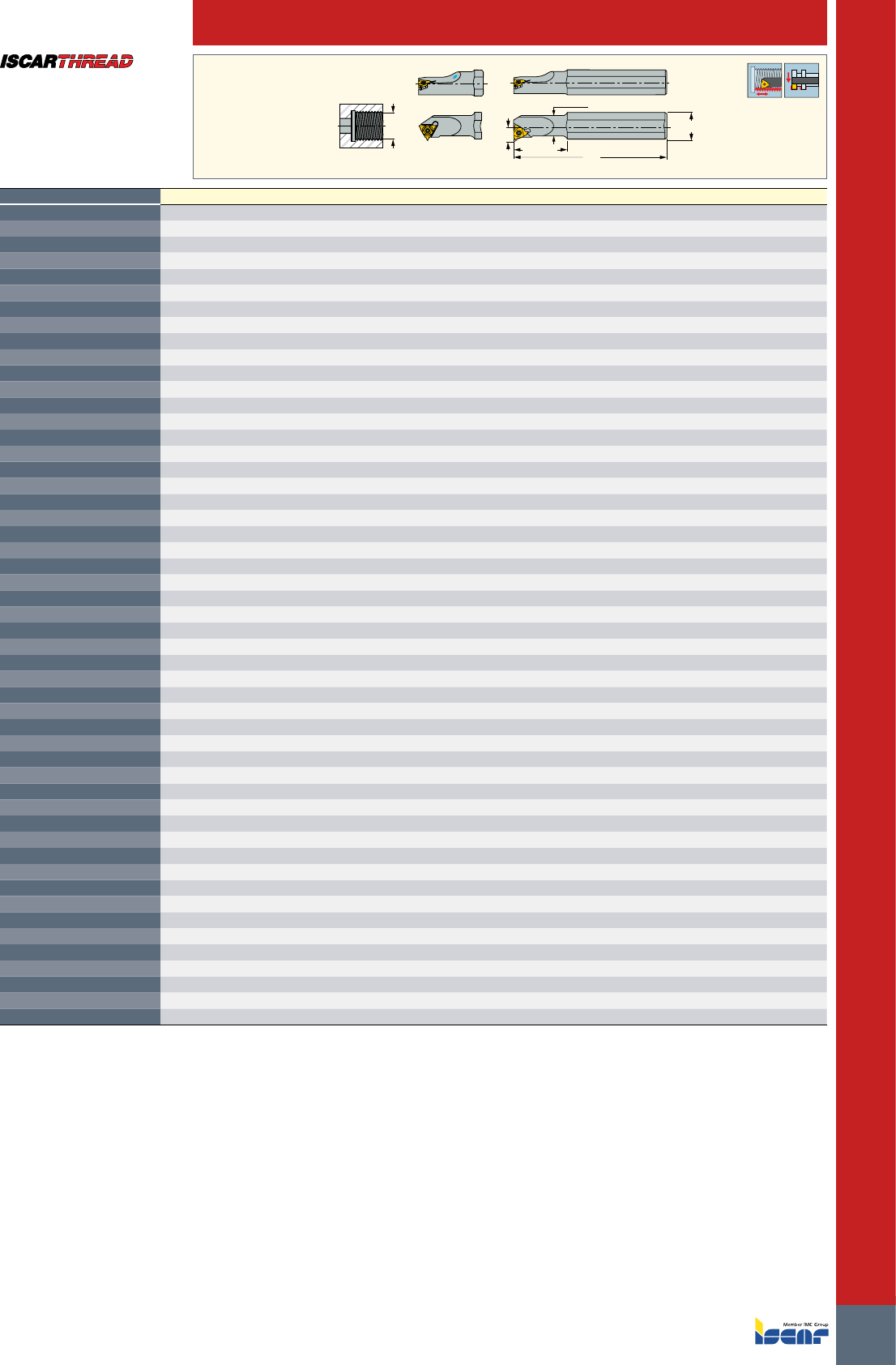

For tools, see pages: AVC-D-SIR/L (707) • MGSIR/L (118) • PICIN-MGSIR/L (386) • SIR/L (703)

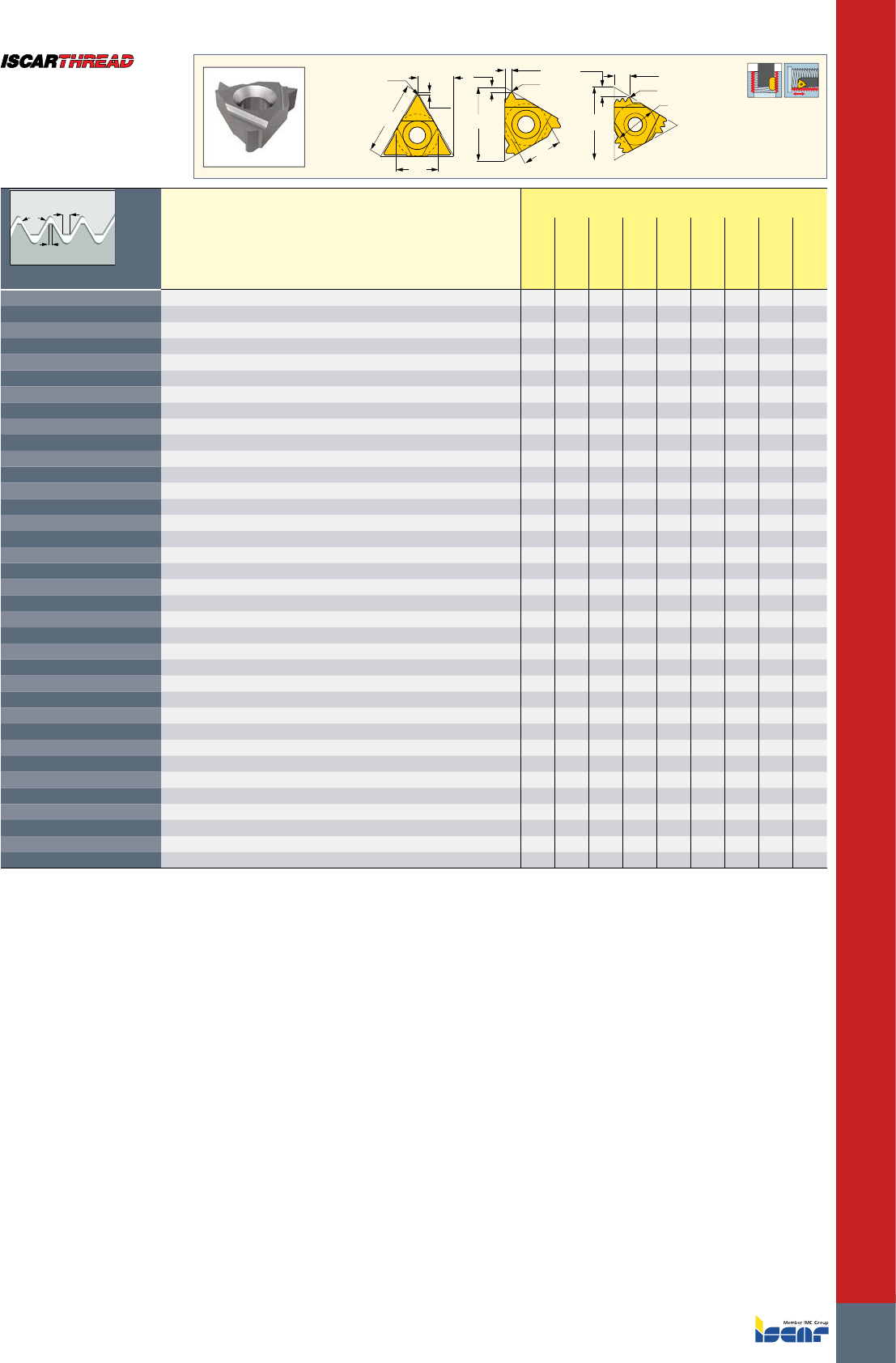

IR/L-55°
Internal Laydown Threading
Inserts with a 55° Partial
Profile for General Industry
55°
NUT
SCREW
Partial Profle 55° (Whitworth)
