TABLE OF CONTENTS
TABLE OF CONTENTS
Complete Machining Solutions
MILLING TOOLS 3
Complete Machining Solutions
TOOLING SYSTEMS 549
MATERIALS AND GRADES 721
INDEX 758
Learn More...
Download
ISCAR WORLD App
Find The NEOFind The NEOLOGIQLOGIQAL Tool AL Tool
For Your Application!For Your Application!
• The virtual tool advisor features advanced AI
and ‘Big Data’ analytics
• Supports with complicated machining tasks and challenges
• Offers a wide range of functions and recommendations
to operate machining centers
• Features online service 24/7 in more than 30 languages
• Functions according to ISO 13399
www.iscar.com
Play Store App Store
3
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MILLING TOOLS
ISCAR
4
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
TABLE OF CONTENTS
Indexable Endmills ................................................................ 5
MULTI-MASTER ...................................................................40
Solid Carbide Endmills ........................................................93
Face Mills ...........................................................................185
Extended Flute Cutters ..................................................... 231
Plunging Cutters ................................................................251
Profiling Tools ....................................................................258
Fast Feed Milling Tools .....................................................291
Slotting and Slitting Cutters ............................................. 317
Cutters for Aluminum ........................................................384
Thread Milling Tools ..........................................................393
Milling Inserts ....................................................................443
5
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
INDEXABLE ENDMILLS
ISCAR
6

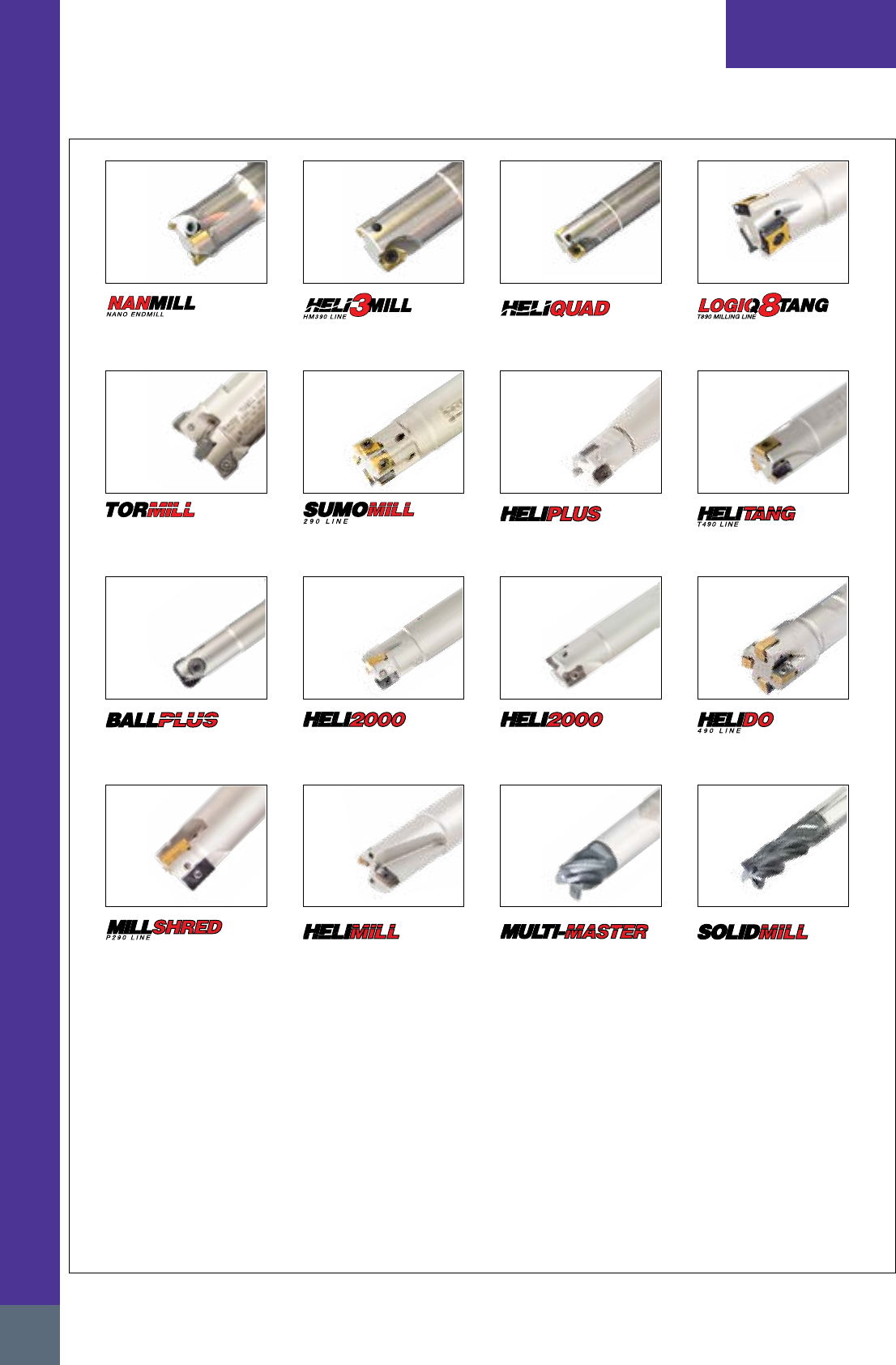

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM390 ETP-04
page 13
HM390 ETP/ETD
pages 14, 22, 30-31, 33
E90
page 11
T890HT
page 29
E90CN
pages 15-16
T290 ELN
pages 15, 21
HP E90
pages 17-18
T490 ELN
pages 19-20,29,30
HCE
page 23
HM90 E90A
pages 24-28
HM90 E90AD
pages 28-29
H490 E90AX
pages 20, 21, 30, 33
P290 EPW
pages 34-35
E90AC
page 36
MULTI MASTER
page 41-43
SOLID CARBIDE
pages 110-114
Endmills 90°

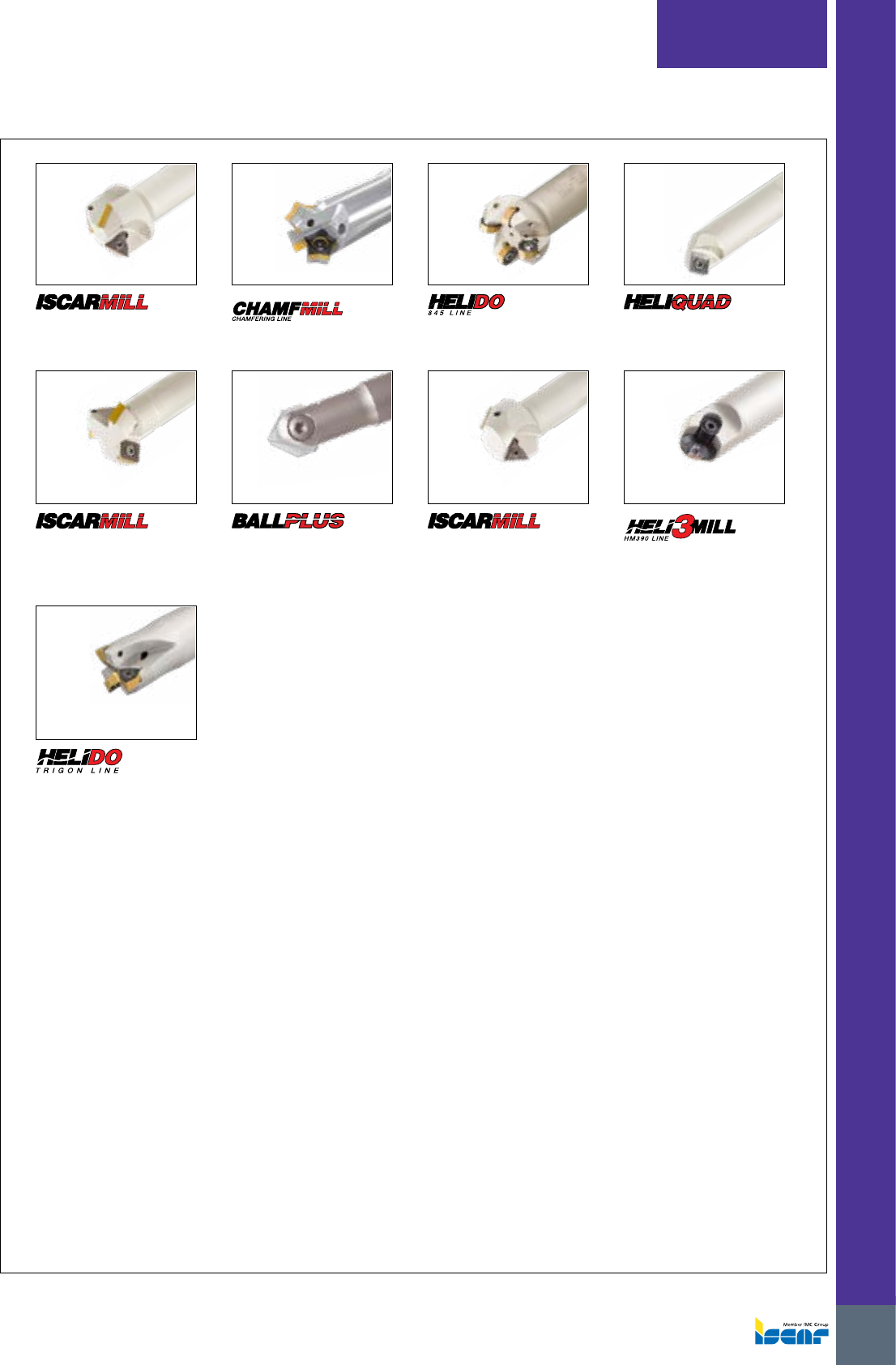

PICTORIAL TOOL
REFERENCE
7
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
E30/T230
page 36
CH45-PN
page 37
SOE45
page 38
E45X
page 38
E45/T245
page 38
HCM
pages 262-265
E60/T260
page 39
HM390 E10-80-07
page 39
H690 EWN
page 12, 16
Endmills 30°, 45°, 60°
PICTORIAL TOOL
REFERENCE
ISCAR
8
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

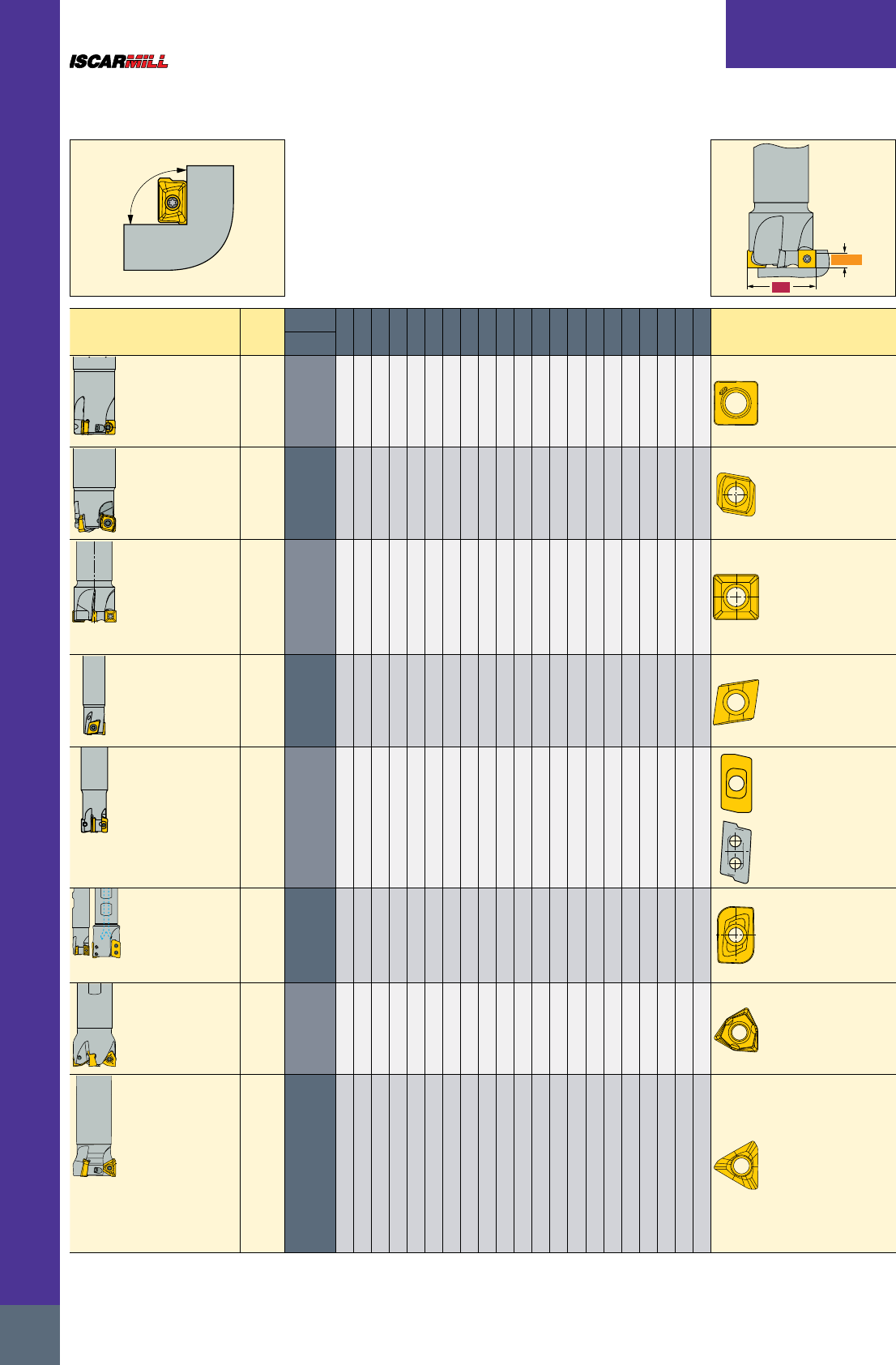

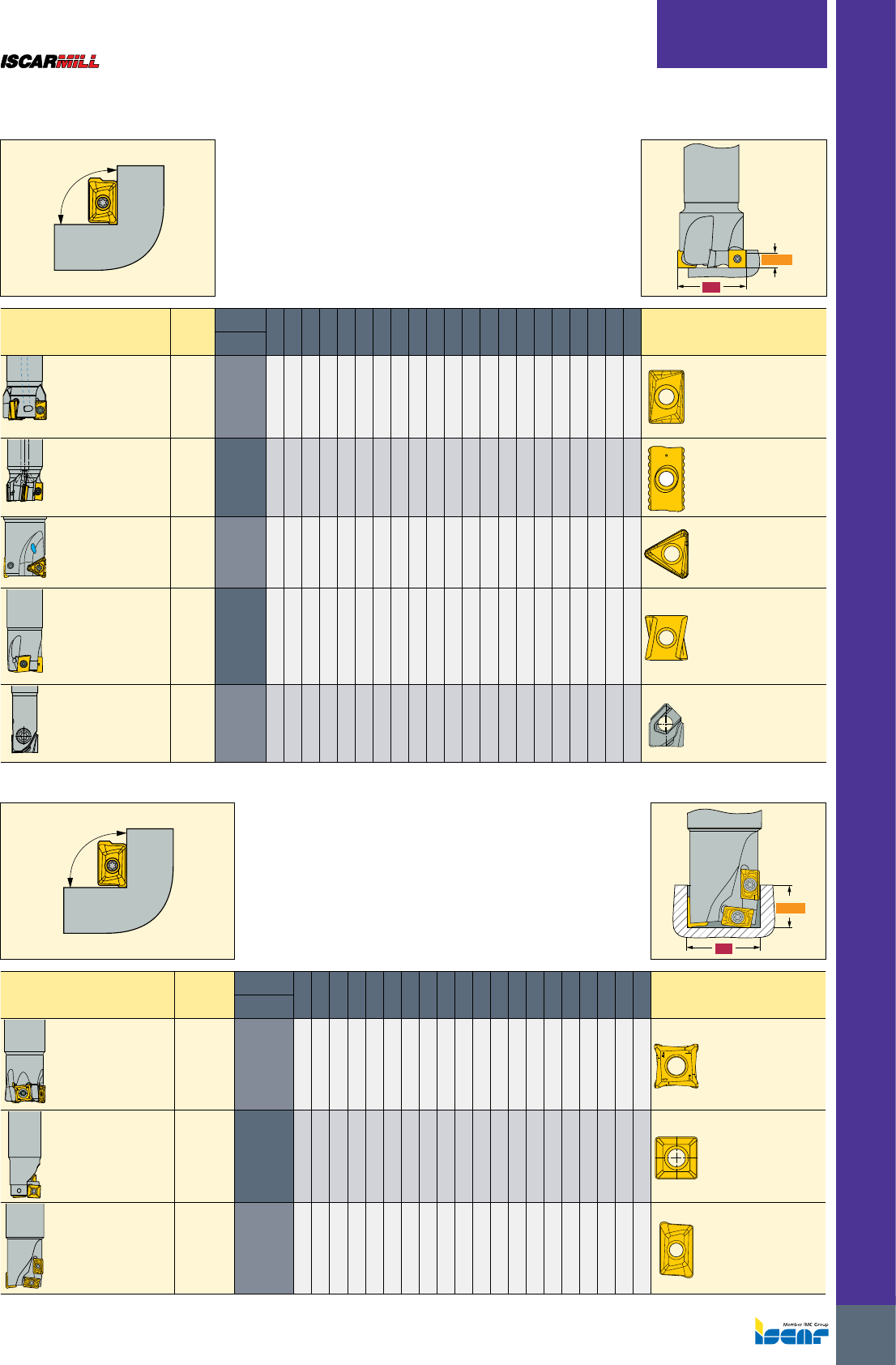

Endmills 90° Selection Guide
90˚
APMX
DC
Tools Pages
DC 6 8 10 12 14 16 17 18 19 20 21 22 25 28 30 32 38 40 50 63 80
Inserts
APMX
E90SO-04
E90SO-MM-04
11
11
3.5
•••••• • SOMT/CT 0402
E90CN-M
E90CN
15
16
0.5
••••• • CNHT/MT 07
E90SP
E90X
21
16
9.6
5.8
• • • • • • • • • •
SPMT 10.../
XPMT 10.../
QPMR 10.../
QPMT 10...
SOMT 06.../
XOMT 06.../
SPCT 10.../
SPMR 10.../
T290 ELN-05
T290 ELN-MM-05
T290 ELN-10
15
15
21
5
10
• • • • • • • • • T290 LNMT 05...
T290 LNMT 1004
HP E90AN-07
HP E90AN-M-07
HP E90AN-MM-07
HP E90AT-19
17
17
18
35
7.7
18
• • • • • • • •
HP ANKT 0702
HP AD..19
HM90 E90A-10
HM90 E90A-MM-10
HM90 E90A-M-10
HM90 E90AD-15
HM90 E90AD-M-15
24-26
27
28
31
32
10
10
10
14.3
14.3
•••••••••••••• ••
HM90 AP...10/
AP...10/
HM90 AD...15/
AD...15/
H690 EWN-04
H690 EWN-07
12
16
4
7
• • • • • •
H690 WNMU 0403
H690 WNHU/
WNMU 0705
HM390 ETP-04
HM390 ETP-MM-04
HM390 ETP-05
HM390 ETP-MM-05
HM390 ETC-07
HM390 ETC-MM
HM390 ETP-10
HM390 ETP-M
HM390 ETP-C#-10
HM390 ETD-15
HM390 ETD-M
HM390 ETD-19
13
13
14
14
18
18
22
22
23
30
31
33
3
3.5
5
8
13
16
••••• • • ••• • ••
HM390 TPKR 0401/
HM390 TPKT/CT 0502/
HM390 TCKT/CT 0703/
HM390 TPKT/CT 1003/
HM390 TDKT/CT 1505
HM390 TDKT 1907
SELECTION GUIDE
9
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Endmills 90° Selection Guide
90˚
APMX
DC
Tools Pages
DC 6 8 10 12 14 16 17 18 19 20 21 22 25 28 30 32 38 40 50 63 80
Inserts
APMX
H490 E90AX-09
H490 E90AX-M
H490 E90AX-MM
H490 E90AX-12
H490 E90AX-17
20
20
21
30
33
8
12
16.3
• • • • • • • • • •
HM490 ANKX/ANCX
-09/
HM490 ANKX/ANCX
-12/
HM490 ANKX/ANCX -17
P290 EPW
P290 EPW-M
34
35
12
18
• • • • P290 ACKT 1204
P290 ACKT 1806
H690 E90AX-10 28
8
• • • •
HM690 TNKX/
TNCX 1005
T490 ELN-08
T490 ELN-M-08
T490 ELN-MM..-08
T490 ELN-11
T490 ELN-13
T490 ELN-16
19
19
20
29
30
33
8
9
12.5
16
• • • • • • • •
T490 LN..0804
T490 LN..1106
T490 LN..1306
T490 LN..1607
HCE
HCE-MM
23
23
8.1-
14.7
• • • • HTR
HCC
90˚
APMX
DC
Tools Pages
DC 8 10 12 14 16 17 18 19 20 21 22 25 28 30 32 38 40 50 63 80
Inserts
APMX
T890HT ELN-R13 29
9.5
• • T890 LN.T 1306
E90XC 36
5.8-22
• • • SOMT-HQ
XOMT-HQ
E90AC 36
19-38
• • • ADCT 1505.../
ADKT 1505.../
FDKT 1505...
Center Cutting Endmills
SELECTION GUIDE
ISCAR
10
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

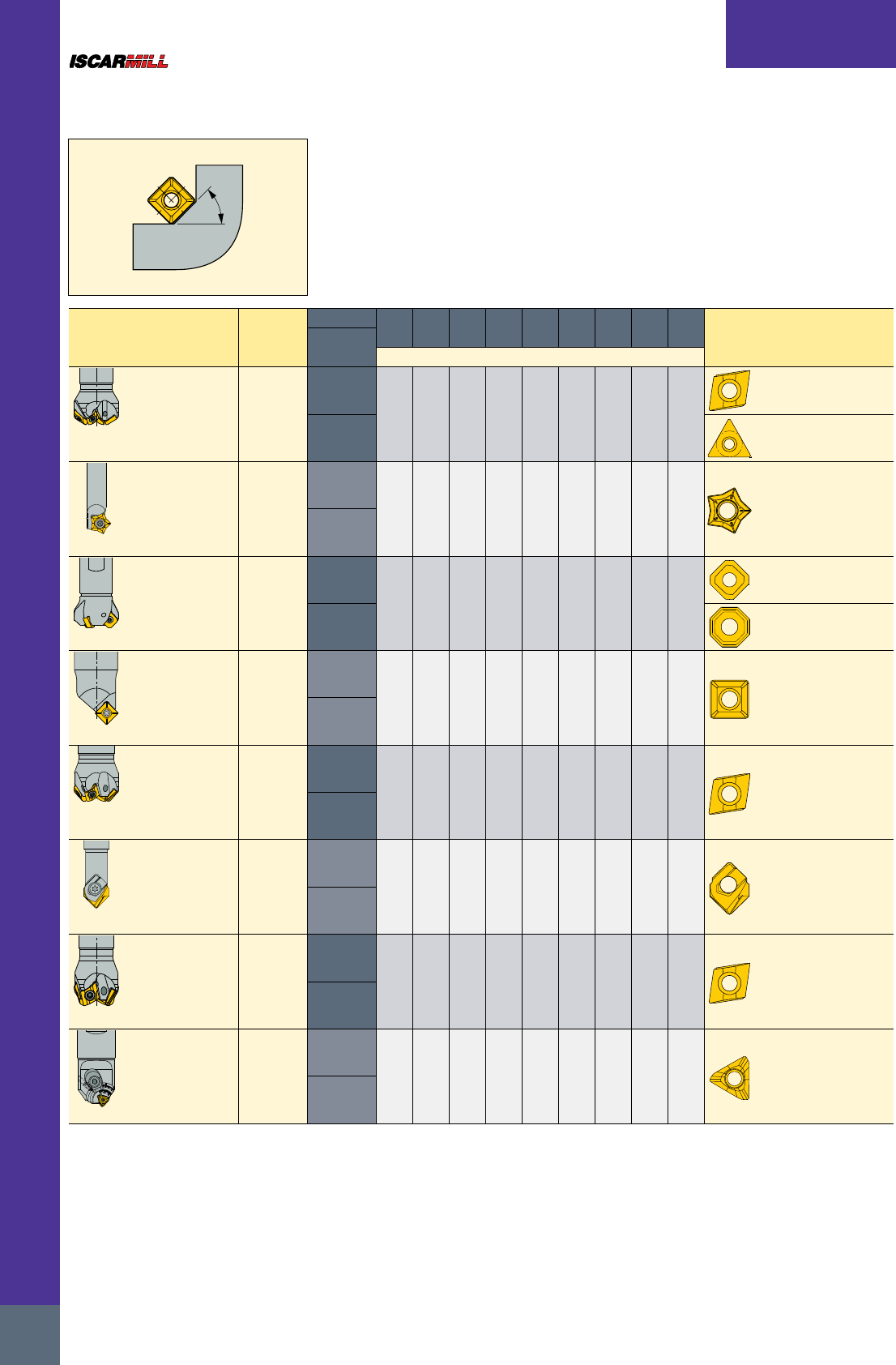

Endmills 30°, 45°, 60° Selection Guide
α°
Tools Pages
DC 6 8 12 16 20 25 30 32 40
Inserts
APMX
Number of Teeth (Effective)
E30
T230
36
36
2.5
7 4 3
T290 LNMT 05...
α=30º
TPMT
CH45-PN06
CH45-MM-PN06
37
37
1.5
1 1
PNMT 0602-TN
α=45º
SOE 45 8/16 38
3.5-6
2 3 4
S845 SNMU/
SNHU 1306
α=45º
ONMU/
ONHU 0505
E45X 38
4
1 1
SOMT 06...
XOMT 06..
QOMT 06..
α=45º
E45
T245
38
38
3.6-9.7
1-4 2 3
SCMT 12
SDMT 09
T290 LNMT 05...
TPMT
α=45º
HCM 262-265
5 - 12
2222
HCD
α=45º
E60
T260
39
39
4.5
12.3 4 2
T290 LNMT 05...TPMT
α=60º
HM390 E10-80-07 39
0.35-1.97
1
HM390 TCK/CT 0703
α=10º-80º
SELECTION GUIDE
11
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
DC_2
DCX_2
15˚
APMX_2
LU
APMX
DC
AB
Rd°
Designation
DC APMX DC_2 DCX_2 APMX_2 LU OAL DCONMS Shank(1) CICT(2) RMPX°(3) MIID(4) MIID_2(5)
kg
E90SO D06-1-C06-04-C
6.00 3.50 - 6.17 0.50 15.00 57.00 6.00 C 1 - SOMT 040204 PNTR SOMT 040208 PNR-FF 0.06
E90SO D08-1-C08-04-C
8.00 3.50 1.90 8.17 0.50 15.30 60.00 8.00 C 1 8.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.01
E90SO D10-2-C10-04-C
10.00 3.50 3.90 10.17 0.50 18.00 70.00 10.00 C 2 6.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.04
E90SO D12-2-C12-04-C
12.00 3.50 5.90 12.17 0.50 18.00 70.00 12.00 C 2 3.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.05
E90SO D12-3-C12-04-C
12.00 3.50 5.90 12.17 0.50 18.00 70.00 12.00 C 3 3.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.05
E90SO D14-4-C14-04-C
14.00 3.50 7.90 14.17 0.50 20.00 80.00 14.00 C 4 2.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.08
E90SO D16-4-C16-04-C
16.00 3.50 9.90 16.17 0.50 20.00 90.00 16.00 C 4 2.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.12
E90SO D16-5-C16-04-C
16.00 3.50 9.90 16.17 0.50 20.00 90.00 16.00 C 5 2.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.12
E90SO D20-6-C20-04-C
20.00 3.50 13.90 20.17 0.50 25.00 110.00 20.00 C 6 1.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.23
• A - with SOMT/CT 0402 insert • B - with SOMT 0402-FF insert • Tightening torque 0.5 Nxm
(1) C-Cylindrical
(2) Number of inserts
(3) Maximum ramping angle - valid only with SOMT 040208 PNR-FF insert
(4) Master insert identification
(5) Master insert identification 2
For inserts, see pages: SOMT 0402-FF (500) • SOMT/CT 0402 (500)
Spare Parts
Designation
E90SO D06-1-C06-04-C
TS 18041I/HG/S T-6IP/51
E90SO D08-1-C08-04-C
TS 18041I/HG/S T-6IP/51
E90SO D10-2-C10-04-C
TS 18041I/HG T-6IP/51
E90SO D12-2-C12-04-C
TS 18041I/HG T-6IP/51
E90SO D12-3-C12-04-C
TS 18041I/HG T-6IP/51
E90SO D14-4-C14-04-C
TS 18041I/HG T-6IP/51
E90SO D16-4-C16-04-C
TS 18041I/HG T-6IP/51
E90SO D16-5-C16-04-C
TS 18041I/HG T-6IP/51
E90SO D20-6-C20-04-C
TS 18041I/HG T-6IP/51
E90SO-04
Endmills Carrying Inserts
for Shouldering and Fast
Feed Applications
OAL
DCONMS
THSZMS
LF
APMX DCX_2 APMX_2
15˚
DC_2
DC
AB
Rd°
Designation
DC APMX DC_2 DCX_2 APMX_2 LF OAL CICT(1) DCONMS THSZMS DRVS(2) RMPX°(3) MIID(4) MIID_2(5)
kg
E90SO D10-2-MMT06-04
10.00 3.50 3.90 10.17 0.50 15.00 21.30 2 9.70 T06 8.0 6.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.05
E90SO D12-3-MMT08-04
12.00 3.50 5.90 12.17 0.50 16.00 23.50 3 11.60 T08 10.0 3.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.15
E90SO D14-4-MMT08-04
14.00 3.50 7.90 14.17 0.50 16.00 23.50 4 13.60 T08 10.0 2.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.01
E90SO D16-5-MMT10-04
16.00 3.50 9.90 16.17 0.50 18.00 29.30 5 15.60 T10 13.0 2.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.03
E90SO D20-6-MMT12-04
20.00 3.50 13.90 20.17 0.50 25.00 38.80 6 19.60 T12 16.0 1.0 SOMT 040204 PNTR SOMT 040208 PNR-FF 0.08
• A - with SOMT/CT 0402 insert • B - with SOMT 0402-FF insert • Tightening torque 0.5 Nxm
(1) Number of inserts
(2) Torque key size
(3) Maximum ramping angle - valid only with SOMT 040208 PNR-FF insert
(4) Master insert identification
(5) Master insert identification 2
For inserts, see pages: SOMT 0402-FF (500) • SOMT/CT 0402 (500)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
Spare Parts
Designation
E90SO-MM-04
TS 18041I/HG T-6IP/51
E90SO-MM-04
Endmills with a MULTI-MASTER
Connection Carrying Inserts
for Shouldering and Fast
Feed Applications
ISCAR
12
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

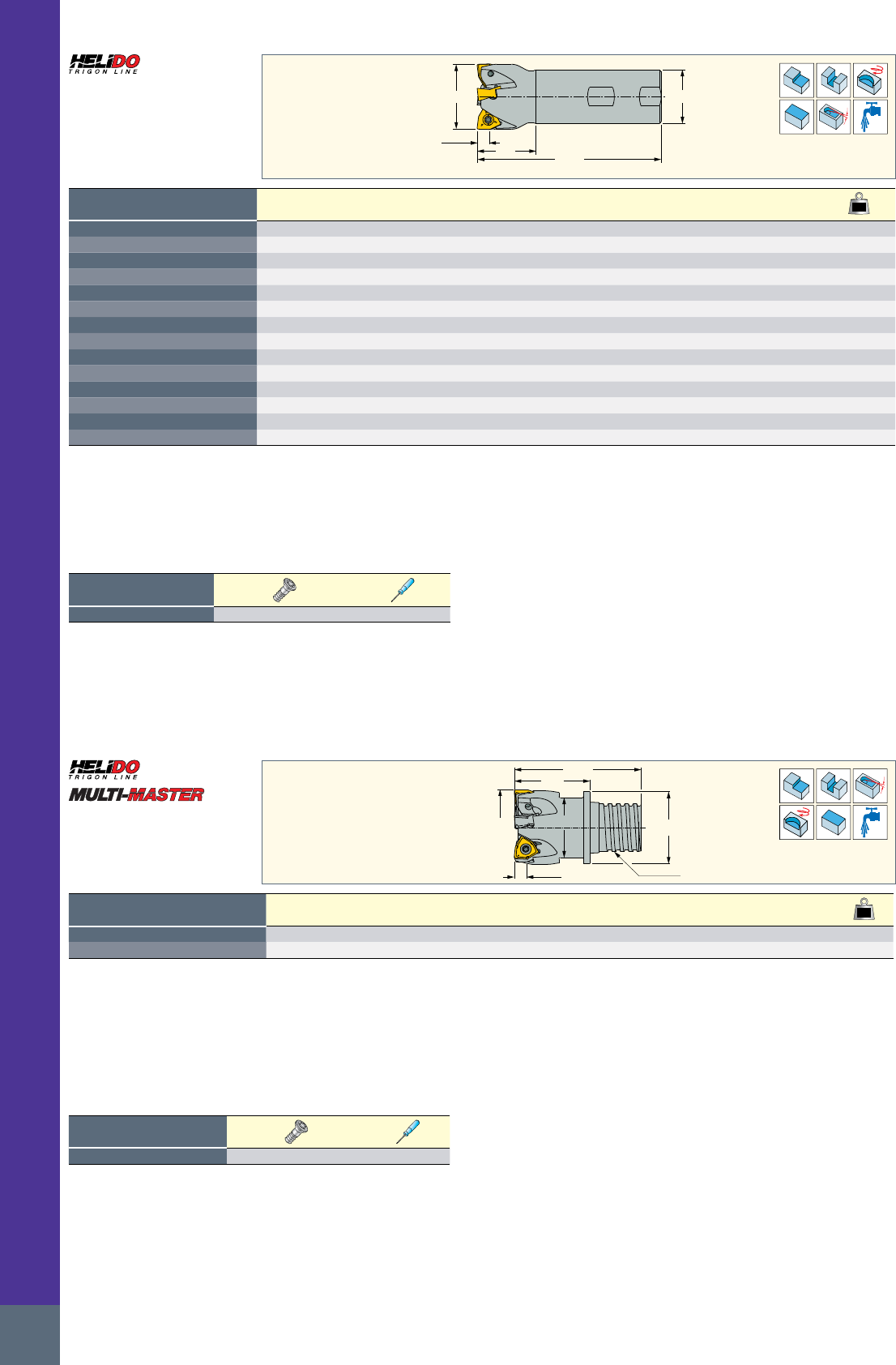

APMX
DCONMS
OAL
LH
DC
Rd°
Designation
DC CICT(1) APMX OAL LH DCONMS Shank(2) RMPX°(3)
kg
H690 EWN D18-2-C16-R04
18.00 2 4.00 100.00 24.0 16.00 C 1.7 0.14
H690 EWN D18-2-C16-R04-B
18.00 2 4.00 160.00 24.0 16.00 C 1.7 0.21
H690 EWN D20-2-C19-R04-B
20.00 2 4.00 160.00 26.0 19.00 C 1.5 0.31
H690 EWN D20-2-C20-R04
20.00 2 4.00 110.00 26.0 20.00 C 1.5 0.42
H690 EWN D20-3-C19-R04-B
20.00 3 4.00 160.00 26.0 19.00 C 1.5 0.30
H690 EWN D20-3-C20-R04
20.00 3 4.00 110.00 26.0 20.00 C 1.5 0.24
H690 EWN D20-3-C20-R04-B
20.00 3 4.00 160.00 26.0 20.00 C 1.5 0.31
H690 EWN D20-3-W20-R04
20.00 3 4.00 85.00 26.0 20.00 W 1.5 0.16
H690 EWN D25-4-C25-R04
25.00 4 4.00 120.00 30.0 25.00 C 1.1 0.36
H690 EWN D25-5-C25-R04
25.00 5 4.00 120.00 30.0 25.00 C 1.1 0.37
H690 EWN D25-5-W25-R04
25.00 5 4.00 95.00 30.0 25.00 W 1.1 0.22
H690 EWN D32-5-C32-R04
32.00 5 4.00 130.00 35.0 32.00 C 0.8 0.68
H690 EWN D32-6-C32-R04
32.00 6 4.00 130.00 35.0 32.00 C 0.8 0.68
H690 EWN D32-6-W32-R04
32.00 6 4.00 110.00 35.0 32.00 W 0.8 0.56
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical , W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H690 WNMU 0403 (468)
Spare Parts
Designation
H690 EWN-04
SR M2.5X6-T7-60 T-7/51
H690 EWN-04
90° Endmills Carrying H690
WNMU 0403 Double-Sided
Trigonal Inserts with 6
Helical Cutting Edges
LF
DCONMS
THSZMS
OAL
DC
APMX
DRVS
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3) TQ_3(4)
kg
H690 EWN D20-3-MMT12-R04
20.00 4.00 3 20.00 18.30 T12 33.00 16.0 1.5 28 0.07
H690 EWN D25-5-MMT15-R04
25.00 4.00 5 25.00 23.90 T15 42.00 20.0 1.1 40 0.12
• Insert clamping screw must be lubricated every indexing. • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Tool tightening torque (Nxm)
For inserts, see pages: H690 WNMU 0403 (468)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
Spare Parts
Designation
H690 EWN-MM-04
SR M2.5X6-T7-60(a) T-7/51
(a) Tightening torque 0.9 Nxm
H690 EWN-MM-04
90° Endmills with a MULTI-MASTER
Threaded Connection Carrying
H690 WNMU 0403 Double-Sided
Trigonal Inserts

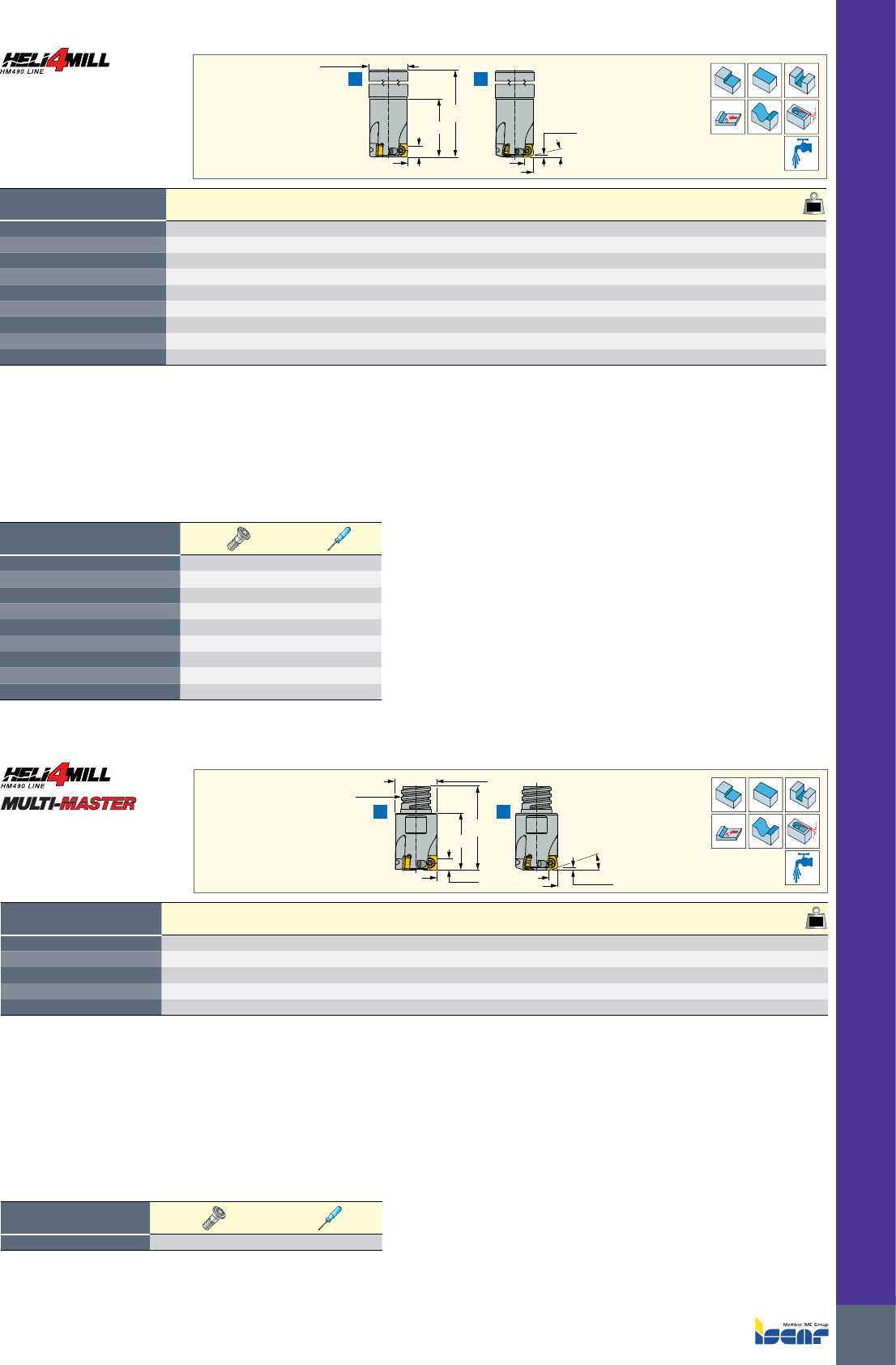

13
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
LH
LU
DC
APMX
Rd°
Designation
DC APMX CICT(1) OAL LU LH DCONMS Shank(2) RMPX°(3)
kg
HM390 ETP D08-2-C08-04
8.00 3.00 2 60.00 9.60 12.0 8.00 C 3.0 0.02
HM390 ETP D10-3-C10-04
10.00 3.00 3 80.00 12.60 15.0 10.00 C 2.5 0.05
• Tightening torque 0.5 Nxm
(1) Number of inserts
(2) C-Cylindrical
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKR 0401 (446)
Spare Parts
Designation
HM390 ETP D08-2-C08-04
SR M2X0.4-3 T6 T-6/5 MAGNET 3X3
HM390 ETP D10-3-C10-04
SR M2X0.4-3.5 T6 T-6/5 MAGNET 3X3
HM390 ETP-04
90° Small Diameter Endmills
Carrying HM390 TPKR
0401 Triangular Inserts with
3 Helical Cutting Edges
DC
DRVS
LF
THSZMS DCONMS
OAL
APMX
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3)
kg
HM390 ETP D08-2-MMT05-04
8.00 3.00 2 10.00 7.60 T05 16.75 5.5 3.0 0.00
HM390 ETP D10-3-MMT06-04
10.00 3.00 3 12.00 9.60 T06 18.30 8.0 2.5 0.00
• Insert tightening torque 0.5 N*m • For adaptation, see page 44 • For user guide, see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKR 0401 (446)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
Spare Parts
Designation
HM390 ETP D08-2-MMT05-04
SR M2X0.4-3 T6 T-6/5 MAGNET 3X3
HM390 ETP D10-3-MMT06-04
SR M2X0.4-3.5 T6 T-6/5 MAGNET 3X3
HM390 ETP-MM-04
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HM390
TPKR 0401... Triangular Inserts
ISCAR
14
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

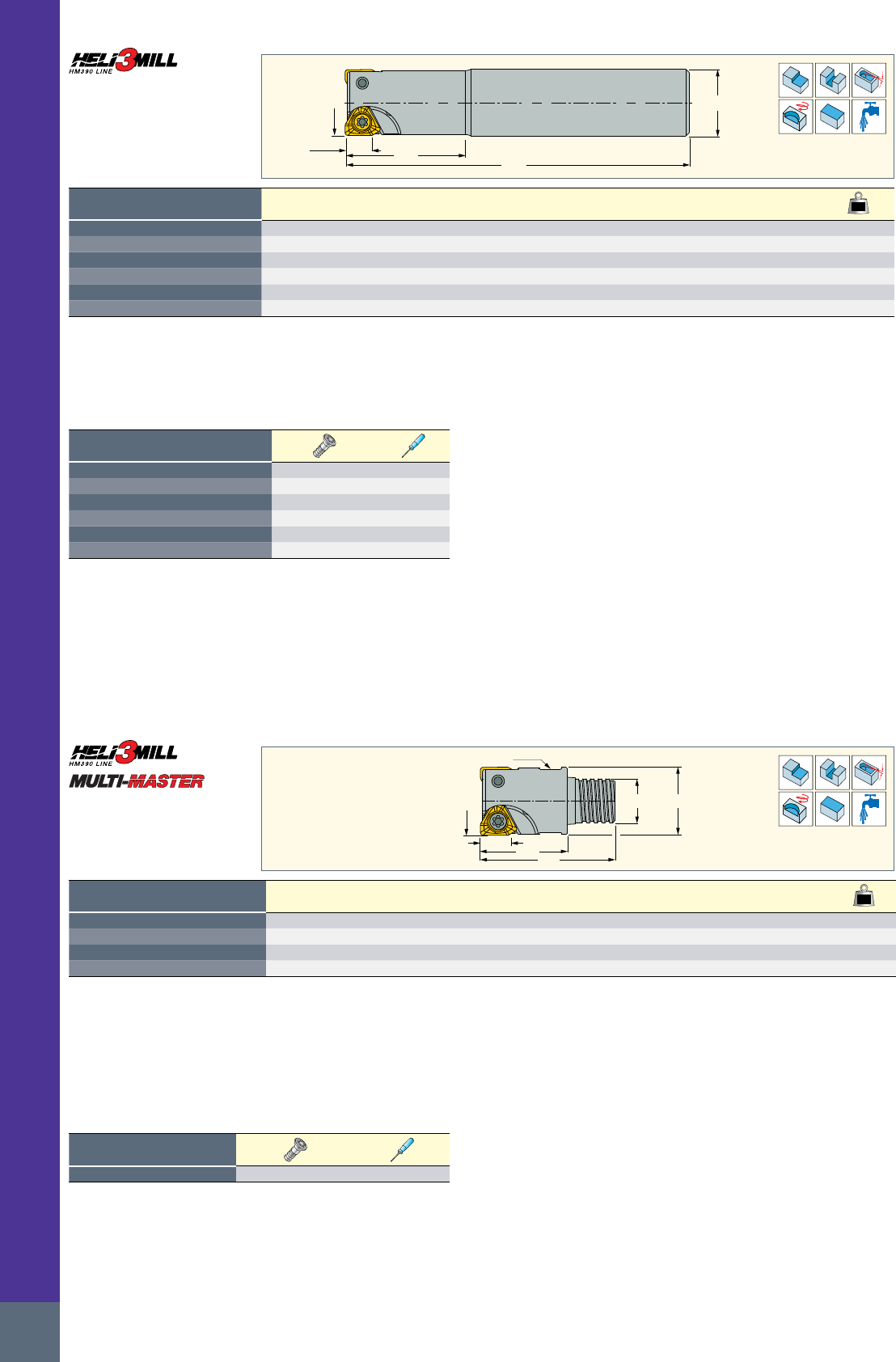

DCONMS
OAL
LH
DC
APMX
Rd°
Designation
DC APMX CICT(1) OAL LH DCONMS Shank(2) RMPX°(3)
kg
HM390 ETP D06-01-C06-05-C
6.00 3.50 1 57.00 15.0 6.00 C 1.0 0.06
HM390 ETP D08-01-C08-05-C
8.00 3.50 1 60.00 14.9 8.00 C 1.0 0.03
HM390 ETP D10-02-C10-05-C
10.00 3.50 2 70.00 18.0 10.00 C 2.0 0.03
HM390 ETP D12-03-C12-05-C
12.00 3.50 3 70.00 18.0 12.00 C 1.5 0.06
HM390 ETP D14-03-C14-05-C
14.00 3.50 3 80.00 20.0 14.00 C 1.5 0.08
HM390 ETP D16-04-C16-05-C
16.00 3.50 4 90.00 20.0 16.00 C 1.5 0.12
• Tightening torque 0.5 N*m • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 0502 (446)
Spare Parts
Designation
HM390 ETP D06-01-C06-05-C
TS 18041I/HG/S T-6IP/51
HM390 ETP D08-01-C08-05-C
TS 18041I/HG/S T-6IP/51
HM390 ETP D10-02-C10-05-C
TS 18041I/HG T-6IP/51
HM390 ETP D12-03-C12-05-C
TS 18041I/HG T-6IP/51
HM390 ETP D14-03-C14-05-C
TS 18041I/HG T-6IP/51
HM390 ETP D16-04-C16-05-C
TS 18041I/HG T-6IP/51
HM390 ETP-05
90° Endmills Carrying HM390
TPKT 0502 Triangular Inserts
with 3 Helical Cutting Edges
DC
DRVS
LF
THSZMS DCONMS
OAL
APMX
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3)
kg
HM390 ETP D10-02-MMT06-05
10.00 3.50 2 15.00 9.60 T06 21.60 8.0 2.0 0.01
HM390 ETP D12-03-MMT08-05
12.00 3.50 3 16.00 11.60 T08 24.20 10.0 1.5 0.01
HM390 ETP D14-03-MMT08-05
14.00 3.50 3 16.00 13.60 T08 22.90 10.0 1.5 0.01
HM390 ETP D16-04-MMT10-05
16.00 3.50 4 18.00 15.60 T10 29.80 13.0 1.5 0.03
• Insert tightening torque 0.5 N*m • For adaptation, see page 44 • For user guide, see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 0502 (446)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)
Spare Parts
Designation
HM390 ETP-MM-05
TS 18041I/HG T-6IP/51
HM390 ETP-MM-05
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HM390
TPKT 0502... Triangular Inserts
15
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
DC DCONMS
LH
APMX
Designation
DC CICT(1) OAL LH APMX DCONMS Shank(2)
kg
T290 ELN D08-01-C08-05
8.00 1 60.00 20.0 5.00 8.00 C 0.02 SR 10503833 T-7/51
T290 ELN D10-02-C10-05
10.00 2 80.00 20.0 5.00 10.00 C 0.04 SR 10503833-S T-7/51
T290 ELN D12-02-C12-05
12.00 2 80.00 20.0 5.00 12.00 C 0.06 SR 10503833 T-7/51
T290 ELN D12-03-C12-05
12.00 3 80.00 20.0 5.00 12.00 C 0.07 SR 10503833 T-7/51
T290 ELN D14-03-C14-05
14.00 3 80.00 20.0 5.00 14.00 C 0.08 SR 10503833 T-7/51
T290 ELN D16-04-C16-05
16.00 4 80.00 22.0 5.00 16.00 C 0.10 SR 10503833 T-7/51
T290 ELN D16-05-C16-05
16.00 5 80.00 22.0 5.00 16.00 C 0.10 SR 10503833 T-7/51
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical
For inserts, see pages: T290 LNMT/LNHT 0502 (474)
T290 ELN-05
Endmills Carrying Tangentially
Clamped Inserts
DC DCONMS
DRVS
APMX
LF
OAL
THSZMS
Designation
DC CICT(1) APMX DCONMS THSZMS LF OAL DRVS(2)
kg
T290 ELN D10-02-MMT06-05
10.00 2 5.00 9.20 T06 13.40 20.00 8.0 0.01 SR 10503833-S T-7/51
T290 ELN D12-03-MMT08-05
12.00 3 5.00 11.00 T08 16.00 24.00 10.0 0.01 SR 10503833 T-7/51
T290 ELN D14-03-MMT08-05
14.00 3 5.00 13.00 T08 16.06 24.00 10.0 0.01 SR 10503833 T-7/51
T290 ELN D16-04-MMT10-05
16.00 4 5.00 14.95 T10 19.25 31.00 13.0 0.03 SR 10503833 T-7/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
For inserts, see pages: T290 LNMT/LNHT 0502 (474)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
T290 ELN-MM-05
Endmills with a MULTI-MASTER
Adaptation Carrying Tangentially
Clamped Inserts
DC
APMX
LF
OAL DRVS
DCONMS
5.7
THSZMS
Rd°
Designation
DC CICT(1) APMX(2) LF OAL THSZMS RMPX°(3) DCONMS DRVS(4) TQ_3(5)
kg
E90CN D16-2-M08-07-C
16.00 2 4.00 30.00 47.50 M08 5.0 13.00 13.0 20 0.03 SR 34-505/LHG T-8/53
E90CN D20-3-M10-07-C
20.00 3 4.00 30.00 50.00 M10 3.5 18.00 16.0 29 0.05 SR 34-505/LHG T-8/53
E90CN D25-4-M12-07-C
25.00 4 4.00 35.00 57.00 M12 2.5 21.00 17.0 33 0.09 SR 34-505/LHG T-8/53
• For adaptation see page 44 • For user guide see pages 542-548
• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned.
Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
(1) Number of inserts
(2) Maximum recommended depth of cut for CNMT 070308-MM insert, APMX=2 mm for CNHT 070305 insert
(3) Maximum ramping angle
(4) Clamping wrench size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: CNHT/MT 07 (538)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
E90CN-M
90° Endmills with a FLEXFIT
Threaded Connection Carrying
CNMT/HT 0703 Inserts
ISCAR
16
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

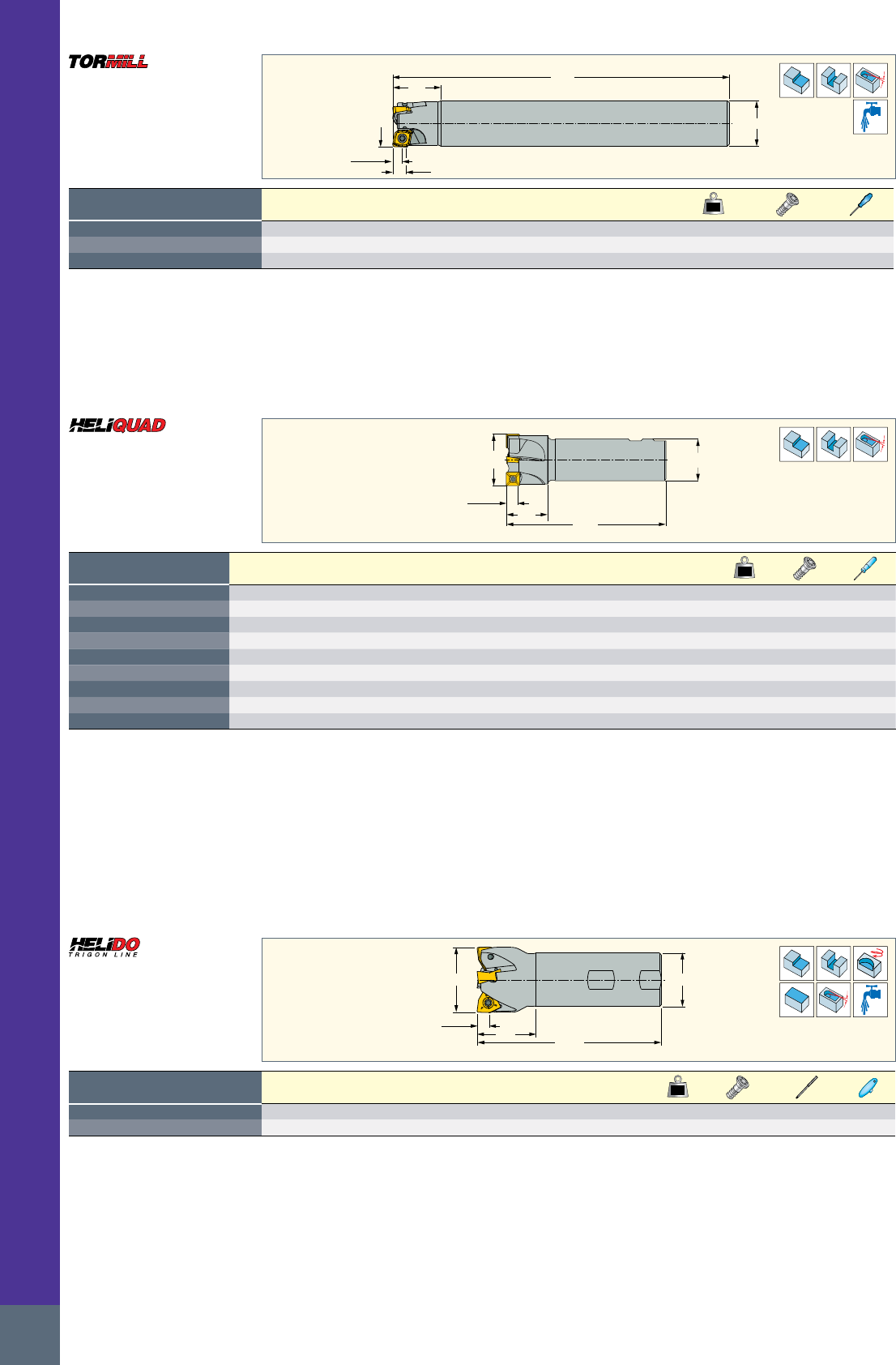

LH
OAL
DCONMS
DC
5.7
APMX
Rd°
Designation
DC CICT(1) APMX(2) LH OAL RMPX°(3) DCONMS
kg
E90CN D16-2-L100-C15-07-C
16.00 2 4.00 20.0 100.00 5.0 15.00 0.11 SR 34-505/LHG T-8/53
E90CN D20-3-L140-C19-07-C
20.00 3 4.00 20.0 140.00 3.5 19.00 0.27 SR 34-505/LHG T-8/53
E90CN D25-4-L160-C24-07-C
25.00 4 4.00 20.0 160.00 2.5 24.00 0.48 SR 34-505/LHG T-8/53
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum recommended depth of cut for CNMT 070308-MM insert, for CNHT 070305 insert APMX=2 mm
(3) Maximum ramping angle
For inserts, see pages: CNHT/MT 07 (538)
E90CN
90° Endmills Carrying
CNMT/HT 0703 Inserts
OAL
LU
APMX
DC DCONMS
Rd°
Designation
DC CICT(1) APMX LU OAL DCONMS Shank(2) RMPX°(3)
kg
E90X D08-C10-06
8.00 1 5.80 16.0 70.00 10.00 C 0.5 0.04 SR 34-508 T-7/51
E90X D10-C10-06
10.00 1 5.80 20.0 80.00 10.00 C 1.0 0.04 SR 34-508 T-7/51
E90X D12-C16-06
12.00 1 5.80 22.0 80.00 16.00 C 90.0 0.10 SR 34-508 T-7/51
E90X D14-C16-06
14.00 2 5.80 20.0 80.00 16.00 C - 0.11 SR 34-508/L T-7/51
E90X D14-W16-06
14.00 2 5.80 22.0 70.00 16.00 W - 0.09 SR 34-508/L T-7/51
E90X D16-C16-06
16.00 2 5.80 20.0 90.00 16.00 C 3.5 0.13 SR 34-508/L T-7/51
E90X D20-C20-06
20.00 3 5.80 22.0 110.00 20.00 C 3.0 0.25 SR 34-508/L T-7/51
E90X D25-C20-06
25.00 4 5.80 25.0 120.00 20.00 C 2.5 0.29 SR 34-508/L T-7/51
E90X D32-W25-06
32.00 5 5.80 25.0 90.00 25.00 W 3.8 0.34 SR 34-508/L T-7/51
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: QOMT-HQ (494) • SOMT-HQ (494) • XOMT-HQ (494)
E90X
Endmills Carrying Square
Q/S/XOMT Inserts
APMX
DCONMS
OAL
LH
DC
Rd°
Designation
DC CICT(1) APMX OAL LH DCONMS Shank(2) RMPX°(3)
kg
H690 EWN D032-03-W32-R07
32.00 3 7.00 110.00 48.0 32.00 W 2.0 0.56 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 EWN D040-04-W32-R07
40.00 4 7.00 110.00 35.0 32.00 W 1.5 0.64 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For user guide see pages 542-548
(1) Number of inserts
(2) C-cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H690 WNHU/WNMU 0705 (469)
H690 EWN-07
90° Endmills Carrying H690
WNMU 0704 Double-Sided
Trigonal Inserts with 6
Helical Cutting Edges
17
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

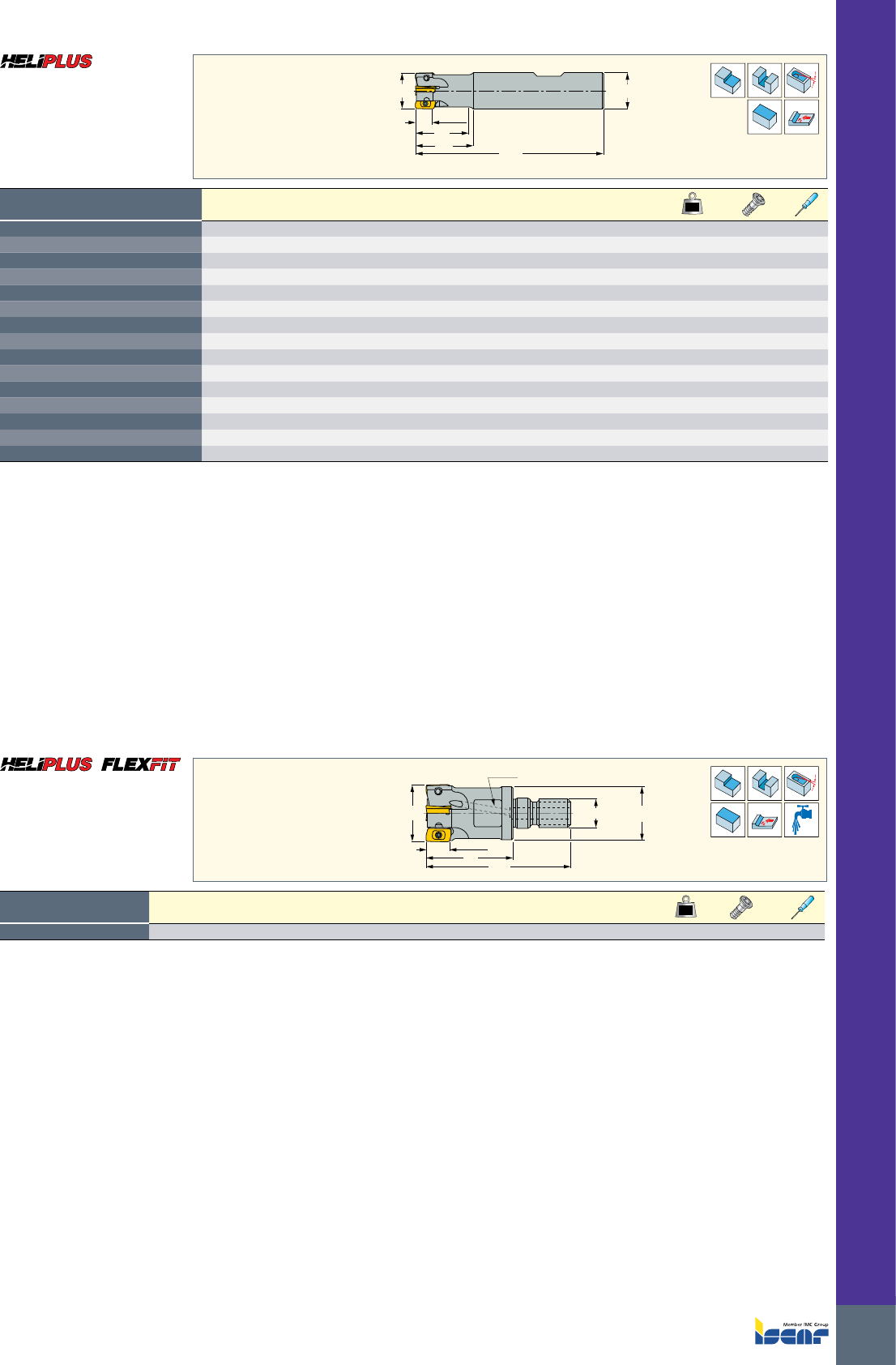

DCONMS
OAL
LH
LU
APMX
DC
Rd°
Designation
DC CICT(2) LH LU OAL APMX DCONMS Shank(3) RMPX°(4) RMPX°_2(5) CSP(6)
kg
HP E90AN-D10-1-C10-07-C
10.00 1 20.0 18.0 80.00 7.70 10.00 C 2.5 - 1 0.04 SR 34-533 T-6/51
HP E90AN-D12-2-C12-07-C
12.00 2 18.0 16.2 80.00 7.70 12.00 C 2.7 3.5 1 0.06 SR 34-533/L/HG T-6/51
HP E90AN-D14-2-C14-07-C
14.00 2 18.0 16.5 80.00 7.70 14.00 C 3.2 4.2 1 0.08 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-C15-07-C-B (1)
16.00 3 26.0 24.5 150.00 7.70 15.00 C 3.2 6.0 1 0.17 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-C16-07-C
16.00 3 26.0 24.5 90.00 7.70 16.00 C 3.2 6.0 1 0.11 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-W16-07
16.00 3 21.0 18.5 85.00 7.70 16.00 W 3.2 6.0 0 0.12 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-C16-07-C
16.00 4 26.0 24.5 90.00 7.70 16.00 C 3.2 6.0 1 0.11 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-W16-07
16.00 4 20.0 18.5 85.00 7.70 16.00 W 3.2 6.0 0 0.12 SR 34-533/L/HG T-6/51
HP E90AN-D20-4-C19-07-C-B (1)
20.00 4 22.0 20.5 160.00 7.70 19.00 C 2.4 4.5 1 0.31 SR 34-533/L/HG T-6/51
HP E90AN-D20-4-C20-07-C
20.00 4 22.0 20.5 110.00 7.70 20.00 C 2.4 4.5 1 0.23 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-C20-07-C
20.00 5 22.0 20.5 110.00 7.70 20.00 C 2.4 4.5 1 0.23 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-W20-07
20.00 5 22.0 20.5 90.00 7.70 20.00 W 2.4 4.5 0 0.20 SR 34-533/L/HG T-6/51
HP E90AN-D25-5-C20-07-C
25.00 5 24.0 - 120.00 7.70 20.00 C 2.0 3.0 1 0.28 SR 34-533/L/HG T-6/51
HP E90AN-D25-7-C20-07-C
25.00 7 24.0 - 120.00 7.70 20.00 C 2.0 3.0 1 0.27 SR 34-533/L/HG T-6/51
HP E90AN-D32-8-C25-07-C
32.00 8 30.0 - 130.00 7.70 25.00 C 1.4 2.5 1 0.48 SR 34-533/L/HG T-6/51
• Insert tightening torque: 62 Nxcm • For user guide see pages 542-548
(1) "B" suffix - cylindrical shank which may be shortened.
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
(4) Maximum ramping angle
(5) Values only for HP ANKT 0702R12T-FF insert
(6) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
HP E90AN-07
Endmills with HELIPLUS
HP ANKT 0702.. Inserts
LF
DCONMS
OAL
APMX
DC THSZMS
DRVS
Rd°
Designation
DC CICT(1) THSZMS OAL LF APMX DCONMS RMPX°(2) RMPX°_2(3) DRVS(5) TQ_3(4)
kg
HP E90AN-D25-5-M12
25.00 5 M12 57.00 35.00 7.70 21.00 2.0 3.0 19.0 33 0.09 SR 34-533/L/HG T-6/51
• Insert tightening torque: 62 Nxcm • For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their
holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated
torque values are specified in the TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Values only for HP ANKT 0702R12T-FF insert
(4) Torque key size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
HP E90AN-M-07
90° Endmills with a FLEXFIT
Threaded Adaptation
Carrying HELIPLUS HP
ANKT 0702.. Inserts
ISCAR
18

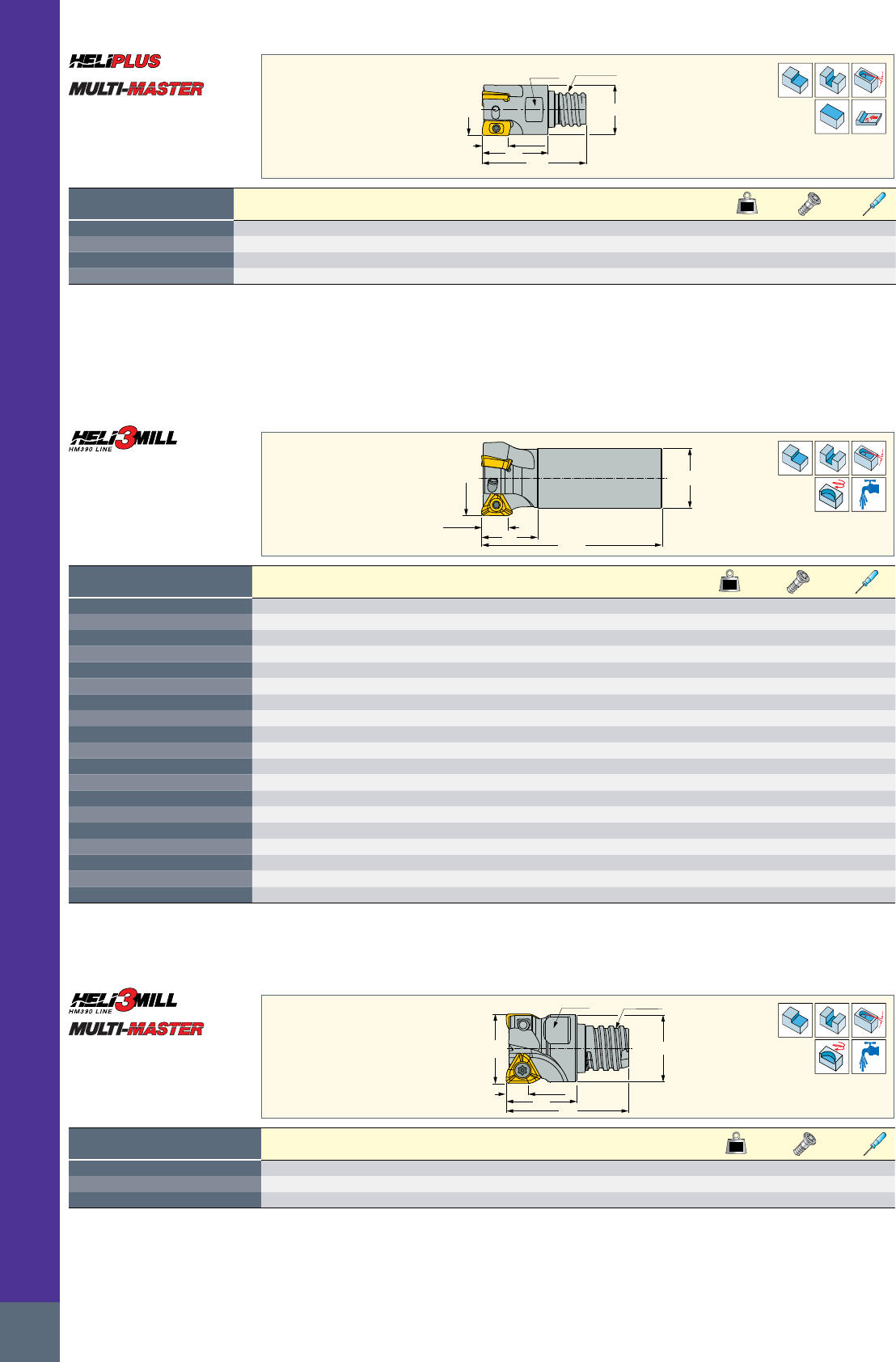

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
DRVS
OAL
LF
APMX
DCONMS
THSZMS
Rd°
Designation
DC CICT(1) OAL LF APMX THSZMS DCONMS DRVS(2) RMPX°(3) RMPX°_2(4)
kg
HP E90AN-D12-2-MMT08
12.00 2 24.45 16.50 7.70 T08 10.60 10.0 2.7 3.5 0.01 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-MMT10
16.00 3 31.75 20.00 7.70 T10 14.95 13.0 3.2 6.0 0.03 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-MMT10
16.00 4 31.75 20.00 7.70 T10 14.95 13.0 3.2 6.0 0.03 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-MMT12
20.00 5 35.30 21.50 7.70 T12 18.40 16.0 2.4 4.5 0.05 SR 34-533/L/HG T-6/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Values only for HP ANKT 0702R12T-FF insert
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
For holders, see pages: MM CAB (667) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)
HP E90AN-MM-07
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HELIPLUS
HP ANKT 0702.. Inserts
LH
APMX
DC
OAL
DCONMS
Rd°
Designation
DC APMX CICT(1) OAL LH DCONMS Shank(2) RMPX°(3)
kg
HM390 ETC D14-1-C16-07
14.00 5.00 1 80.00 21.0 16.00 C 1.9 0.10 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C15-07-B
16.00 5.00 2 150.00 26.0 15.00 C 1.9 0.17 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C16-07
16.00 5.00 2 100.00 26.0 16.00 C 1.9 0.12 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C16-07-B
16.00 5.00 2 150.00 40.0 16.00 C 1.9 0.19 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-W16-07
16.00 5.00 2 80.00 26.0 16.00 W 1.9 0.10 SR M2.5X5-T7-60 T-7/51
HM390 ETC D18-2-C16-07
18.00 5.00 2 100.00 30.0 16.00 C 1.4 0.13 SR M2.5X5-T7-60 T-7/51
HM390 ETC D18-2-C16-07-B
18.00 5.00 2 160.00 30.0 16.00 C 1.4 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C16-07
20.00 5.00 3 55.00 20.0 16.00 C 1.4 0.07 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C19-07-B
20.00 5.00 3 160.00 30.0 19.00 C 1.4 0.28 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C20-07
20.00 5.00 3 110.00 30.0 20.00 C 1.4 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C20-07-B
20.00 5.00 3 160.00 40.0 20.00 C 1.4 0.31 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-W20-07
20.00 5.00 3 85.00 30.0 20.00 W 1.4 0.16 SR M2.5X5-T7-60 T-7/51
HM390 ETC D22-3-C20-07
22.00 5.00 3 110.00 30.0 20.00 C 1.0 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D22-3-C20-07-B
22.00 5.00 3 180.00 30.0 20.00 C 1.0 0.37 SR M2.5X5-T7-60 T-7/51
HM390 ETC D25-4-C25-07
25.00 5.00 4 120.00 35.0 25.00 C 1.0 0.36 SR M2.5X6-T7-60 T-7/51
HM390 ETC D25-4-W25-07
25.00 5.00 4 95.00 35.0 25.00 W 1.0 0.28 SR M2.5X6-T7-60 T-7/51
HM390 ETC D28-4-C25-07-B
28.00 5.00 4 200.00 35.0 25.00 C 0.9 0.64 SR M2.5X6-T7-60 T-7/51
HM390 ETC D32-5-C32-07
32.00 5.00 5 130.00 45.0 32.00 C 0.8 0.68 SR M2.5X6-T7-60 T-7/51
HM390 ETC D32-5-W32-07
32.00 5.00 5 110.00 45.0 32.00 W 0.8 0.56 SR M2.5X6-T7-60 T-7/51
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: HM390 TCKT/CT 0703 (446)
HM390 ETC-07
90° Endmills Carrying HM390
TCKT 0703 Triangular Inserts
with 3 Helical Cutting Edges
OAL
LF
DC DCONMS
APMX
DRVS THSZMS
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3)
kg
HM390 ETC D16-2-MMT10-07
16.00 5.00 2 16.00 15.20 T10 27.30 13.0 1.9 0.02 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-MMT12-07
20.00 5.00 3 20.00 18.30 T12 33.30 16.0 1.4 0.04 SR M2.5X5-T7-60 T-7/51
HM390 ETC D25-4-MMT15-07
25.00 5.00 4 25.00 23.90 T15 42.00 20.0 1.0 0.08 SR M2.5X6-T7-60 T-7/51
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TCKT/CT 0703 (446)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
HM390 ETC-MM
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HM390
TCKT 0703 Triangular Inserts
19
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
DCONMS
DC
LU
LH
APMX
Rd°
Designation
DC CICT(1) LH LU APMX OAL DCONMS Shank(2) CSP(3) RMPX°(4) RMPX°_2(5)
kg
T490 ELN D16-2-C15-08B
16.00 2 41.0 40.0 8.00 150.00 15.00 C 1 2.0 1.1 0.18 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-C16-08
16.00 2 28.0 26.0 8.00 90.00 16.00 C 0 2.0 1.1 0.13 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-C16-08C
16.00 2 28.0 26.0 8.00 90.00 16.00 C 1 2.0 1.1 0.12 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-W16-08
16.00 2 28.0 26.0 8.00 85.00 16.00 W 0 2.0 1.1 0.12 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-W16-08C
16.00 2 28.0 26.0 8.00 85.00 16.00 W 1 2.0 1.1 0.11 SR 10502813-HGSM IP-7/51
T490 ELN D18-2-C20-08C
18.00 2 28.0 26.0 8.00 90.00 20.00 C 1 1.8 1.0 0.18 SR 10502813-HGSM IP-7/51
T490 ELN D20-2-C19-08B
20.00 2 41.0 40.0 8.00 160.00 19.00 C 1 1.7 0.8 0.31 SR 10502813-HG-M IP-7/51
T490 ELN D20-2-C20-08C
20.00 2 28.0 26.0 8.00 110.00 20.00 C 1 1.7 0.8 0.23 SR 10502813-HG-M IP-7/51
T490 ELN D20-2-W20-08C
20.00 2 28.0 26.0 8.00 90.00 20.00 W 1 1.7 0.8 0.19 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-C20-08
20.00 3 28.0 26.0 8.00 110.00 20.00 C 0 1.7 0.8 0.25 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-C20-08C
20.00 3 28.0 26.0 8.00 110.00 20.00 C 1 1.7 0.8 0.23 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-W20-08
20.00 3 28.0 26.0 8.00 90.00 20.00 W 0 1.7 0.8 0.20 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-W20-08C
20.00 3 28.0 26.0 8.00 90.00 20.00 W 1 1.7 0.8 0.18 SR 10502813-HG-M IP-7/51
T490 ELN D22-3-C20-08C
22.00 3 28.0 30.0 8.00 110.00 20.00 C 1 - - 0.24 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-C24-08B
25.00 3 41.0 40.0 8.00 200.00 24.00 C 1 - - 0.61 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-C25-08C
25.00 3 28.0 26.0 8.00 120.00 25.00 C 1 - - 0.39 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-W25-08C
25.00 3 28.0 26.0 8.00 95.00 25.00 W 1 - - 0.30 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-C25-08
25.00 4 28.0 26.0 8.00 120.00 25.00 C 0 - - 0.43 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-C25-08C
25.00 4 28.0 26.0 8.00 120.00 25.00 C 1 - - 0.39 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-W25-08
25.00 4 28.0 26.0 8.00 95.00 25.00 W 0 - - 0.33 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-W25-08C
25.00 4 28.0 26.0 8.00 95.00 25.00 W 1 - - 0.30 SR 10502813-HG-M IP-7/51
T490 ELN D32-3-C32-08C
32.00 3 32.0 30.0 8.00 130.00 32.00 C 1 - - 0.72 SR 10502813-HG-M IP-7/51
T490 ELN D32-3-W32-08C
32.00 3 32.0 30.0 8.00 110.00 32.00 W 1 - - 0.60 SR 10502813-HG-M IP-7/51
T490 ELN D32-4-C32-08B
32.00 4 32.0 30.0 8.00 200.00 32.00 C 1 - - 1.14 SR 10502813-HG-M IP-7/51
T490 ELN D32-5-C32-08C
32.00 5 32.0 30.0 8.00 130.00 32.00 C 1 - - 0.73 SR 10502813-HG-M IP-7/51
T490 ELN D32-5-W32-08C
32.00 5 32.0 30.0 8.00 110.00 32.00 W 1 - - 0.60 SR 10502813-HG-M IP-7/51
T490 ELN D40-4-C32-08C
40.00 4 - 30.0 8.00 130.00 32.00 C 1 - - 0.81 SR 10502813-HG-M IP-7/51
T490 ELN D40-6-C32-08C
40.00 6 - 30.0 8.00 130.00 32.00 C 1 - - 0.82 SR 10502813-HG-M IP-7/51
T490 ELN D40-6-W32-08C
40.00 6 - 30.0 8.00 110.00 32.00 W 1 - - 0.69 SR 10502813-HG-M IP-7/51
• "B" suffix with long cylindrical shank which may be shortened. • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(5) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
T490 ELN-08
90° Endmills Carrying Tangentially
Clamped Inserts with 4 Helical,
8 mm Long Cutting Edges
APMX
DC
LU
LF
OAL
DCONMS
DRVS
THSZMS
Rd°
Designation
DC CICT(1) APMX DCONMS LU LF OAL THSZMS DRVS(2) RMPX°(3) RMPX°_2(4) Insert TQ_3(5)
kg
T490 ELN D16-2-M10
16.00 2 8.00 18.00 22.0 30.00 50.00 M10 12.7 2.0 1.1 T490 LN.. 08 29 0.04
T490 ELN D20-3-M10
20.00 3 8.00 18.70 - 30.00 50.00 M10 15.0 1.7 0.8 T490 LN.. 08 29 0.06
T490 ELN D25-3-M12
25.00 3 8.00 21.00 - 28.00 50.00 M12 17.0 - - T490 LN.. 08 33 0.08
T490 ELN D25-4-M12
25.00 4 8.00 21.00 - 28.00 50.00 M12 17.0 - - T490 LN.. 08 33 0.08
T490 ELN D32-3-M16-13
32.00 3 12.50 29.00 - 45.00 70.00 M16 25.0 - - T490 LN.. 13 40 0.22
T490 ELN D32-5-M16
32.00 5 8.00 29.00 - 30.00 55.00 M16 25.0 - - T490 LN.. 08 40 0.16
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(4) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
T490 ELN-M-08
90° Endmills with a FLEXFIT
Threaded Adaptation Carrying
Tangentially Clamped Inserts
ISCAR
20
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
DRVS
APMX
DC
LF
OAL
THSZMS
Rd°
Designation
DC CICT(1) APMX DCONMS LF OAL THSZMS DRVS(2) RMPX°(3) RMPX°_2(4)
kg
T490 ELN D16-2-MMT10
16.00 2 8.00 14.70 20.00 32.00 T10 13.0 2.0 1.1 0.03 SR 10502813-HGSM IP-7/51
T490 ELN D20-2-MMT12
20.00 2 8.00 18.70 21.50 35.00 T12 16.0 1.7 0.8 0.05 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-MMT12
20.00 3 8.00 18.70 21.50 35.00 T12 16.0 1.7 0.8 0.05 SR 10502813-HG-M IP-7/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(4) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
T490 ELN-MM-08
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying
Tangentially Clamped Inserts

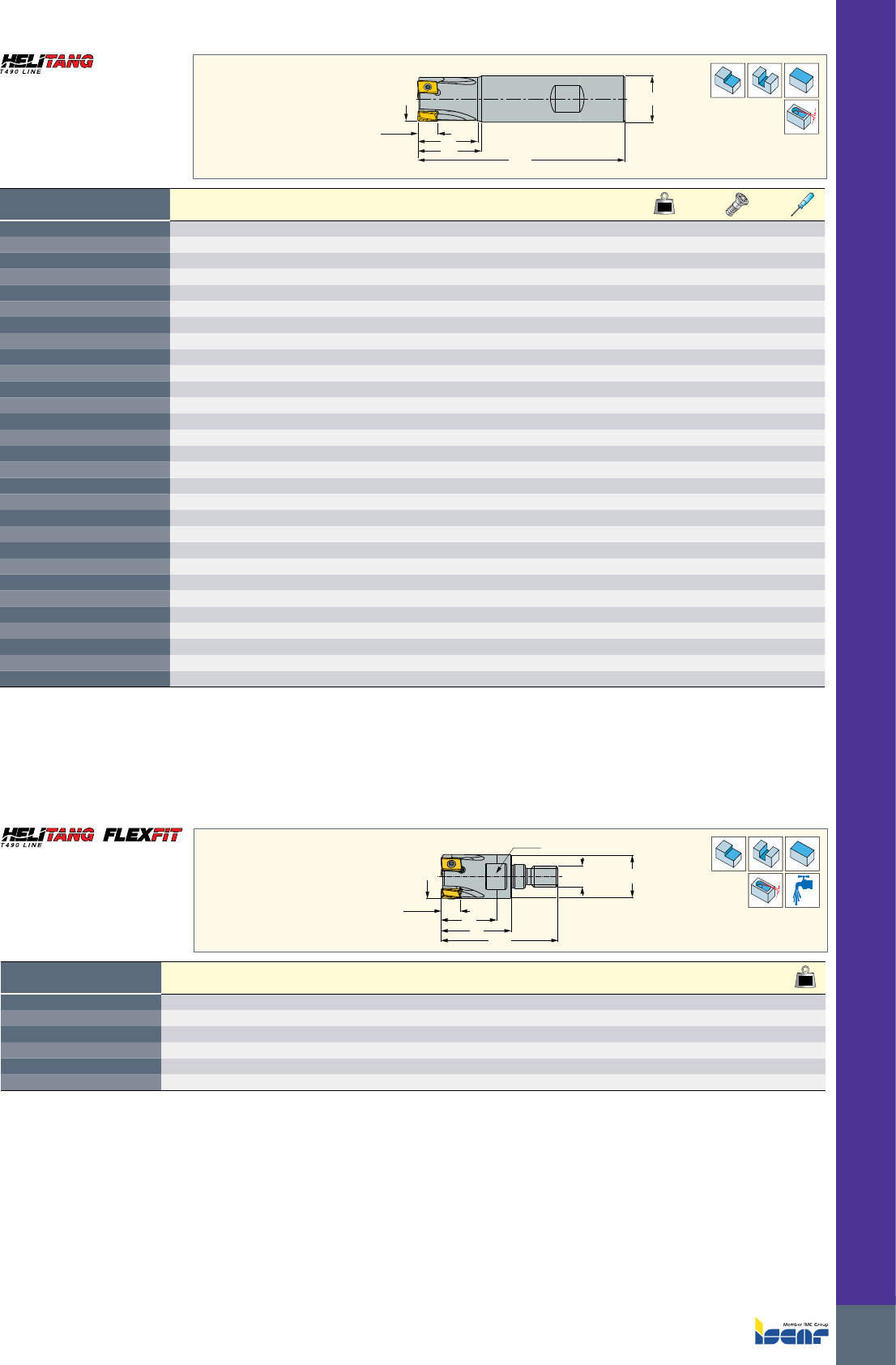

DC
OAL
LU
APMX
DCONMS
Designation
DC CICT(1) APMX OAL LU DCONMS Shank(2)
kg
H490 E90AX D16-2-C15-09-B
16.00 2 8.00 150.00 40.0 15.00 C 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D16-2-C16-09
16.00 2 8.00 90.00 26.0 16.00 C 0.12 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D16-2-W16-09
16.00 2 8.00 85.00 26.0 16.00 W 0.11 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D18-2-C16-09
18.00 2 8.00 90.00 25.0 16.00 C 0.12 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-C19-09-B
20.00 2 8.00 160.00 40.0 19.00 C 0.31 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-C20-09
20.00 2 8.00 110.00 26.0 20.00 C 0.23 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-W20-09
20.00 2 8.00 90.00 26.0 20.00 W 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-3-C20-09
20.00 3 8.00 110.00 26.0 20.00 C 0.23 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-3-W20-09
20.00 3 8.00 90.00 26.0 20.00 W 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D22-3-C20-09
22.00 3 8.00 115.00 25.0 20.00 C 0.25 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-C24-09-B
25.00 3 8.00 200.00 40.0 24.00 C 0.61 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-C25-09
25.00 3 8.00 120.00 26.0 25.00 C 0.39 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-W25-09
25.00 3 8.00 95.00 26.0 25.00 W 0.30 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-4-C25-09
25.00 4 8.00 120.00 26.0 25.00 C 0.39 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-4-W25-09
25.00 4 8.00 95.00 26.0 25.00 W 0.30 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-4-W32-09
32.00 4 8.00 110.00 30.0 32.00 W 0.60 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-5-C32-09
32.00 5 8.00 130.00 30.0 32.00 C 0.72 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-5-W32-09
32.00 5 8.00 110.00 30.0 32.00 W 0.60 SR 10508082-HG SW4-SD BLD T08/M7
• For user guide see pages 542-548 • "B" Suffix cylindrical shank which may be shortened
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)
H490 E90AX-09
90° Endmills Carrying H490
ANKX 09... Double-Sided
Rectangular Inserts with 4
Helical Cutting Edges
DC
DRVS
LF
DCONMS
APMX
THSZMS
Designation
DC CICT(1) APMX LF DHUB THSZMS DRVS(2) TQ_3(3)
kg
H490 E90AX D20-3-M10-09
20.00 3 8.00 30.00 18.70 M10 16.0 29 0.06 SR 10508082-HG BLD T08/M7 SW4-SD
H490 E90AX D25-4-M12-09
25.00 4 8.00 28.00 21.00 M12 17.0 33 0.07 SR 10508082-HG BLD T08/M7 SW4-SD
H490 E90AX D32-5-M16-09
32.00 5 8.00 30.00 29.00 M16 25.0 40 0.16 SR 10508082-HG BLD T08/M7 SW4-SD
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
H490 E90AX-M
90° Endmills with a FLEXFIT
Threaded Connection Carrying
H490 ANKX/ANCX 09...
Double-Sided Rectangular Inserts
21
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
DC
LF
DRVS
DCONMS
THSZMS
Designation
DC CICT(1) APMX LF DCONMS THSZMS DRVS(2)
kg
H490 E90AX D20-3-MMT12-09
20.00 3 8.00 24.70 18.70 T12 16.0 0.05 SR 10508082-HG BLD T08/M7 SW4-SD
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85)
• MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
H490 E90AX-MM
90° Endmills with a MULTI-MASTER
Threaded Connection Carrying
H490 ANKX/ANCX 090...
Double-Sided Rectangular Inserts
OAL
DC DCONMS
LH
APMX
Designation
DC CICT(1) OAL LH APMX DCONMS Shank(2)
kg
T290 ELN D20-02-C20-10
20.00 2 110.00 27.0 10.00 20.00 C 0.22 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D20-03-C20-10
20.00 3 110.00 27.0 10.00 20.00 C 0.23 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D20-03-W20-10
20.00 3 90.00 28.0 10.00 20.00 W 0.18 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-03-C25-10-XL
25.00 3 150.00 30.0 10.00 25.00 C 0.51 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-04-C25-10
25.00 4 120.00 28.0 10.00 25.00 C 0.40 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-04-W25-10
25.00 4 95.00 30.0 10.00 25.00 W 0.30 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-04-C32-10-XL
32.00 4 150.00 30.0 10.00 32.00 C 0.85 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-05-C32-10
32.00 5 130.00 28.0 10.00 32.00 C 0.73 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-05-W32-10
32.00 5 110.00 30.0 10.00 32.00 W 0.60 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-05-C32-10-XL
40.00 5 150.00 30.0 10.00 32.00 C 0.88 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-06-C32-10
40.00 6 130.00 30.0 10.00 32.00 C 0.75 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-06-W32-10
40.00 6 110.00 30.0 10.00 32.00 W 0.63 SR 10504970 BLD IP15/M7 SW6-T-SH
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: T290 LNMT/LNHT 1004 (474)
T290 ELN-10
Endmills Carrying Tangentially
Clamped Inserts
DC
OAL
APMX
LU
DCONMS
Designation
DC CICT(1) APMX LU OAL DCONMS Shank(2)
kg
E90SP D25-02-C25-10
25.00 2 9.60 32.0 110.00 25.00 C 0.35 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D25-02-W25-10
25.00 2 9.60 32.0 95.00 25.00 W 0.29 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D25-03-C25-10
25.00 3 9.60 32.0 110.00 25.00 C 0.76 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D25-03-W25-10
25.00 3 9.60 32.0 95.00 25.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D32-03-C32-10
32.00 3 9.60 32.0 130.00 32.00 C 0.69 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D32-03-W25-10
32.00 3 9.60 31.8 95.00 25.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D40-04-C32-10
40.00 4 9.60 32.0 130.00 32.00 C 0.00 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D40-04-W32-10
40.00 4 9.60 32.0 110.00 32.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D50-06-C32-10
50.00 6 9.60 35.0 130.00 32.00 C 0.00 SW6-T-SH BLD IP15/M7 SR 10514114
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: QPMR 1004-HQ-M (495) • QPMT 100408PDTN (495) • SPCT/SPMR PDR (496) • SPMT-HQ (495) • XPMT-HQ (496)
E90SP
Endmills Carrying Square
S/XPMT Inserts
ISCAR
22
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

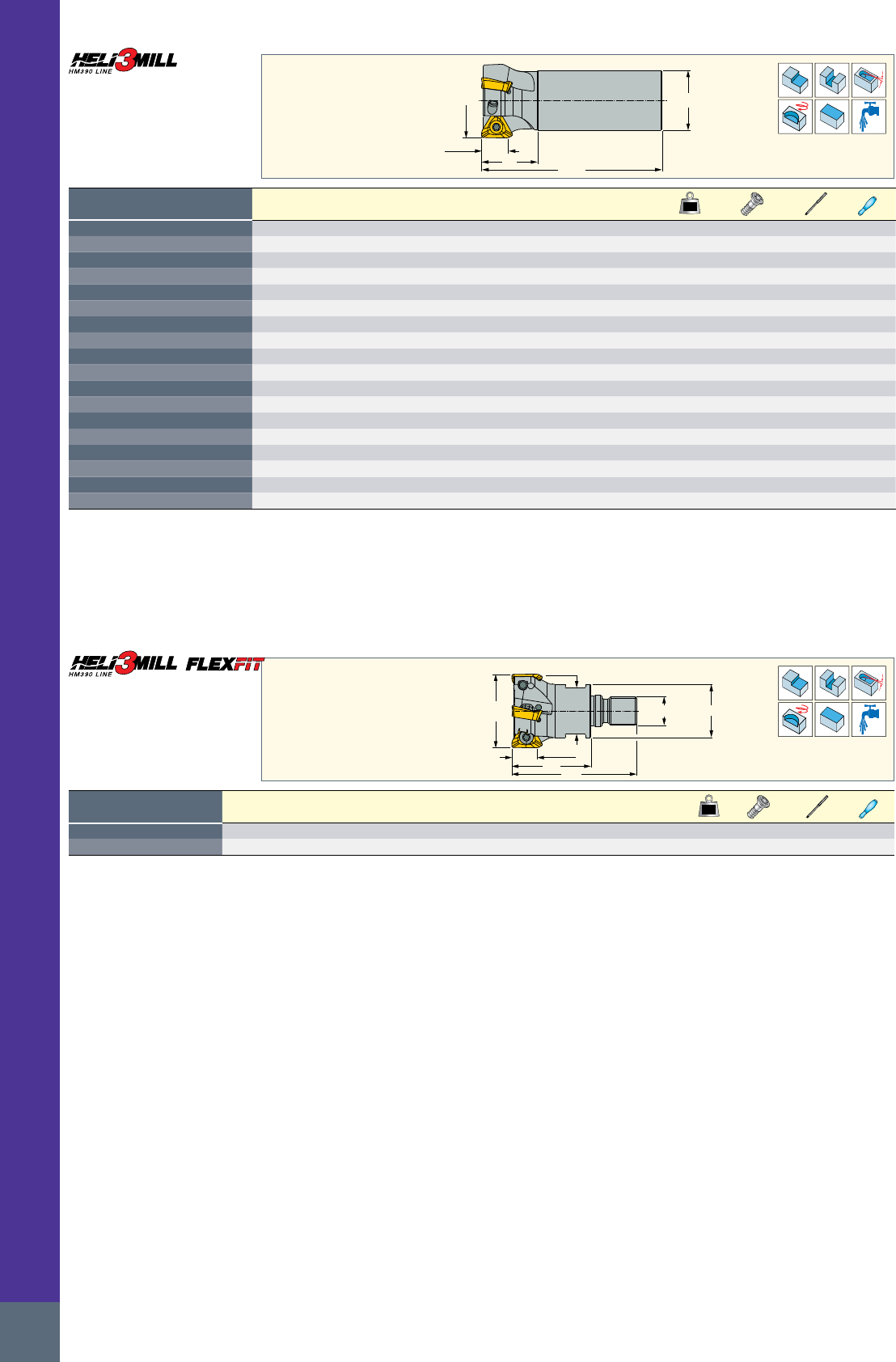

LH
DC
APMX
OAL
DCONMS
Rd°
Designation
DC APMX CICT(1) OAL LH DCONMS Shank(2) RMPX°(3)
kg
HM390 ETP D25-2-C25-10
25.00 8.00 2 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-2-W25-10
25.00 8.00 2 95.00 25.0 25.00 W 2.9 0.30 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C24-10-B
25.00 8.00 3 200.00 25.0 24.00 C 2.9 0.60 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C25-10
25.00 8.00 3 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C25-10-B
25.00 8.00 3 200.00 40.0 25.00 C 2.9 0.66 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-W25-10
25.00 8.00 3 95.00 25.0 25.00 W 2.9 0.30 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-4-C25-10
25.00 8.00 4 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D28-3-C25-10
28.00 8.00 3 120.00 25.0 25.00 C 2.5 0.40 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D28-3-C25-10-B
28.00 8.00 3 200.00 25.0 25.00 C 2.5 0.67 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-C31-10-B
32.00 8.00 3 250.00 30.0 31.00 C 2.1 1.33 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-C32-10
32.00 8.00 3 130.00 30.0 32.00 C 2.1 0.71 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-W32-10
32.00 8.00 3 110.00 30.0 32.00 W 2.1 0.58 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-C32-10
32.00 8.00 4 130.00 30.0 32.00 C 2.1 0.70 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-C32-10-B
32.00 8.00 4 200.00 40.0 32.00 C 2.1 1.11 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-W32-10
32.00 8.00 4 110.00 30.0 32.00 W 2.1 0.58 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D40-5-C32-10
40.00 8.00 5 130.00 30.0 32.00 C 1.6 0.76 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D40-5-W32-10
40.00 8.00 5 110.00 30.0 32.00 W 1.6 0.64 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D50-6-C32-10
50.00 8.00 6 130.00 38.0 32.00 C 1.2 0.86 SR 14-562/S BLD T10/S7 SW6-SD
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 1003 (447)
HM390 ETP-10
90° Endmills Carrying HM390
TPKT 1003 Triangular Inserts
with 3 Helical Cutting Edges
APMX
LF
DC
DRVS
OAL
DCONMS
THSZMS
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3) TQ_3(4)
kg
HM390 ETP D25-3-M12
25.00 8.00 3 35.00 21.00 M12 57.00 18.0 2.9 33 0.08 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-M16
32.00 8.00 4 35.00 29.00 M16 60.00 25.0 2.1 40 0.16 SR 14-562/S BLD T10/S7 SW6-SD
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HM390 TPKT/CT 1003 (447)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
HM390 ETP-M
90° Endmills with a FLEXFIT
Threaded Adaptation Carrying
HM90 TPKT 1003... Inserts
with 3 Helical Cutting Edges
23
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

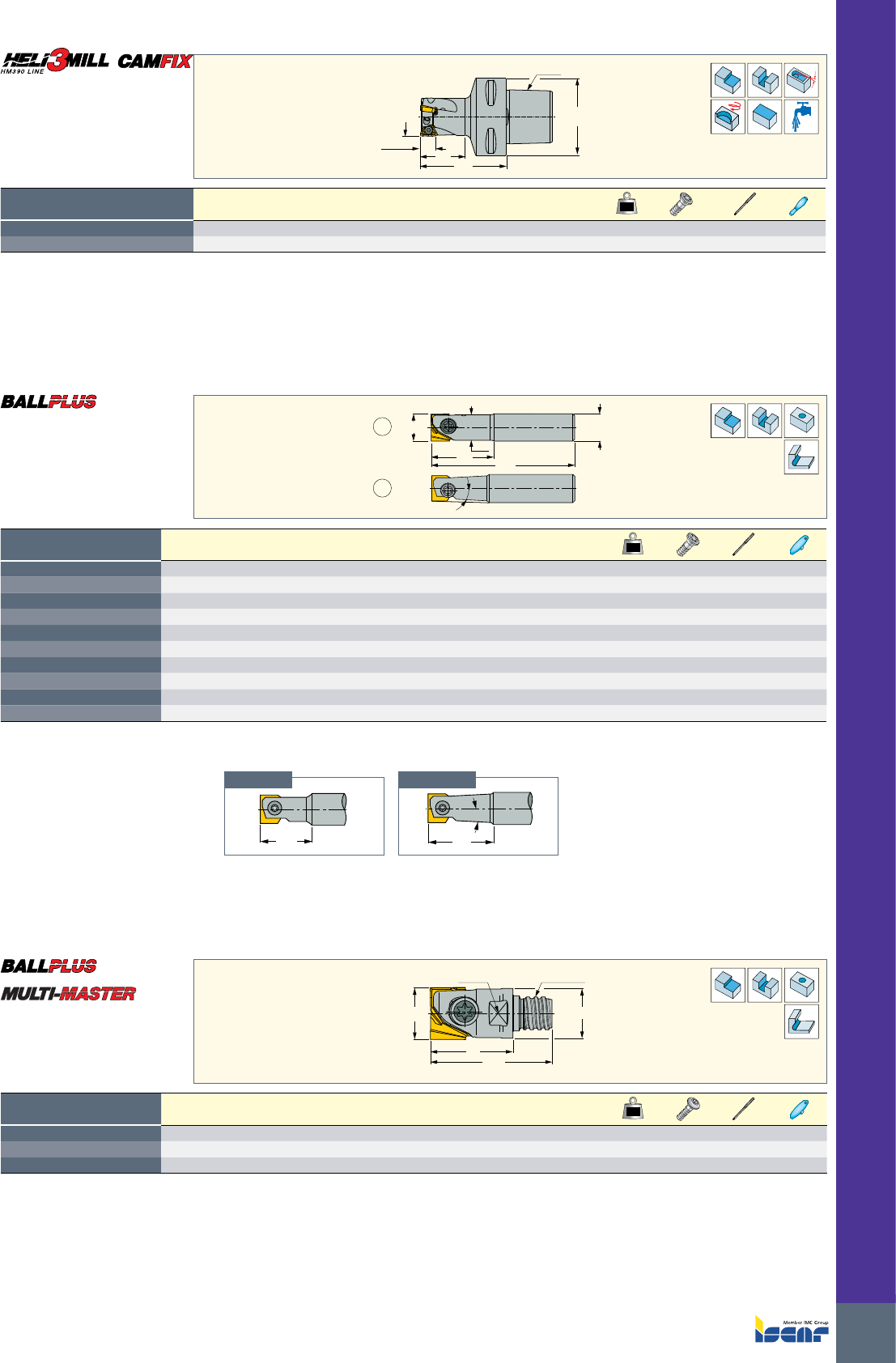

BHTA
BD
DC
LH
DCONMS
A
B/D
Designation
DC LH OAL BD DCONMS Shank(1) BHTA Type
kg
HCE D12-A-L120-C12
12.00 30.0 120.00 11.10 12.00 C - A 0.10 SR 34-540 BLD T15/S7 SW6-T
HCE D12-B-L160-C20
12.00 50.0 160.00 - 20.00 C 4.6 B 0.41 SR 34-540 BLD T15/S7 SW6-T
HCE D12-D-L160-C16
12.00 60.0 160.00 - 16.00 C 1.9 D 0.21 SR 34-540 BLD T15/S7 SW6-T
HCE D16-A-L130-C16
16.00 36.0 130.00 14.90 16.00 C - A 0.19 SR 105739 BLD T20/S7 SW6-T
HCE D16-B-L160-C25
16.00 60.0 160.00 - 25.00 C 4.3 B 0.50 SR 105739 BLD T20/S7 SW6-T
HCE D16-D-L160-C20
16.00 65.0 160.00 - 20.00 C 1.7 D 0.32 SR 105739 BLD T20/S7 SW6-T
HCE D20-A-L150-C20
20.00 60.0 150.00 18.80 20.00 C - A 0.33 SR 1052964 BLD T25/S7 SW6-T
HCE D20-D-L200-C25
20.00 90.0 200.00 - 25.00 C 1.6 D 0.62 SR 1052964 BLD T25/S7 SW6-T
HCE D25-A-L170-C25
25.00 70.0 170.00 23.00 25.00 C - A 0.57 SR 1051666 BLD T25/S7 SW6-T
HCE D25-D-L250-C32
25.00 125.0 250.00 - 32.00 C 1.6 D 1.20 SR 1051666 BLD T25/S7 SW6-T
• For undercutting, use HTR inserts only • The dimensions are for HCC inserts with RE=0.5 mm • For user guide see pages 542-548
(1) C-Cylindrical
For inserts, see pages: HCC-QF (534)
LH
Type A
BHTA
LH
Type B, D
HCE
Multifunction Endmills that Can
Carry Several Insert Geometries
DCONMS
OAL
LF
DC
DRVS THSZMS
Designation
DC OAL LF APMX THSZMS DCONMS DRVS(1) TQ
kg
HCE D12/.50-MMT08
12.00 28.00 20.00 8.10 T08 11.50 10.0 15.0 0.01 SR 34-540 BLD T15/S7 SW6-T
HCE D16/.62-MMT10
16.00 36.75 25.00 10.30 T10 15.20 13.0 28.0 0.03 SR 105739 BLD T20/S7 SW6-T
HCE D20/.75-MMT12
20.00 48.80 35.00 12.80 T12 18.50 15.0 28.0 0.06 SR 1052964 BLD T25/S7 SW6-T
• For undercutting, use HTR inserts only • The dimensions are for HCC inserts with RE=0.5 mm • Do not apply lubricant to the MULTI-MASTER threaded connection
• For adaptation options, see page 44 • For user guide see pages 542-548
(1) Width across flats (wrench should be ordered separately)
For inserts, see pages: HCC-QF (534)
For holders, see pages: MM CAB (667) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)
HCE-MM
Multifunction Endmills with
a MULTI-MASTER Threaded
Adaptation that Can Carry
Several Insert Geometries
LU
APMX
DC
LF
DCONMS
Shank
Rd°
Designation
DCONMS DC APMX CICT(1) LU LF RMPX°(2) Shank CDI
kg
HM390 ETP D25-3-L39-C3-10
32.00 25.00 8.00 3 39.0 55.00 2.9 CAMFIX 0 0.21 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D66-7-L52-C6-10
63.00 66.00 8.00 7 52.0 75.00 0.8 CAMFIX 1 1.80 SR 14-562/S BLD T10/S7 SW6-SD
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 1003 (447)
HM390 ETP-C#-10
90° Endmills Carrying HM390
TPKT 1003 Triangular Inserts
with 3 Helical Cutting Edges
ISCAR
24

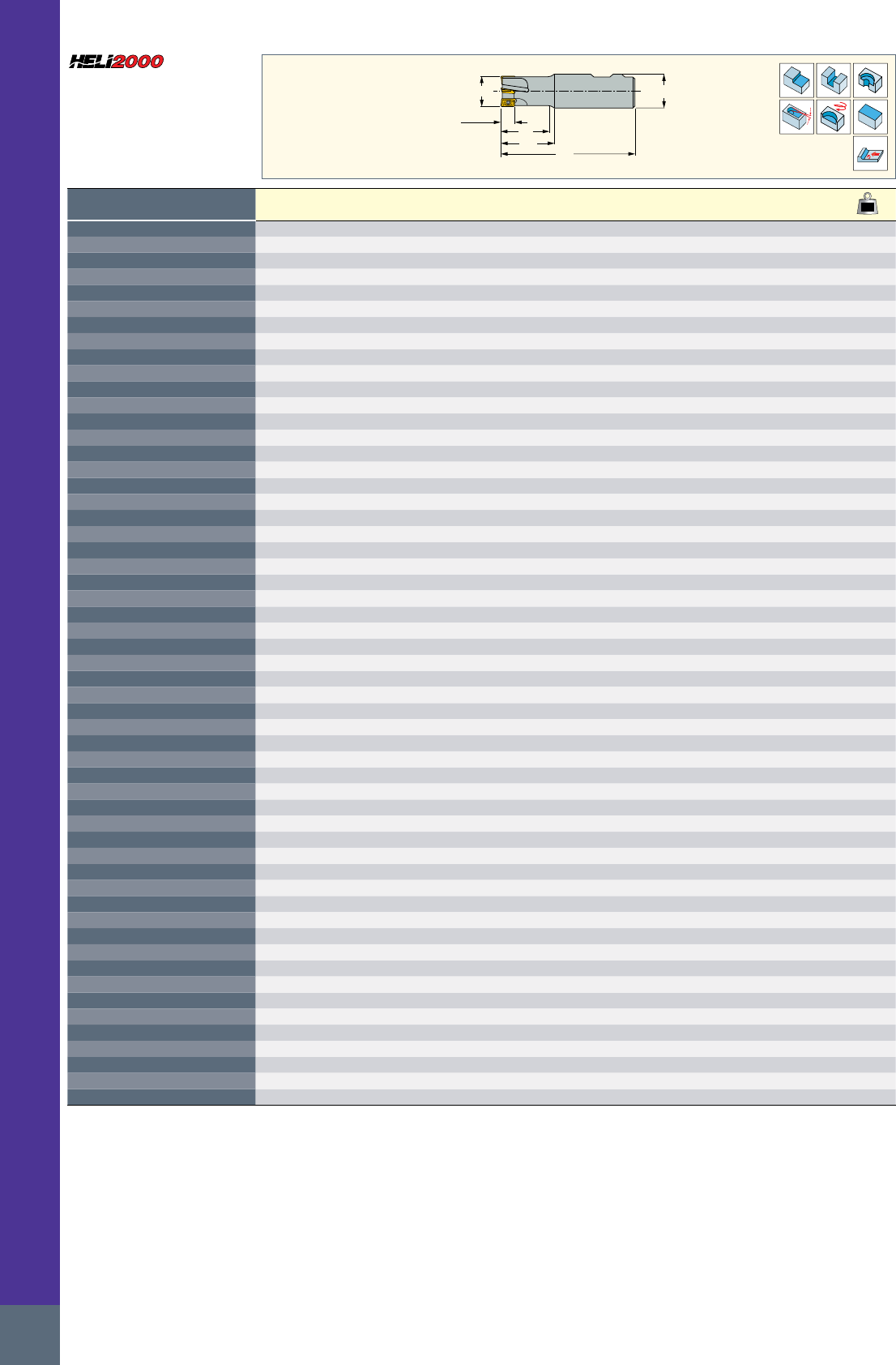

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
DC
OAL
LH
LU
APMX
Rd°
HM90 E90A-10
Endmills Carrying HM90
AP.. 1003... Inserts
Designation
DC CICT(1) APMX OAL LH LU RMPX°(2) DCONMS Shank(3) CSP(4) RPMX(5)
kg
HM90 E90A-D10-1-C10
10.00 1 10.00 80.00 20.0 13.8 5.0 10.00 C 0 132843 0.04
HM90 E90A-D10-1-C10-C
10.00 1 10.00 80.00 20.0 13.8 5.0 10.00 C 1 131850 0.04
HM90 E90A-D10-1-C16-LB
10.00 1 10.00 160.00 30.0 13.8 5.0 16.00 C 0 132843 0.22
HM90 E90A-D10-1-W16
10.00 1 10.00 80.00 20.0 10.6 5.0 16.00 W 0 132843 0.10
HM90 E90A-D12-1-C16
12.00 1 10.00 80.00 20.0 14.0 32.0 16.00 C 0 92536 0.11
HM90 E90A-D12-1-C16-C
12.00 1 10.00 80.00 20.0 14.0 32.0 16.00 C 1 92536 0.10
HM90 E90A-D12-1-C16-LB
12.00 1 10.00 160.00 30.0 16.0 32.0 16.00 C 0 92536 0.23
HM90 E90A-D12-1-W16
12.00 1 10.00 80.00 20.0 14.0 32.0 16.00 W 0 92536 0.11
HM90 E90A-D12-1-W16-C
12.00 1 10.00 80.00 20.0 14.0 32.0 16.00 W 1 92536 0.10
HM90 E90A-D14-1-C16
14.00 1 10.00 80.00 23.0 18.4 7.0 16.00 C 0 75930 0.11
HM90 E90A-D14-1-W16
14.00 1 10.00 80.00 23.0 18.4 7.0 16.00 W 0 75930 0.11
HM90 E90A-D16-2-C15-B
16.00 2 10.00 150.00 25.0 24.4 15.0 15.00 C 0 66712 0.19
HM90 E90A-D16-2-C15-B-C
16.00 2 10.00 150.00 25.0 24.4 15.0 15.00 C 1 66712 0.17
HM90 E90A-D16-2-C16
16.00 2 10.00 90.00 26.0 25.2 15.0 16.00 C 0 66712 0.12
HM90 E90A-D16-2-C16-B
16.00 2 10.00 150.00 40.0 38.2 15.0 16.00 C 0 66712 0.22
HM90 E90A-D16-2-C16-B-C
16.00 2 10.00 150.00 40.0 38.2 15.0 16.00 C 1 66712 0.20
HM90 E90A-D16-2-C16-C
16.00 2 10.00 90.00 26.0 25.2 15.0 16.00 C 1 66712 0.11
HM90 E90A-D16-2-C16-LB
16.00 2 10.00 180.00 40.0 38.1 15.0 16.00 C 0 66712 0.26
HM90 E90A-D16-2-W16
16.00 2 10.00 85.00 26.0 25.2 15.0 16.00 W 0 66712 0.12
HM90 E90A-D16-2-W16-C
16.00 2 10.00 85.00 26.0 25.2 15.0 16.00 W 1 66712 0.11
HM90 E90A-D17-2-C16
17.00 2 10.00 90.00 28.0 27.0 15.0 16.00 C 0 63393 0.13
HM90 E90A-D17-2-C16-L170
17.00 2 10.00 170.00 27.0 - 4.5 16.00 C 0 63393 0.25
HM90 E90A-D18-2-C16
18.00 2 10.00 90.00 26.0 - 7.5 16.00 C 0 60361 0.13
HM90 E90A-D18-2-C16-C
18.00 2 10.00 90.00 26.0 - 7.5 16.00 C 1 60361 0.12
HM90 E90A-D18-2-W20
18.00 2 10.00 90.00 30.0 26.4 7.5 20.00 W 0 60361 0.18
HM90 E90A-D18-2-W20-C
18.00 2 10.00 90.00 30.0 26.4 7.5 20.00 W 1 60361 0.17
HM90 E90A-D19-2-C20
19.00 2 10.00 90.00 26.0 25.0 7.5 20.00 C 0 57727 0.19
HM90 E90A-D20-2-C19-B
20.00 2 10.00 160.00 25.0 - 7.5 19.00 C 0 55578 0.33
HM90 E90A-D20-2-C19-B-C
20.00 2 10.00 160.00 25.0 - 7.5 19.00 C 1 55578 0.30
HM90 E90A-D20-2-C20
20.00 2 10.00 110.00 26.0 25.3 7.5 20.00 C 0 55578 0.24
HM90 E90A-D20-2-C20-B
20.00 2 10.00 160.00 40.0 38.0 7.5 20.00 C 0 55578 0.36
HM90 E90A-D20-2-C20-B-C
20.00 2 10.00 160.00 40.0 38.0 7.5 20.00 C 1 55578 0.33
HM90 E90A-D20-2-C20-C
20.00 2 10.00 110.00 26.0 25.3 7.5 20.00 C 1 55578 0.22
HM90 E90A-D20-2-C20-LB
20.00 2 10.00 200.00 40.0 38.0 7.5 20.00 C 0 55578 0.46
HM90 E90A-D20-2-C20-XL
20.00 2 10.00 130.00 60.0 59.0 7.5 20.00 C 0 55578 0.27
HM90 E90A-D20-2-W20
20.00 2 10.00 90.00 26.1 25.0 7.5 20.00 W 0 55578 0.19
HM90 E90A-D20-2-W20-C
20.00 2 10.00 90.00 26.1 25.0 7.5 20.00 W 1 55578 0.18
HM90 E90A-D20-2-W20-XL
20.00 2 10.00 130.00 60.0 59.0 7.5 20.00 W 0 55578 0.27
HM90 E90A-D20-3-C20
20.00 3 10.00 110.00 26.1 25.0 7.5 20.00 C 0 55578 0.24
HM90 E90A-D20-3-C20-C
20.00 3 10.00 110.00 26.1 25.0 7.5 20.00 C 1 55578 0.22
HM90 E90A-D20-3-W16
20.00 3 10.00 85.00 26.1 - 7.5 16.00 W 0 55578 0.13
HM90 E90A-D20-3-W16-C
20.00 3 10.00 85.00 26.1 - 7.5 16.00 W 1 55578 0.12
HM90 E90A-D20-3-W20
20.00 3 10.00 90.00 26.1 25.0 7.5 20.00 W 0 55578 0.19
HM90 E90A-D20-3-W20-C
20.00 3 10.00 90.00 26.1 25.0 7.5 20.00 W 1 55578 0.18
HM90 E90A-D21-2-C20-L270
21.00 2 10.00 270.00 26.0 - 2.8 20.00 C 0 53729 0.64
HM90 E90A-D21-3-C20
21.00 3 10.00 115.00 26.0 25.0 7.5 20.00 C 0 53729 0.26
HM90 E90A-D22-3-C20
22.00 3 10.00 115.00 26.0 - 7.5 20.00 C 0 51846 0.26
HM90 E90A-D22-3-C20-C
22.00 3 10.00 115.00 26.0 - 7.5 20.00 C 1 51846 0.25
HM90 E90A-D22-3-W25
22.00 3 10.00 95.00 26.0 21.0 7.5 25.00 W 0 51846 0.31
HM90 E90A-D22-3-W25-C
22.00 3 10.00 95.00 26.0 21.0 7.5 25.00 W 1 51846 0.29
HM90 E90A-D25-2-C25
25.00 2 10.00 120.00 26.1 25.0 2.5 25.00 C 0 47512 0.42
HM90 E90A-D25-2-W25
25.00 2 10.00 95.00 26.1 25.0 2.5 25.00 W 0 47512 0.32
HM90 E90A-D25-3-C24-B
25.00 3 10.00 200.00 25.0 - 2.5 24.00 C 0 47512 0.67
HM90 E90A-D25-3-C24-B-C
25.00 3 10.00 200.00 25.0 24.0 2.5 24.00 C 1 47512 0.64
HM90 E90A-D25-3-C25
25.00 3 10.00 120.00 26.1 25.0 2.5 25.00 C 0 47512 0.42
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Maximum RPM
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
25

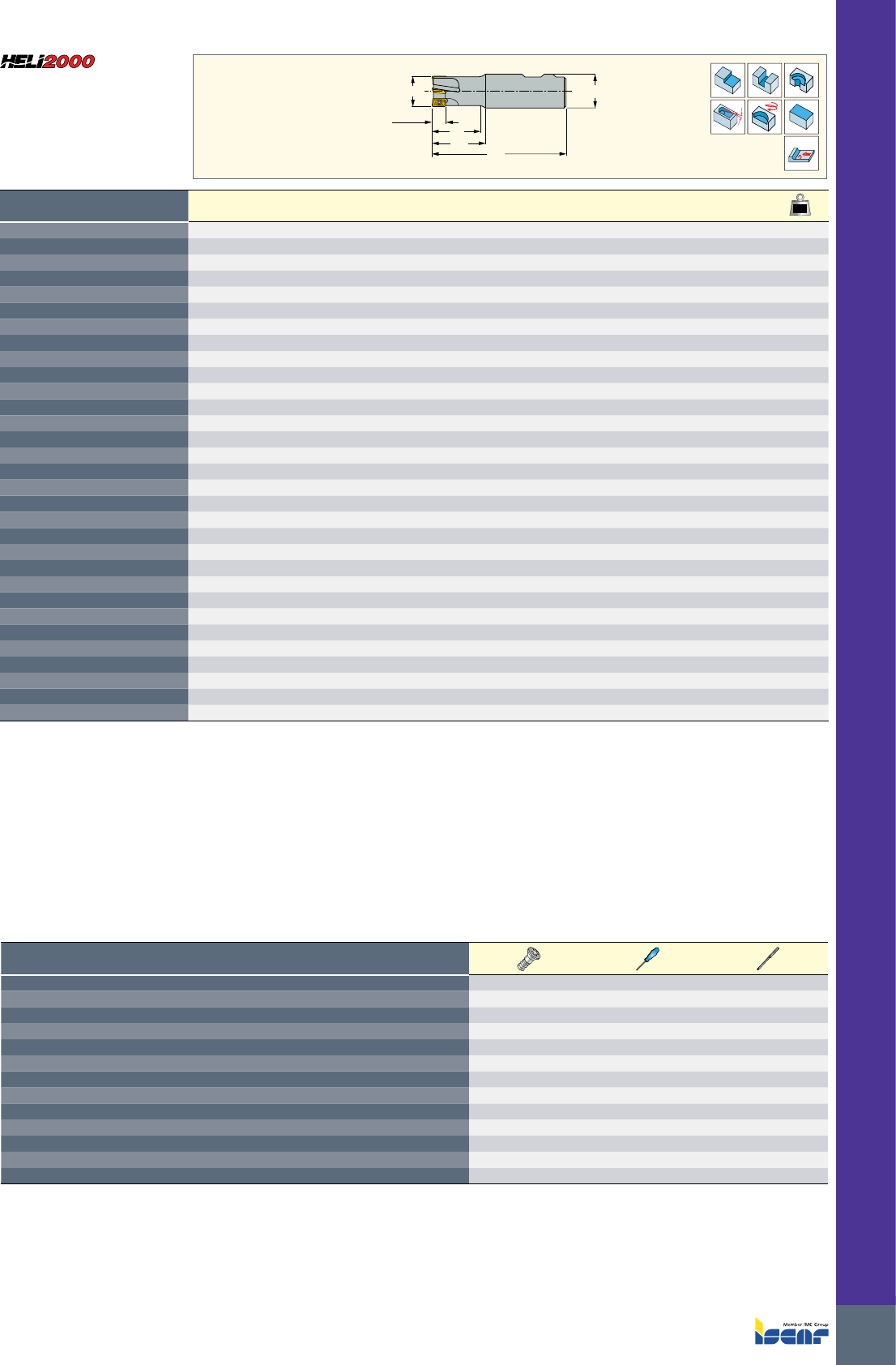

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Designation
DC CICT(1) APMX OAL LH LU RMPX°(2) DCONMS Shank(3) CSP(4) RPMX(5)
kg
HM90 E90A-D25-3-C25-B
25.00 3 10.00 200.00 40.0 37.0 2.5 25.00 C 0 47512 0.72
HM90 E90A-D25-3-C25-B-C
25.00 3 10.00 200.00 40.0 37.0 2.5 25.00 C 1 47512 0.68
HM90 E90A-D25-3-C25-C
25.00 3 10.00 120.00 26.1 25.0 2.5 25.00 C 1 47512 0.39
HM90 E90A-D25-3-W25
25.00 3 10.00 95.00 26.1 25.0 2.5 25.00 W 0 47512 0.32
HM90 E90A-D25-3-W25-C
25.00 3 10.00 95.00 26.1 25.0 2.5 25.00 W 1 47512 0.30
HM90 E90A-D25-3-W25-XL
25.00 3 10.00 140.00 80.0 79.0 2.5 25.00 W 0 47512 0.47
HM90 E90A-D25-4-C25
25.00 4 10.00 120.00 26.0 25.0 2.5 25.00 C 0 47512 0.42
HM90 E90A-D25-4-C25-C
25.00 4 10.00 120.00 26.0 25.0 2.5 25.00 C 1 47512 0.39
HM90 E90A-D25-4-W25
25.00 4 10.00 95.00 26.0 25.0 2.5 25.00 W 0 47512 0.31
HM90 E90A-D25-4-W25-C
25.00 4 10.00 95.00 26.0 25.0 2.5 25.00 W 1 47512 0.30
HM90 E90A-D28-4-C25
28.00 4 10.00 120.00 26.0 - 2.0 25.00 C 0 44005 0.44
HM90 E90A-D28-4-C25-C
28.00 4 10.00 120.00 26.0 - 2.0 25.00 C 1 44005 0.41
HM90 E90A-D28-4-W25
28.00 4 10.00 95.00 26.0 - 2.0 25.00 W 0 44005 0.33
HM90 E90A-D30-4-C32
30.00 4 10.00 130.00 40.0 35.4 2.0 32.00 C 0 36782 0.72
HM90 E90A-D30-4-W25
30.00 4 10.00 95.00 30.0 - 2.0 25.00 W 0 36782 0.35
HM90 E90A-D30-4-W25-C
30.00 4 10.00 95.00 30.0 - 2.0 25.00 W 1 36782 0.33
HM90 E90A-D32-3-C32
32.00 3 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.76
HM90 E90A-D32-3-W32
32.00 3 10.00 110.00 30.0 28.5 3.0 32.00 W 0 35614 0.63
HM90 E90A-D32-4-C32
32.00 4 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.75
HM90 E90A-D32-4-C32-B
32.00 4 10.00 200.00 40.0 37.2 3.0 32.00 C 0 35614 1.18
HM90 E90A-D32-4-C32-LB
32.00 4 10.00 250.00 40.0 37.2 3.0 32.00 C 0 35614 1.50
HM90 E90A-D32-4-W25
32.00 4 10.00 95.00 30.0 - 3.0 25.00 W 0 35614 0.37
HM90 E90A-D32-4-W32-XL
32.00 4 10.00 160.00 100.0 28.5 3.0 32.00 W 0 35614 0.87
HM90 E90A-D32-5-C32
32.00 5 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.75
HM90 E90A-D32-5-C32-C
32.00 5 10.00 130.00 30.0 28.5 3.0 32.00 C 1 35614 0.72
HM90 E90A-D32-5-W25
32.00 5 10.00 95.00 30.0 - 3.0 25.00 W 0 35614 0.37
HM90 E90A-D32-5-W25-C
32.00 5 10.00 95.00 30.0 - 3.0 25.00 W 1 35614 0.35
HM90 E90A-D32-5-W32-C
32.00 5 10.00 110.00 30.0 28.5 3.0 32.00 W 1 35614 0.60
HM90 E90A-D40-5-C32
40.00 5 10.00 130.00 30.0 - 2.7 32.00 C 0 31855 0.83
HM90 E90A-D40-5-W32-C
40.00 5 10.00 110.00 30.0 - 2.7 32.00 W 1 31855 0.68
HM90 E90A-D50-7-C32
50.00 7 10.00 130.00 41.6 - 2.7 32.00 C 0 28492 0.94
DCONMS
DC
OAL
LH
LU
APMX
Rd°
HM90 E90A-10
Endmills Carrying HM90
AP.. 1003... Inserts
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Maximum RPM
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
Spare Parts
Designation
HM90 E90A-D10-1-C10
SR 34-505/HG T-8/53
HM90 E90A-D10-1-C10-C
SR 34-505/HG T-8/53
HM90 E90A-D10-1-C16-LB
SR 34-505/HG T-8/53
HM90 E90A-D10-1-W16
SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16
SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16-C
SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16-LB
SR 34-505/HG T-8/53
HM90 E90A-D12-1-W16
SR 34-505/HG T-8/53
HM90 E90A-D12-1-W16-C
SR 34-505/HG T-8/53
HM90 E90A-D14-1-C16
SR 34-505/HG T-8/53
HM90 E90A-D14-1-W16
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D16-2-C15-B
SR 34-505/HG T-8/53
HM90 E90A-D16-2-C15-B-C
SR 34-505/HG T-8/53
(continued)
ISCAR
26
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Spare Parts
Designation
HM90 E90A-D16-2-C16
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D16-2-C16-B
SR 34-505/HG T-8/53
HM90 E90A-D16-2-C16-B-C
SR 34-505/HG T-8/53
HM90 E90A-D16-2-C16-C
SR 34-505/HG T-8/53
HM90 E90A-D16-2-C16-LB
SR 34-505/HG T-8/53
HM90 E90A-D16-2-W16
SR 34-505/HG T-8/53
HM90 E90A-D16-2-W16-C
SR 34-505/HG T-8/53
HM90 E90A-D17-2-C16
SR 34-505/HG T-8/53
HM90 E90A-D17-2-C16-L170
SR 34-505/HG T-8/53
HM90 E90A-D18-2-C16
SR 34-505/HG T-8/53
HM90 E90A-D18-2-C16-C
SR 34-505/HG T-8/53
HM90 E90A-D18-2-W20
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D18-2-W20-C
SR 34-505/HG T-8/53
HM90 E90A-D19-2-C20
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C19-B
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C19-B-C
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C20
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D20-2-C20-B
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C20-B-C
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C20-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D20-2-C20-LB
SR 34-505/HG T-8/53
HM90 E90A-D20-2-C20-XL
SR 34-505/HG T-8/53
HM90 E90A-D20-2-W20
SR 34-505/HG T-8/53
HM90 E90A-D20-2-W20-C
SR 34-505/HG T-8/53
HM90 E90A-D20-2-W20-XL
SR 34-505/HG T-8/53
HM90 E90A-D20-3-C20
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D20-3-C20-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D20-3-W16
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D20-3-W16-C
SR 34-505/HG T-8/53
HM90 E90A-D20-3-W20
SR 34-505/HG T-8/53
HM90 E90A-D20-3-W20-C
SR 34-505/HG T-8/53
HM90 E90A-D21-2-C20-L270
SR 34-505/HG T-8/53
HM90 E90A-D21-3-C20
SR 34-505/HG T-8/53
HM90 E90A-D22-3-C20
SR 34-505/HG T-8/53
HM90 E90A-D22-3-C20-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D22-3-W25
SR 34-505/HG T-8/53
HM90 E90A-D22-3-W25-C
SR 34-505/HG T-8/53
HM90 E90A-D25-2-C25
SR 34-505/HG T-8/53
HM90 E90A-D25-2-W25
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C24-B
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C24-B-C
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C25
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C25-B
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C25-B-C
SR 34-505/HG T-8/53
HM90 E90A-D25-3-C25-C
SR 34-505/HG T-8/53
HM90 E90A-D25-3-W25
SR 34-505/HG T-8/53
HM90 E90A-D25-3-W25-C
SR 34-505/HG T-8/53
HM90 E90A-D25-3-W25-XL
SR 34-505/HG T-8/53
HM90 E90A-D25-4-C25
SR 34-505/HG T-8/53
HM90 E90A-D25-4-C25-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D25-4-W25
SR 34-505/HG T-8/53
HM90 E90A-D25-4-W25-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D28-4-C25
SR 34-505/HG T-8/53
HM90 E90A-D28-4-C25-C
SR 34-505/HG T-8/53
HM90 E90A-D28-4-W25
SR 34-505/HG T-8/53
HM90 E90A-D30-4-C32
SR 34-505/HG T-8/53
HM90 E90A-D30-4-W25
SR 34-505/HG T-8/53
HM90 E90A-D30-4-W25-C
SR 34-505/HG T-8/53
HM90 E90A-D32-3-C32
SR 34-505/HG T-8/53
HM90 E90A-D32-3-W32
SR 34-505/HG T-8/53
HM90 E90A-D32-4-C32
SR 34-505/HG T-8/53
HM90 E90A-D32-4-C32-B
SR 34-505/HG T-8/53
HM90 E90A-D32-4-C32-LB
SR 34-505/HG T-8/53
HM90 E90A-D32-4-W25
SR 34-505/HG T-8/53
HM90 E90A-D32-4-W32-XL
SR 34-505/HG T-8/53
HM90 E90A-D32-5-C32
SR 34-505/HG T-8/53
HM90 E90A-D32-5-C32-C
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D32-5-W25
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D32-5-W25-C
SR 34-505/HG T-8/53
HM90 E90A-D32-5-W32-C
SR 34-505/HG T-8/53
HM90 E90A-D40-5-C32
SR 34-505/HG T-8/53
HM90 E90A-D40-5-W32-C
SR 34-505/HG T-8/53
HM90 E90A-D50-7-C32
SR 34-505/HG T-8/53
27
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

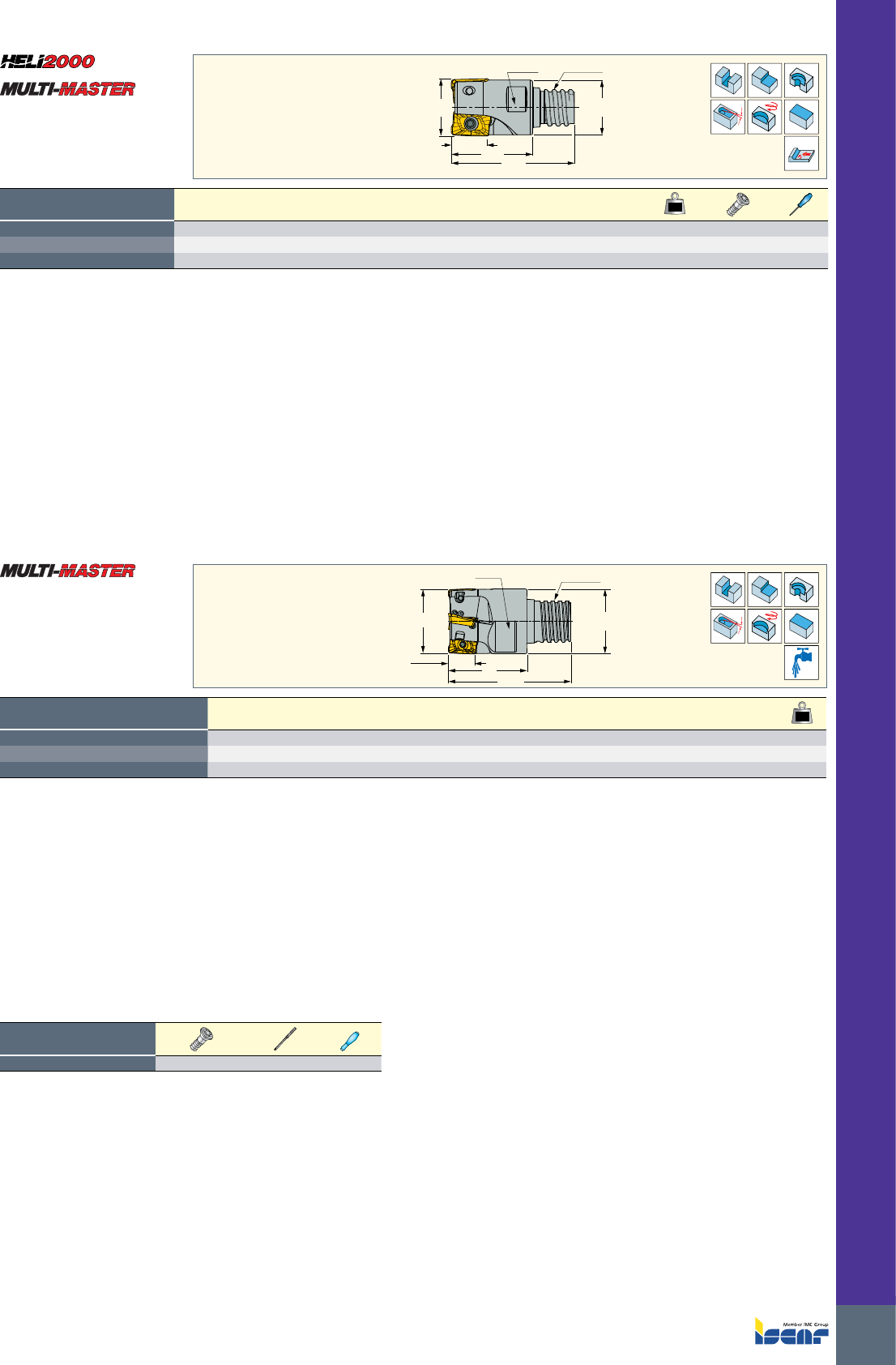

APMX
DRVS THSZMS
DCONMS
OAL
LF
DC
Rd°
Designation
DC CICT(1) APMX OAL RMPX°(2) LF THSZMS DRVS(3) DCONMS
kg
HM90 E90A-D16-2-MMT10
16.00 2 10.00 34.75 15.0 23.00 T10 13.0 15.30 0.03 SR 34-505/HG T-8/53
HM90 E90A-D20-2-MMT12
20.00 2 10.00 38.30 7.5 24.60 T12 16.0 19.20 0.05 SR 34-505/HG T-8/53
HM90 E90A-D20-3-MMT12
20.00 3 10.00 38.30 7.5 24.60 T12 16.0 19.20 0.05 SR 34-505/HG T-8/53
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) Clamping wrench size
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85)
• MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
HM90 E90A-MM-10
90° Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HM90
AP.. 1003... Inserts
DCONMS
THSZMS
DRVS
APMX
LF
OAL
DC
Rd°
Designation
DC CICT(1) APMX OAL RMPX°(2) LF THSZMS TQ_3(3) DRVS(4) DCONMS MIID(5)
kg
HM90 E90A D16-2-MMT10-JHP
16.00 2 10.00 34.80 15.0 23.40 T10 28 13.0 15.60 APKT 1003PDR-HM 0.10
HM90 E90A D20-3-MMT12-JHP
20.00 3 10.00 38.50 7.5 25.50 T12 28 16.0 19.70 APKT 1003PDR-HM 0.15
HM90 E90A D25-4-MMT15-JHP
25.00 4 10.00 47.00 7.5 30.00 T15 40 20.0 24.70 APKT 1003PDR-HM 0.05
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) Tool tightening torque Nxm (lbfxin)
(4) Torque key size
(5) Master insert identification
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
For holders, see pages: MM CAB (667) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
Spare Parts
Designation
HM90 E90A-MM-10-JHP
SR 34-505/HG(a) BLD T08/M7 SW4-SD
(a) Recommended tightening torque for this item: 1.2 Nxm
HM90 E90A-MM-10-JHP
90° JHP Endmills with a
MULTI-MASTER Threaded
Adaptation Carrying HELI2000
and HELIMILL Inserts
ISCAR
28

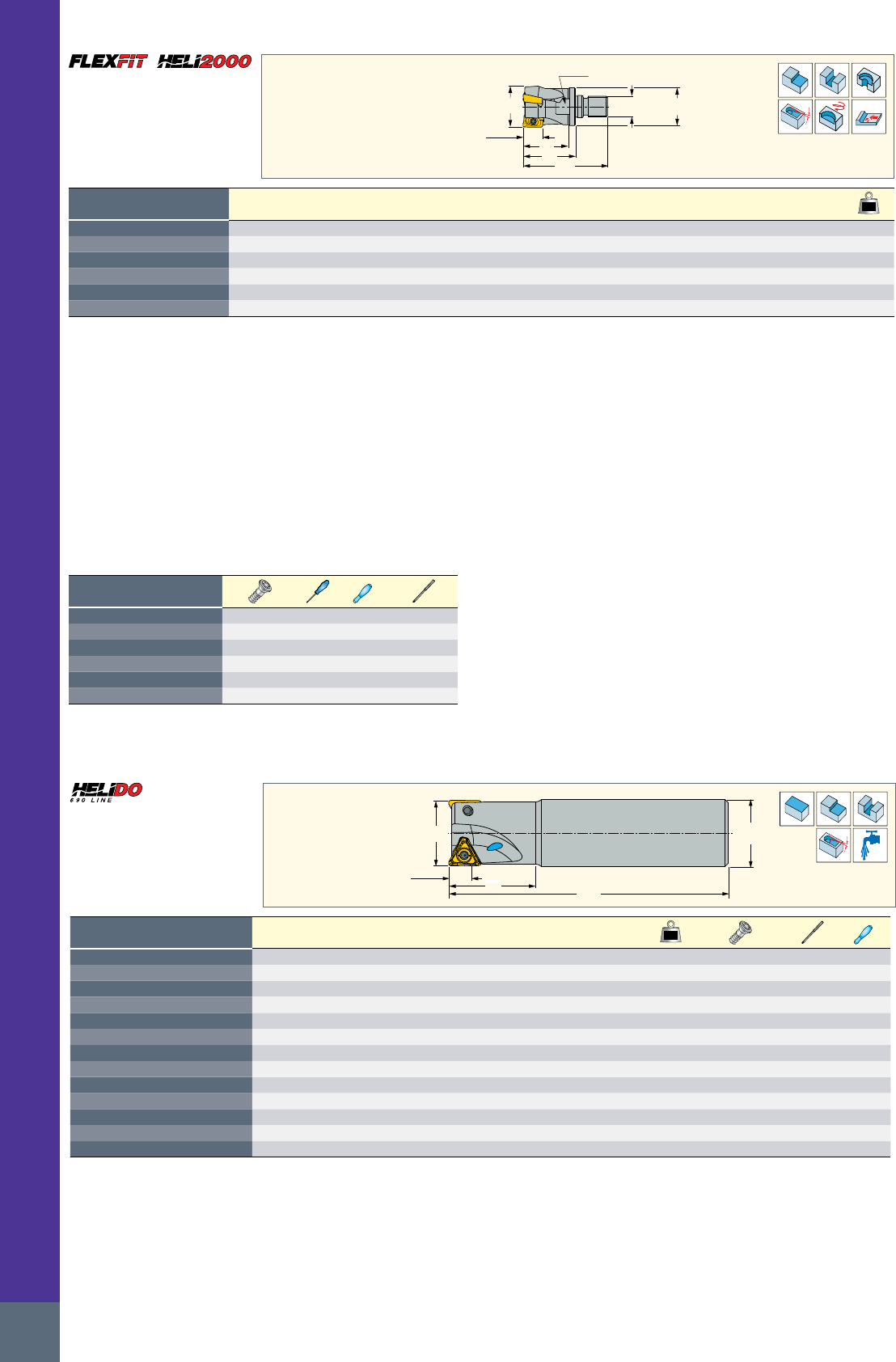

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC DCONMS
LH
APMX
LF OAL
THSZMS
DRVS
Rd°
Designation
DC CICT(1) DCONMS THSZMS LH LF OAL APMX RMPX°(2) CSP(3) DRVS(4) TQ_3(5)
kg
HM90 E90A-D16-2-M08
16.00 2 14.75 M08 24.0 30.00 47.50 10.00 15.0 0 20 10.0 0.03
HM90 E90A-D20-3-M10
20.00 3 18.00 M10 30.0 30.00 50.00 10.00 7.5 1 15.0 29 0.05
HM90 E90A-D20-3-M12
20.00 3 21.00 M12 24.0 30.00 52.00 10.00 7.5 1 33 19.0 0.06
HM90 E90A-D25-3-M12
25.00 3 21.00 M12 35.0 35.00 57.00 10.00 2.5 1 19.0 33 0.08
HM90 E90A-D25-4-M12
25.00 4 21.00 M12 35.0 35.00 57.00 10.00 2.5 1 19.0 33 0.08
HM90 E90A-D32-4-M16
32.00 4 29.00 M16 35.0 35.00 60.00 10.00 3.0 1 25.0 40 0.16
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Torque key size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
Spare Parts
Designation
HM90 E90A-D16-2-M08
SR 34-505/HG T-8/53
HM90 E90A-D20-3-M10
SR 34-505/HG T-8/53
HM90 E90A-D20-3-M12
SR 34-505/HG T-8/53
HM90 E90A-D25-3-M12
SR 34-505/HG T-8/53
HM90 E90A-D25-4-M12
SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D32-4-M16
SR 34-505/HG T-8/53
HM90 E90A-M-10
90° Endmills with a FLEXFIT
Threaded Adaptation Carrying
HM90 AP.. 1003... Inserts
APMX
LU
DCONMS
OAL
DC
Rd°
Designation
DC CICT(1) APMX OAL LU DCONMS Shank(2) RMPX°(3)
kg
H690 E90AX D20-2-C20-10
20.00 2 8.00 110.00 26.0 20.00 C 2.8 0.23 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-2-W20-10
20.00 2 8.00 90.00 26.0 20.00 W 2.8 0.18 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-3-C20-10
20.00 3 8.00 110.00 26.0 20.00 C 2.8 0.23 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-3-W20-10
20.00 3 8.00 90.00 26.0 20.00 W 2.8 0.18 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-3-C25-10
25.00 3 8.00 120.00 26.0 25.00 C 2.6 0.39 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-3-W25-10
25.00 3 8.00 95.00 26.0 25.00 W 2.6 0.29 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-4-C25-10
25.00 4 8.00 120.00 26.0 25.00 C 2.6 0.39 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-4-W25-10
25.00 4 8.00 95.00 26.0 25.00 W 2.6 0.30 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-4-C32-10
32.00 4 8.00 130.00 30.0 32.00 C 1.6 0.72 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-4-W32-10
32.00 4 8.00 110.00 30.0 32.00 W 1.6 0.60 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-5-C32-10
32.00 5 8.00 130.00 30.0 32.00 C 1.6 0.71 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-5-W32-10
32.00 5 8.00 110.00 30.0 32.00 W 1.6 0.59 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D40-5-W32-10
40.00 5 8.00 110.00 38.0 32.00 W 1.1 0.63 SR 10508082-HG BLD T08/M7 SW4-SD
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H690 TNKX/TNCX 1005 (472)
H690 E90AX-10
90° Endmills Carrying H690
TNKX 1005..Triangular Inserts
with 6 Helical Cutting Edges
29
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

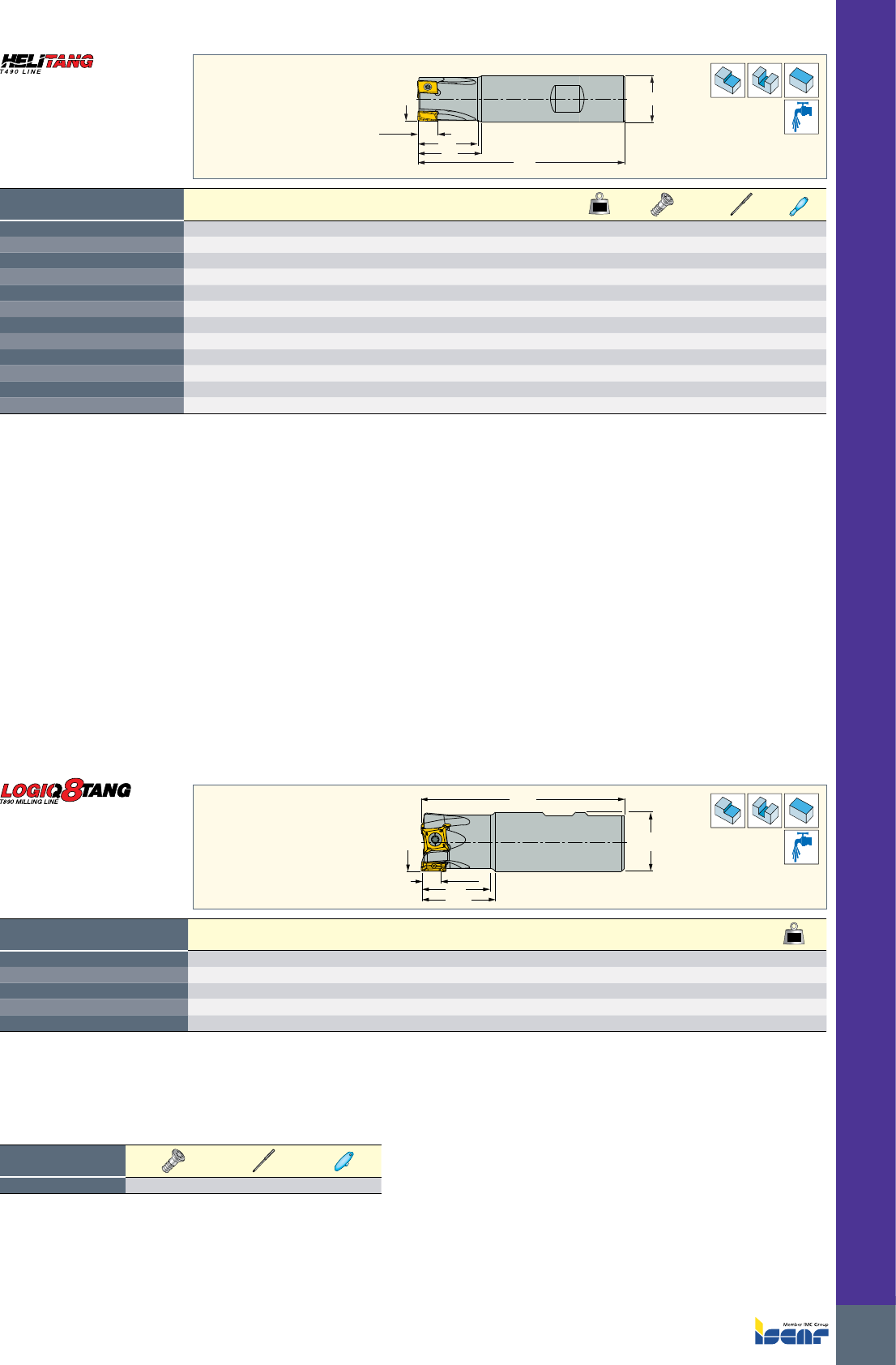

OAL
DCONMS
DC
LU
LH
APMX
Designation
DC CICT(4) LH LU APMX OAL DCONMS Shank(5) RMPX°(6)
kg
T490 ELN D22-2-W25-11 (1)
22.00 2 35.0 33.0 9.00 95.00 25.00 W - 0.29 SR 34-535-SN/L9.3 BLD T15/S7(a) SW6-SD
T490 ELN D25-3-C24-11B (2)
25.00 3 35.0 33.0 9.00 200.00 24.00 C 1.7 0.64 SR 34-535/L9.5-SN BLD T15/S7(a) SW6-SD
T490 ELN D25-3-C25-11 (3)
25.00 3 35.0 33.0 9.00 120.00 25.00 C 1.7 0.40 SR 34-535/L9.5-SN BLD T15/S7(a) SW6-SD
T490 ELN D25-3-W25-11 (3)
25.00 3 35.0 33.0 9.00 95.00 25.00 W 1.7 0.30 SR 34-535/L9.5-SN BLD T15/S7(a) SW6-SD
T490 ELN D32-3-C32-11
32.00 3 40.0 38.0 9.00 130.00 32.00 C 1.5 0.73 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D32-3-C32-11B (2)
32.00 3 40.0 38.0 9.00 200.00 32.00 C 1.5 1.16 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D32-3-W32-11
32.00 3 40.0 38.0 9.00 110.00 32.00 W 1.5 0.60 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D32-4-C32-11
32.00 4 40.0 38.0 9.00 130.00 32.00 C 1.5 0.73 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D32-4-W32-11
32.00 4 40.0 38.0 9.00 110.00 32.00 W 1.5 0.60 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D40-4-C32-11
40.00 4 44.0 38.0 9.00 130.00 32.00 C 1.4 0.84 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D40-4-W32-11
40.00 4 44.0 38.0 9.00 115.00 32.00 W 1.4 0.75 SR 34-535-SN BLD T15/S7(a) SW6-SD
T490 ELN D40-5-C32-11
40.00 5 44.0 38.0 9.00 130.00 32.00 C 1.4 0.83 SR 34-535-SN BLD T15/S7(a) SW6-SD
• Important: Maximum clamping torque 3.2 N*m
(1) Recommended cutting conditions: at ap=6 mm, fz=0.12 mm/t at ap=8 mm, fz=0.10 mm/t
(2) Long cylindrical shank
(3) Recommended cutting conditions: at ap=6 mm, fz=0.15 mm/t at ap=8 mm, fz=0.12 mm/t
(4) Number of inserts
(5) C-Cylindrical, W-Weldon
(6) Maximum ramping angle - valid only with T490 LNHT 1106PNTR-RD insert
(a) Recommended key handle for limiting torque to 3.2 N*m for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade)
For inserts, see pages: T490 LNMT/LNHT 1106 (477)
T490 ELN-11
90° Endmills Carrying
T490 LN#T 11...
Tangentially Clamped Inserts
OAL
DCONMS
DC
APMX
LU
LH
Designation
DC APMX CICT(1) DCONMS Shank(2) LU LH OAL
kg
T890HT ELN D32-3-C32-13
32.00 9.50 3 32.00 C 37.40 40.0 130.00 0.68
T890HT ELN D32-3-C32-13B
32.00 9.50 3 32.00 C 47.40 50.0 250.00 1.43
T890HT ELN D32-3-W32-13
32.00 9.50 3 32.00 W 37.40 40.0 110.00 0.56
T890HT ELN D40-4-C32-13
40.00 9.50 4 32.00 C - 44.0 130.00 0.12
T890HT ELN D40-4-W32-13
40.00 9.50 4 32.00 W - 40.0 115.00 0.69
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: T890 LN.. 1306 (475)
Spare Parts
Designation
T890HT ELN-R13
SR 10513105(a) BLD IP20/M7 SW6-T-SH
(a) Recommended tightening torque: 8.0 N*m (71.0 lbf*in)
T890HT ELN-R13
90° Endmills Carrying
T890 LN.T 1306...
Tangentially Clamped Inserts
with 8 Cutting Edges
ISCAR
30
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
LH
LU
OAL
DCONMS
APMX
Rd°
Designation
DC CICT(2) OAL LH LU APMX DCONMS Shank(3) RMPX°(4)
kg
T490 ELN D25-2-C25-13
25.00 2 120.00 35.0 33.0 12.50 25.00 C - 0.39 SR M4.5-10507218 BLD T15/S7 SW6-T-SH
T490 ELN D25-2-W25-13
25.00 2 95.00 35.0 33.0 12.50 25.00 W - 0.29 SR M4.5-10507218 BLD T15/S7 SW6-T-SH
T490 ELN D32-3-C32-13
32.00 3 130.00 40.0 38.0 12.50 32.00 C 2.8 0.72 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D32-3-C32-13B (1)
32.00 3 250.00 50.0 48.0 12.50 32.00 C 2.8 1.44 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D32-3-W32-13
32.00 3 110.00 40.0 38.0 12.50 32.00 W 2.8 0.59 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D40-3-C40-13B (1)
40.00 3 250.00 50.0 48.0 12.50 40.00 C 2.0 2.25 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D40-4-C32-13
40.00 4 130.00 40.0 - 12.50 32.00 C 2.0 0.81 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D40-4-W32-13
40.00 4 115.00 40.0 - 12.50 32.00 W 2.0 0.72 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D50-4-C32-13
50.00 4 130.00 36.5 - 12.50 32.00 C 1.5 0.96 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490 ELN D50-5-C32-13
50.00 5 130.00 36.5 - 12.50 32.00 C 1.5 0.96 SR 34-535-SN BLD T15/S7 SW6-T-SH
• For user guide see pages 542-548
(1) "B" suffix for long cylindrical shank which may be shortened.
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
(4) Maximum ramping angle - valid only when T490 LNHT 1306 PNTR-RD insert is used
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNR-FF (479) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)
T490 ELN-13
90° Endmills Carrying Tangentially
Clamped Inserts with 4 Helical,
12.5 mm Long Cutting Edges
LH
DC
APMX
OAL
DCONMS
Rd°
Designation
DC APMX CICT(1) OAL LH DCONMS RMPX°(2)
kg
HM390 ETD D040-3-C32-15
40.00 13.00 3 130.00 40.0 32.00 2.1 0.71 SR 10511869 BLD IP20/S7 SW6-T
HM390 ETD D040-4-C32-15
40.00 13.00 4 130.00 30.0 32.00 2.1 0.73 SR 10511869 BLD IP20/S7 SW6-T
HM390 ETD D050-4-C32-15
50.00 13.00 4 130.00 40.0 32.00 1.6 0.84 SR 10505427 BLD IP20/S7 SW6-T
• When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm • For user guide, see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
For inserts, see pages: HM390 TDCR 1505 (448) • HM390 TDKT/CT 1505 (447)
HM390 ETD-15
90° Endmills Carrying HM390
TDKT 1505 Triangular Inserts
with 3 Helical Cutting Edges
DC
OAL
LH
APMX
DCONMS
Designation
DC CICT(1) APMX OAL LH DCONMS Shank(2) RMPX°(3)
kg
H490 E90AX D25-2-C25-12
25.00 2 12.00 110.00 35.0 25.00 C 1.5 0.36 SR 14-544/S SW6-T BLD T15/M7
H490 E90AX D25-2-W25-12
25.00 2 12.00 110.00 35.0 25.00 W 1.5 0.35 SR 14-544/S SW6-T BLD T15/M7
H490 E90AX D32-3-C32-12
32.00 3 12.00 110.00 40.0 32.00 C 4.0 0.60 SR 14-544 SW6-T BLD T15/M7
H490 E90AX D32-3-W32-12
32.00 3 12.00 110.00 40.0 32.00 W 4.0 0.59 SR 14-544 SW6-T BLD T15/M7
H490 E90AX D40-4-C32-12
40.00 4 12.00 130.00 40.0 32.00 C 1.5 0.83 SR 14-544 SW6-T BLD T15/M7
H490 E90AX D40-4-W32-12
40.00 4 12.00 115.00 40.0 32.00 W 1.5 0.73 SR 14-544 SW6-T BLD T15/M7
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle - valid only when the H490 ANKX1205R 15T-FF insert is used
For inserts, see pages: H490 ANKX/ANCX 1205-FF (471) • H490 ANKX/ANCX-12 (470)
H490 E90AX-12
90° Endmills Carrying H490
ANKX 12...Double-Sided
Rectangular Inserts with 4
Helical Cutting Edges
31
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

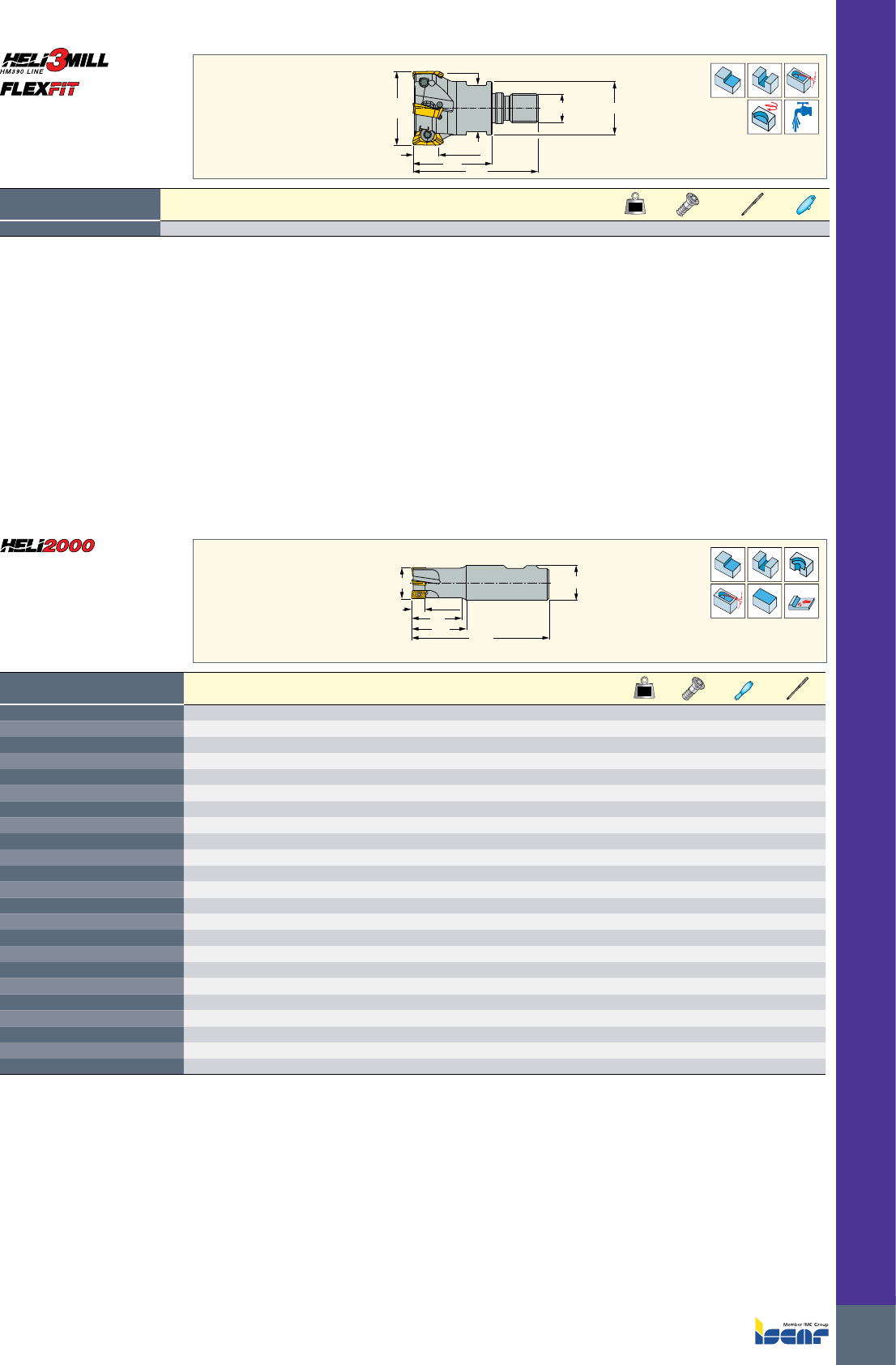

APMX
LF
DC
DRVS
OAL
DCONMS
THSZMS
Rd°
Designation
DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3) TQ_3(4)
kg
HM390 ETD D040-4-M16
40.00 13.00 4 43.00 29.00 M16 68.00 25.0 2.1 40 0.22 SR 10511869 BLD IP20/S7 SW6-T
• For adaptation, see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3
parameter
• When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HM390 TDCR 1505 (448) • HM390 TDKT/CT 1505 (447)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
HM390 ETD-M
90° Endmills with a FLEXFIT
Threaded Adaptation
Carrying HM390 TDKT
1505 Triangular Inserts
DC
OAL
LU
LH
APMX
DCONMS
Rd°
Designation
DC CICT(1) APMX OAL LH LU RMPX°(2) DCONMS Shank(3) CSP(4)
kg
HM90 E90AD-D20-1-C20
20.00 1 14.30 110.00 35.0 34.0 3.0 20.00 C 0 0.24 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C24-B
25.00 2 14.30 200.00 30.0 - 11.5 24.00 C 0 0.67 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25
25.00 2 14.30 110.00 35.0 34.0 11.5 25.00 C 0 0.37 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-B
25.00 2 14.30 200.00 50.0 49.0 11.5 25.00 C 0 0.71 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-C
25.00 2 14.30 110.00 35.0 34.0 11.5 25.00 C 1 0.34 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-XL
25.00 2 14.30 150.00 35.0 34.0 11.5 25.00 C 0 0.53 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25
25.00 2 14.30 100.00 35.0 34.0 11.5 25.00 W 0 0.33 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25-C
25.00 2 14.30 100.00 35.0 34.0 11.5 25.00 W 1 0.30 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25-XL
25.00 2 14.30 150.00 70.0 69.0 11.5 25.00 W 0 0.51 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-2-C32
32.00 2 14.30 120.00 40.0 38.0 5.3 32.00 C 0 0.68 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C31-B
32.00 3 14.30 250.00 30.0 - 5.3 31.00 C 0 1.41 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32
32.00 3 14.30 120.00 40.0 38.0 5.3 32.00 C 0 0.67 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32-B
32.00 3 14.30 250.00 50.0 48.0 5.3 32.00 C 0 1.48 SR 14-544/S SW6-T-SH BLD T15/M7
HM90 E90AD-D32-3-C32-C
32.00 3 14.30 120.00 40.0 38.0 5.3 32.00 C 1 0.63 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32-XL
32.00 3 14.30 160.00 40.0 38.0 5.3 32.00 C 0 0.92 SR 14-544/S SW6-T-SH BLD T15/M7
HM90 E90AD-D32-3-W32
32.00 3 14.30 110.00 40.0 38.3 5.3 32.00 W 0 0.59 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-W32-C
32.00 3 14.30 110.00 40.0 38.3 5.3 32.00 W 1 0.56 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-W32-XL
32.00 3 14.30 160.00 40.0 38.3 5.3 32.00 W 0 0.91 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-3-C40-B
40.00 3 14.30 250.00 50.0 48.0 4.0 40.00 C 0 2.34 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-3-W40-XL
40.00 3 14.30 200.00 80.0 78.0 4.0 40.00 W 0 1.81 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-C32
40.00 4 14.30 130.00 40.0 - 4.0 32.00 C 0 0.82 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-W32
40.00 4 14.30 115.00 40.0 - 4.0 32.00 W 0 0.73 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-W32-C
40.00 4 14.30 115.00 40.0 - 4.0 32.00 W 1 0.69 SR 14-544/S SW6-SD BLD T15/M7
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
HM90 E90AD-15
90° Endmills Carrying HM90
ADKT-1505... Inserts
ISCAR
32
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

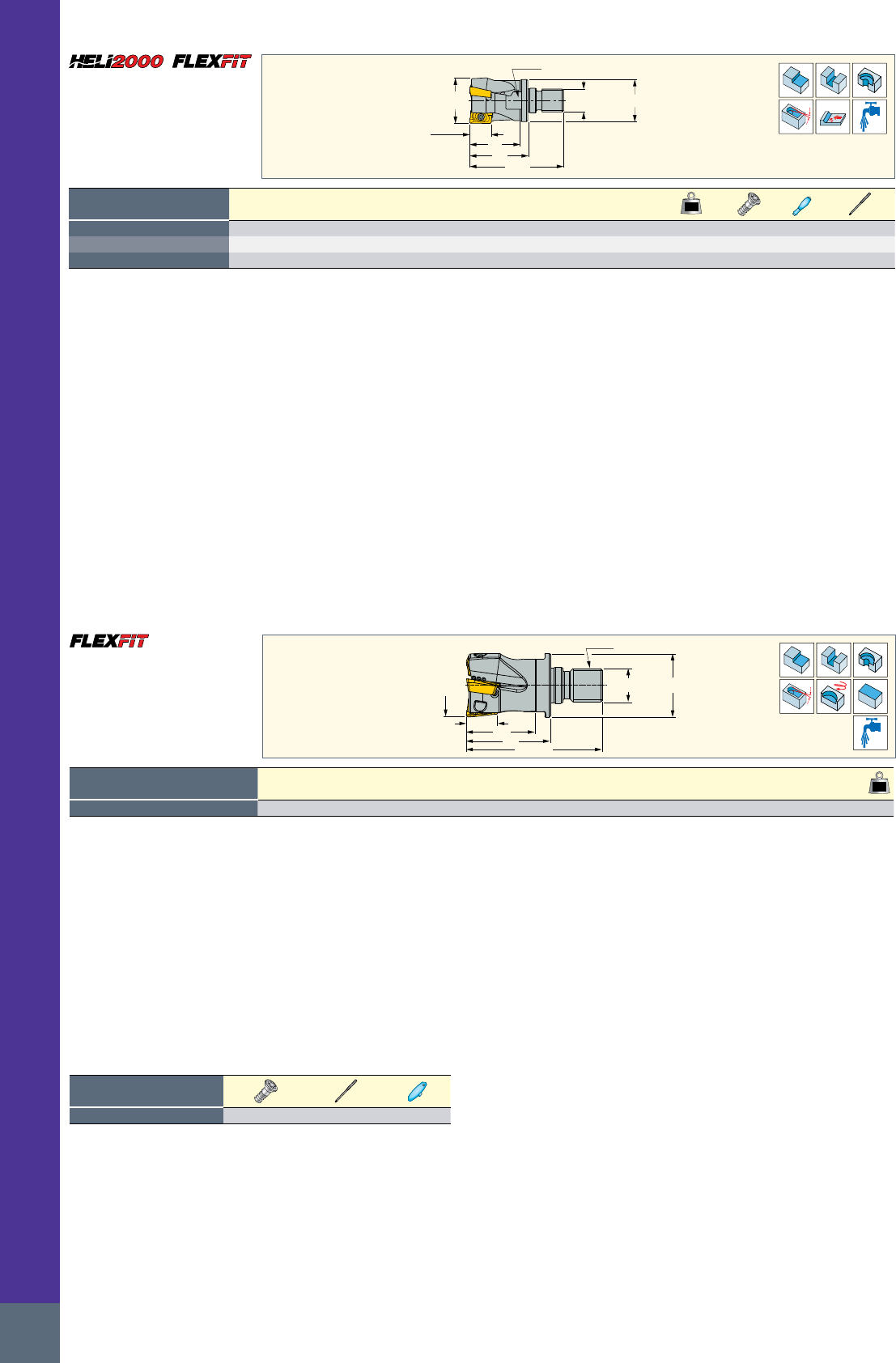

DC
LH
APMX
LF
OAL
DCONMS
THSZMS
DRVS
Rd°
Designation
DC CICT(1) APMX DCONMS THSZMS LH LF OAL RMPX°(2) DRVS(3) TQ_3(4)
kg
HM90 E90AD-D25-2-M12
25.00 2 14.30 21.00 M12 30.8 35.00 57.00 11.5 19.0 33 0.08 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-M16
32.00 3 14.30 29.00 M16 40.0 40.00 65.00 5.3 25.0 40 0.16 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-M16
40.00 4 14.30 29.00 M16 40.0 40.00 65.00 4.0 25.0 40 0.21 SR 14-544/S SW6-SD BLD T15/M7
• For adaptation see page 44 • For user guide, see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Torque key size
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
HM90 E90AD-M-15
90° Endmills with a FLEXFIT
Threaded Adaptation Carrying
HM90 ADKT-1505... Inserts
THSZMS
DRVS
DC
APMXLH
LF OAL
DCONMS
Rd°
Designation
DC CICT(1) APMX OAL RMPX°(2) LF THSZMS DRVS(3) DCONMS TQ_3(4) MIID(5) MIID_2(6)
kg
HM90 E90AD D32-3-M16-JHP
32.00 3 14.30 65.00 5.3 40.00 M16 25.0 30.50 40 ADKT 1505PDTR ADCT 1505R8T-FF 0.17
• For adaptation see page 44 • For user guide, see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Torque key size
(4) Tool tightening torque Nxm (lbfxin)
(5) Master insert identification
(6) Master insert identification 2
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
Spare Parts
Designation
HM90 E90AD-M-15-JHP
SR 14-544/S(a) BLD T15/M7 SW6-T-SH
(a) Recommended tightening torque for this item: 4.8 Nxm
HM90 E90AD-M-15-JHP
90° JHP Endmills With a FLEXFIT
Threaded Adaptation Carrying
HELI2000 and HELIMILL Inserts
33
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

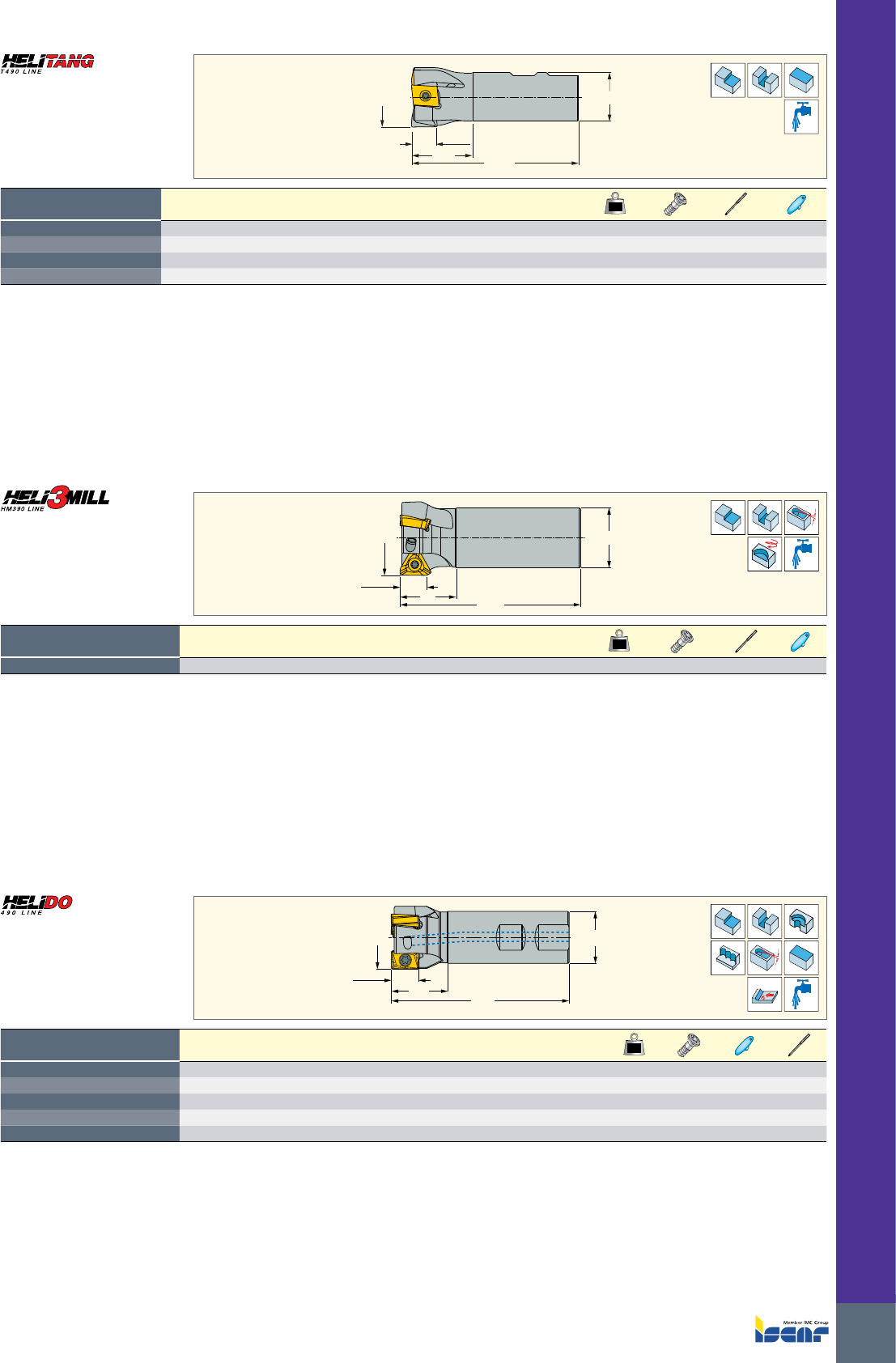

DC DCONMS
OAL
APMX
LH
Designation
DC CICT(1) APMX LH OAL DCONMS Shank(2)
kg
T490 ELN D32-2-C32-16
32.00 2 16.00 41.0 130.00 32.00 C 0.70 SR 14-591-S BLD T20/M7 SW6-T
T490 ELN D32-2-W32-16
32.00 2 16.00 41.0 130.00 32.00 W 0.70 SR 14-591-S BLD T20/M7 SW6-T
T490 ELN D40-3-C32-16
40.00 3 16.00 40.0 130.00 32.00 C 0.76 SR 14-591 BLD T20/M7 SW6-T
T490 ELN D40-3-W32-16
40.00 3 16.00 40.0 110.00 32.00 W 0.64 SR 14-591 BLD T20/M7 SW6-T
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 1607 (480)
T490 ELN-16
90° Endmills Carrying Tangentially
Clamped Inserts with 4 Helical,
16 mm Long Cutting Edges
LH
APMX
DC
OAL
DCONMS
Rd°
Designation
DC APMX CICT(1) OAL LH DCONMS RMPX°(2) Shank(3)
kg
HM390 ETD D040-2-C32-19
40.00 16.00 2 130.00 45.0 32.00 2.0 C 0.69 SR 14-591/L12 BLD T20/S7 SW6-T
For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical
For inserts, see pages: HM390 TDKT 1907 (448)
HM390 ETD-19
90° Endmills Carrying HM390
TDKT 1907 Triangular Inserts
with 3 Helical Cutting Edges
LH
APMX
DC DCONMS
OAL
Rd°
Designation
DC CICT(1) APMX OAL LH DCONMS Shank(2) RMPX°(3)
kg
H490 E90AX D32-2-C32-17
32.00 2 16.30 130.00 44.0 32.00 C 6.5 0.70 SR 14-591 SW6-T BLD T20/M7
H490 E90AX D32-2-W32-17
32.00 2 16.30 95.00 30.0 32.00 W 6.5 0.50 SR 14-591 SW6-T BLD T20/M7
H490 E90AX D40-3-C32-17
40.00 3 16.30 130.00 44.0 32.00 C 4.4 0.76 SR 14-591 SW6-T BLD T20/M7
H490 E90AX D40-3-W32-17
40.00 3 16.30 110.00 35.0 32.00 W 4.4 0.64 SR 14-591 SW6-T BLD T20/M7
H490 E90AX D50-4-C32-17
50.00 4 16.30 120.00 40.0 32.00 C 3.8 0.81 SR 14-591 SW6-T BLD T20/M7
• Rampdown angle is valid only when the H490 ANKX1706R15T-FF insert is used and tool diameter is 1.5 mm larger. • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H490 ANKX 1706-FF (472) • H490 ANKX/ANCX-17 (472)
H490 E90AX-17
90° Endmills Carrying H490
ANKX 17... Double-Sided
Rectangular Inserts with 4
Helical Cutting Edges
ISCAR
34
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

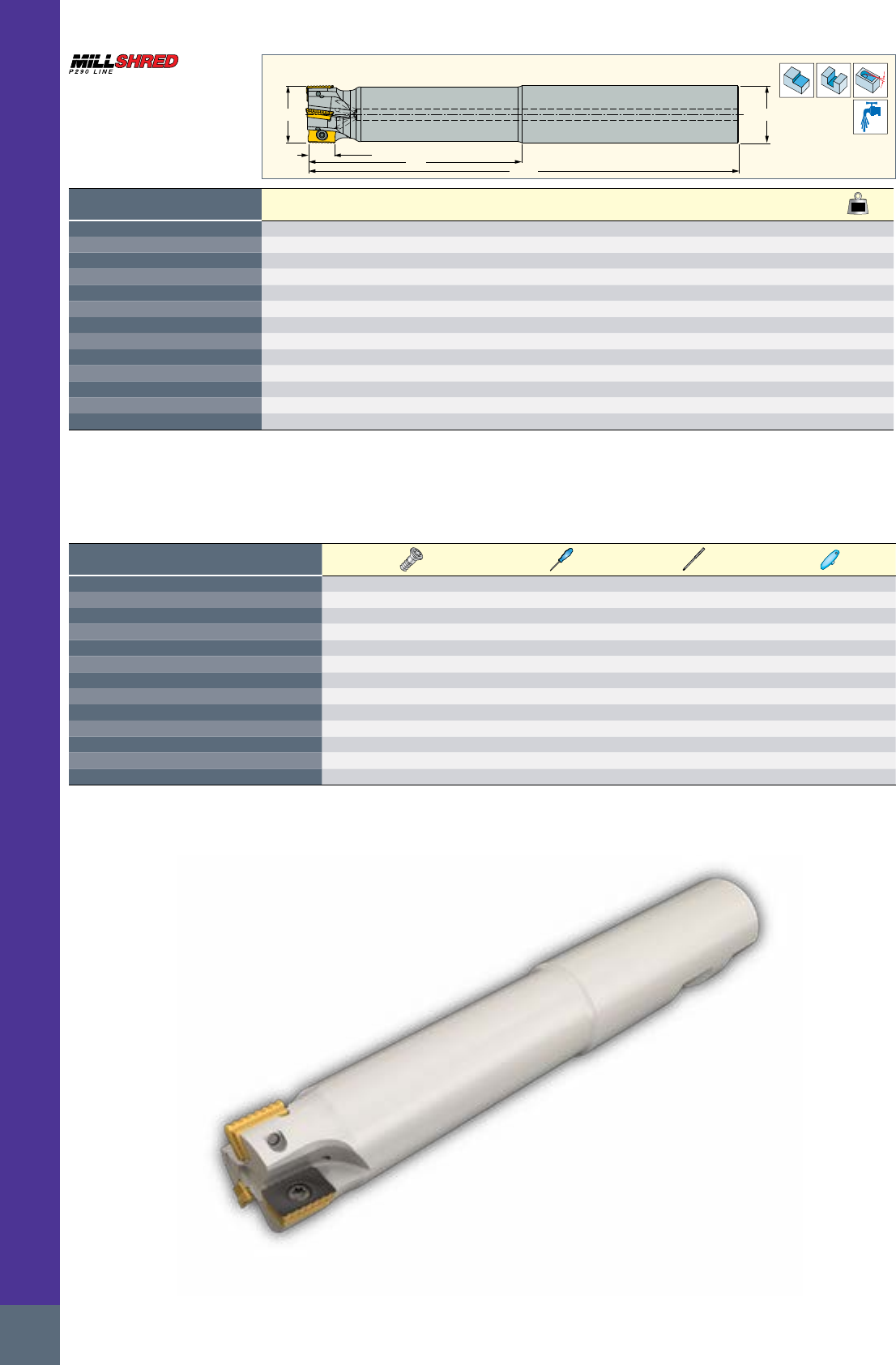

DC
APMX
LH OAL
DCONMS
Rd°
Designation
DC APMX CICT(1) LH OAL DCONMS Shank(2) RMPX°(3)
kg
P290 EPW D20-2-100-W20-12
20.00 12.00 2 40.0 100.00 20.00 W 2.0 0.20
P290 EPW D25-3-130-W25-12
25.00 12.00 3 70.0 130.00 25.00 W 1.4 0.39
P290 EPW D25-3-160-C25-12
25.00 12.00 3 90.0 160.00 25.00 C 1.4 0.47
P290 EPW D25-3-200-C25-12
25.00 12.00 3 120.0 200.00 25.00 C 1.4 0.62
P290 EPW D32-4-130-W25-12
32.00 12.00 4 - 130.00 25.00 W 1.0 0.46
P290 EPW D32-4-150-C25-12
32.00 12.00 4 - 150.00 25.00 C 1.0 0.54
P290 EPW D25-2-120-W25-18
25.00 18.00 2 60.0 120.00 25.00 W 2.5 0.36
P290 EPW D32-3-170-W32-18
32.00 18.00 3 100.0 170.00 32.00 W 2.0 0.84
P290 EPW D32-3-210-C32-18
32.00 18.00 3 130.0 210.00 32.00 C 2.0 1.06
P290 EPW D32-3-240-C32-18
32.00 18.00 3 160.0 240.00 32.00 C 2.0 1.22
P290 EPW D40-4-170-W32-18
40.00 18.00 4 - 170.00 32.00 W 1.5 0.95
P290 EPW D40-4-200-C32-18
40.00 18.00 4 - 200.00 32.00 C 1.5 1.13
P290 EPW D40-4-250-W40-18
40.00 18.00 4 150.0 250.00 40.00 W 1.5 2.08
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)
Spare Parts
Designation
P290 EPW D20-2-100-W20-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D25-3-130-W25-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D25-3-160-C25-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D25-3-200-C25-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D32-4-130-W25-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D32-4-150-C25-12
SR M3X0.5-L7.4 IP9(a) IP-9/151
P290 EPW D25-2-120-W25-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D32-3-170-W32-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D32-3-210-C32-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D32-3-240-C32-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D40-4-170-W32-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D40-4-200-C32-18
SR 14-544/S(b) BLD T15/M7 SW6-T
P290 EPW D40-4-250-W40-18
SR 14-544/S(b) BLD T15/M7 SW6-T
(a) Recommended tightening torque:2.0 N*m
(b) Recommended tightening torque:4.8 N*m
P290 EPW
Long Reach Endmills Carrying 12
and 18 mm Long Edged Inserts
35
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC DCONMS
OAL
LF
DRVS
APMX
THSZMS
Rd°
Designation
DC APMX CICT(1) LF OAL THSZMS DCONMS DRVS(2) RMPX°(3) CSP(4) TQ_3(5)
kg
P290 EPW D20-2-M10-12
20.00 12.00 2 25.00 45.00 M10 18.00 15.0 2.0 0 29 0.04
P290 EPW D25-3-M12-12
25.00 12.00 3 30.00 52.00 M12 21.00 19.0 1.4 1 33 0.07
P290 EPW D32-4-M16-12
32.00 12.00 4 35.00 60.00 M16 29.00 25.0 1.0 1 40 0.16
P290 EPW D32-3-M16-18
32.00 18.00 3 40.00 65.00 M16 29.00 25.0 2.0 1 40 0.15
P290 EPW D40-4-M16-18
40.00 18.00 4 40.00 65.00 M16 29.00 25.0 1.5 1 40 0.20
• For adaptation see page 44 • For user guide, see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
Spare Parts
Designation
P290 EPW D20-2-M10-12
SR M3X0.5-L7.4 IP9(b) IP-9/151
P290 EPW D25-3-M12-12
SR M3X0.5-L7.4 IP9(b) IP-9/151
P290 EPW D32-4-M16-12
SR M3X0.5-L7.4 IP9(b) IP-9/151
P290 EPW D32-3-M16-18
SR 14-544/S(a) BLD T15/M7 SW6-T
P290 EPW D40-4-M16-18
SR 14-544/S(a) BLD T15/M7 SW6-T
(a) Recommended tightening torque:2.0 N*m
(b) Recommended tightening torque:4.8 Nxm
P290 EPW-M
Endmills with FLEXFIT Threaded
Adaptation Carrying 12 and
18 mm Long Edged Inserts
DC
LU OAL
APMX
DCONMS
Rd°
Designation
DC CICT(1) APMX OAL LU RMPX°(2) DCONMS Shank(3)
kg
HP E90AT-D25-2-W25-19
25.00 2 18.00 100.00 40.0 14.0 25.00 W 0.30 SR 14-571/L SW6-SD BLD T10/S7
HP E90AT-D32-3-W32-19
32.00 3 18.00 105.00 40.0 7.0 32.00 W 0.52 SR 14-571/L SW6-SD BLD T10/S7
• First loosely attach the inner clamping screw, then the outer one. In the same order tighten them both. • For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) W-Weldon
For inserts, see pages: HP ADCR 1906 (464) • HP ADKT/ADCT 1906 (464)
HP E90AT-19
90° Endmills Carrying HP
AD.. 1906.. Inserts
ISCAR
36
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
E30T230
30°
DCX
APMX
DCONMS
30°
LH OAL
Designation
DC DCX(1) CICT(2) APMX OAL LH DCONMS Shank(3) CSP(4) MIID(5)
kg
T230 ELN D12-4-C16-05
12.00 21.50 4 2.50 90.00 20.0 16.00 C 1 T290 LNHT 0502 0.13 SR 10503833 T-7/51
T230 ELN D12-4-W16-05
12.00 21.50 4 2.50 90.00 20.0 16.00 W 1 T290 LNHT 0502 0.13 SR 10503833 T-7/51
E30 D16-W25
16.00 40.90 3 7.00 100.00 36.4 25.00 W 0 TPMT 1603 0.42 SR 14-541 T-15/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) C - Cylindrical, W - Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Master insert identification
For inserts, see pages: T290 LNMT/LNHT 0502 (474) • TPMT (468)
E30 / T230
30° Chamfering Endmills
DC
APMX
OAL
LH
LU
DCONMS
Designation
DC CICT(1) NOF(2) APMX LU LH OAL DCONMS Shank(3) MIID(4)
kg
E90AC D25-20W25
25.00 3 2 19.00 49.0 50.0 110.00 25.00 W APKT 1003PDR-HM 0.30
E90AC D32-25W32
32.00 3 2 25.00 48.0 50.0 130.00 32.00 W ADCT 1505PDFR-HM 0.60
E90AC D38-25W32
38.00 5 2 26.00 - 50.0 130.00 32.00 W ADCT 1505PDFR-HM 0.70
• For user guide see pages 542-548
(1) Number of inserts
(2) Number of flutes
(3) W-Weldon
(4) Master insert identification
For inserts, see pages: ADCT 1505PDFR-HM (457) • ADKT 1505..R/L-HM (459) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • XPMT-HQ (496)
Spare Parts
Designation
E90AC D25-20W25
SR 34-505/HG BLD T08/M7 SW4-SD
E90AC D32-25W32
SR 14-544/S BLD T15/M7 SW6-T
E90AC D38-25W32
SR 14-544/S BLD T15/M7 SW6-T ZPN 4-520
E90AC
Drilling Endmills Carrying
APKT/ADKT Inserts
DC
APMX
LH
OAL
DCONMS
Rd°
Designation
DC CICT(1) NOF(2) APMX LH OAL DCONMS Shank(3) CSP(4)
kg
E90XC D12-06-C12-06
12.00 1 1 5.80 25.0 90.00 12.00 C 0 0.07 SR 34-508 T-7/51
E90XC D20-22-C20-06
20.00 5 1 22.00 37.0 120.00 20.00 C 1 0.24 SR 34-508/L T-7/51
• Use the XOMT 06.... insert in central face location • For user guide see pages 542-548
(1) Number of inserts
(2) Number of flutes
(3) C-Cylindrical
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: SOMT-HQ (494) • XOMT-HQ (494)
E90XC
Drilling Endmills Carrying
Square S/XOMT Inserts
37
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

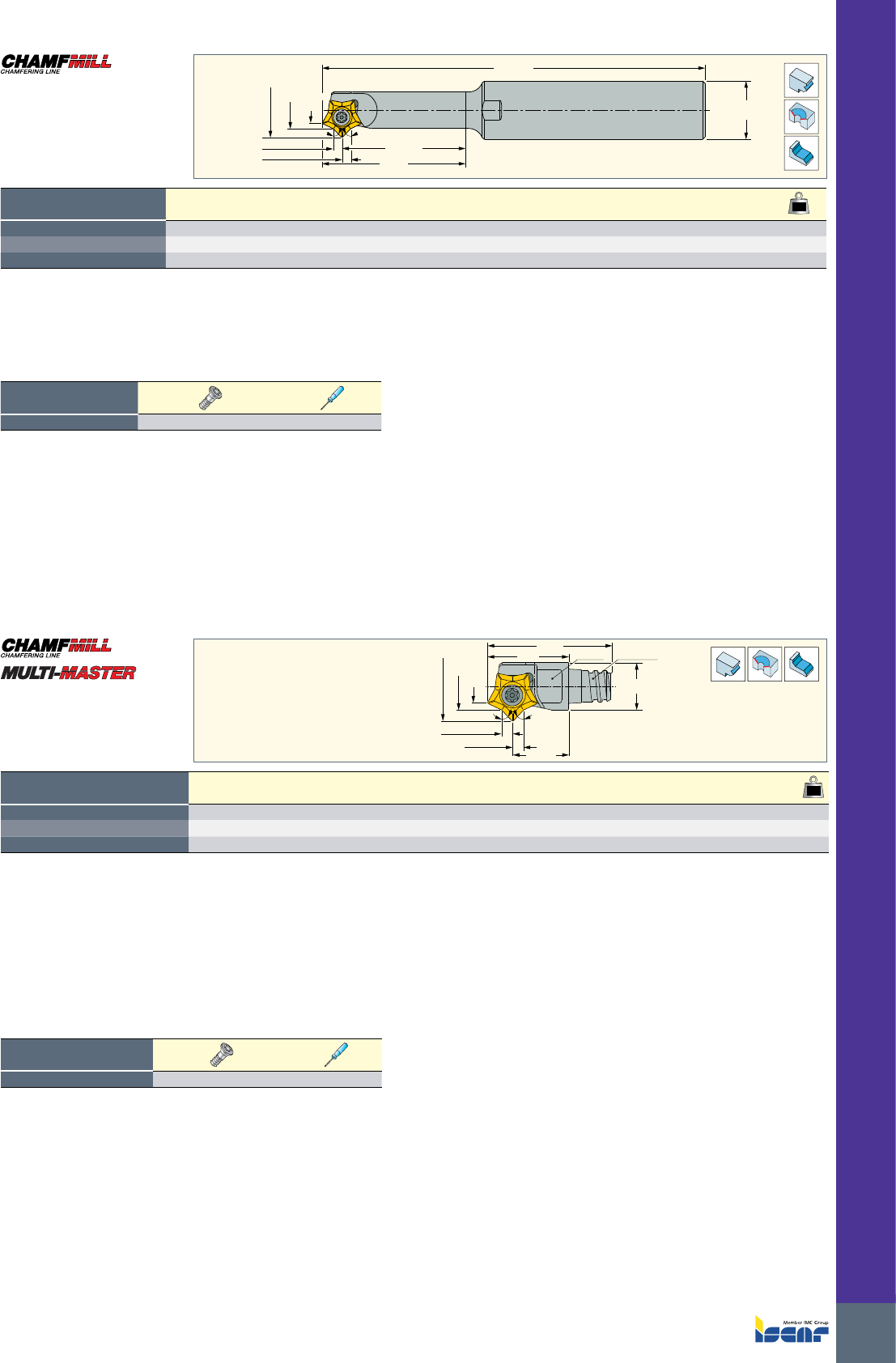

OAL
DCONMS
LU
LU_2
45˚ 45˚
APMX_2
DC
DC_2
DCX
APMX
Designation
DCX(1) DC_2 DC APMX APMX_2 DCONMS CICT(2) LU LU_2 OAL DMIN(3)
kg
CH45-10-30-1-C12-PN06
11.70 8.45 6.60 1.50 1.50 12.00 1 29.40 25.40 100.00 10.00 0.00
CH45-17-60-2-C16-PN06
16.70 13.45 11.40 1.50 1.50 16.00 2 29.40 25.40 110.00 17.00 0.13
CH45-19-80-3-C16-PN06
18.70 15.45 13.40 1.50 1.50 16.00 3 29.40 25.40 130.00 19.00 0.16
(1) Cutting diameter maximum
(2) Number of inserts
(3) Minimum penetration diameter for back chamfering
For inserts, see pages: PNMT 0602-TN (540)
Spare Parts
Designation
CH45-PN06
SR M2.5X5-T7-60 T-7/51
CH45-PN06
Upper and Bottom
Chamfering Endmills Carrying
Pentagonal Inserts
45˚ 45˚
LF_2
APMX_2
LF
DC
DC_2
DCX DRVS
OAL
APMX
THSZMS
DCONMS
Designation
DCX(1) DC_2 DC APMX APMX_2 LF LF_2 OAL DCONMS THSZMS CICT(2) DRVS(3) DMIN(4)
kg
CH45-10/.39-1-MMT05-PN06
11.70 8.45 6.60 1.50 1.50 13.00 9.00 19.75 7.60 T05 1 5.5 10.00 0.00
CH45-17/.67-2-MMT08-PN06
16.70 13.45 11.40 1.50 1.50 18.00 14.00 25.50 12.20 T08 2 10.0 17.00 0.02
CH45-19/.75-3-MMT10-PN06
18.70 15.45 13.40 1.50 1.50 20.00 16.00 31.30 15.30 T10 3 13.0 19.00 0.02
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation options, see page 44 • For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) Width across flats (wrench should be ordered separately)
(4) Minimum penetration diameter for back chamfering
For inserts, see pages: PNMT 0602-TN (540)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
Spare Parts
Designation
CH45-MM-PN06
SR M2.5X5-T7-60 T-7/51
CH45-MM-PN06
Upper and Bottom Chamfering
Endmills with MULTI-MASTER
Threaded Adaptation
ISCAR
38
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
APMX
45°
LH
DCX
DC
Designation
DC DCX(1) CICT(2) APMX LH OAL DCONMS Shank(3)
kg
E45X D06-C12-06
6.00 14.10 1 4.00 25.0 80.00 12.00 C 0.06 SR 34-508 T-7/51
E45X D06-W12-06
6.00 14.10 1 4.00 19.0 70.00 12.00 W 0.05 SR 34-508 T-7/51
E45X D08-C16-06
8.00 16.10 1 4.00 25.0 100.00 16.00 C 0.14 SR 34-508 T-7/51
E45X D08-W16-06
8.00 16.10 1 4.00 23.0 80.00 16.00 W 0.11 SR 34-508 T-7/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
For inserts, see pages: QOMT-HQ (494) • SOMT-HQ (494) • XOMT-HQ (494)
E45X
45° Chamfering Endmills
Carrying X/Q/SOMT 06 Inserts
45
°
APMX APMX APMX
45
°
45
°
LH
OAL
LH
OAL
LH
OAL
DCONMS
DC
LH
45°
OAL
T245
E45 D16 E45 D12 E45 D30
DCX
APMX
Designation
DC DCX(1) CICT(2) APMX OAL LH DCONMS Shank(3) CSP(4) MIID(5)
kg
T245 ELN D12-4-C16-05
12.00 19.70 4 3.60 90.00 20.0 16.00 C 1 T290 LNHT 0502 0.12 SR 10503833 T-7/51
T245 ELN D12-4-W16-05
12.00 19.70 4 3.60 90.00 20.0 16.00 W 1 T290 LNHT 0502 0.12 SR 10503833 T-7/51
E45 D16-W25
16.00 35.90 2 9.70 100.00 33.0 25.00 W 0 TPMT 1603 0.35 SR 14-541 T-15/51
E45 D30-W25
30.00 46.10 3 7.80 100.00 35.0 25.00 W 0 SCMT 120408-19 0.37 SR 16-212 T-20/51
E45 D30-W32
30.00 46.10 3 7.80 110.00 35.0 32.00 W 0 SCMT 120408-19 0.61 SR 16-212 T-20/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) W-Weldon C-Cylindrical
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Master insert identification
For inserts, see pages: SCMT-19 (514) • SDMT-AD-N (513) • T290 LNMT/LNHT 0502 (474) • TPMT (468)
E45 / T245
45° Chamfering Endmills
OAL OAL_2 OAL_3
DCX
DC APMX
45º
DCONMS
DC_2
45º
OAL_4 OAL_5
DC_3 15º
45º
DC_4
DCX_4
DCXBD_4
DCX_3
DCX DC_5
APMX_5APMX_4
APMX_3
APMX_2
AB C DE
Rd°
SOE45 8/16
Multifunctional Endmills
for Octagonal, Square and
Round Insert Contours with
Various Entry Angles
Spare Parts
Designation
SOE45 8/16
SR 11800745 BLD IP15/S7 SW6-T-SH
• A- with ONMU 0505... insert • B- with S845 SNMU 1305... insert • C- with RXMT 1607N insert • D- with OXMT 0507R08-FF insert
• E- with OXMT 050705-R-HP insert • Use only Torx Plus keys • For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle - valid only with RXMT 1607N insert
For inserts, see pages: ONHU 0505-W (487) • ONHU/ONMU-05 (487) • OXMT 0507 (488) • RXMT 1607 (505) • S845 SNHU 1305-W (484) • S845 SNMU/SNHU-13 (483)
Designation
DC DC_2 DC_3 DC_4 DC_5 DCX(1) DCX_3 DCX_4 BD_4 APMX APMX_2 APMX_3 APMX_4
SOE45 8/16-D025-02-W20R
25.00 22.65 20.90 20.10 25.30 35.40 36.50 29.40 35.60 3.50 6.00 7.90 1.20
SOE45 8/16-D032-03-W25R
32.00 29.65 27.50 26.70 32.30 42.40 43.30 36.20 42.60 3.50 6.00 7.90 1.20
SOE45 8/16-D040-04-W32R
40.00 37.65 35.40 37.50 40.30 50.40 51.30 47.00 50.60 3.50 6.00 7.90 1.20
Designation
APMX_5 DCONMS CICT(2) OAL OAL_2 OAL_3 OAL_4 OAL_5 RMPX°(3)
kg
SOE45 8/16-D025-02-W20R
2.90 20.00 2 100.00 101.2 101.60 101.30 101.20 3.1 0.25
SOE45 8/16-D032-03-W25R
2.90 25.00 3 100.00 101.2 101.60 101.30 101.20 4.2 0.38
SOE45 8/16-D040-04-W32R
2.90 32.00 4 110.00 111.2 111.60 111.30 111.20 3.7 0.72
39
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

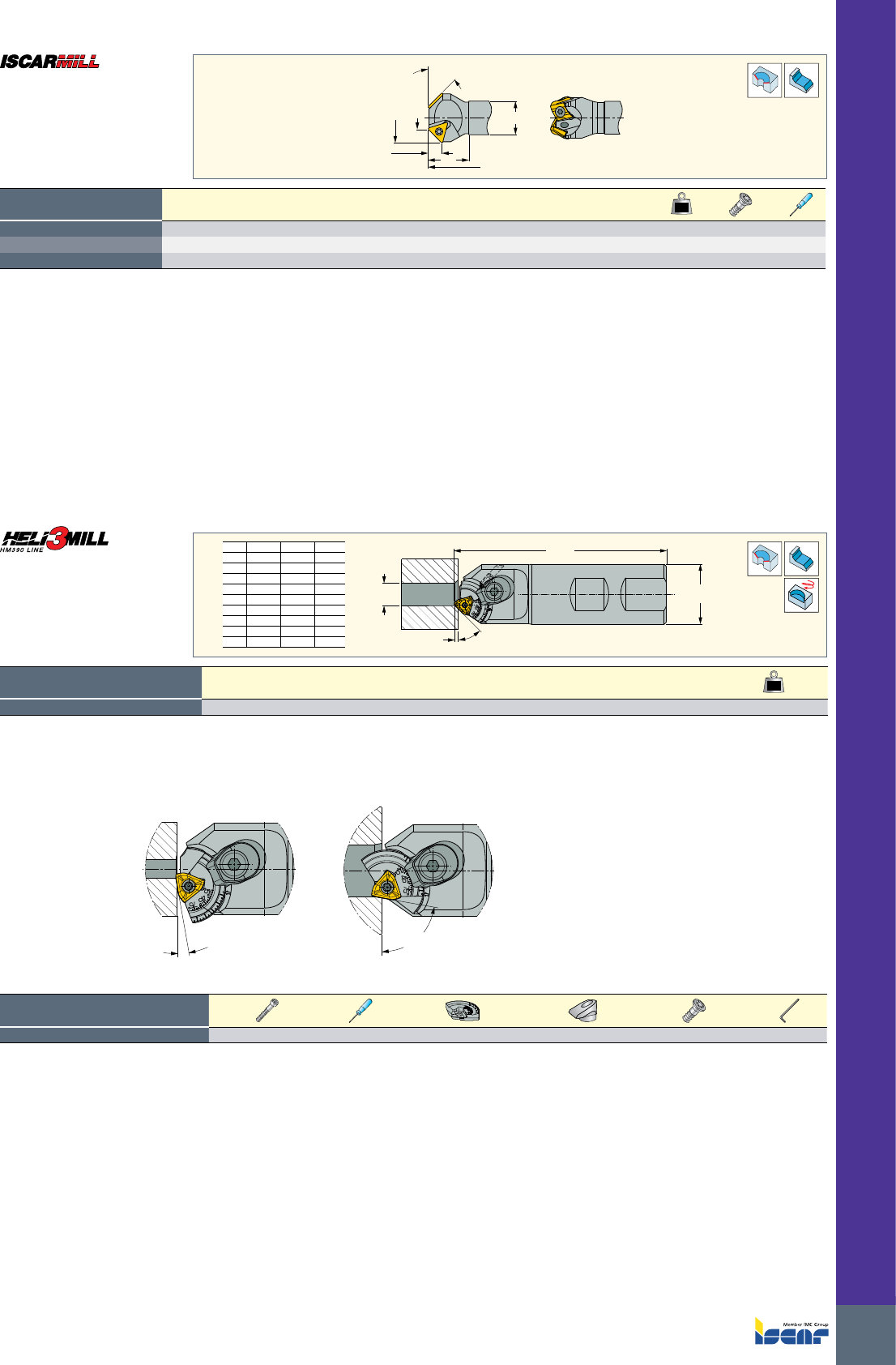

DC
DCX
APMX
60°
DCONMS
E60 T260
LH OAL
Designation
DC DCX(1) CICT(2) APMX OAL LH DCONMS Shank(3) CSP(4) MIID(5)
kg
T260 ELN D12-4-C12-05
12.00 17.50 4 4.50 80.00 20.0 12.00 C 1 T290 LNHT 0502 0.06 SR 10503833 T-7/51
T260 ELN D12-4-W12-05
12.00 17.50 4 4.50 80.00 20.0 12.00 W 1 T290 LNHT 0502 0.06 SR 10503833 T-7/51
E60 D25-W25
25.00 39.40 2 12.30 100.00 33.0 25.00 W 0 TPMT 1603 0.39 SR 14-541 T-15/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) W-Weldon C-Cylindrical
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Master insert identification
For inserts, see pages: T290 LNMT/LNHT 0502 (474) • TPMT (468)
E60 / T260
60° Chamfering Endmills
DMIN
KAPR
APMX
OAL
DCONMS
KAPR DMIN APMX
10° 5
20° 6.1
30° 7.3
40° 8.6
45° 9.3
50° 10
60° 11.3
70° 12.6
80° 13.9
0.35
0.68
1.00
1.29
1.41
1.53
1.73
1.88
1.97
OAL
87.15
87.55
87.90
88.15
88.20
88.25
88.20
88.10
87.85
Designation
CICT(1) OAL DCONMS Shank(2) MIID(3)
kg
HM390 E10-80 D05-1-W25-07
1 87.85 25.00 W HM390 TCCT 0703PCR 0.28
• For user guide see pages 542-548
(1) Number of inserts
(2) W-Weldon
(3) Master insert identification
For inserts, see pages: HM390 TCKT/CT 0703 (446)
KAPR=10° KAPR=80°
Minimal angle Maximal angle
Spare Parts
Designation
HM390 E10-80 D05-1-W25-07
SR M4X10DIN912 T-7/51 CR E10-80 HM390-07 CLAMP E10-80 SR M2.5X5-T7-60 HW 3.0
HM390 E10-80-07
Chamfering Endmill with an
Adjustable Edge Angle
ISCAR
40
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MULTI-MASTER
41
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

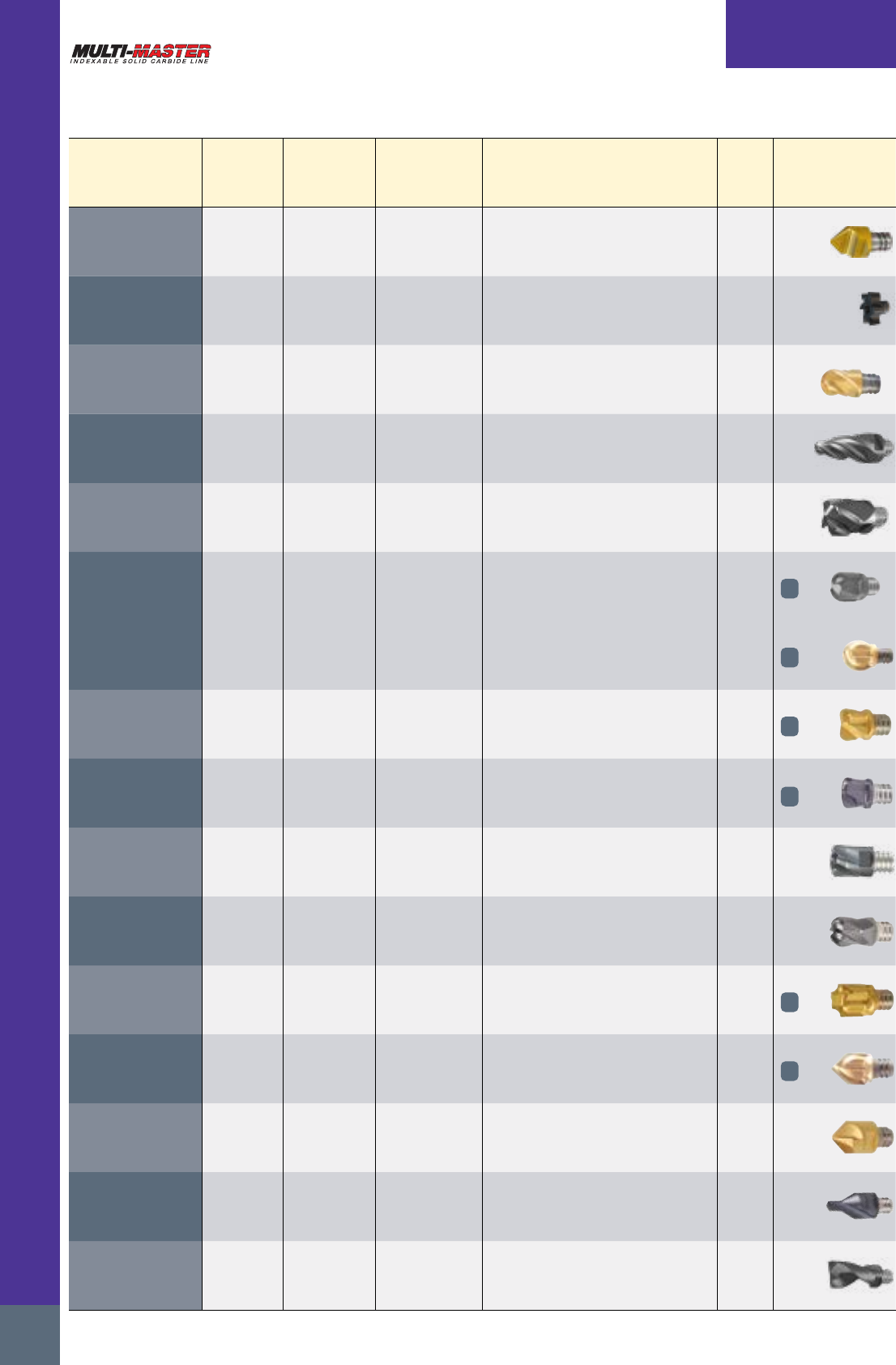

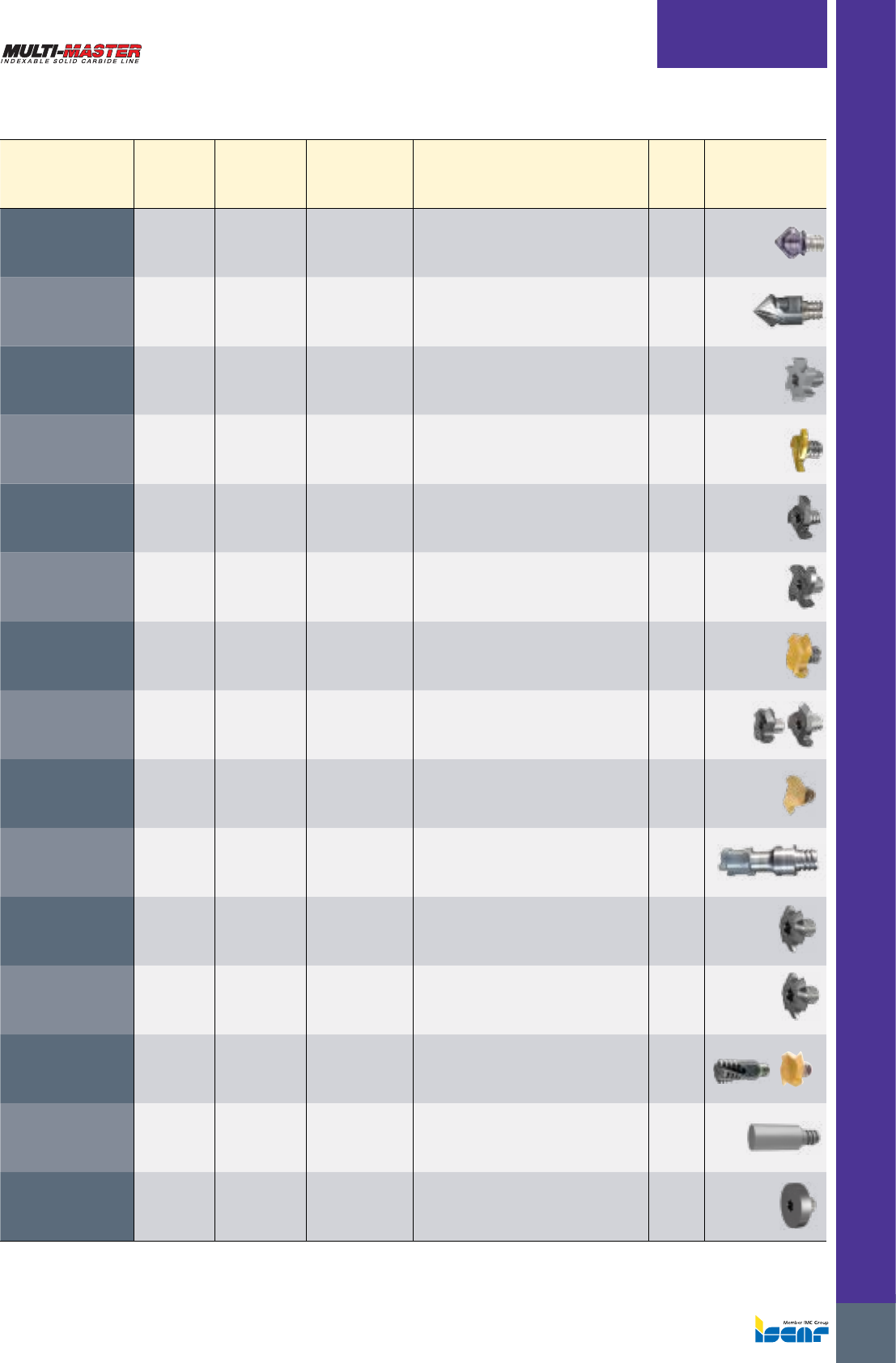

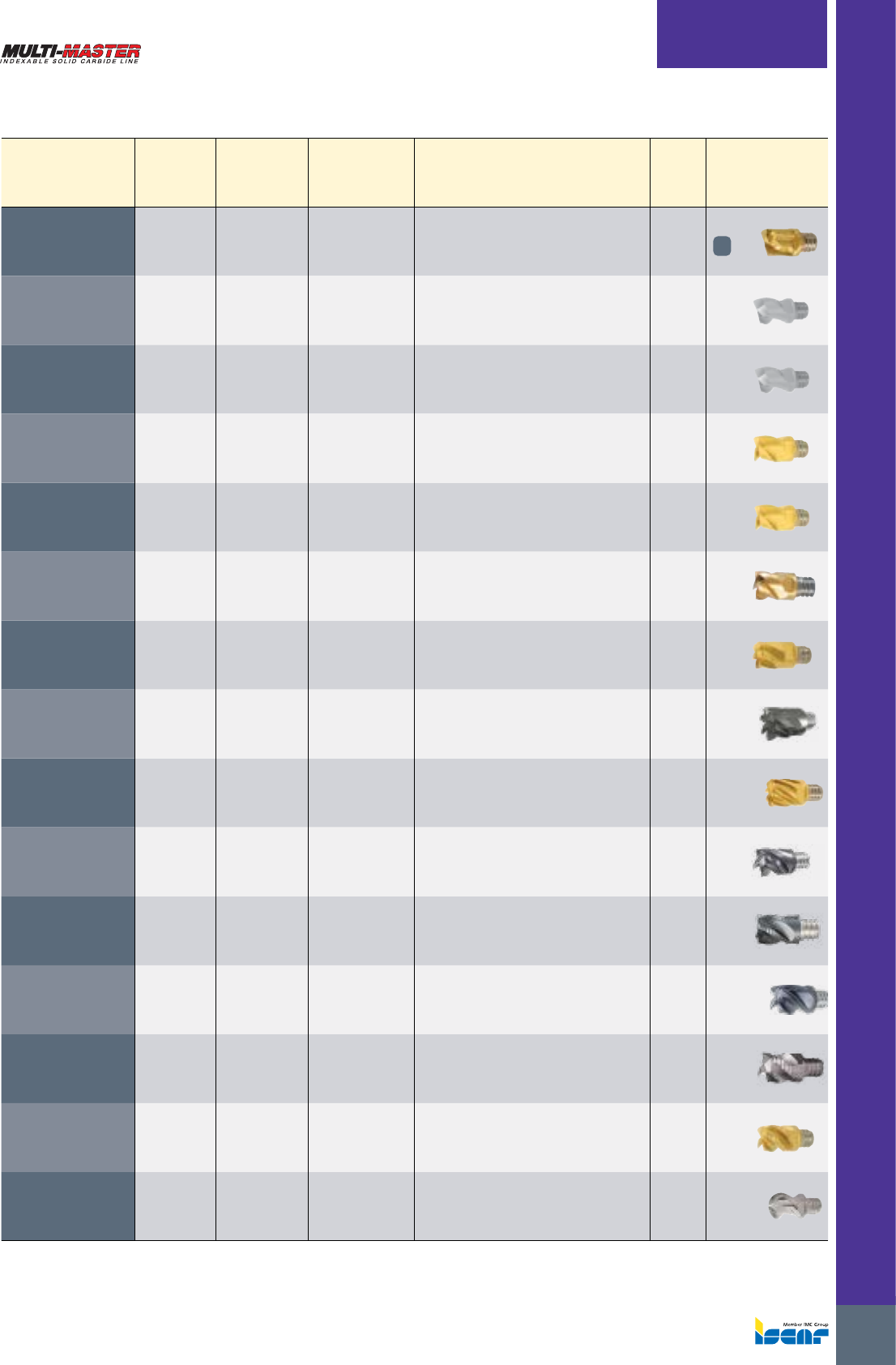

USER GUIDE
Indexable Solid Carbide Milling Heads
Table of Contents
Type Helix Angle No. of Flutes Diameter Range Remarks Page
MM HC 10º2 7.8-16 Slot Drill Milling Heads 73 E
MM EA 45º2, 3 8-20 High Speed Machining on Aluminum 81
MM EA-CF 40º3, 4 8-25 High Speed Machining on
Aluminum-CHATTERFREE 82
MM ECU 38º3 7.7-19.7 For Keyways (DIN 6885) 72
MM EC-3 45º3 8-12 73
MM EC-4 30º, 45º4 5-20 74
MM EC-6
MM EC-D
30º, 45º
50°
6
6, 8, 10
8-12
8-20
For Machining Hardened
Steel (up to 65 HRC). 75
MM ECK-CF 35º, 38º5,6 8-32 For Machining Titanium Alloys 77
MM EC-8/10 30º, 45º8,10 16-25 76
MM EFS 45º4 8-25 Finishred 79
MM EFS-CF 38° 4 6-25 Finishred CHATTERFREE 79
MM EC-CF
MM EC-CF-1.5xD
38º
36º, 46.5º
4, 12
4, 7, 9 8-25 CHATTERFREE 77
76
MM ERA 45° 3 8-25 Rough Machining on Aluminum 81
MM ERS
MM ERS-1.5xD
45º
40º-47º4, 5, 6 8-25 Rough Milling 80
MM EBA 45º2 8-25 Ball Nose
for Machining Aluminum 72
E = Economical
ISCAR
42
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Indexable Solid Carbide Milling Heads
Table of Contents
Type Helix Angle No. of Flutes Diameter Range Remarks Page
MM EPG —1 8 Engraving 50
MM FM —6 12-25 Face Mill 61
MM EB
MM EBC
30º
45º
2, 4
4
5-25
8-20 Ball Nose Milling 71
72
MM EOB —4 8,10,12,16 Oval-Shaped (Barrel) 61
MM ELB —4 8,10,12,16 Lens-Shaped (Barrel) 61
MM HCR
MM HRF —2 8-16 Ball Nose for
General Finishing 70 E
MM HBR —2 10-25.4 Center Cutting, 240°
Spherical Cutting Profile 71 E
MM HT —2 10-20 Torodial 69 E
MM FF —2 10-20 Feed Mill 67 E
MM EFF —4,6 8-25.4 Feed Mill 68
MM ETR 30˚6 8-16 Torodial 69
MM HR
MM ER —2
4
8-20
8-12.7 Corner Rounding 49 E
MM HCD —2 8-20 Chamfering, Countersinking and
Spot Drilling for DIN 74 Screw 45 E
MM ECF —4, 6 8-25
10-25 Chamfering and Countersinking 46
MM ECS —2 1.07-6.41 Centering Drills (DIN 332) 51
MM ECDF —2 8-20 Flat Bottom Drill Heads 52
43
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Indexable Solid Carbide Milling Heads
Table of Contents
E = Economical
Type Helix Angle No. of Flutes Diameter Range Remarks Page
MM HDF —2 9.8-15.7 Double Chamfering 46
MM EDF —3 7.4-11.6 Double Chamfering 47
MM TS —4,6 7.7-25 Groove Milling 54-55
MM GRIT-22K/P,
28K/P —4, 6 21.7, 27.7 Groove Milling 59
MM GRIT-16K/
P,18K/P 3T6 —3 15.7,17.7 Groove Milling 56-57
MM GRIT-4T8 /6T10 —4 21.7 Groove Milling 58
MM SS —4 21.7 Involute Spline 62
MM GRIT-45A —3,4 17.7,21.7 45° Chamfering 47
MM GRIT-K/P-45A
MM GRIT 28P-DR —3,4,6
6
17.7,21.7,27.7
27.7
45° Chamfering
Double-Sided Corner Rounding Milling
48
49
MM TS-DG —415.88, 19.05,
25.4 55
MM TRF 55 —5,6 11.94,15.94,
19.94 63
MM TRF 60 —5,6 11.94,15.94,
19.94,27.7 63
MM TRD
MT-MM —3,4
3-6 15.7, 21.7 10-20 55º-DIN ISO 228, B.S 84
60º-ISO 68, DIN13
64
65-67
MM ESR-G —8-32
8-25.4 Blank Heads 82
MM TC-G —13.8,17.1,23.4,
28.6,35.6 Blank Heads 83
ISCAR
44
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE

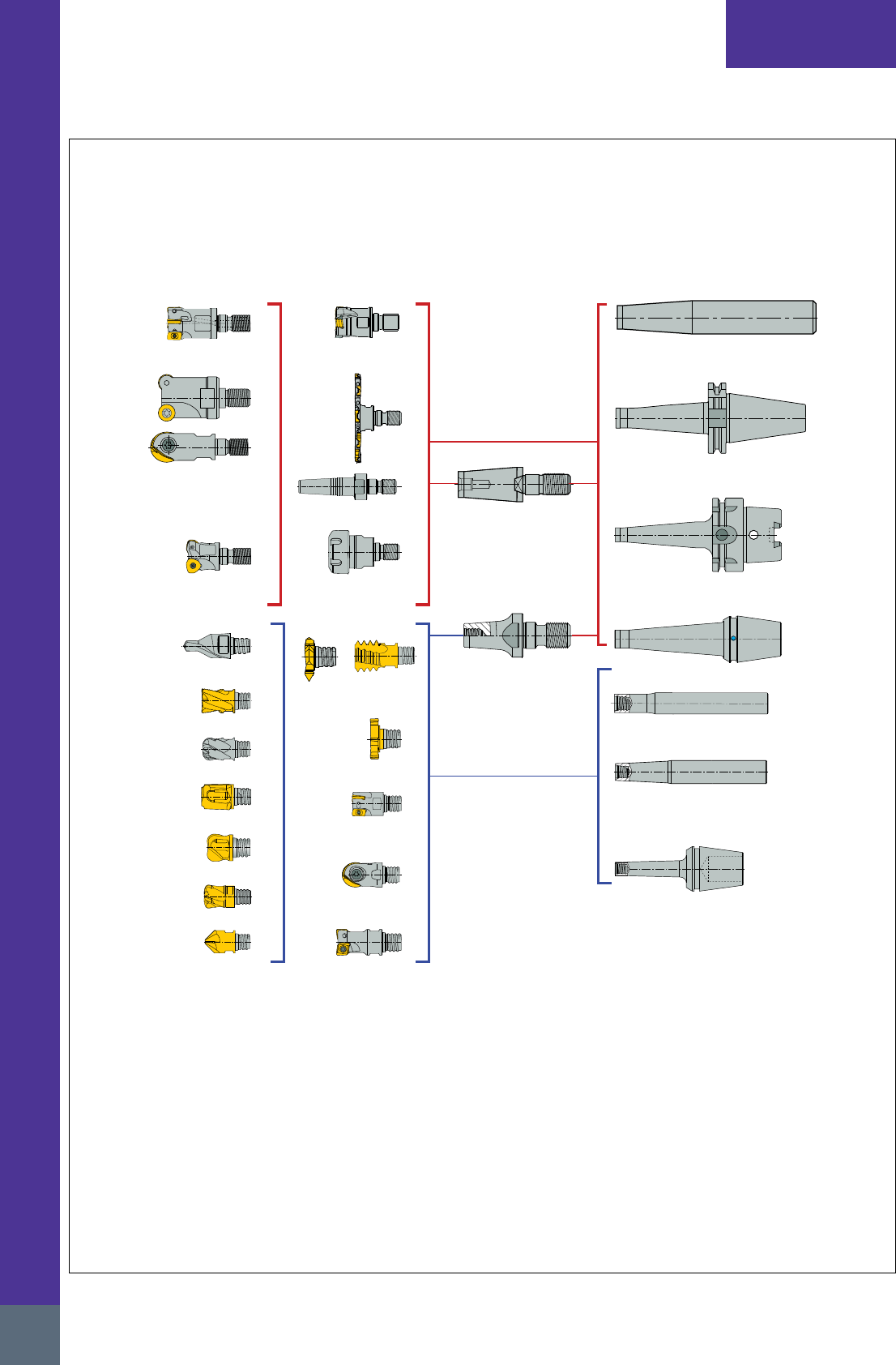

MULTI-MASTER and FLEXFIT Connection Options
Features
Modular system reduces stock cost by using the same head with
different shank options. Enables machining with larger overhang.
Same head can be mounted on metric and inch combinations.
FLEXFIT (M)
MILLING HEADS ADAPTERS SHANKS
MULTI-MASTER (MM)
45
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

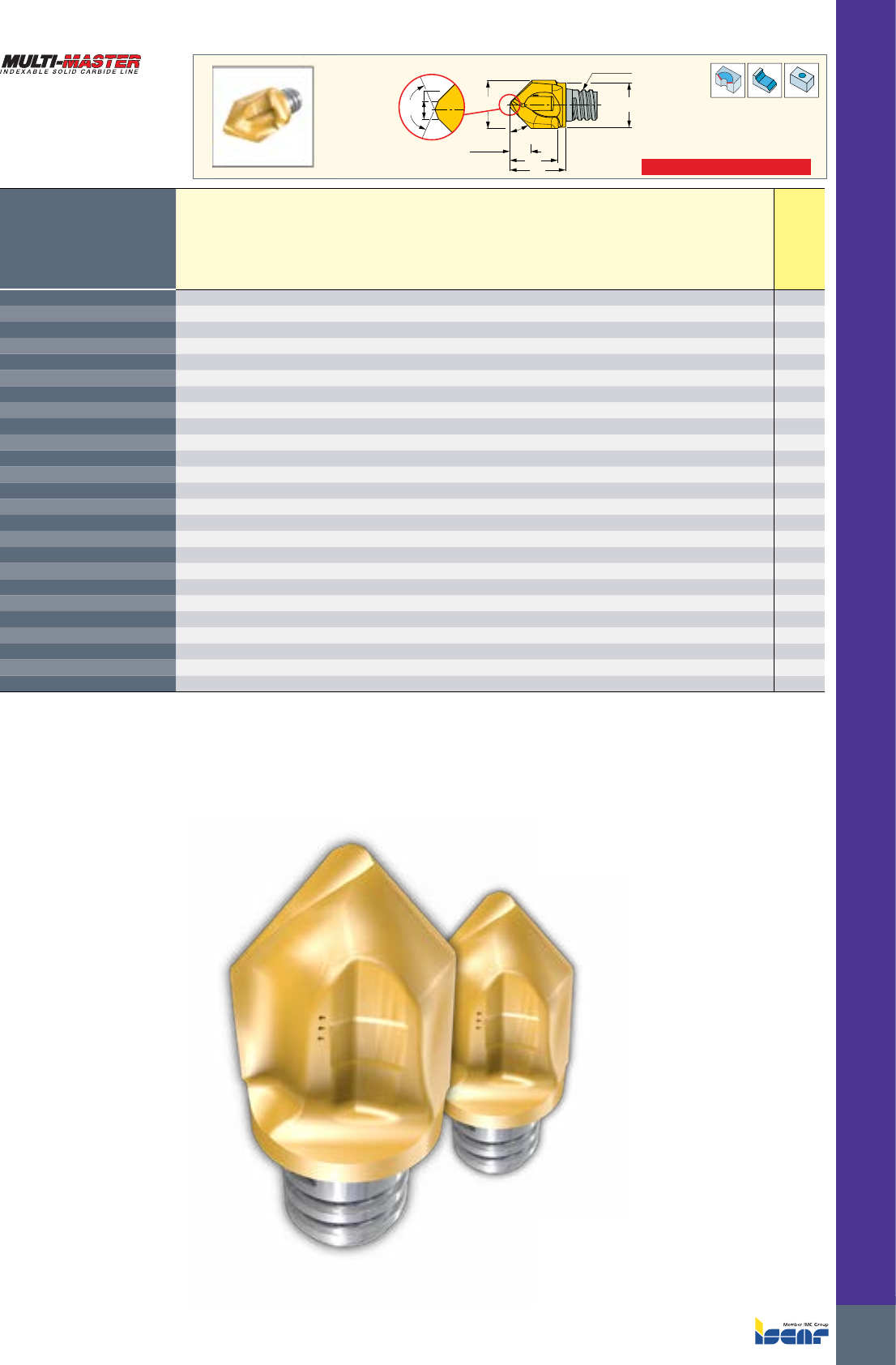

140°
DC
DCONMS
LF
APMX KAPR
LU
DCX
THSZMS
ECONOMICAL SOLUTION
Dimensions
Designation
DCX(4) DCXTOL NOF(5) LU THSZMS DCONMS LF APMX DC KAPR(6)
IC908
MM HCD080-090-2T05 (1)
8.00 z9 2 7.00 T05 7.60 9.75 3.15 1.00 45.0
•
MM HCD083-090-2T05 (1)
8.30 z9 2 7.50 T05 7.60 10.00 3.56 1.00 45.0
•
MM HCD.375-080-2T06
9.50 z9 2 9.00 T06 9.20 11.80 5.00 2.00 50.0
•
MM HCD.375-100-2T06 (2)
9.50 z9 2 9.70 T06 9.50 13.40 3.60 2.00 40.0
•
MM HCD100-060-2T06
10.00 h10 2 9.30 T06 9.50 11.75 7.60 1.50 60.0
•
MM HCD100-120-2T06
10.00 h10 2 9.50 T06 9.50 12.70 2.70 1.50 30.0
•
MM HCD100-090-2T06-N (1)
10.00 z9 2 10.10 T06 9.50 14.00 4.50 1.50 45.0
•
MM HCD104-090-2T06 (1)
10.40 z9 2 9.00 T06 9.50 11.75 4.60 1.50 45.0
•
MM HCD120-060-2T08
12.00 h10 2 11.00 T08 11.50 15.40 9.24 1.50 60.0
•
MM HCD120-120-2T08
12.00 h10 2 11.65 T08 11.50 15.20 3.50 1.50 30.0
•
MM HCD120-090-2T08 (1)
12.00 z9 2 12.00 T08 11.50 15.50 5.30 1.50 45.0
•
MM HCD124-090-2T08 (1)
12.40 z9 2 11.80 T08 11.50 15.50 5.50 1.50 45.0
•
MM HCD.500-080-2T08 (3)
12.70 z9 2 11.10 T08 12.20 15.50 6.80 1.50 50.0
•
MM HCD.500-100-2T08 (2)
12.70 z9 2 10.90 T08 11.50 14.70 4.90 1.50 40.0
•
MM HCD.625-080-2T10
15.90 z9 2 15.20 T10 15.00 18.80 8.80 2.00 50.0
•
MM HCD.625-100-2T10 (2)
15.90 z9 2 14.90 T10 15.10 19.00 6.20 2.00 40.0
•
MM HCD160-060-2T10
16.00 h10 2 16.20 T10 15.20 20.20 12.00 2.50 60.0
•
MM HCD160-120-2T10
16.00 h10 2 15.50 T10 15.20 19.90 4.40 1.50 30.0
•
MM HCD160-090-2T10-N
16.00 z9 2 15.70 T10 15.20 20.00 7.40 1.50 45.0
•
MM HCD165-090-2T10 (1)
16.50 z9 2 14.90 T10 15.20 18.80 7.10 1.50 45.0
•
MM HCD.750-080-2T12
19.05 z9 2 19.60 T12 18.45 24.70 11.00 2.00 50.0
•
MM HCD.750-100-2T12 (2)
19.05 z9 2 18.50 T12 18.30 23.60 7.50 1.50 40.0
•
MM HCD200-060-2T12
20.00 h10 2 18.20 T12 18.45 24.70 15.50 2.50 60.0
•
MM HCD200-120-2T12
20.00 h10 2 14.65 T12 18.45 21.15 5.50 1.50 30.0
•
MM HCD200-090-2T12 (1)
20.00 z9 2 18.20 T12 18.45 24.70 9.40 1.50 45.0
•
• For shanks, see pages 84-91 • Clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) May be used for F-type (fine) countersink according to DIN 74.
(2) May be used for 100° countersink according to ISO 5856, DIN EN 4072, ANSI B18.6.3-1972
(3) Countersink according to American National and British standard flat screws.
(4) Cutting diameter maximum
(5) Number of flutes
(6) Tool cutting edge angle
MM HCD
Interchangeable 2 Flute Solid
Carbide Heads for Chamfering,
Countersinking and Spot Drilling
ISCAR
46
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

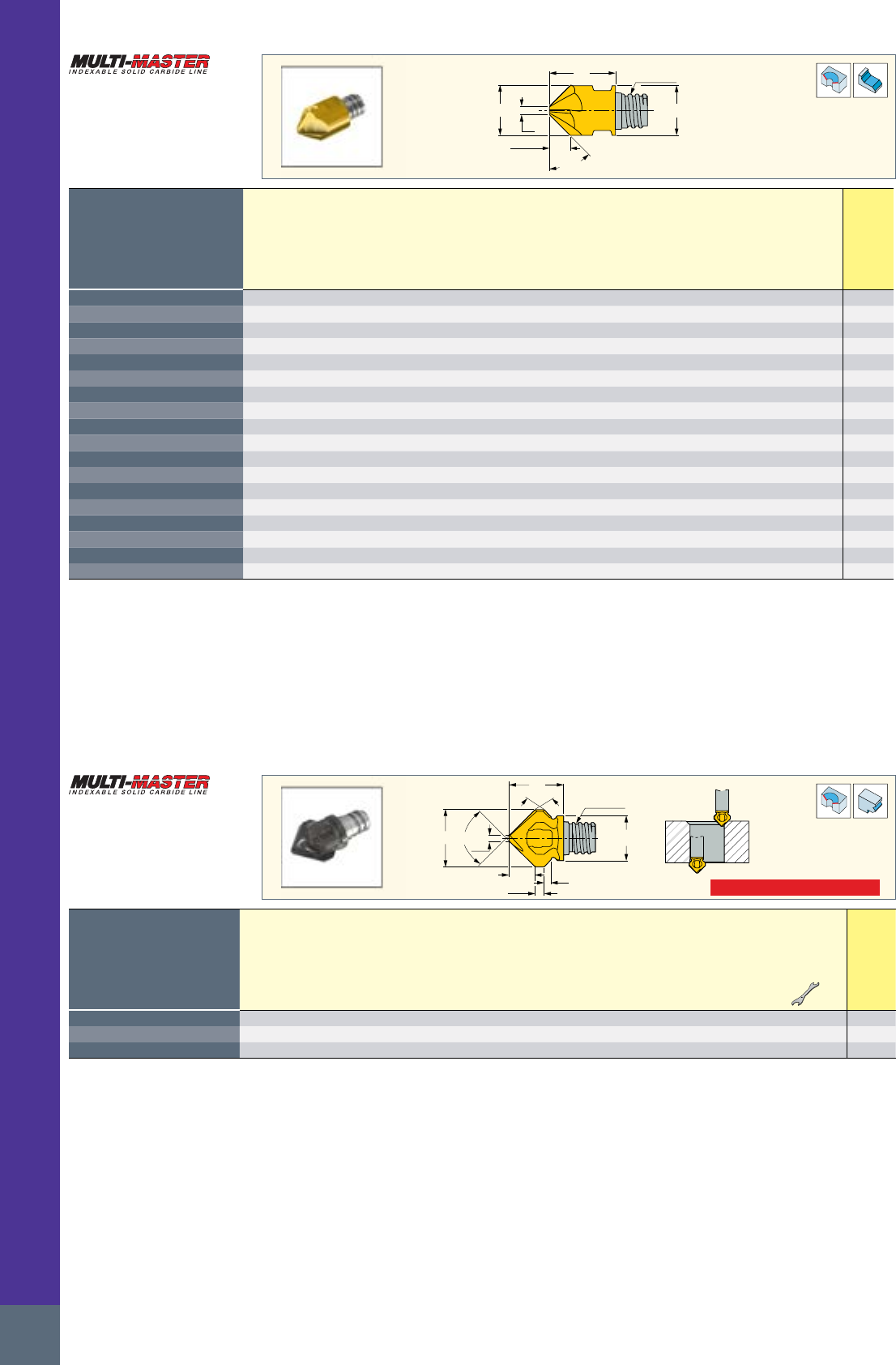

LF
DCONMS
DCX
DC
KAPR
APMX
THSZMS
Dimensions
Designation
KAPR(1) DCX(2) NOF(3) DC APMX THSZMS DCONMS LF
IC908
MM ECF120-02/100-4T06
30.0 10.00 4 2.00 2.30 T06 10.00 13.00
•
MM ECF120-02/120-4T08
30.0 12.00 4 2.00 2.90 T08 12.00 16.50
•
MM ECF120-03/160-6T10
30.0 16.00 6 3.00 3.70 T10 16.00 20.50
•
MM ECF120-05/200-6T12
30.0 20.00 6 5.00 4.30 T12 18.45 25.50
•
MM ECF120-06/250-6T15
30.0 25.00 6 6.00 5.40 T15 25.00 25.00
•
MM ECF45-080-4T05
45.0 8.00 4 1.95 3.00 T05 8.00 10.00
•
MM ECF45-100-4T06
45.0 10.00 4 1.95 4.00 T06 10.00 13.00
•
MM ECF45-120-4T08
45.0 12.00 4 1.95 5.00 T08 12.00 16.50
•
MM ECF45-.500-4T08
45.0 12.70 4 1.95 5.00 T08 12.70 16.50
•
MM ECF45-160-6T10
45.0 16.00 6 3.00 6.50 T10 16.00 20.50
•
MM ECF45-200-6T12
45.0 20.00 6 5.00 7.50 T12 18.45 25.50
•
MM ECF45-250-6T15-M
45.0 25.00 6 5.00 10.00 T15 25.00 25.00
•
MM ECF60-100-4T06
60.0 10.00 4 1.60 7.30 T06 10.00 13.00
•
MM ECF60-02/100-4T06
60.0 10.00 4 2.00 6.90 T06 10.00 13.00
•
MM ECF60-03/120-4T08
60.0 12.00 4 3.00 7.80 T08 12.00 16.50
•
MM ECF60-04/160-6T10
60.0 16.00 6 4.00 10.00 T10 16.00 20.50
•
MM ECF60-05/200-6T12
60.0 20.00 6 5.00 13.00 T12 18.45 25.50
•
MM ECF60-08/250-6T15
60.0 25.00 6 8.00 14.00 T15 25.00 25.00
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Tool cutting edge angle
(2) Cutting diameter maximum
(3) Number of flutes
MM ECF
Interchangeable Solid Carbide
Heads for Chamfering
and Countersinking
DCONMS
LF
90°
DCX 90°DC
L5
FW
L6
THSZMS
ECONOMICAL SOLUTION
Dimensions
Designation
DCX(1) NOF(2) L5 L6 FW DC THSZMS DCONMS LF
IC908
MM HDF100-090-2T05
9.80 2 4.30 0.90 2.50 1.20 T05 7.60 10.80 MM KEY 8X5*
•
MM HDF120-090-2T06
11.80 2 5.30 1.20 2.00 1.20 T06 9.30 11.20 MM KEY 10X7*
•
MM HDF160-090-2T08
15.70 2 7.10 2.20 2.00 1.50 T08 11.50 14.00 MM KEY 13X8*
•
• For shanks, see pages 84-91 • Clamping keys should be ordered separately • For tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately
MM HDF
Interchangeable 2 Flute Solid
Carbide Heads for Upper
and Bottom Chamfering
47
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
90°
DC
L7
LF
L6
90°
DRVS
DCONMS
THSZMS
Dimensions
Designation
DC DCONMS NOF(1) L6 L7 LF THSZMS
IC908
MM EDF074-090-58-3T04
7.40 5.80 3 0.90 1.00 10.00 T04
•
MM EDF094-090-76-3T05
9.40 7.60 3 0.90 1.00 12.50 T05
•
MM EDF116-090-95-3T06
11.60 9.60 3 1.00 1.00 16.50 T06
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EDF
Interchangeable 3 Flute Solid
Carbide Heads for Upper
and Bottom Chamfering
l
RE
KAPR
DC
CDX LF
DCONMS
LU
THSZMS
Dimensions
Designation
DC KAPR(1) CDX(2) RE NOF(3) l THSZMS DCONMS LU LF
IC908
MM TS077-45-20A-4T05
7.70 45.0 1.20 0.20 4 15.20 T05 8.00 10.3 13.85
•
• For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
MM TS-45
Interchangeable Solid
Carbide Small Diameter
45° Chamfering Heads
CDX
CW
RE/FW DC
KAPR
KAPR
THSZMS
Dimensions
Designation
DC KAPR(1) CDX(2) RE FW CW THSZMS NOF(3)
IC908
MM GRIT18K-45A-3T6
17.70 45.0 1.40 0.10 - 3.47 T06 3 T-25/3*
•
MM GRIT18P-45A-3T6
17.70 45.0 1.40 0.10 - 3.47 T06 3 T-25/3*
•
MM GRIT22K-45A-4T8
21.70 45.0 1.70 - 1.50 5.55 T08 4 T-30/3 L*
•
MM GRIT28K-45A-6T10
27.70 45.0 4.00 - 0.50 9.80 T10 6 T-40/3 L*
•
• P-TYPE - Positive geometry for soft and gummy materials. • K-Type - For general steel machining. • Modification options on request.
• Do not apply lubricant to the threaded connection. • For clamping instructions, see pages 91-92 • For shanks, see pages 84-91
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately
MM GRIT-45A
Interchangeable Solid
Carbide Small Diameter
45° Chamfering Heads
ISCAR
48
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

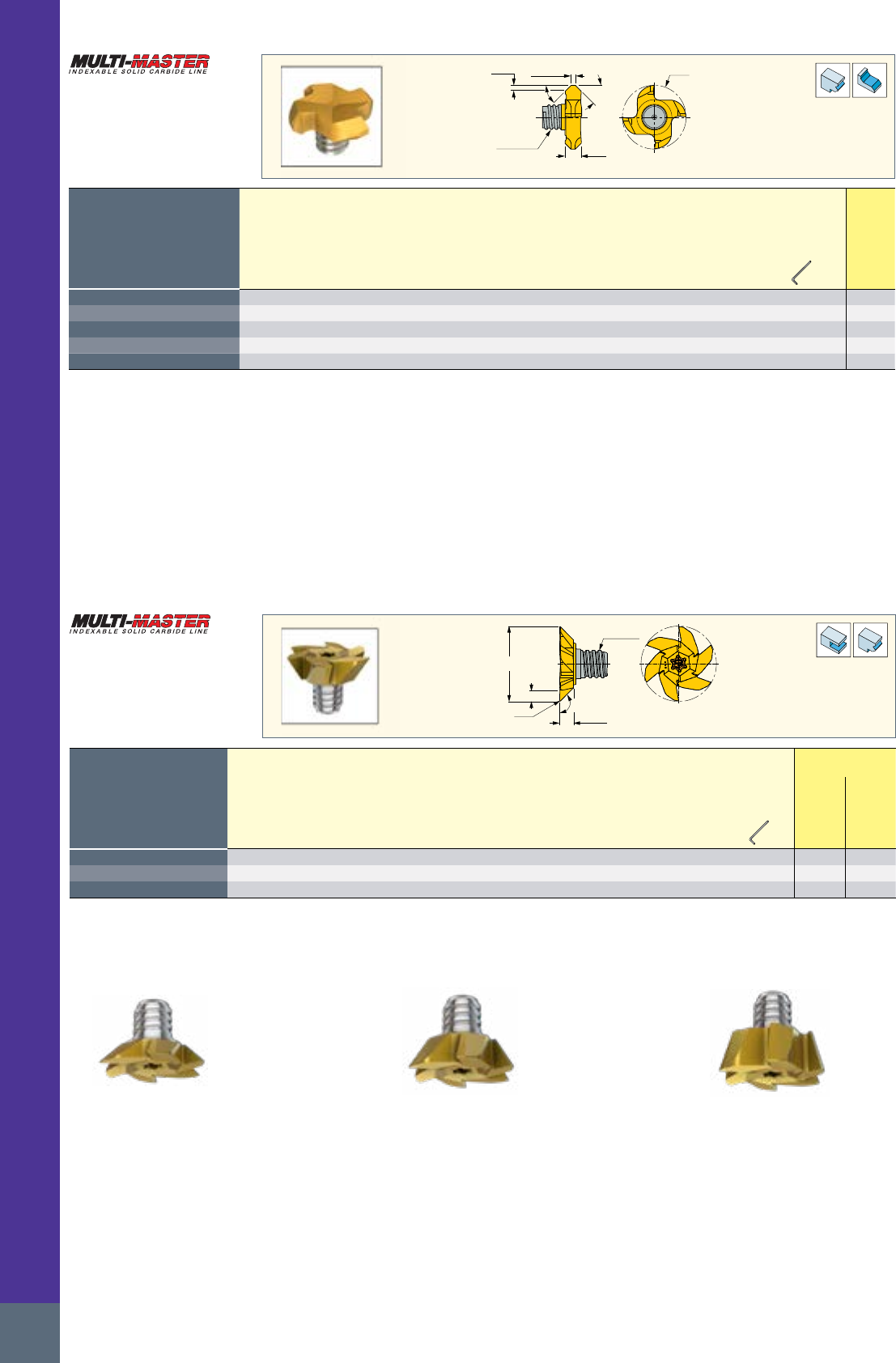

CDX
CW
RE/FW DC
KAPR
KAPR
THSZMS
Dimensions
Designation
DC KAPR(1) CDX(2) RE FW CW THSZMS NOF(3)
IC528
MM GRIT 18K-45A
17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18*
•
MM GRIT 18P-45A
17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18*
•
MM GRIT 22K-45A
21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22*
•
MM GRIT 22P-45A
21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22*
•
MM GRIT 28K-45A
27.70 45.0 4.00 - 0.50 9.80 T10 6 T-40/3 L*
•
• Use carbide shanks for groove milling heads. • Keys for other milling heads must be ordered separately. • MM GRT.. shanks serve mainly for MM GRIT.. slitting heads.
• K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials. • For user guide see pages 44, 177-184
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately
MM GRIT-K/P-45A
Interchangeable Solid
Carbide Small Diameter
45° Chamfering Heads
DC
RE
CDX
APMX
KAPR
THSZMS
Dimensions Tough
1
Hard
Designation
DC KAPR(1) CDX(2) APMX RE THSZMS NOF(3)
IC528
IC908
MM GRIT 28K-45D-6T10
27.70 135.0 4.00 5.00 0.20 T10 6 T-40/3 L*
• •
MM GRIT 28K-60D-6T10
27.70 120.0 4.00 7.80 0.20 T10 6 T-40/3 L*
• •
MM GRIT 28K-75D-6T10
27.70 105.0 2.20 10.10 0.20 T10 6 T-40/3 L*
• •
• Use carbide shanks for groove milling heads • For user guide see pages 44, 177-184
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately
MM GRIT 28K-45D-6T10 MM GRIT 28K-60D-6T10 MM GRIT 28K-75D-6T10
MM GRIT Dovetail
Interchangeable Solid
Carbide Heads
49
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

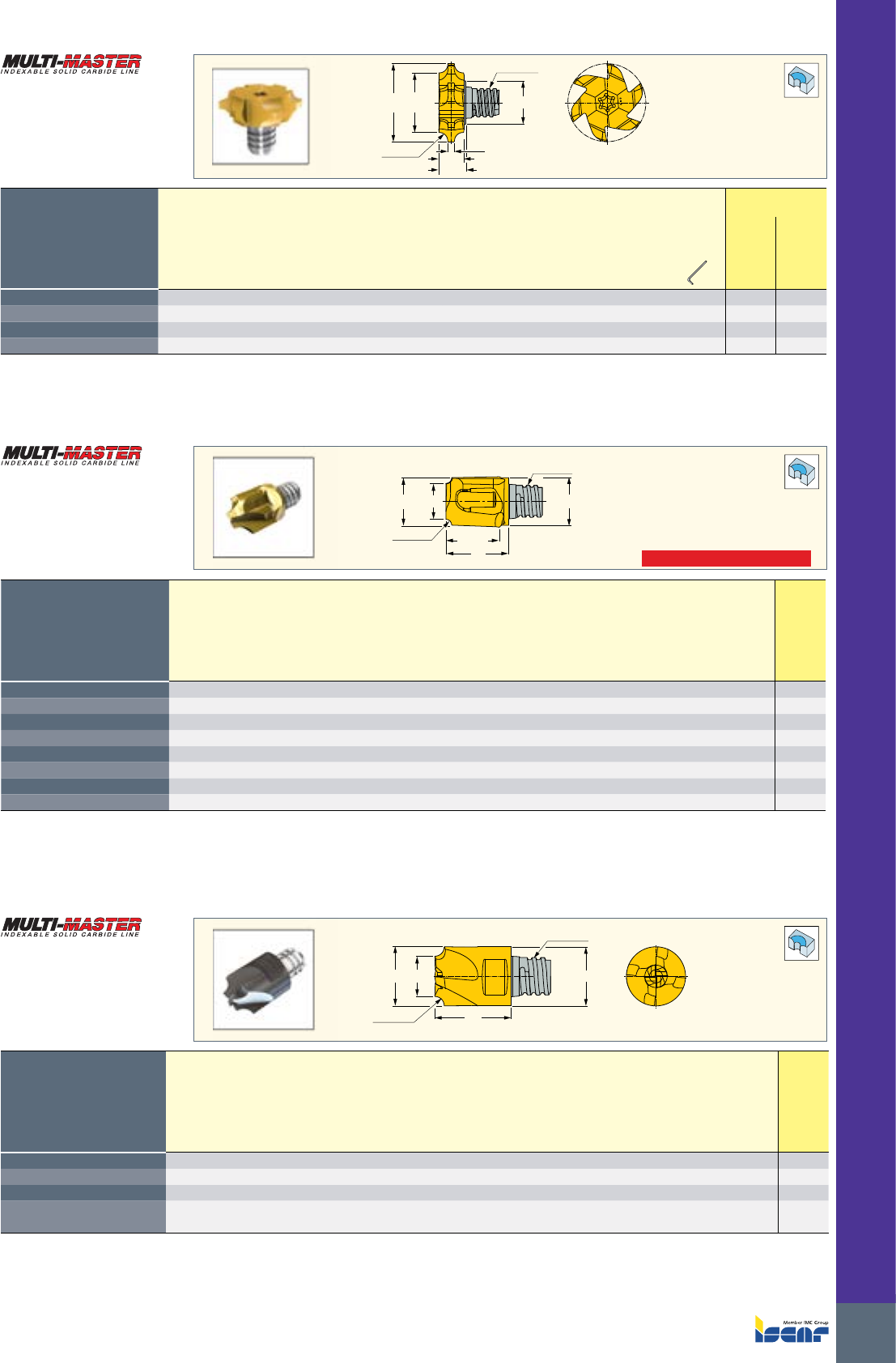

LF
DCONMS
APMX
PRFRAD
DC
DCXh10
THSZMS
ECONOMICAL SOLUTION
Dimensions
Designation
DCX(1) PRFRAD Tm(2) NOF(3) DC APMX THSZMS DCONMS LF
IC908
MM HR1.0/047-5.8-2T05
8.00 1.00 r0.5-3.0 2 5.80 7.50 T05 7.60 10.60
•
MM HR1.6/063-6.8-2T06
10.00 1.60 r0.5-3.0 2 6.80 9.50 T06 9.50 12.50
•
MM HR2.0/078-6.0-2T06
10.00 2.00 r0.5-3.0 2 6.00 9.50 T06 9.50 12.50
•
MM HR2.5/094-5.1-2T06
10.00 2.50 r0.5-3.0 2 5.10 9.50 T06 9.50 12.50
•
MM HR3.0/125-6.5-2T08
12.70 3.00 r0.5-4.0 2 6.50 12.00 T08 11.50 15.60
•
MM HR4.0/156-4.7-2T08
12.70 4.00 r0.5-4.0 2 4.70 12.00 T08 11.50 15.60
•
MM HR5.0/188-6.2-2T10
16.00 5.00 r0.5-5.0 2 6.20 15.00 T10 15.20 19.10
•
MM HR6.0/236-8.0-2T12
20.00 6.00 r0.5-6.0 2 8.00 7.00 T12 18.45 17.40
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Specially tailored radius range upon request.
(3) Number of flutes
MM HR
Interchangeable 2 Flute
Solid Carbide Corner
Rounding Milling Heads
LF
DCONMS
DCX DC
PRFRAD
THSZMS
Dimensions
Designation
PRFRAD Tm(1) DC DCX(2) DCONMS NOF(3) LF THSZMS
IC908
MM ER1.0/047-5.8-4T05
1.00 0.5-1.4 5.80 8.00 8.00 4 10.00 T05
•
MM ER1.6/063-6.8-4T06
1.60 0.5-2.5 6.80 10.00 10.00 4 13.00 T06
•
MM ER2.0/078-6.0-4T06
2.00 0.5-2.5 6.00 10.00 10.00 4 13.00 T06
•
MM ER2.5/094-5.1-4T06
2.50 0.5-2.5 5.10 10.00 10.00 4 13.00 T06
•
MM ER3.0/125-6.5-4T08
3.00 0.5-3.1 6.50 12.70 12.70 4 16.50 T08
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Specially tailored radius range upon request.
(2) Cutting diameter maximum
(3) Number of flutes
MM ER
Interchangeable 4 Flute
Solid Carbide Corner
Rounding Milling Heads
DCONMS
DCX DC
LF
CW
CF
PRFRAD
THSZMS
Dimensions Tough
1
Hard
Designation
PRFRAD CF DCX(1) DC LF CW NOF(2) THSZMS DCONMS
IC528
IC908
MM GRIT 28P-2.7-DR1.0
1.00 2.70 27.70 24.80 6.00 5.60 6 T10 15.30 T-40/3 L*
• •
MM GRIT 28P-2.6-DR2.0
2.00 2.60 27.70 22.90 7.70 7.30 6 T10 15.30 T-40/3 L*
• •
MM GRIT 28P-2.3-DR3.0
3.00 2.30 27.70 21.10 9.70 8.90 6 T10 15.30 T-40/3 L*
• •
MM GRIT 28P-2.6-DR4.0
4.00 2.60 27.70 19.70 11.70 10.90 6 T10 15.30 T-40/3 L*
• •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately
MM GRIT 28P-DR
Interchangeable 6 Flute Solid
Carbide Double-Sided Corner
Rounding Milling Heads
ISCAR
50
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

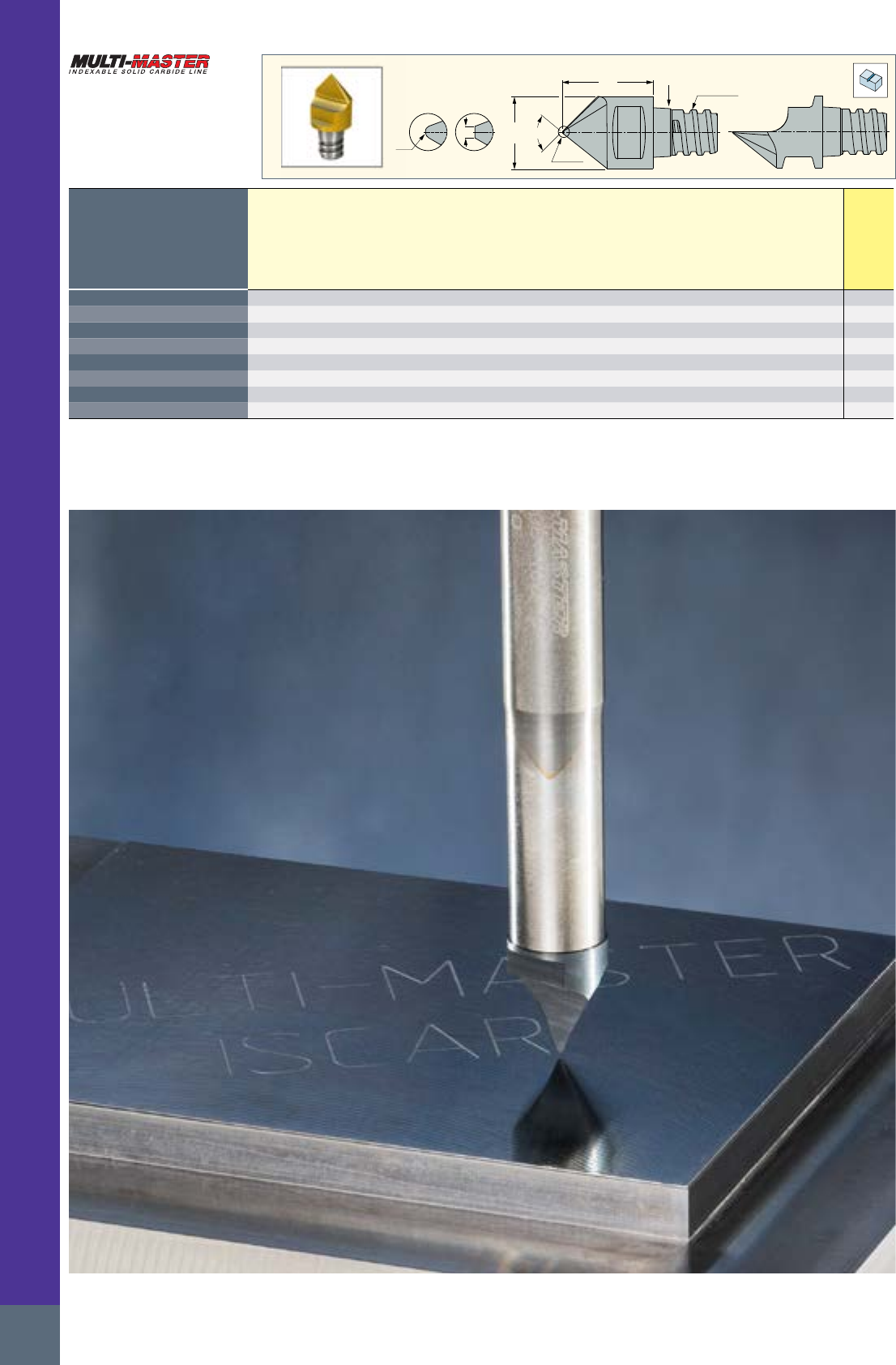

CF
RE
LF View A
DC
RE/CF
PRFA
A
THSZMS
Dimensions
Designation
DC RE CF(1) PRFA LF THSZMS
IC908
MM EPG080/30-1T05
8.00 0.20 - 30.00 10.00 T05
•
MM EPG080/45-1T05
8.00 0.20 - 45.00 10.00 T05
•
MM EPG080/60-1T05
8.00 0.20 - 60.00 10.00 T05
•
MM EPG080/90-1T05
8.00 0.20 - 90.00 10.00 T05
•
MM EPG080/60-F50-1T05
8.00 - 0.50 60.00 10.00 T05
•
MM EPG080/60-F75-1T05
8.00 - 0.75 60.00 10.00 T05
•
MM EPG080/90-F32-1T05
8.00 - 0.32 90.00 10.00 T05
•
MM EPG080/90-F50-1T05
8.00 - 0.50 90.00 10.00 T05
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Frontal corner flat
MM EPG
Single Flute MULTI-MASTER
Engraving Tool Head
51
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

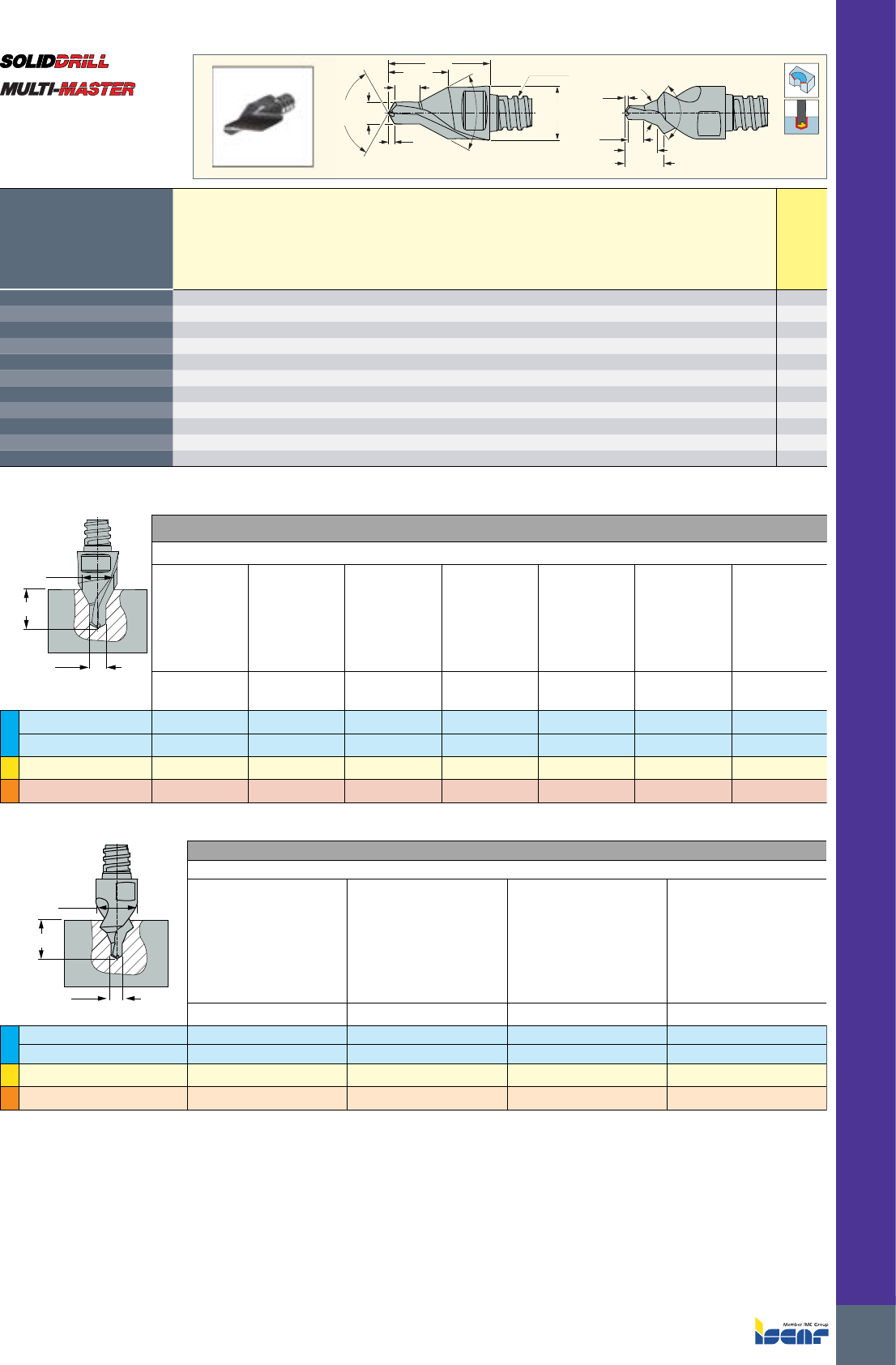

LPR
DC
120º
THSZMS
Fig. 1 Type A Fig. 2 Type B
120°
STA_2
STA_2
DCONMS
SDL
SD_2
PL SDL
PL
SD_2
SD_3
Dimensions
Designation
DC DCONMS THSZMS LPR SDL SD_2 SD_3 STA_2 PL Fig.
IC908
MM ECS-A1.00X06-2T04
1.07 6.00 T04 10.00 1.32 4.14 - 60.0 0.280 1
•
MM ECS-A1.60X06-2T04
1.65 6.00 T04 10.00 1.97 4.45 - 60.0 0.430 1
•
MM ECS-A2.00X06-2T04
2.07 6.00 T04 10.00 2.36 6.37 - 60.0 0.540 1
•
MM ECS-A3.15X08-2T05
3.28 8.00 T05 15.00 3.75 8.76 - 60.0 0.850 1
•
MM ECS-A4.00X10-2T06
4.12 10.00 T06 19.00 4.83 11.05 - 60.0 1.070 1
•
MM ECS-A5.00X12-2T08
5.13 12.00 T08 23.00 5.88 13.23 - 60.0 1.320 1
•
MM ECS-A6.30X16-2T10
6.46 16.00 T10 28.00 7.25 17.18 - 60.0 1.650 1
•
MM ECS-B3.15X12-2T08
3.24 12.00 T08 23.00 3.55 7.40 8.94 60.0 0.830 2
•
MM ECS-B4.00X127-2T08
4.09 12.70 T08 23.00 4.53 9.50 10.71 60.0 1.070 2
•
MM ECS-B5.00X19-2T12
5.09 18.45 T12 25.50 5.56 11.70 14.17 60.0 1.330 2
•
MM ECS-B6.30X20-2T12
6.41 18.45 T12 25.50 6.95 14.50 16.58 60.0 1.680 2
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
APMX
DCX
DC
IC908
*Vcxfz [m/minxmm/tooth]
MM ECS-
A1.00X06-2T04
MM ECS-
A1.60X06-2T04
MM ECS-
A2.00X06-2T04
MM ECS-
A3.15X08-2T05
MM ECS-
A4.00X10-2T06
MM ECS-
A5.00X12-2T08
MM ECS-
A6.30X16-2T10
ISO
DCX=2.12,
APMX=2.5
DCX=3.35,
APMX=3.9
DCX=4.25,
APMX=4.8
DCX=6.70,
APMX=7.60
DCX=8.50,
APMX=9.80
DCX=10.60,
APMX=12.00
DCX=13.20,
APMX=14.80
P4340 24-29HRC 80x0.020 80x0.025 80x0.025 80x0.030 80x0.040 80x0.050 80x0.060
4340 38-42HRC 65x0.020 65x0.025 65x0.025 65x0.030 65x0.040 65x0.050 65x0.060
M316L MAX-215 HB 50x0.015 50x0.020 50x0.020 50x0.025 50x0.030 50x0.040 50x0.040
SInconel 718 15x0.010 15x0.010 15x0.015 15x0.015 15x0.020 15x0.020 15x0.025
* V
c Calculated for ØDC
APMX
DCX
DC
IC908
*Vcxfz [m/minxmm/tooth]
MM ECS-A3.15X12-2T08 MM ECS-A4.00X127-2T08 MM ECS-A5.00X19-2T12 MM ECS-A6.30X20-2T12
ISO DCX=10.00, APMX=8.80 DCX=12.50, APMX=11.00 DCX=16.00, APMX=13.900 DCX=18.00, APMX=16.80
P4340 24-29HRC 75x0.030 75x0.040 75x0.050 75x0.060
4340 38-42HRC 60x0.030 60x0.040 60x0.050 60x0.060
M316L MAX-215 HB 45x0.025 45x0.030 45x0.040 45x0.040
SInconel 718 12x0.015 12x0.020 12x0.020 12x0.025
* Vc Calculated for ØDC
MM ECS
Interchangeable Solid Carbide
Centering Drills (DIN 332)
ISCAR
52
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

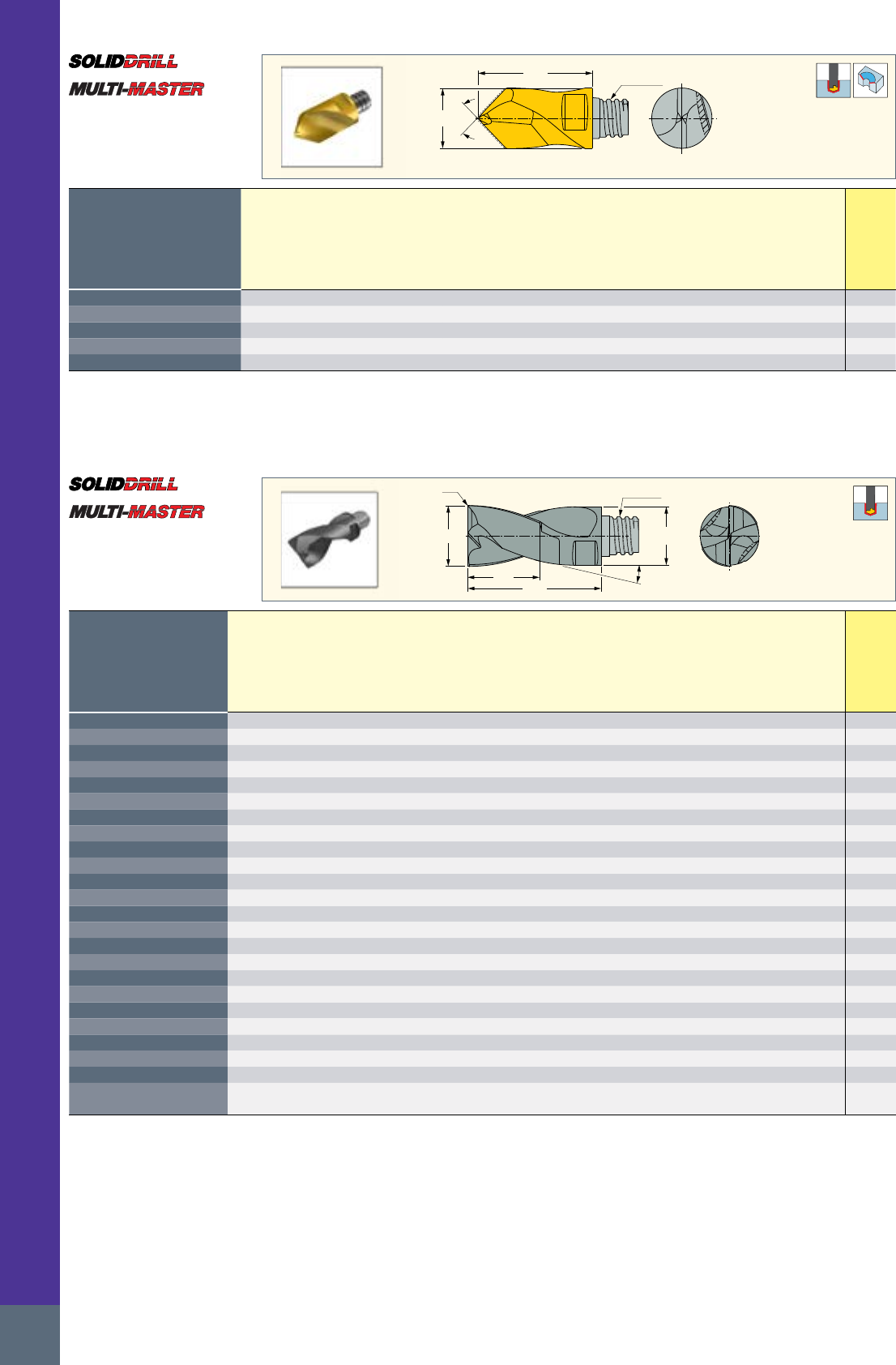

DC 90°
LPR THSZMS
Dimensions
Designation
DC LPR THSZMS
IC908
MM ECD-06X90-2T04
6.00 11.00 T04
•
MM ECD-08X90-2T05
8.00 15.00 T05
•
MM ECD-10X90-2T06
10.00 19.00 T06
•
MM ECD-12X90-2T08
12.00 23.00 T08
•
MM ECD-16X90-2T10
16.00 28.00 T10
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
MM ECD
NC Spotting Drills for Accurately
Locating a Hole without
Using a Guide Bushing
THSZMS
DCONMS
FHA
DC h7
RE
LU LPR
Dimensions
Designation
DC DCONMS NOF(1) LU LPR RE FHA THSZMS
IC908
MM ECDF080A100-2T05
8.00 7.70 2 12.00 22.00 0.00 30.0 T05
•
MM ECDF085A120-2T05
8.50 7.70 2 12.00 22.00 0.00 30.0 T05
•
MM ECDF090A120-2T05
9.00 7.70 2 12.00 22.00 0.00 30.0 T05
•
MM ECDF095A120-2T06
9.50 9.20 2 12.00 22.00 0.00 30.0 T06
•
MM ECDF100A120-2T06
10.00 9.60 2 12.00 22.00 0.00 30.0 T06
•
MM ECDF105A120-2T06
10.50 9.60 2 12.00 23.00 0.00 30.0 T06
•
MM ECDF110A120-2T06
11.00 9.60 2 12.00 23.00 0.00 30.0 T06
•
MM ECDF115A120-2T06
11.50 9.60 2 12.00 23.00 0.00 30.0 T06
•
MM ECDF120A150-2T08
12.00 11.70 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF125A150-2T08
12.50 12.10 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF130A150-2T08
13.00 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF135A150-2T08
13.50 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF140A150-2T08
14.00 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF145A150-2T08
14.50 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF150A150-2T08
15.00 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF155A150-2T08
15.50 12.20 2 15.00 27.00 0.00 30.0 T08
•
MM ECDF160A200-2T10
16.00 15.30 2 20.00 33.50 0.00 30.0 T10
•
MM ECDF165A200-2T10
16.50 15.30 2 20.00 33.50 0.00 30.0 T10
•
MM ECDF170A200-2T10
17.00 15.30 2 20.00 33.50 0.00 30.0 T10
•
MM ECDF175A200-2T10
17.50 15.30 2 20.00 33.50 0.00 30.0 T10
•
MM ECDF180A200-2T10
18.00 15.30 2 20.00 33.50 0.00 30.0 T10
•
MM ECDF185A200-2T12
18.50 18.20 2 25.00 41.00 0.00 30.0 T12
•
MM ECDF190A250-2T12
19.00 18.30 2 25.00 41.00 0.00 30.0 T12
•
MM ECDF195A250-2T12
19.50 18.30 2 25.00 41.00 0.00 30.0 T12
•
MM ECDF200A250-2T12
20.00 18.45 2 25.00 41.00 0.00 30.0 T12
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM ECDF
MULTI-MASTER
Exchangeable Solid Carbide
Flat Bottom Drill Heads
53
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

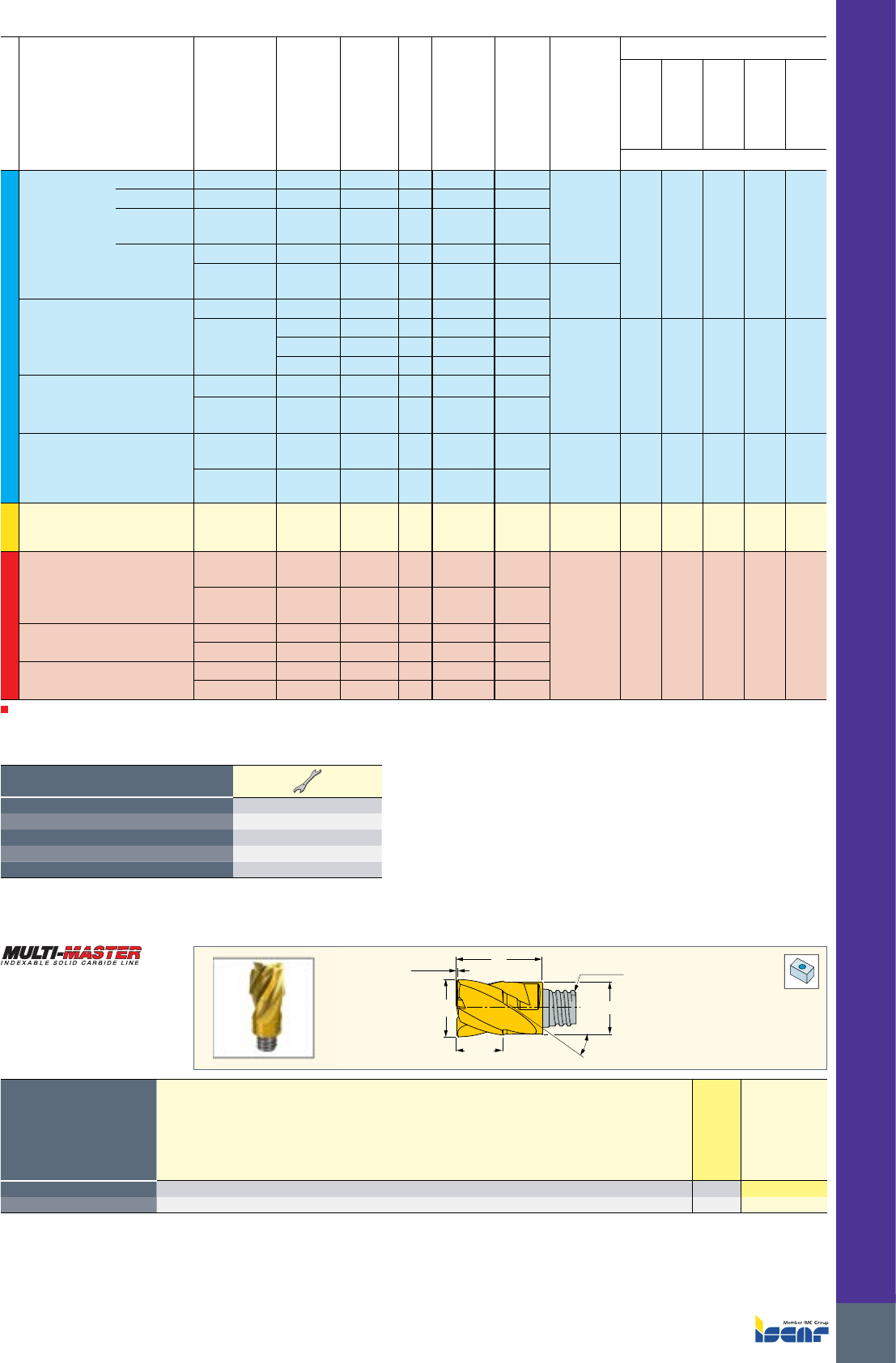

* Optional, should be ordered separately
ISO
Material Condition
Tensile
Strength
[N/mm2]
Kc1(1)
[N/mm2] mc(2)
Hardness
HB
Material
Group
No. V m/min
Feed vs. Flat-Drill Diameter
DC=18.0-25.4
DC=16.0-17.9
DC=13.0-15.9
DC=10.0-12.9
DC=8.0-9.9
frev mm/rev
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 1350 0.21 125 1
80-110-140 0.08
0.10
0.12
0.10
0.12
0.14
0.12
0.15
0.18
0.14
0.17
0.20
0.18
0.21
0.24
>= 0.25 %C Annealed 650 1500 0.22 190 2
< 0.55 %C Quenched
and tempered 850 1675 0.24 250 3
>= 0.55 %C
Annealed 750 1700 0.24 220 4
Quenched
and tempered 1000 1900 0.24 300 5 80-105-130
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 1775 0.24 200 6
Quenched
and tempered
930 1675 0.24 275 7
60-80-100
0.06
0.08
0.10
0.06
0.08
0.10
0.08
0.10
0.12
0.10
0.12
0.14
0.12
0.14
0.16
1000 1725 0.24 300 8
1200 1800 0.24 350 9
High alloyed steel, cast
steel and tool steel
Annealed 680 2450 0.23 200 10
Quenched
and tempered 1100 2500 0.23 325 11
Stainless steel
and cast steel
Ferritic/
martensitic 680 1875 0.21 200 12
60-80-100
0.01
0.02
0.03
0.02
0.03
0.04
0.03
0.04
0.05
0.04
0.05
0.06
0.06
0.07
0.08
Martensitic 820 1875 0.21 240 13
MStainless steel and cast steel Austenitic,
duplex 600 2150 0.20 180 14 60-80-100
0.01
0.02
0.03
0.02
0.03
0.04
0.03
0.04
0.05
0.04
0.05
0.06
0.06
0.07
0.08
K
Grey cast iron (GG)
Ferritic/
pearlitic 1150 0.20 180 17
80-120-160
0.08
0.10
0.12
0.10
0.12
0.14
0.14
0.16
0.18
0.16
0.18
0.20
0.18
0.20
0.22
Pearlitic /
martensitic 1350 0.28 260 18
Cast iron nodular (GGG) Ferritic 1225 0.25 160 15
Pearlitic 1350 0.28 250 16
Malleable cast iron Ferritic 1225 0.25 130 19
Pearlitic 1420 0.30 230 20
recommended cutting data
DCONMS
DC
LF
0.25x45°
FHA
APMX
THSZMS
Dimensions Recommended
Machining Data
Designation
DC(1) APMX LF DCONMS THSZMS NOF(2) FHA CHW KCH
IC908
fz
(mm/t)
MM EFCB110A08-4T06
11.00 8.40 16.50 10.00 T06 4 30.0 45.0 0.25
•
0.03-0.04
MM EFCB140A11-4T08
14.00 11.50 28.00 12.00 T08 4 30.0 45.0 0.25
•
0.04-0.05
• 0.06 mm maximum concavity on the tool's bottom • For shanks, see pages 84-91
• For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) e8 tolerance
(2) Number of flutes
MM EFCB
Interchangeable 4 Flute 30°
Helix Solid Carbide Heads
for Flat Counter Boring
Spare Parts
Designation
MM ECDF080A100-2T05
MM KEY 6X4*
MM ECDF100A120-2T06
MM KEY 8X5*
MM ECDF120A150-2T08
MM KEY 10X7*
MM ECDF160A200-2T10
MM KEY 13X8*
MM ECDF200A250-2T12
MM KEY 16X9*
ISCAR
54
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
CDX
CW CHWx45°
MM TS077-N...
15
8.0
4.5
10
RE
DC
CW
THSZMS
Dimensions Tough
1
Hard
Designation
DC DCTOLL CW NOF(1) THSZMS CDX(2) RE CHW
IC328
IC928
IC908
MM TS077-N07A-4T05
7.70 -0.05 0.70 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS077-N08A-4T05
7.70 -0.05 0.80 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS077-N09A-4T05
7.70 -0.05 0.90 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS077-N10A-4T05
7.70 -0.05 1.00 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS077-N15A-4T05
7.70 -0.05 1.50 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS077-N20A-4T05
7.70 -0.05 2.00 4 T05 1.20 0.20 - MM KEY 6X4*
•
MM TS105-N20D-06T04
10.50 -0.05 2.00 6 T04 2.00 0.40 - T-15/3*
•
MM TS.500-N062P-06T05
12.70 -0.05 1.58 6 T05 2.25 - 0.15 T-20/3*
• •
MM TS.500-N078P-06T05
12.70 -0.05 1.98 6 T05 2.25 - 0.15 T-20/3*
• •
MM TS135-N20P-06T05
13.50 -0.05 2.00 6 T05 2.65 - 0.20 T-20/3*
• •
MM TS135-N25P-06T05
13.50 -0.05 2.50 6 T05 2.65 - 0.20 T-20/3*
• •
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide see pages 44, 177-184
(1) Number of flutes
(2) Cutting depth maximum
* Optional, should be ordered separately
MM TS-N
Interchangeable Solid Carbide
T-Slot Milling Heads
CDX
CW
RE
DC
CW
THSZMS
Dimensions Tough
1
Hard
Designation
DC DCTOLL CW CDX(1) NOF(2) RE THSZMS
IC328
IC908
MM TS135-H30D-06T05
13.50 -0.05 3.00 2.65 6 0.40 T05 T-20/3*
• •
MM TS135-H40D-06T05
13.50 -0.05 4.00 2.65 6 0.40 T05 T-20/3*
• •
MM TS165-H40A-06T05
16.50 -0.05 4.00 4.25 6 0.20 T05 T-20/3*
• •
MM TS160-H20D-06T06
16.00 -0.05 2.00 3.00 6 0.40 T06 T-20/3*
• •
MM TS160-H30D-06T06
16.00 -0.05 3.00 3.00 6 0.40 T06 T-25/3*
• •
MM TS160-H40D-06T06
16.00 -0.05 4.00 3.00 6 0.40 T06 T-25/3*
• •
MM TS165-H20D-06T06
16.50 -0.05 2.00 3.25 6 0.40 T06 T-20/3*
• •
MM TS165-H30D-06T06
16.50 -0.05 3.00 3.25 6 0.40 T06 T-25/3*
• •
MM TS165-H40D-06T06
16.50 -0.05 4.00 3.25 6 0.40 T06 T-25/3*
• •
MM TS195-H60A-06T06
19.50 -0.05 6.00 4.45 6 0.20 T06 T-25/3*
• •
MM TS225-H60A-06T06
22.50 -0.05 6.00 5.95 6 0.20 T06 T-25/3*
• •
MM TS195-H40D-06T08
19.50 -0.05 4.00 3.45 6 0.40 T08 T-30/3 L*
• •
MM TS195-H50D-06T08
19.50 -0.05 5.00 3.45 6 0.40 T08 T-30/3 L*
• •
MM TS195-H60D-06T08
19.50 -0.05 6.00 3.45 6 0.40 T08 T-30/3 L*
• •
MM TS225-H40D-06T08
22.50 -0.05 4.00 4.90 6 0.40 T08 T-40/3 L*
• •
MM TS225-H50D-06T08
22.50 -0.05 5.00 4.95 6 0.40 T08 T-40/3 L*
• •
MM TS225-H60D-06T08
22.50 -0.05 6.00 4.95 6 0.40 T08 T-40/3 L*
• •
MM TS225-H80D-06T08
22.50 -0.05 8.00 4.95 6 0.40 T08 T-40/3 L*
• •
MM TS250-H50D-06T08
25.00 -0.05 5.00 5.90 6 0.40 T08 T-50/3 L*
• •
MM TS250-H60D-06T08
25.00 -0.05 6.00 5.90 6 0.40 T08 T-50/3 L*
• •
MM TS250-H80D-06T08
25.00 -0.05 8.00 5.90 6 0.40 T08 T-50/3 L*
• •
MM TS250-H50D-06T10
25.00 -0.05 5.00 4.30 6 0.40 T10 T-50/3 L*
• •
MM TS250-H60D-06T10
25.00 -0.05 6.00 4.30 6 0.40 T10 T-50/3 L*
• •
MM TS250-H80D-06T10
25.00 -0.05 8.00 4.30 6 0.40 T10 T-50/3 L*
• •
• Inserts in 5 mm and wider feature chip splitting edges • For tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For shanks, see pages 84-91 • For user guide see pages 44, 177-184
(1) Cutting depth maximum
(2) Number of flutes
* Optional, should be ordered separately
MM TS-H
Interchangeable Solid Carbide
T-Slot Milling Heads with
Various Corner Radii
55
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

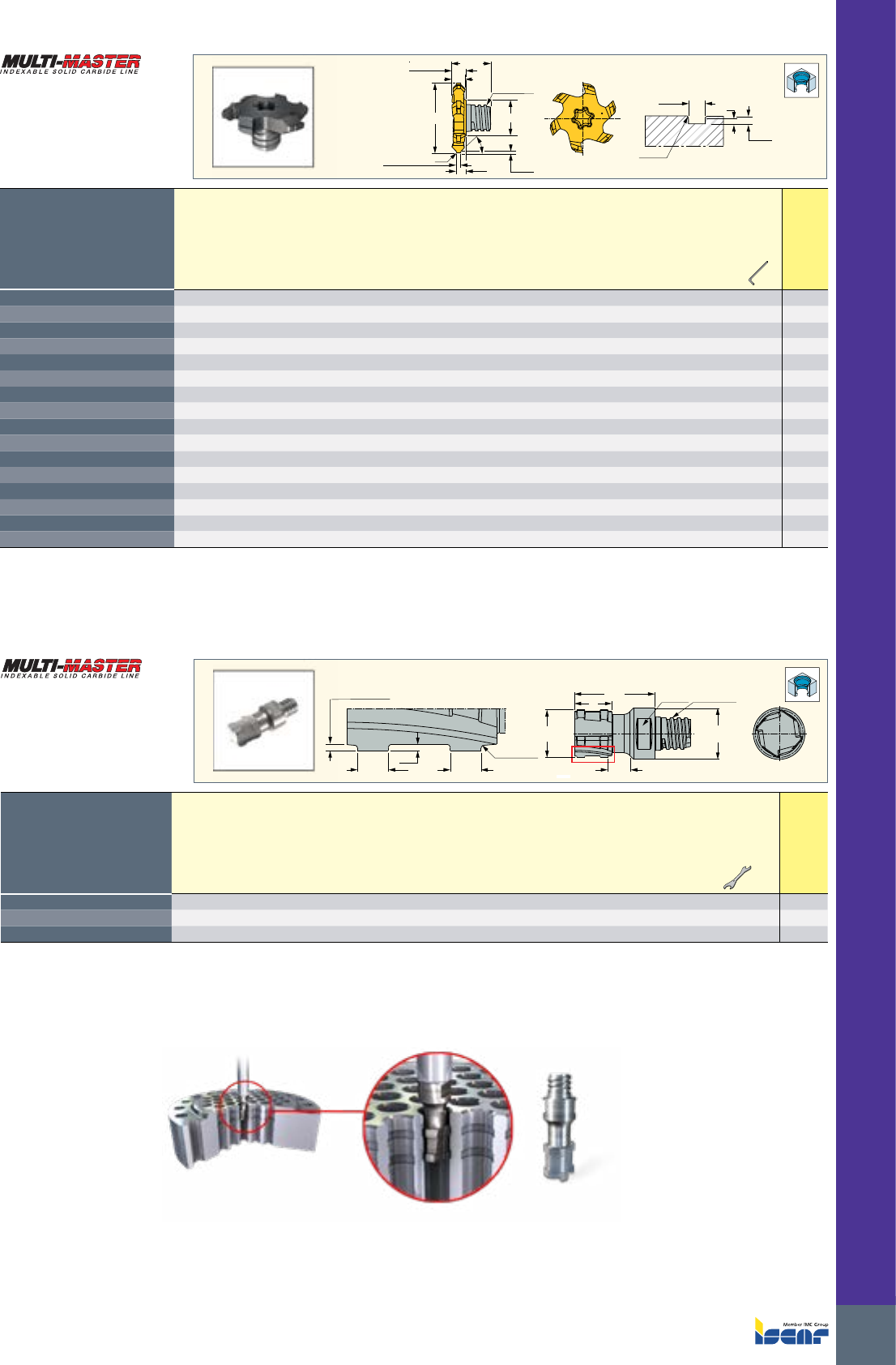

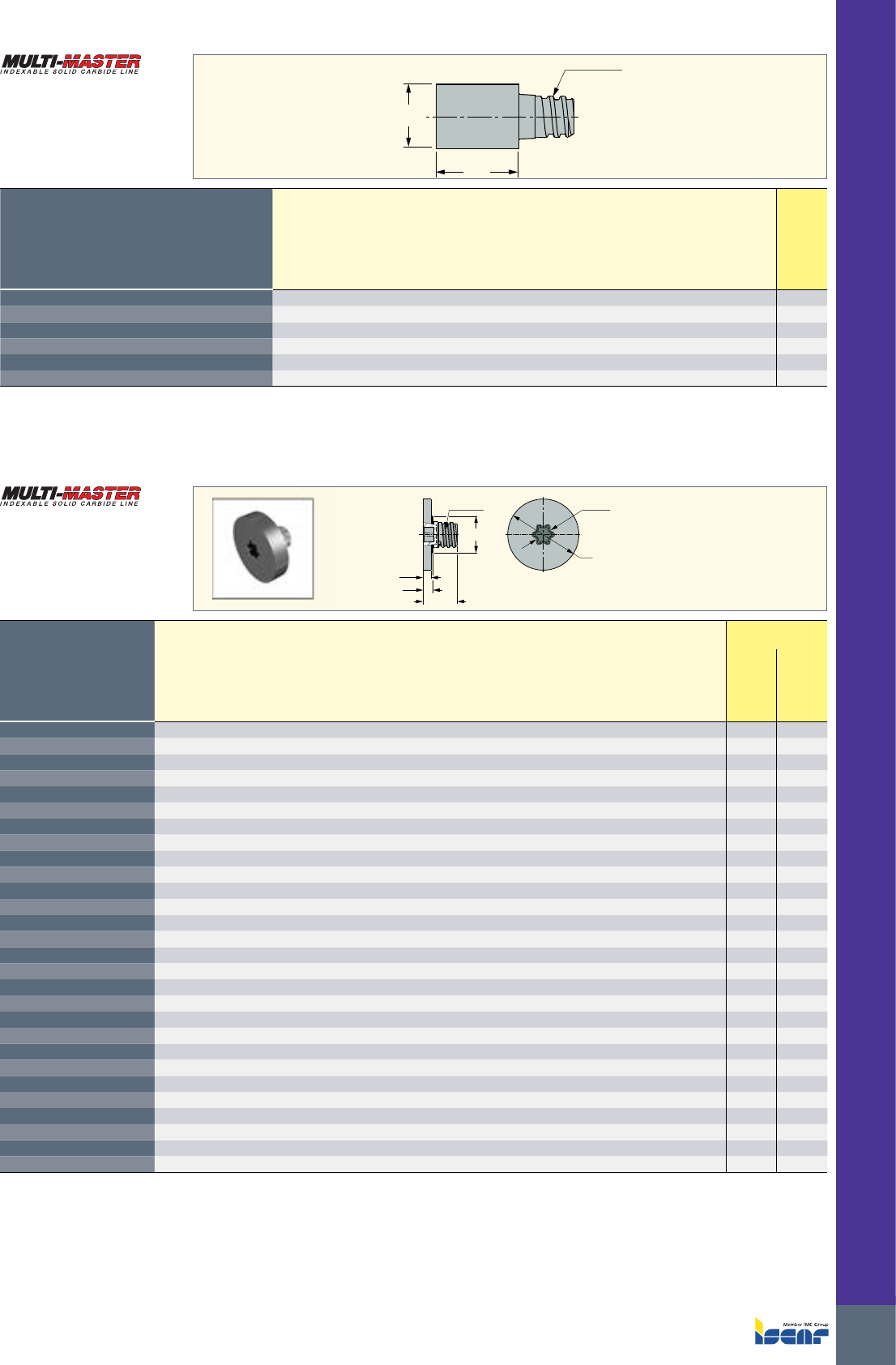

CDX
LF
DCONMS
THSZMS
CW ±0.02
DC
LH
THUB OAL
RE
45˚ CDX
t
CW
R0.3
Dimensions
Designation
DC CW CDX LF t RE THUB LH OAL DCONMS NOF(1) THSZMS
IC928
MM TS127C118T035-6T05
12.70 1.18 0.35 2.23 0.27 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3*
•
MM TS127C118T040-6T05
12.70 1.18 0.40 2.23 0.32 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3*
•
MM TS127C118T050-6T05
12.70 1.18 0.50 2.23 0.42 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3*
•
MM TS127C138T050-6T05
12.70 1.38 0.50 2.23 0.42 0.05 3.00 2.7 8.63 7.70 6 T05 T-20/3*
•
MM TS225C138T060-6T08
22.50 1.38 0.60 3.08 0.50 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L*
•
MM TS225C138T070-6T08
22.50 1.38 0.70 3.08 0.60 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L*
•
MM TS225C138T085-6T08
22.50 1.38 0.85 3.08 0.74 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L*
•
MM TS225C168T070-6T08
22.50 1.68 0.70 3.23 0.60 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L*
•
MM TS225C168T085-6T08
22.50 1.68 0.85 3.23 0.74 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L*
•
MM TS225C168T100-6T08
22.50 1.68 1.00 3.23 0.89 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L*
•
MM TS225C193T100-6T08
22.50 1.93 1.00 3.35 0.89 0.10 4.50 4.2 10.03 11.70 6 T08 T-40/3 L*
•
MM TS225C193T125-6T08
22.50 1.93 1.25 3.35 1.13 0.10 4.50 4.2 10.03 11.70 6 T08 T-40/3 L*
•
MM TS225C223T150-6T08
22.50 2.23 1.50 3.50 1.38 0.10 4.50 4.2 10.33 11.70 6 T08 T-40/3 L*
•
MM TS225C273T150-6T08
22.50 2.73 1.50 3.77 1.39 0.20 4.50 4.1 10.83 11.70 6 T08 T-40/3 L*
•
MM TS225C273T175-6T08
22.50 2.73 1.75 3.77 1.64 0.20 4.40 3.9 10.83 11.70 6 T08 T-40/3 L*
•
MM TS225C325T175-6T08
22.50 3.25 1.75 4.40 1.64 0.20 5.10 4.6 11.35 11.70 6 T08
•
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide see pages 44, 177-184
(1) Number of flutes
* Optional, should be ordered separately
MM TS-C
Interchangeable Solid Carbide
Circlip Groove Milling Heads
According to DIN 471/472
LF
LDRVS
DC±0.05
RE0.3 Typx4
3
0.45 max.
depth of cut
3
6
0.6
L3
A
DCONMS
A
THSZMS
Dimensions
Designation
DC DCONMS PHD(1) THSZMS NOF(2) LF L3 L DRVS(3)
IC908
MM TS155-04T10-8238
15.50 16.00 15.88 T10 4 34.00 18.10 14.10 10.0 MM KEY 10X7*
•
MM TS185-04T12-8239
18.50 18.45 19.05 T12 4 34.50 18.30 14.50 13.0 MM KEY 13X8*
•
MM TS245-04T15-8240
24.50 23.90 25.40 T15 4 37.40 11.00 14.40 20.0 MM KEY 20*
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) For minimum tube outer diameter
(2) Number of flutes
(3) Clamping wrench size
* Optional, should be ordered separately
MM TS-DG
Double Groove Internal
Grooving Heads with a
Threaded Connection for Tube
Sheets of Heat Exchangers
ISCAR
56
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

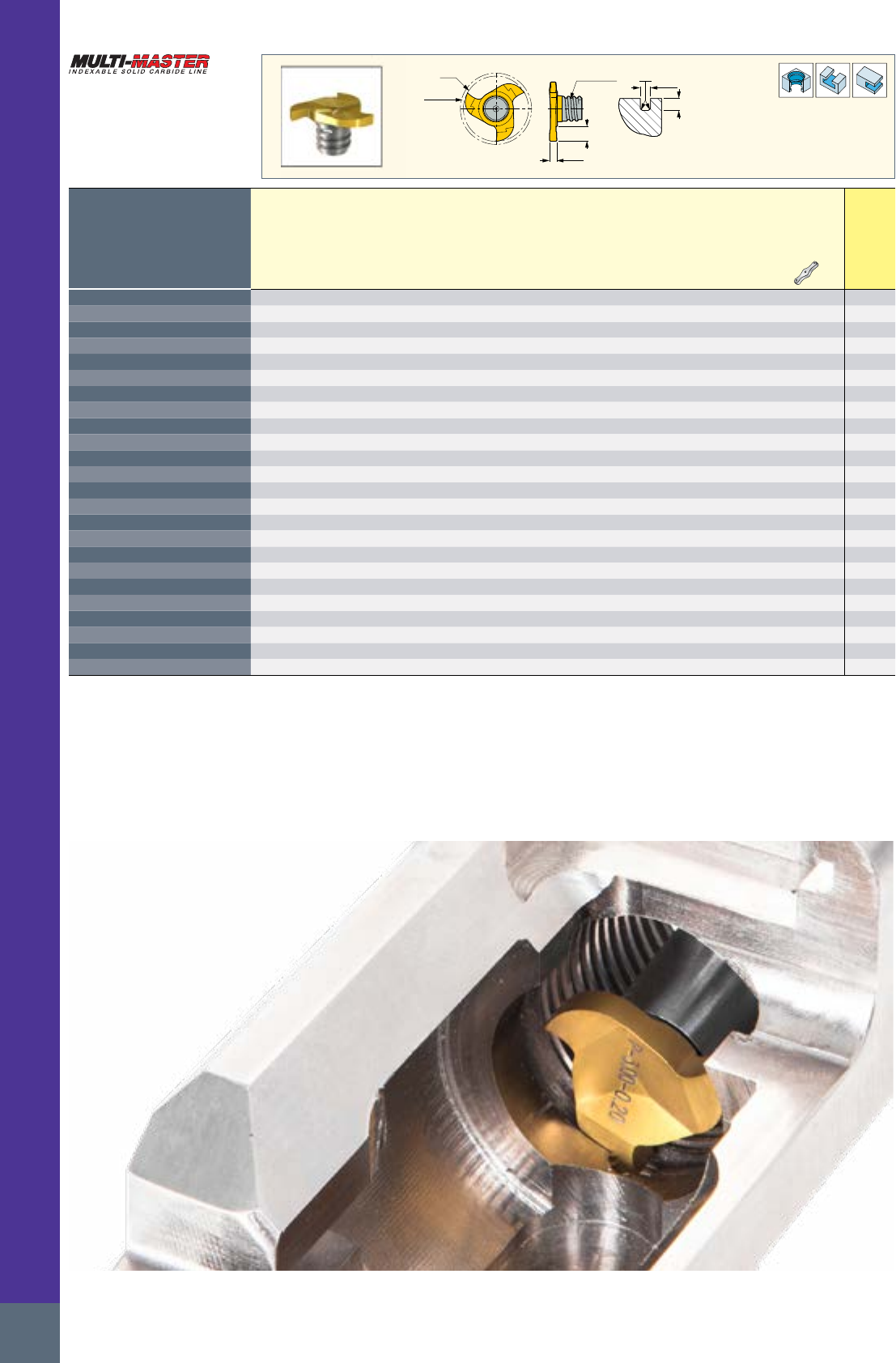

DC THSZMS
DMIN
CW
CDX
CDX
CW
RE
Dimensions
Designation
DC CW CDX(2) NOF(3) RE DMIN(4) THSZMS
IC528
MM GRIT 16K-1.50-0.10
15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18*
•
MM GRIT 16P-1.50-0.10
15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-1.57-0.20
15.70 1.57 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-2.00-0.20
15.70 2.00 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16P-2.20-1.10
15.70 2.20 2.80 3 1.10 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-2.39-0.20
15.70 2.39 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-2.50-0.20
15.70 2.50 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-3.00-0.20
15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16P-3.00-0.20
15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 16K-3.17-0.20
15.70 3.17 2.80 3 0.20 16.00 T06 MM EGR 16-18*
•
MM GRIT 18K-1.20-0.05 (1)
17.70 1.20 3.80 3 0.05 18.00 T06 MM EGR 16-18*
•
MM GRIT 18P-1.20-0.60
17.70 1.20 3.80 3 0.60 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-1.40-0.05 (1)
17.70 1.40 3.80 3 0.05 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-1.50-0.10
17.70 1.50 3.80 3 0.10 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-1.57-0.20
17.70 1.57 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-1.70-0.05 (1)
17.70 1.70 3.80 3 0.05 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-2.00-0.20
17.70 2.00 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
MM GRIT 18P-2.00-1.00
17.70 2.00 3.80 3 1.00 18.00 T06 MM EGR 16-18*
•
MM GRIT 18P-2.20-1.10
17.70 2.20 3.80 3 1.10 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-2.39-0.20
17.70 2.39 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-2.50-0.20
17.70 2.50 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-3.00-0.20
17.70 3.00 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
MM GRIT 18P-3.00-1.50
17.70 3.00 3.80 3 1.50 18.00 T06 MM EGR 16-18*
•
MM GRIT 18K-3.17-0.20
17.70 3.17 3.80 3 0.20 18.00 T06 MM EGR 16-18*
•
• Recommended for O-rings and retaining rings • MM EGR clamping key is supplied with each MM GRT... shank • Modification options on request
• Do not apply lubricant to the threaded connection • For clamping instructions, see pages 91-92
• For shanks, see pages 84-91 • K - For general steel machining • P - Positive geometry for soft and gummy materials • Use carbide shanks for groove milling heads.
• Keys for other milling heads must be ordered separately. • MM GRT.. shanks serve mainly for MM GRIT.. slitting heads.
• K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials. • For user guide see pages 44, 177-184
(1) For circle clips according to DIN 471/472 and ANSI B27.7M
(2) Cutting depth maximum
(3) Number of flutes
(4) Minimum bore diameter
* Optional, should be ordered separately
MM GRIT-16K/P,18K/P
Interchangeable Solid
Carbide Small Diameter
Groove Milling Heads
57
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

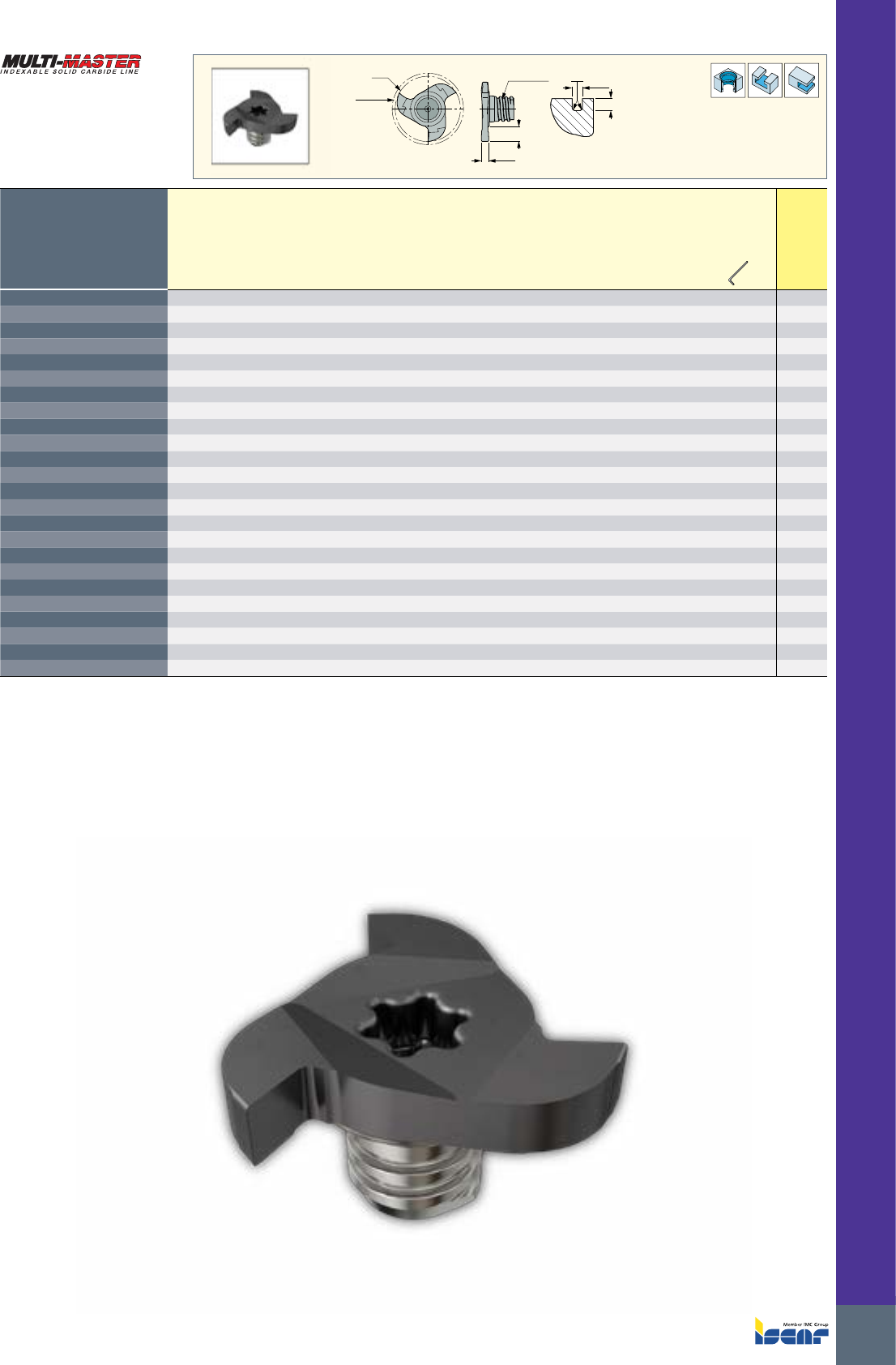

DC THSZMS
DMIN
CW
CDX
CDX
CW
RE
Dimensions
Designation
DC CW CDX(1) NOF(2) RE DMIN(3) THSZMS
IC908
MM GRIT16K150-010-3T6
15.70 1.50 2.80 3 0.10 16.00 T06 T-20/3*
•
MM GRIT16P150-010-3T6
15.70 1.50 2.80 3 0.10 16.00 T06 T-20/3*
•
MM GRIT16K157-020-3T6
15.70 1.57 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT16K200-020-3T6
15.70 2.00 2.80 3 0.20 16.00 T06 T-20/3*
•
MM GRIT16P220-110-3T6
15.70 2.20 2.80 3 1.10 16.00 T06 T-20/3*
•
MM GRIT16K239-020-3T6
15.70 2.39 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT16K250-020-3T6
15.70 2.50 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT16K300-020-3T6
15.70 3.00 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT16P300-020-3T6
15.70 3.00 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT16K317-020-3T6
15.70 3.17 2.80 3 0.20 16.00 T06 T-25/3*
•
MM GRIT18K120-005-3T6
17.70 1.20 3.80 3 0.05 18.00 T06 T-20/3*
•
MM GRIT18P120-060-3T6
17.70 1.20 3.80 3 0.60 18.00 T06 T-20/3*
•
MM GRIT18K140-005-3T6
17.70 1.40 3.80 3 0.05 18.00 T06 T-20/3*
•
MM GRIT18K150-010-3T6
17.70 1.50 3.80 3 0.10 18.00 T06 T-20/3*
•
MM GRIT18K157-020-3T6
17.70 1.57 3.80 3 0.20 18.00 T06 T-20/3*
•
MM GRIT18K170-005-3T6
17.70 1.70 3.80 3 0.05 18.00 T06 T-20/3*
•
MM GRIT18K200-020-3T6
17.70 2.00 3.80 3 0.20 18.00 T06 T-20/3*
•
MM GRIT18P200-100-3T6
17.70 2.00 3.80 3 1.00 18.00 T06 T-20/3*
•
MM GRIT18P220-110-3T6
17.70 2.20 3.80 3 1.10 18.00 T06 T-20/3*
•
MM GRIT18K239-020-3T6
17.70 2.39 3.80 3 0.20 18.00 T06 T-20/3*
•
MM GRIT18K250-020-3T6
17.70 2.50 3.80 3 0.20 18.00 T06 T-20/3*
•
MM GRIT18K300-020-3T6
17.70 3.00 3.80 3 0.20 18.00 T06 T-25/3*
•
MM GRIT18P300-150-3T6
17.70 3.00 3.80 3 1.50 18.00 T06 T-25/3*
•
MM GRIT18K317-020-3T6
17.70 3.17 3.80 3 0.20 18.00 T06 T-25/3*
•
• Recommended for O-rings and retaining rings • Modification options on request • Do not apply lubricant to the threaded connection
• For clamping instructions, see pages 91-92 • For shanks, see pages 84-91 • K-Type - For general steel machining
• P-Type - Positive geometry for soft and gummy materials • Use carbide shanks for groove milling heads. • Keys for other milling heads must be ordered separately.
• MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. • K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials.
• For user guide see pages 44, 177-184
(1) Cutting depth maximum
(2) Number of flutes
(3) Minimum bore diameter
* Optional, should be ordered separately
MM GRIT-16K/P,18K/P 3T6
Interchangeable Solid
Carbide Small Diameter
Groove Milling Heads
ISCAR
58
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

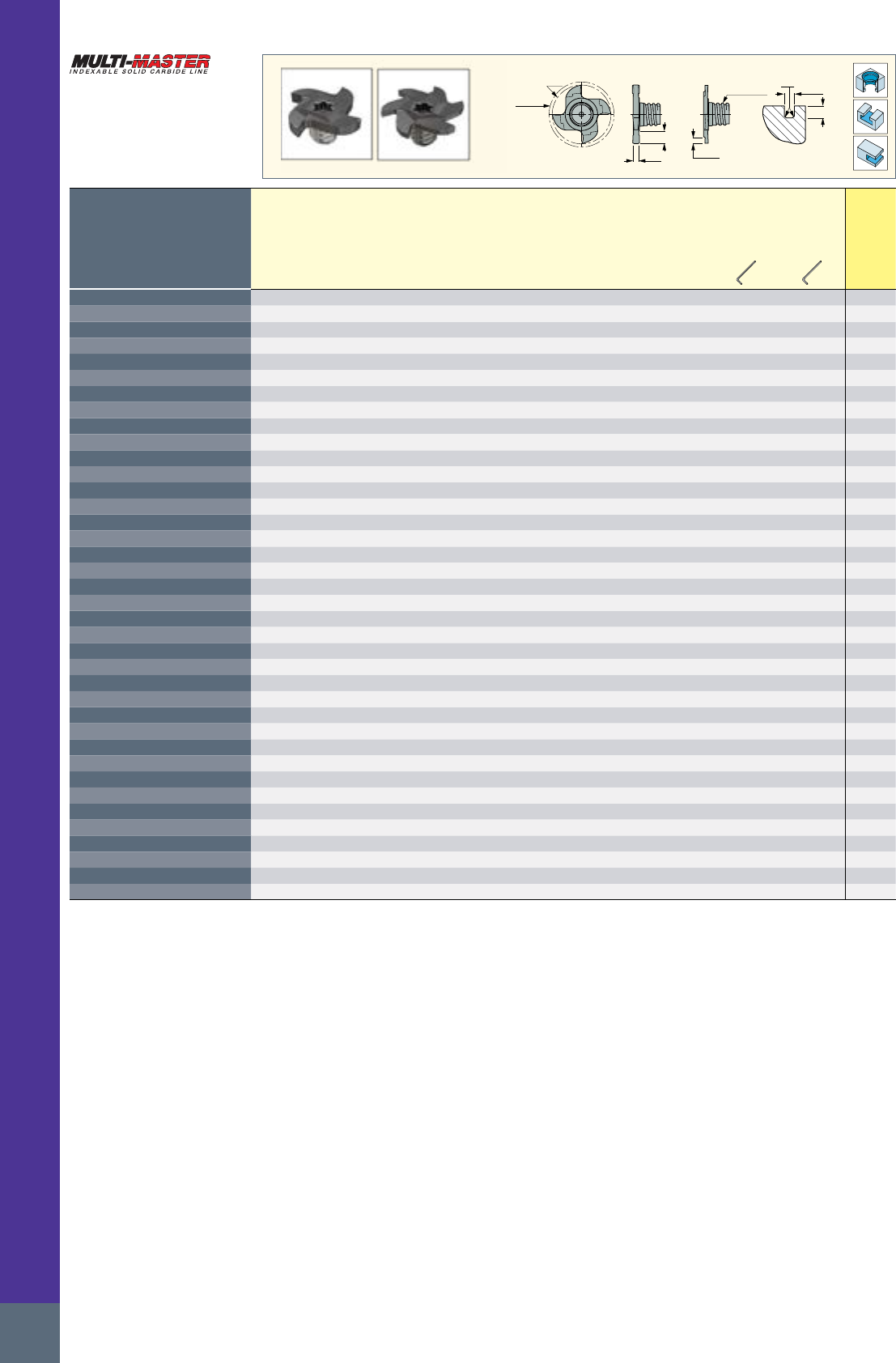

DC
DMIN
CW
CDX
CW≤1.2
CDX
THSZMS
CDX
CW
RE
Dimensions
Designation
DC CW CDX(1) NOF(2) RE DMIN(3) THSZMS
IC908
MM GRIT22K076-000-4T8
21.70 0.76 1.50 4 0.00 22.00 T08 T-25/3*
•
MM GRIT22K086-000-4T8
21.70 0.86 1.70 4 0.00 22.00 T08 T-25/3*
•
MM GRIT22K096-000-4T8
21.70 0.96 1.90 4 0.00 22.00 T08 T-25/3*
•
MM GRIT22K100-005-4T8
21.70 1.00 2.00 4 0.05 22.00 T08 T-25/3*
•
MM GRIT22P100-005-4T8
21.70 1.00 2.00 4 0.05 22.00 T08 T-25/3*
•
MM GRIT22K120-005-4T8
21.70 1.20 4.50 4 0.05 22.00 T08 T-25/3*
•
MM GRIT22K140-005-4T8
21.70 1.40 4.50 4 0.05 22.00 T08 T-25/3*
•
MM GRIT22K157-000-4T8
21.70 1.57 4.50 4 0.00 22.00 T08 T-25/3*
•
MM GRIT22K170-010-4T8
21.70 1.70 4.50 4 0.10 22.00 T08 T-25/3*
•
MM GRIT22P170-010-4T8
21.70 1.70 4.50 4 0.10 22.00 T08 T-25/3*
•
MM GRIT22K195-020-4T8
21.70 1.95 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K200-020-4T8
21.70 2.00 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22P200-020-4T8
21.70 2.00 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K225-020-4T8
21.70 2.25 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K239-020-4T8
21.70 2.39 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K250-020-4T8
21.70 2.50 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22P250-020-4T8
21.70 2.50 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K275-020-4T8
21.70 2.75 4.50 4 0.20 22.00 T08 T-25/3*
•
MM GRIT22K300-020-4T8
21.70 3.00 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22P300-020-4T8
21.70 3.00 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K317-020-4T8
21.70 3.17 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K325-020-4T8
21.70 3.25 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22P381-020-4T8
21.70 3.81 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K400-020-4T8
21.70 4.00 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22P400-020-4T8
21.70 4.00 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22P400-200-4T8
21.70 4.00 4.50 4 2.00 22.00 T08 T-30/3 L*
•
MM GRIT22K425-020-4T8
21.70 4.25 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K425-120-4T8
21.70 4.25 4.50 4 1.20 22.00 T08 T-30/3 L*
•
MM GRIT22K475-020-4T8
21.70 4.75 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K525-020-4T8
21.70 5.25 4.50 4 0.20 22.00 T08 T-30/3 L*
•
MM GRIT22K600-300-4T8
21.70 6.00 4.50 4 3.00 22.00 T08 T-30/3 L*
•
MM GRIT28K250-020-6T10
27.70 2.50 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28K525-020-6T10
27.70 5.25 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28P700-350-6T10
27.70 7.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28K1000-020-6T10
27.70 10.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28K1100-020-6T10
27.70 11.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28K1200-020-6T10
27.70 12.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT28K1300-020-6T10
27.70 13.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
• Recommended for O rings and retaining rings • K - for general steel & cast iron machining P - for soft and gummy materials
• Modification options on request • Do not apply lubricant to the threaded connection • For clamping instructions, see pages 91-92
• For shanks, see pages 84-91 • Use carbide shanks for groove milling heads.
• Keys for other milling heads must be ordered separately.
• MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. • K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials.
• For user guide see pages 44, 177-184
(1) Cutting depth maximum
(2) Number of flutes
(3) Minimum bore diameter
* Optional, should be ordered separately
MM GRIT-22K/P,28K/P
4T8/6T10
Interchangeable Solid
Carbide Small Diameter
Groove Milling Heads
59
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

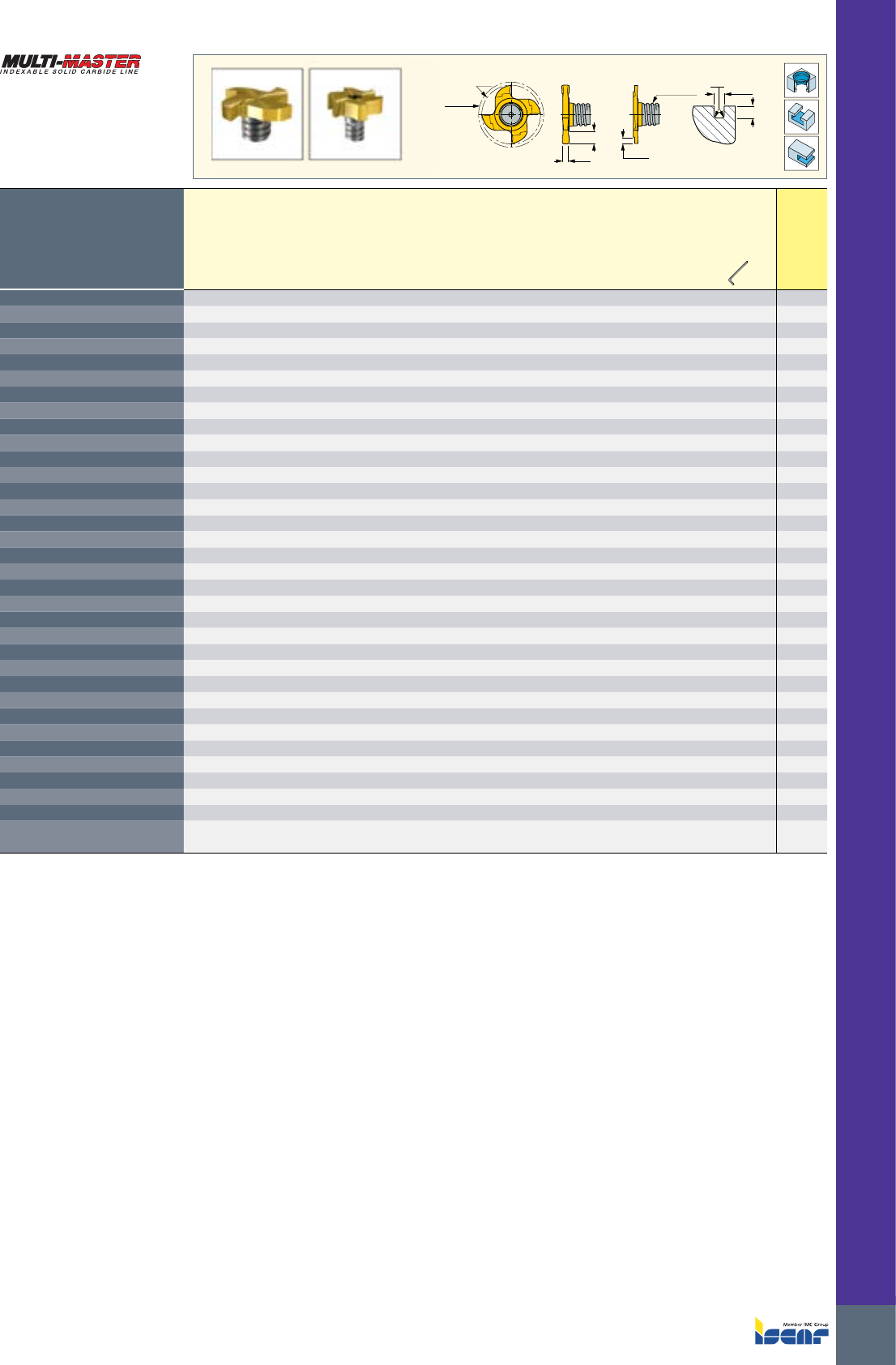

DC
DMIN
CW
CDX
CW≤1.2
CDX
THSZMS
CDX
CW
RE
Dimensions
Designation
DC CW CDX(2) NOF(3) RE DMIN(4) THSZMS
IC528
MM GRIT 22K-0.76-0.00 (1)
21.70 0.76 1.50 4 0.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-0.86-0.00 (1)
21.70 0.86 1.70 4 0.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-0.96-0.00 (1)
21.70 0.96 1.90 4 0.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.00-0.05
21.70 1.00 2.00 4 0.05 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-1.00-0.05
21.70 1.00 2.00 4 0.05 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.20-0.05 (1)
21.70 1.20 4.50 4 0.05 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.40-0.05 (1)
21.70 1.40 4.50 4 0.05 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.57-0.00
21.70 1.57 4.50 4 0.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.70-0.10 (1)
21.70 1.70 4.50 4 0.10 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-1.70-0.10 (1)
21.70 1.70 4.50 4 0.10 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-1.95-0.20 (1)
21.70 1.95 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-2.00-0.20
21.70 2.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-2.00-0.20
21.70 2.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-2.25-0.20 (1)
21.70 2.25 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-2.39-0.20
21.70 2.39 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-2.50-0.20
21.70 2.50 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-2.50-0.20
21.70 2.50 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-2.75-0.20 (1)
21.70 2.75 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-3.00-0.20
21.70 3.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-3.00-0.20
21.70 3.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-3.17-0.20
21.70 3.17 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-3.25-0.20 (1)
21.70 3.25 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-3.81-0.20
21.70 3.81 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-4.00-0.20
21.70 4.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-4.00-0.20
21.70 4.00 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22P-4.00-2.00
21.70 4.00 4.50 4 2.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-4.25-0.20 (1)
21.70 4.25 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-4.25-1.20 (1)
21.70 4.25 4.50 4 1.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-4.75-0.20
21.70 4.75 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-5.25-0.20 (1)
21.70 5.25 4.50 4 0.20 22.00 T08 MM EGR 20-22*
•
MM GRIT 22K-6.00-3.00
21.70 6.00 4.50 4 3.00 22.00 T08 MM EGR 20-22*
•
MM GRIT 28K-2.50-0.2
27.70 2.50 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT 28K-5.25-0.2
27.70 5.25 6.00 6 0.20 28.00 T10 T-40/3 L*
•
MM GRIT 28P-7.0-3.5
27.70 7.00 5.70 6 3.50 28.00 T10 T-40/3 L*
•
MM GRIT 28K-10.0-0.2
27.70 10.00 6.00 6 0.20 28.00 T10 T-40/3 L*
•
• Recommended for O rings and retaining rings • K - for general steel & cast iron machining P for soft and gummy materials
• Modification options on request • Do not apply lubricant to the threaded connection • For clamping instructions, see pages 91-92
• For user guide see pages 542-548 • For shanks, see pages 84-91 • Use carbide shanks for groove milling heads.
• Keys for other milling heads must be ordered separately.
• MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. • K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials.
• For user guide see pages 44, 177-184
(1) For circle clips according to DIN471/472 and ANSI B27.7M
(2) Cutting depth maximum
(3) Number of flutes
(4) Minimum bore diameter
* Optional, should be ordered separately
MM GRIT-22K/P,28K/P
Interchangeable Solid
Carbide Small Diameter
Groove Milling Heads
ISCAR
60
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness
HB
Material
No.
MM-TS MM-GRIT K-TYPE MM-GRIT P-TYPE
Speed Feed mm/t Speed Feed mm/t Speed Feed mm/t
V m/min Fz (min) Fz (max) V m/min Fz (min) Fz (max) V m/min Fz (min) Fz (max)
P
Non-alloy
steel and
cast steel,
free cutting
steel
< 0.25 %C
Annealed 420 125 1 110-140 0.08 0.20 110-160 0.05 0.15 - - -
>= 0.25 %C
Annealed 650 190 2 100-120 0.08 0.18 100-150 0.05 0.15 - - -
< 0.55 %C
Quenched
and
tempered
850 250 3 70-100 0.08 0.15 80-100 0.05 0.15 - - -
>= 0.55 %C
Annealed 750 220 4 70-100 0.08 0.15 80-100 0.05 0.15 - - -
Quenched
and
tempered
1000 300 5 60-80 0.08 0.15 60-80 0.05 0.15 - - -
Low alloy and cast
steel (less than 5% of
alloying elements)
Annealed 600 200 6 100-120 0.08 0.15 110-150 0.05 0.15 - - -
Quenched
and
tempered
930 275 7 90-120 0.08 0.15 100-120 0.05 0.15 - - -
1000 300 8 80-110 0.08 0.15 70-110 0.05 0.15 - - -
1200 350 9 70-100 0.05 0.12 70-100 0.05 0.15 - - -
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 60-80 0.05 0.18 60-80 0.05 0.15 - - -
Quenched
and
tempered
1100 325 11 55-70 0.08 0.15 55-70 0.05 0.15 - - -
Stainless steel
and cast steel
Ferritic/
martensitic. 680 200 12 100-130 0.06 0.12 100-130 0.03 0.15 100-130 0.03 0.10
Martensitic 820 240 13 100-120 0.08 0.15 100-130 0.03 0.15 100-130 0.03 0.10
MStainless steel
and cast steel Austenitic 600 180 14 80-120 0.05 0.10 90-120 0.03 0.12 90-120 0.03 0.10
K
Grey cast iron (GG)
Ferritic/
pearlitic 180 15 160-220 0.10 0.20 160-220 0.03 0.12 - - -
Pearlitic /
martensitic 260 16 120-200 0.10 0.15 120-200 0.03 0.12 - - -
Cast iron nodular
(GGG)
Ferritic 160 17 100-140 0.10 0.20 - - - - - -
Pearlitic 250 18 80-100 0.10 0.15 - - - - - -
Malleable cast iron Ferritic 130 19 180-250 0.10 0.20 180-250 0.03 0.15 - - -
Pearlitic 230 20 160-220 0.10 0.15 160-220 0.03 0.15 - - -
N
Aluminum-
wrought alloys
Not cureable 60 21 800-1200 0.10 0.20 - - - 800-1200 0.05 0.15
Cured 100 22 800-1200 0.10 0.20 - - - 800-1200 0.05 0.15
Aluminum-
cast-alloys
<=12% Si Not cureable 75 23 - - - - - - 600-1000 0.05 0.15
Cured 90 24 - - - - - - 500-1000 0.05 0.15
>12% Si High
temperature 130 25 - - - - - - 200-400 0.05 0.15
Copper
alloys >1% Pb
Free cutting 110 26 - - - - - - - - -
Brass 90 27 - - - - - - - - -
Electrolitic
copper 100 28 - - - - - - - - -
Non-metallic
Duroplastics,
fiber plastics 29 - - - - - - - - -
Hard rubber 30 - - - - - - - - -
S
High temp.
alloys
Fe based Annealed 200 31 - - - 30-40 0.02 0.12 - - -
Cured 280 32 25-35 0.05 0.12 25-40 0.02 0.12 - - -
Ni or Co
based
Annealed 250 33 25-35 0.05 0.12 25-40 - - - 0.01 0.12
Cured 350 34 25-35 0.05 0.12 25-40 - - - 0.01 0.12
Cast 320 35 40-60 0.05 0.12 25-40 - - - 0.01 0.12
Titanium Ti alloys
RM 400 36 40-60 0.05 0.12 40-60 - - - 0.05 0.12
Alpha+beta
alloys cured RM 1050 37 40-60 0.05 0.10 40-60 - - - 0.05 0.10
H
Hardened steel Hardened 55 HRC 38
Hardened 60 HRC 39
Chilled cast iron Cast 400 40
Cast iron Hardened 55 HRC 41
Machining Data for MULTI-MASTER Groove Milling Heads
61
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

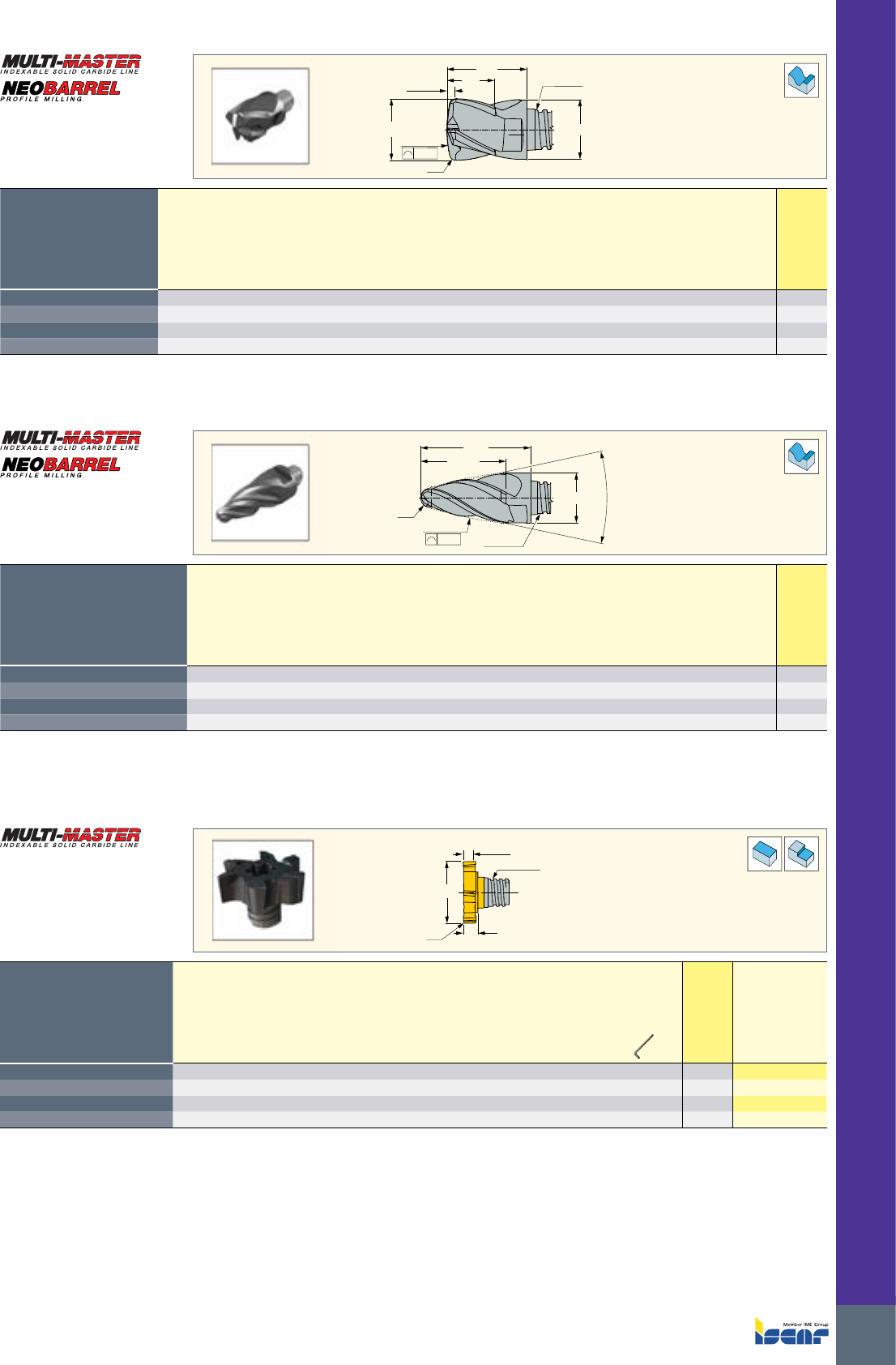

THSZMS
DC
LF
RE
APMX
Dimensions Recommended
Machining Data
Designation
DC APMX RE NOF(1) THSZMS LF
IC908
fz
(mm/t)
MM FM120-36R0.2-06T05
12.00 3.60 0.20 6 T05 4.40 T-20/3*
•
0.04-0.10
MM FM160-48R0.4-06T06
16.00 4.80 0.40 6 T06 5.60 T-25/3*
•
0.05-0.10
MM FM200-60R0.4-06T08
20.00 6.00 0.40 6 T08 6.80 T-40/3 L*
•
0.05-0.10
MM FM250-75R0.4-06T10
25.00 7.50 0.40 6 T10 8.40 T-50/3 L*
•
0.05-0.10
(1) Number of flutes
* Optional, should be ordered separately
MM FM
Interchangeable Solid Carbide
Face Milling Heads with
MULTI-MASTER Threaded
Connections
DCONMS
THSZMS
LF
LU
APMX
DC
BSR
RE
0.02
Dimensions
Designation
DC BSR RE LU APMX THSZMS DCONMS NOF(1) LF
IC908
MM ELB08R16A05-4T05
8.00 16.00 0.50 5.50 0.90 T05 8.00 4 10.00
•
MM ELB10R20A07-4T06
10.00 20.00 1.00 7.50 1.42 T06 10.00 4 13.00
•
MM ELB12R24A09-4T08
12.00 24.00 1.00 9.00 1.55 T08 12.00 4 16.50
•
MM ELB16R32A12-4T10
16.00 32.00 1.00 12.00 1.80 T10 16.00 4 20.50
•
• For user guide see pages 44, 177-184
(1) Number of flutes
MM ELB
Interchangeable Lens-Shaped
(Barrel) Solid Carbide
Heads for 3D Profiling
PRFA
APMX
LF
DCONMS
THSZMS
PRFRAD
RE
0.02
Dimensions
Designation
PRFRAD RE APMX PRFA THSZMS NOF(1) DCONMS LF
IC908
MM EOB08R1.5R80A13-4T05
80.00 1.50 14.20 24.00 T05 4 8.00 18.00
•
MM EOB12R2.0R75A21-4T08
75.00 2.00 21.30 24.00 T08 4 12.00 27.00
•
MM EOB10R2.0R85A16-4T06
85.00 2.00 16.50 24.00 T06 4 10.00 22.00
•
MM EOB16R3.0R75A26-4T10
75.00 3.00 27.00 24.00 T10 4 16.00 33.40
•
• For user guide see pages 44, 177-184
(1) Number of flutes
MM EOB
Interchangeable Oval-Shaped
(Barrel) Solid Carbide
Heads for 3D Profiling
ISCAR
62
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

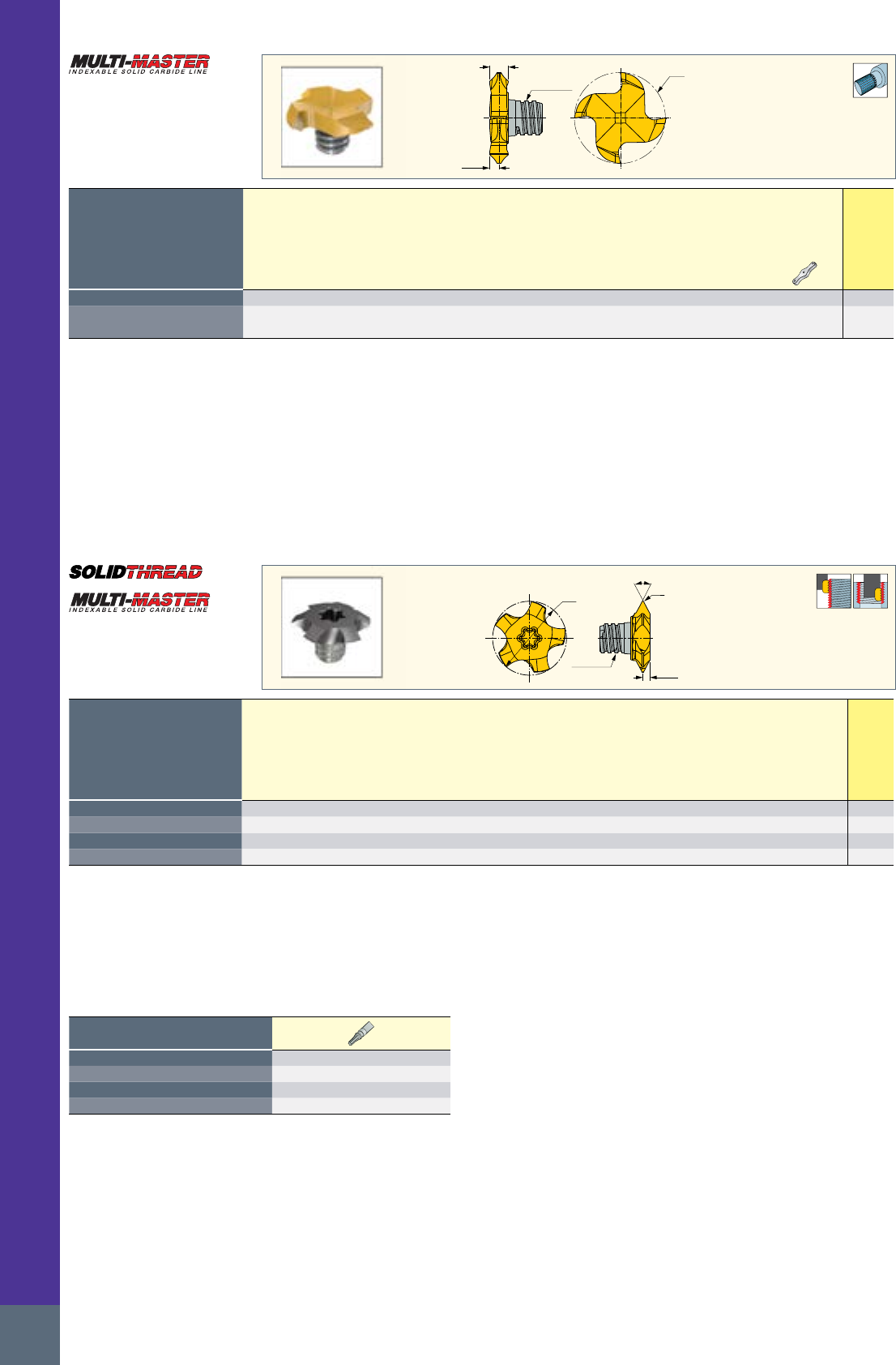

DC
CW
PDX
THSZMS
Dimensions
Designation
Module T range(1) DC PDX CW NOF(2) THSZMS
IC528
MM SS22M100Z1720-4T08
1.00 17-20 21.70 2.8 5.50 4 T08 MM EGR 20-22*
•
MM SS22M100Z2125-4T08
1.00 21-25 21.70 2.3 4.50 4 T08 MM EGR 20-22*
•
MM SS22M150Z1720-4T08
1.50 17-20 21.70 2.7 5.40 4 T08 MM EGR 20-22*
•
• MM EGR 20-22 clamping keys are supplied with each MM GRT... shanks • Tightening torque 1500 Nxcm • Do not apply lubricant to the threaded connection.
• For clamping instructions, see pages 91-92 • For user guide see pages 44, 177-184 • For shanks, see pages 84-91
(1) Teeth range
(2) Number of flutes
* Optional, should be ordered separately
MM SS
Interchangeable Solid Carbide
Heads for Milling Involute Spline
Shafts According to DIN 5480
DC RE
55˚
PDX
THSZMS
Dimensions
Designation
DC NOF(1) TPIN(2) TPIX(3) RE PDX THSZMS TDZ(4) DMIN TQ(5) Standard
IC908
MM TRF12-W55-P11-5T05
11.94 5 11.00 14.00 0.23 1.15 T05 15.875 13.60 7.0 DIN/ISO 228, B.S. 84
•
MM TRF12-W55-P19-5T05
11.94 5 19.00 28.00 0.11 0.75 T05 14.287 13.10 10.0 DIN/ISO 228, B.S. 84
•
MM TRF16-W55-P8-5T06
15.94 5 8.00 14.00 0.23 1.55 T06 20.637 18.30 15.0 DIN/ISO 228, B.S. 84
•
MM TRF20-W55-P6-6T08
19.94 6 6.00 8.00 0.40 1.95 T08 25.4 21.30 28.0 DIN/ISO 228, B.S. 84
•
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Threads per inch minimum
(3) Threads per inch maximum
(4) Smallest possible thread
(5) Tightening torque
Spare Parts
Designation
MM TRF12-W55-P11-5T05
BIT SOCKET T20 3/8" DRIVE*
MM TRF12-W55-P19-5T05
BIT SOCKET T20 3/8" DRIVE*
MM TRF16-W55-P8-5T06
BIT SOCKET T25 3/8" DRIVE*
MM TRF20-W55-P6-6T08
BIT SOCKET T40 3/8" DRIVE*
* Optional, should be ordered separately
MM TRF 55°
Interchangeable Solid Carbide
Milling Heads for 55° Partial
Profile Thread Milling
63
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

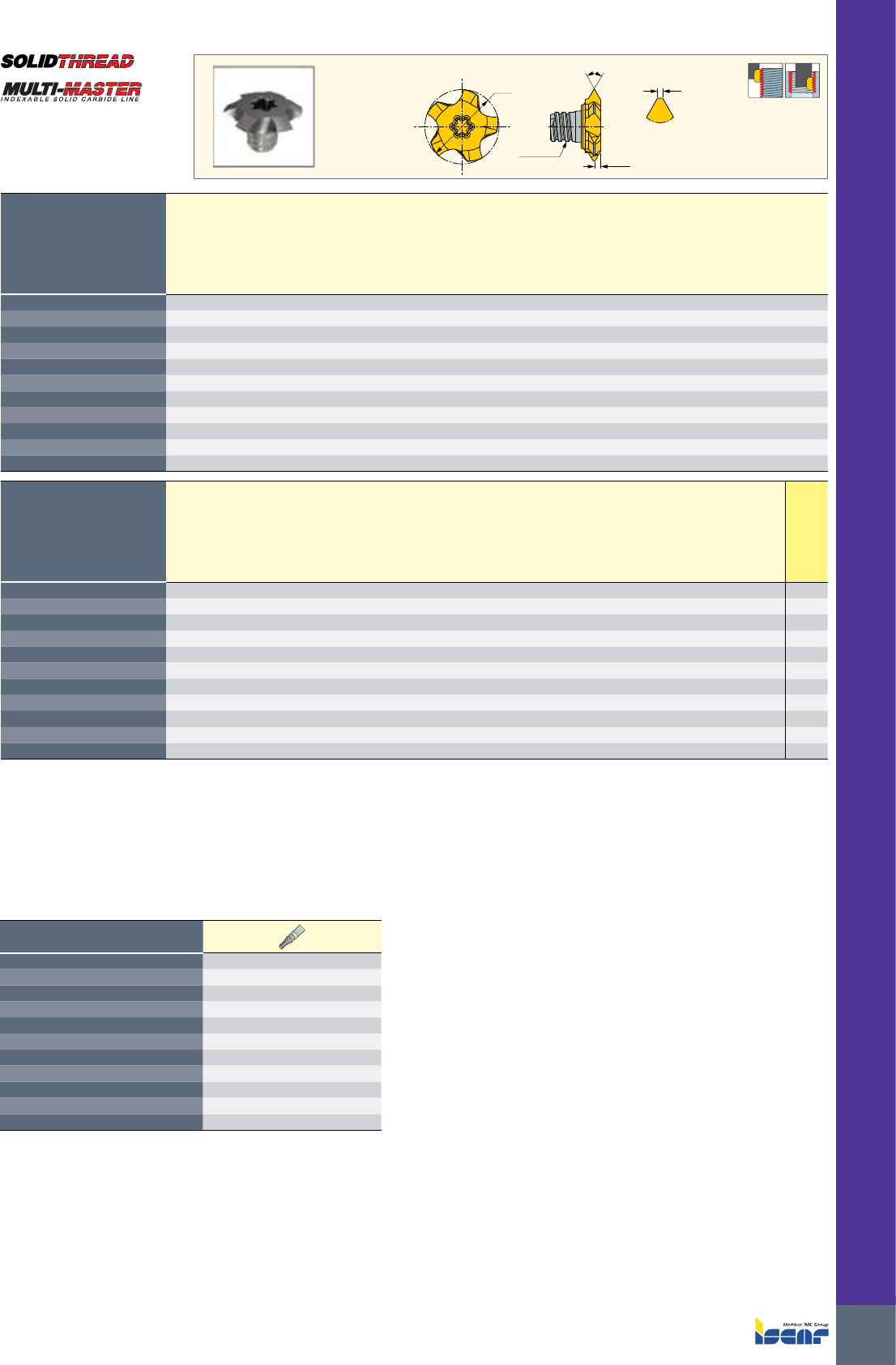

DC
PDX
60˚
CF
THSZMS
MM TRF 60°
Interchangeable Solid Carbide
Milling Heads for 60° Partial
Profile Thread Milling
Spare Parts
Designation
MM TRF12A60-P080-5T05
BIT SOCKET T20 3/8" DRIVE*
MM TRF12A60-P175-5T05
BIT SOCKET T20 3/8" DRIVE*
MM TRF12A60-P250-5T05
BIT SOCKET T20 3/8" DRIVE*
MM TRF16A60-P080-5T06
BIT SOCKET T20 3/8" DRIVE*
MM TRF16A60-P175-5T06
BIT SOCKET T25 3/8" DRIVE*
MM TRF16A60-P300-5T06
BIT SOCKET T25 3/8" DRIVE*
MM TRF20A60-P200-6T08
BIT SOCKET T25 3/8" DRIVE*
MM TRF20A60-P300-6T08
BIT SOCKET T40 3/8" DRIVE*
MM TRF20A60-P400-6T08
BIT SOCKET T25 3/8" DRIVE*
MM TRF28A60-P600-5T10
BIT SOCKET T40 3/8" DRIVE*
MM TRF28A60-P500-6T10
BIT SOCKET T40 3/8" DRIVE*
* Optional, should be ordered separately
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Thread pitch minimum (mm)-internal
(3) Thread pitch maximum (mm)-internal
(4) Thread pitch minimum (mm)-external
(5) Thread pitch maximum (mm)-external
(6) Threads per inch minimum-internal
Dimensions
Designation
DC NOF(1) TTP TTP_DF2 TPN(2) TPX(3) TPN_DF2 TPX_DF2 TPIN(4) TPIX(5) TPIN_DF2 TPIX_DF2
MM TRF12A60-P080-5T05
11.94 5 INT EXT 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00
MM TRF12A60-P175-5T05
11.94 5 INT EXT 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00
MM TRF12A60-P250-5T05
11.94 5 INT EXT 2.000 2.500 1.750 2.000 10.00 13.00 11.00 15.00
MM TRF16A60-P080-5T06
15.94 5 INT EXT 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00
MM TRF16A60-P175-5T06
15.94 5 INT EXT 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00
MM TRF16A60-P300-5T06
15.94 5 INT EXT 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00
MM TRF20A60-P200-6T08
19.94 6 INT EXT 1.000 2.000 0.800 1.750 13.00 28.00 15.00 32.00
MM TRF20A60-P300-6T08
19.94 6 INT EXT 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00
MM TRF20A60-P400-6T08
19.94 6 INT EXT 3.000 4.000 2.500 3.500 6.00 9.00 7.00 10.00
MM TRF28A60-P600-5T10
27.70 5 INT EXT 5.000 6.000 4.500 5.000 4.00 5.00 5.00 6.00
MM TRF28A60-P500-6T10
27.70 6 INT EXT 3.000 5.000 2.500 4.500 6.00 8.00 6.00 10.00
Designation
CF PDX THSZMS TDZ(6) TQ DMIN Standard
IC908
MM TRF12A60-P080-5T05
0.05 0.55 T05 M14 7.0 13.50 ISO 68, DIN 13
•
MM TRF12A60-P175-5T05
0.11 0.96 T05 M14 7.0 13.00 ISO 68, DIN 13
•
MM TRF12A60-P250-5T05
0.22 1.21 T05 M16 7.0 14.00 ISO 68, DIN 13
•
MM TRF16A60-P080-5T06
0.05 0.55 T06 M18 10.0 17.50 ISO 68, DIN 13
•
MM TRF16A60-P175-5T06
0.10 1.00 T06 M18 10.0 17.00 ISO 68, DIN 13
•
MM TRF16A60-P300-5T06
0.22 1.41 T06 M20 10.0 18.00 ISO 68, DIN 13
•
MM TRF20A60-P200-6T08
0.11 0.95 T08 M24 10.0 23.00 ISO 68, DIN 13
•
MM TRF20A60-P300-6T08
0.22 1.41 T08 M24 15.0 22.00 ISO 68, DIN 13
•
MM TRF20A60-P400-6T08
0.31 1.86 T08 M25 15.0 22.00 ISO 68, DIN 13
•
MM TRF28A60-P600-5T10
0.57 2.49 T10 M38 28.0 33.00 ISO 68, DIN 13
•
MM TRF28A60-P500-6T10
0.34 2.17 T10 M33 28.0 30.00 ISO 68, DIN 13
•
ISCAR
64
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

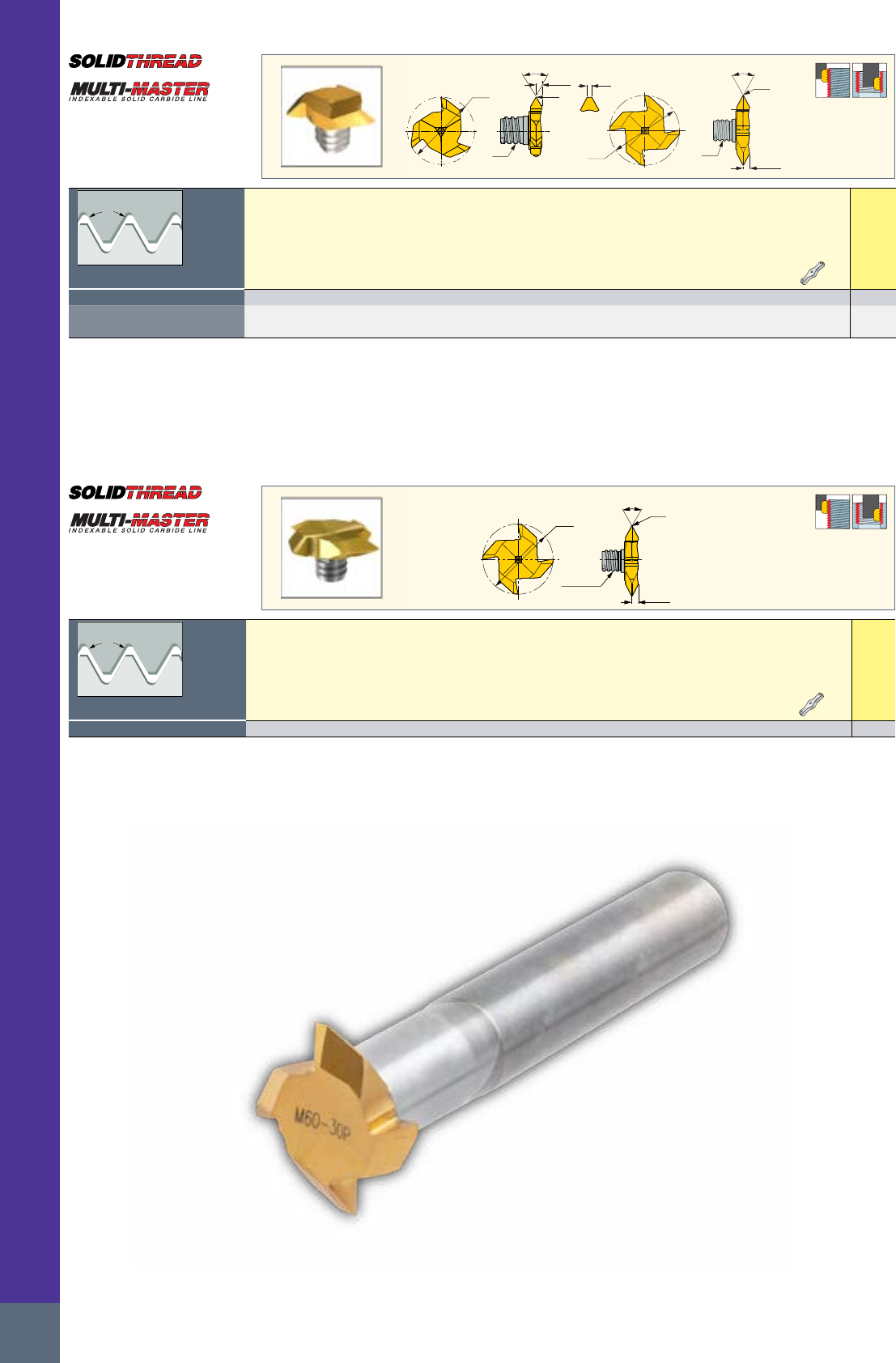

DC
TRD16 TRD22
RE
60
CF
TS TS
RE
DC PDX
PDX
60
Dimensions
Designation
DC NOF(1) TPN(2) TPX(3) RE CF PDX THSZMS TDZ(4) DMIN Standard
IC528
MM TRD16-M60-05P-3T06
15.70 3 0.500 2.000 - (5) 0.05 1.4 T06 M20 19.05 ISO 68, DIN 13 MM EGR 16-18*
•
MM TRD16-M60-15P-3T06
15.70 3 1.500 2.000 0.05 - 1.4 T06 M22 19.05 ISO 68, DIN 13 MM EGR 16-18*
•
MM TRD22-M60-30P-4T08
21.70 4 3.000 4.500 0.20 - 2.4 T08 M36 31.00 ISO 68, DIN 13 MM EGR 20-22*
•
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Thread pitch minimum (mm)-internal
(3) Thread pitch maximum (mm)-internal
(4) Thread pitch minimum (mm)-external
* Optional, should be ordered separately
MM TRD-M
Interchangeable Solid Carbide
Milling Heads for 60° Partial
Profile Thread Milling
60°
NUT
SCREW
RE
55
DC
PDX
THSZMS
Dimensions
Designation
DC NOF(1) RE PDX TPIN(2) TPIX(3) THSZMS TDZ(4) DMIN Standard
IC528
MM TRD22-W55-14P-4T08
21.70 4 0.20 2.0 11.00 14.00 T08 G3/4 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22*
•
• For shanks, see pages 84-91 • For clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Threads per inch minimum-internal
(3) Threads per inch maximum-internal
(4) Threads per inch minimum-external
* Optional, should be ordered separately
MM TRD-W
Interchangeable Solid Carbide
Milling Heads for 55° Partial
Profile Thread Milling
55°
NUT
SCREW
65
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

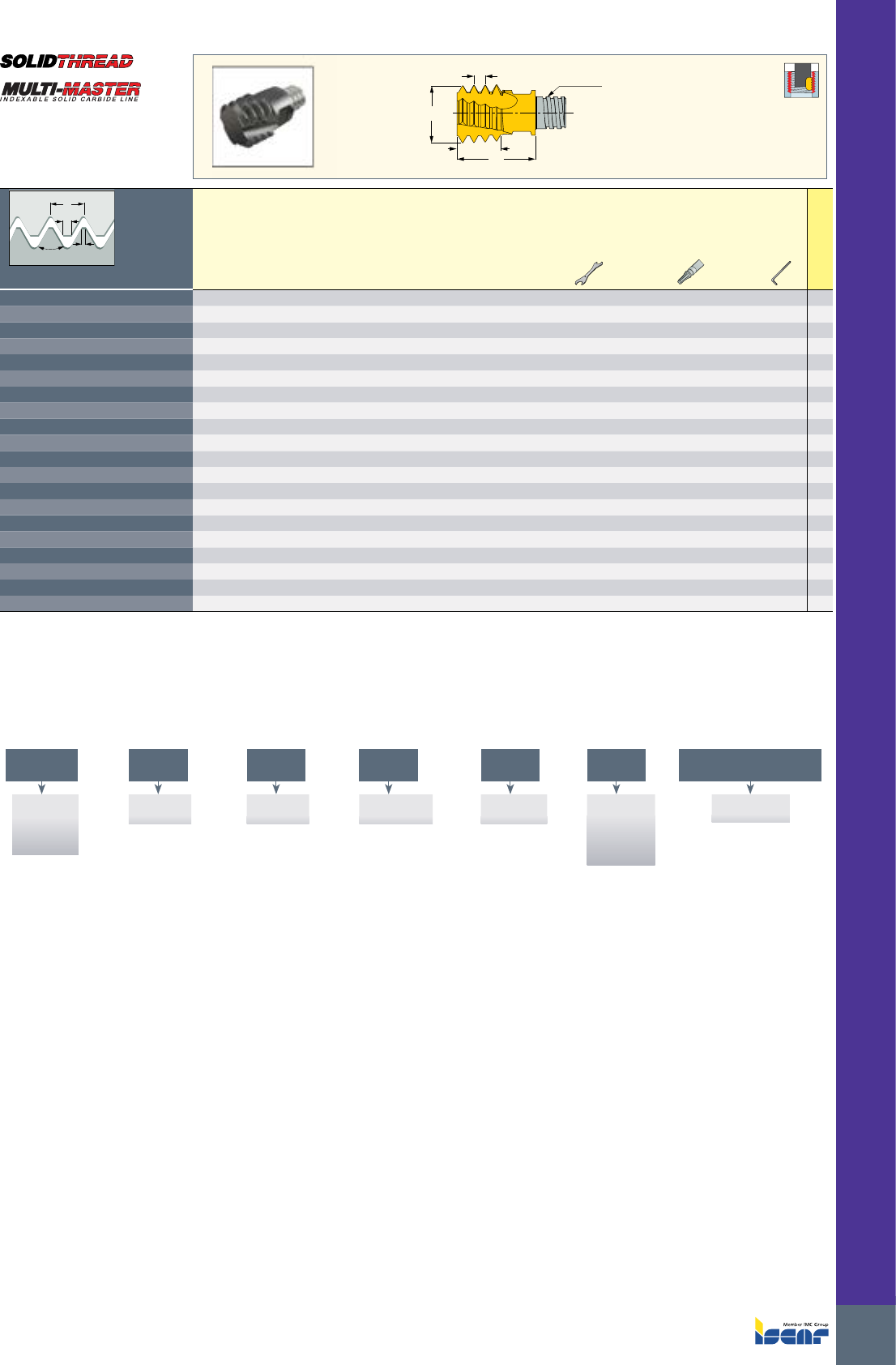

TP
DC
LF
APMX
THSZMS
Application: General engineering
Dimensions
Designation
TP(1)
M
Coarse M Fine DC NOF(2) APMX LF THSZMS
IC908
MT10D7.5 0.5ISO-MMT05
0.500 - =>14 10.00 4 7.50 12.75 T05 MM KEY 6X4*
•
MT 10D6 0.75ISO-MMT05
0.750 - =>12 10.00 4 6.00 12.75 T05 MM KEY 6X4*
•
MT 10D6 1.0ISO-MMT05
1.000 - =>12 10.00 4 6.00 12.75 T05 MM KEY 6X4*
•
MT 10D5 1.25ISO-MMT05
1.250 - =>14 10.00 4 5.00 12.75 T05 MM KEY 6X4*
•
MT 10D6 1.5ISO-MMT05
1.500 - =>14 10.00 4 6.00 12.75 T05 MM KEY 6X4*
•
MT 12D8 0.5ISO-MMT06
0.500 - =>16 12.00 4 8.00 14.30 T06 MM KEY 8X5*
•
MT 12E8 0.75ISO-MMT06
0.750 - =>16 12.00 5 8.30 14.30 T06 MM KEY 8X5*
•
MT 12E8 1.0ISO-MMT06
1.000 - =>16 12.00 5 8.00 14.30 T06 MM KEY 8X5*
•
MT 12D8 1.25ISO-MMT06
1.250 - =>16 12.00 4 7.50 14.30 T06 MM KEY 8X5*
•
MT 12D7 1.5ISO-MMT06
1.500 - =>16 12.00 4 7.60 14.30 T06 MM KEY 8X5*
•
MT 12D7 1.75ISO-MMT06
1.750 - =>16 12.00 4 7.10 14.30 T06 MM KEY 8X5*
•
MT12D8 2.0ISO-MMT06
2.000 M16 =>17 12.00 4 8.00 14.30 T06 MM KEY 8X5*
•
MT 16F12 1.0ISO-MMT08
1.000 - =>22 16.00 6 12.00 20.00 T08 MM KEY 10X7*
•
MT 16F12 1.5ISO-MMT08
1.500 - =>20 16.00 6 12.00 20.00 T08 MM KEY 10X7*
•
MT 16E12 2.0ISO-MMT08
2.000 - =>19 16.00 5 12.00 20.00 T08 MM KEY 10X7*
•
MT15.4E13 2.5ISO-MMT08 98
2.500 M20 =>22 15.40 5 12.70 20.00 T08 MM KEY 10X7*
•
MT 16C12 3.0ISO-MMT08
3.000 M24 =>25 16.00 3 12.10 20.00 T08 MM KEY 10X7*
•
MT20F14 2.0ISO-MMTT10
2.000 - =>27 20.00 6 12.00 21.00 T10 BIT SOCKET T30 3/8" DRIVE* T-40/3 L*
•
MT20D12 3.0ISO-MMTT10
3.000 - =>27 20.00 4 12.20 21.00 T10 BIT SOCKET T40 3/8" DRIVE* T-40/3 L*
•
MT20D14 3.5ISO-MMTT10
3.500 - =>30 20.00 4 10.60 21.00 T10 BIT SOCKET T40 3/8" DRIVE* T-40/3 L*
•
• Note: Description and dimensions relate to the new products with clamping flats.
There is a possibility that the customer will receive the old item (with TORX) until the stock is depleted.
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Thread pitch
(2) Number of flutes
* Optional, should be ordered separately
Thread
Profile
ISO
UN
G (55°)
MT
MULTI-
MASTER
Thread Mill
10
Cutting
Dia.
D
No. of
Flutes
0.75
Pitch
6
Cutting
Length
ISO MMT/MMTT
Connection
Size
Identification Code
MT-ISO-MM
Carbide Milling Heads with
a Threaded Connection for
Internal ISO Metric Thread
TP/8
TP/4
60˚
TP
NUT
SCREW
ISCAR
66
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
TP
DC
APMX
LF
THSZMS
Application: General engineering
Dimensions
Designation
TPI(1) UNC UNF UNEF DC NOF(2) APMX LF THSZMS TP(3)
IC908
MT 10D7 32UN-MMT05
32.0 - - - 10.00 4 6.40 12.75 T05 0.794
•
MT 10D6 28UN-MMT05
28.0 - 1/2 - 10.00 4 5.50 12.75 T05 0.907
•
MT 10D6 24UN-MMT05
24.0 - - 9/16-5/8 10.00 4 5.30 12.75 T05 1.058
•
MT 10D6 20UN-MMT05
20.0 - 1/2 - 10.00 4 5.10 12.75 T05 1.270
•
MT 10D5 18UN-MMT05
18.0 - 9/16-5/8 1 1/8-1 5/8 10.00 4 5.60 12.75 T05 1.411
•
MT 10D7 16UN-MMT05
16.0 - 3/4 - 10.00 4 6.40 12.75 T05 1.588
•
MT 12D8 24UN-MMT06
24.0 - - 5/8- 11/16 12.00 4 7.40 14.30 T06 1.058
•
MT 12D8 20UN-MMT06
20.0 - - 3/4 - 1 12.00 4 7.70 14.30 T06 1.270
•
MT 12D8 18UN-MMT06
18.0 - 5/8 =>1 11/16 12.00 4 7.10 14.30 T06 1.411
•
MT 12D8 16UN-MMT06
16.0 - 3/4 - 12.00 4 8.00 14.30 T06 1.588
•
MT 12D8 14UN-MMT06
14.0 - 7/8 - 12.00 4 7.30 14.30 T06 1.814
•
MT 16E11 18UN-MMT08
18.0 - 5/8 =>1 11/16 16.00 5 11.30 20.00 T08 1.411
•
MT 16E13 14UN-MMT08
14.0 - 7/8 - 16.00 5 12.70 20.00 T08 1.814
•
MT 16E13 12UN-MMT08
12.0 - 1-1 1/2 - 16.00 5 12.70 20.00 T08 2.117
•
MT 15.3D13 10UN-MMT08
10.0 3/4 - - 15.30 4 12.70 20.00 T08 2.540
•
MT 16C11 9UN-MMT08
9.0 7/8 - - 16.00 3 11.30 20.00 T08 2.822
•
MT 16C13 8UN-MMT08
8.0 1.0 - - 16.00 3 12.70 20.00 T08 3.175
•
MT20F13 12UN-MMTT10
12.0 - =>1 - 20.00 6 12.70 21.00 T10 2.117
•
MT20D13 8UN-MMTT10
8.0 1 - 20.00 4 12.70 21.00 T10 3.175
•
MT20D15 7UN-MMTT10
7.0 - 1 1/8 - 1 1/4 - 20.00 4 10.90 21.00 T10 3.629
•
• Note: Description and dimensions relate to the new products with clamping flats.
There is a possibility that the customer will receive the old item (with TORX) until the stock is depleted.
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Threads per inch
(2) Number of flutes
(3) Thread pitch
MT-UN-MM
Carbide Milling Heads with
a Threaded Connection for
Internal UN Thread Profile
TP
60˚
TP/4
TP/8
NUT
SCREW
67

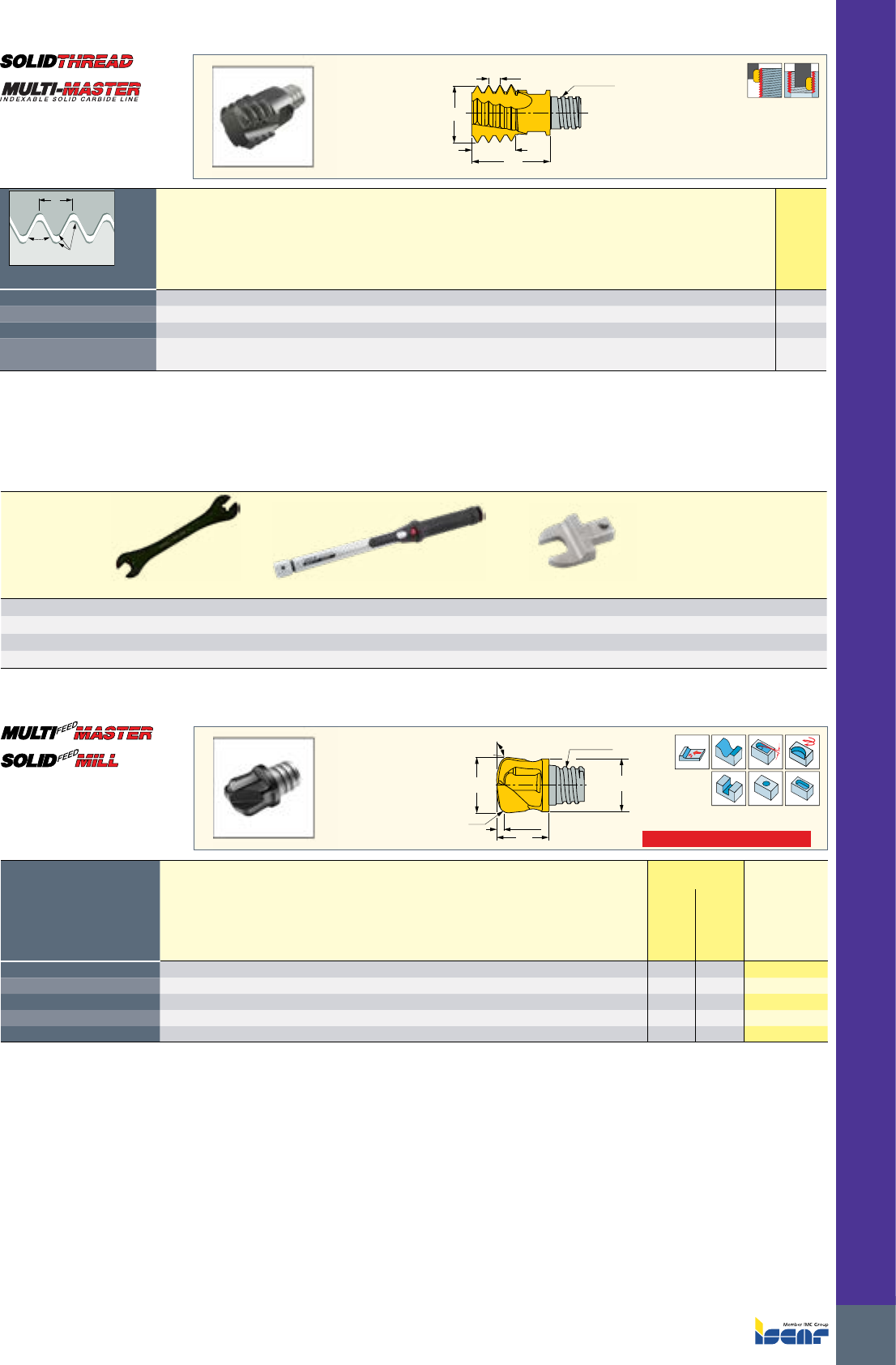

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
TP
DC
APMX
LF
THSZMS
Application: General engineering
fittings and pipe couplings
Dimensions
Designation
TPI(1) TDZ DC NOF(2) APMX LF THSZMS TP(3)
IC908
MT 10D6 19W-MMT05
19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 1.337
•
MT 16D13 14W-MMT08
14.0 G1/2-7/8 16.00 4 12.70 20.00 T08 1.814
•
MT 16D11 11W-MMT08
11.0 G=>1 16.00 4 11.50 20.00 T08 2.309
•
MT20F15 14W-MMTT10
14.0 G3/4-7/8 20.00 6 12.70 21.00 T10 1.814
•
MT20F14 11W-MMTT10
11.0 G=>1 20.00 6 11.50 21.00 T10 2.309
•
• Note: Description and dimensions relate to the new products with clamping flats.
There is a possibility that the customer will receive the old item (with TORX) until the stock is depleted.
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Threads per inch
(2) Number of flutes
(3) Thread pitch
Thread Size Key (1) Torque Wrench (1) Wrench (1) Tightening Torque (Nxcm)
T05 MM KEY 6x4 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 6-05 700
T06 MM KEY 8x5 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 8-06 1000
T08 MM KEY 10x7 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 10-08 1500
T10 MM KEY 13x8 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 13-10 2800
(1)
Order separately
MT-W-MM
Carbide Milling Heads with
a Threaded Connection for
Internal and External 55°
BSW Thread Profile
RE=0.137TP
55˚
TP
NUT
SCREW
Rg
KAPR
DC DCONMS
LF
APMX
THSZMS
ECONOMICAL SOLUTION
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC NOF(1) APMX Rg(2) THSZMS DCONMS LF KAPR(3) RMPX°(4)
IC908
IC903
fz
(mm/t)
MM FF100R1.5-L12-2T06
10.00 2 0.60 2.00 T06 9.60 12.50 97.0 7.0
•
0.30-0.60
MM FF120R2.0-2T08
12.00 2 0.68 2.50 T08 11.50 11.10 97.0 7.0
• •
0.50-1.00
MM FF500R08-L59-2T08
12.70 2 0.68 2.50 T08 11.50 15.00 95.0 7.0
•
0.50-1.00
MM FF160R2.0-2T10
16.00 2 1.10 3.00 T10 15.20 13.50 97.0 7.0
•
0.55-1.10
MM FF200R2.0-2T12
20.00 2 1.50 3.40 T12 18.45 17.40 95.0 7.0
•
0.75-1.50
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Radius for programming
(3) Tool cutting edge angle
(4) Maximum ramping angle
Machining Example:
Shank:
MM S-B-L140-C16-T08
Milling head:
MM FF 120R2.0-2T08
Workpiece material:
SAE 4340 HRc 28
Machining Example:
Shank: MM S-A-L070-W20-T10
Milling head: MM FF160R2.0-2T10 908
Workpiece material: P20 HRc 52
Milling
ap=0.7 mm
ae=8 mm
Vc=150 m/min
Fz=1 mm/tooth
Vf=7960 mm/min
Plunging
a
p=2 mm
V
c=80 mm
F
=0.24 m/min
Milling
ap=0.2 mm
ae=6 mm
Vc=150 m/min
Fz=1.4 mm/tooth
Vf= 8355
T = 60 min
MM FF
Interchangeable 2 Flute FEEDMILL
Solid Carbide Heads for Milling at
Very Fast Feeds and Small D.O.C.
ISCAR
68
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

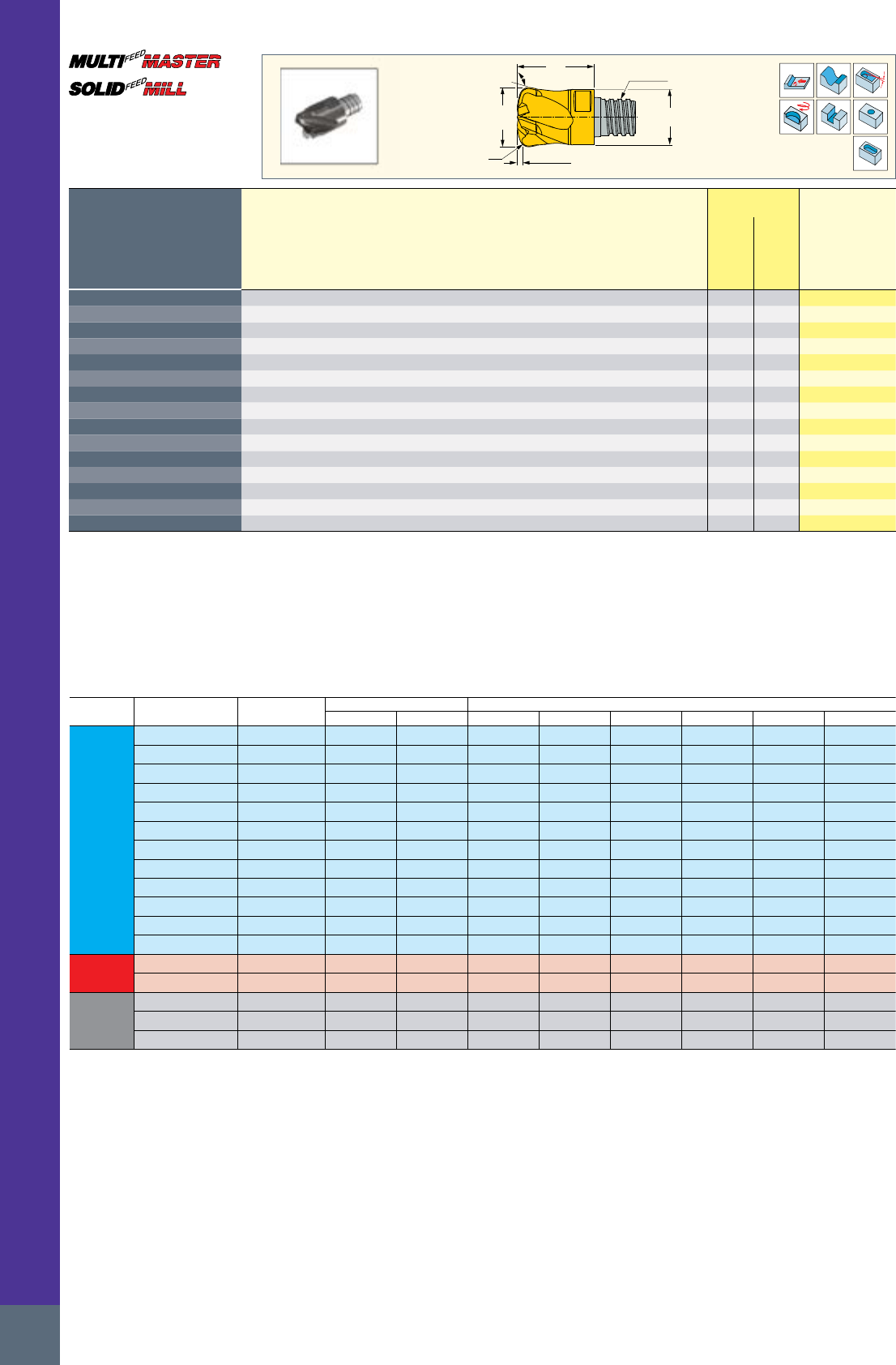

DC
Rg
KAPR
LF
DCONMS
APMX
THSZMS
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC NOF(3) APMX THSZMS DCONMS LF RMPX°(4) KAPR(5) Rg(6) CSP(7)
IC908
IC903
fz
(mm/t)
MM EFF080T3R1.62-4T05
8.00 4 0.40 T05 7.50 10.00 5.0 97.0 1.62 0
•
0.12-0.48
MM EFF100T4R2.01-4T06
10.00 4 0.50 T06 9.50 13.00 5.0 97.0 2.01 0
•
0.16-0.57
MM EFF100T2R1.0-6T06H (1)
10.00 6 0.45 T06 9.50 10.00 3.0 97.0 1.00 1
•
0.16-0.47
MM EFF120T4R1.8-4T08H (1)
12.00 4 0.60 T08 11.50 16.50 5.0 97.0 1.80 1
•
0.16-0.67
MM EFF120T4R2.47-4T08
12.00 4 0.60 T08 11.50 16.50 5.0 97.0 2.47 0
•
0.16-0.67
MM EFF120T2R1.2-6T08H (1)
12.00 6 0.65 T08 11.50 12.50 3.0 97.0 1.20 1
•
0.16-0.54
MM EFF127T4R2.59-4T08
12.70 4 0.60 T08 12.20 16.50 5.0 97.0 2.59 0
•
0.16-0.67
MM EFF127T4R1.3-6T08H
12.70 6 0.70 T08 12.20 12.70 3.0 97.0 1.30 1
•
0.16-0.67
MM EFF160T5R2.2-4T10H (1)
16.00 4 0.80 T10 15.40 20.50 5.0 97.0 2.20 1
•
0.20-0.75
MM EFF160T5R3.25-4T10
16.00 4 0.80 T10 15.40 20.50 5.0 97.0 3.25 0
•
0.20-0.75
MM EFF160T4R2.0-6T10H (1)
16.00 6 1.05 T10 15.40 16.00 3.0 97.0 2.00 1
•
0.20-0.65
MM EFF200T6R4.02-4T12
20.00 4 1.00 T12 18.45 25.50 5.0 97.0 4.02 0
•
0.20-0.90
MM EFF200T5R2.2-6T12H (1)
20.00 6 1.25 T12 18.45 20.00 3.0 97.0 2.20 1
•
0.20-0.80
MM EFF250A7R3.1-6T15 (2)
25.00 6 1.20 T15 23.90 25.00 5.0 97.0 3.10 0
•
0.25-1.00
MM EFF254A7R3.1-6T15 (2)
25.40 6 1.20 T15 23.90 25.00 5.0 97.0 3.10 0
•
0.25-1.00
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With a central coolant hole
(2) Cannot be used for plunging application
(3) Number of flutes
(4) Maximum ramping angle
(5) Tool cutting edge angle
(6) Radius for programming
(7) 0 - Without coolant supply, 1 - With coolant supply
Machining Recommendations
VDI 3323 Material Group(1) Vc (m/min)
Fz (mm/t) vs. Tool Diameter (mm)
apAE 8 10 12 16 20 25
P
1 180 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
2 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
3 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
4 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
5 150 0.045xD 0.7xD 0.43 0.50 0.57 0.65 0.75 0.87
6 150 0.045xD 0.7xD 0.33 0.40 0.48 0.57 0.67 0.78
7 140 0.045xD 0.7xD 0.33 0.40 0.48 0.57 0.67 0.78
8 140 0.045xD 0.7xD 0.30 0.35 0.43 0.52 0.60 0.70
9 140 0.045xD 0.7xD 0.30 0.35 0.43 0.52 0.60 0.70
10 130 0.04xD 0.6xD 0.28 0.33 0.38 0.48 0.57 0.67
11 120 0.04xD 0.6xD 0.25 0.30 0.35 0.43 0.52 0.62
12, 13 120 0.04xD 0.6xD 0.30 0.35 0.43 0.52 0.60 0.70
K15-16 180 Apmax 0.7xD 0.45 0.52 0.60 0.70 0.80 0.90
17-18 160 Apmax 0.7xD 0.38 0.45 0.52 0.60 0.70 0.80
H
38.1(2) 100 0.035xD 0.45xD 0.20 0.25 0.33 0.40 0.48 0.55
38.2(3) 80 0.03xD 0.3xD 0.16 0.22 0.30 0.38 0.45 0.52
39(4) 60 0.02xD 0.25xD 0.12 0.16 0.16 0.20 0.20 0.25
(1)
ISCAR material group in accordance with VDI 3323 standard
(2)
45-49 HRc
(3)
50-55 HRc ap - Depth of cut
(4) 56-63 HRc AE - Width of cut
MM EFF
4, 6 Flute Solid Carbide
Heads for Milling at Very Fast
Feeds and Small D.O.C.
69
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

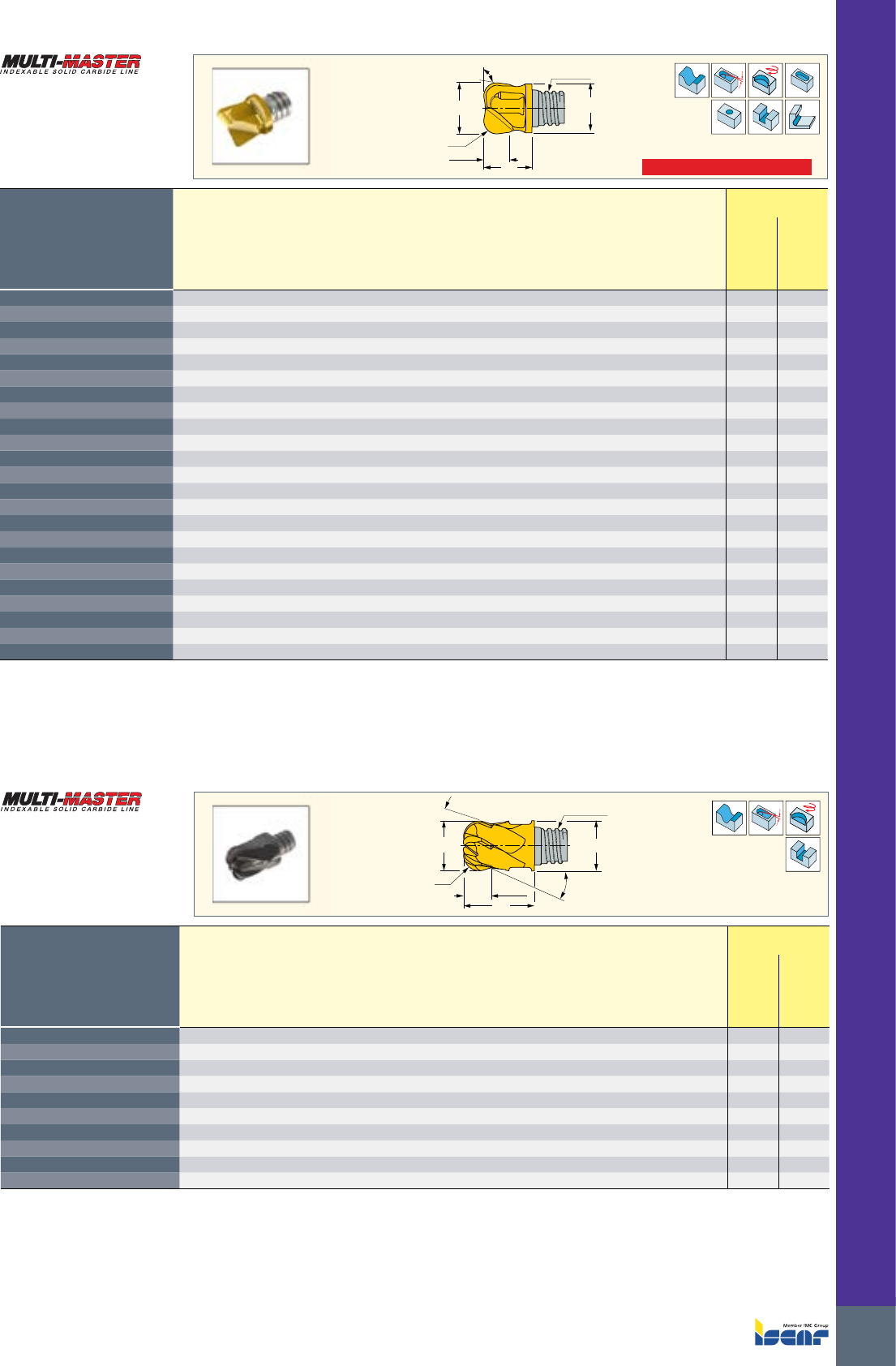

RE
LF
KAPR
DCONMS
APMX
DCh9
THSZMS
ECONOMICAL SOLUTION
Rd°
Dimensions Tough
1
Hard
Designation
DC NOF(1) APMX RE Tm(2) THSZMS DCONMS LF KAPR(3)
IC908
IC903
MM HT100C08R0.5-2T06
10.00 2 7.00 0.50 r0-1.0 T06 9.50 12.45 95.0
•
MM HT100C08R1.0-2T06
10.00 2 7.00 1.00 r0-1.0 T06 9.50 12.45 95.0
•
MM HT100N06R2.0-2T06
10.00 2 6.00 2.00 r0-3.0 T06 9.50 12.40 97.0
•
MM HT100N07R0.5-2T06
10.00 2 6.90 0.50 r0-1.0 T06 9.50 11.20 95.0
•
MM HT100N07R1.0-2T06
10.00 2 6.90 1.00 r0-1.0 T06 9.50 11.20 95.0
•
MM HT100N07R2.0-2T06
10.00 2 6.90 2.00 r0-3.0 T06 9.50 11.20 95.0
•
MM HT100N07R3.0-2T06
10.00 2 6.90 3.00 r2.7-4.0 T06 9.50 11.20 95.0
•
MM HT120N06R3.0-2T06
12.00 2 5.40 3.00 r2.7-4.0 T06 9.10 9.10 97.0
•
MM HT120N06R4.0-2T06
12.00 2 5.10 4.00 r2.7-4.0 T06 11.50 9.10 97.0
•
MM HT120N06R1.6-2T08
12.00 2 5.70 1.60 r1.3-r2.7 T08 11.50 11.10 97.0
• •
MM HT120N06R2.0-2T08
12.00 2 5.90 2.00 r1.3-2.7 T08 11.50 11.10 97.0
• •
MM HT120N06R2.5-2T08
12.00 2 5.50 2.50 r1.3-4.0 T08 11.50 11.10 97.0
•
MM HT120N06R3.0-2T08
12.00 2 5.50 3.00 r2.7-4.4 T08 11.50 11.10 97.0
• •
MM HT120N06R4.0-2T08
12.00 2 5.60 4.00 r2.7-4.4 T08 11.50 11.10 97.0
•
MM HT160N07R2.0-2T10
16.00 2 6.90 2.00 r1.5-4.0 T10 15.20 13.10 97.0
•
MM HT160N07R3.0-2T10
16.00 2 7.20 3.00 r1.5-4.0 T10 15.20 13.40 97.0
•
MM HT160N07R4.0-2T10
16.00 2 7.10 4.00 r1.5-4.0 T10 15.20 13.40 97.0
•
MM HT160N08R5.0-2T10
16.00 2 8.00 5.00 r2.7-4.4 T10 15.20 20.20 97.0
• •
MM HT200N11R3.0-2T12
20.00 2 10.80 3.00 r3.0-8.0 T12 18.45 17.00 97.0
•
MM HT200N11R4.0-2T12
20.00 2 11.10 4.00 r3.0-8.0 T12 18.45 17.30 97.0
•
MM HT200N11R5.0-2T12
20.00 2 11.10 5.00 r3.0-8.0 T12 18.45 17.30 97.0
•
MM HT200N11R6.0-2T12
20.00 2 11.00 6.00 r3.0-8.0 T12 18.45 17.30 97.0
•
MM HT200N11R8.0-2T12
20.00 2 10.90 8.00 r3.0-8.0 T12 18.45 17.30 97.0
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Specially tailored radius range upon request
(3) Tool cutting edge angle
MM HT
Torodial 2 Flute Interchangeable
Solid Carbide Milling Heads
APMX
LF
7˚
RE
DCONMS
FHA
THSZMS
DCXe8
Rd°
Dimensions Tough
1
Hard
Designation
DCX(1) NOF(2) APMX RE THSZMS DCONMS LF FHA RMPX°(3)
IC908
IC903
MM ETR080A04R2.0-6T05
8.00 6 5.00 2.00 T05 7.70 10.00 30.0 9.0
•
MM ETR080A4R05CF-6T05
8.00 6 4.00 0.50 T05 7.70 10.00 30.0 9.0
•
MM ETR080A4R10CF-6T05
8.00 6 4.00 1.00 T05 7.70 10.00 30.0 9.0
•
MM ETR100A05R3.0-6T06
10.00 6 7.00 3.00 T06 9.60 13.00 30.0 9.0
•
MM ETR100A5R05CF-6T06
10.00 6 5.00 0.50 T06 9.60 13.00 30.0 9.0
•
MM ETR100A5R10CF-6T06
10.00 6 5.00 1.00 T06 9.60 13.00 30.0 9.0
•
MM ETR120A07R4.0-6T08
12.00 6 9.00 4.00 T08 11.70 16.50 30.0 9.0
•
MM ETR120A7R05CF-6T08
12.00 6 7.00 0.50 T08 12.00 17.00 30.0 9.0
•
MM ETR120A7R10CF-6T08
12.00 6 7.00 1.00 T08 12.00 17.00 30.0 9.0
•
MM ETR160A09R5.0-6T10
16.00 6 12.00 5.00 T10 15.30 20.50 30.0 9.0
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
(3) Maximum ramping angle
MM ETR
Torodial 2 Flute Interchangeable
Solid Carbide Milling Heads
ISCAR
70
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

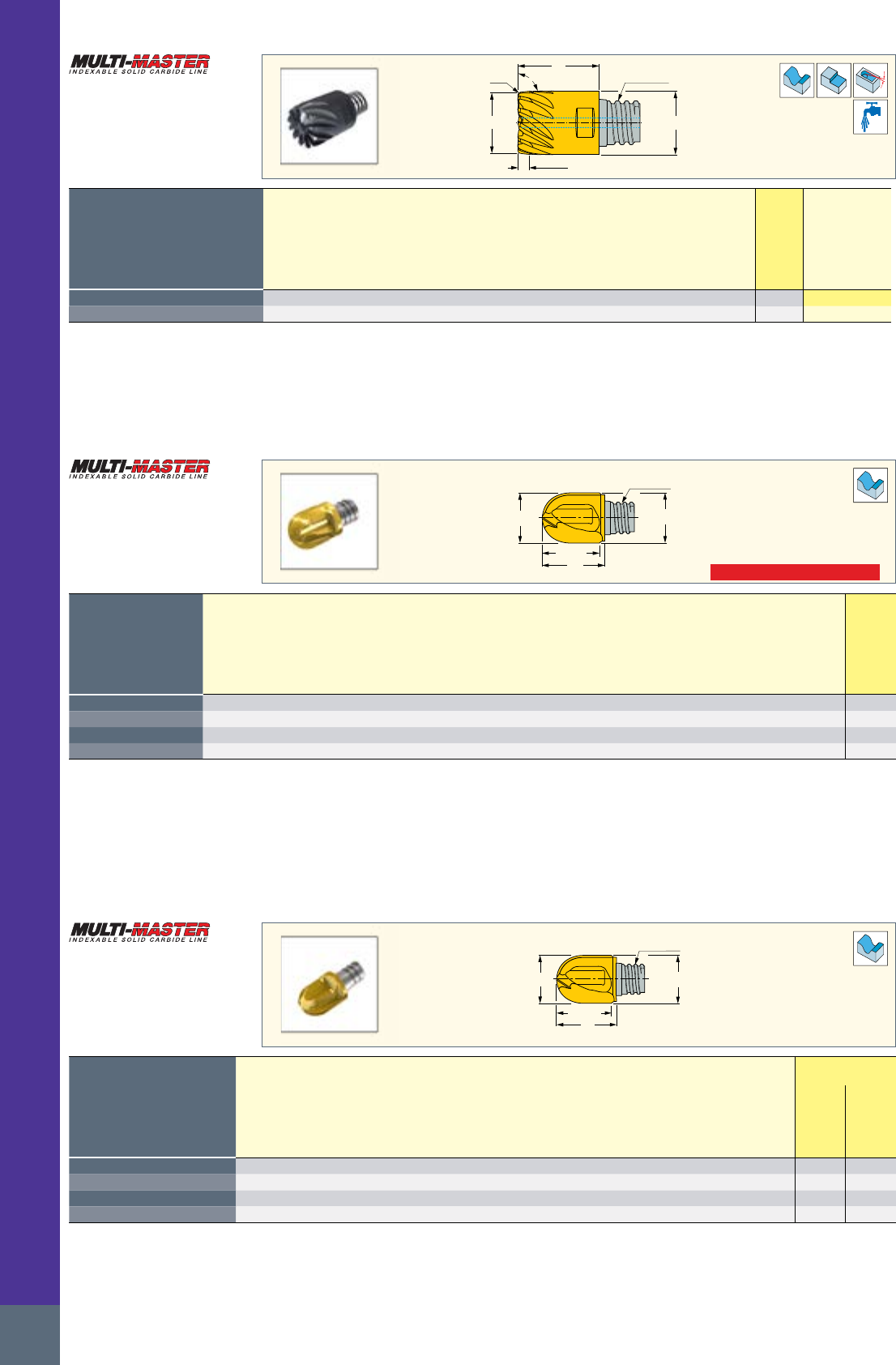

LF
82°
DCONMS
DC
RE
APMX
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC RE NOF(1) APMX THSZMS DCONMS LF RMPX°(2)
IC908
fz
(mm/t)
MM ET11/8H4R10CF-8T08H
11.00 1.00 8 3.50 T08 12.00 16.50 3.0
•
0.04-0.10
MM ET15/8H4R10CF-12T10H
15.00 1.00 12 3.50 T10 16.00 20.50 3.0
•
0.05-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM ET
Solid Carbide Tapered Heads with
20/30° Helix, Variable Pitch and
Coolant Holes for CHATTERFREE
Finishing Operations
APMX
LF
DCONMS
THSZMS
DCXh9
ECONOMICAL SOLUTION
Dimensions
Designation
DCX(1) NOF(2) APMX THSZMS DCONMS LF
IC908
MM HCR080-2T05
8.00 2 7.80 T05 7.60 9.95
•
MM HCR100-2T06
10.00 2 10.00 T06 9.50 12.35
•
MM HCR120-2T08
12.00 2 11.45 T08 11.50 15.30
•
MM HCR160-2T10
16.00 2 15.80 T10 15.20 19.10
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
MM HCR
Interchangeable 2 Flute Solid
Carbide Ball Nose Milling Heads
DCONMS
APMX
LF
DCX
THSZMS
Dimensions Tough
1
Hard
Designation
DCX(1) NOF(2) APMX THSZMS DCONMS LF
IC908
IC903
MM HRF080-2T05
8.00 2 7.60 T05 7.60 9.95
•
MM HRF100-2T06
10.00 2 10.20 T06 9.50 12.35
• •
MM HRF120-2T08
12.00 2 11.50 T08 11.50 15.30
•
MM HRF160-2T10
16.00 2 15.80 T10 15.20 19.10
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
MM HRF
Interchangeable 2 Flute
Solid Carbide Ball Nose
Finish Milling Heads
71
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
LF
120°
DCONMS
DCXh7
THSZMS
ECONOMICAL SOLUTION
Dimensions
Designation
DCX(1) NOF(2) THSZMS DCONMS LF
IC908
MM HBR080-2T04
8.00 2 T04 5.80 8.22 MM KEY 6X4*
•
MM HBR100-2T05
10.00 2 T05 7.60 10.00 MM KEY 6X4*
•
MM HBR120-2T06
12.00 2 T06 9.50 11.60 MM KEY 10X7*
•
MM HBR160-2T08
16.00 2 T08 12.20 15.40 MM KEY 13X8*
•
MM HBR200-2T10
20.00 2 T10 15.20 18.40 MM KEY 13X8*
•
MM HBR250-2T12
25.00 2 T12 18.30 23.20 MM KEY 16X9*
•
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection.
• For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately
MM HBR
Interchangeable 2 Flute High
Precision Ball Nose Solid
Carbide Milling Heads
DCX=5.0 - 7.4°
DCX=6.0 - 11.7°
LF
RE
DCONMS
APMX
FHA
THSZMS
DCXe8
Dimensions
Designation
DCX(2) NOF(3) APMX RE THSZMS DCONMS LF FHA
IC908
MM EB050E07-4T05
5.00 4 7.00 2.49 T05 8.00 15.00 38.0
•
MM EB060E04-4T04
6.00 4 4.00 2.99 T04 5.80 7.60 37.0
•
MM EB060E05-4T05
6.00 4 5.00 2.99 T05 8.00 10.00 38.0
•
MM EB080A05-2T05
8.00 2 5.00 3.98 T05 7.70 10.00 30.0
•
MM EB080A05-4T05
8.00 4 5.00 3.98 T05 7.70 10.00 30.0
•
MM EB100A07-2T06
10.00 2 7.00 4.98 T06 9.60 13.00 30.0
•
MM EB100A07-4T06
10.00 4 7.00 4.98 T06 9.60 13.00 30.0
•
MM EB120A09-2T08
12.00 2 9.00 5.98 T08 11.70 16.50 30.0
•
MM EB120H09CF-3T08I (1)
12.00 3 9.00 5.98 T08 11.70 16.50 38.0
•
MM EB120A09-4T08
12.00 4 9.00 5.98 T08 11.70 16.50 30.0
•
MM EB160A09-2T10
16.00 2 9.00 7.98 T10 15.30 20.50 30.0
•
MM EB160A12-4T10
16.00 4 12.00 7.98 T10 15.30 20.50 30.0
•
MM EB200A15-4T12
20.00 4 15.00 9.97 T12 18.45 25.50 30.0
•
MM EB250A22-4T15
25.00 4 22.00 12.47 T15 23.90 37.00 30.0
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With coolant holes directed to each flute
(2) Cutting diameter maximum
(3) Number of flutes

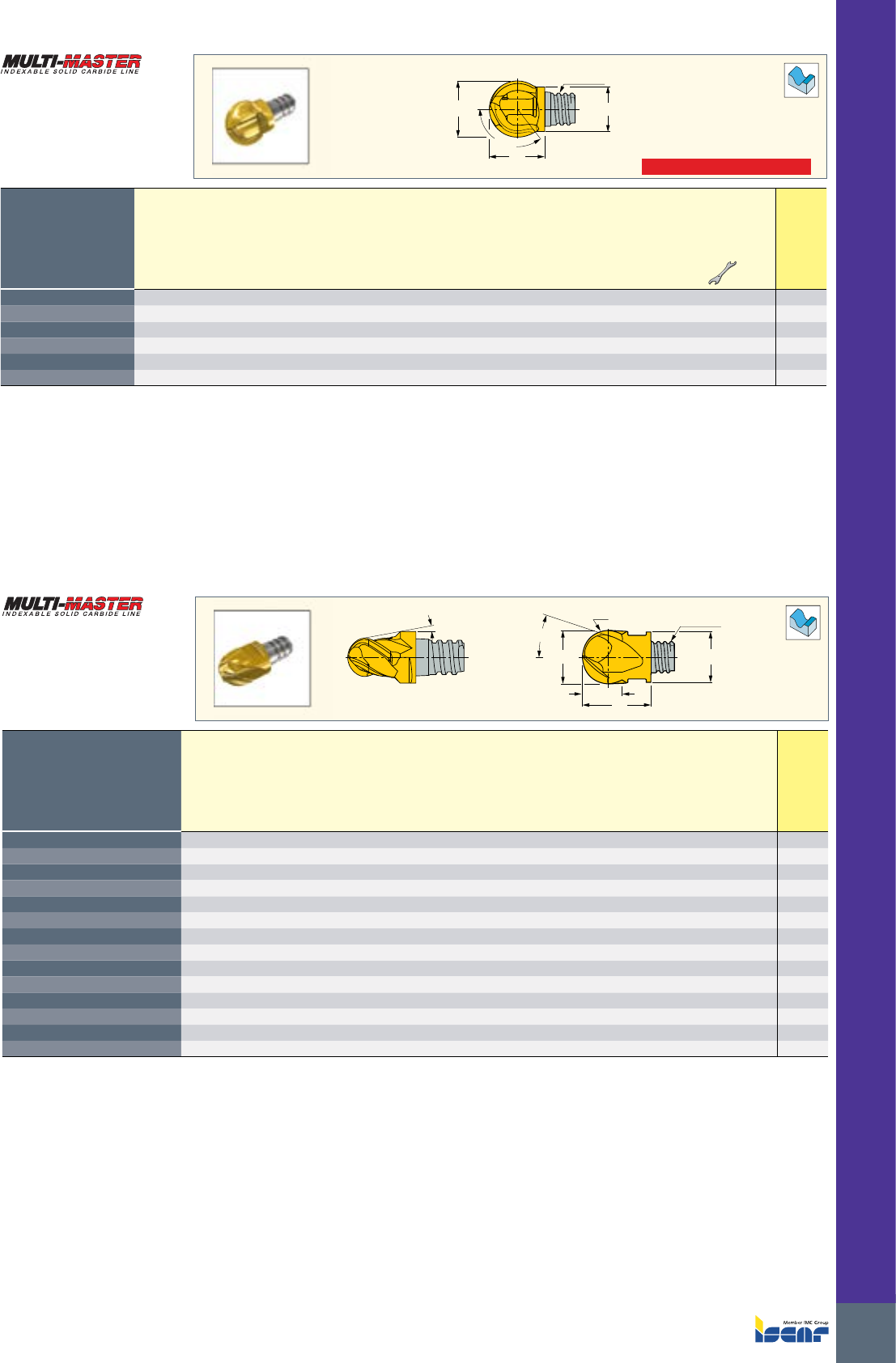

MM EB
Interchangeable Solid Carbide
Ball Nose Milling Heads
ISCAR
72
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

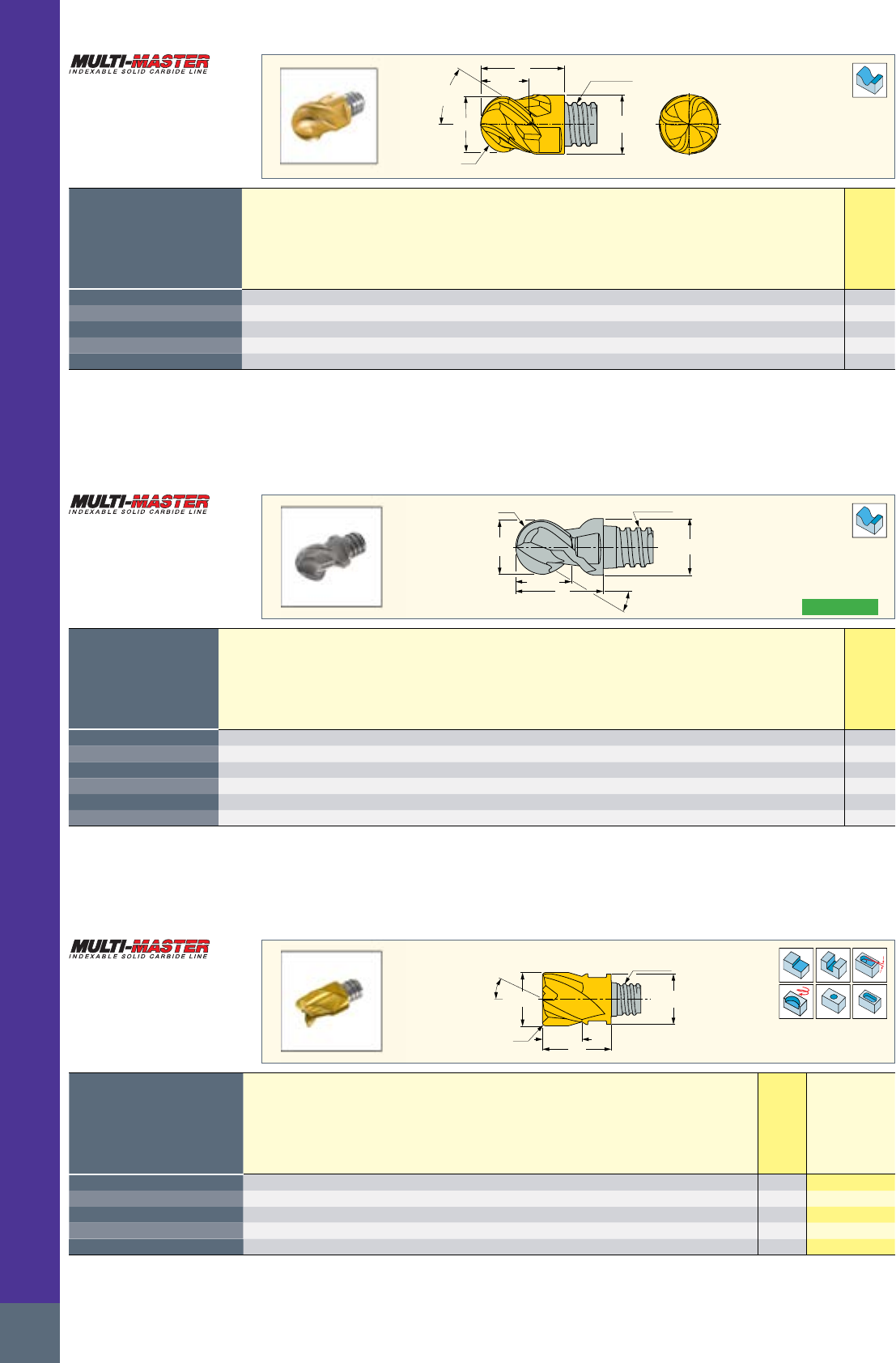

DCONMS
DCX
LF
FHA
RE
APMX THSZMS
Dimensions
Designation
DCX(1) NOF(2) APMX RE THSZMS DCONMS LF FHA
IC903
MM EBC080B05-4T05CF
8.00 4 5.40 3.98 T05 7.70 10.00 45.0
•
MM EBC100B07-4T06CF
10.00 4 7.40 4.98 T06 9.60 13.00 45.0
•
MM EBC120B09-4T08CF
12.00 4 9.30 5.98 T08 11.70 16.50 45.0
•
MM EBC160B12-4T10CF
16.00 4 12.40 7.98 T10 15.30 20.50 45.0
•
MM EBC200B15-4T12CF
20.00 4 16.00 9.97 T12 18.45 25.50 45.0
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately
MM EBC
Interchangeable Solid Carbide
Ball Nose Milling Heads for High
Productivity on Hard Materials
RE
LF
DCONMS
APMX
DCX
FHA
THSZMS
ALUMINUM
Dimensions
Designation
DCX(1) NOF(2) APMX RE RETOL(3) THSZMS DCONMS LF FHA
IC08
MM EBA080B05-2T05
8.00 2 5.00 3.98 0.010 T05 7.70 10.00 45.0
•
MM EBA100B07-2T06
10.00 2 7.00 4.98 0.010 T06 9.60 13.00 45.0
•
MM EBA120B09-2T08
12.00 2 9.00 5.98 0.012 T08 11.50 16.50 45.0
•
MM EBA160B12-2T10
16.00 2 12.00 7.98 0.012 T10 15.30 20.50 45.0
•
MM EBA200B15-2T12
20.00 2 15.00 9.97 0.012 T12 18.45 25.50 45.0
•
MM EBA250B22-2T15
25.00 2 22.00 12.50 0.012 T15 23.90 37.00 45.0
•
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
(3) Corner radius tolerance (+/-)
MM EBA
Interchangeable 2 Flute High
Precision Solid Carbide Ball Nose
Heads for Machining Aluminum
APMX
THSZMS
DCONMS
FHA
RE
LF
DCh8
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA
IC908
fz
(mm/t)
MM ECU077E04R020-3T05
7.70 3 4.00 0.20 T05 7.70 10.00 38.0
•
0.03-0.08
MM ECU097E05R030-3T06
9.70 3 5.00 0.30 T06 9.60 13.00 38.0
•
0.03-0.09
MM ECU117E07R030-3T08
11.70 3 7.00 0.30 T08 11.50 16.50 38.0
•
0.03-0.10
MM ECU157E08R030-3T10
15.70 3 8.00 0.30 T10 15.30 20.50 38.0
•
0.04-0.12
MM ECU197E12R040-3T12
19.70 3 12.00 0.40 T12 18.45 25.50 38.0
•
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM ECU
Interchangeable 3 Flute
Undersized Solid Carbide Heads
for Keyways (DIN 6885)
73
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
FHA
RE
DCh9
LF
APMX
THSZMS
ECONOMICAL SOLUTION
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC NOF(1) APMX RE Tm(2) THSZMS DCONMS LF FHA
IC908
IC903
fz
(mm/t)
MM HC078C08R0.2-2T05
7.80 2 7.70 0.20 r0-2.0 T05 7.60 10.00 10.0
•
0.03-0.09
MM HC080C08R0.4-2T05
8.00 2 7.70 0.40 r0-2.0 T05 7.60 10.00 10.0
• •
0.03-0.09
MM HC080C08R1.0-2T05
8.00 2 7.70 1.00 r0-2.0 T05 7.60 10.00 10.0
• •
0.03-0.09
MM HC080C08R2.0-2T05
8.00 2 7.70 2.00 r0-2.0 T05 7.60 10.00 10.0
• •
0.03-0.09
MM HC098C10R0.3-2T06
9.80 2 9.00 0.30 r0-3.0 T06 9.50 12.35 10.0
•
0.03-0.10
MM HC100C10R0.4-2T06
10.00 2 9.00 0.40 r0-3.0 T06 9.50 12.35 10.0
• •
0.03-0.10
MM HC100C10R1.0-2T06
10.00 2 9.00 1.00 r0-3.0 T06 9.50 12.35 10.0
• •
0.03-0.10
MM HC100C10R2.0-2T06
10.00 2 9.00 2.00 r0-3.0 T06 9.50 12.35 10.0
• •
0.03-0.10
MM HC117C13R0.3-2T08
11.70 2 10.00 0.30 r0-3.0 T08 11.50 14.20 10.0
•
0.04-0.11
MM HC120C13R0.4-2T08
12.00 2 10.00 0.40 r0-3.0 T08 11.50 14.20 10.0
• •
0.04-0.11
MM HC120C13R1.0-2T08
12.00 2 10.00 1.00 r0-3.0 T08 11.50 14.20 10.0
• •
0.04-0.11
MM HC120C13R2.0-2T08
12.00 2 10.00 2.00 r0-3.0 T08 11.50 14.20 10.0
• •
0.04-0.11
MM HC140C11R0.4-2T08
14.00 2 11.60 0.40 r0-4.0 T08 11.50 15.05 10.0
•
0.04-0.12
MM HC157C16R0.3-2T10
15.70 2 15.00 0.30 r0-4.0 T10 15.20 19.05 10.0
•
0.05-0.13
MM HC160C16R0.4-2T10
16.00 2 14.90 0.40 r0-4.0 T10 15.20 19.05 10.0
• •
0.05-0.13
MM HC160C16R0.8-2T10
16.00 2 14.90 0.80 r0-4.0 T10 15.15 19.05 10.0
• •
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Specially tailored radius range, available upon request.
MM HC
Interchangeable Solid Carbide
Slot Drill Milling Heads with
Two 10° Helix Flutes
DCONMS
LF
RE APMX
DCe8
FHA
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(2) APMX RE THSZMS LF FHA DCONMS
IC908
fz
(mm/t)
MM EC080B05R000-3T05
8.00 3 5.00 0.00 T05 10.00 45.0 7.70
•
0.03-0.09
MM EC100B07R000-3T06
10.00 3 7.00 0.00 T06 13.00 45.0 9.60
•
0.03-0.10
MM EC100B12R000-3T06
10.00 3 12.00 0.00 T06 19.00 45.0 9.60
•
0.03-0.10
MM EC120B09R000-3T08I (1)
12.00 3 9.00 0.00 T08 16.50 45.0 11.70
•
0.04-0.11
MM EC120B09R000-3T08
12.00 3 9.00 0.00 T08 16.50 45.0 11.70
•
0.04-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With coolant holes directed to each flute
(2) Number of flutes
MM EC-3
Interchangeable 3 Flute
Solid Carbide Endmill
Heads with 45° Helix
ISCAR
74
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

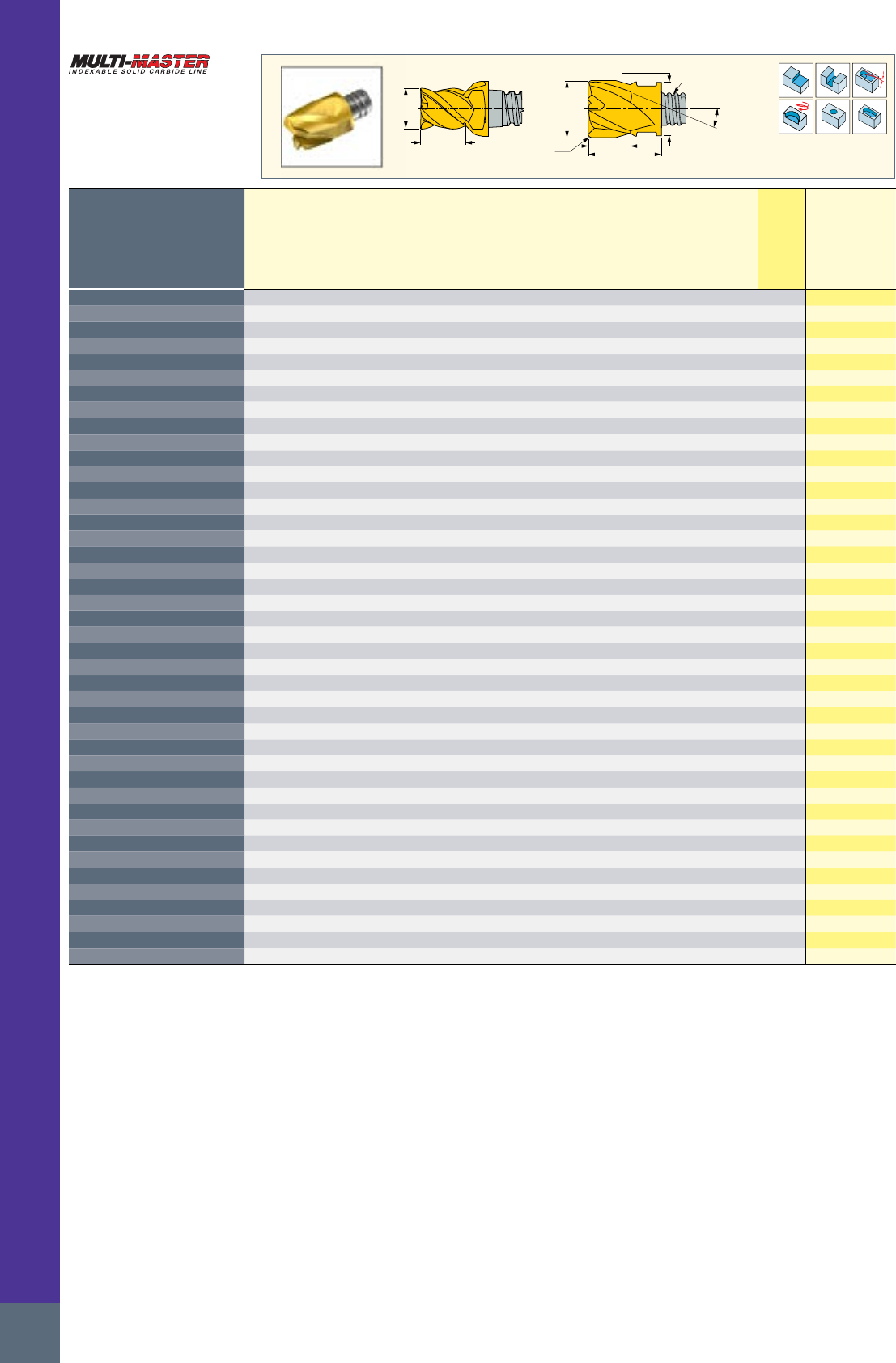

FHA
DCONMS
DC= 5.0 and 6.0
LF
RE APMX
DCe8DCe8
APMX
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC RE FHA NOF(1) APMX THSZMS DCONMS LF
IC908
fz
(mm/t)
MM EC050B07R000-4T05
5.00 0.00 45.0 4 7.00 T05 8.00 15.00
•
0.02-0.06
MM EC060B05R000-4T05
6.00 0.00 45.0 4 5.00 T05 8.00 10.00
•
0.03-0.07
MM EC060B04R0.5-4T04
6.00 0.50 45.0 4 4.00 T04 5.80 8.50
•
0.02-0.04
MM EC080B05R000-4T05
8.00 0.00 45.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080B09R000-4T05
8.00 0.00 45.0 4 9.00 T05 7.70 15.00
•
0.03-0.09
MM EC080A05R0.5-4T05
8.00 0.50 30.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080A09R0.5-4T05
8.00 0.50 30.0 4 9.00 T05 7.70 15.00
•
0.03-0.09
MM EC080B05R0.5-4T05
8.00 0.50 45.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080A05R1.0-4T05
8.00 1.00 30.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080B05R1.0-4T05
8.00 1.00 45.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080A05R1.5-4T05
8.00 1.50 30.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC080B05R1.5-4T05
8.00 1.50 45.0 4 5.00 T05 7.70 10.00
•
0.03-0.09
MM EC100B07R000-4T06
10.00 0.00 45.0 4 7.00 T06 9.60 13.00
•
0.03-0.10
MM EC100B12R000-4T06
10.00 0.00 45.0 4 12.00 T06 9.60 19.00
•
0.03-0.10
MM EC100A07R0.5-4T06
10.00 0.50 30.0 4 7.00 T06 9.60 13.00
•
0.03-0.10
MM EC100B07R0.5-4T06
10.00 0.50 45.0 4 7.00 T06 9.60 13.00
•
0.03-0.10
MM EC100A07R1.0-4T06
10.00 1.00 30.0 4 7.00 T06 9.60 13.00
•
0.03-0.10
MM EC100B07R1.0-4T06
10.00 1.00 45.0 4 7.00 T06 9.60 13.00
•
0.03-0.10
MM EC120B09R000-4T08
12.00 0.00 45.0 4 9.00 T08 11.70 16.50
•
0.04-0.11
MM EC120B14R000-4T08
12.00 0.00 45.0 4 14.00 T08 11.70 23.00
•
0.04-0.11
MM EC120A09R0.5-4T08
12.00 0.50 30.0 4 9.00 T08 11.70 16.50
•
0.04-0.11
MM EC120B09R0.5-4T08
12.00 0.50 45.0 4 9.00 T08 11.70 16.50
•
0.04-0.11
MM EC120A09R1.0-4T08
12.00 1.00 30.0 4 9.00 T08 11.70 16.50
•
0.04-0.11
MM EC120B09R1.0-4T08
12.00 1.00 45.0 4 9.00 T08 11.70 16.50
•
0.04-0.11
MM EC160B12R000-4T10
16.00 0.00 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R0.5-4T10
16.00 0.50 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R0.5-4T10
16.00 0.50 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R1.0-4T10
16.00 1.00 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R1.0-4T10
16.00 1.00 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R1.5-4T10
16.00 1.50 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R1.5-4T10
16.00 1.50 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R2.0-4T10
16.00 2.00 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R2.0-4T10
16.00 2.00 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R3.0-4T10
16.00 3.00 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R3.0-4T10
16.00 3.00 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160A12R4.0-4T10
16.00 4.00 30.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC160B12R4.0-4T10
16.00 4.00 45.0 4 12.00 T10 15.30 20.50
•
0.05-0.13
MM EC200B15R000-4T12
20.00 0.00 45.0 4 15.00 T12 18.45 25.50
•
0.05-0.13
MM EC200A15R0.5-4T12
20.00 0.50 30.0 4 15.00 T12 18.45 25.50
•
0.05-0.13
MM EC200A15R1.0-4T12
20.00 1.00 30.0 4 15.00 T12 18.45 25.50
•
0.05-0.13
MM EC200A15R2.0-4T12
20.00 2.00 30.0 4 15.00 T12 18.45 25.50
•
0.05-0.13
MM EC200A15R3.0-4T12
20.00 3.00 30.0 4 15.00 T12 18.45 25.50
•
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EC-4
Interchangeable 4 Flute
Solid Carbide Endmill Heads
with 30° and 45° Helix and
Various Corner Radii
75
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
FHA
RE
LF
DCONMS
APMX
DC
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA RMPX°(2)
IC908
fz
(mm/t)
MM EC080A05R0.5-6T05
8.00 6 5.00 0.50 T05 7.70 10.00 30.0 6.0
•
0.03-0.09
MM EC080A05R1.0-6T05
8.00 6 5.00 1.00 T05 7.70 10.00 30.0 6.0
•
0.03-0.09
MM EC080A05R1.5-6T05
8.00 6 5.00 1.50 T05 7.70 10.00 30.0 6.0
•
0.03-0.09
MM EC080B05R0.5-6T05
8.00 6 5.00 0.50 T05 7.70 10.00 45.0 3.0
•
0.03-0.10
MM EC080B05R1.0-6T05
8.00 6 5.00 1.00 T05 7.70 10.00 45.0 3.0
•
0.03-0.09
MM EC080B05R1.5-6T05
8.00 6 5.00 1.50 T05 7.70 10.00 45.0 3.0
•
0.03-0.09
MM EC100A07R0.5-6T06
10.00 6 7.00 0.50 T06 9.60 13.00 30.0 6.0
•
0.03-0.10
MM EC100A07R1.0-6T06
10.00 6 7.00 1.00 T06 9.60 13.00 30.0 6.0
•
0.03-0.10
MM EC100A07R1.5-6T06
10.00 6 7.00 1.50 T06 9.60 13.00 30.0 6.0
•
0.03-0.10
MM EC100B07R0.5-6T06
10.00 6 7.00 0.50 T06 9.60 13.00 45.0 3.0
•
0.04-0.10
MM EC100B07R000-6T06
10.00 6 7.00 0.00 T06 9.60 13.00 45.0 3.0
•
0.03-0.10
MM EC100B07R1.0-6T06
10.00 6 7.00 1.00 T06 9.60 13.00 45.0 3.0
•
0.04-0.10
MM EC100B07R1.5-6T06
10.00 6 7.00 1.50 T06 9.60 13.00 45.0 3.0
•
0.03-0.10
MM EC100B12R1.5-6T06
10.00 6 12.00 1.50 T06 9.60 19.00 45.0 3.0
•
0.04-0.10
MM EC120A09R0.5-6T08
12.00 6 9.00 0.50 T08 11.70 16.50 30.0 6.0
•
0.04-0.11
MM EC120A09R1.0-6T08
12.00 6 9.00 1.00 T08 11.70 16.50 30.0 6.0
•
0.04-0.11
MM EC120B09R0.5-6T08
12.00 6 9.00 0.50 T08 11.70 16.50 45.0 3.0
•
0.04-0.10
MM EC120B09R000-6T08
12.00 6 9.00 0.00 T08 11.70 16.50 45.0 3.0
•
0.04-0.11
MM EC120B09R1.0-6T08
12.00 6 9.00 1.00 T08 11.70 16.50 45.0 3.0
•
0.04-0.10
MM EC120B09R1.5-6T08
12.00 6 9.00 1.50 T08 11.70 16.50 45.0 3.0
•
0.04-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM EC-6
Interchangeable 6 Flute
Solid Carbide Endmill Heads
with 30° and 45° Helix and
Various Corner Radii
LF
DCONMS
CHWx45˚
DCe8
APMX FHA
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX CHW KCH THSZMS DCONMS LF FHA RMPX°(2)
IC903
fz
(mm/t)
MM EC080D05C01-6T05
8.00 6 5.00 0.10 45.0 T05 7.70 10.00 50.0 2.0
•
0.03-0.10
MM EC100D07C01-6T06
10.00 6 7.00 0.10 45.0 T06 9.60 13.00 50.0 2.0
•
0.03-0.10
MM EC120D09C01-6T08
12.00 6 9.00 0.10 45.0 T08 11.70 16.50 50.0 3.0
•
0.04-0.11
MM EC160D12C02-8T10
16.00 8 12.00 0.20 45.0 T10 15.30 20.50 50.0 3.0
•
0.05-0.13
MM EC200D15C02-10T12
20.00 10 15.00 0.20 45.0 T12 18.45 25.50 50.0 3.0
•
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM EC-D
Interchangeable 6, 8, 10
Flute Solid Carbide Endmill
Heads with 50° Helix for
Machining Hardened Steel
ISCAR
76
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

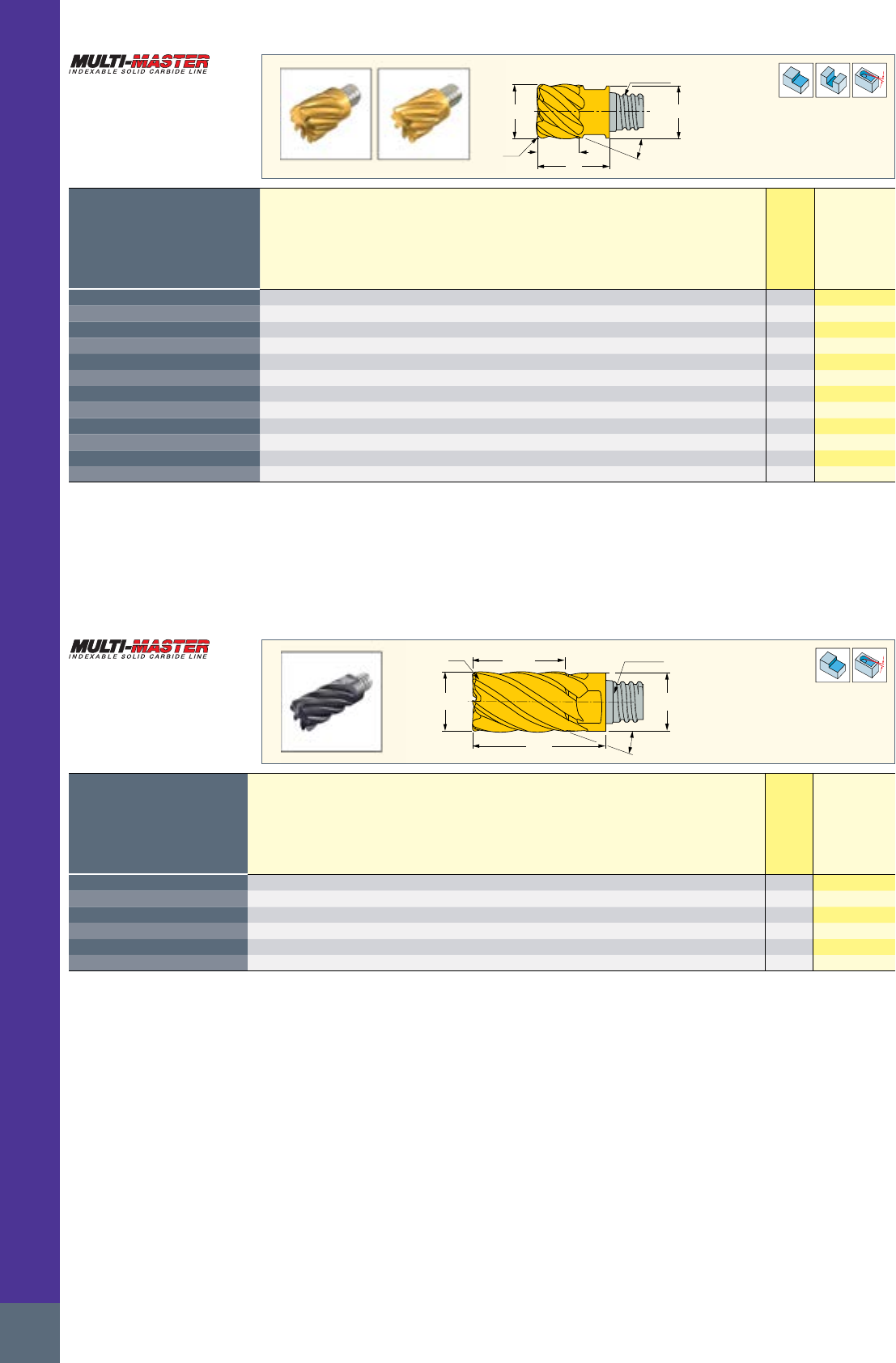

DCONMS
RE
DC
LF
APMX FHA
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(2) APMX RE THSZMS DCONMS LF FHA RMPX°(3)
IC908
fz
(mm/t)
MM EC160A12R0.5-8T10
16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0
•
0.05-0.13
MM EC160A12R0.5-8T10H (1)
16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0
•
0.05-0.13
MM EC160A12R1.0-8T10
16.00 8 12.00 1.00 T10 15.30 20.50 30.0 5.0
•
0.05-0.13
MM EC160A12R1.6-8T10
16.00 8 12.00 1.60 T10 15.30 20.50 30.0 5.0
•
0.05-0.13
MM EC160A12R2.0-8T10
16.00 8 12.00 2.00 T10 15.30 20.50 30.0 5.0
•
0.05-0.13
MM EC160B12R0.5-8T10
16.00 8 12.00 0.50 T10 15.30 20.50 45.0 5.0
•
0.05-0.13
MM EC160B12R1.0-8T10
16.00 8 12.00 1.00 T10 15.30 20.50 45.0 5.0
•
0.05-0.13
MM EC160B12R1.6-8T10
16.00 8 12.00 1.60 T10 15.30 20.50 45.0 5.0
•
0.05-0.13
MM EC160B12R2.0-8T10
16.00 8 12.00 2.00 T10 15.30 20.50 45.0 5.0
•
0.05-0.13
MM EC200A15R1.0-10T12
20.00 10 15.00 1.00 T12 18.45 25.50 30.0 3.0
•
0.05-0.13
MM EC200A15R2.0-10T12
20.00 10 15.00 2.00 T12 18.45 25.50 30.0 3.0
•
0.05-0.13
MM EC250A22R0.8-10T15
25.00 10 22.00 0.80 T15 23.90 37.00 30.0 3.0
•
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With a central coolant hole
(2) Number of flutes
(3) Maximum ramping angle
MM EC-8/10
Interchangeable 8, 10 Flute
Solid Carbide Endmill Heads
with 30° and 45° Helix and
Various Corner Radii
LF
RE
DCe8
THSZMS
DCONMS
FHA
APMX
Rd°
Dimensions Recommended
Machining Data
Designation
DC APMX RE NOF(1) THSZMS DCONMS LF FHA RMPX°(2)
IC908
fz
(mm/t)
MM EC080H12R05CF-7T05
8.00 12.00 0.50 7 T05 7.70 18.00 36.0 3.0
•
0.03-0.10
MM EC100H15R05CF-7T06
10.00 15.00 0.50 7 T06 9.60 22.00 36.0 3.0
•
0.04-0.10
MM EC120H18R05CF-7T08
12.00 18.00 0.50 7 T08 11.70 27.00 36.0 3.0
•
0.04-0.10
MM EC160H24R08CF-9T10
16.00 24.00 0.80 9 T10 15.30 33.50 36.0 1.0
•
0.05-0.10
MM EC200H30R10CF-9T12
20.00 30.00 1.00 9 T12 18.45 41.00 36.0 1.0
•
0.05-0.10
MM EC250H37R10CF-9T15
25.00 37.00 1.00 9 T15 23.90 52.50 36.0 1.0
•
0.05-0.10
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM EC-CF-Z7/9-1.5xD
Interchangeable 7, 9 Flute Solid
Carbide Endmill Heads with 36°
Helix and 1.5xD Flute Lengths

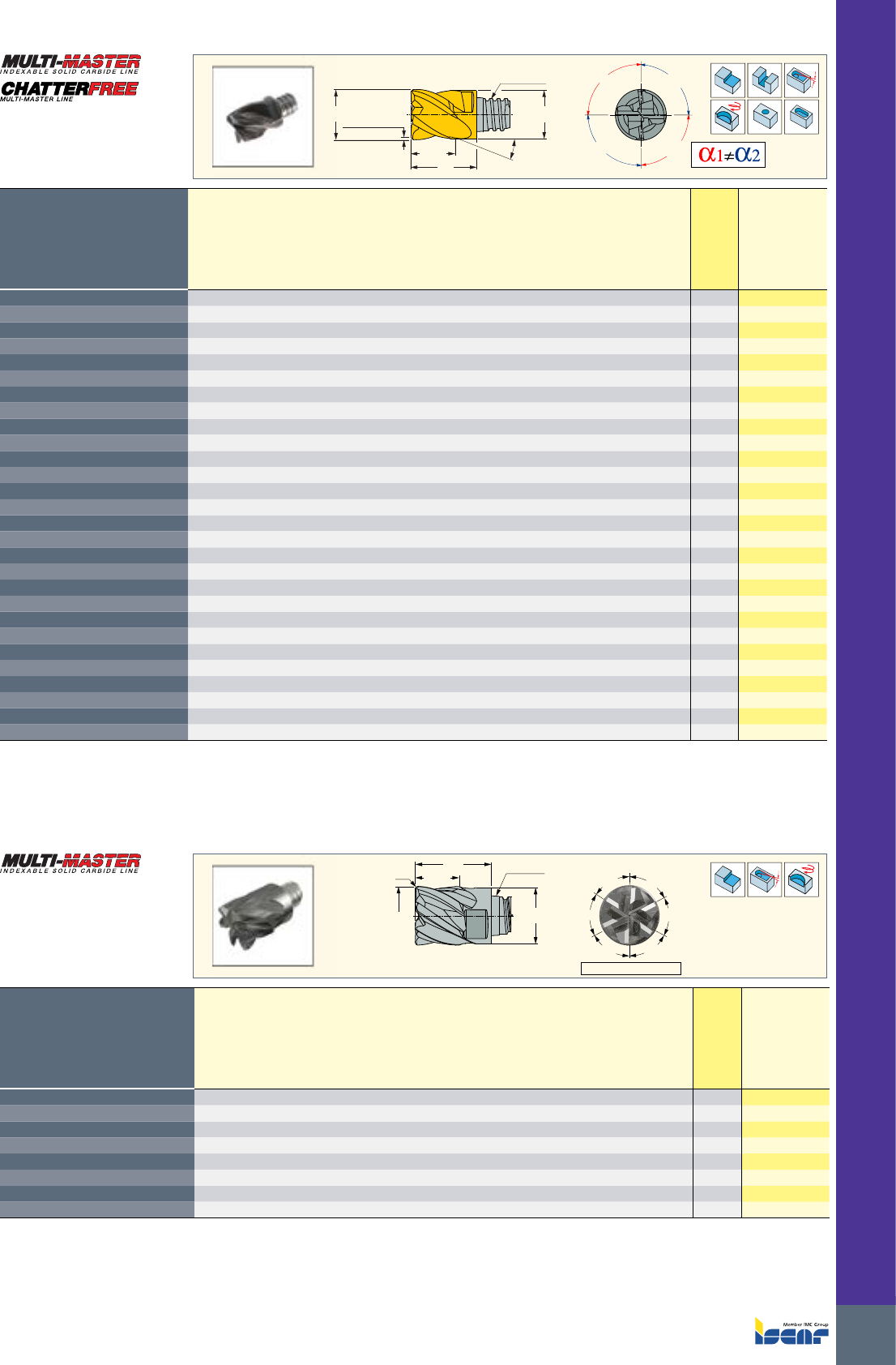

77
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
DC
APMX
LF
CHWx45°/RE
α1
α2
α2
α1
FHA
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC RE NOF(2) APMX THSZMS DCONMS LF FHA CHW KCH
IC908
fz
(mm/t)
MM EC080E05C3CF-4T05
8.00 - 4 5.00 T05 7.70 10.00 38.0 0.30 45.0
•
0.03-0.09
MM EC080E05R0CF-4T05
8.00 - 4 5.00 T05 7.70 10.00 38.0 - -
•
0.03-0.09
MM EC080E05R05CF-4T05
8.00 0.50 4 5.00 T05 7.70 10.00 38.0 - -
•
0.03-0.09
MM EC100E07C4CF-4T06
10.00 - 4 7.00 T06 9.60 13.00 38.0 0.40 45.0
•
0.03-0.10
MM EC100E07R00CF-4T06
10.00 - 4 7.00 T06 9.60 13.00 38.0 - -
•
0.03-0.10
MM EC100E07R02CF-4T06
10.00 0.20 4 7.00 T06 9.60 13.00 38.0 - -
•
0.03-0.10
MM EC100E07R04CF-4T06
10.00 0.40 4 7.00 T06 9.60 13.00 38.0 - -
•
0.03-0.10
MM EC100E07R05CF-4T06
10.00 0.50 4 7.00 T06 9.60 13.00 38.0 - -
•
0.03-0.10
MM EC100E07R25CF-4T06
10.00 2.50 4 7.00 T06 9.60 13.00 38.0 - -
•
0.03-0.10
MM EC120E09C5CF-4T08
12.00 - 4 9.00 T08 11.70 16.50 38.0 0.50 45.0
•
0.04-0.11
MM EC120E09C5CF-4T08I (1)
12.00 - 4 9.00 T08 11.70 16.50 38.0 0.50 45.0
•
0.04-0.11
MM EC120E09R00CF-4T08
12.00 - 4 9.00 T08 11.70 16.50 38.0 - -
•
0.04-0.11
MM EC120E09R02CF-4T08
12.00 0.20 4 9.00 T08 11.70 16.50 38.0 - -
•
0.04-0.11
MM EC120E09R04CF-4T08
12.00 0.40 4 9.00 T08 11.70 16.50 38.0 - -
•
0.04-0.11
MM EC120E09R05CF-4T08
12.00 0.50 4 9.00 T08 11.70 16.50 38.0 - -
•
0.04-0.11
MM EC120E09R15CF-4T08
12.00 1.50 4 9.00 T08 11.70 16.50 38.0 - -
•
0.04-0.11
MM EC160E12C6CF-4T10
16.00 - 4 12.00 T10 15.30 20.50 38.0 0.60 45.0
•
0.05-0.13
MM EC160E12R05CF-4T10
16.00 0.50 4 12.00 T10 15.30 20.50 38.0 - -
•
0.05-0.13
MM EC200E15C6CF-4T12
20.00 - 4 15.00 T12 18.45 25.50 38.0 0.60 45.0
•
0.05-0.17
MM EC200E15R05CF-4T12
20.00 0.50 4 15.00 T12 18.45 25.50 38.0 - -
•
0.05-0.17
MM EC250E28C6CF-12T15
25.00 - 12 28.00 T15 23.90 43.00 38.0 0.60 45.0
•
0.06-0.13
MM EC250E28C6CF-4T15
25.00 - 4 28.00 T15 23.90 43.00 38.0 0.60 45.0
•
0.06-0.17
MM EC250E22C6CF-4T15
25.00 - 4 22.00 T15 23.90 37.00 38.0 0.60 45.0
•
0.06-0.17
MM EC250E22R05CF-4T15
25.00 0.50 4 22.00 T15 23.90 37.00 38.0 - -
•
0.06-0.17
MM EC250E22R10CF-4T15
25.00 1.00 4 22.00 T15 23.90 37.00 38.0 - -
•
0.06-0.17
MM EC250E22R20CF-4T15
25.00 2.00 4 22.00 T15 23.90 37.00 38.0 - -
•
0.06-0.17
MM EC250E22R30CF-4T15
25.00 3.00 4 22.00 T15 23.90 37.00 38.0 - -
•
0.06-0.17
MM EC320H38C06-4T21
32.00 - 4 38.00 T21 30.00 55.00 38.0 0.60 45.0
•
0.06-0.18
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With coolant holes directed to each flute
(2) Number of flutes
MM EC-CF
Interchangeable Solid
Carbide Endmill Heads for
CHATTERFREE Roughing
and Finishing Operations
THSZMS
DCONMS
a1≠a2≠a3≠a4≠a5≠a6
RE LF
APMX
DC e8
a2°
a1°
a6° a5°
a4°
a3°
Rd°
Dimensions Recommended
Machining Data
Designation
DC RE NOF(1) APMX THSZMS DCONMS LF RMPX°(2)
IC908
fz
(mm/t)
MM ECK080H05R04-6T05CF
8.00 0.40 6 5.00 T05 7.70 10.00 5.0
•
0.04-0.08
MM ECK100H07R05-6T06CF
10.00 0.50 6 7.00 T06 9.60 13.00 5.0
•
0.04-0.08
MM ECK120H09R05-6T08CF
12.00 0.50 6 9.00 T08 11.70 16.50 5.0
•
0.04-0.08
MM ECK160H12R08-6T10CF
16.00 0.80 6 12.00 T10 15.30 20.50 5.0
•
0.07-0.12
MM ECK200H15R10-6T12CF
20.00 1.00 6 15.00 T12 18.45 25.50 5.0
•
0.07-0.12
MM ECK250H22R10-6T15CF
25.00 1.00 6 22.00 T15 23.90 37.00 5.0
•
0.07-0.12
MM ECK320H38R4-5T21
32.00 4.00 5 38.00 T21 30.00 55.00 1.0
•
0.06-0.18
MM ECK320H38R5-5T21
32.00 5.00 5 38.00 T21 30.00 55.00 1.0
•
0.06-0.18
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM ECK-CF
5, 6 Flute Solid Carbide Heads
with 35°/38° Helix Featuring
Different Corner Radii For
Machining Titanium Alloys
ISCAR
78
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

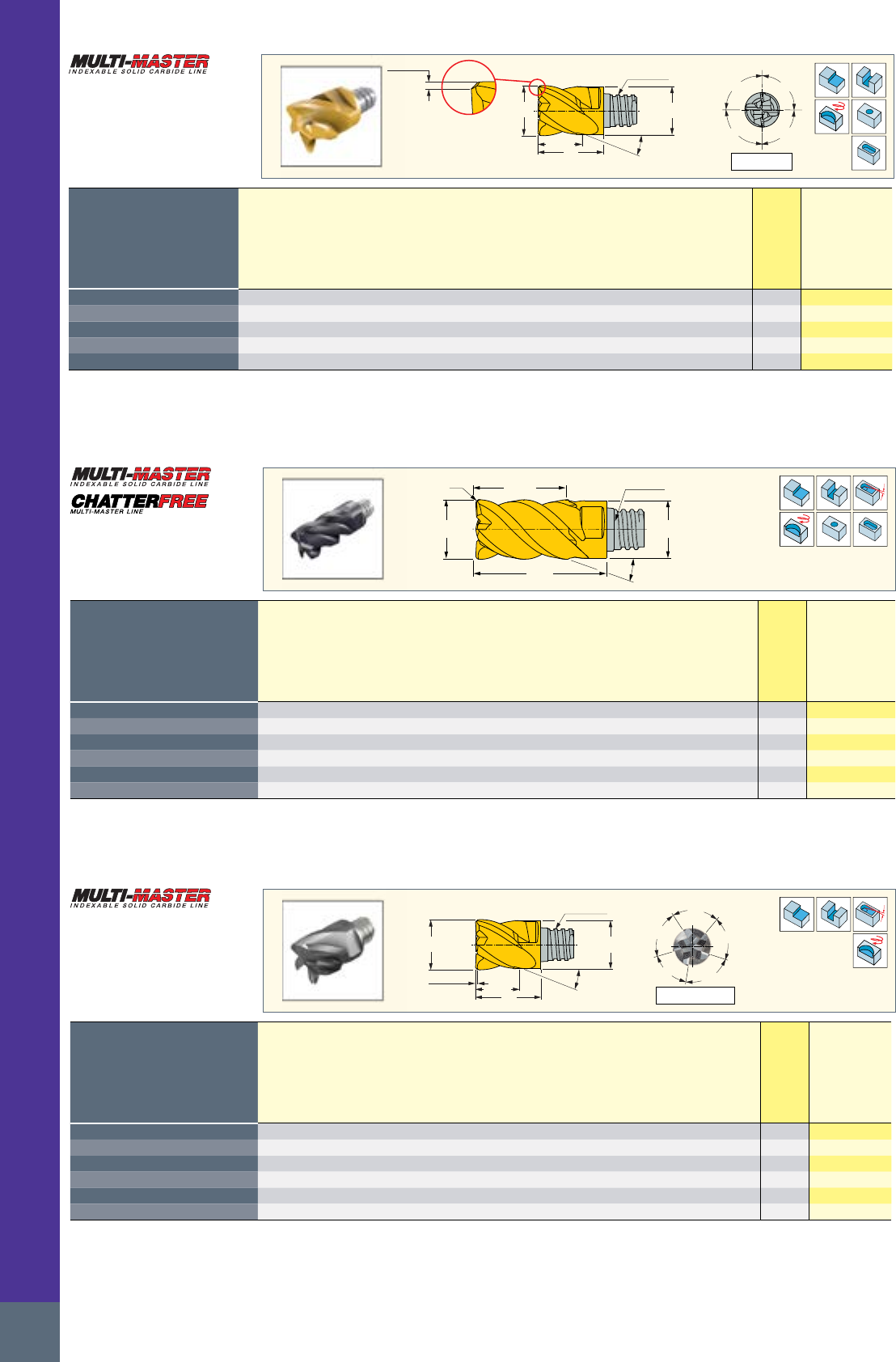

DCONMS
DC
APMX
LF FHA (46-48°)
THSZMS
a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
CHWx45°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX THSZMS DCONMS LF CHW KCH
IC908
fz
(mm/t)
MM EC080H05C3-4T05CF
8.00 4 5.00 T05 7.70 10.00 0.30 45.0
•
0.03-0.09
MM EC100H07C4-4T06CF
10.00 4 7.00 T06 9.60 13.00 0.40 45.0
•
0.03-0.10
MM EC120H09C5-4T08CF
12.00 4 9.00 T08 11.70 16.50 0.50 45.0
•
0.04-0.11
MM EC160H12C6-4T10CF
16.00 4 12.00 T10 15.30 20.50 0.60 45.0
•
0.05-0.13
MM EC200H15C6-4T12CF
20.00 4 15.00 T12 18.45 25.50 0.60 45.0
•
0.05-0.17
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EC-H-4-CF
Interchangeable Solid Carbide
Endmill Heads for CHATTERFREE
Milling of Alloyed Steel
LF
RE
DCe8
THSZMS
DCONMS
FHA
APMX
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA
IC908
fz
(mm/t)
MM EC080H12R05CF-4T05
8.00 4 12.00 0.50 T05 7.70 18.00 46.5
•
0.03-0.09
MM EC100H15R05CF-4T06
10.00 4 15.00 0.50 T06 9.60 22.00 46.5
•
0.03-0.10
MM EC120H18R05CF-4T08
12.00 4 18.00 0.50 T08 11.70 27.00 46.5
•
0.04-0.11
MM EC160H24R05CF-4T10
16.00 4 24.00 0.50 T10 15.30 33.50 46.5
•
0.05-0.13
MM EC200H30R05CF-4T12
20.00 4 30.00 0.50 T12 18.45 41.00 46.5
•
0.05-0.17
MM EC250H37R05CF-4T15
25.00 4 37.00 0.50 T15 23.90 52.50 46.5
•
0.06-0.17
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) Number of flutes
MM EC-CF-Z4-1.5xD
Interchangeable Solid Carbide
Endmill Heads with 1.5xD Flute
Lengths for CHATTERFREE
Roughing and Finishing
DCONMS
DC
APMX
LF
CHWx45° FHA (35 - 41°)
THSZMS
a1°
a5°
a3°
a2°
a4°
a1≠a2≠a3≠a4≠a5
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX THSZMS DCONMS LF RMPX°(2) CHW KCH
IC308
fz
(mm/t)
MM EC080H05C3-5T05CF
8.00 5 5.00 T05 7.70 10.00 5.0 0.30 45.0
•
0.03-0.09
MM EC100H07C4-5T06CF
10.00 5 7.00 T06 9.60 13.00 5.0 0.40 45.0
•
0.03-0.10
MM EC120H09C5-5T08CF
12.00 5 9.00 T08 11.70 16.50 4.0 0.50 45.0
•
0.04-0.11
MM EC160H12C6-5T10CF
16.00 5 12.00 T10 15.30 20.50 4.0 0.60 45.0
•
0.05-0.13
MM EC200H15C6-5T12CF
20.00 5 15.00 T12 18.45 25.50 3.0 0.60 45.0
•
0.05-0.17
MM EC250H22C6-5T15CF
25.00 5 22.00 T15 23.90 37.00 3.0 0.60 45.0
•
0.06-0.17
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM EC-H-5-CF
Interchangeable Solid Carbide
Endmill Heads for CHATTERFREE
Milling of High Temperature
Alloys like Titanium and Inconel

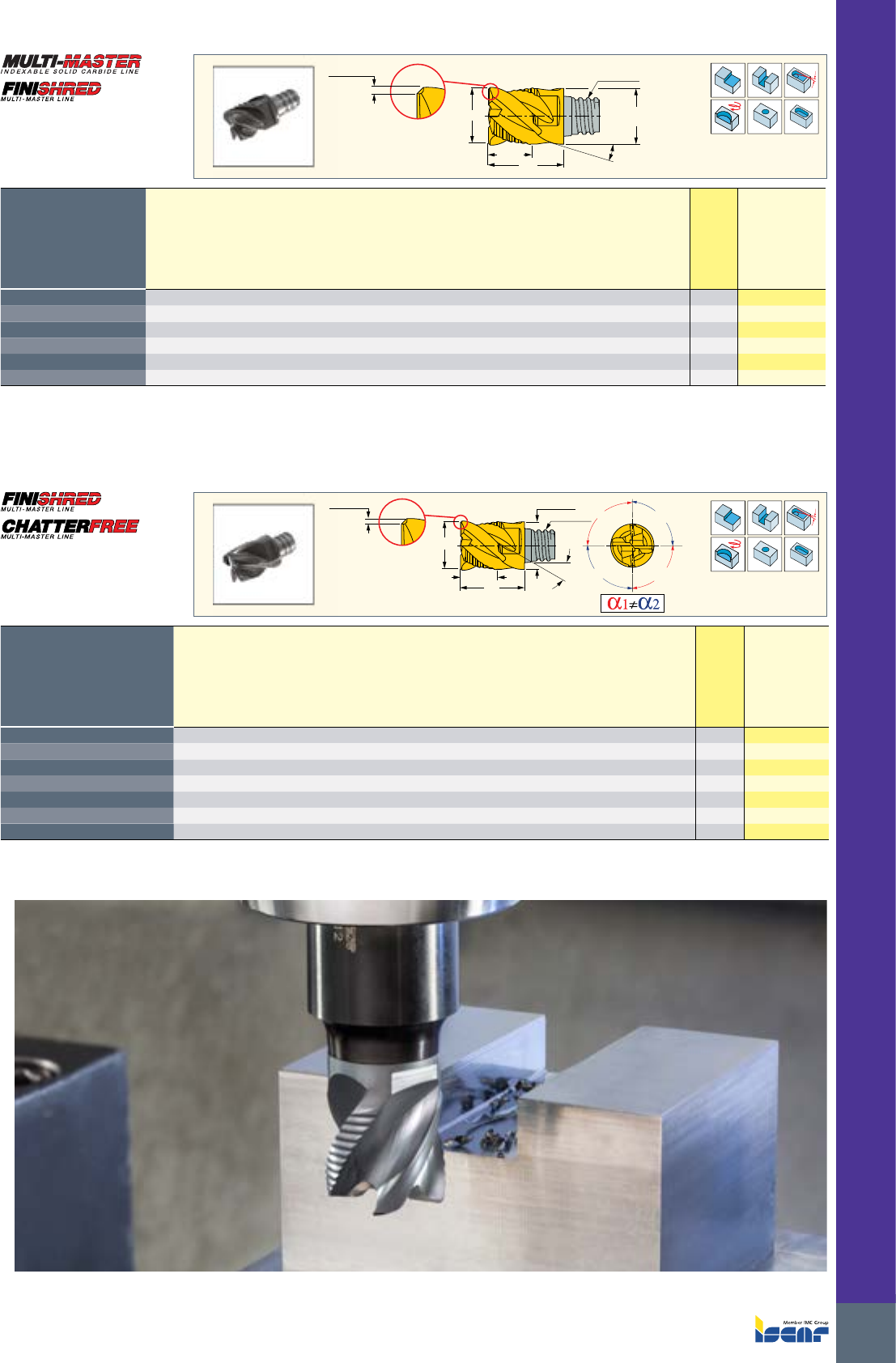

79
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
LF
APMX
DC
FHA
THSZMS
CHWx45°
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX THSZMS DCONMS LF FHA CHW KCH
IC908
fz
(mm/t)
MM EFS080B05-4T05
8.00 4 5.00 T05 7.70 10.00 45.0 0.30 45.0
•
0.03-0.08
MM EFS100B07-4T06
10.00 4 7.00 T06 9.60 13.00 45.0 0.30 45.0
•
0.03-0.09
MM EFS120B09-4T08
12.00 4 9.00 T08 11.70 16.50 45.0 0.40 45.0
•
0.04-0.10
MM EFS160B12-4T10
16.00 4 12.00 T10 15.30 20.50 45.0 0.60 45.0
•
0.05-0.11
MM EFS200B15-4T12
20.00 4 15.00 T12 18.45 25.50 45.0 0.60 45.0
•
0.05-0.11
MM EFS250B22-4T15
25.00 4 22.00 T15 23.90 37.00 45.0 0.60 45.0
•
0.06-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EFS
Combination of Interchangeable
Solid Carbide Endmill Heads
for Roughing and Finishing
α2
α2
α1
α1
CHWx45°
DCe9
LF
FHA
APMX
DCONMS
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX CHW KCH THSZMS DCONMS LF FHA
IC908
fz
(mm/t)
MM EFS060E05-4T05 CF
6.00 4 5.00 0.25 45.0 T05 7.70 10.00 38.0
•
0.03-0.08
MM EFS080E05-4T05 CF
8.00 4 5.00 0.30 45.0 T05 7.70 10.00 38.0
•
0.03-0.08
MM EFS100E07-4T06 CF
10.00 4 7.00 0.40 45.0 T06 9.60 13.00 38.0
•
0.03-0.09
MM EFS120E09-4T08 CF
12.00 4 9.00 0.50 45.0 T08 11.70 16.50 38.0
•
0.04-0.10
MM EFS160E12-4T10 CF
16.00 4 12.00 0.60 45.0 T10 15.30 20.50 38.0
•
0.05-0.11
MM EFS200E15-4T12 CF
20.00 4 16.00 0.60 45.0 T12 18.45 25.50 38.0
•
0.05-0.11
MM EFS250E22-4T15 CF
25.00 4 22.00 0.60 45.0 T15 23.90 37.00 38.0
•
0.06-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EFS-CF
4 Flute Solid Carbide Heads
with 38° Helix and Variable Pitch
for CHATTERFREE Roughing
and Finishing Applications
ISCAR
80
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

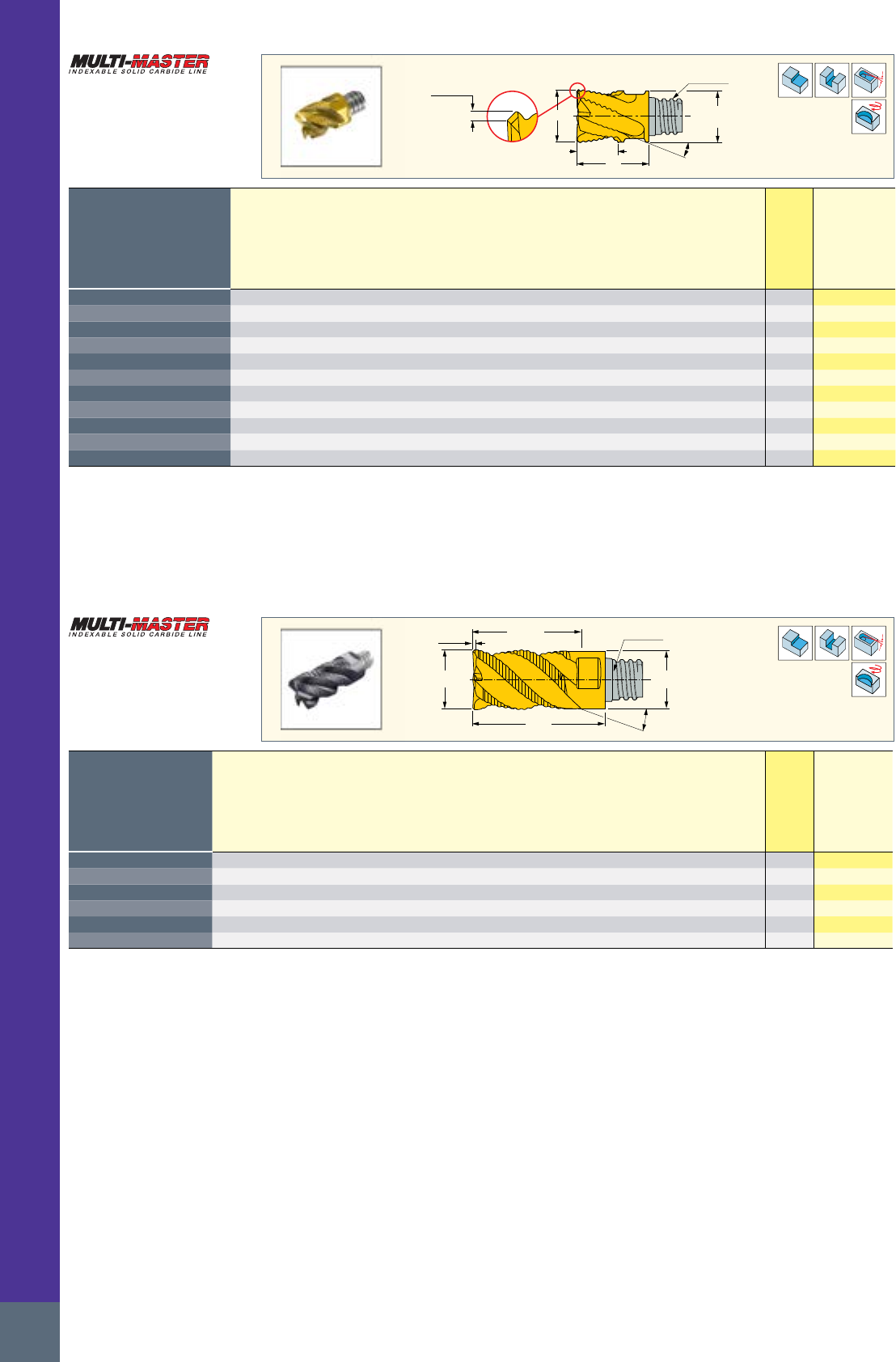

DC
CHWx45°
LF
APMX
DCONMS
FHA
THSZMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(3) APMX THSZMS DCONMS LF FHA RMPX°(4) CHW KCH
IC908
fz
(mm/t)
MM ERS080B05-4T05
8.00 4 5.00 T05 7.70 10.00 45.0 5.0 0.25 45.0
•
0.03-0.08
MM ERS080B09-4T05
8.00 4 9.00 T05 7.70 15.00 45.0 5.0 0.25 45.0
•
0.03-0.08
MM ERS100B07-4T06
10.00 4 7.00 T06 9.60 13.00 45.0 5.0 0.30 45.0
•
0.03-0.09
MM ERS120B09-4T08
12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0
•
0.04-0.10
MM ERS120B09-4T08H (1)
12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0
•
0.04-0.10
MM ERS120B09-4T08I (2)
12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0
•
0.04-0.11
MM ERS120B14-4T08
12.00 4 14.00 T08 11.70 23.00 45.0 5.0 0.35 45.0
•
0.04-0.10
MM ERS160B12-5T10
16.00 5 12.00 T10 15.30 20.50 45.0 5.0 0.40 45.0
•
0.04-0.10
MM ERS160B12-5T10H (1)
16.00 5 12.00 T10 15.30 20.50 45.0 5.0 0.40 45.0
•
0.04-0.10
MM ERS200B15-6T12
20.00 6 15.00 T12 18.45 25.50 45.0 3.0 0.40 45.0
•
0.05-0.11
MM ERS250B22-6T15
25.00 6 22.00 T15 23.90 37.00 45.0 3.0 0.50 45.0
•
0.05-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With a central coolant hole
(2) With coolant holes directed to each flute
(3) Number of flutes
(4) Maximum ramping angle
MM ERS
Interchangeable Solid Carbide
Rough Milling Heads for High
Metal Removal Rates
LF
DCe9
THSZMS
DCONMS
FHA
APMX
CHW
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX CHW KCH THSZMS DCONMS LF FHA RMPX°(2)
IC908
fz
(mm/t)
MM ERS080B12-4T05
8.00 4 12.00 0.25 45.0 T05 7.70 18.00 46.0 5.0
•
0.03-0.08
MM ERS100B15-4T06
10.00 4 15.00 0.30 45.0 T06 9.60 22.00 46.0 5.0
•
0.03-0.09
MM ERS120B18-4T08
12.00 4 18.00 0.35 45.0 T08 11.70 27.00 46.0 5.0
•
0.04-0.10
MM ERS160B24-5T10
16.00 5 24.00 0.40 45.0 T10 15.30 33.50 40.0 5.0
•
0.04-0.10
MM ERS200B30-6T12
20.00 6 30.00 0.40 45.0 T12 18.45 41.00 47.0 3.0
•
0.05-0.11
MM ERS250B37-6T15
25.00 6 37.00 0.50 45.0 T15 23.90 52.50 47.0 3.0
•
0.05-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM ERS-1.5xD
Interchangeable Solid Carbide
Rough Milling Heads with
1.5xD Flute Lengths for High
Metal Removal Rates
81
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

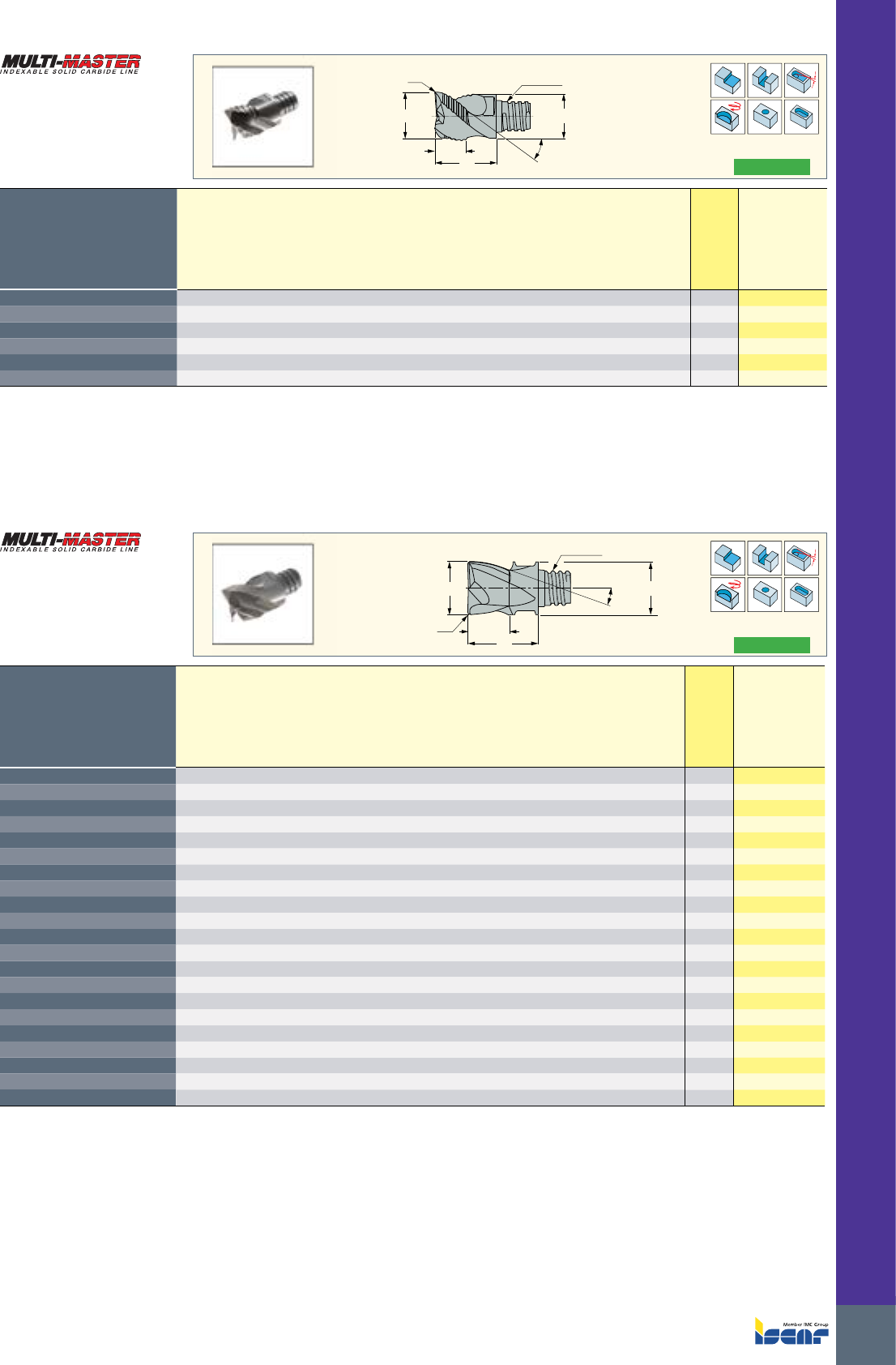

DCONMS
LF FHA
APMX
DC
RE THSZMS
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA
IC08
fz
(mm/t)
MM ERA080B05R0.2-3T05
8.00 3 5.00 0.20 T05 7.70 10.00 45.0
•
0.03-0.15
MM ERA100B06R0.2-3T06
10.00 3 6.00 0.20 T06 9.60 13.00 45.0
•
0.05-0.20
MM ERA120B08R0.2-3T08
12.00 3 8.00 0.20 T08 11.70 16.50 45.0
•
0.07-0.22
MM ERA160B10R0.2-3T10
16.00 3 10.00 0.20 T10 15.30 20.50 45.0
•
0.07-0.25
MM ERA200B12R0.2-3T12
20.00 3 12.00 0.20 T12 18.45 25.50 45.0
•
0.07-0.25
MM ERA250B19R0.2-3T15
25.00 3 19.00 0.20 T15 23.90 37.00 45.0
•
0.07-0.25
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM ERA
Interchangeable Solid Carbide
Rough Milling Heads for
Machining Aluminum at High
Metal Removal Rates
LF
RE
DCONMS
DCh6
APMX
FHA
THSZMS
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA
IC08
fz
(mm/t)
MM EA080B05R0.5-2T05
8.00 2 5.00 0.50 T05 7.70 10.00 45.0
•
0.03-0.09
MM EA080B05R0.5-3T05
8.00 3 5.00 0.50 T05 7.70 10.00 45.0
•
0.03-0.09
MM EA100B07R0.5-2T06
10.00 2 7.00 0.50 T06 9.60 13.00 45.0
•
0.03-0.10
MM EA100B07R1.0-2T06
10.00 2 7.00 1.00 T06 9.60 13.00 45.0
•
0.03-0.10
MM EA100B06R0.5-3T06
10.00 3 6.00 0.50 T06 9.60 13.00 45.0
•
0.03-0.10
MM EA100B06R1.0-3T06
10.00 3 6.00 1.00 T06 9.60 13.00 45.0
•
0.03-0.10
MM EA120B09R0.5-2T08
12.00 2 9.00 0.50 T08 11.70 16.50 45.0
•
0.04-0.11
MM EA120B09R1.0-2T08
12.00 2 9.00 1.00 T08 11.70 16.50 45.0
•
0.04-0.11
MM EA120B08R0.5-3T08
12.00 3 8.00 0.50 T08 11.70 16.50 45.0
•
0.04-0.11
MM EA120B08R1.0-3T08
12.00 3 8.00 1.00 T08 11.70 16.50 45.0
•
0.04-0.11
MM EA120B08R3.0-3T08
12.00 3 8.00 3.00 T08 11.70 16.50 45.0
•
0.04-0.11
MM EA160B10R000-3T10
16.00 3 10.00 0.00 T10 15.30 20.50 45.0
•
0.05-0.13
MM EA160B10R1.0-3T10
16.00 3 10.00 1.00 T10 15.30 20.50 45.0
•
0.05-0.13
MM EA160B10R2.0-3T10
16.00 3 10.00 2.00 T10 15.30 20.50 45.0
•
0.05-0.13
MM EA160B10R3.0-3T10
16.00 3 10.00 3.00 T10 15.30 20.50 45.0
•
0.05-0.13
MM EA160B10R4.0-3T10
16.00 3 10.00 4.00 T10 15.30 20.50 45.0
•
0.05-0.13
MM EA200B12R0.5-3T12
20.00 3 12.00 0.50 T12 18.45 25.50 45.0
•
0.05-0.13
MM EA200B12R1.0-3T12
20.00 3 12.00 1.00 T12 18.45 25.50 45.0
•
0.05-0.13
MM EA200B12R2.0-3T12
20.00 3 12.00 2.00 T12 18.45 25.50 45.0
•
0.05-0.13
MM EA200B12R3.0-3T12
20.00 3 12.00 3.00 T12 18.45 25.50 45.0
•
0.05-0.13
MM EA200B12R4.0-3T12
20.00 3 12.00 4.00 T12 18.45 25.50 45.0
•
0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
MM EA
Interchangeable Solid Carbide
Slot Drill Milling Heads for
Machining Aluminum
ISCAR

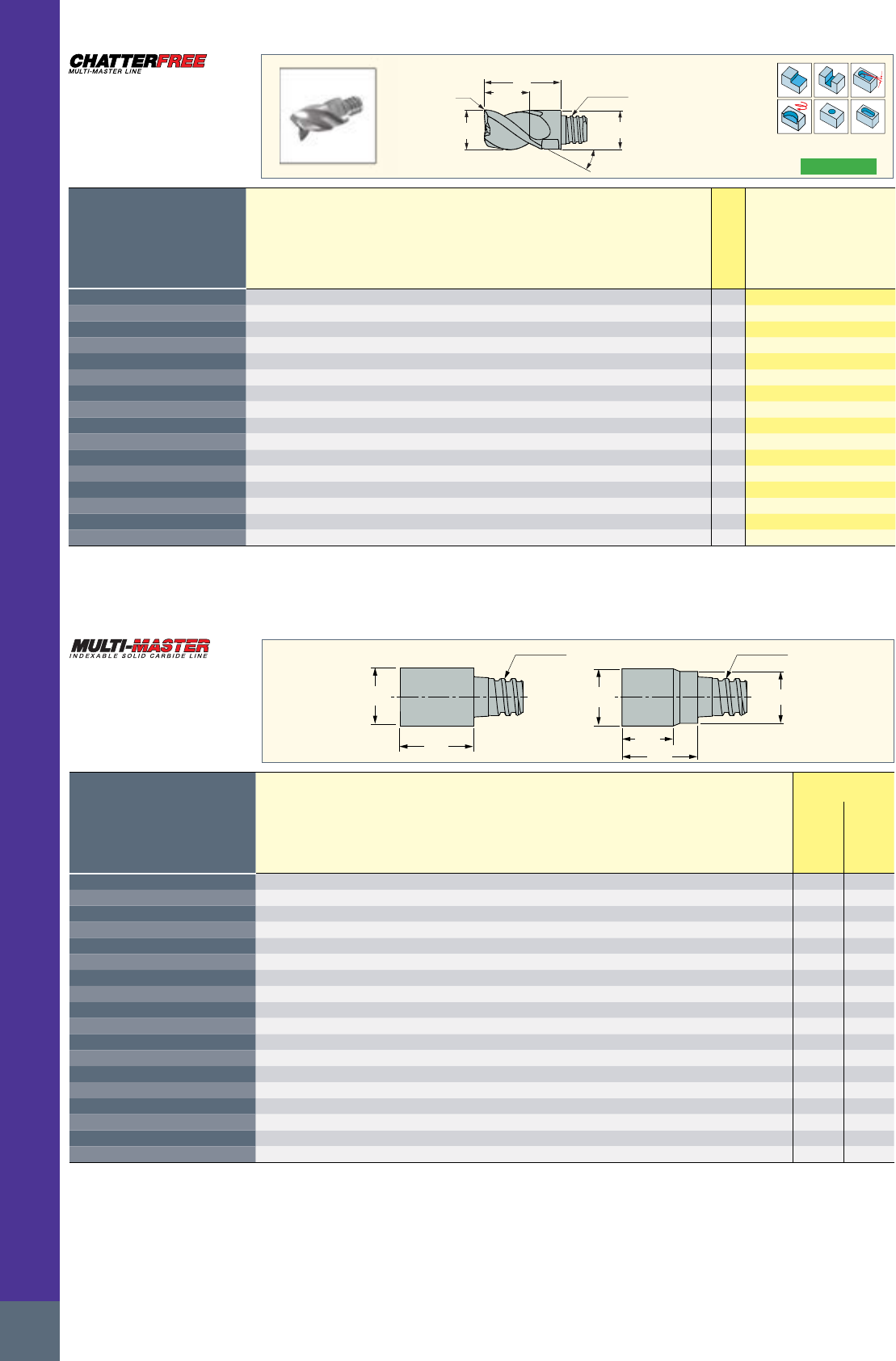

82
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
THSZMS THSZMS
Fig. 1 Fig. 2
DC
LF
DC
DN
LF
LH
Dimensions Tough
1
Hard
Designation
DC LF THSZMS LH DN Fig.
IC08
IC03
MM ESR-G 080-10 T05
8.00 10.35 T05 - - 1
• •
MM ESR-G 080-15 T05
8.00 15.40 T05 - - 1
•
MM ESR-G 100-13 T05
10.00 13.35 T05 - - 1
•
MM ESR-G 100-13 T06
10.00 13.35 T06 - - 1
• •
MM ESR-G 100-19 T06
10.00 19.45 T06 - - 1
•
MM ESR-G 120-17 T06
12.00 17.05 T06 - - 1
•
MM ESR-G 120-17 T08
12.00 17.05 T08 - - 1
•
MM ESR-G 120-23 T08
12.00 23.40 T08 - - 1
•
MM ESR-G 160-21 T08
16.00 20.90 T08 - - 1
•
MM ESR-G 160-21 T10
16.00 20.90 T10 - - 1
• •
MM ESR-G 160-28 T08
16.00 28.45 T08 - - 1
•
MM ESR-G 160-28 T10
16.00 28.45 T10 - - 1
•
MM ESR-G 200-26 T12
20.00 28.10 T12 16.6 18.45 2
• •
MM ESR-G 200-34 T12
20.00 34.50 T12 - - 1
•
MM ESR-G 250-25 T15
25.00 25.60 T15 - - 1
• •
MM ESR-G 250-37 T12
25.00 37.60 T12 - - 1
•
MM ESR-G 250-37 T15
25.00 37.60 T15 - - 1
•
MM ESR-G 320-55-T21 NECK
32.00 55.80 T21 39.5 30.00 2
•
MM ESR BLANKS
Interchangeable Solid
Carbide Blank Heads
DCh6 DCONMS
FHA
APMX
LF
RE THSZMS
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC NOF(1) APMX RE THSZMS DCONMS LF FHA
IC08
fz
(mm/t)
MM EA080H08R0CF-4T05
8.00 4 8.00 0.00 T05 7.70 15.00 40.0
•
0.03-0.09
MM EA100H10R0CF-4T06
10.00 4 10.00 0.00 T06 9.60 19.00 40.0
•
0.03-0.10
MM EA120H12R0.2CF-3T08
12.00 3 12.00 0.20 T08 11.70 23.00 40.0
•
0.04-0.11
MM EA120H12R0CF-4T08
12.00 4 12.00 0.00 T08 11.70 23.00 40.0
•
0.04-0.11
MM EA160H16R0.0CF-3T10
16.00 3 16.00 0.00 T10 15.30 28.00 40.0
•
0.05-0.13
MM EA160H16R0.2CF-3T10
16.00 3 16.00 0.20 T10 15.30 28.00 40.0
•
0.05-0.13
MM EA160H16R0.5CF-3T10
16.00 3 16.00 0.50 T10 15.30 28.00 40.0
•
0.05-0.13
MM EA160H16R2.5CF-3T10
16.00 3 16.00 2.50 T10 15.30 28.00 40.0
•
0.05-0.13
MM EA160H16R0CF-4T10
16.00 4 16.00 0.00 T10 15.30 26.00 40.0
•
0.05-0.12
MM EA200H20R0.0CF-3T12
20.00 3 20.00 0.00 T12 18.45 34.00 40.0
•
0.05-0.13
MM EA200H20R0.2CF-3T12
20.00 3 20.00 0.20 T12 18.45 34.00 40.0
•
0.05-0.13
MM EA200H20R0.5CF-3T12
20.00 3 20.00 0.50 T12 18.45 34.00 40.0
•
0.05-0.13
MM EA200H20R2.5CF-3T12
20.00 3 20.00 2.50 T12 18.45 34.00 40.0
•
0.05-0.13
MM EA250H19R0.5-3T15
25.00 3 19.00 0.50 T15 23.90 37.00 40.0
•
0.06-0.16
MM EA250H19R1.0-3T15
25.00 3 19.00 1.00 T15 23.90 37.00 40.0
•
0.06-0.16
MM EA250H19R3.0-3T15
25.00 3 19.00 3.00 T15 23.90 37.00 40.0
•
0.06-0.16
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
MM EA-CF
Interchangeable Solid Carbide
Endmill Heads with Different
Helix for Machining Aluminum
83
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
THSZMS
DC
LF
Dimensions
Designation
DC LF THSZMS
IC08
MM ESR-G 080-18.0 T05 08
8.00 18.40 T05
•
MM ESR-G 100-22.0 T06
10.00 22.40 T06
•
MM ESR-G 120-27.0 T08 08
12.00 27.45 T08
•
MM ESR-G 160-33.5 T10
16.00 34.00 T10
•
MM ESR-G 200-41.0 T12
20.00 41.50 T12
•
MM ESR-G 250-52.5 T15
25.00 53.00 T15
•
MM ESR-1.5D BLANKS
Interchangeable Solid
Carbide Blank Heads
DC
DRVS
DCONMS
THSZMS
LF
OAL
CW
Dimensions Tough
1
Hard
Designation
DC CW LF OAL DCONMS DRVS(1) THSZMS
IC28
IC08
MM TC138N-19-G-T05
13.80 1.90 2.50 9.60 7.60 20.0 T05
•
MM TC138N-23-G-T05
13.80 2.30 2.90 10.00 7.60 20.0 T05
•
MM TC138N-28-G-T05
13.80 2.80 3.40 10.50 7.60 20.0 T05
•
MM TC138N-35-G-T05
13.80 3.50 4.10 11.20 7.60 20.0 T05
•
MM TC138N-43-G-T05
13.80 4.30 4.90 12.00 7.60 20.0 T05
•
MM TC171N-19-G-T06
17.10 1.90 2.75 9.40 9.25 25.0 T06
•
MM TC171N-23-G-T06
17.10 2.30 3.15 9.80 9.25 25.0 T06
•
MM TC171N-33-G-T06
17.10 3.30 4.15 10.80 9.25 25.0 T06
•
MM TC171N-43-G-T06
17.10 4.30 5.15 11.80 9.25 25.0 T06
•
MM TC171N-50-G-T06
17.10 5.00 5.85 12.50 9.25 25.0 T06
•
MM TC234N-27-G-T08
23.40 2.70 3.30 11.25 12.00 40.0 T08
•
MM TC234N-42-G-T08
23.40 4.20 4.80 12.75 12.00 40.0 T08
•
MM TC234N-53-G-T08
23.40 5.30 5.90 13.85 12.00 40.0 T08
•
MM TC234N-66-G-T08
23.40 6.60 7.20 15.75 12.00 40.0 T08
•
MM TC234N-82-G-T08
23.40 8.20 8.80 17.35 12.00 40.0 T08
•
MM TC234N-99-G-T08
23.40 9.90 10.50 19.05 12.00 40.0 T08
•
MM TC286N-28-G-T10
28.60 2.80 3.65 15.40 15.30 40.0 T10
•
MM TC286N-36-G-T10
28.60 3.60 4.45 16.20 15.30 40.0 T10
•
MM TC286N-46-G-T10
28.60 4.60 5.45 17.20 15.30 40.0 T10
•
MM TC286N-56-G-T10
28.60 5.60 6.45 18.20 15.30 40.0 T10
• •
MM TC286N-66-G-T10
28.60 6.60 7.45 19.20 15.30 40.0 T10
•
MM TC286N-83-G-T10
28.60 8.30 9.15 20.90 15.30 40.0 T10
•
MM TC286N-93-G-T10
28.60 9.30 10.15 21.90 15.30 40.0 T10
•
MM TC286N-103-G-T10
28.60 10.30 11.15 22.90 15.30 40.0 T10
•
MM TC356N-60-G-T12
35.60 6.00 6.55 20.35 18.30 50.0 T12
•
MM TC356N-100-G-T12
35.60 10.00 10.55 24.35 18.30 50.0 T12
• •
MM TC356N-120-G-T12
35.60 12.00 12.55 26.35 18.30 50.0 T12
•
MM TC356N-160-G-T12
35.60 16.00 16.55 30.35 18.30 50.0 T12
•
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide see pages 44, 177-184
(1) Torque key size
MM TC-G
Interchangeable Cemented
Carbide Blank Heads
ISCAR
84
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM S-A-L...-H
MM S-A-L...-CH
LBX
OAL
LB
DCONMS
BD
THSZWS
C-Cylindrical
SL-Safe-Lock®
MM S-A (stepped shanks)
Stepped Cylindrical Shanks
Carrying Interchangeable
Milling Heads
• Do not apply lubricant to the threaded connection.
(1) SL-Safe-Lock® (by Haimer) helical grooves that prevent pull-out(available upon request).
(2) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(3) C-Cylindrical, SL-Safe-Lock® (by Haimer)
(4) S-steel, C-carbide, W-tungsten
(5) 0 - Without coolant supply, 1 - With coolant supply
(6) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
Designation
THSZWS DCONMS BD LB LBX OAL Shank(3) Shank m.(4) CSP(5) RPMX(6) Kg
MM S-A-L050-C08-T04
T04 8.00 5.80 9.90 14.0 50.00 C S 0 60000 0.02
MM S-A-L060/20-C08-T04-C
T04 8.00 5.80 16.90 20.0 60.00 C C 0 60000 0.00
MM S-A-L060-C08-T05
T05 8.00 7.60 12.50 15.0 60.00 C S 0 60000 0.02
MM S-A-L065/24-SL08T05C (1)
T05 8.00 7.60 24.00 25.6 65.00 SL C 0 60000 0.04
MM S-A-L070-C08-T05-C
T05 8.00 7.60 18.60 20.0 70.00 C C 0 60000 0.04
MM S-A-L070-C08-T05-W
T05 8.00 7.60 18.90 20.0 70.00 C W 0 60000 0.06
MM S-A-L090-C08-T05-C
T05 8.00 7.60 38.60 40.0 90.00 C C 0 50160 0.06
MM S-A-L090-C08-T05-W
T05 8.00 7.60 38.60 40.0 90.00 C W 0 36090 0.07
MM S-A-L110-C08-T05-C
T05 8.00 7.60 57.90 60.0 110.00 C C 0 30600 0.07
MM S-A-L110-C08-T05-W
T05 8.00 7.60 58.90 60.0 110.00 C W 0 21060 0.09
MM S-A-L070-C10-T06-C
T06 10.00 9.60 18.50 20.0 70.00 C C 0 54900 0.08
MM S-A-L070-C10-T06-W-H
T06 10.00 9.60 18.90 20.0 70.00 C W 1 60000 0.08
MM S-A-L075-C10-T06
T06 10.00 9.60 17.40 20.0 75.00 C S 0 60000 0.05
MM S-A-L075-C10-T06-H
T06 10.00 9.60 19.40 20.0 75.00 C S 1 53940 0.04
MM S-A-L075/12-C10-T06-CH
T06 10.00 9.60 10.60 12.0 75.00 C S 1 53940 0.04
MM S-A-L075/30-SL10T06C (1)
T06 10.00 9.60 30.00 31.7 75.00 SL C 0 53940 0.08
MM S-A-L090-C10-T06-C
T06 10.00 9.60 38.50 40.0 90.00 C C 0 55170 0.06
MM S-A-L090/040C10T06C-H
T06 10.00 9.60 38.60 40.0 90.00 C C 1 60000 0.08
MM S-A-L090-C10-T06-W
T06 10.00 9.60 17.20 20.0 90.00 C W 0 41670 0.12
MM S-A-L090-C10-T06-W-H
T06 10.00 9.60 39.00 40.0 90.00 C W 1 40860 0.10
MM S-A-L110-C10-T06-C
T06 10.00 9.60 57.90 60.0 110.00 C C 0 34530 0.11
MM S-A-L110-C10-T06-W-H
T06 10.00 9.60 59.00 60.0 110.00 C W 1 24840 0.12
MM S-A-L150-C10-T06-C
T06 10.00 9.60 98.50 100.0 150.00 C C 0 16620 0.00
MM S-A-L070-C12-T08-C
T08 12.00 11.60 17.90 20.0 70.00 C C 0 60000 0.10
MM S-A-L070-C12-T08-W-H
T08 12.00 11.60 18.70 20.0 70.00 C W 1 60000 0.11
MM S-A-L085/36-C12T08C (2)
T08 12.00 11.60 36.00 37.7 85.00 C C 0 60000 0.13
MM S-A-L090/14-C12-T08-CH
T08 12.00 11.60 13.00 14.0 90.00 C S 1 43000 0.08
MM S-A-L090-C12-T08
T08 12.00 11.60 13.30 16.0 90.00 C S 0 43000 0.08
MM S-A-L070/020C12T08C-CH
T08 12.00 11.60 18.00 20.0 70.00 C C 1 43050 0.08
MM S-A-L090-C12-T08-C
T08 12.00 11.60 39.00 40.0 90.00 C C 0 43050 0.12
MM S-A-L090-C12-T08-H
T08 12.00 11.60 38.70 40.0 90.00 C S 1 41040 0.08
MM S-A-L090-C12-T08-W-H
T08 12.00 11.60 38.70 40.0 90.00 C W 1 49800 0.15
MM S-A-L090/040C12T08C-CH
T08 12.00 11.50 38.00 40.0 90.00 C C 1 49800 0.11
MM S-A-L090/42-C12-T08-CH
T08 12.00 11.60 41.00 42.0 90.00 C S 1 41010 0.08
MM S-A-L110-C12-T08-W
T08 12.00 11.60 17.00 20.0 110.00 C W 0 31350 0.20
MM S-A-L110-C12-T08-C
T08 12.00 11.60 57.00 60.0 110.00 C C 0 41040 0.16
MM S-A-L110-C12-T08-W-H
T08 12.00 11.60 58.70 60.0 110.00 C W 1 30210 0.18
MM S-A-L110/060C12T08C-CH
T08 12.00 11.50 58.00 60.0 110.00 C C 1 30210 0.12
MM S-A-L130-C12-T08-C
T08 12.00 11.60 78.60 80.0 130.00 C C 0 27960 0.19
MM S-A-L130-C12-T08-W-H
T08 12.00 11.60 78.70 80.0 130.00 C W 1 20100 0.21
MM S-A-L130/080C12T08C-CH
T08 12.00 11.50 78.00 80.0 130.00 C C 1 20100 0.17
MM S-A-L070-C16-T10-W-H
T10 16.00 15.30 18.20 20.0 70.00 C W 1 60000 0.21
MM S-A-L090-C16-T10-C
T10 16.00 15.30 38.00 40.0 90.00 C C 0 60000 0.21
MM S-A-L090-C16-T10-W-H
T10 16.00 15.30 38.20 40.0 90.00 C W 1 57510 0.27
MM S-A-L090/040C16T10C-CH
T10 16.00 15.30 38.00 40.0 90.00 C C 1 57510 0.17
MM S-A-L100-C16-T10
T10 16.00 15.30 16.30 20.0 100.00 C S 0 39000 0.15
MM S-A-L100-C16-T10-H
T10 16.00 15.30 48.00 50.0 100.00 C S 1 37140 0.13
MM S-A-L100/20-C16-T10-CH
T10 16.00 15.30 18.00 20.0 100.00 C S 1 37140 0.12
MM S-A-L100/42-C16-T10-CH
T10 16.00 15.30 40.20 42.0 100.00 C S 1 38040 0.14
MM S-A-L100/48-C16T10C (2)
T10 16.00 15.30 48.00 50.3 100.00 C C 0 38040 0.06
MM S-A-L110-C16-T10-C
T10 16.00 15.30 58.00 60.0 110.00 C C 0 47010 0.27
MM S-A-L110-C16-T10-W-H
T10 16.00 15.30 58.20 60.0 110.00 C W 1 36030 0.33
MM S-A-L110/060C16T10C-H
T10 16.00 15.00 58.10 60.0 110.00 C C 1 60000 0.00
MM S-A-L110/060C16T10C-CH
T10 16.00 15.30 58.00 60.0 110.00 C C 1 36030 0.17
MM S-A-L130-C16-T10-C
T10 16.00 15.30 77.40 80.0 130.00 C C 0 33510 0.32
MM S-A-L130-C16-T10-W-H
T10 16.00 15.30 78.20 80.0 130.00 C W 1 24450 0.41
MM S-A-L130/080C16T10C-CH
T10 16.00 15.30 78.00 80.0 130.00 C C 1 24450 0.32
MM S-A-L150-C16-T10-C
T10 16.00 15.30 97.40 100.0 150.00 C C 0 24660 0.37
85
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM S-A-L...-H
MM S-A-L...-CH
LBX
OAL
LB
DCONMS
BD
THSZWS
C-Cylindrical
SL-Safe-Lock®
MM S-A (stepped shanks)
(Continue)
Stepped Cylindrical Shanks
Carrying Interchangeable
Milling Heads
LB
THSZWS
LBX
OAL
DCONMS
BD
Designation
THSZWS DCONMS BD LB LBX OAL Shank m.(1)
kg
MM S-A-L075-C10-T06-N
T06 10.00 9.60 18.00 28.0 75.00 S 0.04
MM S-A-L090-C12-T08-N
T08 12.00 11.60 18.00 30.0 90.00 S 0.07
MM S-A-L100-C16-T10-N
T10 16.00 15.30 23.00 35.0 100.00 S 0.04
• Do not apply lubricant to the threaded connection
(1) S-steel
MM S-A-N
Stepped Cylindrical Shanks with
Parallel Directed Coolant Carrying
Interchangeable Milling Heads
Designation
THSZWS DCONMS BD LB LBX OAL Shank(3) Shank m.(4) CSP(5) RPMX(6) Kg
MM S-A-L150-C16-T10-W-H
T10 16.00 15.30 98.20 100.0 150.00 C W 1 17610 0.45
MM S-A-L090-C20-T12-C
T12 20.00 18.30 37.00 40.0 90.00 C C 0 60000 0.27
MM S-A-L090-C20-T12-W-H
T12 20.00 18.30 36.90 40.0 90.00 C W 1 60000 0.41
MM S-A-L090/040C20T12C-CH
T12 20.00 18.30 37.20 40.0 90.00 C C 1 60000 0.30
MM S-A-L110/50-SL20T12C (1)
T12 20.00 18.30 50.00 53.3 110.00 SL C 0 60000 0.08
MM S-A-L120-C20-T12
T12 20.00 18.30 20.30 25.0 120.00 C S 0 36000 0.27
MM S-A-L120-C20-T12-H
T12 20.00 18.30 66.70 70.0 120.00 C S 1 32160 0.25
MM S-A-L120/25-C20-T12-CH
T12 20.00 18.30 22.20 25.0 120.00 C S 1 32160 0.12
MM S-A-L120/48-C20-T12-CH
T12 20.00 18.30 45.20 48.0 120.00 C S 1 32160 0.20
MM S-A-L130-C20-T12-C
T12 20.00 18.30 77.20 80.0 130.00 C C 0 42360 0.47
MM S-A-L130-C20-T12-W-H
T12 20.00 18.30 76.90 80.0 130.00 C W 1 31650 0.59
MM S-A-L130/080C20T12C-CH
T12 20.00 18.30 77.20 80.0 130.00 C C 1 42360 0.44
MM S-A-L170-C20-T12-C
T12 20.00 18.30 97.20 100.0 170.00 C C 0 25170 0.63
MM S-A-L200-C20-T12-C
T12 20.00 18.30 116.50 120.0 200.00 C C 0 17790 0.76
MM S-A-L200-C20-T12-W-H
T12 20.00 18.30 116.90 120.0 200.00 C W 1 12540 0.92
MM S-A-L200/120C20T12C-CH
T12 20.00 18.30 117.20 120.0 200.00 C C 1 17790 0.74
MM S-A-L120-C25-T15-C
T15 25.00 23.90 57.50 60.0 120.00 C C 0 49400 0.64
MM S-A-L120-C25-T15-W-H
T15 25.00 23.90 58.00 60.0 120.00 C W 1 41700 0.89
MM S-A-L125/63-C25T15C (2)
T15 25.00 24.00 63.00 65.8 125.00 C C 0 41700 0.75
MM S-A-L135-C25-T15
T15 25.00 23.90 33.00 35.0 135.00 C S 0 28290 0.47
MM S-A-L135/35-C25-T15-CH
T15 25.00 23.90 33.00 35.0 135.00 C S 1 28230 0.42
MM S-A-L135/50-C25-T15-CH
T15 25.00 23.90 47.70 50.0 135.00 C S 1 28230 0.40
MM S-A-L170-C25-T15-C
T15 25.00 23.90 98.00 100.0 170.00 C C 0 27360 0.96
MM S-A-L175-C25-T15
T15 25.00 23.90 62.70 65.0 175.00 C S 0 16890 0.10
MM S-A-L250-C25-T15-C
T15 25.00 23.90 148.00 150.0 250.00 C C 0 12690 1.45
MM S-A-L100/32-C32-T21
T21 32.00 30.00 32.00 35.3 100.00 C S 0 12690 0.56
MM S-A-L130/60-C32-T21-C
T21 32.00 30.00 60.00 63.3 130.00 C C 0 12690 1.22
MM S-A-L135/64-C32T21C
T21 32.00 30.00 64.00 67.5 135.00 C C 0 12690 1.02
MM S-A-L150/50-C32-T21
T21 32.00 30.00 50.00 53.5 150.00 C S 0 12690 0.86
MM S-A-L170/100-C32-T21-C
T21 32.00 30.00 100.00 103.5 170.00 C C 0 12690 1.22
MM S-A-L250/150-C32-T21-C
T21 32.00 30.00 150.00 153.5 250.00 C C 0 12690 2.50
MM S-A-L300/200-C32-T21-C
T21 32.00 30.00 200.00 203.5 300.00 C C 0 12690 3.00
• Do not apply lubricant to the threaded connection.
(1) SL-Safe-Lock® (by Haimer) helical grooves that prevent pull-out(available upon request).
(2) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(3) C-Cylindrical, SL-Safe-Lock® (by Haimer)
(4) S-steel, C-carbide, W-tungsten
(5) 0 - Without coolant supply, 1 - With coolant supply
(6) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
ISCAR
86
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Detail B
BD
B
THSZWS
MM TS-A-L...-H
OAL
DCONMS
30˚
BD
Designation
THSZWS DCONMS BD OAL Shank m.(1) RPMX(2) CSP(3)
kg
MM TS-A-L070-C08-T04
T04 8.00 5.80 70.00 S - 0 0.00
MM TS-A-L070-C08-T05
T05 8.00 7.60 70.00 S 60000 0 0.03
MM TS-A-L080-C10-T06
T06 10.00 9.60 80.00 S 47400 0 0.05
MM TS-A-L080-C10-T06-H
T06 10.00 9.60 80.00 S 46920 1 0.04
MM TS-A-L090-C12-T08
T08 12.00 11.60 90.00 S 43110 0 0.08
MM TS-A-L090-C12-T08-H
T08 12.00 11.60 90.00 S 42780 1 0.08
MM TS-A-L100-C16-T10
T10 16.00 15.30 100.00 S 39420 0 0.16
MM TS-A-L100-C16-T10-H
T10 16.00 15.30 100.00 S 39210 1 0.14
• Do not apply lubricant to the threaded connection
(1) S-steel, C-carbide
(2) The actual maximum RPM should be calculated by dividing the listed RPM max by the number of the head's flutes being used.
(3) 0 - Without coolant supply, 1 - With coolant supply
MM TS-A
Cylindrical Shanks Carrying
Interchangeable Milling Heads
THSZWS
MM GRT-...C-T08
OAL/LF
DCONMS
Designation
THSZWS DCONMS OAL Shank m.(1) CSP(2)
kg
MM GRT-095-T06
T06 9.52 80.00 C 0 0.07
MM GRT-100-T06
T06 10.00 100.00 C 0 0.10
MM GRT-120C-T08
T08 12.00 100.00 C 1 0.12
MM GRT-127C-T08
T08 12.70 120.00 C 1 0.17
• MM GRT... shanks serve mainly for MM GRIT... slitting heads. When mounting other types of milling heads, do not exceed maximum specified depth of cut for the particular
milling head. Since the shank diameter is not relieved, it may touch a wall on the workpiece being machined.
• Use carbide shanks for groove milling heads and for applications requiring high rigidity and precision.
(1) C - Solid carbide
(2) 0 - Without coolant supply, 1 - With coolant supply
MM GRT (shanks)
Solid Carbide Cylindrical Shanks
Carrying Slitting and Grooving
Interchangeable Milling Heads
DCONMS
LBX
LPR
LU
BD
THSZWS
RE5.0
Designation
DCONMS THSZWS BD LPR LBX LU CDI(1)
kg
MM S-A-H035-C3-T05
32.00 T05 7.60 35.00 20.0 15.00 0 0.00
MM S-A-H035-C3-T06
32.00 T06 9.25 35.00 20.0 15.00 0 0.12
MM S-A-H040-C3-T08
32.00 T08 11.60 40.00 25.0 20.00 0 0.13
MM S-A-H040-C3-T10
32.00 T10 15.30 40.00 25.0 20.00 0 0.15
MM S-A-H045-C3-T12
32.00 T12 18.30 45.00 30.0 25.00 0 0.16
MM S-A-H045-C4-T06
40.00 T06 9.25 45.00 25.0 20.00 0 0.00
MM S-A-H045-C4-T08
40.00 T08 11.60 45.00 25.0 20.00 0 0.00
MM S-A-H050-C4-T10
40.00 T10 15.30 50.00 30.0 25.00 0 0.00
MM S-A-H055-C4-T12
40.00 T12 18.30 55.00 35.0 30.00 0 0.00
MM S-A-H055-C4-T15
40.00 T15 23.90 55.00 35.0 30.00 0 0.35
MM S-A-H060-C5-T10
50.00 T10 15.30 60.00 40.0 35.00 0 0.00
MM S-A-H060-C5-T12
50.00 T12 18.30 60.00 40.0 35.00 0 0.48
MM S-A-H060-C5-T15
50.00 T15 23.90 60.00 40.0 35.00 0 0.58
MM S-A-H065-C6-T12
63.00 T12 18.30 65.00 43.0 38.00 0 0.00
MM S-A-H065-C6-T15
63.00 T15 23.90 65.00 43.0 38.00 0 0.00
MM S-A-H070-C8-T15
80.00 T15 23.90 70.00 40.0 35.00 0 0.00
• Do not apply lubricant to the threaded connection • For adaptation options, see page 44
(1) 1 - Hole for data chip, 0 - Without hole for data chip
MM S-A-C#
MULTI-MASTER Threaded
Connection Shanks with
a CAMFIX (ISO 26623-1)
Exchangeable Adaptation
87
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMSBD
THSZWS OAL/LF
C-Cylindrical
W-Weldon
Designation
THSZWS DCONMS BD OAL Shank(2) Shank m.(3) RPMX(4)
kg
MM S-A-L055-W12-T05
T05 12.00 7.60 55.00 W S 60000 0.05
MM S-A-L070-C20T05
T05 20.00 7.60 70.00 C S 60000 0.24
MM S-A-L150-C12-T05-B (1)
T05 12.00 7.60 150.00 C S 18270 0.13
MM S-A-L065-W16-T06
T06 16.00 9.60 65.00 W S 60000 0.09
MM S-A-L080-C25T06
T06 25.00 9.60 80.00 C S 60000 0.29
MM S-A-L200-C16-T06-B (1)
T06 16.00 9.60 200.00 C S 11970 0.33
MM S-A-L065-W16-T08
T08 16.00 11.60 65.00 W S 60000 0.10
MM S-A-L080-C25T08
T08 25.00 11.60 80.00 C S 60000 0.40
MM S-A-L250-C20-T08-B (1)
T08 20.00 11.60 250.00 C S 9330 0.60
MM S-A-L070-W20-T10
T10 20.00 15.30 70.00 W S 60000 0.17
MM S-A-L080-C32T10
T10 32.00 15.30 80.00 C S 60000 0.65
MM S-A-L250-C25-T10-B (1)
T10 25.00 15.30 250.00 C S 11130 0.94
MM S-A-L075-W25-T12
T12 25.00 18.30 75.00 W S 60000 0.28
MM S-A-L080-C32T12
T12 32.00 18.30 80.00 C S 60000 0.65
MM S-A-L100-W32-T15
T15 32.00 23.90 100.00 W S 60000 0.30
MM S-A-L100-C40T15
T15 40.00 23.90 100.00 C S 60000 0.94
MM S-A-L100-C40T21
T21 40.00 30.00 100.00 C S 60000 1.56
• Do not apply lubricant to the threaded connection.
(1) "B" suffix - cylindrical shank which may be shortened.
(2) C-Cylindrical, W-Weldon
(3) S-steel
(4) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
MM S-A (straight shanks)
Shanks Carrying Interchangeable
Milling Heads
OAL
DCONMS
BD
BHTA
THSZWS
LBX
LB
C-Cylindrical
W-Weldon
Designation
THSZWS DCONMS BD BHTA Shank(1) LB LBX OAL
Shank
m.(2) RPMX(3)
kg
MM S-B-L080/24-C08-T04
T04 8.00 5.80 2.6 C - 24.0 80.00 S 60000 0.00
MM S-B-L080-C12-T05
T05 12.00 7.60 5.0 C - 25.0 80.00 S 60000 0.06
MM S-B-L085/32-C16T05
T05 16.00 7.60 5.0 C 27.00 32.0 85.00 S 41280 0.11
MM S-B-L125-C16-T06
T06 16.00 9.60 5.0 C 31.50 31.7 125.00 S 41280 0.19
MM S-B-L095/40-C20T06
T06 20.00 9.60 5.0 C 34.00 40.0 95.00 S 41280 0.19
MM S-B-L140-C20-T06-W
T06 20.00 9.65 5.0 C - 60.3 140.50 W 51180 0.62
MM S-B-L140-C16-T08
T08 16.00 11.60 5.0 C 19.30 22.0 140.00 S 25590 0.22
MM S-B-L100/48-C20T08
T08 20.00 11.60 5.0 C - 48.0 100.00 S 25590 0.32
MM S-B-L140-C20-T10
T10 20.00 15.30 5.0 C - 27.0 140.00 S 31020 0.34
MM S-B-L170-C25-T10
T10 25.00 15.30 5.0 C - 56.0 170.00 S 29490 0.16
MM S-B-L120/55-C25T10
T10 25.00 15.30 5.0 C - 55.4 120.00 S 29490 0.40
MM S-B-L160-C25-T12
T12 25.00 18.30 5.0 C - 40.0 160.00 S 28680 0.11
MM S-B-L190-C32-T12
T12 32.00 18.30 5.0 C - 80.0 190.00 S 34890 0.56
MM S-B-L150/78-C32T12
T12 32.00 18.30 5.0 C - 78.3 150.00 S 34890 0.78
MM S-B-L200-C32-T15
T15 32.00 23.90 5.0 C - 50.0 200.00 S 14160 1.19
MM S-B-L180/92-C40T15
T15 40.00 23.90 5.0 C - 92.0 180.00 S 14160 0.28
MM S-B-L250-W40-T15
T15 40.00 23.90 5.0 W - 100.0 250.00 S 21840 2.12
MM S-B-L150/57-C40T21
T21 40.00 30.00 5.0 C - 57.0 150.00 S 21840 0.62
• Do not apply lubricant to the threaded connection.
(1) C-Cylindrical, W-Weldon
(2) S-steel, W-tungsten
(3) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
MM S-B (85° conical
shanks)
Shanks Carrying Interchangeable
Milling Heads
ISCAR
88
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMSBD
LB
OAL/LF
BHTA
LBX
THSZWS
Designation
THSZWS DCONMS BD LB Shank LBX OAL BHTA
Shank
m. CSP(1) RPMX(2)
kg
MM S-D-L100-C12-T05
T05 12.00 7.60 29.60 C 35.0 100.00 1.0 S 0 52000 0.08
MM S-D-L110-C12-T05-C
T05 12.00 7.60 55.90 C 60.0 110.00 1.0 C 0 53430 0.13
MM S-D-L110-C12-T05-W-H
T05 12.00 7.60 55.70 C 60.0 110.00 1.0 W 1 38460 0.14
MM S-D-L130-C12-T05-C
T05 12.00 7.60 77.30 C 80.0 130.00 1.0 C 0 36420 0.15
MM S-D-L130-C12-T05-W-H
T05 12.00 7.60 76.40 C 80.0 130.00 1.0 W 1 26160 0.16
MM S-D-L150-C16-T05-C
T05 16.00 7.60 91.50 C 100.0 150.00 1.0 C 0 29700 0.00
MM S-D-L110-C12-T06-W-H
T06 12.00 9.60 58.80 C 60.0 110.00 1.0 W 1 36990 0.17
MM S-D-L130-C16-T06-W-H
T06 16.00 9.60 73.40 C 80.0 130.00 1.0 W 1 29490 0.28
MM S-D-L150-C16-T06-C
T06 16.00 9.60 95.40 C 100.0 150.00 1.0 C 0 30150 0.27
MM S-D-L150-C16-T06-W-H
T06 16.00 9.60 93.80 C 100.0 150.00 1.0 W 1 21660 0.33
MM S-D-L160-C16-T06
T06 16.00 9.60 46.80 C 55.0 160.00 1.0 S 0 23370 0.12
MM S-D-L170-C16-T06-C
T06 16.00 9.60 116.90 C 120.0 170.00 1.0 C 0 23400 0.11
MM S-D-L170-C16-T06-W
T06 16.00 9.60 46.30 C 55.0 170.00 1.0 W 0 21210 0.48
MM S-D-L130-C16-T08-C
T08 16.00 11.60 77.20 C 80.0 130.00 1.0 C 0 39870 0.28
MM S-D-L130-C16-T08-W-H
T08 16.00 11.60 76.40 C 80.0 130.00 1.0 W 1 29040 0.32
MM S-D-L150-C16-T08-C
T08 16.00 11.60 97.80 C 100.0 150.00 1.0 C 0 29970 0.33
MM S-D-L150-C16-T08-W-H
T08 16.00 11.60 98.30 C 100.0 150.00 1.0 W 1 21540 0.38
MM S-D-L170-C20-T08
T08 20.00 11.60 69.70 C 80.0 170.00 1.0 S 0 22680 0.30
MM S-D-L170-C20-T08-C
T08 20.00 11.60 112.00 C 120.0 170.00 1.0 C 0 26250 0.47
MM S-D-L170-C20-T08-W
T08 20.00 11.60 69.70 C 80.0 170.00 1.0 W 0 24900 0.65
MM S-D-L170-C20-T08-W-H
T08 20.00 11.60 113.10 C 120.0 170.00 1.0 W 1 18750 0.53
MM S-D-L150-C20-T10-C
T10 20.00 15.30 97.50 C 120.0 150.00 1.0 C 0 35610 0.10
MM S-D-L150-C20-T10-W-H
T10 20.00 15.30 96.80 C 100.0 150.00 1.0 W 1 25800 0.60
MM S-D-L170-C20-T10-C
T10 20.00 15.30 118.30 C 120.0 170.00 1.0 C 0 28140 0.61
MM S-D-L170-C20-T10-W-H
T10 20.00 15.30 118.00 C 120.0 170.00 1.0 W 1 20100 0.73
MM S-D-L190-C20-T10
T10 20.00 15.30 73.70 C 80.0 190.00 1.0 S 0 15780 0.42
MM S-D-L190-C20-T10-C
T10 20.00 15.30 - C 140.0 190.00 1.0 C 0 22830 0.68
MM S-D-L190-C20-T10-W-H
T10 20.00 15.30 - C 140.0 190.00 1.0 W 1 16170 0.83
MM S-D-L210-C20-T10-C
T10 20.00 15.30 - C 160.0 210.00 1.0 C 0 18270 0.75
MM S-D-L210-C20-T10-W-H
T10 20.00 15.30 - C 160.0 210.00 1.0 W 1 12870 0.93
MM S-D-L180-C25-T12-C
T12 25.00 18.30 115.70 C 120.0 180.00 1.0 C 0 29460 0.91
MM S-D-L180-C25-T12-W-H
T12 25.00 18.30 114.60 C 120.0 180.00 1.0 W 1 20940 1.15
MM S-D-L200-C25-T12-W-H
T12 25.00 18.30 146.60 C 150.0 200.00 1.0 W 1 16560 1.21
MM S-D-L210-C25-T12
T12 25.00 18.30 94.60 C 100.0 210.00 1.0 S 0 15540 0.66
MM S-D-L250-C25-T12-C
T12 25.00 18.30 135.60 C 140.0 250.00 1.0 C 0 16170 1.40
MM S-D-L250-C25-160T12W-H
T12 25.00 18.30 157.20 C 160.0 250.00 1.0 W 1 11310 1.76
MM S-D-L250-C25-T12-W-H
T12 25.00 18.30 135.60 C 140.0 250.00 1.0 W 1 11300 1.80
MM S-D-L250-C32-T15
T15 32.00 23.90 90.10 C 100.0 250.00 1.0 S 0 14160 1.00
MM S-D-L250-C32-T15-C
T15 32.00 23.90 143.30 C 150.0 250.00 1.0 C 0 20370 1.88
MM S-D-L300-C32-T15-C
T15 32.00 23.90 195.70 C 200.0 300.00 1.0 C 0 16000 2.62
• Shank material (Shank m.): S-steel, C-carbide, W-tungsten. • Do not apply lubricant to the threaded connection.
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
MM S-D
(89° conical shanks)
Shanks Carrying Interchangeable
Milling Heads
89
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL LBX
BD
SS
Fig. 1 Fig. 2
THSZWS
Designation
SS THSZWS BD LBX OAL Fig.
kg
MM S-A-H004-ER32-T05-H
ER32 T05 7.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T05-H
ER32 T05 7.60 25.0 65.00 2 0.20
MM S-A-H040-ER32-T05-H
ER32 T05 7.60 40.0 80.00 2 0.23
MM S-A-H004-ER32-T06-H
ER32 T06 9.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T06-H
ER32 T06 9.25 25.0 65.00 2 0.20
MM S-A-H040-ER32-T06-H
ER32 T06 9.25 40.0 80.00 2 0.22
MM S-A-H004-ER32-T08-H
ER32 T08 11.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T08-H
ER32 T08 11.60 25.0 65.00 2 0.20
MM S-A-H050-ER32-T08-H
ER32 T08 11.60 50.0 90.00 2 0.23
MM S-A-H004-ER32-T10-H
ER32 T10 15.30 4.0 44.00 1 0.14
MM S-A-H025-ER32-T10-H
ER32 T10 15.30 25.0 65.00 2 0.20
MM S-A-H050-ER32-T10-H
ER32 T10 15.20 50.0 90.00 2 0.25
MM S-A-H004-ER32-T12-H
ER32 T12 18.30 4.0 44.00 1 0.14
MM S-A-H025-ER32-T12-H
ER32 T12 18.30 25.0 65.00 2 0.22
MM S-A-H050-ER32-T12-H
ER32 T12 18.30 50.0 90.00 2 0.22
MM S-A-H004-ER32-T15-H
ER32 T15 23.90 4.0 44.00 1 0.15
MM S-A-H025-ER32-T15-H
ER32 T15 23.90 25.0 65.00 2 0.21
MM S-A-H050-ER32-T15-H
ER32 T15 23.90 50.0 90.00 2 0.25
• Do not apply lubricant to the threaded connection. • For adaptation see page 44
MM S-ER-H
Shanks Carrying MULTI-MASTER
Solid Carbide Heads with
an ER Collet Adaptation
and Coolant Holes
THSZWSTHSZWS BD BD BD_2
OAL
OAL LBX
LBX
SS
Fig 1 Fig 2
LB
BHTA
SS
Designation
SS THSZWS BHTA BD BD_2 LB LBX OAL Fig.
kg
MM S-A-H004-ER11-T04
ER11 T04 - 5.80 - - 4.0 22.00 1. 0.00
MM S-A-H004-ER11-T05
ER11 T05 - 7.60 - - 4.0 22.00 1. 0.01
MM S-A-H10.5-ER11-T05
ER11 T05 - 7.60 - - 10.5 28.50 1. 0.01
MM S-A-H004-ER16-T05
ER16 T05 - 7.60 - - 4.0 31.50 1. 0.03
MM S-A-H004-ER16-T06
ER16 T06 - 9.25 - - 4.0 31.50 1. 0.03
MM S-A-H004-ER16-T08
ER16 T08 - 11.60 - - 4.0 31.50 1. 0.04
MM S-A-H10.5-ER16-T05
ER16 T05 - 7.60 - - 10.5 38.00 1. 0.04
MM S-A-H10.5-ER16-T06
ER16 T06 - 9.25 - - 10.5 38.00 1. 0.04
MM S-A-H013-ER16-T08
ER16 T08 - 11.60 - - 14.0 40.50 1. 0.02
MM S-A-H004-ER20-T05
ER20 T05 - 7.60 - - 4.0 35.50 1. 0.06
MM S-A-H004-ER20-T06
ER20 T06 - 9.25 - - 4.0 35.50 1. 0.06
MM S-A-H004-ER20-T08
ER20 T08 - 11.60 - - 4.0 35.50 1. 0.07
MM S-A-H004-ER20-T10
ER20 T10 - 15.30 - - 4.0 35.50 1. 0.06
MM S-A-H10.5-ER20-T05
ER20 T05 - 7.60 - - 10.5 42.00 1. 0.06
MM S-A-H10.5-ER20-T06
ER20 T06 - 9.25 - - 10.5 42.00 1. 0.06
MM S-A-H013-ER20-T08
ER20 T08 - 11.60 - - 13.0 44.50 1. 0.07
MM S-A-H016-ER20-T10
ER20 T10 - 15.30 - - 16.0 47.50 1. 0.07
MM S-A-H004-ER25-T05
ER25 T05 - 7.60 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T05
ER25 T05 - 7.60 - - 10.5 44.50 1 0.10
MM S-A-H004-ER25-T06
ER25 T06 - 9.25 - - 4.0 38.00 1. 0.07
MM S-A-H10.5-ER25-T06
ER25 T06 - 9.25 - - 10.5 44.50 1. 0.12
MM S-A-H004-ER25-T08
ER25 T08 - 11.60 - - 4.0 38.00 1. 0.11
MM S-A-H10.5-ER25-T08
ER25 T08 - 11.60 - - 10.5 44.50 1. 0.06
MM S-A-H004-ER25-T10
ER25 T10 - 15.30 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T10
ER25 T10 - 15.30 - - 10.5 44.50 1. 0.10
MM S-A-H004-ER25-T12
ER25 T12 - 18.30 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T12
ER25 T12 - 18.30 - - 10.5 44.50 1. 0.06
MM S-A-H025-ER32-T06
ER32 T06 - 9.25 10.00 18.00 25.0 65.00 2. 0.15
MM S-B-H025-ER32-T06
ER32 T06 5.0 9.60 13.50 22.30 25.0 65.00 2. 0.16
MM S-B-H050-ER32-T06
ER32 T06 5.0 9.60 17.90 47.30 50.0 90.00 2. 0.20
MM S-B-H075-ER32-T06
ER32 T06 5.0 9.60 22.60 74.10 75.0 115.00 2. 0.25
MM S-D-H050-ER32-T06
ER32 T06 1.0 9.60 11.20 45.00 50.0 90.00 2. 0.17
• Do not apply lubricant to the threaded connection. • For adaptation see page 44 • When a rigid ER collet is assembled in an ER holder, the actual protruding length of the
holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32
MM S-ER
Shanks Carrying MULTI-MASTER
Solid Carbide Heads with
an ER Collet Adaptation
ISCAR
90
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS THSZMS
LSCMS LPR
LU
BHTA
DRVS
BD
THSZWS
Designation
THSZWS THSZMS LPR LU BD DCONMS LSCMS DRVS(1) BHTA TQ_3(2)
kg
MM CAB T06M06-16/.63
T06 M06 16.00 11.60 9.30 9.70 14.50 8.0 1.5 15 0.01
MM CAB T06M08-16/.63
T06 M08 16.00 13.70 9.60 13.00 17.50 11.0 6.0 20 0.02
MM CAB T06M08-25/1.0
T06 M08 25.00 11.30 9.30 13.00 17.50 11.0 1.5 20 0.02
MM CAB T06M10-25/1.0
T06 M10 25.00 16.60 9.60 18.00 20.00 11.0 5.0 29 0.04
MM CAB T08M08-16/.63
T08 M08 16.00 5.40 11.70 13.00 17.50 11.0 11.4 20 0.03
MM CAB T08M08-25/1.0
T08 M08 25.00 19.50 11.70 13.00 17.50 11.0 1.5 20 0.03
MM CAB T08M10-20/.75
T08 M10 20.00 11.30 11.70 18.00 20.00 13.0 7.0 29 0.04
MM CAB T08M10-25/1.0
T08 M10 25.00 14.20 11.70 18.00 20.00 11.0 1.5 29 0.03
MM CAB T08M12-20/.75
T08 M12 20.00 9.30 11.70 21.00 22.00 13.0 7.0 33 0.05
MM CAB T08M12-25/1.0
T08 M12 25.00 12.50 11.70 21.00 22.00 13.0 1.5 33 0.04
• Do not apply lubricant to the threaded connection • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must
be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
(1) Clamping wrench size
(2) Tool tightening torque Nxm (lbfxin)
MM CAB
Adapters for Connecting
FLEXFIT Shanks and
MULTI-MASTER Milling Heads
RE
DCONMS
BD
CRKS LU
LBX
LPR
THSZWS
Designation
DCONMS CRKS THSZWS BD LPR LBX LU RE
kg
MM S-A-H040-SK 40-T06
40.00 M16 T06 9.25 40.00 21.0 15.00 6.0 0.86
MM S-A-H045-SK 40-T08
40.00 M16 T08 11.60 45.00 26.0 20.00 6.0 0.87
MM S-A-H050-SK 40-T10
40.00 M16 T10 15.30 50.00 31.0 25.00 6.0 0.88
MM S-A-H050-SK 40-T12
40.00 M16 T12 18.30 50.00 31.0 25.00 6.0 0.90
MM S-A-H050-SK 40-T15
40.00 M16 T15 23.90 50.00 31.0 25.00 6.0 0.93
• Do not apply lubricant to the threaded connection • For adaptation, see page 44
MM S-A-SK
DIN 69871 Integral Tapered
Shanks Carrying MULTI-MASTER
Milling Heads
LPR
RE
BD
DCONMS
LU
LBX
THSZWS
Designation
DCONMS THSZWS BD LPR LBX LU RE CDI(1)
kg
MM S-A-H035-HSK A40-T05
40.00 T05 7.60 35.00 15.0 10.00 5.0 1 0.00
MM S-A-H040-HSK A40-T06
40.00 T06 9.25 40.00 20.0 15.00 5.0 1 0.28
MM S-A-H045-HSK A40-T08
40.00 T08 11.60 45.00 25.0 20.00 5.0 1 0.24
MM S-A-H050-HSK A40-T10
40.00 T10 15.30 50.00 30.0 25.00 5.0 1 0.23
MM S-A-H050-HSK A40-T12
40.00 T12 18.30 50.00 30.0 25.00 5.0 1 0.27
MM S-A-H050-HSK A63-T06
63.00 T06 9.25 50.00 24.0 18.00 6.0 1 0.70
MM S-A-H050-HSK A63-T08
63.00 T08 11.60 50.00 24.0 18.00 6.0 1 0.72
MM S-A-H055-HSK A63-T10
63.00 T10 15.30 55.00 29.0 23.00 6.0 1 0.73
MM S-A-H055-HSK A63-T12
63.00 T12 18.30 55.00 29.0 23.00 6.0 1 0.40
MM S-A-H060-HSK A63-T15
63.00 T15 23.90 60.00 34.0 28.00 6.0 1 0.76
• Do not apply lubricant to the threaded connection • For adaptation options, see page 44
(1) 1 - Hole for data chip, 0 - Without hole for data chip
MM S-A-HSK
MULTI-MASTER Threaded
Connection Shanks with an
Integral HSK DIN 69893 Form
A Tapered Adaptation
91
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
THSZMS DRVS THSZWS
BD
LF
Designation
BD THSZMS THSZWS LF DRVS(1)
kg
MM CAB T05T05-25/1.0-C
7.60 T05 T05 25.40 6.0 0.02
MM CAB T06T06-25/1.0-C
9.30 T06 T06 25.40 8.0 0.02
MM CAB T08T08-25/1.0-C
11.50 T08 T08 25.40 10.0 0.02
MM CAB T10T10-38/1.5-C
15.20 T10 T10 38.10 13.0 0.08
MM CAB T12T12-38/1.5-C
18.45 T12 T12 38.10 16.0 0.11
MM CAB T15T15-45/1.77-C
23.90 T15 T15 45.00 20.0 0.21
• Clamping key should be ordered separately • For adaptation, see page 44
(1) Clamping wrench size
MM CAB-T-T
MULTI-MASTER Shank Extensions
1
2
3
4
5
Designation
Fig. Ts(1) Key TQ(2)
TORQUE WRENCH 5-50Nm 9X12
1 - - -
MM WRENCH 6-05
2 T05 - 7.0
MM WRENCH 8-06
2 T06 - 10.0
MM WRENCH 10-08
2 T08 - 15.0
MM WRENCH 13-10
2 T10 - 28.0
MM WRENCH 16-12
2 T12 - 28.0
MM WRENCH 20-15
2 T15 - 40.0
MM WRENCH 4E-05
3 T05 - 7.0
MM WRENCH 5E-06
3 T06 - 10.0
MM WRENCH 7E-08
3 T08 - 15.0
MM WRENCH 8E-10
3 T10 - 28.0
MM WRENCH 9E-12
3 T12 - 28.0
INSERT TOOL 3/8" 9X12mm
4 - - -
BIT SOCKET T20 3/8" DRIVE
5 - Torx T20 -
BIT SOCKET T25 3/8" DRIVE
5 - Torx T25 -
BIT SOCKET T30 3/8" DRIVE
5 - Torx T30 -
BIT SOCKET T40 3/8" DRIVE
5 - Torx T40 -
BIT SOCKET T50 3/8" DRIVE
5 - Torx T50 -
• NOTE: For recommended clamping torque for each MULTI-MASTER connection size, see page 92
(1) MULTI-MASTER connection size
(2) Clamping torque Nxm
The adjustable torque handle, interchangeable wrenches and Torx bits are optional and should be ordered separately.
Adjustable Torque Handle with Interchangeable Wrenches
for Clamping MULTI-MASTER Milling Heads
MM Adjustable
Torque Keys
Adjustable Torque Handle
and Keys for Secure and
Accurate Tightening of
MULTI-MASTER Milling Heads
ISCAR
92
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Clamping and Indexing Instructions
12 3 4
12 3 4
12 3 4
Do not apply lubricant to the threaded connection.
Thread
Size Key(1) Tightening Torque
(Nxcm)
T04 MM KEY 6x4 400
T05 MM KEY 6x4 700
T06 MM KEY 8x5 1000
T08 MM KEY 10x7 1500
T10 MM KEY 13x8 2800
T12 MM KEY 16x9 2800
T15 MM KEY 20 4000
T21 MM WRENCH 24-21 11000
(1) Order separately
