93
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SOLID CARBIDE ENDMILLS
ISCAR

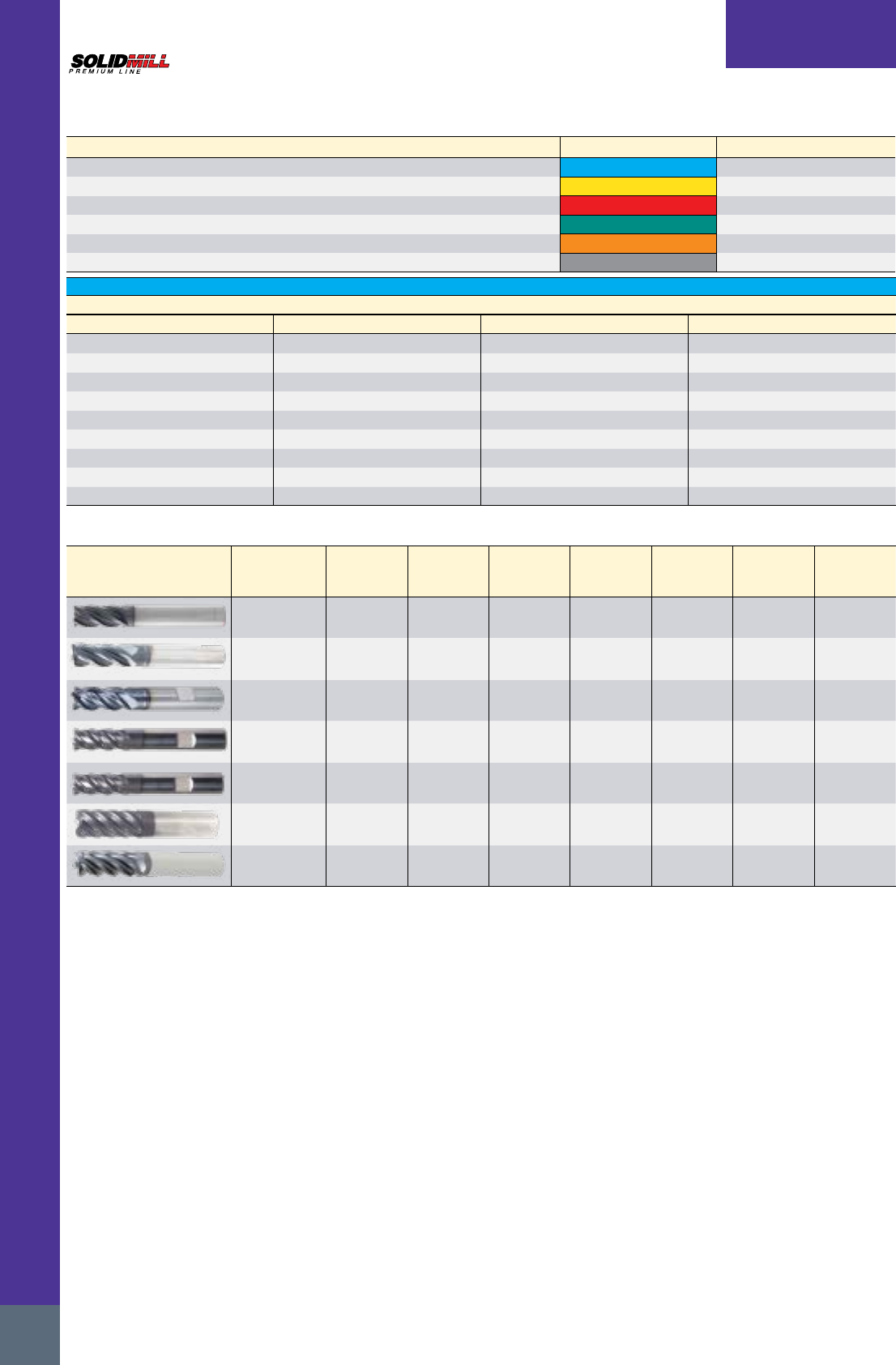

94
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
WORKPIECE MATERIAL ISO Page
STEEL P94
STAINLESS STEEL M 98
CAST IRON K100
ALUMINUM / NON FERROUS MATERIALS N103
SUPERALLOYS / TITANIUM S105
HARD STEELS H107
P (Steel Materials)
Tool Selection Priorities
Tool Rough Semi-Finish Finish/H.S.M
EC-H6/20 - - 1
EC-E7/H7-CF - - 2
EFS-B44 5 6 -
EFS-E44-CF 4 5 -
ECR-B-MF 6 7 -
EC-E5L-CF 7 1 4
EC-E4L-CF 3 3 5
ECP-H4L-CF 2 4 -
EC-H4M-CF-E 1 2 3
ROUGHING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4
RE
NO 116
EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 117
EFS-E44 6-25 - 2xDC 4 CHWx45 NO 125
EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126
ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
95
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

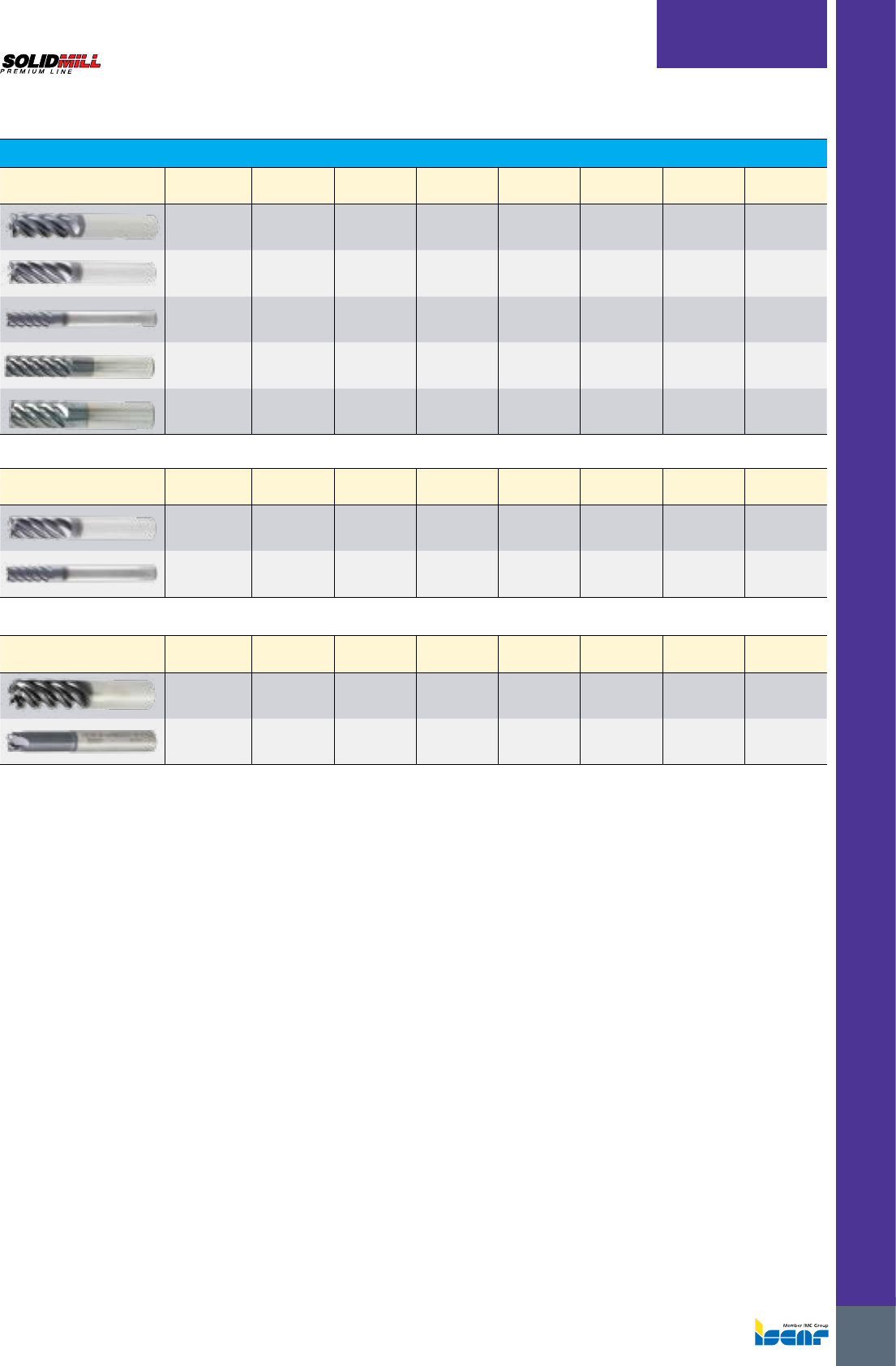

SELECTION GUIDE
FINISHING
P (Steel Materials)
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
TROCHOIDAL / DYNAMIC MILLING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
HIGH FEED MILLING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
ISCAR
96
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE

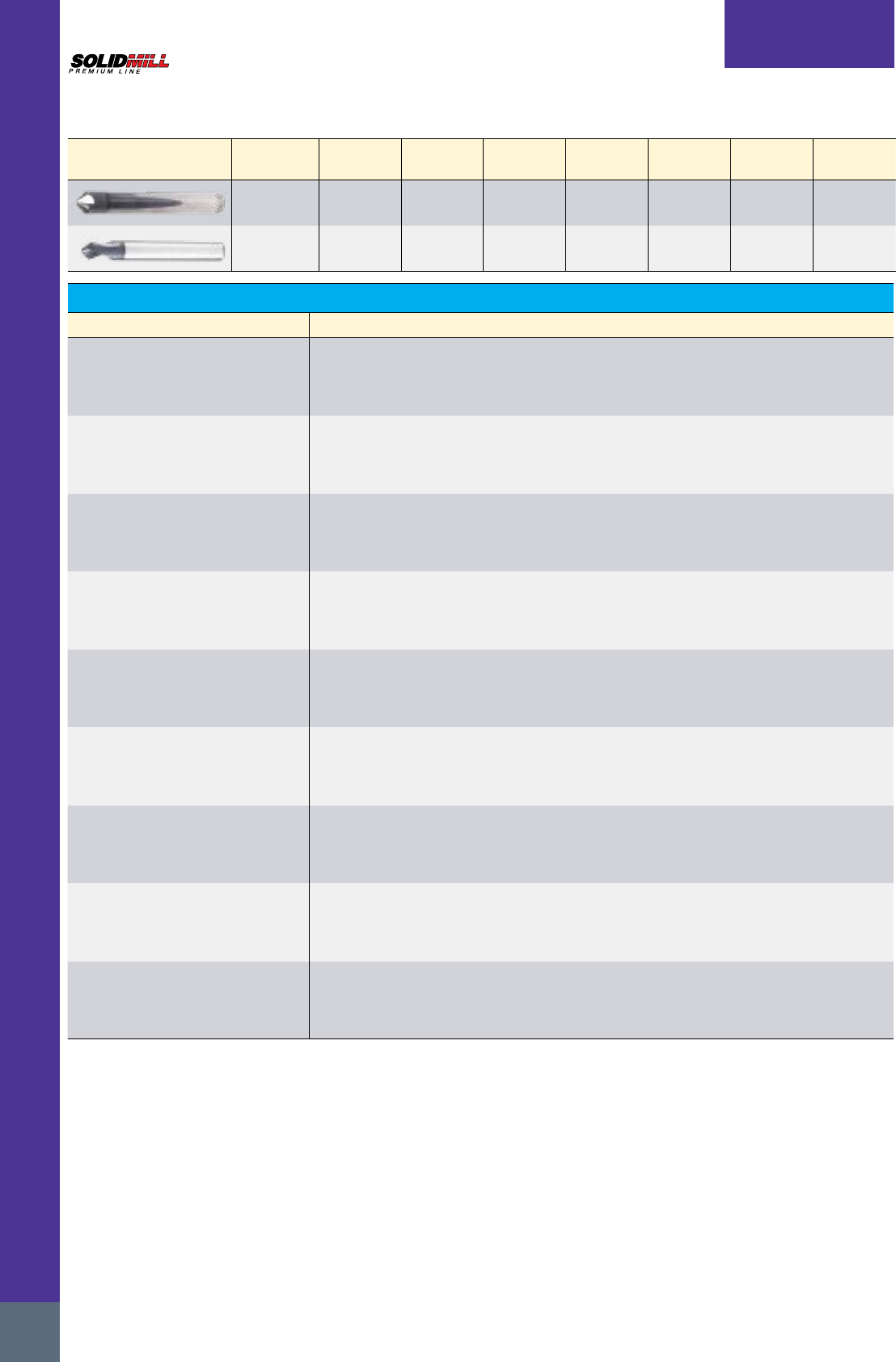

CHAMFERING AND DEBURRING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECF.../45 4-12 - 2.5xDC 4 - NO 174
ECD-S2 3-12 2xDC 0.5xDC 2 - NO 175
P (Steel Materials)
Tool Type Features
EC-H4M-CF-E (ECO Type)
• Rough and finish operations
• General use
• Low power machines
• CHATTERFREE
ECP-H4L-CFR
• Rough operations
• General use
• Chip splitter CHATTERFREE
EC-E4L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• Low power machines CHATTERFREE
EC-E5L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• High material removal rates
ECR-B-MF
• Rough operations
• Used in unstable components
EFS-E44
• Used for machining alloyed steel
• Combination of VIBRAFREE and FINISHROUGH
EFS-B44
• Unique design
• Used for machining titanium, stainless and alloyed steel
• Fully effective
• Semi-finish surface quality
EC-E7/H7-CF
• For high speed machining
• Trochoidal milling
• Finish operations up to 10% X DC
EC-H-CF
• High speed machining
• Multiflute solid endmill
• Tools for super finish
• Up to 5% X DC

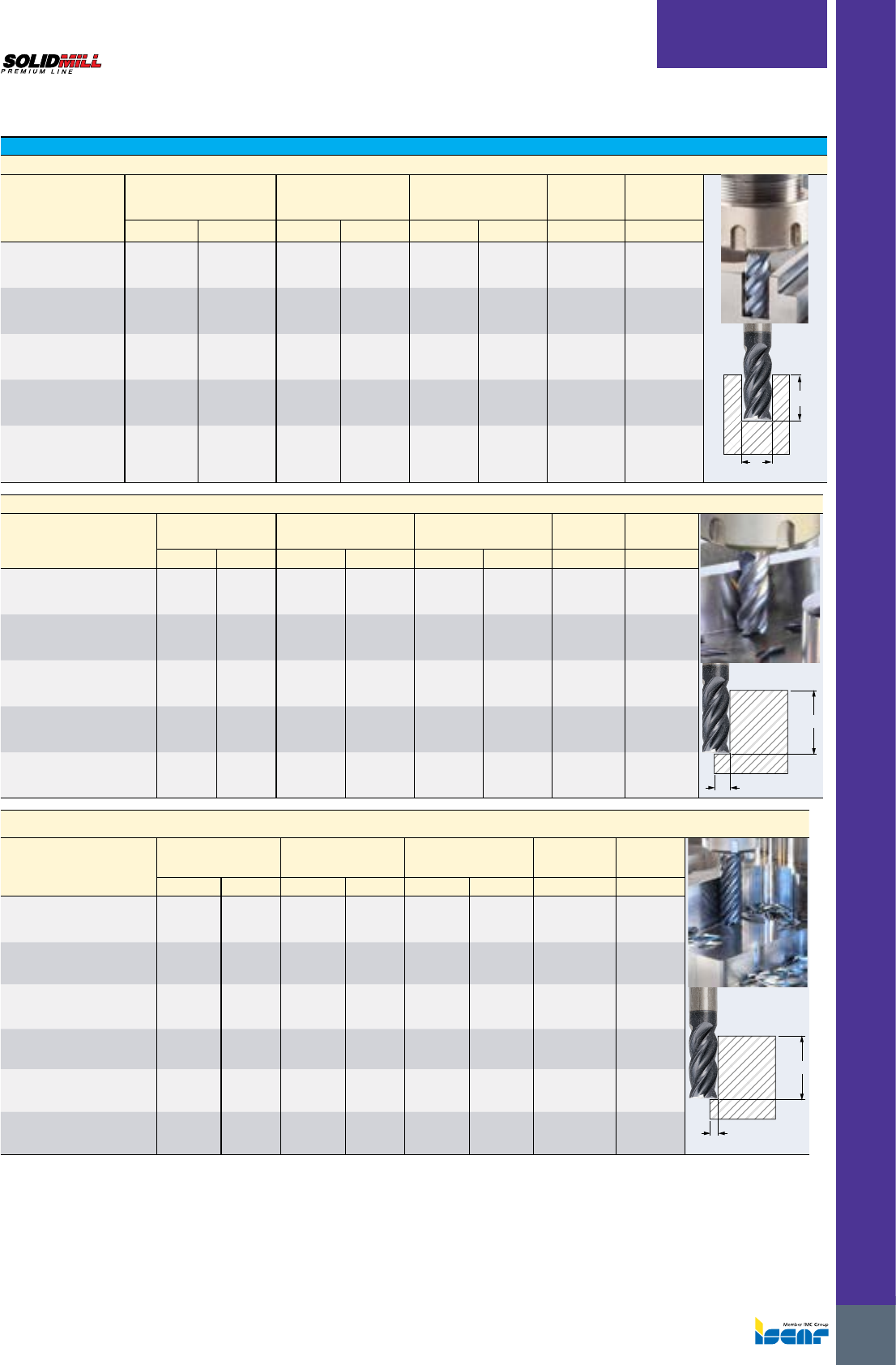

97
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
P (Steel Materials)
ROUGH: AE = 40% - Full Cut , ap = 2 x DC
ap
AE
Ferritic
Steels
Martensitic
Steels
High Alloyed SteelLow Alloyed SteelUnalloyed Steel
Material Group
Parameters
131211108-96-751-4
60-9080-10070-90130-150130-150120-160140-150160-180
Vc (IC900/608)
(m/min)
50-8060-9060-80100-120100-120100-130110-120130-160
Vc (IC300)
(m/min)
0.02-0.0350.02-0.0350.02-0.030.02-0.030.02-0.030.02-0.030.025-0.0350.025-0.035
Fz (Ø6-8)
(mm/t)
0.03-0.040.03-0.040.03-0.0450.03-0.0450.03-0.0450.03-0.0450.03-0.0450.03-0.045
Fz (Ø10-12) (mm/t)
0.035-0.0450.035-0.0450.04-0.0550.04-0.0550.04-0.0550.04-0.0550.04-0.0550.04-0.055
Fz (Ø16-20) (mm/t)
SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
ap
AE
Ferritic
Steels
Martensitic
Steels
High Alloyed SteelLow Alloyed SteelUnalloyed Steel
Material Group
Parameters 131211108-96-751-4
90-120100-13090-110150-160150-170160-180150-170200-220
Vc (IC900/608)
(m/min)
80-10090-11080-90120-130120-130130-150120-130160-190
Vc (IC300)
(m/min)
0.025-0.040.025-0.040.02-0.050.02-0.050.02-0.050.02-0.050.03-0.060.03-0.06
Fz (Ø6-8)
(mm/t)
0.035-0.0450.035-0.0450.04-0.0650.04-0.0650.04-0.0650.04-0.0650.06-0.070.06-0.07
Fz (Ø10-12)
(mm/t)
0.04-0.050.04-0.050.045-0.070.045-0.070.045-0.070.045-0.070.07-0.080.07-0.08
Fz (Ø16-20)
(mm/t)
FINISH: AE = 5% - 10%, ap = Max. cutting length
a
p
AE
Ferritic
Steels
Martensitic
Steels
High Alloyed SteelLow Alloyed SteelUnalloyed Steel
Material Group
Parameters 131211108-96-751-4
120-150130-160110-120160-180170-180180-220170-180220-280
Vc (IC900/608)
(m/min)
100-120110-13090-100130-140130-140150-180130-140190-220
Vc (IC300)
(m/min)
130-160140-170120-130170-190180-230190-230180-200230-290
Vc (IC902/903/702)
(m/min)
0.03-0.0450.03-0.0450.05-0.070.05-0.070.05-0.070.05-0.070.05-0.070.05-0.07
Fz (Ø6-8)
(mm/t)
0.04-0.050.04-0.050.07-0.080.07-0.080.07-0.080.07-0.080.07-0.080.07-0.08
Fz (Ø10-12)
(mm/t)
0.045-0.060.045-0.060.08-0.10.08-0.10.08-0.10.08-0.10.08-0.10.08-0.1
Fz (Ø16-20)
(mm/t)
ISCAR
98
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

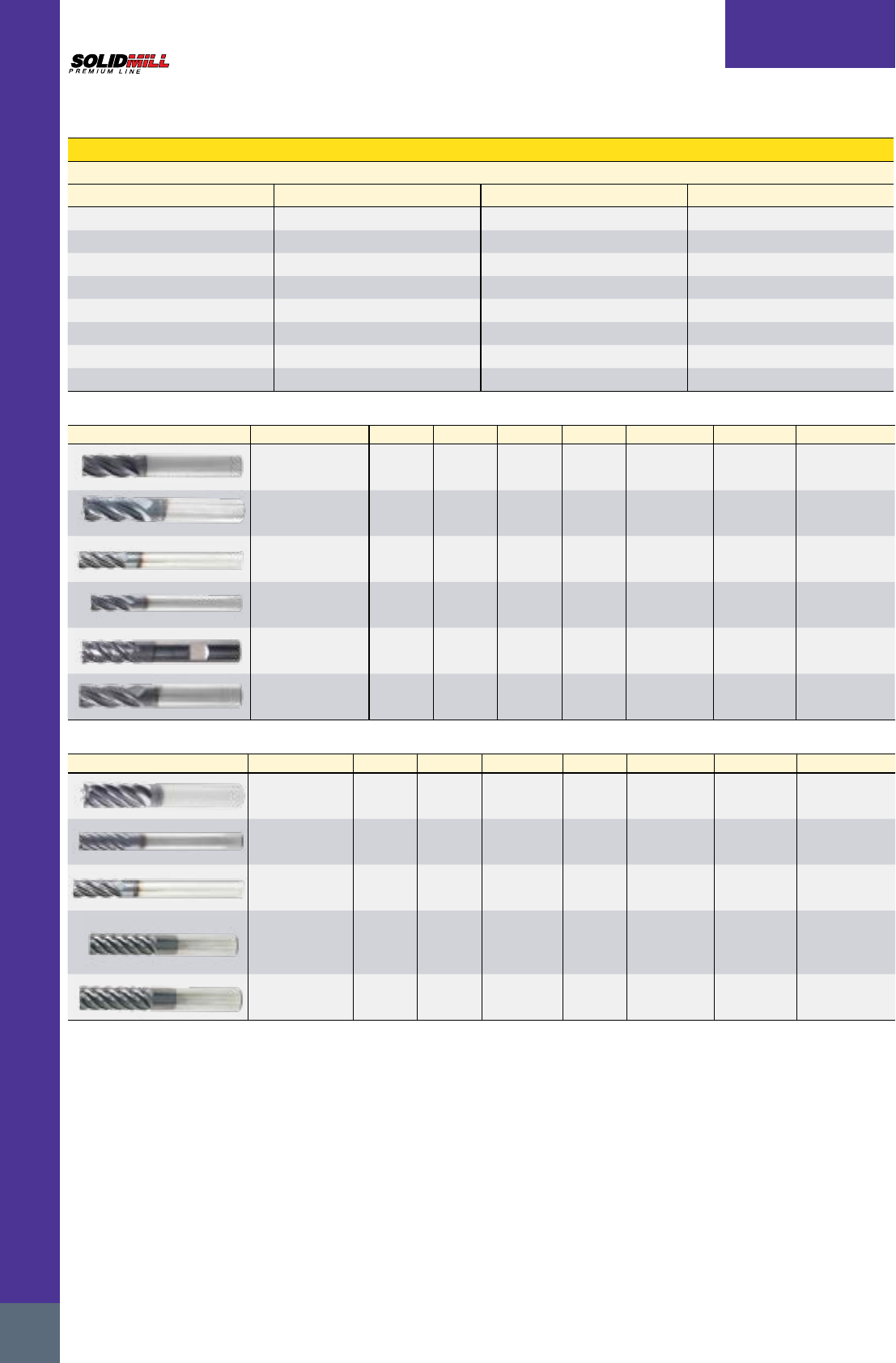

SELECTION GUIDE
M (Stainless Steel)
Tool Selection Priorities
Finish/H.S.MSemi-FinishRoughTool
1--EC-H-CF
2--EC-E7/H7-CF
-65EFS-B44
-54ECP-E4L
33-EC-H5M-CFR
543EC-H4M-CFR
-22ECP-H4L-CFR
411EC-H4M-CF-E
ROUGHING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-H5M-CFR 4-20 - 2xDC 5 RE NO 118
EC-H4-L/M/XL/CFR 3-25 - 2xDC - RE NO 117
EFS-B44 6-25 3xDC 2xDC 4 CHWx45 NO 126
ECP-E4L 5-20 3xDC 2xDC 4 CHWx45 NO 130
FINISHING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
EC-H5M-CFR 4-20 - 2xDC 5 RE NO 118
ECXL-B-4/6 10-20 - 6xDC 7 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
99
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

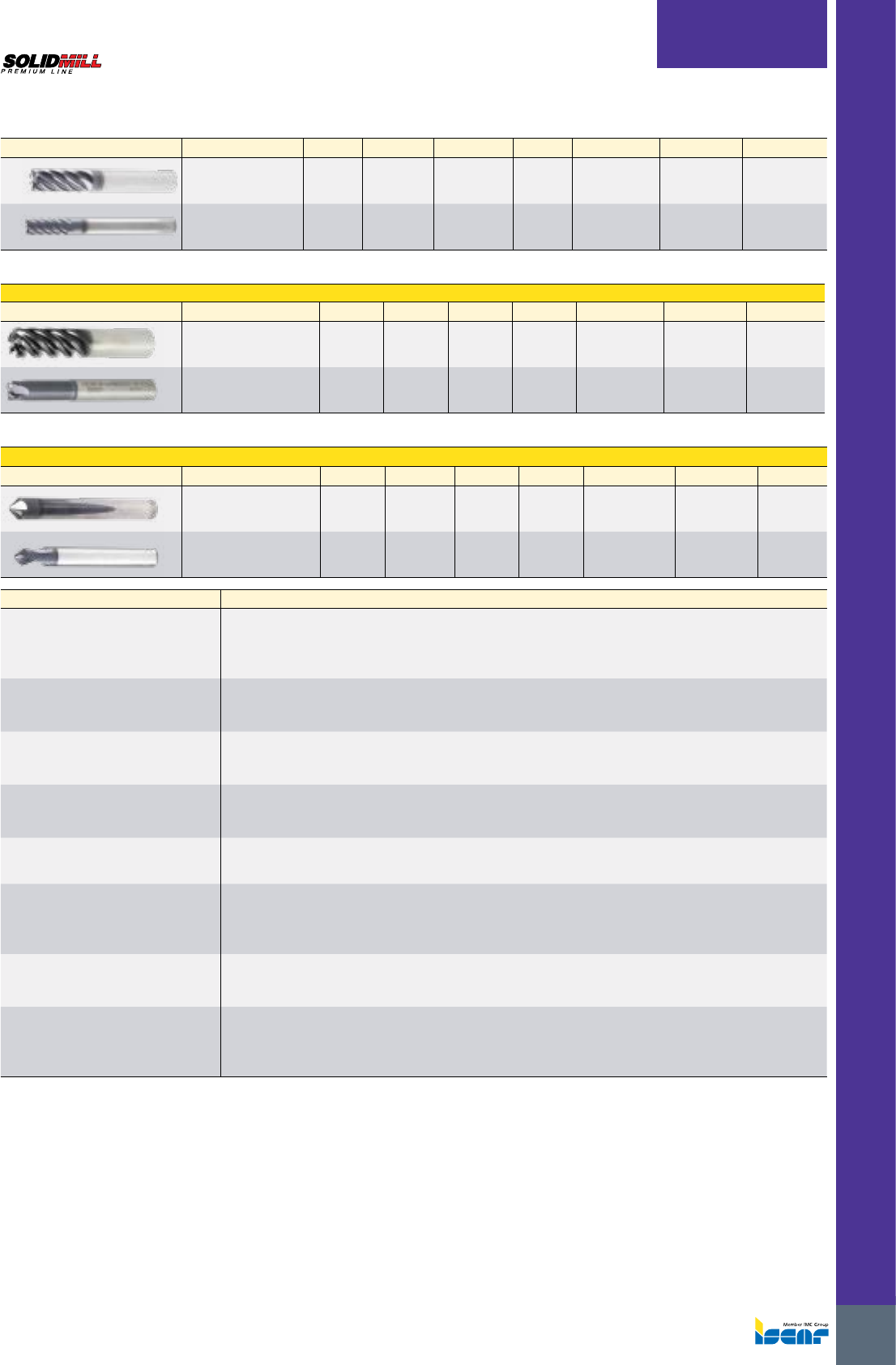

SELECTION GUIDE
TROCHOIDAL / DYNAMIC MILLING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
HIGH FEED MILLING
M (Stainless Steel)
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
CHAMFERING AND DEBURRING
M (Stainless Steel)
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECF.../45 4-12 - 2.5xDC 4 - NO 174
ECD-S2 3-12 2xDC 0.5xDC 2 - NO 174
Tool Type Features
EC-H4M-CF-E
(ECO Type)
• Rough and finish operations
• General use
• Low power machines
• CHATTERFREE
ECP-H4L-CFR
• Rough operations
• General use
• Chip splitter CHATTERFREE
EC-H4M-CFR
• Rough and finish operations
• Used for machining stainless steel
• High material removal rates
EC-H5M-CFR
• Rough and finish operations
• Used for machining stainless steel
• High material removal rates
ECP-E4L
• Used for machining stainless steel and high-temperature alloys
• Chip Splitter
EFS-B44
• Unique design
• Used for machining titanium, stainless and alloyed steel
• Fully effective
• Semi-finish surface quality
EC-E7/H7-CF
• For high speed machining
• Trochoidal milling
• Finish operations up to 10% X DC
EC-H-CF
• High speed machining
• Multiflute solid endmill
• Tools for super finish
• Up to 5% X DC
ISCAR
100
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE

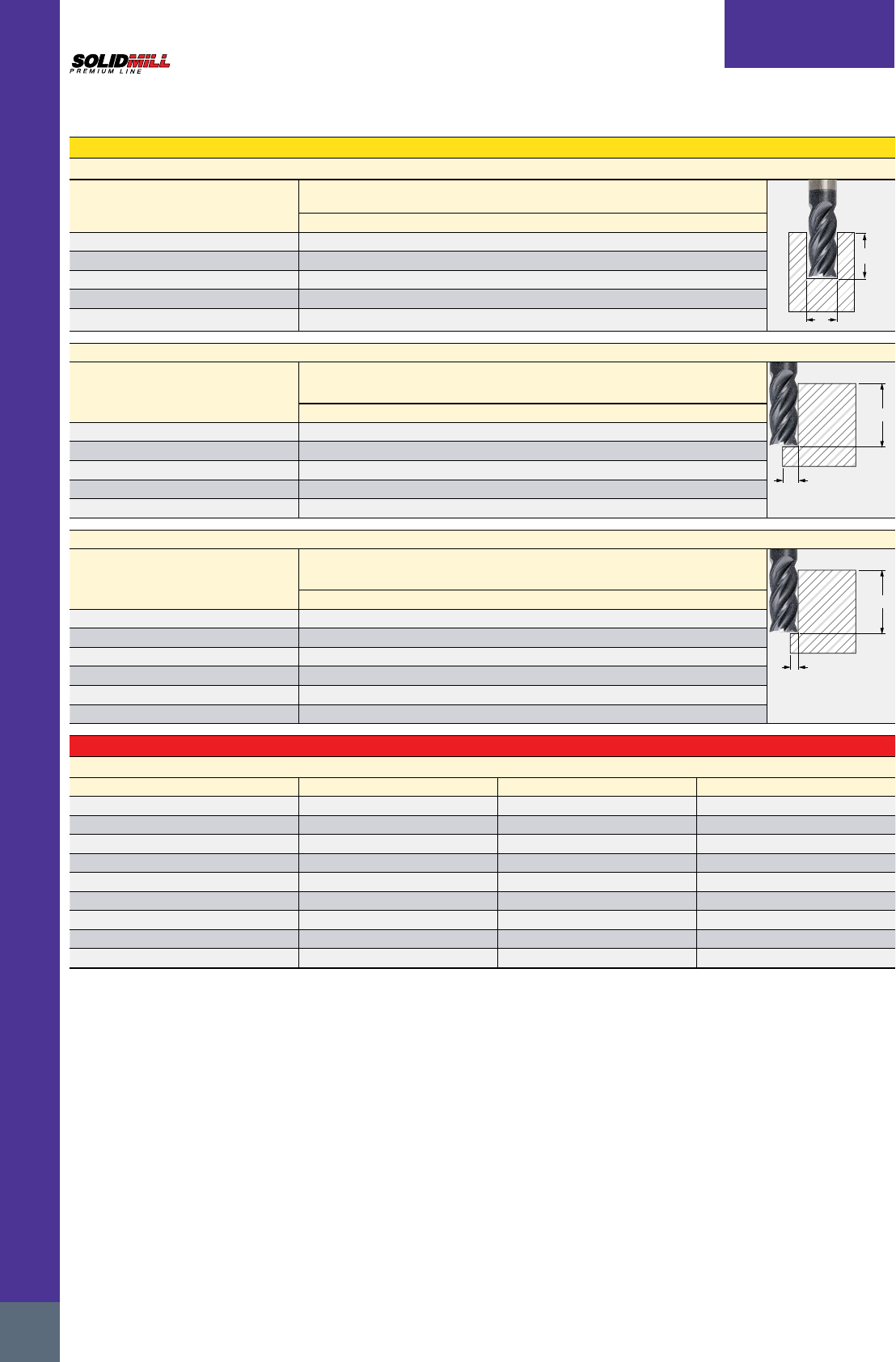

M (Stainless Steel)
ROUGH: AE = 40% - Full Cut , ap = 2 x DC
ap
AE
Austenitic Steels
Material Group Parameters
14
60-80Vc (IC900/608) (m/min)
50-70Vc (IC300) (m/min)
0.02-0.035
Fz (Ø6-8) (mm/t)
0.03-0.04
Fz (Ø10-12) (mm/t)
0.035-0.045
Fz (Ø16-20) (mm/t)
SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
ap
AE
Austenitic Steels
Material Group Parameters
14
80-100Vc (IC900/608) (m/min)
70-90Vc (IC300) (m/min)
0.025-0.04
Fz (Ø6-8) (mm/t)
0.035-0.045
Fz (Ø10-12) (mm/t)
0.04-0.05
Fz (Ø16-20) (mm/t)
FINISH / H.S.M: AE = 5% - 10%, ap = Max. cutting length
ap
AE
Austenitic Steels
Material Group Parameters
14
100-120Vc (IC900/608) (m/min)
90-100Vc (IC300) (m/min)
110-130Vc (IC902/903/702) (m/min)
0.03-0.045
Fz (Ø6-8) (mm/t)
0.04-0.05
Fz (Ø10-12) (mm/t)
0.045-0.06
Fz (Ø16-20) (mm/t)
K (Cast Iron)
Tool Selection Priorities
Finish/H.S.MSemi-FinishRoughTool
1--EC-H-CF
2--EC-E7/H7-CF
-72EFS-B44
-65EFS-E44
-34ECR-B-MF
417EC-E5L-CF
556EC-E4L-CF
-43ECP-H4L-CFR
321EC-H4M-CF-E
101
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
ROUGHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127
EFS-E44 6-25 - 2xDC 4 CHWx45 NO 125
EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126
ECR-B-MF 6-20 - 2xDC 4/6 CHWx45 NO 129
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
FINISHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
TROCHOIDAL / DYNAMIC MILLING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC,
4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ISCAR

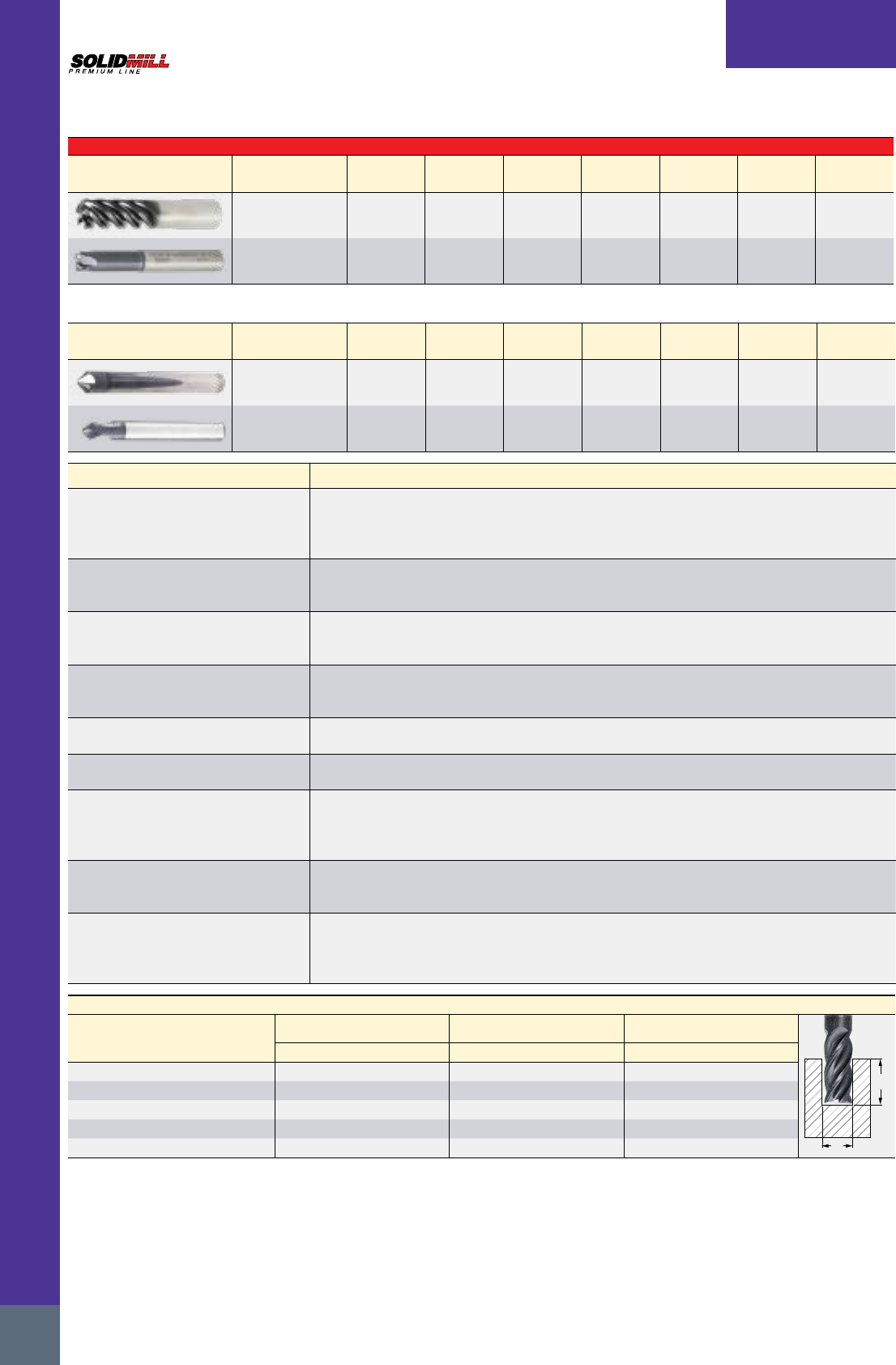

102
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
HIGH FEED MILLING
K (Cast Iron)
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
CHAMFERING AND DEBURRING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
ECF.../45 4-12 - 2.5xDC 4 - NO 174
ECD-S2 3-12 2xDC 0.5xDC 2 - NO 174
Tool Type Features
EC-H4M-CF-E
(ECO Type)
• Rough and finish operations
• General use
• Low power machines
• CHATTERFREE
ECP-H4L-CFR
• Rough operations
• General use
• Chip splitter CHATTERFREE
EC-E4L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• Low power machines no vibrations
EC-E5L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• High material removal rates
ECR-B-MF
• Rough operations
• Used on unstable components
EFS-E44
• Used for machining alloyed steel
• Combination of VIBRAFREE and FINISHROUGH
EFS-B44
• Unique design
• Used for machining titanium, stainless and alloyed steel
• Fully effective
• Semi-finish surface quality
EC-E7/H7-CF
• For high speed machining
• Trochoidal milling
• Finish operations up to 10% X DC
EC-H-CF
• High speed machining
• Multiflute solid endmill
• Tools for Super-Finish
• Up to 5% X DC
ROUGH: AE = 40% - Full Cut , ap = 2 x DC
ap
AE
Malleable Cast IronDuctile Cast IronGrey Cast Iron
Material Group Parameters
19-2017-1815-16
140-18090-13080-130Vc (IC900/608) (m/min)
110-15070-14060-140Vc (IC300) (m/min)
0.02-0.040.02-0.040.02-0.04
Fz (Ø6–8) (mm/t)
0.03-0.050.03-0.050.03-0.05
Fz (Ø10-12) (mm/t)
0.04-0.060.04-0.060.04-0.06
Fz (Ø16-20) (mm/t)
103
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
K (Cast Iron)
SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
ap
AE
Malleable Cast IronDuctile Cast IronGrey Cast Iron
Material Group Parameters 19-2017-1815-16
180-220130-200130-180Vc (IC900/608) (m/min)
150-180140-180140-180Vc (IC300) (m/min)
0.03-0.050.03-0.050.03-0.05
Fz (Ø6–8) (mm/t)
0.04-0.060.04-0.060.04-0.06
Fz (Ø 10-12) (mm/t)
0.06-0.070.06-0.070.06-0.07
Fz (Ø16-20) (mm/t)
FINISH / H.S.M: AE = 5% - 10%, ap = Max. cutting length
ap
AE
Malleable Cast IronDuctile Cast IronGrey Cast Iron
Material Group Parameters 19-2017-1815-16
220-280200-280180-260Vc (IC900/608) (m/min)
180-220180-220180-210Vc (IC300) (m/min)
220-290210-290190-270Vc (IC902/903/702) (m/min)
0.035-0.060.035-0.060.035-0.06
Fz (Ø6–8) (mm/t)
0.06-0.0650.06-0.0650.06-0.065
Fz (Ø10-12) (mm/t)
0.065-0.080.065-0.080.065-0.08
Fz (Ø16-20) (mm/t)
N (Non-Ferrous Metals)
Tool Selection Priorities
Finish/H.S.MSemi-FinishRoughTool
-65ECR-B3-R
336ECA-B-3
112ECA-H4-CF
-43ECAP-H3-CF
454ECA-H3-CF
221ECA-H3-CF-C
ROUGHING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECA-H3-CF 1.5-25 3XDC 2xDC 3 RE NO 154-156
ECAP-H3-CF 10-25 5XDC 2xDC 3 RE YES 157
ECA-H4-CF 6-25 5XDC 2xDC 4 RE NO 156
ECA-B-3 4-20 4xDC 2xDC 3 RE NO 160
ECR-B3-R 6-20 - 1xDC 3 RE NO 158
ISCAR

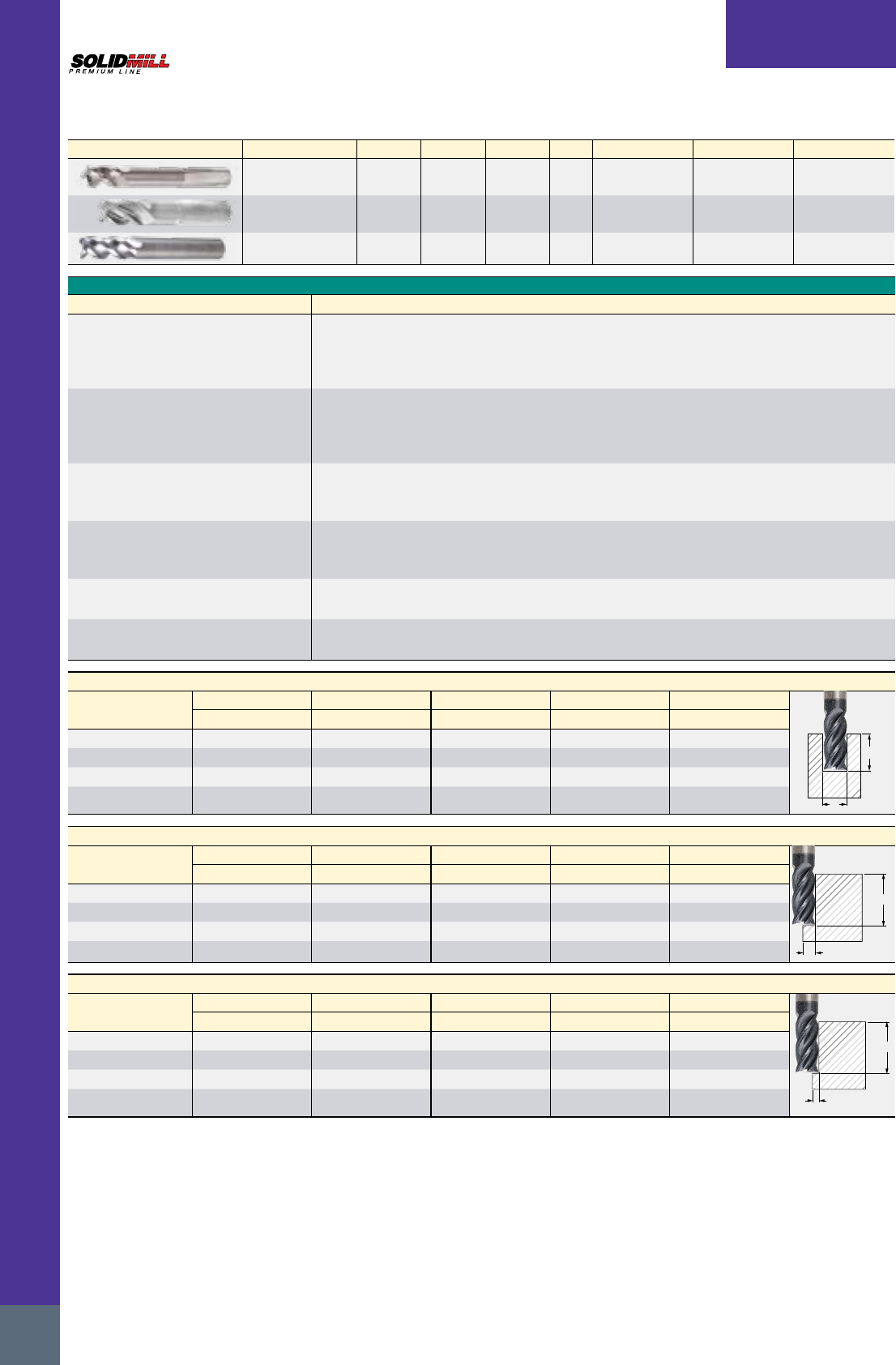

104
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
FINISHING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECA-H3-CF 1-25 3XDC 2xDC 3 RE NO 154-156
ECA-H4-CF 6-25 5XDC 2xDC 4 RE NO 156
ECA-B-3 4-20 4xDC 2xDC 3 RE NO 160
N (Non-Ferrous Metals)
Tool Type Features
ECA-H3-CF
• Suitable for roughing and finishing operations
• CHATTERFREE
• Full slot up to 1.5XDC and 2XDC *
• Excellent solution for low power machines
ECA-H3-CF-C
• Suitable for roughing and finishing operations
• CHATTERFREE
• Full slot up to 2XDC
• Internal coolant for better chip evacuation in deep cavity
ECAP-H3-CF
• Suitable for roughing
• Chip splitter CHATTERFREE
• Internal coolant for better chip evacuation in deep cavity
ECA-H4-CF
• Suitable for roughing and finishing operations
• CHATTERFREE
• Full slot up to 1XDC
ECA-B-3
• Suitable for roughing and finishing operations
• Excellent surface finish
ECR-B3-R
• Suitable for roughing
• Good cheap evacuation
D 2x ROUGH: AE = 40% - Full Cut , ap = 1.5xDC*
ap
AE
Non-MetallicElectrolitic CopperCopper AlloyAlu Cast AlloyAlu Wrought alloy
Material Group
Parameters 29-302826-2723-2521-22
350-360350-360500-520400-550700-760Vc (IC08) (m/min)
0.02-0.040.02-0.040.02-0.040.02-0.040.02-0.04
Fz (Ø6–8) (mm/t)
0.03-0.050.03-0.050.03-0.050.03-0.050.03-0.05
Fz (Ø10-12) (mm/t)
0.03-0.070.03-0.070.03-0.070.03-0.070.03-0.07
Fz (Ø 16-20) (mm/t)
SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
ap
AE
Non-MetallicElectrolitic CopperCopper AlloyAlu Cast AlloyAlu Wrought alloy
Material Group
Parameters 29-302826-2723-2521-22
360-370360-370520-530550-700760-840Vc (IC08) (m/min)
0.03-0.050.03-0.050.03-0.050.04-0.060.04-0.06
Fz (Ø6–8) (mm/t)
0.045-0.0550.045-0.0550.045-0.0550.06-0.080.06-0.08
Fz (Ø 10-12) (mm/t)
0.055-0.070.055-0.070.055-0.070.08-0.10.08-0.1
Fz (Ø 16-20) (mm/t)
FINISH / H.S.M: AE = 5% - 10%, ap = Max. cutting length
a
p
AE
Non-MetallicElectrolitic CopperCopper AlloyAlu Cast AlloyAlu Wrought alloy
Material Group
Parameters 29-302826-2723-2521-22
370-380370-380530-550700-900840-900Vc (IC08) (m/min)
0.035-0.060.035-0.060.035-0.060.045-0.070.045-0.07
Fz (Ø6–8)(mm/t)
0.06-0.070.06-0.070.06-0.070.07-0.10.07-0.1
Fz (Ø10-12) (mm/t)
0.065-0.080.065-0.080.065-0.080.1-0150.1-0.15
Fz (Ø16-20) (mm/t)
105
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE

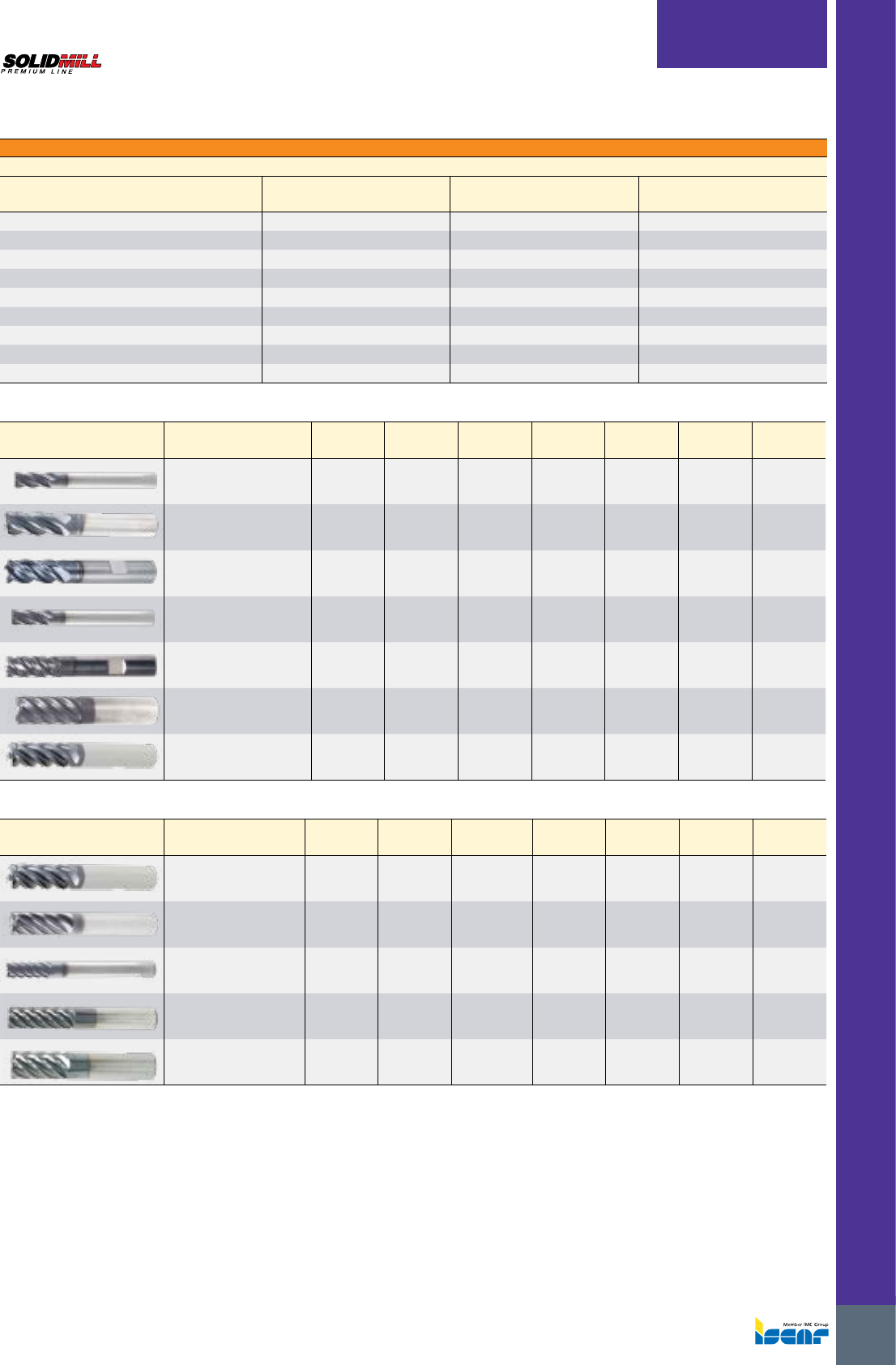

S (High Heat Resistant Alloys)
Tool Selection Priorities
Finish/H.S.MSemi-FinishRoughTool
1--EC-H-CF
2--EC-E7/H7-CF
-11EFS-B44 (IC300)
-33ECK-H4M-CFR
-22ECR-B-MF
347EC-H5M-CFR
576EC-H4M-CFR
-54ECP-H4L-CFR
465EC-H4M-CF-E
ROUGHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127
ECK-H4M-CFR 6-20 - 2xDC 4 - NO / YES 123
EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126
ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
FINISHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
ISCAR

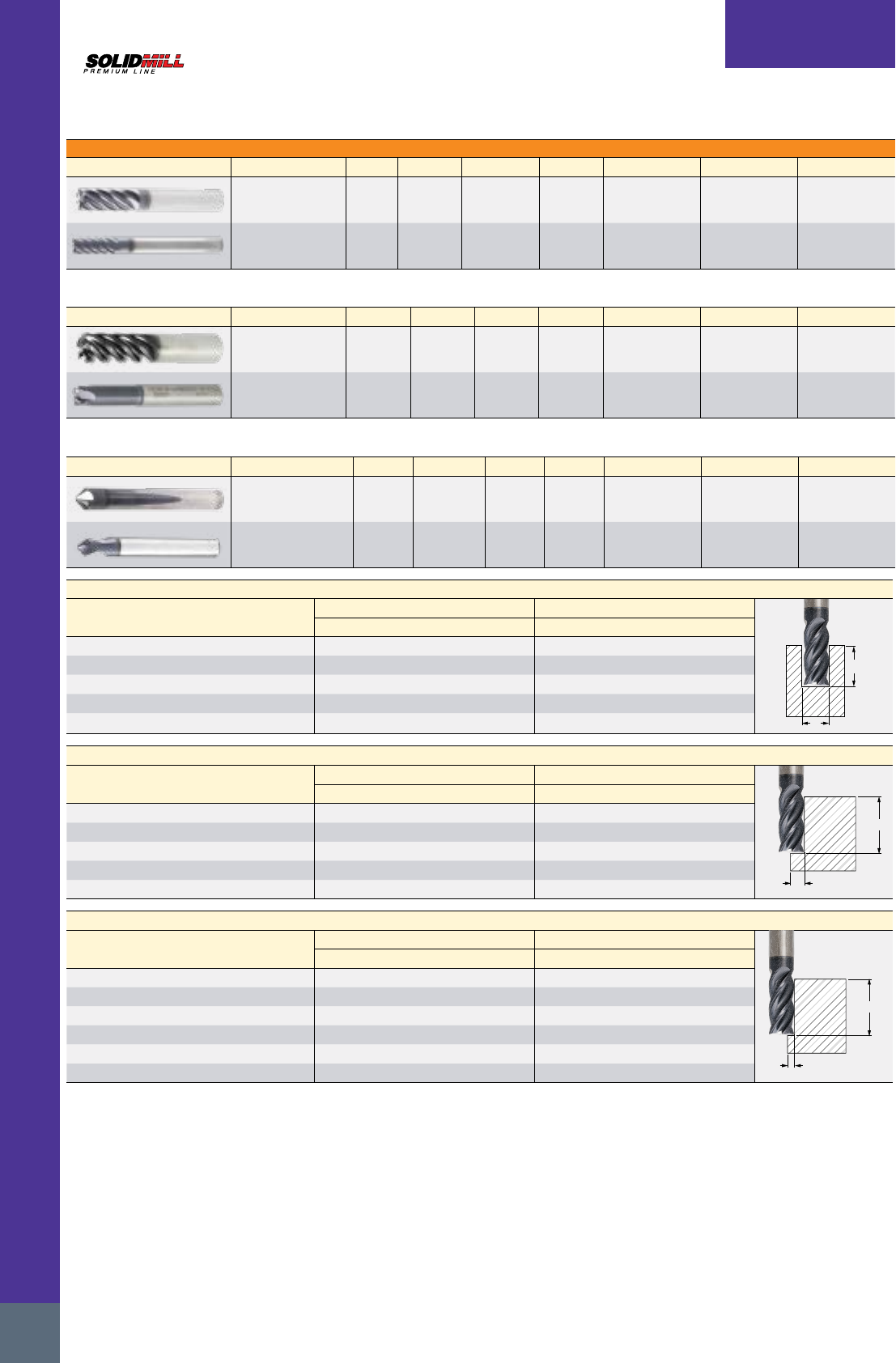

106
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
TROCHOIDAL / DYNAMIC MILLING
S (High Heat Resistant Alloys)
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
HIGH FEED MILLING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
CHAMFERING AND DEBURRING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECF.../45 4-12 - 2.5xDC 4 - NO 174
ECD-S2 3-12 2xDC 0.5xDC 2 - NO 174
*ROUGH: AE = 40% - Full Cut , ap = 1.5 x DC
ap
AE
Titanium and Ti AlloysNickel based Alloys
Material Group Parameters 36-3731-35
30-5020-40Vc (IC900/608) (m/min)
20-4020-30Vc (IC300) (m/min)
0.02-0.030.02-0.03
Fz (Ø6–8) (mm/t)
0.03-0.040.03-0.04
Fz (Ø 10-12) (mm/t)
0.03-0.070.03-0.07
Fz (Ø 16-20) (mm/t)
SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
ap
AE
Titanium and Ti AlloysNickel based Alloys
Material Group Parameters 36-3731-35
50-6040-50Vc (IC900/608) (m/min)
40-5030-45Vc (IC300) (m/min)
0.03-0.040.03-0.04
Fz (Ø6–8) (mm/t)
0.035-0.050.035-0.05
Fz (Ø 10-12) (mm/t)
0.05-0.080.05-0.08
Fz (Ø 16-20) (mm/t)
FINISH / H.S.M: AE = 5% - 10%, ap = Max. cutting length
ap
AE
Titanium and Ti AlloysNickel based Alloys
Material Group Parameters 36-3731-35
60-7050-70Vc (IC900/608) (m/min)
50-6045-60Vc (IC300) (m/min)
65-8055-80Vc (IC902/903/702) (m/min)
0.035-0.050.035-0.05
Fz (Ø6–8) (mm/t)
0.04-0.060.04-0.06
Fz (Ø 10-12) (mm/t)
0.06-0.0850.06-0.085
Fz (Ø 16-20) (mm/t)
107
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE

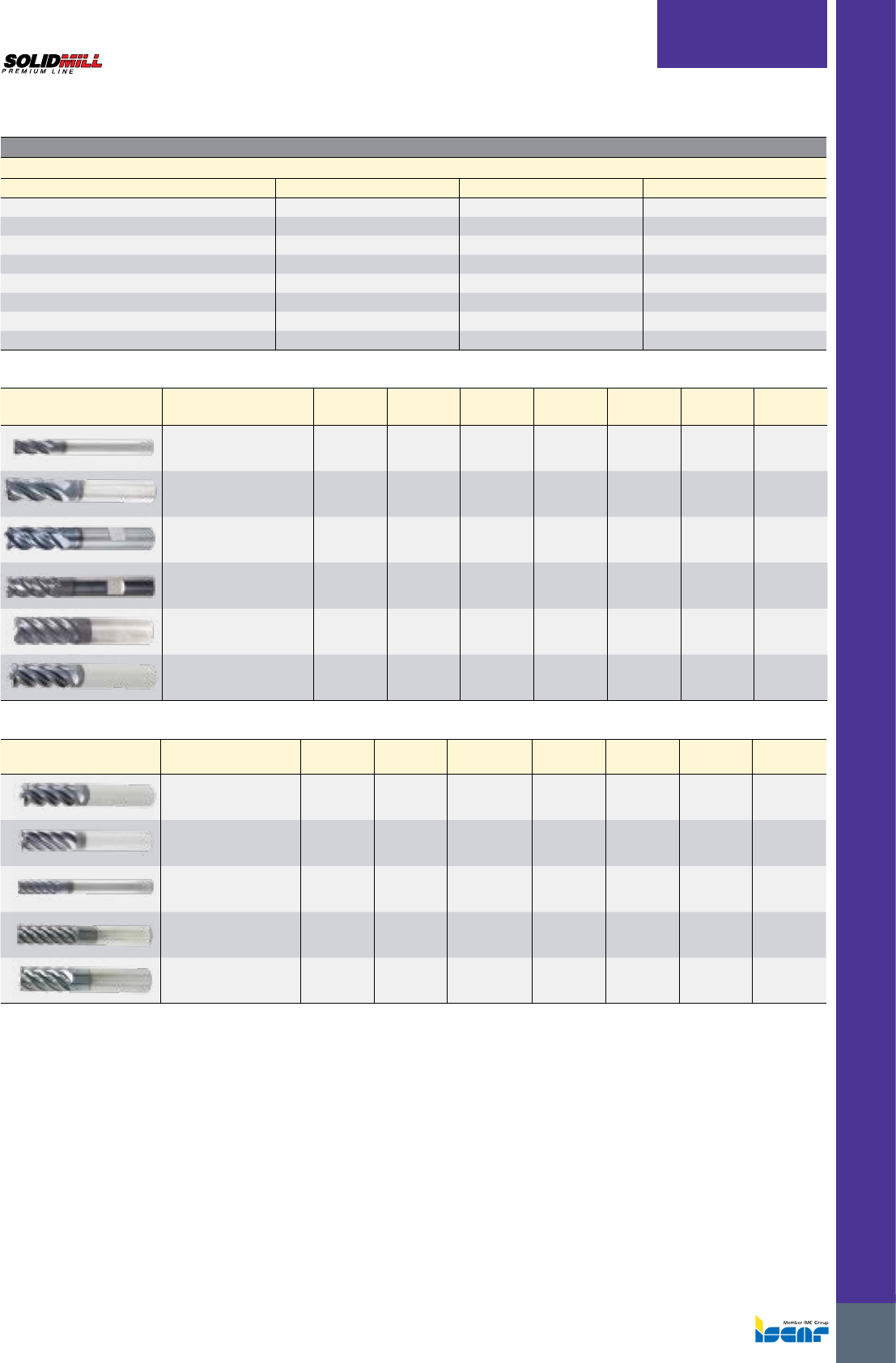

H (Hard Materials)
Tool Selection Priorities
Finish/H.S.MSemi-FinishRoughTool
1--EC-H-CF
2--EC-E7/H7-CF
-32EFS-B44
-11ECR-B-MF
326EC-E5L-CF
565EC-E4L-CF
-43ECP-H4L-CFR
454EC-H4M-CF-E
ROUGHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127
EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126
ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
FINISHING
Designation ØLU (Neck) apZEFF Corner
Type Coolant Page
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
ISCAR
108
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE

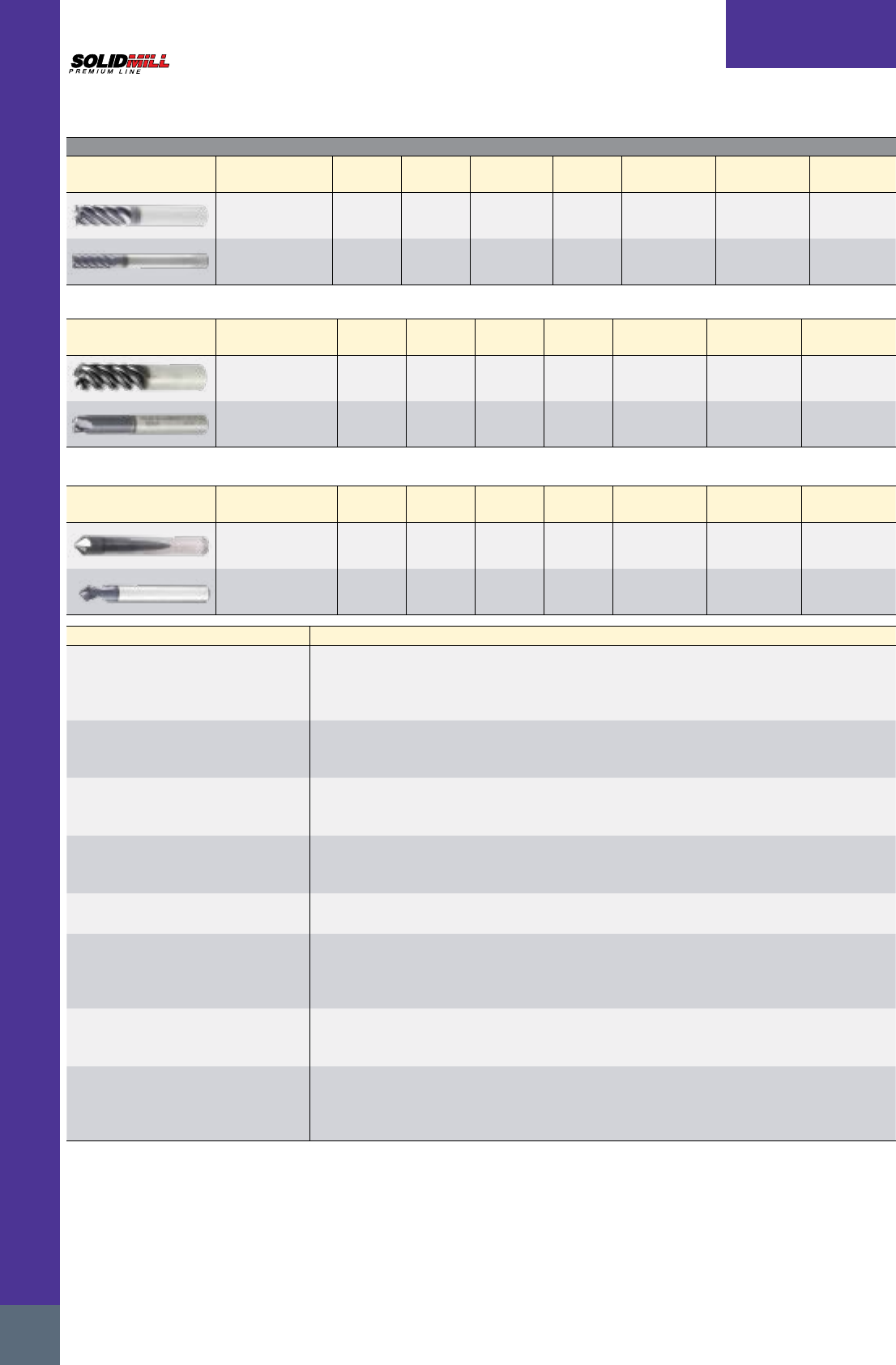

TROCHOIDAL / DYNAMIC MILLING
H (Hard Materials)
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
HIGH FEED MILLING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
CHAMFERING AND DEBURRING
Designation ØLU (Neck) apZEFF Corner Type Coolant Page
ECF.../45 4-12 - 2.5xDC 4 - NO 174
ECD-S2 3-12 2xDC 0.5xDC 2 - NO 174
Tool Type Features
EC-H4M-CF-E (ECO Type)
• Rough and finish operations
• General use
• Low power machines
• CHATTERFREE
ECP-H4L-CFR
• Rough operations
• General use
• Chip splitter CHATTERFREE
EC-E4L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• Low power machines no vibrations
EC-E5L-CF
• Rough and finish operations
• Used for machining alloyed steel and general use
• High material removal rates
ECR-B-MF
• Rough operations
• Used on unstable components
EFS-B44
• Unique design
• Used for machining titanium, stainless and alloyed steel
• Fully effective
• Semi-finish surface quality
EC-E7/H7-CF
• For high speed machining
• Trochoidal milling
• Finish operations up to 10% X DC
EC-H-CF
• High speed machining
• Multiflute solid endmill
• Tools for super finish
• Up to 5% X DC

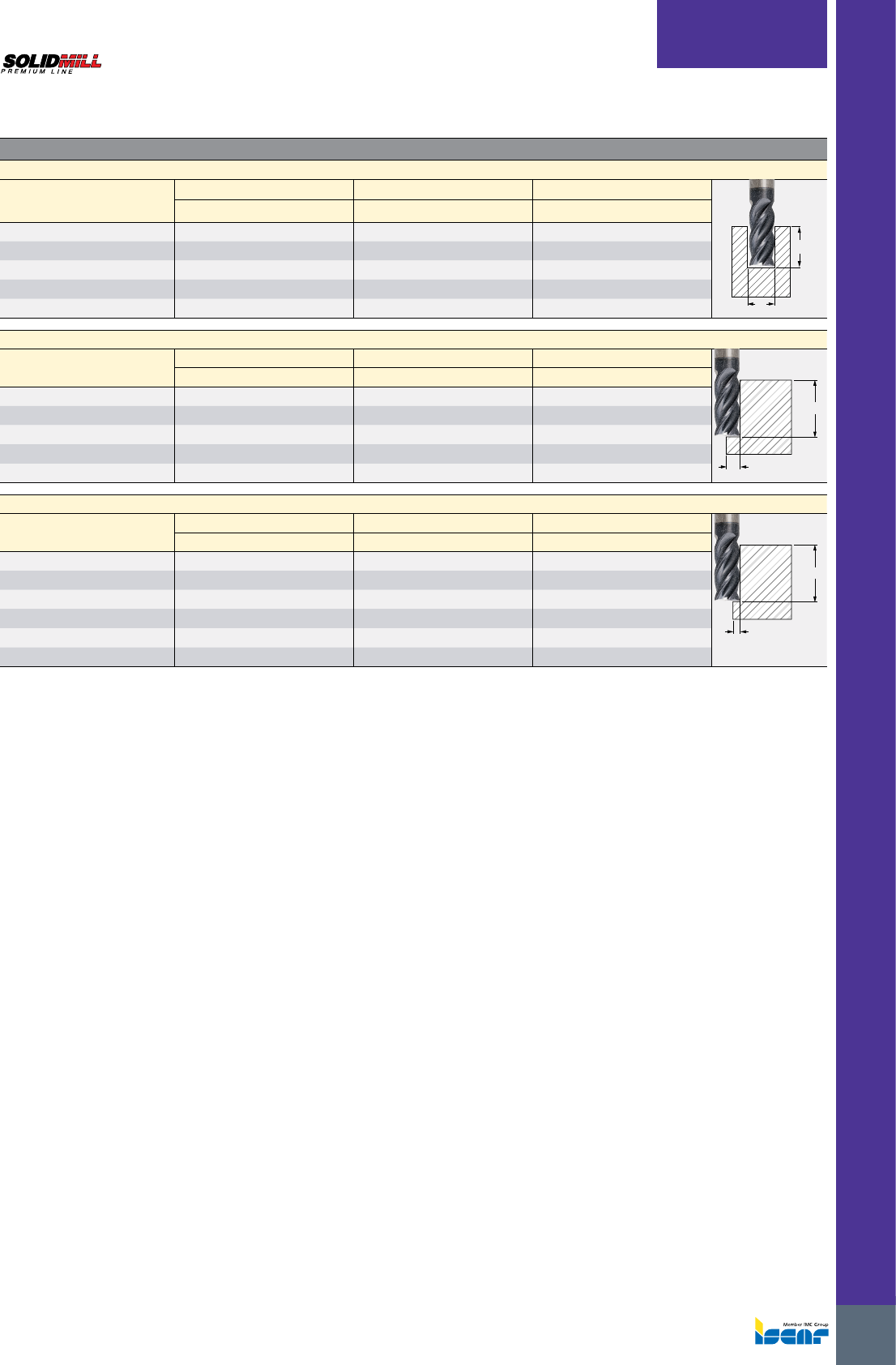

109
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SELECTION GUIDE
H (Hard Materials)
ROUGH: AE = 40% - Full Cut , Ap = 2 x DC
ap
AE
Cast IronChilled Cast IronHardened Steel
Material Group Parameters 414038-39
30-3560-6520-30Vc (IC900/608) (m/min)
20-2550-5520-25Vc (MC300) (m/min)
0.01-0.0150.01-0.0150.01-0.015
Fz (Ø6 – 8) (mm/z)
0.03-0.0450.03-0.0450.03-0.045
Fz (Ø 10 -12) (mm/z)
0.04-0.050.04-0.050.04-0.05
Fz (Ø 16 -20) (mm/z)
SEMI-FINISH: AE = 10% - 40%, Ap = 2 x DC
ap
AE
Cast IronChilled Cast IronHardened Steel
Material Group Parameters 414038-39
35-4065-7030-40Vc (IC900/608) (m/min)
25-3050-5525-30Vc (MC300) (m/min)
0.015-0.0350.015-0.0350.015-0.035
Fz (Ø6 – 8) (mm/z)
0.035-0.0550.035-0.0550.035-0.055
Fz (Ø 10 -12) (mm/z)
0.045-0.060.045-0.060.045-0.06
Fz (Ø 16 -20) (mm/z)
FINISH / H.S.M: AE = 5% - 10%, Ap = Max. Cutting Length
ap
AE
Cast IronChilled Cast IronHardened Steel
Material Group Parameters 414038-39
40-5070-8040-50Vc (IC900/608) (m/min)
30-4055-6030-40Vc (MC300) (m/min)
45-6075-9045-60Vc (IC902/903/702) (m/min)
0.02-0.040.02-0.040.02-0.04
Fz (Ø6 – 8) (mm/z)
0.04-0.060.04-0.060.04-0.06
Fz (Ø 10 -12) (mm/z)
0.05-0.070.05-0.070.05-0.07
Fz (Ø 16 -20) (mm/z)
ISCAR
110
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

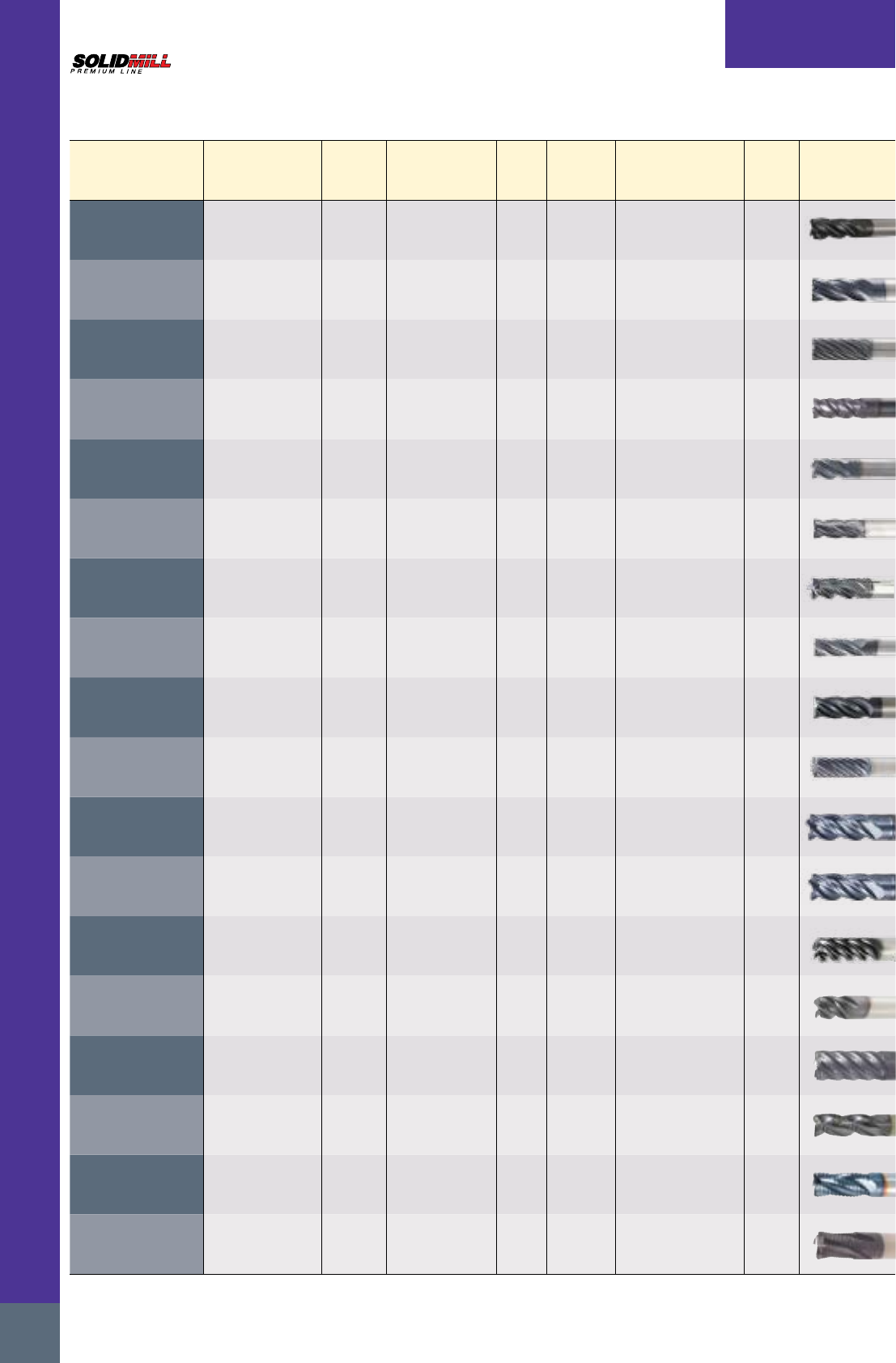

Table of Contents
Type Helix Angle Cutting
Length
Workpiece
Hardness HRc
No. of
Flutes
Diameter
Range Page
EFS-E44 38º2DC <45 4 6-25 125
ECK-H4M-CFR Different helix with
variable pitch 2DC Titanium 4 4-20 158
ECK-H7/9-CFR Different helix with
variable pitch 2DC Titanium 7-9 6-20 124
EFS-B44 45º2DC <55 4 4-25 126
EC-H4S-CF Different helix with
variable pitch DC <55 4 6-20 115
EC-H4M-CF-E Different helix with
variable pitch 2DC <55 4 6-20 115
EC-H4-L/M/XL/CFR Different helix with
variable pitch - <55 4 3-25 117
ECP-H4L-CFR Different helix with
variable pitch 2DC <55 4 6-20 116
EC-E7/H7-CF Different helix with
variable pitch 2DC, 4DC <55 7 2-20 119-120
EC-H-CF Different helix with
variable pitch 2DC <55 6-20 6-20 123
EC-E4L-CF 38º helix with
variable pitch 2DC <45 4 1-25 127
EC-E5L-CF 38º helix with
variable pitch 2.5DC <45 5 6-20 127
EFP-E4,5CF 38º helix with
variable pitch 2DC <55 4-5 6-20 High feed at
small D.O.C. 132
ECR-B-X/L/M/S 45º1-2DC <55 4-7 5-20 128
ECR-B-MF 45º2DC <65 4,6 6-25 Excellent for
hardened steel 129
ECP-E-L 38º2DC <45 3,4 5-20 Recommended for
stainless steel 129-130
ERF-A/E-3,4,6 30º, 38º2DC <55 3-6 4-25 Fine pitch steel alloys 130
ECR-T-M 20º2DC <55 4 6-20 131
(1) Provides high surface finish in rough machining conditions
SELECTION GUIDE
111
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

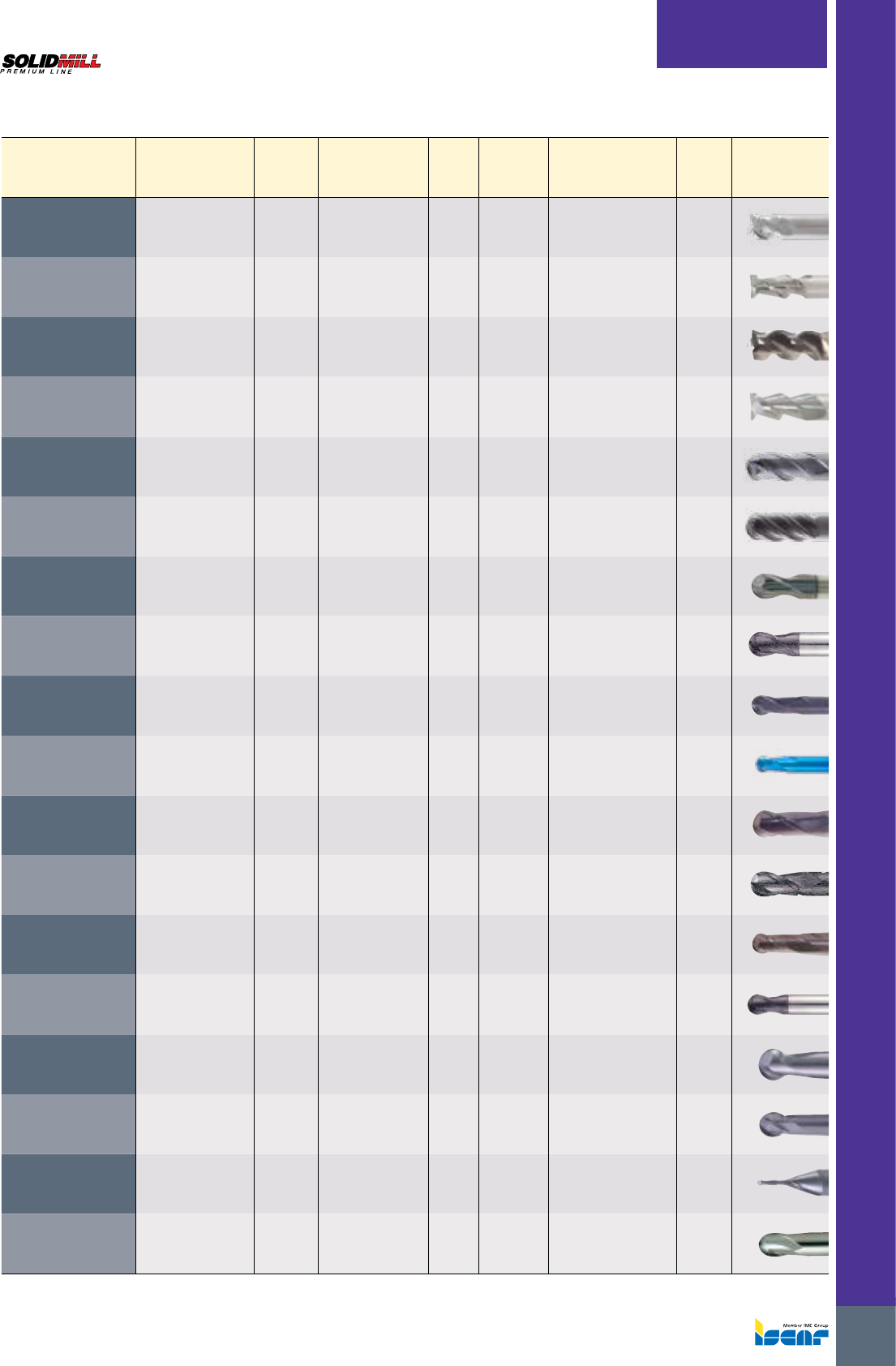

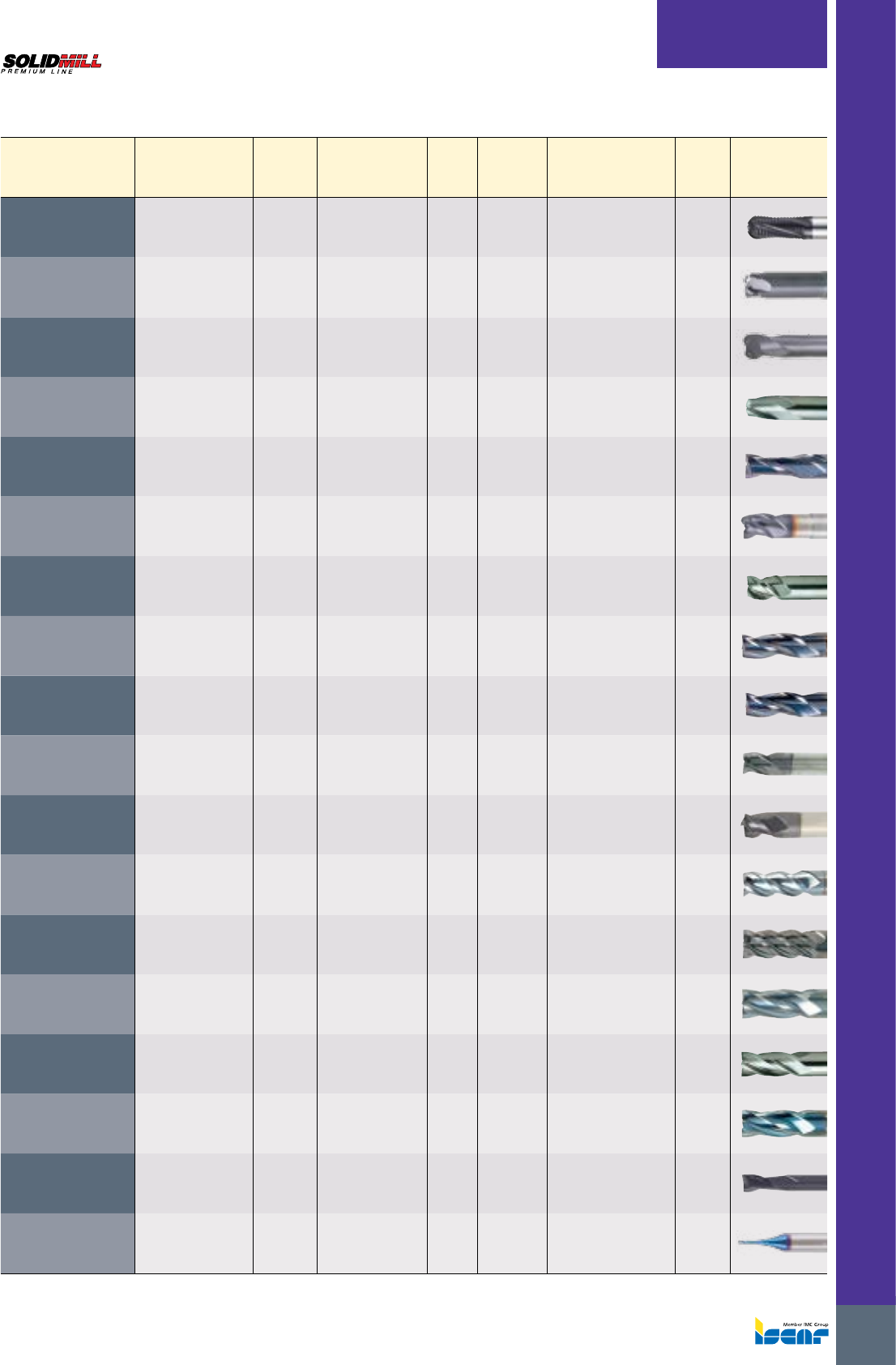

Table of Contents
Type Helix Angle Cutting
Length
Workpiece
Hardness HRc
No. of
Flutes
Diameter
Range Page
EBRF-T 20º2DC <55 3,4 6-20 131
EFF-S 0º0.05DC <65 4 1-20 132
ETR-A2 30º1DC <45 2 2-10 133
EC-A2
(economical short/
medium/extra long)
30º1-10DC <45 2 1-20 135
EC/ECC-A-2 30º2-3.5DC <45 2 2-20 Reinforced 134
ECS/ECCS-E-3 38º1-1.5DC <45 3 2-20 133
EC-B3
(economical-short/
medium)
45º1-2DC <45 3 1.5-20 137
EC-E-3 38º1-2.5DC <45 3 1-20 138
ECC-E-3 38º2-3.5DC <45 3 2-20 Reinforced 139
ECU-E-3 38º2DC <45 3 2.8-19.7 Undersized for
keyholes 138
ECU-E-3-R 38º1.25DC <45 3 3.8-11.7
Undersized for
keyholes with
corner radii
139
EC-B-3/3R 45º2-3.5DC <45 3 2-20 140
EC-B-4/4R 45º2-3.5DC <45 4 2-20 141
EC-A-4/4R 30º2-3.5DC <45 4 2-20 142
EC-A4(economical-
medium&extra
long)
30º2-10DC <45 4 2-20 144
ECC-A-4 30º2-3.5DC <45 4 2-20 Reinforced 143
EC-A2-M 30º1-1.5DC <65 2 0.4-6 147-148
EC-A2-R/H 30° 1.5DC <65 2 0.1-12 145-146
(1) Provides high surface finish in rough machining conditions
SELECTION GUIDE
ISCAR
112
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

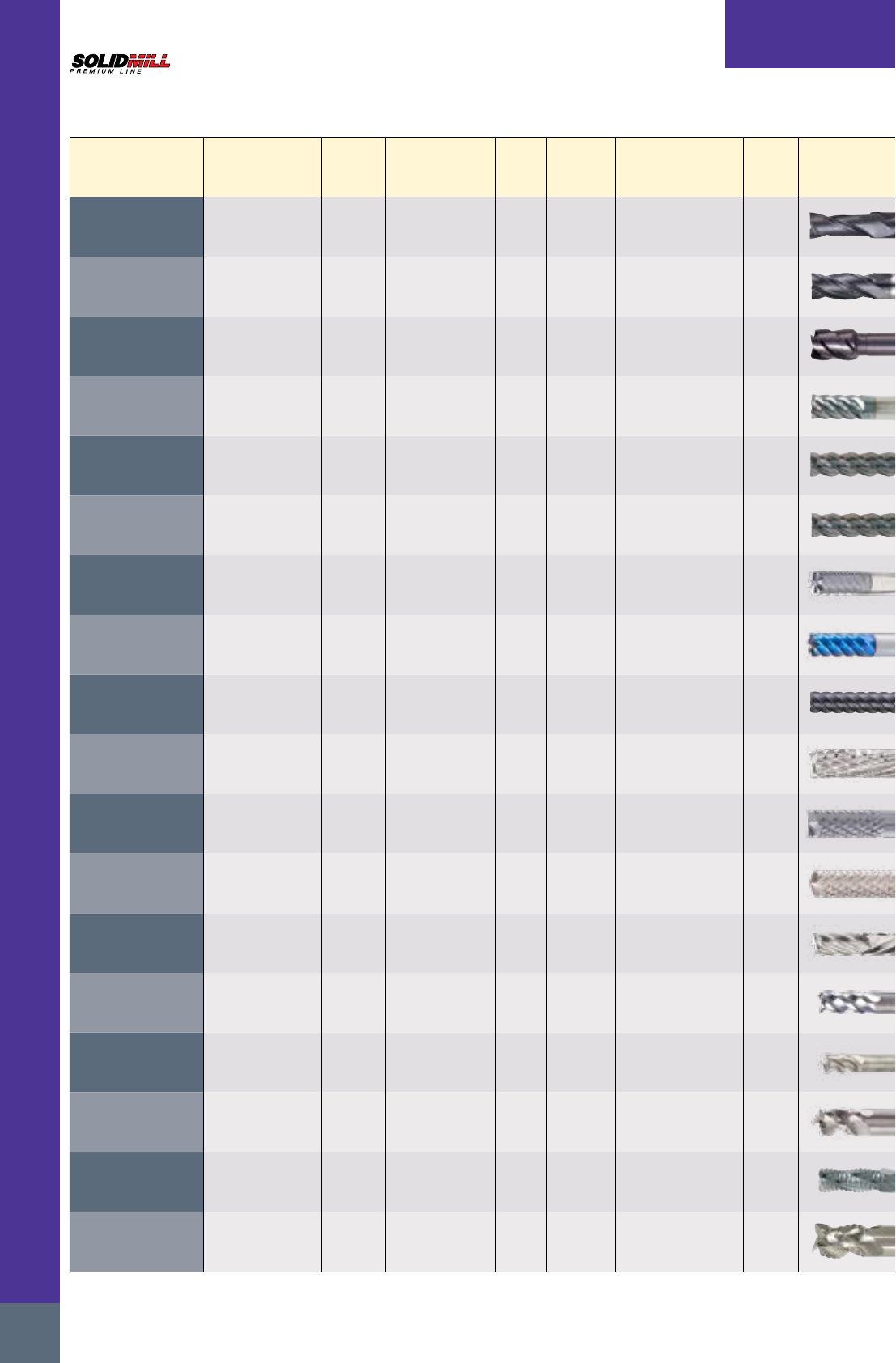

Table of Contents
Type Helix Angle Cutting
Length
Workpiece
Hardness HRc
No. of
Flutes
Diameter
Range Page
EC-A2
(medium length) 30º2DC <65 2 1-25 149
EC-A4 30º2-3DC <65 4 2-25 150
EC-B4-R 45º1.5DC <65 4 10-22 150
ECH-B-6 45º2DC <65 6 6-20 High temp. alloys 151
ECL-B-4/6 45º3-5DC <45 4,6 6-20 151
ECXL-B-4,6 45º4-6DC <45 4,6 10-20 152
EC-D6 50º2DC <65 6 6-20 152
EC-B6-H 45º2DC <65 6 6-20 153
EC-B6 45º4DC <65 6 6-25 153
EPN-F 15º2-4DC CFRP Composites 9-12 3-12 161
EPNC 15º2-4DC CFRP Composites 10 8-12 161
EPND 15º2-4DC CFRP Composites 6-10 1.6-12 161
EPX 15º2DC CFRP Composites 6-8 6-12 162
ECA-H3-CF 39-41° variable helix 2DC Aluminum 3 1-25 154-156
ECA-H4-CF Different helix with
variable pitch 1.5-2DC Aluminum 4 6-25 156
ECAP-H3-CF Different helix with
variable pitch 1.5-2DC Aluminum 3 10-25 157
ERC-E-3 38º2DC Aluminum 3 6-25 157
ECR-B3-R 45º1-3DC Aluminum 3 6-20 158
(1) Provides high surface finish in rough machining conditions
SELECTION GUIDE
113
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Table of Contents
Type Helix Angle Cutting
Length
Workpiece
Hardness HRc
No. of
Flutes
Diameter
Range Page
ECR-B3-R-C 45ºDC Aluminum 3 8-25 158
ECA-B-2 45 2-3DC Aluminum 2 4-20
High Speed
Machining on
aluminum
159
ECA-B-3 45º2-3DC Aluminum 3 4-20
High Speed
Machining on
aluminum
160
ECA-F-2 55º2-5DC Aluminum 2 4-25
High Speed
Machining on
aluminum
160
EB-H-CF Different helix with
variable pitch 2DC <55 3-5 6-20 163
EB-E4L-CF 38º2DC <45 4 3-16 164
EB-A-2 30º1-2DC <45 2 2-20 164
EB-A2
(stub cut length) 30º1DC <70 2 1-25 Stub cut length 165
EB-A2
(rib processing) 30º1.5DC <65 2 0.4-6 170-171
EB-A2-H
(rib processing) 30° 0.8-1DC <65 2 0.1-4.0 169
EB-A2
(long with neck) 30º2-3DC <65 2 3-25 Long overhang length 171
EB-A2
(extra long) 30º2-3DC <65 2 2-20 Extra long
overhang length 172
EB-A2
(tapered flute &
neck)
30º2DC <65 2 1-12 Tapered neck 172
EB-A2
(precision stub cut) 30º1DC <65 2 1-25 Precision stub cut 173
ESB-A2 30º0.75DC <65 2 3-16 Long overhand length 174
ESB-A4 30º0.75DC <65 4 5-16 174
EBM-A-2 30º2-3DC <45 2 0.4-2 Miniature 173
EB-A2
(economical) 30º2-3DC <45 2 2-20 165
(1) Provides high surface finish in rough machining conditions
SELECTION GUIDE
ISCAR
114
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

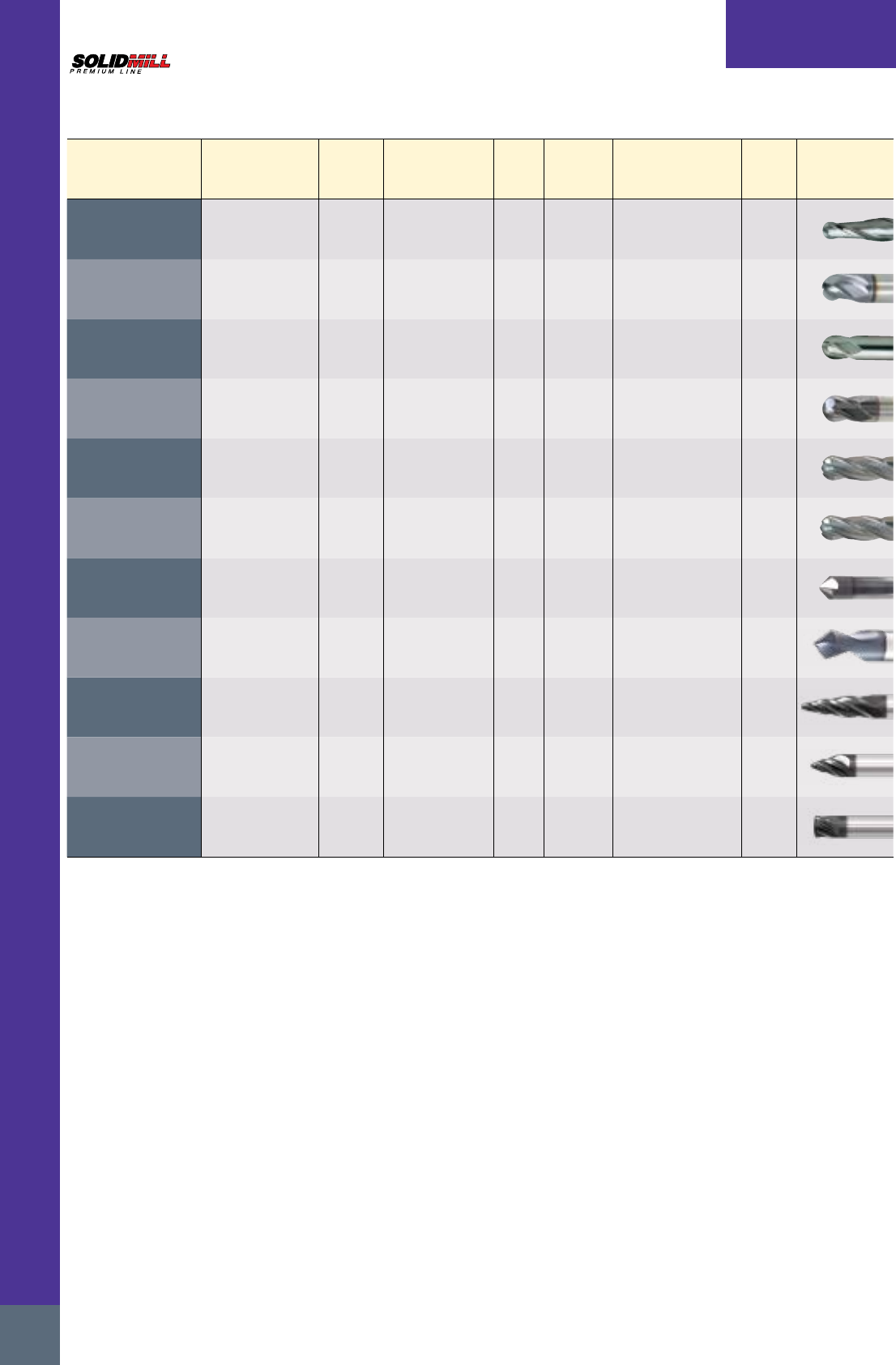

Table of Contents
Type Helix Angle Cutting
Length
Workpiece
Hardness HRc
No. of
Flutes
Diameter
Range Page
EB-A2
(economical- extra
long)
30º3.5-10DC <45 2 3-20 166
EB-A-3 30º1.25DC <45 3 1.6-12 166
EB-A4
(economical-short) 30º1-2DC <45 4 2-20 167
EB-A-4
(short length) 30º1-1.5DC <45 4 2-20 167
EB-A-4
(medium length) 30º2-2.5DC <45 4 3-20 168
EBL-A-4 30º2-3DC <45 4 4-16 168
ECF../45 1.5-
2.5DC <65 4 4-12 174
ECD-S2 straight - - 2 3-12 174
SC EOB 2.5-3D <45 4 8-12 3D Profiling 175
SC ETB 1D <45 4 8-12 3D Profiling 175
SC ELB 0.7D <45 4,6 8-12 3D Profiling 176
(1) Provides high surface finish in rough machining conditions
SELECTION GUIDE
115
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

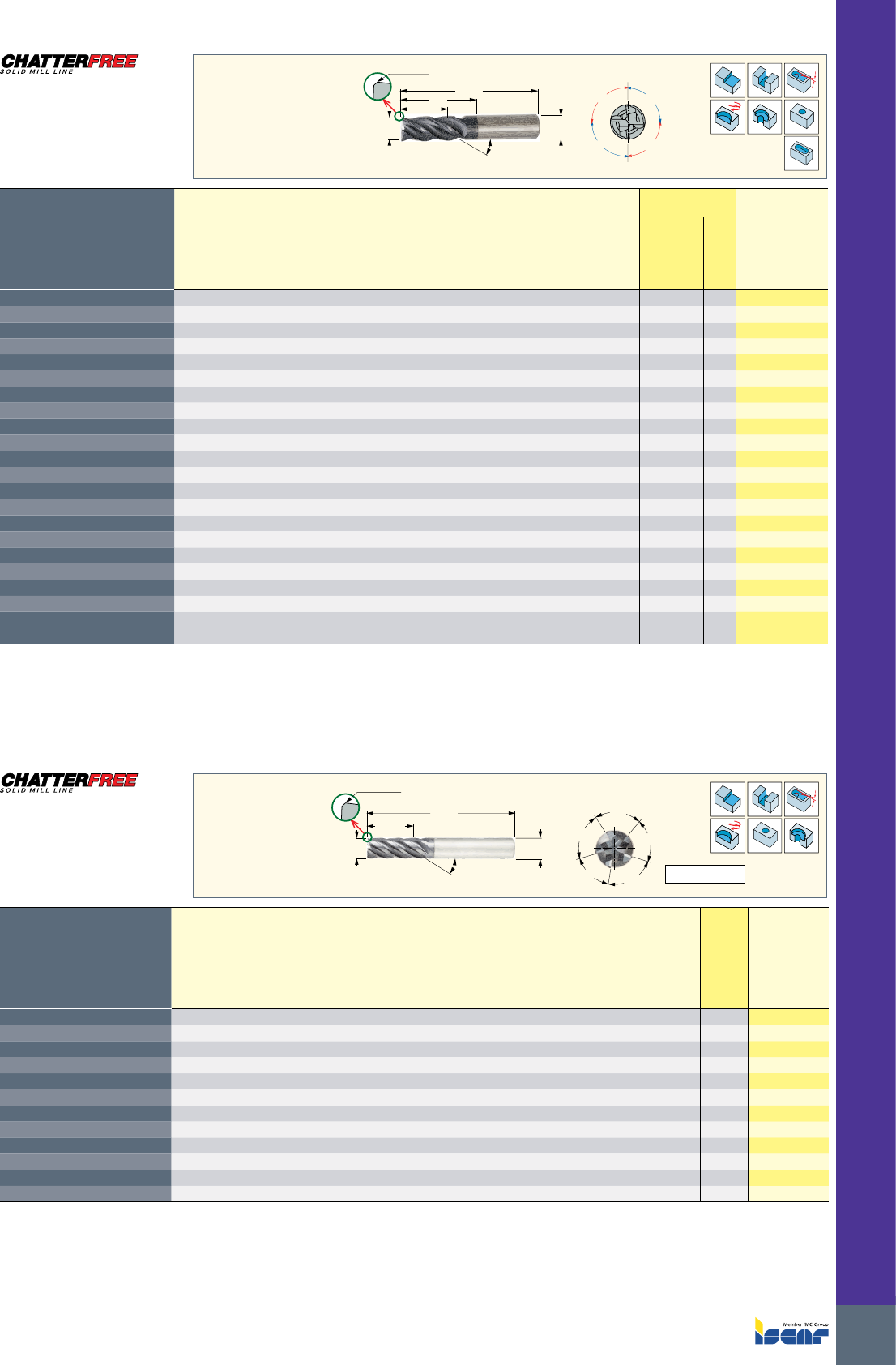

a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
APMX
DCONMS
DC
OAL
CHW x 45°
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) RMPX°(2) Shank(3) CHW KCH
IC900
fz
(mm/t)
EC-H4M 06-12C06CF-E57
6.00 6.00 12.00 57.00 4 5.0 C 0.25 45.0
•
0.03-0.07
EC-H4M 06-12W06CF-E57
6.00 6.00 12.00 57.00 4 5.0 W 0.25 45.0
•
0.03-0.07
EC-H4M 08-16C08CF-E63
8.00 8.00 16.00 63.00 4 5.0 C 0.30 45.0
•
0.03-0.09
EC-H4M 08-16W08CF-E63
8.00 8.00 16.00 63.00 4 5.0 W 0.30 45.0
•
0.03-0.09
EC-H4M 10-20C10CF-E72
10.00 10.00 20.00 72.00 4 5.0 C 0.40 45.0
•
0.03-0.09
EC-H4M 10-20W10CF-E72
10.00 10.00 20.00 72.00 4 5.0 W 0.40 45.0
•
0.03-0.09
EC-H4M 12-24C12CF-E83
12.00 12.00 24.00 83.00 4 5.0 C 0.50 45.0
•
0.04-0.10
EC-H4M 12-24W12CF-E83
12.00 12.00 24.00 83.00 4 5.0 W 0.50 45.0
•
0.04-0.10
EC-H4M 16-32C16CF-E92
16.00 16.00 32.00 92.00 4 5.0 C 0.60 45.0
•
0.05-0.11
EC-H4M 16-32W16CF-E92
16.00 16.00 32.00 92.00 4 5.0 W 0.60 45.0
•
0.05-0.11
EC-H4M 20-40C20CF-E104
20.00 20.00 40.00 104.00 4 5.0 C 0.60 45.0
•
0.05-0.11
EC-H4M 20-40W20CF-E104
20.00 20.00 40.00 104.00 4 5.0 W 0.60 45.0
•
0.05-0.11
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

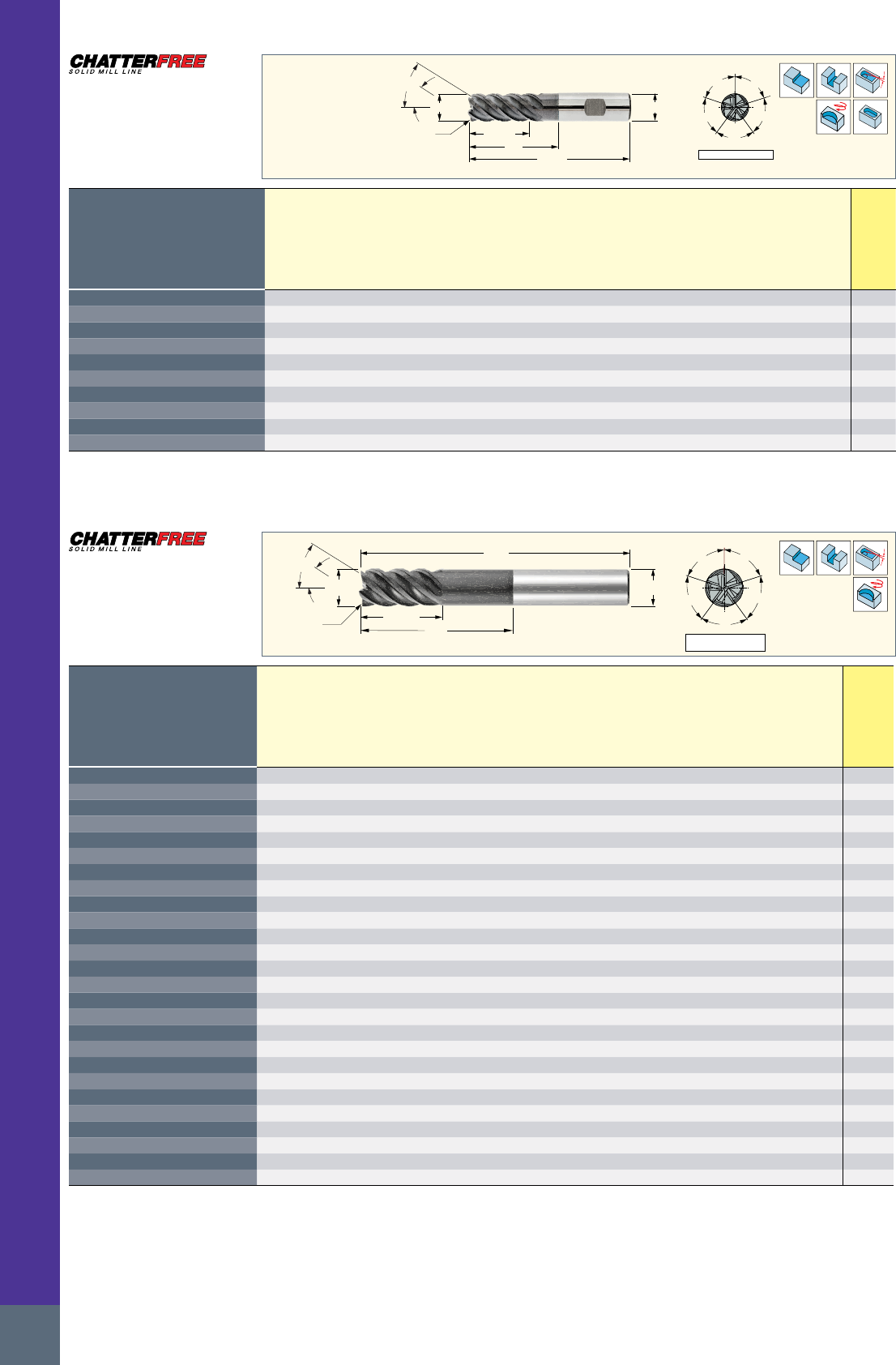

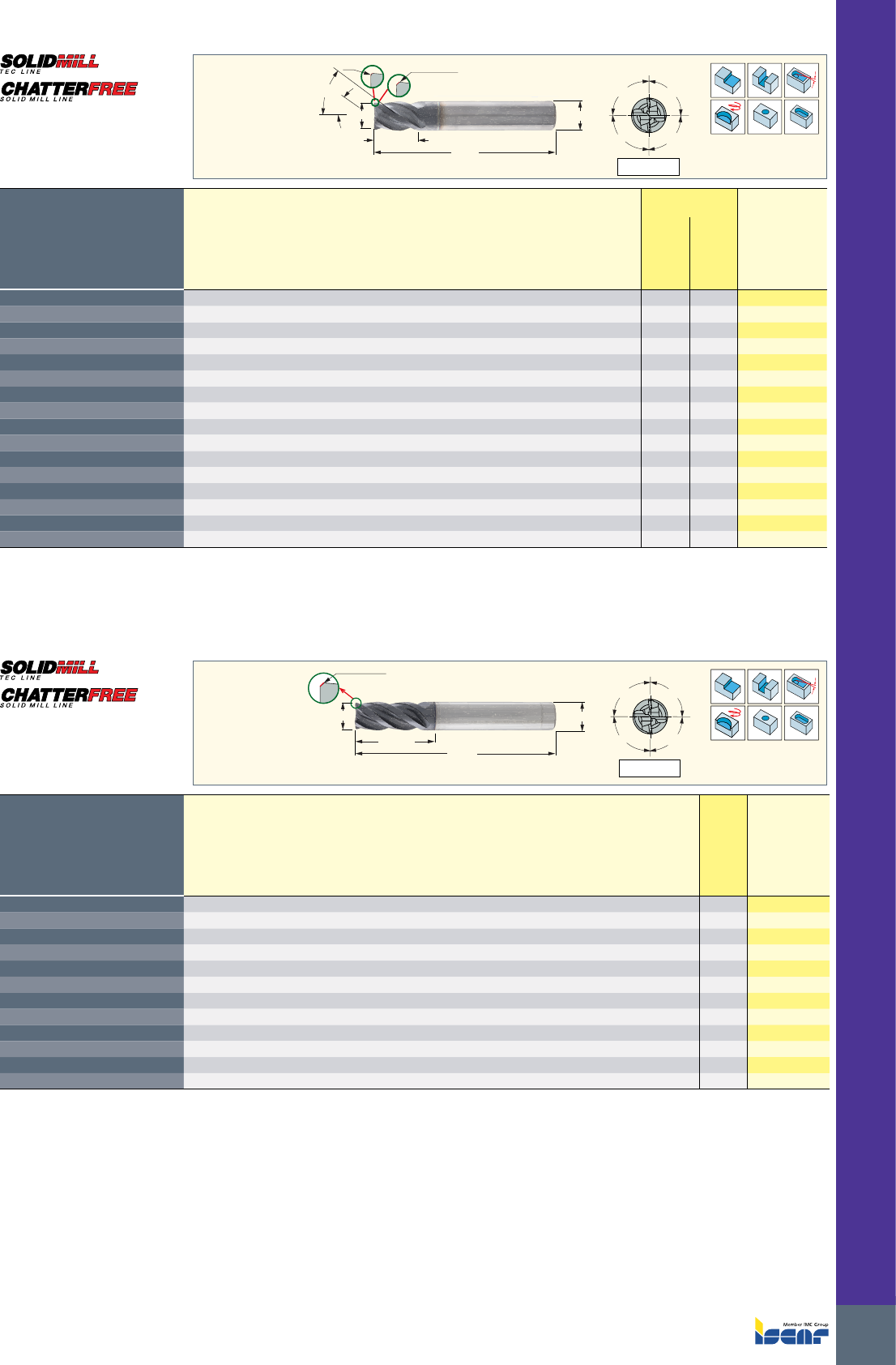

EC-H4M-CF-E
4 Flute Endmills with Different
Helix and Variable Pitch
for Chatter Dampening
a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
APMX
DCONMS
DCe9
36°
40°
OAL
CHW x 45°
RE
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) RE RMPX°(2) Shank(3) CHW KCH
IC900
IC608
fz
(mm/t)
EC-H4S 06-06C06CF-E50
6.00 6.00 6.00 50.00 4 - 5.0 C 0.25 45.0
• •
0.03-0.08
EC-H4S 06-06C06CFR.2E50
6.00 6.00 6.00 50.00 4 0.20 5.0 C - -
• •
0.03-0.08
EC-H4S 06-06W06CF-E50
6.00 6.00 6.00 50.00 4 - 5.0 W 0.25 45.0
• •
0.03-0.08
EC-H4S 08-08C08CF-E63
8.00 8.00 8.00 63.00 4 - 5.0 C 0.30 45.0
• •
0.03-0.08
EC-H4S 08-08C08CFR.4E63
8.00 8.00 8.00 63.00 4 0.40 5.0 C - -
• •
0.03-0.08
EC-H4S 08-08W08CF-E63
8.00 8.00 8.00 63.00 4 - 5.0 W 0.30 45.0
• •
0.03-0.08
EC-H4S 10-10C10CF-E66
10.00 10.00 10.00 66.00 4 - 5.0 C 0.40 45.0
• •
0.03-0.10
EC-H4S 10-10C10CFR.5E66
10.00 10.00 10.00 66.00 4 0.50 5.0 C - -
• •
0.03-0.10
EC-H4S 10-10W10CF-E66
10.00 10.00 10.00 66.00 4 - 5.0 W 0.40 45.0
• •
0.03-0.10
EC-H4S 12-12C12CF-E73
12.00 12.00 12.00 73.00 4 - 5.0 C 0.50 45.0
• •
0.04-0.10
EC-H4S 12-12C12CFR.6E73
12.00 12.00 12.00 73.00 4 0.60 5.0 C - -
• •
0.04-0.10
EC-H4S 12-12W12CF-E73
12.00 12.00 12.00 73.00 4 - 5.0 W 0.50 45.0
• •
0.04-0.10
EC-H4S 16-16C16CF-E82
16.00 16.00 16.00 82.00 4 - 5.0 C 0.60 45.0
• •
0.05-0.11
EC-H4S 16-16W16CF-E82
16.00 16.00 16.00 82.00 4 - 5.0 W 0.60 45.0
• •
0.05-0.11
EC-H4S 20-20C20CF-E92
20.00 20.00 20.00 92.00 4 - 5.0 C 0.60 45.0
• •
0.05-0.11
EC-H4S 20-20W20CF-E92
20.00 20.00 20.00 92.00 4 - 5.0 W 0.60 45.0
• •
0.05-0.11
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

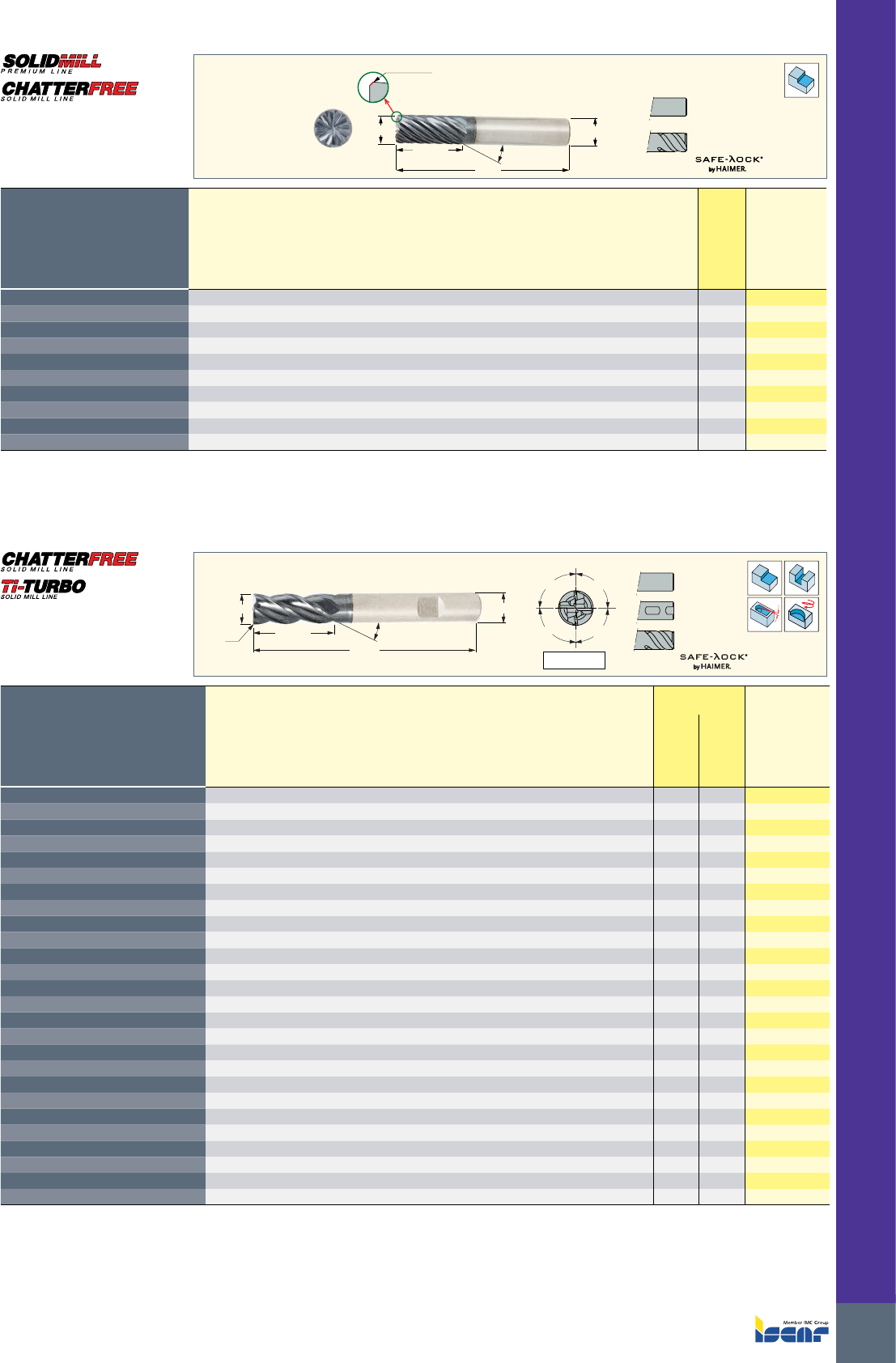

EC-H4S-CF
Short 4 Flute Endmills with
Different Helix and Variable
Pitch for Chatter Dampening
ISCAR
116
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

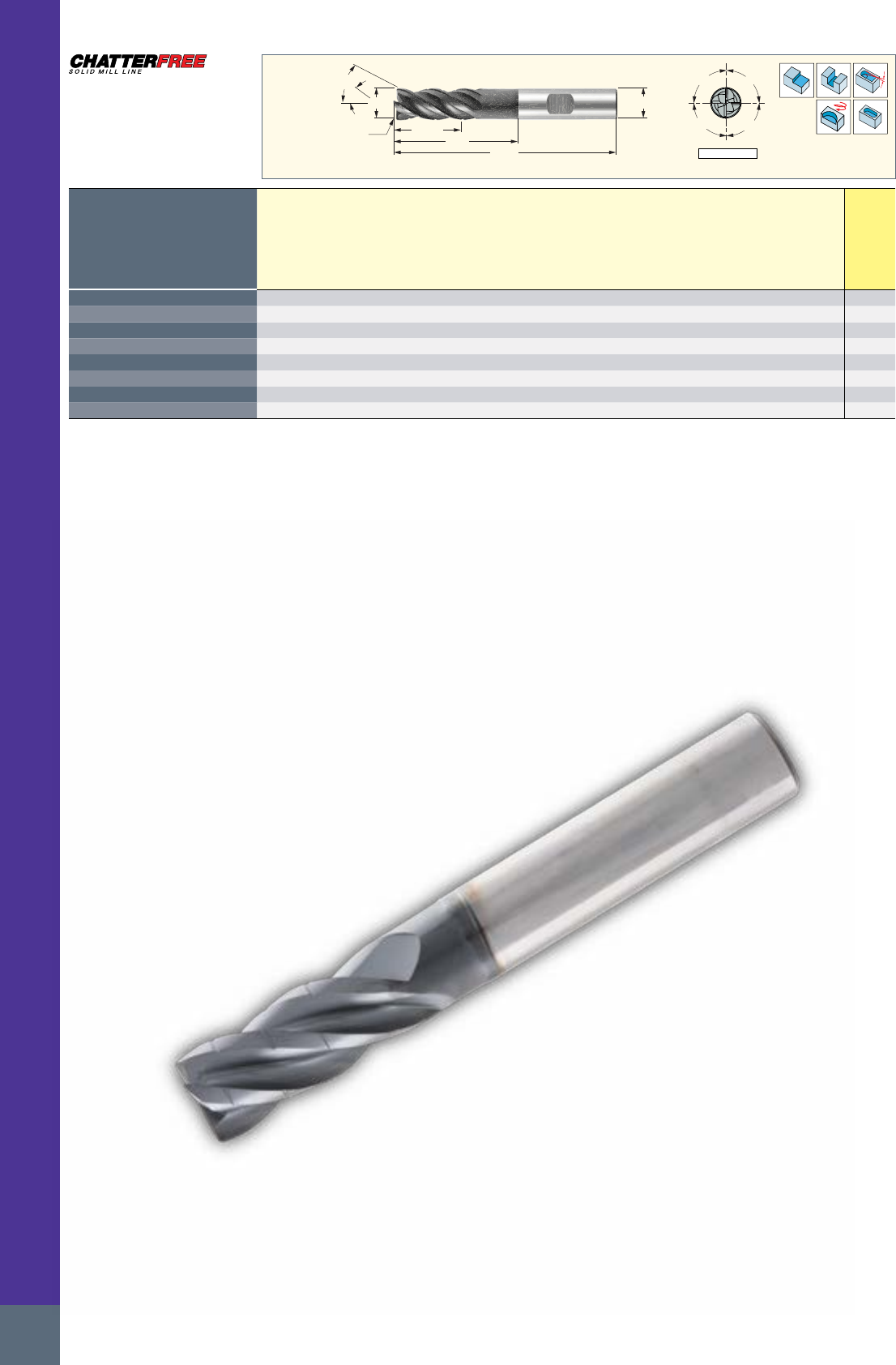

APMX
RE
DCONMS
DC
LU
OAL
a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
36º
37º
Rd°
Dimensions
Designation
DC DCONMS APMX LU OAL NOF(1) Shank(2) RE
IC900
ECP-H4L 10-22/32W10CFR.5
10.00 10.00 22.00 32.0 72.00 4 W 0.50
•
ECP-H4L 10-22/40W10CFR.5
10.00 10.00 22.00 40.0 80.00 4 W 0.50
•
ECP-H4L 12-26/38W12CFR.5
12.00 12.00 26.00 38.0 83.00 4 W 0.50
•
ECP-H4L 12-26/50W12CFR.5
12.00 12.00 26.00 50.0 95.00 4 W 0.50
•
ECP-H4L 16-34/50W16CFR1
16.00 16.00 34.00 50.0 100.00 4 W 1.00
•
ECP-H4L 16-34/64W16CFR1
16.00 16.00 34.00 64.0 116.00 4 W 1.00
•
ECP-H4L 20-42/62W20CFR1
20.00 20.00 42.00 62.0 112.00 4 W 1.00
•
ECP-H4L 20-42/75W20CFR1
20.00 20.00 42.00 75.0 125.00 4 W 1.00
•
(1) Number of flutes
(2) C-Cylindrical, W-Weldon

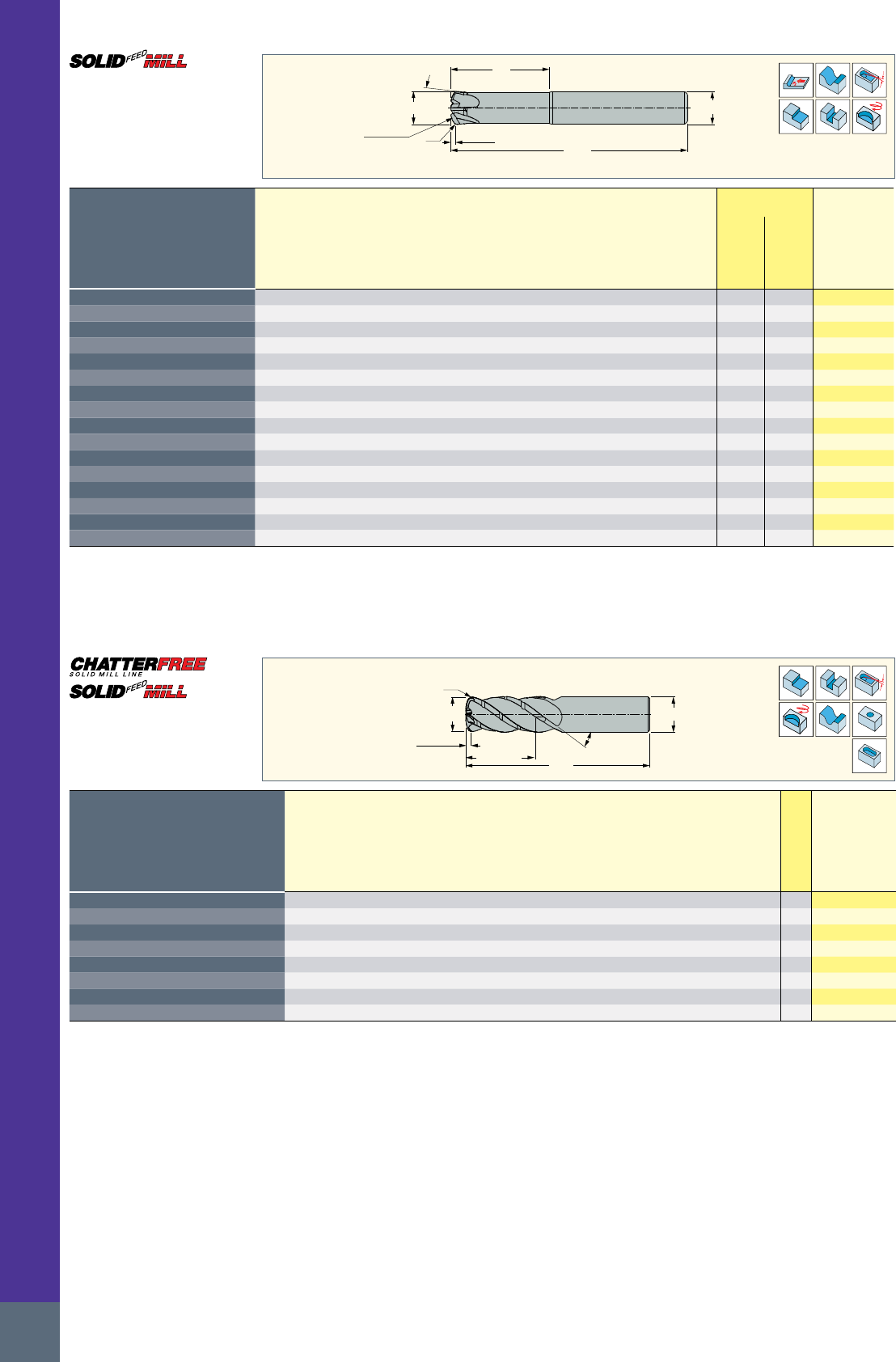

ECP-H4L-CFR
4 Flute Solid Carbide Endmills
with Different Helix, Variable
Pitch and Chip Splitting
Cutting Edges for Roughing

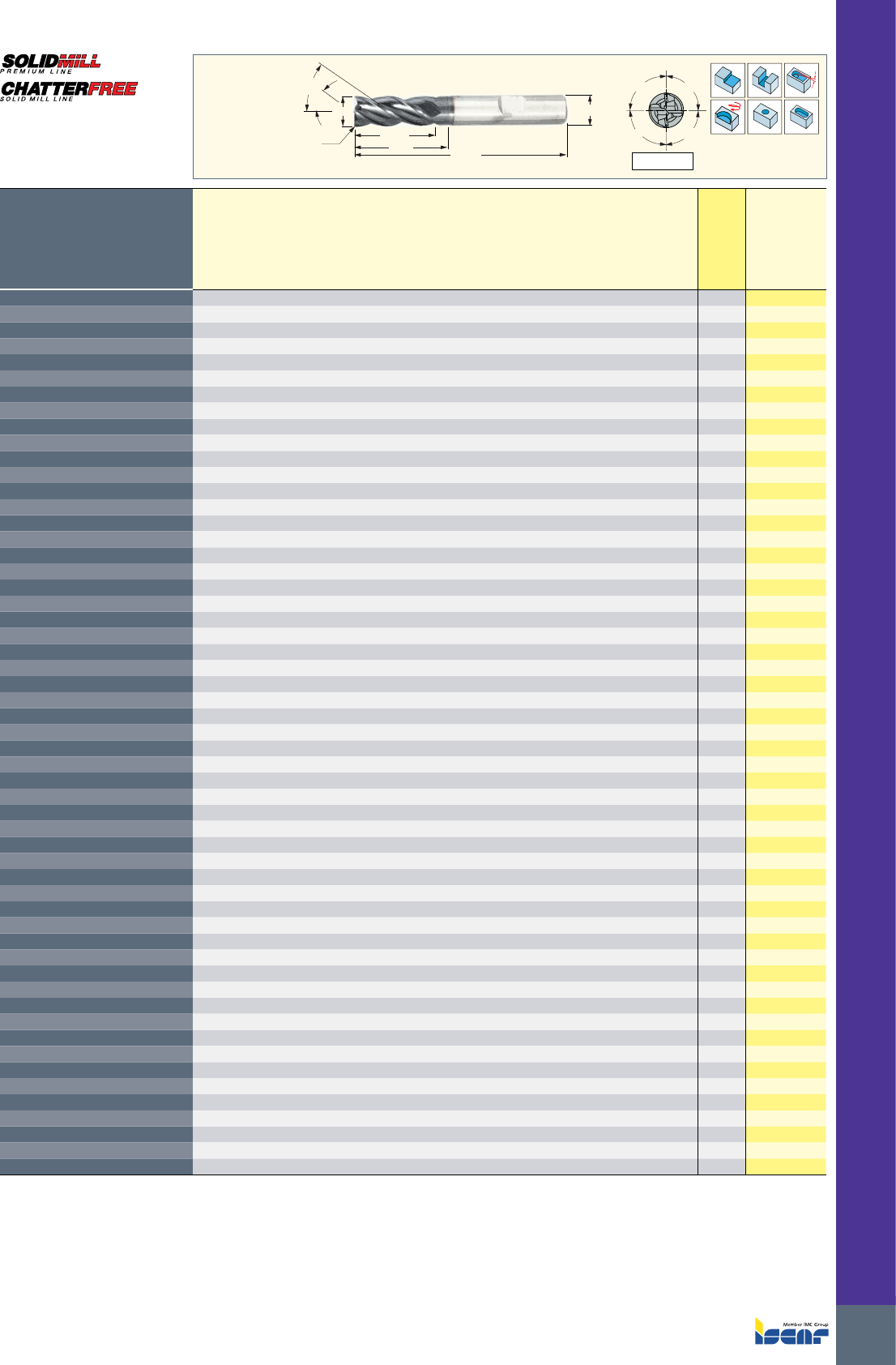

117
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

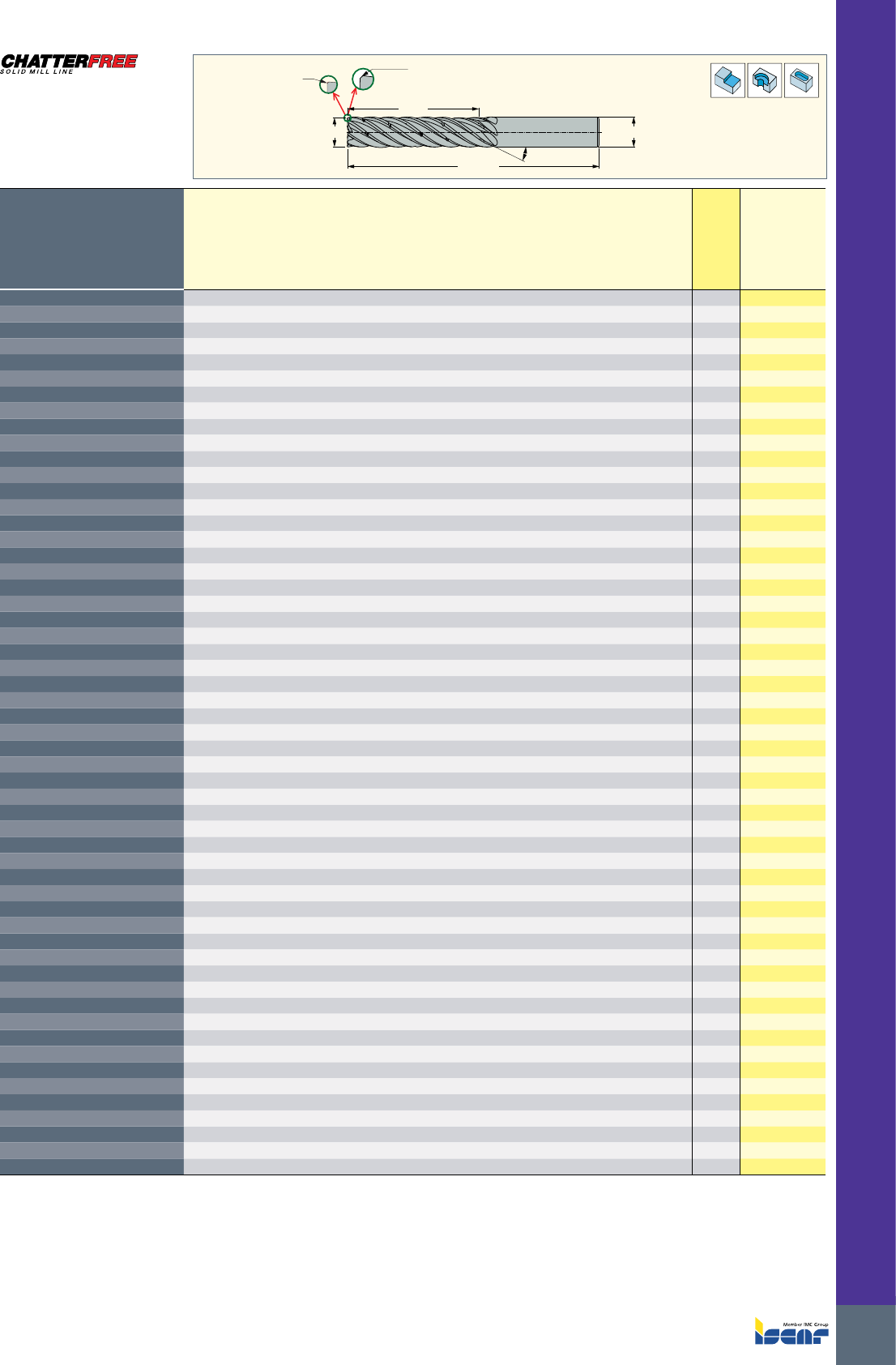

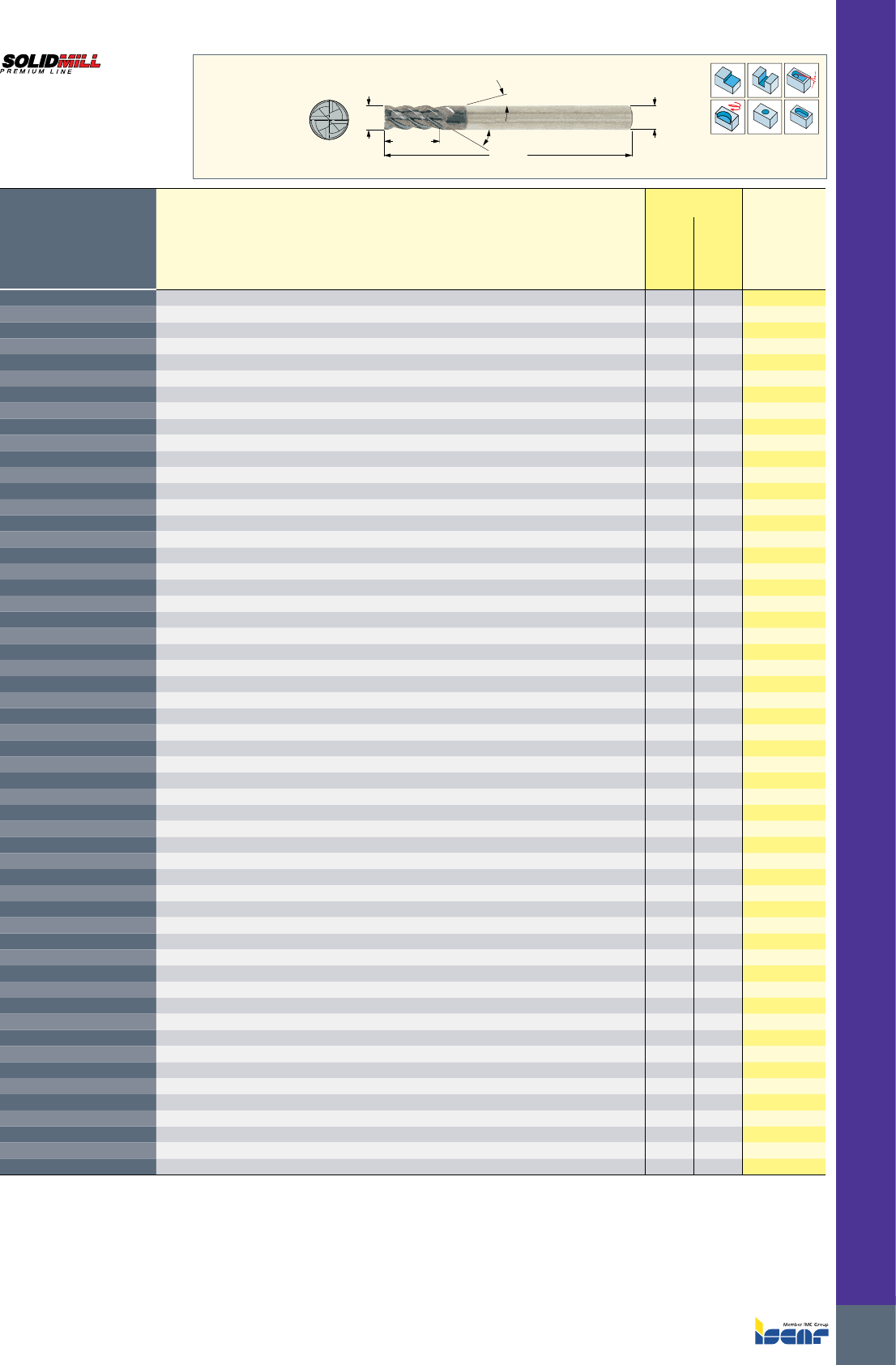

a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
APMX
RE
DCONMS
DC
35º
37º
LU OAL
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(1) RE RMPX°(2) Shank(3) CSP(4)
IC900
fz
(mm/t)
EC-H4L 03-08/10C6CFR.2
3.00 6.00 8.00 10.00 52.00 4 0.20 5.0 C 0
•
-
EC-H4L 04-11/13C6CFR.2
4.00 6.00 11.00 13.00 52.00 4 0.20 5.0 C 0
•
-
EC-H4L 05-13/20C6CFR.2
5.00 6.00 13.00 20.00 57.00 4 0.20 5.0 C 0
•
-
EC-H4L 06-14/20C6CFR.2
6.00 6.00 14.00 20.00 52.00 4 0.20 5.0 C 0
•
-
EC-H4L 06-14/20C6CFR.2C
6.00 6.00 14.00 20.00 52.00 4 0.20 5.0 C 1
•
-
EC-H4L 06-14/25C6CFR.2
6.00 6.00 14.00 25.00 57.00 4 0.20 5.0 C 0
•
-
EC-H4L 06-14/25C6CFR.2C
6.00 6.00 14.00 25.00 57.00 4 0.20 5.0 C 1
•
-
EC-H4M 06-12C06CFR0.2-57
6.00 6.00 12.00 - 57.00 4 0.20 5.0 C 0
•
0.03-0.06
EC-H4M 06-12W06CFR0.2-57
6.00 6.00 12.00 - 57.00 4 0.20 5.0 W 0
•
0.03-0.06
EC-H4XL 06-12/25C06CFR.2
6.00 6.00 12.00 25.00 61.00 4 0.20 5.0 C 0
•
0.03-0.06
EC-H4XL 06-12/25W06CFR.2
6.00 6.00 12.00 25.00 61.00 4 0.20 5.0 W 0
•
0.03-0.06
EC-H4L 08-18/25W8CFR.3
8.00 8.00 18.00 25.00 63.00 4 0.30 5.0 W 0
•
-
EC-H4L 08-18/25W8CFR.3C
8.00 8.00 18.00 25.00 63.00 4 0.30 5.0 W 1
•
-
EC-H4L 08-18/32W8CFR.3
8.00 8.00 18.00 32.00 63.00 4 0.30 5.0 W 0
•
-
EC-H4L 08-18/32W8CFR.3C
8.00 8.00 18.00 32.00 63.00 4 0.30 5.0 W 1
•
-
EC-H4M 08-16C08CFR0.4-63
8.00 8.00 16.00 - 63.00 4 0.40 5.0 C 0
•
0.03-0.08
EC-H4M 08-16W08CFR0.4-63
8.00 8.00 16.00 - 63.00 4 0.40 5.0 W 0
•
0.03-0.08
EC-H4XL 08-16/32C08CFR.4
8.00 8.00 16.00 32.00 68.00 4 0.40 5.0 C 0
•
0.03-0.08
EC-H4XL 08-16/32W08CFR.4
8.00 8.00 16.00 32.00 68.00 4 0.40 5.0 W 0
•
0.03-0.08
EC-H4L 10-22/32W10CFR.5
10.00 10.00 22.00 32.00 72.00 4 0.50 5.0 W 0
•
-
EC-H4L 10-22/32W10CFR.5C
10.00 10.00 22.00 32.00 72.00 4 0.50 5.0 W 1
•
-
EC-H4L 10-22/40W10CFR.5
10.00 10.00 22.00 40.00 80.00 4 0.50 5.0 W 0
•
-
EC-H4L 10-22/40W10CFR.5C
10.00 10.00 22.00 40.00 80.00 4 0.50 5.0 W 1
•
-
EC-H4M 10-20C10CFR0.5-72
10.00 10.00 20.00 - 72.00 4 0.50 5.0 C 0
•
0.03-0.09
EC-H4M 10-20W10CFR0.5-72
10.00 10.00 20.00 - 72.00 4 0.50 5.0 W 0
•
0.03-0.09
EC-H4XL 10-20/40C10CFR.5
10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 C 0
•
0.03-0.09
EC-H4XL 10-20/40W10CFR.5
10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 W 0
•
0.03-0.09
EC-H4L 12-26/38W12CFR.5
12.00 12.00 26.00 38.00 83.00 4 0.50 5.0 W 0
•
-
EC-H4L 12-26/38W12CFR.5C
12.00 12.00 26.00 38.00 83.00 4 0.50 5.0 W 1
•
-
EC-H4L 12-26/50W12CFR.5
12.00 12.00 26.00 50.00 95.00 4 0.50 5.0 W 0
•
-
EC-H4L 12-26/50W12CFR.5C
12.00 12.00 26.00 50.00 95.00 4 0.50 5.0 W 1
•
-
EC-H4M 12-24C12CFR0.6-83
12.00 12.00 24.00 - 83.00 4 0.60 5.0 C 0
•
0.04-0.10
EC-H4M 12-24W12CFR0.6-83
12.00 12.00 24.00 - 83.00 4 0.60 5.0 W 0
•
0.04-0.10
EC-H4XL 12-24/50C12CFR.6
12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 C 0
•
0.04-0.10
EC-H4XL 12-24/50W12CFR.6
12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 W 0
•
0.04-0.10
EC-H4M 14-28C14CFR0.7-83
14.00 14.00 28.00 - 83.00 4 0.70 5.0 C 0
•
0.04-0.11
EC-H4M 14-28W14CFR0.7-83
14.00 14.00 28.00 - 83.00 4 0.70 5.0 W 0
•
0.04-0.11
EC-H4L 16-34/50W16CFR1
16.00 16.00 34.00 50.00 100.00 4 1.00 5.0 W 0
•
-
EC-H4L 16-34/50W16CFR1C
16.00 16.00 34.00 50.00 100.00 4 1.00 5.0 W 1
•
-
EC-H4L 16-34/64W16CFR1
16.00 16.00 34.00 64.00 116.00 4 1.00 5.0 W 0
•
-
EC-H4L 16-34/64W16CFR1C
16.00 16.00 34.00 64.00 116.00 4 1.00 5.0 W 1
•
-
EC-H4M 16-32C16CFR0.8-92
16.00 16.00 32.00 - 92.00 4 0.80 5.0 C 0
•
0.05-0.11
EC-H4M 16-32W16CFR0.8-92
16.00 16.00 32.00 - 92.00 4 0.80 5.0 W 0
•
0.05-0.11
EC-H4XL 16-32/64C16CFR.8
16.00 16.00 32.00 64.00 115.00 4 0.80 5.0 C 0
•
0.05-0.11
EC-H4XL 16-32/64W16CFR.8
16.00 16.00 32.00 64.00 115.00 4 0.80 5.0 W 0
•
0.05-0.11
EC-H4L 20-42/64W20CFR1
20.00 20.00 42.00 64.00 116.00 4 1.00 5.0 W 0
•
-
EC-H4L 20-42/64W20CFR1C
20.00 20.00 42.00 64.00 112.00 4 1.00 5.0 W 1
•
-
EC-H4L 20-42/75W20CFR1
20.00 20.00 42.00 75.00 125.00 4 1.00 5.0 W 0
•
-
EC-H4L 20-42/75W20CFR1C
20.00 20.00 42.00 75.00 125.00 4 1.00 5.0 W 1
•
-
EC-H4M 20-40C20CFR1.0-104
20.00 20.00 40.00 - 104.00 4 1.00 5.0 C 0
•
0.05-0.11
EC-H4M 20-40W20CFR1.0-104
20.00 20.00 40.00 - 104.00 4 1.00 5.0 W 0
•
0.05-0.11
EC-H4XL 20-40/75C20CFR1.0
20.00 20.00 40.00 75.00 125.00 4 1.00 5.0 C 0
•
0.05-0.11
EC-H4XL 20-40/75W20CFR1.0
20.00 20.00 40.00 75.00 125.00 4 1.00 5.0 W 0
•
0.05-0.11
EC-H4M 25-50C25CFR1.2-121
25.00 25.00 50.00 - 121.00 4 1.20 5.0 C 0
•
0.06-0.11
EC-H4M 25-50W25CFR1.2-121
25.00 25.00 50.00 - 121.00 4 1.20 5.0 W 0
•
0.06-0.11
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
EC-H4-L/M/XL-CFR
4 Flute Endmills with Different
Helix and Variable Pitch
for Chatter Dampening
with Assorted Radii
ISCAR
118
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

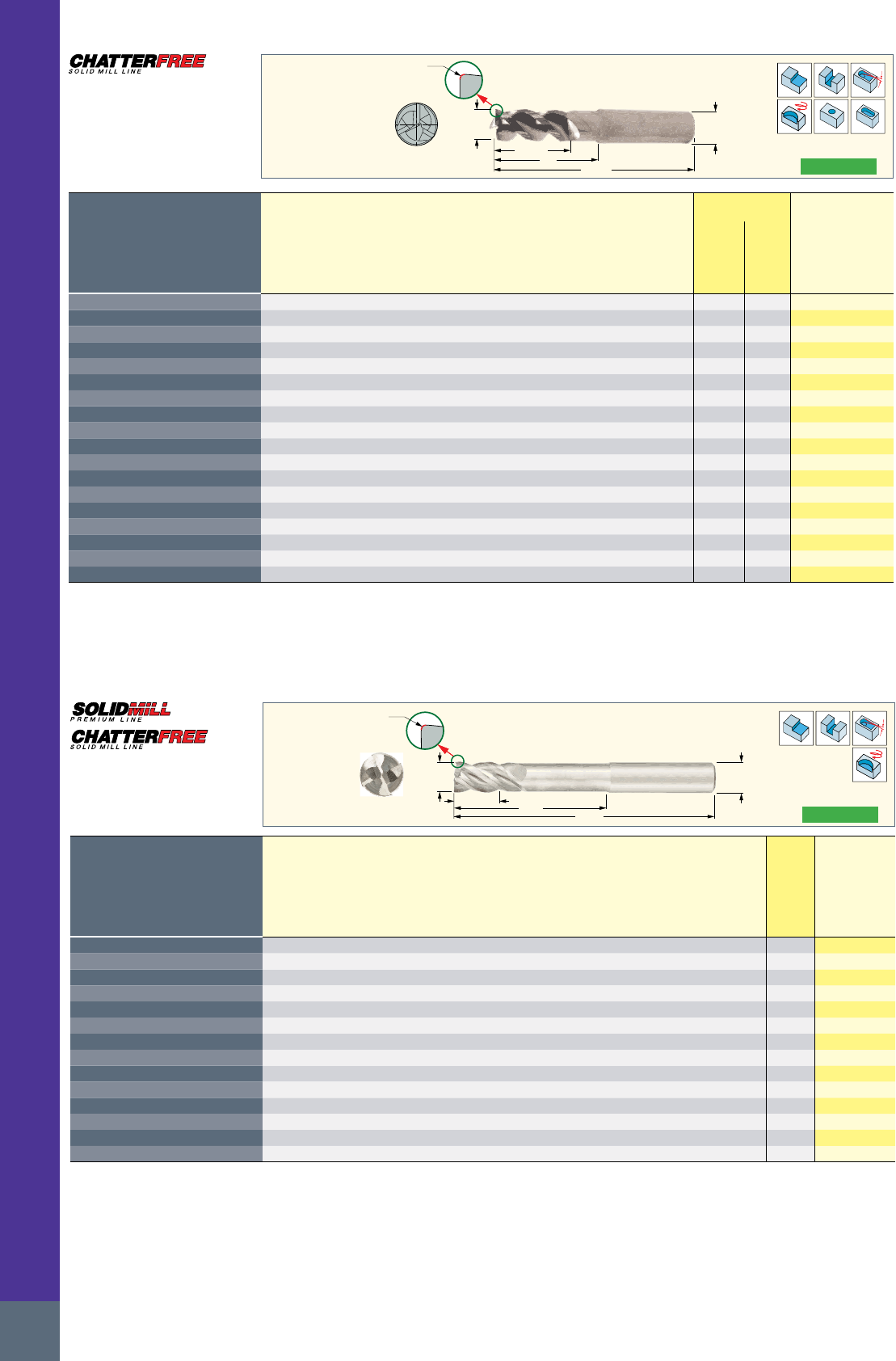

APMX
RE
DCONMS
DC
LU
OAL
a1°
a4°
a5°
a2°
a3°
a1≠a2≠a3≠a4≠a5
45º
46º
Rd°
Dimensions
Designation
DC DCONMS APMX LU OAL NOF(1) Shank RE
IC900
ECP-H5L 08-18/26W08CFR.3
8.00 8.00 18.00 26.0 63.00 5 W 0.30
•
ECP-H5L 08-18/32W08CFR.3
8.00 8.00 18.00 32.0 68.00 5 W 0.30
•
ECP-H5L 10-22/32W10CFR.5
10.00 10.00 22.00 32.0 72.00 5 W 0.50
•
ECP-H5L 10-22/40W10CFR.5
10.00 10.00 22.00 40.0 80.00 5 W 0.50
•
ECP-H5L 12-26/38W12CFR.5
12.00 12.00 26.00 38.0 83.00 5 W 0.50
•
ECP-H5L 12-26/50W12CFR.5
12.00 12.00 26.00 50.0 95.00 5 W 0.50
•
ECP-H5L 16-34/50W16CFR1
16.00 16.00 34.00 50.0 100.00 5 W 1.00
•
ECP-H5L 16-34/64W16CFR1
16.00 16.00 34.00 64.0 116.00 5 W 1.00
•
ECP-H5L 20-42/62W20CFR1
20.00 20.00 42.00 62.0 112.00 5 W 1.00
•
ECP-H5L 20-42/75W20CFR1
20.00 20.00 42.00 75.0 125.00 5 W 1.00
•
(1) Number of flutes
ECP-H5L-CFR
5 Flute Solid Carbide Endmills
with Different Helix, Variable
Pitch and Chip Splitting
Cutting Edges for Roughing
OAL
DC
RE APMX
LU
DCONMS
a1°
a5° a3°
a2°
a4°
a1≠a2≠a3≠a4≠a5
45º
46º
Rd°
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) RE RMPX°(2) Shank(3) CSP(4) LU
IC900
EC-H5M 04-09C06CFR0.2-57
4.00 6.00 9.00 57.00 5 0.20 2.0 C 0 6.00
•
EC-H5M 05-11C06CFR0.2-57
5.00 6.00 11.00 57.00 5 0.20 2.0 C 0 6.00
•
EC-H5M 06-10/25C06CFR.1
6.00 6.00 12.00 61.00 5 0.10 2.0 C 0 25.00
•
EC-H5M 06-10/25C06CFR.1C
6.00 6.00 10.00 61.00 5 0.10 2.0 C 1 25.00
•
EC-H5M 06-13/19C06CFR.1
6.00 6.00 12.00 55.00 5 0.10 2.0 C 0 19.00
•
EC-H5M 06-13/19C06CFR.1C
6.00 6.00 13.00 55.00 5 0.10 2.0 C 1 19.00
•
EC-H5M 08-13/33C08CFR.1
8.00 8.00 13.00 69.00 5 0.10 2.0 C 0 33.00
•
EC-H5M 08-13/33C08CFR.1C
8.00 8.00 13.00 69.00 5 0.10 2.0 C 1 33.00
•
EC-H5M 08-17/25C08CFR.1
8.00 8.00 17.00 61.00 5 0.10 2.0 C 0 25.00
•
EC-H5M 08-17/25C08CFR.1C
8.00 8.00 17.00 61.00 5 0.10 2.0 C 1 25.00
•
EC-H5M 10-17/42C10CFR.1
10.00 10.00 17.00 82.00 5 0.10 2.0 C 0 42.00
•
EC-H5M 10-17/42C10CFR.1C
10.00 10.00 17.00 82.00 5 0.10 2.0 C 1 42.00
•
EC-H5M 10-22/32C10CFR.1
10.00 10.00 22.00 72.00 5 0.10 2.0 C 0 32.00
•
EC-H5M 10-22/32C10CFR.1C
10.00 10.00 22.00 72.00 5 0.10 2.0 C 1 32.00
•
EC-H5M 12-20/50C12CFR.2
12.00 12.00 20.00 95.00 5 0.20 2.0 C 0 50.00
•
EC-H5M 12-20/50C12CFR.2C
12.00 12.00 20.00 95.00 5 0.20 2.0 C 1 50.00
•
EC-H5M 12-26/38C12CFR.2
12.00 12.00 26.00 83.00 5 0.20 2.0 C 0 38.00
•
EC-H5M 12-26/38C12CFR.2C
12.00 12.00 26.00 83.00 5 0.20 2.0 C 1 38.00
•
EC-H5M 16-26/66C16CFR.2
16.00 16.00 26.00 116.00 5 0.20 2.0 C 0 66.00
•
EC-H5M 16-26/66C16CFR.2C
16.00 16.00 26.00 114.00 5 0.20 2.0 C 1 66.00
•
EC-H5M 16-34/50C16CFR.2
16.00 16.00 34.00 98.00 5 0.20 2.0 C 0 50.00
•
EC-H5M 16-34/50C16CFR.2C
16.00 16.00 34.00 98.00 5 0.20 2.0 C 1 50.00
•
EC-H5M 20-32/82C20CFR.2
20.00 20.00 32.00 132.00 5 0.20 2.0 C 0 82.00
•
EC-H5M 20-32/82C20CFR.2C
20.00 20.00 32.00 132.00 5 0.20 2.0 C 1 82.00
•
EC-H5M 20-42/62C20CFR.2
20.00 20.00 42.00 112.00 5 0.20 2.0 C 0 62.00
•
EC-H5M 20-42/62C20CFR.2C
20.00 20.00 42.00 112.00 5 0.20 2.0 C 1 62.00
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
EC-H5M-CFR
5 Flute Endmills with Different
Helix and Variable Pitch
for Chatter Dampening
with Assorted Radii
119

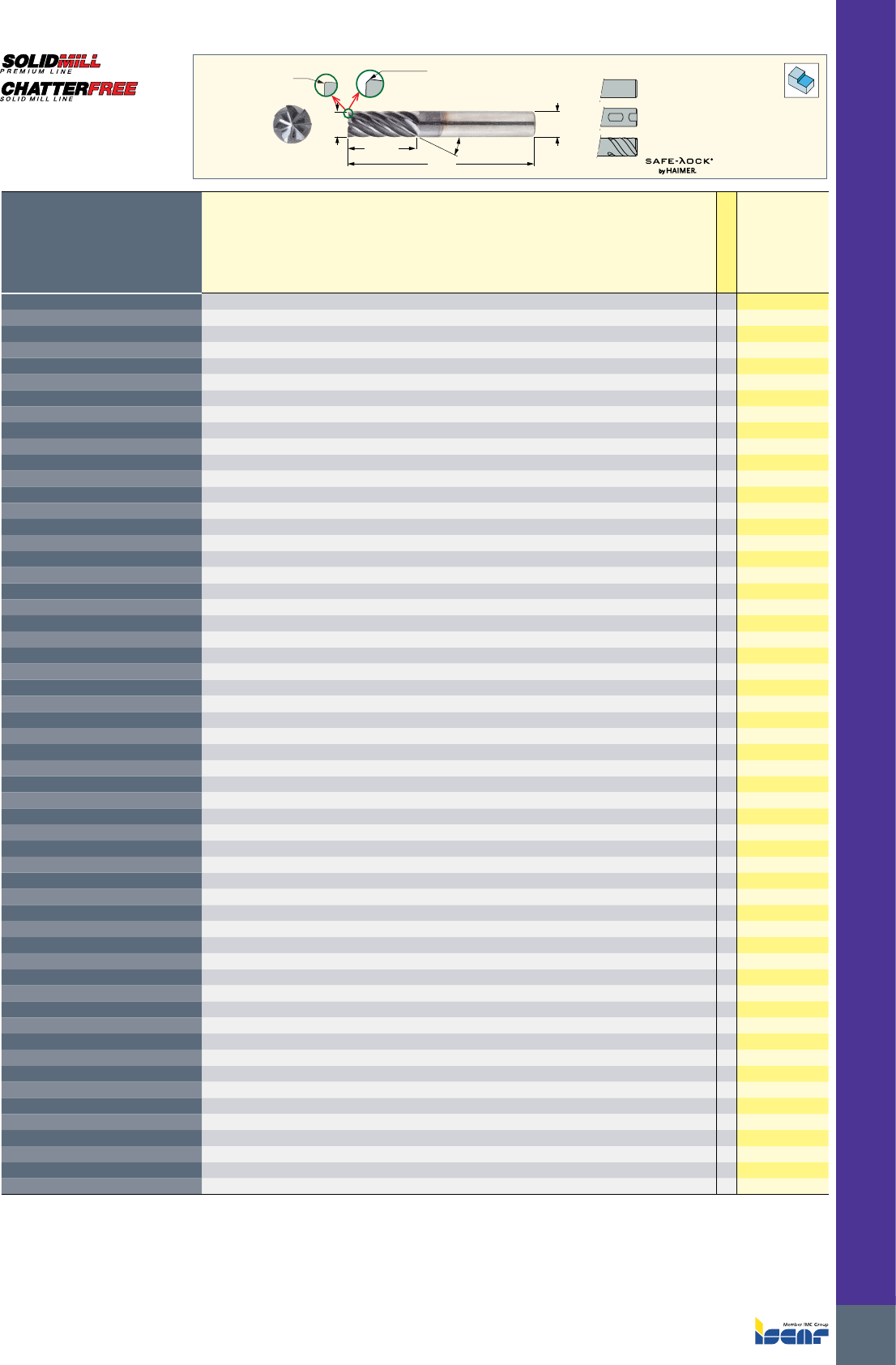

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
FHA˚
DCONMS
DC
CHWx45˚
RE
C-Cylindrical
W-Weldon
SL-Safe-Lock®
EC-E7/H7-CF
7 Flute Endmills with Different
Helix and Variable Pitch
for CHATTERFREE High
Speed Finish Milling
• Enables processing at a radial width of cut (AE) of up to 0.10xDC ,For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(3) Number of flutes
(4) Corner radius tolerance (+/-)
(5) Maximum ramping angle
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL Shank(2) NOF(3) FHA RE RETOL(4) CHW KCH RMPX°(5)
IC902
fz
(mm/t)
EC-E7 02-04C06CF-M57
2.00 6.00 4.00 57.00 C 7 38.0 - - 0.05 45.0 3.0
•
0.01-0.02
EC-E7 03-06C06CF-M57
3.00 6.00 6.00 57.00 C 7 38.0 - - 0.10 45.0 3.0
•
0.02-0.05
EC-E7 04-08C06CF-M57
4.00 6.00 8.00 57.00 C 7 38.0 - - 0.10 45.0 3.0
•
0.02-0.05
EC-E7 05-10C06CF-M57
5.00 6.00 10.00 57.00 C 7 38.0 - - 0.20 45.0 3.0
•
0.03-0.07
EC-H7 06-12C06CF-M57
6.00 6.00 12.00 57.00 C 7 37.0 0.00 - - - 3.0
•
0.03-0.07
EC-H7 06-12C06CFR.2M57
6.00 6.00 12.00 57.00 C 7 37.0 0.20 0.050 - - 3.0
•
0.03-0.10
EC-H7 06-18C06CF-M65
6.00 6.00 18.00 65.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.07
EC-H7 06-24C06CF-70
6.00 6.00 24.00 70.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.07
EC-H7 06-36C06CF-90
6.00 6.00 36.00 90.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.07
EC-H7 08-16C08CF-M63
8.00 8.00 16.00 63.00 C 7 37.0 0.00 - - - 3.0
•
0.03-0.09
EC-H7 08-16C08CFR.4M63
8.00 8.00 16.00 63.00 C 7 37.0 0.40 0.050 - - 3.0
•
0.04-0.12
EC-H7 08-24C08CF-M90
8.00 8.00 24.00 90.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.08
EC-H7 08-32C08CF-90
8.00 8.00 32.00 90.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.09
EC-H7 08-48C08CF-110
8.00 8.00 48.00 110.00 C 7 37.0 - - 0.20 45.0 3.0
•
0.03-0.08
EC-H7 10-20C10CF-M72
10.00 10.00 20.00 72.00 C 7 37.0 0.00 - - - 3.0
•
0.03-0.10
EC-H7 10-20C10CFR.5M72
10.00 10.00 20.00 72.00 C 7 37.0 0.50 - - - 3.0
•
0.03-0.10
EC-H7 10-20C10CFR1.6-M72
10.00 10.00 20.00 72.00 C 7 37.0 1.60 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-20C10CFR2.0-M72
10.00 10.00 20.00 72.00 C 7 37.0 2.00 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-20C10CFR2.5-M72
10.00 10.00 20.00 72.00 C 7 37.0 2.50 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-20C10CFR3.0-M72
10.00 10.00 20.00 72.00 C 7 37.0 3.00 0.070 - - 3.0
•
0.03-0.10
EC-H7 10-20W10CF-M72
10.00 10.00 20.00 72.00 W 7 37.0 0.00 - - - 3.0
•
0.03-0.10
EC-H7 10-30C10CF-M100
10.00 10.00 30.00 85.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.03-0.10
EC-H7 10-30C10CFR0.5-M85
10.00 10.00 30.00 85.00 C 7 37.0 0.50 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-30C10CFR1.6-M85
10.00 10.00 30.00 85.00 C 7 37.0 1.60 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-30C10CFR2.0-M85
10.00 10.00 30.00 85.00 C 7 37.0 2.00 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-30C10CFR2.5-M85
10.00 10.00 30.00 85.00 C 7 37.0 2.50 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-30C10CFR3.0-M85
10.00 10.00 30.00 85.00 C 7 37.0 3.00 0.070 - - 3.0
•
0.03-0.10
EC-H7 10-40C10CF-100
10.00 10.00 40.00 100.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.03-0.10
EC-H7 10-40C10CFR0.5-M100
10.00 10.00 40.00 100.00 C 7 37.0 0.50 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-40C10CFR1.6-M100
10.00 10.00 40.00 100.00 C 7 37.0 1.60 0.070 - - 3.0
•
0.03-0.10
EC-H7 10-40C10CFR2.0-M100
10.00 10.00 40.00 100.00 C 7 37.0 2.00 0.070 - - 3.0
•
0.03-0.10
EC-H7 10-40C10CFR2.5-M100
10.00 10.00 40.00 100.00 C 7 37.0 2.50 0.070 - - 3.0
•
0.03-0.10
EC-H7 10-40C10CFR3.0-M100
10.00 10.00 40.00 100.00 C 7 37.0 3.00 0.080 - - 3.0
•
0.03-0.10
EC-H7 10-60C10CF-130
10.00 10.00 60.00 130.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.03-0.10
EC-H7 10-60C10CFR0.5-M130
10.00 10.00 60.00 130.00 C 7 37.0 0.50 0.050 - - 3.0
•
0.03-0.10
EC-H7 10-60C10CFR1.0-M130
10.00 10.00 60.00 130.00 C 7 37.0 1.00 0.050 - - 3.0
•
0.03-0.10
EC-H7 12-24C12CF-M83
12.00 12.00 24.00 83.00 C 7 37.0 0.00 - - - 3.0
•
0.04-0.11
EC-H7 12-24C12CFR.6M83
12.00 12.00 24.00 83.00 C 7 37.0 0.60 - - - 3.0
•
0.04-0.11
EC-H7 12-24C12CFR1.6-M83
12.00 12.00 24.00 83.00 C 7 37.0 1.60 - - - 3.0
•
0.04-0.11
EC-H7 12-24C12CFR2.0-M83
12.00 12.00 24.00 83.00 C 7 37.0 2.00 - - - 3.0
•
0.04-0.11
EC-H7 12-24C12CFR2.5-M83
12.00 12.00 24.00 83.00 C 7 37.0 2.50 - - - 3.0
•
0.04-0.11
EC-H7 12-24C12CFR3.0-M83
12.00 12.00 24.00 83.00 C 7 37.0 3.00 - - - 3.0
•
0.04-0.11
EC-H7 12-24SL12CF-M83 (1)
12.00 12.00 24.00 83.00 SL 7 37.0 0.00 - - - 3.0
•
0.04-0.12
EC-H7 12-24SL12CFR.6M83 (1)
12.00 12.00 24.00 83.00 SL 7 37.0 0.60 - - - 3.0
•
0.04-0.12
EC-H7 12-24W12CF-M83
12.00 12.00 24.00 83.00 W 7 37.0 0.00 - - - 3.0
•
0.04-0.12
EC-H7 12-36C12CF-M95
12.00 12.00 36.00 95.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 12-36C12CFR0.6-M95
12.00 12.00 36.00 95.00 C 7 37.0 0.60 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-36C12CFR1.6-M95
12.00 12.00 36.00 95.00 C 7 37.0 1.60 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-36C12CFR2.0-M95
12.00 12.00 36.00 95.00 C 7 37.0 2.00 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-36C12CFR2.5-M95
12.00 12.00 36.00 95.00 C 7 37.0 2.50 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-36C12CFR3.0-M95
12.00 12.00 36.00 95.00 C 7 37.0 3.00 0.070 - - 3.0
•
0.04-0.11
EC-H7 12-36SL12CF-M95 (1)
12.00 12.00 36.00 95.00 SL 7 37.0 - - - - 3.0
•
0.04-0.12
EC-H7 12-48C12CF-110
12.00 12.00 48.00 110.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.11
EC-H7 12-48C12CFR0.6-M110
12.00 12.00 48.00 110.00 C 7 37.0 0.60 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-48C12CFR1.6-M110
12.00 12.00 48.00 110.00 C 7 37.0 1.60 0.070 - - 3.0
•
0.04-0.11
EC-H7 12-48C12CFR2.0-M110
12.00 12.00 48.00 110.00 C 7 37.0 2.00 0.070 - - 3.0
•
0.04-0.11
ISCAR
120
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

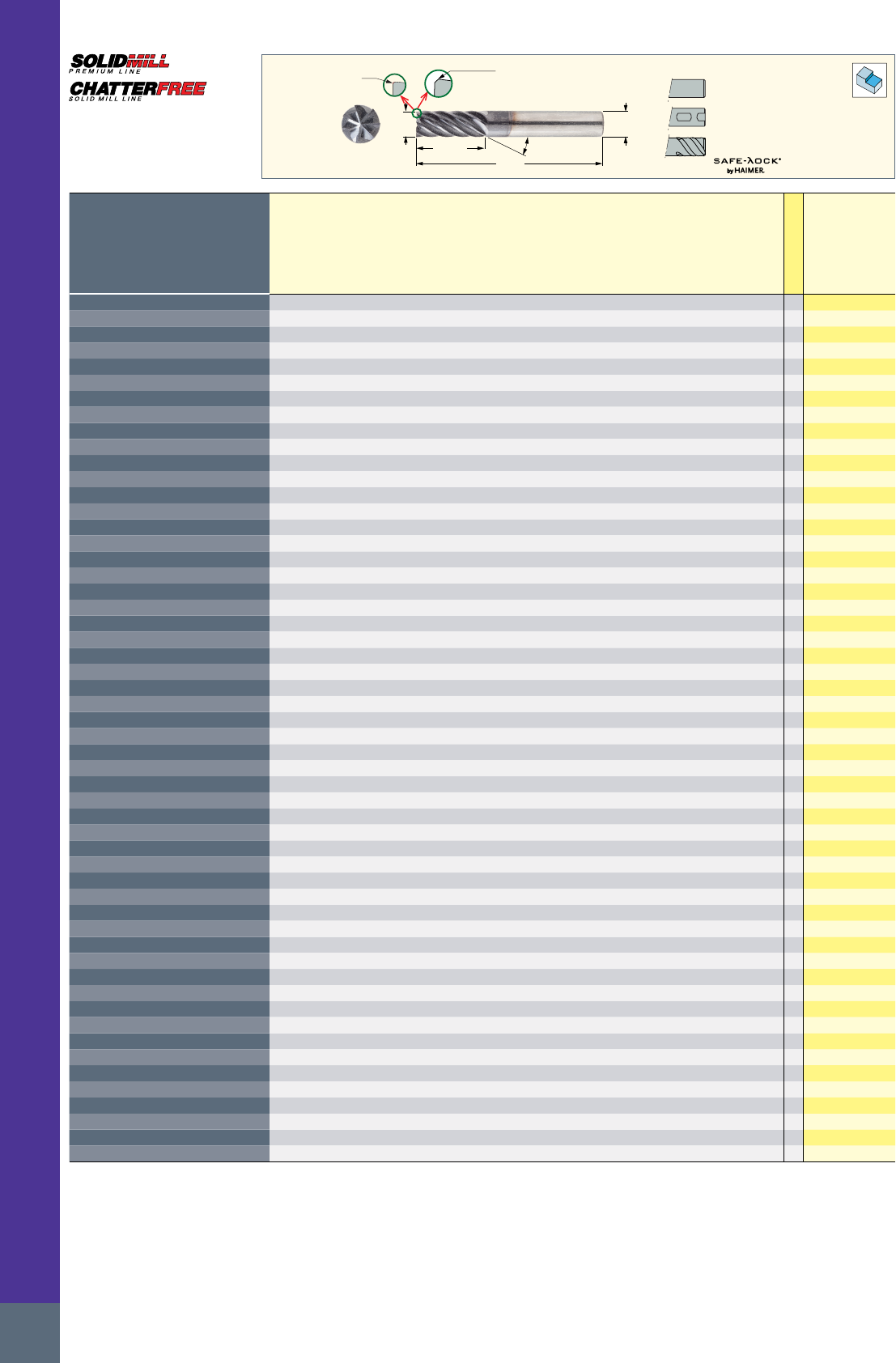

APMX
OAL
FHA˚
DCONMS
DC
CHWx45˚
RE
C-Cylindrical
W-Weldon
SL-Safe-Lock®
EC-E7/H7-CF
7 Flute Endmills with Different
Helix and Variable Pitch
for CHATTERFREE High
Speed Finish Milling
• Enables processing at a radial width of cut (AE) of up to 0.10xDC ,For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(3) Number of flutes
(4) Corner radius tolerance (+/-)
(5) Maximum ramping angle
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL Shank(2) NOF(3) FHA RE RETOL(4) CHW KCH RMPX°(5)
IC902
fz
(mm/t)
EC-H7 12-48C12CFR2.5-M110
12.00 12.00 48.00 110.00 C 7 37.0 2.50 0.070 - - 3.0
•
0.04-0.11
EC-H7 12-48C12CFR3.0-M110
12.00 12.00 48.00 110.00 C 7 37.0 3.00 0.080 - - 3.0
•
0.04-0.11
EC-H7 12-48SL12CF-110 (1)
12.00 12.00 48.00 110.00 SL 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 12-72C12CF-140
12.00 12.00 72.00 140.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 12-72C12CFR1.0-M140
12.00 12.00 72.00 140.00 C 7 37.0 1.00 0.050 - - 3.0
•
0.04-0.11
EC-H7 12-72SL12CF-140 (1)
12.00 12.00 72.00 140.00 SL 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 16-32C16CF-M92
16.00 16.00 32.00 92.00 C 7 37.0 0.00 - - - 3.0
•
0.05-0.13
EC-H7 16-32C16CFR.8M92
16.00 16.00 32.00 92.00 C 7 37.0 0.80 - - - 3.0
•
0.05-0.13
EC-H7 16-32C16CFR1.6-M92
16.00 16.00 32.00 92.00 C 7 37.0 1.60 - - - 3.0
•
0.04-0.12
EC-H7 16-32C16CFR2.0-M92
16.00 16.00 32.00 92.00 C 7 37.0 2.00 - - - 3.0
•
0.04-0.12
EC-H7 16-32C16CFR2.5-M92
16.00 16.00 32.00 92.00 C 7 37.0 2.50 - - - 3.0
•
0.04-0.12
EC-H7 16-32C16CFR3.0-M92
16.00 16.00 32.00 92.00 C 7 37.0 3.00 - - - 3.0
•
0.04-0.12
EC-H7 16-32C16CFR4.0-M92
16.00 16.00 32.00 92.00 C 7 37.0 4.00 - - - 3.0
•
0.04-0.12
EC-H7 16-32SL16CF-M92 (1)
16.00 16.00 32.00 92.00 SL 7 37.0 - - - - 3.0
•
0.04-0.12
EC-H7 16-32SL16CFR.8M92 (1)
16.00 16.00 32.00 92.00 SL 7 37.0 0.80 - - - 3.0
•
0.04-0.12
EC-H7 16-32W16CF-M92
16.00 16.00 32.00 92.00 W 7 37.0 0.00 - - - 3.0
•
0.05-0.13
EC-H7 16-48C16CF-M110
16.00 16.00 48.00 110.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.05-0.13
EC-H7 16-48C16CFR0.8-M110
16.00 16.00 48.00 110.00 C 7 37.0 0.80 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-48C16CFR1.6-M110
16.00 16.00 48.00 110.00 C 7 37.0 1.60 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-48C16CFR2.0-M110
16.00 16.00 48.00 110.00 C 7 37.0 2.00 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-48C16CFR2.5-M110
16.00 16.00 48.00 110.00 C 7 37.0 2.50 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-48C16CFR3.0-M110
16.00 16.00 48.00 110.00 C 7 37.0 3.00 0.070 - - 3.0
•
0.05-0.13
EC-H7 16-48C16CFR4.0-M110
16.00 16.00 48.00 110.00 C 7 37.0 4.00 0.070 - - 3.0
•
0.05-0.13
EC-H7 16-48SL16CF-M110 (1)
16.00 16.00 48.00 110.00 SL 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 16-64C16CF-131
16.00 16.00 64.00 131.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.05-0.13
EC-H7 16-64C16CFR0.8-M131
16.00 16.00 64.00 131.00 C 7 37.0 0.80 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-64C16CFR1.6-M131
16.00 16.00 64.00 131.00 C 7 37.0 1.60 0.070 - - 3.0
•
0.05-0.13
EC-H7 16-64C16CFR2.0-M131
16.00 16.00 64.00 131.00 C 7 37.0 2.00 0.070 - - 3.0
•
0.05-0.13
EC-H7 16-64C16CFR2.5-M131
16.00 16.00 64.00 131.00 C 7 37.0 2.50 0.070 - - 3.0
•
0.05-0.13
EC-H7 16-64C16CFR3.0-M131
16.00 16.00 64.00 131.00 C 7 37.0 3.00 0.080 - - 3.0
•
0.05-0.13
EC-H7 16-64C16CFR4.0-M131
16.00 16.00 64.00 131.00 C 7 37.0 4.00 0.080 - - 3.0
•
0.05-0.13
EC-H7 16-64SL16CF-131 (1)
16.00 16.00 64.00 131.00 SL 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 16-96C16CF-175
16.00 16.00 96.00 175.00 C 7 37.0 - - 0.30 45.0 3.0
•
0.05-0.13
EC-H7 16-96C16CFR1.0M175
16.00 16.00 96.00 175.00 C 7 37.0 1.00 0.050 - - 3.0
•
0.05-0.13
EC-H7 16-96SL16CF-175 (1)
16.00 16.00 96.00 175.00 SL 7 37.0 - - 0.30 45.0 3.0
•
0.04-0.12
EC-H7 20-40C20CF-M104
20.00 20.00 40.00 104.00 C 7 37.0 0.00 - - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR1.6-M104
20.00 20.00 40.00 104.00 C 7 37.0 1.60 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR1M104
20.00 20.00 40.00 104.00 C 7 37.0 1.00 - - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR2.0-M104
20.00 20.00 40.00 104.00 C 7 37.0 2.00 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR2.5-M104
20.00 20.00 40.00 104.00 C 7 37.0 2.50 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR3.0-M104
20.00 20.00 40.00 104.00 C 7 37.0 3.00 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-40C20CFR4.0-M104
20.00 20.00 40.00 104.00 C 7 37.0 4.00 0.080 - - 3.0
•
0.05-0.13
EC-H7 20-40SL20CF-M104 (1)
20.00 20.00 40.00 104.00 SL 7 37.0 0.00 - - - 3.0
•
0.04-0.12
EC-H7 20-40SL20CFR1M104 (1)
20.00 20.00 40.00 104.00 SL 7 37.0 1.00 - - - 3.0
•
0.05-0.15
EC-H7 20-40W20CF-M104
20.00 20.00 40.00 104.00 W 7 37.0 0.00 - - - 3.0
•
0.05-0.13
EC-H7 20-60C20CF-M140
20.00 20.00 60.00 140.00 C 7 37.0 - - 0.40 45.0 3.0
•
0.05-0.13
EC-H7 20-60C20CFR1.0-M140
20.00 20.00 60.00 140.00 C 7 37.0 1.00 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-60C20CFR2.0-M140
20.00 20.00 60.00 140.00 C 7 37.0 2.00 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-60C20CFR2.5-M140
20.00 20.00 60.00 140.00 C 7 37.0 2.50 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-60C20CFR3.0-M140
20.00 20.00 60.00 140.00 C 7 37.0 3.00 0.060 - - 3.0
•
0.05-0.13
EC-H7 20-60C20CFR4.0-M140
20.00 20.00 60.00 140.00 C 7 37.0 4.00 0.080 - - 3.0
•
0.05-0.13
EC-H7 20-60SL20CF-M140 (1)
20.00 20.00 60.00 140.00 SL 7 37.0 - - 0.40 45.0 3.0
•
0.05-0.15
EC-H7 20-80C20CF-140
20.00 20.00 80.00 140.00 C 7 37.0 - - 0.40 45.0 3.0
•
0.05-0.13
EC-H7 20-80C20CFR1.0-M140
20.00 20.00 80.00 140.00 C 7 37.0 1.00 0.060 - - 3.0
•
0.05-0.13
(continued)
121
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
CHWx45˚
RE
APMX
DCONMS h6
FHA˚
OAL
DC e9
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RE RETOL(3) CHW KCH
IC902
fz
(mm/t)
ECP-H7 06-18C06CF-65
6.00 6.00 18.00 65.00 7 36.0 C - - 0.20 45.0
•
0.02-0.07
ECP-H7 06-24C06CF-70
6.00 6.00 24.00 70.00 7 36.0 C - - 0.20 45.0
•
0.02-0.07
ECP-H7 06-36C06CF-90
6.00 6.00 36.00 90.00 7 36.0 C - - 0.20 45.0
•
0.02-0.07
ECP-H7 08-24C08CF-90
8.00 8.00 24.00 90.00 7 36.0 C - - 0.20 45.0
•
0.02-0.08
ECP-H7 08-32C08CF-90
8.00 8.00 32.00 90.00 7 36.0 C - - 0.20 45.0
•
0.02-0.09
ECP-H7 08-48C08CF-110
8.00 8.00 48.00 110.00 7 36.0 C - - 0.20 45.0
•
0.02-0.08
ECP-H7 10-30C10CF-85
10.00 10.00 30.00 85.00 7 36.0 C - - 0.30 45.0
•
0.02-0.10
ECP-H7 10-30C10CFR0.5-85
10.00 10.00 30.00 85.00 7 36.0 C 0.50 0.050 - -
•
0.02-0.10
ECP-H7 10-30C10CFR1.6-85
10.00 10.00 30.00 85.00 7 36.0 C 1.60 0.050 - -
•
0.02-0.10
ECP-H7 10-30C10CFR2.0-85
10.00 10.00 30.00 85.00 7 36.0 C 2.00 0.080 - -
•
0.02-0.10
ECP-H7 10-30C10CFR2.5-85
10.00 10.00 30.00 85.00 7 36.0 C 2.50 0.080 - -
•
0.02-0.10
ECP-H7 10-30C10CFR3.0-85
10.00 10.00 30.00 85.00 7 36.0 C 3.00 0.080 - -
•
0.02-0.10
ECP-H7 10-40C10CF-100
10.00 10.00 40.00 100.00 7 36.0 C - - 0.30 45.0
•
0.02-0.10
ECP-H7 10-40C10CFR0.5-100
10.00 10.00 40.00 100.00 7 36.0 C 0.50 0.050 - -
•
0.02-0.10
ECP-H7 10-40C10CFR1.6-100
10.00 10.00 40.00 100.00 7 36.0 C 1.60 0.050 - -
•
0.02-0.10
ECP-H7 10-40C10CFR2.0-100
10.00 10.00 40.00 100.00 7 36.0 C 2.00 0.080 - -
•
0.02-0.10
ECP-H7 10-40C10CFR2.5-100
10.00 10.00 40.00 100.00 7 36.0 C 2.50 0.080 - -
•
0.02-0.10
ECP-H7 10-40C10CFR3.0-100
10.00 10.00 40.00 100.00 7 36.0 C 3.00 0.080 - -
•
0.02-0.10
ECP-H7 10-60C10CF-130
10.00 10.00 60.00 130.00 7 36.0 C - - 0.30 45.0
•
0.02-0.10
ECP-H7 10-60C10CFR0.5-130
10.00 10.00 60.00 130.00 7 36.0 C 0.50 0.050 - -
•
0.04-0.12
ECP-H7 10-60C10CFR1.0-130
10.00 10.00 60.00 130.00 7 36.0 C 1.00 0.050 - -
•
0.05-0.13
ECP-H7 12-36C12CF-95
12.00 12.00 36.00 95.00 7 36.0 C - - 0.30 45.0
•
0.04-0.12
ECP-H7 12-36C12CFR0.6-95
12.00 12.00 36.00 95.00 7 36.0 C 0.60 0.050 - -
•
0.05-0.13
ECP-H7 12-36C12CFR1.6-95
12.00 12.00 36.00 95.00 7 36.0 C 1.60 0.070 - -
•
0.05-0.13
ECP-H7 12-36C12CFR2.0-95
12.00 12.00 36.00 95.00 7 36.0 C 2.00 0.050 - -
•
0.05-0.13
ECP-H7 12-36C12CFR2.5-95
12.00 12.00 36.00 95.00 7 36.0 C 2.50 0.050 - -
•
0.05-0.13
ECP-H7 12-36C12CFR3.0-95
12.00 12.00 36.00 95.00 7 36.0 C 3.00 0.070 - -
•
0.05-0.13
ECP-H7 12-36C12CFR4.0-95
12.00 12.00 36.00 110.00 7 36.0 C 4.00 0.080 - -
•
0.05-0.13
ECP-H7 12-48C12CF-110
12.00 12.00 48.00 110.00 7 36.0 C - - 0.30 45.0
•
0.04-0.11
ECP-H7 12-48C12CFR0.6-110
12.00 12.00 48.00 110.00 7 36.0 C 0.60 0.050 - -
•
0.05-0.13
ECP-H7 12-48C12CFR1.6-110
12.00 12.00 48.00 110.00 7 36.0 C 1.60 0.070 - -
•
0.05-0.13
ECP-H7 12-48C12CFR2.0-110
12.00 12.00 48.00 110.00 7 36.0 C 2.00 0.060 - -
•
0.05-0.13
ECP-H7 12-48C12CFR2.5-110
12.00 12.00 48.00 110.00 7 36.0 C 2.50 0.050 - -
•
0.05-0.13
ECP-H7 12-48C12CFR3.0-110
12.00 12.00 48.00 110.00 7 36.0 C 3.00 0.070 - -
•
0.05-0.13
ECP-H7 12-48C12CFR4.0-110
12.00 12.00 48.00 110.00 7 36.0 C 4.00 0.080 - -
•
0.05-0.13
ECP-H7 12-72C12CF-140
12.00 12.00 72.00 140.00 7 36.0 C - - 0.30 45.0
•
0.04-0.12
ECP-H7 12-72C12CFR1.0-140
12.00 12.00 72.00 140.00 7 36.0 C 1.00 0.050 - -
•
0.05-0.13
ECP-H7 16-48C16CF-110
16.00 16.00 48.00 110.00 7 36.0 C - - 0.30 45.0
•
0.05-0.13
ECP-H7 16-48C16CFR0.8-110
16.00 16.00 48.00 110.00 7 36.0 C 0.80 0.050 - -
•
0.05-0.13
ECP-H7 16-48C16CFR1.6-110
16.00 16.00 48.00 110.00 7 36.0 C 1.60 0.050 - -
•
0.05-0.13
ECP-H7 16-48C16CFR2.0-110
16.00 16.00 48.00 110.00 7 36.0 C 2.00 0.050 - -
•
0.05-0.13
ECP-H7 16-48C16CFR2.5-110
16.00 16.00 48.00 110.00 7 36.0 C 2.50 0.050 - -
•
0.05-0.13
ECP-H7 16-48C16CFR3.0-110
16.00 16.00 48.00 110.00 7 36.0 C 3.00 0.070 - -
•
0.05-0.13
ECP-H7 16-48C16CFR4.0-110
16.00 16.00 48.00 110.00 7 36.0 C 4.00 0.070 - -
•
0.05-0.13
ECP-H7 16-64C16CF-131
16.00 16.00 64.00 131.00 7 36.0 C - - 0.30 45.0
•
0.05-0.13
ECP-H7 16-64C16CFR0.8-131
16.00 16.00 64.00 131.00 7 36.0 C 0.80 0.050 - -
•
0.05-0.13
ECP-H7 16-96C16CF-175
16.00 16.00 96.00 175.00 7 36.0 C - - 0.30 45.0
•
0.05-0.13
ECP-H7 16-96C16CFR1.0-175
16.00 16.00 96.00 175.00 7 36.0 C 1.00 0.050 - -
•
0.05-0.13
ECP-H7 20-60C20CF-140
20.00 20.00 60.00 140.00 7 36.0 C - - 0.40 45.0
•
0.07-0.20
ECP-H7 20-60C20CFR1.0-140
20.00 20.00 60.00 140.00 7 36.0 C 1.00 0.050 - -
•
0.07-0.20
ECP-H7 20-60C20CFR2.0-140
20.00 20.00 60.00 140.00 7 36.0 C 2.00 0.050 - -
•
0.07-0.20
ECP-H7 20-60C20CFR2.5-140
20.00 20.00 60.00 140.00 7 36.0 C 2.50 0.050 - -
•
0.07-0.20
ECP-H7 20-60C20CFR3.0-140
20.00 20.00 60.00 140.00 7 36.0 C 3.00 0.050 - -
•
0.07-0.20
ECP-H7 20-60C20CFR4.0-140
20.00 20.00 60.00 140.00 7 36.0 C 4.00 0.080 - -
•
0.07-0.20
ECP-H7 20-80C20CF-140
20.00 20.00 80.00 140.00 7 36.0 C - - 0.40 45.0
•
0.05-0.20
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
ECP-H7-CF
7 Flute Solid Carbide Endmills
with Different Helix, Variable Pitch
and Chip Splitting Cutting Edges
ISCAR
122

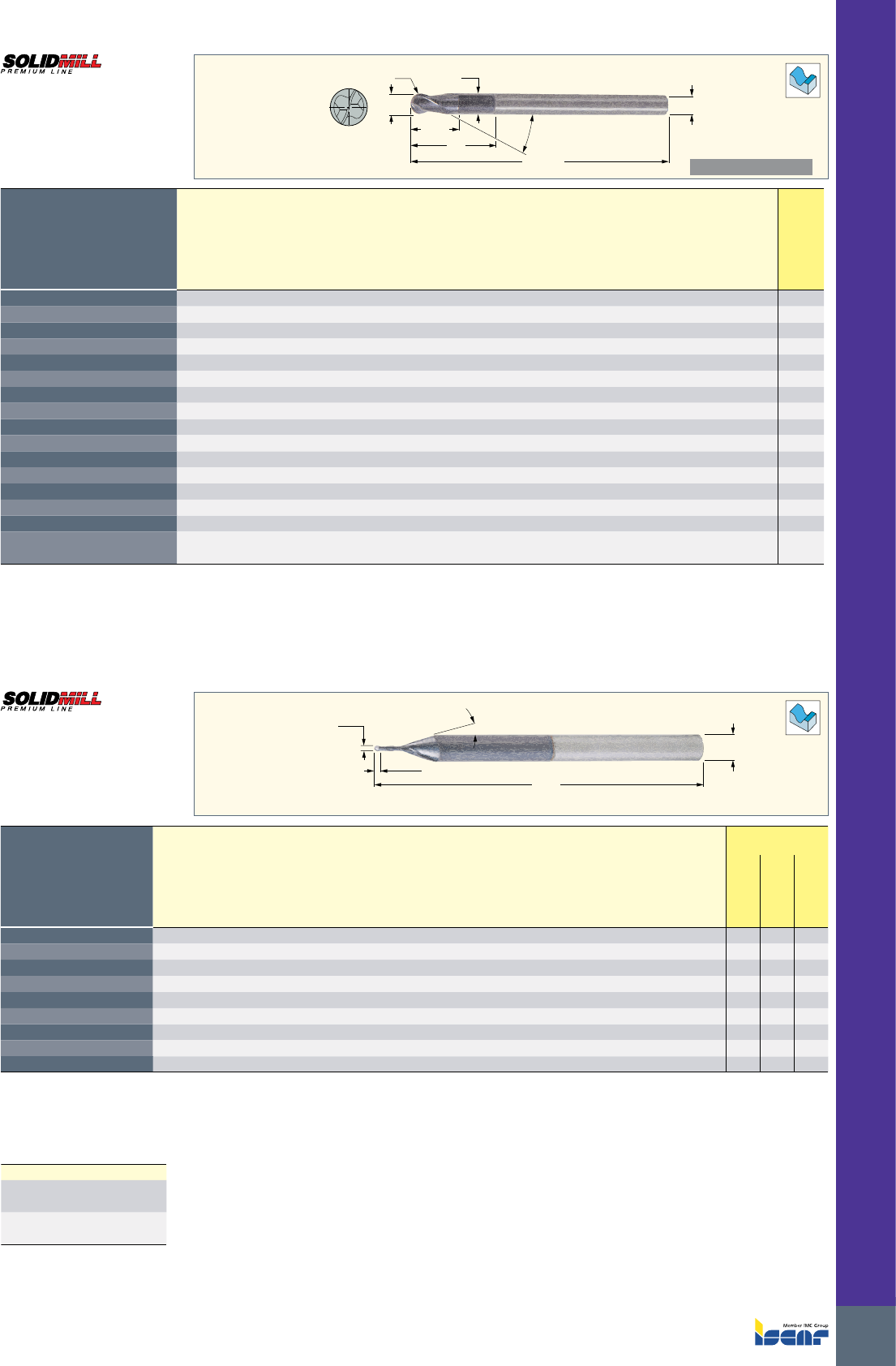

ENDMILLS • SOLID CARBIDE • MULTI-MASTER

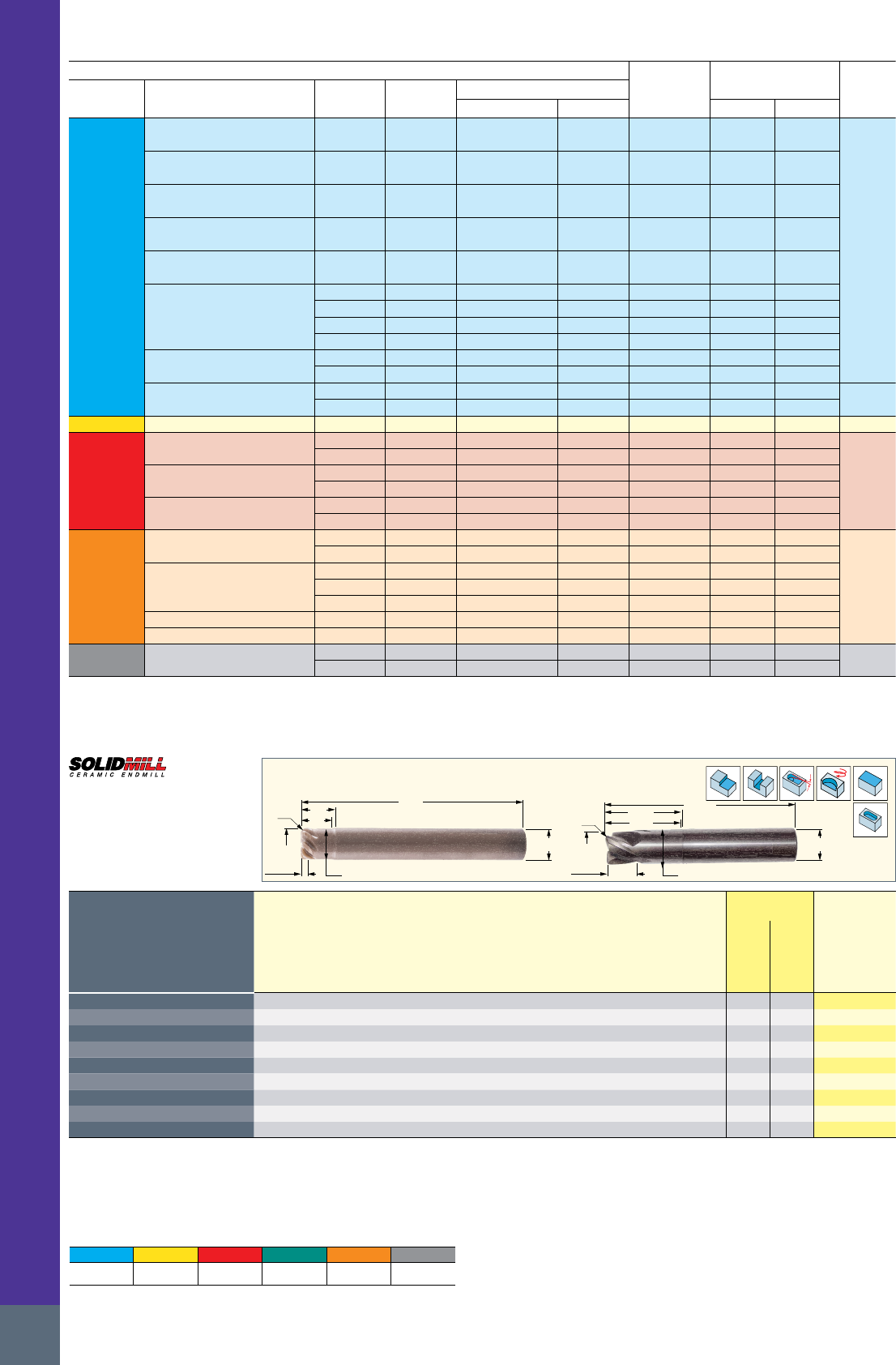

OAL
NOF 7 NOF 3
LH
RE
DC
APMX DN
DCONMS
LU
OAL
LH
RE
DC
APMX DN
DCONMS
LU
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC APMX LU LH DN RE(1) NOF(2) DCONMS RMPX°(3) OAL Shank(4)
IS35
IS6
fz
(mm/t)
EC-E3 06-06/15C06R.4N50CE
6.00 6.00 14.50 15.0 5.50 0.42 3 6.00 3.0 50.00 C
•
0.02-0.03
EC-E3 08-08/20C08R.5N57CE
8.00 8.00 19.50 20.0 7.50 0.56 3 8.00 3.0 57.00 C
•
0.02-0.03
EC-E3 10-10/25C10R.7N65CE
10.00 10.00 24.50 25.0 9.50 0.70 3 10.00 3.0 65.00 C
•
0.02-0.03
EC-E3 12-12/30C12R1.N72CE
12.00 12.00 29.50 30.0 11.50 1.10 3 12.00 3.0 72.00 C
•
0.02-0.03
EC-E3 16-16/35C16R2.N83CE
16.00 16.00 34.50 35.0 15.50 1.90 3 16.00 3.0 83.00 C
•
0.02-0.04
EC-E3 20-20/40C20R2.N93CE
20.00 15.00 39.50 40.0 19.50 2.50 3 20.00 3.0 93.00 C
•
0.02-0.04
EC-E7 08-02C08R1.0N63CE
8.00 0.40 8.00 9.5 7.50 1.00 7 8.00 3.0 63.00 C
•
0.02-0.03
EC-E7 10-02C10R1.5N72CE
10.00 0.70 10.00 11.5 9.50 1.50 7 10.00 3.0 72.00 C
•
0.02-0.03
EC-E7 12-02C12R1.5N83CE
12.00 1.30 10.00 12.0 11.50 1.50 7 12.00 3.0 83.00 C
•
0.02-0.03
• Recommended cutting speed on high temperature nickel-based superalloys: 250-1000 m/min • Maximum width of cut for the 3 flute cutters is 0.1xDC
• Maximum width of cut for the 7 flute cutters is DC • Only air coolant should be used
(1) Programming radius
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical
PMK N(K) S(M) H(P/K)
+++
+ recommended
EC-E3/E7-CE (ceramic)
3 and 7 Flute Solid Ceramic
Endmills with Relieved Necks
for Machining Nickel Base
Alloys, Cast Iron and Graphite
Table - Average Cutting Data for ECP-H7...
Workpiece Material Cutting
Speed
Vc [m/min]
fz [mm/tooth]
Coolant
ISO class
DIN/ISO 513 Description
ISCAR mat
group*
Hardness
HB
Typical Materials
AISI/SAE/ASTM DIN W.-Nr. Starting Range
P
Non-alloy steel and cast steel,
free cutting steel <0.25%C 1 125 1020 1.1151 210-300 0.12 0.05-0.2
Dry
Non-alloy steel and cast steel,
free cutting steel >=0.25%C 2 190 1040 1.0511 200-280 0.12 0.05-0.2
Non-alloy steel and cast steel,
free cutting steel <0.55%C 3 250 1040 1.1186 200-260 0.1 0.05-0.2
Non-alloy steel and cast steel,
free cutting steel >=0.55%C 4 220 1060 1.0601 180-250 0.1 0.05-0.2
Non-alloy steel and cast steel,
free cutting steel >=0.55%C 5 300 E 360 1.0070 180-240 0.1 0.05-0.2
Low alloy & cast steel (less
than 5% of alloying elements)
6 200 5120 1.0841 170-240 0.1 0.05-0.2
7 275 4340 1.6565 160-230 0.1 0.05-0.2
8 300 6150 1.8159 150-230 0.1 0.05-0.2
9 350 1.4882 140-220 0.1 0.05-0.2
High alloyed steel, cast
steel and tool steel
10 200 H13 1.2344 120-210 0.08 0.05-0.2
11 325 T15 1.3243 110-170 0.08 0.05-0.2
Ferritic and martensitic
stainless
12 200 420 1.4028 150-230 0.08 0.03-0.16 Dry / Wet
13 240 430 1.4021 140-220 0.08 0.03-0.16
MAustenitic and duplex stainless 14 180 304L 1.4306 100-160 0.06 0.03-0.16 Wet
K
Grey cast iron 15 180 CLASS25 0.6015 150-250 0.1 0.03-0.16
Dry
16 260 CLASS45 0.6030 120-200 0.1 0.03-0.16
Nodular cast iron 17 160 80-55-06 0.7050 150-300 0.08 0.03-0.16
18 250 100/70/03 0.7070 100-250 0.08 0.03-0.16
Malleable cast iron 19 130 32510 0.8135 150-300 0.08 0.03-0.16
20 230 90001 0.8170 100-220 0.08 0.03-0.16
S
High temp. alloys, Fe-based 31 200 330 1.4864 50-60 0.08 0.02-0.16
Wet
32 280 1.4977 40-50 0.03 0.02-0.16
High temp. alloys,
Ni- or Co- based
33 250 Inconel 625 2.4856 35-50 0.04 0.02-0.16
34 350 Inconel 718 2.4668 25-35 0.03 0.02-0.16
35 320 Inconel X-750 2.4669 30-40 0.03 0.02-0.16
Titanium (pure) 36 HRC 30-32 AMS 5397 2.4674 65-110 0.1 0.02-0.16
Titanium alloys 37 HRC 30-32 AMS R56400 3.7165 35-70 0.08 0.02-0.16
HHardened steel 38.1 HRC 45-49 4340 1.6565 55-75 0.03 0.02-0.16 Dry
38.2 HRC 50-55 P20 1.2330 55-75 --- ---
123
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
CHWx 45°
DCONMS
DC
FHA˚
C-Cylindrical
SL-Safe-Lock®
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(2) FHA Shank(3) CHW KCH
IC902
fz
(mm/t)
EC-H6 06-12C06CF-H57
6.00 6.00 12.00 57.00 6 45.0 C 0.20 45.0
•
0.03-0.07
EC-H8 08-16C08CF-H63
8.00 8.00 16.00 63.00 8 45.0 C 0.20 45.0
•
0.03-0.09
EC-H10 10-20C10CF-H72
10.00 10.00 20.00 72.00 10 35.0 C 0.30 45.0
•
0.03-0.10
EC-H10 10-20SL10CF-H72 (1)
10.00 10.00 20.00 72.00 10 35.0 SL - -
•
0.03-0.10
EC-H12 12-24C12CF-H83
12.00 12.00 24.00 83.00 12 35.0 C 0.30 45.0
•
0.04-0.11
EC-H12 12-24SL12CF-H83 (1)
12.00 12.00 20.00 72.00 12 35.0 SL - -
•
0.04-0.11
EC-H16 16-32C16CF-H92
16.00 16.00 32.00 92.00 16 35.0 C 0.30 45.0
•
0.05-0.13
EC-H16 16-32SL16CF-H92 (1)
16.00 16.00 20.00 72.00 16 35.0 SL - -
•
0.05-0.13
EC-H20 20-40C20CFH104
20.00 20.00 40.00 104.00 20 30.0 C 0.40 45.0
•
0.05-0.13
EC-H20 20-40SL20CFH104 (1)
20.00 20.00 41.00 105.00 20 35.0 SL - -
•
0.05-0.13
• Enables processing at a radial width of cut (AE) of up to 0.06xDC .For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) Number of flutes
(3) C-Cylindrical, SL-Safe-Lock® (by Haimer)
EC-H-CF
6-20 Flute Endmills with
Different Helix and Variable
Pitch for CHATTERFREE
High Speed Finish Milling
a1°
a4°
a2°
a3°
a1≠a2≠a3≠a4
APMX
RE
DCONMS
DC
OAL
FHA˚
C-Cylindrical
W-Weldon
SL-Safe-Lock®
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(3) RE FHA RMPX°(4) Shank(5) CSP(6)
IC300
IC900
fz
(mm/t)
ECK-H4M 04-08C06CFR0.2-57
4.00 6.00 8.00 57.00 4 0.20 36.0 5.0 C 0
•
0.02-0.05
ECK-H4M 05-10C06CFR0.2-57
5.00 6.00 10.00 57.00 4 0.20 36.0 5.0 C 0
•
0.02-0.05
ECK-H4M 06-12C06CFR.2-57C (1)
6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 C 1
•
0.03-0.06
ECK-H4M 06-12C06CFR0.2-57
6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 C 0
•
0.03-0.06
ECK-H4M 06-12W06CFR0.2-57
6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 W 0
•
0.03-0.06
ECK-H4M 08-16C08CFR0.4-63
8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 C 0
•
0.03-0.06
ECK-H4M 08-16W08CFR.4-63C (1)
8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 W 1
•
0.03-0.06
ECK-H4M 08-16W08CFR0.4-63
8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 W 0
•
0.03-0.06
ECK-H4 10-20SL10CFR.5-72C (2)
10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 SL 1
•
0.03-0.07
ECK-H4 10-20SL10CFR0.5-72 (2)
10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 SL 0
•
0.03-0.07
ECK-H4M 10-20C10CFR0.5-72
10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 C 0
•
0.03-0.07
ECK-H4M 10-20W10CFR.5-72C (1)
10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 W 1
•
0.03-0.07
ECK-H4M 10-20W10CFR0.5-72
10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 W 0
•
0.03-0.07
ECK-H4 12-24SL12CFR0.6-83 (2)
12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 SL 0
•
0.04-0.08
ECK-H4M 12-24C12CFR0.6-83
12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 C 0
•
0.04-0.08
ECK-H4M 12-24W12CFR.6
12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 0
•
0.04-0.08
ECK-H4M 12-24W12CFR.6-83C (1)
12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 1
•
0.04-0.08
ECK-H4M 12-24W12CFR0.6-83
12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 0
•
0.04-0.08
ECK-H4 16-32SL16CFR.8-92C (2)
16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 SL 1
•
0.05-0.08
ECK-H4 16-32SL16CFR0.8-92 (2)
16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 SL 0
•
0.05-0.08
ECK-H4M 16-32C16CFR0.8-92
16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 C 0
•
0.05-0.08
ECK-H4M 16-32W16CFR.8-92C (1)
16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 W 1
•
0.05-0.08
ECK-H4M 16-32W16CFR0.8-92
16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 W 0
•
0.05-0.08
ECK-H4 20-40SL20CFR1.-104 (2)
20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 SL 0
•
0.05-0.08
ECK-H4M 20-40C20CFR1.-104
20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 C 0
•
0.05-0.08
ECK-H4M 20-40W20CFR1.-104
20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 W 0
•
0.05-0.08
• For user guide, see pages 177-184
(1) With coolant channel
(2) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(3) Number of flutes
(4) Maximum ramping angle
(5) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(6) 0 - Without coolant supply, 1 - With coolant supply
ECK-H4M-CFR
Endmills with Different Helix,
Chamfered Edges and
Variable Pitch for Chatter
Dampening on Titanium
ISCAR
124
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
RE
DCONMS
DC
OAL
C-Cylindrical
W-Weldon
SL-Safe-Lock®
Dimensions
Designation
DC DCONMS APMX OAL NOF(2) RE RMPX°(3) Shank(4)
IC900
ECK-H7 06-13C06CFR0.2T57
6.00 6.00 13.00 57.00 7 0.20 5.0 C
•
ECK-H7 06-13W06CFR0.2T57
6.00 6.00 13.00 57.00 7 0.20 5.0 W
•
ECK-H7 08-19C08CFR0.4T63
8.00 8.00 19.00 63.00 7 0.40 5.0 C
•
ECK-H7 08-19W08CFR0.4T63
8.00 8.00 19.00 63.00 7 0.40 5.0 W
•
ECK-H7 10-22C10CFR0.5T72
10.00 10.00 22.00 72.00 7 0.50 5.0 C
•
ECK-H7 10-22SL10CFR0.5T72 (1)
10.00 10.00 22.00 72.00 7 0.50 5.0 SL
•
ECK-H7 10-22W10CFR0.5T72
10.00 10.00 22.00 72.00 7 0.50 5.0 W
•
ECK-H7 12-26C12CFR0.6T83
12.00 12.00 26.00 83.00 7 0.60 5.0 C
•
ECK-H7 12-26SL12CFR0.6T83 (1)
12.00 12.00 26.00 83.00 7 0.60 5.0 SL
•
ECK-H7 12-26W12CFR0.6T83
12.00 12.00 26.00 83.00 7 0.60 5.0 W
•
ECK-H9 16-32C16CFR0.8T92
16.00 16.00 32.00 92.00 9 0.80 5.0 C
•
ECK-H9 16-32SL16CFR0.8T92 (1)
16.00 16.00 32.00 92.00 9 0.80 5.0 SL
•
ECK-H9 16-32W16CFR0.8T92
16.00 16.00 32.00 92.00 9 0.80 5.0 W
•
ECK-H9 20-38C20CFR1T104
20.00 20.00 38.00 104.00 9 1.00 5.0 C
•
ECK-H9 20-38SL20CFR1T104 (1)
20.00 20.00 38.00 104.00 9 1.00 5.0 SL
•
ECK-H9 20-38W20CFR1T104
20.00 20.00 38.00 104.00 9 1.00 5.0 W
•
• Enables processing at a radial width of cut (AE) of up to 0.10xDC ,For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
Designation
Finishing High Speed Machining
fz (min)
mm/t
fz (max)
mm/t
fz (min)
mm/t
fz (max)
mm/t
ECK-H7 06-13C06CFR0.2T57
0.02 0.04 0.08 0.15
ECK-H7 06-13W06CFR0.2T57
0.02 0.04 0.08 0.15
ECK-H7 08-19C08CFR0.4T63
0.02 0.04 0.08 0.15
ECK-H7 08-19W08CFR0.4T63
0.02 0.04 0.08 0.15
ECK-H7 10-22C10CFR0.5T72
0.03 0.05 0.1 0.25
ECK-H7 10-22W10CFR0.5T72
0.03 0.05 0.1 0.25
ECK-H7 12-26C12CFR0.6T83
0.03 0.05 0.1 0.25
ECK-H7 12-26W12CFR0.6T83
0.03 0.05 0.1 0.25
ECK-H9 16-32C16CFR0.8T92
0.04 0.07 0.15 0.3
ECK-H9 16-32W16CFR0.8T92
0.04 0.07 0.15 0.3
ECK-H9 20-38C20CFR1T104
0.04 0.07 0.15 0.3
ECK-H9 20-38W20CFR1T104
0.04 0.07 0.15 0.3

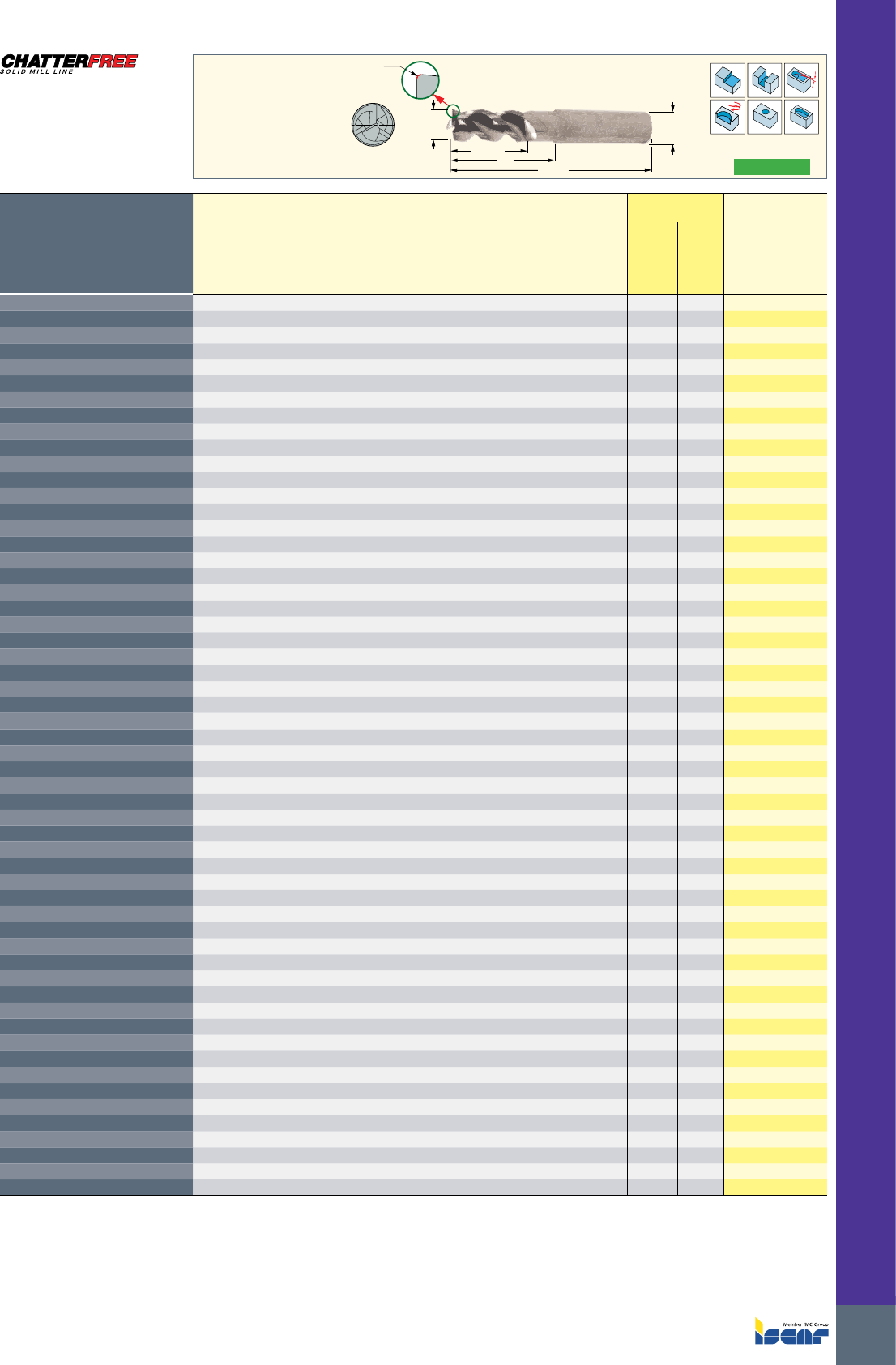

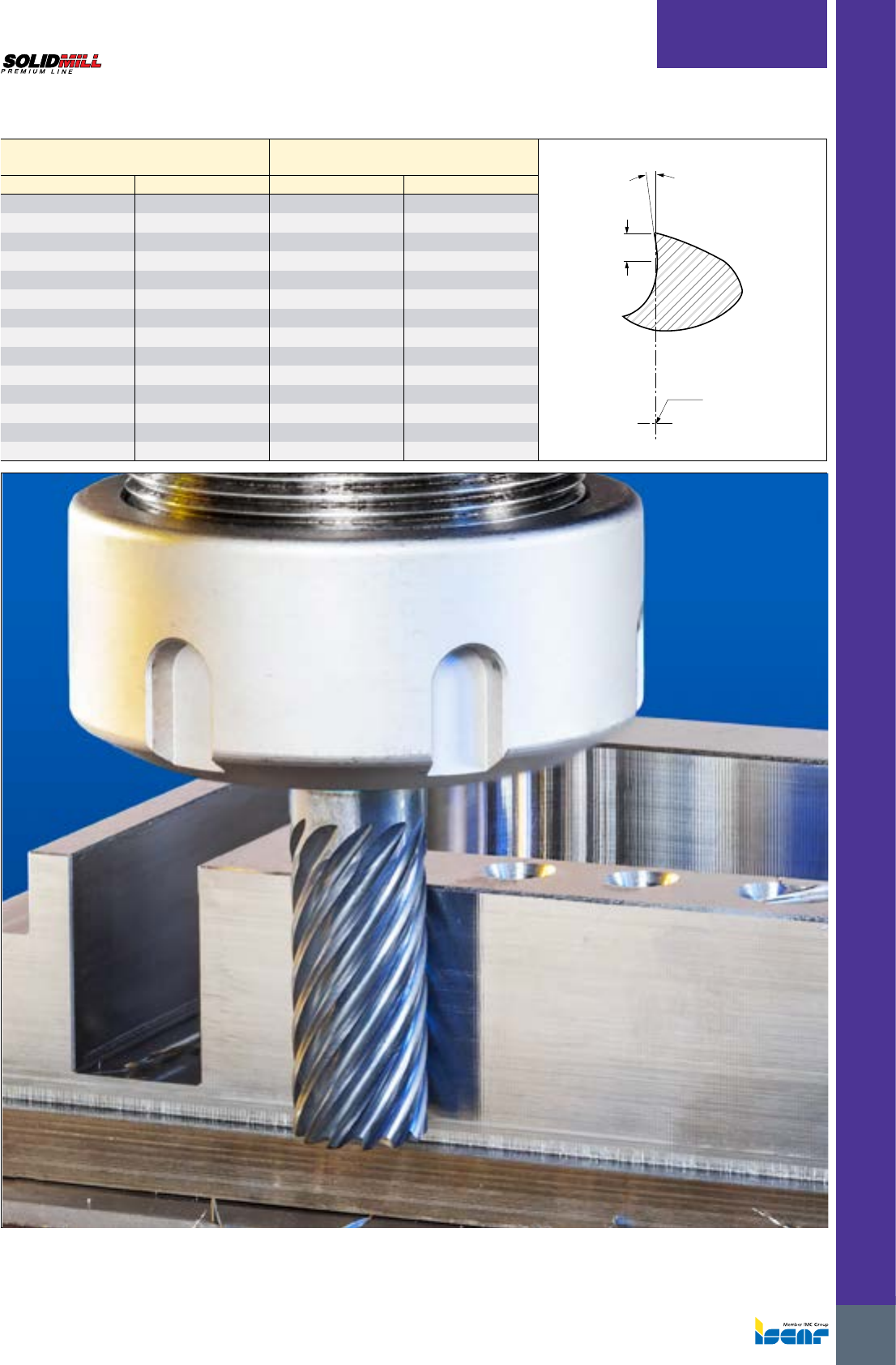

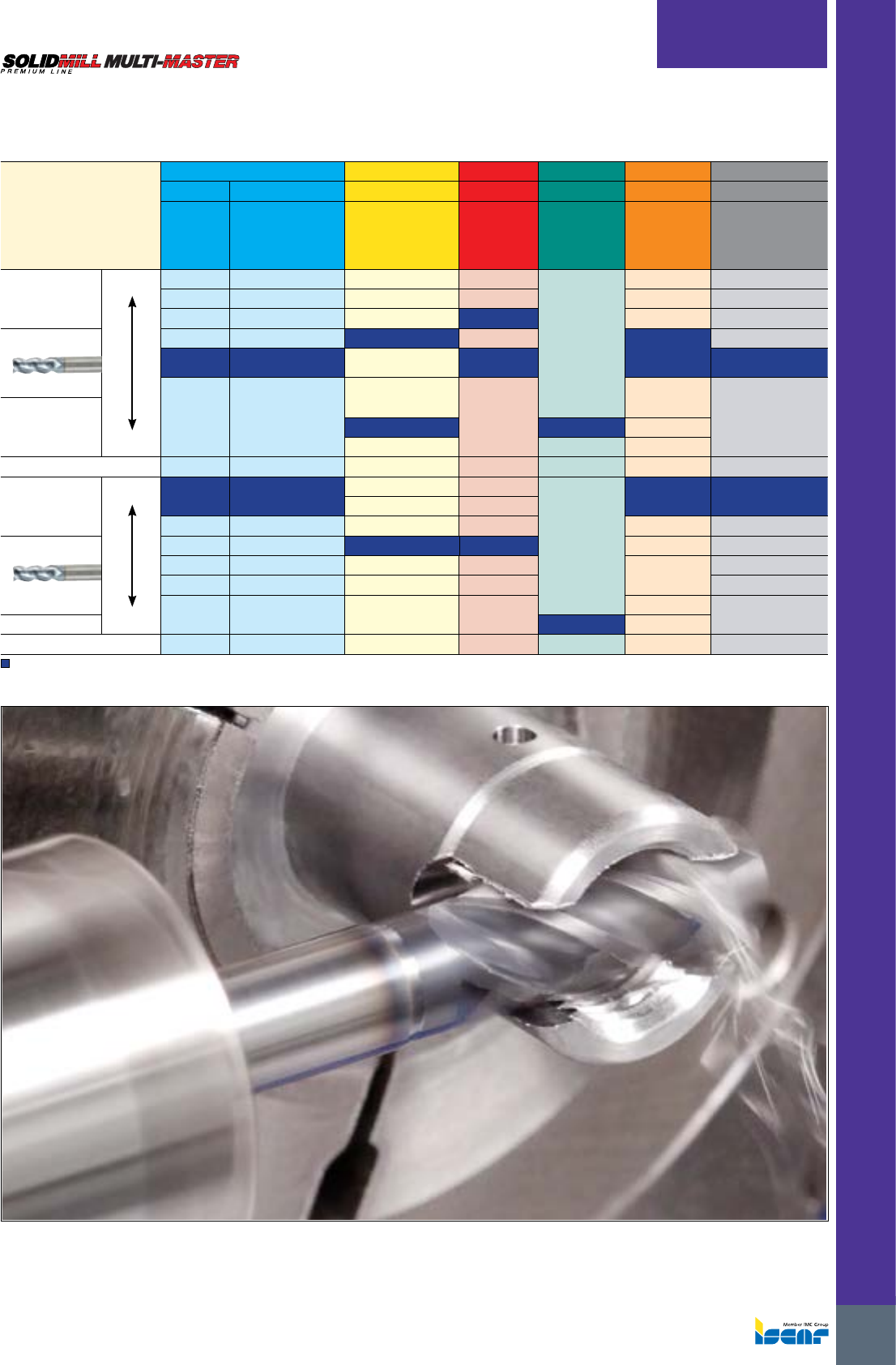

Feed Recommendations
ECK-H7/9-CFR
7 and 9 Flute Endmills
with Different Helix and
Variable Pitch for Chatter
Dampening on Titanium
125
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
a2
a2
a1
a1≠ a2
a1
APMX
CHW x 45°
DCONMS
DC
OAL
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC900
fz
(mm/t)
EFS-E44 06-14C06CF57
6.00 6.00 14.00 57.00 4 38.0 5.0 C 0.25 45.0
•
0.03-0.06
EFS-E44 06-14W06CF57
6.00 6.00 14.00 57.00 4 38.0 5.0 W 0.25 45.0
•
0.03-0.06
EFS-E44 08-18C08CF63
8.00 8.00 18.00 63.00 4 38.0 5.0 C 0.30 45.0
•
0.03-0.08
EFS-E44 08-18W08CF63
8.00 8.00 18.00 63.00 4 38.0 5.0 W 0.30 45.0
•
0.03-0.08
EFS-E44 10-22C10CF72
10.00 10.00 22.00 72.00 4 38.0 5.0 C 0.40 45.0
•
0.03-0.09
EFS-E44 10-22W10CF72
10.00 10.00 22.00 72.00 4 38.0 5.0 W 0.40 45.0
•
0.03-0.09
EFS-E44 12-26C12CF83
12.00 12.00 26.00 83.00 4 38.0 5.0 C 0.50 45.0
•
0.04-0.10
EFS-E44 12-26W12CF83
12.00 12.00 26.00 83.00 4 38.0 5.0 W 0.50 45.0
•
0.04-0.10
EFS-E44 14-30C14CF83
14.00 14.00 30.00 83.00 4 38.0 5.0 C 0.50 45.0
•
0.04-0.11
EFS-E44 14-30W14CF83
14.00 14.00 30.00 83.00 4 38.0 5.0 W 0.50 45.0
•
0.04-0.11
EFS-E44 16-34C16CF92
16.00 16.00 34.00 92.00 4 38.0 5.0 C 0.60 45.0
•
0.05-0.11
EFS-E44 16-34W16CF92
16.00 16.00 34.00 92.00 4 38.0 5.0 W 0.60 45.0
•
0.05-0.11
EFS-E44 20-42C20CF104
20.00 20.00 42.00 104.00 4 38.0 5.0 C 0.60 45.0
•
0.05-0.11
EFS-E44 20-42W20CF104
20.00 20.00 42.00 104.00 4 38.0 5.0 W 0.60 45.0
•
0.05-0.11
EFS-E44 25-52C25CF121
25.00 25.00 52.00 121.00 4 38.0 5.0 C 0.60 45.0
•
0.06-0.11
EFS-E44 25-52W25CF121
25.00 25.00 52.00 121.00 4 38.0 5.0 W 0.60 45.0
•
0.06-0.11
• Minimum width of cut for semi-finishing operation >= 0.05 x DC • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EFS-E44
Combination of Roughing
and Finishing Solid Carbide
Endmills with Variable Pitch
for CHATTERFREE Milling
ISCAR
126
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
CHW x 45°
LU
DCONMS
APMX
OAL
DC
FHA
C-Cylindrical
W-Weldon
SL-Safe-Lock®
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(2) FHA RMPX°(3) Shank(4) CSP(5) CHW KCH
IC300
IC900
IC608
fz
(mm/t)
EFS-B44 04-10C06-57
4.00 6.00 10.00 - 57.00 4 45.0 5.0 C 0 0.12 45.0
•
0.03-0.05
EFS-B44 05-12C06-57
5.00 6.00 12.00 - 57.00 4 45.0 5.0 C 0 0.18 45.0
•
0.03-0.06
EFS-B44 06-14/20C06-57
6.00 6.00 14.00 20.0 57.00 4 45.0 5.0 C 0 0.25 45.0
•
0.03-0.06
EFS-B44 06-14/20W06-57
6.00 6.00 14.00 20.0 57.00 4 45.0 5.0 W 0 0.25 45.0
•
0.03-0.06
EFS-B44 06-14C06-57
6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 0 0.25 45.0
• • •
0.03-0.06
EFS-B44 06-14C06-57C
6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 1 0.25 45.0
•
0.03-0.05
EFS-B44 06-14W06-57
6.00 6.00 14.00 - 57.00 4 45.0 5.0 W 0 0.25 45.0
• •
0.03-0.06
EFS-B44 08-18/26C08-63
8.00 8.00 18.00 26.0 63.00 4 45.0 5.0 C 0 0.30 45.0
•
0.03-0.08
EFS-B44 08-18/26W08-63
8.00 8.00 18.00 26.0 63.00 4 45.0 5.0 W 0 0.30 45.0
•
0.03-0.08
EFS-B44 08-18C08-63
8.00 8.00 18.00 - 63.00 4 45.0 5.0 C 0 0.30 45.0
• • •
0.03-0.08
EFS-B44 08-18W08-63
8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 0 0.30 45.0
• •
0.03-0.08
EFS-B44 08-18W08-63C
8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 1 0.30 45.0
•
0.03-0.06
EFS-B44 10-22/32C10-72
10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 C 0 0.30 45.0
•
0.03-0.09
EFS-B44 10-22/32SL10-72 (1)
10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 SL 0 0.00 45.0
•
0.03-0.09
EFS-B44 10-22/32W10-72
10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 W 0 0.30 45.0
•
0.03-0.09
EFS-B44 10-22C10-72
10.00 10.00 22.00 - 72.00 4 45.0 5.0 C 0 0.30 45.0
• • •
0.03-0.09
EFS-B44 10-22SL10-72 (1)
10.00 10.00 22.00 - 72.00 4 45.0 5.0 SL 0 0.30 45.0
•
0.03-0.09
EFS-B44 10-22SL10-72C (1)
10.00 10.00 22.00 - 72.00 4 45.0 5.0 SL 1 0.30 45.0
•
0.04-0.07
EFS-B44 10-22W10-72
10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 0 0.30 45.0
• •
0.03-0.09
EFS-B44 10-22W10-72C
10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 1 0.30 45.0
•
0.04-0.07
EFS-B44 12-26/38C12-83
12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 C 0 0.40 45.0
•
0.04-0.10
EFS-B44 12-26/38SL12-83 (1)
12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 SL 0 0.40 45.0
•
0.04-0.10
EFS-B44 12-26/38W12-83
12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 W 0 0.40 45.0
•
0.04-0.10
EFS-B44 12-26C12-83
12.00 12.00 26.00 - 83.00 4 45.0 5.0 C 0 0.40 45.0
• •
0.04-0.10
EFS-B44 12-26SL12-83 (1)
12.00 12.00 26.00 - 83.00 4 45.0 5.0 SL 0 0.40 45.0
•
0.04-0.10
EFS-B44 12-26SL12-83C (1)
12.00 12.00 26.00 - 83.00 4 45.0 5.0 SL 1 0.40 45.0
•
0.04-0.08
EFS-B44 12-26W12-83
12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 0 0.40 45.0
• • •
0.04-0.10
EFS-B44 12-26W12-83C
12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 1 0.40 45.0
•
0.04-0.08
EFS-B44 14-30C14-83
14.00 14.00 30.00 - 83.00 4 45.0 5.0 C 0 0.40 45.0
• •
0.04-0.11
EFS-B44 14-30W14-83
14.00 14.00 30.00 - 83.00 4 45.0 5.0 W 0 0.40 45.0
• •
0.04-0.11
EFS-B44 16-34/50C16-100
16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 C 0 0.60 45.0
•
0.05-0.11
EFS-B44 16-34/50SL16-100 (1)
16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 SL 0 0.60 45.0
•
0.05-0.11
EFS-B44 16-34/50W16-100
16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 W 0 0.60 45.0
•
0.05-0.11
EFS-B44 16-34C16-92
16.00 16.00 34.00 - 92.00 4 45.0 5.0 C 0 0.60 45.0
• • •
0.05-0.11
EFS-B44 16-34SL16-92 (1)
16.00 16.00 34.00 - 92.00 4 45.0 5.0 SL 0 0.60 45.0
•
0.05-0.11
EFS-B44 16-34SL16-92C (1)
16.00 16.00 34.00 - 92.00 4 45.0 5.0 SL 1 0.60 45.0
•
0.05-0.08
EFS-B44 16-34W16-92
16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 0 0.60 45.0
• •
0.05-0.11
EFS-B44 16-34W16-92C
16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 1 0.60 45.0
•
0.05-0.08
EFS-B44 20-42/62C20-125
20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 C 0 0.60 45.0
•
0.05-0.11
EFS-B44 20-42/62SL20-125 (1)
20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 SL 0 0.60 45.0
•
0.05-0.11
EFS-B44 20-42/62W20-125
20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 W 0 0.60 45.0
•
0.05-0.11
EFS-B44 20-42C20-104
20.00 20.00 42.00 - 104.00 4 45.0 5.0 C 0 0.60 45.0
• • •
0.05-0.11
EFS-B44 20-42SL20-104 (1)
20.00 20.00 42.00 - 104.00 4 45.0 5.0 SL 0 0.60 45.0
•
0.05-0.11
EFS-B44 20-42W20-104
20.00 20.00 42.00 - 104.00 4 45.0 5.0 W 0 0.60 45.0
• •
0.05-0.11
EFS-B44 25-52C25-121
25.00 25.00 52.00 - 121.00 4 45.0 5.0 C 0 0.60 45.0
• •
0.06-0.11
EFS-B44 25-52SL25-121 (1)
25.00 25.00 52.00 - 121.00 4 45.0 5.0 SL 0 0.60 45.0
•
0.06-0.11
EFS-B44 25-52W25-121
25.00 25.00 52.00 - 121.00 4 45.0 5.0 W 0 0.60 45.0
• • •
0.06-0.11
• Minimum width of cut for semi-finishing operation >= 0.05 x DC • IC300 should be mainly used for machining exotic materials
• For user guide, see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(5) 0 - Without coolant supply, 1 - With coolant supply
EFS-B44
Combination of Roughing
and Finishing Solid Carbide
Endmills with a Single Tool
127
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
FHA
CHWx45˚
α1
α1#α1
α2
α2
α1
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC300
IC900
IC608
fz
(mm/t)
EC-E4L 01-2/04C04CF50
1.00 4.00 2.20 4.00 50.00 4 38.0 5.0 C 0.04 45.0
•
0.02-0.05
EC-E4L 02-4/06C04CF50
2.00 4.00 4.30 6.10 50.00 4 38.0 5.0 C 0.08 45.0
•
0.02-0.05
EC-E4L 03-8/11C06CF57
3.00 6.00 8.00 11.00 57.00 4 38.0 5.0 C 0.10 45.0
•••
0.02-0.05
EC-E4L 04-10/14C06CF57
4.00 6.00 10.00 14.00 57.00 4 38.0 5.0 C 0.15 45.0
•••
0.02-0.05
EC-E4L 05-12/17C06CF57
5.00 6.00 12.00 17.00 57.00 4 38.0 5.0 C 0.18 45.0
•••
0.02-0.06
EC-E4L 06-14/20C06CF57
6.00 6.00 14.00 20.00 57.00 4 38.0 5.0 C 0.25 45.0
•••
0.03-0.07
EC-E4L 06-14/20W06CF57
6.00 6.00 14.00 20.00 57.00 4 38.0 5.0 W 0.25 45.0
•••
0.03-0.07
EC-E4L 08-18/26C08CFS63
8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 C - -
•
0.03-0.08
EC-E4L 08-18/26C08CF63
8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 C 0.30 45.0
•••
0.03-0.09
EC-E4L 08-18/26W08CF63
8.00 8.00 18.00 26.00 63.00 4 38.0 5.0 W 0.30 45.0
• •
0.03-0.09
EC-E4L 10-22/32C10CFS72
10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 C - -
•
0.03-0.09
EC-E4L 10-22/32C10CF72
10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 C 0.40 45.0
•••
0.03-0.10
EC-E4L 10-22/32W10CF72
10.00 10.00 22.00 32.00 72.00 4 38.0 5.0 W 0.40 45.0
•••
0.03-0.10
EC-E4L 12-26/38C12CFS83
12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 C - -
•
0.04-0.10
EC-E4L 12-26/38C12CF83
12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 C 0.50 45.0
•••
0.04-0.11
EC-E4L 12-26/38W12CF83
12.00 12.00 26.00 38.00 83.00 4 38.0 5.0 W 0.50 45.0
•••
0.04-0.11
EC-E4L 16-34/50C16CF100
16.00 16.00 34.00 50.00 100.00 4 38.0 5.0 C 0.60 45.0
•••
0.05-0.13
EC-E4L 16-34/50W16CF100
16.00 16.00 34.00 50.00 100.00 4 38.0 5.0 W 0.60 45.0
•••
0.05-0.13
EC-E4L 20-42/60C20CF110
20.00 20.00 42.00 60.00 110.00 4 38.0 5.0 C 0.60 45.0
•••
0.05-0.17
EC-E4L 20-42/60W20CF110
20.00 20.00 42.00 60.00 110.00 4 38.0 5.0 W 0.60 45.0
• •
0.05-0.17
EC-E4L 25-50/65C25CF121
25.00 25.00 50.00 65.00 121.00 4 38.0 5.0 C 0.60 45.0
•
0.05-0.17
EC-E4L 25-50/65W25CF121
25.00 25.00 50.00 65.00 121.00 4 38.0 5.0 W 0.60 45.0
•
0.05-0.17
• IC300 should be mainly used for machining exotic materials • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-E4L-CF
4 Flute, 38° Helix Endmills with
3xD Relieved Neck and Variable
Pitch for Chatter Dampening
OAL
APMX
FHA
CHWx45˚
DCONMS
DC
a1°
a5°
a3°
a2°
a4° a1≠a2≠a3≠a4≠a5
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC900
fz
(mm/t)
EC-E5L 06-15C06CF57
6.00 6.00 15.00 57.00 5 38.0 5.0 C 0.20 45.0
•
0.03-0.07
EC-E5L 06-15W06CF57
6.00 6.00 15.00 57.00 5 38.0 5.0 W 0.20 45.0
•
0.03-0.07
EC-E5L 08-20C08CF63
8.00 8.00 20.00 63.00 5 38.0 5.0 C 0.25 45.0
•
0.03-0.09
EC-E5L 08-20W08CF63
8.00 8.00 20.00 63.00 5 38.0 5.0 W 0.25 45.0
•
0.03-0.09
EC-E5L 10-25C10CF72
10.00 10.00 25.00 72.00 5 38.0 5.0 C 0.30 45.0
•
0.03-0.10
EC-E5L 10-25W10CF72
10.00 10.00 25.00 72.00 5 38.0 5.0 W 0.30 45.0
•
0.03-0.10
EC-E5L 12-30C12CF83
12.00 12.00 30.00 83.00 5 38.0 5.0 C 0.40 45.0
•
0.04-0.11
EC-E5L 12-30W12CF83
12.00 12.00 30.00 83.00 5 38.0 5.0 W 0.40 45.0
•
0.04-0.11
EC-E5L 16-40C16CF100
16.00 16.00 40.00 100.00 5 38.0 5.0 C 0.50 45.0
•
0.05-0.13
EC-E5L 16-40W16CF100
16.00 16.00 40.00 100.00 5 38.0 5.0 W 0.50 45.0
•
0.05-0.13
EC-E5L 20-50C20CF125
20.00 20.00 50.00 125.00 5 38.0 5.0 C 0.50 45.0
•
0.05-0.17
EC-E5L 20-50W20CF125
20.00 20.00 50.00 125.00 5 38.0 5.0 W 0.50 45.0
•
0.05-0.17
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-E5L-CF
5 Flute, 38° Helix Medium Length
(2.5xD) Variable Pitch Endmills
ISCAR
128
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
APMX
OAL
DCONMS
CHW x 45°
RE
15°
LU
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(2) FHA RMPX°(3) Shank(4) RE CHW KCH
IC300
IC900
fz
(mm/t)
ECR-B4M 05-10C06-57
5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 C - 0.20 45.0
•
0.02-0.05
ECR-B4M 05-10W06-57
5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 W - 0.20 45.0
•
0.02-0.05
ECR-B4S 05-05C06-57
5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 C - 0.20 45.0
•
0.02-0.05
ECR-B4S 05-05W06-57
5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 W - 0.20 45.0
•
0.02-0.05
ECR-B4L 06-12/18C06-57
6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.06
ECR-B4L 06-12/18W06-57
6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 W - 0.25 45.0
• •
0.03-0.06
ECR-B4M 06-12C06-57
6.00 6.00 12.00 - 57.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.06
ECR-B4M 06-12W06-57
6.00 6.00 12.00 - 57.00 4 45.0 5.0 W - 0.25 45.0
•
0.03-0.06
ECR-B4S 06-06C06-57
6.00 6.00 6.00 - 57.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.06
ECR-B4S 06-06W06-57
6.00 6.00 6.00 - 57.00 4 45.0 5.0 W - 0.25 45.0
•
0.03-0.06
ECR-B4S 07-07C08-63
7.00 8.00 7.00 - 63.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.07
ECR-B4L 08-16/24C08-63
8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.08
ECR-B4L 08-16/24W08-63
8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 W - 0.25 45.0
• •
0.03-0.08
ECR-B4M 08-16C08-63
8.00 8.00 16.00 - 63.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.08
ECR-B4M 08-16W08-63
8.00 8.00 16.00 - 63.00 4 45.0 5.0 W - 0.25 45.0
•
0.03-0.08
ECR-B4S 08-08C08-63
8.00 8.00 8.00 - 63.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.08
ECR-B4S 08-08W08-63
8.00 8.00 8.00 - 63.00 4 45.0 5.0 W - 0.25 45.0
•
0.03-0.08
ECR-B4X 08-12/32C08-68
8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 C - 0.25 45.0
•
0.03-0.08
ECR-B4X 08-12/32W08-68
8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 W - 0.25 45.0
•
0.03-0.08
ECR-B4L 10-20/30C10-72
10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 C - 0.30 45.0
•
0.03-0.09
ECR-B4L 10-20/30W10-72
10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 W - 0.30 45.0
• •
0.03-0.09
ECR-B4M 10-20C10-72
10.00 10.00 20.00 - 72.00 4 45.0 5.0 C - 0.30 45.0
•
0.03-0.09
ECR-B4M 10-20C10-72R1.0
10.00 10.00 20.00 - 72.00 4 45.0 5.0 C 1.00 - -
•
0.03-0.09
ECR-B4M 10-20W10-72
10.00 10.00 20.00 - 72.00 4 45.0 5.0 W - 0.30 45.0
•
0.03-0.09
ECR-B4S 10-10C10-72
10.00 10.00 10.00 - 72.00 4 45.0 5.0 C - 0.30 45.0
•
0.03-0.09
ECR-B4S 10-10W10-72
10.00 10.00 10.00 - 72.00 4 45.0 5.0 W - 0.30 45.0
•
0.03-0.09
ECR-B4X 10-15/40C10-80 90
10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 C - 0.30 45.0
•
0.03-0.09
ECR-B4X 10-15/40W10-80 90
10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 W - 0.30 45.0
•
0.03-0.09
ECR-B4L 12-24/36C12-83
12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 C - 0.35 45.0
•
0.04-0.10
ECR-B4L 12-24/36W12-83
12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 W - 0.35 45.0
•
0.04-0.10
ECR-B4M 12-24C12-83
12.00 12.00 24.00 - 83.00 4 45.0 5.0 C - 0.35 45.0
•
0.04-0.10
ECR-B4M 12-24C12-83R1.2
12.00 12.00 24.00 - 83.00 4 45.0 5.0 C 1.20 - -
•
0.04-0.10
ECR-B4M 12-24W12-83
12.00 12.00 24.00 - 83.00 4 45.0 5.0 W - 0.35 45.0
•
0.04-0.10
ECR-B4M 12-24W12-83R1.2
12.00 12.00 24.00 - 83.00 4 45.0 5.0 W 1.20 - -
•
0.04-0.10
ECR-B4S 12-12C12-83
12.00 12.00 12.00 - 83.00 4 45.0 5.0 C - 0.35 45.0
•
0.04-0.10
ECR-B4S 12-12W12-83
12.00 12.00 12.00 - 83.00 4 45.0 5.0 W - 0.35 45.0
•
0.04-0.10
ECR-B4X 12-18/48C12-100
12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 C - 0.35 45.0
•
0.04-0.10
ECR-B4X 12-18/48W12-100
12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 W - 0.35 45.0
•
0.05-0.11
ECR-B5L 16-32/48C16-100 (1)
16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B5L 16-32/48W16-100 (1)
16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B5M 16-32C16-92 (1)
16.00 16.00 32.00 - 92.00 5 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B5M 16-32C16-92R1.6 (1)
16.00 16.00 32.00 - 92.00 5 45.0 5.0 C 1.60 - -
•
0.05-0.11
ECR-B5M 16-32W16-92 (1)
16.00 16.00 32.00 - 92.00 5 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B5M 16-32W16-92R1.6 (1)
16.00 16.00 32.00 - 92.00 5 45.0 5.0 W 1.60 - -
•
0.05-0.11
ECR-B5S 16-16C16-92 (1)
16.00 16.00 16.00 - 92.00 5 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B5S 16-16W16-92 (1)
16.00 16.00 16.00 - 92.00 5 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B5X 16-24/64C16-115 (1)
16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B5X 16-24/64W16-115 (1)
16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B7L 20-40/60C20-110 (1)
20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B7L 20-40/60W20-110 (1)
20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B7M 20-40C20-104 (1)
20.00 20.00 40.00 - 104.00 7 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B7M 20-40W20-104 (1)
20.00 20.00 40.00 - 104.00 7 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
ECR-B7S 20-20C20-104 (1)
20.00 20.00 20.00 - 104.00 7 45.0 5.0 C - 0.40 45.0
•
0.05-0.11
ECR-B7S 20-20W20-104 (1)
20.00 20.00 20.00 - 104.00 7 45.0 5.0 W - 0.40 45.0
•
0.05-0.11
• For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon
ECR-B-X/L/M/S
4-7 Flute, 45° Helix with
Different Length Solid Carbide
Roughing Endmills
129
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
CHW x 45°
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(2) FHA RMPX°(3) Shank(4) CHW KCH
IC900
fz
(mm/t)
ECR-B4MF 06-14C06-57
6.00 6.00 14.00 57.00 4 45.0 5.0 C 0.25 45.0
•
0.03-0.06
ECR-B4MF 06-14W06-57
6.00 6.00 14.00 57.00 4 45.0 5.0 W 0.25 45.0
•
0.03-0.06
ECR-B4MF 08-18C08-63
8.00 8.00 18.00 63.00 4 45.0 5.0 C 0.30 45.0
•
0.03-0.08
ECR-B4MF 08-18W08-63
8.00 8.00 18.00 63.00 4 45.0 5.0 W 0.30 45.0
•
0.03-0.08
ECR-B4MF 10-22C10-72
10.00 10.00 22.00 72.00 4 45.0 5.0 C 0.30 45.0
•
0.03-0.09
ECR-B4MF 10-22W10-72
10.00 10.00 22.00 72.00 4 45.0 5.0 W 0.30 45.0
•
0.03-0.09
ECR-B4MF 12-26C12-83
12.00 12.00 26.00 83.00 4 45.0 5.0 C 0.40 45.0
•
0.04-0.10
ECR-B4MF 12-26W12-83
12.00 12.00 26.00 83.00 4 45.0 5.0 W 0.40 45.0
•
0.04-0.10
ECR-B4MF 14-30C14-83
14.00 14.00 30.00 83.00 4 45.0 5.0 C 0.40 45.0
•
0.04-0.11
ECR-B4MF 14-30W14-83
14.00 14.00 30.00 83.00 4 45.0 5.0 W 0.40 45.0
•
0.04-0.11
ECR-B6MF 16-34C16-92 (1)
16.00 16.00 34.00 92.00 6 45.0 5.0 C 0.50 45.0
•
0.05-0.11
ECR-B6MF 16-34W16-92 (1)
16.00 16.00 34.00 92.00 6 45.0 5.0 W 0.50 45.0
•
0.05-0.11
ECR-B6MF 20-42C20-104 (1)
20.00 20.00 42.00 104.00 6 45.0 5.0 C 0.70 45.0
•
0.05-0.11
ECR-B6MF 20-42W20-104 (1)
20.00 20.00 42.00 104.00 6 45.0 5.0 W 0.70 45.0
•
0.05-0.11
ECR-B6MF 25-52C25-121 (1)
25.00 25.00 52.00 121.00 6 45.0 5.0 C 0.90 45.0
•
0.06-0.11
ECR-B6MF 25-52W25-121 (1)
25.00 25.00 52.00 121.00 6 45.0 5.0 W 0.90 45.0
•
0.06-0.11
• The rougher's cutting edge profile has shallow serrations. • A very durable design which leaves only a small amount of material for the finishing cut.
• For user guide, see pages 177-184
..
(1) Cannot be used for plunging application
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon
ECR-B-MF
4 and 6 Flute, 45° Helix
Medium Length Solid Carbide
Roughing Endmills for
Materials up to 65 HRc
OAL
APMX
LU
CHW x 45°
FHA
DCONMS
DC
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(1) RMPX°(2) FHA Shank(3) CHW KCH
IC900
fz
(mm/t)
ECP-E3L 05-12/17C06S57
5.00 6.00 12.00 17.0 57.00 3 5.0 38.0 C 0.20 45.0
•
0.02-0.05
ECP-E3L 05-12/17W06S57
5.00 6.00 12.00 17.0 57.00 3 5.0 38.0 W 0.20 45.0
•
0.02-0.05
ECP-E3L 06-14/20C06S57
6.00 6.00 14.00 20.0 57.00 3 5.0 38.0 C 0.30 45.0
•
0.03-0.06
ECP-E3L 06-14/20W06S57
6.00 6.00 14.00 20.0 57.00 3 5.0 38.0 W 0.30 45.0
•
0.03-0.06
ECP-E3L 08-18/26C08S63
8.00 8.00 18.00 26.0 63.00 3 5.0 38.0 C 0.40 45.0
•
0.03-0.08
ECP-E3L 08-18/26W08S63
8.00 8.00 18.00 26.0 63.00 3 5.0 38.0 W 0.40 45.0
•
0.03-0.08
ECP-E3L 10-22/32C10S72
10.00 10.00 22.00 32.0 72.00 3 5.0 38.0 C 0.40 45.0
•
0.03-0.09
ECP-E3L 10-22/32W10S72
10.00 10.00 22.00 32.0 72.00 3 5.0 38.0 W 0.40 45.0
•
0.03-0.09
ECP-E3L 12-26/38C12S83
12.00 12.00 26.00 38.0 83.00 3 5.0 38.0 C 0.40 45.0
•
0.04-0.10
ECP-E3L 12-26/38W12S83
12.00 12.00 26.00 38.0 83.00 3 5.0 38.0 W 0.40 45.0
•
0.04-0.10
ECP-E3L 14-30/44C14S100
14.00 14.00 30.00 44.0 100.00 3 5.0 38.0 C 0.50 45.0
•
0.05-0.11
ECP-E3L 14-30/44W14S100
14.00 14.00 30.00 44.0 100.00 3 5.0 38.0 W 0.50 45.0
•
0.05-0.11
ECP-E3L 16-34/50C16S100
16.00 16.00 34.00 50.0 100.00 3 5.0 38.0 C 0.50 45.0
•
0.05-0.11
ECP-E3L 16-34/50W16S100
16.00 16.00 34.00 50.0 100.00 3 5.0 38.0 W 0.50 45.0
•
0.05-0.11
ECP-E3L 20-42/62C20S125
20.00 20.00 42.00 62.0 125.00 3 5.0 38.0 C 0.50 45.0
•
0.05-0.11
ECP-E3L 20-42/62W20S125
20.00 20.00 42.00 62.0 125.00 3 5.0 38.0 W 0.50 45.0
•
0.05-0.11
• Most recommended for machining stainless steel. • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECP-E3L
3 Flute, 38° Helix Solid Carbide
Roughing Endmills with 3xD
Relieved Necks and Chip
Splitting Cutting Edges
ISCAR
130
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

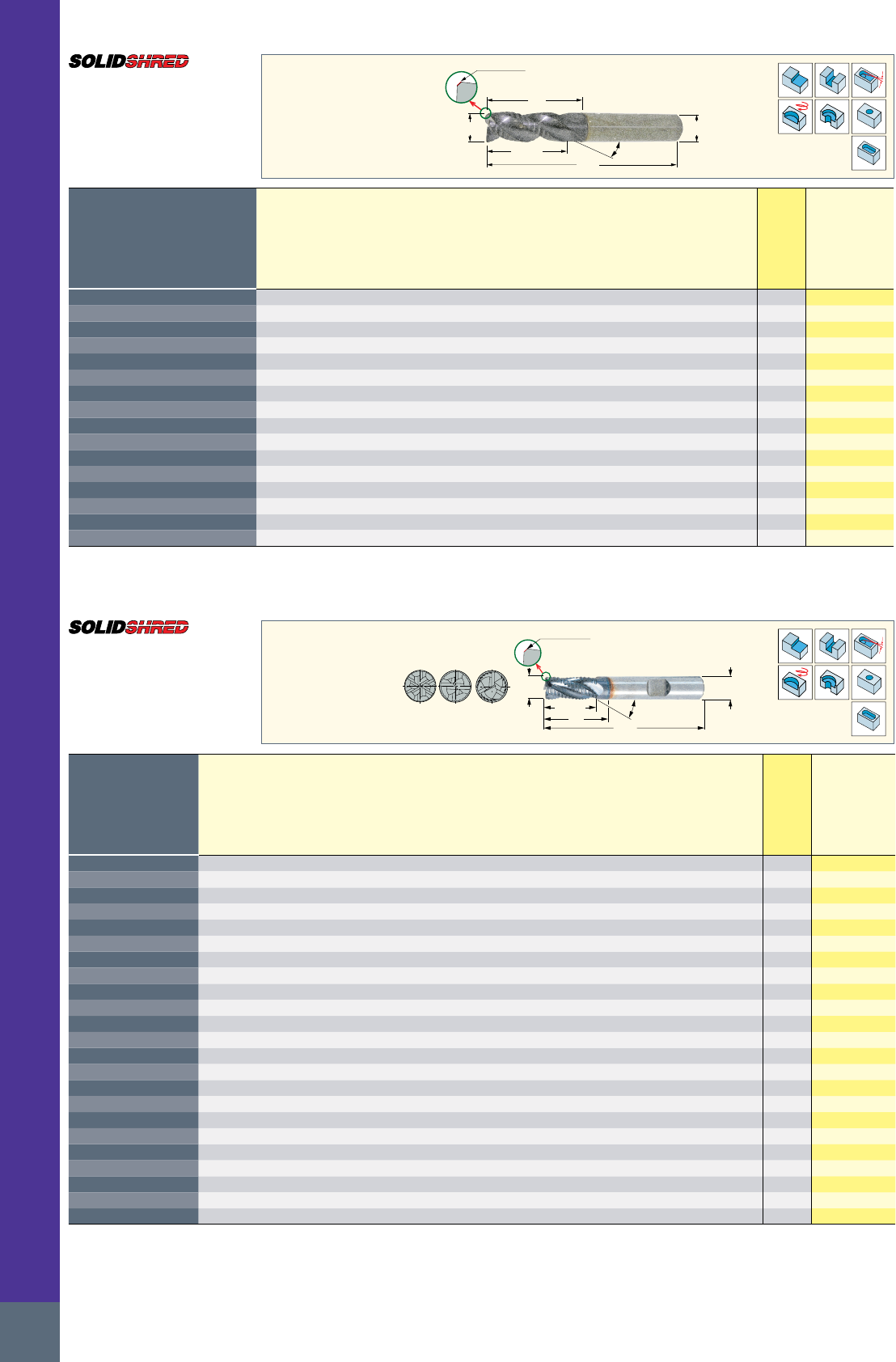

CHW x 45°
OAL
LU
APMX FHA
DCONMS
DC
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(1) FHA Shank(2) CHW KCH
IC900
fz
(mm/t)
ECP-E4L 05-12/17C06S57
5.00 6.00 12.00 17.0 57.00 4 38.0 C 0.20 45.0
•
0.02-0.05
ECP-E4L 05-12/17W06S57
5.00 6.00 12.00 17.0 57.00 4 38.0 W 0.20 45.0
•
0.02-0.05
ECP-E4L 06-14/20C06S57
6.00 6.00 14.00 20.0 57.00 4 38.0 C 0.30 45.0
•
0.03-0.06
ECP-E4L 06-14/20W06S57
6.00 6.00 14.00 20.0 57.00 4 38.0 W 0.30 45.0
•
0.03-0.06
ECP-E4L 08-18/26C08S63
8.00 8.00 18.00 26.0 63.00 4 38.0 C 0.40 45.0
•
0.03-0.08
ECP-E4L 08-18/26W08S63
8.00 8.00 18.00 26.0 63.00 4 38.0 W 0.40 45.0
•
0.03-0.08
ECP-E4L 10-22/32C10S72
10.00 10.00 22.00 32.0 72.00 4 38.0 C 0.40 45.0
•
0.03-0.09
ECP-E4L 10-22/32W10S72
10.00 10.00 22.00 32.0 72.00 4 38.0 W 0.40 45.0
•
0.03-0.09
ECP-E4L 12-26/38C12S83
12.00 12.00 26.00 38.0 83.00 4 38.0 C 0.40 45.0
•
0.04-0.10
ECP-E4L 12-26/38W12S83
12.00 12.00 26.00 38.0 83.00 4 38.0 W 0.40 45.0
•
0.04-0.10
ECP-E4L 14-30/44C14S100
14.00 14.00 30.00 44.0 100.00 4 38.0 C 0.50 45.0
•
0.04-0.11
ECP-E4L 14-30/44W14S100
14.00 14.00 30.00 44.0 100.00 4 38.0 W 0.50 45.0
•
0.04-0.11
ECP-E4L 16-34/50C16S100
16.00 16.00 34.00 50.0 100.00 4 38.0 C 0.50 45.0
•
0.05-0.12
ECP-E4L 16-34/50W16S100
16.00 16.00 34.00 50.0 100.00 4 38.0 W 0.50 45.0
•
0.05-0.12
ECP-E4L 20-42/62C20S125
20.00 20.00 42.00 62.0 125.00 4 38.0 C 0.50 45.0
•
0.05-0.15
ECP-E4L 20-42/62W20S125
20.00 20.00 42.00 62.0 125.00 4 38.0 W 0.50 45.0
•
0.05-0.15
• Most recommended for machining stainless steel. • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon
ECP-E4L
4 Flute, 38° Helix Solid Carbide
Roughing Endmills with 3xD
Relieved Necks and Chip
Splitting Cutting Edges
APMX
OAL
FHA
LU
CHW x 45°
DCONMS
DC
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(2) FHA RMPX°(3) Shank(4) CHW KCH
IC900
fz
(mm/t)
ERF040E08-3C06
4.00 6.00 8.00 13.00 57.00 3 38.0 5.0 C 0.25 45.0
•
0.02-0.05
ERF050E10-3C06
5.00 6.00 10.00 17.00 57.00 3 38.0 5.0 C 0.30 45.0
•
0.02-0.05
ERF060E13-3C06
6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.30 45.0
•
0.03-0.06
ERF060E13-3W06
6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 W 0.30 45.0
•
0.03-0.06
ERF070E20-3C08
7.00 8.00 20.00 26.00 63.00 3 38.0 5.0 C 0.30 45.0
•
0.03-0.07
ERF080E20-3C08
8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.30 45.0
•
0.03-0.08
ERF080E20-3W08
8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 W 0.30 45.0
•
0.03-0.08
ERF090A22-4C10
9.00 10.00 22.00 30.00 72.00 4 30.0 5.0 C 0.30 45.0
•
0.03-0.08
ERF100A22-4C10
10.00 10.00 22.00 30.00 72.00 4 30.0 5.0 C 0.30 45.0
•
0.03-0.09
ERF100A22-4W10
10.00 10.00 22.00 30.00 72.00 4 30.0 5.0 W 0.30 45.0
•
0.03-0.09
ERF110A25-4C12
11.00 12.00 25.00 31.00 83.00 4 30.0 5.0 C 0.30 45.0
•
0.03-0.09
ERF120A25-4C12
12.00 12.00 25.00 37.00 83.00 4 30.0 5.0 C 0.40 45.0
•
0.04-0.10
ERF120A25-4W12
12.00 12.00 25.00 37.00 83.00 4 30.0 5.0 W 0.40 45.0
•
0.04-0.10
ERF130A25-4C14
13.00 14.00 25.00 32.00 83.00 4 30.0 5.0 C 0.40 45.0
•
0.04-0.10
ERF140A25-4C14
14.00 14.00 25.00 37.00 83.00 4 30.0 5.0 C 0.50 45.0
•
0.04-0.11
ERF140A25-4W14
14.00 14.00 25.00 37.00 83.00 4 30.0 5.0 W 0.50 45.0
•
0.04-0.11
ERF160A32-4C16
16.00 16.00 32.00 44.00 92.00 4 30.0 5.0 C 0.50 45.0
•
0.05-0.11
ERF160A32-4W16
16.00 16.00 32.00 44.00 92.00 4 30.0 5.0 W 0.50 45.0
•
0.05-0.11
ERF180A32-4C18
18.00 18.00 32.00 44.00 92.00 4 30.0 5.0 C 0.50 45.0
•
0.05-0.11
ERF180A32-4W18
18.00 18.00 32.00 44.00 92.00 4 30.0 5.0 W 0.50 45.0
•
0.05-0.11
ERF200A38-4C20
20.00 20.00 38.00 55.00 104.00 4 30.0 5.0 C 0.60 45.0
•
0.05-0.11
ERF200A38-4W20
20.00 20.00 38.00 55.00 104.00 4 30.0 5.0 W 0.60 45.0
•
0.05-0.11
ERF250A45-6W25 (1)
25.00 25.00 45.00 64.00 121.00 6 30.0 5.0 W 0.60 45.0
•
0.06-0.11
• For user guide, see pages 177-184
(1) No center cutting • Cannot be used for plunging application
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon
ERF-A/E-3,4,6
3, 4, and 6 Flute, 30° and 38°
Helix Solid Carbide Roughing
Endmills with 3xD Relieved
Neck for Alloy Steel
131
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
APMX
OAL
CHW x 45°
DC
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC900
fz
(mm/t)
ECR-T4M 06-10-C06-57
6.00 6.00 10.00 57.00 4 20.0 5.0 C 0.30 45.0
•
0.03-0.06
ECR-T4M 06-10-W06-57
6.00 6.00 10.00 57.00 4 20.0 5.0 W 0.30 45.0
•
0.03-0.06
ECR-T4M 08-16-C08-63
8.00 8.00 16.00 63.00 4 20.0 5.0 C 0.40 45.0
•
0.03-0.08
ECR-T4M 08-16-W08-63
8.00 8.00 16.00 63.00 4 20.0 5.0 W 0.40 45.0
•
0.03-0.08
ECR-T4M 10-20-C10-72
10.00 10.00 20.00 72.00 4 20.0 5.0 C 0.40 45.0
•
0.03-0.09
ECR-T4M 10-20-W10-72
10.00 10.00 20.00 72.00 4 20.0 5.0 W 0.40 45.0
•
0.03-0.09
ECR-T4M 12-24-C12-83
12.00 12.00 24.00 83.00 4 20.0 5.0 C 0.40 45.0
•
0.04-0.10
ECR-T4M 12-24-W12-83
12.00 12.00 24.00 83.00 4 20.0 5.0 W 0.40 45.0
•
0.04-0.10
ECR-T4M 16-32-C16-92
16.00 16.00 32.00 92.00 4 20.0 5.0 C 0.50 45.0
•
0.05-0.11
ECR-T4M 16-32-W16-92
16.00 16.00 32.00 92.00 4 20.0 5.0 W 0.50 45.0
•
0.05-0.11
ECR-T4M 20-40-C20-104
20.00 20.00 40.00 104.00 4 20.0 5.0 C 0.50 45.0
•
0.05-0.11
ECR-T4M 20-40-W20-104
20.00 20.00 40.00 104.00 4 20.0 5.0 W 0.50 45.0
•
0.05-0.11
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECR-T-M
4 Flute, 20° Helix Medium Length
Solid Carbide Roughing Endmills
for High Stock Removal Rates
OAL
FHA
APMX
DCe9 DCONMSh6
HARD MATERIALS
Rd°
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC903
EBRF-T3 06-16C06M57
6.00 6.00 16.00 57.00 3 20.0 C 0.010
•
EBRF-T3 08-16C08M63
8.00 8.00 16.00 63.00 3 20.0 C 0.010
•
EBRF-T4 10-22C10M72
10.00 10.00 22.00 72.00 4 20.0 C 0.010
•
EBRF-T4 12-26C12M83
12.00 12.00 26.00 83.00 4 20.0 C 0.012
•
EBRF-T4 14-26C14M83
14.00 14.00 26.00 83.00 4 20.0 C 0.012
•
EBRF-T4 16-32C16M92
16.00 16.00 32.00 92.00 4 20.0 C 0.012
•
EBRF-T4 18-32C18M92 IC902
18.00 18.00 32.00 92.00 4 20.0 C 0.012
•
EBRF-T4 20-38C20M104
20.00 20.00 38.00 104.00 4 20.0 C 0.012
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EBRF-T
3, 4 Flute, 20° Helix Long Solid
Carbide Ball Nose Endmills for
Roughing Materials up to 55 HRC
ISCAR
132
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
7°
RE
LU
APMX
OAL
DCONMS
DC
PRFRAD
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS OAL NOF(1) LU RE(2) PRFRAD APMX Shank(3)
IC903
IC902
fz
(mm/t)
EFF-S2 01-04/03C6RP.15M50
1.00 6.00 50.00 2 3.0 0.15 0.1 0.06 C
•
0.02-0.05
EFF-S2 02-07/06C6RP0.3M50
2.00 6.00 50.00 2 6.0 0.30 0.2 0.12 C
•
0.10-0.14
EFF-S2 03-1/09C06RP0.5M50
3.00 6.00 50.00 2 9.0 0.50 0.4 0.20 C
•
0.10-0.20
EFF-S4-04 020/14C06M57
4.00 6.00 57.00 4 14.0 0.70 0.5 0.20 C
•
0.10-0.25
EFF-S4-05 022/17C06M57
5.00 6.00 57.00 4 17.0 0.90 0.6 0.30 C
•
0.10-0.30
EFF-S4-06 030/20C06R1.0M
6.00 6.00 57.00 4 20.0 1.23 5.3 0.30 C
•
0.10-0.30
EFF-S6-06 025/20C06R0.7M
6.00 6.00 50.00 6 20.0 0.40 5.0 0.35 C
•
0.10-0.25
EFF-S4-08 035/26C08R1.3M
8.00 8.00 63.00 4 26.0 1.62 7.0 0.40 C
•
0.10-0.40
EFF-S6-08 025/26C08R0.86M
8.00 8.00 63.00 6 26.0 0.86 6.0 0.40 C
•
0.10-0.35
EFF-S4-10 040/30C10R1.6M
10.00 10.00 72.00 4 30.0 2.01 8.8 0.50 C
•
0.15-0.50
EFF-S6-10 025/30C10R1.0M
10.00 10.00 72.00 6 30.0 1.00 6.0 0.50 C
•
0.15-0.45
EFF-S4-12 045/34C12R2.0M
12.00 12.00 83.00 4 34.0 2.47 10.6 0.60 C
•
0.15-0.50
EFF-S6-12 030/34C12R1.2M
12.00 12.00 83.00 6 34.0 1.20 10.0 0.65 C
•
0.15-0.45
EFF-S4-16 055/42C16R2.6M
16.00 16.00 92.00 4 42.0 3.25 14.0 0.80 C
•
0.20-0.60
EFF-S6-16 045/42C16R2.0M
16.00 16.00 92.00 6 42.0 2.00 16.0 1.10 C
•
0.20-0.55
EFF-S4-20 060/46C20R3.2M
20.00 20.00 104.00 4 46.0 4.02 17.7 1.00 C
•
0.20-0.70
• For user guide, see pages 177-184
(1) Number of flutes
(2) Should be used for programming
(3) C-Cylindrical
EFF-S2/S4/S6
Solid Carbide Endmills with
Relieved Necks for Fast
Feed High Productivity
DCONMS
LU/APMX
DC
APMX_2
RE
OAL
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS OAL RE(2) NOF(3) FHA APMX_2(4) LU RMPX°(5) Shank(6)
IC903
fz
(mm/t)
EFP-E4CF 06-12C06R1.0M57
6.00 6.00 57.00 1.00 4 38.0 0.30 12.00 5.0 C
•
0.02-0.30
EFP-E4CF 08-16C08R1.4M63
8.00 8.00 63.00 1.40 4 38.0 0.40 16.00 5.0 C
•
0.03-0.40
EFP-E4CF 10-20C10R1.7M72
10.00 10.00 72.00 1.70 4 38.0 0.50 20.00 5.0 C
•
0.03-0.50
EFP-E4CF 12-25C12R2.0M83
12.00 12.00 83.00 2.00 4 38.0 0.60 24.00 5.0 C
•
0.04-0.50
EFP-E4CF 16-32C16R2.7M92
16.00 16.00 92.00 2.70 4 38.0 0.80 32.00 5.0 C
•
0.05-0.60
EFP-E5CF 16-40C16R2.7M92 (1)
16.00 16.00 92.00 2.70 5 38.0 0.80 40.00 5.0 C
•
0.05-0.60
EFP-E4CF 20-40C20R3.4M104
20.00 20.00 104.00 3.40 4 38.0 1.00 40.00 5.0 C
•
0.05-0.70
EFP-E5CF 20-48C20R3.4M104 (1)
20.00 20.00 104.00 3.40 5 38.0 1.00 48.00 5.0 C
•
0.05-0.70
• For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Used for programming
(3) Number of flutes
(4) Maximum D.O.C. for high feed milling (FEEDMILL)
(5) Maximum ramping angle
(6) C-Cylindrical
EFP-E4,5CF
Solid Carbide Roughing Endmills
with Chip Splitting Cutting
Edges, Variable Pitch and
Large Radius Frontal Edge
133
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
RE
LH
OAL
DN
APMX
LU
LU
DCONMS
DC
BHTA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) LU DN LH BHTA RMPX°(2) RE Shank(3)
IC900
fz
(mm/t)
ETR-A2 02-2/08C06R.5M80
2.00 6.00 2.00 80.00 2 8.0 1.90 40.0 3.6 5.0 0.50 C
•
0.01-0.03
ETR-A2 03-2/12C06R.5M80
3.00 6.00 2.00 80.00 2 12.0 2.80 40.0 3.3 5.0 0.50 C
•
0.01-0.04
ETR-A2 04-3/16C06R1M80
4.00 6.00 3.00 80.00 2 16.0 3.70 40.0 2.8 5.0 1.00 C
•
0.02-0.05
ETR-A2 06-4/25C08R2M100
6.00 8.00 4.00 100.00 2 25.0 5.60 66.0 2.0 5.0 2.00 C
•
0.03-0.07
ETR-A2 10-6/40C12R3M160
10.00 12.00 6.00 158.00 2 40.0 9.60 110.0 1.0 5.0 3.00 C
•
0.03-0.10
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ETR-A2
2 Flute Toroidal Endmills
APMX
OAL
DN
LU
CHWx45º FHA
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX LU DN OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC300
IC900
fz
(mm/t)
ECS020E03-3W06-57
2.00 6.00 3.00 8.00 1.90 57.00 3 38.0 5.0 W - -
•
0.01-0.03
ECS025E03-3W06-57
2.50 6.00 3.00 8.00 2.40 57.00 3 38.0 5.0 W - -
•
0.01-0.03
ECS030E04-3W06-57
3.00 6.00 4.00 9.00 2.90 57.00 3 38.0 5.0 W - -
•
0.01-0.04
ECS035E04-3W06-57
3.50 6.00 4.00 12.00 3.40 57.00 3 38.0 5.0 W - -
•
0.01-0.04
ECS040E05-3W06-57
4.00 6.00 5.00 13.00 3.90 57.00 3 38.0 5.0 W - -
• •
0.02-0.05
ECS050E06-3W06-57
5.00 6.00 6.00 14.00 4.90 57.00 3 38.0 5.0 W - -
•
0.02-0.06
ECCS060E07-3W06-57
6.00 6.00 7.00 15.00 5.90 57.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.07
ECCS070E08-3W08-63
7.00 8.00 8.00 20.00 6.70 63.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.08
ECCS080E09-3W08-63
8.00 8.00 9.00 21.00 7.60 63.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.09
ECCS090E10-3W10-72
9.00 10.00 10.00 22.00 8.60 72.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.09
ECCS100E11-3W10-72
10.00 10.00 11.00 23.00 9.50 72.00 3 38.0 5.0 W 0.25 45.0
•
0.03-0.10
ECCS120E12-3W12-83
12.00 12.00 12.00 24.00 11.30 83.00 3 38.0 5.0 W 0.25 45.0
•
0.04-0.11
ECCS160E16-3W16-92
16.00 16.00 16.00 33.00 15.20 92.00 3 38.0 5.0 W 0.25 45.0
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon
ECS/ECCS-E-3
3 Flute, 38° Helix Short Solid
Carbide Slot / Drill Endmills
with 3xD Relieved Necks
and Chamfered Corners
ISCAR
134
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
15°
FHA
CHW x 45°
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) KCH CHW
IC08
IC300
IC900
fz
(mm/t)
ECC020B07-2C03
2.00 3.00 7.00 38.00 2 45.0 5.0 C 0.10 45.0
•
0.01-0.03
EC020B07-2C03
2.00 3.00 7.00 38.00 2 45.0 5.0 C - -
• •
0.01-0.03
EC020B07-2C06
2.00 6.00 7.00 57.00 2 45.0 5.0 C - -
•
0.01-0.03
ECC025A07-2C03
2.50 3.00 7.00 38.00 2 30.0 5.0 C 0.10 45.0
•
0.01-0.03
EC025A07-2C03
2.50 3.00 7.00 38.00 2 30.0 5.0 C - -
• •
0.01-0.03
ECC030A10-2C03
3.00 3.00 10.00 38.00 2 30.0 5.0 C 0.10 45.0
•
0.01-0.04
EC030A10-2C03
3.00 3.00 10.00 38.00 2 30.0 5.0 C - -
• •
0.01-0.04
EC030A10-2C06
3.00 6.00 10.00 57.00 2 30.0 5.0 C - -
• •
0.01-0.04
ECC035A12-2C04
3.50 4.00 12.00 50.00 2 30.0 5.0 C 45.0 0.10
•
0.01-0.04
EC035A12-2C04
3.50 4.00 12.00 50.00 2 30.0 5.0 C - -
• •
0.01-0.04
ECC040A12-2C04
4.00 4.00 12.00 50.00 2 30.0 5.0 C 45.0 0.15
•
0.02-0.05
EC040A12-2C04
4.00 4.00 12.00 50.00 2 30.0 5.0 C - -
•••
0.02-0.05
EC040A12-2C06
4.00 6.00 12.00 57.00 2 30.0 5.0 C - -
•••
0.02-0.05
EC045A14-2C06
4.50 6.00 14.00 57.00 2 30.0 5.0 C - -
•
0.02-0.05
ECC050A14-2C05
5.00 5.00 14.00 50.00 2 30.0 5.0 C 0.15 45.0
• •
0.02-0.06
EC050A14-2C05
5.00 5.00 14.00 50.00 2 30.0 5.0 C - -
• •
0.02-0.06
EC050A14-2C06
5.00 6.00 14.00 57.00 2 30.0 5.0 C - -
• •
0.02-0.06
EC055A16-2C06
5.50 6.00 16.00 57.00 2 30.0 5.0 C - -
•
0.02-0.06
ECC060A16-2C06
6.00 6.00 16.00 57.00 2 30.0 5.0 C 45.0 0.15
•
0.03-0.07
EC060A16-2C06
6.00 6.00 16.00 57.00 2 30.0 5.0 C - -
•••
0.03-0.07
EC060A16-2W06
6.00 6.00 16.00 57.00 2 30.0 5.0 W - -
•
0.03-0.07
EC065A20-2C07
6.50 7.00 20.00 60.00 2 30.0 5.0 C - -
•
0.03-0.07
EC070A20-2C07
7.00 7.00 20.00 60.00 2 30.0 5.0 C - -
• •
0.03-0.08
ECC080A20-2C08
8.00 8.00 20.00 63.00 2 30.0 5.0 C 0.15 45.0
•
0.03-0.09
EC080A20-2C08
8.00 8.00 20.00 63.00 2 30.0 5.0 C - -
•••
0.03-0.09
EC080A20-2W08
8.00 8.00 20.00 63.00 2 30.0 5.0 W - -
•
0.03-0.09
EC085A22-2C10
8.50 10.00 22.00 72.00 2 30.0 5.0 C - -
•
0.03-0.09
ECC100A22-2C10
10.00 10.00 22.00 72.00 2 30.0 5.0 C 45.0 0.25
•
0.03-0.10
EC100A22-2C10
10.00 10.00 22.00 72.00 2 30.0 5.0 C - -
•••
0.03-0.10
ECC120A25-2C12
12.00 12.00 25.00 83.00 2 30.0 5.0 C 0.25 45.0
•
0.04-0.11
EC120A25-2C12
12.00 12.00 25.00 83.00 2 30.0 5.0 C - -
•••
0.04-0.11
EC140A25-2C14
14.00 14.00 25.00 83.00 2 30.0 5.0 C - -
• •
0.04-0.12
ECC160A32-2C16
16.00 16.00 32.00 92.00 2 30.0 5.0 C 45.0 0.25
•
0.05-0.13
EC160A32-2C16
16.00 16.00 32.00 92.00 2 30.0 5.0 C - -
• •
0.05-0.13
EC180A32-2C18
18.00 18.00 32.00 92.00 2 30.0 5.0 C - -
• •
0.05-0.13
ECC200A38-2C20
20.00 20.00 38.00 104.00 2 30.0 5.0 C 0.25 45.0
•
0.05-0.13
EC200A38-2C20
20.00 20.00 38.00 104.00 2 30.0 5.0 C - -
• •
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC/ECC-A-2
2 Flute, 30 and 45° Helix
Medium Length Solid Carbide
Slot / Drill Endmills
135
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
APMX
DC
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
IC900
fz
(mm/t)
EC-A2 01-03C04E50
1.00 4.00 3.00 50.00 2 30.0 5.0 C
• •
0.00-0.01
EC-A2 015-045C04E50
1.50 4.00 4.50 50.00 2 30.0 5.0 C
• •
0.00-0.02
EC-A2 02-08C02E32
2.00 2.00 8.00 32.00 2 30.0 5.0 C
• •
0.01-0.03
EC-A2 02-03W06E50
2.00 6.00 3.00 50.00 2 30.0 5.0 W
• •
0.01-0.03
EC-A2 025-08C025E32
2.50 2.50 8.00 32.00 2 30.0 5.0 C
• •
0.01-0.03
EC-A2 03-12C03E38
3.00 3.00 12.00 38.00 2 30.0 5.0 C
• •
0.01-0.04
EC-A2 03-30C03E75
3.00 3.00 30.00 75.00 2 30.0 5.0 C
• •
0.01-0.04
EC-A2 03-04W06E50
3.00 6.00 4.00 50.00 2 30.0 5.0 W
• •
0.01-0.04
EC-A2 035-12C035E32
3.50 3.50 12.00 32.00 2 30.0 5.0 C
• •
0.01-0.04
EC-A2 04-12C04E50
4.00 4.00 12.00 50.00 2 30.0 5.0 C
• •
0.02-0.05
EC-A2 04-30C04E75
4.00 4.00 30.00 75.00 2 30.0 5.0 C
• •
0.02-0.05
EC-A2 04-05W06E54
4.00 6.00 5.00 54.00 2 30.0 5.0 W
• •
0.02-0.05
EC-A2 045-05W06E54
4.50 6.00 5.00 54.00 2 30.0 5.0 W
• •
0.02-0.05
EC-A2 05-14C05E50
5.00 5.00 14.00 50.00 2 30.0 5.0 C
• •
0.02-0.06
EC-A2 05-40C05E100
5.00 5.00 40.00 100.00 2 30.0 5.0 C
• •
0.02-0.06
EC-A2 05-06W06E54
5.00 6.00 6.00 54.00 2 30.0 5.0 W
• •
0.02-0.06
EC-A2 055-16C055E50
5.50 5.50 16.00 50.00 2 30.0 5.0 C
• •
0.02-0.06
EC-A2 06-07W06E54
6.00 6.00 7.00 54.00 2 30.0 5.0 W
• •
0.03-0.07
EC-A2 06-16C06E50
6.00 6.00 16.00 50.00 2 30.0 5.0 C
• •
0.03-0.07
EC-A2 06-50C06E150
6.00 6.00 50.00 150.00 2 30.0 5.0 C
• •
0.03-0.07
EC-A2 07-20C07E60
7.00 7.00 20.00 60.00 2 30.0 5.0 C
• •
0.03-0.08
EC-A2 08-09W08E58
8.00 8.00 9.00 58.00 2 30.0 5.0 W
• •
0.03-0.09
EC-A2 08-20C08E63
8.00 8.00 20.00 60.00 2 30.0 5.0 C
• •
0.03-0.09
EC-A2 08-50C08E150
8.00 8.00 50.00 150.00 2 30.0 5.0 C
• •
0.03-0.09
EC-A2 09-20C09E60
9.00 9.00 20.00 60.00 2 30.0 5.0 C
• •
0.03-0.09
EC-A2 10-11W10E66
10.00 10.00 11.00 66.00 2 30.0 5.0 W
• •
0.03-0.10
EC-A2 10-22C10E72
10.00 10.00 22.00 72.00 2 30.0 5.0 C
• •
0.03-0.10
EC-A2 10-60C10E150
10.00 10.00 60.00 150.00 2 30.0 5.0 C
• •
0.03-0.10
EC-A2 12-22C12E73
12.00 12.00 22.00 73.00 2 30.0 5.0 C
• •
0.04-0.11
EC-A2 12-75C12E150
12.00 12.00 75.00 150.00 2 30.0 5.0 C
• •
0.04-0.11
EC-A2 14-25C14E75
14.00 14.00 25.00 75.00 2 30.0 5.0 C
• •
0.04-0.12
EC-A2 14-65C14E150
14.00 14.00 65.00 150.00 2 30.0 5.0 C
• •
0.04-0.12
EC-A2 16-25C16E92
16.00 16.00 25.00 92.00 2 30.0 5.0 C
• •
0.05-0.13
EC-A2 16-65C16E150
16.00 16.00 65.00 150.00 2 30.0 5.0 C
• •
0.05-0.13
EC-A2 18-18W18E84
18.00 18.00 18.00 84.00 2 30.0 5.0 W
•
0.05-0.13
EC-A2 18-65C18E150
18.00 18.00 65.00 150.00 2 30.0 5.0 C
• •
0.05-0.13
EC-A2 20-20W20E92
20.00 20.00 20.00 92.00 2 30.0 5.0 W
• •
0.05-0.13
EC-A2 20-32C20E100
20.00 20.00 32.00 100.00 2 30.0 5.0 C
• •
0.05-0.13
EC-A2 20-65C20E150
20.00 20.00 65.00 150.00 2 30.0 5.0 C
• •
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical,W-Weldon
EC-A2 (economical-short/
medium/extra long)
Economical Type 2 Flute, 30°
Helix Center Cutting, Short/
Medium/Extra Long Length
Solid Carbide Endmills
ISCAR
136
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
OAL
APMX
DCONMS
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
IC900
fz
(mm/t)
EC-A3 005-015C03E38
0.50 3.00 1.50 38.00 3 30.0 5.0 C
• •
0.0070-0.0100
EC-A3 008-02C03E38
0.80 3.00 2.00 38.00 3 30.0 5.0 C
• •
0.0070-0.0100
EC-A3 01-02C03E38
1.00 3.00 2.00 38.00 3 30.0 5.0 C
•
0.0100-0.0300
EC-A3 012-02C03E38
1.20 3.00 2.00 38.00 3 30.0 5.0 C
• •
0.0100-0.0300
EC-A3 015-02C03E38
1.50 3.00 2.00 38.00 3 30.0 5.0 C
• •
0.0100-0.0300
EC-A3 018-02C03E38
1.80 3.00 2.00 38.00 3 30.0 5.0 C
• •
0.0100-0.0300
EC-E3 02-08C02E32
2.00 2.00 8.00 32.00 3 38.0 5.0 C
• •
0.0100-0.0300
EC-E3 02-04C06E35
2.00 6.00 4.00 35.00 3 38.0 5.0 C
• •
0.0100-0.0300
EC-E3 025-08C025E32
2.50 2.50 8.00 32.00 3 38.0 5.0 C
• •
0.0100-0.0300
EC-E3 025-05C06E36
2.50 6.00 5.00 36.00 3 38.0 5.0 C
• •
0.0100-0.0300
EC-E3 03-12C03E38
3.00 3.00 12.00 38.00 3 38.0 5.0 C
• •
0.0100-0.0400
EC-E3 03-05C06E36
3.00 6.00 5.00 36.00 3 38.0 5.0 C
• •
0.0100-0.0400
EC-A3 035-12C035E32
3.50 3.50 12.00 32.00 3 30.0 5.0 C
• •
0.0100-0.0400
EC-A3 035-06W06E37
3.50 6.00 6.00 37.00 3 30.0 5.0 W
• •
0.0100-0.0400
EC-E3 04-12C04E50
4.00 4.00 12.00 50.00 3 38.0 5.0 C
• •
0.0200-0.0500
EC-E3 04-07C06E39
4.00 6.00 7.00 39.00 3 38.0 5.0 C
• •
0.0200-0.0500
EC-A3 045-14C045E50
4.50 4.50 14.00 50.00 3 30.0 5.0 C
• •
0.0200-0.0500
EC-A3 045-08W06E38
4.50 6.00 8.00 38.00 3 30.0 5.0 W
• •
0.0200-0.0500
EC-E3 05-14C05E50
5.00 5.00 14.00 50.00 3 38.0 5.0 C
• •
0.0200-0.0600
EC-A3 05-08W06E39
5.00 6.00 8.00 39.00 3 30.0 5.0 W
•
0.0200-0.0600
EC-E3 05-08C06E39
5.00 6.00 8.00 39.00 3 30.0 5.0 C
•
0.0200-0.0600
EC-A3 055-16C055E50
5.50 5.50 16.00 50.00 3 30.0 5.0 C
• •
0.0200-0.0600
EC-A3 055-08W06E39
5.50 6.00 8.00 39.00 3 30.0 5.0 W
• •
0.0200-0.0600
EC-E3 06-08C06E39
6.00 6.00 8.00 39.00 3 38.0 5.0 C
• •
0.0300-0.0700
EC-E3 06-16C06E50
6.00 6.00 16.00 50.00 3 38.0 5.0 C
• •
0.0300-0.0700
EC-A3 0675-10W08E42
6.75 8.00 10.00 42.00 3 30.0 5.0 W
• •
0.0300-0.0700
EC-E3 07-20C07E60
7.00 7.00 20.00 60.00 3 30.0 5.0 C
• •
0.0300-0.0800
EC-A3 07-10W08E42
7.00 8.00 10.00 42.00 3 30.0 5.0 W
• •
0.0300-0.0800
EC-E3 08-11C08E43
8.00 8.00 11.00 43.00 3 38.0 5.0 C
• •
0.0300-0.0900
EC-E3 08-20C08E63
8.00 8.00 20.00 63.00 3 38.0 5.0 C
• •
0.0300-0.0900
EC-A3 09-20C09E60
9.00 9.00 20.00 60.00 3 30.0 5.0 C
• •
0.0300-0.0900
EC-A3 09-11W10E48
9.00 10.00 11.00 48.00 3 30.0 5.0 W
• •
0.0300-0.0900
EC-A3 097-11W10E48
9.70 10.00 11.00 48.00 3 30.0 5.0 W
• •
0.0300-0.0900
EC-E3 10-13C10E50
10.00 10.00 13.00 50.00 3 38.0 5.0 C
• •
0.0300-0.1000
EC-E3 10-22C10E72
10.00 10.00 22.00 72.00 3 38.0 5.0 C
• •
0.0300-0.1000
EC-E3 12-15C12E55
12.00 12.00 15.00 55.00 3 30.0 5.0 C
• •
0.0400-0.1100
EC-E3 12-22C12E73
12.00 12.00 22.00 73.00 3 38.0 5.0 C
• •
0.0400-0.1100
EC-A3 14-25C14E75
14.00 14.00 25.00 75.00 3 30.0 5.0 C
• •
0.0400-0.1200
EC-A3 16-18W16E62
16.00 16.00 18.00 62.00 3 30.0 5.0 W
• •
0.0500-0.1300
EC-A3 16-25C16E75
16.00 16.00 25.00 75.00 3 30.0 5.0 C
• •
0.0500-0.1300
EC-E3 20-32C20E104
20.00 20.00 32.00 104.00 3 38.0 5.0 C
•
0.0500-0.1300
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-A3/E3
(economical-short/medium)
Economical Type 3 Flute,
30° and 38° Helix, Center
Cutting, Short/Mediun Length
Solid Carbide Endmills
137
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
APMX
DC
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
IC900
fz
(mm/t)
EC-B3 015-03C03E38
1.50 3.00 3.00 38.00 3 45.0 5.0 C
• •
0.00-0.02
EC-B3 02-03W06E50
2.00 6.00 3.00 50.00 3 45.0 5.0 W
• •
0.01-0.03
EC-B3 03-04W06E50
3.00 6.00 4.00 50.00 3 45.0 5.0 W
• •
0.01-0.04
EC-B3 03-08C06E50
3.00 6.00 8.00 50.00 3 45.0 5.0 C
• •
0.01-0.04
EC-B3 035-04W06E50
3.50 6.00 4.00 50.00 3 45.0 5.0 W
• •
0.01-0.04
EC-B3 04-05W06E54
4.00 6.00 5.00 54.00 3 45.0 5.0 W
• •
0.02-0.05
EC-B3 04-11C06E50
4.00 6.00 11.00 50.00 3 45.0 5.0 C
• •
0.02-0.05
EC-B3 045-05W06E54
4.50 6.00 5.00 54.00 3 45.0 5.0 W
• •
0.02-0.05
EC-B3 05-06C06E57
5.00 6.00 6.00 57.00 3 45.0 5.0 C
• •
0.02-0.06
EC-B3 05-13C06E50
5.00 6.00 13.00 50.00 3 45.0 5.0 C
• •
0.02-0.06
EC-B3 06-07W06E54
6.00 6.00 7.00 54.00 3 45.0 5.0 W
• •
0.03-0.07
EC-B3 06-13C06E50
6.00 6.00 13.00 50.00 3 45.0 5.0 C
• •
0.03-0.07
EC-B3 08-09W08E58
8.00 8.00 9.00 58.00 3 45.0 5.0 W
• •
0.03-0.09
EC-B3 08-19C08E63
8.00 8.00 19.00 63.00 3 45.0 5.0 C
• •
0.03-0.09
EC-B3 09-10W10E66
9.00 10.00 10.00 66.00 3 45.0 5.0 W
• •
0.03-0.09
EC-B3 10-11W10E66
10.00 10.00 11.00 66.00 3 45.0 5.0 W
• •
0.03-0.10
EC-B3 10-22C10E72
10.00 10.00 22.00 72.00 3 45.0 5.0 C
• •
0.03-0.10
EC-B3 12-12W12E73
12.00 12.00 12.00 73.00 3 45.0 5.0 W
• •
0.04-0.11
EC-B3 12-26C12E73
12.00 12.00 26.00 73.00 3 45.0 5.0 C
• •
0.04-0.11
EC-B3 14-14W14E75
14.00 14.00 14.00 75.00 3 45.0 5.0 W
• •
0.04-0.12
EC-B3 14-26C14E75
14.00 14.00 26.00 75.00 3 45.0 5.0 C
• •
0.04-0.12
EC-B3 16-16W16E82
16.00 16.00 16.00 82.00 3 45.0 5.0 W
• •
0.05-0.13
EC-B3 16-25C16E92
16.00 16.00 25.00 92.00 3 45.0 5.0 C
• •
0.05-0.13
EC-B3 20-20W20E92
20.00 20.00 20.00 92.00 3 45.0 5.0 W
• •
0.05-0.13
EC-B3 20-32C20E104
20.00 20.00 32.00 104.00 3 45.0 5.0 C
• •
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-B3
(economical-short/medium)
Economical Type 3 Flute,
45° Helix, Center Cutting,
Short/Medium Length
Solid Carbide Endmills
ISCAR
138
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
15°
APMX
OAL
FHA
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
IC300
IC900
fz
(mm/t)
EC010E025-3C03
1.00 3.00 2.50 38.00 3 38.0 5.0 C
• •
0.01-0.01
EC015E04-3C04
1.50 4.00 4.00 50.00 3 38.0 5.0 C
• •
0.01-0.02
EC025E07-3C03
2.50 3.00 7.00 38.00 3 38.0 5.0 C
•
0.01-0.03
EC030E10-3C03
3.00 3.00 10.00 38.00 3 38.0 5.0 C
•••
0.01-0.04
EC030E10-3C06
3.00 6.00 10.00 57.00 3 38.0 5.0 C
•
0.01-0.04
EC035E12-3C04
3.50 4.00 12.00 50.00 3 38.0 5.0 C
• •
0.01-0.04
EC040E12-3C04
4.00 4.00 12.00 50.00 3 38.0 5.0 C
•••
0.02-0.05
EC040E12-3C06
4.00 6.00 12.00 57.00 3 38.0 5.0 C
•
0.02-0.05
EC045E14-3C06
4.50 6.00 14.00 57.00 3 38.0 5.0 C
• •
0.02-0.05
EC050E14-3C05
5.00 5.00 14.00 50.00 3 38.0 5.0 C
•••
0.02-0.06
EC050E14-3C06
5.00 6.00 14.00 57.00 3 38.0 5.0 C
•
0.02-0.06
EC050E14-3W06
5.00 6.00 14.00 57.00 3 38.0 5.0 W
•
0.02-0.06
EC060E16-3C06
6.00 6.00 16.00 57.00 3 38.0 5.0 C
•••
0.03-0.07
EC060E16-3W06
6.00 6.00 16.00 57.00 3 38.0 5.0 W
•
0.03-0.07
EC070E20-3C07
7.00 7.00 20.00 60.00 3 38.0 5.0 C
• •
0.03-0.08
EC080E20-3C08
8.00 8.00 20.00 63.00 3 38.0 5.0 C
•••
0.03-0.09
EC080E20-3W08
8.00 8.00 20.00 63.00 3 38.0 5.0 W
•
0.03-0.09
EC100E22-3C10
10.00 10.00 22.00 72.00 3 38.0 5.0 C
•••
0.03-0.10
EC100E22-3W10
10.00 10.00 22.00 72.00 3 38.0 5.0 W
• •
0.03-0.10
EC120E25-3C12
12.00 12.00 25.00 83.00 3 38.0 5.0 C
•••
0.04-0.11
EC120E25-3W12
12.00 12.00 25.00 83.00 3 38.0 5.0 W
•
0.04-0.11
EC140E25-3C14
14.00 14.00 25.00 83.00 3 38.0 5.0 C
•
0.04-0.12
EC140E25-3W14
14.00 14.00 25.00 83.00 3 38.0 5.0 W
•
0.04-0.12
EC160E32-3C16
16.00 16.00 32.00 92.00 3 38.0 5.0 C
• •
0.05-0.13
EC160E32-3W16
16.00 16.00 32.00 92.00 3 38.0 5.0 W
•
0.05-0.13
EC180E32-3C18
18.00 18.00 32.00 92.00 3 38.0 5.0 C
•
0.05-0.13
EC180E32-3W18
18.00 18.00 32.00 92.00 3 38.0 5.0 W
•
0.05-0.13
EC200E38-3C20
20.00 20.00 38.00 104.00 3 38.0 5.0 C
•
0.05-0.13
EC200E38-3W20
20.00 20.00 38.00 104.00 3 38.0 5.0 W
•
0.05-0.13
• Multi-purpose endmill. • Suitable for deep slotting. • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-E-3
3 Flute, 38° Helix Medium
Length Solid Carbide Endmills
DCONMS
APMX
OAL
DC
15°
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC900
fz
(mm/t)
ECU028E04-3W06-57
2.80 6.00 4.00 57.00 3 38.0 5.0 W
•
0.01-0.04
ECU038E05-3W06-57
3.80 6.00 5.00 57.00 3 38.0 5.0 W
•
0.01-0.04
ECU048E06-3W06-57
4.80 6.00 6.00 57.00 3 38.0 5.0 W
•
0.02-0.05
ECU057E07-3W06-57
5.70 6.00 7.00 57.00 3 38.0 5.0 W
•
0.02-0.06
ECU067E08-3W08-63
6.70 8.00 8.00 63.00 3 38.0 5.0 W
•
0.03-0.07
ECU077E09-3W08-63
7.70 8.00 9.00 63.00 3 38.0 5.0 W
•
0.03-0.08
ECU097E11-3W10-72
9.70 10.00 11.00 72.00 3 38.0 5.0 W
•
0.03-0.09
ECU117E12-3W12-73
11.70 12.00 12.00 73.00 3 38.0 5.0 W
•
0.03-0.10
ECU137E16-3W14-83
13.70 14.00 14.00 83.00 3 38.0 5.0 W
•
0.04-0.11
ECU157E16-3W16-92
15.70 16.00 16.00 92.00 3 38.0 5.0 W
•
0.04-0.12
ECU177E18-3W18-92
17.70 18.00 18.00 92.00 3 38.0 5.0 W
•
0.05-0.13
• Undersized short design for keyholes • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon
ECU-E-3
3 Flute, 38° Helix Short
Undersized Slot / Drill
Solid Carbide Endmills
139
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
CHW x 45°
FHA
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC300
IC900
fz
(mm/t)
ECC020B07-3C03
2.00 3.00 7.00 38.00 3 45.0 5.0 C 0.10 45.0
•
0.01-0.03
ECC025E07-3C03
2.50 3.00 7.00 38.00 3 38.0 5.0 C 0.10 45.0
•
0.01-0.03
ECC030E10-3C03
3.00 3.00 10.00 38.00 3 38.0 5.0 C 0.10 45.0
• •
0.01-0.04
ECC035E12-3C04
3.50 4.00 12.00 50.00 3 38.0 5.0 C 0.10 45.0
•
0.01-0.04
ECC040E12-3C04
4.00 4.00 12.00 50.00 3 38.0 5.0 C 0.15 45.0
•
0.02-0.05
ECC050E14-3C05
5.00 5.00 14.00 50.00 3 38.0 5.0 C 0.15 45.0
• •
0.02-0.06
ECC060E16-3C06
6.00 6.00 16.00 57.00 3 38.0 5.0 C 0.15 45.0
•
0.03-0.07
ECC060E16-3W06
6.00 6.00 16.00 57.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.07
ECC080E20-3C08
8.00 8.00 20.00 63.00 3 38.0 5.0 C 0.15 45.0
•
0.03-0.09
ECC080E20-3W08
8.00 8.00 20.00 63.00 3 38.0 5.0 W 0.15 45.0
•
0.03-0.09
ECC100E22-3C10
10.00 10.00 22.00 72.00 3 38.0 5.0 C 0.25 45.0
•
0.03-0.10
ECC100E22-3W10
10.00 10.00 22.00 72.00 3 38.0 5.0 W 0.25 45.0
•
0.03-0.10
ECC120E25-3C12
12.00 12.00 25.00 83.00 3 38.0 5.0 C 0.25 45.0
•
0.04-0.11
ECC120E25-3W12
12.00 12.00 25.00 83.00 3 38.0 5.0 W 0.25 45.0
•
0.04-0.11
ECC160E32-3C16
16.00 16.00 32.00 92.00 3 38.0 5.0 C 0.25 45.0
•
0.05-0.13
ECC160E32-3W16
16.00 16.00 32.00 92.00 3 38.0 5.0 W 0.25 45.0
•
0.05-0.13
ECC200E38-3C20
20.00 20.00 38.00 104.00 3 38.0 5.0 C 0.25 45.0
•
0.05-0.13
ECC200E38-3W20
20.00 20.00 38.00 104.00 3 38.0 5.0 W 0.25 45.0
•
0.05-0.13
• Multi-purpose endmill • Suitable for deep slotting • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECC-E-3
3 Flute, 38 and 45° Helix Medium
Length Slot / Drill Solid Carbide
Endmills with Chamfered Corners
DCONMS
APMX
RE
15°
DC
OAL
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX RE OAL NOF(1) FHA RMPX°(2) Shank(3)
IC900
fz
(mm/t)
ECU038E05-3W06R01L57
3.80 6.00 5.00 0.10 57.00 3 38.0 5.0 W
•
0.01-0.04
ECU048E06-3W06R02L57
4.80 6.00 6.00 0.20 57.00 3 38.0 5.0 W
•
0.02-0.05
ECU057E07-3W06R02L57
5.70 6.00 7.00 0.20 57.00 3 38.0 5.0 W
•
0.02-0.06
ECU077E09-3W08R02L63
7.70 8.00 9.00 0.20 63.00 3 38.0 5.0 W
•
0.03-0.08
ECU097E11-3W10R03L72
9.70 10.00 11.00 0.30 72.00 3 38.0 5.0 W
•
0.03-0.09
ECU117E12-3W12R03L83
11.70 12.00 12.00 0.30 83.00 3 38.0 5.0 W
•
0.03-0.10
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon
ECU-E-3-R
3 Flute, 38° Helix Short
Undersized Slot / Drill Solid
Carbide Endmills with Various
Radii According to DIN 6885
ISCAR
140
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
15°
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) RE
IC08
IC300
IC900
fz
(mm/t)
EC020B07-3C03
2.00 3.00 7.00 38.00 3 45.0 5.0 C -
• •
0.01-0.03
EC020B07-3C06
2.00 6.00 7.00 57.00 3 45.0 5.0 C -
•
0.01-0.03
EC025B07-3C03
2.50 3.00 7.00 38.00 3 45.0 5.0 C -
• •
0.01-0.03
EC030B10-3C03
3.00 3.00 10.00 38.00 3 45.0 5.0 C -
• •
0.01-0.04
EC030B10-3C06
3.00 6.00 10.00 57.00 3 45.0 5.0 C -
• •
0.01-0.04
EC040B12-3C04
4.00 4.00 12.00 50.00 3 45.0 5.0 C -
• •
0.02-0.05
EC040B12-3C06
4.00 6.00 12.00 57.00 3 45.0 5.0 C -
• •
0.02-0.05
EC050B14-3C05
5.00 5.00 14.00 50.00 3 45.0 5.0 C -
•
0.02-0.06
EC050B14-3C06
5.00 6.00 14.00 57.00 3 45.0 5.0 C -
• •
0.02-0.06
EC060B13-3C06R0.5
6.00 6.00 13.00 57.00 3 45.0 5.0 C 0.50
•
0.03-0.07
EC060B13-3C06R1.0
6.00 6.00 13.00 57.00 3 45.0 5.0 C 1.00
•
0.03-0.07
EC060B16-3C06
6.00 6.00 16.00 57.00 3 45.0 5.0 C -
• •
0.03-0.07
EC060B16-3W06
6.00 6.00 16.00 57.00 3 45.0 5.0 W -
•
0.03-0.07
EC070B16-3C07
7.00 7.00 16.00 60.00 3 45.0 5.0 C -
• •
0.03-0.08
EC080B20-3C08
8.00 8.00 20.00 63.00 3 45.0 5.0 C -
• •
0.03-0.09
EC080B20-3C08R0.5
8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.50
•
0.03-0.09
EC080B20-3C08R1
8.00 8.00 20.00 63.00 3 45.0 5.0 C 1.00
•
0.03-0.09
EC080B20-3C08R1.5
8.00 8.00 20.00 63.00 3 45.0 5.0 C 1.50
•
0.03-0.09
EC080B20-3C08R2
8.00 8.00 20.00 63.00 3 45.0 5.0 C 2.00
•
0.03-0.09
EC080B20-3W08
8.00 8.00 20.00 63.00 3 45.0 5.0 W -
•
0.03-0.09
EC090B20-3C09
9.00 9.00 20.00 67.00 3 45.0 5.0 C -
•
0.03-0.09
EC100B22-3C10
10.00 10.00 22.00 72.00 3 45.0 5.0 C -
• •
0.03-0.10
EC100B22-3C10R0.5
10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.50
•
0.03-0.10
EC100B22-3C10R1
10.00 10.00 22.00 72.00 3 45.0 5.0 C 1.00
•
0.03-0.10
EC100B22-3C10R1.5
10.00 10.00 22.00 72.00 3 45.0 5.0 C 1.50
•
0.03-0.10
EC100B22-3C10R2
10.00 10.00 22.00 72.00 3 45.0 5.0 C 2.00
•
0.03-0.10
EC100B22-3C10R3
10.00 10.00 22.00 72.00 3 45.0 5.0 C 3.00
•
0.03-0.10
EC100B22-3W10
10.00 10.00 22.00 72.00 3 45.0 5.0 W -
•
0.03-0.10
EC120B25-3C12
12.00 12.00 25.00 83.00 3 45.0 5.0 C -
• •
0.04-0.11
EC120B25-3C12R0.5
12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.50
•
0.04-0.11
EC120B25-3C12R1
12.00 12.00 25.00 83.00 3 45.0 5.0 C 1.00
•
0.04-0.11
EC120B25-3C12R1.5
12.00 12.00 25.00 83.00 3 45.0 5.0 C 1.50
•
0.04-0.11
EC120B25-3C12R2
12.00 12.00 25.00 83.00 3 45.0 5.0 C 2.00
•
0.04-0.11
EC120B25-3C12R3
12.00 12.00 25.00 83.00 3 45.0 5.0 C 3.00
•
0.04-0.11
EC120B25-3W12
12.00 12.00 25.00 83.00 3 45.0 5.0 W -
•
0.04-0.11
EC140B25-3C14
14.00 14.00 25.00 83.00 3 45.0 5.0 C -
•
0.04-0.12
EC140B25-3W14
14.00 14.00 25.00 83.00 3 45.0 5.0 W -
•
0.04-0.12
EC160B32-3C16
16.00 16.00 32.00 92.00 3 45.0 5.0 C -
•
0.05-0.13
EC160B32-3C16R0.5
16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.50
•
0.05-0.13
EC160B32-3C16R1
16.00 16.00 32.00 92.00 3 45.0 5.0 C 1.00
•
0.05-0.13
EC160B32-3C16R2
16.00 16.00 32.00 92.00 3 45.0 5.0 C 2.00
•
0.05-0.13
EC160B32-3C16R3
16.00 16.00 32.00 92.00 3 45.0 5.0 C 3.00
•
0.05-0.13
EC160B32-3W16
16.00 16.00 32.00 92.00 3 45.0 5.0 W -
•
0.05-0.13
EC180B32-3C18
18.00 18.00 32.00 92.00 3 45.0 5.0 C -
•
0.05-0.13
EC180B32-3W18
18.00 18.00 32.00 92.00 3 45.0 5.0 W -
•
0.05-0.13
EC200B38-3C20
20.00 20.00 38.00 104.00 3 45.0 5.0 C -
•
0.05-0.13
EC200B38-3C20R0.5
20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.50
•
0.05-0.13
EC200B38-3C20R1
20.00 20.00 38.00 104.00 3 45.0 5.0 C 1.00
•
0.05-0.13
EC200B38-3C20R2
20.00 20.00 38.00 104.00 3 45.0 5.0 C 2.00
•
0.05-0.13
EC200B38-3C20R3
20.00 20.00 38.00 104.00 3 45.0 5.0 C 3.00
•
0.05-0.13
EC200B38-3C20R4
20.00 20.00 38.00 104.00 3 45.0 5.0 C 4.00
•
0.05-0.13
EC200B38-3W20
20.00 20.00 38.00 104.00 3 45.0 5.0 W -
•
0.05-0.13
• Excellent for deep slotting and shouldering. • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-B-3/3R
3 Flute, 45° Helix Medium Length
Slot / Drill Solid Carbide Endmills
141
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
APMX
OAL
DC
15°
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) RE
IC900
IC902
fz
(mm/t)
EC020B07-4C03
2.00 3.00 7.00 38.00 4 45.0 5.0 C -
•
0.01-0.03
EC020B07-4C03R0.25-38
2.00 3.00 7.00 38.00 4 45.0 5.0 C 0.25
•
0.01-0.03
EC020B07-4C06
2.00 6.00 7.00 57.00 4 45.0 5.0 C -
•
0.01-0.03
EC030B10-4C03
3.00 3.00 10.00 38.00 4 45.0 5.0 C -
•
0.01-0.04
EC030B10-4C06
3.00 6.00 10.00 57.00 4 45.0 5.0 C -
•
0.01-0.04
EC040B12-4C04
4.00 4.00 12.00 50.00 4 45.0 5.0 C -
•
0.02-0.05
EC040B12-4C06
4.00 6.00 12.00 57.00 4 45.0 5.0 C -
•
0.02-0.05
EC050B14-4C05
5.00 5.00 14.00 50.00 4 45.0 5.0 C -
•
0.02-0.06
EC050B14-4C06
5.00 6.00 14.00 57.00 4 45.0 5.0 C -
•
0.02-0.06
EC060B16-4C06
6.00 6.00 16.00 57.00 4 45.0 5.0 C -
•
0.03-0.07
EC060B16-4C06R0.5
6.00 6.00 16.00 57.00 4 45.0 5.0 C 0.50
•
0.03-0.07
EC060B16-4C06R1
6.00 6.00 16.00 57.00 4 45.0 5.0 C 1.00
•
0.03-0.07
EC060B16-4W06
6.00 6.00 16.00 57.00 4 45.0 5.0 W -
•
0.03-0.07
EC070B16-4C07
7.00 7.00 16.00 60.00 4 45.0 5.0 C -
•
0.03-0.08
EC080B20-4C08
8.00 8.00 20.00 63.00 4 45.0 5.0 C -
•
0.03-0.09
EC080B20-4C08R0.5
8.00 8.00 20.00 63.00 4 45.0 5.0 C 0.50
•
0.03-0.09
EC080B20-4C08R1
8.00 8.00 20.00 63.00 4 45.0 5.0 C 1.00
•
0.03-0.09
EC080B20-4C08R1.5
8.00 8.00 20.00 63.00 4 45.0 5.0 C 1.50
•
0.03-0.09
EC080B20-4C08R2
8.00 8.00 20.00 63.00 4 45.0 5.0 C 2.00
•
0.03-0.09
EC080B20-4W08
8.00 8.00 20.00 63.00 4 45.0 5.0 W -
•
0.03-0.09
EC090B20-4C09
9.00 9.00 20.00 67.00 4 45.0 5.0 C -
•
0.03-0.09
EC100B22-4C10
10.00 10.00 22.00 72.00 4 45.0 5.0 C -
•
0.03-0.10
EC100B22-4C10R0.5
10.00 10.00 22.00 72.00 4 45.0 5.0 C 0.50
•
0.03-0.10
EC100B22-4C10R1
10.00 10.00 22.00 72.00 4 45.0 5.0 C 1.00
•
0.03-0.10
EC100B22-4C10R1.5
10.00 10.00 22.00 72.00 4 45.0 5.0 C 1.50
•
0.03-0.10
EC100B22-4C10R2
10.00 10.00 22.00 72.00 4 45.0 5.0 C 2.00
•
0.03-0.10
EC100B22-4C10R3
10.00 10.00 22.00 72.00 4 45.0 5.0 C 3.00
•
0.03-0.10
EC100B22-4W10
10.00 10.00 22.00 72.00 4 45.0 5.0 W -
•
0.03-0.10
EC120B25-4C12
12.00 12.00 25.00 83.00 4 45.0 5.0 C -
•
0.04-0.11
EC120B25-4C12R0.5
12.00 12.00 25.00 83.00 4 45.0 5.0 C 0.50
•
0.04-0.11
EC120B25-4C12R1
12.00 12.00 25.00 83.00 4 45.0 5.0 C 1.00
•
0.04-0.11
EC120B25-4C12R1.5
12.00 12.00 25.00 83.00 4 45.0 5.0 C 1.50
•
0.04-0.11
EC120B25-4C12R2
12.00 12.00 25.00 83.00 4 45.0 5.0 C 2.00
•
0.04-0.11
EC120B25-4C12R3
12.00 12.00 25.00 83.00 4 45.0 5.0 C 3.00
•
0.04-0.11
EC120B25-4W12
12.00 12.00 25.00 83.00 4 45.0 5.0 W -
•
0.04-0.11
EC140B25-4C14
14.00 14.00 25.00 83.00 4 45.0 5.0 C -
•
0.04-0.12
EC160B32-4C16
16.00 16.00 32.00 92.00 4 45.0 5.0 C -
•
0.05-0.13
EC160B32-4C16R0.5
16.00 16.00 32.00 92.00 4 45.0 5.0 C 0.50
•
0.05-0.13
EC160B32-4C16R1
16.00 16.00 32.00 92.00 4 45.0 5.0 C 1.00
•
0.05-0.13
EC160B32-4C16R1.5
16.00 16.00 32.00 92.00 4 45.0 5.0 C 1.50
•
0.05-0.13
EC160B32-4C16R2
16.00 16.00 32.00 92.00 4 45.0 5.0 C 2.00
•
0.05-0.13
EC160B32-4C16R2.5
16.00 16.00 32.00 92.00 4 45.0 5.0 C 2.50
•
0.05-0.13
EC160B32-4C16R3
16.00 16.00 32.00 92.00 4 45.0 5.0 C 3.00
•
0.05-0.13
EC160B32-4W16
16.00 16.00 32.00 92.00 4 45.0 5.0 W -
•
0.05-0.13
EC180B32-4C18
18.00 18.00 32.00 92.00 4 45.0 5.0 C -
•
0.05-0.13
EC200B38-4C20
20.00 20.00 38.00 104.00 4 45.0 5.0 C -
•
0.05-0.13
EC200B38-4C20R0.5
20.00 20.00 38.00 104.00 4 45.0 5.0 C 0.50
•
0.05-0.13
EC200B38-4C20R1
20.00 20.00 38.00 104.00 4 45.0 5.0 C 1.00
•
0.05-0.13
EC200B38-4C20R1.5
20.00 20.00 38.00 104.00 4 45.0 5.0 C 1.50
•
0.05-0.13
EC200B38-4C20R2
20.00 20.00 38.00 104.00 4 45.0 5.0 C 2.00
•
0.05-0.13
EC200B38-4C20R2.5
20.00 20.00 38.00 104.00 4 45.0 5.0 C 2.50
•
0.05-0.13
EC200B38-4C20R3
20.00 20.00 38.00 104.00 4 45.0 5.0 C 3.00
•
0.05-0.13
EC200B38-4C20R4
20.00 20.00 38.00 104.00 4 45.0 5.0 C 4.00
•
0.05-0.13
EC200B38-4C20R5
20.00 20.00 38.00 104.00 4 45.0 5.0 C 5.00
•
0.05-0.13
EC200B38-4W20
20.00 20.00 38.00 104.00 4 45.0 5.0 W -
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-B-4/4R
4 Flute, 45° Helix Medium
Length Solid Carbide Endmills
ISCAR
142
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
15°
FHA
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) RE
IC08
IC300
IC900
fz
(mm/t)
EC020A07-4C03
2.00 3.00 7.00 38.00 4 30.0 5.0 C -
• •
0.01-0.03
EC020A10-4C05R0.4
2.00 5.00 10.00 50.00 4 30.0 5.0 C 0.40
•
0.01-0.04
EC025A07-4C03
2.50 3.00 7.00 38.00 4 30.0 5.0 C -
•
0.01-0.03
EC030A10-4C03
3.00 3.00 10.00 38.00 4 30.0 5.0 C -
• •
0.01-0.04
EC030A10-4C03R0.6
3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.60
•
0.01-0.04
EC030A10-4C03R0.8
3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.80
•
0.01-0.04
EC030A10-4C04R0.4
3.00 4.00 10.00 50.00 4 30.0 5.0 C 0.40
•
0.01-0.04
EC030A10-4C06
3.00 6.00 10.00 57.00 4 30.0 5.0 C -
•
0.01-0.04
EC035A12-4C04
3.50 4.00 12.00 50.00 4 30.0 5.0 C -
•
0.01-0.04
EC035A12-4C04R0.4
3.50 4.00 12.00 50.00 4 30.0 5.0 C 0.40
•
0.01-0.04
EC040A07-4C04R0.4
4.00 4.00 7.00 50.00 4 30.0 5.0 C 0.40
•
0.02-0.05
EC040A10-4C04R1.0
4.00 4.00 10.00 50.00 4 30.0 5.0 C 1.00
•
0.02-0.05
EC040A12-4C04
4.00 4.00 12.00 50.00 4 30.0 5.0 C -
• •
0.02-0.05
EC040A12-4C04R0.4
4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.40
•
0.02-0.05
EC040A12-4C04R0.8
4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.80
•
0.02-0.05
EC040A12-4C06
4.00 6.00 12.00 57.00 4 30.0 5.0 C -
•
0.02-0.05
EC045A14-4C06
4.50 6.00 14.00 57.00 4 30.0 5.0 C -
•
0.02-0.05
EC050A14-4C05
5.00 5.00 14.00 50.00 4 30.0 5.0 C -
• •
0.02-0.06
EC050A14-4C05R0.5
5.00 5.00 14.00 50.00 4 30.0 5.0 C 0.50
•
0.02-0.06
EC050A20-4C05R0.8
5.00 5.00 20.00 50.00 4 30.0 5.0 C 0.80
•
0.02-0.06
EC050A14-4C06
5.00 6.00 14.00 57.00 4 30.0 5.0 C -
•
0.02-0.06
EC060A16-4C06
6.00 6.00 16.00 57.00 4 30.0 5.0 C -
•••
0.03-0.07
EC060A16-4C06R0.4
6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.40
•
0.03-0.07
EC060A16-4C06R0.8
6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.80
•
0.03-0.07
EC060A16-4W06
6.00 6.00 16.00 57.00 4 30.0 5.0 W -
•
0.03-0.07
EC070A20-4C07
7.00 7.00 20.00 60.00 4 30.0 5.0 C -
• •
0.03-0.08
EC075A20-4C08
7.50 8.00 20.00 63.00 4 30.0 5.0 C -
•
0.03-0.08
EC080A20-4C08
8.00 8.00 20.00 63.00 4 30.0 5.0 C -
•••
0.03-0.09
EC080A20-4C08R0.8
8.00 8.00 20.00 63.00 4 30.0 5.0 C 0.80
•
0.03-0.09
EC080A20-4W08
8.00 8.00 20.00 63.00 4 30.0 5.0 W -
•
0.03-0.09
EC100A22-4C10
10.00 10.00 22.00 72.00 4 30.0 5.0 C -
•••
0.03-0.10
EC100A22-4W10
10.00 10.00 22.00 72.00 4 30.0 5.0 W -
•
0.03-0.10
EC120A25-4C12
12.00 12.00 25.00 83.00 4 30.0 5.0 C -
•••
0.04-0.11
EC120A25-4W12
12.00 12.00 25.00 83.00 4 30.0 5.0 W -
•
0.04-0.11
EC140A25-4C14
14.00 14.00 25.00 83.00 4 30.0 5.0 C -
• •
0.04-0.12
EC140A32-4C14
14.00 14.00 32.00 83.00 4 30.0 5.0 C -
•
0.04-0.12
EC160A32-4C16
16.00 16.00 32.00 92.00 4 30.0 5.0 C -
•••
0.05-0.13
EC160A32-4W16
16.00 16.00 32.00 92.00 4 30.0 5.0 W -
•
0.05-0.13
EC160A40-4C16-92
16.00 16.00 40.00 92.00 4 30.0 5.0 C -
•
0.05-0.13
EC180A32-4C18
18.00 18.00 32.00 92.00 4 30.0 5.0 C -
•
0.05-0.13
EC200A38-4C20
20.00 20.00 38.00 104.00 4 30.0 5.0 C -
•
0.05-0.13
EC200A38-4W20
20.00 20.00 38.00 104.00 4 30.0 5.0 W -
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
EC-A-4/4R
4 Flute, 30° Helix Medium
Length Solid Carbide Endmills
with Various Radii
143
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
CHW x 45°
FHA
DCONMS
DC
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC300
IC900
fz
(mm/t)
ECC020B07-4C03
2.00 3.00 7.00 38.00 4 45.0 5.0 C 0.10 45.0
•
0.01-0.03
ECC025A07-4C03
2.50 3.00 7.00 38.00 4 30.0 5.0 C 0.10 45.0
•
0.01-0.03
ECC030A10-4C03
3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.10 45.0
•
0.01-0.04
ECC035A12-4C04
3.50 4.00 12.00 50.00 4 30.0 5.0 C 0.10 45.0
•
0.01-0.04
ECC040A12-4C04
4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.15 45.0
• •
0.02-0.05
ECC050A14-4C05
5.00 5.00 14.00 50.00 4 30.0 5.0 C 0.15 45.0
•
0.02-0.06
ECC060A16-4C06
6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.15 45.0
•
0.03-0.07
ECC080A20-4C08
8.00 8.00 20.00 63.00 4 30.0 5.0 C 0.15 45.0
•
0.03-0.09
ECC080A20-4W08
8.00 8.00 20.00 63.00 4 30.0 5.0 W 0.15 45.0
•
0.03-0.09
ECC100A22-4C10
10.00 10.00 22.00 72.00 4 30.0 5.0 C 0.25 45.0
•
0.03-0.10
ECC100A22-4W10
10.00 10.00 22.00 72.00 4 30.0 5.0 W 0.25 45.0
•
0.03-0.10
ECC120A25-4C12
12.00 12.00 25.00 83.00 4 30.0 5.0 C 0.25 45.0
•
0.04-0.11
ECC120A25-4W12
12.00 12.00 25.00 83.00 4 30.0 5.0 W 0.25 45.0
•
0.04-0.11
ECC160A32-4C16
16.00 16.00 32.00 92.00 4 30.0 5.0 C 0.25 45.0
•
0.05-0.13
ECC160A32-4W16
16.00 16.00 32.00 92.00 4 30.0 5.0 W 0.25 45.0
•
0.05-0.13
ECC200A38 4W20
20.00 20.00 38.00 104.00 4 30.0 5.0 W 0.25 45.0
•
0.05-0.13
ECC200A38-4C20
20.00 20.00 38.00 104.00 4 30.0 5.0 C 0.25 45.0
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECC-A-4
4 Flute, 30° Helix Medium
Length Solid Carbide Endmills
with Chamfered Corners
ISCAR
144
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
OAL
APMX
DCONMS
FHA
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
IC900
fz
(mm/t)
EC-A4 02-08C02E32
2.00 2.00 8.00 32.00 4 30.0 5.0 C
• •
0.01-0.03
EC-A4 025-08C025E32
2.50 2.50 8.00 32.00 4 30.0 5.0 C
• •
0.01-0.03
EC-A4 03-12C03E38
3.00 3.00 12.00 38.00 4 30.0 5.0 C
• •
0.01-0.04
EC-A4 03-30C03E75
3.00 3.00 30.00 75.00 4 30.0 5.0 C
• •
0.01-0.04
EC-A4 04-12C04E50
4.00 4.00 12.00 50.00 4 30.0 5.0 C
• •
0.02-0.05
EC-A4 04-30C04E75
4.00 4.00 30.00 75.00 4 30.0 5.0 C
• •
0.02-0.05
EC-A4 05-14C05E50
5.00 5.00 14.00 50.00 4 30.0 5.0 C
• •
0.02-0.06
EC-A4 05-40C05E100
5.00 5.00 40.00 100.00 4 30.0 5.0 C
• •
0.02-0.06
EC-A4 055-16C055E50
5.50 5.50 16.00 50.00 4 30.0 5.0 C
• •
0.02-0.06
EC-A4 06-16C06E50
6.00 6.00 16.00 50.00 4 30.0 5.0 C
• •
0.03-0.07
EC-A4 06-50C06E150
6.00 6.00 50.00 150.00 4 30.0 5.0 C
• •
0.03-0.07
EC-A4 07-20C07E60
7.00 7.00 20.00 60.00 4 30.0 5.0 C
• •
0.03-0.08
EC-A4 08-20C08E63
8.00 8.00 20.00 63.00 4 30.0 5.0 C
• •
0.03-0.09
EC-A4 08-50C08E150
8.00 8.00 50.00 150.00 4 30.0 5.0 C
• •
0.03-0.09
EC-A4 09-20C09E60
9.00 9.00 20.00 60.00 4 30.0 5.0 C
• •
0.03-0.09
EC-A4 10-22C10E72
10.00 10.00 22.00 70.00 4 30.0 5.0 C
• •
0.03-0.10
EC-A4 10-60C10E150
10.00 10.00 60.00 150.00 4 30.0 5.0 C
• •
0.03-0.10
EC-A4 12-22C12E73
12.00 12.00 22.00 73.00 4 30.0 5.0 C
• •
0.04-0.11
EC-A4 12-75C12E150
12.00 12.00 75.00 150.00 4 30.0 5.0 C
• •
0.04-0.11
EC-A4 14-25C14E83
14.00 14.00 25.00 83.00 4 30.0 5.0 C
• •
0.04-0.12
EC-A4 14-65C14E150
14.00 14.00 65.00 150.00 4 30.0 5.0 C
• •
0.04-0.12
EC-A4 16-25C16E82
16.00 16.00 25.00 82.00 4 30.0 5.0 C
• •
0.05-0.13
EC-A4 16-65C16E150
16.00 16.00 65.00 150.00 4 30.0 5.0 C
• •
0.05-0.13
EC-A4 18-65C18E150
18.00 18.00 65.00 150.00 4 30.0 5.0 C
• •
0.05-0.13
EC-A4 20-32C20E104
20.00 20.00 32.00 104.00 4 30.0 5.0 C
• •
0.05-0.13
EC-A4 20-65C20E150
20.00 20.00 65.00 150.00 4 30.0 5.0 C
• •
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
EC-A4(economical-medium
& extra long)
Economical Type 4 Flute, 30°
Helix, Center Cutting, Medium &
Extra Long Solid Carbide Endmills
145
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
15°
DN
OAL
APMX
LU
FHA
RE
DCONMS
DC
HARD MATERIALS
Rd°
EC-A2-R/H (rib processing)
2 Flute, 30° Helix and Corner
Radii Solid Carbide Endmills
for Rib Processing on Hard
Materials up to 65 HRC
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX RE LU OAL DN NOF(1) FHA Shank(2)
IC702
fz
(mm/t)
EC-A2 001-0015/003C4H45
0.10 4.00 0.15 - 0.3 45.00 0.09 2 30.0 C
•
0.0020-0.0025
EC-A2 002-003/005C4H45
0.20 4.00 0.30 - 0.5 45.00 0.17 2 30.0 C
•
0.0030-0.0030
EC-A2 003-0045/01C4H45
0.30 4.00 0.45 - 1.0 45.00 0.27 2 30.0 C
•
0.0030-0.0040
EC-A2 003-0045/03C4H45
0.30 4.00 0.45 - 3.0 45.00 0.27 2 30.0 C
•
0.0030-0.0040
EC-A2 004-006/01C4H45
0.40 4.00 0.60 - 1.0 45.00 0.37 2 30.0 C
•
0.0030-0.0050
EC-A2 004-006/02C4H45
0.40 4.00 0.60 - 2.0 45.00 0.37 2 30.0 C
•
0.0030-0.0050
EC-A2 005-007/02C4H45
0.50 4.00 0.70 - 2.0 45.00 0.45 2 30.0 C
•
0.0030-0.0050
EC-A2 005-007/04C4H45
0.50 4.00 0.70 - 4.0 45.00 0.45 2 30.0 C
•
0.0030-0.0050
EC-A2 005-007/1.5C4R05H45
0.50 4.00 0.70 0.05 1.5 45.00 0.45 2 30.0 C
•
0.0010-0.0020
EC-A2 005-007/2.5C4R05H45
0.50 4.00 0.70 0.05 2.5 45.00 0.45 2 30.0 C
•
0.0010-0.0020
EC-A2 006-009/02C4H45
0.60 4.00 0.90 - 2.0 45.00 0.55 2 30.0 C
•
0.0030-0.0070
EC-A2 006-009/3C4R05H45
0.60 4.00 0.90 0.05 3.0 45.00 0.55 2 30.0 C
•
0.0010-0.0020
EC-A2 007-010/4C4R.1H45
0.70 4.00 1.00 0.10 4.0 45.00 0.65 2 30.0 C
•
0.0010-0.0030
EC-A2 008-012/04C4H45
0.80 4.00 1.20 - 4.0 45.00 0.75 2 30.0 C
•
0.0030-0.0080
EC-A2 008-012/06C4H45
0.80 4.00 1.20 - 6.0 45.00 0.75 2 30.0 C
•
0.0030-0.0090
EC-A2 008-012/4C4R.1H45
0.80 4.00 1.20 0.10 4.0 45.00 0.75 2 30.0 C
•
0.0010-0.0030
EC-A2 008-012/6C4R.1H45
0.80 4.00 1.20 0.10 6.0 45.00 0.75 2 30.0 C
•
0.0010-0.0030
EC-A2 010-015/04C4H45
1.00 4.00 1.50 - 4.0 45.00 0.97 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/06C4H45
1.00 4.00 1.50 - 6.0 45.00 0.97 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/08C4H45
1.00 4.00 1.50 - 8.0 45.00 0.95 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/10C4H45
1.00 4.00 1.50 - 10.0 45.00 0.95 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/12C4H45
1.00 4.00 1.50 - 12.0 45.00 0.93 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/20C4H55
1.00 4.00 1.50 - 20.0 55.00 0.93 2 30.0 C
•
0.0040-0.0120
EC-A2 010-015/4C6R.1H50
1.00 6.00 1.50 0.10 4.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/4C6R.2H50
1.00 6.00 1.50 0.20 4.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/4C6R.3H50
1.00 6.00 1.50 0.30 4.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/6C6R.1H50
1.00 6.00 1.50 0.10 6.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/6C6R.2H50
1.00 6.00 1.50 0.20 6.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/6C6R.3H50
1.00 6.00 1.50 0.30 6.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 010-015/8C6R.3H50
1.00 6.00 1.50 0.30 8.0 50.00 0.95 2 30.0 C
•
0.0020-0.0060
EC-A2 012-018/06C4H45
1.20 4.00 1.80 - 6.0 45.00 1.17 2 30.0 C
•
0.0050-0.0150
EC-A2 015-023/06C4H45
1.50 4.00 2.30 - 6.0 45.00 1.47 2 30.0 C
•
0.0050-0.0150
EC-A2 015-023/08C4H45
1.50 4.00 2.30 - 8.0 45.00 1.45 2 30.0 C
•
0.0050-0.0150
EC-A2 015-023/10C4H45
1.50 4.00 2.30 - 10.0 45.00 1.45 2 30.0 C
•
0.0050-0.0150
EC-A2 015-023/12C4H45
1.50 4.00 2.30 - 12.0 45.00 1.41 2 30.0 C
•
0.0050-0.0150
EC-A2 015-025/10C6R.2H50
1.50 6.00 2.50 0.20 10.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/12C6R.2H50
1.50 6.00 2.50 0.20 12.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/4C6R.2H50
1.50 6.00 2.50 0.20 4.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/4C6R.3H50
1.50 6.00 2.50 0.30 4.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/6C6R.2H50
1.50 6.00 2.50 0.20 6.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/6C6R.3H50
1.50 6.00 2.50 0.30 6.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/8C6R.2H50
1.50 6.00 2.50 0.20 8.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 015-025/8C6R.3H50
1.50 6.00 2.50 0.30 8.0 50.00 1.45 2 30.0 C
•
0.0030-0.0080
EC-A2 020-030/06C4H45
2.00 4.00 3.00 - 6.0 45.00 1.97 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/08C4H45
2.00 4.00 3.00 - 8.0 45.00 1.95 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/10C4H45
2.00 4.00 3.00 - 10.0 45.00 1.95 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/12C4H45
2.00 4.00 3.00 - 12.0 45.00 1.93 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/14C4H50
2.00 4.00 3.00 - 14.0 50.00 1.93 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/16C4H50
2.00 4.00 3.00 - 16.0 50.00 1.91 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/20C4H55
2.00 4.00 3.00 - 20.0 55.00 1.89 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/25C4H60
2.00 4.00 3.00 - 25.0 60.00 1.89 2 30.0 C
•
0.0100-0.0200
EC-A2 020-030/10C6R.2H55
2.00 6.00 3.00 0.20 10.0 55.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 020-030/10C6R.3H55
2.00 6.00 3.00 0.30 10.0 55.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 020-030/10C6R.5H55
2.00 6.00 3.00 0.50 10.0 55.00 1.95 2 30.0 C
•
0.0040-0.0100
ISCAR
146
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
15°
DN
OAL
APMX
LU
FHA
RE
DCONMS
DC
HARD MATERIALS
Rd°
EC-A2-R/H (rib processing)
(continued)
2 Flute, 30° Helix and Corner
Radii Solid Carbide Endmills
for Rib Processing on Hard
Materials up to 65 HRC
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX RE LU OAL DN NOF(1) FHA Shank(2)
IC702
fz
(mm/t)
EC-A2 020-030/16C6R.3H55
2.00 6.00 3.00 0.30 16.0 55.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 020-030/6C6R.2H50
2.00 6.00 3.00 0.20 6.0 50.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 020-030/6C6R.3H50
2.00 6.00 3.00 0.30 6.0 50.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 020-030/6C6R.5H50
2.00 6.00 3.00 0.50 6.0 50.00 1.95 2 30.0 C
•
0.0040-0.0100
EC-A2 030-040/10C6R.2H55
3.00 6.00 4.00 0.20 10.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/10C6R.5H55
3.00 6.00 4.00 0.50 10.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/12C6R.2H55
3.00 6.00 4.00 0.20 12.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/12C6R.3H55
3.00 6.00 4.00 0.30 12.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/12C6R.5H55
3.00 6.00 4.00 0.50 12.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/16C6R.2H55
3.00 6.00 4.00 0.20 16.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/16C6R.5H55
3.00 6.00 4.00 0.50 16.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/20C6R.5H55
3.00 6.00 4.00 0.50 20.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/8C6R.2H55
3.00 6.00 4.00 0.20 8.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-040/8C6R.3H55
3.00 6.00 4.00 0.30 8.0 55.00 2.85 2 30.0 C
•
0.0050-0.0150
EC-A2 030-045/12C6H45
3.00 6.00 4.50 - 12.0 45.00 2.85 2 30.0 C
•
0.0150-0.0300
EC-A2 030-045/16C6H55
3.00 6.00 4.50 - 16.0 55.00 2.85 2 30.0 C
•
0.0150-0.0300
EC-A2 030-045/30C6H70
3.00 6.00 4.50 - 30.0 70.00 2.85 2 30.0 C
•
0.0150-0.0300
EC-A2 030-045/35C6H80
3.00 6.00 4.50 - 35.0 80.00 2.85 2 30.0 C
•
0.0150-0.0300
EC-A2 040-050/12C6R.2H55
4.00 6.00 5.00 0.20 12.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/12C6R.5H55
4.00 6.00 5.00 0.50 12.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/12C6R1.H55
4.00 6.00 5.00 1.00 12.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/16C6R.2H55
4.00 6.00 5.00 0.20 16.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/16C6R.5H55
4.00 6.00 5.00 0.50 16.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/20C6R.2H55
4.00 6.00 5.00 0.20 20.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/20C6R.3H55
4.00 6.00 5.00 0.30 20.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-050/20C6R.5H55
4.00 6.00 5.00 0.50 20.0 55.00 3.85 2 30.0 C
•
0.0060-0.0200
EC-A2 040-060/16C6H60
4.00 6.00 6.00 - 16.0 60.00 3.80 2 30.0 C
•
0.0200-0.0500
EC-A2 060-070/20C6R.3H60
6.00 6.00 7.00 0.30 20.0 60.00 5.85 2 30.0 C
•
0.0080-0.0300
EC-A2 060-070/20C6R.5H60
6.00 6.00 7.00 0.50 20.0 60.00 5.85 2 30.0 C
•
0.0080-0.0300
EC-A2 060-070/20C6R1.H60
6.00 6.00 7.00 1.00 20.0 60.00 5.85 2 30.0 C
•
0.0080-0.0300
EC-A2 060-070/20C6R1.5H60
6.00 6.00 7.00 1.50 20.0 60.00 5.85 2 30.0 C
•
0.0080-0.0300
EC-A2 060-070/20C6R2.H60
6.00 6.00 7.00 2.00 20.0 60.00 5.85 2 30.0 C
•
0.0080-0.0300
EC-A2 080-090/25C8R1.H60
8.00 8.00 9.00 1.00 25.0 60.00 7.70 2 30.0 C
•
0.0100-0.0350
EC-A2 080-090/25C8R2.H60
8.00 8.00 9.00 2.00 25.0 60.00 7.70 2 30.0 C
•
0.0100-0.0350
EC-A2 100-090/32C10R.3H70
10.00 10.00 9.00 0.30 32.0 70.00 9.70 2 30.0 C
•
0.0100-0.0400
EC-A2 100-110/32C10R.5H70
10.00 10.00 11.00 0.50 32.0 70.00 9.70 2 30.0 C
•
0.0100-0.0400
147
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
15°
DN
OAL
APMX
LU
FHA
DCONMS
DC
HARD MATERIALS
Rd°
EC-A2-M (rib processing)
2 Flute, 30° Helix Solid Carbide
Endmills for Rib Processing on
Hard Materials up to 55 HRC
• The DC tolerance is: 0 - -0.015 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL DN NOF(1) FHA RMPX°(2) Shank(3)
IC903
fz
(mm/t)
EC-A2 004-006/02C4M45
0.40 4.00 0.60 2.0 45.00 0.37 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 004-006/03C4M45
0.40 4.00 0.60 3.0 45.00 0.37 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 004-006/04C4M45
0.40 4.00 0.60 4.0 45.00 0.37 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 004-006/05C4M45
0.40 4.00 0.60 5.0 45.00 0.37 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 005-007/02C4M45
0.50 4.00 0.70 2.0 45.00 0.45 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 005-007/04C4M45
0.50 4.00 0.70 4.0 45.00 0.45 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 005-007/06C4M45
0.50 4.00 0.70 6.0 45.00 0.45 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 005-007/08C4M45
0.50 4.00 0.70 8.0 45.00 0.45 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 006-009/02C4M45
0.60 4.00 0.90 2.0 45.00 0.55 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 006-009/04C4M45
0.60 4.00 0.90 4.0 45.00 0.55 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 006-009/06C4M45
0.60 4.00 0.90 6.0 45.00 0.55 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 006-009/08C4M45
0.60 4.00 0.90 8.0 45.00 0.55 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 006-009/10C4M45
0.60 4.00 0.90 10.0 45.00 0.55 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 007-010/02C4M45
0.70 4.00 1.00 2.0 45.00 0.65 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 007-010/08C4M45
0.70 4.00 1.00 8.0 45.00 0.65 2 30.0 3.0 C
•
0.0010-0.0030
EC-A2 008-012/04C4M45
0.80 4.00 1.20 4.0 45.00 0.75 2 30.0 3.0 C
•
0.0020-0.0040
EC-A2 008-012/06C4M45
0.80 4.00 1.20 6.0 45.00 0.75 2 30.0 3.0 C
•
0.0020-0.0040
EC-A2 008-012/08C4M45
0.80 4.00 1.20 8.0 45.00 0.75 2 30.0 3.0 C
•
0.0020-0.0040
EC-A2 008-012/10C4M45
0.80 4.00 1.20 10.0 45.00 0.75 2 30.0 3.0 C
•
0.0020-0.0040
EC-A2 009-0135/06C4M45
0.90 4.00 1.35 6.0 45.00 0.85 2 30.0 3.0 C
•
0.0030-0.0050
EC-A2 009-0135/10C4M45
0.90 4.00 1.35 10.0 45.00 0.85 2 30.0 3.0 C
•
0.0030-0.0050
EC-A2 009-0135/15C4M50
0.90 4.00 1.35 15.0 50.00 0.85 2 30.0 3.0 C
•
0.0030-0.0050
EC-A2 010-015/04C4M45
1.00 4.00 1.50 4.0 45.00 0.97 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/06C4M45
1.00 4.00 1.50 6.0 45.00 0.97 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/08C4M45
1.00 4.00 1.50 8.0 45.00 0.95 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/10C4M45
1.00 4.00 1.50 10.0 45.00 0.95 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/12C4M45
1.00 4.00 1.50 12.0 45.00 0.93 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/16C4M50
1.00 4.00 1.50 16.0 50.00 0.93 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 010-015/20C4M55
1.00 4.00 1.50 20.0 55.00 0.93 2 30.0 3.0 C
•
0.0040-0.0060
EC-A2 012-018/06C4M45
1.20 4.00 1.80 6.0 45.00 1.17 2 30.0 3.0 C
•
0.0040-0.0075
EC-A2 012-018/08C4M45
1.20 4.00 1.80 8.0 45.00 1.15 2 30.0 3.0 C
•
0.0040-0.0075
EC-A2 012-018/10C4M45
1.20 4.00 1.80 10.0 45.00 1.15 2 30.0 3.0 C
•
0.0040-0.0075
EC-A2 012-018/16C4M50
1.20 4.00 1.80 16.0 50.00 1.13 2 30.0 3.0 C
•
0.0040-0.0075
EC-A2 014-021/06C4M45
1.40 4.00 2.10 6.0 45.00 1.35 2 30.0 3.0 C
•
0.0040-0.0080
EC-A2 014-021/08C4M45
1.40 4.00 2.10 8.0 45.00 1.35 2 30.0 3.0 C
•
0.0040-0.0080
EC-A2 014-021/10C4M45
1.40 4.00 2.10 10.0 45.00 1.35 2 30.0 3.0 C
•
0.0040-0.0080
EC-A2 015-023/06C4M45
1.50 4.00 2.30 6.0 45.00 1.47 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/08C4M45
1.50 4.00 2.30 8.0 45.00 1.45 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/10C4M45
1.50 4.00 2.30 10.0 45.00 1.45 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/12C4M45
1.50 4.00 2.30 12.0 45.00 1.41 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/14C4M50
1.50 4.00 2.30 14.0 50.00 1.41 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/16C4M50
1.50 4.00 2.30 16.0 50.00 1.41 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 015-023/20C4M55
1.50 4.00 2.30 20.0 55.00 1.41 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 016-024/06C4M45
1.60 4.00 2.40 6.0 45.00 1.57 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 016-024/08C4M45
1.60 4.00 2.40 8.0 45.00 1.55 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 016-024/10C4M45
1.60 4.00 2.40 10.0 45.00 1.55 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 016-024/18C4M55
1.60 4.00 2.40 18.0 55.00 1.53 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 016-024/26C4M60
1.60 4.00 2.40 26.0 60.00 1.53 2 30.0 3.0 C
•
0.0050-0.0100
EC-A2 018-027/06C4M45
1.80 4.00 2.70 6.0 45.00 1.77 2 30.0 3.0 C
•
0.0060-0.0100
EC-A2 018-027/08C4M45
1.80 4.00 2.70 8.0 45.00 1.75 2 30.0 3.0 C
•
0.0060-0.0100
EC-A2 018-027/10C4M45
1.80 4.00 2.70 10.0 45.00 1.75 2 30.0 3.0 C
•
0.0060-0.0100
EC-A2 018-027/12C4M45
1.80 4.00 2.70 12.0 45.00 1.73 2 30.0 3.0 C
•
0.0060-0.0100
EC-A2 018-027/14C4M50
1.80 4.00 2.70 14.0 50.00 1.73 2 30.0 3.0 C
•
0.0060-0.0100
ISCAR
148

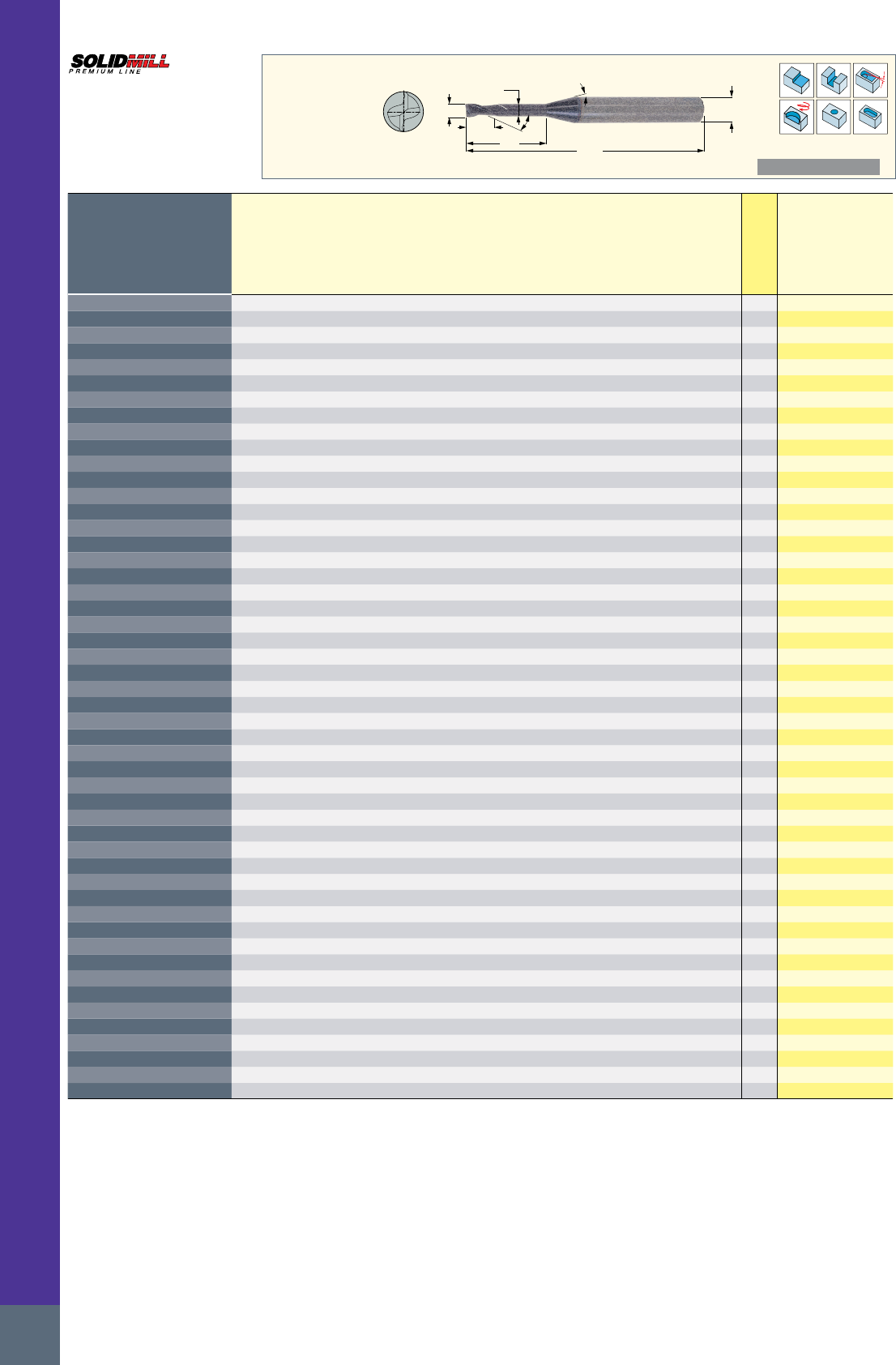

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
15°
DN
OAL
APMX
LU
FHA
DCONMS
DC
HARD MATERIALS
Rd°
EC-A2-M (rib processing)
(continued)
2 Flute, 30° Helix Solid Carbide
Endmills for Rib Processing on
Hard Materials up to 55 HRC
• The DC tolerance is: 0 - -0.015 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL DN NOF(1) FHA RMPX°(2) Shank(3)
IC903
fz
(mm/t)
EC-A2 020-030/06C4M45
2.00 4.00 3.00 6.0 45.00 1.97 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/08C4M45
2.00 4.00 3.00 8.0 45.00 1.95 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/10C4M45
2.00 4.00 3.00 10.0 45.00 1.95 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/12C4M45
2.00 4.00 3.00 12.0 45.00 1.93 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/14C4M50
2.00 4.00 3.00 14.0 50.00 1.93 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/16C4M50
2.00 4.00 3.00 16.0 50.00 1.91 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/18C4M55
2.00 4.00 3.00 18.0 55.00 1.91 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/20C4M55
2.00 4.00 3.00 20.0 55.00 1.89 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/25C4M60
2.00 4.00 3.00 25.0 60.00 1.89 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 020-030/30C4M70
2.00 4.00 3.00 30.0 70.00 1.89 2 30.0 3.0 C
•
0.0080-0.0150
EC-A2 025-037/08C4M45
2.50 4.00 3.70 8.0 45.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/10C4M45
2.50 4.00 3.70 10.0 45.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/12C4M45
2.50 4.00 3.70 12.0 45.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/14C4M50
2.50 4.00 3.70 14.0 50.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/16C4M55
2.50 4.00 3.70 16.0 55.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/18C4M55
2.50 4.00 3.70 18.0 55.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/20C4M60
2.50 4.00 3.70 20.0 60.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/25C4M70
2.50 4.00 3.70 25.0 70.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 025-037/30C4M80
2.50 4.00 3.70 30.0 80.00 2.40 2 30.0 3.0 C
•
0.0090-0.0180
EC-A2 030-045/08C6M45
3.00 6.00 4.50 8.0 45.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/10C6M45
3.00 6.00 4.50 10.0 45.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/12C6M45
3.00 6.00 4.50 12.0 45.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/14C6M50
3.00 6.00 4.50 14.0 50.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/16C6M55
3.00 6.00 4.50 16.0 55.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/18C6M55
3.00 6.00 4.50 18.0 55.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/20C6M60
3.00 6.00 4.50 20.0 60.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/25C6M65
3.00 6.00 4.50 25.0 65.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/30C6M70
3.00 6.00 4.50 30.0 70.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/35C6M80
3.00 6.00 4.50 35.0 80.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 030-045/40C6M90
3.00 6.00 4.50 40.0 90.00 2.85 2 30.0 3.0 C
•
0.0100-0.0180
EC-A2 040-060/12C6M50
4.00 6.00 6.00 12.0 50.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/16C6M60
4.00 6.00 6.00 16.0 60.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/20C6M60
4.00 6.00 6.00 20.0 60.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/25C6M70
4.00 6.00 6.00 25.0 70.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/30C6M70
4.00 6.00 6.00 30.0 70.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/35C6M80
4.00 6.00 6.00 35.0 80.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/40C6M90
4.00 6.00 6.00 40.0 90.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/45C6M90
4.00 6.00 6.00 45.0 90.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 040-060/50C6M100
4.00 6.00 6.00 50.0 100.00 3.80 2 30.0 3.0 C
•
0.0100-0.0200
EC-A2 050-075/16C6M60
5.00 6.00 7.50 16.0 60.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/20C6M60
5.00 6.00 7.50 20.0 60.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/25C6M70
5.00 6.00 7.50 25.0 70.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/30C6M80
5.00 6.00 7.50 30.0 80.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/35C6M80
5.00 6.00 7.50 35.0 80.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/40C6M80
5.00 6.00 7.50 40.0 80.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 050-075/50C6M110
5.00 6.00 7.50 50.0 110.00 4.80 2 30.0 3.0 C
•
0.0100-0.0250
EC-A2 060-090/20C6M80
6.00 6.00 9.00 20.0 80.00 5.70 2 30.0 3.0 C
•
0.0150-0.0300
EC-A2 060-090/30C6M90
6.00 6.00 9.00 30.0 90.00 5.70 2 30.0 3.0 C
•
0.0150-0.0300
EC-A2 060-090/40C6M100
6.00 6.00 9.00 40.0 100.00 5.60 2 30.0 3.0 C
•
0.0150-0.0300
EC-A2 060-090/50C6M110
6.00 6.00 9.00 50.0 110.00 5.60 2 30.0 3.0 C
•
0.0150-0.0300
149

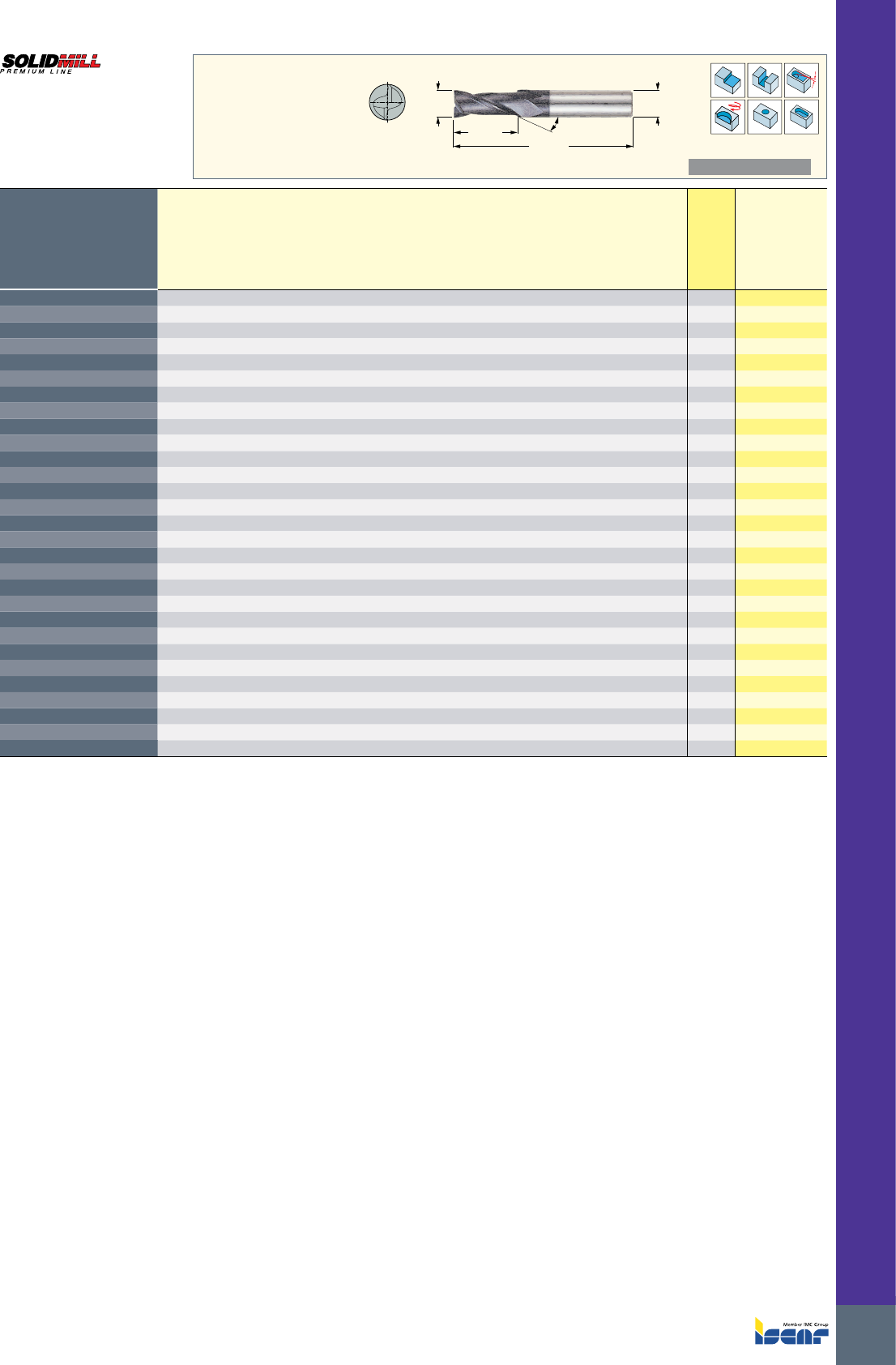

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX FHA
DCONMS
DC
HARD MATERIALS
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC903
fz
(mm/t)
EC-A2 010-025C06-40
1.00 6.00 2.50 40.00 2 30.0 5.0 C
•
0.00-0.01
EC-A2 015-040C06-40
1.50 6.00 4.00 40.00 2 30.0 5.0 C
•
0.00-0.02
EC-A2 020-060C06-40
2.00 6.00 6.00 40.00 2 30.0 5.0 C
•
0.01-0.03
EC-A2 025-080C06-40
2.50 6.00 8.00 40.00 2 30.0 5.0 C
•
0.01-0.03
EC-A2 030-080C06-45
3.00 6.00 8.00 45.00 2 30.0 5.0 C
•
0.01-0.04
EC-A2 035-10C06M45
3.50 6.00 10.00 45.00 2 30.0 5.0 C
•
0.01-0.04
EC-A2 040-11C06-45
4.00 6.00 11.00 45.00 2 30.0 5.0 C
•
0.02-0.05
EC-A2 045-11C06-45
4.50 6.00 11.00 45.00 2 30.0 5.0 C
•
0.02-0.05
EC-A2 050-13C06-50
5.00 6.00 13.00 50.00 2 30.0 5.0 C
•
0.02-0.06
EC-A2 055-13C06-50
5.50 6.00 13.00 50.00 2 30.0 5.0 C
•
0.02-0.06
EC-A2 060-13C06-50
6.00 6.00 13.00 50.00 2 30.0 5.0 C
•
0.03-0.07
EC-A2 065-16C08-60
6.50 8.00 16.00 60.00 2 30.0 5.0 C
•
0.03-0.07
EC-A2 070-16C08-60
7.00 8.00 16.00 60.00 2 30.0 5.0 C
•
0.03-0.08
EC-A2 075-16C08-60
7.50 8.00 16.00 60.00 2 30.0 5.0 C
•
0.03-0.08
EC-A2 080-19C08-60
8.00 8.00 19.00 60.00 2 30.0 5.0 C
•
0.03-0.09
EC-A2 085-19C10-70
8.50 10.00 19.00 70.00 2 30.0 5.0 C
•
0.03-0.09
EC-A2 090-19C10-70
9.00 10.00 19.00 70.00 2 30.0 5.0 C
•
0.03-0.09
EC-A2 095-19C10-70
9.50 10.00 19.00 70.00 2 30.0 5.0 C
•
0.03-0.09
EC-A2 100-22C10-70
10.00 10.00 22.00 70.00 2 30.0 5.0 C
•
0.03-0.10
EC-A2 110-22C12-75
11.00 12.00 22.00 75.00 2 30.0 5.0 C
•
0.03-0.10
EC-A2 120-26C12-75
12.00 12.00 26.00 75.00 2 30.0 5.0 C
•
0.04-0.11
EC-A2 130-26C12-85
13.00 12.00 26.00 85.00 2 30.0 5.0 C
•
0.04-0.11
EC-A2 140-26C14-85
14.00 14.00 26.00 85.00 2 30.0 5.0 C
•
0.04-0.12
EC-A2 150-26C16-90
15.00 16.00 26.00 90.00 2 30.0 5.0 C
•
0.04-0.12
EC-A2 160-32C16-100
16.00 16.00 32.00 100.00 2 30.0 5.0 C
•
0.05-0.13
EC-A2 170-32C16-100
17.00 16.00 32.00 100.00 2 30.0 5.0 C
•
0.05-0.13
EC-A2 180-32C18-100
18.00 18.00 32.00 100.00 2 30.0 5.0 C
•
0.05-0.13
EC-A2 200-38C20-105
20.00 20.00 38.00 105.00 2 30.0 5.0 C
•
0.05-0.13
EC-A2 220-38C20-105
22.00 20.00 38.00 105.00 2 30.0 5.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
EC-A2 (medium length)
2 Flute, 30° Helix Medium
Length Solid Carbide Endmills for
Hard Materials up to 65 HRC
ISCAR
150

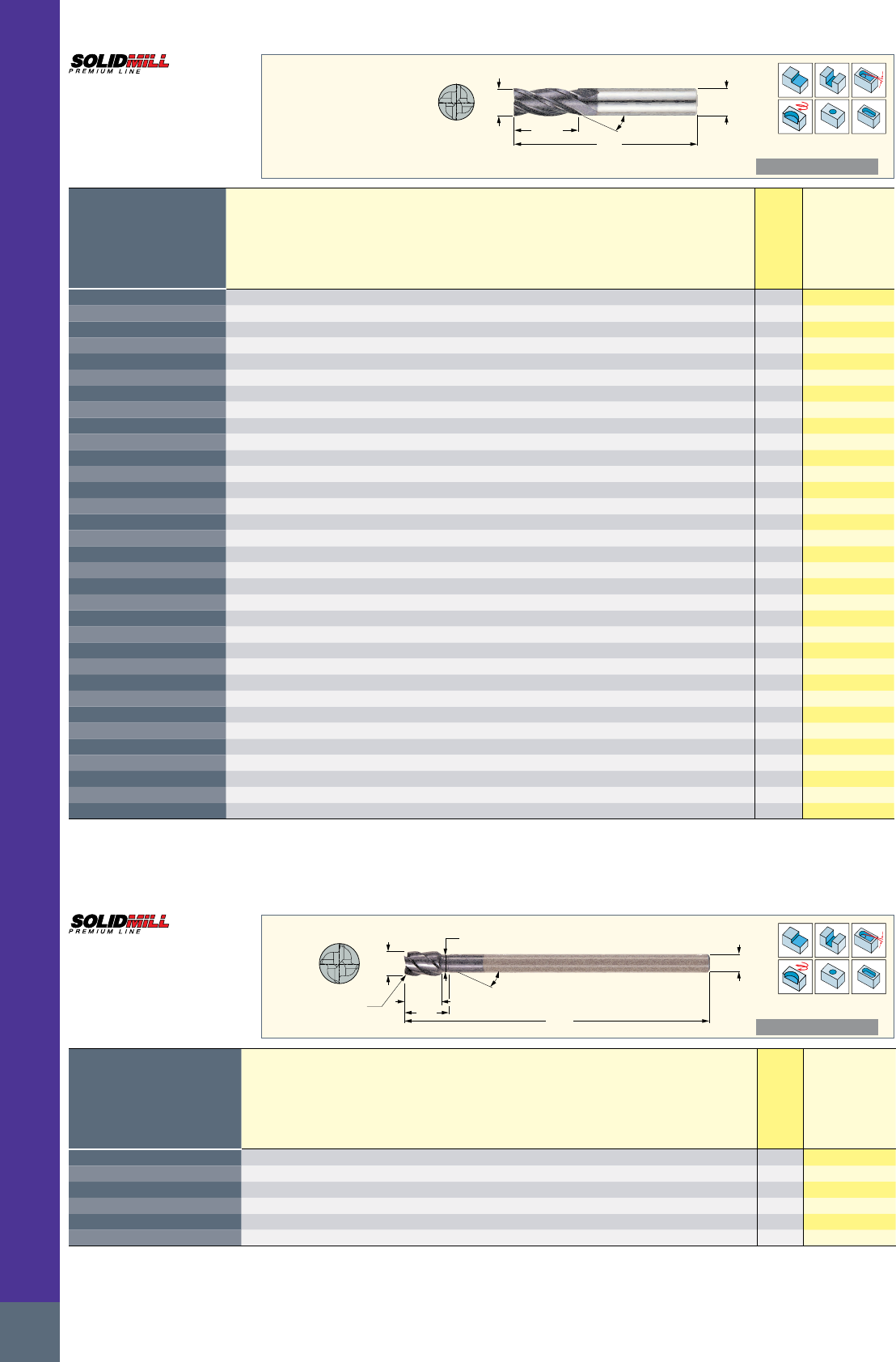

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX FHA
DCONMS
DC
HARD MATERIALS
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC903
fz
(mm/t)
EC-A4 020-060C06-50
2.00 6.00 6.00 50.00 4 30.0 5.0 C
•
0.01-0.03
EC-A4 025-080C06-50
2.50 6.00 8.00 50.00 4 30.0 5.0 C
•
0.01-0.03
EC-A4 030-080C06-50
3.00 6.00 8.00 50.00 4 30.0 5.0 C
•
0.01-0.04
EC-A4 035-10C06-50
3.50 6.00 10.00 50.00 4 30.0 5.0 C
•
0.01-0.04
EC-A4 040-11C06-50
4.00 6.00 11.00 50.00 4 30.0 5.0 C
•
0.02-0.05
EC-A4 045-11C06-50
4.50 6.00 11.00 50.00 4 30.0 5.0 C
•
0.02-0.05
EC-A4 050-13C06-50
5.00 6.00 13.00 50.00 4 30.0 5.0 C
•
0.02-0.06
EC-A4 055-13C06-50
5.50 6.00 13.00 50.00 4 30.0 5.0 C
•
0.02-0.06
EC-A4 060-13C06-50
6.00 6.00 13.00 50.00 4 30.0 5.0 C
•
0.03-0.07
EC-A4 065-16C08-63
6.50 8.00 16.00 63.00 4 30.0 5.0 C
•
0.03-0.07
EC-A4 070-16C08-63
7.00 8.00 16.00 63.00 4 30.0 5.0 C
•
0.03-0.08
EC-A4 075-16C08-63
7.50 8.00 16.00 63.00 4 30.0 5.0 C
•
0.03-0.08
EC-A4 080-19C08-63
8.00 8.00 19.00 63.00 4 30.0 5.0 C
•
0.03-0.09
EC-A4 085-19C10-72
8.50 10.00 19.00 72.00 4 30.0 5.0 C
•
0.03-0.09
EC-A4 090-19C10-72
9.00 10.00 19.00 72.00 4 30.0 5.0 C
•
0.03-0.09
EC-A4 095-19C10-70
9.50 10.00 19.00 70.00 4 30.0 5.0 C
•
0.03-0.09
EC-A4 100-22C10-72
10.00 10.00 22.00 72.00 4 30.0 5.0 C
•
0.03-0.10
EC-A4 105-22C12-75
10.50 12.00 22.00 75.00 4 30.0 5.0 C
•
0.03-0.10
EC-A4 110-22C12-75
11.00 12.00 22.00 75.00 4 30.0 5.0 C
•
0.03-0.10
EC-A4 115-22C12-75
11.50 12.00 22.00 75.00 4 30.0 5.0 C
•
0.03-0.10
EC-A4 120-26C12-73
12.00 12.00 26.00 73.00 4 30.0 5.0 C
•
0.04-0.11
EC-A4 130-26C12-85
13.00 12.00 26.00 85.00 4 30.0 5.0 C
•
0.04-0.11
EC-A4 140-26C12-85
14.00 12.00 26.00 85.00 4 30.0 5.0 C
•
0.04-0.12
EC-A4 140-26C14-83
14.00 14.00 26.00 83.00 4 30.0 5.0 C
•
0.04-0.12
EC-A4 140-26C16-85
14.00 16.00 26.00 85.00 4 30.0 5.0 C
•
0.04-0.12
EC-A4 150-26C16-92
15.00 16.00 26.00 92.00 4 30.0 5.0 C
•
0.04-0.12
EC-A4 160-32C16-92
16.00 16.00 32.00 92.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 170-32C16-100
17.00 16.00 32.00 100.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 180-32C18-100
18.00 18.00 32.00 100.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 190-32C20-100
19.00 20.00 32.00 100.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 200-38C20-104
20.00 20.00 38.00 104.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 220-38C20-105
22.00 20.00 38.00 105.00 4 30.0 5.0 C
•
0.05-0.13
EC-A4 250-45C25-120
25.00 25.00 45.00 120.00 4 30.0 5.0 C
•
0.05-0.13
• The DC tolerance is: 0 - -0.03 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
EC-A4
4 Flute, 30° Helix Medium
Length Solid Carbide Endmills for
Hard Materials up to 65 HRC
OAL
APMX
LH
DN
RE
FHA
DCONMS
DC
HARD MATERIALS
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS RE APMX LH DN OAL NOF(1) FHA RMPX°(2) Shank(3)
IC903
fz
(mm/t)
EC-B4 10-15C08R.5M130
10.00 8.00 0.50 15.00 19.2 7.50 130.00 4 45.0 5.0 C
•
0.03-0.10
EC-B4 12-18C10R.5M150
12.00 10.00 0.50 18.00 22.2 9.50 150.00 4 45.0 5.0 C
•
0.04-0.11
EC-B4 14-21C12R.5M160
14.00 12.00 0.50 21.00 25.2 11.50 160.00 4 45.0 5.0 C
•
0.04-0.12
EC-B4 14-21C12R1M160
14.00 12.00 1.00 21.00 25.2 11.50 160.00 4 45.0 5.0 C
•
0.04-0.12
EC-B4 18-27C16R0.5M180
18.00 16.00 0.50 27.00 31.2 15.50 180.00 4 45.0 5.0 C
•
0.05-0.13
EC-B4 22-33C20R.5M200
22.00 20.00 0.50 33.00 37.2 19.50 200.00 4 45.0 5.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
EC-B4-R
4 Flute, 45° Helix Extra-Long Solid
Carbide Endmills with Various
Corner Radii for Hardened Steel
151

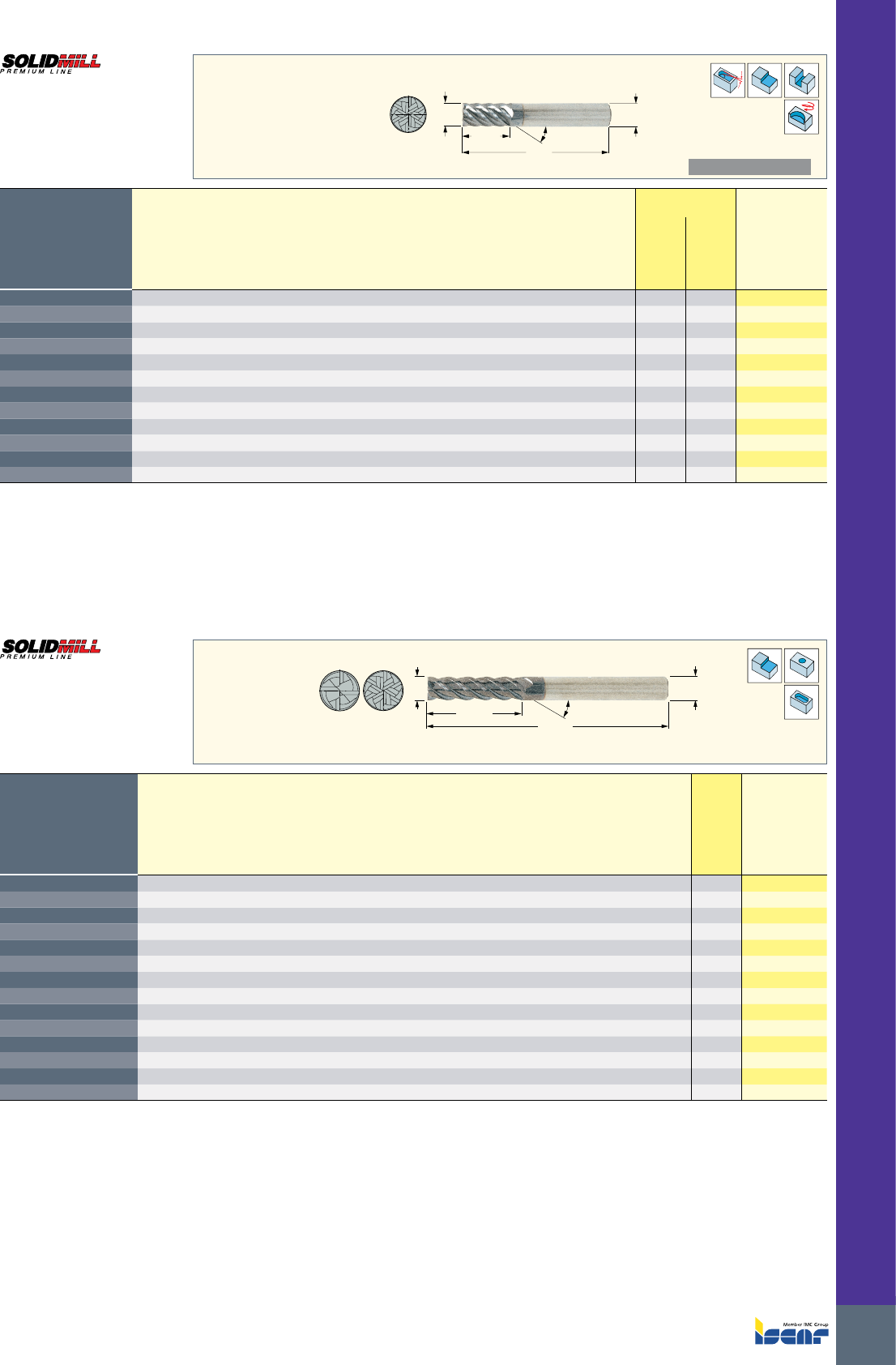

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
FHA
HARD MATERIALS
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2)
IC900
IC903
fz
(mm/t)
ECH060B16-6C06
6.00 6.00 16.00 57.00 6 45.0 C
• •
0.03-0.07
ECH060B16-6W06
6.00 6.00 16.00 57.00 6 45.0 W
•
0.03-0.07
ECH080B20-6C08
8.00 8.00 20.00 63.00 6 45.0 C
• •
0.03-0.09
ECH080B20-6W08
8.00 8.00 20.00 63.00 6 45.0 W
•
0.03-0.09
ECH100B22-6C10
10.00 10.00 22.00 72.00 6 45.0 C
• •
0.03-0.10
ECH100B22-6W10
10.00 10.00 22.00 72.00 6 45.0 W
•
0.03-0.10
ECH120B25-6C12
12.00 12.00 25.00 83.00 6 45.0 C
• •
0.04-0.11
ECH120B25-6W12
12.00 12.00 25.00 83.00 6 45.0 W
•
0.04-0.11
ECH160B32-6C16
16.00 16.00 32.00 92.00 6 45.0 C
• •
0.05-0.13
ECH160B32-6W16
16.00 16.00 32.00 92.00 6 45.0 W
•
0.05-0.13
ECH200B38-6C20
20.00 20.00 38.00 104.00 6 45.0 C
• •
0.05-0.13
ECH200B38-6W20
20.00 20.00 38.00 104.00 6 45.0 W
•
0.05-0.13
• Use IC903 for machining hardened steel up to 65 HRc • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon
ECH-B-6
6 Flute, 45° Helix Medium
Length Solid Carbide
Endmills for Finishing of Hard
Materials up to 65 HRC
DCONMS
APMX
OAL
DC
FHA
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(2) FHA Shank(3)
IC900
fz
(mm/t)
ECL060B24-4C06
6.00 6.00 24.00 65.00 4 45.0 C
•
0.03-0.07
ECL060B24-4W06
6.00 6.00 24.00 65.00 4 45.0 W
•
0.03-0.07
ECL080B32-4C08
8.00 8.00 32.00 79.00 4 45.0 C
•
0.03-0.09
ECL080B32-4W08
8.00 8.00 32.00 79.00 4 45.0 W
•
0.03-0.09
ECL100B40-4C10
10.00 10.00 40.00 100.00 4 45.0 C
•
0.03-0.10
ECL100B40-4W10
10.00 10.00 40.00 100.00 4 45.0 W
•
0.03-0.10
ECL120B48-4C12
12.00 12.00 48.00 100.00 4 45.0 C
•
0.04-0.11
ECL120B48-4W12
12.00 12.00 48.00 100.00 4 45.0 W
•
0.04-0.11
ECL140B50-4C14
14.00 14.00 50.00 100.00 4 45.0 C
•
0.04-0.12
ECL140B50-4W14
14.00 14.00 50.00 100.00 4 45.0 W
•
0.04-0.12
ECL160B56-6C16 (1)
16.00 16.00 56.00 115.00 6 45.0 C
•
0.05-0.13
ECL160B56-6W16 (1)
16.00 16.00 56.00 115.00 6 45.0 W
•
0.05-0.13
ECL200B60-6C20 (1)
20.00 20.00 60.00 125.00 6 45.0 C
•
0.05-0.13
ECL200B60-6W20 (1)
20.00 20.00 60.00 125.00 6 45.0 W
•
0.05-0.13
• Smooth cutting in extra long depth • For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) C-Cylindrical, W-Weldon
ECL-B-4/6
4 & 6 Flute, 45° Helix Long
Solid Carbide Endmills
ISCAR
152

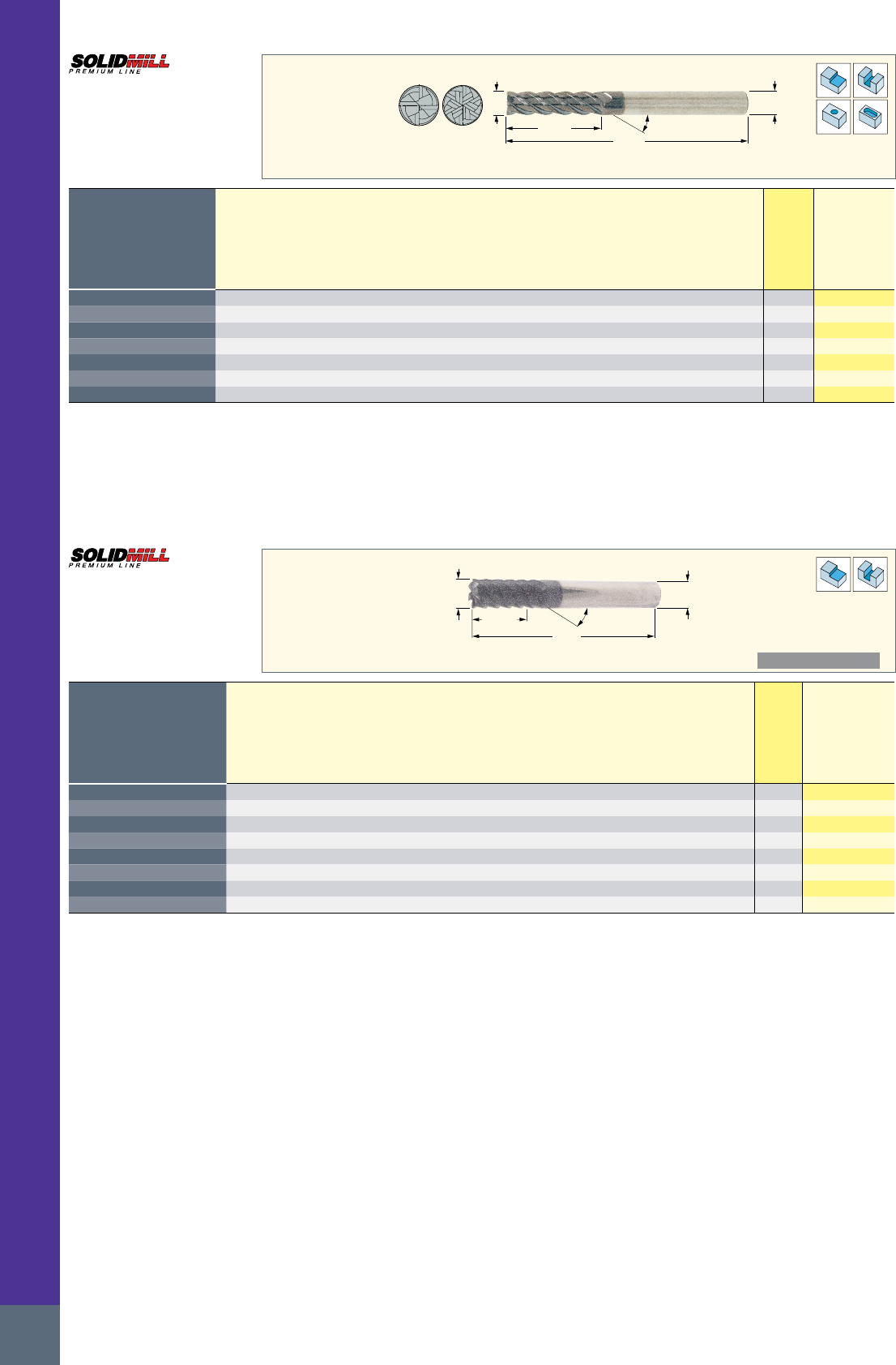

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
APMX
OAL
DC
FHA
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(2) FHA Shank(3)
IC900
fz
(mm/t)
ECXL100B60-4C10
10.00 10.00 60.00 112.00 4 45.0 C
•
0.03-0.10
ECXL100B60-4W10
10.00 10.00 60.00 112.00 4 45.0 W
•
0.03-0.10
ECXL120B72-4C12
12.00 12.00 72.00 150.00 4 45.0 C
•
0.04-0.11
ECXL120B72-4W12
12.00 12.00 72.00 150.00 4 45.0 W
•
0.04-0.11
ECXL160B80-6C16 (1)
16.00 16.00 80.00 150.00 6 45.0 C
•
0.05-0.13
ECXL160B80-6W16 (1)
16.00 16.00 80.00 150.00 6 45.0 W
•
0.05-0.13
ECXL200B80-6C20 (1)
20.00 20.00 80.00 150.00 6 45.0 C
•
0.05-0.13
• Smooth cutting in extra long depth. • For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) C-Cylindrical, W-Weldon
ECXL-B-4/6
4 & 6 Flute, 45° Helix Extra
Long Solid Carbide Endmills
DCONMS
APMX
OAL
DC
FHA
HARD MATERIALS
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RMPX°(3)
IC903
fz
(mm/t)
EC-D6 06-13C06H57
6.00 6.00 13.00 57.00 6 50.0 C 5.0
•
0.03-0.07
EC-D6 08-20C08H63
8.00 8.00 20.00 63.00 6 50.0 C 5.0
•
0.03-0.09
EC-D6 10-22C10H72
10.00 10.00 22.00 72.00 6 50.0 C 5.0
•
0.03-0.10
EC-D6 12-25C12H83
12.00 12.00 25.00 83.00 6 50.0 C 5.0
•
0.04-0.11
EC-D6 12-25W12H83
12.00 12.00 25.00 83.00 6 50.0 W 5.0
•
0.04-0.11
EC-D6 14-30C14H83
14.00 14.00 30.00 83.00 6 50.0 C 5.0
•
0.04-0.12
EC-D6 16-32C16H92
16.00 16.00 32.00 92.00 6 50.0 C 5.0
•
0.05-0.13
EC-D6 20-38C20H104
20.00 20.00 38.00 104.00 6 50.0 C 5.0
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
EC-D6
6 Flute, 50° Helix Medium
Length Solid Carbide
Endmills for Finishing of Hard
Materials up to 65 HRc
153
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
FHA
DN
DCONMS
DC
RE
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX RE DN LU OAL NOF(1) FHA Shank(2)
IC702
fz
(mm/t)
EC-B6 06-06/14C06R.25H50
6.00 6.00 6.00 0.25 5.85 14.00 50.00 6 45.0 C
•
0.03-0.07
EC-B6 06-06/14C06R.5H50
6.00 6.00 6.00 0.50 5.70 14.00 50.00 6 45.0 C
•
0.03-0.07
EC-B6 06-13C06R.5H70
6.00 6.00 13.00 0.50 6.00 - 70.00 6 45.0 C
•
0.03-0.07
EC-B6 06-26C06R.5H70
6.00 6.00 26.00 0.50 6.00 - 70.00 6 45.0 C
•
0.03-0.07
EC-B6 08-08/24C08R.5H60
8.00 8.00 8.00 0.50 7.70 24.00 60.00 6 45.0 C
•
0.03-0.09
EC-B6 08-19C08R.5H90
8.00 8.00 19.00 0.50 8.00 - 90.00 6 45.0 C
•
0.03-0.09
EC-B6 08-36C08R.5H90
8.00 8.00 36.00 0.50 8.00 - 90.00 6 45.0 C
•
0.03-0.09
EC-B6 10-22C10R.5H100
10.00 10.00 22.00 0.50 10.00 - 100.00 6 45.0 C
•
0.03-0.10
EC-B6 10-22C10R1H100
10.00 10.00 22.00 1.00 10.00 - 100.00 6 45.0 C
•
0.03-0.10
EC-B6 10-46C10R1H100
10.00 10.00 46.00 1.00 10.00 - 100.00 6 45.0 C
•
0.03-0.10
EC-B6 12-26C12R.5H110
12.00 12.00 26.00 0.50 12.00 - 110.00 6 45.0 C
•
0.04-0.11
EC-B6 12-26C12R1H110
12.00 12.00 26.00 1.00 12.00 - 110.00 6 45.0 C
•
0.04-0.11
EC-B6 12-56C12R1H110
12.00 12.00 56.00 1.00 12.00 - 110.00 6 45.0 C
•
0.04-0.11
EC-B6 20-38C20R2H140
20.00 20.00 38.00 2.00 20.00 - 140.00 6 45.0 C
•
0.05-0.13
EC-B6 20-76C20R2H140
20.00 20.00 76.00 2.00 20.00 - 140.00 6 45.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EC-B6-H
6 Flute, 45° Helix Extra Long Solid
Carbide Endmills for Finishing of
Hard Materials up to 65 HRC
OAL
APMX FHA
DCONMS
DC
HARD MATERIALS
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2)
IC903
fz
(mm/t)
EC-B6 060-026C06-70
6.00 6.00 26.00 70.00 6 45.0 C
•
0.03-0.07
EC-B6 080-036C08-90
8.00 8.00 36.00 90.00 6 45.0 C
•
0.03-0.09
EC-B6 100-46C10-100
10.00 10.00 46.00 100.00 6 45.0 C
•
0.03-0.10
EC-B6 120-56C12-110
12.00 12.00 56.00 110.00 6 45.0 C
•
0.04-0.11
EC-B6 160-66C16-130
16.00 16.00 66.00 130.00 6 45.0 C
•
0.05-0.13
EC-B6 200-76C20-140
20.00 20.00 76.00 140.00 6 45.0 C
•
0.05-0.13
EC-B6 250-92C25-180
25.00 25.00 92.00 180.00 6 45.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EC-B6
6 Flute, 45° Helix Extra Long Solid
Carbide Endmills for Finishing of
Hard Materials up to 65 HRC
ISCAR
154
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
LU OAL
DC DCONMS
RE
ALUMINUM
Rd°
ECA-H3-CF
Solid Carbide Endmills with
Different Helix, Variable
Pitch and Relieved Neck
for Machining Aluminum
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) LU RMPX°(2) Shank(3) RE
IC1508
IC08
fz
(mm/t)
ECA-H3 01-04C06CF-R.05
1.00 6.00 4.00 57.00 3 6.00 5.0 C 0.05
•
0.01-0.01
ECA-H3 015-04/06C06CF-R01
1.50 6.00 4.00 57.00 3 6.00 5.0 C 0.10
•
0.01-0.01
ECA-H3 02-05/08C06CF-R01
2.00 6.00 5.00 57.00 3 8.00 5.0 C 0.10
•
0.01-0.02
ECA-H3 025-05/08C06CF-R01
2.50 6.00 5.00 57.00 3 8.00 5.0 C 0.10
•
0.01-0.02
ECA-H3 03-07/12C06CF-R01
3.00 6.00 7.00 57.00 3 12.00 5.0 C 0.10
•
0.03-0.05
ECA-H3 04-10/16C06CF-R02
4.00 6.00 10.00 57.00 3 16.00 5.0 C 0.20
•
0.03-0.05
ECA-H3 05-12/20C06CF-R02
5.00 6.00 12.00 57.00 3 20.00 5.0 C 0.20
•
0.03-0.06
ECA-H3 06-09/18C06CF-R02
6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-09/18C06CF-R02D
6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-09/18C06CF-R04
6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.40
•
0.03-0.07
ECA-H3 06-09/18C06CF-R08
6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.80
•
0.03-0.07
ECA-H3 06-09/30C06CF-R02
6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-09/30C06CF-R02D
6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-09/30C06CF-R04
6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.40
•
0.03-0.07
ECA-H3 06-09/30C06CF-R08
6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.80
•
0.03-0.07
ECA-H3 06-12/18C06CF-R02C
6.00 6.00 12.00 57.00 3 18.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-12/30C06CF-R02C
6.00 6.00 12.00 64.00 3 30.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-14/24C06CF-R02
6.00 6.00 14.00 60.00 3 24.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 06-14/24C06CF-R02D
6.00 6.00 14.00 60.00 3 24.00 5.0 C 0.20
•
0.03-0.07
ECA-H3 08-12/24C08CF-R02
8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-12/24C08CF-R02D
8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-12/24C08CF-R04
8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.40
•
0.03-0.09
ECA-H3 08-12/24C08CF-R08
8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.80
•
0.03-0.09
ECA-H3 08-12/24C08CF-R30
8.00 8.00 12.00 63.00 3 24.00 5.0 C 3.00
•
0.03-0.09
ECA-H3 08-12/40C08CF-R02
8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-12/40C08CF-R02D
8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-12/40C08CF-R04
8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.40
•
0.03-0.09
ECA-H3 08-12/40C08CF-R08
8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.80
•
0.03-0.09
ECA-H3 08-16/24C08CF-R02C
8.00 8.00 16.00 63.00 3 24.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-16/40C08CF-R02C
8.00 8.00 16.00 78.00 3 40.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-18/32C08CF-R02
8.00 8.00 18.00 68.00 3 32.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 08-18/32C08CF-R02D
8.00 8.00 18.00 68.00 3 32.00 5.0 C 0.20
•
0.03-0.09
ECA-H3 10-15/30C10CF-R02
10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-15/30C10CF-R02D
10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-15/30C10CF-R04
10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.40
•
0.03-0.10
ECA-H3 10-15/30C10CF-R08
10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.80
•
0.03-0.10
ECA-H3 10-15/30C10CF-R16
10.00 10.00 15.00 72.00 3 30.00 5.0 C 1.60
•
0.03-0.10
ECA-H3 10-15/30C10CF-R30
10.00 10.00 15.00 72.00 3 30.00 5.0 C 3.00
•
0.03-0.10
ECA-H3 10-15/50C10CF-R02
10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-15/50C10CF-R02D
10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-15/50C10CF-R04
10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.40
•
0.03-0.10
ECA-H3 10-15/50C10CF-R08
10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.80
•
0.03-0.10
ECA-H3 10-15/50C10CF-R16
10.00 10.00 15.00 92.00 3 50.00 5.0 C 1.60
•
0.03-0.10
ECA-H3 10-15/50C10CF-R20
10.00 10.00 15.00 92.00 3 50.00 5.0 C 2.00
•
0.03-0.10
ECA-H3 10-15/50C10CF-R30
10.00 10.00 15.00 92.00 3 50.00 5.0 C 3.00
•
0.03-0.10
ECA-H3 10-20/30C10CF-R02C
10.00 10.00 20.00 72.00 3 30.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-20/50C10CF-R02C
10.00 10.00 20.00 100.00 3 50.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-22/40C10CF-R02
10.00 10.00 22.00 80.00 3 40.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-22/40C10CF-R02D
10.00 10.00 22.00 80.00 3 40.00 5.0 C 0.20
•
0.03-0.10
ECA-H3 10-22/40C10CF-R30
10.00 10.00 22.00 80.00 3 40.00 5.0 C 3.00
•
0.03-0.10
ECA-H3 12-18/36C12CF-R02
12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-18/36C12CF-R02D
12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-18/36C12CF-R04
12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.40
•
0.04-0.11
ECA-H3 12-18/36C12CF-R08
12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.80
•
0.04-0.11
ECA-H3 12-18/36C12CF-R16
12.00 12.00 18.00 83.00 3 36.00 5.0 C 1.60
•
0.04-0.11
155
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
LU OAL
DC DCONMS
RE
ALUMINUM
Rd°
ECA-H3-CF
Solid Carbide Endmills with
Different Helix, Variable
Pitch and Relieved Neck
for Machining Aluminum
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) LU RMPX°(2) Shank(3) RE
IC1508
IC08
fz
(mm/t)
ECA-H3 12-18/36C12CF-R20
12.00 12.00 18.00 83.00 3 36.00 5.0 C 2.00
•
0.04-0.11
ECA-H3 12-18/36C12CF-R25
12.00 12.00 18.00 83.00 3 36.00 5.0 C 2.50
•
0.04-0.11
ECA-H3 12-18/36C12CF-R30
12.00 12.00 18.00 83.00 3 36.00 5.0 C 3.00
•
0.04-0.11
ECA-H3 12-18/60C12CF-R02
12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-18/60C12CF-R02D
12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-18/60C12CF-R04
12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.40
•
0.04-0.11
ECA-H3 12-18/60C12CF-R08
12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.80
•
0.04-0.11
ECA-H3 12-18/60C12CF-R16
12.00 12.00 18.00 100.00 3 60.00 5.0 C 1.60
•
0.04-0.11
ECA-H3 12-18/60C12CF-R20
12.00 12.00 18.00 100.00 3 60.00 5.0 C 2.00
•
0.04-0.11
ECA-H3 12-18/60C12CF-R25
12.00 12.00 18.00 100.00 3 60.00 5.0 C 2.50
•
0.04-0.11
ECA-H3 12-18/60C12CF-R30
12.00 12.00 18.00 100.00 3 60.00 5.0 C 3.00
•
0.04-0.11
ECA-H3 12-24/36C12CF-R02C
12.00 12.00 24.00 83.00 3 36.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-24/60C12CF-R02C
12.00 12.00 24.00 100.00 3 60.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-26/48C12CF-R02
12.00 12.00 26.00 93.00 3 48.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 12-26/48C12CF-R02D
12.00 12.00 26.00 93.00 3 48.00 5.0 C 0.20
•
0.04-0.11
ECA-H3 16-24/48C16CF-R02
16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-24/48C16CF-R02D
16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-24/48C16CF-R04
16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.40
•
0.05-0.13
ECA-H3 16-24/48C16CF-R08
16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.80
•
0.05-0.13
ECA-H3 16-24/48C16CF-R16
16.00 16.00 24.00 92.00 3 48.00 5.0 C 1.60
•
0.05-0.13
ECA-H3 16-24/48C16CF-R20
16.00 16.00 24.00 92.00 3 48.00 5.0 C 2.00
•
0.05-0.13
ECA-H3 16-24/48C16CF-R25
16.00 16.00 24.00 92.00 3 48.00 5.0 C 2.50
•
0.05-0.13
ECA-H3 16-24/48C16CF-R30
16.00 16.00 24.00 92.00 3 48.00 5.0 C 3.00
•
0.05-0.13
ECA-H3 16-24/48C16CF-R32
16.00 16.00 24.00 92.00 3 48.00 5.0 C 3.20
•
0.05-0.13
ECA-H3 16-24/48C16CF-R40
16.00 16.00 24.00 92.00 3 48.00 5.0 C 4.00
•
0.05-0.13
ECA-H3 16-24/48C16CF-R50
16.00 16.00 24.00 92.00 3 48.00 5.0 C 5.00
•
0.05-0.13
ECA-H3 16-24/80C16CF-R02
16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-24/80C16CF-R04
16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.40
•
0.05-0.13
ECA-H3 16-24/80C16CF-R08
16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.80
•
0.05-0.13
ECA-H3 16-24/80C16CF-R16
16.00 16.00 24.00 128.00 3 80.00 5.0 C 1.60
•
0.05-0.13
ECA-H3 16-24/80C16CF-R20
16.00 16.00 24.00 128.00 3 80.00 5.0 C 2.00
•
0.05-0.13
ECA-H3 16-24/80C16CF-R25
16.00 16.00 24.00 128.00 3 80.00 5.0 C 2.50
•
0.05-0.13
ECA-H3 16-24/80C16CF-R30
16.00 16.00 24.00 128.00 3 80.00 5.0 C 3.00
•
0.05-0.13
ECA-H3 16-24/80C16CF-R32
16.00 16.00 24.00 128.00 3 80.00 5.0 C 3.20
•
0.05-0.13
ECA-H3 16-24/80C16CF-R40
16.00 16.00 24.00 128.00 3 80.00 5.0 C 4.00
•
0.05-0.13
ECA-H3 16-24/80C16CF-R50
16.00 16.00 24.00 128.00 3 80.00 5.0 C 5.00
•
0.05-0.13
ECA-H3 16-32/48C16CF-R02C
16.00 16.00 32.00 92.00 3 48.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-32/80C16CF-R02C
16.00 16.00 32.00 127.00 3 80.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-34/64C16CF-R02
16.00 16.00 34.00 115.00 3 64.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 16-34/64C16CF-R02D
16.00 16.00 34.00 115.00 3 64.00 5.0 C 0.20
•
0.05-0.13
ECA-H3 20-30/100C20CF-R02
20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.20
•
0.05-0.14
ECA-H3 20-30/100C20CF-R04
20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.40
•
0.05-0.14
ECA-H3 20-30/100C20CF-R08
20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.80
•
0.05-0.14
ECA-H3 20-30/100C20CF-R32
20.00 20.00 30.00 150.00 3 100.00 5.0 C 3.20
•
0.05-0.14
ECA-H3 20-30/100C20CF-R40
20.00 20.00 30.00 150.00 3 100.00 5.0 C 4.00
•
0.05-0.14
ECA-H3 20-30/100C20CF-R50
20.00 20.00 30.00 150.00 3 100.00 5.0 C 5.00
•
0.05-0.14
ECA-H3 20-30/60C20CF-R02
20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.20
•
0.05-0.14
ECA-H3 20-30/60C20CF-R02D
20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.20
•
0.05-0.14
ECA-H3 20-30/60C20CF-R04
20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.40
•
0.05-0.14
ECA-H3 20-30/60C20CF-R08
20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.80
•
0.05-0.14
ECA-H3 20-30/60C20CF-R16
20.00 20.00 30.00 110.00 3 60.00 5.0 C 1.60
•
0.05-0.14
ECA-H3 20-30/60C20CF-R20
20.00 20.00 30.00 110.00 3 60.00 5.0 C 2.00
•
0.05-0.14
ECA-H3 20-30/60C20CF-R32
20.00 20.00 30.00 110.00 3 60.00 5.0 C 3.20
•
0.05-0.14
ECA-H3 20-30/60C20CF-R40
20.00 20.00 30.00 110.00 3 60.00 5.0 C 4.00
•
0.05-0.14
ECA-H3 20-30/60C20CF-R50
20.00 20.00 30.00 110.00 3 60.00 5.0 C 5.00
•
0.05-0.14
ECA-H3 20-40/60C20CF-R02C
20.00 20.00 40.00 109.00 3 60.00 5.0 C 0.20
•
0.05-0.14
(continued)
ISCAR
156
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
LU OAL
DC DCONMS
RE
ALUMINUM
Rd°
ECA-H3-CF
Solid Carbide Endmills with
Different Helix, Variable
Pitch and Relieved Neck
for Machining Aluminum
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) LU RMPX°(2) Shank(3) RE
IC1508
IC08
fz
(mm/t)
ECA-H3 20-42/80C20CF-R02
20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20
•
0.05-0.14
ECA-H3 20-42/80C20CF-R02D
20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20
•
0.05-0.14
ECA-H320-40/100C20CF-R02C
20.00 20.00 40.00 149.00 3 100.00 5.0 C 0.20
•
0.05-0.14
ECA-H3 25-38/125C25CF-R02
25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.20
•
0.05-0.15
ECA-H3 25-38/125C25CF-R08
25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.80
•
0.05-0.15
ECA-H3 25-38/125C25CF-R16
25.00 25.00 38.00 185.00 3 125.00 5.0 C 1.60
•
0.05-0.15
ECA-H3 25-38/125C25CF-R20
25.00 25.00 38.00 185.00 3 125.00 5.0 C 2.00
•
0.05-0.15
ECA-H3 25-38/125C25CF-R40
25.00 25.00 38.00 185.00 3 125.00 5.0 C 4.00
•
0.05-0.15
ECA-H3 25-38/125C25CF-R50
25.00 25.00 38.00 185.00 3 125.00 5.0 C 5.00
•
0.05-0.15
ECA-H3 25-38/75C25CF-R02
25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.20
•
0.05-0.15
ECA-H3 25-38/75C25CF-R04
25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.40
•
0.05-0.15
ECA-H3 25-38/75C25CF-R16
25.00 25.00 38.00 130.00 3 75.00 5.0 C 1.60
•
0.05-0.15
ECA-H3 25-38/75C25CF-R20
25.00 25.00 38.00 130.00 3 75.00 5.0 C 2.00
•
0.05-0.15
ECA-H3 25-38/75C25CF-R32
25.00 25.00 38.00 130.00 3 75.00 5.0 C 3.20
•
0.05-0.15
ECA-H3 25-38/75C25CF-R50
25.00 25.00 38.00 130.00 3 75.00 5.0 C 5.00
•
0.05-0.15
ECA-H3 25-50/75C25CF-R02C
25.00 25.00 50.00 128.00 3 75.00 5.0 C 0.20
•
0.05-0.15
ECA-H3 25-52/100C25CF-R02
25.00 25.00 52.00 156.00 3 100.00 5.0 C 0.20
•
0.05-0.15
ECA-H325-50/125C25CF-R02C
25.00 25.00 50.00 183.00 3 125.00 5.0 C 0.20
•
0.05-0.15
APMX LU OAL
DC DCONMS
RE
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC APMX LU OAL DCONMS RE NOF(1) RMPX°(2) Shank(3)
IC08
fz
(mm/t)
ECA-H4 06-09/30C06CFR02
6.00 9.00 30.00 65.00 6.00 0.20 4 5.0 C
•
0.03-0.07
ECA-H4 06-12/18C06CFR02
6.00 12.00 18.00 57.00 6.00 0.20 4 5.0 C
•
0.03-0.07
ECA-H4 08-12/40C08CFR02
8.00 12.00 40.00 79.00 8.00 0.20 4 5.0 C
•
0.03-0.09
ECA-H4 08-16/24C08CFR02
8.00 16.00 24.00 63.00 8.00 0.20 4 5.0 C
•
0.03-0.09
ECA-H4 10-15/50C10CFR02
10.00 15.00 50.00 92.00 10.00 0.20 4 5.0 C
•
0.04-0.10
ECA-H4 10-20/30C10CFR02
10.00 20.00 30.00 72.00 10.00 0.20 4 5.0 C
•
0.04-0.10
ECA-H4 12-18/60C12CFR02
12.00 18.00 60.00 100.00 12.00 0.20 4 5.0 C
•
0.04-0.11
ECA-H4 12-24/36C12CFR02
12.00 24.00 36.00 83.00 12.00 0.20 4 5.0 C
•
0.04-0.11
ECA-H4 16-24/80C16CFR02
16.00 24.00 80.00 128.00 16.00 0.20 4 5.0 C
•
0.05-0.13
ECA-H4 16-32/48C16CFR02
16.00 32.00 48.00 100.00 16.00 0.20 4 5.0 C
•
0.05-0.13
ECA-H4 20-30/100C20CFR02
20.00 30.00 100.00 150.00 20.00 0.20 4 5.0 C
•
0.05-0.14
ECA-H4 20-40/60C20CFR02
20.00 40.00 60.00 110.00 20.00 0.20 4 5.0 C
•
0.05-0.14
ECA-H4 25-38/125C25CFR02
25.00 38.00 125.00 185.00 25.00 0.20 4 5.0 C
•
0.08-0.14
ECA-H4 25-50/75C25CFR02
25.00 50.00 75.00 130.00 25.00 0.20 4 5.0 C
•
0.08-0.14
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ECA-H4-CF
Solid Carbide Endmills with
Different Helix and Long Neck
Relief for Machining Aluminum
(continued)
157
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
RE APMX
OAL
LU
DCONMS
RE
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC APMX LU OAL DCONMS RE NOF(1) RMPX°(2) Shank(3)
IC08
fz
(mm/t)
ECAP-H3 10-15/50C10CFR02C
10.00 15.00 50.0 92.00 10.00 0.20 3 5.0 C
•
0.03-0.10
ECAP-H3 10-22/40C10CFR02C
10.00 22.00 40.0 80.00 10.00 0.20 3 5.0 C
•
0.03-0.10
ECAP-H3 12-18/60C12CFR02C
12.00 18.00 60.0 100.00 12.00 0.20 3 5.0 C
•
0.04-0.11
ECAP-H3 12-26/48C12CFR02C
12.00 26.00 48.0 93.00 12.00 0.20 3 5.0 C
•
0.04-0.11
ECAP-H3 16-24/80C16CFR02C
16.00 24.00 80.0 128.00 16.00 0.20 3 5.0 C
•
0.05-0.13
ECAP-H3 16-34/64C16CFR02C
16.00 34.00 64.0 115.00 16.00 0.20 3 5.0 C
•
0.05-0.13
ECAP-H320-30/100C20CFR02C
20.00 30.00 100.0 150.00 20.00 0.20 3 5.0 C
•
0.05-0.14
ECAP-H3 20-42/80C20CFR02C
20.00 42.00 80.0 130.00 20.00 0.20 3 5.0 C
•
0.05-0.14
ECAP-H325-38/125C25CFR02C
25.00 38.00 125.0 185.00 25.00 0.20 3 5.0 C
•
0.05-0.14
ECAP-H325-52/100C25CFR02C
25.00 52.00 100.0 158.00 25.00 0.20 3 5.0 C
•
0.05-0.14
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ECAP-H3-CF
Solid Carbide Endmills with
Different Helix, Variable Pitch,
Chip Splitters and Coolant
Holes for Machining Aluminum
APMX
OAL
DCONMS
DC
CHW x 45°
LU
FHA
ALUMINUM
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX LU OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH
IC1508
IC08
IC300
fz
(mm/t)
ERC060E13-3C06
6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.50 45.0
•
0.03-0.07
ERC060E13-3C06CH05DA57
6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.50 45.0
•
0.03-0.07
ERC060E13-3W06
6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 W 0.50 45.0
• •
0.03-0.07
ERC080E20-3C08
8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.50 45.0
•
0.03-0.15
ERC080E20-3C08CH05DA63
8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.50 45.0
•
0.03-0.15
ERC080E20-3W08
8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 W 0.50 45.0
• •
0.03-0.15
ERC100E22-3C10
10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 C 0.60 45.0
•
0.05-0.20
ERC100E22-3C10CH06DA72
10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 C 0.60 45.0
•
0.05-0.20
ERC100E22-3W10
10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 W 0.60 45.0
• •
0.05-0.20
ERC120E25-3C12
12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 C 0.60 45.0
•
0.07-0.22
ERC120E25-3C12CH06DA83
12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 C 0.60 45.0
•
0.07-0.22
ERC120E25-3W12
12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 45.0
• •
0.07-0.22
ERC140E25-3W14
14.00 14.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 45.0
•
0.07-0.22
ERC160E32-3C16
16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 C 0.60 45.0
•
0.07-0.25
ERC160E32-3C16CH06DA92
16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 C 0.60 45.0
•
0.07-0.25
ERC160E32-3W16
16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 45.0
• •
0.07-0.25
ERC180E32-3W18
18.00 18.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 45.0
•
0.07-0.25
ERC200E38-3C20
20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 C 0.70 45.0
•
0.07-0.25
ERC200E38-3W20
20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 W 0.70 45.0
• •
0.07-0.25
ERC250E45-3C25
25.00 25.00 45.00 64.00 121.00 3 38.0 5.0 C 0.70 45.0
•
0.07-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ERC-E-3
3 Flute, 38° Helix Medium
Length Solid Carbide Roughing
Endmills with 3xD Relieved
Necks for Machining Aluminum
ISCAR
158

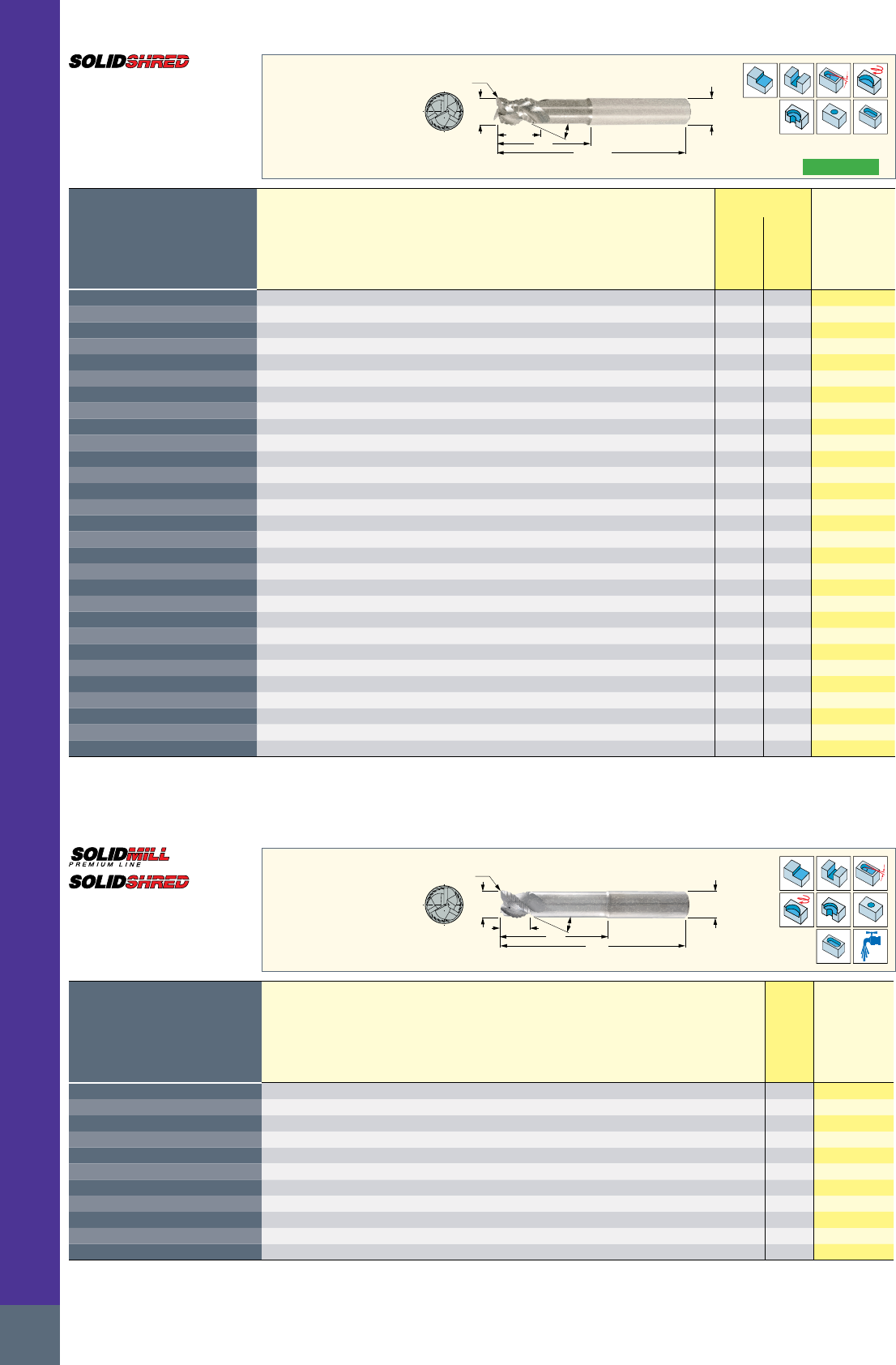

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC
RE
APMX
OAL
LU
DCONMS
FHA
ALUMINUM
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS LU OAL NOF(1) FHA RMPX°(2) APMX Shank(3) RE
IC1508
IC08
fz
(mm/t)
ECR-B3 06-09/21C06R02A57
6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20
•
0.03-0.07
ECR-B3 06-09/21C06R02DA57
6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20
•
0.03-0.07
ECR-B3 06-09/21W06R02A57
6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 W 0.20
•
0.03-0.07
ECR-B3 06-09/30C06R02A65
6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 C 0.20
•
0.03-0.07
ECR-B3 06-09/30W06R02A65
6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 W 0.20
•
0.03-0.07
ECR-B3 08-12/27C08R02A63
8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20
•
0.03-0.15
ECR-B3 08-12/27C08R02DA63
8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20
•
0.03-0.15
ECR-B3 08-12/27W08R02A63
8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 W 0.20
•
0.03-0.15
ECR-B3 08-12/40C08R02A78
8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 C 0.20
•
0.03-0.15
ECR-B3 08-12/40W08R02A78
8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 W 0.20
•
0.03-0.15
ECR-B3 10-12/31C10R02A72
10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20
•
0.05-0.20
ECR-B3 10-12/31C10R02DA72
10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20
•
0.05-0.20
ECR-B3 10-12/31W10R02A72
10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 W 0.20
•
0.05-0.20
ECR-B3 10-12/50C10R02A100
10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 C 0.20
•
0.05-0.20
ECR-B3 10-12/50W10R02A100
10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 W 0.20
•
0.05-0.20
ECR-B3 12-12/37C12R02A83
12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20
•
0.07-0.22
ECR-B3 12-12/37C12R02DA83
12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20
•
0.07-0.22
ECR-B3 12-12/37W12R02A83
12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 W 0.20
•
0.07-0.22
ECR-B3 12-14/55C12R02A100
12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 C 0.20
•
0.07-0.22
ECR-B3 12-14/55W12R02A100
12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 W 0.20
•
0.07-0.22
ECR-B3 16-14/43C16R02A92
16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20
•
0.07-0.25
ECR-B3 16-14/43C16R02DA92
16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20
•
0.07-0.25
ECR-B3 16-14/43W16R02A92
16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 W 0.20
•
0.07-0.25
ECR-B3 16-18/80C16R02A150
16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 C 0.20
•
0.07-0.25
ECR-B3 16-18/80W16R02A150
16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 W 0.20
•
0.07-0.25
ECR-B3 20-17/53C20R02A104
20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 C 0.20
•
0.07-0.25
ECR-B3 20-17/53W20R02A104
20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 W 0.20
•
0.07-0.25
ECR-B3 20-22/80C20R02A150
20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 C 0.20
•
0.07-0.25
ECR-B3 20-22/80W20R02A150
20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 W 0.20
•
0.07-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECR-B3-R
3 Flute, 45° Helix Solid Carbide
Roughing Endmills with 3xD
Relieved Necks for High Stock
Removal Rates of Aluminum
APMX
DC
RE
OAL
LH
DCONMS
FHA
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS LH OAL NOF(1) FHA RMPX°(2) APMX Shank(3) RE
IC08
fz
(mm/t)
ECR-B3 08-12/41C08R02A83C
8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20
•
0.05-0.15
ECR-B3 08-12/41C08R20A83C
8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00
•
0.05-0.15
ECR-B3 10-12/41C10R.2A83C
10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20
•
0.07-0.20
ECR-B3 10-12/41C10R20A83C
10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00
•
0.07-0.20
ECR-B3 12-12/41C12R.2A87C
12.00 12.00 41.0 87.00 3 45.0 20.0 12.00 C 0.20
•
0.10-0.22
ECR-B3 16-14/60C16R2A109C
16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 2.00
•
0.10-0.25
ECR-B316-14/60C16R.2A109C
16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 0.20
•
0.10-0.25
ECR-B316-14/60C16R40A109C
16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 4.00
•
0.10-0.25
ECR-B320-17/60C20R40A111C
20.00 20.00 60.0 111.00 3 45.0 20.0 17.00 C 4.00
•
0.10-0.25
ECR-B320-30/100C25R4A150C
20.00 20.00 100.0 150.00 3 45.0 20.0 30.00 C 4.00
•
0.10-0.25
ECR-B325-25/74C25R40A130C
25.00 25.00 74.0 130.00 3 45.0 20.0 25.00 C 4.00
•
0.10-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ECR-B3-R-C
3 Flute, 45° Helix Solid Carbide
Roughing Endmills with 3xD
Relieved Necks and Coolant
Channels for Aluminum
159
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
APMX
DC
FHA
OAL
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
fz
(mm/t)
ECA040B12-2C06
4.00 6.00 12.00 57.00 2 45.0 5.0 C
•
0.02-0.05
ECA050B14-2C06
5.00 6.00 14.00 57.00 2 45.0 5.0 C
•
0.02-0.06
ECA060B16-2C06
6.00 6.00 16.00 57.00 2 45.0 5.0 C
•
0.03-0.07
ECA080B20-2C08
8.00 8.00 20.00 63.00 2 45.0 5.0 C
•
0.03-0.09
ECA100B22-2C10
10.00 10.00 22.00 72.00 2 45.0 5.0 C
•
0.03-0.10
ECA120B25-2C12
12.00 12.00 25.00 83.00 2 45.0 5.0 C
•
0.04-0.11
ECA160B32-2C16
16.00 16.00 32.00 92.00 2 45.0 5.0 C
•
0.05-0.13
ECA200B38-2C20
20.00 20.00 38.00 104.00 2 45.0 5.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ECA-B-2
2 Flute, 45° Helix Medium
Length Solid Carbide Endmills
for Machining Aluminum
OAL
LU
LH
APMX
DN
DCONMSh6
DCe8
FHA
Dimensions
Designation
DC DCONMS APMX OAL LU LH DN NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4)
IC08
EBA-B2 010-010/02C6-57
1.00 6.00 1.00 57.00 2.0 12.0 0.95 2 45.0 C 0.000 0.004
•
EBA-B2 020-020/04C6-57
2.00 6.00 2.00 57.00 4.0 12.0 1.80 2 45.0 C 0.000 0.005
•
EBA-B2 030-030/06C6-57
3.00 6.00 3.00 57.00 6.0 12.0 2.70 2 45.0 C -0.010 0.010
•
EBA-B2 040-040/08C6-57
4.00 6.00 4.00 57.00 8.0 12.0 3.70 2 45.0 C -0.010 0.010
•
EBA-B2 050-050/10C6-57
5.00 6.00 5.00 57.00 10.0 12.0 4.70 2 45.0 C -0.010 0.010
•
EBA-B2 060-060/12C6-57
6.00 6.00 6.00 57.00 12.0 13.0 5.50 2 45.0 C -0.010 0.010
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
EBA-B2
2 Flute High Precision Solid
Carbide Ball Nose Endmills
for Machining Aluminum
ISCAR
160
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
RE
15°
FHA
ALUMINUM
Rd°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) RE
IC1508
IC08
fz
(mm/t)
ECA-B-3 04-12C06-57
4.00 6.00 12.00 57.00 3 45.0 5.0 C 0.10
•
0.02-0.05
ECA-B-3 04-12C06-57 R02D
4.00 6.00 12.00 57.00 3 45.0 5.0 C 0.20
•
0.02-0.05
ECA-B-3 04-12W06-57
4.00 6.00 12.00 57.00 3 45.0 5.0 W 0.10
•
0.02-0.05
ECA-B-3 05-14C06-57
5.00 6.00 14.00 57.00 3 45.0 5.0 C 0.20
•
0.02-0.06
ECA-B-3 05-14C06-57 R02D
5.00 6.00 14.00 57.00 3 45.0 5.0 C 0.20
•
0.02-0.06
ECA-B-3 05-14W06-57
5.00 6.00 14.00 57.00 3 45.0 5.0 W 0.20
•
0.02-0.06
ECA-B-3 06-16C06-57
6.00 6.00 16.00 57.00 3 45.0 5.0 C 0.20
•
0.03-0.07
ECA-B-3 06-16C06-57 R02D
6.00 6.00 16.00 57.00 3 45.0 5.0 C 0.20
•
0.03-0.07
ECA-B-3 06-16W06-57
6.00 6.00 16.00 57.00 3 45.0 5.0 W 0.20
•
0.03-0.07
ECA-B-3 08-20C08-63
8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.20
•
0.03-0.09
ECA-B-3 08-20C08-63 R02D
8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.20
•
0.03-0.09
ECA-B-3 08-20C08R3-63
8.00 8.00 20.00 63.00 3 45.0 5.0 C 3.00
•
0.03-0.09
ECA-B-3 08-20W08-63
8.00 8.00 20.00 63.00 3 45.0 5.0 W 0.20
•
0.03-0.09
ECA-B-3 10-22C10-72
10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.20
•
0.03-0.10
ECA-B-3 10-22C10-72 R02D
10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.20
•
0.03-0.10
ECA-B-3 10-22W10-72
10.00 10.00 22.00 72.00 3 45.0 5.0 W 0.20
•
0.03-0.10
ECA-B-3 10-25C10R3-72
10.00 10.00 25.00 72.00 3 45.0 5.0 C 3.00
•
0.03-0.10
ECA-B-3 10-25C10R4-72
10.00 10.00 25.00 72.00 3 45.0 5.0 C 4.00
•
0.03-0.10
ECA-B-3 12-25C12-83
12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.20
•
0.04-0.11
ECA-B-3 12-25C12-83 R02D
12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.20
•
0.04-0.11
ECA-B-3 12-25W12-83
12.00 12.00 25.00 83.00 3 45.0 5.0 W 0.20
•
0.04-0.11
ECA-B-3 12-30C12R3-83
12.00 12.00 30.00 83.00 3 45.0 5.0 C 3.00
•
0.04-0.11
ECA-B-3 12-30C12R4-83
12.00 12.00 30.00 83.00 3 45.0 5.0 C 4.00
•
0.04-0.11
ECA-B-3 14-30C14-83
14.00 14.00 30.00 83.00 3 45.0 5.0 C 0.20
•
0.04-0.12
ECA-B-3 14-30W14-83
14.00 14.00 30.00 83.00 3 45.0 5.0 W 0.20
•
0.04-0.12
ECA-B-3 16-32C16-92
16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.20
•
0.05-0.13
ECA-B-3 16-32C16-92 R02D
16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.20
•
0.05-0.13
ECA-B-3 16-32W16-92
16.00 16.00 32.00 92.00 3 45.0 5.0 W 0.20
•
0.05-0.13
ECA-B-3 20-38C20-104
20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.20
•
0.05-0.13
ECA-B-3 20-38C20-104 R02D
20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.20
•
0.05-0.13
ECA-B-3 20-38W20-104
20.00 20.00 38.00 104.00 3 45.0 5.0 W 0.20
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
ECA-B-3
3 Flute, 45° Helix Medium
Length Solid Carbide Endmills
for Machining Aluminum
DCONMS
APMX
OAL
DC
FHA
ALUMINUM
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3)
IC08
fz
(mm/t)
ECA040F11-2C04
4.00 4.00 11.00 50.00 2 55.0 5.0 C
•
0.02-0.05
ECA060F13-2C06
6.00 6.00 13.00 57.00 2 55.0 5.0 C
•
0.03-0.07
ECA080F20-2C08
8.00 8.00 20.00 63.00 2 55.0 5.0 C
•
0.03-0.09
ECA100F22-2C10
10.00 10.00 22.00 72.00 2 55.0 5.0 C
•
0.03-0.10
ECA120F25-2C12
12.00 12.00 25.00 83.00 2 55.0 5.0 C
•
0.04-0.11
ECA160F32-2C16
16.00 16.00 32.00 92.00 2 55.0 5.0 C
•
0.05-0.13
ECA200F38-2C20
20.00 20.00 38.00 104.00 2 55.0 5.0 C
•
0.05-0.13
ECA250F45-2C25
25.00 25.00 45.00 121.00 2 55.0 5.0 C
•
0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
ECA-F-2
2 Flute, 55° Helix Medium
Length Solid Carbide Endmills
for Machining Aluminum
161
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
FHA
OAL
APMX
DC
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(2) FHA Shank(3)
IC02
fz
(mm/t)
EPN-F10 03-12C03F55
3.00 3.00 12.00 55.00 10 15.0 C
•
0.01-0.02
EPN-F10 04-16C04F55
4.00 4.00 16.00 55.00 10 15.0 C
•
0.01-0.02
EPN-F10 06-19C06F57
6.00 6.00 19.00 57.00 10 15.0 C
•
0.02-0.03
EPNF060S15-3L/9C06F57 (1)
6.00 6.00 15.00 57.00 9 15.0 C
•
0.02-0.04
EPN-F12 08-25C08F63
8.00 8.00 25.00 63.00 12 15.0 C
•
0.02-0.03
EPNF080S25-3L/10C8F72 (1)
8.00 8.00 25.00 72.00 10 15.0 C
•
0.02-0.04
EPN-F12 10-25C10F72
10.00 10.00 25.00 72.00 12 15.0 C
•
0.02-0.03
EPNF100S25-3L/12C10F72 (1)
10.00 10.00 25.00 72.00 12 15.0 C
•
0.02-0.04
EPN-F12 12-25C12F83
12.00 12.00 25.00 83.00 12 15.0 C
•
0.02-0.03
• Coated tools available on request • For user guide, see pages 177-184
(1) Deep chip gullets for eliminating chip jamming.
(2) Number of flutes
(3) C-Cylindrical
EPN-F
Solid Endmills with a Special
Edge Configuration for
Machining Different Types
of Composite Materials
DC
OAL
APMX
DCONMS
Rd°
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) RMPX°(2) Shank(3)
IC02
fz
(mm/t)
EPNC-C10 08-25C08F63
8.00 8.00 25.00 63.00 10 5.0 C
•
0.02-0.08
EPNC-C10 10-25C10F72
10.00 10.00 25.00 72.00 10 5.0 C
•
0.02-0.08
EPNC-C10 12-25C12F83
12.00 12.00 25.00 83.00 10 5.0 C
•
0.02-0.08
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
EPNC
Solid Carbide Endmill with
Special Cutting Edges, for
Machining Different Types
of Composite Materials
DC 140°
OAL
APMX
DCONMS
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL NOF(1) Shank(2)
IC02
fz
(mm/t)
EPND-C6 016-5C03F55
1.60 3.00 5.00 55.00 6 C
•
0.0050-0.0100
EPND-C6 024-10C03F55
2.40 3.00 10.00 55.00 6 C
•
0.0050-0.0100
EPND-C8 03-12C03F55
3.00 3.00 12.00 55.00 8 C
•
0.0050-0.0120
EPND-C8 04-16C04F60
4.00 4.00 16.00 60.00 8 C
•
0.0050-0.0120
EPND-C10 06-19C06F65
6.00 6.00 19.00 65.00 10 C
•
0.0200-0.0800
EPND-C10 08-25C08F63
8.00 8.00 25.00 63.00 10 C
•
0.0200-0.0800
EPND-C10 10-25C10F72
10.00 10.00 25.00 72.00 10 C
•
0.0200-0.0800
EPND-C10 12-25C12F83
12.00 12.00 25.00 83.00 10 C
•
0.0200-0.0800
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EPND
Solid Carbide Endmills with
Special Cutting Edges, also
for Drill Mill Operation
ISCAR
162
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
APMX_2
APMX
DC
FHA
FHA
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX APMX_2 OAL NOF(1) FHA Shank(2)
IC02
fz
(mm/t)
EPX-F6 06-12C06F57
6.00 6.00 12.00 5.30 57.00 6 30.0 C
•
0.02-0.06
EPX-F6 08-16C08F63
8.00 8.00 16.00 6.60 63.00 6 30.0 C
•
0.02-0.06
EPX-F6 10-20C10F72
10.00 10.00 20.00 8.70 72.00 6 30.0 C
•
0.02-0.06
EPX-F8 12-24C12F83
12.00 12.00 24.00 10.60 83.00 8 30.0 C
•
0.02-0.06
• Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height
• Coated tools available on request • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EPX
Solid Carbide Endmills with
Right- and Left-Hand Helix
Flutes Changing Direction
at Mid Cutting Heights
163
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
FHA
APMX
α#β#λ
α
β
λ
DCe8 DCONMSh6
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC902
EB-H3 06-12C06CFH57
6.00 6.00 12.00 57.00 3 38.0 C 0.010
•
EB-H3 08-16C08CFH63
8.00 8.00 16.00 63.00 3 38.0 C 0.010
•
EB-H3 10-20C10CFH72
10.00 10.00 20.00 72.00 3 38.0 C 0.010
•
EB-H3 12-24C12CFH83
12.00 12.00 24.00 83.00 3 38.0 C 0.012
•
EB-H5 16-32C16CFH92
16.00 16.00 32.00 92.00 5 38.0 C 0.012
•
EB-H5 20-40C20CFH104
20.00 20.00 40.00 104.00 5 38.0 C 0.012
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
ISO Class
DIN/ISO
513
Material
Group
Vc (m/min)
Roughing Semi-Finishing Finishing
P
1 180 220 280
2-4 150 170 200
5 125 140 170
6 130 150 190
7-9 120 135 170
10 115 130 165
11 100 110 120
12-13 110 110 150
K15-16 160 180 220
17-18 150 170 200
H
38.1 70 80 100
38.2 40 50
39 30 40
Tool DC(mm)
ap(mm) 8 10 12
0.2 2.1 2.5 2.8 3.1
0.3 2.6 3 3.4 3.7
0.5 3.3 3.9 4.3 4.8
0.7 3.8 4.5 5.1 5.6
14.5 5.3 6 6.6
25.6 6.9 8 8.9
36 7.7 9.1 10.4
4- 8 9.8 11.3
5- - 10 11.8
6- - - 12
Effective Cutting Diameter as a
Function of Depth of Cut
Feed Recommendations
ISO Class
DIN/ISO
513
Material
Group
fz (mm/tooth) for DC
6 8 10 12
P
1-4 0.055 0.062 0.07 0.08
5 0.043 0.05 0.06 0.068
6-7 0.04 0.048 0.057 0.062
8-9 0.035 0.038 0.045 0.05
10 0.03 0.032 0.038 0.042
11 0.025 0.028 0.035 0.038
12-13 0.03 0.032 0.038 0.042
K15-16 0.058 0.065 0.073 0.085
17-18 0.058 0.065 0.073 0.085
H
38.1 0.021 0.025 0.027 0.03
38.2 0.008 0.009 0.01 0.013
39 0.007 0.007 0.008 0.009
The table refers to rough and semi-finish milling applications
For semi-finish and finishing applications, the table values should be
reduced by 10-20%
Cutting Speed Recommendations (IC902)
EB-H-CF
3/5 Flute Solid Carbide Ball
Nose Endmills with Different
Helix and Variable Pitch for
Materials up to 65 HRC
ISCAR
164
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
LU
45°
APMX
α
β
β
α
α≠β
DCe8 DCONMSh6
HARD MATERIALS
Rd°
Dimensions
Designation
DC DCONMS APMX LU OAL RMPX°(1) Shank(2)
IC902
EB-E4L 03-06/09C06CFH57
3.00 6.00 6.00 9.00 57.00 5.0 C
•
EB-E4L 04-08/12C06CFH57
4.00 6.00 8.00 12.00 57.00 5.0 C
•
EB-E4L 05-10/15C06CFH57
5.00 6.00 10.00 15.00 57.00 5.0 C
•
EB-E4L 06-12/18C06CFH57
6.00 6.00 12.00 18.00 57.00 5.0 C
•
EB-E4L 08-16/24C08CFH63
8.00 8.00 16.00 24.00 63.00 5.0 C
•
EB-E4L 10-20/30C10CFH72
10.00 10.00 20.00 30.00 72.00 5.0 C
•
EB-E4L 12-24/36C12CFH83
12.00 12.00 24.00 36.00 83.00 5.0 C
•
EB-E4L 16-32/48C16CFH92
16.00 16.00 32.00 48.00 92.00 5.0 C
•
• For user guide, see pages 177-184
(1) Maximum ramping angle
(2) C-Cylindrical
EB-E4L-CF
4 Flute, 45° Helix Ball Nose
Endmills with 3xD Relieved Necks
and Variable Pitch for Chatter
Dampening on Hard Materials
15°
DCONMS
APMX
OAL
DC
FHA
HARD MATERIALS
Dimensions Tough
1
Hard
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4)
IC08
IC300
IC900
IC903
EB020A04-2C03
2.00 3.00 4.00 38.00 2 30.0 C 0.000 0.005
• •
EB030A05-2C03
3.00 3.00 5.00 38.00 2 30.0 C -0.010 0.010
• •
EB030A05-2C06
3.00 6.00 5.00 57.00 2 30.0 C -0.010 0.010
• • •
EB040A07-2C04
4.00 4.00 7.00 50.00 2 30.0 C -0.010 0.010
•
EB040A07-2C06
4.00 6.00 7.00 57.00 2 30.0 C -0.010 0.010
• • •
EB050A08-2C05
5.00 5.00 8.00 50.00 2 30.0 C -0.010 0.010
•
EB050A08-2C06
5.00 6.00 8.00 57.00 2 30.0 C -0.010 0.010
• • • •
EB060A08-2C06
6.00 6.00 8.00 57.00 2 30.0 C -0.010 0.010
• • • •
EB080A11-2C08
8.00 8.00 11.00 63.00 2 30.0 C -0.010 0.010
• • • •
EB100A13-2C10
10.00 10.00 13.00 72.00 2 30.0 C -0.010 0.010
• • •
EB120A14-2C12
12.00 12.00 14.00 83.00 2 30.0 C -0.012 0.012
• • •
EB160A16-2C16
16.00 16.00 16.00 92.00 2 30.0 C -0.012 0.012
• •
EB200A20-2C20
20.00 20.00 20.00 104.00 2 30.0 C -0.012 0.012
•
• Short and stable design for profiling (roughing). • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
EB-A-2
2 Flute, 30° Helix Short Solid
Carbide Ball Nose Endmills
165
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX
OAL
DCONMS
DC
FHA
Dimensions Tough
1
Hard
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2)
IC08
IC900
EB-A2 02-06C03E38
2.00 3.00 6.00 38.00 2 30.0 C
• •
EB-A2 02-04C06E48
2.00 6.00 4.00 48.00 2 30.0 C
• •
EB-A2 025-04C06E48
2.50 6.00 4.00 48.00 2 30.0 C
• •
EB-A2 03-04C06E48
3.00 6.00 4.00 48.00 2 30.0 C
• •
EB-A2 03-07W06E57
3.00 6.00 7.00 57.00 2 30.0 W
• •
EB-A2 04-06C06E50
4.00 6.00 6.00 50.00 2 30.0 C
• •
EB-A2 04-08W06E57
4.00 6.00 8.00 57.00 2 30.0 W
• •
EB-A2 05-07C06E51
5.00 6.00 7.00 51.00 2 30.0 C
•
EB-A2 05-10W06E57
5.00 6.00 10.00 57.00 2 30.0 W
• •
EB-A2 06-07C06E51
6.00 6.00 7.00 51.00 2 30.0 C
• •
EB-A2 06-10W06E57
6.00 6.00 10.00 57.00 2 30.0 W
• •
EB-A2 08-09C08E63
8.00 8.00 9.00 63.00 2 30.0 C
• •
EB-A2 08-16W08E63
8.00 8.00 16.00 63.00 2 30.0 W
• •
EB-A2 10-10C10E66
10.00 10.00 10.00 66.00 2 30.0 C
• •
EB-A2 10-19W10E72
10.00 10.00 19.00 72.00 2 30.0 W
• •
EB-A2 12-14C12E71
12.00 12.00 14.00 71.00 2 30.0 C
• •
EB-A2 12-22W12E83
12.00 12.00 22.00 83.00 2 30.0 W
• •
EB-A2 16-26W16E92
16.00 16.00 26.00 92.00 2 30.0 W
•
EB-A2 18-26W18E92
18.00 18.00 26.00 92.00 2 30.0 W
•
EB-A2 20-20C20E82
20.00 20.00 20.00 82.00 2 30.0 C
• •
EB-A2 20-32W20E104
20.00 20.00 32.00 104.00 2 30.0 W
• •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon
EB-A2 (economical)
Economical Type 2 Flute,
30° Helix Ball Nose Solid
Carbide Endmills
APMX
OAL
LH
RE DN
FHA
DCe8 DCONMSh6
HARD MATERIALS
Dimensions
Designation
DC RE(1) DCONMS APMX OAL LH DN NOF(2) FHA Shank(3) RETOLL(4) RETOLU(5)
IC903
EB-A2 01-01/02C04H50
1.00 0.50 4.00 1.00 50.00 2.2 0.95 2 30.0 C 0.000 0.004
•
EB-A2 012-012/02C04H50
1.20 0.60 4.00 1.20 50.00 2.6 1.10 2 30.0 C -0.010 0.010
•
EB-A2 015-015/03C04H50
1.50 0.75 4.00 1.50 50.00 3.0 1.40 2 30.0 C -0.010 0.010
•
EB-A2 02-02/04C06H50
2.00 1.00 6.00 2.00 50.00 4.0 1.90 2 30.0 C 0.000 0.005
•
EB-A2 03-03/06C06H60
3.00 1.50 6.00 3.00 60.00 6.0 2.90 2 30.0 C -0.010 0.010
•
EB-A2 04-04/08C06H70
4.00 2.00 6.00 4.00 70.00 8.0 3.90 2 30.0 C -0.010 0.010
•
EB-A2 05-05/10C06H80
5.00 2.50 6.00 5.00 80.00 10.0 4.90 2 30.0 C -0.010 0.010
•
EB-A2 06-06/12C06H90
6.00 3.00 6.00 6.00 90.00 12.0 5.90 2 30.0 C -0.010 0.010
•
EB-A2 07-07/14C08H90
7.00 3.50 8.00 7.00 90.00 14.0 6.90 2 30.0 C -0.010 0.010
•
EB-A2 08-08/16C08H100
8.00 4.00 8.00 8.00 100.00 16.0 7.90 2 30.0 C -0.010 0.010
•
EB-A2 10-10/20C10H100
10.00 5.00 10.00 10.00 100.00 20.0 9.90 2 30.0 C -0.010 0.010
•
EB-A2 12-12/24C12H110
12.00 6.00 12.00 12.00 110.00 24.0 11.90 2 30.0 C -0.012 0.012
•
EB-A2 14-14/28C14H110
14.00 7.00 14.00 14.00 110.00 28.0 13.80 2 30.0 C -0.012 0.012
•
EB-A2 20-20/40C20H160
20.00 10.00 20.00 20.00 160.00 40.0 19.80 2 30.0 C -0.012 0.012
•
• For user guide, see pages 177-184
(1) ±0.01 tolerance
(2) Number of flutes
(3) C-Cylindrical
(4) Corner radius tolerance lower
(5) Corner radius tolerance upper
EB-A2 (stub cut length)
2 Flute, 30° Helix Stub Cut Length
Ball Nose Solid Carbide Endmills
for Materials up to 55-70 HRC
ISCAR
166
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DC 0
-0.012
OAL
FHA
APMX
DCONMS
Dimensions Tough
1
Hard
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC08
IC900
EB-A2 03-30C03E75
3.00 3.00 30.00 75.00 2 30.0 C 0.020
• •
EB-A2 04-30C04E75
4.00 4.00 30.00 75.00 2 30.0 C 0.020
• •
EB-A2 05-40C05E100
5.00 5.00 40.00 100.00 2 30.0 C 0.020
• •
EB-A2 06-50C06E150
6.00 6.00 50.00 150.00 2 30.0 C 0.020
• •
EB-A2 08-50C08E150
8.00 8.00 50.00 150.00 2 30.0 C 0.020
• •
EB-A2 10-60C10E150
10.00 10.00 60.00 150.00 2 30.0 C 0.020
• •
EB-A2 12-75C12E150
12.00 12.00 75.00 150.00 2 30.0 C 0.020
• •
EB-A2 16-75C16E150
16.00 16.00 75.00 150.00 2 30.0 C 0.020
• •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EB-A2 (economical-extra
long)
Economical Type 2 Flute, 30°
Helix Ball Nose Extra Long
Solid Carbide Endmills
OAL
15°
APMX FHA
DCe8 DCONMSh6
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC900
EB016A020-3C03
1.60 3.00 2.00 38.00 3 30.0 C 0.006
•
EB030A05-3C03
3.00 3.00 5.00 38.00 3 30.0 C 0.010
•
EB030A05-3C06
3.00 6.00 5.00 57.00 3 30.0 C 0.010
•
EB040A07-3C04
4.00 4.00 7.00 50.00 3 30.0 C 0.010
•
EB040A07-3C06
4.00 6.00 7.00 57.00 3 30.0 C 0.010
•
EB050A08-3C05
5.00 5.00 8.00 50.00 3 30.0 C 0.010
•
EB050A08-3C06
5.00 6.00 8.00 57.00 3 30.0 C 0.010
•
EB060A08-3C06
6.00 6.00 8.00 57.00 3 30.0 C 0.010
•
EB080A11-3C08
8.00 8.00 11.00 63.00 3 30.0 C 0.010
•
EB100A13-3C10
10.00 10.00 13.00 72.00 3 30.0 C 0.010
•
EB120A14-3C12
12.00 12.00 14.00 83.00 3 30.0 C 0.012
•
• Short and stable design for profiling (roughing). • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EB-A-3
3 Flute, 30° Helix Short Solid
Carbide Ball Nose Endmills
167
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
APMX OAL
15°
FHA
DCe8 DCONMSh6
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC900
EB020A03/06-4C03L38
2.00 3.00 3.00 38.00 4 30.0 C 0.006
•
EB030A05-4C03
3.00 3.00 5.00 38.00 4 30.0 C 0.010
•
EB030A05-4C06
3.00 6.00 5.00 57.00 4 30.0 C 0.010
•
EB040A07-4C04
4.00 4.00 7.00 50.00 4 30.0 C 0.010
•
EB040A07-4C06
4.00 6.00 7.00 57.00 4 30.0 C 0.010
•
EB050A08-4C06
5.00 6.00 8.00 57.00 4 30.0 C 0.010
•
EB060A08-4C06
6.00 6.00 8.00 57.00 4 30.0 C 0.010
•
EB080A11-4C08
8.00 8.00 11.00 63.00 4 30.0 C 0.010
•
EB100A13-4C10
10.00 10.00 13.00 72.00 4 30.0 C 0.010
•
EB120A14-4C12
12.00 12.00 14.00 83.00 4 30.0 C 0.012
•
EB140A14-4C14
14.00 14.00 14.00 83.00 4 30.0 C 0.012
•
EB160A16-4C16
16.00 16.00 16.00 92.00 4 30.0 C 0.012
•
EB200A20-4C20
20.00 20.00 20.00 104.00 4 30.0 C 0.012
•
• Short and stable design for profiling (finishing). • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EB-A-4 (short length)
4 Flute, 30° Helix Short Solid
Carbide Ball Nose Endmills
OAL
FHA
APMX
DCe8 DCONMSh6
Dimensions Tough
1
Hard
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOLL(3) RETOLU
IC08
IC900
EB-A4 02-04C06E50
2.00 6.00 4.00 50.00 4 30.0 C 0.000 0.005
• •
EB-A4 03-04C06E50
3.00 6.00 4.00 48.00 4 30.0 C -0.010 0.010
•
EB-A4 04-06C06E50
4.00 6.00 6.00 50.00 4 30.0 C -0.010 0.010
•
EB-A4 05-07C06E51
5.00 6.00 7.00 51.00 4 30.0 C -0.010 0.010
• •
EB-A4 06-07C06E50
6.00 6.00 7.00 50.00 4 30.0 C -0.010 0.010
•
EB-A4 06-07C06E51
6.00 6.00 7.00 51.00 4 30.0 C -0.010 0.010
•
EB-A4 08-09C08E59
8.00 8.00 9.00 59.00 4 30.0 C -0.010 0.010
• •
EB-A4 10-10C10E66
10.00 10.00 10.00 66.00 4 30.0 C -0.010 0.010
• •
EB-A4 12-14C12E71
12.00 12.00 14.00 71.00 4 30.0 C -0.012 0.012
• •
EB-A4 16-16C16E76
16.00 16.00 16.00 76.00 4 30.0 C -0.012 0.012
• •
EB-A4 18-18C18E76
18.00 18.00 18.00 76.00 4 30.0 C -0.012 0.012
• •
EB-A4 20-20C20E82
20.00 20.00 20.00 82.00 4 30.0 C -0.012 0.012
• •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
EB-A4 (economical-short)
Economical Type 4 Flute,
30° Helix Ball Nose Short
Solid Carbide Endmills
ISCAR
168
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
OAL
APMX
DC
15°
FHA
Dimensions Tough
1
Hard
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2)
IC900
IC902
EB030A08-4C04
3.00 4.00 8.00 50.00 4 30.0 C
• •
EB040A12-4C04
4.00 4.00 12.00 50.00 4 30.0 C
• •
EB050A14-4C05
5.00 5.00 14.00 50.00 4 30.0 C
• •
EB060A16-4C06
6.00 6.00 16.00 57.00 4 30.0 C
• •
EB080A20-4C08
8.00 8.00 20.00 63.00 4 30.0 C
• •
EB090A11-4C09
9.00 9.00 11.00 67.00 4 30.0 C
•
EB100A22-4C10
10.00 10.00 22.00 72.00 4 30.0 C
•
EB120A25-4C12
12.00 12.00 25.00 83.00 4 30.0 C
•
EB160A32-4C16
16.00 16.00 32.00 92.00 4 30.0 C
•
EB200A38-4C20
20.00 20.00 38.00 104.00 4 30.0 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EB-A-4 (medium length)
4 Flute, 30° Helix Medium Length
Solid Carbide Ball Nose Endmills
APMX
OAL
FHA
DCe8 DCONMSh6
Dimensions
Designation
DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3)
IC900
EBL040A12-4C04
4.00 4.00 12.00 80.00 4 30.0 C 0.010
•
EBL060A16-4C06
6.00 6.00 16.00 100.00 4 30.0 C 0.010
•
EBL070A16-4C07
7.00 7.00 16.00 100.00 4 30.0 C 0.010
•
EBL080A20-4C08
8.00 8.00 20.00 100.00 4 30.0 C 0.010
•
EBL090A20-4C09
9.00 9.00 20.00 100.00 4 30.0 C 0.010
•
EBL100A22-4C10
10.00 10.00 22.00 100.00 4 30.0 C 0.010
•
EBL120A25-4C12
12.00 12.00 25.00 100.00 4 30.0 C 0.012
•
EBL160A32-4C16
16.00 16.00 32.00 125.00 4 30.0 C 0.012
•
• Profiling in deep cavities • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EBL-A-4
4 Flute, 30° Helix Long Solid
Carbide Ball Nose Endmills
169
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
15°
DN
FHA
DCe8 DCONMSh6
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3)
IC702
fz
(mm/t)
EB-A2 004-004/03C4H45
0.40 4.00 0.40 45.00 3.0 0.37 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 005-004/04C4H45
0.50 4.00 0.40 45.00 4.0 0.45 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 005-004/08C4H45
0.50 4.00 0.40 45.00 8.0 0.45 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 006-005/02C4H45
0.60 4.00 0.50 45.00 2.0 0.55 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 006-005/04C4H45
0.60 4.00 0.50 45.00 4.0 0.55 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 006-005/08C4H45
0.60 4.00 0.50 45.00 8.0 0.55 2 30.0 C 0.005
•
0.0100-0.0150
EB-A2 008-006/02C4H45
0.80 4.00 0.60 45.00 2.0 0.75 2 30.0 C 0.005
•
0.0150-0.0250
EB-A2 008-006/04C4H45
0.80 4.00 0.60 45.00 4.0 0.75 2 30.0 C 0.005
•
0.0150-0.0250
EB-A2 008-006/06C4H45
0.80 4.00 0.60 45.00 6.0 0.75 2 30.0 C 0.005
•
0.0150-0.0250
EB-A2 010-008/03C4H45
1.00 4.00 0.80 45.00 3.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 010-008/04C4H45
1.00 4.00 0.80 45.00 4.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 010-008/06C4H45
1.00 4.00 0.80 45.00 6.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 010-008/08C4H45
1.00 4.00 0.80 45.00 8.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 010-008/10C4H45
1.00 4.00 0.80 45.00 10.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 010-008/20C4M55
1.00 4.00 0.80 55.00 20.0 0.95 2 30.0 C 0.005
•
0.0200-0.0350
EB-A2 012-010/08C4H45
1.20 4.00 1.00 45.00 8.0 1.15 2 30.0 C 0.005
•
0.0200-0.0450
EB-A2 015-012/06C4H45
1.50 4.00 1.20 45.00 6.0 1.45 2 30.0 C 0.005
•
0.0200-0.0450
EB-A2 015-012/10C4H45
1.50 4.00 1.20 45.00 10.0 1.45 2 30.0 C 0.005
•
0.0200-0.0450
EB-A2 015-012/12C4H45
1.50 4.00 1.20 45.00 12.0 1.45 2 30.0 C 0.005
•
0.0200-0.0450
EB-A2 015-012/20C4H55
1.50 4.00 1.20 55.00 20.0 1.45 2 30.0 C 0.005
•
0.0200-0.0450
EB-A2 020-016/04C4H45
2.00 4.00 1.60 45.00 4.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/06C4H45
2.00 4.00 1.60 45.00 6.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/10C4H45
2.00 4.00 1.60 45.00 10.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/12C4H50
2.00 4.00 1.60 50.00 12.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/14C4H50
2.00 4.00 1.60 50.00 14.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/16C4H50
2.00 4.00 1.60 50.00 16.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 020-016/20C4H55
2.00 4.00 1.60 55.00 20.0 1.95 2 30.0 C 0.005
•
0.0300-0.0700
EB-A2 030-024/12C6H50
3.00 6.00 2.40 50.00 12.0 2.85 2 30.0 C 0.005
•
0.0500-0.1000
EB-A2 030-024/16C6H55
3.00 6.00 2.40 55.00 16.0 2.85 2 30.0 C 0.005
•
0.0500-0.1000
EB-A2 030-024/20C6H60
3.00 6.00 2.40 60.00 20.0 2.85 2 30.0 C 0.005
•
0.0500-0.1000
EB-A2 030-024/25C6H65
3.00 6.00 2.40 65.00 25.0 2.85 2 30.0 C 0.005
•
0.0500-0.1000
EB-A2 040-032/16C6H60
4.00 6.00 3.20 60.00 16.0 3.85 2 30.0 C 0.005
•
0.0600-0.1500
EB-A2 040-032/20C6H65
4.00 6.00 3.20 65.00 20.0 3.85 2 30.0 C 0.005
•
0.0600-0.1500
EB-A2 040-032/25C6H70
4.00 6.00 3.20 70.00 25.0 3.85 2 30.0 C 0.005
•
0.0600-0.1500
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EB-A2-H (rib processing)
2 Flute, 30° Helix Rib Processing
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRC
ISCAR
170
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
15°
DN
FHA
DCe8 DCONMSh6
HARD MATERIALS
EB-A2 (rib processing)
2 Flute, 30° Helix Rib Processing
Solid Carbide Ball Nose Endmills
for Materials up to 55 HRc
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3)
IC903
fz
(mm/t)
EB-A2 004-006/01C4M45
0.40 4.00 0.60 45.00 1.0 0.36 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 004-006/02C4M45
0.40 4.00 0.60 45.00 2.0 0.36 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 004-006/03C4M45
0.40 4.00 0.60 45.00 3.0 0.36 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 005-007/02C4M45
0.50 4.00 0.70 45.00 2.0 0.45 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 005-007/04C4M45
0.50 4.00 0.70 45.00 4.0 0.45 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 005-007/06C4M45
0.50 4.00 0.70 45.00 6.0 0.45 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 005-007/08C4M45
0.50 4.00 0.70 45.00 8.0 0.45 2 30.0 C 0.010
•
0.0030-0.0060
EB-A2 006-009/02C4M45
0.60 4.00 0.90 45.00 2.0 0.55 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 006-009/04C4M45
0.60 4.00 0.90 45.00 4.0 0.55 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 008-012/02C4M45
0.80 4.00 1.20 45.00 2.0 0.75 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 008-012/04C4M45
0.80 4.00 1.20 45.00 4.0 0.75 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 008-012/06C4M45
0.80 4.00 1.20 45.00 6.0 0.75 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 008-012/10C4M45
0.80 4.00 1.20 45.00 10.0 0.75 2 30.0 C 0.010
•
0.0040-0.0080
EB-A2 010-015/03C4M45
1.00 4.00 1.50 45.00 3.0 0.97 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/04C4M45
1.00 4.00 1.50 45.00 4.0 0.97 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/05C4M45
1.00 4.00 1.50 45.00 5.0 0.97 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/06C4M45
1.00 4.00 1.50 45.00 6.0 0.97 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/07C4M45
1.00 4.00 1.50 45.00 7.0 0.95 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/08C4M45
1.00 4.00 1.50 45.00 8.0 0.95 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/10C4M45
1.00 4.00 1.50 45.00 10.0 0.95 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/12C4M45
1.00 4.00 1.50 45.00 12.0 0.93 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/14C4M50
1.00 4.00 1.50 50.00 14.0 0.93 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/16C4M50
1.00 4.00 1.50 50.00 16.0 0.93 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 010-015/20C4M55
1.00 4.00 1.50 55.00 20.0 0.93 2 30.0 C 0.010
•
0.0050-0.0100
EB-A2 012-018/08C4M45
1.20 4.00 1.80 45.00 8.0 1.17 2 30.0 C 0.010
•
0.0060-0.0150
EB-A2 012-018/12C4M45
1.20 4.00 1.80 45.00 12.0 1.13 2 30.0 C 0.010
•
0.0060-0.0150
EB-A2 014-021/08C4M45
1.40 4.00 2.10 45.00 8.0 1.35 2 30.0 C 0.010
•
0.0060-0.0150
EB-A2 014-021/16C4M50
1.40 4.00 2.10 50.00 16.0 1.31 2 30.0 C 0.010
•
0.0060-0.0150
EB-A2 015-015/03C04M50
1.50 4.00 1.50 50.00 3.0 1.47 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 015-023/06C4M45
1.50 4.00 2.30 45.00 6.0 1.47 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 015-023/08C4M45
1.50 4.00 2.30 45.00 8.0 1.45 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 015-023/10C4M45
1.50 4.00 2.30 45.00 10.0 1.45 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 015-023/12C4M45
1.50 4.00 2.30 45.00 12.0 1.43 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 015-023/20C4M55
1.50 4.00 2.30 55.00 20.0 1.39 2 30.0 C 0.010
•
0.0070-0.0160
EB-A2 016-024/08C4M45
1.60 4.00 2.40 45.00 8.0 1.55 2 30.0 C 0.010
•
0.0080-0.0170
EB-A2 016-024/12C4M45
1.60 4.00 2.40 45.00 12.0 1.53 2 30.0 C 0.010
•
0.0080-0.0170
EB-A2 018-027/08C4M45
1.80 4.00 2.70 45.00 8.0 1.75 2 30.0 C 0.010
•
0.0080-0.0180
EB-A2 018-027/12C4M45
1.80 4.00 2.70 45.00 12.0 1.73 2 30.0 C 0.010
•
0.0080-0.0180
EB-A2 018-027/16C4M50
1.80 4.00 2.70 50.00 16.0 1.71 2 30.0 C 0.010
•
0.0080-0.0180
EB-A2 020-030/04C4M45
2.00 4.00 3.00 45.00 4.0 1.97 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/06C4M45
2.00 4.00 3.00 45.00 6.0 1.97 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/10C4M45
2.00 4.00 3.00 45.00 10.0 1.93 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/12C4M50
2.00 4.00 3.00 50.00 12.0 1.93 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/14C4M50
2.00 4.00 3.00 50.00 14.0 1.93 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/16C4M50
2.00 4.00 3.00 50.00 16.0 1.91 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/20C4M55
2.00 4.00 3.00 55.00 20.0 1.89 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/25C4M60
2.00 4.00 3.00 60.00 25.0 1.89 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 020-030/30C4M70
2.00 4.00 3.00 70.00 30.0 1.89 2 30.0 C 0.010
•
0.0100-0.0210
EB-A2 030-045/08C6M50
3.00 6.00 4.50 50.00 8.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/10C6M50
3.00 6.00 4.50 50.00 10.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/12C6M50
3.00 6.00 4.50 50.00 12.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/16C6M55
3.00 6.00 4.50 55.00 16.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/20C6M60
3.00 6.00 4.50 60.00 20.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/25C6M65
3.00 6.00 4.50 65.00 25.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 030-045/30C6M70
3.00 6.00 4.50 70.00 30.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
171
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
15°
DN
FHA
DCe8 DCONMSh6
HARD MATERIALS
EB-A2 (rib processing)
(continued)
2 Flute, 30° Helix Rib Processing
Solid Carbide Ball Nose Endmills
for Materials up to 55 HRc
OAL
APMX
LU
RE DN
FHA
DCe8 DCONMSh6
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3)
IC903
EB-A2 03-08C06M70
3.00 1.50 6.00 8.00 70.00 - - 2 30.0 C 0.010
•
EB-A2 04-08C06M70
4.00 2.00 6.00 8.00 70.00 - - 2 30.0 C 0.010
•
EB-A2 05-12C06M80
5.00 2.50 6.00 12.00 80.00 - - 2 30.0 C 0.010
•
EB-A2 06-12/22C06M80
6.00 3.00 6.00 12.00 80.00 22.00 5.80 2 30.0 C 0.010
•
EB-A2 07-14C08M90
7.00 3.50 8.00 14.00 90.00 - - 2 30.0 C 0.020
•
EB-A2 08-14/27C08M90
8.00 4.00 8.00 14.00 90.00 27.00 7.80 2 30.0 C 0.020
•
EB-A2 10-18/31C10M100
10.00 5.00 10.00 18.00 100.00 31.00 9.80 2 30.0 C 0.020
•
EB-A2 12-22/35C12M110
12.00 6.00 12.00 22.00 110.00 35.00 11.80 2 30.0 C 0.020
•
EB-A2 16-30/50C16M140
16.00 8.00 16.00 30.00 140.00 50.00 15.80 2 30.0 C 0.020
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
EB-A2 (long with neck)
2 Flute, 30° Helix Long Solid
Carbide Ball Nose Endmills
with Relieved Necks for
Materials up to 65 HRC
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
Dimensions Recommended
Machining Data
Designation
DC DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3)
IC903
fz
(mm/t)
EB-A2 030-045/35C6M80
3.00 6.00 4.50 80.00 35.0 2.85 2 30.0 C 0.010
•
0.0120-0.0300
EB-A2 040-060/10C6M60
4.00 6.00 6.00 60.00 10.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/12C6M60
4.00 6.00 6.00 60.00 12.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/16C6M60
4.00 6.00 6.00 60.00 16.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/20C6M65
4.00 6.00 6.00 65.00 20.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/25C6M70
4.00 6.00 6.00 70.00 25.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/30C6M70
4.00 6.00 6.00 70.00 30.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/35C6M80
4.00 6.00 6.00 80.00 35.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 040-060/45C6M90
4.00 6.00 6.00 90.00 45.0 3.80 2 30.0 C 0.010
•
0.0150-0.0350
EB-A2 050-075/20C6M60
5.00 6.00 7.50 60.00 20.0 4.80 2 30.0 C 0.010
•
0.0180-0.0440
EB-A2 050-075/25C6M70
5.00 6.00 7.50 70.00 25.0 4.80 2 30.0 C 0.010
•
0.0180-0.0440
EB-A2 050-075/30C6M80
5.00 6.00 7.50 80.00 30.0 4.80 2 30.0 C 0.010
•
0.0180-0.0440
EB-A2 050-075/35C6M80
5.00 6.00 7.50 80.00 35.0 4.80 2 30.0 C 0.010
•
0.0180-0.0440
EB-A2 060-090/20C6M80
6.00 6.00 9.00 80.00 20.0 5.80 2 30.0 C 0.010
•
0.0200-0.0500
EB-A2 060-090/30C6M90
6.00 6.00 9.00 90.00 30.0 5.80 2 30.0 C 0.010
•
0.0200-0.0500
EB-A2 060-090/40C6M100
6.00 6.00 9.00 100.00 40.0 5.80 2 30.0 C 0.010
•
0.0200-0.0500
ISCAR
172
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
RE
FHA
DC DCONMS
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX OAL NOF(1) FHA Shank(2)
IC903
EB-A2 02-06C03M80
2.00 1.00 3.00 6.00 80.00 2 30.0 C
•
EB-A2 03-08C03M100
3.00 1.50 3.00 8.00 100.00 2 30.0 C
•
EB-A2 04-08C04M100
4.00 2.00 4.00 8.00 100.00 2 30.0 C
•
EB-A2 06-10C06M120
6.00 3.00 6.00 10.00 120.00 2 30.0 C
•
EB-A2 08-14C08M140
8.00 4.00 8.00 14.00 140.00 2 30.0 C
•
EB-A2 10-18C10M180
10.00 5.00 10.00 18.00 180.00 2 30.0 C
•
EB-A2 12-22C12M200
12.00 6.00 12.00 22.00 200.00 2 30.0 C
•
EB-A2 16-30C16M250
16.00 8.00 16.00 30.00 250.00 2 30.0 C
•
EB-A2 20-38C20M250
20.00 10.00 20.00 38.00 250.00 2 30.0 C
•
• The DC tolerance is: 0 - -0.030 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EB-A2 (extra long)
2 Flute, 30° Helix Extra Long
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRC
DCONMS
OAL
APMX
LH
LU
DC
RE±0.01
BHTA
DN
FHA
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX LU LH DN BHTA OAL NOF(1) FHA Shank(2)
IC903
EB-A2 01-02/04/1.5C06M60
1.00 0.50 6.00 2.00 4.0 23.0 2.00 1.5 60.00 2 30.0 C
•
EB-A2 01-02/04/3.0C06M80
1.00 0.50 6.00 2.00 4.0 42.0 5.00 3.0 80.00 2 30.0 C
•
EB-A2 01-02/04/5.0C06M60
1.00 0.50 6.00 2.00 4.0 23.0 4.30 5.0 60.00 2 30.0 C
•
EB-A2 02-04/06/1.5C06M60
2.00 1.00 6.00 4.00 6.0 23.0 2.90 1.5 60.00 2 30.0 C
•
EB-A2 02-04/06/3.0C06M80
2.00 1.00 6.00 4.00 6.0 41.0 5.70 3.0 80.00 2 30.0 C
•
EB-A2 02-04/06/5.0C06M60
2.00 1.00 6.00 4.00 6.0 23.0 5.00 5.0 60.00 2 30.0 C
•
EB-A2 03-06/08/1.5C06M90
3.00 1.50 6.00 6.00 8.0 52.0 5.30 1.5 90.00 2 30.0 C
•
EB-A2 03-06/08/3.0C06M70
3.00 1.50 6.00 6.00 8.0 32.0 5.60 3.0 70.00 2 30.0 C
•
EB-A2 04-08/10/1.5C06M90
4.00 2.00 6.00 8.00 10.0 49.0 6.00 1.5 90.00 2 30.0 C
•
EB-A2 04-08/10/3.0C06M70
4.00 2.00 6.00 8.00 10.0 28.0 6.00 3.0 70.00 2 30.0 C
•
EB-A2 05-10/12/1.5C08M110
5.00 2.50 8.00 10.00 12.0 61.0 7.60 1.5 110.00 2 30.0 C
•
EB-A2 06-12/15/1.5C08M110
6.00 3.00 8.00 12.00 15.0 53.0 8.00 1.5 110.00 2 30.0 C
•
EB-A2 06-12/15/3.0C08M90
6.00 3.00 8.00 12.00 15.0 34.0 8.00 3.0 90.00 2 30.0 C
•
EB-A2 08-14/17/1.5C10M120
8.00 4.00 10.00 14.00 17.0 55.0 10.00 1.5 120.00 2 30.0 C
•
EB-A2 08-14/17/3.0C10M100
8.00 4.00 10.00 14.00 17.0 36.0 10.00 3.0 100.00 2 30.0 C
•
EB-A2 10-18/21/1.5C12M130
10.00 5.00 12.00 18.00 21.0 59.0 12.00 1.5 130.00 2 30.0 C
•
EB-A2 10-18/21/3.0C12M110
10.00 5.00 12.00 18.00 21.0 40.0 12.00 3.0 110.00 2 30.0 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
EB-A2 (tapered flute &
neck)
2 Tapered Flutes, 30° Helix
Solid Carbide Ball Nose
Endmills with Relieved Necks
for Materials up to 65 HRC
173
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
OAL
APMX
LU
DN
RE
FHA
DCe8 DCONMSh6
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX LU OAL DN NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4)
IC903
EB-A2 01-01/02C04M50
1.00 0.50 4.00 1.00 2.20 50.00 0.95 2 30.0 C 0.000 0.004
•
EB-A2 01-01/02C06M50
1.00 0.50 6.00 1.00 2.20 50.00 0.95 2 30.0 C -0.010 0.010
•
EB-A2 012-012/02C04M50
1.20 0.60 4.00 1.20 2.60 50.00 1.10 2 30.0 C -0.010 0.010
•
EB-A2 02-02/04C06M50
2.00 1.00 6.00 2.00 4.00 50.00 1.90 2 30.0 C -0.010 0.010
•
EB-A2 025-025/05C06M60
2.50 1.25 6.00 2.50 5.00 60.00 2.40 2 30.0 C 0.000 0.006
•
EB-A2 03-03/06C06M60
3.00 1.50 6.00 3.00 6.00 60.00 2.90 2 30.0 C -0.010 0.010
•
EB-A2 04-04/08C06M70
4.00 2.00 6.00 4.00 8.00 70.00 3.90 2 30.0 C -0.010 0.010
•
EB-A2 05-05/10C06M80
5.00 2.50 6.00 5.00 10.00 80.00 4.90 2 30.0 C -0.010 0.010
•
EB-A2 06-06/12C06M90
6.00 3.00 6.00 6.00 12.00 90.00 5.90 2 30.0 C -0.010 0.010
•
EB-A2 07-07/14C08M90
7.00 3.50 8.00 7.00 14.00 90.00 6.90 2 30.0 C -0.010 0.010
•
EB-A2 08-08/16C08M100
8.00 4.00 8.00 8.00 16.00 100.00 7.90 2 30.0 C -0.010 0.010
•
EB-A2 09-09/18C10M100
9.00 4.50 10.00 9.00 18.00 100.00 8.90 2 30.0 C -0.010 0.010
•
EB-A2 10-10/20C10M100
10.00 5.00 10.00 10.00 20.00 100.00 9.90 2 30.0 C -0.010 0.010
•
EB-A2 12-12/24C12M110
12.00 6.00 12.00 12.00 24.00 110.00 11.90 2 30.0 C -0.012 0.012
•
EB-A2 14-14/28C14M110
14.00 7.00 14.00 14.00 28.00 110.00 13.80 2 30.0 C -0.012 0.012
•
EB-A2 16-16/32C16M140
16.00 8.00 16.00 16.00 32.00 140.00 15.80 2 30.0 C -0.012 0.012
•
EB-A2 25-25/50C25M180
25.00 12.50 25.00 25.00 50.00 180.00 24.80 2 30.0 C -0.015 0.015
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
EB-A2 (precision stub cut)
2 Flute, 30° Helix Stub Cut
Length High Precision Ball Nose
Endmills with Relieved Necks
for Materials up to 65 HRC
DCONMSh6
OAL
DCe8
FHA
APMX
Dimensions Tough
1
Hard
Designation
DC RE DCONMS APMX OAL NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4)
IC08
IC900
IC902
EBM004A008-2C03
0.40 0.20 3.00 0.80 38.00 2 30.0 C 0.000 0.004
• •
EBM005A010-2C03
0.50 0.25 3.00 1.00 38.00 2 30.0 C 0.000 0.004
• •
EBM006A012-2C03
0.60 0.30 3.00 1.20 38.00 2 30.0 C 0.000 0.004
• •
EBM007A014-2C03
0.70 0.35 3.00 1.40 38.00 2 30.0 C 0.000 0.004
•
EBM008A016-2C03
0.80 0.40 3.00 1.60 38.00 2 30.0 C 0.000 0.004
• •
EBM010A025-2C04
1.00 0.50 4.00 2.50 50.00 2 30.0 C 0.000 0.004
• • •
EBM012A030-2C04
1.20 0.60 4.00 3.00 50.00 2 30.0 C 0.000 0.004
• • •
EBM016A040-2C04
1.60 0.80 4.00 4.00 50.00 2 30.0 C 0.000 0.004
• • •
EBM020A060-2C04
2.00 1.00 4.00 6.00 50.00 2 30.0 C 0.000 0.004
• • •
• Short and stable design for profiling (roughing). • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
DC Tolerance
DC≤0.6 DC 0.000
-0.010
0.6<DC≤2 DC 0.000
-0.012
EBM-A-2
2 Flute, 30° Helix Medium
Length Solid Carbide Miniature
Ball Nose Endmills
ISCAR
174
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
DCONMS
APMX
LH
FHA
OAL
DC
RE DN 1.6°
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX LH DN OAL NOF(1) FHA Shank(2)
IC903
ESB-A2 03 02/30C06M80
3.00 1.50 6.00 2.30 30.0 2.50 80.00 2 30.0 C
•
ESB-A2 04 03/30C06M80
4.00 2.00 6.00 3.10 30.0 3.30 80.00 2 30.0 C
•
ESB-A2 05 03/38C06M80
5.00 2.50 6.00 3.90 38.0 4.10 80.00 2 30.0 C
•
ESB-A2 06 04/28C06M100
6.00 3.00 6.00 4.90 28.0 4.70 100.00 2 30.0 C
•
ESB-A2 08 06/33C08M100
8.00 4.00 8.00 6.30 33.0 6.50 100.00 2 30.0 C
•
ESB-A2 10 07/40C10M100
10.00 5.00 10.00 7.90 40.0 8.20 100.00 2 30.0 C
•
ESB-A2 16 12/59C16M150
16.00 8.00 16.00 12.40 59.0 13.40 150.00 2 30.0 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
ESB-A2
2 Flute, 30° Helix Spherical Long
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRc
DCONMS
1.6°
OAL
LH
APMX FHA
DC
DN
RE
HARD MATERIALS
Dimensions
Designation
DC RE DCONMS APMX LH DN OAL NOF(1) FHA Shank(2)
IC903
ESB-A4 05 3/38C06M80
5.00 2.50 6.00 3.90 38.0 4.10 80.00 4 30.0 C
•
ESB-A4 06 4/28C06M100
6.00 3.00 6.00 4.90 28.0 4.70 100.00 4 30.0 C
•
ESB-A4 08 6/33C08M100
8.00 4.00 8.00 6.30 33.0 6.30 100.00 4 30.0 C
•
ESB-A4 10 7/40C10M100
10.00 5.00 10.00 7.90 40.0 8.20 100.00 4 30.0 C
•
ESB-A4 12 9/49C12M100
12.00 6.00 12.00 9.50 49.0 9.80 100.00 4 30.0 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
ESB-A4
4 Flute, 30° Helix Spherical Long
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRC
APMX
OAL
DCONMS
90°
DC
Dimensions
Designation
DC DCX(1) APMX OAL NOF(2) Shank(3)
IC900
ECF D-1.5/45-4C04
1.00 4.00 1.50 50.00 4 C
•
ECF D-2/45-4C06
2.00 6.00 2.00 57.00 4 C
•
ECF D-3/45-4C08
2.00 8.00 3.00 63.00 4 C
•
ECF D-4/45-4C10
2.00 10.00 4.00 72.00 4 C
•
ECF D-5/45-4C12
2.00 12.00 5.00 83.00 4 C
•
• For user guide, see pages 177-184
(1) Cutting diameter maximum
(2) Number of flutes
(3) C-Cylindrical
ECF../45
45° Chamfering and
Countersinking Solid
Carbide Endmills
175
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
LU
90°DCONMS
OAL
DC
APMX
Dimensions Tough
1
Hard
Designation
DC DCONMS OAL APMX LU Shank(1)
IC08
IC900
ECD-S2 030/90C03-38
3.00 3.00 38.00 1.37 6.00 C
• •
ECD-S2 040/90C04-50
4.00 4.00 50.00 1.79 8.00 C
• •
ECD-S2 050/90C05-50
5.00 5.00 50.00 2.24 10.00 C
• •
ECD-S2 060/90C06-57
6.00 6.00 57.00 2.71 12.00 C
• •
ECD-S2 080/90C08-63
8.00 8.00 63.00 3.63 16.00 C
• •
ECD-S2 100/90C10-72
10.00 10.00 72.00 4.55 20.00 C
• •
ECD-S2 120/90C12-73
12.00 12.00 73.00 5.47 24.00 C
• •
• For user guide, see pages 177-184
(1) C-Cylindrical
ECD-S2
45° Chamfering and Spot
Drilling Solid Carbide Tools
DCONMS
PRFRAD
0.02
TFBA
RE_2
OAL
APMX
RE
Dimensions
Designation
PRFRAD RE_2 RE APMX TFBA DCONMS NOF(1) OAL Shank(2)
IC902
ETB-R1R250A10/20-4C08-63
250.00 4.00 1.00 10.00 40.00 8.00 4 63.00 C
•
ETB-R2R250A11/20-4C10-72
250.00 5.00 2.00 11.00 40.00 10.00 4 72.00 C
•
ETB-R3R250A12/20-4C12-83
250.00 6.00 3.00 12.00 40.00 12.00 4 83.00 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
SC ETB
Solid Carbide Tapered-Shaped
(Barrel) Endmills for 3D Profiling
DCONMS
OAL
PRFRAD
0.02
PRFA
RE
APMX
Dimensions
Designation
PRFRAD RE APMX PRFA DCONMS NOF(1) OAL Shank(2)
IC902
EOB-R1R90A24/7-4C08-63
90.00 1.00 24.80 14.88 8.00 4 63.00 C
•
EOB-R2R85A24/8-4C10-72
85.00 2.00 26.60 15.46 10.00 4 72.00 C
•
EOB-R2R80A27/9-4C12-83
80.00 2.00 27.10 18.38 12.00 4 83.00 C
•
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
SC EOB
Solid Carbide Oval-Shaped
(Barrel) Endmills for 3D Profiling
ISCAR
176
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
0.02
OAL
DCONMS
LU
DC
BSR
APMX
RE
Dimensions
Designation
DC BSR RE LU APMX DCONMS NOF(1) OAL Shank
IC902
ELB-R0.75R16A5-6C8-63
8.00 15.00 0.75 5.00 1.10 8.00 4 63.00 C
•
ELB-R1R20A7-6C10-72
10.00 20.00 1.00 7.00 1.43 10.00 6 72.00 C
•
ELB-R1R25A9-6C12-83
12.00 25.00 1.00 9.00 1.53 12.00 6 83.00 C
•
(1) Number of flutes
SC ELB
Solid Carbide Lens-Shaped
(Barrel) Endmills for 3D Profiling
177
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Grade Priorities for Solid Carbide Endmills
Material Groups
ISO P ISO M ISO K ISO N ISO S ISO H
1 - 11 12 - 13 14 15 - 20 21 - 28 31 - 37 38 - 41
Steel
Stainless Steel
Ferritic &
Martensitic
Stainless Steel
Austenitic &
Duplex (Ferritic-
Austenitic)
Cast Iron Nonferrous High Temp
Alloys
Hard Steel &
Hardened Cast
Iron
Solid &
MULTI-MASTER
Endmills
Harder IC702 IC702 IC902 IS6* IS6* IC702
IC902 IC902 IC903 IC902 IS902** IC903
IC903 IC903 IC903 IC903
IC608 IC608 IC608 IC608 IC900 (908) IC608
IC900
(908) IC900 (908) IC900 (908) IC900 (908) IC300 (308) IC900 (908)
Roughing/
Semi-Finishing IC300 (308) IC08 IC08
Tougher
Coolant N Y Y N Y Y N
Solid &
MULTI-MASTER
Endmills
Harder IC702 IC702 IC902 IS6* IC902 IC702
IC902 IC902 IC608 IC902 IC903 IC902
IC903 IC903 IC300 (308) IC903 IC900 (908) IC903
IC608 IC608 IC608 IC608
IC900 (908) IC900 (908) IC900 (908) IC900 (908) IC900 (908)
IC08
Finishing Tougher IC08
Coolant N Y Y N Y Y N
First choice
* SiAiON grade
** First choice for trochoidal milling
Table of Contents
ISCAR
178
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Machining Data for Solid Carbide and MULTI-MASTER Endmills
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness
HB
Material
No.
Cutting Speed (m/min)
IC900/IC608 IC903 IC300 IC08
P
Non-alloy
steel and cast
steel, free
cutting steel
< 0.25 %C Annealed 420 125 1 260-280 260-280 210-220 180-200
>= 0.25 %C Annealed 650 190 2 200-230 200-230 160-180 140-160
< 0.55 %C Quenched and tempered 850 250 3 160-220 160-220 130-180 110-150
>= 0.55 %C Annealed 750 220 4 160-220 160-220 130-180 110-150
Quenched and tempered 1000 300 5 140-180 140-180 110-140 100-130
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6 160-220 160-220 130-180 110-150
Quenched and tempered
930 275 7 120-180 120-180 100-140 80-130
1000 300 8 130-180 130-180 100-140 90-130
1200 350 9 140-180 140-180 110-140 100-130
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 130-180 130-180 100-140 90-130
Quenched and tempered 1100 325 11 70-120 70-120 60-100 50-80
Stainless steel and cast steel Ferritic/martensitic. 680 200 12 80-160 80-160 60-130 60-110
Martensitic 820 240 13 60-150 60-150 50-120 40-100
MStainless steel and cast steel Austenitic 600 180 14 60-120 60-120 50-100 40-80
K
Grey cast iron (GG) Ferritic/pearlitic 180 15 80-260 80-250 60-210 60-180
Pearlitic/martensitic 260 16 130-240 130-240 100-190 90-170
Cast iron nodular (GGG) Ferritic 160 17 150-280 150-270 120-220 100-200
Pearlitic 250 18 90-280 90-270 70-220 60-200
Malleable cast iron Ferritic 130 19 150-280 150-270 120-220 100-200
Pearlitic 230 20 140-240 140-240 110-190 100-170
N
Aluminum-wrought alloys Not cureable 60 21 800-900
Cured 100 22 700-800
Aluminum-
cast-alloys
<=12% Si Not cureable 75 23 800-900
Cured 90 24 750-850
>12% Si High temperature 130 25 400-450
Copper alloys >1% Pb
Free cutting 110 26 500-550
Brass 90 27 500-550
Electrolitic copper 100 28 350-380
Non-metallic Duroplastics, fiber plastics 29
Hard rubber 30
S
High temp.
alloys
Fe based Annealed 200 31 20-40 20-40 20-30 10-20
Cured 280 32 20-40 20-30 20-20 10-20
Ni or Co
based
Annealed 250 33 20-50 20-30 20-20 20-50
Cured 350 34 20-70 20-30 20-20 20-50
Cast 320 35 30-70 30-80 20-60 20-50
Titanium Ti alloys RM 400 36 30-70 30-80 20-60 20-30
Alpha+beta alloys cured RM 1050 37 30-70 30-80 20-60 20-30
H
Hardened steel Hardened 55 HRC 38 30-50 30-60 20-40 40-60
Hardened 60 HRC 39 30-40 30-40 20-30 20-30
Chilled cast iron Cast 400 40 60-80 70-90 50-60 65-75
Cast iron Hardened 55 HRC 41 30-50 30-60 20-40 40-45
179
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Regrinding Instructions for Solid Carbide Endmills (continued)
Base Distance for Rake Angle Measurement
Tool Diameter Base Distance Tool Diameter Base Distance
Rake Angle
Center
Base
mm in mm in
0.5<d1≤0.7 .02<d1≤.03 0.03 .001181
0.7<d1≤0.8 .03<d1≤.032 0.04 .001574
0.8<d1≤1.0 .032<d1≤.04 0.05 .001968
1.0<d1≤1.2 .04<d1≤.05 0.065 .002559
1.2<d1≤1.4 .05<d1≤.055 0.075 .002952
1.4<d1≤1.6 .055<d1≤.063 0.085 .003346
1.6<d1≤2 .063<d1≤.08 0.1 .003937
2<d1≤4 .08<d1≤.158 0.2 .007874
4<d1≤6.35 .158<d1≤.25 0.3 .01181
6.35<d1≤8 .25<d1≤.315 0.4 .01574
8<d1≤13 .315<d1≤.512 0.5 .01968
13<d1≤21 .512<d1≤.827 0.6 .02362
21<d1≤27 .827<d1≤1.063 0.7 .02755
27<d1≤ 1.063<d1 0.8 .03149
ISCAR
180
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Circle Segment Lines for Advanced Finish Milling Operations
Barrel Endmill
ISCAR’s Barrel line comprises a variety of solid carbide
endmills and MULTI-MASTER heads in different shapes:
Oval, Taper & Lens.
For more information, refer to NPA 22-2020
Solid Carbide Endmills
Oval Barrel
– EOB
Taper Barrel
– ETB
Lens Barrel
– ELB
MULTI-MASTER Heads
Oval Barrel
– MM EOB
Lens Barrel
– MM ELB
Barrel endmills are intended for finish and
semi-finish machining of 3D surfaces
Blade Rough Blade Finish
A prominent advantage of a Barrel endmill over a
Ball-Nose is the number of stepovers and, subsequent,
machining time can be significantly reduced without
degradation of the surface finish parameters.
The large-diameter arc of the endmill cutting edge
results in a substantial reduction of the cusp height.
181
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Machining Guidelines
The Most Important Thing to Remember
Programming circle segment tooling requires a supporting CAM system
• Step #1 – for Ball-Nose
Select a Ball-Nose tool
configuration and define
its parameters.
• Step #1 – for Oval Shape
Select a Barrel tool configuration
and define its parameters.
ISCAR
182
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
• Step #1 – for Taper Shape
Select a Taper tool configuration
and set its parameters.
• Step #1 – for Lens Shape
Select a Lens tool configuration
and set its parameters.
183
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
• Step #2
Select the process. Each
CAM defines different relevant
processes, for example:
Surface, 5-Axis, Adv3D, etc.
Remember:
The advantage of barrel endmills
is realized when used for 5
axis, finish milling operations
Important
Each CAM software has its own
features to configure the tools
and their machining processes,
but the definitions are similar.
The following example
demonstrates only one way to
define a Surface Finish (Ra) and
is process dependent. In this
example you will notice how
many stepovers are required
in order to obtain the same
Ra with different tools.
There are many different
options to define the required
results from a tool.
Example
Same Ra – Different stepovers
Ball Nose Ø12 R6 [Ø.472” R.236”]
Oval Ø12 R80 [Ø.472” R3.15”]
Taper Ø12 R250 [Ø.472” R9.84”]
Lens Ø12 R25 [Ø.472” R.98”]
Take Into Consideration
Barrel milling should not always be considered the answer to finishing all 3D machined surfaces. Some part shapes are not
conducive to Barrel milling operations. Sometimes, the blend radii of the machined part or the kinetics of the machine result
in a complicated CAM tool path which may increase the cycle time compared to using a conventional Ball-Nose milling
approach. This is where the need for a highly skilled programmer to make good and effective decisions comes into play.
ISCAR
184
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
USER GUIDE
Recommended Cutting Parameters to Start with (Metric)
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness
HB
Material
No. (1)
Cutting Parameters
Vc m/min fz mm/t fz start
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 1 210-300 0.005-0.01xD 0.006xD
>= 0.25 %C Annealed 650 190 2 200-250 0.005-0.01xD 0.006xD
< 0.55 %C Quenched and
tempered 850 250 3 160-240 0.004-0.009xD 0.005xD
>= 0.55 %C
Annealed 750 220 4 160-240 0.003-0.008xD 0.004xD
Quenched and
tempered 1000 300 5 140-200 0.004-0.009xD 0.005xD
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6 160-240 0.003-0.008xD 0.004xD
Quenched and
tempered
930 275 7 120-200 0.003-0.008xD 0.004xD
1000 300 8 130-200 0.003-0.008xD 0.004xD
1200 350 9 140-200 0.003-0.008xD 0.004xD
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 130-200 0.003-0.008xD 0.004xD
Quenched and 1100 325 11 70-130 0.002-0.007xD 0.003xD
tempered
Ferritic/martensitic 680 200 12 80-175 0.002-0.007xD 0.003xD
Stainless steel and cast steel Martensitic 820 240 13 60-165 0.002-0.007xD 0.003xD
MStainless steel and cast steel Austenitic 600 180 14 60-110 0.002-0.007xD 0.003xD
K
Grey cast iron (GG) Ferritic/pearlitic 180 15 150-275 0.005-0.01xD 0.006xD
Pearlitic 260 16 150-265 0.005-0.01xD 0.006xD
Cast iron nodular (GGG) Ferritic 160 17 150-200 0.005-0.01xD 0.006xD
Pearlitic 250 18 90-150 0.004-0.009xD 0.005xD
Malleable cast iron Ferritic 130 19 150-200 0.005-0.01xD 0.006xD
Pearlitic 230 20 90-150 0.004-0.009xD 0.005xD
S
High temp. alloys
Fe based Annealed 200 31 20-45 0.002-0.004xD 0.003xD
Cured 280 32 20-35 0.002-0.004xD 0.003xD
Ni or Co
based
Annealed 250 33 20-35 0.002-0.004xD 0.003xD
Cured 350 34 20-35 0.002-0.004xD 0.003xD
Cast 320 35 60-90 0.002-0.004xD 0.003xD
Titanium alloys
Pure Rm = 400 36 60-90 0.002-0.004xD 0.003xD
Alpha+beta
alloys cured Rm = 1050 37 60-90 0.002-0.004xD 0.003xD
H
Hardened steel Hardened 55 HRC 38 40-80 0.001-0.003xD 0.002xD
Hardened 60 HRC 39
Chilled cast iron Cast 400 40 40-80 0.001-0.003xD 0.002xD
Cast iron Hardened 55 HRC 41 40-80 0.001-0.003xD 0.002xD
