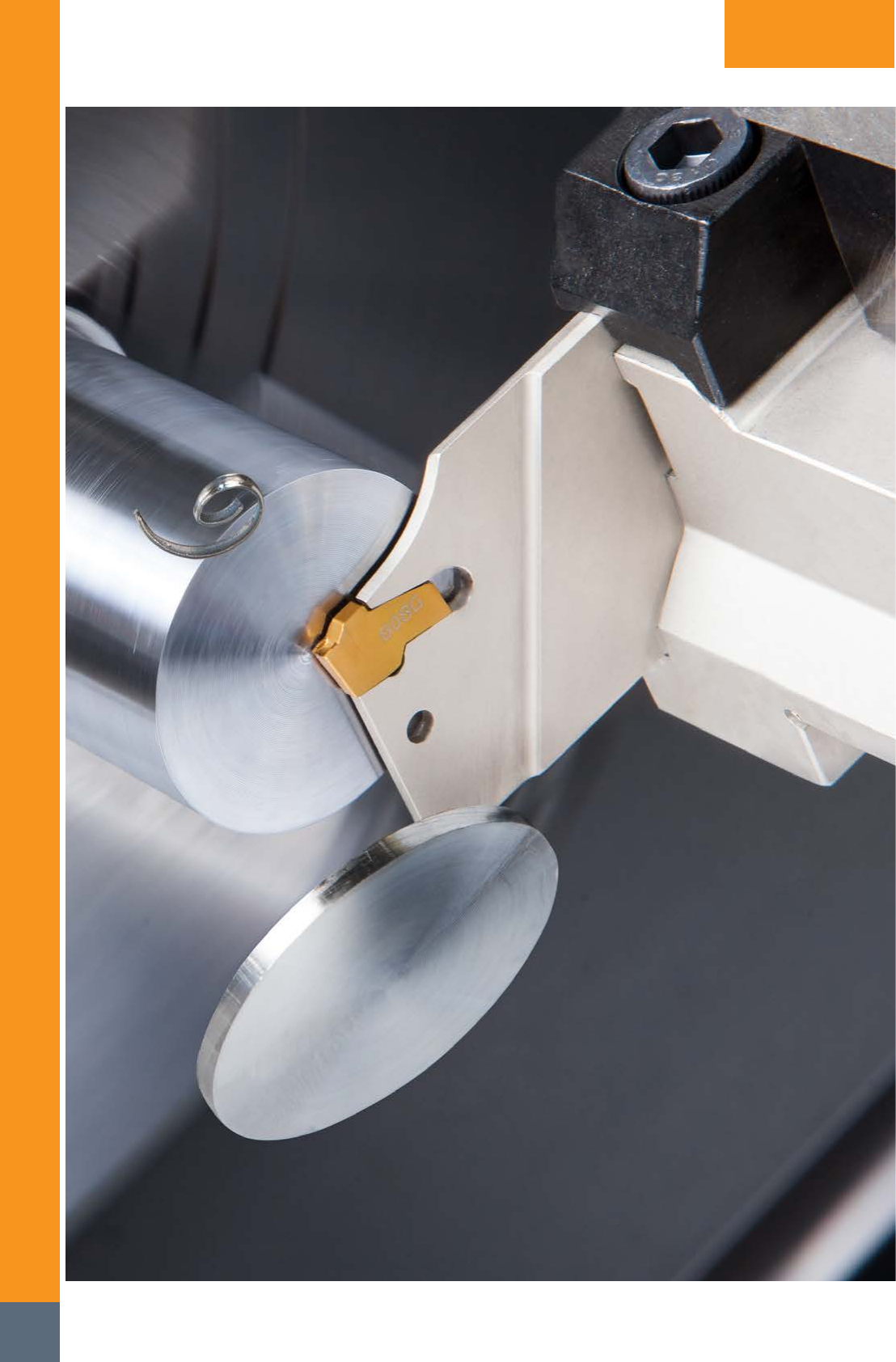

SELECTION GUIDE

PARTING

Clamping Systems

• First choice for parting

• Double-ended insert

• Self-clamped for deeper grooving and

parting medium to large diameters

• Screw-clamped for small diameters

• See also HELI-GRIP, page 259

Self-clamped Screw-clamped

• Very rigid clamping in a tangentially oriented pocket

• Enables machining at very high feed rates and

provides excellent straightness and surface finish

• Recommended for parting large diameter

parts and for interrupted cuts

• Offers a free, unobstructed chip flow

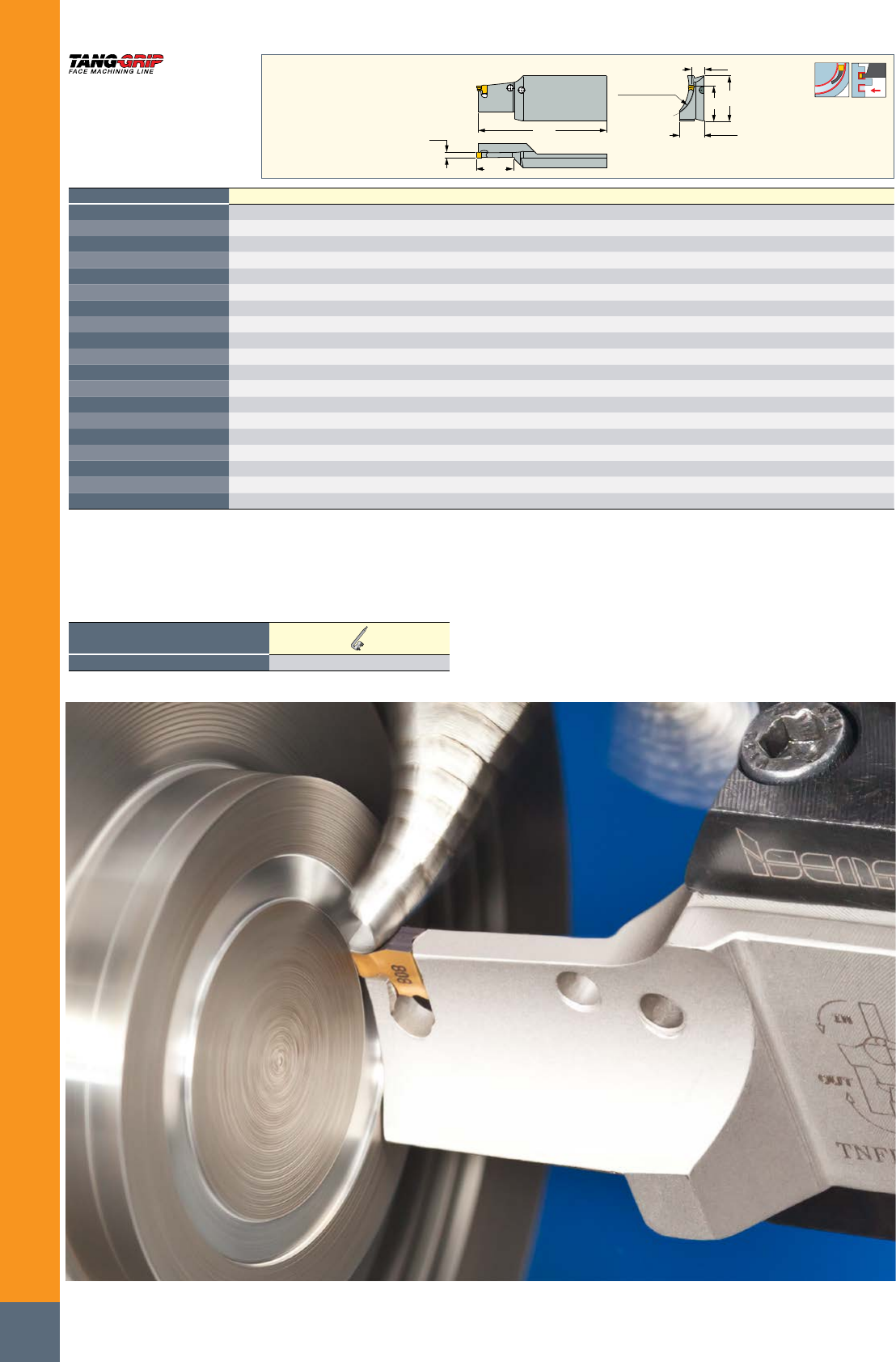

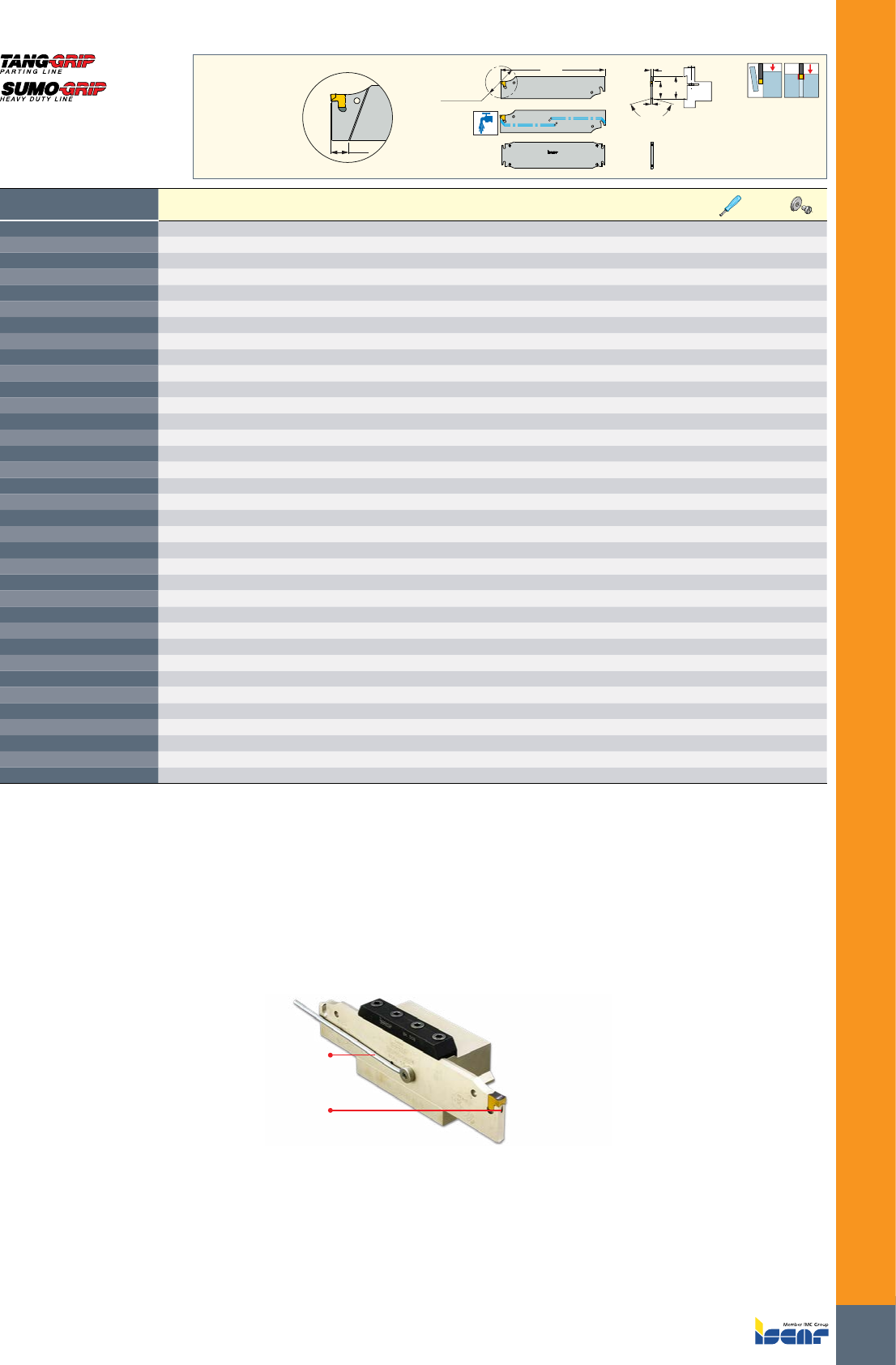

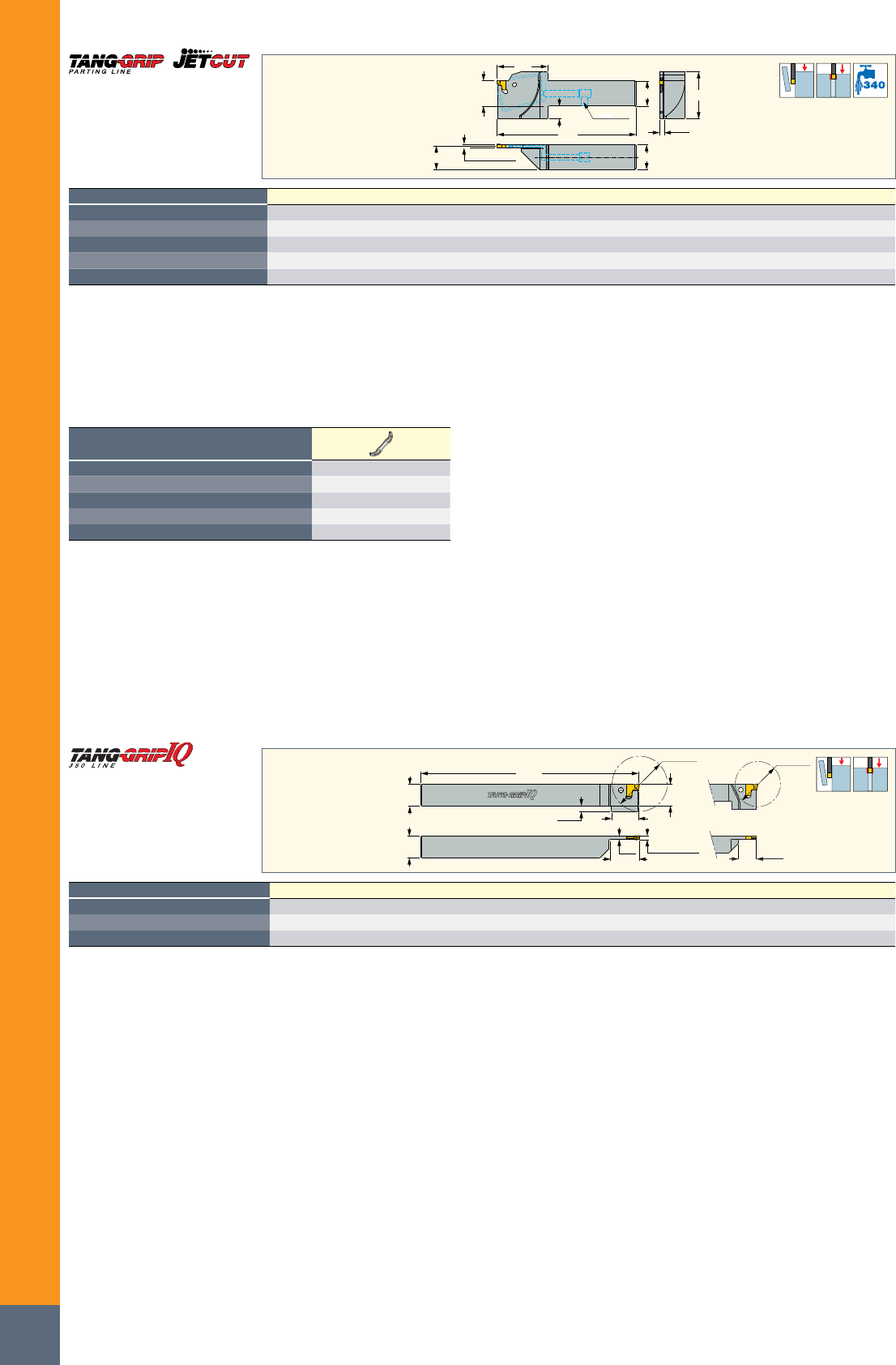

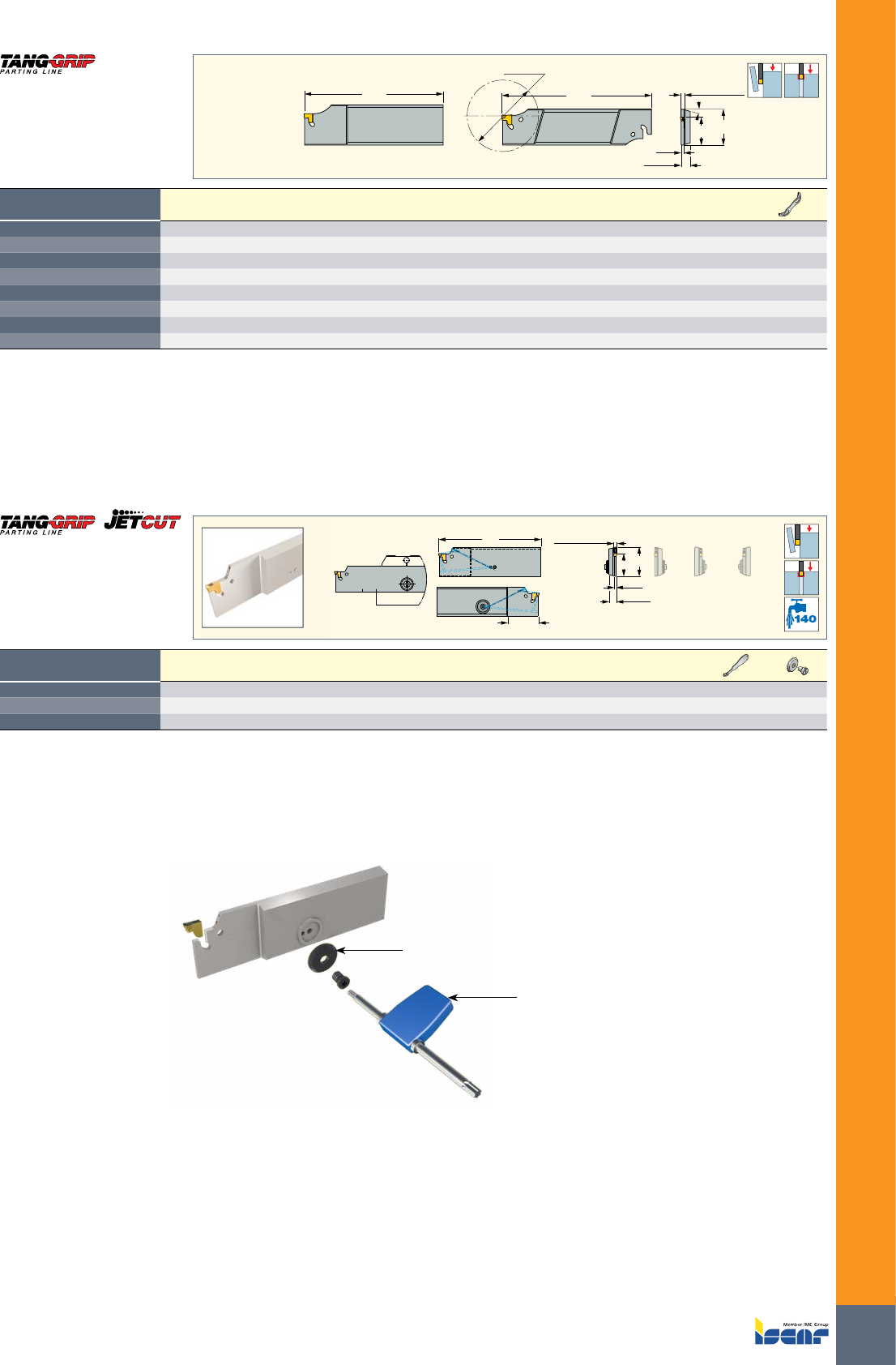

TANG-GRIP

• Single-ended insert

• Self- and screw-clamped options

Screw-clamped Self-clamped

• Unique adaptation for Quad /Square

type adapters with 4 pockets

• Outstanding stability, vibration free parting

system also on big diameters

• Improves insert life, surface finish and workpiece

straightness due to robust design

• Enables reduction of cutting width due to

excellent stability, leading to material savings

• Ø120mm bar can be cut with only 3 mm insert width

• Guarantees high productivity, especially when using

TAG N…HF inserts with feed of up to 0.4 mm\rev.

• Economical adapters with 4 pockets

• User friendly, easy to operate

• Saves set up time after pocket replacement; adapter

can be positioned with new pocket without set up

• Several adapters can be clamped on one tool block

• The tools and adapters are designed for

JET-CUT cooling up to 140 Bar

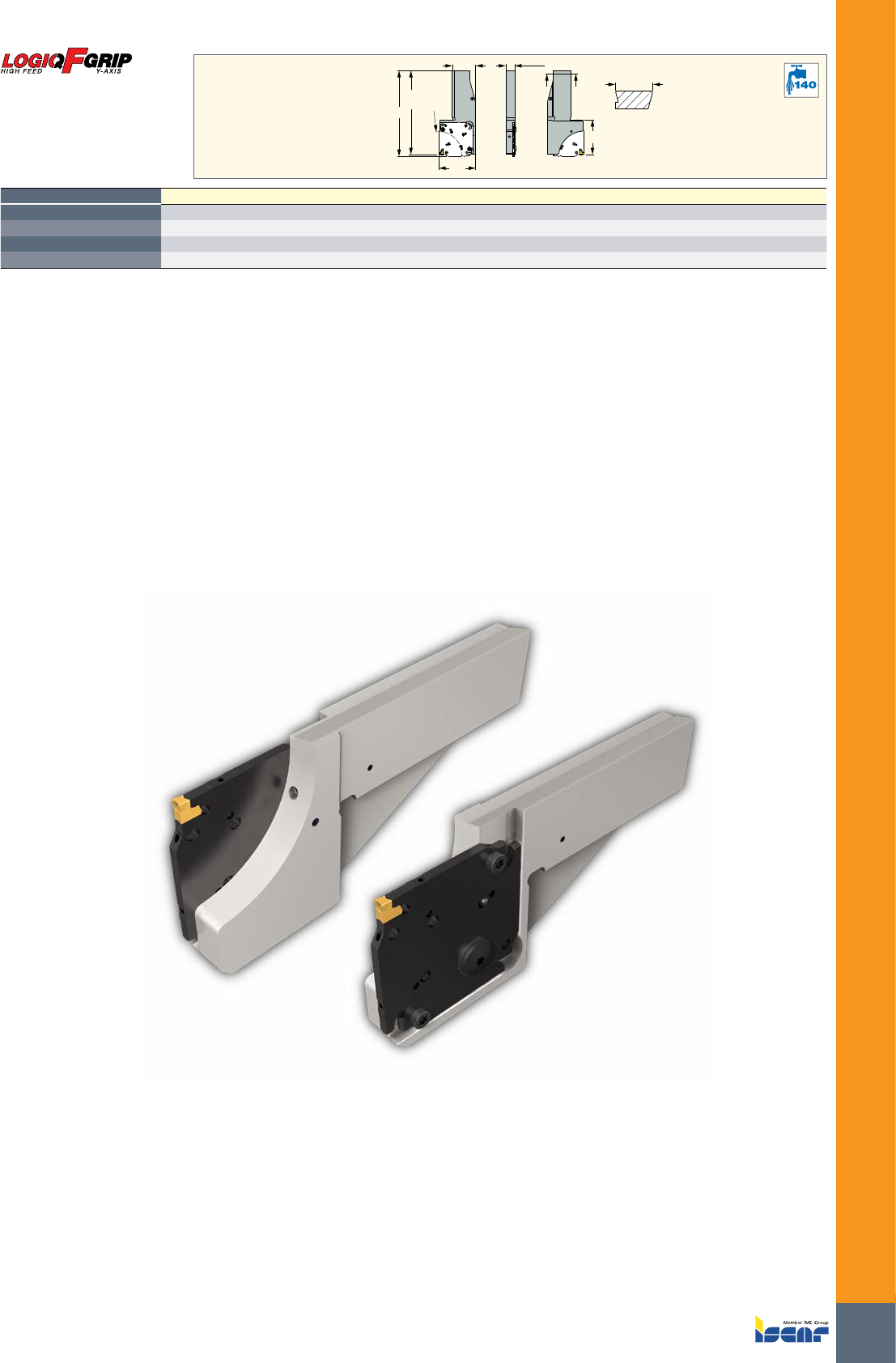

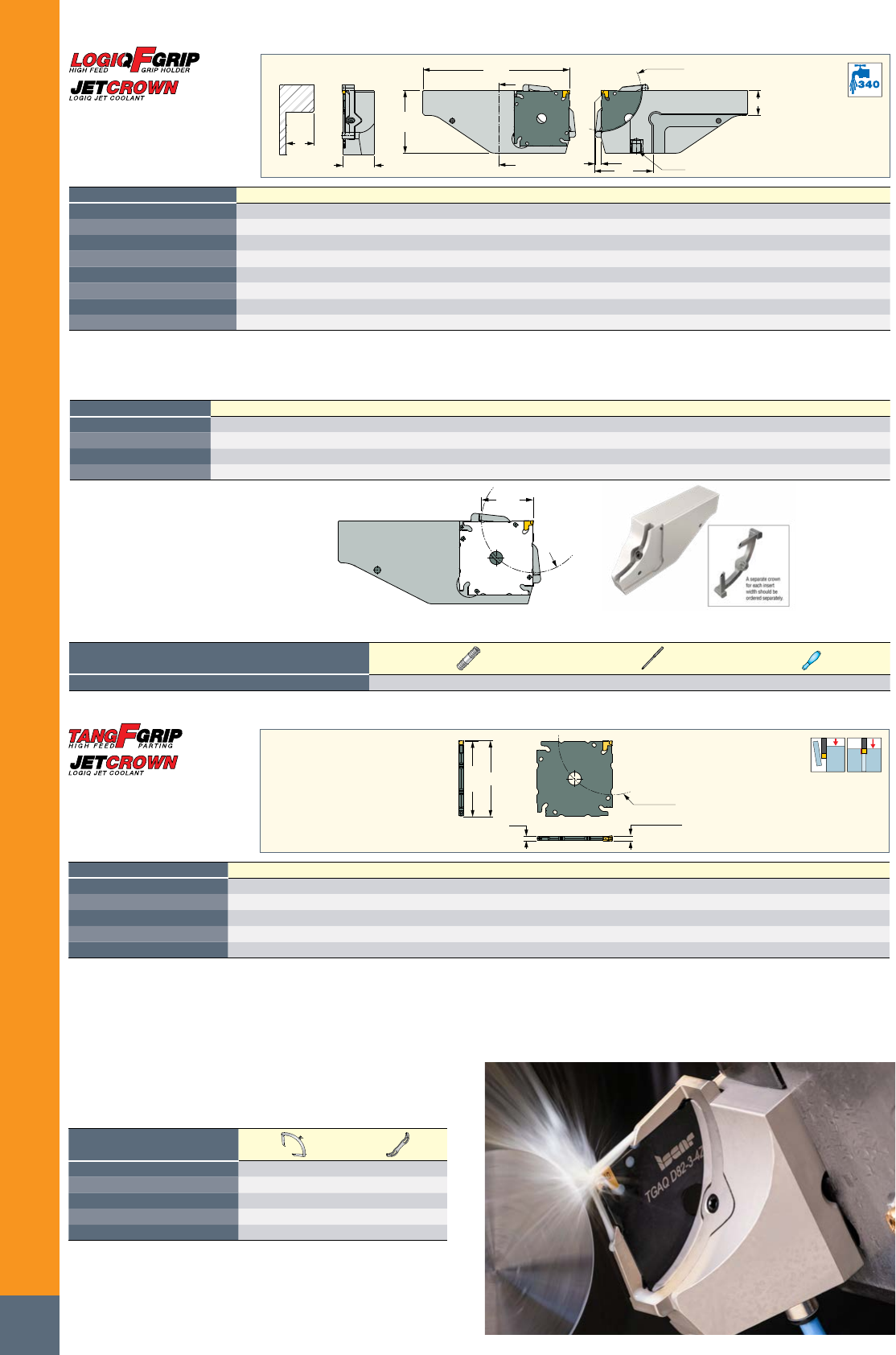

LOGIQ-F-GRIP

• Economical pentagonal adapters with 5 pockets

• No setup time after pocket replacement

• Several adapters can be clamped on one holder

• The tools and adapters are designed for

JET-CUT cooling up to 340 Bar

TANG-5-GRIP

• 5 cutting edges

• Fast edge indexing

• For shallow grooving and up to 20 mm parting diameter

• PENTA-IQ for parting up to 40mm bar diameter

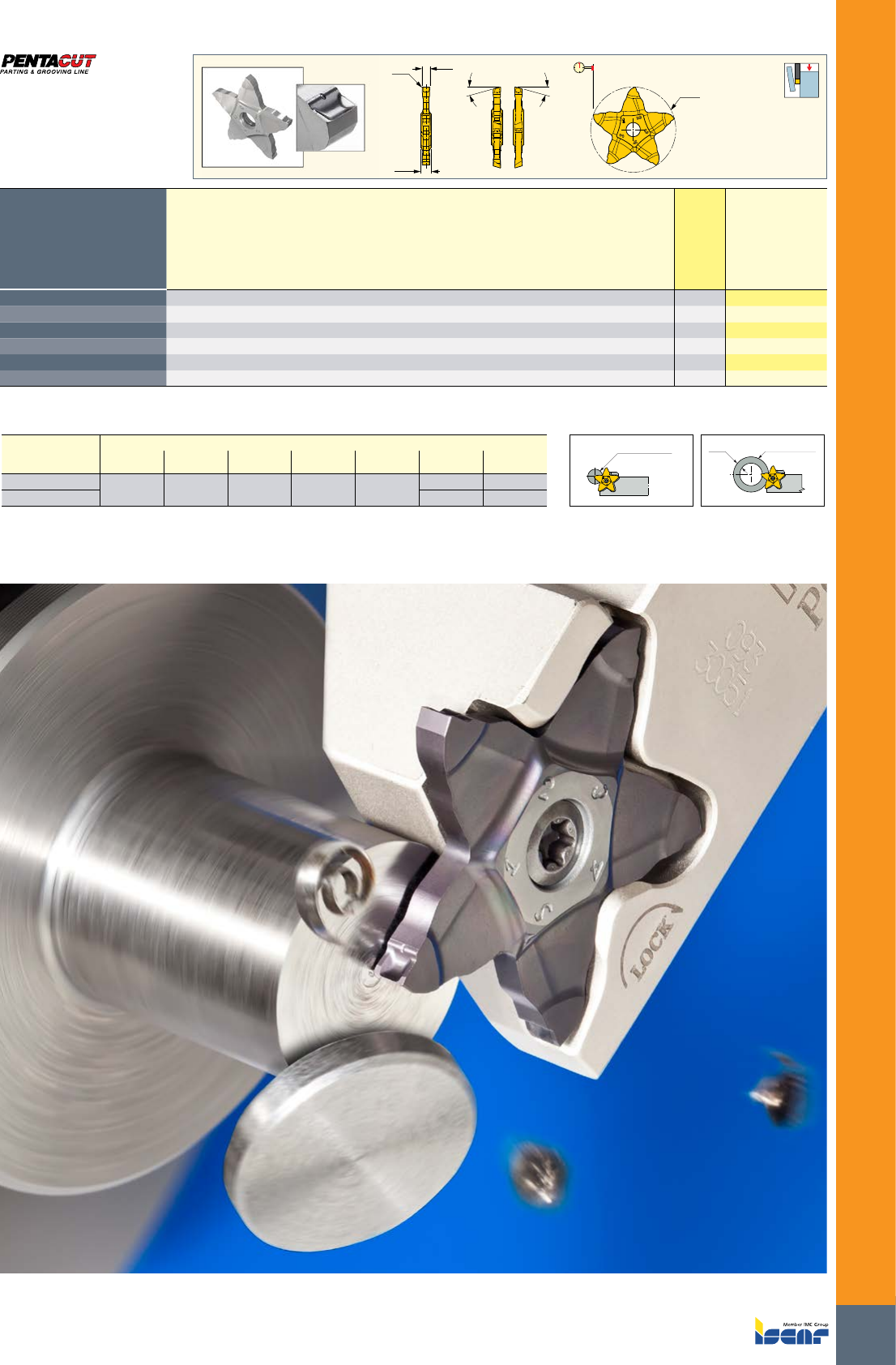

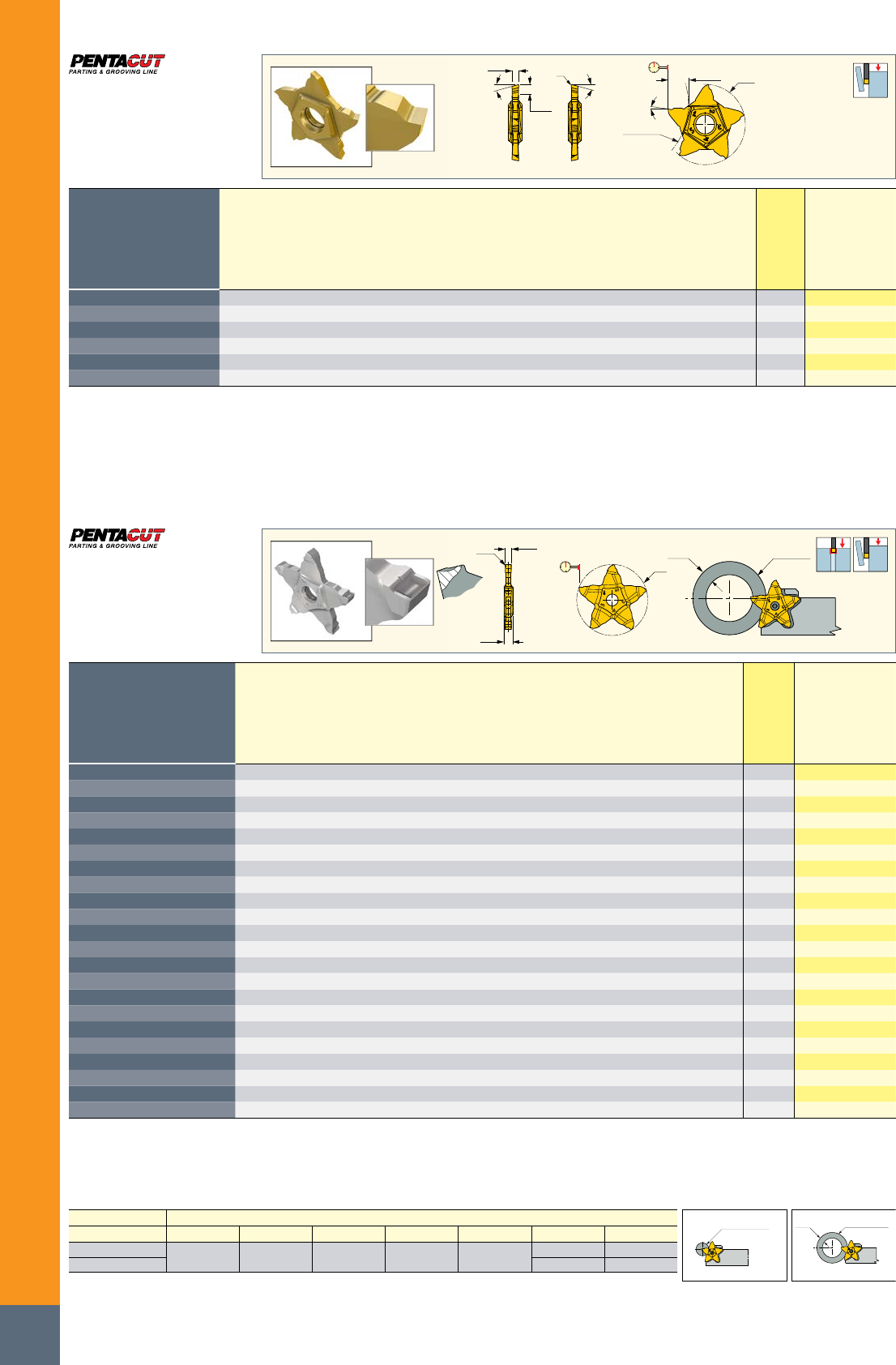

PENTACUT PENTAIQ

FIRST CHOICE!

ISCAR

462

SELECTION GUIDE

PARTING

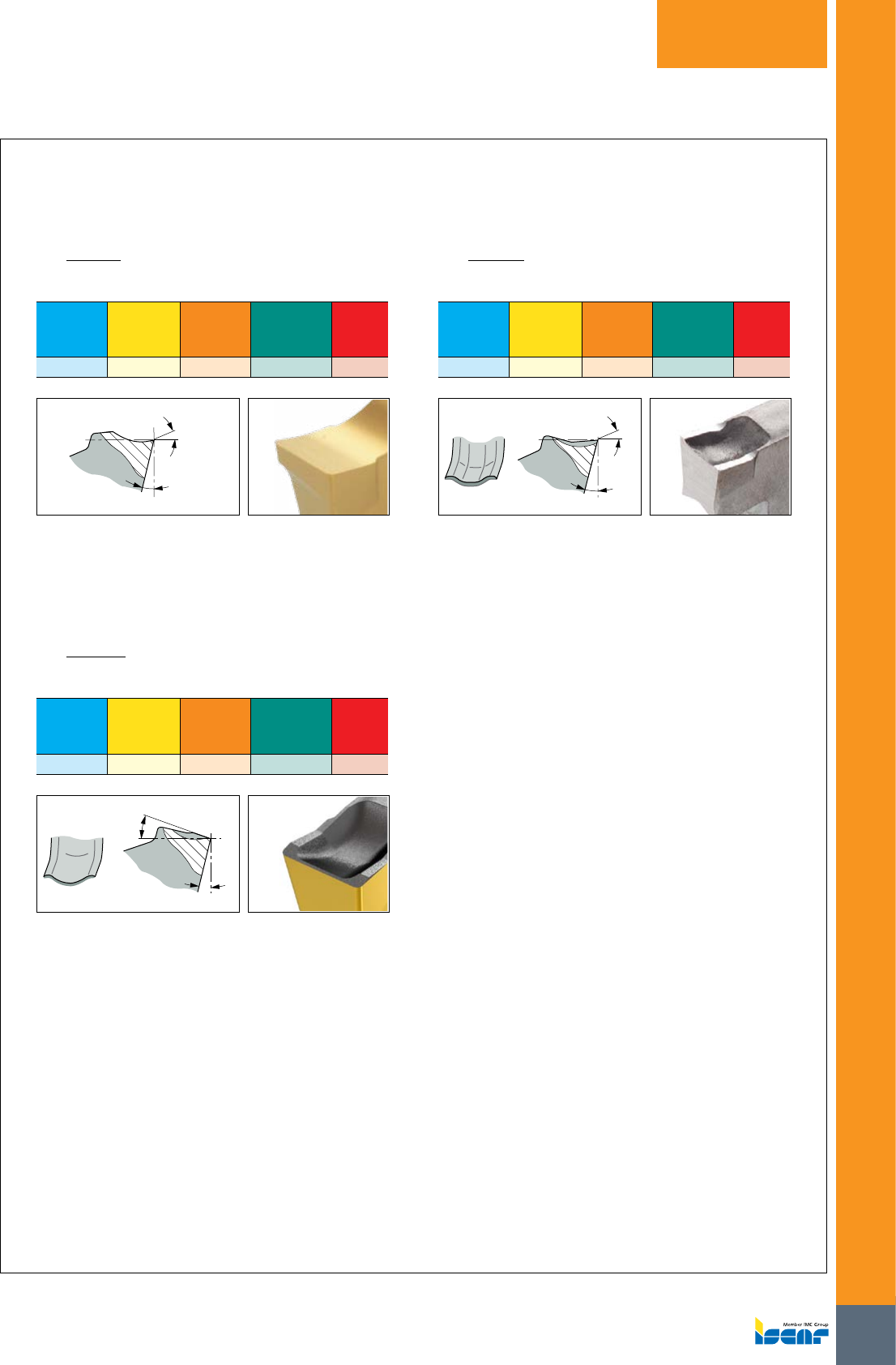

Main Chipformers

HF-Type

• For high feed machining only!

• Reinforced cutting edge (negative rake)

• Should be used with short extension tools

f ≈ W insert

12 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 7 7 7 3

~12˚

7˚

Recommended feed range as a function of insert width

0.02

3.0 5.04.0

0.15

0.25

0.35

0.45

Feed

mm/rev

0.80

Width

C-Type

• First choice for parting of bars, hard materials

and tough applications

• A positive rake, single cavity with negative land and

shoulders provides extra cutting-edge strength

• Medium-to-high feed

f ≈ W insert

18 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 7 3

(IC20 only)

(IC20 only) 3

Recommendations are for neutral inserts.

For R/L inserts, reduce feed by 20-40%.

~12˚

7˚

Recommended feed range as a function of insert width

0.02

1.6 2.0 3.0 5.04.0 6.0 8.0 9.0 12.7

0.15

0.25

0.35

0.45

Feed

mm/rev

0.80

Width

MF Type

• Parting and Grooving Insert for Soft and

Hard Materials, Medium Feed

f ≈ W insert

21 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 3 3 7 3

463

SELECTION GUIDE

PARTING

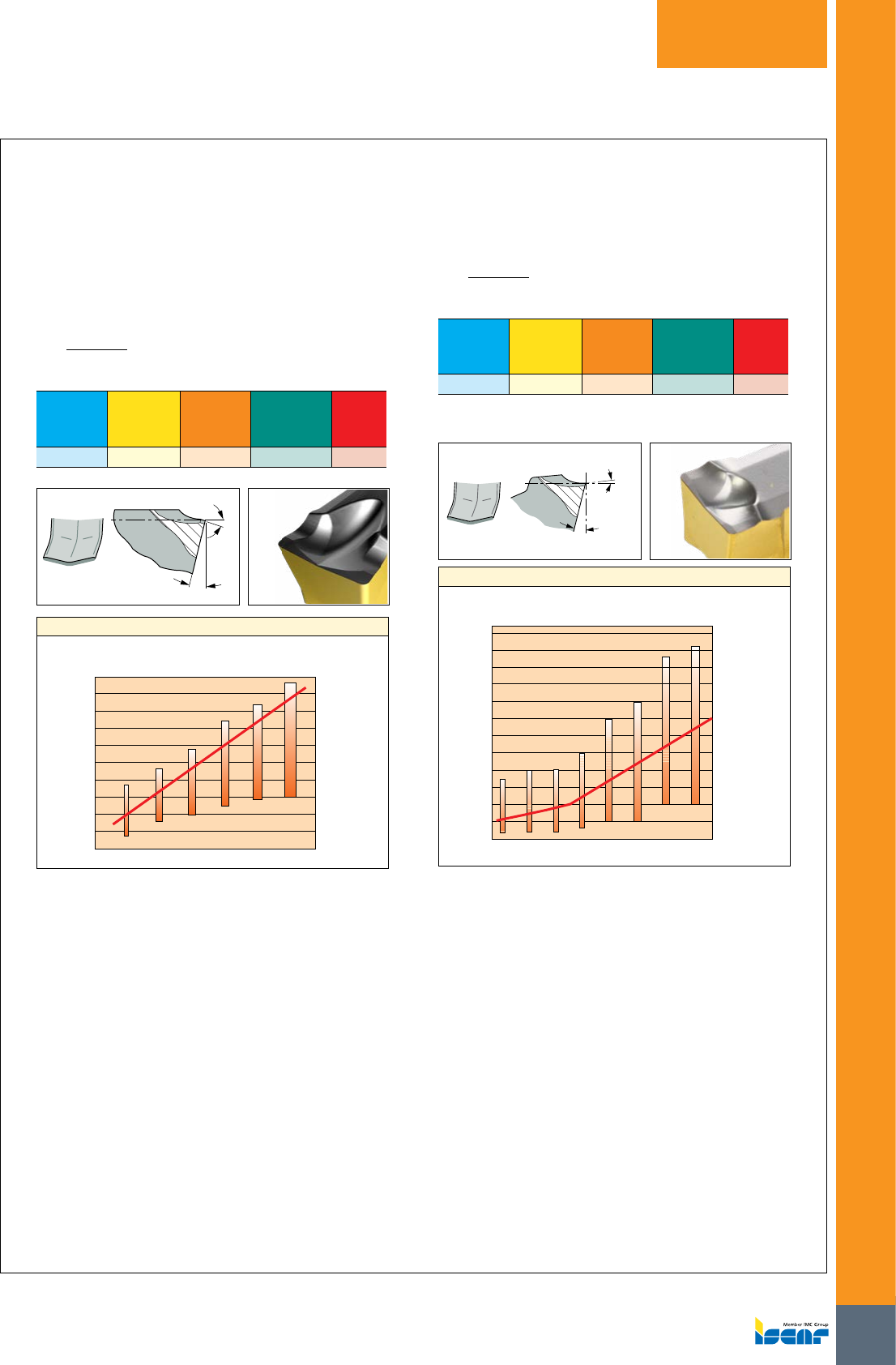

JT-Type

Based on the J-type chipformer with a

T-land reinforced frontal cutting edge.

• Provides a solution for the intermediate range

between the strong and negative C-type configuration

and the positive edged J-type chipformer.

• Can be used on a wide range of materials.

• Same manner as the J-type, but it can be used

at higher feeds due to its reinforced edge.

f ≈ W insert

24 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 3 3 7 3

7°

5°

Recommended feed range as a function of insert width

0.10

0.15

0.20

0.25

0.30

72 3 4 65

Feed

mm/rev

Width

J-Type

• First choice for soft materials, parting tubes,

small diameters and thin-walled parts

• Cutting edge with positive rake

• Low-to-medium feed

f ≈ W insert

26 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 3 3 3 7

Recommendations are for neutral inserts.

For R/L inserts, reduce feed by 20-40%.

7°

4°

Recommended feed range as a function of insert width

6.01.6 2.0 3.0 4.0 5.01.41.0

Feed

mm/rev

Width

0.02

0.06

0.10

0.14

0.18

0.22

0.25

PARTING

ISCAR

464

SELECTION GUIDE

PARTING

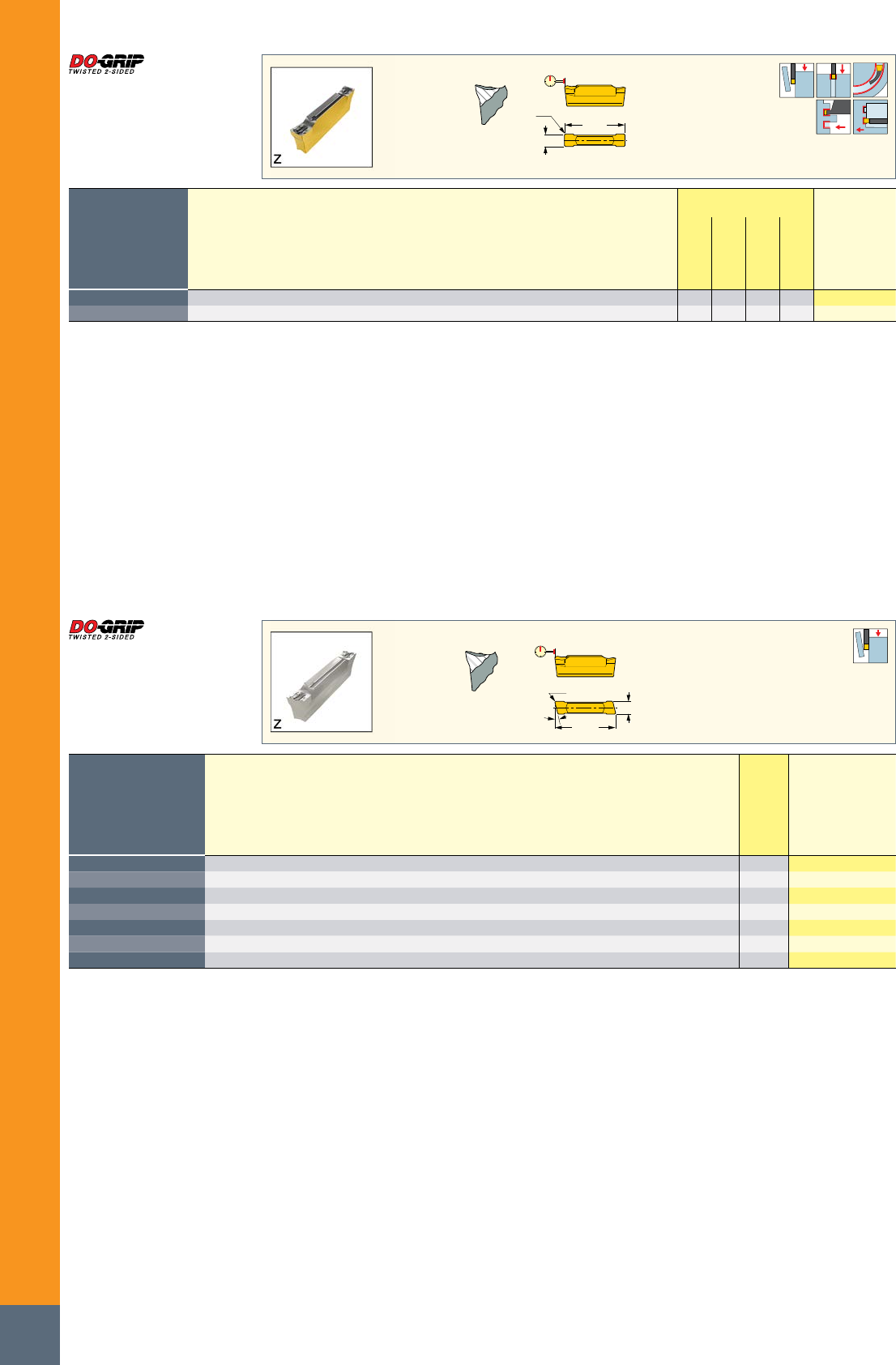

Z-Type

• Cutting edge with high positive rake, suitable for parting

tubes, thin walled arts and for small diameters

• Suitable for soft materials

• Excellent for cutting bearing steel and stainless steel

• Low-to-medium feeds

f ≈ W insert

28 [mm/rev]

Alloy Steel Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials Cast Iron

3 3 3 3 7

11˚

7˚

• Parting and Grooving Insert for Stainless Steel

& soft materials

• Miniature Parts

• Low Feeds

f ≈ W insert

31 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 3 3 7 7

7°

0°

UA/UT-Type

• A chipformer for use at low feeds

• Recommended for CrNi alloys and low

carbon steel, especially in the bearing industry

and on similar, ductile materials

• The narrow chipformer design ensures short deformed

chips and provides improved performance

• UA and UT are similar chipformers. UT is

slightly tighter than the UA chipformer

f ≈ W insert

40 [mm/rev]

7°

~12°

Recommended feed range as a function of insert width

4.0 5.0 6.0

0.02

0.06

0.10

0.14

0.18

3.02.2

Feed

mm/rev

Width

PARTING

465

SELECTION GUIDE

PARTING

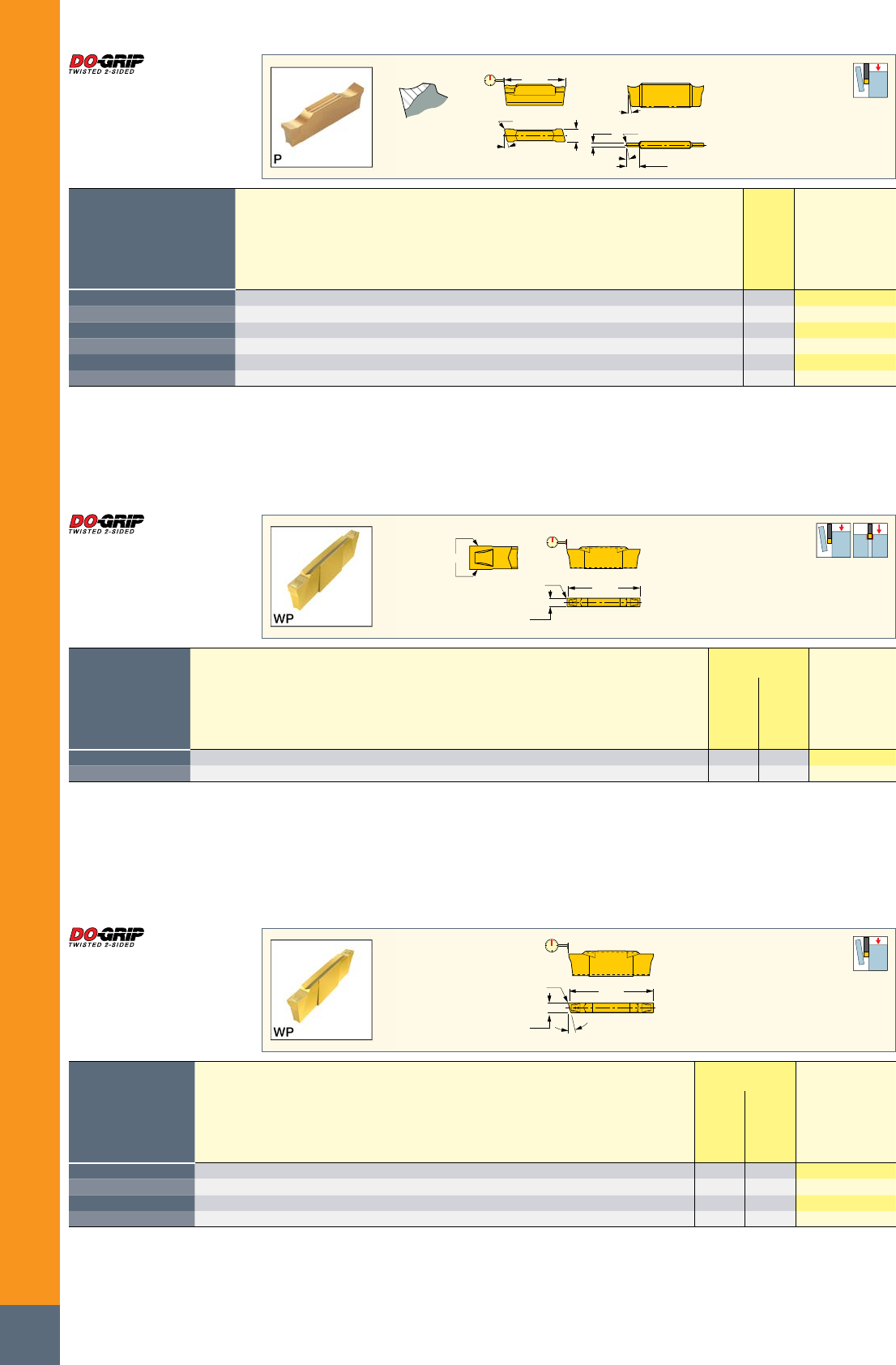

P-Type

• Very positive rake inclination and sharp cutting edge

• For soft materials, slim parts and general parting

• Low feeds

f ≈ W insert

55 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 3 7 3 7

7˚

13˚

M-Type

• Similar to C-type, but with modified edge (smaller K-land)

• Improved chip control at medium feed

f ≈ W insert

22 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

3 7 3 7 7

~12¡

7¡

A-Type

• Positive rake, sharp edge

• For parting aluminum

• In grade IC20

f ≈ W insert

43 [mm/rev]

Alloy

Steel

Austenitic

Stainless

High

Temp.

Alloys

Nonferrous

Materials

Cast

Iron

7 7 7 3 7

7°

9°

PARTING

ISCAR

466

SELECTION GUIDE

PARTING

Main Chipformers Recommended Feed

PARTING

Workpiece

Hardness

Feed mm/rev

0.01 0.03 0.05 0.07 0.09 0.11 0.13 0.15 0.17 0.19 0.21 0.23 0.25

0.30 0.35 0.40

HF MF LF C J UT

Selection of Chipformers for Various Workpiece Materials

Inserts Alloy Steel Austenitic

Stainless

High Temp.

Alloys

Nonferrous

Materials Cast Iron

48 8 8 4

484

(IC20 only)

High W

48 8 8 4

C-jet

(Coolant)

4448 8

4Medium to

high feed

4 8 4

444 8 4

Feed J

444 4 8

LFT

444 8 8

Low UT

48 8 8 8

44 8 4 8

88848

4First choice

467

PARTING

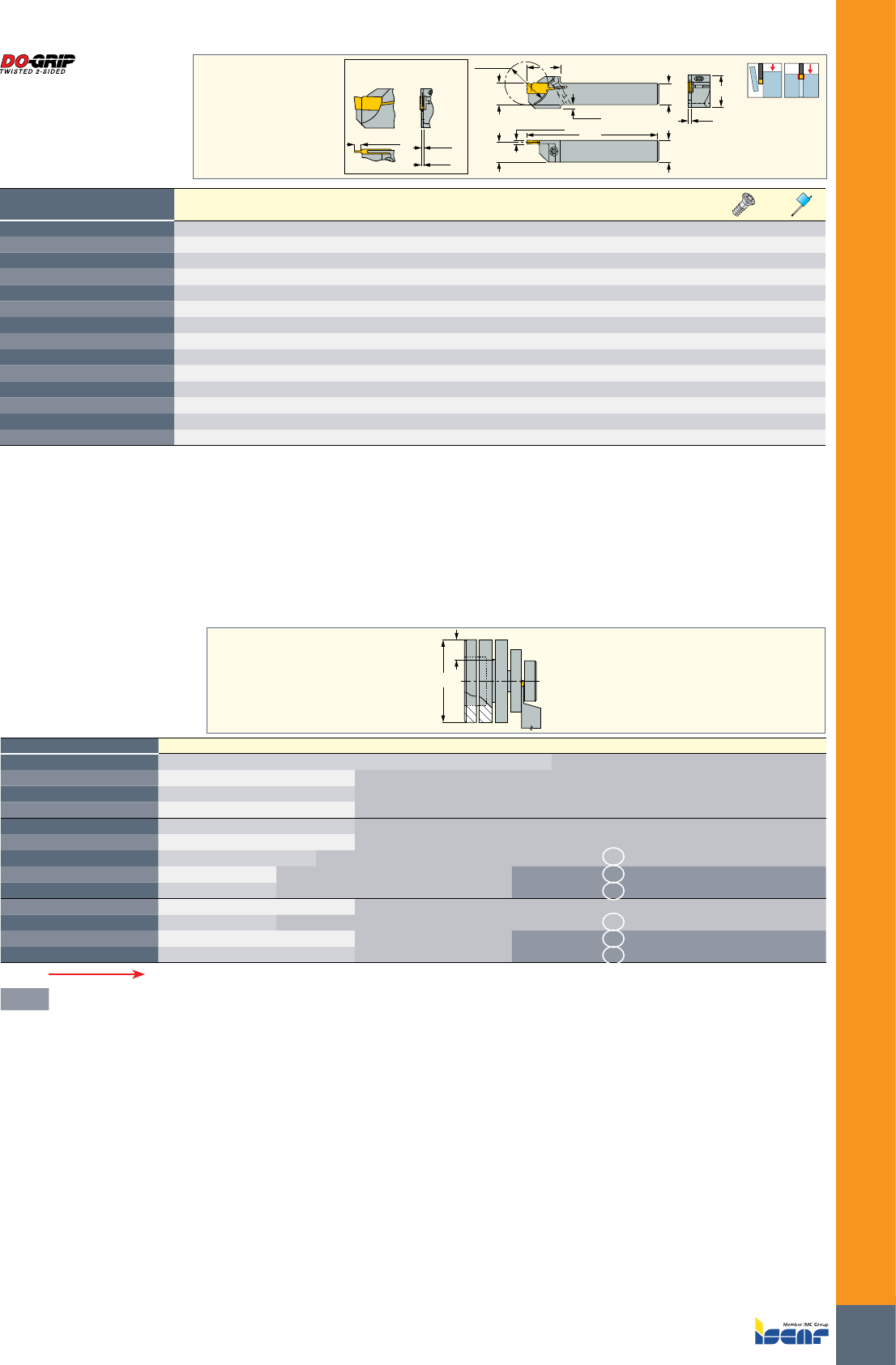

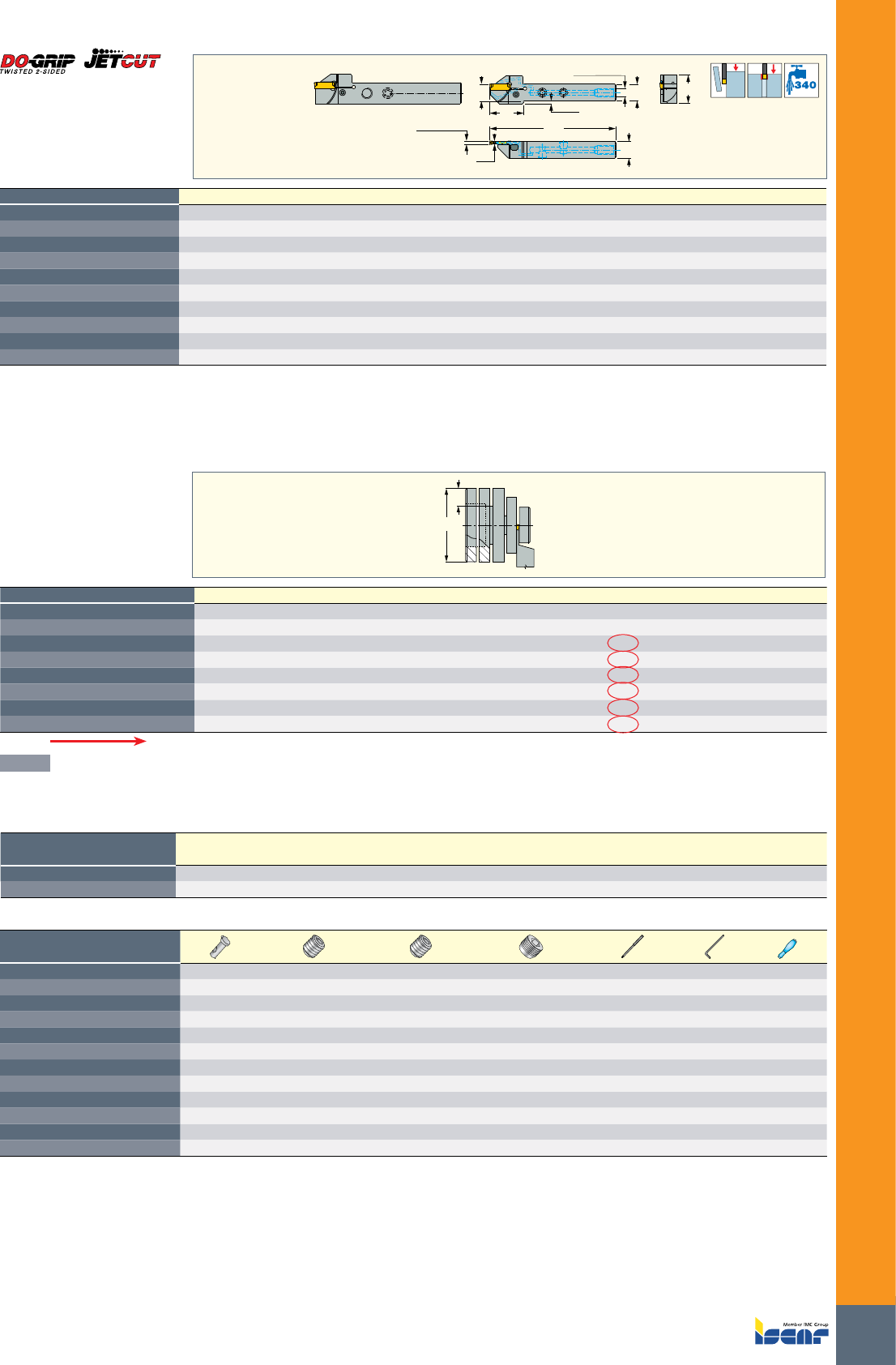

CUTDIA

OAL WB

150°

CWN-CWX

CWN-CWX DGFH

DGFH-C

Designation

H CWN(4) CWX(5) WB OAL HF CUTDIA Insert

DGFH 26-1.4

26.0 1.40 1.40 2.50 (7) 110.00 21.4 26.0 DG. 14..

DGFH 26-2 (1)

26.0 1.90 (6) 2.50 1.60 110.00 21.4 39.0 (8) DG. 1.../DG. 2...

DGFH 26-3 (1)

26.0 3.00 (6) 3.18 2.40 110.00 21.4 39.0 (8) DG. 1.../DG. 3...

DGFH 26C-3 (2)

26.0 3.00 3.18 2.40 110.00 21.4 39.0 (8) DGNC/DGRC/DGLC 3...

DGFH 26-4

26.0 4.00 4.00 3.20 110.00 21.4 80.0 DG. 4.../GRIP 4...

DGFH 32-1.4

32.0 1.40 1.40 2.50 (7) 150.00 24.8 26.0 DG. 14

DGFH 32-2 (1)

32.0 1.90 (6) 2.50 1.80 150.00 24.8 39.0 (8) DG. 1.../DG. 2...

DGFH 32-3 (1)

32.0 3.00 (6) 3.18 2.40 150.00 24.8 39.0 (8) DG. 1.../DG. 3...

DGFH 32C-3 (2)

32.0 3.00 3.18 2.40 150.00 24.8 39.0 (8) DGNC/DGRC/DGLC 3...

DGFH 32-4

32.0 4.00 4.00 3.20 150.00 24.8 100.0 DG. 4.../GRIP 4...

DGFH 32C-4 (3)

32.0 4.00 4.00 3.20 150.00 24.8 69.0 DGNC/DGRC/DGLC 4...

DGFH 32-5

32.0 5.00 5.00 4.00 150.00 24.8 120.0 DG. 5.../GRIP 5...

DGFH 32-6

32.0 6.00 6.35 5.20 150.00 24.8 120.0 DG. 6.../GRIP 6...

DGFH 45-3

45.0 3.00 (6) 3.18 2.40 225.00 38.0 160.0 DG. 1.../DG. 3...

DGFH 45-4

45.0 4.00 4.10 3.20 225.00 38.0 160.0 DG. 4.../GRIP 4...

DGFH 45-5

45.0 4.80 5.00 4.00 225.00 38.0 160.0 DG. 5.../GRIP 5...

DGFH 45-6

45.0 6.00 6.40 5.20 225.00 38.0 160.0 DG. 6.../GRIP 6...

• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified • For user guide, see pages 538-547

(1) For CUTDIA 50 mm, use single-ended insert (should be modified by the user)

(2) Blades with frontal coolant holes (JET-CUT) • For CUTDIA 50 mm, use single-ended insert (should be modified by the user)

(3) These blades are suitable for turning, using GRIP 4 inserts • Blades with frontal coolant holes (JET-CUT)

(4) Minimum cutting width

(5) Maximum cutting width

(6) For DG. 1... insert, modify holder

(7) Thickness at the D.O.C. area is 1.0 mm

(8) Maximum diameter with double-sided inserts.

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN/DGNC/DGNM-C (481) • DGR/L-C DGRC/LC-C (482) • DGN/DGNM-J/JS/JT (483)

• DGR/L-J/JS (484) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGR-P (488) • DGR-WP (488)

• DGR-Z/ZS (486) • GRIP (269) • GRIP (full radius) (270)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBR/L (617) • SGTBU/SGTBN (616)

• UBHCR/L (618)

Spare Parts

Designation

DGFH 26-1.4

EDG 23B*

DGFH 26-2

EDG 23A*

DGFH 26-3

EDG 23A*

DGFH 26C-3

EDG 23A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*

DGFH 26-4

EDG 23A*

DGFH 32-1.4

EDG 23B*

DGFH 32-2

EDG 33A*

DGFH 32-3

EDG 33A*

DGFH 32C-3

EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*

DGFH 32-4

EDG 33A*

DGFH 32C-4

EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*

DGFH 32-5

EDG 33A*

DGFH 32-6

EDG 33A*

DGFH 45-3

EDG 33A*

DGFH 45-4

EDG 33A*

DGFH 45-5

EDG 33A*

DGFH 45-6

EDG 33A*

* Optional, should be ordered separately

DGFH

Parting and Grooving Blades

with and without Coolant

Channels Carrying DO-GRIP

and HELI-GRIP Inserts

ISCAR

468

PARTING

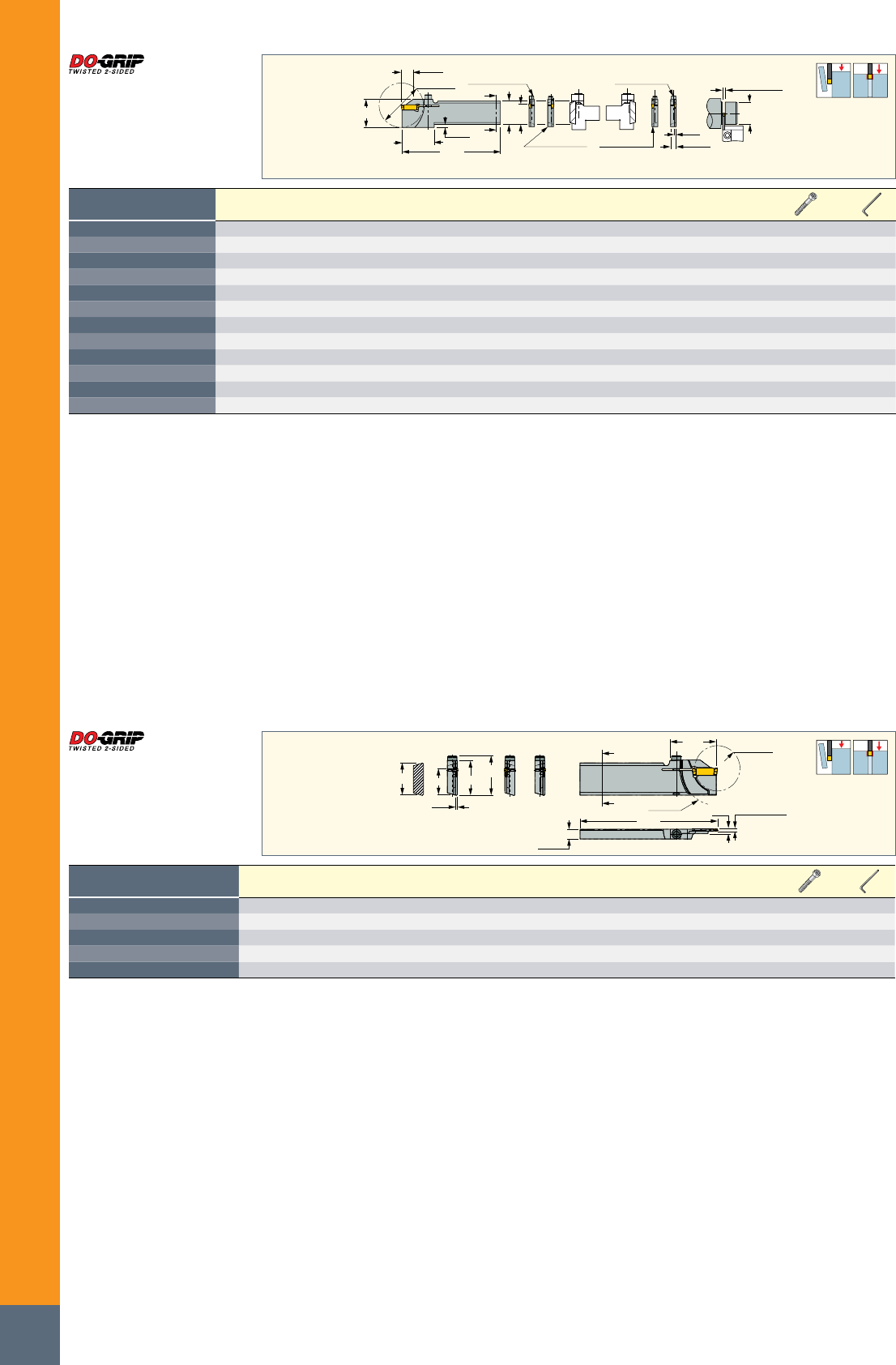

CWN-CWX

CUTDIA

WB_2

OAL

Min. Max.

Max.Min.

Bar Max

Designation

CWN(2) CWX(3) WB WB_2 OAL H HF CUTDIA Insert

DGFH 32-2-JHP (1)

1.90 (4) 2.50 1.80 2.5 150.00 32.0 24.8 39.0 DG. 1.../DG. 2... SGC 340 EDG 33A-JHP*

DGFH 32-3-JHP

3.00 (4) 3.18 2.50 - 152.00 32.0 24.8 90.0 DG. 1.../DG. 3... SR M2.0X2.5DIN916 SGC 340 EDG 33A-JHP*

DGFH 32-4-JHP

4.00 4.00 3.20 - 152.00 32.0 24.9 90.0 DG. 4.../GRIP 4... SR M2.0X2.5DIN916 SGC 340 EDG 33A-JHP*

DGFH 32-5-JHP

5.00 5.00 4.00 - 152.00 32.0 24.9 90.0 DG. 5.../GRIP 5... SR M2.0X2.5DIN916 SGC 340 EDG 33A-JHP*

DGFH 32-6-JHP (1)

6.00 6.35 5.20 - 160.00 32.0 24.9 90.0 DG. 6.../GRIP 6... SGC 340 EDG 33A-JHP*

• For user guide and accessories, see pages 538-547

(1) Only an upper channel

(2) Minimum cutting width

(3) Maximum cutting width

(4) For DG. 1... insert, modify holder

* Optional, should be ordered separately

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482)

• DGR/L-J/JS (484) • GRIP (269) • GRIP (full radius) (270)

For holders, see pages: TGTBU-JHP (497)

DGFH-JHP

Parting and Grooving Blades

with Channels for Low and

High-Pressure Coolant

Carrying DO-GRIP Inserts

CUTDIA

CWN-CWX

15°

WB_2

OAL

DGFHR-32...

DGFHR-26...

Designation

H CWN(1) CWX(2) WB_2 WB OAL HF CUTDIA(3) Machines Insert

DGFHR 26T16-2

26.0 1.90 2.50 8.0 1.70 110.00 21.4 42.0 TNS-30 DG. 1.../DG. 2.. EDG 23A*

DGFHR/L 26T23-2

26.0 1.90 2.50 8.0 1.60 110.00 21.4 42.0 TNS-30/112 DG. 1.../DG. 2.. EDG 23A*

DGFHR/L 26T16-3

26.0 3.00 3.18 8.0 2.40 110.00 21.4 30.0 TNS-30 DG. 1.../DG. 3.. EDG 23A*

DGFHR/L 26T23-3

26.0 3.00 3.18 8.0 2.40 110.00 21.4 42.0 TNS-30/42 DG. 1.../DG. 3.. EDG 23A*

DGFHR/L 32T22-2

32.0 1.90 2.50 8.0 1.60 110.00 24.8 42.0 TNS-42 DG. 1.../DG. 2.. EDG 33A*

DGFHR/L 32T33-3

32.0 3.00 3.18 8.0 2.40 110.00 24.8 60.0 TNS-42/60/65 DG. 1.../DG. 3.. EDG 33A*

DGFHR/L 32T33-4

32.0 4.00 4.00 8.0 3.40 110.00 24.8 60.0 TNS-42/60/65 DG. 4.../GRIP 4.. EDG 33A*

DGFHL 32T41-4

32.0 4.00 4.00 10.0 3.40 110.00 24.8 80.0 TNS-65/80/480 DG. 4.../GRIP 4.. EDG 33A*

DGFHR 32T41-4

32.0 4.00 4.00 8.0 3.40 110.00 24.8 80.0 TNS-65/80/480 DG. 4.../GRIP 4..

• Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user.

• DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified - see page 479

• For user guide, see pages 538-547

(1) Minimum cutting width • For DG: 1.0 insert - modify holder

(2) Maximum cutting width

(3) The specified limit refers to the tool

* Optional, should be ordered separately

For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

DGFHR/L

Parting and Grooving Reinforced

Blades Carrying DO-GRIP Inserts

469

PARTING

OAL

CDX

WB_2

HF H

CWN-CWX

DGHFL... DGHFR... DGHFL...RDGHFR...L

Min Max

Bar Max

Designation

CWN(1) CWX(2) WB_2 WB OAL H HF CDX(3) Insert

DGFHR/L 32BC-3T33-JHP

3.00 3.18 7.9 2.40 111.00 32.0 24.8 33.00 DG. 3.. SR M4-21532 HW 3.0 SGC 340 SR M3X3DIN913

DGFHL 32BC-3T33R-JHP

3.00 3.18 7.9 2.40 111.00 32.0 24.8 33.00 DG. 3.. SR M4-21532 HW 3.0 SGC 340 SR M3X3DIN913

DGFHR 32BC-3T33L-JHP

3.00 3.18 7.9 2.40 111.00 32.0 24.8 33.00 DG. 3.. SR M4-21532 HW 3.0 SGC 340 SR M3X3DIN913

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width • For DG: 1.0 insert - modify holder

(2) Maximum cutting width

(3) The specified limit refers to the tool

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: TGTBU-JHP (497)

T-2010/5

SGC 340

DGFHR/L-BC-JHP

Parting and Grooving Reinforced

Blades with Channels for

High-Pressure Coolant

Carrying DO-GRIP Inserts

OAL CWN-CWN

WB_2

CUTDIA

a°

Designation

H CWN(7) CWX(8) CUTDIA WB WB_2 OAL LH a°

DGFS 0-12-2 (1)

12.7 1.90 2.50 32.0 1.60 3.2 110.00 32.0 0 EDG 33B*

DGFS 0-17-2 (2)

17.4 1.90 2.50 35.0 1.60 3.2 110.00 32.0 0 EDG 33B*

DGFS 0-17-3 (2)

17.4 3.00 3.18 60.0 2.40 3.2 110.00 32.0 0 EDG 33B*

DGFS 5-17-2 (3)

17.4 1.90 2.50 35.0 1.60 3.2 110.00 32.0 5 EDG 33B*

DGFS 5-17-3 (3)

17.4 3.00 3.18 60.0 2.40 3.2 110.00 32.0 5 EDG 33B*

DGFS 5-17-4 (3)

17.4 4.00 4.00 60.0 3.20 3.2 110.00 32.0 5 EDG 33B*

DGFS 5-22-2 (4)

22.2 1.90 2.50 50.0 1.60 3.2 150.00 32.0 5 EDG 33B*

DGFS 5-22-3 (5)

22.2 3.00 3.18 75.0 2.40 3.2 150.00 32.0 5 EDG 33B*

DGFS 5-22-4 (5)

22.2 4.00 4.00 80.0 3.20 3.2 150.00 32.0 5 EDG 33B*

DGFS 5-24-3

23.8 3.00 3.18 80.0 2.40 3.2 150.00 32.0 5 EDG 33B*

DGFS 5-28-2 (6)

28.5 1.90 2.50 65.0 1.60 3.2 150.00 32.0 5 EDG 33B*

DGFS 5-28-4 (6)

28.5 4.00 4.00 100.0 3.20 3.2 150.00 32.0 5 EDG 33B*

• DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified -see page 479

• For user guide, see pages 538-547

(1) Toolholder assembly X18-1,46,47-WT,160-CL,354-CL,701-ACL,702,702-CL,703,703-CL,704,704-CL,6921,6925

(2) Toolholder assembly E-7,47,102-CL,103-CL,161-A-CL,162-A-CL

(3) Toolholder assembly 226,226-CL,275,275-CL,276-CL,361-CL,431,630,707-A,707-A-CL

(4) Toolholder assembly 100-CL,274,277,277-CL,274-CL,370,383-CL, 6722,6754,6755,6854,6855,6922,51,51-CL,353-CL,167,370-CL

(5) Toolholder assembly 100-CL,274,277,277-CL,274-CL,370,383-CL, 6722,6754,6755,6854,6855,51,51-CL,353-CL,167,370-CL

(6) Toolholder assembly 278,278-CL,279,279-CL,280,280-CL,281,281-CL,375-CL,359-CL,372-CL,A6120,52,52-CL

(7) Minimum cutting width • For DG: 1.0 insert - modify holder

(8) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: DGN-LF/LFT (485) • DGN/DGNC/DGNM-C (481) • DGR/L-C DGRC/LC-C (482) • DGN/DGNM-J/JS/JT (483) • DGR/L-J/JS (484)

• DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • GRIP (269) • GRIP (full radius) (270)

DGFS

Blades for Multi-Spindle

Machines, Replacement for

HSS and Brazed Tools

ISCAR

470

PARTING

CUTDIA

CDX

OAH

36.7 OAL

HBH

DGFHL-B-D50 DGFHR-B-D50

DGFHL-B-D50R DGFHR-B-D50L

WB_2

CWN-CWX

CUTDIA

Designation

H(4) CWN(5) CWX(6) WB WB_2 OAL OAH HF HBH CDX(7) CUTDIA(8) Insert

DGFHR/L 26B-2D50 (1)

26.0 1.90 2.50 1.60 8.0 110.00 33.7 21.4 3.6 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHL 26B-2D50R (2)

26.0 1.90 2.50 1.60 8.0 110.00 31.5 21.4 3.7 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHR 26B-2D50L (2)

26.0 1.90 2.50 1.60 8.0 110.00 31.5 21.4 3.7 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHR/L 26B-3D50 (1)

26.0 3.00 3.18 2.40 8.0 110.00 31.5 21.4 3.7 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHL 26B-3D50R (2)

26.0 3.00 3.18 2.40 8.0 110.00 31.5 21.4 3.7 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHR 26B-3D50L (2)

26.0 3.00 3.18 2.40 8.0 110.00 31.5 21.4 3.7 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHR/L 32B-2D50 (3)

32.0 1.90 2.50 1.60 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHL 32B-2D50R (2)

32.0 1.90 2.50 1.60 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHR 32B-2D50L (2)

32.0 1.90 2.50 1.60 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHR/L 32B-3D50 (3)

32.0 3.00 3.18 2.40 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHL 32B-3D50R (2)

32.0 3.00 3.18 2.40 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHR 32B-3D50L (2)

32.0 3.00 3.18 2.40 8.0 120.00 31.5 24.8 - 18.00 50.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

• Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type.

• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-see page 479

• For user guide, see pages 538-547

(1) For Traub machines, model TNC 30, TNM 28, TNS 26/30/42/112, TNA 300, TNK 260

(2) For Tornos Bechler, Emco 2000/20, 2000/26 machines

(3) For TRAUB machines, model TNC 42/65, TNM 42/65, TNS 42/60/65, TNA 300/400

(4) Mounted on all ISCAR standard blocks

(5) Minimum cutting width • For DG: 1.0 insert - modify holder

(6) Maximum cutting width

(7) Cutting depth maximum

(8) The specified limit refers to the tool

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

DGFHR/L-B-D..(R/L)

Reinforced Type Blades

with Screw Clamping

HHF

31.5

OAH

DGFHL..B-..TR-D..

A54 max

CUTDIA

37.8

CWN-CWX

3.5

OAL

WB_2

DGFHL..B

-..TR-D-R

DGFHL..B

-..TR-D

Designation

H(2) CWN(3) CWX(4) WB WB_2 OAL OAH HF CUTDIA(5) Insert

DGFHL 26B-1.5TR-D20 (1)

26.0 1.00 1.50 1.20 7.9 110.00 27.9 21.4 20.0 DG. 1.../DG. 15.. SR M4X20 DIN912 HW 3.0

DGFHL 26B-2TR-D36

26.0 1.90 (6) 2.50 1.60 7.9 110.00 27.9 21.4 36.0 DG. 1.../DG. 2.. SR M5X20-01172 HW 3.0

DGFHL 26B-2TR-D36R

26.0 1.90 (6) 2.50 1.60 7.9 110.00 27.9 21.4 36.0 DG. 1.../DG. 2.. SR M4X20 DIN912 HW 3.0

DGFHL 26B-3TR-D36

26.0 3.00 (6) 3.18 2.40 7.9 110.00 27.9 21.4 36.0 DG. 1.../DG. 3.. SR M4X20 DIN912 HW 3.0

DGFHL 26B-3TR-D36R

26.0 3.00 (6) 3.18 2.40 7.9 110.00 27.9 21.4 36.0 DG. 1.../DG. 3.. SR M5X20-01172 HW 3.0

• Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user

• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - see page 479

• For user guide, see pages 538-547

(1) Do not use DG.. 1.4 on this tool!

(2) Mounted on all ISCAR standard blocks

(3) Minimum cutting width

(4) Maximum cutting width

(5) The specified limit refers to the tool

(6) For DG: 1.0 insert - modify holder

For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

DGFHL-26B-TR-D

Reinforced Type Blades with

Screw Clamping for TRAUB

and Index Machines

471

PARTING

CUTDIA LH

HBH

OAL

CWN-CWX

WF B

OAH

DGTR/L..B-1.5D...

with DGN/R/L 1 mm inserts

CDX=3 0.75

WB Left-hand shown

Designation

CWN(2) CWX(3) H B WB WF LH CUTDIA OAH HBH OAL Insert

DGTR/L 8B-1.4SH

1.40 1.40 8.0 8.0 1.00 7.50 18.0 10.0 15.4 2.0 125.00 DG. 14.. SR 16-236 P(a) T-15/5

DGTR/L 10B-1.4D20SH

1.40 1.40 10.0 10.0 1.00 9.50 18.0 20.0 13.7 2.0 120.00 DG. 14.. SR 16-236 P(a) T-15/5

DGTR/L 10B-1.5D20SH (1)

1.00 1.50 10.0 10.0 1.00 9.50 19.0 20.0 15.7 2.0 120.00 DG. 1.../DG. 15.. SR 16-236 P(a) T-15/5

DGTR/L 10B-2D20SH

1.90 2.50 10.0 10.0 1.60 9.20 19.0 20.0 15.7 2.0 120.00 DG. 1.../DG. 2.. SR 16-236 P(a) T-15/5

DGTR/L 12B-1.4D24SH

1.40 1.40 12.0 12.0 1.00 11.50 19.0 24.0 15.7 - 120.00 DG. 14.. SR 16-236 P(a) T-15/5

DGTR/L 12B-1.5D24SH (1)

1.00 1.50 12.0 12.0 1.00 11.40 19.0 24.0 15.7 - 120.00 DG. 1.../DG. 15.. SR 16-236 P(a) T-15/5

DGTR/L 12B-2D24SH

1.90 2.50 12.0 12.0 1.60 11.20 19.0 24.0 15.7 - 120.00 DG. 1.../DG. 2.. SR 16-236 P(a) T-15/5

DGTR 12B-2D24SH-L85

1.90 2.50 12.0 12.0 1.60 11.20 19.0 24.0 15.7 - 85.00 DG. 1.../DG. 2.. SR 16-236 P(a) T-15/5

DGTR/L 12B-3D24SH

3.00 3.18 12.0 12.0 2.40 10.80 19.0 24.0 15.7 - 120.00 DG. 3.../DG. 10.. SR 16-236 P(a) T-15/5

DGTR/L 16B-1.5D25SH (1)

1.00 1.50 16.0 16.0 1.20 15.40 19.5 25.4 19.7 - 120.00 DG. 1.../DG. 15.. SR 16-236 P(a) T-15/5

DGTR/L 16B-2D25SH

1.90 2.50 16.0 16.0 1.60 15.20 19.5 25.4 19.7 - 120.00 DG. 1.../DG. 2.. SR 16-236 P(a) T-15/5

DGTR/L 16B-3D25SH

3.00 3.18 16.0 16.0 2.40 14.80 19.5 25.4 19.7 - 120.00 DG. 1.../DG. 3.. SR 16-236 P(a) T-15/5

DGTR/L 20B-1.5D25SH (1)

1.00 1.50 20.0 20.0 1.20 19.40 19.5 25.4 23.7 - 120.00 DG. 1.../DG. 15.. SR 16-236 P(a) T-15/5

DGTR/L 20B-3D25SH

3.00 3.18 20.0 20.0 2.40 18.80 19.5 25.4 23.7 - 120.00 DG. 1.../DG. 3.. SR 16-236 P(a) T-15/5

• DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions

for the 2 and 3 holder pockets, see page 479

• For user guide, see pages 538-547

(1) Do not use DG.. 1.4 on this tool!

(2) Minimum cutting width

(3) Maximum cutting width

(a) Recommended tightening torque for this item: 3 N*m (26.5 lbf*in)

For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Designation

øDmax

DGTR/L 10B-1.4D20

——————————20 23 26 32 45 76 NL

DGTR/L 12B-1.4D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 16B-1.4D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 20B-1.4D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 10B-2D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 12B-2D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 16B-2D32

————32 35 37 41 47 55 69 93 150 400 NL NL NL

DGTR/L 20B-2D35

———75 90 113 155 250 650 NL NL NL NL NL NL NL NL

DGTR/L 25B-2D35

———75 90 113 155 250 650 NL NL NL NL NL NL NL NL

DGTR/L 12B-3D30

—————30 32 35 38 43 50 62 83 125 300 NL NL

DGTR/L 16B-3D35

———35 39 42 46 51 59 71 91 130 230 1200 NL NL NL

DGTR/L 20B-3D40

56 62 71 83 102 134 200 400 NL NL NL NL NL NL NL NL NL

DGTR/L 25B-3D40

56 62 71 83 102 134 200 400 NL NL NL NL NL NL NL NL NL

Depth T

20 19 18 17 16 15 14 13 12 11 10 987654

NL- No Limit Example:

For 9 mm depth of groove on a 75 mm workpiece diameter, six tools may be used.

Depth Capacity DGTR/L-B-D

Depth of Cut as Function

of Workpiece Diameter

(DGN/R/L-100... excluded)

DGTR/L-B-D-SH

Parting and Grooving Short

Head Tools for CNC and

Swiss Automatics

ISCAR

472

PARTING

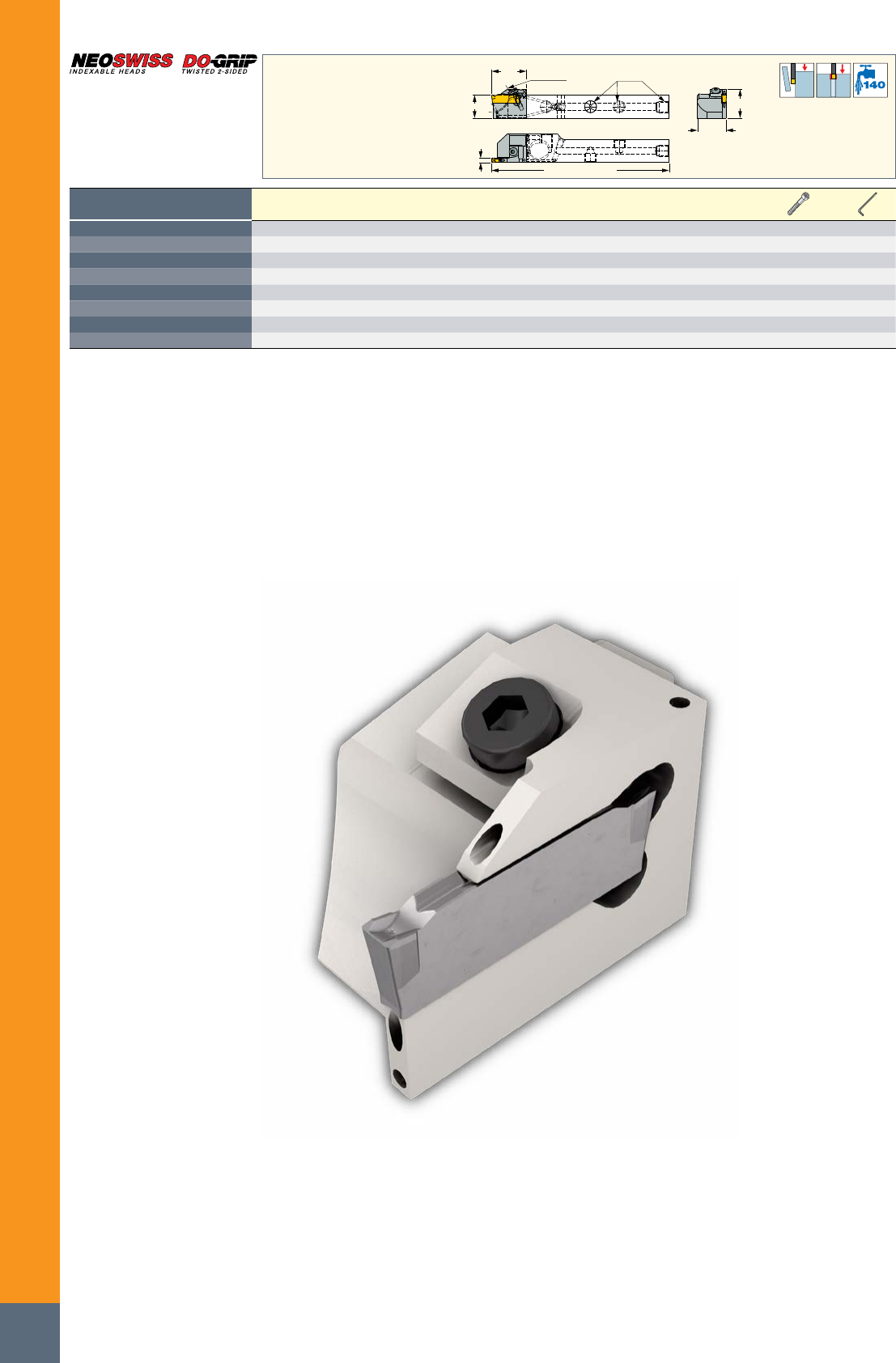

LH CNT

CUTDIA

OAL (assembly)

CWN-CWX

OAW

OAH

Bar Max

Designation

CWN(1) CWX(2) HF OAW OAH LH OAL CUTDIA Insert

NQCH12-DGTL-2D24SH-JHP

1.90 2.50 12.1 20.00 16.20 24.0 124.00 24.0 DGN 2 SR M3X10DIN912 HW 2.5

NQCH12-DGTR-2D24SH-JHP

1.90 2.50 12.1 20.00 16.20 24.2 124.20 24.0 DGN 2 SR M3X10DIN912 HW 2.5

NQCH16-DGTL-2D24SH-JHP

1.90 2.50 16.1 20.00 20.20 24.0 124.00 24.0 DGN 2 SR M3X10DIN912 HW 2.5

NQCH16-DGTR-2D24SH-JHP

1.90 2.50 16.1 20.00 20.20 24.2 124.20 24.0 DGN 2 SR M3X10DIN912 HW 2.5

NQCH12-DGTL-3D24SH-JHP

3.00 3.18 12.1 20.00 16.20 24.0 124.00 24.0 DGN 3 SR M3X10DIN912 HW 2.5

NQCH12-DGTR-3D24SH-JHP

3.00 3.18 12.1 20.00 16.20 24.2 124.20 24.0 DGN 3 SR M3X10DIN912 HW 2.5

NQCH16-DGTL-3D24SH-JHP

3.00 3.18 16.1 20.00 20.20 24.0 124.00 24.0 DGN 3 SR M3X10DIN912 HW 2.5

NQCH16-DGTR-3D24SH-JHP

3.00 3.18 16.1 20.00 20.20 24.2 124.20 24.0 DGN 3 SR M3X10DIN912 HW 2.5

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C

(481) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: NQCH-JHP (61)

NQCH-DGTR/L-D-SH-JHP

Screw Lock JETCUT Modular

Heads for Swiss Type Machines

- Double-Sided Parting Inserts

473

PARTING

CNT (typ.x3)

CWN-CWX

OAL

OAH

LH HBH

Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) H B WB LH CUTDIA(3) OAH HBH OAL Insert CNT

DGTR/L 12B-2D24-JHP-SL

1.90 2.50 12.0 12.0 1.70 29.4 24.0 25.7 6.5 100.00 DG. 2... 5/16"-24 UNF

DGTR/L 16B-2D35-JHP-SL

1.90 2.50 16.0 16.0 1.70 32.0 35.0 26.7 2.6 120.00 DG. 2... 5/16"-24 UNF

DGTL 20B-2D35-JHP-SL

1.90 2.50 20.0 20.0 1.70 32.0 35.0 28.1 - 140.00 DG. 2... 1/8"-28 BSPP

DGTR 20B-2D35-JHP-SL

1.90 2.50 20.0 20.0 1.70 32.0 35.0 28.1 - 140.00 DG. 2.. 1/8"-28 BSPP

DGTR/L 12B-3D24-JHP-SL

3.00 3.18 12.0 12.0 2.40 29.4 24.0 25.7 6.5 100.00 DG. 3.. 5/16"-24 UNF

DGTR/L 16B-3D35-JHP-SL

3.00 3.18 16.0 16.0 2.40 32.0 35.0 26.7 2.6 120.00 DG. 3.. 5/16"-24 UNF

DGTR/L 20B-3D40-JHP-SL

3.00 3.18 20.0 20.0 2.40 35.6 40.0 28.1 - 140.00 DG. 3.. 1/8"-28 BSPP

DGTR/L 25B-2D35-JHP-SL

1.90 2.50 25.0 25.0 1.70 32.1 35.0 33.1 - 140.00 DG. 2.. 1/8"-28 BSPP

DGTR/L 25B-3D40-JHP-SL

3.00 3.18 25.0 25.0 2.40 35.6 40.0 33.1 - 140.00 DG. 3.. 1/8"-28 BSPP

DGTR 25B-4D40-JHP-SL

4.00 4.76 25.0 25.0 3.40 34.6 40.0 33.0 - 140.00 DG..4.. 1/8"-28 BSPP

• For insert depth capacity table and modification instructions for the holder pockets, see page 479 • For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum cutting diameter

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Depth Capacity

DGTR/L-B-D-JHP-SL

Depth of Cut as Function

of Workpiece Diameter

(DGN/R/L-100... excluded)

Designation

øDmax

DGTR/L 12B-2D24-JHP-SL

————————24 26 27 28 30 32 36 42 52

DGTR/L 16B-2D35-JHP-SL

————————24 26 27 28 30 32 36 42 52

DGTR/L 20B-2D35-JHP-SL

———35 39 42 46 51 59 71 91 130 230 1200 NL NL NL

DGTR/L 25B-2D35-JHP-SL

———65 70 75 80 90 100 120 140 180 250 410 1200 NL NL

DGTR/L 12B-3D24-JHP-SL

———35 39 42 46 51 59 71 91 130 230 1200 NL NL NL

DGTR/L 16B-3D35-JHP-SL

———75 90 113 155 250 650 NL NL NL NL NL NL NL NL

DGTR/L 20B-3D40-JHP-SL

56 62 71 83 102 134 200 400 NL NL NL NL NL NL NL NL NL

DGTR/L 25B-3D40-JHP-SL

50 55 60 67 75 85 100 115 140 200 350 NL NL NL NL NL NL

Depth T

20 19 18 17 16 15 14 13 12 11 10 987654

NL - No Limit

Example:

For a 9 mm depth of groove on a 75 mm workpiece diameter, six tools may be used.

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

DGTR/L ...2-JHP-SL

3-4 4-5 5-6

DGTR/L ...3-JHP-SL

5-6 6-7 7-8

Spare Parts

Designation

DGTR/L 12B-2D24-JHP-SL

PIN-32121 SR M5-24145-RL SR 5/16UNF TL360 BLD HW2.5 HW 5/32" SW6-SD

DGTR/L 16B-2D35-JHP-SL

PIN-32121 SR M5-24145-RL SR 5/16UNF TL360 BLD HW2.5 HW 5/32" SW6-SD

DGTR/L 20B-2D35-JHP-SL

PIN-32121 SR M5-24145-RL PLG G1/8 TL360 BLD HW2.5 HW 5.0 SW6-SD

DGTL 12B-3D24-JHP-SL

PIN-32121 SR M5-24145 SR M5-24145-RL SR 5/16UNF TL360 BLD HW2.5 HW 5/32" SW6-SD

DGTR 12B-3D24-JHP-SL

PIN-32121 SR M5-24145-RL SR 5/16UNF TL360 BLD HW2.5 HW 5/32" SW6-SD

DGTR/L 16B-3D35-JHP-SL

PIN-32121 SR M5-24145-RL SR 5/16UNF TL360 BLD HW2.5 HW 5/32" SW6-SD

DGTR/L 20B-3D40-JHP-SL

PIN-32121 SR M5-24145-RL PLG G1/8 TL360 BLD HW2.5 HW 5.0 SW6-SD

DGTL 25B-2D35-JHP-SL

PIN-32121 SR M5-24145-RL PLG G1/8 TL360 HW 5.0

DGTR 25B-2D35-JHP-SL

PIN-32121 SR M5-24145-RL PLG G1/8 TL360 BLD HW2.5 HW 5.0 SW6-SD

DGTL 25B-3D40-JHP-SL

BLD HW2.5 SW6-SD

DGTR/L 25B-3D40-JHP-SL

PIN-32121 SR M5-24145-RL PLG G1/8 TL360 HW 5.0

DGTR 25B-3D40-JHP-SL

BLD HW2.5* SW6-SD*

* Optional, should be ordered separately

DGTR/L-B-D-JHP-SL

Parting and Grooving Side Lock

Type Tools with High-Pressure

Coolant for CNC and Swiss

Automatics

ISCAR

474

PARTING

OAL

Coolant Inlet

OAH

CWN-CWX WB

WF B

Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) H B WB WF LH CUTDIA(3) OAH OAL Insert

DGTR/L 20B-2D35-JHP-SL-MC

1.90 2.50 20.0 20.0 1.70 19.15 32.1 35.0 28.10 102.10 DG. 2...

DGTR/L 20B-3D40-JHP-SL-MC

3.00 3.18 20.0 20.0 2.40 18.80 35.6 40.0 28.10 105.60 DG. 3...

DGTR/L 25B-2D35-JHP-SL-MC

1.90 2.50 25.0 25.0 1.70 24.15 32.1 35.0 33.10 117.10 DG. 2...

DGTR/L 25B-3D40-JHP-SL-MC

3.00 3.18 25.0 25.0 2.40 23.80 35.6 40.0 33.10 120.60 DG. 3...

• For insert depth capacity table and modification instructions for the holder pockets, see page 479 • For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum cutting diameter

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation

DGTR/L-B-D-JHP-SL-MC

SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913

DGTR/L-B-D-JHP-SL-MC

Parting and Grooving Side Lock

Type Tools with Bottom Inlets

for High-Pressure Coolant

475

PARTING

DGTL-BC-D DGTL-B-D

HBH

OAL

CWN-CWX

CDX

Left-hand shown

Designation

CWN(3) CWX(4) H B WB OAL LH CDX(5) WF HBH CSP(6) Insert

DGTR/L 10B-1.4D20

1.40 1.40 10.0 10.0 1.00 140.00 23.6 10.00 9.50 2.0 0 DG. 14..

DGTR/L 12B-1.4D30

1.40 1.40 12.0 12.0 1.00 140.00 29.6 15.00 11.50 3.5 0 DG. 14..

DGTR/L 16B-1.4D30

1.40 1.40 16.0 16.0 1.00 140.00 29.6 15.00 15.50 - 0 DG. 14..

DGTR/L 20B-1.4D30

1.40 1.40 20.0 20.0 1.00 140.00 29.6 15.00 19.50 - 0 DG. 14..

DGTR/L 10B-2D30

1.90 2.50 10.0 10.0 1.60 140.00 29.6 15.00 9.20 6.6 0 DG. 1.../DG. 2..

DGTR/L 12B-2D30

1.90 2.50 12.0 12.0 1.60 140.00 29.6 15.00 11.20 3.5 0 DG. 1.../DG. 2..

DGTR/L 16B-2D32

1.90 2.50 16.0 16.0 1.60 140.00 30.6 16.00 15.20 - 0 DG. 1.../DG. 2..

DGTR/L 20B-2D35

1.90 2.50 20.0 20.0 1.60 140.00 32.1 17.50 19.20 - 0 DG. 1.../DG. 2..

DGTR/L 25B-2D35

1.90 2.50 25.0 25.0 1.60 140.00 32.1 17.50 24.20 - 0 DG. 1.../DG. 2..

DGTR/L 12B-3D30

3.00 3.18 12.0 12.0 2.40 140.00 29.6 15.00 10.80 3.5 0 DG. 1.../DG. 3..

DGTR/L 16B-3D35

3.00 3.18 16.0 16.0 2.40 140.00 32.1 16.00 14.80 2.6 0 DG. 1.../DG. 3..

DGTR/L 16BC-3D35 (1)

3.00 3.18 16.0 16.0 2.40 140.00 31.1 16.00 14.80 2.6 1 DGNC/DGRC/DGLC 3...

DGTR/L 20B-3D40 (2)

3.00 3.18 20.0 20.0 2.40 140.00 35.6 20.00 18.80 - 0 DG. 1.../DG. 3..

DGTR/L 20BC-3D40 (1)

3.00 3.18 20.0 20.0 2.40 140.00 34.6 20.00 18.80 - 1 DGNC/DGRC/DGLC 3...

DGTR/L 25B-3D40 (2)

3.00 3.18 25.0 25.0 2.40 140.00 35.6 20.00 23.80 - 0 DG. 1.../DG. 3..

• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width tools • DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3.

• For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, see page 479 • For user guide, see pages 538-547

(1) Tools for inserts with coolant holes for high temperature alloys and stainless steel

(2) Insert's Tmax=18 mm, for deeper penetration modify insert into single-ended

(3) Minimum cutting width

(4) Maximum cutting width

(5) The specified limit refers to the tool

(6) 0 - Without coolant supply, 1 - With coolant supply

For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation

DGTR/L 10B-1.4D20

SR M5X12 DIN912 HW 4.0

DGTR/L 12B-1.4D30

SR M5X12 DIN912 HW 4.0

DGTR/L 16B-1.4D30

SR M5X12 DIN912 HW 4.0

DGTR/L 20B-1.4D30

SR M5X12 DIN912 HW 4.0

DGTR/L 10B-2D30

SR M5X12 DIN912 HW 4.0

DGTR/L 12B-2D30

SR M5X12 DIN912 HW 4.0

DGTR/L 16B-2D32

SR M4X14 DIN912 HW 3.0

DGTR/L 20B-2D35

SR M4X14 DIN912 HW 3.0

DGTL 25B-2D35

SR M5X12 DIN912 HW 4.0

DGTR 25B-2D35

SR M4X14 DIN912 HW 3.0

DGTR/L 12B-3D30

SR M5X12 DIN912 HW 4.0

DGTR/L 16B-3D35

SR M5X12 DIN912 HW 4.0

DGTR/L 16BC-3D35

SR M5X12 DIN912 HW 4.0 CGM 343* CF 343* SGCU 341* CGF 343*

DGTR/L 20B-3D40

SR M5X12 DIN912 HW 4.0

DGTR/L 20BC-3D40

SR M5X12 DIN912 HW 4.0 CGM 343* CF 343* SGCU 341* CGF 343*

DGTR/L 25B-3D40

SR M5X12 DIN912 HW 4.0

* Optional, should be ordered separately

DGTR/L-B/BC-D

Integral Shank Reinforced Parting

and Grooving Tools Especially

for DGNC Type of Inserts

ISCAR

476

PARTING

CUTDIA

HBH

CWN-CWX

OAL

Right-hand shown

Designation

CWN(1) CWX(2) H B WB OAL LH HBH CUTDIA Insert

DGTR/L 1010-2

1.90 2.50 10.0 10.0 1.80 150.00 29.0 6.6 35.0 DG. 1.../DG. 2.. EDG 33B*

DGTR/L 1212-2

1.90 2.50 12.0 12.0 1.80 150.00 29.0 6.6 35.0 DG. 1.../DG. 2.. EDG 33B*

DGTR/L 1616-2

1.90 2.50 16.0 16.0 1.80 150.00 29.0 2.6 35.0 DG. 1.../DG. 2.. EDG 33B*

DGTR/L 2012-2

1.90 2.50 20.0 12.0 1.80 125.00 29.0 - 35.0 DG. 1.../DG. 2.. EDG 33A*

DGTR/L 1212-3

3.00 3.18 12.0 12.0 2.50 150.00 29.0 6.6 35.0 (3) DG. 1.../DG. 3.. EDG 33B*

DGTR/L 1616-3

3.00 3.18 16.0 16.0 2.50 150.00 29.0 6.6 35.0 (4) DG. 1.../DG. 3.. EDG 33B*

DGTR/L 2012-3

3.00 3.18 20.0 12.0 2.50 125.00 29.0 - 35.0 (3) DG. 1.../DG. 3.. EDG 33A*

DGTR/L 2020-3

3.00 3.18 20.0 20.0 2.50 125.00 29.0 - 35.0 (3) DG. 1.../DG. 3.. EDG 33A*

DGTR/L 2525-3

3.00 3.18 25.0 25.0 2.50 150.00 29.0 - 35.0 (3) DG. 1.../DG. 3.. EDG 33A*

DGTR/L 2020-4

4.00 4.76 20.0 20.0 3.40 125.00 31.0 - 51.0 DG. 4.../GRIP 4.. EDG 33A*

DGTR/L 2525-4

4.00 4.76 25.0 25.0 3.40 150.00 31.0 - 51.0 DG. 4.../GRIP 4.. EDG 33A*

DGTR/L 2020-5

4.80 5.00 20.0 20.0 4.00 125.00 33.0 - 59.0 DG. 5.../GRIP 5.. EDG 33A*

DGTR/L 2525-5

4.80 5.00 25.0 25.0 4.00 150.00 33.0 - 76.0 DG. 5.../GRIP 5.. EDG 33A*

DGTR/L 2525-6

6.00 6.35 25.0 25.0 5.30 150.00 33.0 - 76.0 DG. 6.../GRIP 6.. EDG 33A*

• Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user

• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - see page 479

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Dmax=43 mm when single-ended insert is used

(4) Dmax=43(1.69") when single-ended insert is used

* Optional, should be ordered separately

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN/DGNC/DGNM-C (481) • DGR/L-C DGRC/LC-C (482) • DGN/DGNM-J/JS/JT (483)

• DGR/L-J/JS (484) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGR-P (488) • DGR-WP (488)

• DGR-Z/ZS (486) • GRIP (269) • GRIP (full radius) (270)

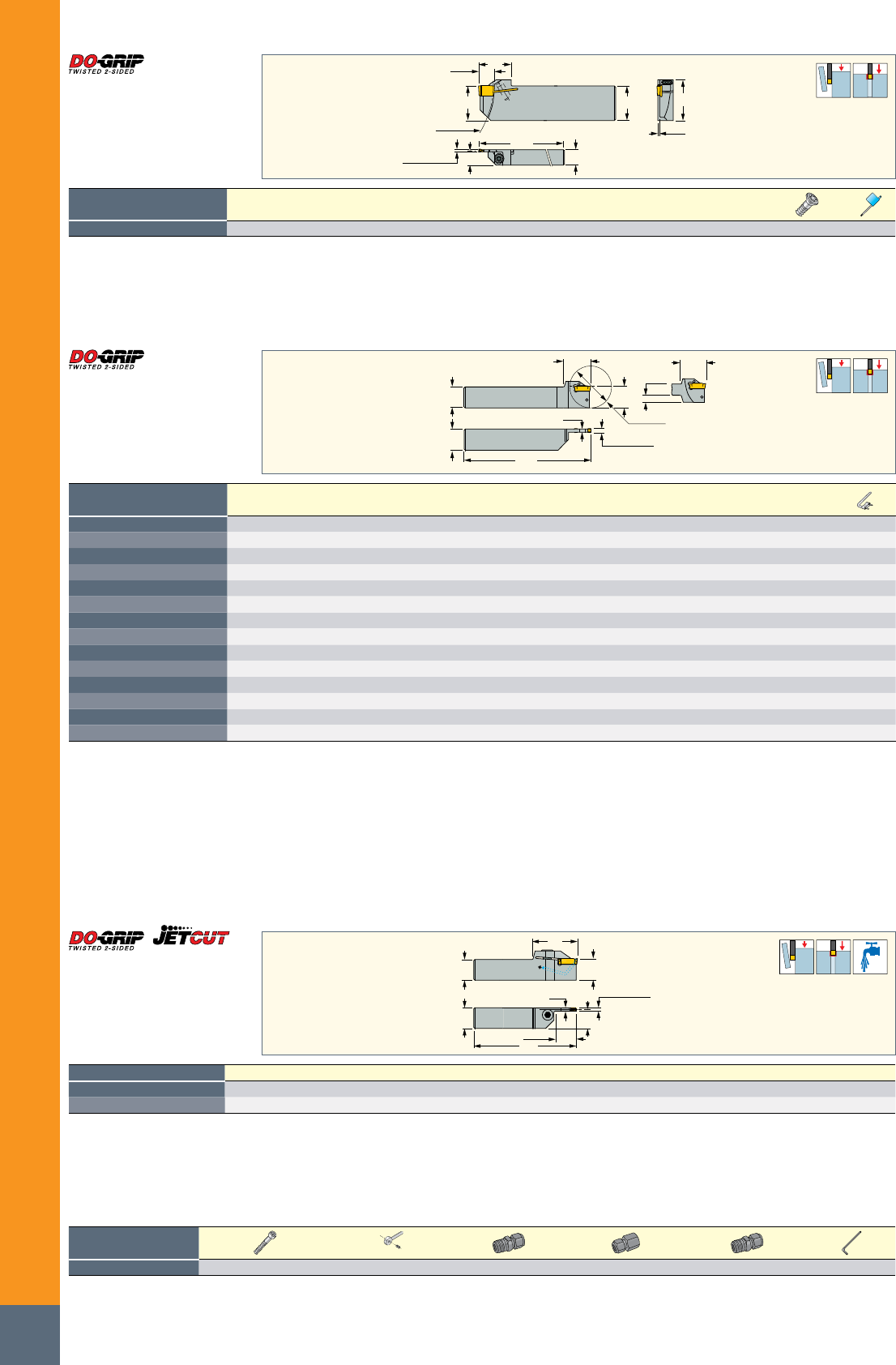

DGTR/L

Integral Shank Parting

and Grooving Tools

CDX

CUTDIA

CWN-CWX WF B

OAH

OAL

Left-hand shown

Designation

CWN(1) CWX(2) H B WB WF OAL LH CUTDIA CDX(3) OAH

DGTR/L 2009B-1.5T9SH

1.00 1.50 20.0 9.0 1.20 8.40 100.00 19.0 95.0 9.00 23.7 SR 16-236 P T-15/5

• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width • For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

For inserts, see pages: DGN-P (487) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR/L-J/JS (484)

DGTR/L-B-T-SH

Reinforced Parting and Grooving

Short Head Tools Carrying

DGN Double-Ended Inserts

OAL

WB CWN-CWX

CDX Right-hand shown

Designation

H B CWN(1) CWX(2) OAL WB WF LH CDX(3) Insert

DGTR/L 20BC-4T25

20.0 20.0 4.00 4.00 140.00 3.40 18.30 42.0 25.00 DGNC/DGRC/DGLC 4...

DGTR/L 25BC-4T25

25.0 25.0 4.00 4.00 140.00 3.40 23.30 42.0 25.00 DGNC/DGRC/DGLC 4...

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

For inserts, see pages: DGN-UT/UA (487) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation

DGTR/L-BC-T

SR M6X16 DIN912 SGCU 341* CGF 343* CF 343* CGM 343* HW 5.0

* Optional, should be ordered separately

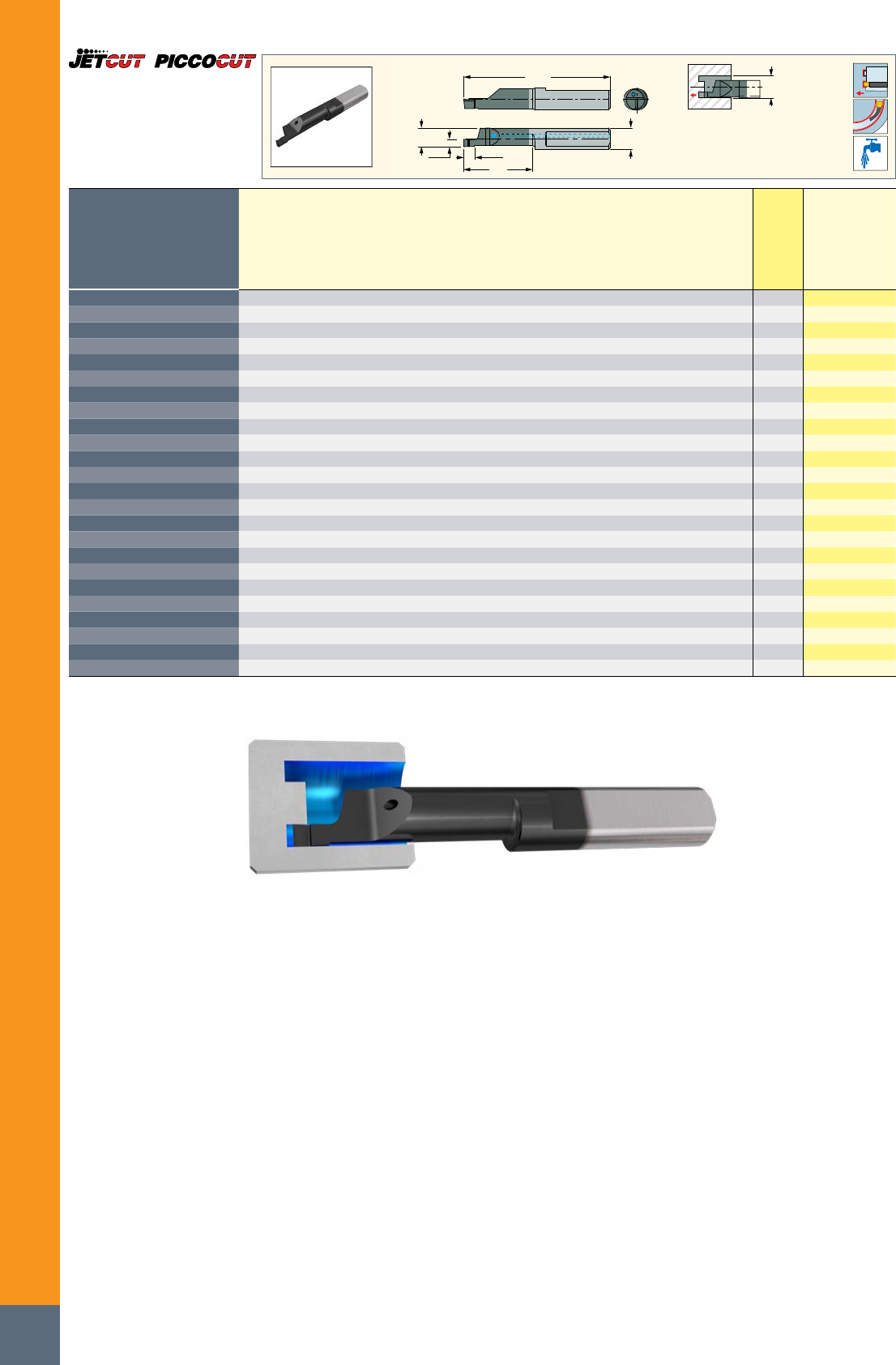

DGTR/L-BC-T

Parting and Grooving

Tools with Coolant Holes

Carrying JET-CUT Inserts

477

PARTING

OAL

HBH

CWN-CWX

CUTDIA

Left-hand shown

Designation

CW CUTDIA H B WB OAL LH WF HBH

DGTR/L 20B-2XL-D60

2.00 60.0 20.0 20.0 1.74 150.00 43.2 19.10 8.0 SR M4X35DIN912 HW 3.0

DGTR/L 25B-2XL-D60

2.00 60.0 25.0 25.0 1.74 150.00 43.2 24.10 3.0 SR M4X35DIN912 HW 3.0

DGTR/L 20B-3XL-D65

3.00 65.0 20.0 20.0 2.40 150.00 43.2 18.80 12.0 SR M5X40DIN912 HW 4.0

DGTR/L 25B-3XL-D65

3.00 65.0 25.0 25.0 2.40 150.00 43.2 23.80 7.0 SR M5X40DIN912 HW 4.0

• For insert depth capacity table, see page 477 • For user guide, see pages 538-547

For inserts, see pages: DGN-C-XL (490) • DGN-J-XL (491) • DGR/L-C-XL (491) • DGR/L-J-XL (491)

Depth of Cut as Function of Workpiece Diameter

Tmax

Dmax

T max D max

15 No limit

16 600

17 300

18 200

19 150

20 130

21 120

22 100

23 90

24 85

25 80

26 75

27 70

28 65

29 63

30 60

T max D max

15 No limit

16 1000

17 400

18 300

19 230

20 180

21 150

22 130

23 115

24 105

25 95

26 90

27 85

28 80

29 75

30 72

31 70

32.5 65

Tmax/Dmax for

DGTR/L...-2XL

Tmax/Dmax for

DGTR/L...-3XL

DGTR/L-XL

Integral Shank Reinforced Parting

and Grooving Tools for Parting

Up to 65 mm Diameters

HBL

HBH

CWN-CWX OAL

HOAH

WB_2

CUTDIA

DGTR/L..12B-1.5D...

with DGN/R/L 1000 inserts

CDX=3 0.75

WB Right -hand shown

Designation

CWN(1) CWX(2) H B WB WB_2 WF OAL LH HBL CUTDIA OAH HBH Insert

DGTR/L 12B-1.4D20-TR12

1.40 1.40 12.0 12.0 1.00 2.3 11.50 95.00 32.5 20.00 20.0 23.7 8.0 DG. 14..

DGTL 12B-1.5D20-TR12

1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15..

DGTR 12B-1.5-D20-TR12

1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15..

• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width! • For TRAUB machines, model TNL 12/7

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: DGN-P (487) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR/L-J/JS (484)

Spare Parts

Designation

DGTR/L-B-D-TR

SR 16-236 P(a) T-15/5

(a) 3N*M(26.5LBF*in)

DGTR/L-B-D-TR

Reinforced Parting and Grooving

Tools Carrying Double-Ended

DO-GRIP Inserts

ISCAR

478

PARTING

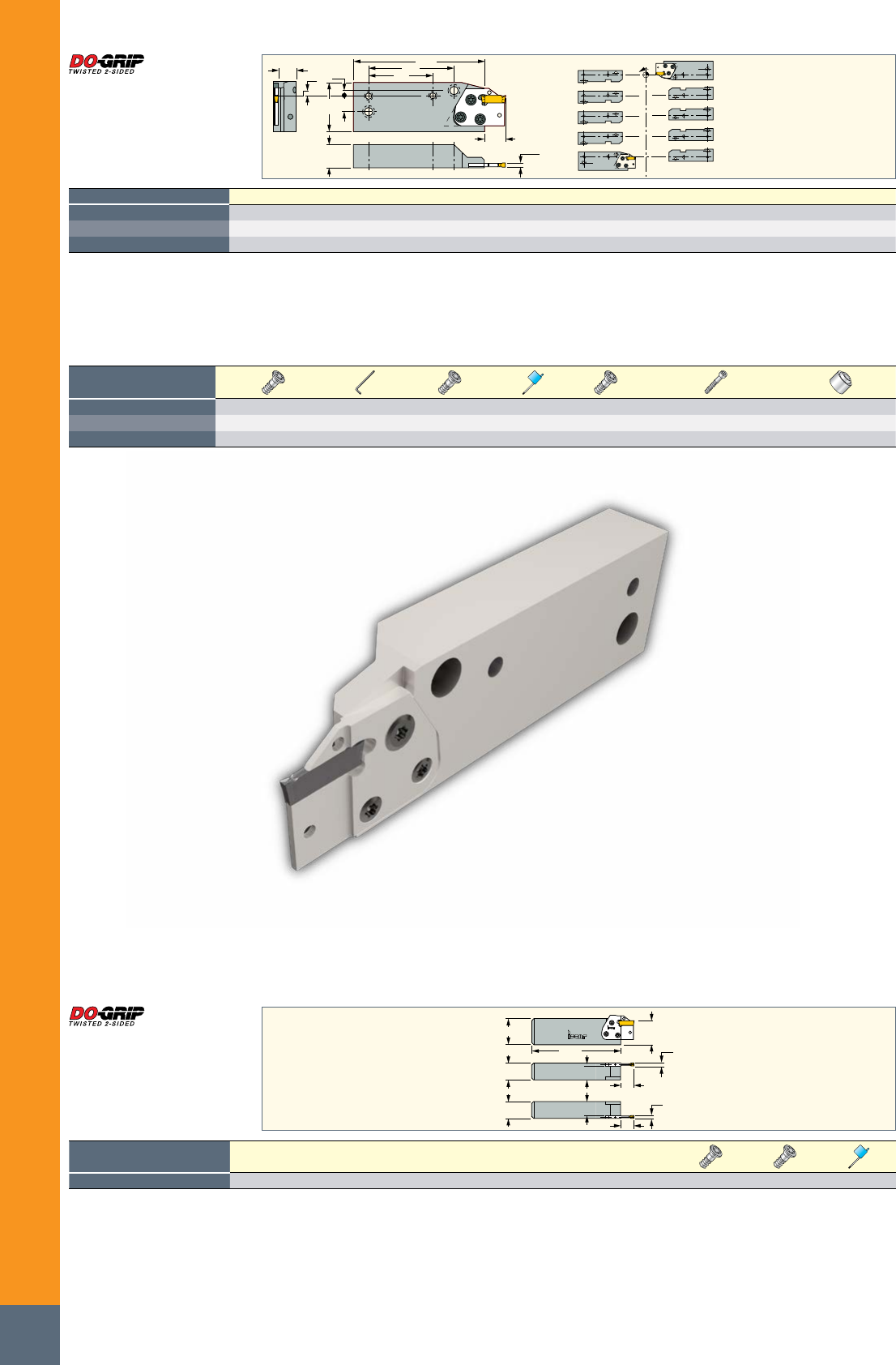

WF HF

HH2

OAL

(a)

CW(a)

T21

T22

T23

T24

T25

T11

T12

T13

T14

T15 Left-hand shown

• (a) See adapter dimensions

Designation

H B OAL WF HF H2 H5 L6 L5

DGHAL DECO 7-10 (1)

40.3 18.2 106.00 15.0 - 12.8 4.8 52.00 69.00

DGHAL DECO 13 (2)

42.0 35.2 115.00 28.7 2.0 16.0 16.0 60.00 60.00

DGHAL DECO 20-26 (2)

44.8 23.2 120.00 20.0 4.0 17.0 17.0 65.00 65.00

• DGAD-... HGAD-... adapters should be ordered separately

(1) Positioning combinations: T11; T25

(2) Positioning combinations: All

For tools, see pages: DGAD-B-D (479) • DGAD/HGAD (479) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498)

Spare Parts

Designation

DGHAL DECO 7-10

SR 14-519-L9.7(a) HW 4.0 SR 16-212-L9.5 T-20/5 SR 16-212 SR M5X25DIN912

DGHAL DECO 13

SR 14-519-L9.7(a) HW 5.0 SR 16-212-L7.5 T-20/5 SR 16-212 SR M6X25 DIN912

DGHAL DECO 20-26

SR 14-519-L12.8(a) HW 5.0 SR 16-212-L7.5 T-20/5 SR 16-212 SR M6X25 DIN912 EZ 104

(a) Recommended tightening torque: 9 N*m (80lbf*in)

DGHAL-DECO

Holders for DGAD Adapters for

Tornos Bechler Deco Machines

(a)

OAL

(a) See adapter dimensions

Designation

H B HF OAL WF S1(2)

HMSN 35/3722 (1)

36.5 22.4 34.5 181.70 18.4 226 SR 16-212 SR 14-519 T-20/5

• DGAD-... HGAD-..., adapters should be ordered separately

(1) For models #42; #52; #60; #61; #62; #602

(2) Comparable Empire block

For tools, see pages: DGAD-B-D (479) • DGAD/HGAD (479) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73)

HMSN-New Britain

Holders for Grooving and

Turning Adapters for New Britain

Multi-Spindle Bar Machines

479

PARTING

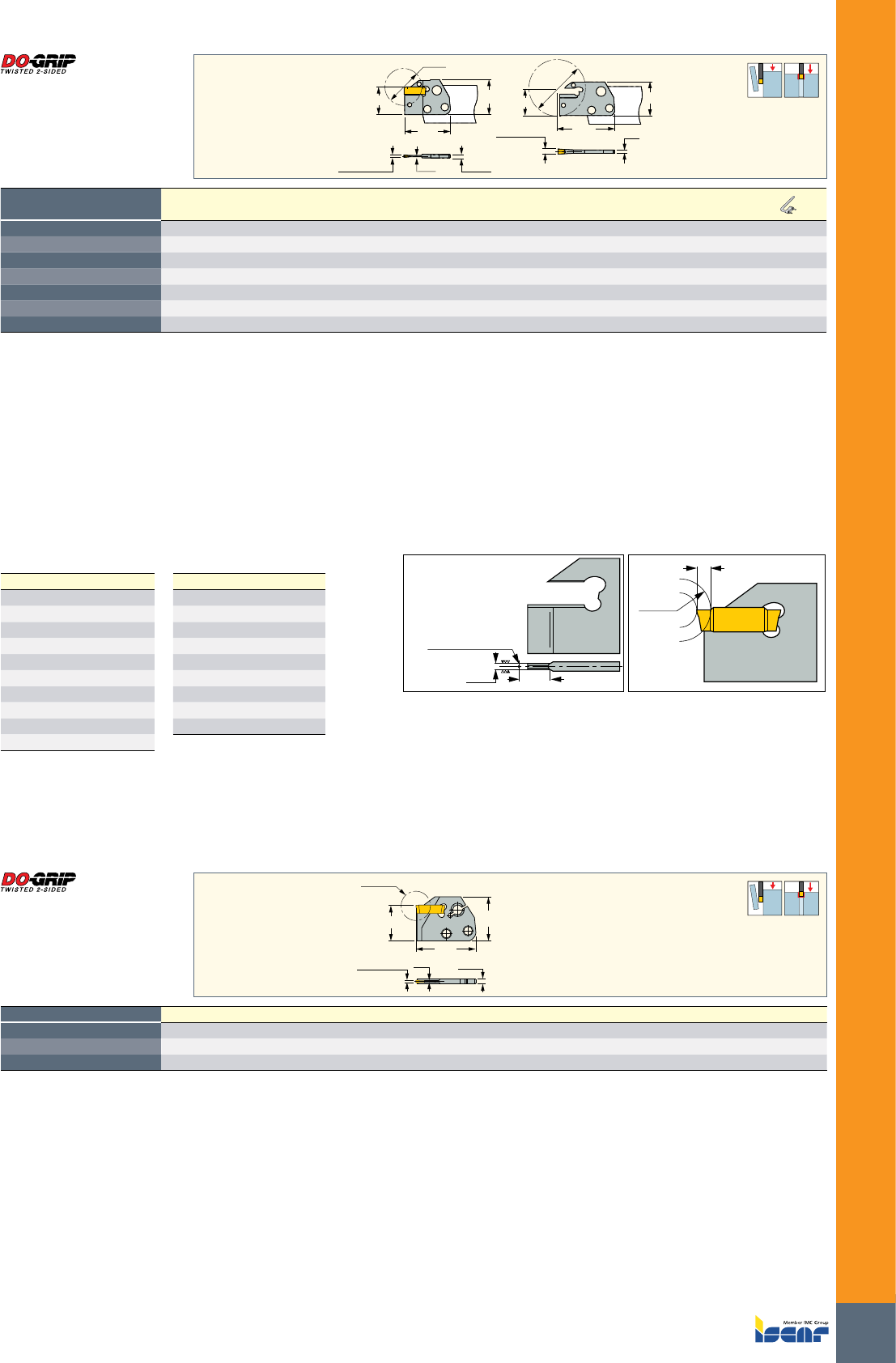

OAL

OAH

CWN-CWX WB WB_2

CUTDIA

Designation

CWN(2) CWX(3) WB WB_2 OAL CUTDIA HF OAH

DGAD 1.4B-D16

1.40 1.40 1.00 3.2 36.80 16.0 24.0 30.3

DGAD 1.5B-D20 (1)

1.00 1.50 1.00 3.2 41.00 20.0 24.0 30.3

DGAD 2B-D20

1.90 2.50 1.60 3.2 41.00 20.0 24.0 30.3

• Up to 3 mm depth, without any limitation on the diameter • DG..1.0 insert can also be mounted into pocket sizes 2 and 3,

in which case the pocket width has to be modified-see page 479

• For user guide, see pages 538-547

(1) Do not use DG.. 1.4 on this tool!

(2) Minimum cutting width

(3) Maximum cutting width

For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • MAHR/L-JHP-MC (280) • MAHPR/L-JHP (281) • MAHR/L-JHP (279)

• MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHPD (625) • C#-MAHDR-45 (623) • C#-MAHDOR (624) • HSK A63WH-MAHUR/L (632)

• HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633) • IM-MAHPD (633) • HMSN-New Britain (478) • DGHAL-DECO (478)

DGAD-B-D

Parting and Grooving Screw-

Clamped Adapters for DO-GRIP

Double-Ended Inserts

CUTDIA

DGAD, HGAD 1.4N/2N/3N DGAD 4N/5N/6N

OAL OAL

OAH OAH

WB_2

CWN-CWX

CUTDIA

Designation

CWN(2) CWX(3) WB WB_2 OAH HF OAL CUTDIA

DGAD 1.4N

1.40 1.40 1.00 3.2 30.0 24.0 41.50 28.0 EDG 23B*

DGAD 2N

1.90 (4) 2.50 1.60 3.2 30.0 24.0 41.50 32.0 EDG 33A*

DGAD 3N (1)

3.00 (4) 3.18 2.40 4.0 30.0 24.0 41.50 32.0 EDG 33A*

HGAD 3N

3.00 3.00 2.40 4.0 30.0 24.0 50.50 50.0 EDG 23B*

DGAD 4N

4.00 4.00 3.20 - 30.0 24.0 50.50 50.0 EDG 33A*

DGAD 5N

4.80 5.00 4.00 - 30.0 24.0 50.50 50.0 EDG 33A*

DGAD 6N

6.00 6.35 5.20 - 30.0 24.0 50.50 50.0 EDG 33A*

• DG..1.0 insert can be mounted into pocket sizes 2 and 3 in which case the pocket width has to be modified - see page 479

• For user guide, see pages 538-547

(1) Only the DGN/R/L inserts are suitable for this adapter

(2) Minimum cutting width

(3) Maximum cutting width

(4) For 1 mm inserts, modify adapter

* Optional, should be ordered separately

For inserts, see pages: DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484) • GRIP (269)

• GRIP (full radius) (270) • HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGR/L-C (489) • HGR/L-J/JS (490)

For holders, see pages: MAHPR/L-JHP (281) • MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHPD (625)

• C#-MAHDR-45 (623) • C#-MAHDOR (624) • HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633)

• IM-MAHPD (633) • C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • MAHR/L-JHP-MC (280) • HMSN-New Britain (478) • DGHAL-DECO (478)

Depth Capacity for DGN/R-1002J

Insert on Standard Holders

max

Standard Holders Modification

To achieve no limitation on the workpiece diameter up to 3 mm depth, the steel

support under the insert should be ground, as per the shown sketch.

Cutting Edge

0.6 3.3

Depth: T D max

Up to 2.2 32.3

2.3 29.3

2.4 26.7

2.5 24.8

2.6 23.2

2.7 21.7

2.8 20.5

2.9 19.4

3.0 18.4

Depth: T D max

Up to 1.2 No limit

1.3 830

1.4 218

1.5 126

1.6 88.4

1.7 68.2

1.8 55.6

1.9 46.9

2.0 40.7

2.1 36.0

DGAD/HGAD

Parting and Grooving Adapters for

DO-GRIP Double-Ended Inserts

ISCAR

480

PARTING

OAL

WB_2

CWN-CWX

HOLDER: MAHL-...-JHP

HOLDER: MAHPR-...-JHP

OHN

OAH

Bar Max

Designation

CWN(1) CWX(2) CUTDIA OHN(3) WF WB WB_2 OAL OAH HF Insert

DGPAD 2R/L-D22-JHP

1.90 2.50 22.0 21.0 6.40 1.60 7.2 45.50 33.0 24.0 DG. 2...

DGPAD 2R/L-D32-JHP

1.90 2.50 32.0 21.0 6.40 1.60 7.2 45.50 33.0 24.0 DG. 2...

DGPAD 3R/L-D32-JHP

3.00 3.18 32.0 21.0 6.00 2.40 7.2 45.50 33.0 24.0 DG. 3...

DGPAD 2R/L-D42-JHP

1.90 2.50 42.0 21.0 6.30 1.70 7.2 49.00 33.0 24.0 DG. 2...

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Minimum overhang

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

DGPAD 2R/L-D22-JHP

567

DGPAD 2R/L-D32-JHP

567

DGPAD 3R/L-D32-JHP

8.5 10 12

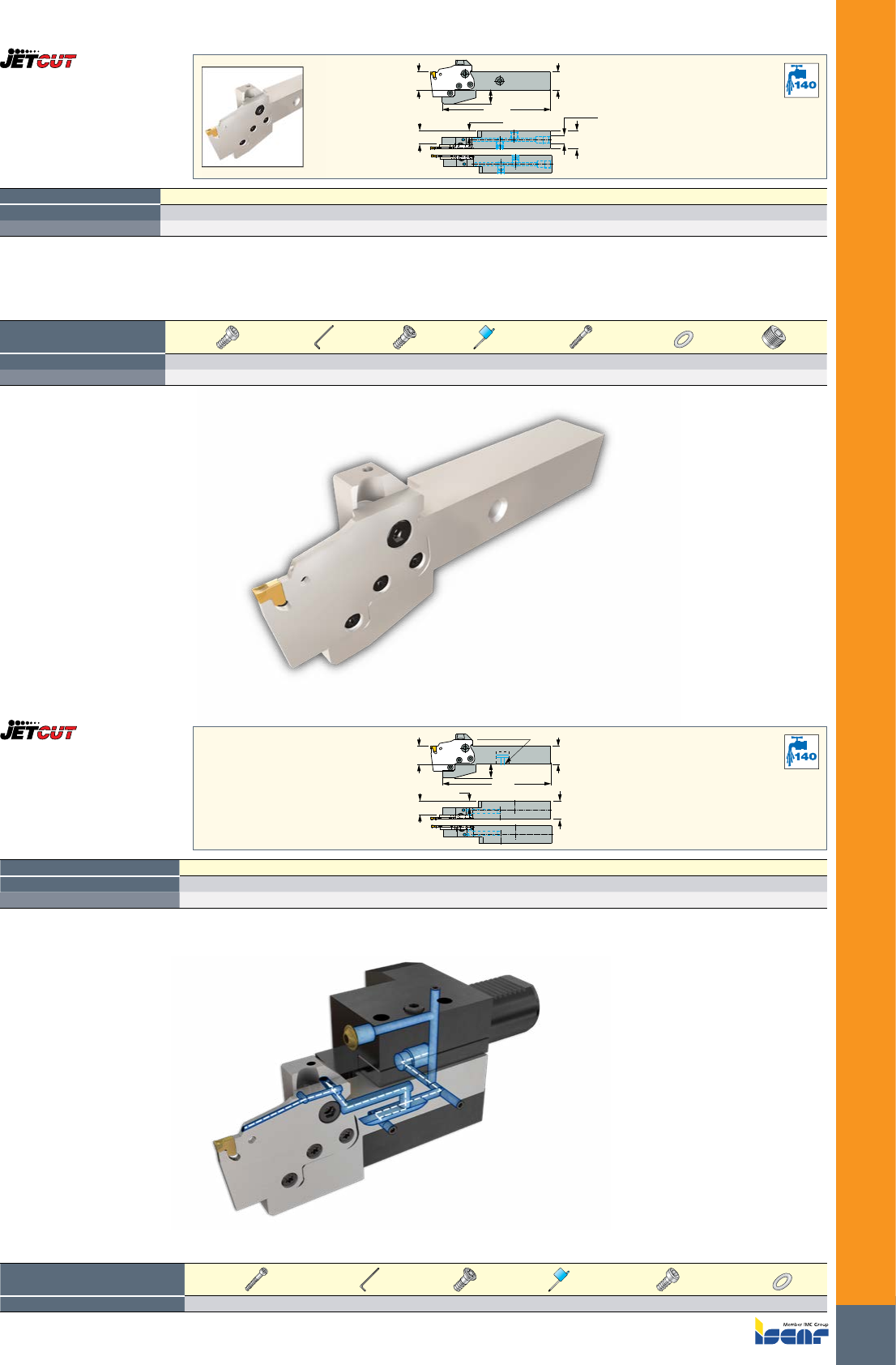

DGPAD-JHP

Adapters with High-Pressure

Coolant Channels for DO-GRIP

Parting and Grooving Inserts

Coolant

inlet

CUTDIA

WB_2

OAL

Coolant outlet

OAH

Bar Max

Designation

CW CUTDIA WF WB WB_2 LF OAL OAH HF Insert

DGPAD-XL 3R/L-D52-JHP

3.00 52.0 6.00 2.40 7.2 27.70 54.40 43.00 34.0 DG. 3...

DGPAD-XL 3L-D65-JHP

3.00 65.0 6.00 2.40 7.2 34.20 60.40 43.00 34.0 DG. 3...

DGPAD-XL 3R-D65-JHP

3.00 65.0 6.00 2.40 7.2 34.20 60.00 43.00 34.0 DG. 3...

• For user guide and accessories, see pages 538-547

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: ABC MAHDR-#-XL-JHP (782) • MAHPR/L-XL-JHP (561) • MAHR/L-MG-XL-JHP (501) • MAHR/L-MG-XL-JHP-MC (501)

• TR TNK36 MAHDL-R-XL-JHP (782) • TR45TNL MAHDN-R-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778)

DGPAD-XL-JHP

Parting and Grooving Extra Long

Adapters with Coolant Channels

Carrying DO-GRIP Inserts

481

PARTING

DGNMDGN

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(3) RE RETOL(4) CDX(5) INSL

IC328

IC830

IC928

IC1030

IC1028

IC354

IC5400

IC1010

IC308

IC808

IC908

IC30N

IC20

IC807

IC907

f groove

(mm/rev)

DGN 2002C

2.00 0.03 0.20 0.020 18.00 19.90

•• ••••• •• •

0.05-0.16

DGN 2202C

2.20 0.03 0.20 0.020 18.00 19.80

•• •••••••••• •

0.05-0.16

DGN 2502C

2.50 0.03 0.20 0.020 18.00 20.70

• • • •

0.08-0.20

DGN 3102C

3.10 0.04 0.20 0.020 18.00 20.10

•• ••••••••••••

0.10-0.25

DGNC 3102C (1)

3.10 0.04 0.20 0.020 18.00 21.00

• •

0.10-0.25

DGNM 3202C (2)

3.18 0.04 0.20 0.020 - (6) 20.40

•••

0.10-0.25

DGN 4003C

4.00 0.04 0.30 0.030 - (6) 18.80

•• ••• •••••••

0.10-0.30

DGNC 4003C (1)

4.00 0.04 0.30 0.030 - (6) 19.00

• •

0.10-0.30

DGN 4803C

4.80 0.04 0.30 0.030 - (6) 19.90

•

0.12-0.35

DGN 5003C

5.00 0.04 0.30 0.030 - (6) 19.10

•• ••• • ••••

0.12-0.35

DGN 6303C

6.35 0.04 0.35 0.030 - (6) 19.10

• • • • • • • •

0.15-0.40

• Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 538-547

(1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum

(2) Single-ended insert

(3) Cutting width tolerance (+/-)

(4) Corner radius tolerance (+/-)

(5) Cutting depth maximum

(6) No depth limit

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479)

• DGAQ (515) • DGAQ-JHP (515) • DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470)

• DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474)

• DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566)

• HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFIR/L-MC (574)

• HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574) • NQCH-DGTR/L-D-SH-JHP (472)

DGN/DGNC/DGNM-C

Double-Sided Parting Inserts for

Parting and Grooving Bars, Hard

Materials and Tough Applications

ISCAR

482

PARTING

PSIRR

RE INSL

±0.1

DGR/LC

±0.1

PSIRR

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CDX(2) PSIRL PSIRR INSL

IC328

IC830

IC1030

IC1028

IC354

IC1010

IC808

IC908

IC20

f groove

(mm/rev)

DGL 2202C-6D

2.20 0.20 18.00 6.0 - 20.80

• •••• ••

0.04-0.12

DGR 2202C-6D

2.20 0.20 18.00 - 6.0 20.80

•••••••••

0.04-0.12

DGL 3102C-15D

3.10 0.20 18.00 15.0 - 21.00

••••

0.08-0.14

DGL 3102C-6D

3.10 0.20 18.00 6.0 - 21.00

•••••••••

0.08-0.18

DGLC 3102C-6D (1)

3.10 0.20 18.00 6.0 - 21.00

• •

0.08-0.18

DGR 3102C-15D

3.10 0.20 18.00 - 15.0 20.90

• • • • • •

0.08-0.14

DGR 3102C-6D

3.10 0.20 18.00 - 6.0 21.00

•••••••••

0.08-0.18

DGR 3102C-8D

3.10 0.20 18.00 - 8.0 21.10

••••

0.05-0.15

DGRC 3102C-6D (1)

3.10 0.20 18.00 - 6.0 20.90

• •

0.08-0.18

DGL 4003C-4D

4.00 0.30 - (3) 4.0 - 18.90

• •••• ••

0.08-0.20

DGLC 4003C-4D (1)

4.00 0.30 - (3) 4.0 - 19.00

•

0.08-0.20

DGR 4003C-4D

4.00 0.30 - (3) - 4.0 18.80

•• ••• ••

0.08-0.20

DGRC 4003C-4D (1)

4.00 0.30 - (3) - 4.0 19.00

• •

0.08-0.20

DGR 4800CS-4D

4.80 0.02 - (3) - 4.0 19.70

•

0.05-0.15

DGR 4800CS-8D

4.80 0.02 - (3) - 8.0 19.70

•

0.05-0.15

DGR 4803C-4D

4.80 0.30 - (3) - 4.0 20.30

•

0.10-0.25

DGR 4803C-8D

4.80 0.30 - (3) - 8.0 20.30

•

0.10-0.20

DGL 5003C-4D

5.00 0.30 - (3) 4.0 - 19.10

•••

0.10-0.25

DGR 5003C-4D

5.00 0.30 - (3) - 4.0 19.20

•••

0.10-0.25

DGL 6303C-4D

6.35 0.35 - (3) 4.0 - 19.10

•••

0.12-0.30

DGR 6303C-4D

6.35 0.35 - (3) - 4.0 19.10

•••

0.12-0.30

• Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 538-547

(1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum

(2) Cutting depth maximum

(3) No depth limit

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)

• DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469)

• DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471)

• DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266) • NQCH-DGTR/L-D-SH-JHP (472)

DGR/L-C DGRC/LC-C

Double-Sided Inserts for

Parting Bars, Hard Materials

and Tough Applications

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL

IC328

IC1030

IC354

f groove

(mm/rev)

DGN 5003W

5.00 0.30 0.04 0.030 19.00

•••

0.12-0.33

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)

• DGFH (268) • DGFH-JHP (269) • DGTR/L (476) • HELIR/L (266) • HFAER/L-5T, 6T (566) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-5T (560)

• HFIR/L-MC (574) • HFPAD-5 (563) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-W

Double-Sided Inserts with

Central Ridged Chipformer for

Parting and Grooving Hard

Materials and Interrupted Cuts

483

PARTING

±0.1

INSL

7°

CDX

DGNMDGN 1002

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(3) RE RETOL(4) CDX(5) INSL

IC328

IC830

IC928

IC1030

IC1028

IC354

IC5400

IC1010

IC308

IC808

IC908

IC20

IC807

IC907

f groove

(mm/rev)

DGN 1002J

1.00 0.02 0.16 0.020 3.00 21.00

•••••

0.02-0.07

DGN 1402J

1.40 0.03 0.16 0.020 15.00 15.80

•• ••• ••••

0.03-0.12

DGN 1502J

1.50 0.03 0.16 0.020 18.00 20.90

•••••

0.03-0.12

DGN 2002JT

2.00 0.03 0.20 0.020 18.00 19.80

•

0.04-0.14

DGN 2200JS (1)

2.20 0.03 0.02 0.020 18.00 19.00

• • • •

0.03-0.08

DGN 2202J

2.20 0.03 0.20 0.020 18.00 19.80

•• ••••••••••

0.04-0.12

DGN 2202JT

2.20 0.03 0.20 0.020 18.00 19.80

• • •

0.04-0.14

DGN 3100JS (1)

3.10 0.04 0.02 0.020 18.00 19.70

• • • •

0.03-0.10

DGN 3102J

3.10 0.04 0.20 0.020 18.00 20.10

•• ••••••••• •

0.04-0.16

DGN 3102JT

3.10 0.04 0.20 0.020 18.00 20.10

• • • •

0.05-0.18

DGN 3202J

3.18 0.04 0.20 0.020 18.00 20.10

•

0.04-0.16

DGNM 3202J (2)

3.18 0.04 0.20 0.020 - (6) 20.30

• • • • •

0.04-0.16

DGN 4003J

4.00 0.04 0.30 0.030 - (6) 18.90

•• ••• ••••••

0.05-0.18

DGN 4003JT

4.00 0.04 0.30 0.030 - (6) 18.90

•

0.05-0.18

DGN 4803J

4.80 0.04 0.30 0.030 - (6) 20.40

•

0.05-0.20

DGN 5003J

5.00 0.04 0.30 0.030 - (6) 19.00

•• ••• • •••

0.05-0.20

DGN 5003JT

5.00 0.04 0.30 0.030 - (6) 19.00

• •

0.05-0.20

DGN 6303J

6.35 0.04 0.35 0.030 - (6) 19.10

•• ••• • •••

0.05-0.25

DGN 6303JT

6.35 0.04 0.35 0.030 - (6) 19.10

• •

0.05-0.25

• JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds

• For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners

(2) Single-ended insert

(3) Cutting width tolerance (+/-)

(4) Corner radius tolerance (+/-)

(5) Cutting depth maximum

(6) No depth limit

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479)

• DGAQ (515) • DGAQ-JHP (515) • DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470)

• DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474)

• DGTR/L-B-D-SH (471) • DGTR/L-B-D-TR (477) • DGTR/L-B-T-SH (476) • DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266)

• HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560)

• HFHR/L-6T (561) • HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267)

• IM-HFIR-MC (574) • NQCH-DGTR/L-D-SH-JHP (472)

DGN/DGNM-J/JS/JT

Double-Sided Inserts for Parting

and Grooving Soft Materials,

Parting Tubes, Small Diameters

and Thin-Walled Parts

ISCAR

484

PARTING

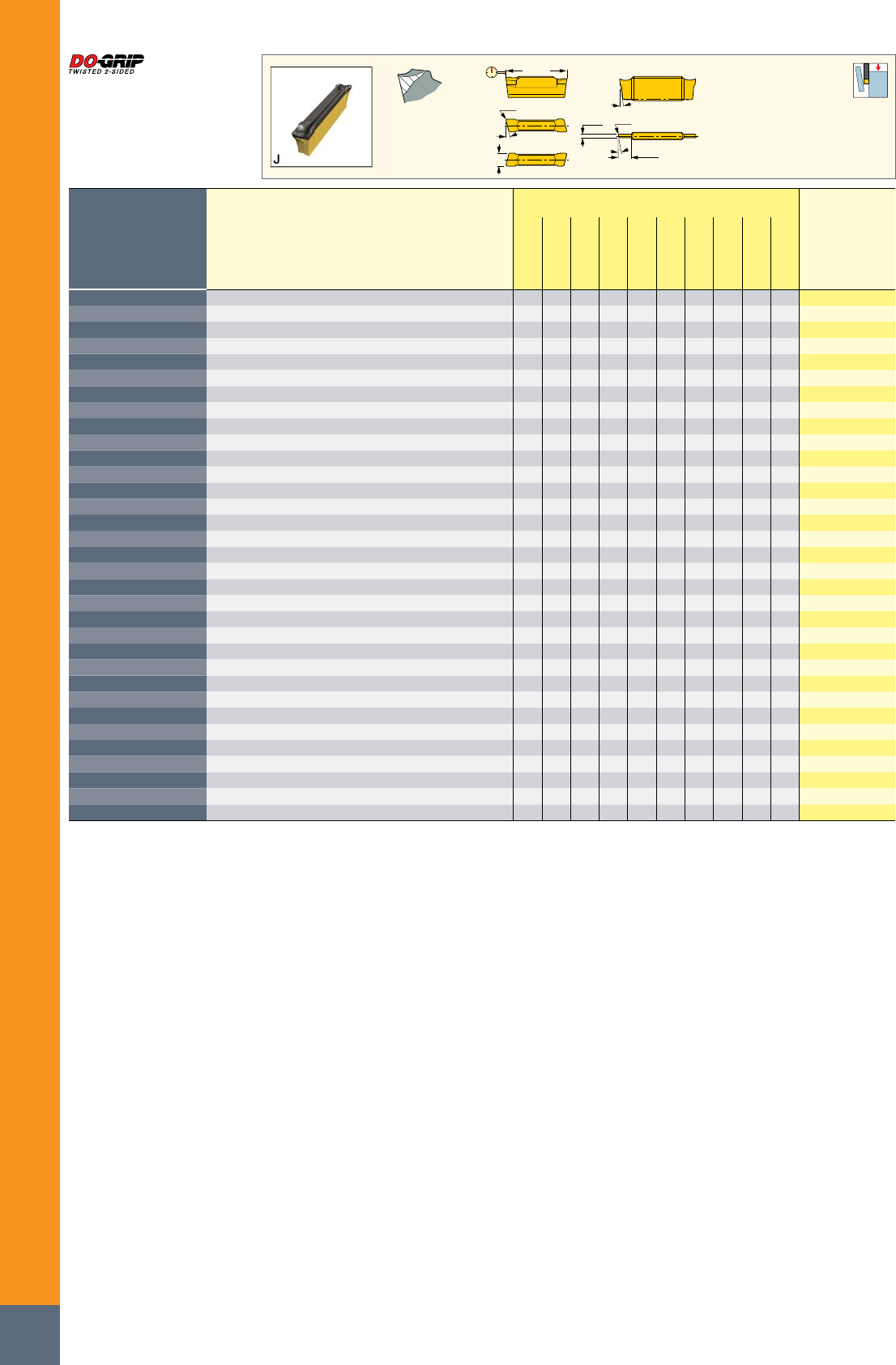

PSIRR

INSL

±0.1

DGR/L 1001

CDX

PSIRR

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CDX(2) INSL PSIRL PSIRR

IC328

IC830

IC1030

IC1028

IC354

IC1010

IC308

IC808

IC908

IC20

f groove

(mm/rev)

DGL 1001J-8D

1.00 0.07 3.00 21.00 - 8.0

• •

0.02-0.06

DGR 1001J-8D

1.00 0.07 3.00 21.00 8.0 -

• • • • •

0.02-0.06

DGL 1400JS-15D (1)

1.40 0.02 14.00 15.40 - 15.0

• •

0.03-0.07

DGR 1400JS-15D (1)

1.40 0.02 14.00 15.40 15.0 -

•••• •• •

0.03-0.07

DGL 1402J-8D

1.40 0.16 14.00 15.80 - 8.0

• •

0.03-0.08

DGR 1402J-8D

1.40 0.16 14.00 15.80 8.0 -

• • • • • •

0.03-0.08

DGR 1500J-8D

1.50 0.05 18.00 20.90 8.0 -

•••• ••

0.03-0.08

DGL 2200JS-15D (1)

2.20 0.02 18.00 20.60 - 15.0

• • • • • •

0.03-0.07

DGL 2200JS-6D (1)

2.20 0.02 18.00 20.60 - 6.0

• • • •

0.03-0.08

DGR 2200JS-15D (1)

2.20 0.02 18.00 20.60 15.0 -

• ••••• ••

0.03-0.07

DGR 2200JS-6D (1)

2.20 0.02 18.00 20.60 6.0 -

••••••• •

0.03-0.08

DGL 2202J-6D

2.20 0.20 18.00 21.00 - 6.0

• •••• ••

0.03-0.10

DGR 2202J-15D

2.20 0.20 18.00 21.00 15.0 -

••••

0.03-0.08

DGR 2202J-6D

2.20 0.20 18.00 21.00 6.0 -

•••••• ••

0.03-0.10

DGL 3100JS-15D (1)

3.10 0.02 18.00 20.60 - 15.0

• • • • •

0.03-0.07

DGL 3100JS-6D (1)

3.10 0.02 18.00 20.60 - 6.0

• • • •

0.03-0.08

DGR 3100JS-15D (1)

3.10 0.02 18.00 20.60 15.0 -

••••••• •

0.03-0.07

DGR 3100JS-6D (1)

3.10 0.02 18.00 20.60 6.0 -

••••••• •

0.03-0.08

DGL 3102J-15D

3.10 0.20 18.00 21.00 - 15.0

• • •

0.04-0.10

DGL 3102J-6D

3.10 0.20 18.00 21.00 - 6.0

•••••• ••

0.04-0.14

DGR 3102J-15D

3.10 0.20 18.00 21.00 15.0 -

• • • • • •

0.04-0.10

DGR 3102J-6D

3.10 0.20 18.00 21.00 6.0 -

•••••• •••

0.04-0.14

DGR 4000JS-15D (1)

4.00 0.00 - (3) 19.30 15.0 -

• •

0.04-0.10

DGL 4003J-4D

4.00 0.30 - (3) 18.90 - 4.0

• •••• ••

0.04-0.15

DGR 4003J-4D

4.00 0.30 - (3) 18.90 - 4.0

•• ••• •••

0.04-0.15

DGR 4800JS-4D (1)

4.80 0.03 - (3) 19.80 - 4.0

•

0.04-0.12

DGR 4800JS-8D (1)

4.80 0.03 - (3) 19.80 - 8.0

•

0.04-0.14

DGR 4803J-4D

4.80 0.30 - (3) 19.80 - 4.0

•

0.04-0.18

DGR 4803J-8D

4.80 0.30 - (3) 19.80 - 8.0

•

0.04-0.15

DGL 5003J-4D

5.00 0.30 - (3) 19.80 - 4.0

• •

0.05-0.20

DGR 5003J-4D

5.00 0.30 - (3) 19.80 - 4.0

• • • •

0.05-0.20

DGL 6303J-4D

6.35 0.35 - (3) 19.10 - 4.0

• •

0.05-0.25

DGR 6303J-4D

6.35 0.35 - (3) 19.10 - 4.0

•

0.05-0.25

• For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners

(2) Cutting depth maximum

(3) No depth limit.

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)

• DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469)

• DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471)

• DGTR/L-B-D-TR (477) • DGTR/L-B-T-SH (476) • DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266) • NQCH-DGTR/L-D-SH-JHP (472)

DGR/L-J/JS

Double-Sided Inserts for

Parting Soft Materials, Parting

Tubes, Small Diameters

and Thin-Walled Parts

485

PARTING

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(1) RE RETOL(2) CDX(3) INSL

IC830

IC928

IC1030

IC5400

IC1010

IC808

IC908

f groove

(mm/rev)

DGN 2002LF

2.00 0.03 0.20 0.020 18.00 19.80

• • • •

0.03-0.08

DGN 2202LF

2.20 0.03 0.20 0.020 18.00 19.80

•••• •

0.03-0.08

DGN 2502LF

2.50 0.03 0.20 0.020 18.00 19.80

• •

0.03-0.08

DGN 3102LF

3.10 0.04 0.20 0.020 18.00 20.10

•••••••

0.04-0.10

DGN 3102LFT

3.10 0.04 0.20 0.020 18.00 21.10

• •

0.04-0.12

• The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard

materials applications. It can be applied at higher feeds than the LF chipformer

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: DGAD-B-D (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468)

• DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473)

• DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-LF/LFT

Double-Sided Inserts for Parting

and Grooving Stainless Steel

7°

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) CDX(2) INSL

IC830

IC1030

IC5400

IC1010

IC808

f groove

(mm/rev)

DGN 2002MF

2.00 0.20 0.04 18.00 19.90

•••••

0.04-0.12

DGN 2202MF

2.20 0.20 0.04 18.00 19.90

• •

0.04-0.12

DGN 3002MF

3.00 0.20 0.04 18.00 20.10

•

0.06-0.18

DGN 3102MF

3.10 0.20 0.04 18.00 20.10

•••••

0.06-0.18

DGN 4003MF

4.00 0.30 0.04 - (3) 18.80

• •

0.08-0.20

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Cutting depth maximum

(3) No depth limit

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476)

• DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • HELIR/L (266) • HFAER/L-4 (565) • HFAIR/L-4 (572) • HFAIR/L-DG (573)

• HFFR/L-T (564) • HFHR/L-4T (559) • HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)

• NQCH-DGTR/L-D-SH-JHP (472)

DGN-MF

Double-Sided Inserts for Parting

and Grooving Soft and Hard

Materials at Medium Feeds

ISCAR

486

PARTING

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CDX(1) CWTOL(2) RE RETOL(3) INSL

IC1030

IC1010

IC808

IC908

f groove

(mm/rev)

DGN 2002Z

2.00 18.00 0.03 0.20 0.020 20.90

••••

0.03-0.12

DGN 3002Z

3.00 18.00 0.03 0.20 0.020 20.90

• •

0.03-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

(2) Cutting width tolerance (+/-)

(3) Corner radius tolerance (+/-)

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480)

• DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475)

• NQCH-DGTR/L-D-SH-JHP (472)

DGN-Z

Double-Sided Inserts

for Parting Tubes, Thin-

Walled and Small Parts

PSIRR

INSL

±0.1

Dimensions Recommended

Machining Data

Designation

CW RE INSL CDX(2) PSIRR

IC908

f groove

(mm/rev)

DGR 2000ZS-15D (1)

2.00 0.02 20.40 18.00 15.0

•

0.03-0.07

DGR 2000ZS-6D (1)

2.00 0.02 20.40 18.00 6.0

•

0.03-0.08

DGR 2002Z-15D

2.00 0.20 20.90 18.00 15.0

•

0.03-0.10

DGR 2002Z-6D

2.00 0.20 20.90 18.00 6.0

•

0.03-0.10

DGR 3000ZS-15D (1)

3.00 0.02 20.40 18.00 15.0

•

0.03-0.10

DGR 3000ZS-6D (1)

3.00 0.02 20.40 18.00 6.0

•

0.03-0.12

DGR 3002Z-6D

3.00 0.20 20.90 18.00 6.0

•

0.03-0.14

• For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners

(2) Cutting depth maximum

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480)

• DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475)

• NQCH-DGTR/L-D-SH-JHP (472)

DGR-Z/ZS

Double-Sided Inserts with Very

Positive Rake for Parting Tubes

and Thin-Walled and Small Parts

487

PARTING

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(1) RE RETOL(2) CDX(3) INSL

IC328

IC1030

IC1028

IC354

IC350

IC1010

IC308

IC908

IC20

f groove

(mm/rev)

DGN 2202UA

2.20 0.03 0.20 0.020 18.00 19.90

• • •

0.04-0.13

DGN 2202UT

2.20 0.03 0.20 0.020 18.00 19.60

• •

0.03-0.11

DGN 3003UA

3.00 0.03 0.25 0.020 18.00 20.50

•••• •• •

0.04-0.15

DGN 3003UT

3.00 0.03 0.25 0.020 18.00 20.50

• •

0.04-0.13

DGN 4003UA

4.00 0.04 0.30 0.020 - (4) 19.40

• •

0.05-0.16

DGN 4003UT

4.00 0.04 0.30 0.020 - (4) 19.30

• • •

0.04-0.15

DGN 5003UT

5.00 0.04 0.30 0.020 - (4) 19.00

• • • •

0.05-0.18

DGN 6008UT

6.00 0.04 0.80 0.050 - (4) 19.10

• • • •

0.06-0.20

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

(4) No depth limit

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)

• DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469)

• DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471)

• DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266) • HGPAD (267) • HGPAD-JHP (267) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-UT/UA

Double-Sided Inserts for Parting

and Grooving Cr-Ni Alloys,

Low Carbon Steel and Ductile

Materials at Low Feeds

±0.1 ±0.1

DGN 1000

INSL

7°

CW CDX

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL CDX(3)

IC508

f groove

(mm/rev)

DGN 1000P

1.00 0.05 0.02 0.020 20.00 3.00

•

0.02-0.05

DGN 1500P

1.50 0.05 0.02 0.020 20.00 18.00

•

0.02-0.07

DGN 2000P

2.00 0.05 0.02 0.020 20.00 18.00

•

0.02-0.08

DGN 3000P

3.00 0.05 0.02 0.020 20.00 18.00

•

0.02-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480)

• DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B-D-TR (477)

• DGTR/L-B-T-SH (476) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-P

Double-Sided Inserts for Parting

and Grooving Soft Materials,

Thin and Miniature Parts

ISCAR

488

PARTING

PSIRR

lNSL DGR 1000

±0.1

7°

CW CW

CDX

Dimensions Recommended

Machining Data

Designation

CW RE INSL CDX(1) PSIRR

IC508

f groove

(mm/rev)

DGR 1000P-15D

1.00 0.05 20.60 2.90 15.0

•

0.02-0.03

DGR 1000P-6D

1.00 0.05 20.60 2.90 6.0

•

0.02-0.04

DGR 1500P-15D

1.50 0.05 20.60 18.00 15.0

•

0.02-0.04

DGR 1500P-6D

1.50 0.05 20.60 18.00 6.0

•

0.02-0.05

DGR 2000P-15D

2.00 0.05 20.60 18.00 15.0

•

0.02-0.05

DGR 2000P-6D

2.00 0.05 20.60 18.00 6.0

•

0.02-0.07

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFS (469) • DGPAD-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473)

• DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B-D-TR (477) • DGTR/L-B-T-SH (476) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

DGR-P

Double-Sided Inserts for

Parting Soft Materials, Thin

and Miniature Parts

INSL

±0.1

Wipers

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3) INSL

IC328

IC1030

f groove

(mm/rev)

DGN 1900WP

1.90 0.05 0.02 0.020 6.00 19.70

• •

0.04-0.12

DGN 2400WP

2.39 0.05 0.02 0.020 6.00 20.40

• •

0.05-0.14

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFS (469) • DGPAD-JHP (480) • DGTR/L (476)

• DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-WP

Double-Sided Parting and

Grooving Inserts with a Wiper

Design for High Flatness

and Surface Finish

PSIRR

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CDX(1) INSL PSIRR

IC328

IC1030

f groove

(mm/rev)

DGR 1900WP-12D

1.90 0.05 6.00 19.70 12.0

• •

0.04-0.10

DGR 1900WP-5D

1.90 0.05 6.00 19.70 5.0

•

0.04-0.10

DGR 2400WP-12D

2.39 0.05 6.00 20.40 12.0

• •

0.04-0.10

DGR 2400WP-5D

2.39 0.05 6.00 20.40 5.0

•

0.04-0.12

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)

• DGFH-JHP (269) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFS (469) • DGPAD-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473)

• DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

DGR-WP

Double-Sided Parting Inserts

with a Wiper Design for High

Flatness and Surface Finish

489

PARTING

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) INSL

IC328

IC830

IC354

IC308

IC908

f groove

(mm/rev)

HGN 3003C

3.00 0.30 0.05 15.80

•••••

0.08-0.20

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HFPAD-3 (562) • HFPAD-JHP (562)

• HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267)

HGN-C

Parting and Grooving Inserts

for Parting Bars, Hard Materials

and Tough Applications

PSIRR

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE INSL PSIRL PSIRR

IC328

IC830

f groove

(mm/rev)

HGL 3003C-6D

3.00 0.30 15.60 6.0 -

•

0.06-0.16

HGR 3003C-6D

3.00 0.30 15.60 - 6.0

• •

0.06-0.16

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HGFH (268)

HGR/L-C

Inserts for Parting Bars, Hard

Materials and Tough Applications

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL

IC328

IC830

IC354

IC308

f groove

(mm/rev)

HGN 3002J

3.00 0.20 0.05 0.030 16.10

••••

0.04-0.15

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HFPAD-3 (562) • HFPAD-JHP (562)

• HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267)

HGN-J

Inserts for Parting and

Grooving Soft Materials,

Parting Tubes, Small Diameters

and Thin-Walled Parts

ISCAR

490

PARTING

PSIRR

±0.1

lNSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE PSIRL PSIRR INSL

IC328

IC830

IC354

f groove

(mm/rev)

HGL 3000JS-15D (1)

3.00 0.02 15.0 - 15.20

•

0.03-0.07

HGR 3000JS-15D (1)

3.00 0.02 - 15.0 15.20

•

0.03-0.07

HGL 3002J-6D

3.00 0.20 6.0 - 15.70

•

0.04-0.12

HGR 3002J-6D

3.00 0.20 - 6.0 15.70

•••

0.04-0.12

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners

For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HGFH (268)

HGR/L-J/JS

Double-Sided Inserts for Parting

Soft Materials, Tubes, Small

Diameters and Thin-Walled Parts

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL

IC328

IC354

f groove

(mm/rev)

HGN 3003UT

3.00 0.30 0.05 0.030 15.80

• •

0.04-0.13

• No depth limit • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HFPAD-3 (562) • HFPAD-JHP (562)

• HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267)

HGN-UT

Double-Sided Inserts for Parting

and Grooving Low Feeds on Cr-Ni

Alloys and Low Carbon Steel

7°

INSL

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3) INSL

IC830

IC5400

IC808

f groove

(mm/rev)

DGN 2002C-XL

2.05 0.20 0.04 0.030 30.00 32.00

•••

0.05-0.16

DGN 3002C-XL

3.00 0.20 0.04 0.030 32.50 35.00

• •

0.07-0.20

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: DGTR/L-XL (477)

DGN-C-XL

Extra Long Parting and Grooving

Inserts for Parting Bars Up to 65

mm Diameters, Hard Materials

and Tough Applications

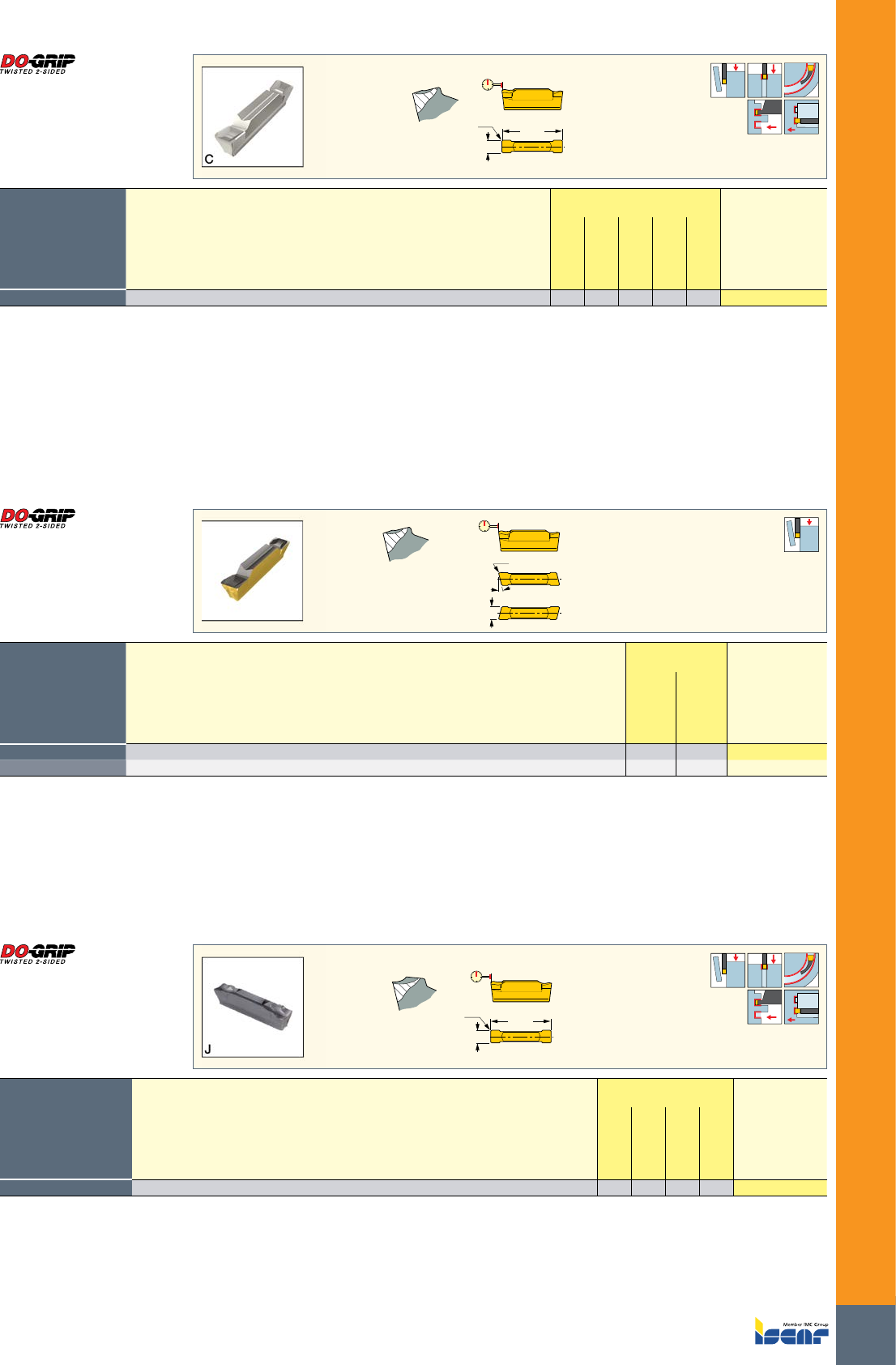

491

PARTING

7°

INSL

PSIRR

±0.1

Right-hand shown

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CDX(1) PSIRL PSIRR INSL

IC830

IC808

f groove

(mm/rev)

DGL 2002C-6D-XL

2.00 0.20 30.00 6.0 - 32.00

• •

0.05-0.12

DGR 2002C-6D-XL

2.00 0.20 30.00 - 6.0 32.00

• •

0.05-0.12

DGL 3002C-6D-XL

3.00 0.20 32.50 6.0 - 35.00

• •

0.08-0.18

DGR 3002C-6D-XL

3.00 0.20 32.50 - 6.0 35.00

• •

0.08-0.18

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

For tools, see pages: DGTR/L-XL (477)

DGR/L-C-XL

Extra Long Double-Sided Inserts

for Parting Bars, Hard Materials

and Tough Applications

7°

±0.1

INSL

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3) INSL

IC830

IC5400

IC808

f groove

(mm/rev)

DGN 2002J-XL

2.05 0.20 0.04 0.030 30.00 32.00

•••

0.04-0.14

DGN 3002J-XL

3.00 0.20 0.04 0.030 32.50 35.00

• •

0.04-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: DGTR/L-XL (477)

DGN-J-XL

Extra Long Inserts for Parting

and Grooving Soft Materials,

Parting Tubes, Small Diameters

and Thin-Walled Parts

7°

±0.1

INSL

PSIRR

Right-hand shown

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CDX(1) PSIRL PSIRR INSL

IC830

IC808

f groove

(mm/rev)

DGL 2002J-6D-XL

2.00 0.20 30.00 6.0 - 32.00

• •

0.04-0.10

DGR 2002J-6D-XL

2.00 0.20 30.00 - 6.0 32.00

• •

0.04-0.10

DGL 3002J-6D-XL

3.00 0.20 32.50 6.0 - 35.00

• •

0.04-0.14

DGR 3002J-6D-XL

3.00 0.20 32.50 - 6.0 35.00

• •

0.04-0.14

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

For tools, see pages: DGTR/L-XL (477)

DGR/L-J-XL

Extra Long Double-Sided Inserts

for Parting Soft Materials,

Tubes, Small Diameters

and Thin-Walled Parts

ISCAR

492

PARTING

CDX

INSL

CW±0.02

Dimensions Recommended

Machining Data

Designation

CW CWTOL(1) RE RETOL(2) CDX INSL

IC1008

f groove

(mm/rev)

BGM N0801J

0.80 0.02 0.10 0.020 10.00 38.70

•

0.02-0.05

BGM N1001J

1.00 0.02 0.10 0.020 10.00 38.70

•

0.02-0.08

BGM N1201J

1.20 0.02 0.10 0.020 10.00 38.70

•

0.03-0.10

BGM N1501J

1.50 0.02 0.10 0.020 10.00 38.70

•

0.05-0.12

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: BGTR/L-B-JHP (492)

BGM N-J

Narrow Material Cost Saving

Inserts for Grooving and Parting

up to 20 mm Bar Diameters

CDX

INSL

PSIR

Dimensions Recommended

Machining Data

Designation

CW RE INSL CDX PSIR

IC1008

f groove

(mm/rev)

BGM R/L1001J-15D

1.00 0.10 38.70 10.00 15.0

•

0.02-0.06

BGM R/L1001J-6D

1.00 0.10 38.70 10.00 6.0

•

0.02-0.08

• For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: BGTR/L-B-JHP (492)

BGM R/L-J

Narrow Material Cost Saving

Inserts for Parting up to

20 mm Bar Diameters

Dmax

OAL

HBH

Bar Max

Designation

CWN(1) CWX(2) H HF B WB OAL LH D max(3) WF HBH

BGTR/L 16B-D20-JHP

0.80 1.50 16.0 16.0 16.0 4.00 142.00 47.5 40.0 (4) 14.00 4.0

BGTR/L 20B-D20-JHP

0.80 1.50 20.0 20.0 20.0 4.00 142.00 47.5 40.0 (4) 18.00 -

BGTR/L 25B-D20-JHP

0.80 1.50 25.0 25.0 25.0 4.00 142.00 47.5 40.0 (4) 23.00 -

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) The specified limit refers to the tool

(4) for grooving

For inserts, see pages: BGM N-J (492) • BGM R/L-J (492)

For holders, see pages: AVC-D80-VH (98) • C#-ADE (732) • C#-ADES (732) • C#-ASHA (731) • C#-ASHR/L (731) • C#-ASHR/L-45 (732)

• DT30/2 ASH# 16/20-1-35080 (759) • HSK A-WH-ASHR/L-1 (736) • HSK A63WH-ASHN-45 (736) • HSK A63WH-ASHR/L-2 (736) • HSK A63WH-ASHR/L-3 (737)

• HSK A63WH-ASHR/L-45 (736)

Spare Parts

Designation

BGTR/L 16B-D20-JHP

SR M5X16 DIN912 SR 5/16UNF TL360 HW 4.0

BGTR/L 20B-D20-JHP

SR M5X16 DIN912 HW 3.0 PLG G1/8 TL360 HW 5.0

BGTL 25B-D20-JHP

SR M5X16 DIN912 HW 3.0 PLG G1/8 TL360 HW 5.0

BGTR 25B-D20-JHP

SR M5X16 DIN912 HW 4.0 PLG G1/8 TL360 HW 5.0

BGTR/L-B-JHP

Integral Shank Parting and

Grooving Tools with Coolant

Channels Carrying Narrow Inserts

for Parting up to 20 mm Bars

493

PARTING

TGFH 100-9

OAL

150º

CWN-CWX

HF H

CUTDIA

TGFH 100,150

TGFH...1.4/1.6

TGFH...K

CDX

Designation

H CWN(2) CWX(3) WB OAL CDX HF CUTDIA CSP(4) Insert

TGFH 19-1.4

19.0 1.40 1.40 1.05 (5) 86.00 9.60 15.7 30.0 0 TAG 1.4 ETG 1.4/1.6*

TGFH 19-1.6

19.0 1.60 1.60 1.30 (6) 86.00 11.00 15.7 32.0 0 TAG 1.6 ETG 1.4/1.6*

TGFH 19-2

19.0 1.80 2.40 1.65 86.00 - 15.7 38.0 0 TAG 2 ETG 2*

TGFH 26-1.4

26.0 1.40 1.40 1.05 (5) 110.00 8.30 21.4 29.0 0 TAG 1.4 ETG 1.4/1.6*

TGFH 26-1.6

26.0 1.60 1.60 1.30 (6) 110.00 10.00 21.4 35.0 0 TAG 1.6 ETG 1.4/1.6*

TGFH 26-2

26.0 1.80 2.40 1.65 110.00 - 21.4 50.0 0 TAG 2 ETG 2*

TGFH 26-3

26.0 2.80 3.50 2.50 110.00 - 21.4 75.0 0 TAG 3 ETG 3-4*

TGFH 26K-3 (1)

26.0 2.80 3.50 2.50 110.00 - 21.4 75.0 1 TAG 3 ETG 3-4-SH* SGC 340

TGFH 26-4

26.0 3.70 4.50 3.40 110.00 - 21.4 80.0 0 TAG 4 ETG 3-4*

TGFH 26-5

26.0 4.70 5.50 4.00 150.00 - 21.4 80.0 0 TAG 5 ETG 5-7*

TGFH 32-1.4

32.0 1.40 1.40 1.05 (5) 150.00 7.10 24.8 29.0 0 TAG 1.4 ETG 1.4/1.6*

TGFH 32-1.6

32.0 1.60 1.60 1.30 (5) 150.00 10.00 24.8 38.0 0 TAG 1.6 ETG 1.4/1.6*

TGFH 32-2

32.0 1.80 2.40 1.65 (5) 150.00 - 24.8 50.0 0 TAG 2 ETG 2*

TGFH 32-3

32.0 2.80 3.50 2.50 150.00 - 24.8 100.0 0 TAG 3 ETG 3-4*

TGFH 32K-3 (1)

32.0 2.80 3.50 2.50 150.00 - 24.8 100.0 1 TAG 3 ETG 3-4-SH* SGC 340

TGFH 32-4

32.0 3.70 4.50 3.40 150.00 - 24.8 100.0 0 TAG 4 ETG 3-4*

TGFH 32K-4 (1)

32.0 3.70 4.50 3.40 150.00 - 24.8 100.0 1 TAG 4 ETG 3-4-SH* SGC 340

TGFH 32-5

32.0 4.70 5.50 4.00 150.00 - 24.8 120.0 0 TAG 5 ETG 5-7*

TGFH 32-6

32.0 5.70 6.50 5.20 150.00 - 24.8 120.0 0 TAG 6 ETG 5-7*

TGFH 32-7

32.0 6.80 7.50 6.00 148.00 - 24.8 120.0 0 TAG 7 ETG 5-7*

TGFH 45-3

45.0 2.80 3.50 2.50 225.00 - 38.1 160.0 0 TAG 3 ETG 3-4*

TGFH 45-4

45.0 3.70 4.50 3.40 225.00 - 38.1 160.0 0 TAG 4 ETG 3-4*

TGFH 45-5

45.0 4.70 5.50 4.00 225.00 - 38.1 160.0 0 TAG 5 ETG 5-7*

TGFH 45-6

45.0 5.70 6.50 5.20 225.00 - 38.1 160.0 0 TAG 6 ETG 5-7*

TGFH 45-7

45.0 6.80 7.50 6.00 225.00 - 38.1 160.0 0 TAG 7 ETG 5-7*

TGFH 52-7

52.6 6.80 7.50 6.00 190.00 - 45.2 190.0 0 TAG 7 ETG 5-7*

TGFH 53-7

52.6 6.80 7.50 6.00 260.00 - 45.2 220.0 0 TAG 7 ETG 5-7*

TGFH 52K-8 (1)

52.6 7.70 8.50 7.20 190.00 - 45.2 190.0 1 TAG 8 ETG 8-12*

TGFH 53K-8 (1)

52.6 7.70 8.50 7.20 260.00 - 45.2 215.0 1 TAG 8 ETG 8-12*

TGFH 52K-9 (1)

52.6 8.70 10.00 8.20 190.00 - 45.2 190.0 1 TAG 9 ETG 8-12*

TGFH 53K-9 (1)

52.6 8.70 10.00 8.20 260.00 - 45.2 215.0 1 TAG 9 ETG 8-12*

TGFHR/L 53K-12 (1)

52.6 11.70 12.70 10.00 260.00 - 45.2 215.0 1 TAG 12 ETG 8-12*

TGFH 100-9

100.0 8.70 10.00 8.20 460.00 - 92.5 450.0 0 TAG 9 ETG 8-12*

TGFH 100-12

100.0 11.70 12.70 10.00 460.00 - 92.5 450.0 0 TAG 12 ETG 8-12*

TGFH 150-12

150.0 11.70 12.70 10.00 610.00 - 142.5 600.0 0 TAG 12 ETG 8-12*

• For user guide, see pages 538-547

(1) With coolant holes, the recommended coolant pressure is 10 bar min.; cooling tube SGCU 341 should be ordered separately

(2) Minimum cutting width

(3) Maximum cutting width

(4) 0 - Without coolant supply, 1 - With coolant supply

(5) Thickness beyond the D.O.C. area is 2.50 mm

(6) Thickness beyond the D.O.C. area is 1.60 mm

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

Coolant inlet SGCU-341

(should be ordered separately)

Coolant outlet

K TYPE COOLANT

TGFH/R/L

Blades with a Tangentially

Oriented Pocket Carrying TANG-

GRIP Single-Ended Inserts

for Parting and Grooving

ISCAR

494

PARTING

OAL

CUTDIA CWN-CWX

Min Max

Bar Max

Designation

H CWN(2) CWX(3) WB OAL HF CUTDIA Insert

TGFH 26C-3-JHP

26.0 2.80 3.50 2.50 140.00 21.4 75.0 TAG 3 SGC 340 ETG 3-4-SH*

TGFH 32C-3-JHP

32.0 2.80 3.50 2.50 150.00 24.8 90.0 TAG 3 SGC 340 ETG 3-4-SH*

TGFH 26C-4-JHP

26.0 3.70 4.50 3.40 140.00 21.4 75.0 TAG 4 SGC 340 ETG 3-4-SH*

TGFH 32C-4-JHP

32.0 3.70 4.50 3.40 150.00 24.8 90.0 TAG 4 SGC 340 ETG 3-4-SH*

TGFH 32C-5-JHP

32.0 4.70 5.50 4.00 160.00 24.8 120.0 TAG 5 SGC 340 ETG 5-7*

TGFH 32C-6-JHP (1)

32.0 5.70 6.50 5.20 160.00 24.8 120.0 TAG 6 SGC 340 ETG 5-7*

• For user guide and accessories, see pages 538-547

(1) Only an upper channel

(2) Minimum cutting width

(3) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)

For holders, see pages: TGTBU-JHP (497)

TGFH-JHP

Parting and Grooving Blades

with Channels for Low and

High-Pressure Coolant

Carrying TANG-GRIP Inserts

TGFH 19-2S

CUTDIA

TGFH 19-3S

OAL

OAH HF

HBL

CWN-CWX

HBH WB

Designation

H CWN(1) CWX(2) WB OAL HF OAH HBH HBL CDX(3) CUTDIA

TGFH 19-2S

19.0 1.80 2.40 1.65 32.00 15.7 19.0 - - 12.00 36.0 ETG 2*

TGFH 19-3S

19.0 2.80 3.50 2.50 34.60 15.7 22.0 3.0 15.5 16.00 40.0 ETG 3-4-SH*

• For Dmax and Tmax drawing, see SGBHR/L holder

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

TGFH-S

Parting and Grooving Single-

Sided Blades Carrying

TANG-GRIP Inserts

CUTDIA

12 LH HBH

10.3

OAL

HTPRM

Right-hand shown

Designation

H B HBH OAL HTPRM LH CDX(1) CUTDIA

SGBHR/L 1010

10.0 10.0 10.0 154.00 19.0 20.0 16.00 40.0

SGBHR 1212

12.0 12.0 8.0 154.00 19.0 20.0 16.00 40.0

SGBHR 1414

14.0 14.0 6.0 154.00 19.0 20.0 16.00 40.0

SGBHR/L 1616

16.0 16.0 6.0 154.00 19.0 20.0 16.00 40.0

SGBHR/L 2020

20.0 20.0 2.0 154.00 19.0 20.0 16.00 40.0

SGBHR/L 2525

25.0 25.0 - 154.00 19.0 20.0 16.00 40.0

• For Dmax and Tmax dimensions, see TGFH-S adapters

(1) Cutting depth maximum

For tools, see pages: TGFH-S (494)

Spare Parts

Designation

SGBHL 1010

SET ESG 1 SR M5X25DIN912 HW 4.0

SGBHR 1010

SR M5X25DIN912 HW 4.0

SGBHR 1212

SR M5X25DIN912 HW 4.0

SGBHR 1414

SET ESG 1 SR M5X25DIN912 HW 4.0

SGBHR/L 1616

SR M5X25DIN912 HW 4.0

SGBHL 2020

SR M5X25DIN912 HW 4.0

SGBHR 2020

SET ESG 1 SR M5X25DIN912 HW 4.0

SGBHR/L 2525

SR M5X25DIN912 HW 4.0

SGBHR/L

Tool Blocks for SELF-GRIP

Single-Sided Blades

495

PARTING

OAL OAL CWN-CWX

HF H

15°

WB_2

CUTDIA

TGFHR 32... TGFHR 26...

Right-hand shown

Designation

H CWN(1) CWX(2) WB WB_2 OAL HF CUTDIA

TGFHL 26T16-2

26.0 1.80 2.40 1.65 7.9 110.50 21.4 43.0 ETG 2*

TGFHR 26T16-3

26.0 2.80 3.50 2.50 7.9 110.50 21.4 43.0 ETG 3-4-SH*

TGFHR/L 26T23-2

26.0 1.80 2.40 1.65 7.9 110.50 21.4 46.0 ETG 2*

TGFHR/L 26T23-3

26.0 2.80 3.50 2.50 7.9 110.50 21.4 46.0 ETG 3-4-SH*

TGFHR/L 32T22-2

32.0 1.80 2.40 1.65 7.9 110.50 24.8 42.0 ETG 2*

TGFHR/L 32T22-3

32.0 2.80 3.50 2.50 7.9 110.50 24.8 42.0 ETG 3-4-SH*

TGFHR/L 32T33-3

32.0 2.80 3.50 2.50 7.9 110.50 24.8 66.0 ETG 3-4-SH*

TGFHR/L 32T33-4

32.0 3.70 4.50 3.40 7.9 110.50 24.8 66.0 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBR/L (617) • SGTBU/SGTBN (616)

• UBHCR/L (618)

TGFHR/L

Single- and Double-Ended

Parting and Grooving Reinforced

Blades Carrying TANG-GRIP

Tangentially Clamped Inserts

TGFHL... TGFHR... TGFHR...L TGFHL...R

CWN-CWX

WB_2

HF H

OAL

CDX

Min Max

Bar Max

Designation

CWN(1) CWX(2) WB_2 WB OAL H HF CDX(3) Insert

TGFHR/L 32C-3T33-JHP

2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340

TGFHL 32C-3T33R-JHP

2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340

TGFHR 32C-3T33L-JHP

2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: TGTBU-JHP (497)

SGC 340

T-2010/5

TGFHR/L-JHP

Parting and Grooving Reinforced

Blades with Channels for

High-Pressure Coolant

Carrying TANG-GRIP Inserts

ISCAR

496

PARTING

30 40 50 60 MAX.

OAL CWN-CWX

150°

CUTDIA

TGSU ...-4Z

3 1

4 2

Designation

H CWN(2) CWX(3) CUTDIA NOP(4) WB OAL HF CSP(5) Insert

TGSU 35-1.4-IQ

35.0 1.40 1.40 35.0 2 2.50 (6) 180.00 33.2 0 TAG 1.4 ETG 1.4/1.6*

TGSU 35-2-IQ

35.0 1.80 2.40 59.5 2 2.50 (7) 160.00 33.2 0 TAG 2 ETG 2*

TGSU 35-3-IQ-4Z

35.0 2.80 3.50 120.0 4 2.50 180.00 33.2 0 TAG 3 ETG 3-4-SH*

TGSU 35-4-IQ-4Z

35.0 3.70 4.50 120.0 4 3.40 180.00 33.2 0 TAG 4 ETG 3-4-SH*

TGSU 35-5-IQ

35.0 4.70 5.50 144.0 2 4.00 180.00 33.2 0 TAG 5 ETG 5-7*

TGSU 35-6-IQ

35.0 5.70 6.50 144.0 2 5.20 180.00 33.2 0 TAG 6 ETG 5-7*

TGSU 35-7-IQ

35.0 6.80 7.50 144.0 2 6.00 180.00 33.2 0 TAG 7 ETG 5-7*

TGSU 35C-8-IQ (1)

35.0 7.70 8.50 144.0 2 7.20 180.00 33.2 1 TAG 8 ETG 8-12*

TGSU 35C-9-IQ (1)

35.0 8.70 10.00 144.0 2 8.20 180.00 33.2 1 TAG 9 ETG 8-12*

TGSU 56C-7-IQ (1)

56.0 6.80 7.50 220.0 2 6.00 260.00 53.6 1 TAG 7 ETG 5-7*

TGSU 56C-8-IQ (1)

56.0 7.70 8.50 220.0 2 7.20 260.00 53.6 1 TAG 8 ETG 8-12*

TGSU 56C-9-IQ (1)

56.0 8.70 10.00 220.0 2 8.20 260.00 53.6 1 TAG 9 ETG 8-12*

• For user guide, see pages 538-547

(1) C- Internal coolant, use with TGTBU HD blocks only; cooling tube SGCU 341 should be ordered separately

(2) Minimum cutting width

(3) Maximum cutting width

(4) Number of pockets

(5) 0 - Without coolant supply, 1 - With coolant supply

(6) Thickness at the D.O.C. area is 1.05 mm

(7) Thickness at the D.O.C. area is 1.65 mm

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)

For holders, see pages: TGTBU (496)

TGSU 35-3-IQ-4Z

TGSU 35-4-IQ-4Z

TGSU

Parting and Grooving Flat Top

Blades with Tangential Pockets

Carrying TANG-GRIP

Single-Ended Inserts

HTPRM

WTHPRM

OAW

HBH

OAH H

OAL

Choose blade by HTPRM dimension

Designation

H B HTPRM WTHPRM OAW OAH HBH OAL

TGTBU 20-35

20.0 19.0 35.0 6.00 38.00 56.0 23.7 110.00 BKU 110 SR M6X16 DIN912 HW 5.0

TGTBU 25-35

25.0 23.0 35.0 6.00 42.00 56.0 18.7 110.00 BKU 110 SR M6X16 DIN912 HW 5.0

TGTBU 32-35

32.0 29.0 35.0 6.00 48.00 56.0 11.7 110.00 BKU 110 SR M6X16 DIN912 HW 5.0

TGTBU 32-35 HD (1)

32.0 30.0 35.0 8.00 55.00 64.0 18.0 130.00 BK 509 SR M8X20DIN912 HW 6.0

TGTBU 40-35

40.0 41.0 35.0 6.00 60.00 56.0 3.7 110.00 BKU 110 SR M6X16 DIN912 HW 5.0

TGTBU 40-35 HD (1)

40.0 41.0 35.0 8.00 66.00 64.0 10.0 130.00 BK 509 SR M8X20DIN912 HW 6.0

TGTBU 40-56 HD (1)

40.0 41.0 56.0 8.00 66.00 72.0 28.0 130.00 BK 509 SR M8X20DIN912 HW 6.0

(1) HD - recommended blocks for TGSU...-8, TGSU...-9 blades

For tools, see pages: TGSU (496)

TGTBU

Tool Blocks for TGSU Parting

and Grooving Blades

497

PARTING

OAL

OAH

OAW

WTHPRM

HBH

HTPRM

G 1/8"

Choose blade by prism height dimension

Bar Max

Designation

H B HTPRM OAW OAH HBH WTHPRM OAL

TGTBU 16-5G-JHP

16.0 16.9 26.0 35.60 29.9 13.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-5G-JHP

20.0 20.9 26.0 39.60 33.9 9.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-35-JHP

20.0 19.0 35.0 38.00 32.3 23.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-6G-JHP

20.0 19.0 32.0 39.20 36.4 15.0 5.30 100.00 BKU 100 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-5G-JHP

25.0 26.1 26.0 44.10 39.0 5.5 4.10 110.00 BKU 105 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-6G-JHP

25.0 23.0 32.0 43.20 41.4 8.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-35-JHP

25.0 23.0 35.0 42.00 37.3 18.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 32-6G-JHP

32.0 29.0 32.0 49.20 48.4 5.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 32-35-JHP

32.0 29.0 35.0 48.00 44.3 11.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

For tools, see pages: DGFH-JHP (269) • DGFHR/L-BC-JHP (469) • TGFH-JHP (494) • TGFHR/L-JHP (495)

TGTBU-JHP

Tool Blocks for Parting

and Grooving Blades for

High-Pressure Coolant

HBH

HBL

CWN-CWX

OAL

CDX TGFH 12MB-2

Designation

CWN(1) CWX(2) WB OAL HF HBH HBL CDX(3) Insert

TGFH 12MB-2 L58

1.80 2.40 1.65 58.00 12.2 2.8 15.5 11.50 TAG 2 ETG 2*

TGFH 17MB-2 L58

1.80 2.40 1.65 58.00 17.2 - - 11.50 TAG 2 ETG 2*

TGFH 22MB-2 L58

1.80 2.40 1.65 58.00 22.2 - - 11.50 TAG 2 ETG 2*

TGFH 17MB-3

2.80 3.50 2.50 64.00 17.2 - - 12.00 TAG 3 ETG 3-4-SH*

TGFH 22MB-3

2.80 3.50 2.50 64.00 22.2 - - 12.00 TAG 3 ETG 3-4-SH*

TGFH 22MB-3-L84

2.80 3.50 2.50 84.00 22.2 - - 16.00 TAG 3 ETG 3-4-SH*

TGFH 28MB-3

2.80 3.50 2.50 100.00 28.0 - - 19.00 TAG 3 ETG 3-4-SH*

TGFH 17MB-4

3.70 4.50 3.40 70.00 17.2 - - 14.00 TAG 4 ETG 3-4-SH*

TGFH 22MB-4

3.70 4.50 3.40 70.00 22.2 - - 14.00 TAG 4 ETG 3-4-SH*

TGFH 22MB-4-L90

3.70 4.50 3.40 90.00 22.2 - - 17.00 TAG 4 ETG 3-4-SH*

TGFH 28MB-4

3.70 4.50 3.40 100.00 28.0 - - 19.00 TAG 4 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

TGFH-MB

Parting and Grooving Blades for

Other Manufacturers Blocks

ISCAR

498

PARTING

CUTDIA

OAL

OAH

WB_2

CWN-CWX

Designation

CWN(1) CWX(2) WB_2 WB OAL CUTDIA HF OAH Insert

TGAD 1.4N

1.40 1.40 3.20 1.1 41.50 32.0 24.0 29.0 TAG 1.4 ETG 1.4/1.6*

TGAD 2N

1.80 2.40 3.20 1.7 41.50 32.0 24.0 30.0 TAG 2 ETG 2*

TGAD 3N

2.80 3.50 4.00 2.4 41.50 35.0 24.0 30.0 TAG 3 ETG 3-4-SH*

TGAD 4N

3.70 4.50 3.20 3.2 50.50 50.0 24.0 30.0 TAG 4 ETG 3-4-SH*

TGAD 5N

4.70 5.50 4.00 4.0 50.50 50.0 24.0 30.0 TAG 5 ETG 5-7*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: DGHAL-DECO (478) • MAHPR/L-JHP (281) • MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624)

• C#-MAHPD (625) • C#-MAHDR-45 (623) • HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633)

• C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • IM-MAHPD (633) • MAHR/L-JHP-MC (280)

TGAD

Parting and Grooving

Adapters Carrying TANG-GRIP

Tangentially Clamped Inserts

OAL CNT

WF(assembly)

24.6

WF(adapter) WF(assembly)=WF+WF(adapter)

Bar Max

Designation

H B OAL WF CNT HF

NMAHR/L 20-MG-JHP

20.0 20.0 100.00 14.70 G1/8 20.0

NMAHR/L 25-MG-JHP

25.0 25.0 100.00 19.70 G1/8 25.0

For tools, see pages: D/HGAD RE/LE-JHP (499) • PCAD RE/LE-JHP (499) • TGAD RE/LE-JHP (498)

Spare Parts

Designation

NMAHR/L-JHP

SR M5-04451 SW6-T-SH BLD T20/S7 OR 5X1N

NMAHR/L-JHP

Holders with High-Pressure

Coolant Channels Carrying

MODU-GRIP Adapters

OAH

OAL

CUTDIA

WB WB_2

Right-hand shown

Bar Max

Designation

CWN(1) CWX(2) WF WB WB_2 LF OAL OAH HF CUTDIA Insert

TGAD 2R/LE-D54-JHP

1.80 2.40 4.48 1.65 5.3 44.40 58.30 25.80 18.9 54.0 TAG 2

TGAD 3R/LE-D54-JHP

3.00 3.50 4.08 2.45 5.3 44.40 58.30 25.80 18.9 54.0 TAG 3

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: NMAHR/L-JHP (498)

Spare Parts

Designation

TGAD 2R/LE-D54-JHP

ETG 2*

TGAD 3R/LE-D54-JHP

ETG 3-4-SH*

* Optional, should be ordered separately

TGAD RE/LE-JHP

Parting and Grooving Adapters

with Channels for High-Pressure

Coolant Carrying TANG-GRIP

Inserts

499

PARTING

OAH

OAL

CUTDIA

WB WB_2

Bar Max

Designation

CWN(2) CWX(3) WF WB WB_2 LF OAL OAH HF CUTDIA Insert

DGAD 2R/LE-D38-JHP (1)

1.90 2.50 4.50 1.60 5.3 40.40 54.35 25.80 18.9 38.0 DGN 2 EDG 33A*

DGAD 3R/LE-D38-JHP (1)

3.00 3.18 4.08 2.45 5.3 40.40 54.35 25.80 18.9 38.0 DGN 3 EDG 33A*

HGAD 3R/LE-D42-JHP

3.00 3.00 4.08 2.45 5.3 38.40 52.35 25.80 18.9 42.0 HGN 3/GRIP 3 EDG 23B*

• For user guide and accessories, see pages 538-547

(1) For parting and external grooving only

(2) Minimum cutting width

(3) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483)

• DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484) • GRIP (269) • GRIP (full radius) (270)

• HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGR/L-C (489) • HGR/L-J/JS (490)

For holders, see pages: NMAHR/L-JHP (498)

D/HGAD RE/LE-JHP

Parting and Grooving Adapters

with Channels for High-Pressure

Coolant Carrying DO-GRIP Inserts

OAL

OAH

WB_2

Right-hand shown

Bar Max

Designation

CWN(1) CWX(2) WF WB WB_2 LF OAL OAH HF Insert

PCAD 24R/LE-JHP

0.50 3.18 5.20 11.00 5.3 41.40 55.30 25.80 18.9 PENTA 24

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: PENTA 24-BSPT (674) • PENTA 24-ISO (657) • PENTA 24-MT (646) • PENTA 24-NPT (670) • PENTA 24-UN (664)

• PENTA 24-W (668) • PENTA 24-WT (641) • PENTA 24N-C (320) • PENTA 24N-C (full radius) (321) • PENTA 24N-J (319) • PENTA 24N-J (full radius) (320)

• PENTA 24N-PF (full radius) (322) • PENTA 24N-PF/P (321) • PENTA 24N-Z (322) • PENTA 24R-C (531) • PENTA 24R-P (534) • PENTA 24R/L-J (530)

• PENTA 24R/L-Z (533)

For holders, see pages: NMAHR/L-JHP (498)

Spare Parts

Designation

PCAD 24LE-JHP

SR 16-212-01397L

PCAD 24RE-JHP

SR 16-212-01397

PCAD RE/LE-JHP

Parting and Grooving

Adapters with Channels

for High-Pressure Coolant

Carrying PENTA 24 Inserts

ISCAR

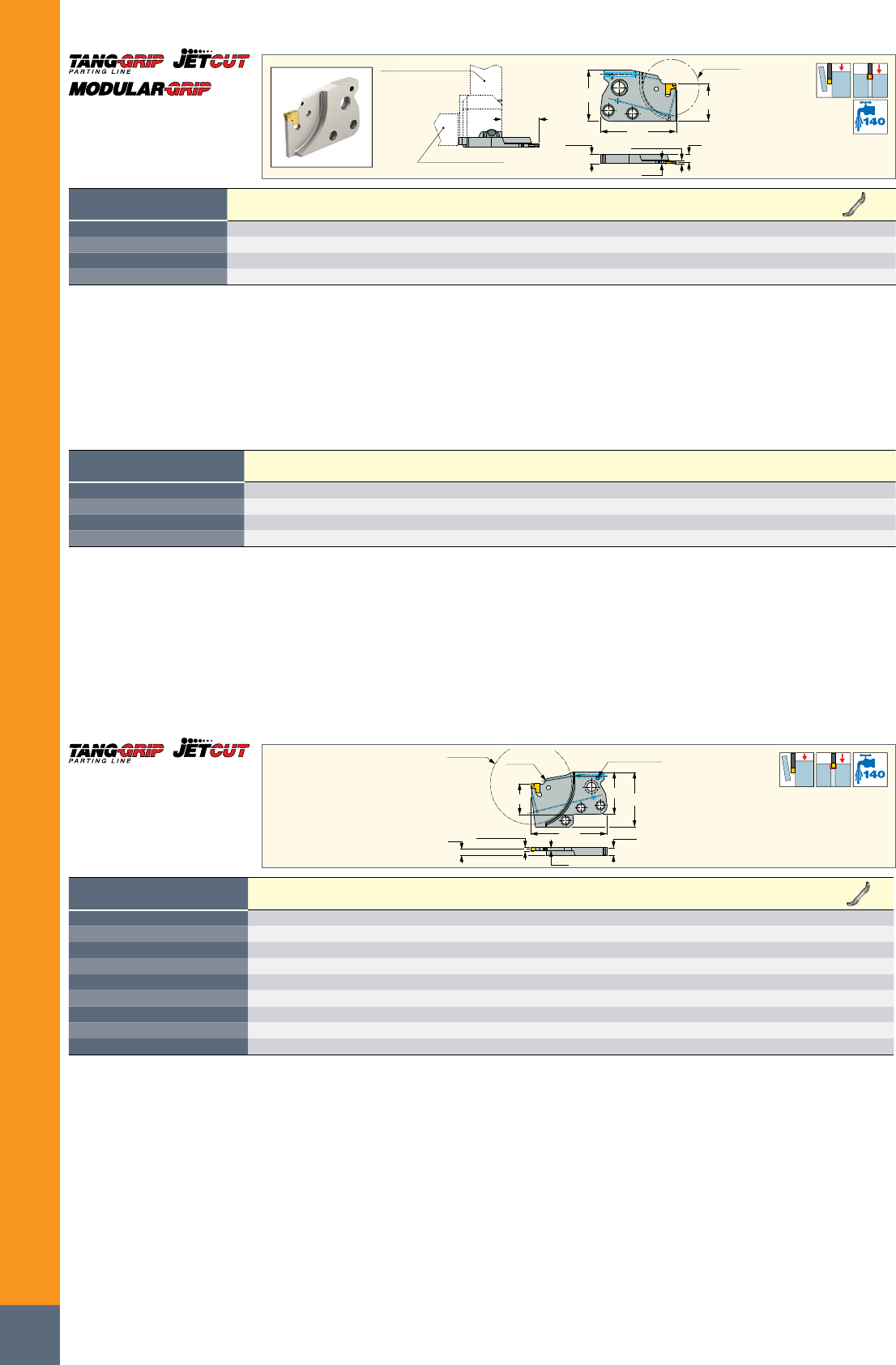

500

PARTING

OAL

CUTDIA

CWN-CWX

WB_2

HOLDER: MAHPR-...-JHP

HOLDER: MAHL-...-JHP

OHN

OAH

WF(assembly)=WF(holder)+WF(adapter)

• Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) CUTDIA OHN(3) WF WB WB_2 OAL OAH HF Insert

TAGPAD 2R/L-D42-JHP

1.80 2.40 42.0 24.0 5.18 1.65 6.0 48.40 33.0 24.0 TAG 2 ETG 2*

TAGPAD 2R/L-D52-JHP

1.80 2.40 52.0 29.0 5.18 1.65 6.0 53.40 33.0 24.0 TAG 2 ETG 2*

TAGPAD 3R/L-D42-JHP

2.80 3.50 42.0 24.0 4.80 2.40 6.0 48.40 33.0 24.0 TAG 3 ETG 3-4-SH*

TAGPAD 3R/L-D52-JHP

2.80 3.50 52.0 29.0 4.80 2.40 6.0 53.40 33.0 24.0 TAG 3 ETG 3-4-SH*

• For user guide and accessories see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Minimum overhang

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: ABC MAHDR-#-XL-JHP (782) • DT##/2 MAHD#-#-XL-JHP (758) • MAHR/L-JHP-MC (280) • MS##-##-MG-JHP (757)

• MS-ES#####-GWS-MG-JHP (759) • TR45 MAHDR-#-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

TAGPAD 2R/L-D42-JHP

567

TAGPAD 2R/L-D52-JHP

567

TAGPAD 3R/L-D42-JHP

8.5 10 12

TAGPAD 3R/L-D52-JHP

8.5 10 12

TAGPAD-JHP

Parting and Grooving Adapters

with Coolant Channels for

High-Pressure Carrying

TANG-GRIP Inserts

Coolant inlet

OAL

OAH

WB_2

CWN-CWX

Coolant

outlet

CUTDIA

Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) WF WB WB_2 OAL OAH HF CUTDIA Insert

TAGPAD-XL 2R/L-D65-JHP

1.80 2.40 5.20 1.60 6.0 60.00 43.0 34.0 65.0 TAG 2 ETG 2*

TAGPAD-XL 3R/L-D52-JHP

2.80 3.50 4.80 2.40 6.0 53.40 43.0 34.0 52.0 TAG 3 ETG 3-4-SH*

TAGPAD-XL 3R/L-D65-JHP

2.80 3.50 4.80 2.40 6.0 59.90 43.0 34.0 65.0 TAG 3 ETG 3-4-SH*

TAGPAD-XL 3R/L-D82-JHP

2.80 3.50 4.80 2.40 6.0 70.40 43.0 34.0 82.0 TAG 3 ETG 3-4-SH*

TAGPAD-XL 3R/L-D102-JHP

2.80 3.50 4.80 2.40 6.0 82.50 43.0 34.0 102.0 TAG 3 ETG 3-4-SH*

TAGPAD-XL 4R/L-D52-JHP

3.70 4.50 4.30 3.40 6.0 53.40 43.0 34.0 52.0 TAG 4 ETG 3-4-SH*

TAGPAD-XL 4R/L-D65-JHP

3.70 4.50 4.30 3.40 6.0 60.00 43.0 34.0 65.0 TAG 4 ETG 3-4-SH*

TAGPAD-XL 4R/L-D82-JHP

3.70 4.50 4.30 3.40 6.0 70.00 43.0 34.0 82.0 TAG 4 ETG 3-4-SH*

TAGPAD-XL 4R/L-D102-JHP

3.70 4.50 4.30 3.40 6.0 83.00 43.0 34.0 102.0 TAG 4 ETG 3-4-SH*

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: ABC MAHDR-#-XL-JHP (782) • MAHPR/L-XL-JHP (561) • MAHR/L-MG-XL-JHP (501) • MAHR/L-MG-XL-JHP-MC (501)

• TR TNK36 MAHDL-R-XL-JHP (782) • TR45 MAHDR-#-XL-JHP (781) • TR45TNL MAHDN-R-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

TAGPAD-XL-JHP

Extra Long Parting and Grooving

Adapters with Channels

for High-Pressure Coolant

Carrying TANG-GRIP Inserts

501

PARTING

OAL

HBH

HF H

HBKW

WF (shank)

G1/8x3

Right-hand

Left-hand

WF(assembly)=WF(shank)+WF(adapter)

Bar Max

Designation

H B OAL HBH WF HBKW

MAHR/L 20-MG-XL-JHP

20.0 20.0 149.10 24.0 14.0 4.00

MAHR/L 25-MG-XL-JHP

25.0 25.0 149.10 19.0 19.0 9.00

• For user guide and accessories, see pages 538-547

For tools, see pages: DGPAD-XL-JHP (480) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TNFPAD-XL-JHP (569)

Spare Parts

Designation

MAHR/L 20-MG-XL-JHP

SR M6X12DIN6912-P HW 5.0 SR M5-04451 T-20/5 SR M6X14-XT DIN 912 OR 5X1N PLG G1/8 TL360

MAHR/L 25-MG-XL-JHP

SR M6X12DIN6912-P HW 5.0 SR M5-04451 T-20/5 SR M6X14-XT DIN 912 OR 5X1N PLG G1/8 TL360

MAHR/L-MG-XL-JHP

Holders with High-Pressure

Coolant Channels for

Interchangeable Adapters

OAL

HBH

Coolant inlet

Right-hand

Left-hand

WF(assembly)=WF(shank)+WF(adapter)

Bar Max

Designation

H B OAL HBH WF HBKW

MAHR/L 20-MG-XL-JHP-MC

20.0 20.0 116.10 10.0 14.0 4.00

MAHR/L 25-MG-XL-JHP-MC

25.0 25.0 114.00 10.0 19.0 9.00

• For Tmax, refer to the adapters data

For tools, see pages: DGPAD-XL-JHP (480) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TNFPAD-XL-JHP (569)

Spare Parts

Designation

MAHR/L-MG-XL-JHP-MC

SR M6X14-XT DIN 912 HW 5.0 SR M5-04451 T-20/5 SR M6X12DIN6912-P OR 5X1N

MAHR/L-MG-XL-JHP-MC

Holders with Bottom Inlets

for High-Pressure Coolant

Channels Carrying Parting

and Grooving Adapters

ISCAR

502

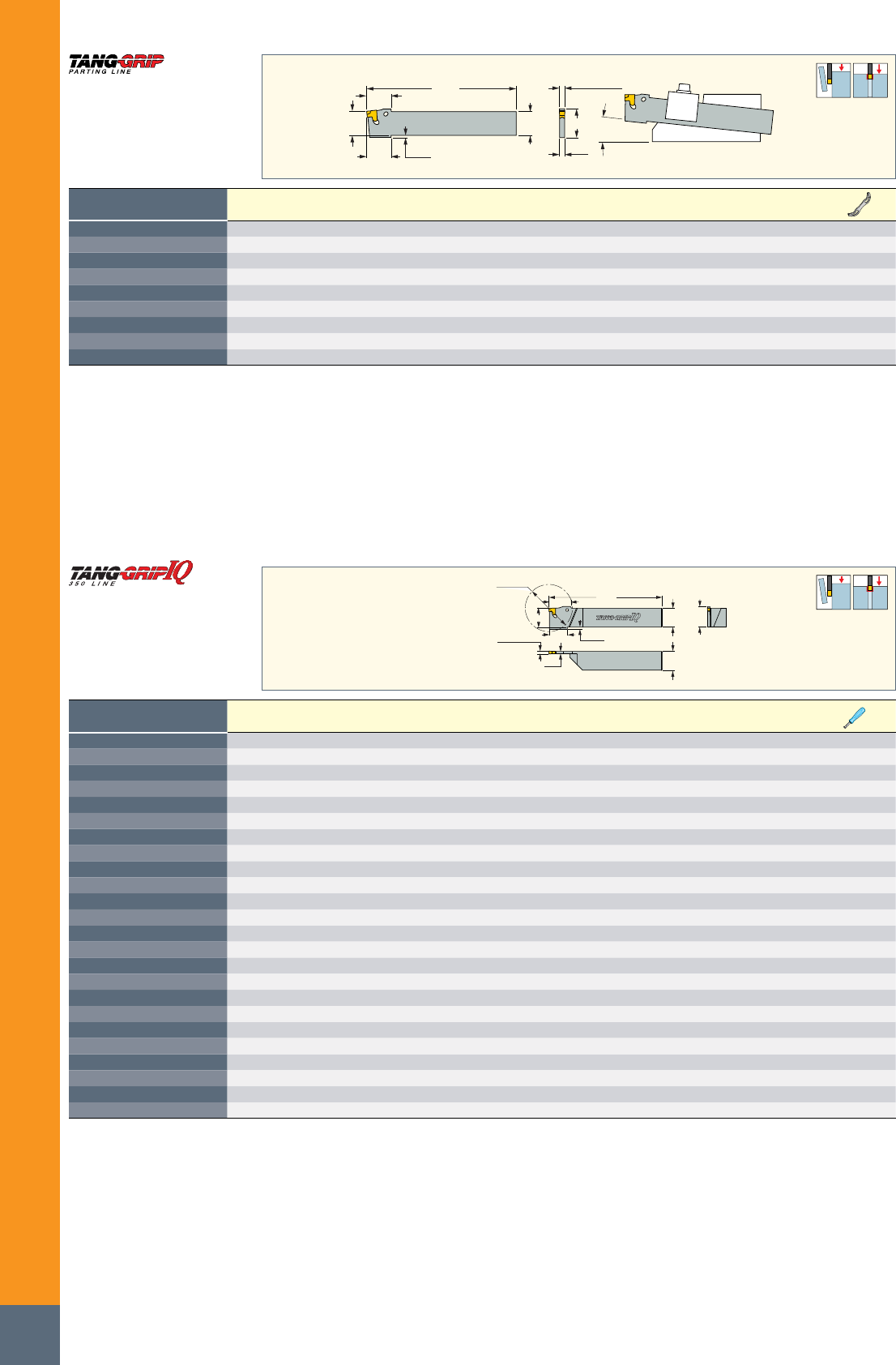

PARTING

HBL HBH

OAL

HOAH

CWN-CWX

a°

Designation

CWN(1) CWX(2) H WB OAL OAH HF LH HBL HBH CUTDIA a° Insert

TGFS 0-17-2

1.80 2.40 17.2 1.65 110.00 17.2 17.2 - 18.00 1.8 35.0 0 TAG 2 ETG 2*

TGFS 0-17-3

2.80 3.50 17.2 2.50 110.00 19.0 17.2 - 18.00 1.8 60.0 0 TAG 3 ETG 3-4-SH*

TGFS 5-17-2

1.80 2.40 17.4 1.65 110.00 18.9 17.5 18.0 18.00 1.5 35.0 5 TAG 2 ETG 2*

TGFS 5-17-3

2.80 3.50 17.4 2.50 110.00 20.7 17.5 18.0 18.00 1.5 60.0 5 TAG 3 ETG 3-4-SH*

TGFS 5-17-4

3.70 4.50 17.4 3.40 110.00 20.7 17.5 18.0 18.00 1.5 60.0 5 TAG 4 ETG 3-4-SH*

TGFS 5-22-2

1.80 2.40 22.2 1.65 150.00 23.8 22.4 18.0 - - 50.0 5 TAG 2 ETG 2*

TGFS 5-22-3

2.80 3.50 22.2 2.50 150.00 24.1 22.4 18.0 - - 75.0 5 TAG 3 ETG 3-4-SH*

TGFS 5-22-4

3.70 4.50 22.2 3.40 150.00 24.1 22.4 18.0 - - 80.0 5 TAG 4 ETG 3-4-SH*

TGFS 5-28-4

3.70 4.50 28.6 3.40 150.00 30.4 28.7 18.0 - - 100.0 5 TAG 4 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

TGFS

Blades for Multi-Spindle

Machines - Replacement for

HSS and Brazed Tools

OAH

OAL

CUTDIA

HBH

CWN-CWX

HBL

Left-hand shown

Designation

CWN(2) CWX(3) H B WB OAL OAH LH HBL HBH CUTDIA Insert

TGTR/L 1010-1.4-IQ

1.40 1.45 10.0 10.0 1.05 140.00 15.0 - 15.50 5.0 20.0 TAG 1.4 ETG 1.4/1.6*

TGTR/L 1212-1.4-IQ

1.40 1.45 12.0 12.0 1.05 140.00 12.0 - 16.00 3.0 30.0 TAG 1.4 ETG 1.4/1.6*

TGTR/L 1616-1.4-IQ

1.40 1.45 16.0 16.0 1.05 140.00 16.0 - 16.00 - 30.0 TAG 1.4 ETG 1.4/1.6*

TGTR/L 2020-1.4-IQ

1.40 1.45 20.0 20.0 1.05 140.00 20.0 - 16.00 - 30.0 TAG 1.4 ETG 1.4/1.6*

TGTR/L 1010-1.6-IQ

1.60 1.64 10.0 10.0 1.30 120.00 - - 16.00 5.0 28.0 TAG 1.6 ETG 1.4/1.6*

TGTR/L 1212-1.6-IQ

1.60 1.64 12.0 12.0 1.30 120.00 - - 16.00 3.0 32.0 TAG 1.6 ETG 1.4/1.6*

TGTR/L 1616-1.6-IQ

1.60 1.64 16.0 16.0 1.30 120.00 - - 16.00 - 35.0 TAG 1.6 ETG 1.4/1.6*

TGTR/L 1010-2-IQ

1.80 2.40 10.0 10.0 1.65 150.00 15.0 - 15.50 5.0 28.0 TAG 2 ETG 2*

TGTR/L 1212-2-IQ

1.80 2.40 12.0 12.0 1.65 150.00 15.0 - 17.00 3.0 32.0 TAG 2 ETG 2*

TGTR/L 1612-2-L120-IQ

1.80 2.50 16.0 12.0 1.65 120.00 16.0 - 16.00 - 35.0 TAG 2 ETG 2*

TGTR/L 1616-2-IQ

1.80 2.40 16.0 16.0 1.65 150.00 16.0 - 16.00 - 35.0 TAG 2 ETG 2*

TGTR/L 2012-2-IQ

1.80 2.40 20.0 12.0 1.65 125.00 20.0 - 16.00 - 35.0 TAG 2 ETG 2*

TGTR/L 1212-3-IQ

2.80 3.50 12.0 12.0 2.50 150.00 19.0 - 19.00 7.0 32.0 TAG 3 ETG 3-4-SH*

TGTR/L 1612-3-L120-IQ

2.80 3.50 16.0 12.0 2.50 120.00 19.0 - 19.00 3.0 35.0 TAG 3 ETG 3-4-SH*

TGTR/L 1616-3-IQ

2.80 3.50 16.0 16.0 2.50 150.00 19.0 - 19.00 3.0 35.0 TAG 3 ETG 3-4-SH*

TGTR/L 2012-3-IQ

2.80 3.50 20.0 12.0 2.50 125.00 20.0 - 19.00 - 43.0 TAG 3 ETG 3-4-SH*

TGTR/L 2020-3-IQ

2.80 3.50 20.0 20.0 2.50 120.50 21.7 23.4 19.00 - 54.0 TAG 3 ETG 3-4*

TGTR/L 2525-3-IQ

2.80 3.50 25.0 25.0 2.50 150.50 26.7 23.4 19.00 - 56.0 TAG 3 ETG 3-4*

TGTR 2525K-3 (1)

2.80 3.50 25.0 25.0 2.50 150.00 26.7 23.4 19.00 - 56.0 TAG 3 ETG 3-4*

TGTR/L 2020-4-IQ

3.70 4.50 20.0 20.0 3.40 120.50 21.7 23.4 19.00 - 57.0 TAG 4 ETG 3-4*

TGTR/L 2525-4-IQ

3.70 4.50 25.0 25.0 3.40 150.50 26.7 23.4 19.00 - 65.0 TAG 4 ETG 3-4*

TGTR/L 2020-5-IQ

4.70 5.50 20.0 20.0 4.00 120.00 21.7 - 19.00 - 57.0 TAG 5 ETG 5-7*

TGTR/L 2525-5-IQ

4.70 5.50 25.0 25.0 4.00 150.00 25.0 - 19.00 - 76.0 TAG 5 ETG 5-7*

TGTR/L 2525-6-IQ

5.70 6.50 25.0 25.0 5.20 150.00 25.0 - 19.00 - 76.0 TAG 6 ETG 5-7*

• For user guide, see pages 538-547

(1) With coolant

(2) Minimum cutting width

(3) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)

TGTR/L-IQ

Integral Shank TANG-GRIP

Toolholders for Parting

and Grooving

503

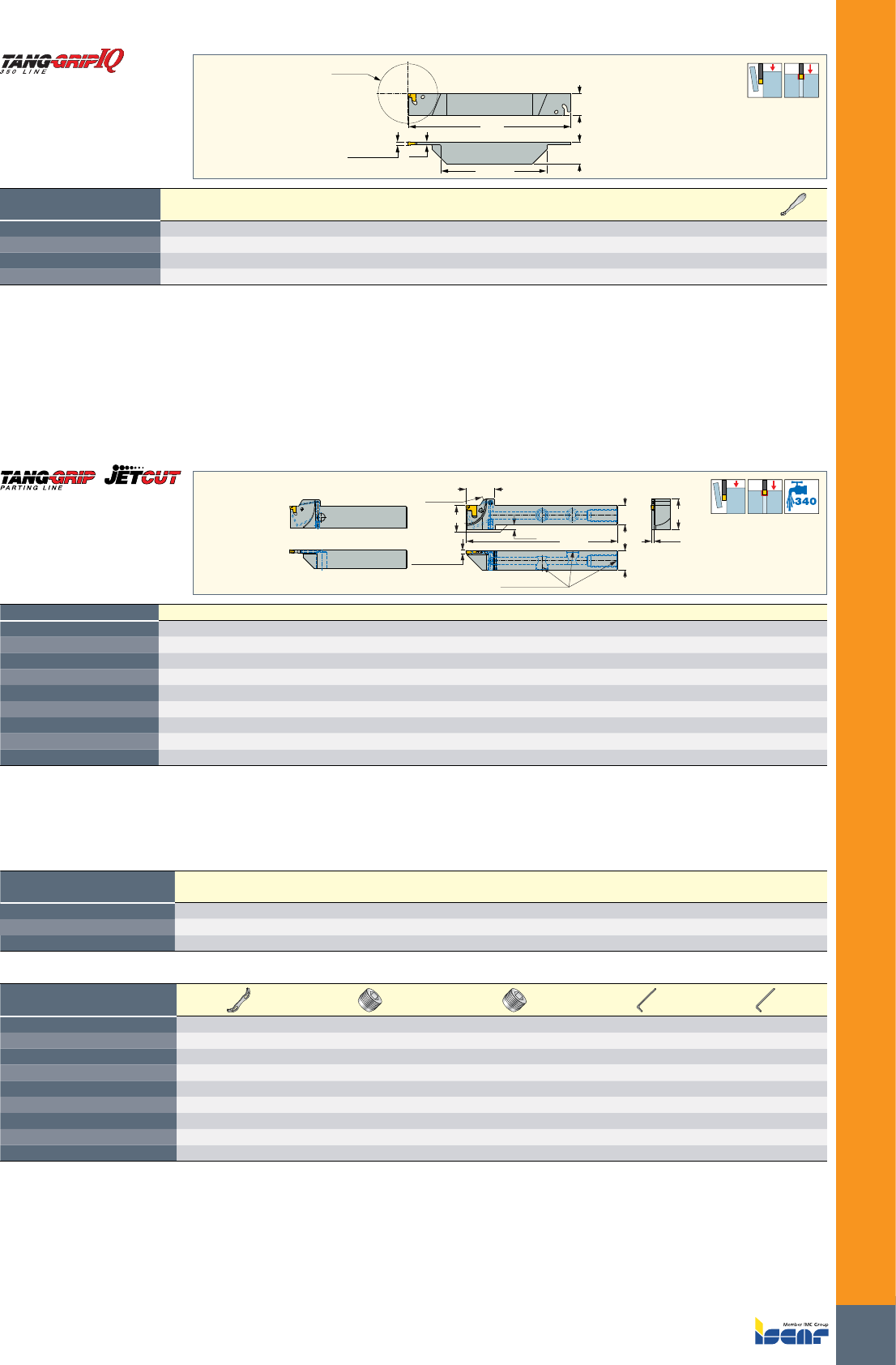

PARTING

CUTDIA

CWN-CWX

OAL

LSCMS Left-hand shown

Designation

CWN(1) CWX(2) CUTDIA H B WB OAL LSCMS Insert

TGTR/L 2020-3-IQ-2Z

2.80 3.50 54.0 20.0 20.0 2.50 150.00 98.90 TAG 3 ETG 3-4-SH*

TGTR/L 2525-3-IQ-2Z

2.80 3.50 56.0 25.0 25.0 2.50 150.00 98.00 TAG 3 ETG 3-4-SH*

TGTR/L 2020-4-IQ-2Z

3.70 4.50 57.0 20.0 20.0 3.40 150.00 95.00 TAG 4 ETG 3-4-SH*

TGTR/L 2525-4-IQ-2Z

3.70 4.50 65.0 25.0 25.0 3.40 150.00 88.00 TAG 4 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

TGTR/L-IQ-2Z

Integral Shank TANG-GRIP

Toolholders with 2 Pockets

for Parting and Grooving

CWN-CWX

OAH

OAL

HBH

CUTDIA

20-25 mm shanks 10-16 mm shanks

CNT (Inlet ports)

Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) H B WB OAL OAH LH HBH CNT CUTDIA Insert

TGTR/L 1010-2JHP

1.80 2.50 10.0 10.0 1.72 100.00 19.5 18.5 5.0 UNF 5/16-24 24.0 TAG 2

TGTR/L 1212-2JHP

1.80 2.50 12.0 12.0 1.72 100.00 19.5 18.5 3.0 UNF 5/16-24 24.0 TAG 2

TGTR/L 1616-2JHP

1.80 2.50 16.0 16.0 1.72 120.00 21.5 25.5 - UNF 5/16-24 35.0 TAG 2

TGTR/L 2012-2JHP

1.80 2.50 20.0 12.0 1.72 120.00 25.6 25.5 - UNF 5/16-24 35.0 TAG 2

TGTR/L 1616-3JHP

2.80 3.50 16.0 16.0 2.50 120.00 24.5 25.5 3.0 UNF 5/16-24 35.0 TAG 3

TGTR/L 2020-3JHP

2.80 3.50 20.0 20.0 2.50 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 3

TGTR/L 2525-3JHP

2.80 3.50 25.0 25.0 2.50 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 3

TGTR/L 2020-4JHP

3.70 4.50 20.0 20.0 3.40 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 4

TGTR/L 2525-4JHP

3.70 4.50 25.0 25.0 3.40 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 4

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

TGTR/L...-2JHP

2-4 4-6 6-8

TGTR/L...-3JHP

7-9 9-11 11-13

TGTR/L...-4JHP

7-9 9-11 11-13

Spare Parts

Designation

TGTR/L 1010-2JHP

ETG 2-SH-T* SR 5/16XUNF-TL-S HW 5/32"

TGTR/L 1212-2JHP

ETG 2-SH-T* SR 5/16UNF TL360 HW 5/32"

TGTR/L 1616-2JHP

ETG 2* SR 5/16UNF TL360 HW 5/32"

TGTR/L 2012-2JHP

ETG 2* SR 5/16UNF TL360 HW 5/32"

TGTR/L 1616-3JHP

ETG 3-4-SH* SR 5/16UNF TL360 HW 5/32"

TGTR/L 2020-3JHP

ETG 3-4-SH* PLG G1/8 TL360 HW 5.0

TGTR/L 2525-3JHP

ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32"

TGTR/L 2020-4JHP

ETG 3-4-SH* PLG G1/8 TL360 HW 5.0

TGTR/L 2525-4JHP

ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32"

* Optional, should be ordered separately

TGTR/L-JHP

Parting and Grooving Tools with

Channels for High-Pressure

Coolant Carrying TANG-GRIP

Inserts

ISCAR

504

PARTING

OAH

Coolant

inlet

HBH

OAL

CWN-CWX

WF Left-hand shown

Bar Max

Designation

CWN(1) CWX(2) H B HF WB OAL OAH LH HBH CUTDIA(3) Insert

TGTR/L 2020-D42-2-JHP-MC

1.80 2.50 20.0 20.0 20.0 1.72 99.00 25.70 29.0 - 42.0 TAG 2

TGTR/L 2020-D65-3-JHP-MC

2.80 3.50 20.0 20.0 20.1 2.50 110.50 37.60 40.5 10.0 65.0 TAG 3

TGTR/L 2020-D82-3-JHP-MC

2.80 3.50 20.0 20.0 20.1 2.50 119.00 38.80 49.0 10.0 82.0 TAG 3

TGTR/L 2525-D65-3-JHP-MC

2.80 3.50 25.0 25.0 25.1 2.50 126.00 37.60 41.0 5.0 65.0 TAG 3

TGTR/L 2525-D82-3-JHP-MC

2.80 3.50 25.0 25.0 25.1 2.50 134.50 38.80 49.5 5.0 82.0 TAG 3

• For user guide and accessories, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum cutting diameter

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

Spare Parts

Designation

TGTR/L 2020-D42-2-JHP-MC

ETG 2*

TGTR/L 2020-D65-3-JHP-MC

ETG 3-4-SH*

TGTR/L 2020-D82-3-JHP-MC

ETG 3-4-SH*

TGTR/L 2525-D65-3-JHP-MC

ETG 3-4-SH*

TGTR/L 2525-D82-3-JHP-MC

ETG 3-4-SH*

* Optional, should be ordered separately

TGTR/L-JHP-MC

Parting and Grooving Toolholders

with Bottom Inlets for

High-Pressure Coolant

Carrying TANG-GRIP Inserts

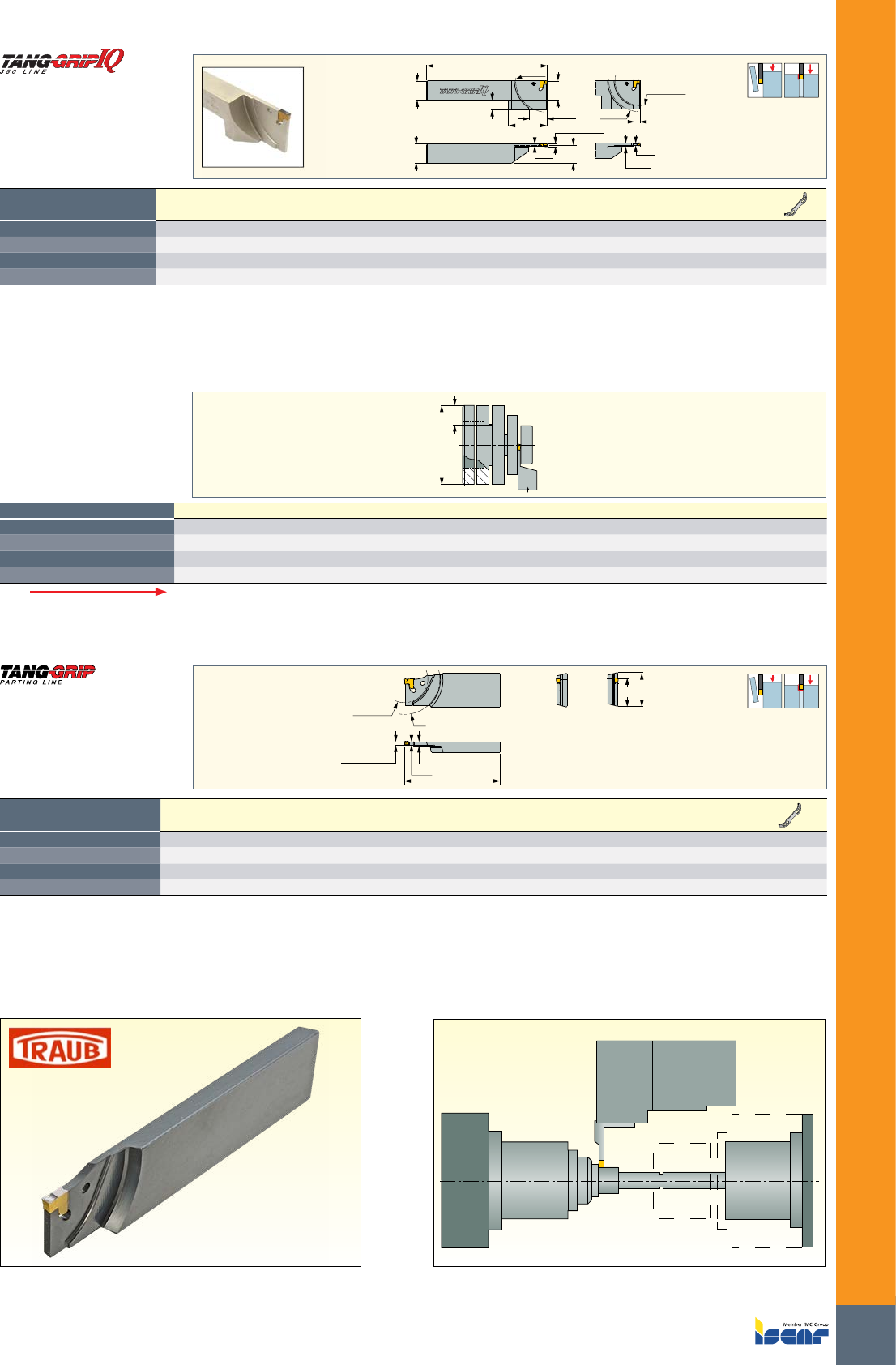

OAL

HBL

WB CWN-CWX

CDX

HBH

H HF

CUTDIA

10.8

CUTDIA

TGTR/L 10

Right-hand shown

Designation

CWN(1) CWX(2) H HF B WB OAL HBL HBH CDX(3) CUTDIA(4)

TGTR/L 1010-2T10SH-L120-IQ

1.80 2.50 10.0 10.1 10.0 1.65 120.00 15.0 5.0 10.00 26.0

TGTR/L 1212-2T15SH-L120-IQ

1.80 2.50 12.0 12.1 12.0 1.65 120.00 15.0 3.0 15.00 30.0

TGTR/L 1616-2T18SH-L120-IQ

1.80 2.50 16.0 16.1 16.0 1.65 120.00 - - 18.00 36.0

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

(3) Cutting depth maximum

(4) For parting

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507) • TAG N-UT (510)

• TAG R/L-C (507) • TAG R/L-J/JS (509)

TGTR/L-2T..SH-L120

Integral Shank Short-Head

TANG-GRIP Toolholders for

Parting and Grooving

505

PARTING

CUTDIA

CWN-CWX

3.5

OAL

...TR-D36R ...TR-D36

Designation

H CWN(1) CWX(2) WB OAL HF CUTDIA Insert

TGFHL 26-2TR-D36

26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2*

TGFHL 26-2TR-D36R

26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2*

TGFHL 26-3TR-D36

26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH*

TGFHL 26-3TR-D36R

26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

INDEX

TGFHL-TR

Reinforced Blades for TRAUB

and Index Machines Carrying

TANG-GRIP Tangentially

Clamped Inserts

HBH

HBL CWN-CWX

BWB

CDX

CUTDIA

OAL TGTR/L 16…D52TGTR/L 19…D65

CUTDIA

D1max

WB_2

CDX

Right-hand shown

Designation

CW CWN(1) CWX(2) H B WB WB_2 OAL HBL WF HBH CUTDIA D1 max CDX Insert

TGTR/L 1616-2-D52-IQ

2.00 1.80 2.40 16.0 16.0 1.65 3.50 125.00 40.0 15.20 14.0 52.0 65.0 6.00 TAG 2 ETG 2*

TGTR/L 2020-2-D65-IQ

2.00 1.80 2.40 20.0 20.0 1.65 - 125.00 40.0 19.20 10.0 65.0 - 18.00 TAG 2 ETG 2*

TGTR/L 1616-3-D52-IQ

3.00 2.80 3.50 16.0 16.0 2.50 3.50 125.00 40.0 14.80 14.0 52.0 65.0 6.00 TAG 3 ETG 3-4-SH*

TGTR/L 2020-3-D65-IQ

3.00 2.80 3.50 20.0 20.0 2.50 - 125.00 40.0 18.80 10.0 65.0 - 18.00 TAG 3 ETG 3-4-SH*

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

Depth Capacity DGTR/L-D

Table Determining Depth

of Cut as Function of

Workpiece Diameter

Designation

Tmax

TGTR/L 1616-2-D52-IQ

20 25 19 16 15 13 11 10 9 8

TGTR/L 2020-2-D65-IQ

20 25 30 31 29 26 24 23 22 20

TGTR/L 1616-3-D52-IQ

20 25 20 17 15 13 11 10 9 8

TGTR/L 2020-3-D65-IQ

20 25 30 31 29 26 24 23 22 20

D40 50 60 70 80 100 120 150 200 300

TGTR/L-D

Integral Shank TANG-GRIP

Toolholders with Reinforced

Blades for Parting and Grooving

Mainly Sub-Spindle Machines

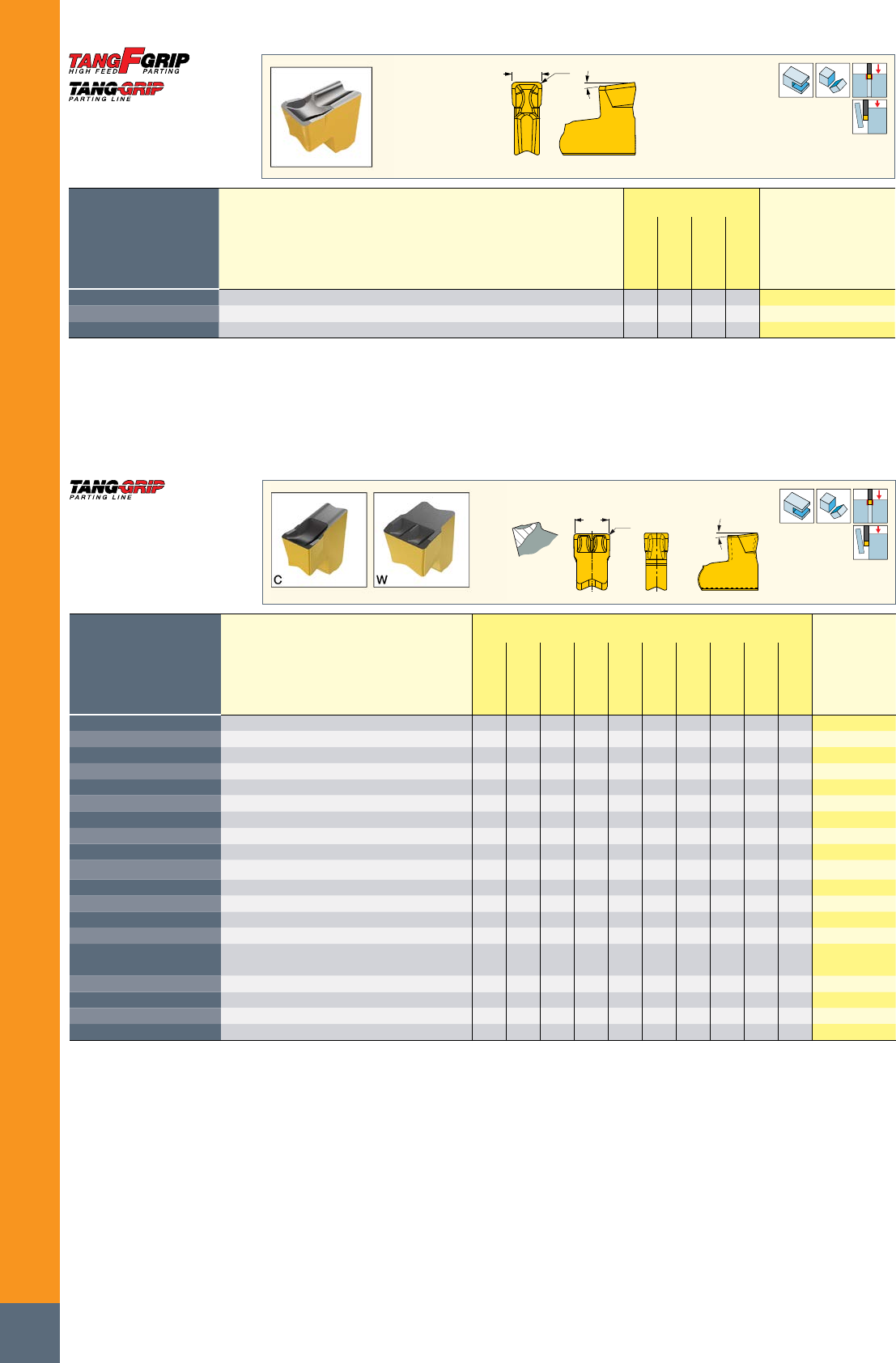

ISCAR

506

PARTING

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(1) RE

IC830

IC1030

IC1010

IC808

f groove

(mm/rev)

TAG N3HF

3.00 0.040 0.40

••••

0.25-0.35

TAG N4HF

4.00 0.040 0.50

••••

0.30-0.40

TAG N5HF

5.00 0.040 0.50

• •

0.30-0.40

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505)

• TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503)

• TGTR/L-JHP-MC (504)

TAG N-HF

Single-Ended Inserts for High

Feed Parting and Grooving, Hard

Materials and Tough Applications

7º

CW RE

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(3) RE

IC830

IC928

IC1030

IC5400

IC1010

IC808

IC908

IC30N

IC20

IC807

f groove

(mm/rev)

TAG N1.4C

1.40 0.04 0.16

•

0.04-0.10

TAG N1.6C

1.60 0.04 0.16

• •

0.04-0.14

TAG N2C

2.00 0.04 0.20

• •••• ••

0.05-0.16

TAG N2.4C

2.40 0.04 0.16

• •

0.06-0.18

TAG N3CB (1)

3.00 0.04 0.35

• •

0.12-0.30

TAG N3C

3.05 0.04 0.20

••••••••••

0.10-0.25

TAG N3M (2)

3.05 0.04 0.20

• •

0.06-0.18

TAG N3W

3.05 0.04 0.20

• •

0.10-0.25

TAG N4C

4.00 0.04 0.24

••••••• ••

0.10-0.30

TAG N4CB (1)

4.00 0.04 0.40

• •

0.10-0.33

TAG N4M (2)

4.00 0.04 0.24

• •

0.06-0.20

TAG N4W

4.00 0.04 0.24

• •

0.10-0.30

TAG N4.8C

4.80 0.04 0.30

• •

0.10-0.35

TAG N5C

5.05 0.04 0.25

• • •

0.10-0.35

TAG N6.3C

6.30 0.04 0.35

• •

0.15-0.40

TAG N7W

7.00 0.08 0.50

• •

0.18-0.40

TAG N8C

8.00 0.10 0.50

• •

0.20-0.70

TAG N9.5W

9.50 0.05 0.50

• •

0.22-0.80

TAG N9.5C

9.50 0.10 0.50

• •

0.25-0.80

TAG N12.7W

12.70 0.10 0.85

• •

0.30-0.80

• Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 538-547

(1) Larger corner radii for interrupted cut and high feed applications

(2) Similar to C-type, but with a modified edge; improved chip control at medium feeds

(3) Cutting width tolerance (+/-)

For tools, see pages: ADMP D45 (521) • Anti-Vibration Blades (284) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498)

• TGAD RE/LE-JHP (498) • TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGBHR/L-JHP (331) • TGFH-JHP (494) • TGFH-MB (497)

• TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505)

• TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-C/W/M

Single-Ended Inserts for Parting,

Grooving and Slitting Bars, Hard

Materials and Tough Applications

507

PARTING

CW CW

PSIRL PSIRR 7º

RE RE

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(1) RE PSIRR PSIRL

IC830

IC928

IC808

IC908

IC30N

f groove

(mm/rev)

TAG L2C-6D

2.05 0.10 0.20 - 6.0

• •

0.04-0.12

TAG R2C-6D

2.05 0.10 0.20 6.0 -

• •

0.04-0.12

TAG R2.4C-8D

2.40 0.10 0.16 8.0 -

•

0.05-0.13

TAG L3C-6D

3.00 0.10 0.20 - 6.0

••••

0.08-0.18

TAG R3C-6D

3.00 0.10 0.20 6.0 -

••••

0.08-0.18

TAG R3C-8D

3.00 0.10 0.20 8.0 -

•

0.06-0.16

TAG L3C-15D

3.00 0.10 0.20 - 15.0

••••

0.08-0.16

TAG R3C-15D

3.00 0.10 0.20 15.0 -

••••

0.08-0.16

TAG L4C-4D

4.05 0.10 0.24 - 4.0

• •

0.08-0.20

TAG R4C-4D

4.05 0.10 0.24 4.0 -

••••

0.08-0.20

TAG L5C-4D

5.05 0.10 0.25 - 4.0

• •

0.10-0.25

TAG R5C-4D

5.05 0.10 0.25 4.0 -

• •

0.10-0.25

TAG L6.3C-4D

6.35 0.10 0.35 - 4.0

• •

0.12-0.30

TAG R6.3C-4D

6.35 0.10 0.35 4.0 -

• •

0.12-0.30

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494)

• TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504)

• TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG R/L-C

Single-Ended Inserts for Parting

Bars, Hard Materials and

Tough Parting Applications

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW CWTOL(1) RE

IC830

IC1030

IC5400

IC1010

IC808

f groove

(mm/rev)

TAG N2MF

2.00 0.05 0.20

•••••

0.04-0.15

TAG N3MF

3.05 0.05 0.20

•••••

0.06-0.18

TAG N4MF

4.00 0.05 0.25

•••••

0.07-0.22

TAG N5MF

5.00 0.05 0.25

• •

0.08-0.25

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505)

• TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503)

• TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-MF

Single-Ended Inserts for Parting

Grooving and Slitting Stainless

and Alloy Steel at Medium Feed

ISCAR

508

PARTING

JT J

7º

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(2) RETOL(3)

IC830

IC928

IC1030

IC5400

IC1010

IC808

IC908

IC20

IC807

f groove

(mm/rev)

TAG N1.4J

1.40 0.16 0.04 0.030

• • •

0.03-0.10

TAG N1.6J

1.60 0.16 0.04 0.030

• •

0.03-0.12

TAG N2JS (1)

2.00 0.02 0.04 0.020

• •

0.03-0.08

TAG N2J

2.00 0.20 0.04 0.040

• • • • • •

0.04-0.12

TAG N2JT

2.00 0.20 0.04 0.040

• • • • •

0.04-0.14

TAG N3JS (1)

3.05 0.02 0.04 0.020

• •

0.04-0.10

TAG N3J

3.05 0.20 0.04 0.030

•••••••••

0.04-0.16

TAG N3JT

3.05 0.20 0.04 0.030

• • • •

0.05-0.18

TAG N3.2JT

3.25 0.20 0.04 0.030

• •

0.05-0.18

TAG N4J

4.00 0.24 0.04 0.030

••••••• •

0.04-0.18

TAG N4JT

4.05 0.24 0.04 0.030

• • • •

0.06-0.20

TAG N5J

5.05 0.25 0.04 0.040

• • •

0.05-0.20

TAG N5JT

5.05 0.25 0.04 0.040

• • •

0.06-0.22

TAG N6.3J

6.35 0.34 0.04 0.040

• •

0.06-0.22

TAG N6.3JT

6.35 0.34 0.04 0.040

• •

0.08-0.25

TAG N7JT

7.05 0.50 0.04 0.040

• •

0.10-0.28

• JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds.

• For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners cannot be used on TGSF slitting cutters

(2) Cutting width tolerance (+/-)

(3) Corner radius tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332)

• TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502)

• TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-J/JS/JT

Single-Ended Inserts for

Parting, Grooving and

Slitting Soft Materials

509

PARTING

CW CW

7°

RE RE

PSIRL PSIRR

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE PSIRL PSIRR

IC830

IC928

IC808

IC908

IC807

f groove

(mm/rev)

TAG L1.4J-8D

1.40 0.16 8.0 -

•••

0.03-0.08

TAG R1.4J-8D

1.40 0.16 - 8.0

•••

0.03-0.08

TAG L1.4JS-10D (1)

1.40 0.02 10.0 -

•••

0.02-0.06

TAG R1.4JS-10D (1)

1.40 0.02 - 10.0

•••

0.02-0.06

TAG L2J-6D

2.00 0.20 6.0 -

• •

0.03-0.10

TAG R2J-6D

2.00 0.20 - 6.0

• •

0.03-0.10

TAG L2JS-6D (1)

2.00 0.02 6.0 -

• •

0.02-0.08

TAG R2JS-6D (1)

2.00 0.02 - 6.0

• •

0.02-0.08

TAG L2J-15D

2.00 0.20 15.0 -

• •

0.03-0.08

TAG R2J-15D

2.00 0.20 - 15.0

• •

0.03-0.08

TAG L2JS-15D (1)

2.00 0.02 15.0 -

• •

0.02-0.06

TAG R2JS-15D (1)

2.00 0.02 - 15.0

• •

0.02-0.06

TAG L3J-6D

3.00 0.20 6.0 -

••••

0.04-0.14

TAG R3J-6D

3.00 0.20 - 6.0

••••

0.04-0.14

TAG L3JS-6D (1)

3.00 0.02 6.0 -

• •

0.03-0.10

TAG R3JS-6D (1)

3.00 0.02 - 6.0

• •

0.03-0.10

TAG L3J-15D

3.00 0.20 15.0 -

••••

0.04-0.12

TAG R3J-15D

3.00 0.20 - 15.0

••••

0.04-0.12

TAG L3JS-15D (1)

3.00 0.02 15.0 -

• •

0.03-0.08

TAG R3JS-15D (1)

3.00 0.02 - 15.0

• •

0.03-0.08

TAG L4J-4D

4.00 0.24 4.0 -

• •

0.04-0.15

TAG R4J-4D

4.00 0.24 - 4.0

••••

0.04-0.15

TAG L5J-4D

5.05 0.25 4.0 -

• •

0.05-0.18

TAG R5J-4D

5.05 0.25 - 4.0

• •

0.05-0.18

TAG L6.3J-4D

6.35 0.35 4.0 -

• •

0.05-0.20

TAG R6.3J-4D

6.35 0.35 - 4.0

• •

0.05-0.20

• For cutting speed recommendations and user guide, see pages 538-547

(1) Sharp corners cannot be used on TGSF slitting cutters

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494)

• TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504)

• TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG R/L-J/JS

TANG-GRIP Inserts for Parting

Soft Materials, Tubes, Small

Diameters and Thin-Walled Parts

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2)

IC830

IC1030

IC5400

IC1010

IC808

f groove

(mm/rev)

TAG N2LF

2.00 0.20 0.04 0.030

•••••

0.03-0.08

TAG N3LF

3.05 0.20 0.04 0.030

•••••

0.04-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TGAD (498) • TGAD RE/LE-JHP (498) • TGAQ (514)

• TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505)

• TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503)

• TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-LF

Single-Ended Inserts for

Parting, Grooving and

Slitting Stainless Steel

ISCAR

510

PARTING

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2)

IC830

IC808

IC908

f groove

(mm/rev)

TAG N2UT

2.00 0.20 0.04 0.040

•••

0.03-0.10

TAG N3UT

3.00 0.30 0.04 0.040

• •

0.04-0.12

TAG N4UT

4.00 0.30 0.04 0.040

•

0.05-0.15

TAG N5UT

5.00 0.30 0.04 0.040

•

0.05-0.18

TAG N6UT

6.00 0.85 0.04 0.040

•

0.06-0.22

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332)

• TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502)

• TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-UT

Single-Sided Inserts for Parting,

Grooving & Slitting at Low

Feeds on Cr-Ni Alloys, Ductile

Materials & Low Carbon Steel

10°

7°

CW RE

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2)

IC20

f groove

(mm/rev)

TAG N2A

2.00 0.20 0.04 0.040

•

0.02-0.10

TAG N3A

3.07 0.20 0.04 0.040

•

0.03-0.14

TAG N4A

4.00 0.24 0.04 0.030

•

0.03-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)

• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505)

• TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503)

• TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

TAG N-A

Single-Ended Inserts for Parting,

Grooving and Slitting Aluminum

511

PARTING

OAW

CUTDIA

OAL assembly

OAH

Coolant inlet G1/8

Bar Max

Designation

OAH H B OAW OAL LB CUTDIA

TGTBQ 20L-D52-JHP

50.00 20.0 20.5 26.50 122.00 34.00 52.0

TGTBQ 20R-D52-JHP

50.00 20.0 20.5 26.50 122.00 34.00 52.0

TGTBQ 25L-D52-JHP

50.00 25.0 25.5 31.50 132.00 34.00 52.0

TGTBQ 25R-D52-JHP

50.00 25.0 25.5 31.50 132.00 34.00 52.0

TGTBQ 20L-D82-JHP

64.00 20.0 20.5 26.50 140.00 53.00 82.0

TGTBQ 20R-D82-JHP

64.00 20.0 20.5 26.50 140.00 53.00 82.0

TGTBQ 25L-D82-JHP

64.00 25.0 25.5 31.50 150.00 53.00 82.0

TGTBQ 25R-D82-JHP

64.00 25.0 25.5 31.50 150.00 53.00 82.0

TGTBQ 32L-D82-JHP

64.00 32.0 32.5 38.50 150.50 53.50 82.0

TGTBQ 32R-D82-JHP

64.00 32.0 32.5 38.50 150.50 53.50 82.0

TGTBQ 25L-D120-JHP

95.00 25.0 25.5 31.50 165.00 67.00 120.0

TGTBQ 25R-D120-JHP

95.00 25.0 25.5 31.50 165.00 67.00 120.0

TGTBQ 32L-D120-JHP

95.00 32.0 32.5 38.50 165.00 67.00 120.0

TGTBQ 32R-D120-JHP

95.00 32.0 32.5 38.50 165.00 67.00 120.0

TGTBQ 25L-D160-JHP

107.00 25.0 25.5 31.50 190.50 92.50 160.0

TGTBQ 25R-D160-JHP

107.00 25.0 25.5 31.50 190.50 92.50 160.0

TGTBQ 32L-D160-JHP

107.00 32.0 32.5 38.50 190.50 92.50 160.0

TGTBQ 32R-D160-JHP

107.00 32.0 32.5 38.50 190.50 92.50 160.0

TGTBQ 40L-D160-JHP

107.00 40.0 40.5 46.50 190.50 92.50 160.0

TGTBQ 40R-D160-JHP

107.00 40.0 40.5 46.50 190.50 92.50 160.0

For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)

Designation

øDmax

TGTBQ...D52-JHP

53 54 55 56 57 59 61 64 67 71 75 81 88 96 107 122 141 169

TGTBQ...D82-JHP

107 110 114 119 124 130 137 145 154 165 178 194 213 237 267 308 363 443

TGTBQ...D120-JHP

202 210 219 229 240 253 267 283 302 324 349 380 417 462 518 592 689 827

TGTBQ...D160-JHP

345 361 377 396 418 441 468 499 534 576 624 682 753 840 951 1096 1294 1583

CDX 21 20 19 18 17 16 15 14 13 12 11 10 987654

Designation

øDmax

TGTBQ...D82-JHP

83 83 84 84 85 86 87 88 89 91 92 94 96 98 101 103

TGTBQ...D120-JHP

139 141 143 145 148 150 153 156 160 164 168 172 177 183 188 195

TGTBQ...D160-JHP

220 225 229 234 239 245 251 257 264 271 279 288 298 308 320 332

CDX 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22

Designation

øDmax

TGTBQ...D120-JHP

121 122 123 123 124 125 125 126 127 128 129 130 131 132 134 135 137

TGTBQ...D160-JHP

171 177 181 183 184 186 188 190 193 195 198 200 203 206 209 213 217

CDX 56-60 53-55 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38

CDX

øDmax

Table determining depth of cut for grooving as function of workpiece diameter

1. Block: TGTBQ...D...

2. Blade: T/DGAQ...

3. Locating Pin: Side thrust Pin 3mm

4. Screw: SR M4x10 ISO 14580

5. Screw: SR M4x9-Seal-JHP

6. Seal washer: CSW 1/8’’

7. O-ring: O-ring 10x2 NBR

Spare Parts

Designation

TGTBQ-JHP

SR M4X9-SEAL-JHP SIDE THRUST PIN 3mm JHP COPPER SEAL 1/8" SR ISO 14580 M4X10 SW6-SD BLD T20/S7 O-RING 10X2 NBR

TGTBQ-JHP

Tool Blocks for Square

TANG-F-GRIP and DO-F-GRIP

Parting and Grooving Adapters

for High-Pressure Coolant

ISCAR

512

PARTING

LF A View A

OAW

WF (assembly)

V## SQR-L D82-JHP V## SQL-R D82-JHP V## SQR-R D82-JHP V## SQL-L D82-JHP

Bar Max

Designation

H LF OAW WF(1)

V60 SQL-L-D82-JHP

62.0 34.70 64.50 28.95

V60 SQL-R-D82-JHP

62.0 34.70 64.50 15.35

V60 SQR-L-D82-JHP

62.0 34.70 64.50 18.85

V60 SQR-R-D82-JHP

62.0 34.70 64.50 32.45

V85 SQL-L-D82-JHP

83.0 34.70 85.00 40.95

V85 SQL-R-D82-JHP

83.0 34.70 85.00 27.35

V85 SQR-L-D82-JHP

83.0 34.70 85.00 27.35

V85 SQR-R-D82-JHP

83.0 34.70 85.00 40.95

(1) When 3mm width insert is used.

For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)

Identification Key

L- Holder (prism) orientation

L- Pocket side

V60 SQL-L-D82-JHP V60 SQL-R-D82-JHP

L- Holder (prism) orientation

R- Pocket side

V60 SQR-L-D82-JHP

R- Holder (prism) orientation

L- Pocket side

V60 SQR-R-D82-JHP

R-

Holder (prism) orientation

R- Pocket side

Spare Parts

Designation

V## SQ#-#-D82-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" O-RING 10X2 NBR SIDE THRUST PIN 3mm SR ISO 14580 M4X10

V## SQ#-#-D82-JHP

Intermediate Holders for

TANG-F-GRIP and DO-F-GRIP

Square Type D82 Adapters

Designed for Modular

Tooling Systems

OAW

CUTDIA

Coolant

inlet

OAL assembly

OAH

Bar Max

Designation

OAH H B OAW OAL LB CUTDIA

TGTBQ 20R/L-D52-JHP-MC

50.00 20.0 20.5 26.50 112.00 42.00 52.0

TGTBQ 25R/L-D52-JHP-MC

50.00 25.0 26.5 31.50 125.00 40.00 52.0

TGTBQ 20R/L-D82-JHP-MC

64.00 20.0 20.5 26.50 127.50 57.50 82.0

TGTBQ 25R/L-D82-JHP-MC

64.00 25.0 26.5 31.50 142.50 57.50 82.0

TGTBQ 25R/L-D120-JHP-MC

95.00 25.0 26.5 31.50 158.00 73.00 120.0

For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)

Spare Parts

Designation

TGTBQ-JHP-MC

SR M4X9-SEAL-JHP SIDE THRUST PIN 3mm JHP COPPER SEAL 1/8" SR ISO 14580 M4X10 BLD T20/S7 SW6-SD O-RING 10X2 NBR PLG G1/8 TL360

TGTBQ-JHP-MC

Tool Blocks for Parting and

Grooving Square Adapters

for High-Pressure Coolant

with Three Cooling Inlets

513

PARTING

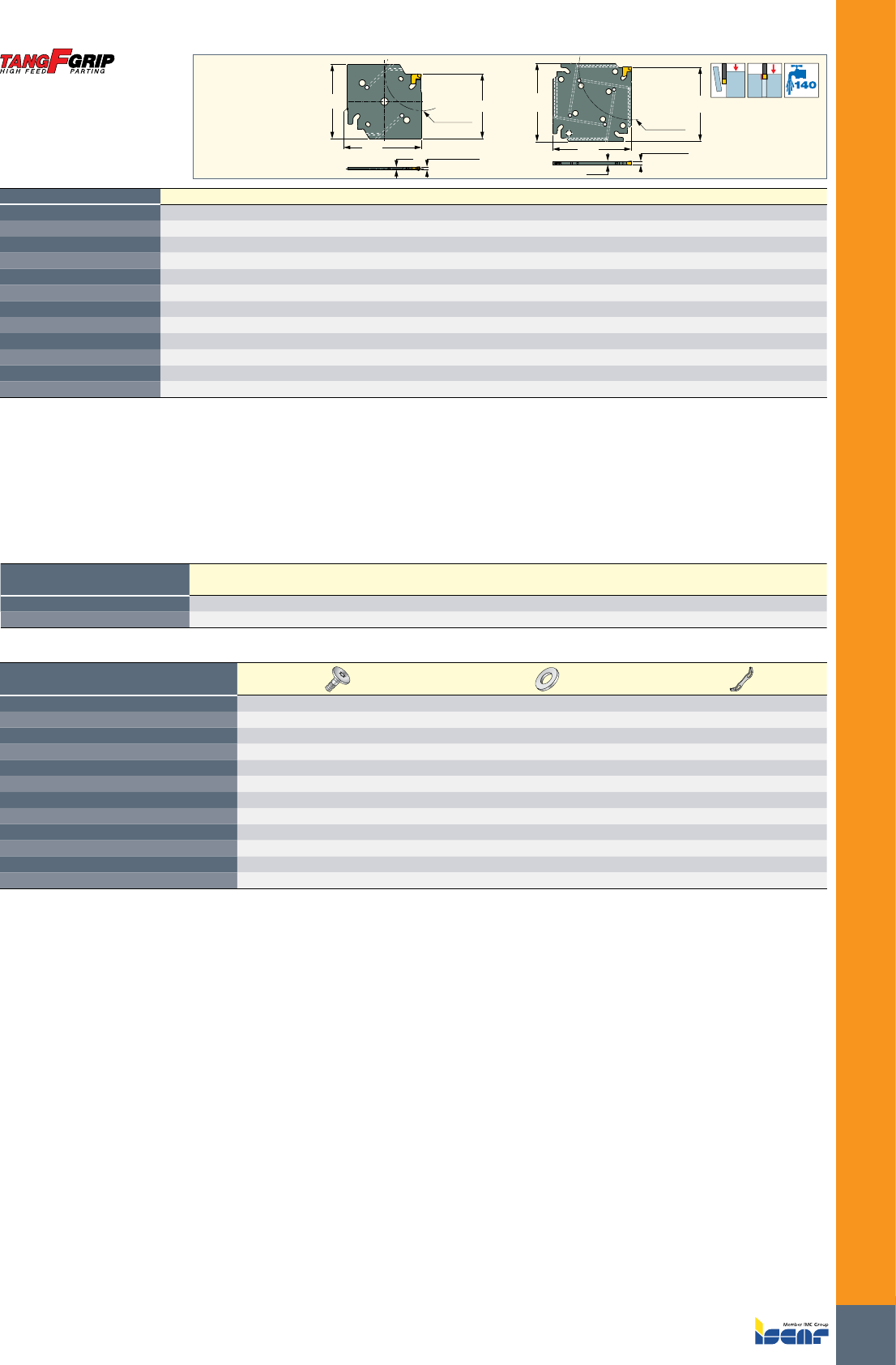

OAH

OAL WB

CUTDIA

CWN-CWX

CUTDIA

D52

CWN-CWX

OAH

OAL

Bar Max

Designation

OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5)

TGAQ D52-2-2Z-JHP

50.00 50.00 1.80 2.50 1.65 43.5 52.0 TAG 2 1

TGAQ D52-3-2Z-JHP

50.00 50.00 2.80 3.50 2.50 43.5 52.0 TAG 3 1

TGAQ D52-4-2Z-JHP

50.00 50.00 3.70 4.50 3.40 43.5 52.0 TAG 4 1

TGAQ D82-2-4Z-JHP

61.00 61.00 1.80 2.50 1.65 58.0 82.0 TAG 2 1

TGAQ D82-3-4Z-JHP

61.00 61.00 2.80 3.50 2.50 58.0 82.0 TAG 3 1

TGAQ D82-4-4Z-JHP

61.00 61.00 3.70 4.50 3.40 58.0 82.0 TAG 4 1

TGAQ D120-3-4Z-JHP

90.50 90.50 2.80 3.50 2.50 84.0 120.0 TAG 3 1

TGAQ D120-4-4Z-JHP

90.50 90.50 3.70 4.50 3.40 84.0 120.0 TAG 4 1

TGAQ D120-5-4Z-JHP

90.50 90.50 4.70 5.50 4.00 84.0 120.0 TAG 5 1

TGAQ D160-3-4Z-JHP

100.00 100.00 2.80 3.50 2.50 97.0 160.0 TAG 3 1

TGAQ D160-4-4Z-JHP

100.00 100.00 3.70 4.50 3.40 97.0 160.0 TAG 4 1

TGAQ D160-5-4Z-JHP

100.00 100.00 4.70 5.50 4.00 97.0 160.0 TAG 5 1

• Suitable for all TANG-GRIP inserts

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum diameter for parting

(4) Master insert identification

(5) 0 - Without coolant supply, 1 - With coolant supply

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: TGTBQ-JHP (511) • TGTBQ-JHP-MC (512) • TGTBY-JHP (517) • V## SQ#-#-D82-JHP (512)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

TGAQ D.../-2.../-3...-JHP

4-7 5-8 6-9

TGAQ D.../-4.../-5...-JHP

6-7 7-8 8-9

Spare Parts

Designation

TGAQ D52-2-2Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 2*

TGAQ D52-3-2Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D52-4-2Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D82-2-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 2*

TGAQ D82-3-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D82-4-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D120-3-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D120-4-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D120-5-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 5-7*

TGAQ D160-3-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D160-4-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*

TGAQ D160-5-4Z-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 5-7*

* Optional, should be ordered separately

TGAQ-JHP

Parting and Grooving Square

Adapters with Internal Coolant

Holes Carrying TANG-GRIP

Tangentially Clamped Inserts

ISCAR

514

PARTING

OAH

OAL WB

CUTDIA

CWN-CWX

CUTDIA

D52

CWN-CWX

OAH

OAL

Designation

OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5)

TGAQ D52-2-2Z

50.00 50.00 1.80 2.50 1.65 43.5 52.0 TAG 2 0

TGAQ D52-3-2Z

50.00 50.00 2.80 3.50 2.50 43.5 52.0 TAG 3 0

TGAQ D52-4-2Z

50.00 50.00 3.70 4.50 3.40 43.5 52.0 TAG 4 0

TGAQ D82-2-4Z

61.00 61.00 1.80 2.50 1.65 58.0 82.0 TAG 2 0

TGAQ D82-3-4Z

61.00 61.00 2.80 3.50 2.50 58.0 82.0 TAG 3 0

TGAQ D82-4-4Z

61.00 61.00 3.70 4.50 3.40 58.0 82.0 TAG 4 0

TGAQ D120-3-4Z

90.50 90.50 2.80 3.50 2.50 84.0 120.0 TAG 3 0

TGAQ D120-4-4Z

90.50 90.50 3.70 4.50 3.40 84.0 120.0 TAG 4 0

TGAQ D120-5-4Z

90.50 90.50 4.70 5.50 4.00 84.0 120.0 TAG 5 0

TGAQ D160-3-4Z

100.00 100.00 2.80 3.50 2.50 97.0 160.0 TAG 3 0

TGAQ D160-4-4Z

100.00 100.00 3.70 4.50 3.40 97.0 160.0 TAG 4 0

TGAQ D160-5-4Z

100.00 100.00 4.70 5.50 4.00 97.0 160.0 TAG 5 0

• Suitable for all TANG-GRIP inserts

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum diameter for parting

(4) Master insert identification

(5) 0 - Without coolant supply, 1 - With coolant supply

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: TGTBQ-JHP (511) • TGTBQ-JHP-MC (512) • TGTBY-JHP (517) • V## SQ#-#-D82-JHP (512)

Spare Parts

Designation

TGAQ D52-2-2Z

SR ISO 14580 M4X10 ETG 2*

TGAQ D52-3-2Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D52-4-2Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D82-2-4Z

SR ISO 14580 M4X10 ETG 2*

TGAQ D82-3-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D82-4-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D120-3-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D120-4-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D120-5-4Z

SR ISO 14580 M4X10 ETG 5-7*

TGAQ D160-3-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D160-4-4Z

SR ISO 14580 M4X10 ETG 3-4-SH*

TGAQ D160-5-4Z

SR ISO 14580 M4X10 ETG 5-7*

* Optional, should be ordered separately

TGAQ

Parting and Grooving Square

Adapters Carrying TANG-GRIP

Tangentially Clamped Inserts

515

PARTING

CUTDIA

OAH

OAL

CWN-CWX

CUTDIA

OAH

OAL

D120

CWN-CWX

Bar Max

Designation

OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5)

DGAQ D52-2-2Z-JHP

50.00 50.00 1.90 2.50 1.72 43.5 52.0 DGN 2 1

DGAQ D52-3-2Z-JHP

50.00 50.00 3.00 3.18 2.50 43.5 52.0 DGN 3 1

DGAQ D52-4-2Z-JHP

50.00 50.00 4.00 4.00 3.20 43.5 52.0 DGN 4 1

DGAQ D82-3-2Z-JHP

64.40 64.40 3.00 3.18 2.50 58.0 82.0 DGN 3 1

DGAQ D82-4-2Z-JHP

64.40 64.40 4.00 4.00 3.20 58.0 82.0 DGN 4 1

DGAQ D82-5-2Z-JHP

64.40 64.40 5.00 5.00 4.00 58.0 82.0 DGN 5 1

DGAQ D120-4-4Z-JHP

90.50 90.50 4.00 4.00 3.20 84.0 120.0 DGN 4 1

DGAQ D120-5-4Z-JHP

90.50 90.50 5.00 5.00 4.00 84.0 120.0 DGN 5 1

• When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum diameter for parting

(4) Master insert identification

(5) 0 - Without coolant supply, 1 - With coolant supply

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482)

• DGR/L-J/JS (484)

For holders, see pages: TGTBQ-JHP (511) • TGTBQ-JHP-MC (512) • TGTBY-JHP (517) • V## SQ#-#-D82-JHP (512)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

DGAQ D.../-2/-3...-JHP

4-7 5-8 6-9

DGAQ D.../-4/-5...-JHP

6-7 7-8 8-9

Spare Parts

Designation

DGAQ-JHP

SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" EDG 33A*

* Optional, should be ordered separately

TWISTED 2-SIDED

DGAQ-JHP

Parting and Grooving Square

Adapters with Internal Coolant

Holes Carrying DO-GRIP Inserts

CUTDIA

OAH

OAL

CWN-CWX

CUTDIA

OAH

OAL

D120

CWN-CWX

Designation

OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5)

DGAQ D52-2-2Z

50.00 50.00 1.90 2.50 1.72 43.5 52.0 DGN 2 0

DGAQ D52-3-2Z

50.00 50.00 3.00 3.18 2.50 43.5 52.0 DGN 3 0

DGAQ D52-4-2Z

50.00 50.00 4.00 4.00 3.20 43.5 52.0 DGN 4 0

DGAQ D82-3-2Z

64.40 64.40 3.00 3.18 2.50 58.0 82.0 DGN 3 0

DGAQ D82-4-2Z

64.40 64.40 4.00 4.00 3.20 58.0 82.0 DGN 4 0

DGAQ D82-5-2Z

64.40 64.40 5.00 5.00 4.00 58.0 82.0 DGN 5 0

DGAQ D120-4-4Z

90.50 90.50 4.00 4.00 3.20 84.0 120.0 DGN 4 0

DGAQ D120-5-4Z

90.50 90.50 5.00 5.00 4.00 84.0 120.0 DGN 5 0

• When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert.

(1) Minimum cutting width

(2) Maximum cutting width

(3) Maximum diameter for parting

(4) Master insert identification

(5) 0 - Without coolant supply, 1 - With coolant supply

For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

For holders, see pages: TGTBQ-JHP (511) • TGTBQ-JHP-MC (512) • TGTBY-JHP (517) • V## SQ#-#-D82-JHP (512)

Spare Parts

Designation

DGAQ

SR ISO 14580 M4X10 EDG 33A*

* Optional, should be ordered separately

TWISTED 2-SIDED

DGAQ

Parting and Grooving

Square Adapters Carrying

DO-GRIP Inserts

ISCAR

516

PARTING

CUTDIA

CWN-CWX

A separate crown for each insert

width should be ordered separately

Designation

CWN(1) CWX(2) WB H HF(3) CUTDIA MIID(4)

TGAQ D65-2-4Z-ECD

1.80 2.50 1.65 49.0 48.7 65.0 TAG N2

TGAQ D65-3-4Z-ECD

2.80 3.50 2.50 49.0 48.7 65.0 TAG N3

TGAQ D82-2-4Z-ECD

1.80 2.50 1.65 58.0 57.7 82.0 TAG N2

TGAQ D82-3-4Z-ECD

2.80 3.50 2.50 58.0 57.7 82.0 TAG N3

TGAQ D82-4-4Z-ECD

3.70 3.40 3.40 58.0 57.7 82.0 TAG N4

• Suitable for all TANG-GRIP inserts

(1) Minimum cutting width

(2) Maximum cutting width

(3) Related to insert

(4) Master insert identification

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: TGTBQ-ECD-JHP (JET-CROWN) (516)

Spare Parts

Designation

TGAQ D65-2-4Z-ECD

ECD D65-2-TG* ETG 2*

TGAQ D65-3-4Z-ECD

ECD D65-3-TG* ETG 3-4-SH*

TGAQ D82-2-4Z-ECD

ECD D82-2-TG* ETG 2*

TGAQ D82-3-4Z-ECD

ECD D82-3-TG* ETG 3-4-SH*

TGAQ D82-4-4Z-ECD

ECD D82-4-TG* ETG 3-4-SH*

* Optional, should be ordered separately

TGAQ-ECD (JET-CROWN)

Parting and Grooving Square

Adapters Compatible with

TANG-GRIP Inserts (Single-Ended)

6.1

LB G1/8

CUTDIA

OAL

A-A

OAH

OAW A separate crown for each insert

width should be ordered separately

Bar Max

Designation

OAH H B OAW OAL LB CUTDIA

TGTBQ 20L-D65-ECD-JHP

55.00 20.0 20.5 26.50 129.00 42.00 65.0

TGTBQ 20R-D65-ECD-JHP

55.00 20.0 20.5 26.50 129.00 42.00 65.0

TGTBQ 25L-D65-ECD-JHP

55.00 25.0 25.5 31.50 139.00 42.00 65.0

TGTBQ 25R-D65-ECD-JHP

55.00 25.0 25.5 31.50 139.00 42.00 65.0

TGTBQ 20L-D82-ECD-JHP

64.00 20.0 20.5 26.50 140.00 53.00 82.0

TGTBQ 20R-D82-ECD-JHP

64.00 20.0 20.5 26.50 140.00 53.00 82.0

TGTBQ 25L-D82-ECD-JHP

64.00 25.0 25.5 31.50 150.00 53.00 82.0

TGTBQ 25R-D82-ECD-JHP

64.00 25.0 25.5 31.50 150.00 53.00 82.0

• A separate crown for each insert width should be ordered separately.

For tools, see pages: TGAQ-ECD (JET-CROWN) (516)

Designation

Dmax

TGTBQ ..R/L-D65-ECD

98 95 90 87 84 81 78 76 74 73 72 70 69 68 67 66 65

CDX

8 9 10 11 12 13 14 15 16 17 18 19 20-21 22 23-24 25-33 32.5

TGTBQ ..R/L-D82-ECD

118 116 112 108 105 102 99 97 95 93 91 90 89 88 87 86 85 84 83 82

CDX

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 31 41

CDX

ØDmax

Depth of cut as function of workpiece diameter

The tool cannot be used for grooving applications when the workpiece diameter is

larger than 118mm.

Spare Parts

Designation

TGTBQ-ECD-JHP (JET-CROWN)

SR M7-R-L BLD T20/S7 SW6-SD

TGTBQ-ECD-JHP (JET-CROWN)

Tool Blocks for Square

TANG-F-GRIP (TGAQ-ECD)

Parting and Grooving Adapters

for High-Pressure Coolant

517

PARTING

OAH

OAW

A-A A-A

OAL

CUTDIA

HTPRM

TGTBY R32-D82R-JHP with TGAQ Shown

Bar Max

Designation

OAH HF OAW LF LB CUTDIA OAL(1) OAL_2(2) HTPRM

TGTBY L32-D82R-JHP

42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00

TGTBY R32-D82L-JHP

42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00

TGTBY R32-D82R-JHP

42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00

TGTBY L32-D82L-JHP

42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00

• Can be used also for X-axis (multi-task machines) - location pin should be removed • For set up procedure see page 518

(1) Overall length with TGAQ adapter

(2) Overall length with DGAQ adapter

For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)

TGTBY-JHP

Y-Axis Intermediate Prismatic

Holders for Square JHP

Adapters on Multi-Task Machines

for Parting and Grooving

ISCAR

518

PARTING

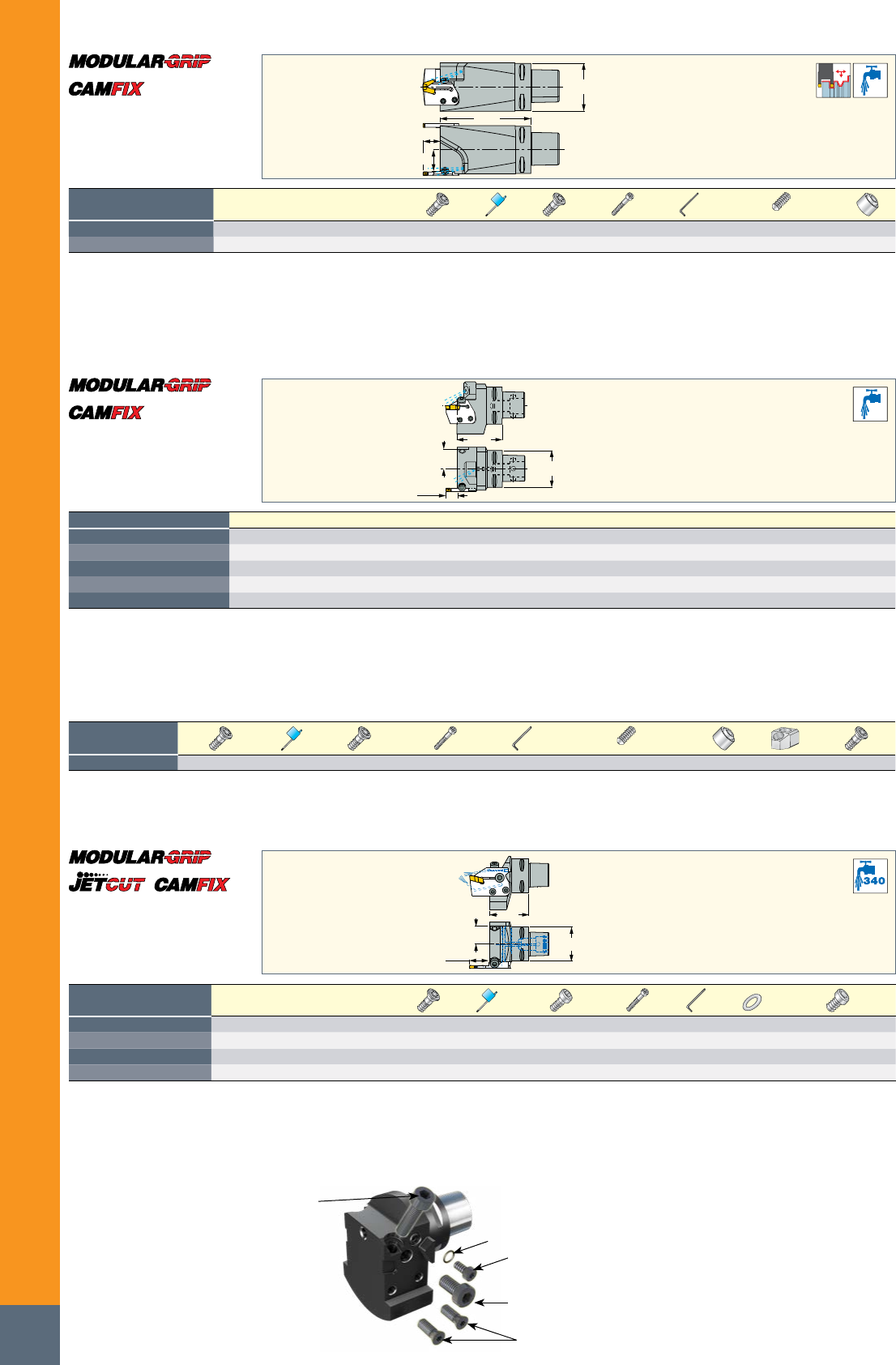

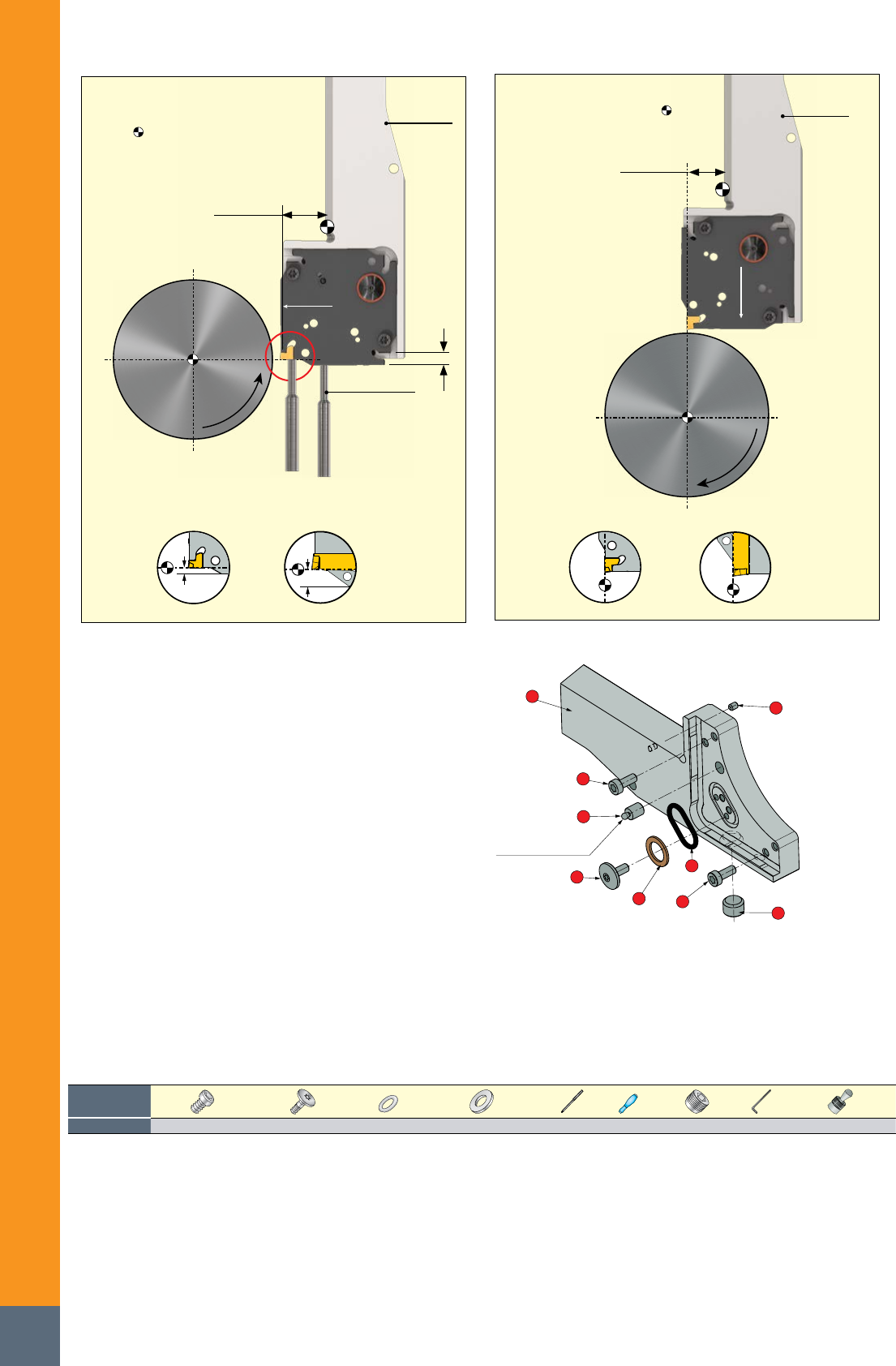

1. Block: TGTBY

2. Locating pin: Side thrust Pin 3 mm

3. Clamping screw : SR M4x10 ISO 14580

4. Clamping & sealing screw: SR M4x9-Seal-JHP

5. Seal washer: CSW 1/8’’

6. O-ring: O-ring 10x2 NBR

7. Lower sealing plug: Plug G1/8-6.5 TL360

8. Upper sealing screw: SR M3x4-DIN913

Remove Pin for

X-Axis Machinning

Y-Axis Tool Setup on Multi-Task Machines

* For Y-Axis cut off, compensate 30.82 mm in Y-Axis direction

and compensate 3 mm for TGAQ adapters or

6.4 mm for DGAQ adapters in X-Axis direction.

Set the cutting edge on the center line:

Option 1 - Gauge the cutting edge - this is preferable due to

better accuracy

Option 2 - Gauge the blade and compensate 3mm / 6.4mm

* For X-Axis cut off, compensate 27.5 mm in Y-Axis direction.

Location pin should be removed.

Parting and Setup in Y-Axis Direction

Feed (in Y axis)

Y Y

Feed (in X axis)

TGTBY TGTBY

Cutting edge is located:

1. 30.82 mm from machine center

line ( ) in Y Axis

2. 3 mm from for TGAQ adapter and

6.4 mm for DGAQ adapter

(see sketches below)

Cutting edge is located 27.5 mm

from machine center line ( )

*3 REF

*30.82 REF

*27.5 REF

For TGAQ

Adapters

Correct

Position

For DGAQ

Adapters

Correct

Position

Setup cutting edge level on center line Setup cutting edge level on center line

Option 1 Option 2

6.4 REF

3 REF

Machine Probe

Parting and Setup in X-Axis Direction - Optional

Spare Parts

Designation

TGTBY-JHP

SR ISO 14580 M4X10 SR M4X9-SEAL-JHP OR 16X2 NBR JHP COPPER SEAL 1/8" BLD T20/S7 SW6-SD PLG G1/8 TL360 HW 5.0 SIDE THRUST PIN 3mm

519

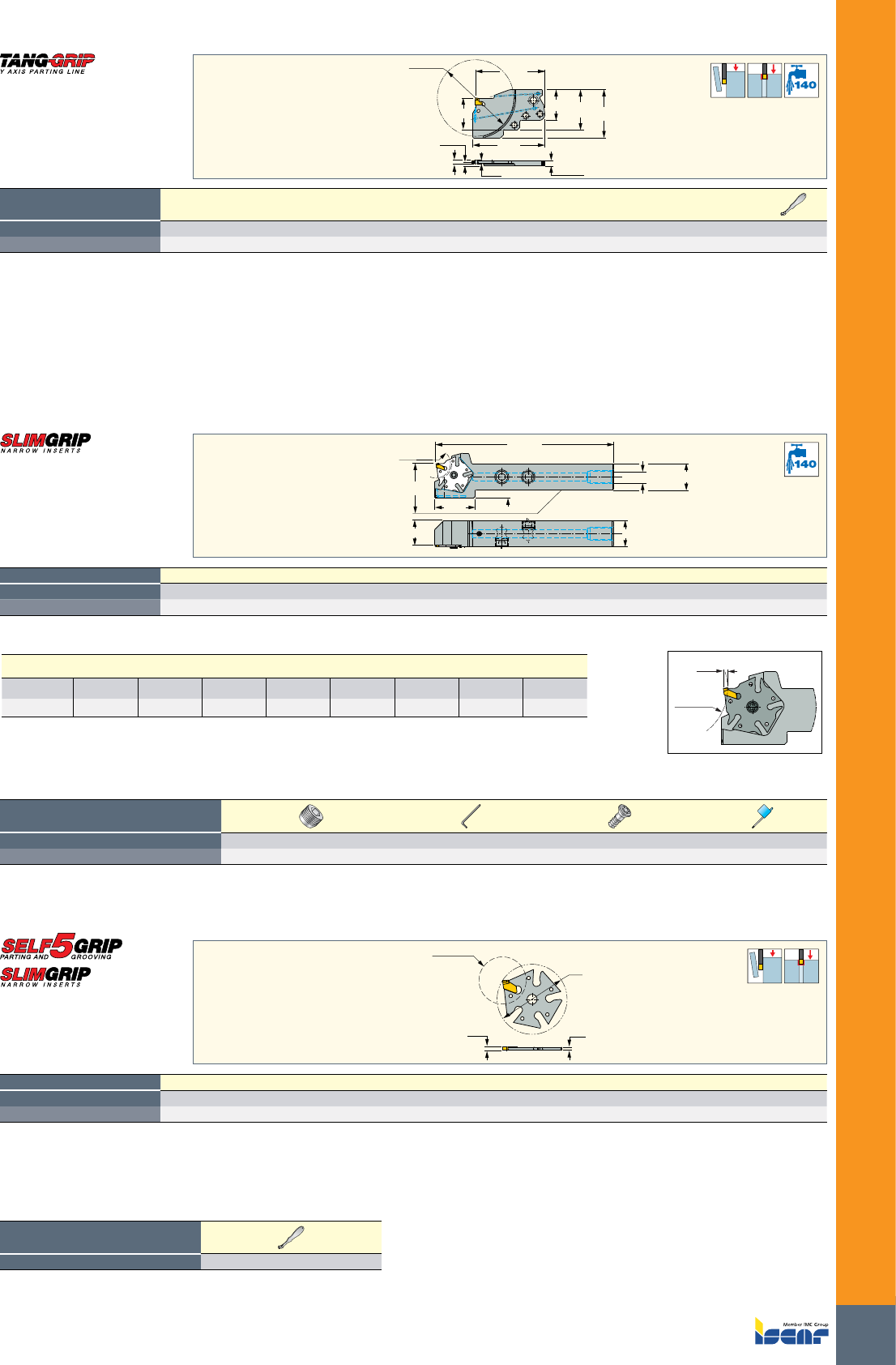

PARTING

WB_2

OAL

OAH

74.4

CUTDIA

Bar Max

Designation

CW WF WB WB_2 OAL OAH HF CUTDIA MIID(1)

TAGPAD-Y-D82R/L-3C

3.00 4.80 2.40 6.0 77.40 52.00 34.0 82.0 TAG N3HF ETG 3-4-SH*

TAGPAD-Y-D82R/L-4C

4.00 4.30 3.40 6.0 77.40 52.00 34.0 82.0 TAG N4HF ETG 3-4-SH*

• Can be offered for parting up to 125mm diameter as semi standard: TAGPAD-Y-125R\L-3C, TAGPAD-Y-125R\L-4C

• For set up procedure and user guide, see page 548

• The tool types shown are currently unavailable in the USA, Canada, China, Japan and Korea.

(1) Master insert identification

* Optional, should be ordered separately

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-MF (507) • TAG N-UT (510)

• TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: ABC MAHDR-#-XL-JHP (782) • MAHPR/L-XL-JHP (561) • MAHR/L-MG-XL-JHP (501) • MAHR/L-MG-XL-JHP-MC (501)

• TR45 MAHDR-#-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

TAGPAD-Y-JHP

Y-Axis Adapters for Parting &

Grooving on Multi-Task Machines

& Turning Centers with JHP

Channels and TANG-GRIP Inserts

OAL

CUTDIA

CNT (typx3)

HBL

HBH

Bar Max

Designation

H HF HBH B WF CUTDIA OAL HBL CNT

THMPR/L 16-D22-JHP

16.0 16.1 10.0 16.0 14.60 22.0 135.00 29.6 UNF 5/16-24

THMPR/L 20-D22-JHP

20.0 20.1 6.0 20.0 18.60 22.0 135.00 29.6 G1/8

For tools, see pages: ADMP D22 (519)

THMPR/L...-D22-JHP CDX to øDmax

CDX ≤2.0 ≤3.0 ≤4.0 ≤5.0 ≤6.0 ≤7.0 ≤8.0 ≤11.0

øDmax 85 80 75 70 65 60 55 50

CDX

øDmax

Spare Parts

Designation

THMPR/L 16-D22-JHP

SR 5/16UNF TL360 HW 5/32" SR M4-39432 T-15/5

THMPR/L 20-D22-JHP

PLG G1/8 TL360 HW 5.0 SR M4-39432 T-15/5

THMPR/L D22-JHP

Holders with High-Pressure

Coolant Channels for Pentagonal

SLIM-GRIP Adapters

CUTDIA

Designation

CW WB D CUTDIA Insert

ADMP D22-1.2

1.20 1.06 32 22.0 GFT 1.2

ADMP D22-1.6

1.60 1.20 32 22.0 GFT 1.6

• For user guide, see pages 538-547

For inserts, see pages: GFT-C (520) • GFT-J (520)

For holders, see pages: THMPR/L D22-JHP (519)

Spare Parts

Designation

ADMP D22

ESG-SLM*

* Optional, should be ordered separately

ADMP D22

Parting and Grooving

Adapters with 5 Pockets

for SLIM-GRIP Inserts

ISCAR

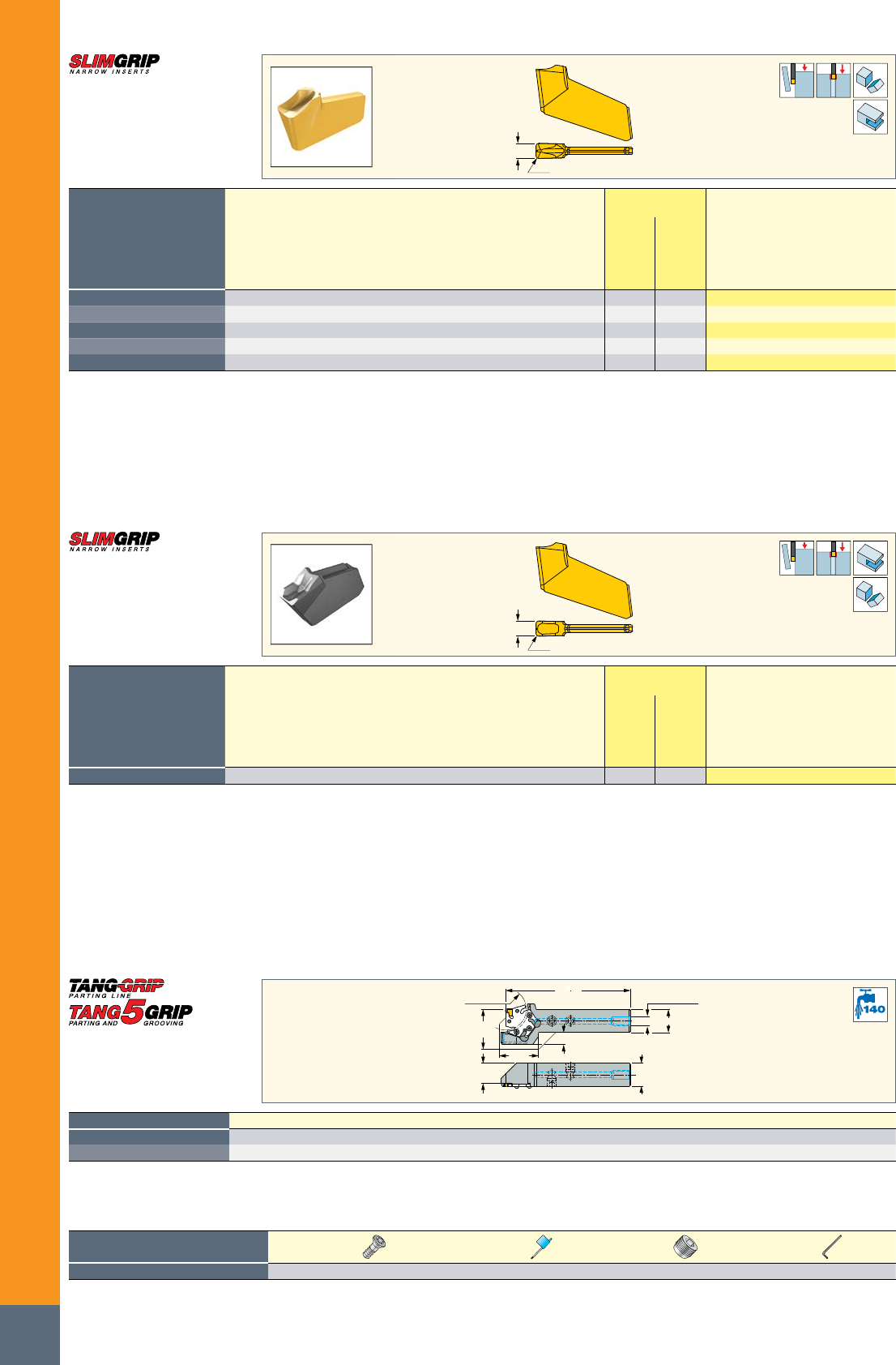

520

PARTING

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE

IC1028

IC1008

f groove

(mm/rev)

GFT 0.6J-0.1

0.60 0.10

• •

0.03-0.05

GFT 0.8J-0.1

0.80 0.10

• •

0.03-0.07

GFT 1.0J-0.1

1.00 0.10

• •

0.03-0.09

GFT 1.2J-0.14

1.20 0.14

• •

0.03-0.10

GFT 1.6J-0.16

1.60 0.16

• •

0.03-0.12

For tools, see pages: ADMP D22 (519) • SGAQ (376)

GFT-J

Thin Parting, Grooving

and Slitting Single-Ended

Inserts for Soft Materials

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE

IC1028

IC1008

f groove

(mm/rev)

GFT 1.6C-0.16

1.60 0.16

• •

0.05-0.15

For tools, see pages: ADMP D22 (519)

GFT-C

Thin Parting, Grooving & Slitting

Single-Ended Inserts

for Soft Materials

WF B

CNT (typx3)

CUTDIA OAL

HBL

HBH

Bar Max

Designation

H HF HBH B WF CUTDIA OAL HBL CNT

THMPR/L 20-D45-JHP

20.0 20.1 18.0 20.0 17.35 45.0 135.00 35.6 G1/8

THMPR/L 25-D45-JHP

25.0 25.1 13.0 25.0 22.35 45.0 135.00 35.6 G1/8

For tools, see pages: ADMP D45 (521)

Spare Parts

Designation

THMPR/L D45-JHP

SR M3X8 ISO 14580 BLACK T-10/5 PLG G1/8 TL360 HW 5.0

THMPR/L D45-JHP

Holders with High-Pressure

Coolant Channels for Pentagonal

TANG-GRIP Adapters

521

PARTING

CUTDIA

Designation

CWN(1) CWX(2) WB D CUTDIA Insert

ADMP D45-2.0

1.80 2.40 1.60 42 45.0 TAG 2

ADMP D45-3.0

2.80 3.50 2.50 42 45.0 TAG 3

• For user guide, see pages 538-547

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)

• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

For holders, see pages: THMPR/L D45-JHP (520)

THMPR/L...-D45-JHP Tmax. to Dmax.

Tmax T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 T≤22.5

Dmax 85 80 75 70 65 60 55 50 45

Tmax Dmax

Spare Parts

Designation

ADMP D45-2.0

ETG 2*

ADMP D45-3.0

ETG 3-4-SH*

* Optional, should be ordered separately

ADMP D45

Parting and Grooving Adapters

with 5 Pockets for TANG-GRIP

Tangentially Clamped Inserts

15.3 Ref.

CW BW

7°

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) BW

IC328

IC830

IC354

IC908

IC20

f groove

(mm/rev)

GIM 3C

3.00 0.22 0.05 2.40

•••••

0.15-0.25

GIM 4C

4.00 0.25 0.05 3.40

•

0.15-0.25

GIM 5C

5.00 0.40 0.05 4.00

•••••

0.15-0.30

GIM 6C

6.00 0.40 0.05 4.80

• • • •

0.15-0.30

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357)

• CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276)

• GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIM-C

Parting and Grooving Single-Sided

Inserts for Parting Bars, Hard

Materials and Tough Applications

ISCAR

522

PARTING

CW BW

15.3 Ref.

7°

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) BW

IC328

IC830

IC354

IC908

IC20

f groove

(mm/rev)

GIM 2.2J

2.20 0.17 0.05 1.70

•••••

0.06-0.13

GIM 3J

3.00 0.25 0.05 2.40

•••••

0.08-0.15

GIM 4J

4.00 0.25 0.05 3.20

•••••

0.08-0.18

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

GIM-J

Utility Single-Sided Inserts

for Parting and Grooving

Soft Materials, Tubes

and Small Diameters

7°

PSIRR

15.3 Ref.

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) PSIRL PSIRR BW

IC656

IC328

IC830

IC354

IC908

IC20

f groove

(mm/rev)

GIM 2.2J-8LA

2.20 0.17 0.05 8.0 - 1.70

• • • •

0.05-0.10

GIM 2.2J-8RA

2.20 0.17 0.05 - 8.0 1.70

••••••

0.05-0.10

GIM 2.2JS-15LA

2.20 0.02 0.05 15.0 - 1.70

• • •

0.05-0.10

GIM 2.2JS-15RA

2.20 0.02 0.05 - 15.0 1.70

•••••

0.05-0.10

GIM 3J-4LA

3.00 0.22 0.05 4.0 - 2.40

• •

0.05-0.12

GIM 3J-4RA

3.00 0.25 0.05 - 4.0 2.40

• • • •

0.05-0.12

GIM 3J-8LA

3.00 0.25 0.05 8.0 - 2.40

• • • •

0.05-0.12

GIM 3J-8RA

3.00 0.25 0.05 - 8.0 2.40

••••••

0.05-0.12

GIM 3JS-15LA

3.00 0.02 0.05 15.0 - 2.40

• • •

0.05-0.12

GIM 3JS-15RA

3.00 0.02 0.05 - 15.0 2.40

• • • •

0.05-0.12

GIM 4J-6LA

4.00 0.25 0.05 6.0 - 3.20

•

0.08-0.15

GIM 4J-6RA

4.00 0.25 0.05 - 6.0 3.20

• •

0.08-0.15

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

GIM-J-RA/LA

Utility Single-Sided Inserts

for Parting and Grooving

Soft Materials, Parting Tubes

and Small Diameters

523

PARTING

CW BW

7°

15.3 Ref.

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) BW

IC328

IC830

IC354

IC908

IC20

f groove

(mm/rev)

GIM 2.4

2.40 0.18 0.05 2.40

•••

0.10-0.18

GIM 3

3.00 0.22 0.05 2.40

•••••

0.10-0.18

GIM 3.2

3.20 0.22 0.05 2.40

•••••

0.10-0.20

GIM 4

4.00 0.25 0.05 3.20

•••••

0.15-0.20

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIM-W

Single-Sided Inserts with

Central Ridged Chipformer and

Reinforced Edge for Parting

and Grooving Alloy Steel

7˚

15.3 Ref.

PSIRL

PSIRR

±0.1

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) PSIRL PSIRR BW

IC656

IC328

IC830

IC354

IC908

IC20

f groove

(mm/rev)

GIM 3-4LA

3.00 0.20 0.05 4.0 - 2.40

•••

0.08-0.16

GIM 3-8LA

3.00 0.20 0.05 8.0 - 2.40

• • • •

0.08-0.16

GIM 3S-15RA

3.00 0.22 0.05 - 15.0 2.40

•

0.08-0.16

GIM 3-4RA

3.00 0.25 0.05 - 4.0 2.40

••••••

0.08-0.16

GIM 3-8RA

3.00 0.25 0.05 - 8.0 2.40

••••••

0.08-0.16

GIM 3.2-4LA

3.20 0.22 0.05 4.0 - 2.50

•

0.08-0.16

GIM 3.2-4RA

3.20 0.22 0.05 - 4.0 2.50

•••

0.08-0.16

GIM 3.2-8LA

3.20 0.22 0.05 8.0 - 2.50

•

0.08-0.16

GIM 3.2-8RA

3.20 0.22 0.05 - 8.0 2.50

• • • •

0.08-0.16

GIM 4-4LA

4.00 0.25 0.05 4.0 - 3.20

• •

0.10-0.16

GIM 4-4RA

4.00 0.25 0.05 - 4.0 3.20

• • • •

0.10-0.16

GIM 4-8LA

4.00 0.25 0.05 8.0 - 3.20

•

0.10-0.16

GIM 4-8RA

4.00 0.25 0.05 - 8.0 3.20

• • • •

0.10-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIM-W-RA/LA

Single-Sided Screw-Clamped

Inserts with Central Ridged

Chipformer for Parting Alloy Steel

ISCAR

524

PARTING

15.3 Ref.

±0.1

7°

RE BW

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) BW

IC656

IC328

f groove

(mm/rev)

GIM 4.6UT

4.60 0.60 0.03 3.80

• •

0.03-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIM-UT

Single-Ended Screw-Clamped

Inserts for Parting and Grooving

at Low Feeds on CrNi Alloys

and Low Carbon Steel

7°

15.3 Ref.

PSIRR

±0.1

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) PSIRR BW

IC328

f groove

(mm/rev)

GIM 3UT-1.5RA

3.12 0.25 0.03 1.5 2.50

•

0.03-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)

• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)

• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

GIM-UT-RA/LA

Single-Ended Screw-Clamped

Inserts for Parting at Low

Feeds on CrNi Alloys and

Low Carbon Steel

20 Ref.

7˚

±0.1

CW RE BW

5.5

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW CDX(3)

IC830

IC808

IC908

IC20

IC20N

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GDMW 2.4

2.40 0.18 0.04 0.030 2.00 18.00

•••••

0.25-1.50 0.07-0.12 0.05-0.08

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: PADR/L (306) • PHGR/L (305) • PHSR/L (373)

GDMW 2.4

Utility Double-Ended

Inserts for External Turning,

Grooving and Parting

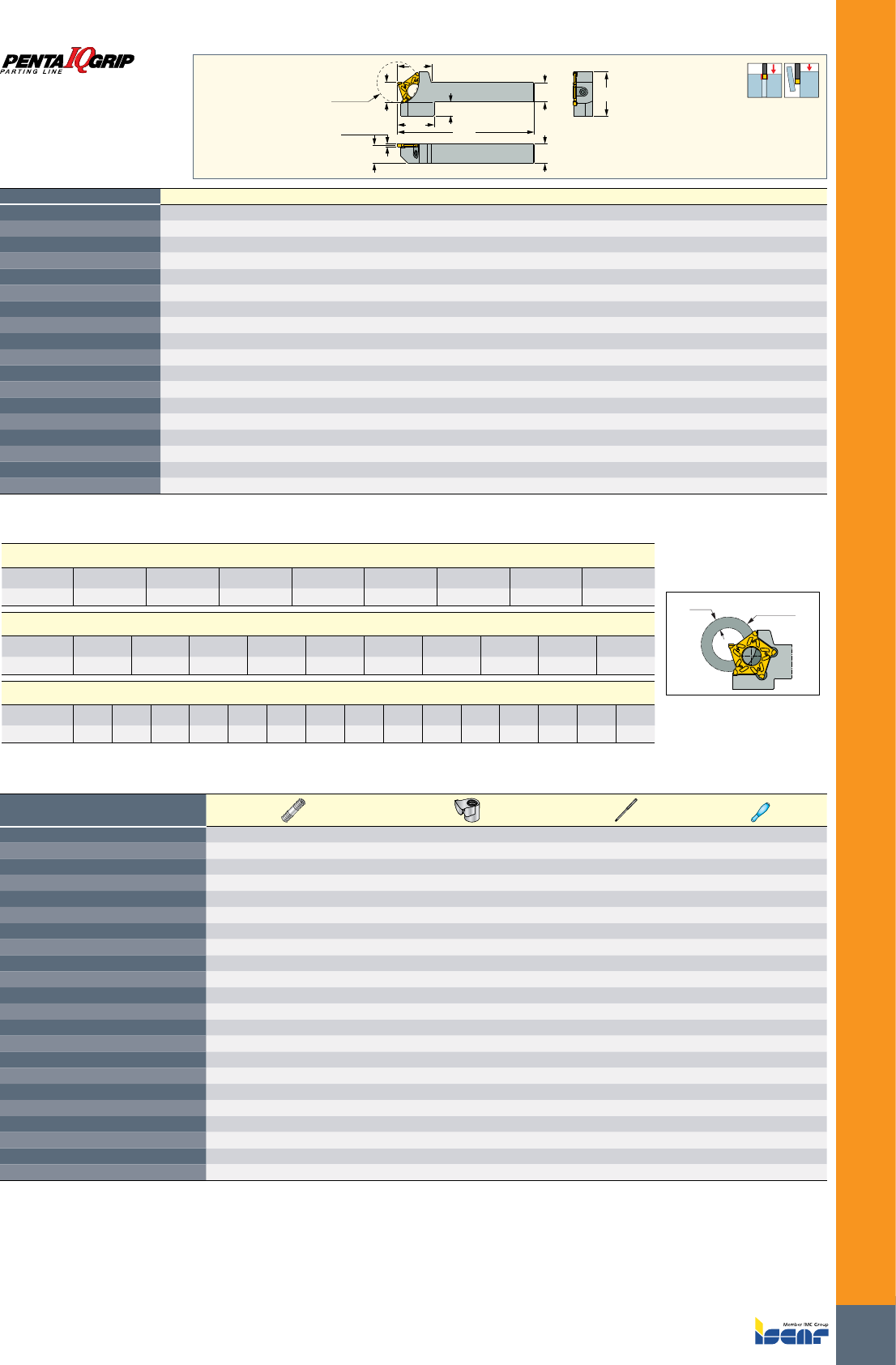

525

PARTING

OAH

OAL

HBL

CWN-CWX

CUTDIA

HBH

Left-hand shown

Designation

H B CWN(1) CWX(2) WF CUTDIA OAL LH HBL HBH OAH

PCHR/L 12-D22-2-IQ

12.0 12.0 2.00 2.40 11.40 22.0 100.00 26.9 25.70 8.0 25.5

PCHR/L 16-D22-2-IQ

16.0 16.0 2.00 2.40 15.40 22.0 120.00 26.9 23.20 4.0 25.5

PCHR/L 20-D22-2-IQ

20.0 20.0 2.00 2.40 19.40 22.0 120.00 26.9 - - 25.5

PCHR/L 12-D22-3-IQ

12.0 12.0 3.00 3.20 10.70 22.0 120.00 19.7 20.00 11.0 25.5

PCHR/L 16-D22-3-IQ

16.0 16.0 3.00 3.20 14.70 22.0 120.00 19.7 20.00 7.0 25.5

PCHR/L 20-D22-3-IQ

20.0 20.0 3.00 3.20 18.70 22.0 120.00 19.7 - - 25.5

PCHR/L 12-D32-2-IQ

12.0 12.0 2.00 2.40 11.50 32.0 100.00 28.4 29.50 14.0 33.6

PCHR/L 16-D32-2-IQ

16.0 16.0 2.00 2.40 15.50 32.0 120.00 28.4 29.50 10.0 33.6

PCHR/L 20-D32-2-IQ

20.0 20.0 2.00 2.40 19.50 32.0 120.00 28.4 29.50 6.0 33.6

PCHR/L 25-D32-2-IQ

25.0 25.0 2.00 2.40 24.50 32.0 120.00 28.4 - - 33.6

PCHR/L 12-D32-3-IQ

12.0 12.0 3.00 3.20 10.70 32.0 100.00 26.0 32.00 16.0 32.6

PCHR/L 16-D32-3-IQ

16.0 16.0 3.00 3.20 14.70 32.0 120.00 26.0 32.00 12.0 32.6

PCHR/L 20-D32-3-IQ

20.0 20.0 3.00 3.20 18.70 32.0 120.00 26.0 32.00 8.0 32.6

PCHR/L 25-D32-3-IQ

25.0 25.0 3.00 3.20 23.70 32.0 120.00 26.0 - - 32.6

PCHR/L 16-D40-3-IQ

16.0 16.0 3.00 3.20 14.70 40.0 135.00 33.3 36.80 17.0 43.5

PCHR/L 20-D40-3-IQ

20.0 20.0 3.00 3.20 18.70 40.0 135.00 33.3 35.60 13.0 43.5

PCHR/L 25-D40-3-IQ

25.0 25.0 3.00 3.20 23.70 40.0 135.00 33.3 33.60 8.0 43.5

PCHR/L 32-D40-3-IQ

32.0 32.0 3.00 3.20 30.70 40.0 135.00 33.3 - - 43.5

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: PENTA D-N-C (527) • PENTA D-N-J (527) • PENTA D-N-PB (528) • PENTA D-R/L-C (528) • PENTA D-R/L-J (527) • PENTA D-R/L-PB (528)

Tmax ØDmax

(1) N.L = No Limit

Tmax as a Function of Dmax for PENTA D32

Tmax T≤1.2 T≤2 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤16.0

Dmax N.L(1) N.L(1) 250 130 80 60 50 45 40 32

Tmax as a Function of Dmax for PENTA D22

Tmax T≤1.2 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤7.0 T≤9.0 T≤11.0

Dmax N.L(1) 600 130 60 40 30 25 22

Tmax as a Function of Dmax for PENTA D40

Tmax T≤1.2 T≤2 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 T≤11.0 T≤12.0 T≤13.0 T≤16.0 T≤20.0

Dmax N.L(1) N.L(1) N.L(1) 350 200 140 105 85 75 65 60 55 50 45 40

Spare Parts

Designation

PCHR/L 12-D22-2-IQ

SR M6-R-L LEVER PD22-2 INJ BLD T15/S7 SW6-SD

PCHR/L 16-D22-2-IQ

SR M6-R-L LEVER PD22-2 INJ BLD T15/S7 SW6-SD

PCHR/L 20-D22-2-IQ

SR M6-R-L LEVER PD22-2 INJ BLD T15/S7 SW6-SD

PCHR/L 12-D22-3-IQ

SR M6-R-L LEVER PD22-3 INJ BLD T15/S7 SW6-SD

PCHR/L 16-D22-3-IQ

SR M6-R-L LEVER PD22-3 INJ BLD T15/S7 SW6-SD

PCHL 20-D22-3-IQ

LEVER PD22-3 INJ*

PCHR/L 20-D22-3-IQ

SR M6-R-L BLD T15/S7 SW6-SD

PCHR 20-D22-3-IQ

LEVER PD22-3 INJ

PCHR/L 12-D32-2-IQ

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD

PCHR/L 16-D32-2-IQ

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD

PCHR/L 20-D32-2-IQ

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD

PCHR/L 25-D32-2-IQ

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD

PCHL 12-D32-3-IQ

LEVER PD32-3 INJ

PCHR/L 12-D32-3-IQ

SR M6-R-L BLD T15/S7 SW6-SD

PCHR 12-D32-3-IQ

LEVER PD32-3 INJ*

PCHR/L 16-D32-3-IQ

SR M6-R-L LEVER PD32-3 INJ BLD T15/S7 SW6-SD

PCHR/L 20-D32-3-IQ

SR M6-R-L LEVER PD32-3 INJ BLD T15/S7 SW6-SD

PCHR/L 25-D32-3-IQ

SR M6-R-L LEVER PD32-3 INJ BLD T15/S7 SW6-SD

PCHR/L 16-D40-3-IQ

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD

PCHR/L 20-D40-3-IQ

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD

PCHR/L 25-D40-3-IQ

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD

PCHR/L 32-D40-3-IQ

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD

* Optional, should be ordered separately

PCHR/L-D-IQ

Grooving and Parting

Tools Carrying Inserts

with 5 Cutting Edges

ISCAR

526

PARTING

OAH

OAL

HBL

HBH

CUTDIA

CNT (typx3)

CWN-CWX

Bar Max

Designation

H HF HBH B CWN(1) CWX(2) WF CUTDIA OAL LH HBL OAH CNT

PCHR/L 12-D22-2-JHP

12.0 0.0 8.0 12.0 2.00 2.40 11.00 22.0 101.50 29.0 29.50 32.0 UNF 5/16-24

PCHR/L 16-D22-2-JHP

16.0 0.0 4.0 16.0 2.00 2.40 15.00 22.0 121.50 29.0 29.50 32.0 UNF 5/16-24

PCHR/L 20-D22-2-JHP

20.0 0.0 - 20.0 2.00 2.40 19.00 22.0 121.50 29.0 29.50 32.0 G 1/8-28

PCHR/L 12-D32-2-JHP

12.0 12.1 14.5 12.0 2.00 2.40 11.15 32.0 100.00 30.5 31.00 41.0 UNF 5/16-24

PCHR/L 16-D32-2-JHP

16.0 16.1 10.0 16.0 2.00 2.40 15.21 32.0 120.00 25.9 27.00 41.0 UNF 5/16-24

PCHR/L 20-D32-2-JHP

20.0 20.1 6.5 20.0 2.00 2.40 18.40 32.0 120.00 30.5 31.00 41.0 G 1/8-28

PCHR/L 25-D32-2-JHP

25.0 25.1 1.5 25.0 2.00 2.40 23.40 32.0 120.00 29.0 29.50 41.0 G 1/8-28

PCHR/L 16-D40-3-JHP

16.0 16.0 17.0 16.0 3.00 3.20 14.60 40.0 135.00 36.3 36.80 51.0 UNF 5/16-24

PCHR/L 20-D40-3-JHP

20.0 20.0 13.0 20.0 3.00 3.20 18.60 40.0 135.00 35.1 35.60 51.0 G 1/8-28

PCHR/L 25-D40-3-JHP

25.0 25.0 8.0 25.0 3.00 3.20 23.60 40.0 135.00 33.1 33.60 51.0 G 1/8-28

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: PENTA D-N-C (527) • PENTA D-N-J (527) • PENTA D-N-PB (528) • PENTA D-R/L-C (528) • PENTA D-R/L-J (527)

• PENTA D-R/L-PB (528)

Tmax Dmax (CUTDIA)

PCHR/L D32-2...-JHP Dmax for Partting Off 32/T16

Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0

Dmax 150 125 100 78 65 57 51 46 43 40

Tmax T≤11.0 T≤12.0 T≤13.0 T≤14.0 T≤15.0

Dmax 39 37 35 34 33

PCHR/L D40-3...-JHP Dmax for Partting Off 40/T20

Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0

Dmax 400 300 200 145 114 95 82 73 66 61

Tmax T≤11.0 T≤12.0 T≤13.0 T≤14.0 T≤15.0 T≤16.0 T≤17.0 T≤18.0 T≤19.0

Dmax 57 54 51 49 47 46 45 44 42

PCHR/L D22-2...-JHP Dmax for Partting Off 22/T11

Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0

Dmax 89 64 48 40 34 31 28 27 24 21

Flow Rate vs. Pressure

Designation

70 bar

Flow Rate (liters/min)

100 bar

Flow Rate (liters/min)

140 bar

Flow Rate (liters/min)

PCHR/L...-2JHP

2-4 4-6 6-8

PCHR/L...-3JHP

7-9 9-11 11-13

Spare Parts

Designation

PCHR/L 12-D22-2-JHP

SR M6-R-L LEVER PD22-2 INJ BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360

PCHR/L 16-D22-2-JHP

SR M6-R-L LEVER PD22-2 INJ BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360

PCHL 20-D22-2-JHP

LEVER PD22-2 INJ*

PCHR/L 20-D22-2-JHP

SR M6-R-L BLD T15/S7 SW6-SD HW 5.0 PLG G1/8 TL360

PCHR 20-D22-2-JHP

LEVER PD22-2 INJ

PCHR/L 12-D32-2-JHP

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360

PCHR/L 16-D32-2-JHP

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360

PCHR/L 20-D32-2-JHP

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD HW 5.0 PLG G1/8 TL360

PCHR/L 25-D32-2-JHP

SR M6-R-L LEVER PD32-2 INJ BLD T15/S7 SW6-SD HW 5.0 PLG G1/8 TL360

PCHR/L 16-D40-3-JHP

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD HW 5/32" SR 5/16UNF TL360

PCHR/L 20-D40-3-JHP

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD HW 5.0 PLG G1/8 TL360

PCHR/L 25-D40-3-JHP

SR M7-R-L LEVER PD40 INJ BLD T20/S7 SW6-SD HW 5.0 PLG G1/8 TL360

* Optional, should be ordered separately

PCHR/L-D-JHP

Grooving and Parting Tools with

Channels for High-Pressure

Coolant Carrying Inserts with

5 Cutting Edges

527

PARTING

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) IC

IC808G

f groove

(mm/rev)

PENTA D22N200J020

2.00 0.20 0.02 0.030 22.00

•

0.04-0.12

PENTA D22N300J020

3.00 0.20 0.02 0.030 22.00

•

0.04-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-N-J

Inserts with 5 Cutting Edges

for Parting and Grooving Soft

Materials, Parting Tubes, Small

and Thin-Walled Parts

CW PSIR Right-hand shown

Dimensions Recommended

Machining Data

Designation

CW RE IC PSIRL PSIRR

IC808G

f groove

(mm/rev)

PENTA D22L200J-6D

2.00 0.20 22.00 6.0 -

•

0.04-0.10

PENTA D22R200J-6D

2.00 0.20 22.00 - 6.0

•

0.04-0.10

PENTA D22L200J-15D

2.00 0.20 22.00 15.0 -

•

0.04-0.08

PENTA D22R200J-15D

2.00 0.20 22.00 - 15.0

•

0.04-0.08

PENTA D22L300J-6D

3.00 0.20 22.00 6.0 -

•

0.04-0.12

PENTA D22R300J-6D

3.00 0.20 22.00 - 6.0

•

0.04-0.12

PENTA D22L300J-15D

3.00 0.20 22.00 15.0 -

•

0.04-0.10

PENTA D22R300J-15D

3.00 0.20 22.00 - 15.0

•

0.04-0.10

• For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-R/L-J

Inserts with 5 Cutting Edges

for Parting Tubes, Small

and Thin-Walled Parts

Right-hand shown

Dimensions Recommended

Machining Data

Designation

RE CW RETOL(1) CWTOL(2) IC

IC808G

f groove

(mm/rev)

PENTA D32N200C020

0.20 2.00 0.030 0.02 30.25

•

0.04-0.14

PENTA D32N300C020

0.20 3.00 0.030 0.02 30.25

•

0.06-0.22

PENTA D40N300C020

0.20 3.02 0.030 0.02 37.80

•

0.06-0.22

• For cutting speed recommendations and user guide, see pages 538-547

(1) Corner radius tolerance (+/-)

(2) Cutting width tolerance (+/-)

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-N-C

Inserts with 5 Cutting Edges

for Parting and Grooving

Hard Materials, Tough and

General Applications

ISCAR

528

PARTING

CW PSIRR Right-hand shown

Dimensions Recommended

Machining Data

Designation

CW RE IC PSIRL PSIRR

IC808G

f groove

(mm/rev)

PENTA D32L200C-6D

2.00 0.10 30.25 6.0 -

•

0.04-0.12

PENTA D32R200C-6D

2.00 0.10 30.25 - 6.0

•

0.04-0.12

PENTA D32L200C-15D

2.00 0.20 30.25 15.0 -

•

0.04-0.10

PENTA D32R200C-15D

2.00 0.20 30.25 - 15.0

•

0.04-0.10

PENTA D32L300C-6D

3.00 0.20 30.25 6.0 -

•

0.04-0.14

PENTA D32R300C-6D

3.00 0.20 30.25 - 6.0

•

0.04-0.14

PENTA D32L300C-15D

3.00 0.20 30.25 15.0 -

•

0.04-0.10

PENTA D32R300C-15D

3.00 0.20 30.25 - 15.0

•

0.04-0.10

PENTA D40L300C-6D

3.00 0.20 37.80 6.0 -

•

0.04-0.14

PENTA D40R300C-6D

3.00 0.20 37.80 - 6.0

•

0.04-0.14

PENTA D40L300C-15D

3.00 0.20 37.80 15.0 -

•

0.04-0.10

PENTA D40R300C-15D

3.00 0.20 37.80 - 15.0

•

0.04-0.10

• For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-R/L-C

Inserts with 5 Cutting Edges for

Parting Hard Materials, Tough

and General Applications

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) IC

IC808G

f groove

(mm/rev)

PENTA D40N300PB020

3.00 0.20 0.02 0.030 37.80

•

0.03-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-N-PB

Pentagonal Inserts for Parting

and Grooving Bearing Steel

and Other Ductile Materials

CW PSIR Right-hand shown

Dimensions Recommended

Machining Data

Designation

CW RE IC PSIRL PSIRR

IC808G

f groove

(mm/rev)

PENTA D40L300PB-6D

3.00 0.20 37.80 6.0 -

•

0.03-0.08

PENTA D40R300PB-6D

3.00 0.20 37.80 - 6.0

•

0.03-0.08

PENTA D40L300PB-15D

3.00 0.10 37.80 15.0 -

•

0.03-0.06

PENTA D40R300PB-15D

3.00 0.10 37.80 - 15.0

•

0.03-0.06

• For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

PENTA D-R/L-PB

Pentagonal Inserts for

Parting Bearing Steel and

other Ductile Materials

529

PARTING

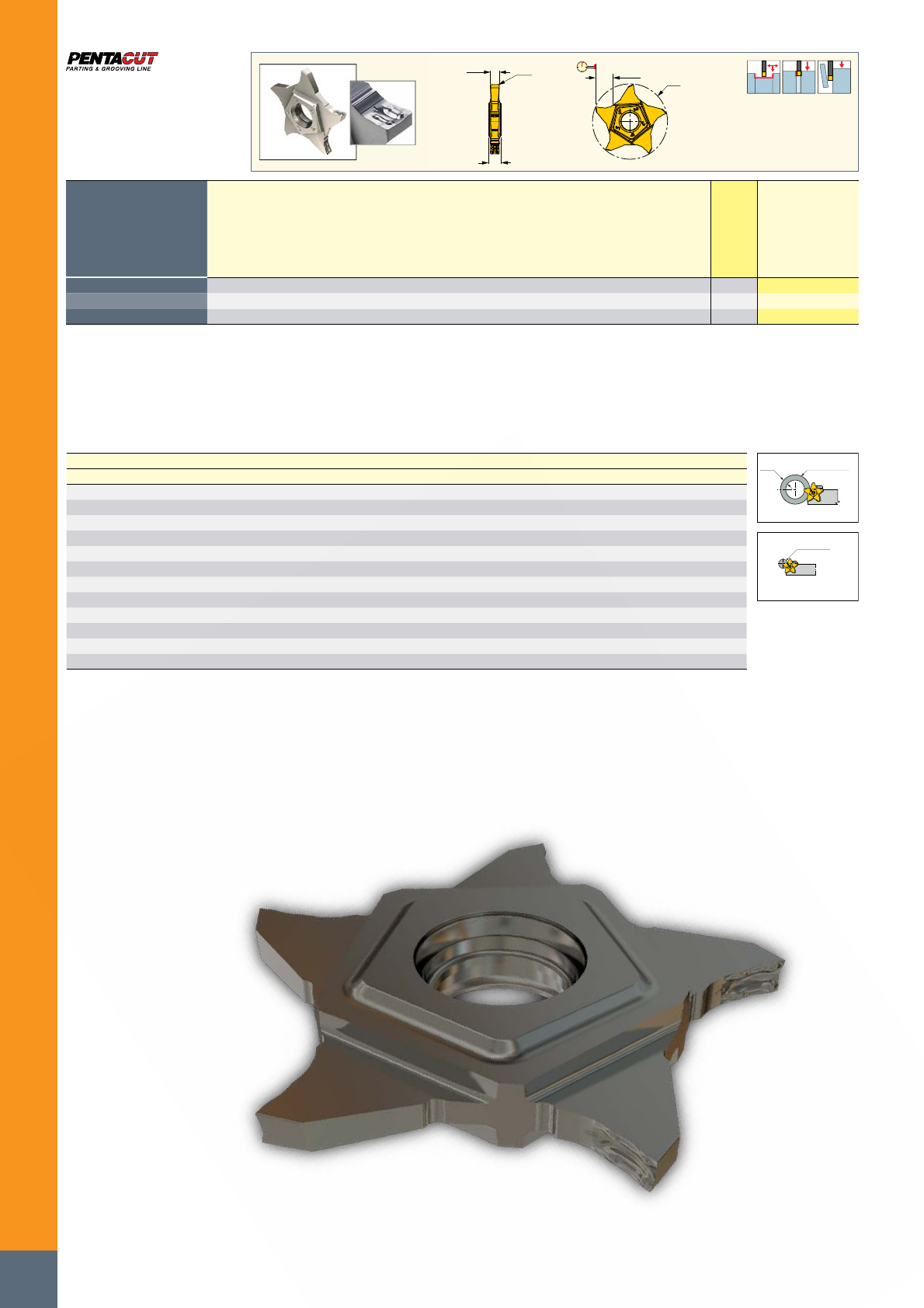

CDX(3) 24

±0.04

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW CDX(3)

IC1010

IC1008

IC908

IC807G

f groove

(mm/rev)

PENTA 24N050J000

0.50 0.00 0.02 0.020 4.00 1.00

•

0.02-0.04

PENTA 24N050J004

0.50 0.04 0.02 0.020 4.00 2.50

•

0.02-0.05

PENTA 24N080J000

0.80 0.00 0.02 0.020 4.00 1.60

•

0.02-0.05

PENTA 24N100J004

1.00 0.04 0.02 0.020 4.00 3.50

•

0.03-0.07

PENTA 24N100J006

1.00 0.06 0.02 0.020 4.00 3.50

• •

0.03-0.07

PENTA 24N104J000

1.04 0.00 0.02 0.020 4.00 2.00

•

0.02-0.07

PENTA 24N120J000

1.20 0.00 0.02 0.020 4.00 2.00

• •

0.03-0.07

PENTA 24N125J010

1.25 0.10 0.02 0.020 4.00 2.00

•

0.03-0.07

PENTA 24N140J000

1.40 0.00 0.02 0.020 4.00 2.00

•

0.03-0.08

PENTA 24N147J000

1.47 0.00 0.02 0.020 4.00 2.50

•

0.03-0.08

PENTA 24N150J010

1.50 0.10 0.00 0.020 4.00 5.00

••••

0.03-0.10

PENTA 24N157J015

1.57 0.15 0.02 0.030 4.00 3.00

• •

0.00-0.12

PENTA 24N170J010

1.70 0.10 0.02 0.030 4.00 3.00

• •

0.03-0.12

PENTA 24N178J018

1.78 0.18 0.02 0.030 4.00 3.00

• •

0.04-0.12

PENTA 24N185J015

1.85 0.15 0.02 0.030 4.00 3.00

•

0.04-0.12

PENTA 24N196J015

1.96 0.15 0.02 0.030 4.00 3.00

• •

0.04-0.12

PENTA 24N196J040

1.96 0.40 0.02 0.030 4.00 3.00

•

0.03-0.10

PENTA 24N200J020

2.00 0.20 0.02 0.030 4.00 6.00

••••

0.04-0.12

PENTA 24N222J015

2.22 0.15 0.02 0.030 4.00 3.50

• •

0.04-0.16

PENTA 24N230J020

2.30 0.20 0.02 0.030 4.00 3.50

• •

0.04-0.16

PENTA 24N239J015

2.39 0.15 0.02 0.030 4.00 5.00

• •

0.04-0.16

PENTA 24N247J020

2.47 0.20 0.02 0.030 4.00 5.00

• •

0.04-0.16

PENTA 24N270J010

2.70 0.10 0.02 0.020 4.00 5.00

•

0.04-0.16

PENTA 24N287J020

2.87 0.20 0.02 0.030 4.00 6.50

•

0.04-0.16

PENTA 24N300J000

3.00 0.00 0.02 0.020 4.00 6.50

•

0.04-0.10

PENTA 24N300J020

3.00 0.20 0.02 0.030 4.00 6.50

• • •

0.04-0.16

PENTA 24N300J040

3.00 0.40 0.02 0.030 4.00 6.50

• •

0.04-0.16

PENTA 24N315J015

3.15 0.15 0.02 0.030 4.00 6.50

•

0.04-0.16

PENTA 24N318J020

3.18 0.20 0.02 0.030 4.00 6.50

• •

0.04-0.16

PENTA 24N330J010

3.30 0.10 0.02 0.030 5.00 6.40

•

0.04-0.16

PENTA 24N348J020

3.48 0.20 0.02 0.030 5.00 6.40

•

0.04-0.18

PENTA 24N356J020

3.56 0.20 0.02 0.030 5.00 6.40

•

0.04-0.18

PENTA 24N374J020

3.74 0.20 0.02 0.030 5.00 6.40

•

0.04-0.18

PENTA 24N398J020

3.98 0.20 0.02 0.030 5.00 6.20

•

0.04-0.18

PENTA 24N400J040

4.00 0.40 0.02 0.030 5.00 6.20

•

0.04-0.18

PENTA 24N423J010

4.23 0.10 0.02 0.030 5.00 6.20

•

0.04-0.18

• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depth relative to part diameter, see page 532

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

PENTA 24N-J

Inserts with 5 Cutting Edges

for Parting and Grooving

Soft Materials, Tubes, Small

and Thin-Walled Parts

Insert lead

angle (K)

N, R, L

Corner radius RE (mm)x100

for neutral insert. (k=0)

Or lead angle for right- or

left-hand inserts.

(eg. 15D=15º)

010

Cutting edge

width CW(mm)

x100

150

Circular

circumference

of the insert

Family name

PENTA

Chipbreaker

style J, Z

Identification System for Standard Inserts

ISCAR

530

PARTING

±0.04

CDX

R.H. L.H.

PSIRL

PSIRR

Dimensions Recommended

Machining Data

Designation

CW CDX(1) RE CWTOL(2) PSIRL PSIRR CUTDIA(3)

IC1008

f groove

(mm/rev)

PENTA 24L100J15D

1.00 3.50 0.06 0.02 15.0 - 7.0

•

0.02-0.06

PENTA 24R100J15D

1.00 3.50 0.06 0.02 - 15.0 7.0

•

0.02-0.06

PENTA 24L150J06D

1.50 5.00 0.10 0.02 6.0 - 10.0

•

0.03-0.09

PENTA 24L150J15D

1.50 5.00 0.06 0.02 15.0 - 10.0

•

0.03-0.08

PENTA 24R150J06D

1.50 5.00 0.06 0.02 - 6.0 10.0

•

0.03-0.09

PENTA 24R150J15D

1.50 5.00 0.06 0.02 - 15.0 10.0

•

0.03-0.08

PENTA 24L200J06D

2.00 6.00 0.10 0.02 6.0 - 12.0

•

0.04-0.10

PENTA 24L200J15D

2.00 6.00 0.10 0.02 15.0 - 12.0

•

0.04-0.09

PENTA 24R200J06D

2.00 6.00 0.10 0.02 - 6.0 12.0

•

0.04-0.10

PENTA 24R200J15D

2.00 6.00 0.10 0.02 - 15.0 12.0

•

0.04-0.09

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

(2) Cutting width tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 533

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

PENTA 24R/L-J

Inserts with 5 Cutting Edges

for Parting Tubes, Small

and Thin-Walled Parts

CDX(3) 24

±0.04

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3)

IC908

f groove

(mm/rev)

PENTA 24N150C010

1.50 0.10 0.02 0.050 5.00

•

0.05-0.11

PENTA 24N157C015

1.57 0.15 0.02 0.050 3.00

•

0.05-0.12

PENTA 24N170C010

1.70 0.10 0.02 0.050 3.00

•

0.05-0.13

PENTA 24N178C018

1.78 0.18 0.02 0.050 3.00

•

0.05-0.14

PENTA 24N196C015

1.96 0.15 0.02 0.050 3.00

•

0.05-0.15

PENTA 24N200C020

2.00 0.20 0.02 0.050 6.00

•

0.05-0.16

PENTA 24N222C015

2.22 0.15 0.02 0.050 3.50

•

0.05-0.16

PENTA 24N230C020

2.30 0.20 0.02 0.050 3.50

•

0.06-0.17

PENTA 24N239C015

2.39 0.15 0.02 0.050 5.00

•

0.07-0.18

PENTA 24N247C020

2.47 0.20 0.02 0.050 5.00

•

0.08-0.18

PENTA 24N270C010

2.70 0.10 0.02 0.050 6.20

•

0.09-0.18

PENTA 24N287C020

2.87 0.20 0.02 0.050 6.20

•

0.10-0.18

PENTA 24N300C020

3.00 0.20 0.02 0.050 6.20

•

0.10-0.20

PENTA 24N300C040

3.00 0.40 0.02 0.050 6.20

•

0.10-0.20

PENTA 24N318C020

3.18 0.20 0.02 0.050 6.20

•

0.10-0.20

PENTA 24N478C055

4.78 0.55 0.02 0.050 6.20

•

0.10-0.25

PENTA 24N486C040

4.86 0.40 0.02 0.050 6.20

•

0.10-0.25

PENTA 24N500C040

5.00 0.40 0.02 0.050 6.20

•

0.10-0.25

• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 532

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

PENTA 24N-C

Inserts with 5 Cutting Edges for

Parting and Grooving Bars, Hard

Materials and Tough Applications

531

PARTING

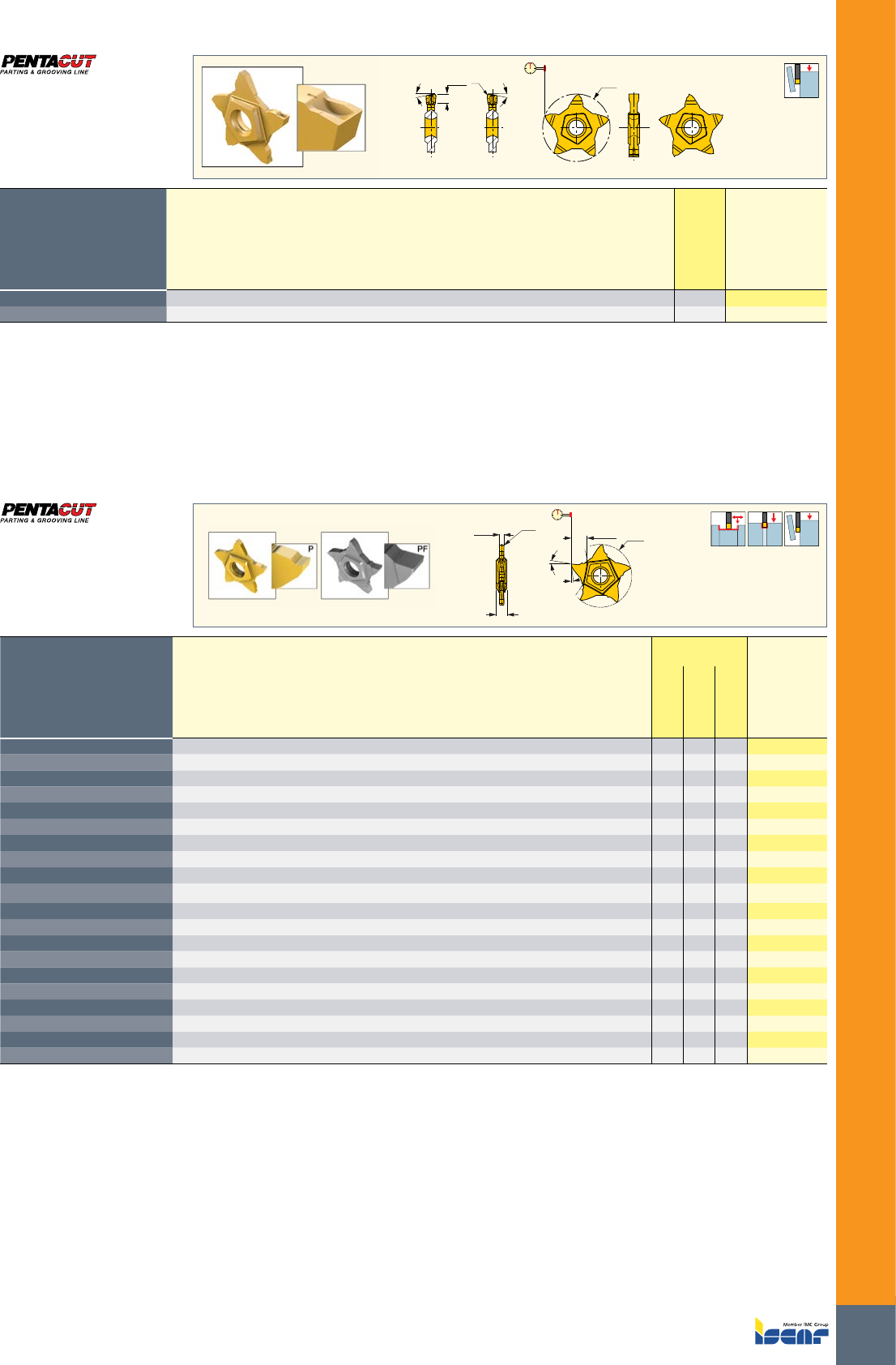

±0.04

CDX

R.H. L.H.

PSIRL

PSIRR

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) CDX(2) PSIRR

IC1008

f groove

(mm/rev)

PENTA 24R150C06D

1.50 0.06 0.02 5.00 6.0

•

0.03-0.10

PENTA 24R200C06D

2.00 0.10 0.02 6.00 6.0

•

0.04-0.12

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Cutting depth maximum

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

PENTA 24R-C

Inserts with 5 Cutting Edges

for Parting Bars, Hard Materials

and Tough Applications

7º

GAN

RE CDX(3)

±0.04

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3) GAN

IC1008

IC908

IC30N

f groove

(mm/rev)

PENTA 24N050PF005

0.50 0.05 0.02 0.020 2.50 6.0

•

0.01-0.04

PENTA 24N075PF005

0.75 0.05 0.02 0.020 2.50 6.0

•

0.02-0.05

PENTA 24N095PF005

0.95 0.05 0.02 0.020 4.00 6.0

•

0.02-0.05

PENTA 24N100P005

1.00 0.05 0.02 0.020 3.50 12.0

•

0.02-0.05

PENTA 24N100PF010

1.00 0.10 0.02 0.020 4.00 6.0

• •

0.03-0.06

PENTA 24N125PF020

1.25 0.20 0.02 0.020 5.00 6.0

•

0.03-0.06

PENTA 24N145PF020

1.45 0.20 0.02 0.020 6.20 6.0

•

0.03-0.06

PENTA 24N150P005

1.50 0.05 0.02 0.020 5.00 12.0

•

0.02-0.07

PENTA 24N150PF020

1.50 0.20 0.02 0.030 6.00 6.0

• •

0.03-0.09

PENTA 24N175PF020

1.75 0.20 0.02 0.030 6.20 6.0

•

0.02-0.08

PENTA 24N185PF020

1.85 0.20 0.02 0.030 6.00 6.0

•

0.03-0.10

PENTA 24N200P005

2.00 0.05 0.02 0.020 6.00 12.0

•

0.02-0.08

PENTA 24N200PF020

2.00 0.20 0.02 0.030 6.50 6.0

• •

0.04-0.10

PENTA 24N230PF020

2.30 0.20 0.02 0.030 6.20 6.0

•

0.04-0.14

PENTA 24N239PF015

2.39 0.15 0.02 0.030 6.50 6.0

•

0.04-0.14

PENTA 24N250PF020

2.50 0.20 0.02 0.030 6.50 6.0

• •

0.04-0.14

PENTA 24N300PF020

3.00 0.20 0.02 0.030 6.50 6.0

• •

0.04-0.14

PENTA 24N300PF030

3.00 0.30 0.02 0.030 6.20 6.0

•

0.04-0.15

PENTA 24N400PF020

4.00 0.20 0.02 0.030 6.50 6.0

•

0.04-0.16

PENTA 24N400PF040

4.00 0.40 0.02 0.030 6.20 6.0

•

0.04-0.16

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 532

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

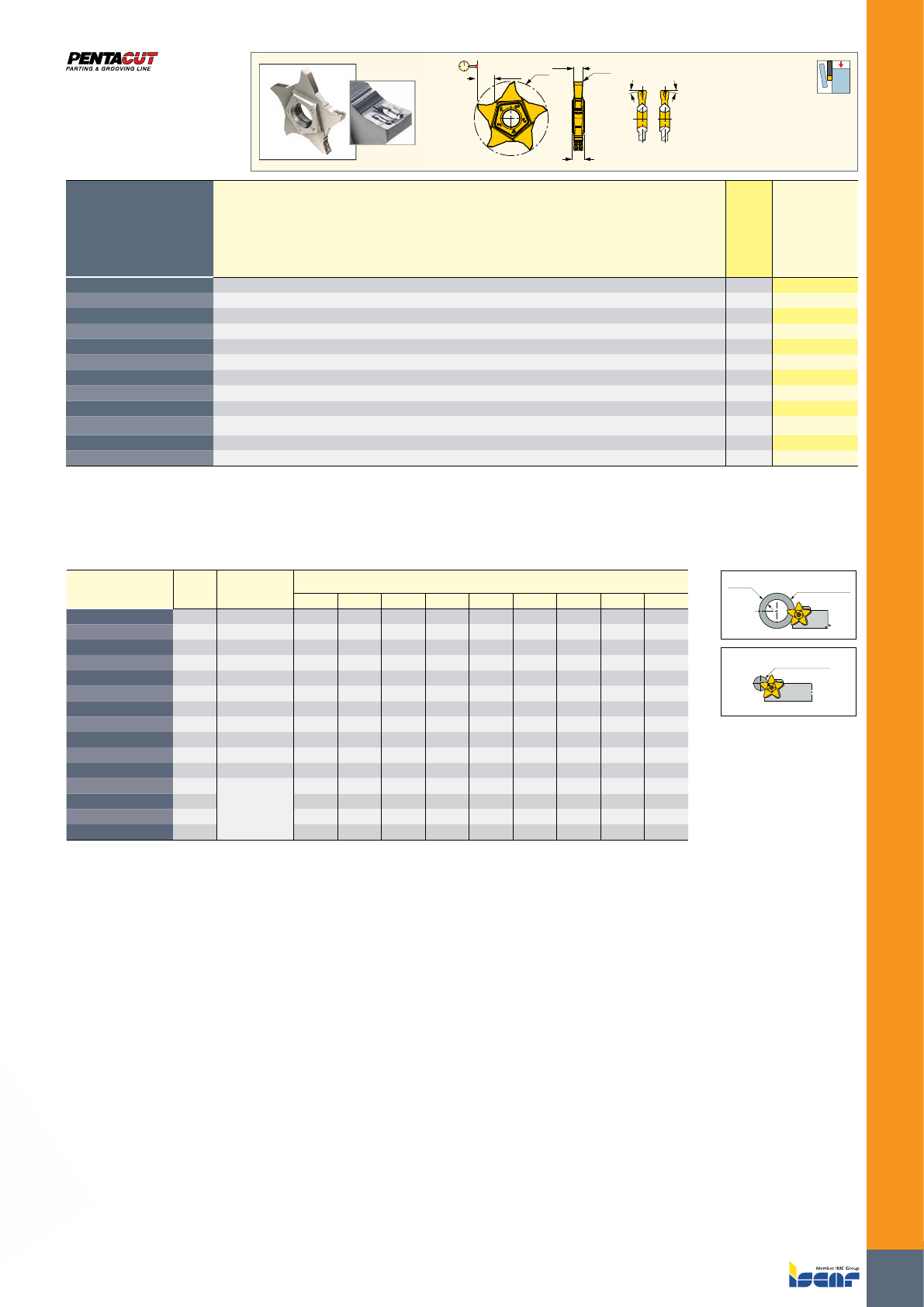

PENTA 24N-PF/P

Pentagonal Inserts with a High

Positive Flat Rake for Parting

and Precision Grooving

ISCAR

532

PARTING

CW RE

CDX(3)

±0.04

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3)

IC908

f groove

(mm/rev)

PENTA 24N150Z010

1.50 0.10 0.02 0.020 5.00

•

0.05-0.08

PENTA 24N200Z020

2.00 0.20 0.02 0.030 6.40

•

0.04-0.12

PENTA 24N300Z020

3.00 0.20 0.02 0.000 6.40

•

0.04-0.16

• Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters

• Suitable for machining soft materials and bearing steel at low to medium feeds

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 532

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

ØDmax(CUTDIA)

Tmax

Dmax as a Function of Parting / Grooving Depth (T) for PENTA 24 Inserts

CW±0.02 CDX(3) CDX / ØDmax T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.5 T≤6.4

CW=0.50 (1) 1.0 1.0 / N.L. --------

CW=0.50 (2) 2.5 250

CW=0.80 1.6 1.6 / N.L. --------

CW=1.00 3.5 N.L. 250 - - - - - -

1.04≤CW≤1.40 2.0 2.0 / N.L. --------

CW=1.47 2.5 2.5 / N.L. --------

CW=1.50 5.0 N.L. 470 210 70 30 - - -

1.57≤CW≤1.96 3.0 N.L. - - - - - - -

CW=2.00 6.0(4) N.L. 470 210 130 75 45 20 -

2.22≤CW≤2.30 3.5 N.L. 250 - - - - - -

2.39≤CW≤2.50 5.0 N.L. 470 210 70 30 - - -

2.70≤CW≤3.18 6.4 N.L. 470 210 135 100 70 40 20

(1)

Refers to PENTA 24N050J000 - a precision grooving insert (2) Refers to PENTA 24N050J004 - a parting insert (3) CUTDIA for parting = 2 x CDX

(4) For full radius insert, CDX = 3.0, ØDmax = No limit

PENTA 24N-Z

Inserts with 5 Cutting Edges for

Grooving and Parting Tubes,

Small and Thin-Walled Parts

533

PARTING

RH LH

CW RE

±0.04 24

CDX

PSIRLPSIRR

Dimensions Recommended

Machining Data

Designation

CW PSIRL PSIRR RE CUTDIA CDX(1)

IC1008

f groove

(mm/rev)

PENTA 24L150Z06D

1.50 6.0 - 0.06 10.0 5.00

•

0.03-0.09

PENTA 24L150Z15D

1.50 15.0 - 0.06 10.0 5.00

•

0.03-0.08

PENTA 24R150Z06D

1.50 - 6.0 0.06 10.0 5.00

•

0.03-0.09

PENTA 24R150Z15D

1.50 - 15.0 0.06 10.0 5.00

•

0.03-0.08

PENTA 24L200Z06D

2.00 6.0 - 0.10 12.8 6.40

•

0.04-0.10

PENTA 24L200Z15D

2.00 15.0 - 0.10 12.8 6.40

•

0.04-0.09

PENTA 24R200Z06D

2.00 - 6.0 0.10 12.8 6.40

•

0.04-0.10

PENTA 24R200Z15D

2.00 - 15.0 0.10 12.8 6.40

•

0.04-0.09

PENTA 24L300Z06D

3.00 6.0 - 0.20 12.8 6.40

•

0.04-0.13

PENTA 24L300Z15D

3.00 15.0 - 0.20 12.8 6.40

•

0.04-0.12

PENTA 24R300Z06D

3.00 - 6.0 0.20 12.8 6.40

•

0.04-0.15

PENTA 24R300Z15D

3.00 - 15.0 0.20 12.8 6.40

•

0.04-0.14

• Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters

• Suitable for machining soft materials and bearing steel at low to medium feeds

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

ØDmax(CUTDIA)

Tmax

W±0.02 Tmax(1) Tmax / Dmax

Dmax as a Function of Parting / Grooving Depth (T) for PENTA 24 Inserts

T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 T≤6.2 T≤6.4

W=0.50

1.0 1.0 / N.L. ---------

W=0.50

2.5 2.5 / N.L. ---------

W=0.80

1.6 1.6 / N.L. ---------

W=1.00

3.5 N.L. 250 - - - - - - -

1.04≤W≤1.40

2.0 2.0 / N.L. ---------

W=1.47

2.5 2.5 / N.L. ---------

W=1.50

5.0 N.L. 470 210 70 30 - - - -

1.57≤W≤1.96

3.0 N.L. - - - - - - - -

W=2.00

6.0(2) N.L. 470 210 130 75 45 20 - -

2.22≤W≤2.30

3.5 N.L. 250 - - - - - - -

2.39≤W≤2.50

5.0 N.L. 470 210 70 30 - - - -

2.70≤W≤3.18

6.2 N.L. 470 210 135 100 70 40 20 -

3.19≤W≤3.74

6.4 N.L. 350 180 115 80 52 32 26 20

3.75≤W≤4.00

6.2 N.L. 350 180 115 80 62 32 18 -

4.01≤W≤4.23

6.2 N.L. 350 180 115 80 62 42 25 -

(1)

Dmax for parting = 2 x Tmax

(2)

For full radius insert , Tmax = 3.0, Dmax = No limit

PENTA 24R/L-Z

Inserts with 5 Cutting Edges

for Parting Tubes, Small

and Thin-Walled Parts

ISCAR

534

PARTING

12°

CUTDIA

±0.04

PSIRR PSIRL

CDX

CW CDX

R.H. L.H.

Dimensions Recommended

Machining Data

Designation

CW CDX(1) RE CWTOL(2) CUTDIA(3) PSIRR

IC1008

f groove

(mm/rev)

PENTA 24R100P06D

1.00 3.50 0.05 0.02 7.2 6.0

•

0.02-0.04

PENTA 24R100P15D

1.00 3.50 0.05 0.02 7.2 15.0

•

0.02-0.03

PENTA 24R150P06D

1.50 5.00 0.05 0.02 11.0 6.0

•

0.02-0.05

PENTA 24R150P15D

1.50 5.00 0.05 0.02 11.0 15.0

•

0.02-0.04

PENTA 24R200P06D

2.00 6.00 0.05 0.02 12.6 6.0

•

0.02-0.07

PENTA 24R200P15D

2.00 6.00 0.05 0.02 12.6 15.0

•

0.02-0.05

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting depth maximum

(2) Cutting width tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 533

For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)

• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

PENTA 24R-P

Inserts with 5 Cutting Edges

for Parting Soft Materials, Thin

Walls and Miniature Parts

±0.04

4.3

CUTDIA

CDX

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3)

IC908

f groove

(mm/rev)

PENTA 34N150C015

1.50 0.15 0.02 0.030 8.00

•

0.03-0.07

PENTA 34N200C020

2.00 0.20 0.02 0.030 8.00

•

0.04-0.14

PENTA 34N200C100

2.00 1.00 0.02 0.050 8.00

•

0.05-0.16

PENTA 34N222C015

2.22 0.15 0.02 0.030 8.00

•

0.05-0.14

PENTA 34N230C020

2.30 0.20 0.02 0.030 8.00

•

0.05-0.14

PENTA 34N239C015

2.39 0.15 0.02 0.030 8.00

•

0.05-0.15

PENTA 34N239C120

2.39 1.20 0.02 0.050 8.00

•

0.05-0.18

PENTA 34N247C020

2.47 0.20 0.02 0.030 8.00

•

0.05-0.18

PENTA 34N250C020

2.50 0.20 0.02 0.030 8.00

•

0.05-0.18

PENTA 34N270C010

2.70 0.10 0.02 0.030 10.00

•

0.05-0.18

PENTA 34N287C020

2.87 0.20 0.02 0.030 10.00

•

0.05-0.18

PENTA 34N300C000

3.00 0.00 0.02 0.000 10.00

•

0.04-0.10

PENTA 34N300C020

3.00 0.20 0.02 0.030 10.00

•

0.06-0.22

PENTA 34N300C040

3.00 0.40 0.02 0.030 10.00

•

0.06-0.25

PENTA 34N300C150

3.00 1.50 0.02 0.050 10.00

•

0.06-0.20

PENTA 34N315C015

3.15 0.15 0.02 0.030 10.00

•

0.06-0.20

PENTA 34N318C020

3.18 0.20 0.02 0.030 10.00

•

0.06-0.22

PENTA 34N330C010

3.30 0.10 0.02 0.020 10.00

•

0.06-0.20

PENTA 34N348C020

3.48 0.20 0.02 0.030 10.00

•

0.06-0.25

PENTA 34N350C025

3.50 0.25 0.02 0.030 10.00

•

0.06-0.30

PENTA 34N398C020

3.98 0.20 0.02 0.030 10.00

•

0.06-0.30

PENTA 34N400C030

4.00 0.30 0.02 0.030 10.00

•

0.06-0.30

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 534

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

ØDmax(CUTDIA) ØDmax(CUTDIA)

Tmax

ØDmax as a Function of Parting / Grooving Depth (T) for PENTA 34 Inserts

CW±0.02 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤8.5 T≤9.0 T≤10.0

1.50 ≤ CW ≤ 2.69 N.L. 350 165 100 55 - -

2.70 ≤ CW ≤ 4.00 55 20

CUTDIA for parting = 2 x CDX

N.L. = No Limit

PENTA 34N-C

Inserts with 5 Cutting Edges

for Parting and Grooving

Hard Materials, Tough and

General Applications

535

PARTING

4.3

CDX

±0.04

R.H. L.H.

CUTDIA

PSIRLPSIRR

Dimensions Recommended

Machining Data

Designation

CW RE CUTDIA(1) CDX(2) PSIRL PSIRR

IC908

f groove

(mm/rev)

PENTA 34L150C08D

1.50 0.07 18.0 8.00 8.0 -

•

0.03-0.08

PENTA 34R150C08D

1.50 0.07 18.0 8.00 - 8.0

•

0.03-0.08

PENTA 34L200C06D

2.00 0.10 18.0 8.00 6.0 -

•

0.04-0.12

PENTA 34R200C06D

2.00 0.10 18.0 8.00 - 6.0

•

0.04-0.12

PENTA 34L200C15D

2.00 0.10 18.0 8.00 15.0 -

•

0.04-0.10

PENTA 34R200C15D

2.00 0.10 18.0 8.00 - 15.0

•

0.04-0.10

PENTA 34L300C06D

3.00 0.20 20.0 10.00 6.0 -

•

0.04-0.14

PENTA 34R300C06D

3.00 0.20 20.0 10.00 - 6.0

•

0.06-0.14

PENTA 34L300C15D

3.00 0.20 20.0 10.00 15.0 -

•

0.04-0.10

PENTA 34R300C15D

3.00 0.20 20.0 10.00 - 15.0

•

0.06-0.12

• For cutting speed recommendations and user guide, see pages 538-547

(1) For grooving and parting depths relative to part diameter, see page 537

(2) Cutting depth maximum

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

PENTA 34R/L-C

Inserts with 5 Cutting Edges for

Parting Hard Materials, Tough

and General Applications

RE Ø34

4.3

±0.04

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3)

IC908

f groove

(mm/rev)

PENTA 34N150J015

1.50 0.15 0.02 0.002 8.50

•

0.03-0.10

PENTA 34N200J020

2.00 0.20 0.02 0.002 8.50

•

0.04-0.12

PENTA 34N200J100

2.00 1.00 0.02 0.002 8.50

•

0.05-0.12

PENTA 34N239J015

2.39 0.15 0.02 0.002 8.50

•

0.04-0.16

PENTA 34N239J120

2.39 1.20 0.02 0.002 8.50

•

0.06-0.16

PENTA 34N250J020

2.50 0.20 0.02 0.002 8.50

•

0.04-0.16

PENTA 34N270J010

2.70 0.10 0.02 0.002 10.00

•

0.04-0.16

PENTA 34N300J000

3.00 0.00 0.02 0.000 10.00

•

0.04-0.10

PENTA 34N300J020

3.00 0.20 0.02 0.002 10.00

•

0.04-0.16

PENTA 34N300J040

3.00 0.40 0.02 0.002 10.00

•

0.04-0.16

PENTA 34N300J150

3.00 1.50 0.02 0.002 10.00

•

0.06-0.20

PENTA 34N318J020

3.18 0.20 0.02 0.002 10.00

•

0.20-0.16

• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 534

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

PENTA 34N-J

Inserts with 5 Cutting Edges

for Parting and Grooving Soft

Materials, Parting Tubes, Small

and Thin-Walled Parts

ISCAR

536

PARTING

RE Ø34

4.3

PSIRRPSIRL ±0.04

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) CUTDIA(2) PSIRL PSIRR

IC908

f groove

(mm/rev)

PENTA 34L150J06D

1.50 0.07 0.02 18.0 6.0 -

•

0.03-0.09

PENTA 34L150J15D

1.50 0.07 0.02 18.0 15.0 -

•

0.03-0.08

PENTA 34R150J06D

1.50 0.07 0.02 18.0 - 6.0

•

0.03-0.09

PENTA 34R150J15D

1.50 0.07 0.02 18.0 - 15.0

•

0.03-0.08

PENTA 34L200J06D

2.00 0.10 0.02 18.0 6.0 -

•

0.04-0.10

PENTA 34L200J15D

2.00 0.10 0.02 18.0 15.0 -

•

0.04-0.09

PENTA 34R200J06D

2.00 0.10 0.02 18.0 - 6.0

•

0.04-0.10

PENTA 34R200J15D

2.00 0.10 0.02 18.0 - 15.0

•

0.04-0.09

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) For grooving and parting depths relative to part diameter, see page 537

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

PENTA 34R/L-J

Inserts with 5 Cutting Edges

for Parting Tubes, Small

and Thin-Walled Parts

RE ±0.04

4.3

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX(3)

IC908

f groove

(mm/rev)

PENTA 34N150PB015

1.50 0.15 0.02 0.030 8.50

•

0.03-0.06

PENTA 34N200PB020

2.00 0.20 0.02 0.030 8.50

•

0.03-0.08

PENTA 34N300PB020

3.00 0.20 0.02 0.030 9.50

•

0.03-0.10

• For cutting speed recommendations and user guide, see pages 538-547

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) For grooving and parting depths relative to part diameter, see page 534

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

PENTA 34N-PB

Parting and Grooving Pentagonal

Inserts for Parting Bearing Steel

and Other Ductile Materials

537

PARTING

4.3

R.H. L.H.

±0.04

PSIRLPSIRR

Dimensions Recommended

Machining Data

Designation

CW RE CUTDIA PSIRL PSIRR

IC908

f groove

(mm/rev)

PENTA 34R150PB-6D

1.50 0.07 18.0 - 6.0

•

0.03-0.05

PENTA 34L150PB-6D

1.50 0.07 18.0 6.0 -

•

0.03-0.05

PENTA 34R200PB-6D

2.00 0.10 18.0 - 6.0

•

0.03-0.06

PENTA 34L200PB-6D

2.00 0.10 18.0 6.0 -

•

0.03-0.06

PENTA 34R300PB-6D

3.00 0.20 20.0 - 6.0

•

0.03-0.08

PENTA 34L300PB-6D

3.00 0.20 20.0 6.0 -

•

0.03-0.08

• For cutting speed recommendations and user guide, see pages 538-547

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

ØDmax(CUTDIA)

Tmax

Dmax as a Function of Parting / Grooving Depth (T) for PENTA 34 Inserts

W±0.02 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤8.5 T≤9.0 T≤10.0

1.50 ≤ W ≤ 2.69 N.L. 350 165 100 55 - -

2.70 ≤ W ≤ 4.00 55 20

Dmax for parting = 2 x Tmax

N.L. = No Limit

PENTA 34R/L-PB

Pentagonal Inserts for

Parting Bearing Steel and

other Ductile Materials

ISCAR

538

USER GUIDE

PARTING

Parting and Grooving

Selection of Inserts

For a proper match of insert and cutting

material to application, the following variables

must be taken into consideration:

• Width of cut (width of insert)

• Chipformer style

• Lead angle

• Corner radius

• Carbide grade

Width of Cut (W.O.C.) and Depth of Cut (D.O.C.)

In selecting W.O.C., the main factor to consider is the

required D.O.C. The ratio D.O.C.≈ 8xW.O.C. is of practical

use on alloy steel of average machinability. For example,

applying a 3 mm W.O.C. insert TAG N3C to cut-off a

48 mm solid bar.

Additional factors which affect D.O.C.

capacity, relative to the ratio, are:

Holder or Blade Size

To minimize risk of vibration and deflection always choose:

• Blade or toolholder with smallest possible overhang.

• Toolholder with maximum shank dimension.

• Blade height (B) dimension which is larger than Tmax.

• Blade or holder with maximum blade width (largest

possible insert seat size).

Example:

• A W.O.C. 9.5 mm on blade TGFH 53K-9

• (B=52.6 mm) extends the ratio of D.O.C. to

W.O.C. by some 50% to 120 mm.

Tmax

Insert Support

A self-clamped tool is recommended for deep radial

machining. A screw-clamp holder is recommended

for axial and small D.O.C. machining.

90˚ Mounting

It is very important that the insert is mounted at 90º

to the center line of the workpiece in order to obtain

perpendicular surfaces and reduce the risk of vibration.

Workpiece Machinability

The workpiece material affects all of the above factors.

Machine Power and Setup Rigidity

Excessive W.O.C. on a light-duty machine will yield

vibration and may even stop spindle rotation.

Expensive Workpiece Material

On costly metals the narrowest applicable

W.O.C. should be used.

10'

0.1/1000

90°±

PARTING

539

USER GUIDE

PARTING

Insert Positioning

The Twisted Insert for Cut-Off

and Grooving Applications

Machining depths longer than insert length is made

possible with the double-ended, twisted insert body.

The rear edge is slanted in relation to the frontal

edge so it does not come into contact with

the machined groove surface when the tool

penetrates deeply into the workpiece.

Clamping

Extended, prismatic surfaces guarantee reliable, foolproof

clamping even in unstable machining conditions.

Screw-Clamping Self-Clamping

Small diameters (D.O.C.)

with screw-clamped Inserts

Large diameters (D.O.C.)

with self-clamped Inserts

Setup

• The optimal cutting edge height above the center of

TANG-GRIP tools is up to 0.08 mm + 0.025 mm

W.O.C., an advantage when cutting solid bar to center

• Cut-off as close to chuck as possible

• On new applications, first machine in the low or

middle range of recommended speeds and feeds

Machining

• Consistency of speed and feed improves performance

• Apply coolant abundantly

• Secure inserts into clean pockets

• Cutting forces on soft workpiece materials may

be insufficient to push insert well into pocket.

Tap insert into place using a plastic hammer

• On a conventional lathe, lock the carriage

to prevent axial motion during cut-off

(0.08+0.025) max.

Center Height

Usage

• Replace worn inserts promptly, the price of a

new one is much less than the risk of damage

from continuing with one that is worn out

• Replace blades that have worn or damaged pockets

• Never try to repair damaged pockets

• Chip curling is dependent on the chipformer

type and the machining conditions

Chipformer Features

• Narrows the chip

• Eliminates friction with groove walls,

prevents chip jam overload

• Permits higher feeds

• Produces unscratched surfaces,

eliminating additional facing

• Curls the chips into compact spirals for easy disposal

PARTING

ISCAR

540

USER GUIDE

PARTING

Selection of Corner Radius

1 A smaller corner radius (r) will reduce the load on

the workpiece and produce a smaller size burr

2 At the same time, a large corner radius allows

for higher feeds and increased tool life

Sharp

Radii

Diameter

Feed

Standard Corner Radius

• Standard medium corner size

• For general applications and materials

Medium (standard)

corner radius

“S” Sharp Corners

• Cutting edge with positive rake and sharp corners

• When a minimum burr (pip) size is essential

• For small feeds

• For small diameters or thin walls

• For CNCs, multi-spindle and screw machines

JSP

Sharp corner

“B” Large Corner Radius

• Reinforced corners with stronger cutting edge

• For tough applications and interrupted cuts

Large corner radius

PARTING

541

USER GUIDE

PARTING

Lead Angle

Lead angle (K) on cut-off inserts reduces size of burr

remaining on workpiece. Increasing the lead angle reduces

the burr, but also reduces possible feed rates and tool life.

Therefore, neutral inserts are recommended for parts on

which a burr is tolerated.

Insert designations such as TAG R... DGR (R.H.)

and TAG L... DGL (L.H.) comply with standard

terms for turning direction. When looking toward the

chuck from the workpiece, R.H.=counterclockwise

(C.C.) rotation of workpiece and L.H.=clockwise

inserts; C requires left-hand inserts. A neutral insert

with 0º lead angle increases D.O.C. capacity.

Left Neutral Right

TAG L/DGL TAG N/DGN TAG R/DGR

TAGR/GFR/DGR TAGR/GFN/DGN

TAG R/DGR TAG N/DGN

TAG R/DGR-WRONG

Neutral Insert vs. Lead Angle Type

Lifetime 4

Chip Control 4

Burr Size 4

Surface Finish 4

Part

Straightness 4

PARTING

ISCAR

542

USER GUIDE

PARTING

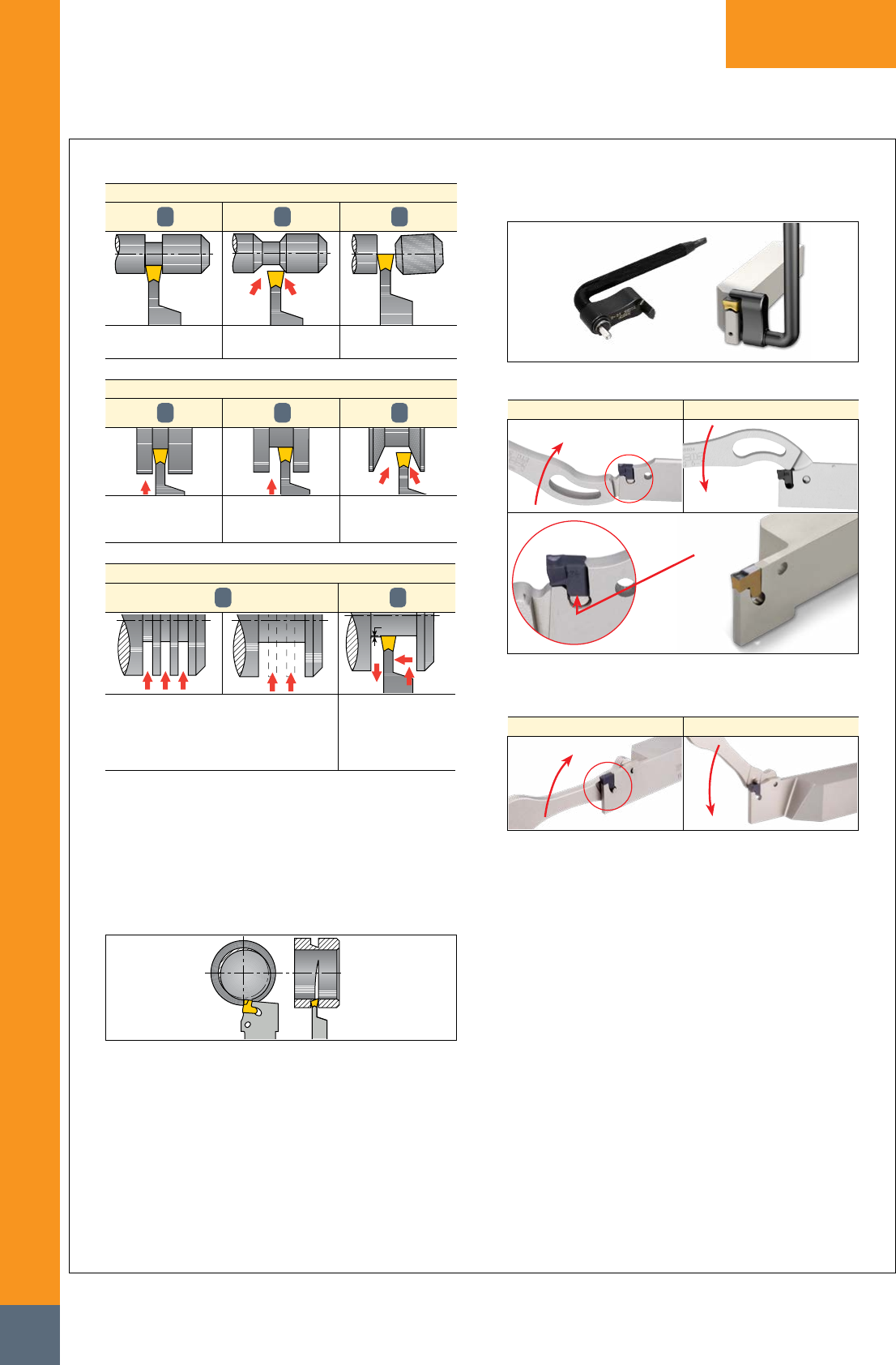

General Rules for Specific Applications

Chamfer and Cut-Off

123

Break in and/

or groove

Chamfer Cut-off

V-Belt Pulley Grooves

1 2 3

Break in Multiple plunge

to depth at minor

width of groove

Bevel, plunge

and turn to

minor diameter

Neck Recessing

1 2

Multiple plunge grooves Necking On

neck turning,

DOC (a)=up to

size of insert

corner radius

Cut-Off on Eccentric Tubes

Inserts with 4º lead angle are usually recommended

for tubes. However, the combination of eccentric bore

and machine resiliency may increase feed-snap on

breakthrough and damage the cutting edge. Changing

to 6º lead angle inserts will moderate breakthrough.

Alternatively, inserts with an extra negative rake-land that

strengthens the cutting edge are available on request.

Clamping / Extraction Instructions

TANG-GRIP The tools are equipped with a

user-friendly clamping and extraction device.

Insertion Side

Extraction Side

ETG 8-12 Extractor for 8 to 12.7 mm inserts

Extracting Clamping

The flat side of the

pin must face up

ETG 5-7 (for 5-7 mm tools)

ETG 2 (for 2 mm tools)

ETG 1.4 (for 1.4 mm tools)

Extracting Clamping

ETG 3-4 (for 3 and 4 mm tools)

PARTING

543

USER GUIDE

PARTING

Clamping / Extraction Instructions

Extractor for DGN/R/L Double-Ended Inserts

Do-Grip Insert Clamping/Extracting

Extracting the insert

Grade Application Range

Cutting Speed

IC1010 (IC808)

IC807 (IC907)

IC354

IC1030 (IC830)

Feed / Interrupted cut

Eccentric Extractor for Insert Indexing

Simple to operate; controlled rotation requires low

force; guarantees limited upper jaw movement

and secures maximum load on blade.

PARTING

Selection Guide for Parting Grades

Material groups

ISO P ISO M ISO K ISO N ISO S ISO H

1-11 12-13 14 15-20 21-28 31-37 38-41

Steel

Stainless

Steel

Ferritic &

Martensitic

Stainless

Steel

Austenitic

& Duplex

(Ferritic -

Austenitic) Cast Iron Non-ferrous

High

Temperature

Alloys

Hard Steel &

Cast Iron

PARTING

Harder IC807 (IC907) IC807 (IC907) IC807 (IC907) IC20 IC807 (IC907) IC807 (IC907)

IC808 IC808 IC807 (IC907) IC20

IC808 IC1010 IC1010 IC20 IC808 IC808

IC1010 IC5400 IC5400 IC808 IC1010 IC1010

IC830 IC830 IC830 IC1010 IC830

Tougher IC1030 IC1030 IC1030 IC1030

First choice

ISCAR

544

USER GUIDE

PARTING

Machining Data and Parting Speed Recommendations

PARTING

ISO

Material Condition

Tensile

Strength

[N/mm2]

Hardness

Material

Group No.

Non-alloy steel and cast

steel, free cutting steel

< 0.25 %C Annealed 420 125 1

>= 0.25 %C Annealed 650 190 2

< 0.55 %C Quenched and tempered 850 250 3

>= 0.55 %C Annealed 750 220 4

Quenched and tempered 1000 300 5

Low alloy steel and cast steel

(less than 5% of alloying elements)

Annealed 600 200 6

Quenched and tempered

930 275 7

1000 300 8

1200 350 9

High alloyed steel, cast steel,

and tool steel

Annealed 680 200 10

Quenched and tempered 1100 325 11

Stainless steel and

cast steel

Ferritic/martensitic 680 200 12

Martensitic 820 240 13

MStainless steel and cast steel Austenitic, duplex 600 180 14

Grey cast iron (GG) Ferritic/pearlitic 180 15

Pearlitic/martensitic 260 16

Cast iron nodular (GGG) Ferritic 160 17

Pearlitic 250 18

Malleable cast iron Ferritic 130 19

Pearlitic 230 20

Aluminum-wrought alloys Not hardenable 60 21

Hardenable 100 22

Aluminum-cast alloys

<=12% Si Not hardenable 75 23

Hardenable 90 24

>12% Si High temperature 130 25

Copper alloys

>1% Pb Free cutting 110 26

Brass 90 27

Electrolitic copper 100 28

Non-metallic Duroplastics, fiber plastics 29

Hard rubber 30

High temp. alloys

Fe based Annealed 200 31

Hardened 280 32

Ni or Co based

Annealed 250 33

Hardened 350 34

Cast 320 35

Titanium alloys Pure RM 400 36

Alpha+beta alloys hardened RM 1050 37

Hardened steel Hardened 55 HRC 38

Hardened 60 HRC 39

Chilled cast iron Cast 400 40

Cast iron Hardened 55 HRC 41

545

USER GUIDE

Material

Group No. IC907/807 IC30N IC354

IC1010/

IC908/808/1008 IC5400

IC1030/

IC830/928/1028 IC328

1160 - 240 130 - 190 115 - 170 135 - 200 110 - 160 100 - 150 95 - 140

2150 - 205 120 - 160 105 - 145 125 - 170 100 - 135 95 - 125 85 - 120

3115 - 170 90 - 135 80 - 120 95 - 140 75 - 110 70 - 105 65 - 100

4125 - 190 100 - 150 90 - 135 105 - 160 85 - 130 80 - 120 75 - 110

5100 - 160 80 - 130 70 - 115 85 - 135 70 - 110 65 - 100 60 - 95

6125 - 190 100 - 150 90 - 135 105 - 160 85 - 130 80 - 120 75 - 110

7100 - 170 80 - 135 70 - 120 85 - 140 70 - 110 65 - 105 60 - 100

8100 - 160 80 - 130 70 - 115 85 - 135 70 - 110 65 - 100 60 - 95

990 - 150 70 - 120 65 - 105 75 - 125 60 - 100 55 - 95 50 - 85

10 150 - 205 120 - 160 105 - 145 125 - 170 100 - 135 95 - 125 85 - 120

11 90 - 150 70 - 120 65 - 105 75 - 125 60 - 100 55 - 95 50 - 85

IC20N IC907/807 IC808 IC908 IC5400 IC830/928/1028 IC328

12 170 - 300 115 - 210 110 - 200 105 - 190 85 - 150 80 - 140 75 - 135

13 150 - 290 105 - 200 100 - 190 95 - 180 75 - 145 70 - 135 65 - 125

IC20N IC907/807 IC808 IC908 IC5400 IC830/928/1028 IC328

14 140 - 260 95 - 175 90 - 170 85 - 160 70 - 130 65 - 120 60 - 110

IC907/807 IC808 IC908 IC20

15 170 - 305 145 - 270 140 - 255 70 - 125

16 150 - 215 130 - 190 125 - 180 60 - 90

17 160 - 265 140 - 230 135 - 220 65 - 110

18 125 - 205 110 - 180 105 - 170 50 - 85

19 190 - 320 170 - 280 160 - 265 80 - 130

20 160 - 265 140 - 230 135 - 220 65 - 110

IC907/807 IC908/808 IC20

21 360 - 1080 330 - 990 300 - 900

22 270 - 900 250 - 825 225 - 750

23 270 - 900 250 - 825 225 - 750

24 180 - 540 165 - 495 150 - 450

25 180 - 360 165 - 330 150 - 300

26 180 - 360 165 - 330 150 - 300

27 130 - 270 120 - 250 110 - 225

28 90 - 180 80 - 165 75 - 150

29 40 - 180 40 - 165 35 - 150

IC807 IC907 IC908 IC808 IC830/328/928/1028 IC20

31 50 - 70 45 - 70 40 - 60 40 - 65 30 - 45 30 - 40

32 35 - 55 35 - 50 30 - 45 30 - 45 20 - 35 20 - 30

33 35 - 55 35 - 50 30 - 45 30 - 45 20 - 35 20 - 30

34 30 - 50 30 - 45 25 - 40 25 - 40 20 - 30 15 - 30

35 25 - 35 25 - 35 20 - 30 20 - 30 15 - 20 15 - 20

36 115 - 190 110 - 185 95 - 160 100 - 170 70 - 120 65 - 110

37 40 - 50 40 - 50 35 - 45 35 - 45 30 - 40 40 - 50

IC807 IC907 IC808 IC908

38 35-45 30-40 30-40 25-35

39 30-40 25-35 25-35 20-30

40 45-65 40-60 40-60 30-50

41 40-50 35-45 35-45 30-40

PARTING

Grade ISO Grade Description Coating Layers Coating Color*

PVD COATED

IC308

P15-P30

A tough submicron grain size substrate with PVD coating.

Suitable for steel, alloy steels and stainless steel at low to medium

cutting speeds under stable conditions.

S15-S30 TiCN

Base

IC328

P30-P45

A tough substrate with PVD coating, suitable for a wide range of

applications on steels and stainless steel at low to medium speeds

and medium to high feeds.

The grade is recommended for interrupted cuts and machining

under unstable conditions.

M25-M40

TiCN

Base

IC354

P20-P40

A tough substrate with PVD coating, suitable for general use on

a wide range of carbon steels, alloy steels and stainless steel at

moderate speeds and feeds.

M20-M30

TiCN

Base

IC807

P10-P20 A hard submicron grain size substrate with PVD coating and a

special SUMOTEC surface treatment. Suitable for machining

steels, alloy steels, austenitic stainless steel, high temperature

alloys and hard steels at moderate to relatively high cutting

speeds under stable conditions. Features high wear resistance

and plastic deformation durability.

M05-M15

K15-K30

TiN

S10-S20 TiAlN

H05-H15 Base

IC808

P15-P30 A tough submicron grain size substrate with PVD coating and a

special SUMOTEC surface treatment. Recommended for general

use for a large variety of applications and materials such as

steels, alloy steels, austenitic stainless steel and high temperature

alloys at moderate cutting speeds and feeds. Features high wear

resistance and chipping durability.

M20-M30

K20-K40

TiN

S15-S30 TiAlN

H20-H30 Base

IC830

P30-P45 A tough substrate with PVD coating and a special SUMOTEC

surface treatment. Suitable for machining steel and stainless

steel at low to medium cutting speeds and moderate to high

feeds. The grade features high toughness and recommended for

interrupted cuts and machining under unstable conditions. May

be used on high temperature alloys at low cutting speeds.

M25-M40

TiN

TiAlN

Base

IC907

P10-P20 A hard submicron grain size substrate with PVD coating, suitable

for a wide range of materials such as steels,

alloy steels, hard steels, austenitic stainless steel and heat

resistant alloys at moderate to relatively high cutting speeds under

stable conditions. Features high wear resistance and plastic

deformation durability.

M05-M15

K15-K30

S10-S20 TiAlN

H05-H15 Base

IC908

P15-P30

A tough submicron grain size substrate with PVD coating,

recommended general use in a large variety of operations and

materials such as steels, alloy steels, austenitic stainless steel and

high temperature alloys at moderate cutting speeds.

Features high wear resistance and chipping durability.

M20-M30

K20-K40

S15-S30 TiAlN

H20-H30 Base

IC928

P30-P45

A tough substrate with PVD coating, suitable for machining steel

and stainless steel at low to medium cutting speeds and moderate

to high feeds. The grade is recommended for interrupted cut and

machining at unstable conditions.

M25-M40

AlTiCrN

Base

* For coated grades

ISCAR Parting Grades Chart

ISCAR

546

USER GUIDE

PARTING

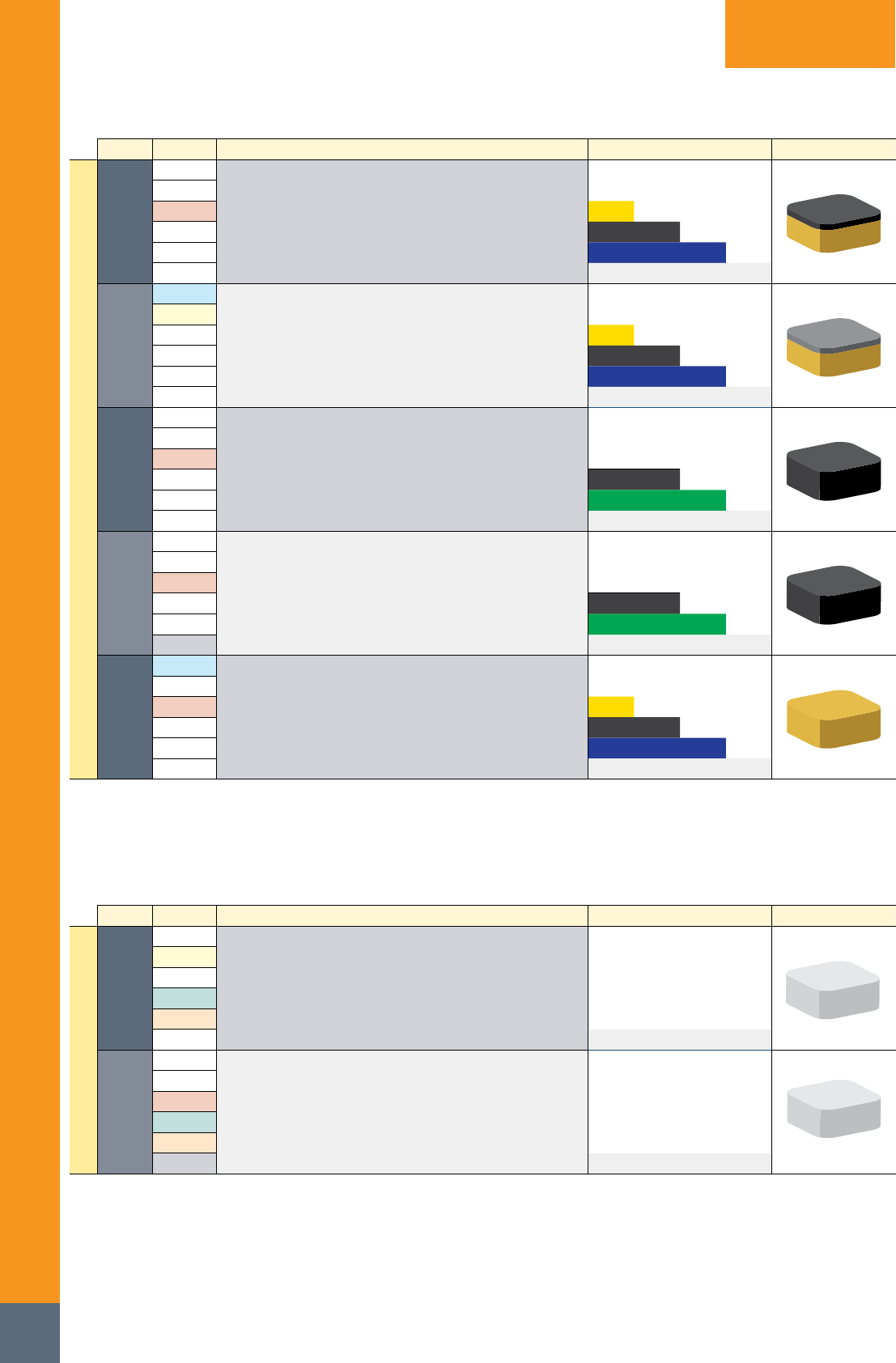

Grade ISO Grade Description Coating Layers Coating Color*

PVD COATED

IC1008

P15-P30

A tough submicron grain size substrate with PVD coating.

Recommended for general use on a wide range of applications

and materials as steels, alloy steels, austenitic stainless steel and

high temperature alloys at moderate cutting speeds.

M20-M30

K20-K40

TiN

S15-S30 TiAlN

H20-H30 Base

IC1010

P15-P30 A tough submicron grain size substrate with PVD coating.

Recommended for general use on a wide range of applications

and materials such as steels, alloy steels, austenitic stainless steel

and high temperature alloys at moderate cutting speeds and low

to medium feeds. The grade features improved toughness and

wear resistance which extends tool life.

M20-M30

K20-K40

TiN

S15-S30 AITiN

H20-H30 Base

IC1028

P30-P45

A tough substrate with PVD coating, suitable for machining

steel and stainless steel at low to medium cutting speeds

and moderate to high feeds. The grade is recommended for

interrupted cuts and machining under unstable conditions.

M25-M40

TiN

AlTiCrN

Base

IC1030

P30-P45

A tough substrate with PVD coating, suitable for machining

steel and stainless steel at low to medium cutting speeds and

moderate to high feeds. Recommended for interrupted cuts

and machining under unstable conditions. The grade features

improved toughness and wear resistance which extends tool life.

M25-M40

TiN

AITiN

Base

CVD COATED

IC5400

P30-P45

A tough substrate with MTCVD coating and a special SUMOTEC

post coating treatment. Suitable for machining steel and stainless

steel at low to medium cutting speeds and moderate to high

feeds under stable and unstable machining conditions.

M25-M45

TiN

Al2O3

TiCN

Base

* For coated grades

ISCAR Parting Grades Chart

Grade ISO Grade Description Uncoated Layers Uncoated

CERMET

IC30N

P10-P30

A tough cermet grade, suitable for machining, steels and stainless

steel at medium to high cutting speeds and low feeds.

Features excellent surface finish, very good wear resistance and

prevents built-up edge.

M10-M20

Base

UNCOATED

IC20

A hard-uncoated carbide grade for machining aluminum and

other non-ferrous materials at medium to high cutting speeds.

Can be used for cast iron at low cutting speeds.

Suitable also for machining high temperature and Titanium alloys,

at low cutting speeds.

K10-K20

N05-N25

S10-S20

H10-H20 Base

547

USER GUIDE

PARTING

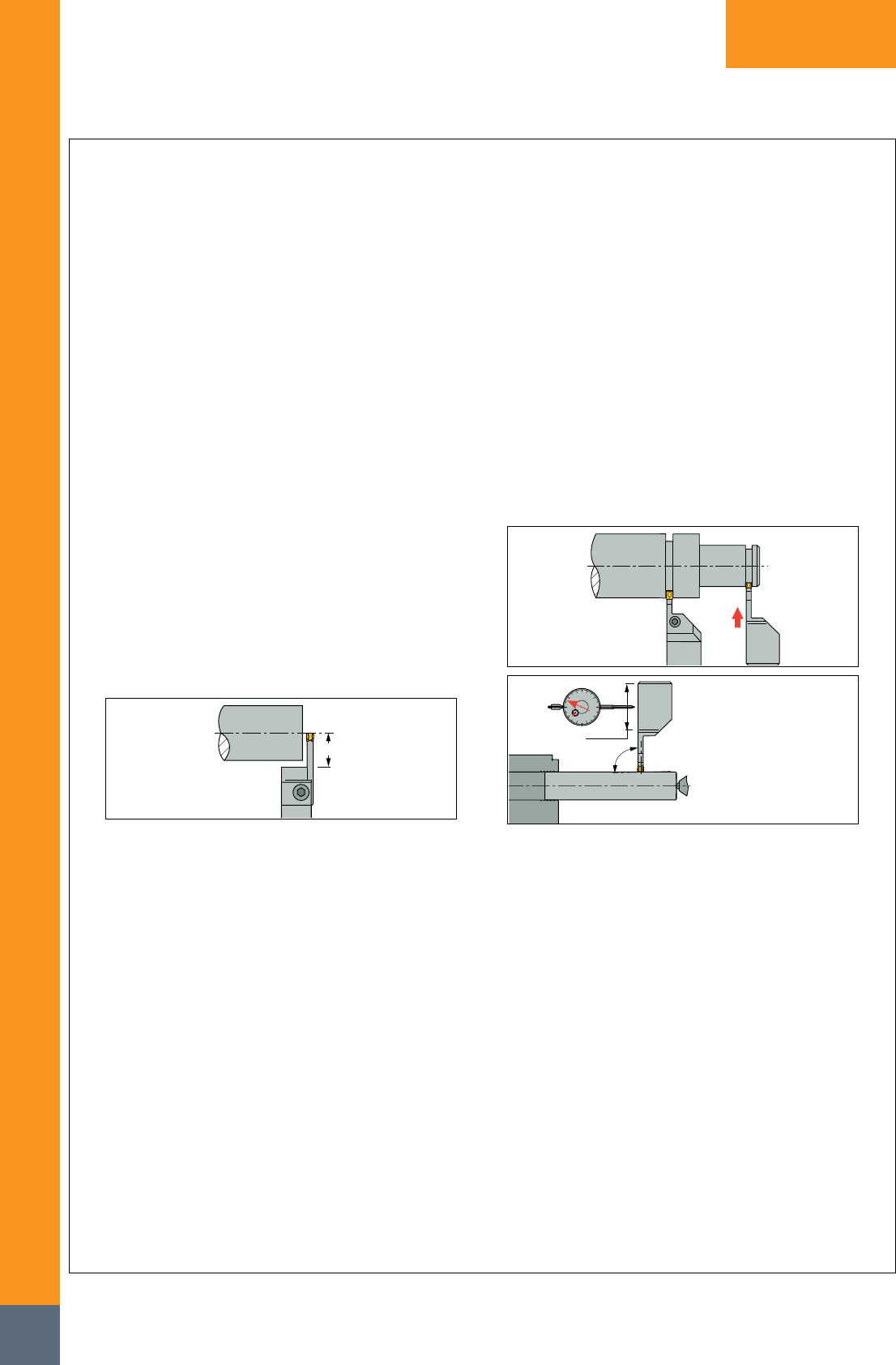

Y Axis TAGPAD setup on Multi-Task

and Turning Center Machines

For setup in X direction, use the dimensions marked

on the adapter. Setup in Y Axis is not needed.

Adapter TAGPAD-Y-D82….

Machine probe

Block C6/C8 ASH R/L

HSK ASH R/L…

MAH…XL…JHP…

FEED

Option 2

for correct postion

compensate

X axis 3 mm

Option 1

Option 2

* Option 1 is preferable due to better accuracy

Setting in X Axis

Set the cutting edge on the center line:

Option 1 - Gauge the cutting edge

Option 2 - Gauge the blade and compensate 3mm

ISCAR

548

PARTING

549

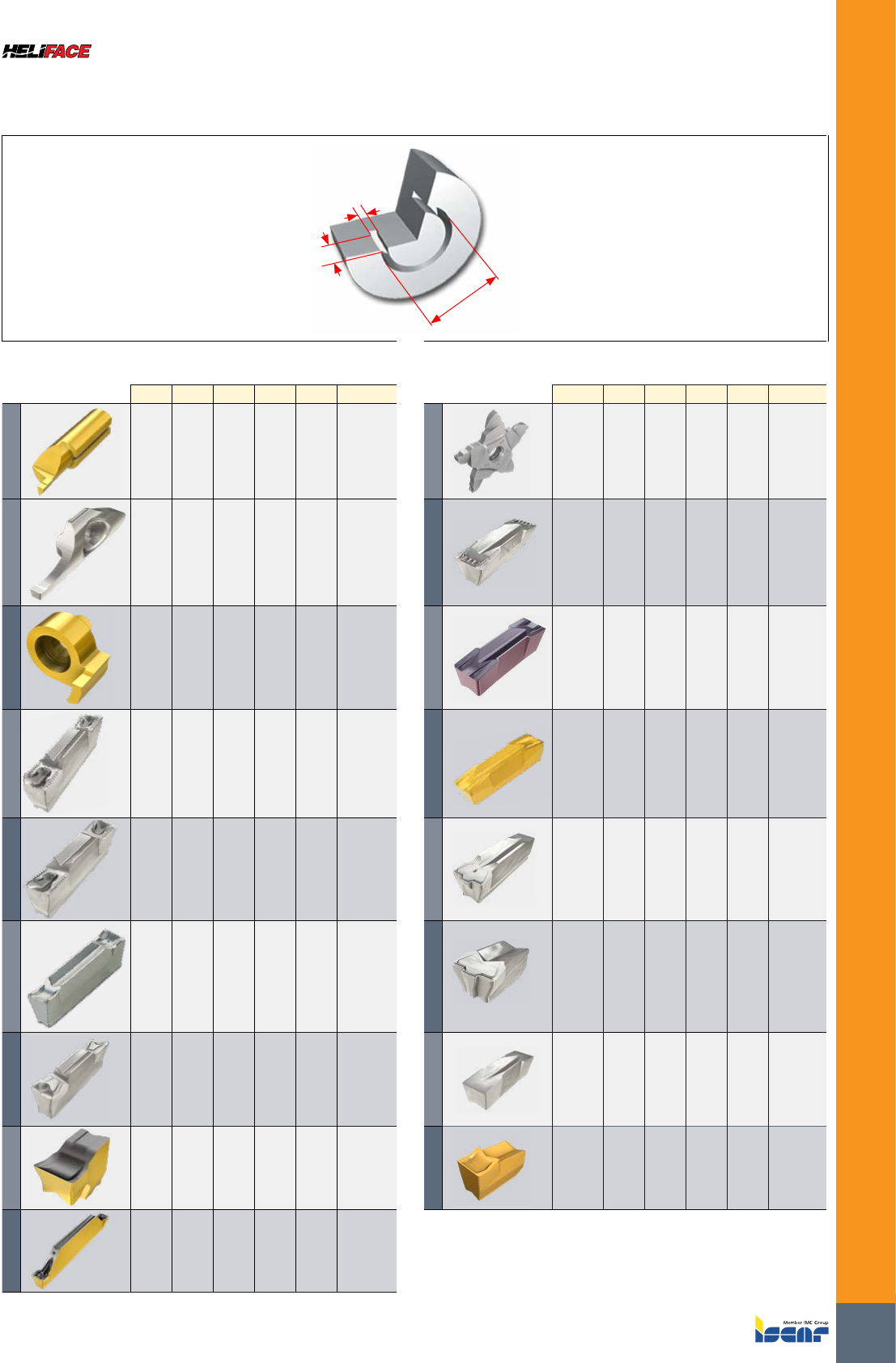

FACE GROOVING

FACE GROOVING AND TURNING

ISCAR

550

FACE GROOVING

Selection Guide ................................................................................................551

Tools and Inserts ..............................................................................................557

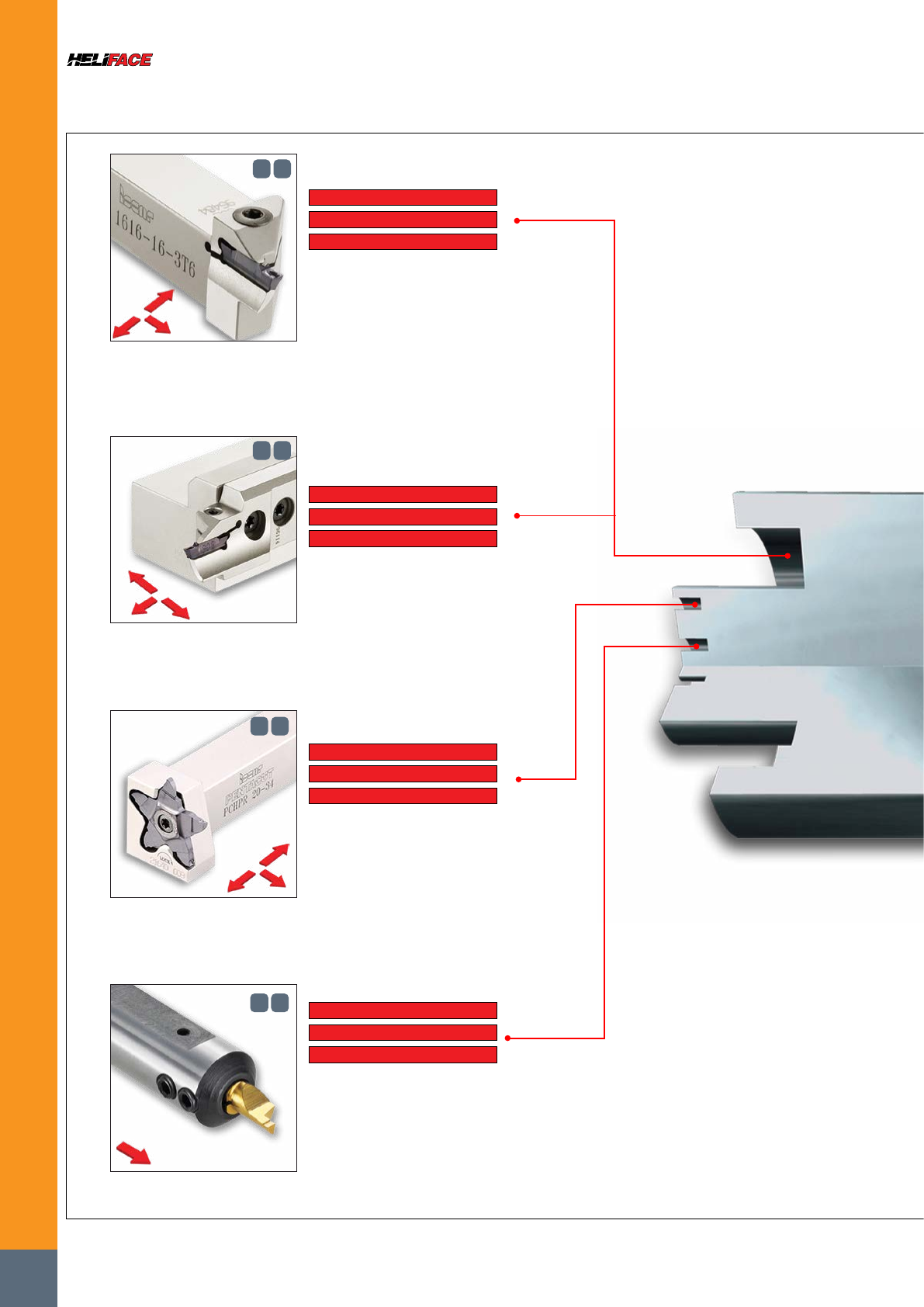

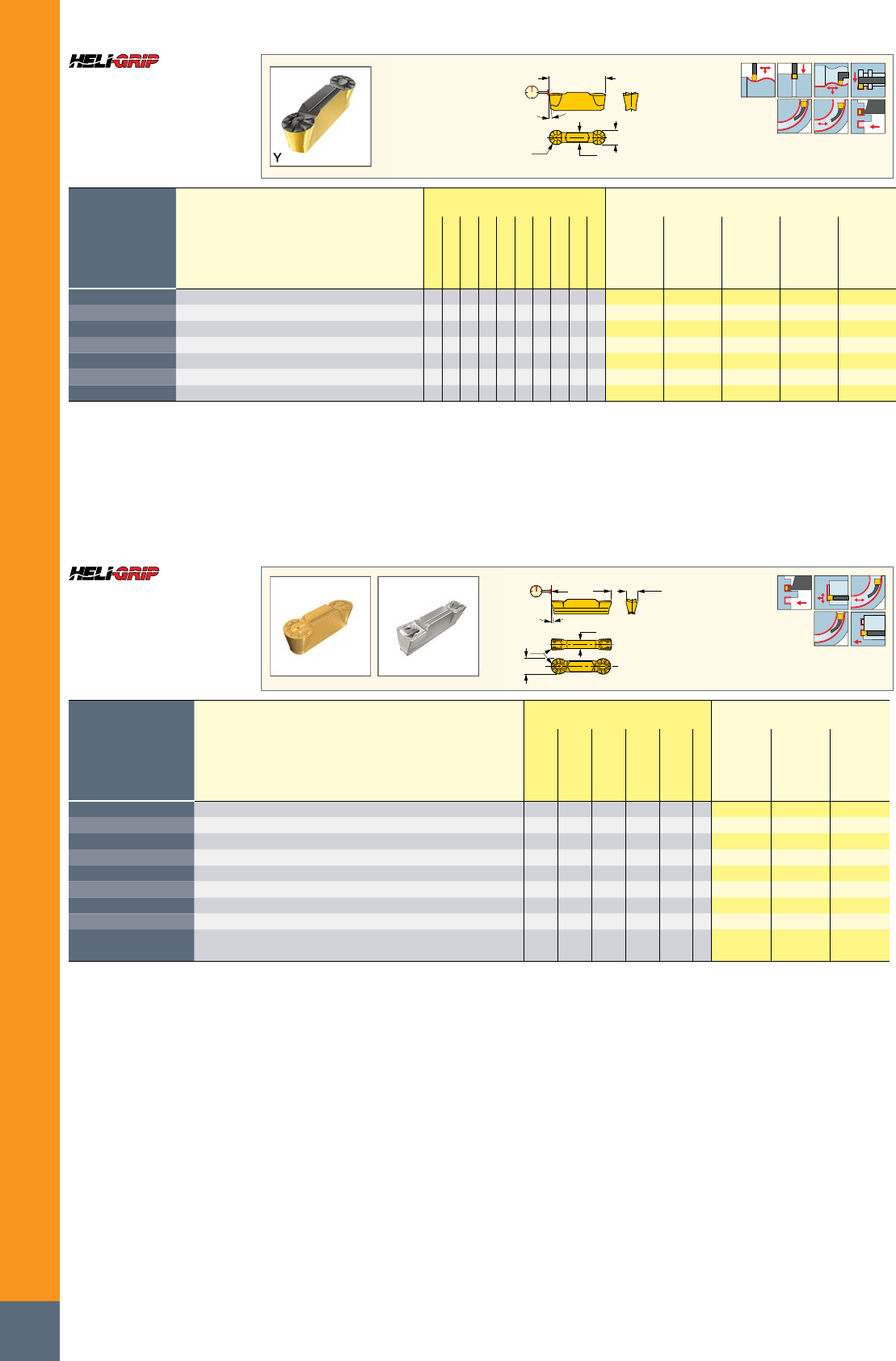

HELI-FACE and HELI-GRIP .................................................................................557

CUT-GRIP ...........................................................................................................579

TANG-GRIP .........................................................................................................583

SELF-GRIP .......................................................................................................... 586

PENTACUT ..........................................................................................................589

Tools for Miniature Parts .................................................................................592

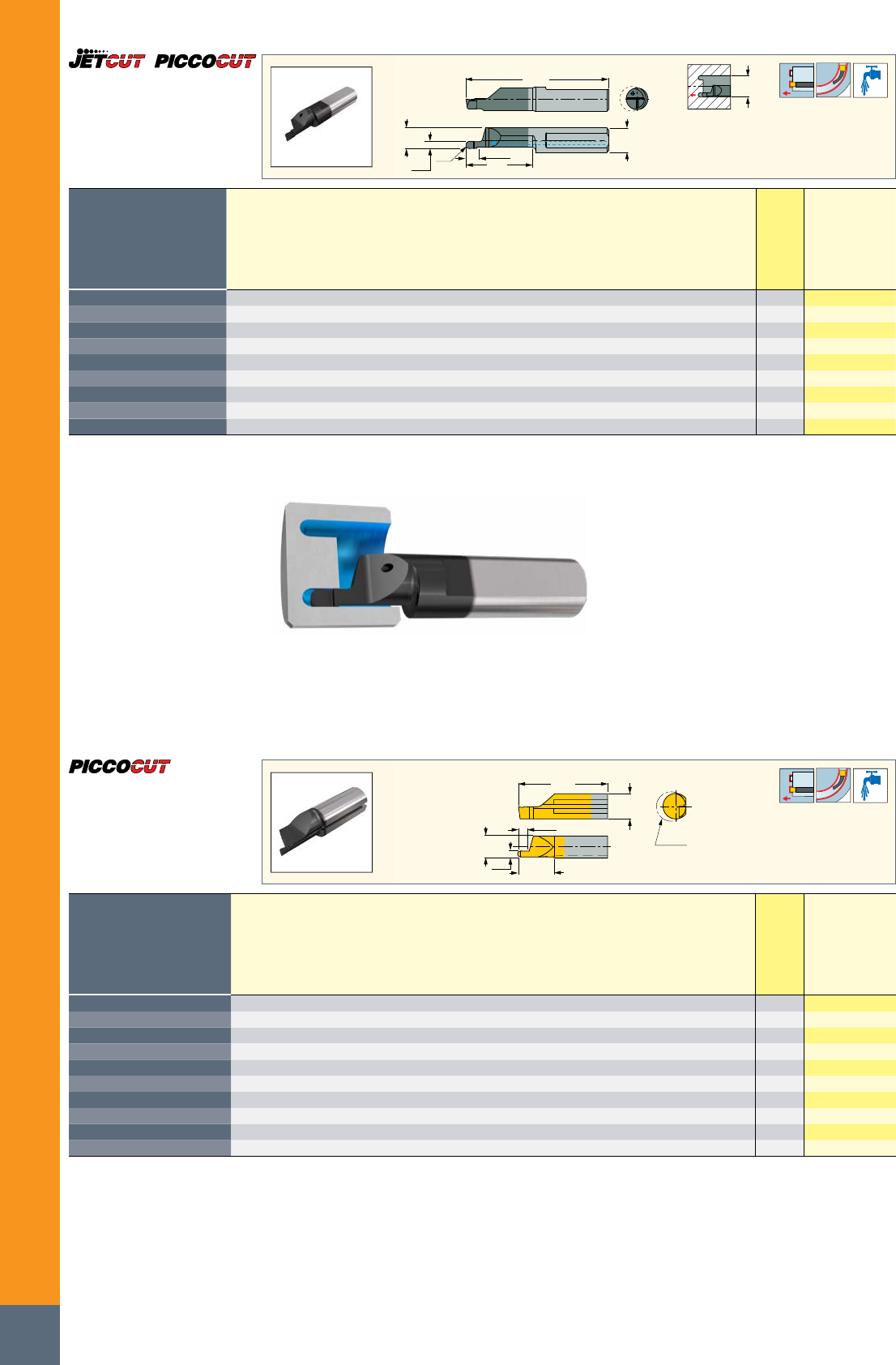

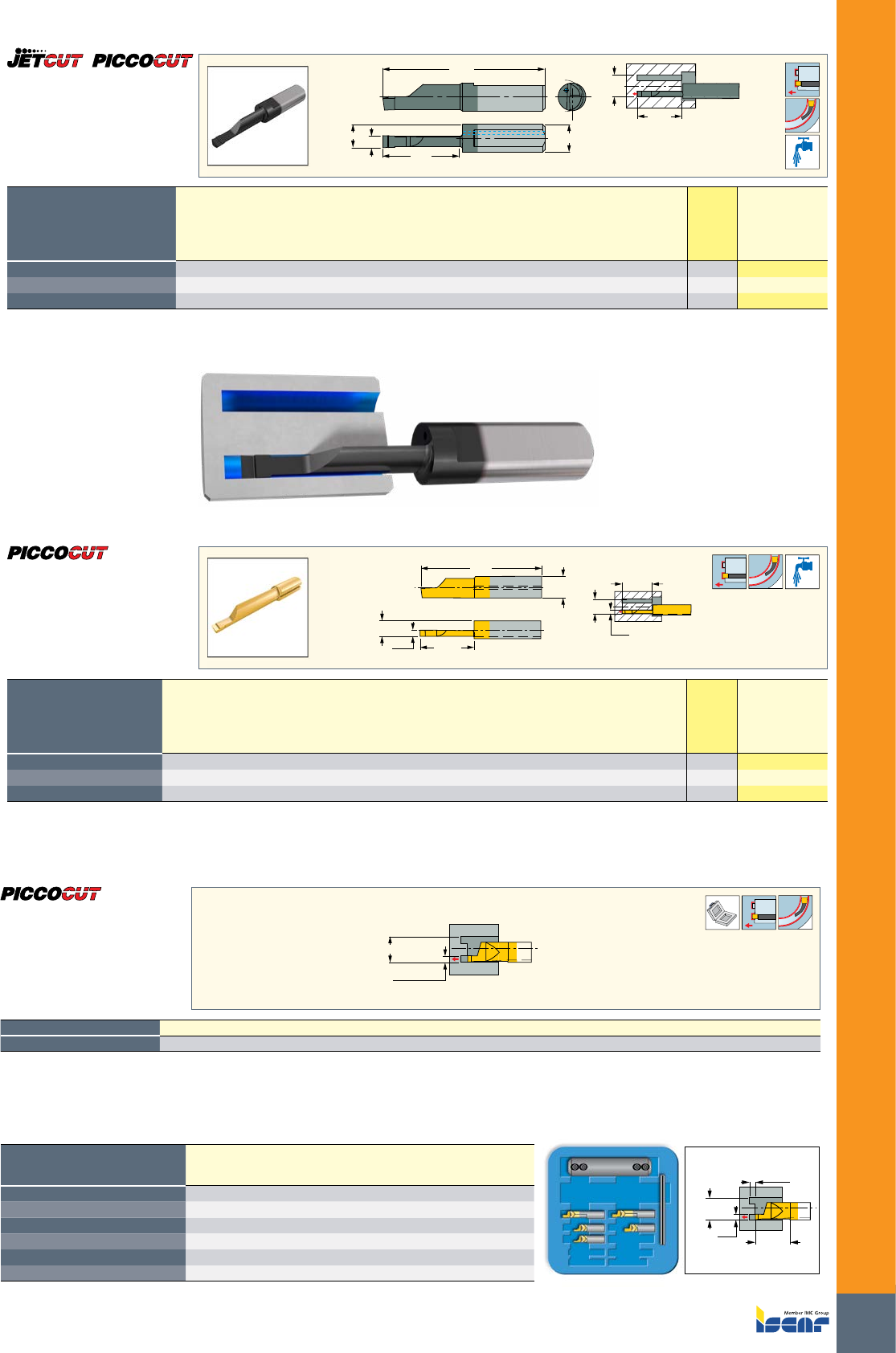

PICCO-CUT ........................................................................................................592

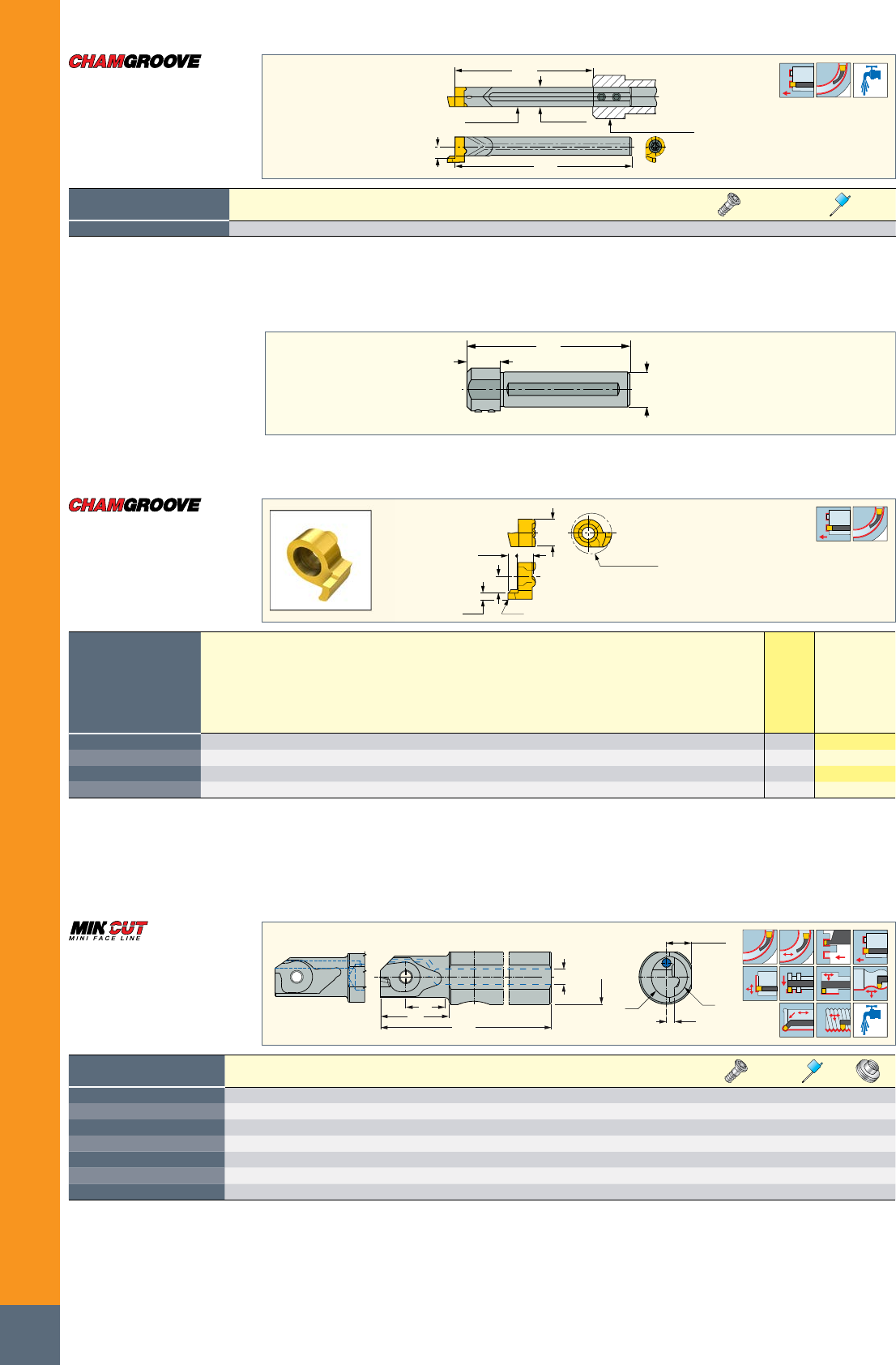

CHAMGROOVE ...................................................................................................598

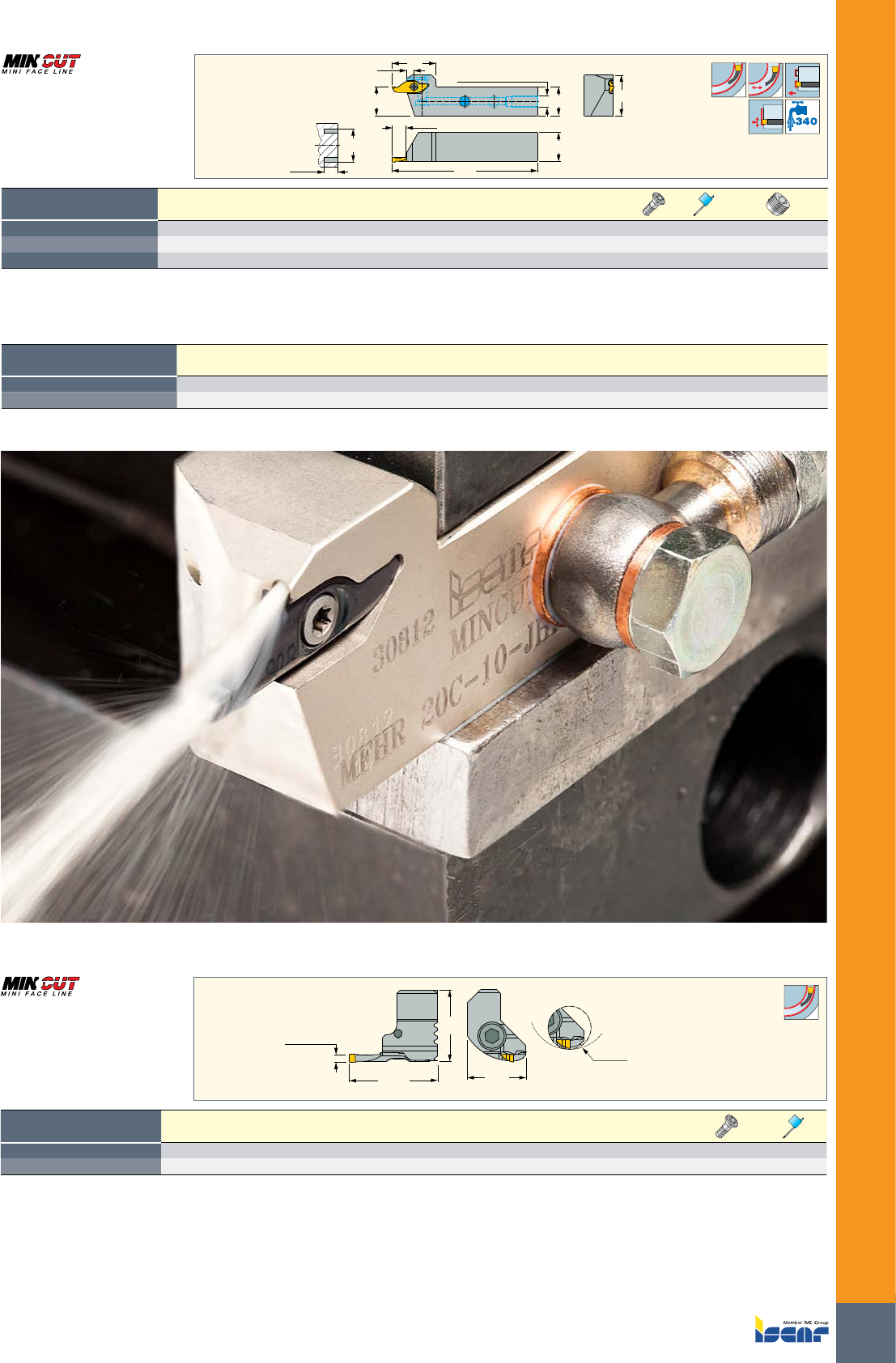

MINCUT ..............................................................................................................598

User Guide ........................................................................................................602

Cutting Speed Recommendations. ...................................................................... 602

Face Gooving Grades Chart ................................................................................605

TABLE OF CONTENTS

551

FACE GROOVING

A Variety of Inserts for

Face Machining Applications

CDX

DAXN

Face Grooving DAXN 6–40 mm Face Grooving DAXN 24–80 mm

DAXN DAXX CWN CWX CDX Page DAXN DAXX CWN CWX CDX Page

Picco

6 - 1 3 30 541-543

PENTA 34F

22 ∞ 2.39 4 5 570-571

MIFR/MEFL

8 - 1.5 3.5 15 545

GDMY/N

50 ∞ 8 8 27 272-273,

564-565

GFQR

12 19 1 2.5 3 543

GIF

80 ∞ 8 10 27 563

HGPL

12 ∞ 3 6 ∞ 560

GIFG 8

50 ∞ 8 8 25 563

GRIP

12 ∞ 3 6.35 ∞ 559-560

GIMM 8CC

80 ∞ 8 8 ∞ 565

DGN

21 ∞ 4 6 ∞ 438-440

GDMM CC

50 ∞ 7 8 ∞ 565

HFPR/L

12 ∞ 3 6 ∞ 558

GIA-K

80 ∞ 8 8 25 282

TNF

30 700 3 6 ∞ 567

GFF

25 55 2.1 6 35 260

HFPN

27 130 2 2 14 557

ISCAR

552

FACE GROOVING

Small Diameter

Face Machining Systems

Integral shank toolholder with

double-ended inserts.

Used for face grooving and face

turning of small parts for 12 mm

minimum groove diameter.

Tool: HGHR/L see page 558

Insert: GRIP… / HGPL…

CW = 3-6.35 mm

CDX = 6 mm

DAXN = 12 mm

Exchangeable external adapters.

Used with HELIFACE and GRIP

inserts for deep face machining.

Tool: HGAER/L… (adapter) see page 565

Tool: HFAER/L… (adapter) see pages 565-566

Insert: HFPR/L…

CW = 3-6 mm

CDX = 32 mm

DAXN = 12 mm

Pentagonal insert for face

grooving and recessing up

to 5 mm depth of cut at a

minimum of 22 mm diameter.

Tool: PCHPR/L see page 316

Insert: PENTA 34F...

CW = 2.39-4 mm

CDX = 5 mm

DAXN = 22 mm

Small solid carbide bars for

machining shallow grooves from

6 mm minimum diameter.

Tool: PICCO R010 see page 594

CW = 1-5 mm

CDX = 6 mm

DAXN = 6 mm

553

USER GUIDE

FACE GROOVING

Small solid carbide bars for

machining deep face grooves of up

to 30 and 8 mm minimum diameter.

Tool: PICCO R015 see page 597

CW = 2.5-3 mm

CDX = 30 mm

DAXN = 8 mm

MINCUT-A family of internal face

grooving and face turning tools

for machining small diameters

ranging from 8-60 mm.

Strong and stable tangential

pocket with internal coolant.

CW = 1.5-3.5 mm

CDX = 5.5 mm

DAXN = 8 mm

Tool: MIFHR ... see page 598

Insert: MIFR …

Tool: MGCH 09C see page 598

Insert: GFQR…

A screw-clamped insert on an

internal coolant solid carbide bar.

Used for machining shallow grooves

from 12 mm minimum diameter.

CW = 1-2.5 mm

CDX = 3 mm

DAXN = 12 mm

Main Applications

External Grooving Internal Grooving

CDX

DAXN

CDX

DAXN

CDX

DAXN

Grooving Next to a Shaft

A B

ISCAR

554

FACE GROOVING

Tool: HFHR/L… see pages 558-561

Insert: HFPR/L…

CW = 3-6 mm

CDX = 32 mm

DAXN = 25 mm

Integral shank toolholders

carrying HELIFACE and GRIP

inserts. For deep face grooving

and side face turning.

Tool: TNFFH see page 583

Insert: TNF 3-6C…

CW = 3-6 mm

CDX = 35 mm

DAXN = 30 mm

Adapter and blade toolholders

carrying TNF 3-6C inserts.

For deep face grooving.

Slanted, screw-clamped adapter carrying

HELIFACE and GRIP inserts. A part

of the MODULAR-GRIP system. Very

rigid, for tough face operations.

Tool: HFPAD… (adapter) see pages 562-564

Insert: HFPR/L…

CW = 3-6 mm

CDX = 20 mm

DAXN = 25 mm

Reinforced blades carrying TNF

3-6C inserts. Recommended

for face grooving only. Can

machine along a shaft.

Excellent chip evacuation.

Tool: TNFFA see page 584

Insert: TNF 3-6C…

CW = 3-6 mm

CDX = 35 mm

DAXN = 30 mm

Economical, double-ended blades

carrying HELIFACE and GRIP

inserts. Recommended for deep

face grooving and face turning to

a maximum depth of 38 mm.

Tool: HFFR/L… see page 564

Insert: HFPR/L…

CW = 4-6 mm

CDX = 38 mm

DAXN = 48 mm

Medium Diameter

Face Machining Systems

555

USER GUIDE

FACE GROOVING

Integral toolholders carrying

HELIFACE and GRIP inserts. For

machining up to 5.3 mm depth of

cut. 3-6 mm wide inserts can be

mounted in the same pocket.

Tool: HFHR/L..-M see page 566

Insert: HFPR/L…

CW = 3-6 mm

CDX = 5.3 mm

DAXN = 20 mm

Exchangeable, internal coolant

adapters carrying HELIFACE and

GRIP inserts. Recommended for

deep internal face machining.

Tool: HFAIR/L…& HGAIR/L

(adapter) see pages 568, 572

Insert: HFPR/L…

CW = 3-6 mm

CDX = 12 mm

DAXN = 32 mm

Boring bars for shallow face

machining of up to 5 mm

depth carrying HELIFACE and

GRIP inserts. Internal coolant.

3-6 mm width inserts can be

mounted in the same pocket.

Tool: HFIR/L..-MC see page 574

Insert: HFPR/L…

CW = 3-6 mm

CDX = 5 mm

DAXN = 20 mm

C B

Main Applications

External Grooving Internal Grooving

CDX

DAXN

CDX

DAXN

CDX

DAXN

Grooving Next to a Shaft

A B

Pentagonal insert for face grooving

and recessing next to shoulders

up to 5 mm depth of cut at a

minimum of 22 mm diameter.

Tool: PCHPRS/LS see page 590

Insert: PENTA 34F-RS/LS…

CW = 2.39-4 mm

CDX = 5 mm

DAXN = 22 mm

Tool: TNFFA see page 584

Insert: TNF 3-6C…

ISCAR

556

USER GUIDE

FACE GROOVING

Large Diameter

Face Machining Systems

Blades carrying 8 mm single-ended

CUT-GRIP inserts. Can machine

up to 120 mm depth next to a

shaft. Used for large diameters.

Tool: CGFG 51-..R/L-P8

see page 580

Insert: GIMY 8…

CW = 8 mm

CDX = 120 mm

DAXN = 180 mm

Tool: GHFG ..R/L-8 see page 579

Insert: GDMY 8..

Integral toolholders carrying 8 mm

CUT-GRIP inserts. For heavy

machining of medium and large parts.

Can machine next to a shaft of up to

25 mm depth.

CW = 8 mm

CDX = 25 mm

DAXN = 50 mm

Exchangeable adapters carrying

8 mm CUT-GRIP inserts. Can

machine up to 25 mm depth next

to a shaft. For heavy machining

of medium and large parts.

Tool: GAFG ..R/L-8

(adapter) see page 580

Insert: GDMM 8CC

CW = 8 mm

CDX = 25 mm

DAXN = 80 mm

Main Applications

CDX

DAXN

Grooving Next to a Shaft

External Grooving

CDX

DAXN

Internal Grooving

CDX

DAXN

557

FACE GROOVING

CDX

OAL

WB_2

DAXN-DAXX HF H

Right-hand shown

Designation

DAXN(1) DAXX(2) CW CDX WF WB_2 HF H OAL

HFFH 38R/L-2

38.0 45.0 2.00 14.00 4.50 5.2 24.8 32.0 150.00 EDG 33B*

HFFH 45R/L-2

45.0 60.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*

HFFH 60R/L-2

60.0 80.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*

HFFH 80R/L-2

80.0 100.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*

HFFH 100R/L-2

100.0 130.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*

• H dimension links blades and blocks

(1) Minimum penetration diameter

(2) Maximum penetration diameter * Optional, should be ordered separately

For inserts, see pages: HFPN (575)

For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

HFFH

Face Grooving Blades

OAL

CDX

DAXN-DAXX

WB_2

HF H

Right-hand shown

Designation

CW DAXN(1) DAXX(2) CDX H WF HF OAL WB_2

HFFA 27R/L-2

2.00 27.0 29.0 14.00 32.0 9.50 24.8 102.00 21.0 EDG 33B*

HFFA 29R/L-2

2.00 29.0 33.0 14.00 32.0 9.50 24.8 102.00 18.5 EDG 33B*

HFFA 33R/L-2

2.00 33.0 38.0 14.00 32.0 9.50 24.8 102.00 17.5 EDG 33B*

HFFA 38R/L-2

2.00 38.0 46.0 14.00 32.0 9.50 24.8 102.00 13.5 EDG 33B*

HFFA 46R/L-2

2.00 46.0 60.0 14.00 32.0 9.50 24.8 102.00 13.5 EDG 33B*

HFFA 60R/L-2

2.00 60.0 80.0 14.00 32.0 9.50 24.8 102.00 14.0 EDG 33B*

HFFA 80R/L-2

2.00 80.0 105.0 14.00 32.0 9.50 24.8 102.00 16.1 EDG 33B*

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

* Optional, should be ordered separately

For inserts, see pages: HFPN (575)

For holders, see pages: SGTBU/SGTBN (616) • UBHCR/L (618)

HFFA

Reinforced Face Grooving Blades

ISCAR

558

FACE GROOVING

CDX HBH

OAL

WF CW

OAW

OAH

CDX

DAXN-DAXX

Right-hand shown

Designation

H B CW CDX HBH WF DAXN(1) DAXX(2) OAL LH OAH OAW

HGHR 1010-12-3T6

10.0 10.0 3.00 6.00 2.0 9.50 12.0 16.0 120.00 19.0 19.0 13.70 SR 76-1400 T-20/3

HGHR 1010-16-3T6

10.0 10.0 3.00 6.00 2.0 9.50 16.0 25.0 120.00 19.0 19.0 12.80 SR 76-1400 T-20/3

HGHR/L 1212-12-3T6

12.0 12.0 3.00 6.00 - 11.00 12.0 16.0 120.00 19.0 19.0 15.70 SR 76-1400 T-20/3

HGHR 1212-16-3T6

12.0 12.0 3.00 6.00 - 11.00 16.0 25.0 120.00 19.0 19.0 14.80 SR 76-1400 T-20/3

HGHR/L 1616-12-3T6

16.0 16.0 3.00 6.00 - 15.00 12.0 16.0 120.00 19.0 21.0 19.70 SR 76-1400 T-20/3

HGHR/L 1616-16-3T6

16.0 16.0 3.00 6.00 - 15.00 16.0 25.0 120.00 19.0 21.0 18.80 SR 76-1400 T-20/3

HGHR/L 2020-12-3T6

20.0 20.0 3.00 6.00 - 20.00 12.0 16.0 120.00 19.0 25.0 24.00 SR 76-1400 T-20/3

HGHR/L 2020-16-3T6

20.0 20.0 3.00 6.00 - 20.00 16.0 25.0 120.00 19.0 25.0 24.00 SR 76-1400 T-20/3

HGHR/L 2525-12-3T6

25.0 25.0 3.00 6.00 - 25.00 12.0 16.0 120.00 19.0 30.0 29.00 SR 76-1400 T-20/3

HGHR/L 2525-16-3T6

25.0 25.0 3.00 6.00 - 25.00 16.0 25.0 120.00 19.0 30.0 29.00 SR 76-1400 T-20/3

• HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGPL (578)

No limitation for widening groove toward or away

from center, except for the following tools:

Limitation of widening toward center

depends on the major diameter (D)

as per chart.

HGHR/L...-12-3T6

D d

12.0 4.0

13.0 1.0

13.5 0

HGHR/L-3

Integral Holders for Face

Grooving and Turning

WF2

CDX WF

OAL

HF OAH

DAXN-DAXX

CDX HFHR/L --3T12

Right-hand shown

Designation

CW CDX H HF B OAL WF WF2 DAXN(2) DAXX(3) LH OAH

HFHR/L 20-25-3T12

3.00 12.00 20.0 20.0 20.0 140.00 20.50 5.3 25.0 30.0 38.0 28.0 SR M6X16 DIN912 HW 5.0

HFHR/L 20-30-3T12

3.00 12.00 20.0 20.0 20.0 140.00 20.50 5.3 30.0 38.0 38.0 29.0 SR M6X16 DIN912 HW 5.0

HFHR/L 20-38-3T12

3.00 12.00 20.0 20.0 20.0 140.00 20.50 5.3 38.0 48.0 38.0 30.0 SR M6X16 DIN912 HW 5.0

HFHR/L 20-48-3T12

3.00 12.00 20.0 20.0 20.0 140.00 20.50 5.3 48.0 60.0 38.0 30.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-25-3T12

3.00 12.00 25.0 25.0 25.0 150.00 25.50 5.3 25.0 30.0 38.0 33.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-30-3T12

3.00 12.00 25.0 25.0 25.0 150.00 25.50 5.3 30.0 38.0 38.0 34.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-38-3T12

3.00 12.00 25.0 25.0 25.0 150.00 25.50 5.3 38.0 48.0 38.0 35.0 SR M6X16 DIN912 HW 5.0

HFHR/L 20-60-3T22 (1)

3.00 22.00 20.0 20.0 20.0 140.00 20.50 - 60.0 75.0 40.0 31.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-48-3T22 (1)

3.00 22.00 25.0 25.0 25.0 150.00 25.50 - 48.0 60.0 40.0 36.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-60-3T22 (1)

3.00 22.00 25.0 25.0 25.0 150.00 25.50 - 60.0 75.0 40.0 36.0 SR M6X16 DIN912 HW 5.0

HFHR/L 20-75-3T25 (1)

3.00 25.00 20.0 20.0 20.0 140.00 20.50 - 75.0 100.0 43.0 31.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-75-3T25 (1)

3.00 25.00 25.0 25.0 25.0 150.00 25.50 - 75.0 100.0 43.0 36.0 SR M6X16 DIN912 HW 5.0

• For user guide, see pages 604-613

(1) For deep face grooving only.

(2) Minimum penetration diameter

(3) Maximum penetration diameter

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576)

No limitation for widening groove toward or away

from center, except for the following tools:

Limitation of

widening toward

center (d) depends

on the major

diameter (D) as

per chart.

HFHR/L-:-25-4T12

D d

25 1

≥26 0

HFHR/L-:-29-4T12

D d

29 1

≥46 0

HFHR/L-:-25-3T12

D d

25 5

26 2

≥27 0

HFHR/L-3T

Integral Holders for Facing

559

FACE GROOVING

HFHR/L 20-25-4T12

WF2

CDX

HFHR/L --4T12

OAL

OAH

HBH

DAXN-DAXX

CDX

Right-hand shown

Designation

CW CDX H HF B OAL WF WF2 DAXN(1) DAXX(2) LH OAH HBH

HFHR/L 20-25-4T12

4.00 12.00 20.0 20.0 20.0 140.00 20.60 6.2 25.0 29.0 39.0 29.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-29-4T12

4.00 12.00 20.0 20.0 20.0 140.00 20.60 6.2 29.0 34.0 39.0 30.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-25-4T12

4.00 12.00 25.0 25.0 25.0 150.00 25.60 6.2 25.0 29.0 39.0 34.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-29-4T12

4.00 12.00 25.0 25.0 25.0 150.00 25.60 6.2 29.0 34.0 39.0 35.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-34-4T20

4.00 20.00 20.0 20.0 20.0 140.00 20.60 - 34.0 40.0 39.0 30.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-34-4T20

4.00 20.00 25.0 25.0 25.0 150.00 25.60 - 34.0 40.0 39.0 35.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-40-4T25

4.00 25.00 20.0 20.0 20.0 140.00 20.60 - 40.0 48.0 44.0 31.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-48-4T25

4.00 25.00 20.0 20.0 20.0 140.00 20.60 - 48.0 60.0 44.0 32.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-60-4T25

4.00 25.00 20.0 20.0 20.0 140.00 20.60 - 60.0 75.0 44.0 32.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-75-4T25

4.00 25.00 20.0 20.0 20.0 140.00 20.60 - 75.0 100.0 44.0 34.0 2.0 SR M6X16 DIN912 HW 5.0

HFHL 25-100-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 100.0 140.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHL 25-140-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.74 - 140.0 240.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-240-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 240.0 800.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-40-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 40.0 48.0 44.0 36.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-48-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 48.0 60.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-60-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 60.0 75.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHL 25-75-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 75.0 100.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR 25-100-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.74 - 100.0 140.0 44.0 37.0 -

HFHR 25-140-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.60 - 140.0 240.0 44.0 37.0 -

HFHR 25-75-4T25

4.00 25.00 25.0 25.0 25.0 150.00 25.80 - 75.0 100.0 44.0 37.0 -

• DGN & GRIP 4 mm inserts can be used only with right-hand tools, HGPL 4 mm with left-hand tools • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • HGPL (578)

Limitation of widening

toward center (d) depends

on the major diameter (D)

as per chart

HFHR/L-:-25-4T12

D d

25 1

≥26 0

HFHR/L-:-29-4T12

D d

29 1

≥46 0

Penetration Range

HFHR/L-4T

Integral Holders for Facing

ISCAR

560

FACE GROOVING

WF2

CDX

HFHR/L --5T10

OAL

OAH

HBH

DAXN-DAXX

CDX

Right-hand shown

Designation

CW CDX H HF B OAL WF2 WF DAXN(1) DAXX(2) LH OAH HBH

HFHR/L 20-25-5T10

5.00 10.00 20.0 20.0 20.0 140.00 7.1 21.00 25.0 30.0 38.0 28.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-25-5T10

5.00 10.00 25.0 25.0 25.0 150.00 7.1 26.00 25.0 30.0 38.0 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-110-5T14

5.00 14.00 25.0 25.0 25.0 150.00 - 23.50 110.0 200.0 32.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-52-5T14

5.00 14.00 25.0 25.0 25.0 150.00 - 23.50 52.0 75.0 32.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-75-5T14

5.00 14.00 25.0 25.0 25.0 150.00 - 23.50 75.0 110.0 32.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-28-5T15

5.00 17.00 20.0 20.0 20.0 140.00 - 21.00 28.0 31.0 34.0 30.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-31-5T15

5.00 17.00 20.0 20.0 20.0 140.00 - 21.00 31.0 35.0 34.0 30.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-28-5T15

5.00 17.00 25.0 25.0 25.0 150.00 - 26.00 28.0 31.0 34.0 35.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-31-5T15

5.00 17.00 25.0 25.0 25.0 150.00 - 26.00 31.0 35.0 34.0 35.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-35-5T20

5.00 20.00 20.0 20.0 20.0 140.00 - 21.00 35.0 40.0 39.0 31.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-40-5T20

5.00 20.00 20.0 20.0 20.0 140.00 - 21.00 40.0 45.0 39.0 31.0 - SR M6X16 DIN912 HW 5.0

HFHL 25-200-5T20

5.00 20.00 25.0 25.0 25.0 150.00 - 23.50 200.0 800.0 32.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-35-5T20

5.00 20.00 25.0 25.0 25.0 150.00 - 26.00 35.0 40.0 39.0 36.0 - SR M6X16 DIN912 HW 5.0

HFHL 25-40-5T20

5.00 20.00 25.0 25.0 25.0 140.00 - 26.00 40.0 45.0 39.0 36.0 - SR M6X16 DIN912 HW 5.0

HFHR 25-200-5T20

5.00 20.00 25.0 25.0 25.0 150.00 - 26.00 200.0 800.0 32.5 33.0 -

HFHR 25-40-5T20

5.00 20.00 25.0 25.0 25.0 150.00 - 26.00 40.0 45.0 39.0 36.0 -

HFHR/L 20-45-5T25

5.00 25.00 20.0 20.0 20.0 140.00 - 21.00 45.0 55.0 44.0 32.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-55-5T25

5.00 25.00 20.0 20.0 20.0 140.00 - 21.00 55.0 70.0 44.0 35.0 3.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-45-5T25

5.00 25.00 25.0 25.0 25.0 150.00 - 26.00 45.0 55.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-55-5T25

5.00 25.00 25.0 25.0 25.0 150.00 - 26.00 55.0 70.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-70-5T28

5.00 28.00 20.0 20.0 20.0 140.00 - 21.00 70.0 95.0 47.0 35.0 3.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-130-5T32

5.00 32.00 25.0 25.0 25.0 150.00 - 26.00 130.0 180.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-180-5T32

5.00 32.00 25.0 25.0 25.0 150.00 - 26.00 180.0 800.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-70-5T32

5.00 32.00 25.0 25.0 25.0 150.00 - 26.00 70.0 95.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-95-5T32

5.00 32.00 25.0 25.0 25.0 150.00 - 26.00 95.0 130.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

• DGN & GRIP 5.. inserts can be used only with right-hand tools, HGPL 5.. inserts with left-hand tools • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)

Limitation of widening

toward center (d)

depends on the major

diameter (D) as per

chart

No limitation for widening groove toward or away from center, except for the following tools:

HFHR/L-

o -31-5T15

D d

31 15

32 10

33 7

34 4

35 2

≥36 0

HFHR/L- o -28-5T15

D d

28 13

29 8

30 5

31 3

32 1

≥33 0

HFHR/L-o-25-5T10

D d

25 4

26 1

≥27 0

HFHR/L- o -30-6T10

D d

30 7

31 4

32 1

≥33 0

HFHR/L-5T

Integral Holders for Facing

561

FACE GROOVING

WF2

CDX

HFHR/L --6T10

OAL

OAH

HBH

DAXN-DAXX

CDX

Right-hand shown

Designation

CW CDX H HF B OAL WF2 WF DAXN(1) DAXX(2) LH OAH HBH

HFHL 20-26-6T10

6.00 10.00 20.0 20.0 20.0 140.00 7.9 21.40 26.0 30.0 39.0 29.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-30-6T15

6.00 17.00 20.0 20.0 20.0 140.00 - 21.40 30.0 38.0 36.0 30.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-30-6T15

6.00 17.00 25.0 25.0 25.0 150.00 - 26.40 30.0 38.0 36.0 35.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-38-6T20

6.00 20.00 20.0 20.0 20.0 140.00 - 21.40 38.0 50.0 39.0 31.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-100-6T20

6.00 20.00 25.0 25.0 25.0 150.00 - 26.00 100.0 200.0 40.0 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-200-6T20

6.00 20.00 25.0 25.0 25.0 150.00 - 23.00 200.0 3000.0 37.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-38-6T20

6.00 20.00 25.0 25.0 25.0 150.00 - 26.40 38.0 50.0 39.0 36.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-50-6T20

6.00 20.00 25.0 25.0 25.0 150.00 - 23.00 50.0 65.0 37.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-65-6T20

6.00 20.00 25.0 25.0 25.0 150.00 - 23.00 65.0 100.0 37.5 33.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 20-50-6T25

6.00 25.00 20.0 20.0 20.0 140.00 - 21.40 50.0 70.0 44.0 32.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-50-6T25

6.00 25.00 25.0 25.0 25.0 150.00 - 26.40 50.0 70.0 44.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-100-6T32

6.00 32.00 25.0 25.0 25.0 150.00 - 26.40 100.0 180.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

HFHR/L 25-180-6T32

6.00 32.00 25.0 25.0 25.0 150.00 - 26.40 180.0 400.0 51.0 40.0 3.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-400-6T32

6.00 32.00 25.0 25.0 25.0 150.00 - 26.40 400.0 3000.0 51.0 40.0 3.0 SR M6X16 DIN912 HW 5.0

HFHR/L 25-70-6T32

6.00 32.00 25.0 25.0 25.0 150.00 - 26.40 70.0 100.0 51.0 37.0 - SR M6X16 DIN912 HW 5.0

• DGN & GRIP 6.. inserts can be used only with right-hand tools, HGPL 6.. inserts with left-hand tools • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • HGPL (578)

Limitation of

widening

toward center (d)

depends on the

major diameter (D)

as per chart

No limitation for widening groove toward or away

from center, except for the following tools:

HFHR/L- o -30-6T10

D d

30 7

31 4

32 1

≥33 0

HFHR/L-6T

Integral Holders for Facing

OAH

OAW

LH OAL

MHD

MHD_2

HBH

Right-hand shown

Designation

H B LH OAL HBH OAH OAW HF L5 MHD MHD_2

MAHPR/L-XL-20-JHP-MCG

20.0 20.0 23.0 120.00 24.0 53.00 45.00 20.0 29.00 50.00 85.00

MAHPR/L-XL-25-JHP-MCG

25.0 25.0 15.0 120.00 19.0 53.00 45.50 25.0 35.00 50.00 90.00

For tools, see pages: DGPAD-XL-JHP (480) • HFPAD-JHP (562) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TNFPAD-XL-JHP (569)

Spare Parts

Designation

MAHPR/L-XL-20-JHP-MCG

SR M5-04451 T-20/5 SR M6X16 DIN912 HW 5.0 OR 5X1N SR M4X4 DIN913 TL360 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SUPPORT MG-XL-5113377

MAHPR/L-XL-25-JHP-MCG

SR M5-04451 T-20/5 SR M6X16 DIN912 HW 5.0 OR 5X1N SR M4X4 DIN913 TL360 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SUPPORT MG-XL-5113377

MAHPR/L-XL-JHP

Holders with High Pressure

Coolant Channels for

MODULAR-GRIP Perpendicularly

Mounted Adapters

ISCAR

562

FACE GROOVING

OAH

ØDAXN-DAXX

CDX

OAL

Right-hand shown

Designation

CW CDX WF WB OAL HF OAH DAXN(1) DAXX(2)

HFPAD 3R/L-40-T10-JHP

3.00 10.00 4.80 5.80 39.50 24.0 33.00 40.0 65.0

HFPAD 3R/L-115-T18-JHP

3.00 18.00 4.80 5.80 43.50 24.0 33.00 115.0 400.0

HFPAD 3R/L-65-T18-JHP

3.00 18.00 4.80 5.80 43.50 24.0 33.00 65.0 115.0

HFPAD 4R/L-44-T14-JHP

4.00 14.00 4.80 5.80 40.50 24.0 33.00 44.0 58.0

HFPAD 4R/L-58-T14-JHP

4.00 14.00 4.80 5.80 40.50 24.0 33.00 58.0 88.0

HFPAD 4R/L-88-T14-JHP

4.00 14.00 4.50 5.80 40.50 24.0 33.00 88.0 175.0

HFPAD 4R/L-175-T20-JHP

4.00 20.00 4.80 6.50 45.50 24.0 33.00 175.0 800.0

HFPAD 5R/L-110-T14-JHP

5.00 14.00 4.50 6.30 45.50 24.0 33.00 110.0 200.0

HFPAD 5R/L-40-T14-JHP

5.00 14.00 4.50 6.30 40.50 24.0 33.00 40.0 50.0

HFPAD 5L-50-T14-JHP

5.00 14.00 4.50 6.30 40.50 24.0 33.00 50.0 75.0

HFPAD 5R/L-75-T14-JHP

5.00 14.00 4.50 6.30 40.50 24.0 33.00 75.0 110.0

HFPAD 5R/L-200-T20-JHP

5.00 20.00 4.50 6.60 45.50 24.0 33.00 200.0 800.0

HFPAD 6R/L-60-T14-JHP

6.00 14.00 4.50 6.80 40.50 24.0 33.00 60.0 100.0

HFPAD 6R/L-100-T20-JHP

6.00 20.00 4.50 6.80 45.50 24.0 33.00 100.0 200.0

HFPAD 6R/L-200-T20-JHP

6.00 20.00 4.50 7.10 45.50 24.0 33.00 200.0 3000.0

• WF(assembly)=WF(shank) + WF(adapter) • HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters

• For user guide, see pages 604-613

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

For inserts, see pages: DGN-MF (485) • DGN-W (482) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • GRIP (269) • GRIP (full radius) (270)

• HFPR/L (576) • HFPR/L (full radius) (576) • HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGPL (578)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • MAHPR/L-JHP (281) • MAHPR/L-XL-JHP (561) • MAHR/L-JHP (279) • MAHR/L-JHP-MC (280)

HFPAD-JHP

Adapters for Face Machining

OAH

OAL

WB_2

WF (adapter)

Holder: MAHPL Holder: MAHR

OHN

WF(assembly)

DAXN-DAXX

CDX

Left-hand shown

Designation

DAXN(1) DAXX(2) CW CDX OHN(3) WF(4) WB_2 OAL HF OAH

HFPAD 3R/L-25-T10

25.0 30.0 3.00 10.00 15.0 4.80 5.8 39.50 24.0 32.0

HFPAD 3R/L-30-T10

30.0 40.0 3.00 10.00 15.0 4.80 5.8 39.50 24.0 32.0

HFPAD 3R/L-40-T10

40.0 65.0 3.00 10.00 15.0 4.80 5.8 39.50 24.0 32.0

HFPAD 3R/L-65-T18

65.0 115.0 3.00 18.00 19.0 4.80 5.8 43.50 24.0 32.0

HFPAD 3R/L-115-T18

115.0 400.0 3.00 18.00 19.0 4.80 5.8 43.50 24.0 32.0

• WF(assembly)=WF(shank) + WF(adapter) • HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Minimum overhang

(4) WF(adapter)

For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGPL (578)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • IH-HFPAD (571) • MAHR/L-JHP-MC (280) • MAHPR/L-JHP (281)

• MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHPD (625) • C#-MAHDR-45 (623) • C#-MAHDOR (624)

• HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633) • IM-MAHPD (633)

HFPAD-3

Adapters for Face Machining

563

FACE GROOVING

OAH

OAL

WB_2

WF (adapter)

Holder: MAHPL Holder: MAHR

OHN

WF(assembly)

DAXN-DAXX

CDX

Left-hand shown

Designation

DAXN(1) DAXX(2) CW CDX OHN(3) WF(4) WB_2 OAL HF OAH

HFPAD 4R/L-25-T10

25.0 31.0 4.00 10.00 16.0 4.50 5.8 40.50 24.0 32.0

HFPAD 4R/L-31-T10

31.0 44.0 4.00 10.00 16.0 4.50 5.8 40.50 24.0 32.0

HFPAD 4R/L-44-T14

44.0 58.0 4.00 14.00 16.0 4.50 5.8 40.50 24.0 32.0

HFPAD 4R/L-58-T14

58.0 88.0 4.00 14.00 16.0 4.50 5.8 40.50 24.0 32.0

HFPAD 4R/L-88-T14

88.0 175.0 4.00 14.00 16.0 4.50 5.8 40.50 24.0 32.0

HFPAD 4R/L-175-T20

175.0 800.0 4.00 20.00 21.0 4.50 6.5 45.50 24.0 32.0

• WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4.. inserts with left-hand adapters

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Minimum overhang

(4) WF(adapter)

For inserts, see pages: DGN-MF (485) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • GRIP (269) • GRIP (full radius) (270)

• HFPR/L (576) • HFPR/L (full radius) (576) • HGPL (578)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • IH-HFPAD (571) • MAHR/L-JHP-MC (280) • MAHPR/L-JHP (281)

• MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHPD (625) • C#-MAHDR-45 (623) • C#-MAHDOR (624)

• HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633) • IM-MAHPD (633)

HFPAD-4

Adapters for Face Machining

OAH

OAL

WB_2

WF (adapter)

Holder: MAHPL Holder: MAHR

OHN

WF(assembly)

DAXN-DAXX

CDX

Left-hand shown

Designation

DAXN(1) DAXX(2) CW CDX OHN(3) WF(4) WB_2 OAL HF OAH

HFPAD 5R/L-40-T14

40.0 50.0 5.00 14.00 16.0 4.50 6.3 40.50 24.0 32.0

HFPAD 5R/L-50-T14

50.0 75.0 5.00 14.00 16.0 4.50 6.3 40.50 24.0 32.0

HFPAD 5R/L-75-T14

75.0 110.0 5.00 14.00 16.0 4.50 6.3 40.50 24.0 32.0

HFPAD 5R/L-110-T14

110.0 200.0 5.00 14.00 16.0 4.50 6.3 40.50 24.0 32.0

HFPAD 5R/L-200-T20

200.0 800.0 5.00 20.00 21.0 4.50 6.6 45.50 24.0 32.0

• WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5.. inserts with left-hand adapters

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Minimum overhang

(4) WF(adapter)

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • IH-HFPAD (571) • MAHR/L-JHP-MC (280) • MAHPR/L-JHP (281)

• MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHDOR (624) • C#-MAHPD (625) • C#-MAHDR-45 (623)

• HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633) • IM-MAHPD (633)

HFPAD-5

Adapters for Face Machining

ISCAR

564

FACE GROOVING

OAH

OAL

WB_2

WF (adapter)

Holder: MAHPL Holder: MAHR

OHN

WF(assembly)

DAXN-DAXX

CDX

Left-hand shown

Designation

DAXN(1) DAXX(2) CW CDX OHN(3) WF(4) WB_2 OAL HF OAH

HFPAD 6R/L-60-T14

60.0 100.0 6.00 14.00 16.0 4.50 6.8 40.50 24.0 32.0

HFPAD 6R/L-100-T20

100.0 200.0 6.00 20.00 21.0 4.50 6.8 45.50 24.0 32.0

HFPAD 6R/L-200-T20

200.0 3000.0 6.00 20.00 21.0 4.50 7.1 45.50 24.0 32.0

• WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6.. inserts with left-hand adapters

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Minimum overhang

(4) WF(adapter)

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • HGPL (578)

For holders, see pages: C#-MAHD-JHP (624) • C#-MAHPD-JHP (625) • IH-HFPAD (571) • MAHR/L-JHP-MC (280) • MAHPR/L-JHP (281)

• MAHR/L-JHP (279) • MAHR/L (279) • MAHPR/L (280) • C#-MAHD (624) • C#-MAHPD (625) • C#-MAHDR-45 (623) • C#-MAHDOR (624)

• HSK A63WH-MAHUR/L (632) • HSK A63WH-MAHDR-45 (631) • HSK A63WH-MAHDOR (631) • IM-MAHD (633) • IM-MAHPD (633)

HFPAD-6

Adapters for Face Machining

OAL WB_2

150°

DAXN-DAXX

CDX

Right-hand shown

Designation

CW DAXN(2) DAXX(3) CDX OAL HF H WB_2

HFFR/L 48-4T25 (1)

4.00 48.0 60.0 25.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 60-4T25

4.00 60.0 75.0 25.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 75-4T30

4.00 75.0 140.0 30.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 140-4T30

4.00 140.0 1500.0 30.00 150.00 24.8 32.0 3.2 EDG 33B*

HFFR/L 70-5T32

5.00 70.0 95.0 32.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 95-5T35

5.00 95.0 130.0 35.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 130-5T38

5.00 130.0 180.0 38.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 180-5T38

5.00 180.0 1500.0 38.00 150.00 24.8 32.0 4.0 EDG 33B*

HFFR/L 90-6T32

6.00 90.0 180.0 32.00 150.00 24.8 32.0 5.2 EDG 33B*

HFFR/L 180-6T38

6.00 180.0 400.0 38.00 150.00 24.8 32.0 5.2 EDG 33B*

• After initial groove, no limitation to widening groove outward or toward center.

• DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades

• For user guide, see pages 604-613

(1) HGPL 4...Y with LH blade

(2) Minimum penetration diameter

(3) Maximum penetration diameter

* Optional, should be ordered separately

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)

For holders, see pages: SGTBF (618) • SGTBU/SGTBN (616) • UBHCR/L (618)

HFFR/L-T

Blades for Face Machining

OAL

OAW

Coolant Outlet

HFAEL

Adapter

Right-hand shown

Designation

OAL B H HF OAW

HAR/L 25C

110.00 25.0 25.0 25.0 39.00 SR 14-519 T-20/3

HAR/L 32C

130.00 32.0 32.0 32.0 46.00 SR 14-519 T-20/3

• Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L

For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)

HAR/L

Face Machining Adapter Holders

565

FACE GROOVING

OAL

Coolant Outlet

HFAEL

Adapter

Left-hand shown

Designation

OAL H HF B

HAPR/L 25C

124.00 25.0 25.0 25.0 SR 14-519 T-20/3

HAPR/L 32C

139.00 32.0 32.0 32.0 SR 14-519 T-20/3

• Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L.

For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)

HAPR/L

Face Machining Perpendicular

Holders for Adapters

CDX

DAXN-DAXX

OAL

OHX

Right-hand shown

Designation

CDX CW DAXN(1) DAXX(2) OAL OHX(3) WF

HFAER/L 40-4T20

20.00 4.00 40.0 48.0 68.50 21.0 11.6 SR M5X16 DIN912 HW 4.0

HFAER/L 48-4T20

20.00 4.00 48.0 60.0 68.50 21.0 11.6 SR M5X16 DIN912 HW 4.0

HFAER/L 60-4T25

25.00 4.00 60.0 75.0 68.50 26.0 11.6 SR M5X16 DIN912 HW 4.0

HFAER/L 75-4T25

25.00 4.00 75.0 100.0 68.50 26.0 11.6 SR M5X16 DIN912 HW 4.0

• DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Maximum overhang

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634)

HFAER/L-4

Adapters for External

Facing Along Shafts

CDX

DAXN-DAXX

OAL

OHX

Right-hand shown

Designation

CDX CW DAXN(1) DAXX(2) OHX(3) WF OAL

HGAER/L 12-3M

2.00 3.00 12.0 500.0 21.0 10.2 55.00

HGAER/L 12-3T6

6.00 3.00 12.0 15.0 21.0 10.2 55.00

HGAER/L 14-3T7

7.00 3.00 14.0 17.0 21.0 10.2 55.00

HGAER/L 17-3T8

8.00 3.00 17.0 21.0 21.0 10.2 55.00

HGAER/L 21-3T9

9.00 3.00 21.0 25.0 21.0 10.2 55.00

• GRIP 3... inserts can be used with right-hand adapters only, HGPL 3 with left-hand adapters • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Maximum overhang

For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634)

Spare Parts

Designation

HGAER/L-3

SR 16-236 P T-15/3

HGAER/L-3

Adapters for External

Facing Along Shafts

ISCAR

566

FACE GROOVING

CDX

DAXN-DAXX

OAL WF

Right-hand shown

Designation

CW CDX DAXN(1) DAXX(2) OAL WF

HFAER/L 70C-5T25

5.00 25.00 70.0 95.0 66.00 12.2 EDG 33B*

HFAER/L 95C-5T25

5.00 25.00 95.0 130.0 66.00 12.2 EDG 33B*

HFAER/L 70C-6T28

6.00 28.00 70.0 100.0 69.00 12.3 EDG 33B*

HFAER/L 100C-6T32

6.00 32.00 100.0 180.0 73.00 12.3 EDG 33B*

HFAER/L 180C-6T32

6.00 32.00 180.0 400.0 73.00 12.3 EDG 33B*

• After initial groove, no limitation to widening groove outward from or toward center

• Adapters can be mounted on standard HAR/L, HAPR/L, HAI holders for external machining

• DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter * Optional, should be ordered separately

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)

• DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634)

HFAER/L-5T, 6T

Adapters for External

Facing Along Shafts

CDX

DAXN-DAXX

CDX

HF H

CWN-CWX

OAL

OAW

OAH

Right-hand shown

Designation

CWN(1) CWX(2) CDX WF H HF B OAL DAXN(3) DAXX(4) OAH OAW

HFHR/L 20M

3.00 6.00 5.30 20.00 20.0 20.0 20.0 130.00 20.0 2000.0 29.0 22.50 SR M6X16 DIN912 HW 5.0

HFHR/L 25M

3.00 6.00 5.30 25.00 25.0 25.0 25.0 150.00 20.0 2000.0 34.0 27.50 SR M6X16 DIN912 HW 5.0

• DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools

• After initial groove, no limitation to widening groove outward or toward center

• For user guide, see pages 604-613

(1) Minimum cutting width

(2) Maximum cutting width

(3) Minimum penetration diameter

(4) Maximum penetration diameter

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576)

HFHR/L- o M & HFHPR/L- o M

Integral Toolholders

For shallow machining up to max. 5 mm depth of groove.

One toolholder can be mounted with inserts in 3-6 mm

widths. The initial major diameter groove is limited by the

insert’s geometry of each size.

After the initial groove, face recessing outward or toward

the center is not limited by the insert’s geometry.

CWX=6 mm

CWN=3 mm

DAXN-DAXX

CW DAXN DAXX

3 25.6 51.5

4 24.1 73.7

5 22.1 170

6 20.8 ∞

Insert initial face grooving range

HFHR/L-M

Toolholders for Shallow

Face Grooving

CDX

DAXN-DAXX

CWN-CWX CDX

OAL

OAH

Right-hand shown

Designation

CWN(1) CWX(2) CDX WF H B OAL DAXN(3) DAXX(4) OAH HF

HFHPR/L 20M

3.00 6.00 5.00 25.30 20.0 20.0 130.00 20.0 2000.0 29.0 20.0 SR M6X16 DIN912 HW 5.0

HFHPR/L 25M

3.00 6.00 5.00 30.30 25.0 25.0 150.00 20.0 2000.0 34.0 25.0 SR M6X16 DIN912 HW 5.0

• DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools

• After initial groove, no limitation to widening groove outward or toward center

• For user guide, see pages 604-613

(1) Minimum cutting width

(2) Maximum cutting width

(3) Minimum penetration diameter

(4) Maximum penetration diameter

For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576)

HFHPR/L-M

Perpendicular Toolholders

for Shallow Face Grooving

Boring Bars for Adapters

HGAIR/L & HFAIR/L Adapters and HAI Holders

Adapter clamped on HAI round shank holders can

machine deep internal boring and grooving applications.

The tool can bore down to the bottom, and is supplied

with internal coolant for better performance.

HFAIR/L &

HGAIR/L HAI Holders

Exchangeable

adapters, see pages

568, 572

for adapters, see page 572

HFAIR/L HGAIR/L - C- T - 

HELIFACE

Internal adapters

right or left

Min. initial

groove

diameter

Internal

coolant

Insert

width

Max.

depth

groove

HAI Holder System Assembly

HFAIL & HGAIL

Left-hand Adapters

HFAIR & HGAIR

Right-hand Adapters

The same HAI boring bar can be used with right- and

left-hand adapters in a wide range of face machining

applications. The two screws and the central guiding slot

on the adapter correspond to the key and holes on the

holder ensuring strong, safe, and accurate clamping.

Coolant System

Seal HAI HGAIR/L

HFAIR/L

Coolant Inlet

Connector

(1)

Seal

Connector

Seal

(1) Connector for coolant inlet BSP 1/8 thread. For PL-20, use M6 thread.

Connector not supplied with tools.

567

USER GUIDE

FACE GROOVING

ISCAR

568

FACE GROOVING

OAH

OAW

26°

OAL

Left-hand shown

Designation

H B OAL LH OAH OAW

BHSL 25-26-B1-JHP

25.0 25.0 130.00 24.0 36.00 41.00 SR M6X18 DIN912 HW 5.0 OR 5X1N SR M4X3 DIN913

BHSR/L-JHP

Holders for Double-Sided

Face Grooving Blades with

Inclined Clamping Position

and JHP Cooling Hole

OAL WF

OHX

CDX

DAXN-DAXX

Right-hand shown

Designation

CDX DAXN(1) DAXX(2) CW OAL WF OHX(3)

HGAIR/L 12-3M

2.00 12.0 500.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 12-3T6

6.00 12.0 15.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 14-3T7

7.00 14.0 17.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 17-3T8

8.00 17.0 21.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 21-3T9

9.00 21.0 25.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 25-3T9

9.00 25.0 34.0 3.00 55.00 10.2 21.0 SR 16-236 P T-15/3

HGAIR/L 35-3T10

10.00 35.0 45.0 3.00 56.00 10.3 22.0 SR 16-236 P T-15/3

HGAIR/L 45-3T10

10.00 45.0 65.0 3.00 56.00 10.3 22.0 SR 16-236 P T-15/3

HGAIR/L 65-3T18

18.00 65.0 115.0 3.00 64.00 11.3 30.0 SR 16-236 P T-15/3

HGAIR/L 115-3T18

18.00 115.0 400.0 3.00 64.00 11.3 30.0 SR 16-236 P T-15/3

• HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Maximum overhang

For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGN-C (489) • HGN-J (489) • HGN-UT (490) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAI-C (572) • HAPR/L (565) • HAR/L (564) • IH-HFAIR (569) • IM-HAD (634) • IM-HAPR/L (634)

HGAIR/L-3

Adapters for Internal Face

Grooving and Turning

569

FACE GROOVING

OAL

AView A

OAH

OAW

Designation

OAH OAW OAL

IH-HFAIR

55.40 72.50 44.90

For tools, see pages: HFAIR/L-DG (573) • HGAIR/L-3 (568)

HSK63 HATA+IH-HFAIR

C6 HATA+IH-HFAIR HSK63/C6 HATA

IH-HFAIR

Adapter

DAX CW

CDX

Spare Parts

Designation

IH-HFAIR

SR 14-519 T-20/3 O-RING 19X2 NBR SR M6X20-XT

IH-HFAIR

Intermediate Serrated

Cartridge for Standard

HELI-FACE HFAIR Adapters.

CDX

ØDAXN-DAXX

OAH

WF CW

OAL

Right-hand shown

Designation

CW CDX WF WB OAL HF OAH DAXN(1) DAXX(2)

TNFPAD-XL 4L-35T20-JHP

4.00 20.00 8.00 9.50 65.00 34.0 43.00 35.0 53.0

TNFPAD-XL 4L-45T20-JHP

4.00 20.00 8.00 9.50 65.00 34.0 43.00 45.0 68.0

TNFPAD-XL 4R/L-35T35-JHP

4.00 35.00 8.00 9.50 80.00 34.0 43.00 35.0 53.0

TNFPAD-XL 4R/L-45T35-JHP

4.00 35.00 8.00 9.50 80.00 34.0 43.00 45.0 68.0

TNFPAD-XL 5L-60T20-JHP

5.00 20.00 8.00 10.00 65.00 34.0 43.00 60.0 90.0

TNFPAD-XL 5R/L-60T40-JHP

5.00 40.00 8.00 10.00 85.00 34.0 43.00 60.0 90.0

TNFPAD-XL 6L-110T20-JHP

6.00 20.00 8.00 10.50 65.00 34.0 43.00 110.0 312.0

TNFPAD-XL 6L-80T20-JHP

6.00 20.00 8.00 10.50 65.00 34.0 43.00 80.0 122.0

TNFPAD-XL 6L-80T45-JHP

6.00 45.00 8.00 10.50 90.00 34.0 43.00 80.0 122.0

TNFPAD-XL 6R/L-110T50-JHP

6.00 50.00 8.00 10.50 95.00 34.0 43.00 110.0 312.0

• WF(assembly)=WF(shank) + WF(adapter) • TNF 4..5..6 inserts can be used with left and right hand adapters. • For user guide, see pages 604-613

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

For inserts, see pages: TNF GN-IQ (585) • TNF-M-IQ (585) • TNF-P-IQ (585)

For holders, see pages: ABC MAHDR-#-XL-JHP (782) • IH-TNFPAD (570) • MAHPR/L-XL-JHP (561) • MAHR/L-MG-XL-JHP (501) • MAHR/L-MG-XL-JHP-MC (501)

• V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

Spare Parts

Designation

TNFPAD-XL-JHP

ETF 3-6

TNFPAD-XL-JHP

Adapters for Face Machining

ISCAR

570

FACE GROOVING

OAH

OAL

OAW

AView A

Designation

OAH OAW OAL

IH-TNFPAD

54.00 73.00 65.70

For tools, see pages: TNFPAD-XL-JHP (569)

HSK63 HATA + IH-TNFPAD

C6 HATA + IH-TNFPAD

DAX CW

CDX

HSK63/C6 HATA

IH-TNFPAD

Adapter

Designation

CW (min) CW (max) CDX DAX (min) DAX (max)

TNFPAD-XL 4L-35T20-JHP

4.00 6.90 20.00 35.0 53.0

TNFPAD-XL 4L-45T20-JHP

4.00 6.90 20.00 45.0 68.0

TNFPAD-XL 4R/L-35T35-JHP

4.00 6.90 35.00 35.0 53.0

TNFPAD-XL 4R/L-45T35-JHP

4.00 6.90 35.00 45.0 68.0

TNFPAD-XL 5L-60T20-JHP

5.00 8.90 20.00 60.0 90.0

TNFPAD-XL 5R/L-60T40-JHP

5.00 8.90 40.00 60.0 90.0

TNFPAD-XL 6L-110T20-JHP

6.00 10.90 20.00 110.0 312.0

TNFPAD-XL 6L-80T20-JHP

6.00 10.90 20.00 80.0 122.0

TNFPAD-XL 6L-80T45-JHP

6.00 10.90 45.00 80.0 122.0

TNFPAD-XL 6R/L-110T50-JHP

6.00 10.90 50.00 110.0 312.0

Spare Parts

Designation

IH-TNFPAD

SR M6X14-XT DIN 912 BLD T20/M7 SW6-SD SR M5-04451 SR M6X20-XT O-RING 19X2 NBR OR 5X1N

IH-TNFPAD

Intermediate Serrated Cartridge

for standard TANG-FACE

TNFPAD-XL R Adapters

571

FACE GROOVING

OAL

A View A

OAH OAW

Designation

OAH OAW OAL

IH-HFPAD

54.00 73.00 58.90

For tools, see pages: HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

HSK63 HATA+IH-HFPAD

C6 HATA+IH-HFPAD HSK63/C6 HATA

IH-HFPAD

Adapter

Adapters

CW (min) CW (max) CDX DAX (min) DAX (max)

HFPAD 3R-25-T10

3 5.1 10 25 30

HFPAD 3R-30-T10

3 5.1 10 30 40

HFPAD 3R-40-T10

3 5.1 10 40 65

HFPAD 3R-65-T18

3 5.1 18 65 99.2

HFPAD 4R-25-T10

4 6.9 10 25 31

HFPAD 4R-31-T10

4 6.9 10 31 44

HFPAD 4R-44-T14

4 6.9 14 44 58

HFPAD 4R-58-T14

4 6.9 14 58 88

HFPAD 4R-88-T14

4 6.9 14 88 100.8

HFPAD 5R-40-T14

5 8.1 14 40 50

HFPAD 5R-50-T14

5 8.1 14 50 75

HFPAD 5R-75-T14

5 8.1 14 75 101.8

HFPAD 6R-60-T14

6 10.1 14 60 100

HFPAD 6R-100-T20

6 10.1 20 100 102.8

HFPAD 3R-30-T10-JHP

3 5.1 10 30 40

HFPAD 3R-40-T10-JHP

3 5.1 10 40 65

HFPAD 3R-65-T18-JHP

3 5.1 18 65 99.2

HFPAD 4R-44-T14-JHP

4 6.9 14 44 58

HFPAD 4R-58-T14-JHP

4 6.9 14 58 88

HFPAD 4R-88-T14-JHP

4 6.9 14 88 100.8

HFPAD 5R-40-T14-JHP

5 8.1 14 40 50

HFPAD 5R-75-T14-JHP

5 8.1 14 75 101.8

HFPAD 6R-60-T14-JHP

6 10.1 14 60 100

HFPAD 6R-100-T20-JHP

6 10.1 20 100 102.8

DAX CW

CDX

Spare Parts

Designation

IH-HFPAD

SR M6X20-XT SR M5-04451 SR M6X12DIN6912 HW 5.0 T-20/5 O-RING 19X2 NBR OR 5X1N BLD T20/M7 SW6-SD

IH-HFPAD

Intermediate Serrated Cartridge

For standard HFPAD R Adapters

ISCAR

572

FACE GROOVING

OAL WF

OHX

CDX

DAXN-DAXX

Right-hand shown

Designation

CDX CW DAXN(1) DAXX(2) OAL WF OHX(3)

HFAIR/L 34-4T18

18.00 4.00 34.0 40.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0

HFAIR/L 40-4T20

20.00 4.00 40.0 48.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0

HFAIR/L 48-4T20

20.00 4.00 48.0 60.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0

HFAIR/L 60-4T25

25.00 4.00 60.0 75.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0

• DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Maximum overhang

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAI-C (572) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634)

HFAIR/L-4

Adapters for Internal Face

Grooving and Turning

CDX(a) OAL

WF (assembly)=WF (adapter)+WF (holder)

WF (adapter)

Coolant Outlet

WF (holder)

DCONMS

Designation

DCONMS OAL HF WF(1) CSP(2)

HAI 20

20.00 130.00 9.0 0.50 0 SR 14-519 T-20/3

HAI 25C

25.00 150.00 11.5 3.00 1 SR 14-519 T-20/3 PL 25

HAI 32C

32.00 200.00 14.5 6.50 1 SR 14-519 T-20/3 PL 32

HAI 40C

40.00 250.00 18.0 10.50 1 SR 14-519 T-20/3 PL 40

• The HAI boring bars can be used with right and left-hand adapters • (a) CDX - see corresponding adapters

(1) Holder

(2) 0 - Without coolant supply, 1 - With coolant supply

For tools, see pages: HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAIR/L-3 (568)

HAI-C

Boring Bars with Coolant

Holes for Internal Grooving

and Turning Adapters

573

FACE GROOVING

OAL

CDX

CW OHX

DAXN-DAXX

Right-hand shown

Designation

CW DAXN(1) DAXX(2) CDX WF OHX(3) OAL

HFAIR/L 75C-4T30DG

4.00 75.0 140.0 30.00 10.9 34.5 68.50 EDG 33B*

HFAIR/L 140C-4T30DG

4.00 140.0 - 30.00 10.9 34.5 68.50 EDG 33B*

HFAIR/L 55C-5T25DG

5.00 55.0 70.0 25.00 11.9 32.0 66.00 EDG 33B*

HFAIR/L 70C-5T25DG

5.00 70.0 95.0 25.00 11.9 32.0 66.00 EDG 33B*

HFAIR/L 95C-5T35DG

5.00 95.0 130.0 35.00 11.9 39.5 73.50 EDG 33B*

HFAIR/L 130C-5T38DG

5.00 130.0 180.0 38.00 11.9 42.5 76.50 EDG 33B*

HFAIR/L 180C-5T38DG

5.00 180.0 - 38.00 11.9 42.5 76.50 EDG 33B*

HFAIR/L 70C-6T28DG

6.00 70.0 100.0 28.00 12.0 35.0 69.00 EDG 33B*

HFAIR/L 100C-6T32DG

6.00 100.0 180.0 32.00 12.0 39.0 73.00 EDG 33B*

HFAIR/L 180C-6T38DG

6.00 180.0 - 38.00 12.4 42.5 76.50 EDG 33B*

• After initial groove, no limitation to widening groove outward or toward center • DGN inserts can be used on right- and left-hand tools, GRIP inserts only on right-hand tools,

HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools.

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) Maximum overhang

* Optional, should be ordered separately

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)

For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAI-C (572) • HAPR/L (565) • HAR/L (564) • IH-HFAIR (569) • IM-HAD (634) • IM-HAPR/L (634)

Adapters can be used for internal machining along bore. Adapters can be mounted on standard

HAI boring bars for internal machining, and on HAR/L, HAPR/L holders for external machining.

G(1)

Bmin.

Boring

B Min. =WF (assembly)+G+DCONMS/2

Pmin.

G(1)

Face Recessing

P Min. =2WF (assembly)-B-2CW+2G+DCONMS

G(1)

Dmin.

Face Grooving

D Min. =2WF (assembly)-B+2G+DCONMS

(1)

The minimum recommended value for clearance (G) is 0.5 mm

* WF (assembly)=WF(adapter)+WF(holder)

Boring, Face Grooving and Face Recessing Capacity

HFAIR/L-DG

Adapters for Internal Face

Grooving and Turning

DCONMS

WF 5.3

BDRED

CWN-CWX LDRED Right-hand shown

Designation

CWN(1) CWX(2) DCONMS WF LDRED LF BDRED CDI(3)

C4 HFIR/L-MC

3.00 6.00 40.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83

C5 HFIR-MC

3.00 6.00 50.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83

• DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove

outward or toward center • For user guide, see pages 604-613

(1) Minimum cutting width

(2) Maximum cutting width

(3) 1 - Hole for data chip, 0 - Without hole for data chip

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/

JS/JT (483) • DGN-W (482) • HGPL (578)

For holders, see pages: HSK-C# (735)

C#-HFIR/L-MC

Boring Bars for Internal Grooving

and Turning with CAMFIX

Exchangeable Shanks

ISCAR

574

FACE GROOVING

DCONMS

5.3

CWN-CWX

LDRED

BDRED

Right-hand shown

Designation

DCONMS LF BDRED WF LDRED CWN(1) CWX(2)

IM40 HFIR-MC

40.00 80.0 25.00 11.30 52.0 3.00 6.00 SR M5X16 DIN912 HW 4.0 EZ 83

IM50 HFIR-MC

50.00 80.0 25.00 11.30 52.0 3.00 6.00 SR M5X16 DIN912 HW 4.0 EZ 83

• (*) Tools with orientation holes in the flange groove can be supplied on request

• DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools

• After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 604-613

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGN-W (482)

IM-HFIR-MC

Tools for Internal Grooving and

Turning with ISO 26622-1(*)

Tapered Shank

CDX

CWN-CWX OAL

WF (holder)

CW/2

DCONMS

Designation

DCONMS CWN(1) CWX(2) CDX OAL WF HF

HFIR/L 16MC

16.00 3.00 6.00 5.00 150.00 11.14 7.5 SR M5X16 DIN912 HW 4.0 PL 16

HFIR/L 20MC

20.00 3.00 6.00 5.00 170.00 11.14 9.0 SR M5X16 DIN912 HW 4.0 PL 20

HFIR/L 25MC

25.00 3.00 6.00 5.00 200.00 11.14 11.5 SR M5X16 DIN912 HW 4.0 PL 25

HFIR/L 32MC

32.00 3.00 6.00 5.00 250.00 14.68 14.5 SR M6X20 DIN912 HW 5.0 PL 32

HFIR/L 40MC

40.00 3.00 6.00 5.00 300.00 18.70 18.0 SR M6X20 DIN912 HW 5.0 PL 40

• DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools

• After initial groove, no limitation to widening groove outward or toward center

• For user guide, see pages 604-613

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: DGN-MF (485) • DGN-W (482) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • GRIP (269) • GRIP (full radius) (270)

• HFPR/L (576) • HFPR/L (full radius) (576) • HGPL (578)

For holders, see pages: DT30/2 ##L70WN (758) • DT30/2 ADR-##-20-55 (758)

Internal Face Recessing

Boring Internal Face Grooving

HFIR/L- o MC Integral Boring Bars

For shallow, internal face machining to max.

5 mm depth of groove. One boring bar can

be mounted with inserts in 4-6 mm widths.

The initial major diameter groove is limited by

the insert’s geometry of each size.

After the initial groove, face recessing

outward or toward center is not

limited by the insert’s geometry.

Insert Initial

Face Grooving Range

CW Min. Max.

4 23 90

5 21 300

6 20 ∞

(1)

The minimum recommended value for clearance (G) is 0.5 mm

Boring, Face Grooving & Face Recessing Capacity

Boring

B Min. =WF(holder)+

DCONMS/2+CW/2+2G

Bmin.

G(1)

Face Grooving

D Min. =2WF (holder)+

DCONMS+CW-B+2G

5max

G(1)

Dmin.

Face Recessing

P Min. =2WF (holder)+

DCONMS-W-B+2G

G(1)

Pmin.

HFIR/L-MC

Boring Bars for Internal

Grooving and Turning

575

FACE GROOVING

CWN-CWX OAL

CDX

DAXN-DAXX

CWN-CWX

CW DAXN-DAXX

Min Max

4,5,6

130

∞

Right-hand shown

Designation

CWN(1) CWX(2) HF B H OAL WF CDX

CR HFIR-16M

3.00 6.00 16.0 16.0 20.0 67.00 20.00 5.00

CR HFIR-20M

3.00 6.00 20.0 20.0 24.0 72.00 24.00 5.00

• Used for shallow internal face machining to max. 5 mm depth of groove • Inserts in 3-6 mm widths can be mounted on the cartridges

• Only DGN & GRIP 4.. - 6.. inserts can be used with the right-hand tools

(1) Minimum cutting width

(2) Maximum cutting width

For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270)

• DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGN-W (482)

CR-HFIR/L-M

Assembly Dimensions

(1) L adjustment±1

(2) F adjustment +0.3

-0

(3)

Assembly screws ISO 7380 are recommended

Designation

E L1(1) F(2) Rmax. Assembly Screw(3)

CR HFIR/L-16M

25 8 20 6 M8X30

CR HFIR/L-20M

30 10 24 6 M8X30

Assembly

Screw

45º

Spare Parts

Designation

CR HFIR-16M

SR M5X20DIN912 HW 4.0 SR 76-1401 SR M4X10 DIN916 HW 2.0

CR HFIR-20M

SR M5X20DIN912 HW 4.0 SR 76-1401 SR M4X10 DIN913 HW 2.0

CR HFIR-M

Cartridges for Face

Grooving and Turning

7°

HFPN 2010

RE INSL

±0.1

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL

IC808

f groove

(mm/rev)

HFPN 2002

2.00 0.20 0.04 0.030 19.40

•

0.03-0.10

HFPN 2010

2.00 1.00 0.04 0.030 19.40

•

0.03-0.10

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: HFFA (557) • HFFH (557)

HFPN

Utility Double-Ended Face

Machining Inserts

ISCAR

576

FACE GROOVING

19 Ref.

±0.1

7°

RE BW

DAXN-DAXX

No depth penetration limit.

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW DAXN(3) DAXX(4)

IC830

IC354

IC8250

IC808

IC9015

IC20

IC5010

IC806

(mm)

f face-groove

(mm/rev)

f face-turn

(mm/rev)

HFPR/L 3015

3.00 1.50 0.05 0.050 2.10 25.6 51.5

•••• •••

0.00-1.50 0.08-0.20 0.12-0.20

HFPR/L 4020

4.00 2.00 0.05 0.050 2.80 24.1 73.7

•••• •••

0.00-2.00 0.10-0.24 0.15-0.25

HFPL 5025

5.00 2.50 0.05 0.050 3.40 22.1 170.0

•••• •••

0.00-2.50 0.12-0.24 0.15-0.35

HFPR 5025

5.00 2.50 0.05 0.050 3.40 22.1 170.0

•• •••••

0.00-2.50 0.12-0.24 0.15-0.35

HFPR/L 6030

6.00 3.00 0.05 0.050 4.00 20.8 -

•••• •••

0.00-3.00 0.12-0.28 0.20-0.40

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.

(4) Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.

For tools, see pages: C#-HFIR/L-MC (573) • CR HFIR-M (575) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573)

• HFFR/L-T (564) • HFHPR/L-M (566) • HFHR/L-3T (558) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFHR/L-M (566)

• HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • IM-HFIR-MC (574)

HFPR/L (full radius)

Utility Double-Ended Full Radius

Face Machining Inserts

7°

RE BW

19 Ref.

±0.1

DAXN-DAXX

No depth penetration limit

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW DAXN(3) DAXX(4)

IC830

IC354

IC8250

IC808

IC9015

IC20

IC5010

IC806

(mm)

f face-

groove

(mm/rev)

f face-turn

(mm/rev)

HFPR/L 3003

3.00 0.30 0.05 0.050 2.10 25.6 51.5

•••• •••

0.30-1.50 0.08-0.20 0.10-0.20

HFPR/L 4004

4.00 0.40 0.05 0.050 2.80 24.1 73.7

•••• •••

0.40-2.00 0.10-0.24 0.15-0.25

HFPR/L 5004

5.00 0.40 0.05 0.050 3.40 22.1 170.0

••••••••

0.50-2.50 0.12-0.24 0.15-0.35

HFPR/L 6004

6.00 0.40 0.05 0.050 4.00 20.8 -

•••• •••

0.40-3.00 0.12-0.28 0.15-0.40

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.

(4) Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.

For tools, see pages: C#-HFIR/L-MC (573) • CR HFIR-M (575) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573)

• HFFR/L-T (564) • HFHPR/L-M (566) • HFHR/L-3T (558) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFHR/L-M (566)

• HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • IM-HFIR-MC (574)

HFPR/L

Utility Double-Ended Face

Machining Inserts

577

FACE GROOVING

INSL (Ref.)

±0.1

No depth penetration limit

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL BW

IC830

IC8250

IC08

IC808

IC908

IC418

IC5010

IC806

IC807

IC804

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

f face-

groove

(mm/rev)

f face-turn

(mm/rev)

GRIP 3002Y

3.00 0.20 0.05 0.050 15.80 2.30

••••• •••

0.25-1.80 0.14-0.18 0.07-0.11 0.08-0.20 0.10-0.20

GRIP 3003Y

3.00 0.30 0.05 0.050 15.80 2.30

••••••••

0.40-1.80 0.15-0.19 0.07-0.11 0.08-0.20 0.10-0.20

GRIP 318-040Y

3.18 0.40 0.05 0.050 15.80 2.30

• • • • •

0.50-1.90 0.17-0.22 0.07-0.12 0.08-0.20 0.10-0.20

GRIP 4002Y

4.00 0.20 0.05 0.050 19.00 2.80

••••• ••

0.25-2.40 0.16-0.21 0.09-0.14 0.10-0.24 0.15-0.30

GRIP 4004Y

4.00 0.40 0.05 0.050 19.00 2.80

••••••••••

0.50-2.40 0.18-0.24 0.09-0.15 0.10-0.24 0.15-0.30

GRIP 476-080Y

4.76 0.80 0.05 0.050 19.00 3.10

• • • • • •

1.00-2.80 0.21-0.33 0.10-0.20 0.10-0.24 0.15-0.30

GRIP 5005Y

5.00 0.50 0.05 0.050 19.00 3.30

••••••••••

0.60-3.00 0.20-0.30 0.11-0.20 0.12-0.24 0.15-0.35

GRIP 5008Y

5.00 0.80 0.05 0.050 19.00 3.40

•• ••••••

1.00-3.00 0.23-0.35 0.11-0.21 0.12-0.24 0.15-0.35

GRIP 6005Y

6.00 0.50 0.05 0.050 19.00 4.20

•• ••••••

0.60-3.60 0.22-0.36 0.13-0.23 0.12-0.28 0.15-0.40

GRIP 6008Y

6.00 0.80 0.05 0.050 19.00 4.20

•• ••••••

1.00-3.60 0.24-0.42 0.13-0.25 0.12-0.28 0.15-0.40

GRIP 635-080Y

6.35 0.80 0.05 0.050 19.00 4.20

• • • • •

1.00-3.80 0.25-0.44 0.14-0.27 0.12-0.28 0.15-0.40

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479)

• DGFH (268) • DGFH-JHP (269) • DGFS (469) • DGTR/L (476) • HELIIR/L (355) • HELIR/L (266) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566)

• HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFIR/L-MC (574) • HFPAD-3 (562)

• HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGAER/L-3 (565) • HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558)

• HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)

The Twisted Insert

for Face Machining

The double-ended, twisted insert body

makes it possible to machine deeper than

the insert’s length.

A unique chipformer for controlled chip flow

in axial and radial directions.

The rear angle is slanted in relation

to the frontal edge so it does not

come into contact with the machined

groove surface as the tool penetrates

deeply into the workpiece.

GRIP

Utility Double-Ended

Inserts for External, Internal

and Face Machining

ISCAR

578

FACE GROOVING

INSL (Ref.)

±0.1

7°

RE BW

No depth penetration limit

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL BW

IC830

IC8250

IC08

IC808

IC908

IC418

IC5010

IC806

IC807

IC804

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

f face-

groove

(mm/rev)

f face-turn

(mm/rev)

GRIP 3015Y

3.00 1.50 0.05 0.050 15.80 2.10

••••••••••

0.00-1.50 0.18-0.26 0.07-0.13 0.08-0.20 0.10-0.20

GRIP 318-159Y

3.18 1.59 0.05 0.050 15.80 2.30

• • •

0.00-1.50 0.19-0.28 0.07-0.13 0.08-0.20 0.10-0.20

GRIP 4020Y

4.00 2.00 0.05 0.050 19.00 2.80

••••••••••

0.00-2.00 0.20-0.34 0.09-0.17 0.10-0.24 0.15-0.30

GRIP 476-238Y

4.76 2.38 0.05 0.050 19.00 3.20

• • • •

0.00-2.30 0.21-0.40 0.10-0.20 0.10-0.24 0.15-0.30

GRIP 5025Y

5.00 2.50 0.05 0.050 19.00 3.40

•• ••• •••

0.00-2.50 0.23-0.42 0.11-0.21 0.12-0.24 0.15-0.35

GRIP 6030Y

6.00 3.00 0.05 0.050 19.00 4.20

•••••••••

0.00-3.00 0.24-0.50 0.13-0.25 0.12-0.28 0.15-0.40

GRIP 635-318Y

6.35 3.18 0.05 0.050 19.00 4.00

• • •

0.00-3.10 0.25-0.53 0.14-0.27 0.12-0.28 0.15-0.40

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479)

• DGFH (268) • DGFH-JHP (269) • DGFS (469) • DGTR/L (476) • HELIIR/L (355) • HELIR/L (266) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566)

• HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFIR/L-MC (574)

• HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGAER/L-3 (565) • HGAIR/L-3 (568) • HGFH (268)

• HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)

GRIP (full radius)

Utility Double-Ended Full

Radius Inserts for External,

Internal and Face Machining

±0.1 INSL CW

7°

Dimensions Tough

Hard Recommended Machining Data

Designation

CW BW RE CWTOL(1) RETOL(2) INSL

IC328

IC354

IC08

IC808

IC908

IC806

(mm)

f face-

groove

(mm/rev)

f face-

turn

(mm/rev)

HGPL 3015Y

3.00 2.10 1.50 0.03 0.050 16.00

• •

0.00-1.50 0.08-0.20 0.12-0.23

HGPL 3002Y

3.00 2.30 0.20 0.03 0.050 16.00

••••

0.24-1.80 0.08-0.20 0.12-0.23

HGPL 3003Y

3.00 2.30 0.30 0.03 0.050 16.00

•••••

0.36-1.80 0.08-0.20 0.12-0.23

HGPL 4002Y

4.00 2.80 0.20 0.03 0.050 19.00

••••

0.24-2.40 0.10-0.24 0.16-0.30

HGPL 4004Y

4.00 2.80 0.40 0.03 0.050 19.00

••••

0.48-2.40 0.10-0.24 0.16-0.30

HGPL 4020Y

4.00 2.80 2.00 0.03 0.050 19.00

•••

0.00-2.00 0.10-0.24 0.16-0.30

HGPL 5005Y

5.00 3.30 0.50 0.03 0.050 19.00

• • •

0.60-3.00 0.12-0.24 0.20-0.38

HGPL 5025Y

5.00 3.30 2.50 0.03 0.050 19.00

•••

0.00-2.50 0.12-0.24 0.20-0.38

HGPL 6005Y

6.00 4.20 0.50 0.03 0.050 19.00

• • • •

0.60-3.60 0.12-0.28 0.24-0.45

HGPL 6030Y

6.00 4.20 3.00 0.03 0.050 19.00

•••

0.00-3.00 0.12-0.28 0.24-0.45

• No depth penetration limit • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HFIR/L-MC (573) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564)

• HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFIR/L-MC (574) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HFPAD-JHP (562) • HGAER/L-3 (565) • HGAIR/L-3 (568) • HGHR/L-3 (558)

HGPL

Utility Double-Ended Inserts

for Face Machining

579

FACE GROOVING

OAL

GHFG-25-50R-8

CDX

DAXN-DAXX

Right-hand shown

Designation

CDX DAXN(1) DAXX(2) H HF B OAL LH WF

GHFG 25-50R/L-8

25.00 50.0 64.0 25.0 25.0 25.0 150.00 41.0 22.00 SR M6X20 DIN912 HW 5.0

GHFG 25-63R/L-8

25.00 63.0 82.0 25.0 25.0 25.0 150.00 41.0 22.00 SR M6X20 DIN912 HW 5.0

GHFG 32-63R-8

25.00 63.0 82.0 32.0 32.0 32.0 170.00 41.0 30.00 SR M6X20 DIN912 HW 5.0

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291) • GDMY-F (291)

• GIA-K (long pocket) (299) • GIF (long pocket) (298) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292) • GIFG-E (W=8) (581)

GHFG-R/L-8

Holders for Face Grooving

and Turning Along Shafts

DAXN-DAXX

CDX

OAL

HBH

Right-hand shown

Designation

CDX DAXN(1) DAXX(2) H HF B OAL LH WF HBH

GHFGR/L 25-80-8

23.00 80.0 115.0 25.0 25.0 25.0 150.00 43.5 21.30 6.0 SR M6X20 DIN912 HW 5.0

GHFGR/L 32-80-8

23.00 80.0 115.0 32.0 32.0 32.0 170.00 43.5 28.30 - SR M6X20 DIN912 HW 5.0

GHFGR/L 25-105-8

25.00 105.0 160.0 25.0 25.0 25.0 150.00 43.5 21.30 6.0 SR M6X20 DIN912 HW 5.0

GHFGR/L 32-105-8

25.00 105.0 160.0 32.0 32.0 32.0 170.00 43.5 28.30 - SR M6X20 DIN912 HW 5.0

GHFGR/L 25-155-8

25.00 155.0 510.0 25.0 25.0 25.0 150.00 43.5 21.30 6.0 SR M6X20 DIN912 HW 5.0

GHFGR/L 32-155-8

25.00 155.0 510.0 32.0 32.0 32.0 170.00 43.5 28.30 - SR M6X20 DIN912 HW 5.0

• No limitation to widening the groove either way after initial grooving • CDX depends on the penetration diameter and the insert

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291) • GDMY-F (291)

• GIA-K (long pocket) (299) • GIF (long pocket) (298) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292) • GIFG-E (W=8) (581)

• GIPA/GIDA 8 (full radius) (302)

CDX for GHFGR/L (25/32)-80-8

GIF 8…GIFG 8…GDMY 8…GIPA 8…GIDA 8…GIA 8…GDMM 8CC…

16 23 23 20 24 16 24

17 23 23 20 24 17 24

18 23 23 21 24 18 24

19 23 23 21 24 19 24

20 23 23 22 24 20 24

104

20 23 23 22 24 20 24

115

22 23 23 22 24 22 24

CDX for GHFGR/L (25/32)-105-8

GIF 8…GIFG 8…GDMY 8…GIPA 8…GIDA 8…GIA 8…GDMM 8CC…

105

21 23 23 23 24 21 24

114

22 23 23 23 24 22 24

126

23 23 24 23 24 23 24

140-160

24 24 24 23 24 24 24

CDX for GHFGR/L (25/32)-155-8

GIF 8…GIFG 8…GDMY 8…GIPA 8…GIDA 8…GIA 8…GDMM 8CC…

155

24 24 24 23 24 24 24

180

24 24 24 23 24 24 24

210-510

24 24 24 23 24 24 24

GHFGR/L-8

Holders for Face Grooving

and Turning

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) INSL BW

IC830

IC8250

IC08

IC808

IC908

IC418

IC5010

IC806

IC807

IC804

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

f face-

groove

(mm/rev)

f face-turn

(mm/rev)

GRIP 3015Y

3.00 1.50 0.05 0.050 15.80 2.10

••••••••••

0.00-1.50 0.18-0.26 0.07-0.13 0.08-0.20 0.10-0.20

GRIP 318-159Y

3.18 1.59 0.05 0.050 15.80 2.30

• • •

0.00-1.50 0.19-0.28 0.07-0.13 0.08-0.20 0.10-0.20

GRIP 4020Y

4.00 2.00 0.05 0.050 19.00 2.80

••••••••••

0.00-2.00 0.20-0.34 0.09-0.17 0.10-0.24 0.15-0.30

GRIP 476-238Y

4.76 2.38 0.05 0.050 19.00 3.20

• • • •

0.00-2.30 0.21-0.40 0.10-0.20 0.10-0.24 0.15-0.30

GRIP 5025Y

5.00 2.50 0.05 0.050 19.00 3.40

•• ••• •••

0.00-2.50 0.23-0.42 0.11-0.21 0.12-0.24 0.15-0.35

GRIP 6030Y

6.00 3.00 0.05 0.050 19.00 4.20

•••••••••

0.00-3.00 0.24-0.50 0.13-0.25 0.12-0.28 0.15-0.40

GRIP 635-318Y

6.35 3.18 0.05 0.050 19.00 4.00

• • •

0.00-3.10 0.25-0.53 0.14-0.27 0.12-0.28 0.15-0.40

• For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479)

• DGFH (268) • DGFH-JHP (269) • DGFS (469) • DGTR/L (476) • HELIIR/L (355) • HELIR/L (266) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566)

• HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFIR/L-MC (574)

• HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGAER/L-3 (565) • HGAIR/L-3 (568) • HGFH (268)

• HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)

ISCAR

580

FACE GROOVING

OAL

OHX

HBH

WF(assembly) WF (holder)

CDX

GADR-8

GAFG-L-8 GHARRight-hand shown

Designation

H HF B WF(1) OAL LH OHX(2) HBH TGA(3) CDX(4) FG(5)

GHAR/L 25-8

25.0 25.0 25.0 16.0 124.50 45.0 25.50 14.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0

GHAR/L 32-8

32.0 32.0 32.0 23.0 144.50 45.0 25.50 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0

• Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)

(1) WF(holder)

(2) Maximum overhang

(3) Adapter for Turning & Grooving

(4) See specific adapter dimensions

(5) Adapter for Face Grooving

For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

GHAR/L-8

External Holders for Grooving

and Turning Adapters

OAL

LH HBH

CDX

GAFG…R-8 GADL 8 GHAPRRight-hand shown

Designation

H HF B OAL LH HBH TGA(1) CDX(2) FG(3)

GHAPR/L 32-8

32.0 32.0 32.0 155.00 30.0 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0

• Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)

(1) Adapter for Turning & Grooving

(2) See specific adapter dimensions

(3) Adapter for Face Grooving

For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

GHAPR/L-8

External Holders for Grooving

and Turning Perpendicularly

Oriented Adapters

DAXN-DAXX

CDX

OAH HF

GAFG-...L8

For face grooving

OAL

CDX

Left-hand shown

Designation

CW DAXN(1) DAXX(2) CDX(3) WF HF OAH OAL

GAFG 80R/L-8

8.00 80.0 115.0 23.00 9.00 32.0 42.0 63.50

GAFG 105R/L-8

8.00 105.0 160.0 25.00 9.00 32.0 42.0 63.50

GAFG 155R/L-8

8.00 155.0 510.0 25.00 9.00 32.0 42.0 63.50

• No limitation for widening the groove either way after initial grooving • For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

(3) For GIFG-8 & GDMY-8 CDX=25 mm for DAX range

For inserts, see pages: GDMA (300) • GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291)

• GDMY-F (291) • GIA-K (long pocket) (299) • GIF (long pocket) (298) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292)

• GIFG-E (W=8) (581) • GIPA/GIDA 8 (full radius) (302)

For holders, see pages: C#-GHAD-8 (625) • C#-GHAPR/L-8 (626) • GHAPR/L-8 (286) • GHAR/L-8 (285) • IM-GHAD-8 (634)

GAFG-R/L-8

Adapters for Face Machining

DAXN-DAXX

CDX OAL

HHF OAH

WB_2

Left-hand shown

Designation

CW DAXN(1) DAXX(2) CDX H HF OAL OAH WB_2

CGFG 51-180R/L-P8

8.00 180.0 240.0 70.00 52.6 45.0 200.00 60.0 27.5 SR M4-2052 HW 3.0

CGFG 51-240R/L-P8

8.00 240.0 320.0 80.00 52.6 45.0 210.00 70.0 26.0 SR M4-2052 HW 3.0

CGFG 51-320R/L-P8

8.00 320.0 440.0 90.00 52.6 45.0 220.00 80.0 24.5 SR M4-2052 HW 3.0

CGFG 51-440R/L-P8

8.00 440.0 700.0 100.00 52.6 45.0 230.00 90.0 22.5 SR M4-2052 HW 3.0

CGFG 51-700R/L-P8

8.00 700.0 1500.0 120.00 52.6 45.0 250.00 100.0 20.0 SR M4-2052 HW 3.0

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GIMF (288) • GIMM 8CC (583) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIPY (300)

For holders, see pages: SGTBK (617) • SGTBU/SGTBN (616)

CGFG 51-P8

Blades for Face Machining

Carrying 8 mm Inserts

581

FACE GROOVING

6.4

±0.1 30 Ref.

DAXN

CDX

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) DAXN(3) CDX(4) BW

IC635

IC20

f face-groove

(mm/rev)

GIFG 8.00E-0.80

8.00 0.80 0.02 0.050 50.0 25.00 6.00

• •

0.15-0.25

GIFG 8.00E-1.20

8.00 1.20 0.02 0.050 50.0 25.00 6.00

•

0.15-0.25

• For cutting speed recommendations, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

(4) Cutting depth maximum

For tools, see pages: GAFG-R/L-8 (580) • GHFG-R/L-8 (579) • GHFGR/L-8 (579)

GIFG-E (W=8)

Inserts for Deep Face

Grooving and Turning

7°

Ref.

6.4

±0.025

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW CDX(3)

IC830

IC8250

IC808

IC908

IC20

IC5010

IC428

IC806

IC807

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GIF 8.00E-0.40

8.00 0.40 0.02 0.030 6.00 27.00

•••

0.50-4.80 0.29-0.48 0.18-0.31

GIF 8.00E-0.80

8.00 0.80 0.02 0.050 6.00 27.00

•••••••••

1.00-4.80 0.32-0.56 0.18-0.34

GIF 8.00E-1.20

8.00 1.20 0.02 0.050 6.00 27.00

•••••••

1.45-4.80 0.32-0.62 0.18-0.34

GIF 10.00E-0.80

10.00 0.80 0.02 0.050 8.00 27.00

••••••• •

1.00-6.00 0.35-0.65 0.22-0.40

GIF 10.00E-1.20

10.00 1.20 0.02 0.050 8.00 27.00

••••• •

1.45-6.00 0.35-0.72 0.22-0.40

• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)

• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GIF-E (W=8,10)

Precision Double-Ended Inserts

for Grooving and Turning

7°

15°

±0.025

6.4

30 Ref.

DAXN

CDX

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW CDX(3) DAXN(4)

IC5010

IC428

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GIA 8.00K-0.80

8.00 0.80 0.02 0.050 6.00 25.00 160.0

• •

1.00-4.80 0.36-0.64 0.18-0.38

GIA 8.00K-1.20

8.00 1.20 0.02 0.050 6.00 25.00 160.0

• •

1.45-4.80 0.36-0.70 0.18-0.38

• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

(4) Minimum axial grooving diameter

For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)

• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GIA-K (long pocket)

Flat Top Precision Double-Ended

Inserts with T-Land for Machining

Cast Iron

ISCAR

582

FACE GROOVING

6.4

30 Ref.

±0.1

7°

DAXN

CDX

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW DAXN(3) CDX(4)

IC830

IC8250

IC808

IC908

IC20

IC5010

IC428

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GDMY 808

8.00 0.80 0.05 0.050 6.00 50.0 27.00

•••••••

1.00-4.80 0.32-0.56 0.18-0.34

• DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

(4) Cutting depth maximum

For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)

• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GDMY

Utility Double-Ended Inserts

for Grooving and Turning

7°

±0.1

30 Ref.

6.4

DAXN

CDX

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW DAXN(3) CDX

IC830

IC8250

IC808

IC908

IC20

IC5010

IC428

IC806

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GDMY 840

8.00 4.00 0.05 0.050 5.60 50.0 25.00

••••••••

0.00-4.00 0.32-0.67 0.18-0.34

• Can cut arcs to 250° • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDKR/L (446)

• GHDR/L (long pocket) (285) • GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GDMY (full radius)

Utility Double-Ended Full Radius

Inserts for Grooving and Profiling

7º

30 Ref.

6.3 Ref.

RE BW

±0.1

Dimensions Tough

Hard Recommended Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW CDX(3)

IC808

IC908

(mm)

f turn

(mm/rev)

f groove

(mm/rev)

GDMY 840F

8.00 4.00 0.05 0.050 5.60 25.00

• •

0.00-4.00 0.32-0.67 0.18-0.34

• DMIN for internal applications = 65 mm • For cutting speed recommendations and user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Cutting depth maximum

For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)

• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GDMY-F

Utility Double-Ended Inserts

for Grooving and Profiling

Ductile Materials

583

FACE GROOVING

±0.1

15.3

Ref.

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW

IC808

IC908

f face-groove

(mm/rev)

GIMM 8CC

8.00 0.80 0.05 0.050 5.80

• •

0.30-0.45

• For cutting speed recommendations, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-P8 (283) • CGHR/L-P8DG (284) • CGPAD (281) • GHDR/L (short pocket) (275)

• GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278)

GIMM 8CC

Single-Ended Utility Insert with a

Frontal Chip Splitter for External

Rough Grooving and Side Turning

29.95 Ref.

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) BW

IC830

IC354

IC808

IC907

f face-groove

(mm/rev)

GDMM 7CC

7.00 0.80 0.05 0.050 6.00

•

0.30-0.45

GDMM 8CC

8.00 0.80 0.05 0.050 5.60

• • •

0.30-0.45

• For cutting speed recommendations, see pages 604-613

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

For tools, see pages: C#-GHDR/L (274) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)

• GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)

GDMM-CC

Single-Ended Utility Insert for

External Rough Grooving and Side

Turning with a Frontal Chip Splitter

DAXN-DAXX

WB_2

OAL

CDX

Right-hand shown

Designation

CW DAXN(1) DAXX(2) CDX HF H WF WB_2 OAL Insert

TNFFH 65R/L-3IQ

3.00 65.0 90.0 18.00 24.8 32.0 4.10 5.2 150.00 TNF 3... ETF 3-6*

TNFFH 90R/L-3IQ

3.00 90.0 120.0 18.00 24.8 32.0 4.10 5.2 150.00 TNF 3... ETF 3-6*

TNFFH 120R/L-3IQ

3.00 120.0 160.0 24.00 24.8 32.0 4.10 5.2 150.00 TNF 3... ETF 3-6*

TNFFH 80R/L-4IQ

4.00 80.0 150.0 32.00 24.8 32.0 3.80 5.2 150.00 TNF 4... ETF 3-6*

TNFFH 150R/L-4IQ

4.00 150.0 500.0 32.00 24.8 32.0 3.80 5.2 150.00 TNF 4... ETF 3-6*

TNFFH 80R/L-5IQ

5.00 80.0 150.0 30.00 24.8 32.0 3.50 5.2 150.00 TNF 5... ETF 3-6*

TNFFH 150R/L-5IQ

5.00 150.0 500.0 35.00 24.8 32.0 3.50 5.2 150.00 TNF 5... ETF 3-6*

TNFFH 80R/L-6IQ

6.00 80.0 150.0 30.00 24.8 32.0 3.30 5.2 150.00 TNF 6... ETF 3-6*

TNFFH 150R/L-6IQ

6.00 150.0 700.0 35.00 24.8 32.0 3.30 5.2 150.00 TNF 6... ETF 3-6*

• H dimension links blades and blocks

(1) Minimum penetration diameter

(2) Maximum penetration diameter

* Optional, should be ordered separately

For inserts, see pages: TNF GN-IQ (585) • TNF-M-IQ (585) • TNF-P-IQ (585)

ETF 3-6 extractor (to be ordered separately)

TNFFH-IQ

Face Grooving Blades

ISCAR

584

FACE GROOVING

OAL

DAXN-DAXX H

WB_2

CDX Right-hand shown

Designation

CW DAXN(1) DAXX(2) CDX H WF HF OAL WB_2 Insert

TNFFA 30R/L-3IQ

3.00 30.0 35.0 19.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 35R/L-3IQ

3.00 35.0 40.0 19.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 40R/L-3IQ

3.00 40.0 46.0 23.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 46R/L-3IQ

3.00 46.0 54.0 25.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 54R/L-3IQ

3.00 54.0 65.0 26.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 65R/L-3IQ

3.00 65.0 80.0 27.00 32.0 9.50 24.8 90.00 18.5 TNF 3...

TNFFA 80R/L-3IQ

3.00 80.0 100.0 27.00 32.0 9.50 24.8 90.00 16.7 TNF 3...

TNFFA 35R/L-4IQ

4.00 35.0 45.0 25.00 32.0 9.00 24.8 90.00 18.1 TNF 4...

TNFFA 45R/L-4IQ

4.00 45.0 60.0 25.00 32.0 9.00 24.8 90.00 17.3 TNF 4...

TNFFA 60R/L-4IQ

4.00 60.0 80.0 27.00 32.0 9.00 24.8 90.00 18.0 TNF 4...

TNFFA 80R/L-4IQ

4.00 80.0 130.0 27.00 32.0 9.00 24.8 90.00 14.8 TNF 4...

TNFFA 40R/L-5IQ

5.00 40.0 50.0 25.00 32.0 9.70 24.8 90.00 18.0 TNF 5...

TNFFA 50R/L-5IQ

5.00 50.0 70.0 28.00 32.0 9.70 24.8 90.00 18.0 TNF 5...

TNFFA 70R/L-5IQ

5.00 70.0 100.0 30.00 32.0 9.70 24.8 90.00 18.0 TNF 5...

TNFFA 100R/L-5IQ

5.00 100.0 180.0 35.00 32.0 9.70 24.8 90.00 18.0 TNF 5...

TNFFA 45R/L-6IQ

6.00 45.0 60.0 25.00 32.0 10.20 24.8 90.00 18.0 TNF 6...

TNFFA 60R/L-6IQ

6.00 60.0 80.0 28.00 32.0 10.20 24.8 90.00 18.0 TNF 6...

TNFFA 80R/L-6IQ

6.00 80.0 110.0 30.00 32.0 10.20 24.8 90.00 18.0 TNF 6...

TNFFA 110R/L-6IQ

6.00 110.0 300.0 35.00 32.0 10.20 24.8 90.00 14.8 TNF 6...

• For user guide, see pages 604-613

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: TNF GN-IQ (585) • TNF-M-IQ (585) • TNF-P-IQ (585)

Spare Parts

Designation

TNFFA-IQ

ETF 3-6*

* Optional, should be ordered separately

TNFFA-IQ

Reinforced Face Grooving Blades

585

FACE GROOVING

CW RE

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1)

IC808

f face-groove

(mm/rev)

TNF 3P-IQ

3.00 0.30 0.05

•

0.10-0.15

TNF 4P-IQ

4.00 0.25 0.05

•

0.10-0.15

TNF 5P-IQ

5.00 0.35 0.05

•

0.12-0.20

TNF 6P-IQ

6.00 0.35 0.05

•

0.12-0.20

• For user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

TNF-P-IQ

Face Grooving Single-Ended

Inserts for Machining Steel

CW RE

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1)

IC808

f face-groove

(mm/rev)

TNF 3M-IQ

3.00 0.30 0.05

•

0.08-0.10

TNF 4M-IQ

4.00 0.25 0.05

•

0.08-0.12

TNF 5M-IQ

5.00 0.35 0.05

•

0.12-0.20

TNF 6M-IQ

6.00 0.35 0.05

•

0.12-0.20

• For user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

TNF-M-IQ

Face Grooving Single-Ended

Inserts for Machining Stainless

Steel and High Temperature Alloys

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1)

IC808

f face-groove

(mm/rev)

TNF 3GN-IQ

3.00 0.30 0.05

•

0.06-0.10

TNF 4GN-IQ

4.00 0.25 0.05

•

0.06-0.12

TNF 5GN-IQ

5.00 0.35 0.05

•

0.08-0.16

TNF 6GN-IQ

6.00 0.35 0.05

•

0.08-0.20

• For user guide, see pages 604-613

(1) Cutting width tolerance (+/-)

For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

TNF GN-IQ

Face Grooving Single-Ended

Inserts for Machining Steel

ISCAR

586

FACE GROOVING

DAXN-DAXX

CDX CW

OAL

Left-hand shown

Designation

CW H B CDX DAXN(1) DAXX(2) HF OAL Insert

SGFFR/L 20-25-2

2.10 20.0 20.0 13.00 25.0 30.0 20.0 120.00 GFF 2R/L ESG 0.5

SGFFR/L 20-30-2

2.10 20.0 20.0 14.00 29.0 36.0 20.0 120.00 GFF 2R/L ESG 0.5

SGFFR/L 20-35-2

2.10 20.0 20.0 16.00 35.0 46.0 20.8 120.00 GFF 2N ESG 0.5

SGFFR/L 20-45-2

2.10 20.0 20.0 20.00 45.0 61.0 20.8 120.00 GFF 2N ESG 0.5

SGFFR/L 20-60-2

2.10 20.0 20.0 20.00 60.0 80.0 20.8 120.00 GFF 2N ESG 0.5

SGFFR/L 25-35-2

2.10 25.0 25.0 16.00 35.0 46.0 25.8 130.00 GFF 2N ESG 0.5

SGFFR/L 25-45-2

2.10 25.0 25.0 20.00 45.0 61.0 25.8 130.00 GFF 2N ESG 0.5

SGFFR/L 25-60-2

2.10 25.0 25.0 20.00 60.0 80.0 25.8 130.00 GFF 2N ESG 0.5

SGFFR 25-25-2

2.10 25.0 25.0 13.00 25.0 30.0 25.0 130.00 GFF 2N ESG 0.5

SGFFR 25-30-2

2.10 25.0 25.0 14.00 29.0 36.0 25.0 130.00 GFF 2N ESG 0.5

SGFFR/L 20-30-3

3.00 20.0 20.0 16.00 30.0 35.0 20.0 120.00 GFF 3R/L SET ESG 1

SGFFR 20-35-3

3.00 20.0 20.0 18.00 34.4 40.6 20.0 120.00 GFF 3R/L SET ESG 1

SGFFR 20-40-3

3.00 20.0 20.0 20.00 40.0 47.0 20.0 120.00 GFF 3R/L SET ESG 1

SGFFR 20-46-3

3.00 20.0 20.0 22.00 46.0 55.0 20.0 120.00 GFF 3R/L SET ESG 1

SGFFR 20-55-3

3.00 20.0 20.0 22.00 54.0 65.0 21.2 120.00 GFF 3N SET ESG 1

SGFFR 20-65-3

3.00 20.0 20.0 23.00 64.0 80.0 21.0 120.00 GFF 3N SET ESG 1

SGFFR 20-80-3

3.00 20.0 20.0 24.00 79.0 100.0 20.7 120.00 GFF 3N SET ESG 1

SGFFR/L 25-40-3

3.00 25.0 25.0 20.00 40.0 47.0 25.0 130.00 GFF 3R/L SET ESG 1

SGFFR/L 25-55-3

3.00 25.0 25.0 24.00 54.0 65.0 26.2 130.00 GFF 3N SET ESG 1

SGFFR 25-30-3

3.00 25.0 25.0 16.00 30.0 35.0 25.0 130.00 GFF 3R/L SET ESG 1

SGFFR 25-35-3

3.00 25.0 25.0 18.00 34.4 40.6 25.0 130.00 GFF 3R/L SET ESG 1

SGFFR 25-46-3

3.00 25.0 25.0 22.00 46.0 55.0 25.0 130.00 GFF 3R/L SET ESG 1

SGFFR 25-65-3

3.00 25.0 25.0 25.00 64.0 80.0 26.0 130.00 GFF 3N SET ESG 1

SGFFR 25-80-3

3.00 25.0 25.0 26.00 79.0 100.0 25.7 130.00 GFF 3N SET ESG 1

SGFFR/L 20-35-4

4.00 20.0 20.0 20.00 35.0 45.0 20.0 120.00 GFF 4N SET ESG 1

SGFFR 20-45-4

4.00 20.0 20.0 25.00 44.0 58.0 20.0 120.00 GFF 4N SET ESG 1

SGFFR 20-60-4

4.00 20.0 20.0 25.00 57.0 80.0 20.0 120.00 GFF 4N SET ESG 1

SGFFR 20-80-4

4.00 20.0 20.0 25.00 79.0 130.0 20.0 120.00 GFF 4N SET ESG 1

SGFFR/L 25-45-4

4.00 25.0 25.0 25.00 44.0 58.0 25.0 150.00 GFF 4N SET ESG 1

SGFFR/L 25-60-4

4.00 25.0 25.0 26.00 57.0 80.0 25.0 150.00 GFF 4N SET ESG 1

SGFFR/L 25-80-4

4.00 25.0 25.0 26.00 79.0 130.0 25.0 150.00 GFF 4N SET ESG 1

SGFFR 25-35-4

4.00 25.0 25.0 20.00 35.0 45.0 25.0 150.00 GFF 4N SET ESG 1

SGFFR/L 20-50-5

5.00 20.0 20.0 25.00 50.0 75.0 20.0 120.00 GFF 5N SET ESG 1

SGFFR 20-75-5

5.00 20.0 20.0 26.00 74.0 130.0 20.0 120.00 GFF 5N SET ESG 1

SGFFR/L 25-100-5

5.00 25.0 25.0 30.00 100.0 180.0 25.0 150.00 GFF 5N SET ESG 1

SGFFR 25-50-5

5.00 25.0 25.0 26.00 50.0 71.0 25.0 150.00 GFF 5N SET ESG 1

SGFFR 25-70-5

5.00 25.0 25.0 28.00 69.0 102.0 25.0 150.00 GFF 5N SET ESG 1

SGFFR 20-60-6

6.00 20.0 20.0 25.00 57.0 60.0 20.0 120.00 GFF 6N SET ESG 1

SGFFR/L 25-100-6

6.00 25.0 25.0 30.00 100.0 180.0 25.0 150.00 GFF 6N SET ESG 1

SGFFR/L 25-60-6

6.00 25.0 25.0 30.00 57.0 77.0 25.0 150.00 GFF 6N SET ESG 1

SGFFR/L 25-75-6

6.00 25.0 25.0 30.00 75.0 102.0 25.0 150.00 GFF 6N SET ESG 1

• Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GFF-N (589) • GFF-R/L (589)

SGFFR/L

Face Grooving Integral

Shank Tools

587

FACE GROOVING

OAL

CDX

DAXN-DAXX

Right-hand shown

Designation

CW CDX DAXN(1) DAXX(2) H HF OAL

SGFFA 25-R/L-2

2.10 13.00 25.0 30.0 32.0 0.0 80.00 ESG 0.5

SGFFA 30-L-2

2.10 14.00 29.0 36.0 32.0 0.0 80.00 ESG 0.5

SGFFA 35-L-2

2.10 16.00 35.0 46.0 32.0 0.8 80.00 ESG 0.5

SGFFA 45-L-2

2.10 20.00 45.0 61.0 32.0 0.8 80.00 ESG 0.5

SGFFA 60-L-2

2.10 20.00 60.0 80.0 32.0 0.8 80.00 ESG 0.5

SGFFA 80-L-2

2.10 20.00 79.0 102.0 32.0 0.8 80.00 ESG 0.5

SGFFA 35-L-3

3.00 20.00 34.4 40.6 32.0 0.0 90.00 SET ESG 1

SGFFA 40-L-3

3.00 22.00 40.0 47.0 32.0 0.0 90.00 SET ESG 1

SGFFA 46-L-3

3.00 24.00 46.0 55.0 32.0 0.0 90.00 SET ESG 1

SGFFA 55-L-3

3.00 25.00 54.0 65.0 32.0 1.2 90.00 SET ESG 1

SGFFA 65-L-3

3.00 26.00 64.0 80.0 32.0 1.0 90.00 SET ESG 1

SGFFA 80-L-3

3.00 28.00 79.0 100.0 32.0 0.7 95.00 SET ESG 1

SGFFA 35-L-4

4.00 25.00 35.0 45.0 32.0 0.0 90.00 SET ESG 1

SGFFA 45-R/L-4

4.00 25.00 44.0 58.0 32.0 0.0 90.00 SET ESG 1

SGFFA 40-R/L-5

5.00 25.00 40.0 52.0 32.0 0.0 90.00 SET ESG 1

SGFFA 50-R/L-5

5.00 28.00 50.0 71.0 32.0 0.0 95.00 SET ESG 1

SGFFA 70-L-5

5.00 30.00 69.0 102.0 32.0 0.0 95.00 SET ESG 1

SGFFA 100-L-5

5.00 35.00 100.0 180.0 32.0 0.0 100.00 SET ESG 1

SGFFA 45-R/L-6

6.00 25.00 44.0 58.0 32.0 0.0 90.00 SET ESG 1

SGFFA 60-L-6

6.00 30.00 57.0 77.0 32.0 0.0 95.00 SET ESG 1

SGFFA 75-R/L-6

6.00 35.00 75.0 102.0 32.0 0.0 100.00 SET ESG 1

• Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated • H dimension links blades and blocks

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GFF-N (589) • GFF-R/L (589)

For holders, see pages: SGTBF (618) • SGTBU/SGTBN (616) • UBHCR/L (618)

SGFFA

Reinforced Face Grooving Blades

for Standard Tool Blocks

ISCAR

588

FACE GROOVING

WB_2

WB_2OAL WB_2

SGFFH..L-6 SGFFH..R-6

DAXN-DAXX

CDX

Designation

CW CDX DAXN(1) DAXX(2) HF H WB_2 OAL

SGFFH 35-R/L-2

2.10 20.00 35.0 46.0 0.8 32.0 5.2 150.00

SGFFH 45-R/L-2

2.10 20.00 45.0 61.0 0.8 32.0 5.2 150.00

SGFFH 60-R-2

2.10 20.00 60.0 80.0 0.8 32.0 5.2 150.00

SGFFH 80-R/L-2

2.10 20.00 79.0 102.0 0.8 32.0 4.0 150.00

SGFFH 100-R/L-2

2.10 20.00 101.0 132.0 0.0 32.0 4.0 150.00

SGFFH 75-R/L-3

3.00 20.00 65.0 92.0 1.0 32.0 5.2 150.00

SGFFH 90-R/L-3

3.00 20.00 90.0 122.0 0.2 32.0 5.2 150.00

SGFFH 120-R/L-3

3.00 25.00 120.0 160.0 0.0 32.0 5.2 150.00

SGFFH 80-R/L-4

4.00 30.00 80.0 155.0 2.5 32.0 5.2 150.00

SGFFH 150-R/L-4

4.00 30.00 150.0 500.0 2.5 32.0 5.2 150.00

SGFFH 80-R/L-5

5.00 32.00 80.0 162.0 0.0 32.0 5.2 150.00

SGFFH 150-R/L-5

5.00 35.00 150.0 600.0 0.0 32.0 5.2 150.00

SGFFH 90-R/L-6

6.00 32.00 90.0 150.0 0.0 32.0 8.0 150.00

SGFFH 150-R/L-6

6.00 35.00 148.0 700.0 0.0 32.0 5.2 150.00

• Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated • H dimension links blades and blocks

(1) Minimum penetration diameter

(2) Maximum penetration diameter

For inserts, see pages: GFF-N (589)

For holders, see pages: SGTBF (618) • SGTBK (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

Spare Parts

Designation

SGFFH 35-L-2

SET ESG 0.5

SGFFH 35-R-2

ESG 0.5

SGFFH 45-L-2

SET ESG 0.5

SGFFH 45-R-2

ESG 0.5

SGFFH 60-R-2

ESG 0.5

SGFFH 80-R/L-2

ESG 0.5

SGFFH 100-R/L-2

ESG 0.5

SGFFH 75-R/L-3

SET ESG 1

SGFFH 90-R/L-3

SET ESG 1

SGFFH 120-R/L-3

SET ESG 1

SGFFH 80-R/L-4

SET ESG 1

SGFFH 150-R/L-4

SET ESG 1

SGFFH 80-R/L-5

SET ESG 1

SGFFH 150-R/L-5

SET ESG 1

SGFFH 90-R/L-6

SET ESG 1

SGFFH 150-R/L-6

SET ESG 1

SGFFH

Face Grooving Blades

589

FACE GROOVING

7°

R L

DAXN

CDX

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) DAXN(3) DAXX(4)

IC354

IC20

f face-groove

(mm/rev)

GFF 2R

2.10 0.20 0.10 0.050 25.0 36.0

• •

0.03-0.13

GFF 3L

3.00 0.30 0.10 0.050 30.0 55.0

•

0.03-0.15

GFF 3R

3.00 0.30 0.10 0.050 30.0 55.0

• •

0.03-0.15

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

(4) Maximum axial grooving diameter

For tools, see pages: SGFFA (587) • SGFFR/L (586)

GFF-R/L

Face Grooving Inserts

7°

DAXN

CDX

Dimensions Tough

Hard Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) DAXN(3)

IC354

IC20

f face-groove

(mm/rev)

GFF 2N

2.10 0.20 0.10 0.050 35.0

• •

0.03-0.13

GFF 3N

3.00 0.30 0.10 0.050 54.0

• •

0.03-0.15

GFF 4N

4.00 0.25 0.10 0.050 35.0

• •

0.04-0.18

GFF 5N

5.00 0.25 0.10 0.050 40.0

• •

0.05-0.18

GFF 6N

6.00 0.25 0.10 0.050 44.0

• •

0.05-0.20

• Grooving depth is limited only by the tool being used

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

For tools, see pages: SGFFA (587) • SGFFH (588) • SGFFR/L (586)

GFF-N

Face Grooving Inserts

DAXN

R L

CDX

±0.04

DAXN

CDX

Dimensions Recommended

Machining Data

Designation

CW RE RETOL(1) CDX DAXN(2)

IC908

f face-groove

(mm/rev)

PENTA 34F239-0.15-22R/L

2.39 0.15 0.020 5.00 22.0

•

0.08-0.12

PENTA 34F247-0.20-22R/L

2.47 0.20 0.020 5.00 22.0

•

0.08-0.12

PENTA 34F300-0.40-22R/L

3.00 0.40 0.020 5.00 22.0

•

0.08-0.15

PENTA 34F400-0.40-22R/L

4.00 0.40 0.020 5.00 22.0

•

0.08-0.15

• For cutting speed recommendations, see pages 604-613

(1) Corner radius tolerance (+/-)

(2) Minimum axial grooving diameter

For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

PENTA 34F-R/L

Pentagonal Inserts for Face

Grooving and Recessing

ISCAR

590

FACE GROOVING

Lock

CDX

OAL

CWN-CWX

HBH

Right-hand shown

Designation

H B CWN(1) CWX(2) CDX(3) HF WF LF OAL LH HBH

PCHPR/L 16-24

16.0 16.0 0.50 3.20 (4) 6.50 16.0 1.50 (5) 23.5 120.00 11.5 -

PCHPR/L 20-24

20.0 20.0 0.50 3.20 (4) 6.50 20.0 1.50 (5) 28.0 120.00 11.5 -

PCHPR/L 25-24

25.0 25.0 0.50 3.20 (4) 6.50 25.0 1.50 (5) 33.0 135.00 11.5 -

PCHPR/L 20-34

20.0 20.0 1.40 4.00 10.00 20.0 1.90 34.0 120.00 15.0 6.0

PCHPR/L 25-34

25.0 25.0 1.40 4.00 10.00 25.0 1.90 34.0 135.00 15.0 -

(1) Minimum cutting width

(2) Maximum cutting width

(3) For specific information, refer to insert data

(4) Up to 6.2 mm width may be ordered on request

(5) Valid for inserts with CW<3.2 mm

For inserts, see pages: PENTA 24-BSPT (674) • PENTA 24-ISO (657) • PENTA 24-MT (646) • PENTA 24-NPT (670) • PENTA 24-UN (664)

• PENTA 24-W (668) • PENTA 24-WT (641) • PENTA 24N-C (320) • PENTA 24N-C (full radius) (321) • PENTA 24N-J (319) • PENTA 24N-J (full radius) (320)

• PENTA 24N-PF (full radius) (322) • PENTA 24N-PF/P (321) • PENTA 24N-Z (322) • PENTA 24R-C (531) • PENTA 24R-P (534) • PENTA 24R/L-J (530)

• PENTA 24R/L-Z (533) • PENTA 34F-R/L (589) • PENTA 34N-C (324) • PENTA 34N-J (325) • PENTA 34N-PB (324) • PENTA 34R/L-C (535)

• PENTA 34R/L-J (536) • PENTA 34R/L-PB (537)

Spare Parts

Designation

PCHPL 16-24

SR 16-212-01397 T-20/5

PCHPR 16-24

SR 16-212-01397L T-20/5

PCHPL 20-24

SR 16-212-01397 T-20/5

PCHPR 20-24

SR 16-212-01397L T-20/5

PCHPL 25-24

SR 16-212-01397 T-20/5

PCHPR 25-24

SR 16-212-01397L T-20/5

PCHPR/L 20-34

SR 16-212-01397 T-20/5

PCHPR/L 25-34

SR 16-212-01397 T-20/5

PCHPR/L

Perpendicular Holders

Carrying Inserts with 5 Cutting

Edges for Facing, Grooving,

Parting and Recessing

CDX

±0.04

CW RE

DAXN

CDX

DAXN

Dimensions Recommended

Machining Data

Designation

CW RE CDX DAXN(1)

IC908

f face-groove

(mm/rev)

PENTA 34F239-0.15-22R/LS

2.39 0.15 5.00 22.0

•

0.08-0.12

PENTA 34F247-0.20-22R/LS

2.47 0.20 5.00 22.0

•

0.08-0.12

PENTA 34F300-0.40-22R/LS

3.00 0.40 5.00 22.0

•

0.08-0.15

PENTA 34F400-0.40-22R/LS

4.00 0.40 5.00 22.0

•

0.08-0.15

• For cutting speed recommendations, see pages 604-613

(1) Minimum axial grooving diameter

For tools, see pages: PCHPRS/LS (590)

PENTA 34F-RS/LS

Pentagonal Inserts for Face

Grooving and Recessing Along

Shafts up to 5 mm Depth of Cut

at a Minimum of 22 mm Diameter

CDX

DAXN

CDX

33.8

HF H

OAL

CWN-CWX

3°

HBH

14.04

Right-hand shown

Designation

H B CWN(1) CWX(2) OAL HBH CDX(3) HF

PCHPR/LS 20-34

20.0 20.0 2.39 4.00 120.00 6.0 5.00 20.0 SR 16-212-01397RS T-20/5

PCHPR/LS 25-34

25.0 25.0 2.39 4.00 135.00 - 5.00 25.0 SR 16-212-01397RS T-20/5

(1) Minimum cutting width

(2) Maximum cutting width

(3) Insert limit

For inserts, see pages: PENTA 34F-RS/LS (590)

PCHPRS/LS

Perpendicular Shank

Tools Carrying Pentagonal

Inserts for Machining Next

to Long Central Shafts

591

FACE GROOVING

FACE TOOLS

FOR MINIATURE PARTS

ISCAR

592

FACE GROOVING

OAL

DCONMS

CDX

DAXN

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW CDX DCONMS a LU OAL

IC908

f face-groove

(mm/rev)

PICCO R 010.1006-10N

6.0 1.00 1.50 6.05 5.20 9.0 32.00

•

0.01-0.04

PICCO R 010.1506-10N

6.0 1.50 2.00 6.05 5.20 9.0 32.00

•

0.01-0.04

PICCO R 010.1008-10N

8.0 1.00 1.50 7.05 5.90 9.0 32.00

•

0.01-0.04

PICCO R 010.1008-20N

8.0 1.00 1.50 7.05 5.90 19.0 41.00

•

0.01-0.04

PICCO R 010.1008-30N

8.0 1.00 1.50 7.05 5.90 29.0 51.00

•

0.01-0.04

PICCO R 610.1008-10N

8.0 1.00 1.50 6.05 5.20 9.0 32.00

•

0.01-0.04

PICCO R/L 010.1508-20N

8.0 1.50 2.50 7.05 5.90 19.0 41.00

•

0.01-0.04

PICCO R 010.1508-10N

8.0 1.50 2.50 7.05 5.90 9.0 32.00

•

0.01-0.04

PICCO R 010.1508-30N

8.0 1.50 2.50 7.05 5.90 29.0 51.00

•

0.01-0.04

PICCO R 610.1508-10N

8.0 1.50 2.50 6.05 5.20 9.0 32.00

•

0.01-0.04

PICCO R 610.1508-20N

8.0 1.50 2.50 6.05 5.20 19.0 41.00

•

0.01-0.04

PICCO R/L 010.2008-30N

8.0 2.00 3.00 7.05 5.90 29.0 51.00

•

0.02-0.05

PICCO R 010.2008-10N

8.0 2.00 3.00 7.05 5.90 9.0 32.00

•

0.02-0.05

PICCO R 010.2008-20N

8.0 2.00 3.00 7.05 5.90 19.0 41.00

•

0.02-0.05

PICCO R 610.2008-10N

8.0 2.00 3.00 6.05 5.20 9.0 32.00

•

0.02-0.05

PICCO R 610.2008-20N

8.0 2.00 3.00 6.05 5.20 19.0 41.00

•

0.02-0.05

PICCO R 010.2508-10N

8.0 2.50 3.50 7.05 5.90 9.0 32.00

•

0.02-0.05

PICCO R 010.2508-20N

8.0 2.50 3.50 7.05 5.90 19.0 41.00

•

0.02-0.05

PICCO R 610.2508-10N

8.0 2.50 3.50 6.05 5.20 9.0 32.00

•

0.02-0.05

PICCO R 010.3008-10N

8.0 3.00 3.50 7.05 5.90 9.0 32.00

•

0.02-0.06

PICCO R 010.3008-20N

8.0 3.00 3.50 7.05 5.90 19.0 41.00

•

0.02-0.06

PICCO R 010.3008-30N

8.0 3.00 3.50 7.05 5.90 29.0 51.00

•

0.02-0.06

PICCO R 610.3008-10N

8.0 3.00 3.50 6.05 5.20 9.0 32.00

•

0.02-0.06

PICCO R 610.3008-20N

8.0 3.00 3.50 6.05 5.20 19.0 41.00

•

0.02-0.06

• Only right-hand inserts are available as standard • All inserts are with sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only

• For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

PICCO-010/610-N

(Face Grooving)

Inserts with Internal Coolant

Channel for Face Grooving

593

FACE GROOVING

OAL

DCONMS

CDX

CW OHN

DAXN

CDX

CW OHN

Right-hand shown

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW CDX DCONMS a OHN(2) OAL

IC228

f face-groove

(mm/rev)

PICCO R 010.1006-10

6.0 1.00 1.50 6.00 5.20 11.0 26.00

•

0.01-0.04

PICCO R 010.1506-10

6.0 1.50 2.00 6.00 5.20 11.0 26.00

•

0.01-0.04

PICCO R 010.1008-10

8.0 1.00 1.50 7.00 5.90 11.0 26.00

•

0.01-0.04

PICCO R 010.1008-20

8.0 1.00 1.50 7.00 5.90 21.0 35.00

•

0.01-0.04

PICCO R 010.1008-30

8.0 1.00 1.50 7.00 5.90 30.0 45.00

•

0.01-0.04

PICCO R 610.1008-10

8.0 1.00 1.50 6.00 5.20 11.0 26.00

•

0.01-0.04

PICCO R 610.1008-20

8.0 1.00 1.50 6.00 5.20 20.0 35.00

•

0.01-0.04

PICCO R/L 010.1508-20

8.0 1.50 2.50 7.00 5.90 21.0 35.00

•

0.01-0.04

PICCO R/L 010.1508-30

8.0 1.50 2.50 7.00 5.90 30.0 45.00

•

0.01-0.04

PICCO R 010.1508-10

8.0 1.50 2.50 7.00 5.90 11.0 26.00

•

0.01-0.04

PICCO R 610.1508-10

8.0 1.50 2.50 6.00 5.20 11.0 26.00

•

0.01-0.04

PICCO R 610.1508-20

8.0 1.50 2.50 6.00 5.20 20.0 35.00

•

0.01-0.04

PICCO R/L 010.2008-30

8.0 2.00 3.00 7.00 5.90 30.0 45.00

•

0.02-0.05

PICCO R 010.2008-10

8.0 2.00 3.00 7.00 5.90 11.0 26.00

•

0.02-0.05

PICCO R 010.2008-20

8.0 2.00 3.00 7.00 5.90 21.0 35.00

•

0.02-0.05

PICCO R 610.2008-10

8.0 2.00 3.00 6.00 5.20 11.0 26.00

•

0.02-0.05

PICCO R 610.2008-20

8.0 2.00 3.00 6.00 5.20 20.0 35.00

•

0.02-0.05

PICCO R 010.2508-10

8.0 2.50 3.50 7.00 5.90 11.0 26.00

•

0.02-0.05

PICCO R 010.2508-20

8.0 2.50 3.50 7.00 5.90 21.0 35.00

•

0.02-0.05

PICCO R 010.2508-30

8.0 2.50 3.50 7.00 5.90 30.0 45.00

•

0.02-0.05

PICCO R 610.2508-10

8.0 2.50 3.50 6.00 5.20 11.0 26.00

•

0.02-0.05

PICCO R 610.2508-20

8.0 2.50 3.50 6.00 5.20 20.0 35.00

•

0.02-0.05

PICCO R 010.3008-10

8.0 3.00 3.50 7.00 5.90 11.0 26.00

•

0.02-0.06

PICCO R 010.3008-20

8.0 3.00 3.50 7.00 5.90 21.0 35.00

•

0.02-0.06

PICCO R 010.3008-30

8.0 3.00 3.50 7.00 5.90 30.0 45.00

•

0.02-0.06

PICCO R 610.3008-10

8.0 3.00 3.50 6.00 5.20 11.0 26.00

•

0.02-0.06

PICCO R 610.3008-20

8.0 3.00 3.50 6.00 5.20 20.0 35.00

•

0.02-0.06

• Only right-hand inserts are available as standard • All inserts are with sharp corners • For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

(2) Minimum overhang

PICCO-010/610

(Face Grooving)

Inserts for Face Grooving

ISCAR

594

FACE GROOVING

OAL

DCONMS

CDX

DAXN

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW RE CDX DCONMS a LU OAL

IC908

f face-groove

(mm/rev)

PICCO R 010.1005-10N

8.0 1.00 0.50 2.00 7.05 5.90 9.0 32.00

•

0.01-0.04

PICCO R 010.1005-20N

8.0 1.00 0.50 2.00 7.05 5.90 19.0 41.00

•

0.01-0.04

PICCO R 010.1608-10N

8.0 1.60 0.80 3.00 7.05 5.90 9.0 32.00

•

0.01-0.05

PICCO R 010.1608-20N

8.0 1.60 0.80 3.00 7.05 5.90 19.0 41.00

•

0.01-0.05

PICCO R 010.2010-10N

8.0 2.00 1.00 4.00 7.05 5.90 9.0 32.00

•

0.02-0.05

PICCO R 010.2010-20N

8.0 2.00 1.00 4.00 7.05 5.90 19.0 41.00

•

0.02-0.05

PICCO R 010.2512-10N

8.0 2.50 1.25 5.00 7.05 5.90 9.0 32.00

•

0.02-0.05

PICCO R 010.3015-10N

8.0 3.00 1.50 6.00 7.05 5.90 9.0 32.00

•

0.02-0.05

PICCO R 010.3015-20N

8.0 3.00 1.50 6.00 7.05 5.90 19.0 41.00

•

0.02-0.05

• Only right-hand inserts are available as standard, left-hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only

• For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

PICCO-010-N (Full Radius

for Face Grooving)

Inserts with Internal

Coolant Channel for Round

Profile Face Grooving

DAXN

DCONMS

OAL

CDX

OHN Right-hand shown

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW RE CDX DCONMS a OHN(2) OAL

IC1008

f face-groove

(mm/rev)

PICCO R 010.1005-10

8.0 1.00 0.50 2.00 7.00 5.90 11.0 26.00

•

0.01-0.04

PICCO R 010.1005-20

8.0 1.00 0.50 2.00 7.00 5.90 20.0 35.00

•

0.01-0.04

PICCO R 010.1608-10

8.0 1.60 0.80 3.00 7.00 5.90 11.0 26.00

•

0.01-0.05

PICCO R 010.1608-20

8.0 1.60 0.80 3.00 7.00 5.90 20.0 35.00

•

0.01-0.05

PICCO R 010.2010-10

8.0 2.00 1.00 4.00 7.00 5.90 11.0 26.00

•

0.02-0.05

PICCO R 010.2010-20

8.0 2.00 1.00 4.00 7.00 5.90 20.0 35.00

•

0.02-0.05

PICCO R 010.2512-10

8.0 2.50 1.25 5.00 7.00 5.90 11.0 26.00

•

0.02-0.05

PICCO R 010.2512-20

8.0 2.50 1.25 5.00 7.00 5.90 20.0 35.00

•

0.02-0.05

PICCO R 010.3015-10

8.0 3.00 1.50 6.00 7.00 5.90 11.0 26.00

•

0.02-0.05

PICCO R 010.3015-20

8.0 3.00 1.50 6.00 7.00 5.90 20.0 35.00

•

0.02-0.05

• Only right-hand inserts are available as standard, left-hand inserts on request • For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

(2) Minimum overhang

PICCO-010

(Round Face Groove)

Inserts for Round Profile

Face Grooving

595

FACE GROOVING

DCONMS

OAL

CDX

DAXN

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW CDX DCONMS a LU OAL

IC908

f face-groove

(mm/rev)

PICCO R 620.1006-20N

6.0 1.00 2.00 6.05 5.20 19.0 41.00

•

0.01-0.04

PICCO R 620.1506-20N

6.0 1.50 3.00 6.05 5.20 19.0 41.00

•

0.01-0.05

PICCO R 620.2006-20N

6.0 2.00 4.00 6.05 5.20 19.0 41.00

•

0.02-0.06

PICCO R 620.2506-20N

6.0 2.50 5.00 6.05 5.20 19.0 41.00

•

0.02-0.06

PICCO R 620.3006-20N

6.0 3.00 6.00 6.05 5.20 19.0 41.00

•

0.02-0.06

• Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners

• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

PICCO-620-N (Face

Grooving along Shaft)

Inserts with Internal Coolant

Channel for Grooving along

Shaft Dmin 6 mm

OHN

DAXN

DCONMS

OAL

CDX

CW Right-hand shown

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW CDX DCONMS a OHN(2) OAL

IC1008

f face-groove

(mm/rev)

PICCO R 620.1006-20

6.0 1.00 2.00 6.00 5.20 20.0 35.00

•

0.01-0.04

PICCO R 620.1506-20

6.0 1.50 3.00 6.00 5.20 20.0 35.00

•

0.01-0.05

PICCO R 620.2006-20

6.0 2.00 4.00 6.00 5.20 20.0 35.00

•

0.02-0.06

PICCO R 620.2506-20

6.0 2.50 5.00 6.00 5.20 20.0 35.00

•

0.02-0.06

PICCO R 620.3006-20

6.0 3.00 6.00 6.00 5.20 20.0 35.00

•

0.02-0.06

• Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners

• For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

(2) Minimum overhang

PICCO-620

(Groove Along Shaft)

Inserts for Grooving Along

a Shaft Dmin 6 mm

ISCAR

596

FACE GROOVING

OAL

aCW

RE0.2

DCONMS

DAXN

CDX

Bar Max

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW LU CDX DCONMS a OAL

IC908

f face-groove

(mm/rev)

PICCO R016.0300-10N

16.0 3.00 9.00 9.00 8.00 5.50 32.00

•

0.01-0.05

PICCO R016.0300-20N

16.0 3.00 19.00 19.00 8.00 5.50 41.00

•

0.01-0.05

PICCO R016.0400-20N

16.0 4.00 19.00 19.00 8.00 6.00 41.00

•

0.01-0.05

PICCO R020.0300-25N

20.0 3.00 24.00 24.00 8.00 5.50 46.00

•

0.01-0.05

PICCO R020.0300-30N

20.0 3.00 29.00 29.00 8.00 5.50 51.00

•

0.01-0.04

PICCO R020.0300-40N

20.0 3.00 39.00 39.00 8.00 5.50 61.00

•

0.01-0.04

PICCO R020.0400-25N

20.0 4.00 24.00 24.00 8.00 6.00 46.00

•

0.01-0.06

PICCO R020.0400-30N

20.0 4.00 29.00 29.00 8.00 6.00 51.00

•

0.01-0.06

PICCO R020.0400-40N

20.0 4.00 39.00 39.00 8.00 6.00 61.00

•

0.01-0.05

PICCO R020.0500-25N

20.0 5.00 24.00 24.00 8.00 6.50 46.00

•

0.02-0.06

PICCO R020.0500-30N

20.0 5.00 29.00 29.00 8.00 6.50 51.00

•

0.02-0.06

PICCO R020.0500-35N

20.0 5.00 34.00 34.00 8.00 6.50 56.00

•

0.02-0.05

PICCO R020.0500-40N

20.0 5.00 39.00 39.00 8.00 6.50 61.00

•

0.02-0.05

• All inserts have two coolant holes which may be used with coolant pressure up to 100 bars • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only

• For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

PICCO-016/020-N

(Face Grooving)

Inserts with Internal Coolant

Channel for Deep Face Grooving

RE0.2

OAL

OHN

DCONMS

6.3

DAXN

Right-hand shown

Bar Max

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW OHN(2) DCONMS a OAL

IC1008

f face-groove

(mm/rev)

PICCO R 016.0300-10

16.0 3.00 10.00 8.00 5.50 30.00

•

0.01-0.05

PICCO R 016.0300-20

16.0 3.00 20.00 8.00 5.50 40.00

•

0.01-0.05

PICCO R 016.0400-10

16.0 4.00 10.00 8.00 6.00 30.00

•

0.01-0.05

PICCO R 016.0400-20

16.0 4.00 20.00 8.00 6.00 40.00

•

0.01-0.05

PICCO R 020.0300-25

20.0 3.00 25.00 8.00 5.50 45.00

•

0.01-0.05

PICCO R 020.0300-30

20.0 3.00 30.00 8.00 5.50 50.00

•

0.01-0.04

PICCO R 020.0300-35

20.0 3.00 35.00 8.00 5.50 55.00

•

0.01-0.04

PICCO R 020.0300-40

20.0 3.00 40.00 8.00 5.50 60.00

•

0.01-0.04

PICCO R 020.0400-25

20.0 4.00 25.00 8.00 6.00 45.00

•

0.01-0.06

PICCO R 020.0400-30

20.0 4.00 30.00 8.00 6.00 50.00

•

0.01-0.06

PICCO R 020.0400-35

20.0 4.00 35.00 8.00 6.00 55.00

•

0.01-0.05

PICCO R 020.0400-40

20.0 4.00 40.00 8.00 6.00 60.00

•

0.01-0.05

PICCO R 020.0500-20

20.0 5.00 20.00 8.00 6.50 40.00

•

0.02-0.06

PICCO R 020.0500-25

20.0 5.00 25.00 8.00 6.50 45.00

•

0.02-0.06

PICCO R 020.0500-30

20.0 5.00 30.00 8.00 6.50 50.00

•

0.02-0.06

PICCO R 020.0500-35

20.0 5.00 35.00 8.00 6.50 55.00

•

0.02-0.05

PICCO R 020.0500-40

20.0 5.00 40.00 8.00 6.50 60.00

•

0.02-0.05

• All inserts have two coolant holes which may be used with coolant pressure up to 100 bars • For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

(2) Minimum overhang

PICCO-016/020

(Face Grooving)

Inserts with Coolant Holes

for Deep Face Grooving

597

FACE GROOVING

DAXN

CWN-CWX

KITS

Designation

DAXN(1) CWN(2) CWX(3)

KIT PICCO SET-4R

8.0 1.00 3.00

(1) Minimum axial grooving diameter

(2) Minimum cutting width

(3) Maximum cutting width

PICCO

Face Grooving PICCO Mini-Bar Tool Set - 4R

Designation

Mini Bore

Dia. OHN CDX CW Pcs. Designation

PICCO 16.D6

1x Holder

PICCO R/L 010.1008-10

8.0 11 1.5 1.0 1x Mini Carbide Bar

PICCO R/L 010.1508-10

8.0 11 2.5 1.5 1x Mini Carbide Bar

PICCO R/L 010.2008-10

8.0 11 3.0 2.0 1x Mini Carbide Bar

PICCO R/L 010.2508-20

8.0 21 3.5 2.5 1x Mini Carbide Bar

PICCO R/L 010.3008-20

8.0 21 3.5 3.0 1x Mini Carbide Bar

Available grade: IC228

Min Bore

Dia.

CDX

CW OHN

KIT PICCO Face

Contains One Toolholder

and a Set of Solid Carbide

Miniature Face Turning and

Grooving Boring Bars

OAL

aCW

DCONMS

DAXN

CDX

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW LU DCONMS a OAL

IC908

f face-groove

(mm/rev)

PICCO R 015.2515-20N

8.0 2.50 19.00 7.05 5.90 41.00

•

0.01-0.04

PICCO R 015.3015-20N

8.0 3.00 19.00 7.05 5.90 41.00

•

0.02-0.05

PICCO R 015.3015-30N

8.0 3.00 29.00 7.05 5.90 51.00

•

0.01-0.04

• Only right-hand inserts are available as standard, left-hand inserts on request • All inserts are with sharp corners

• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

PICCO-015-N

(Face Grooving)

Inserts with Internal Coolant

Channel for Deep Face Grooving

CW OHN

DCONMS

OAL

DAXN

CDX

Right-hand shown

Dimensions Recommended

Machining Data

Designation

DAXN(1) CW OHN(2) DCONMS a OAL CDX

IC228

f face-groove

(mm/rev)

PICCO R 015.2515-20

8.0 2.50 20.00 7.00 5.90 35.00 20.00

•

0.01-0.04

PICCO R/L 015.3015-20

8.0 3.00 20.00 7.00 5.90 35.00 20.00

•

0.02-0.05

PICCO R 015.3015-30

8.0 3.00 30.00 7.00 5.90 45.00 30.00

•

0.01-0.04

• Only right-hand inserts are available as standard, left-hand inserts on request • All inserts are with sharp corners

• For detailed cutting data, see page 604

(1) Minimum axial grooving diameter

(2) Minimum overhang

PICCO-015 (Face Grooving)

Inserts for Deep Face Grooving

ISCAR

598

FACE GROOVING

DCONMS

OHX

MGCH 09C (MG PCO-16-9)

OAL

The same tool applies for right-and left-machining

Designation

DCONMS OAL OHX(1) WF

MGCH 09C

9.00 83.50 65.0 5.50 SR 76-2145 T-15/5

(1) Maximum overhang

For inserts, see pages: GFQR (598)

For holders, see pages: PICCO/MG PCO (Holder) (399)

15 75

MG PCO-16-9

MG PCO

Holder Bar for Adjustable Shank

MGCH-C (face)

Face Machining Tools Carrying

GFQR Inserts for Dmin 12 - Dmax

19 mm Penetration Range

INSL

CDX 5

CW RE

DAXN-DAXX

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) CDX DAXN(3) DAXX(4)

IC528

f face-groove

(mm/rev)

GFQR 12-1.00-0.05

1.00 0.05 0.02 0.030 1.50 12.0 16.0

•

0.01-0.04

GFQR 12-1.50-0.20

1.50 0.20 0.02 0.030 2.50 12.0 17.0

•

0.01-0.04

GFQR 12-2.00-0.20

2.00 0.20 0.02 0.030 3.00 12.4 18.0

•

0.02-0.05

GFQR 12-2.50-0.20

2.50 0.20 0.02 0.030 3.00 13.0 19.0

•

0.02-0.05

• For detailed cutting data, see page 604

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum penetration diameter

(4) Maximum penetration diameter

GFQR

Face Grooving Inserts

RADW

OAL

DCONMS

MIFHR... 10 MIFHR... 8

CND

L3RE

Designation

DCONMS CND WF RADW OAL L3 LH RE Insert

MIFHR 8SC-8-SRK (1)

8.00 1.2 1.4 3.70 75.00 7.40 11.7 3.80 MI.R 8 SR 14-297 T-8/5

MIFHR 10C-8

10.00 5.0 1.4 4.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5

MIFHR 12C-8

12.00 5.0 1.4 5.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5

MIFHR 12C-10 (2)

12.00 6.0 2.4 5.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5

MIFHR 16C-10 (2)

16.00 6.0 2.4 7.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5

MIFHR 16C-15

16.00 8.0 2.7 7.50 100.00 12.50 19.0 10.30 MI.R 15 SR 34-506/L T-9/5 PL 16

MIFHR 20C-15

20.00 8.5 4.7 9.00 100.00 12.50 19.0 11.30 MI.R 15 SR 34-506/L T-9/5 PL 20

(1) Solid carbide shank

(2) Only face grooving inserts are available for this tool

For inserts, see pages: MEFL (600) • MIFR (600) • MIGR 8 (413) • MITR 8-MT (650) • MIUR 8 (413)

For holders, see pages: PICCO/MG PCO (Holder) (399)

MIFHR

Bars for Face and Internal

Grooving, Undercutting

and Threading Inserts

599

FACE GROOVING

OAL

DAXN

CDX

OAH

UNF 5/16”-24 typex3

Bar Max

Designation

H B OAL LH L3 CDX DAXN(1) OAH HF Insert

MFHR 12C-10-JHP

12.0 12.0 100.00 27.0 5.20 9.00 10.0 20.0 12.0 MI.R 10 SR 34-506 T-9/5 SR 5/16UNF TL360

MFHR 16C-10-JHP

16.0 16.0 100.00 27.0 5.20 9.00 10.0 24.0 16.0 MI.R 10 SR 34-506 T-9/5 SR 5/16UNF TL360

MFHR 20C-10-JHP

20.0 20.0 100.00 30.0 5.20 9.00 10.0 28.0 20.0 MI.R 10 SR 34-506 T-9/5 SR 5/16UNF TL360

• For DAXN, refer to insert data • For user guide and accessories, see pages 604-613

(1) Minimum axial grooving diameter

For inserts, see pages: MEFL (600) • MIFR (600)

Flow Rate vs. Pressure

Designation

70 Bar

Flow Rate (liters/min)

100 Bar

Flow Rate (liters/min)

140 Bar

Flow Rate (liters/min)

MFHR 12C-10-JHP

3 5-9 9-11

MFHR 16C-10-JHP

3 7-9 9-11

MFHR-JHP

Square Shank Tools for

MIFR 10 Face Grooving Inserts

OAH

OAL

CWN-CWX

DAXN

DAXX

Designation

DAXN(1) DAXX(2) CWN(3) CWX(4) OAL WB OAH Insert

IHSR 8-21 MIFR8

8.0 21.0 1.50 2.20 32.00 23.00 17.50 MI.R 8 SR 14-297 T-8/5

IHSR 19-34 MIFR10

19.0 34.0 2.00 3.00 27.00 22.00 17.80 MI.R 10 SR 34-506 T-9/5

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

(3) Minimum cutting width

(4) Maximum cutting width

For inserts, see pages: MIFR (600)

IHSR-MIFR

Trepanning Cartridges Carrying

MINCUT Inserts Mounted on the

BHR MB32-32X63 Boring Head

ISCAR

600

FACE GROOVING

INSL

PDY

MIFR 8MIFR 10MIFR 15

CDX

DAXN-DAXX

CDX

Dimensions Recommended

Machining Data

Designation

INSL CW CWTOL(1) RE RETOL(2) WF S1 DAXN(3) DAXX(4) CDX PDY

IC908

f face-

groove

(mm/rev)

f face-

turn

(mm/rev)

MIFR 8-1.50-0.20

17.70 1.50 0.02 0.20 0.020 2.60 6.5 8.0 11.5 5.50 11.00

•

0.02-0.10 0.02-0.06

MIFR 8-1.60-0.80

17.70 1.60 0.02 0.80 0.020 2.60 6.5 8.0 12.1 5.50 11.00

•

0.02-0.10 0.02-0.06

MIFR 8-2.00-0.20

17.70 2.00 0.02 0.20 0.020 2.80 6.5 8.0 16.0 5.50 11.00

•

0.02-0.10 0.02-0.06

MIFR 8-2.20-0.20

17.70 2.20 0.02 0.20 0.020 2.90 6.5 8.0 21.0 5.50 11.00

•

0.02-0.10 0.02-0.06

MIFR 10-2.00-0.20

25.10 2.00 0.02 0.20 0.020 3.00 7.6 10.0 - 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 10-2.00-1.00

25.10 2.00 0.02 1.00 0.020 3.00 7.6 10.0 - 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 10-2.50-0.20

25.10 2.50 0.02 0.20 0.020 3.10 7.6 10.0 30.0 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 10-2.50-1.25

25.10 2.50 0.02 1.25 0.020 3.30 7.6 10.0 - 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 10-3.00-0.20

25.10 3.00 0.02 0.20 0.020 3.40 7.6 10.0 30.0 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 10-3.00-1.50

25.10 3.00 0.02 1.50 0.020 3.30 7.6 10.0 34.0 9.00 14.80

•

0.02-0.10 0.02-0.06

MIFR 15-2.50-0.20

30.00 2.50 0.02 0.20 0.020 5.55 9.0 15.0 60.0 15.00 19.30

•

0.03-0.05 0.03-0.04

MIFR 15-2.50-1.25

30.00 2.50 0.02 1.25 0.020 5.55 9.0 12.0 47.0 15.00 19.30

•

0.03-0.05 0.03-0.04

MIFR 15-3.00-0.20

30.00 3.00 0.02 0.20 0.020 5.85 9.0 15.0 60.0 15.00 19.30

•

0.03-0.05 0.03-0.04

MIFR 15-3.00-1.50

30.00 3.00 0.02 1.50 0.020 5.85 9.0 10.0 - 15.00 19.30

•

0.03-0.05 0.03-0.04

MIFR 15-3.50-0.20

30.00 3.50 0.02 0.20 0.020 6.00 9.0 10.0 - 15.00 19.30

•

0.03-0.05 0.03-0.04

• Recommended cutting speeds and feeds can increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel

• For cutting speed recommendations, see page 600

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

(4) Maximum axial grooving diameter

For tools, see pages: IHSR-MIFR (599) • MFHR-JHP (599) • MIFHR (413)

MIFR

Screw-Clamped Inserts

for Internal Face Grooving

and Turning

DAXN-DAXX

CDX

DAXN-DAXX

CDX

INSL

PDY

Dimensions Recommended

Machining Data

Designation

CW RE CWTOL(1) RETOL(2) WF S1 CDX PDY INSL DAXN(3) DAXX(4)

IC908

f face-

groove

(mm/rev)

f face-

turn

(mm/rev)

MEFL 8-1.50-0.20

1.50 0.20 0.02 0.020 2.60 6.6 5.50 11.00 17.40 8.0 15.0

•

0.02-0.10 0.02-0.06

MEFL 8-1.60-0.80

1.60 0.80 0.02 0.020 2.70 6.6 5.50 11.00 17.40 7.0 12.1

•

0.02-0.10 0.02-0.06

MEFL 8-2.00-0.20

2.00 0.20 0.02 0.020 3.10 6.6 5.50 11.00 17.40 7.0 20.0

•

0.02-0.10 0.02-0.06

MEFL 8-2.00-1.00

2.00 1.00 0.02 0.020 2.90 6.6 5.50 11.00 17.40 7.0 14.0

•

0.02-0.10 0.02-0.06

MEFL 8-2.20-0.20

2.20 0.20 0.02 0.020 3.10 6.6 5.50 11.00 17.40 7.0 20.0

•

0.02-0.10 0.02-0.06

MEFL 10-2.50-0.20

2.50 0.20 0.02 0.020 3.15 7.6 9.00 14.85 24.50 10.0 45.0

•

0.02-0.06 0.02-0.05

MEFL 10-2.50-1.25

2.50 1.25 0.02 0.020 3.15 7.6 9.00 14.85 24.50 10.0 45.0

•

0.02-0.06 0.02-0.05

MEFL 10-3.00-0.20

3.00 0.20 0.02 0.020 3.60 7.6 9.00 14.85 24.50 10.0 100.0

•

0.02-0.06 0.02-0.05

MEFL 10-3.00-1.50

3.00 1.50 0.02 0.020 3.40 7.6 9.00 14.85 24.50 10.0 100.0

•

0.02-0.06 0.02-0.05

• For cutting speed recommendations, see pages

(1) Cutting width tolerance (+/-)

(2) Corner radius tolerance (+/-)

(3) Minimum axial grooving diameter

(4) Maximum axial grooving diameter

For tools, see pages: MFHR-JHP (599) • MIFHR (413)

MEFL

Screw-Clamped Inserts for

External Face Grooving and

Turning Next to Shafts

601

FACE GROOVING

KITS

Designation

Qty

KIT MINCUT

Catalog No Designation Quantity

2801523

MIFHR 12C-8 1

6404029

MIGR 8-1.60-0.80 1

6404045

MIFR 8-2.20-0.20 1

6404049

MIFR 8-1.60-0.80 1

6405165

MITR 8-MT1-0.05 1

6405188

MIUR 8-1.00-0.50 1

6405194

MIGR 8-2.00-0.10 1

MINCUT KIT

Contains One Toolholder and

a Set of 6 Different Inserts

for Internal Face Grooving

and Turning Applications

Machining Data for Face Machining

ISO

Material Condition

Tensile Strength

[N/mm2]Hardness HB

Material

Group No.

Non-alloy steel and cast

steel, free cutting steel

< 0.25 %C Annealed 420 125 1

>= 0.25 %C Annealed 650 190 2

< 0.55 %C Quenched and tempered 850 250 3

>= 0.55 %C Annealed 750 220 4

Quenched and tempered 1000 300 5

Low alloy steel and cast steel (less

than 5% of alloying elements)

Annealed 600 200 6

Quenched and tempered

930 275 7

1000 300 8

1200 350 9

High alloyed steel, cast steel, and tool steel Annealed 680 200 10

Quenched and tempered 1100 325 11

Stainless steel and cast steel Ferritic/martensitic 680 200 12

Martensitic 820 240 13

MStainless steel and cast steel Austenitic 600 180 14

Cast iron nodular (GG) Ferritic/pearlitic 180 15

Pearlitic/ Martensitic 260 16

Grey cast iron (GGG) Ferritic 160 17

Pearlitic 250 18

Malleable cast iron Ferritic 130 19

Pearlitic 230 20

Aluminum-wrought alloys Not cureable 60 21

Cured 100 22

Aluminum-cast-alloys

<=12% Si Not cureable 75 23

Cured 90 24

>12% Si High temperature 130 25

Copper alloys

>1% Pb Free cutting 110 26

Brass 90 27

Electrolitic copper 100 28

Non-metallic Duroplastics, fiber plastics 29

Hard rubber 30

High temp. alloys

Fe based Annealed 200 31

Cured 280 32

Ni or Co based

Annealed 250 33

Cured 350 34

Cast 320 35

Titanium Ti alloys RM 400 36

Alpha+beta alloys cured RM 1050 37

Hardened steel Hardened 55 HRC 38

Hardened 60 HRC 39

Chilled cast iron Cast 400 40

Cast iron Hardened 55 HRC 41

ISCAR

602

USER GUIDE

FACE GROOVING

Material

No. IC228/528 IC830 IC354 IC908 IC808 IC8250

185 - 125 90 - 135 95 - 145 120 - 180 125 - 190 180 - 270

275 - 110 80 - 115 90 - 125 110 - 155 115 - 165 165 - 230

360 - 85 65 - 95 70 - 100 85 - 125 90 - 130 125 - 185

465 - 100 70 - 110 75 - 115 95 - 145 100 - 150 140 - 215

550 - 85 55 - 90 60 - 95 75 - 120 80 - 125 110 - 180

665 - 100 70 - 110 75 - 115 95 - 145 100 - 150 140 - 215

750 - 85 55 - 95 60 - 100 75 - 125 80 - 130 110 - 185

850 - 85 55 - 90 60 - 95 75 - 120 80 - 125 110 - 180

950 - 75 50 - 80 55 - 90 70 - 110 75 - 115 105 - 165

10 75 - 110 80 - 115 90 - 125 110 - 155 115 - 165 165 - 230

11 50 - 75 50 - 80 55 - 90 70 - 110 75 - 115 105 - 165

IC806 IC808 IC354 IC830 IC20

12 110 - 200 100 - 180 80 - 145 75 - 135 50 - 90

13 100 - 185 90 - 170 70 - 135 65 - 125 45 - 85

IC806 IC808 IC354 IC830 IC20

14 90 - 170 80 - 155 65 - 125 60 - 115 40 - 75

IC5010 IC428 IC8250 IC808 IC20

15 135 - 255 125 - 230 110 - 205 85 - 160 60 - 115

16 120 - 180 110 - 160 100 - 145 75 - 110 55 - 80

17 130 - 215 120 - 195 110 - 175 85 - 135 60 - 95

18 105 - 170 95 - 155 85 - 140 65 - 110 45 - 75

19 160 - 265 145 - 240 130 - 215 100 - 170 70 - 120

20 130 - 215 120 - 195 110 - 175 85 - 135 60 - 95

IC808 IC20

21 330 - 990 300 - 900

22 250 - 825 225 - 750

23 250 - 825 225 - 750

24 165 - 495 150 - 450

25 165 - 330 150 - 300

26 165 - 330 150 - 300

27 120 - 250 110 - 225

28 80 - 165 75 - 150

29 40 - 165 35 - 150

IC806 IC908 IC808 IC830 IC20

31 45 - 70 35 - 55 35 - 60 25 - 40 25 - 40

32 30 - 50 25 - 40 25 - 40 20 - 30 15 - 30

33 30 - 50 25 - 40 25 - 40 20 - 30 15 - 30

34 25 - 45 20 - 35 20 - 35 15 - 25 15 - 25

35 20 - 30 15 - 25 15 - 25 10 - 20 10 - 15

36 105 - 180 85 - 145 90 - 150 65 - 110 60 - 100

37 40 - 50 30 - 40 30 - 40 25 - 35 35 - 45

IC808 IC20

38 25-30 20-30

39 20-30 15-25

40 30-45 30-40

41 25-30 25-30

603

USER GUIDE

FACE GROOVING

Machining Data for Face Machining

ISO

Material Condition

Tensile

Strength

[N/mm2]

Hardness

Material

No.

Cutting

Speed

(m/min)

GFQR

IC528

Feed

(mm/rev)

PICCO

IC228

Feed

(mm/rev)

MIFR/

MEFL

8 IC908

Feed

(mm/rev)

MIFR 10

IC908

Feed

(mm/rev)

MIFR 15

IC908

Feed

(mm/rev)

Non-alloy

steel and

cast steel,

free cutting

steel

< 0.25 %C Annealed 420 125 1 80-180 0.02-0.08 0.015-0.05

0.015-0.08 0.03-0.10 0.03-0.08

>= 0.25 %C Annealed 650 190 2

< 0.55 %C

Quenched

and

tempered

850 250 3 80-130 0.02-0.06 0.015-0.04

>= 0.55 %C Annealed 750 220 4

Quenched

and

tempered

1000 300 5 80-120 0.02-0.06 0.015-0.04

Low alloy and cast

steel (less than 5% of

alloying elements)

Annealed 600 200 6 80-140 0.02-0.08 0.015-0.04

Quenched

and

tempered

930 275 7 80-140 0.02-0.08 0.015-0.04

1000 300 8 80-120 0.02-0.06 0.015-0.03

1200 350 9 80-120 0.02-0.05 0.015-0.03

High alloyed steel, cast

steel, and tool steel

Annealed 680 200 10 80-140 0.02-0.08 0.015-0.04

Quenched

and

tempered

1100 325 11 80-120 0.02-0.08 0.015-0.03

Stainless steel

and cast steel

Ferritic/

martensitic 680 200 12 40-120 0.02-0.08 0.015-0.04 0.015-0.07 0.03-0.08 0.02-0.05

Martensitic 820 240 13 40-120 0.02-0.07 0.015-0.04 0.015-0.07 0.03-0.08 0.02-0.05

MStainless steel

and cast steel Austenitic 600 180 14 40-100 0.02-0.06 0.015-0.03 0.015-0.07 0.03-0.08 0.02-0.05

Cast iron nodular (GG)

Ferritic/

pearlitic 180 15 80-140 0.02-0.08 0.015-0.05

0.02-0.10 0.05-0.12 0.04-0.10

Pearlitic/

Martensitic 260 16 80-120 0.02-0.07 0.015-0.04

Grey cast iron (GGG) Ferritic 160 17 80-140 0.02-0.08 0.015-0.04

Pearlitic 250 18 80-120 0.02-0.07 0.015-0.04

Malleable cast iron Ferritic 130 19 80-140 0.02-0.06 0.015-0.04

Pearlitic 230 20 80-120 0.02-0.07 0.015-0.04

Aluminum-wrought alloys Not cureable 60 21 150-320 0.02-0.08 0.015-005

0.02-0.10 0.05-0.15 0.05-0.12

Cured 100 22 100-250 0.02-0.08 0.015-005

Aluminum-

cast-alloys

<=12% Si Not cureable 75 23 150-300 0.02-0.08 0.015-005

Cured 90 24 150-300 0.02-0.08 0.015-005

>12% Si High

temperature 130 25 100-150 0.02-0.08 0.015-005

Copper

alloys

>1% Pb Free cutting 110 26 80-230 0.02-0.08 0.015-005

Brass 90 27 70-200 0.02-0.08 0.015-005

Electrolitic

copper 100 28 50-180 0.02-0.08 0.015-005

Non-metallic

Duroplastics,

fiber plastics 29

Hard rubber 30

High temp.

alloys

Fe based Annealed 200 31 20-40 0.02-0.06 0.015-0.04

0.015-0.7 0.02-0.08 0.02-0.05

Cured 280 32 15-30 0.02-0.06 0.015-0.04

Ni or Co

based

Annealed 250 33 15-20 0.02-0.06 0.015-0.04

Cured 350 34 15-20 0.02-0.06 0.015-0.04

Cast 320 35 15-20 0.02-0.06 0.015-0.04

Titanium Ti alloys

RM 400 36 40-120 0.02-0.06 0.015-0.04

Alpha+beta

alloys cured RM 1050 37 20-50 0.02-0.06 0.015-0.04

Hardened steel Hardened 55 HRC 38

Hardened 60 HRC 39

Chilled cast iron Cast 400 40

Cast iron Hardened 55 HRC 41

ISCAR

604

USER GUIDE

FACE GROOVING

Grade ISO Grade Description Coating Layers Coating Color*

PVD COATED

IC354

P20-P40

A tough substrate with PVD coating, suitable for general use on

a wide range of carbon steels, alloy steels and stainless steel at

moderate speeds and feeds.

M20-M30

TiCN

Base

IC806

A hard submicron grain size substrate with PVD coating and a

special SUMOTEC surface treatment.

Excellent for machining high temperature alloys and Titanium

alloys, at moderate to relatively high cutting speeds.

Features high wear resistance and plastic deformation durability.

M05-M15

TiAlN

S10-S20 AlTiN

Base

IC807

P10-P20 A hard submicron grain size substrate with PVD coating and a

special SUMOTEC surface treatment. Suitable for machining

steels, alloy steels, austenitic stainless steel, high temperature

alloys and hard steels at moderate to relatively high cutting

speeds under stable conditions. Features high wear resistance

and plastic deformation durability.

M05-M15

K15-K30

TiN

S10-S20 TiAlN

H05-H15 Base

IC808

P15-P30 A tough submicron grain size substrate with PVD coating and a

special SUMOTEC surface treatment. Recommended for general

use for a large variety of applications and materials such as

steels, alloy steels, austenitic stainless steel and high temperature

alloys at moderate cutting speeds and feeds. Features high wear

resistance and chipping durability.

M20-M30

K20-K40

TiN

S15-S30 TiAIN

H20-H30 Base

IC830

P30-P45 A tough substrate with PVD coating and a special SUMOTEC

surface treatment. Suitable for machining steel and stainless

steel at low to medium cutting speeds and moderate to high

feeds. The grade features high toughness and recommended for

interrupted cuts and machining under unstable conditions. May

be used on high temperature alloys at low cutting speeds.

M25-M40

TiN

S20-S30 TiAlN

Base

IC908

P15-P30

A tough submicron grain size substrate with PVD coating,

recommended for general use in a large variety of operations and

materials such as steels, alloy steels, austenitic stainless steel and

high temperature alloys at moderate cutting speeds.

Features high wear resistance and chipping durability.

M20-M30

K20-K40

S15-S30 TiAlN

H20-H30 Base

* For coated grades

ISCAR Face Gooving Grades Chart

605

USER GUIDE

FACE GROOVING

Grade ISO Grade Description Coating Layers Coating Color*

CVD COATED

IC5010

A hard substrate with MTCVD coating with a special SUMOTEC

surface treatment. Recommended for machining gray and nodular

cast iron at moderate to high cutting speeds, provides very good

resistance to chipping.

K10-K20 TiN

Al2O3

TiCN

Base

IC8250

P15-P35

A tough substrate with a cobalt enriched layer and MTCVD

coating with a special SUMOTEC surface treatment.

Recommended for general use machining of steels, alloy steels

and martensitic stainless steel in a wide range of conditions.

Features high toughness and good wear resistance.

M15-M25

TiN

Al2O3

TiCN

Base

IC418

A tough substrate with multilayer CVD coating. Recommended for

machining gray and nodular cast iron at medium to high cutting

speeds. Can be used for interrupted cuts and under heavy

machining conditions.

K10-K25

Al2O3

Tic

Base

IC428

A hard substrate with multilayer CVD coating.

Recommended for machining gray and nodular cast

iron at moderate to high cutting speeds.

K05-K20

Al2O3

Tic

H15-H25 Base

IC9015

P10-P25

A hard substrate with a cobalt enriched layer and MTCVD

coating. Recommended for high speed machining of steels,

alloy steels and martensitic stainless steel with moderate feeds

at stable conditions.

K10-K15 TiN

Al2O3

TiCN

Base

* For coated grades

Grade ISO Grade Description Coating Layers Uncoated

UNCOATED

IC08

A tough uncoated submicron carbide grade, suitable for steels,

stainless steel and high temperature alloys at low cutting speeds.

Good choice for non-ferrous materials.

M15-M30

N10-N25

S20-S30

Base

IC20

A hard-uncoated carbide grade for machining aluminum and

other non-ferrous materials at medium to high cutting speeds.

Can be used for cast iron at low cutting speeds.

Suitable also for machining high temperature and Titanium alloys,

at low cutting speeds.

K10-K20

N05-N25

S10-S20

H10-H20 Base

ISCAR Face Gooving Grades Chart

ISCAR

606

USER GUIDE

FACE GROOVING

Clamping the Insert

Clamping an insert correctly into the holder

is necessary for stable machining.

• Be sure that the seat is clean of dirt and swarf.

• In the first stage of clamping, ease the insert gently into

place. Make sure that the prismatic surfaces match.

Screw Clamping Torque

Insert Width Nxm

34-5

45-6

56-7

6/8 7-9

CGFG 51... 4-6

The unique chipformer is designed for deep

grooving and face turning both toward and away

from the center with excellent chip formation.

HELI-FACE HFPR/L

& HGPL Type

HELI-GRIP

GRIP...Y Type

For general use in turning

& grooving on all types of

materials. Use for deep

grooving in low-to-medium

feeds 0.04-0.15 mm/rev.

Min grooving dia. 12 mm.

The “all in one” insert for

parting, external grooving

and turning, internal

grooving and turning, face

grooving and turning.

DO-GRIP

DGN...C Type

DO-GRIP

DGN...J Type

For grooving operations

only. Strong cutting edge

for hard materials and

tough applications in

feeds 0.1-0.2 mm/rev.

For grooving operations

only. Positive rake, for soft

materials in low-to-medium

feeds 0.05-0.15 mm/rev.

Face Machining Guide

Tool Selection - Follow these recommendations

to choose the right tool for high peformance.

Choose the widest possible insert and tool, according

to the cutting width and geometry to be machined.

T max

Choose the shortest tool blade overhang,

according to the maximum depth required.

Dmin

Major

Diameter

Minor

Diameter

Choose the tool range with the largest

diameter, depending on the initial grooving

diameter required in the application.

Remark: On integral shank tools the given range

refers to the holder capacity.

Tool Adjustment - Prior to machining, check

and adjust the following tool positions.

Check the cutting edge height at center line, machine

in light turning down to center and check for burr.

// 0.015 4 mm

Check parallelism of the cutting edge and machined

surface. Correct position can guarantee good surface

quality when face turning in both directions.

607

USER GUIDE

FACE GROOVING

Face Machining Guide

Recommended machining sequence in roughing

operation using multifunction HELI-FACE tools.

Groove at the initial diameter up to the depth of

cut selected for the next step in face turning.

Continue with face turning away from the center.

After rapid positioning back into initial groove,

continue with face turning to center.

Note: When face grooving, reduce the speed by 40% in relation to that

used in face turning.

Optimizing the Machining Sequence

Recommended machining sequence

using multifunction tools.

Groove at the initial diameter to the final depth of

the groove and continue face turning away from

the center to the tangential point on the radius.

Finish major diameter toward the

bottom and generate the radius.

Position the tool in rapid movement in the initial

groove, continue face turning to center, without

touching the machined roughing steps on the wall.

Finish boring the minor diameter to

the bottom, up to final depth.

Note: When face grooving, reduce the speed by 40% in relation to that

used in face turning.

ISCAR

608

USER GUIDE

FACE GROOVING

The Multifunction Advantage

The HELI-FACE internal boring bar HFIR/L MC

typewith internal coolant can replace the three different

ISO tools and shorten machining time by 20%.

A single multifunction tool machines the whole part:

grooving, face turning and chamfering, replacing three

ISO tools and reducing machining time by 40%.

A single integral HELI-FACE tool HFHPL-M

replaces three ISO tools and reduces

machining time by 50%.

Note: When face grooving, reduce the speed by 40% in relation to that

used in face turning.

The Multifunction Advantage

This workpiece was machined using

three different conventional tools.

An indexable drill for bottom drilling.

A standard internal boring bar with a trigon

insert for roughing and finishing.

A standard internal boring bar with a trigon insert

for bottom machining. This operation requires

a small diameter shank and long overhang.

The HELI-FACE Solution

The HELI-FACE internal boring bar HFIR/L MC type

with internal coolant can replace the three different

ISO tools and shorten machining time by 20%.

609

USER GUIDE

FACE GROOVING

The Multifunction Advantage

This part was machined using three

different conventional tools.

A standad ISO tool for external turning.

A boring bar for face turning and chamfering.

A face grooving tool for grooving,

recessing and chamfering.

The HELI-FACE Solution

A single integral HELI-FACE tool HFHPL-M replaces

three ISO tools and reduces machining time by 50%.

Insert Replacement

EDG 33B

Eccentric Extractor

Simple to operate; controlled rotation requires low force;

guarantees limited upper jaw movement and secures

maximum load on blade.

Two extractor pins are placed in the

two holes in the holder blades.

Indexing

Place the EDG extractor in the holes

Hold the extractor against the tool.

Rotate the eccentric handle to lift the upper jaw.

ISCAR

610

USER GUIDE

FACE GROOVING

Recommended feed range for grooving with

HFPR/L inserts in various widths.

mm/rev

0.15

0.03

0.05

0.07

0.09

0.11

0.13

0.12

0.04

0.15 0.15

0.1

0.05 0.05

0.04

Width of Inserts (W)

Feed

Chip shapes for grooving, according to width of

insert and feed, using HFHR/L toolholders.

f=0.05

mm/rev

f=0.08

mm/rev

f=0.10

mm/rev

f=0.15

mm/rev

W=3, 4 mmW=5, 6 mm

Note: In face grooving, narrowed and deformed chips are preferred.

Curled and long chips can flow out more easily from deep grooves.

Recommended depth of cut and feed range

for face turning using HFHR/L toolholders

carrying HFPR/L inserts in various widths.

4.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

0.1 0.2 0.3 mm/rev0.05 0.15 0.25

Depth of Cut

Feed

Chip shapes in face turning with inserts HFPR/L-5004

& HFPR/L 6004 and HFHR/L toolholders.

f=0.10

mm/rev

f=0.20

mm/rev

f=0.25

mm/rev

f=0.30

mm/rev

ap=1mmap=2mmap=3mmap=4mm

Note: In roughing, increase feed at small depth of cut and reduce feed at

large depth of cut.

HFPR/L 3003

GRIP/HGPL 300Y

HFPR/L 4004

GRIP/HGPL 400Y

HFPR/L 5004

GRIP/HGPL 500Y

HFPR/L 6004

GRIP/HGPL 600Y

Machining Conditions in Face Grooving

611

USER GUIDE

FACE GROOVING

Using Adapters for 3 mm Inserts

Recommended feed range for grooving with Grip 3...

and HGPL 3... inserts and HGAIR/L and HGAER/L

adapters. Feed range changes according to adapter type.

mm/rev

0.08

0.02

0.03

0.04

0.05

0.06

0.07

40-60 40-60 40-80 40-80 40-80 m/min

0.08

0.02

0.08

0.020.020.02

0.02

0.05

0.07

0.04

Cutting Speed Vc

Feed

HGAIR/L 12-3T6

HGAER/L 12-3T6

HGAIR/L 14-3T7

HGAER/L 14-3T7

HGAIR/L 17-3T8

HGAER/L 17-3T8

HGAIR/L 21-3T9

HGAER/L 21-3T9

HGAIR/L 25-3T9

Recommended depth of cut and feed range for turning

with HGPL 3... inserts with HGAIR/L and HGAER/L

adapters. Feed range changes according to adapter type.

Feed

1.2

0.4

0.6

0.05

1.0

0.06 0.07 0.090.08 0.1 0.11 0.12 mm/rev

0.8

0.2

0.04

Depth of Cut ap

HGAIR/L 21-3T9

HGAER/L 21-3T9

HGAIR/L 25-3T9

HGAIR/L 14-3T7

HGAER/L 14-3T7

HGAIR/L 17-3T8

HGAER/L 17-3T8

HGAIR/L 12-3T6

HGAER/L 12-3T6

Note: In roughing, increase feed at small depth of cut, and reduce feed at

large depth of cut.

Using Adapters for 4-6 mm Inserts

Recommended feed range in grooving with HFPR/L

inserts and HFAIR/L & HFAER/L adapters.

mm/rev

0.12

0.04

0.06

0.08

0.09

0.10

4 5 6

0.05

0.07

0.11 0.12

0.10

0.07

0.050.05

0.04

Width of Inserts (W)

Feed

Recommended depth of cut and feed range in turning

with HFPR/L inserts and HFAIR/L & HFAER/L adapters.

Feed range changes according to adapter type.

Feed

2.5

0.5

1.0

1.5

2.0

0.1 0.20.05 0.15 0.25 mm/rev

Depth of Cut ap

HFAIR/L- ...4

HFAER/L- ...4

HFAIR/L- ...5

HFAER/L- ...5

HFAIR/L- ...6

HFAER/L- ...6

Note: In roughing, reduce feed when depth of cut is increased, ad increase

feed at small depth of cut.

Face Grooving and Turning Recommendations

ISCAR

612

USER GUIDE

FACE GROOVING

Specially Tailored

Semi-Standard Face Grooving

and Undercutting Tools

The following drawings show typical

semi-standard face grooving tools that can be

ordered. Please specify all relevant dimensions

and attach workpiece material geometric details.

HSK

CAMFIX

HSK

CAMFIX

Grade Selection for Facing Applications

Material groups

ISO P ISO M ISO K ISO N ISO S ISO H

1-11 12-13 14 15-20 21-28 31-37 38-41

Steel

Stainless

Steel

Ferritic &

Martensitic

Stainless

Steel

Austenitic

& Duplex

(Ferritic-

Austenitic) Cast Iron Non-ferrous

High

Temperature

Alloys

Hard Steel

& Cast Iron

FACING

Harder IC808 IC808 IC808 IC5010 IC808

IC8250 IC8250 IC8250 IC20 IC20

IC830 IC830 IC08 IC908

Tougher IC428 IC808

First choice

613

USER GUIDE

FACE GROOVING

ISCAR

614

FACE GROOVING

615

TOOL BLOCKS

ISCAR

616

TOOL BLOCKS

HBH

OAH HTPRM

SGTBN

OAW

WTHPRM

OAL

SGTBU- --G

SGTBU- C-

Coolant connection

Designation

H B HTPRM OAW OAH HBH WTHPRM OAL

SGTBN 16-2

16.0 16.0 19.0 26.00 30.0 4.0 2.00 76.00

SGTBU 16-5G

16.0 17.0 26.0 34.00 43.0 13.0 4.10 86.00

SGTBU 20-5G

20.0 21.0 26.0 38.00 43.0 9.0 4.10 86.00

SGTBU 20-6G

20.0 19.1 32.0 38.20 50.0 12.9 5.30 100.00

SGTBU 25-5G

25.0 26.1 26.0 43.10 45.0 5.0 4.10 110.00

SGTBU 25-6G

25.0 23.0 32.0 42.20 50.0 7.8 5.30 110.00

SGTBU 25-8M

25.0 23.0 45.0 42.20 70.0 27.0 5.30 110.00

SGTBU 25C-6 (1)

25.0 23.0 32.0 42.20 50.0 7.8 5.30 110.00

SGTBU 32-25-6G

32.0 25.1 32.0 44.15 54.0 4.8 5.30 110.00

SGTBU 32-6G

32.0 29.1 32.0 28.20 54.0 4.8 5.30 110.00

SGTBU 32-8M

32.0 29.0 45.0 48.20 70.0 20.0 5.30 110.00

SGTBU 32C-14 (1)

32.0 28.0 52.6 63.00 99.8 41.7 12.60 140.00

SGTBU 40-6G

40.0 - 32.0 60.00 57.0 - 5.30 114.00

SGTBU 40-9

40.0 41.0 52.6 66.00 81.0 22.0 8.00 130.00

SGTBU 40C-14 (1)

40.0 28.0 52.6 63.00 99.8 33.8 12.60 140.00

SGTBU 50-9

50.0 41.0 52.6 66.00 83.0 14.0 8.00 135.00

SGTBU 50C-14 (1)

50.0 28.0 52.6 63.00 99.8 23.8 12.60 140.00

SGTBU 100-9-12 (2)

50.0 49.0 100.0 106.00 155.0 73.5 15.00 225.00

SGTBU 150-9-12 (2)

50.0 49.0 150.0 106.00 209.0 127.5 15.00 306.00

• Choose blade by HTPRM and WTHPRM dimensions

(1) Elbow-style connector unit supplied with each JET-CUT tool block

(2) See more detailed information below

For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-8-10D (287) • CGHN-D (283) • CGHN-DG (283) • CGHN-P8 (283)

• CGHR/L-12-14D (333) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFA (557) • HFFH (557) • HFFR/L-T (564) • HGFH (268)

• PCHBR/L (318) • SGFFA (587) • SGFFH (588) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGHN-D (271) • TNFFA-IQ (584) • TNFFH-IQ (583)

OAH

OAL

BHBH

HTPRM

OAW

SGTBU 100/150-9-12

Spare Parts

Designation

SGTBN 16-2

SR M5X20DIN912 HW 4.0

SGTBU 16-5G

BKU 86 SR M6X16 DIN912 HW 5.0

SGTBU 20-5G

BKU 86 SR M6X16 DIN912 HW 5.0

SGTBU 20-6G

BKU 100 SR M6X16 DIN912 HW 5.0

SGTBU 25-5G

BKU 105 SR M6X16 DIN912 HW 5.0

SGTBU 25-6G

BKU 110 SR M6X16 DIN912 HW 5.0

SGTBU 25-8M

BKU 110 SR M6X16 DIN912 SR M6X30 DIN912 HW 5.0

SGTBU 25C-6

BKU 110 SR M6X16 DIN912 HW 5.0 SGCU-344* CF 343* CGF 343* CGM 343*

SGTBU 32-25-6G

BKU 110 SR M6X16 DIN912 HW 5.0

SGTBU 32-6G

BKU 110 SR M6X16 DIN912 HW 5.0

SGTBU 32-8M

BKU 110 SR M6X16 DIN912 HW 5.0

SGTBU 32C-14

BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N

SGTBU 40-6G

BKU 110 SR M6X16 DIN912 HW 5.0

SGTBU 40-9

BK 509 SR M8X25DIN912 HW 6.0

SGTBU 40C-14

BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N

SGTBU 50-9

BK 509 SR M8X25DIN912 HW 6.0

SGTBU 50C-14

BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N

SGTBU 100-9-12

SR M10X25 DIN912 HW 8.0

SGTBU 150-9-12

SR M10X25 DIN912 HW 8.0

* Optional, should be ordered separately

SGTBU/SGTBN

Blocks for Various Parting

and Grooving Blades

617

TOOL BLOCKS

OAL

OAH

HBH

OAW

WTHPRM

HTPRM

Designation

H B WTHPRM HTPRM OAW OAH HBH OAL

SGTBK 32-9

32.0 28.0 8.50 32.0 48.00 62.0 3.0 120.00 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0

SGTBK 38-9

38.0 35.0 8.50 52.6 60.00 90.0 25.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0

SGTBK 40-9

40.0 35.0 8.50 52.6 60.00 90.0 23.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0

SGTBK 50-9

50.0 40.0 8.50 52.6 65.00 90.0 15.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0

• Choose blade by HTPRM dimension

For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-8-10D (287) • CGHN-P8 (283) • CGHR/L-12-14D (333)

• CGHR/L-P8DG (284) • DGFH (268) • HFFH (557) • PCHBR/L (318) • SGFFH (588) • TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)

SGTBK

Blocks for Heavy Duty Parting

and Grooving Blades

OAL

HTPRM

WTHPRM

Right-hand shown

Designation

H HF HTPRM B OAL WTHPRM

SGTBR 19-2

25.0 19.0 19.0 19.0 100.00 2.00 SR M6X25 DIN912 HW 5.0

SGTBL 25-6

32.0 25.0 26.0 20.0 121.50 5.00 SR M6X25 DIN912 HW 5.0

SGTBR 25-6

32.0 25.0 26.0 20.0 120.00 5.00 SR M6X30 DIN912 HW 5.0

• Choose blade by HTPRM dimension

For tools, see pages: DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HGFH (268) • PCHBR/L (318) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495)

SGTBR/L

Blocks for Parting and Grooving

Blades for Conventional Lathes

OAL

OAH

OAW

WTHPRM

HBH

HTPRM

G 1/8"

Choose blade by prism height dimension

Bar Max

Designation

H B HTPRM OAW OAH HBH WTHPRM OAL

TGTBU 16-5G-JHP

16.0 16.9 26.0 35.60 29.9 13.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-5G-JHP

20.0 20.9 26.0 39.60 33.9 9.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-35-JHP

20.0 19.0 35.0 38.00 32.3 23.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 20-6G-JHP

20.0 19.0 32.0 39.20 36.4 15.0 5.30 100.00 BKU 100 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-5G-JHP

25.0 26.1 26.0 44.10 39.0 5.5 4.10 110.00 BKU 105 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-6G-JHP

25.0 23.0 32.0 43.20 41.4 8.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 25-35-JHP

25.0 23.0 35.0 42.00 37.3 18.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 32-6G-JHP

32.0 29.0 32.0 49.20 48.4 5.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N

TGTBU 32-35-JHP

32.0 29.0 35.0 48.00 44.3 11.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N

For tools, see pages: DGFH-JHP (269) • DGFHR/L-BC-JHP (469) • TGFH-JHP (494) • TGFHR/L-JHP (495)

TGTBU-JHP

Tool Blocks for Parting

and Grooving Blades for

High Pressure Coolant

ISCAR

618

TOOL BLOCKS

HTPRM

2 Ref.

(a)

WTHPRM OAH

OAW

LSCMS

OAL

Designation

H B HTPRM OAL LSCMS OAW OAH WTHPRM

SGTBF 25-A

25.0 25.0 32.0 102.00 80.00 48.00 48.0 5.50 SR M6X40 DIN912 HW 5.0

SGTBF 32-A

32.0 32.0 32.0 116.00 100.00 48.00 48.0 5.50 SR M6X40 DIN912 HW 5.0

• (a) h2 Ref. as defined for SELF-GRIP face grooving blades • Choose blade by HTPRM dimension

For tools, see pages: DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HFFR/L-T (564) • HGFH (268) • SGFFA (587) • SGFFH (588)

• TGFH/R/L (332) • TGFHR/L (495) • TNFFA-IQ (584) • TNFFH-IQ (583)

SGTBF

Perpendicular Blocks for

Parting and Grooving Blades

HTPRM

OAW

OAH H

OAL

Right-hand shown

Designation

H HTPRM B OAH OAW OAL

UBHCR/L 20-26

20.0 26.0 20.0 42.0 35.60 100.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5

UBHCR/L 25-32

25.0 32.0 25.0 46.0 40.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5

UBHCR/L 32-32

32.0 32.0 32.0 46.0 47.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5

• Choose blade by HTPRM dimension

For tools, see pages: CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470)

• HFFA (557) • HFFH (557) • HFFR/L-T (564) • HGFH (268) • SGFFA (587) • SGFFH (588) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGHN-D (271)

• TGHN-S (271) • TNFFA-IQ (584) • TNFFH-IQ (583)

UBHCR/L

Holders for Grooving, Turning

and Parting Blades

619

USER GUIDE

TOOL BLOCKS

JETCUT Assembly

CInsert GF

DBlade SGFHK-

ECap SGC 340 supplied with a blade;

to be used with Option 1 only.

FTool block SGTBUC-

GElbow-style connector unit supplied

with each tool block

HSGCU-344 H 3/16” copper Tube 343 (length 250 mm)

JStandard current tool blocks SGTBN, SGTBU, SGTBF

KCoolant connection unit SGCU-341

MIntegral shank holder SGTFR/LK-

Option 1:

Coolant supplied through the tool block.

Option 2:

Coolant supplied directly to the blade.

Option 3:

Coolant supplied directly to the integral shank tool.

The coolant supply tube can be used

with the following options:

• DGTR...C integral tool

• DGFH-C blades used on regular blocks

by connecting directly to the blade

• SGTBU-C blocks with coolant passages

and connecting ports

The Right Connection for Your Application

Option 1:

Coolant supplied directly to the blade.

SGCU 341 Coolant connection unit

Connectors:

CGM 343 (G1/8 external thread)

CGF 343 (G1/8 internal thread)

CF 343 (NPT1/8 internal thread)

Option 2:

Coolant supplied through the tool block.

SGCU 344 Elbow connector

TUBE 343

3/16” copper tube (length 250 mm)

(G1/8 external thread) (G1/8 internal thread)

(NPT1/8 external thread) (NPT1/8 internal thread)

Option 3:

Coolant supplied directly to the tool.

SGCU 341 Coolant connection unit

Connectors:

CGM 343 (G1/8 external thread)

CGF 343 (G1/8 internal thread)

CF 343 (NPT1/8 internal thread)

ISCAR

620

USER GUIDE

TOOL BLOCKS

621

EXCHANGEABLE HEADS HOLDERS

ISCAR

622

EXCHANGEABLE HEADS HOLDERS

HSK-T (ISO 1264-3 T Type and ICTM Standard)

Quick Change tools are expensive compared to

standard shank tools. ISCAR offers economical

solutions by using adapters, blades or regular tools

and boring bars on the Quick Change adaptations.

CAMFIX (ISO 26623-1) ........................................................................................622

HSK-T (ISO 12164-3 T Type and ICTM Standard) ..............................................631

IM (ISO 26622-1 and Mazak XMZ Standard) ........................................................633

TABLE OF CONTENTS

ISCAR offers a wide range of tools for three

types of Quick Change systems:

1 CAMFIX (ISO 26623-1)

2 HSK-T (ISO 12164-3 T Type and ICTM Standards)

3 IM (ISO 26622-1 and Mazak XMZ Standards)

CAMFIX (ISO 266231)

CAMFIX

b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1

28,3 32 15 M12x1.5 3,6 22 0,7 2,5 19 15 6 13 25 8

35,3 40 18 M14x1.5 4,6 28 0,9 2,5 24 20 8 15 30 11,5

44,4 50 21 M16x1.5 6,1 35 1,12 3 30 20 10 20 37 14

55,8 63 28 M20x2 8,1 44 1,4 3 38 22 12 27 47 15,5

71,1 80 32 M20x2 9,1 55 2 3 48 30 12 28 48 25

C8X

88,7 100 32 M20x2 9,1 55 2 3 48 32 16 28 48 25

C10

88,3 100 43 M24x2 12 72 2,8 3 60 36 16 40 70 26,5

CAMFIX ISO 26623-1

Toolholder Standard l7

l8A

A-A C-C

l2l3

l11

623

EXCHANGEABLE HEADS HOLDERS

Features

• Symmetrical design: Due to the symmetrical

design, the torque load is distributed on the

polygon, providing a self-centering effect.

• Rigidity: The CAMFIX clamping mechanism

is extremely rigid against bending forces.

• Accuracy: The taper and face contact ensure

high repeatability within 2 microns when

operated with an automatic tool changer.

CAMFIX -

ISO 26623-1 Standard Quick Change Shanks

DCONMS

OHX LF

Right-hand shown • OHX= See specific blade dimensions

Designation

DCONMS WF LF H CDI(1)

C4 TBU-32R/L

40.00 21.0 60.00 32.0 1 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125

C5 TBU-32R

50.00 30.0 64.00 32.0 1 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN-S (282) • TGHN-S (271)

C#-TBU

Blocks with CAMFIX

Exchangeable Tapered Shanks

for Parting and Grooving Blades

L145°

DCONMS

LPR

CDX

Right-hand shown • CDX = See specific adapter dimensions

45°

45º

Designation

DCONMS LPR L1 LB LF BD CP(1) CDI(2)

C6 MAHDR-45

63.00 130.00 91.9 105.78 89.0 75.00 100 1

C8 MAHDR-45

80.00 130.00 91.9 - 89.0 80.00 100 1

• For mill-turn machines

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

C6 MAHDR-45

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20DIN7984 HW 4.0 SR M6X6DIN551 14H/22H(c) SR M5X4 DIN913 EZ 83

C8 MAHDR-45

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) SR M5X6 DIN913 EZ 83

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

C#-MAHDR-45

Holders with CAMFIX

Exchangeable Shanks for

Parting, Grooving, Turning

and Facing Adapters

DCONMS

LPR

OHX

Right-hand shown • OHX = See specific blade dimensions

Designation

DCONMS WF LPR H CP(1) CDI(2)

C6 TBK-32R/L

63.00 32.0 138.00 32.0 100 1 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 EZ 125 SR M8X6 DIN913

C8 TBK-52R

80.00 40.5 161.00 52.0 100 1 BK 40-9 SR M6X16 DIN912 HW 5.0 EZ 125 SR M8X6 DIN913

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN-DG (283) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HGFH (268) • PCHBR/L (318)

• TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)

C#-TBK-R/L

Blocks with CAMFIX

Exchangeable Shanks for

Parting and Grooving Blades

Hole for Data Chip

Coolant

technological hole

Magazine and spindle

positioning groove

V-groove for ATC

(Automatic Tool

Change) arm

ISCAR

624

EXCHANGEABLE HEADS HOLDERS

DCONMS

LPR

CDX

WF Right-hand shown • CDX = See specific adapter dimensions

Designation

DCONMS WF LPR CDI(1)

C6 MAHDOR

63.00 29.0 130.00 1 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125

C8 MAHDOR

80.00 37.5 130.00 1 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125

(1) 1 - Hole for data chip, 0 - Without hole for data chip

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

For tools, see pages: DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HGPAD (267)

• SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73)

C#-MAHDOR

Holders with CAMFIX

Exchangeable Shanks for

Parting, Grooving, Turning

and Facing Adapters

DCONMS

CDX

LPR

Right-hand shown • CDX = See specific adapter dimensions

Designation

DCONMS LPR WF CP(1) CDI(2)

C3 MAHD

32.00 50.00 18.5 100 0

C4 MAHD

40.00 46.50 22.1 100 1

C5 MAHD

50.00 47.00 23.0 100 1

C6 MAHD

63.00 50.00 29.0 100 1

C8 MAHD

80.00 60.00 37.5 100 1

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

C#-MAHD

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

C#-MAHD

Holders with CAMFIX

Exchangeable Shanks for

Parting, Grooving, Turning

and Facing Adapters

DCONMS

LPR

CDX

Right-hand shown

• CDX = See specific adapter dimensions

• WF=WF(shank)+WF(adapter)

Bar Max

Designation

DCONMS LPR WF CDI(1)

C3 MAHD-JHP

32.00 45.00 18.5 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C4 MAHD-JHP

40.00 46.50 21.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C5 MAHD-JHP

50.00 47.00 26.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C6 MAHD-JHP

63.00 50.00 32.5 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

• For user guide and accessories, see pages 78, 622

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • CGPAD-JHP (282) • DGAD-B-D (479) • DGAD/HGAD (479) • DGPAD-JHP (480) • HFPAD-3 (562)

• HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • PCADR/L (316) • PCADR/L-JHP (317)

• PCADRS/LS-JHP (317) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TAGPAD-JHP (500) • TGAD (498)

• TGPAD (270) • TGPAD-JHP (271)

OR 5X1N

SR M4X8ISO14580 (Key: T-20/5)

SR M6X12DIN6912 (Key: HW 5.0)

SR M5-04451(Key: T-20/5)

SR M6X20-XT

(Key: HW 5.0)

C#-MAHD-JHP

Holders with CAMFIX

Exchangeable Shanks and High

Pressure Coolant Channels for

MODULAR-GRIP Adapters

625

EXCHANGEABLE HEADS HOLDERS

DCONMS

LPR

CDX

CDX = See specific adapter dimensions

Designation

DCONMS LPR WF CP(1) CDI(2)

C4 MAHPD

40.00 46.00 25.00 100 1

C5 MAHPD

50.00 46.00 26.00 100 1

C6 MAHPD

63.00 47.00 33.00 100 1

C8 MAHPD

80.00 56.00 42.00 100 1

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

C#-MAHPD

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 SR 76-1022 EZA-21414

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

C#-MAHPD

Perpendicular Holders with

CAMFIX Exchangeable Shanks

Carrying Adapters for Parting,

Grooving, Turning and Facing

DCONMS

DAXN-DAXX

CDX

CDX - See specific adapter dimensions

Designation

DCONMS LF WF CW DAXN(1) DAXX(2) CDX(3) CP(4) CDI(5)

C5 GHAD-8

50.00 65.00 26.00 8.00 80.0 510.0 25.00 100 1

C6 GHAD-8

63.00 65.00 32.50 8.00 80.0 510.0 25.00 100 1

• For user guide and accessories see page 622

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

(3) Cutting depth maximum

(4) Coolant pressure (Bar)

(5) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

Spare Parts

Designation

C#-GHAD-8

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125

C#-GHAD-8

Holders with CAMFIX

Exchangeable Shanks

for Grooving, Turning

and Facing Adapters

DCONMS

CDX

CDX= See specific adapter dimensions

Bar Max

Designation

DCONMS LF WF CDI(1)

C3 MAHPD-JHP

32.00 40.00 26.00 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C4 MAHPD-JHP

40.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C5 MAHPD-JHP

50.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

C6 MAHPD-JHP

63.00 46.00 33.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK

• For user guide and accessories, see pages 78, 622

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • CGPAD-JHP (282) • DGAD-B-D (479) • DGAD/HGAD (479) • DGPAD-JHP (480) • HFPAD-3 (562) • HFPAD-4 (563)

• HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • PCADR/L (316) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317)

• SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TAGPAD-JHP (500) • TGAD (498) • TGPAD (270) • TGPAD-JHP (271)

C#-MAHPD-JHP

Perpendicular Holders with

CAMFIX Exchangeable Shanks

for Parting, Grooving, Turning

and Facing Adapters

ISCAR

626

EXCHANGEABLE HEADS HOLDERS

25.5

WF DCONMS

LPR

7.0

Bar Max

Designation

DCONMS LPR WF CDI(1)

C5 GHAD-8-JHP

50.00 65.00 17.00 1

C6 GHAD-8-JHP

63.00 65.00 23.50 1

C8 GHAD-8-JHP

80.00 74.00 38.50 1

• For user guide and accessories see pages 78, 622

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GADR/L-JHP (287)

SR M4x8ISO14580

Key: (T-20/5)

SR M6x25DIN912

Key: (HW5.0)

SR M6x12DIN912

Key: (HW5.0)

SR 14-519

Key: (T20/5)

OR DX1N

Spare Parts

Designation

C5 GHAD-8-JHP

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK

C6 GHAD-8-JHP

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK

C8 GHAD-8-JHP

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK

C#-GHAD-JHP

Holders with High Pressure

Coolant Channels and CAMFIX

Exchangeable Shanks for

Grooving and Turning

26 25.5

DCONMS

CW LF

DAXN-DAXX

CDX

Right-hand shown

• CDX - See specific adapter dimensions

Designation

DCONMS LF WF CW DAXN(1) DAXX(2) CDX(3) CP(4) CDI(5)

C5 GHAPR/L-8

50.00 64.00 26.00 8.00 80.0 510.0 25.00 100 1

C6 GHAPR/L-8

63.00 75.00 33.00 8.00 80.0 510.0 25.00 100 1

• For user guide and accessories see page 622

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

(3) Cutting depth maximum

(4) Coolant pressure (Bar)

(5) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

Spare Parts

Designation

C5 GHAPR/L-8

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125

C6 GHAPL-8

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125

C6 GHAPR-8

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0

C#-GHAPR/L-8

Perpendicular Holders with

CAMFIX Exchangeable

Shanks for Grooving, Turning

and Facing Adapters

627

EXCHANGEABLE HEADS HOLDERS

LPR

DCONMS

CDX

CDX - See specific adapter dimensions

Designation

DCONMS LPR WF CDI(1)

C4 HAD

40.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0

C5 HAD

50.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0

C6 HAD

63.00 60.00 22.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)

C#-HAD

Holders with CAMFIX

Exchangeable Tapered Shanks

for Internal Facing Adapters

LPR

DCONMS

Designation

DCONMS BD LPR CDI(1)

C6 HATA

63.00 106.00 66.00 1

(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation

C6 HATA

SR M8X45 DIN 913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0

C#-HATA

CAMFIX Toolholder with a

Serrated Connection Adaptation

CDX

DCONMS

Right-hand shown

• CDX - See specific adapter dimensions

Designation

DCONMS LF CDI(1)

C4 HAPR/L

40.00 50.00 1 SR 14-519 T-20/3

C6 HAPR/L

63.00 50.00 1 SR 14-519 T-20/3

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)

C#-HAPR/L

Perpendicular Holders with

CAMFIX Exchangeable Shanks

for Internal Facing Adapters

ISCAR

628

EXCHANGEABLE HEADS HOLDERS

DCONWS

DCONMS

LPR

A0.003A

58-60 HRc

Designation

DCONMS DCONWS LPR LB CDI(1)

C6 RE C3X070

63.00 32.00 70.00 39.00 0 1.10

C8 RE C3X060

80.00 32.00 60.00 29.30 0 1.70

C6 RE C4X080

63.00 40.00 80.00 51.40 0 1.20

C8 RE C4X070

80.00 40.00 70.00 36.50 0 1.90

C6 RE C5X080

63.00 50.00 80.00 51.50 0 1.50

C8 RE C5X080

80.00 50.00 80.00 49.30 0 2.20

C8 RE C6X080

80.00 63.00 80.00 53.10 0 2.50

C8 RE C6X120

80.00 63.00 120.00 12.00 0 4.00

(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation

C6 RE C3X070

SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C3 DRW NUT*

C8 RE C3X060

SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C3 DRW NUT*

C6 RE C4X080

SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C4 DRW NUT*

C8 RE C4X070

SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C4 DRW NUT*

C6 RE C5X080

SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C5 DRW NUT*

C8 RE C5X080

SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C5 DRW NUT*

C8 RE C6X080

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*

C8 RE C6X120

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*

* Optional, should be ordered separately

RE-C#

CAMFIX Reduction Adapters

DCONWS

DCONMS

CRKS

LPR

A0.003A

58-60 HRc

Designation

DCONMS DCONWS LPR CRKS CDI(1)

C3 EX C3X060

32.00 32.00 60.00 M12 0 0.40

C3 EX C3X080

32.00 32.00 80.00 M12 0 0.50

C4 EX C4X060

40.00 40.00 60.00 M14 0 0.50

C4 EX C4X080

40.00 40.00 80.00 M14 0 0.70

C5 EX C5X080

50.00 50.00 80.00 M16 0 1.13

C5 EX C5X100

50.00 50.00 100.00 M16 0 1.42

C6 EX C6X100

63.00 63.00 100.00 M20 0 2.23

C6 EX C6X140

63.00 63.00 140.00 M20 0 3.13

C8 EX C8X100

80.00 80.00 100.00 M20 0 3.65

C8 EX C8X125

80.00 80.00 125.00 M20 0 4.60

(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation

C3 EX C3X060

SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*

C3 EX C3X080

SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*

C4 EX C4X060

SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*

C4 EX C4X080

SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*

C5 EX C5X080

SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*

C5 EX C5X100

SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*

C6 EX C6X100

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*

C6 EX C6X140

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*

C8 EX C8X100

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*

C8 EX C8X125

SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*

* Optional, should be ordered separately

EX C# (CAMFIX extension)

CAMFIX Extension Adapters

629

EXCHANGEABLE HEADS HOLDERS

OAW

DCONMS

LPR

OAL

DMIN

CDX

Designation

DCONMS LPR H OAW WF OAL LH CDI(1)

C5 GHIC-70

50.00 120.00 26.0 53.00 26.50 150.00 100.0 1 SR M8X6 DIN913 SR M6X16 DIN912 SR M3X4 DIN913

C6 GHIC-70

63.00 122.00 26.0 53.00 26.50 160.00 100.0 1 SR M8X6 DIN913 SR M6X16 DIN912 SR M3X4 DIN913

• Data for DMIN and CDX parameters presents in CGHN 26-M, SGFH 26-M, TGHN 26-M adapters

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN 26-M (356) • TGHN 26-M (354)

C#-GHIC

CUT-GRIP holders with CAMFIX

Exchangeable Shanks for Internal

Grooving and Turning Blades

LPR

OAL

DCONMS

DMIN

CDX

Designation

DCONMS LH LPR WF Adapter OAL CDI(1)

C3 GHAIL-20

32.00 20.0 35.00 16.00 GEAIL-20 54.00 0

C3 GHAIR-20

32.00 20.0 35.00 16.00 GEAIR-20 54.00 0

C4 GHAIL-20

40.00 20.0 40.00 20.00 GEAIL-20 64.00 1

C4 GHAIR-20

40.00 20.0 40.00 20.00 GEAIR-20 64.00 1

C4 GHAIL-25

40.00 25.0 45.00 20.00 GEAIL-25 69.00 1

C4 GHAIR-25

40.00 25.0 45.00 20.00 GEAIR-25 71.40 1

C4 GHAIL-32

40.00 32.0 52.00 20.00 GAIL-32 76.00 1

C4 GHAIR-32

40.00 32.0 52.00 20.00 GAIR-32 76.00 1

C5 GHAIL-20

50.00 20.0 40.00 25.00 GEAIL-20 70.00 1

C5 GHAIR-20

50.00 20.0 40.00 25.00 GEAIR-20 70.00 1

C5 GHAIL-25

50.00 25.0 45.00 25.00 GEAIL-25 75.00 1

C5 GHAIR-25

50.00 25.0 45.00 25.00 GEAIR-25 75.00 1

C5 GHAIL-40

50.00 40.0 60.00 25.00 GEAIL-40 90.00 1

C5 GHAIR-40

50.00 40.0 60.00 25.00 GEAIR-40 90.00 1

C6 GHAIL-25

63.00 25.0 47.00 31.50 GEAIL-25 85.00 1

C6 GHAIR-25

63.00 25.0 47.00 31.50 GEAIR-25 85.00 1

C6 GHAIL-40

63.00 40.0 62.00 31.50 GAIL-40 100.00 1

C6 GHAIR-40

63.00 40.0 62.00 31.50 GAIR-40 100.00 1

• DMIN, CDX, f2 data present in GAIR, GEAIR adapters

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GAIR/L (346) • GEAIR/L (340)

Spare Parts

Designation

C3 GHAIR-20

SR 76-2057 T-8/5

C4 GHAIR-20

SR 76-2057 T-8/5

C4 GHAIR-25

SR 16-236 P T-15/5

C4 GHAIR/L-32

SR 16-236 P T-15/5

C5 GHAIR-20

SR 76-2057 T-8/5

C5 GHAIR-25

SR 16-236 P T-15/5

C5 GHAIR/L-40

SR 16-212 T-20/5

C6 GHAIR-25

SR 16-236 P T-15/5

C6 GHAIR/L-40

SR 16-212 T-20/5

C#-GHAIR/L

Boring Bars with CAMFIX

Exchangeable Shanks for

Internal Grooving and Turning

ISCAR

630

EXCHANGEABLE HEADS HOLDERS

LPR

DCONWS

DCONMS

Bar Max

Designation

DCONMS DCONWS LPR LB CRKS

CDI(1)

C4-SH-D16-2.5D-JHP

40.00 16.00 40.00 20.00 M14 0.31 1

C4-SH-D20-2.5D-JHP

40.00 20.00 50.00 30.00 M14 0.35 1

C4-SH-D25-2.5D-JHP

40.00 25.00 55.00 35.00 M14 0.41 1

C4-SH-D32-2.5D-JHP

40.00 32.00 75.00 55.00 M14 0.63 1

C4-SH-D40-3D-JHP

40.00 40.00 80.00 80.00 M14 0.88 1

C5-SH-D16-2.5D-JHP

50.00 16.00 40.00 20.00 M16 0.50 1

C5-SH-D20-2.5D-JHP

50.00 20.00 50.00 30.00 M16 0.54 1

C5-SH-D25-2.5D-JHP

50.00 25.00 55.00 35.00 M16 0.61 1

C5-SH-D32-2.5D-JHP

50.00 32.00 75.00 55.00 M16 0.00 1

C5-SH-D40-3D-JHP

50.00 40.00 100.00 80.00 M16 1.26 1

C6-SH-D16-2.5D-JHP

63.00 16.00 40.00 18.00 M20 0.83 1

C6-SH-D20-2.5D-JHP

63.00 20.00 50.00 28.00 M20 0.87 1

C6-SH-D25-2.5D-JHP

63.00 25.00 65.00 43.00 M20 0.00 1

C6-SH-D32-3D-JHP

63.00 32.00 90.00 68.00 M20 1.26 1

C6-SH-D32-4D-JHP

63.00 32.00 125.00 103.00 M20 0.00 1

C6-SH-D40-3D-JHP

63.00 40.00 100.00 78.00 M20 1.61 1

C6-SH-D40-4D-JHP

63.00 40.00 140.00 118.00 M20 1.99 1

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: AVC-D-SIR/L (707) • AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96)

• AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDJCN-Y (76) • AVC-SDUCR/L (95) • AVC-SRDCN-Y (77) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95)

Spare Parts

Designation

C4-SH-D16-2.5D-JHP

SR M3X10DIN912 HW 2.5

C4-SH-D20-2.5D-JHP

SR M3.5XL10-D5.5 HW 2.5

C5-SH-D16-2.5D-JHP

SR M3X10DIN912 HW 2.5

C5-SH-D20-2.5D-JHP

SR M3.5XL10-D5.5 HW 2.5

C6-SH-D16-2.5D-JHP

SR M3X10DIN912 HW 2.5

C6-SH-D20-2.5D-JHP

SR M3.5XL10-D5.5 HW 2.5

C#-SH-JHP

Serrated Connection

Shanks with a CAMFIX

Exchangeable Adaptation

LPR

DCONWS

DCONMS

Bar Max

Designation

DCONMS DCONWS LPR LB CRKS

CDI(1)

C6-SH-D16-5D-E-JHP

63.00 16.00 80.00 58.00 M20 0.93 1

C6-SH-D20-5D-E-JHP

63.00 20.00 100.00 78.00 M20 1.06 1

C6-SH-D25-5D-E-JHP

63.00 25.00 115.00 93.00 M20 1.29 1

C6-SH-D32-5D-E-JHP

63.00 32.00 150.00 128.00 M20 0.00 1

C6-SH-D40-5D-E-JHP

63.00 40.00 185.00 163.00 M20 2.68 1

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: AVC-D-SIR/L (707) • AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96)

• AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDJCN-Y (76) • AVC-SDUCR/L (95) • AVC-SRDCN-Y (77) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95)

Spare Parts

Designation

C6-SH-D16-5D-E-JHP

HW 2.5 SR M3X10DIN912

C6-SH-D20-5D-E-JHP

HW 2.5 SR M3.5XL10-D5.5

C#-SH-E-JHP

Serrated Connection Shanks

with Carbide Core and a CAMFIX

Exchangeable Adaptation

631

EXCHANGEABLE HEADS HOLDERS

45°

DCONMS

LPR

CDX

CDX = See specific adapter dimensions • Right-handshown

45°

45º

Designation

DCONMS LPR L1 L5 LF BD CP(1) CDI(2)

HSK A63WH MAHDR 45

63.00 130.00 91.9 30.00 89.0 75.00 100 1

• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3)

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

HSK A63WH MAHDR 45

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT HW 5.0 SR M6X6DIN551 14H/22H(b) SATZ-M8X1-M3

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

HSK A63WH-MAHDR-45

Holders with HSK Tapered

Shanks for MODULAR-GRIP,

Parting, Grooving and

Facing Adapters

DCONMS

LPR

CDX

CDX = See specific adapter dimensions • Right-hand shown

Designation

DCONMS WF LPR L5 CDI(1)

HSK A63WH MAHDOR

63.00 29.0 130.00 30.00 1 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125

• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3)

(1) 1 - Hole for data chip, 0 - Without hole for data chip

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

HSK A63WH-MAHDOR

Holders with HSK Exchangeable

Shanks for Parting, Grooving,

Turning and Facing Adapters

ISCAR

632

EXCHANGEABLE HEADS HOLDERS

LPROHX

DCONMS

OHX = See specific blade dimensions

• Right-hand shown

Designation

DCONMS LPR L5 WF H(1) CP(2) CDI(3)

HSK A63WH TBK 32R/L

63.00 138.00 30.00 32.0 32.0 100 1 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 EZ 125

• Complies with ICTM standard (ISO 12164-3) • Not suitable for ATC for some Multi-Tasking Machine models, please consult your MTB

• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)

(1) Blade size H has to fit this dimension

(2) Coolant pressure (Bar)

(3) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN-DG (283) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HGFH (268) • PCHBR/L (318)

• TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)

HSK A-WH-TBK-R/L

Blocks with HSK Exchangeable

Tapered Shanks for Parting

and Grooving Blades

LPR BD

DCONMS

Designation

DCONMS BD LPR

HSK63 HATA

63.00 106.00 86.00

Spare Parts

Designation

HSK63 HATA

SR M6X6 DIN913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0 SR M8X45 DIN 913

HSK 63 HATA

HSK Toolholder with a Serrated

Connection Adaptation

10°

DCONMS

LPR

CDX

CDX = See specific adapter dimensions • Right-handshown

10°

Designation

DCONMS f1 WF LPR L1 L5 CP(1) CDI(2)

HSK A63WH MAHUR/L 10

63.00 113.1 29.00 130.00 49.4 30.00 100 1

• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3)

(1) Coolant pressure (Bar)

(2) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (265) • DGAD-B-D (436) • DGAD/HGAD (436) • HFPAD-3 (549) • HFPAD-4 (549) • HFPAD-5 (550) • HFPAD-6 (550)

• HGPAD (251) • PCADR/L (300) • SCLCR-PAD (50) • SDJCR-PAD (54) • SVJCR-PAD (60) • SWAPR-PAD (66) • TGAD (455) • TGPAD (256) • TTADR/L-JHP (651)

Spare Parts

Designation

HSK A63WH MAHUR/L 10

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

HSK A63WH-MAHUR/L

Holders with HSK-T Shanks

for 10° Mounting on Mill-Turn

Machines for Parting, Grooving,

Turning and Facing Adapters

633

EXCHANGEABLE HEADS HOLDERS

OHX LF

DCONMS

OHX - See specific blade dimensions

• Right-hand shown

Designation

DCONMS H LF WF CDI(1)

IM40 TBU-32R

40.00 32.0 51.00 23.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125

IM50 TBU-32R

50.00 32.0 61.00 30.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125

IM63 TBU-32L

63.00 32.0 63.00 38.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN-S (282) • TGHN-S (271)

IM-TBU

Blocks with an ISO 26622-1(*)

Tapered Shank for Parting and

Grooving Blades

DCONMS

LPR

CDX

CDX = See specific adapter dimensions

• Right-handshown

Designation

DCONMS LPR WF CDI(1)

IM40 MAHD

40.00 43.00 18.0 0

IM50 MAHD

50.00 47.00 23.0 0

IM63 MAHD

63.00 52.00 29.0 0

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

IM-MAHD

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) SR 76-1022 EZA 125 EZ 125

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

IM-MAHD

Holders with an ISO 26622-1(*)

Tapered Shank for Parting,

Grooving, Turning and

Facing Adapters

DCONMS

LPR

CDX CDX = See specific adapter dimensions

• Right-hand shown

Designation

DCONMS LPR WF CDI(1)

IM40 MAHPD

40.00 44.00 25.00 0

IM50 MAHPD

50.00 45.00 26.00 0

IM63 MAHPD

63.00 45.00 33.00 0

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)

• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation

IM-MAHPD

SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZP 5 EZ 125

(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag

(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

IM-MAHPD

Perpendicular Holders with

an ISO 26622-1(*) Tapered

Shank for Parting, Grooving,

Turning and Facing Adapters

ISCAR

634

EXCHANGEABLE HEADS HOLDERS

DAXN-DAXX

CDX

DCONMS

CDX

CDX - See specific adapter dimensions

Designation

DCONMS CW LF WF DAXN(1) DAXX(2) CDX(3) CDI(4)

IM50 GHAD-8

50.00 8.00 60.00 26.00 80.0 510.0 25.00 0

IM63 GHAD-8

63.00 8.00 65.00 32.50 80.0 510.0 25.00 0

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) Minimum axial grooving diameter

(2) Maximum axial grooving diameter

(3) Cutting depth maximum

(4) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GADR/L-8 (269) • GAFG-R/L-8 (562) • PCADR/L 34N-RE (301)

Spare Parts

Designation

IM-GHAD-8

SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125

IM-GHAD-8

Holders with an ISO 26622-1(*)

Tapered Shank for Grooving,

Turning and Facing Adapters

DCONMS

LPR

CDX

CDX - See specific adapter dimensions

Designation

DCONMS LPR WF CDI(1)

IM40 HAD

40.00 60.00 18.0 0 SR 14-519 T-20/3 HW 3.0 SR M4X6DIN912

IM50 HAD

50.00 60.00 18.0 0 SR 14-519 T-20/3 HW 3.0 SR M4X6DIN912

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: HFAER/L-4 (551) • HFAER/L-5T, 6T (552) • HFAIR/L-4 (554) • HFAIR/L-DG (555) • HGAER/L-3 (551) • HGAIR/L-3 (554)

IM-HAD

Holders with an ISO 26622-1(*)

Tapered Shank for Internal

Facing Adapters

CDX

DCONMS

CDX - See specific adapter dimensions

• Right-hand shown

Designation

DCONMS LF CDI(1)

IM40 HAPR/L

40.00 50.00 0 SR 14-519 T-20/3

IM50 HAPR

50.00 50.00 0 SR 14-519 T-20/3

• (*) Tools with orientation holes in the flange groove can be supplied on request

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: HFAER/L-4 (551) • HFAER/L-5T, 6T (552) • HFAIR/L-4 (554) • HFAIR/L-DG (555) • HGAER/L-3 (551) • HGAIR/L-3 (554)

IM-HAPR/L

Perpendicular Holders with an

ISO 26622-1 (*) Tapered Shank

for Internal Facing Adapters
