The ITS BORE System
Shanks Toolholders
SKA/SKB
SKA-FC
Page 390
EMH
Page 398
Extensions and Reducers
EX
Page 396
HSK
Pages 391-392
RE
Page 397
CC
Page 399
CAMFIX
Page 392
RE AVI
Page 397
DC
Page 399
CATM
Page 391
CHR
Page 398
SMH
Page 400
BT/BTB
BT-FC
Pages 392-393
TP
Page 400
IS0M/ISO
Page 393
TCS/TCC
Page 401
MTT/MTD
Page 395
ODP
see ISCAR MILLING
LINES catalog pages
582,610,624, 650,668
ST
Pages 394-395
AMT
Page 402
DIN2079
Page 396
BLANK
Page 402
ISCAR
386
USER GUIDE
ITS BORE
The ITS BORE System
Rough Boring Heads
BHR MB 16, 20, 25, 32, 40, 50, 63, 80
(ø18-200)
Page 404
IHSR
IHCR
IHPR
IHBR
IHSR BW CR LNHT
IHSR BW CR SOMT

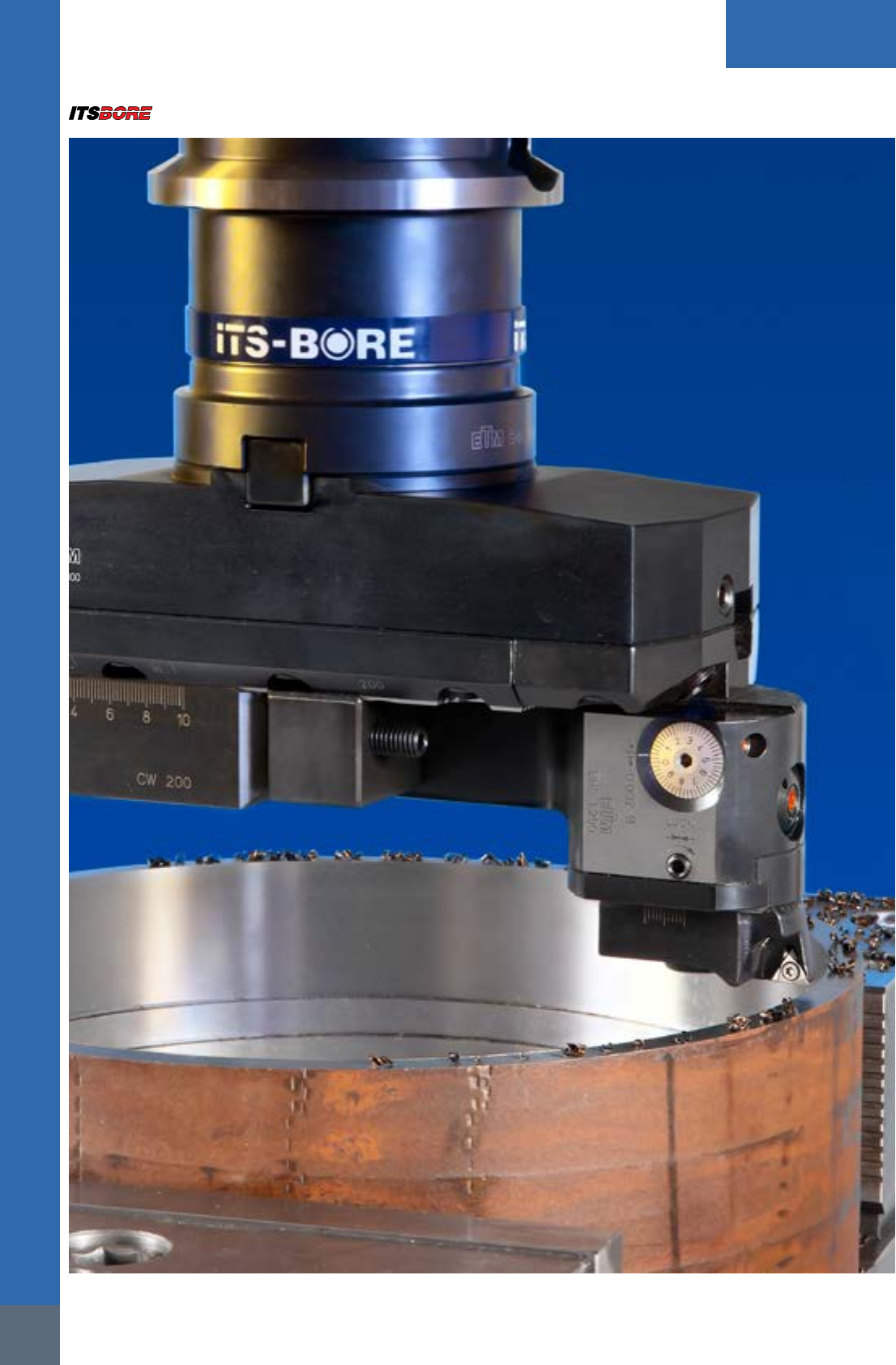

TCH AL 200, 300, 400, 500, 600, 700, 800
(ø200-1200)
Page 407
IHSR BW
TCHH EX 100/300
Extension slides
SMH MB
IHSR
IHCR
IHBR
IHPR
DIN69871-FM
BT-FM
Rough & Fine Boring Heads
BHC MB 25, 32, 40, 50, 63, 80
(ø28-120)
Page 411
IHSR C
IHRF C
IHFF C
Fine Boring Heads (10 µm)
BHE MB 14, 16, 20, 25, 32, 40
(ø14.5-66)
Page 418
Non.0.002
0.01
0.5
LOCK
IHWF E IHFF (E) IHRF IHRF CH IHRF BW
BHE MB-H 32, 50
(ø2.5-22)
Page 418
Non. 0.002
0.01
0.5
LOCK
PICCO ACE BH
BHE MB 50, 63, 80
(ø2.5-30)
IHAXF
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
Lock
Non.
SLEEVE
IHAXF-E
IHAXF
IHAXF-AVI
BHEH
PICCO ACE BH
(ø28-56)
IHRF
IHRF
IHFF
IHFF
BBH
IHFF
IHFF
BBH D
BHEH
(ø40-90)
IHRF
IHFF
BBH
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
Non.
Lock
(ø54-132)
Non.0.002
0.01
0.5
LOCK
IHWF E IHFF (E) IHRF IHRF CH IHRF BW
(ø72-200)
BH NUT
BHE 50
0.5 Ø
0.01 Ø
0.002 Ø
BHEH
CW
IHFF
IHRF
Non.
Lock
IHRF BW
Pages 418-422
387
USER GUIDE
ITS BORE
The ITS BORE System
Fine Boring Heads (2 µm)
BHF MB 16, 20, 25, 32, 40
(ø18-63)
Page 425
LOCK
0.1ø
0.002ø
IHRF
IHFF IHRF CH IHRF BW
BHF MB 50-BL
(ø2.5-22)
Pages 423-424,427
270° 300° 330°
7
5
210° 240°
0 1°
2°
0 1°
8
9
0
1
6
4
2
3
2°
IHAXF...
SLEEVE
IHAXF-E
IHAXF
IHAXF-AVI
PICCO ACE BH

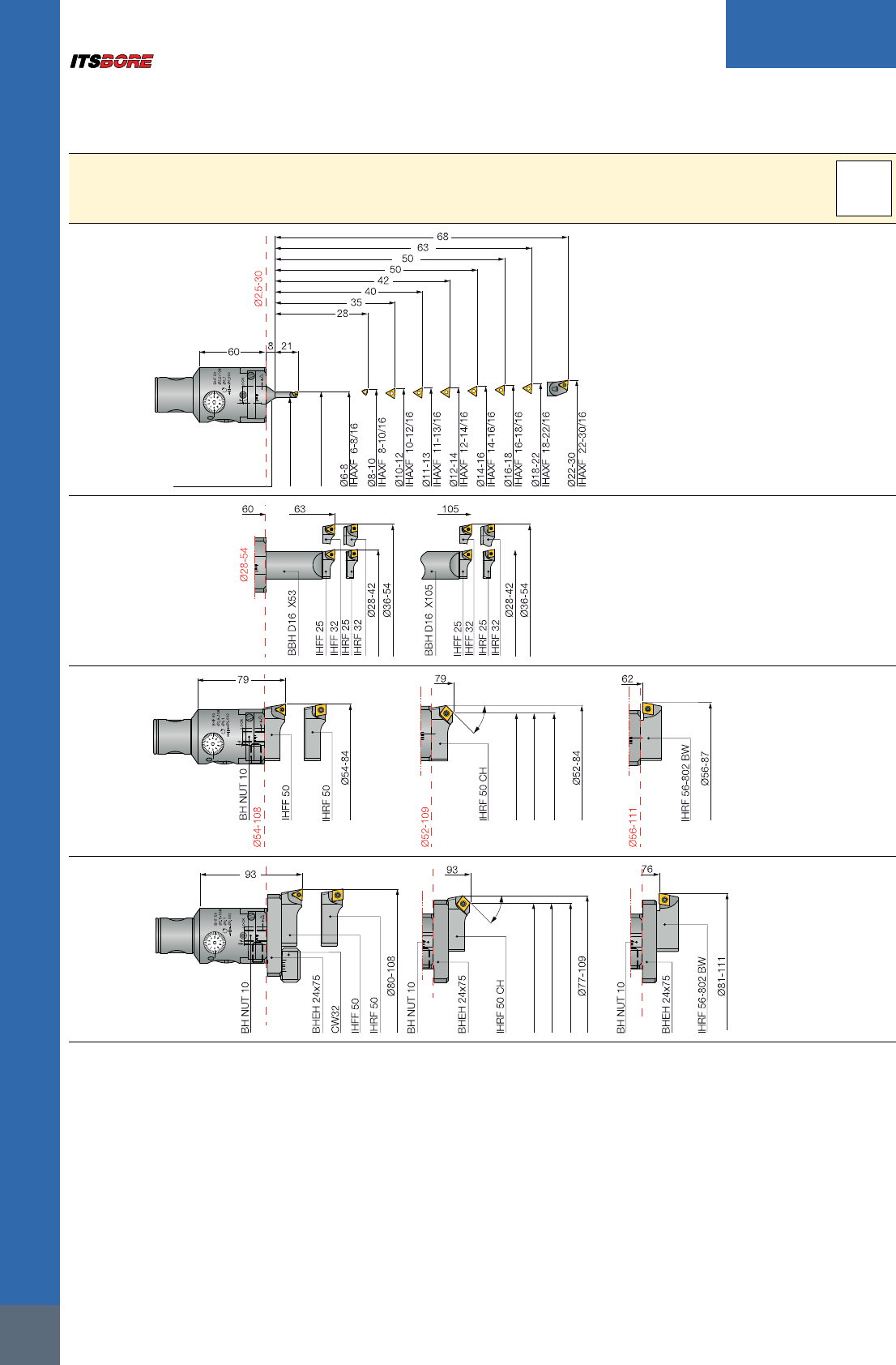

BHF MB 50-50X60
(ø2.5-30)
PICCO ACE BH
IHAXF
IHAXF
IHAXF
IHRF
IHRF
IHFF
IHFF
BBH
BHF 50
Ø2.5-108
Ø0.1
Ø0.002
LOCK
(ø28-54)
BH NUT
IHFF
IHRF
BHF 50
Ø2.5-108
Ø0.1
Ø0.002
LOCK
(ø54-108)
IHRF BW
BHEH
CW
IHRF
IHFF
IHRF CH
BH NUT
BHF 50
Ø2.5-108
Ø0.1
Ø0.002
LOCK
pages 425,428
BHF MB 50, 63, 80
(ø77-500)
Pages 429-431,432
1
0
9
8
7
6
5
4
3
2
IHFF
BHFH
BBH
IHAXF
SLEEVE
IHAXF
ADBH
IHFF
IHRF IHRF CH IHRF BW
PICCO ACE BH
ADBH
TCH AL 200, 300, 400, 500, 600, 700, 800
(ø200-1200)
Page 438
02468
10
SMH MB
CW200
IHFF50
IHRF50
BHF/D L200
IHRF-BW
BT-FM
DIN69871-FM
BHD 32, 40, 50, 63, 80
Pages 414-417
LOCK
SR44
+
L1
L
IHWF E
IHFF (E)
IHRF
IHRF CH
IHRF BW
BHEH
L5
CW32
d
SS
d
d2
+
BATTERY
SR44
LOCK
BBH
IHAXF
IHFF
d2

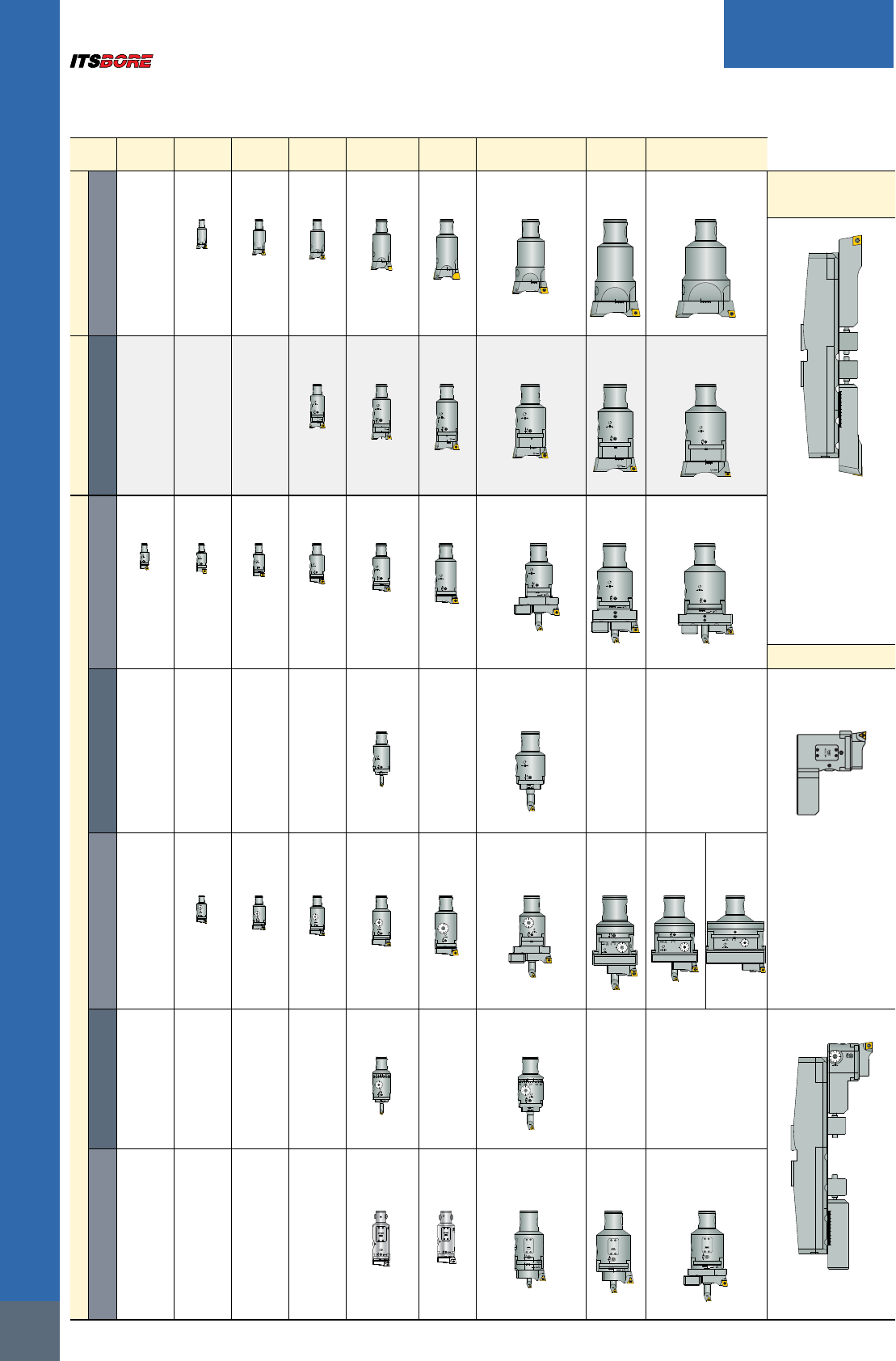

ITS BORE Boring Heads Selection Guide
MB
Size 14 16 20 25 32 40 50 63 80
Rough
BHR-TCH Ø18-1202
BHR
MB16-16
Ø18-22
BHR
MB20-20
Ø22-28
BHR
MB25-25
Ø28-38
BHR
MB32-32
Ø35.5-50
BHR
MB40-40
Ø50-68
BHR
MB50-50 Ø68-90
MB50-63 Ø90-120
BHR
MB63-63
Ø90-120
BHR
MB80-80 Ø120-200
Roughing
22
IHSR 22-28
30
IHSR 28-38
IHSR 68-90
70 80 90
IHSR 90-120
90 100 110 120
0 2 4
IHSR 120-160
TCH AL300
Ø 300-702
IHSR 160-800
IH...
Page 404 Page 404 Page 404 Page 404 Page 404 Page 404 Page 404 Page 404
Rough + Finish
BHC Ø28-120 10 µm
BHC
MB25-25
Ø28-36
BHC
MB32-32
Ø36-46
BHC
MB40-40
Ø46-60
BHC
MB50-50 Ø60-75
BHC
MB63-63
Ø75-95
BHC
MB80-80 Ø95-120
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
IHRF 28-36C
30
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
IHRF 36-46 C
40
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
IHRF 46-60 C
60 70
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
IHRF 60-75 C
60 70
IHRF 75-95 C
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
80 90 100
IHRF 95-120 C
100 110 120
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
Page 411 Page 411 Page 411 Page 411 Page 411 Page 411 Page 407
Finish
BHE Ø6-200 10 µm
BHE
MB14-14
Ø14.5-18
BHE
MB16-16
Ø18-24
BHE
MB20-20
Ø22-30
BHE
MB25-25
Ø28-40
BHE
MB32-32
Ø35-53
BHE
MB40-40
Ø48-66
BHE
MB50-50 Ø2.5-110
BHE
MB63-63
Ø6-125
BHE
MB80-80
Ø6-200
TCH AL200 Ø200-602
TCH AL300 Ø300-702
TCH AL400 Ø400-802
TCH AL500 Ø500-902
TCH AL600 Ø600-
1002 TCH AL700
Ø700-1102 TCH
AL800 Ø800-1202
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
Page 418 Page 418 Page 418 Page 418 Page 418 Page 418 Page 418 Page 418 Page 418
Finishing
BHE H Ø2.5-22 10 µm
BHE
MB32-
32...H
Ø2.5-18
BHE
MB50-50...H
Ø2.5-22
BHD50 L200
Ø200-1202
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
Page 418 Page 418 Page 437
BHF Ø2.5-1202 2 µm
BHF
MB16-16
Ø18-23
BHF
MB20-20
Ø22-29
BHF
MB25-25
Ø28-38
BHF
MB32-32
Ø35.5-50
BHF
MB40-40
Ø48-63
BHF MB50-50
Ø2.5-108 BHF
MB50-80 Ø2.5-
160 BHF MB50-63
BHF
MB63-63
Ø2.5-125
BHF
MB80-80
Ø2.5-160
BHF
MB80-125
Ø135-500
LOCK
0.05 Ø
0.002 Ø
LOCK
0.05 Ø
0.002 Ø
LOCK
0.05 Ø
0.002 Ø
LOCK
0.1 Ø
0.002 Ø
LOCK
0.1 Ø
0.002 Ø
LOCK
0.1 Ø
0.002 Ø
0.1 Ø
0.002 Ø
LOCK
0.1 Ø
0.002 Ø
0.1 Ø
0.002 Ø
BHF L200
Ø200 -1202
Page 425 Page 425 Page 425 Page 425 Page 425 Page 425 Page 432 Page 432 Page 432 Page 437
BHF BL Ø2.5-22 2 µm
BHF
MB50-32...
BL Ø2.5-12
BHF
MB50-50...
BL Ø6-22
TCH AL300
Ø 300-702
CW 200
BHF L200
LOCK
0.002 Ø
LOCK
0.05 Ø
0.002 Ø
210 240 270 300 330
LOCK
0.05 Ø
0.002 Ø
Page 423 Page 423 Page
BHD MB Ø2-1202 2 μm
BHD
MB32-32-
83 Ø35-51
BHD
MB40-
40-90
Ø48-64
BHD
MB50-50X60
Ø2.5-110
BHD
MB63-
63X89
Ø6-125
BHD
MB80-80X104
Ø6-200
LOCK
BATTERY
SR44
LOCK
SR44
BATTERY
LOCK
0.5 Ø
0.01 Ø
Non. 0.002 Ø
LOCK
SR44
BATTERY
Page 414 Page 414 Page 414 Page 414 Page 414 Page 438
ISCAR
388
USER GUIDE
ITS BORE

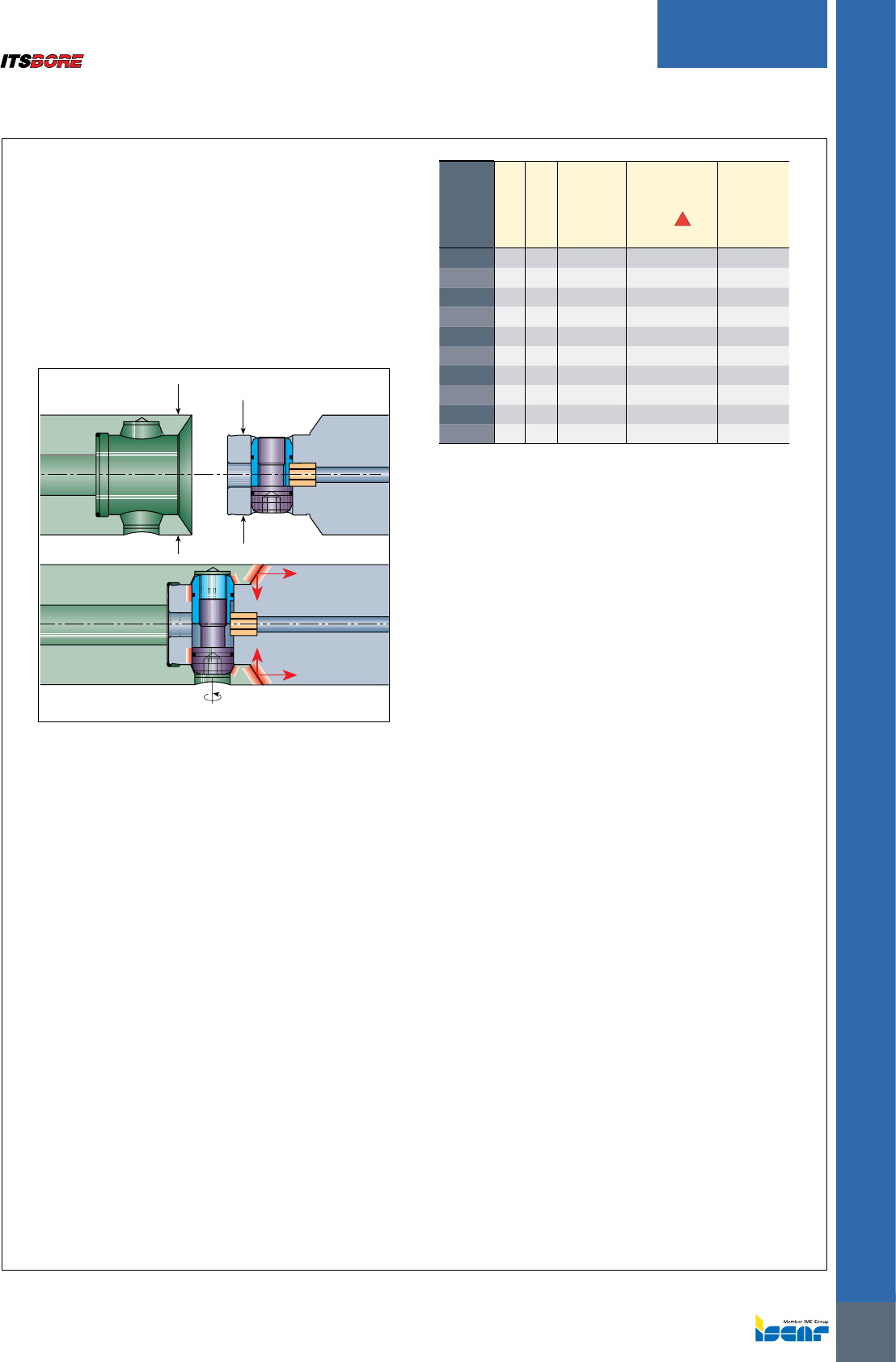

ITSBORE is a modular toolholder system for boring,
milling, drilling and tapping. This rigid, high-precision
system is manufactured in one of the world’s most
advanced production facilities. The system is designed
with extreme flexibility and simplicity, making it
suitable for machine tools, machining centers and
flexible manufacturing systems. It is recommended
for machining strict tolerances with a high degree of
surface finish. Its cylindrical-conical coupling and
radial-expanding pin ensure maximum rigidity and
concentricity in boring and milling. The system has
an internal coolant supply in all components.
d
1
m
1
S
Designation
d1øm1
Size Allen
Key (mm)
Tightening
Torque
(Nm)
!
Maximum
Driving
Torque
(Nm)
MB14 14 10 2.5 2-2.5 40
MB16 16 10 2.5 2-2.5 40
MB20 20 13 3 4-4.5 70
MB25 25 16 3 6.5-7.5 120
MB32 32 20 4 7-8 200
MB40 40 25 5 16-18 400
MB50 50 32 6 30-35 700
MB63 63 42 8 70-80 1600
MB80 80 42 8 70-80 1600
MB110 110 76 14 200-220 6300

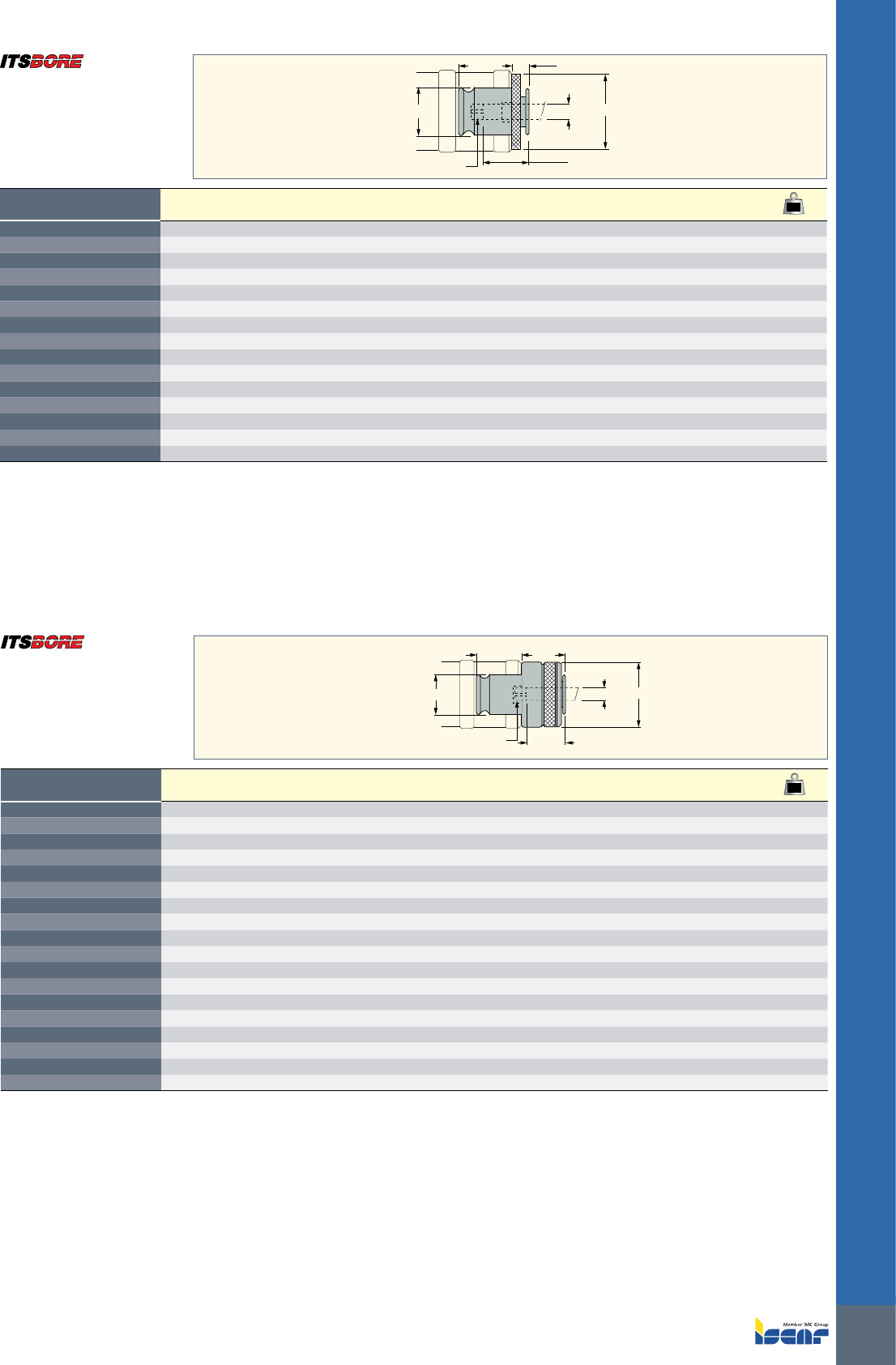

MB Connection
389
USER GUIDE
ITS BORE
ISCAR
390
ITS BORE

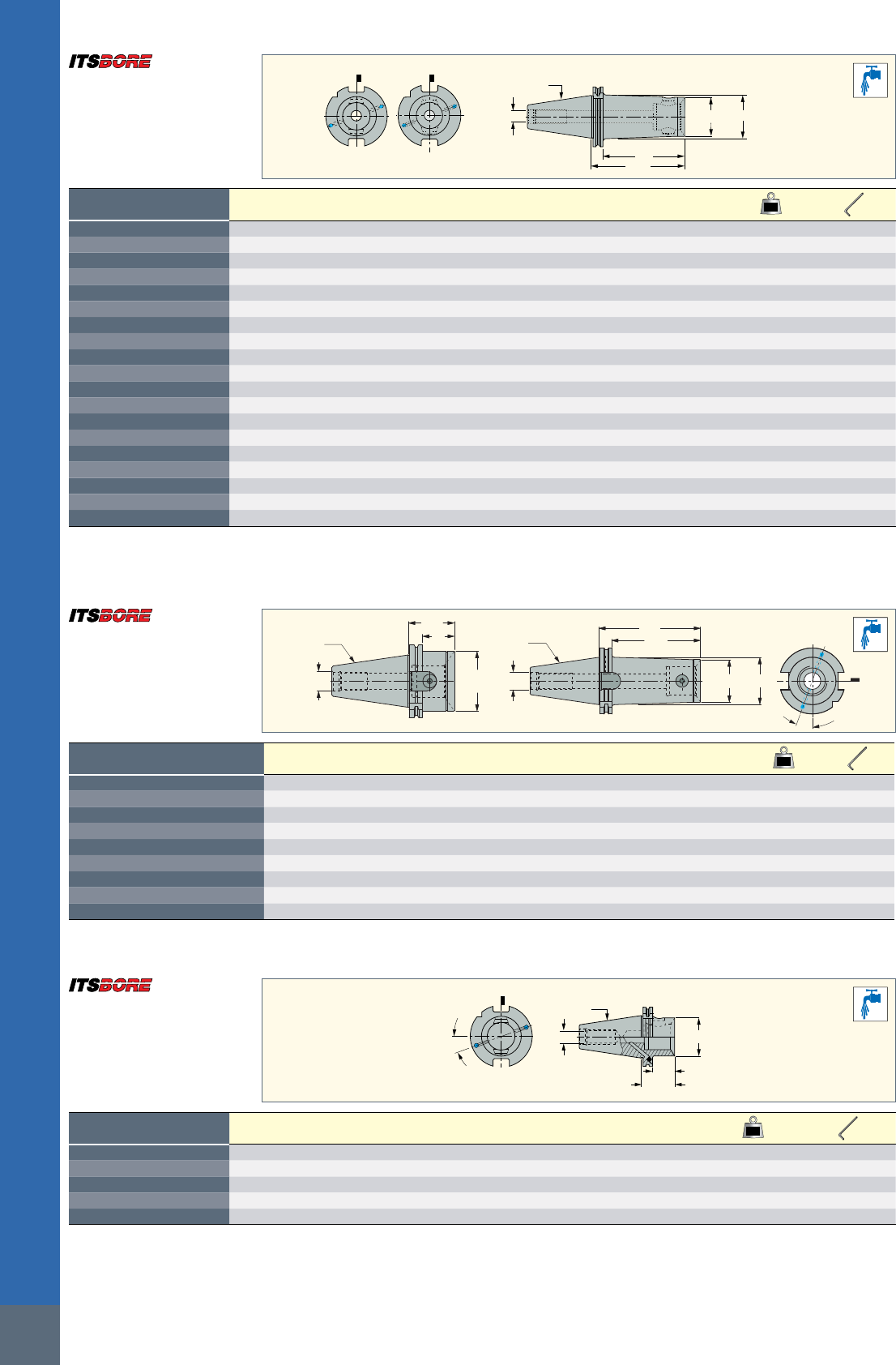

LPR
LB
DCONWS
SS
ADBAD
CRKS BD
(a)(a)
(a)Cutting edge position
Designation
SS DCONWS LPR LB BD CRKS
kg
SKA 30-MB32
30 32.00 30.00 10.5 - M12 0.40 HW 4.0
SKA 30-MB50
30 50.00 60.00 41.0 - M12 0.67 HW 6.0
SKA 40-MB40
40 40.00 45.00 26.0 - M16 0.94 HW 5.0
SKA 40-MB40X120 ADB
40 40.00 120.00 101.0 44.50 M16 1.70 HW 5.0
SKA 40-MB50
40 50.00 48.00 29.0 - M16 0.99 HW 6.0
SKA 40-MB50X120 ADB
40 50.00 120.00 101.0 - M16 2.04 HW 6.0
SKA 40-MB63
40 63.00 80.00 61.0 - M16 1.52 HW 8.0
SKA 45-MB50
45 50.00 48.00 29.0 - M20 1.77 HW 6.0
SKA 50-MB110X150
50 110.00 150.00 131.0 - M24 8.47 HW 10.0
SKA 50-MB50
50 50.00 48.00 29.0 - M24 2.82 HW 6.0
SKA 50-MB50X120 ADB
50 50.00 120.00 101.0 60.00 M24 4.03 HW 6.0
SKA 50-MB63
50 63.00 56.00 37.0 - M24 2.95 HW 8.0
SKA 50-MB63X150 ADB
50 63.00 150.00 131.0 70.00 M24 2.81 HW 8.0
SKA 50-MB80
50 80.00 62.00 43.0 - M24 3.51 HW 8.0
SKA 50-MB80X180 ADB
50 80.00 180.00 161.0 - M24 7.90 HW 8.0
SKA 60-MB110X100
60 110.00 100.00 81.0 - M30 10.50 HW 10.0
SKA 60-MB110X200
60 110.00 200.00 181.0 - M30 18.00 HW 10.0
SKA 60 MB63X60
60 63.00 60.00 41.0 71.00 M30 9.47 HW 8.0
SKA 60-MB80X65
60 80.00 65.00 46.0 - M30 10.38 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability • The coolant passages of holders with A/B suffix are plugged
with screws so they can be used either as SKA or SKB (through coolant).
SKA-MB
MB Modular Connection System
with DIN69871 Form AD/ADB
/ ISO7388/1 Taper Shanks
20°
SS
SS
Fig. 1 Fig. 2
DCONWS
DCONWS CRKSCRKS
LB
LB LPR
LPR
BD
Designation
SS DCONWS LPR BD LB CRKS Fig.
kg
SKA 40 FC MB50 ADB
40 50.00 48.00 - 29.0 M16 1. 0.90 HW 6.0
SKA 40 FC MB50X120 ADB
40 50.00 120.00 - 101.0 M16 2. 1.70 HW 6.0
SKA 40 FC MB63 ADB
40 63.00 80.00 - - M16 1. 1.50 HW 8.0
SKA 50 FC MB50 ADB
50 50.00 48.00 - 29.0 M24 1. 2.70 HW 6.0
SKA 50 FC MB50X120 ADB
50 50.00 120.00 60.00 101.0 M24 2. 3.50 HW 6.0
SKA 50 FC MB63 ADB
50 63.00 56.00 - 37.0 M24 1. 2.80 HW 8.0
SKA 50 FC MB63X150 ADB
50 63.00 150.00 75.50 131.0 M24 2. 5.00 HW 8.0
SKA 50 FC MB80 ADB
50 80.00 62.00 - 43.0 M24 1. 3.40 HW 8.0
SKA 50 FC MB80X180 ADB
50 80.00 180.00 - 161.0 M24 2. 6.90 HW 8.0
SKA-FC-MB
MB Modular Boring Connection
System with DIN 69871 Face
Contact ADB Tapered Shanks
SS
DCONWS
LPR
LB
CRKS
20º
(a)
(a)Cutting edge position
Designation
SS DCONWS LB LPR CRKS
kg
SKB 40-MB50
40 50.00 29.0 48.00 M16 1.04 HW 6.0
SKB 40-MB63
40 63.00 61.0 80.00 M16 1.56 HW 8.0
SKB 50-MB50
50 50.00 29.0 48.00 M24 2.91 HW 6.0
SKB 50-MB63
50 63.00 37.0 56.00 M24 3.07 HW 8.0
SKB 50-MB80
50 80.00 43.0 62.00 M24 3.60 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
SKB-MB
MB Modular Connection System
with DIN69871 Form B (coolant
through flange) Taper Shanks
391
ITS BORE
(a)
DCONWS
LB
LPR
CRKS
SS
(a)Cutting edge position
Designation
SS DCONWS LB LPR CRKS
kg
CATM 40 MB50
40 50.00 47.0 66.00 M16 1.21 HW 6.0
CATM 40 MB63
40 63.00 - 100.00 M16 1.91 HW 8.0
CATM 45 MB50
45 50.00 29.0 48.00 M20 1.83 HW 6.0
CATM 50 MB50
50 50.00 29.0 48.00 M24 3.06 HW 6.0
CATM 50 MB63
50 63.00 37.0 56.00 M24 3.08 HW 8.0
CATM 50 MB80
50 80.00 43.0 62.00 M24 3.38 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
CATM-MB
MB Modular Boring Connection
System with CATM FORM
AD ANSIB5.5 Caterpillar
Tapered Shanks and Metric
Pull Stud Threads
(a)
DCONWS BD
LPR
LB
DCONMS
(a)Cutting edge position
Designation
DCONMS DCONWS LB LPR BD
kg
HSK A40 MB32
40.00 32.00 28.0 48.00 - 0.32 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40* HW 4.0
HSK A50 MB50
50.00 50.00 - 66.00 - 0.69 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50* HW 6.0
HSK A63 MB40
63.00 40.00 34.0 60.00 - 0.92 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63* HW 5.0
HSK A63 MB40X120
63.00 40.00 94.0 120.00 46.00 1.60 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63* HW 5.0
HSK A63 MB50
63.00 50.00 40.0 66.00 - 1.04 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63* HW 6.0
HSK A63 MB50X120
63.00 50.00 94.0 120.00 - 1.05 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63* HW 6.0
HSK A63 MB63
63.00 63.00 - 75.00 - 1.15 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63* HW 8.0
HSK A80 MB50
80.00 50.00 44.0 70.00 - 1.61 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK80* HW 6.0
HSK A80 MB63
80.00 63.00 54.0 80.00 - 1.50 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK80* HW 8.0
HSK A80 MB80
80.00 80.00 - 86.00 - 2.54 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK80* HW 8.0
HSK A100 MB50
100.00 50.00 43.0 72.00 - 2.58 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 6.0
HSK A100 MB50X120
100.00 50.00 91.0 120.00 60.00 1.05 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 6.0
HSK A100 MB63
100.00 63.00 53.0 82.00 - 2.86 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 8.0
HSK A100 MB63X150
100.00 63.00 121.0 150.00 70.00 4.71 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 8.0
HSK A100 MB80
100.00 80.00 59.0 88.00 - 3.60 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 8.0
HSK A100 MB80X180
100.00 80.00 151.0 180.00 - 6.50 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100* HW 8.0
• A cooling tube must be used with all coolant through HSK spindles • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying
capability.
* Optional, should be ordered separately
HSK A-MB
MB Modular Connection
System with DIN 69893
HSK A Taper Shanks
(a)
DCONMS DCONWS
LPR
LB
(a)Cutting edge position
Designation
DCONMS DCONWS LB LPR
kg
HSK E40 MB32
40.00 32.00 22.0 42.00 0.30 HW 4.0
HSK E50 MB50
50.00 50.00 - 66.00 0.71 HW 6.0
HSK E63 MB50
63.00 50.00 40.0 66.00 1.87 HW 6.0
• A cooling tube must be used with all coolant through HSK spindles • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying
capability.
HSK E-MB
MB Modular Connection System
with DIN 69893 E Taper Shanks
ISCAR
392
ITS BORE

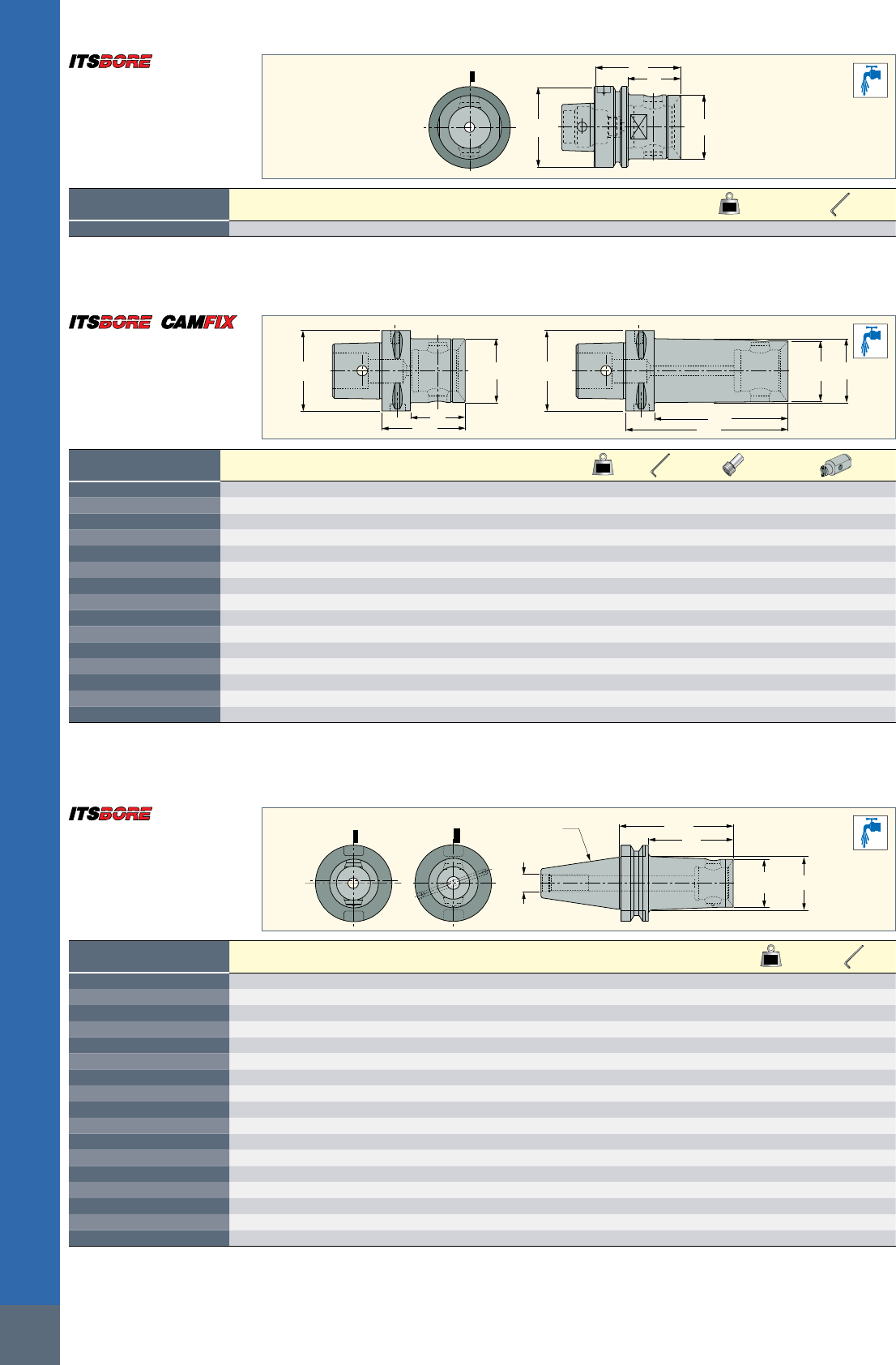

(a)
DCONMS DCONWS
LPR
LB
(a)Cutting edge position
Designation
DCONMS DCONWS LB LPR
kg
HSK F 63 MB50
63.00 50.00 39.0 65.00 1.00 HW 6.0
• A cooling tube must be used with all coolant through HSK spindles • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying
capability.
HSK F-MB
MB Modular Connection System
with DIN 69893 F Taper Shanks
Fig 1 Fig 2
DCONMS DCONMSDCONWS DCONWS BD
LB LB
LPR LPR
Designation
DCONMS DCONWS LPR LB BD Fig.
kg
C4 MB32X42
40.00 32.00 42.00 22.0 - 1. 0.30 HW 4.0 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 MB40X45
40.00 40.00 45.00 - - 1. 0.40 HW 5.0 COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 MB50X55
50.00 50.00 55.00 - - 1. 0.72 HW 6.0 COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 MB40X50
63.00 40.00 50.00 28.0 - 1. 0.90 HW 5.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 MB40X120
63.00 40.00 120.00 98.0 44.00 2. 1.50 HW 5.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 MB50X55
63.00 50.00 55.00 33.0 50.00 2. 0.80 HW 6.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 MB50X67
63.00 50.00 67.00 45.0 - 1. 1.10 HW 6.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 MB50X120
63.00 50.00 120.00 98.0 54.00 2. 1.90 HW 6.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 MB63X77
63.00 63.00 77.00 - - 1. 1.54 HW 8.0 COOLING TUBE C6* WRENCH COOL TUBE C6*
C8 MB50X60
80.00 50.00 60.00 30.0 - 1. 1.99 HW 6.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 MB50X120
80.00 50.00 120.00 90.0 54.00 2. 2.80 HW 6.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 MB63X70
80.00 63.00 70.00 40.0 - 1. 2.16 HW 8.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 MB63X150
80.00 63.00 150.00 120.0 67.00 2. 4.00 HW 8.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 MB80X75
80.00 80.00 75.00 - - 1. 2.60 HW 8.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 MB80X120
80.00 80.00 120.00 - - 1. 4.30 HW 8.0 COOLING TUBE C8* WRENCH COOL TUBE C8*
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
* Optional, should be ordered separately
C#-MB
MB Modular Boring Connection
System with CAMFIX
Exchangeable Shanks
SS
ADBAD
(a)(a)
DCONWS BD
LB
LPR
CRKS
(a)Cutting edge position
Designation
SS DCONWS LB LPR BD CRKS
kg
BT30 MB32
30 32.00 10.6 32.00 - M12 0.38 HW 4.0
BT30 MB50
30 50.00 38.6 60.00 - M12 0.70 HW 6.0
BT40 MB40
40 40.00 18.0 45.00 - M16 0.99 HW 5.0
BT40 MB40X120 ADB
40 40.00 93.0 120.00 44.50 M16 1.78 HW 5.0
BT40 MB50
40 50.00 21.0 48.00 - M16 1.00 HW 6.0
BT40 MB50X120 ADB
40 50.00 93.0 120.00 - M16 2.08 HW 6.0
BT40 MB63
40 63.00 39.0 66.00 - M16 1.35 HW 8.0
BT45 MB50
45 50.00 29.0 62.00 - M20 2.32 HW 6.0
BT50 MB50
50 50.00 28.0 66.00 - M24 3.78 HW 6.0
BT50 MB50X120 ADB
50 50.00 82.0 120.00 60.00 M24 4.64 HW 6.0
BT50 MB63
50 63.00 37.0 75.00 - M24 3.98 HW 8.0
BT50 MB63X150 ADB
50 63.00 112.0 150.00 70.00 M24 5.85 HW 8.0
BT50 MB80
50 80.00 37.0 75.00 - M24 4.30
BT50 MB80X180 ADB
50 80.00 142.0 180.00 - M24 8.19 HW 8.0
BT50 MB110X140
50 110.00 102.0 140.00 - M24 6.80 HW 10.0
BT60 MB110X110
60 110.00 63.0 110.00 - M30 11.50 HW 10.0
BT60 MB110X200
60 110.00 152.0 200.00 - M30 18.10 HW 10.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
BT-MB
MB Modular Connection
System with BT MAS-403
FORM AD/ADB Taper Shanks

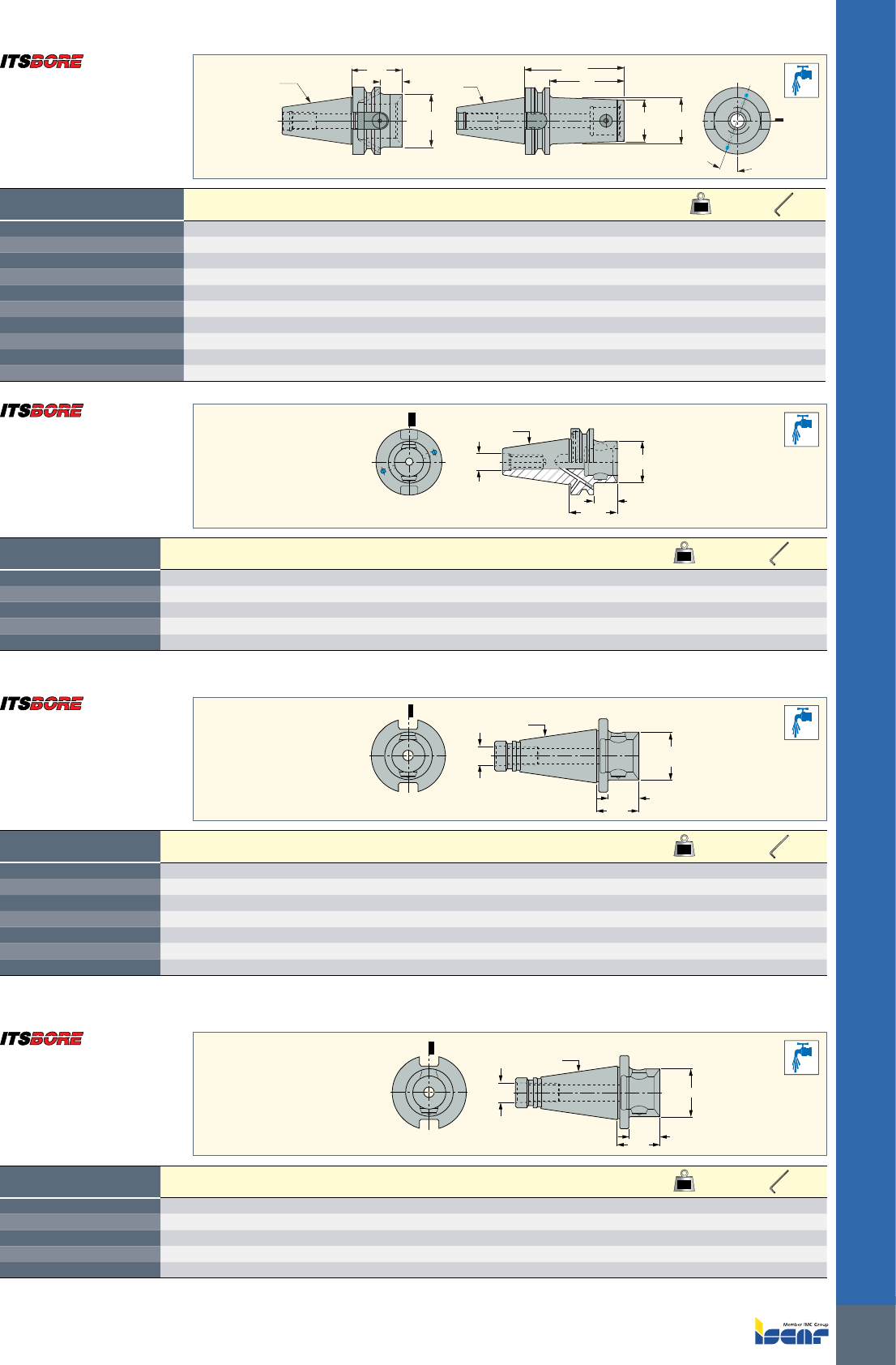

393
ITS BORE
SS
(a)
DCONWS
CRKS
LB
LPR
(a)Cutting edge position
Designation
SS DCONWS LB LPR CRKS
kg
ISO 40-MB50
40 50.00 36.0 48.00 UNC 5/8"-11 1.03 HW 6.0
ISO 40-MB63
40 63.00 - 60.00 UNC 5/8"-11 1.36 HW 8.0
ISO 50-MB50
50 50.00 33.0 48.00 UNC 1.0"-8 2.83 HW 6.0
ISO 50-MB63
50 63.00 41.0 56.00 UNC 1.0"-8 2.94 HW 8.0
ISO 50-MB80
50 80.00 45.0 60.00 UNC 1.0"-8 3.56 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
ISO-MB
MB Modular Connection System
with ISO 297 Taper Shanks
SS
20°
Fig. 1 Fig. 2
SS
DCONWSDCONWS
LB
LB
LPR
LPR
BD
Designation
SS DCONWS LPR BD LB Fig.
kg
BT30 FC MB50
30 50.00 60.00 - 32.0 1. 0.70
BT40 FC MB50
40 50.00 48.00 - 21.0 1. 0.90 HW 6.0
BT40 FC MB50X120 ADB
40 50.00 120.00 - 93.0 2. 1.90 HW 5.0
BT40 FC MB63
40 63.00 66.00 - - 1. 1.20 HW 8.0
BT50 FC MB50
50 50.00 66.00 - 28.0 1. 3.30 HW 6.0
BT50 FC MB50X120 ADB
50 50.00 120.00 60.00 82.0 2. 4.20 HW 6.0
BT50 FC MB63
50 63.00 75.00 - 37.0 1. 3.70 HW 8.0
BT50 FC MB63X150 ADB
50 63.00 150.00 70.00 112.0 2. 5.80 HW 8.0
BT50 FC MB80
50 80.00 75.00 - 37.0 1. 4.00 HW 8.0
BT50 FC MB80X180 ADB
50 80.00 180.00 - 142.0 2. 7.50 HW 8.0
BT-FC-MB
MB Modular Boring System
with BT MAS-403 Face Contact
ADB Tapered Shanks
(a)
SS
DCONWS
CRKS
LB
LPR
(a)Cutting edge position
Designation
SS DCONWS LB LPR CRKS
kg
BTB40 MB50
40 50.00 21.0 48.00 M16 0.96 HW 6.0
BTB40 MB63
40 63.00 - 66.00 M16 1.34 HW 8.0
BTB50 MB50X66
50 50.00 28.0 66.00 M24 3.89 HW 6.0
BTB50 MB63X75
50 63.00 37.0 75.00 M24 4.00 HW 8.0
BTB50 MB80
50 80.00 37.0 75.00 M24 4.30 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
BTB-MB
MB Modular Connection
System with BT MAS-403
Type B Taper Shanks
(a)
SS
DCONWS
LB
LPR
CRKS
(a)Cutting edge position
Designation
SS DCONWS LB LPR CRKS
kg
ISOM 30-MB50
30 50.00 - 58.00 M12 0.78 HW 6.0
ISOM 40-MB50
40 50.00 36.0 48.00 M16 0.95 HW 6.0
ISOM 40-MB63
40 63.00 - 60.00 M16 1.34 HW 8.0
ISOM 45-MB50
45 50.00 33.0 48.00 M20 1.81 HW 6.0
ISOM 50-MB50
50 50.00 33.0 48.00 M24 2.82 HW 6.0
ISOM 50-MB63
50 63.00 41.0 56.00 M24 3.04 HW 8.0
ISOM 50-MB80
50 80.00 45.0 60.00 M24 3.60 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
ISOM-MB
MB Modular Connection System
with DIN 2080-A Taper Shanks
ISCAR
394
ITS BORE
(a) 2
DCONMS DCONWS DCONWS
DCONMS
1
OAL
OAL
OHX
OHX
(a)Cutting edge position
Designation
DCONMS DCONWS OAL OHX(1) CSP(2) Fig.
kg
ST 16-MB16
16.00 16.00 100.00 66.0 1 1. 0.15 HW 2.5
ST 20-MB20
20.00 20.00 125.00 85.0 1 1. 0.27 HW 3.0
ST 25-MB32
25.00 32.00 100.00 35.0 0 2. 0.41 HW 4.0
ST 32-MB50
32.00 50.00 140.00 60.0 0 2. 0.42 HW 6.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
(1) Maximum overhang
(2) 0 - Without coolant supply, 1 - With coolant supply

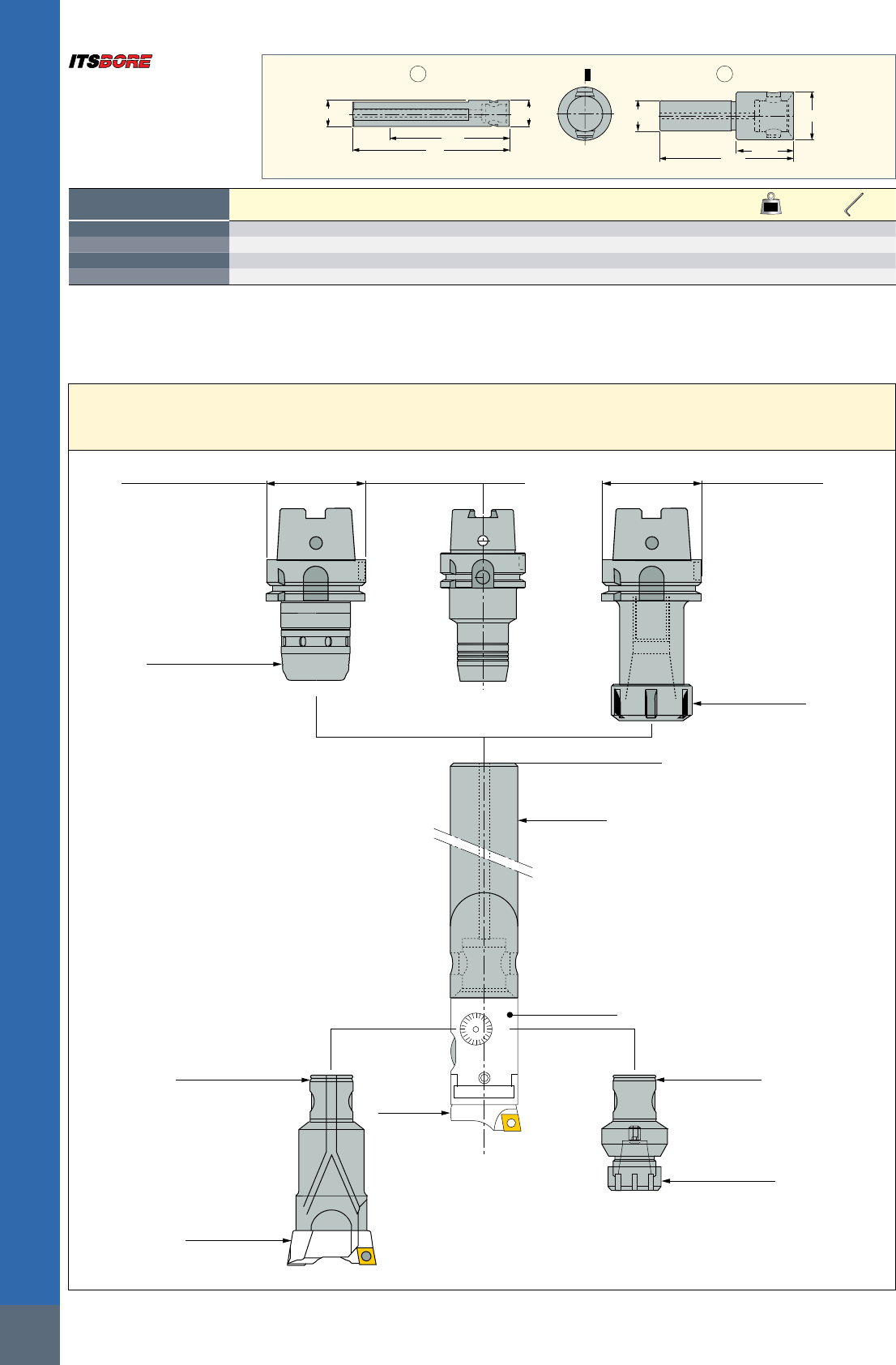

ST-MB
MB Modular Connection System
with Straight Cylindrical Shanks
ST16-32 MB16-MB32 Diameter Range: 18-50 mm
HSK
DIN
BT
CAMFIX
Rear Connection
MAXIN Power Chuck
Rear ConnectionHydraulic Chuck
HSK HSK
ER Collet Chuck
HSK
DIN
BT
CAMFIX
Straight Carbide Shank
BHF MB 16-32
ST 16-32
IHSR 18-50
IHCR 28-50
IHPR 36-50
IHRF 16-32
IHFF 25-32
Rough Boring Head
18-50 Dia. Range CC-MB-ER
ER Collet Chuck
BHF-MB
Fine Boring Heads
18-50 Dia. Range
BHR-MB 16-32

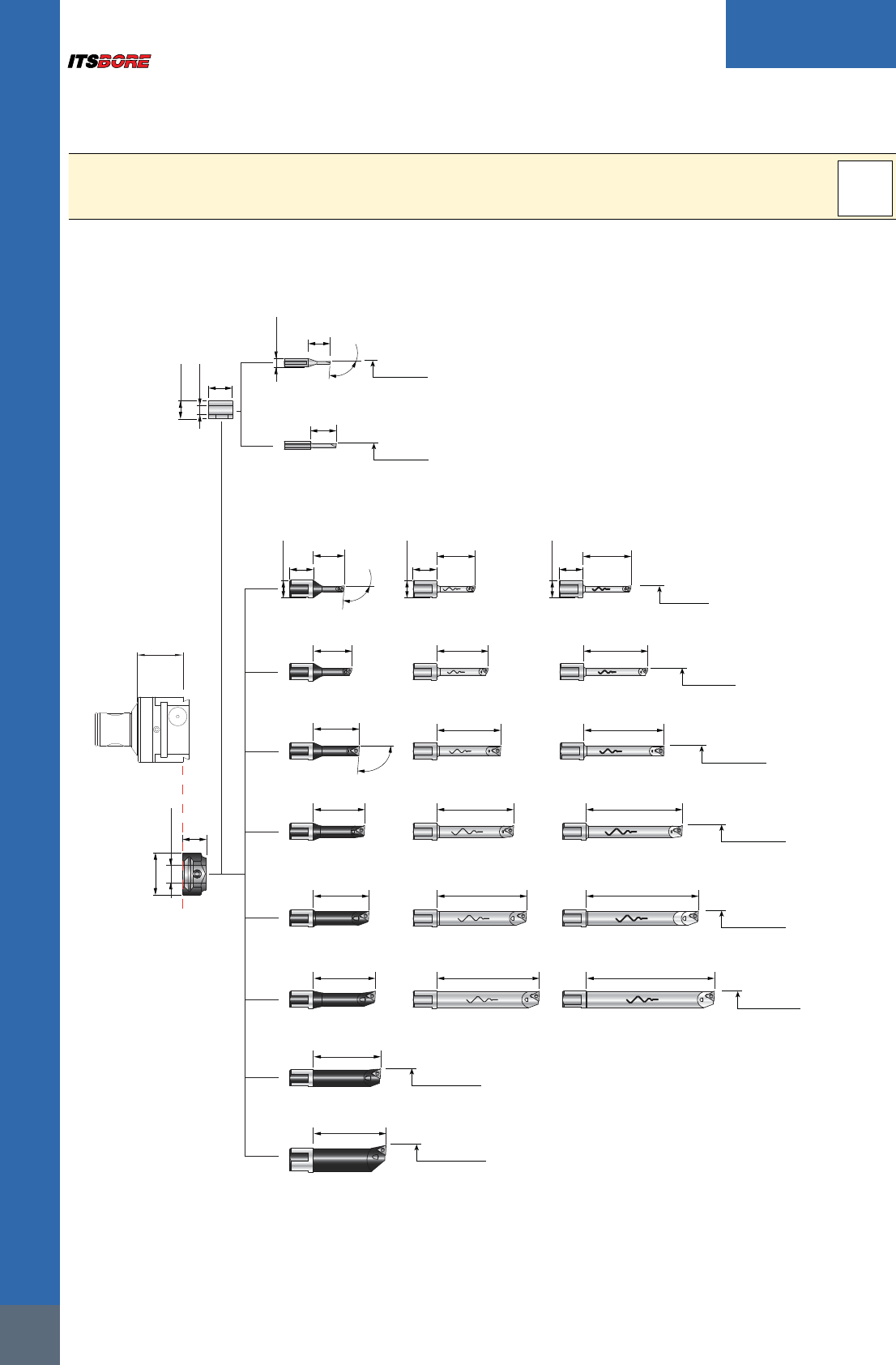

ST-MB Straight Carbide Shank with MB Connection Assembly Options

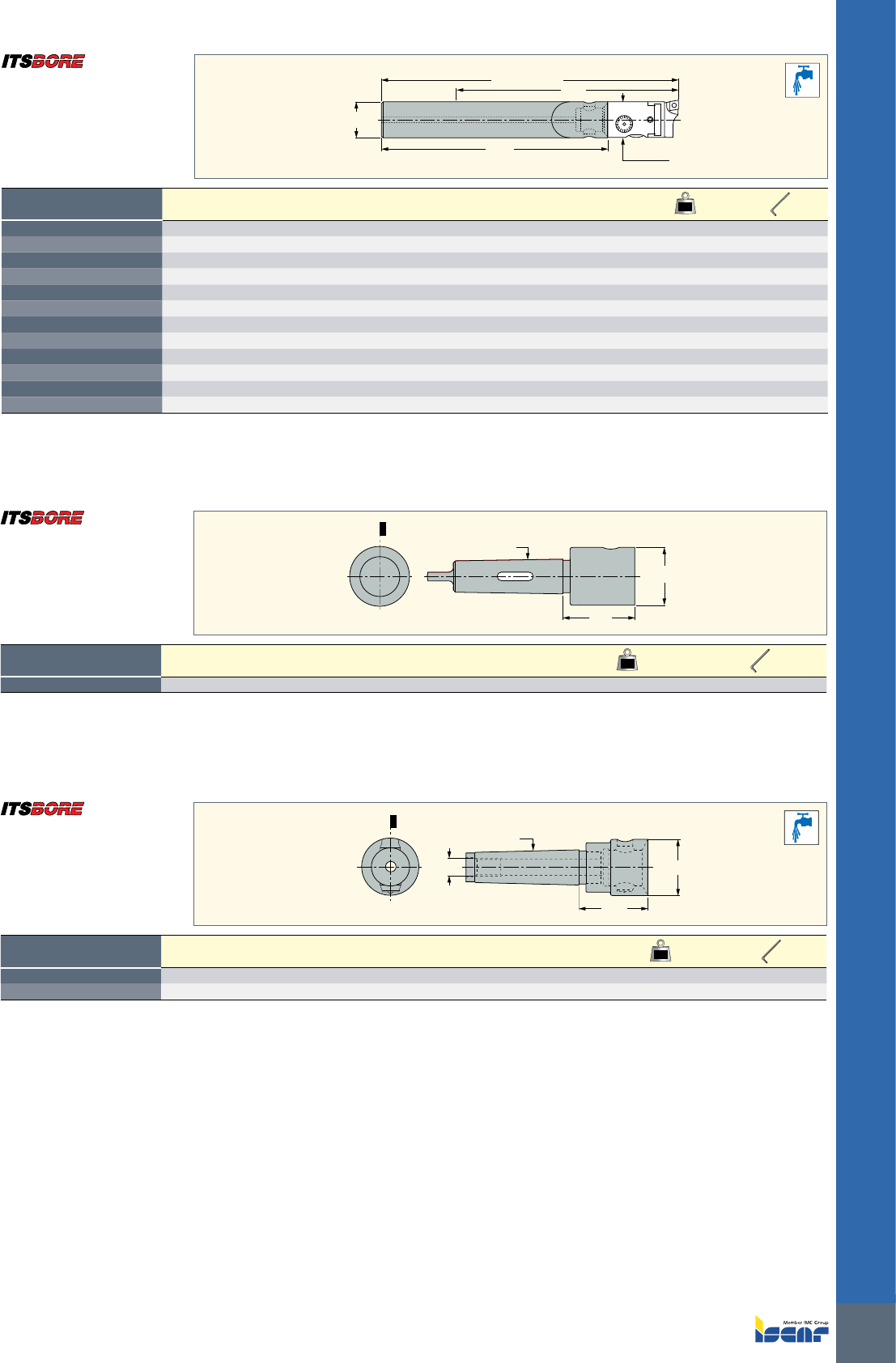

395
ITS BORE
(a)
Tt˚
DCONWS
LPR
(a)Cutting edge position
Designation
Tt° DCONWS LPR
kg
MTT 5-MB63
MT5 63.00 65.00 2.16 HW 8.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
MTT-MB
MB Modular Connection
System with DIN 228/B 1806
Morse Taper Shanks
(a)
Tt˚
DCONWS
LPR
CRKS
(a)Cutting edge position
Designation
Tt° DCONWS LPR CRKS
kg
MTD 4-MB50
MT4 50.00 63.00 M16 0.93 HW 6.0
MTD 4-MB50 SIP
MT4 50.00 63.00 M14 0.98 HW 6.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
MTD-MB
MB Modular Connection
System with DIN 228/A 220
Morse Taper Shanks
Lmax
LF (assembly)
DCONMS
DCONWS
OAL
Designation
DCONMS DCONWS OAL LF L max
kg
ST 16-MB16X110E
16.00 16.00 110.00 144.00 100.0 0.28 HW 2.5
ST 16-MB16X140E
16.00 16.00 140.00 174.00 125.0 0.17 HW 2.5
ST 16-MB16X170E
16.00 16.00 170.00 204.00 160.0 0.42 HW 2.5
ST 20-MB20X135E
20.00 20.00 135.00 175.00 125.0 0.40 HW 3.0
ST 20-MB20X170E
20.00 20.00 170.00 210.00 160.0 0.69 HW 3.0
ST 20-MB20X210E
20.00 20.00 210.00 250.00 200.0 0.40 HW 3.0
ST 25-MB25X160E
25.00 25.00 160.00 210.00 160.0 0.40 HW 3.0
ST 25-MB25X205E
25.00 25.00 205.00 255.00 200.0 1.28 HW 3.0
ST 25-MB25X255E
25.00 25.00 255.00 305.00 250.0 1.55 HW 3.0
ST 32-MB32X195E
32.00 32.00 195.00 258.00 200.0 1.96 HW 4.0
ST 32-MB32X250E
32.00 32.00 250.00 313.00 250.0 2.50 HW 4.0
ST 32-MB32X315E
32.00 32.00 315.00 378.00 320.0 3.30 HW 4.0
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
ST-MB-E
MB Modular Connection System
with Cylindrical Carbide Shanks
ISCAR
396
ITS BORE
BD_2 DCONMS DCONWS BD
LB
THID
DBC
LSCMS LF
Designation
LF DCONWS LSCMS LB BD BD_2 DCONMS DBC THID
kg
DIN2079 MB50 40
35.00 50.00 10.00 21.0 90.00 110.00 88.89 66.70 M12 1.96 HW 6.0
DIN2079 MB63 40
47.00 63.00 10.00 31.0 90.00 110.00 88.89 66.70 M12 2.06 HW 8.0
DIN2079 MB63 50
45.00 63.00 12.00 31.0 135.00 150.00 128.57 101.60 M16 4.60 HW 8.0
DIN2079 MB80 50
50.00 80.00 12.00 36.0 135.00 150.00 128.57 101.60 M16 5.00 HW 8.0
• Standard connection plate that can be assembled easily on most CNC spindle machines with a DIN2079 interface. This connection plate enables the use of ITS BORE
components with the MB connection by using any standard adapter with four screws. It is affixed directly on the machine spindle.
DIN2079-MB
MB Modular Connection
System with DIN 2079 Spindle
Connecting Interface
DCONWS
DCONMS
LPR
Designation
DCONMS LPR DCONWS
kg
EX 14X25-MB14
14.00 25.00 14.00 0.04
EX 16X25-MB16
16.00 25.00 16.00 0.06
EX 20X32-MB20
20.00 32.00 20.00 0.09
EX 25X25-MB25
25.00 25.00 25.00 0.10
EX 25X40-MB25
25.00 40.00 25.00 0.16
EX 32X32-MB32
32.00 32.00 32.00 0.20
EX 32X50-MB32
32.00 50.00 32.00 0.31
EX 40X40-MB40
40.00 40.00 40.00 0.39
EX 40X63-MB40
40.00 63.00 40.00 0.61
EX 50X50-MB50
50.00 50.00 50.00 0.70
EX 50X80-MB50
50.00 80.00 50.00 1.20
EX 50X100-MB50
50.00 100.00 50.00 1.53
EX 63X63-MB63
63.00 63.00 63.00 1.49
EX 63X100-MB63
63.00 100.00 63.00 2.39
EX 63X125-MB63
63.00 125.00 63.00 2.99
EX 80X80-MB80
80.00 80.00 80.00 3.10
EX 80X125-MB80
80.00 125.00 80.00 4.90
EX 80X160-MB80
80.00 160.00 80.00 6.25
EX 110X140-MB110
110.00 140.00 110.00 10.45
EX 110X200-MB110
110.00 200.00 110.00 14.30
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
EX-MB
Extensions for the MB Modular
Connection System
397
ITS BORE
DCONWS
LPR
LB
DCONMS
Designation
DCONMS DCONWS LPR LB
kg
RE MB16-MB14X24
16.00 14.00 25.00 19.5 0.04
RE MB20-MB14X19
20.00 14.00 20.00 14.5 0.03
RE MB20-MB16X20
20.00 16.00 20.00 16.0 0.06
RE MB25-MB14X19
25.00 14.00 20.00 13.5 0.06
RE MB25-MB16X20
25.00 16.00 20.00 15.0 0.08
RE MB25-MB20X25
25.00 20.00 25.00 20.0 0.09
RE MB32-MB14X25
32.00 14.00 25.00 17.5 0.08
RE MB32-MB16X24
32.00 16.00 24.00 18.0 0.13
RE MB32-MB20X25
32.00 20.00 25.00 20.0 0.14
RE MB32-MB25X28
32.00 25.00 28.00 23.0 0.16
RE MB40-MB14X25
40.00 14.00 25.00 16.5 0.23
RE MB40-MB16X24
40.00 16.00 24.00 17.0 0.22
RE MB40-MB20X26
40.00 20.00 26.00 20.0 0.23
RE MB40-MB25X28
40.00 25.00 28.00 22.0 0.26
RE MB40-MB32X32
40.00 32.00 32.00 27.0 0.29
RE MB50-MB14X25
50.00 14.00 25.00 14.5 0.40
RE MB50-MB14X39
50.00 14.00 39.00 30.5 0.42
RE MB50-MB16X24
50.00 16.00 24.00 15.0 0.39
RE MB50-MB16X40
50.00 16.00 40.00 31.0 0.41
RE MB50-MB16X74
50.00 16.00 74.00 65.0 0.47
RE MB50-MB20X26
50.00 20.00 26.00 18.0 0.40
RE MB50-MB20X70
50.00 20.00 70.00 62.0 0.50
RE MB50-MB20X93
50.00 20.00 93.00 85.0 0.56
RE MB50-MB25X117
50.00 25.00 117.00 110.0 0.68
RE MB50-MB25X28
50.00 25.00 28.00 21.0 0.42
RE MB50-MB25X87
50.00 25.00 87.00 80.0 0.64
RE MB50-MB32X144
50.00 32.00 144.00 137.0 1.09
RE MB50-MB32X32
50.00 32.00 32.00 25.0 0.46
RE MB50-MB32X87
50.00 32.00 87.00 80.0 0.71
RE MB50-MB40X176
50.00 40.00 176.00 170.0 1.87
RE MB50-MB40X36
50.00 40.00 36.00 30.0 0.51
RE MB50-MB40X87
50.00 40.00 87.00 80.0 0.97
RE MB63-MB50X40
63.00 50.00 40.00 34.0 0.97
RE MB80-MB50X45
80.00 50.00 45.00 36.0 1.35
RE MB80-MB63X60
80.00 63.00 60.00 52.0 1.77
RE MB110-MB80X70
110.00 80.00 70.00 52.0 6.00
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
RE MB-MB
Reducers for the MB Modular
Connection System
DCONMS
LB
LPR
DCONWS BD
Designation
DCONMS DCONWS LPR BD LB
kg
RE MB50-MB16X74-AVI
50.00 16.00 74.00 17.50 65.0 0.51
RE MB50-MB20X93-AVI
50.00 20.00 93.00 21.50 85.0 0.65
RE MB50-MB25X117-AVI
50.00 25.00 117.00 27.00 110.0 0.92
RE MB50-MB32X144-AVI
50.00 32.00 144.00 35.00 138.0 1.47
RE MB50-MB40X176-AVI
50.00 40.00 176.00 47.00 170.0 2.66
RE MB63-MB50X220-AVI
63.00 50.00 220.00 60.00 214.0 5.00
RE MB80-MB63X280-AVI
80.00 63.00 280.00 77.00 272.0 10.40
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
RE MB-AVI
MB Modular System Vibration
Damping Reducers
ISCAR
398
ITS BORE

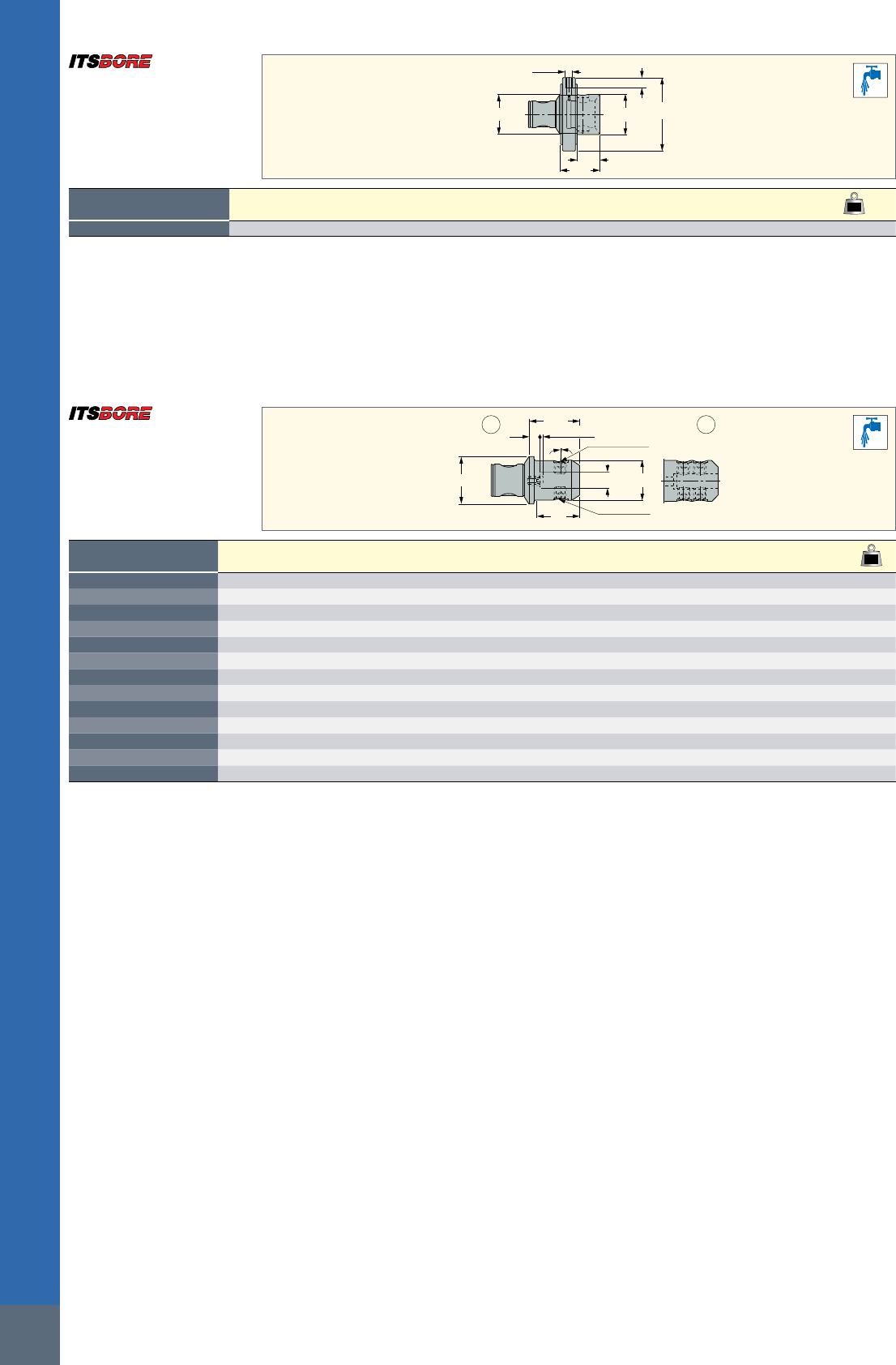

15
R 3/8
DCONWS BD
LPR
LB
DCONMS
Designation
DCONMS DCONWS BD LB LPR RPMX(1) CP(2)
kg
CHR MB63
63.00 63.00 115.00 35.0 63.00 3500 10 3.30
• Important: coolant flow must be started prior to rotating the spindle to avoid damage of the O-rings • Verify that the weight of the entire tool assembly does not exceed the
machine spindle's carrying capability.
(1) Maximum RPM
(2) Coolant pressure (Bar)
CHR MB

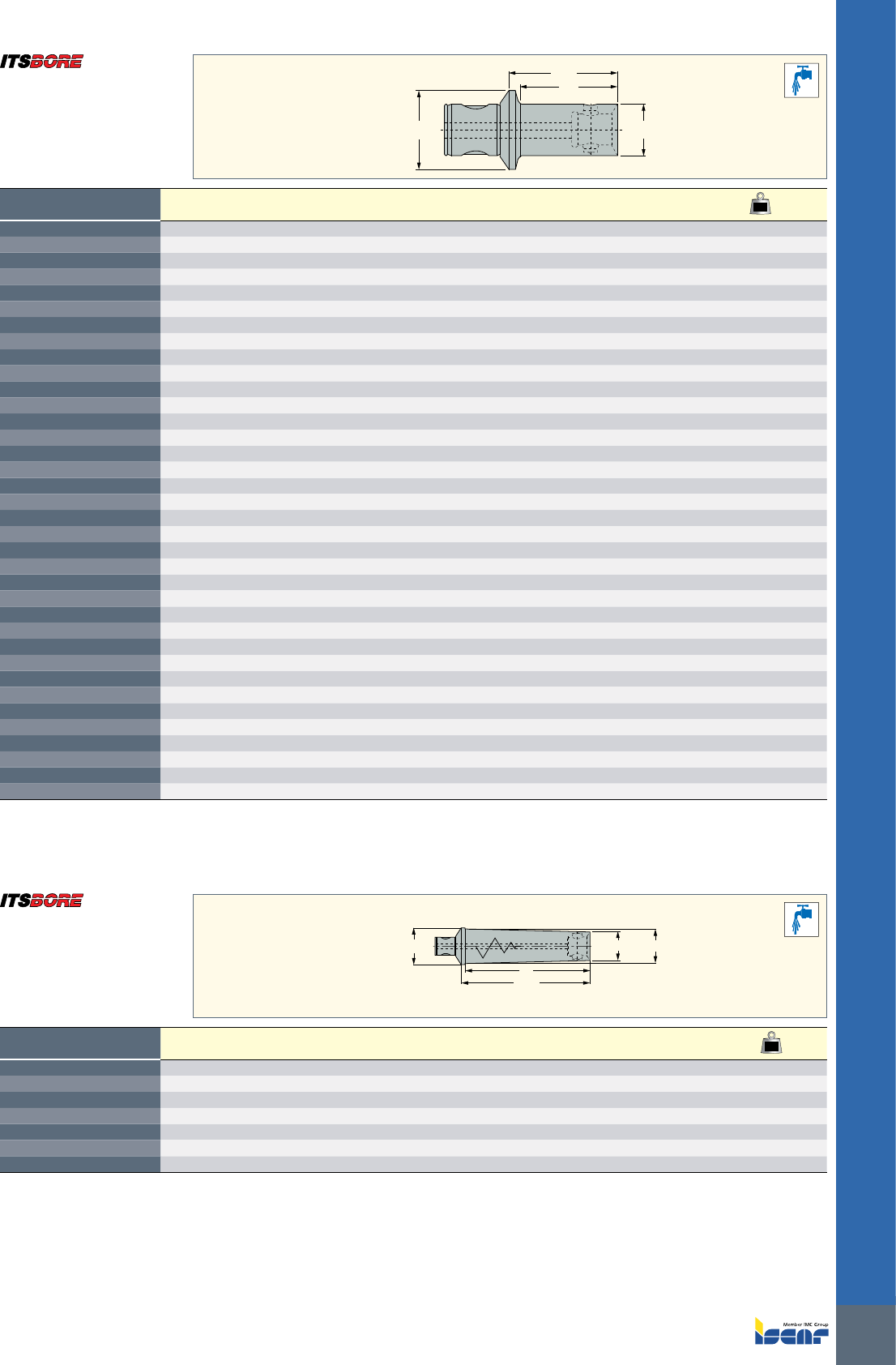

Coolant Supply Collar for the
MB Modular Boring System
2º
L5
LPR
Whistle notch
EMH 1835-E
DCONMS DCONWS
ADJRGA
BD
Weldon
EMH 1835-B
LB
12
Designation
DCONMS DCONWS BD LB LPR L5 ADJRGA Fig.
kg
EMH MB50-6
50.00 6.00 25.00 32.5 44.00 7.00 2.0 1. 0.51
EMH MB50-8
50.00 8.00 28.00 33.0 44.00 7.00 2.0 1. 0.54
EMH MB50-10
50.00 10.00 35.00 42.0 52.00 11.00 3.0 1. 0.68
EMH MB50-12
50.00 12.00 42.00 48.0 57.00 11.00 3.0 1. 0.85
EMH MB50-14
50.00 14.00 42.00 48.0 57.00 11.00 3.0 1. 0.84
EMH MB50-16
50.00 16.00 48.00 61.0 67.00 17.00 4.0 1. 1.12
EMH MB50-20
50.00 20.00 51.00 - 67.00 16.00 4.0 1. 1.08
EMH MB50-25
50.00 25.00 63.00 - 80.00 22.00 4.0 2. 1.21
EMH MB63-16
63.00 16.00 48.00 53.0 64.00 14.00 4.0 1. 1.45
EMH MB63-20
63.00 20.00 52.00 56.0 66.00 14.00 4.0 1. 1.55
EMH MB63-25
63.00 25.00 64.00 - 74.00 16.00 4.0 2. 2.11
EMH MB63-32
63.00 32.00 72.00 - 76.00 14.00 4.0 2. 2.42
EMH MB80-40
80.00 40.00 80.00 - 83.00 12.00 4.0 2. 3.21
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
EMH MB
Weldon and Whistle Notch
Side-Lock Holders with
the MB Modular Boring
Connection System
399

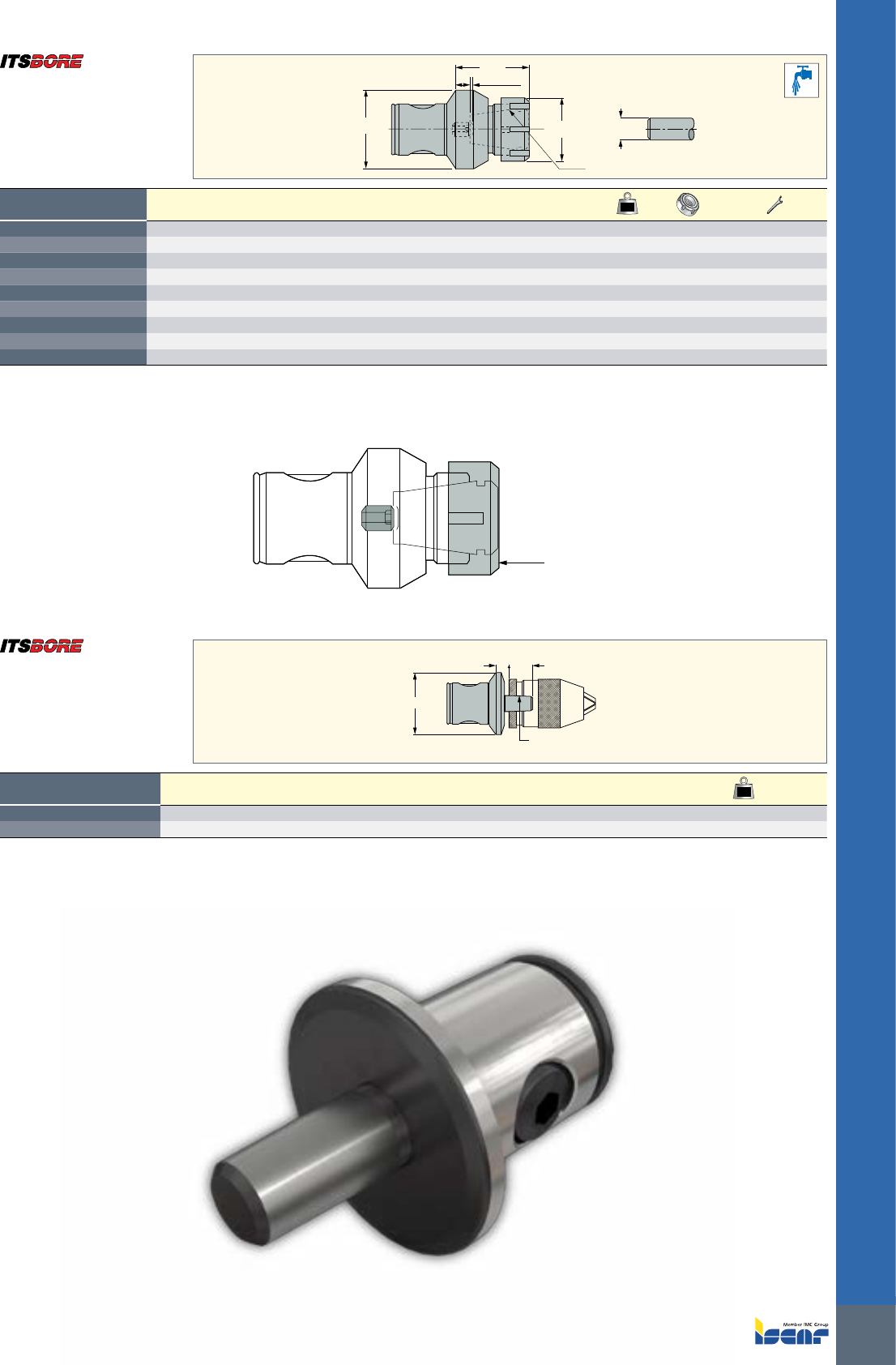

ITS BORE
L5
CSI
DCONNWS
DCONXWS
BD
ADJRGA
DCONMS
LPR
Designation
DCONMS CSI DCONNWS(1) DCONXWS(2) BD LPR L5 ADJRGA
kg
CC MB16 ER11M
16.00 ER11 0.5 7.0 16.00 25.00 2.50 2.0 0.05 NUT ER11 MINI WRENCH ER11 MINI*
CC MB20 ER16M
20.00 ER16 0.5 10.0 22.00 32.00 1.00 2.0 0.05 NUT ER16 MINI WRENCH ER16 MINI*
CC MB25 ER20M
25.00 ER20 1.0 13.0 28.00 40.00 2.50 2.0 0.14 NUT ER20 MINI WRENCH ER20 MINI*
CC MB32 ER25M
32.00 ER25 1.0 16.0 35.00 42.00 1.50 2.0 0.23 NUT ER25 MINI WRENCH ER25 MINI*
CC MB40 ER25
40.00 ER25 1.0 16.0 42.00 45.00 5.00 2.0 0.45 NUT ER25 TOP WRENCH ER25*
CC MB50 ER25
50.00 ER25 1.0 16.0 42.00 48.00 7.00 2.0 0.67 NUT ER25 TOP WRENCH ER25*
CC MB50 ER32
50.00 ER32 2.0 20.0 50.00 55.00 7.00 2.0 0.79 NUT ER32 TOP WRENCH ER32*
CC MB63 ER32
63.00 ER32 2.0 20.0 50.00 59.00 12.00 2.0 1.35 NUT ER32 TOP WRENCH ER32*
CC MB63 ER40
63.00 ER40 3.0 26.0 63.00 64.00 12.00 2.0 1.55 NUT ER40 TOP WRENCH ER40*
• For ER collets, see ISCAR Tooling Systems Catalog.
(1) Minimum diameter
(2) Maximum diameter
* Optional, should be ordered separately
NUT
CC MB-ER

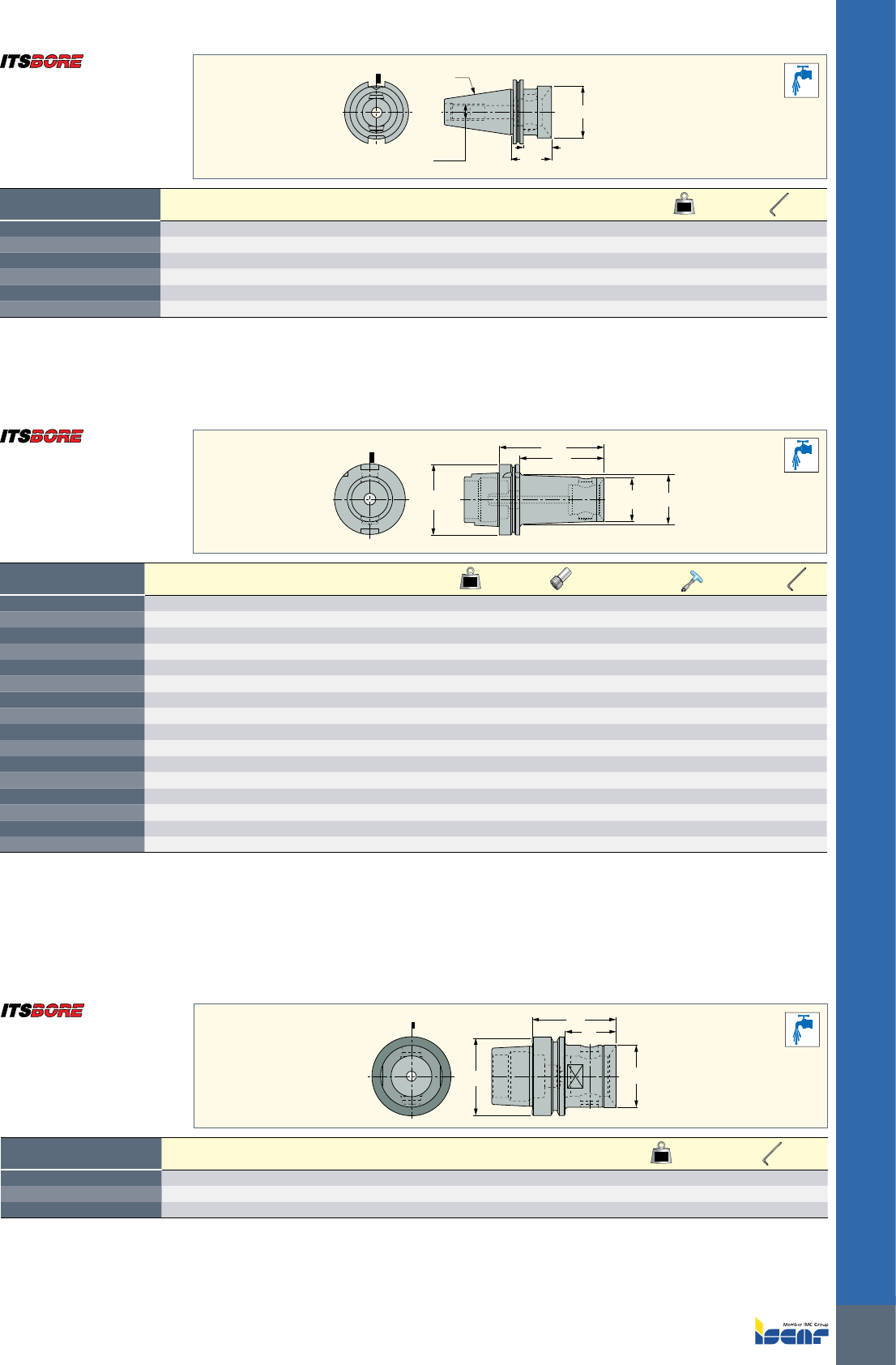

DIN 6499 ER Collet Chuck
with the MB Modular Boring
Connection System
Tt˚
24
DCONMS
LF
Designation
DCONMS Tt° LF
kg
DC MB50 B16
50.00 B16 10.00 0.40
DC MB63 B16
63.00 B16 13.50 0.41
• Without drill chuck.
DC MB
DIN238 DC Drill Chuck
Arbor with the MB Modular
Connection System
ISCAR
400
ITS BORE
Fig. 1
LF LSCWS
BD
DBC THID
Fig. 2
DCONMS
DCONWS
DCONMS
Designation
DCONMS DCONWS BD DBC THID LF LSCWS Fig.
kg
SMH MB40-16
40.00 16.00 32.00 - - 15.00 17.00 1. 0.32
SMH MB40-22
40.00 22.00 40.00 - - 13.00 19.00 1. 0.38
SMH MB50-16
50.00 16.00 32.00 - - 15.00 17.00 1. 0.48
SMH MB50-22
50.00 22.00 40.00 - - 15.00 19.00 1. 0.55
SMH MB50-27
50.00 27.00 50.00 - - 15.00 21.00 1. 0.66
SMH MB50-32
50.00 32.00 60.00 - - 15.00 24.00 1. 0.79
SMH MB63-22
63.00 22.00 60.00 - - 15.00 19.00 1. 1.01
SMH MB63-27
63.00 27.00 60.00 - - 15.00 21.00 1. 1.09
SMH MB63-32
63.00 32.00 70.00 - - 15.00 24.00 1. 1.24
SMH MB80-32
80.00 32.00 88.00 - - 24.00 24.00 1. 2.09
SMH MB80-40
80.00 40.00 88.00 66.70 M12 24.00 27.00 2. 2.25
SMH MB80-50
80.00 50.00 90.00 - - 24.00 30.00 2. 2.58
SMH MB80-60 (1)
80.00 60.00 128.50 101.60 M16 31.50 40.00 2. 4.19
SMH MB110-60 (1)
110.00 60.00 128.50 101.60 M16 36.00 40.00 2. 7.56
• When mounting slitting cutters, remove the drive dogs and use spacer rings. • Verify that the weight of the entire tool assembly does not exceed the machine spindle's
carrying capability.
(1) Shell locking screw not supplied
12
4 3
Designation
(1) (2) (3) (4)
SMH MB40-16
M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW
SMH MB40-22
M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW
SMH MB50-16
M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW
SMH MB50-22
M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW
SMH MB50-27
M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW
SMH MB50-32
M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW
SMH MB63-27
M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW
SMH MB63-32
M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW
SMH MB80-32
M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW
SMH MB80-40
M 20 CLAMP SCREW SEM 40 BH DOG DRIVE SMH 40 KEY SMH 40 M6X18SMH KEY SCREW
Spare Parts
SMH MB
Shell Mill Holders with
the MB Modular Boring
Connection System
DCONMS
LPR
Flb Flf
FlfFlb
DCONWS BD
LB
Designation
DCONMS Tap min Tap max LB LPR BD DCONWS Flf Flb
kg
TP MB50-M 3-12
50.00 M1 M14 65.0 76.00 36.00 19.00 7.5 7.5 0.78
TP MB50-M 8-20
50.00 M4.5 M20 - 106.00 53.00 31.00 12.5 12.5 1.60
TP MB63-M 3-12
63.00 M1 M14 57.2 70.00 36.00 19.00 7.5 7.5 1.14
TP MB63-M 8-20
63.00 M4.5 M20 93.0 104.00 53.00 31.00 12.5 12.5 1.88
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
TP MB-M
Tapping Chucks with the MB
Modular Connection System
401
ITS BORE
S
DCONMS
LSCMS
LSCWS
LPR
DCONWS BD
Designation
DCONWS(1) S(2) S1(3) S2(4) BD DCONMS LPR LSCMS LSCWS
kg
TCS #1 DIN 4-3
4.00 3.00 M4 - 30.00 19.00 7.0 21.50 17.0 0.48
TCS #1 DIN 3.5-2.7
3.50 2.70 M3 M4.5, M5 30.00 19.00 7.0 21.50 17.0 0.01
TCS #1 DIN 4.5-3.4
4.50 3.40 M3.5 M6 30.00 19.00 7.0 21.50 17.0 0.08
TCS #1 DIN 6-4.9
6.00 4.90 M4.5, M6 M8 30.00 19.00 7.0 21.50 17.0 0.08
TCS #1 DIN 8-6.2
8.00 6.20 M8 - 30.00 19.00 7.0 21.50 17.0 0.10
TCS #1 DIN 9-7
9.00 7.00 - M12 30.00 19.00 7.0 21.50 17.0 0.08
TCS #1 DIN 10-8
10.00 8.00 M10 - 30.00 19.00 7.0 21.50 17.0 0.10
TCS #1 DIN 11-9
11.00 9.00 M14 M14 30.00 19.00 7.0 21.50 17.0 0.48
TCS #2 DIN 8X6.2
8.00 6.20 M8 - 48.00 31.00 11.0 35.00 30.0 0.28
TCS #2 DIN 9X 7
9.00 7.00 - M12 48.00 31.00 17.0 35.00 30.0 0.28
TCS #2 DIN 10X 8
10.00 8.00 M10 - 48.00 31.00 17.0 35.00 30.0 0.28
TCS #2 DIN 11X 9
11.00 9.00 - M14 48.00 31.00 17.0 35.00 30.0 0.48
TCS #2 DIN 12X 9
12.00 9.00 - M16 48.00 31.00 17.0 35.00 30.0 0.27
TCS #2 DIN 14X11
14.00 11.00 - M18 48.00 31.00 17.0 35.00 30.0 0.25
TCS #2 DIN 16X12
16.00 12.00 - M20 48.00 31.00 17.0 35.00 30.0 0.24
(1) According to tap shank size.
(2) Square size.
(3) Tap size according to DIN371
(4) Tap size according to DIN376/374
TCS-DIN
Quick Change Tap
Collets for Solid Taps
S
DCONMS
LSCMS
LSCWS
LPR
DCONWS BD
Designation
DCONWS(1) S(2) S1(3) S2(4) BD DCONMS LPR LSCMS LSCWS
kg
TCC #1 DIN 2.8-2.1
2.80 2.10 M2, M2.5 M4 32.00 19.00 25.0 21.50 17.0 0.17
TCC #1 DIN 4-3
4.00 3.00 M3.5 - 32.00 19.00 25.0 21.50 17.0 0.34
TCC #1 DIN 4.5-3.4
4.50 3.40 M4 M6 32.00 19.00 25.0 21.50 17.0 0.17
TCC #1 DIN 6-4.9
6.00 4.90 M4.5, M6 M8 32.00 19.00 25.0 21.50 17.0 0.17
TCC #1 DIN 7-5.5
7.00 5.50 M7 M10 32.00 19.00 25.0 21.50 17.0 0.17
TCC #1 DIN 8-6.2
8.00 6.20 M8 - 32.00 19.00 25.0 21.50 17.0 0.16
TCC #1 DIN 9-7
9.00 7.00 - M12 32.00 19.00 25.0 21.50 17.0 0.17
TCC #1 DIN 10-8
10.00 8.00 M10 - 32.00 19.00 25.0 21.50 17.0 0.16
TCC #1 DIN 11-9
11.00 9.00 M10 M14 32.00 19.00 25.0 21.50 17.0 0.15
TCC #2 DIN 6X4.9
6.00 4.90 M4.5, M6 M8 50.00 31.00 34.0 35.00 30.0 0.53
TCC #2 DIN 7X5.5
7.00 5.50 M7 M10 50.00 31.00 34.0 35.00 30.0 0.54
TCC #2 DIN 8X6.2
8.00 6.20 M8 - 50.00 31.00 34.0 35.00 30.0 0.53
TCC #2 DIN 9X7
9.00 7.00 M7 M12 50.00 31.00 34.0 35.00 30.0 0.53
TCC #2 DIN 10X8
10.00 8.00 M10 - 50.00 31.00 34.0 35.00 30.0 0.53
TCC #2 DIN 11X9
11.00 9.00 - M14 50.00 31.00 34.0 35.00 30.0 0.53
TCC #2 DIN 12X9
12.00 9.00 - M16 50.00 31.00 34.0 35.00 30.0 0.52
TCC #2 DIN 14X11
14.00 11.00 - M18 50.00 31.00 34.0 35.00 30.0 0.51
TCC #2 DIN 16X12
16.00 12.00 - M20 50.00 31.00 34.0 35.00 30.0 0.50
(1) According to tap shank size.
(2) Square size.
(3) Tap size according to DIN371
(4) Tap size according to DIN376/374
TCC-DIN
Quick Change Tap Collets
with a Safety Clutch
ISCAR
402

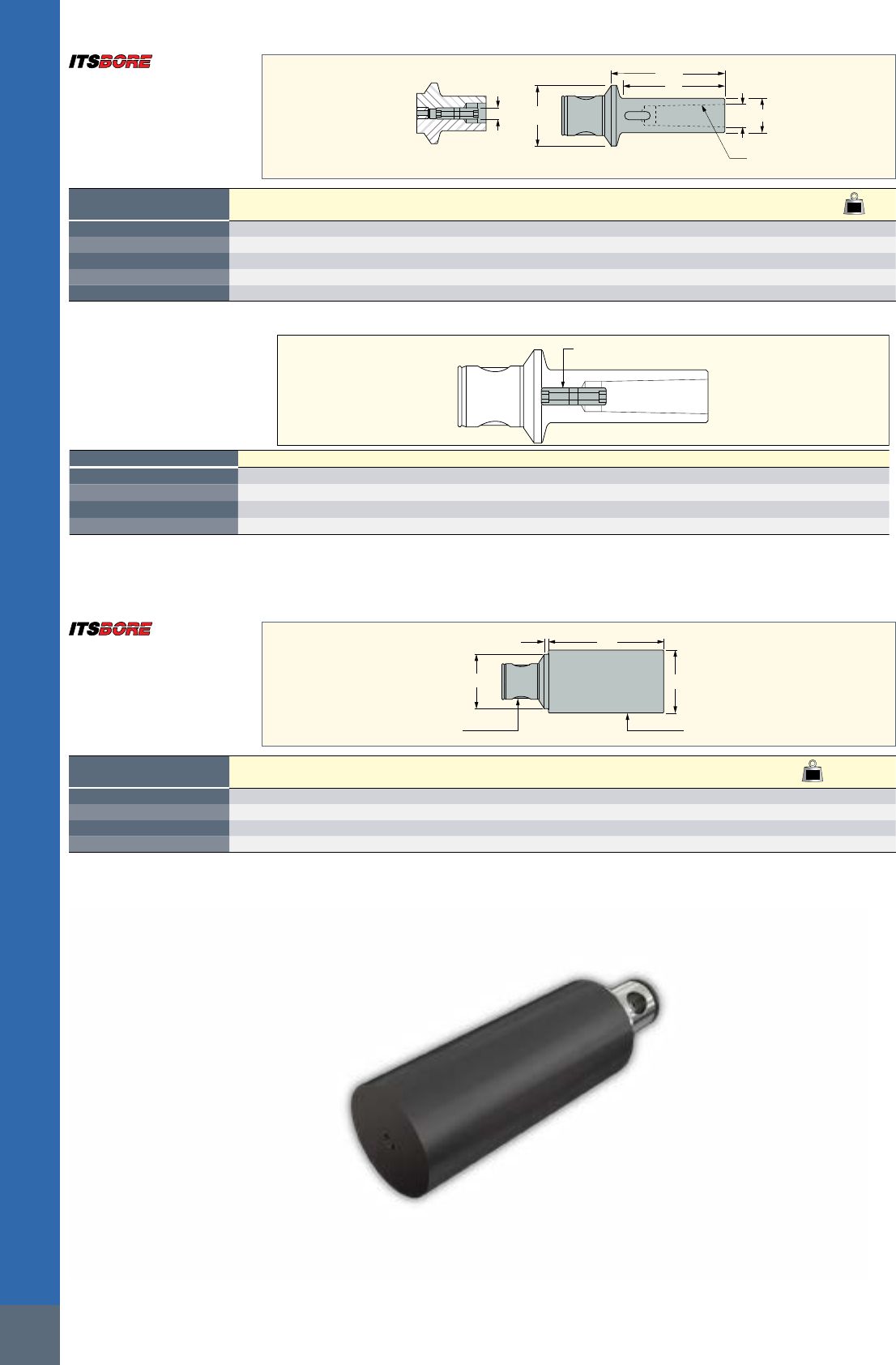

ITS BORE
Tt°
DIN 228A DIN 228B
DCONMS
THID
LPR
d
2
BD
LB
Designation
Tt° DCONMS d2 BD THID LB LPR
kg
AMT MB50-MT1
MT1 50.00 12.07 20.00 M6 68.0 80.00 0.52
AMT MB50-MT2
MT2 50.00 17.78 30.00 M10 86.0 100.00 0.78
AMT MB50-MT3
MT3 50.00 23.82 36.00 M12 110.0 120.00 1.02
AMT MB63-MT3
MT3 63.00 23.82 36.00 M12 108.0 120.00 1.40
AMT MB63-MT4
MT4 63.00 31.26 48.00 M16 133.0 150.00 2.20
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
1
AMT
Screw for Shanks
– Morse
Taper Tang AMT
Designation
1
AMT MB50-MT2
AMT MT2-SCREW
AMT MB50-MT3
AMT MT3-SCREW
AMT MB63-MT3
AMT MT3-SCREW
AMT MB63-MT4
AMT MT4-SCREW
Spare Parts
AMT MB-MT
MB Modular Connection
System with Morse Taper
Tang DIN 228 A/B
22-25 HRc55-60 HRc
10
DCONMS BD
LB
Designation
DCONMS BD LB
kg
BLANK MB50-63X160
50.00 63.00 160.00 4.44
BLANK MB63-80X200
63.00 80.00 200.00 8.77
BLANK MB80-100X250
80.00 100.00 250.00 16.62
BLANK MB110-130X250
110.00 130.00 250.00 18.00
• Material: 39NiCrMo3
BLANK MB
Blanks with MB Modular
Connection System
403

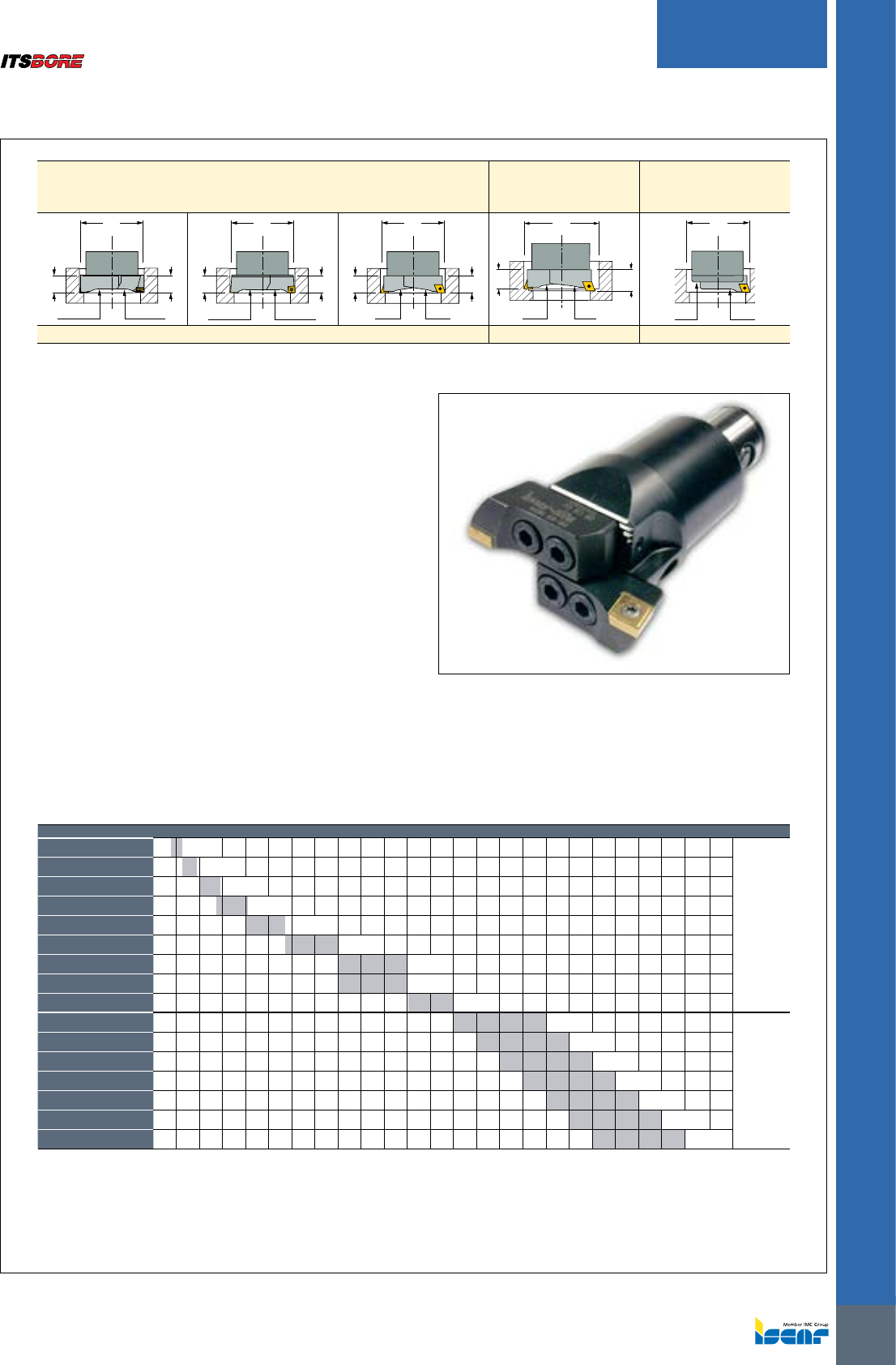

USER GUIDE
ITS BORE
1 Radial setting of the cutting edges should be
carried out with tool presetting equipment.
2 Boring bars fitted with two insert pockets are for roughing
operations involving heavy chip removal.
The double-insert boring bars include:
- Two IHSR/CR SOMT/CR LNHT insert holders on the
same plane with the two cutting edges set at an identical
radial distance for high feed rate roughing operations
(Fig. a).
- An IHCR insert holder and an IHSR insert holder not on
the same plane with the two cutting edges set at different
radial distances for high-depth roughing operations (Fig. b).
3 Boring bars fitted with a single insert holder are for
roughing and finishing operations involving normal
chip removal. The serrated surface protection
plate PLT should always be used (Fig. c).
Rough Boring Options
Roughing with High Feed
Roughing with High
Cutting Depth
Light Roughing
or Semi-Finishing
Applications
Ø
CR LNHT
CR LNHT
A A
Ø
CR SOMTCR SOMT
A A
Ø
IHSR
IHSR
A A
Ø
IHSR
IHCR
A
1
A
Ø
IHSR
PLT
Fig. a Fig. b Fig. c
Rough Boring Head Diameter Range
Assembly
Reference
Page
BHR MB16-16x34
18-22
843
BHR MB20-20x40
22-28
BHR MB25-25x50
28-38
BHR MB32-32x63
35.5-50
BHR MB40-40x80
50-68
BHR MB50-50x100
68-90
BHR MB50-63x80
90-120
BHR MB63-63x125
90-120
BHR MB80-80x140
120-200
TCH AL200
200-602
847
TCH AL300
300-702
TCH AL400
400-802
TCH AL 500
500-902
TCH AL 600
600-1002
TCH AL 700
700-1102
TCH AL 800
800-1202
20 30 40 50 60 70 80 90 100 110 120 130 200 300 400 500 600 70010 800 900 1000 1100 1200
ISCAR

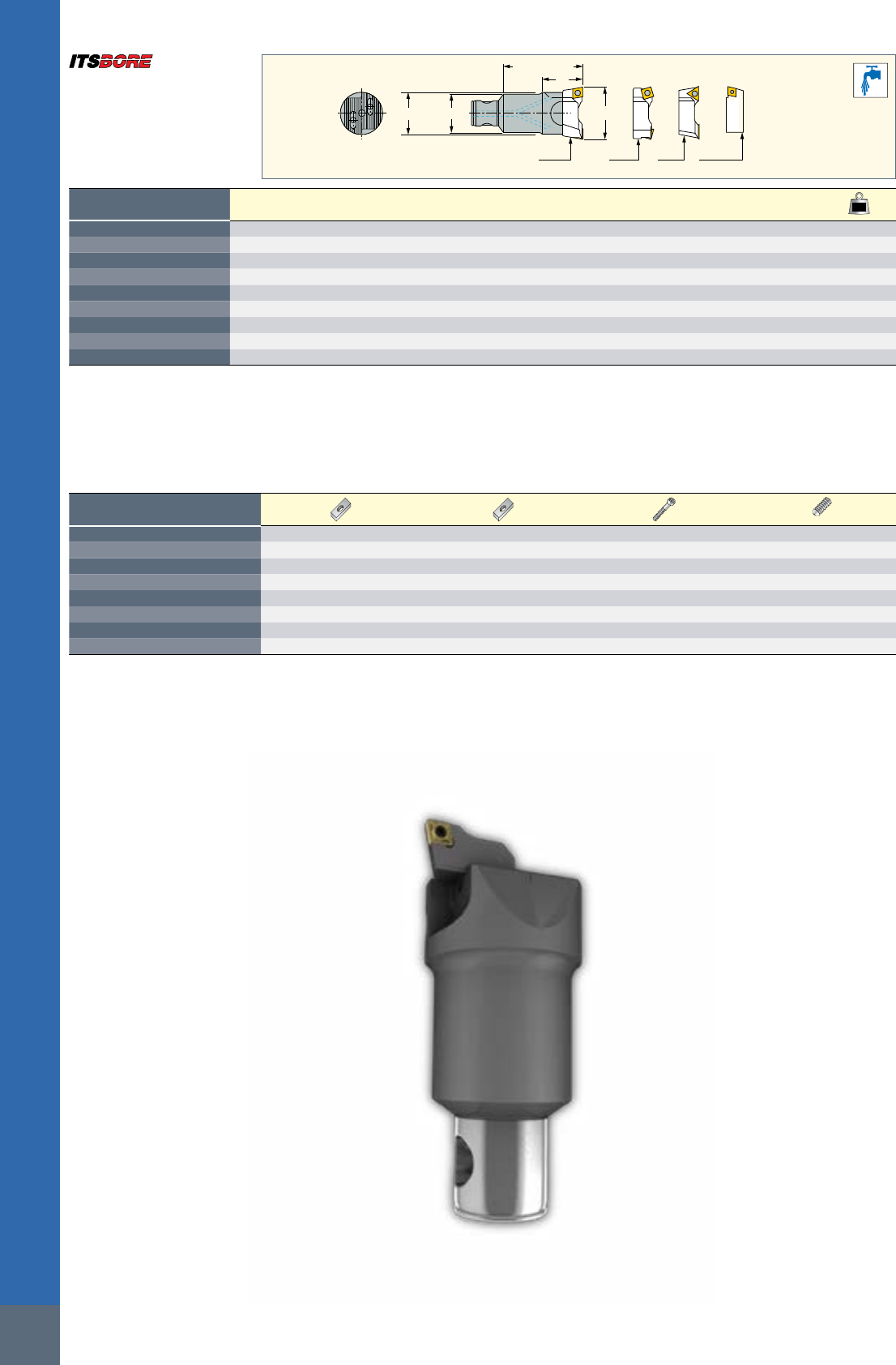

404
ITS BORE
IHSR
IHCR IHPR IHBR
A
L1
B C
IHSR BW
D
DCONMS
BD
LF (assembly)
DCN-DCX
Designation
BD DCONMS LF DCN(1) DCX(2) L1 IH(3) RPMX(4)
kg
BHR MB16-16X34
16.00 16.00 34.00 18.0 22.0 - IH...18-22 12000 0.06
BHR MB20-20X40
20.00 20.00 40.50 22.0 28.0 - IH...22-28 12000 0.11
BHR MB25-25X50
25.00 25.00 50.00 28.0 38.0 - IH...28-38 10000 0.18
BHR MB32-32X63
32.00 32.00 63.00 35.5 50.0 - IH...36-50 10000 0.36
BHR MB40-40X80
40.00 40.00 80.00 50.0 68.0 - IH...50-68 8000 0.70
BHR MB50-50X100
55.00 50.00 100.00 68.0 90.0 50.0 IH...68-90 8000 1.49
BHR MB50-63X80
72.00 50.00 80.00 90.0 120.0 60.0 IH...90-120 8000 1.50
BHR MB63-63X125
72.00 63.00 125.00 90.0 120.0 63.0 IH...90-120 6000 3.09
BHR MB80-80X140
95.00 80.00 140.00 120.0 200.0 75.0 IH...120-800 5000 5.38
• Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Insert holders
(4) Maximum RPM
Spare Parts
Designation
BHR MB16-16X34
BH NUT BHR MB16 PLT 16* SR M3X14 DIN912 SR M3X8 DIN913
BHR MB20-20X40
BH NUT BHR MB20 PLT 20* SR M4X15DIN912 BH M3X5UNI5923
BHR MB25-25X50
BH NUT BHR MB25 PLT 25* SR M4X20 DIN912 SR M3X8 DIN913
BHR MB32-32X63
BH NUT BHR MB32 PLT 32* SR M5X25DIN912 SR M4X12 DIN913
BHR MB40-40X80
BH NUT BHR MB40 PLT 40* SR M6X30 DIN912 SR M5X14 DIN913
BHR MB50-63X80
BH NUT BHR MB50 PLT 50* SR M10X40DIN912 SR M5X12 DIN913
BHR MB63-63X125
BH NUT BHR MB63 PLT 63* SR M10X40DIN912 SR M6X16 DIN913
BHR MB80-80X140
BH NUT BHR MB80 PLT 80* SR M12X45DIN912 SR M8X25 DIN913
* Optional, should be ordered separately
BHR MB
Rough Boring Heads for
Diameter Range 18-200 mm
405
USER GUIDE
ITS BORE

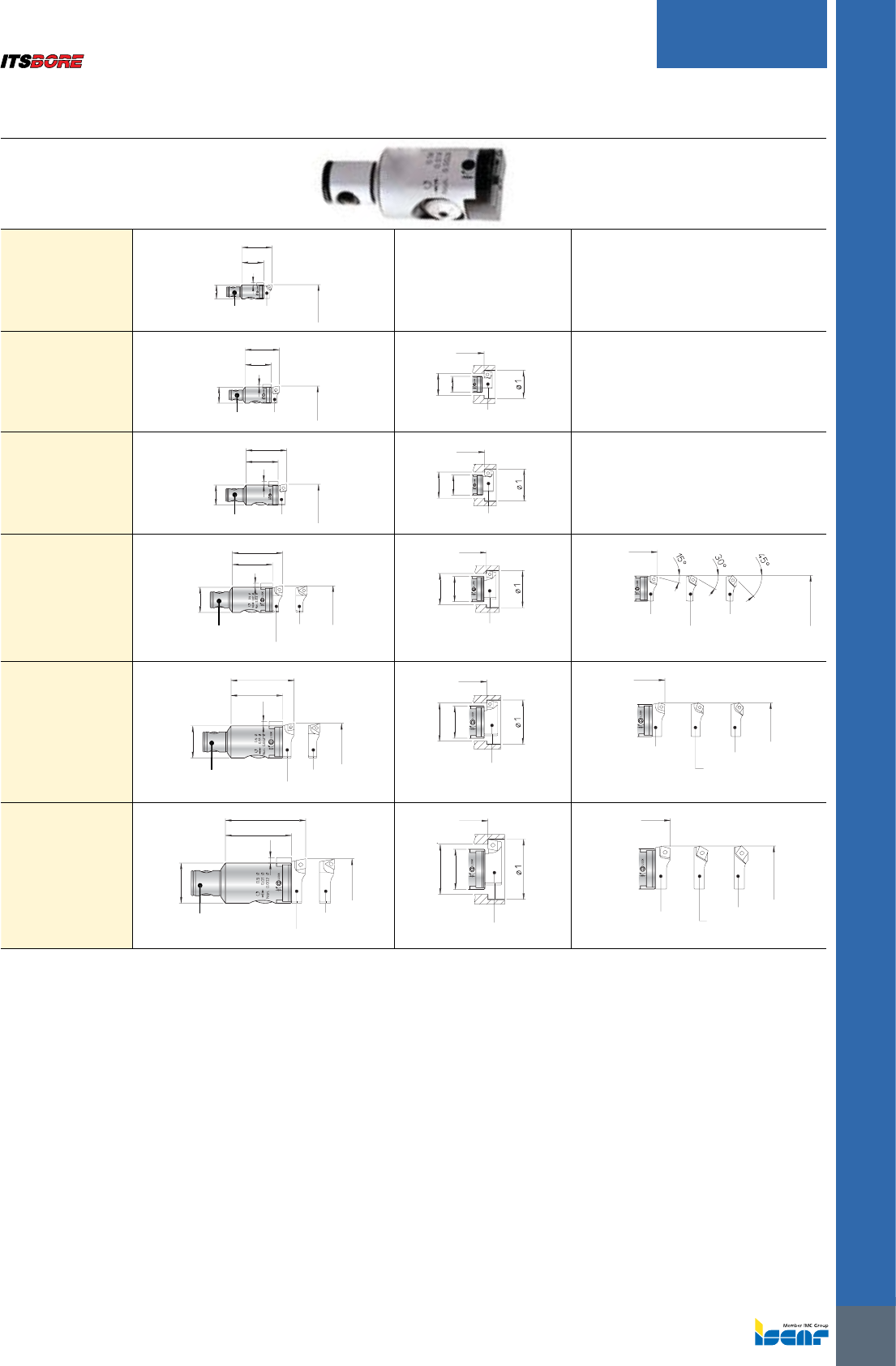

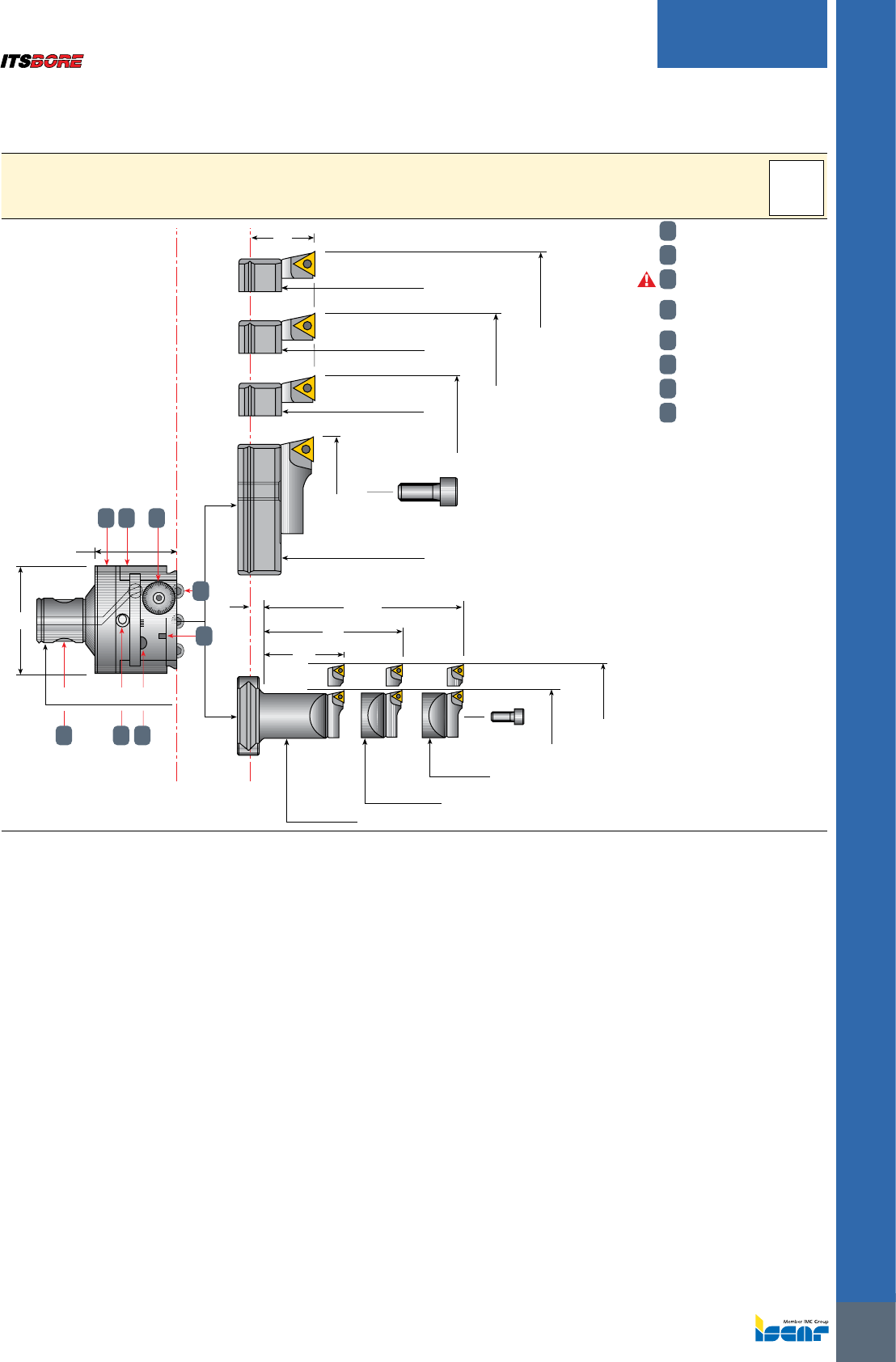

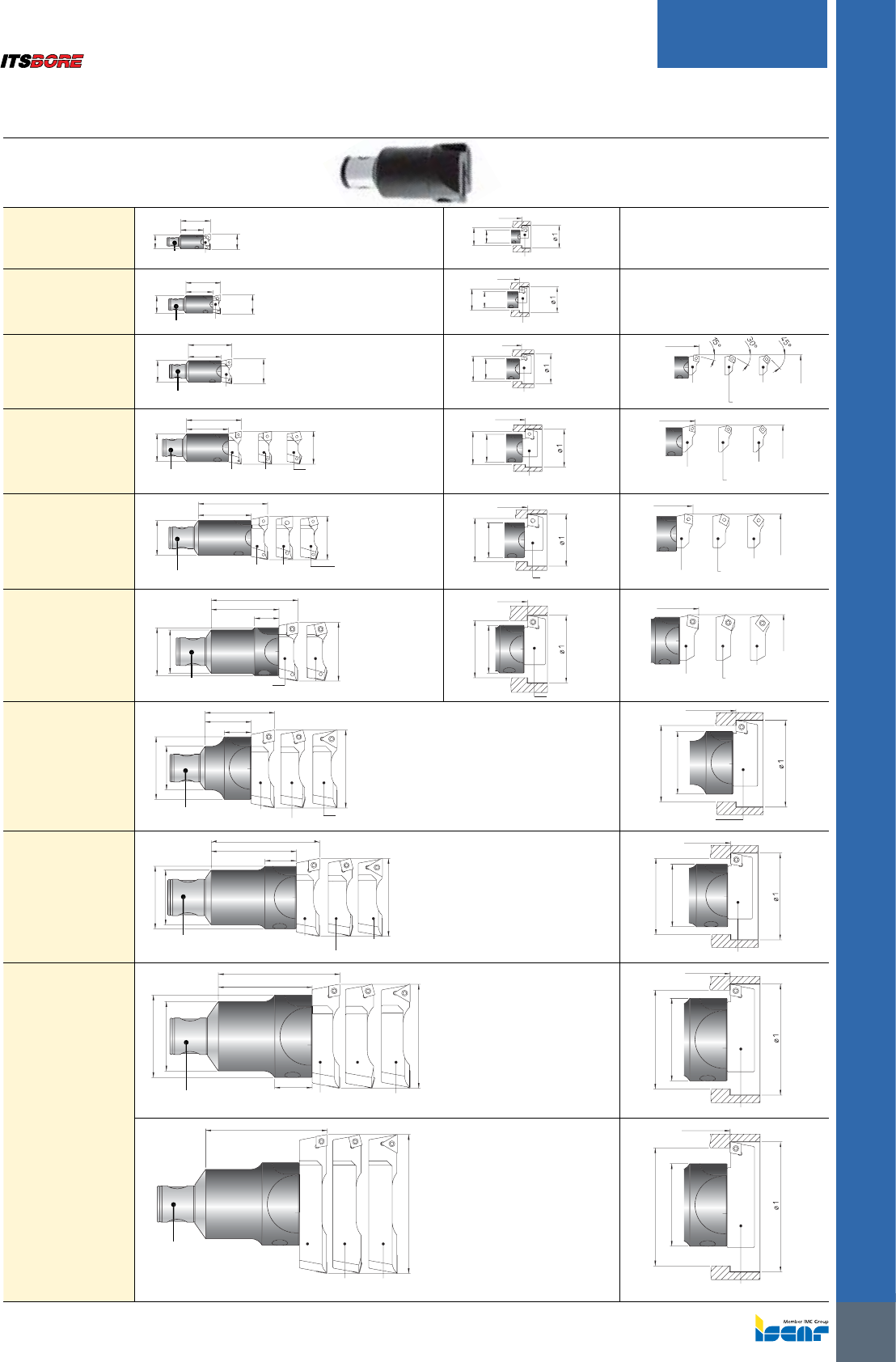

BHR MB - Additional Information
BHR MB16- 16X34
Ø18 ~ .22
MB16
IHSR 18-22
34
26
Ø16
Ø18-22
IHSR 20-24 BW
27.5
Ø16
Ø20-24
Ømin=(Ø1+17):2
BHR MB20- 20X40
Ø22 ~ 28
MB20
IHSR 22-28
40.5
31
Ø20
Ø22-28
IHSR 23.5-30BW
32.5
Ø.20
Ø23.5-30
Ømin=(Ø1+21):2
BHR MB25- 25X50
Ø28 ~ 38
IHSR 28-38
IHCR 28-38
MB25
50
37.5
Ø25
Ø28-38
IHSR 29.5-40BW
39
Ø25
Ø29.5-40
Ømin=(Ø1+26):2
IHSR 26-38 CH15
IHSR 26-38 CH45
IHSR 26-38 CH30
50
Ø26-38
BHR MB32- 32X63
Ø35.5 ~ 50
IHSR 36-50 IHPR 36-50
IHCR 36-50
IHSR 36-50-09
IHCR 36-50-09
MB32
63
48
Ø32
Ø35.5-50
IHSR 39-52 BW
50
Ø32
Ø39-52
Ømin=(Ø1+33):2
IHSR 34.5-49 CH15 IHSR 34.5-49 CH45
IHSR 34.5-49 CH30
63
Ø34.5-49
BHR MB40- 40X80
Ø50 ~ 68
IHSR 50-68 IHPR 50-68
IHCR 50-68
IHSR 50-68-12
IHCR 50-68-12
MB40
80
61
Ø40
Ø50-68
IHSR 51-70 BW
63.5
Ø40
Ø51-70
Ømin=(Ø1+41):2
IHSR 46.5-66 CH15
IHSR 46.5-66 CH45
IHSR 46.5-66 CH30
80
Ø46.5-66

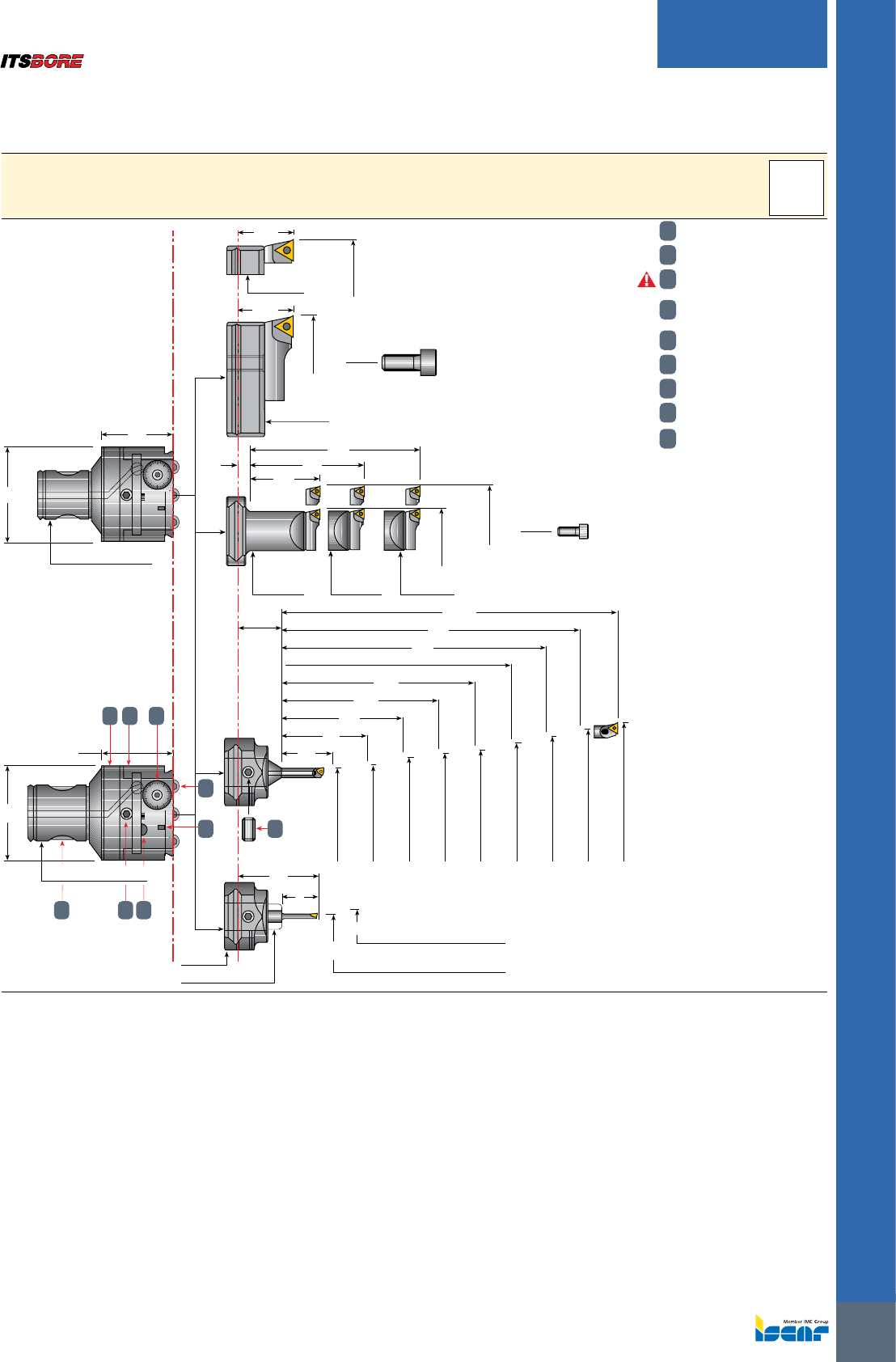

BHR MB50- 50X100
Ø68 ~ 90
IHSR 68-90
IHCR 68-90 IHPR 68-90
MB50
100
78
28
Ø50
Ø55
Ø68-90
IHSR 69-92 BW
80.5
Ø55
Ø69-92
Ømin=(Ø1+56):2
IHSR 65-88 CH15 IHSR 65-88 CH45
IHSR 65-88 CH30
100
Ø65-88
BHR MB50- 63X80
Ø90 ~ 120
IHSR 90-120
IHCR 90-120 IHPR 90-120IHBR 90-120
MB50
80
53
33
Ø72
Ø50
Ø90-120
IHSR 91-122 BW
55.5
Ø72
Ø91-122
Ømin=(Ø1+73):2
BHR MB63- 63X125
Ø90 ~ 120
IHSR 90-120
IHCR 90-120
IHPR 90-120
IHBR 90-120
MB63
125
98
36
Ø72
Ø63
Ø90-120
IHSR 91-122 BW
100.5
Ø72
Ø91-122
Ømin=(Ø1+73):2
BHR MB80- 80X140
Ø120 ~ 200
IHSR 120-160
IHCR 120-160
IHPR 120-160
IHBR 120-160
MB80
140
108
43
Ø95
Ø80
Ø120-160
IHSR 121-162 BW
110.5
Ø95
Ø121-162
Ømin=(Ø1+96):2
IHCR 160-800
IHSR 160-800
IHSR 160-800-19 IHPR 160-800-19
IHPR 160-800
IHBR 160-800
MB80
140
Ø160-200
IHSR 161-802 BW
110.5
Ø95
Ø161-202
Ømin=(Ø1+96):2
ISCAR
406

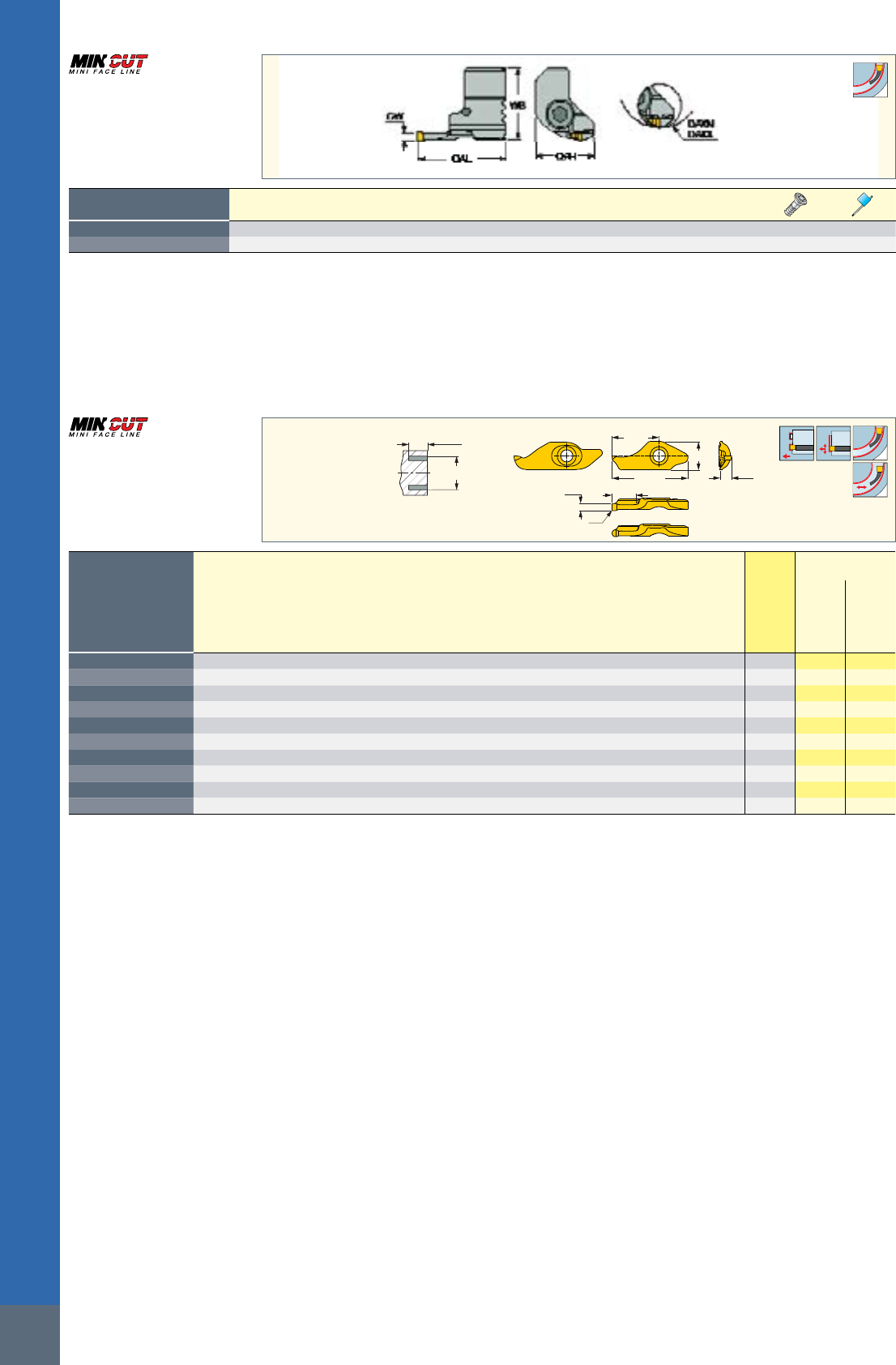

ITS BORE

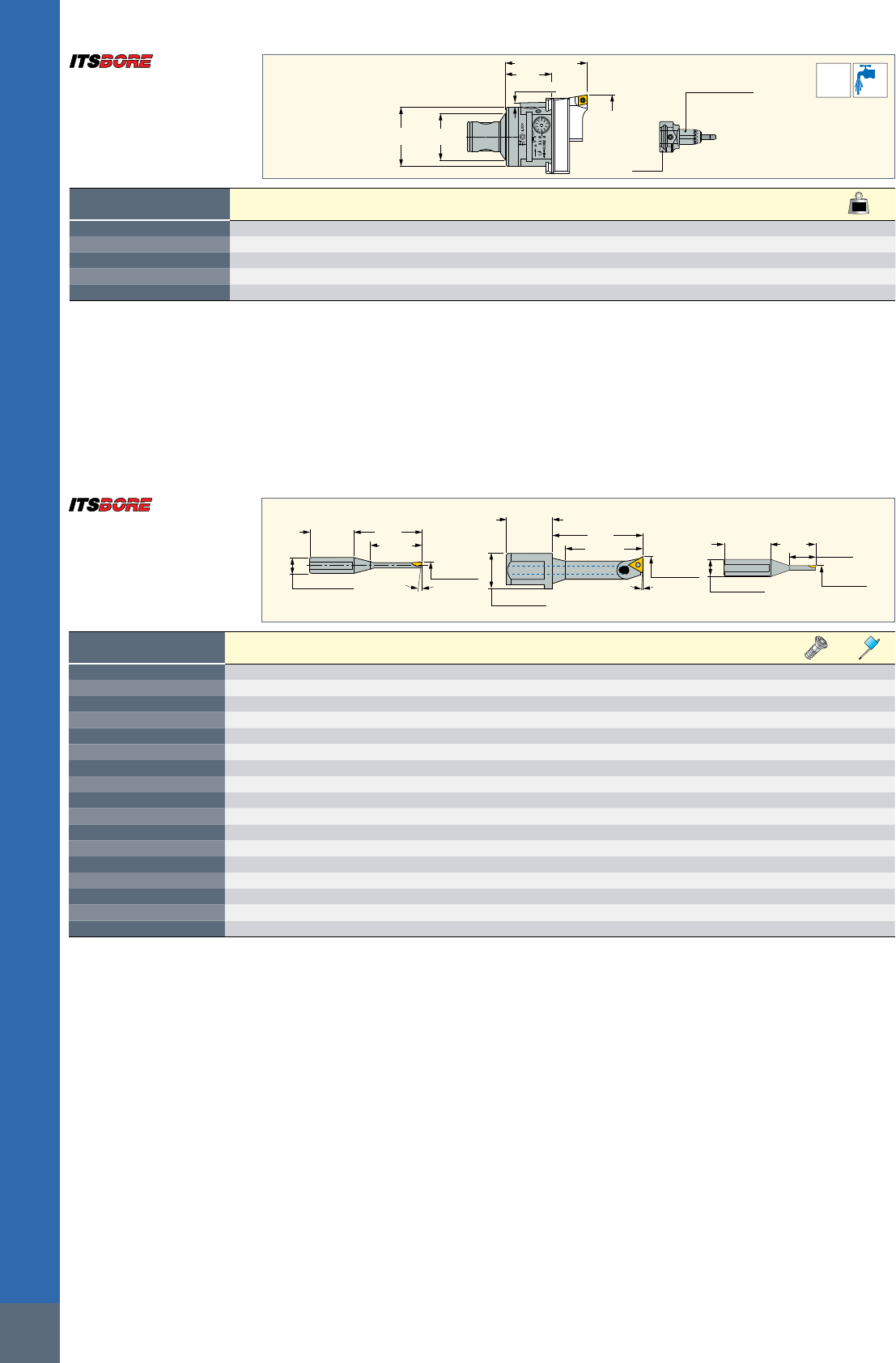

Designation
DAXN(1) DAXX(2) CWN(3) CWX(4) OAL WB OAH Insert
IHSR 8-21 MIFR8
8.0 21.0 1.50 2.20 32.00 23.00 17.50 MI.R 8 SR 14-297 T-8/5
IHSR 19-34 MIFR10
19.0 34.0 2.00 3.00 27.00 22.00 17.80 MI.R 10 SR 34-506 T-9/5
(1) Minimum axial grooving diameter
(2) Maximum axial grooving diameter
(3) Minimum cutting width
(4) Maximum cutting width
For inserts, see pages: MIFR (406)
For holders, see pages: BHR MB (404)
IHSR-MIFR
Trepanning Cartridges Carrying
MINCUT Inserts Mounted on the
BHR MB32-32X63 Boring Head
INSL
PDY
S1
MIFR 8MIFR 10
CDX
CW
RE
WF
DAXN-DAXX
CDX
Dimensions Recommended
Machining Data
Designation
INSL CW CWTOL(1) RE RETOL(2) WF S1 DAXN(3) DAXX(4) CDX PDY
IC908
f face-
groove
(mm/rev)
f face-
turn
(mm/rev)
MIFR 8-1.50-0.20
17.70 1.50 0.02 0.20 0.020 2.60 6.5 8.0 11.5 5.50 11.00
•
0.02-0.10 0.02-0.06
MIFR 8-1.60-0.80
17.70 1.60 0.02 0.80 0.020 2.60 6.5 8.0 12.1 5.50 11.00
•
0.02-0.10 0.02-0.06
MIFR 8-2.00-0.20
17.70 2.00 0.02 0.20 0.020 2.80 6.5 8.0 16.0 5.50 11.00
•
0.02-0.10 0.02-0.06
MIFR 8-2.20-0.20
17.70 2.20 0.02 0.20 0.020 2.90 6.5 8.0 21.0 5.50 11.00
•
0.02-0.10 0.02-0.06
MIFR 10-2.00-0.20
25.10 2.00 0.02 0.20 0.020 3.00 7.6 10.0 - 9.00 14.80
•
0.02-0.10 0.02-0.06
MIFR 10-2.00-1.00
25.10 2.00 0.02 1.00 0.020 3.00 7.6 10.0 - 9.00 14.80
•
0.02-0.10 0.02-0.06
MIFR 10-2.50-0.20
25.10 2.50 0.02 0.20 0.020 3.10 7.6 10.0 30.0 9.00 14.80
•
0.02-0.10 0.02-0.06
MIFR 10-2.50-1.25
25.10 2.50 0.02 1.25 0.020 3.30 7.6 10.0 - 9.00 14.80
•
0.02-0.10 0.02-0.06
MIFR 10-3.00-0.20
25.10 3.00 0.02 0.20 0.020 3.40 7.6 10.0 30.0 9.00 14.80
•
0.02-0.10 0.02-0.06
MIFR 10-3.00-1.50
25.10 3.00 0.02 1.50 0.020 3.30 7.6 10.0 34.0 9.00 14.80
•
0.02-0.10 0.02-0.06
• Recommended cutting speeds and feeds can increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Minimum axial grooving diameter
(4) Maximum axial grooving diameter
For tools, see pages: IHSR-MIFR (406)
MIFR
Screw-Clamped Inserts
for Internal Face Grooving
and Turning
407

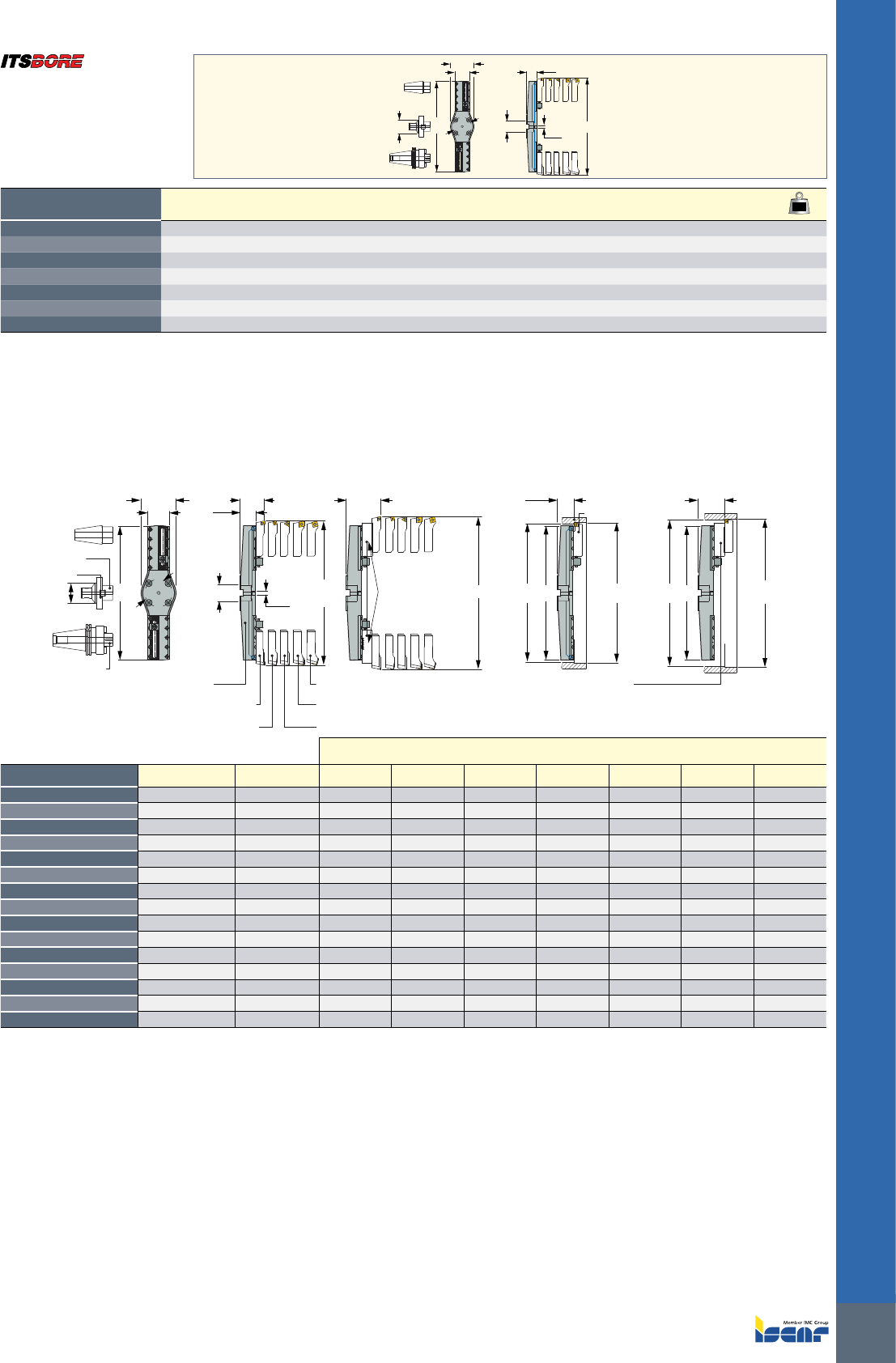

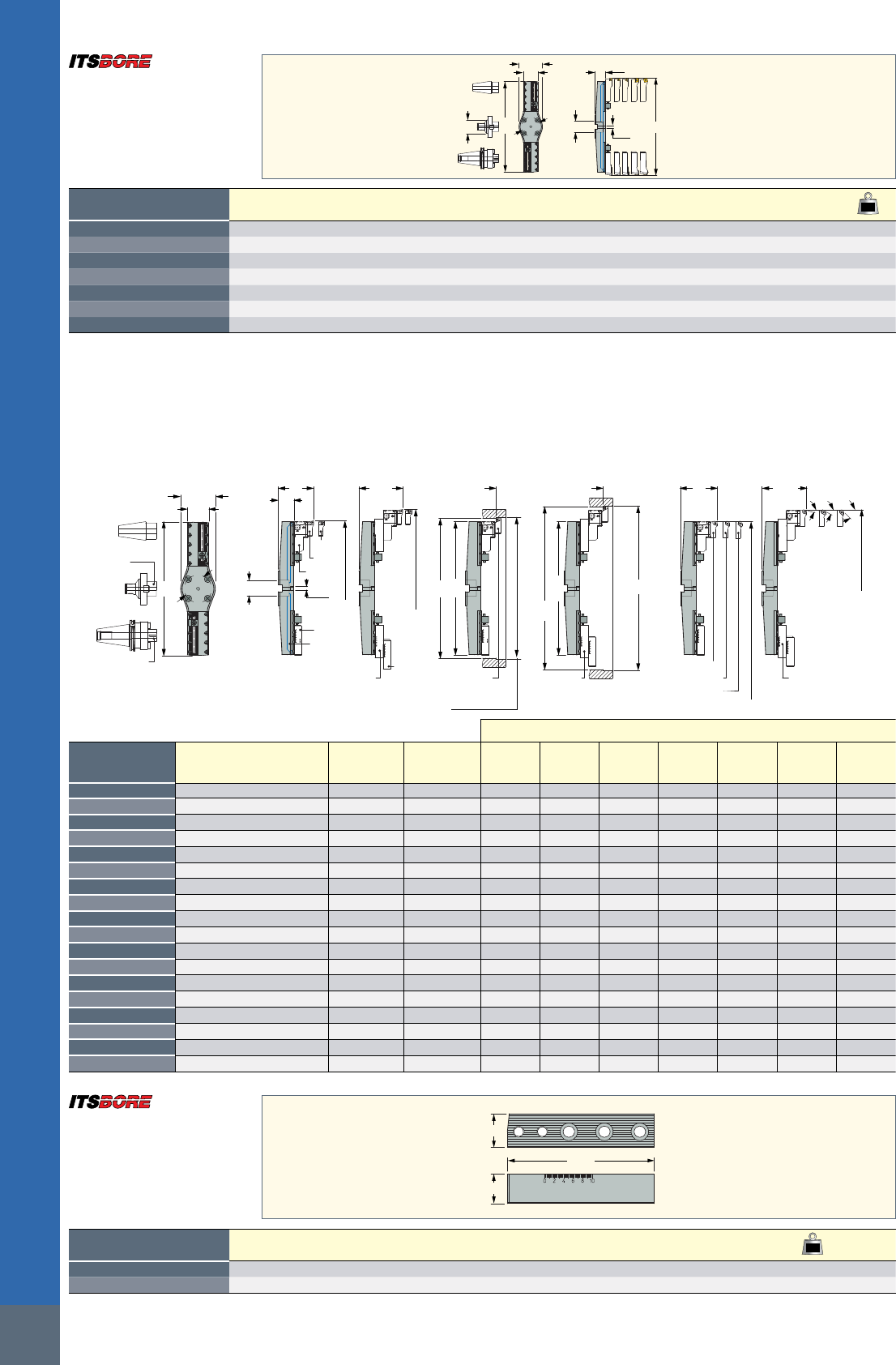

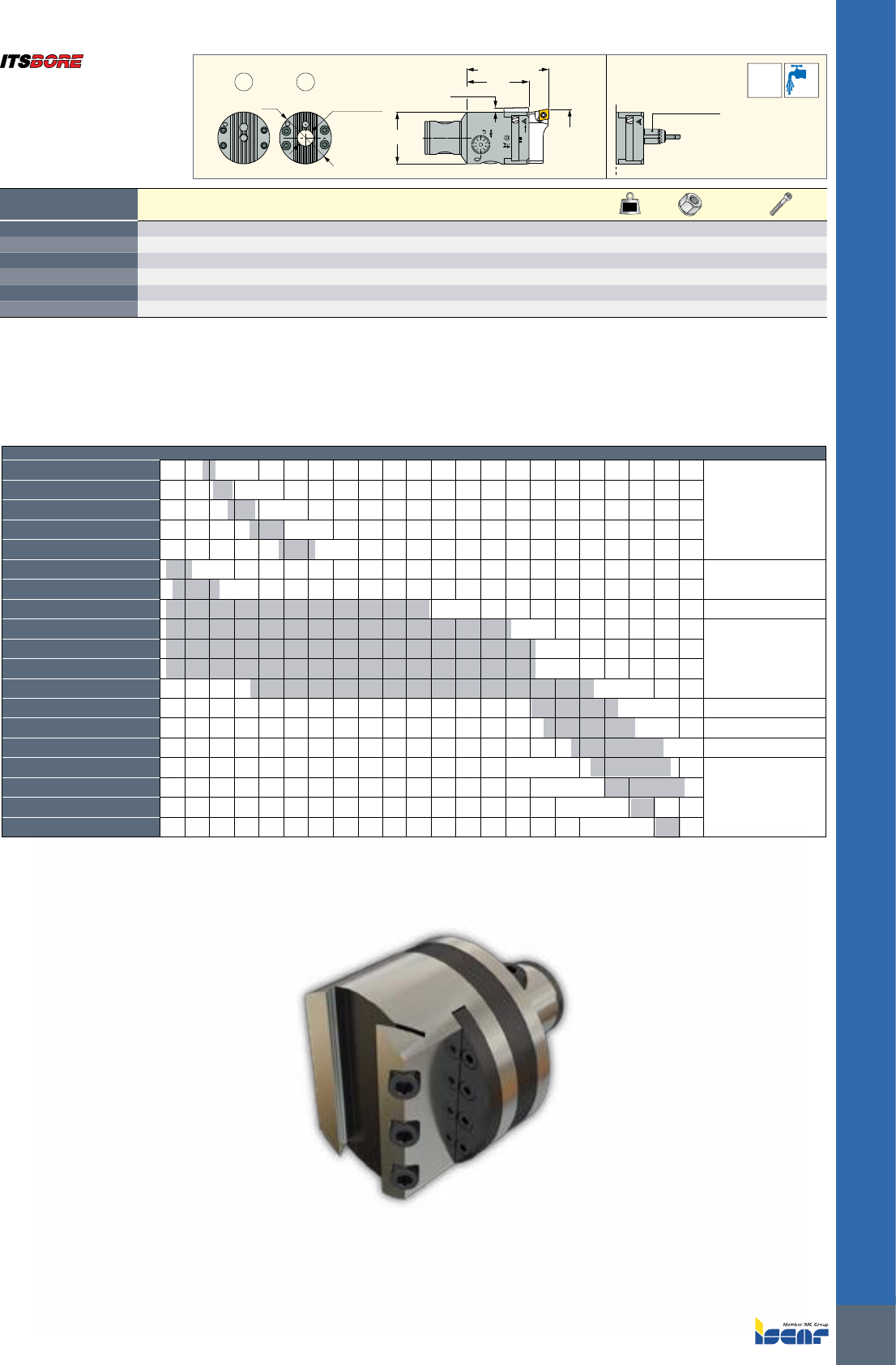

ITS BORE
BD
SS DCONMS H5
CXT DCN-DCX
80 BH
OAW
DBC
Designation
DCN(1) DCX(2) BD DCONMS DBC SS OAW CXT BH CSP(3) RPMX(4)
kg
TCH AL200
200.0 602.0 194.00 40.00 66.70 80 - - 54.00 1 700 3.20
TCH AL300
300.0 702.0 288.00 40.00 66.70 80 - - 54.00 1 400 3.90
TCH AL400
400.0 802.0 394.00 40.00 66.70 80 - 1/4GAS 61.00 0 300 6.90
TCH AL500
500.0 902.0 494.00 60.00 101.60 80,110 128.0 1/4GAS 69.00 0 200 8.70
TCH AL600
600.0 1002.0 594.00 60.00 101.60 80,110 128.0 1/4GAS 71.00 0 200 8.34
TCH AL700
700.0 1102.0 694.00 60.00 101.60 80,110 128.0 1/4GAS 74.00 0 200 8.34
TCH AL800
800.0 1202.0 794.00 60.00 101.60 80,110 128.0 1/4GAS 80.00 0 150 15.20
• Aluminum body, with steel serrated seats • The "O" position on the counterweight balances the BHF boring head for 200 mm boring diameter position. For every 10 mm
change in boring diameter, move the counterweight by 1 measurement mark • Verify that the weight of the entire tool assembly does not exceed the machine spindle's
carrying capability • For spare parts, see pages 436-437, 468
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Maximum RPM
For tools, see pages: IHBR (409) • IHCR (408) • IHPR (408) • IHSR (408) • IHSR-BW (410)
TCH...
IHSR 160-800
IHCR 160-800
IHPR 160-800
IHBR 160-800
IHPR 160-800-19
IHSR 160-800-19
IHSR 161-802 BW
TCHH EX 100/300
DMIN=(DCN (3,4)+BD+1)/2
SMH 40-60
SS
DIN2080-CP
(centering plug)
HSK A 100 FM 60X 70
BT-FM
DIN69871-FM
BD DCONMS H7 DCN-DCX DCN-DCX DCN-DCX (3,4)DCN-DCX (3,4) BDBD DMINDMIN
CXT
80 BH LF LF_2 LF_3 LF_4
OAW
DBC
MB80-110-140
TCHH EX 100/300
Extension slides
Large Diameter Double Edge Fine Boring Options
Large Diameter Double Edge Rough Boring Options
Aluminum Twin Cutter Heads
Boring Tools
Extension Slides Dimensions TCH 200 TCH 300 TCH 400 TCH 500 TCH 600 TCH 700 TCH 800
IH.R 160-800/-19
DCN-DCX 200-300 300-400 400-500 500-600 600-700 700-800 800-900
IH.R 160-800/-19
TCHH EX 100 DCN-DCX 300-400 400-500 500-600 600-700 700-800 800-900 900-1000
IH.R 160-800/-19
TCHH EX 300 DCN-DCX 400-600 500-700 600-800 700-900 800-1000 900-1100 1000-1200
IHSR 161-802 BW
DCN-DCX (3,4) 202-302 302-402 402-502 502-602 602-702 702-802 802-902
IHSR 161-802 BW
TCHH EX 100 DCN-DCX (3,4) 302-402 402-502 502-602 602-702 702-802 802-902 902-1002
IHSR 161-802 BW
TCHH EX 300 DCN-DCX (3,4) 402-602 502-702 602-802 702-902 802-1002 902-1102 1002-1202
IH.R 160-800
LF 86 86 93 101 103 106 112
IH.R 160-800-19
LF 94 94 101 109 111 114 120
IH.R 160-800
TCHH EX 100 LF_2 116 116 123 131 133 136 142
IH.R 160-800
TCHH EX 300 LF_2 126 126 133 141 143 146 152
IH.R 160-800-19
TCHH EX 100 LF_2 124 124 131 139 141 144 150
IH.R 160-800-19
TCHH EX 300 LF_2 134 134 141 149 151 154 160
IHSR 161-802 BW
LF_3 56.5 56.5 63.5 71.5 73.5 76.5 82.5
IHSR 161-802 BW
TCHH EX 100 LF_4 86.5 86.5 93.5 101.5 103.5 106.5 112.5
IHSR 161-802 BW
TCHH EX 300 LF_4 96.5 96.5 103.5 111.5 113.5 116.5 122.5
TCHH EX 100/300
IHRF 50 CH30 54-800
IHRF 50 CH45 54-800
IHRF 50 CH15 54-800
IHRF 56-802BW
TCHH EX 100/300
TCHH EX 100/300
IHRF 50
IHFF 50
DMIN
DMIN
BD BD
BHF L200
CW 200
DCN-DCX DCN-DCX
DCN-DCX
DCN-DCX(3,4)
DCN-DCX
DCONMS H7
CW 200
TCH . . .
LF LF_2 LF_3 LF_4 LF_2
LF
BH 15° 30° 45°
SMH 40-60
DIN2080-CP
(centering plug)
HSK A 100 FM 60X 70
BT-FM
DIN69871-FM
BD
80
OAW
DBC
MB80-110-140
CXT
DCN-DCX(3,4)
Aluminum Twin Cutter Heads
Boring Tools
Fine Boring Slide Head
Extension
Slides Dimensions TCH 200 TCH 300 TCH 400 TCH 500 TCH 600 TCH 700 TCH 800
IH.F 50
BHF L200 / BHD50 L200 DCN-DCX 200-300 300-400 400-500 500-600 600-700 700-800 800-900
IH.F 50
BHF L200 / BHD50 L200 TCHH EX 100 DCN-DCX 300-400 400-500 500-600 600-700 700-800 800-900 900-1000
IH.F 50
BHF L200 / BHD50 L200 TCHH EX 300 DCN-DCX 400-600 500-700 600-800 700-900 800-1000 900-1100 1000-1200
IHRF 56-802BW
BHF L200 / BHD50 L200 DCN-DCX(3,4) 202-302 302-402 402-502 502-602 602-702 702-802 802-902
IHRF 56-802BW
BHF L200 / BHD50 L200 TCHH EX 100 DCN-DCX(3,4) 302-402 402-502 502-602 602-702 702-802 802-902 902-1002
IHRF 56-802BW
BHF L200 / BHD50 L200 TCHH EX 300 DCN-DCX(3,4) 402-602 502-702 602-802 702-902 802-1002 902-1102 1002-1202
IH.F 50
BHF L200 LF 120 120 127 135 137 140 146
IH.F 50
BHF L200 TCHH EX 100 LF_2 150 150 157 165 167 170 176
IH.F 50
BHF L200 TCHH EX 300 LF_2 160 160 167 175 177 180 186
IHRF 56-802BW
BHF L200 LF_3 103 103 110 118 120 123 129
IHRF 56-802BW
BHF L200 TCHH EX 100 LF_4 133 133 140 148 150 153 159
IHRF 56-802BW
BHF L200 TCHH EX 300 LF_4 143 143 150 158 160 163 169
IH.F 50
BHD50 L200 LF 147 147 154 162 164 167 173
IH.F 50
BHD50 L200 TCHH EX 100 LF_2 177 177 184 192 194 197 203
IH.F 50
BHD50 L200 TCHH EX 300 LF_2 187 187 194 202 204 207 213
IHRF 56-802BW
BHD50 L200 LF_3 130 130 137 145 147 150 156
IHRF 56-802BW
BHD50 L200 TCHH EX 100 LF_4 160 160 167 175 177 180 186
IHRF 56-802BW
BHD50 L200 TCHH EX 300 LF_4 170 170 177 185 187 190 196
TCH AL
Aluminum Twin Cutter
Heads for Rough and Fine
Boring Operations, Diameter
Range 200-1200 mm
ISCAR
408
ITS BORE
WF
75°
OAL
Designation
DCN(1) DCX(2) WF OAL Insert
IHPR 36-50
35.5 50.0 15.00 32.00 SCMT 09T3... SR 16-236 T-15/5
IHPR 50-68
50.0 68.0 19.00 40.00 SCMT 09T3... SR 16-236 T-15/5
IHPR 68-90
68.0 90.0 22.00 53.90 SCMT 1204... SR 16-212 T-20/5
IHPR 90-120
90.0 120.0 27.00 70.50 SCMT 1204... SR 16-212 T-20/5
IHPR 120-160
120.0 160.0 32.00 94.50 SCMT 1204... SR 16-212 T-20/5
IHPR 160-800
160.0 800.0 32.00 130.00 SCMT 1204... SR 16-212 T-20/5
IHPR 160-800-19
160.0 800.0 40.00 129.00 SNMG 1906... SR10402352 HW 4.0
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: SCGT-AS (458) • SCMT-14 (457) • SCMT-19 (458) • SCMT-SM (457)
For holders, see pages: BHR MB (404) • TCH AL (407) • TCHH EX (438)
IHPR
75° Rough Boring Toolholders
OAL
WF
90°
Designation
DCN(1) DCX(2) WF OAL Insert
IHSR 18-22
18.0 22.0 8.00 15.00 CCMT 0602... SR 14-548 T-7/5
IHSR 22-28
22.0 28.0 9.50 19.00 CCMT 0602... SR 14-548 T-7/5
IHSR 28-38
28.0 38.0 12.50 23.00 CCMT 0602... SR 14-548 T-7/5
IHSR 36-50
35.5 50.0 15.00 32.00 CCMT 0602... SR 14-548 T-7/5
IHSR 36-50-09
35.5 50.0 15.00 32.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 50-68
50.0 68.0 19.00 40.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 50-68-12
50.0 68.0 19.00 40.00 CCMT 1204... SR 16-212 T-20/5
IHSR 68-90
68.0 90.0 22.00 54.00 CCMT 1204... SR 16-212 T-20/5
IHSR 90-120
90.0 120.0 27.00 70.50 CCMT 1204... SR 16-212 T-20/5
IHSR 120-160
120.0 160.0 32.00 94.50 CCMT 1204... SR 16-212 T-20/5
IHSR 160-800
160.0 800.0 32.00 130.00 CCMT 1204... SR 16-212 T-20/5
IHSR 160-800-19
160.0 800.0 40.00 130.00 CNMG 1906... SR 10402352 HW 4.0
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452)
• CCMT-WG (454) • CCMT/CCGT (453) • CCMT/CCGT-SM (452)
For holders, see pages: BHR MB (404) • TCH AL (407) • TCHH EX (438)
IHSR
Rough Boring Tools for Twin
Cutters with a Radial and Axial
Edge Positioned Inner to the
Opposite Finishing Tool
OAL
WF
90°
Designation
DCN(1) DCX(2) WF OAL Insert
IHCR 28-38
28.0 38.0 12.30 23.00 CCMT 0602... SR 14-548 T-7/5
IHCR 36-50
35.5 50.0 14.80 32.00 CCMT 0602... SR 14-548 T-7/5
IHCR 36-50-09
36.0 50.0 14.80 32.00 CCMT 09T3... SR 16-236 T-15/5
IHCR 50-68
50.0 68.0 18.70 40.00 CCMT 09T3... SR 16-236 T-15/5
IHCR 50-68-12
50.0 68.0 18.70 40.00 CCMT 1204... SR 16-212 T-20/5
IHCR 68-90
68.0 90.0 21.70 54.00 CCMT 1204... SR 16-212 T-20/5
IHCR 90-120
90.0 120.0 26.70 70.50 CCMT 1204... SR 16-212 T-20/5
IHCR 120-160
120.0 160.0 31.70 94.50 CCMT 1204... SR 16-212 T-20/5
IHCR 160-800
160.0 800.0 31.70 130.00 CCMT 1204... SR 16-212 T-20/5
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452)
• CCMT-WG (454) • CCMT/CCGT (453) • CCMT/CCGT-SM (452)
For holders, see pages: BHR MB (404) • TCH AL (407) • TCHH EX (438)
IHCR
Boring Toolholders for the MB
Modular Boring System
409
ITS BORE

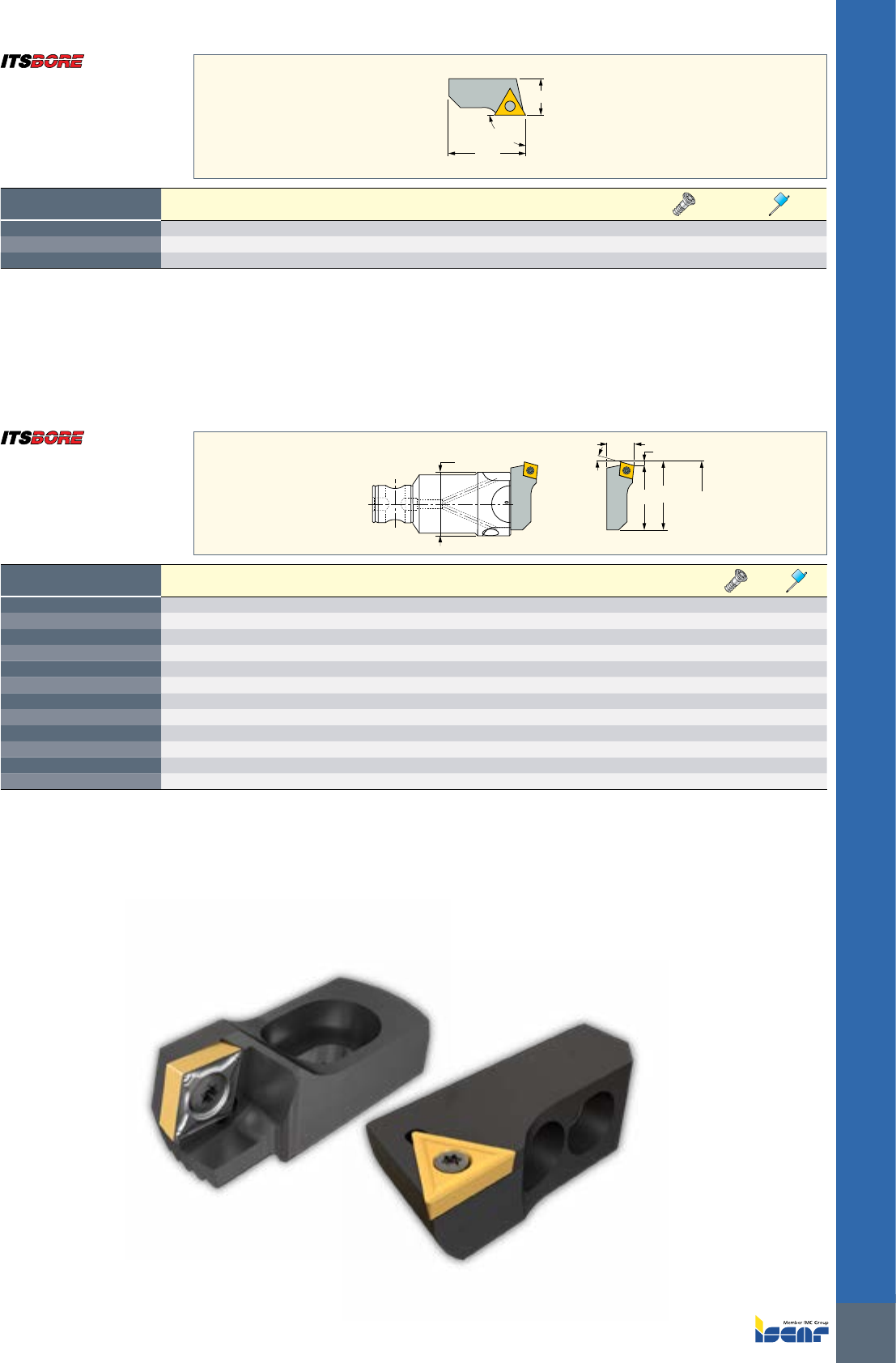

90°
WF
OAL
Designation
DCN(1) DCX(2) WF OAL Insert
IHBR 90-120
90.0 120.0 27.00 70.50 TCMT 2205... SR 16-212 T-20/5
IHBR 120-160
120.0 160.0 32.00 94.50 TCMT 2205... SR 16-212 T-20/5
IHBR 160-800
160.0 800.0 32.00 130.00 TCMT 2205... SR 16-212 T-20/5
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: TCMT-19 (458) • TCMT-SM (459)
For holders, see pages: BHR MB (404) • TCH AL (407) • TCHH EX (438)
IHBR
Rough Boring Toolholders
WF
OAL DCN-DCX
L
PSIRR
LF
BD
Designation
DCN(1) PSIRR LF OAL WF L BD DCX(2) Insert
IHSR 26-38 CH15
26.0 15.0 21.40 23.00 12.50 1.60 25.00 38.00 CCMT 0602... SR 14-548 T-7/5
IHSR 26-38 CH30
26.0 30.0 20.00 23.00 12.50 3.00 25.00 38.00 CCMT 0602... SR 14-548 T-7/5
IHSR 26-38 CH45
26.0 45.0 18.70 23.00 12.50 4.30 25.00 38.00 CCMT 0602... SR 14-548 T-7/5
IHSR 34.5-49 CH15
34.5 15.0 29.40 31.00 15.00 1.60 32.00 49.00 CCMT 0602... SR 14-548 T-7/5
IHSR 34.5-49 CH30
34.5 30.0 28.00 31.00 15.00 3.00 32.00 49.00 CCMT 0602... SR 14-548 T-7/5
IHSR 34.5-49 CH45
34.5 45.0 26.70 31.00 15.00 4.30 32.00 49.00 CCMT 0602... SR 14-548 T-7/5
IHSR 46.5-66 CH15
46.5 15.0 36.60 39.00 19.00 2.40 40.00 66.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 46.5-66 CH30
46.5 30.0 34.40 39.00 19.00 4.60 40.00 66.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 46.5-66 CH45
46.5 45.0 32.50 39.00 19.00 6.50 40.00 66.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 65-88 CH15
65.0 15.0 49.80 53.00 22.00 3.20 50.00 88.00 CCMT 1204... SR 16-212 T-20/5
IHSR 65-88 CH30
65.0 30.0 46.80 53.00 22.00 6.20 50.00 88.00 CCMT 1204... SR 16-212 T-20/5
IHSR 65-88 CH45
65.0 45.0 44.20 53.00 22.00 8.80 50.00 88.00 CCMT 1204... SR 16-212 T-20/5
• For user guide, see pages 403,471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCMT-14 (453) • CCMT-PF (452) • CCMT-WG (454) • CCMT/CCGT (453)
• CCMT/CCGT-SM (452)
For holders, see pages: BHR MB (404)
IHSR-CH
Chamfering Tools for
BHR Boring Heads
ISCAR
410
ITS BORE
OAL
OAL DCN-DCX
DCN-DCX
LF
LF
WF
WF
DMIN
DMIN
BD
BD
90°
90°
BHR 20-200 TCH 202-802
IHSR-BW
Back Face Turning Tools for BHR
and TCH AL Rough Boring Heads
Designation
SS(1) BD DCN(2) LF DCX(3) WF OAL Insert
IHSR 20-24 BW
BHR MB16-16 16.0 20 27.5 24 10 16.00 CCMT 0602...
IHSR 23.5-30BW
BHR MB20-20 20.0 23.5 32.5 30 11 19.50 CCMT 0602...
IHSR 29.5-40BW
BHR MB25-25 25.0 29.5 39.0 40 14.5 24.00 CCMT 0602...
IHSR 39-52 BW
BHR MB32-32 32.0 39 50.0 52 17 32.00 CCMT 09T3...
IHSR 51-70 BW
BHR MB40-40 40.0 51 63.5 70 21 42.00 CCMT 1204...
IHSR 69-92 BW
BHR MB50-50 55.0 69 80.5 92 24.5 57.00 CCMT 1204...
IHSR 91-122 BW
BHR MB63-63 72.0 91 100.5 122 28.5 76.00 CCMT 1204...
IHSR 121-162 BW
BHR MB80-80 95.0 121 110.5 162 31.5 101.00 CCMT 1204...
BHR MB80-80 95.0 161 110.5 202 31.5 122 CCMT 1204...
TCH AL200 194 202 56.5 302 28 122 CCMT 1204...
TCH AL300 288 302 56.5 402 28 122 CCMT 1204...
IHSR 161-802 BW
TCH AL400 394 402 63.5 502 28 122 CCMT 1204...
TCH AL500 494 502 71.5 602 28 122 CCMT 1204...
TCH AL600 594 602 73.5 702 28 122 CCMT 1204...
TCH AL700 694 702 76.5 802 28 122 CCMT 1204...
TCH AL800 794 802 82.5 902 28 122 CCMT 1204...
• DMIN=(min bore diameter)=(DCN+BD+1)/2 • BD=Size of the boring head being used • For user guide, see pages 403, 471-477
(1) Suitable boring heads
(2) Cutting diameter minimum
(3) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452)
• CCMT-WG (454) • CCMT/CCGT (453) • CCMT/CCGT-SM (452)
For holders, see pages: BHR MB (404) • TCH AL (407, 438) • TCHH EX (438)
Spare Parts
Designation
IHSR 20-24 BW
SR 14-548 T-7/5
IHSR 23.5-30BW
SR 14-548 T-7/5
IHSR 29.5-40BW
SR 14-548 T-7/5
IHSR 39-52 BW
SR 16-236 T-15/5
IHSR 51-70 BW
SR 16-212 T-20/5
IHSR 69-92 BW
SR 16-212 T-20/5
IHSR 91-122 BW
SR 16-212 T-20/5
IHSR 121-162 BW
SR 16-212 T-20/5
IHSR 161-802 BW
SR 16-212 T-20/5
OAL
90˚
WF
Designation
DCN(1) DCX(2) WF OAL MIID(3)
CR LNHT10 68-90-CP
68.00 90.00 23.10 53.76 HTP LN.. 1006
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Master insert identification
For inserts, see pages: HTP LN.. 1006 (450)
For holders, see pages: BHR MB (404)
Spare Parts
Designation
CR LNHT
SR 34-550 BLD T10/S7 SW6-SD
CR LNHT
Boring Cartridge with a
Tangential Insert for BHR
MB50-50X100 Boring Head
411

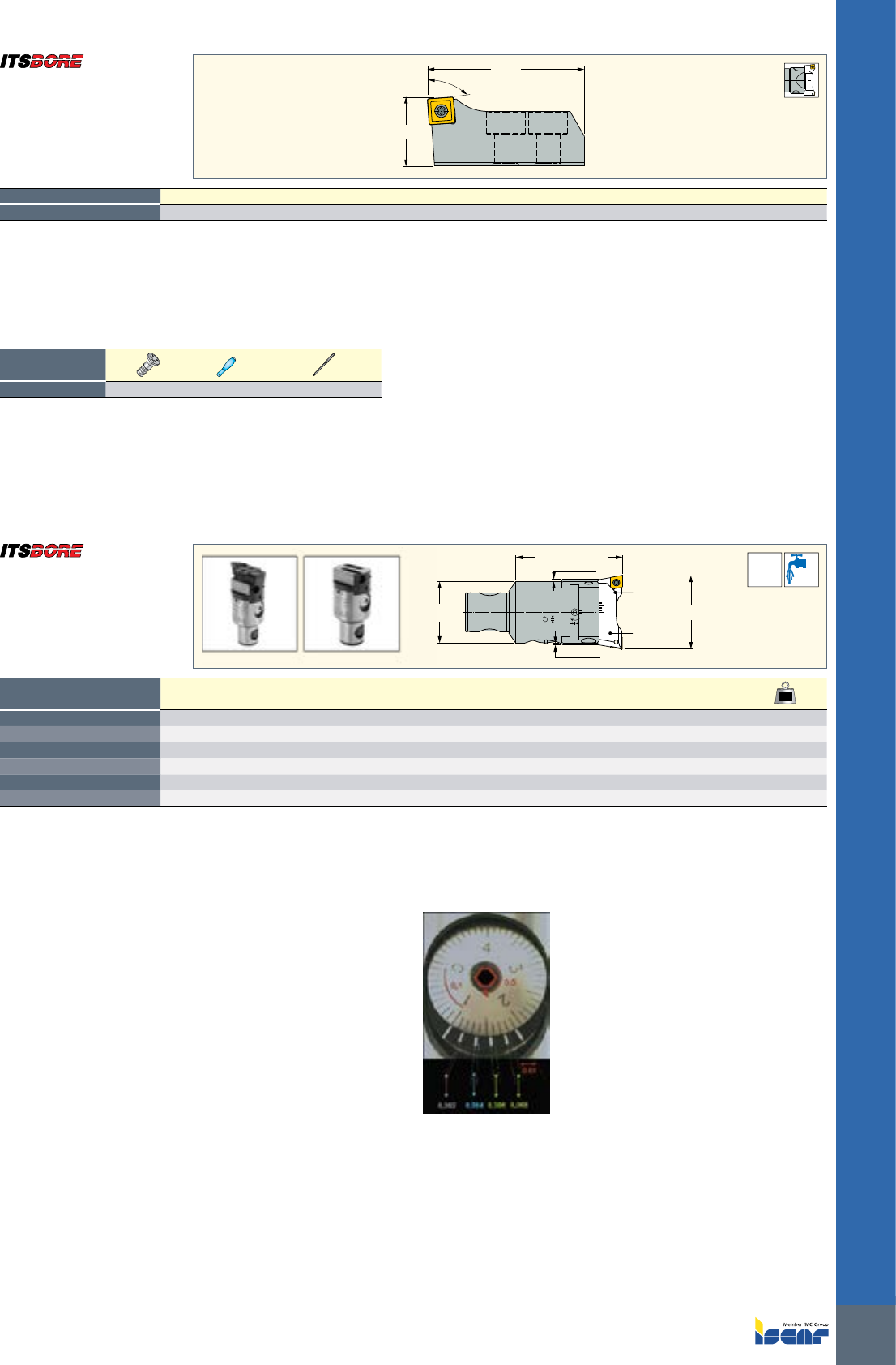

ITS BORE
OAL
86˚
WF
Designation
DCN(1) DCX(2) WF OAL MIID(3)
CR SOMT09 68-90-CP
68.00 90.00 23.60 54.00 SO.T 09...
• For user guide, see pages 403, 471-477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Master insert identification
For inserts, see pages: SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116)
For holders, see pages: BHR MB (404)
Spare Parts
Designation
CR SOMT
SR 34-506 SW4-SD BLD T09/M7-SW4
CR SOMT
Boring Cartridge with a Square
Insert for BHR MB50-50X100
Boring Head
IHRF C
IHFF C
IHSR C
ADJRGR
DCONMS
LF (assembly)
DCN-DCX
ADJRGR
Non. 0.002
0.01
0.5
LOCK
10 µm
2 µm
40
Bar Max
Designation
DCONMS LF DCN(1) DCX(2) ADJRGR IH RPMX(3)
kg
BHC MB25-25-57
25.00 56.50 28.0 36.0 0.50 IH...-C 10000 0.23
BHC MB32-32-71
32.00 71.00 36.0 46.0 0.50 IH...-C 10000 0.45
BHC MB40-40-90
40.00 90.00 46.0 60.0 1.00 IH...-C 8000 0.70
BHC MB50-50-87
50.00 87.00 60.0 75.0 1.00 IH...-C 8000 1.21
BHC MB63-63-109
63.00 109.00 75.0 95.0 2.00 IH...-C 6000 2.70
BHC MB80-80-130
80.00 130.00 95.0 120.0 2.00 IH...-C 5000 4.41
• The roughing head precedes the finishing head by 0.2 mm. Each head can be adjusted independently • Important: insert radius for combi rough and fine boring must be
the same size. • For spare parts, see page 468
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHFF-C (413) • IHRF-C (413) • IHSR-C (413)
Graduated dial of 0.01 mm with
circular vernier of 0.002 mm
BHC MB
Combi Rough and Fine Boring
Heads with 10 µm Direct
Diameter Adjustment and
2 µm by a Vernier Scale
ISCAR
412
USER GUIDE
ITS BORE
BHC MB - Additional Information
BHC MB25-25-57
Ø28 ~ 36
IHFF 28-36 C
IHSR 28-36 C
MB25
56.3
56.5
0.5 0.5
ø28-36
ø25
46.5
IHRF 28-36 C
IHSR 28-36 C
56.3
ø28-36
56.5
BHC MB32-32-71
Ø36 ~ 46
IHFF 36-46 C
IHSR 36-46 C
MB32
70.8
59.5
71
0.5 0.5
ø36-46
ø32
IHRF 36-46 C
IHSR 36-46 C
70.8
71
ø36-46
BHC MB40-40-90
Ø46 ~ 60
IHFF 46-60 C
IHSR 46-60 C
MB40
89.8
76
90
11
ø46-60
ø40
IHRF 46-60 C
IHSR 46-60 C
89.8
90
ø46-60
BHC MB50-50-87
Ø60 ~ 75
IHFF 60-75 C
IHSR 60-75 C
MB50
86.8
68
87
11
ø60-75
ø50
IHRF 60-75 C
IHSR 60-75 C
86.8
87
ø60-75
BHC MB63-63-109
Ø75 ~ 95
IHFF 75-95 C
IHSR 75-95 C
MB63
108.8
109
84.5
22
ø75-95
ø63
IHRF 75-95 C
IHSR 75-95 C
108.8
109
ø75-95
BHC MB80-80-130
Ø95 ~ 120
IHFF 95-120 C
IHSR 95-120 C
MB80 130
129.8
100.5
22
ø95-120
ø80
IHRF 95-120 C
IHSR 95-120 C
130
129.8
ø95-120

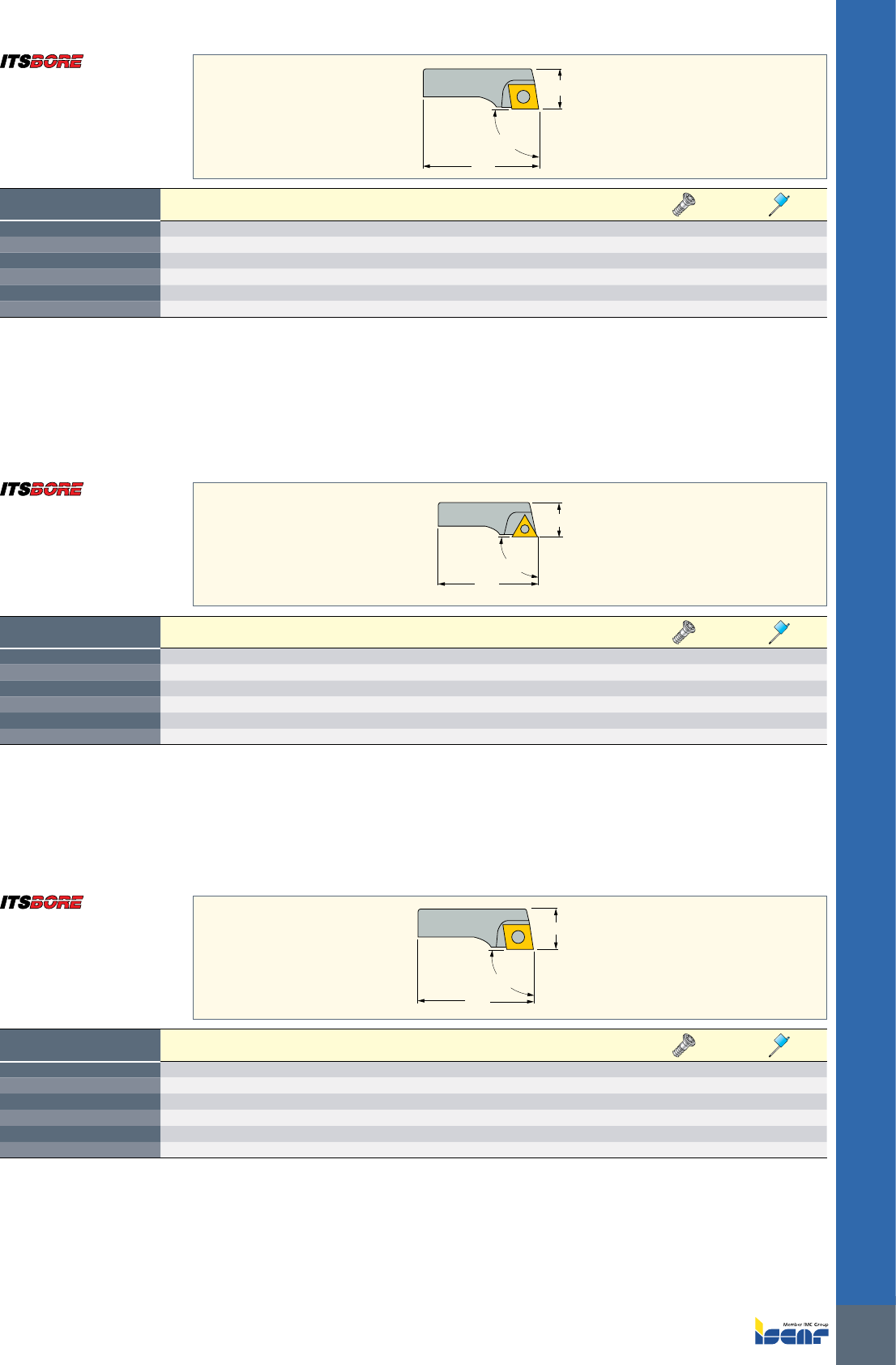

413
ITS BORE
OAL
WF
90°
Designation
DCN(1) DCX(2) WF OAL Insert
IHRF 28-36 C
28.0 36.0 9.80 24.00 CCGT 0602... SR 14-548 T-7/5
IHRF 36-46 C
36.0 46.0 11.30 30.00 CCGT 0602... SR 14-548 T-7/5
IHRF 46-60 C
46.0 60.0 13.80 40.00 CCGT 09T3... SR 16-236 T-15/5
IHRF 60-75 C
60.0 75.0 18.80 54.00 CCGT 09T3... SR 16-236 T-15/5
IHRF 75-95 C
75.0 95.0 24.30 68.00 CCGT 09T3... SR 16-236 T-15/5
IHRF 95-120 C
95.0 120.0 29.30 87.00 CCGT 09T3... SR 16-236 T-15/5
• For user guide, see page 477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452) • CCMT-WG (454) • CCMT/CCGT (453)
• CCMT/CCGT-SM (452)
For holders, see pages: BHC MB (411)
IHRF-C
Boring Tools for Twin Cutters
Positioned Inner to the Opposite
Finishing Tool on MB BHC
Combi Boring Heads
OAL
WF
91°
Designation
WF OAL DCN(1) DCX(2) Insert
IHFF 28-36 C
9.80 24.00 28.00 36.00 TPGX 0902... SR 14-298 T-8/5
IHFF 36-46 C
11.30 30.00 36.00 46.00 TPGX 0902... SR 14-298 T-8/5
IHFF 46-60 C
13.80 40.00 46.00 60.00 TPGX 1103... SR-17979 M3X8 T-8/5
IHFF 60-75 C
18.80 54.00 60.00 75.00 TPGX 1103... SR-17979 M3X8 T-8/5
IHFF 75-95 C
25.30 68.00 75.00 95.00 TPGX 1103... SR-17979 M3X8 T-8/5
IHFF 95-120 C
29.30 87.00 95.00 120.00 TPGX 1103... SR-17979 M3X8 T-8/5
• For user guide, see page 477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: TPGX (459) • TPGX (CBN) (460)
For holders, see pages: BHC MB (411)
IHFF-C
Triangular Finishing Insert Holders
for BHC Combi Boring Heads
90°
OAL
WF
Designation
DCN(1) DCX(2) WF OAL Insert
IHSR 28-36 C
28.0 36.0 10.00 24.00 CCMT 0602... SR 14-548 T-7/5
IHSR 36-46 C
36.0 46.0 11.50 30.00 CCMT 0602... SR 14-548 T-7/5
IHSR 46-60 C
46.0 60.0 14.00 40.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 60-75 C
60.0 75.0 19.00 54.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 75-95 C
75.0 95.0 24.50 68.00 CCMT 09T3... SR 16-236 T-15/5
IHSR 95-120 C
95.0 120.0 29.50 87.00 CCMT 09T3... SR 16-236 T-15/5
• For user guide, see page 477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452)
• CCMT-WG (454) • CCMT/CCGT (453) • CCMT/CCGT-SM (452)
For holders, see pages: BHC MB (411)
IHSR-C
Rhombic Roughing Insert Holders
for BHC Combi Boring Heads
ISCAR
414
ITS BORE
LOCK
SR44
+
+
BATTERY
SR44
LOCK
LPR
IHWF E IHFF (E) IHRF IHRF CH IHRF BW BHEH
ADJRGR
BBH CW32
DCONMS DCN-DCX
DCN-DCX
IHAXF PICCO ACE BH
IHFF
DCONWS
DCONWS
LF (assembly)
Only for BHD
MB50, MB63, MB80
2 µm
40
Bar Max
Designation
LF DCONMS DCN(1) DCX(2) LPR ADJRGR DCONWS RPMX(3)
kg
BHD MB32-32-83
83.00 32.00 35.0 51.0 71.5 3.00 - 20000 0.41
BHD MB40-40-90
90.00 40.00 48.0 64.0 76.0 4.00 - 20000 0.73
BHD MB50-50-60
80.00 50.00 2.5 110.0 61.0 5.00 16.00 20000 1.10
BHD MB63-63-89
88.50 63.00 6.0 125.0 69.5 5.00 16.00 20000 2.20
BHD MB80-80-104
104.00 80.00 6.0 200.0 84.5 5.00 16.00 20000 3.90
• For spare parts, see pages 435-436 • Note that a protruding reset button dictates the enlargement of the actual DCONMS by 2 mm in each size respectively.
This is important when the tool is being used for back-boring applications where you must clear any obstacles inside the machine/workpiece.
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439) • IHWF (436)

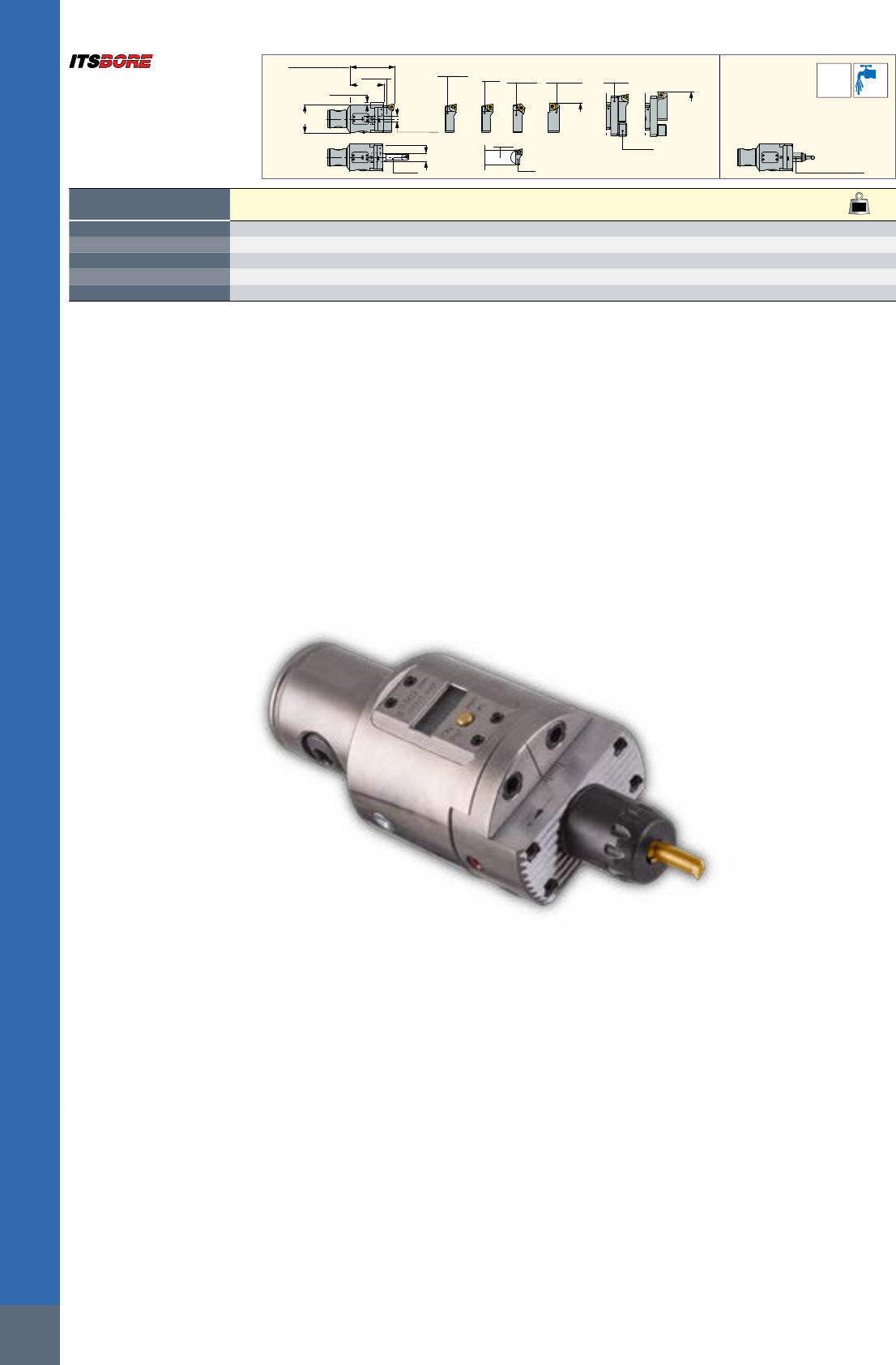

BHD MB
Fine Boring Heads with Digital
2 µm Direct Adjustment
Diametric Display

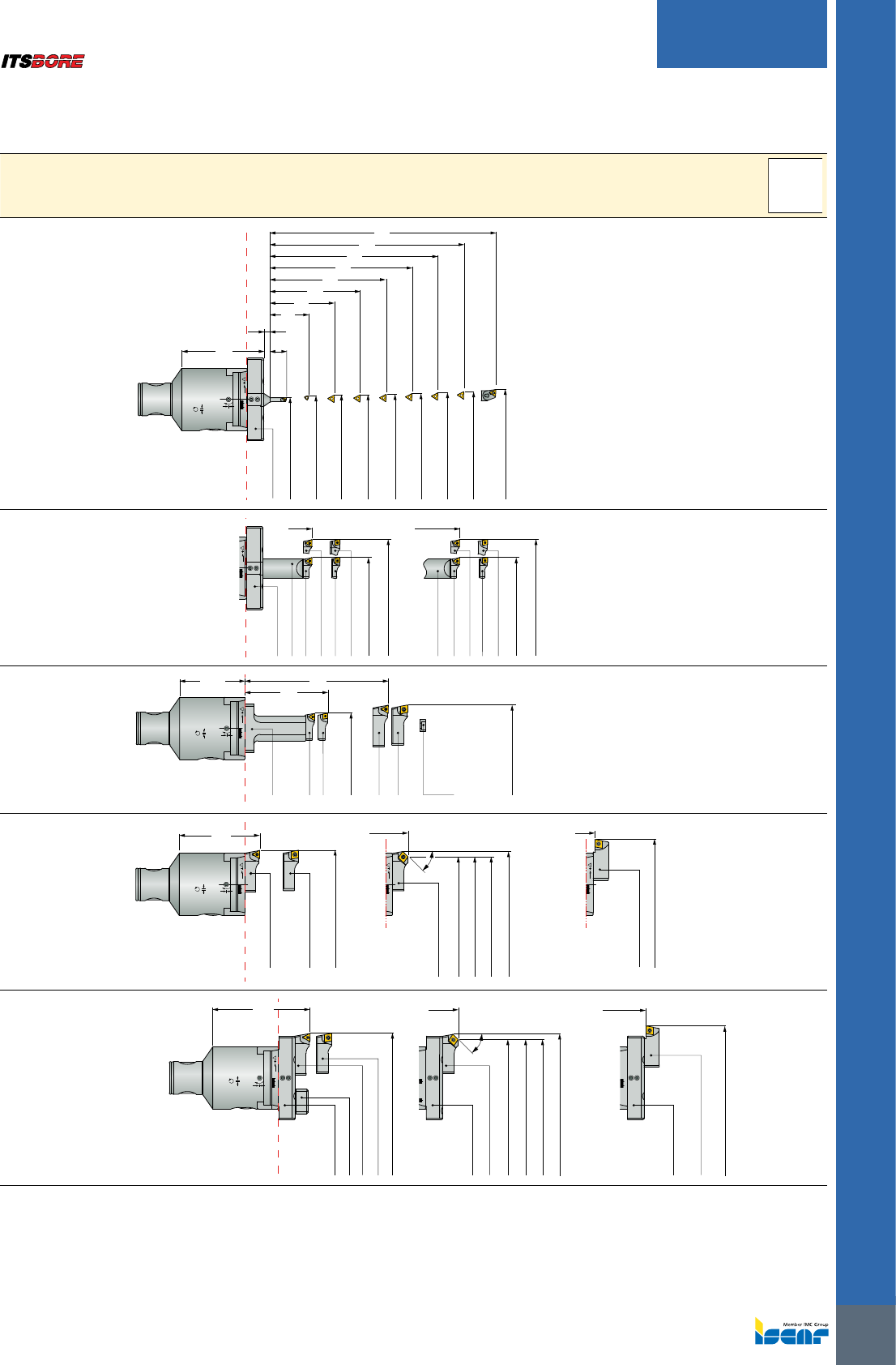

415

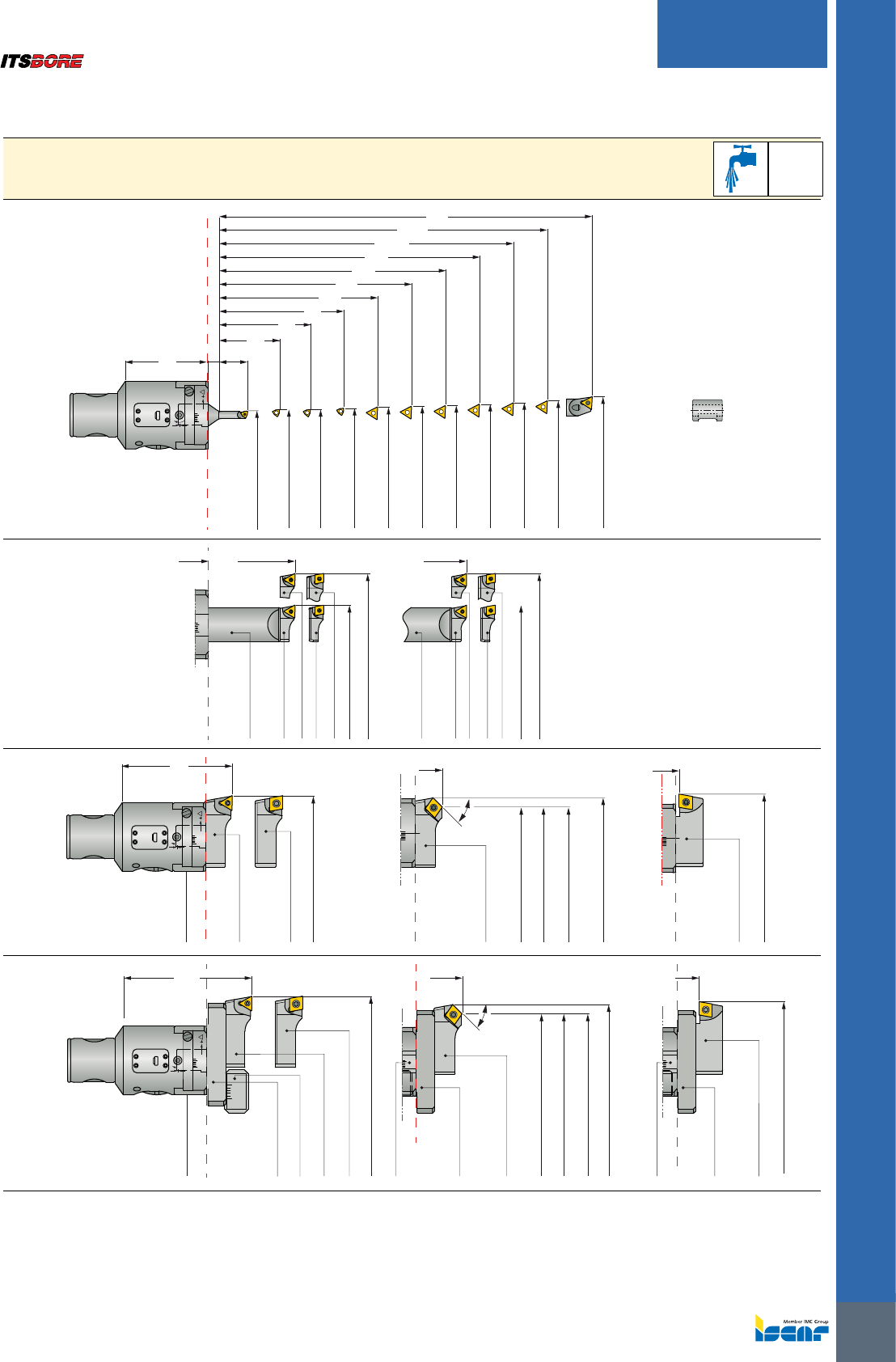

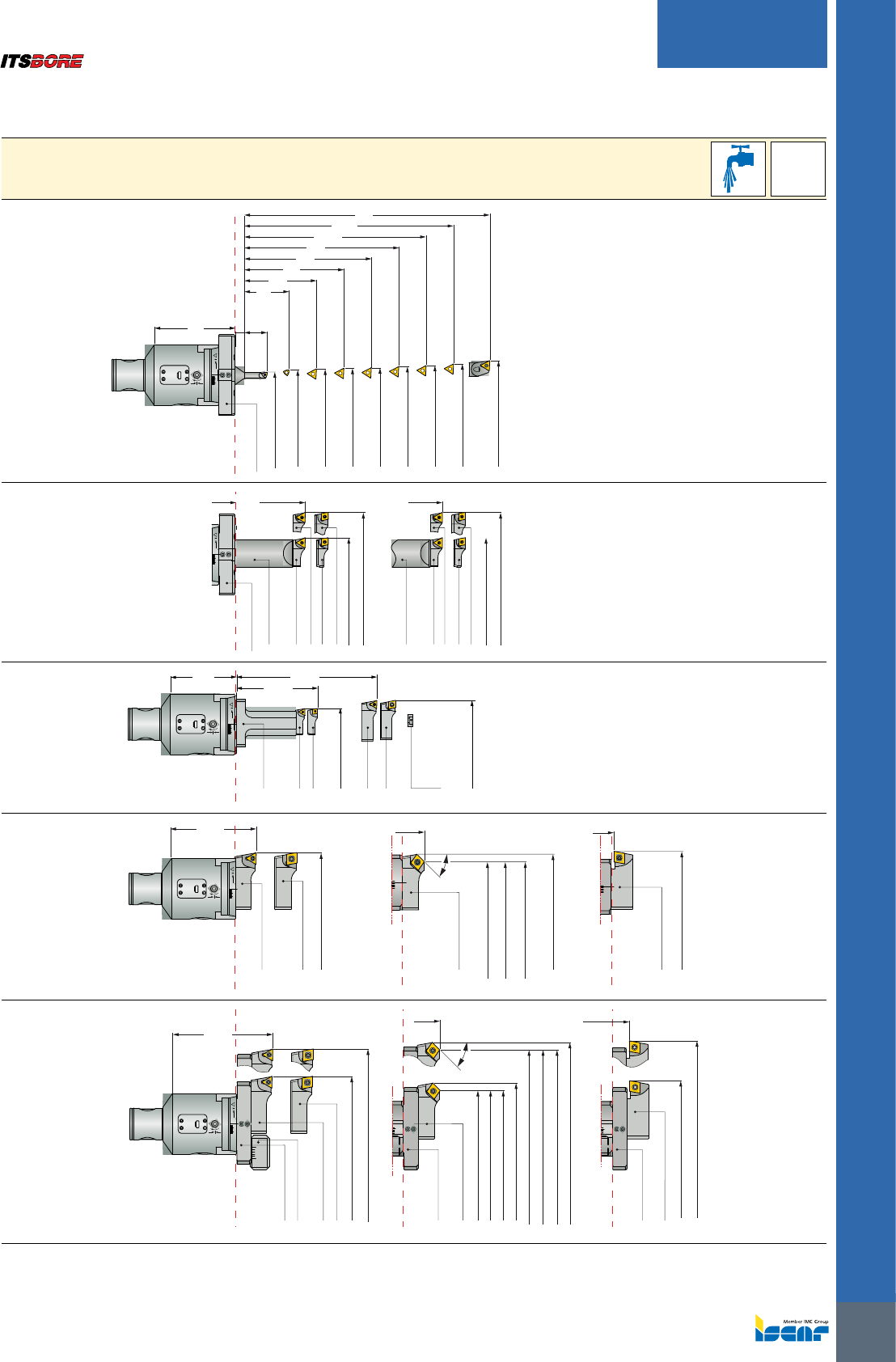

USER GUIDE
ITS BORE
Fine Boring Head Range 2 μm Direct Diametric Adjustment
BHD MB50-50X60 ø2.5-110
2 µm
Ø22-30
IHAXF 22-30/16
Ø14-16
Ø16-18
Ø18-22
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
IHAXF 6-8/16
Ø6-8
IHAXF 4- 6/8
Ø4-6
Ø8-10
Ø10-12
Ø11-13
Ø12-14
IHAXF 8-10/16
IHAXF 10-12/16
IHAXF 11-13/16
IHAXF 12-14/16
68
63
60
50
42
40
35
28
21
24
821
Ø6-30
LOCK
61
BATTERY
SR44
IHAXF 2.5-4/8
Ø2.5-4
REQUIRED FOR
IHAXF.../8
SLEEVE D8-D16
61
Ø28-56
63 105
IHRF 32
IHRF 25
IHFF 32
IHFF 25
BBH D16 X105
Ø28-44
Ø36-56
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-56
Ø28-44
BBH D16 X53
80 80 63
BH NUT 10
IHFF 50
IHRF 50
Ø54-86
Ø54-86
IHRF 50 CH
KAPR=45º Ø38.5-72
KAPR=30º Ø43-76
KAPR=15º Ø47.5-81
Ø52-86
IHRF 56-802 BW
Ø56-88.5
Ø56-88.5
Ø52-86
KAPR
LOCK
BATTERY
SR44
94
94 77
Ø80-110
Ø81-113.5
Ø77-111
KAPR
BH NUT 10
BHEH 24x75
IHRF 56-802 BW
BHEH 24x75
IHRF 50 CH
KAPR=45º Ø63.5-97
KAPR=30º Ø67.5-101
KAPR=15º Ø72-106
Ø77-111
Ø81-113.5
BH NUT 10
BHEH 24x75
CW32
IHFF 50
IHRF 50
Ø80-110
BH NUT 10 LOCK
BATTERY
SR44
ISCAR
416

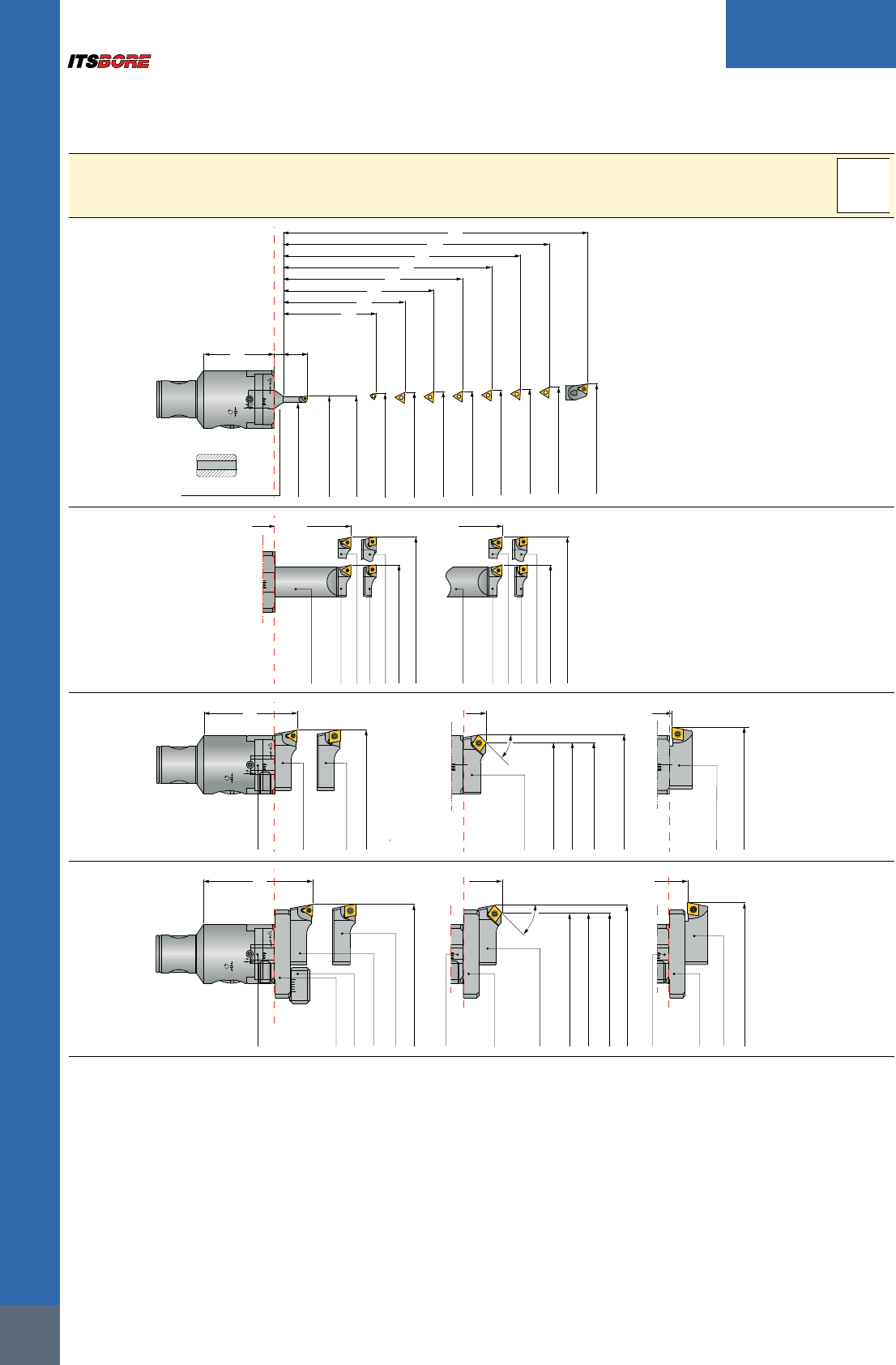

USER GUIDE
ITS BORE
Fine Boring Head Range 2 μm Direct Diametric Adjustment
BHD MB63-63X89 ø6-125
2 µm
Ø22-30
IHAXF 22-30/16
Ø14-16
Ø16-18
Ø18-22
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
Ø6-8
Ø8-10
Ø10-12
Ø11-13
Ø12-14
IHAXF 8-10/16
IHAXF 10-12/16
IHAXF 11-13/16
IHAXF 12-14/16
68
63
60
50
42
40
35
28
821
Ø2.5-30
106
BHEH 28x80
LOCK
SR44
BATTERY
101.5
Ø28-56
63 105
IHRF 32
IHRF 25
IHFF 32
IHFF 25
BBH D16 X105
Ø28-44
Ø36-56
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-56
Ø28-44
BBH D16 X53
BHEH 28x80
101.5
Ø28-56
63 105
IHRF 32
IHRF 25
IHFF 32
IHFF 25
BBH D16 X105
Ø28-44
Ø36-56
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-56
Ø28-44
BBH D16 X53
BHEH 28x80
104 104 87
IHFF 50
IHRF 50
Ø88-132
Ø88-202.5
IHRF 50 CH
Ø85-133
KAPR=45º Ø72.5-120.5
KAPR=30º Ø76-124
KAPR=15º Ø80-128
IHRF 56-802 BW
Ø88.5-135.5
Ø88.5-202.5
Ø72.5-200
KAPR
LOCK
SR44
BATTERY
Ø115-200
Ø115.5-202.5
Ø99-200
BHEH...
IHRF 56-802 BW
BHEH...
IHRF 50 CH
BHEH 28x148 Ø112-160
KAPR=45º Ø99-147
KAPR=30º Ø102.5-150.5
KAPR=15º Ø107-155
BHEH 28x108 Ø115.5-162.5
BHEH 28x148
CW32
IHFF 50
IHRF 50
BHEH 28x108 Ø115-160
LOCK
SR44
BATTERY
125.5
125.5
108
KAPR
BHEH 28x148 Ø152-200
KAPR=45º Ø139-187
KAPR=30º Ø143-191
KAPR=15º Ø147-195
BHEH 28x148 Ø155.5-202.5
BHEH 28x148 Ø155-200
417
USER GUIDE
ITS BORE

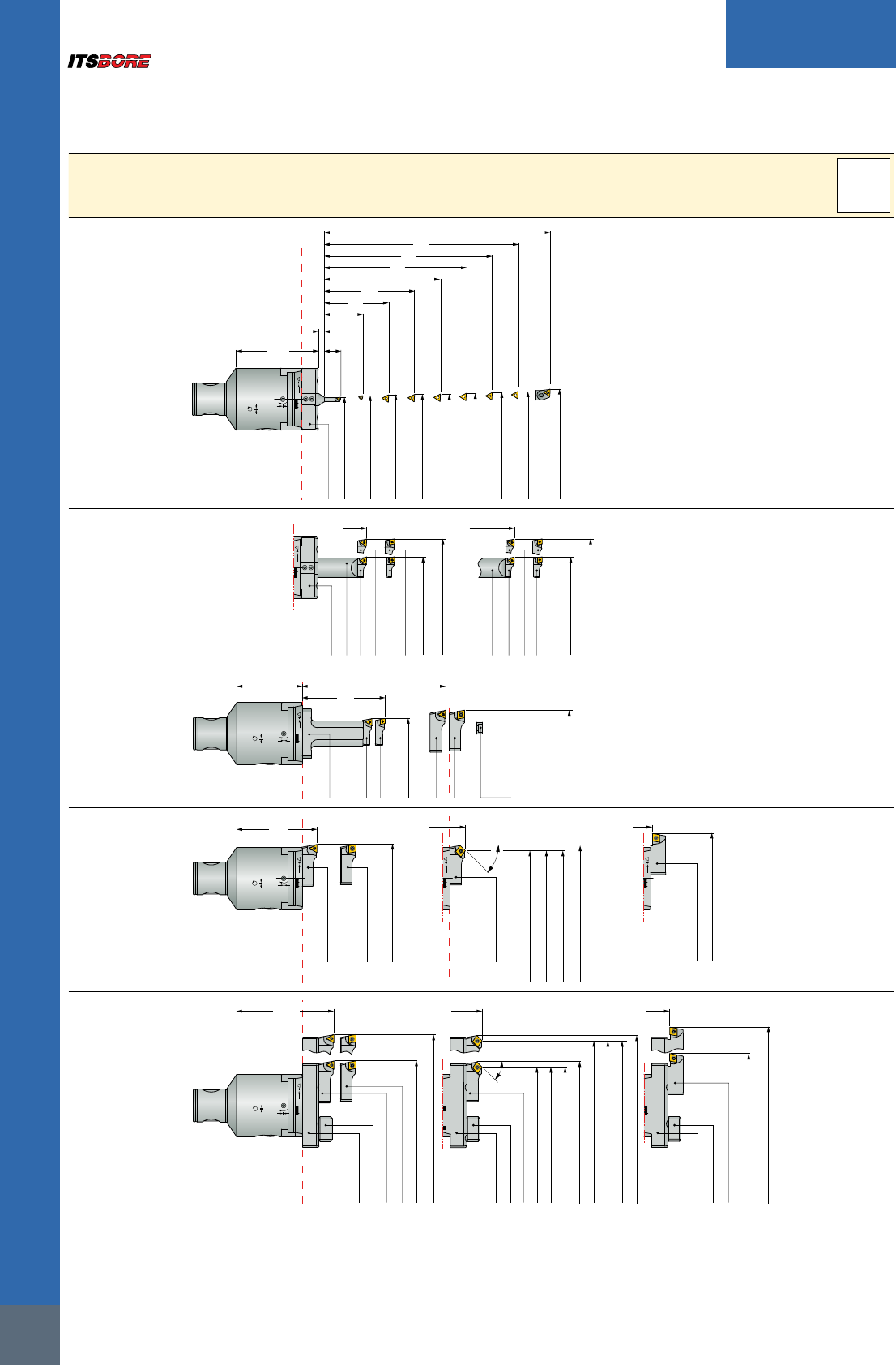

Fine Boring Head Range 2 μm Direct Diametric Adjustment
BHD MB80-80X104 ø6-200
2 µm
Ø22-30
IHAXF 22-30/16
Ø14-16
Ø16-18
Ø18-22
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
Ø6-8
Ø8-10
Ø10-12
Ø11-13
Ø12-14
IHAXF 8-10/16
IHAXF 10-12/16
IHAXF 11-13/16
IHAXF 12-14/16
68
63
60
50
42
40
35
28
821
Ø2.5-30
106
BHEH 28x80
LOCK
SR44
BATTERY
101.5
Ø28-56
63 105
IHRF 32
IHRF 25
IHFF 32
IHFF 25
BBH D16 X105
Ø28-44
Ø36-56
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-56
Ø28-44
BBH D16 X53
BHEH 28x80
Ø40-90
95.5
88.5
IHRF 50
IHFF 50
IHRF 32
IHFF 32
BBH 63x78
Ø54-90
Ø40-56
IH...50
BH WASHER
LOCK
SR44
BATTERY
85
104 104 87
IHFF 50
IHRF 50
Ø88-132
Ø88-202.5
IHRF 50 CH
Ø85-133
KAPR=45º Ø72.5-120.5
KAPR=30º Ø76-124
KAPR=15º Ø80-128
IHRF 56-802 BW
Ø88.5-135.5
Ø88.5-202.5
Ø72.5-200
KAPR
LOCK
SR44
BATTERY
Ø115-200
Ø115.5-202.5
Ø99-200
BHEH...
IHRF 56-802 BW
BHEH...
IHRF 50 CH
BHEH 28x148 Ø112-160
KAPR=45º Ø99-147
KAPR=30º Ø102.5-150.5
KAPR=15º Ø107-155
BHEH 28x108 Ø115.5-162.5
BHEH 28x148
CW32
IHFF 50
IHRF 50
BHEH 28x108 Ø115-160
LOCK
SR44
BATTERY
125.5
125.5 108
KAPR
BHEH 28x148 Ø152-200
KAPR=45º Ø139-187
KAPR=30º Ø143-191
KAPR=15º Ø147-195
BHEH 28x148 Ø155.5-202.5
BHEH 28x148 Ø155-200
ISCAR
418

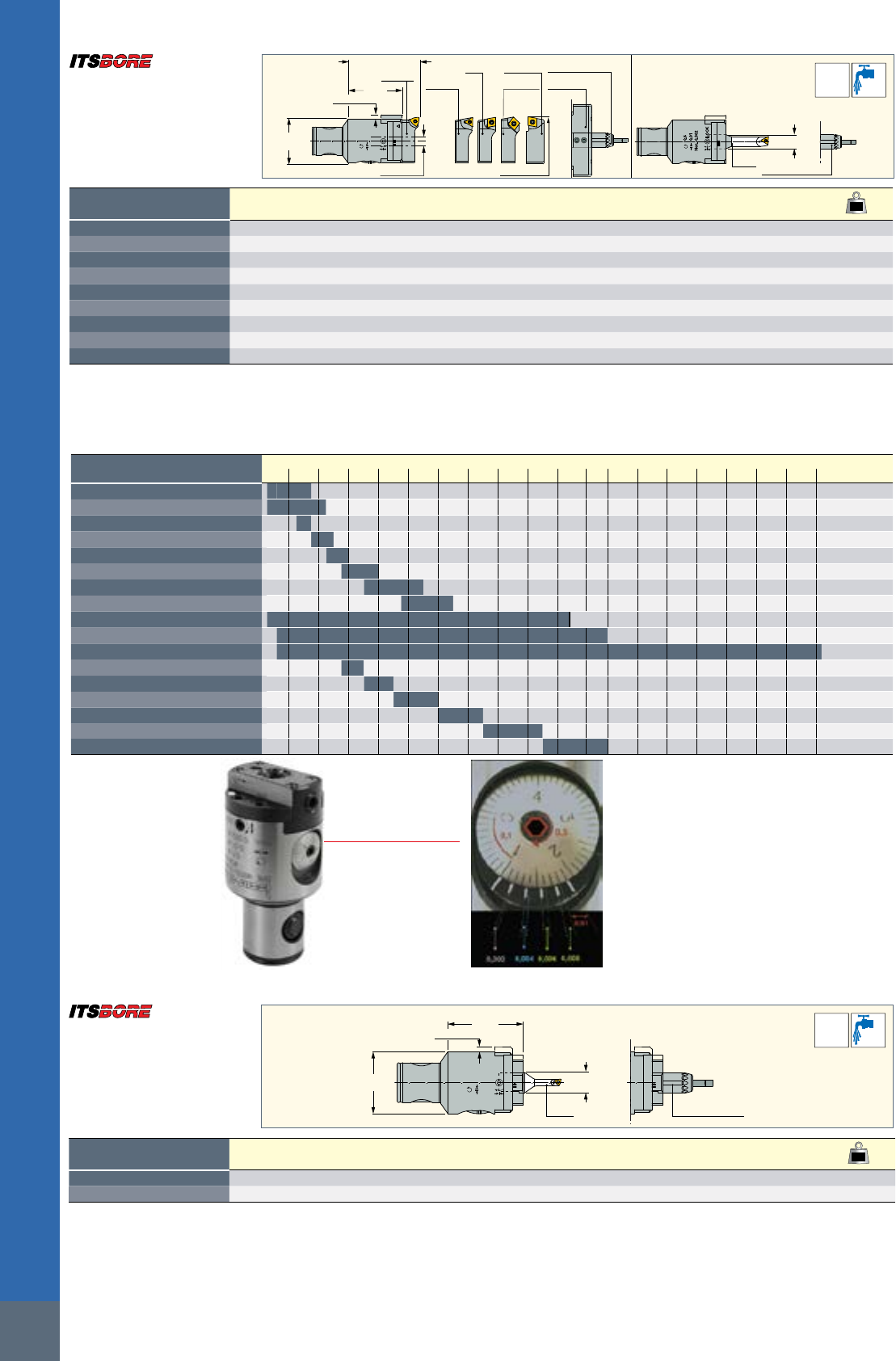

ITS BORE
Non.0.002
0.01
0.5
LOCK
DCN-DCX
ADJRGR
LPR
DCONWS
DCONWS
DCONMS
LF (assembly)
IHWF E IHFF (E)
IHRF
IHRF CH BHEH
IHRF BW
Only for BHE MB50-50x80
IHAXF
PICCO ACE BH
PICCO ACE BH
10 µm
2 µm
40
Bar Max
Designation
DCONMS LF DCN(1) DCX(2) LPR ADJRGR DCONWS
kg
BHE MB14-14-30
14.00 30.00 14.5 18.0 22.0 1.00 - 0.05
BHE MB16-16-34
16.00 34.00 18.0 24.0 26.0 2.00 - 0.08
BHE MB20-20-40
20.00 40.00 22.0 30.0 31.5 3.00 - 0.05
BHE MB25-25-50
25.00 50.00 28.0 40.0 40.0 3.00 - 0.20
BHE MB32-32-63
32.00 63.00 35.0 53.0 51.5 4.00 - 0.41
BHE MB40-40-80
40.00 80.00 48.0 66.0 66.0 5.00 - 0.79
BHE MB50-50-80
50.00 80.00 2.5 110.0 61.0 5.00 16.00 1.04
BHE MB63-63-89
63.00 89.00 6.0 125.0 69.5 10.00 - 1.00
BHE MB80-80-104
80.00 104.00 6.0 200.0 84.5 12.00 - 3.84
• For boring options, see pages 388, 419-422 • For spare parts, see pages 435-436, 467
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439) • IHWF (436)
Boring Head Diameter Range
10 20 30 40 50 60 70 80 90 100 120 130 140 150 160 170 180 190 200
BHE MB32-35-53 H
2.5~ 18
BHE MB50-50-60 H
2.5 ~22
BHE MB14-14-30
14.5~ 18
BHE MB16-16-34
18 ~24
BHE MB20-20-40
22~ 30
BHE MB25-25-50
28~ 40
BHE MB32-32-63
35 ~53
BHE MB40-40-80
48 ~66
BHE MB50-50-80
2.5~110
BHE MB63-63-89
6~ 125
BHE MB80-80-104
6~200
BHC MB25-25-57
28 ~36
BHC MB32-32-71
36 ~46
BHC MB40-40-90
46~ 60
BHC MB50-50-86
60 ~75
BHC MB63-63-108
75 ~95
BHC MB80-80-129
95~ 120
Graduated dial of 0.01 mm with
circular vernier of 0.002 mm
BHE MB50-50-80
BHE MB
Fine Boring Heads with the
MB Connection, 10 µm Direct
Diametric Adjustment and
2 µm by a Vernier Scale
IHAXF PICCO ACE BH
ADJRGR
LPR
DCONWS
DCONMS
Non. 0.002
0.01
0.5
LOCK
10 µm
2 µm
40
Bar Max
Designation
DCONMS LPR DCN(1) DCX(2) DCONWS ADJRGR RPMX(3)
kg
BHE MB32-32-53 H
32.00 53.00 2.5 18.0 8.00 0.50 10000 0.35
BHE MB50-50-60 H
50.00 60.00 2.5 22.0 16.00 1.00 8000 1.00
• For spare parts, see pages 435-436, 467
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434)
BHE MB-H
Fine Boring Heads for High
Rotation Speed with a
10 Micrometer Direct Dia.
Adjustment and 2 Micrometer
by a Vernier Scale
419
USER GUIDE
ITS BORE

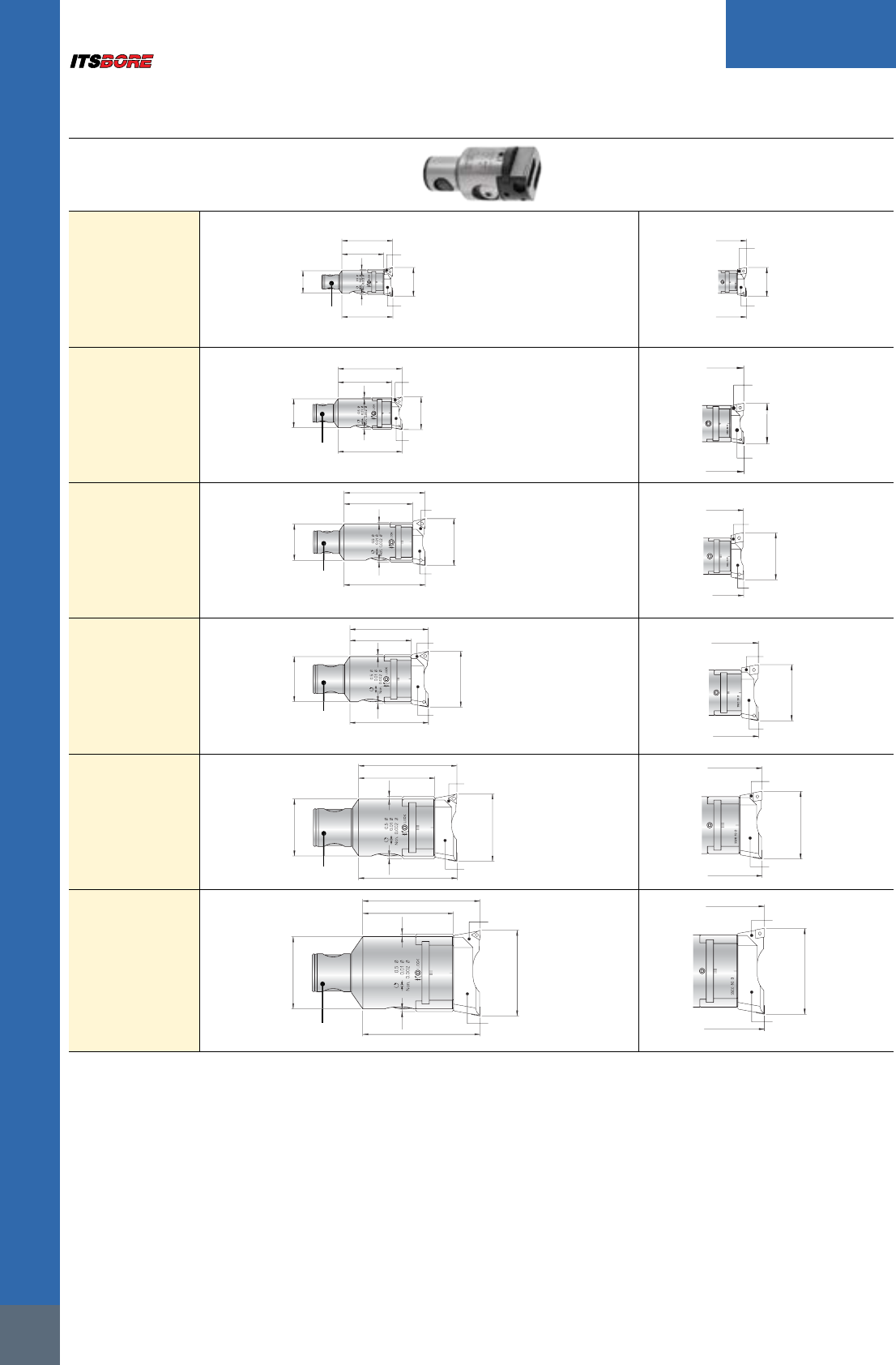

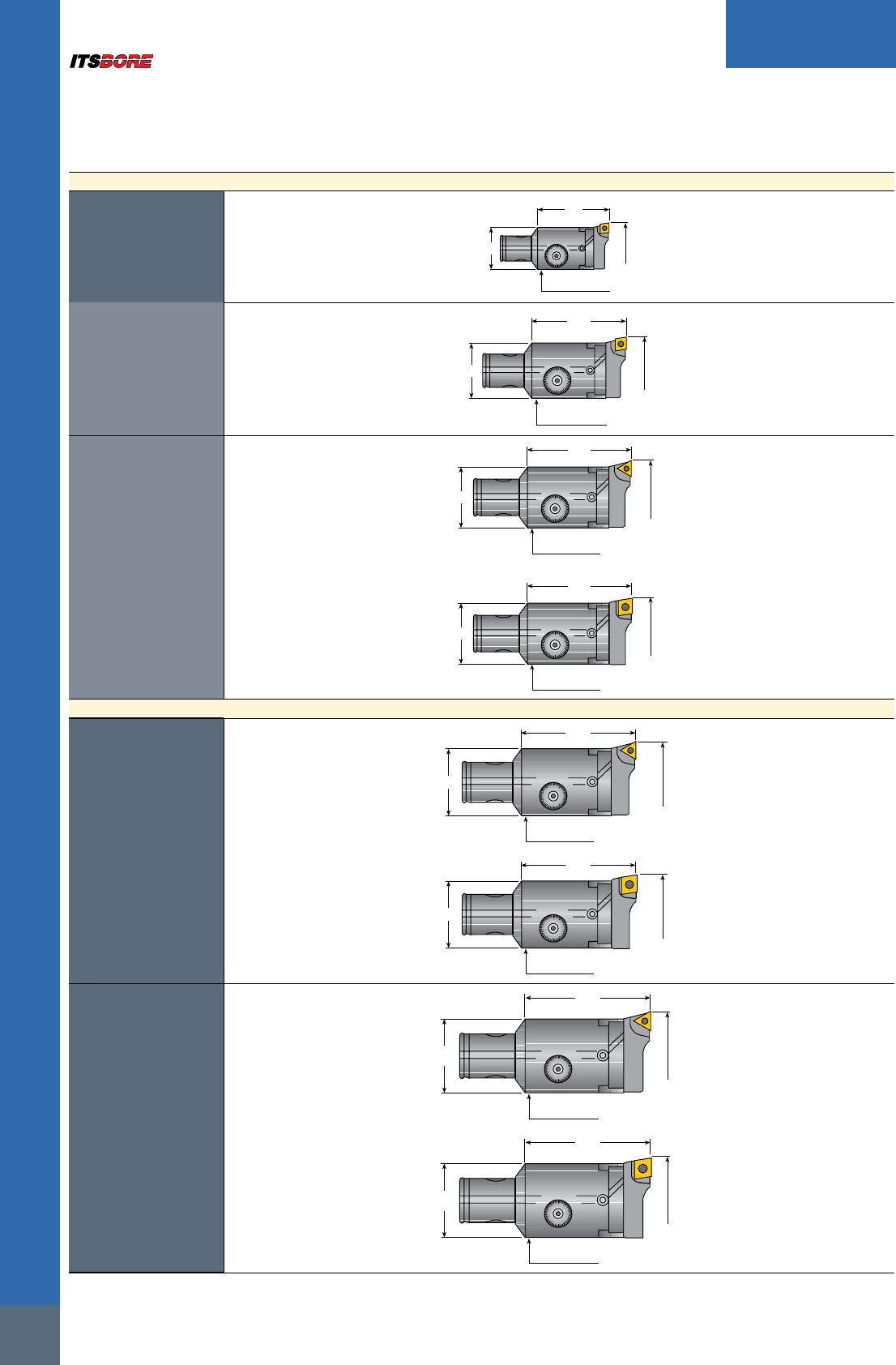

BHE MB - Additional Information
BHE MB14-14-30
Ø14.5 ~ 18
IHWF 14 EMB14
30
22
Ø14
1
Ø14.5-18
BHE MB16-16-34
Ø18 ~ 24
IHRF 16MB16
34
26
Ø16
1.5
Ø18-24
IHRF 20-25BW
27.5
Ø16
Ø20-26
Ømin=(Ø1+17):2
BHE MB20-20-40
Ø22 ~ 30
IHRF 20
MB20
40
31.5
Ø20
2.5
Ø22-30
IHRF 24.5-32BW
33.5
Ø20
Ø24.5-33
Ømin=(Ø1+Ø21):2
BHE MB25-25-50
Ø28 ~ 40
IHRF 25
IHFF 25
MB25
50
40
Ø25
3
Ø28-40
IHRF 31.5-41.5BW
41.5
Ø25
Ø31.5-42.5
Ømin=(Ø1+26):2
IHRF 25 CH15 28-38
IHRF 25 CH45 28-38
IHRF 25 CH30 28-38
50
Ø26.5-39.5
BHE MB32-32-63
Ø35 ~ 53
IHRF 32
IHFF 32
MB32
63
51.5
Ø32
4
Ø35-53
IHRF 38.5-51.5BW
53
Ø32
Ø38.5-53.5
Ømin=(Ø1+33):2
IHRF 32 CH15 35-53 IHRF 32 CH45 36-50
IHRF 32 CH30 35-53
63
Ø34-52
BHE MB40-40-80
Ø48 ~ 66
IHRF 40
IHFF 40
MB40
80
66
Ø40
5
Ø48-66
IHRF 50.5-65BW
IHRF 40 CH15 48-66
68
Ø40
Ø50.5-67
Ømin=(Ø1+41):2
IHRF 40 CH15 48-66 IHRF 40 CH45 48-66
IHRF 40 CH30 48-66
80
Ø50.5-67
Ø44.5-65.5
ISCAR
420
USER GUIDE
ITS BORE
10 µm Direct Diametric Adjustment and 2 μm by a Vernier Scale
BHE MB50-50x80 ø2.5-113.5
2 µm
10 µm
68
Ø2.5-30
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
63
50
50
42
40
35
28
61 821
Ø22-30
IHAXF 22-30/16
Ø14-16
Ø16-18
Ø18-22
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
IHAXF 6-8/16
Ø6-8
IHAXF 4-6/8
Ø4-6
IHAXF 2.5-4/8
Ø2.5-4
Ø8-10
Ø10-12
Ø11-13
Ø12-14
IHAXF 6-10/16
IHAXF 10-12/16
IHAXF 11-13/16
IHAXF 12-14/16
Non.
Lock
SLEEVE D8-D16
61 63
Ø28-56
Ø14-16
Ø16-18
Ø18-22
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
IHAXF 6-8/16
Ø6-8
IHAXF 4-6/8
Ø4-6
IHAXF 2.5-4/8
Ø2.5-4
Ø8-10
Ø10-12
Ø11-13
Ø12-14
IHAXF 6-10/16
IHAXF 10-12/16
IHAXF 11-13/16
IHAXF 12-14/16
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-54
Ø28-42
BBH D16X53
105
IHRF 32
IHRF 25
IHFF 32
IHFF 25
Ø36-56
Ø28-44
BBH D16X105
Ø54-86
Ø52-86
Ø56-88.5
80
80
KAPR
BH NUT 10
IHFF 50
IHRF 50
IHRF 50 -CH
IHRF 56-802 BW
KAPR=45º Ø38.5-72
KAPR=30º Ø43-76
KAPR=15º Ø47.5-81
Ø52-86
Ø56-88.5
Ø54-86
BHE 50
0.5 Ø
0.01 Ø
0.002 Ø
63
Non.
Lock
Ø80-110
KAPR
BH NUT 10
IHFF 50
IHRF 50
IHRF 50 -CH
IHRF 56-802 BW
Ø77-111
Ø81-113.5
94
94 77
BH NUT 10
KAPR=45º Ø63.5-97
KAPR=30º Ø67.5-101
KAPR=15º Ø72-106
Ø77-111
Ø81-113.5
BH NUT 10
BHEH 24x75
IHRF 56-802 BW
BHE 50
0.5 Ø
0.01 Ø
0.002 Ø
BH NUT 10
BHEH 24x75
BHEH 24x75
CW32
IHFF 50
IHRF 50 CH
IHRF 50
Ø80-110
Non.
Lock
s
!See page 481
Fine Boring Head Range
421
USER GUIDE
ITS BORE
10 µm Direct Diametric Adjustment and 2 μm by a Vernier Scale
BHE MB63-63x89 ø6-129.5
2 µm
10 µm
IHAXF 16-18/16
IHAXF 18-22/16
Ø14-16
IHAXF 14-16/16
Ø6-8
Ø8-10
Ø11-13
IHAXF 10-12/16
IHAXF 12-14/16
68
63
50
50
42
40
35
28
91
8
21
Ø22-30
IHAXF 22-30/16
Ø16-18
Ø18-22
IHAXF 6-8/16
Ø10-12
Ø12-14
IHAXF 8-10/16
IHAXF 11-13/16
BHEH 28x80
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
Lock
Non.
IHAXF 16-18/16
IHAXF 18-22/16
Ø14-16
IHAXF 14-16/16
Ø6-8
Ø8-10
Ø11-13
IHAXF 10-12/16
IHAXF 12-14/16
63 105
IHAXF 22-30/16
Ø16-18
Ø18-22
IHAXF 6-8/16
Ø10-12
Ø12-14
IHAXF 8-10/16
IHAXF 11-13/16
IHFF 25
IHRF 25
IHRF 25
IHRF 32
BBH D16x105
IHFF 25
IHFF 32
IHFF 32
IHRF 32
BBH D16x53
Ø36-56
Ø28-44
Ø36-56
Ø28-44
BHEH 28x80 BHEH 28x80
Ø40-74
68.5 98
90
IHRF 50
IHFF 50
IHRF 32
IHFF 32
BBH 63x78
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
Non.
Ø54-74
Ø40-56
BH WASHER
IH...50
Lock
Ø72-125
Ø56-127
Ø72.5-129.5
KAPR
Ø40-74
88.5
88.5 71
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
IHFF 50
IHRF 50
IHRF 50 CH
IHRF 56-802 BW
Ø72-110
KAPR=15º Ø64-108
Ø69-113
Ø72.5-115
KAPR=30º Ø60-104
KAPR=45º Ø56-100
Non.
Lock
Ø56-127
110
110
KAPR
93.5
BHE 63
0.5 Ø
0.01 Ø
0.002 Ø
BHEH 28x80
CW 32
IHFF 50
BHEH 28x80
IHRF 50 CE
BHEH 28x80
IHRF 56-802 BW
IHRF 50
Ø86-125
Ø83-127
KAPR=15º Ø78-122
KAPR=30º Ø74-118
KAPR=45º Ø70-114
Ø86.5-129.5
Non.
Lock
s
!See page 482
Fine Boring Head Range
ISCAR
422
USER GUIDE
ITS BORE
10 µm Direct Diametric Adjustment and 2 μm by a Vernier Scale
BHE MB80-80x104 ø6-202.5
2 µm
10 µm
Ø6-30
IHAXF 16-18/16
IHAXF 18-22/16
Ø14-16
IHAXF 14-16/16
Ø6-8
Ø8-10
Ø11-13
IHAXF 10-12/16
IHAXF 12-14/16
68
63
60
50
42
40
35
28
106
8
21
Ø22-30
IHAXF 22-30/16
Ø16-18
Ø18-22
IHAXF 6-8/16
Ø10-12
Ø12-14
IHAXF 8-10/16
IHAXF 11-13/16
BHEH 28x80
BHE 80
0.5 Ø
0.01 Ø
0.002 Ø
Lock
Non.
Ø28-56
IHAXF 16-18/16
IHAXF 18-22/16
IHAXF 14-16/16
IHAXF 10-12/16
IHAXF 12-14/16
63 105
IHAXF 22-30/16
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHFF 25
IHRF 25
IHRF 25
IHRF 32
BBH D16x105
IHFF 25
IHFF 32
IHFF 32
IHRF 32
BBH D16x53
Ø36-56
Ø28-44
Ø36-56
Ø28-44
BHEH 28x80 BHEH 28x80
IHFF 25
IHRF 25
IHRF 25
IHRF 32
BBH D16x105
IHFF 25
IHFF 32
IHFF 32
IHRF 32
BBH D16x53
BHEH 28x80
Ø40-90
84.5 98
90
IHRF 50
IHFF 32
IHRF 32
IHFF 32
BBH 63x78
BHE 80
0.5 Ø
0.01 Ø
0.002 Ø
Non.
Ø54-90
Ø40-56
BH WASHER
IH...50
Lock
KAPR
Ø88-200
Ø72.5-200
Ø88.5-202.5
104
104 87
BHE 80
0.5 Ø
0.01 Ø
0.002 Ø
IHFF 50
IHRF 50
IHRF 50 CH
IHRF 56-802 BW
Ø88-132
KAPR=15º Ø80-128
Ø85-133
Ø88.5-135.5
KAPR=30º Ø76-124
KAPR=45º Ø72.5-120.5
Non.
Lock
125.5
125.5
KAPR
108
BHE 80
0.5 Ø
0.01 Ø
0.002 Ø
BHEH 28x148
CW32
IHFF 50
BHEH...
CW32
IHRF 50 CH
BHEH...
CW32
IHRF 56-802 BW
IHRF 50
BHEH 28x148 Ø155-200
BHEH 28x108 Ø115-160
BHEH 28x108 Ø112-160
KAPR=15º Ø107-155
KAPR=30º Ø102.5-150.5
KAPR=45º Ø99-147
BHEH 28x148 Ø152-200
BHEH 28x148 Ø155.5-202.5
BHEH 28x108 Ø115.5-162.5
KAPR=15º Ø147-195
KAPR=30º Ø143-191
KAPR=45º Ø139-187
Non.
Lock
s
!See page 482
Fine Boring Head Range
423

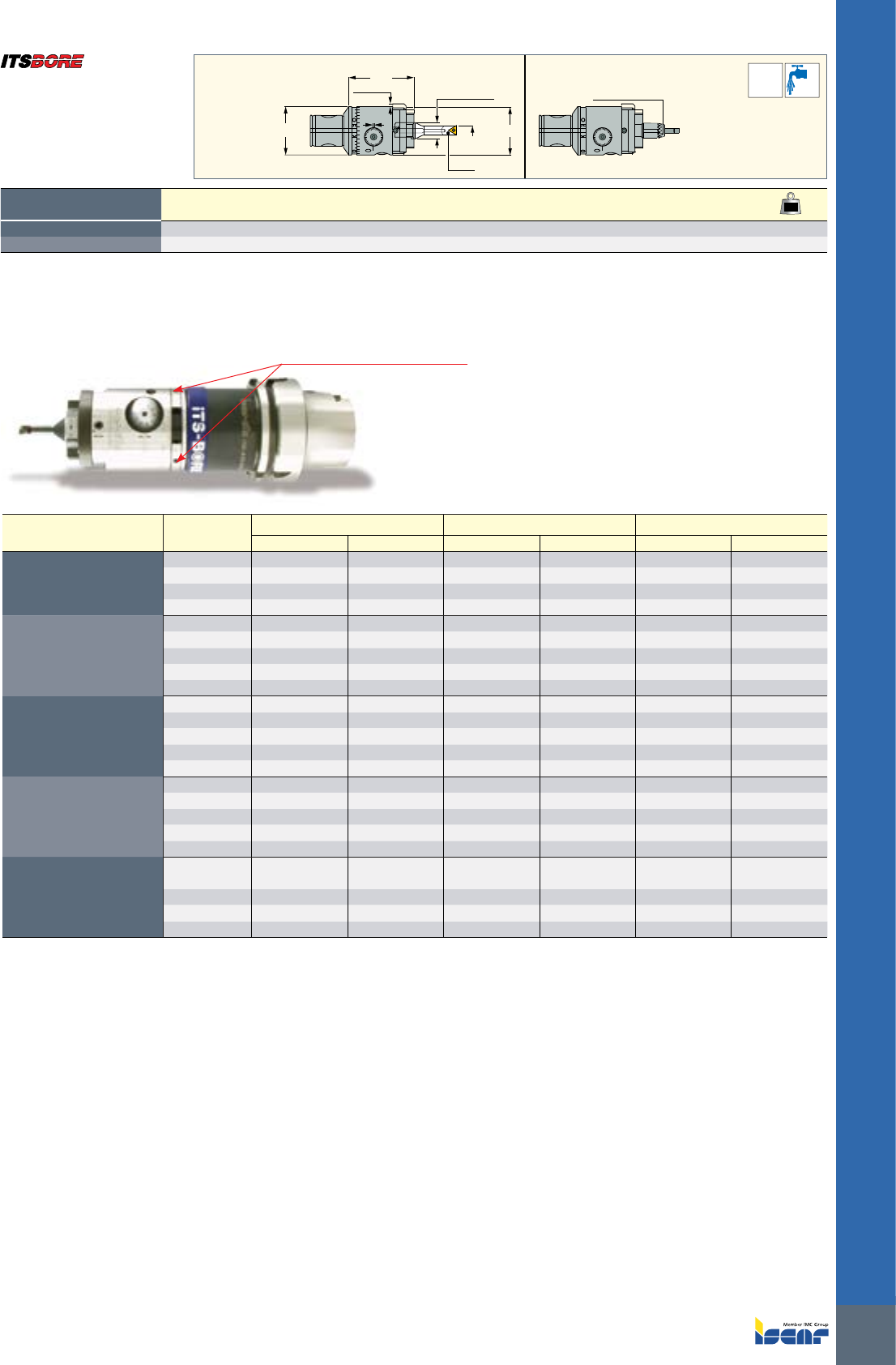

ITS BORE
270° 300° 330°
7
5
210° 240°
01°
2°
01°
8
9
0
1
6
4
2
3
2°
DCONWSH6
DCONMS
ADJRGR
LPR
IHAXF
0.002
DCN-DCX
BD
PICCO ACE BH
Only for BHF MB50-50X68 BL
2 µm
40
Bar Max
Designation
DCONMS BD LPR DCN(1) DCX(2) DCONWS ADJRGR RPMX(3)
kg
BHF MB50-32X60 BL
50.00 32.00 60.00 2.5 12.0 8.00 3.00 20000 0.80
BHF MB50-50X68 BL
50.00 50.00 68.50 6.0 22.0 16.00 4.00 20000 1.12
• For boring options, see page 427 • For spare parts, see page 466 • For cutting conditions, see page 477
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHAXF (432)
Balancing Weights W1 & W2
BHF MB50-32X60 BL and BHF MB50-50X68
BL with the simple positioning of the two
counterweights into the graduated groove.
The table below displays all tools available for
the working range of 2.5-22 mm diameters.

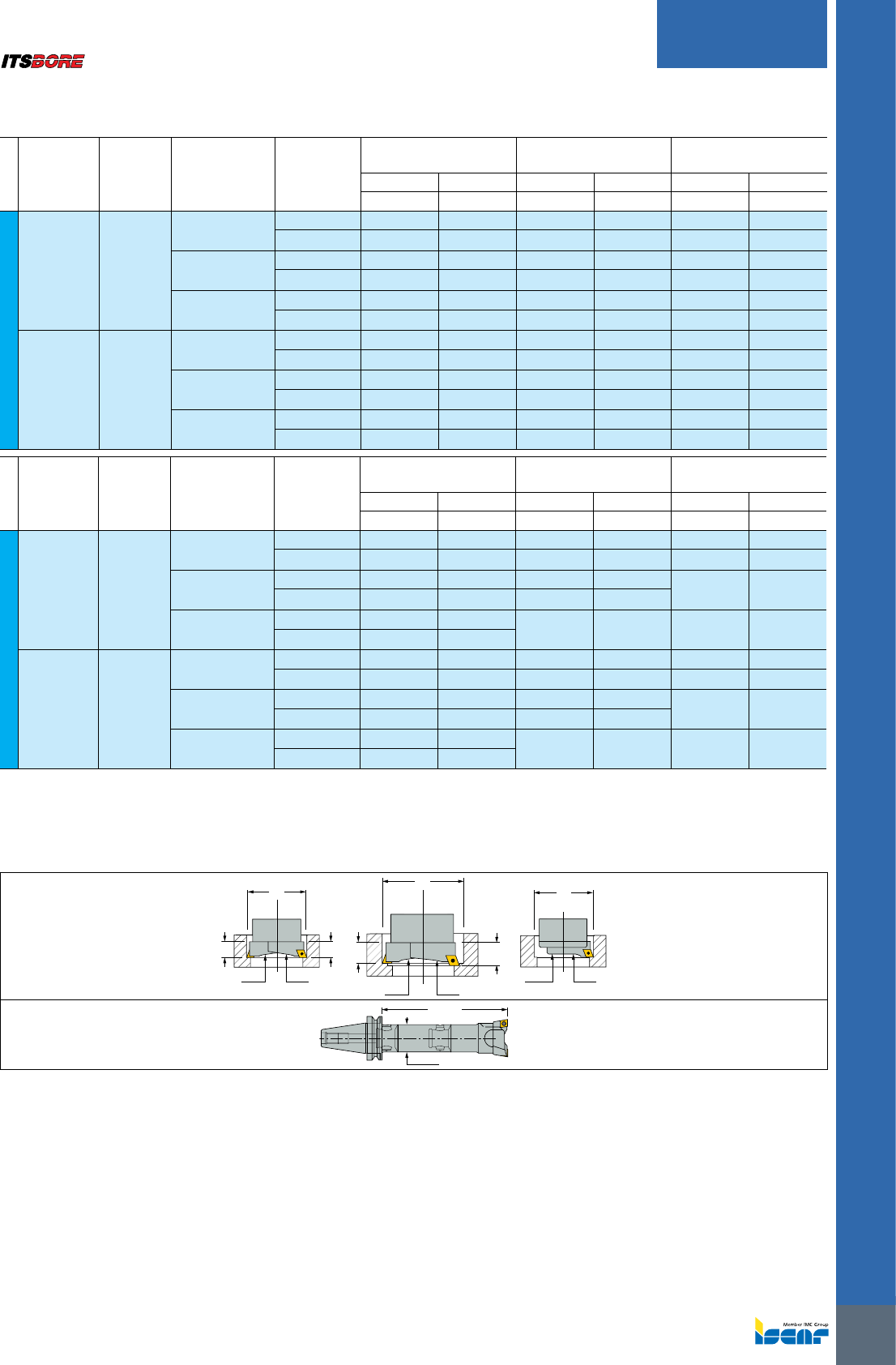

Balance Correction for BHF MB50-32x60BL
TOOLS Ø BORE SKB 40-MB50 BTB 40 MB50 HSK 63 MB50
W1W2W1W2W1W2
IHAXF 2.5-4/8
2.5 66° 283° 54° 292° 60° 257°
3 76° 283° 56° 284° 8° 196°
3.5 83° 360° 44° 246° 107° 261°
4 116° 285° 30° 224° 128° 264°
IHAXF 4-6/8
4 71° 293° 50° 294° 63° 262°
4.5 75° 287° 55° 287° 6° 194°
5.5 4° 238° 44° 248° 129° 287°
5.5 126° 298° 32° 229° 129° 268°
6 123° 264° 145° 301° 136° 254°
IHAXF 6-8/8
6.6 2° 302° 45° 307° 68° 280°
6.5 75° 288° 56° 288° 78° 274°
7.7 5° 280° 55° 280° 179° 351°
7.5 16° 199° 78° 295° 129° 284°
8 121° 292° 18° 214° 128° 275°
IHAXF 8-10/8
8 70° 295° 49° 297° 88° 300°
8.5 75° 280° 55° 281° 51° 245°
9 67° 255° 49° 258° 160° 330°
9.5 131° 302° 19° 216° 112° 273°
10 119° 272° 167° 320° 129° 266°
IHAXF 10-12/8
10 65° 293° 46° 293° 56° 257°
10.5 66° 273° 29° 262° 182° 351°
11 44° 234° 45° 255° 163° 317°
11.5 130° 295° 16° 214° 131° 270°
12 127° 275° 156° 312° 138° 259°
Balance Correction for BHF MB50-50x68 BL
TOOLS Ø BORE SKB 40-MB50 BTB 40 MB50 HSK 63 MB50
W1W2W1W2W1W2
IHAXF 6- 8/16
6.0 43° 315° 46° 346° 46° 346°
6.5 63° 326° 44° 326° 59° 336°
7 82° 305° 67° 304° 93° 323°
7.5 30° 205° 62° 255° 5.5° 163°
8 124° 242° 126° 258° 92° 219°
IHAXF 8-10/16
8 42° 312° 36° 336° 48° 348°
8.5 52° 328° 39° 339° 75° 330°
9 68° 318° 51° 317° 112° 331°
9.5 104° 283° 73° 268° 56° 212°
10 110° 270° 15° 200° 113° 222°
IHAXF 10-12/16
10 35° 336° 30° 330° 44° 344°
10.5 44° 321° 32° 332° 45° 345°
11 56° 307° 35° 312° 71° 325°
11.5 153° 328° 21° 223° 327° 121°
12 139° 297° 171° 333° 84° 234°
IHAXF 12-14/16
12 30° 330° 26° 326° 40° 340°
12.5 32° 332° 28° 328° 48° 334°
13 64° 281° 40° 280° 80° 304°
13.5 38° 236° 42° 261° 38° 208°
14 138° 253° 177° 300° 114° 236°
IHAXF 14-16/16
14 22° 324° 18° 318° 39° 339°
14.5 30° 330° 16° 316° 57° 357°
15 37° 257° 22° 266° 54° 302°
15.5 184° 340° 35° 270° 130° 297°
16 160° 253° 172° 277° 138° 251°
IHAXF 16-18/16
16 26° 326° 24° 324° 58° 358°
16.5 36° 303° 14° 313° 37° 319°
17 37° 276° 27° 292° 56° 272°
17.5 151° 287° 187° 324° 128° 288°
18 160° 279° 189° 304° 140° 243°
IHAXF 18-22/16
18 10° 310° 6° 305° 28° 328°
18.5 29° 328° 0° 300° 17° 313°
19 200° 317° 230° 332° 26° 259°
19.5 190° 295° 208° 307° 169° 303°
20 180° 242° 188° 249° 174° 234°
20.5 179° 240° 186° 247° 168° 228°
21 176° 236° 174° 236° 169° 229°
21.5 190° 252° 141° 202° 170° 230°
22 180° 240° 170° 230° 176° 236°
Balancing Data for Various BHF...MB...BL Boring Combinations (continued)
BHF MB-BL
Fine Boring Heads with
a Balancing Mechanism
and a 2 Micrometer Direct
Diametric Adjustment
ISCAR
424
ITS BORE

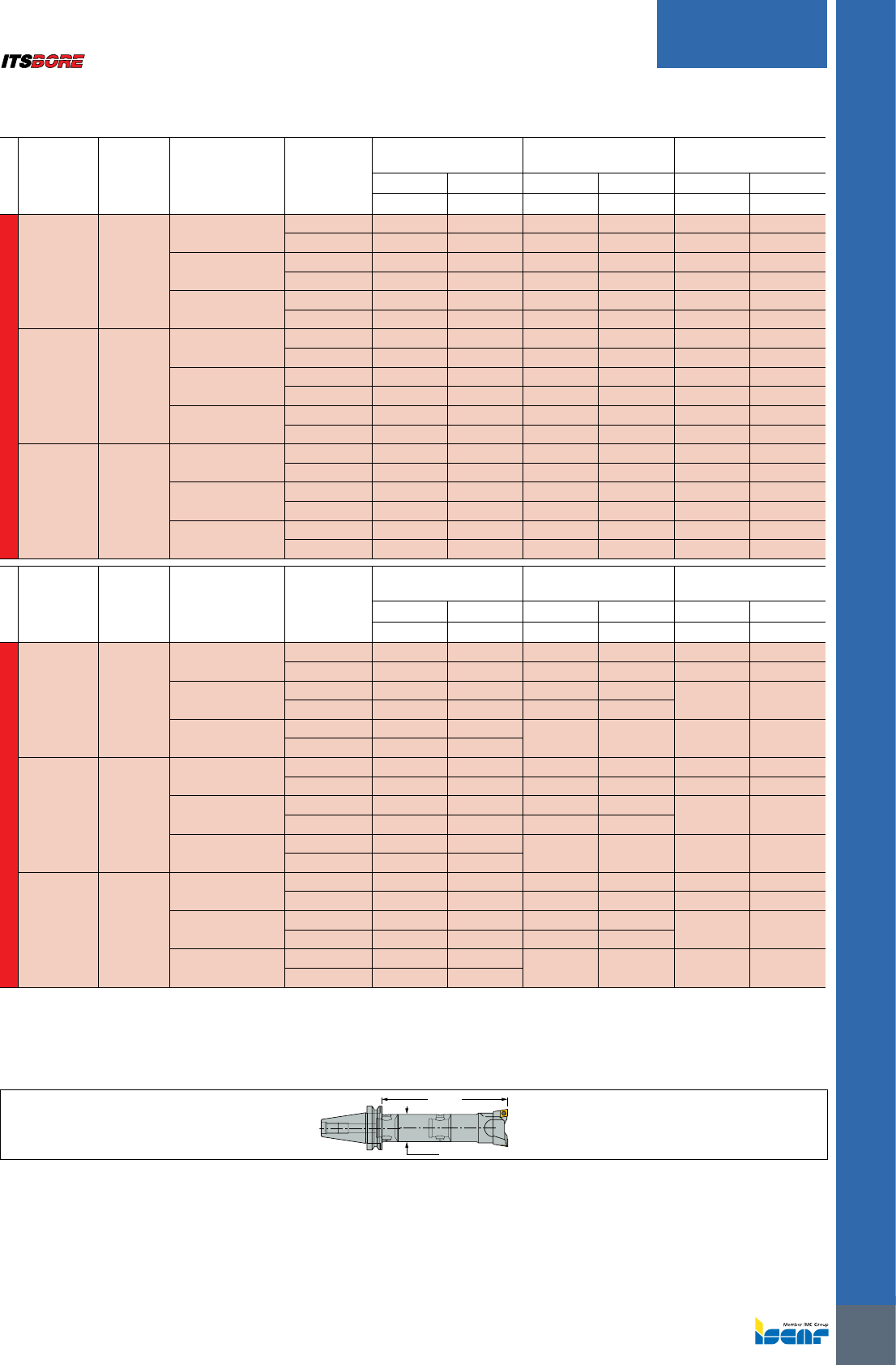

Balancing Weights W1 & W2
BHF MB50-32X60 BL and BHF MB50-50X68
BL with the simple positioning of the two
counterweights into the graduated groove.
The table below displays all tools available for
the working range of 2.5-22 mm diameters.
Balance Correction for BHF MB50-32x60BL
TOOLS Ø BORE SKB 40-MB50 BTB 40 MB50 HSK 63 MB50
W1W2W1W2W1W2
IHAXF 2.5-4/8
2.5 66° 283° 54° 292° 60° 257°
3 76° 283° 56° 284° 8° 196°
3.5 83° 360° 44° 246° 107° 261°
4 116° 285° 30° 224° 128° 264°
IHAXF 4-6/8
4 71° 293° 50° 294° 63° 262°
4.5 75° 287° 55° 287° 6° 194°
5.5 4° 238° 44° 248° 129° 287°
5.5 126° 298° 32° 229° 129° 268°
6 123° 264° 145° 301° 136° 254°
IHAXF 6-8/8
6.6 2° 302° 45° 307° 68° 280°
6.5 75° 288° 56° 288° 78° 274°
7.7 5° 280° 55° 280° 179° 351°
7.5 16° 199° 78° 295° 129° 284°
8 121° 292° 18° 214° 128° 275°
IHAXF 8-10/8
8 70° 295° 49° 297° 88° 300°
8.5 75° 280° 55° 281° 51° 245°
9 67° 255° 49° 258° 160° 330°
9.5 131° 302° 19° 216° 112° 273°
10 119° 272° 167° 320° 129° 266°
IHAXF 10-12/8
10 65° 293° 46° 293° 56° 257°
10.5 66° 273° 29° 262° 182° 351°
11 44° 234° 45° 255° 163° 317°
11.5 130° 295° 16° 214° 131° 270°
12 127° 275° 156° 312° 138° 259°
Balance Correction for BHF MB50-50x68 BL
TOOLS Ø BORE SKB 40-MB50 BTB 40 MB50 HSK 63 MB50
W1W2W1W2W1W2
IHAXF 6- 8/16
6.0 43° 315° 46° 346° 46° 346°
6.5 63° 326° 44° 326° 59° 336°
7 82° 305° 67° 304° 93° 323°
7.5 30° 205° 62° 255° 5.5° 163°
8 124° 242° 126° 258° 92° 219°
IHAXF 8-10/16
8 42° 312° 36° 336° 48° 348°
8.5 52° 328° 39° 339° 75° 330°
9 68° 318° 51° 317° 112° 331°
9.5 104° 283° 73° 268° 56° 212°
10 110° 270° 15° 200° 113° 222°
IHAXF 10-12/16
10 35° 336° 30° 330° 44° 344°
10.5 44° 321° 32° 332° 45° 345°
11 56° 307° 35° 312° 71° 325°
11.5 153° 328° 21° 223° 327° 121°
12 139° 297° 171° 333° 84° 234°
IHAXF 12-14/16
12 30° 330° 26° 326° 40° 340°
12.5 32° 332° 28° 328° 48° 334°
13 64° 281° 40° 280° 80° 304°
13.5 38° 236° 42° 261° 38° 208°
14 138° 253° 177° 300° 114° 236°
IHAXF 14-16/16
14 22° 324° 18° 318° 39° 339°
14.5 30° 330° 16° 316° 57° 357°
15 37° 257° 22° 266° 54° 302°
15.5 184° 340° 35° 270° 130° 297°
16 160° 253° 172° 277° 138° 251°
IHAXF 16-18/16
16 26° 326° 24° 324° 58° 358°
16.5 36° 303° 14° 313° 37° 319°
17 37° 276° 27° 292° 56° 272°
17.5 151° 287° 187° 324° 128° 288°
18 160° 279° 189° 304° 140° 243°
IHAXF 18-22/16
18 10° 310° 6° 305° 28° 328°
18.5 29° 328° 0° 300° 17° 313°
19 200° 317° 230° 332° 26° 259°
19.5 190° 295° 208° 307° 169° 303°
20 180° 242° 188° 249° 174° 234°
20.5 179° 240° 186° 247° 168° 228°
21 176° 236° 174° 236° 169° 229°
21.5 190° 252° 141° 202° 170° 230°
22 180° 240° 170° 230° 176° 236°
Balancing Data for Various BHF...MB...BL Boring Combinations (continued)
425
ITS BORE
LOCK
0.1ø
0.002ø
BD
12
DCONWS
DCONMS
LF (assembly)
LPR
ADJRGR
DCN-DCX
PICCO ACE BH
Only for BHF MB50-50X60
2 µm
40
Bar Max
Designation
DCONMS BD LF LPR ADJRGR DCN(1) DCX(2) DCONWS Fig. IH RPMX(3)
kg
BHF MB16-16X34 RV
16.00 16.00 34.0 26.00 1.00 18.0 23.0 - 1. IH.. 16.. 12000 0.11 BH LOCK NUT 14/16 BH LOCK SR 14/16
BHF MB20-20X40 RV
20.00 20.00 40.0 32.60 2.00 22.0 29.0 - 1. IH.. 20.. 12000 0.14 BH LOCK NUT 20 BH LOCK SR 20
BHF MB25-25X50
25.00 25.00 50.0 40.00 2.00 28.0 38.0 - 1. IH.. 25.. 10000 0.21 BH LOCK NUT 25 BH LOCK SR 25
BHF MB32-32X63
32.00 32.00 63.0 51.50 3.00 35.5 50.0 - 1. IH.. 32.. 10000 0.43 BH LOCK NUT 32 BH LOCK SR 32
BHF MB40-40X80
40.00 40.00 80.0 66.00 4.00 48.0 63.0 - 1. IH.. 40.. 8000 0.79 BH LOCK NUT 40 BH LOCK SR 40
BHF MB50-50X60
50.00 50.00 79.0 60.00 4.00 2.5 108.0 16.00 2. IH.. 50.. 8000 1.09 BH NUT 10 BH LOCK SR 50
• For user guide, see pages 428, 481 • For spare parts, see page 466
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439)
BHF MB16-MB50
Dia. 2.5-108
Fine Boring Heads with a
2 µm Direct Diametric
Adjustment for a Diameter
Range of 2.5 up to 108 mm
Assembly Reference
Fine Boring Head Diameter Range
Page
BHF MB16-16x34
18-23
864
BHF MB20-20x40
22-29
BHF MB25-25x50
28-38
BHF MB32-32x63
35.5-50
BHF MB40-40x80
48-63
BHF MB50-32x60 BL
2.5-12 862
BHF MB50-50x68 BL
6-22
BHF MB50-50x60
2.5-108 864
BHF MB50-63x87
2.5-160
871
BHF MB50-80x94
2.5-220
BHF MB80-80x94
2.5-220
BHF MB80-125x114
36-500
TCH AL 200
200-602
TCH AL 300
300-702
TCH AL 400
400-802
TCH AL 500
500-902
876
TCH AL 600
600-1002
TCH AL 700
700-1102
TCH AL 800
800-1202
10 20 30 40 50 60 70 80 90 100 110 120 130 150 180 280 400 6000 700 800 1200
ISCAR
426
USER GUIDE
ITS BORE
BHF Fine Boring Heads high precision machining to a close tolerance with high surface quality.
These heads enable a fine diametric adjustment as small as 2 μm with a direct reading.
BHF MB16-MB40 Diameter Range: 18-63
ø18-23
BHF MB16-16X34 RV
1
0
9
8
7
6
5
4
3
2
BHF MB16-16x34
16
34
Ø18-23
IHRF 16
ø22-29
BHF MB20-20X40 RV
1
0
9
8
7
6
5
4
3
2
Ø22-29
IHRF 20
40
20
BHF MB20-20x40
ø28-38
BHF MB25-25x50
1
0
9
8
7
6
5
4
3
2
BHF MB25-25x50
25
50
Ø28-38
IHFF 25
1
0
9
8
7
6
5
4
3
2
BHF MB25-25x50
25
50
Ø28-38
IHRF 25
BHF MB16-MB40 Diameter Range: 18-63
ø36-50
BHF MB32-32x63
1
0
9
8
7
6
5
4
3
2
IHFF 32
BHF MB32-32x63
Ø36-50
63
32
1
0
9
8
7
6
5
4
3
2
IHRF 32
BHF MB32-32x63
Ø36-50
63
32
ø48-63
BHF MB40-40x80
40
Ø48-63
1
0
9
8
7
6
5
4
3
2
80
IHFF 40
BHF MB40-40x80
40
Ø48-63
1
0
9
8
7
6
5
4
3
2
80
IHRF 40
BHF MB40-40x80
427
USER GUIDE
ITS BORE
2 µm Direct Diametric Adjustment

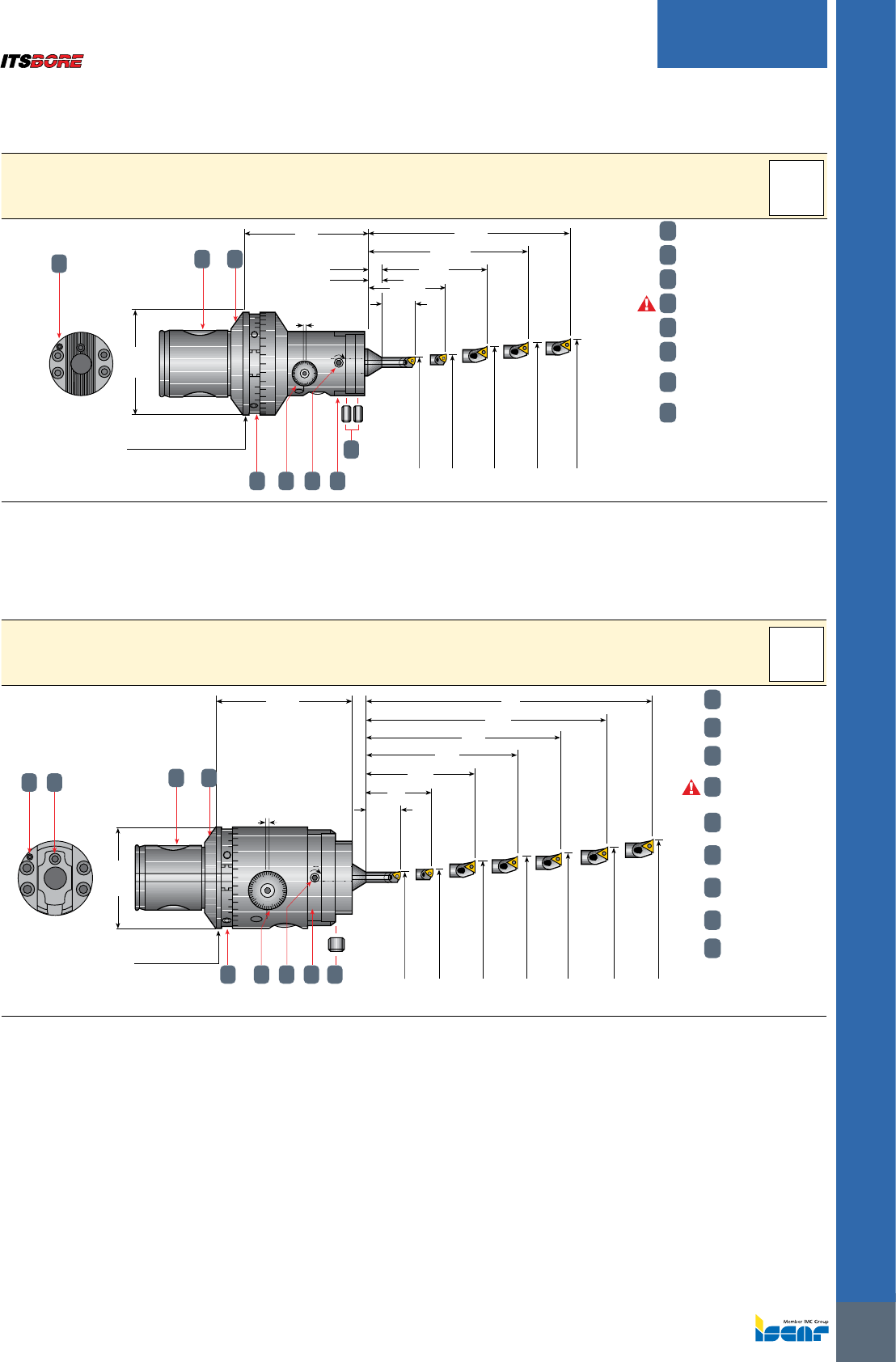

BHF MB50-32x60 BL ø2.5-12
2 µm
12.5
Ø2.5-4
IHAXF 2.5-4/8
Ø4-6
IHAXF 4-6/8
Ø6- 8
IHAXF 6-8/8
Ø8-10
IHAXF 8-10/8
Ø10-12
IHAXF 10-12/8
24
21
28
36
50
12
2
60
1
0
9
8
7
6
5
4
3
2
01˚ 2˚ 01˚ 2˚
210˚240˚270˚300˚330˚
0.002
A-A
BHF MB50-32x60 BL
1
2
3
4 5
6
7
8
1
Body
2
Tool Slide
3
Expanding Pin
4
Graduated Dial
5
Slide Locking Screw
6
Coolant Nozzle
7
Boring Bar Locking
Screws
8
Balancing Rings
s
!See page 481
BHF MB50-50x68 BL ø6-22
2 µm
21
Ø6-8
IHAXF 6-8/16
Ø8-10
IHAXF 8-10/16
Ø10-12
IHAXF 10-12/16
Ø12-14
IHAXF 12-14/16
Ø14-16
IHAXF 14-16/16
28
63
50
50
50
68.5 8
Ø16-18
IHAXF 16-18/16
Ø18-22
IHAXF 18-22/16
42
35
1
0
9
8
7
6
5
4
3
2
210˚240˚270˚300˚330˚
01˚ 2˚ 01˚ 2˚
0.002
BHF MB50-50x68 BL
1
2
3
4 5
6
7
8
9
1
Body
2
Tool Slide
3
Expanding Pin
4
Graduated Dial
5
Slide Locking
Screw
6
Coolant Nozzle
7
Boring Bar
Locking Screws
8
Oiling Nipple
9
Balancing Rings
s
!See page 481
Fine Boring Heads with Balancing Rings
ISCAR
428
USER GUIDE
ITS BORE

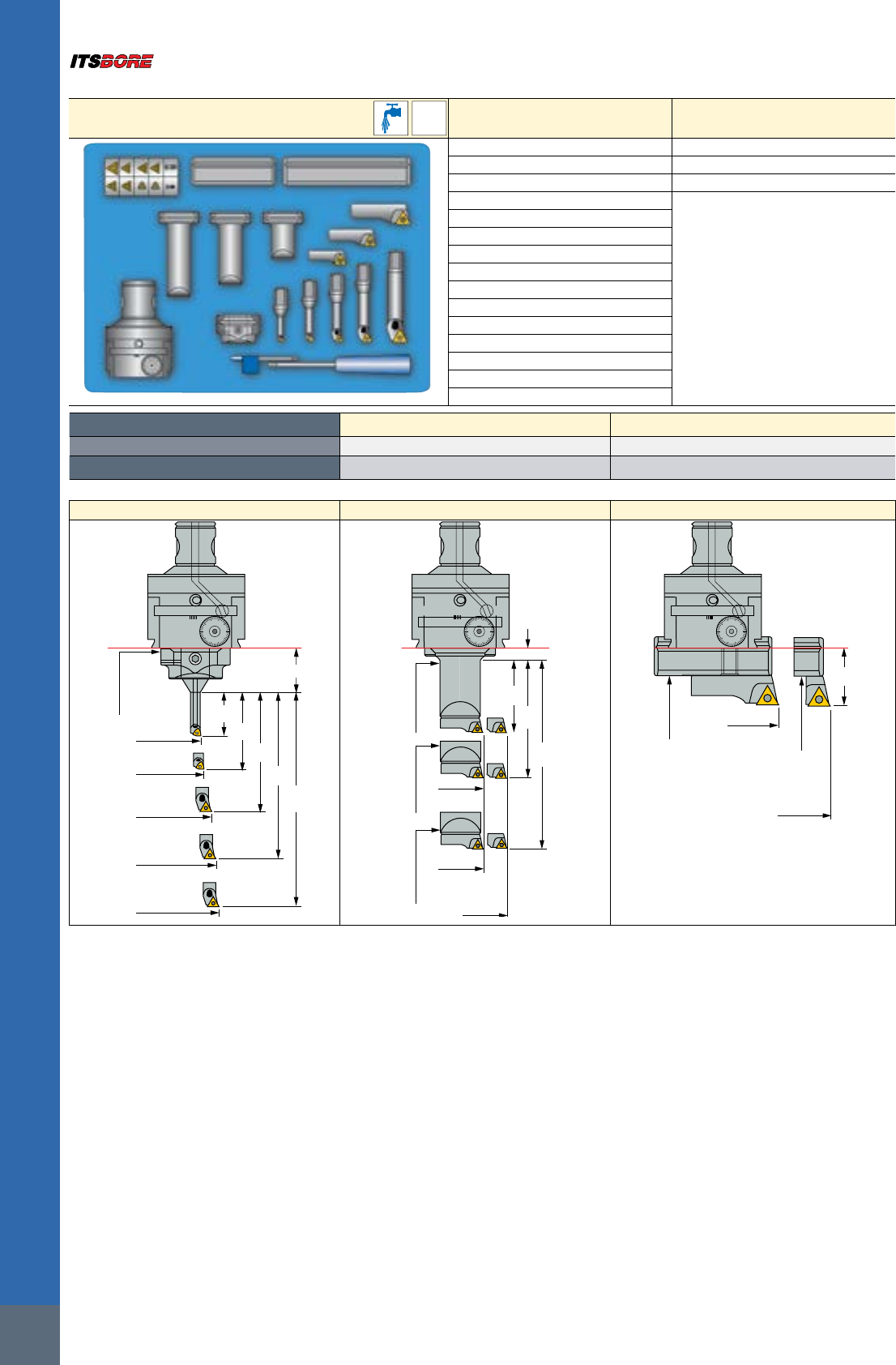

Fine Boring Head Range
2 µm Direct Diametric Adjustment
BHF MB50-50x60 ø2.5-108
2 µm
IHAXF 4-6/8
Ø4-6
IHAXF 2.5-4/8
Ø2.5-4
SLEEVE D8-D16
KAPR
KAPR=30˚ Ø43-74.5
KAPR=15˚ Ø47.5-79.5
KAPR=45˚ Ø39-71.5
KAPR
KAPR=45˚ Ø63.5-95
KAPR=30˚ Ø67.5-99
KAPR=15˚ Ø72-104
s
!See page 481
429
USER GUIDE
ITS BORE
2 µm Direct Diametric Adjustment
BHF MB50-63x87 ø2.5-160
BHF MB63-63x87 ø2.5-160
2 µm
Dia Range LL
1
Ø4-
62024
IHAXF 4-6/8
D
SLEEVE D8-D16
L1
L
D
Ø2.5-
41221
IHAXF 2.5-4/8
24
Ø77-125
IHFF 50
IHRF 50
38.5
BHFH 30x75
Ø28-70
IHFF 25
IHRF 25
Ø36-80
IHFF 3 2
IHRF 32
50
BBH 30x40 BBH 30x70
80
7
49
49
63
63
BHF MB50-63x87
BHF MB63-63x87
BBH 30x115
125
Ø95-160
IHFF 50
IHRF 50
38.5
BHFH 30x93
Ø18-22
IHAXF 18-22/16
Ø22-30
IHAXF 22-30/16
21
28
35
40
42
50 50
63
68
Ø16-18
IHAXF 16-18 /16
Ø6-
8
IHAXF 6-8/16
Ø14-16
IHAXF 14-16/16
Ø12-14
IHAXF 12-14/16
Ø11-13
IHAXF 11-13/16
Ø10-12
IHAXF 10-12/16
Ø8-10
IHAXF 8-10/16
Dia Range
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
ADBH
1 2 3
4
5 6 7
8 9
1
Body
2
Tool Slide
3
Graduated Dial
4
Toolholder
Locking Screw
5
Expanding Pin
6
Slide Locking Screw
7
Coolant Nozzle
8
Oiling Nipple
9
Toolholder
Locking Screw
s
!See pages 481-482
Fine Boring Head Range
ISCAR
430
USER GUIDE
ITS BORE
2 µm Direct Diametric Adjustment

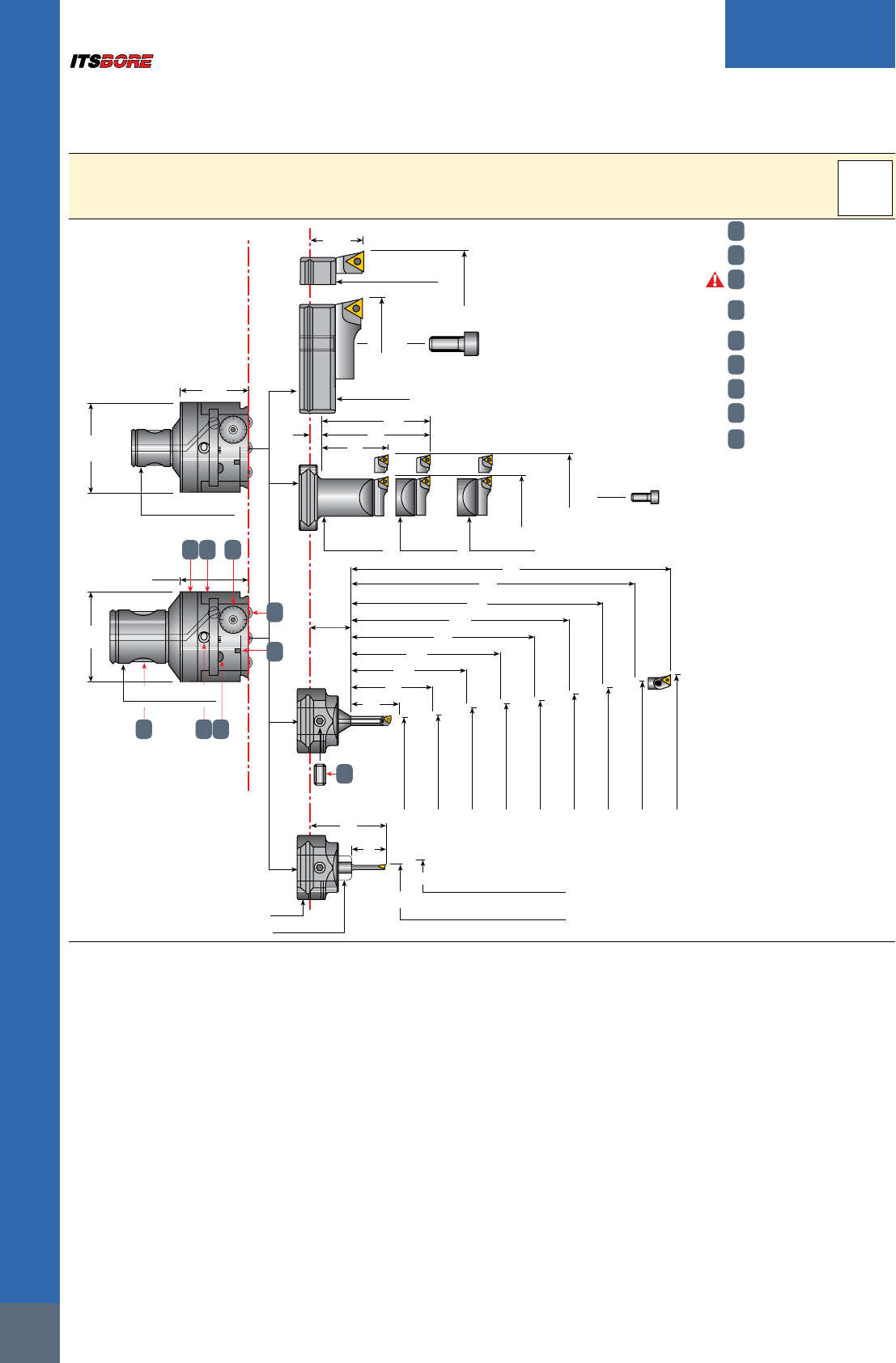

BHF MB50-80x94 ø2.5-220
BHF MB80-80x94 ø2.5-220
2 µm
24
Ø28-86
IHFF 25
IHRF 25
IHFF 32
IHRF 32
50
BBH 30x40 BBH 30x70
80
7
55.5
80
BHF MB80-80x94
55.5
80
BHF MB50-80x94
38.5
Ø95-160
IHFF 50
Ø140-220
IHFF 50
BHFH 30x93
BHFH 30x135
BBH 30x115
0
.0005
.0015
.001
0
.0005
.0015
.001
LL
1
Ø4-
62024
IHAXF 4-6/8
D
SLEEVE D8-D16
L1
L
D
Ø2.5-.4
12 21
IHAXF 2.5-4/8
Ø18-22
IHAXF 18-22/16
Ø22-30
IHAXF 22-30/16
21
28
35
40
42
50
50
63
68
Ø16-18
IHAXF 16-19/16
Ø6-
8
IHAXF 6-8/16
Ø14-16
IHAXF 14-17/16
Ø12-14
IHAXF 12-15/16
Ø11-13
IHAXF 11-14/16
Ø10-12
IHAXF 10-13/16
Ø8-10
IHAXF 8-10/16
Dia Range
125
ADBH
Ø36-96
IHRF 50
IHRF 50
1 2 3
4
5 6 7
8
9
1
Body
2
Tool Slide
3
Graduated Dial
4
Toolholder
Locking Screw
5
Expanding Pin
6
Slide Locking Screw
7
Coolant Nozzle
8
Oiling Nipple
9
Toolholder
Locking Screw
s
!See pages 481-482
Fine Boring Head Range
431
USER GUIDE
ITS BORE
2 µm Direct Diametric Adjustment
BHF MB80-125x114 ø36-500
2 µm
Ø36-123
IHFF 32
IHRF 32
Ø46-137
IHFF 40
IHRF 40
80
BBH 40x69
BBH 40x114
125
9
63
125
BHF MB80-125x114
51
IHFF 50
IHRF 50
Ø135-210
BHFH 40x133
200
BBH 40x189
Ø205-310
BHFH 40x200
Ø305-410
BHFH 40x300
Ø405-500
BHFH 40x400
1
0
9
8
7
6
5
4
3
2
IHFF 50
IHRF 50
IHFF 50
IHRF 50
IHFF 50
IHRF 50
1 2 3
4
5 6 7
8
1
Body
2
Tool Slide
3
Graduated Dial
4
Toolholder
Locking Screw
5
Expanding Pin
6
Slide Locking Screw
7
Coolant Nozzle
8
Oiling Nipple
s
!See page 482
Fine Boring Head Range
ISCAR
432
ITS BORE
LSCMS LSCMS
LSCMS
DCN-DCX DCN-DCX DCN-DCX
OHN OHN OHN
Fig. 1 Fig. 2 Fig. 3
LDRED LDRED LDRED
DCONMSg5
DCONMSg5
6˚ KAPR
DCONMSg5
Designation
DCN(2) DCX(3) LDRED OHN(4) LSCMS DCONMS(5) Fig. KAPR(6) Insert CSP(7)
IHAXF 2.5-4/8 (1)
2.50 4.00 12.5 21.00 22.00 8.00 1. 3.0 SOLID 0
IHAXF 4- 6/8 (1)
4.00 6.00 20.0 24.00 24.00 8.00 1. 3.0 SOLID 0
IHAXF 6- 8/16
6.00 8.00 21.0 29.00 22.00 16.00 2. 3.0 WCGT 0201... 1SR 14-299 T-6/5
IHAXF 6- 8/8
6.00 8.00 21.0 23.00 16.00 8.00 3. 5.0 WCGT 0201... 1SR 14-299 T-6/5
IHAXF 8-10/16
8.00 10.00 28.0 36.00 22.00 16.00 2. 3.0 WCGT 0201... 1SR 14-299 T-6/5
IHAXF 8-10/8
8.00 10.00 - 28.00 16.00 8.00 3. 5.0 WCGT 0201... 1SR 14-299 T-6/5
IHAXF 10-12/16
10.00 12.00 35.0 43.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 10-12/8
10.00 12.00 - 36.00 16.00 8.00 3. 5.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 11-13/16
11.00 13.00 40.0 48.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 12-14/16
12.00 14.00 42.0 48.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 12-14/8
12.00 14.00 - 42.00 14.00 8.00 3. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 14-16/16
14.00 16.00 50.0 52.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 14-16/8
14.00 16.00 - 48.00 14.00 8.00 3. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 16-18/16
16.00 18.00 50.0 58.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 16-18/8
16.00 18.00 - 54.00 14.00 8.00 3. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 18-22/16
18.00 22.00 - 63.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
IHAXF 22-30/16
22.00 30.00 - 68.00 22.00 16.00 2. 3.0 TPGX 0902... 1SR 14-298 T-8/5
(1) Brazed tool
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Minimum overhang
(5) For DCONMS=8 mm, 16 mm O.D. sleeves should be used
(6) Tool cutting edge angle
(7) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: TPGX (459) • TPGX (CBN) (460) • TPGX (PCD) (460) • WCGT (459)
For holders, see pages: ADBH (435) • BHD MB (414) • BHE MB (418) • BHE MB-H (418) • BHF MB-BL (423) • BHF MB16-MB50 Dia. 2.5-108 (425) • SLEEVE (433)
IHAXF
Brazed and Indexable
Boring Bars for the MB
Modular Boring System
ADJRGR
LPR
DCONMS
BD
LF (assembly)
DCN-DCX
PICCO ACE BH
ADBH
2 µm
40
Bar Max
Designation
DCONMS BD LF DCN(4) DCX(5) LPR ADJRGR RPMX(6)
kg
BHF MB50-63X87 (1)
50.00 63.00 87.0 2.5 125.0 49.00 5.00 8000 1.28
BHF MB50-80X94 (2)
50.00 80.00 94.0 2.5 160.0 58.00 5.00 8000 2.22
BHF MB63-63X87 (1)
63.00 63.00 87.0 2.5 125.0 49.00 5.00 6000 1.57
BHF MB80-80X94 (2)
80.00 80.00 94.0 2.5 160.0 58.00 5.00 5000 2.63
BHF MB80-125X114 (3)
80.00 125.00 114.0 135.0 500.0 63.00 5.00 4000 5.72
• For user guide, see pages 429-431, 478-483 • For spare parts, see page 466
(1) Use with slide BHFH 30X75 or BHFH 30X93.
(2) Use with slide BHFH 30X93 or BHFH 30X135.
(3) Use with slide BHFH 40X133, BHFH 40X200, BHFH 40X300 and BHFH 40X400.
(4) Cutting diameter minimum
(5) Cutting diameter maximum
(6) Maximum RPM
BHF MB50-MB80
Dia. 2.5-500
Fine Boring Heads with a
2 µm Direct Diametric
Adjustment for a Diameter
Range of 2.5 up to 500 mm
433

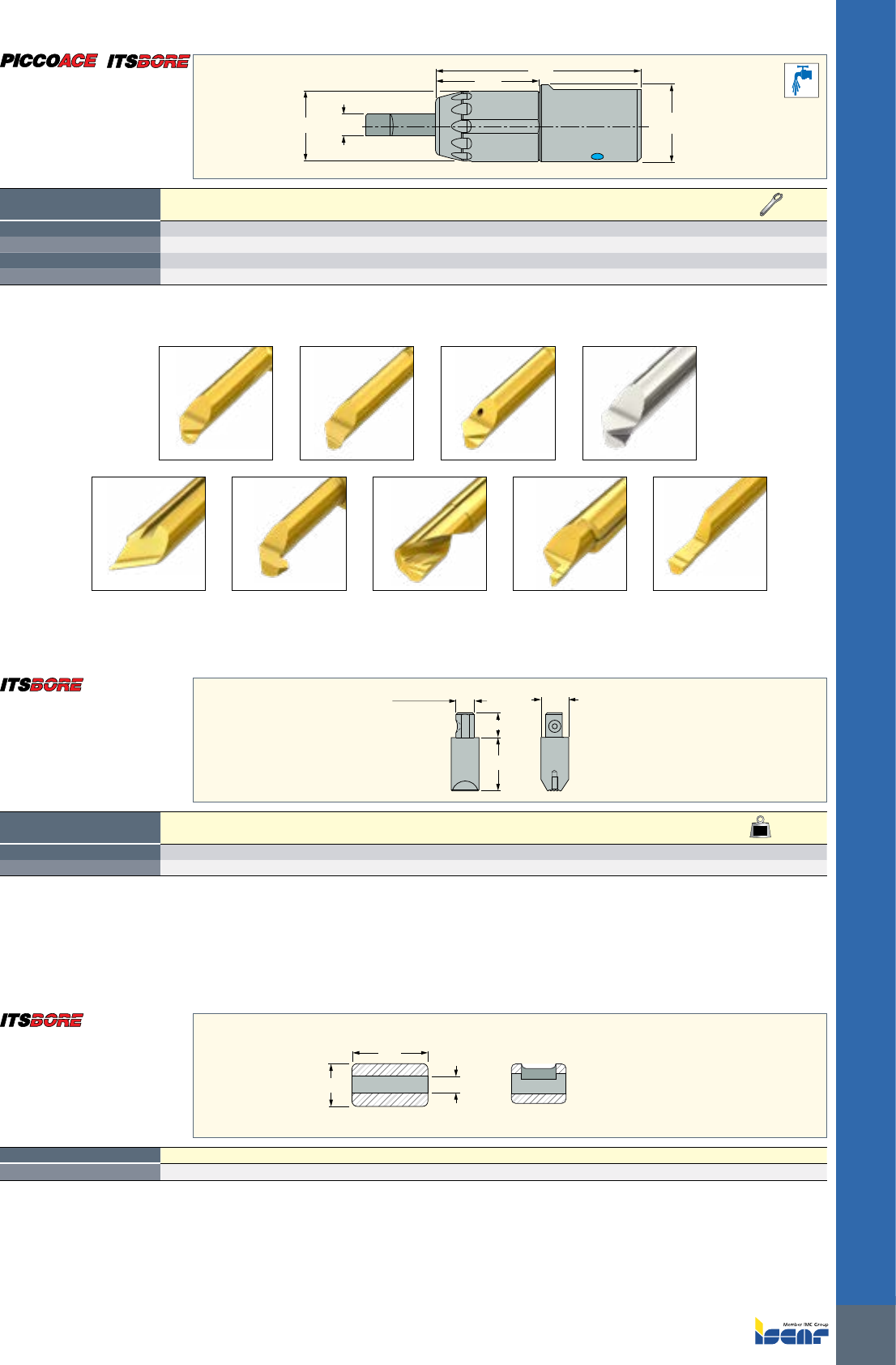

ITS BORE
LB
OAL
DCONWS DCONMS
BD
Designation
DCONMS DCONWS BD OAL LB
PICCO ACE-BH 16-4
16.00 4.00 14.50 42.50 21.50 WRENCH ACE 4-5
PICCO ACE-BH 16-5
16.00 5.00 14.50 42.50 21.50 WRENCH ACE 4-5
PICCO ACE-BH 16-6
16.00 6.00 19.90 43.50 21.50 WRENCH ACE 6-7
PICCO ACE-BH 16-7
16.00 7.00 19.90 43.50 21.50 WRENCH ACE 6-7
• Holders are suitable for right- and left-hand PICCO inserts
The PICCO-ACE-BH Holders Can Carry a Wide Range of PICCOCUT Insert Geometries
PICCO 050 PICCO 050C
PICCO 520 PICCO 060 PICCO 010 PICCO 020
PICCO MF
PICCO 051 PICCO 050 IB50 (CBN)
PICCO ACE-BH
Holders with Short Shanks for
ITS BORE System Carrying
PICCOCUT Inserts
DCONMS
g6
LS
LPR
BD
Designation
DCONMS LPR BD LS
kg
BBH D16-53
16.00 53.00 25.00 21.50 0.50
BBH D16-105
16.00 95.00 25.00 21.50 0.80
For tools, see pages: IHFF (436) • IHRF (436)
BBH D16
Extension Slides for MB
Modular Fine Boring Holders
Fig.2Fig.1
DCONMSg7 DCONWSh8
OAL
Designation
DCONMS DCONWS OAL Fig.
SLEEVE D 8-D16
16.00 8.00 23.00 2.
For tools, see pages: IHAXF (432)
SLEEVE
Reduction Sleeves for
Boring Bars on the MB
Modular Boring System
ISCAR
434
ITS BORE

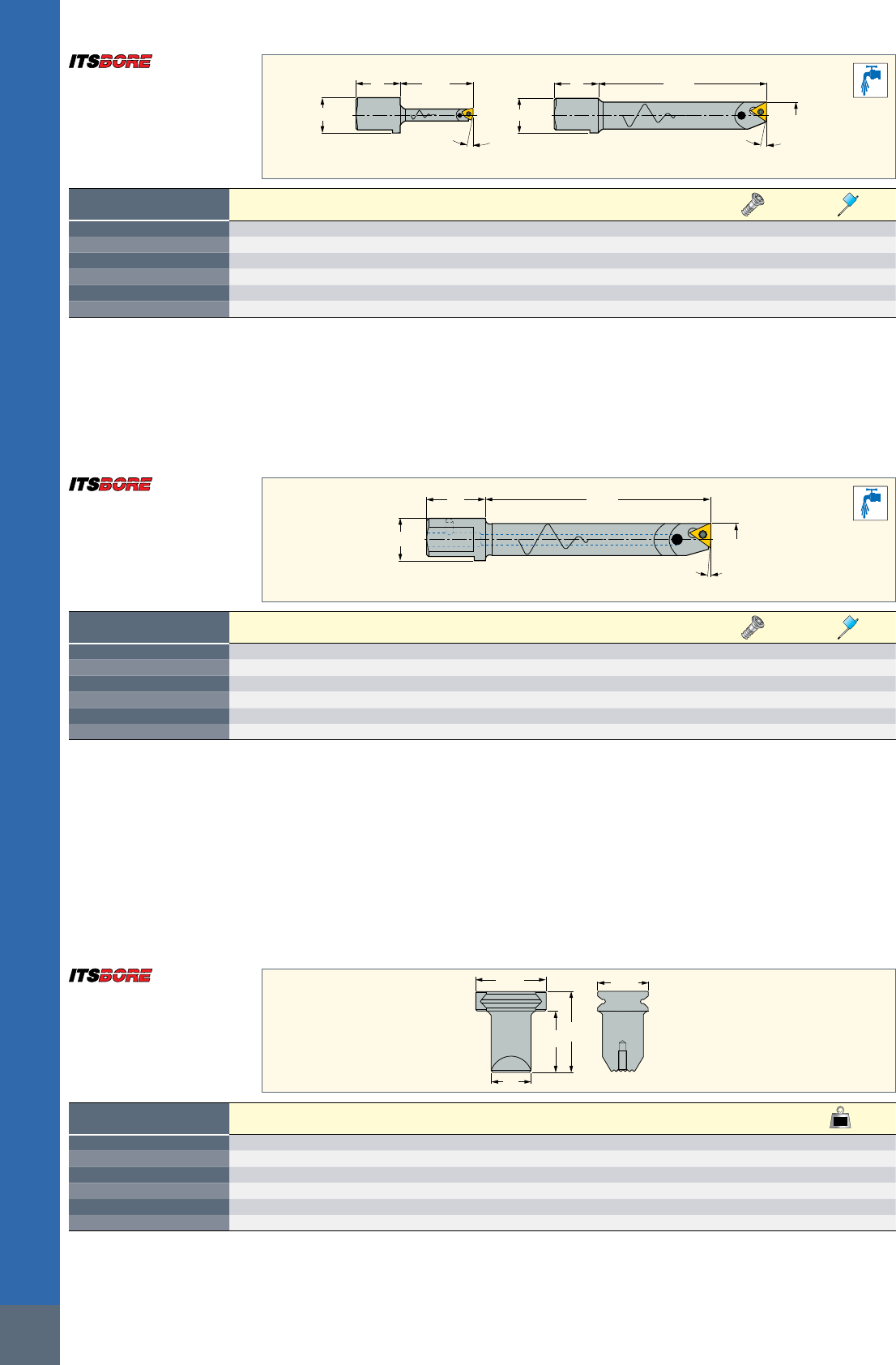

DCN-DCX
3°
OHN
22
DCONMSg5
DCONMSg5
3°
OHN
22
Designation
DCN(1) DCX(2) OHN(3) DCONMS Insert
IHAXF 6- 8-AVI
6.00 8.00 36.0 16.00 WCGT 0201... SR 14-299 T-6/5
IHAXF 8-10-AVI
8.00 10.00 48.0 16.00 WCGT 0201... SR 14-299 T-6/5
IHAXF 10-12-AVI
10.00 12.00 60.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 12-14-AVI
12.00 14.00 72.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 14-16-AVI
14.00 16.00 84.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 16-18-AVI
16.00 18.00 96.0 16.00 TPGX 0902... SR 14-298 T-8/5
• Note: Not recommended to be used on balanceable BHF-BL fine boring heads.
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Minimum overhang
For inserts, see pages: TPGX (459) • TPGX (CBN) (460) • WCGT (459)
For holders, see pages: ADBH (435) • BHD MB (414) • BHE MB (418) • BHE MB-H (418) • BHF MB16-MB50 Dia. 2.5-108 (425)
IHAXF-AVI
Heavy Metal Vibration
Damping Boring Bars
OHN
22
DCONMSg5
3˚
DCN-DCX
Designation
DCN(1) DCX(2) OHN(3) DCONMS Insert
IHAXF 6- 8-E
6.00 8.00 45.0 16.00 WCGT 0201... SR 14-299 T-6/5
IHAXF 8-10-E
8.00 10.00 60.0 16.00 WCGT 0201... SR 14-299 T-6/5
IHAXF 10-12-E
10.00 12.00 75.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 12-14-E
12.00 14.00 90.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 14-16-E
14.00 16.00 105.0 16.00 TPGX 0902... SR 14-298 T-8/5
IHAXF 16-18-E
16.00 18.00 120.0 16.00 TPGX 0902... SR 14-298 T-8/5
• Note: Not recommended to be used on balanceable BHF-BL fine boring heads.
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Minimum overhang
For inserts, see pages: TPGX (459) • TPGX (CBN) (460) • WCGT (459)
For holders, see pages: ADBH (435) • BHD MB (414) • BHE MB (418) • BHE MB-H (418) • BHF MB16-MB50 Dia. 2.5-108 (425)
IHAXF-E
Carbide Vibration
Dampening Boring Bars

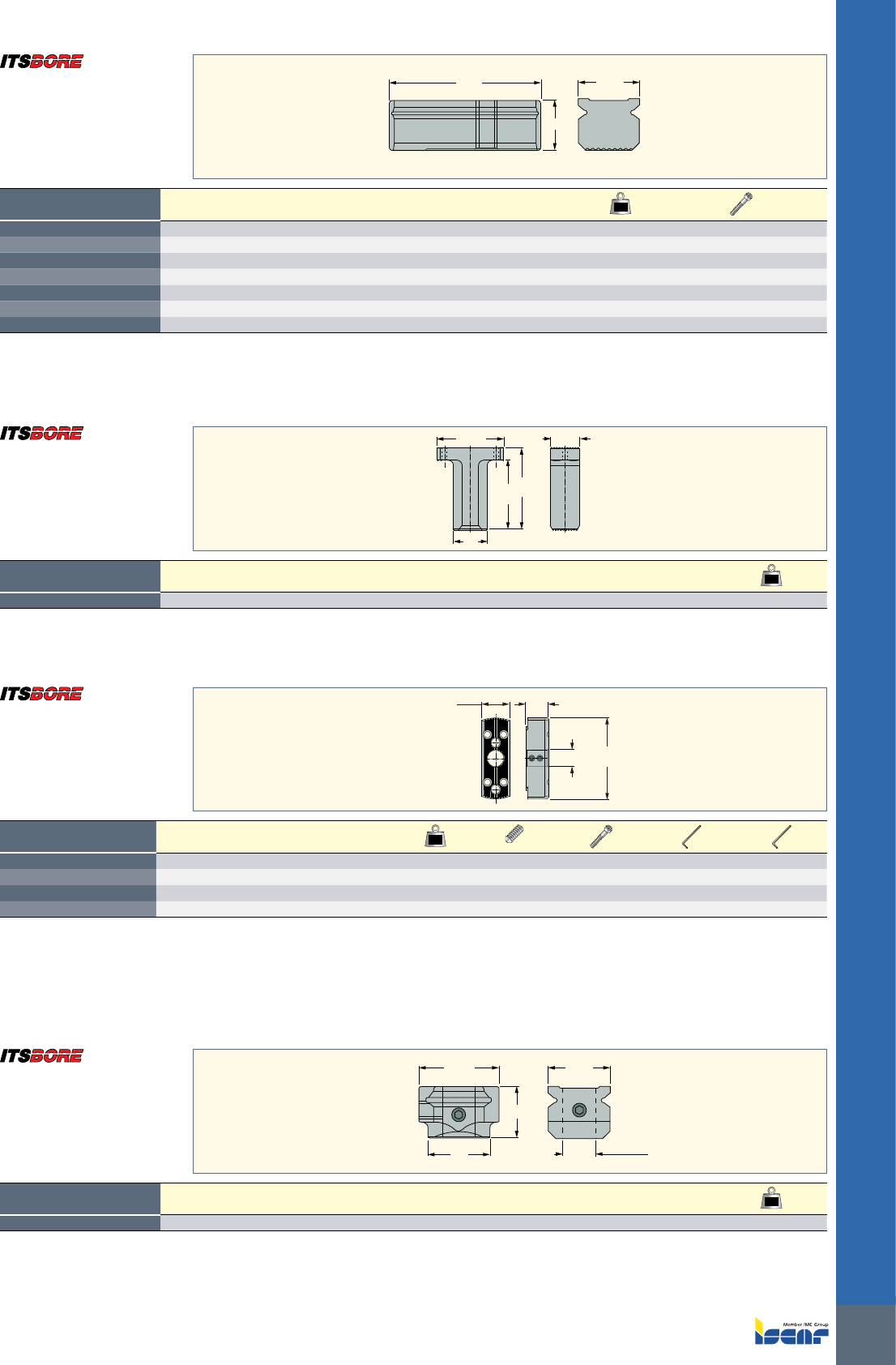

BD
LB LPR
BD_2 OAW
Designation
OAW LB BD LPR BD_2
kg
BBH 30X40
30.5 40.0 25.00 52.50 43.00 0.27
BBH 30X70
30.5 70.0 25.00 82.50 43.00 0.38
BBH 30X115
30.5 115.0 27.00 127.50 43.00 0.64
BBH 40X69
40.0 69.0 32.00 86.00 56.00 0.69
BBH 40X114
40.0 114.0 32.00 131.00 56.00 0.98
BBH 40X189
40.0 189.0 38.00 206.00 56.00 1.94
For tools, see pages: IHFF (436) • IHRF (436)
BBH 30/40
Extension Slides for MB
Modular Fine Boring Holders
435
ITS BORE
OAW
OAH
OAL
Designation
OAW OAL OAH
kg
BHFH 30X75
30.5 75.00 25.00 0.44 SR M10X25 DIN912
BHFH 30X93
30.5 93.00 25.00 0.54 SR M10X25 DIN912
BHFH 30X135
30.5 135.00 25.00 0.76 SR M10X25 DIN912
BHFH 40X133
40.0 133.00 40.00 1.52 SR M10X25 DIN912
BHFH 40X200
40.0 200.00 40.00 2.30 SR M10X25 DIN912
BHFH 40X300
40.0 300.00 40.00 3.47 SR M10X25 DIN912
BHFH 40X400
40.0 400.00 40.00 4.56 SR M10X25 DIN912
For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439)
BHFH
Counter Weight Slides for MB
Modular Fine Boring Holders
BD
LB LPR
BD_2 OAW
Designation
BD_2 LPR BD LB OAW
kg
BBH 63X78
63.00 78.00 32.00 66.0 28.0 0.52
For tools, see pages: IHFF (436) • IHRF (436)
BBH 63
Extension Slides for MB Modular
BHE Fine Boring Holders
BD
DCONWS
OAW LF
Designation
OAW BD LF DCONWS
kg
BHEH 24X75
24.0 75.00 14.50 - 0.20
BHEH 28X80
28.0 80.00 22.50 16.00 0.33 SR M6X6 DIN913* SR M5X25DIN912* HW 4.0* HW 3.0*
BHEH 28X108
28.0 108.00 22.50 - 0.53
BHEH 28X148
28.0 148.00 22.50 - 0.69
* Optional, should be ordered separately
For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439)
BHEH
Slides for MB Modular BHE
Fine Boring Holders
BD
BD_2
OAL
OAW
DCONWS
Designation
BD DCONWS OAL BD_2 OAW
kg
ADBH 30XD16
30.00 16.00 25.00 39.00 30.5 0.15
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434)
ADBH
Sleeve for MB Modular
Fine Boring Holders
ISCAR
436
ITS BORE

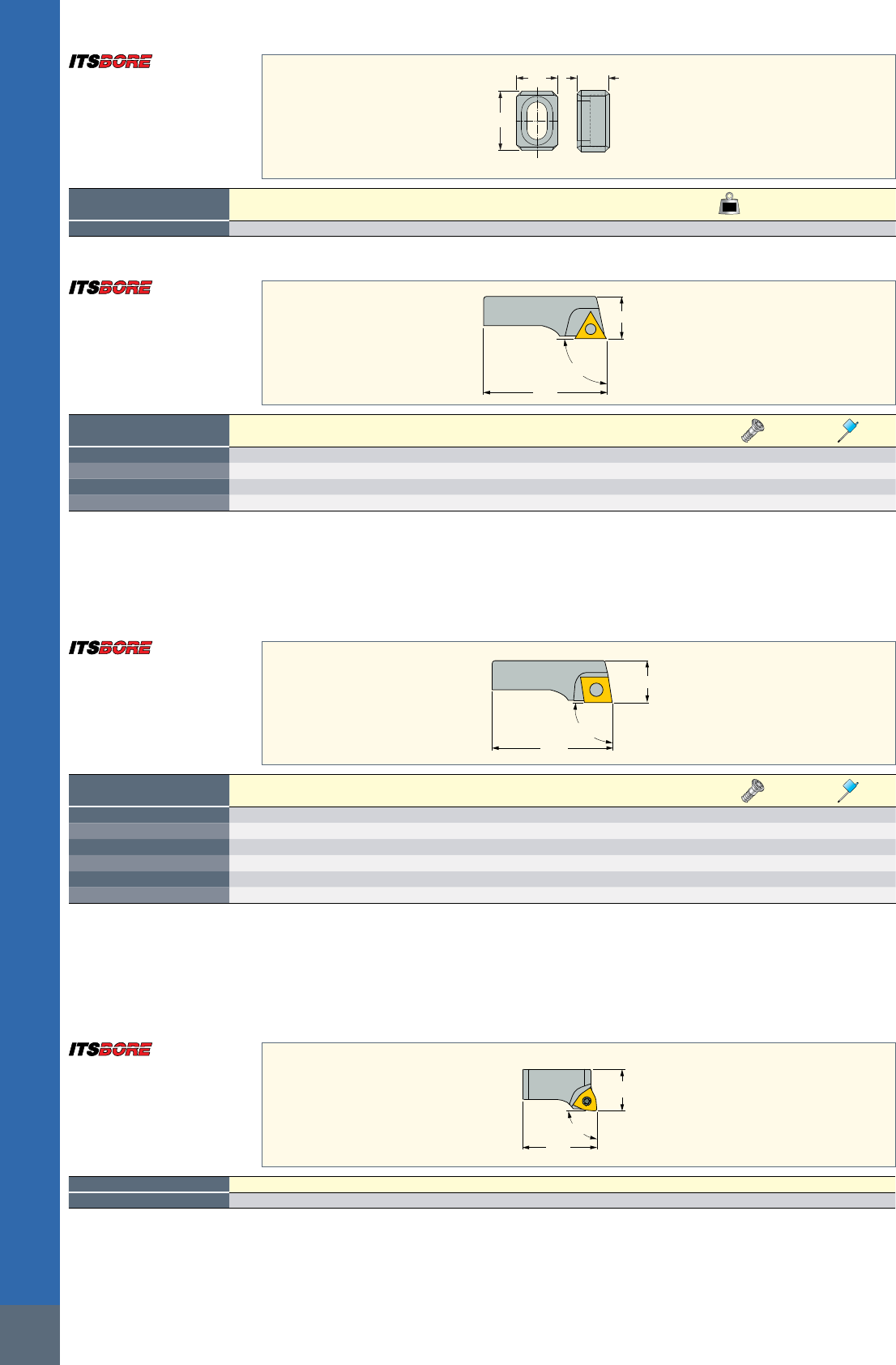

22 17
OAL
Designation
OAL
kg
CW32
31.50 0.05
CW32
Counter Balancing Weight
Used on BHEH Slide for
Fine Boring Holders
OAL
WF
91°
Designation
WF OAL DCN(1) DCX(2) Insert
IHFF 25
10.00 26.50 28.0 40.0 TPGX 0902... SR 14-298 T-8/5
IHFF 32
11.50 34.50 35.0 53.0 TPGX 0902... SR 14-298 T-8/5
IHFF 40
14.00 44.60 48.0 66.0 TPGX 1103... SR-17979 M3X8 T-8/5
IHFF 50
19.00 52.00 54.0 86.0 TPGX 1103... SR-17979 M3X8 T-8/5
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: TPGX (459) • TPGX (CBN) (460)
For holders, see pages: BBH 30/40 (434) • BBH 63 (435) • BBH D16 (433) • BHD 50 L200 (437) • BHD MB (414) • BHE MB (418) • BHEH (435) • BHF L200 (437) •
BHF MB16-MB50 Dia. 2.5-108 (425) • BHFH (435)
IHFF
Triangular Insert Holders
for Mounting on MB
Fine Boring Heads
OAL
WF
90°
Designation
WF OAL DCN(1) DCX(2) Insert
IHRF 16
8.00 17.00 18.0 24.0 CCGT 0602... SR 14-548 T-7/5
IHRF 20
8.50 21.00 22.0 30.0 CCGT 0602... SR 14-548 T-7/5
IHRF 25
10.00 26.50 28.0 40.0 CCGT 0602... SR 14-548 T-7/5
IHRF 32
11.50 34.50 35.0 53.0 CCGT 0602... SR 14-548 T-7/5
IHRF 40
14.00 44.00 48.0 66.0 CCGT 09T3... SR 16-236 T-15/5
IHRF 50
19.00 52.00 54.0 86.0 CCGT 09T3... SR 16-236 T-15/5
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCET-WF (453) • CCGT-AF (455) • CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452)
• CCMT-WG (454) • CCMT/CCGT (453) • CCMT/CCGT-SM (452)
For holders, see pages: BBH 30/40 (434) • BBH 63 (435) • BBH D16 (433) • BHD 50 L200 (437) • BHD MB (414) • BHE MB (418) • BHEH (435) • BHF L200 (437)
• BHF MB16-MB50 Dia. 2.5-108 (425) • BHFH (435)
IHRF
80° Rhombic Insert
Holders for Mounting on
MB Fine Boring Heads
WF
OAL
95°
Designation
WF OAL DCN(1) DCX(2) Insert
IHWF 14 E
8.00 14.00 14.5 18.0 WCGT 0201...
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: WCGT (459)
For holders, see pages: BHD MB (414) • BHE MB (418)
IHWF
Trigon Insert Holders for Mounting
on MB Fine Boring Heads
437
ITS BORE

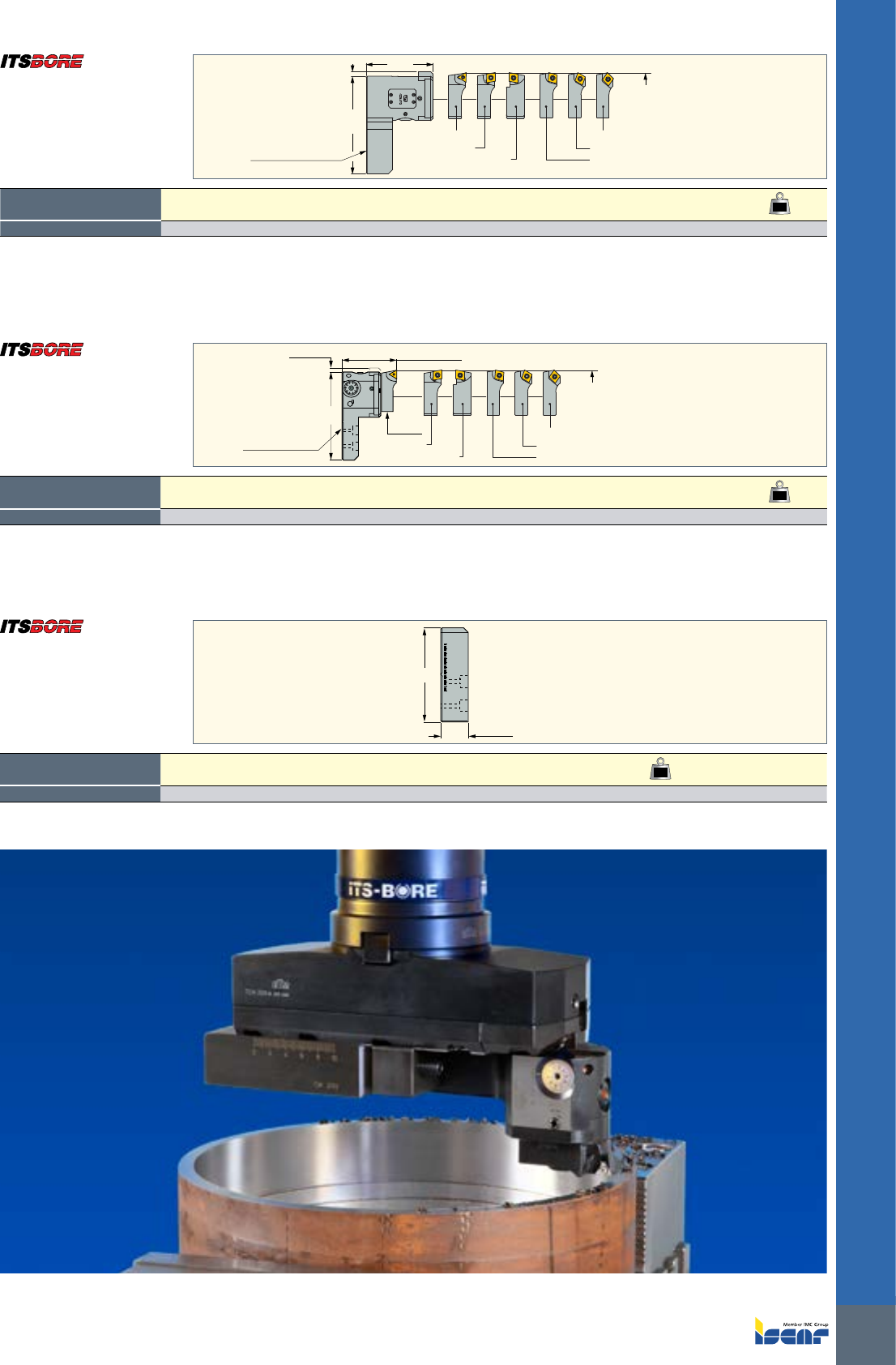

IHFF50
Serrated Surface
IHRF 50
IHRF 56-802BW
IHRF 50 CH45 54-800
IHRF 50 CH30 54-800
IHRF 50 CH15 54-800
DCN-DCX
OAL
ADJRGR LF (assembly)
Designation
DCN(1) DCX(2) OAL LF ADJRGR
kg
BHF L200
200.0 1202.0 110.00 67.0 5.00 1.27
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439)
BHF L200
Fine Boring Slide Head for TCH
AL Large Diameter Holders
0246810
30x56.5
OAL
Designation
OAL
kg
CW200
105.00 1.12
CW200
Counter Balancing Weight
for TCH AL Rough and
Fine Boring Holders
Serrated Surface
IHFF 50
IHRF 50
IHRF 56-802BW
IHRF 50 CH45 54-800
IHRF 50 CH30 54-800
IHRF 50 CH15 54-800
DCN-DCX
ADJRGR
OAL
OAH
Designation
DCN(1) DCX(2) OAL OAH ADJRGR RPMX(3)
kg
BHD 50 L200
200.0 1202.0 110.00 74.0 5.00 20000 1.70
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
For tools, see pages: IHFF (436) • IHRF (436) • IHRF-BW (439) • IHRF-CH (439)
BHD 50 L200
Digital Fine Boring Slide Head for
TCH AL Large Diameter Holders
ISCAR
438
ITS BORE
OAW
OAH
OAL
Designation
OAH OAW OAL
kg
TCHH EX100
31.00 35.5 155.00 1.50
TCHH EX300
41.00 35.5 255.00 2.80
For tools, see pages: IHBR (409) • IHCR (408) • IHPR (408) • IHSR (408) • IHSR-BW (410)
TCHH EX
Boring Tools Extension Slides
for TCH AL Boring Heads
BD
SS DCONMS H5
CXT DCN-DCX
80 BH
OAW
DBC
Designation
DCN(1) DCX(2) BD DCONMS DBC SS OAW CXT BH CSP(3) RPMX(4)
kg
TCH AL200
200.0 602.0 194.00 40.00 66.70 80 - - 54.00 1 700 3.20
TCH AL300
300.0 702.0 288.00 40.00 66.70 80 - - 54.00 1 400 3.90
TCH AL400
400.0 802.0 394.00 40.00 66.70 80 - 1/4GAS 61.00 0 300 6.90
TCH AL500
500.0 902.0 494.00 60.00 101.60 80,110 128.0 1/4GAS 69.00 0 200 8.70
TCH AL600
600.0 1002.0 594.00 60.00 101.60 80,110 128.0 1/4GAS 71.00 0 200 8.34
TCH AL700
700.0 1102.0 694.00 60.00 101.60 80,110 128.0 1/4GAS 74.00 0 200 8.34
TCH AL800
800.0 1202.0 794.00 60.00 101.60 80,110 128.0 1/4GAS 80.00 0 150 15.20
• Aluminum body, with steel serrated seats • The "O" position on the counterweight balances the BHF boring head for 200 mm boring diameter position. For every 10 mm
change in boring diameter, move the counterweight by 1 measurement mark • Verify that the weight of the entire tool assembly does not exceed the machine spindle's
carrying capability • For spare parts, see pages 436-437, 469
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Maximum RPM
For tools, see pages: IHBR (409) • IHCR (408) • IHPR (408) • IHSR (408) • IHSR-BW (410)
TCH...

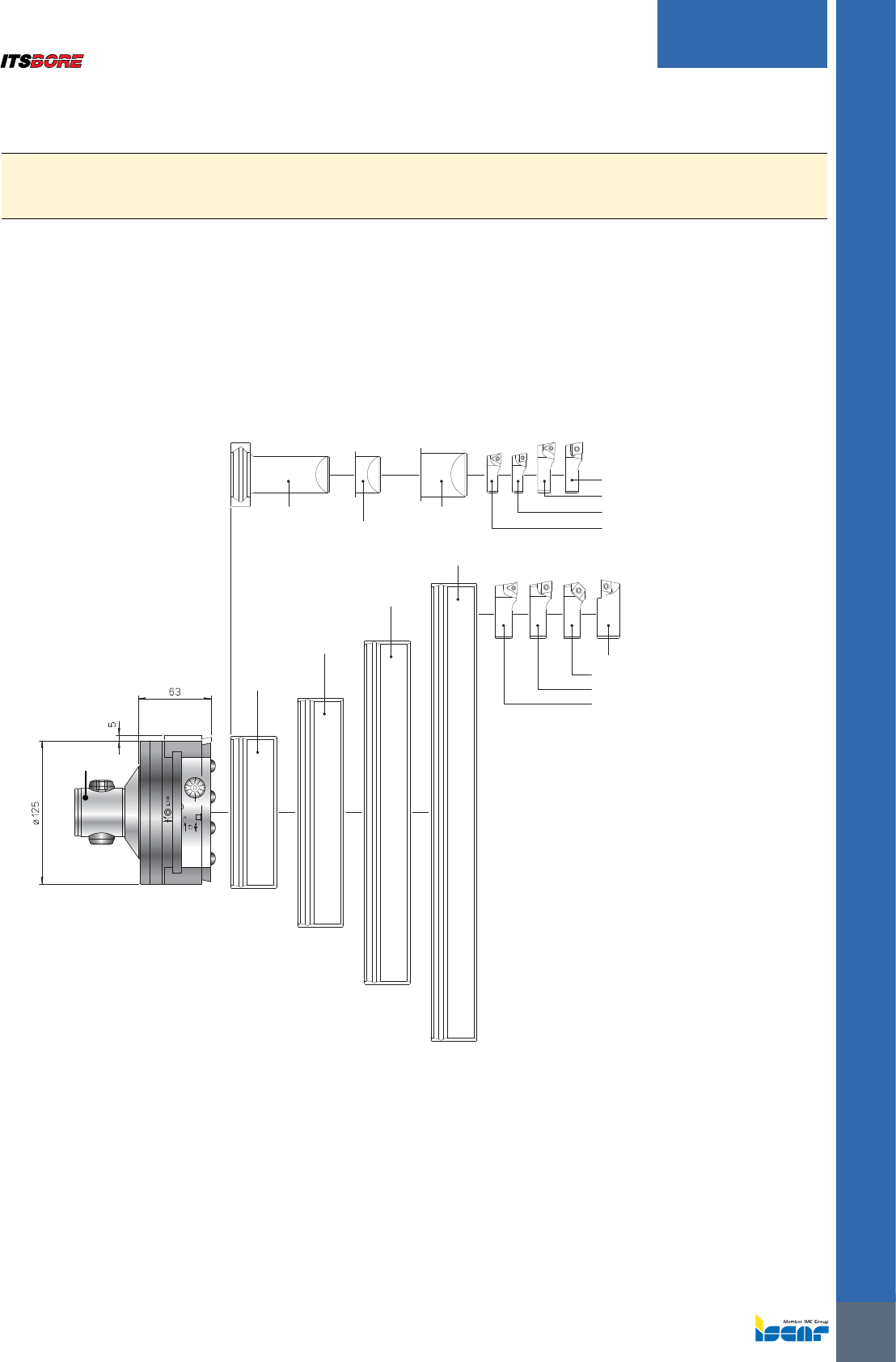

IHSR 160-800
IHCR 160-800
IHPR 160-800
IHBR 160-800
IHPR 160-800-19
IHSR 160-800-19
IHSR 161-802 BW
TCHH EX 100/300
DMIN=(DCN (3,4)+BD+1)/2
SMH 40-60
SS
DIN2080-CP
(centering plug)
HSK A 100 FM 60X 70
BT-FM
DIN69871-FM
BD DCONMS H7 DCN-DCX DCN-DCX DCN-DCX (3,4)DCN-DCX (3,4) BDBD DMINDMIN
CXT
80 BH LF LF_2 LF_3 LF_4
OAW
DBC
MB80-110-140
TCHH EX 100/300
Extension slides
Large Diameter Double Edge Fine Boring Options
Large Diameter Double Edge Rough Boring Options
Aluminum Twin Cutter Heads
Boring Tools
Extension Slides Dimensions TCH 200 TCH 300 TCH 400 TCH 500 TCH 600 TCH 700 TCH 800
IH.R 160-800/-19
DCN-DCX 200-300 300-400 400-500 500-600 600-700 700-800 800-900
IH.R 160-800/-19
TCHH EX 100 DCN-DCX 300-400 400-500 500-600 600-700 700-800 800-900 900-1000
IH.R 160-800/-19
TCHH EX 300 DCN-DCX 400-600 500-700 600-800 700-900 800-1000 900-1100 1000-1200
IHSR 161-802 BW
DCN-DCX (3,4) 202-302 302-402 402-502 502-602 602-702 702-802 802-902
IHSR 161-802 BW
TCHH EX 100 DCN-DCX (3,4) 302-402 402-502 502-602 602-702 702-802 802-902 902-1002
IHSR 161-802 BW
TCHH EX 300 DCN-DCX (3,4) 402-602 502-702 602-802 702-902 802-1002 902-1102 1002-1202
IH.R 160-800
LF 86 86 93 101 103 106 112
IH.R 160-800-19
LF 94 94 101 109 111 114 120
IH.R 160-800
TCHH EX 100 LF_2 116 116 123 131 133 136 142
IH.R 160-800
TCHH EX 300 LF_2 126 126 133 141 143 146 152
IH.R 160-800-19
TCHH EX 100 LF_2 124 124 131 139 141 144 150
IH.R 160-800-19
TCHH EX 300 LF_2 134 134 141 149 151 154 160
IHSR 161-802 BW
LF_3 56.5 56.5 63.5 71.5 73.5 76.5 82.5
IHSR 161-802 BW
TCHH EX 100 LF_4 86.5 86.5 93.5 101.5 103.5 106.5 112.5
IHSR 161-802 BW
TCHH EX 300 LF_4 96.5 96.5 103.5 111.5 113.5 116.5 122.5
TCHH EX 100/300
IHRF 50 CH30 54-800
IHRF 50 CH45 54-800
IHRF 50 CH15 54-800
IHRF 56-802BW
TCHH EX 100/300
TCHH EX 100/300
IHRF 50
IHFF 50
DMIN
DMIN
BD BD
BHF L200
CW 200
DCN-DCX DCN-DCX
DCN-DCX
DCN-DCX(3,4)
DCN-DCX
DCONMS H7
CW 200
TCH . . .
LF LF_2 LF_3 LF_4 LF_2
LF
BH 15° 30° 45°
SMH 40-60
DIN2080-CP
(centering plug)
HSK A 100 FM 60X 70
BT-FM
DIN69871-FM
BD
80
OAW
DBC
MB80-110-140
CXT
DCN-DCX(3,4)
Aluminum Twin Cutter Heads
Boring Tools
Fine Boring Slide Head
Extension
Slides Dimensions TCH 200 TCH 300 TCH 400 TCH 500 TCH 600 TCH 700 TCH 800
IH.F 50
BHF L200 / BHD50 L200 DCN-DCX 200-300 300-400 400-500 500-600 600-700 700-800 800-900
IH.F 50
BHF L200 / BHD50 L200 TCHH EX 100 DCN-DCX 300-400 400-500 500-600 600-700 700-800 800-900 900-1000
IH.F 50
BHF L200 / BHD50 L200 TCHH EX 300 DCN-DCX 400-600 500-700 600-800 700-900 800-1000 900-1100 1000-1200
IHRF 56-802BW
BHF L200 / BHD50 L200 DCN-DCX(3,4) 202-302 302-402 402-502 502-602 602-702 702-802 802-902
IHRF 56-802BW
BHF L200 / BHD50 L200 TCHH EX 100 DCN-DCX(3,4) 302-402 402-502 502-602 602-702 702-802 802-902 902-1002
IHRF 56-802BW
BHF L200 / BHD50 L200 TCHH EX 300 DCN-DCX(3,4) 402-602 502-702 602-802 702-902 802-1002 902-1102 1002-1202
IH.F 50
BHF L200 LF 120 120 127 135 137 140 146
IH.F 50
BHF L200 TCHH EX 100 LF_2 150 150 157 165 167 170 176
IH.F 50
BHF L200 TCHH EX 300 LF_2 160 160 167 175 177 180 186
IHRF 56-802BW
BHF L200 LF_3 103 103 110 118 120 123 129
IHRF 56-802BW
BHF L200 TCHH EX 100 LF_4 133 133 140 148 150 153 159
IHRF 56-802BW
BHF L200 TCHH EX 300 LF_4 143 143 150 158 160 163 169
IH.F 50
BHD50 L200 LF 147 147 154 162 164 167 173
IH.F 50
BHD50 L200 TCHH EX 100 LF_2 177 177 184 192 194 197 203
IH.F 50
BHD50 L200 TCHH EX 300 LF_2 187 187 194 202 204 207 213
IHRF 56-802BW
BHD50 L200 LF_3 130 130 137 145 147 150 156
IHRF 56-802BW
BHD50 L200 TCHH EX 100 LF_4 160 160 167 175 177 180 186
IHRF 56-802BW
BHD50 L200 TCHH EX 300 LF_4 170 170 177 185 187 190 196
TCH AL
Aluminum Twin Cutter
Heads for Rough and Fine
Boring Operations, Diameter
Range 200-1200 mm
439
ITS BORE
DMIN DMIN DMIN
BD
BD
BD
LF LF LF
WF
WF
OAL OAL OAL
DCN-DCX
DCN-DCX
DCN-DCX
WF
90° 90°
90°
BHF16-50
IHRF...BW
BHF63-125
BHFH
IHRF...BW
TCH AL200-800
BHF L200
IHRF...BW
IHRF-BW
Back Face Turning Toolholders
for BHF and TCH AL
Fine Boring Heads
Spare Parts
Designation
IHRF-BW
SR 16-236 T-15/5
Designation
SS (1) BD DCN(2) LF DCX(3) WF OAL Insert
IHRF 20-25BW
BHF MB16-16x34 16 20 27.5 25 8 18 CCMT 0602...
IHRF 24.5-32BW
BHF MB20-20x40 20 24.5 33.5 32 8.5 22.5 CCMT 0602...
IHRF 31.5-41.5BW
BHF MB25-25x50 25 31.5 41.5 40.5 9.5 28.5 CCMT 0602...
IHRF 38.5-51.5BW
BHF MB32-32x63 32 38.5 53 51.5 11 35.5 CCMT 0602...
IHRF 50.5-65BW
BHF MB40-40X80 40 50.5 68 65 13.5 46 CCMT 09T3...
IHRF 56-802BW
BHF MB50-50X60 50 56 62 87 17.5 53 CCMT 09T3...
BHF MB63-63X87+BHFH…75-93 82 70.5 127 17.5 53 CCMT 09T3...
BHF MB80-80X94+BHFH…93-135 100 79.5 162 17.5 53 CCMT 09T3...
BHF MB80-125X114+BHFH... 133-400 140 98 502 17.5 53 CCMT 09T3...
TCH AL200+BHF L200/BHD 50 L200 194 202 103 302 17.5 53 CCMT 09T3...
TCH AL300+BHF L200/BHD 50 L200 288 302 103 402 17.5 53 CCMT 09T3...
TCH AL400+BHF L200/BHD 50 L200 394 402 110 502 17.5 53 CCMT 09T3...
TCH AL500+BHF L200/BHD 50 L200 494 502 118 602 17.5 53 CCMT 09T3...
TCH AL600+BHF L200/BHD 50 L200 594 602 120 702 17.5 53 CCMT 09T3...
TCH AL700+BHF L200/BHD 50 L200 694 702 123 802 17.5 53 CCMT 09T3...
TCH AL800+BHF L200/BHD 50 L200 794 802 129 902 17.5 53 CCMT 09T3...
• DMIM=(min bore diameter)=(DCN+BD+1)/2 • BD=Size of the boring head being used
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452) • CCMT-WG (454) • CCMT/CCGT (453)
• CCMT/CCGT-SM (452)
For holders, see pages: BHD 50 L200 (437) • BHD MB (414) • BHE MB (418) • BHEH (435) • BHF L200 (437) • BHF MB16-MB50 Dia. 2.5-108 (425) • BHFH (435)
1
0
9
8
7
6
5
4
3
2
LF OAL
LFA
DCN-DCX
PSIRR
WF
Designation
DCN(1) DCX(2) LF OAL WF LFA PSIRR Insert
IHRF 16 CH20 18-23
18.00 23.00 17.80 20.00 11.00 2.20 20.0 CCGT 0602...
IHRF 16 CH30 18-23
18.00 23.00 16.80 20.00 9.00 3.20 30.0 CCGT 0602...
IHRF 16 CH45 18-23
18.00 23.00 15.54 20.10 9.50 4.60 45.0 CCGT 0602...
IHRF 16 CH60 18-23
18.00 23.00 14.50 20.00 9.50 5.60 60.0 CCGT 0602...
IHRF 20 CH15 22-29
22.00 29.00 22.30 24.00 11.00 1.70 15.0 CCGT 0602...
IHRF 20 CH20 22-29
22.00 29.00 21.70 24.00 11.00 2.20 20.0 CCGT 0602...
IHRF 20 CH30 22-29
22.00 29.00 20.80 24.00 9.00 3.20 30.0 CCGT 0602...
IHRF 20 CH60 22-29
22.00 29.00 18.40 24.00 9.50 5.60 60.0 CCGT 0602...
IHRF 25 CH15 28-38
28.00 38.00 24.00 25.70 10.40 1.70 15.0 CCGT 0602...
IHRF 25 CH30 28-38
28.00 38.00 22.60 25.60 10.40 3.20 30.0 CCGT 0602...
IHRF 25 CH45 28-38
28.00 38.00 21.40 25.90 10.40 4.40 45.0 CCGT 0602...
IHRF 32 CH15 35-53
35.00 53.00 32.00 33.70 12.60 1.70 15.0 CCGT 0602...
IHRF 32 CH30 35-53
35.00 53.00 30.50 33.70 12.10 3.20 30.0 CCGT 0602...
IHRF 32 CH45 36-50
36.00 50.00 29.20 33.70 12.10 4.60 45.0 CCGT 0602...
IHRF 32 CH60 36-50
36.00 50.00 29.30 34.80 12.00 5.60 60.0 CCGT 0602...
IHRF 40 CH60 48-63
48.00 63.00 39.10 47.50 16.50 8.40 60.0 CCGT 09T3...
IHRF 40 CH15 48-66
48.00 66.00 44.90 47.40 17.50 2.50 15.0 CCGT 09T3...
IHRF 40 CH30 48-66
48.00 66.00 38.20 42.90 14.40 4.70 30.0 CCGT 09T3...
IHRF 40 CH45 48-66
48.00 66.00 36.40 43.00 14.40 6.70 45.0 CCGT 09T3...
IHRF 50 CH15 54-800
54.00 800.00 48.10 50.60 19.00 2.50 15.0 CCGT 09T3...
IHRF 50 CH20 54-800
54.00 800.00 52.20 55.50 18.00 3.30 20.0 CCGT 09T3...
IHRF 50 CH30 54-800
54.00 800.00 49.95 50.80 19.00 4.70 30.0 CCGT 09T3...
IHRF 50 CH45 54-800
54.00 800.00 44.00 50.60 19.00 6.70 45.0 CCGT 09T3...
IHRF 50 CH60 54-800
54.00 800.00 47.10 55.50 16.50 8.40 60.0 CCGT 09T3...
(1) Cutting diameter minimum
(2) Cutting diameter maximum
For inserts, see pages: CCGT-AS (455) • CCGW/CCMT (CBN) (454) • CCMT (PCD) (454) • CCMT-14 (453) • CCMT-PF (452) • CCMT-WG (454) • CCMT/CCGT (453)
• CCMT/CCGT-SM (452)
For holders, see pages: BHD 50 L200 (437) • BHD MB (414) • BHE MB (418) • BHEH (435) • BHF L200 (437) • BHF MB16-MB50 Dia. 2.5-108 (425) • BHFH (435)
IHRF-CH
Chamfering Tools for
BHF Boring Heads
ISCAR
440
ITS BORE
+

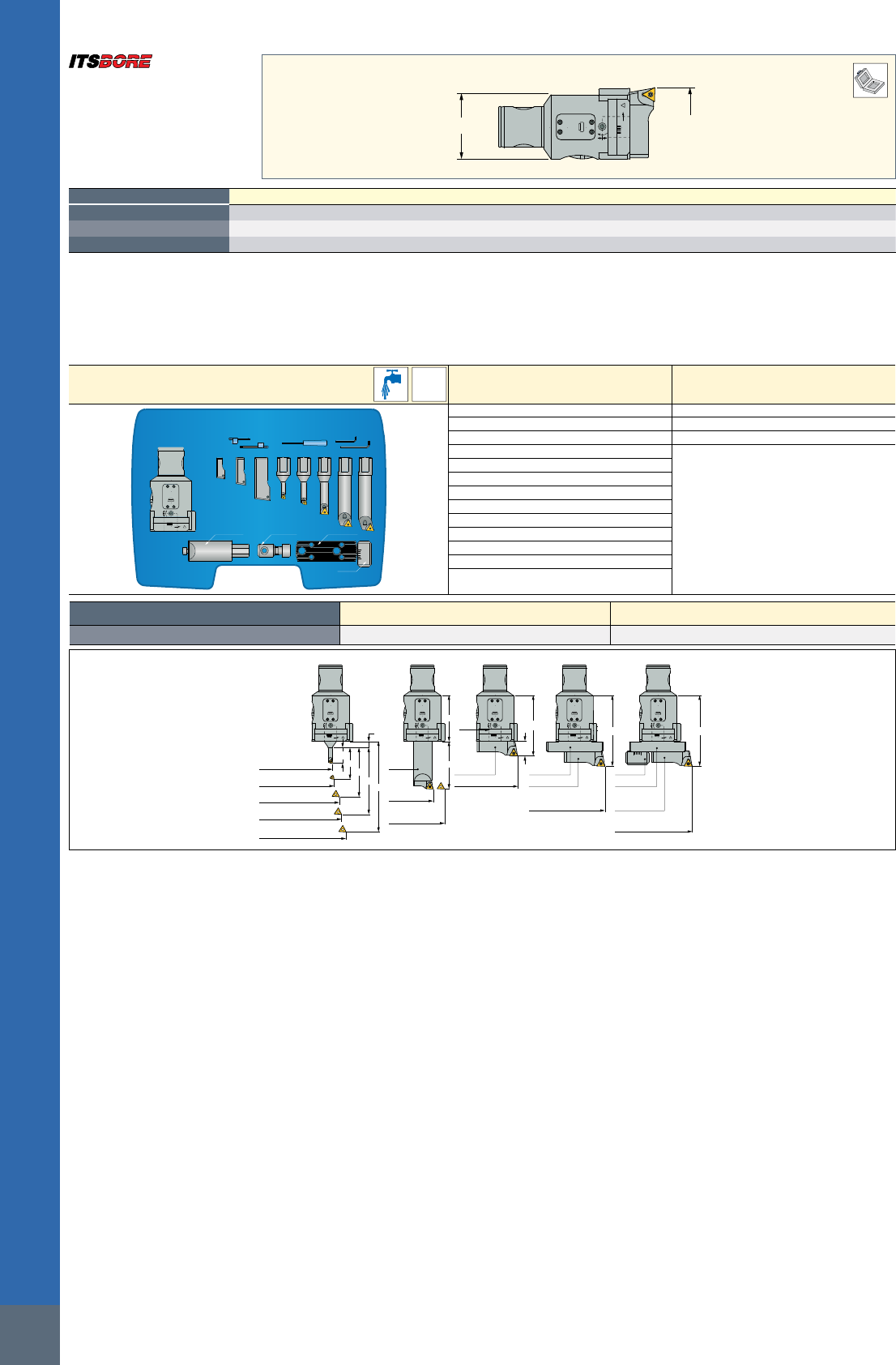

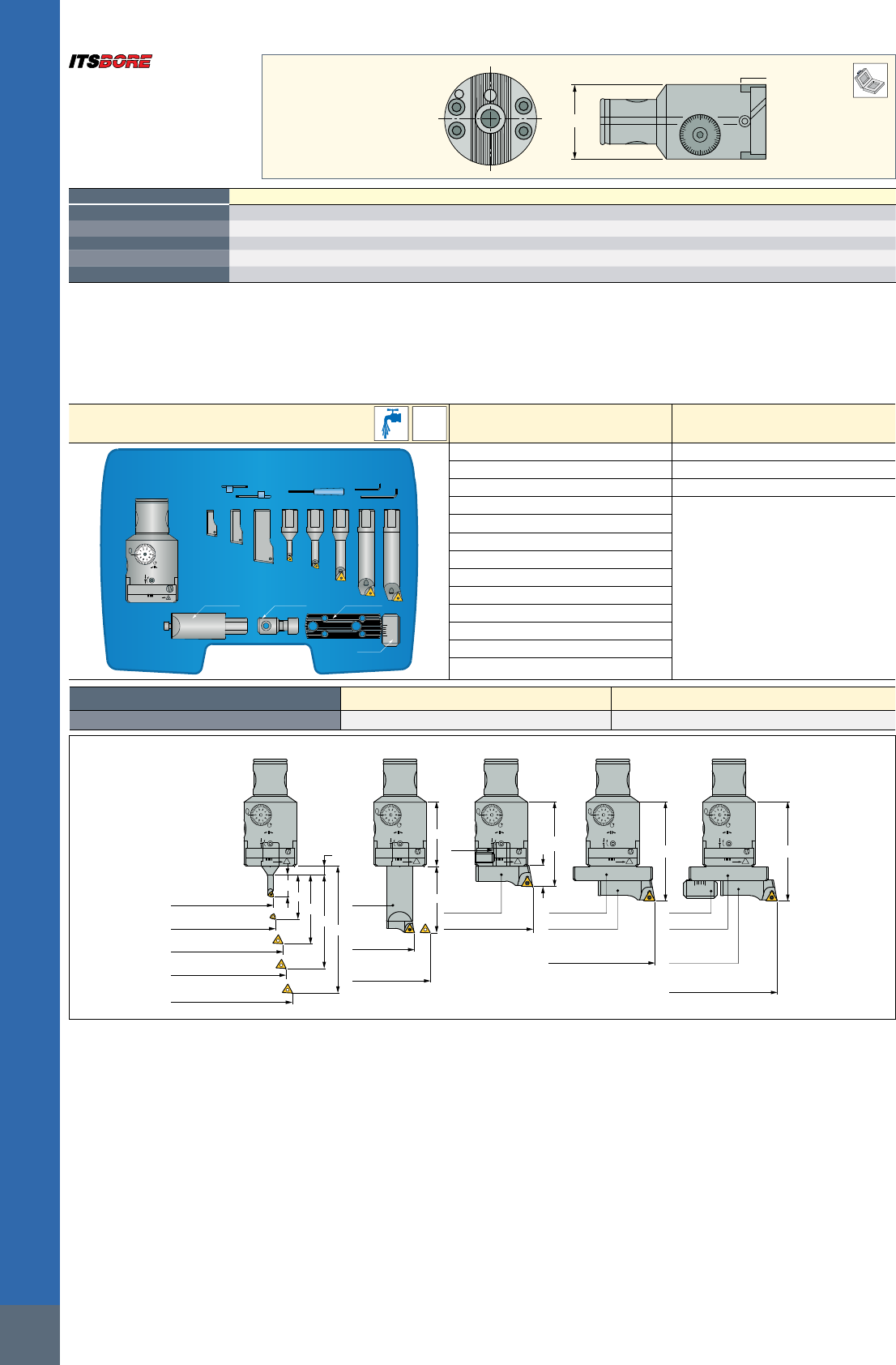

BATTERY
SR44
DCONMS DCN-DCX
KITS
Designation
DCN(1) DCONMS DCX(2)
KIT BHD MB50-50 6-110
6.00 50.00 110.00
KIT BHD MB63-63 6-125
6.00 63.00 125.00
KIT BHD MB80-80 6-200
6.00 80.00 200.00
(1) Cutting diameter minimum
(2) Cutting diameter maximum
KIT BHD-MB
Digital Display Fine Boring
Head and Various Boring
Tools and Inserts
Boring Kit BHD MB50-50 metric/inch (ø6-110 mm)
Fine Boring Head with a 2 μm Direct Diametric Adjustment Resolution and a Built-in Digital Display
2 µm
Tools Inserts
IHFF 25
BBH D16x53
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BH NUT 10 BHEH 24x75
CW 32
+
BATTERY
SR44
LOCK
1 BHD MB50-50x60 2 WCGT 020102L
1 IHFF 25 5 TPGX 730-L
1 IHFF 32 1 TPGX 220-L
1 IHFF 50
1 IHAXF 6-8/16
1 IHAXF 8-10/16
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 BBH D16-53
1 BHEH 24x75
1 BH NUT 10
1 CW 32
Designation MB Boring Range
KIT BHD MB50-50 6-110 50 6-110
+
BATTERY
SR44
+
BATTERY
SR44
+
BATTERY
SR44
+
BATTERY
SR44
+
BATTERY
SR44
Ø6-8
IHAXF 6-8/16
BBH
D16-53 IHFF 50
BH
NUT
10
BHEH 24x75 CW 32
BHEH 24x75
IHFF 50
IHFF 50
Ø54-86
Ø80-110
Ø92-110
Ø28-44
IHFF 25
Ø36-56
IHFF 32
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø22-30
IHAXF 22-30/16
8
2128
40
50 68
19
79
61
63
93 93
Ø36-56Ø6-30 Ø54-86 Ø80-110 Ø92-110
LOCK
441
ITS BORE

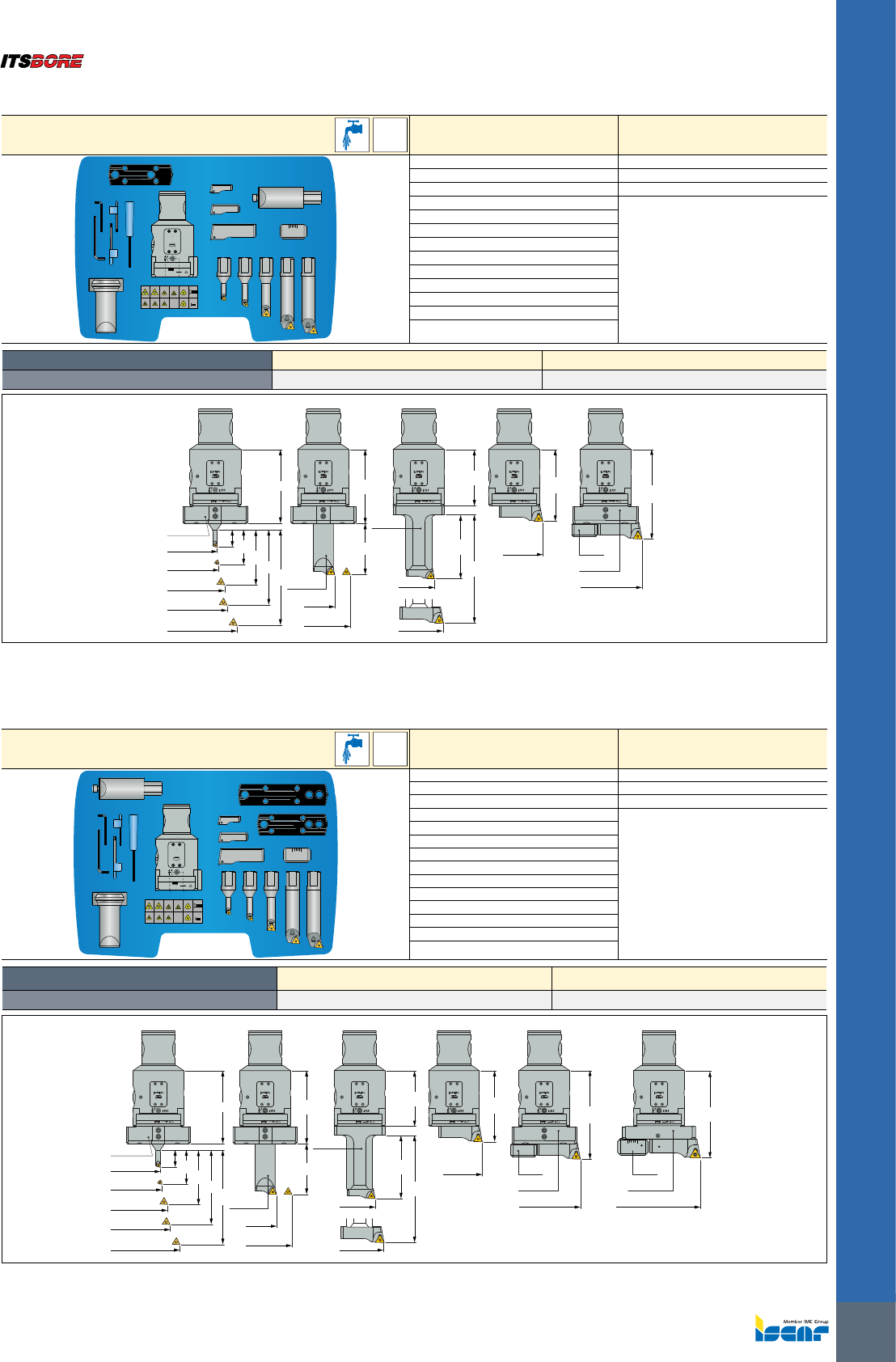

Boring Kit BHD MB63-63 6-125 metric/inch (ø6-125 mm)
Fine Boring Head with a 2 μm Direct Diametric Adjustment Resolution and a Built-in Digital Display
2 µm
Tools Inserts
BHEH 28X80
BBH D16-53
+
BATTERY
SR44
LOCK
IHFF 25
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BBH 63X78
CW32
1BHD MB63-63-89 2WCGT 020102L
1BBH 63X78 5TPGX 730-L
1BHEH 28X80 1 TPGX 220-L
1BBH 16-53
1 CW32
1IHAXF 6- 8/16
1IHAXF 8-10/16
1IHAXF 11-13/16
1IHAXF 16-18/16
1IHAXF 22-30/16
1IHFF 25
1IHFF 32
1IHFF 50
Designation MB d1Boring Range
KIT BHD MB63-63 6-125 63 2.5-125
Ø6-30 Ø28-56 Ø40-74 Ø72-103 Ø86-125
BHEH 28X80
Ø6-8
IHAXF 6-8/16
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø28-44
IHFF 25
Ø40-56
IHFF 32
Ø54-74
IHFF 50
Ø72-103
IHFF 50
Ø86-125
IHFF 50
BHEH 28X80
CW32
88.5
110
BBH D16-53
Ø36-56
IHFF 32
Ø22-30
IHAXF 22-30/16
40
50
8
91
60
21
28
91
63
BBH 63X78
77.5
69.5
84.5
11
Boring KIT BHD MB80-80 6-200 metric/inch (ø6-200 mm)
Fine Boring Head with a 2 μm Direct Diametric Adjustment Resolution and a Built-in Digital Display
2 µm
Tools Inserts
+
BATTERY
SR44
LOCK
IHFF 25
IHFF 32
IHFF 50 CW32
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BBH D16-53
BHEH 28X108
BHEH 28X148
BBH 63X78
1BHD MB80-80-104 2 WCGT 020102L
1BBH D16-53 5 TPGX 730-L
1BBH 63X78 1 TPGX 220-L
1BHEH 28X108
1BHEH 28X148
1 CW32
1IHAXF 6- 8/16
1IHAXF 8-10/16
1IHAXF 11-13/16
1IHAXF 16-18/16
1IHAXF 22-30/16
1IHFF 25
1IHFF 32
1IHFF 50
Designation MB Boring Range
KIT BHD MB80-80 6-200 80 6-200
Ø6-30 Ø28-56 Ø40-86 Ø85-116 Ø115-160 Ø155-200
BHEH 28X80
Ø6-8
IHAXF 6-8/16
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø28-44
IHFF 25
Ø40-56
IHFF 32
Ø54-86
IHFF 50
Ø85-116
IHFF 50
Ø115-160
IHFF 50
BHEH 28X80
CW32
104
125.5
BBH D16-53
Ø36-56
IHFF 32
Ø22-30
IHAXF 22-30/16
40
50
8
106
60
21
28
106
63
BBH 63X78
77.5
84.5
84.5
11
BHEH 28x148 Ø155-200
IHFF 50
BHEH 28x148
CW32
125.5
ISCAR
442
ITS BORE

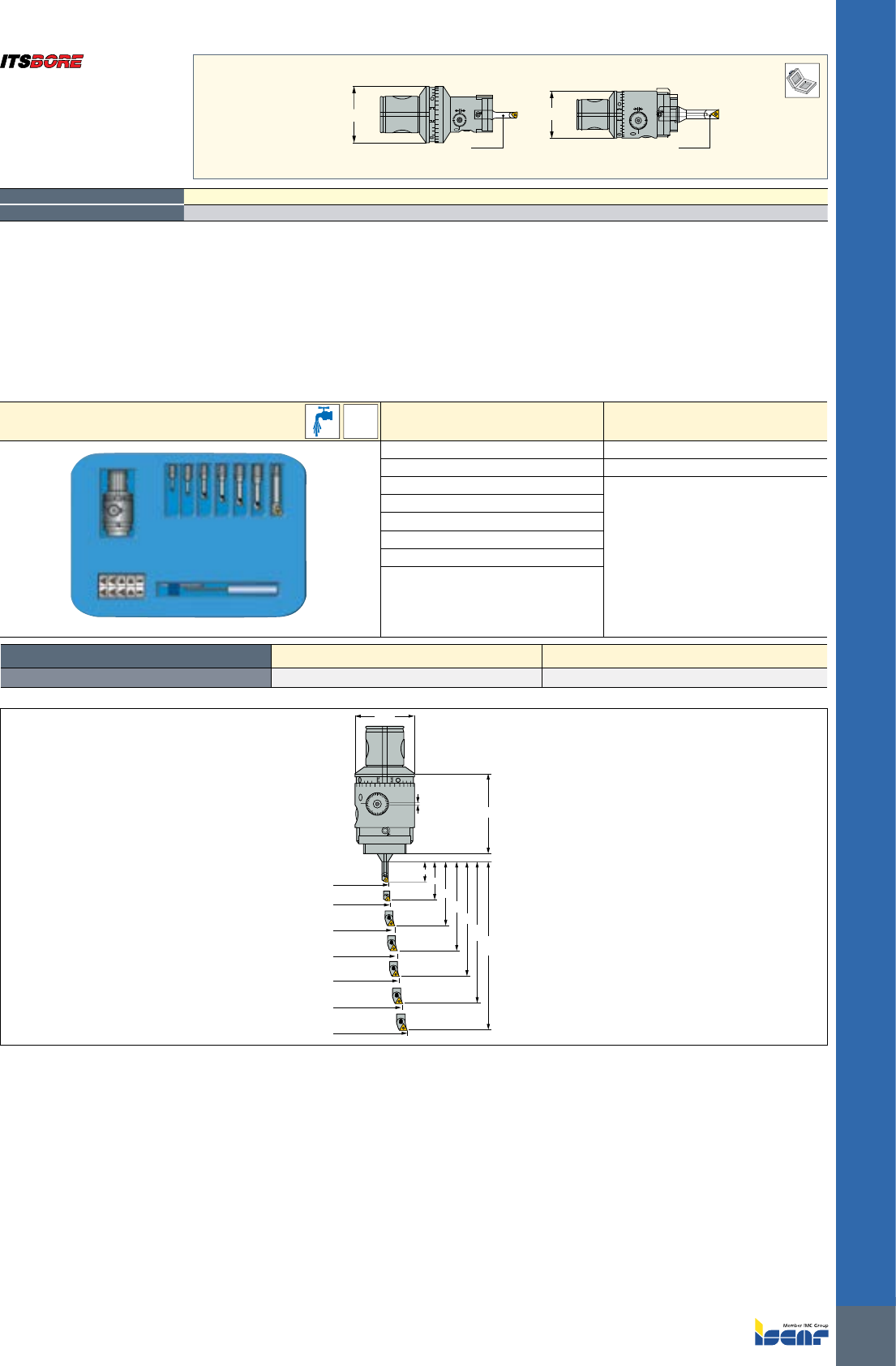

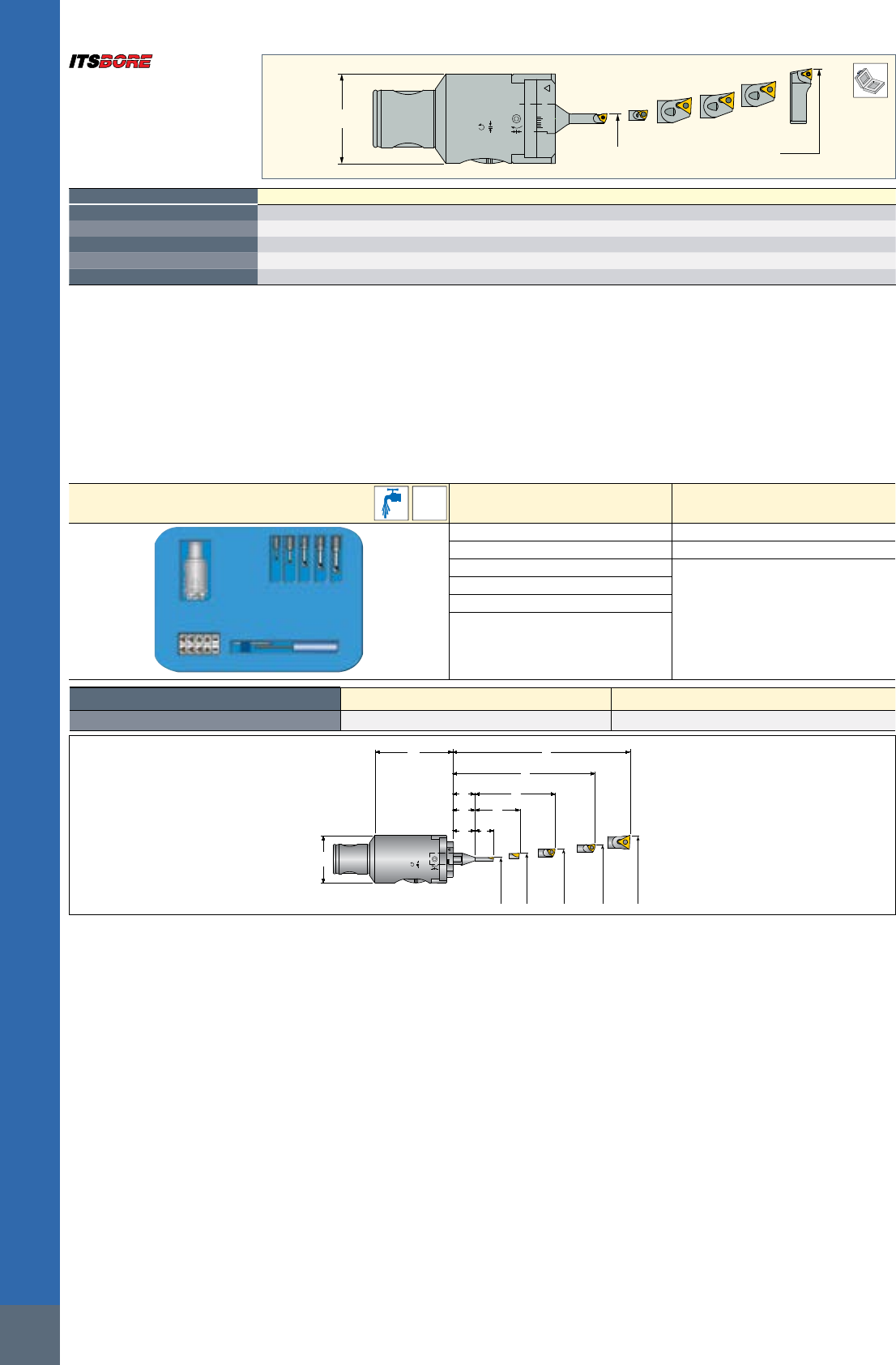

Boring KIT BHE MB32-32 2.5-12 H (ø2.5-12 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm
2 µm
Boring Tools Inserts
1 BHE MB32-32X53 H 5 TPGX 090202L
1 IHAXF 2.5-4/8 2 WCGT 020102L
1 IHAXF 4-6/8
1 IHAXF 6-8/8
1 IHAXF 8-10/8
1 IHAXF 10-12/8
Designation MB Boring Range
KIT BHE MB32-32 2.5-12 H 32 2.5-12
Ø2.5-4
IHAXF 2.5-4/8
Ø4-6
IHAXF 4-6/8
Ø6-8
IHAXF 6-8/8
Ø8-10
IHAXF 8-10/8
Ø10-12
IHAXF 10-12/8
53
Ø32
16.5
12.5
12
20
2
21
28
36
Non. 0.002
0.01
0.5
LOCK
IHAXF
DCONMS
IHFF (E)
Non.0.002
0.01
0.5
LOCK
KITS
Designation
DCN(2) DCX(3) DCONMS RPMX(4)
KIT BHE MB32-32 2.5-12 H (1)
2.50 12.00 32.00 10000
KIT BHE MB50-50 6-110
6.00 110.00 50.00 8000
KIT BHE MB50-50 6-22 H (1)
6.00 22.00 50.00 8000
KIT BHE MB63-63 6-125
6.00 125.00 63.00 6000
KIT BHE MB80-80 6-200
6.00 200.00 80.00 5000
• For kit contents and boring options, see following page. • 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale.
(1) Balanced to G2.5/12,000 RPM
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Maximum RPM
KIT BHE MB
Contains a Fine Boring Head and
Various Boring Tools and Inserts
443
ITS BORE

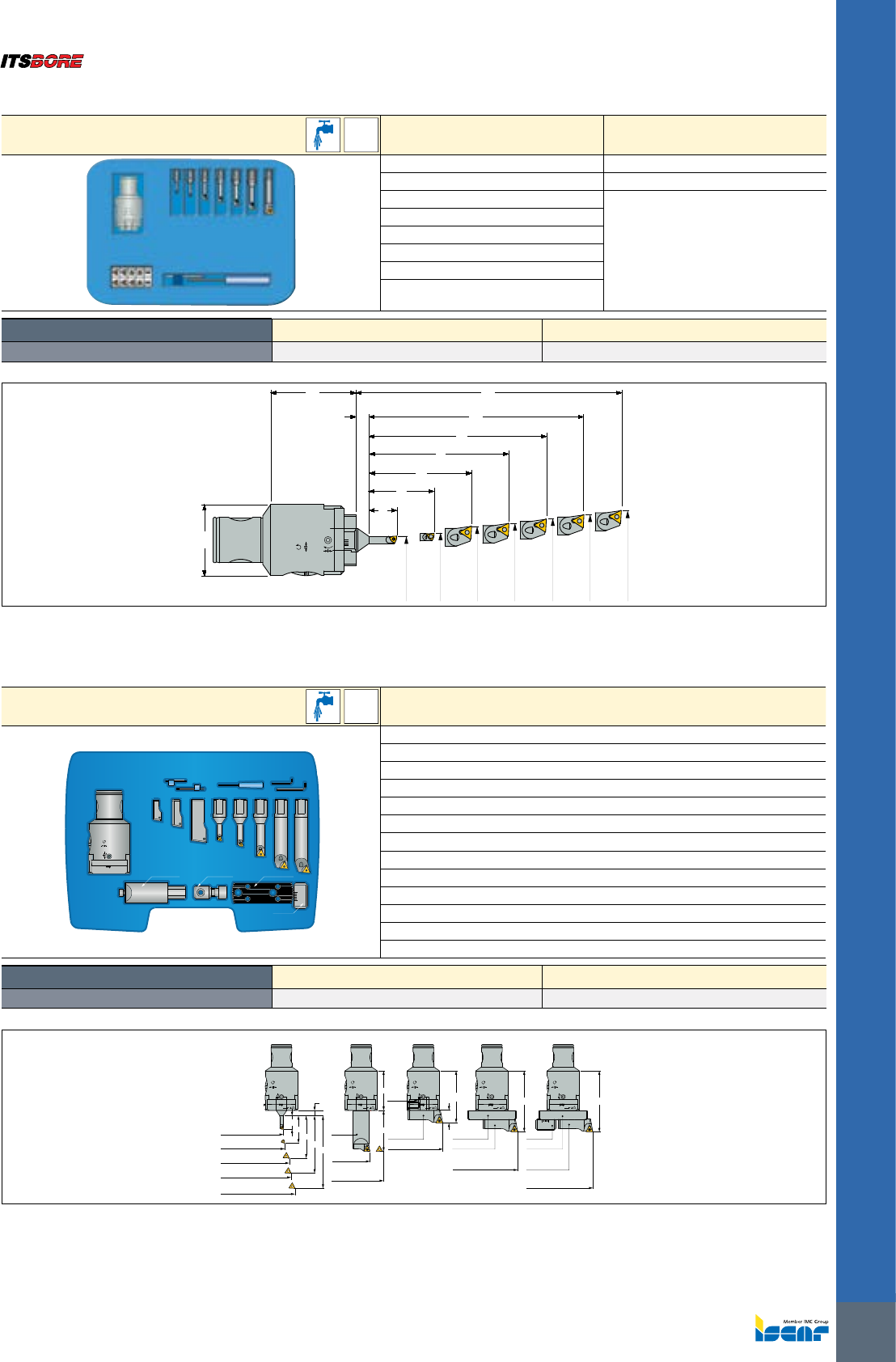

Boring KIT BHE MB50-50 6-22 H (ø6-22 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm
2 µm
Boring Tools Inserts
1 BHE MB50-50X60 H 5 TPGX 090202L
1 IHAXF 6-8/16 2 WCGT 020102L
1 IHAXF 8-10/16
1 IHAXF 10-12/16
1 IHAXF 12-14/16
1 IHAXF 14-16/16
1 IHAXF 16-18/16
1 IHAXF 18-22/16
Designation MB Boring Range
KIT BHE MB50-50 6-22 H 50 6-22
10 µm direct diametric adjustment and 2 µm by a Vernier scale
21
28
35
42
50
Ø6-8
IHAXF 6-8/16
Ø8-10
IHAXF 8-10/16
Ø10-12
IHAXF 10-12/16
Ø12-14
IHAXF 12-14/16
Ø14-16
IHAXF 14-16/16
Ø16-18
IHAXF 16-18/16
Ø18-22
IHAXF 18-22/16
Ø50
60 63
508
Non. 0.002
0.01
0.5
LOCK
Boring KIT BHE MB50-50 6-110 (ø6-110 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm
2 µm
Boring Tools
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
IHFF 25
BBH D16x53
BHE 50-50x80
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BH NUT 10 BHEH 24x75
CW 32
1 BHE MB50-50x80
1 IHFF 25
1 IHFF 32
1 IHFF 50
1 IHAXF 6-8/16
1 IHAXF 8-10/16
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 BBH D16x53
1 BHEH 24x75
1 BH NUT 10
1 CW 32
Designation MB Boring Range
KIT BHE MB50-50 6-110 50 6-110
10 µm direct diametric adjustment and 2 µm by a Vernier scale
Ø6-8
IHAXF 6-8/16
BBH
D16x53
IHFF 50
BH
NUT10
BHEH 24x75 CW 32
BHEH 24x75
IHFF 50
IHFF 50
Ø54-86
Ø80-110
Ø92-110
Ø28-44
IHFF 25
Ø36-56
IHFF 32
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø22-30
IHAXF 22-30/16
8
21
28
40
50
60
19
80
61
63
94 94
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
BHE 50
Ø 2.5-110
0.5 Ø
0.01 Ø
0.002 Ø
Non.
LOCK
Ø6-30 Ø28-56 Ø54-86 Ø80-110 Ø92-110
ISCAR
444
ITS BORE

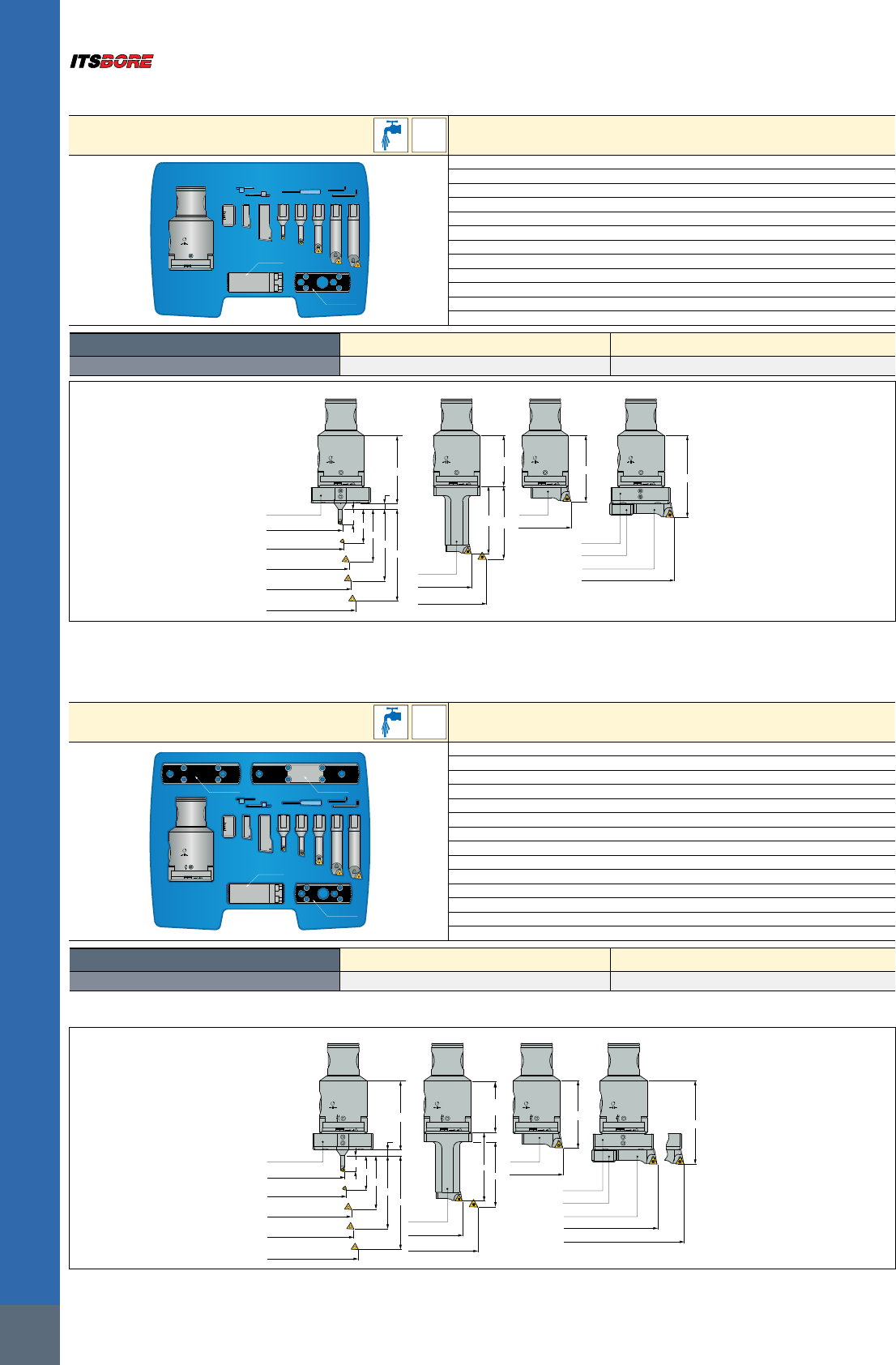

Boring KIT BHD MB63-63 6-125 (ø6-125 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm
2 µm
Boring Tools
BHE 63
Ø 6-125
0.5 Ø
0.01Ø
Non. 0.002 Ø
CW 32
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BBH 63x78
BHEH 28x80
1 BHD MB63-63x89
1 IHFF 32
1 IHFF 50
1 IHFF 6-8/16
1 IHAXF 8-10/16
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 BBH 63x78
1 BHEH 28x80
1 BH WASHER IH..50
1 CW 32
Designation MB Boring Range
KIT BHD MB63-63 6-125 63 6-125
BHE 63
Ø 6-125
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 63
Ø 6-125
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 63
Ø 6-125
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 63
Ø 6-125
0.5 Ø
0.01Ø
Non. 0.002 Ø
Ø6-8
IHAXF 6-8/16
BBH 63x78
Ø86-125
Ø40-56
IHFF 32
Ø54-74
IHFF 50
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø22-30
IHAXF 22-30/16
8
21
28
40
50
60
91
68.5
88.5
110
84.5
77.5
Ø6-30 Ø40-74 Ø72-110 Ø86-125
BHEH 28x80 IHFF 50
IHFF 50
CW 32
BHEH 28x80
Ø72-110
Boring KIT BHE MB80-80 6-200 (ø6-200 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm
2 µm
Boring Tools
LOCK
BHE 80
Ø 6-200
0.5 Ø
0.01Ø
Non. 0.002 Ø
CW 32
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BHH 63x78
BHE MB80-80x100
BHEH 28x80
BHEH 28x108 BHEH 28x148
1 BHE MB80-80x104
1 IHFF 32
1 IHFF 50
1 IHFF 6-8/16
1 IHAXF 8-10/16
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 BBH 63x78
1 BHEH 28x80
1 BHEH 28x108
1 BHEH 28x148
1 BH WASHER IH..50
1 CW 32
Designation MB Boring Range
KIT BHE MB80-80 6-200 80 6-200
(1) The specified boring range differs from the one specified for the boring bar.
The extra range is not recommended for high rotational speeds.
BHE 80
Ø 6-100
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 80
Ø 6-200
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 80
Ø 6-200
0.5 Ø
0.01Ø
Non. 0.002 Ø
BHE 80
Ø 6-200
0.5 Ø
0.01Ø
Non. 0.002 Ø
LOCK LOCK LOCK LOCK
Ø6-8
IHAXF 6-8/16
BHH 63x78
Ø115-160 BHEH 28x108
Ø40-56
IHFF 32
Ø54-90
IHFF 50
Ø8-12
IHAXF 8-10/16
Ø11-17
IHAXF 11-13/16
Ø16-23
IHAXF 16-18/16
Ø22-42
IHAXF 22-30/16
Ø155-200 BHEH 28x148
8
21
28
40
50
60
106
11
84.5
104
125.5
97
89.5
Ø6-42 Ø40-90 Ø88-132 Ø115-200
BHEH 28x80 IHFF 50
IHFF 50
CW 32
BHEH...
Ø88-132
(1)
(1)
445
ITS BORE
Boring KIT BHF MB50-50 6-22 BL (ø6-22 mm)
BHF BL Fine Boring Balanceable Head
2 µm
Tools Inserts
1 BHF MB50-50X68 BL 5 TPGX 090202L
1 IHAXF 6-8/16 2 WCGT 020102L
1 IHAXF 8-10/16
1 IHAXF 10-12/16
1 IHAXF 12-14/16
1 IHAXF 14-16/16
1 IHAXF 16-18/16
1 IHAXF 18-22/16
Designation MB Boring Range
KIT BHF MB50-50 6-22 BL 50 6-22
(1) On BHF BL max. balanceable dia. is 20 mm.
21
Ø6-
8
IHAXF 6-8/16
Ø8-10
IHAXF 8-10/1
6
Ø10-12
IHAXF 10-12/16
Ø12-14
IHAXF 12-14/16
Ø14-16
IHAXF 14-16/16
28
35
42
50
50
68.5
8
Ø16-18
(1)
IHAXF 16-18/16
Ø18-22
IHAXF 18-22/16
50
63
1
0
9
8
7
6
5
4
3
2
210 240 270 300 330
012012
0.002
IHAXFIHAXF
DCONMS
DCONMS
0 1° 2° 0 1° 2°
210° 240° 270° 300° 330°
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
210° 240° 270° 300° 330°
0 1°2° 0 1° 2°
KITS
Designation
DCONMS DCN(2) DCX(3) RPMX(4)
KIT BHF MB50-50 6-22 BL (1)
50.00 6.00 22.00 20000
(1) Balanced to G2.5/20,000 RPM.
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Maximum RPM
KIT BHF MB-BL
Contains a Balanceable Fine
Boring Head and Various
Boring Tools and Inserts
ISCAR
446
ITS BORE
Boring KIT BHF MB50-50 6-108 (ø6-108 mm)
2 µm
Tools Inserts
BHF 50
Ø 2.5-108
0.5 Ø
0.002 Ø
LOCK
IHFF 25
BBH D16x53
IHFF 32
IHFF 50
IHAXF 6-8/16
IHAXF 8-10/16
IHAXF 11-13/16
IHAXF 16-18/16
IHAXF 22-30/16
BH NUT 10 BHEH 24x75
CW 32
1 BHF MB50-50x60 2 WCGT 020102L
1 IHFF 25 5 TPGX 730-L
1 IHFF 32 1 TPGX 220-L
1 IHFF 50
1 IHAXF 6-8/16
1 IHAXF 8-10/16
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 BBH D16x53
1 BHEH 24x75
1 BH NUT 10
1 CW 32
Designation MB Boring Range
KIT BHF MB50-50 6-108 50 6-108
BHF 50
Ø 2.5-108
0.1 Ø
0.002 Ø
LOCK
BHF 50
Ø 2.5-108
0.1 Ø
0.002 Ø
LOCK
BHF 50
Ø 2.5-108
0.1 Ø
0.002 Ø
LOCK
BHF 50
Ø 2.5-108
0.1 Ø
0.002 Ø
LOCK
BHF 50
Ø 2.5-108
0.1 Ø
0.002 Ø
LOCK
¯6-8Ê
IHAXFÊ6-8/16Ê
BBH
D16x53Ê IHFFÊ50
BH
NUT
10
BHEHÊ24x75 CWÊ32
BHEHÊ24x75
IHFFÊ50
IHFFÊ50
¯54-84
¯80-108
¯92-108
¯28-42
IHFFÊ25
¯36-54
IHFFÊ32
¯8-12Ê
IHAXFÊ8-10/16Ê
¯11-17Ê
IHAXFÊ11-13/16Ê
¯16-23Ê
IHAXFÊ16-18/16Ê
¯22-30Ê
IHAXFÊ22-30/16Ê
8
21
28
40
50 68
19
79
61
63
93 93
Ø6-30 Ø28-54 Ø54-84 Ø80-108 Ø92-108
1
0
9
8
7
6
5
4
3
2
DCONMS
KITS
Designation
DCN(1) DCX(2) DCONMS RPMX(3)
KIT BHF MB50-50 6-108
6.00 108.00 50.00 8000
KIT BHF MB50-63 6-125
6.00 125.00 50.00 8000
KIT BHF MB50-80 6-220
6.00 220.00 50.00 8000
KIT BHF MB63-63 6-125
6.00 125.00 63.00 6000
KIT BHF MB80-80 6-220
6.00 220.00 80.00 5000
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Maximum RPM
KIT BHF-MB
Contains a Fine Boring Head and
Various Boring Tools and Inserts
447
ITS BORE

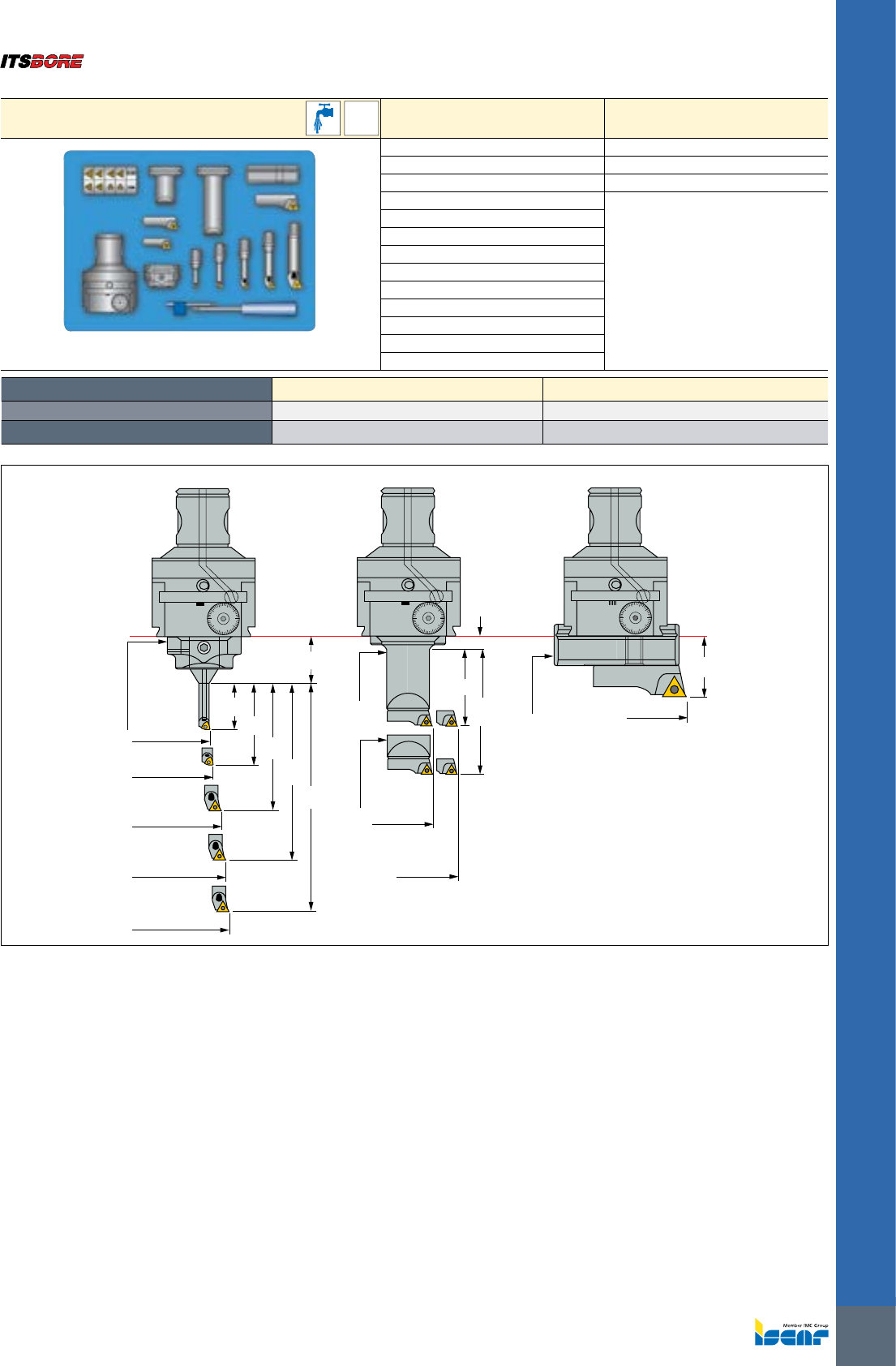

Boring KIT BHF MB50-63 6-125 / Boring KIT BHF MB63-63 6-125 (ø6-125 mm)
2 µm
Tools Inserts
1 BHF MB...-63x87 5 TPGX 090202L
1 IHAXF 6-8/16 1 TPGX 110302L
1 IHAXF 8-10/16 2 WCGT 020102L
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 ADBH 30xD16
1 BBH 30x40
1 BBH 30x70
1 BHFH 30x75
1 IHFF 25
1 IHFF 32
1 IHFF 50
Designation MB Boring Range
KIT BHF MB50-63 6-125 50 6-125
KIT BHF MB63-63 6-125 63 6-125
(1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds.
21
Ø6-8
IHAXF 6-8
Ø8-10
IHAXF 8-10
Ø11-17
IHAXF 11-13
Ø16-23
IHAXF 16-18
Ø22-30
IHAXF 22-30
28
40
58
68
24
1
0
9
8
7
6
5
4
3
2
Ø77-125
IHFF 50
38.5
1
0
9
8
7
6
5
4
3
2
Ø28-70
IHFF 25
IHRF 25
Ø36-80
IHFF 32
IHRF 32
50
BBH 30x40
BBH 30x70
80
7
1
0
9
8
7
6
5
4
3
2
BHFH 30x75
ADBH 30xD16
Ø6-30 Ø28-80 Ø77-125
(1)
(1)
ISCAR
448
ITS BORE
Boring KIT BHF MB50-80 6-220 / KIT BHF MB80-80 6-220 (ø6-220 mm)
2 µm
Tools Inserts
1 BHF MB..-80x94 5 TPGX 090202L
1 IHAXF 6-8/16 1 TPGX 110302L
1 IHAXF 8-10/16 2 WCGT 020102L
1 IHAXF 11-13/16
1 IHAXF 16-18/16
1 IHAXF 22-30/16
1 ADBH 30xD16
1 BBH 30x40
1 BBH 30x70
1 BBH 30x115
1 BHFH 30x93
1 BHFH 30x135
1 IHFF 25
1 IHFF 32
1 IHFF 50
Designation MB Boring Range
KIT BHF MB50-80 6-220 50 6-220
KIT BHF MB80-80 6-220 80 6-220
(1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds.
ø6-30 ø28-96 ø95-220
21
Ø6- 8
IHAXF 6-8
Ø8-10
IHAXF 8-10
Ø11-17
IHAXF 11-13
Ø16-23
IHAXF 16-18
Ø22-30
IHAXF 22-30
28
40
58
68
24
ADBH 30xD16
1
0
9
8
7
6
5
4
3
2
(1)
(1)
Ø36-96
IHFF 32
IHRF 32
50
BBH 30x40
BBH 30x70
80
7
1
0
9
8
7
6
5
4
3
2
BBH 30x115
125
Ø30-86
IHFF 25
IHRF 25
Ø28-86
IHFF 25
IHRF 25
38.
5
Ø95-160
IHFF 50
Ø140-220
IHFF 50
BHFH 30x93
BHFH 30x135
1
0
9
8
7
6
5
4
3
2
449
ITS BORE

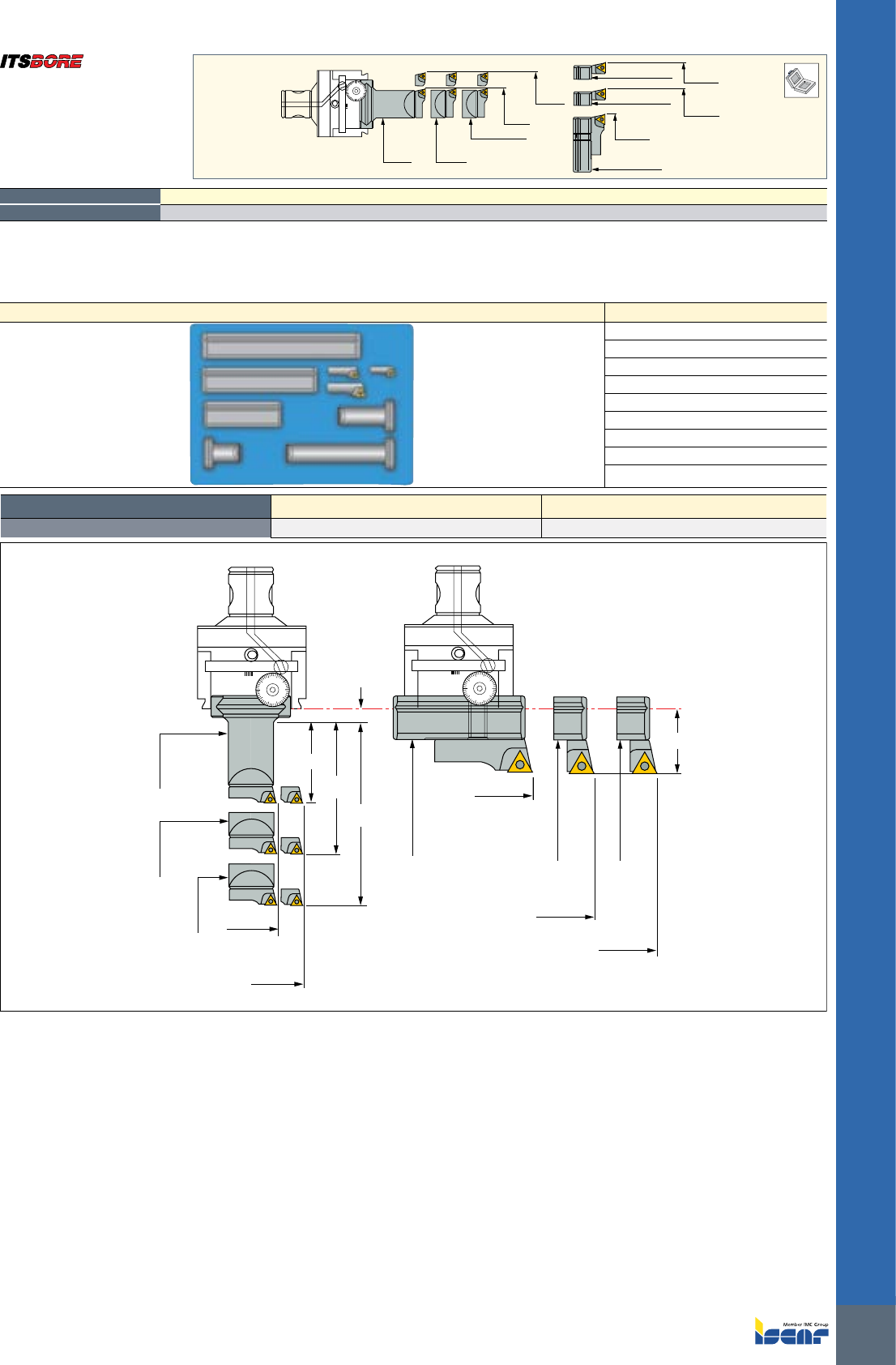

IHFF 50
BHFH 40x133
IHFF 50
BHFH 40x200
IHFF 50
BHFH 40x300
IHFF
32
IHFF
40
BBH 40-189
BBH
40x69
BBH
40-114
1
6
5
3
2
4
0
9
8
7
KITS
Designation
DCONMS DCN(1) DCX(2)
KIT BHFH MB80-125
80.00 36.00 410.00
(1) Cutting diameter minimum
(2) Cutting diameter maximum
KIT BHFH MB80-125 36-410
Holder for BHF MB80-125x114
ø36-410
ACCESSORIES
1 BBH 40x69
1 BBH 40x114
1 BBH 40x189
1 BHFH 40x133
1 BHFH 40x200
1 BHFH 40x300
1 IHFF 32
1 IHFF 40
1 IHFF 50
Designation MB Boring Range
KIT BHFH MB80-125 36-410 80 36-410
Ø36-123
IHFF 32
IHRF 32
Ø46-137
IHFF 40
IHRF 40
80
BBH 40x69
BBH 40x114
125
9
IHFF 50
Ø135-210
BHFH 40x133
200
BBH 40x189
Ø205-310
IHFF 50
BHFH 40x200
Ø305-410
IHFF 50
BHFH 40x300
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
Ø36-137
Ø135-410
51
KIT BHFH-MB
Contains Adapters, Extensions
and Boring Bars for 36 to
410 mm Boring Range
ISCAR
450

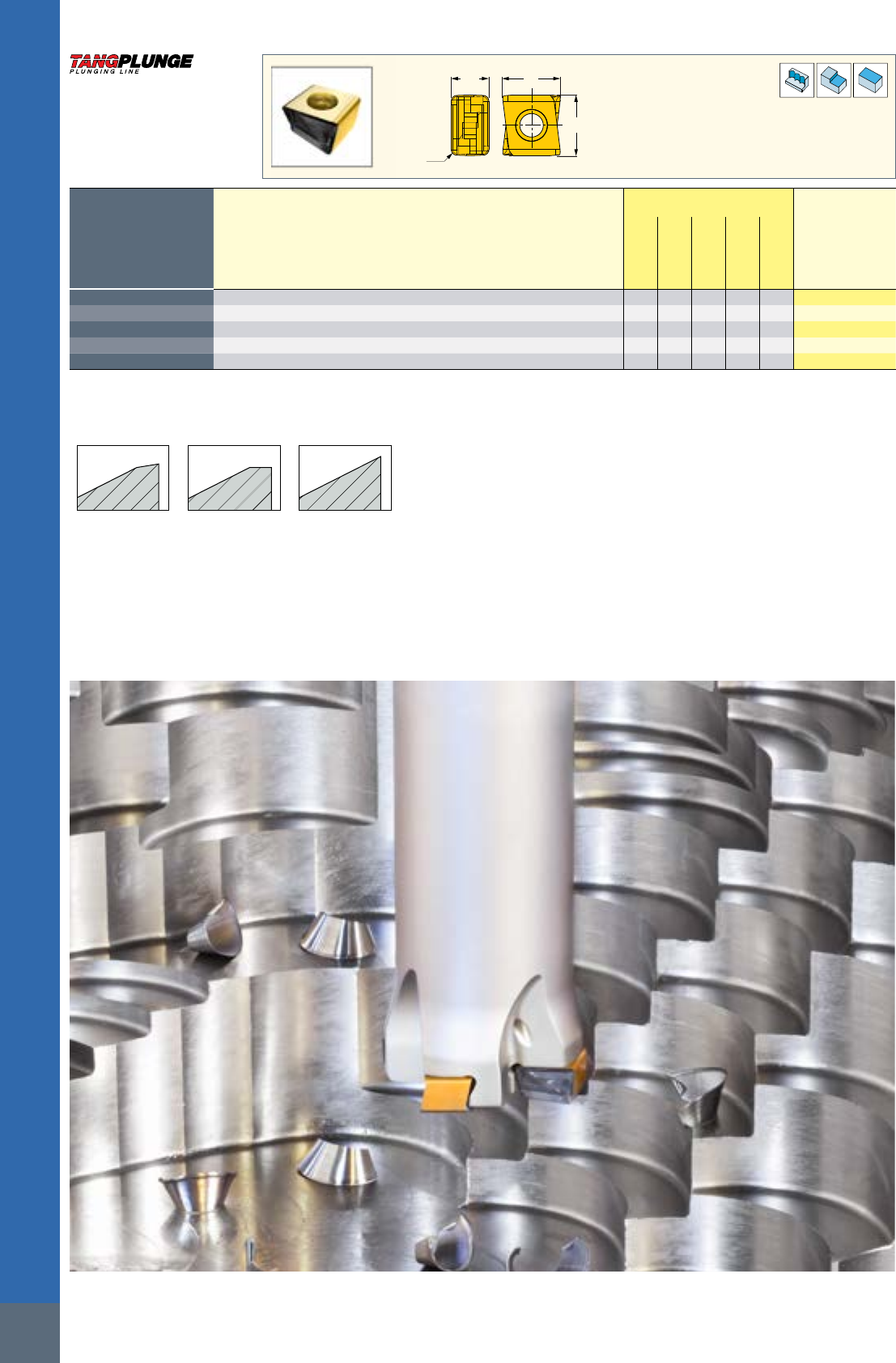

ITS BORE
W1
L
RE
S
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
W1 L S RE
IC330
IC830
IC808
IC810
IC07
fz
(mm/t)
HTP LNAR 1006 FR (1)
6.50 10.50 10.13 1.00
•
0.05-0.15
HTP LNAR 1006 FR-P
6.50 10.50 10.13 1.00
•
0.05-0.15
HTP LNHT 1006 ER
6.50 10.50 9.93 1.00
••••
0.10-0.15
HTP LNHT 1006 ETR
6.50 10.50 9.93 1.00
•••
0.12-0.20
HTP LNMT 1006 ER (2)
6.50 10.50 9.96 1.00
•••
0.08-0.15
• FR-P - For machining aluminum, ER- For general applications, ETR- First priority for hardened steel
(1) FR - Sharp cutting edge for unstable conditions and for ISO S material
(2) Mounting this insert increases tool diameter by 0.1 mm
For tools, see page: CR LNHT (410)
ETR
ER FR, FR-P
ER- For general
applications
ETR- First priority
for hardened steel
FR-P- For machining
aluminum
HTP LN.. 1006
Tangentially Clamped Inserts with
4 Cutting Edges for Plungers
451
ITS BORE
Dimensions Tough
1
Hard
Designation
IC S RE
IC328
IC5500
IC808
IC908
IC8080
IC9080
SOMT 09T306-DT
9.00 3.81 0.60
•••••
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-DT
Inserts for DR Drills for
General Applications at
Medium-to-High Feeds
S
IC
RE
Dimensions Tough
1
Hard
Designation
IC S RE
IC328
IC908
SOMT 09T306-GF
9.00 3.81 0.60
• •
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-GF
Inserts for DR Drills for
Soft Materials at Low-
to-Medium Feeds
IC
RE
S
Dimensions
Designation
IC S RE
IC08
SOGT 09T306-AL
9.00 3.81 0.60
•
• Sharp cutting edge with polished rake for aluminum
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111)
SOGX/T-AL
Inserts for DR Drills for Aluminum
S
IC
RE
Dimensions
Designation
IC S RE
IC808
SOMT 09T306-HD
9.00 3.81 0.60
•
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-HD
Inserts for DR Drills for Carbon
Steel and Soft Materials
ISCAR
452
ITS BORE
7°
D1
S
80°
IC
RE L
95º
99°
91°
95º
95º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC6025
IC8250
IC6015
IC8150
IC20
IC5010
IC428
IC5005
IC806
IC807
IC907
ap
(mm)
f
(mm/rev)
CCGT 060201-SM
6.45 6.35 2.38 0.10 2.80
•
0.25-2.00 0.05-0.20
CCGT 060202-SM
6.45 6.35 2.38 0.20 2.80
•
0.25-2.00 0.05-0.25
CCMT 060202-SM
6.45 6.35 2.38 0.20 2.80
• • •
0.25-2.00 0.05-0.25
CCMT 060204-SM
6.45 6.35 2.38 0.40 2.80
•••• •••
0.50-2.50 0.07-0.25
CCMT 060208-SM
6.45 6.35 2.38 0.80 2.80
• • • •
0.50-2.50 0.07-0.25
CCMT 09T302-SM
9.70 9.52 3.97 0.20 4.40
••• •••
0.50-2.50 0.06-0.25
CCMT 09T304-SM
9.70 9.52 3.97 0.40 4.40
•• ••••••••
0.50-2.50 0.06-0.25
CCMT 09T308-SM
9.70 9.52 3.97 0.80 4.40
•••• • ••••
0.50-3.00 0.07-0.25
CCMT 120404-SM
12.90 12.70 4.76 0.40 5.50
• • • • •
0.70-3.50 0.07-0.25
CCMT 120408-SM
12.90 12.70 4.76 0.80 5.50
•••• ••
0.70-3.50 0.07-0.30
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCMT/CCGT-SM
Single-Sided Turning Inserts for
Semi-Finish and Finishing on
Soft Materials and Exotic Alloys
7°
D1
S
80°
IC
RE L
95º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC6025
IC6015
IC806
IC807
IC907
IC804
ap
(mm)
f
(mm/rev)
CCMT 060202-PF
6.30 6.35 2.38 0.20 2.80
••• •••
0.20-2.50 0.04-0.25
CCMT 060204-PF
6.30 6.35 2.38 0.40 2.80
••••••
0.40-2.50 0.04-0.30
CCMT 09T302-PF
9.70 9.52 3.97 0.20 4.40
• ••••
0.50-3.00 0.05-0.30
CCMT 09T304-PF
9.70 9.52 3.97 0.40 4.40
•••••••
0.50-3.50 0.05-0.35
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCMT-PF
80° Rhombic Inserts with a
Positive Flank for Semi-Finish
and Finishing on Soft
Materials and Exotic Alloys
453

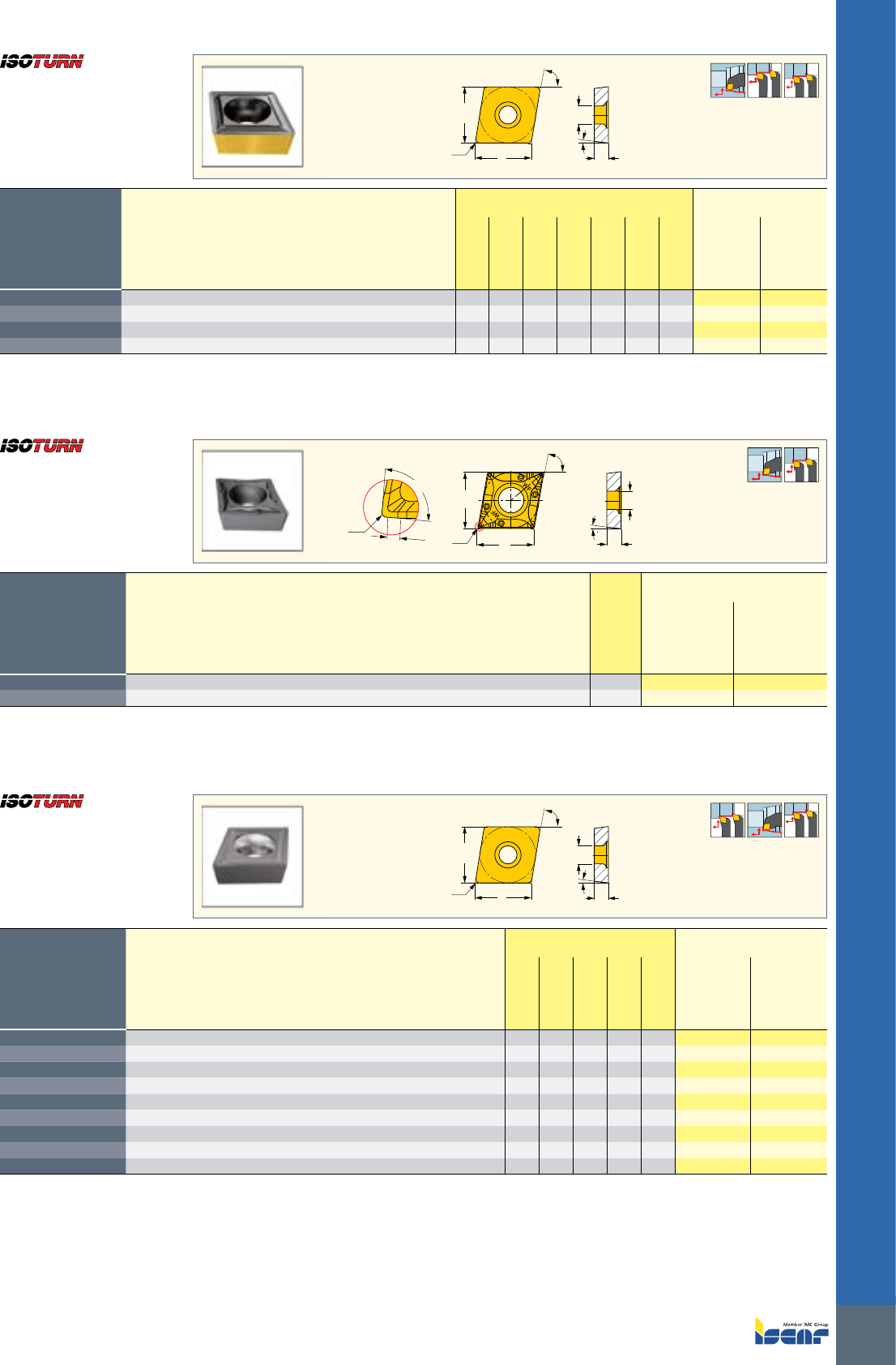

ITS BORE
7°
D1
S
80°
IC
RE L
95º
99°
91°
95º
95º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC8250
IC20
IC428
IC5005
IC807
IC907
ap
(mm)
f
(mm/rev)
CCMT 060204-14
6.30 6.35 2.38 0.40 2.80
• •••••
0.50-2.50 0.14-0.25
CCMT 09T304-14
9.70 9.52 3.97 0.40 4.40
• • •
0.50-3.00 0.14-0.25
CCMT 09T308-14
9.70 9.52 3.97 0.80 4.40
•••••
0.80-3.00 0.14-0.30
CCMT 120408-14
12.90 12.70 4.76 0.80 5.50
• •
0.80-3.00 0.14-0.30
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCMT-14
80° Rhombic Inserts with a
7° Positive Flank for Semi-
Finishing and Finish Turning
80°
IC
RE
RE
L
7°
86°
0.3
D1
S
95º
95º
95º
Dimensions Recommended Machining Data
Designation
L IC S RE D1
IC907
ap
(mm)
f
(mm/rev)
CCET 0602005-WF
6.30 6.35 2.38 0.05 2.80
•
0.05-2.00 0.01-0.20
CCET 09T3005-WF
9.50 9.52 3.97 0.05 4.40
•
0.05-2.00 0.01-0.20
For tools, see pages: IHCR (408) • IHRF (436) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCET-WF
80° Rhombic Inserts with a 7°
Positive Flank and a Wiper Near
the Corner for High Feed Finishing
7°
D1
S
80°
IC
RE L
95º
95º
95º
99°
91°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC8250
IC30N
IC20
IC20N
IC520N
ap
(mm)
f
(mm/rev)
CCGT 060202
6.45 6.35 2.38 0.20 2.80
•
0.50-2.00 0.10-0.20
CCGT 060202L (1)
6.45 6.35 2.38 0.20 2.80
• •
0.50-2.00 0.10-0.20
CCGT 060204
6.45 6.35 2.38 0.40 2.80
•
0.50-2.00 0.10-0.20
CCGT 060204L (1)
6.45 6.35 2.38 0.40 2.80
•
0.50-2.00 0.10-0.20
CCMT 060202
6.45 6.35 2.38 0.20 2.80
• •
0.50-2.00 0.10-0.20
CCMT 060204
6.45 6.35 2.38 0.40 2.80
• • •
0.50-2.00 0.12-0.22
CCMT 09T302
9.70 9.52 3.97 0.20 4.40
• •
0.50-2.50 0.12-0.25
CCMT 09T304
9.70 9.52 3.97 0.40 4.40
• •
0.50-2.50 0.12-0.25
CCMT 09T308
9.70 9.52 3.97 0.80 4.40
• •
0.80-3.00 0.14-0.25
• Use left-hand inserts for left-hand external tools and for right-hand internal tools
(1) Left-hand insert
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCMT/CCGT
80° Rhombic Inserts with a
7° Positive Flank for Semi-
Finishing and Finish Turning
ISCAR
454

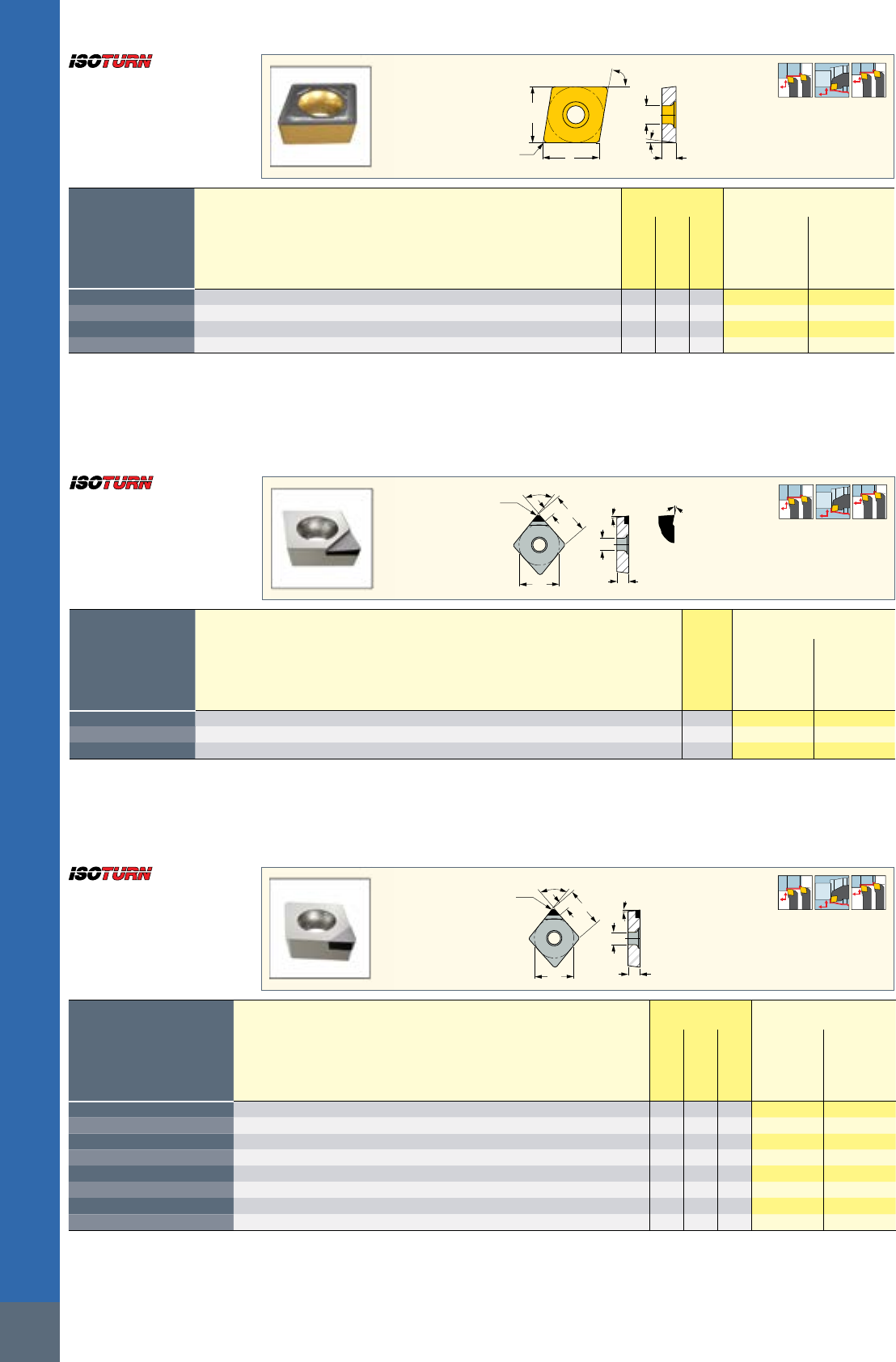

ITS BORE
7°
D1
S
80°
IC
RE L
95º
95º
95º
99°
91°
Dimensions Tough
1
Hard Recommended Machining Data
Designation
L IC S RE D1
IC8250
IC807
IC907
ap
(mm)
f
(mm/rev)
CCMT 060204-WG
6.30 6.35 2.38 0.40 2.80
• •
0.40-2.00 0.10-0.35
CCMT 09T304-WG
9.70 9.52 3.97 0.40 4.40
•
0.40-2.00 0.14-0.30
CCMT 09T308-WG
9.70 9.52 3.97 0.80 4.40
•
0.50-2.50 0.20-0.38
CCMT 120408-WG
12.90 12.70 4.76 0.80 5.50
•
0.50-3.00 0.20-0.36
For tools, see pages: • IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCMT-WG
80° Rhombic Inserts with a 7°
Positive Flank and a Wiper Near
the Corner for High Feed Finishing
7°
S
D1
7°
80°
LE L
RE
IC
95º
95º
95º
99°
91°
Dimensions Recommended
Machining Data
Designation
L IC S RE LE D1
ID5
ap
(mm)
f
(mm/rev)
CCMT 060202D
6.30 6.35 2.38 0.20 3.1 2.80
•
0.08-3.00 0.05-0.30
CCMT 060204D
6.30 6.35 2.38 0.40 3.0 2.80
•
0.10-3.00 0.05-0.30
CCMT 09T304D
9.70 9.52 3.97 0.40 3.9 4.40
•
0.10-3.00 0.05-0.30
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413)
CCMT (PCD)
Inserts with a Single PCD
Top Corner Tip, 7° Clearance
and Positive Rake Angle
for Finishing Aluminum
7°
S
D1
80°
LE L
RE
IC
95º
95º
95º
99°
91°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE LE D1
IB05H
IB55
IB10H
ap
(mm)
f
(mm/rev)
CCGW 03X102T01015-1
3.63 3.57 1.39 0.20 2.0 1.90
• •
0.05-0.50 0.05-0.20
CCGW 03X104T01015-1
3.63 3.57 1.39 0.40 2.3 1.90
• •
0.05-0.50 0.05-0.20
CCGW 04T102T01015-1
4.44 4.37 1.79 0.20 2.0 2.30
• •
0.05-0.50 0.05-0.20
CCGW 04T104T01015-1
4.44 4.37 1.79 0.40 2.3 2.30
• •
0.05-0.50 0.05-0.20
CCMT 060202T
6.30 6.35 2.38 0.20 2.6 2.80
•
0.05-0.50 0.05-0.20
CCMT 060204T
6.30 6.35 2.38 0.40 2.7 2.80
•
0.05-0.50 0.05-0.20
CCMT 09T304T
9.70 9.52 3.97 0.40 2.9 4.40
•
0.05-0.50 0.05-0.20
CCMT 09T308T
9.70 9.52 3.97 0.80 3.6 4.40
•
0.05-0.50 0.05-0.20
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413)
CCGW/CCMT (CBN)
80° Rhombic Inserts with
a Single CBN Top Corner
Tip and 7° Clearance for
Machining Hardened Steel
455

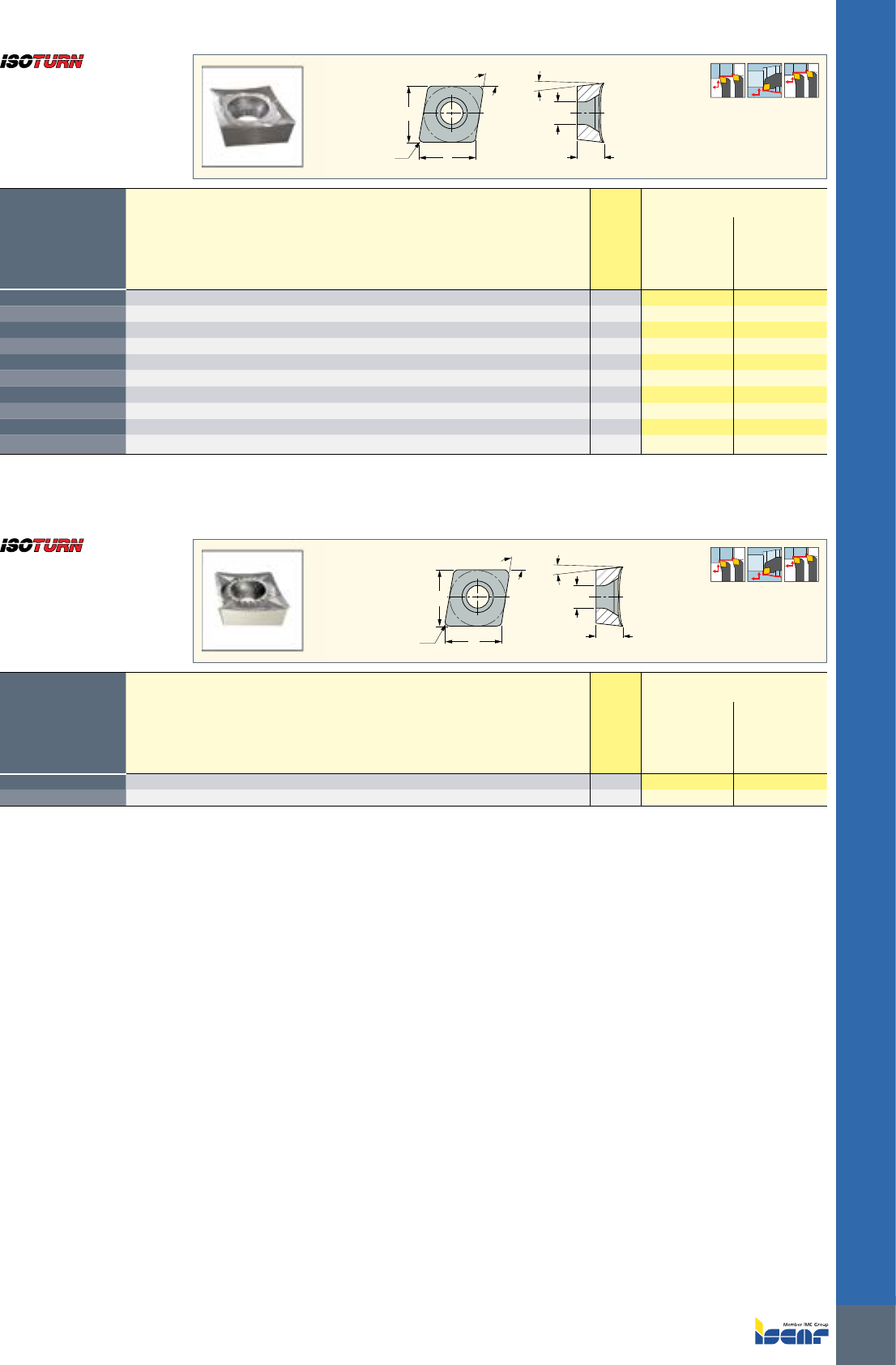

ITS BORE
7˚
D1
L
RE S
IC
80˚
95º
95º
95º
99°
91°
Dimensions Recommended Machining Data
Designation
L IC S RE D1
IC20
ap
(mm)
f
(mm/rev)
CCGT 060201-AS
6.40 6.35 2.38 0.10 2.80
•
0.50-2.00 0.10-0.20
CCGT 060202-AS
6.40 6.35 2.38 0.20 2.80
•
0.50-2.00 0.10-0.20
CCGT 060204-AS
6.40 6.35 2.38 0.40 2.80
•
0.50-2.00 0.10-0.25
CCGT 09T301-AS
9.70 9.52 3.97 0.10 4.40
•
0.50-2.50 0.10-0.25
CCGT 09T302-AS
9.70 9.52 3.97 0.20 4.40
•
0.50-2.50 0.10-0.25
CCGT 09T304-AS
9.70 9.52 3.97 0.40 4.40
•
0.50-2.50 0.10-0.25
CCGT 09T308-AS
9.70 9.52 3.97 0.80 4.40
•
0.80-3.00 0.10-0.30
CCGT 120402-AS
12.90 12.70 4.76 0.20 5.50
•
0.50-2.50 0.10-0.25
CCGT 120404-AS
12.90 12.70 4.76 0.40 5.50
•
0.50-2.50 0.10-0.25
CCGT 120408-AS
12.90 12.70 4.76 0.80 5.50
•
1.00-3.50 0.10-0.30
For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCGT-AS
80° Rhombic Inserts with a 7°
Positive Flank, Very Positive
Rake Angle and Sharp Cutting
Edge for Machining Aluminum
7˚
S
D1
L
RE
IC
80˚
95º
95º
95º
99°
91°
Dimensions Recommended Machining Data
Designation
L IC S RE D1
IC20
ap
(mm)
f
(mm/rev)
CCGT 09T308-AF
9.70 9.52 3.97 0.80 4.40
•
0.80-3.00 0.15-0.25
CCGT 120408-AF
12.90 12.70 4.76 0.80 5.50
•
1.00-3.50 0.15-0.30
For tools, see pages: IHCR (408) • IHRF (436) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409)
CCGT-AF
80° Rhombic Inserts with a 7°
Positive Flank, Very Positive
Rake Angle and Sharp Cutting
Edge for Machining Aluminum
456

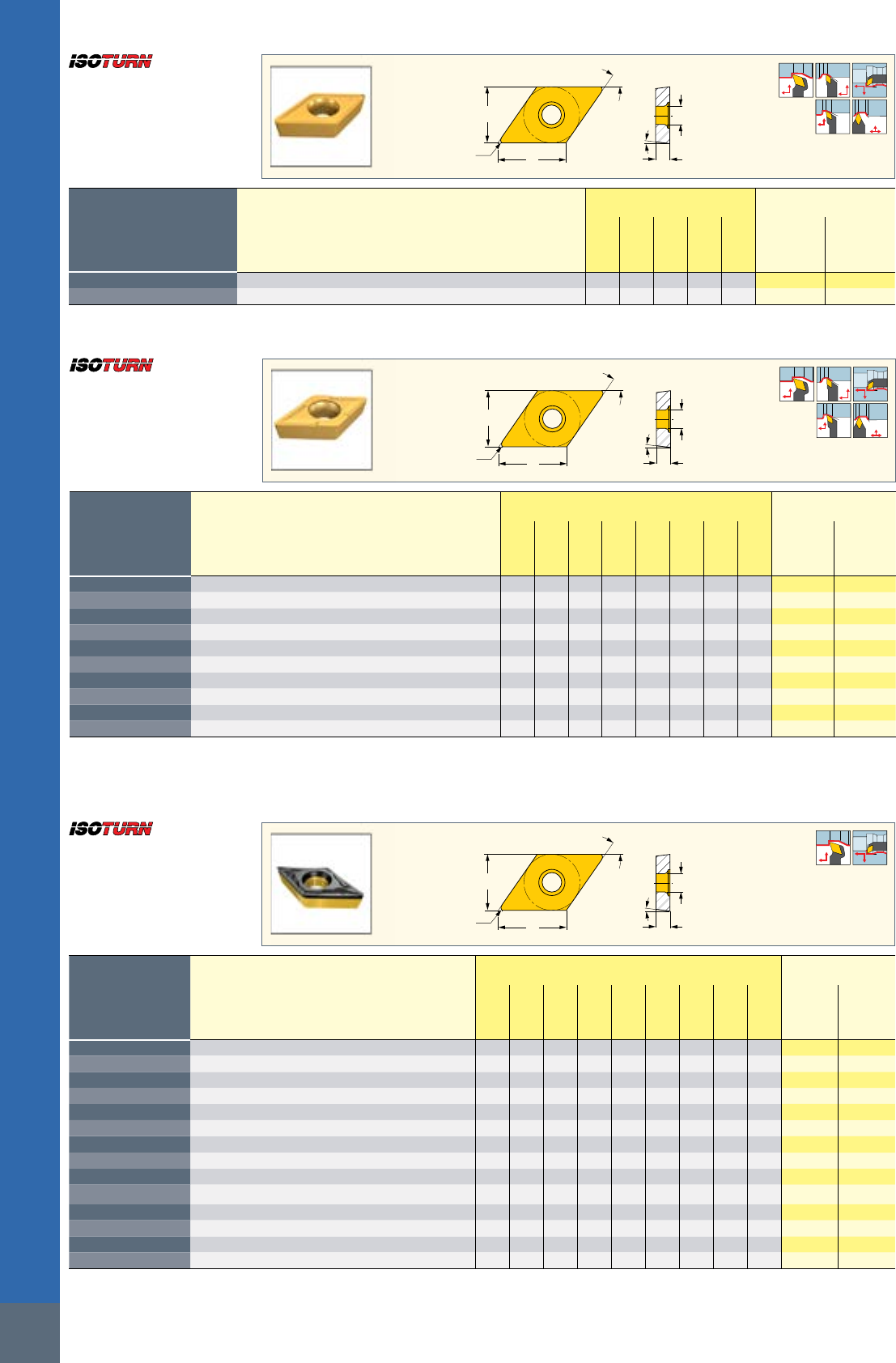

ITS BORE
7°
S
D1
55°
L
RE
IC
10 7. 5 °
9 1°
29°
MAX 93º-95º
50º
MAX
93º
27°
MAX
62.5º
60°
MAX
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC8150
IC20
IC428
IC5005
ap
(mm)
f
(mm/rev)
DCMT 11T304-14
11.60 9.52 3.97 0.40 4.40
•••
1.00-2.50 0.14-0.25
DCMT 11T308-14
11.60 9.52 3.97 0.80 4.40
••••
1.50-3.00 0.14-0.29
DCMT-14
55° Rhombic Inserts with a
Positive Flank for Semi-Finishing
and Finish Turning on Soft
Materials and Exotic Alloys
7°
S
D1
55°
L
RE
IC
10 7. 5 °
9 1°
29°
MAX 93º-95º
50º
MAX
93º
27°
MAX
62.5º
60°
MAX
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC8250
IC908
IC30N
IC530N
IC8150
IC20N
IC520N
ap
(mm)
f
(mm/rev)
DCGT 070201R (1)
7.70 6.35 2.38 0.10 2.80
•
0.25-1.50 0.05-0.15
DCGT 070202
7.70 6.35 2.38 0.20 2.80
•
0.50-2.00 0.08-0.20
DCGT 070204
7.70 6.35 2.38 0.40 2.80
•
0.80-2.50 0.10-0.25
DCMT 070202
7.70 6.35 2.38 0.20 2.80
•• •••
0.50-2.00 0.08-0.20
DCMT 070204
7.70 6.35 2.38 0.40 2.80
• • • • • •
0.50-2.00 0.08-0.22
DCGT 11T302
11.60 9.52 3.97 0.20 4.40
•
0.50-2.00 0.08-0.20
DCGT 11T304
11.60 9.52 3.97 0.40 4.40
• •
1.00-2.50 0.12-0.25
DCMT 11T302
11.60 9.52 3.97 0.20 4.40
• • • •
0.50-2.00 0.08-0.20
DCMT 11T304
11.60 9.52 3.97 0.40 4.40
• • •
0.50-2.00 0.12-0.25
DCMT 11T308
11.60 9.52 3.97 0.80 4.40
• • •
1.50-3.00 0.14-0.29
• Right-hand inserts for right-hand external tools and for left-hand internal tools • For user guide and cutting speed recommendations, see pages ..
(1) Right-hand insert
DCMT/DCGT
55° Rhombic Inserts with
a 7° Positive Clearance for
Finishing Applications
7°
S
D1
55°
L
RE
IC
10 7. 5 °
93º-95º
50º
MAX
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC6025
IC8250
IC908
IC6015
IC806
IC807
IC907
IC804
ap
(mm)
f
(mm/rev)
DCGT 070201-PF
7.70 6.35 2.38 0.10 2.80
•
0.30-3.00 0.02-0.25
DCGT 070202-PF
7.70 6.35 2.38 0.20 2.80
•
0.40-3.00 0.03-0.25
DCGT 070204-PF
7.70 6.35 2.38 0.40 2.80
•
0.50-3.00 0.05-0.25
DCMT 070201-PF
7.70 6.35 2.38 0.10 2.80
• •
0.30-3.00 0.02-0.25
DCMT 070202-PF
7.70 6.35 2.38 0.20 2.80
•
0.40-3.00 0.03-0.25
DCMT 070204-PF
7.70 6.35 2.38 0.40 2.80
•
0.50-3.00 0.05-0.25
DCMT 070208-PF
7.70 6.35 2.38 0.80 2.80
• •
0.70-3.00 0.08-0.25
DCGT 11T301-PF
11.60 9.52 3.97 0.10 4.40
•
0.30-3.00 0.03-0.25
DCGT 11T302-PF
11.60 9.52 3.97 0.20 4.40
•
0.40-3.00 0.04-0.25
DCGT 11T304-PF
11.60 9.52 3.97 0.40 4.40
•
0.50-3.00 0.05-0.25
DCGT 11T308-PF
11.60 9.52 3.97 0.80 4.40
•
0.70-3.00 0.10-0.25
DCMT 11T302-PF
11.60 9.52 3.97 0.20 4.40
• ••••
0.30-3.00 0.04-0.25
DCMT 11T304-PF
11.60 9.52 3.97 0.40 4.40
••• •••••
0.50-3.00 0.05-0.25
DCMT 11T308-PF
11.60 9.52 3.97 0.80 4.40
••• •••••
0.70-3.00 0.10-0.25
DCMT/DCGT-PF
55° Rhombic Inserts with a
Positive Flank for Semi-Finish
and Finishing on Soft
Materials and Exotic Alloys
457

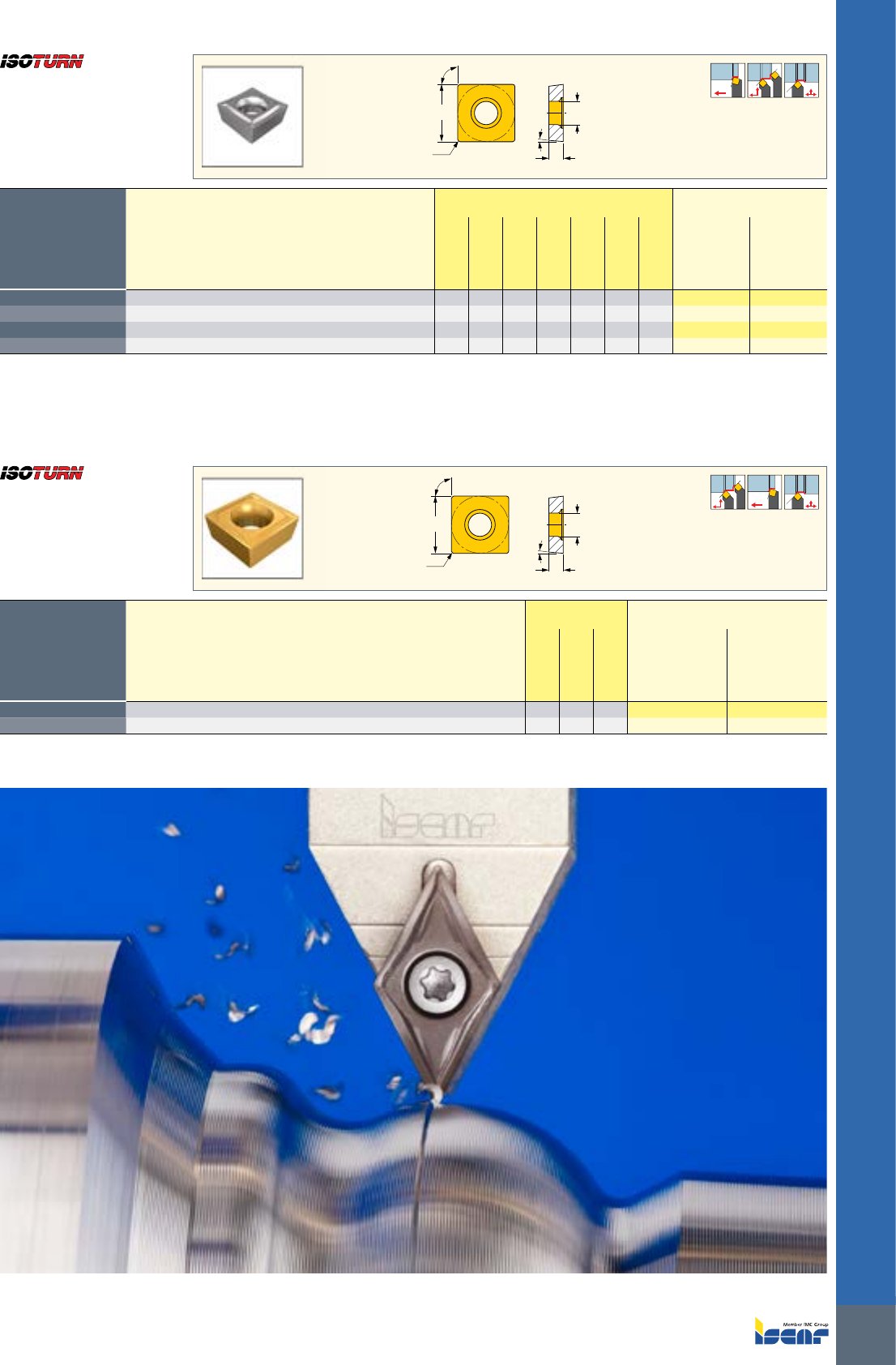

ITS BORE
7°
S
D1
90°
IC=L
RE
75º
45
º
45º
45°
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L S RE D1
IC830
IC6025
IC8250
IC8150
IC5005
IC807
IC907
ap
(mm)
f
(mm/rev)
SCMT 09T304-SM
9.52 3.97 0.40 4.40
• • • •
0.50-3.00 0.07-0.25
SCMT 09T308-SM
9.52 3.97 0.80 4.40
•••••••
0.50-3.00 0.10-0.30
SCMT 120404-SM
12.70 4.76 0.40 5.50
•
0.50-3.50 0.10-0.25
SCMT 120408-SM
12.70 4.76 0.80 5.50
• • • •
1.00-4.00 0.10-0.30
For tools, see page: IHPR (408)
SCMT-SM
Square Inserts with a 7°
Positive Flank for Semi-Finishing
and Finish Turning on Soft
Materials and Exotic Alloys
7°
S
D1
90°
IC=L
RE
45
º
45º
75º
45°
Dimensions Tough
1
Hard Recommended Machining Data
Designation
L S RE D1
IC8250
IC807
IC907
ap
(mm)
f
(mm/rev)
SCMT 09T304-14
9.52 3.97 0.40 4.40
• •
1.00-3.50 0.12-0.30
SCMT 120404-14
12.70 4.76 0.40 5.50
•
1.00-4.00 0.12-0.30
For tools, see page: IHPR (408)
SCMT-14
Square Inserts with a 7°
Positive Flank for Semi-Finishing
and Finish Turning on Soft
Materials and Exotic Alloys
ISCAR
458

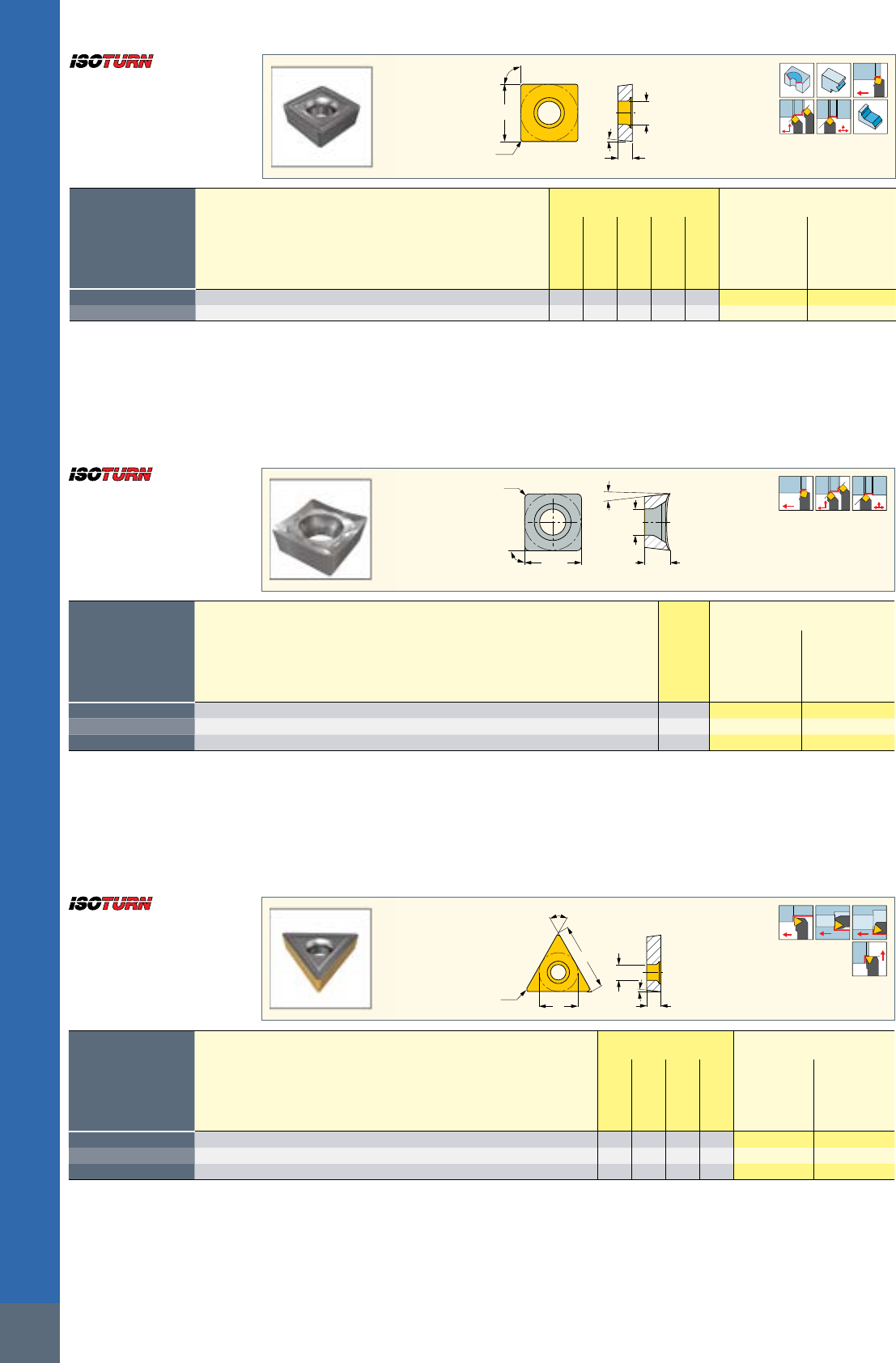

ITS BORE
7°
S
D1
90°
IC=L
RE
75º
45º
45º
45°
Dimensions Tough
1
Hard Recommended Machining Data
Designation
L S RE D1
IC830
IC20
IC5005
IC807
IC907
ap
(mm)
fz
(mm/rev)
SCMT 120408-19
12.70 4.76 0.80 5.50
•••••
3.00-8.00 0.08-0.15
SCMT 120412-19
12.70 4.76 1.20 5.50
•
3.00-8.00 0.08-0.15
For tools, see page: IHPR (408)
SCMT-19
Square Inserts with a 7° Positive
Flank for Semi-Roughing at
Medium to High Feeds
S
D1
7°
90˚ IC=L
RE
75º
45
º
45º
45°
Dimensions Recommended Machining Data
Designation
L IC S RE D1
IC20
ap
(mm)
f
(mm/rev)
SCGT 09T308-AS
9.52 9.52 3.97 0.80 4.40
•
0.50-3.00 0.10-0.30
SCGT 120404-AS
12.70 12.70 4.76 0.40 5.50
•
1.00-4.00 0.10-0.30
SCGT 120408-AS
12.70 12.70 4.76 0.80 5.50
•
1.00-4.00 0.10-0.30
For tools, see page: IHPR (408)
SCGT-AS
Square Inserts with a 7° Positive
Flank, Very Positive Rake
Angle and Sharp Cutting Edge
for Machining Aluminum
IC
60°
S
RE
L
7°
D1
91º91º
95º
91º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC50M
IC8150
IC20
ap
(mm)
f
(mm/rev)
TCMT 110204-19
11.00 6.35 2.38 0.40 2.80
•••
0.50-3.00 0.10-0.30
TCMT 16T308-19
16.50 9.52 3.97 0.80 4.40
• • •
1.00-4.00 0.20-0.35
TCMT 220508-19
22.00 12.70 5.00 0.80 5.50
•
1.00-4.00 0.20-0.35
For tools, see page: IHBR (409)
TCMT-19
Triangular Inserts with a 7°
Positive Flat Rake for
Semi-Roughing Applications
at Medium to High Feeds
459

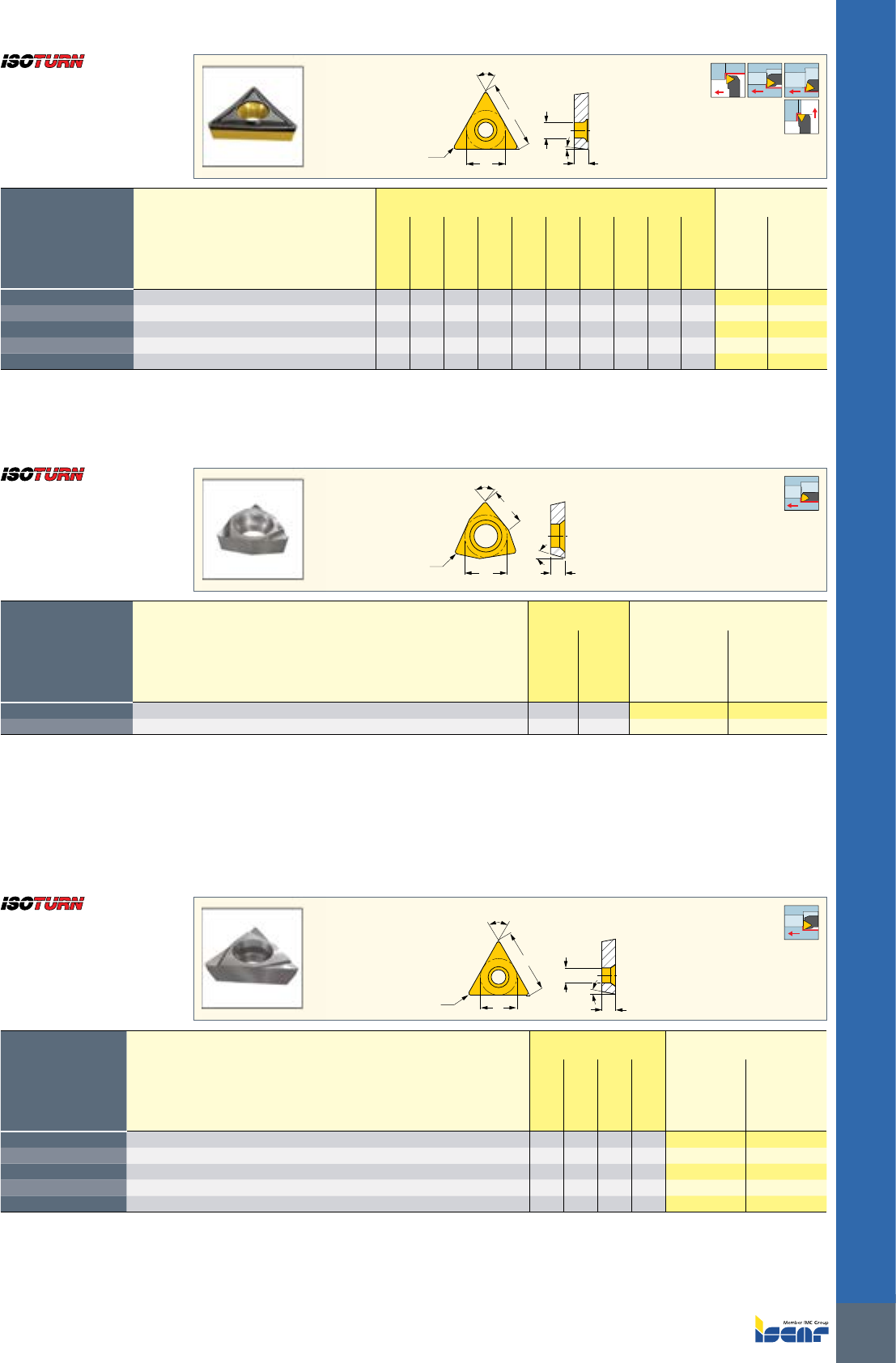

ITS BORE
IC
60°
S
RE
L
7°
D1
91º91º
95º
91º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC830
IC8350
IC8250
IC908
IC8150
IC5010
IC428
IC5005
IC807
IC907
ap
(mm)
f
(mm/rev)
TCMT 110204-SM
11.00 6.35 2.38 0.40 2.80
••••• •••
0.20-3.00 0.05-0.25
TCMT 110208-SM
11.00 6.35 2.38 0.80 2.80
• • •
0.50-2.50 0.07-0.25
TCMT 16T304-SM
16.50 9.52 3.97 0.40 4.40
• • • • • • •
0.50-3.00 0.06-0.25
TCMT 16T308-SM
16.50 9.52 3.97 0.80 4.40
• • • • • •
0.50-3.00 0.08-0.28
TCMT 16T308-SM*
16.50 9.52 3.97 0.80 4.40
•
0.50-3.00 0.08-0.28
For tools, see page: IHBR (409)
TCMT-SM
Triangular Inserts with a 7°
Positive Flank for Semi-Finishing
and Finish Turning on Soft
Materials and Exotic Alloys
S
7°
80°
IC
L
RE
93º
Dimensions Tough
1
Hard Recommended Machining Data
Designation
L IC S RE
IC908
IC30N
ap
(mm)
f
(mm/rev)
WCGT 020102L
2.18 3.97 1.59 0.20
• •
0.40-2.00 0.05-0.10
WCGT 020104L
2.18 3.97 1.59 0.40
• •
0.40-2.00 0.10-0.15
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHWF (436)
WCGT
Trigon Inserts with a 7°
Positive Flank and Chipformer
for Finish Turning
IC
60°
RE
L
D1
11°
S
91º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE D1
IC908
IC20
IC20N
IC520N
ap
(mm)
f
(mm/rev)
TPGX 090202-L
9.52 5.56 2.38 0.20 3.00
••••
1.00-2.00 0.10-0.20
TPGX 090204-L
9.52 5.56 2.38 0.40 3.00
••••
1.00-2.50 0.15-0.20
TPGX 110302-L
11.00 6.35 3.18 0.20 3.50
••••
1.00-2.50 0.10-0.20
TPGX 110304-L
11.00 6.35 3.18 0.40 3.50
••••
1.00-3.00 0.15-0.20
TPGX 110308-L
11.00 6.35 3.18 0.80 3.50
•
1.00-3.50 0.15-0.25
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHFF-C (413)
TPGX
Triangular Inserts with an 11°
Positive Flank and Ground
Chipformer for Finish Turning
ISCAR
460

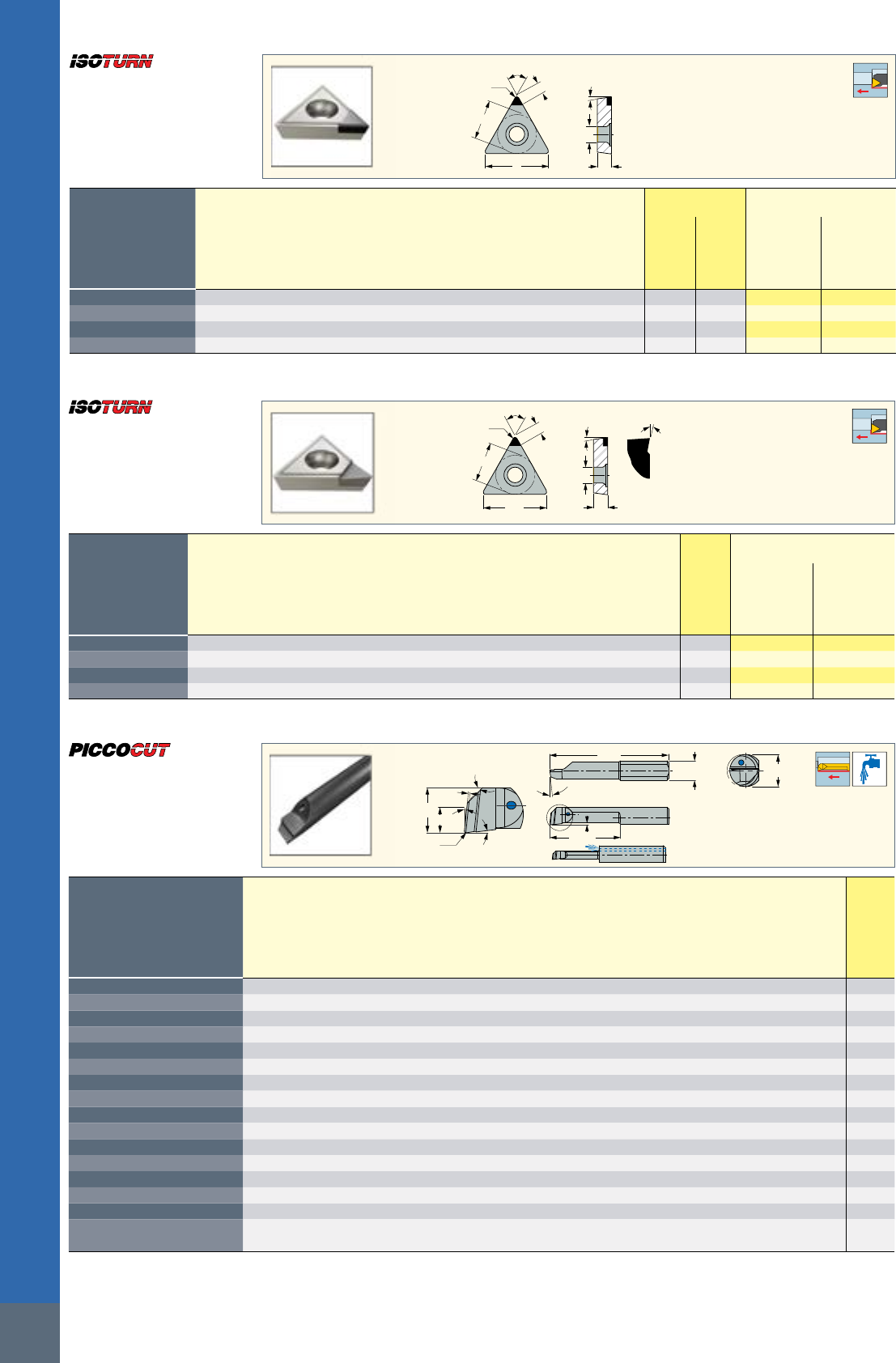

ITS BORE
L
60°
RE
S
LE
D1
11°
IC
91º
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
L IC S RE LE D1
IB90
IB50
ap
(mm)
f
(mm/rev)
TPGX 090202T
9.52 5.56 2.38 0.20 2.5 2.50
• •
0.05-0.50 0.03-0.20
TPGX 090204T
9.52 5.56 2.38 0.40 2.6 2.50
• •
0.05-0.50 0.03-0.20
TPGX 110302T
11.00 6.35 3.18 0.20 3.3 3.50
• •
0.05-0.50 0.03-0.20
TPGX 110304T
11.00 6.35 3.18 0.40 3.0 3.50
• •
0.05-0.50 0.03-0.20
For tools, see pages: IHAXF (432) • IHAXF-AVI (434) • IHAXF-E (434) • IHFF (436) • IHFF-C (413)
TPGX (CBN)
Triangular Inserts with CBN
Single Top Corner Brazed Tip,
11° Clearance for Machining
Cast Iron and Hardened Steel
L
IC
60°
RE
S
7°
LE
D1
11°
91º
Dimensions Recommended Machining Data
Designation
L IC S RE LE D1
ID5
ap
(mm)
f
(mm/rev)
TPGX 090202
9.52 5.56 2.38 0.20 3.0 2.50
•
0.10-3.00 0.05-0.30
TPGX 090204
9.52 5.56 2.38 0.40 3.0 2.50
•
0.10-3.00 0.05-0.30
TPGX 110302
11.00 6.35 3.18 0.20 3.4 3.50
•
0.10-3.00 0.05-0.30
TPGX 110304
11.00 6.35 3.18 0.40 3.8 3.50
•
0.10-3.00 0.05-0.30
For tools, see page: AIHAXF (432)
TPGX (PCD)
Triangular Inserts with PCD
Single Top Corner Brazed Tip,
11° Clearance and Positive Rake
Angle for Finishing Aluminum
LF
DCONMS
CDX
A
6°
45°
6°
0.2
7°
DMIN
RE
a
WF DMIN≥3
A
DMIN<3
OHN
Dimensions
Designation
DCONMS WF a RE LF OHN(1) CDX(2) DMIN
IC908
PICCO R/LX050.2-5R15
4.00 - 1.80 0.15 19.00 5.0 0.10 2.00
•
PICCO R/LX050.2-10R05
4.00 - 1.80 0.05 24.00 10.0 0.10 2.00
•
PICCO R/LX050.2-10R15
4.00 - 1.80 0.15 24.00 10.0 0.10 2.00
•
PICCO R/LX050.3-16R10
4.00 0.70 2.70 0.10 30.00 16.0 0.15 3.00
•
PICCO R/LX050.3-16R20
4.00 0.70 2.70 0.20 30.00 16.0 0.15 3.00
•
PICCO R/LX050.4-10R10
4.00 1.60 3.60 0.10 24.00 10.0 0.20 4.00
•
PICCO R/LX050.4-10R20
4.00 1.60 3.60 0.20 24.00 10.0 0.20 4.00
•
PICCO R/LX050.4-16R10
4.00 1.60 3.60 0.10 30.00 16.0 0.20 4.00
•
PICCO R/LX050.4-16R20
4.00 1.60 3.60 0.20 30.00 16.0 0.20 4.00
•
PICCO R/LX050.5-15R10
5.00 2.10 4.60 0.10 30.00 15.0 0.30 5.00
•
PICCO R/LX050.5-15R20
5.00 2.10 4.60 0.20 30.00 15.0 0.30 5.00
•
PICCO R/LX050.5-25R10
5.00 2.10 4.60 0.10 40.00 25.0 0.30 5.00
•
PICCO R/LX050.5-25R20
5.00 2.10 4.60 0.20 40.00 25.0 0.30 5.00
•
PICCO R/LX050.6-15R10
6.00 2.50 5.50 0.10 30.00 15.0 0.40 6.00
•
PICCO R/LX050.6-15R20
6.00 2.50 5.50 0.20 30.00 15.0 0.40 6.00
•
PICCO R/LX050.6-22R20
6.00 2.50 5.50 0.20 37.00 22.0 0.40 6.00
•
PICCO R/LX050.6-35R20
6.00 2.50 5.50 0.20 50.00 35.0 0.40 6.00
•
• Left-hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R/LX050
Reinforced Boring Inserts
with Internal Coolant Holes
461

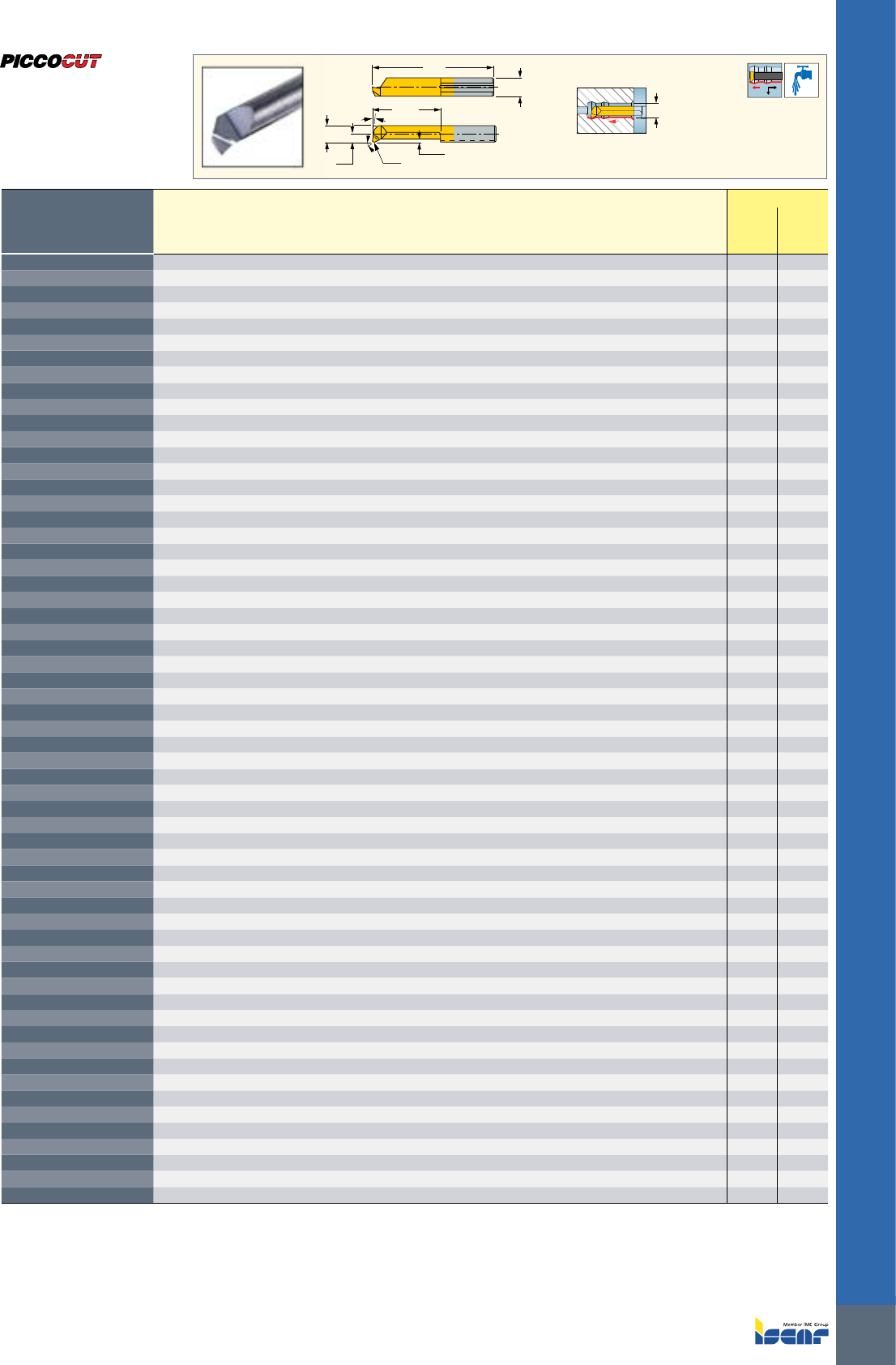

ITS BORE
a
WF RE
20°
OHN
8°
CDX
LF
DCONMS
DMIN
Right-hand shown
PICCO R/L 050, 053, 055
Inserts for Internal Turning
and Chamfering
• Specify right- or left-hand bars
(1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev.
(2) Minimum overhang
(3) Cutting depth maximum
Dimensions Tough
1
Hard
Designation
DCONMS WF a LF OHN(2) RE CDX(3) DMIN
IC228
IC908
PICCO R 050.06-2 (1)
4.00 - 0.50 20.00 2.0 0.04 0.08 0.60
• •
PICCO R 050.06-3 (1)
4.00 - 0.50 20.00 3.0 0.04 0.08 0.60
• •
PICCO R 050.08-4
4.00 - 0.70 20.00 4.0 0.04 0.08 0.80
•
PICCO R/L 050.1-5
4.00 - 0.90 20.00 4.5 0.05 0.10 1.00
• •
PICCO R/L 050.1-7
4.00 - 0.90 22.00 6.5 0.05 0.10 1.00
• •
PICCO R 050.15-5
4.00 - 1.30 19.00 5.0 0.05 0.10 1.50
•
PICCO R 050.15-10
4.00 - 1.30 24.00 10.0 0.06 0.10 1.50
•
PICCO R/L 050.2-5
4.00 - 1.70 19.00 4.0 0.05 0.10 2.00
• •
PICCO R 055.2-5
4.00 - 1.70 19.00 5.0 0.05 0.10 2.00
•
PICCO R/L 050.2-10
4.00 - 1.70 24.00 9.0 0.05 0.10 2.00
• •
PICCO R 055.2-10
4.00 - 1.70 24.00 10.0 0.05 0.10 2.00
•
PICCO L 050.2-15
4.00 - 1.70 29.00 15.0 0.05 0.10 2.00
• •
PICCO R 050.2-15
4.00 - 1.70 29.00 14.0 0.05 0.10 2.00
• •
PICCO R 055.2-15
4.00 - 1.70 29.00 15.0 0.05 0.10 2.00
•
PICCO R 050.25-5
4.00 0.20 2.20 19.00 5.0 0.05 0.15 2.50
•
PICCO R 050.25-10
4.00 0.20 2.20 24.00 10.0 0.07 0.15 2.50
•
PICCO R 050.25-16
4.00 0.20 2.20 30.00 16.0 0.07 0.15 2.50
•
PICCO R 053.3-10
4.00 0.60 2.60 24.00 9.0 0.03 0.20 2.80
•
PICCO R 055.3-10
4.00 0.60 2.60 24.00 10.0 0.05 0.20 2.80
•
PICCO R/L 050.3-10
4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80
• •
PICCO R 053.3-16
4.00 0.60 2.60 30.00 15.0 0.03 0.20 2.80
•
PICCO R 055.3-16
4.00 0.60 2.60 30.00 16.0 0.05 0.20 2.80
•
PICCO R/L 050.3-16
4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80
• •
PICCO R 053.3-20
4.00 0.60 2.60 34.00 19.0 0.03 0.20 2.80
•
PICCO R/L 050.3-20
4.00 0.60 2.60 34.00 19.0 0.10 0.20 2.80
• •
PICCO R 050.35-10
4.00 1.10 3.10 24.00 10.0 0.10 0.25 3.50
•
PICCO R 050.35-16
4.00 1.10 3.10 30.00 16.0 0.10 0.25 3.50
•
PICCO R 050.35-20
4.00 1.10 3.10 34.00 20.0 0.10 0.25 3.50
•
PICCO R 050.35-24
4.00 1.10 3.10 38.00 24.0 0.10 0.25 3.50
•
PICCO R 053.4-10
4.00 1.50 3.50 24.00 9.0 0.03 0.30 4.00
•
PICCO R 055.4-10
4.00 1.50 3.50 24.00 10.0 0.05 0.30 4.00
•
PICCO R/L 050.4-10
4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00
• •
PICCO R 053.4-16
4.00 1.50 3.50 30.00 15.0 0.03 0.30 4.00
•
PICCO R 055.4-16
4.00 1.50 3.50 30.00 16.0 0.05 0.30 4.00
•
PICCO R/L 050.4-16
4.00 1.50 3.50 30.00 15.0 0.10 0.30 4.00
• •
PICCO R 053.4-20
4.00 1.50 3.50 34.00 19.0 0.03 0.30 4.00
•
PICCO R 055.4-20
4.00 1.50 3.50 34.00 20.0 0.05 0.30 4.00
•
PICCO R/L 050.4-20
4.00 1.50 3.50 34.00 19.0 0.10 0.30 4.00
• •
PICCO R/L 050.4-24
4.00 1.50 3.50 38.00 23.0 0.10 0.30 4.00
• •
PICCO R/L 050.4-28
4.00 1.50 3.50 42.00 27.0 0.10 0.30 4.00
• •
PICCO R 055.4-28
4.00 1.50 3.50 42.00 28.0 0.05 0.50 4.00
•
PICCO R 055.5-10
5.00 1.90 4.40 25.00 9.0 0.05 0.50 5.00
•
PICCO R/L 050.5-10
5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00
• •
PICCO R 055.5-15
5.00 1.90 4.40 30.00 14.0 0.05 0.50 5.00
•
PICCO R/L 050.5-15
5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00
• •
PICCO R 055.5-20
5.00 1.90 4.40 35.00 19.0 0.05 0.50 5.00
•
PICCO R/L 050.5-20
5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00
• •
PICCO R 055.5-25
5.00 1.90 4.40 40.00 24.0 0.05 0.50 5.00
•
PICCO R/L 050.5-25
5.00 1.90 4.40 40.00 24.0 0.15 0.50 5.00
• •
PICCO R 055.5-30
5.00 1.90 4.40 45.00 29.0 0.05 0.50 5.00
•
PICCO R/L 050.5-30
5.00 1.90 4.40 45.00 29.0 0.15 0.50 5.00
• •
PICCO R/L 050.5-35
5.00 1.90 4.40 50.00 34.0 0.15 0.50 5.00
• •
PICCO R 055.6-15
6.00 2.30 5.30 30.00 14.0 0.05 0.50 6.00
•
PICCO R/L 050.6-15
6.00 2.30 5.30 30.00 14.0 0.15 0.50 6.00
• •
PICCO R 055.6-22
6.00 2.30 5.30 37.00 21.0 0.05 0.50 6.00
•
PICCO R/L 050.6-22
6.00 2.30 5.30 37.00 21.0 0.15 0.50 6.00
• •
PICCO R 055.6-25
6.00 2.30 5.30 40.00 24.0 0.05 0.50 6.00
•
PICCO R/L 050.6-25
6.00 2.30 5.30 40.00 24.0 0.15 0.50 6.00
• •
PICCO R 055.6-30
6.00 2.30 5.30 45.00 29.0 0.05 0.50 6.00
•
ISCAR
462

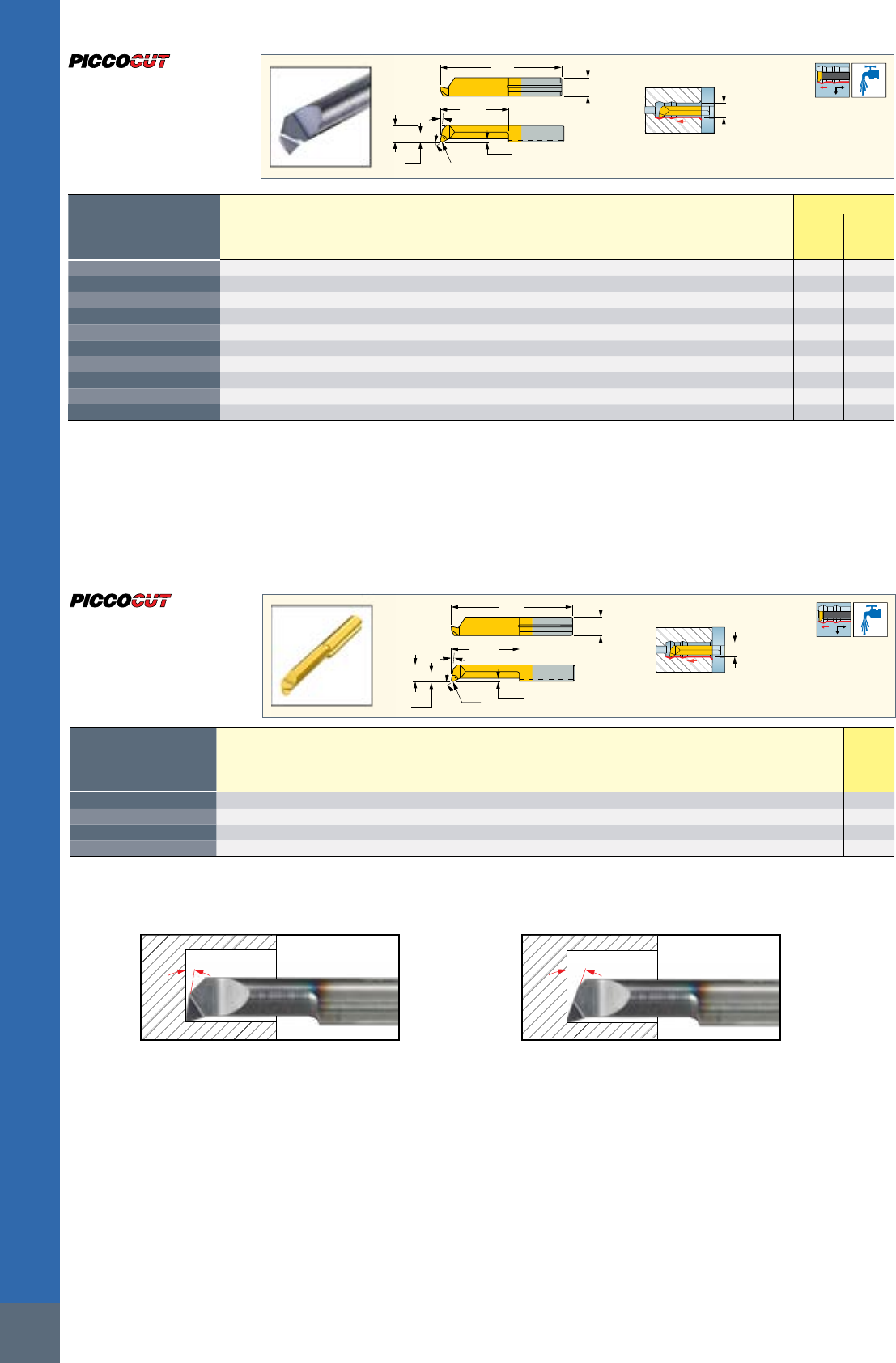

ITS BORE
a
WF RE
20°
OHN
20°
CDX
LF
DCONMS
DMIN
Right-hand shown
Dimensions
Designation
DCONMS WF a LF OHN(1) RE CDX(2) DMIN
IC908
PICCO R 050.20.2-10
4.00 - 1.70 24.00 10.0 0.05 0.10 2.00
•
PICCO R 050.20.3-10
4.00 0.60 2.60 24.00 10.0 0.10 0.20 2.80
•
PICCO R 050.20.4-16
4.00 1.50 3.50 30.00 16.0 0.10 0.30 4.00
•
PICCO R 050.20.5-20
5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00
•
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
PICCO 050... PICCO 050.20...
8° 20°
PICCO R 050.20
Inserts for Internal Turning
and Chamfering Next to the
Bottom of Blind Holes
a
WF RE
20°
OHN
8°
CDX
LF
DCONMS
DMIN
Right-hand shown
PICCO R/L 050, 053, 055
(Continue)
Inserts for Internal Turning
and Chamfering
• Specify right- or left-hand bars
(1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev.
(2) Minimum overhang
(3) Cutting depth maximum
Dimensions Tough
1
Hard
Designation
DCONMS WF a LF OHN(2) RE CDX(3) DMIN
IC228
IC908
PICCO R/L 050.6-30
6.00 2.30 5.30 45.00 29.0 0.15 0.50 6.00
• •
PICCO R/L 050.6-35
6.00 2.30 5.30 50.00 34.0 0.15 0.50 6.00
• •
PICCO R/L 050.6-42
6.00 2.30 5.30 57.00 41.0 0.15 0.50 6.00
• •
PICCO R/L 050.7-20
7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-25
7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-30
7.00 2.80 6.30 45.00 29.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-35
7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-40
7.00 2.80 6.30 55.00 39.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-45
7.00 2.80 6.30 60.00 44.0 0.15 0.60 6.80
• •
PICCO R/L 050.7-50
7.00 2.80 6.30 65.00 49.0 0.15 0.60 6.80
• •
463

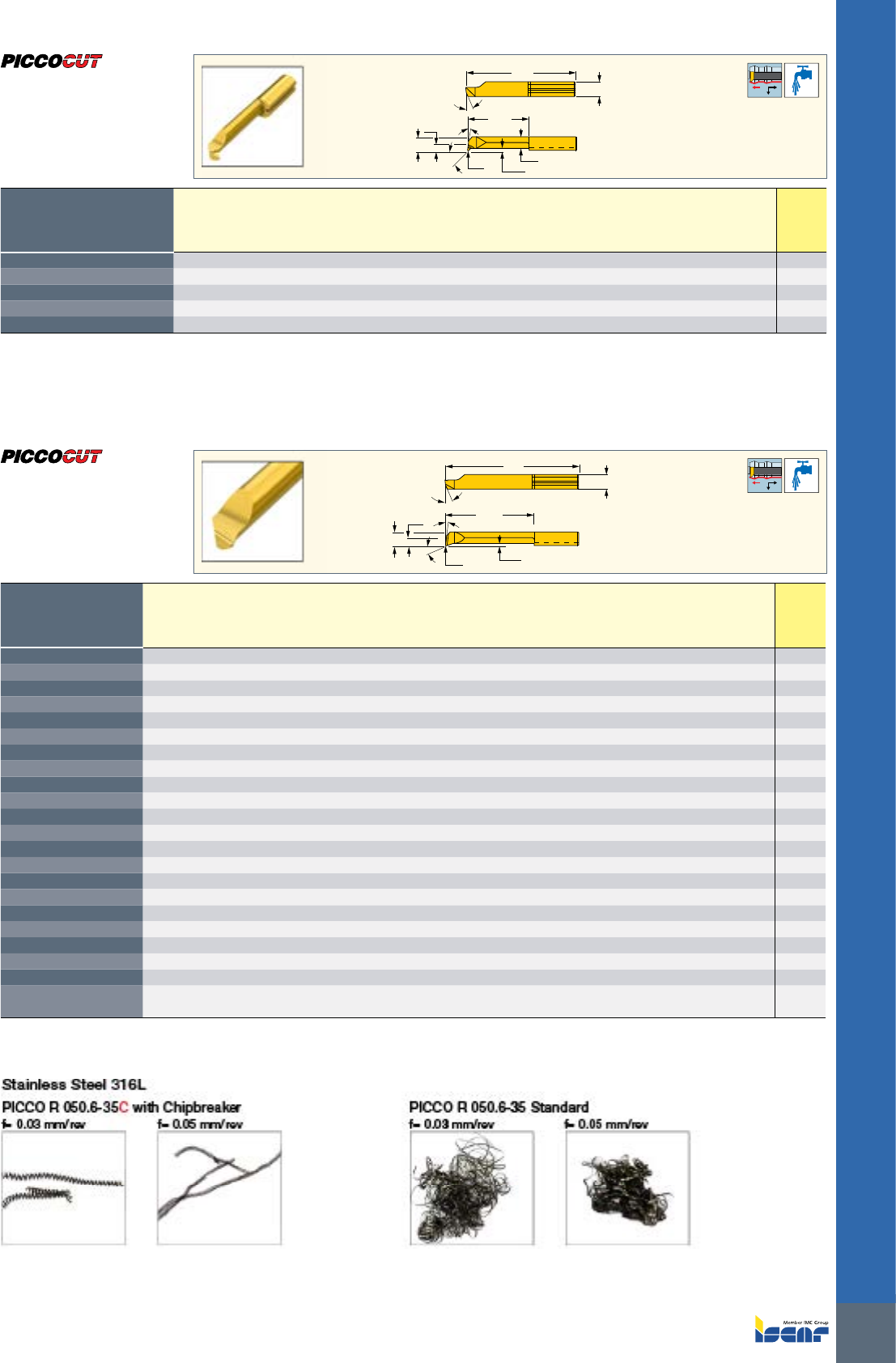

ITS BORE
5°
47°
a
8°
WB
LF
RE CDX
WF
DCONMS
OHN
Right-hand shown
Dimensions
Designation
DCONMS WF a LF OHN(1) WB CDX(2) DMIN RE
IC908
PICCO R/L 047.4-20
4.00 1.50 3.50 34.00 20.0 3.00 0.30 4.00 0.15
•
PICCO R/L 047.5-25
5.00 1.90 4.40 40.00 25.0 3.80 0.50 5.00 0.15
•
PICCO R/L 047.6-30
6.00 2.30 5.30 45.00 30.0 4.50 0.50 6.00 0.15
•
PICCO R 047.T6-22
6.00 2.30 5.30 37.00 22.0 3.40 1.80 6.00 0.15
•
PICCO R 047.T6-30
6.00 2.30 5.30 45.00 30.0 3.40 1.80 6.00 0.15
•
• Left hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R/L 047
Inserts for Internal Deep Profiling
LF
5°
8°
RE CDX
20°
a
WF
DCONMS
OHN
Right-hand shown
Dimensions
Designation
DCONMS WF a LF OHN(1) CDX(2) DMIN RE
IC908
PICCO R/L 050.4-10C
4.00 1.50 3.50 24.00 10.0 0.30 4.00 0.10
•
PICCO R/L 050.4-20C
4.00 1.50 3.50 34.00 20.0 0.30 4.00 0.10
•
PICCO R/L 050.4-24C
4.00 1.50 3.50 38.00 24.0 0.30 4.00 0.10
•
PICCO R/L 050.4-28C
4.00 1.50 3.50 42.00 28.0 0.30 4.00 0.10
•
PICCO R 050.4-16C
4.00 1.50 3.50 30.00 16.0 0.30 4.00 0.10
•
PICCO R/L 050.5-10C
5.00 1.90 4.40 25.00 10.0 0.50 5.00 0.15
•
PICCO R/L 050.5-15C
5.00 1.90 4.40 30.00 15.0 0.50 5.00 0.15
•
PICCO R/L 050.5-20C
5.00 1.90 4.40 35.00 20.0 0.50 5.00 0.15
•
PICCO R/L 050.5-25C
5.00 1.90 4.40 40.00 25.0 0.50 5.00 0.15
•
PICCO R/L 050.5-30C
5.00 1.90 4.40 45.00 30.0 0.50 5.00 0.15
•
PICCO R/L 050.5-35C
5.00 1.90 4.40 50.00 35.0 0.50 5.00 0.15
•
PICCO R/L 050.6-15C
6.00 2.30 5.30 30.00 15.0 0.50 6.00 0.15
•
PICCO R/L 050.6-22C
6.00 2.30 5.30 37.00 22.0 0.50 6.00 0.15
•
PICCO R/L 050.6-25C
6.00 2.30 5.30 40.00 25.0 0.50 6.00 0.15
•
PICCO R/L 050.6-30C
6.00 2.30 5.30 45.00 30.0 0.50 6.00 0.15
•
PICCO R/L 050.6-35C
6.00 2.30 5.30 50.00 35.0 0.50 6.00 0.15
•
PICCO R/L 050.6-42C
6.00 2.30 5.30 57.00 42.0 0.50 6.00 0.15
•
PICCO R/L 050.7-20C
7.00 2.80 6.30 35.00 20.0 0.60 6.80 0.15
•
PICCO R/L 050.7-25C
7.00 2.80 6.30 40.00 25.0 0.60 6.80 0.15
•
PICCO R/L 050.7-30C
7.00 2.80 6.30 45.00 30.0 0.60 6.80 0.15
•
PICCO R/L 050.7-35C
7.00 2.80 6.30 50.00 35.0 0.60 6.80 0.15
•
PICCO R/L 050.7-40C
7.00 2.80 6.30 55.00 40.0 0.60 6.80 0.15
•
PICCO L 050.7-50C
7.00 2.80 6.30 65.00 50.0 0.60 6.80 0.15
•
• All left-hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R/L 050-C
Inserts with Chipformers for
Internal Boring and Profiling
ISCAR

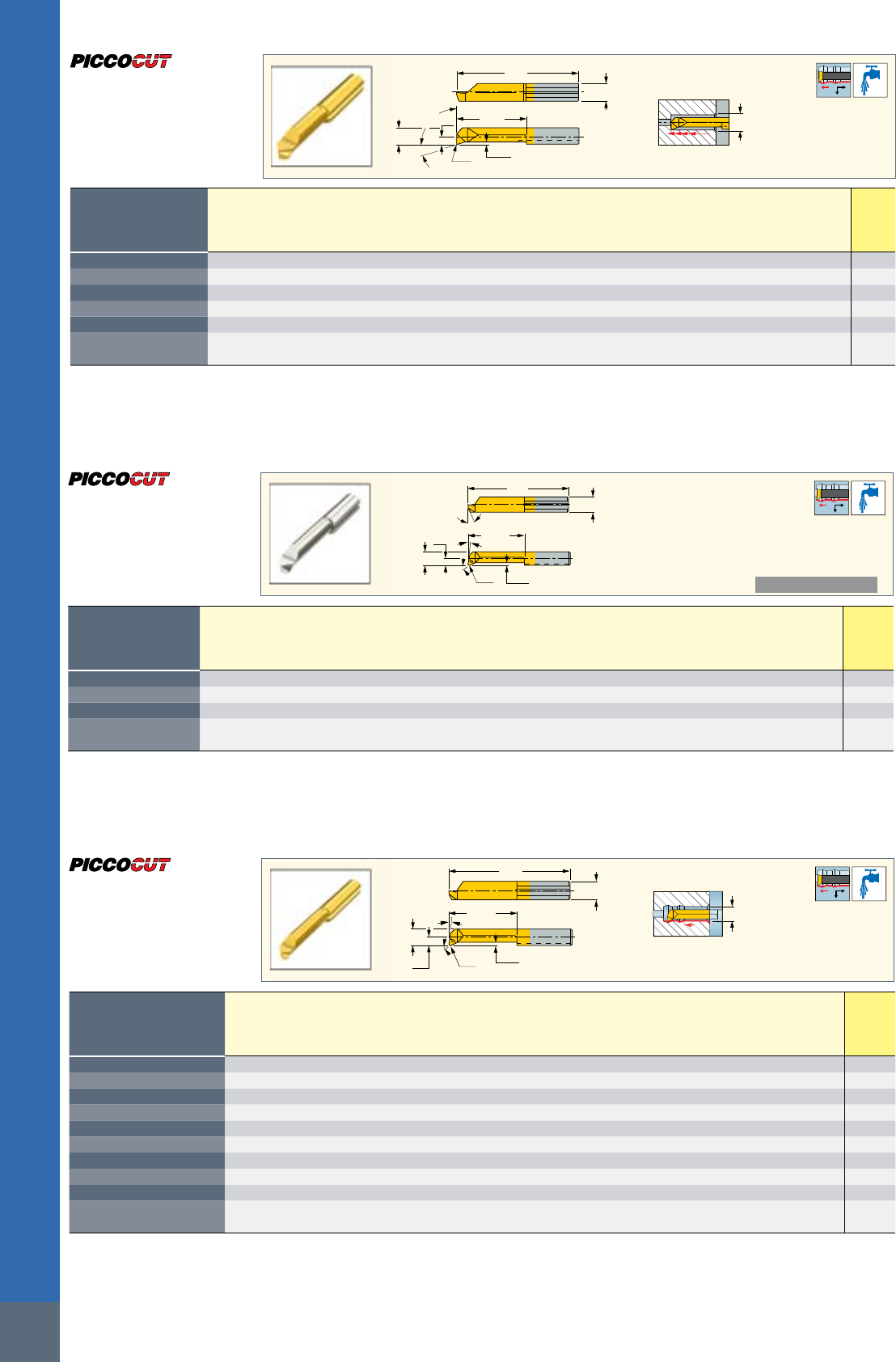

464
ITS BORE
DMIN
DCONMS
LF
WF
CDX
90°
a
20° RE
OHN
Right-hand shown
Dimensions
Designation
DCONMS WF a LF OHN(1) RE CDX(2) DMIN
IC228
PICCO R/L 090.3-10
4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80
•
PICCO R/L 090.3-16
4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80
•
PICCO R/L 090.4-10
4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00
•
PICCO R/L 090.4-16
4.00 1.50 3.50 30.00 15.0 0.10 0.30 4.00
•
PICCO R/L 090.5-10
5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00
•
PICCO R/L 090.5-15
5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00
•
PICCO R/L 090.5-20
5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00
•
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R/L 090
Inserts for Internal
Turning and Profiling
20°
8°
a
5°
LF
RE CDX
WF
DCONMS
OHN
Right-hand shown • HARD MATERIALS
Dimensions
Designation
DCONMS WF a LF OHN(1) CDX(2) DMIN RE
IB55
PICCO R 050.3-10B
4.00 0.60 2.60 25.50 10.0 0.20 2.80 0.10
•
PICCO R 050.4-10B
4.00 1.50 3.50 25.50 10.0 0.30 4.00 0.10
•
PICCO R 050.5-15B
5.00 1.90 4.40 31.50 15.0 0.50 5.00 0.15
•
PICCO R 050.6-15B
6.00 2.30 5.30 31.50 15.0 0.50 6.00 0.15
•
PICCO R 050.7-20B
7.00 2.80 6.30 36.50 20.0 0.60 6.80 0.15
•
• It is not recommended to use coolant when machining with CBN tipped tools • Available on request only
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R 050 (CBN)
CBN Tipped Inserts for
Internal Turning, Profiling and
Chamfering of Hard Steel
a
WF RE
20°
8°
CDX
LF
DCONMS
DMIN
OHN
Dimensions
Designation
DCONMS WF a LF OHN(1) RE CDX(2) DMIN
IC902
PICCO R/LHD 050.2-5
4.00 - 1.70 19.00 4.0 0.05 0.10 2.00
•
PICCO R/LHD 050.3-10
4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80
•
PICCO R/LHD 050.3-16
4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80
•
PICCO R/LHD 050.4-10
4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00
•
PICCO R/LHD 050.4-20
4.00 1.50 3.50 34.00 19.0 0.10 0.30 4.00
•
PICCO R/LHD 050.5-10
5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00
•
PICCO R/LHD 050.5-15
5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00
•
PICCO R/LHD 050.6-15
6.00 2.30 5.30 30.00 14.0 0.15 0.50 6.00
•
PICCO R/LHD 050.7-20
7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80
•
PICCO R/LHD 050.7-25
7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80
•
PICCO R/LHD 050.7-35
7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80
•
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
PICCO R/LHD 050
Inserts for Internal Turning
and Chamfering of Hard
Steel - Up to 65 HRC
465

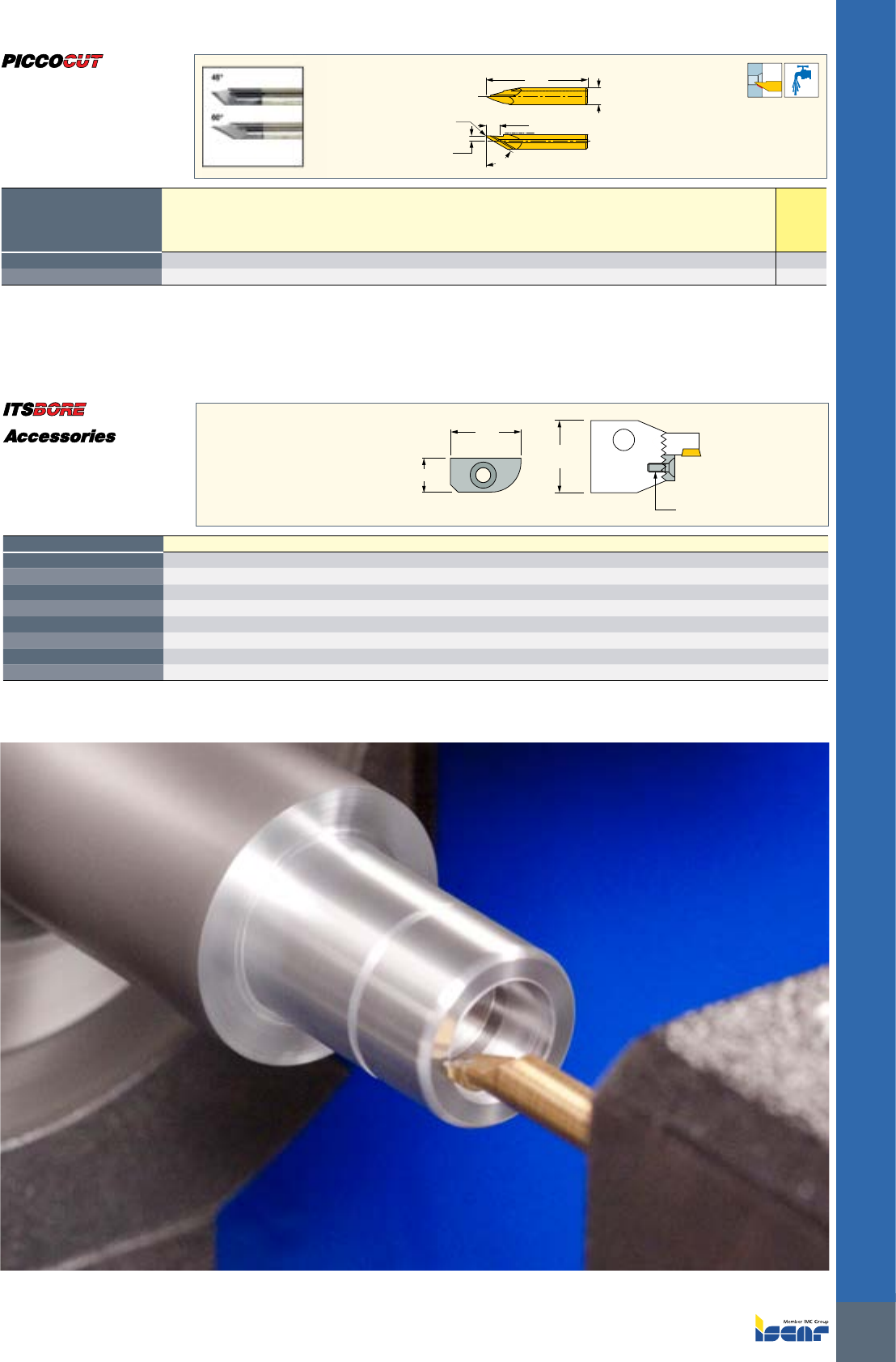

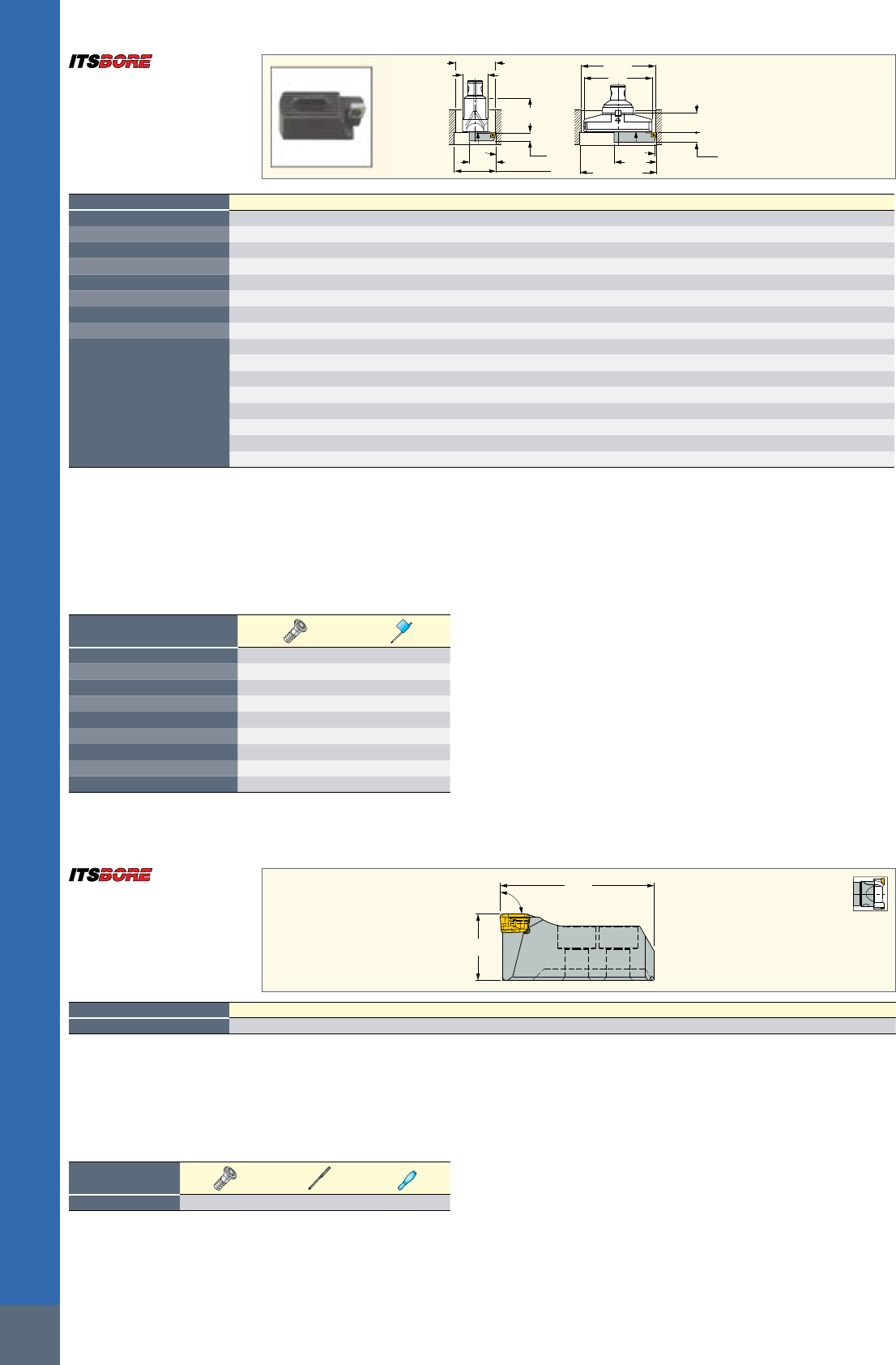

ITS BORE
LF
DCONMS
CDX
WF
RE
KAPR Right-hand shown
Dimensions
Designation
DCONMS WF KAPR(1) LF RE CDX DMIN
IC908
PICCO R/L 520.0045-15
5.00 1.50 45.0 30.00 0.20 3.50 1.00
•
PICCO R/L 520.0060-15
5.00 1.50 60.0 30.00 0.20 4.00 1.00
•
• Left hand inserts on request
(1) Tool cutting edge angle
PICCO R/L 520
Inserts for Internal Chamfering
DCONMS
G
1
OAL
H
Designation
DCONMS H OAL G1
PLT 16
16.00 7.0 14.00 SR M3x12 DIN912
PLT 20
20.00 8.5 17.00 SR M4x14 DIN912
PLT 25
25.00 10.2 21.00 SR M4x16 DIN7991
PLT 32
32.00 13.9 28.00 SR M5x20 DIN7991
PLT 40
40.00 17.4 35.00 SR M6x25 DIN7991
PLT 50
50.00 21.4 47.50 SR M8x25 DIN7991
PLT 63
63.00 26.4 62.00 SR M10x30 DIN7991
PLT 80
80.00 33.9 82.50 SR M12x35 DIN7991
P LT
Cover Plate Protects the
Serrated Faces When a
Single Toolholder is Used
ISCAR
466
ITS BORE

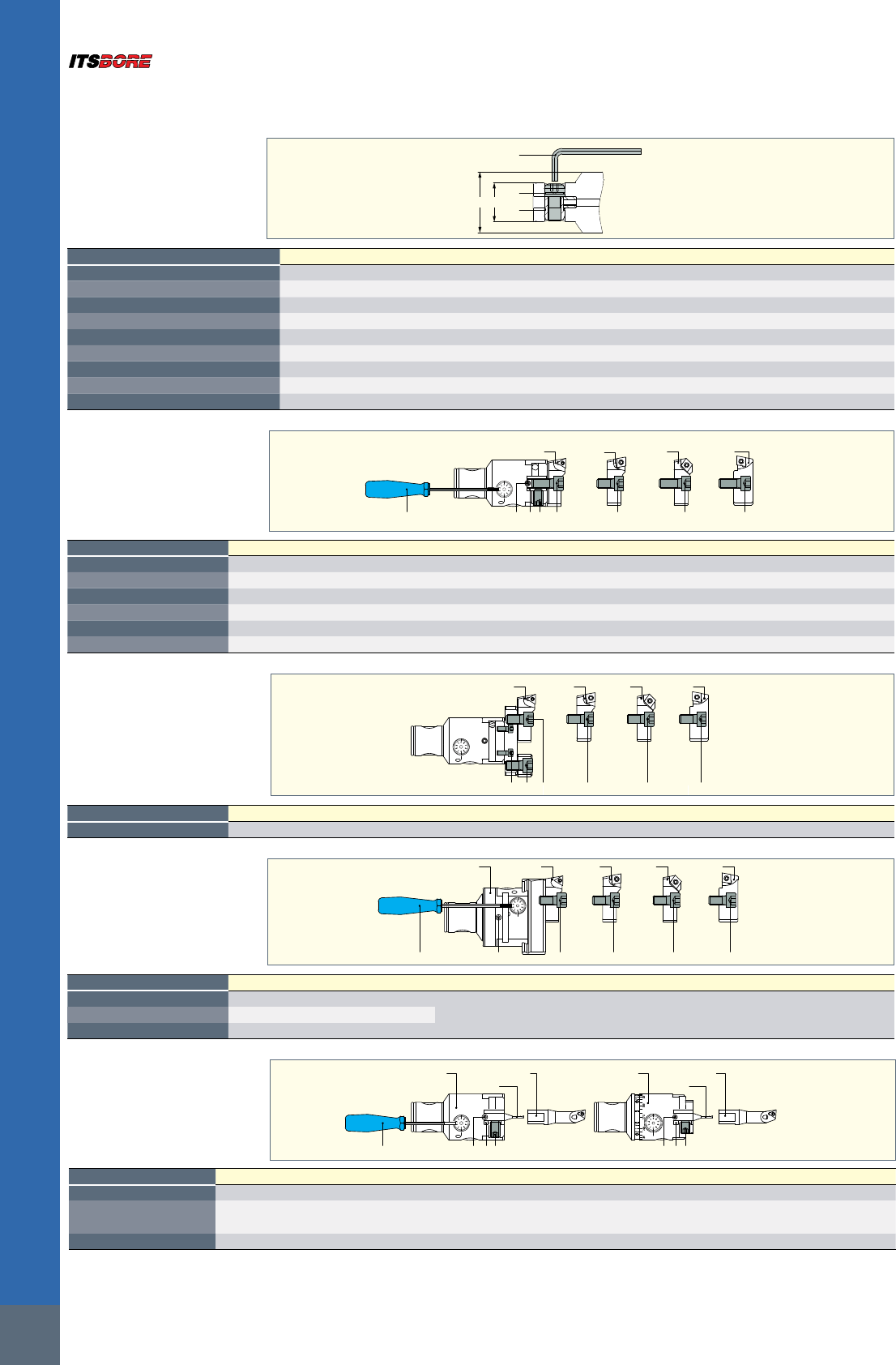

BH MB COUPLING SET 1
OR
d2d1
OR
Designation
d1 d2 1 OR
BH MB14 COUPLING SET
14 10 2.5 -
BH MB16 COUPLING SET
16 10 2.5 -
BH MB20 COUPLING SET
20 13 3 -
BH MB25 COUPLING SET
25 16 3 -
BH MB32 COUPLING SET
32 20 4 ORM 0075-10
BH MB40 COUPLING SET
40 25 5 ORM 0100-10
BH MB50 COUPLING SET/M5
50 32 6 ORM 0130-10
BH MB63-80 COUPLING SET
63 - 80 42 8 OR 2075
BH MB110 COUPLING SET
110 76 14 OR 3112

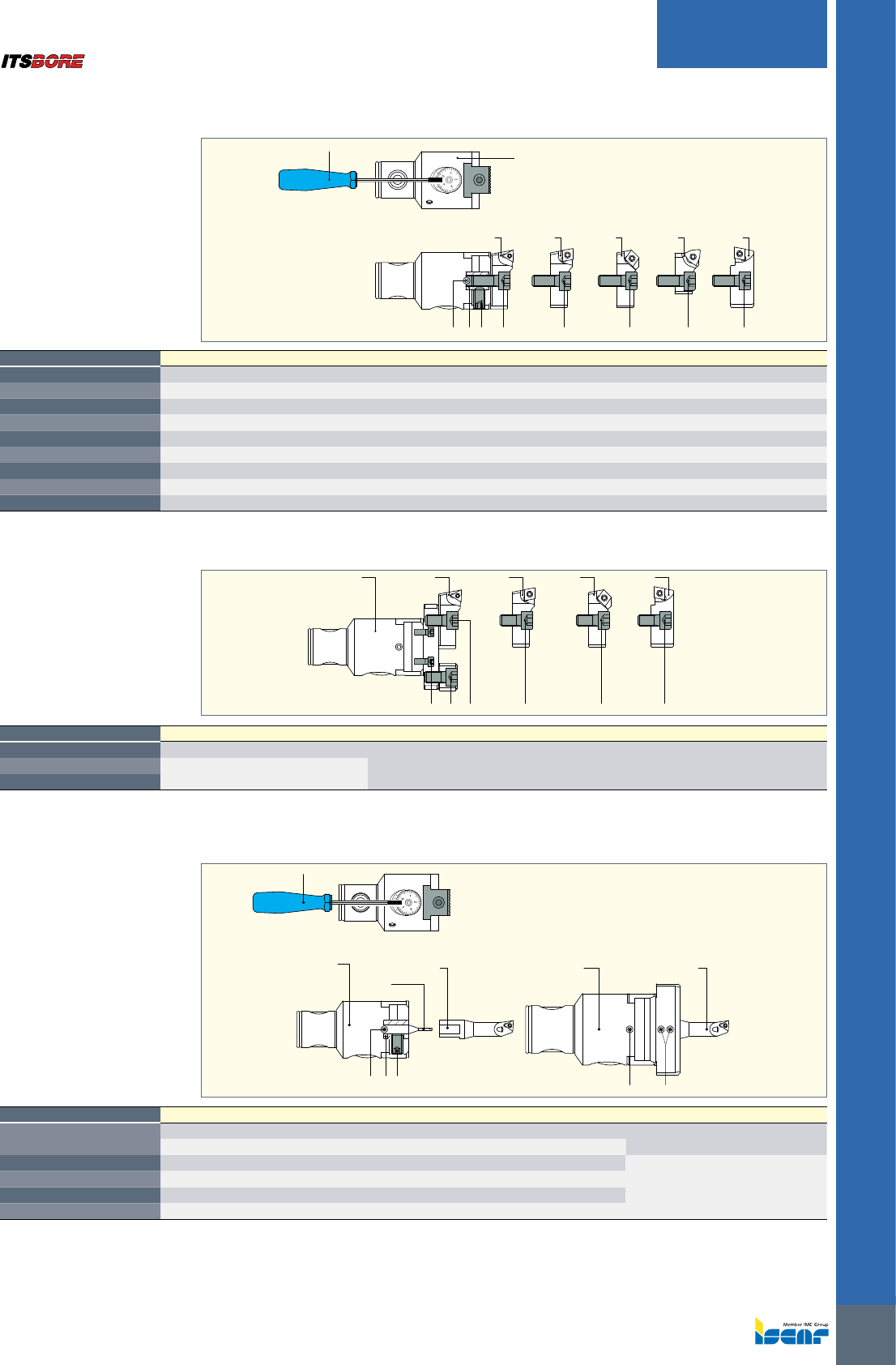

BHF - SPARE PARTS
4 5 1 3 2 2 2 2
IHFF IHRF IHRF CH IHRF BW
Designation
1 2 3 4 5
BHF...-16…
-SR M3X6 DIN 912 -BH HW 1.5 HANDLE SR M3X4.5 DIN 913
BHF...-20…
-SR M4X8 DIN 912 -BH HW 1.5 HANDLE SR M3X4.5 DIN 913
BHF...-25…
-SR M5X1O DIN 912 -BH HW 2.0 HANDLE SR M4X4 DIN 913
BHF...-32…
-SR M6X12 DIN 912 -BH HW 2.0 HANDLE SR M4X5 DIN 913
BHF...-40…
-SR M8X14 DIN 912 -BH HW 2.5 HANDLE SR M5X6 DIN 913 SR
BHF...-50-60
BH NUT 10 SR M1OX25 DIN 912 SR M10X16 DIN 913 BH HW 2.5 HANDLE SR M5X8 DIN 913
BHF - SPARE PARTS IHFF
1 2 3 3 3 3
IHRF IHRF CH IHSR BW
Designation
1 2 3
BHF...-50...
SR M5X12 DIN 912 SR M1OX20 DIN 912 SR M1OX25 DIN 912
BHF - SPARE PARTS
Designation
1 2 3
BHF...-63…
SR M6X10 DIN 915
SR M1OX25 DIN 912 BH HW 3.0 HANDLE
BHF...-80…
SR M6X14 DIN 915
BHF...-125…
SR M6X22 DIN 915
BHF IHFF IHRF IHRF CH IHRF BW
22221
3
BHF - SPARE PARTS BHF 50 IHAXF 16/AVI/E BHF 32 BL
BHF 50 BL
IHAXF 16/AVI/E
IHAXF 8IHAXF 8
4 1 2 3 1 2 3
Designation
1 2 3 4
BHF...-50...
SR M5X8 DIN 913 SLEEVE D 8-D16 SR M10X10 DIN 913 BH HW 2.5 HANDLE
BHF...-32... BL
SR M4X5 DIN 913 -SR M5X8 DIN 913
SR M5X12 DIN 913 BH HW 2.0 HANDLE
BHF...-50... BL
SR M5X8 DIN 913 SLEEVE D 8-D16 SR M10X10 DIN 913 BH HW 2.5 HANDLE
467
USER GUIDE
ITS BORE
BHE MB - SPARE PARTS
IHRF BW
22222
4
315
IHFF EIHRF CHIHRFIHFF
BHE
Designation
1 2 3 4 5
BHE MB14-14X30
-SR M3X6 DIN 912 -BH HW 1.5 HANDLE SR M3X3.5 DIN 913
BHE MB16-16X34
-SR M3X6 DIN 912 -BH HW 1.5 HANDLE SR M3X4.5 DIN 913
BHE MB20-20X40
-SR M4X8 DIN 912 -BH HW 1.5 HANDLE SR M3X4.5 DIN 913
BHE MB25-25X50
-SR M5X1O DIN 912 - BH HW 1.5 HANDLE SR M4X4 DIN 913
BHE MB32-32X63
-SR M6X12 DIN 912 -BH HW 2.5 HANDLE SR M5X5 DIN 913
BHE MB40-40X80
-SR M8X14 DIN 912 -BH HW 3.0 HANDLE SR M6X6 DIN 913
BHE MB50-50X80
BH NUT 10 SR M1OX25 DIN 912 SR M10X16 DIN 913 BH HW 3.0 HANDLE SR M6X8 DIN 913
BHE MB63-63X89
-SR M1OX20 DIN 912 -BH HW 3.0 HANDLE SR M6X8 DIN 913
BHE MB80-80X104
-SR M1OX25 DIN 912 - BH HW 3.0 HANDLE SR M6X12 DIN 913
BHE - SPARE PARTS IHRF BW
333321
IHRF CHIHRFIHFFBHE
Designation
1 2 3
BHE MB50-50X80
SR M5X12 DIN 912
SR M1OX20 DIN 912 SR M1OX25 DIN 912
BHE MB63-63X89
SR M5X25 DIN 912
BHE MB80-80X104
BHE - SPARE PARTS
4
BHE MB32-32X53 H
BHE MB50-50X60 H
BHE MB50-50X80
IHAXF 18/AVI/E BHE MB63-63X89
BHE MB80-80X104
IHAXF 18/AVI/E
1 3
IHAXF 8
123
Designation
1 2 3 4
BHE MB32-32X53 H
SR M5X5 DIN 913 -SR M5X8 DIN 913 BH HW 2.5 HANDLE
SR M5X5 DIN 913 -SR M5X12 DIN 913
BHE MB50-50X60 H
SR M6X8 DIN 913 SLEEVE D 8-D16 SR M10X10 DIN 913
BH HW 3.0 HANDLE
BHE MB50-50X80
SR M6X8 DIN 913 SLEEVE D 8-D16 SR M10X10 DIN 913
BHE MB63-63X89
SR M6X8 DIN 913 -SR M6X6 DIN 913
BHE MB80-80X104
SR M6X12 DIN 913 -SR M6X6 DIN 913
ISCAR
468
USER GUIDE
ITS BORE

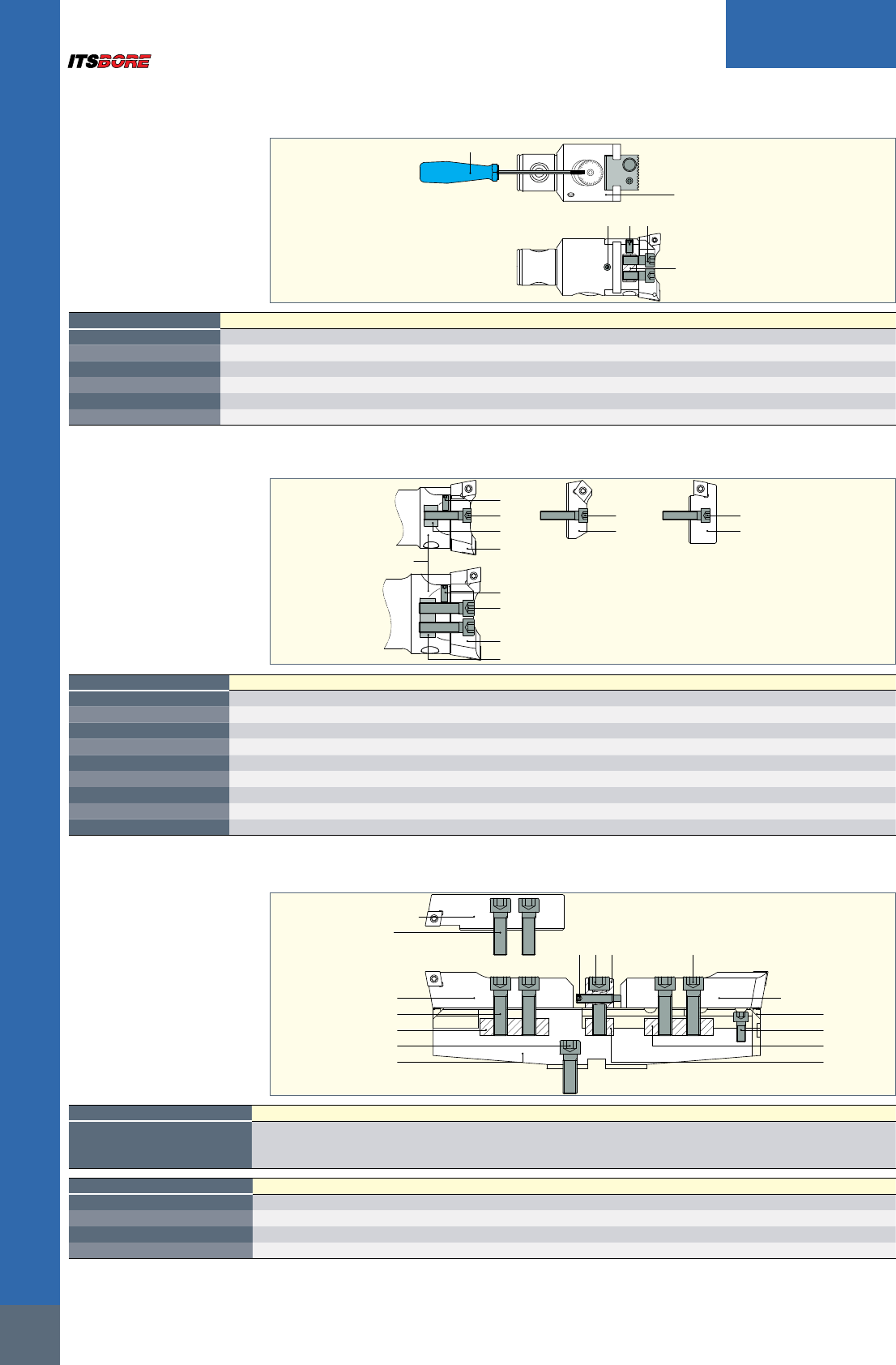

BHC - SPARE PARTS
1
0
2
3
4
4
5 1 2
BHC
3
Designation
1 2 3 4 5
BHC MB25-25X57
SR M4X8 DIN 913 BH SR M4X11 DIN 912 PT BH NUT-BHC MB25 BH HW 2.0 HANDLE SR M4X5 DIN 913
BHC MB32-32X71
SR M5X10 DIN 913 BH SR M5X12.5 DIN 912 PT BH NUT-BHC MB32 BH HW 2.5 HANDLE SR M5X5 DIN 913
BHC MB40-40X90
SR M6X12 DIN 913 BH SR M6X16 DIN 912 PT BH NUT-BHC MB40 BH HW 3.0 HANDLE SR M6X6 DIN 913
BHC MB50-50X87
SR M6X14 DIN 913 BH SR M8X20 DIN 912 PT BH NUT-BHC MB50 BH HW 3.0 HANDLE SR M6X8 DIN 913
BHC MB63-63X109
SR M6X16 DIN 913 BH SR M10X26 DIN 912 PT BH NUT-BHC MB63 BH HW 3.0 HANDLE SR M6X8 DIN 913
BHC MB80-80X130
SR M6X20 DIN 913 BH SR M12X30 DIN 912 PT BH NUT-BHC MB80 BH HW 3.0 HANDLE SR M6X12 DIN 913
BHR - SPARE PARTS
fig.1
BHR
3
22 2
IHFR CH IHRF BW
3
2
1
1
S....
IH
fig.2
Designation
1 2 3
BHR MB16…16
BH NUT BHR MB16 SR M3X14 DIN912 SR M3X4 DIN913
BHR MB20…20
BH NUT BHR MB20 SR M4X15 DIN912 SR M3X5 DIN913
BHR MB25…25
BH NUT BHR MB25 SR M4X20 DIN912 SR M3X8 DIN913
BHR MB32…32
BH NUT BHR MB32 SR M5X25 DIN912 SR M4X12 DIN913
BHR MB40…50
BH NUT BHR MB40 SR M6X30 DIN912 SR M5X14 DIN913
BHR MB50…50
BH NUT BHR MB50 SR M8X35 DIN912 SR M5X12 DIN913
BHR MB50…63
BH NUT BHR MB63 SR M10X40 DIN912 SR M6X16 DIN913
BHR MB63…63
BH NUT BHR MB63 SR M10X40 DIN912 SR M6X16 DIN913
BHR MB80…80
BH NUT BHR MB80 SR M12X45 DIN912 SR M8X25 DIN913
TCH AL - SPARE PARTS
(Rough Boring) IHSR 161-800 BW
IH...160-800
TCH AL
4
4 4
IH...160-800
7
8
1
2
5 3
4
1
6
Designation
1 2 3 4
TCH AL 200-300-400
TCH AL 500-600-700-800
BH TCH NUT A BH TCH NUT B BH TCH NUT C SR M12X40 DIN 912
Designation
5 6 7 8
TCH AL 200
SR M8X40 DIN 915 SR M12X35 DIN 912 BH SERRATED PLATE 200 SR M8X25 DIN 912
TCH AL 300
SR M8X40 DIN 915 SR M12X35 DIN 912 BH SERRATED PLATE 300 SR M8X25 DIN 912
TCH AL 400
SR M8X40 DIN 915 SR M12X35 DIN 912 BH SERRATED PLATE 400-700 SR M8X20 DIN 912
TCH AL 500-600-700-800
SR M8X40 DIN 915 SR M16X50 DIN 912 BH SERRATED PLATE 400-700 SR M8X25 DIN 912
469
USER GUIDE
ITS BORE

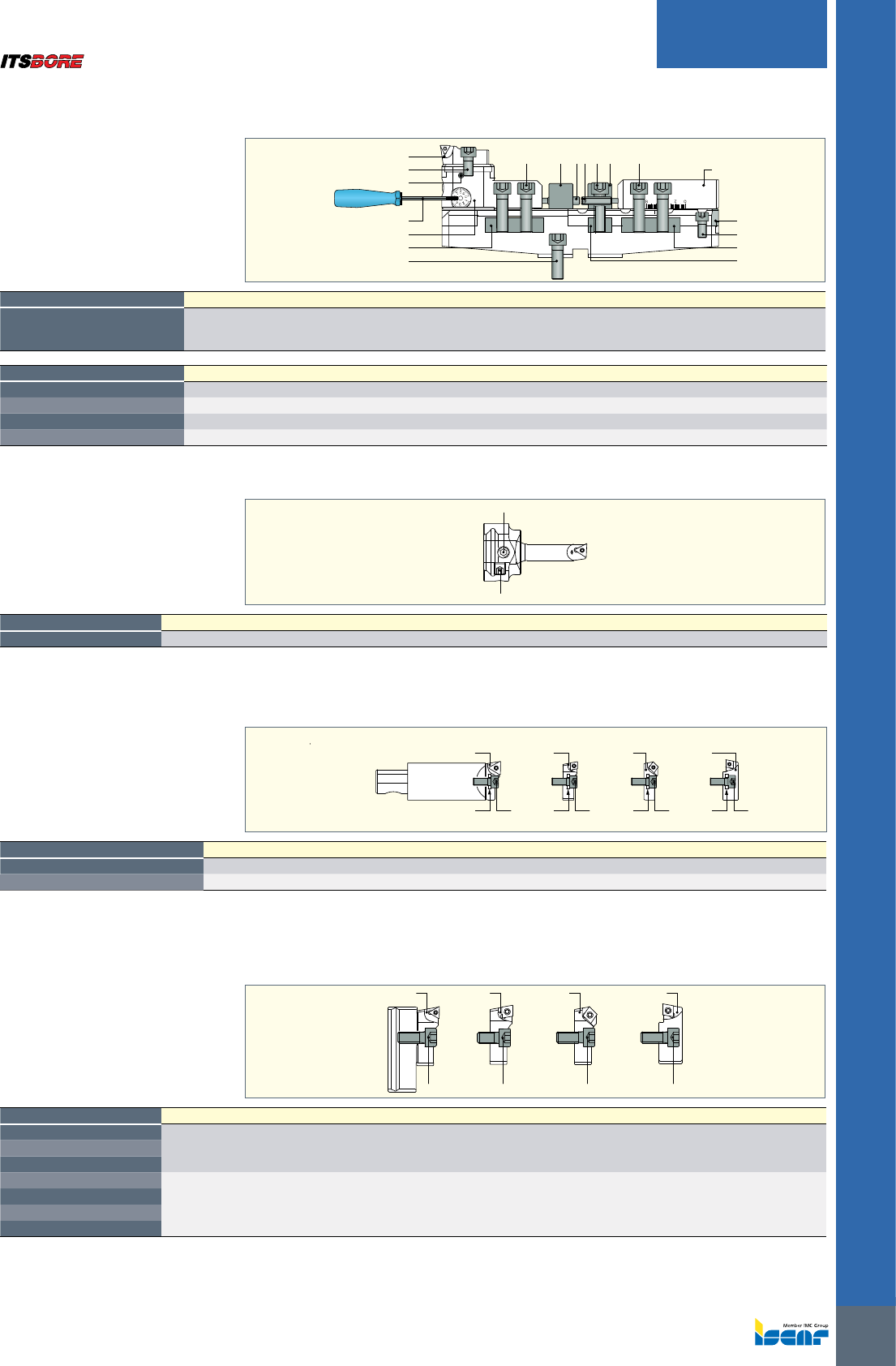

ADBH - SPARE PARTS
1
1
Designation
1
ADBH 30XD16
TSR M8X8 DIN 915
BBH-D - SPARE PARTS
IHFF...
2 1 2 1 2 1 2 1
IHRF... IHRF...CH.. IHRF...BW..
Designation
1 2
BBH D16-53
SR M5X12 DIN 912 WASHER DIN 125A M5
BBH D16-105
SR M5X12 DIN 912 WASHER DIN 125A M5
BHFH - SPARE PARTS IHFF...
1 1 1 1
IHRF... IHRF...CH.. IHRF...BW..
Designation
1
BHFH 30X75
SR M1OX18 DIN 912
BHFH 40X133
BHFH 30X93
BHFH 40X200
SR M1OX25 DIN 912
BHFH 30X135
BHFH 40X300
BHFH 40X400
TCH AL - SPARE PARTS
(Fine Boring)
IHFF..., IHRF...
IHRF...BW
BHF L200
IHRF...CH,
10
11
1
6
9
4 4 455 33
7
CW 200
8
1
2
Designation
1 2 3 4 5
TCH AL 200-300-400
TCH AL 500-600-700-800
BH TCH NUT A BH TCH NUT B BH TCH NUT C SR M12X40 DIN 912 SR M8X40 DIN 915
Designation
6 7 8 9 10 11
TCH AL 200
SR M12X35 DIN 912 BH SERRATED PLATE 200 SR M8X25 DIN 912 SR M1OX20 DIN 912 SR M6X8 DIN 915 BH HW 3.0 HANDLE
TCH AL 300
SR M12X35 DIN 912 BH SERRATED PLATE 300 SR M8X25 DIN 912 SR M1OX20 DIN 912 SR M6X8 DIN 915 BH HW 3.0 HANDLE
TCH AL 400
SR M12X35 DIN 912 BH SERRATED PLATE 400-700 SR M8X20 DIN 912 SR M1OX20 DIN 912 SR M6X8 DIN 915 BH HW 3.0 HANDLE
TCH AL 500-600-700-800
SR M16X50 DIN 912 BH SERRATED PLATE 400-700 SR M8X25 DIN 912 SR M1OX20 DIN 912 SR M6X8 DIN 915 BH HW 3.0 HANDLE
ISCAR
470
USER GUIDE
ITS BORE
BHEH - SPARE PARTS
Designation
1
BHEH 24x75
SR M1OX20 DIN 912
BHEH 28x80
SR M1OX25 DIN 912
BHEH 28x108
BHEH 28x148
IHFF... IHRF... HRF...CH.. IHRF...BW..
1 1 1 1
EMH - SPARE PARTS Screw
Screw
Designation
Screw #1 Screw # 2
EMH MB 50-6
EMH 50-6 SCREW M6x10 EM SCREW
EMH MB 50-8
EMH 50-8 SCREW M8x10 EM SCREW
EMH MB 50-10
EMH 50-10 SCREW M10x12 EM SCREW
EMH MB 50-12
EMH 50-12 SCREW M12x16 EM SCREW
EMH MB 50-14
EMH 50-14 SCREW M14x16 EM SCREW
EMH MB 50-16
EMH 50-16 SCREW M14x16 EM SCREW
EMH MB 50-20
EMH 50-20 SCREW M16x16 EM SCREW
EMH MB 63-16
EMH 63-16 SCREW M14x16 EM SCREW
EMH MB 63-20
EMH 63-20 SCREW M16x16 EM SCREW
EMH MB 63-25
EMH 63-25 SCREW M18x20 EM SCREW
EMH MB 63-32
EME 63-32 SCREW M18x20 EM SCREW
EMH MB 80-40
EMH 80-40 SCREW M20x20 EM SCREW
BH WASHER - SPARE
PARTS
15.5
6.9
For Kit BHE
Designation
For Kit BHE
BH WASHER IH..50
KIT BHE MB50-50X80
KIT BHE MB63-63X89
KIT BHE MB80-80X104
KIT BHF MB50-50X80 6-108
CC - SPARE PARTS
1
2
Components for CC MB
Designation
1 2 Wrench
CC MB16-ER11M
CC MB16 SCREW NUT ER11 MINI WRENCH ER11 MINI
CC MB20-ER16M
CC MB20 SCREW NUT ER16 MINI WRENCH ER16 MINI
CC MB25-ER20M
CC MB25 SCREW NUT ER20 MINI WRENCH ER20 MINI
CC MB32-ER25M
CC MB32 SCREW NUT ER25 MINI WRENCH ER25 MINI
CC MB40-ER25
CC MB40 SCREW NUT ER25 TOP WRENCH ER25
CC MB50-ER25
CC MB50 SCREW NUT ER25 TOP WRENCH ER25
CC MB50-ER32
CC MB50 SCREW NUT ER32 TOP WRENCH ER32
CC MB63-ER32
CC MB63 SCREW NUT ER32 TOP WRENCH ER32
CC MB63-ER40
CC MB63 SCREW NUT ER40 TOP WRENCH ER40
471
USER GUIDE
ITS BORE
BHR Rough Boring Cutting Data
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
18-28
Boring Range
28-50
Boring Range
50-68
0.5-1.2 1.2-2.5 0.8-1.5 1.5-2.5 0.8-1.5 1.5-3.0
0.2 0.4 0.2-0.4 0.4 0.2-0.4 0.4-0.8
P
Carbon Steel HB<200
2.5 Vc (m/min) 150-180 120-150 160-200 140-170 160-200 140-180
•••
f (mm/rev) 0.1-0.2 0.08-0.2 0.15-0.2 0.15-0.2 0.15-0.25 0.08-0.2
4 Vc (m/min) 140-160 100-140 160-180 120-150 160-180 120-150
••
f (mm/rev) 0.1-0.18 0.08-0.15 0.1-0.12 0.08-0.1 0.1-0.12 0.08-0.1
6.3 Vc (m/min) 60-80 40-60 60-90 50-60 70-90 50-70
•
f (mm/rev) 0.06-0.12 0.06-0.1 0.06-0.12 0.06-0.1 0.06-0.1 0.06-0.1
Carbon Steel HB>200
2.5 Vc (m/min) 130-160 100-130 140-180 120-160 140-180 120-160
•••
f (mm/rev) 0.08-0.15 0.08-0.12 0.08-0.2 0.06-0.12 0.08-0.25 0.08-0.18
4 Vc (m/min) 110-140 80-110 100-140 80-120 100-140 80-120
••
f (mm/rev) 0.08-0.12 0.08-0.1 0.08-0.15 0.06-0.15 0.08-0.2 0.06-0.15
6.3 Vc (m/min) 70-90 60-70 80-100 60-80 80-100 60-80
•
f (mm/rev) 0.08-0.1 0.06-0.08 0.06-0.1 0.06-0.08 0.08-0.15 0.06-0.1
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
68-120
Boring Range
120-200
Boring Range
200-500
0.8-1.5 1.5-3.5 0.8-2.0 2.0-3.5 0.8-2.0 2.0-4.0
0.2-0.4 0.4-0.8 0.2-0.4 R=0.4-0.8 R=0.2-0.4 R=0.4-0.8
P
Carbon Steel HB<200
2.5 Vc (m/min) 160-220
150-180 180-250 160-200 220-280 200-220
•••
f (mm/rev) 0.15-0.25
0.08-0.2 0.15-0.3 0.1-0.2 0.15-0.3 0.1-0.15
4 Vc (m/min) 140-180
120-150 160-200 140-180
N.R. N.R.
••
f (mm/rev) 0.08-0.2
0.08-0.15 0.1-0.2 0.08-0.15
6.3 Vc (m/min) 70-100
50-70
N.R. N.R. N.R. N.R.
•
f (mm/rev) 0.06-0.1
0.06-0.1
Carbon Steel HB>200
2.5 Vc (m/min) 140-180
120-160 150-170 100-140 100-140 80-120
•••
f (mm/rev) 0.15-0.3
0.12-0.2 0.15-0.25 0.1-0.2 0.15-0.3 0.1-0.2
4 Vc (m/min) 120-150
100-140 100-130 80-110
N.R.
N.R.
••
f (mm/rev) 0.1-0.2
0.1-0.18 0.08-0.2 0.08-0.12
6.3 Vc (m/min) 80-100
60-80
N.R. N.R. N.R. N.R.
•
f (mm/rev) 0.08-0.12
0.08-0.12
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
Ø
IHSR
PLT
Ø
A1
A
IHSR
IHCR
A
A
Ø
IHSR IHSRIHSR
LDRED
BDRED
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
ISCAR
472
USER GUIDE
ITS BORE

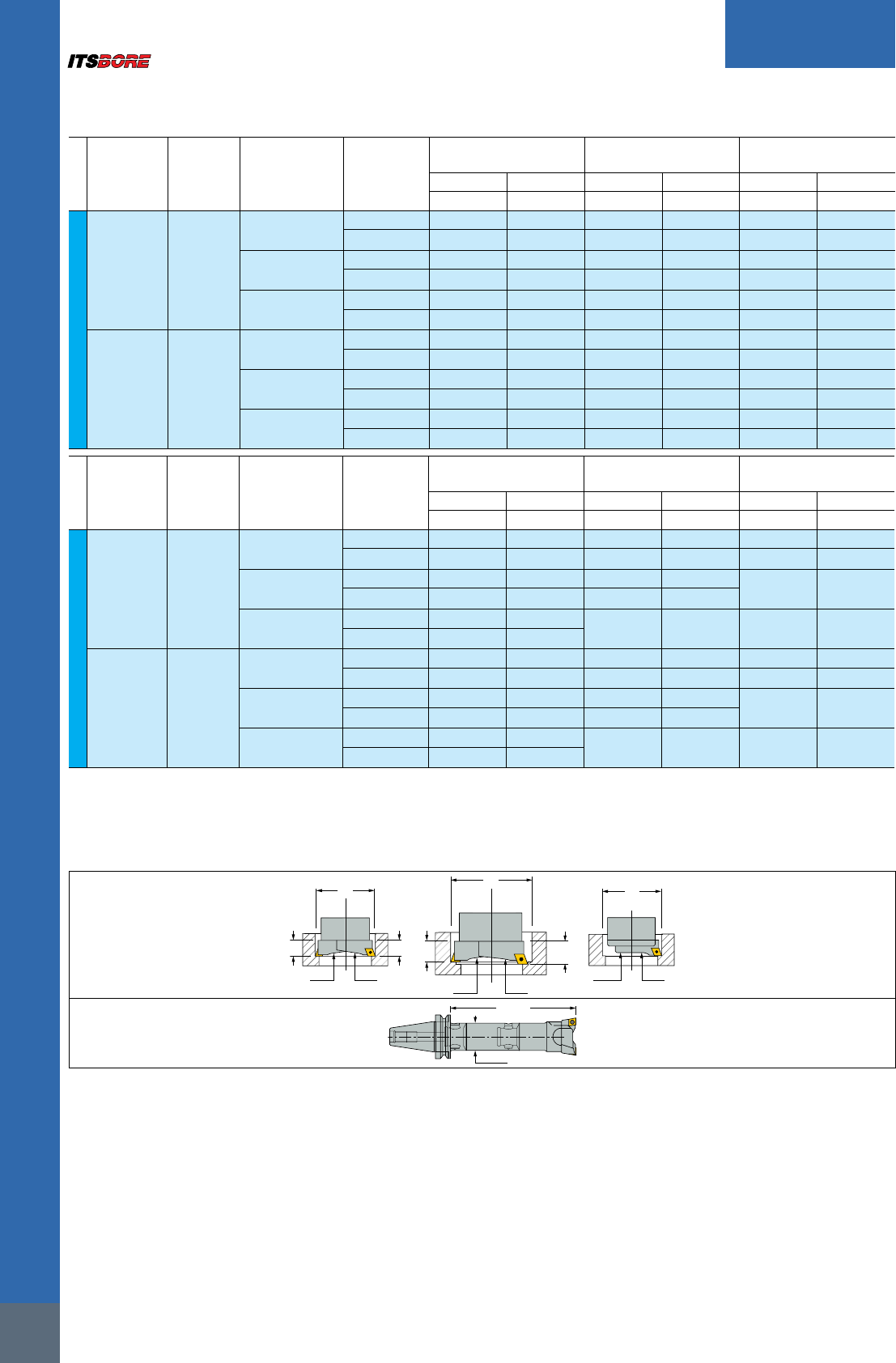

ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
18-28
Boring Range
28-50
Boring Range
50-68
0.5-1.0 1.0-1.8 0.5-1.0 1.0-1.8 0.5-1.2
1.2-2.0
0.2 0.4 0.2-0.4 0.4 0.2-0.4
0.4-0.8
P
Carbon Steel HB<200
2.5 Vc (m/min)
140-160 90-120 150-180 100-130 160-200 140-180
•••
f (mm/rev)
0.08-0.18 0.08-0.15 0.08-0.2 0.08-0.18 0.1-0.25 0.1-0.15
4 Vc (m/min)
100-130 70-100 110-150 90-120 140-180 100-130
••
f (mm/rev)
0.08-0.15 0.06-0.12 0.08-0.18 0.08-0.15 0.8-0.18 0.08-0.12
6.3 Vc (m/min)
80-100 60-90 80-100 70-90 100-140 80-120
•
f (mm/rev)
0.08-0.15 0.06-0.1 0.06-0.12 0.06-0.12 0.6-0.15 0.08-0.1
Carbon Steel HB>200
2.5 Vc (m/min)
130-150 120-140 130-150 120-140 140-170 120-150
•••
f (mm/rev)
0.08-0.18 0.06-0.15 0.08-0.18 0.06-0.15 0.08-0.2 0.08-0.18
4 Vc (m/min)
100-130 100-120 100-130 100-120 120-150
100-120
••
f (mm/rev)
0.08-0.15 0.06-0.13 0.08-0.15 0.06-0.13 0.08-0.18
0.08-0.15
6.3 Vc (m/min)
80-100 70-90 80-100 70-90 100-120 70-90
•
f (mm/rev)
0.08-0.12 0.06-0.11 0.08-0.12 0.06-0.11 0.08-0.12 0.06-0.11
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
68-120
Boring Range
120-200
Boring Range
200-500
1.8 2.5 0.8-2.0 2.0-3.5 0.8-2.0 2.0-4.0
0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8
P
Carbon Steel HB<200
2.5 Vc (m/min) 160-220 140-180 160-220 140-180 160-220 140-180
•••
f (mm/rev) 0.1-0.3 0.1-0.25 0.1-0.3 0.1-0.25 0.1-0.35 0.1-0.3
4 Vc (m/min) 150-200 120-160 120-160 120-160 N.R N.R
••
f (mm/rev) 0.1-0.2 0.08-0.18 0.1-0.2 0.08-0.18
6.3 Vc (m/min) 100-140 100-140 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.18 0.08-0.15
Carbon Steel HB>200
2.5 Vc (m/min) 160-200 140-180 140-200 140-180 140-200 140-180
•••
f (mm/rev) 0.1-0.3 0.01-0.25 0.01-0.35 0.01-0.3 0.01-0.35 0.01-0.3
4 Vc (m/min) 140-160 120-140 150-180 120-140 N.R N.R
••
f (mm/rev) 0.08-0.2 0.08-0.15 0.08-0.12 0.08-0.12
6.3 Vc (m/min) 100-120 70-90 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.16 0.08-0.12
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
Ø
IHSR
PLT
Ø
A1
A
IHSR
IHCR
A
A
Ø
IHSR IHSRIHSR
LDRED
BDRED
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
BHR Rough Boring Cutting Data
473
USER GUIDE
ITS BORE

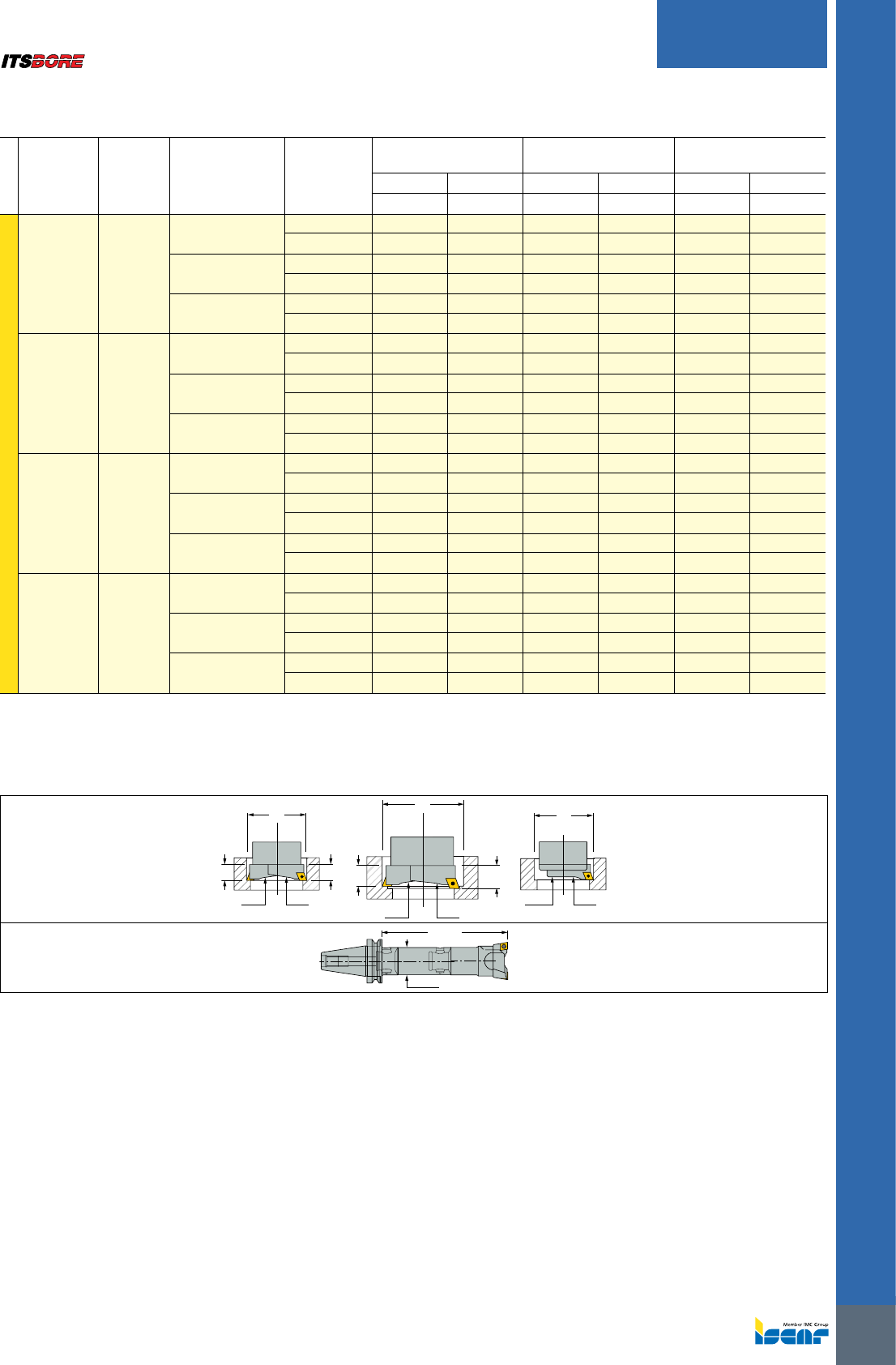

ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
18-28
Boring Range
28-50
Boring Range
50-68
0.5-1.0 1.0-1.8 0.5-1.0 1.0-1.8 0.5-1.2
1.2-2.0
0.2 0.4 0.2-0.4 0.4 0.2-0.4
0.4-0.8
M
Stainless
Steel
Ferritic &
Martensitic
2.5 Vc (m/min) 100-150 110-130 120-160 100-150 120-160 110-160
•••
f (mm/rev) 0.08-0.15 0.06-0.12 0.08-0.18 0.06-0.12 0.08-0.25 0.08-0.18
4 Vc (m/min) 90-130 90-120 100-140 90-140 100-150 80-120
••
f (mm/rev) 0.08-0.12 0.06-0.1 0.08-0.12 0.06-0.1 0.08-0.18 0.08-0.12
6.3 Vc (m/min) 60-90 50-70 60-90 50-70 70-100 50-70
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.12 0.06-0.1 0.06-0.15 0.08-0.1
Stainless
Steel Austenitic
2.5 Vc (m/min) 110-130 100-130 120-150 110-140 110-160 100-150
•••
f (mm/rev) 0.08-0.15 0.06-0.12 0.08-0.18 0.06-0.12 0.08-0.25 0.06-0.12
4 Vc (m/min) 80-110 80-110 90-130 90-120 100-150 90-130
••
f (mm/rev) 0.08-0.12 0.06-0.1 0.08-0.12 0.06-0.1 0.08-0.18 0.06-0.1
6.3 Vc (m/min) 60-90 50-70 60-90 50-70 70-100 50-70
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.12 0.06-0.1 0.06-0.15 0.06-0.1
Cast
Stainless
Steel
Ferritic &
Martensitic
2.5 Vc (m/min) 90-130 100-130 120-150 110-140 120-160 100-150
•••
f (mm/rev) 0.08-0.15 0.06-0.12 0.08-0.18 0.06-0.12 0.08-0.25 0.06-0.12
4 Vc (m/min) 70-110 80-110 90-130 90-120 100-150 90-130
••
f (mm/rev) 0.08-0.12 0.06-0.1 0.08-0.12 0.06-0.1 0.08-0.18 0.06-0.1
6.3 Vc (m/min) 60-90 50-70 60-90 50-70 70-100 50-70
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.12 0.06-0.1 0.06-0.15 0.06-0.1
Cast
Stainless
Steel
Austenitic
2.5 Vc (m/min) 80-120 70-110 100-150 90-140 110-150 100-150
•••
f (mm/rev) 0.08-0.15 0.06-0.12 0.08-0.18 0.06-0.1 0.08-0.25 0.06-0.12
4 Vc (m/min) 70-100 70-100 80-130 70-120 90-140 90-130
••
f (mm/rev) 0.08-0.12 0.06-0.1 0.08-0.12 0.06-0.1 0.08-0.18 0.06-0.1
6.3 Vc (m/min) 60-90 50-70 60-90 50-70 70-100 50-70
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.12 0.06-0.1 0.06-0.15 0.06-0.1
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
Ø
IHSR
PLT
Ø
A1
A
IHSR
IHCR
A
A
Ø
IHSR IHSRIHSR
LDRED
BDRED
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
BHR Rough Boring Cutting Data
ISCAR
474
USER GUIDE
ITS BORE

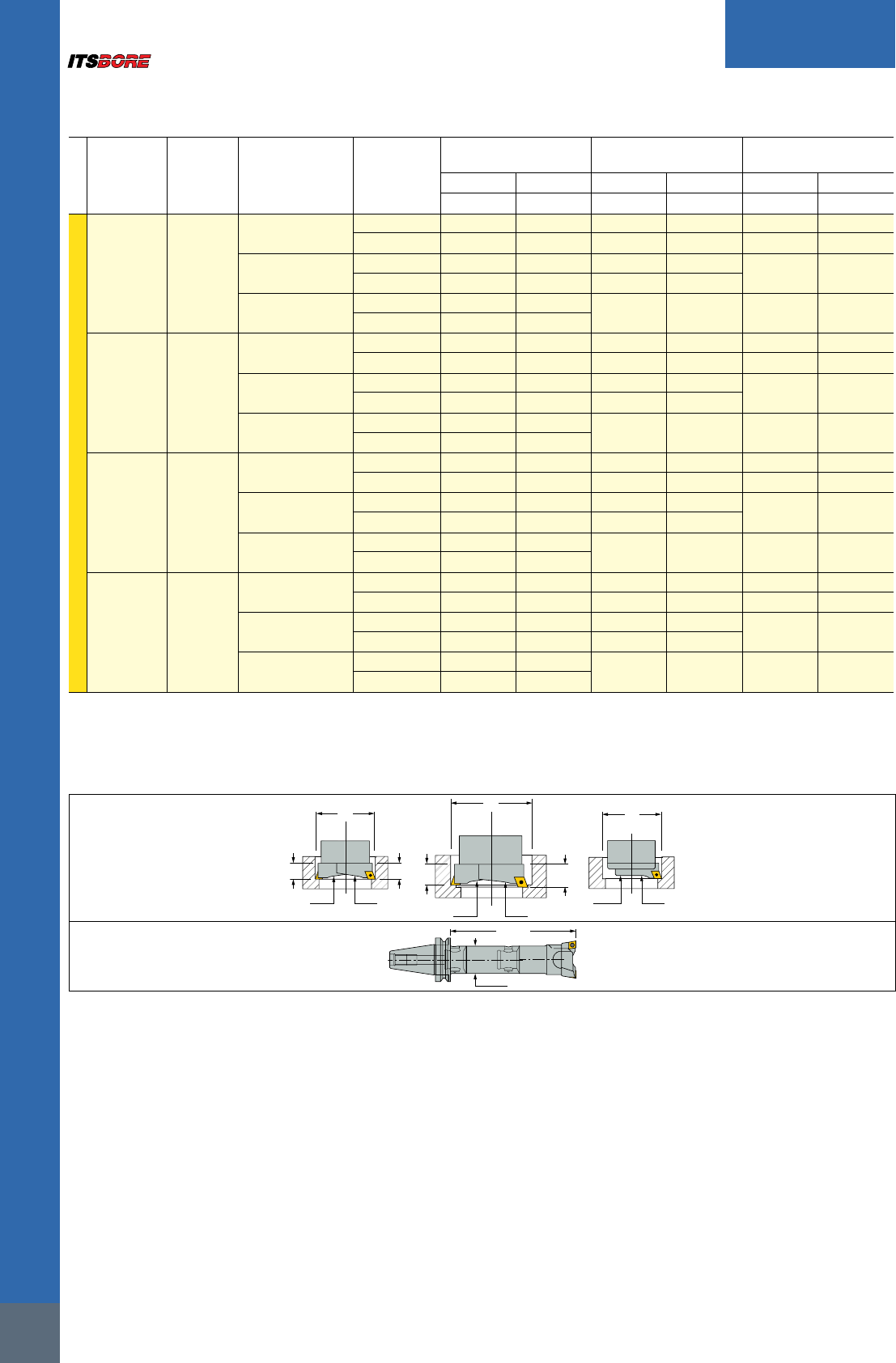

ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
68-120
Boring Range
120-200
Boring Range
200-500
0.8-1.8 1.8-2.5 0.8-2.0 2.0-3.0 0.8-2.0 2.0-3.5
0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8
M
Stainless
Steel
Ferritic &
Martensitic
2.5 Vc (m/min) 130-220 120-200 140-220 120-180 150-220 120-20
•••
f (mm/rev) 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25
4 Vc (m/min) 100-160 90-140 120-180 90-140 N.R N.R
••
f (mm/rev) 0.08-0.25 0.08-0.18 0.08-0.25 0.08-0.18
6.3 Vc (m/min) 70-100 50-70 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.2 0.08-0.15
Stainless
Steel Austenitic
2.5 Vc (m/min) 120-200 100-160 120-200 100-160 120-200 100-180
•••
f (mm/rev) 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25
4 Vc (m/min) 100-150 90-140 100-160 90-140 N.R N.R
••
f (mm/rev) 0.08-0.25 0.08-0.18 0.08-0.25 0.08-0.18
6.3 Vc (m/min) 70-100 50-70 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.2 0.08-0.15
Cast
Stainless
Steel
Ferritic &
Martensitic
2.5 Vc (m/min) 130-200 120-180 140-200 120-160 140-200 120-180
•••
f (mm/rev) 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25
4 Vc (m/min) 110-150 90-150 100-160 90-140 N.R N.R
••
f (mm/rev) 0.08-0.25 0.08-0.18 0.08-0.25 0.08-0.18
6.3 Vc (m/min) 70-100 50-70 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.2 0.08-0.15
Cast
Stainless
Steel
Austenitic
2.5 Vc (m/min) 130-180 120-180 120-200 100-160 120-200 100-180
•••
f (mm/rev) 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25 0.08-0.3 0.08-0.25
4 Vc (m/min) 100-140 90-140 100-160 90-140 N.R N.R
••
f (mm/rev) 0.08-0.25 0.08-0.18 0.08-0.25 0.08-0.18
6.3 Vc (m/min) 70-190 50-70 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.2 0.08-0.15
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
Ø
IHSR
PLT
Ø
A1
A
IHSR
IHCR
A
A
Ø
IHSR IHSRIHSR
LDRED
BDRED
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
BHR Rough Boring Cutting Data
475
USER GUIDE
ITS BORE
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
18-28
Boring Range
28-50
Boring Range
50-68
0.5-1.0 1.0-1.8 0.5-1.0 1.0-1.8 0.5-1.2 1.2-2.0
0.2-0.4 0.4 0.2-0.4 0.4 0.2-0.4 0.4-0.8
K
Gray Cast
Iron GG
10-25
HB<200
2.5 Vc (m/min) 120-160 100-140 120-180 110-150 120-180 110-150
•••
f (mm/rev) 0.06-0.15 0.06-0.18 0.06-0.15 0.06-0.12 0.08-0.2 0.08-0.12
4Vc (m/min) 100-140 80-120 100-150 80-120 100-150 80-120
••
f (mm/rev) 0.06-0.12 0.06-0.1 0.06-0.12 0.06-0.1 0.08-0.12 0.08-0.1
6.3 Vc (m/min) 70-100 60-90 70-100 60-90 70-100 60-90
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.08-0.1 0.08-0.1
Gray Cast
Iron GG
25-40
2.5 Vc (m/min) 140-200 140-200 140-220 160-250 180-220 200-280
•••
f (mm/rev) 0.06-0.15 0.06-0.18 0.06-0.15 0.06-0.18 0.08-0.2 0.1-0.25
4Vc (m/min) 120-160 120-160 120-180 140-200 140-180 180-220
••
f (mm/rev) 0.06-0.12 0.06-0.14 0.06-0.12 0.06-0.14 0.08-0.12 0.08-0.2
6.3 Vc (m/min) 70-100 60-90 70-100 60-90 60-100 60-120
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.08-0.1 0.08-0.1
Cast Iron
GGG
Spheroidal
& Graphite
2.5 Vc (m/min) 120-180 120-180 120-200 140-220 180-220 180-240
•••
f (mm/rev) 0.06-0.15 0.06-0.18 0.06-0.15 0.06-0.18 0.08-0.18 0.1-0.2
4Vc (m/min) 120-160 120-160 120-180 140-200 140-200 160-220
••
f (mm/rev) 0.06-0.12 0.06-0.14 0.06-0.12 0.06-0.14 0.08-0.12 0.08-0.18
6.3 Vc (m/min) 60-100 60-90 60-100 60-90 60-90 60-100
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.08-0.1 0.08-0.1
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
68-120
Boring Range
120-200
Boring Range
50-68
0.8-1.8 1.8-2.5 0.8-2.0 2.0-3.0 0.8-2.0 2.0-3.5
0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8
K
Gray Cast
Iron GG
10-25
HB<200
2.5 Vc (m/min) 120-200 110-150 150-250 180-280 150-250 180-280
•••
f (mm/rev) 0.08-0.25 0.08-0.3 0.08-0.25 0.08-0.35 0.08-0.25 0.08-0.35
4Vc (m/min) 100-150 80-120 120-170 120-170 N.R N.R
••
f (mm/rev) 0.08-0.18 0.08-0.2 0.08-0.18 0.08-0.25
6.3 Vc (m/min) 70-100 60-90 N.R N.R N.R N.R
•
f (mm/rev) 0.08-0.15 0.08-0.12
Gray Cast
Iron GG
25-40
2.5 Vc (m/min) 250-300 250-350 250-350 250-350 250-350 250-350
•••
f (mm/rev) 0.12-0.35 0.12-0.35 0.15-0.3 0.15-0.4 0.15-0.3 0.15-0.4
4Vc (m/min) 200-270 230-300 200-300 200-270 N.R N.R
••
f (mm/rev) 0.1-0.25 0.12-0.3 0.15-0.3 0.15-0.35
6.3 Vc (m/min) 70-150 60-120 N.R N.R N.R N.R
•
f (mm/rev) 0.1-0.15 0.12-0.25
Cast Iron
GGG
Spheroidal
& Graphite
2.5 Vc (m/min) 200-240 200-280 200-280 220-300 220-300 220-300
•••
f (mm/rev) 0.12-0.3 0.12-0.3 0.15-0.3 0.15-0.35 0.15-0.3 0.15-0.35
4Vc (m/min) 160-220 180-240 180-250 200-270 N.R N.R
••
f (mm/rev) 0.1-0.2 0.12-0.25 0.12-0.2 0.15-0.35
6.3 Vc (m/min) 60-100 60-100 N.R N.R N.R N.R
•
f (mm/rev) 0.1-0.15 0.12-0.2
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
LDRED
BDRED
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
BHR Rough Boring Cutting Data
ISCAR
476

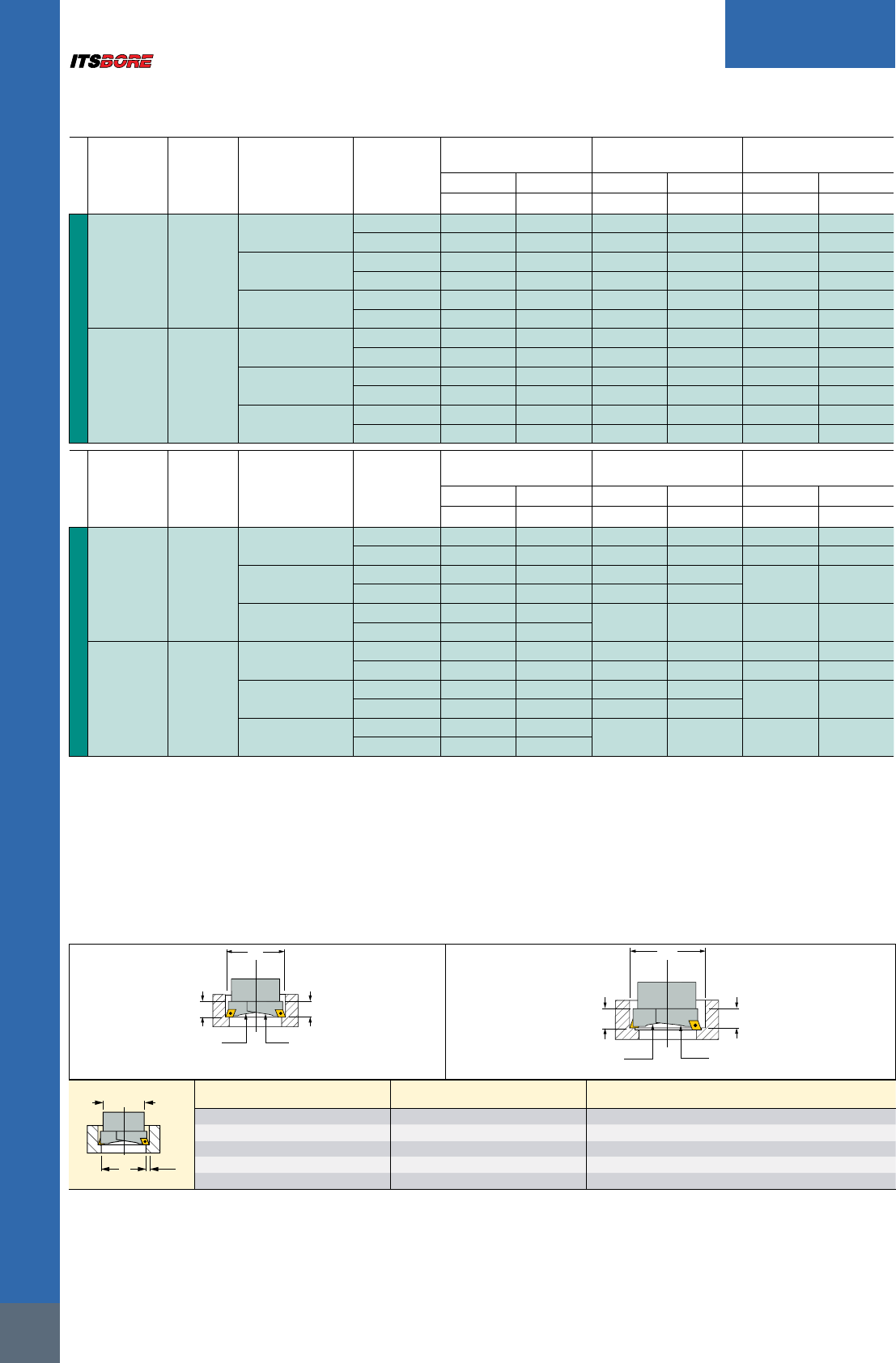

USER GUIDE
ITS BORE
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
18-28
Boring Range
28-50
Boring Range
50-68
0.5-1.5 1.5-2.5 0.5-1.5 1.5-2.5 0.5-2.0 1.2-3.0
0.2-0.4 0.4 0.2-0.4 0.4 0.2-0.4 0.4-0.8
N
Aluminum
/ Cast >12si
2.5 Vc (m/min) 200-300 240-350 200-300 240-350 200-300 240-35
•••
f (mm/rev) 0.06-0.2 0.06-0.25 0.06-0.2 0.06-0.25 0.06-0.25 0.06-0.3
4Vc (m/min) 150-220 150-220 150-220 150-220 150-220 150-220
••
f (mm/rev) 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2
6.3 Vc (m/min) 60-100 60-100 60-100 60-100 60-100 60-100
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1
Aluminum
/ Cast <12si
2.5 Vc (m/min) 180-250 220-280 180-250 220-280 180-250 220-280
•••
f (mm/rev) 0.06-0.2 0.06-0.25 0.06-0.25 0.06-0.25 0.06-0.25 0.06-0.3
4Vc (m/min) 120-220 120-220 120-220 120-220 120-220 120-220
••
f (mm/rev) 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.25
6.3 Vc (m/min) 60-100 60-100 60-100 60-100 60-100 60-100
•
f (mm/rev) 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1 0.06-0.1
ISO
Workpiece
Material
Hardness
HB
Overhang
LDRED/BDRED
ap (mm)
RE (Radius)
Boring Range
68-120
Boring Range
120-200
Boring Range
200-500
0.8-3.0 1.8-4.0 0.8-3.0 2.0-4.0 0.8-3.0 2.0-4.5
0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8 0.2-0.4 0.4-0.8
N
Aluminum
/ Cast >12si
2.5 Vc (m/min) 200-300 240-350 200-300 240-350 200-300 240-350
•••
f (mm/rev) 0.06-0.25 0.06-0.3 0.06-0.25 0.06-0.4 0.06-0.25 0.06-0.4
4Vc (m/min) 150-220 150-220 150-220 150-220 N.R N.R
••
f (mm/rev) 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2
6.3 Vc (m/min) 60-100 60-100 N.R N.R N.R N.R
•
f (mm/rev) 0.06-0.1 0.06-0.1
Aluminum
/ Cast <12si
2.5 Vc (m/min) 180-250 220-280 180-250 220-280 180-250 220-280
•••
f (mm/rev) 0.06-0.25 0.06-0.3 0.06-0.3 0.06-0.4 0.06-0.3 0.06-0.4
4Vc (m/min) 120-220 120-220 120-220 120-220 N.R N.R
••
f (mm/rev) 0.06-0.2 0.06-0.2 0.06-0.2 0.06-0.2
6.3 Vc (m/min) 60-100 60-100 N.R N.R N.R N.R
•
f (mm/rev) 0.06-0.1 0.06-0.1
N.R. = Not Recommended
Stability
••• Good
•• Normal
•Poor
Cutting Conditions
Cutting Conditions for BHR Rough Boring Heads
A
A
Ø
IHSR IHSRIHSR
Ø
A
1
A
IHSRIHCR
Twin boring cutters with the same cutting diameter Twin boring cutters with different cutting diameters and heights (Z=1)
BDRED
Bap
B Working Range ap Steel ap Cast Iron, Aluminum
18-28 ap - 1.5-2 ap - 2-2.5
28-50 ap - 2-3 ap - 2.5-3.5
50-68 ap - 3-4 ap - 3.5-5
68-200 ap - 4-5 ap - 5-7
200-500 ap - 5-6 ap - 6-8
It’s advisable to start with B hole≥boring bar diameter d
BHR Rough Boring Cutting Data
477

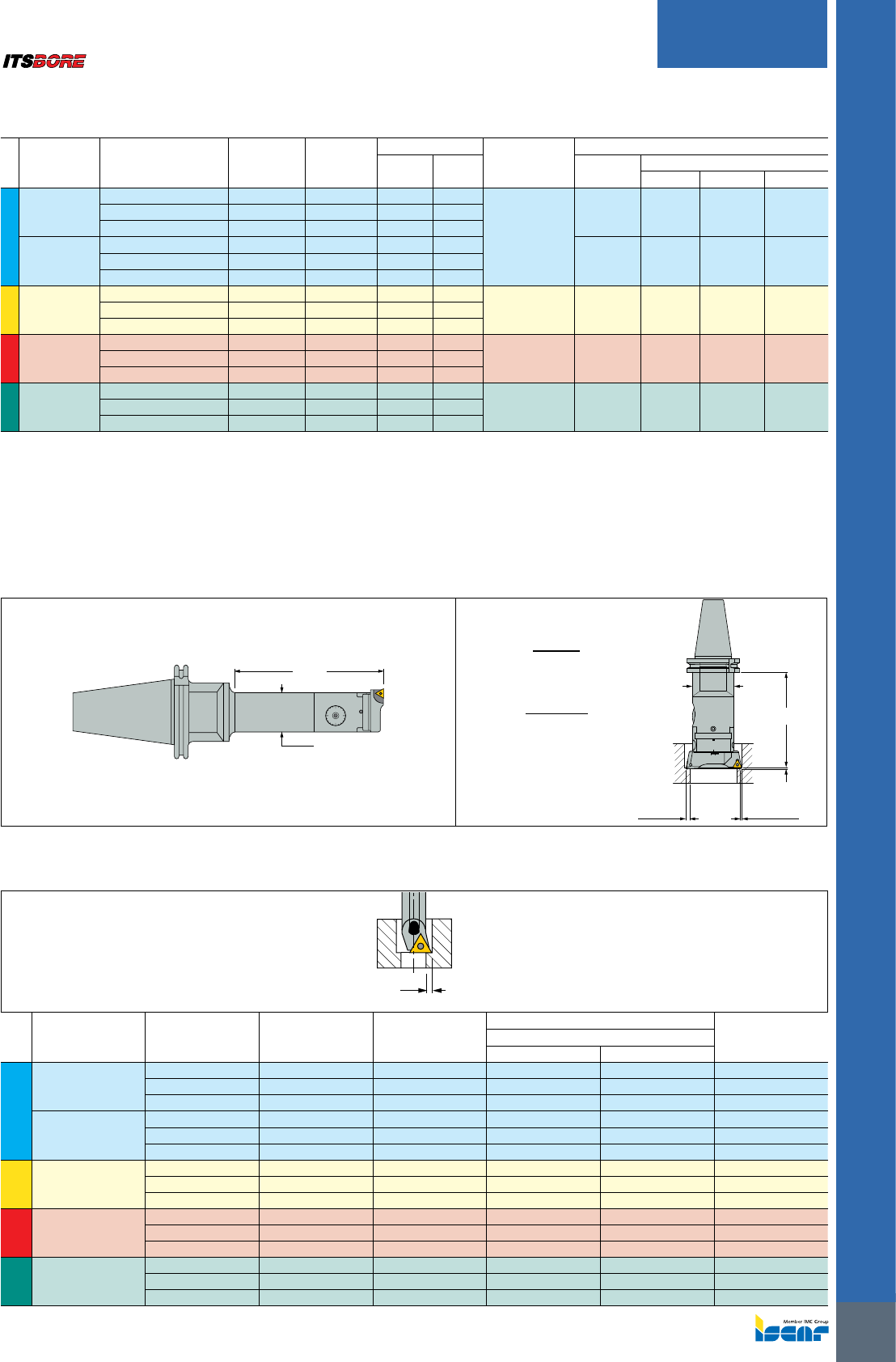

USER GUIDE
ITS BORE
ISO
Material
Boring Depth to
Diameter Ratio
Working
Conditions
Cutting
Speed
Vc=m/min
Feed fn=mm/rev
Carbide Grade
Cutting Depth mm
RE=0.2 RE=0.4 Finishing
Roughing
Ø28-Ø46 Ø46-Ø75 Ø75-Ø160
P
Carbon Steel
HB < 200
LDRED/BDRED = 2.5 good 160-250 0.1-0.2 0.1-0.2 IC807, IC908,
IC520N, IC20N,
IC30N, IC8150,
IC8250, IC3028
0.15-0.3 1.5 2 2.5 LDRED/BDRED = 4 normal 120-180 0.1-0.2 0.1-0.2
LDRED/BDRED = 6.3 difficult 70-100 *0.1-0.15 0.1-0.2
Carbon Steel
HB > 200
LDRED/BDRED = 2.5 good 140-200 0.1-0.2 0.1-0.2
0.15-0.3 1.5 2 2.5 LDRED/BDRED = 4 normal 100-160 0.1-0.2 0.1-0.2
LDRED/BDRED = 6.3 difficult 70-100 *0.1-0.15 0.1-0.2
M
Stainless
Steel AISI
304-316
LDRED/BDRED = 2.5 good 100-140 0.1-0.2 0.1 -0.2 IC807, IC30N,
IC3028 0.15-0.3 1.5 2 2.5 LDRED/BDRED = 4 normal 80-110 0.1-0.2 0.1 -0.2
LDRED/BDRED = 6.3 difficult 60-90 *0.1-0.15 0.1-0.2
KCast Iron
LDRED/BDRED = 2.5 good 120-160 0.1-0.2 0.1 -0.2 IB55, IC908,
IC5005, IC428 0.15-0.3 2 2.5 3LDRED/BDRED = 4 normal 90-120 0.1-0.2 0.1 -0.2
LDRED/BDRED = 6.3 difficult 60-90 *0.1-0.15 0.1-0.2
NAluminum
LDRED/BDRED = 2.5 good 250-350 0.1-0.2 0.1-0.2
ID5, IC20 0.15-0.3 2 2.5 3LDRED/BDRED = 4 normal 160-250 0.1-0.2 0.1-0.2
LDRED/BDRED = 6.3 difficult 100-150 *0.1-0.15 0.1-0.2
* Only for finishing Inserts.
** Use inserts with the same corner radii for both roughing and finishing inserts
VcCutting speed (m/min)
DDiameter of workpiece (mm)
nNumber of revolutions / min' (rev./min)
VfFeed rate (mm/min.)
fn Feed / rev/ (mm/rev)
∏ 3.14
LDRED
BDRED
0
.0005
.0015
.001
Vc= ∏·D·n
1000
n= Vc 1000
∏·D
Vf= n·fn
BDRED
LDRED
0.2
ap finishingap roughing
In case of a single or a stepped boring cutter configuration, only half the feed should be applied.
Cutting Conditions for BHD / BHF / BHE Fine Boring Heads
ap
0.1-0.25
ISO
Material LDRED/BDRED Stability
Cutting Speed
Vc=m/min
Feed f=mm/rev
Insert Grade
Insert Radius
RE=0.2 RE=0.4
P
Carbon Steel
HB<200
LDRED/BDRED=2.5 good 200-300 0.05-0.08 0.08-0.10 IC20N
LDRED/BDRED=4 normal 160-250 0.05-0.08 0.08-0.10 IC30N
LDRED/BDRED=6.3 difficult 70-100 0.05-0.08 - IC54
Carbon Steel
HB<200
LDRED/BDRED=2.5 good 160-250 0.05-0.08 0.08-0.10 IC20N
LDRED/BDRED=4 normal 150-200 0.05-0.08 0.08-0.10 IC30N
LDRED/BDRED=6.3 difficult 70-100 0.05-0.08 -
MStainless Steel
AISI 304-316
LDRED/BDRED=2.5 good 120-160 0.05-0.08 0.08-0.10 IC54
LDRED/BDRED=4 normal 100-140 0.05-0.08 0.08-0.10
LDRED/BDRED=6.3 difficult 70-100 0.05-0.08 -
KCast Iron
LDRED/BDRED=2.5 good 120-160 0.05-0.08 0.08-0.10 IC20
LDRED/BDRED=4 normal 100-140 0.05-0.08 0.08-0.10
LDRED/BDRED=6.3 difficult 70-100 0.05-0.08 -
NAluminum
LDRED/BDRED=2.5 good 300-400 0.05-0.08 0.08-0.10 IC20
LDRED/BDRED=4 normal 250-350 0.05-0.08 0.08-0.10
LDRED/BDRED=6.3 difficult 100-150 0.05-0.08 -
(1) ap=0.1 min
Cutting Conditions for Boring Operations with BHC Combi Rough and Fine
ISCAR
478
USER GUIDE
ITS BORE
Fine Boring Head Range
2 µm Direct Diametric Adjustment
BHF MB50-80x94
BHF MB80-80x94
ø2.5-160
2 µm
IHAXF 8-10/16
IHAXF 6- 8/16 IHAXF 6- 8-AVI IHAXF 6- 8-E
IHAXF 10-12/16
IHAXF 12-14/16
IHAXF 14-16/16
IHAXF 16-18/16
IHAXF 18-22/16
IHAXF 22-30/16
IHAXF 8-10-AVI
IHAXF 10-12-AVI
IHAXF 12-14-AVI
IHAXF 14-16-AVI
IHAXF 16-18-AVI
IHAXF 8-10-E
IHAXF 10-12-E
IHAXF 12-14-E
IHAXF 14-16-E
IHAXF 16-18-E
222222
22
Ø16 g5
93°
IHAXF 2.5-4/8
IHAXF 4- 6/8
SLEEVE D 8-D16
Ø 8 g5
Ø 8 H6
Ø 16 g6
25
Ø 39
ADBH 30XD16
Ø 16 H6
Ø2.5 - 4
Ø4 - 6
Ø6 - 8
Ø8 - 10
Ø10 - 12
Ø12 - 14
Ø14 - 16
Ø16 - 18
Ø18 - 22
Ø22 - 30
29
52.5
96°
95°
Ø16 g5
Ø16
g5
21
24
36 48
60 75
60
43
48 72 90
52 84 105
58 96 120
63
68
36 45
Fine Boring Head Range
479
USER GUIDE
ITS BORE
Fine Boring Head Range
2 µm Direct Diametric Adjustment
BHF MB80-125x114
ø36-500
Ø 36 ~ 138
Ø 135 ~ 500
MB80
BBH 40X69
BBH 40X114
BBH 40X189
BHFH 40X400
BHFH 40X300
BHFH 40X200
BHFH 40X133
IHRF 40
IHFF 40
IHRF 32
IHFF 32
IHRF 56-802BW
IHRF CH...
IHRF 50
IHFF 50
Fine Boring Head Range
ISCAR
480
USER GUIDE
ITS BORE
Fine Boring Head Range
2 µm Direct Diametric Adjustment
BHF MB80-125x114
ø2.5-160
2 µm
BHFH 40X133
IHRF 50
IHFF 50
BHFH 40X200
BHFH 40X300
BHFH 40X400
BHFH 40X133
IHRF 56-802BW BHFH 40X200
BHFH 40X300
BHFH 40X400
BHFH 40X133
BHFH 40X200
IHRF 50 CH45 54-800
IHRF 50 CH30 54-800
IHRF 50 CH15 54-800
BHFH 40X300
BHFH 40X400
Fine Boring Head Range
481
USER GUIDE
ITS BORE

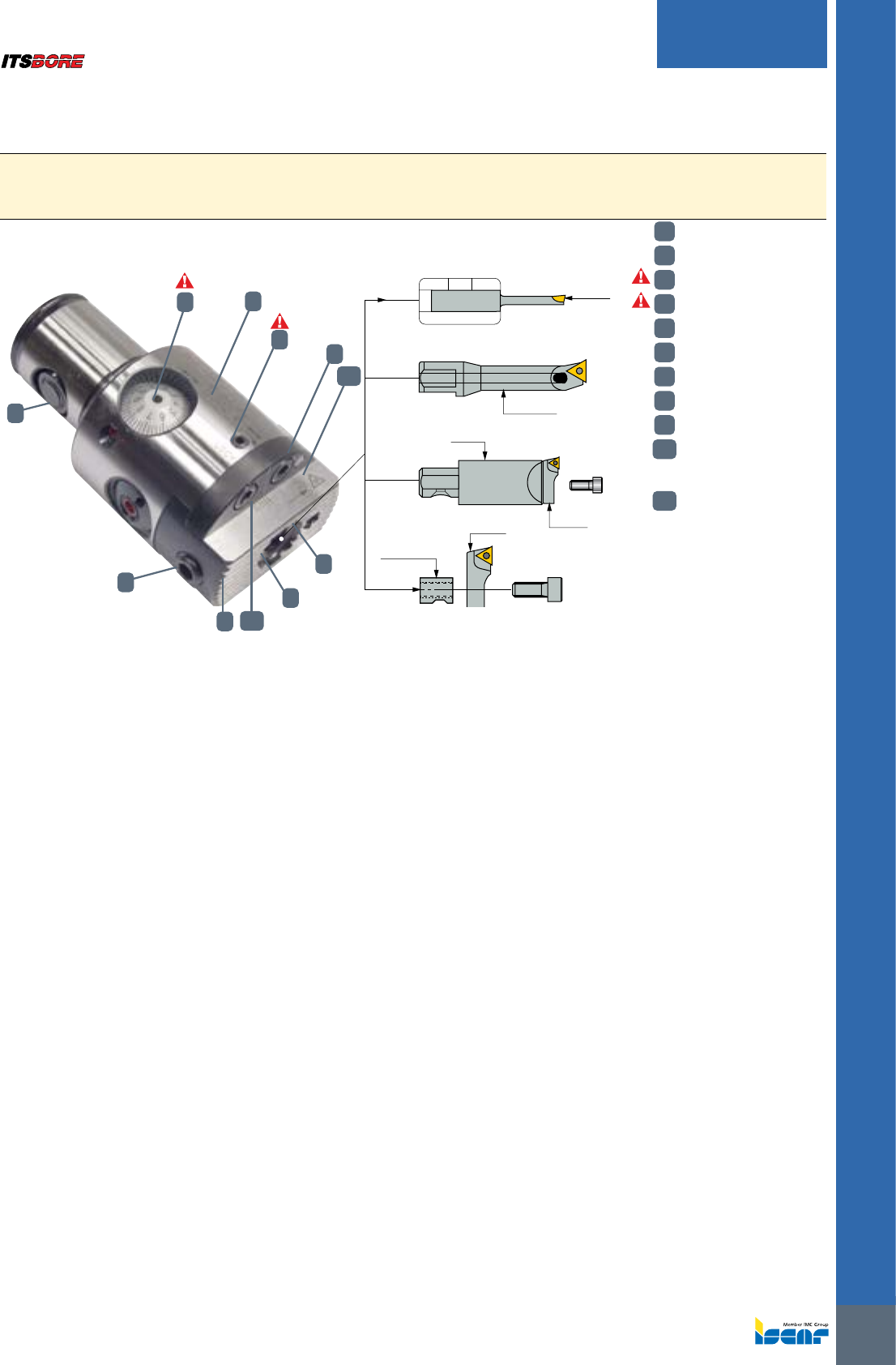

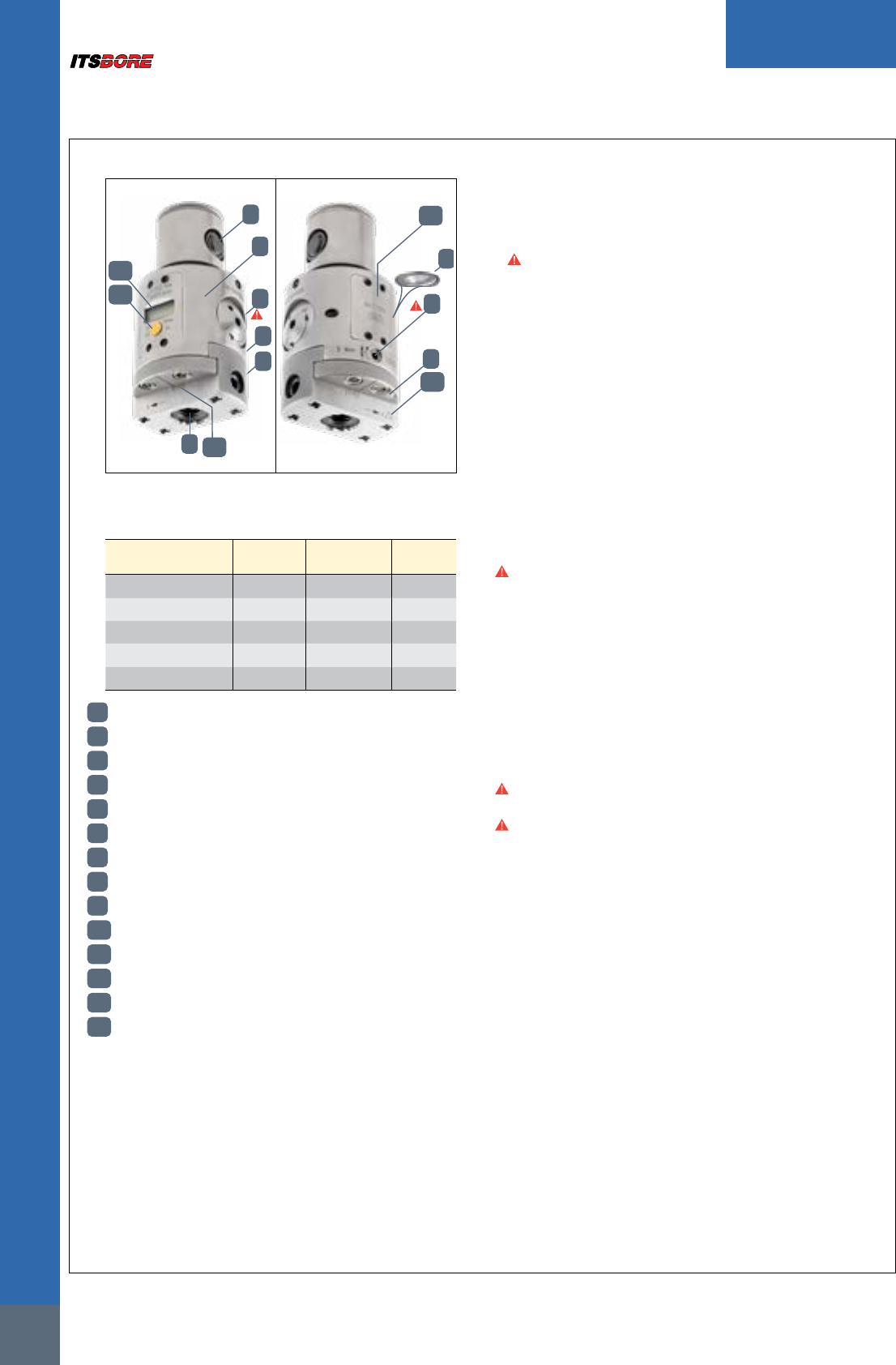

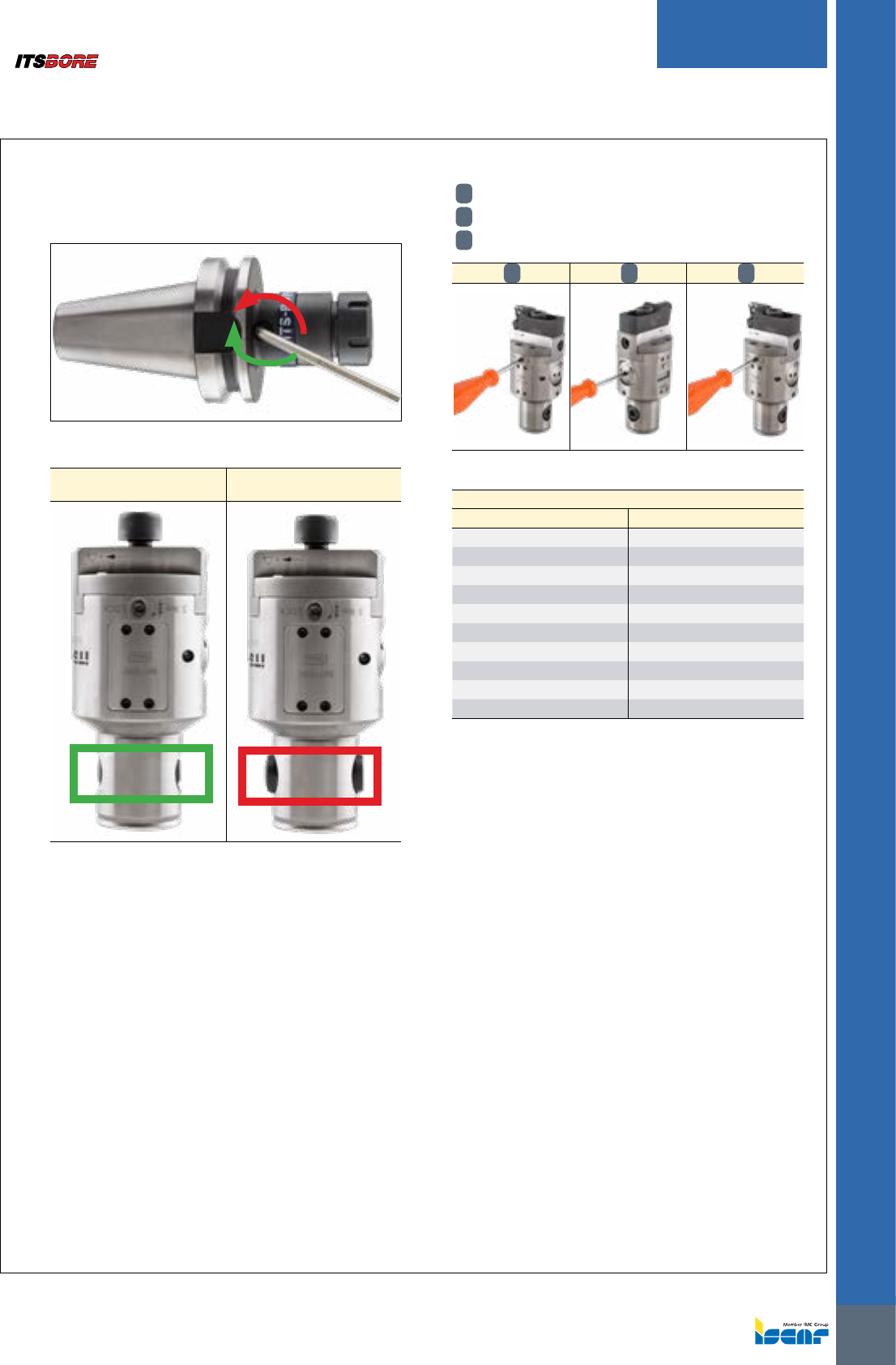

Operating Instructions
BHF 50 Shown
Sleeve
Nut
IHAX F
Reduction Sleeve
IHAXF
BBH
IHFF
IHFF
5
710
8
2
1
3
4
6
11
9
1
Body
2
Expanding pin
3
Graduated dial
4
Slide locking screw
5
Toolholder locking screw
6
Coolant nozzle
7
Serrated face
8
Oiling nipple
9
Tool bore 16H7
10
Slide adjustment range
Do not exceed the
range marks!!
11
Cutting edge
position mark
Assembly
• Before mounting the BHF boring head,
make sure the expanding pin [2] does not
protrude from the cylindrical body part.
• Insert BHF into the shank.
• Tighten pin [2] by turning clockwise
following the recommended tightening
torque guidelines below:
Positioning
• The tool slide [7] allows for a 4 mm adjustment
by turning graduated dial [3] counterclockwise.
• When changing the direction of the dial rotation,
backlash must be compensated for.
• After positioning, lock the tool slide
by means of the screw [4].
• Loosen screw [4] before making any slide adjustment.
Maintenance
Weekly:
• Lubricate through the nipple [8] with ISO UN G220 oil.
Periodically:
• Clean and lubricate the conical and
cylindrical matching surfaces.
• Treat expanding pin [2] with an anti-friction lubricant.
• Clean and lubricate the tool slide guideway.
Important Note:
Toolholder should be firmly affixed to the slide.
Recommended torque: (N.m)
BHF MB16-16x34 2.0 - 2.5
BHF MB20-20x40 4.0 - 4.5
BHF MB25-25x50 6.5 - 7.5
BHF MB32-32x63 7.0 - 8.0
BHF MB40-40x80 16.0 - 18.0
BHF MB50-50x60 30.0 - 35.0
• Insert the screw [5]. If it protrudes, the sleeve should
be rotated until the screw can enter the recess in
the sleeve nut, reduction sleeve or boring bar.
Disassembly
In order to separate the BHF from the shank, loosen
the expanding pin [2] by turning counterclockwise.
Fine Boring Head BHF 16-50
ISCAR
482
USER GUIDE
ITS BORE

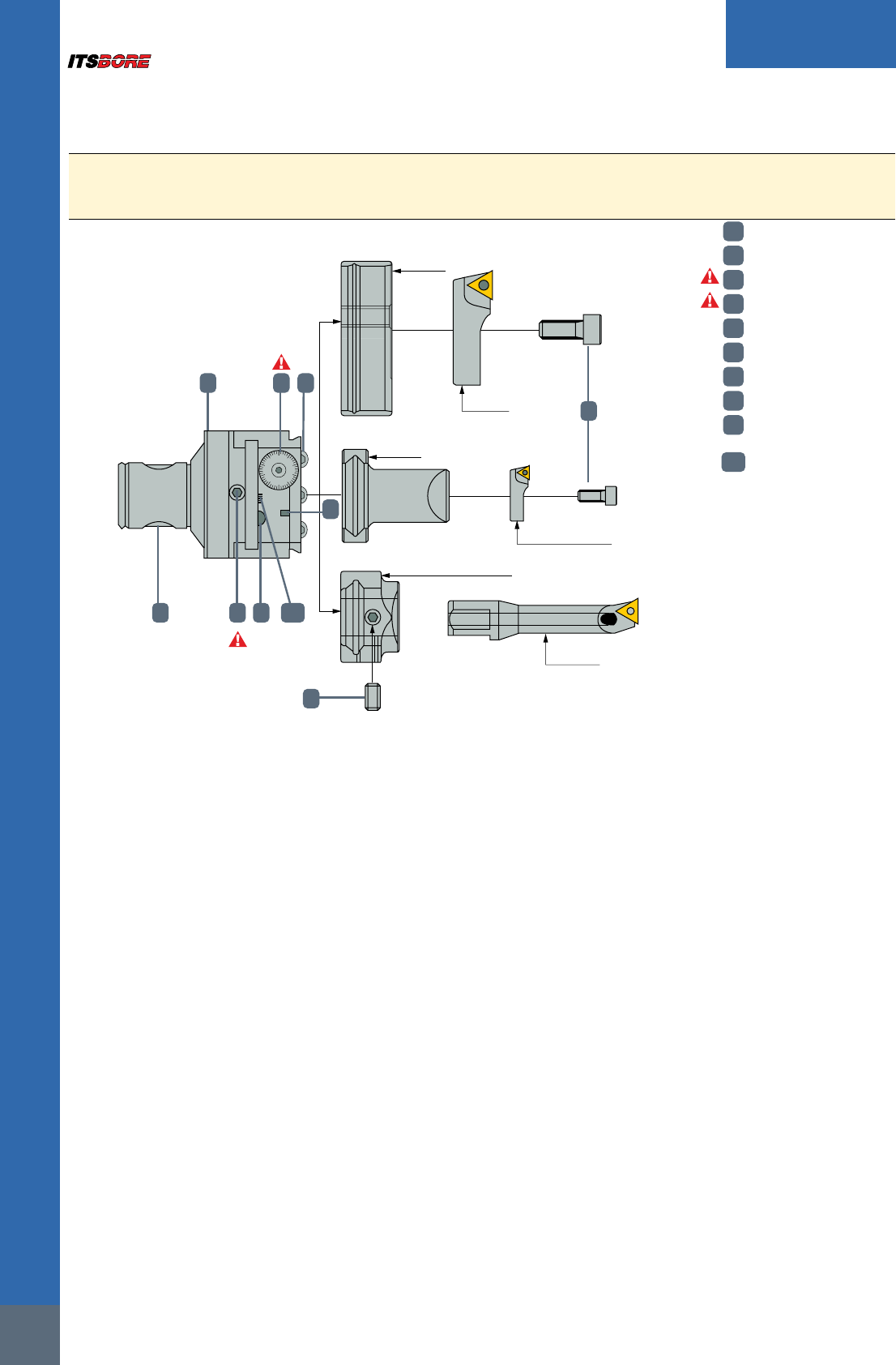

Operating Instructions
BHF 50 Shown
1
0
9
8
7
6
5
4
3
2
IHFF
IHFF / IHRF
ADBH 30xD16
IHAX F
BBH
BHFH
4 62
8
5
9
731
10
1
Body
2
Expanding pin
3
Graduated dial
4
Slide locking screw
5
Toolholder locking screw
6
Coolant nozzle
7
Slide holder
8
Oiling nipple
9
Toolholder locking
screws
10
Slide adjustment range
Do not exceed the
range marks
Assembly
• Before mounting the BHF boring head,
make sure the expanding pin [2] does not
protrude from the cylindrical body part.
• Insert BHF into the shank.
• Tighten pin [2] by turning clockwise
following the recommended tightening
torque guidelines below:
Positioning
• The tool slide [7] allows for a 5 mm adjustment
by turning graduated dial [3] counterclockwise.
• When changing the direction of the dial rotation,
backlash must be compensated for.
• After positioning, lock the tool slide
by means of the screw [4].
• Loosen screw [4] before making any slide adjustment.
Maintenance
Weekly:
• Lubricate through the nipple [8] with ISO UN G220 oil.
Periodically:
• Clean and lubricate the conical and
cylindrical matching surfaces.
• Treat expanding pin [2] with an anti-friction lubricant.
• Clean and lubricate the tool slide guideway.
Important Note:
Toolholder should be firmly affixed to the slide.
Recommended torque: (N.m)
BHF MB50- 63x87 30-35
BHF MB50- 80x94 30-35
BHF MB63- 63x87 80-90
BHF MB80- 80x94 80-90
BHF MB80-125x94 80-90
• Insert the screw [5]. If it protrudes, the sleeve
should be rotated until the screw can enter the
recess in the sleeve nut or boring bar.
Disassembly
In order to separate the BHF from the shank, loosen
the expanding pin [2] by turning counterclockwise.
Fine Boring Head BHF 63-125
483
USER GUIDE
ITS BORE
Operation and Maintenance
MB Connection
To LOCK, rotate the radial pin clockwise
To UNLOCK, rotate the radial pin counter-clockwise
Table shows the recommended tightening torques:
UNLOCKING
LOCKING
Before assembling the MB connection elements, make sure the radial pin
is not projected from the cylindrical parts.
CORRECT 4WRONG 7
Stages for adjusting boring heads with dial:
1
Loosen slide adjustment screw
2
Adjust the dial screw
3
Tighten slide adjustment screw
123
Driving Torque
MB Nm
MB14 2-2.5
MB16 2-2.5
MB20 4-4.5
MB25 6.5-7.5
MB32 7-8
MB40 16-18
MB50 30-35
MB63 70-80
MB80 70-80
MB110 200-220
ISCAR
484
USER GUIDE
ITS BORE
BHD Digital Fine Boring Head Metric/Inch Operating Instructions
BHD MB 80-32
7
5
5
7
10
12
13
2
1
3
9
14
8
4
6
11
Tighten pin (2) by turning clockwise
Following the recommended tightening
torque guidelines below:
Designation (Nm) (Lbf.ft)
Allen Key
(mm)
BHD MB32-32-83 7.0-8.0 5.16-5.90 4
BHD MB40-40-90 16.0-18.0 11.80-13.28 5
BHD MB50-50-60 30.0-35.0 22.13-25.81 6
BHD MB63-63-89 70.0-80.0 51.63-59.0 8
BHD MB80-80-104 70.0-80.0 51.63-59.0 8
1 Body
2 Expanding pin
3 Dial
4 Slide locking screw
5 Toolholder locking screw
6 Coolant nozzle
7 Slide holder
8 Oiling nipple
9 Tool bore 16H7
10 Slide adjustment range
11 Cutting edge position mark
12 Digital display
13 Selection button
14 Battery cover
Assembly
• Before mounting the BHD boring head,
make sure the expanding pin [2] does not
protrude from the cylindrical body part.
• Insert BHD boring head into the shank.
Tighten pin [2] by turning clockwise.
• Tighten screw [5]. If it protrudes, the sleeve
should be rotated until the screw can enter the
recess in the sleeve nut or boring bar.
Disassembly
To separate the BHD from the shank, loosen the
expanding pin [2] by turning counterclockwise.
Positioning
The display [12] shows the value of the adjustment
diameter with a 2µm screen resolution.
• Switch on the BHD boring head by pushing
the selection button [13]. The display [12] will
show the value of the previous adjustment.
To reset the value displayed, press and hold the button
[13]. After 2 seconds, the display will show. Release
the button. The display will show the value 0.000.
Loosen screw [4] before making any
slide adjustment to the dial [3].
• Adjust the required diameter by turning the dial [3]
counterclockwise. The tool slide [7] allows a 5mm radial
adjustment. The display [12] will show the
new value in diameter. The absolute value
CANNOT be viewed, only the relative value.
• After positioning, lock the tool slide
by means of the screw [4]
see torque recommendation. If unused for more than
30 seconds, the display switches off automatically.
WARNINIG
DO NOT perform any slide movement
when the display is switched off.
DO NOT exceed the range marks [10].
Before carrying out a fine adjustment
(described in FIG.3):
1 Loosen screw [4] of slide adjustment.
2 Adjust dial [3] to required diameter.
3 Tighten screw [4].
Setting metric/inch
To change unit readout from metric to inch:
• Press and hold the button [13]. The display
shows “----”, after 10 sec the new unit readout
appears on the left of the display.
• Release the button.
485
USER GUIDE
ITS BORE
BHD Digital Fine Boring Head Metric/Inch Operating Instructions
1 2 3
Fig. 3
Locking Screw
Tightening Torques (Nm)
Designation: (Nm)
BHD MB32-32-83 2.0
BHD MB40-40-90 2.5
BHD MB50-50-60 3.0
BHD MB63-63-89 3.5
BHD MB80-80-104 4.0
ba
c
d
Fig. 4
Fig. 5
Battery Replacement
When the batteries are low the display will show a warning
sign “batt” for a few seconds (FIG.4). It is recommended
to replace the batteries as soon as possible.
To replace the batteries (FIG.5):
• Remove the battery compartment cover
[b] by unscrewing the 4 screws [a].
• Replace the two batteries using type SR44 1.55V
and position them in the correct direction.
• Tighten the 4 screws [a].
• The integrated seal [d] is now secured
on the battery cover.
Maintenance Weekly:
• Lubricate through the nipple [8] with ISO UN G220 oil.
Periodically:
Clean and lubricate the conical and
cylindrical matching surfaces.
Treat the expanding pin [2] with an anti-friction lubricant.
Clean and lubricate the tool slide guide way.
WARNING
• The only maneuvering and adjustment screws to be
used are those listed in the components section.
• The screws not listed in the components section
should not be touched so as to avoid
malfunction of the boring bars and heads.
• Bit holders and boring bars should be assembled with
the insert turned in the same direction as the screw [4].
• The use of coolant on the BHD boring head
double-bit heads should be 40 BAR max.
• The machine tool must be equipped with all of
the active and passive safety devices that will
assure safe use of the BHD boring head.
• ISCAR requires that the machine tools where
the BHD boring head is mounted comply with
the provisions of the 2006/42/CE directive.
Inserts
We advise you to use the inserts proposed by ISCAR.
The use of different inserts can affect
ultimate machining results.
ISCAR
486
USER GUIDE
ITS BORE
Cartridge should be mounting according
to the insert symbol direction
CORRECT 4WRONG 7
CORRECT 4WRONG 7
487
USER GUIDE
ITS BORE
Warning: slide position must be adjusted
within the indicated limits. Excess movements
damage internal kinematics When BHF is assembled, the cutting edge should
be positioned in relation to the arbor key slots.
Cutting Edge Position
Maintenance
Boring heads should be lubricated with ISO UN G220 oil weekly
ISCAR
488
USER GUIDE
ITS BORE
Complete Machining Solutions
MATERIALS AND GRADES
ISCAR
490
MATERIALS AND GRADES
USER GUIDE
Grade ISO Grade Description Coating Layers *Coating Color
PVD COATED
IC328
P25-P40
A tough substrate with PVD coating, suitable for wide range of
applications on steel and stainless steel at low to medium speeds
and medium to high feeds. The grade is recommended for
interrupted cuts and machining under unstable conditions.
M30-M40
S20-S30 TiCN
Base
IC508
P20-P40 A broad-spectrum grade with a tough-submicron fine grain
substrate and PVD coating. Designed for machining main types
of engineering materials at various cutting speeds. Features
excellent notch wear and built-up edge resistance. Suitable for
interrupted cutting and machining under unfavorable conditions.
M20-M30
K20-K30
N10-N30 TiN
S10-S25 TiCN
H20-H30 Base
IC520
A hard substrate PVD coated grade. Intended mainly for
machining austenitic stainless steel, high-temperature alloys and
Titanium.
M10-M20
N10-N15 TiN
S10-S20 TiCN
Base
IC806
P10-P20
A hard submicron fine grain substrate, PVD coated grade
followed by a SUMOTEC surface treatment. Applied mainly to
machining heat- resistant superalloys at moderate cutting speeds.
M10-M20
K10-K25
TiAIN
AlTiN
Base
IC808
P15-P30
A tough, submicron fine grain size substrate with excellent
chipping resistance, combined with a SUMOTEC PVD coating.
Provides high wear resistance. Recommended for a very wide
range of materials.
M20-M30
K20-K30
TiN
S10-S25 TiAIN
H20-H30 Base
IC808G
P15-P30
A tough, submicron fine grain size substrate with PVD coating.
Features high resistance to chipping and abrasive wear. Designed
for machining a wide variety of engineering materials.
M20-M30
K15-K25
TiN
S10-S25 TiAlN
H10-H20 Base
IC830
P20-P40 A tough substrate with PVD coating and a special SUMOTEC
surface treatment. Suitable for machining steel and stainless steel
at low to medium cutting speeds and moderate to high feeds.
The grade features high toughness and recommended for
interrupted cuts and machining under unstable conditions. May
be used on high temperature alloys at low cutting speeds.
M25-M35
TiN
S15-S30 TiAlN
Base
IC903
P10-P20
Ultra-fine grain size, PVD coated. High wear resistance and
toughness. High speed, medium feed. Used for up to 62 HRC
hardened steel, Titanium, nickel-based alloys and stainless steel.
M15-M25
K10-K20
S10-S20 AlTiN
H10-H20 Base
IC907
P10-P20 A hard submicron grain size substrate with a PVD coating,
suitable for a wide range of a materials such as steels, alloy
steels, hard steels, austenitic stainless steel and heat resistant
alloys at moderate to relatively high cutting speeds under stable
conditions. Features high wear resistance and plastic deformation
durability.
M05-M15
K15-K30
S10-S20 TiAlN
H05-H15 Base
* For coated grades
ISCAR Hole Making Grades Chart
491
MATERIALS AND GRADES
USER GUIDE
Grade ISO Grade Description Coating Layers *Coating Color
PVD COATED
IC908
P15-P30 A tough submicron grain size substrate with PVD coating,
recommended for general use in a large variety of operations and
materials such as steels, alloy steels, austenitic stainless steel
and high temperature alloys at moderate cutting speeds. Features
high wear resistance and chipping durability.
M20-M30
K20-K30
S10-S25 TiAlN
H20-H30 Base
IC920
A PVD coated carbide grade that features good fracture
toughness and high wear resistance. Used mostly for machining
nodular cast iron at medium cutting speed.
K10-K20
N10-N25
TiAlN
Base
IC928
P20-P40
A tough substrate with PVD coating, suitable for machining
steel and stainless steel at low to medium cutting speeds
and moderate to high feeds. The grade is recommended for
interrupted cuts and machining under unstable conditions.
M25-M35
S15-S30 TiAlN
Base
IC950
P15-P35
A PVD coated grade with excellent wear resistance. Generally
used for heavy machining alloy steel and cast iron.
K15-K35
TiAlN
Base
IC1008
P10-P20
A tough submicron grain size substrate with coating.
Recommended for general use on a wide range of applications
and materials as steels, alloy steels, austenitic stainless steel and
high temperature alloys at moderate cutting speeds.
M05-M15
K15-K30
TiN
S10-S20 TiAlN
H05-H15 Base
CVD COATED
IC5500
P20-P35
A tough substrate with SUMOTEC CVD coating.
Recommended for high speed drilling of steel.
Provides excellent tool life.
TiN
Al2O3
TiCN
Base
IC8080
P10-P20
A submicron grain size substrate with SUMOTEC MTCVD coating.
Features excellent chipping and wear resistance. Recommended
for high speed drilling of cast iron and steel, to be used for the
peripheral insert on DR drills.
K10-K20 TiN
Al2O3
TiCN
Base
IC9025
P20-P30
A tough substrate with a cobalt enriched layer combined with
a multi-layer CVD coating. Recommended for general use
machining of steel in a wide range of conditions, featuring high
toughness and wear resistance.
M15-M30
TiN
Al2O3
TiCN
Base
IC9080
P10-P20
A submicron grain size substrate with a CVD coating.
Features excellent chipping and wear resistance. Recommended
for high speed drilling of cast iron and steel, to be used for the
peripheral insert on DR drills.
K10-K20 TiN
Al2O3
TiCN
Base
* For coated grades
ISCAR Hole Making Grades Chart
ISCAR
492
MATERIALS AND GRADES
USER GUIDE
ISCAR Hole Making Grades Chart
Grade ISO Grade Description Uncoated Layers Uncoated
UNCOATED
IC03
An uncoated, ultra-fine carbide grain size, which is characterized
by high wear resistance and toughness. Used mainly for
machining high-temperature superalloys and Titanium, may be
applied to cutting hardened steel and cast iron.
S10-S20
H15-H25 Base
IC07
A hard-uncoated submicron grain size carbide grade, suitable
for machining aluminum alloys and other non-ferrous materials at
high cutting speeds.
M10-M20
N05-N20
S10-S30
Base
IC08
A tough uncoated submicron grain size carbide grade, suitable
for steels, stainless steel and high temperature alloys at low
cutting speeds. Good choice for non-ferrous materials.
M10-M30
N10-N25
S10-S30
Base
493
MATERIALS AND GRADES
USER GUIDE
MATERIAL GROUPS
Based on ISO 513 and VDI 3323 standards
ISO
Material Condition
Tensile Strength
[N/mm2] Kc1(1) [N/mm2] mc(2)
Hardness
HB
Material
Group
No.
P
Non-alloy steel and cast
steel, free cutting steel
< 0.25 %C Annealed 420 1350 0.21 125 1
≥ 0.25 %C Annealed 650 1500 0.22 190 2
< 0.55 %C Quenched and tempered 850 1675 0.24 250 3
≥ 0.55 %C Annealed 750 1700 0.24 220 4
Quenched and tempered 1000 1900 0.24 300 5
Low alloy and cast steel (less than 5% of
alloying elements)
Annealed 600 1775 0.24 200 6
Quenched and tempered
930 1675 0.24 275 7
1000 1725 0.24 300 8
1200 1800 0.24 350 9
High alloyed steel, cast steel and tool steel Annealed 680 2450 0.23 200 10
Quenched and tempered 1100 2500 0.23 325 11
Stainless steel and cast steel Ferritic/martensitic 680 1875 0.21 200 12
Martensitic 820 1875 0.21 240 13
MStainless steel and cast steel Austenitic, duplex 600 2150 0.20 180 14
K
Gray cast iron (GG) Ferritic / pearlitic 1150 0.20 180 15
Pearlitic / martensitic 1350 0.28 260 16
Nodular cast iron (GGG) Ferritic 1225 0.25 160 17
Pearlitic 1350 0.28 250 18
Malleable cast iron Ferritic 1225 0.25 130 19
Pearlitic 1420 0.3 230 20
N
Aluminum-wrought alloys Not hardenable 700 0.25 60 21
Hardenable 800 0.25 100 22
Aluminum-cast alloys
≤12% Si Not hardenable 700 0.25 75 23
Hardenable 700 0.25 90 24
>12% Si High temperature 750 0.25 130 25
Copper alloys
>1% Pb Free cutting 700 0.27 110 26
Brass 700 0.27 90 27
Electrolytic copper 700 0.27 100 28
Non metallic Duroplastics, fiber plastics 29
Hard rubber 30
S
High temperature alloys
Fe based Annealed 2600 0.24 200 31
Hardened 3100 0.24 280 32
Ni or Co
based
Annealed 3300 0.24 250 33
Hardened 3300 0.24 350 34
Cast 3300 0.24 320 35
Titanium alloys
Pure 400 1160 0.24 36
Alpha+beta alloys,
hardened 1050 1245 0.24 37
H
Hardened steel Hardened 4600 55 HRC 38
Hardened 4700 60 HRC 39
Chilled cast iron Cast 4600 400 40
Cast iron Hardened 4500 55 HRC 41
Steel
Stainless Steel
Cast Iron
Non-ferrous
High Temp. and Titanium Alloys
Hardened Steel and Cast Iron
(1) Specific cutting force for 1 mm2 chip section.
(2) Chip thickness factor.
ISCAR
494
MATERIALS AND GRADES
USER GUIDE
Hardness Conversion Table
2240
2100
1960
1820
1680
1540
1400
1260
1120
980
840
700
560
10 20 30 40 50 60 70
320
300
280
260
240
220
200
180
160
140
120
100
80
200
300
400
500
600
700
N/mm2Kpsi
80 560
Brinell Hardness (HB)
100 700
120 840
140 980
160 1120
180 1260
200 1400
220 1540
240 1680
260 1820
280 1960
300 2100
320 2240
Tensile Strength
Rockwell “C” Hardness (HRC)
MATERIAL GROUPS
495
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
1
1020;
G10200;
K02301;
K02595;
K02596;
K02597;
K02598;
K02599;
K02702;
K0300
1.0044
S275JR;
St 44-2;
Fe 430 B
EN 43 B;
Fe 430 B FN;
43/25 HR;
43/25HS;
43 B;
HFW4;
HFS4;
ERW 3
E 28-2 1411;
1412
Fe 430 B FN;
Fe 430 B
AE 275 B;
Fe 430 B FN
SN 400 B;
SN 400 C;
SN 490 B;
SN 490 C;
SS 400;
STK 400;
STKM 19 C;
STKR 400;
19 C;
SS 41;
STK 41
St4ps;
St4sp S275JR
1
1.0050
E295;
St 50-2;
Fe 490-2;
ST 50-2 G (E295+CR)
Fe 490-2 FN;
50 B A 50-2 1550;
2172 Fe 490 A 490-2;
Fe 490-2 FN
SS 490;
SS 50
St5ps;
St5sp
1
K02404;
K02702 1.0045 S355JR;
Fe 510 B
50 B;
4360-50 B E 36-2 Fe 510 B FN AE 355 B
SN 400 B;
SN 400 C;
SN 490 B;
SN 490 C;
SS 490;
SS 50
S355JR
1
K02702 1.0143
S275J0;
St 44-3 U;
Fe 430 C
43C;
4360-43C E 28-3 1414-01 Fe 430 C FN AE 275 D S275J0
1
1.0130 P265S;
SPH 265
164-400B
LT 20
SPH 265;
A 42 AP SPH 265 P265S
1
A 619 1.0333
DC03G1;
USt 3;
USt 13
2 CR;
3 CR EFeP 02 AP 02 SPCD DC03G1
1
K02601;
K03000;
A 573 Gr. 70;
A 611 Gr.D
1.0144
S275J2G3 (S275J2);
St 44-3
(Fe 430 D 1)
Fe 430 D1
FF;
4360-43 C;
4360-43 D
E 28-3;
E 28-4
1411;
1412;
1414
Fe 430 B;
Fe 430 C (FN);
Fe 430 D (FF)
AE 275 D;
Fe 430 D1 FF
SM 400 A;
SM 400 B;
SM 400 C;
SS 400;
STK 400;
STKR 400;
SM 41 A;
SM 41 B;
SM 41 C
St4kp;
St4ps;
St4sp
1
1008;
G10080;
A 621
1.0330
DC01;
DC 01;
St 2;
St 12
CR 4;
CS 4
C;
TC 1142 FeP 01;
FeP 00
AP 11;
FeP 01;
AP 00
SPCC;
CR 1 DC01 (FeP 05)
1
1015;
G10150;
K02401
1.0037 S235JR (Fe 360 B);
St 37-2
Fe 360 B;
4360-40 B;
ERW 3;
CEW 3;
37/23 HR;
37/23 HS;
37/23 CR;
37/23 CS
E 24-2 1311 Fe 360 B;
1449 37/23 HR
AE 235 B;
Fe 360 B
STKM 12 A;
STKM 12 AC
1
1.0035 S185 (Fe 310-0);
St 33
Fe 310-0;
15 HR;
15 HS;
1449 15 HR;
1449 15 HS
A 33 1300 Fe 320 Fe 310-0;
A 310-0
SGP;
SS 330;
SS 34
St0 S185
1
K02502 1.0034 E195;
RSt 34-2
CEW 2;
34/20 HR;
34/20 HS;
34/20 CR;
1449
34/20CS
A 34-2 NE Fe 330 BFN St2ps;
St2sp E195
1
1.0334 DD12G1;
UStW 23 2 C FeP 12 AP 12 SPHD 10kp
1
1006;
G10060 1.0335 DD13;
StW 24
1 CR;
1 CS;
1 HR;
2 HR;
2 HS;
2 CR;
2 CS
3 C FeP 13 AP13 SPHE 08kp DD13
1
A 620 1.0338
DC04;
St 4;
St 14
CR 1;
CR 2 ES 1147 FeP 04 AP 04;
FeP 04
SPCE;
HR 4 08JuA DC04 (FeP 04)
ISCAR MATERIAL GROUPS
According to VDI 3323 Standard
ISCAR
496
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
1
K01700;
K02001;
K02200;
K02201;
K02203;
K02503;
K02601;
K02801
1.0345
P235GH;
HI;
H I
141-360;
151-360;
154-360;
161-360;
164-360
A 37 CP 1330;
1331
FeE 235;
Fe 360 1 KW;
Fe 360 1 KG;
Fe 360 2 KW;
Fe 360 2 KG
A 37 Grado RA II;
A 37 Grado RC I
SGV 410;
SGV 450;
SGV 480;
SPV 235;
SPV 450;
SPV 490;
SGV 42;
SGV 46;
SGV 49;
SPV 24;
SPV 46;
SPV 50
P235GH
1
1010;
G10100 1.0301 C10;
C 10
040 A 10;
045 M 10;
En 2 A;
En 2 A/1;
En 2 B;
En 32 A;
10 CS
C10RR;
XC 10;
C 10;
AF 34 C 10
1 C 10;
C 10
F.151;
F.151.A S 10C 10 C10
1
1.0149
S275JOH;
St 44-3 U;
RoSt 44-2
43 C;
4360-43C E 28-3 1412-04 Fe 430 C Fe 430 C;
AE 275 C S275JOH
1
1.0226 DX51D;
St 02 Z Z2 GC 1151 10 FeP 02 G FeP 02 G SGC C
1
A 1011
(SS Grade 36
(230) Type 2);
A1011
(SS Grade 36
(250) Type 1)
1.0114
S235JO;
St 37-3 U;
Fe 360 C
40 C;
4360-40C E 24-3 Fe 360 C FN AE 235 C SS 330;
SS 34 S235JO
1
A572-60 1.8900 S380N;
StE 380 4360 55 E 2145 FeE 390 KG S 25 C S380N
1
A 572 Gr. 65 1.0060
E335;
St 60-2
(Fe 590-2 B)
En 55 C;
Fe 590-2-FN;
55 E;
4360-55 E
A 60-2 1650 Fe 590;
Fe 60-2
A 590;
Fe 590-2 FN
SM 570;
SM 58
St6ps;
St6sp E335
1
1.0028 S250G1T;
USt 34-2 A 34-2 Fe 330;
Fe 330 B FU
SS 330;
SS 34
1
K01700;
K02200;
K02801
1.0112 P235S;
SPH 235
164-360B
LT20;
1501-164-
360B LT20
A 37 AP;
SPH 235 Fe 360 C AE 235 C P235S
1
1.0722 10SPb20;
10 SPb 20 10 PbF 2 CF 10 SPb 20 10 SPb 20;
F.2122 10SPb20
1
1108;
1109;
1111;
B1111;
B 1111;
G11080;
G11090
1.0721 10S20;
10 S 20 10 F 2 CF 10 S 20 10 S 20;
F. 2121 10S20
1
12L13;
12L14;
12 L 13;
12 L 14;
G12134;
G12144
1.0718 11SMnPb30;
9 SMnPb 28
230 M 07
Pb;
En 1A Pb
S 250 Pb 1914 CF 9 SMnPb 28
F.210.C;
F.210.M;
11 SMnPb 28;
F.2112
SUM 22 L;
SUM 23 L;
SUM 24 L
11SMnPb30
1
1213;
1215;
G12130;
G12150
1.0715 11SMn30;
9 SMn 28
230 M 07;
En 1 A S 250 1912 CF 9 S 22
F.210.A;
F.210.L;
11 SMn 28;
F.2111
SUM 22 11SMn30
1
1020;
1023;
G10200;
G10230
1.1151 C22E;
Ck 22
055 M 15;
070 M 20;
En 3 A;
En 3 C;
En 2
XC 25;
XC 18;
2 C 22
1450 C 20;
C 25
F.1120;
C 25 K
S 20 C;
S 20 CK;
S 22 C
20 C22E
1
A 1008
(HSLAS-F
Grade 80
[550]);
A 1011
(HLAS-F Grade
80 [550])
1.0986 S500MC;
QStE 500 TM
60F55 HR;
60F55 HS;
60F55 CS
E 560 D;
S 560 MC FeE 560 TM S500MC
497
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
1
A 1008
(HSLAS-F
Grade 70
[480]);
A 1008
(HSLAS Grade
70 [480]
Class 1)
1.0984 S500MC;
QStE 500 TM
E 490 D;
S 490 MC 2662 FeE 490 TM S500MC
1
A 1008
(HSLAS Grade
65 [450]
Class 1);
A 1008
(HSLAS Grade
65 [450]
Class 2)
1.0982 S460MC;
QStE 460 TM
1501-50F45;
50F45 HR;
50F45 HS;
50F45 CS
S460MC
1
A 1008 (HSLAS
Grade 50 [340]
Class 1);
A 1008 (HSLAS
Grade 50 [340]
Class 2)
1.0976 S355MC;
QStE 360 TM
46F40 HR;
46F40 HS;
46F40 CS
E 355 D 2642 FeE 355 TM S355MC
1
A 1008 (HSLAS
Grade 50
[340]);
A 1008 (HSLAS
Grade45 [310]
Class 2);
A 1011
(HSLAS-F
Grade 50 [340])
1.0972 S315MC;
QStE 300 TM
1501-40F30;
43F35 HR;
43F35 HS;
43F35 CS
E 315 D
1
K01600;
K02007;
K02700;
K02701;
K02803;
K02900;
K03009;
K03300;
K11803;
K12000;
K12001;
K12037
1.0562 P355N;
StE 355 225-490A
FeE 355 KG N;
E 355 R/FP;
A 510 AP
2106
FeE 355;
FeE 355 KG;
FeE 355 KW
AE 355 KG;
AE 355 DD
SM 490 A;
SM 490 B;
SM 490 C;
SM 490 YA;
SM 490YB STK
490 YB;
STK 490;
STK 500;
SM 50 A;
SM 50 B
15GF P355N
1
1024;
K03011;
K03014;
K12037;
K12709
1.0570 S355J2G3 (S355J2);
St 52-3 N (Fe 510 D1)
2132;
2134 fE 510 AE 355 D;
Fe 510 D1 FF
SM 490 A;
SM 490 B;
SM 490 C;
SM 490 YA;
SM 490 YB;
SM 520 B;
SM 520 C;
STK 490;
STK 500;
STKM 16 C
17GS;
17G1S S355J2G3
1
K01600;
K02302;
K02700;
K02701;
K02803;
K03301;
K11803;
K12037;
K12609;
A 299 (A);
A 299 (B)
1.0566 P355NL1;
TStE 355 225-490 A A 510 FP 2107 Fe E 355 KT
SLA 365;
STK 490;
STK 500;
SLA 37;
STK 50;
STK 51
P355NL1
1
K01600;
K02007;
K02701;
K02803;
K117803;
K12001;
K12037;
K12609
1.0565 P355NH;
WStE 355
225/490;
225-490 A;
500 Nb
A 510 AP 2106 FeE 355-2;
FeE 355 KW P355NH
1
K12037 1.0549 S355 NLH;
TStE 355 50 EE 2135 Fe 510 D FeE 355 KTM S355 NLH
1
K12000 1.0553
S355JO;
St 52-3 U;
Fe 510 C
50 C;
4360-50C E 36-3 Fe 510 C FN AE 355 C SCC 3 S355JO
ISCAR
498
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
1
A 252 (1);
A 252 (2);
A 252 (3)
1.0547 S355JOH;
St 52-3 U
50 C;
4360-50C
TSE 355-3;
E 36-3 Fe 510 C AE 355 C;
Fe 510 C S355JOH
1
K02502 1.0036
S235JRG1;
S235JR;
Fe 360 B;
USt 37-2
Fe 360 B FU;
Fe 360 B FN
1311;
1312
Fe 360 B;
Fe 360 C;
Fe 360 D
AE 235 B;
Fe 360 B
16D;
St3Kp
1
1020;
1022;
1023;
G10200;
G10220;
G10230
1.0402 C22
055 M 15;
070 M 20;
En 3 A;
En 3 B;
En 3 C;
En 2;
22 HS;
22 CS
AF 42 C 20;
XC 25;
1 C 22
1450 C 20;
C 21
F.112;
1 C 22
S 20 C;
S 22 C 20 C22;
2C/2D
1
K01701;
K02505;
K02704;
K02801
1.0425 P265GH;
H ll
151-400;
154-400;
161-400;
164-400
A 42 CP;
A 42 AP
1431;
1430;
1432
Fe 410 1 KW;
Fe 410 1 KG;
Fe 410 1 KT;
Fe 410 2 KW;
Fe 410 2 KG
A 42 Grado RC I;
A 42 Grado RC II;
F.6306;
F.6307
SG 295;
SGV 410;
SGV 450;
SGV 480;
SPV 315;
SPV 355;
SG 30;
SGV 42;
SGV 46;
SGV 49;
SPV 32;
SPV 36
16K;
20K P265GH
1
A27 65-35 1.0443
HX300PD;
H300PD;
H 300 PD
E 23-45 M 1305 HX300PD
1
K12000;
K12037 1.0546 S355NL;
TStE 355
50 EE;
4360-50EE E 355 FP 2135;
2135-01 FeE 355 KT AE 355 Grado KT
1
K12709 1.0545 S355N;
StE 355
50 E;
4360-50E E 355 R 2134 FeE 355 KG AE 355 Grado KG
SM 490 A;
SM 490 B;
SM 490 C;
SM 490 YA;
SM 490 YB;
SM 50 A;
SM 50 B;
SM 50 C;
SM 50 YA;
SM 50 YB
S355N
1
K02705;
K02305;
K12709
1.0539 S355NH;
StE 335 N S355NH S355NH;
TSE 355-4 2134-04 Fe 510 B Fe 355 KGN S355NH
1
1213;
1215;
G12130;
G12150
1.0715 11SMn30;
9 SMn 28
230 M 07;
220 M 07 S 250 1912 CF 9 S 22
F.210.A;
F.210.L;
11 SMn 28;
F.2111
SUM 22 11SMn30
1
1.0722 10SPb20;
10 SPb 20 10 PbF 2 CF 10 SPb 20 10 SPb 20;
F.2122 10SPb20
1
1215;
G12150;
A 29 (1215);
A 108 (1215);
A 510 (1215);
A 510 (1215);
A 519 (1215);
A 521 (1215)
1.0736 11SMn37;
9 SMn 36 S 300 CF 9 Mn 36 12 SMn 35;
F.2113 SUM 25 11SMn37
1
12L14;
12 L 14;
G12144
1.0737 11SMnPb37;
9 SMnPb 36 S 300 Pb 1926 CF 9 SMnPb 36 12 SMnPb 35;
F.2114 11SMnPb37
1
1010;
G10100 1.1121 C10E;
Ck 10
040 A 10;
045 M 10;
En 2 A;
En 2 A/1;
En 2 B;
En 32 A
C10RR;
XC 10 1265
2 C 10;
2 C 15;
1 C 10;
C 10
C 10 k;
F.1510
S 09 CK;
S 10 C
08;
10 C10E
1
1015;
1017;
G10150;
G10170
1.1141 C15E;
Ck 15
080 A 15;
080 M 15;
En 32 C
XC 12;
XC 15;
XC 18
1370 1 C 15;
C 15
C 16 k;
F.1511;
F.1110;
C 15 k
S 15 C;
S 15 CK 15 C15E
499
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
1
1020;
G10200;
K02301;
K02595;
K02596;
K02597;
K02598;
K02599;
K02702;
K03000
1.0044
S275JR;
St 44-2;
Fe 430 B
En 43 B;
Fe 430 B;
43/25 HR;
43/25 HS;
43 B;
HFW 4;
HFS 4;
ERW 3;
CEW 4;
SAW 4
E 28 A;
NFA 35-501
E 28
1411;
1412 Fe 430 B FN AE 275 B;
Fe 430 B FN
SN 400 B;
SN 400 C;
SN 490 B;
SN 490 C;
SS 400;
STK 400;
STKM 19 C;
STKR 400;
19 C;
SS 41;
STK 41
St4ps;
St4sp S275JR
1
1.0250 S320GD;
StE 320-3 Z S 320 GD
SGC 440;
SZAC 440;
SZAH 440;
SGLH 440
S320GD
1
1.0453 P265NL;
P 265 NL P265NL
1
1.0338
DC04;
St 4;
St 14
CR 1;
CS 2 ES 1147 FeP 04 AP 04;
FeP 04
SPCE;
HR 4 08JuA DC04
1
1
K02001;
K02601;
K02701
1.0116
S235J2G3 (S235J2);
St 37-3 N;
Fe 360 D 1
Fe 360 D1
FF;
37/23 CR;
37/23 CS;
37/23 HR;
37/23 HS;
40 D;
HFW 4;
HFS 4
E 24-3;
E 24-4;
E 24-U
1312;
1313
Fe 360 C;
D;
Fe 360 C FN;
Fe 360 D FF;
Fe 37-2
SS 330;
SS 34
16D;
St3sp S235J2G3
1
1015;
1017;
G10150;
G10170
1.0401 C15;
C 15
080 A 15;
080 M 15;
En32 C;
17 CS;
17 HS
C18RR;
XC 18;
C 18;
AF 37 C 12
1350
1 C 15;
C15;
C16
F.111 S 15 C C15
1
1.0347
DC03;
RRSt;
RRSt 13
CR2;
CR3;
CS3;
1449 3 CR;
1449 2 CR
E 1146 FeP 02;
FeP 03
AP 02;
AP02;
FeP03
SPCD;
CR 3 08Ju DC03
1
K01500;
K01702;
K02401;
K02502;
K03000;
A570.36
1.0038
S235JR;
S235JRG2;
RSt 37-2;
Fe 360 B
Fe 360 B FU;
37/23 CR;
37/23 CS;
37/23 HR;
37/23 HS;
HFW 3;
HFS 3;
40 B
E 24-2 NE 1312 Fe 360 B FN
AE 235 B FN;
AE 235 B FU;
Fe 360 B FN;
Fe 360 B FU
SS 330;
SS 34
St3ps;
St3sp S235JR
1
J03001 1.0446 GE240;
GS-45 A 1 230-450;
230-450 W 25L-3 GE240
2
1035;
G10350 1.0501 C35G;
C 35 G
080 M 30;
En 5;
080 M 36
C 35;
AF 55;
1 C 35;
XC 38
1572;
1550
C 35;
1 C 35 F.113 S 35 C;
S 35 CM C35G
2
1035;
G10350 1.1183
C35G;
C 35 G;
Cf 35
080 A 35 XC 38 TS 1572 C 36;
C 38
F.1130;
C 35 k
S 35 C;
S 35 CM 35 C35G
2
1039;
G10390 1.1157 40Mn4;
40 Mn 4 35 M 5 40G
2
1040;
G10400 1.0511 C40;
C 40
En 8;
080 M 40
AF 60;
C 40;
1 C 40
C 40;
1 C 40 F.114.A C40
2
1045;
1045 H;
1042;
G10450;
H10450;
G10420
1.1191 C45E;
Ck 45
080 H 46;
080 M 46
C45RR;
XC 45;
XC 48 H-1
1672 C 45
F.1140;
F.1142;
C 45 k;
C48 k
S 45 C;
S 45 CM;
S 48 C
45 C45E
2
1025;
G10250 1.1158 C25E;
Ck 25 070 M 26 2 C 25;
XC 25 C 25 F.1120;
C 25 k
S 25 C;
S 28 C 25 C25E
ISCAR
500
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
2
1043;
1045;
G10430;
G10450
1.0503 C45;
C 45 080 M 46
C 45;
AF 65;
C 45;
1 C 45
1650 C 45;
1 C 45 F.114 S 45 C;
S 45 CM 45 C45
2
1050;
1055;
G10500;
G10550
1.1213
C53G;
C53E;
Cf 53
XC 48 TS C 53 S 50 C;
S 50 CM 50
2
1140;
G11400 1.0726 35S20;
35 S 20 212 M 36 35 MF 4 1957
F.210.G;
35 MnS 6;
F.2131
35S20;
8M
2
1139;
1146;
G11390;
G11460
1.0727 46S20;
45 S 20 45 MF 4 46S20
2
K12000 1.0553
S355J0;
St 52-3 U;
Fe 510-C
50 C E 36-3 Fe 510 C FN AE 355 C SCC 3 S355J0
2
1.0551 S355JRC S355JRC
2
K02700;
K02803;
K03103;
K03300;
K12437
1.0473 P355GH;
19 Mn 6 A 52 CP 2101;
2102 Fe E 355-2 A 52 RC I, RA II
SGV 410;
SGV 450;
SGV 480
P355GH
2
1.0416 C18D;
GS-38 20-400 M 1306 C18D
2
K12447 1.0577
S355J2;
S355J2G4;
Fe 510 D2
A 52 FP 2107 A 52 RB II;
AE 355 D
2
1049;
1050;
G10490;
G10500
1.1206 C50E;
Ck 50 080 M 50 XC 50;
2 C 50 1674 C 50 50 C50E
2
1330;
1527;
G13300;
G15270
1.1170 28Mn6
150 M 19;
En 14 A;
En 14 B
20 M 5 C 28 Mn SCMn 1 30G 28Mn6
2
1034;
1035;
1038;
G10340;
G10350;
G10380;
C 1034
1.1181 C35E;
Ck 35
080 M 30;
En 5;
080 M 36
XC35RR;
XC32;
XC 35;
XC 38 H 2;
XC 38 H 1;
2 C 35
1572 C 35 F.1130;
C 35 k
S 35 C;
S 35 CM;
S 38 C
35 C35E
2
1.1180 C35R;
Cm 35 080 A 35 XC 38 H 1 u;
Cm 35 C 35 F.1135;
C 35 k-1 C35R
2
1030;
G10300 1.1178 C30E;
Ck 30
080 M 30;
En 5 XC 32 C 30 2 C 30 S 30 C;
S 30 CM C30E
2
1049;
1050;
G10490;
G10500
1.0540 C50 En 43 A;
080 M 50 C50 1674 C 50 1 C 50 S 50 C C50
2
1536;
G15360 1.1166 34Mn5 TO.B
SMn 433 H;
SMn 433 HRCH;
SMn 433 RCH;
SMn 1 H
2
1025;
G10250 1.0406 C25 070 M 26 1 C 25 C 25;
1 C 25
2
1.0723 15S22;
15 S 20
210 A 15;
210 M 15 1922 F.210F;
F.210.F SUM 32
2
1.1730
C45U;
C45W;
C 45 U;
C 45 U
C45U
3
1045;
1049;
G10450;
G10490
1.1201 C45R;
Cm 45 080 M 46
3 C 45;
XC 42 H 1;
XC 48 H 1 u
1660 C 45
F.1145;
F.1147;
C 45 k-1;
C 48 k-1
S 45 C;
S 45 CM 45 C45R
3
1040;
G10400 1.1186 C40E;
Ck 40
080 M 40;
En 8
2 C 40;
XC 42 H 1 C 40 S 40 C 40 C40E
501
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
3
1074;
1075;
G10740;
G10750
1.0614
C76D;
C 76 D;
D 75-2
XC 75 3 CD 75 75 C76D
3
1095;
G10950 1.0618
C92D;
C 92 D;
D 95-2
95 HS;
95 CS XC 90 3 CD 95 C92D
3
1086;
G10860 1.0616
C86D;
C 86 D;
D 85-2
80 HS;
80 CS XC 80 C 85;
3 CD 85 C86D
3
1.1165 G28Mn6;
GS-30 Mn 5
A 5;
A 6
30 Mn 5;
AM 30 Mn 5;
F.120.D;
F.8211;
F.8311
SCMn 2 27ChGSNMDTL;
30GSL G28Mn6
3
K01700;
K02001;
K02200;
K02201;
A 516 Gr.70;
A 515 Gr. 70;
A 414 Gr.F;
A 414 Gr.G
1.0481
P295GH;
17Mn4;
17 Mn 4
224-469 B A 48 CP;
A 48 AP 2102 Fe 295 A 47 RC I;
RA II
SG 365;
SGV 410;
SGV 450;
SGV 480;
SPV 315;
SG 37;
SGV 42;
SGV 46;
SGV 49;
SPV 32
14G2 P295GH
3
1043;
1045;
G10430;
G10450
1.0503 C45;
C 45 080 M 46
C 45;
AF 65;
C 45;
1 C 45
1650 C 45;
1 C 45 F.114 S 45 C;
S 45 CM C45
3
1335;
1335 H;
1541;
1541 H;
G13350;
G15410;
H13350;
H15410
1.1167 36Mn5;
36 Mn 5 150 M 36 40 M 5;
35 Mn 5 2120 F. 1203-36 Mn 6;
F. 8212-36 Mn 5
SMn 438;
SMn 438H;
SCMn 3
35G2;
35GL 36Mn5
3
1045;
1045 H;
1042;
G10450;
H10450;
G10420
1.1191 C45E;
Ck 45
089 H 46;
080 M 46
C45RR;
XC 45;
XC 48 H 1
1672 C 45
F.1140;
F.1142;
C 45 k;
C 48 k
S 45 C;
S 45 CM;
S 48 C
45 C45E
3
1.1303 38MnVS6;
38 MnVS 6 38MnVS6
4
1055;
G10550 1.0535 C55 070 M 55;
En 9
C54;
1 C 55;
AF 70;
C 55
1655 C 55;
1 C 55 F.115
S 55 C;
S 55 C-CSP;
S 55 CM
55 C55
4
1055;
G10550 1.1203 C55E;
Ck 55
070 M 55;
En 9
C50RR;
XC 54;
XC 50;
2 C 55;
XC 55 H 1
1655 C 55 F.1150;
C 55 K
S 55 C;
S 55 C-CSP;
S 55 CM
55 C55E
4
1060;
G10600 1.0601 C60 060 A 62;
En 43 D
C60;
1 C 60
C 60;
1 C 60
S 58 C;
S 60-C-CSP;
S 60 CM;
S 65 C-CSP;
S 65 CM
60;
60G
C60;
43D
4
1070;
G10700 1.1231 C67S;
Ck 67
060 A 67;
080 A 67;
En 43 E
C68RR;
XC 68 1770 C 67 S 70 C-CSP;
S 70 CM
65GA;
68GA C67S
4
1074;
1075;
1078;
G10700;
G10750;
G10780
1.1248 C75S;
Ck 75
060 A 78;
80
C75RR;
XC 75 1774 C 75 S 75 CM 75A C75S
4
1095;
G10950 1.1274 C100S;
Ck 101 95 C100RR;
XC 100 1870 C 100 SK 95 -CSP C100S
4
W112;
W1;
T72301
1.1563 C125U;
C 125 W
Y2 120;
C120E3U C 120 KU F.5123;
C 120
SK 120;
SK 120 M;
SK 2;
SK 2 M;
TC 120
U12-1 C125U
ISCAR
502
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
4
1086;
G10860 1.1269
C80S;
Ck 85;
C 85 E
C90RR;
XC 90 C 85 SK 85-CP 85A C80S
4
1055;
G10550 1.1209 C55R;
Cm 55
070 M 55;
En 9
3 C 55;
XC 55 H 1 C 55 F.1155;
C 55 k-1 C55R
4
1074;
1075;
G10740;
G10750
1.0605 C75 060 A 78 C 75 C 75 75
4
1070;
G10700 1.0603 C67
060 A 67;
080 A 67;
En 43 E;
1449 70 HS
C68;
XC 65 C 67 S 70 C-CSP;
S 70 CM C67
4
1.1219 C56E2;
Cf 54
C56E2;
S55C C56E2
5
1055;
G10550 1.1220 C56D2;
C 56 D 2 C 56 D 2 C56D2
5
1.1217 C90S;
C 90 S CS95
C90RR;
XC 90;
XC90;
C90E2U
SK 95 C90S
5
1060;
1064;
G10600;
G10640
1.1221 C60E;
Ck 60
060 A 62;
070 M 60;
En 43 D
C60RR;
XC 60;
X 65;
2 C 60
1678 C 60
S 58 C;
S 60 C-CSP;
S 60 CM;
C 65 C-CSP;
C 60 CM
60GA C60E
5
1055;
G10550 1.1203 C55E;
Ck 55
070 M 55;
En 9
C50RR;
XC 54;
XC 50;
XC 55 H 1;
2 C 55
1655 C 55 F.1150;
C 55 k
S 55 C;
S 55 C-CSP;
S 55 CM
55 C55E
6
9260;
G92600 1.5028 65Si7;
65 Si 7 60 S 7
50 P 7;
SUP 6;
SUP 6 M;
SUP 7;
SWOSM
60S2G
6
9260 H;
H92600;
9260;
G92600
1.5027 60Si7 251 A 60;
251 H 60 60 S 7 60 Si 7 F.144.B;
F.1441 60S2
6
9255;
G92550 1.5026
56Si7;
56 Si 7;
55Si7;
55 Si 7
251 A 58;
En 45 A 55 S 7 2085;
2090 55 Si 7
F.144;
F.144.A;
56 Si 7;
F.1440
55S2;
60S2
565Si7;
55Si7
6
9255;
G22550 1.5025 51Si7;
51 S 7
50S7;
51 Si 7
48 Si 7;
50 Si 7 F.145.B 51Si7
6
1.5024 46Si7
45 S 7;
Y 46 S 7;
46 SI 7
F.1451 46Si7
6
G50986;
ASTM Grade
E50100;
ASTM Grade
G15116;
SAE E50100
1.3501 100Cr2;
100 Cr 2
GCr6;
B00040;
GCr4
100C2 SchCh4
6
K21390;
K21590;
ASTM A 182
F22
1.7380 10CrMo9-10;
10 CrMo 9 10
622;
622-490;
622/515;
622/690
12 CD 9-10;
10 CD 9.10 2218 12 CrMo 9 10 TU.H
SCMQ4E;
SCMV 4;
SFVA F 22.A;
SFVA F 22.B;
SFVCM F22B;
STBA 24;
STFA 24;
STPA 24
12Ch8 10CrMo9-10
6
O2;
T31502 1.2842 90MnCrV8;
90 MnCrV 8
BO 2;
BO2
90 MnV 8;
90 MV 8 90 MnVCr 8 KU 90 MnCrV 8;
F.5229 90MnCrV8
6
1.2550 60WCrV7;
60 WCrV 7
BS1;
BS 1 55 WC 20 2710 55 WCrV 8 KU;
58 WCr 9 KU
60 WCrSiV 8;
F.5242 60WCrV7
6
1.2241
51CrMnV4;
51 CrV 4;
50 CrV 4
6
L2;
T61202 1.2210 115CrV3;
115 CrV 3 100 C 3 107 CrV 3 KU F.520.L;
F.5125 115CrV3
503
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
6
1.2419 105WCr6;
105 WCr 6 105WC 13 105 WCr 5;
105 WC 13 2140 107 WCr 5 KU F.5233;
105 WCr 5
SKS 2;
SKS 2 M;
SKS 3;
SKS 31
ChW1G;
ChWG 105WCr6
6
4820;
5120;
5120H;
G48200;
G51200;
H51200
1.7147 20MnCr5;
20 MnCr 5 150 M 19 20 MC 5 2172 20 MnCr 5;
Fe52 F.150.D
SMnC 420 H;
SMnC 420 RCH;
SMnC 21 H
18ChG 20MnCr5
6
9255;
G92550 1.0904 55Si7;
55 Si 7 250A53 55 S 7 2085 55 Si 8 56 Si 7
6
9254;
G92550 1.0904 55Si7;
55 Si 7 250 A 53 55 S 7 2090
6
9262;
G95620 1.0961 HDT 450 F;
S340 MGC 60 SC 6 60 SiCr 8 60 SiCr 8;
F.1442
60S2;
55S2;
50ChFA
6
4135;
4137;
4135H;
4137H;
G41350;
G41370;
H41350;
H41370
1.7220
34CrMo4;
GS34 CrMo 4;
G34 CrMo 4
708 A 30
34 CD 4;
34CrMo4RR;
35 CD 4; 2234 34 CrMo 4 KB;
35 CrMo 4
35 CrMo 4 DF;
F.125.A;
F.125.B;
F.1254;
F.1250
SCM 435 H;
SCM 435 HRCH;
SCM 435 M;
SCM 435 RCH;
SCM 435TK;
SCM 3 H;
STKS 3
35ChM;
AS38ChGM 34CrMo4
6
1.5120 38MnSi4;
38 MnSi 4
6
L3;
T61203 1.2067
102Cr6;
102 Cr 6;
100Cr6
BL 3;
BL3
100Cr6RR;
100 C 6;
100Cr6;
Y 100 C 6
102 Cr 6 KU F.5230;
100 Cr 6 SUJ 2 Ch 102Cr6
6
L1 1.2108 90CrSi5;
90 CrSi 5 2092 105 WCr 5 90CrSi5
6
P20;
T51620 1.2330 35CrMo4;
35 CrMo 4 708 A 37 34 CD 4 2234 35 CrMo 4 35CrMo4
6
O1;
T31501 1.2510 100MnCrW4;
100 MnCrW 4
BO1;
BO0;
BO 1;
BO 0
90MnWCrV5;
90 MWCV 5;
8 MO 8
2140 95 MnWCr 5 KU;
10 WCr 6
F.522.A;
F.5220;
95 MnCrW5;
105 WCr 5
SKS 31 100MnCrW4
6
S1;
T41901 1.2542 45WCrV7;
45 WCrV 7
BS1;
BS 1
45 WCrV 8;
45 WCrV 20 2710 45 WCrV 8 KU
F.524;
F.5241;
45 WCrSi 8
5ChW25F 45WCrV7
6
L6;
T61206 1.2713
55NiCrMoV6;
56NiCrMoV6;
55 NiCrMoV 6;
56 NiCrMoV 6
BH 224;
BH 225 55 NCDV 7 F.520.S SKT 4 5ChNM 55NiCrMoV6
6
1.2721 50NiCr13 55 NCV 6 2550 F.528
6
E52100;
G52986 1.3505 100Cr6;
100 Cr 6
2 S.135;
535 A 99
100Cr6RR;
100 C 6;
100Cr6
2258 100 Cr 6
F.131;
100 Cr 6;
F.1310
SUJ 2;
SUJ 4 SchCh 15 100Cr6
6
K11820;
K12020;
K12320;
A204 Grade A;
A182 Grade F1
1.5415 16Mo3;
15 Mo 3 1503-243 B 15 D 3 2912;
16Mo3
16 Mo 3 KG;
16 Mo 3 KW;
16 Mo 5 KG;
16 Mo 5 KW
F. 2601;
16 Mo 3
STBA 12;
STFA 12;
STPA 12
6
4422;
G44220;
J12522
1.5419
G20Mo5;
20Mo4;
GS-22 Mo 4
245;
B 1;
B1
SCPH 11 G20Mo5
6
A 350-LF 5;
K13050;
K21703;
K22103
1.5622 14Ni6;
14 Ni 6 16 N 6 14 Ni 6 KG;
14 Ni 6 KT
F.2641;
15 Ni 6 14Ni6
6
3415 1.5732 14NiCr10;
14 NiCr 10 14 NC 11 16 NiCr 11 15 NiCr 11
SNC 415;
SNC 415 H;
SNC 415 M
12ChN3A 14NiCr10
ISCAR
504
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
6
3310;
3310 RH;
3312;
3316;
9315;
E 3310;
E 3316;
E9315;
G33106
1.5752
15NiCr13;
14NiCr14;
15 NiCr 13;
14NiCr14
655 M 13;
655 H 13;
En 36 A
10 NC 12;
12 NC 15;
14 NC 12;
16 NC 12;
16 NCD 13
15 NiCr 11;
F.1540
SNC 815 H;
SNC 815 HRCH;
SNC 815 RCH;
SNC 22 H
15NiCr13
6
1.7262 15CrMo5;
15 CrMo 5 12 CD 4
12 CrMo 4;
F.150.J;
F155;
F.1551
SCM 415 H;
SCM 415 HRCH;
SCM 415 M;
SCM 415 RCH;
SCM 415 TK;
SCM 21 H
15CrMo5
6
1.6587 17CrNiMo6;
17 CrNiMo 6 820A16 18 NCD 6 14 NiCrMo 13
6
9310;
9310H;
9310 RH;
E 9310 H;
G93106;
H93100;
H93106
1.6657 14NiCrMo13-4;
14 NiCrMo 13 4
832 H 13;
832 M 13;
S.157;
En 36 C
16 NCD 13 15 NiCrMo 13;
16 NiCrMo 12
14 NiCrMo 13;
14 NiCrMo 13-1;
F.1560;
F.1569
6
5015;
G50150 1.7015 15Cr3;
15 Cr 3 523 M 15
12 C 3;
15Cr2RR;
15 C 2
SCr 415;
SCr 415 H;
SCr 415 HRCH;
SCr 415 RCH;
SCr 21 H
15Ch 15Cr3
6
5132;
5132 H;
G51320;
H51320
1.7033 34Cr4;
34 Cr 4
530 A 32;
530 H 32;
530 M 32
32 C 4 34 Cr 4;
34 Cr KB
35 Cr 4;
F.8221
SCr 430;
SCr 430 H;
SCr 430 HRCH;
SCr 430 RCH;
SCr 2 H
35Ch 34Cr4
6
5140;
5140 H;
5140 RH;
G51400;
H51400
1.7035 41Cr4;
41 Cr 4
530 A 40;
530 M 40;
530 H 40;
En 18
42 C 4 41 Cr 4;
41 Cr 4 KB
41 Cr 4 DF;
F.1211;
F.1202
SCr 440;
SCr 440 H 40Ch 41Cr4
6
5140;
G51400 1.7045 42Cr4;
42 Cr 4 530 A 40 42 C 4 TS 2245 41 Cr 4 42 Cr 4 SCr 440
6
5115;
5117;
G51150;
G51170
1.7131 16MnCr5;
16 MnCr 5
527 M 17;
590 H 17;
590 M 17
16MnCr5RR;
16 MC 5 2173 16 MnCr 5 F.1516 18ChG 16MnCrS5
6
1.7139 16MnCrS5;
16 MnCrS 5
BGH 7139;
BOHLER E 411;
VW 4221;
OPEL QS1916;
PROCONS
7139;
E411;
SES
2127 16MnCrS5
6
5155;
5155 H;
5150;
G51550;
H51550;
G51600
1.7176 55Cr3;
55 Cr 3
525 A 58;
525 A 60;
En 48
55 C 3;
55Cr3 2253 55 Cr 3 F.1431
SUP 9;
SUP 9 A;
SUP 9 M
50ChGA 55Cr3
6
4142;
G41420 1.7223 41CrMo4;
41 CrMo 4
MOC 2;
V320 41 CrMo 4 42 CrMo 4 SNB 22-1 40ChFA
6
4140;
4140 H;
4140 RH;
4142;
4142 H;
4145;
G41400;
H41400;
G41420;
H41420;
K14248;
K14047
1.7225;
1.7227
42CrMo4;
42CrMo4V;
42 CrMo 4;
42 CrMo 4 V
708 M 40;
709 M 40;
En 19;
En 19 A
42 CD 4;
40 CD 4;
42CrMo4RR
2244;
42CrMo4
42 CrMo 4;
38 CrMo 4 KB;
41 CrMo 4
TO.D;
TU.L
SCM 440 H;
SCM 440 HRCH;
SCM 440 M;
SCM 440 RCH;
SCM 440 TK;
SNB 7 Class 2;
SCM 4 H;
SNB 22-1
40ChFA 42CrMo4
505
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
6
4147;
4147 H;
4150;
4150 H;
8650;
8650 H;
G41470;
G41500;
G86500;
H41470;
H41500;
H86500
1.7228 50CrMo4;
50 CrMo 4
708 M 40;
708 A 47 2512 653 M 31
SCM 445 H;
SCM 445 HRCH;
SCM 445 RCH;
SCM 5 H
50CrMo4
6
8620;
G86200 1.7321 20MoCr4;
20 MoCr 4 2625
BGH 7321;
E320;
SIQUAL 7321
20MoCr4
6
K11547;
K11562;
K11564;
K11757;
K11789;
K12052;
ASTM A182
F12
1.7335 13CrMo4-5;
13 CrMo4 4
620;
620-440;
620-470;
620-540;
621
15 CD 4-05 2216 14 CrMo 3;
14CrMo4 5
TU.E;
TU.F;
F.2631;
14 CrMo 4 5
SCMV 2;
SFVA 12;
STBA 22;
STFA 22;
STPA 20;
STPA 22
12ChM;
15ChM 13CrMo4-5
6
K21390;
K21590;
ASTM A182
F22
1.7380
10CrMo9-10;
10 CrMo 9 10;
GS-12CrMo9-10;
GS-12 CrMo 9 10;
G 12 CrMo9-12
622;
622-490;
622/515;
622/690;
1502-622
12 CD 9-10;
10 CD 9.10 2218 12 CrMo 9;
12 CrMo 10 TU.H
SCMQ 4 E;
SCMV 4;
SFVA F 22 A;
SFVA F 22 B;
SFVCM F 22 B;
STBA 24;
STFA 24;
STPA 24
12Ch8 10CrMo9-10
6
1.7715 14MoV6-3;
14 MoV 6 3
1503-660-
440 13 MoCrV 6
6
E71400;
K24065;
K24728;
A355 Class A
1.8509
41CrAlMo7-10;
41CrAlMo7;
41 CrAlMo 7
905 M 39;
En 41 B 40 CAD 6.12 2940 41 CrAlMo 7
F.174;
41 CrAlMo 7;
F1740
SACM 645;
SACM 1 38Ch2MJuA 41B
6
1.6566 17NiCrMo6-4 17NiCrMo6-4
6
P20+S 1.2312 40CrMnMoS8-6 40 CMD 8 S
6
1.7149 20MnCrS5;
20 MnCrS 5 20MnCrS5
6
P20+Ni 1.2738 40CrMnNiMo8-6-4;
40 CrMnNiMo 8 6 4 40 CMND 8 40Ch2GNM 40CrMnNiMo8-6-4
6
1.2311 40CrMnMo7;
40 CrMnMo 7 40 CMD 8 35 CrMo 8 KU F.5302 40CrMnMo7
6
1.7238 49CrMo4;
49 CrMo 4
6
4150;
G41500 1.7701
52CrMoV4;
51CrMoV4;
51 CrMoV 4
51 CDV 4;
51CrMoV4 51 CrMoV 4 51CrMoV4
6
1.7337 16CrMo4-4;
16 CrMo 4 4
A 18 CrMo 45
KW
SCM 415 M;
SCM 415;
STBA 22;
SFVA F12
6
1.7242 16CrMo4;
16 CrMo 4 15 CD 3.5 18 CrMo 4 F.1550;
18 CrMo 4
SCM 418 H;
SCM 418 HRCH;
SCM 418 RCH;
SCM 418 TK
16CrMo4
6
4419;
4419 H;
4520;
G44190;
H44190;
G45200;
K11522;
K11820;
K12020;
K12023;
K12320;
K12821
1.5423 16Mo5 16 Mo 5 KG;
16 Mo 5 KW
TU.D;
F.2602
SB 450 M;
SB 480 M;
SB 46 M SB
49 M
6
30ChGSA
ISCAR
506
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
6
HY-80;
HY 80;
HY80;
K31820;
MIL-S-21952
6
605 M 36;
En 16;
En 16T
7
4130;
4130 H;
4130 RH;
G41300;
H41300
1.7218
25CrMo4;
25 CrMo 4;
GS-25 CrMo 4;
G 25 CrMo 4
708 A 25 25 CD 4 2225 25 CrMo 4;
25 CrMo KB
F.222;
F.1256
SCM 420 TK;
SCM 430 M;
SCM 430 RCH;
SCM 430 TK;
STKS 1
20ChM;
30ChM 25CrMo4
7
1.8070 21CrMoV5-11;
21 CrMoV 5 11 35 NiCr 9
7
1.7755 GS-35 CrMoV 10 4;
G35 CrMoV 10-4
7
1.7733 24CrMoV5-5 20 CDV 6 21 CrMoV 5 11
7
4340;
4340 H;
9850;
G43400;
G98500;
H43400;
K23028
1.6565 40NiCrMo6;
40 NiCrMo 6
817 M 40;
En 24
F.1275;
40 NiCrMo 7
SNB 24-1;
SNB 24-2;
SNB 24-3;
SNB 24-4;
SNB 24-5;
SNCM 439 RCH
40Ch2N2MA 40NiCrMo6
7
8640;
8640 H;
8740;
8740 H;
8742;
G86400;
G87400;
G87420;
H86400;
H87400;
K11640
1.6546 40NiCrMo2-2;
40 NiCrMo 2 2
40 NCD 2;
40 NCD TS
40 NiCrMo 2;
40 NiCrMo 2 KB
40 NiCrMo 2 DF;
F.1205;
F.1204;
TO.E
SNCM 240;
SNCM 240 RCH 38ChGNM
7
8617;
8617 H;
8620;
8620 H;
8620 RH;
8617;
G86170;
G86200;
H86170;
H86200;
K12147
1.6523
20NiCrMo2-2;
21NiCrMo2;
21 NiCrMo 2
805 H 20;
805 M 20;
806 M 20;
En 362
20 NCD 2 2506 20 NiCrMo 2
20 NiCrMo 2;
20 NiCrMo 3-1;
F.1522;
F.1534
SNCM 220;
SNCM 220 H;
SNCM 220
HRCH;
SNCM 220 M;
SNCM 220 RCH;
SNCM 21 H
20ChGNM 20NiCrMo2-2
7
1.5755 31NiCr14;
31 NiCr 14 653 M 31 18 NC 13
7
3135 1.5710 36NiCr6;
36 NiCr 6 640 A 35 35 NC 6 SNC 236 36NiCr6
7
4340;
G43400;
4337;
G43370
1.6582 34CrNiMo6;
34 CrNiMo 6
816 M 6;
817 M 40
34 CrNiMo 8;
35 NCD 6 2541 35 NiCrMo 6 KB F.1272 38Ch2N2MA 34CrNiMo6
7
1.8519 31CrMoV9;
31 CrMoV 9 30Ch3MF 31CrMoV9
7
8630 1.6545 30NiCrMo2-2;
30 NiCrMo 2 2 30 NCD 2 30 NiCrMo 2 KB
7
4340;
G43400 1.6580 30CrNiMo8 823 M 30 30 CND 8;
30 NCD 8 30 CrNi Mo 8 SNCM 431
7
K01907 1.5217 20MnV6;
20 MnV 6 N
55 C;
GR 55;
Grade 55
20MV6;
TS E 455 4;
TU E 455 4
20MnV6;
S460
7
300M;
4340M;
K44220
1.6928 41SiNiCrMoV7-6 S 155
8
1.8523
40CrMoV13-9;
39CrMoV13-9;
39 CrMoV 13 9
897 M 39 36 CrMoV 12 40CrMoV13-9
8
1.8515 31CrMo12;
31 CrMo 12 722 M 24 30 CD 12 2240 32 CrMo 12 F.1712;
F.124.A
31CrMo12;
40B
507
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
8
1.8161 58CrV4;
58 CrV 4
8
1.7361 32CrMo12;
32 CrMo 12 722 M 24 30 CD 12 2240 30 CrMo 12 F.124.A 32CrMo12
8
9840;
G98400 1.6511 36CrNiMo4;
36 CrNiMo 4
817 M 37;
816 M 40
40 NCD 3;
35 NCD 5
39 NiCrMo 4;
39 NiCrMo 4 KB
F.128;
F.1280;
35 NiCrMo 4
SUP 10 40ChGNM;
40ChN2MA 36CrNiMo4
8
6145;
6150;
6150 H;
G61500;
H61500
1.8159
51CrV4;
50CrV4;
50 CrV 4
735 A 50;
735 A 51;
735 H 51;
735 M 50;
En 47
50CrV4RR;
50 CV 4;
51 CV 4
2230 50 CrV 4
F.143;
F.143.A;
51 CrV 4;
F.1430
SUP 10;
SUP 10-CSP;
SUP 10 M
50ChFA;
50ChGFA 51CrV4
8
3435 1.5736 36NiCr10;
36 NiCr 10 30 NC 11
SNC 631;
SNC 631 H;
SNC 631 M
8
A128 Grade A;
J91109;
J91129;
J91139;
J91149
1.3401;
1.3403
X120Mn12;
X 120 Mn 12;
G-X120 Mn 12
BW 10 Z 120 M 12 2183 GX 120 Mn 12
F.240.A;
F.240.A1;
AM-X 120 Mn 12;
F.8251
SCMnH 1;
SCMnH 11 110G13L
8
4142;
G41420 1.2332 47CrMo4 708 M 40 42 CD 4 2244 42 CrMo 4 42 CrMo 4 SCM;
SCM 440 47CrMo4
8
4140 H;
4140 RH;
4140 HT
42CrMo4+QT
8
8
8
1.8705 21MnCr6-5
8
9
1.6659 31NiCrMo13-4 830 M 31 2534 F.270
9
1.5864 35NiCr18
9
9
9
9
1.8715 17MnCr5-3 17MnCr5-3
10
K71340;
K81340 1.5662 X8Ni9
1501-509;
1501-510;
502-650;
509-690
9 Ni;
Z 8 N 09
X 10 Ni 9;
X 12 Ni 09
F.2645;
XBNi 09
SL9N520;
SL9N590;
STBL 690;
STPL 690;
SL9N53;
SL9N60;
STBL 70;
STPL 70
X8Ni9
10
2515;
A2515;
2517;
E2517;
K41583
1.5680
X12Ni5;
12Ni19;
Z 18 N 5;
Z 10 N 05;
5 Ni
SL5N590;
SL5N60 X12Ni5
10
D4;
T30404;
D6;
T30406
1.2436 X210CrW12;
X 210 CrW 12 BD6
Z 200 CD 12;
Z 210 CW
12-01;
X210CrW12-1
2312 X 215 CrW 12
1 KU
F.5213;
X210 CrW 12 SKD 2 X210CrW12
10
H13;
T20813 1.2344 X40CrMoV5-1;
X40 CrMoV 5 1 BH 13 X 40 CrMoV 5;
Z 40 CDV 5 2242 X 40 CrMoV 5
1 1 KU
F.5318;
X 40 CrMoSiV 5 SKD 61 4Ch5MF1S X40CrMoV5-1
10
A2;
T30102 1.2363
X100CrMoV5;
X100CrMoV5-1;
X 100 CrMoV 5 1
BA 2 X 100 CrMoV 5;
Z 100 CDW 5 2260 X 100 CrMoV 5
1 KU
F.536;
F.5227;
X 100 CrMoV 5
SKD 12 X100CrMoV5
10
H21;
T20821 1.2581 X30WCrV9-3;
X30WCrV9 3 BH 21 Z 30 WCV 9 X 30 WCrV 9
3 KU
F.5323;
X 30 WCrV 9 SKD 5 3Ch2W8F X30WCrV9-3;
X30WCrV9 3
10
1.2601 X165CrMoV12;
X 165 CrMoV 12 2310 X165CrMoW
12KU X165CrMoV12
10
1.2316 X36CrMo17;
X38CrMo16 X38CrMo16
10
M2;
T11302 1.3343
HS6-5-2;
HS 6-5-2;
S 6-5-2
BM 2;
BM2
Z 85 WDCV
06-05-04-02;
6-5-2;
HS6-5-2
2722 F.550.A;
F.5604 SKH 51 R6M5 HS6-5-2
ISCAR
508
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
10
H11;
T20811 1.2343 X37CrMoV5-1;
X38CrMoV5-1 BH 11 Z 38 CDV 5;
X38CrMoV
X 37 CrMoV 5
1 KU
F.520.G;
F.5137;
X 37 CrMoSiV 5
SKD 6 4Ch5MFS X37CrMoV5-1
10
H12;
T20812
1.2606;
1.2605
X37CrMoW5-1;
X 37 CrMoW 5 1;
X35CrWMoV5;
X 35 CrWMoV 5
BH 12 Z 35 CWDV 5;
X35CrWMoV5
X 35 CrMoW
05 KU F.537 SKD 62 5ChNM X37CrMoW5-1;
X35CrWMoV5
10
D2;
T30402 1.2379
X153CrMoV12;
X155CrVMo12-1;
X155 CrVMo 12 1
BD 2
X 160 CrMoV
12;
Z 160 CDV 12
2310 X 155 CrVMo 12
1 KU F.520.A SKD 10;
SKD 11 X153CrMoV12
10
1.2085 X33CrS16;
X 33 CrS 16 Z 35 V CD 17.S X33CrS16
10
1.2162 21MnCr5;
21 MnCr 5 20 MC 5 21MnCr5
10
1.2767
X45NiCrMo4;
45NiCrMo16;
X 45 NiCrMo 4
45 NCD 16 40 NiCrMoV 8 KU X45NiCrMo4
10
1.2764
X19NiCrMo4;
X 19 NiCrMo 4;
GX19NiCrMo4
X19NiCrMo4
10
D3;
T30403 1.2080 X210Cr12;
X 210 Cr 12 BD 3 X200Cr12;
Z 200 C 12 X 205 Cr 12 KU
F.521;
F.5212;
X 210 Cr 12
SKD 1 Ch12 X210Cr12
10
1.2367 X38CrMoV5-3;
X 38 CrMoV 5 3 X38CrMoV5-3
10
1.6957
27NiCrMoV15-6;
26NiCrMoV14-5;
26 NiCrMoV 14 5
10
501;
502;
S50100;
S50200;
K41545
1.7362
X12CrMo5;
X 11 CrMo 5;
12CrMo19-5;
12 CrMo 19 5
F.240.B;
TU.J
SCMV 6;
SFVA F 5 A;
SFVA F 5 B;
SFVA F 5 C;
SFVA 5 D;
SNB 5 Class 1;
STBA 29;
STFA 25;
STPA 25
X12CrMo5
11
M33;
T11333;
M34;
T11334
1.3249 HS2-9-2-8;
S 2-9-2-8 BM 34 2-9-2-8;
F.5611
11
M41;
T11341 1.3246 HS7-4-2-5;
S 7-4-2-5
Z 110 WKCDV
07-05-04-04-02
F.5615;
HS 7-4-2-5 HS7-4-2-5
11
M42;
T11342 1.3247 HS2-10-1-8;
S 2-10-1-8 BM 42
Z 110 DKCWV
09-08-04-
02-01;
2-9-1-8;
HS2-9-1-8
2716 HS 2-9-1-8 F.5617;
HS 2-10-1-8 SKH 59 HS2-10-1-8
11
1.3207 HS10-4-3-10;
S 10-4-3-10 BT 42
Z 130 WKCDV
10-10-04-
04-03;
10-4-3-10;
HS10-4-3-10
HS 10-4-3-10
F.550.B;
F.5553;
HS 10-4-3-10
SKH 57 R12F3K10M3-SCh HS10-4-3-10
11
T15;
T12015 1.3202 HS12-1-4-5;
S 12-1-4-5 BT 15 HS12-1-4-5 HS 12-1-5-5 F.5563;
HS 12-1-5-5 R13F4K5
11
1.3243 HS6-5-2-5;
S 6-5-2-5 BM 35
6-5-2-5;
6-5-2-5 HC;
HS6-5-2-5;
HS6-5-2-5HC;
Z 85 WDKCV
06-05-05-
04-02;
Z 90 WDKCV
06-05-05-04-02
2723 HS 6-5-2-5
F.550.C;
F.5613;
HS 6-5-2-5
SKH 55 R6M5K5 HS6-5-2-5
11
M7;
T11307 1.3348 HS2-9-2;
S 2-9-2
Z 100 DCWV
09-04-02-02;
2-9-2;
HS2-9-2
2782 HS 2 9 2 F.5607;
HS 2-9-2 SKH 58 HS2-9-2
11
T4;
T12004 1.3255 HS18-1-2-5;
S 18-1-2-5 BT 4
Z 80 WKCV
19-05-04-01;
HS 18-1-1-5
HS 18-1-1-5 F.5530;
HS 18-1-1-5 SKH 3 HS18-1-2-5
509
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
11
T1;
T12001 1.3355 HS18-0-1;
S 18-0-1 BT 1
18-0-1;
HS 18-0-1;
Z 80 WCV
18-04-01
2750 HS 18-0-1 F.5520;
HS 18-0-1 SKH 2 R18 HS18-0-1
11
11
11
11
11
11
11
X10NiMoCrV6
12
430 F;
S43020 1.4104 X12CrMoS17;
X 12 CrMoS 17 Z 13 CF 17 2383 X 10 CrS 17 F.3413 SUS 430 F X12CrMoS17
12
S31500 1.4417 GX2CrNiMoN25-7-3 2376 GX2CrNiMoN
25-7-3
12
1.4742 X10CrAlSi18;
X10CrAl18 Z 12 CAS 18 F.3113;
X 10 CrAl 18 SUS 21 15Ch18SJu X10CrAlSi18
12
1.4724
X10CrAlSi13;
X10CrAl13;
X 10 CrAl 13
X 10 CrAl 12 F.3152;
X 10 CrAl 13 10Ch13SJu X10CrAlSi13
12
434;
S43400 1.4113 X6CrMo17-1;
X 6 CrMo 17 1 434 S 17 Z 8 CD 17-01 2325 F.3116 SUS 434 X6CrMo17-1
12
HNV-6;
HNV6;
S65006
1.4747 X80CrNiSi20;
X 80 CrNiSi 20 443 S 65 Z 80 CSN 20-02 X 80 CrSiNi 20 F.320B SUH 4
12
446;
S44600 1.4762
X10CrAlSi25;
X10CrAl24;
X 10 CrAl 24
Z 10 CAS 24 2322 F.3154 SUH 446 X10CrAlSi25
12
EV 8;
S63008 1.4871 X53CrMnNiN21-9;
X 53 CrMnNiN 21 9 349 S 52 Z 52 CMN
21-9 Az
X 53 CrMnNiN
21 9 F.3217 SUH 35, SUH 36 55Ch20G9AN4 X53CrMnNiN21-9
12
1.4001
X7Cr14;
X 7 Cr 14;
G-X 7 Cr 13
Z 8 C 13 FF SUS 4105 X7Cr14
12
440 B;
S44003 1.4112 X90CrMoV18 X 89 CrMoV
18-1 SUS 440B X90CrMoV18
12
410 S;
403;
S41008;
S40300
1.4000 X6Cr13;
X 6 Cr 13 403 S 17 Z 8 C 12 2301 X 6 Cr 13 F.3110
SUS 403;
SUS 403 FB;
SUS 410 S
08Ch13 X6Cr13
12
410;
S41000;
S41001;
CA-15
1.4006
X12Cr13;
GX12Cr13;
X 12 Cr 13;
X 10 Cr 13
410 S 21;
ANC 1
grade A;
En 56 A
Z 10 C 13;
Z 13 C 13 2302 X 12 Cr 13 KG;
X 12 Cr 13 KW F.3401
SUS 410;
SUS 410 FB;
SUS 410 TB;
SUS 410 TKA;
SUS 410 TKC;
SUS F 410-A;
SUS F 410-B;
SUS F 410-C
12Ch13;
15Ch13L X13Cr13
12
405;
S40500 1.4002 X6CrAl13;
X 6 CrAl 13 405 S 17 Z 8 CA 12 X 6 CrAl 13 F.3111
SUS 405;
SUS 405 TB;
SUS 405 TP
X6CrAl13
12
416;
S41600 1.4005 X12CrS13;
X 12 CrS 13
416 S 21;
En 56 AM Z 11 CF 13 2380 X12 CrS 13 F.3411 SUS 416 X12CrS13
12
1.4015 X8Cr17
12
430;
S43000 1.4016 X6Cr17;
X 6 Cr 17
430 S 17;
430 S 15;
430 S 18
Z 8 C 17 2320 X 8 Cr 17 F.310.D;
F.3113
SUS 430;
SUS 430 TB;
SUS 430 TKA;
SUS 430 TKC;
SUS 430 TP
12Ch17 X6Cr17
12
1.4027 GX20Cr14
ANC 1 grade
B;
ANC 1 grade
C;
420 C 24;
420 C 29
Z 20 C 13 M SCS 2 20Ch13L
12
420 F;
S42020 1.4028 X30Cr13;
X 30 Cr 13
420 S 37;
420 S 45;
En 56 C;
En 56 D
Z 33 C 13 Cl;
Z 33 C 13;
Z 30 C 13
2304 X 30 Cr 13 F.3403
SUS 420 F;
SUS 420 J 2;
SUS 420 J
2-CSP;
SUS 420 J 2 FB;
SUS 420 J 2 TKA
30Ch13 X30Cr13
ISCAR
510
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
12
1.4086 GX120Cr29;
G-X 120 Cr 29 452 C 11
12
1.4340 GX40CrNi27-4;
G-X 40 CrNi 27 4
12
1.4720 X20CrMo13;
X 20 CrMo 13
12
439;
430 Ti;
S43035;
S43036;
XM 8
1.4510 X3CrTi17;
X 6 CrTi 17 Z 4 CT 17 X 6 CrTi 17 F.3115;
X 5 CrTi 17
SUS 430 LX;
SUS 430 LXTB;
SUS XM8TB
08Ch17T X3CrTi17
12
446-1 1.4749 X18CrN28 Z 12 C 25 X18CrN28
12
1.4511 X3CrNb17;
X 6 CrNb 17 Z 4 CNb 17 X 6 CrNb 17 F.3122;
X 5 CrNb 17
SUS 430 LX;
SUS 430 LXTB X3CrNb17
12
409;
S40900 1.4512 X2CrTi12;
X 6 CrTi 12
LW 19;
409 S 19 Z 3 CT 12 X 6 CrTi 12 F.3121
SUH 409 L;
SUS 409 LTB;
SUS 409 TB
X2CrTi12
12
1.4418 X4CrNiMo16-5-1;
X 4 CrNiMo 16 5
Z 6 CND
16-04-01 2387 X4CrNiMo16-5-1
12
420;
S42000 1.4021 X20Cr13;
X 20 Cr 13
420 S 37;
420 S 29;
En 56 C
Z 20 C 13 CI;
Z 20 C 13 2303 X 20 Cr 13 F.310.J;
F.3402
SUS 420 J 1;
SUS 420 J 1 FB;
SUS 420 J 1 TKA
20Ch13 X20Cr13
13
420;
S42000;
S42080
1.4031 X39Cr13;
X 38 Cr 13
Z 40 C 14 CI;
Z 40 C 14 2304 X 40 Cr 14 F.3404;
X40 Cr 13 SUS 420 J 2 40Ch13 X39Cr13
13
1.4922
X20CrMoV11-1;
X20CrMoV12-1;
X 20 CrMoV 12 1
BS 762 2317 X 20 CrMoNi
12 01
X20CrMoV11-1;
X20CrMoV12-1
13
1.4923
X22CrMoV12-1;
X21CrMoNiV12-1;
X 22 CrMoV 12 1
X22CrMoV12-1;
X21CrMoNiV12-1
13
420;
S42000 1.4021 X20Cr13;
X 20 Cr 13
420 S 37;
420 S 29;
En 56 C
Z 20 C 13 CI;
Z 20 C 13 2303 X 20 Cr 13
F.310.J;
F.3402;
X 20 Cr 13
SUS 420 J 1;
SUS 420 J 1 FB;
SUS 420 J 1 TKA
20Ch13 X20Cr13
13
420;
S42000 1.4034 X46Cr13;
X 46 Cr 13
Z 44 C 14 CI;
Z 44 C 14;
Z 38 C 13 M
X 40 Cr 14 F.3405;
X 40 Cr 13 40Ch13 X46Cr13
13
431;
S43100 1.4057
X17CrNi16-2;
X 20 CrNi 17 2;
X 22 CrNi 17
431 S 29;
En 57
Z 15 CN 16.02
CI;
Z 15 CN 16-02
2321 X16 CrNi 16
F.313;
F.3427;
X 19 CrNi 17 2
SUS 431;
SUS 431 FB
14Ch17N2;
20Ch17N2 X17CrNi16-2
13
CA 6-NM;
S41500;
J91540
1.4313 X3CrNiMo13-4;
X 4 CrNi 13 4
Z 6 CN 13-04;
Z 6 CN 13-4;
Z 4 CND 13.4 M
2384 X3CrNiMo13-4
13
1.4122 X39CrMo17-1;
X 35 CrMo 17 X 39 CrMo 17-1 X39CrMo17-1
13
422;
S42200 1.4935 X20CrMoWV12-1;
X 20 CrMoWV 12 1 X20CrMoWV12-1
13
HNV 3;
S65007 1.4718
X45CrSi9-3;
X 45 CrS 9 3;
G-X 45 CrNi 9 3
401 S 45;
En 52 Z 45 CS 9 X 45 CrSi 8 F.322;
F.3220 SUH 1 40Ch9S2;
4Ch9S2 X45CrSi9-3
13
1.2083;
1.2083 ESR
X40Cr14;
X 42 Cr 13
X40Cr14;
Z 40 C 14 2314 X 41 Cr 13 KU F.5263;
X 40 Cr 13 SUS 420 J 2 X40Cr14
13
CA 6-NM;
J91540 1.4317 GX4CrNi13-4;
G-X 5 CrNi 13 4
425 C 11;
425 C 12 Z 4 CND 13 4 M GX 6 CrNi 13 04 SCS 6;
SCS 6X GX4CrNi13-4
13
S13800;
XM-13 1.4534 X3CrNiMoAl 13-8-2;
X 3 CrNiMoAl 13 8 2 FE-PM1503 X3CrNiMoAl 13-8-2
14
15-5PH;
15-5 PH;
XM-12;
S15500;
J92110
1.4545;
1.4545.9 X5CrNiCuNb15-5 Z 7 CNU 15-05 X5CrNiCu15-3
14
329;
S31260;
S32900
1.4460 X3CrNiMo27-5-2;
X 4 CrNiMo 27 5 2
Z 3 CND 25-07
Az;
Z 5 CND 27-05
Az
2324
F.3552;
F.3309;
X 8 CrNiMo
27-05;
X 8 CrNiMo 26 6
SUS 329 J 1;
SUS 329 J 1 FB;
SUS 329 J 1 TB;
SUS 329 J 1 TP
10Ch26N5M X3CrNiMo27-5-2
511
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
14
321;
S32100 1.4541 X6CrNiTi18-10
321 S 31;
LW 18;
LW 24;
LWCF 18;
LWCF 24;
321 S 12;
321 S 50;
321 S 51;
321 S
50-490;
1010;
1115
Z 6 CNT 18-10 2337
X 6 CrNiTi 18 11;
X 6 CrNiTi 18
11 KG;
X 6 CrNiTi 18
11 KW;
X 6 CrNiTi 18
11 KT
F.332;
F.3523;
X 6 CrNiTi 18 10
SUS 321
06Ch18N10T;
08Ch18N10T;
09Ch18N10T;
12Ch18N10T
X6CrNiTi18-10
14
1.4425 X2CrNiMo18-13-3
14
316;
316H;
316 H;
S31600;
S31609
1.4401 X5CrNiMo17-12-2;
X 5 CrNiMo 18 10
316 S 31;
316 S 33;
316 S 17;
316 S 19;
316 S 40;
316 S 41;
845
Z 6 CND 17-11;
Z 6 CND 17-11-
02-FF;
Z 7 CND 17-11-
02;
Z 7 CND
17-12-02
2347
X 5 CrNiMo
17 12;
X 5 CrNiMo 17
12 KG;
X 5 CrNiMo 17
12 KW
F.310.A;
F.3534;
X 5 CrNiMo 17
12 2
SUS 316;
SUS 316 A;
SUS 316 FB;
SUS 316 HFB;
SUS 316 HTB;
SUS 316 HTP;
SUS 316 TB;
SUS 316 TBS
08Ch16N11M3 X5CrNiMo17-12-2
14
1.4821 X20CrNiSi25-4 Z20CNS25.04 X20CrNiSi25-4
14
J92701 1.4312 GX10CrNi18-8
ANC 3
grade A;
ANC 3 A;
302 C 25
Z 10 CN 18.9 M SCS 12;
SCS 13A 10Ch18N9L
14
J92605;
J93005 1.4823 GX40CrNiSi27-4;
G-X 40 CrNiSi 27 4 SCH 11 X GX40CrNiSi27-4
14
1.4585
GX7CrNiMoCuNb18-18;
G-X 7 CrNiMoCuNb
18 18
X 6 CrNiMoTi
17 12
14
347;
J92640;
J82710
1.4552 GX5CrNiNb19-11;
G-X 5 CrNiNb 18 9
347 C 17;
821 grade
Nb
Z 4 CNNb
19.10 M;
Z 6 CNNb
18.10 M
AM-X 7 CrNiNb
20 10;
F.8413
SCS 21;
SCS 21 X GX5CrNiNb19-11
14
1.4500
GX7NiCrMoCuNb25-20;
G-X 7 NiCrMoCuNb
25-20
23 NCDU
25.20 M
14
304;
S30400 1.4301 X5CrNi18-10;
X 5 CrNi 18 9
304 S 15;
304 S 31;
LW 13;
LW 15;
LW 21;
LWCF 13;
LWCF 15;
302 S 17;
304 S 16;
304 S 17;
304 S 40
Z 4 CN 19-10
FF;
Z 5 CN 17-08;
Z 6 CN 18-09;
Z 7 CN 18-09
2333;
2332
X 5 CrNi 18 10;
X 5 CrNi 18
10 KG;
X 5 CrNi 18 10
KW;
X 5 CrNi 18
10 KT
F.3504;
X 5 CrNi 18 10
SUS 304;
SUS 304 A;
SUS 304-CSP;
SUS 304 FB;
SUS 304 TB;
SUS 304 TBS;
SUS 304 TKA;
SUS 304 TKC
08Ch18N10 X5CrNi18-10
14
304L;
304 L;
S30403;
J92500;
J92600
1.4306;
1.4309
X2CrNi19-11;
GXCrNi19-11
304 S 11;
LW 20;
LWCF 20;
S.536;
T.74;
304 C 12;
305 S 11
Z 1 CN 18-12;
Z 2 CN 18-10;
Z 3 CN 19.10
M;
Z 3 CN 18-10;
Z 3 CN 19-11;
Z 3 CN 19-11
FF
2352
X 3 CrNi 18 11;
X 2 CrNi 18 11;
GX 2 CrNi 19 10
F.310.G;
F.3503;
X 2 CrNi 19 10;
AM-X 2 CrNi
19 10;
F.8412
SCS19 03Ch18N11 X2CrNi19-11;
GXCrNi19-11
14
304H;
304 H;
CF-8;
J92590;
J92600;
J92650;
J92710
1.4308 GX5CrNi19-10;
G-X 6 CrNi 18 9 304 C 15
Z 6 CN 18.10
M;
Z 6 CN 19.9 M
AM-X 7 CrNi
20 10;
F.8411
SCS 13;
SCS 13 A;
SCS 13 X
07Ch18N9L GX5CrNi19-10;
58E
14
J92701 1.4312 GX10CrNi18-8;
G-X 10 CrNi 18 8
ANC 3
grade A;
ANC 3 A;
3025 S 25
Z 10 CND
18.9 M SCS 12 10Ch18N9L GX10CrNi18-8
14
S32304 1.4362 X2CrNiN23-4;
X 2 CrNiN 23 4
Z 3 CN 23-04
Az 2327 X2CrNiN23-4
14
201;
S20100 1.4372 X12CrMnNiN17-7-5 Z 12 CMN
17-07 Az SUS 201 X12CrMnNiN
17-7-5
ISCAR
512
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
14
316;
S31600 1.4436 X3CrNiMo17-13-3;
X 5 CrNiMo 17 13 3
316 S 31;
316 S 33;
LW 23;
LWCF 23;
316 S 19;
316 S 40;
316 S 41;
1.4436
Z 6 CND 18-12-
03;
Z6 CND 18-13;
Z 7 CND
18-12-03
2343
X 5 CrNiMo
17 13;
X 8 CrNiMo
17 13
F.3538;
X 5 CrNiMo 17
13 3
SUS 316;
SUS 316 A;
SUS 316 FB;
SUS 316 TB;
SUS 316 TBS;
SUS 316 TKA;
SUS 316 TKC;
SUS 316 TP
X3CrNiMo17-13-3
14
316L;
316 L;
S31603;
J92700;
J92800
1.4404
X2CrNiMo17-12-2;
X2CrNiMo17-13-2;
X 2 CrNiMo 17 12 2;
X 2 CrNiMo 17 13 2
316 S 11;
316 S 13;
316 S 14;
316 S 30;
S.161;
S.537;
T.75
Z 2 CND 17-12;
Z 3 CND 17-11-
02;
Z 3 CND 17-12-
02;
Z 3 CND 17-12-
02 FF;
Z 3 CND
18-12-03
2348 X 2 CrNiMo
17 12
F.310.K;
F.3533;
F.3537
SUS 316 L;
SUS 316 LFB;
SUS 316 LTBS;
SUS 316 LTP;
SUS 316 F 316 L
X2CrNiMo17-13-2
14
316LN;
316 LN;
S31653
1.4406
X2CrNiMoN17-11-2;
X2CrNiMoN17-12-2;
X 2 CrNiMoN 17 12 2
316 S 61;
316 S 63
Z 2 CND 17-11
Az
X 2 CrNiMoN
17 12
F.3542;
X 2 CrNiMoN 17
12 2
SUS 316 LN;
SUS F 316 LN
X2CrNiMoN
17-11-2
14
CF-8M;
J92900 1.4408 GX5CrNiMo 19-11-2;
G-X 6 CrNiMo 18 10
ANC 4 grade
B;
ANC 4 B;
316 C 16;
845 grade B
AM-X 7 CrNiMo
20 10;
F.8414
SCS 14;
SCS 14 A;
SCS 14 X
07Ch18N10G2S2M2L GX5CrNiMo
19-11-2
14
S32750 1.4410 X2CrNiMoN25-7-4;
X 10 CrNiMo 18 9
Z 5 CND 25-06
Az 2328 X2CrNiMoN 25-7-4
14
316LN;
316 LN;
S31563
1.4429 X2CrNiMoN17-13-3;
X 2 CrNiMoN 17 13 3
316 S 63;
1.4429
Z 3 CND 17-12
Az 2375 X 2 CrNiMoN
17 13
F.3543;
X 2 CrNiMoN 17
13 3
SUS 316 LN;
SUS F 316 LN
X2CrNiMoN
17-13-3
14
316L;
316 L;
S31603;
J92800
1.4435 X2CrNiMo18-4-3;
X 2 CrNiMo18 14 3
316 S 13;
316 S 11;
316 S 14;
316 S 31;
LW 22;
LWCF 22;
845 B
Z 3 CND 17-12-
03;
Z 3 CND
18-14-03
2353
X 2 CrNiMoN
17 13;
X 2 CrNiMoN 17
13 KG;
X 2 CrNiMoN 17
13 KW
F.3533-X2
CrNiMo 17 13 2
SUS 316 L;
SUS 316 LFB;
SUS 316 LTBS;
SUS 316 LTP;
SUS F 316 L
O3Ch17N14M3 X2CrNiMo18-4-3
14
S31726 1.4439 X2CrNiMoN17-13-5;
X 2 CrNiMoN 17 13 5
Z 3 CND 18-14-
05 Az
F.3544;
X 2 CrNiMoN 17
13 5
X2CrNiMoN
17-13-5
14
317;
S31700 1.4449 X3CrNiMo18-12-3 317 S 16 X 5 CrNiMo
18 15
SUS 317;
SUS 317 TB;
SUS 317 TP;
SUS F 317
X3CrNiMo18-12-3
14
329;
S31260;
S32900
1.4460 X3CrNiMoN27-5-2;
X 4 CrNiMoN 27 5 2
Z 5 CND 27-05
Az;
Z 3 CND 25-07
Az
2324
F.3552;
F.3309;
X 8 CrNiMo
27-05;
X 8 CrNiMo 26 6
SUS 329 J 1;
SUS 329 J 1 FB;
SUS 329 J 1 TB;
SUS 329 J 1 TP
10Ch26N5M X3CrNiMoN27-5-2
14
S31803;
S31260;
S32900
1.4462 X2CrNiMoN22-5-3;
X 2 CrNiMoN 22 5 3
318 S 13;
1.4462
Z 2 CND 24-08
Az;
Z 3 CND 25-06-
03 Az;
Z 3 CND 25
-05 Az
2377
SUS 329 J 3 L;
SUS 329 J 3 LTB;
SUS 329 J 3 LTP
X2CrNiMoN22-5-3
14
631;
17-7PH;
17-7 PH;
S17700
1.4568;
1.4564;
1.4504
X7CrNiAl17-7;
X 7 CrNiAl 17 7 301 S 81 Z 9 CNA 17-07;
Z 8 CNA 17-07 2388 X 2 CrNiMo 17 12
SUS 631;
SUS 631 J 1;
SUS 631-CSP
09Ch17N7Ju1 X7CrNiAl17-7
14
443;
444;
S44300;
S44400
1.4521 X2CrMoTi18-2;
X 2 CrMoTi 18 2
Z 3 CDT 18-02;
Z 3 CDT 18-2 2326
F.3123;
X 2 CrMoTiNb
18 2
SUS 444;
SUS 444 TB;
SUS 444 TP
X2CrMoTi18-2
14
904L;
904 L;
N08904
1.4539
X1NiCrMoCu25-20-5;
X 1 NiCrMoCuN 25
20 5
904 S 13 Z 2 NCDU
25-20 2562 X1NiCrMoCu
25-20-5
14
630;
17-4PH;
17-4 PH;
S17400
1.4542 X5CrNiCuNb16-4;
X 5 CrNiChNb 17 4
Z 7 CNU 15-05;
Z 7 CNU 16-04;
Z 7 CNU 17-04
SUS 630;
SUS 630 FB;
SUS F 630
X5CrNiCuNb16-4
14
S31254 1.4547 X1CrNiMoN20-18-7 2378 X1CrNiMoN
20-18-7
513
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
14
631;
17-7PH;
17-7 PH;
S17700
1.4568 X7CrNiAl17-7;
X 7 CrNiAl 17 7 301 S 81 Z 9 CNA 17-07;
Z 8 CNA 17-07 2388 X 2 CrNiMo 17 12
SUS 631;
SUS 631 J 1;
SUS 631-CSP
09Ch17N7Ju1 X7CrNiAl17-7
14
316 Ti;
S31635 1.4571 X6CrNiMoTi17-12-2;
X 6 CrNiMoTi 17 12 2
320 S 31;
320 S 18 Z 6 CNDT 17-12 2350
X 6 CrNiMoTi
17 12;
X 6 CrNiMoTi 17
12 KG;
X 6 CrNiMoTi 17
12 KW
F.310.B;
F.3535;
X 6 CrNiMoTi 17
12 2
SUS 316 Ti;
SUS 316 TiTB;
SUS 316 TiTP
08Ch16N11M3T;
08Ch17N13M2T;
10Ch17N13M2T
X6CrNiMoTi
17-12-2
14
309S;
309 S;
309;
S30908;
S30900
1.4833 X12CrNi23-13;
X 7 CrNi 23 14 309 S 24 Z 15 CN 23-13;
Z 15 CN 24-13 X 6 CrNi 23 14
SUS 309 S;
SUS 309 S TB;
SUS 309 S TP
X12CrNi23-13
14
S30415 1.4891 X4CrNiSiN18-10;
X 4 CrNiSiN 18 10 2372 X4CrNiSiN 18-10
14
S30815 1.4893 X9CrNiSiNCe21-11-2;
X 8 CrNiSiN 21 11 2368 X9CrNiSiNCe
21-11-2
14
304H;
304 H;
S30409;
S30480
1.4948
X6CrNi18-10;
X6CrNi18-11;
X 6 CrNi 18 11;
304 S 50;
304 S 51;
801 grade A
Z 5 CN 18-09 SUS 302 X6CrNi18-10
14
1.4581 GX5CrNiMoNb19-11-2;
G X 5 CrNiMoNb 18 10
ANC 4 grade
C;
ANC 4 C;
318 C 17;
845 grade
Nb
Z 4 CNDNb
18.12 M
GX 6 CrNiMoNb
20 11 SCS 22 GX5CrNiMoNb
19-11-2
14
303;
S30300 1.4305 X8CrNiS18-9;
X 10 CrNiS 18 9 303 S 31 Z 8 CNF 18-09 2346 X 10 CrNiS 18 09
F.310.C;
F.3508;
X 10 CrNiS 18-09
SUS 303 30Ch18N11 X8CrNiS18-9;
58M
14
304L;
304 L;
S30403
1.4306 X2CrNi19-11;
X 2 CrNi 19 11
304 S 11;
LW14;
LW 20;
LWCF 14;
LWCF 20;
S.536;
T.74;
304 C 12;
304 S 11
Z 1 CN 18-12;
Z 3 CN 18-10;
Z 3 CN 19-11;
Z 3 CN 19-11
FF
2352 X 2 CrNi 18 11;
X 3 CrNi 18 11
F.310.G;
F.3503;
X 2 CrNi 18 10
SUS 304 L;
SUS 304 LFP;
SUS 304 LTB;
SUS 304 LTBS;
SUS 304 LTP;
SUS F 304 L
03Ch18N11 X2CrNi19-11
14
301;
J 230;
S30100;
S30200
1.4310 X10CrNi18-8;
X 12 CrNi 17 7
301 S 21;
301 S 22
Z 11 CN 17-08;
Z 11 CN 18-08;
Z 12 18-09
2331 X 12 CrNi 17 07 F.3517;
X 2 CrNiN 18 10
SUS 301;
SUS 301-CSP;
SUS 302;
SUS 302 FB
12Ch18N9 X10CrNi18-8
14
304LN;
304 LN;
S30453
1.4311 X2CrNiN18-10;
X 2 CrNiN 18 10 304 S 61
Z 3 CN 18-10
Az;
Z 3 CN 18-07
Az
2371 X 2 CrNiN 18 11 F.3541;
X 2 CrNiN 18 10
SUS 304 LN;
SUS F 304 LN X2CrNiN18-10
14
304B1;
304B2;
304B3;
304 B1;
304 B2;
304 B3;
S30461;
S30462;
S30463
1.4350 X5CrNi18-9 304 S 31 Z 6 CN 18.09 2332;
2333 X 5 CrNi 18 10 F.3551 58E
14
317L;
317 L;
S31703
1.4438 X2CrNiMo18-15-4;
X2 CrNiMo 18 16 4 317 S 12
Z 2 CND 19-15-
04;
Z 3 CND
19-15-04
2367 X 2 CrNiMo
18 16
F.3539;
X2 CrNiMo 18
16 4
SUS 317 L;
SUS 317 LFB;
SUS 317 LTB;
SUS 317 LTP;
SUS F 317 L;
SUS Y 317 L
X2CrNiMo18-15-4
14
321H;
321 H;
S32109
1.4878 X12CrNiTi18-10;
X 12 CrNiTi 18-9 321 S 31 Z 6 CNT 18-10 2337 X 6 CrNiTi 18.11 F.3553
SUS 321;
SUS 321 HFB;
SUS 321 HTB;
SUS 321 HTP;
SUS 321 TKA;
SUS 321 TP;
SUS F 321;
SUS Y 321
X12CrNiTi18-10;
58B
ISCAR
514
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
14
347;
348;
S34700;
S34800
1.4550 X6CrNiNb18-10;
X 6 CrNiNb 18 10
347 S 31;
ANC 3 grade
B;
ANC 3 B;
347 S 20;
347 S 40;
347 S 50;
347 S 51
Z 6 CNNb
18-10 2338
X 6 CrNiNb
18 11;
X 6 CrNiNb 18
11 KG;
X 6 CrNiNb 18
11 KW;
X 6 CrNiNb 18
11 KT
F.3524;
X 6 CrNiNb 18 10
SUS 347;
SUS 347 FB;
SUS 347 HTB;
SUS 347 TB;
SUS 347 TKA;
SUS 347 TP;
SUS F 347
08Ch18N12B
X6CrNiNb18-10;
58F;
14
318;
S31803 1.4583 X10CrNiMoNb18-12;
X 10CrNiMoNb 18 12
Z 6 CNDNb
18-12
X 6 CrNiMoNb
20 11
14
310H;
310 H;
310S;
310 S;
S31008;
S31009
1.4845 X8CrNi25-21;
X 12 CrNi 25 21
310 S 16;
310 S 24;
310 S 25;
310 S 31
Z 8 CN 25-20;
Z 12 CN 25-20;
Z 12 CN 26-21
2361 X 6 CrNi 25 20 (X
6 CrNi 25 20) F.331
SUS 310 S;
SUS 310 FB;
SUS 310 STG;
SUS 310 STP;
SUS310 TB;
SYS Y 310 S
10Ch23N18;
20Ch23N18 X12CrNi25-21
14
1.4465;
1.4466
X1CrNiMoN25-22-2;
X 2 CrNiMoN 25 22 7
X1CrNiMoN
25-22-2
14
309;
S30900 1.4828 X15CrNiSi20-12;
X 15 CrNiSi 20 12 309 S 24
Z 9 CN 24-13;
Z 17 CNS
20-12
X 16 CrNi 23 14
F.3312;
X 15 CrNiSi
20-12
SUH 309;
SUS 309 TB;
SUS 309 TP
20Ch20N14S2 58C;
X15CrNiSi20-12
14
HK;
J94203;
J94204;
J94224
1.4848 GX40CrNiSi25-20;
G-X 40 CrNiSi 25 20
310 C 40;
310 C 45
G X 40 CrNi
26 20
AM-X 40 CrNi
25 20;
F.8452
SCH 21;
SCH 22;
SCH 22 X
GX40CrNiSi25-20
14
HK 30;
J93503;
J94003;
J94013;
HH
1.4837;
1.4848+Nb
GX40CrNiSi25-12;
G-X 40 CrNiSi 25 12 309 C 30 G X 35 CrNi
25 12
SCH 13;
SCH 13 A;
SCH 13 X;
SCH 17;
SCS 17
40Ch24N12SL GX40CrNiSi25-12
14
310;
314;
S3100;
S31400;
S31500
1.4841 X15CrNiSi25-21;
X 15 CrNiSi 25 20 314 S 25 Z 15 CNS 25-20 X 16 CrNiSi
25 20
F.3310;
X 15 CrNiSi
25-20
SUH 310;
SUS 310 TB;
SUS Y 310
20Ch25N20S2 X15CrNiSi25-21
14
1.4849 GX40NiCrSiNb38-19;
G-X 40 NiCrSi 38 18
GX40NiCrSiNb
38-19
14
S32760;
SA351/995;
25Cr-7Ni-Mo-N
1.4501 X2CrNiMoCuWN25-7-4 1.4501 Z 3 CNDU
25-06 Az
X2CrNiMoCuWN
25-7-4
14
348;
S34800 1.4546 X5CrNiNb18-10
2 S.130;
2 S.143;
3 S.144;
3 S.145;
S.525;
S.527
14
1.4544;
1.4544.9
S.524;
S.526;
2 S 129
Z 10 CNT
18-11;
9160/C 63;
9160C201
X 6 CrNiTi 18 11 08Ch18N12T FE-PA 13
14
1.6900 X12CrNi18-9;
X 12 CrNi 18 9
14
1.4829 X12CrNi22-12;
X 12 CrNi 22 12
14
1.4882 X50CrMnNiNbN21-9 Z 50 CMNNb
21.09
X50CrMnNiNbN
21-9
14
316N;
316 N;
J92804
1.4409 GX2CrNiMo19-11-2;
G-X 2 CrNiMo 19 11 2
Z 3 CND
19.10 M
GX2 CrNiMo
19 11
AM-X 2 CrNiMo
19 11;
F.8415
SCS 16 A;
SCS 16 AX SCS
16 AXN
GX2CrNiMo
19-11-2
14
304L;
304 L J92500;
J92620
1.4309 GX2CrNi19-11 304 C 12 Z 3 CN 19.10 M GX 2 CrNi 19 10
AM-X 2 CrNi
19 10;
F.8412
SCS 19;
SCS 19 A GX2CrNi19-11
15
A48 25 B;
Class 25;
No 25 B
0.6015
EN-GJL-150;
GG 15;
EN-JL 1020
Grade 150 Ft 15 D;
R 15 D 01 15-00 G 14;
G 15 FG 15 FC 15;
FC 150 SCh 15 EN-GJL-150;
EN-JL 1020
15
A48-30 B;
Class 30,
No.30 B
0.6020
EN-GJL-200;
GG 20;
EN-JL 1030
Grade 220 Ft 20 D 01 20-00 G 20;
Gh 190 FG 20 FC 20;
FC 200 SCh 20 EN-GJL-200;
EN-JL 1030
15
A48-20 B;
Class 20;
No 20 B
0.6010
EN-GJL-100;
GG 10;
EN-JL 1010
Ft 10 D 01 10-00 G 10 FG 10 FC 10;
FC 100 SCh10 EN-GJL-100;
EN-JL 1010
515
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
16
A48-45 B;
Class 45;
No 45 B
0.6030
EN-GJL-300;
GG 30;
EN-JL 1050
Grade 300 Ft 30 D 01 30-00 G 30 FG 30 FC 30;
FC 300 SCh 30 EN-GJL-300;
EN-JL 1050
16
A48-50 B;
Class 50;
No 50 B
0.6035
EN-GJL-350;
GG 35;
EN-JL 1060
Grade 350 Ft 35 D 01 35-00 G 35 FG 35 FC 35;
FC350 SCh 35
EN-GJL-350;
GG 35;
EN-JL 1060
16
A48-60 B;
Class 60;
No 60 B
0.6040 EN-JLZ;
GG 40 Grade 400 Ft 40 D 01 40-00 SCh 40 EN-JLZ
16
A48-40 B;
Class 40;
No 40 B
0.6025
EN-GJL-250;
GG 25;
EN-JL 140
Grade260 Ft 25 D 01 25-00 G 25 FG 25 FC 25 SCh 25 EN-GJL-250;
EN-JL 140
17
0.7033 EN-GJS-350-22-LT;
GGG 35.3 350/22 L 40 FGS 370-/17 0717-15 GS 370-17 FNG 38-17 FCD 350-22L VCh42-12 EN-GJS-350-22-LT
17
60-40-18;
A536 60-40-18 0.7043
EN-GJS-400-18;
EN-GJS-400-18-LT;
GGG-40.3;
EN-GJS-400-18A-LT
370/7;
SNG 370/17 FGS 370-17 0717-15 GSO 400-12 VCh 42-2
EN-GJS-400-18;
EN-GJS-400-
18-LT;
EN-GJS-400-
18A-LT
17
60-40-18;
A536 60-40-18 0.7040
EN-GJS-400-15;
EN-JS 1030;
GGG-40
420/12;
SNG 420/12 FCS 400-12 0717-02 GS 400-12 FGE 38-17 FCD 40 VCh 42-12 EN-GJS-400-15;
EN-JS 1030
17
65-45-12;
A536 65-45-12 5.3107 EN-GJS-450-10 450/10;
SNG 450/10 FGS 450-10 GS 400-12 FGE 42-12 FCD450 VCh 45 EN-GJS-450-10
18
65-45-12;
A536 65-45-12 0.7050
EN-GJS-500-7;
EN-GJS-500-7A;
EN-JS 1050;
GGG-50
500/7 FGS 500-7 0727-02 GS 500/7 FGE 50-7
FCD 50;
FCD 500;
FCD 500-7
VCh 50-2
EN-GJS-500-7;
EN-GJS-500-7A;
EN-JS 1050
18
80-55-06;
A536 80-55-06 0.7060
EN-GJS-600-3;
EN-GJS-600-3A;
EN-JS 1060;
GGG-60
600/3 FGS 600-3 0732-03 GS 600/3 FGE 60-2
FCD 60;
FCD 600;
FCD 600-3
18
0.7652 GGG-NiMn 13 7 S-NiMn 13 7 S-NM 13 7 07 32-03 GGG 60 GGG 60
18
100-70-03;
A536 100-
70-03
0.7070
EN-GJS-700-2;
EN-JS 1070;
GGG-70
700/2;
SNG700/2 FGS 700-2 0737-01 GS 700-2 FGE 70-2
FCD 70;
FCD 700;
FCD 700-2
VCh 70-2 EN-GJS-700-2;
EN-JS 1070
18
A439 Type D-2 0.7660 GGG-NiCr 20 2 S-NiCr 20 2 S-NC 20-2
18
A439 Type
D-2 B 0.7661 GGG-NiCr 20 3 S-NiCr 20 3 S-NC 20 3
19
A47-32510;
A47 Class
32510;
A47 Grade
32510;
32510
0.8135
EN-GJMB-350-10;
EN-JM 1130;
GTS-35-10;
GTS-35
B 340/12;
310 B340/12
MN 35-10;
A32-702 MN
350-10
0810 B 35-10 GTS 35;
36114 Type A
FCMB 340;
G5703 FCMB
340
KCh 35-10 EN-GJMB-350-10;
EN-JM 1130
19
A47-35018,
A47 Class
35018;
A47 Grade
35018
MN 380-18;
A32-702 MN
380-18
KCh 37-12
19
A47-22010;
A47 Class
22010;
A47 Grade
22010;
UNS F22200
B 32-10;
6681 B
32-10
FCMB 310 KCh 33-8
20
A220-50005;
A220 Class
50005;
A220 Grade
50005
0.8155
EN-GJMB-550-4;
EN-JM1160;
GTS-55-04
P 55-04;
P 510/4
MP 60-3;
A32-703 MP
60-3;
Mn 550-4
0856-00 P 55-04 Type C;
36116 Type C FCMP 540 KCh 55-4;
KCh60-3
EN-GJMB-550-4;
EN-JM1160
20
A220-70003;
A220 Class
70003;
A220 Grade
70003
0.8165
EN-GJMB-650-2;
EN-JM1180;
GTS-65-02
P 65-02;
6681 P
65-02;
P 570/3
Mn 650-3 0862-030 GMN 65 FCMP 590 KCh 63-3 EN-GJMB-650-2;
EN-JM1180
20
A220-70003;
A220 Class
70003;
A220 Grade
70003
0.8170
EN-GJMB-700-2;
EN-JM1190;
GTS-70-02
P 70-2;
6681 P 70-2;
P 690/2
MP 70-2;
A 32-703 MP
70-2;
Mn 700-2
0862-03 P 70-2;
GMN 70 36116 Type A FCMP 690 KCh 70-2 EN-GJMB-700-2;
EN-JM1190
ISCAR
516
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
20
A220-45006;
A220 Class
45006;
A220 Grade
45006 A220-
45008;
A220 Class
45008;
A220 Grade
45008
0.8145
EN-GJMD-450-6;
EN-JM1140;
GTS-45-06;
GTS-45
P 45-06;
6681 P
45-06
MP 50-5;
A32-703 MP
50-5
0854-00 P 45-06 Type E;
36116 Type E KCh 45-7 EN-GJMD-450-6;
EN-JM1140
20
A220-80002;
A220 Class
80002;
A220 Grade
80002
P 70-2 MN 700-2 854 FCMP 70;
FCMP 700 KCh 80-1.5
20
A220-90001;
A220 Class
90001;
A220 Grade
90001
20
A220-60004;
A220 Class
60004;
A220 Grade
60004
20
A220-40010;
A220 Class
40010;
A220 Grade
40010
0852-00
20
0.8040 EN-GJMW-400-5;
GTW-40-05 W 40-05 MB 400-5 W 40-05 36113 Type A FCMW 370 EN-GJMW-400-5;
EN-JM1030
20
0.8035 EN-GJMW-350-4;
GTW-35-04 W 35-04 MB 35-7 W 35-04 36113 Type B FCMW 330 EN-GJMW-350-4;
EN-JM1010
21
AA5005;
AA5006;
A95005;
A95006;
5005;
5005A;
5006
3.3315 AlMg1;
AlMg1C N41 A G0-6 144106 L3350 A5005 1510;
AMg1
AlMg1C;
5005A
21
AA1050;
A91050;
1050;
1050A
3.0255 Al99,5;
Al99.5 1B A5 14407 9001/2 L-3051 AD0
Al99.5;
Al99,5;
1050A
21
AA1200;
A91200 ;
1200;
1200A
3.0205
Al99,0;
Al99.0;
Al99
1C A4 144010 Al99.0 L-3001 A1200 A0
Al99.0;
AL99,0;
1200
22
AA2017;
A92017;
2017;
2017A
3.1325;
3.1124
AlCu2,5Si(A);
AlCu2.5Si(A);
AlCuMg1
A-U4G L-3120 V65
AlCu2,5Si(A);
AlCu2.,5Si(A);
2017A
22
3.2315 AlMgSi1 H30 A-SGM0.7 144312 9006/4 L-3453 AD35 AlSiMgMn;
6082
22
3.4345 AlZnMgCuO,5;
AlZnMgCuO.5
AlZnMgCu0.5;
AlZnMgCu0,5;
7022
22
3.1655 AlCu6BiPb;
AlCuBiPb FC1 A-U5PbBi 144355 9002/5 L-3192 A2011 AlCu6BiPb;
2011
22
AA7075;
A97075;
7075
3.4365;
3.4364
AlZn5,5MgCu;
AlZn5.5MgCu;
AlZnMgCu1,5;
AlZnMgCu1.5
7075;
L95;
L96
A-Z5GU 9007/2 L-3710 A7075 B95
AlZn5.5MgCu;
AlZn5,.5MgCu;
AW-7075;
7075
22
AA2024;
A92024;
2024
3.1355;
3.1354 AlCuMg2 2024;
2L97 A-U4G1 9002/4;
3583 L-3140 A2024 D16 AlCu4Mg1;
2024
22
3.4335 AlZn4,5Mg1;
AlZn4.5Mg1 H17 A-Z5G 144425 9007/1 L-3741
AlZn4.5Mg1;
AlZn4,5Mg1;
7020
22
AA6061;
A96061;
6061
3.3211;
3.3214 AlMg1SiCu H20 A-GSUC 9006/2 L-3420 A6061 AD33
EN AW-6061;
EN AW-AlMg1SiCu;
AlMg1SiCu
517
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
23
3.3261
G-AlMg5Si;
GK-AlMg5Si;
AlMg5Si;
VDS 245
LM5 144163 AL13
EN AC-51400;
EN AC-AlMg5Si;
G-AlMg5Si;
AlMg5Si
23
3.2982
GD-AlSi12(Cu);
G-AlSi12(Cu);
AlSi12(Cu);
VDS 231 D
A-S12U 3048
EN AC-47100;
EN AC-AlSi12C;
G-AlSi12Cu;
AlSi12Cu;
AlSi12Cu1(Fe)
23
520.0;
AA 520.0;
A05200
A-G10S 3056 L-2310 AC7B A18
23
222.0;
AA 222.0;
A02220
LM12 3041 L-2110
23
518.0;
AA 518.0;
A05180
3.3292
G-AlMg9;
GD-AlMg9;
AlMg9;
VDS 349
EN AC-51200;
EN AC-AlMg9;
G-AlMg9;
AlMg9
23
203.0;
AA 203.0;
A02030
3.1754 G-AICu5Ni1,5;
G-AICu5Ni1.5 AU5NKZr
23
ER4047;
A94047 3.2585 SG-AlSi12 4047A;
NG2 144262 SG-AlSi12;
EL-AlSi12
23
712.0;
AA 712.0;
A07120
G-AlZn10Si8Mg;
GK-AlZn10Si8Mg;
AlZn10Si8Mg;
VDS 108
A-Z5GF 3602
EN AC-71100;
EN
AC-AlZn10Si8Mg;
G-AlZn10Si8Mg;
AlZn10Si8Mg
23
514.0;
514.1;
AA 514.0;
AA 514.1;
A05140;
A05141
3.3561
G-AlMg5;
GK-AlMg5;
AlMg5;
EN AC-51300;
VDS 244
A-G6 3058 L-2331
AL28;
AMg5Mz;
EN AC-51300;
EN AC-AlMg5;
G-AlMg5;
AlMg5
23
B413.0;
AA B413.0;
A24130;
B213.0;
AA 213.0;
A22130
3.2581;
3,2582
G-AlSi12;
GK-AlSi12;
GD-AlSi12;
AlSi12
LM6 A-S13 144261 4514 L-2520 AC3
EN AC-44200;
EN AC-AlSi12;
G-AlSi12;
GD-AlSi12;
AlSi12
23
3.2211
G-AlSi11;
GK-AlSi11;
AlSi11
EN AC-44000;
EN AC-AlSi11;
G-AlSi11
23
A444.0;
AA A444.0;
A14440
AK7
23
3.3541
G-AlMg3;
GK-AlMg3;
GF-AlMg3;
AlMg3;
VDC 244
H20 A-G3T 144224 3059 L-2341 ADC6
EN AC-51100;
EN AC-AlMg3;
G-AlMg3;
AlMg3
24
515.0;
AA 515.0;
A05150
3.3241
G-AlMg3Si;
GK-AlMg3Si;
GF-AlMg3Si;
AlMg3Si;
AlMg3Si1
G-AlMg3Si1;
AlMg3Si
24
3.2373
G-AlSi9Mg;
GK-AlSi9Mg;
AlSi9Mg
A-S9G 3051 AC4A AK9 G-AlSi9Mg;
AlSi9Mg
24
A356.0;
AA A356.0;
A13560;
A356.2;
AA A356.2;
A13562
3.2371
G-AlSi7Mg;
GK-AlSi7Mg;
GF-AlSi7Mg;
AlSi7Mg
2L99 A-S7G03 L-2651 AC4CH AL9 G-AlSi7Mg;
AlSi7Mg
24
204.0;
AA 204.0;
A02040
3.1371
G-AlCu4TiMg;
GK-AlCu4TiMg;
GF-AlCu4TiMg;
AlCu4TiMg
AU5GT L-2140 AC1B
EN AC-21000;
EN AC-AlCu4TiMg;
G-AlCu4TiMg
24
A333.0;
AA A333.0;
A13330
3.2161 G-AlSi8Cu3;
GK-AlSi8Cu3 144163 AL13
EN AC-AlSi8Cu3;
EN AC-AlSi8Cu3;
G-AlSi8Cu3
ISCAR
518
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
24
380.0;
AA 380.0;
A03800
3.2163
G-AlSi9Cu3;
GD-AlSi9Cu3;
AlSi9Cu3;
VDS 226
LM24 A-S9U3 144252 3610 L-2630 AC4B AK8M3;
AK8
EN AC-46200;
EN AC-AlSi8Cu3;
G-AlSi9Cu3;
AlSi8Cu3
24
365.0;
AA 365.0;
A03650
G-AlSi10MnMg
EN AC-43500;
EN
AC-AlSi10MnMg;
G-AlSi10MnMg
24
319.0;
AA 319.0;
A03190
3.2151
G-AlSi6Cu4;
GK-AlSi6Cu4;
AlSi6Cu4;
VDS 225
LM21 A-S5UZ 144230 7369/4 L-2620 AC2B AK5M
EN AC-45000;
EN AC-AlSi6Cu4;
G-AlSi6Cu4;
AlSi6Cu4
24
3.2383
G-AlSi10MgCu;
GK-AlSi10MgCu;
G-AlSi10Mg(Cu);
GK-AlSi10Mg(Cu);
AlSi10MgCu;
AlSi10Mg(Cu)
A-S10UG
24
3.2381;
3.2385
G-AlSi10Mg;
GK-AlSi10Mg;
GD-AlSi10Mg;
AlSi10Mg;
VDS 239
A-S10G 144253
EN AC-43000;
EN AC-AlSi10Mg;
G-AlSi10Mg;
AlSi10Mg
24
3.1841 G-AlCu4Ti;
AlCu4Ti AL19
EN AC-21100;
EN AC-AlCu4Ti;
G-AlCu4Ti;
AlCu4Ti
25
390.0;
AA 390.0;
A03900
G-AlSi17Cu4Mg LM30 4282
EN AB-48100;
EN AC-48100;
G-AlSi17Cu4Mg;
AlSi17Cu4Mg
25
393.0;
AA 393.0;
A03930
G-AlSi20CuMgNi;
AlSi20CuMgNi LM29 AK21M2N2
25
G-AlSi18Cu1MgNi;
AlSi18Cu1MgNi LM28
26
C36000 2.0375 CuZn36Pb3 CZ124 CuZn36Pb3 12167
C3600;
C3601;
C3602
CuZn36Pb3;
CW603N
26
C83810 2.1098 CuSn3Zn8Pb5-C;
G-CuSn2ZnPb LG1 CuSn3Zn8Pb5-C
26
C83600 2.1096;
2.1096.01
CuSn5Zn5Pb5-C;
G-CuSn5ZnPb;
Rg 5
LG2
CuPb5Sn5Zn5;
UE5;
U-E 5 Pb 5 Z 5
5204-15 H5111;
H2203 BrO5Ts5S5 CuSn5Zn5Pb5-C
26
C93200 2.1090
CuSn7Zn4Pb7-C;
G-CuSn7ZnPb;
GC-CuSn7ZnPb;
GZ-CuSn7ZnPb;
Rg 7
GC 493K
CuSn7Pb6Zn4;
UE7;
U-E 7 Z 5 Pb 4
CuSn7Zn4Pb7-C
26
C93800 2.1182
CuSn7Pb15-C;
G-CuPb15Sn;
GC-CuPb15Sn;
GZ-CuPb15Sn
LB1 U-Pb15E8;
U-Pb 15 E8 C-3300 CuSn7Pb15-C;
CC496K
26
C93700 2.1176
CuSn10Pb10-C;
G-CuPb10Sn;
GC-CuPb10Sn;
GZ-CuPb10Sn
LB2 U-Pb10 CuSn10Pb10-C
27
C22000 2.0230 CuZn10;
Ms90 CZ101 U-Z10;
CuZn10
P-CuZn10;
P-OT90 C2200 L90 CuZn10;
CW501L
27
C86200;
SAE 430A 2.0596
CuZn34Mn3Al2Fe1-C;
G-CuZn34Al2;
GK-CuZn34Al2;
GZ-CuZn34Al2
HTB 1 U-Z36N3;
CuZn19Al6Y20
HBSC4;
H5102/class 3;
H5102/class 4
LTs23A;
LTs23A6Zh3MTs2
CuZn34Mn3Al2
Fe1-C;
CC764S
27
C27200 2.0335 CuZn36;
Ms64 CZ108 U-Z36;
CuZn 36 C 2700 L63 CuZn36;
CW507L
27
C27400 2.0321 CuZn37;
Ms63 CZ108 P-CuZn37;
P-OT63 C2720 L63 CuZn37;
CW508L
27
C86400 2.0592
CuZn35Mn2Al1Fe1-C;
G-CuZn35Al1;
GK-CuZn35Al1;
GZ-CuZn35Al1;
G-Ms60
HTB 1 HBSC1;
CAC301
CuZn35Mn2Al1
Fe1-C;
CC765S
519
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
27
C46400 2.0530 CuZn38Sn1As;
CuZn38Sn1 CZ112 P-CuZn39Sn1 C4640 LO60-1 CuZn38Sn1As;
CW717R
27
C23000;
85Cu-15Zn 2.0240 CuZn15 ;
CuZn 15 CZ102 U-Z15;
CuZn15
5112-02;
5112-04;
5112-05
C2300 CuZn15;
CW502L
27
C24000;
80Cu-20Zn 2.0250
CuZn20;
CuZn 20;
Ms80
CZ103 CuZn20
5114-02;
5114-04;
5114-05
C2400 CuZn20;
CW503L
27
C26000;
CA260 2.0265 CuZn30;
CuZn 30 CZ106 CuZn30 C2600 CuZn30;
CW505L
28
C63000 2.0966 CuAl10Ni5Fe4;
CuAI 10 Ni 5 Fe 4 CA 104 U-A10N;
CuAl9Ni5Fe3 P-CuAl10Ni5Fe5 C6301
BrAD;
BrAZhN10-4-4;
N10-4-4
CuAl10Ni5Fe4;
CW307G
28
C90700 2.1050
CuSn10-C;
G-CuSn 10;
SnBz10
CT1 CuSn8 CuSn10-C;
CC480K
28
C90800;
C91700
2.1052;
2.1052.01;
2.1052.04;
2.1052.03
CuSn12-C;
G-CuSn12;
GZ-CuSn12;
SnBz12, Gbz12
PB2 UE12P CAC502C;
PBC2C
CuSn12-C;
CC483K
28
C95800;
C95810 2.0975
G-CuAl10Fe5Ni5-C;
G-CuAI 10 Ni;
NiAlBz-F60
CuAl10Fe5Ni5
Y70 CAC703C CC333G
28
C11000 2.0060
Cu-ETP;
E-Cu57;
E Cu 57
C101 Cu-B Cu-DHP C11020 C1100 M1
Cu-ETP;
E-Cu57;
CW004A
28
C81500 2.1292 G-CuCrF 35 CC1-FF U-Cr0.8Zr
28
C10300 2.0070
Cu-HCP;
Cu-PHC;
SE-Cu
C103 LS60-2
Cu-HCP;
CW020A;
Cu-PHC;
CW021A
28
C10100;
C10200 2.0040 Cu-OF;
OF-Cu
C103;
C110
Ci-c1;
Cu-c2 C-1120 C1011;
C1020 M0b Cu-OF;
CW008A
28
C86550 2.0590 G-CuZn40Fe;
G-SoMsF30 G-CuZn40Fe
28
C18100;
C18150 2.1293 CuCr1Zr;
CuCrZr CC102 U-C1Z;
U-Cr0.8Zr
CuCr1Zr;
CW106C
28
C11000;
C12200 2.0090
Cu-DHP;
E-Cu58;
E Cu 58 SF-Cu
C106 Cu-B C1100;
C1220 M1f
Cu-DHP;
E-Cu58;
CW024A
28
C95500 2.0971 CuAl9Ni3Fe2 UA9 BrA10Zh4N4L
28
C61000 2.0920 CuAl8;
Cu Al 8 CuAl8 BrA7 CuAl8
29
29
30
30
31
330;
N08330 1.4864
X12NiCrSi35-16;
X12NiCrSi36-16;
X12 NiCrSi 36 16
NA 17;
INCOLOY
alloy DS
Z 20 NCS
33-16;
Z 12 NCS
37-18;
Z 12 NCS
35-16
F.3313 SUH 330
31
N08002;
N08004;
N08005;
N08030
1.4865
GX40NiCrSi38-19
GX40NiCrSi38-18;
G-X40 NiCrSi38 18
330 C 11;
330 C 40;
331 C 40
GX 50 NiCr 39 19 SCH 15;
SCH 16 GX40NiCrSi38-18
31
1.4558 X2NiCrAlTi32-20;
X2 NiCrAITi 32 20 NA 15 NCF 800 X2NiCrAlTi32-20
31
N08031 1.4562 X1NiCrMoCu32-28-7;
X1 NiCrMoCu 32 28 7
X1NiCrMoCu
32-28-7
31
1.4958 X5NiCrAITi31-20;
X5 NiCrAITi 31 20 NA 15 NCF 800 H;
NCF 718 X5NiCrAITi31-20
31
N08811 1.4959 X8NiCrAlTi32-21;
X8 NiCrAlTi 32 21
NA 15;
NA 15 H
Z 8 NC 33-21;
Z 10 NC 32-21 X8NiCrAlTi32-21
ISCAR
520
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
31
N08028 1.4563 X1NiCrMoCu31-27-4;
X1 NiCrMoCu 31 27 4
Z 2 NCDU
31-27;
Z 1 NCDU
31-27-03
2584 EK77;
ChN30MDB
X1NiCrMoCu
31-27-4
31
B 163;
N08800;
N08810;
N08332;
N08811
1.4876
X10NiCrAlTi32-21;
X10NiCrAlTi32-20;
X10 NiCrAlTi 32 20
NA 15;
NA 15 H
Z 10 NC 32-21;
Z 8 NC 33-21
F.3314;
F.3545
NCF 800;
NCF 800 TB;
NCF 800 TP
X10NiCrAlTi32-21
32
S590;
J 467 1.4977 X40CoCrNi20-20;
X40 CoCrNi 20 20 Z 42 CNKDWNb
32
660;
S66286 1.4980
X6NiCrTiMoVB25-15-2;
X5NiCrTi26-15 X6
NiCrTiMoVB 25 15 2;
X5 NiCrTi 26 15
HR 51;
HR 52
Z 3 NCT 25;
Z 6 NCTDV
25.15 B
X6NiCrTiMoVB
25-15-2;
X5NiCrTi26-15
32
1.4943;
1.4944
X4NiCrTi25-15;
X5NiCrTi26-15 HR 51 Z 6 NCTDV
25-15 B 2570 X4NiCrTi25-15;
X5NiCrTi26-15
32
661;
R30155 1.4971 X12CrCoNi21-20;
X12 CrCoNi 21 20 X12CrCoNi21-20
32
Haynes 556;
R30556
33
Incoloy 825;
N08825; 2.4858 NiCr21Mo NA 16 NC 21 Fe DU ChN38VT
33
Hastelloy C-4;
N06455 2.4610 NiMo16Cr16Ti
33
Nimonic 75;
N06075;
AMS 5715
2.4630;
2.4951 NiCr20Ti HR 5;
HR 203-4 NC 20 T
33
Inconel 625;
N06625;
AMS 5666
2.4856 NiCr22Mo9Nb NA 21 NC 22 FeDNb
33
Inconel 690;
N06690 2.4642 NiC29Fe NC 30 Fe
33
Monel 400;
N04400
2.4360;
2.4361 NiCu30Fe NA 13 NU 30
33
Hastelloy X;
N06002;
5390A;
AMS 5754;
AMS 5536
2.4603;
2.4665
NiCr30FeMo;
NiCr22Fe18Mo;
NiCr21Fe18Mo9
HR 6 NC 22 FeD
33
Inconel 617;
N06617;
AMS 5887
2.4663a NiCr23Co12Mo NC 14 K 9 T 5
DWA
33
Nimonic 90;
N07090;
AMS 5829
2.4632;
2.4969
NiCr20Co18Ti;
NiCr 20 Co 18 Ti
HR 2;
HR202;
HR 402;
HR 501;
HR 502;
HR 503
Z 8 NCDT 42 NiCr20Co18Ti
33
Haynes 214;
NO7214 2.4646 NiCr16Al
33
Rene 41;
N07041;
AMS 5712;
AMS 5713
2.4973 NiCr19Co11MoTi;
NiCr 19 CoMo NC 19 KDT
33
Hastelloy B2;
N10665
2.4617;
2.4616;
2.4615
NiMo28;
EL-NiM29;
SG(UP)-NiMo27
YNiMo-7 NiMo28
33
Udimet L-605;
R30605 2.4964 CoCr20W15Ni
33
Monel R-405;
N04405
2.4360;
2.4361 NiCu30Fe NA 13 NU 30
33
Inconel 600;
N06600;
AMS 5665
2.4816 NiCr15Fe8;
NiCr 15 Fe NA 14 NC 16 FeT ChN78T NiCr15Fe8
33
Inconel 601;
N06601 2.4851 NiCr23Fe15A;
NiCr 23 Fe N C 23 FeA ChN60Yu NiCr23Fe15A
33
Nimonic 263;
N07263;
AMS 5872;
AMS 5886
2.4650
NiCo20Cr20MoTi;
NiCo 20 Cr 20 MoTi
MoTi
HR 10;
HR 206;
HR 404
NCK 20 D NiCo20Cr20MoTi
521
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
34
Haynes 188;
Jetalloy 209;
R30188;
AMS 5772
2.4964 CoCr22W14Ni KC22WN
34
Monel K-500;
N05500 2.4375 NiCu30Al3Ti;
NiCu 30 Al NA 18 NU 30 AT NiCu30Al3Ti
34
Inconel 718;
N07718;
AMS 5596;
AMS 5589
2.4668
NiCr19Nb5Mo3;
NiCr 19 NbMo;
NiCr19Fe19Nb5Mo3
HR 8 NC 19 Fe Nb NiCr19Nb5Mo3
34
2.4955 NiFe25Cr20NbTi;
NiFe 25 Cr 20 NbTi NiFe25Cr20NbTi NiFe25Cr20NbTi
34
Incoloy 925;
N09925 2.4670
34
Nimonic 901;
N09901;
AMS 5660;
AMS 5661
2.4662
NiFe35Cr14MoTi;
NiCr13Mo6Ti3;
NiCr 13 Mo 6 Ti 3
Z8 NCDT 42
34
Udimet 500;
N07500;
AISI 684
2.4983 NiCr18Co18MoAlTi NCK 19 DAT NiCr18Co18MoAlTi
34
Nimonic 80A;
N07080
2.4631;
2.4952
NiCr20TiAl;
NiCr 20 TiAl
HR 401;
HR 601 NC 20 TA NCF 80 A ChN77TYuR;
ChN56VMTYu NiCr20TiAl
34
Jetalloy 209;
AMS 5772 CoCr22W14Ni KC 22 WN
34
Altemp S-816 2.4989 CoCr20Ni20W Altemp S-816
34
MAR-M 246 2.4675 NiCr23Mo16Cu;
NiCr 23 Mo 16 Cu NiCr23Mo16Cu
34
Inconel 722;
N07722;
AMS 5411
34
Waspaloy;
N07001;
AISI 685;
AMS 5704;
AMS 5706;
AMS 5708;
AMS 5544
2.4654 NiCr20Co13Mo4Ti3AL;
NiCr 19 Co 14 Mo 4 Ti NC 20 K 14 NiCr20Co
13Mo4Ti3AL
34
Rene 80 NC14 K9 T5
DWA
35
5388C;
N30002;
CW-12MW; 2.4883 G-NiM16CrW
35
N7M;
N-7M;
N30007
2.4685 G-NiMo28 ND 30 M
35
N12MV;
N-12MV;
N30012
2.4882;
9.4810;
2.4810/9.4810
G-NiMo30
35
Nimocast
PK24;
N13100;
AMS 5397
2.4674 G-NiCo15Cr10AlTiMo HC 204 NK 15 CAT
35
Jethete M-252;
N07252;
AMS 5551
2.4916 G-NiCr19Co;
G-NICR 19 Co
35
Nimocast 713;
N07713;
AMS 5391;
Inconel 713LC
2.4670 G-NiCr13Al6MoNb HC 203 NC 13 AD
35
M-35-1;
N214135
2.4365;
2.4365/9.4365 G-NiCu40Nb NiCuC
36
Titanium
Grade 1;
R50250;
ASTM GR. 1
3.7024;
3.7025
Ti 1;
Ti 99.8 TA1 T-35 Ti1-Type 1 Ti-PO1 Class 2;
Gr-1 VT1-00 Ti 99.8
ISCAR
522
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
36
Titanium
Grade 2;
R50400;
AMS 4902;
AMS 4941;
AST M Gr. 2
3.7034;
3.7035;
3.7036
Ti 2;
Ti 99.7
TA2;
TA3;
TA4;
TA5
T-40 Ti1-Type 2 Ti-PO2 Class 2;
Gr-2 VT1-0 Ti 99.7
36
Titanium
Grade 3;
R50500;
ASTM Gr. 3
3.7055;
3.7056
Ti 3;
Ti 99.6
DTD 5023,
DTD 5273 T-50 Ti1-Type 3 Class 3;
Gr-3 Ti 99.6
36
Titanium
Grade 4;
R50700;
ASTM Gr. 4
3.7064;
3.7065;
3.7066
Ti 4;
Ti 99.5
TA7;
TA8;
TA9
T-60 Ti1-Type 4 Class 4;
Gr-4 Ti 99.5
36
Titanium
Grade 7;
R52400;
Ti-0.15Pd
3.7235 Ti2Pd-Type 7 Class 13;
Gr-13
37
Titanium
Grade 5;
R56400;
Ti-6Al-4V
3.7165;
3.7164 Ti6Al4V
TA10;
TA11;
TA12;
TA13;
TA 28;
TA56;
Ti-Al-V
TA6V;
T-A 6 V;
Ti-P.63
TiAl6V4-Type 5 Ti-P63
Class 6 0;
Gr 6 0;
SAT-64
VT6 Ti6Al4V
37
Titanium Grade
6Al-2Sn-4Zr-
2Mo;
R54620;
6Al-2Sn-4Zr-
2Mo
3.7145;
3.7144 TiAl6Sn2Zr4Mo2 VT25 TiAl6Sn2Zr4Mo2
37
3.7175;
3.7174 TiAl6V6Sn2
37
Titanium
Grade 9;
R56320;
Ti-3Al-2.5V
3.7195;
3.7194 Ti6Al2.5V TiAl3V2.5-Type 9 Class 6 1;
Gr 6 1 PT-3V Ti6Al2.5V
37
3.7124 TiCu2
TA 21;
TA22;
TA23;
TA24
T-U2 Ti-P11
37
3.7185;
3.7184
Ti4Al4Mo2Sn;
TiAl4Mo4Sn4Si0.5
TA45;
TA46;
TA47;
TA48;
TA49;
TA50;
TA57
T-A4DE Ti-P68
37
Titanium
Grade 6;
R54520;
Ti-5Al-2.5Sn
3.7115.1;
3.7115
TiAl5Sn2.5;
TiAl 5 Sn 22
TA14;
TA17
T-A5E;
Ti-P.65 SAT-525 VT5-1 TiAl5Sn2.5
37
R56410;
Ti-10V-2Fe-3Al
37
Titanium grade
23;
R56401;
Ti-6Al-4V-ELI
Ti6Al4V ELI TA11 TiAl6V4ELI-Type
5.1
Class 6 1;
Gr 6 1
37
VST 5553 Ti5Al5V5Mo3Cr;
Ti-5Al-5V-5Mo-3Cr
37
Ti-4Al-3Mo-1V T-A4D3V VT14
37
VT22
38
1.2762 75CrMoNiW6-7;
75 CrMoNiW 6 7 75CrMoNiW6-7
38
W1;
T72301 1.1625 C80W2;
C 80 W2 BW 18
F.520.U;
F.5107;
C 80
SK 75;
SK 85;
SK 85 M;
SK 5;
SK 5 M;
SK 6
U8-1 C80W2
38
W110;
T72301 1.1545
C105U;
C 105 W 1;
C 105 U
C 105 E 2 U;
Y1 105;
C105E2U
1880 C 100 KU F.515;
F.516
SK 105;
SK 3;
TC 105
U10A-1;
U10A-2;
U11-1
C105U
523
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
38
1.6746 32NiCrMo14-5;
32 NiCrMo 14-5 832 M 31 35 NCD 14 F.1262-32
NiCrMo 12 32NiCrMo14-5
38
W210;
T72302 1.2833 100V1;
100 V 1 BW 2
C 105 E 2 UV 1;
Y1 105 V;
100 V 2
102 V 2 KU SKS 43 100V1
38
6145;
6150;
6150 H;
G61500;
H61500
1.8159
51CrV4;
50CrV4;
50 CrV 4
735 A 50;
735 A 51;
735 H 51;
735 M 50;
En 47
50CrV4RR;
50 CV 4;
51 CV 4
2230 50 CrV 4
F.143;
F.143.A;
51 CrV 4;
F.1430
SUP 10;
SUP 10-CSP;
SUP 10 M
50ChFA;
50ChGFA 51CrV4
38
P20;
T51620 1.2330 35CrMo4;
35 CrMo 4 708 A 37 34 CD 4 2234 35 CrMo 4 35CrMo4
38
38
38
38
38
1.8721 26MnCr6-3 26MnCr6-3
38
38
38
38
1.2083;
1.2083 ESR
X40Cr14;
X 42 Cr 13
X40Cr14;
Z 40 C 14 2314 X 41 Cr 13 KU F.5263;
X 40 Cr 13 SUS 420 J 2 X40Cr14
38
300M;
4340M;
K44220
1.6928 41SiNiCrMoV7-6 S 155
38
30ChGSA
39
A2;
T30102 1.2363
X100CrMoV5;
X100CrMoV5-1;
X 100 CrMoV 5 1
BA 2 X 100 CrMoV 5;
Z 100 CDW 5 2260 X 100 CrMoV 5
1 KU
F.536;
F.5227;
X 100 CrMoV 5
SKD 12 X100CrMoV5
39
D2;
T30402 1.2379
X153CrMoV12;
X155CrVMo12-1;
X155 CrVMo 12 1
BD 2
X 160 CrMoV
12;
Z 160 CDV 12
2310 X 155 CrVMo 12
1 KU F.520.A SKD 10;
SKD 11 X153CrMoV12
39
D3;
T30403 1.2080 X210Cr12;
X 210 Cr 12 BD 3 X200Cr12;
Z 200 C 12 X 205 Cr 12 KU
F.521;
F.5212;
X 210 Cr 12
SKD 1 Ch12 X210Cr12
39
L3;
T61203 1.2067
102Cr6;
102 Cr 6;
100 Cr 6
BL 3;
BL3
100Cr6RR;
100 C 6;
100Cr6;
Y 100 C 6
102 Cr 6 KU F.5230;
100 Cr 6 SUJ 2 Ch 102Cr6
39
M1;
H41;
T11301;
T20841
1.3346 HS2-9-1;
S 2-9-1 BM 1
HS 2-8-1;
Z 85 DCWV
08-04-02-01
HS2-9-1
39
T1;
T12001 1.3355 HS18-0-1;
S 18-0-1 BT 1
18-0-1;
HS 18-0-1;
Z 80 WCV
18-04-01
2750 HS 18-0-1 F.5520;
HS 18-0-1 SKH 2 R18 HS18-0-1
39
O2;
T31502 1.2842 90MnCrV8;
90 MnCrV 8
BO 2;
BO2
90 MnV 8;
90 MV 8 90 MoVCr 8 KU 90 MnCrV 8;
F.5229 90MnCrV8
39
H13;
T20813 1.2344 X40CrMoV5-1;
X40 CrMoV 5 1 BH 13 X 40 CrMoV 5;
Z 40 CDV 5 2242 X 40 CrMoV 5
1 1 KU
F.5318;
X 40 CrMoSiV 5 SKD 61 4Ch5MF1S X40CrMoV5-1
39
39
39
39
39
39
440C;
S44004;
S44025
1.4125 X105CrMo17;
X105 CrMo 17
Z 100 CD 17 CI;
Z 100 CD 17 SUS 440 C 95Ch18;
110Ch18M-SChD X105CrMo17
40
A 532 lll A
25% Cr 0.9650 G-X 260 Cr 27 Grade 3 D 0466-00 ChWG
40
Ni-Hard 4 0.9630 G-X 300 CrNiSi 9 5 2
40
Ni-Hard 1 0.9625 G-X 330 NiCr 4 2 Grade 2 B 0513-00
40
A 532 lll A
25% Cr 0.9655 G-X 300 CrMo 27 1 Grade 3 E 20Ch25N20S2
40
Ni-Hard 2 0.9620 G-X 260 NiCr 4 2 Grade 2 A 0512-00
ISCAR
524
MATERIALS AND GRADES
USER GUIDE
Material Group No.
USA Germany U.K. France Sweden Italy Spain Japan Russia EURONORM
AISI/SAE/
UNS/
ASTM/AA Werkstoff DIN BS AFNOR SS UNI UNE JIS GOST EN
41
A532
IID20%CrMo-
LC
0.9645;
5.5609 G-X 260 CrMoNi 20 2 1 Grade 3C EN-GJN-
HV600(XCr23)
41
A532
IIC15%CrMo-
HC
0.9635;
0.9640
G-X 300 CrMo 15 3;
G-X 300 CrMoNi 15 2 1
Grade 3A;
Grade 3B
EN-GJN-
HV600(XCr14)
525
ALPHABETICAL INDEX
ALPHABETICAL INDEX
A ADBH 435
ADBH - SPARE PARTS 469
AMT MB-MT 402
AOMT/AOGT 114
AOMT-Chamfering 134
B BBH 30/40 434
BBH 63 435
BBH D16 433
BBH-D - SPARE PARTS 469
BHC MB 411
BHC - SPARE PARTS 468
BHD 50 L200 437
BHD MB 414
BHEH 435
BHEH - SPARE PARTS 470
ISCAR
526
ALPHABETICAL INDEX
B BHE MB 418
BHE MB-H 418
BHE MB - SPARE PARTS 467
BHE - SPARE PARTS 467
BHFH 435
BHFH - SPARE PARTS 469
BHF L200 437
BHF MB16-MB50 Dia. 2.5-108 425
BHF MB50-MB80 Dia. 2.5-500 432
BHF MB-BL 423
BHF - SPARE PARTS 466
BH MB COUPLING SET 466
BHR MB 404
BHR - SPARE PARTS 468
BH WASHER - SPARE PARTS 470
BLANK MB 402
527
ALPHABETICAL INDEX
B BTB-MB 393
BT-FC-MB 393
BT-MB 392
C CAID 219
CAOD 219
CAORC 237
CATM-MB 391
CCET-WF 453
CCGT-AF 455
CCGT-AS 455
CCGW/CCMT (CBN) 454
CC MB-ER 399
CCMT-14 453
CCMT/CCGT 453
CCMT/CCGT-SM 452
CCMT (PCD) 454
ISCAR
528
ALPHABETICAL INDEX
C CCMT-PF 452
CCMT-WG 454
CC - SPARE PARTS 470
CHAMRING 139
CHR MB 398
C#-MB 392
CR LNHT 410
CR SOMT 411
CW32 436
CW200 437
D D3N A-1.5D 58
D3N A-3D 59
D3N A-5D 60
D3N A-8D 61
D3N R-1.5D 58
D3N R-3D 59
529
ALPHABETICAL INDEX
D D3N R-5D 60
D3N R-8D 61
DCM-3.5D (7.5-20.9 mm) 92
DCM-3D (7.5-25.9 mm) 92
DCM-5D (7.5-25.9 mm) 93
DCM-8D (10-25.9 mm) 93
DC MB 399
DCMT-14 456
DCMT/DCGT 456
DCMT/DCGT-PF 456
DCN A-1.5D 4
DCN A-3D 6
DCN A-5D 8
DCN A-8D 10
DCN C-3D 13
DCN C-5D 13
ISCAR
530
ALPHABETICAL INDEX
D DCN C-8D 14
DCN C-12D 14
DCNM 17
DCN R-1.5D 5
DCN R-3D 7
DCN R-5D 9
DCN R-8D 11
DCN R-10D 11
DCN R-12D 12
DCNS-3D 15
DCNS-5D 16
DCNT (M8-M24) 136
DCT (M8-M24) 134
DDC-EA 246
DDC-EC 249
DDD-E3 232
531
ALPHABETICAL INDEX
D DDD-EC 211
DDD-EF-FB 202
DDD-EF-FT 193
DFN A-1.5D-IQ 86
DFN A-3D-IQ 86
DFN A-5D-IQ 86
DFN A-8D-IQ 87
DIN2079-MB 396
DR-2D-N 106
DR-3D-N 108
DR-4D-N 109
DR-4D-T 112
DR-5D-N 111
DR-CA 113
DRG-MF 142
Drilling Eccenter Sleeves 118
ISCAR
532
ALPHABETICAL INDEX
D DSC-EA 233
DSC-EC 236
DSC-IA 240
DSC-IC 242
DSD-E0 230
DSD-E1 230
DSD-E2/E3 231
DSD-EC 209
DSD-EF-FB 201
DSD-EF-FT 192
DSD-IC 210
DSD-IF-FB 201
DSD-IF-FT 192
DSTR-EC 255
DSTR-IC 258
E EMH MB 398
533
ALPHABETICAL INDEX
E EMH - SPARE PARTS 470
EX-MB 396
F F3P 65
FCP 52
FLEXFIT HOLDER 17
G GD-DH 285
GD-DH (12-13.5) 283
GD-DHL 284
GDH-MKT 287
GDV 294
GPP 220
GPS 195, 205, 215
H H3P 62
HCP-IQ 47
HFP-IQ 87
HSK A-MB 391
ISCAR
534
ALPHABETICAL INDEX
H HSK E-MB 391
HSK F-MB 392
HTP LN.. 1006 450
I ICG 57
ICK 28
ICK-2M 32
ICM 36
ICN 42
ICP 18
ICP-2M 24
IDI-SG 94
IDI-SK 98
IFP-IQ 88
IHAXF 432
IHAXF-AVI 434
IHAXF-E 434
535
ALPHABETICAL INDEX
I IHBR 409
IHCR 408
IHFF 436
IHFF-C 413
IHPR 408
IHRF 436
IHRF-BW 439
IHRF-C 413
IHRF-CH 439
IHSR 408
IHSR-BW 410
IHSR-C 413
IHSR-CH 409
IHSR-MIFR 406
IHWF 436
ISO-MB 393
ISCAR
536
ALPHABETICAL INDEX
I ISOM-MB 393
K KIT BHD-MB 440
KIT BHE MB 442
KIT BHFH-MB 449
KIT BHF-MB 446
KIT BHF MB-BL 445
L LOGT 288
M MD-BODY 82
MD-DFN-HEAD 82
MD-DR-DH-HEAD 83
MD-EXTENSION 83
MIFR 406
MNC-5D 66
MNC-7/8D 67
MNSNT 293
MTD-MB 395
537
ALPHABETICAL INDEX
M MTT-MB 395
N NPHT 203
NPMT 204
NPMX 0803 RB/RG 214
P PICCO ACE-BH 433
PICCO-MF 147
PICCO-MFT 147
PICCO R 050.20 462
PICCO R 050 (CBN) 464
PICCO R/L 047 463
PICCO R/L 050, 053, 055 461
PICCO R/L 050-C 463
PICCO R/L 090 464
PICCO R/L 520 465
PICCO R/LHD 050 464
PICCO R/LX050 460
ISCAR
538
ALPHABETICAL INDEX
P PLT 465
Q QCP-2M 43
R RE MB-AVI 397
RE MB-MB 397
RGP 244
RING DCM 137
RM-BN-H7LB 314
RM-BN-H7SA 315
RM-BN-RC-RING 313
RM-BNT (Shanks) 312
RM-FCR-H7N-CS-C 325
RM-FCR-H7S-CS-C 324
RM-MTR-H7N-CS-C 323
RM-MTR-H7S-CS-C 322
RM-SEI-A 336
RM-SEI-B 336
539
ALPHABETICAL INDEX
R RM-SEI-C 337
RM-SET-B-B 335
RM-SET-T-B 334
RM SETTING DEVICE 337
RM-SHR-H7N-MT 327
RM-SHR-H7S-MT 326
RM-SR-H7S 328
RM-SRH-Q-MT 328
S SCCD-ACP3 158
SCCD-ACP5 165
SCD-ACG8 (8xD) 167
SCD-ACP3N (3XD) 156
SCD-ACP5 (5xD) 164
SCD-ACP5N (5xD) 162
SCD-ACP8 (8xD) 167
SCD-ACP8N (8xD) 168
ISCAR
540
ALPHABETICAL INDEX
S SCD-ACP20 (20xD) 169
SCD-ACP-CS (20xD) 170
SCD-AH5 (5xD) 166
SCD-AP3 (3xD) 154
SCD-AP3N (3xD) 152
SCD-AP4 (4xD) 151
SCD-AP5 (5xD) 161
SCD-AP5N (5xD) 159
SCD-AP6 (6xD) 151
SCD-CVD 174
SCD-FNPCD 174
SCD-SXC30 171
SCD-SXC40 172
SCD-SXC50 173
SCDT 140
SCD-WPCD 174
541
ALPHABETICAL INDEX
S SCGT-AS 458
SCMT-14 457
SCMT-19 458
SCMT-SM 457
SGP 220
SHIM GPS 262
SKA-FC-MB 390
SKA-MB 390
SKB-MB 390
SLEEVE 433
SMH MB 400
SOGT-W 67
SOGX/T-AL 115, 451
SOGX-W 67
SOMT-DT 116, 451
SOMT-GF 115, 451
ISCAR
542
ALPHABETICAL INDEX
S SOMT-HD 116, 451
SOMX-DT 114
SOMX-GF 114
SOMX-HD 115
ST-MB 394
ST-MB-E 395
T TCC-DIN 401
TCH AL 407, 438
TCH AL - SPARE PARTS(Fine Boring) 469
TCH AL - SPARE PARTS (Rough Boring) 468
TCHH EX 438
TCMT-19 458
TCMT-SM 459
TCS-DIN 401
TDO-I (D18.41-65.00) 266
TDO-I (D65.00-171.99) 267
543
ALPHABETICAL INDEX
T TOGT-DT 194, 288
TOGT-GF 194, 288
TPF M-F (HSS) 360
TPG MF (HSS) 351
TPG M-H (HSS) 356
TPG M (HSS) 350
TPG M-S (HSS) 356
TPG UNC (HSS) 352
TPG UNF (HSS) 352
TPGX 459
TPGX (CBN) 460
TPGX (PCD) 460
TPH M-W (HSS) 349
TP MB-M 400
TPMX 214
TPS MF (HSS) 354
ISCAR
544
ALPHABETICAL INDEX
T TPS M-H (HSS) 358
TPS M (HSS) 353
TPS M-N (HSS) 357
TPST MF-G (HSS) 359
TPST M-G (HSS) 359
TPS UNC (HSS) 355
TPS UNF (HSS) 355
TS*** 263
TS-I** 264
TS-O** 265
W WCGT 459
X XCGT-DT 140
XCMT-MF 143
XCMT-MG 143
XOGX-DT 137
XPMT-45 234
XPMT-UB 234
2022
G
“© 2013 Iscar Ltd. This document, as well as all information
and other data contained herein and/or derived therefrom,
including but not limited to, all trademarks, logos, trade-
names, concepts, pictures, designs and/or devices, as well
as any data from which any proprietary and/or intellectual
property right may emanate (“Information”), is the sole
and exclusive property of Iscar Ltd. and is protected
by copyright and other applicable laws. No part of any
Information may be used or otherwise disseminated for any
purpose whatsoever without the express prior
written consent of Iscar Ltd.
Items appearing in this catalog may be improved, amended
or withdrawn without prior notice.”
Please check ISCAR’s online catalog
www.iscar.com for the most current
technical information regarding
our products.
ISCAR LTD.
Israel
Headquarters
Tel +972 (0)4 997 0311
Fax +972 (0)4 987 3741
www.iscar.com
headquarter@iscar.co.il
Argentina
ISCAR TOOLS ARGENTINA SA
Tel +54 114 912 2200
Fax +54 114 912 4411
admin@iscararg.com.ar
www.iscararg.com.ar
Australia
ISCAR AUSTRALIA PTY. LTD
Tel +61 (0) 2 8848 3500
Fax +61 (0) 2 8848 3511
iscaraus@iscar.com.au
www.iscar.com.au
Austria
ISCAR AUSTRIA GmbH
Tel +43 7252 71200-0
Fax +43 7252 71200-999
office@iscar.at
www.iscar.at
Belarus
JV ALC “TWING-M”
Tel +375 17 506-32-38
+375 17 506-33-31/65
Tel/Fax +375 17 506-32-37
info@twing.by
www.twing.by, www.iscar.by
Belgium
n.v. ISCAR BENELUX s.a.
Tel +32 (0) 2 464 2020
Fax +32 (0) 2 522 5121
info@iscar.be
www.iscar.be
Bosnia
(Representative Office)
Tel +387 32 201 100
Fax +387 32 201 101
info@iscar.ba
Brazil
ISCAR DO BRASIL COML. LTDA.
Tel +55 19 3826-7100
Fax +55 19 3826-7171
DDG 0800 701 8877
iscar@iscarbrasil.com.br
www.iscar.com.br
Bulgaria
ISCAR BULGARIA
Tel/Fax +359 431 62557
aa_iscar@infotel.bg
www.iscar.bg
Canada
ISCAR TOOLS INC.
Tel +1 905 829 9000
Fax +1 905 829 9100
admin@iscar.ca
www.iscar.ca
Chile
J&A INTERNATIONAL
Tel +56 2 2232 5838
amedina@jya.cl
www.jya.cl
China
ISCAR CHINA
Tel +86 21 8024 8888
iscar@iscar.com.cn
www.iscar.com.cn
Colombia
ISCAR Andina
Tel +57 310 380 9932
Tel/fax +57 1 896 65 78
iscar@iscar.com.co
www.iscar.com.co
Croatia
ISCAR ALATI d.o.o.
Tel +385 (0) 1 33 23 301
Fax +385 (0) 1 33 76 145
iscar@zg.t-com.hr
www.iscar.hr
Cyprus
WAMET (Demetriades) Ltd.
Tel +357 (0) 2 336660/5498
Fax +357 (0) 2 333386
wamet@cytanet.com.cy
Czech Republic
ISCAR CR s.r.o.
Tel +420 377 420 625
Fax +420 377 420 630
iscar@iscar.cz
www.iscar.cz
Denmark
KJ VAERKTOEJ AS/ISCAR DENMARK
Tel +45 70 11 22 44
Fax +45 46 98 67 10
kj@kj.dk
www.iscar.dk
Ecuador
ISCAR Andina
Tel/fax +57 1 821 93 38
iscar@iscar.com.co
atencioncliente@iscar.com.co
www.iscar.com.co
Estonia
KATOMSK AS
Tel +372 6775 671
Fax +372 6720 266
aleksei@katomsk.ee
Finland
ISCAR FINLAND OY
Tel +358-(0)9-439 1420
Fax +358-(0)9-466 328
info@iscar.fi
www.iscar.fi
France
ISCAR FRANCE SAS
Tel +33 (0)1 30 12 92 92
Fax +33 (0)1 30 12 95 82
info@iscar.fr
www.iscar.fr
Germany
ISCAR Germany GmbH
Tel +49 (0) 72 43 9908-0
Fax +49 (0) 72 43 9908-93
gmbh@iscar.de
www.iscar.de
Greece
INTERNATIONAL TOOLS
K.-X. GEORGOPOULOS & SIA O.E
Tel +30 210 346 0133
Fax +30 210 342 5621
info@internationaltools.gr
VIMA
V. Mazloumian & Sons
Tel +30 2310 517-117 / 544-521
Fax +30 2310 529-107
vimaco@otenet.gr
http://www.vimaco.gr
Hong Kong
MTC TOOLING SYSTEMS LTD
Tel +85-2-23054838
Fax +85-2-27988789
yoongkamsing@hotmail.com
Hungary
ISCAR HUNGARY KFT.
Tel +36 28 887 700
Fax +36 28 887 710
iscar@iscar.hu
www.iscar.hu
India
ISCAR India Ltd.
Tel +91 77009 63707
sales@iscar.in
www.iscar.in
Indonesia
CV MULTI TEKNIK
Tel +62-21-29206242/44/45/59
Fax +62-21-29206243
contact@multi-teknik.co.id
Ireland
HARD METAL MACHINE TOOLS
Tel +353 (0) 1 286 2466
Fax +353 (0) 1 286 1514
phannigan@hardmetal.ie
www.hardmetal.ie
Italy
ISCAR ITALIA srl
Tel +39 02 93 528 1
Fax +39 02 93 528 213
marketing@iscaritalia.it
www.iscaritalia.it
Japan
ISCAR JAPAN LTD.
Tel +81 6 6835 5471
Fax +81 6 6835 5472
iscar@iscar.co.jp
www.iscar.co.jp
Latvia
MECHA, UAB
Tel +370 37 407 230
Fax +370 37 407 231
info@mecha.lt
Lithuania
MECHA, UAB
Tel +370 37 407 230
Fax +370 37 407 231
sigitas@mecha.lt
Mexico
ISCAR DE MÉXICO
Tel +52 (442) 214 5505
Fax +52 (442) 214 5510
iscarmex@iscar.com.mx
www.iscar.com.mx
The Netherlands
ISCAR NEDERLAND B.V.
Tel +31 (0) 182 535523
Fax +31 (0) 182 572777
info@iscar.nl
www.iscar.nl
New Zealand
ISCAR PACIFIC LTD.
Tel +64 (0) 9 573 1280
Fax +64 (0) 9 573 0781
iscar@iscarpac.co.nz
North Macedonia
(Representative Office)
Tel +389 2 309 02 52
Fax +389 2 309 02 54
info@iscar.com.mk
Norway
SVEA MASKINER AS
Tel +47 32277750
Fax +47 32277751
per.martin.bakken@svea.no
Peru
HARTMETALL SAC
Tel: (511) 6612699
otorres@hartmetallgroup.com
Philippines
MESCO
Tel +63 2631 1775
Fax +63 2635 0276
mesco@mesco.com.ph
Poland
ISCAR POLAND Sp. z o.o.
Tel +48 32 735 7700
Fax +48 32 735 7701
iscar@iscar.pl
www.iscar.pl
Portugal
ISCAR Portugal, SA
Tel +351 256 579950
Fax +351 256 586764
info@iscarportugal.pt
www.iscarportugal.pt
Romania
ISCAR Tools SRL
Tel +40 (0)312 286 614
Fax +40 (0)312 286 615
iscar-romania@iscar.com
Russia
Moscow
ISCAR LLC
Tel/fax +7 495 660 91 25/31
iscar@iscar.ru
www.iscar.ru
Serbia
ISCAR TOOLS d.o.o.
Tel +381 11 314 90 38
Fax +381 11 314 91 47
info@iscartools.rs
Singapore
SINO TOOLING SYSTEM
Tel +65 6566 7668
Fax +65 6567 7336
sinotool@singnet.com.sg
Slovakia
ISCAR SR, s.r.o.
Tel +421 (0) 41 5074301
Fax +421 (0) 41 5074311
info@iscar.sk
www.iscar.sk
Slovenia
ISCAR SLOVENIJA d.o.o.
Tel +386 1 580 92 30
Fax +386 1 562 21 84
info@iscar.si
www.iscar.si
South Africa
ISCAR SOUTH AFRICA (PTY) LTD.
ShareCall 08600-47227
Tel +27 11 997 2700
Fax +27 11 388 9750
iscar@iscarsa.co.za
www.iscar.co.za
South Korea
ISCAR KOREA
Tel +82 53 760 7594
Fax +82 53 760 7500
leeyj@taegutec.co.kr
www.iscarkorea.co.kr
Spain
ISCAR IBERICA SA
Tel +34 93 594 6484
Fax +34 93 582 4458
iscar@iscarib.es
www.iscarib.es
Sweden
ISCAR SVERIGE AB
Tel +46 (0) 18 66 90 60
Fax +46 (0) 18 122 920
info@iscar.se
www.iscar.se
Switzerland
ISCAR HARTMETALL AG
Tel +41 (0) 52 728 0850
Fax +41 (0) 52 728 0855
office@iscar.ch
www.iscar.ch
Taiwan
ISCAR Taiwan Ltd.
Tel +886 (0)4-24731573
Fax +886 (0)4-24731530
iscar.taiwan@msa.hinet.net
www.iscar.org.tw
Thailand
ISCAR Thailand Ltd.
Tel +66 (2) 7136633-8
Fax +66 (2) 7136632
iscar@iscarthailand.com
www.iscarthailand.com
Turkey
ISCAR Kesici Takim
TIC. VE. IML. LTD
Tel +90 (262) 751 04 84 (Pbx)
Fax +90 (262) 751 04 85
iscar@iscar.com.tr
www.iscar.com.tr
Ukraine
ISCAR UKRAINE LLC
Tel +38 (050) 440 23 91
info@iscar.com.ua
www.iscar.com.ua
United Arab Emirates
SVRS General Trading LLC
Tel +971 4 342 6699
www.svrs-mena.com
United Kingdom
ISCAR TOOLS LTD.
Tel +44 (0) 121 422 8585
Fax +44 (0) 121 423 2789
sales@iscar.co.uk
www.iscar.co.uk
United States
ISCAR METALS INC.
Tel +1 817 258 3200
Tech Tel 1-877-BY-ISCAR
Fax +1 817 258 3221
info@iscarmetals.com
www.iscarmetals.com
Venezuela
FERREINDUSTRIAL ISO-DIN C.A.
Tel +58 2 632 8211/633 4657
Fax +58 2 632 5277
iso-din@cantv.net
Vietnam
ISCAR VIETNAM
(Representative Office)
Tel +84 8 38 123 519/20
Fax +84 8 38 123 521
iscarvn@hcm.fpt.vn
www.iscarvn.com
Download ISCAR WORLD APP E-CAT
ISCAR
HOLEMAKING
LINES
Metric Catalog
www.iscar.com
