INDEXABLE DRILLS
INDEXABLE DRILLS
ISCAR
4
INDEXABLE DRILLS
LPR
OAL
LS
DCONMS h6 DF
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-009-12A-1.5D
6.00 6.40 12.00 16.00 9.96 23.0 0.960 45.0 68.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-010-12A-1.5D
6.50 6.90 12.00 16.00 10.93 24.1 1.180 45.0 69.10 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-011-12A-1.5D
7.00 7.40 12.00 16.00 11.51 25.1 1.010 45.0 70.10 7.0 ICP 070 K DCN 6-9.99
DCN 075-011-12A-1.5D
7.50 7.90 12.00 16.00 12.35 25.9 1.100 45.0 70.90 7.0 ICP 075 K DCN 6-9.99
DCN 080-012-12A-1.5D
8.00 8.40 12.00 16.00 13.20 27.9 1.200 45.0 72.90 8.0 ICP 080 K DCN 6-9.99
DCN 085-013-12A-1.5D
8.50 8.90 12.00 16.00 14.04 28.2 1.290 45.0 73.20 8.0 ICP 085 K DCN 6-9.99
DCN 090-014-12A-1.5D
9.00 9.40 12.00 16.00 14.85 29.3 1.350 45.0 74.30 9.0 ICP 090 K DCN 6-9.99
DCN 095-014-12A-1.5D
9.50 9.90 12.00 16.00 15.69 30.1 1.440 45.0 75.10 9.0 ICP 095 K DCN 6-9.99
DCN 100-015-16A-1.5D
10.00 10.40 16.00 20.00 16.50 31.2 1.500 48.0 79.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-016-16A-1.5D
10.50 10.90 16.00 20.00 17.34 32.0 1.590 48.0 80.00 10.0 ICP 105 K DCN 10-13.99
DCN 110-017-16A-1.5D
11.00 11.40 16.00 20.00 18.17 33.1 1.670 48.0 81.10 11.0 ICP 110 K DCN 10-13.99
DCN 115-017-16A-1.5D
11.50 11.90 16.00 20.00 19.01 33.9 1.760 48.0 81.90 11.0 ICP 115 K DCN 10-13.99
DCN 120-018-16A-1.5D
12.00 12.40 16.00 20.00 19.82 35.0 1.820 48.0 83.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-019-16A-1.5D
12.50 12.90 16.00 20.00 20.66 35.8 1.910 48.0 83.80 12.0 ICP 125 K DCN 10-13.99
DCN 130-020-16A-1.5D
13.00 13.40 16.00 20.00 21.46 37.1 1.960 48.0 85.10 13.0 ICP 130 K DCN 10-13.99
DCN 135-020-16A-1.5D
13.50 13.90 16.00 20.00 22.30 37.9 2.050 48.0 85.90 13.0 ICP 135 K DCN 10-13.99
DCN 140-021-16A-1.5D
14.00 14.40 16.00 20.00 23.12 41.1 2.120 48.0 89.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-022-16A-1.5D
14.50 14.90 16.00 20.00 23.96 41.9 2.210 48.0 89.90 14.0 ICP 145 K DCN 14-17.99
DCN 150-023-20A-1.5D
15.00 15.90 20.00 25.00 24.77 46.2 2.270 50.0 96.20 15.0 ICP 150 K DCN 14-17.99
DCN 160-024-20A-1.5D
16.00 16.90 20.00 25.00 26.42 49.3 2.420 50.0 99.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-026-20A-1.5D
17.00 17.90 20.00 25.00 28.09 52.4 2.590 50.0 102.40 17.0 ICP 170 K DCN 14-17.99
DCN 180-027-25A-1.5D
18.00 18.90 25.00 32.00 29.73 55.5 2.730 56.0 111.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-029-25A-1.5D
19.00 19.90 25.00 32.00 31.38 58.5 2.880 56.0 114.50 19.0 ICP 190 K DCN 18-21.99
DCN 200-030-25A-1.5D
20.00 20.90 25.00 32.00 33.02 61.6 3.020 56.0 117.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-032-25A-1.5D
21.00 21.90 25.00 32.00 34.68 64.7 3.180 56.0 120.70 21.0 ICP 210 K DCN 18-21.99
DCN 220-033-25A-1.5D
22.00 22.90 25.00 32.00 36.32 67.8 3.320 56.0 123.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-035-32A-1.5D
23.00 23.90 32.00 42.00 37.96 70.9 3.460 60.0 130.90 23.0 ICP 230 K DCN 22-26.99
DCN 240-036-32A-1.5D
24.00 24.90 32.00 42.00 39.62 73.9 3.620 60.0 133.90 24.0 ICP 240 K DCN 22-26.99
DCN 250-038-32A-1.5D
25.00 25.90 32.00 42.00 41.30 77.0 3.800 60.0 137.00 25.0 ICP 250 K DCN 22-26.99
DCN 260-039-32A-1.5D
26.00 26.90 32.00 42.00 42.95 80.1 3.950 60.0 140.10 26.0 ICP 260 K DCN 22-26.99
DCN 270-041-32A-1.5D
27.00 27.90 32.00 42.00 44.60 83.1 4.100 60.0 151.10 27.0 ICP 270 K DCN 27-32.99
DCN 280-042-32A-1.5D
28.00 28.90 32.00 42.00 46.25 86.2 4.250 60.0 146.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-044-32A-1.5D
29.00 29.90 32.00 42.00 47.93 89.3 4.430 60.0 149.30 29.0 ICP 290 K DCN 27-32.99
DCN 300-045-32A-1.5D
30.00 30.90 32.00 42.00 49.59 92.4 4.590 60.0 152.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-047-32A-1.5D
31.00 31.90 32.00 42.00 51.26 95.5 4.760 60.0 155.50 31.0 ICP 310 K DCN 27-32.99
DCN 320-048-32A-1.5D
32.00 32.90 32.00 42.00 52.86 98.5 4.860 60.0 158.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)

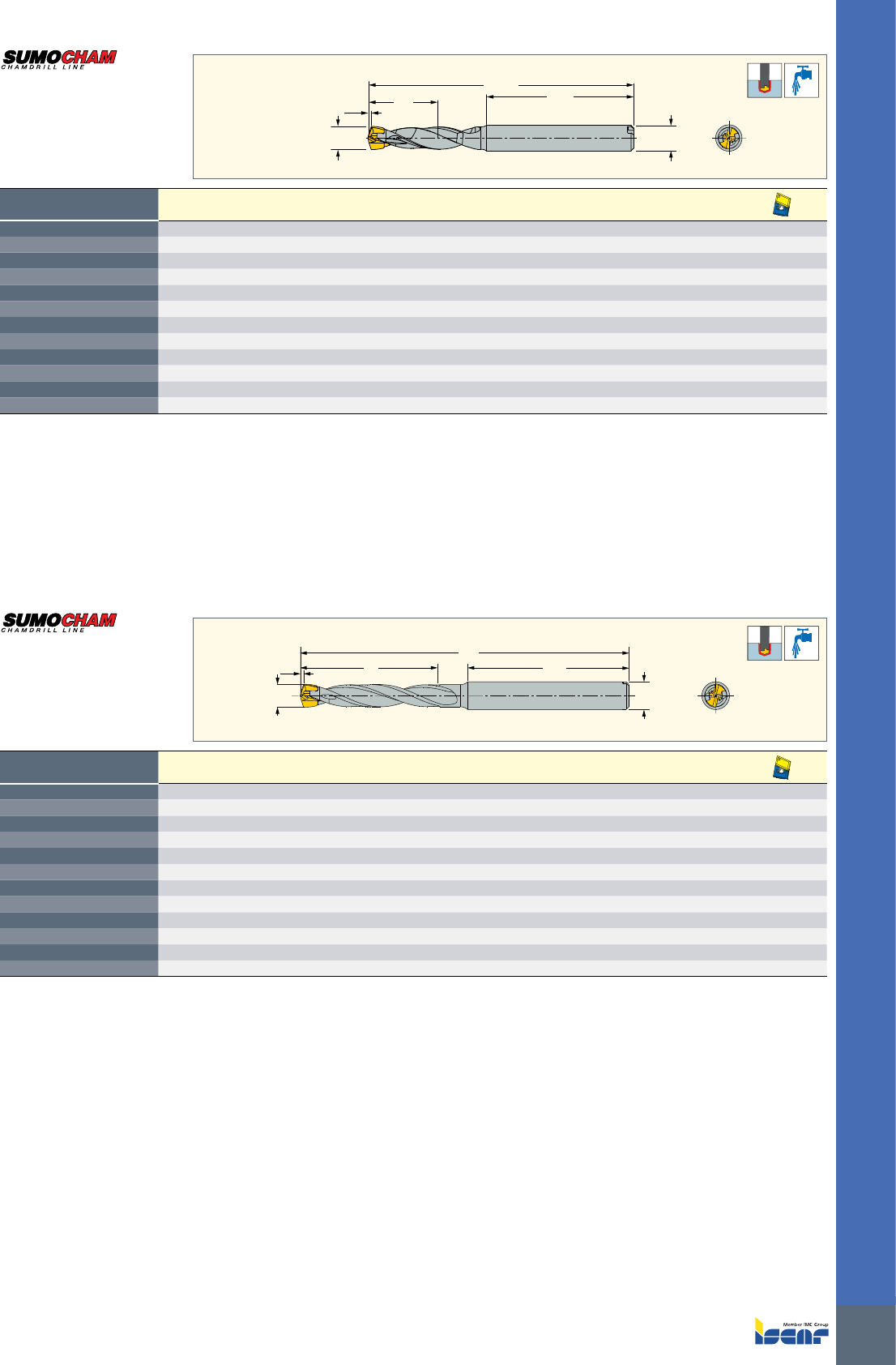

DCN A-1.5D

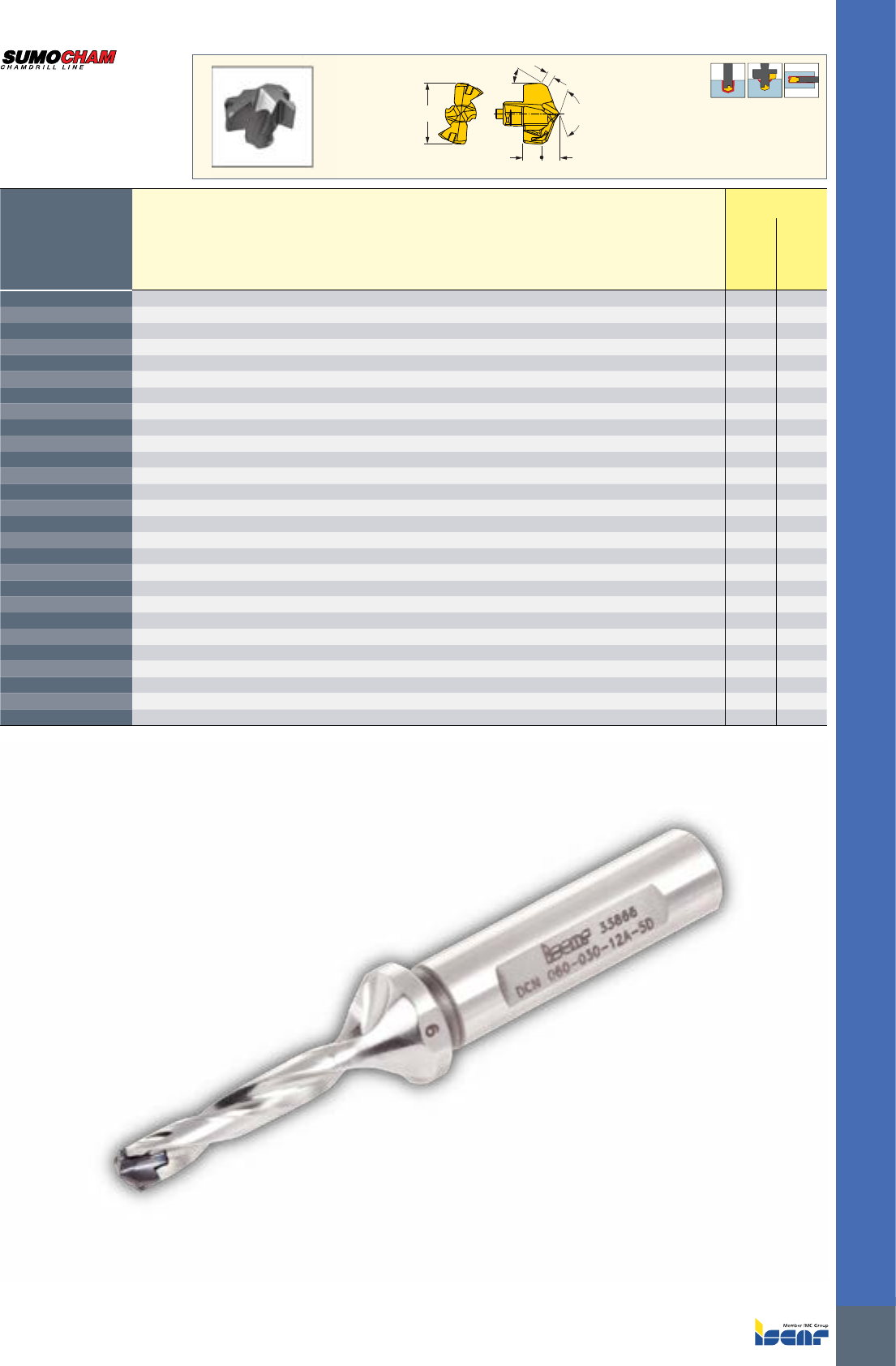

Exchangeable Head Drills with
Coolant Holes and One Flat
Shank, Drilling Depth 1.5xD
5
INDEXABLE DRILLS
LPR
OAL
LS
DCONMS h6 DF
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-009-12R-1.5D
6.00 6.40 12.00 16.00 9.96 23.0 0.960 45.0 68.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-010-12R-1.5D
6.50 6.90 12.00 16.00 10.78 24.1 1.030 45.0 69.10 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-011-12R-1.5D
7.00 7.40 12.00 16.00 11.51 25.1 1.010 45.0 70.10 7.0 ICP 070 K DCN 6-9.99
DCN 075-011-12R-1.5D
7.50 7.90 12.00 16.00 12.35 25.9 1.100 45.0 70.90 7.0 ICP 075 K DCN 6-9.99
DCN 080-012-12R-1.5D
8.00 8.40 12.00 16.00 13.20 27.9 1.200 45.0 72.90 8.0 ICP 080 K DCN 6-9.99
DCN 085-013-12R-1.5D
8.50 8.90 12.00 16.00 14.04 28.2 1.290 45.0 73.20 8.0 ICP 085 K DCN 6-9.99
DCN 090-014-12R-1.5D
9.00 9.40 12.00 16.00 14.85 29.3 1.350 45.0 74.30 9.0 ICP 090 K DCN 6-9.99
DCN 095-014-12R-1.5D
9.50 9.90 12.00 16.00 15.69 30.1 1.440 45.0 75.10 9.0 ICP 095 K DCN 6-9.99
DCN 100-015-16R-1.5D
10.00 10.40 16.00 20.00 16.50 31.2 1.500 48.0 79.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-016-16R-1.5D
10.50 10.90 16.00 20.00 17.27 32.0 1.520 48.0 80.00 10.0 ICP 105 K DCN 10-13.99
DCN 110-017-16R-1.5D
11.00 11.40 16.00 20.00 18.17 33.1 1.670 48.0 81.10 11.0 ICP 110 K DCN 10-13.99
DCN 115-017-16R-1.5D
11.50 11.90 16.00 20.00 19.01 33.9 1.760 48.0 81.90 11.0 ICP 115 K DCN 10-13.99
DCN 120-018-16R-1.5D
12.00 12.40 16.00 20.00 19.82 35.0 1.820 48.0 83.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-019-16R-1.5D
12.50 12.90 16.00 20.00 20.66 35.8 1.910 48.0 83.80 12.0 ICP 125 K DCN 10-13.99
DCN 130-020-16R-1.5D
13.00 13.40 16.00 20.00 21.46 37.1 1.960 48.0 85.10 13.0 ICP 130 K DCN 10-13.99
DCN 135-020-16R-1.5D
13.50 13.90 16.00 20.00 22.30 37.9 2.050 48.0 85.90 13.0 ICP 135 K DCN 10-13.99
DCN 140-021-16R-1.5D
14.00 14.40 16.00 20.00 23.12 41.1 2.120 48.0 89.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-022-16R-1.5D
14.50 14.90 16.00 20.00 23.96 41.9 2.210 48.0 89.90 14.0 ICP 145 K DCN 14-17.99
DCN 150-023-20R-1.5D
15.00 15.90 20.00 25.00 24.77 46.2 2.270 50.0 96.20 15.0 ICP 150 K DCN 14-17.99
DCN 160-024-20R-1.5D
16.00 16.90 20.00 25.00 26.42 49.3 2.420 50.0 99.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-026-20R-1.5D
17.00 17.90 20.00 25.00 28.09 52.4 2.590 50.0 102.40 17.0 ICP 170 K DCN 14-17.99
DCN 180-027-25R-1.5D
18.00 18.90 25.00 32.00 29.73 55.5 2.730 56.0 111.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-029-25R-1.5D
19.00 19.90 25.00 32.00 31.38 58.5 2.880 56.0 114.50 19.0 ICP 190 K DCN 18-21.99
DCN 200-030-25R-1.5D
20.00 20.90 25.00 32.00 33.02 61.6 3.020 56.0 117.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-032-25R-1.5D
21.00 21.90 25.00 32.00 34.68 64.7 3.180 56.0 120.70 21.0 ICP 210 K DCN 18-21.99
DCN 220-033-25R-1.5D
22.00 22.90 25.00 32.00 36.32 67.8 3.320 56.0 123.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-035-32R-1.5D
23.00 23.90 32.00 42.00 37.96 70.9 3.460 60.0 130.90 23.0 ICP 230 K DCN 22-26.99
DCN 240-036-32R-1.5D
24.00 24.90 32.00 42.00 39.62 74.0 3.620 60.0 134.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-038-32R-1.5D
25.00 25.90 32.00 42.00 41.30 77.0 3.800 60.0 137.00 25.0 ICP 250 K DCN 22-26.99
DCN 260-039-32R-1.5D
26.00 26.90 32.00 42.00 42.95 80.1 3.950 60.0 140.10 26.0 ICP 260 K DCN 22-26.99
DCN 270-041-32R-1.5D
27.00 27.90 32.00 42.00 44.60 83.1 4.100 60.0 143.10 27.0 ICP 270 K DCN 27-32.99
DCN 280-042-32R-1.5D
28.00 28.90 32.00 42.00 46.25 86.2 4.250 60.0 146.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-044-32R-1.5D
29.00 29.90 32.00 42.00 47.93 89.3 4.430 60.0 149.30 29.0 ICP 290 K DCN 27-32.99
DCN 300-045-32R-1.5D
30.00 30.90 32.00 42.00 49.59 92.4 4.590 60.0 152.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-047-32R-1.5D
31.00 31.90 32.00 42.00 51.26 95.5 4.760 60.0 155.50 31.0 ICP 310 K DCN 27-32.99
DCN 320-048-32R-1.5D
32.00 32.90 32.00 42.00 52.86 98.5 4.860 60.0 158.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-1.5D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 1.5xD
ISCAR
6
INDEXABLE DRILLS
DCONMS h6 DF
LPR OAL LS
DCN-DCX k7
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-018-12A-3D
6.00 6.40 12.00 16.00 18.96 32.0 0.960 45.0 77.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-020-12A-3D
6.50 6.90 12.00 16.00 20.68 33.8 1.180 45.0 78.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-021-12A-3D
7.00 7.40 12.00 16.00 22.01 35.6 1.010 45.0 80.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-023-12A-3D
7.50 7.90 12.00 16.00 23.60 37.1 1.100 45.0 82.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-024-12A-3D
8.00 8.40 12.00 16.00 25.20 39.4 1.200 45.0 84.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-025-12A-3D
8.50 8.90 12.00 16.00 26.79 40.9 1.290 45.0 85.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-027-12A-3D
9.00 9.40 12.00 16.00 28.35 42.8 1.350 45.0 87.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-029-12A-3D
9.50 9.90 12.00 16.00 29.94 44.3 1.440 45.0 89.30 9.0 ICP 095 K DCN 6-9.99
DCN 100-030-16A-3D
10.00 10.40 16.00 20.00 31.50 46.2 1.500 48.0 94.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-032-16A-3D
10.50 10.90 16.00 20.00 33.09 47.7 1.590 48.0 95.70 10.0 ICP 105 K DCN 10-13.99
DCN 110-033-16A-3D
11.00 11.40 16.00 20.00 34.67 49.6 1.670 48.0 97.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-035-16A-3D
11.50 11.90 16.00 20.00 36.26 51.1 1.760 48.0 99.10 11.0 ICP 115 K DCN 10-13.99
DCN 120-036-16A-3D
12.00 12.40 16.00 20.00 37.82 53.0 1.820 48.0 101.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-037-16A-3D
12.50 12.90 16.00 20.00 39.41 54.5 1.910 48.0 102.50 12.0 ICP 125 K DCN 10-13.99
DCN 130-039-16A-3D
13.00 13.40 16.00 20.00 40.96 56.6 1.960 48.0 104.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-041-16A-3D
13.50 13.90 16.00 20.00 42.55 58.1 2.050 48.0 106.10 13.0 ICP 135 K DCN 10-13.99
DCN 140-042-16A-3D
14.00 14.40 16.00 20.00 44.12 62.1 2.120 48.0 110.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-044-16A-3D
14.50 14.90 16.00 20.00 45.71 63.6 2.210 48.0 111.60 14.0 ICP 145 K DCN 14-17.99
DCN 150-045-20A-3D
15.00 15.90 20.00 25.00 47.27 68.7 2.270 50.0 118.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-048-20A-3D
16.00 16.90 20.00 25.00 5.42 73.3 2.420 50.0 123.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-051-20A-3D
17.00 17.90 20.00 25.00 53.59 77.9 2.590 50.0 127.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-054-25A-3D
18.00 18.90 25.00 32.00 56.73 82.5 2.730 56.0 138.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-057-25A-3D
19.00 19.90 25.00 32.00 59.88 87.0 2.880 56.0 143.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-060-25A-3D
20.00 20.90 25.00 32.00 63.02 91.6 3.020 56.0 147.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-063-25A-3D
21.00 21.90 25.00 32.00 66.18 96.2 3.180 56.0 152.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-066-25A-3D
22.00 22.90 25.00 32.00 69.32 100.8 3.320 56.0 156.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-069-32A-3D
23.00 23.90 32.00 42.00 72.46 105.4 3.460 60.0 165.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-072-32A-3D
24.00 24.90 32.00 42.00 75.62 110.0 3.620 60.0 170.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-075-32A-3D
25.00 25.90 32.00 42.00 78.80 114.5 3.800 60.0 174.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-078-32A-3D
26.00 26.90 32.00 42.00 81.95 119.0 3.950 60.0 179.00 26.0 ICP 260 K DCN 22-26.99
DCN 270-081-32A-3D
27.00 27.90 32.00 42.00 85.10 123.7 4.100 60.0 191.70 27.0 ICP 270 K DCN 27-32.99
DCN 270-081-40A-3D
27.00 27.90 40.00 50.00 85.10 123.7 4.100 68.0 183.70 27.0 ICP 270 K DCN 27-32.99
DCN 280-084-32A-3D
28.00 28.90 32.00 42.00 88.25 128.2 4.250 60.0 196.20 28.0 ICP 280 K DCN 27-32.99
DCN 280-084-40A-3D
28.00 28.90 40.00 50.00 88.25 128.2 4.250 68.0 188.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-087-32A-3D
29.00 29.90 32.00 42.00 91.43 132.8 4.430 60.0 200.80 29.0 ICP 290 K DCN 27-32.99
DCN 290-087-40A-3D
29.00 29.90 40.00 50.00 91.43 132.8 4.430 68.0 192.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-090-32A-3D
30.00 30.90 32.00 42.00 94.59 137.4 4.590 60.0 205.40 30.0 ICP 300 K DCN 27-32.99
DCN 300-090-40A-3D
30.00 30.90 40.00 50.00 94.59 137.4 4.590 68.0 197.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-093-32A-3D
31.00 31.90 32.00 42.00 97.76 142.0 4.760 60.0 210.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-096-32A-3D
32.00 32.90 32.00 42.00 100.86 146.5 4.860 60.0 214.50 32.0 ICP 320 K DCN 27-32.99
DCN 320-096-40A-3D
32.00 32.90 40.00 50.00 100.86 146.5 4.860 68.0 206.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN A-3D
Exchangeable Head Drills with
Coolant Holes and One Flat
Shank, Drilling Depth 3xD
7

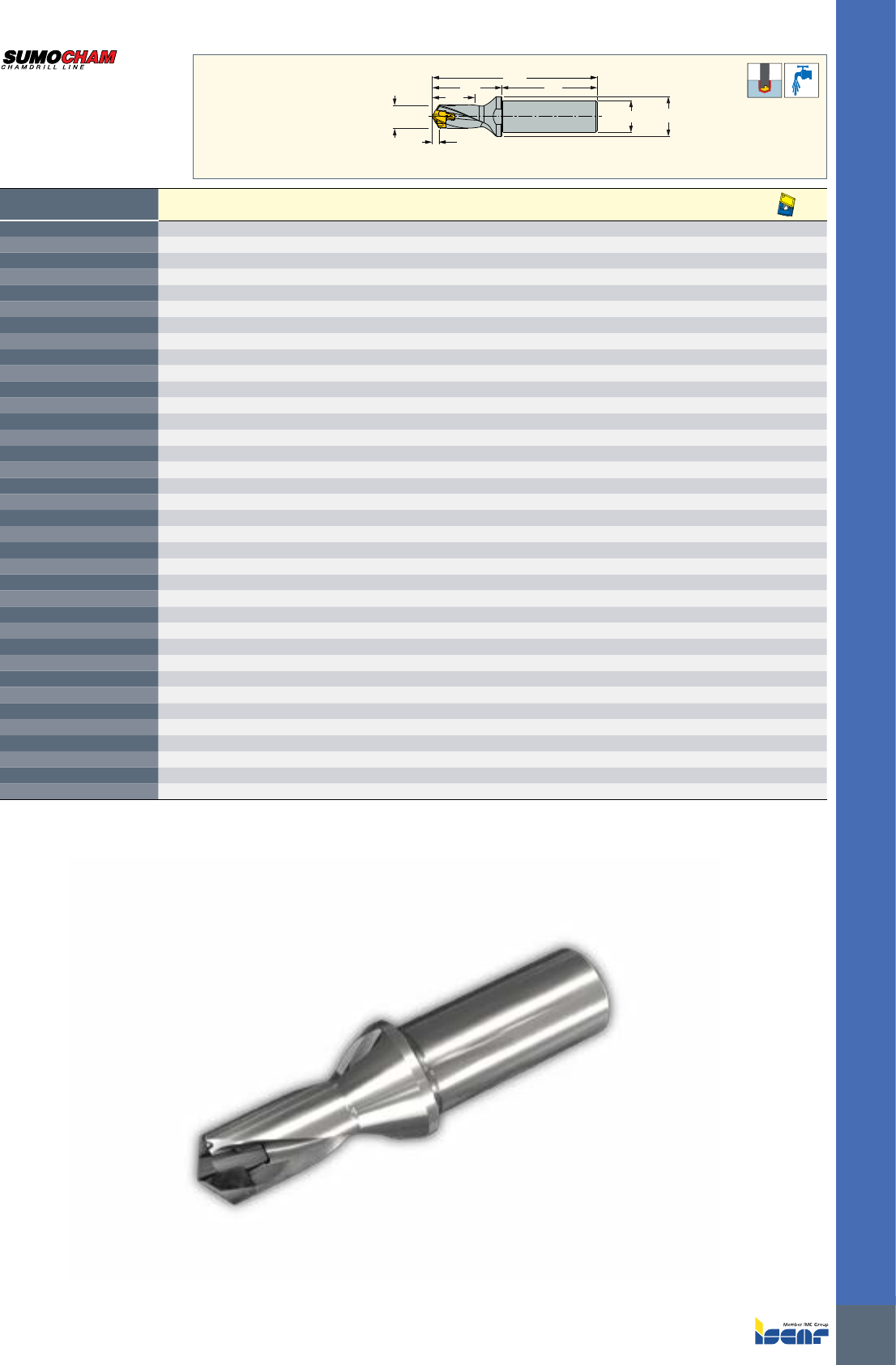

INDEXABLE DRILLS
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-018-12R-3D
6.00 6.40 12.00 16.00 18.96 32.0 0.960 45.0 77.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-020-12R-3D
6.50 6.90 12.00 16.00 20.68 33.8 1.180 45.0 78.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-021-12R-3D
7.00 7.40 12.00 16.00 22.01 35.6 1.010 45.0 80.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-023-12R-3D
7.50 7.90 12.00 16.00 23.60 37.1 1.100 45.0 82.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-024-12R-3D
8.00 8.40 12.00 16.00 25.20 39.4 1.200 45.0 84.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-025-12R-3D
8.50 8.90 12.00 16.00 26.79 40.9 1.290 45.0 85.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-027-12R-3D
9.00 9.40 12.00 16.00 28.35 42.8 1.350 45.0 87.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-029-12R-3D
9.50 9.90 12.00 16.00 29.94 44.3 1.440 45.0 89.30 9.0 ICP 095 K DCN 6-9.99
DCN 100-030-16R-3D
10.00 10.40 16.00 20.00 31.50 46.2 1.500 48.0 94.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-032-16R-3D
10.50 10.90 16.00 20.00 33.09 47.7 1.590 48.0 95.70 10.0 ICP 105 K DCN 10-13.99
DCN 110-033-16R-3D
11.00 11.40 16.00 20.00 34.67 49.6 1.670 48.0 97.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-035-16R-3D
11.50 11.90 16.00 20.00 36.26 51.1 1.760 48.0 99.10 11.0 ICP 115 K DCN 10-13.99
DCN 120-036-16R-3D
12.00 12.40 16.00 20.00 37.82 53.0 1.820 48.0 101.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-037-16R-3D
12.50 12.90 16.00 20.00 39.41 54.5 1.910 48.0 102.50 12.0 ICP 125 K DCN 10-13.99
DCN 130-039-16R-3D
13.00 13.40 16.00 20.00 40.96 56.6 1.960 48.0 104.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-041-16R-3D
13.50 13.90 16.00 20.00 42.55 58.1 2.050 48.0 106.10 13.0 ICP 135 K DCN 10-13.99
DCN 140-042-16R-3D
14.00 14.40 16.00 20.00 44.12 62.1 2.120 48.0 110.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-044-16R-3D
14.50 14.90 16.00 20.00 45.71 63.6 2.210 48.0 111.60 14.0 ICP 145 K DCN 14-17.99
DCN 150-045-20R-3D
15.00 15.90 20.00 25.00 47.27 68.7 2.270 50.0 118.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-048-20R-3D
16.00 16.90 20.00 25.00 50.42 73.3 2.420 50.0 123.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-051-20R-3D
17.00 17.90 20.00 25.00 53.59 77.9 2.590 50.0 127.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-054-25R-3D
18.00 18.90 25.00 32.00 56.73 82.5 2.730 56.0 138.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-057-25R-3D
19.00 19.90 25.00 32.00 59.88 87.0 2.880 56.0 143.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-060-25R-3D
20.00 20.90 25.00 32.00 63.02 91.6 3.020 56.0 147.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-063-25R-3D
21.00 21.90 25.00 32.00 66.18 96.2 3.180 56.0 152.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-066-25R-3D
22.00 22.90 25.00 32.00 69.32 100.8 3.320 56.0 156.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-069-32R-3D
23.00 23.90 32.00 42.00 72.46 105.4 3.460 60.0 165.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-072-32R-3D
24.00 24.90 32.00 42.00 75.62 110.0 3.620 60.0 170.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-075-32R-3D
25.00 25.90 32.00 42.00 78.80 114.5 3.800 60.0 174.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-078-32R-3D
26.00 26.90 32.00 42.00 81.95 119.0 3.950 60.0 179.00 26.0 ICP 260 K DCN 22-26.99
DCN 270-081-32R-3D
27.00 27.90 32.00 42.00 85.10 123.7 4.100 60.0 183.70 27.0 ICP 270 K DCN 27-32.99
DCN 280-084-32R-3D
28.00 28.90 32.00 42.00 88.25 128.2 4.250 60.0 188.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-087-32R-3D
29.00 29.90 32.00 42.00 91.43 132.8 4.430 60.0 192.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-090-32R-3D
30.00 30.90 32.00 42.00 94.59 137.4 4.590 60.0 197.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-093-32R-3D
31.00 31.90 32.00 42.00 97.76 142.0 4.760 60.0 202.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-096-32R-3D
32.00 32.90 32.00 42.00 100.86 146.5 4.860 60.0 206.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-3D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 3xD
ISCAR
8

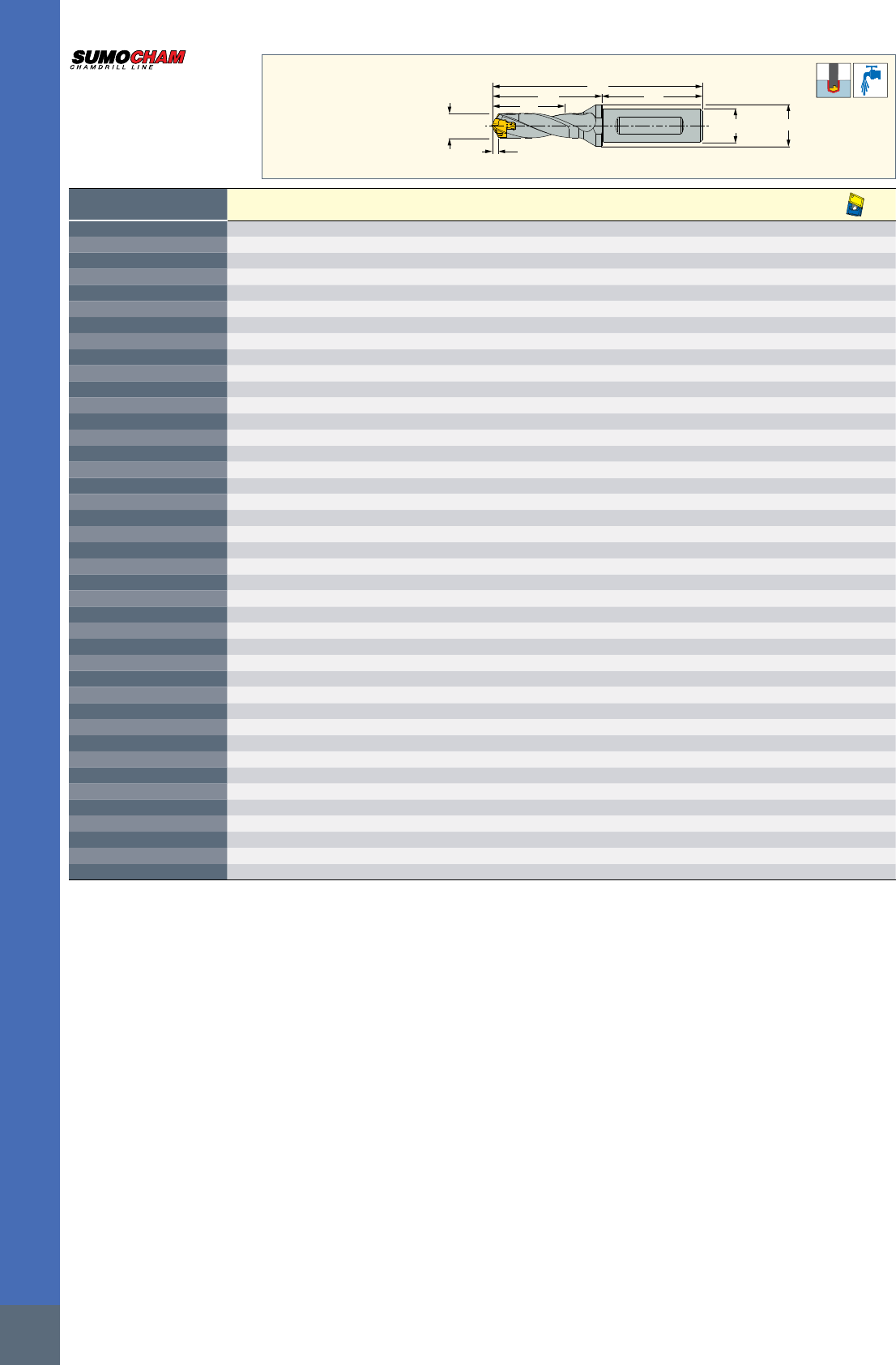

INDEXABLE DRILLS
LPR
OAL
LS
DCONMSh6 DF
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-030-12A-5D
6.00 6.40 12.00 16.00 30.96 44.0 0.960 45.0 89.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-033-12A-5D
6.50 6.90 12.00 16.00 33.68 46.8 1.180 45.0 91.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-035-12A-5D
7.00 7.40 12.00 16.00 36.01 49.6 1.010 45.0 94.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-038-12A-5D
7.50 7.90 12.00 16.00 38.60 52.1 1.100 45.0 97.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-040-12A-5D
8.00 8.40 12.00 16.00 41.20 55.4 1.200 45.0 100.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-042-12A-5D
8.50 8.90 12.00 16.00 43.79 57.9 1.290 45.0 102.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-045-12A-5D
9.00 9.40 12.00 16.00 46.35 60.8 1.350 45.0 105.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-048-12A-5D
9.50 9.90 12.00 16.00 48.94 63.3 1.440 45.0 108.30 9.0 ICP 095 K DCN 6-9.99
DCN 100-050-16A-5D
10.00 10.40 16.00 20.00 51.50 66.2 1.500 48.0 114.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-053-16A-5D
10.50 10.90 16.00 20.00 54.09 68.7 1.590 48.0 116.70 10.0 ICP 105 K DCN 10-13.99
DCN 110-055-16A-5D
11.00 11.40 16.00 20.00 56.67 71.6 1.670 48.0 119.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-058-16A-5D
11.50 11.90 16.00 20.00 59.26 74.1 1.760 48.0 122.10 11.0 ICP 115 K DCN 10-13.99
DCN 120-060-16A-5D
12.00 12.40 16.00 20.00 61.82 77.0 1.820 48.0 125.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-062-16A-5D
12.50 12.90 16.00 20.00 64.41 79.5 1.910 48.0 127.50 12.0 ICP 125 K DCN 10-13.99
DCN 130-065-16A-5D
13.00 13.40 16.00 20.00 66.96 82.6 1.960 48.0 130.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-068-16A-5D
13.50 13.90 16.00 20.00 69.55 85.1 2.050 48.0 133.10 13.0 ICP 135 K DCN 10-13.99
DCN 140-070-16A-5D
14.00 14.40 16.00 20.00 72.12 90.2 2.120 48.0 138.20 14.0 ICP 140 K DCN 14-17.99
DCN 145-073-16A-5D
14.50 14.90 16.00 20.00 74.71 92.7 2.210 48.0 140.70 14.0 ICP 145 K DCN 14-17.99
DCN 150-075-20A-5D
15.00 15.90 20.00 25.00 77.27 98.7 2.270 50.0 148.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-080-20A-5D
16.00 16.90 20.00 25.00 82.42 105.3 2.420 50.0 155.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-085-20A-5D
17.00 17.90 20.00 25.00 87.59 111.9 2.590 50.0 161.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-090-25A-5D
18.00 18.90 25.00 32.00 92.73 118.5 2.730 56.0 174.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-095-25A-5D
19.00 19.90 25.00 32.00 97.88 125.0 2.880 56.0 181.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-100-25A-5D
20.00 20.90 25.00 32.00 103.02 131.6 3.020 56.0 187.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-105-25A-5D
21.00 21.90 25.00 32.00 108.18 138.2 3.180 56.0 194.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-110-25A-5D
22.00 22.90 25.00 32.00 113.32 144.8 3.320 56.0 200.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-115-32A-5D
23.00 23.90 32.00 42.00 118.46 151.4 3.460 60.0 211.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-120-32A-5D
24.00 24.90 32.00 42.00 123.62 158.0 3.620 60.0 218.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-125-32A-5D
25.00 25.90 32.00 42.00 128.80 164.5 3.800 60.0 224.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-130-32A-5D
26.00 26.90 32.00 42.00 133.95 171.0 3.950 60.0 231.00 26.0 ICP 260 K DCN 22-26.99
DCN 270-135-32A-5D
27.00 27.90 32.00 42.00 139.10 177.7 4.100 60.0 237.65 27.0 ICP 270 K DCN 27-32.99
DCN 270-135-40A-5D
27.00 27.90 40.00 50.00 139.10 177.7 4.100 68.0 245.65 27.0 ICP 270 K DCN 27-32.99
DCN 280-140-32A-5D
28.00 28.90 32.00 42.00 144.25 184.2 4.250 60.0 252.20 28.0 ICP 280 K DCN 27-32.99
DCN 280-140-40A-5D
28.00 28.90 40.00 50.00 144.25 184.2 4.250 68.0 244.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-145-32A-5D
29.00 29.90 32.00 42.00 149.43 190.8 4.430 60.0 258.80 29.0 ICP 290 K DCN 27-32.99
DCN 290-145-40A-5D
29.00 29.90 40.00 50.00 149.43 190.8 4.430 68.0 250.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-150-32A-5D
30.00 30.90 32.00 42.00 154.59 197.4 4.590 60.0 265.40 30.0 ICP 300 K DCN 27-32.99
DCN 300-150-40A-5D
30.00 30.90 40.00 50.00 154.59 197.4 4.590 68.0 257.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-155-32A-5D
31.00 31.90 32.00 42.00 159.76 204.0 4.760 60.0 272.00 31.0 ICP 310 K DCN 27-32.99
DCN 310-155-40A-5D
31.00 31.90 40.00 50.00 159.76 204.0 4.760 68.0 264.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-160-32A-5D
32.00 32.90 32.00 42.00 164.86 210.5 4.860 60.0 278.50 32.0 ICP 320 K DCN 27-32.99
DCN 320-160-40A-5D
32.00 32.90 40.00 50.00 164.86 210.5 4.860 68.0 270.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN A-5D
Exchangeable Head Drills with
Coolant Holes and One Flat
Shank, Drilling Depth 5xD
9
INDEXABLE DRILLS
DCONMS h6
DCN-DCX k7 DF
LSLPR
OAL
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-030-12R-5D
6.00 6.40 12.00 16.00 30.96 44.0 0.960 45.0 89.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-033-12R-5D
6.50 6.90 12.00 16.00 33.68 46.8 1.180 45.0 91.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-035-12R-5D
7.00 7.40 12.00 16.00 36.01 49.6 1.010 45.0 94.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-038-12R-5D
7.50 7.90 12.00 16.00 38.60 52.1 1.100 45.0 97.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-040-12R-5D
8.00 8.40 12.00 16.00 41.20 55.4 1.200 45.0 100.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-042-12R-5D
8.50 8.90 12.00 16.00 43.79 57.9 1.290 45.0 102.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-045-12R-5D
9.00 9.40 12.00 16.00 46.35 60.8 1.350 45.0 105.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-048-12R-5D
9.50 9.90 12.00 16.00 48.94 63.3 1.440 45.0 108.30 9.0 ICP 095 K DCN 6-9.99
DCN 100-050-16R-5D
10.00 10.40 16.00 20.00 51.50 66.2 1.500 48.0 114.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-053-16R-5D
10.50 10.90 16.00 20.00 54.09 68.7 1.590 48.0 116.70 10.0 ICP 105 K DCN 10-13.99
DCN 110-055-16R-5D
11.00 11.40 16.00 20.00 56.67 71.6 1.670 48.0 119.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-058-16R-5D
11.50 11.90 16.00 20.00 59.26 74.1 1.760 48.0 122.10 11.0 ICP 115 K DCN 10-13.99
DCN 120-060-16R-5D
12.00 12.40 16.00 20.00 61.82 77.0 1.820 48.0 125.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-062-16R-5D
12.50 12.90 16.00 20.00 64.41 79.5 1.910 48.0 127.50 12.0 ICP 125 K DCN 10-13.99
DCN 130-065-16R-5D
13.00 13.40 16.00 20.00 66.96 82.6 1.960 48.0 130.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-068-16R-5D
13.50 13.90 16.00 20.00 69.55 85.1 2.050 48.0 133.10 13.0 ICP 135 K DCN 10-13.99
DCN 140-070-16R-5D
14.00 14.40 16.00 20.00 72.12 90.2 2.120 48.0 138.20 14.0 ICP 140 K DCN 14-17.99
DCN 145-073-16R-5D
14.50 14.90 16.00 20.00 74.62 92.7 2.210 48.0 140.70 14.0 ICP 145 K DCN 14-17.99
DCN 150-075-20R-5D
15.00 15.90 20.00 25.00 77.27 98.7 2.270 50.0 148.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-080-20R-5D
16.00 16.90 20.00 25.00 82.42 105.3 2.420 50.0 155.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-085-20R-5D
17.00 17.90 20.00 25.00 87.59 111.9 2.590 50.0 161.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-090-25R-5D
18.00 18.90 25.00 32.00 92.73 118.5 2.730 56.0 174.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-095-25R-5D
19.00 19.90 25.00 32.00 97.88 125.0 2.880 56.0 181.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-100-25R-5D
20.00 20.90 25.00 32.00 103.02 131.6 3.020 56.0 187.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-105-25R-5D
21.00 21.90 25.00 32.00 108.18 138.2 3.180 56.0 194.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-110-25R-5D
22.00 22.90 25.00 32.00 113.32 144.8 3.320 56.0 200.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-115-32R-5D
23.00 23.90 32.00 42.00 118.46 151.4 3.460 60.0 211.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-120-32R-5D
24.00 24.90 32.00 42.00 123.62 158.0 3.620 60.0 218.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-125-32R-5D
25.00 25.90 32.00 42.00 128.80 164.5 3.800 60.0 224.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-130-32R-5D
26.00 26.90 32.00 42.00 133.95 171.0 3.950 60.0 231.00 26.0 ICP 260 K DCN 22-26.99
DCN 270-135-32R-5D
27.00 27.90 32.00 42.00 139.10 177.7 4.100 60.0 237.70 27.0 ICP 270 K DCN 27-32.99
DCN 280-140-32R-5D
28.00 28.90 32.00 42.00 144.25 184.2 4.250 60.0 244.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-145-32R-5D
29.00 29.90 32.00 42.00 149.43 190.8 4.430 60.0 250.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-150-32R-5D
30.00 30.90 32.00 42.00 154.59 197.4 4.590 60.0 257.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-155-32R-5D
31.00 31.90 32.00 42.00 159.76 204.0 4.760 60.0 264.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-160-32R-5D
32.00 32.90 32.00 42.00 164.86 210.5 4.860 60.0 270.50 32.0 ICP 320 K DCN 27-32.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-5D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 5xD
ISCAR
10

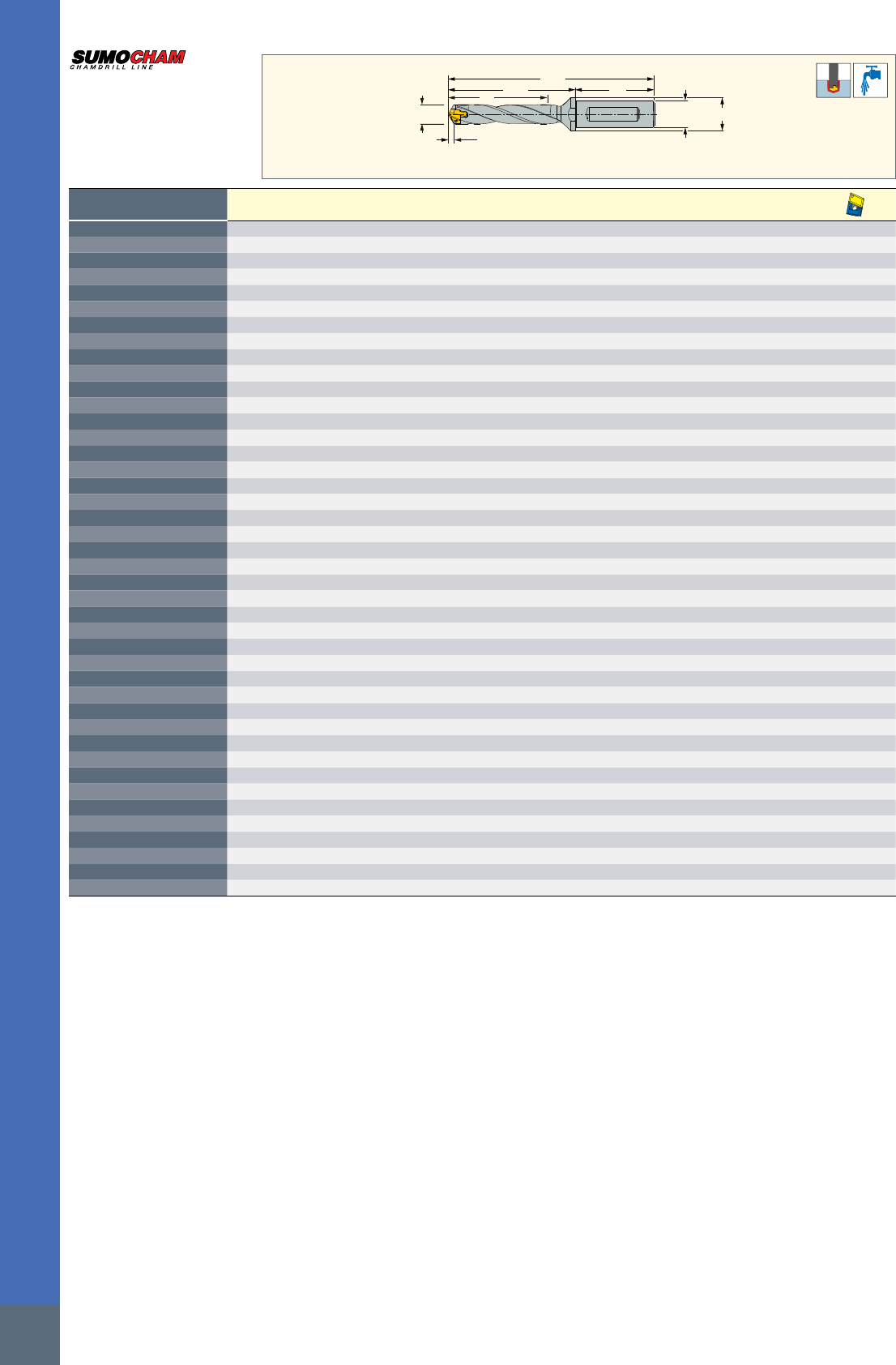

INDEXABLE DRILLS
LPR
OAL
LS
DF
LU
PL
DCN-DCX k7 DCONMSh6
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-048-12A-8D
6.00 6.40 12.00 16.00 48.96 62.0 0.960 45.0 107.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-052-12A-8D
6.50 6.90 12.00 16.00 53.18 66.3 1.180 45.0 111.30 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-056-12A-8D
7.00 7.40 12.00 16.00 57.01 70.6 1.010 45.0 115.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-060-12A-8D
7.50 7.90 12.00 16.00 61.10 74.6 1.100 45.0 120.00 7.0 ICP 075 K DCN 6-9.99
DCN 080-064-12A-8D
8.00 8.40 12.00 16.00 65.20 79.4 1.200 45.0 124.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-068-12A-8D
8.50 8.90 12.00 16.00 69.29 83.4 1.290 45.0 128.40 8.0 ICP 085 K DCN 6-9.99
DCN 090-072-12A-8D
9.00 9.40 12.00 16.00 73.36 87.8 1.360 45.0 132.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-076-12A-8D
9.50 9.90 12.00 16.00 77.44 91.8 1.440 45.0 136.80 9.0 ICP 095 K DCN 6-9.99
DCN 100-080-16A-8D
10.00 10.40 16.00 20.00 81.50 96.2 1.500 48.0 144.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-084-16A-8D
10.50 10.90 16.00 20.00 85.59 100.2 1.590 48.0 148.20 10.0 ICP 105 K DCN 10-13.99
DCN 110-088-16A-8D
11.00 11.40 16.00 20.00 89.67 104.6 1.670 48.0 152.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-092-16A-8D
11.50 11.90 16.00 20.00 93.76 108.6 1.760 48.0 156.60 11.0 ICP 115 K DCN 10-13.99
DCN 120-096-16A-8D
12.00 12.40 16.00 20.00 97.82 113.0 1.820 48.0 161.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-100-16A-8D
12.50 12.90 16.00 20.00 101.91 117.0 1.910 48.0 165.00 12.0 ICP 125 K DCN 10-13.99
DCN 130-104-16A-8D
13.00 13.40 16.00 20.00 105.96 121.6 1.960 48.0 169.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-108-16A-8D
13.50 13.90 16.00 20.00 110.05 125.6 2.050 48.0 173.60 13.0 ICP 135 K DCN 10-13.99
DCN 140-112-16A-8D
14.00 14.40 16.00 20.00 114.12 132.1 2.120 48.0 180.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-116-16A-8D
14.50 14.90 16.00 20.00 118.21 136.2 2.210 48.0 184.20 14.0 ICP 145 K DCN 14-17.99
DCN 150-120-20A-8D
15.00 15.90 20.00 25.00 122.27 143.7 2.270 50.0 193.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-128-20A-8D
16.00 16.90 20.00 25.00 130.42 153.3 2.420 50.0 203.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-136-20A-8D
17.00 17.90 20.00 25.00 138.59 162.9 2.590 50.0 212.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-144-25A-8D
18.00 18.90 25.00 32.00 146.73 172.5 2.730 56.0 228.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-152-25A-8D
19.00 19.90 25.00 32.00 154.88 182.0 2.880 56.0 238.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-160-25A-8D
20.00 20.90 25.00 32.00 163.02 191.6 3.020 56.0 247.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-168-25A-8D
21.00 21.90 25.00 32.00 171.18 201.2 3.180 56.0 257.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-176-25A-8D
22.00 22.90 25.00 32.00 179.32 210.8 3.320 56.0 266.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-184-32A-8D
23.00 23.90 32.00 42.00 187.46 220.4 3.460 60.0 280.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-192-32A-8D
24.00 24.90 32.00 42.00 195.62 230.0 3.620 60.0 290.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-200-32A-8D
25.00 25.90 32.00 42.00 203.80 239.5 3.800 60.0 299.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-208-32A-8D
26.00 26.90 32.00 42.00 211.95 249.3 3.950 60.0 309.30 26.0 ICP 260 K DCN 22-26.99
DCN 270-216-32A-8D
27.00 27.90 32.00 42.00 220.10 258.6 4.100 60.0 318.60 27.0 ICP 270 K DCN 27-32.99
DCN 280-224-32A-8D
28.00 28.90 32.00 42.00 228.25 268.2 4.250 60.0 328.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-232-32A-8D
29.00 29.90 32.00 42.00 236.43 277.8 4.430 60.0 337.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-240-32A-8D
30.00 30.90 32.00 42.00 244.59 287.4 4.590 60.0 347.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-248-32A-8D
31.00 31.90 32.00 42.00 252.76 297.0 4.760 60.0 357.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-256-32A-8D
32.00 32.90 32.00 42.00 260.86 306.5 4.860 60.0 366.50 32.0 ICP 320 K DCN 27-32.99
• Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. It is not required if HCP or QCP drilling head is used
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN A-8D
Exchangeable Head Drills with
Coolant Holes and One Flat
Shank, Drilling Depth 8xD
11

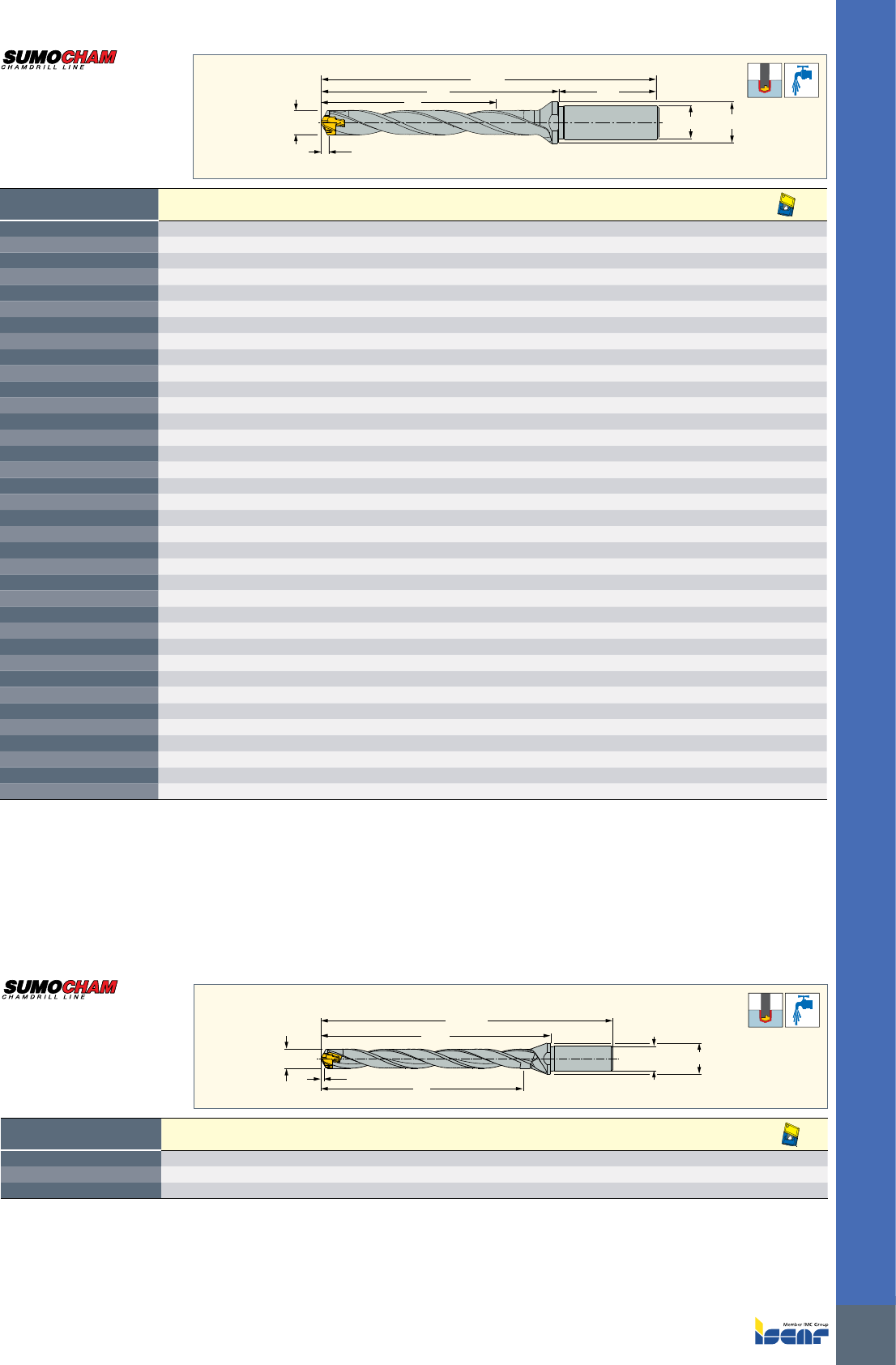

INDEXABLE DRILLS
LPR
OAL
LS
DCONMSh6
DCN-DCX k7 DF
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 060-048-12R-8D
6.00 6.40 12.00 16.00 48.96 62.0 0.960 45.0 107.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-052-12R-8D
6.50 6.90 12.00 16.00 53.18 66.3 1.180 45.0 111.30 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-056-12R-8D
7.00 7.40 12.00 16.00 57.01 70.6 1.010 45.0 115.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-060-12R-8D
7.50 7.90 12.00 16.00 61.10 74.6 1.100 45.0 120.00 7.0 ICP 075 K DCN 6-9.99
DCN 080-064-12R-8D
8.00 8.40 12.00 16.00 65.20 79.4 1.200 45.0 124.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-068-12R-8D
8.50 8.90 12.00 16.00 69.29 83.4 1.290 45.0 128.40 8.0 ICP 085 K DCN 6-9.99
DCN 090-072-12R-8D
9.00 9.40 12.00 16.00 73.35 87.8 1.350 45.0 132.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-076-12R-8D
9.50 9.90 12.00 16.00 77.44 91.8 1.440 45.0 136.80 9.0 ICP 095 K DCN 6-9.99
DCN 100-080-16R-8D
10.00 10.40 16.00 20.00 81.50 96.2 1.500 48.0 144.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-084-16R-8D
10.50 10.90 16.00 20.00 85.59 100.2 1.590 48.0 148.20 10.0 ICP 105 K DCN 10-13.99
DCN 110-088-16R-8D
11.00 11.40 16.00 20.00 89.67 104.6 1.670 48.0 152.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-092-16R-8D
11.50 11.90 16.00 20.00 93.76 108.6 1.760 48.0 156.60 11.0 ICP 115 K DCN 10-13.99
DCN 120-096-16R-8D
12.00 12.40 16.00 20.00 97.82 113.0 1.820 48.0 161.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-100-16R-8D
12.50 12.90 16.00 20.00 101.91 117.0 1.910 48.0 165.00 12.0 ICP 125 K DCN 10-13.99
DCN 130-104-16R-8D
13.00 13.40 16.00 20.00 105.96 121.6 1.960 48.0 169.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-108-16R-8D
13.50 13.90 16.00 20.00 110.05 125.6 2.050 48.0 173.60 13.0 ICP 135 K DCN 10-13.99
DCN 140-112-16R-8D
14.00 14.40 16.00 20.00 114.12 132.1 2.120 48.0 180.10 14.0 ICP 140 K DCN 14-17.99
DCN 145-116-16R-8D
14.50 14.90 16.00 20.00 118.21 136.2 2.210 48.0 184.20 14.0 ICP 145 K DCN 14-17.99
DCN 150-120-20R-8D
15.00 15.90 20.00 25.00 122.27 143.7 2.270 50.0 193.70 15.0 ICP 150 K DCN 14-17.99
DCN 160-128-20R-8D
16.00 16.90 20.00 25.00 130.42 153.3 2.420 50.0 203.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-136-20R-8D
17.00 17.90 20.00 25.00 138.59 162.9 2.590 50.0 212.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-144-25R-8D
18.00 18.90 25.00 32.00 146.73 172.5 2.730 56.0 228.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-152-25R-8D
19.00 19.90 25.00 32.00 154.88 182.0 2.880 56.0 238.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-160-25R-8D
20.00 20.90 25.00 32.00 163.02 191.6 3.020 56.0 247.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-168-25R-8D
21.00 21.90 25.00 32.00 171.18 201.2 3.180 56.0 257.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-176-25R-8D
22.00 22.90 25.00 32.00 179.32 210.8 3.320 56.0 266.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-184-32R-8D
23.00 23.90 32.00 42.00 187.46 220.4 3.460 60.0 280.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-192-32R-8D
24.00 24.90 32.00 42.00 195.62 230.0 3.620 60.0 290.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-200-32R-8D
25.00 25.90 32.00 42.00 203.80 239.5 3.800 60.0 299.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-208-32R-8D
26.00 26.90 32.00 42.00 211.95 249.3 3.950 60.0 309.30 26.0 ICP 260 K DCN 22-26.99
DCN 270-216-32R-8D
27.00 27.90 32.00 42.00 220.10 258.6 4.100 60.0 318.60 27.0 ICP 270 K DCN 27-32.99
DCN 280-224-32R-8D
28.00 28.90 32.00 42.00 228.25 268.2 4.250 60.0 328.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-232-32R-8D
29.00 29.90 32.00 42.00 236.43 277.8 4.430 60.0 337.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-240-32R-8D
30.00 30.90 32.00 42.00 244.59 287.4 4.590 60.0 347.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-248-32R-8D
31.00 31.90 32.00 42.00 252.76 297.0 4.760 60.0 357.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-256-32R-8D
32.00 32.90 32.00 42.00 260.86 306.5 4.860 60.0 366.50 32.0 ICP 320 K DCN 27-32.99
• Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. It is not required if HCP or QCP drilling head is used
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-8D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 8xD

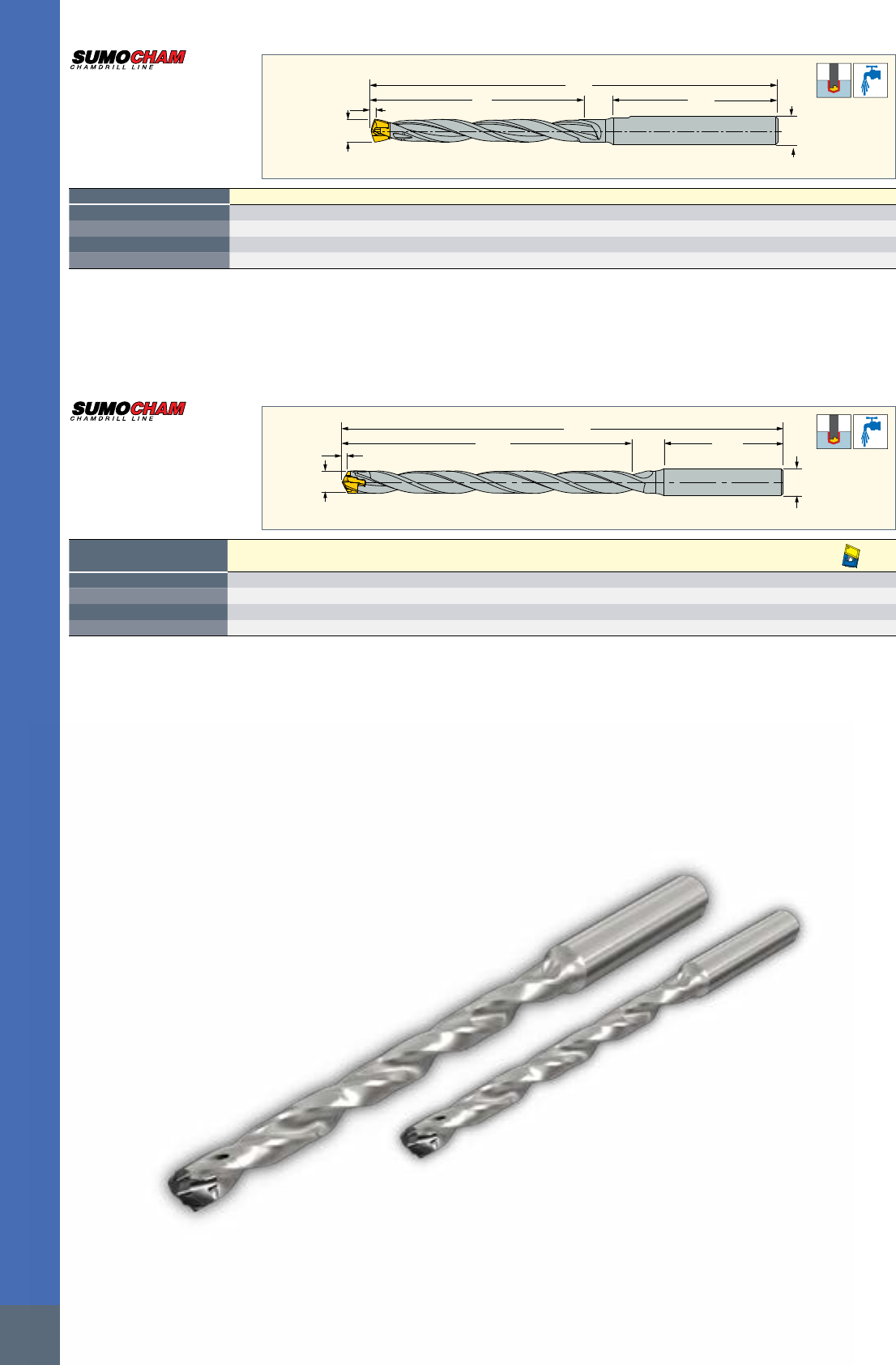

DF
DCONMS h6
LPR
OAL
LU
DC k7
PL
Designation
DC DCONMS DF LU LPR PL OAL SSC(1)
DCN 160-160-20R-10D
16.00 20.00 25.00 162.40 185.30 2.420 235.30 16.0 K DCN 14-17.99
DCN 190-190-25R-10D
19.00 25.00 32.00 192.90 220.00 2.880 276.00 19.0 K DCN 18-21.99
DCN 250-250-32R-10D
25.00 32.00 42.00 253.80 289.50 3.800 349.50 25.0 K DCN 22-26.99
• Prior to using the 10xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. It is not required if HCP or QCP drilling head is used • Do
not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Seat size code
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-10D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 10xD
ISCAR
12

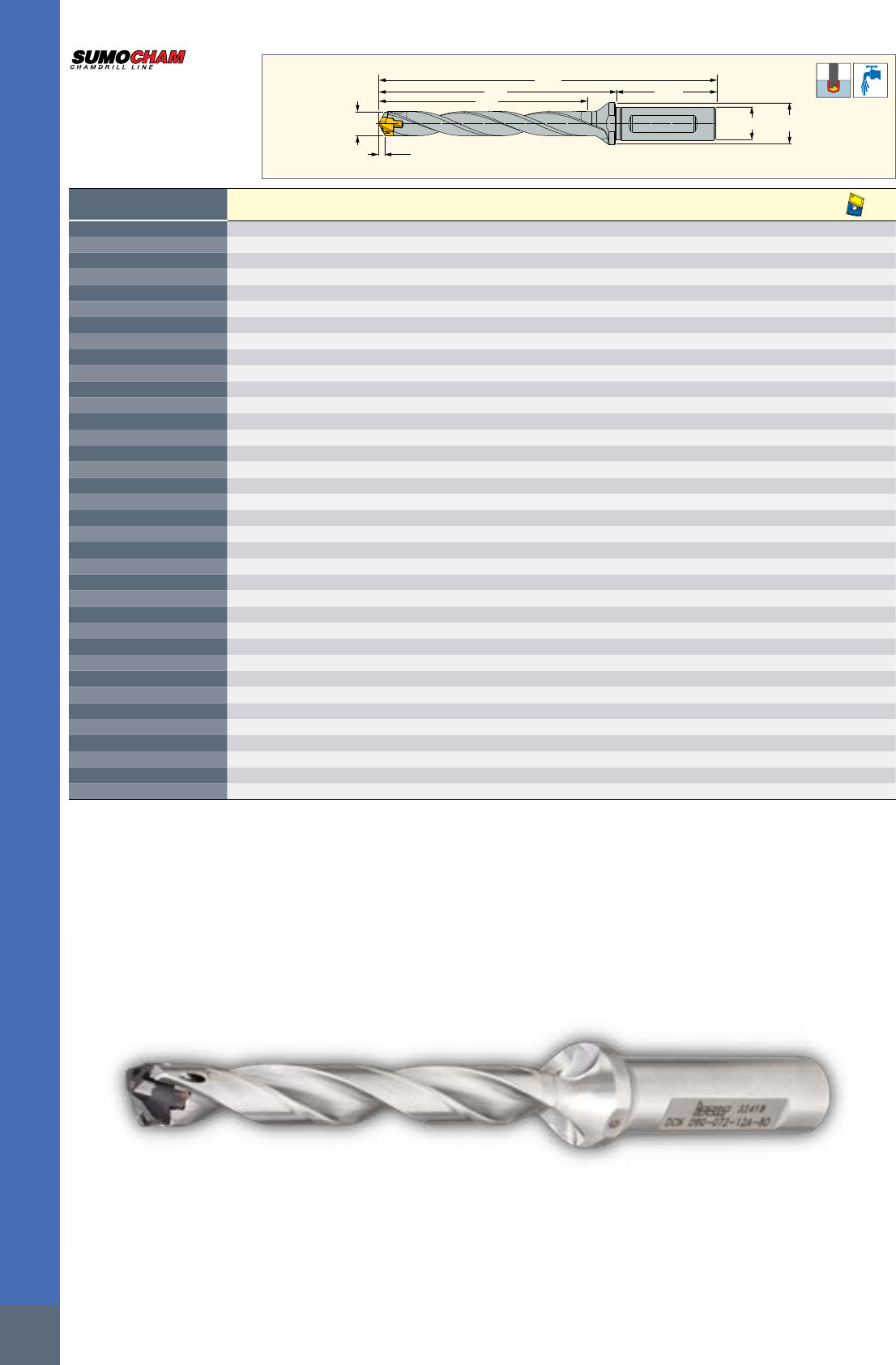

INDEXABLE DRILLS
DCONMSh6 DF
LPR
OAL
LS
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) MIID(4)
DCN 080-096-12R-12D
8.00 8.40 12.00 16.00 97.50 111.4 1.200 45.0 156.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-102-12R-12D
8.50 8.90 12.00 16.00 103.60 117.4 1.290 45.0 162.40 8.0 ICP 085 K DCN 6-9.99
DCN 090-108-12R-12D
9.00 9.40 12.00 16.00 109.60 123.8 1.350 45.0 168.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-114-12R-12D
9.50 9.90 12.00 16.00 115.70 129.8 1.440 45.0 174.80 9.0 ICP 095 K DCN 6-9.99
DCN 100-120-16R-12D
10.00 10.40 16.00 20.00 121.80 136.2 1.500 48.0 184.20 10.0 ICP 100 K DCN 10-13.99
DCN 105-126-16R-12D
10.50 10.90 16.00 20.00 127.90 142.2 1.590 48.0 190.20 10.0 ICP 105 K DCN 10-13.99
DCN 110-132-16R-12D
11.00 11.40 16.00 20.00 134.00 148.6 1.670 48.0 196.60 11.0 ICP 110 K DCN 10-13.99
DCN 115-138-16R-12D
11.50 11.90 16.00 20.00 140.10 154.6 1.760 48.0 202.60 11.0 ICP 115 K DCN 10-13.99
DCN 120-144-16R-12D
12.00 12.40 16.00 20.00 146.20 161.0 1.820 48.0 209.00 12.0 ICP 120 K DCN 10-13.99
DCN 125-150-16R-12D
12.50 12.90 16.00 20.00 152.30 167.0 1.910 48.0 215.00 12.0 ICP 125 K DCN 10-13.99
DCN 130-156-16R-12D
13.00 13.40 16.00 20.00 158.40 173.6 1.960 48.0 221.60 13.0 ICP 130 K DCN 10-13.99
DCN 135-162-16R-12D
13.50 13.90 16.00 20.00 164.50 179.6 2.050 48.0 227.00 13.0 ICP 135 K DCN 10-13.99
DCN 140-168-16R-12D
14.00 14.40 16.00 20.00 170.60 188.2 2.120 48.0 236.00 14.0 ICP 140 K DCN 14-17.99
DCN 145-174-16R-12D
14.50 14.90 16.00 20.00 176.60 194.2 2.210 48.0 242.00 14.0 ICP 145 K DCN 14-17.99
DCN 150-180-20R-12D
15.00 15.90 20.00 25.00 182.70 203.7 2.270 50.0 253.73 15.0 ICP 150 K DCN 14-17.99
DCN 160-192-20R-12D
16.00 16.90 20.00 25.00 194.90 217.3 2.420 50.0 267.30 16.0 ICP 160 K DCN 14-17.99
DCN 170-204-20R-12D
17.00 17.90 20.00 25.00 207.10 230.9 2.590 50.0 280.90 17.0 ICP 170 K DCN 14-17.99
DCN 180-216-25R-12D
18.00 18.90 25.00 32.00 219.30 244.5 2.730 56.0 300.50 18.0 ICP 180 K DCN 18-21.99
DCN 190-228-25R-12D
19.00 19.90 25.00 32.00 231.50 258.0 2.880 56.0 314.00 19.0 ICP 190 K DCN 18-21.99
DCN 200-240-25R-12D
20.00 20.90 25.00 32.00 243.60 271.6 3.020 56.0 327.60 20.0 ICP 200 K DCN 18-21.99
DCN 210-252-25R-12D
21.00 21.90 25.00 32.00 255.80 285.2 3.180 56.0 341.20 21.0 ICP 210 K DCN 18-21.99
DCN 220-264-25R-12D
22.00 22.90 25.00 32.00 268.00 298.8 3.320 56.0 354.80 22.0 ICP 220 K DCN 22-26.99
DCN 230-276-32R-12D
23.00 23.90 32.00 42.00 280.20 312.3 3.460 60.0 362.40 23.0 ICP 230 K DCN 22-26.99
DCN 240-288-32R-12D
24.00 24.90 32.00 42.00 292.40 325.9 3.620 60.0 386.00 24.0 ICP 240 K DCN 22-26.99
DCN 250-300-32R-12D
25.00 25.90 32.00 42.00 304.60 339.5 3.800 60.0 399.50 25.0 ICP 250 K DCN 22-26.99
DCN 260-312-32R-12D
26.00 26.90 32.00 42.00 316.70 381.1 3.950 60.0 441.10 26.0 ICP 260 K DCN 22-26.99
DCN 270-324-32R-12D
27.00 27.90 32.00 42.00 328.90 393.7 4.100 60.0 453.60 27.0 ICP 270 K DCN 27-32.99
DCN 280-336-32R-12D
28.00 28.90 32.00 42.00 341.10 406.2 4.250 60.0 466.20 28.0 ICP 280 K DCN 27-32.99
DCN 290-348-32R-12D
29.00 29.90 32.00 42.00 353.30 418.8 4.430 60.0 478.80 29.0 ICP 290 K DCN 27-32.99
DCN 300-360-32R-12D
30.00 30.90 32.00 42.00 365.50 431.4 4.590 60.0 491.40 30.0 ICP 300 K DCN 27-32.99
DCN 310-372-32R-12D
31.00 31.90 32.00 42.00 377.60 444.0 4.760 60.0 504.00 31.0 ICP 310 K DCN 27-32.99
DCN 320-384-32R-12D
32.00 32.90 32.00 42.00 389.80 457.5 4.860 60.0 516.50 32.0 ICP 320 K DCN 27-32.99
• Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill • The HCP or QCP drilling head may eliminate the need for a
pre-hole • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCN R-12D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 12xD
13
INDEXABLE DRILLS
OAL
LS
LU
PL
DCN-DCXk7 DCONMSh6
Designation
DCN(2) DCX(3) DCONMS LU PL LS OAL SSC(4) MIID(5)
DCN 040-012-06C-3D (1)
4.00 4.40 6.00 12.62 0.620 35.0 57.70 4.0 ICP 040
DCN 045-014-06C-3D (1)
4.50 4.90 6.00 14.16 0.660 35.0 59.65 4.5 ICP 045
DCN 050-015-06C-3D (1)
5.00 5.40 6.00 15.73 0.730 35.0 61.30 5.0 ICP 050
DCN 055-017-06C-3D (1)
5.50 5.90 6.00 17.31 0.810 35.0 63.15 5.5 ICP 055
DCN 060-018-08C-3D
6.00 6.40 8.00 18.96 0.960 36.0 64.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-020-08C-3D
6.50 6.90 8.00 20.68 1.180 36.0 65.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-021-08C-3D
7.00 7.40 8.00 22.01 1.010 36.0 67.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-023-08C-3D
7.50 7.90 8.00 23.60 1.100 36.0 69.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-024-10C-3D
8.00 8.40 10.00 25.20 1.200 40.0 75.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-026-10C-3D
8.50 8.90 10.00 27.69 1.290 40.0 76.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-027-10C-3D
9.00 9.40 10.00 28.38 1.350 40.0 78.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-029-10C-3D
9.50 9.90 10.00 29.94 1.440 40.0 80.30 9.0 ICP 095 K DCN 6-9.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) The SK DCN key is supplied with the insert
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Seat size code
(5) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52)
DCN C-3D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 3xD
PL LU
DCN-DCXk7 DCONMSh6
LS
OAL
Designation
DCN(2) DCX(3) DCONMS LU PL LS OAL SSC(4) MIID(5)
DCN 040-020-06C-5D (1)
4.00 4.40 6.00 20.62 0.620 35.0 65.70 4.0 ICP 040
DCN 045-023-06C-5D (1)
4.50 4.90 6.00 23.16 0.660 35.0 68.65 4.5 ICP 045
DCN 050-025-06C-5D (1)
5.00 5.40 6.00 25.73 0.730 35.0 71.30 5.0 ICP 050
DCN 055-028-06C-5D (1)
5.50 5.90 6.00 28.31 0.810 35.0 74.15 5.5 ICP 055
DCN 060-030-08C-5D
6.00 6.40 8.00 30.96 0.960 36.0 76.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-033-08C-5D
6.50 6.90 8.00 33.68 1.180 36.0 78.80 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-035-08C-5D
7.00 7.40 8.00 36.01 1.010 36.0 81.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-038-08C-5D
7.50 7.90 8.00 38.60 1.100 36.0 84.10 7.0 ICP 075 K DCN 6-9.99
DCN 080-040-10C-5D
8.00 8.40 10.00 41.20 1.200 40.0 91.40 8.0 ICP 080 K DCN 6-9.99
DCN 085-043-10C-5D
8.50 8.90 10.00 43.79 1.290 40.0 93.90 8.0 ICP 085 K DCN 6-9.99
DCN 090-045-10C-5D
9.00 9.40 10.00 46.35 1.350 40.0 96.80 9.0 ICP 090 K DCN 6-9.99
DCN 095-048-10C-5D
9.50 9.90 10.00 48.94 1.440 40.0 99.30 9.0 ICP 095 K DCN 6-9.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) The SK DCN key is supplied with the insert
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Seat size code
(5) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52)
DCN C-5D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 5xD
ISCAR
14
INDEXABLE DRILLS
DCN-DCXk7 DCONMSh6
PL LU LS
OAL
Designation
DCN(1) DCX(2) DCONMS LU PL LS OAL SSC(3) MIID(4)
DCN 040-032-06C-8D
4.00 4.40 6.00 32.62 0.620 35.0 77.70 4.0 ICP 040
DCN 045-036-06C-8D
4.50 4.90 6.00 36.66 0.660 35.0 82.20 4.5 ICP 045
DCN 050-040-06C-8D
5.00 5.40 6.00 40.73 0.730 35.0 86.30 5.0 ICP 050
DCN 055-044-06C-8D
5.50 5.90 6.00 44.81 0.810 35.0 90.70 5.5 ICP 055
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICK (28) • ICM (36) • HCP-IQ (47) • FCP (52)
DCN C-8D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 8xD
DCN-DCXk7 DCONMSh6
PL LU LS
OAL
Designation
DCN(1) DCX(2) DCONMS LU PL LS OAL SSC(3) MIID(4)
DCN 060-072-08C-12D
6.00 6.40 8.00 72.96 0.960 36.0 120.00 6.0 ICP 060 K DCN 6-9.99-Y
DCN 065-078-08C-12D
6.50 6.90 8.00 79.18 1.180 36.0 126.30 6.5 ICP 065 K DCN 6-9.99-Y
DCN 070-084-08C-12D
7.00 7.40 8.00 85.01 1.010 36.0 132.60 7.0 ICP 070 K DCN 6-9.99
DCN 075-090-08C-12D
7.50 7.90 8.00 91.10 1.100 36.0 136.60 7.0 ICP 075 K DCN 6-9.99
• Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill • The HCP or QCP drilling head may eliminate the need for a
pre-hole • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52)
DCN C-12D
Exchangeable Head Drills with
Coolant Holes and a Cylindrical
Shank, Drilling Depth 12xD
15
INDEXABLE DRILLS
DCONMSh6
LS
LPR OAL
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS LU LPR PL LS OAL SSC(3)
DCNS 075-022-080B-3D
7.50 7.90 8.00 23.60 34.2 1.100 36.0 70.20 7.0 K DCN 6-9.99
DCNS 080-024-080B-3D
8.00 8.40 8.00 25.20 34.7 1.200 36.0 70.70 8.0 K DCN 6-9.99
DCNS 085-025-090B-3D
8.50 8.90 9.00 26.79 36.8 1.290 36.0 72.90 8.0 K DCN 6-9.99
DCNS 090-027-090B-3D
9.00 9.40 9.00 28.35 38.8 1.350 36.0 74.80 9.0 K DCN 6-9.99
DCNS 095-029-100B-3D
9.50 9.90 10.00 29.94 40.3 1.440 36.0 76.30 9.0 K DCN 6-9.99
DCNS 100-030-100B-3D
10.00 10.40 10.00 31.50 45.2 1.500 41.0 86.20 10.0 K DCN 10-13.99
DCNS 105-032-110B-3D
10.50 10.90 11.00 33.09 46.7 1.590 41.0 87.70 10.0 K DCN 10-13.99
DCNS 110-033-110B-3D
11.00 11.40 11.00 34.67 48.6 1.670 41.0 89.60 11.0 K DCN 10-13.99
DCNS 115-035-120B-3D
11.50 11.90 12.00 36.26 50.1 1.760 41.0 91.10 11.0 K DCN 10-13.99
DCNS 120-036-120B-3D
12.00 12.40 12.00 37.82 52.0 1.820 41.0 93.00 12.0 K DCN 10-13.99
DCNS 125-037-130B-3D
12.50 12.90 13.00 34.41 53.5 1.910 46.0 99.50 12.0 K DCN 10-13.99
DCNS 130-039-130B-3D
13.00 13.40 13.00 40.96 55.6 1.960 47.0 102.60 13.0 K DCN 10-13.99
DCNS 135-041-140B-3D
13.50 13.90 14.00 42.55 57.1 2.050 43.0 100.10 13.0 K DCN 10-13.99
DCNS 140-042-140B-3D
14.00 14.40 14.00 44.12 59.2 2.120 44.0 103.20 14.0 K DCN 14-17.99
DCNS 145-044-150B-3D
14.50 14.90 15.00 45.71 60.7 2.210 45.0 105.70 14.0 K DCN 14-17.99
DCNS 150-045-150B-3D
15.00 15.90 15.00 47.27 62.7 2.270 45.0 107.70 15.0 K DCN 14-17.99
DCNS 160-048-160B-3D
16.00 16.90 16.00 50.42 69.6 2.420 48.0 117.70 16.0 K DCN 14-17.99
DCNS 170-051-170B-3D
17.00 17.90 17.00 53.59 71.9 2.590 48.0 119.90 17.0 K DCN 14-17.99
DCNS 180-054-180B-3D
18.00 18.90 18.00 56.73 75.5 2.730 48.0 123.50 18.0 K DCN 18-21.99
DCNS 190-057-190B-3D
19.00 19.90 19.00 59.88 78.6 2.880 54.0 132.60 19.0 K DCN 18-21.99
DCNS 200-060-200B-3D
20.00 20.90 20.00 63.02 88.1 3.020 54.0 142.10 20.0 K DCN 18-21.99
DCNS 210-063-210B-3D
21.00 21.90 21.00 66.18 90.7 3.180 60.0 150.70 21.0 K DCN 18-21.99
DCNS 220-066-220B-3D
22.00 22.90 22.00 69.32 94.3 3.320 60.0 154.30 22.0 K DCN 22-26.99
DCNS 230-069-230B-3D
23.00 23.90 23.00 72.46 97.8 3.460 60.0 157.80 23.0 K DCN 22-26.99
DCNS 240-072-240B-3D
24.00 24.90 24.00 75.62 101.3 3.620 60.0 161.40 24.0 K DCN 22-26.99
DCNS 250-075-250B-3D
25.00 25.90 25.00 78.80 105.0 3.800 60.0 165.00 25.0 K DCN 22-26.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 86-81
• For CHAMRING, see page 139
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCNS-3D
Exchangeable Head Drills without
a Flange and One Flat Shank,
Drilling Depth 3xD, Suitable
for Chamfering Holders
ISCAR
16
INDEXABLE DRILLS
DCONMSh6
LS
LPR
OAL
LU
PL
DCN-DCX k7
Designation
DCN(1) DCX(2) DCONMS LU LPR PL LS OAL SSC(3)
DCNS 075-037-080B-5D
7.50 7.90 8.00 38.60 49.2 1.100 36.0 85.20 7.0 K DCN 6-9.99
DCNS 080-040-080B-5D
8.00 8.40 8.00 41.20 56.4 1.200 36.0 92.40 8.0 K DCN 6-9.99
DCNS 085-042-090B-5D
8.50 8.90 9.00 43.79 53.9 1.290 36.0 89.90 8.0 K DCN 6-9.99
DCNS 090-045-090B-5D
9.00 9.40 9.00 46.35 56.8 1.350 36.0 92.80 9.0 K DCN 6-9.99
DCNS 095-048-100B-5D
9.50 9.90 10.00 48.94 59.2 1.440 36.0 95.30 9.0 K DCN 6-9.99
DCNS 100-050-100B-5D
10.00 10.40 10.00 51.50 65.2 1.500 41.0 106.20 10.0 K DCN 10-13.99
DCNS 105-053-110B-5D
10.50 10.90 11.00 54.09 67.7 1.590 41.0 108.70 10.0 K DCN 10-13.99
DCNS 110-055-110B-5D
11.00 11.40 11.00 56.67 70.6 1.670 41.0 111.60 11.0 K DCN 10-13.99
DCNS 115-058-120B-5D
11.50 11.90 12.00 59.26 73.1 1.760 41.0 114.10 11.0 K DCN 10-13.99
DCNS 120-060-120B-5D
12.00 12.40 12.00 61.82 75.9 1.820 41.0 117.00 12.0 K DCN 10-13.99
DCNS 125-062-130B-5D
12.50 12.90 13.00 64.41 78.5 1.910 46.0 124.50 12.0 K DCN 10-13.99
DCNS 130-065-130B-5D
13.00 13.40 13.00 66.96 81.5 1.960 47.0 128.60 13.0 K DCN 10-13.99
DCNS 135-068-140B-5D
13.50 13.90 14.00 69.55 84.1 2.050 43.0 127.10 13.0 K DCN 10-13.99
DCNS 140-070-140B-5D
14.00 14.40 14.00 72.12 87.1 2.120 44.0 131.20 14.0 K DCN 14-17.99
DCNS 145-073-150B-5D
14.50 14.90 15.00 74.71 89.7 2.210 45.0 134.70 14.0 K DCN 14-17.99
DCNS 150-075-150B-5D
15.00 15.90 15.00 77.27 92.7 2.270 45.0 137.70 15.0 K DCN 14-17.99
DCNS 160-080-160B-5D
16.00 16.90 16.00 82.42 101.7 2.420 48.0 149.70 16.0 K DCN 14-17.99
DCNS 170-085-170B-5D
17.00 17.90 17.00 87.59 105.9 2.590 48.0 153.90 17.0 K DCN 14-17.99
DCNS 180-090-180B-5D
18.00 18.90 18.00 92.73 111.5 2.730 48.0 159.50 18.0 K DCN 18-21.99
DCNS 190-095-190B-5D
19.00 19.90 19.00 97.88 116.6 2.880 54.0 170.60 19.0 K DCN 18-21.99
DCNS 200-100-200B-5D
20.00 20.90 20.00 103.02 128.1 3.020 54.0 182.10 20.0 K DCN 18-21.99
DCNS 210-105-210B-5D
21.00 21.90 21.00 108.18 132.6 3.180 60.0 192.70 21.0 K DCN 18-21.99
DCNS 220-110-220B-5D
22.00 22.90 22.00 113.32 138.3 3.320 60.0 198.30 22.0 K DCN 22-26.99
DCNS 230-115-230B-5D
23.00 23.90 23.00 118.46 143.8 3.460 60.0 203.80 23.0 K DCN 22-26.99
DCNS 240-120-240B-5D
24.00 24.90 24.00 123.62 149.4 3.620 60.0 209.40 24.0 K DCN 22-26.99
DCNS 250-125-250B-5D
25.00 25.90 25.00 128.80 155.0 3.800 60.0 215.00 25.0 K DCN 22-26.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
• For CHAMRING, see page 139
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
DCNS-5D
Exchangeable Head Drills without
a Flange and One Flat Shank,
Drilling Depth 5xD, Suitable
for Chamfering Holders
17

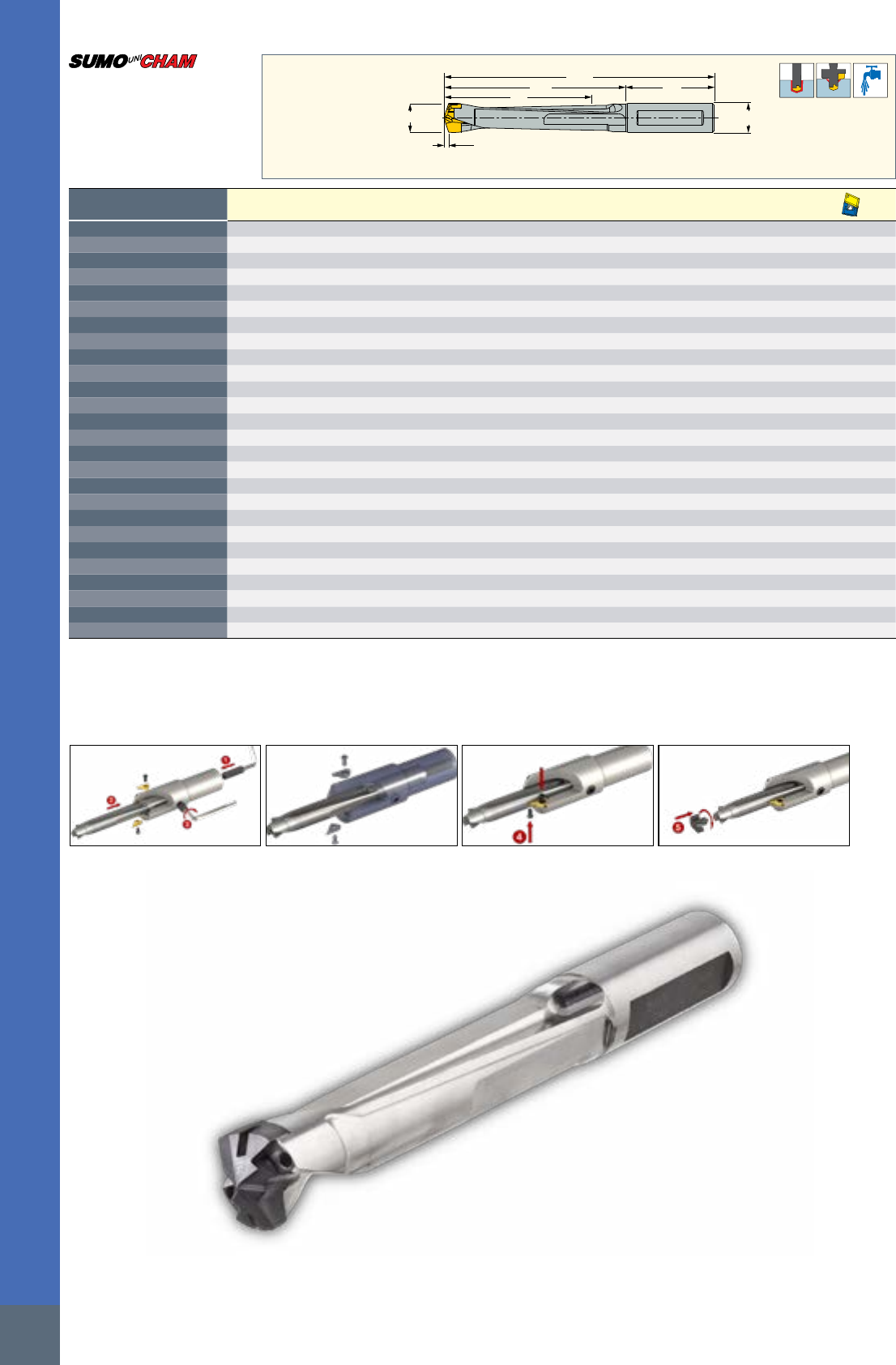

INDEXABLE DRILLS
DCONMS
THSZMS
T-22
OAL
LPR
LU
PL
DCN-DCX
Designation
DCN(1) DCX(2) DCONMS LU LPR PL OAL THSZMS SSC(3) TQ_3(4)
DCNM 060-018-M12-3D
6.00 6.40 25.00 22.00 42.0 0.960 64.00 M12 6.0 33 K DCN 6-9.99-Y
DCNM 065-020-M12-3D
6.50 6.90 25.00 24.30 44.3 1.180 66.30 M12 6.5 33 K DCN 6-9.99-Y
DCNM 070-021-M12-3D
7.00 7.40 25.00 25.60 45.6 1.010 67.60 M12 7.0 33 K DCN 6-9.99
DCNM 075-023-M12-3D
7.50 7.90 25.00 27.60 47.6 1.100 69.60 M12 7.0 33 K DCN 6-9.99
DCNM 080-024-M12-3D
8.00 8.40 25.00 29.40 49.4 1.200 71.40 M12 8.0 33 K DCN 6-9.99
DCNM 085-025-M12-3D
8.50 8.90 25.00 30.40 50.4 1.290 72.40 M12 8.0 33 K DCN 6-9.99
DCNM 090-027-M12-3D
9.00 9.40 25.00 32.80 52.8 1.350 74.80 M12 9.0 33 K DCN 6-9.99
DCNM 095-029-M12-3D
9.50 9.90 25.00 34.80 54.8 1.440 76.80 M12 9.0 33 K DCN 6-9.99
DCNM 100-030-M12-3D
10.00 10.40 25.00 36.20 56.2 1.500 78.20 M12 10.0 33 K DCN 10-13.99
DCNM 105-032-M12-3D
10.50 10.90 25.00 38.20 58.2 1.590 80.20 M12 10.0 33 K DCN 10-13.99
DCNM 110-033-M12-3D
11.00 11.40 25.00 39.60 59.6 1.670 81.60 M12 11.0 33 K DCN 10-13.99
DCNM 115-035-M12-3D
11.50 11.90 25.00 41.60 61.6 1.760 83.60 M12 11.0 33 K DCN 10-13.99
DCNM 120-036-M12-3D
12.00 12.40 25.00 43.00 63.0 1.820 85.00 M12 12.0 33 K DCN 10-13.99
DCNM 125-037-M12-3D
12.50 12.90 25.00 44.00 64.0 1.910 86.00 M12 12.0 33 K DCN 10-13.99
DCNM 130-039-M12-3D
13.00 13.40 25.00 46.60 66.6 1.960 88.60 M12 13.0 33 K DCN 10-13.99
DCNM 135-041-M12-3D
13.50 13.90 25.00 48.60 68.6 2.050 90.60 M12 13.0 33 K DCN 10-13.99
DCNM 140-042-M12-3D
14.00 14.40 25.00 50.20 70.2 2.120 92.15 M12 14.0 33 K DCN 14-17.99
DCNM 145-044-M12-3D
14.50 14.90 25.00 52.20 72.2 2.210 94.15 M12 14.0 33 K DCN 14-17.99
DCNM 150-045-M12-3D
15.00 15.90 25.00 53.70 73.7 2.270 95.73 M12 15.0 33 K DCN 14-17.99
DCNM 160-048-M12-3D
16.00 16.90 25.00 57.30 77.3 2.420 99.30 M12 16.0 33 K DCN 14-17.99
DCNM 170-051-M12-3D
17.00 17.90 25.00 60.90 80.9 2.590 102.90 M12 17.0 33 K DCN 14-17.99
DCNM 180-054-M12-3D
18.00 18.90 25.00 64.50 84.5 2.730 106.50 M12 18.0 33 K DCN 18-21.99
DCNM 190-057-M12-3D
19.00 19.90 25.00 68.00 88.0 2.880 110.00 M12 19.0 33 K DCN 18-21.99
DCNM 200-060-M12-3D
20.00 20.90 25.00 71.60 91.6 3.020 113.60 M12 20.0 33 K DCN 18-21.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57)
For holders, see pages: FLEXFIT HOLDER (17)
For more holders see ISCAR MILLING LINES catalog

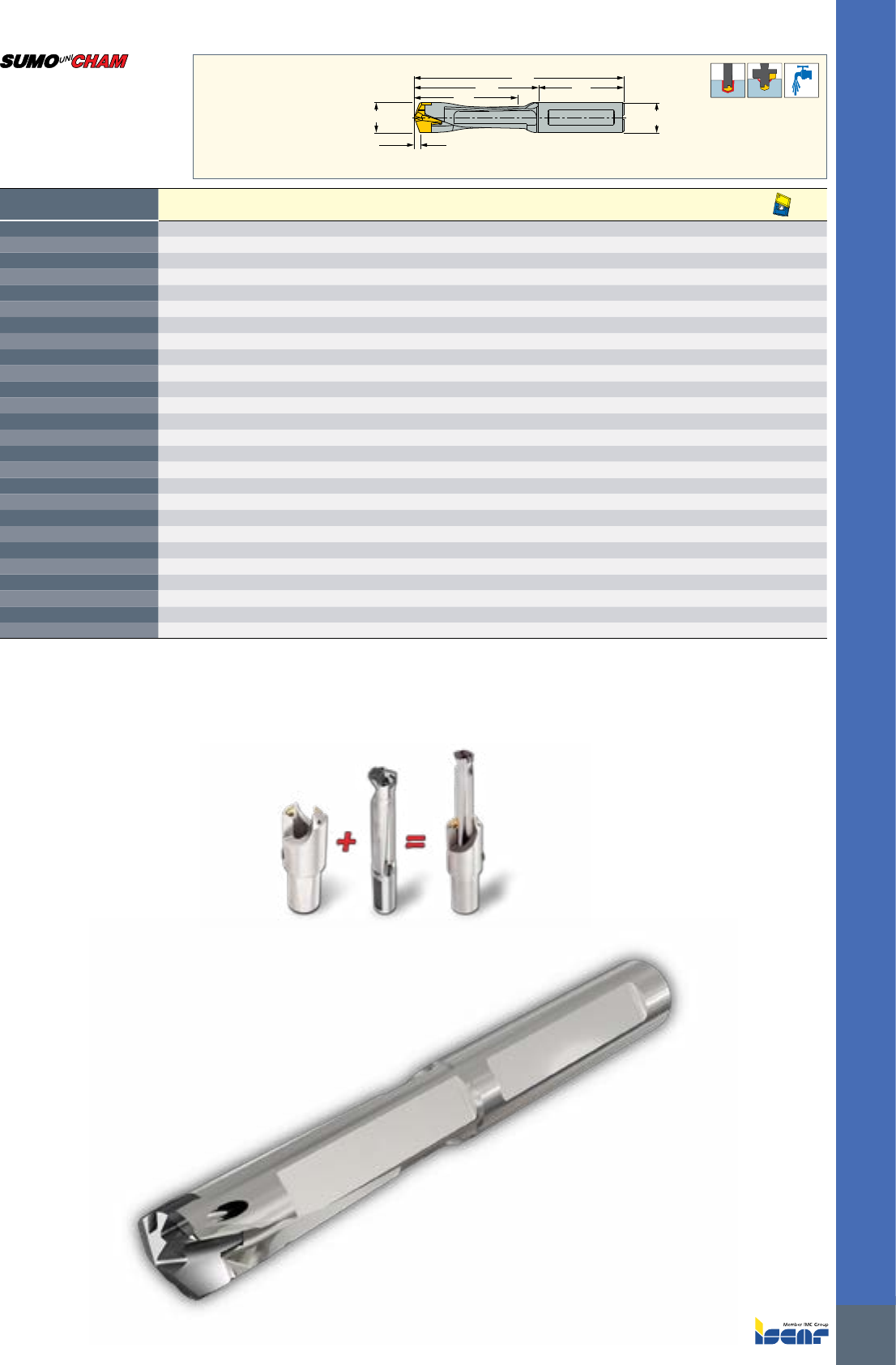

DCNM
Modular SUMOCHAM Drill with
FLEXFIT Connection for
Multi-Spindle and
Swiss-Type Machines
3 FLATS
OAL
WSC M12 CNT
DCONMS
Designation
DCONMS OAL WSC(1) CNT
FLEXFIT 160-HOLDER-DCN-MS
16.00 36.00 7.5 5/16"-24
FLEXFIT 1905-HOLDER-DCNMS
19.05 36.00 8.5 5/16"-24
FLEXFIT 200-HOLDER-DCN-MS
20.00 36.00 8.5 G1/8" BSP
FLEXFIT 220-HOLDER-DCN-MS
22.00 48.00 9.5 G1/8" BSP
FLEXFIT 250-HOLDER-DCN-MS
25.00 54.00 11.0 G1/8" BSP
FLEXFIT 254-HOLDER-DCN-MS
25.40 54.00 11.0 G1/8" BSP
(1) For all 3 flats
For tools, see pages: DCNM (17)
FLEXFIT HOLDER
FLEXFIT Threaded Modular Shank
with 3 Flats for Side Clamping
ISCAR
18

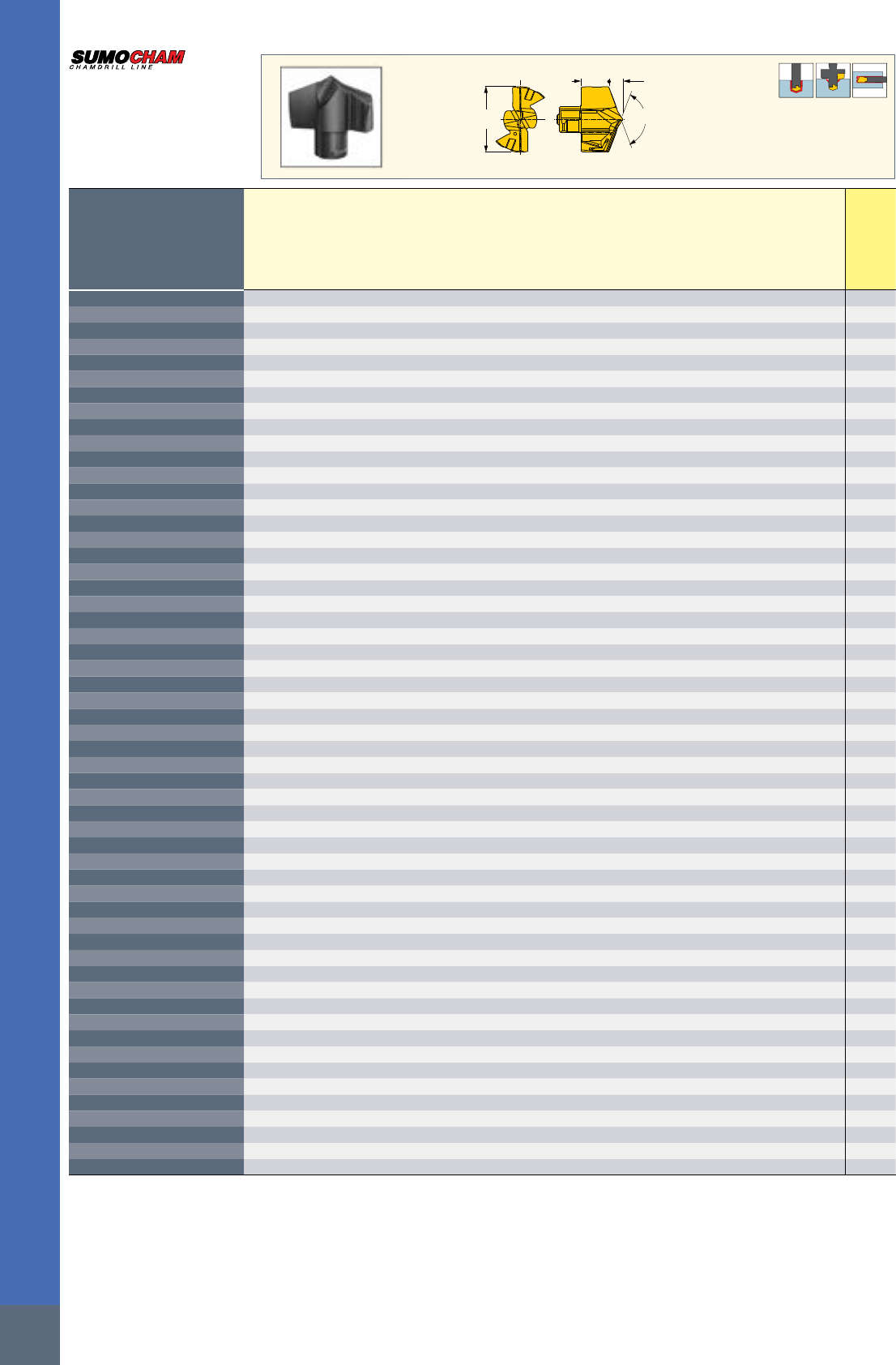

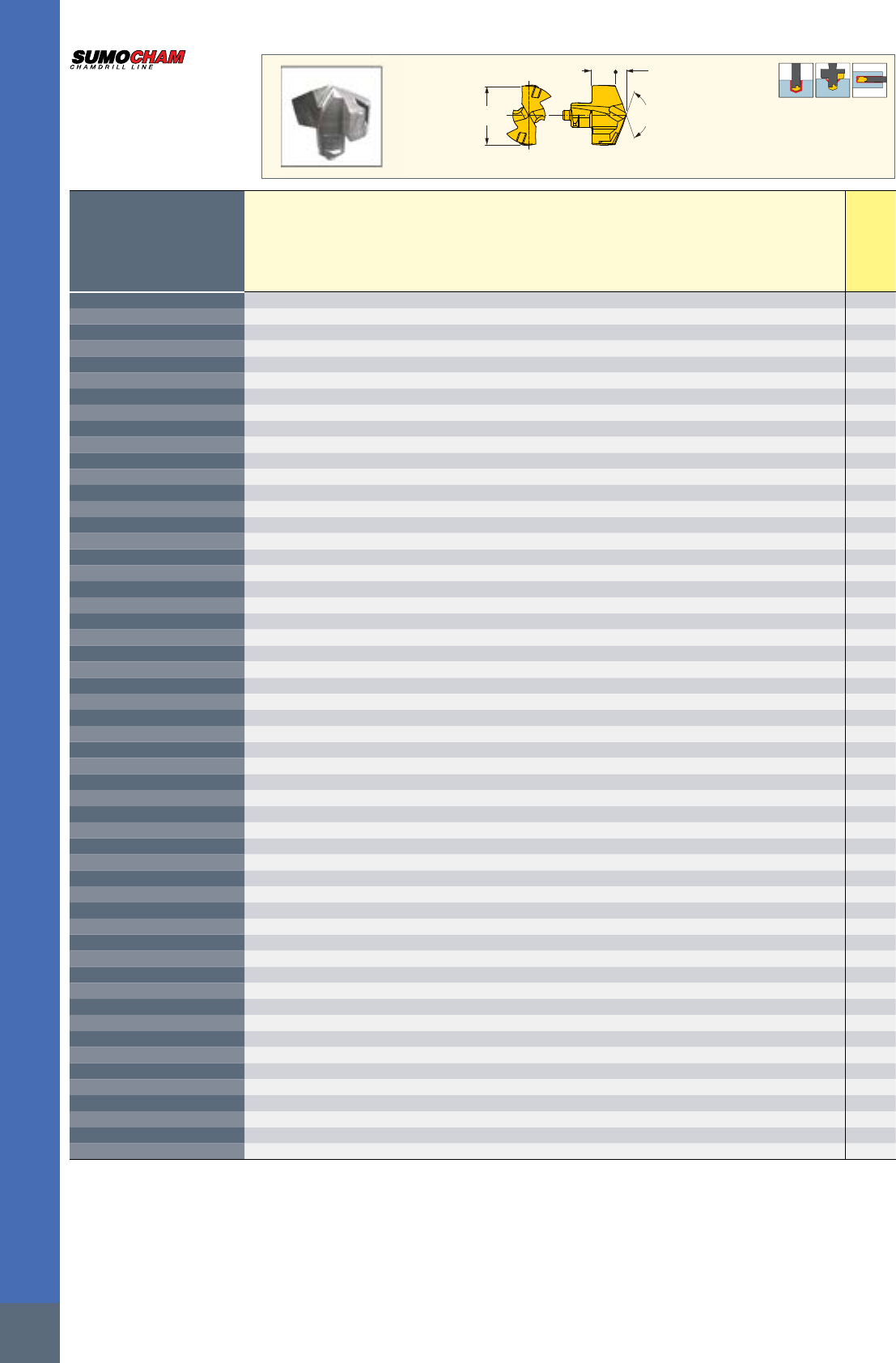

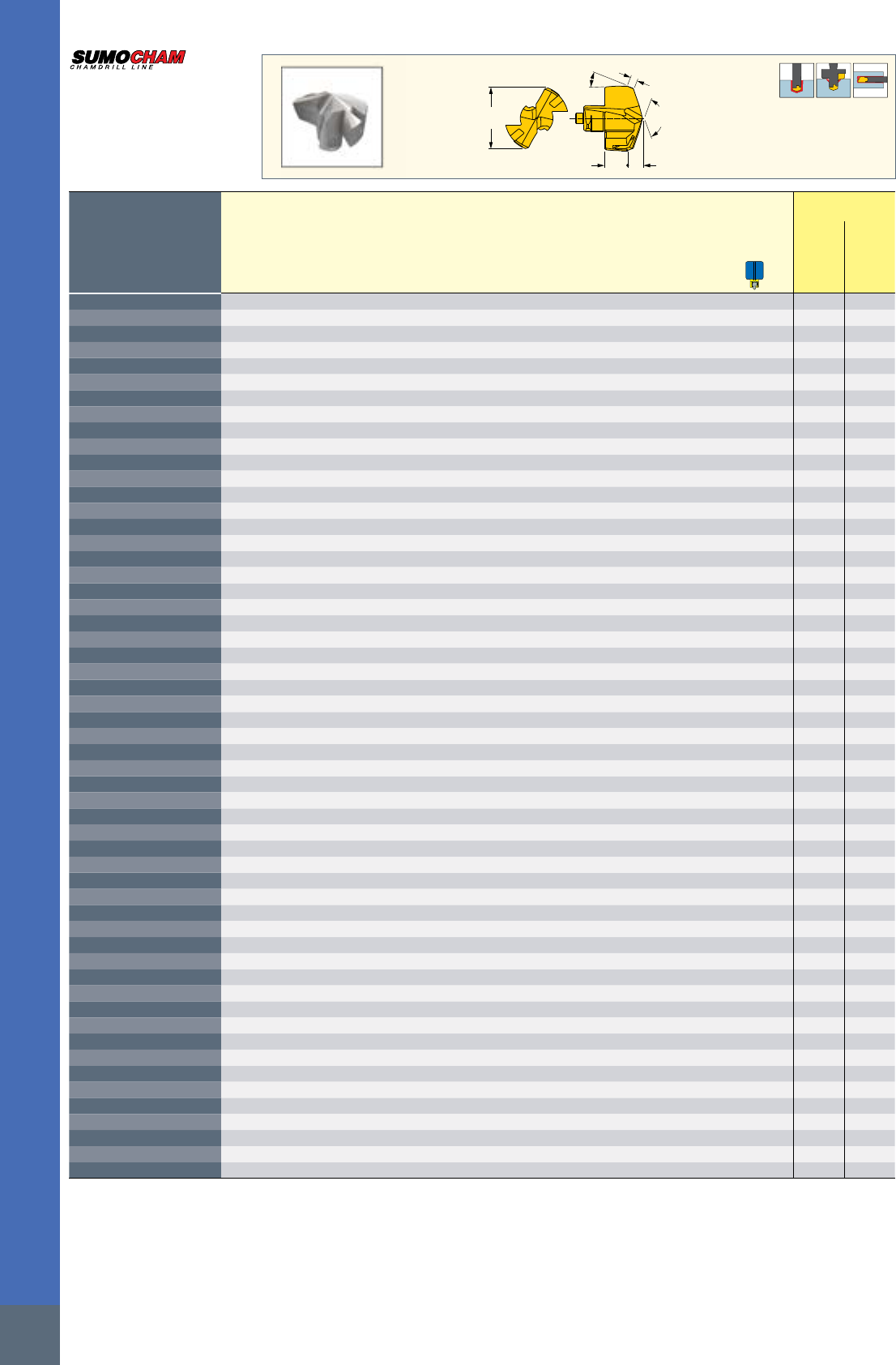

INDEXABLE DRILLS
PL
LF
SIG
DC
ICP
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 040
4.00 0.620 2.48 140 4.0 SK DCN 4-4.99
•
ICP 041
4.10 0.620 2.48 140 4.0 SK DCN 4-4.99
•
ICP 042
4.20 0.620 2.48 140 4.0 SK DCN 4-4.99
•
ICP 043
4.30 0.620 2.48 140 4.0 SK DCN 4-4.99
•
ICP 044
4.40 0.620 2.48 140 4.0 SK DCN 4-4.99
•
ICP 045
4.50 0.660 2.89 140 4.5 SK DCN 4-4.99
•
ICP 046
4.60 0.680 2.87 140 4.5 SK DCN 4-4.99
•
ICP 047
4.70 0.700 2.85 140 4.5 SK DCN 4-4.99
•
ICP 048
4.80 0.710 2.84 140 4.5 SK DCN 4-4.99
•
ICP 049
4.90 0.730 2.82 140 4.5 SK DCN 4-4.99
•
ICP 050
5.00 0.730 2.97 140 5.0 SK DCN 5-5.99
•
ICP 051
5.10 0.750 3.02 140 5.0 SK DCN 5-5.99
•
ICP 052
5.20 0.770 3.00 140 5.0 SK DCN 5-5.99
•
ICP 053
5.30 0.780 2.99 140 5.0 SK DCN 5-5.99
•
ICP 054
5.40 0.800 2.97 140 5.0 SK DCN 5-5.99
•
ICP 055
5.50 0.810 3.04 140 5.5 SK DCN 5-5.99
•
ICP 056
5.60 0.830 3.02 140 5.5 SK DCN 5-5.99
•
ICP 057
5.70 0.850 3.00 140 5.5 SK DCN 5-5.99
•
ICP 058
5.80 0.860 2.99 140 5.5 SK DCN 5-5.99
•
ICP 059
5.90 0.880 2.97 140 5.5 SK DCN 5-5.99
•
ICP 060
6.00 0.960 3.04 140 6.0
•
ICP 061
6.10 0.980 3.02 140 6.0
•
ICP 062
6.20 1.000 3.00 140 6.0
•
ICP 063
6.30 1.010 2.99 140 6.0
•
ICP 0635
6.35 1.020 2.98 140 6.0
•
ICP 064
6.40 1.030 2.97 140 6.0
•
ICP 065
6.50 1.180 3.12 140 6.5
•
ICP 066
6.60 1.200 3.10 140 6.5
•
ICP 067
6.70 1.220 3.08 140 6.5
•
ICP 068
6.80 1.230 3.07 140 6.5
•
ICP 069
6.90 1.250 3.05 140 6.5
•
ICP 070
7.00 1.010 3.59 140 7.0
•
ICP 071
7.10 1.030 3.57 140 7.0
•
ICP 072
7.20 1.050 3.55 140 7.0
•
ICP 073
7.30 1.060 3.54 140 7.0
•
ICP 074
7.40 1.080 3.52 140 7.0
•
ICP 075
7.50 1.100 3.50 140 7.0
•
ICP 076
7.60 1.120 3.48 140 7.0
•
ICP 077
7.70 1.140 3.46 140 7.0
•
ICP 078
7.80 1.160 3.44 140 7.0
•
ICP 079
7.90 1.170 3.43 140 7.0
•
ICP 080
8.00 1.200 4.20 140 8.0
•
ICP 081
8.10 1.220 4.18 140 8.0
•
ICP 082
8.20 1.240 4.16 140 8.0
•
ICP 083
8.30 1.250 4.15 140 8.0
•
ICP 084
8.40 1.270 4.13 140 8.0
•
ICP 085
8.50 1.290 4.11 140 8.0
•
ICP 086
8.60 1.310 4.09 140 8.0
•
ICP 087
8.70 1.330 4.07 140 8.0
•
ICP 088
8.80 1.350 4.05 140 8.0
•
ICP 089
8.90 1.360 4.04 140 8.0
•
ICP 090
9.00 1.350 4.45 140 9.0
•
ICP 091
9.10 1.370 4.43 140 9.0
•
ICP 092
9.20 1.390 4.41 140 9.0
•
ICP 093
9.30 1.400 4.40 140 9.0
•
19

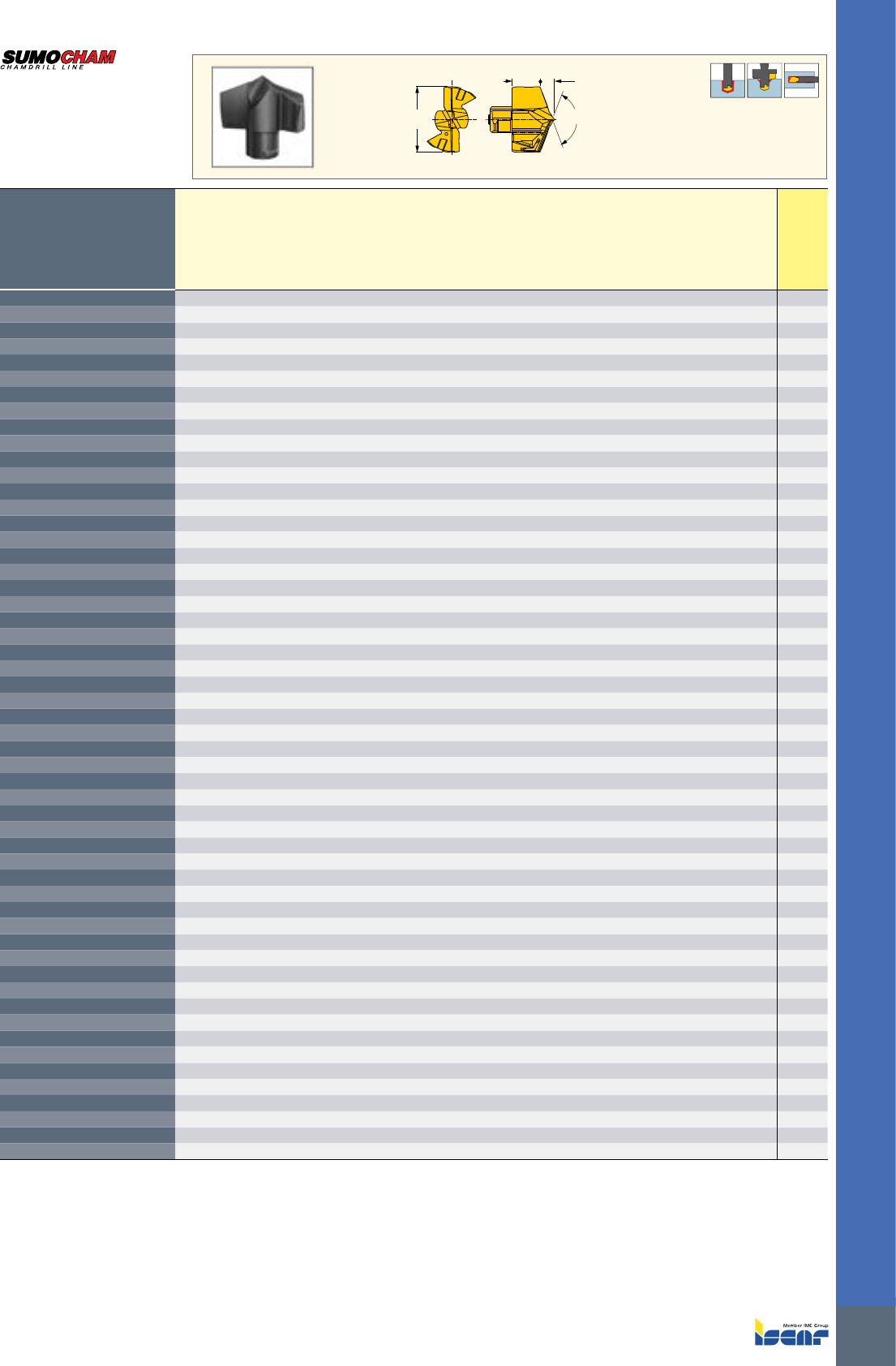

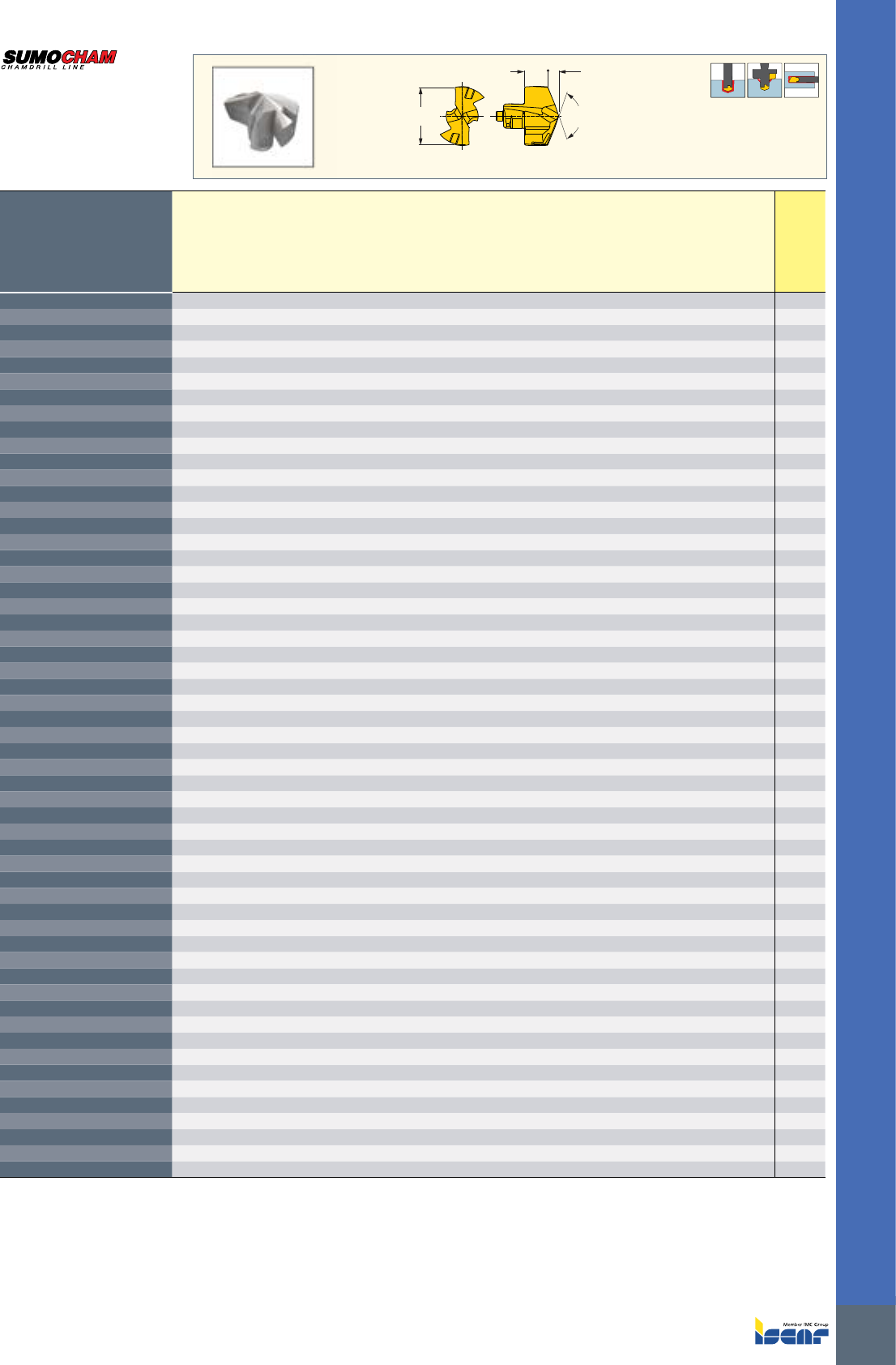

INDEXABLE DRILLS
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)

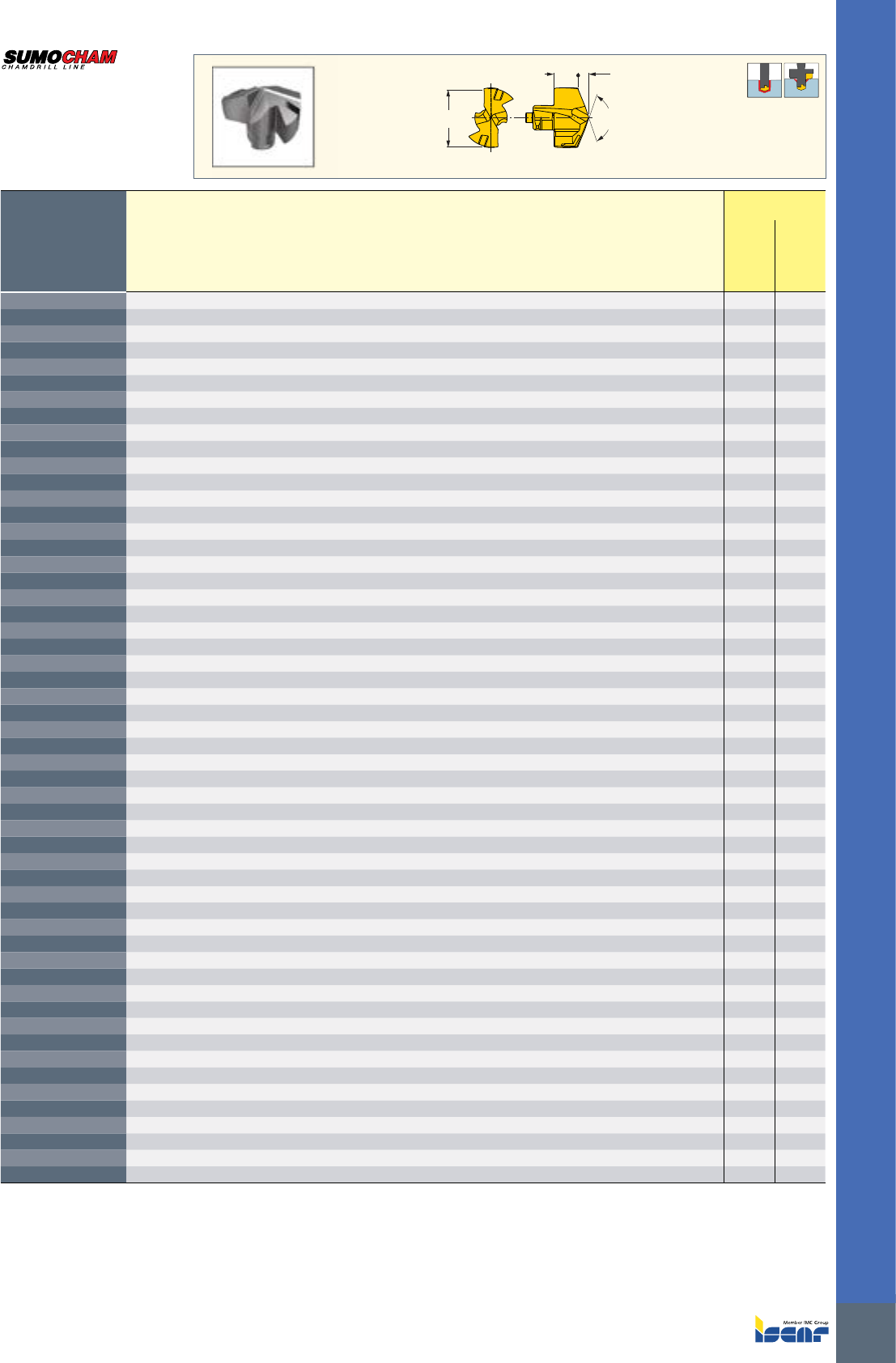

PL
LF
SIG
DC
ICP

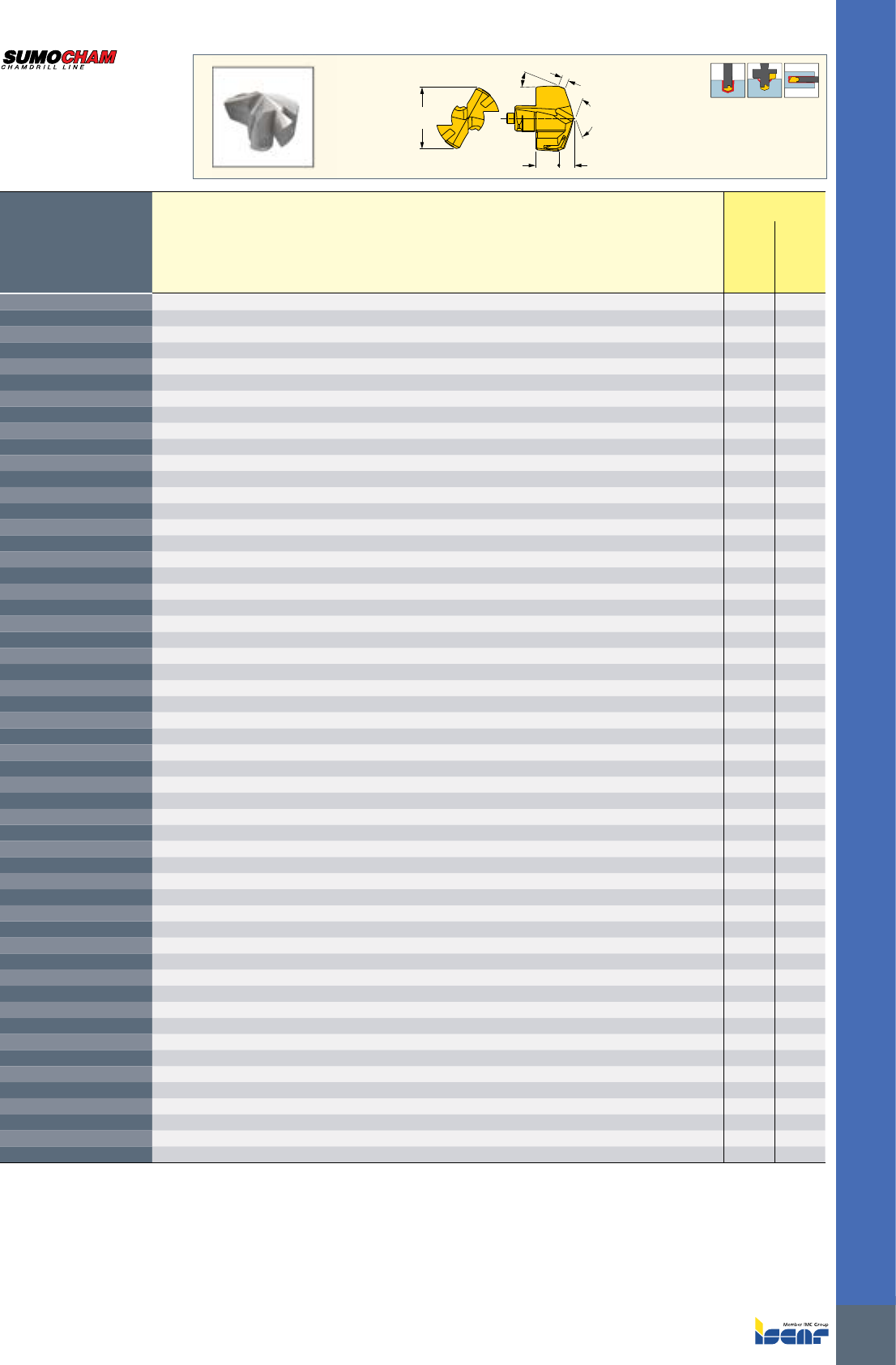

Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
(continued)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 094
9.40 1.420 4.38 140 9.0
•
ICP 095
9.50 1.440 4.36 140 9.0
•
ICP 096
9.60 1.460 4.34 140 9.0
•
ICP 097
9.70 1.480 4.32 140 9.0
•
ICP 098
9.80 1.500 4.30 140 9.0
•
ICP 099
9.90 1.510 4.29 140 9.0
•
ICP 100
10.00 1.500 4.70 140 10.0
•
ICP 101
10.10 1.520 4.68 140 10.0
•
ICP 102
10.20 1.540 4.66 140 10.0
•
ICP 103
10.30 1.550 4.65 140 10.0
•
ICP 104
10.40 1.570 4.63 140 10.0
•
ICP 105
10.50 1.590 4.61 140 10.0
•
ICP 106
10.60 1.610 4.59 140 10.0
•
ICP 107
10.70 1.630 4.57 140 10.0
•
ICP 108
10.80 1.650 4.55 140 10.0
•
ICP 109
10.90 1.660 4.54 140 10.0
•
ICP 110
11.00 1.670 4.93 140 11.0
•
ICP 111
11.10 1.690 4.91 140 11.0
•
ICP 112
11.20 1.710 4.89 140 11.0
•
ICP 113
11.30 1.720 4.88 140 11.0
•
ICP 114
11.40 1.740 4.86 140 11.0
•
ICP 115
11.50 1.760 4.84 140 11.0
•
ICP 116
11.60 1.780 4.82 140 11.0
•
ICP 117
11.70 1.800 4.80 140 11.0
•
ICP 118
11.80 1.820 4.78 140 11.0
•
ICP 119
11.90 1.830 4.77 140 11.0
•
ICP 120
12.00 1.820 5.18 140 12.0
•
ICP 121
12.10 1.320 5.16 140 12.0
•
ICP 122
12.20 1.340 5.14 140 12.0
•
ICP 123
12.30 1.350 5.13 140 12.0
•
ICP 124
12.40 1.370 5.11 140 12.0
•
ICP 125
12.50 1.390 5.09 140 12.0
•
ICP 126
12.60 1.410 5.07 140 12.0
•
ICP 127
12.70 1.430 5.05 140 12.0
•
ICP 128
12.80 1.450 5.03 140 12.0
•
ICP 129
12.90 1.460 5.02 140 12.0
•
ICP 130
13.00 1.960 5.64 140 13.0
•
ICP 131
13.10 1.980 5.62 140 13.0
•
ICP 132
13.20 2.000 5.60 140 13.0
•
ICP 133
13.30 2.010 5.59 140 13.0
•
ICP 134
13.40 2.030 5.57 140 13.0
•
ICP 135
13.50 2.050 5.55 140 13.0
•
ICP 136
13.60 2.070 5.53 140 13.0
•
ICP 137
13.70 2.090 5.51 140 13.0
•
ICP 138
13.80 2.110 5.49 140 13.0
•
ICP 139
13.90 2.120 5.48 140 13.0
•
ICP 140
14.00 2.120 6.03 140 14.0
•
ICP 141
14.10 2.140 6.01 140 14.0
•
ICP 142
14.20 2.160 5.99 140 14.0
•
ICP 143
14.30 2.170 5.98 140 14.0
•
ICP 144
14.40 2.190 5.96 140 14.0
•
ICP 145
14.50 2.210 5.94 140 14.0
•
ICP 146
14.60 2.230 5.92 140 14.0
•
ICP 147
14.70 2.250 5.90 140 14.0
•
ISCAR
20

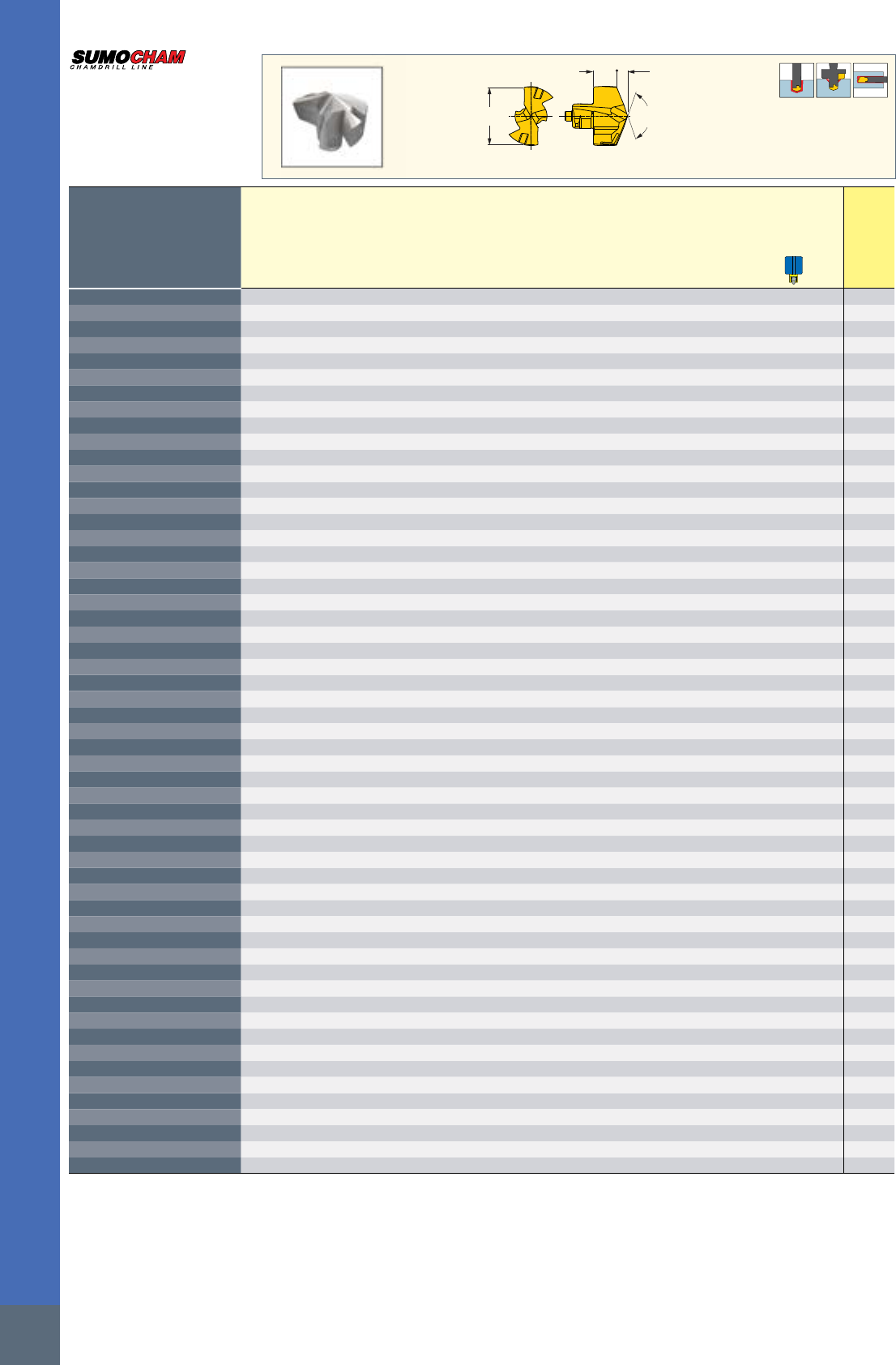

INDEXABLE DRILLS
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
PL
LF
SIG
DC
ICP
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
(continued)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 148
14.80 2.270 5.88 140 14.0
•
ICP 149
14.90 2.280 5.87 140 14.0
•
ICP 150
15.00 2.270 6.46 140 15.0
•
ICP 151
15.10 2.290 6.44 140 15.0
•
ICP 152
15.20 2.310 6.42 140 15.0
•
ICP 153
15.30 2.320 6.41 140 15.0
•
ICP 154
15.40 2.340 6.39 140 15.0
•
ICP 155
15.50 2.360 6.37 140 15.0
•
ICP 156
15.60 2.380 6.35 140 15.0
•
ICP 157
15.70 2.400 6.33 140 15.0
•
ICP 158
15.80 2.420 6.31 140 15.0
•
ICP 159
15.90 2.430 6.30 140 15.0
•
ICP 160
16.00 2.420 6.88 140 16.0
•
ICP 161
16.10 2.440 6.86 140 16.0
•
ICP 162
16.20 2.460 6.84 140 16.0
•
ICP 163
16.30 2.470 6.83 140 16.0
•
ICP 164
16.40 2.490 6.81 140 16.0
•
ICP 165
16.50 2.510 6.79 140 16.0
•
ICP 166
16.60 2.530 6.77 140 16.0
•
ICP 167
16.70 2.550 6.75 140 16.0
•
ICP 168
16.80 2.570 6.73 140 16.0
•
ICP 169
16.90 2.580 6.72 140 16.0
•
ICP 170
17.00 2.590 7.31 140 17.0
•
ICP 171
17.10 2.610 7.29 140 17.0
•
ICP 172
17.20 2.630 7.27 140 17.0
•
ICP 173
17.30 2.640 7.26 140 17.0
•
ICP 174
17.40 2.660 7.24 140 17.0
•
ICP 175
17.50 2.680 7.22 140 17.0
•
ICP 176
17.60 2.700 7.20 140 17.0
•
ICP 177
17.70 2.720 7.18 140 17.0
•
ICP 178
17.80 2.740 7.16 140 17.0
•
ICP 179
17.90 2.750 7.15 140 17.0
•
ICP 180
18.00 2.730 7.77 140 18.0
•
ICP 181
18.10 2.750 7.75 140 18.0
•
ICP 182
18.20 2.770 7.73 140 18.0
•
ICP 183
18.30 2.780 7.72 140 18.0
•
ICP 184
18.40 2.800 7.70 140 18.0
•
ICP 185
18.50 2.820 7.68 140 18.0
•
ICP 186
18.60 2.840 7.66 140 18.0
•
ICP 187
18.70 2.860 7.64 140 18.0
•
ICP 188
18.80 2.880 7.62 140 18.0
•
ICP 189
18.90 2.890 7.61 140 18.0
•
ICP 190
19.00 2.880 8.12 140 19.0
•
ICP 1905
19.05 2.890 8.11 140 19.0
•
ICP 191
19.10 2.900 8.10 140 19.0
•
ICP 192
19.20 2.920 8.08 140 19.0
•
ICP 1927
19.27 2.930 8.07 140 19.0
•
ICP 193
19.30 2.930 8.07 140 19.0
•
ICP 194
19.40 2.950 8.05 140 19.0
•
ICP 195
19.50 2.970 8.03 140 19.0
•
ICP 196
19.60 2.990 8.01 140 19.0
•
ICP 197
19.70 3.010 7.99 140 19.0
•
ICP 198
19.80 3.030 7.97 140 19.0
•
ICP 199
19.90 3.040 7.96 140 19.0
•
ICP 200
20.00 3.020 8.58 140 20.0
•
21
INDEXABLE DRILLS
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
PL
LF
SIG
DC
ICP

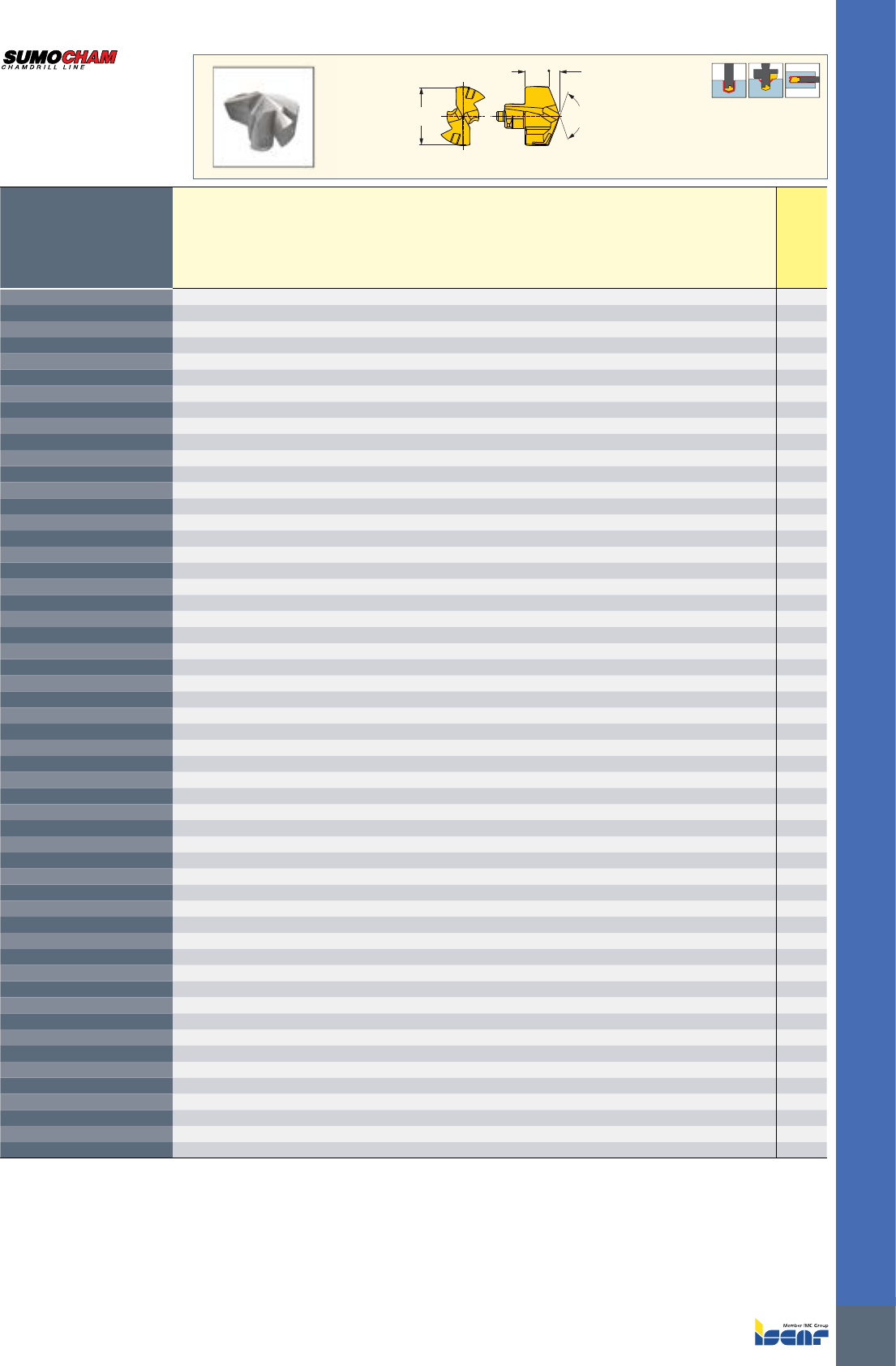

Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
(continued)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 201
20.10 3.040 8.56 140 20.0
•
ICP 202
20.20 3.060 8.54 140 20.0
•
ICP 203
20.30 3.070 8.53 140 20.0
•
ICP 204
20.40 3.090 8.51 140 20.0
•
ICP 205
20.50 3.110 8.49 140 20.0
•
ICP 206
20.60 3.130 8.47 140 20.0
•
ICP 207
20.70 3.150 8.45 140 20.0
•
ICP 208
20.80 3.170 8.43 140 20.0
•
ICP 209
20.90 3.180 8.42 140 20.0
•
ICP 210
21.00 3.180 9.00 140 21.0
•
ICP 211
21.10 3.200 8.98 140 21.0
•
ICP 212
21.20 3.220 8.96 140 21.0
•
ICP 213
21.30 3.230 8.95 140 21.0
•
ICP 214
21.40 3.250 8.93 140 21.0
•
ICP 215
21.50 3.270 8.91 140 21.0
•
ICP 216
21.60 3.290 8.89 140 21.0
•
ICP 217
21.70 3.310 8.87 140 21.0
•
ICP 218
21.80 3.330 8.85 140 21.0
•
ICP 219
21.90 3.340 8.84 140 21.0
•
ICP 220
22.00 3.320 9.44 140 22.0
•
ICP 221
22.10 3.340 9.42 140 22.0
•
ICP 222
22.20 3.360 9.40 140 22.0
•
ICP 223
22.30 3.370 9.39 140 22.0
•
ICP 224
22.40 3.390 9.37 140 22.0
•
ICP 225
22.50 3.410 9.35 140 22.0
•
ICP 226
22.60 3.430 9.33 140 22.0
•
ICP 227
22.70 3.450 9.31 140 22.0
•
ICP 228
22.80 3.470 9.29 140 22.0
•
ICP 229
22.90 3.480 9.28 140 22.0
•
ICP 230
23.00 3.460 9.87 140 23.0
•
ICP 231
23.10 3.480 9.85 140 23.0
•
ICP 232
23.20 3.500 9.83 140 23.0
•
ICP 233
23.30 3.510 9.82 140 23.0
•
ICP 234
23.40 3.530 9.80 140 23.0
•
ICP 235
23.50 3.550 9.78 140 23.0
•
ICP 236
23.60 3.570 9.76 140 23.0
•
ICP 237
23.70 3.590 9.74 140 23.0
•
ICP 238
23.80 3.610 9.72 140 23.0
•
ICP 239
23.90 3.620 9.71 140 23.0
•
ICP 240
24.00 3.620 10.28 140 24.0
•
ICP 241
24.10 3.640 10.26 140 24.0
•
ICP 242
24.20 3.660 10.24 140 24.0
•
ICP 243
24.30 3.670 10.23 140 24.0
•
ICP 244
24.40 3.690 10.21 140 24.0
•
ICP 245
24.50 3.710 10.19 140 24.0
•
ICP 246
24.60 3.730 10.17 140 24.0
•
ICP 247
24.70 3.750 10.15 140 24.0
•
ICP 248
24.80 3.770 10.13 140 24.0
•
ICP 249
24.90 3.780 10.12 140 24.0
•
ICP 250
25.00 3.800 10.70 140 25.0
•
ICP 251
25.10 3.820 10.68 140 25.0
•
ICP 252
25.20 3.840 10.66 140 25.0
•
ICP 253
25.30 3.850 10.65 140 25.0
•
ICP 254
25.40 3.870 10.63 140 25.0
•
ICP 255
25.50 3.890 10.61 140 25.0
•
ISCAR
22

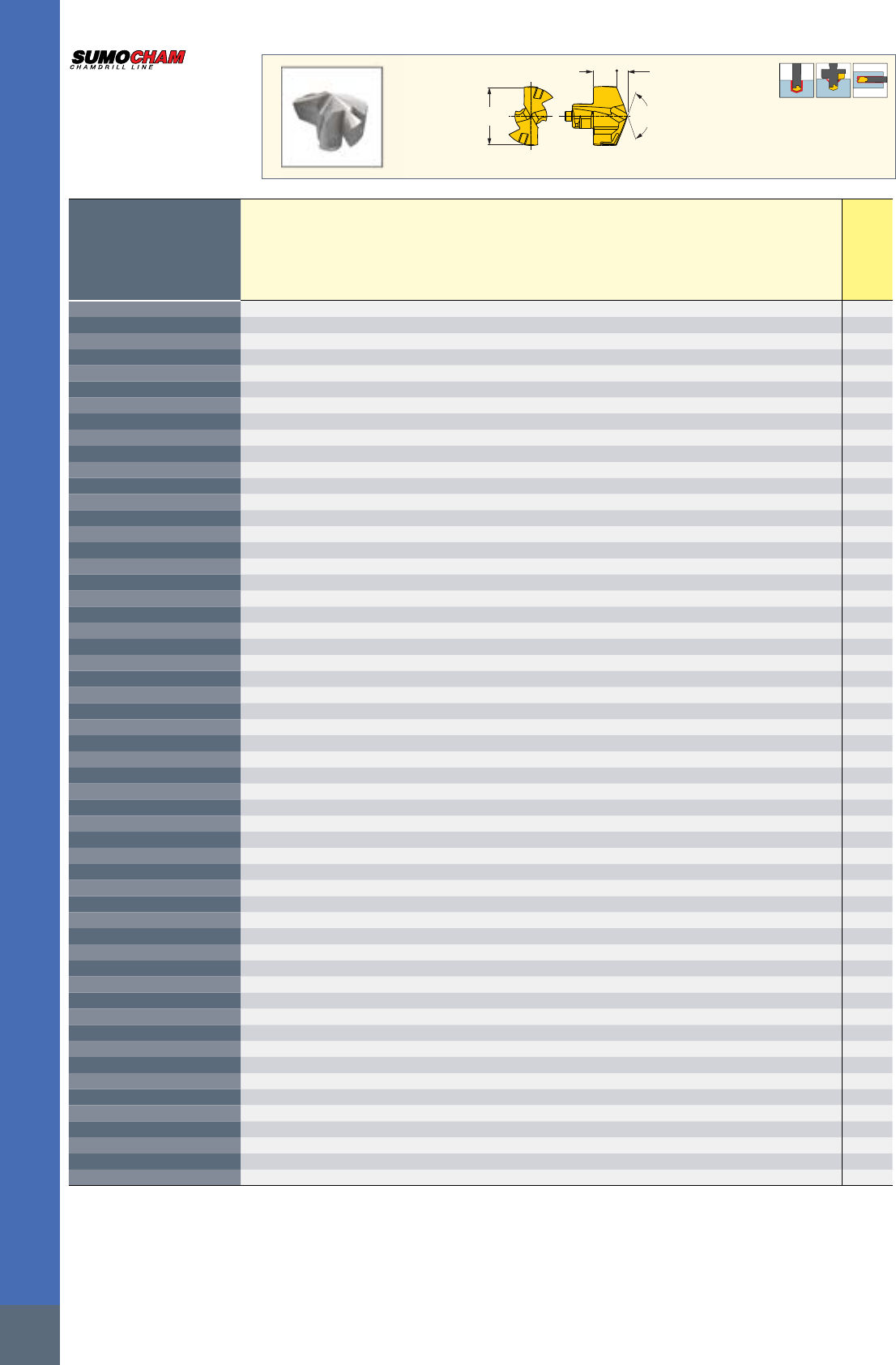

INDEXABLE DRILLS
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
PL
LF
SIG
DC
ICP
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
(continued)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 256
25.60 3.910 10.59 140 25.0
•
ICP 257
25.70 3.930 10.57 140 25.0
•
ICP 258
25.80 3.950 10.55 140 25.0
•
ICP 259
25.90 3.960 10.54 140 25.0
•
ICP 260
26.00 3.950 11.12 140 26.0
•
ICP 261
26.10 3.970 11.10 140 26.0
•
ICP 262
26.20 3.990 11.08 140 26.0
•
ICP 263
26.30 4.000 11.07 140 26.0
•
ICP 264
26.40 4.020 11.05 140 26.0
•
ICP 265
26.50 4.040 11.03 140 26.0
•
ICP 266
26.60 4.060 11.01 140 26.0
•
ICP 267
26.70 4.080 10.99 140 26.0
•
ICP 268
26.80 4.100 10.97 140 26.0
•
ICP 269
26.90 4.110 10.96 140 26.0
•
ICP 270
27.00 4.100 11.55 140 27.0
•
ICP 271
27.10 4.120 11.53 140 27.0
•
ICP 272
27.20 4.140 11.51 140 27.0
•
ICP 273
27.30 4.150 11.50 140 27.0
•
ICP 274
27.40 4.170 11.48 140 27.0
•
ICP 275
27.50 4.190 11.46 140 27.0
•
ICP 276
27.60 4.210 11.44 140 27.0
•
ICP 277
27.70 4.230 11.42 140 27.0
•
ICP 278
27.80 4.250 11.40 140 27.0
•
ICP 279
27.90 4.260 11.39 140 27.0
•
ICP 280
28.00 4.250 11.97 140 28.0
•
ICP 281
28.10 4.270 11.95 140 28.0
•
ICP 282
28.20 4.290 11.93 140 28.0
•
ICP 283
28.30 4.300 11.92 140 28.0
•
ICP 284
28.40 4.320 11.90 140 28.0
•
ICP 285
28.50 4.340 11.88 140 28.0
•
ICP 2858
28.58 4.360 11.86 140 28.0
•
ICP 286
28.60 4.360 11.86 140 28.0
•
ICP 287
28.70 4.380 11.84 140 28.0
•
ICP 288
28.80 4.400 11.82 140 28.0
•
ICP 289
28.90 4.410 11.81 140 28.0
•
ICP 290
29.00 4.430 12.37 140 29.0
•
ICP 291
29.10 4.450 12.35 140 29.0
•
ICP 292
29.20 4.470 12.33 140 29.0
•
ICP 293
29.30 4.480 12.32 140 29.0
•
ICP 294
29.40 4.500 12.30 140 29.0
•
ICP 295
29.50 4.520 12.28 140 29.0
•
ICP 296
29.60 4.540 12.26 140 29.0
•
ICP 297
29.70 4.560 12.24 140 29.0
•
ICP 298
29.80 4.580 12.22 140 29.0
•
ICP 299
29.90 4.590 12.21 140 29.0
•
ICP 300
30.00 4.590 12.79 140 30.0
•
ICP 301
30.10 4.610 12.77 140 30.0
•
ICP 302
30.20 4.630 12.75 140 30.0
•
ICP 303
30.30 4.640 12.74 140 30.0
•
ICP 304
30.40 4.660 12.72 140 30.0
•
ICP 305
30.50 4.680 12.70 140 30.0
•
ICP 306
30.60 4.700 12.68 140 30.0
•
ICP 307
30.70 4.720 12.66 140 30.0
•
ICP 308
30.80 4.740 12.64 140 30.0
•
23
INDEXABLE DRILLS
• The drill head has a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
PL
LF
SIG
DC
ICP
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO P Materials
(continued)
Dimensions
Designation
DC PL LF SIG SSC(1)
IC908
ICP 309
30.90 4.750 12.63 140 30.0
•
ICP 310
31.00 4.760 13.20 140 31.0
•
ICP 311
31.10 4.780 13.18 140 31.0
•
ICP 312
31.20 4.800 13.16 140 31.0
•
ICP 313
31.30 4.810 13.15 140 31.0
•
ICP 314
31.40 4.830 13.13 140 31.0
•
ICP 315
31.50 4.850 13.11 140 31.0
•
ICP 316
31.60 4.870 13.09 140 31.0
•
ICP 317
31.70 4.890 13.07 140 31.0
•
ICP 3175
31.75 4.900 13.06 140 31.0
•
ICP 318
31.80 4.910 13.05 140 31.0
•
ICP 319
31.90 4.920 13.04 140 31.0
•
ICP 320
32.00 4.860 13.68 140 32.0
•
ICP 321
32.10 4.880 13.66 140 32.0
•
ICP 322
32.20 4.900 13.64 140 32.0
•
ICP 323
32.30 4.910 13.63 140 32.0
•
ICP 324
32.40 4.930 13.61 140 32.0
•
ICP 325
32.50 4.950 13.59 140 32.0
•
ICP 326
32.60 4.970 13.57 140 32.0
•
ICP 327
32.70 4.990 13.55 140 32.0
•
ICP 328
32.80 5.010 13.53 140 32.0
•
ICP 329
32.90 5.020 13.52 140 32.0
•
ISCAR
24

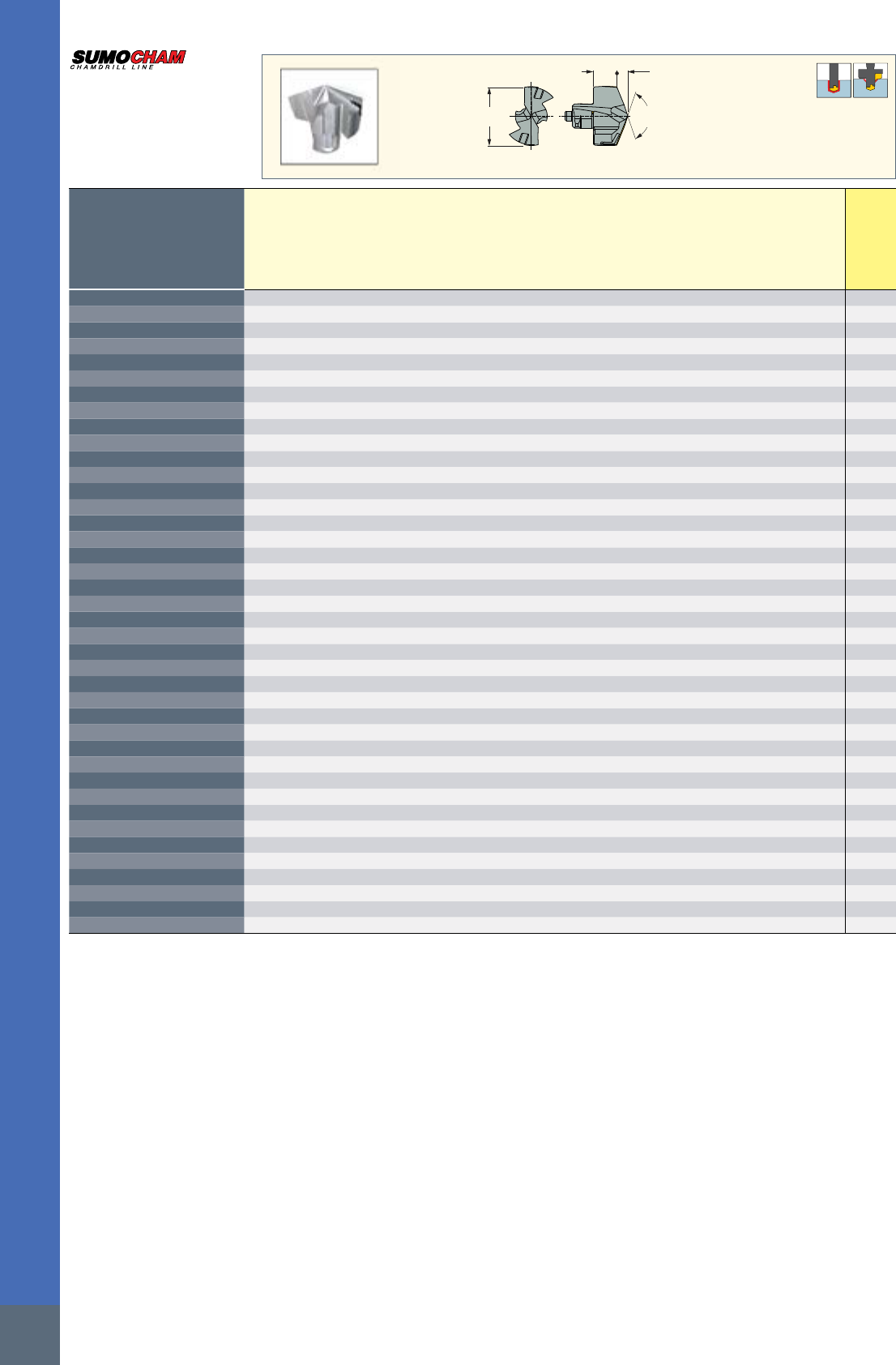

INDEXABLE DRILLS
LF PL
SIG
DC
ICP-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO P Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
ICP 060-2M
6.00 2.91 1.090 140 6.0
•
ICP 061-2M
6.10 2.89 1.110 140 6.0
•
ICP 062-2M
6.20 2.87 1.130 140 6.0
•
ICP 064-2M
6.40 2.84 1.160 140 6.0
•
ICP 065-2M
6.50 3.12 1.180 140 6.5
•
ICP 066-2M
6.60 3.10 1.200 140 6.5
•
ICP 067-2M
6.70 3.08 1.220 140 6.5
•
ICP 068-2M
6.80 3.06 1.240 140 6.5
•
ICP 069-2M
6.90 3.04 1.260 140 6.5
•
ICP 070-2M
7.00 3.33 1.270 140 7.0
•
ICP 071-2M
7.10 3.31 1.290 140 7.0
•
ICP 073-2M
7.30 3.27 1.330 140 7.0
•
ICP 074-2M
7.40 3.25 1.350 140 7.0
•
ICP 075-2M
7.50 3.24 1.360 140 7.0
•
ICP 077-2M
7.70 3.20 1.400 140 7.0
•
ICP 078-2M
7.80 3.18 1.420 140 7.0
•
ICP 079-2M
7.90 3.16 1.440 140 7.0
•
ICP 080-2M
8.00 3.94 1.460 140 8.0
•
ICP 081-2M
8.10 3.93 1.470 140 8.0
•
ICP 082-2M
8.20 3.91 1.490 140 8.0
•
ICP 083-2M
8.30 3.89 1.510 140 8.0
•
ICP 084-2M
8.40 3.87 1.530 140 8.0
•
ICP 085-2M
8.50 3.85 1.550 140 8.0
•
ICP 086-2M
8.60 3.83 1.570 140 8.0
•
ICP 087-2M
8.70 3.82 1.580 140 8.0
•
ICP 088-2M
8.80 3.80 1.600 140 8.0
•
ICP 089-2M
8.90 3.78 1.620 140 8.0
•
ICP 090-2M
9.00 4.16 1.640 140 9.0
•
ICP 091-2M
9.10 4.14 1.660 140 9.0
•
ICP 092-2M
9.20 4.13 1.670 140 9.0
•
ICP 093-2M
9.30 4.11 1.690 140 9.0
•
ICP 094-2M
9.40 4.09 1.710 140 9.0
•
ICP 095-2M
9.50 4.07 1.730 140 9.0
•
ICP 096-2M
9.60 4.05 1.750 140 9.0
•
ICP 097-2M
9.70 4.03 1.770 140 9.0
•
ICP 098-2M
9.80 4.02 1.780 140 9.0
•
ICP 099-2M
9.90 4.00 1.800 140 9.0
•
ICP 100-2M
10.00 4.38 1.820 140 10.0
•
ICP 101-2M
10.10 4.36 1.840 140 10.0
•
ICP 102-2M
10.20 4.34 1.860 140 10.0
•
ICP 103-2M
10.30 4.33 1.870 140 10.0
•
ICP 104-2M
10.40 4.31 1.890 140 10.0
•
ICP 105-2M
10.50 4.29 1.910 140 10.0
•
ICP 106-2M
10.60 4.27 1.930 140 10.0
•
ICP 107-2M
10.70 4.25 1.950 140 10.0
•
ICP 108-2M
10.80 4.23 1.970 140 10.0
•
ICP 109-2M
10.90 4.22 1.980 140 10.0
•
ICP 110-2M
11.00 4.60 2.000 140 11.0
•
ICP 111-2M
11.10 4.58 2.020 140 11.0
•
ICP 112-2M
11.20 4.56 2.040 140 11.0
•
ICP 113-2M
11.30 4.54 2.060 140 11.0
•
ICP 114-2M
11.40 4.53 2.070 140 11.0
•
ICP 115-2M
11.50 4.51 2.090 140 11.0
•
ICP 116-2M
11.60 4.49 2.110 140 11.0
•
25
INDEXABLE DRILLS
LF PL
SIG
DC
ICP-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO P Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
ICP 117-2M
11.70 4.47 2.130 140 11.0
•
ICP 118-2M
11.80 4.45 2.150 140 11.0
•
ICP 119-2M
11.90 4.43 2.170 140 11.0
•
ICP 120-2M
12.00 4.82 2.180 140 12.0
•
ICP 121-2M
12.10 4.80 2.200 140 12.0
•
ICP 122-2M
12.20 4.78 2.220 140 12.0
•
ICP 123-2M
12.30 4.76 2.240 140 12.0
•
ICP 124-2M
12.40 4.74 2.260 140 12.0
•
ICP 125-2M
12.50 4.73 2.270 140 12.0
•
ICP 126-2M
12.60 4.71 2.290 140 12.0
•
ICP 127-2M
12.70 4.69 2.310 140 12.0
•
ICP 128-2M
12.80 4.67 2.330 140 12.0
•
ICP 129-2M
12.90 4.65 2.350 140 12.0
•
ICP 130-2M
13.00 5.23 2.370 140 13.0
•
ICP 131-2M
13.10 5.22 2.380 140 13.0
•
ICP 132-2M
13.20 5.20 2.400 140 13.0
•
ICP 133-2M
13.30 5.18 2.420 140 13.0
•
ICP 134-2M
13.40 5.16 2.440 140 13.0
•
ICP 135-2M
13.50 5.14 2.460 140 13.0
•
ICP 136-2M
13.60 5.13 2.470 140 13.0
•
ICP 137-2M
13.70 5.11 2.490 140 13.0
•
ICP 138-2M
13.80 5.09 2.510 140 13.0
•
ICP 139-2M
13.90 5.07 2.530 140 13.0
•
ICP 140-2M
14.00 5.60 2.550 140 14.0
•
ICP 141-2M
14.10 5.58 2.570 140 14.0
•
ICP 142-2M
14.20 5.57 2.580 140 14.0
•
ICP 143-2M
14.30 5.55 2.600 140 14.0
•
ICP 144-2M
14.40 5.53 2.620 140 14.0
•
ICP 145-2M
14.50 5.51 2.640 140 14.0
•
ICP 146-2M
14.60 5.49 2.660 140 14.0
•
ICP 147-2M
14.70 5.47 2.680 140 14.0
•
ICP 148-2M
14.80 5.46 2.690 140 14.0
•
ICP 149-2M
14.90 5.44 2.710 140 14.0
•
ICP 150-2M
15.00 6.00 2.730 140 15.0
•
ICP 151-2M
15.10 5.98 2.750 140 15.0
•
ICP 152-2M
15.20 5.96 2.770 140 15.0
•
ICP 153-2M
15.30 5.95 2.780 140 15.0
•
ICP 154-2M
15.40 5.93 2.800 140 15.0
•
ICP 155-2M
15.50 5.91 2.820 140 15.0
•
ICP 156-2M
15.60 5.89 2.840 140 15.0
•
ICP 157-2M
15.70 5.87 2.860 140 15.0
•
ICP 158-2M
15.80 5.85 2.880 140 15.0
•
ICP 159-2M
15.90 5.84 2.890 140 15.0
•
ICP 160-2M
16.00 6.39 2.910 140 16.0
•
ICP 161-2M
16.10 6.37 2.930 140 16.0
•
ICP 162-2M
16.20 6.35 2.950 140 16.0
•
ICP 163-2M
16.30 6.33 2.970 140 16.0
•
ICP 165-2M
16.50 6.30 3.000 140 16.0
•
ICP 166-2M
16.60 6.28 3.020 140 16.0
•
ICP 167-2M
16.70 6.26 3.040 140 16.0
•
ICP 170-2M
17.00 6.81 3.090 140 17.0
•
ICP 171-2M
17.10 6.79 3.110 140 17.0
•
ICP 172-2M
17.20 6.77 3.130 140 17.0
•
ICP 174-2M
17.40 6.73 3.170 140 17.0
•
(continued)
ISCAR
26
INDEXABLE DRILLS
LF PL
SIG
DC
ICP-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO P Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
ICP 175-2M
17.50 6.72 3.180 140 17.0
•
ICP 177-2M
17.70 6.68 3.220 140 17.0
•
ICP 178-2M
17.80 6.66 3.240 140 17.0
•
ICP 179-2M
17.90 6.64 3.260 140 17.0
•
ICP 180-2M
18.00 7.22 3.280 140 18.0
•
ICP 181-2M
18.10 7.21 3.290 140 18.0
•
ICP 182-2M
18.20 7.19 3.310 140 18.0
•
ICP 183-2M
18.30 7.17 3.330 140 18.0
•
ICP 184-2M
18.40 7.15 3.350 140 18.0
•
ICP 185-2M
18.50 7.13 3.370 140 18.0
•
ICP 186-2M
18.60 7.12 3.380 140 18.0
•
ICP 187-2M
18.70 7.10 3.400 140 18.0
•
ICP 188-2M
18.80 7.08 3.420 140 18.0
•
ICP 189-2M
18.90 7.06 3.440 140 18.0
•
ICP 190-2M
19.00 7.54 3.460 140 19.0
•
ICP 191-2M
19.10 7.52 3.480 140 19.0
•
ICP 192-2M
19.20 7.51 3.490 140 19.0
•
ICP 1925-2M
19.25 7.50 3.500 140 19.0
•
ICP 1927-2M
19.27 7.49 3.510 140 19.0
•
ICP 193-2M
19.30 7.49 3.510 140 19.0
•
ICP 194-2M
19.40 7.47 3.530 140 19.0
•
ICP 195-2M
19.50 7.45 3.550 140 19.0
•
ICP 196-2M
19.60 7.43 3.570 140 19.0
•
ICP 197-2M
19.70 7.41 3.590 140 19.0
•
ICP 198-2M
19.80 7.40 3.600 140 19.0
•
ICP 199-2M
19.90 7.38 3.620 140 19.0
•
ICP 200-2M
20.00 7.96 3.640 140 20.0
•
ICP 201-2M
20.10 7.94 3.660 140 20.0
•
ICP 202-2M
20.20 7.92 3.680 140 20.0
•
ICP 203-2M
20.30 7.91 3.690 140 20.0
•
ICP 204-2M
20.40 7.89 3.710 140 20.0
•
ICP 206-2M
20.60 7.85 3.750 140 20.0
•
ICP 207-2M
20.70 7.83 3.770 140 20.0
•
ICP 208-2M
20.80 7.81 3.790 140 20.0
•
ICP 209-2M
20.90 7.80 3.800 140 20.0
•
ICP 210-2M
21.00 8.38 3.820 140 21.0
•
ICP 211-2M
21.10 8.36 3.840 140 21.0
•
ICP 212-2M
21.20 8.34 3.860 140 21.0
•
ICP 213-2M
21.30 8.32 3.880 140 21.0
•
ICP 214-2M
21.40 8.31 3.890 140 21.0
•
ICP 215-2M
21.50 8.29 3.910 140 21.0
•
ICP 216-2M
21.60 8.27 3.930 140 21.0
•
ICP 217-2M
21.70 8.25 3.950 140 21.0
•
ICP 218-2M
21.80 8.23 3.970 140 21.0
•
ICP 219-2M
21.90 8.21 3.990 140 21.0
•
ICP 220-2M
22.00 8.80 4.000 140 22.0
•
ICP 221-2M
22.10 8.78 4.020 140 22.0
•
ICP 222-2M
22.20 8.76 4.040 140 22.0
•
ICP 223-2M
22.30 8.74 4.060 140 22.0
•
ICP 224-2M
22.40 8.72 4.080 140 22.0
•
ICP 225-2M
22.50 8.71 4.090 140 22.0
•
ICP 226-2M
22.60 8.69 4.110 140 22.0
•
ICP 227-2M
22.70 8.67 4.130 140 22.0
•
ICP 228-2M
22.80 8.65 4.150 140 22.0
•
(continued)

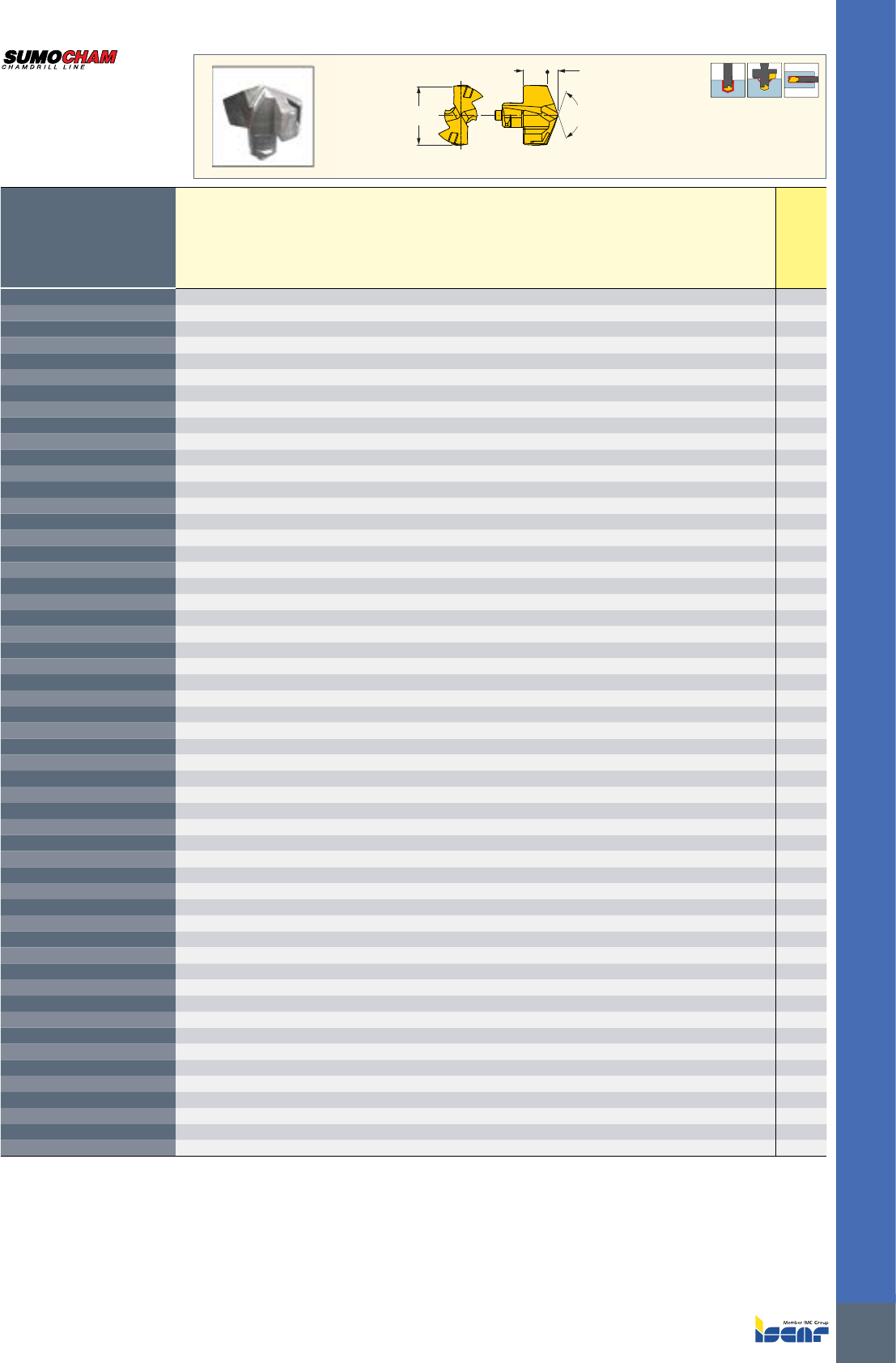

27
INDEXABLE DRILLS
LF PL
SIG
DC
ICP-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO P Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
ICP 229-2M
22.90 8.63 4.170 140 22.0
•
ICP 230-2M
23.00 9.11 4.190 140 23.0
•
ICP 231-2M
23.10 9.10 4.200 140 23.0
•
ICP 232-2M
23.20 9.08 4.220 140 23.0
•
ICP 233-2M
23.30 9.06 4.240 140 23.0
•
ICP 234-2M
23.40 9.04 4.260 140 23.0
•
ICP 235-2M
23.50 9.02 4.280 140 23.0
•
ICP 236-2M
23.60 9.01 4.290 140 23.0
•
ICP 237-2M
23.70 8.99 4.310 140 23.0
•
ICP 238-2M
23.80 8.97 4.330 140 23.0
•
ICP 239-2M
23.90 8.95 4.350 140 23.0
•
ICP 240-2M
24.00 9.53 4.370 140 24.0
•
ICP 241-2M
24.10 9.51 4.390 140 24.0
•
ICP 242-2M
24.20 9.50 4.400 140 24.0
•
ICP 243-2M
24.30 9.48 4.420 140 24.0
•
ICP 245-2M
24.50 9.44 4.460 140 24.0
•
ICP 246-2M
24.60 9.42 4.480 140 24.0
•
ICP 247-2M
24.70 9.40 4.500 140 24.0
•
ICP 248-2M
24.80 9.39 4.510 140 24.0
•
ICP 249-2M
24.90 9.37 4.530 140 24.0
•
ICP 250-2M
25.00 9.95 4.550 140 25.0
•
ICP 251-2M
25.10 9.93 4.570 140 25.0
•
ICP 252-2M
25.20 9.91 4.590 140 25.0
•
ICP 253-2M
25.30 9.90 4.600 140 25.0
•
ICP 254-2M
25.40 9.88 4.620 140 25.0
•
ICP 255-2M
25.50 9.86 4.640 140 25.0
•
ICP 256-2M
25.60 9.84 4.660 140 25.0
•
ICP 2567-2M
25.67 10.58 3.920 140 25.0
•
ICP 257-2M
25.70 9.82 4.680 140 25.0
•
ICP 258-2M
25.80 9.80 4.700 140 25.0
•
ICP 259-2M
25.90 9.79 4.710 140 25.0
•
(continued)
ISCAR
28

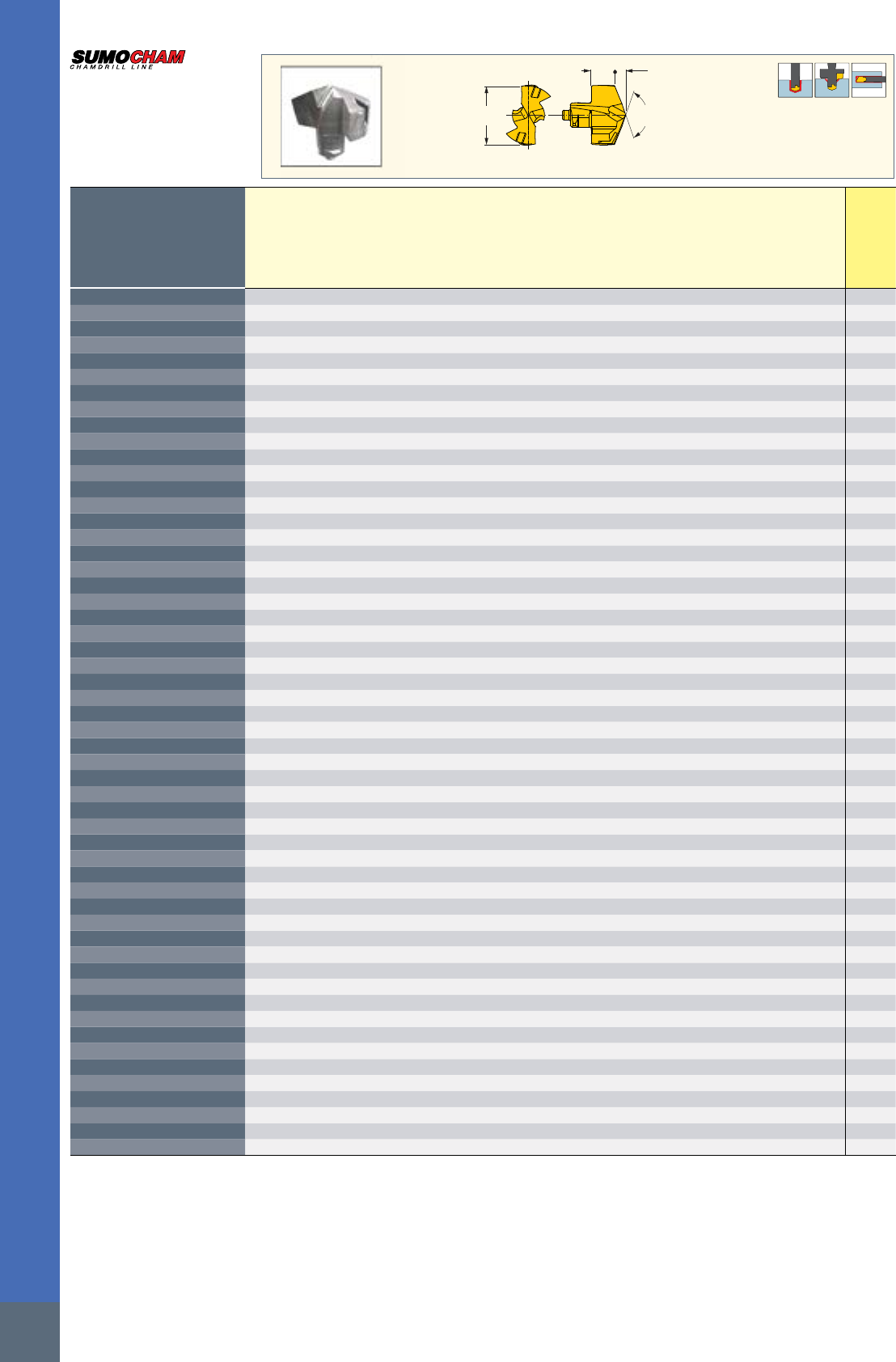

INDEXABLE DRILLS
DC
BCH
SIG
PL
LF
KCH
ICK
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO K Materials
• The drill head is produced with a ground chamfer and a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136) • MNSNT (293)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 050
5.00 2.45 1.250 0.60 30.0 140 5.0 SK DCN 5-5.99
•
ICK 055
5.50 2.47 1.380 0.60 30.0 140 5.5 SK DCN 5-5.99
•
ICK 059
5.90 2.47 1.380 0.60 30.0 140 5.5 SK DCN 5-5.99
•
ICK 061
6.10 2.48 1.520 0.72 30.0 140 6.0
•
ICK 062
6.20 2.48 1.520 0.72 30.0 140 6.0
•
ICK 063
6.30 2.48 1.520 0.72 30.0 140 6.0
•
ICK 0635
6.35 2.48 1.520 0.72 30.0 140 6.0
•
ICK 064
6.40 2.48 1.520 0.72 30.0 140 6.0
•
ICK 065
6.50 2.64 1.660 0.72 30.0 140 6.5
•
ICK 066
6.60 2.64 1.660 0.72 30.0 140 6.5
•
ICK 067
6.70 2.64 1.660 0.72 30.0 140 6.5
•
ICK 068
6.80 2.64 1.660 0.72 30.0 140 6.5
•
ICK 069
6.90 2.64 1.660 0.72 30.0 140 6.5
•
ICK 070
7.00 3.02 1.580 0.84 30.0 140 7.0
•
ICK 071
7.10 3.02 1.580 0.84 30.0 140 7.0
•
ICK 072
7.20 3.02 1.580 0.84 30.0 140 7.0
•
ICK 073
7.30 3.02 1.580 0.84 30.0 140 7.0
•
ICK 074
7.40 3.02 1.580 0.84 30.0 140 7.0
•
ICK 075
7.50 3.02 1.580 0.84 30.0 140 7.0
•
ICK 076
7.60 3.02 1.580 0.84 30.0 140 7.0
•
ICK 078
7.80 3.02 1.580 0.84 30.0 140 7.0
•
ICK 079
7.90 3.02 1.580 0.84 30.0 140 7.0
•
ICK 080
8.00 3.43 1.970 0.96 30.0 140 8.0
• •
ICK 082
8.20 3.43 1.970 0.96 30.0 140 8.0
•
ICK 083
8.30 3.43 1.970 0.96 30.0 140 8.0
•
ICK 084
8.40 3.43 1.970 0.96 30.0 140 8.0
•
ICK 085
8.50 3.43 1.970 0.96 30.0 140 8.0
• •
ICK 086
8.60 3.43 1.970 0.96 30.0 140 8.0
•
ICK 087
8.70 3.43 1.970 0.96 30.0 140 8.0
•
ICK 088
8.80 3.43 1.970 0.96 30.0 140 8.0
•
ICK 089
8.90 3.43 1.970 0.96 30.0 140 8.0
•
ICK 090
9.00 3.60 2.200 1.08 30.0 140 9.0
• •
ICK 091
9.10 3.60 2.200 1.08 30.0 140 9.0
• •
ICK 092
9.20 3.60 2.200 1.08 30.0 140 9.0
•
ICK 094
9.40 3.60 2.200 1.08 30.0 140 9.0
•
ICK 095
9.50 3.60 2.200 1.08 30.0 140 9.0
• •
ICK 098
9.80 3.60 2.200 1.08 30.0 140 9.0
•
ICK 099
9.90 3.60 2.200 1.08 30.0 140 9.0
•
ICK 100
10.00 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 101
10.10 3.77 2.430 1.20 30.0 140 10.0
•
ICK 102
10.20 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 103
10.30 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 104
10.40 3.77 2.430 1.20 30.0 140 10.0
•
ICK 105
10.50 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 106
10.60 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 107
10.70 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 108
10.80 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 109
10.90 3.77 2.430 1.20 30.0 140 10.0
•
ICK 110
11.00 3.94 2.660 1.32 30.0 140 11.0
•
ICK 111
11.10 3.94 2.660 1.32 30.0 140 11.0
• •
ICK 112
11.20 3.94 2.660 1.32 30.0 140 11.0
•
ICK 113
11.30 3.94 2.660 1.32 30.0 140 11.0
• •
ICK 114
11.40 3.94 2.660 1.32 30.0 140 11.0
•
ICK 115
11.50 3.94 2.660 1.32 30.0 140 11.0
• •
ICK 116
11.60 3.94 2.660 1.32 30.0 140 11.0
•
29
INDEXABLE DRILLS
DC
BCH
SIG
PL
LF
KCH
ICK
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO K Materials
• The drill head is produced with a ground chamfer and a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 117
11.70 3.94 2.660 1.32 30.0 140 11.0
• •
ICK 118
11.80 3.94 2.660 1.32 30.0 140 11.0
•
ICK 119
11.90 3.94 2.660 1.32 30.0 140 11.0
•
ICK 120
12.00 4.10 2.180 1.44 30.0 140 12.0
• •
ICK 121
12.10 4.10 2.200 1.44 30.0 140 12.0
•
ICK 122
12.20 4.10 2.220 1.44 30.0 140 12.0
•
ICK 123
12.30 4.10 2.240 1.44 30.0 140 12.0
•
ICK 124
12.40 4.10 2.260 1.44 30.0 140 12.0
•
ICK 125
12.50 4.10 2.270 1.44 30.0 140 12.0
• •
ICK 126
12.60 4.10 2.290 1.44 30.0 140 12.0
•
ICK 127
12.70 4.10 2.310 1.44 30.0 140 12.0
•
ICK 128
12.80 4.10 2.330 1.44 30.0 140 12.0
• •
ICK 129
12.90 4.10 2.350 1.44 30.0 140 12.0
•
ICK 130
13.00 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 131
13.10 4.48 3.120 1.56 30.0 140 13.0
•
ICK 132
13.20 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 133
13.30 4.48 3.120 1.56 30.0 140 13.0
•
ICK 134
13.40 4.48 3.120 1.56 30.0 140 13.0
•
ICK 135
13.50 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 136
13.60 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 137
13.70 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 138
13.80 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 139
13.90 4.48 3.120 1.56 30.0 140 13.0
•
ICK 140
14.00 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 141
14.10 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 142
14.20 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 143
14.30 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 144
14.40 4.79 3.360 1.68 30.0 140 14.0
•
ICK 145
14.50 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 146
14.60 4.79 3.360 1.68 30.0 140 14.0
•
ICK 147
14.70 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 148
14.80 4.79 3.360 1.68 30.0 140 14.0
•
ICK 149
14.90 4.79 3.360 1.68 30.0 140 14.0
•
ICK 150
15.00 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 151
15.10 5.14 3.590 1.80 30.0 140 15.0
•
ICK 152
15.20 5.14 3.590 1.80 30.0 140 15.0
•
ICK 153
15.30 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 154
15.40 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 155
15.50 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 156
15.60 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 157
15.70 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 158
15.80 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 159
15.90 5.14 3.590 1.80 30.0 140 15.0
•
ICK 160
16.00 5.55 3.750 1.92 30.0 140 16.0
•
ICK 161
16.10 5.55 3.750 1.92 30.0 140 16.0
•
ICK 162
16.20 5.55 3.750 1.92 30.0 140 16.0
•
ICK 163
16.30 5.55 3.750 1.92 30.0 140 16.0
•
ICK 164
16.40 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 165
16.50 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 166
16.60 5.55 3.750 1.92 30.0 140 16.0
•
ICK 167
16.70 5.55 3.750 1.92 30.0 140 16.0
•
ICK 168
16.80 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 170
17.00 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 171
17.10 5.84 4.060 2.04 30.0 140 17.0
• •
ISCAR
30
INDEXABLE DRILLS
DC
BCH
SIG
PL
LF
KCH
ICK
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO K Materials
• The drill head is produced with a ground chamfer and a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 172
17.20 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 173
17.30 5.84 4.060 2.04 30.0 140 17.0
•
ICK 174
17.40 5.84 4.060 2.04 30.0 140 17.0
•
ICK 175
17.50 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 176
17.60 5.84 4.060 2.04 30.0 140 17.0
•
ICK 177
17.70 5.84 4.060 2.04 30.0 140 17.0
•
ICK 178
17.80 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 179
17.90 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 180
18.00 6.21 4.290 2.16 30.0 140 18.0
• •
ICK 181
18.10 6.21 4.290 2.16 30.0 140 18.0
• •
ICK 182
18.20 6.21 4.290 2.16 30.0 140 18.0
•
ICK 183
18.30 6.21 4.290 2.16 30.0 140 18.0
•
ICK 184
18.40 6.21 4.290 2.16 30.0 140 18.0
•
ICK 185
18.50 6.21 4.290 2.16 30.0 140 18.0
• •
ICK 186
18.60 6.21 4.290 2.16 30.0 140 18.0
•
ICK 187
18.70 6.21 4.290 2.16 30.0 140 18.0
• •
ICK 189
18.90 6.21 4.290 2.16 30.0 140 18.0
•
ICK 190
19.00 6.47 4.530 2.28 30.0 140 19.0
•
ICK 1905
19.05 6.47 4.530 2.28 30.0 140 19.0
• •
ICK 191
19.10 6.47 4.530 2.28 30.0 140 19.0
• •
ICK 192
19.20 6.47 4.530 2.28 30.0 140 19.0
•
ICK 193
19.30 6.47 4.530 2.28 30.0 140 19.0
•
ICK 194
19.40 6.47 4.530 2.28 30.0 140 19.0
• •
ICK 195
19.50 6.47 4.530 2.28 30.0 140 19.0
• •
ICK 196
19.60 6.47 4.530 2.28 30.0 140 19.0
•
ICK 197
19.70 6.47 4.530 2.28 30.0 140 19.0
•
ICK 198
19.80 6.47 4.530 2.28 30.0 140 19.0
•
ICK 199
19.90 6.47 4.530 2.28 30.0 140 19.0
•
ICK 200
20.00 6.81 4.790 2.40 30.0 140 20.0
• •
ICK 201
20.10 6.81 4.790 2.40 30.0 140 20.0
•
ICK 204
20.40 6.81 4.790 2.40 30.0 140 20.0
•
ICK 205
20.50 6.81 4.790 2.40 30.0 140 20.0
•
ICK 206
20.60 6.81 4.790 2.40 30.0 140 20.0
•
ICK 207
20.70 6.81 4.790 2.40 30.0 140 20.0
•
ICK 208
20.80 6.81 4.790 2.40 30.0 140 20.0
•
ICK 209
20.90 6.81 4.790 2.40 30.0 140 20.0
•
ICK 210
21.00 7.20 4.980 2.52 30.0 140 21.0
• •
ICK 211
21.10 7.20 4.980 2.52 30.0 140 21.0
•
ICK 212
21.20 7.20 4.980 2.52 30.0 140 21.0
•
ICK 213
21.30 7.20 4.980 2.52 30.0 140 21.0
•
ICK 215
21.50 7.20 4.980 2.52 30.0 140 21.0
• •
ICK 216
21.60 7.20 4.980 2.52 30.0 140 21.0
•
ICK 217
21.70 7.20 4.980 2.52 30.0 140 21.0
•
ICK 218
21.80 7.20 4.980 2.52 30.0 140 21.0
•
ICK 219
21.90 7.20 4.980 2.52 30.0 140 21.0
•
ICK 220
22.00 7.54 5.220 2.64 30.0 140 22.0
• •
ICK 221
22.10 7.54 5.220 2.64 30.0 140 22.0
•
ICK 222
22.20 7.54 5.220 2.64 30.0 140 22.0
•
ICK 223
22.30 7.54 5.220 2.64 30.0 140 22.0
•
ICK 225
22.50 7.54 5.220 2.64 30.0 140 22.0
•
ICK 226
22.60 7.54 5.220 2.64 30.0 140 22.0
•
ICK 227
22.70 7.54 5.220 2.64 30.0 140 22.0
•
ICK 230
23.00 7.88 5.450 2.76 30.0 140 23.0
•
ICK 231
23.10 7.88 5.450 2.76 30.0 140 23.0
• •
ICK 233
23.30 7.88 5.450 2.76 30.0 140 23.0
•
31
INDEXABLE DRILLS
DC
BCH
SIG
PL
LF
KCH
ICK
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO K Materials
• The drill head is produced with a ground chamfer and a honed cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 234
23.40 7.88 5.450 2.76 30.0 140 23.0
•
ICK 235
23.50 7.88 5.450 2.76 30.0 140 23.0
• •
ICK 236
23.60 7.88 5.450 2.76 30.0 140 23.0
•
ICK 238
23.80 7.88 5.450 2.76 30.0 140 23.0
•
ICK 239
23.90 7.88 5.450 2.76 30.0 140 23.0
•
ICK 240
24.00 8.21 5.690 2.88 30.0 140 24.0
• •
ICK 243
24.30 8.21 5.690 2.88 30.0 140 24.0
•
ICK 245
24.50 8.21 5.690 2.88 30.0 140 24.0
•
ICK 247
24.70 8.21 5.690 2.88 30.0 140 24.0
•
ICK 248
24.80 8.21 5.690 2.88 30.0 140 24.0
•
ICK 249
24.90 8.21 5.690 2.88 30.0 140 24.0
•
ICK 250
25.00 8.56 5.940 3.00 30.0 140 25.0
• •
ICK 251
25.10 8.56 5.940 3.00 30.0 140 25.0
•
ICK 252
25.20 8.56 5.940 3.00 30.0 140 25.0
•
ICK 253
25.30 8.56 5.940 3.00 30.0 140 25.0
•
ICK 254
25.40 8.56 5.940 3.00 30.0 140 25.0
•
ICK 255
25.50 8.56 5.940 3.00 30.0 140 25.0
•
ICK 256
25.60 8.56 5.940 3.00 30.0 140 25.0
•
ICK 258
25.80 8.56 5.940 3.00 30.0 140 25.0
• •
ICK 259
25.90 8.56 5.940 3.00 30.0 140 25.0
•
ICK 260
26.00 9.05 6.020 3.12 30.0 140 26.0
•
ICK 264
26.40 9.05 6.020 3.12 30.0 140 26.0
•
ICK 265
26.50 9.05 6.020 3.12 30.0 140 26.0
•
ICK 269
26.90 9.05 6.020 3.12 30.0 140 26.0
•
ICK 270
27.00 9.44 6.210 3.24 30.0 140 27.0
•
ICK 275
27.50 9.44 6.210 3.24 30.0 140 27.0
•
ICK 279
27.90 9.44 6.210 3.24 30.0 140 27.0
•
ICK 280
28.00 9.78 6.440 3.36 30.0 140 28.0
•
ICK 285
28.50 9.78 6.440 3.36 30.0 140 28.0
•
ICK 289
28.90 9.78 6.440 3.36 30.0 140 28.0
•
ICK 290
29.00 10.10 6.700 3.48 30.0 140 29.0
•
ICK 295
29.50 10.10 6.700 3.48 30.0 140 29.0
•
ICK 299
29.90 10.10 6.700 3.48 30.0 140 29.0
•
ICK 300
30.00 10.45 6.930 3.60 30.0 140 30.0
•
ICK 305
30.50 10.45 6.930 3.60 30.0 140 30.0
•
ICK 309
30.90 10.45 6.930 3.60 30.0 140 30.0
•
ICK 310
31.00 10.78 7.180 3.72 30.0 140 31.0
•
ICK 315
31.50 10.78 7.180 3.72 30.0 140 31.0
•
ICK 3175
31.75 10.78 7.180 3.72 30.0 140 31.0
•
ICK 319
31.90 10.78 7.180 3.72 30.0 140 31.0
•
ICK 320
32.00 11.18 7.360 3.84 30.0 140 32.0
•
ICK 325
32.50 11.18 7.360 3.84 30.0 140 32.0
•
ICK 329
32.90 11.18 7.360 3.84 30.0 140 32.0
•
ISCAR

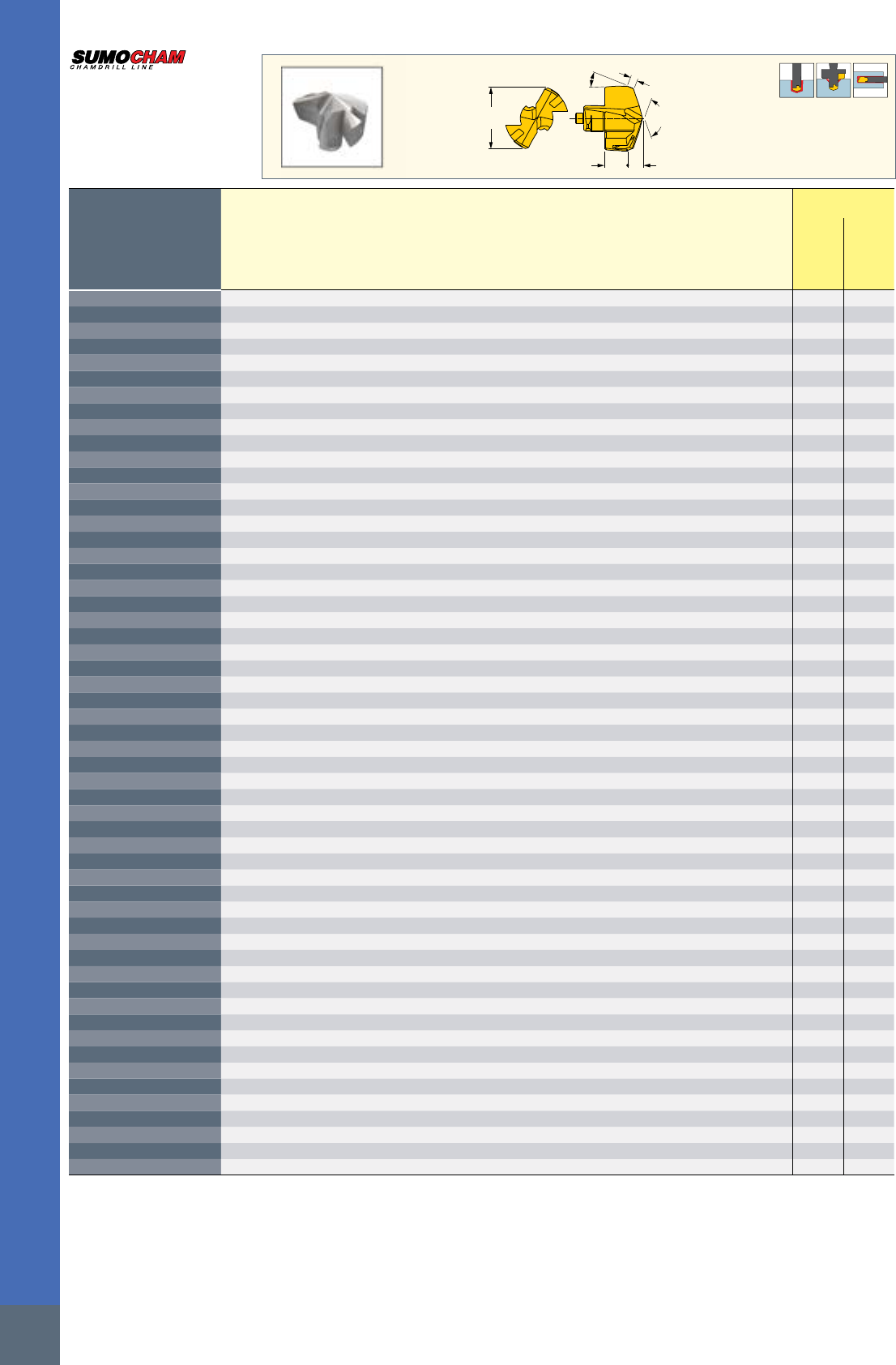

32
INDEXABLE DRILLS
LF PL
SIG
BCH
KCH
DC
ICK-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO K Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 060-2M
6.00 2.48 1.520 0.72 30.0 140 6.0
•
ICK 061-2M
6.10 2.48 1.520 0.72 30.0 140 6.0
•
ICK 062-2M
6.20 2.48 1.520 0.72 30.0 140 6.0
•
ICK 063-2M
6.30 2.48 1.520 0.72 30.0 140 6.0
•
ICK 0635-2M
6.35 2.48 1.520 0.72 30.0 140 6.0
•
ICK 064-2M
6.40 2.48 1.520 0.72 30.0 140 6.0
•
ICK 065-2M
6.50 2.64 1.660 0.72 30.0 140 6.5
•
ICK 066-2M
6.60 2.64 1.660 0.72 30.0 140 6.5
•
ICK 067-2M
6.70 2.64 1.660 0.72 30.0 140 6.5
•
ICK 068-2M
6.80 2.64 1.660 0.72 30.0 140 6.5
•
ICK 069-2M
6.90 2.64 1.660 0.72 30.0 140 6.5
•
ICK 070-2M
7.00 3.02 1.580 0.84 30.0 140 7.0
•
ICK 071-2M
7.10 3.02 1.580 0.84 30.0 140 7.0
•
ICK 072-2M
7.20 3.02 1.580 0.84 30.0 140 7.0
•
ICK 073-2M
7.30 3.02 1.580 0.84 30.0 140 7.0
•
ICK 074-2M
7.40 3.02 1.580 0.84 30.0 140 7.0
•
ICK 075-2M
7.50 3.02 1.580 0.84 30.0 140 7.0
•
ICK 076-2M
7.60 3.02 1.580 0.84 30.0 140 7.0
•
ICK 077-2M
7.70 3.02 1.580 0.84 30.0 140 7.0
•
ICK 078-2M
7.80 3.02 1.580 0.84 30.0 140 7.0
•
ICK 079-2M
7.90 3.02 1.580 0.84 30.0 140 7.0
•
ICK 080-2M
8.00 3.43 1.970 0.96 30.0 140 8.0
•
ICK 081-2M
8.10 3.43 1.970 0.96 30.0 140 8.0
•
ICK 083-2M
8.30 3.43 1.970 0.96 30.0 140 8.0
•
ICK 084-2M
8.40 3.43 1.970 0.96 30.0 140 8.0
•
ICK 085-2M
8.50 3.43 1.970 0.96 30.0 140 8.0
•
ICK 086-2M
8.60 3.43 1.970 0.96 30.0 140 8.0
•
ICK 087-2M
8.70 3.43 1.970 0.96 30.0 140 8.0
•
ICK 088-2M
8.80 3.43 1.970 0.96 30.0 140 8.0
•
ICK 089-2M
8.90 3.43 1.970 0.96 30.0 140 8.0
•
ICK 090-2M
9.00 3.60 2.200 1.08 30.0 140 9.0
•
ICK 091-2M
9.10 3.60 2.200 1.08 30.0 140 9.0
•
ICK 093-2M
9.30 3.60 2.200 1.08 30.0 140 9.0
•
ICK 094-2M
9.40 3.60 2.200 1.08 30.0 140 9.0
•
ICK 095-2M
9.50 3.60 2.200 1.08 30.0 140 9.0
•
ICK 096-2M
9.60 3.60 2.200 1.08 30.0 140 9.0
•
ICK 097-2M
9.70 3.60 2.200 1.08 30.0 140 9.0
•
ICK 098-2M
9.80 3.60 2.200 1.08 30.0 140 9.0
•
ICK 099-2M
9.90 3.60 2.200 1.08 30.0 140 9.0
•
ICK 100-2M
10.00 3.77 2.430 1.20 30.0 140 10.0
•
ICK 101-2M
10.10 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 102-2M
10.20 3.77 2.430 1.20 30.0 140 10.0
•
ICK 103-2M
10.30 3.77 2.430 1.20 30.0 140 10.0
•
ICK 104-2M
10.40 3.77 2.430 1.20 30.0 140 10.0
•
ICK 105-2M
10.50 3.77 2.430 1.20 30.0 140 10.0
•
ICK 106-2M
10.60 3.77 2.430 1.20 30.0 140 10.0
• •
ICK 107-2M
10.70 3.77 2.430 1.20 30.0 140 10.0
•
ICK 108-2M
10.80 3.77 2.430 1.20 30.0 140 10.0
•
ICK 109-2M
10.90 3.77 2.430 1.20 30.0 140 10.0
•
ICK 110-2M
11.00 3.94 2.660 1.32 30.0 140 11.0
•
ICK 111-2M
11.10 3.94 2.660 1.32 30.0 140 11.0
•
ICK 112-2M
11.20 3.94 2.660 1.32 30.0 140 11.0
•
ICK 113-2M
11.30 3.94 2.660 1.32 30.0 140 11.0
•
ICK 114-2M
11.40 3.94 2.660 1.32 30.0 140 11.0
•

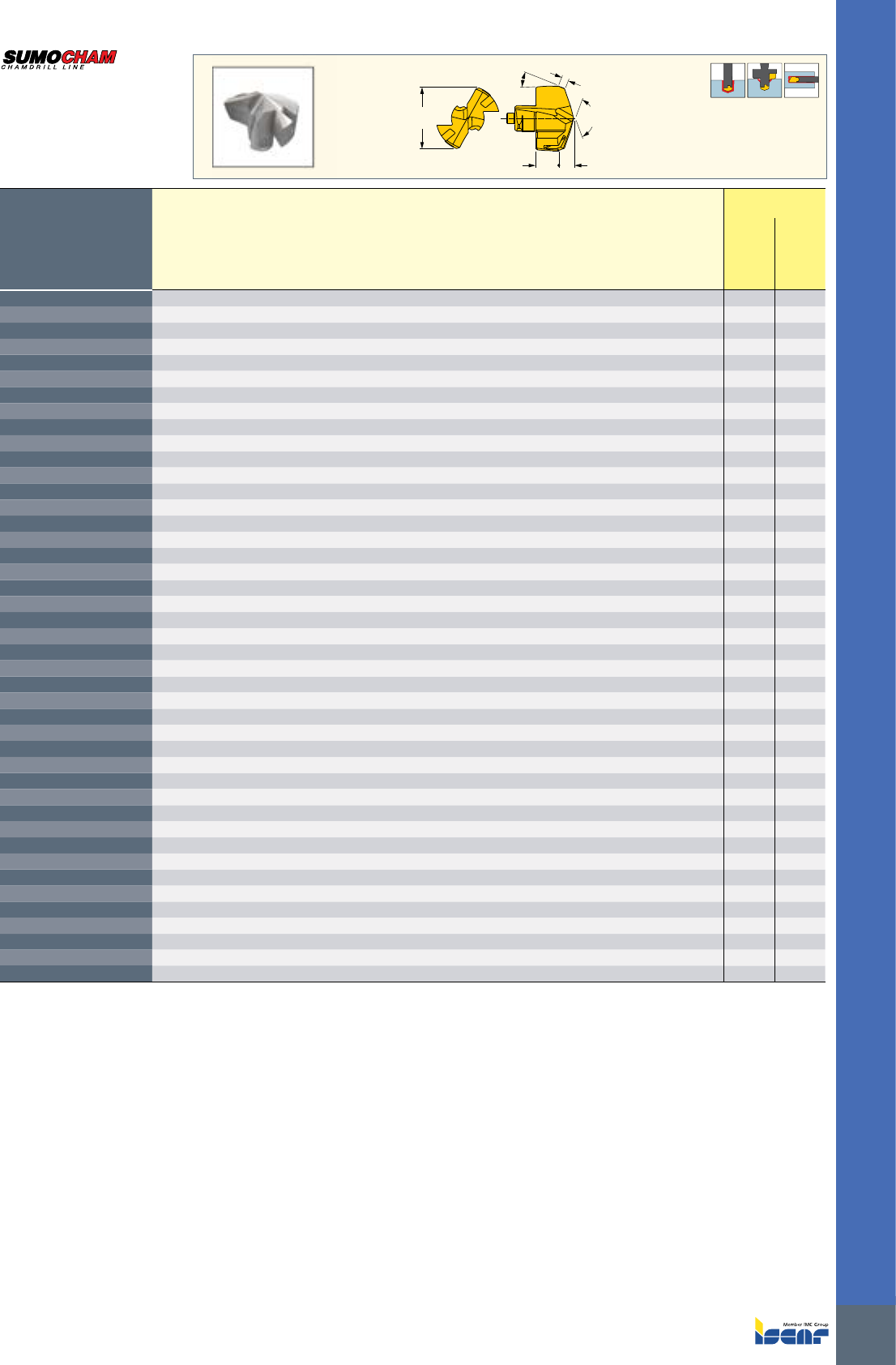

33
INDEXABLE DRILLS
LF PL
SIG
BCH
KCH
DC
ICK-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO K Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 116-2M
11.60 3.94 2.660 1.32 30.0 140 11.0
•
ICK 117-2M
11.70 3.94 2.660 1.32 30.0 140 11.0
•
ICK 118-2M
11.80 3.94 2.660 1.32 30.0 140 11.0
•
ICK 119-2M
11.90 3.94 2.660 1.32 30.0 140 11.0
•
ICK 120-2M
12.00 4.10 2.180 1.44 30.0 140 12.0
•
ICK 121-2M
12.10 4.10 2.200 1.44 30.0 140 12.0
•
ICK 122-2M
12.20 4.10 2.220 1.44 30.0 140 12.0
•
ICK 123-2M
12.30 4.10 2.240 1.44 30.0 140 12.0
•
ICK 124-2M
12.40 4.10 2.260 1.44 30.0 140 12.0
•
ICK 125-2M
12.50 4.10 2.270 1.44 30.0 140 12.0
•
ICK 126-2M
12.60 4.10 2.290 1.44 30.0 140 12.0
•
ICK 127-2M
12.70 4.10 2.310 1.44 30.0 140 12.0
•
ICK 128-2M
12.80 4.10 2.330 1.44 30.0 140 12.0
•
ICK 131-2M
13.10 4.48 3.120 1.56 30.0 140 13.0
•
ICK 132-2M
13.20 4.48 3.120 1.56 30.0 140 13.0
•
ICK 133-2M
13.30 4.48 3.120 1.56 30.0 140 13.0
•
ICK 134-2M
13.40 4.48 3.120 1.56 30.0 140 13.0
•
ICK 135-2M
13.50 4.48 3.120 1.56 30.0 140 13.0
• •
ICK 136-2M
13.60 4.48 3.120 1.56 30.0 140 13.0
•
ICK 137-2M
13.70 4.48 3.120 1.56 30.0 140 13.0
•
ICK 138-2M
13.80 4.48 3.120 1.56 30.0 140 13.0
•
ICK 139-2M
13.90 4.48 3.120 1.56 30.0 140 13.0
•
ICK 140-2M
14.00 4.79 3.360 1.68 30.0 140 14.0
•
ICK 141-2M
14.10 4.79 3.360 1.68 30.0 140 14.0
• •
ICK 142-2M
14.20 4.79 3.360 1.68 30.0 140 14.0
•
ICK 144-2M
14.40 4.79 3.360 1.68 30.0 140 14.0
•
ICK 145-2M
14.50 4.79 3.360 1.68 30.0 140 14.0
•
ICK 146-2M
14.60 4.79 3.360 1.68 30.0 140 14.0
•
ICK 147-2M
14.70 4.79 3.360 1.68 30.0 140 14.0
•
ICK 148-2M
14.80 4.79 3.360 1.68 30.0 140 14.0
•
ICK 149-2M
14.90 4.79 3.360 1.68 30.0 140 14.0
•
ICK 150-2M
15.00 5.14 3.590 1.80 30.0 140 15.0
•
ICK 151-2M
15.10 5.14 3.590 1.80 30.0 140 15.0
•
ICK 152-2M
15.20 5.14 3.590 1.80 30.0 140 15.0
• •
ICK 153-2M
15.30 5.14 3.590 1.80 30.0 140 15.0
•
ICK 154-2M
15.40 5.14 3.590 1.80 30.0 140 15.0
•
ICK 155-2M
15.50 5.14 3.590 1.80 30.0 140 15.0
•
ICK 156-2M
15.60 5.14 3.590 1.80 30.0 140 15.0
•
ICK 159-2M
15.90 5.14 3.590 1.80 30.0 140 15.0
•
ICK 160-2M
16.00 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 161-2M
16.10 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 162-2M
16.20 5.55 3.750 1.92 30.0 140 16.0
•
ICK 163-2M
16.30 5.55 3.750 1.92 30.0 140 16.0
•
ICK 164-2M
16.40 5.55 3.750 1.92 30.0 140 16.0
•
ICK 165-2M
16.50 5.55 3.750 1.92 30.0 140 16.0
•
ICK 166-2M
16.60 5.55 3.750 1.92 30.0 140 16.0
•
ICK 167-2M
16.70 5.55 3.750 1.92 30.0 140 16.0
• •
ICK 168-2M
16.80 5.55 3.750 1.92 30.0 140 16.0
•
ICK 169-2M
16.90 5.55 3.750 1.92 30.0 140 16.0
•
ICK 170-2M
17.00 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 171-2M
17.10 5.84 4.060 2.04 30.0 140 17.0
•
ICK 172-2M
17.20 5.84 4.060 2.04 30.0 140 17.0
•
ICK 173-2M
17.30 5.84 4.060 2.04 30.0 140 17.0
•
ICK 174-2M
17.40 5.84 4.060 2.04 30.0 140 17.0
•
(continued)
ISCAR
34
INDEXABLE DRILLS
LF PL
SIG
BCH
KCH
DC
ICK-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO K Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 175-2M
17.50 5.84 4.060 2.04 30.0 140 17.0
• •
ICK 176-2M
17.60 5.84 4.060 2.04 30.0 140 17.0
•
ICK 178-2M
17.80 5.84 4.060 2.04 30.0 140 17.0
•
ICK 179-2M
17.90 5.84 4.060 2.04 30.0 140 17.0
•
ICK 180-2M
18.00 6.21 4.290 2.16 30.0 140 18.0
•
ICK 181-2M
18.10 6.21 4.290 2.16 30.0 140 18.0
•
ICK 183-2M
18.30 6.21 4.290 2.16 30.0 140 18.0
•
ICK 184-2M
18.40 6.21 4.290 2.16 30.0 140 18.0
•
ICK 185-2M
18.50 6.21 4.290 2.16 30.0 140 18.0
•
ICK 186-2M
18.60 6.21 4.290 2.16 30.0 140 18.0
•
ICK 187-2M
18.70 6.21 4.290 2.16 30.0 140 18.0
•
ICK 188-2M
18.80 6.21 4.290 2.16 30.0 140 18.0
•
ICK 189-2M
18.90 6.21 4.290 2.16 30.0 140 18.0
•
ICK 190-2M
19.00 6.47 4.530 2.28 30.0 140 19.0
•
ICK 191-2M
19.10 6.47 4.530 2.28 30.0 140 19.0
• •
ICK 192-2M
19.20 6.47 4.530 2.28 30.0 140 19.0
•
ICK 193-2M
19.30 6.47 4.530 2.28 30.0 140 19.0
•
ICK 195-2M
19.50 6.47 4.530 2.28 30.0 140 19.0
•
ICK 196-2M
19.60 6.47 4.530 2.28 30.0 140 19.0
•
ICK 197-2M
19.70 6.47 4.530 2.28 30.0 140 19.0
•
ICK 198-2M
19.80 6.47 4.530 2.28 30.0 140 19.0
•
ICK 199-2M
19.90 6.47 4.530 2.28 30.0 140 19.0
•
ICK 200-2M
20.00 6.81 4.790 2.40 30.0 140 20.0
•
ICK 201-2M
20.10 6.81 4.790 2.40 30.0 140 20.0
•
ICK 202-2M
20.20 6.81 4.790 2.40 30.0 140 20.0
•
ICK 203-2M
20.30 6.81 4.790 2.40 30.0 140 20.0
•
ICK 204-2M
20.40 6.81 4.790 2.40 30.0 140 20.0
•
ICK 205-2M
20.50 6.81 4.790 2.40 30.0 140 20.0
•
ICK 206-2M
20.60 6.81 4.790 2.40 30.0 140 20.0
•
ICK 207-2M
20.70 6.81 4.790 2.40 30.0 140 20.0
•
ICK 208-2M
20.80 6.81 4.790 2.40 30.0 140 20.0
•
ICK 209-2M
20.90 6.81 4.790 2.40 30.0 140 20.0
•
ICK 210-2M
21.00 7.20 4.980 2.52 30.0 140 21.0
•
ICK 211-2M
21.10 7.20 4.980 2.52 30.0 140 21.0
•
ICK 212-2M
21.20 7.20 4.980 2.52 30.0 140 21.0
•
ICK 213-2M
21.30 7.20 4.980 2.52 30.0 140 21.0
•
ICK 214-2M
21.40 7.20 4.980 2.52 30.0 140 21.0
•
ICK 215-2M
21.50 7.20 4.980 2.52 30.0 140 21.0
•
ICK 216-2M
21.60 7.20 4.980 2.52 30.0 140 21.0
•
ICK 217-2M
21.70 7.20 4.980 2.52 30.0 140 21.0
•
ICK 218-2M
21.80 7.20 4.980 2.52 30.0 140 21.0
•
ICK 219-2M
21.90 7.20 4.980 2.52 30.0 140 21.0
•
ICK 220-2M
22.00 7.54 5.220 2.64 30.0 140 22.0
•
ICK 221-2M
22.10 7.54 5.220 2.64 30.0 140 22.0
•
ICK 222-2M
22.20 7.54 5.220 2.64 30.0 140 22.0
•
ICK 223-2M
22.30 7.54 5.220 2.64 30.0 140 22.0
•
ICK 224-2M
22.40 7.54 5.220 2.64 30.0 140 22.0
• •
ICK 225-2M
22.50 7.54 5.220 2.64 30.0 140 22.0
•
ICK 226-2M
22.60 7.54 5.220 2.64 30.0 140 22.0
•
ICK 227-2M
22.70 7.54 5.220 2.64 30.0 140 22.0
•
ICK 228-2M
22.80 7.54 5.220 2.64 30.0 140 22.0
•
ICK 229-2M
22.90 7.54 5.220 2.64 30.0 140 22.0
•
ICK 230-2M
23.00 7.88 5.450 2.76 30.0 140 23.0
•
ICK 231-2M
23.10 7.88 5.450 2.76 30.0 140 23.0
•
(continued)

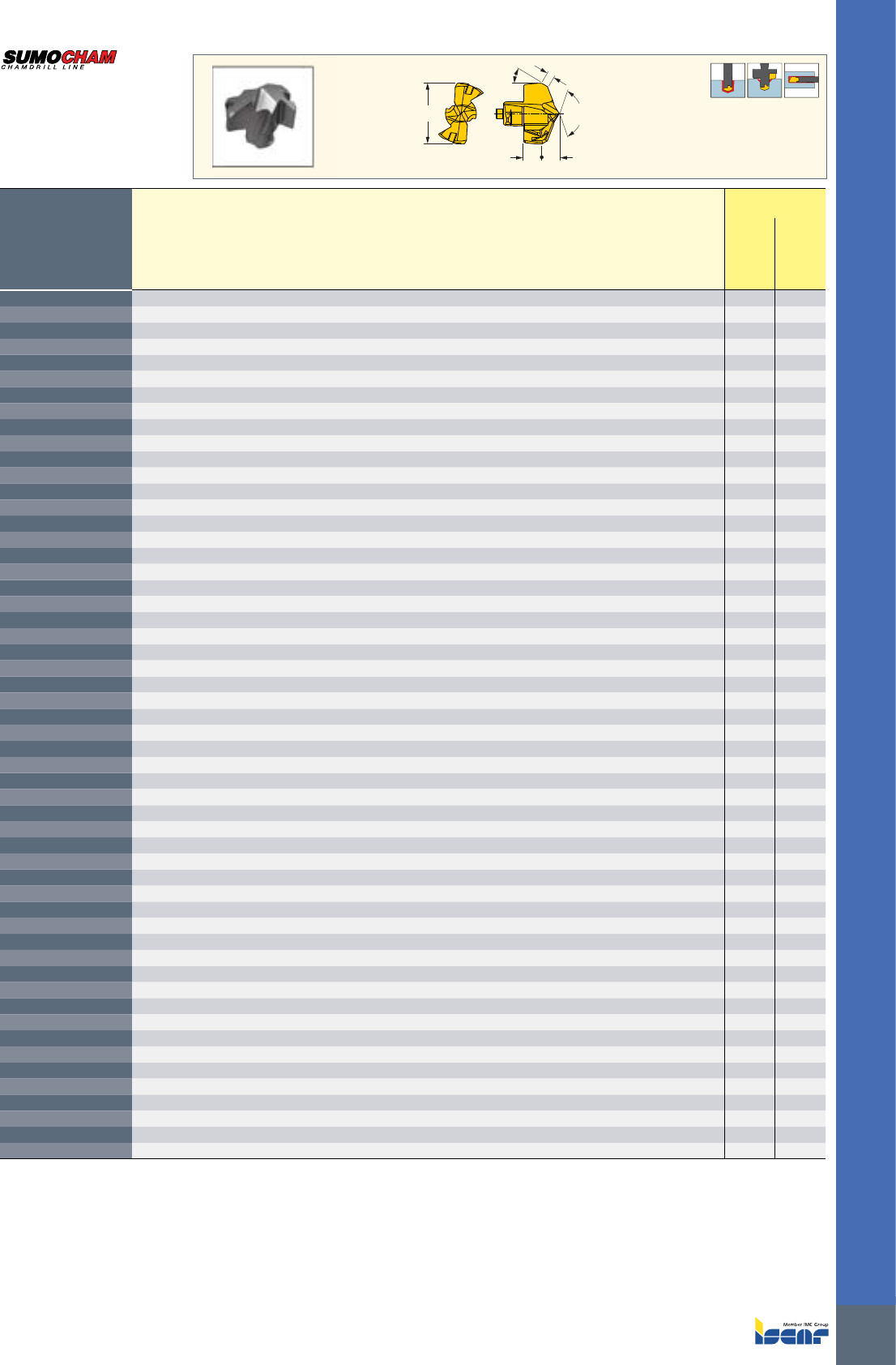

35
INDEXABLE DRILLS
LF PL
SIG
BCH
KCH
DC
ICK-2M
Exchangeable Double Margin
Drilling Heads for DCN Drills, for
Machining ISO K Materials with
High Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions Tough
1
Hard
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IC907
ICK 232-2M
23.20 7.88 5.450 2.76 30.0 140 23.0
•
ICK 233-2M
23.30 7.88 5.450 2.76 30.0 140 23.0
•
ICK 234-2M
23.40 7.88 5.450 2.76 30.0 140 23.0
•
ICK 235-2M
23.50 7.88 5.450 2.76 30.0 140 23.0
•
ICK 236-2M
23.60 7.88 5.450 2.76 30.0 140 23.0
•
ICK 237-2M
23.70 7.88 5.450 2.76 30.0 140 23.0
•
ICK 238-2M
23.80 7.88 5.450 2.76 30.0 140 23.0
•
ICK 239-2M
23.90 7.88 5.450 2.76 30.0 140 23.0
•
ICK 240-2M
24.00 8.21 5.690 2.88 30.0 140 24.0
•
ICK 241-2M
24.10 8.21 5.690 2.88 30.0 140 24.0
•
ICK 242-2M
24.20 8.21 5.690 2.88 30.0 140 24.0
•
ICK 243-2M
24.30 8.21 5.690 2.88 30.0 140 24.0
•
ICK 244-2M
24.40 8.21 5.690 2.88 30.0 140 24.0
•
ICK 245-2M
24.50 8.21 5.690 2.88 30.0 140 24.0
•
ICK 246-2M
24.60 8.21 5.690 2.88 30.0 140 24.0
•
ICK 247-2M
24.70 8.21 5.690 2.88 30.0 140 24.0
•
ICK 249-2M
24.90 8.21 5.690 2.88 30.0 140 24.0
•
ICK 250-2M
25.00 8.56 5.940 3.00 30.0 140 25.0
•
ICK 251-2M
25.10 8.56 5.940 3.00 30.0 140 25.0
•
ICK 252-2M
25.20 8.56 5.940 3.00 30.0 140 25.0
•
ICK 253-2M
25.30 8.56 5.940 3.00 30.0 140 25.0
•
ICK 254-2M
25.40 8.56 5.940 3.00 30.0 140 25.0
•
ICK 255-2M
25.50 8.56 5.940 3.00 30.0 140 25.0
•
ICK 256-2M
25.60 8.56 5.940 3.00 30.0 140 25.0
•
ICK 257-2M
25.70 8.56 5.940 3.00 30.0 140 25.0
•
ICK 258-2M
25.80 8.56 5.940 3.00 30.0 140 25.0
•
ICK 259-2M
25.90 8.56 5.940 3.00 30.0 140 25.0
•
(continued)
ISCAR
36

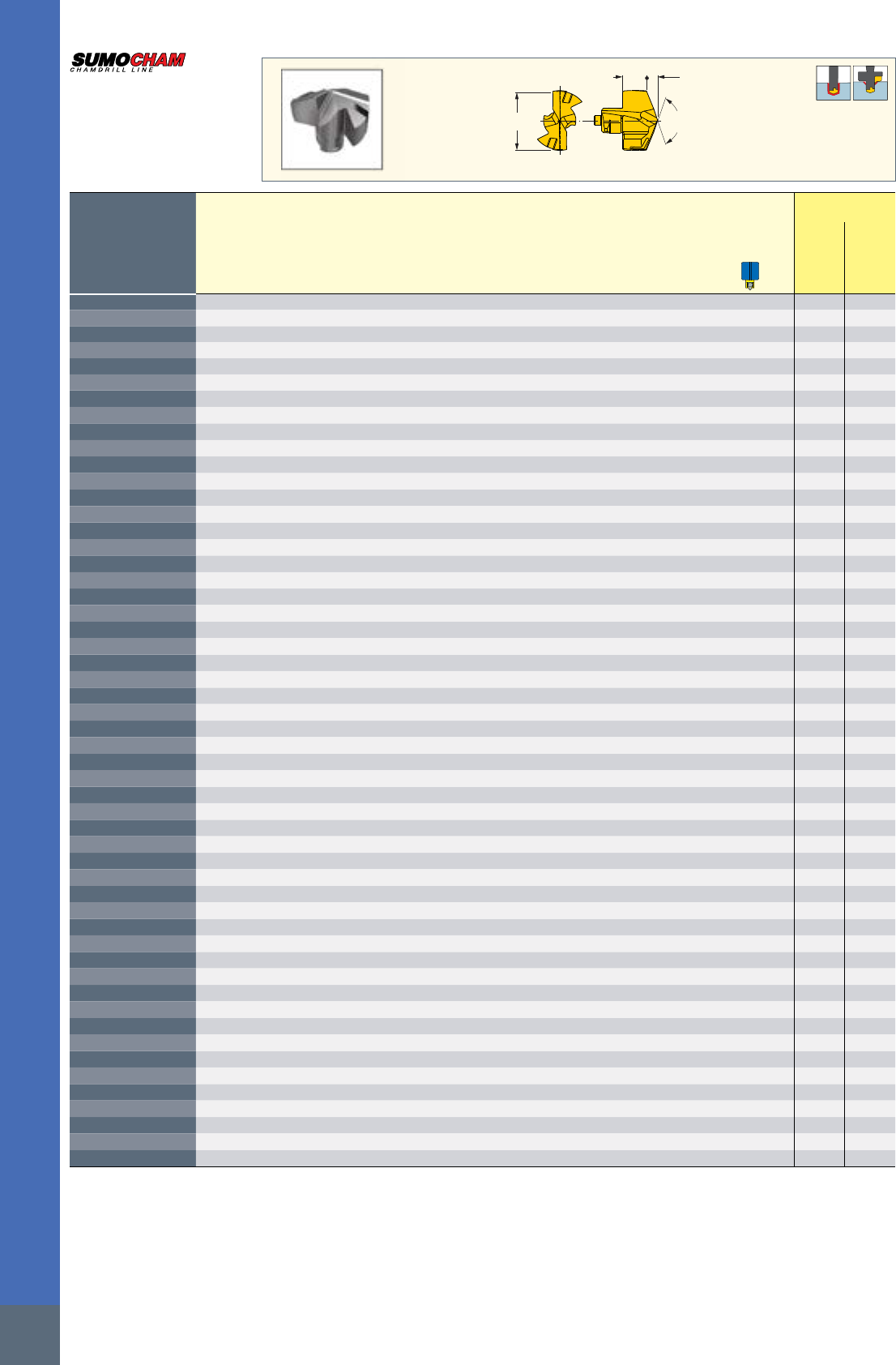

INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 050
5.00 0.700 3.00 140 5.0 SK DCN 5-5.99
•
ICM 051
5.10 0.720 2.98 140 5.0 SK DCN 5-5.99
•
ICM 052
5.20 0.740 2.96 140 5.0 SK DCN 5-5.99
•
ICM 053
5.30 0.750 2.95 140 5.0 SK DCN 5-5.99
•
ICM 054
5.40 0.770 2.93 140 5.0 SK DCN 5-5.99
•
ICM 055
5.50 0.900 2.95 140 5.5 SK DCN 5-5.99
•
ICM 056
5.60 0.920 2.93 140 5.5 SK DCN 5-5.99
•
ICM 057
5.70 0.940 2.91 140 5.5 SK DCN 5-5.99
•
ICM 058
5.80 0.960 2.89 140 5.5 SK DCN 5-5.99
•
ICM 059
5.90 0.970 2.88 140 5.5 SK DCN 5-5.99
•
ICM 060
6.00 0.960 3.04 140 6.0
•
ICM 061
6.10 0.980 3.02 140 6.0
•
ICM 062
6.20 1.000 3.00 140 6.0
•
ICM 063
6.30 1.010 2.99 140 6.0
•
ICM 0635
6.35 1.020 2.98 140 6.0
•
ICM 064
6.40 1.030 2.97 140 6.0
•
ICM 065
6.50 1.270 3.03 140 6.5
•
ICM 066
6.60 1.290 3.01 140 6.5
•
ICM 067
6.70 1.310 2.99 140 6.5
•
ICM 068
6.80 1.330 2.97 140 6.5
•
ICM 069
6.90 1.340 2.96 140 6.5
•
ICM 070
7.00 1.010 3.59 140 7.0
•
ICM 071
7.10 1.030 3.57 140 7.0
•
ICM 072
7.20 1.050 3.55 140 7.0
•
ICM 073
7.30 1.060 3.54 140 7.0
•
ICM 074
7.40 1.080 3.52 140 7.0
•
ICM 075
7.50 1.100 3.24 140 7.0
• •
ICM 076
7.60 1.120 3.48 140 7.0
•
ICM 077
7.70 1.140 3.46 140 7.0
•
ICM 078
7.80 1.160 3.44 140 7.0
•
ICM 079
7.90 1.170 3.43 140 7.0
•
ICM 080
8.00 1.200 3.94 140 8.0
• •
ICM 081
8.10 1.220 4.18 140 8.0
•
ICM 082
8.20 1.240 4.16 140 8.0
•
ICM 083
8.30 1.250 4.15 140 8.0
•
ICM 084
8.40 1.270 4.13 140 8.0
•
ICM 085
8.50 1.290 3.85 140 8.0
• •
ICM 086
8.60 1.310 4.09 140 8.0
•
ICM 087
8.70 1.330 3.82 140 8.0
• •
ICM 088
8.80 1.350 4.05 140 8.0
•
ICM 089
8.90 1.360 4.04 140 8.0
•
ICM 090
9.00 1.360 4.16 140 9.0
• •
ICM 091
9.10 1.380 4.14 140 9.0
• •
ICM 092
9.20 1.400 4.40 140 9.0
•
ICM 093
9.30 1.410 4.39 140 9.0
•
ICM 094
9.40 1.430 4.37 140 9.0
• •
ICM 095
9.50 1.450 4.07 140 9.0
• •
ICM 096
9.60 1.470 4.33 140 9.0
•
ICM 097
9.70 1.490 4.03 140 9.0
• •
ICM 098
9.80 1.510 4.29 140 9.0
•
ICM 099
9.90 1.520 4.00 140 9.0
• •
ICM 100
10.00 1.500 4.38 140 10.0
• •
ICM 101
10.10 1.520 4.68 140 10.0
•
37
INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 102
10.20 1.540 4.66 140 10.0
• •
ICM 103
10.30 1.550 4.65 140 10.0
• •
ICM 104
10.40 1.570 4.31 140 10.0
• •
ICM 105
10.50 1.590 4.29 140 10.0
• •
ICM 106
10.60 1.610 4.27 140 10.0
• •
ICM 107
10.70 1.630 4.25 140 10.0
• •
ICM 108
10.80 1.650 4.55 140 10.0
•
ICM 109
10.90 1.660 4.54 140 10.0
•
ICM 110
11.00 1.660 4.94 140 11.0
• •
ICM 111
11.10 1.680 4.58 140 11.0
• •
ICM 112
11.20 1.700 4.56 140 11.0
• •
ICM 113
11.30 1.710 4.89 140 11.0
•
ICM 114
11.40 1.730 4.87 140 11.0
•
ICM 115
11.50 1.750 4.51 140 11.0
• •
ICM 116
11.60 1.770 4.83 140 11.0
•
ICM 117
11.70 1.790 4.81 140 11.0
•
ICM 118
11.80 1.810 4.45 140 11.0
• •
ICM 119
11.90 1.820 4.43 140 11.0
• •
ICM 120
12.00 1.810 4.82 140 12.0
• •
ICM 121
12.10 1.830 5.17 140 12.0
•
ICM 122
12.20 1.850 5.15 140 12.0
•
ICM 123
12.30 1.860 4.76 140 12.0
• •
ICM 124
12.40 1.880 4.74 140 12.0
• •
ICM 125
12.50 1.900 4.73 140 12.0
• •
ICM 126
12.60 1.920 5.08 140 12.0
•
ICM 127
12.70 1.940 4.69 140 12.0
• •
ICM 128
12.80 1.960 5.04 140 12.0
•
ICM 129
12.90 1.970 4.65 140 12.0
• •
ICM 130
13.00 1.950 5.23 140 13.0
• •
ICM 131
13.10 1.970 5.22 140 13.0
• •
ICM 132
13.20 1.990 5.61 140 13.0
•
ICM 133
13.30 2.000 5.60 140 13.0
•
ICM 134
13.40 2.020 5.58 140 13.0
•
ICM 135
13.50 2.040 5.14 140 13.0
• •
ICM 136
13.60 2.060 5.13 140 13.0
• •
ICM 137
13.70 2.080 5.52 140 13.0
•
ICM 138
13.80 2.100 5.50 140 13.0
•
ICM 139
13.90 2.110 5.49 140 13.0
•
ICM 140
14.00 2.110 5.60 140 14.0
• •
ICM 141
14.10 2.130 6.02 140 14.0
•
ICM 142
14.20 2.150 5.57 140 14.0
• •
ICM 143
14.30 2.160 5.55 140 14.0
• •
ICM 144
14.40 2.180 5.97 140 14.0
•
ICM 145
14.50 2.200 5.51 140 14.0
• •
ICM 146
14.60 2.220 5.93 140 14.0
•
ICM 147
14.70 2.240 5.91 140 14.0
• •
ICM 148
14.80 2.260 5.89 140 14.0
•
ICM 149
14.90 2.270 5.88 140 14.0
•
ICM 150
15.00 2.260 6.00 140 15.0
• •
ICM 151
15.10 2.280 6.45 140 15.0
•
ICM 152
15.20 2.300 6.43 140 15.0
•
ICM 153
15.30 2.310 6.42 140 15.0
•
ICM 154
15.40 2.330 6.40 140 15.0
•
ICM 155
15.50 2.350 5.91 140 15.0
• •
ISCAR
38
INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 156
15.60 2.370 6.36 140 15.0
•
ICM 157
15.70 2.390 5.87 140 15.0
• •
ICM 158
15.80 2.410 6.32 140 15.0
•
ICM 159
15.90 2.420 5.84 140 15.0
• •
ICM 160
16.00 2.420 6.39 140 16.0
• •
ICM 1605
16.05 2.430 6.87 140 16.0
•
ICM 161
16.10 2.440 6.86 140 16.0
•
ICM 162
16.20 2.460 6.84 140 16.0
•
ICM 163
16.30 2.470 6.83 140 16.0
•
ICM 164
16.40 2.490 6.32 140 16.0
• •
ICM 165
16.50 2.510 6.30 140 16.0
• •
ICM 166
16.60 2.530 6.77 140 16.0
•
ICM 167
16.70 2.550 6.26 140 16.0
• •
ICM 168
16.80 2.570 6.73 140 16.0
•
ICM 169
16.90 2.580 6.72 140 16.0
•
ICM 170
17.00 2.570 6.81 140 17.0
• •
ICM 171
17.10 2.590 6.79 140 17.0
• •
ICM 172
17.20 2.610 7.29 140 17.0
•
ICM 173
17.30 2.620 7.28 140 17.0
•
ICM 174
17.40 2.640 7.26 140 17.0
•
ICM 175
17.50 2.660 6.72 140 17.0
• •
ICM 176
17.60 2.680 7.22 140 17.0
•
ICM 177
17.70 2.700 7.20 140 17.0
•
ICM 178
17.80 2.720 7.18 140 17.0
•
ICM 179
17.90 2.730 6.64 140 17.0
• •
ICM 180
18.00 2.720 7.22 140 18.0
• •
ICM 182
18.20 2.760 7.74 140 18.0
•
ICM 183
18.30 2.770 7.73 140 18.0
•
ICM 184
18.40 2.790 7.71 140 18.0
•
ICM 185
18.50 2.810 7.69 140 18.0
• •
ICM 186
18.60 2.830 7.67 140 18.0
•
ICM 187
18.70 2.850 7.65 140 18.0
•
ICM 188
18.80 2.870 7.63 140 18.0
•
ICM 189
18.90 2.880 7.62 140 18.0
•
ICM 190
19.00 2.870 7.54 140 19.0
• •
ICM 1905
19.05 2.880 8.12 140 19.0
• •
ICM 191
19.10 2.890 8.11 140 19.0
•
ICM 192
19.20 2.910 8.09 140 19.0
•
ICM 1925
19.25 2.920 8.08 140 19.0
•
ICM 1927
19.27 2.920 8.08 140 19.0
•
ICM 193
19.30 2.920 8.08 140 19.0
•
ICM 194
19.40 2.940 8.06 140 19.0
•
ICM 195
19.50 2.960 8.04 140 19.0
•
ICM 196
19.60 2.980 8.02 140 19.0
•
ICM 197
19.70 3.000 7.41 140 19.0
• •
ICM 198
19.80 3.020 7.98 140 19.0
•
ICM 199
19.90 3.030 7.97 140 19.0
•
ICM 200
20.00 3.020 7.96 140 20.0
• •
ICM 201
20.10 3.040 8.56 140 20.0
•
ICM 202
20.20 3.060 8.54 140 20.0
•
ICM 203
20.30 3.070 8.53 140 20.0
•
ICM 204
20.40 3.090 8.51 140 20.0
•
ICM 205
20.50 3.110 7.87 140 20.0
• •
39
INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 206
20.60 3.130 8.47 140 20.0
•
ICM 207
20.70 3.150 8.45 140 20.0
•
ICM 208
20.80 3.170 8.43 140 20.0
•
ICM 209
20.90 3.180 8.42 140 20.0
•
ICM 210
21.00 3.200 8.38 140 21.0
• •
ICM 211
21.10 3.220 8.96 140 21.0
•
ICM 212
21.20 3.240 8.94 140 21.0
•
ICM 213
21.30 3.250 8.93 140 21.0
•
ICM 214
21.40 3.270 9.91 140 21.0
•
ICM 215
21.50 3.290 9.89 140 21.0
•
ICM 216
21.60 3.310 8.87 140 21.0
•
ICM 217
21.70 3.330 8.85 140 21.0
•
ICM 218
21.80 3.350 8.83 140 21.0
•
ICM 219
21.90 3.360 8.82 140 21.0
•
ICM 220
22.00 3.350 8.80 140 22.0
• •
ICM 221
22.10 3.370 9.39 140 22.0
•
ICM 222
22.20 3.390 9.37 140 22.0
•
ICM 223
22.30 3.400 9.36 140 22.0
•
ICM 224
22.40 3.420 9.34 140 22.0
•
ICM 225
22.50 3.440 9.32 140 22.0
•
ICM 226
22.60 3.460 9.30 140 22.0
•
ICM 227
22.70 3.480 9.28 140 22.0
•
ICM 228
22.80 3.500 9.26 140 22.0
•
ICM 229
22.90 3.510 9.25 140 22.0
•
ICM 230
23.00 3.510 9.82 140 23.0
•
ICM 232
23.20 3.550 9.78 140 23.0
•
ICM 233
23.30 3.560 9.77 140 23.0
•
ICM 234
23.40 3.580 9.75 140 23.0
•
ICM 235
23.50 3.600 9.73 140 23.0
•
ICM 237
23.70 3.640 9.69 140 23.0
•
ICM 238
23.80 3.660 9.67 140 23.0
•
ICM 239
23.90 3.670 9.66 140 23.0
•
ICM 240
24.00 3.640 10.26 140 24.0
•
ICM 241
24.10 3.660 10.24 140 24.0
•
ICM 242
24.20 3.680 10.22 140 24.0
•
ICM 243
24.30 3.690 10.21 140 24.0
•
ICM 244
24.40 3.710 10.19 140 24.0
•
ICM 245
24.50 3.730 10.17 140 24.0
•
ICM 246
24.60 3.750 10.15 140 24.0
•
ICM 247
24.70 3.770 10.13 140 24.0
•
ICM 248
24.80 3.790 10.11 140 24.0
•
ICM 249
24.90 3.800 10.10 140 24.0
•
ICM 250
25.00 3.840 10.66 140 25.0
•
ICM 251
25.10 3.860 10.64 140 25.0
•
ICM 252
25.20 3.880 10.62 140 25.0
•
ICM 253
25.30 3.890 10.61 140 25.0
•
ICM 254
25.40 3.910 10.59 140 25.0
•
ICM 255
25.50 3.930 10.57 140 25.0
•
ICM 256
25.60 3.950 10.55 140 25.0
•
ICM 2565
25.65 3.960 10.54 140 25.0
•
ICM 2567
25.67 3.960 10.54 140 25.0
•
ICM 257
25.70 3.970 10.53 140 25.0
•
ICM 258
25.80 3.990 10.51 140 25.0
•
ICM 259
25.90 4.000 10.50 140 25.0
•
ISCAR
40
INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 260
26.00 3.970 11.10 140 26.0
•
ICM 261
26.10 3.990 11.08 140 26.0
•
ICM 262
26.20 4.010 11.06 140 26.0
•
ICM 263
26.30 4.020 11.05 140 26.0
•
ICM 264
26.40 4.040 11.03 140 26.0
•
ICM 265
26.50 4.060 11.01 140 26.0
•
ICM 266
26.60 4.080 10.99 140 26.0
•
ICM 267
26.70 4.100 10.97 140 26.0
•
ICM 268
26.80 4.120 10.95 140 26.0
•
ICM 269
26.90 4.130 10.94 140 26.0
•
ICM 270
27.00 4.130 11.52 140 27.0
•
ICM 271
27.10 4.150 11.50 140 27.0
•
ICM 272
27.20 4.170 11.48 140 27.0
•
ICM 273
27.30 4.180 11.47 140 27.0
•
ICM 274
27.40 4.200 11.45 140 27.0
•
ICM 275
27.50 4.220 11.43 140 27.0
•
ICM 276
27.60 4.240 11.41 140 27.0
•
ICM 277
27.70 4.260 11.39 140 27.0
•
ICM 278
27.80 4.280 11.37 140 27.0
•
ICM 279
27.90 4.290 11.36 140 27.0
•
ICM 280
28.00 4.280 11.94 140 28.0
•
ICM 281
28.10 4.300 11.92 140 28.0
•
ICM 282
28.20 4.320 11.90 140 28.0
•
ICM 283
28.30 4.330 11.89 140 28.0
•
ICM 284
28.40 4.350 11.87 140 28.0
•
ICM 285
28.50 4.370 11.85 140 28.0
•
ICM 286
28.60 4.390 11.83 140 28.0
•
ICM 287
28.70 4.410 11.81 140 28.0
•
ICM 288
28.80 4.430 11.79 140 28.0
•
ICM 289
28.90 4.440 11.78 140 28.0
•
ICM 290
29.00 4.460 12.34 140 29.0
•
ICM 291
29.10 4.480 12.32 140 29.0
•
ICM 292
29.20 4.500 12.30 140 29.0
•
ICM 293
29.30 4.510 12.29 140 29.0
•
ICM 294
29.40 4.530 12.27 140 29.0
•
ICM 295
29.50 4.550 12.25 140 29.0
•
ICM 296
29.60 4.570 12.23 140 29.0
•
ICM 297
29.70 4.590 12.21 140 29.0
•
ICM 298
29.80 4.610 12.19 140 29.0
•
ICM 300
30.00 4.610 12.77 140 30.0
•
ICM 301
30.10 4.630 12.75 140 30.0
•
ICM 302
30.20 4.650 12.73 140 30.0
•
ICM 303
30.30 4.660 12.72 140 30.0
•
ICM 304
30.40 4.680 12.70 140 30.0
•
ICM 305
30.50 4.700 12.68 140 30.0
•
ICM 306
30.60 4.720 12.66 140 30.0
•
ICM 307
30.70 4.740 12.64 140 30.0
•
ICM 308
30.80 4.760 12.62 140 30.0
•
ICM 309
30.90 4.770 12.61 140 30.0
•
ICM 310
31.00 4.790 13.17 140 31.0
•
ICM 311
31.10 4.810 13.15 140 31.0
•
ICM 312
31.20 4.830 13.13 140 31.0
•
ICM 315
31.50 4.880 13.08 140 31.0
•
ICM 317
31.70 4.920 13.04 140 31.0
•
41
INDEXABLE DRILLS
LF PL
SIG
DC
ICM
Exchangeable Drilling Heads
for DCN Drills, for Machining
ISO M and ISO S Materials
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions Tough
1
Hard
Designation
DC PL LF SIG SSC(1)
IC908
IC907
ICM 3175
31.75 4.930 13.03 140 31.0
•
ICM 318
31.80 4.940 13.02 140 31.0
•
ICM 319
31.90 4.950 13.01 140 31.0
•
ICM 320
32.00 4.890 13.65 140 32.0
•
ICM 321
32.10 4.910 13.63 140 32.0
•
ICM 322
32.20 4.930 13.61 140 32.0
•
ICM 323
32.30 4.940 13.60 140 32.0
•
ICM 324
32.40 4.960 13.58 140 32.0
•
ICM 325
32.50 4.980 13.56 140 32.0
•
ICM 326
32.60 5.000 13.54 140 32.0
•
ICM 327
32.70 5.020 13.52 140 32.0
•
ICM 328
32.80 5.040 13.50 140 32.0
•
ICM 329
32.90 5.050 13.49 140 32.0
•
ISCAR
42

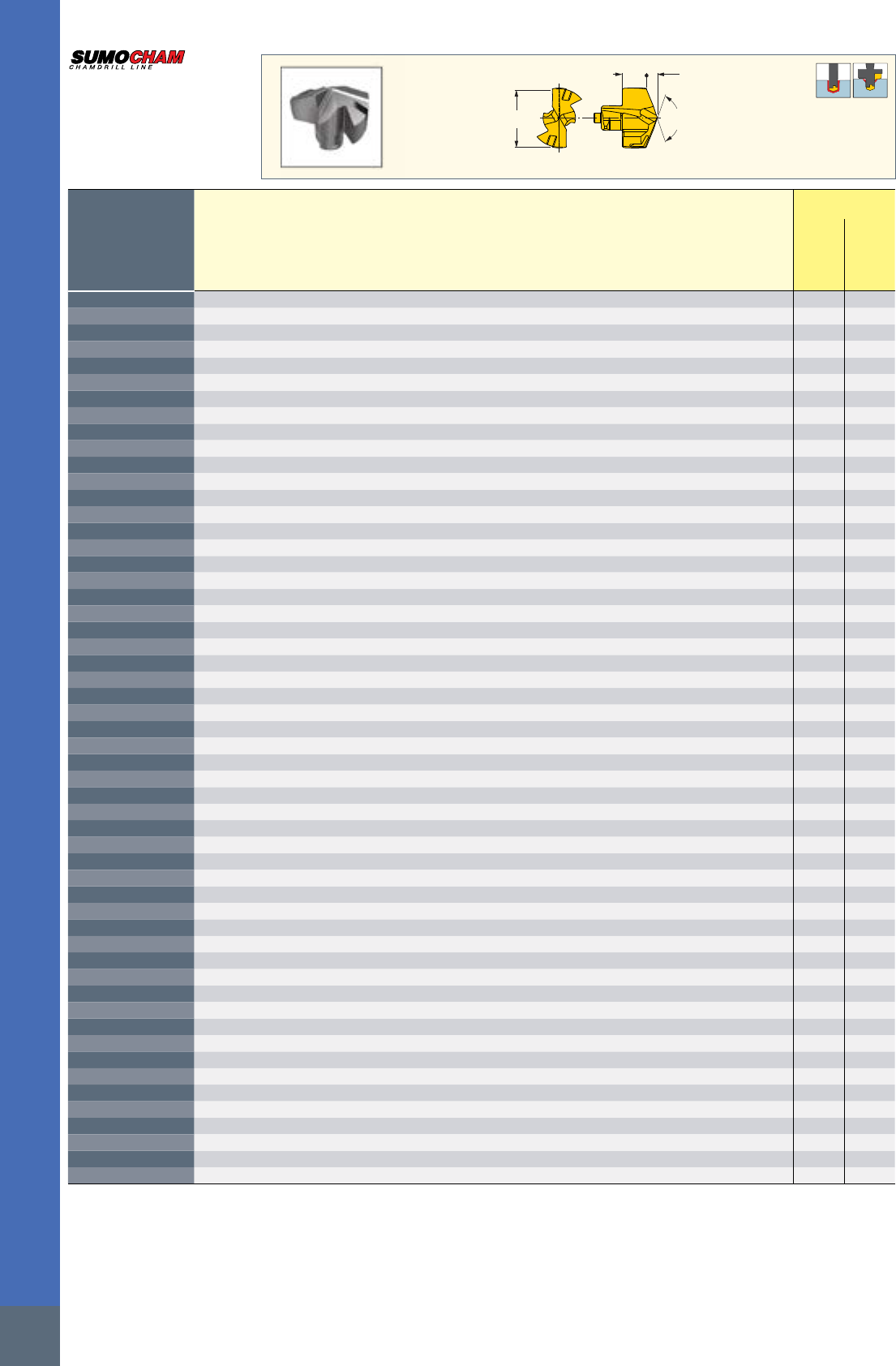

INDEXABLE DRILLS
PL
LF
140º
DC
Dimensions
Designation
DC PL LF SIG SSC(1)
IC08
ICN 0635
6.35 1.020 2.98 140 6.0
•
ICN 0952
9.52 1.440 4.36 140 9.0
•
ICN 100
10.00 1.500 4.70 140 10.0
•
ICN 102
10.20 1.540 4.66 140 10.0
•
ICN 103
10.30 1.550 4.65 140 10.0
•
ICN 105
10.50 1.590 4.61 140 10.0
•
ICN 108
10.80 1.650 4.55 140 10.0
•
ICN 110
11.00 1.670 4.93 140 11.0
•
ICN 111
11.10 1.690 4.91 140 11.0
•
ICN 115
11.50 1.760 4.84 140 11.0
•
ICN 119
11.90 1.830 4.77 140 11.0
•
ICN 120
12.00 1.820 5.18 140 12.0
•
ICN 123
12.30 1.350 5.65 140 12.0
•
ICN 125
12.50 1.390 5.61 140 12.0
•
ICN 127
12.70 1.430 5.57 140 12.0
•
ICN 130
13.00 1.960 5.64 140 13.0
•
ICN 135
13.50 2.050 5.55 140 13.0
•
ICN 137
13.70 2.090 5.51 140 13.0
•
ICN 140
14.00 2.120 6.03 140 14.0
•
ICN 141
14.10 2.140 6.01 140 14.0
•
ICN 142
14.20 2.160 5.99 140 14.0
•
ICN 1427
14.27 2.170 5.98 140 14.0
•
ICN 145
14.50 2.210 5.94 140 14.0
•
ICN 150
15.00 2.270 6.46 140 15.0
•
ICN 157
15.70 2.400 6.33 140 15.0
•
ICN 158
15.80 2.420 6.31 140 15.0
•
ICN 1587
15.87 2.430 6.30 140 15.0
•
ICN 160
16.00 2.420 6.88 140 16.0
•
ICN 165
16.50 2.510 6.79 140 16.0
•
ICN 167
16.70 2.550 6.75 140 16.0
•
ICN 170
17.00 2.590 7.31 140 17.0
•
ICN 175
17.50 2.680 7.22 140 17.0
•
ICN 180
18.00 2.730 7.77 140 18.0
•
ICN 185
18.50 2.820 7.68 140 18.0
•
ICN 190
19.00 2.880 8.12 140 19.0
•
ICN 1905
19.05 2.890 8.11 140 19.0
•
ICN 195
19.50 2.970 8.03 140 19.0
•
ICN 2062
20.62 3.130 8.47 140 20.0
•
ICN 2222
22.22 3.360 9.40 140 22.0
•
ICN 254
25.40 3.870 10.63 140 25.0
•
• The drill is manufactured with a sharp cutting edge and polished flutes • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
ICN
Exchangeable Drilling
Heads for DCN Drills, for
Machining ISO N Materials
43
INDEXABLE DRILLS
LF PL
DC SIG
QCP-2M
Exchangeable Double Margin
& Self-Centering Drilling Heads
for DCN Drills, for Machining
ISO P Materials with High
Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
QCP 060-2M
6.00 2.79 1.210 136 6.0
•
QCP 061-2M
6.10 2.77 1.230 136 6.0
•
QCP 062-2M
6.20 2.75 1.250 136 6.0
•
QCP 0635-2M
6.35 2.72 1.280 136 6.0
•
QCP 064-2M
6.40 2.71 1.290 136 6.0
•
QCP 065-2M
6.50 2.89 1.410 136 6.5
•
QCP 066-2M
6.60 2.87 1.430 136 6.5
•
QCP 067-2M
6.70 2.85 1.450 136 6.5
•
QCP 068-2M
6.80 2.83 1.470 136 6.5
•
QCP 069-2M
6.90 2.81 1.490 136 6.5
•
QCP 070-2M
7.00 3.25 1.350 136 7.0
•
QCP 071-2M
7.10 3.23 1.370 136 7.0
•
QCP 072-2M
7.20 3.21 1.390 136 7.0
•
QCP 073-2M
7.30 3.19 1.410 136 7.0
•
QCP 074-2M
7.40 3.17 1.430 136 7.0
•
QCP 075-2M
7.50 3.15 1.450 136 7.0
•
QCP 076-2M
7.60 3.13 1.470 136 7.0
•
QCP 077-2M
7.70 3.11 1.490 136 7.0
•
QCP 078-2M
7.80 3.09 1.510 136 7.0
•
QCP 079-2M
7.90 3.07 1.530 136 7.0
•
QCP 080-2M
8.00 3.78 1.620 136 8.0
•
QCP 081-2M
8.10 3.76 1.640 136 8.0
•
QCP 082-2M
8.20 3.74 1.660 136 8.0
•
QCP 083-2M
8.30 3.72 1.680 136 8.0
•
QCP 084-2M
8.40 3.70 1.700 136 8.0
•
QCP 085-2M
8.50 3.68 1.720 136 8.0
•
QCP 086-2M
8.60 3.66 1.740 136 8.0
•
QCP 087-2M
8.70 3.64 1.760 136 8.0
•
QCP 088-2M
8.80 3.62 1.780 136 8.0
•
QCP 090-2M
9.00 3.89 1.910 136 9.0
•
QCP 091-2M
9.10 3.87 1.930 136 9.0
•
QCP 092-2M
9.20 3.85 1.950 136 9.0
•
QCP 093-2M
9.30 3.83 1.970 136 9.0
•
QCP 094-2M
9.40 3.81 1.990 136 9.0
•
QCP 095-2M
9.50 3.79 2.010 136 9.0
•
QCP 096-2M
9.60 3.77 2.030 136 9.0
•
QCP 097-2M
9.70 3.75 2.050 136 9.0
•
QCP 098-2M
9.80 3.73 2.070 136 9.0
•
QCP 099-2M
9.90 3.71 2.090 136 9.0
•
QCP 100-2M
10.00 4.70 2.090 136 10.0
•
QCP 101-2M
10.10 4.68 2.110 136 10.0
•
QCP 102-2M
10.20 4.66 2.130 136 10.0
•
QCP 103-2M
10.30 4.64 2.150 136 10.0
•
QCP 104-2M
10.40 4.62 2.170 136 10.0
•
QCP 105-2M
10.50 4.60 2.190 136 10.0
•
QCP 106-2M
10.60 4.58 2.210 136 10.0
•
QCP 107-2M
10.70 4.56 2.230 136 10.0
•
QCP 108-2M
10.80 4.54 2.250 136 10.0
•
QCP 109-2M
10.90 4.52 2.270 136 10.0
•
QCP 110-2M
11.00 4.93 2.320 136 11.0
•
QCP 111-2M
11.10 4.91 2.340 136 11.0
•
QCP 112-2M
11.20 4.89 2.360 136 11.0
•
QCP 113-2M
11.30 4.87 2.380 136 11.0
•
QCP 114-2M
11.40 4.85 2.400 136 11.0
•
ISCAR
44
INDEXABLE DRILLS
LF PL
DC SIG
QCP-2M
Exchangeable Double Margin
& Self-Centering Drilling Heads
for DCN Drills, for Machining
ISO P Materials with High
Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
QCP 115-2M
11.50 4.83 2.420 136 11.0
•
QCP 116-2M
11.60 4.81 2.440 136 11.0
•
QCP 117-2M
11.70 4.79 2.460 136 11.0
•
QCP 118-2M
11.80 4.77 2.480 136 11.0
•
QCP 119-2M
11.90 4.75 2.500 136 11.0
•
QCP 120-2M
12.00 5.18 2.450 136 12.0
•
QCP 121-2M
12.10 5.16 2.470 136 12.0
•
QCP 122-2M
12.20 5.14 2.490 136 12.0
•
QCP 123-2M
12.30 5.12 2.510 136 12.0
•
QCP 124-2M
12.40 5.10 2.530 136 12.0
•
QCP 125-2M
12.50 5.08 2.550 136 12.0
•
QCP 126-2M
12.60 5.06 2.570 136 12.0
•
QCP 127-2M
12.70 5.04 2.590 136 12.0
•
QCP 128-2M
12.80 5.02 2.610 136 12.0
•
QCP 129-2M
12.90 5.00 2.630 136 12.0
•
QCP 130-2M
13.00 5.64 2.710 136 13.0
•
QCP 131-2M
13.10 5.62 2.730 136 13.0
•
QCP 132-2M
13.20 5.60 2.750 136 13.0
•
QCP 133-2M
13.30 5.58 2.770 136 13.0
•
QCP 134-2M
13.40 5.56 2.790 136 13.0
•
QCP 135-2M
13.50 5.54 2.810 136 13.0
•
QCP 136-2M
13.60 5.52 2.830 136 13.0
•
QCP 137-2M
13.70 5.50 2.850 136 13.0
•
QCP 138-2M
13.80 5.48 2.870 136 13.0
•
QCP 139-2M
13.90 5.46 2.890 136 13.0
•
QCP 140-2M
14.00 6.03 2.930 136 14.0
•
QCP 141-2M
14.10 6.01 2.950 136 14.0
•
QCP 142-2M
14.20 5.99 2.970 136 14.0
•
QCP 143-2M
14.30 5.97 2.990 136 14.0
•
QCP 144-2M
14.40 5.95 3.010 136 14.0
•
QCP 145-2M
14.50 5.93 3.030 136 14.0
•
QCP 146-2M
14.60 5.91 3.050 136 14.0
•
QCP 147-2M
14.70 5.89 3.070 136 14.0
•
QCP 148-2M
14.80 5.87 3.090 136 14.0
•
QCP 149-2M
14.90 5.85 3.110 136 14.0
•
QCP 150-2M
15.00 6.46 3.180 136 15.0
•
QCP 151-2M
15.10 6.44 3.200 136 15.0
•
QCP 152-2M
15.20 6.42 3.220 136 15.0
•
QCP 153-2M
15.30 6.40 3.240 136 15.0
•
QCP 155-2M
15.50 6.36 3.280 136 15.0
•
QCP 156-2M
15.60 6.34 3.300 136 15.0
•
QCP 157-2M
15.70 6.32 3.320 136 15.0
•
QCP 158-2M
15.80 6.30 3.340 136 15.0
•
QCP 159-2M
15.90 6.28 3.360 136 15.0
•
QCP 160-2M
16.00 6.88 3.390 136 16.0
•
QCP 161-2M
16.10 6.86 3.410 136 16.0
•
QCP 162-2M
16.20 6.84 3.430 136 16.0
•
QCP 163-2M
16.30 6.82 3.450 136 16.0
•
QCP 165-2M
16.50 6.78 3.490 136 16.0
•
QCP 166-2M
16.60 6.76 3.510 136 16.0
•
QCP 167-2M
16.70 6.74 3.530 136 16.0
•
QCP 170-2M
17.00 7.31 3.570 136 17.0
•
QCP 171-2M
17.10 7.29 3.590 136 17.0
•
QCP 172-2M
17.20 7.27 3.610 136 17.0
•
QCP 174-2M
17.40 7.23 3.650 136 17.0
•
(continued)
45

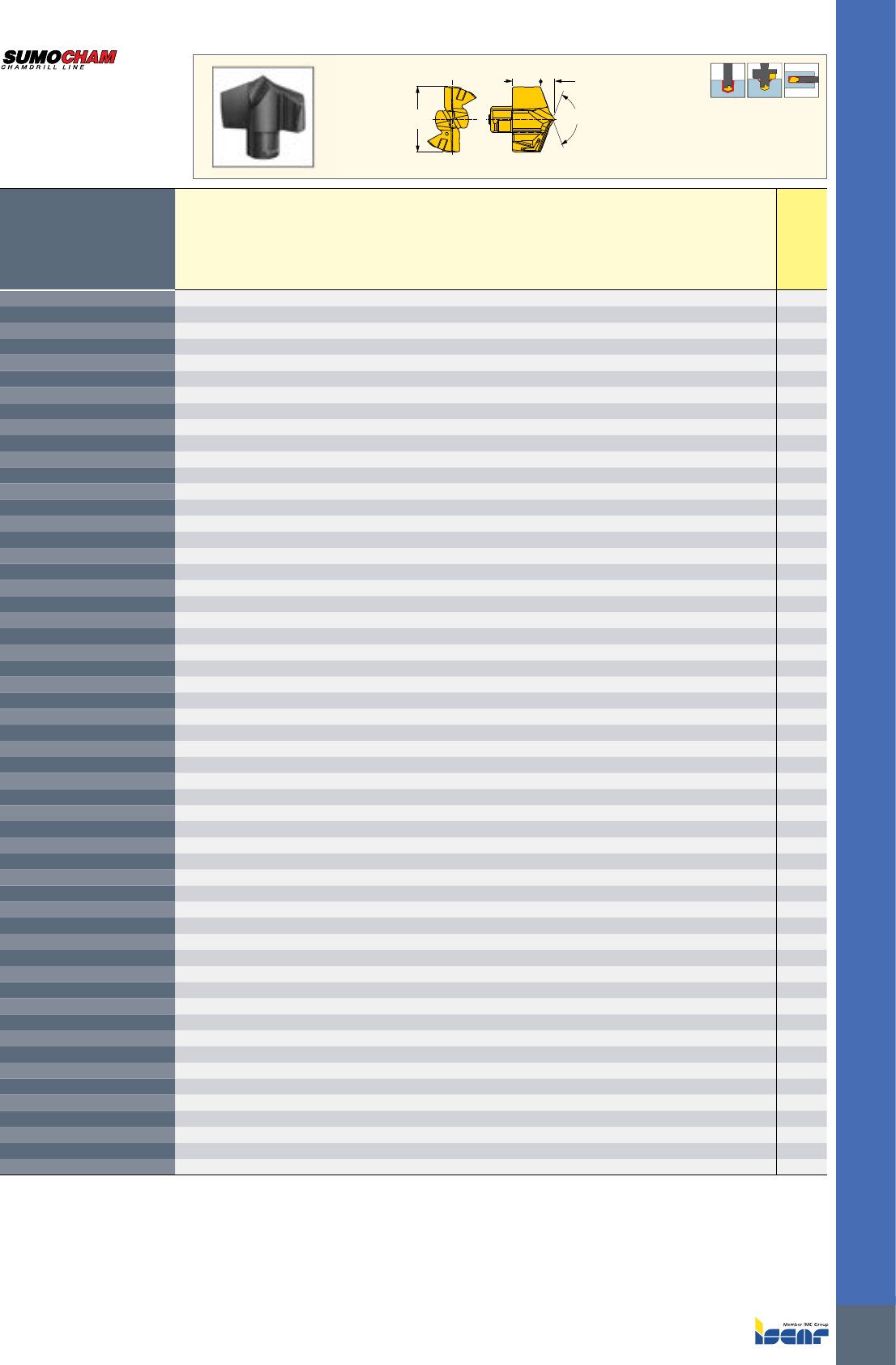

INDEXABLE DRILLS
LF PL
DC SIG
QCP-2M
Exchangeable Double Margin
& Self-Centering Drilling Heads
for DCN Drills, for Machining
ISO P Materials with High
Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
QCP 175-2M
17.50 7.21 3.670 136 17.0
•
QCP 177-2M
17.70 7.17 3.710 136 17.0
•
QCP 178-2M
17.80 7.15 3.730 136 17.0
•
QCP 179-2M
17.90 7.13 3.750 136 17.0
•
QCP 180-2M
18.00 7.77 3.780 136 18.0
•
QCP 181-2M
18.10 7.75 3.800 136 18.0
•
QCP 183-2M
18.30 7.71 3.840 136 18.0
•
QCP 185-2M
18.50 7.67 3.880 136 18.0
•
QCP 186-2M
18.60 7.65 3.900 136 18.0
•
QCP 187-2M
18.70 7.63 3.920 136 18.0
•
QCP 188-2M
18.80 7.61 3.940 136 18.0
•
QCP 189-2M
18.90 7.59 3.960 136 18.0
•
QCP 190-2M
19.00 8.12 3.990 136 19.0
•
QCP 1905-2M
19.05 8.11 4.000 136 19.0
•
QCP 191-2M
19.10 8.10 4.010 136 19.0
•
QCP 192-2M
19.20 8.08 4.030 136 19.0
•
QCP 1927-2M
19.27 8.07 4.040 136 19.0
•
QCP 193-2M
19.30 8.06 4.050 136 19.0
•
QCP 194-2M
19.40 8.04 4.070 136 19.0
•
QCP 195-2M
19.50 8.02 4.090 136 19.0
•
QCP 197-2M
19.70 7.98 4.130 136 19.0
•
QCP 198-2M
19.80 7.96 4.150 136 19.0
•
QCP 199-2M
19.90 7.94 4.170 136 19.0
•
QCP 200-2M
20.00 8.58 4.240 136 20.0
•
QCP 201-2M
20.10 8.56 4.260 136 20.0
•
QCP 202-2M
20.20 8.54 4.280 136 20.0
•
QCP 203-2M
20.30 8.52 4.300 136 20.0
•
QCP 204-2M
20.40 8.50 4.320 136 20.0
•
QCP 205-2M
20.50 8.48 4.340 136 20.0
•
QCP 206-2M
20.60 8.46 4.360 136 20.0
•
QCP 207-2M
20.70 8.44 4.380 136 20.0
•
QCP 209-2M
20.90 8.40 4.420 136 20.0
•
QCP 210-2M
21.00 9.00 4.400 136 21.0
•
QCP 213-2M
21.30 8.94 4.460 136 21.0
•
QCP 215-2M
21.50 8.90 4.500 136 21.0
•
QCP 217-2M
21.70 8.86 4.540 136 21.0
•
QCP 218-2M
21.80 8.84 4.560 136 21.0
•
QCP 220-2M
22.00 9.44 4.600 136 22.0
•
QCP 221-2M
22.10 9.42 4.620 136 22.0
•
QCP 222-2M
22.20 9.40 4.640 136 22.0
•
QCP 223-2M
22.30 9.38 4.660 136 22.0
•
QCP 225-2M
22.50 9.34 4.700 136 22.0
•
QCP 226-2M
22.60 9.32 4.720 136 22.0
•
QCP 227-2M
22.70 9.30 4.740 136 22.0
•
QCP 230-2M
23.00 9.87 4.840 136 23.0
•
QCP 233-2M
23.30 9.81 4.900 136 23.0
•
QCP 234-2M
23.40 9.79 4.920 136 23.0
•
QCP 235-2M
23.50 9.77 4.940 136 23.0
•
QCP 237-2M
23.70 9.73 4.980 136 23.0
•
QCP 238-2M
23.80 9.71 5.000 136 23.0
•
QCP 240-2M
24.00 10.28 5.030 136 24.0
•
QCP 242-2M
24.20 10.24 5.070 136 24.0
•
QCP 243-2M
24.30 10.22 5.090 136 24.0
•
QCP 245-2M
24.50 10.18 5.130 136 24.0
•
QCP 246-2M
24.60 10.16 5.150 136 24.0
•
(continued)
ISCAR
46
INDEXABLE DRILLS
LF PL
DC SIG
QCP-2M
Exchangeable Double Margin
& Self-Centering Drilling Heads
for DCN Drills, for Machining
ISO P Materials with High
Surface Finish Results
• Can provide high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • DCNT (M8-M24) (136)
• MNSNT (293)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
QCP 247-2M
24.70 10.14 5.170 136 24.0
•
QCP 249-2M
24.90 10.10 5.210 136 24.0
•
QCP 250-2M
25.00 10.70 5.280 136 25.0
•
QCP 251-2M
25.10 10.68 5.300 136 25.0
•
QCP 252-2M
25.20 10.66 5.320 136 25.0
•
QCP 253-2M
25.30 10.64 5.340 136 25.0
•
QCP 254-2M
25.40 10.62 5.360 136 25.0
•
QCP 255-2M
25.50 10.60 5.380 136 25.0
•
QCP 256-2M
25.60 10.58 5.400 136 25.0
•
QCP 2567-2M
25.67 10.56 5.420 136 25.0
•
QCP 257-2M
25.70 10.56 5.420 136 25.0
•
QCP 258-2M
25.80 10.54 5.440 136 25.0
•
QCP 259-2M
25.90 10.52 5.460 136 25.0
•
(continued)
47

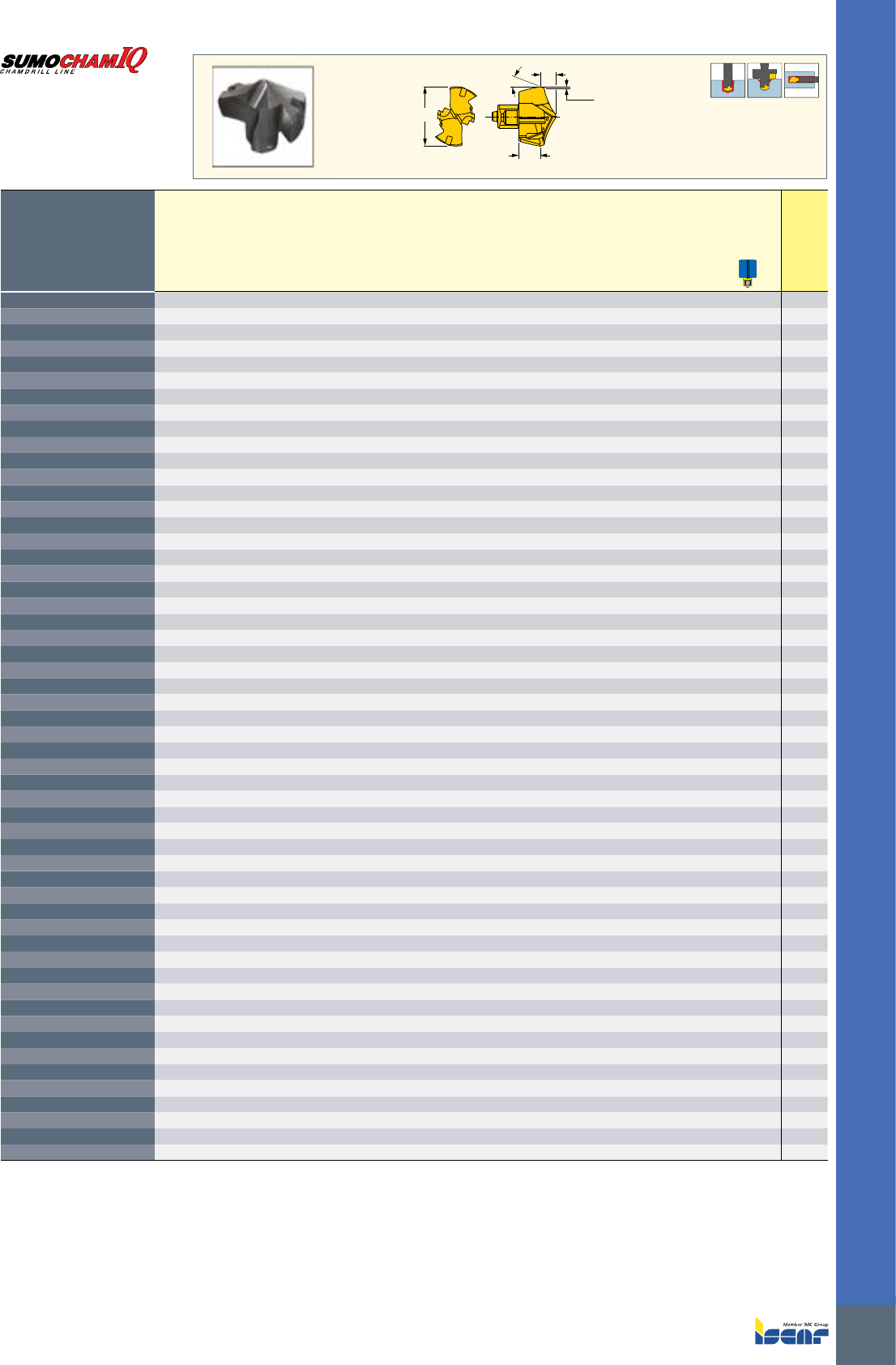

INDEXABLE DRILLS
DC
LF
KCH
CHW
PL
HCP-IQ
Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
Dimensions
Designation
DC LF PL CHW KCH SSC(1)
IC908
HCP 040-IQ
4.00 2.40 1.160 0.20 30.0 4 SK DCN 4-4.99
•
HCP 041-IQ
4.10 2.40 1.160 0.20 30.0 4 SK DCN 4-4.99
•
HCP 042-IQ
4.20 2.40 1.160 0.20 30.0 4 SK DCN 4-4.99
•
HCP 043-IQ
4.30 2.40 1.160 0.20 30.0 4 SK DCN 4-4.99
•
HCP 044-IQ
4.40 2.40 1.160 0.20 30.0 4 SK DCN 4-4.99
•
HCP 045-IQ
4.50 2.64 1.190 0.20 30.0 4.5 SK DCN 4-4.99
•
HCP 046-IQ
4.60 2.64 1.190 0.20 30.0 4.5 SK DCN 4-4.99
•
HCP 047-IQ
4.70 2.64 1.190 0.20 30.0 4.5 SK DCN 4-4.99
•
HCP 048-IQ
4.80 2.64 1.190 0.20 30.0 4.5 SK DCN 4-4.99
•
HCP 049-IQ
4.90 2.64 1.190 0.20 30.0 4.5 SK DCN 4-4.99
•
HCP 050-IQ
5.00 2.79 1.440 0.25 30.0 5.0 SK DCN 5-5.99
•
HCP 051-IQ
5.10 2.79 1.440 0.25 30.0 5.0 SK DCN 5-5.99
•
HCP 052-IQ
5.20 2.79 1.440 0.25 30.0 5.0 SK DCN 5-5.99
•
HCP 053-IQ
5.30 2.79 1.440 0.25 30.0 5.0 SK DCN 5-5.99
•
HCP 054-IQ
5.40 2.79 1.440 0.25 30.0 5.0 SK DCN 5-5.99
•
HCP 055-IQ
5.50 2.75 1.630 0.25 30.0 5.5 SK DCN 5-5.99
•
HCP 056-IQ
5.60 2.75 1.630 0.25 30.0 5.5 SK DCN 5-5.99
•
HCP 057-IQ
5.70 2.75 1.630 0.25 30.0 5.5 SK DCN 5-5.99
•
HCP 058-IQ
5.80 2.75 1.630 0.25 30.0 5.5 SK DCN 5-5.99
•
HCP 059-IQ
5.90 2.75 1.630 0.25 30.0 5.5 SK DCN 5-5.99
•
HCP 060-IQ
6.00 2.35 1.650 0.29 30.0 6.0
•
HCP 061-IQ
6.10 2.35 1.650 0.29 30.0 6.0
•
HCP 062-IQ
6.20 2.35 1.650 0.29 30.0 6.0
•
HCP 063-IQ
6.30 2.35 1.650 0.29 30.0 6.0
•
HCP 064-IQ
6.40 2.35 1.650 0.29 30.0 6.0
•
HCP 065-IQ
6.50 2.63 1.670 0.29 30.0 6.5
•
HCP 066-IQ
6.60 2.63 1.670 0.29 30.0 6.5
•
HCP 067-IQ
6.70 2.63 1.670 0.29 30.0 6.5
•
HCP 068-IQ
6.80 2.63 1.670 0.29 30.0 6.5
•
HCP 069-IQ
6.90 2.63 1.670 0.29 30.0 6.5
•
HCP 070-IQ
7.00 2.83 1.770 0.35 30.0 7.0
•
HCP 071-IQ
7.10 2.83 1.770 0.35 30.0 7.0
•
HCP 072-IQ
7.20 2.83 1.770 0.35 30.0 7.0
•
HCP 073-IQ
7.30 2.83 1.770 0.35 30.0 7.0
•
HCP 074-IQ
7.40 2.83 1.770 0.35 30.0 7.0
•
HCP 075-IQ
7.50 2.83 1.770 0.35 30.0 7.0
•
HCP 076-IQ
7.60 2.83 1.770 0.35 30.0 7.0
•
HCP 077-IQ
7.70 2.83 1.770 0.35 30.0 7.0
•
HCP 078-IQ
7.80 2.83 1.770 0.35 30.0 7.0
•
HCP 079-IQ
7.90 2.83 1.770 0.35 30.0 7.0
•
HCP 080-IQ
8.00 3.24 2.160 0.40 30.0 8.0
•
HCP 081-IQ
8.10 3.24 2.160 0.40 30.0 8.0
•
HCP 082-IQ
8.20 3.24 2.160 0.40 30.0 8.0
•
HCP 083-IQ
8.30 3.24 2.160 0.40 30.0 8.0
•
HCP 084-IQ
8.40 3.24 2.160 0.40 30.0 8.0
•
HCP 085-IQ
8.50 3.24 2.160 0.40 30.0 8.0
•
HCP 086-IQ
8.60 3.24 2.160 0.40 30.0 8.0
•
HCP 087-IQ
8.70 3.24 2.160 0.40 30.0 8.0
•
HCP 088-IQ
8.80 3.24 2.160 0.40 30.0 8.0
•
HCP 089-IQ
8.90 3.20 2.160 0.40 30.0 8.0
•
HCP 090-IQ
9.00 3.55 2.250 0.46 30.0 9.0
•
HCP 091-IQ
9.10 3.55 2.250 0.46 30.0 9.0
•
HCP 092-IQ
9.20 3.55 2.250 0.46 30.0 9.0
•
HCP 093-IQ
9.30 3.55 2.250 0.46 30.0 9.0
•
ISCAR
48
INDEXABLE DRILLS
DC
LF
KCH
CHW
PL
HCP-IQ
Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions
Designation
DC LF PL CHW KCH SSC(1)
IC908
HCP 094-IQ
9.40 3.55 2.250 0.46 30.0 9.0
•
HCP 095-IQ
9.50 3.55 2.250 0.46 30.0 9.0
•
HCP 096-IQ
9.60 3.55 2.250 0.46 30.0 9.0
•
HCP 097-IQ
9.70 3.55 2.250 0.46 30.0 9.0
•
HCP 098-IQ
9.80 3.55 2.250 0.46 30.0 9.0
•
HCP 099-IQ
9.90 3.55 2.250 0.46 30.0 9.0
•
HCP 100-IQ
10.00 3.48 2.720 0.46 30.0 10.0
•
HCP 101-IQ
10.10 3.48 2.720 0.46 30.0 10.0
•
HCP 102-IQ
10.20 3.48 2.720 0.46 30.0 10.0
•
HCP 103-IQ
10.30 3.48 2.720 0.46 30.0 10.0
•
HCP 104-IQ
10.40 3.48 2.720 0.46 30.0 10.0
•
HCP 105-IQ
10.50 3.48 2.720 0.46 30.0 10.0
•
HCP 106-IQ
10.60 3.48 2.720 0.46 30.0 10.0
•
HCP 107-IQ
10.70 3.48 2.720 0.46 30.0 10.0
•
HCP 108-IQ
10.80 3.48 2.720 0.46 30.0 10.0
•
HCP 109-IQ
10.90 3.48 2.720 0.46 30.0 10.0
•
HCP 110-IQ
11.00 3.85 2.750 0.52 30.0 11.0
•
HCP 111-IQ
11.10 3.85 2.750 0.52 30.0 11.0
•
HCP 112-IQ
11.20 3.85 2.750 0.52 30.0 11.0
•
HCP 113-IQ
11.30 3.85 2.750 0.52 30.0 11.0
•
HCP 114-IQ
11.40 3.85 2.750 0.52 30.0 11.0
•
HCP 115-IQ
11.50 3.85 2.750 0.52 30.0 11.0
•
HCP 116-IQ
11.60 3.85 2.750 0.52 30.0 11.0
•
HCP 117-IQ
11.70 3.85 2.750 0.52 30.0 11.0
•
HCP 118-IQ
11.80 3.85 2.750 0.52 30.0 11.0
•
HCP 119-IQ
11.90 3.85 2.750 0.52 30.0 11.0
•
HCP 120-IQ
12.00 3.84 3.160 0.52 30.0 12.0
•
HCP 121-IQ
12.10 3.84 3.160 0.52 30.0 12.0
•
HCP 122-IQ
12.20 3.84 3.160 0.52 30.0 12.0
•
HCP 123-IQ
12.30 3.84 3.160 0.52 30.0 12.0
•
HCP 124-IQ
12.40 3.84 3.160 0.52 30.0 12.0
•
HCP 125-IQ
12.50 3.84 3.160 0.52 30.0 12.0
•
HCP 126-IQ
12.60 3.84 3.160 0.52 30.0 12.0
•
HCP 127-IQ
12.70 3.84 3.160 0.52 30.0 12.0
•
HCP 128-IQ
12.80 3.84 3.160 0.52 30.0 12.0
•
HCP 129-IQ
12.90 3.84 3.160 0.52 30.0 12.0
•
HCP 130-IQ
13.00 4.09 3.510 0.58 30.0 13.0
•
HCP 131-IQ
13.10 4.09 3.510 0.58 30.0 13.0
•
HCP 132-IQ
13.20 4.09 3.510 0.58 30.0 13.0
•
HCP 133-IQ
13.30 4.09 3.510 0.58 30.0 13.0
•
HCP 134-IQ
13.40 4.09 3.510 0.58 30.0 13.0
•
HCP 135-IQ
13.50 4.09 3.510 0.58 30.0 13.0
•
HCP 136-IQ
13.60 4.09 3.510 0.58 30.0 13.0
•
HCP 137-IQ
13.70 4.09 3.510 0.58 30.0 13.0
•
HCP 138-IQ
13.80 4.09 3.510 0.58 30.0 13.0
•
HCP 139-IQ
13.90 4.09 3.510 0.58 30.0 13.0
•
HCP 140-IQ
14.00 4.52 3.630 0.64 30.0 14.0
•
HCP 141-IQ
14.10 4.52 3.630 0.64 30.0 14.0
•
HCP 142-IQ
14.20 4.52 3.630 0.64 30.0 14.0
•
HCP 143-IQ
14.30 4.52 3.630 0.64 30.0 14.0
•
HCP 144-IQ
14.40 4.52 3.630 0.64 30.0 14.0
•
HCP 145-IQ
14.50 4.52 3.630 0.64 30.0 14.0
•
HCP 146-IQ
14.60 4.52 3.630 0.64 30.0 14.0
•
HCP 147-IQ
14.70 4.52 3.630 0.64 30.0 14.0
•
HCP 148-IQ
14.80 4.52 3.630 0.64 30.0 14.0
•

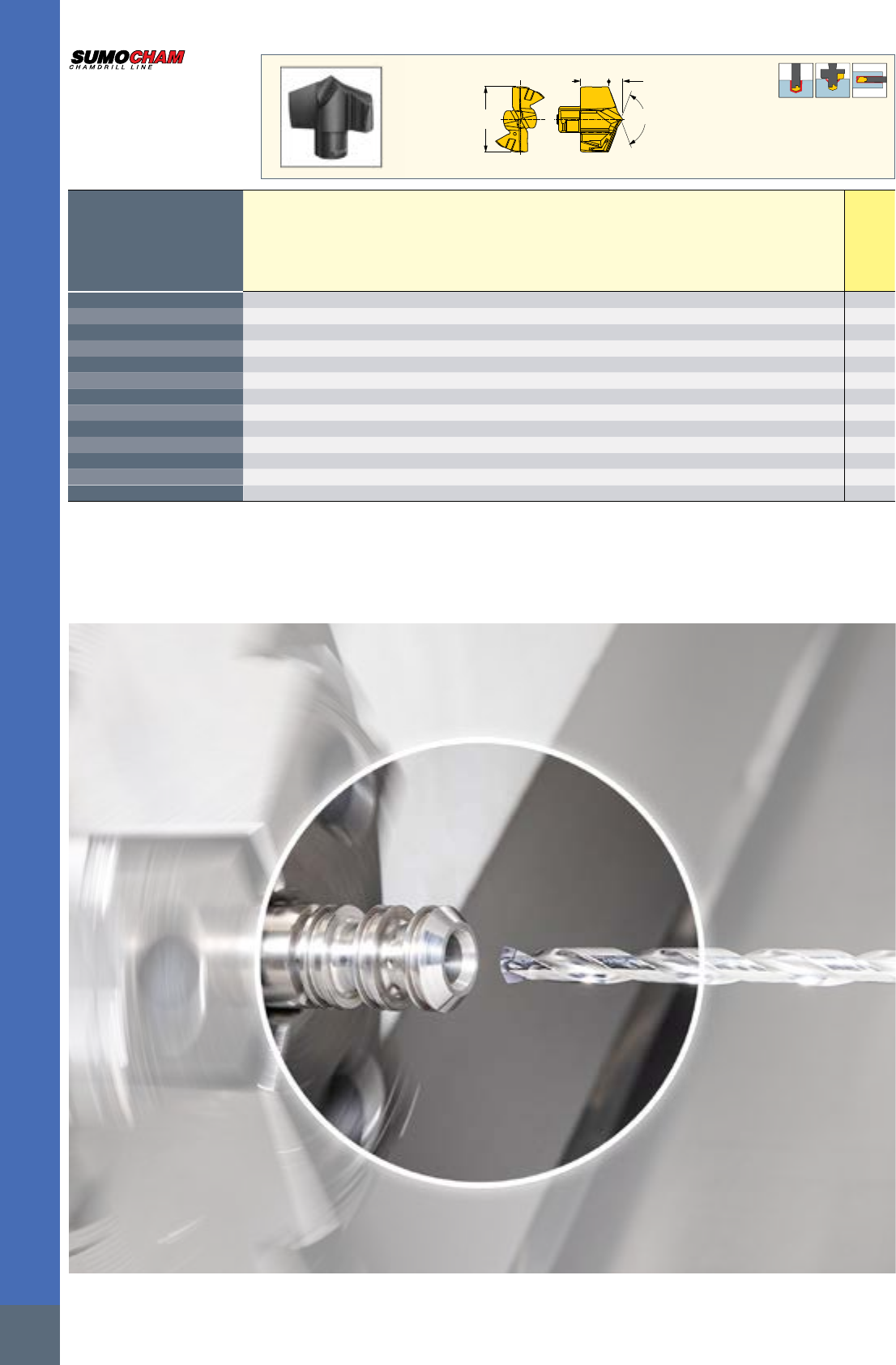

49

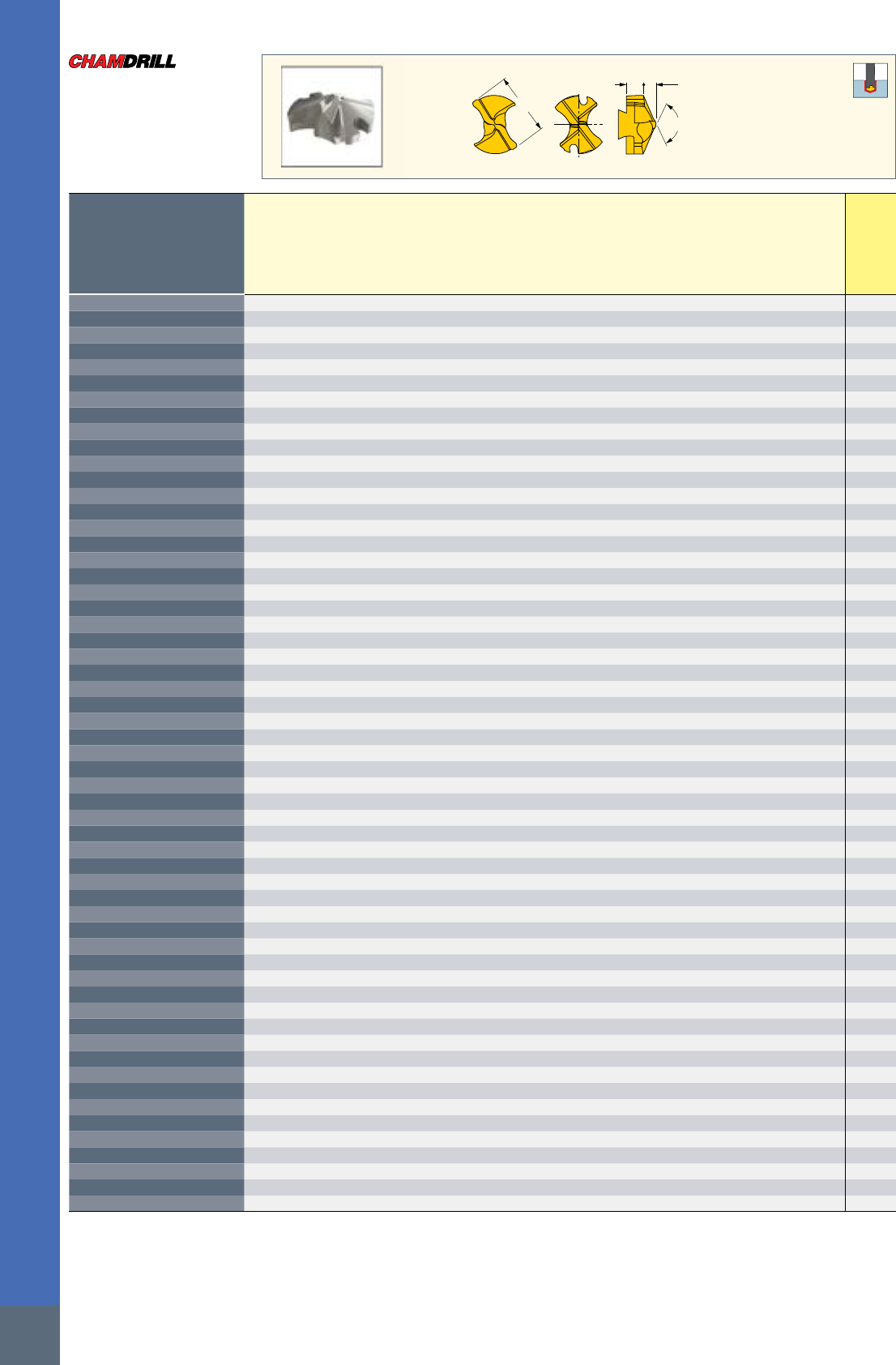

INDEXABLE DRILLS
DC
LF
KCH
CHW
PL
HCP-IQ
Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions
Designation
DC LF PL CHW KCH SSC(1)
IC908
HCP 149-IQ
14.90 4.52 3.630 0.64 30.0 14.0
•
HCP 150-IQ
15.00 4.85 3.880 0.69 30.0 15.0
•
HCP 151-IQ
15.10 4.85 3.880 0.69 30.0 15.0
•
HCP 152-IQ
15.20 4.85 3.880 0.69 30.0 15.0
•
HCP 153-IQ
15.30 4.85 3.880 0.69 30.0 15.0
•
HCP 154-IQ
15.40 4.85 3.880 0.69 30.0 15.0
•
HCP 155-IQ
15.50 4.85 3.880 0.69 30.0 15.0
•
HCP 156-IQ
15.60 4.85 3.880 0.69 30.0 15.0
•
HCP 157-IQ
15.70 4.85 3.880 0.69 30.0 15.0
•
HCP 158-IQ
15.80 4.85 3.880 0.69 30.0 15.0
•
HCP 159-IQ
15.90 4.85 3.880 0.69 30.0 15.0
•
HCP 160-IQ
16.00 5.39 3.910 0.64 30.0 16.0
•
HCP 1605-IQ
16.05 5.39 3.910 0.62 30.0 16.0
•
HCP 161-IQ
16.10 5.39 3.910 0.64 30.0 16.0
•
HCP 162-IQ
16.20 5.39 3.910 0.64 30.0 16.0
•
HCP 163-IQ
16.30 5.39 3.910 0.64 30.0 16.0
•
HCP 164-IQ
16.40 5.39 3.910 0.64 30.0 16.0
•
HCP 165-IQ
16.50 5.39 3.910 0.64 30.0 16.0
•
HCP 166-IQ
16.60 5.39 3.910 0.64 30.0 16.0
•
HCP 167-IQ
16.70 5.39 3.910 0.64 30.0 16.0
•
HCP 168-IQ
16.80 5.39 3.910 0.64 30.0 16.0
•
HCP 169-IQ
16.90 5.39 3.910 0.64 30.0 16.0
•
HCP 170-IQ
17.00 5.33 4.570 0.87 30.0 17.0
•
HCP 171-IQ
17.10 5.33 4.570 0.87 30.0 17.0
•
HCP 172-IQ
17.20 5.33 4.570 0.87 30.0 17.0
•
HCP 173-IQ
17.30 5.33 4.570 0.87 30.0 17.0
•
HCP 174-IQ
17.40 5.33 4.570 0.87 30.0 17.0
•
HCP 175-IQ
17.50 5.33 4.570 0.87 30.0 17.0
•
HCP 176-IQ
17.60 5.33 4.570 0.87 30.0 17.0
•
HCP 177-IQ
17.70 5.33 4.570 0.87 30.0 17.0
•
HCP 178-IQ
17.80 5.33 4.570 0.87 30.0 17.0
•
HCP 179-IQ
17.90 5.33 4.570 0.87 30.0 17.0
•
HCP 180-IQ
18.00 5.84 4.660 0.81 30.0 18.0
•
HCP 181-IQ
18.10 5.84 4.660 0.81 30.0 18.0
•
HCP 182-IQ
18.20 5.84 4.660 0.81 30.0 18.0
•
HCP 183-IQ
18.30 5.84 4.660 0.81 30.0 18.0
•
HCP 184-IQ
18.40 5.84 4.660 0.81 30.0 18.0
•
HCP 185-IQ
18.50 5.84 4.660 0.81 30.0 18.0
•
HCP 186-IQ
18.60 5.84 4.660 0.81 30.0 18.0
•
HCP 187-IQ
18.70 5.84 4.660 0.81 30.0 18.0
•
HCP 188-IQ
18.80 5.84 4.660 0.81 30.0 18.0
•
HCP 189-IQ
18.90 5.84 4.660 0.81 30.0 18.0
•
HCP 190-IQ
19.00 6.34 4.660 0.75 30.0 19.0
•
HCP 191-IQ
19.10 6.34 4.660 0.75 30.0 19.0
•
HCP 192-IQ
19.20 6.34 4.660 0.75 30.0 19.0
•
HCP 1927-IQ
19.27 6.34 4.660 0.75 30.0 19.0
•
HCP 193-IQ
19.30 6.34 4.660 0.75 30.0 19.0
•
HCP 194-IQ
19.40 6.34 4.660 0.75 30.0 19.0
•
HCP 195-IQ
19.50 6.34 4.660 0.75 30.0 19.0
•
HCP 196-IQ
19.60 6.34 4.660 0.75 30.0 19.0
•
HCP 197-IQ
19.70 6.34 4.660 0.75 30.0 19.0
•
HCP 198-IQ
19.80 6.34 4.660 0.75 30.0 19.0
•
HCP 199-IQ
19.90 6.34 4.660 0.75 30.0 19.0
•
HCP 200-IQ
20.00 6.79 4.810 0.58 30.0 20.0
•
HCP 201-IQ
20.10 6.79 4.810 0.58 30.0 20.0
•
ISCAR
50

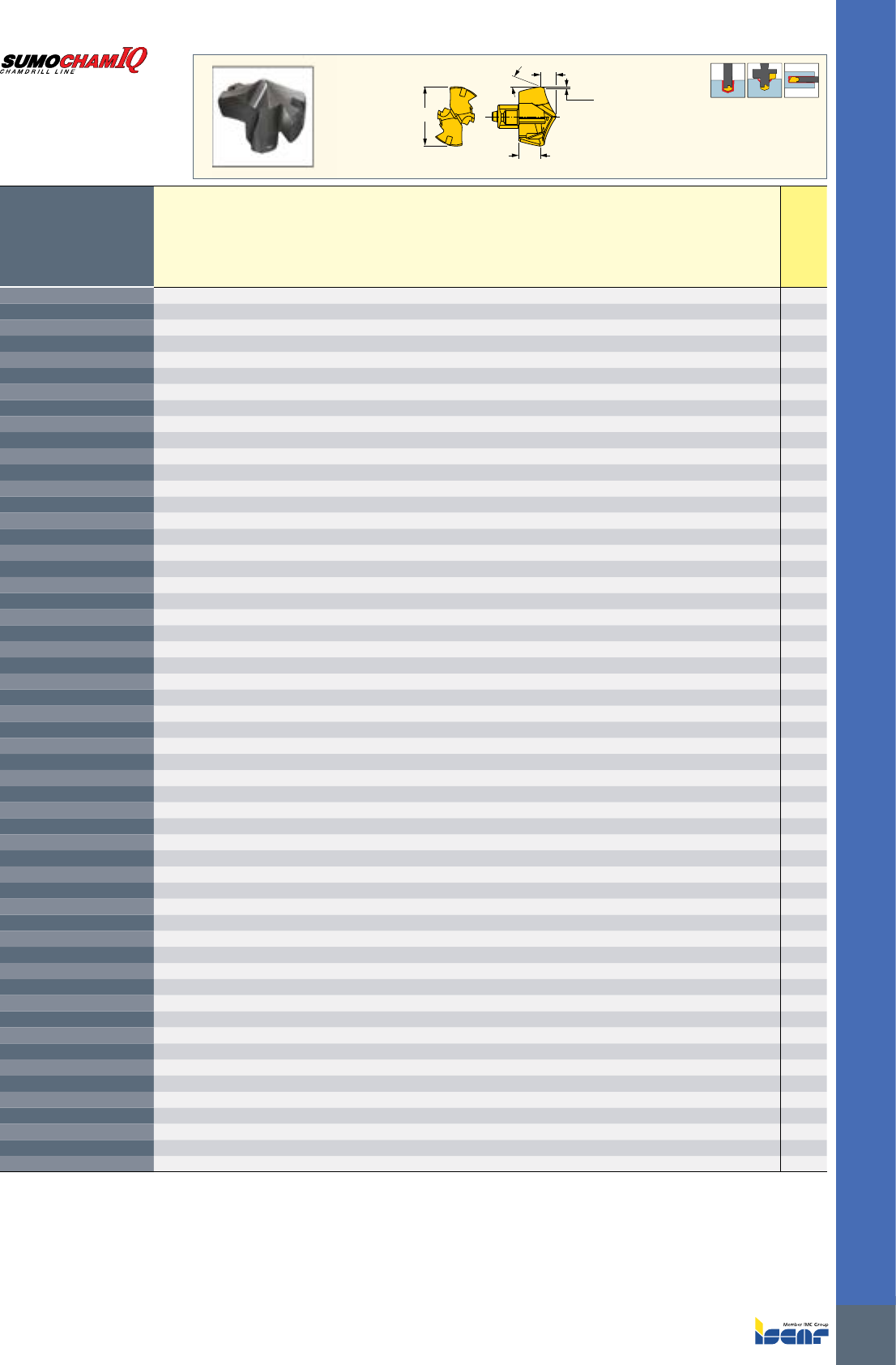

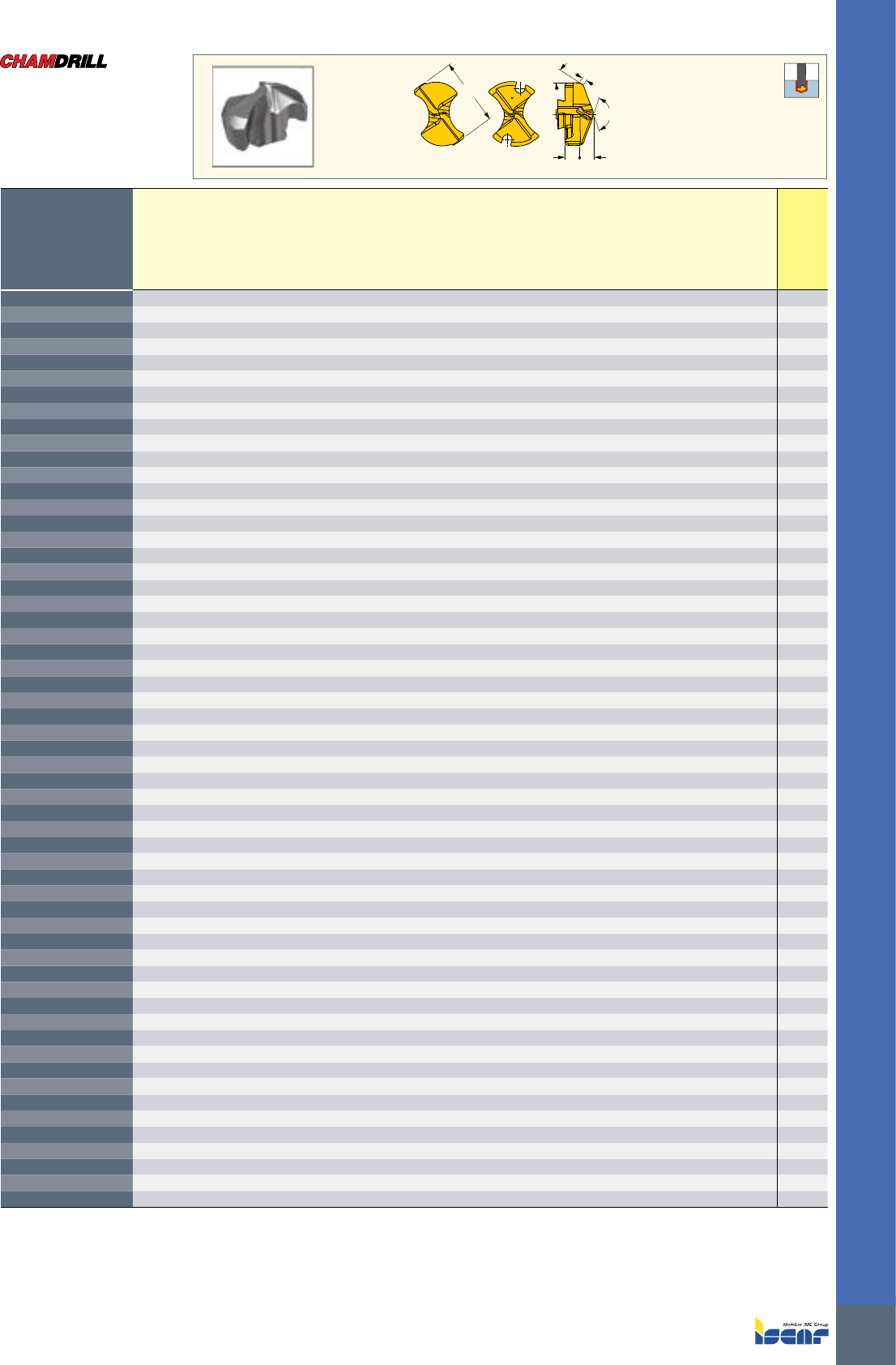

INDEXABLE DRILLS
DC
LF
KCH
CHW
PL
HCP-IQ
Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions
Designation
DC LF PL CHW KCH SSC(1)
IC908
HCP 202-IQ
20.20 6.79 4.810 0.58 30.0 20.0
•
HCP 203-IQ
20.30 6.79 4.810 0.58 30.0 20.0
•
HCP 204-IQ
20.40 6.79 4.810 0.58 30.0 20.0
•
HCP 205-IQ
20.50 6.79 4.810 0.58 30.0 20.0
•
HCP 206-IQ
20.60 6.79 4.810 0.58 30.0 20.0
•
HCP 207-IQ
20.70 6.79 4.810 0.58 30.0 20.0
•
HCP 208-IQ
20.80 6.79 4.810 0.58 30.0 20.0
•
HCP 209-IQ
20.90 6.79 4.810 0.58 30.0 20.0
•
HCP 210-IQ
21.00 7.24 4.940 0.69 30.0 21.0
•
HCP 211-IQ
21.10 7.24 4.940 0.69 30.0 21.0
•
HCP 212-IQ
21.20 7.24 4.940 0.69 30.0 21.0
•
HCP 213-IQ
21.30 7.24 4.940 0.69 30.0 21.0
•
HCP 214-IQ
21.40 7.24 4.940 0.69 30.0 21.0
•
HCP 215-IQ
21.50 7.24 4.940 0.69 30.0 21.0
•
HCP 216-IQ
21.60 7.24 4.940 0.69 30.0 21.0
•
HCP 217-IQ
21.70 7.24 4.940 0.69 30.0 21.0
•
HCP 218-IQ
21.80 7.24 4.940 0.69 30.0 21.0
•
HCP 219-IQ
21.90 7.20 4.940 0.69 30.0 21.0
•
HCP 220-IQ
22.00 7.56 5.200 0.69 30.0 22.0
•
HCP 221-IQ
22.10 7.56 5.200 0.69 30.0 22.0
•
HCP 222-IQ
22.20 7.56 5.200 0.69 30.0 22.0
•
HCP 223-IQ
22.30 7.56 5.200 0.69 30.0 22.0
•
HCP 224-IQ
22.40 7.56 5.200 0.69 30.0 22.0
•
HCP 225-IQ
22.50 7.56 5.200 0.69 30.0 22.0
•
HCP 226-IQ
22.60 7.56 5.200 0.69 30.0 22.0
•
HCP 227-IQ
22.70 7.56 5.200 0.69 30.0 22.0
•
HCP 228-IQ
22.80 7.56 5.200 0.69 30.0 22.0
•
HCP 229-IQ
22.90 7.56 5.200 0.69 30.0 22.0
•
HCP 230-IQ
23.00 8.05 5.280 0.75 30.0 23.0
•
HCP 231-IQ
23.10 8.05 5.280 0.75 30.0 23.0
•
HCP 232-IQ
23.20 8.05 5.280 0.75 30.0 23.0
•
HCP 233-IQ
23.30 8.05 5.280 0.75 30.0 23.0
•
HCP 234-IQ
23.40 8.05 5.280 0.75 30.0 23.0
•
HCP 235-IQ
23.50 8.05 5.280 0.75 30.0 23.0
•
HCP 236-IQ
23.60 8.05 5.280 0.75 30.0 23.0
•
HCP 237-IQ
23.70 8.05 5.280 0.75 30.0 23.0
•
HCP 238-IQ
23.80 8.05 5.280 0.75 30.0 23.0
•
HCP 239-IQ
23.90 8.05 5.280 0.75 30.0 23.0
•
HCP 240-IQ
24.00 8.27 5.630 0.81 30.0 24.0
•
HCP 241-IQ
24.10 8.27 5.630 0.81 30.0 24.0
•
HCP 242-IQ
24.20 8.27 5.630 0.81 30.0 24.0
•
HCP 243-IQ
24.30 8.27 5.630 0.81 30.0 24.0
•
HCP 244-IQ
24.40 8.27 5.630 0.81 30.0 24.0
•
HCP 245-IQ
24.50 8.27 5.630 0.81 30.0 24.0
•
HCP 246-IQ
24.60 8.27 5.630 0.81 30.0 24.0
•
HCP 247-IQ
24.70 8.27 5.630 0.81 30.0 24.0
•
HCP 248-IQ
24.80 8.27 5.630 0.81 30.0 24.0
•
HCP 249-IQ
24.90 8.27 5.630 0.81 30.0 24.0
•
HCP 250-IQ
25.00 8.80 5.700 0.64 30.0 25.0
•
HCP 251-IQ
25.10 8.80 5.700 0.64 30.0 25.0
•
HCP 252-IQ
25.20 8.80 5.700 0.64 30.0 25.0
•
HCP 253-IQ
25.30 8.80 5.700 0.64 30.0 25.0
•
HCP 254-IQ
25.40 8.80 5.700 0.64 30.0 25.0
•
HCP 255-IQ
25.50 8.80 5.700 0.64 30.0 25.0
•
HCP 256-IQ
25.60 8.80 5.700 0.64 30.0 25.0
•
51
INDEXABLE DRILLS
DC
LF
KCH
CHW
PL
HCP-IQ

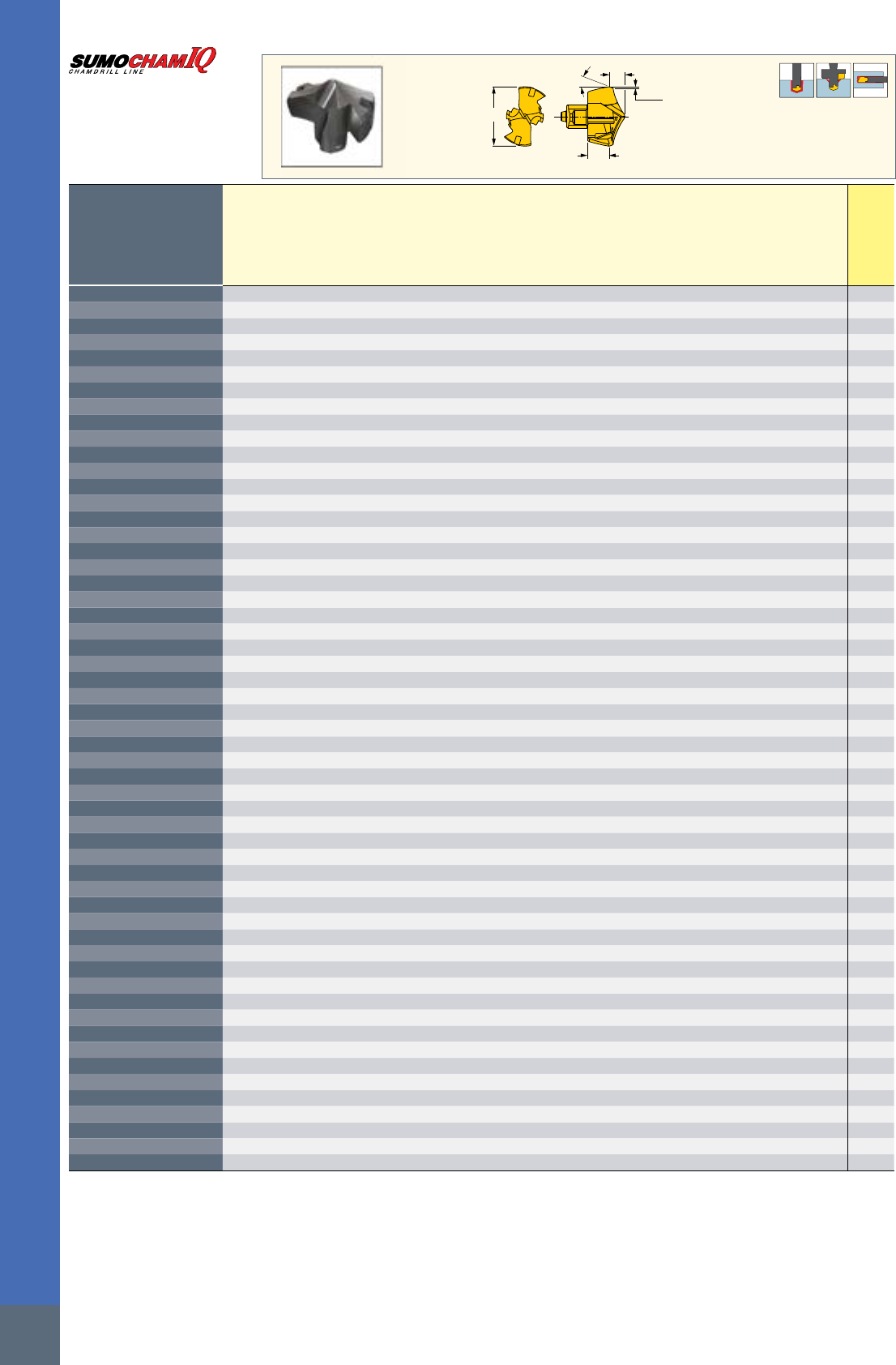

Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
(continued)
Dimensions
Designation
DC LF PL CHW KCH SSC(1)
IC908
HCP 2565-IQ
25.65 8.80 5.700 0.67 30.0 25.0
•
HCP 257-IQ
25.70 8.80 5.700 0.64 30.0 25.0
•
HCP 258-IQ
25.80 8.80 5.700 0.64 30.0 25.0
•
HCP 259-IQ
25.90 8.80 5.700 0.64 30.0 25.0
•
HCP 260-IQ
26.00 9.12 5.950 0.58 30.0 26.0
•
HCP 262-IQ
26.20 9.12 5.950 0.58 30.0 26.0
•
HCP 265-IQ
26.50 9.12 5.950 0.58 30.0 26.0
•
HCP 266-IQ
26.60 9.12 5.950 0.58 30.0 26.0
•
HCP 269-IQ
26.90 9.12 5.950 0.58 30.0 26.0
•
HCP 270-IQ
27.00 9.45 6.200 0.64 30.0 27.0
•
HCP 275-IQ
27.50 9.45 6.200 0.64 30.0 27.0
•
HCP 277-IQ
27.70 9.45 6.200 0.64 30.0 27.0
•
HCP 280-IQ
28.00 9.80 6.420 0.64 30.0 28.0
•
HCP 285-IQ
28.50 9.80 6.420 0.64 30.0 28.0
•
HCP 290-IQ
29.00 10.16 6.640 0.64 30.0 29.0
•
HCP 295-IQ
29.50 10.16 6.640 0.64 30.0 29.0
•
HCP 300-IQ
30.00 10.50 6.880 0.69 30.0 30.0
•
HCP 305-IQ
30.50 10.50 6.880 0.69 30.0 30.0
•
HCP 310-IQ
31.00 11.00 6.960 0.69 30.0 31.0
•
HCP 315-IQ
31.50 11.00 6.960 0.69 30.0 31.0
•
HCP 3175-IQ
31.75 11.00 6.960 0.69 30.0 31.0
•
HCP 320-IQ
32.00 11.20 7.340 0.75 30.0 32.0
•
HCP 325-IQ
32.50 11.20 7.340 0.75 30.0 32.0
•
HCP 329-IQ
32.90 11.20 7.340 0.75 30.0 32.0
•
ISCAR
52

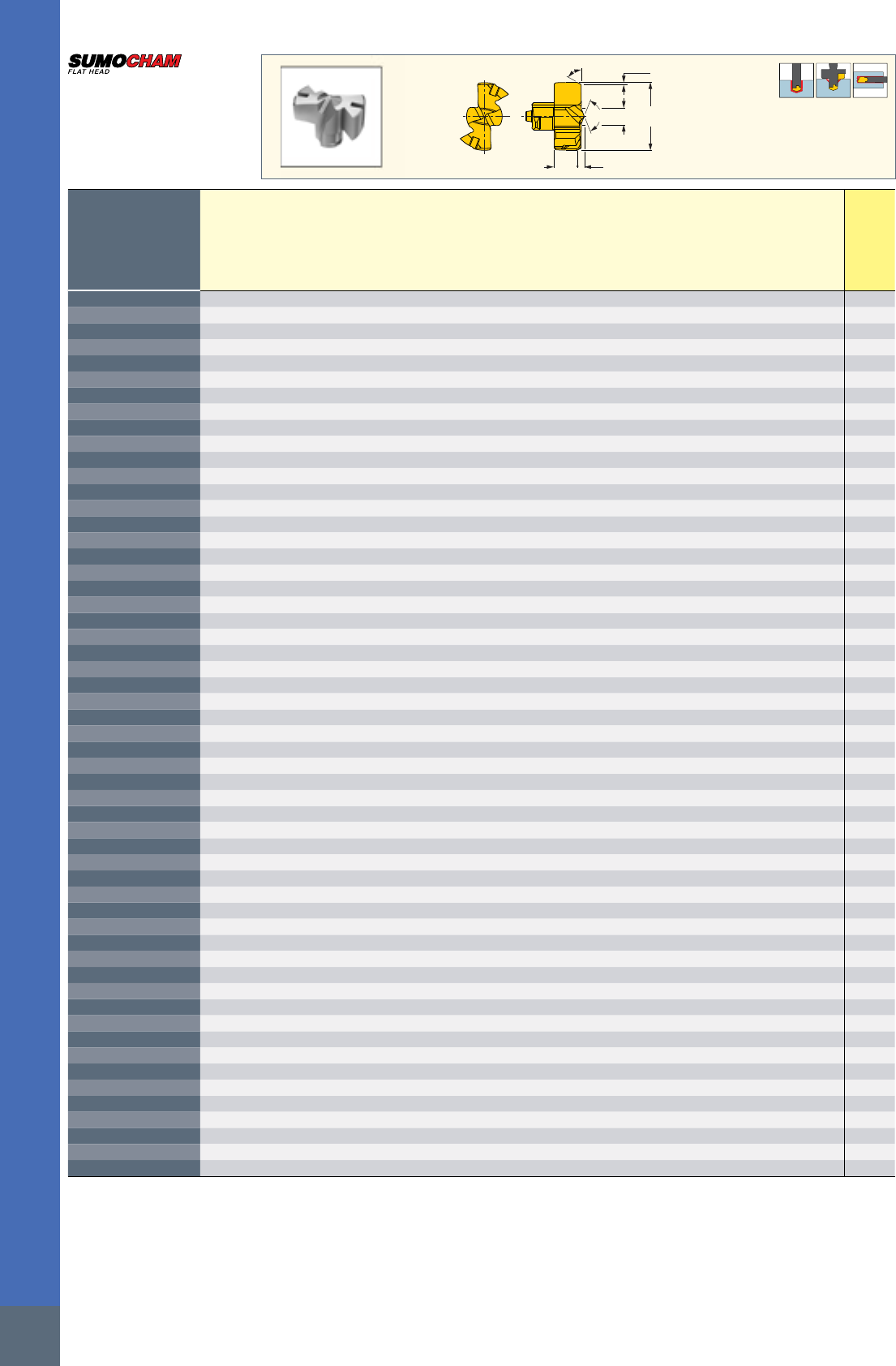

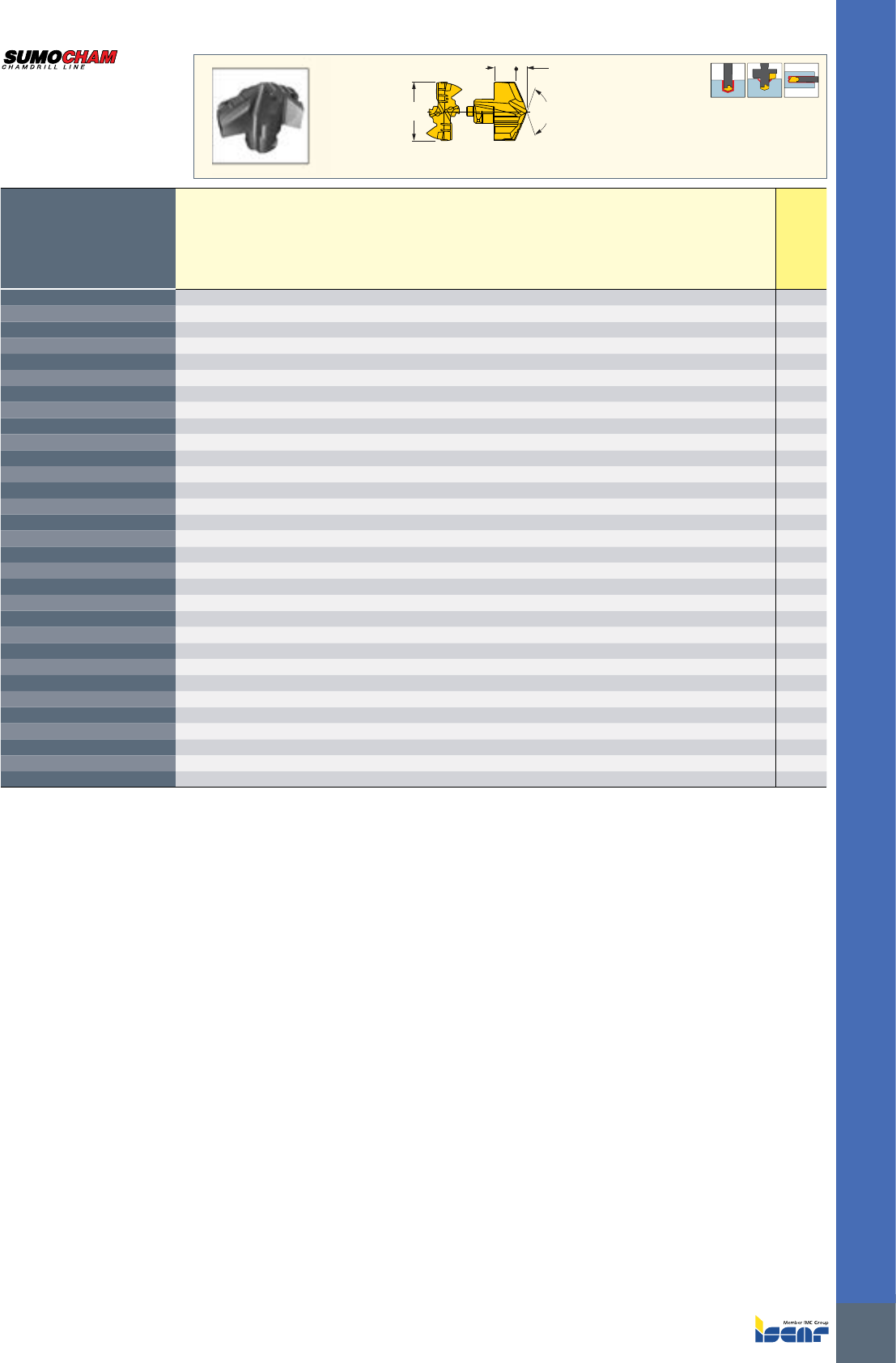

INDEXABLE DRILLS
DC
CHW
KCH
PDDSIG
LF PL
FCP
Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
Dimensions
Designation
DC PDD LF PL CHW KCH SIG SSC(1)
IC908
FCP 040-IQ
4.00 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99
•
FCP 041-IQ
4.10 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99
•
FCP 042-IQ
4.20 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99
•
FCP 043-IQ
4.30 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99
•
FCP 044-IQ
4.40 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99
•
FCP 045-IQ
4.50 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99
•
FCP 046-IQ
4.60 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99
•
FCP 047-IQ
4.70 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99
•
FCP 048-IQ
4.80 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99
•
FCP 049-IQ
4.90 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99
•
FCP 050-IQ
5.00 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99
•
FCP 051-IQ
5.10 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99
•
FCP 052-IQ
5.20 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99
•
FCP 053-IQ
5.30 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99
•
FCP 054-IQ
5.40 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99
•
FCP 055-IQ
5.50 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99
•
FCP 056-IQ
5.60 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99
•
FCP 057-IQ
5.70 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99
•
FCP 058-IQ
5.80 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99
•
FCP 059-IQ
5.90 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99
•
FCP 060
6.00 1.15 2.40 0.610 0.23 60.0 140 6.0
•
FCP 061
6.10 1.15 2.40 0.610 0.23 60.0 140 6.0
•
FCP 062
6.20 1.15 2.40 0.610 0.23 60.0 140 6.0
•
FCP 063
6.30 1.15 2.40 0.610 0.23 60.0 140 6.0
•
FCP 064
6.40 1.15 2.40 0.610 0.23 60.0 140 6.0
•
FCP 065
6.50 1.54 2.60 0.680 0.23 60.0 140 6.5
•
FCP 066
6.60 1.54 2.60 0.680 0.23 60.0 140 6.5
•
FCP 067
6.70 1.54 2.60 0.680 0.23 60.0 140 6.5
•
FCP 068
6.80 1.54 2.60 0.680 0.23 60.0 140 6.5
•
FCP 069
6.90 1.54 2.60 0.680 0.23 60.0 140 6.5
•
FCP 070
7.00 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 071
7.10 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 072
7.20 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 073
7.30 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 074
7.40 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 075
7.50 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 076
7.60 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 077
7.70 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 078
7.80 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 079
7.90 1.54 2.90 0.680 0.23 60.0 140 7.0
•
FCP 080
8.00 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 081
8.10 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 082
8.20 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 083
8.30 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 084
8.40 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 085
8.50 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 086
8.60 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 087
8.70 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 088
8.80 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 089
8.90 2.44 3.30 1.090 0.40 60.0 140 8.0
•
FCP 090
9.00 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 091
9.10 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 092
9.20 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 093
9.30 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 094
9.40 2.55 3.50 1.110 0.40 60.0 140 9.0
•
53

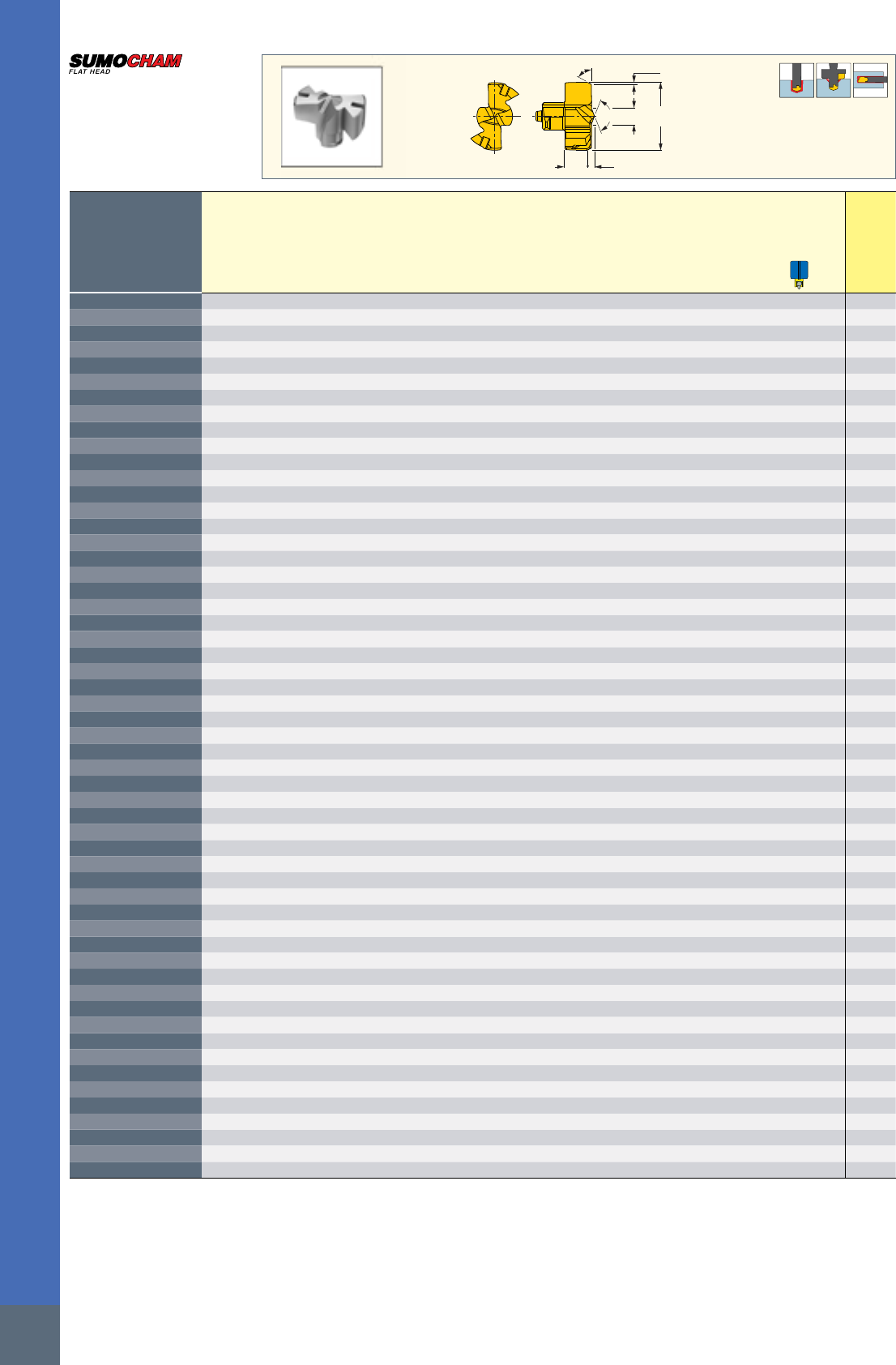

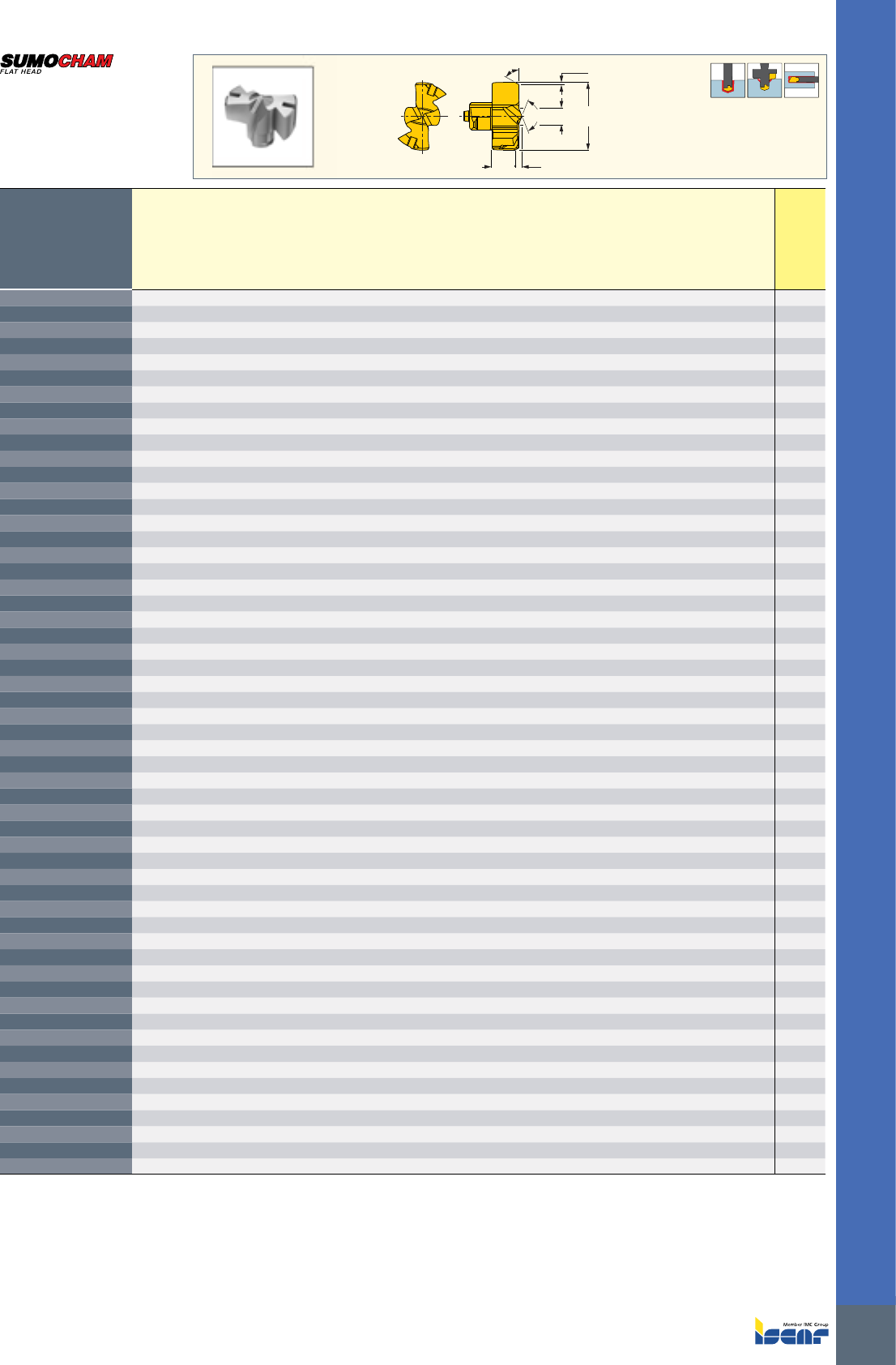

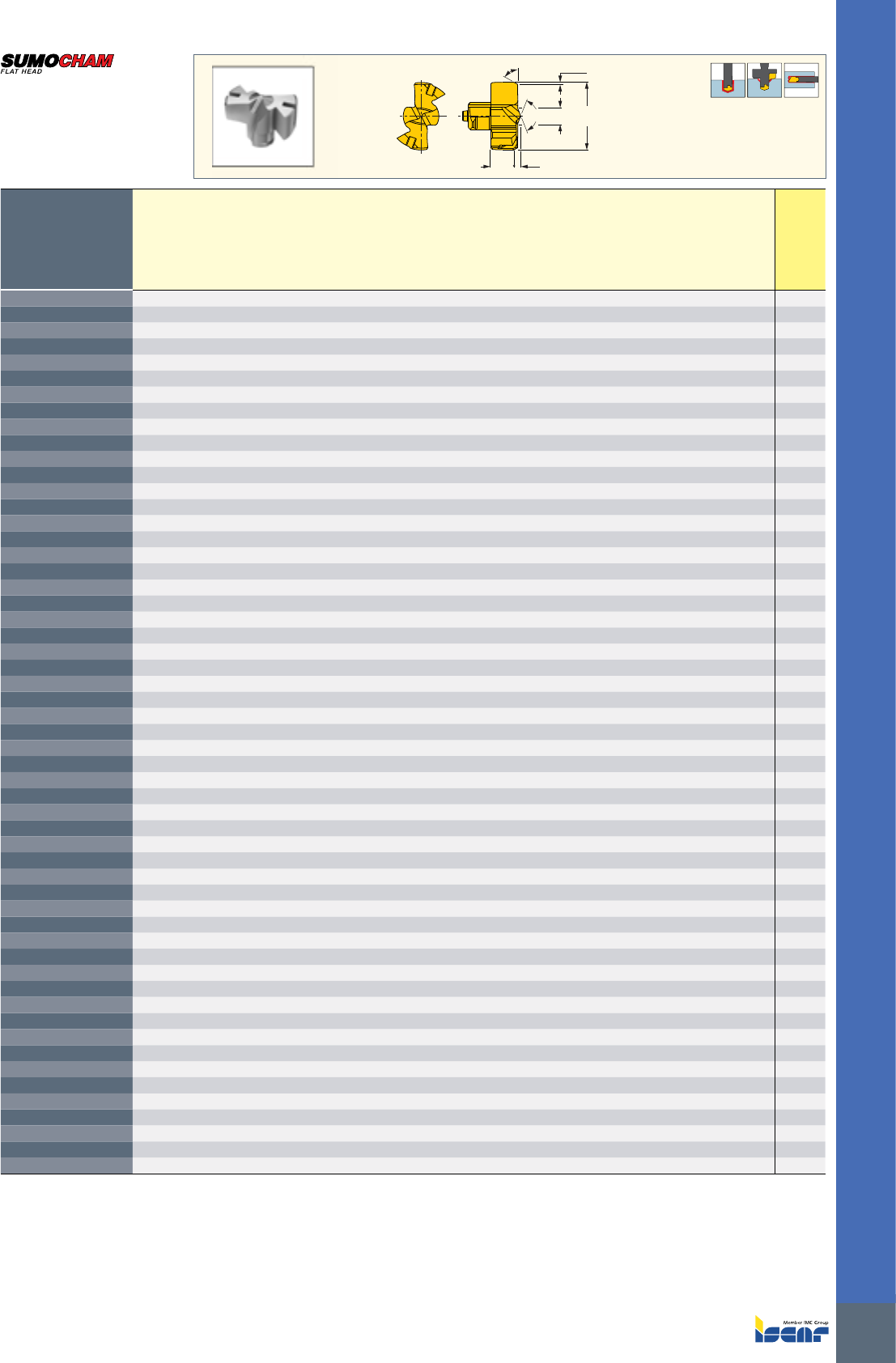

INDEXABLE DRILLS
DC
CHW
KCH
PDDSIG
LF PL
FCP
Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions
Designation
DC PDD LF PL CHW KCH SIG SSC(1)
IC908
FCP 095
9.50 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 096
9.60 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 097
9.70 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 098
9.80 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 099
9.90 2.55 3.50 1.110 0.40 60.0 140 9.0
•
FCP 100
10.00 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 101
10.10 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 102
10.20 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 103
10.30 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 104
10.40 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 105
10.50 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 106
10.60 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 107
10.70 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 108
10.80 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 109
10.90 2.89 3.70 1.170 0.40 60.0 140 10.0
•
FCP 110
11.00 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 111
11.10 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 112
11.20 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 113
11.30 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 114
11.40 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 115
11.50 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 116
11.60 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 117
11.70 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 118
11.80 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 119
11.90 2.98 3.80 1.250 0.40 60.0 140 11.0
•
FCP 120
12.00 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 121
12.10 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 122
12.20 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 123
12.30 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 124
12.40 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 125
12.50 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 126
12.60 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 127
12.70 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 128
12.80 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 129
12.90 3.13 4.10 1.260 0.40 60.0 140 12.0
•
FCP 130
13.00 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 131
13.10 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 132
13.20 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 133
13.30 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 134
13.40 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 135
13.50 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 136
13.60 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 137
13.70 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 138
13.80 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 139
13.90 3.52 4.40 1.280 0.40 60.0 140 13.0
•
FCP 140
14.00 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 141
14.10 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 142
14.20 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 143
14.30 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 144
14.40 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 145
14.50 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 146
14.60 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 147
14.70 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 148
14.80 3.81 4.80 1.310 0.40 60.0 140 14.0
•
FCP 149
14.90 3.81 4.80 1.310 0.40 60.0 140 14.0
•
ISCAR
54
INDEXABLE DRILLS
DC
CHW
KCH
PDDSIG
LF PL
FCP
Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions
Designation
DC PDD LF PL CHW KCH SIG SSC(1)
IC908
FCP 150
15.00 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 151
15.10 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 152
15.20 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 153
15.30 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 154
15.40 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 155
15.50 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 156
15.60 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 157
15.70 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 158
15.80 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 159
15.90 4.24 5.23 1.350 0.40 60.0 140 15.0
•
FCP 160
16.00 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 161
16.10 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 162
16.20 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 163
16.30 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 164
16.40 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 165
16.50 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 166
16.60 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 167
16.70 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 168
16.80 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 169
16.90 4.06 5.60 1.390 0.40 60.0 140 16.0
•
FCP 170
17.00 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 171
17.10 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 172
17.20 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 173
17.30 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 174
17.40 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 175
17.50 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 176
17.60 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 177
17.70 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 178
17.80 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 179
17.90 4.14 5.90 1.400 0.40 60.0 140 17.0
•
FCP 180
18.00 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 181
18.10 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 182
18.20 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 183
18.30 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 184
18.40 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 185
18.50 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 186
18.60 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 187
18.70 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 188
18.80 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 189
18.90 4.16 6.18 1.420 0.40 60.0 140 18.0
•
FCP 190
19.00 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 191
19.10 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 192
19.20 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 193
19.30 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 194
19.40 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 195
19.50 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 196
19.60 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 197
19.70 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 198
19.80 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 199
19.90 4.25 6.50 1.440 0.40 60.0 140 19.0
•
FCP 200
20.00 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 201
20.10 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 202
20.20 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 203
20.30 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 204
20.40 6.56 7.50 1.770 0.40 60.0 140 20.0
•
55
INDEXABLE DRILLS
DC
CHW
KCH
PDDSIG
LF PL
FCP
Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions
Designation
DC PDD LF PL CHW KCH SIG SSC(1)
IC908
FCP 205
20.50 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 206
20.60 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 207
20.70 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 208
20.80 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 209
20.90 6.56 7.50 1.770 0.40 60.0 140 20.0
•
FCP 210
21.00 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 211
21.10 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 212
21.20 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 213
21.30 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 214
21.40 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 215
21.50 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 216
21.60 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 217
21.70 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 218
21.80 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 219
21.90 6.92 7.90 1.790 0.40 60.0 140 21.0
•
FCP 220
22.00 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 221
22.10 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 222
22.20 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 223
22.30 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 224
22.40 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 225
22.50 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 226
22.60 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 227
22.70 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 228
22.80 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 229
22.90 7.13 8.20 1.810 0.40 60.0 140 22.0
•
FCP 230
23.00 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 231
23.10 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 232
23.20 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 233
23.30 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 234
23.40 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 235
23.50 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 236
23.60 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 237
23.70 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 238
23.80 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 239
23.90 7.42 8.60 1.830 0.40 60.0 140 23.0
•
FCP 240
24.00 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 241
24.10 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 242
24.20 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 243
24.30 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 244
24.40 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 245
24.50 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 246
24.60 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 247
24.70 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 248
24.80 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 249
24.90 7.45 9.00 1.860 0.40 60.0 140 24.0
•
FCP 250
25.00 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 251
25.10 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 252
25.20 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 253
25.30 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 254
25.40 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 255
25.50 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 256
25.60 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 257
25.70 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 258
25.80 7.54 9.40 1.900 0.40 60.0 140 25.0
•
FCP 259
25.90 7.54 9.40 1.900 0.40 60.0 140 25.0
•
ISCAR
56

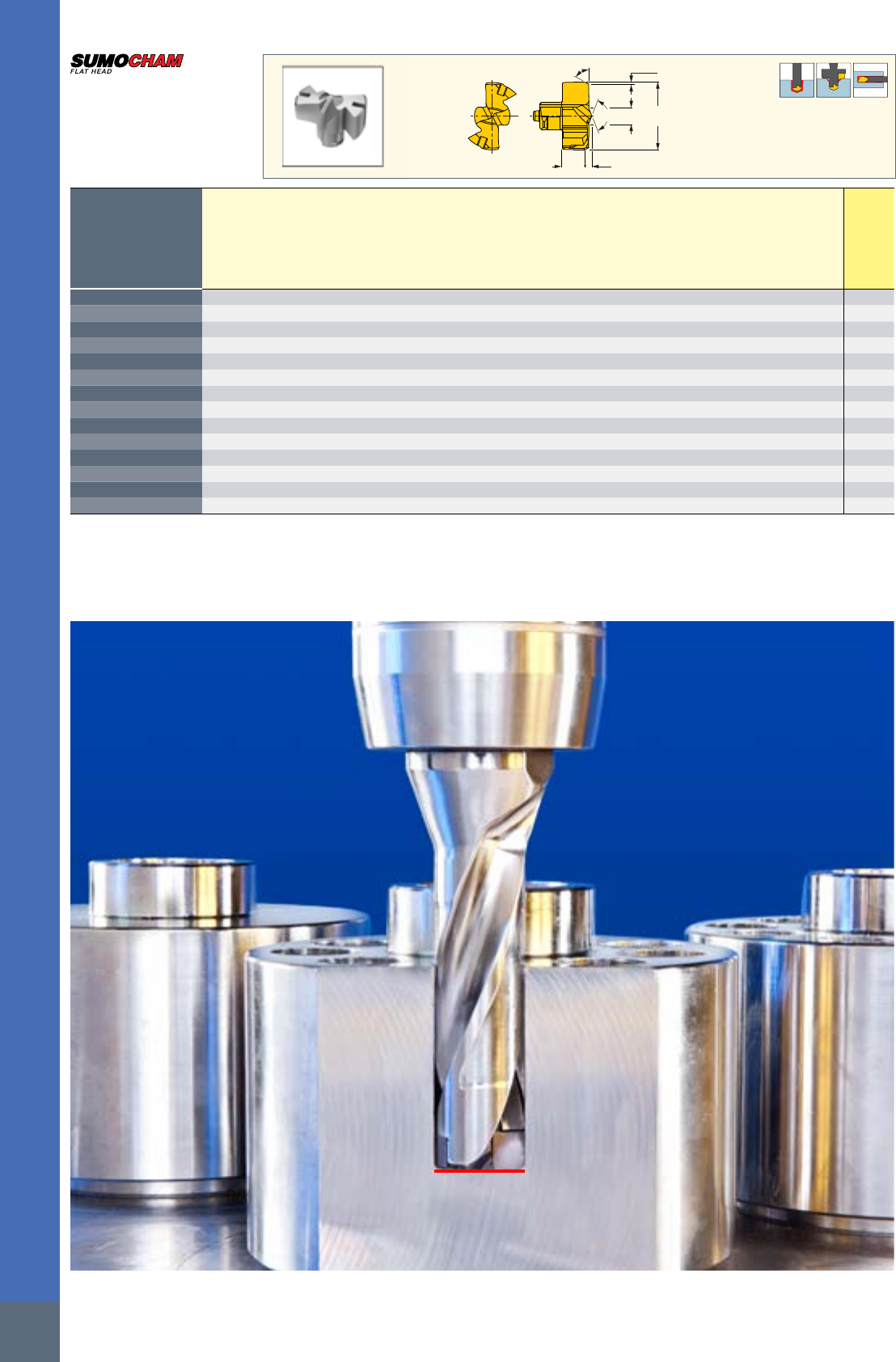

INDEXABLE DRILLS
DC
CHW
KCH
PDDSIG
LF PL
FCP
Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
(continued)
Dimensions
Designation
DC PDD LF PL CHW KCH SIG SSC(1)
IC908
FCP 260
26.00 8.00 9.70 1.990 0.40 60.0 140 26.0
•
FCP 265
26.50 8.00 9.70 1.990 0.40 60.0 140 26.0
•
FCP 270
27.00 8.10 10.40 2.050 0.40 60.0 140 27.0
•
FCP 275
27.50 8.10 10.40 2.050 0.40 60.0 140 27.0
•
FCP 280
28.00 8.80 10.50 2.150 0.40 60.0 140 28.0
•
FCP 285
28.50 8.80 10.50 2.150 0.40 60.0 140 28.0
•
FCP 290
29.00 9.00 10.80 2.200 0.40 60.0 140 29.0
•
FCP 295
29.50 9.00 10.80 2.200 0.40 60.0 140 29.0
•
FCP 300
30.00 9.10 11.40 2.150 0.40 60.0 140 30.0
•
FCP 305
30.50 9.10 11.40 2.150 0.40 60.0 140 30.0
•
FCP 310
31.00 9.10 11.70 2.180 0.40 60.0 140 31.0
•
FCP 315
31.50 9.10 11.70 2.180 0.40 60.0 140 31.0
•
FCP 320
32.00 9.80 12.30 2.210 0.40 60.0 140 32.0
•
FCP 325
32.50 9.80 12.30 2.210 0.40 60.0 140 32.0
•
57
INDEXABLE DRILLS
LF PL
SIG
DC
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
ICG 140
14.00 5.08 2.770 130 14.0
•
ICG 142
14.20 5.08 2.770 130 14.0
•
ICG 145
14.50 5.08 2.770 130 14.0
•
ICG 150
15.00 5.45 2.980 130 15.0
•
ICG 155
15.50 5.33 3.100 130 15.0
•
ICG 160
16.00 5.81 3.190 130 16.0
•
ICG 163
16.30 5.81 3.190 130 16.0
•
ICG 165
16.50 5.81 3.190 130 16.0
•
ICG 170
17.00 6.20 3.400 130 17.0
•
ICG 175
17.50 6.20 3.400 130 17.0
•
ICG 177
17.70 6.20 3.400 130 17.0
•
ICG 180
18.00 6.60 3.600 130 18.0
•
ICG 185
18.50 6.60 3.600 130 18.0
•
ICG 190
19.00 6.89 3.810 130 19.0
•
ICG 193
19.30 6.89 3.810 130 19.0
•
ICG 195
19.50 6.89 3.810 130 19.0
•
ICG 200
20.00 7.22 3.980 130 20.0
•
ICG 203
20.30 7.22 3.980 130 20.0
•
ICG 205
20.50 7.22 3.980 130 20.0
•
ICG 210
21.00 7.65 4.130 130 21.0
•
ICG 215
21.50 7.65 4.130 130 21.0
•
ICG 220
22.00 8.05 4.310 130 22.0
•
ICG 225
22.50 8.05 4.310 130 22.0
•
ICG 230
23.00 8.44 4.490 130 23.0
•
ICG 235
23.50 8.44 4.490 130 23.0
•
ICG 240
24.00 8.81 4.690 130 24.0
•
ICG 245
24.50 8.81 4.690 130 24.0
•
ICG 250
25.00 9.18 4.920 130 25.0
•
ICG 253
25.30 9.18 4.920 130 25.0
•
ICG 257
25.70 9.18 4.920 130 25.0
•
ICG 259
25.90 9.18 4.920 130 25.0
•
• Drilling head equipped with chip breaker and chip splitter • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)
ICG
Exchangeable Chip Splitting
Drilling Heads for DCN
Drills, for Machining ISO
M and ISO P Materials
ISCAR
58

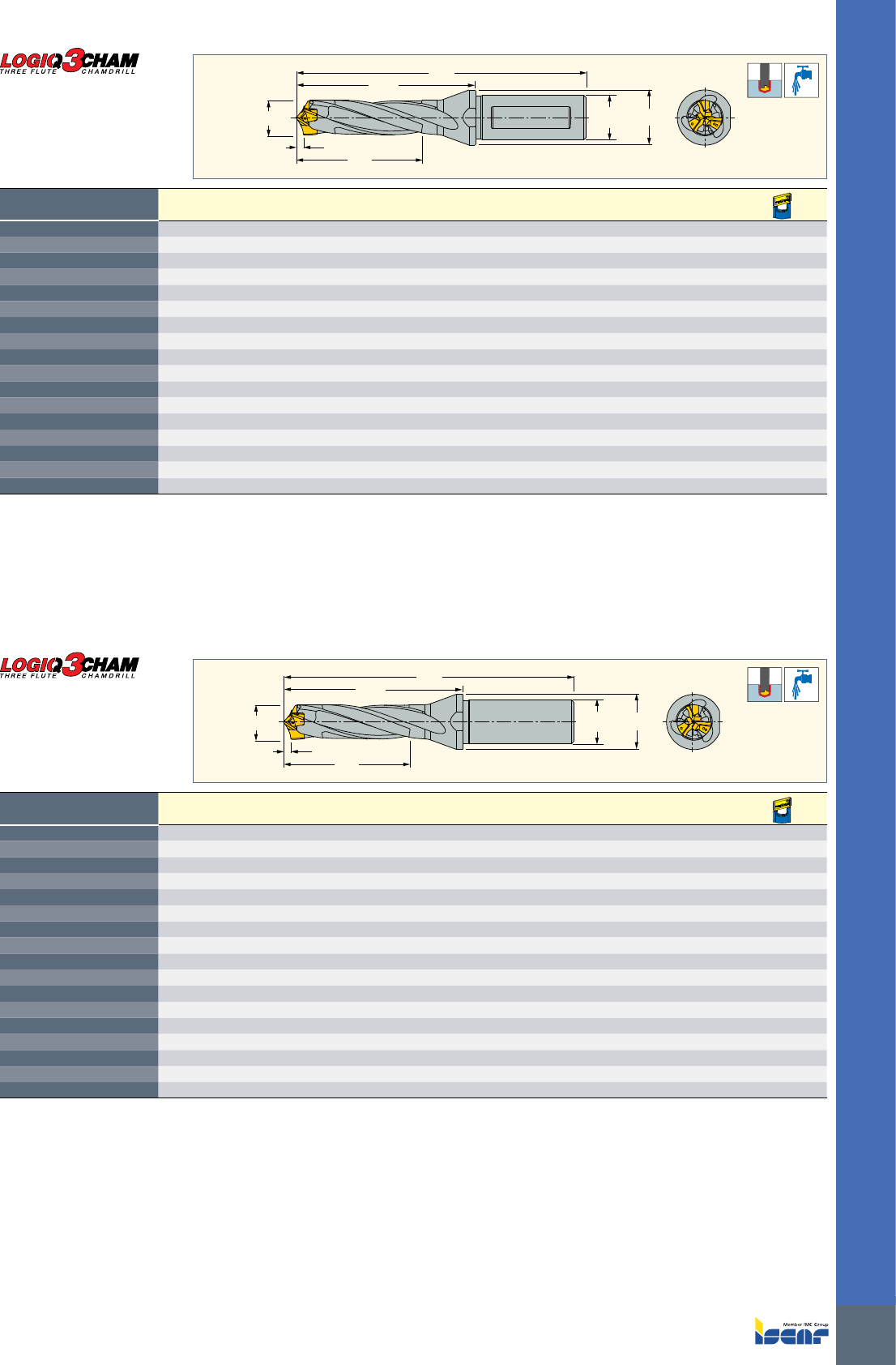

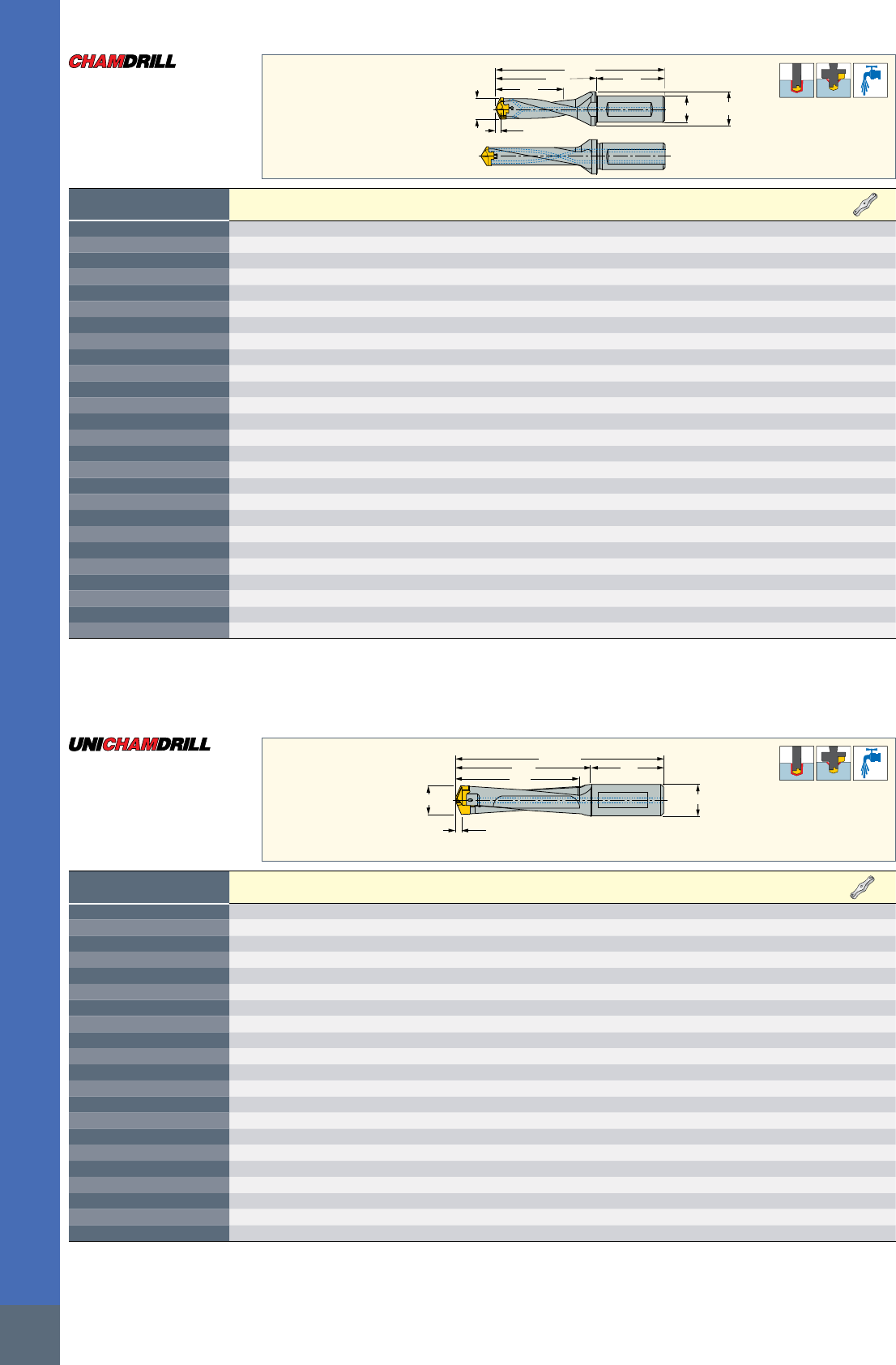

INDEXABLE DRILLS
DCONMS h6
OAL
LPR
LU
PL
DCN-DCX k7 DF
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-018-16A-1.5D
12.00 12.40 16.00 20.00 20.71 42.92 2.710 90.92 12 K D3N 12-13.99
D3N 125-019-16A-1.5D
12.50 12.90 16.00 20.00 21.46 44.42 2.710 92.42 12 K D3N 12-13.99
D3N 130-020-16A-1.5D
13.00 13.40 16.00 20.00 22.41 46.58 2.910 94.58 13 K D3N 12-13.99
D3N 135-020-16A-1.5D
13.50 13.90 16.00 20.00 23.16 48.08 2.910 96.08 13 K D3N 12-13.99
D3N 140-021-16A-1.5D
14.00 14.40 16.00 20.00 24.10 50.08 3.100 98.08 14 K D3N 14-15.99
D3N 145-022-16A-1.5D
14.50 14.90 16.00 20.00 24.85 51.58 3.100 99.58 14 K D3N 14-15.99
D3N 150-023-20A-1.5D
15.00 15.90 20.00 25.00 25.97 53.66 3.470 103.66 15 K D3N 14-15.99
D3N 160-024-20A-1.5D
16.00 16.90 20.00 25.00 27.44 57.25 3.440 107.25 16 K D3N 16-17.99
D3N 170-026-20A-1.5D
17.00 17.90 20.00 25.00 29.02 60.72 3.520 110.72 17 K D3N 16-17.99
D3N 180-027-25A-1.5D
18.00 18.90 25.00 32.00 30.90 64.36 3.900 120.36 18 K D3N 18-19.99
D3N 190-029-25A-1.5D
19.00 19.90 25.00 32.00 32.60 67.92 4.100 123.92 19 K D3N 18-19.99
D3N 200-030-25A-1.5D
20.00 20.90 25.00 32.00 34.32 71.24 4.320 127.24 20 K D3N 20-21.99
D3N 210-032-25A-1.5D
21.00 21.90 25.00 32.00 36.05 74.80 4.550 130.80 21 K D3N 20-21.99
D3N 220-033-25A-1.5D
22.00 22.90 25.00 32.00 37.69 78.62 4.690 134.62 22 K D3N 22-23.99
D3N 230-035-32A-1.5D
23.00 23.90 32.00 40.00 39.41 82.00 4.910 142.00 23 K D3N 22-23.99
D3N 240-036-32A-1.5D
24.00 24.90 32.00 40.00 41.21 85.54 5.210 145.54 24 K D3N 24-25.99
D3N 250-038-32A-1.5D
25.00 25.90 32.00 40.00 42.81 89.22 5.310 149.11 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N A-1.5D
Exchangeable Head 3 Flute Drills
with Coolant Holes and One Flat
Shank, Drilling Depth 1.5xD
DCONMS h6
OAL
LPR
LU
PL
DCN-DCX k7 DF
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-018-16R-1.5D
12.00 12.40 16.00 20.00 20.71 42.92 2.710 90.92 12 K D3N 12-13.99
D3N 125-019-16R-1.5D
12.50 12.90 16.00 20.00 21.46 44.42 2.710 92.42 12 K D3N 12-13.99
D3N 130-020-16R-1.5D
13.00 13.40 16.00 20.00 22.41 46.58 2.910 94.58 13 K D3N 12-13.99
D3N 135-020-16R-1.5D
13.50 13.90 16.00 20.00 23.16 48.08 2.910 96.08 13 K D3N 12-13.99
D3N 140-021-16R-1.5D
14.00 14.40 16.00 20.00 24.10 50.08 3.100 98.08 14 K D3N 14-15.99
D3N 145-022-16R-1.5D
14.50 14.90 16.00 20.00 24.85 51.58 3.100 99.58 14 K D3N 14-15.99
D3N 150-023-20R-1.5D
15.00 15.90 20.00 25.00 25.97 53.66 3.470 103.66 15 K D3N 14-15.99
D3N 160-024-20R-1.5D
16.00 16.90 20.00 25.00 27.44 57.25 3.440 107.25 16 K D3N 16-17.99
D3N 170-026-20R-1.5D
17.00 17.90 20.00 25.00 29.02 60.72 3.520 110.72 17 K D3N 16-17.99
D3N 180-027-25R-1.5D
18.00 18.90 25.00 32.00 30.90 64.36 3.900 120.36 18 K D3N 18-19.99
D3N 190-029-25R-1.5D
19.00 19.90 25.00 32.00 32.60 67.92 4.100 123.92 19 K D3N 18-19.99
D3N 200-030-25R-1.5D
20.00 20.90 25.00 32.00 34.32 71.24 4.320 127.24 20 K D3N 20-21.99
D3N 210-032-25R-1.5D
21.00 21.90 25.00 32.00 36.05 74.80 4.550 130.80 21 K D3N 20-21.99
D3N 220-033-25R-1.5D
22.00 22.90 25.00 32.00 37.69 78.62 4.690 134.62 22 K D3N 22-23.99
D3N 230-035-32R-1.5D
23.00 23.90 32.00 40.00 39.41 82.00 4.910 142.00 23 K D3N 22-23.99
D3N 240-036-32R-1.5D
24.00 24.90 32.00 40.00 41.21 85.54 5.210 145.54 24 K D3N 24-25.99
D3N 250-038-32R-1.5D
25.00 25.90 32.00 40.00 42.81 89.22 5.310 149.11 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N R-1.5D
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round
Shank, Drilling Depth 1.5xD
59

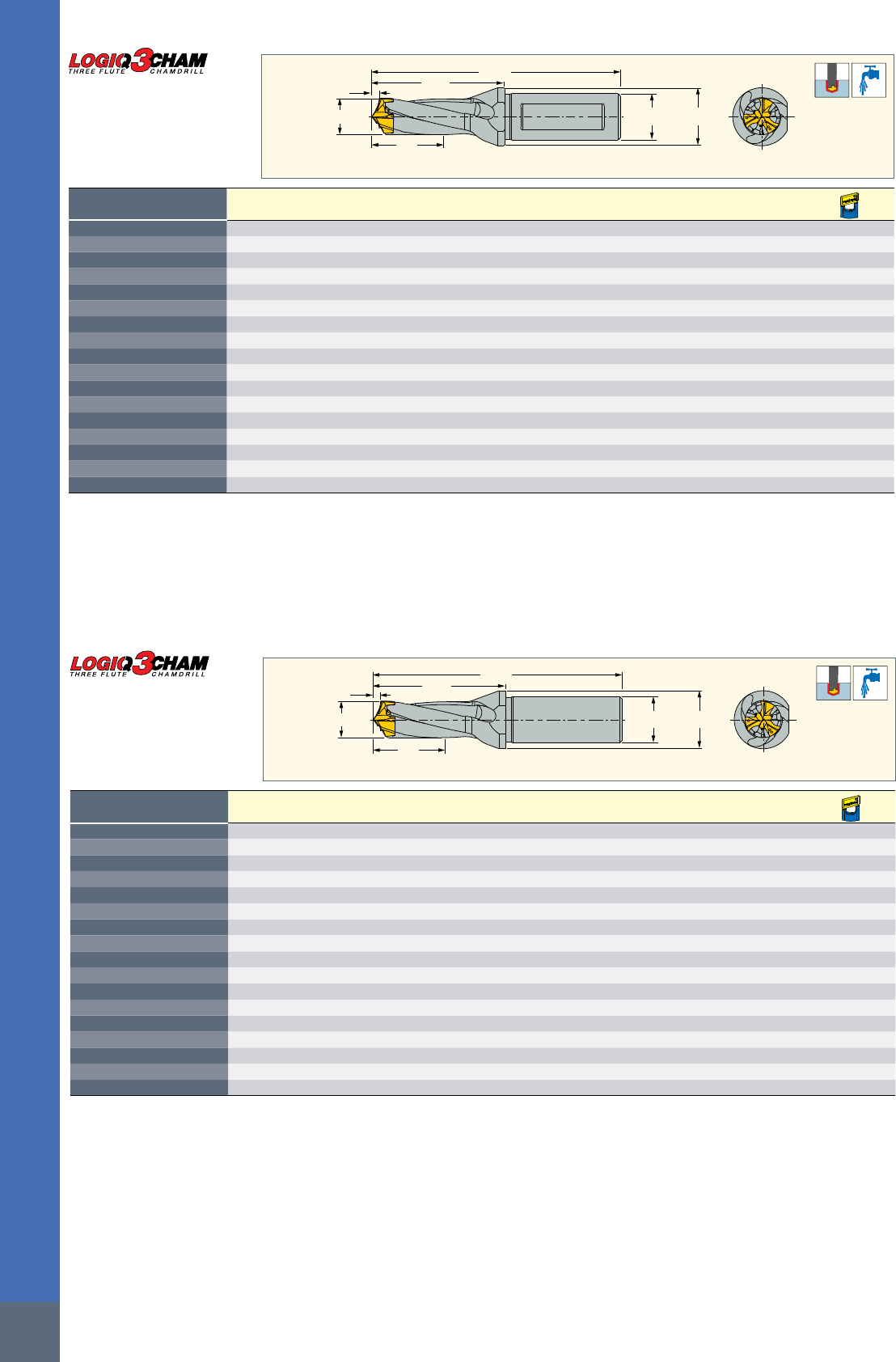

INDEXABLE DRILLS
DCONMSh6 DF
OAL
LPR
PL
DCN-DCX k7
LU
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-036-16A-3D
12.00 12.40 16.00 20.00 38.71 60.92 2.710 108.92 12 K D3N 12-13.99
D3N 125-037-16A-3D
12.50 12.90 16.00 20.00 40.21 63.17 2.710 111.17 12 K D3N 12-13.99
D3N 130-039-16A-3D
13.00 13.40 16.00 20.00 41.91 66.08 2.910 114.08 13 K D3N 12-13.99
D3N 135-041-16A-3D
13.50 13.90 16.00 20.00 43.41 68.33 2.910 116.33 13 K D3N 12-13.99
D3N 140-042-16A-3D
14.00 14.40 16.00 20.00 45.10 71.08 3.100 119.08 14 K D3N 14-15.99
D3N 145-044-16A-3D
14.50 14.90 16.00 20.00 46.60 73.33 3.100 121.33 14 K D3N 14-15.99
D3N 150-045-20A-3D
15.00 15.90 20.00 25.00 48.47 76.16 3.470 126.16 15 K D3N 14-15.99
D3N 160-048-20A-3D
16.00 16.90 20.00 25.00 51.44 81.25 3.440 131.25 16 K D3N 16-17.99
D3N 170-051-20A-3D
17.00 17.90 20.00 25.00 54.52 86.22 3.520 136.22 17 K D3N 16-17.99
D3N 180-054-25A-3D
18.00 18.90 25.00 32.00 57.90 91.36 3.900 147.36 18 K D3N 18-19.99
D3N 190-057-25A-3D
19.00 19.90 25.00 32.00 61.10 96.42 4.100 152.42 19 K D3N 18-19.99
D3N 200-060-25A-3D
20.00 20.90 25.00 32.00 64.32 101.24 4.320 157.24 20 K D3N 20-21.99
D3N 210-063-25A-3D
21.00 21.90 25.00 32.00 67.55 106.30 4.550 162.30 21 K D3N 20-21.99
D3N 220-066-25A-3D
22.00 22.90 25.00 32.00 70.69 111.62 4.690 167.62 22 K D3N 22-23.99
D3N 230-069-32A-3D
23.00 23.90 32.00 42.00 73.91 116.50 4.910 176.50 23 K D3N 22-23.99
D3N 240-072-32A-3D
24.00 24.90 32.00 42.00 77.21 121.54 5.210 181.54 24 K D3N 24-25.99
D3N 250-075-32A-3D
25.00 25.90 32.00 42.00 80.31 126.72 5.310 186.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N A-3D
Exchangeable Head 3 Flute Drills
with Coolant Holes and One
Flat Shank, Drilling Depth 3xD
DCONMSh6 DF
OAL
LPR
PL
DCN-DCX k7
LU
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-036-16R-3D
12.00 12.40 16.00 20.00 38.71 60.92 2.710 108.92 12 K D3N 12-13.99
D3N 125-037-16R-3D
12.50 12.90 16.00 20.00 40.21 63.17 2.710 111.17 12 K D3N 12-13.99
D3N 130-039-16R-3D
13.00 13.40 16.00 20.00 41.91 66.08 2.910 114.08 13 K D3N 12-13.99
D3N 135-041-16R-3D
13.50 13.90 16.00 20.00 43.41 68.33 2.910 116.33 13 K D3N 12-13.99
D3N 140-042-16R-3D
14.00 14.40 16.00 20.00 45.10 71.08 3.100 119.08 14 K D3N 14-15.99
D3N 145-044-16R-3D
14.50 14.90 16.00 20.00 46.60 73.33 3.100 121.33 14 K D3N 14-15.99
D3N 150-045-20R-3D
15.00 15.90 20.00 25.00 48.47 76.16 3.470 126.16 15 K D3N 14-15.99
D3N 160-048-20R-3D
16.00 16.90 20.00 25.00 51.44 81.25 3.440 131.25 16 K D3N 16-17.99
D3N 170-051-20R-3D
17.00 17.90 20.00 25.00 54.52 86.22 3.520 136.22 17 K D3N 16-17.99
D3N 180-054-25R-3D
18.00 18.90 25.00 32.00 57.90 91.36 3.900 147.36 18 K D3N 18-19.99
D3N 190-057-25R-3D
19.00 19.90 25.00 32.00 61.10 96.42 4.100 152.42 19 K D3N 18-19.99
D3N 200-060-25R-3D
20.00 20.90 25.00 32.00 64.32 101.24 4.320 157.24 20 K D3N 20-21.99
D3N 210-063-25R-3D
21.00 21.90 25.00 32.00 67.55 106.30 4.550 162.30 21 K D3N 20-21.99
D3N 220-066-25R-3D
22.00 22.90 25.00 32.00 70.69 111.62 4.690 167.82 22 K D3N 22-23.99
D3N 230-069-32R-3D
23.00 23.90 32.00 42.00 73.91 116.50 4.910 176.50 23 K D3N 22-23.99
D3N 240-072-32R-3D
24.00 24.90 32.00 42.00 77.21 121.54 5.210 181.54 24 K D3N 24-25.99
D3N 250-075-32R-3D
25.00 25.90 32.00 42.00 80.31 126.72 5.310 186.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N R-3D
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round
Shank, Drilling Depth 3xD
ISCAR
60
INDEXABLE DRILLS
DCONMSh6 DF
OAL
LPR
PL
DCN-DCX k7
LU
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-060-16A-5D
12.00 12.40 16.00 20.00 62.71 84.92 2.710 132.92 12 K D3N 12-13.99
D3N 125-062-16A-5D
12.50 12.90 16.00 20.00 65.21 88.17 2.710 136.17 12 K D3N 12-13.99
D3N 130-065-16A-5D
13.00 13.40 16.00 20.00 67.91 92.08 2.910 140.08 13 K D3N 12-13.99
D3N 135-068-16A-5D
13.50 13.90 16.00 20.00 70.41 95.33 2.910 143.33 13 K D3N 12-13.99
D3N 140-070-16A-5D
14.00 14.40 16.00 20.00 73.10 99.08 3.100 147.08 14 K D3N 14-15.99
D3N 145-073-16A-5D
14.50 14.90 16.00 20.00 75.60 102.33 3.100 150.33 14 K D3N 14-15.99
D3N 150-075-20A-5D
15.00 15.90 20.00 25.00 78.47 106.16 3.470 156.16 15 K D3N 14-15.99
D3N 160-080-20A-5D
16.00 16.90 20.00 25.00 83.44 113.25 3.440 163.25 16 K D3N 16-17.99
D3N 170-085-20A-5D
17.00 17.90 20.00 25.00 88.52 120.22 3.520 170.22 17 K D3N 16-17.99
D3N 180-090-25A-5D
18.00 18.90 25.00 32.00 93.90 127.36 3.900 183.36 18 K D3N 18-19.99
D3N 190-095-25A-5D
19.00 19.90 25.00 32.00 99.10 134.42 4.100 190.42 19 K D3N 18-19.99
D3N 200-100-25A-5D
20.00 20.90 25.00 32.00 104.32 141.24 4.320 197.24 20 K D3N 20-21.99
D3N 210-105-25A-5D
21.00 21.90 25.00 32.00 109.55 148.30 4.550 204.30 21 K D3N 20-21.99
D3N 220-110-25A-5D
22.00 22.90 25.00 32.00 114.69 155.62 4.690 211.62 22 K D3N 22-23.99
D3N 230-115-32A-5D
23.00 23.90 32.00 42.00 119.91 162.50 4.910 222.50 23 K D3N 22-23.99
D3N 240-120-32A-5D
24.00 24.90 32.00 42.00 125.21 169.54 5.210 229.54 24 K D3N 24-25.99
D3N 250-125-32A-5D
25.00 25.90 32.00 42.00 130.31 176.72 5.310 236.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N A-5D
Exchangeable Head 3 Flute Drills
with Coolant Holes and One
Flat Shank, Drilling Depth 5xD
DCONMSh6 DF
OAL
LPR
PL
DCN-DCX k7
LU
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-060-16R-5D
12.00 12.40 16.00 20.00 62.71 84.92 2.710 132.92 12 K D3N 12-13.99
D3N 125-062-16R-5D
12.50 12.90 16.00 20.00 65.21 88.17 2.710 136.17 12 K D3N 12-13.99
D3N 130-065-16R-5D
13.00 13.40 16.00 20.00 67.91 92.08 2.910 140.08 13 K D3N 12-13.99
D3N 135-068-16R-5D
13.50 13.90 16.00 20.00 70.41 95.33 2.910 143.33 13 K D3N 12-13.99
D3N 140-070-16R-5D
14.00 14.40 16.00 20.00 73.10 99.08 3.100 147.08 14 K D3N 14-15.99
D3N 145-073-16R-5D
14.50 14.90 16.00 20.00 75.60 102.33 3.100 150.33 14 K D3N 14-15.99
D3N 150-075-20R-5D
15.00 15.90 20.00 25.00 78.47 106.16 3.470 156.16 15 K D3N 14-15.99
D3N 160-080-20R-5D
16.00 16.90 20.00 25.00 83.44 113.25 3.440 163.25 16 K D3N 16-17.99
D3N 170-085-20R-5D
17.00 17.90 20.00 25.00 88.52 120.22 3.520 170.22 17 K D3N 16-17.99
D3N 180-090-25R-5D
18.00 18.90 25.00 32.00 93.90 127.36 3.900 183.36 18 K D3N 18-19.99
D3N 190-095-25R-5D
19.00 19.90 25.00 32.00 99.10 134.42 4.100 190.42 19 K D3N 18-19.99
D3N 200-100-25R-5D
20.00 20.90 25.00 32.00 104.32 141.24 4.320 197.24 20 K D3N 20-21.99
D3N 210-105-25R-5D
21.00 21.90 25.00 32.00 109.55 148.30 4.550 204.30 21 K D3N 20-21.99
D3N 220-110-25R-5D
22.00 22.90 25.00 32.00 114.69 155.62 4.690 211.62 22 K D3N 22-23.99
D3N 230-115-32R-5D
23.00 23.90 32.00 42.00 119.91 162.50 4.910 222.50 23 K D3N 22-23.99
D3N 240-120-32R-5D
24.00 24.90 32.00 42.00 125.21 169.54 5.210 229.54 24 K D3N 24-25.99
D3N 250-125-32R-5D
25.00 25.90 32.00 42.00 130.31 176.72 5.310 236.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N R-5D
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round
Shank, Drilling Depth 5xD
61
INDEXABLE DRILLS

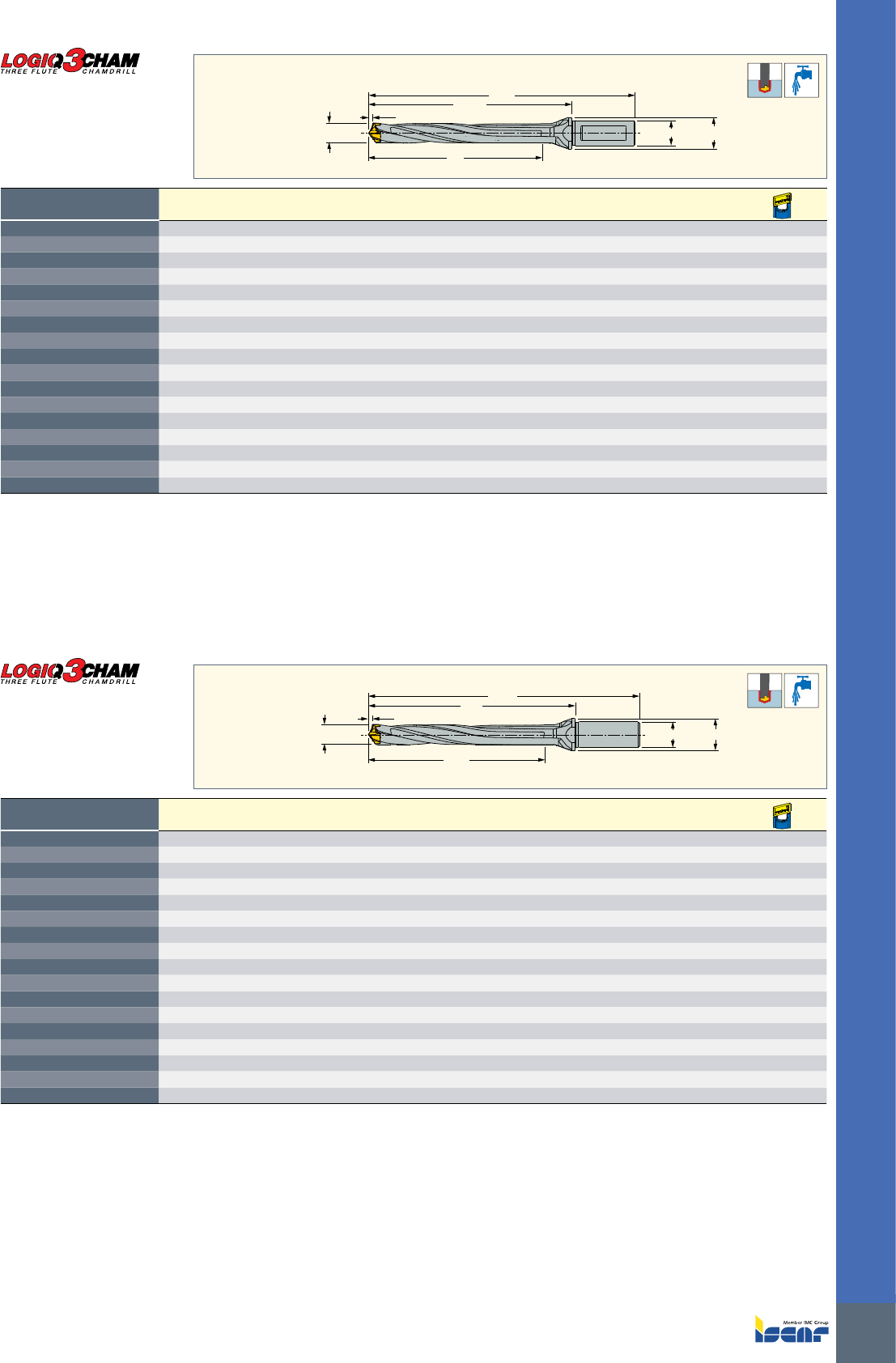

OAL
LPR
DCONMS h6
PL
DCN-DCX k7
LU
DF
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-096-16A-8D
12.00 12.40 16.00 20.00 98.71 120.92 2.710 168.90 12 K D3N 12-13.99
D3N 125-100-16A-8D
12.50 12.90 16.00 20.00 102.71 125.67 2.710 173.70 12 K D3N 12-13.99
D3N 130-104-16A-8D
13.00 13.40 16.00 20.00 106.91 131.08 2.910 179.10 13 K D3N 12-13.99
D3N 135-108-16A-8D
13.50 13.90 16.00 20.00 110.91 135.83 2.910 183.80 13 K D3N 12-13.99
D3N 140-112-16A-8D
14.00 14.40 16.00 20.00 115.10 141.08 3.100 189.10 14 K D3N 14-15.99
D3N 145-116-16A-8D
14.50 14.90 16.00 20.00 119.10 145.83 3.100 193.80 14 K D3N 14-15.99
D3N 150-120-20A-8D
15.00 15.90 20.00 25.00 123.47 151.16 3.470 201.20 15 K D3N 14-15.99
D3N 160-128-20A-8D
16.00 16.90 20.00 25.00 131.44 161.25 3.440 211.30 16 K D3N 16-17.99
D3N 170-136-20A-8D
17.00 17.90 20.00 25.00 139.52 171.22 3.520 221.30 17 K D3N 16-17.99
D3N 180-144-25A-8D
18.00 18.90 25.00 32.00 147.90 181.36 3.900 237.40 18 K D3N 18-19.99
D3N 190-152-25A-8D
19.00 19.90 25.00 32.00 156.10 191.42 4.100 247.40 19 K D3N 18-19.99
D3N 200-160-25A-8D
20.00 20.90 25.00 32.00 164.32 201.24 4.320 257.20 20 K D3N 20-21.99
D3N 210-168-25A-8D
21.00 21.90 25.00 32.00 172.55 211.30 4.550 267.30 21 K D3N 20-21.99
D3N 220-176-25A-8D
22.00 22.90 25.00 32.00 180.69 221.62 4.690 277.60 22 K D3N 22-23.99
D3N 230-184-32A-8D
23.00 23.90 32.00 42.00 188.91 231.50 4.910 291.50 23 K D3N 22-23.99
D3N 240-192-32A-8D
24.00 24.90 32.00 42.00 197.21 241.54 5.210 301.50 24 K D3N 24-25.99
D3N 250-200-32A-8D
25.00 25.90 32.00 42.00 205.31 251.72 5.120 311.70 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N A-8D
Exchangeable Head 3 Flute Drills
with Coolant Holes and One
Flat Shank, Drilling Depth 8xD
OAL
LPR
DCONMS h6
PL
DCN-DCX k7
LU
DF
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL OAL SSC(3)
D3N 120-096-16R-8D
12.00 12.40 16.00 20.00 98.71 120.92 2.710 168.90 12 K D3N 12-13.99
D3N 125-100-16R-8D
12.50 12.90 16.00 20.00 102.71 125.67 2.710 173.70 12 K D3N 12-13.99
D3N 130-104-16R-8D
13.00 13.40 16.00 20.00 106.91 131.08 2.910 179.10 13 K D3N 12-13.99
D3N 135-108-16R-8D
13.50 13.90 16.00 20.00 110.91 135.83 2.910 183.80 13 K D3N 12-13.99
D3N 140-112-16R-8D
14.00 14.40 16.00 20.00 115.10 141.08 3.100 189.10 14 K D3N 14-15.99
D3N 145-116-16R-8D
14.50 14.90 16.00 20.00 119.10 145.83 3.100 193.80 14 K D3N 14-15.99
D3N 150-120-20R-8D
15.00 15.90 20.00 25.00 123.47 151.16 3.470 201.20 15 K D3N 14-15.99
D3N 160-128-20R-8D
16.00 16.90 20.00 25.00 131.44 161.25 3.440 211.30 16 K D3N 16-17.99
D3N 170-136-20R-8D
17.00 17.90 20.00 25.00 139.52 171.22 3.520 221.20 17 K D3N 16-17.99
D3N 180-144-25R-8D
18.00 18.90 25.00 32.00 147.90 181.36 3.900 237.40 18 K D3N 18-19.99
D3N 190-152-25R-8D
19.00 19.90 25.00 32.00 156.10 191.42 4.100 247.40 19 K D3N 18-19.99
D3N 200-160-25R-8D
20.00 20.90 25.00 32.00 164.32 201.24 4.320 257.20 20 K D3N 20-21.99
D3N 210-168-25R-8D
21.00 21.90 25.00 32.00 172.55 211.30 4.550 267.30 21 K D3N 20-21.99
D3N 220-176-25R-8D
22.00 22.90 25.00 32.00 180.69 221.62 4.690 277.60 22 K D3N 22-23.99
D3N 230-184-32R-8D
23.00 23.90 32.00 42.00 188.91 231.50 4.910 291.50 23 K D3N 22-23.99
D3N 240-192-32R-8D
24.00 24.90 32.00 42.00 197.21 241.54 5.210 301.50 24 K D3N 24-25.99
D3N 250-200-32R-8D
25.00 25.90 32.00 42.00 205.31 251.72 5.120 311.70 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
D3N R-8D
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round
Shank, Drilling Depth 8xD
ISCAR

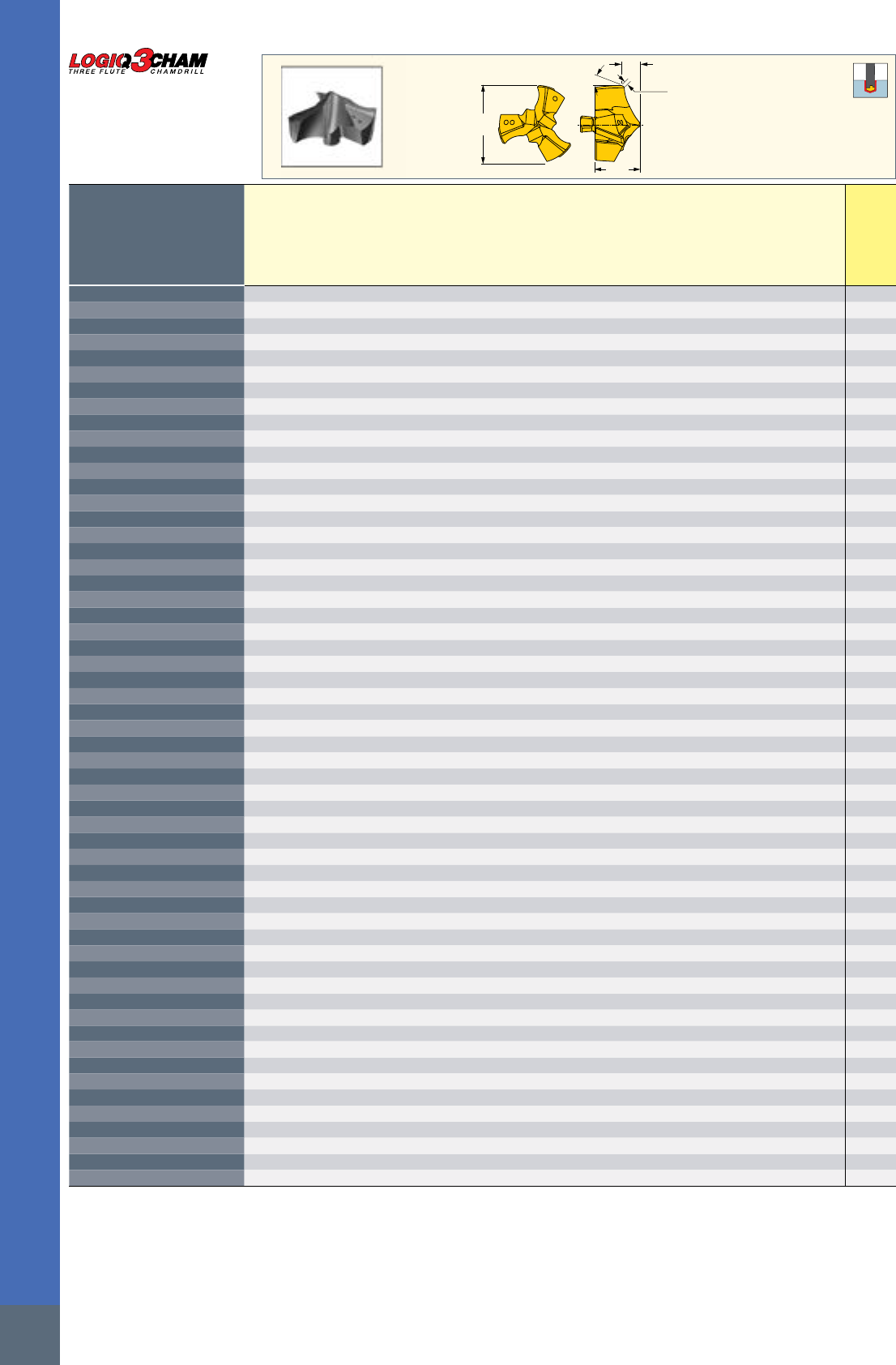

62
INDEXABLE DRILLS
PL
LPR
DC
KCH BCH
H3P
Exchangeable 3 Flute Drilling
Heads for Machining Carbon
and Alloy Steel (ISO P)
and Cast Iron (ISO K)
• For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) PL tolerance ±0.1 mm
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
Dimensions
Designation
DC LPR(1) PL(2) KCH BCH
IC908
H3P 120-IQ
12.00 6.92 2.710 15.0 0.40
•
H3P 121-IQ
12.10 6.92 2.710 15.0 0.40
•
H3P 122-IQ
12.20 6.92 2.710 15.0 0.40
•
H3P 123-IQ
12.30 6.92 2.710 15.0 0.40
•
H3P 124-IQ
12.40 6.92 2.710 15.0 0.40
•
H3P 125-IQ
12.50 6.92 2.710 15.0 0.40
•
H3P 126-IQ
12.60 6.92 2.710 15.0 0.40
•
H3P 127-IQ
12.70 6.92 2.710 15.0 0.40
•
H3P 128-IQ
12.80 6.92 2.710 15.0 0.40
•
H3P 129-IQ
12.90 6.92 2.710 15.0 0.40
•
H3P 130-IQ
13.00 7.58 2.910 15.0 0.40
•
H3P 131-IQ
13.10 7.58 2.910 15.0 0.40
•
H3P 132-IQ
13.20 7.58 2.910 15.0 0.40
•
H3P 133-IQ
13.30 7.58 2.910 15.0 0.40
•
H3P 134-IQ
13.40 7.58 2.910 15.0 0.40
•
H3P 135-IQ
13.50 7.58 2.910 15.0 0.40
•
H3P 136-IQ
13.60 7.58 2.910 15.0 0.40
•
H3P 137-IQ
13.70 7.58 2.910 15.0 0.40
•
H3P 138-IQ
13.80 7.58 2.910 15.0 0.40
•
H3P 139-IQ
13.90 7.58 2.910 15.0 0.40
•
H3P 140-IQ
14.00 8.10 3.100 15.0 0.40
•
H3P 141-IQ
14.10 8.10 3.100 15.0 0.40
•
H3P 142-IQ
14.20 8.10 3.100 15.0 0.40
•
H3P 143-IQ
14.30 8.10 3.100 15.0 0.40
•
H3P 144-IQ
14.40 8.10 3.100 15.0 0.40
•
H3P 145-IQ
14.50 8.10 3.100 15.0 0.40
•
H3P 146-IQ
14.60 8.10 3.100 15.0 0.40
•
H3P 147-IQ
14.70 8.10 3.100 15.0 0.40
•
H3P 148-IQ
14.80 8.10 3.100 15.0 0.40
•
H3P 149-IQ
14.90 8.10 3.100 15.0 0.40
•
H3P 150-IQ
15.00 8.66 3.470 15.0 0.40
•
H3P 151-IQ
15.10 8.66 3.470 15.0 0.40
•
H3P 152-IQ
15.20 8.66 3.470 15.0 0.40
•
H3P 153-IQ
15.30 8.66 3.470 15.0 0.40
•
H3P 154-IQ
15.40 8.66 3.470 15.0 0.40
•
H3P 155-IQ
15.50 8.66 3.470 15.0 0.40
•
H3P 156-IQ
15.60 8.66 3.470 15.0 0.40
•
H3P 157-IQ
15.70 8.66 3.470 15.0 0.40
•
H3P 158-IQ
15.80 8.66 3.470 15.0 0.40
•
H3P 159-IQ
15.90 8.66 3.470 15.0 0.40
•
H3P 160-IQ
16.00 9.26 3.440 15.0 0.40
•
H3P 161-IQ
16.10 9.26 3.440 15.0 0.40
•
H3P 162-IQ
16.20 9.26 3.440 15.0 0.40
•
H3P 163-IQ
16.30 9.26 3.440 15.0 0.40
•
H3P 164-IQ
16.40 9.26 3.440 15.0 0.40
•
H3P 165-IQ
16.50 9.26 3.440 15.0 0.40
•
H3P 166-IQ
16.60 9.26 3.440 15.0 0.40
•
H3P 167-IQ
16.70 9.26 3.440 15.0 0.40
•
H3P 168-IQ
16.80 9.25 3.440 15.0 0.40
•
H3P 169-IQ
16.90 9.26 3.440 15.0 0.40
•
H3P 170-IQ
17.00 9.72 3.520 15.0 0.40
•
H3P 171-IQ
17.10 9.72 3.520 15.0 0.40
•
H3P 172-IQ
17.20 9.72 3.520 15.0 0.40
•
H3P 173-IQ
17.30 9.72 3.520 15.0 0.40
•
H3P 174-IQ
17.40 9.72 3.520 15.0 0.40
•
H3P 175-IQ
17.50 9.72 3.520 15.0 0.40
•
63
INDEXABLE DRILLS
PL
LPR
DC
KCH BCH

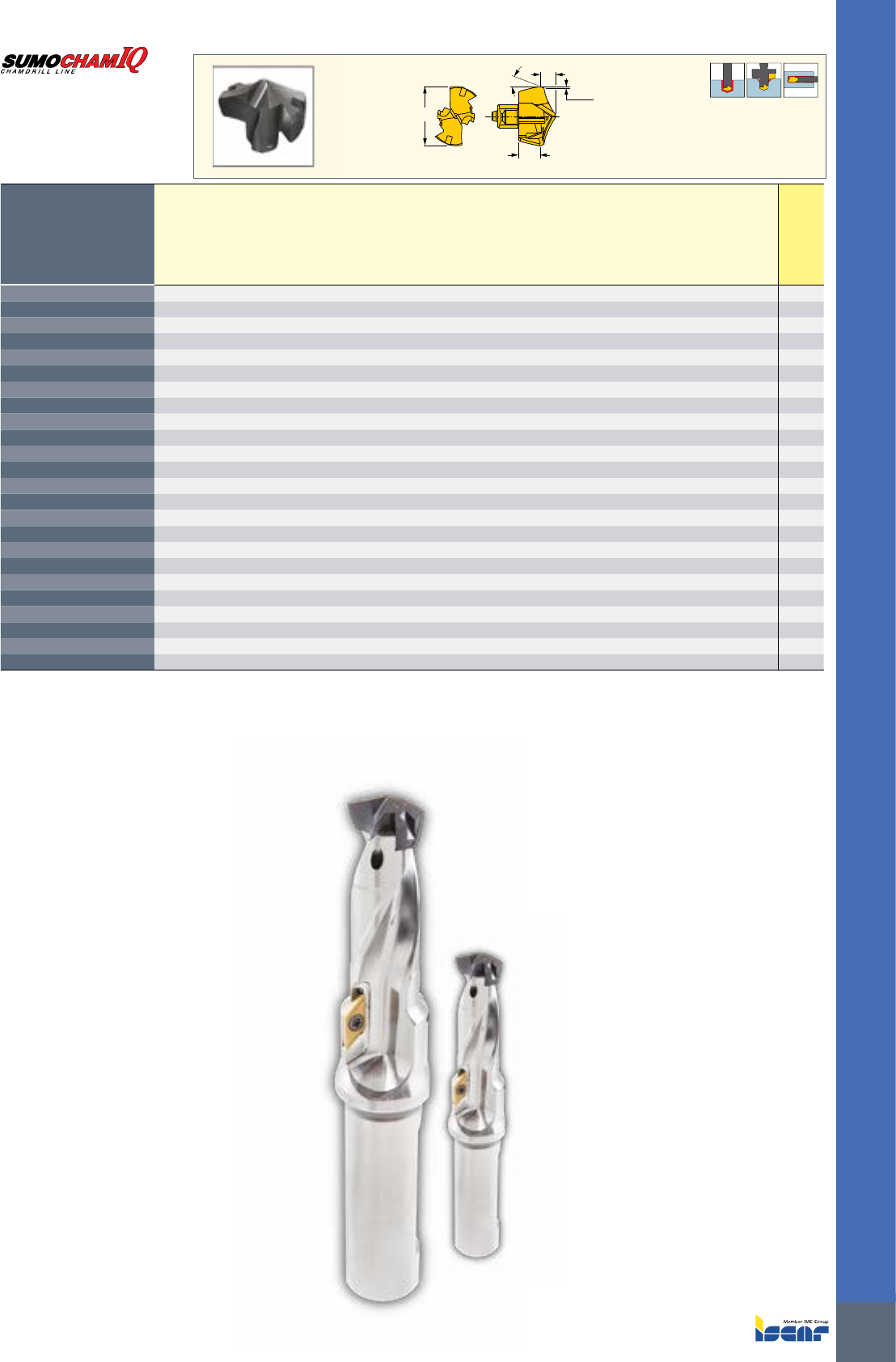

H3P
Exchangeable 3 Flute Drilling
Heads for Machining Carbon
and Alloy Steel (ISO P)
and Cast Iron (ISO K)
• For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) PL tolerance ±0.1 mm
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
Dimensions
Designation
DC LPR(1) PL(2) KCH BCH
IC908
H3P 176-IQ
17.60 9.72 3.520 15.0 0.40
•
H3P 177-IQ
17.70 9.72 3.520 15.0 0.40
•
H3P 178-IQ
17.80 9.72 3.520 15.0 0.40
•
H3P 179-IQ
17.90 9.72 3.520 15.0 0.40
•
H3P 180-IQ
18.00 10.36 3.900 15.0 0.40
•
H3P 181-IQ
18.10 10.36 3.900 15.0 0.40
•
H3P 182-IQ
18.20 10.36 3.900 15.0 0.40
•
H3P 183-IQ
18.30 10.36 3.900 15.0 0.40
•
H3P 184-IQ
18.40 10.36 3.900 15.0 0.40
•
H3P 185-IQ
18.50 10.36 3.900 15.0 0.40
•
H3P 186-IQ
18.60 10.36 3.900 15.0 0.40
•
H3P 187-IQ
18.70 10.36 3.900 15.0 0.40
•
H3P 188-IQ
18.80 10.36 3.900 15.0 0.40
•
H3P 189-IQ
18.90 10.36 3.900 15.0 0.40
•
H3P 190-IQ
19.00 10.92 4.100 15.0 0.40
•
H3P 1905-IQ
19.05 10.92 4.100 15.0 0.40
•
H3P 191-IQ
19.10 10.92 4.100 15.0 0.40
•
H3P 192-IQ
19.20 10.92 4.100 15.0 0.40
•
H3P 1927-IQ
19.27 10.92 4.100 15.0 0.40
•
H3P 193-IQ
19.30 10.92 4.100 15.0 0.40
•
H3P 194-IQ
19.40 10.92 4.100 15.0 0.40
•
H3P 195-IQ
19.50 10.92 4.100 15.0 0.40
•
H3P 196-IQ
19.60 10.92 4.100 15.0 0.40
•
H3P 197-IQ
19.70 10.92 4.100 15.0 0.40
•
H3P 198-IQ
19.80 10.92 4.100 15.0 0.40
•
H3P 199-IQ
19.90 10.92 4.100 15.0 0.40
•
H3P 200-IQ
20.00 11.24 4.320 15.0 0.40
•
H3P 201-IQ
20.10 11.24 4.320 15.0 0.40
•
H3P 202-IQ
20.20 11.24 4.320 15.0 0.40
•
H3P 203-IQ
20.30 11.24 4.320 15.0 0.40
•
H3P 204-IQ
20.40 11.24 4.320 15.0 0.40
•
H3P 205-IQ
20.50 11.24 4.320 15.0 0.40
•
H3P 206-IQ
20.60 11.24 4.320 15.0 0.40
•
H3P 207-IQ
20.70 11.24 4.320 15.0 0.40
•
H3P 208-IQ
20.80 11.24 4.320 15.0 0.40
•
H3P 209-IQ
20.90 11.24 4.320 15.0 0.40
•
H3P 210-IQ
21.00 11.80 4.550 15.0 0.40
•
H3P 211-IQ
21.10 11.80 4.550 15.0 0.40
•
H3P 212-IQ
21.20 11.80 4.550 15.0 0.40
•
H3P 213-IQ
21.30 11.80 4.550 15.0 0.40
•
H3P 214-IQ
21.40 11.80 4.550 15.0 0.40
•
H3P 215-IQ
21.50 11.80 4.550 15.0 0.40
•
H3P 216-IQ
21.60 11.80 4.550 15.0 0.40
•
H3P 217-IQ
21.70 11.80 4.550 15.0 0.40
•
H3P 218-IQ
21.80 11.80 4.550 15.0 0.40
•
H3P 219-IQ
21.90 11.80 4.550 15.0 0.40
•
H3P 220-IQ
22.00 12.63 4.690 15.0 0.40
•
H3P 221-IQ
22.10 12.63 4.690 15.0 0.40
•
H3P 222-IQ
22.20 12.63 4.690 15.0 0.40
•
H3P 223-IQ
22.30 12.63 4.690 15.0 0.40
•
H3P 224-IQ
22.40 12.63 4.690 15.0 0.40
•
H3P 225-IQ
22.50 12.63 4.690 15.0 0.40
•
H3P 226-IQ
22.60 12.63 4.690 15.0 0.40
•
H3P 227-IQ
22.70 12.63 4.690 15.0 0.40
•
H3P 228-IQ
22.80 12.63 4.690 15.0 0.40
•
H3P 229-IQ
22.90 12.63 4.690 15.0 0.40
•
(continued)
ISCAR
64
INDEXABLE DRILLS
PL
LPR
DC
KCH BCH

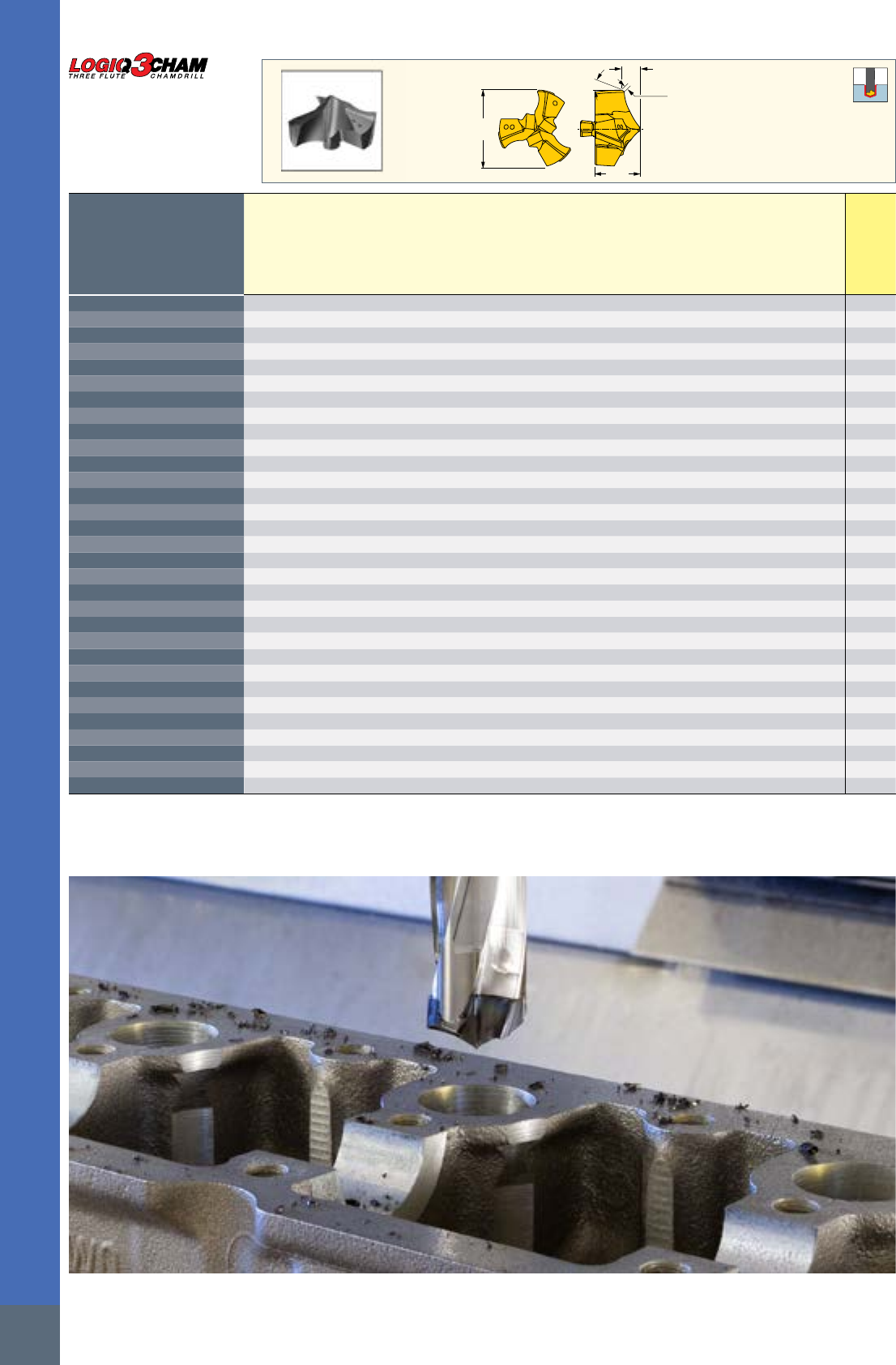

H3P
Exchangeable 3 Flute Drilling
Heads for Machining Carbon
and Alloy Steel (ISO P)
and Cast Iron (ISO K)
• For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) PL tolerance ±0.1 mm
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
Dimensions
Designation
DC LPR(1) PL(2) KCH BCH
IC908
H3P 230-IQ
23.00 13.00 4.910 15.0 0.40
•
H3P 231-IQ
23.10 13.00 4.910 15.0 0.40
•
H3P 232-IQ
23.20 13.00 4.910 15.0 0.40
•
H3P 233-IQ
23.30 13.00 4.910 15.0 0.40
•
H3P 234-IQ
23.40 13.00 4.910 15.0 0.40
•
H3P 235-IQ
23.50 13.00 4.910 15.0 0.40
•
H3P 236-IQ
23.60 13.00 4.910 15.0 0.40
•
H3P 237-IQ
23.70 13.00 4.910 15.0 0.40
•
H3P 238-IQ
23.80 13.00 4.910 15.0 0.40
•
H3P 239-IQ
23.90 13.00 4.910 15.0 0.40
•
H3P 240-IQ
24.00 13.54 5.210 15.0 0.40
•
H3P 241-IQ
24.10 13.54 5.210 15.0 0.40
•
H3P 242-IQ
24.20 13.54 5.210 15.0 0.40
•
H3P 243-IQ
24.30 13.54 5.210 15.0 0.40
•
H3P 244-IQ
24.40 13.54 5.210 15.0 0.40
•
H3P 245-IQ
24.50 13.54 5.210 15.0 0.40
•
H3P 246-IQ
24.60 13.54 5.210 15.0 0.40
•
H3P 247-IQ
24.70 13.54 5.210 15.0 0.40
•
H3P 248-IQ
24.80 13.54 5.210 15.0 0.40
•
H3P 249-IQ
24.90 13.54 5.210 15.0 0.40
•
H3P 250-IQ
25.00 14.11 5.310 15.0 0.40
•
H3P 251-IQ
25.10 14.11 5.310 15.0 0.40
•
H3P 252-IQ
25.20 14.11 5.310 15.0 0.40
•
H3P 253-IQ
25.30 14.11 5.310 15.0 0.40
•
H3P 254-IQ
25.40 14.11 5.310 15.0 0.40
•
H3P 255-IQ
25.50 14.11 5.310 15.0 0.40
•
H3P 256-IQ
25.60 14.11 5.310 15.0 0.40
•
H3P 2565-IQ
25.65 14.11 5.310 15.0 0.40
•
H3P 257-IQ
25.70 14.11 5.310 15.0 0.40
•
H3P 258-IQ
25.80 14.11 5.310 15.0 0.40
•
H3P 259-IQ
25.90 14.11 5.310 15.0 0.40
•
(continued)

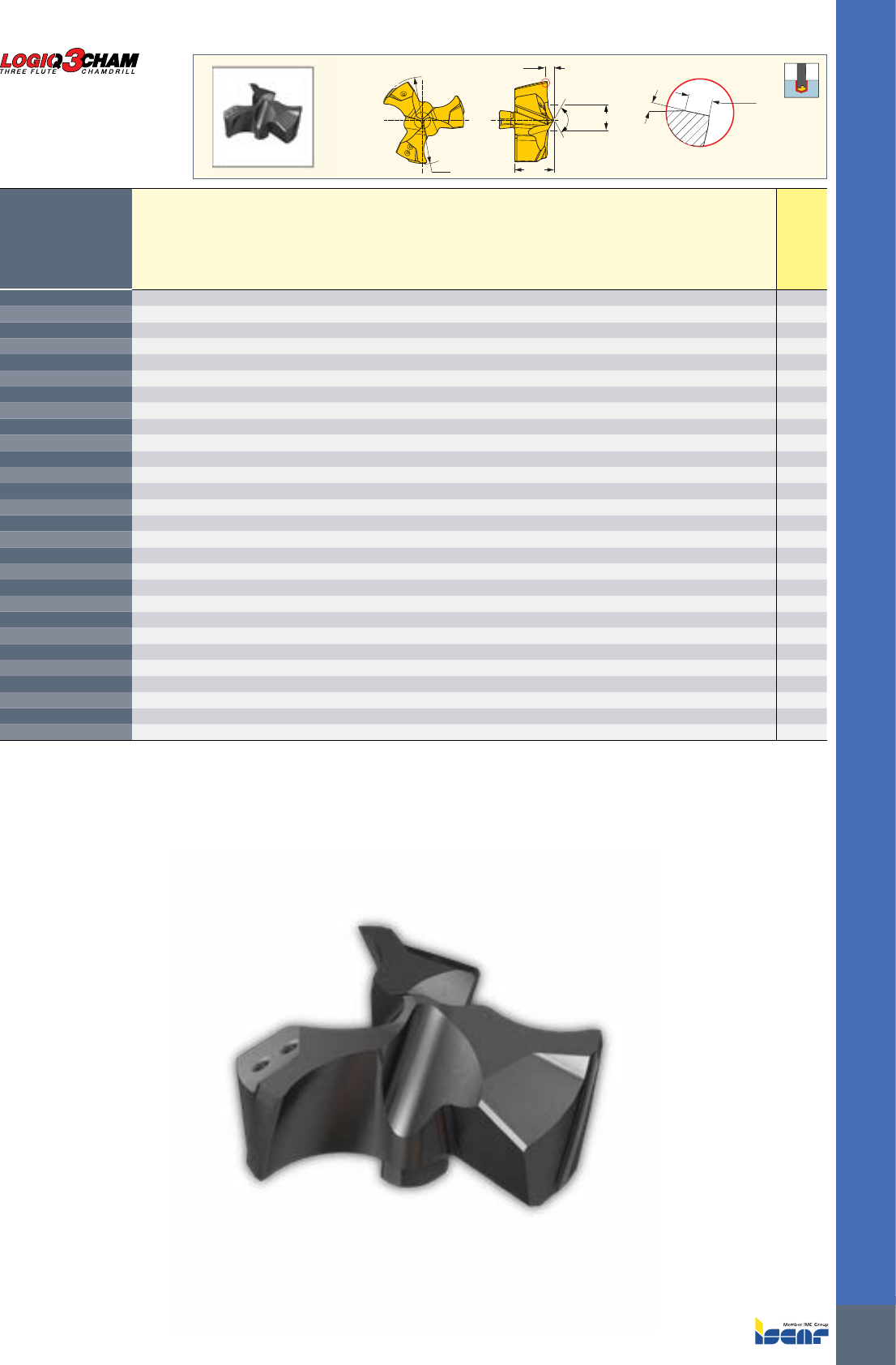

65
INDEXABLE DRILLS
DC
KCH
PDD
SIG
PL
LPR
BCH
Dimensions
Designation
DC LPR(1) PL PDD SIG BCH KCH SSC(2)
IC908
F3P 120-IQ
12.00 4.90 0.790 2.96 133 0.40 15.0 12
•
F3P 125-IQ
12.50 4.90 0.790 2.96 133 0.40 15.0 12
•
F3P 130-IQ
13.00 5.39 0.990 3.52 130 0.40 15.0 13
•
F3P 135-IQ
13.50 5.39 0.990 3.52 130 0.40 15.0 13
•
F3P 140-IQ
14.00 6.42 1.110 4.16 124 0.40 15.0 14
•
F3P 145-IQ
14.50 6.42 1.110 4.16 124 0.40 15.0 14
•
F3P 150-IQ
15.00 6.72 1.190 3.81 121 0.40 15.0 15
•
F3P 155-IQ
15.50 6.72 1.190 3.81 121 0.40 15.0 15
•
F3P 160-IQ
16.00 7.03 1.090 3.95 121 0.40 15.0 16
•
F3P 165-IQ
16.50 7.03 1.090 3.95 121 0.40 15.0 16
•
F3P 170-IQ
17.00 7.70 1.160 4.09 121 0.40 15.0 17
•
F3P 175-IQ
17.50 7.70 1.160 4.09 121 0.40 15.0 17
•
F3P 180-IQ
18.00 8.02 1.230 5.86 131 0.40 15.0 18
•
F3P 185-IQ
18.50 8.02 1.230 5.86 131 0.40 15.0 18
•
F3P 190-IQ
19.00 8.09 1.270 6.19 131 0.40 15.0 19
•
F3P 195-IQ
19.50 8.09 1.270 6.19 131 0.40 15.0 19
•
F3P 200-IQ
20.00 8.59 1.340 6.54 132 0.40 15.0 20
•
F3P 205-IQ
20.50 8.59 1.340 6.54 132 0.40 15.0 20
•
F3P 210-IQ
21.00 9.02 1.410 6.92 132 0.40 15.0 21
•
F3P 215-IQ
21.50 9.02 1.410 6.92 132 0.40 15.0 21
•
F3P 220-IQ
22.00 9.97 1.680 7.19 132 0.40 15.0 22
•
F3P 225-IQ
22.50 9.97 1.680 7.19 132 0.40 15.0 22
•
F3P 230-IQ
23.00 10.17 1.750 7.66 132 0.40 15.0 23
•
F3P 235-IQ
23.50 10.17 1.750 7.66 132 0.40 15.0 23
•
F3P 240-IQ
24.00 10.59 1.820 7.79 132 0.40 15.0 24
•
F3P 245-IQ
24.50 10.59 1.820 7.79 132 0.40 15.0 24
•
F3P 250-IQ
25.00 10.81 1.660 8.09 131 0.40 15.0 25
•
F3P 255-IQ
25.50 10.81 1.660 8.09 131 0.40 15.0 25
•
• For nearly flat bottom hole applications • For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) Seat size code
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
F3P
Exchangeable 3 Flute Flat
Drilling Heads for Machining
Carbon and Alloy Steel (ISO
P) and Cast Iron (ISO K)
ISCAR
66
INDEXABLE DRILLS

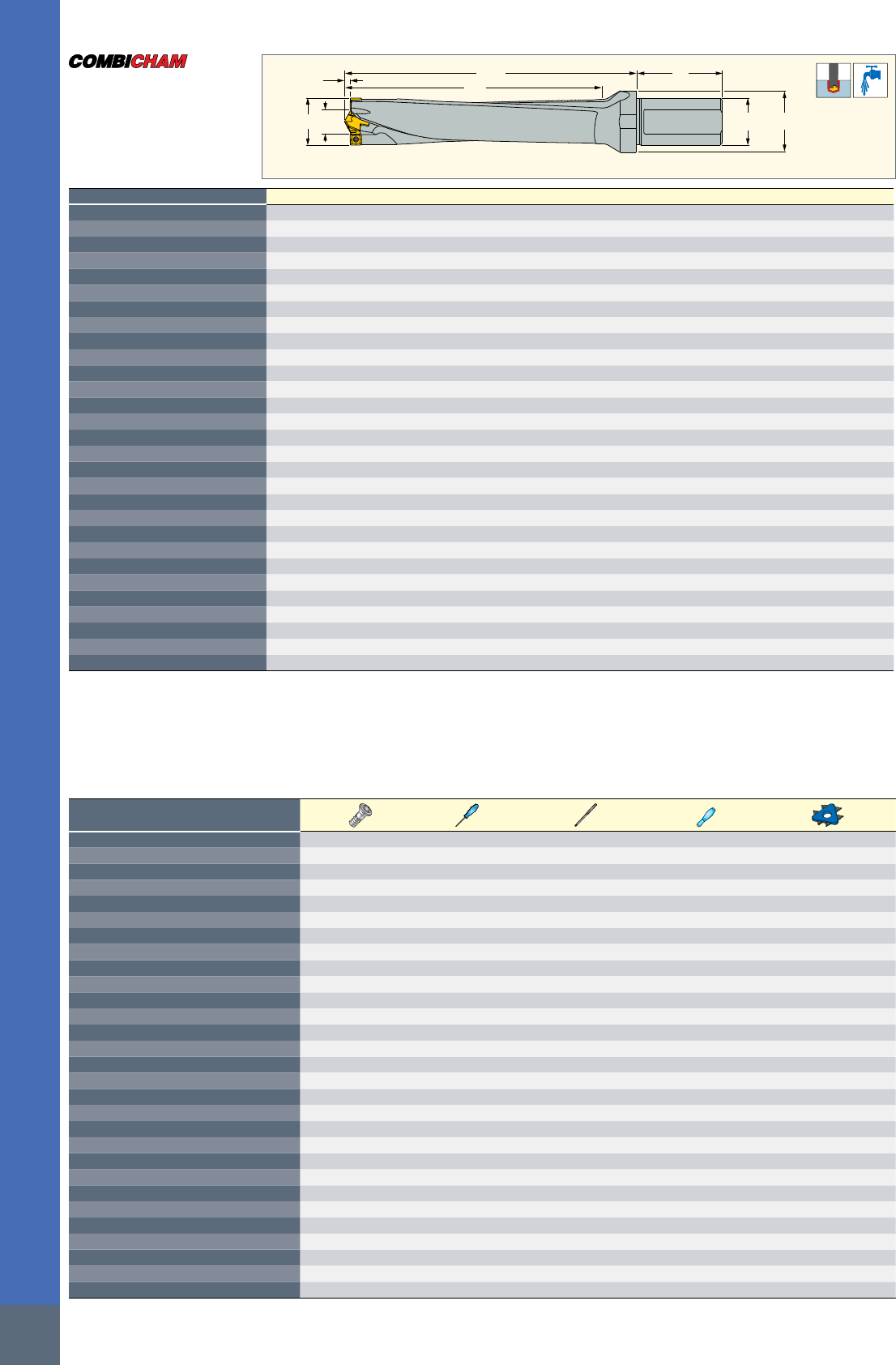

DF
LS
LPR
PL
DC PDD
LU
DCONMS
Designation
DC LU PL DCONMS PDD DF LS LPR Insert(1) Insert 1(2)
MNC 260-130 A32-150-06-5D
26.00 132.93 2.93 32.00 15.00 42.00 60.0 166.92 SOGX 060304-W ICP 150
MNC 265-132 A32-155-06-5D
26.50 135.53 3.03 32.00 15.50 42.00 60.0 167.03 SOGX 060304-W ICP 155
MNC 270-135 A32-160-06-5D
27.00 138.10 3.10 32.00 16.00 42.00 60.0 170.10 SOGX 060304-W ICP 160
MNC 280-140 A32-170-06-5D
28.00 143.25 3.25 32.00 17.00 42.00 60.0 174.30 SOGX 060304-W ICP 170
MNC 290-145 A32-160-07-5D
29.00 148.10 3.10 32.00 16.00 42.00 60.0 180.11 SOGX 070305-W ICP 160
MNC 295-148 A32-165-07-5D
29.50 150.69 3.19 32.00 16.50 42.00 60.0 183.21 SOGX 070305-W ICP 165
MNC 300-150 A32-165-07-5D
30.00 153.19 3.19 32.00 16.50 42.00 60.0 186.21 SOGX 070305-W ICP 165
MNC 310-155 A32-175-07-5D
31.00 158.34 3.34 32.00 17.50 42.00 60.0 193.30 SOGX 070305-W ICP 175
MNC 320-160 A32-185-07-5D
32.00 163.49 3.49 32.00 18.50 42.00 60.0 198.50 SOGX 070305-W ICP 185
MNC 330-165 A32-175-09-5D
33.00 168.64 3.64 32.00 17.50 42.00 60.0 203.60 SOGT 09T306-W ICP 175
MNC 340-170 A32-180-09-5D
34.00 173.70 3.70 32.00 18.00 42.00 60.0 208.70 SOGT 09T306-W ICP 180
MNC 350-175 A32-189-09-5D
35.00 178.86 3.86 32.00 18.90 42.00 60.0 213.90 SOGT 09T306-W ICP 189
MNC 360-180 A32-190-10-5D
36.00 183.85 3.85 32.00 19.00 42.00 60.0 218.80 SOGT 100408-W ICP 190
MNC 370-185 A32-200-10-5D
37.00 189.01 4.01 32.00 20.00 42.00 60.0 224.00 SOGT 100408-W ICP 200
MNC 375-188 A32-205-10-5D
37.50 191.60 4.10 32.00 20.50 42.00 60.0 227.11 SOGT 100408-W ICP 205
MNC 380-190 A40-209-10-5D
38.00 194.17 4.17 40.00 20.90 50.00 68.0 231.21 SOGT 100408-W ICP 209
MNC 390-195 A40-215-10-5D
39.00 199.26 4.26 40.00 21.50 50.00 68.0 237.28 SOGT 100408-W ICP 215
MNC 400-200 A40-225-10-5D
40.00 204.41 4.41 40.00 22.50 50.00 68.0 244.36 SOGT 100408-W ICP 225
MNC 405-203 A40-235-10-5D
40.50 207.07 4.57 40.00 23.50 50.00 68.0 247.53 SOGT 100408-W ICP 235
MNC 410-205 A40-239-10-5D
41.00 209.64 4.64 40.00 23.90 50.00 68.0 249.64 SOGT 100408-W ICP 239
MNC 420-210 A40-249-10-5D
42.00 214.77 4.77 40.00 24.90 50.00 68.0 254.80 SOGT 100408-W ICP 249
MNC 430-215 A40-259-10-5D
43.00 219.99 4.99 40.00 25.90 50.00 68.0 263.00 SOGT 100408-W ICP 259
MNC 440-220 A40-210-12-5D
44.00 225.18 5.18 40.00 21.00 50.00 68.0 264.18 SOGT 120408-W ICP 210
MNC 450-225 A40-219-12-5D
45.00 230.33 5.33 40.00 21.90 50.00 68.0 269.38 SOGT 120408-W ICP 219
MNC 460-230 A40-229-12-5D
46.00 235.48 5.48 40.00 22.90 50.00 68.0 274.46 SOGT 120408-W ICP 229
MNC 470-235 A40-239-12-5D
47.00 240.64 5.64 40.00 23.90 50.00 68.0 280.63 SOGT 120408-W ICP 239
MNC 480-240 A40-249-12-5D
48.00 245.77 5.77 40.00 24.90 50.00 68.0 284.80 SOGT 120408-W ICP 249
MNC 490-245 A40-259-12-5D
49.00 250.99 5.99 40.00 25.90 50.00 68.0 292.00 SOGT 120408-W ICP 259
MNC 500-250 A40-269-12-5D
50.00 256.11 6.11 40.00 26.90 50.00 68.0 297.07 SOGT 120408-W ICP 269
• Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Intermediate sizes are available on
request • For user guide and cutting conditions, see pages 68-81
(1) Outer insert
(2) Central insert
For inserts, see pages: HCP-IQ (47) • ICG (57) • ICP (18) • SOGT-W (67) • SOGX-W (67)
Spare Parts
Designation
MNC 260-130 A32-150-06-5D
SR 34-508/L T-7/51 K MNC MULTI
MNC 265-132 A32-155-06-5D
SR 34-508/L T-7/51 K MNC MULTI
MNC 270-135 A32-160-06-5D
SR 34-508/L T-7/51 K MNC MULTI
MNC 280-140 A32-170-06-5D
SR 34-508/L T-7/51 K MNC MULTI
MNC 290-145 A32-160-07-5D
SR 14-560 T-8/53 K MNC MULTI
MNC 295-148 A32-165-07-5D
SR 14-560 T-8/53 K MNC MULTI
MNC 300-150 A32-165-07-5D
SR 14-560 T-8/53 K MNC MULTI
MNC 310-155 A32-175-07-5D
SR 14-560 T-8/53 K MNC MULTI
MNC 320-160 A32-185-07-5D
SR 14-560 T-8/53 K MNC MULTI
MNC 330-165 A32-175-09-5D
SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI
MNC 340-170 A32-180-09-5D
SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI
MNC 350-175 A32-189-09-5D
SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI
MNC 360-180 A32-190-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI
MNC 370-185 A32-200-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI
MNC 375-188 A32-205-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI
MNC 380-190 A40-209-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI
MNC 390-195 A40-215-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI
MNC 400-200 A40-225-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC 22-33
MNC 405-203 A40-235-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC 22-33
MNC 410-205 A40-239-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC 22-33
MNC 420-210 A40-249-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC 22-33
MNC 430-215 A40-259-10-5D
SR 14-571 BLD T10/S7 SW6-SD K MNC 22-33
MNC 440-220 A40-210-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI
MNC 450-225 A40-219-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI
MNC 460-230 A40-229-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC 22-33
MNC 470-235 A40-239-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC 22-33
MNC 480-240 A40-249-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC 22-33
MNC 490-245 A40-259-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC 22-33
MNC 500-250 A40-269-12-5D
SR 14-544/S BLD T15/S7 SW6-SD K MNC 22-33
MNC-5D
Large Diameter Indexable Drills
with a Pilot Drilling Head and One
Flat Shank, Drilling Depth 5xD
67
INDEXABLE DRILLS

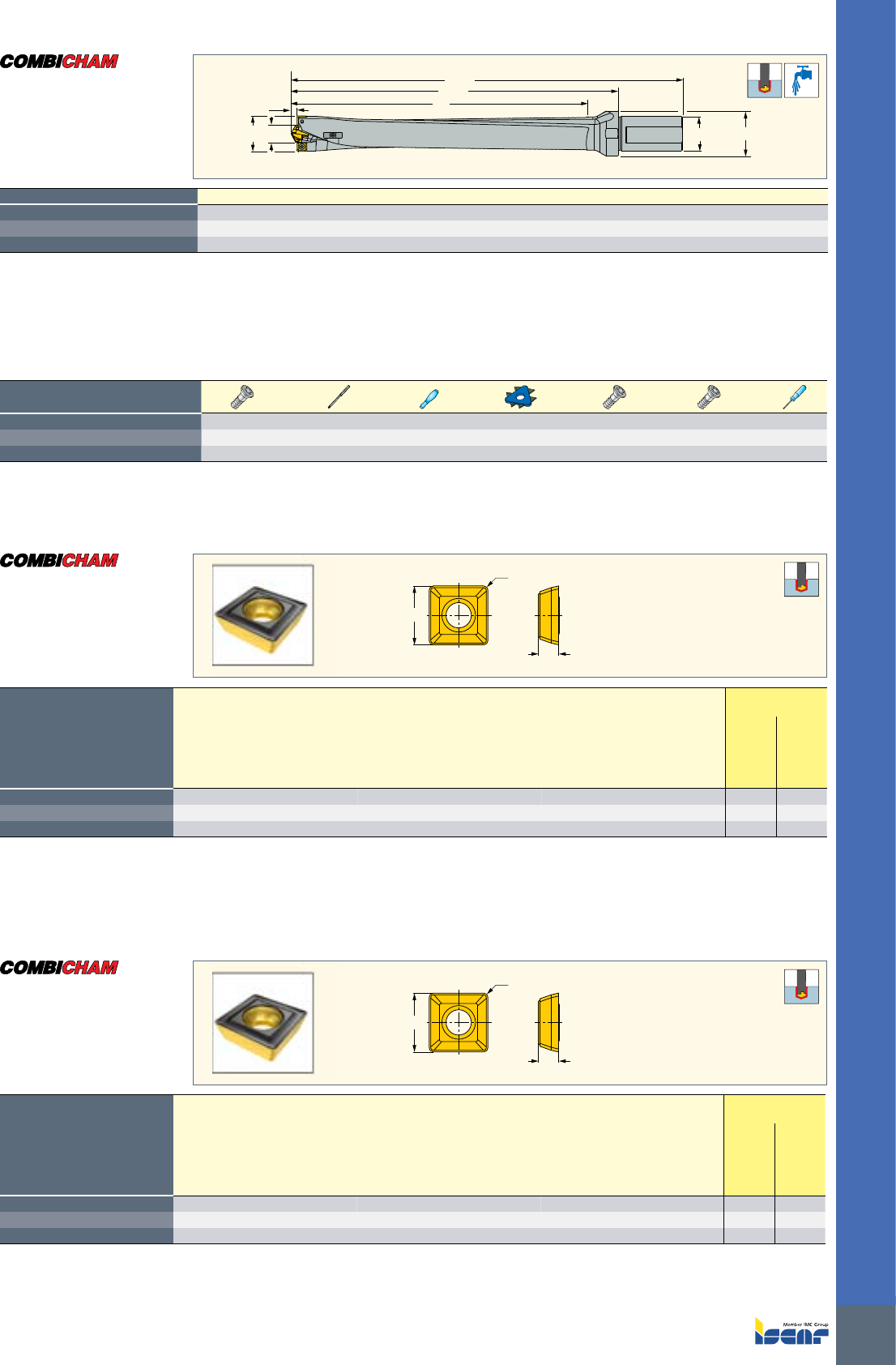

DF
DCONMS
PL LU
OAL
LPR
DC PDD
Designation
DC PDD LU PL LPR OAL DCONMS DF Insert(1) Insert 1(2)
MNC 332-265 A32-175-09-8D
33.20 17.50 270.60 5.570 304.40 358.80 32.00 42.00 SOGT 09T306-W HCP 175-IQ
MNC 362-289 A32-190-10-8D
36.20 19.00 294.60 5.570 326.90 381.30 32.00 42.00 SOGT 100408-W HCP 190-IQ
MNC 392-289 A40-219-10-7D
39.20 21.90 294.90 5.940 352.20 414.30 40.00 50.00 SOGT 100408-W HCP 219-IQ
• Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Intermediate sizes are available on
request • For user guide and cutting conditions, see pages 68-81
(1) Outer insert
(2) Central insert
For inserts, see pages: HCP-IQ (47) • SOGT-W (67)
Spare Parts
Designation
MNC 332-265 A32-175-09-8D
SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI SR 34-508 SR 34-508/S-HG T-7/51
MNC 362-289 A32-190-10-8D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI SR 34-508 T-7/51
MNC 392-289 A40-219-10-7D
SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI SR 34-508 T-7/51
MNC-7/8D
Large Diameter Indexable Drills
for the Wind Turbine Industry
S
RE
IC
Dimensions Tough
1
Hard
Designation
IC S RE
IC808
IC8080
SOGX 050204-W
5.40 2.40 0.40
•
SOGX 060304-W
6.20 3.20 0.40
•
SOGX 070305-W
7.70 3.60 0.50
• •
• For user guide and cutting conditions, see pages 68-81
For tools, see pages: MNC-5D (66)
SOGX-W
Precision Ground Inserts with
DT General Use Chipformer
and a Wiper for MNC
Large Diameter Drills
S
RE
IC
Dimensions Tough
1
Hard
Designation
IC S RE
IC808
IC8080
SOGT 09T306-W
9.00 3.81 0.60
• •
SOGT 100408-W
9.80 4.30 0.80
• •
SOGT 120408-W
12.70 4.76 0.80
•
• For user guide and cutting conditions, see pages 68-81
For tools, see pages: MNC-5D (66) • MNC-7/8D (67)
SOGT-W
Precision Ground Inserts with
DT General Use Chipformer
and a Wiper for MNC Drills
ISCAR

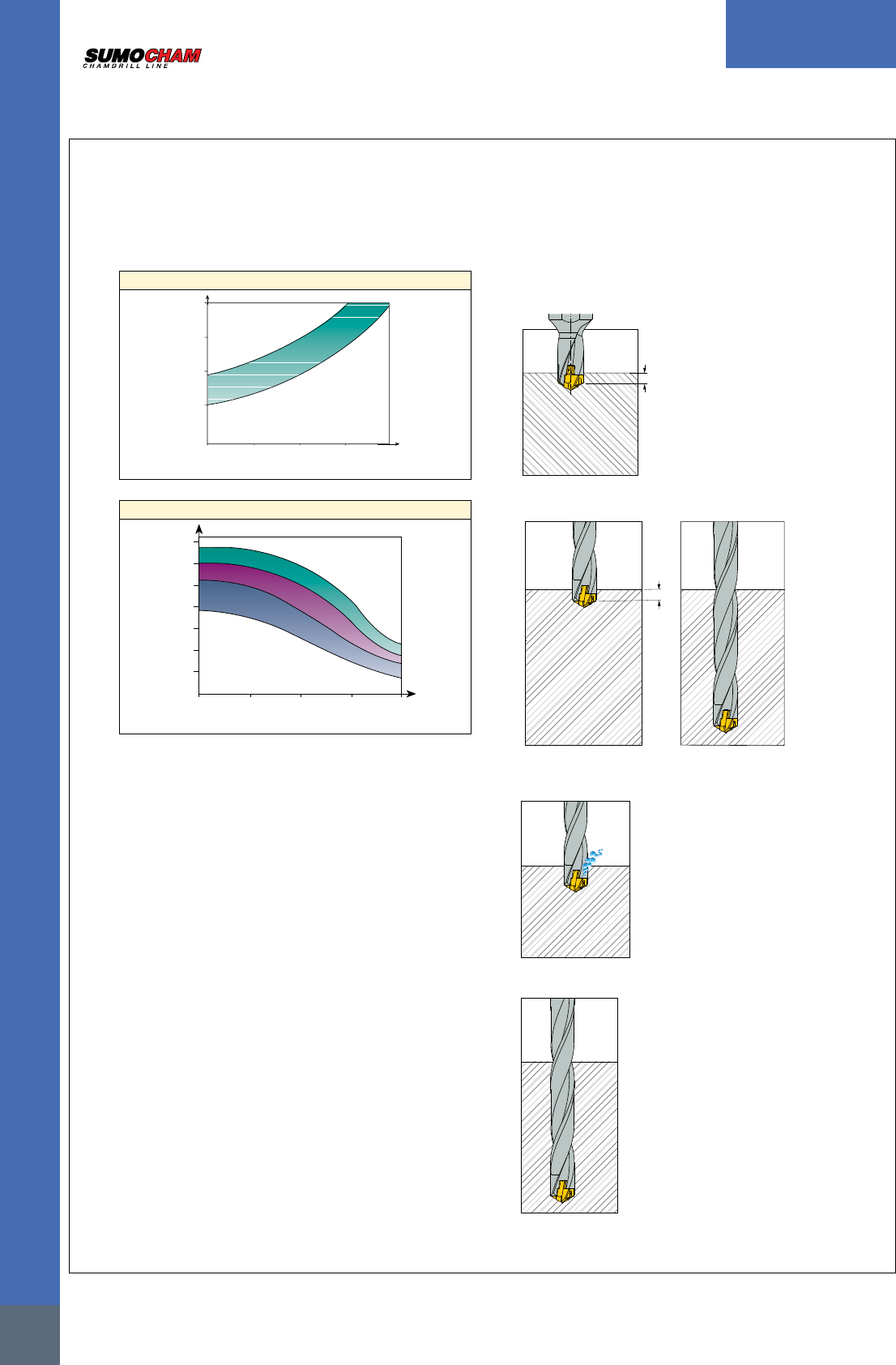

68
USER GUIDE
INDEXABLE DRILLS
• When drilling stainless steel or high temperature
alloys using the ICM drilling head, it is highly
recommended to apply high-pressure oil or 7-10%
mineral or vegetable based oil emulsion.
• Following is the recommended coolant
flow rate and pressure.
Coolant Flow Rate (liter/min)
flow
rate
6.8 12 16 20
30
20
10
5
25
Drill Diameter D (mm)
Minimum Coolant Pressure (bar)
25
612 16 20
3
5
8
10
12
3 X D
5 X D
8, 12X D
1.5 X D
15
Drill Diameter D (mm)
• For optimal performance, it is recommended to adjust
runout of outer points or chisel with a maximum of
0.02 mm. Large runout will influence drill
performance tool life and hole quality.
• No setup time is needed after indexing
the SUMOCHAM drill head.
• SUMOCHAM drills can be used either on
milling centers or lathe machines.
• When using SUMOCHAM drill in stationary (lathe)
applications, we recommend using the ISCAR GYRO
device or eccenter sleeve to reduce misalignment.
Misalignment will cause poor performance of the
SUMOCHAM drill or even tool breakage.
• Prior to using 8D or 12D drills, it is recommended to drill a
0.5xD pre-hole using a short or centering drill.
Enter the pre-hole at slow speed and feed until 2-5 mm
from its bottom. Start the cooling system and increase
rotation to the recommended drilling speed. Hold for 2-3
seconds, then continue at the recommended drilling feed.
1 Pre-hole 0.5xD deep for centering
0.5xD
2 Slow rotation and feed while entering the pre-hole
1.5xD
3 Maintain for 2-3 seconds and
activate the cooling system
4 Continue drilling at recommended cutting conditions
69
USER GUIDE
INDEXABLE DRILLS

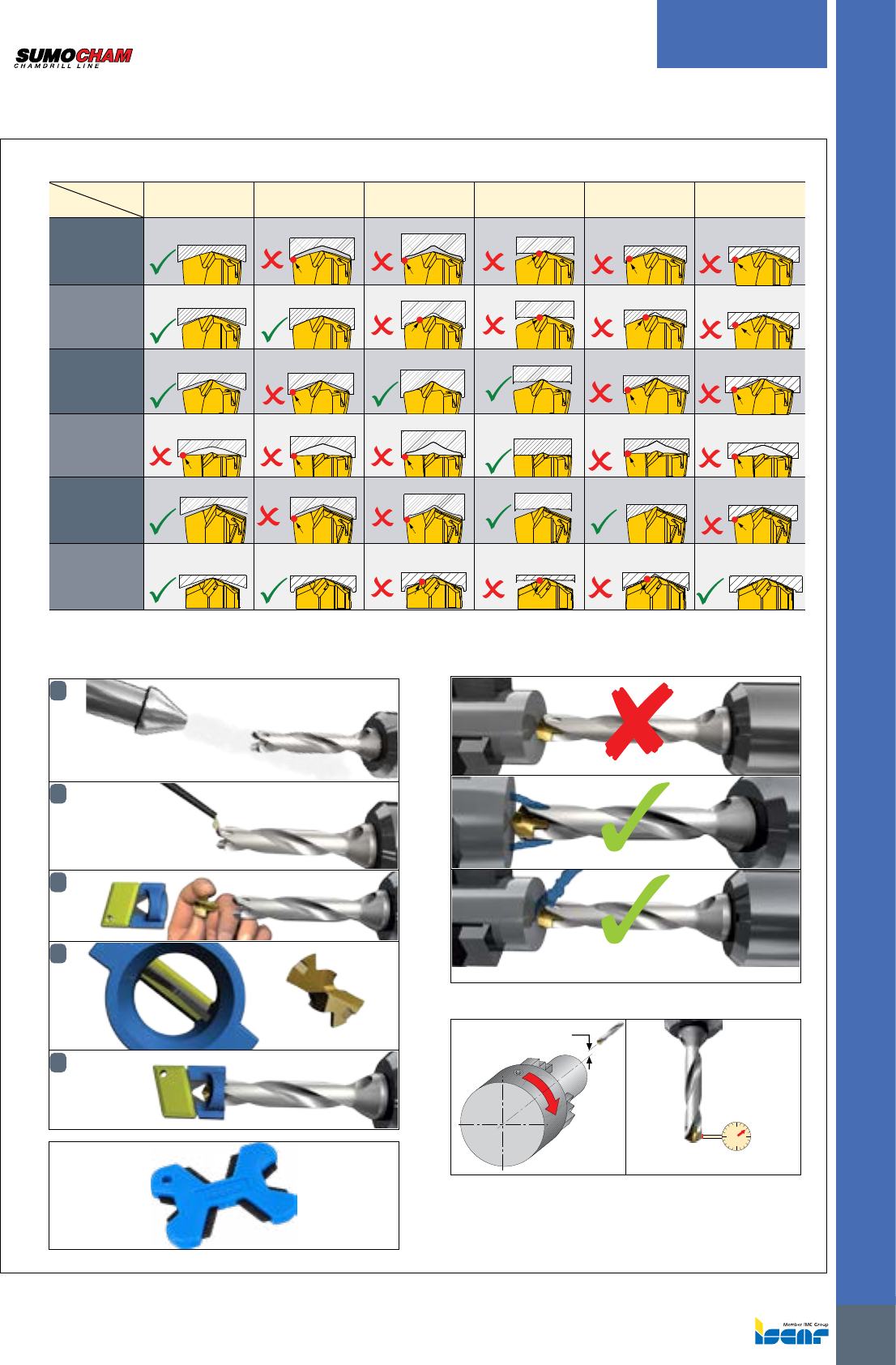

PreHole Adjustment
PreHole
Hole ICP/ ICM/ ICN ICK HCP/H3P FCP/F3P QCP
ICG
ICP
ICM
ICN
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
ICP
ICP
ICP
ICP
ICP
ICP
ICK
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
ICK
ICK
ICK
ICK ICK
ICK
HCP
H3P
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
H#P H#P H#P H#P H#P H#P
FCP
F3P
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
F#P
F#P
F#P
F#P
F#P
F#P
QCP
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
QCP QCP QCP QCP QCP
QCP QCP
ICG
ICP/M/N PreHole ICK PreHole H#P PreHole FCP PreHole QCP PreHole ICG PreHole
ICG
ICG
ICG
ICG
ICG
ICG
*For proper insert performance and centering, a bigger insert within a 1.0 mm range of the same diameter may be used

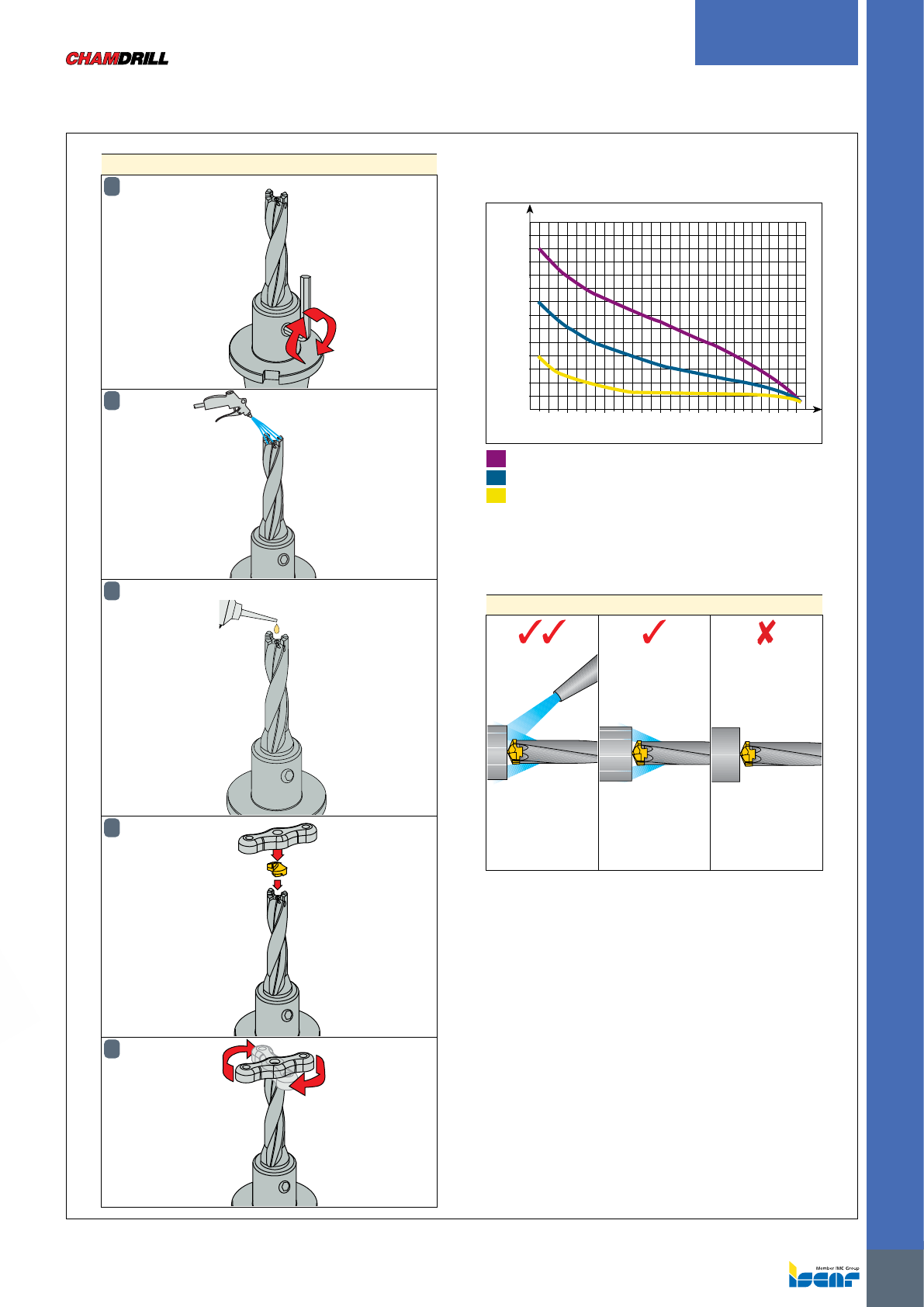

Drilling Head
Mounting Procedure
1
2
3
4
5
Coolant Recommendations
Up to 2D
Maximum Runout, Misalignment
Max 0.02 mm
Max 0.02 mm
K DCN MULTI
The optional K DCN MULTI key enables clamping all
currently available SUMOCHAM drilling heads
in a 6-26.9 mm diameter range.
ISCAR

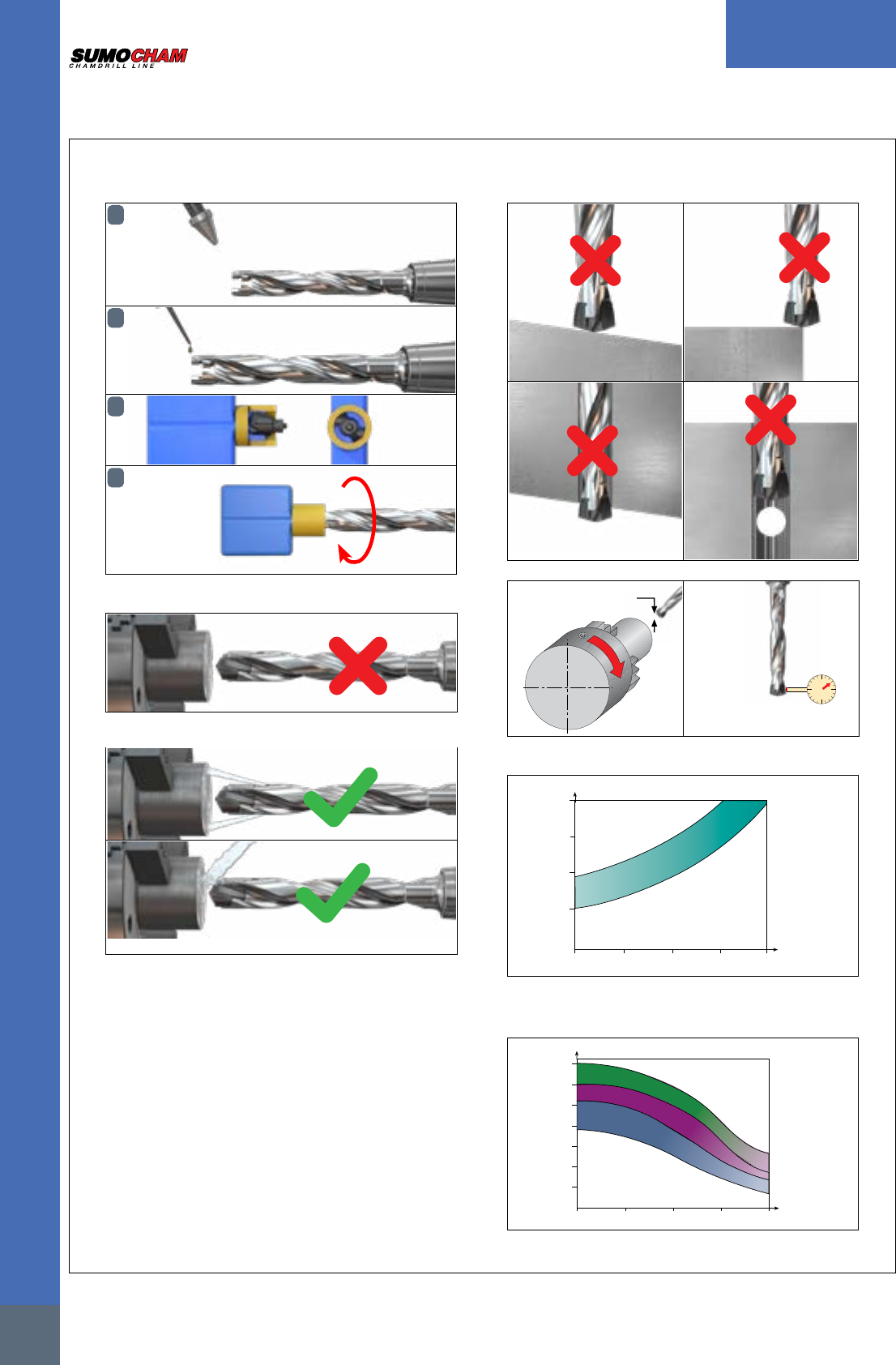

70
USER GUIDE
INDEXABLE DRILLS
Drilling Head Dia. 4.0-5.99mm
Mounting Procedure
1
2
3
4
Coolant Recommendations
Dry machining
Up to 2xD
Drilling Limitations
Max 0.02 mm
Max 0.02 mm
Max 0.02 mm
Max 0.02 mm
Coolant Flow Rate
416 20 25
30
20
10
5
32 Dia.
liter/min
flow
rate
Drill Diameter D (mm)
Minimum Coolant Pressure
5 X D
8 X D
3 X D
bar
32
416 20 25
3
4
5
8
10
12
15
Dia.
Drill Diameter D (mm)
71
USER GUIDE
INDEXABLE DRILLS

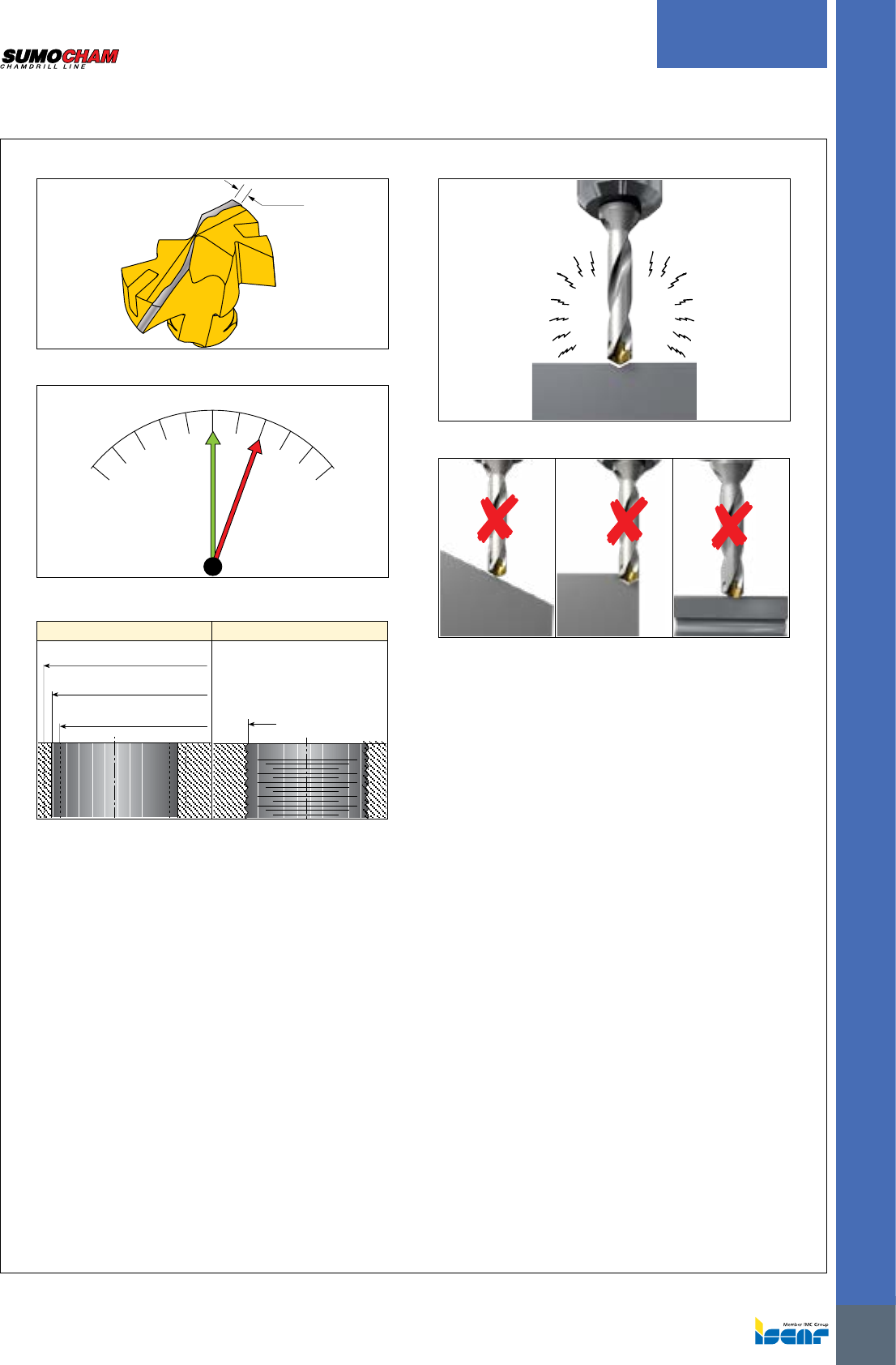

Indication of Drill Head Wear
Wear Limit
0.2-0.3
Power Restriction
P(1) Px1.25(2)
0
(1) New drilling head
(2) Worn-out drilling head
Diameter Change Surface Finish Declines
Ø > D nominal + 0.15 mm
Ø < D nominal - 0.03 mm
D nominal
Ra
Vibration Noise Drastically Increases
Drilling Limitations
ISCAR
72
USER GUIDE
INDEXABLE DRILLS
Material Groups Recommended Machining Conditions
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness HB
Material No.(1)
V m/min
SUMOCHAM
Feed vs. Drill Diameter
D=4-4.9
D=5-5.9
D=6-7.9
D=8-9.9
D=10-11.9
D=12-13.9
D=14-15.9
D=16-19.9
D=20-25.9
D=26-32.9
mm/rev
P
Non-alloy
steel and cast
steel, free
cutting steel
< 0.25 %C Annealed 420 125 1
80-
110
-140
0.04
0.06
0.08
0.07
0.09
0.11
0.09
0.11
0.13
0.12
0.17
0.22
0.15
0.21
0.28
0.18
0.24
0.30
0.20
0.27
0.35
0.25
0.35
0.45
0.25
0.35
0.45
0.30
0.40
0.50
≥ 0.25 %C Annealed 650 190 2
80-
105
-130
< 0.55 %C Quenched and
tempered 850 250 3
80-
100
-120
≥ 0.55 %C
Annealed 750 220 4
70-
90
-110
Quenched and
tempered 1000 300 5
50-
70
-90
Low alloy and cast
steel (less than 5% of
alloying elements)
Annealed 600 200 6
80-
100
-120 0.04
0.06
0.08
0.07
0.10
0.13
0.09
0.12
0.15
0.12
0.18
0.25
0.14
0.21
0.28
0.16
0.24
0.32
0.18
0.26
0.35
0.23
0.31
0.40
0.25
0.35
0.45
0.30
0.40
0.50
Quenched and
tempered
930 275 7
70-
90
-110
1000 300 8
50-
70
-90
1200 350 9
40-
55
-70
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10
50-
70
-90 0.06
0.07
0.08
0.07
0.09
0.10
0.09
0.11
0.12
0.12
0.16
0.20
0.12
0.17
0.22
0.15
0.20
0.25
0.18
0.23
0.28
0.20
0.25
0.30
0.22
0.27
0.33
0.25
0.30
0.35
Quenched and
tempered 1100 325 11
40-
60
-80
Stainless steel
and cast steel
Ferritic/martensitic 680 200 12
40-
55
-70 0.05
0.06
0.07
0.06
0.07
0.08
0.08
0.09
0.10
0.10
0.12
0.15
0.12
0.15
0.18
0.14
0.17
0.20
0.16
0.20
0.24
0.16
0.21
0.26
0.18
0.24
0.30
0.20
0.27
0.35
Martensitic 820 240 13
40-
55
-70
MStainless steel
and cast steel Austenitic, duplex 600 180 14
30-
50
-70
0.05
0.06
0.07
0.06
0.07
0.08
0.08
0.09
0.10
0.10
0.12
0.15
0.12
0.15
0.18
0.14
0.17
0.20
0.16
0.20
0.24
0.16
0.21
0.26
0.18
0.24
0.30
0.20
0.27
0.35
K
Gray cast iron (GG) Ferritic / pearlitic 180 15
90-
125
-160
0.04
0.06
0.08
0.10
0.13
0.15
0.12
0.15
0.18
0.15
0.22
0.30
0.20
0.27
0.35
0.25
0.32
0.40
0.30
0.37
0.45
0.35
0.45
0.55
0.35
0.47
0.60
0.40
0.50
0.60
Pearlitic / martensitic 260 16
80-
110
-140
Nodular cast iron (GGG) Ferritic 160 17
90-
135
-180
Pearlitic 250 18
80-
110
-140
Malleable cast iron Ferritic 130 19
90-
125
-160
Pearlitic 230 20
80-
110
-140
N
Aluminum-wrought alloys Not hardenable 60 21
90-
155
-220
0.20
0.27
0.35
0.25
0.32
0.40
0.30
0.37
0.45
0.35
0.42
0.50
0.40
0.50
0.60
0.45
0.57
0.70
0.50
0.67
0.75
Hardenable 100 22
Aluminum-
cast alloys
≤12% Si Not hardenable 75 23
Hardenable 90 24
>12% Si High temperature 130 25
80-
120
-160
Copper alloys
>1% Pb Free cutting 110 26
90-
155
-220
Brass 90 27
Electrolytic copper 100 28
Non metallic
Duroplastics,
fiber plastics 29
Hard rubber 30
S
High
temperature
alloys
Fe based Annealed 200 31
30-
45
-60
0.05
0.06
0.07
0.06
0.08
0.11
0.08
0.10
0.13
0.10
0.12
0.15
0.12
0.15
0.18
0.12
0.16
0.20
0.14
0.18
0.22
0.16
0.20
0.25
Hardened 280 32
20-
35
-50
Ni or Co
based
Annealed 250 33
Hardened 350 34
Cast 320 35
Titanium alloys
Pure 400 36
20-
35
-50
0.05
0.06
0.07
0.06
0.09
0.12
0.08
0.11
0.15
0.10
0.14
0.18
0.12
0.16
0.20
0.14
0.18
0.22
0.16
0.20
0.25
0.18
0.22
0.27
Alpha+beta alloys,
hardened 1050 37
HHardened steel Hardened 55 HRC 38
20-
35
-50
0.05
0.06
0.07
0.06
0.09
0.12
0.08
0.11
0.15
0.10
0.14
0.18
0.12
0.16
0.20
0.14
0.18
0.22
0.16
0.20
0.25
0.18
0.22
0.27
Hardened 60 HRC 39
Recommended cutting data
(1) For workpiece materials list, see pages 495-524 . As a starting value, the middle of the recommended machining range should be used.
Then, according to the wear results, conditions can be changed to optimize performance.
The data refers to IC908
• When using external coolant supply only, reduce cutting speed by 10%
• Use internal coolant supply when machining austenitic stainless steel
• When using more than 5XD drill ratio, reduce cutting parameters by 10%
73
USER GUIDE
INDEXABLE DRILLS
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness
HB
Material
No.(1) V m/min
SUMOCHAM
Feed vs. Drill Diameter
D=4-4.9
D=5-5.9
D=6-7.9
D=8-9.9
D=10-11.9
D=12-13.9
D=14-15.9
D=16-19.9
D=20-25.9
D=26-32.9
mm/rev
P
Non-alloy
steel and cast
steel, free
cutting steel
< 0.25 %C Annealed 420 125 1
80-
110
-140
0.04
0.06
0.08
0.07
0.09
0.11
0.09
0.11
0.13
0.12
0.17
0.22
0.15
0.21
0.28
0.18
0.24
0.30
0.20
0.27
0.35
0.25
0.35
0.45
0.25
0.35
0.45
0.30
0.40
0.50
≥ 0.25 %C Annealed 650 190 2
80-
105
-130
< 0.55 %C Quenched and
tempered 850 250 3
80-
100
-120
≥ 0.55 %C
Annealed 750 220 4
70-
90
-110
Quenched and
tempered 1000 300 5
50-
70
-90
Low alloy and cast
steel (less than 5% of
alloying elements)
Annealed 600 200 6
80-
100
-120 0.04
0.06
0.08
0.07
0.09
0.11
0.09
0.12
0.15
0.12
0.18
0.25
0.14
0.21
0.28
0.16
0.24
0.32
0.18
0.26
0.35
0.23
0.31
0.40
0.25
0.35
0.45
0.30
0.40
0.50
Quenched and
tempered
930 275 7
70-
90
-110
1000 300 8
50-
70
-90
1200 350 9
40-
55
-70
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10
50-
70
-90 0.06
0.07
0.08
0.07
0.09
0.10
0.09
0.11
0.12
0.12
0.16
0.20
0.12
0.17
0.22
0.15
0.20
0.25
0.18
0.23
0.28
0.20
0.25
0.30
0.22
0.27
0.33
0.25
0.30
0.35
Quenched and
tempered 1100 325 11
40-
60
-80
Stainless steel and cast steel
Ferritic/
martensitic 680 200 12
40-
55
-70 0.05
0.06
0.07
0.06
0.07
0.08
0.08
0.10
0.11
0.11
0.15
0.19
0.11
0.16
0.21
0.14
0.19
0.24
0.17
0.22
0.27
0.22
0.24
0.29
0.21
0.26
0.32
0.24
0.29
0.34
Martensitic 820 240 13
K
Gray cast iron (GG)
Ferritic /
pearlitic 180 15
90-
125
-160
0.04
0.06
0.08
0.10
0.13
0.15
0.12
0.15
0.18
0.15
0.22
0.30
0.20
0.27
0.35
0.25
0.32
0.40
0.30
0.37
0.45
0.35
0.45
0.55
0.35
0.47
0.60
0.40
0.50
0.60
Pearlitic /
martensitic 260 16
80-
110
-140
Nodular cast iron (GGG) Ferritic 160 17
90-
135
-180
Pearlitic 250 18
80-
110
-140
Malleable cast iron Ferritic 130 19
90-
125
-160
Pearlitic 230 20
80-
110
-140
Recommended cutting data
(1) For workpiece materials list, see pages 495-524 . As a starting value, the middle of the recommended machining range should be used.
Then, according to the wear results, conditions can be changed to optimize performance.
The data refers to IC908
• When using external coolant supply only, reduce cutting speed by 10%
• When using more than 5XD drill ratio, reduce cutting parameters by 10%
No need to reduce the cutting parameters while using 8XD and up holders
Material Groups Recommended Machining Conditions
ISCAR
74
USER GUIDE
INDEXABLE DRILLS
Material
group Material number Cutting Speed Vc m/min
Feed mm/rev
D=14-15.99 D=16-19.9 D=20-25.9
P
3
80-
100-120
0.15
0.22
0.27
0.18
0.24
0.3
0.2
0.27
0.35
4
5
6
7
8
9
10
11
12 60-
80-100
0.12
0.2
0.16
0.23
0.18
0.26
13
M14 60-
80-100
0.12
0.2
0.27
0.16
0.23
0.3
0.18
0.26
0.35
N
21
80-
200-300
0.35
0.45
0.5
0.4
0.5
0.6
0.45
0.57
0.65
22
23
24
25
26
27
28
S
31
25-
30-35
0.10
0.14
0.22
0.12
0.18
0.25
0.12
0.18
0.25
32
33
34
35
36
37
H
38
20-
35-50
0.12
0.15
0.2
0.14
0.18
0.22
0.16
0.2
0.25
39
Recommended cutting data
Recommended Machining Conditions for ICG Inserts
SUMOCHAM
Feed vs. Drill Diameter
Mtl. No. V m/min D=10-11.9 D=12-13.9 D=14-15.9 D=16-19.9
mm/rev
21
90-155-220
0.25
0.32
0.40
0.30
0.37
0.45
0.35
0.42
0.50
0.40
0.50
0.60
22
23
24
25 80-120-160
26
90-155-220
27
28
Recommended cutting data
According to the wear results, conditions can be changed to optimize performance.
Recommended Machining Conditions for ICN Inserts
75
USER GUIDE
INDEXABLE DRILLS
ISO
Material Condition
Tensile
Strength
Rm
[N/mm2]
Hardness
HB
Mtl.
No.
VC
m/min
Feed vs. Drill Diameter
D=12-13.9
D=14-15.9
D=16-17.9
D=18-19.9
D=20-21.9
D=22-23.9
D=24-25.9
mm/rev
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 1
80-100-120 0.30
0.39
0.45
0.36
0.45
0.51
0.45
0.51
0.57
0.48
0.57
0.63
0.51
0.60
0.66
0.54
0.63
0.69
0.57
0.66
0.72
≥ 0.25 %C Annealed 650 190 2
< 0.55 %C Quenched and
tempered 850 250 3
≥ 0.55 %C
Annealed 750 220 4 70-85-100
Quenched and
tempered 1000 300 5 50-65-80
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6 70-90-110 0.33
0.39
0.42
0.36
0.42
0.48
0.39
0.48
0.54
0.42
0.51
0.60
0.45
0.54
0.63
0.48
0.57
0.66
0.51
0.60
0.69
Quenched and
tempered
930 275 7 70-85-100
1000 300 8 50-65-80
1200 350 9 40-50-60
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 50-70-90 0.27
0.33
0.36
0.30
0.36
0.39
0.33
0.39
0.42
0.36
0.42
0.45
0.39
0.45
0.48
0.42
0.48
0.51
0.45
0.51
0.54
Quenched and
tempered 1100 325 11 40-60-80
K
Gray cast iron (GG)
Ferritic / pearlitic 180 15 90-125-140
0.40
0.60
0.78
0.45
0.66
0.84
0.54
0.72
0.90
0.60
0.78
0.96
0.66
0.84
1.02
0.72
0.90
1.08
0.78
0.96
1.14
Pearlitic /
martensitic 260 16 80-110-120
Nodular cast iron (GGG) Ferritic 160 17 90-135-160
Pearlitic 250 18 80-110-120
Malleable cast iron Ferritic 130 19 90-125-140
Pearlitic 230 20 80-110-120
Recommended cutting data
Material Groups Recommended Machining Conditions
ISCAR
76
USER GUIDE
INDEXABLE DRILLS
Recommended Machining Conditions for MNC drills
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness HB
Material No.(1)
Cutting
Speed Vc
[m/min]
Feed vs. Drill Diameter F [mm/rev]
26< ØD <28
29< ØD <32
33< ØD <35
36< ØD <43
44< ØD <50
Vc
min
Vc
max
f
min
f
max
f
min
f
max
f
min
f
max
f
min
f
max
f
min
f
max
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 1 120 200
0.25 0.35 0.25 0.35 0.25 0.40 0.25 0.40 0.28 0.45
≥ 0.25 %C Annealed 650 190 2
< 0.55 %C Quenched
and tempered 850 250 3
130 190
≥ 0.55 %C
Annealed 750 220 4
Quenched
and tempered 1000 300 5
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6
120 180 0.25 0.33 0.25 0.33 0.25 0.38 0.25 0.38 0.26 0.43
Quenched
and tempered
930 275 7
1000 300 8
1200 350 9
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10
100 160 0.25 0.33 0.25 0.33 0.25 0.36 0.25 0.36 0.26 0.41
Quenched
and tempered 1100 325 11
Stainless steel and cast steel
Ferritic/
martensitic 680 200 12 90 140 0.12 0.24 0.12 0.24 0.16 0.25 0.18 0.25 0.18 0.30
Martensitic 820 240 13
MStainless steel and cast steel Austenitic,
duplex 600 180 14 90 140 0.12 0.24 0.12 0.24 0.16 0.25 0.18 0.25 0.18 0.30
K
Gray cast iron (GG)
Ferritic /
pearlitic 180 15
Pearlitic /
martensitic 260 16
Nodular cast iron (GGG) Ferritic 160 17 150 250 0.25 0.40 0.25 0.45 0.3 0.50 0.3 0.50 0.35 0.55
Pearlitic 250 18
Malleable cast iron Ferritic 130 19
Pearlitic 230 20
N
Aluminum-wrought alloys
Not
hardenable 60 21
Hardenable 100 22 160 260 0.3 0.50 0.3 0.50 0.35 0.55 0.35 0.55 0.4 0.60
Aluminum-
cast alloys
≤12% Si Not
hardenable 75 23
Hardenable 90 24
>12% Si High
temperature 130 25
Copper alloys
>1% Pb Free cutting 110 26
Brass 90 27
Electrolytic
copper 100 28
Non metallic
Duroplastics,
fiber plastics 29
Hard rubber 30
S
High temperature
alloys
Fe based Annealed 200 31
Hardened 280 32
Ni or Co
based
Annealed 250 33
Hardened 350 34
Cast 320 35
Titanium alloys
Pure 400 36
Alpha+beta
alloys,
hardened
1050 37
H
Hardened steel Hardened 55 HRC 38 20 50 0.1 0.16 0.12 0.18 0.14 0.2 0.14 0.2 0.16 0.22
Hardened 60 HRC 39
Chilled cast iron Cast 400 40
Cast iron Hardened 55 HRC 41
(1) For workpiece materials list, see pages 495-524 . As a starting value, the middle of the recommended machining range should be used.
Then, according to the wear results, conditions can be changed to optimize performance.
77
USER GUIDE
INDEXABLE DRILLS
Troubleshooting
Cutting Edge Chipping
1 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
2 Reduce feed rate, increase speed.
3 If the drill vibrates, reduce cutting speed and increase feed rate.
4 When drilling rough, hard or sloped surfaces (up to 7°), reduce the feed rate by 30-50% when entering and exiting.
5 Check cooling lubricant and increase coolant pressure. In case of external coolant supply, improve jet direction and
add cooling jets.
Chisel Area Chipping
1 Reduce feed rate.
2 Increase coolant pressure.
3 Check the adaptation. Use hydraulic clamping chuck, MAXIN power chuck or side lock systems.
4 Increase workpiece chucking force.
Excessive Flank Wear
1 Check that the correct geometry is used.
2 Reduce cutting speed.
3 Increase internal coolant pressure.
Excessive Flute Land Wear
1 Check that the correct geometry is used.
2 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
3 Reduce cutting speed.
4 When drilling rough, hard or sloped surfaces (up to 7°), reduce the feed rate by 30-50% when entering and exiting.
5 Increase coolant pressure.
6 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
7 Increase workpiece chucking force stability and rigidity.
8 If there is low pocket gripping force - replace drill body.
Built-Up Edge
1 Increase cutting speed/feed.
2 Increase coolant pressure.
Ø > D nominal + 0.15mm
Ø < D nominal - 0.03mm
D nominal
Deviation of Hole Tolerance
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial cutting points).
2 Reduce feed rate.
3 Check the chisel point runout and make sure that it is within 0.02 mm T.I.R.
4 Wrong cutting edge. Replace head.
5 Increase workpiece chucking force.
6 Check the adaptation. Use hydraulic clamping chuck, MAXIN power chuck or side clamping systems.
7 Increase internal coolant pressure.
Ra
Surface Finish Too Rough
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Adjust the feed for improved chip formation.
3 In case of chip jamming - increase the coolant flow and/or reduce the cutting speed.
4 Increase the coolant pressure.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
6 Use pecking cycle.
7 Use double margin geometry.
Hole Not Straight:
1 Use 2M geometry.
2 Drill a pre-hole for centering (check recommendations for pre-hole operation).
3 Increase coolant pressure, improve jet direction in case of external coolant supply.
4 Increase the feed.
Inaccurate Hole Position
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
3 When drilling rough, hard or sloped surfaces (up to 7°), reduce the feed rate by 30%-50% when entering.
4 Drill a pre-hole with a 140° point angle for centering.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
Burrs on Exit
1 Reduce the feed rate by 30%-50% when exiting.
2 Replace the worn head.
3 Check the adaptation. Use hydraulic clamping chuck, MAXIN power chuck or side clamping systems.
ISCAR
78
USER GUIDE
INDEXABLE DRILLS
Applications for DCNS Drills
Replaces solid
carbide drills
without changing
any holding
components
When using
SUMOUNICHAM,
the drill’s
projection can
be adjusted
Shorter projection
compared to
SUMOCHAM,
when required
For better stability in rough applications
and interrupted cuts
SUMOUNICHAM
Moderate Helix
SUMOCHAM
High Helix
SUMOUNICHAM SUMOCHAM
Can be used on
multi-spindle applications
for close spacing between
adjacent drills
79
USER GUIDE
INDEXABLE DRILLS
Regrinding Instructions
Regrinding Instructions for ICM Geometry
After each grinding operation, rotate the drill
180° and repeat the grinding procedure.
1
Primary Clearance
2
Secondary Clearance
DAT
20°
20°
3
Chisel
4
Edge Preparation
20°
A-A
t±0.02
T-Land
T
D Range
0.05
8-11.99
0.07
12-15.99
0.08
16-19.99
0.1
20-25.99
0.12
26-32.99
Regrinding Instructions for ICP Geometry
After each grinding operation, rotate the drill
180° and repeat the grinding procedure.
1
Primary Clearance
2
Secondary Clearance
DAT
20°
20°
3
Chisel
4
Edge Preparation
A-A
R=0.03-0.05 mm
Regrinding Instructions for ICK Geometry
After each grinding operation, rotate the drill
180° and repeat the grinding procedure.
1
Primary Clearance
2
Secondary Clearance
DAT
20°
20°
3
Chisel
4
Edge Preparation
A-A
R=0.03-0.05 mm
ISCAR
80
USER GUIDE
INDEXABLE DRILLS
Drilling Head
Mounting Procedure
1
2
3
4
5
6
Coolant Recommendations
Dry machining
Up to 2xD
Drilling Limitations
* Up to 6° reduce feed by 20%
* 6°-12° reduce feed by 50%
Maximum Runout, Misalignment
Max 0.02 mm
Max 0.02 mm
416 20 25
30
20
10
5
32
Dia.
Coolant Flow Rate
Drill Diameter D (mm)
liter/min
flow
rate
10 16 20 25
30
20
10
5
32 Dia.
Coolant Flow Rate
Drill Diameter D (mm)
liter/min
flow
rate
5 X D
8 X D
3 X D
Minimum Coolant Pressure
bar
32
416 20 25
3
4
5
8
10
12
15
Dia.
81
USER GUIDE
INDEXABLE DRILLS
Troubleshooting
Cutting Edge Chipping
1 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
2 Reduce feed rate, increase speed.
3 If the drill vibrates, reduce cutting speed and increase feed rate.
4 When drilling rough, hard or angled (up to 12° angular surface), reduce the feed rate by 30-50%.
5 Check cooling lubricant. Increase coolant pressure. In case of external
coolant supply, improve jet direction and add cooling jets.
Chisel Area Chipping
1 Reduce feed rate.
2 Increase coolant pressure.
3 Increase workpiece chucking force.
Excessive Flank Wear
4 Reduce cutting speed.
5 Increase internal coolant pressure.
Excessive Land Wear
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Reduce cutting speed.
3 When drilling rough, hard or angled (up to 12° angular surface), reduce the feed rate by 30-50%.
4 Increase coolant pressure.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
6 Increase workpiece chucking force stability and rigidity.
Built-Up Edge
1 Increase cutting speed/feed.
2 Increase
Inaccurate Hole Position
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
3 When drilling rough, hard or sloped surfaces (up to 7°), reduce the feed rate by 30%-50% when entering.
4 Drill a pre-hole with a 140° point angle for centering.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
Ø > D nominal + 0.15mm
Ø < D nominal - 0.03mm
D nominal
Deviation of Hole Tolerance
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial cutting points).
2 Reduce feed rate.
3 Check the chisel point runout and make sure that it is within 0.02 mm T.I.R.
4 Wrong cutting edge. Replace head.
5 Increase workpiece chucking force.
6 Increase internal coolant pressure.
Burrs on Exit
1 Reduce the feed rate by 50%-70% during exit.
2 Replace the worn head.
Ra
Surface Finish Too Rough
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Adjust the feed for improved chip formation.
3 In case of chip jamming - increase the coolant flow and/or reduce the cutting speed.
4 Increase the coolant pressure.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
6 Use pecking cycle.
7 Replace the drilling head.
ISCAR
82
INDEXABLE DRILLS
MD-DR-DH
LF LS
LCF
DF
DCONMS
DCONWS
DCN-DCX
MD-DFN
Designation
DCONMS DF LS LF LCF DCN(1) DCX(2) DCONWS(3)
MD-BODY-33-36-400-32A
32.00 42.00 60.0 445.00 393.3 33.00 36.90 6.70 SET SCREW M6-MODUDRILL BLD T15/S7 SW6-T-SH
MD-BODY-37-40-400-32A
32.00 42.00 60.0 445.00 393.3 37.00 40.00 6.90 SET SCREW M6-MODUDRILL BLD T15/S7 SW6-T-SH
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) HEAD connection size
For tools, see pages: MD-DFN-HEAD (82) • MD-DR-DH-HEAD (83)
MD-BODY
Modular Drill Bodies, Each
Can Carry a Variety of
Exchangeable Drilling Heads
with Different Diameters
DCONMS
LPR
DCN-DCX
Designation
DCN(1) DCX(2) LPR DCONMS PL SSC(3) MIID(4)
MD-DFN 330 HEAD
33.00 33.90 36.90 6.70 7.330 33.0 HFP 330-IQ K DFN 30-40
MD-DFN 340 HEAD
34.00 34.90 37.20 6.70 7.620 34.0 HFP 340-IQ K DFN 30-40
MD-DFN 350 HEAD
35.00 35.90 37.20 6.70 7.650 35.0 HFP 350-IQ K DFN 30-40
MD-DFN 360 HEAD
36.00 36.90 37.60 6.70 8.150 36.0 HFP 360-IQ K DFN 30-40
MD-DFN 370 HEAD
37.00 37.90 37.60 6.90 8.040 37.0 HFP 370-IQ K DFN 30-40
MD-DFN 380 HEAD
38.00 38.90 38.00 6.90 8.200 38.0 HFP 380-IQ K DFN 30-40
MD-DFN 390 HEAD
39.00 40.00 38.00 6.90 8.430 39.0 HFP 390-IQ K DFN 30-40
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 84-85
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
(4) Master insert identification
For inserts, see pages: HFP-IQ (87)
For holders, see pages: MD-BODY (82) • MD-EXTENSION (83)
MD-DFN-HEAD
Exchangeable Drilling Heads
Carrying CHAMIQDRILL
Solid Carbide Inserts
83
INDEXABLE DRILLS
LF
DCONMS
BD
DCONWS
Designation
BDRED LF DCONWS DCONMS
MD-EXTENSION-33-36-200
32.40 200.00 6.70 6.70
MD-EXTENSION-37-40-200
36.40 200.00 6.90 6.90
For tools, see pages: MD-DFN-HEAD (82) • MD-DR-DH-HEAD (83)
Spare Parts
Designation
MD-EXTENSION
SET SCREW M6-MODUDRILL SR M5X4 DIN913 BLD T15/S7 SW6-T-SH
MD-EXTENSION
Modular Extension Holder
to Prolong The Overall
Length by 200 mm
DCONMS
LPR
DC
PL
Designation
DC LPR DCONMS MIID(1) MIID_2(2) PL
MD-DR-DH 330 070606-06
33.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 333 070606-06
33.30 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 340 070606-06
34.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 349 070606-06
34.90 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 350 070606-06
35.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 360 070707-06
36.00 33.00 6.70 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 365 070707-06
36.50 33.00 6.70 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 370 070707-06
37.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 380 070707-06
38.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 381 070707-06
38.10 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 390 070707-06
39.00 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 397 070707-06
39.70 39.00 6.90 SOMX 07 SOMX 07 (3) 1.000
MD-DR-DH 400 070707-06
40.00 40.00 6.90 SOMX 07 SOMX 07 (3) 1.000
• For user guide and cutting conditions, see pages 84-85
(1) Master insert identification
(2) Master insert identification 2
(3) Central insert
For inserts, see pages: SOMX-DT (114) • SOMX-GF (114) • SOMX-HD (115)
For holders, see pages: MD-BODY (82) • MD-EXTENSION (83)
Spare Parts
Designation
MD-DR-DH-HEAD
SR 14-560-HG T-8/53 SR 22052/HG-P IP-7/51 GPS-06-20-120
MD-DR-DH-HEAD
Exchangeable Drilling
Heads with Guide Pads
Carrying Square Inserts
ISCAR
84
USER GUIDE
INDEXABLE DRILLS
Head and Body Assembly
12345
MD-DR-DH Inserts Assembly
1234
Important:
For MD-DR-DH Head
• A short pre-hole 1XD deep (minimum) with H8
hole tolerance should be prepared to guide
the long drill (an endmill can be used)
• Use HD chip breaker for internal insert
MD-DFN Head Assembly
1234
For MD-DFN Head
Max allowed Δ = 0.04 mm
Axial runout & Radial runout
Drilling Limitations
Flow Rate vs. Pressure & Drill Diameter
Drill Diameter
(mm) Pressure (bar) Flow Rate
(liter/min)
33 20 60
34 20 60
35 20 60
36 20 60
37 20 60
38 20 70
39 20 70
40 20 70
• Internal coolant supply only
85
USER GUIDE
INDEXABLE DRILLS
MD-DR-DH Cutting Parameters
ISO
Material Condition
Tensile
Strength Rm
[N/mm2]Hardness HB Material No.
Vc
[m/min]
Feed Vs. Drill Diameter
33<ØD<40 (mm)
f [mm/rev]
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 1 100-150 0.10-0.25
≥ 0.25 %C Annealed 650 190 2
< 0.55 %C Quenched and
tempered 850 250 3
80-150 0.15-0.30
≥ 0.55 %C
Annealed 750 220 4
Quenched and
tempered 1000 300 5
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6
Quenched and
tempered
930 275 7
70-120 0.15-0.301000 300 8
1200 350 9
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 80-150 0.10-0.25
Quenched and
tempered 1100 325 11 70-120 0.10-0.25
K
Grey cast iron (GG)
Ferritic / pearlitic 180 15
180-300 0.18-0.35
Pearlitic /
martensitic 260 16
Nodular cast iron (GGG) Ferritic 160 17
150-250
0.15-0.30
Pearlitic 250 18
Malleable cast iron Ferritic 130 19 0.15-0.35
Pearlitic 230 20
MD-DFN Cutting Parameters
ISO
Material Condition
Tensile
Strength Rm
[N/mm2]Hardness HB Material No. Vc [m/min]
Feed Vs. Drill
Diameter
33<ØD<40 (mm)
f [mm/rev]
P
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 1 80-110-140
0.30 0.40 0.50
≥ 0.25 %C Annealed 650 190 2 90-105-130
< 0.55 %C Quenched and
tempered 850 250 3 80-100-120
≥ 0.55 %C
Annealed 750 220 4 70-90-110
Quenched and
tempered 1000 300 5 50-70-90
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6 80-100-120
0.30 0.40 0.50
Quenched and
tempered
930 275 7 70-90-110
1000 300 8 50-70-90
1200 350 9 40-55-70
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 50-70-90
0.25 0.30 0.35
Quenched and
tempered 1100 325 11 40-60-80
K
Grey cast iron (GG)
Ferritic / pearlitic 180 15 90-125-160
0.40 0.50 0.60
Pearlitic /
martensitic 260 16 80-110-140
Nodular cast iron (GGG) Ferritic 160 17 90-135-180
Pearlitic 250 18 80-110-140
Malleable cast iron Ferritic 130 19 90-125-160
Pearlitic 230 20 80-110-140
ISCAR
86
INDEXABLE DRILLS
DCONMSh6
DCN-DCX k7
LS
DF
LPR OAL
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DFN 330-050-32A-1.5D-IQ
33.00 33.90 32.00 42.00 50.0 87.5 7.330 60.0 147.50 33.0 K DFN 30-40
DFN 340-051-32A-1.5D-IQ
34.00 34.90 32.00 42.00 51.0 90.2 7.620 60.0 150.20 34.0 K DFN 30-40
DFN 350-053-32A-1.5D-IQ
35.00 35.90 32.00 42.00 53.0 92.8 7.650 60.0 152.80 35.0 K DFN 30-40
DFN 360-054-32A-1.5D-IQ
36.00 36.90 32.00 42.00 54.0 95.5 8.150 60.0 155.50 36.0 K DFN 30-40
DFN 370-056-32A-1.5D-IQ
37.00 37.90 32.00 42.00 56.0 98.1 8.040 60.0 158.10 37.0 K DFN 30-40
DFN 380-057-32A-1.5D-IQ
38.00 38.90 32.00 42.00 57.0 100.8 8.200 60.0 160.80 38.0 K DFN 30-40
DFN 390-059-32A-1.5D-IQ
39.00 40.00 32.00 42.00 59.0 103.4 8.430 60.0 163.40 39.0 K DFN 30-40
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: HFP-IQ (87)
DFN A-1.5D-IQ
Exchangeable Head Drills with
Flat Shank and Internal Coolant
Holes. Drilling Depth: 1.5xD
DF
DCONMSh6
DCN-DCX k7
LS
LPR
OAL
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DFN 330-099-32A-3D-IQ
33.00 33.90 32.00 42.00 99.0 137.0 7.330 60.0 197.00 33.0 K DFN 30-40
DFN 340-102-32A-3D-IQ
34.00 34.90 32.00 42.00 102.0 141.2 7.620 60.0 201.20 34.0 K DFN 30-40
DFN 350-105-32A-3D-IQ
35.00 35.90 32.00 42.00 105.0 145.3 7.650 60.0 205.30 35.0 K DFN 30-40
DFN 360-108-32A-3D-IQ
36.00 36.90 32.00 42.00 108.0 149.5 8.150 60.0 209.50 36.0 K DFN 30-40
DFN 370-111-32A-3D-IQ
37.00 37.90 32.00 42.00 111.0 153.6 8.040 60.0 213.60 37.0 K DFN 30-40
DFN 380-114-32A-3D-IQ
38.00 38.90 32.00 42.00 114.0 157.8 8.200 60.0 217.80 38.0 K DFN 30-40
DFN 390-117-32A-3D-IQ
39.00 40.00 32.00 42.00 117.0 161.9 8.430 60.0 221.90 39.0 K DFN 30-40
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: HFP-IQ (87)
DFN A-3D-IQ
Exchangeable Head Drills with
Flat Shank and Internal Coolant
Holes. Drilling Depth: 3xD
DF
DCONMSh6
DCN-DCX k7
LS
LPR
OAL
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DFN 330-165-32A-5D-IQ
33.00 33.90 32.00 42.00 165.0 203.0 7.330 60.0 263.00 33.0 K DFN 30-40
DFN 340-170-32A-5D-IQ
34.00 34.90 32.00 42.00 170.0 209.2 7.620 60.0 269.20 34.0 K DFN 30-40
DFN 350-175-32A-5D-IQ
35.00 35.90 32.00 42.00 175.0 215.3 7.650 60.0 275.30 35.0 K DFN 30-40
DFN 360-180-32A-5D-IQ
36.00 36.90 32.00 42.00 180.0 221.5 8.150 60.0 281.50 36.0 K DFN 30-40
DFN 370-185-32A-5D-IQ
37.00 37.90 32.00 42.00 185.0 227.6 8.040 60.0 287.60 37.0 K DFN 30-40
DFN 380-190-32A-5D-IQ
38.00 38.90 32.00 42.00 190.0 233.8 8.200 60.0 293.80 38.0 K DFN 30-40
DFN 390-195-32A-5D-IQ
39.00 40.00 32.00 42.00 195.0 239.9 8.430 60.0 299.90 39.0 K DFN 30-40
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: HFP-IQ (87)
DFN A-5D-IQ
Exchangeable Head Drills with
Flat Shank and Internal Coolant
Holes. Drilling Depth: 5xD
87
INDEXABLE DRILLS
DFDCONMSh6
DCN-DCX k7
LS
LPR OAL
LU
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DFN 330-264-32A-8D-IQ
33.00 33.90 32.00 42.00 264.0 302.0 7.330 60.0 362.00 33.0 K DFN 30-40
DFN 340-272-32A-8D-IQ
34.00 34.90 32.00 42.00 272.0 311.2 7.620 60.0 371.20 34.0 K DFN 30-40
DFN 350-280-32A-8D-IQ
35.00 35.90 32.00 42.00 280.0 320.3 7.650 60.0 380.30 35.0 K DFN 30-40
DFN 360-288-32A-8D-IQ
36.00 36.90 32.00 42.00 288.0 329.5 8.150 60.0 389.50 36.0 K DFN 30-40
DFN 370-296-32A-8D-IQ
37.00 37.90 32.00 42.00 296.0 338.6 8.040 60.0 398.60 37.0 K DFN 30-40
DFN 380-304-32A-8D-IQ
38.00 38.90 32.00 42.00 304.0 347.8 8.200 60.0 407.80 38.0 K DFN 30-40
DFN 390-312-32A-8D-IQ
39.00 40.00 32.00 42.00 312.0 356.9 8.430 60.0 416.90 39.0 K DFN 30-40
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: HFP-IQ (87)
DFN A-8D-IQ
Exchangeable Head Drills with
Flat Shank and Internal Coolant
Holes. Drilling Depth: 8xD
LPR
1.0
KCH
DC
LF
Dimensions
Designation
DC LPR LF SSC(1) KCH
IC908
HFP 330-IQ
33.00 18.50 11.2 33.0 30.0
•
HFP 331-IQ
33.10 18.50 11.2 33.0 30.0
•
HFP 332-IQ
33.20 18.50 11.2 33.0 30.0
•
HFP 333-IQ
33.30 18.50 11.2 33.0 30.0
•
HFP 334-IQ
33.40 18.50 11.2 33.0 30.0
•
HFP 335-IQ
33.50 18.50 11.2 33.0 30.0
•
HFP 339-IQ
33.90 18.50 11.2 33.0 30.0
•
HFP 340-IQ
34.00 19.70 12.1 34.0 30.0
•
HFP 343-IQ
34.30 19.70 12.1 34.0 30.0
•
HFP 345-IQ
34.50 19.70 12.1 34.0 30.0
•
HFP 349-IQ
34.90 19.70 12.1 34.0 30.0
•
HFP 350-IQ
35.00 19.70 12.1 35.0 30.0
•
HFP 355-IQ
35.50 19.70 12.1 35.0 30.0
•
HFP 360-IQ
36.00 20.80 12.7 36.0 30.0
•
HFP 362-IQ
36.20 20.80 12.7 36.0 30.0
•
HFP 364-IQ
36.40 20.80 12.7 36.0 30.0
•
HFP 365-IQ
36.50 20.80 12.7 36.0 30.0
•
HFP 370-IQ
37.00 20.80 12.8 37.0 30.0
•
HFP 375-IQ
37.50 20.80 12.8 37.0 30.0
•
HFP 380-IQ
38.00 22.00 13.8 38.0 30.0
•
HFP 381-IQ
38.10 22.00 13.8 38.0 30.0
•
HFP 385-IQ
38.50 22.00 13.8 38.0 30.0
•
HFP 390-IQ
39.00 22.00 13.6 39.0 30.0
•
HFP 392-IQ
39.20 22.00 13.6 39.0 30.0
•
HFP 395-IQ
39.50 22.00 13.6 39.0 30.0
•
HFP 397-IQ
39.70 22.00 13.6 39.0 30.0
•
HFP 400-IQ
40.00 23.00 14.4 39.0 30.0
•
• Advance self centering, and high surface finish • Intermediate sizes can be supplied on request • For user guide and cutting conditions, see pages 89-91
(1) Seat size code
For tools, see pages: DFN A-1.5D-IQ (86) • DFN A-3D-IQ (86) • DFN A-5D-IQ (86) • DFN A-8D-IQ (87) • MD-DFN-HEAD (82)
HFP-IQ
Exchangeable DFN Drill Heads
for Carbon and Alloy Steel
(ISO P) and Cast Iron (ISO K)
ISCAR
88
INDEXABLE DRILLS
LF
LPR
DC SIG
Dimensions
Designation
DC LPR LF SSC(1) SIG
IC908
IFP 330-IQ
33.00 18.50 13.48 33 140
•
IFP 332-IQ
33.20 18.50 13.45 33 140
•
IFP 335-IQ
33.50 18.50 13.41 33 140
•
IFP 340-IQ
34.00 19.70 14.53 34 140
•
IFP 345-IQ
34.50 19.70 14.46 34 140
•
IFP 350-IQ
35.00 19.70 14.38 35 140
•
IFP 355-IQ
35.50 19.70 14.30 35 140
•
IFP 360-IQ
36.00 20.80 15.33 36 140
•
IFP 362-IQ
36.20 20.80 15.30 36 140
•
IFP 370-IQ
37.00 20.80 15.18 37 140
•
IFP 375-IQ
37.50 20.80 15.10 37 140
•
IFP 380-IQ
38.00 22.00 16.22 38 140
•
IFP 385-IQ
38.50 22.00 16.15 38 140
•
IFP 390-IQ
39.00 22.00 16.07 39 140
•
IFP 392-IQ
39.20 22.00 16.04 39 140
•
IFP 395-IQ
39.50 22.00 16.00 39 140
•
IFP 400-IQ
40.00 22.00 15.92 40 140
•
• Intermediate sizes can be supplied on request • For user guide and cutting conditions, see pages 89-91
(1) Seat size code
For tools, see pages: DFN A-1.5D-IQ (86) • DFN A-3D-IQ (86) • DFN A-5D-IQ (86) • DFN A-8D-IQ (87) • MD-DFN-HEAD (82)
IFP-IQ
Exchangeable DFN Drill Heads for
Machining ISO P, ISO M and High
Temp. Alloys (ISO S) Materials
89
USER GUIDE
INDEXABLE DRILLS
Insert Clamping Instructions
123
1
!Exiting inclined surface
Up to 7°, reduce feed by 50-70% during exiting
2
!Entering inclined surface
Up to 7°
3
Boring
Not possible
4
!Cross hole
Maximum cross hole diameter must be ¼ of drill diameter
5
!Stacked plates
Requires a rigid clamping
6
!Chamber
Reduce feed by 50-70%, maximum depth 3XD
7
!Convex
The radius of the penetration surface must be 4X the
CHAMIQDRILL head ØD. Short pre-hole is needed
8
!Concave
Spot facing operation is needed before drilling
ISCAR
90
USER GUIDE
INDEXABLE DRILLS
Cutting Condition Recommendations
Mtl. No. V m/min
CHAMIQDRILL
Feed vs. Drill Diameter
D=33.0-40.0
mm/rev
1
80-
110
-140
0.30
0.40
0.50
2
80-
105
-130
3
80-
100
-120
4
70-
90
-110
5
50-
70
-90
6
80-
100
-120
0.30
0.40
0.50
7
70-
90
-110
8
50-
70
-90
9
40-
55
-70
10
50-
70
-90 0.25
0.30
0.35
11
40-
60
-80
15
90-
125
-160
0.40
0.50
0.60
16
80-
110
-140
17
90-
135
-180
18
80-
110
-140
19
90-
125
-160
20
80-
110
-140
Recommended cutiing data
Flow Rate vs. Pressure and Drill Diameter
Drill Diameter (mm) Pressure (bar) Flow Rate
(liter/min)
33 20 60
34 20 60
35 20 60
36 20 60
37 20 60
38 20 70
39 20 70
40 20 70
Indication of Drill Head Wear
Wear Limit
0.2-0.3
Diameter Change
Ø > D nominal + 0.15 mm
Ø < D nominal - 0.03 mm
D nominal
Power Restriction
P(1) Px1.25(2)
0
(1) New drilling head
(2) Worn-out drilling head
Surface Finish Declines
Ra
Achievable Hole Tolerances
5xD Drills
Alloy and Carbon Steel and Cast Iron
Hole Geometrical Feature What Should You Expect
Ø Diameter tolerance +0.06 mm
Circularity 0.035
Hole axis straightness (/100mm) 0.03-0.10
Surface finish 0.6-3.2Ra
400 mm Modular Drills Alloy and
Carbon Steel and Cast Iron
Hole Geometrical Feature What Should You Expect
Ø Diameter tolerance +0.06 mm
Circularity 0.035
Hole axis straightness (/100mm) 0.03-0.15
Surface finish 0.6-3.2Ra
91
USER GUIDE
INDEXABLE DRILLS
Troubleshooting
Cutting Edge Chipping
1 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
2 Reduce feed rate, increase speed.
3 If the drill vibrates, reduce cutting speed and increase feed rate.
4 When drilling rough, hard or sloped surfaces (up to 7°), reduce the
feed rate by 50-70% when entering and exiting.
5 Check cooling lubricant and increase coolant pressure. In case of external
coolant supply, improve jet direction and add cooling jets.
Chisel Area Chipping
1 Reduce feed rate.
2 Increase coolant pressure.
3 Increase workpiece chucking force.
Excessive Flank Wear
1 Reduce cutting speed.
2 Increase internal coolant pressure.
Excessive Land Wear
1 Check the runout and make sure it is within 0.03 mm T.I.R. (radial and axial).
2 Reduce cutting speed.
3 When drilling rough, hard or sloped surfaces (up to 7°), reduce the
feed rate by 50%-70% when entering and exiting.
4 Increase coolant pressure.
5 Check the chisel point runout and make sure it is within 0.03 mm T.I.R.
6 Increase workpiece chucking force stability and rigidity.
Built-Up Edge
1 Increase cutting speed/feed.
2 Increase coolant pressure.
Ø > D nominal + 0.15mm
Ø < D nominal - 0.03mm
D nominal
Deviation of Hole Tolerance
1 Check the runout and make sure it is within 0.03 mm T.I.R. (radial and axial cutting points).
2 Reduce feed rate.
3 Check the chisel point runout and make sure it is within 0.03 mm T.I.R.
4 Worn cutting edge. Replace head.
5 Increase workpiece chucking force.
6 Increase internal coolant pressure.
Ra
Surface Finish Too Rough
1 Check the runout and make sure it is within 0.03 mm T.I.R. (radial and axial).
2 Adjust the feed for improved chip formation.
3 In case of chip jamming - increase the coolant flow and/or reduce the cutting speed.
4 Increase the coolant pressure.
5 Check the chisel point runout and make sure it is within 0.03 mm T.I.R.
6 Use pecking cycle.
7 Replace the drilling head
Hole Not Straight
1 Drill a pre-hole for centering (check recommendations for pre-hole operation).
2 Increase coolant pressure, improve jet direction in case of external coolant supply.
3 Increase the feed.
Inaccurate Hole Position
1 Check the runout and make sure it is within 0.03 mm T.I.R. (radial and axial).
2 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
3 When drilling rough, hard or sloped surfaces (up to 7°), reduce the feed rate by 50%-70% when entering.
4 Drill a pre-hole with a 140° point angle for centering.
5 Check the chisel point runout and make sure it is within 0.03 mm T.I.R.
Burrs on Exit
1 Reduce the feed rate by 50%-70% when exiting.
2 Replace the worn head.
ISCAR
92
INDEXABLE DRILLS
D = 7.5 - 21.9
D = 22 - 25.9
LU
LPR OAL LS
DF
DCONMS
DCN-DCX
PL
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DCM 075-022-12A-3D
7.50 7.90 12.00 16.00 22.0 33.1 1.360 45.0 78.10 8.0 K DCM- 8
DCM 080-024-12A-3D
8.00 8.40 12.00 16.00 24.0 35.0 1.460 45.0 80.00 8.0 K DCM- 8
DCM 085-025-12A-3D
8.50 8.90 12.00 16.00 25.0 37.0 1.550 45.0 82.00 8.0 K DCM- 8
DCM 090-027-12A-3D
9.00 9.40 12.00 16.00 27.0 39.1 1.640 45.0 84.10 9.0 K DCM- 9
DCM 095-028-12A-3D
9.50 9.90 12.00 16.00 28.0 41.1 1.730 45.0 86.10 9.0 K DCM- 9
DCM 100-030-16A-3D
10.00 10.40 16.00 20.00 30.0 44.0 1.820 48.0 92.00 10.0 K DCM-10
DCM 105-031-16A-3D
10.50 10.90 16.00 20.00 31.0 46.0 1.910 48.0 94.00 10.0 K DCM-10
DCM 110-033-16A-3D
11.00 11.40 16.00 20.00 33.0 48.1 2.000 48.0 96.10 11.0 K DCM-11
DCM 115-034-16A-3D
11.50 11.90 16.00 20.00 34.0 50.0 2.090 48.0 98.00 11.0 K DCM-11
DCM 120-036-16A-3D
12.00 12.40 16.00 20.00 36.0 52.2 2.180 48.0 100.20 12.0 K DCM-12
DCM 125-037-16A-3D
12.50 12.90 16.00 20.00 37.0 53.8 2.270 48.0 101.80 12.0 K DCM-12
DCM 130-039-16A-3D
13.00 13.40 16.00 20.00 39.0 56.5 2.370 48.0 104.50 13.0 K DCM-13
DCM 135-040-16A-3D
13.50 13.90 16.00 20.00 40.0 58.5 2.460 48.0 106.50 13.0 K DCM-13
DCM 140-042-16A-3D
14.00 14.40 16.00 20.00 42.0 61.2 2.550 48.0 109.20 14.0 K DCM-14
DCM 145-043-16A-3D
14.50 14.90 16.00 20.00 43.0 64.8 2.640 48.0 112.80 14.0 K DCM-14
DCM 150-045-20A-3D
15.00 15.90 20.00 25.00 45.0 65.7 2.730 50.0 115.70 15.0 K DCM-15
DCM 160-048-20A-3D
16.00 16.90 20.00 25.00 48.0 70.0 2.910 50.0 120.00 16.0 K DCM-16
DCM 170-051-20A-3D
17.00 17.90 20.00 25.00 51.0 73.5 3.090 50.0 123.50 17.0 K DCM-17
DCM 180-054-25A-3D
18.00 18.90 25.00 32.00 54.0 78.3 3.280 56.0 134.30 18.0 K DCM-18
DCM 190-057-25A-3D
19.00 19.90 25.00 32.00 57.0 82.3 3.460 56.0 138.30 19.0 K DCM-19
DCM 200-060-25A-3D
20.00 20.90 25.00 32.00 60.0 87.0 3.640 56.0 143.00 20.0 K DCM-20
DCM 210-063-25A-3D
21.00 21.90 25.00 32.00 63.0 90.8 3.820 56.0 146.80 21.0 K DCM-21
DCM 220-066-25A-3D
22.00 22.90 25.00 32.00 66.0 95.1 4.000 56.0 151.10 22.0 K DCM-22
DCM 230-069-25A-3D
23.00 23.90 25.00 32.00 69.0 99.5 4.190 56.0 155.50 23.0 K DCM-23
DCM 240-072-25A-3D
24.00 24.90 25.00 32.00 72.0 103.6 4.370 56.0 159.60 24.0 K DCM-24
DCM 250-075-25A-3D
25.00 25.90 25.00 32.00 75.0 109.0 4.550 56.0 165.00 25.0 K DCM-25
• Do not mount smaller drilling heads other than the specified range of the drill body • Drill tolerance: k7 • For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: IDI-SG (94) • IDI-SK (98)
DCM-3D (7.5-25.9 mm)
Exchangeable Head Drills
with One Flat Shank,
Drilling Depth 3xD
DCONMSh6
LS
LPR OAL
DCN-DCX
LU
PL
Designation
DCN(1) DCX(2) DCONMS LU LPR PL LS OAL SSC(3)
DCM 075-026-8B-3.5D
7.50 7.90 8.00 26.0 33.7 1.360 43.0 76.70 8.0 K DCM- 8
DCM 080-028-8B-3.5D
8.00 8.40 8.00 28.0 35.9 1.460 43.0 78.90 8.0 K DCM- 8
DCM 085-029-9B-3.5D
8.50 8.90 9.00 29.0 36.8 1.549 43.0 79.90 8.0 K DCM- 8
DCM 090-031-9B-3.5D
9.00 9.40 9.00 31.0 39.1 1.640 43.0 82.10 9.0 K DCM- 9
DCM 095-033-10B-3.5D
9.50 9.90 10.00 33.0 40.3 1.730 43.0 83.30 9.0 K DCM- 9
DCM 100-033-10B-3.5D
10.00 10.40 10.00 33.0 42.9 1.829 43.0 86.00 10.0 K DCM-10
DCM 105-034-11B-3.5D
10.50 10.90 11.00 34.0 44.8 1.910 43.0 87.80 10.0 K DCM-10
DCM 110-036-11B-3.5D
11.00 11.40 11.00 36.0 46.9 2.000 43.0 89.90 11.0 K DCM-11
DCM 115-038-12B-3.5D
11.50 11.90 12.00 38.0 48.6 2.090 43.0 91.60 11.0 K DCM-11
DCM 120-042-12B-3.5D
12.00 12.40 12.00 42.0 50.8 2.184 43.0 93.80 12.0 K DCM-12
DCM 125-042-13B-3.5D
12.50 12.90 13.00 42.0 52.6 2.270 43.0 95.60 12.0 K DCM-12
DCM 130-042-13B-3.5D
13.00 13.40 13.00 42.0 54.6 2.362 45.0 99.50 13.0 K DCM-13
DCM 135-044-14B-3.5D
13.50 13.90 14.00 44.0 56.1 2.464 45.0 101.20 13.0 K DCM-13
DCM 140-048-14B-3.5D
14.00 14.40 14.00 48.0 59.2 2.540 45.0 104.20 14.0 K DCM-14
DCM 145-050-15B-3.5D
14.50 14.90 15.00 50.0 60.9 2.640 45.0 105.90 14.0 K DCM-14
DCM 150-052-15B-3.5D
15.00 15.90 15.00 52.0 63.0 2.718 45.0 108.10 15.0 K DCM-15
DCM 160-052-16B-3.5D
16.00 16.90 16.00 52.0 67.1 2.921 48.0 115.00 16.0 K DCM-16
DCM 170-055-17B-3.5D
17.00 17.90 17.00 55.0 73.6 3.090 48.0 121.60 17.0 K DCM-17
DCM 180-060-18B-3.5D
18.00 18.90 18.00 60.0 78.2 3.277 48.0 126.30 18.0 K DCM-18
DCM 190-062-19B-3.5D
19.00 19.90 19.00 62.5 81.8 3.460 54.0 135.80 19.0 K DCM-19
DCM 200-066-20B-3.5D
20.00 20.90 20.00 66.0 84.6 3.632 54.0 138.60 20.0 K DCM-20
• Do not mount smaller drilling heads other than the specified range of the drill body • Drill tolerance: k7 • For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: IDI-SG (94) • IDI-SK (98)
DCM-3.5D (7.5-20.9 mm)
UNICHAMDRILL Exchangeable
Head Drills without Flange and
with Flat Shank, Drilling Depth
3.5xD, for Chamfering Holders
93
INDEXABLE DRILLS
DCONMSh6 DF
DCN-DCX
LS
LPR
OAL
LU
PL
DC = 7.5-21.9
DC = 22-25.9
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DCM 075-037-12A-5D
7.50 7.90 12.00 16.00 37.0 48.1 1.360 45.0 93.10 8.0 K DCM- 8
DCM 080-040-12A-5D
8.00 8.40 12.00 16.00 40.0 51.0 1.460 45.0 96.00 8.0 K DCM- 8
DCM 085-042-12A-5D
8.50 8.90 12.00 16.00 42.0 54.0 1.550 45.0 99.00 8.0 K DCM- 8
DCM 090-045-12A-5D
9.00 9.40 12.00 16.00 45.0 57.1 1.640 45.0 102.10 9.0 K DCM- 9
DCM 095-047-12A-5D
9.50 9.90 12.00 16.00 47.0 60.1 1.730 45.0 105.10 9.0 K DCM- 9
DCM 100-050-16A-5D
10.00 10.40 16.00 20.00 50.0 64.0 1.820 48.0 112.00 10.0 K DCM-10
DCM 105-052-16A-5D
10.50 10.90 16.00 20.00 52.0 67.0 1.910 48.0 115.00 10.0 K DCM-10
DCM 110-055-16A-5D
11.00 11.40 16.00 20.00 55.0 70.1 2.000 48.0 118.10 11.0 K DCM-11
DCM 115-057-16A-5D
11.50 11.90 16.00 20.00 57.0 73.0 2.090 48.0 121.00 11.0 K DCM-11
DCM 120-060-16A-5D
12.00 12.40 16.00 20.00 60.0 76.2 2.180 48.0 124.20 12.0 K DCM-12
DCM 125-062-16A-5D
12.50 12.90 16.00 20.00 62.0 79.2 2.270 48.0 127.20 12.0 K DCM-12
DCM 130-065-16A-5D
13.00 13.40 16.00 20.00 65.0 82.5 2.370 48.0 130.50 13.0 K DCM-13
DCM 135-067-16A-5D
13.50 13.90 16.00 20.00 67.0 85.5 2.460 48.0 133.50 13.0 K DCM-13
DCM 140-070-16A-5D
14.00 14.40 16.00 20.00 70.0 89.2 2.550 48.0 137.20 14.0 K DCM-14
DCM 145-072-16A-5D
14.50 14.90 16.00 20.00 72.0 92.2 2.640 48.0 140.20 14.0 K DCM-14
DCM 150-075-20A-5D
15.00 15.90 20.00 25.00 75.0 95.7 2.730 50.0 145.70 15.0 K DCM-15
DCM 160-080-20A-5D
16.00 16.90 20.00 25.00 80.0 102.0 2.910 50.0 152.00 16.0 K DCM-16
DCM 170-085-20A-5D
17.00 17.90 20.00 25.00 85.0 107.5 3.090 50.0 157.50 17.0 K DCM-17
DCM 180-090-25A-5D
18.00 18.90 25.00 32.00 90.0 114.3 3.280 56.0 170.30 18.0 K DCM-18
DCM 190-095-25A-5D
19.00 19.90 25.00 32.00 95.0 120.3 3.460 56.0 176.30 19.0 K DCM-19
DCM 200-100-25A-5D
20.00 20.90 25.00 32.00 100.0 127.0 3.640 56.0 183.00 20.0 K DCM-20
DCM 210-105-25A-5D
21.00 21.90 25.00 32.00 105.0 132.8 3.820 56.0 188.80 21.0 K DCM-21
DCM 220-110-25A-5D
22.00 22.90 25.00 32.00 110.0 139.1 4.000 56.0 195.10 22.0 K DCM-22
DCM 230-115-25A-5D
23.00 23.90 25.00 32.00 115.0 145.5 4.190 56.0 201.50 23.0 K DCM-23
DCM 240-120-25A-5D
24.00 24.90 25.00 32.00 120.0 151.6 4.370 56.0 207.60 24.0 K DCM-24
DCM 250-125-25A-5D
25.00 25.90 25.00 32.00 125.0 159.0 4.550 56.0 215.00 25.0 K DCM-25
• Do not mount smaller drilling heads other than the specified range of the drill body • Drill tolerance: k7 • For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: IDI-SG (94) • IDI-SK (98)
DCM-5D (7.5-25.9 mm)
Exchangeable Head Drills
with One Flat Shank,
Drilling Depth 5xD
DF
DCONMSh6
DCN-DCX
LU
PL
LPR
OAL
DC= 10-20.9
DC= 21-25.9
LS
Designation
DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3)
DCM 100-080-16A-8D
10.00 10.90 16.00 20.00 80.0 94.0 1.820 48.0 142.00 10.0 K DCM-10
DCM 110-088-16A-8D
11.00 11.90 16.00 20.00 88.0 103.2 2.000 48.0 151.20 11.0 K DCM-11
DCM 120-096-16A-8D
12.00 12.90 16.00 20.00 96.0 112.3 2.180 48.0 160.30 12.0 K DCM-12
DCM 130-104-16A-8D
13.00 13.90 16.00 20.00 104.0 121.5 2.370 48.0 169.50 13.0 K DCM-13
DCM 140-112-16A-8D
14.00 14.90 16.00 20.00 112.0 131.2 2.550 48.0 179.20 14.0 K DCM-14
DCM 150-120-20A-8D
15.00 15.90 20.00 25.00 120.0 140.7 2.730 50.0 190.70 15.0 K DCM-15
DCM 160-128-20A-8D
16.00 16.90 20.00 25.00 128.0 150.0 2.910 50.0 200.00 16.0 K DCM-16
DCM 170-136-20A-8D
17.00 17.90 20.00 25.00 136.0 158.5 3.090 50.0 208.50 17.0 K DCM-17
DCM 180-144-25A-8D
18.00 18.90 25.00 32.00 144.0 168.3 3.280 56.0 224.30 18.0 K DCM-18
DCM 190-152-25A-8D
19.00 19.90 25.00 32.00 152.0 177.3 3.460 56.0 233.30 19.0 K DCM-19
DCM 200-160-25A-8D
20.00 20.90 25.00 32.00 160.0 187.2 3.640 56.0 243.20 20.0 K DCM-20
DCM 210-168-25A-8D
21.00 21.90 25.00 32.00 168.0 196.2 3.820 56.0 252.20 21.0 K DCM-21
DCM 220-176-25A-8D
22.00 22.90 25.00 32.00 176.0 205.2 4.000 56.0 261.20 22.0 K DCM-22
DCM 230-184-25A-8D
23.00 23.90 25.00 32.00 184.0 215.1 4.190 56.0 271.10 23.0 K DCM-23
DCM 240-192-25A-8D
24.00 24.90 25.00 32.00 192.0 224.5 4.370 56.0 280.50 24.0 K DCM-24
DCM 250-200-25A-8D
25.00 25.90 25.00 32.00 200.0 233.7 4.550 56.0 289.70 25.0 K DCM-25
• Do not mount smaller drilling heads other than the specified range of the drill body • Drill tolerance: k7 • For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: IDI-SG (94) • IDI-SK (98)
DCM-8D (10-25.9 mm)
CHAMDRILL Exchangeable
Head Drills with One Flat
Shank, Drilling Depth: 8xD
ISCAR
94
INDEXABLE DRILLS
SIG
LF PL
6.8-21.9 22.0-25.9
DC
IDI-SG
General Use DCM Drill Heads
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
IDI 068-SG
6.80 2.86 1.240 140 6.8
•
IDI 075-SG
7.50 2.74 1.360 140 8.0
•
IDI 076-SG
7.60 2.72 1.380 140 8.0
•
IDI 077-SG
7.70 2.70 1.400 140 8.0
•
IDI 078-SG
7.80 2.68 1.420 140 8.0
•
IDI 079-SG
7.90 2.66 1.440 140 8.0
•
IDI 080-SG
8.00 2.64 1.460 140 8.0
•
IDI 081-SG
8.10 2.63 1.470 140 8.0
•
IDI 082-SG
8.20 2.61 1.490 140 8.0
•
IDI 083-SG
8.30 2.59 1.510 140 8.0
•
IDI 084-SG
8.40 2.57 1.530 140 8.0
•
IDI 085-SG
8.50 2.55 1.550 140 8.0
•
IDI 086-SG
8.60 2.53 1.570 140 8.0
•
IDI 087-SG
8.70 2.52 1.580 140 8.0
•
IDI 088-SG
8.80 2.50 1.600 140 8.0
•
IDI 089-SG
8.90 2.48 1.620 140 8.0
•
IDI 090-SG
9.00 2.66 1.640 140 9.0
•
IDI 091-SG
9.10 2.64 1.660 140 9.0
•
IDI 092-SG
9.20 2.63 1.670 140 9.0
•
IDI 093-SG
9.30 2.61 1.690 140 9.0
•
IDI 094-SG
9.40 2.59 1.710 140 9.0
•
IDI 095-SG
9.50 2.57 1.730 140 9.0
•
IDI 096-SG
9.60 2.55 1.750 140 9.0
•
IDI 097-SG
9.70 2.53 1.770 140 9.0
•
IDI 098-SG
9.80 2.52 1.780 140 9.0
•
IDI 099-SG
9.90 2.50 1.800 140 9.0
•
IDI 100-SG
10.00 3.48 1.820 140 10.0
•
IDI 101-SG
10.10 3.46 1.840 140 10.0
•
IDI 102-SG
10.20 3.44 1.860 140 10.0
•
IDI 103-SG
10.30 3.43 1.870 140 10.0
•
IDI 104-SG
10.40 3.41 1.890 140 10.0
•
IDI 105-SG
10.50 3.39 1.910 140 10.0
•
IDI 106-SG
10.60 3.37 1.930 140 10.0
•
IDI 107-SG
10.70 3.35 1.950 140 10.0
•
IDI 108-SG
10.80 3.33 1.970 140 10.0
•
IDI 109-SG
10.90 3.32 1.980 140 10.0
•
IDI 110-SG
11.00 3.50 2.000 140 11.0
•
IDI 111-SG
11.10 3.48 2.020 140 11.0
•
IDI 112-SG
11.20 3.46 2.040 140 11.0
•
IDI 113-SG
11.30 3.44 2.060 140 11.0
•
IDI 114-SG
11.40 3.43 2.070 140 11.0
•
IDI 115-SG
11.50 3.41 2.090 140 11.0
•
IDI 116-SG
11.60 3.39 2.110 140 11.0
•
IDI 117-SG
11.70 3.37 2.130 140 11.0
•
IDI 118-SG
11.80 3.35 2.150 140 11.0
•
IDI 119-SG
11.90 3.33 2.170 140 11.0
•
IDI 120-SG
12.00 3.62 2.180 140 12.0
•
IDI 121-SG
12.10 3.60 2.200 140 12.0
•
IDI 122-SG
12.20 3.58 2.220 140 12.0
•
IDI 123-SG
12.30 3.56 2.240 140 12.0
•
IDI 124-SG
12.40 3.54 2.260 140 12.0
•
IDI 125-SG
12.50 3.53 2.270 140 12.0
•
IDI 126-SG
12.60 3.51 2.290 140 12.0
•
IDI 127-SG
12.70 3.49 2.310 140 12.0
•
IDI 128-SG
12.80 3.47 2.330 140 12.0
•
IDI 129-SG
12.90 3.45 2.350 140 12.0
•
95
INDEXABLE DRILLS
SIG
LF PL
6.8-21.9 22.0-25.9
DC
IDI-SG
General Use DCM Drill Heads
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
IDI 130-SG
13.00 3.63 2.370 140 13.0
•
IDI 131-SG
13.10 3.62 2.380 140 13.0
•
IDI 132-SG
13.20 3.60 2.400 140 13.0
•
IDI 133-SG
13.30 3.58 2.420 140 13.0
•
IDI 134-SG
13.40 3.56 2.440 140 13.0
•
IDI 135-SG
13.50 3.54 2.460 140 13.0
•
IDI 136-SG
13.60 3.53 2.470 140 13.0
•
IDI 137-SG
13.70 3.51 2.490 140 13.0
•
IDI 138-SG
13.80 3.49 2.510 140 13.0
•
IDI 139-SG
13.90 3.47 2.530 140 13.0
•
IDI 140-SG
14.00 4.25 2.550 140 14.0
•
IDI 141-SG
14.10 4.23 2.570 140 14.0
•
IDI 142-SG
14.20 4.22 2.580 140 14.0
•
IDI 143-SG
14.30 4.20 2.600 140 14.0
•
IDI 144-SG
14.40 4.18 2.620 140 14.0
•
IDI 145-SG
14.50 4.16 2.640 140 14.0
•
IDI 146-SG
14.60 4.14 2.660 140 14.0
•
IDI 147-SG
14.70 4.12 2.680 140 14.0
•
IDI 148-SG
14.80 4.11 2.690 140 14.0
•
IDI 149-SG
14.90 4.09 2.710 140 14.0
•
IDI 150-SG
15.00 4.67 2.730 140 15.0
•
IDI 151-SG
15.10 4.65 2.750 140 15.0
•
IDI 152-SG
15.20 4.63 2.770 140 15.0
•
IDI 153-SG
15.30 4.62 2.780 140 15.0
•
IDI 154-SG
15.40 4.60 2.800 140 15.0
•
IDI 155-SG
15.50 4.58 2.820 140 15.0
•
IDI 156-SG
15.60 4.56 2.840 140 15.0
•
IDI 157-SG
15.70 4.54 2.860 140 15.0
•
IDI 158-SG
15.80 4.52 2.880 140 15.0
•
IDI 159-SG
15.90 4.51 2.890 140 15.0
•
IDI 160-SG
16.00 4.99 2.910 140 16.0
•
IDI 161-SG
16.10 4.97 2.930 140 16.0
•
IDI 162-SG
16.20 4.95 2.950 140 16.0
•
IDI 163-SG
16.30 4.93 2.970 140 16.0
•
IDI 164-SG
16.40 4.92 2.980 140 16.0
•
IDI 165-SG
16.50 4.90 3.000 140 16.0
•
IDI 166-SG
16.60 4.88 3.020 140 16.0
•
IDI 167-SG
16.70 4.86 3.040 140 16.0
•
IDI 168-SG
16.80 4.84 3.060 140 16.0
•
IDI 169-SG
16.90 4.82 3.080 140 16.0
•
IDI 170-SG
17.00 4.31 3.090 140 17.0
•
IDI 171-SG
17.10 4.29 3.110 140 17.0
•
IDI 172-SG
17.20 4.27 3.130 140 17.0
•
IDI 173-SG
17.30 4.25 3.150 140 17.0
•
IDI 174-SG
17.40 4.23 3.170 140 17.0
•
IDI 175-SG
17.50 4.22 3.180 140 17.0
•
IDI 176-SG
17.60 4.20 3.200 140 17.0
•
IDI 177-SG
17.70 4.18 3.220 140 17.0
•
IDI 178-SG
17.80 4.16 3.240 140 17.0
•
IDI 179-SG
17.90 4.14 3.260 140 17.0
•
IDI 180-SG
18.00 5.02 3.280 140 18.0
•
IDI 181-SG
18.10 5.01 3.290 140 18.0
•
IDI 182-SG
18.20 4.99 3.310 140 18.0
•
IDI 183-SG
18.30 4.97 3.330 140 18.0
•
IDI 184-SG
18.40 4.95 3.350 140 18.0
•
IDI 185-SG
18.50 4.93 3.370 140 18.0
•
IDI 186-SG
18.60 4.92 3.380 140 18.0
•
(continued)
ISCAR
96
INDEXABLE DRILLS
SIG
LF PL
6.8-21.9 22.0-25.9
DC
IDI-SG
General Use DCM Drill Heads
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
IDI 187-SG
18.70 4.90 3.400 140 18.0
•
IDI 188-SG
18.80 4.88 3.420 140 18.0
•
IDI 189-SG
18.90 4.86 3.440 140 18.0
•
IDI 190-SG
19.00 5.04 3.460 140 19.0
•
IDI 1905-SG
19.05 5.03 3.470 140 19.0
•
IDI 191-SG
19.10 5.02 3.480 140 19.0
•
IDI 192-SG
19.20 5.01 3.490 140 19.0
•
IDI 193-SG
19.30 4.99 3.510 140 19.0
•
IDI 194-SG
19.40 4.97 3.530 140 19.0
•
IDI 195-SG
19.50 4.95 3.550 140 19.0
•
IDI 196-SG
19.60 4.93 3.570 140 19.0
•
IDI 197-SG
19.70 4.91 3.590 140 19.0
•
IDI 198-SG
19.80 4.90 3.600 140 19.0
•
IDI 199-SG
19.90 4.88 3.620 140 19.0
•
IDI 200-SG
20.00 5.66 3.640 140 20.0
•
IDI 201-SG
20.10 5.64 3.660 140 20.0
•
IDI 202-SG
20.20 5.62 3.680 140 20.0
•
IDI 203-SG
20.30 5.61 3.690 140 20.0
•
IDI 204-SG
20.40 5.59 3.710 140 20.0
•
IDI 205-SG
20.50 5.57 3.730 140 20.0
•
IDI 206-SG
20.60 5.55 3.750 140 20.0
•
IDI 207-SG
20.70 5.53 3.770 140 20.0
•
IDI 208-SG
20.80 5.51 3.790 140 20.0
•
IDI 209-SG
20.90 5.50 3.800 140 20.0
•
IDI 210-SG
21.00 5.68 3.820 140 21.0
•
IDI 211-SG
21.10 5.66 3.840 140 21.0
•
IDI 212-SG
21.20 5.64 3.860 140 21.0
•
IDI 213-SG
21.30 5.62 3.880 140 21.0
•
IDI 214-SG
21.40 5.61 3.890 140 21.0
•
IDI 215-SG
21.50 5.59 3.910 140 21.0
•
IDI 216-SG
21.60 5.57 3.930 140 21.0
•
IDI 217-SG
21.70 5.55 3.950 140 21.0
•
IDI 218-SG
21.80 5.53 3.970 140 21.0
•
IDI 219-SG
21.90 5.51 3.990 140 21.0
•
IDI 220-SG
22.00 6.30 4.000 140 22.0
•
IDI 221-SG
22.10 6.28 4.020 140 22.0
•
IDI 222-SG
22.20 6.30 4.000 140 22.0
•
IDI 2222-SG
22.22 6.26 4.040 140 22.0
•
IDI 223-SG
22.30 6.24 4.060 140 22.0
•
IDI 224-SG
22.40 6.22 4.080 140 22.0
•
IDI 225-SG
22.50 6.21 4.090 140 22.0
•
IDI 226-SG
22.60 6.19 4.110 140 22.0
•
IDI 227-SG
22.70 6.17 4.130 140 22.0
•
IDI 228-SG
22.80 6.15 4.150 140 22.0
•
IDI 229-SG
22.90 6.13 4.170 140 22.0
•
IDI 230-SG
23.00 6.21 4.190 140 23.0
•
IDI 231-SG
23.10 6.20 4.200 140 23.0
•
IDI 232-SG
23.20 6.18 4.220 140 23.0
•
IDI 233-SG
23.30 6.16 4.240 140 23.0
•
IDI 234-SG
23.40 6.14 4.260 140 23.0
•
IDI 235-SG
23.50 6.12 4.280 140 23.0
•
IDI 237-SG
23.70 6.09 4.310 140 23.0
•
IDI 238-SG
23.80 6.07 4.330 140 23.0
•
IDI 239-SG
23.90 6.05 4.350 140 23.0
•
IDI 240-SG
24.00 6.43 4.370 140 24.0
•
IDI 241-SG
24.10 6.41 4.390 140 24.0
•
IDI 242-SG
24.20 6.40 4.400 140 24.0
•
(continued)
97
INDEXABLE DRILLS
SIG
LF PL
6.8-21.9 22.0-25.9
DC
IDI-SG
General Use DCM Drill Heads
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL SIG SSC(1)
IC908
IDI 243-SG
24.30 6.38 4.420 140 24.0
•
IDI 244-SG
24.40 6.36 4.440 140 24.0
•
IDI 245-SG
24.50 6.34 4.460 140 24.0
•
IDI 246-SG
24.60 6.32 4.480 140 24.0
•
IDI 247-SG
24.70 6.30 4.500 140 24.0
•
IDI 248-SG
24.80 6.29 4.510 140 24.0
•
IDI 249-SG
24.90 6.27 4.530 140 24.0
•
IDI 250-SG
25.00 6.45 4.550 140 25.0
•
IDI 251-SG
25.10 6.43 4.570 140 25.0
•
IDI 252-SG
25.20 6.41 4.590 140 25.0
•
IDI 253-SG
25.30 6.40 4.600 140 25.0
•
IDI 254-SG
25.40 6.38 4.620 140 25.0
•
IDI 255-SG
25.50 6.36 4.640 140 25.0
•
IDI 256-SG
25.60 6.34 4.660 140 25.0
•
IDI 257-SG
25.70 6.32 4.680 140 25.0
•
IDI 258-SG
25.80 6.30 4.700 140 25.0
•
IDI 259-SG
25.90 6.29 4.710 140 25.0
•
(continued)
ISCAR
98
INDEXABLE DRILLS
SIG
PLLF
DC 22.0-25.9DC 6.8-21.9
BCH
KCH
DC
IDI-SK
DCM Drill Heads for Cast Iron
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IDI 068-SK
6.80 2.86 1.240 0.48 30.0 140 6.8
•
IDI 080-SK
8.00 2.64 1.460 0.56 30.0 140 8.0
•
IDI 081-SK
8.10 2.63 1.470 0.57 30.0 140 8.0
•
IDI 085-SK
8.50 2.55 1.550 0.60 30.0 140 8.0
•
IDI 087-SK
8.70 2.52 1.580 0.61 30.0 140 8.0
•
IDI 088-SK
8.80 2.50 1.600 0.62 30.0 140 8.0
•
IDI 090-SK
9.00 2.66 1.640 0.63 30.0 140 9.0
•
IDI 091-SK
9.10 2.64 1.660 0.64 30.0 140 9.0
•
IDI 095-SK
9.50 2.57 1.730 0.67 30.0 140 9.0
•
IDI 100-SK
10.00 3.48 1.820 0.70 30.0 140 10.0
•
IDI 102-SK
10.20 3.44 1.860 0.71 30.0 140 10.0
•
IDI 103-SK
10.30 3.43 1.870 0.72 30.0 140 10.0
•
IDI 105-SK
10.50 3.39 1.910 0.74 30.0 140 10.0
•
IDI 106-SK
10.60 3.37 1.930 0.74 30.0 140 10.0
•
IDI 107-SK
10.70 3.35 1.950 0.75 30.0 140 10.0
•
IDI 108-SK
10.80 3.33 1.970 0.76 30.0 140 10.0
•
IDI 109-SK
10.90 3.32 1.980 0.76 30.0 140 10.0
•
IDI 110-SK
11.00 3.50 2.000 0.77 30.0 140 11.0
•
IDI 111-SK
11.10 3.48 2.020 0.78 30.0 140 11.0
•
IDI 112-SK
11.20 3.46 2.040 0.78 30.0 140 11.0
•
IDI 113-SK
11.30 3.44 2.060 0.79 30.0 140 11.0
•
IDI 115-SK
11.50 3.41 2.090 0.81 30.0 140 11.0
•
IDI 116-SK
11.60 3.39 2.110 0.81 30.0 140 11.0
•
IDI 118-SK
11.80 3.35 2.150 0.83 30.0 140 11.0
•
IDI 120-SK
12.00 3.62 2.180 0.84 30.0 140 12.0
•
IDI 122-SK
12.20 3.58 2.220 0.85 30.0 140 12.0
•
IDI 123-SK
12.30 3.56 2.240 0.86 30.0 140 12.0
•
IDI 124-SK
12.40 3.54 2.260 0.87 30.0 140 12.0
•
IDI 125-SK
12.50 3.53 2.270 0.88 30.0 140 12.0
•
IDI 127-SK
12.70 3.49 2.310 0.89 30.0 140 12.0
•
IDI 130-SK
13.00 3.63 2.370 0.91 30.0 140 13.0
•
IDI 131-SK
13.10 3.62 2.380 0.92 30.0 140 13.0
•
IDI 132-SK
13.20 3.60 2.400 0.92 30.0 140 13.0
•
IDI 133-SK
13.30 3.58 2.420 0.93 30.0 140 13.0
•
IDI 135-SK
13.50 3.54 2.460 0.95 30.0 140 13.0
•
IDI 136-SK
13.60 3.53 2.470 0.95 30.0 140 13.0
•
IDI 137-SK
13.70 3.51 2.490 0.96 30.0 140 13.0
•
IDI 138-SK
13.80 3.49 2.510 0.97 30.0 140 13.0
•
IDI 139-SK
13.90 3.47 2.530 0.97 30.0 140 13.0
•
IDI 140-SK
14.00 4.25 2.550 0.98 30.0 140 14.0
•
IDI 141-SK
14.10 4.23 2.570 0.99 30.0 140 14.0
•
IDI 142-SK
14.20 4.22 2.580 0.99 30.0 140 14.0
•
IDI 143-SK
14.30 4.20 2.600 1.00 30.0 140 14.0
•
IDI 144-SK
14.40 4.18 2.620 1.01 30.0 140 14.0
•
IDI 145-SK
14.50 4.16 2.640 1.02 30.0 140 14.0
•
IDI 146-SK
14.60 4.14 2.660 1.02 30.0 140 14.0
•
IDI 147-SK
14.70 4.12 2.680 1.03 30.0 140 14.0
•
IDI 148-SK
14.80 4.11 2.690 1.04 30.0 140 14.0
•
IDI 150-SK
15.00 4.67 2.730 1.05 30.0 140 15.0
•
IDI 151-SK
15.10 4.65 2.750 1.06 30.0 140 15.0
•
IDI 152-SK
15.20 4.63 2.770 1.06 30.0 140 15.0
•
IDI 153-SK
15.30 4.62 2.780 1.07 30.0 140 15.0
•
IDI 154-SK
15.40 4.60 2.800 1.08 30.0 140 15.0
•
IDI 155-SK
15.50 4.58 2.820 1.09 30.0 140 15.0
•
IDI 156-SK
15.60 4.56 2.840 1.09 30.0 140 15.0
•
IDI 157-SK
15.70 4.54 2.860 1.10 30.0 140 15.0
•
99
INDEXABLE DRILLS
SIG
PLLF
DC 22.0-25.9DC 6.8-21.9
BCH
KCH
DC
IDI-SK
DCM Drill Heads for Cast Iron
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IDI 158-SK
15.80 5.02 2.880 1.11 30.0 140 15.0
•
IDI 159-SK
15.90 5.01 2.890 1.11 30.0 140 15.0
•
IDI 160-SK
16.00 4.99 2.910 1.12 30.0 140 16.0
•
IDI 161-SK
16.10 4.97 2.930 1.13 30.0 140 16.0
•
IDI 162-SK
16.20 4.95 2.950 1.13 30.0 140 16.0
•
IDI 163-SK
16.30 4.93 2.970 1.14 30.0 140 16.0
•
IDI 165-SK
16.50 4.90 3.000 1.16 30.0 140 16.0
•
IDI 166-SK
16.60 4.88 3.020 1.16 30.0 140 16.0
•
IDI 167-SK
16.70 4.86 3.040 1.17 30.0 140 16.0
•
IDI 168-SK
16.80 4.84 3.060 1.18 30.0 140 16.0
•
IDI 169-SK
16.90 4.82 3.080 1.18 30.0 140 16.0
•
IDI 170-SK
17.00 4.31 3.090 1.19 30.0 140 17.0
•
IDI 171-SK
17.10 4.29 3.110 1.20 30.0 140 17.0
•
IDI 172-SK
17.20 4.27 3.130 1.20 30.0 140 17.0
•
IDI 173-SK
17.30 4.25 3.150 1.21 30.0 140 17.0
•
IDI 174-SK
17.40 4.23 3.170 1.22 30.0 140 17.0
•
IDI 175-SK
17.50 4.22 3.180 1.23 30.0 140 17.0
•
IDI 176-SK
17.60 4.20 3.200 1.23 30.0 140 17.0
•
IDI 177-SK
17.70 4.18 3.220 1.24 30.0 140 17.0
•
IDI 178-SK
17.80 4.16 3.240 1.25 30.0 140 17.0
•
IDI 179-SK
17.90 4.14 3.260 1.25 30.0 140 17.0
•
IDI 180-SK
18.00 5.02 3.280 1.26 30.0 140 18.0
•
IDI 181-SK
18.10 5.01 3.290 1.27 30.0 140 18.0
•
IDI 182-SK
18.20 4.99 3.310 1.27 30.0 140 18.0
•
IDI 183-SK
18.30 4.97 3.330 1.28 30.0 140 18.0
•
IDI 185-SK
18.50 4.93 3.370 1.30 30.0 140 18.0
•
IDI 186-SK
18.60 4.92 3.380 1.30 30.0 140 18.0
•
IDI 187-SK
18.70 4.90 3.400 1.31 30.0 140 18.0
•
IDI 188-SK
18.80 4.88 3.420 1.32 30.0 140 18.0
•
IDI 190-SK
19.00 5.04 3.460 1.33 30.0 140 19.0
•
IDI 1905-SK
19.05 5.03 3.470 1.33 30.0 140 19.0
•
IDI 191-SK
19.10 5.02 3.480 1.34 30.0 140 19.0
•
IDI 194-SK
19.40 4.97 3.530 1.36 30.0 140 19.0
•
IDI 195-SK
19.50 4.95 3.550 1.37 30.0 140 19.0
•
IDI 197-SK
19.70 4.91 3.590 1.38 30.0 140 19.0
•
IDI 198-SK
19.80 4.90 3.600 1.39 30.0 140 19.0
•
IDI 200-SK
20.00 5.66 3.640 1.40 30.0 140 20.0
•
IDI 201-SK
20.10 5.64 3.660 1.41 30.0 140 20.0
•
IDI 202-SK
20.20 5.62 3.680 1.41 30.0 140 20.0
•
IDI 203-SK
20.30 5.61 3.690 1.42 30.0 140 20.0
•
IDI 205-SK
20.50 5.57 3.730 1.44 30.0 140 20.0
•
IDI 206-SK
20.60 5.55 3.750 1.44 30.0 140 20.0
•
IDI 210-SK
21.00 5.68 3.820 1.47 30.0 140 21.0
•
IDI 211-SK
21.10 5.66 3.840 1.48 30.0 140 21.0
•
IDI 212-SK
21.20 5.64 3.860 1.48 30.0 140 21.0
•
IDI 214-SK
21.40 5.61 3.890 1.50 30.0 140 21.0
•
IDI 215-SK
21.50 5.59 3.910 1.51 30.0 140 21.0
•
IDI 216-SK
21.60 5.57 3.930 1.51 30.0 140 21.0
•
IDI 217-SK
21.70 5.55 3.950 1.52 30.0 140 21.0
•
IDI 219-SK
21.90 5.51 3.990 1.53 30.0 140 21.0
•
IDI 220-SK
22.00 6.30 4.000 1.54 30.0 140 22.0
•
IDI 221-SK
22.10 6.28 4.020 1.55 30.0 140 22.0
•
IDI 223-SK
22.30 6.24 4.060 1.56 30.0 140 22.0
•
IDI 224-SK
22.40 6.22 4.080 1.57 30.0 140 22.0
•
IDI 225-SK
22.50 6.21 4.090 1.58 30.0 140 22.0
•
IDI 230-SK
23.00 6.21 4.190 1.61 30.0 140 23.0
•
IDI 231-SK
23.10 6.20 4.200 1.62 30.0 140 23.0
•
(continued)
ISCAR
100
INDEXABLE DRILLS
SIG
PLLF
DC 22.0-25.9DC 6.8-21.9
BCH
KCH
DC
IDI-SK
DCM Drill Heads for Cast Iron
• For cutting conditions see pages 101-105
(1) Seat size code
For tools, see pages: DCM-3.5D (7.5-20.9 mm) (92) • DCM-3D (7.5-25.9 mm) (92) • DCM-5D (7.5-25.9 mm) (93) • DCM-8D (10-25.9 mm) (93) • DCT (M8-M24) (134)
Dimensions
Designation
DC LF PL BCH KCH SIG SSC(1)
IC908
IDI 232-SK
23.20 6.18 4.220 1.62 30.0 140 23.0
•
IDI 234-SK
23.40 6.14 4.260 1.64 30.0 140 23.0
•
IDI 236-SK
23.60 6.11 4.290 1.65 30.0 140 23.0
•
IDI 237-SK
23.70 6.09 4.310 1.66 30.0 140 23.0
•
IDI 238-SK
23.80 6.07 4.330 1.67 30.0 140 23.0
•
IDI 240-SK
24.00 6.43 4.370 1.68 30.0 140 24.0
•
IDI 241-SK
24.10 6.41 4.390 1.69 30.0 140 24.0
•
IDI 243-SK
24.30 6.38 4.420 1.70 30.0 140 24.0
•
IDI 244-SK
24.40 6.36 4.440 1.71 30.0 140 24.0
•
IDI 245-SK
24.50 6.34 4.460 1.72 30.0 140 24.0
•
IDI 249-SK
24.90 6.27 4.530 1.74 30.0 140 24.0
•
IDI 250-SK
25.00 6.45 4.550 1.75 30.0 140 25.0
•
IDI 251-SK
25.10 6.43 4.570 1.76 30.0 140 25.0
•
IDI 254-SK
25.40 6.38 4.620 1.78 30.0 140 25.0
•
IDI 255-SK
25.50 6.36 4.640 1.79 30.0 140 25.0
•
IDI 258-SK
25.80 6.30 4.700 1.81 30.0 140 25.0
•
IDI 259-SK
25.90 6.29 4.710 1.81 30.0 140 25.0
•
(continued)
101
USER GUIDE
INDEXABLE DRILLS
Drilling Head Mounting Procedure
CHAMDRILL DCM Drilling Head
1
2
3
oil
4
5
CHAMDRILL Unlocking Change in Torque
Typical Unlocking Torque Range
Torque [N*cm]
0
024
100
200
300
400
500
6810 12 14 16 18 20
600
22 24 26 28 30
700
No. of Indexes
Dia. 17-25.9 mm
Dia. 11-16 mm
Dia. 7.5-10.5 mm
The number of indexing changes according to machine/
clamping rigidity, machining conditions, workpiece
material, coolant, cooling pressure and correct usage.
Coolant
In stationary drill
applications both
internal and external
coolant supply is
recommended.
ISCAR
102
USER GUIDE
INDEXABLE DRILLS
Recommended Coolant Pressure and Flow Rate
Coolant Flow Rate (liter/min)
flow
rate
6.8 12 16 20
30
20
10
5
25
Drill Diameter D (mm)
Minimum Coolant Pressure (bar)
25
6.8 12 16 20
3
5
8
10
12
5 X D
8 X D
3 X D
15
Drill Diameter D (mm)
* For special drills more than 8xD, it is recommended to use higher
coolant pressure 15–70 bar.
To guarantee chip evacuation, the coolant must always
flow through the tool. If the machine is not equipped
with coolant through the spindle, we recommend
using a coolant inducer. External coolant supply can
be used if hole depth is less than 1xD and reduced
cutting data is applied. The diagram shows the
coolant flow rates for different drills and pressures.
Coolant Mix
Recommended emulsion mix is 6-8%.
When drilling in stainless and high strength
steels, a mix of 10% is recommended.
When using the IDI drilling head, high pressure oil or
7-15% mineral or vegetable based oil emulsion is highly
recommended for drilling stainless steel and
high temperature alloys.
Dry Drilling
It is possible to drill without coolant in cast iron.
Oil mist through the drill is then required (for 2xD max).
Drilling Limitations
Regrinding of drill head is not recommended,
it may cause drill malfunction.
Centering Hole Data for DCM 8xD
We strongly recommend the use of DCN 1.5D drill of the
same diameter to drill a centering pre-hole. The use of
the centering pre-hole improves hole location, accuracy,
roundness, straightness and surface finish and reliability.
5
Use internal coolant with at least 15 bar pressure.
Power/Force Requirements
kw Net Power
0
2
4
6
8
68101214161820222426
No. of Indexes
Material:
SAE 4340
Speed:
100 m/min
Feed:
0.2 mm/rev
Values change for different materials and drilling conditions.
103
USER GUIDE
INDEXABLE DRILLS
ISO
Material Condition
Tensile
Strength
[N/mm2]
Hardness HB
Material No.
Cutting
Speed Vc
m/min
Feed vs. Drill Diameter mm/rev
D=6.8-10.9
D=11-12.9
D=13-14.9
D=15-16.9
D=17-20.9
D=21-25.9
P
Non-alloy
steel and
cast steel,
free cutting
steel
< 0.25 %C Annealed 420 125 1 50-130
0.12-0.2 0.15-0.25 0.2-0.3 0.25-0.35 0.25-0.45 0.25-0.45
≥ 0.25 %C Annealed 650 190 2 100-120
< 0.55 %C Quenched and
tempered 850 250 3 90-110
≥ 0.55 %C
Annealed 750 220 4 90-120
Quenched and
tempered 1000 300 5 70-90
Low alloy and cast
steel (less than 5% of
alloying elements)
Annealed 600 200 6 80-130
0.12-0.2 0.15-0.25 0.2-0.3 0.25-0.35 0.3-0.4 0.3-0.45
Quenched and
tempered
930 275 7 70-110
1000 300 8 60-90
1200 350 9 40-70
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 50-80
0.12-0.2 0.12-0.22 0.15-0.25 0.2-0.28 0.25-0.33 0.25-0.35
Quenched and
tempered 1100 325 11 40-70
Stainless steel
and cast steel
Ferritic/
martensitic 680 200 12 20-50 0.08-0.14 0.12-0.22 0.12-0.15 0.14-0.20 0.16-0.24 0.15-0.28
Martensitic 820 240 13
MStainless steel
and cast steel Austenitic, duplex 600 180 14 20-50 0.08-0.14 0.12-0.22 0.12-0.15 0.14-0.20 0.16-0.24 0.15-0.28
K
Gray cast iron (GG)
Ferritic / pearlitic 180 15 90-140
0.2-0.3 0.25-0.35 0.3-0.4 0.35-0.45 0.4-0.5 0.4-0.6
Pearlitic /
martensitic 260 16 80-130
Nodular cast iron (GGG) Ferritic 160 17 100-180
Pearlitic 250 18 90-160
Malleable cast iron Ferritic 130 19
Pearlitic 230 20
N
Aluminum-
wrought alloys
Not hardenable 60 21 90-160
0.2-0.35 0.25-0.4 0.3-0.45 0.35-0.5 0.4-0.6 0.4-0.65Hardenable 100 22 80-120
Aluminum-
cast alloys
≤12% Si Not hardenable 75 23 90-160
Hardenable 90 24
>12% Si High temperature 130 25
Copper
alloys
>1% Pb Free cutting 110 26
Brass 90 27
Electrolytic
copper 100 28
Non metallic
Duroplastics,
fiber plastics 29
Hard rubber 30
S
High
temperature
alloys
Fe based Annealed 200 31 30-50 0.05-0.1 0.08-0.13 0.1-0.15 0.12-0.18 0.12-0.2 0.12-0.22
Hardened 280 32 20-40
Ni or Co
based
Annealed 250 33 20-50 0.06-0.12 0.09-0.15 0.12-0.18 0.15-0.2 0.15-0.23 0.15-0.25
Hardened 350 34
Cast 320 35
Titanium alloys
Pure 400 36
Alpha+beta
alloys, hardened 1050 37
H
Hardened steel
Hardened 55
HRC 38 20-50 0.06-0.12 0.09-0.15 0.12-0.18 0.15-0.2 0.15-0.23 0.15-0.25
Hardened 60
HRC 39
Chilled cast iron Cast 400 40 20-50 0.06-0.12 0.09-0.15 0.12-0.18 0.15-0.2 0.15-0.23 0.15-0.25
Cast iron Hardened 55
HRC 41
• When using external coolant supply only, reduce cutting speed by 10% • When using more than 5XD drill ratio, reduce cutting parameters by 10% As a starting value, the
middle of the recommended machining range should be used. Then, according to the wear results, conditions can be changed to optimize performance. The data refers to
IC908. For IC1008, cutting speed should be increased by 15%.
Material Groups Recommended Machining Conditions
ISCAR
104
USER GUIDE
INDEXABLE DRILLS
Applications for DCM 3.5D
Replaces solid
carbide drils
without changing
any holding
components
When using
SUMOUNICHAM,
the drill’s
projection can
be adjusted
Shorter projection
compared to
CHAMDRILL
when required
For better stability in rough applications
and interrupted cuts
UNICHAMDRILL
Moderate Helix
CHAMDRILL
High Helix
UNICHAMDRILL CHAMDRILL
Can be used on multi-spindle
applications for close spacing
between adjacent drills
105
USER GUIDE
INDEXABLE DRILLS
Troubleshooting
Cutting Edge Chipping
1 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
2 Reduce feed rate, increase speed.
3 If the drill vibrates, reduce cutting speed and increase feed rate.
4 When drilling rough, hard or sloped surfaces (up to 6°), reduce the feed rate by 30-50% when entering and exiting.
5 Check cooling lubricant and increase coolant pressure. In case of external
coolant supply, improve jet direction and add cooling jets.
Excessive Flank Wear
1 Check that the correct geometry is used.
2 Reduce cutting speed.
3 Increase internal coolant pressure.
Chisel Area Chipping
1 Reduce feed rate.
2 Increase coolant pressure.
3 Check the adaptation. Use hydraulic clamping chuck, maxin power chuck or side lock systems.
4 Increase workpiece chucking force.
Excessive Flute Land Wear
1 Check that the correct geometry is used.
2 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
3 Reduce cutting speed.
4 When drilling rough, hard or sloped surfaces (up to 6°), reduce the feed rate by 30-50% when entering and exiting.
5 Increase coolant pressure.
6 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
7 Increase workpiece chucking force stability and rigidity.
8 If there is low pocket gripping force - replace drill body.
Built-Up Edge
1 Increase cutting speed.
2 Increase coolant pressure.
Ø > D nominal + 0.15mm
Ø < D nominal - 0.03mm
D nominal
Deviation of Hole Tolerance
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial cutting points).
2 Reduce feed rate.
3 Check the chisel point runout and make sure that it is within 0.02 mm T.I.R.
4 Wrong cutting edge. Replace head.
5 Increase workpiece chucking force.
6 Check the adaptation. Use hydraulic clamping chuck, maxin power chuck or side clamping systems.
7 Increase internal coolant pressure.
Ra
Surface Finish Too Rough
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Adjust the feed for improved chip formation.
3 In case of chip jamming - increase the coolant flow and/or reduce the cutting speed.
4 Increase the coolant pressure.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
6 Use pecking cycle.
Insufficient Pocket Gripping Torque
1 Check unlocking gripping torque with TK DCM torque key. If there is no click indication - replace drill head.
2 Increase coolant pressure.
Inaccurate Hole Position
1 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).
2 Check the stability of the machine spindle, tool and workpiece clamping rigidity.
3 When drilling rough, hard or sloped surfaces (up to 6°), reduce the feed rate by 30-50% when entering.
4 Drill a pre-hole with a 140° point angle for centering.
5 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.
Burrs on Exit
1 Reduce the feed rate by 30-50% when exiting.
2 Replace the worn head.
3 Check the adaptation. Use hydraulic clamping chuck, maxin power chuck or side clamping systems.
ISCAR
106
INDEXABLE DRILLS
DC= 14-60 mm
DC= 12-13.5 mm
LPR
OAL
LS
DF
DCONMS
CNT
LU
DC
DR-2D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 2xD
• Hole tolerance D+0.15/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves (used with tool
diameter range of 14.00-60.00 only), see page 118. • For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
(115)
Designation
DC DCX(1) LU LPR LS OAL DCONMS DF CNT MIID(2)
DR120-024-16-04-2D-N
12.00 12.40 24.0 42.0 48.0 90.00 16.00 20.00 - AOMT 04
DR125-025-16-04-2D-N
12.50 12.90 25.0 43.0 48.0 91.00 16.00 20.00 - AOMT 04
DR130-026-16-04-2D-N
13.00 13.40 26.0 44.0 48.0 92.00 16.00 20.00 - AOMT 04
DR135-027-16-04-2D-N
13.50 13.90 27.0 45.0 48.0 93.00 16.00 20.00 - AOMT 04
DR140-028-20-05-2D-N
14.00 16.80 28.0 46.0 50.0 96.00 20.00 25.00 G1/4" SOMX 05
DR145-029-20-05-2D-N
14.50 17.10 29.0 47.0 50.0 97.00 20.00 25.00 G1/4" SOMX 05
DR150-030-20-05-2D-N
15.00 17.40 30.0 48.0 50.0 98.00 20.00 25.00 G1/4" SOMX 05
DR155-031-20-05-2D-N
15.50 17.60 31.0 49.0 50.0 99.00 20.00 25.00 G1/4" SOMX 05
DR160-032-20-05-2D-N
16.00 17.80 32.0 50.0 50.0 100.00 20.00 25.00 G1/4" SOMX 05
DR165-033-20-05-2D-N
16.50 18.10 33.0 51.0 50.0 101.00 20.00 25.00 G1/4" SOMX 05
DR170-034-20-05-2D-N
17.00 18.30 34.0 52.0 50.0 102.00 20.00 25.00 G1/4" SOMX 05
DR175-035-20-05-2D-N
17.50 18.50 35.0 53.0 50.0 103.00 20.00 25.00 G1/4" SOMX 05
DR180-036-25-06-2D-N
18.00 20.30 36.0 56.0 56.0 112.00 25.00 32.00 G3/8" SOMX 06
DR185-037-25-06-2D-N
18.50 20.50 37.0 57.0 56.0 113.00 25.00 32.00 G3/8" SOMX 06
DR190-038-25-06-2D-N
19.00 20.80 38.0 58.0 56.0 114.00 25.00 32.00 G3/8" SOMX 06
DR195-039-25-06-2D-N
19.50 21.00 39.0 59.0 56.0 115.00 25.00 32.00 G3/8" SOMX 06
DR200-040-25-06-2D-N
20.00 21.30 40.0 60.0 56.0 116.00 25.00 32.00 G3/8" SOMX 06
DR205-041-25-06-2D-N
20.50 21.60 41.0 61.0 56.0 117.00 25.00 32.00 G3/8" SOMX 06
DR210-042-25-07-2D-N
21.00 24.50 42.0 62.0 56.0 118.00 25.00 32.00 G3/8" SOMX 07
DR215-043-25-07-2D-N
21.50 24.70 43.0 63.0 56.0 119.00 25.00 32.00 G3/8" SOMX 07
DR220-044-25-07-2D-N
22.00 25.00 44.0 64.0 56.0 120.00 25.00 32.00 G3/8" SOMX 07
DR225-045-25-07-2D-N
22.50 25.20 45.0 65.0 56.0 121.00 25.00 32.00 G3/8" SOMX 07
DR230-046-25-07-2D-N
23.00 25.50 46.0 66.0 56.0 122.00 25.00 32.00 G3/8" SOMX 07
DR235-047-25-07-2D-N
23.50 25.70 47.0 67.0 56.0 123.00 25.00 32.00 G3/8" SOMX 07
DR240-048-25-07-2D-N
24.00 26.00 48.0 68.0 56.0 124.00 25.00 32.00 G3/8" SOMX 07
DR025-050-32-09-2D-N
25.00 29.50 50.0 82.0 58.0 140.00 32.00 42.00 G1/2" SOMT 09
DR026-052-32-09-2D-N
26.00 30.00 52.0 84.0 58.0 142.00 32.00 42.00 G1/2" SOMT 09
DR027-054-32-09-2D-N
27.00 30.50 54.0 86.0 58.0 144.00 32.00 42.00 G1/2" SOMT 09
DR028-056-32-09-2D-N
28.00 31.00 56.0 88.0 58.0 146.00 32.00 42.00 G1/2" SOMT 09
DR029-058-32-09-2D-N
29.00 31.50 58.0 90.0 58.0 148.00 32.00 42.00 G1/2" SOMT 09
DR030-060-32-09-2D-N
30.00 32.00 60.0 92.0 58.0 150.00 32.00 42.00 G1/2" SOMT 09
DR031-062-32-09-2D-N
31.00 32.50 62.0 94.0 58.0 152.00 32.00 42.00 G1/2" SOMT 09
DR032-064-32-09-2D-N
32.00 33.00 64.0 96.0 58.0 154.00 32.00 42.00 G1/2" SOMT 09
DR033-066-32-09-2D-N
33.00 34.00 66.0 98.0 58.0 156.00 32.00 42.00 G1/2" SOMT 09
DR034-068-32-09-2D-N
34.00 34.50 68.0 100.0 58.0 158.00 32.00 42.00 G1/2" SOMT 09
DR035-070-32-12-2D-N
35.00 40.50 70.0 106.0 58.0 164.00 32.00 50.00 G1/2-1 SOMT 12
DR036-072-32-12-2D-N
36.00 41.00 72.0 108.0 58.0 166.00 32.00 50.00 G1/2-1 SOMT 12
DR037-074-32-12-2D-N
37.00 41.50 74.0 110.0 58.0 168.00 32.00 50.00 G1/2-1 SOMT 12
DR038-076-32-12-2D-N
38.00 42.00 76.0 112.0 58.0 170.00 32.00 50.00 G1/2-1 SOMT 12
DR039-078-32-12-2D-N
39.00 42.50 78.0 114.0 58.0 172.00 32.00 50.00 G1/2-1 SOMT 12
DR040-080-40-12-2D-N
40.00 43.00 80.0 116.0 68.0 184.00 40.00 50.00 G3/4-14 SOMT 12
DR041-082-40-12-2D-N
41.00 43.50 82.0 118.0 68.0 186.00 40.00 50.00 G3/4-14 SOMT 12
DR042-084-40-12-2D-N
42.00 44.00 84.0 120.0 68.0 188.00 40.00 50.00 G3/4-14 SOMT 12
DR043-086-40-12-2D-N
43.00 44.50 86.0 122.0 68.0 190.00 40.00 50.00 G3/4-14 SOMT 12
DR044-088-40-12-2D-N
44.00 45.00 88.0 124.0 68.0 192.00 40.00 50.00 G3/4-14 SOMT 12
DR045-090-40-16-2D-N
45.00 51.00 90.0 126.0 68.0 194.00 40.00 60.00 G3/4-14 SOMT 16
DR046-092-40-16-2D-N
46.00 51.50 92.0 128.0 68.0 196.00 40.00 60.00 G3/4-14 SOMT 16
DR047-094-40-16-2D-N
47.00 52.00 94.0 130.0 68.0 198.00 40.00 60.00 G3/4-14 SOMT 16
107
INDEXABLE DRILLS
• Hole tolerance D+0.15/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves (used with tool
diameter range of 14.00-60.00 only), see page 118 • For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
(115)
DC= 14-60 mm
DC= 12-13.5 mm
LPR
OAL
LS
DF
DCONMS
CNT
LU
DC
DR-2D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 2xD
Designation
DC DCX(1) LU LPR LS OAL DCONMS DF CNT MIID(2)
DR048-096-40-16-2D-N
48.00 52.50 96.0 132.0 68.0 200.00 40.00 60.00 G3/4-14 SOMT 16
DR049-098-40-16-2D-N
49.00 53.00 98.0 134.0 68.0 202.00 40.00 60.00 G3/4-14 SOMT 16
DR050-100-40-16-2D-N
50.00 54.00 100.0 136.0 68.0 204.00 40.00 60.00 G3/4-14 SOMT 16
DR051-102-40-16-2D-N
51.00 54.50 102.0 138.0 68.0 206.00 40.00 60.00 G3/4-14 SOMT 16
DR052-104-40-16-2D-N
52.00 55.00 104.0 140.0 68.0 208.00 40.00 60.00 G3/4-14 SOMT 16
DR053-106-40-16-2D-N
53.00 55.50 106.0 142.0 68.0 210.00 40.00 60.00 G3/4-14 SOMT 16
DR054-108-40-16-2D-N
54.00 56.00 108.0 144.0 68.0 212.00 40.00 60.00 G3/4-14 SOMT 16
DR055-110-40-16-2D-N
55.00 56.50 110.0 146.0 68.0 214.00 40.00 60.00 G3/4-14 SOMT 16
DR056-112-40-16-2D-N
56.00 57.00 112.0 148.0 68.0 216.00 40.00 60.00 G3/4-14 SOMT 16
DR057-114-40-16-2D-N
57.00 57.50 114.0 150.0 68.0 218.00 40.00 60.00 G3/4-14 SOMT 16
DR058-116-40-16-2D-N
58.00 58.00 116.0 152.0 68.0 220.00 40.00 60.00 G3/4-14 SOMT 16
DR059-118-40-16-2D-N
59.00 59.00 118.0 154.0 68.0 222.00 40.00 60.00 G3/4-14 SOMT 16
DR060-120-40-16-2D-N
60.00 60.00 120.0 156.0 68.0 224.00 40.00 60.00 G3/4-14 SOMT 16
(continued)
ISCAR
108
INDEXABLE DRILLS
LPR
OAL
LU
LS
DF
DCONMS
CNT
DC
DC = 12-13.5 mm
DC = 14-38 mm
Designation
DC DCX(1) LU LPR LS OAL DCONMS DF CNT MIID(2)
DR120-036-16-04-3D-N
12.00 12.40 36.0 54.0 48.0 102.00 16.00 20.00 - AOMT 040204-90DT
DR125-038-16-04-3D-N
12.50 12.90 38.0 55.5 48.0 103.50 16.00 20.00 - AOMT 040204-90DT
DR130-039-16-04-3D-N
13.00 13.40 39.0 57.0 48.0 105.00 16.00 20.00 - AOMT 040204-90DT
DR135-041-16-04-3D-N
13.50 13.90 41.0 58.5 48.0 106.50 16.00 20.00 - AOMT 040204-90DT
DR140-042-20-05-3D-N
14.00 16.80 42.0 60.0 50.0 110.00 20.00 25.00 G1/4" SOMX 050204-DT
DR145-044-20-05-3D-N
14.50 17.10 43.5 61.5 50.0 111.50 20.00 25.00 G1/4" SOMX 050204-DT
DR150-045-20-05-3D-N
15.00 17.40 45.0 63.0 50.0 113.00 20.00 25.00 G1/4" SOMX 050204-DT
DR155-047-20-05-3D-N
15.50 17.60 46.5 64.5 50.0 114.50 20.00 25.00 G1/4" SOMX 050204-DT
DR160-048-20-05-3D-N
16.00 17.80 48.0 66.0 50.0 116.00 20.00 25.00 G1/4" SOMX 050204-DT
DR165-050-20-05-3D-N
16.50 18.10 49.5 67.5 50.0 117.50 20.00 25.00 G1/4" SOMX 050204-DT
DR170-051-20-05-3D-N
17.00 18.30 51.0 69.0 50.0 119.00 20.00 25.00 G1/4" SOMX 050204-DT
DR175-053-20-05-3D-N
17.50 18.50 52.5 70.5 50.0 120.50 20.00 25.00 G1/4" SOMX 050204-DT
DR180-054-25-06-3D-N
18.00 20.30 54.0 74.0 56.0 130.00 25.00 32.00 G3/8" SOMX 060304-DT
DR185-056-25-06-3D-N
18.50 20.50 55.5 75.5 56.0 131.50 25.00 32.00 G3/8" SOMX 060304-DT
DR190-057-25-06-3D-N
19.00 20.80 57.0 77.0 56.0 133.00 25.00 32.00 G3/8" SOMX 060304-DT
DR195-059-25-06-3D-N
19.50 21.00 58.5 78.5 56.0 134.50 25.00 32.00 G3/8" SOMX 060304-DT
DR200-060-25-06-3D-N
20.00 21.30 60.0 80.0 56.0 136.00 25.00 32.00 G3/8" SOMX 060304-DT
DR205-062-25-06-3D-N
20.50 21.60 61.5 81.5 56.0 137.50 25.00 32.00 G3/8" SOMX 060304-DT
DR210-063-25-07-3D-N
21.00 24.50 63.0 83.0 56.0 139.00 25.00 32.00 G3/8" SOMX 070305-DT
DR215-065-25-07-3D-N
21.50 24.70 64.5 84.5 56.0 140.50 25.00 32.00 G3/8" SOMX 070305-DT
DR220-066-25-07-3D-N
22.00 25.00 66.0 86.0 56.0 142.00 25.00 32.00 G3/8" SOMX 070305-DT
DR225-068-25-07-3D-N
22.50 25.20 67.5 87.5 56.0 143.50 25.00 32.00 G3/8" SOMX 070305-DT
DR230-069-25-07-3D-N
23.00 25.50 69.0 89.0 56.0 145.00 25.00 32.00 G3/8" SOMX 070305-DT
DR235-071-25-07-3D-N
23.50 25.70 70.5 90.5 56.0 146.50 25.00 32.00 G3/8" SOMX 070305-DT
DR240-072-25-07-3D-N
24.00 26.00 72.0 92.0 56.0 148.00 25.00 32.00 G3/8" SOMX 070305-DT
DR025-075-32-09-3D-N
25.00 29.50 75.0 107.0 58.0 165.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR026-078-32-09-3D-N
26.00 30.00 78.0 110.0 58.0 168.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR027-081-32-09-3D-N
27.00 30.50 81.0 113.0 58.0 171.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR028-084-32-09-3D-N
28.00 31.00 84.0 116.0 58.0 174.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR029-087-32-09-3D-N
29.00 31.50 87.0 119.0 58.0 177.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR030-090-32-09-3D-N
30.00 32.00 90.0 122.0 58.0 180.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR031-093-32-09-3D-N
31.00 32.50 93.0 125.0 58.0 183.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR032-096-32-09-3D-N
32.00 33.00 96.0 128.0 58.0 186.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR033-099-32-09-3D-N
33.00 34.00 99.0 131.0 58.0 189.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR034-102-32-09-3D-N
34.00 34.50 102.0 134.0 58.0 192.00 32.00 42.00 G1/2" SOMT 09T306-DT
DR035-105-32-12-3D-N
35.00 40.50 105.0 141.0 58.0 199.00 32.00 50.00 G1/2-14 SOMT 120408-DT
DR036-108-32-12-3D-N
36.00 41.00 108.0 144.0 58.0 202.00 32.00 50.00 G1/2-14 SOMT 120408-DT
DR037-111-32-12-3D-N
37.00 41.50 111.0 147.0 58.0 205.00 32.00 50.00 G1/2-14 SOMT 120408-DT
DR038-114-32-12-3D-N
38.00 42.00 114.0 150.0 58.0 208.00 32.00 50.00 G1/2-14 SOMT 120408-DT
• Hole tolerance D+0.25/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves (used with tool
diameter range of 14.00-38.00 only), see page 118 • For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
(115)
DR-3D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 3xD
109
INDEXABLE DRILLS
DFDCONMS
DC
DC= 14-60 mm
DC= 12-13.5 mm
LPR LS
CNT
LU
DR-4D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 4xD
• Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves (used with tool
diameter range of 14.00-60.00 only), see page 118 • For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
(115)
Designation
DC DCX(1) LU LPR LS DCONMS DF CNT MIID(2)
DR120-048-16-04-4D-N
12.00 12.40 48.0 66.0 48.0 16.00 20.00 - AOMT 040204-90DT
DR125-050-16-04-4D-N
12.50 12.90 50.0 68.0 48.0 16.00 20.00 - AOMT 040204-90DT
DR130-052-16-04-4D-N
13.00 13.40 52.0 70.0 48.0 16.00 20.00 - AOMT 040204-90DT
DR135-054-16-04-4D-N
13.50 13.90 54.0 72.0 48.0 16.00 20.00 - AOMT 040204-90DT
DR140-056-20-05-4D-N
14.00 16.80 56.0 74.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR145-058-20-05-4D-N
14.50 17.10 58.0 76.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR150-060-20-05-4D-N
15.00 17.40 60.0 78.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR155-062-20-05-4D-N
15.50 17.60 62.0 80.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR160-064-20-05-4D-N
16.00 17.80 64.0 82.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR165-066-20-05-4D-N
16.50 18.10 66.0 84.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR170-068-20-05-4D-N
17.00 18.30 68.0 86.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR175-070-20-05-4D-N
17.50 18.50 70.0 88.0 50.0 20.00 25.00 G1/4" SOMX 050204-DT
DR180-072-25-06-4D-N
18.00 20.30 72.0 92.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR185-074-25-06-4D-N
18.50 20.50 74.0 94.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR190-076-25-06-4D-N
19.00 20.80 76.0 96.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR195-078-25-06-4D-N
19.50 21.00 78.0 98.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR200-080-25-06-4D-N
20.00 21.30 80.0 100.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR205-082-25-06-4D-N
20.50 21.60 82.0 102.0 56.0 25.00 32.00 G3/8" SOMX 060304-DT
DR210-084-25-07-4D-N
21.00 24.50 84.0 104.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR215-086-25-07-4D-N
21.50 24.70 86.0 106.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR220-088-25-07-4D-N
22.00 25.00 88.0 108.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR225-090-25-07-4D-N
22.50 25.20 90.0 110.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR230-092-25-07-4D-N
23.00 25.50 92.0 112.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR235-094-25-07-4D-N
23.50 25.70 94.0 114.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR240-096-25-07-4D-N
24.00 26.00 96.0 116.0 56.0 25.00 32.00 G3/8" SOMX 070305-DT
DR025-100-32-09-4D-N
25.00 29.50 100.0 132.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR026-104-32-09-4D-N
26.00 30.00 104.0 136.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR027-108-32-09-4D-N
27.00 30.50 108.0 140.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR028-112-32-09-4D-N
28.00 31.00 112.0 144.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR029-116-32-09-4D-N
29.00 31.50 116.0 148.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR030-120-32-09-4D-N
30.00 32.00 120.0 152.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR031-124-32-09-4D-N
31.00 32.50 124.0 156.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR032-128-32-09-4D-N
32.00 33.00 128.0 160.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR033-132-32-09-4D-N
33.00 34.00 132.0 164.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR034-136-32-09-4D-N
34.00 34.50 136.0 168.0 58.0 32.00 42.00 G1/2" SOMT 09T306-DT
DR035-140-32-12-4D-N
35.00 40.50 140.0 176.0 58.0 32.00 50.00 G 1/2"-14 SOMT 120408-DT
DR036-144-32-12-4D-N
36.00 41.00 144.0 180.0 58.0 32.00 50.00 G 1/2"-14 SOMT 120408-DT
DR037-148-32-12-4D-N
37.00 41.50 148.0 184.0 58.0 32.00 50.00 G 1/2"-14 SOMT 120408-DT
DR038-152-32-12-4D-N
38.00 42.00 152.0 188.0 58.0 32.00 50.00 G 1/2"-14 SOMT 120408-DT
DR039-156-32-12-4D-N
39.00 42.50 156.0 192.0 58.0 32.00 50.00 G 1/2"-14 SOMT 120408-DT
DR040-160-40-12-4D-N
40.00 43.00 160.0 196.0 68.0 40.00 50.00 G 3/4"-14 SOMT 120408-DT
DR041-164-40-12-4D-N
41.00 43.50 164.0 200.0 68.0 40.00 50.00 G 3/4"-14 SOMT 120408-DT
DR042-168-40-12-4D-N
42.00 44.00 168.0 204.0 68.0 40.00 50.00 G 3/4"-14 SOMT 120408-DT
DR043-172-40-12-4D-N
43.00 44.50 172.0 208.0 68.0 40.00 50.00 G 3/4"-14 SOMT 120408-DT
DR044-176-40-12-4D-N
44.00 45.00 176.0 212.0 68.0 40.00 50.00 G 3/4"-14 SOMT 120408-DT
DR045-180-40-16-4D-N
45.00 51.00 180.0 215.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR046-184-40-16-4D-N
46.00 51.50 184.0 219.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR047-188-40-16-4D-N
47.00 52.00 188.0 223.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR048-192-40-16-4D-N
48.00 52.50 192.0 227.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR049-196-40-16-4D-N
49.00 53.00 196.0 231.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR050-200-40-16-4D-N
50.00 54.00 200.0 235.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
ISCAR
110
INDEXABLE DRILLS
DFDCONMS
DC
DC= 14-60 mm
DC= 12-13.5 mm
LPR LS
CNT
LU
DR-4D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 4xD
• Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves (used with tool
diameter range of 14.00-60.00 only), see page 118 • For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
(115)
Designation
DC DCX(1) LU LPR LS DCONMS DF CNT MIID(2)
DR051-204-40-16-4D-N
51.00 54.50 204.0 239.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR052-208-40-16-4D-N
52.00 55.00 208.0 243.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR053-212-40-16-4D-N
53.00 55.50 212.0 247.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR054-216-40-16-4D-N
54.00 56.00 216.0 251.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR055-220-40-16-4D-N
55.00 56.50 220.0 255.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR056-224-40-16-4D-N
56.00 57.00 224.0 259.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR057-228-40-16-4D-N
57.00 57.50 228.0 263.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR058-232-40-16-4D-N
58.00 58.00 232.0 267.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR059-236-40-16-4D-N
59.00 59.00 236.0 271.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
DR060-240-40-16-4D-N
60.00 60.00 240.0 275.0 68.0 40.00 60.00 G 3/4"-14 SOMT 160512-DT
(continued)
111
INDEXABLE DRILLS
CNT DCONMS
DC DF
LU
LPR
OAL
LS
Designation
DC DCX(1) LU LPR LS OAL DCONMS DF CNT MIID(2)
DR140-070-20-05-5D-N
14.00 16.10 70.0 88.0 50.0 138.00 20.00 25.00 G1/4" SOMX 050204-DT
DR150-075-20-05-5D-N
15.00 16.80 75.0 93.0 50.0 143.00 20.00 25.00 G1/4" SOMX 050204-DT
DR160-080-20-05-5D-N
16.00 17.35 80.0 98.0 50.0 148.00 20.00 25.00 G1/4" SOMX 050204-DT
DR170-085-20-05-5D-N
17.00 17.98 85.0 103.0 50.0 153.00 20.00 25.00 G1/4" SOMX 050204-DT
DR180-090-25-06-5D-N
18.00 19.73 90.0 110.0 56.0 166.00 25.00 32.00 G3/8" SOMX 060304-DT
DR190-095-25-06-5D-N
19.00 20.35 95.0 115.0 56.0 171.00 25.00 32.00 G3/8" SOMX 060304-DT
DR200-100-25-06-5D-N
20.00 20.98 100.0 120.0 56.0 176.00 25.00 32.00 G3/8" SOMX 060304-DT
DR210-105-25-07-5D-N
21.00 23.63 105.0 125.0 56.0 181.00 25.00 (3) 32.00 G3/8" SOMX 070305-DT
DR220-110-25-07-5D-N
22.00 24.25 110.0 130.0 56.0 186.00 25.00 (3) 32.00 G3/8" SOMX 070305-DT
DR230-115-25-07-5D-N
23.00 24.88 115.0 135.0 56.0 191.00 25.00 (3) 32.00 G3/8" SOMX 070305-DT
DR240-120-25-07-5D-N
24.00 25.50 120.0 140.0 56.0 196.00 25.00 (3) 32.00 G3/8" SOMX 070305-DT
• Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves, see page 118
• For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
(3) One flat shank
For inserts, see pages: SOGX/T-AL (115) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD (115)
Spare Parts
Designation
DR140-070-20-05-5D-N
SR 34-533/L T-6/5
DR150-075-20-05-5D-N
SR 34-533/L T-6/5
DR160-080-20-05-5D-N
SR 34-533/L T-6/5
DR170-085-20-05-5D-N
SR 34-533/L T-6/5
DR180-090-25-06-5D-N
SR 34-508/L T-7/51
DR190-095-25-06-5D-N
SR 34-508/L T-7/51
DR200-100-25-06-5D-N
SR 34-508/L T-7/51
DR210-105-25-07-5D-N
SR 14-560 T-8/53
DR220-110-25-07-5D-N
SR 14-560 T-8/53
DR230-115-25-07-5D-N
SR 14-560 T-8/53
DR240-120-25-07-5D-N
SR 14-560 T-8/53
DR-5D-N
Indexable Square Insert Drills with
Coolant Holes, Drilling Depth 5xD
ISCAR
112
INDEXABLE DRILLS
CNT
DC DCONMS DF
LU
LPR Rear Port
Flange Port Th1
LS
Designation
DC DCX(1) LU LPR LS DCONMS DF CNT Th1 MIID(2)
DR140-056-20-05-4D-T
14.00 15.90 56.0 77.0 50.0 20.00 27.70 NPT 1/4-18 NPT 1/16-27 SOMX 050204-DT
DR160-064-20-05-4D-T
16.00 17.90 64.0 82.0 50.0 20.00 27.70 NPT 1/4-18 NPT 1/16-27 SOMX 050204-DT
DR180-072-25-06-4D-T
18.00 20.90 72.0 94.0 56.0 25.00 32.00 NPT 3/8-18 NPT 1/16-27 SOMX 060304-DT
DR210-084-25-07-4D-T
21.00 24.90 84.0 109.0 56.0 25.00 32.00 NPT 3/8-18 NPT 1/16-27 SOMX 070305-DT
DR250-100-32-09-4D-T
25.00 27.90 100.0 133.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09T306-DT
DR280-112-32-09-4D-T
28.00 30.90 112.0 144.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09T306-DT
DR310-124-32-09-4D-T
31.00 31.90 124.0 157.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09T306-DT
DR320-128-32-09-4D-T
32.00 32.90 128.0 161.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09T306-DT
DR350-140-32-12-4D-T
35.00 39.90 140.0 177.0 58.0 32.00 50.00 NPT 1/2-14 NPT 1/16-27 SOMT 120408-DT
DR400-160-40-12-4D-T
40.00 44.90 160.0 197.0 68.0 40.00 50.00 NPT 3/4-14 NPT 1/4-18 SOMT 120408-DT
DR450-180-40-16-4D-T
45.00 51.90 180.0 215.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 160512-DT
DR520-208-40-16-4D-T
52.00 55.90 208.0 243.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 160512-DT
DR560-224-40-16-4D-T
56.00 57.90 224.0 259.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 160512-DT
DR580-232-40-16-4D-T
58.00 58.90 232.0 267.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 160512-DT
DR590-236-40-16-4D-T
59.00 60.00 236.0 271.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 160512-DT
• Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions • For eccenter sleeves, see page 118
• For user guide and cutting conditions, see pages 117-128
(1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
(2) Master insert identification
For inserts, see pages: SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD (115)
Spare Parts
Designation
DR140-056-20-05-4D-T
SR 34-533/L T-6/5 PLG 1/16PTF PLG 1/4PTF Z C
DR160-064-20-05-4D-T
SR 34-533/L T-6/5 PLG 1/16PTF PLG 1/4PTF Z C
DR180-072-25-06-4D-T
SR 34-508/L T-7/51 PLG 1/16PTF PLG 3/8PTF
DR210-084-25-07-4D-T
SR 14-560 T-8/53 PLG 1/16PTF PLG 3/8PTF
DR250-100-32-09-4D-T
SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF
DR280-112-32-09-4D-T
SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF
DR310-124-32-09-4D-T
SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF
DR320-128-32-09-4D-T
SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF
DR350-140-32-12-4D-T
SR 14-544/S BLD T15/S7 SW6-SD PLG 1/16PTF PLG 1/2PTF
DR400-160-40-12-4D-T
SR 14-544/S BLD T15/S7 SW6-SD PLG 3/4PTF PLG 1/4PTF Z C
DR450-180-40-16-4D-T
SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C
DR520-208-40-16-4D-T
SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C
DR560-224-40-16-4D-T
SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C
DR580-232-40-16-4D-T
SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C
DR590-236-40-16-4D-T
SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C
DR-4D-T
Indexable Insert Drills for
Non-Rotating Applications with
Coolant Holes and One Flat
Shank, Drilling Depth 4xD
113
INDEXABLE DRILLS
DCONMS
DC DF
LU
LPR
OAL
LS
DR-CA
DR Large Diameter Drills
(57-80 mm) with Cartridges
and One Flat Shank
• Hole tolerance: D±0.5 in average conditions. However, it can be higher or lower according to machine and tooling conditions
• For user guide and cutting conditions, see pages 117-128
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Max. dia. on lathe, with the thickest shim plate
For inserts, see pages: SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116)
ISCAR
114
INDEXABLE DRILLS
RE
S
INSL
L
178°
Dimensions Tough
1
Hard
Designation
L S RE INSL
IC08
IC1008
IC808
IC908
AOGT 040204-90AL
4.00 1.60 0.40 5.00
•
AOMT 040204-90DT
4.00 1.60 0.40 5.00
• • •
AOMT 040204-90HD (1)
4.00 1.60 0.40 5.00
•
• Used on 12-13.5 mm DR drills • For user guide and cutting conditions, see pages 117-128
(1) For low carbon steel and soft materials.
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109)
AOMT/AOGT
Inserts for DR Drills
S
IC
RE
Dimensions Tough
1
Hard
Designation
IC S RE
IC5500
IC808
IC908
IC8080
IC9080
SOMX 050204-DT
5.40 2.40 0.40
• • • •
SOMX 060304-DT
6.20 3.20 0.40
•••••
SOMX 070305-DT
7.70 3.60 0.50
•••••
SOMX 160512-DT
16.00 5.56 1.20
•
• DT - a general use chipformer for medium to high feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)
SOMX-DT
Inserts for DR Drills with a DT
General Use Chipformer
S
IC
RE
Dimensions
Designation
IC S RE
IC908
SOMX 050204-GF
5.40 2.40 0.40
•
SOMX 060304-GF
6.20 3.20 0.40
•
SOMX 070305-GF
7.70 3.60 0.50
•
• GF - a narrow chipformer for use on soft materials at low to medium feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)
SOMX-GF
Inserts with a GF Chipformer for
Soft Materials Used on DR Drills
115
INDEXABLE DRILLS
S
IC
RE
Dimensions
Designation
IC S RE
IC808
SOMX 050204-HD
5.40 2.40 0.40
•
SOMX 060304-HD
6.20 3.20 0.40
•
SOMX 070305-HD
7.70 3.60 0.50
•
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)
SOMX-HD
Inserts for DR Drills for Carbon
Steel and Soft Materials
IC
RE
S
Dimensions
Designation
IC S RE
IC08
SOGX 050204-AL
5.40 2.40 0.40
•
SOGX 060304-AL
6.20 3.20 0.40
•
SOGX 070305-AL
7.70 3.60 0.50
•
SOGT 09T306-AL
9.00 3.81 0.60
•
SOGT 120408-AL
12.70 4.76 0.80
•
• Sharp cutting edge with polished rake for aluminum • For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111)
SOGX/T-AL
Inserts for DR Drills for Aluminum
S
IC
RE
Dimensions Tough
1
Hard
Designation
IC S RE
IC328
IC908
SOMT 09T306-GF
9.00 3.81 0.60
• •
SOMT 120408-GF
12.70 4.76 0.80
•
SOMT 160512-GF
16.00 5.56 1.20
•
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-GF
Inserts for DR Drills for
Soft Materials at Low-
to-Medium Feeds
ISCAR
116
INDEXABLE DRILLS
S
IC
RE
Dimensions
Designation
IC S RE
IC808
SOMT 09T306-HD
9.00 3.81 0.60
•
SOMT 100408-HD
9.80 4.30 0.80
•
SOMT 110408-HD
11.50 4.80 0.80
•
SOMT 120408-HD
12.70 4.76 0.80
•
SOMT 160512-HD
16.00 5.56 1.20
•
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-HD
Inserts for DR Drills for Carbon
Steel and Soft Materials
Dimensions Tough
1
Hard
Designation
IC S RE
IC328
IC5500
IC808
IC908
IC8080
IC9080
SOMT 060204-DT
6.00 1.96 0.40
• • •
SOMT 09T306-DT
9.00 3.81 0.60
•••••
SOMT 100408-DT
9.80 4.30 0.80
•••
SOMT 110408-DT
11.50 4.80 0.80
• •
SOMT 120408-DT
12.70 4.76 0.80
• • • •
SOMT 140512-DT
14.30 5.20 1.20
•••
SOMT 160512-DT
16.00 5.56 1.20
• • •
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)
SOMT-DT
Inserts for DR Drills for
General Applications at
Medium-to-High Feeds
117
USER GUIDE
INDEXABLE DRILLS
Specially Tailored Designation Code Key
Metric Metric Metric Other Characteristics
MN - SUMOCHAM heads #.## #.## F - Cartridge
MNC - COMBICHAM A - Adjustable Cartridge
MF - CHAM-IQ-DRILL R - No Cartridge
M3N - LOGIQ-3-CHAM L - Left-Hand Drill
MD - IDI Heads B - Boring Tool
MR - XOMT/SOMT/SOMX Inserts S - Stacked Plates
MC - Assembly T - Flat Bottom
MH - Combi Holder C - Frontal Coolant
H - Heavy Metal
P - Combi Head
Y - Combi Assembly
M - Twisted
Inch Inch Inch ANSI ISO
IN - SUMOCHAM heads #.## #.## A - 2 SOMT 06
INC - COMBICHAM F - 3 SOMT 09
IF - CHAM-IQ-DRILL H - 4 SOMT 12
I3N - LOGIQ-3-CHAM K - 5 SOMT 16
ID - IDI Heads T - 4 AOMT 04
IR - XOMT/SOMT/SOMX Inserts P - 5 SOMX 05
IC - Assembly Q - 6 SOMX 06
IH - Combi Heads R - 7 SOMX 07
J - 10 SOMT 10
I - 11 SOMT 11
L - 14 SOMT 14
N - DCN/D3N Pocket
E - DCM Pocket
Line Drill Diameter Drilling Depth Shank/Flange Code Insert Size Insert
Qty Other
M R 3 4 8 - 0 6 9 N D - Q 4 R
40 mm
Whistle notch
68.7 mm
Ø34.75mm
Insers-
SOMX 060304-DT
Shank Type Code Shank/Diameter Type Code
F - One Parallel Flat P - 10 mm Z - .375"
D - Two Parallel Flats (DZ Metric Type) S - 12 mm T - .437"
E - Extended Lengh (For Coolant Ring) Q - 14 mm V - .500"
N - Whistle Notch (DR Metric Type) R - 16 mm W - .562"
L - One Flat (ISO 9266 Cham Shank) H - 18 mm U - .625"
R - Round (Fully Rounded) A - 20 mm J - .750"
W - Weldon B - 25 mm K - 1.000"
M - Morse C - 32 mm L - 1.250"
H - HSK D - 40 mm M - 1.500"
X - Special E - 50 mm N - 2.000"
P - CLICKFIT F - 63 mm 2 - MT2
B - BBS (ABS Compatible)(1) G - 80 mm 3 - MT3
K - IM (ISO 26622-1 standard) X - Special 4 - MT4
C - CAMFIX 5 - MT5
V - VDI (ISO 26623-1 standard)
Other types on request
(1) The trademark ABS® is owned by the KOMET GROUP
ISCAR
118
INDEXABLE DRILLS
On a milling machine, the drill’s nominal diameter can be
changed by shifting the drill’s axis out of the tool spindle.
+0.4
0
+0.2
0
+0.2
-0.2
L
MILL
M
M
Adapter
Eccenter
Sleeve
DR-Drill
Radial adjustment pin (not supplied)
+0.4
0
+0.2
0
+0.2
-0.2
L
90
D + 0.4mm
D - 0.2mm
D
M
M
D+0.4
D-0.2
To enlarge the diameter, turn the sleeve clockwise
Operation on a Milling Machine
-0.2
M
L
+0.2
0
+0.2
+0.4
Hole Diameter 29.8 mm
+16
0
+12
+4
+8
0
+8
-8
X.001”
-4
+4
M
L
Drill Diameter = 30 mm
Hole Diameter 30 mm
+0.4
0
+0.2
0
+0.2
-0.2
M
L
Drill Diameter = 30 mm
Hole Diameter 30.4 mm
Hole Diameter 29.8 mm
Recommended Feed When Using Eccenter Sleeves
Recommended Feed Rate
100%
90%
80%
70%
60%
50%
40%
2xD 3xD 4xD 5xD Length to Dia. Ratio
5
ø3 typ.x2
(1)
DCONMS
DCONWS
DF
OAL
Designation
DCONWS DCONMS DF OAL
ECCENTER SLEEVE 20X25
20.00 25.00 40.00 44.00
ECCENTER SLEEVE 25X32
25.00 32.00 50.00 46.00
ECCENTER SLEEVE 32X40
32.00 40.00 65.00 55.00
ECCENTER SLEEVE 40X50
40.00 50.00 75.00 77.00
• (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied)
Drilling Eccenter Sleeves
Bushings for Enlarging
or Reducing DR Nominal
Drilling Diameters by Shifting
the Drill Off-Center
119
USER GUIDE
INDEXABLE DRILLS
Machining Conditions
Cooling Methods
Directing the coolant through the tool is essential
for reliable machining. This method prevents
chip pile up, insert damage or breakage,
and damage to the workpiece surface.
Internal Coolant External Coolant
Apply standard cutting data. Drilling depth is limited
to 1.5xD. For larger
depths, a pecking cycle
is recommended.
Rotating Drills
For best results:
1 Check adapter rigidity.
2 Minimize drill runout in relation to spindle center line.
3 Use recommended cutting conditions.
How to Select Cutting Parameters
Step 1 - Prior to Drilling
• Use charts on pages 122-124 to select feed
and speed according to workpiece material.
• For the first grade choice, in general we
recommend selecting IC808.
Step 2 - Initial Test Hole Drilling
• Evaluate chip evacuation. If not satisfactory, adjust
feed and speed, using example photos below.
• If chip evacuation is still a problem, i.e. chips are too
long, change the chipbreaker to GF as shown below.
SOMT/SOMX
Too Tight Optimal Shape Too Long
may cause
insert damage
may cause
tool damage
Optimizing Chip Shape
Chip control is one of the most important factors for
tool performance in order to facilitate chip evacuation
and avoid tool damage.
Cutting conditions must be adjusted
to achieve optimal chip shape.
How To Achieve Optimal Chip Shape
Too Tight
Increase
speed within
recommended limits.
If not satisfactory,
decrease feed.
Optimal
Shape
Too Long
If machining at
high speed, first
reduce speed. If
unsatisfactory,
increase feed, but
do not exceed
upper limit.
ISCAR
120
USER GUIDE
INDEXABLE DRILLS
Setup of Non-Rotating Drills
Drill Positioning on Turret Lathe
The peripheral insert cutting edge should
be parallel to the machine X-axis.
X axis
Y axis
Two Correct
Options
AB
The drill can be mounted on the X-axis or on
a 180º rotation.
For better chip evacuation it is recommended
to apply option A peripheral insert position.
Shifting Direction
X axis
Y axis
Change hole diameter by shifting
drill’s center along lathe x-axis.
Diameter Change by Center Shift
DR-06
D Nominal D Max. on Lathe
16 19.5
17 20.0
18 20.5
19 21.0
20 21.5
21 22.0
22 23.0
DR-09
D Nominal D Max. on Lathe
23 28.5
24 29.0
25 29.5
26 30.0
27 30.5
28 31.0
29 31.5
30 32.0
31 32.5
32 33.3
33 34.0
34 34.5
35 35.0
DR-12
D Nominal D Max. on Lathe
34 39.5
35 40.0
36 40.5
37 41.0
38 41.5
39 42.0
40 42.5
41 43.0
42 43.5
43 44.0
44 44.5
45 51.0
46 51.5
47 52.0
48 52.5
49 53.0
50 54.0
51 54.5
52 55.0
53 55.5
54 56.0
55 56.5
56 57.0
57 57.5
58 58.0
59 59.0
60 60.0
Applicable only when using SOMT inserts
121
USER GUIDE
INDEXABLE DRILLS
Setup of Non-Rotating Drills
Grades for Applications and Materials
Material Groups
Main Applications
ISO P ISO M ISO K ISO N ISO S ISO H
1-11 12-13 14 15-20 21-28 31-37 38-41
Steel
Stainless
Steel
Ferritic &
Martensitic
Stainless Steel
Austenitic & Duplex
(Ferritic-Austenitic)
Cast Iron Nonferrous High
Temp
Hard
Steel
Harder
IC808 (908) IC808 (908) IC808 (908) IC8080(1) (9080) IC808 (908) IC808 (908) IC808 (908)
DRILLING IC5500 IC808 (908)
Tougher
(1) Use for an outer insert on DR drills
Default recommendation
Drilling Insert Grades
Machining Conditions
Optimizing Chip Shape for DR Drills
L
L1
h2
h1
DT GF
General use
For ISO – P/M/K/H/S
materials
For medium up to
high feed rates
L – open
H2 – low
L1 – medium
H1 – shallow
For low up to medium
feed rates
For ISO – P material
L – close
H2 – high
L1 – small
H1 – deep
AL HD
For medium up to
high feed rates
For ISO – N material
L – open
H2 – high
L1 – non
H1 – deep
For low up to medium
feed rates
For ISO – P material
L – open
H2 – high
L1 – non
H1 – non
Make sure the center line of the drill is aligned with the
spindle center line. It is recommended to verify the setup
according to the instructions shown below.
DR-06
D-0.3 (mm) D+1 (mm)
Under regular conditions it is possible to adjust
the center line of the drill (X-axis of the machine)
in order to change hole diameter size.
CORE
1 Drill a hole 6 mm deep with the drill center
line aligned with the spindle center line.
2 Check the existing core. If there is no core, check the
alignment of the Y-axis of the drill and spindle. Correct
by checking the adapter or adjusting the Y-axis.
3 Check that the hole diameter equals the drill diameter
+0.0- +0.2 mm. If not, adjust the X-axis.
4 Note: In some operations, part of the core may break.
If this occurs, use finger contact to verify if any
core remains
Warning: As the drill goes all the way through
a workpiece, it ejects a disc.
For worker safety, guards should be used..
ISCAR
122
USER GUIDE
INDEXABLE DRILLS
Machining Data for DR Drills
ISO
Material Condition
Tensile Strength
[N/mm2]
Hardness
HB
Group
No.(1)
P
Non-alloy steel and cast
steel, free cutting steel
< 0.25 %C Annealed 420 125 1
≥ 0.25 %C Annealed 650 190 2
< 0.55 %C Quenched and tempered 850 250 3
≥ 0.55 %C Annealed 750 220 4
Quenched and tempered 1000 300 5
Low alloy and cast steel (less than 5% of alloying elements)
Annealed 600 200 6
Quenched and tempered
930 275 7
1000 300 8
1200 350 9
High alloyed steel, cast steel and tool steel Annealed 680 200 10
Quenched and tempered 1100 325 11
Stainless steel and cast steel Ferritic/martensitic 680 200 12
Martensitic 820 240 13
MStainless steel and cast steel Austenitic, duplex 600 180 14
K
Gray cast iron (GG) Ferritic / pearlitic 180 15
Pearlitic / martensitic 260 16
Nodular cast iron (GGG) Ferritic 160 17
Pearlitic 250 18
Malleable cast iron Ferritic 130 19
Pearlitic 230 20
N
Aluminum-wrought alloys Not hardenable 60 21
Hardenable 100 22
Aluminum-cast alloys
≤12% Si Not hardenable 75 23
Hardenable 90 24
>12% Si High temperature 130 25
Copper alloys
>1% Pb Free cutting 110 26
Brass 90 27
Electrolytic copper 100 28
Non metallic Duroplastics, fiber plastics 29
Hard rubber 30
S
High temperature alloys
Fe based Annealed 200 31
Hardened 280 32
Ni or Co based
Annealed 250 33
Hardened 350 34
Cast 320 35
Titanium alloys Pure 400 36
Alpha+beta alloys, hardened 1050 37
H
Hardened steel Hardened 55 HRC 38
Hardened 60 HRC 39
Chilled cast iron Cast 400 40
Cast iron Hardened 55 HRC 41
• This table refers to 2/3xD drill ratio usage. For 4xD ratio decrease cutting data by 15%
• Chipformer should be selected based on our geometry range recommendations
• When using external coolant supply only, reduce cutting speed by 10%
• Use internal coolant supply when machining austenitic stainless steel
(1) For workpiece materials list, see pages 495-524
123
USER GUIDE
INDEXABLE DRILLS
Mat.
No.
Cutting Speed (1) Feed vs. Drill Diameter mm/rev
Vc m/min
IC808/ 908
external
Vc m/min
IC8080 /9080
external
DR-04
AL/DT/HD
DR-05
GF/DT/AL/HD
DR-06
GF/DT/AL/HD
DR-07
GF/DT/AL/HD
DR-09/10
GF/DT/AL/HD
DR-11/12
GF/DT/AL/HD
DR-14/16
GF/DT/AL/HD
1200-300 260-390
0.04-0.08
0.02-0.06
0.06-0.10
0.10-0.15
0.04-0.08
0.07-0.12
0.10-0.16
0.04-0.08
0.08-0.12
0.12-0.18
0.05-0.10
0.10-0.15
0.14-0.22
0.05-0.10
0.12-0.16
0.15-0.25
0.08-0.15
0.14-0.17
0.16-0.26
0.08-0.15
2
3
150-200 190-260
4
50.06-0.10
0.10-0.14
0.04-0.08
0.07-0.12
0.10-0.15
0.04-0.08
0.08-0.12
0.10-0.16
0.05-0.10
0.10-0.14
0.14-0.20
0.05-0.10
0.12-0.15
0.14-0.22
0.08-0.15
0.14-0.16
0.15-0.24
0.08-0.15
6150-220 190-290
7120-180 160-230
8
9
10 120-190 160-250 0.06-0.10
0.10-0.14
0.08-0.112
0.06-0.10
0.10-0.14
0.08-0.112
0.06-0.10
0.10-0.14
0.08-0.112
0.08-0.12
0.12-0.18
0.096-0.144
0.10-0.15
0.14-0.20
0.112-0.160
0.14-0.17
0.16-0.24
0.128-0.192
11 100-160 210-310
12 160-240 210-310 0.06-0.10
0.048-0.08
0.06-0.10
0.048-0.08
0.06-0.12
0.048-0.096
0.08-0.12
0.064-0.096
0.10-0.14
0.08-0.112
0.12-0.20
0.096-0.160
13
14 160-240 210-310 0.04-0.08 0.06-0.10 0.06-0.10 0.06-0.12 0.08-0.12 0.10-0.14 0.12-0.20
15 150-250 190-320
0.08-0.16 0.10-0.22 0.10-0.22 0.10-0.22 0.15-0.25 0.18-0.30 0.20-0.34
16
17
120-180 160-230
18
19
20
21
150-300 190-390 0.08-0.24 0.12-0.25 0.12-0.25 0.12-0.25 0.20-0.30 0.2-0.35 0.28-0.45
22
23
24
25
26
27
28
29
30
31
20-50 30-60
0.03-0.07 0.04-0.08 0.04-0.08 0.05-0.09 0.07-0.10 0.08-0.12 0.10-0.14
32
33
34
35
36 50-60 60-80
37
38 20-50 30-60
0.04-0.08 0.05-0.08 0.05-0.08 0.06-0.09 0.07-0.10 0.08-0.12 0.10-0.14
39
40
41
(1) Central insert should always be IC808/IC908
• This table refers to 2/3xD drill lengths. For 4xD and 5XD drills, decrease cutting data by 15%
• When using only external coolant supply, reduce cutting speed by 10%
• Use internal coolant supply when machining austenitic stainless steel
ISCAR
124
USER GUIDE
INDEXABLE DRILLS
Material Vc (m/min) Feed (mm/rev)
57-66 dia. 67-73 dia. 74-80 dia.
Low Carbon Steel (<0.3% C) 180-250 0.08-0.12 0.08-0.12 0.09-0.14
Carbon Steel (>0.3% C) 160-220 0.12-0.18 0.12-0.18 0.14-0.21
Low Alloy Steel (<HB300) 150-220 0.10-0.18 0.10-0.18 0.12-0.21
High Alloy Steel (>HB300) 130-180 0.10-0.15 0.10-0.15 0.12-0.17
Stainless Steel 170-240 0.08-0.15 0.08-0.15 0.09-0.17
Cast Iron 180-250 0.15-0.22 0.15-0.22 0.17-0.25
Ductile Cast Iron 130-200 0.10-0.20 0.10-0.20 0.12-0.23
Aluminum 330-380 0.15-0.25 0.15-0.25 0.17-0.29
Ti Alloy (Ti 6AI) 30-60 0.12-0.16 0.12-0.16 0.14-0.18
Machining Conditions for Large Diameter DR-TWIST Drills
125
USER GUIDE
INDEXABLE DRILLS
Machining Conditions
Machine Power and Feed Force Requirements
Power required, in relation to drill diameter
Power Pe (kW)
0
16 20 24
2
4
6
8
10
12
14
16
18
20
28 30 34 38 42 46 50 54
22
24
58 62 66 70
Drill Diameter D (mm)
f=0.25
f=0.18
f=0.1
Required Machine Power
Material: SAE 4140
Cutting speed: 100 m/min
For different cutting speeds, use factor as follows:
Machine Power
P = Pe · C
η
Vc [m/min] 100 150 200
C 1.0 1.5 2.0
η=Machine efficiency
Feed force (thrust force) required,
in relation to drill diameter
Power Pe (kW)
0
16 20 24
1
2
3
4
5
6
7
8
9
10
28 30 34 38 42 46 50 54
11
12
58 62 66 70
Drill Diameter D (mm)
f=0.25
f=0.18
f=0.1
Required Feed Force
Material: SAE 4140
Internal Coolant Pressure
Selecting Coolant Pressure and Flow Rate
Coolant Flow Rate (liter/min)
45
flow
rate
16 25 35 45
60
30
15
60
Drill Diameter D (mm)
Minimum Coolant Pressure (bar)
4.5 X D
3 X D
7-13 X D
2 X D
55 65
16 25 35 45
1
2
3
4
5
6
7
8
9
10
Drill Diameter D (mm)
* For special drills more than 4xD, it is recommended to use high coolant
pressure 15–70 bar
ISCAR
126
USER GUIDE
INDEXABLE DRILLS
Irregular Conditions for DR Drills
If surface slope exceeds 5º, reduce feed by 50%
during penetration or when exiting. It is preferred
to pre-face the surface to eliminate slope.
123
1Drilling into a pre-hole reduces feed to
eliminate deflection(1) of the drill body.
2Drilling an interrupted cut reduces feed during crossing
to eliminate deflection(1) of the drill body.
3Insufficient stability of workpiece requires
additional support. Reduce feed.
(1) Deflection may be observed by a mark on the drill body.
Note: For irregular applications, use DR drills with XOMT
inserts as a first priority.
Stacked Plates
Drilling operation is not recommended, but may be done
by specially designed drills in 16-60 mm range.
Apply standard cutting data.
Regular Conditions for DR Drills
Note: For irregular applications, use DR drills with XOMT inserts
as a first priority.
Indexable Insert Drills -
Troubleshooting DR Chips
Chip Jamming due
to Long Chips
Chip Jamming
despite Short Chips
Solutions Solutions
1 Increase feed. If drilling a
very soft material, reduce
feed and increase speed.
2 Choose a geometry with
a tighter chipbreaker
for lower feeds (GF).
3 Long chips that rotate around
the drill are problematic.
If chip formation can not
be improved by changing
the machining conditions,
use a pecking cycle.
1 Increase coolant
pressure/volume.
2 Reduce cutting speed.
Chipping Along
Cutting Edge
Machine Troubleshooting
Vibrations
Solutions Solutions
1 Reduce entrance feed.
2 Choose a tougher grade.
3 Choose a geometry
with open chip breaking
for higher feeds.
(SOMT, WOLH)
4 Reduce feed.*
5 Reduce cutting speed.
6 Increase coolant
pressure.
1 Check mounting of drill.
2 Check mounting
of workpiece.
3 Increase feed. If drilling
a very soft material,
reduce feed and
increase speed.*
4 Reduce cutting speed.
Chipping of Center Insert Insufficient Torque
Solutions Solutions
1 Check mounting of drill.
2 Check mounting
of workpiece.
3 Reduce entrance feed.
4 Reduce cutting speed.
5 Check drill runout
(should be 0.05 mm
maximum).
1 Reduce feed.*
2 Choose a geometry with
a looser chipformer.
Excessive Flank Wear Insufficient Power
Solutions Solutions
1 Reduce cutting speed.
2 Increase coolant
pressure/volume.
3 Choose a better wear
resistant grade.
1 Reduce cutting speed.
2 Reduce feed.*
3 Choose a geometry with
a looser chipformer.
* Use GF chipformer
Troubleshooting
127
USER GUIDE
INDEXABLE DRILLS
Undersized holes Oversized holes
Rotating drill
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert over center
• Increase coolant pressure
• Change the insert chipbreaker
Non-rotating drill
• Check misalignment
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert over center
• Rotate drill 180 degrees
• Increase coolant pressure
• Change the insert chipbreaker
Pin in hole Vibrations
Rotating drill
• Use shorter drill overhang (if possible)
• Reduce feed by 30-50%
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert is positioned over center within its limits
• Increase coolant pressure
• Change the insert chipbreaker
Non-rotating drill
• Check misalignment
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert over center
• Rotate drill 180 degrees
• Increase coolant pressure
• Change the insert chipbreaker
Cone Hole
Rotating drill
• Use shorter drill overhang (if possible)
• Reduce feed by 30-50%
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert is positioned over center
within its limits
• Increase coolant pressure
• Change the insert chipbreaker
Non-rotating drill
• Check misalignment
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert is positioned over center
within its limits
• Rotate drill 180 degrees
• Increase coolant pressure
• Change the insert chipbreaker
Bad Surface Finish
Rotating drill
• Improve chip formation (change chipbreaker
type or cutting condition)
• Increase coolant pressure
• Increase speed and reduce feed
• Stabilize clamping device
Non-rotating drill
• Improve chip formation (change chipbreaker
type or cutting condition)
• Increase coolant pressure
• Increase speed and reduce feed
• Stabilize clamping device
Troubleshooting
ISCAR
128
USER GUIDE
INDEXABLE DRILLS
Chip jamming
Rotating drill
• Improve chip formation (change chipbreaker
type or cutting condition)
• Increase coolant pressure
Non-rotating drill
• Improve chip formation (change chipbreaker
type or cutting condition)
• Increase coolant pressure
Deflection
Rotating drill
• Use shorter drill overhang (if possible)
• Reduce feed by 30-50%
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert is positioned over center within its limits
• Increase coolant pressure
• Change the insert chipbreaker
• Stabilize clamping device
Non-rotating drill
• Check misalignment
• Check that overlapping is correct
between inner and outer inserts
• Check inner insert is positioned over center within its limits
• Rotate drill 180 degrees
• Increase coolant pressure
• Change the insert chipbreaker
Broken Screw
• Use recommended torque wrench
• Lubricate the screw before tightening
Insufficient machine power-
• Reduce speed and feed
• Use recommended chipbreaker for low feed
Insufficient machine torque
• Reduce feed
• Use recommended chipbreaker for low feed
Chip Formation Problems
Long chip/ Chip jamming:
This typical problem with stainless or low carbon steel,
can affect hole quality, especially on surface finish, and
in some cases can cause insert or tool breakage.
Optimal Shape Too Long Too Tight
If machining at
high speed, first
reduce speed.
If unsatisfactory,
increase feed, but
do not exceed
upper limit.
Increase
speed within
recommended
limits. If not
satisfactory,
decrease feed.
129
USER GUIDE
INDEXABLE DRILLS
DR-DH Deep Drills for Milling Centers and Lathe Machines
DR-DH are drills for a drilling depth-to-diameter
ratio of 7xD and up, to be used on standard
horizontal milling centers, turning, and multi-task
machines. Use of supplementary machine and
setup can be avoided. These drills can be used
with the existing adaptations, not requiring any
special coolant pressure or extra pump capacity.
DR-DH drills are available as semi-standard items
in the diameter range of 25.4 to 69.5 mm.
Features
• High feed drilling: up to 0.35 mm/rev for high productivity
• Excellent surface quality: Ra = 0.6 – 2.0 [µm]
• Good hole cylindricity: 50-80 [µm]
• Hole tolerance: IT10
• Large drilling depth: L=7xD and higher – up to 800 mm
• Carries standard SOMX/SOMT indexable
inserts with 4 cutting edges
• No dedicated machine or extra setup needed
• Standard coolant pressure as used in general drilling
• Standard indexable, double-ended guide pads
• Used for steel (ISO P) and cast iron (ISO K) materials
ISCAR offers two drill versions:
Single Flute
DR-DH-31.65-0350NC-2FS
• Very rigid tool
• Designed for easy to cut materials such
as cast iron and low alloyed steel
• Patented chip gullet design
Double Flute
DR-DH-31.65-0350NC-2FD
• Double chip gullet for improved chip flow
• Designed for drilling gummy materials such as
non-alloyed steel and high temperature alloys
Designation
Metric
DR - DH -31.65 - 0350 NC - 2FD
Family Drilling depth (mm) Shank dia. F=Cartridge
R= No cartridge
Dia. (mm) Shank Type No. of Pads D=Double flute
S=Single flute
Inch
DR - DH -1.500 - 12.00 NC - 2FD
ISCAR
130
USER GUIDE
INDEXABLE DRILLS
• The DR-DH drills will be supplied upon request. For a quotation, please contact ISCAR headquarters,
providing all necessary hole and drill details (See following requested information form).
Requested Information Form for Deep Hole Drill Design
Company name Telephone no.
Address Date
Contact person Customer no.
Workpiece
Product name: Hole diameter:
Hole depth: No. of holes: Tolerance (of hole):
Surface finish (Rz, Ra...): Deviation (mm/100): Straightness (mm/100):
Material
Material (DIN, AISI, JIS...):
Hardness (HB, HS, HRC...):
Condition: o Quenched o Tempered o Cast o Annealed
o Other
Machine
Machine supplier name:
Machine type/model: o NC lathe o Machining center o Horizontal o Vertical
Rigidity: o Good o Normal o Poor
Spindle power (kW):
Tool and/or workpiece rotation (TR/WR):
o Tool and workpiece o Rotating workpiece (WR) o Rotating tool (TR)
Type of Coolant
Water based: o Soluble o Emulsion %
Oil based: o Coolant Pressure (bar): Coolant Volume (L/min):
Hole Data
Need a pre-hole drill quoation o Pre-drilled hole size % (mm/inch)
131
USER GUIDE
INDEXABLE DRILLS
Bore Type
12345678910
α
Please sketch your drilling application
General Production Information
Quantity of parts per year
Grade, tool life, etc
Cutting data
Perfomance expectation Vc = m/min N = RPM F = mm/min f = mm/rev
Description of present system in use
Please fill in and return to your ISCAR representative.
ISCAR
132
USER GUIDE
INDEXABLE DRILLS
1 A short pre-hole 20 mm long (minimum) with H8 hole tolerance should be prepared
to guide the long drill (a standard DR drill or an endmill can be used).
Option No.1 Option No.2
1.1 Penetration with an endmill 2.1 Penetration by drilling
1.2 Enlargement with the endmill 2.2 DRG-MF boring
3Deep hole drilling with DR-DH
2 The DR-DH drill should enter into the pre-hole at slow rotation speed and with coolant supply.
DR-DH Insert Mounting Configuration vs. Drill Diameter
DR-DH ø##.# [mm] Central Insert Intermediate Insert Peripheral Insert Guiding Pad
25.4-28.5 SOMX 050204…SOMX 050204…SOMX 050204…GPS-06-20-075
28.6-30.0 SOMX 050204…SOMX 060304…SOMX 050204…GPS-07-20-120
30.1-33.0 SOMX 060304…SOMX 060304…SOMX 060304…GPS-07-20-120
33.1-37.5 SOMX 060304…SOMX 070305…SOMX 060304…GPS-08-25-155
37.6-40.5 SOMX 070305…SOMX 070305…SOMX 070305…GPS-08-25-155
40.6-42.9 SOMX 070305…SOMT 09T306…SOMX 070305…GPS-08-25-155
43.0-47.5 SOMT 09T306…SOMT 09T306…SOMT 09T306…GPS-08-25-155
47.6-51.0 SOMT 100408…SOMT 100408…SOMT 100408…GPS-10-30-200
51.1-54.0 SOMT 100408…SOMT 110408…SOMT 100408…GPS-10-30-200
54.1-57.4 SOMT 100408…SOMT 110408…SOMT 110408…GPS-10-30-200
57.5-61.0 SOMT 110408…SOMT 110408…SOMT 110408…GPS-14-40-250
61.1-63.0 SOMT 110408…SOMT 120408…SOMT 110408…GPS-14-40-250
63.1-69.5 SOMT 120408…SOMT 120408…SOMT 120408…GPS-14-40-250
Spare Parts
Insert Screw Key Guiding Pad Clamping Screw Key
SOMX 050204... SR 34-533/L T-6/51 GPS-06-20-075 SR 11201753-1 T-7
SOMX 060304... SR 34-508/L T-7/51 GPS-06-20-085 SR 11201753-1 T-7
SOMX 070305... SR 14-560 T-8/51 GPS-06-20-100 SR 11201753-1 T-7
SOMT 09T306... SR 34-506 T-9/51 GPS-14-40-250 SR 11201752-2 T-15
SOMT 100408... SR 14-571 T-10/51 GPS-07-20-120 SR 11201753-4 T-9
SOMT 110408... SR 14-544/S T-15/51 GPS-10-30-200 SR 11201753-6 T-15
SOMT 120408... SR 14-544/S T-15/51
User Guide
133
USER GUIDE
INDEXABLE DRILLS
• DR-DH drills can be used with any type of adaptation.
However, concentric adapters such as hydraulic chucks
are advantageous for better runout. When machining
high temperature alloys or applying very high machining
loads, it is advisable to use strong gripping adapters
such as: side lock adapters, power / hydraulic chucks.
• In case of chip formation or chip evacuation problems,
the following sequence is recommended:
1 Reduce cutting speed by 10%
2 Increase internal coolant pressure
3 Apply a pecking cycle
4 Interrupted cut will have a direct influence on
hole accuracy, quality and drill life. (Sometimes
even tool breakage can occur).
Double-ended Pad
Worn support pads provide poor surface finish in a drilled
hole. In this case, pads should be rotated or replaced.
Rotate when wear shows on the back side of the pad
DR-DH Machining Recommendations
ISO
Material Condition Tensile Strength
Rm [N/mm2]
Hardness
HB Mtl. No.
Cutting
Speed vc
m/min
Feed mm/rev
P
Non-alloy steel
and cast steel,
free cutting steel
0.1 - 0.25 %C Annealed 420 125 1 100-150 0.10-0.25
0.25 - 0.25 %C Annealed 650 190 2 0.10-0.25
0.25 - 0.25 %C Quenched and
tempered 850 250 3
80-150
0.15-0.30
0.55 - 0.80 %C Annealed 750 220 4 0.15-0.30
0.55 - 0.80 %C Quenched and
tempered 1000 300 5 0.15-0.30
Low alloy and cast steel (less
than 5% of alloying elements)
Annealed 600 200 6 0.15-0.30
Quenched and
tempered
930 275 7
70-120
0.15-0.30
1000 300 8 0.15-0.30
1200 350 9 0.15-0.30
High alloyed steel, cast
steel and tool steel
Annealed 680 200 10 80-150 0.10-0.25
Quenched and
tempered 1100 325 11 70-120 0.10-0.25
K
Grey cast iron (GG)
Ferritic / pearlitic 180 15
180-300
0.18-0.35
Pearlitic / martensitic 260 16 0.18-0.35
Nodular cast iron (GGG) Ferritic 160 17
150-250
0.15-0.30
Pearlitic 250 18 0.15-0.30
Malleable cast iron Ferritic 130 19 0.15-0.35
Pearlitic 230 20 0.15-0.35
ISCAR
134
INDEXABLE DRILLS
S
±
0.025
L
L
W
1
W
1
EPSR EPSR
AOMT 060204-45DT AOMT 030204-N-..DT
Dimensions Tough
1
Hard
Designation
L W1 S EPSR
IC1008
IC508
IC908
AOMT 060204-45DT
5.66 4.50 1.96 45.5
• •
AOMT 060204-45HD (1)
5.66 4.50 1.96 45.5
•
AOMT 030204-N-45DT (2)
2.80 4.00 1.59 45.5
•
AOMT 030204-N-30DT (2)
4.00 4.00 1.59 30.5
•
• The cutting speed is dependent on the drilling insert being used
(1) For low carbon steel
(2) Used for specially tailored tools
For tools, see pages: DCNT (M8-M24) (136) • DCT (M8-M24) (134)
AOMT-Chamfering
Chamfering Inserts
DCONMS
LS
OAL
LPR
LU
SD_2
SDL
DCN-DCX
PL
DC_2
STA_2
Designation
DCN(2) Dnominal(3) DCX(4) DC_2 DCONMS SDL LU LPR OAL LS STA_2 PL SSC(5) Th(6) SD_2
DCT 068-021-14B-M8 (1)
6.80 6.80 7.40 13.90 14.00 20.9 31.70 43.10 88.14 45.0 90.0 1.240 6.8 M8 25.74 SR 34-508 T-7/51 K DCM- 8
DCT 085-026-14B-M10
8.30 8.50 8.90 14.00 14.00 26.3 36.60 48.00 93.05 45.0 90.0 1.550 8.0 M10 30.55 SR 34-508 T-7/51 K DCM- 8
DCT 102-030-14B-M12
10.00 10.20 10.90 14.00 14.00 30.0 39.80 53.90 98.86 45.0 90.0 1.860 10.0 M12 33.76 SR 34-508 T-7/51 K DCM-10
DCT 120-035-16B-M14
12.00 12.00 12.90 16.00 16.00 34.9 45.10 60.20 108.18 48.0 90.0 2.180 12.0 M14 39.08 SR 34-508 T-7/51 K DCM-12
DCT 140-039-18B-M16
14.00 14.00 14.90 18.00 18.00 39.0 49.60 62.50 110.55 48.0 90.0 2.550 14.0 M16 43.55 SR 34-508 T-7/51 K DCM-14
DCT 175-042-20B-M20
17.30 17.50 17.90 21.00 20.00 42.0 53.00 66.20 116.18 50.0 90.0 3.180 17.0 M20 46.98 SR 34-508 T-7/51 K DCM-17
DCT 210-048-25B-M24
21.00 21.00 21.90 25.50 25.00 48.2 60.30 72.80 128.82 56.0 90.0 3.820 21.0 M24 54.32 SR 34-508 T-7/51 K DCM-21
• Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Do not mount smaller drilling heads other
than the specified range of the drill body • For user guide and cutting conditions, see page 135
(1) Reduce recommended feed for DCT 6.8 mm drills by 10%
(2) Cutting diameter minimum
(3) Pre-thread hole diameter
(4) Cutting diameter maximum
(5) Seat size code
(6) Used for standard thread size
For inserts, see pages: AOMT-Chamfering (134) • IDI-SG (94) • IDI-SK (98)
DCT (M8-M24)
Exchangeable Head Drills with
Chamfering Inserts Mainly
for Pre-Thread Holes
135
USER GUIDE
INDEXABLE DRILLS
There are two main applications for pre-thread hole drilling:
Drilling pre-thread blind and through holes:
Drilling with a 45° Chamfer Drilling and Counter Boring
6 mm max
Pre-Thread DCT Drills
·
Pre-Thread DCT Metric Threads Recommended Diameters
Drill Designation Dia. Range M Thread Head
Dia. MF Head Head Dia. TR
Thread Head Dia. M Helicoil
Thread Head Dia.
DCT 068-021-14B-M8 6.80-7.49 M8 6.8 MF8X0.75 7.20 TR10X3 7.49
MF8X1 7.00
DCT 085-026-14B-M10 8.30-8.99 M10 8.5 MF10X1 8.99 TR10X1.5 8.60 M8 8.40
MF10X1.25 8.80
DCT 102-030-14B-M12 10.0-10.99
M12 10.2 MF11X1 10.00 TR12X2 10.20 M10 10.50
MF12X1 10.99 TR14X4 10.50
MF12X1.25 10.80
MF12X1.5 10.50
DCT 120-035-16B-M14 12.0-12.99
M14 12.0 MF13X1 12.00 TR14X2 12.20 M12 12.50
MF14X1 12.99 TR16X4 12.30
MF14X1.25 12.80
MF14X1.5 12.50
DCT 140-039-18B-M16 14.0-14.99
M16 14.0 MF14X1 14.00 TR18X4 14.30 M14 14.99
MF16X1 14.99
MF16X1.5 14.50
DCT 175-042-20B-M20 17.3-17.99 M20 17.5 TR22X5 17.30
MF20X2 17.99
DCT 210-048-25B-M24 21.0-21.99 M24 21.0 MF22X1 21.00
Inch Threads
Drill Designation Dia.
Range
UNF
Thread
Head
Dia. UNC Thread Head
Dia.
UNC Helicoil
Thread
Head
Dia.
BSW
Thread
Head
Dia. BSF Thread Head
Dia.
DCT 085-026-14B-M10 8.30-
8.99 UNF3/8-24 8.5 UNC5/16-18 8.4
DCT 102-030-14B-M12 10.0-
10.99 UNC1/2-13 10.8 BSW1/2-12 10.5 BSF1/2-16 10.99
DCT 120-035-16B-M14 12.0-
12.99 UNC9/16-12 12.3 BSF9/16-16 12.50
DCT 140-039-18B-M16 14.0-
14.99 UNF5/8-18 14.5
DCT 175-042-20B-M20 17.3-
17.99 UNF3/4-16 17.5
Inch Threads
Drill Designation Dia.
Range
NPT
Thread
Head
Dia. BSF Thread Head
Dia.
BSP
Thread
Head
Dia. UNEF Thread Head
Dia.
UNJF Helicoil
Thread
Head
Dia.
DCT 085-026-14B-M10 8.30-8.99 NPT1/8-27 8.5 G1/8-28 8.8 UNEF3/8-32 8.7 UNJF3/8-24 8.6
DCT 102-030-14B-M12 10.0-10.99 BSF1/2-16 10.99
DCT 120-035-16B-M14 12.0-12.99 BSF9/16-16 12.50
DCT 140-039-18B-M16 14.0-14.99 NPT3/8-18 14.5 UNEF5/8-24 14.8 UNJF5/8-18 14.5
DCT 175-042-20B-M20 17.3-17.99 NPT1/2-14 17.5 UNEF3/4-20 17.8
ISCAR
136
INDEXABLE DRILLS
DCONMS
LTA
DF
LS
SDL 6
DC_2
PL
DCN-DCX k7
Designation
Dnominal(1) Th(2) DCN(3) DCX(4) DC_2 SDL PL LTA DCONMS DF LS SSC(5)
DCNT 068-021-12A-M8
6.80 M8 6.50 6.90 13.50 21.00 1.240 43.80 12.00 16.00 45.0 6.5
DCNT 085-026-12A-M10
8.50 M10 8.50 8.90 15.50 26.00 1.200 48.80 12.00 17.00 45.0 8.0
DCNT 102-030-16A-M12
10.20 M12 10.00 10.40 17.00 30.00 1.500 52.50 16.00 20.00 48.0 10.0
DCNT 120-035-16A-M14
12.00 M14 12.00 12.40 19.00 35.00 1.800 61.00 16.00 21.00 48.0 12.0
DCNT 140-039-16A-M16
14.00 M16 14.00 14.40 21.00 39.00 2.100 66.90 16.00 23.00 48.0 14.0
DCNT 175-042-20A-M20
17.50 M20 17.00 17.90 24.00 42.00 2.700 69.30 20.00 25.00 50.0 17.0
DCNT 210-048-25A-M24
21.00 M24 21.00 21.90 28.00 48.00 3.200 80.00 25.00 32.00 56.0 21.0
• Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Do not mount smaller drilling heads other
than the specified range of the drill body. • For user guide and cutting conditions, see page 136
(1) Pre-thread hole diameter
(2) Used for standard thread size
(3) Cutting diameter minimum
(4) Cutting diameter maximum
(5) Pocket size
For inserts, see pages: ICP (18) • ICP-2M (24) • ICK (28) • ICK-2M (32) • ICM (36) • ICN (42) • QCP-2M (43) • HCP-IQ (47) • FCP (52) • ICG (57) • AOMT-Chamfering
(134)
DCNT (M8-M24)
Exchangeable Head Drills with
Chamfering Inserts Mainly
for Pre-Thread Holes
Spare Parts
Designation
DCNT 068-021-12A-M8
SR 34-508 T-7/51 K DCN 6-9.99-Y
DCNT 085-026-12A-M10
SR 34-508 T-7/51 K DCN 6-9.99
DCNT 102-030-16A-M12
SR 34-508 T-7/51 K DCN 10-13.99
DCNT 120-035-16A-M14
SR 34-508 T-7/51 K DCN 10-13.99
DCNT 140-039-16A-M16
SR 34-508 T-7/51 K DCN 14-17.99
DCNT 175-042-20A-M20
SR 34-508 T-7/51 K DCN 14-17.99
DCNT 210-048-25A-M24
SR 34-508 T-7/51 K DCN 18-21.99
137
INDEXABLE DRILLS
BD
45˚
LB
CHW
Designation
SS(1) DCN(2) DCX(3) BD(4) LB Ch CHW MIID(5)
RING DCM 100
DCM 100 10.00 10.40 33.00 14.3 1.5 1.50 XOGX
RING DCM 105
DCM 105 10.50 10.90 33.00 14.3 1.5 1.50 XOGX
RING DCM 110
DCM 110 11.00 11.40 35.00 14.5 1.5 1.50 XOGX
RING DCM 115
DCM 115 11.50 11.90 35.00 14.5 1.5 1.50 XOGX
RING DCM 120
DCM 120 12.00 12.40 37.50 14.6 1.5 1.50 XOGX
RING DCM 125
DCM 125 12.50 12.90 37.50 14.6 1.5 1.50 XOGX
RING DCM 130
DCM 130 13.00 13.40 39.00 14.6 1.5 1.50 XOGX
RING DCM 135
DCM 135 13.50 13.90 39.00 14.6 1.5 1.50 XOGX
RING DCM 140
DCM 140 14.00 14.40 41.00 15.3 1.5 1.50 XOGX
RING DCM 145
DCM 145 14.50 14.90 41.00 15.3 1.5 1.50 XOGX
RING DCM 150
DCM 150 15.00 15.90 43.00 16.5 1.5 1.50 XOGX
RING DCM 160
DCM 160 16.00 16.90 45.00 17.0 2.0 2.00 XOGX
RING DCM 170
DCM 170 17.00 17.90 47.00 17.5 2.0 2.00 XOGX
RING DCM 180
DCM 180 18.00 18.90 48.00 18.0 2.0 2.00 XOGX
RING DCM 200
DCM 200 20.00 20.90 52.00 18.0 2.0 2.00 XOGX
• RING DCM can be mounted only on DCM 3XD and DCM 5XD drills • For mounting instructions, see page 138
(1) Drill size
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) BD=D ring
(5) Master insert identification
For inserts, see pages: XOGX-DT (137)
Spare Parts
Designation
RING DCM 100
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 105
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 110
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 115
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 120
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 125
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 130
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 135
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 140
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 145
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 150
SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T
RING DCM 160
SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T
RING DCM 170
SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T
RING DCM 180
SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T
RING DCM 200
SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T
(a) Maximum tightening torque 10 N*m
(b) Maximum tightening torque 7 N*m
RING DCM
Chamfering Ring Mounted on
CHAMDRILL Drills for Drilling and
Chamfering in One Operation
W
1
S
45º
INSL
Dimensions
Designation
W1 S INSL
IC830
XOGX 090700-45DT
9.00 7.00 12.00
•
For tools, see pages: RING DCM (137)
XOGX-DT
Inserts Used on Chamfering Rings
ISCAR
138
USER GUIDE
INDEXABLE DRILLS
Drilling and Chamfering in One Operation
for DCM 3xD and 5xD Drills
1
2
3
5
4
Mounting Instructions
1Insert the chamfering ring on the drill body
and slide to the desired position(1).
2Rotate the ring clockwise until the stopper
engages the flute edge.
3Tighten the ring screw according to the maximum
tightening torque indicated on page 137.
4Mount the chamfering insert.
5Mount the CHAMDRILL head.
Chamfering Ring Position Range
Drill
Diameter
Drill Body 3xD
L (min-max)
Drill Body 5xD
L (min-max)
Maximum
Chamfer Size
10 8-16 15-36
1.5
10.5 8-18 17-39
11 8-19 18-41
11.5 8-21 20-44
12 8-22 21-46
12.5 8-24 23-49
13 8-25 24-51
13.5 8-27 26-54
14 9-29 28-57
14.5 9-30 29-60
15 9-31 30-60
16 9-33 32-65
2.0
17 11-35 34-69
18 11-38 34-74
19 11-42 41-80
20 11-45 44-85
User Guide
Recommendations for better stability:
1 Use 3xD drill instead of 5xD, if possible.
2 Mount the chamfering ring as close
as possible to the drill shank.
3 For better chamfering insert life, apply a
coolant to the chamfering insert, in addition
to the internal and/or external coolant.
4 A wider gap “X” between the drill and the head size is
preferred (i.e. for a 14.6 mm head, use a 14 mm body
rather than 14.5 mm). A slightly larger “X” dimension
can dramatically increase the chamfering insert life.
(1) The “L” dimension shown is relative to the common 1 mm chamfer.
For other sizes, adjust “L” accordingly.
Min. 1 mm
Min. 1 mm
NO
SETUP
TIME!
L
1mm(1)
X
(maximize)
Chamfering Ring
139
INDEXABLE DRILLS
LPR LS
DF
DCONWS
DCONMS
STA
DC
DCN/DCX
Whistle notch shank
*SDL max
min
CHAMRING
Drill Holders for Drilling and
Chamfering in One Operation
• It is recommended to apply external coolant on the chamfering inserts • Reduce the recommended feed and speed by 50% when machining maximum chamfer size
• *SDLmin & SDLmax dimensions are based on the 45° chamfering insert • Chamfering angle (STA) depends on the chamfering insert being used
For inserts, see pages: XCGT-DT (140)
ISCAR
140
INDEXABLE DRILLS
W1
S
INSL
PNA
Dimensions Tough
1
Hard
Designation
W1 INSL S PNA
IC08
IC808
XCGT 060300-30DT
6.18 12.30 2.80 30.0
• •
XCGT 060300-45DT
6.18 12.30 2.80 45.0
• •
XCGT 060300-60DT
6.18 12.30 2.80 60.0
• •
XCGT 090300-30DT
8.50 16.00 3.30 30.0
• •
XCGT 090300-45DT
8.50 16.00 3.30 45.0
• •
XCGT 090300-60DT
8.50 16.00 3.30 60.0
• •
For tools, see pages: CHAMRING (139)
XCGT-DT
Inserts used on Chamfering
Drill Holders for Chamfering
and Drilling in One Operation
DC 140°
PL SDL
DC_2 m7 LCF OAL
45°
LU
LS
DCONMSh6
Dimensions
Designation
DC SDL DCONMS FTDZ(1) DC_2 PL LU LCF OAL LS
IC908
SCDT 025-009-060-M3
2.50 8.8 6.00 M3 4.00 0.450 16.00 20.0 62.00 36.0
•
SCDT 033-011-060-M4
3.30 11.4 6.00 M4 4.50 0.600 19.00 24.0 62.00 36.0
•
SCDT 042-014-060-M5
4.20 13.6 6.00 M5 5.50 0.760 22.00 28.0 66.00 36.0
•
SCDT 050-017-080-M6
5.00 16.5 8.00 M6 6.60 0.910 27.00 34.0 79.00 40.0
•
SCDT 068-021-100-M8
6.80 21.0 10.00 M8 9.00 1.240 38.00 47.0 89.00 40.0
•
SCDT 085-026-120-M10
8.50 25.5 12.00 M10 11.00 1.550 45.00 55.0 102.00 40.0
•
• For user guide and cutting conditions, see pages 175-184
(1) Used for standard thread size
SCDT
Pre-Thread Solid Carbide
Drills with Coolant Holes
141
MULTIFUNCTION TOOLS
MULTIFUNCTION TOOLS
ISCAR
142
MULTIFUNCTION TOOLS
DC
WF
LPR=LF
LU LS
DCONMS
DMIN
CNT
Fig. 1
Fig. 2
±0.05
±0.05
Right-hand shown
Designation
DC DMIN WF LU LPR LS DCONMS CNT Insert Fig.
DR-MF-08R/L-2.25D-12A-04
8.00 8.00 - 18.0 22.5 42.0 12.00 G 1/16 XCMT 04... 1SR 18034/HG-P IP-6/5
DRG-MF-10R/L-2.25D-12A-05
10.00 12.00 7.10 22.5 27.5 42.0 12.00 G 1/16 XCMT 05... 2SR 20038/HG-P IP-6/5
DRG-MF-12R/L-2.25D-16A-06
12.00 14.50 8.50 27.0 33.0 45.0 16.00 G 1/8 XCMT 06... 2SR 22052/HG-P IP-7/5
DRG-MF-14R/L-2.25D-16A-07
14.00 16.50 9.50 31.5 38.5 45.0 16.00 G 1/8 XCMT 07... 2SR 25064/HG-P IP-8/5
DRG-MF-16R/L-2.25D-20A-08
16.00 19.00 11.10 36.0 44.0 50.0 20.00 G 1/8 XCMT 08... 2SR 30070/HG-P IP-9/151
DRG-MF-20R/L-2.25D-25A-10
20.00 23.50 13.20 45.0 55.0 56.0 25.00 G 1/8 XCMT 10... 2SR 35088I/HG-P IP-10/151
DRG-MF-25R/L-2.25D-32A-13
25.00 29.00 16.50 56.5 69.0 61.0 32.00 G 1/8 XCMT 13... 2SR 45A100I/HG IP-20/51
DRG-MF-32R/L-2.25D-40A-17
32.00 36.50 20.50 72.0 86.0 74.0 40.00 G 1/8 XCMT 17... 2SR 45A100I/HG IP-20/51
• In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis • The tools feature internal coolant
holes
For inserts, see pages: XCMT-MF (143) • XCMT-MG (143)
DRG-MF
Multifunction Drilling, Boring,
Facing, External Turning and
Internal Grooving Tools
143
MULTIFUNCTION TOOLS
EPSR
L
RE
IC
AN AN
S
RE L
IC
EPSR S
XCMT 040104R-MF
Fig. 1 Fig. 2
Dimensions
Designation
IC L S RE AN EPSR Fig.
IC908
XCMT 040104R/L-MF
4.40 6.37 1.70 0.40 7.0 83.5 2
•
XCMT 050204-MF
5.60 5.60 2.10 0.40 7.0 83.5 1
•
XCMT 060204-MF
6.40 6.40 2.38 0.40 7.0 83.5 1
•
XCMT 070304-MF
7.50 7.50 3.18 0.40 7.0 83.5 1
•
XCMT 080304-MF
8.40 8.40 3.18 0.40 7.0 83.5 1
•
XCMT 10T304-MF
10.50 10.50 3.97 0.40 7.0 83.5 1
•
XCMT 10T308-MF
10.50 10.50 3.97 0.80 7.0 83.5 1
•
XCMT 130404-MF
13.40 13.40 4.76 0.40 7.0 83.5 1
•
XCMT 130408-MF
13.40 13.40 4.76 0.80 7.0 83.5 1
•
XCMT 170508-MF
17.40 17.40 5.56 0.80 7.0 83.5 1
•
For tools, see pages: DRG-MF (142)
XCMT-MF
Inserts for DR-MF Multifunction
Tools with Two Cutting
Edges for Hard Materials
and Interrupted Cut
CDX
7°
S
CW
RE
Dimensions Tough
1
Hard Recommended
Machining Data
Designation
CW CDX(1) CWTOL(2) RE S
IC808
IC808G
f turn
(mm/rev)
f groove
(mm/rev)
XCMT 05R-15718015MG
1.57 1.80 0.02 0.15 2.28
•
0.03-0.07 0.03-0.06
XCMT 05R-201802-MG
2.00 1.80 0.02 0.20 2.28
•
0.05-0.10 0.04-0.07
XCMT 06R-17820018MG
1.78 1.80 0.02 0.18 2.28
•
0.04-0.08 0.04-0.07
XCMT 06R-202002-MG
2.00 2.00 0.02 0.20 2.65
•
0.05-0.10 0.04-0.07
XCMT 07R-19620015MG
1.96 1.80 0.02 0.15 2.28
•
0.05-0.10 0.04-0.07
XCMT 07R-252002-MG
2.50 2.00 0.02 0.20 3.41
•
0.07-0.12 0.05-0.10
XCMT 08R-22125015MG
2.21 2.00 0.02 0.15 3.41
•
0.06-0.11 0.04-0.08
XCMT 08R-252502-MG
2.50 2.50 0.02 0.20 3.50
•
0.07-0.12 0.05-0.10
XCMT 10R-23930015MG
2.39 2.00 0.02 0.15 3.41
•
0.07-0.12 0.05-0.10
XCMT 10R-303003-MG
3.00 3.00 0.02 0.30 4.34
•
0.14-0.18 0.06-0.12
XCMT 13R-31835020MG
3.18 3.50 0.02 0.20 5.18
•
0.14-0.18 0.06-0.12
XCMT 13R-353503-MG
3.50 3.50 0.02 0.30 5.25
•
0.14-0.20 0.07-0.14
XCMT 17R-404004-MG
4.00 4.00 0.02 0.40 6.00
•
0.15-0.21 0.08-0.15
(1) Cutting depth maximum
(2) Cutting width tolerance (+/-)
For tools, see pages: DRG-MF (142)
XCMT-MG
Two Cutting Edged Internal
Grooving Inserts for DR-MF
Multifunction Tools
ISCAR
144
USER GUIDE
MULTIFUNCTION TOOLS
User guide for DRG-MF
Coolant Pressure
• Apply above 6 Bar in 2.25xD tools (optimal pressure
is above 10 Bar).
Radial Adjustment (off-center drilling)
• Radial adjustment is dependent on drill diameter
Optimization of Chip Shape
• Apply high-speed machining on low carbon steel
• Produce thin chips, as most problems
are caused by thick chips
• Regulate chips produced by machining
medium-to-high carbon steel
• If too tight, either increase speed and reduce
feed, or reduce speed and increase feed
• If too long, reduce speed and increase feed
Tool Drill Dia. Dmin Dmax
DRG-MF-10 10 9.82 10.60
DRG-MF-12 12 11.82 12.60
DRG-MF-14 14 13.80 14.60
DRG-MF-16 16 15.76 16.50
DRG-MF-20 20 19.80 20.60
DRG-MF-25 25 24.80 25.80
DRG-MF-32 32 31.80 33.00
Troubleshooting
Problem Solution
Chipping
caused by
built-up edge
• Increase cutting speed
• Reduce feed
• Check tool and workpiece rigidity
• Reduce tool and workpiece overhang
Excessive
flank wear
• Reduce cutting speed
• Use a harder grade (special)
• Increase coolant flow
• Check cutting edge height
Edge
deformation
• Reduce cutting speed
• Use a harder grade (special)
• Increase coolant flow
• Reduce feed
Poor surface
quality
• Reduce feed
• Increase coolant flow
• Check tool and workpiece rigidity
• Increase cutting speed
Long chips
• Increase feed
• Reduce cutting speed
• Increase coolant flow
Tight chips
• Reduce feed
Vibrations
• Check tool and workpiece rigidity
• Reduce tool and workpiece overhang
• Reduce cutting speed
• Increase feed
• Check cutting edge height
• Reduce feed and increase cutting
speed on very soft materials
User Guide for Turn-Mill Machines
Insert Positioning
For drilling, cutting edge should be positioned in the center
of tool body.
Correct Correct Wrong
Cutting edge
for drilling
✓
✓
✗
Cutting edge
for drilling
Setup
Core Ø Ø/2
Check formation of core and its size after drilling 3 mm to
6 mm depth. The diameter of the core should be within
0.15-0.45 mm.
Adjust Y-axis of the tool body by using the new adjustable
clamping unit (if available) or rotate the tool body 180°
and secure it into a turret. Check the core again.
Important: If a core does not appear, this can cause
breakage of insert vibration when drilling or turning.
If the size of the core is over the recommended
size, it will cause overload and vibration.
Angular error
Warning: As the drill
goes all the way through
a workpiece, it ejects a
disc. For worker safety,
guards should be used.
145
USER GUIDE
MULTIFUNCTION TOOLS
Recommended Cutting Conditions for XCMT-MF Inserts
Cutting speed (Vc)
Workpiece Materials Material No.
VDI 3323 Hardness (BHN) Cutting speed: Vc (m/min) for IC908
Drilling Turning & Boring
Low carbon steel (<0.25% C)1 ~150 130-240 150-270
Carbon steel (≥0.25% C) 2 150-250 90-160 100-180
Low alloy steel 6 ~180 120-210 140-230
Medium alloy steel 7 200-250 70-140 80-160
High alloy steel 8, 9 250-350 50-100 60-120
Martensitic stainless steel 12 200 110-180 130-200
Austenitic stainless steel 14 200 90-160 100-180
Grey cast iron 17, 18 180-220 110-180 120-200
Ductile cast iron 15, 16 200-240 90-160 100-180
Aluminum alloy 21-24 60-130 100-500 150-600
Copper alloy 26-28 90-100 100-400 100-500
Recommended Cutting Conditions
Insert Machining Type Cutting Conditions
ap (mm) f (mm/rev)
XCMT 040104 External Turning 0.6 (0.2-1.8) 0.05 (0.02-0.15)
Drilling - 0.06 (0.02-0.10)
XCMT 050204
External Turning 0.8 (0.2-2.5) 0.08 (0.02-0.15)
Face Turning 0.6 (0.2-1.7) 0.06 (0.02-0.13)
Drilling - 0.05 (0.02-0.10)
XCMT 060204
External Turning 1.0 (0.2-3.0) 0.10 (0.03-0.20)
Face Turning 0.8 (0.2-2.5) 0.07 (0.03-0.15)
Drilling - 0.05 (0.02-0.10)
XCMT 070304
External Turning 1.3 (0.3-3.5) 0.12 (0.03-0.20)
Face Turning 1.0 (0.25-3.0) 0.10 (0.03-0.18)
Drilling - 0.06 (0.03-0.12)
XCMT 0803..
Face Turning 1.5 (0.35-4.0) 0.14 (0.06-0.25)
External Turning 1.2 (0.3-3.5) 0.12 (0.06-0.24)
Drilling - 0.08 (0.05-0.16)
XCMT 10T304
External Turning 1.8 (0.5-3.5) 0.12 (0.06-0.30)
Face Turning 1.8 (0.5-3.5) 0.12 (0.06-0.30)
Drilling - 0.08 (0.03-0.15)
XCMT 10T308
External Turning 1.8 (0.5-3.5) 0.20 (0.10-0.40)
Face Turning 1.8 (0.5-3.5) 0.20 (0.10-0.40)
Drilling - 0.08 (0.03-0.15)
XCMT 130404
External Turning 2.0 (0.6-4.3) 0.15 (0.07-0.32)
Face Turning 2.0 (0.6-4.3) 0.15 (0.07-0.32)
Drilling - 0.08 (0.03-0.15)
XCMT 130408
External Turning 2.0 (0.6-4.3) 0.20 (0.10-0.40)
Face Turning 2.0 (0.6-4.3) 0.20 (0.10-0.40)
Drilling - 0.08 (0.03-0.15)
XCMT 170508
External Turning 3.0 (0.7-5.3) 0.22 (0.10-0.40)
Face Turning 3.0 (0.7-5.3) 0.22 (0.10-0.40)
Drilling - 0.08 (0.03-0.15)
Cutting parameters are for 2.25xD steel shank
Internal coolant supply is recommended
ISCAR
146
USER GUIDE
MULTIFUNCTION TOOLS
Chip Control Range for DRG-MF
Drilling
Feed (mm/rev) Material: SAE 4140 (220BHN), V=120 m/min
0.02
0.04
0.06
0.08
0.10
0.15
0.20
0.30
10 12 14 16820 25 32
Diameter of tool (mm)
Turning
D.O.C. (mm) Material: SAE 1045 (220BHN), V=150 m/min
3.0
0.02 0.05 0.1 0.15 0.2 0.25
0.2
0.5
1.0
1.5
2.0
2.5
3.5
4.5
5.5
0.3 0.35 0.4
Feed (mm/rev)
XCMT 050204
XCMT 050204
XCMT 060204
XCMT 070304
XCMT 080304
XCMT 100304
XCMT 130304
XCMT 170304
147
MULTIFUNCTION TOOLS
OAL
LU
DCONMS h6
DC
RE+0.05 Right-hand shown
Dimensions
Designation
DC LU OAL DCONMS RE
IC908
PICCO R-MF 6-3 L06
3.00 6.0 28.00 6.00 0.10
•
PICCO R/L-MF 6-4 L08
4.00 8.0 30.00 6.00 0.10
•
PICCO R/L-MF 6-4 L12
4.00 12.0 34.00 6.00 0.20
•
PICCO R/L-MF 6-5 L10
5.00 10.0 32.00 6.00 0.10
•
PICCO R/L-MF 6-5 L15
5.00 15.0 41.00 6.00 0.30
•
PICCO R/L-MF 6-6 L12
6.00 12.0 34.00 6.00 0.10
•
PICCO R/L-MF 6-6 L18
6.00 18.0 43.00 6.00 0.30
•
PICCO R/L-MF 8-7 L14
7.00 14.0 41.00 8.00 0.10
•
PICCO R/L-MF 8-7 L21
7.00 21.0 55.00 8.00 0.30
•
PICCO R/L-MF 8-8 L16
8.00 16.0 43.00 8.00 0.10
•
PICCO R/L-MF 8-8 L24
8.00 24.0 58.50 8.00 0.30
•
• Dmin can be 0.1 mm smaller by shifting tool center • Applications: drilling; face turning; internal chamfering; internal turning/ boring; internal profiling; external chamfering;
external turning
PICCO-MF
Multifunction Solid Carbide
Tools for Drilling, Facing, Internal
and External Turning on Swiss
and Small CNC Machines
OAL
LU
DCONMS h6
PDY
CF THL
60°
DMIN
a
RE+0.05
t
Right-hand shown
Dimensions
Designation
DCONMS DMIN LU TPN(2) TPX(3) t a CF THL OAL PDY RE
IC908
PICCO R/L-MFT60 6-4 L08
6.00 4.00 8.0 0.500 0.750 0.46 3.90 0.06 7.3 30.00 1.3 0.10
•
PICCO R-MFT60 6-4 L12
6.00 4.00 12.0 0.500 0.750 0.46 3.90 0.06 11.6 34.00 1.2 0.20
•
PICCO R/L-MFT60 6-5 L10
6.00 5.00 10.0 0.500 1.000 0.61 4.90 0.06 9.0 32.00 1.4 0.10
•
PICCO R/L-MFT60 6-5 L15 (1)
6.00 5.00 15.0 0.500 1.000 0.61 4.90 0.06 14.4 37.00 1.4 0.30
•
PICCO R/L-MFT60 6-6 L18 (1)
6.00 6.00 18.0 0.500 1.000 0.61 5.90 0.06 17.3 43.00 1.4 0.30
•
PICCO R-MFT60 6-6 L12
6.00 6.00 12.0 0.500 1.000 0.61 5.90 0.06 11.0 34.00 1.4 0.10
•
PICCO R/L-MFT60 8-7 L14
8.00 7.00 14.0 0.750 1.250 0.76 6.90 0.09 13.0 41.00 1.5 0.10
•
PICCO R-MFT60 8-7 L21
8.00 7.00 21.0 0.750 1.250 0.76 6.90 0.09 20.0 55.00 1.5 0.30
•
PICCO R/L-MFT60 8-8 L16
8.00 8.00 16.0 0.900 1.500 0.92 7.90 0.11 15.0 43.00 1.5 0.10
•
PICCO L-MFT60 8-8 L24 (1)
8.00 8.00 24.0 0.900 1.500 0.92 7.90 0.11 23.0 57.00 1.5 0.30
•
PICCO R-MFT60 8-8 L24
8.00 8.00 24.0 0.900 1.500 0.92 7.90 0.11 23.0 51.00 1.5 0.30
•
• Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right-
and left-hand)
(1) Available on request
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
PICCO-MFT
Solid Carbide Tools for Drilling,
Facing, Internal and External
Turning and Threading on Swiss
and Small CNC Machines
NUT
SCREW
60°
ISCAR
148
USER GUIDE
MULTIFUNCTION TOOLS
PICCO-MF Recommended Cutting Conditions
Cutting speed (Vc)
Workpiece Materials Material No.
VDI 3323 Hardness (BHN) Cutting Speed: Vc (m/min) for IC908
Drilling Turning & Boring
Low carbon steel (<0.25% C) 1 ~150 40-100 40-180
Carbon steel (≥0.25% C) 2 150-250 40-100 40-180
Low alloy steel 6 ~180 40-80 40-140
Medium alloy steel 7 200-250 40-80 40-140
High alloy steel 8, 9 250-350 40-60 40-120
Martensitic stainless steel 12 200 20-60 40-140
Austenitic stainless steel 14 200 20-60 40-140
Grey cast iron 15,16 180-220 40-140 40-140
Ductile cast iron 17,18 200-240 40-150 40-150
Aluminum alloy 21-24 60-130 50-200 150-320
Copper alloy 26-28 90-100 50-200 150-320
Feed (f) and depth of cut (ap) 2xD
Tool Diameter (mm) Machining Type Cutting Conditions
ap (mm) f (mm/rev)
3-4
External Turning 0.8 (0.2-2.5) 0.04 (0.01-0.08)
Face Turning 0.6 (0.02-1.7) 0.03 (0.01-0.06)
Drilling - 0.02 (0.01-0.06)
5-6
External Turning 1.0 (0.2-3.0) 0.04 (0.01-0.08)
Face Turning 0.8 (0.2-2.5) 0.03 (0.01-0.06)
Drilling - 0.03 (0.01-0.08)
7-8
External Turning 1.3 (0.3-3.5) 0.04 (0.01-0.08)
Face Turning 1.0 (0.25-0.3) 0.04 (0.01-0.07)
Drilling - 0.04 (0.01-0.10)
Feed (f) and depth of cut (ap) 4xD
Tool Diameter (mm) Machining Type Cutting Conditions
ap (mm) f (mm/rev)
3-4
External Turning 0.8 (0.2-2.5) 0.03 (0.01-0.07)
Face Turning 0.6 (0.02-1.7) 0.02 (0.01-0.04)
Drilling - 0.02 (0.01-0.05)
5-6
External Turning 1.0 (0.2-3.0) 0.03 (0.01-0.07)
Face Turning 0.8 (0.2-2.5) 0.02 (0.01-0.04)
Drilling - 0.02 (0.01-0.06)
7-8
External Turning 1.3 (0.3-3.5) 0.03 (0.01-0.07)
Face Turning 1.0 (0.25-0.3) 0.02 (0.01-0.04)
Drilling - 0.03 (0.01-0.08)
