Каталог Iscar токарные пластины ISO 2022

121

ISOTURN INSERTS

ISCAR

122

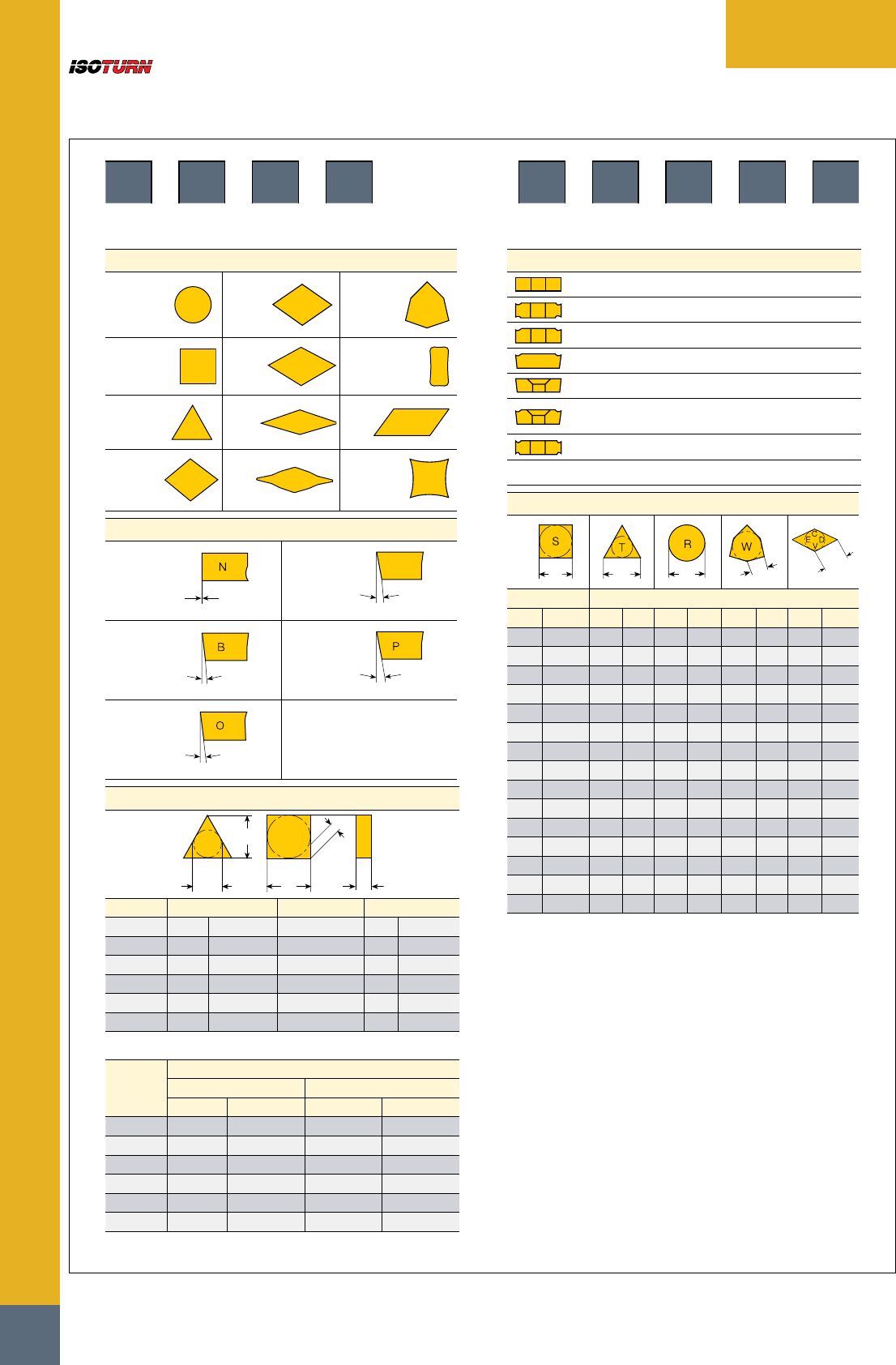

USER GUIDE

ISOTURN INSERTS

W N M G 08 04 08 E GN

1234 56789

1. Shape

75º

80º

90º

55º

60º

35º

55º

80º/100º

25º

80º

2. Clearance Angle

0º 7º

5º 11º

Other

3. Tolerance

m s IC

E ±0.025 ±0.025 ±0.025

G ±0.025 ±0.13 ±0.025

M from ±0.08 ±0.13 from ±0.05

to ±0.18(1) to ±0.13(1)

U from ±0.13 ±0.13 from ±0.08

to ±0.38(1) to ±0.25(1)

(1) Exact tolerance depends on insert size

Tolerance in mm

On m On IC

Class M Class U Class M Class U

6.35 ±0.08 ±0.13 ±0.05 ±0.08

9.52 ±0.08 ±0.13 ±0.05 ±0.08

12.70 ±0.13 ±0.20 ±0.08 ±0.13

15.87 ±0.15 ±0.27 ±0.10 ±0.18

19.05 ±0.15 ±0.27 ±0.10 ±0.18

25.40 ±0.18 ±0.38 ±0.13 ±0.25

4. Type

Without chipbreaker, with hole

Chipbreaker on both sides, with hole

M, S

Chipbreaker on one side, with hole

Chipbreaker on one side, without hole

B, W

Countersink on one side, with hole

T, H

Chipbreaker on one side, with

hole and countersink

Neg./pos. on one or both sides, with hole

Z, X

Special

5. Cutting Edge Length

IC Symbol (L)

inch mm C D R S T V W Q

5/32 3.97 04 03 06 06 02(1)

7/32 5.56 05 09

1/4 6.35 06 07 11 11

9/32 7.15 12

8.00 08

3/8 9.52 09 11 09 16 16 06 09

10.00 10

12.00 12

1/2 12.70 12 15 12 22 22 08 12

5/8 15.88 16 15 27

16.00 16

3/4 19.05 19 19 33 13

20.00 20

25.00 25

1 25.40 25

(1) WBMT 06...

123

USER GUIDE

ISOTURN INSERTS

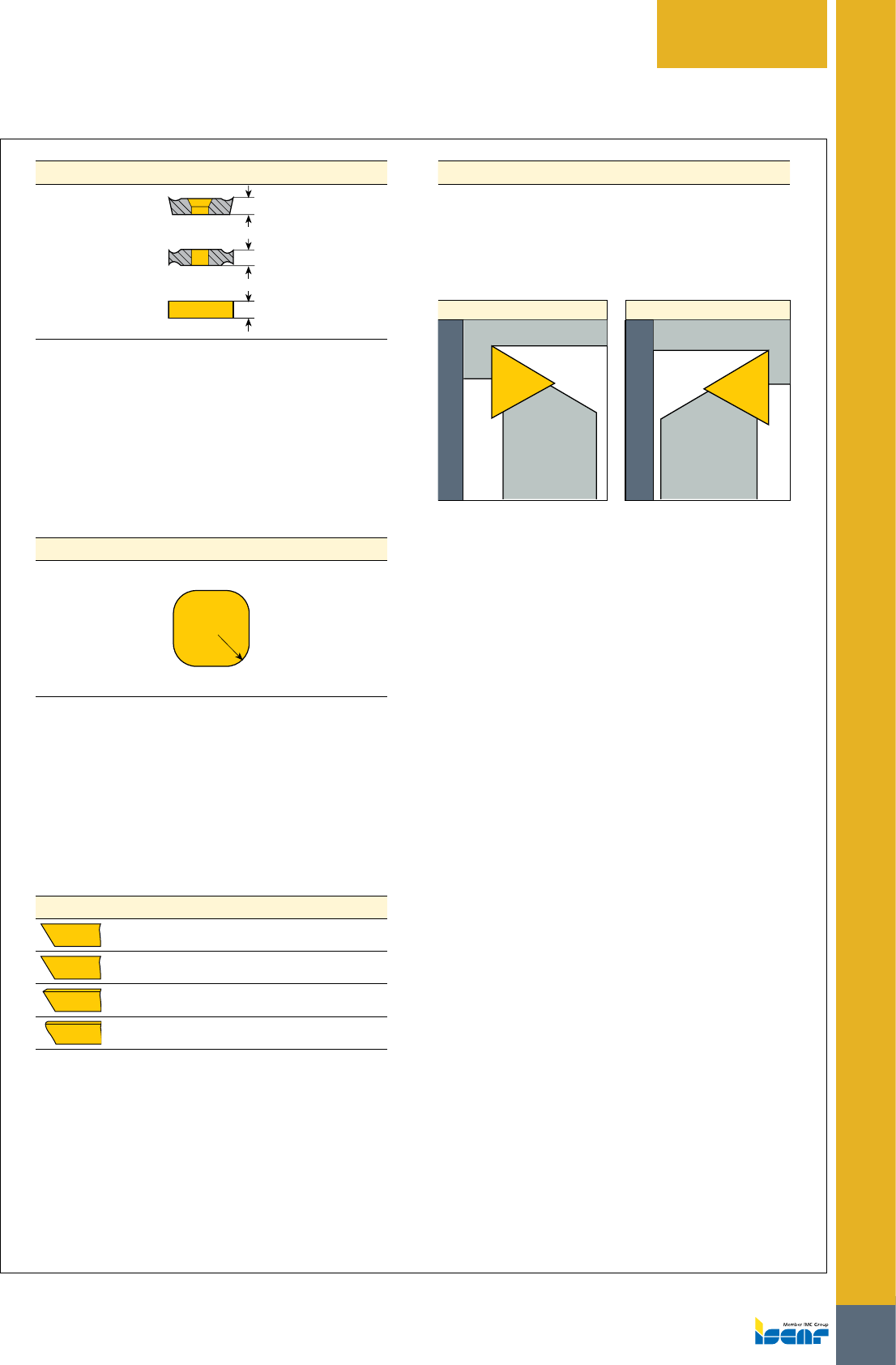

6. Thickness

01 = 1.59 mm

T1 = 1.98 mm

02 = 2.38 mm

03 = 3.18 mm

T3 = 3.97 mm

04 = 4.76 mm

06 = 6.35 mm

07 = 7.94 mm

7. Corner Radius

02 = 0.2 mm

04 = 0.4 mm

08 = 0.8 mm

12 = 1.2 mm

16 = 1.6 mm

20 = 2.0 mm

24 = 2.4 mm

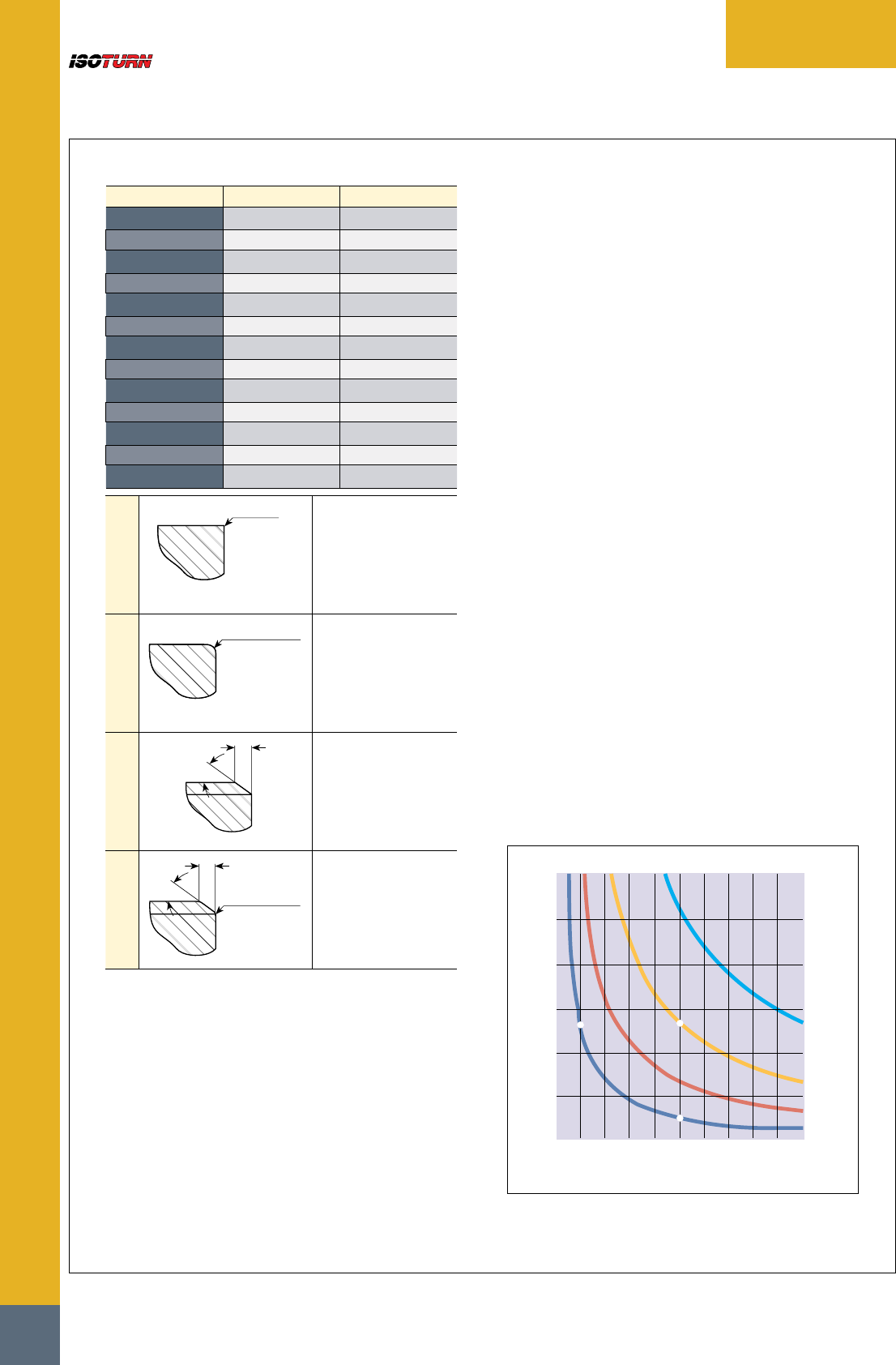

8. Cutting Edge (Optional)

F Sharp

EHoned (Rounded)

TChamfered (Negative Land)

SChamfered + Honed

9. Chipformer Designation

SF AS/AF TF NM

PF ../Z-RF/LF(1) PP TNM

NF WF GN NR

SM WG NMS RP

14 VL

Right-hand Left-hand

ISCAR

124

USER GUIDE

ISOTURN INSERTS

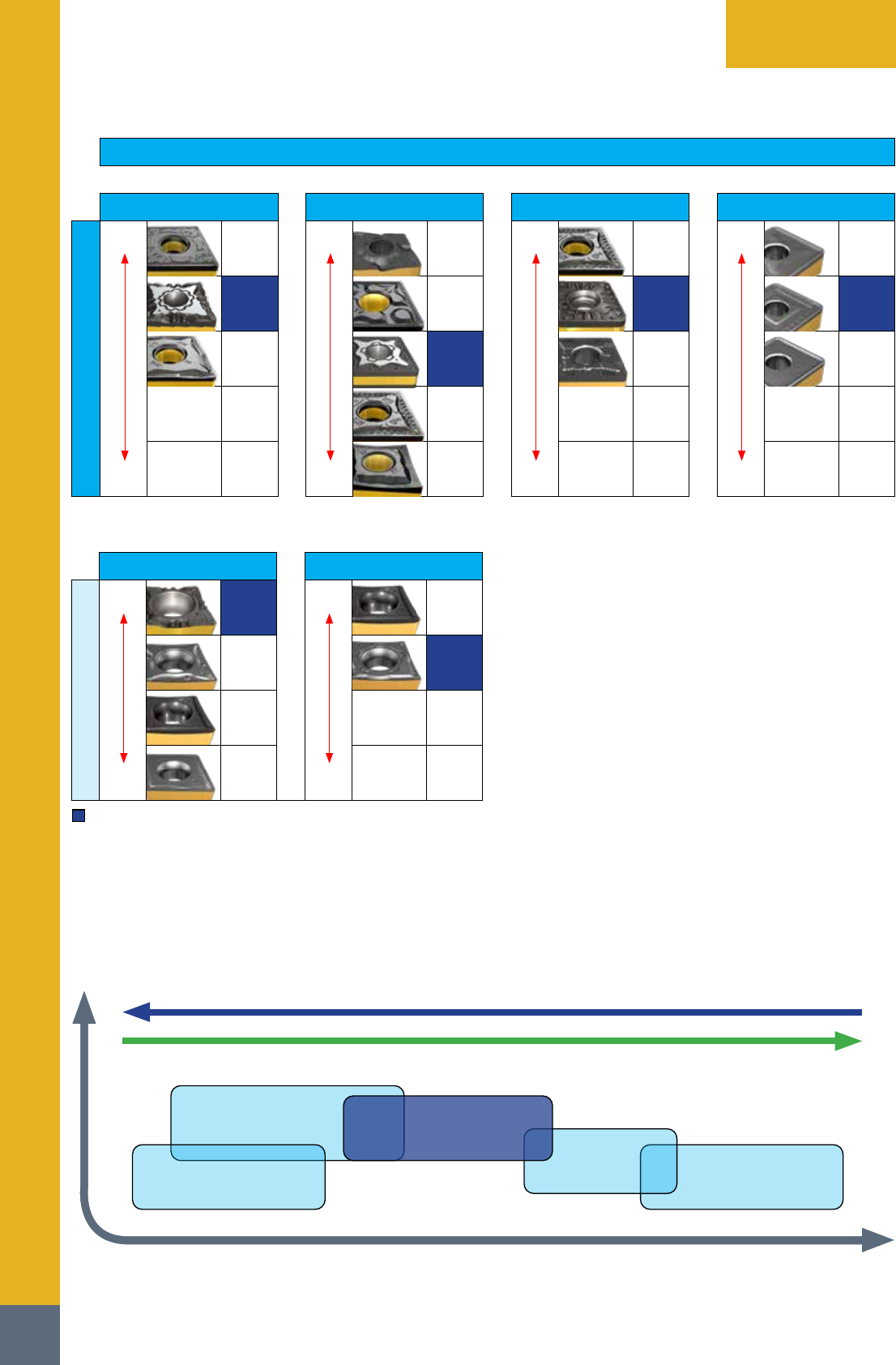

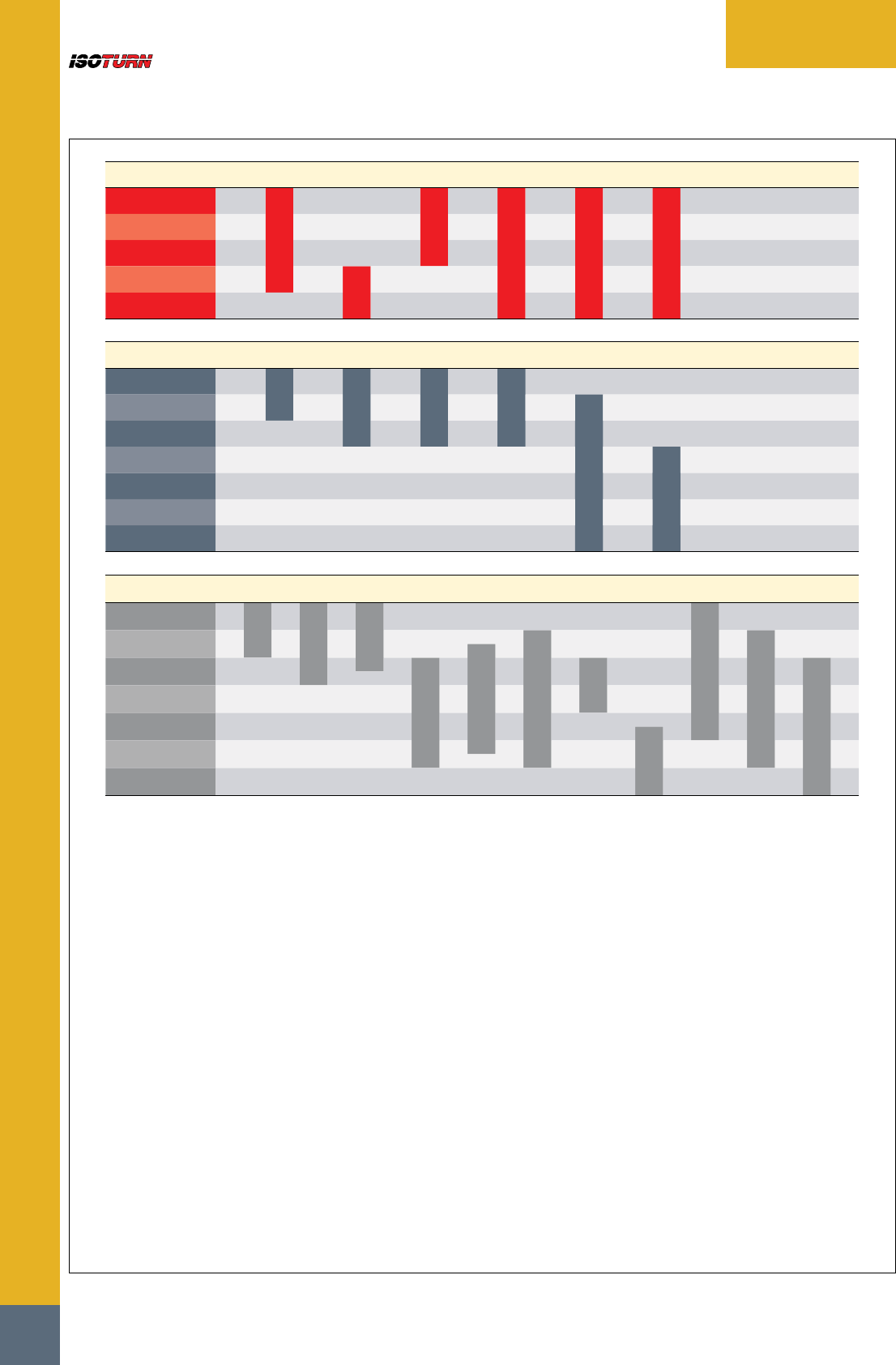

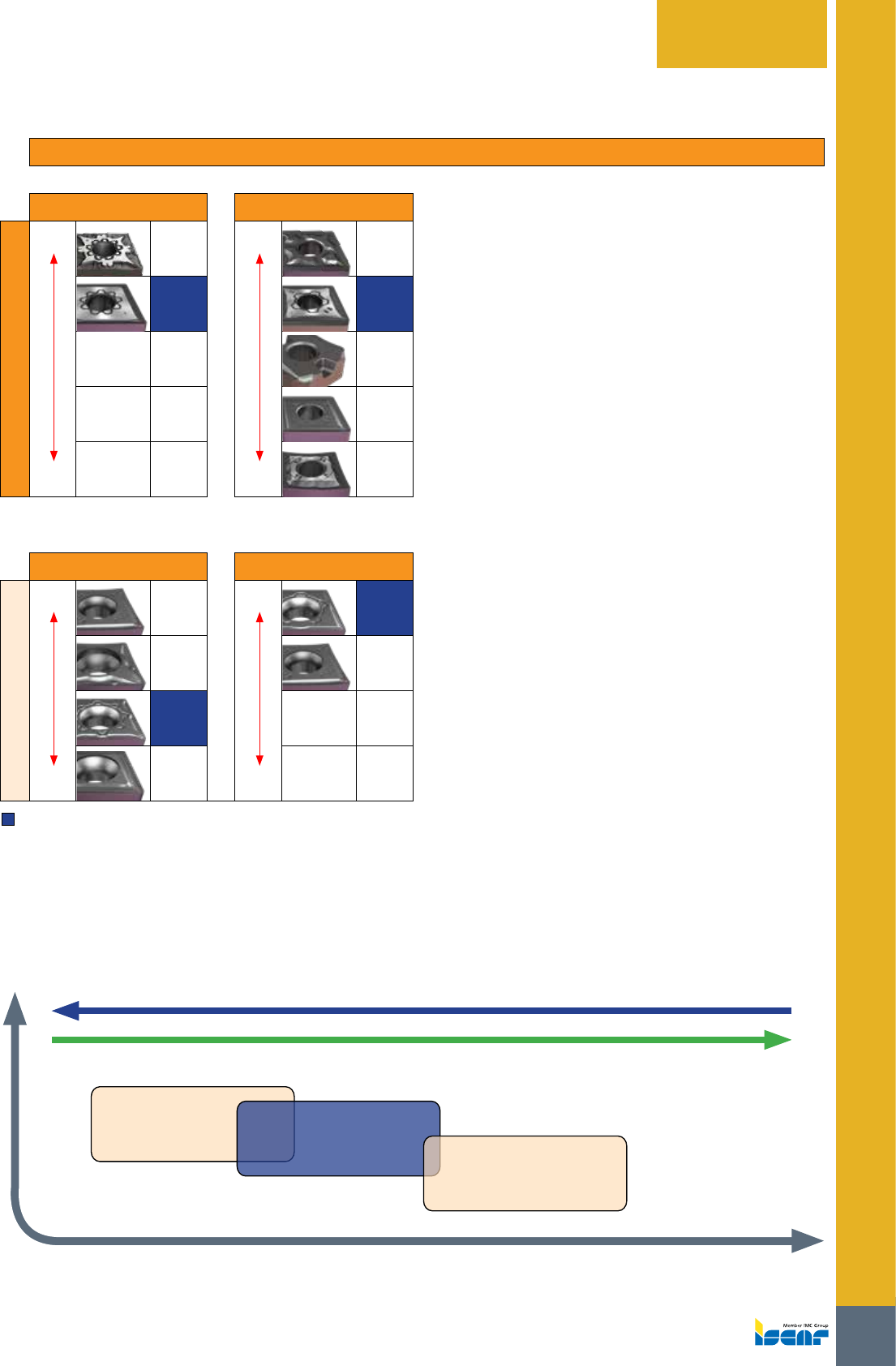

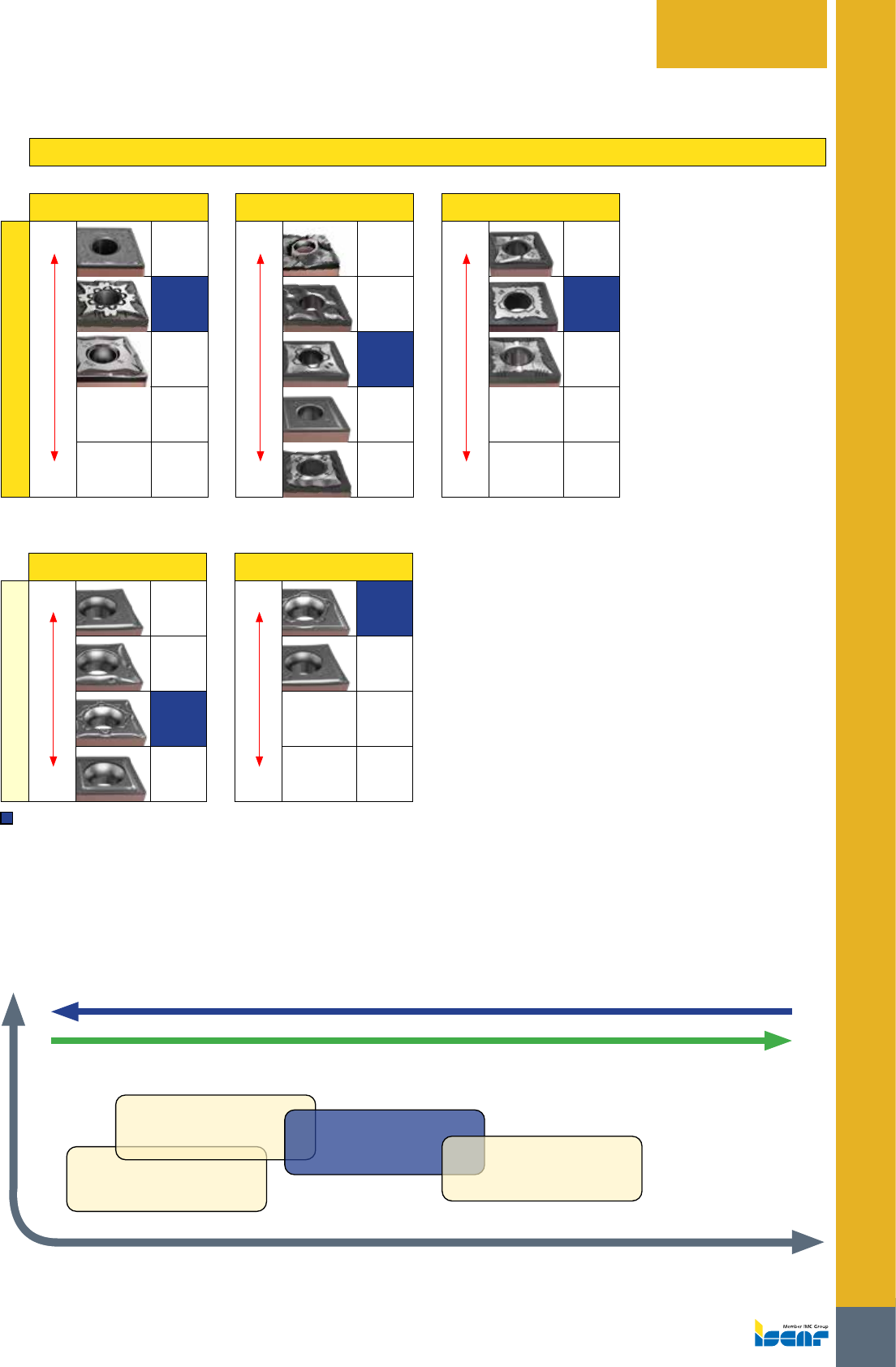

Selection Guide for Chipformers and Grades

Recommended Carbide Grades

* For CBN and Ceramic grades for hardend steel see page (237)

First Choice

ISO P-Steel

Finishing Medium Roughing Heavy

Negative

Tight

M4PW

Tight

H3P

F3P TF R3P H4P

NF M3P NR H5P

Open Open Open Open

Finishing Medium

Positive

Tight

F3P

Tight

PF M3P

Open Open

IC830

IC8350

IC807

IC8150 IC8250

P05 P35P30P25P20P15P10

Tough

Hard

125

USER GUIDE

ISOTURN INSERTS

Recommended Carbide Grades

First Choice

IC830

IC6025

IC807

IC6015

M05 M35M30M25M20M15M10

Tough

Hard

ISO M- Stainless Steel

Finishing Medium Roughing

Negative

Tight

M4MW

Tight

F3M TF R3M

NF M3M NR

Open Open Open

Finishing Medium

Positive

Tight

M3M

PF SM

F3M

Open Open

ISCAR

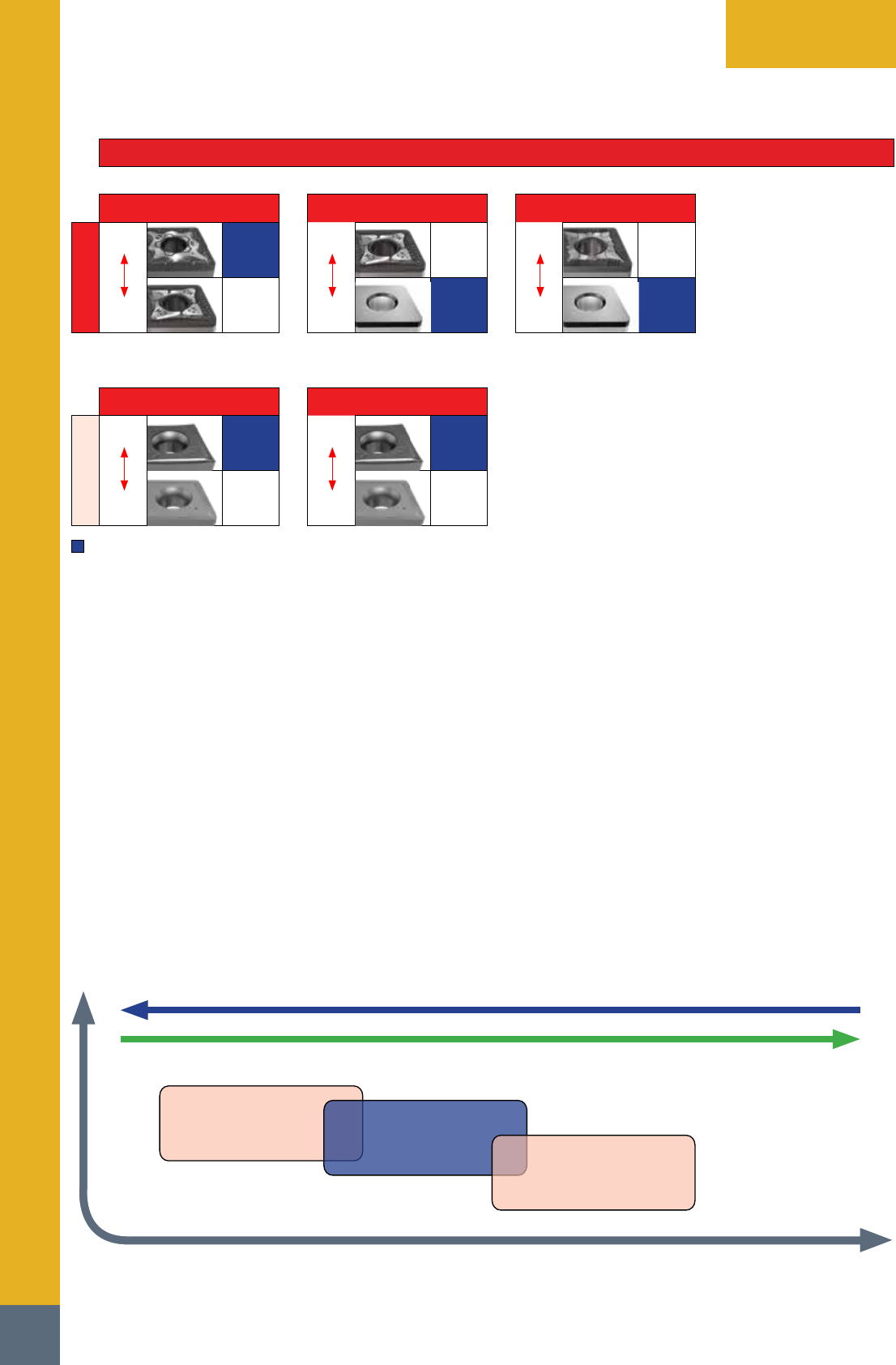

126

USER GUIDE

ISOTURN INSERTS

First Choice

Selection Guide for Chipformers and Grades

IC5010

IC8150

IC5005

K05 K35K30K25K20K15K10

Tough

Hard

IS0 K-Cast Iron

‘

Finishing Medium Roughing

Negative

Tight

M3P

Tight

GN A A

Open Open Open

‘

Finishing Medium

Positive

Tight

14 14

Open Open

Recommended Carbide Grades

* For CBN and Ceramic grades for hardend steel see page (237)

127

USER GUIDE

ISOTURN INSERTS

First Choice

Selection Guide for Chipformers and Grades

S05 S35S30S25S20S15S10

IC806

IC830

IC804

Tough

Hard

ISO S-High Temp. Alloys

Finishing Medium

Negative

Tight

F3M

Tight

F3S M3M

EM-M

Open Open

Finishing Medium

Positive

Tight

M3M

PF SM

F3M

Open Open

Recommended Carbide Grades

* For CBN and Ceramic grades for hardend steel see page (237)

ISCAR

128

USER GUIDE

ISOTURN INSERTS

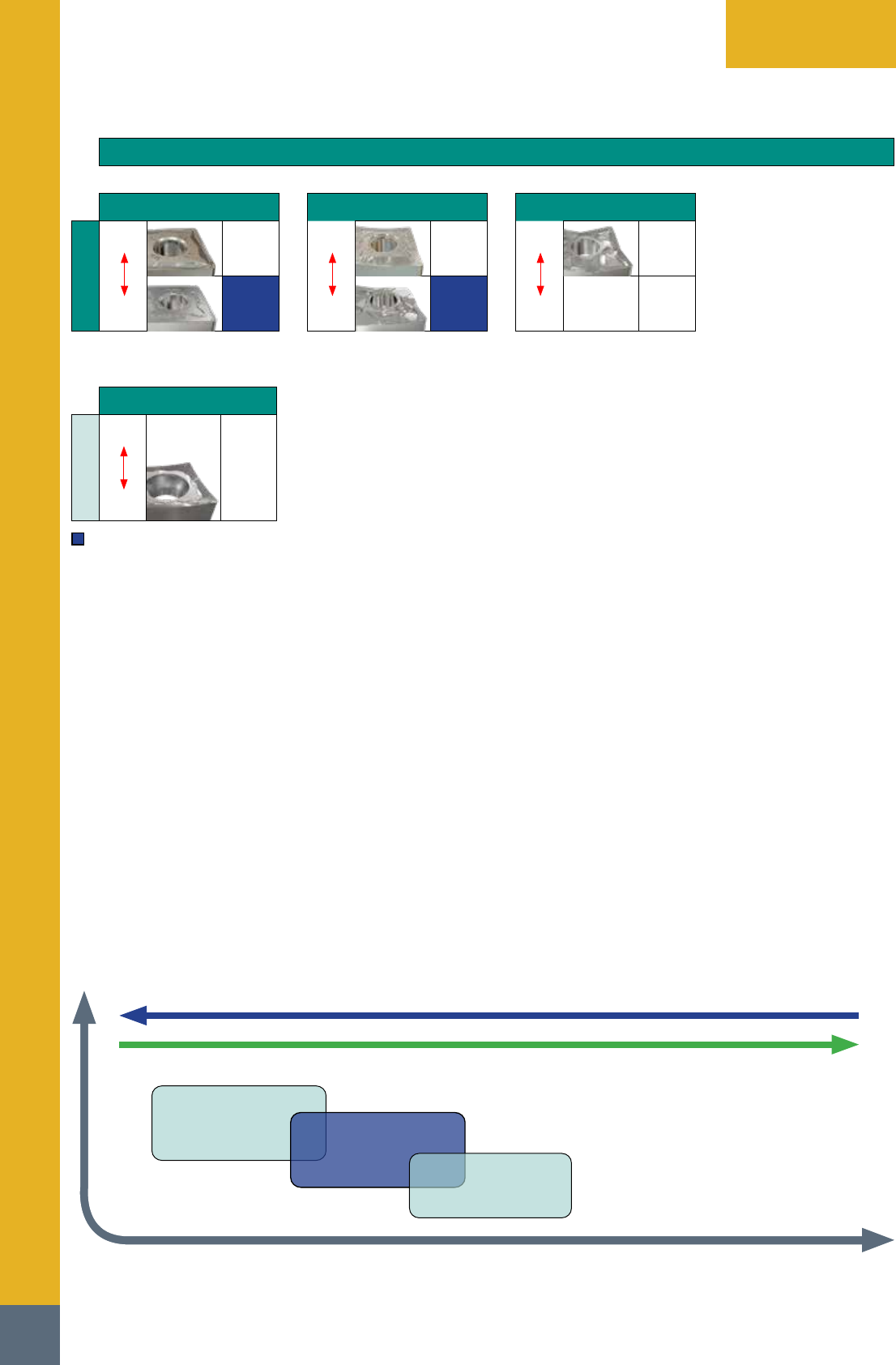

IS0 N-Aluminum

‘

Finishing Medium Roughing

Negative

Tight

NMS12

F3N M3N

Open Open Open

Finishing

Positive

Tight

Open

First Choice

Selection Guide for Chipformers and Grades

IC20

ID5

*PCD IC520

N05 N35N30N25N20N15N10

Tough

Hard

Recommended Carbide Grades

129

USER GUIDE

ISOTURN INSERTS

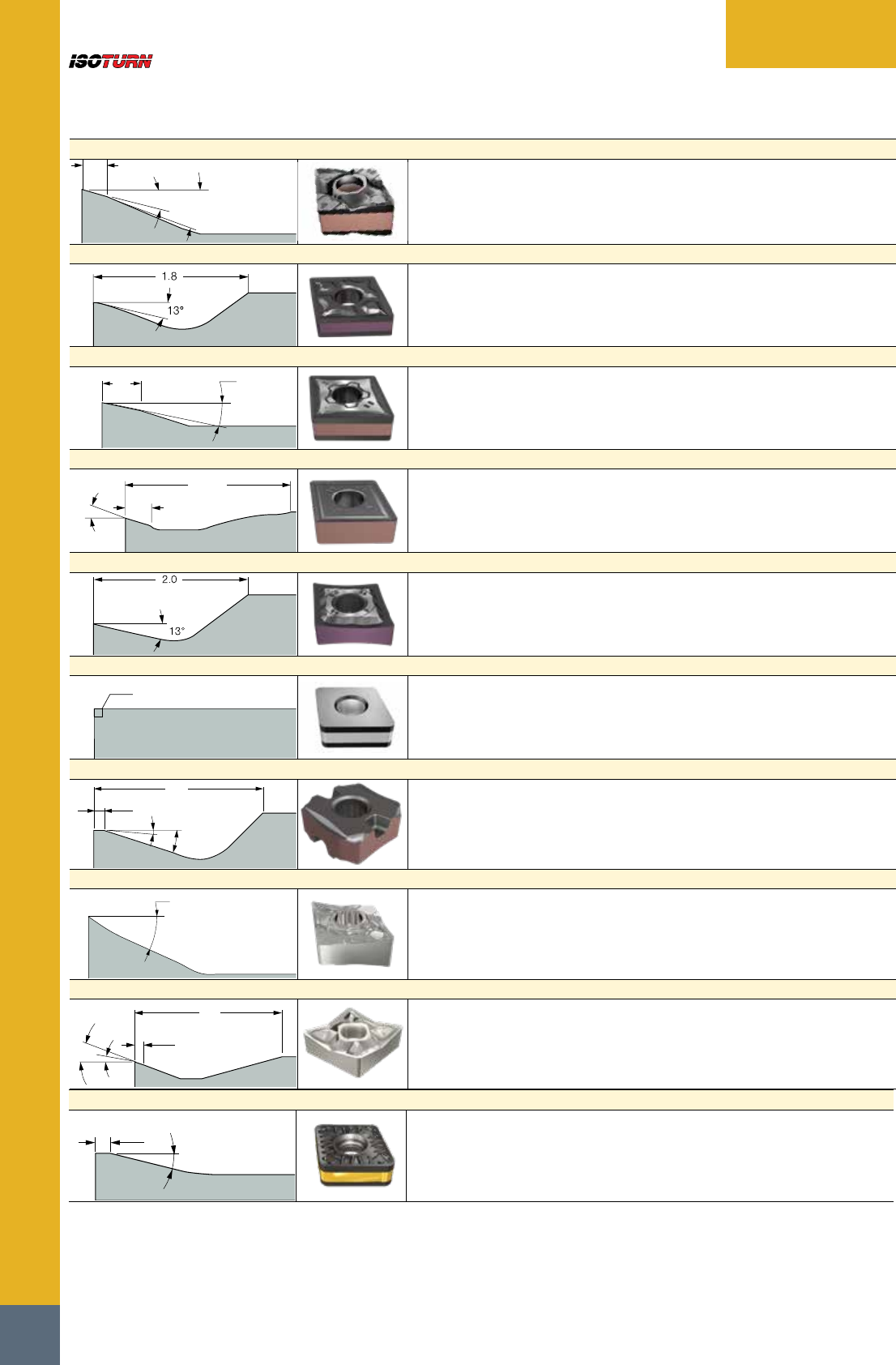

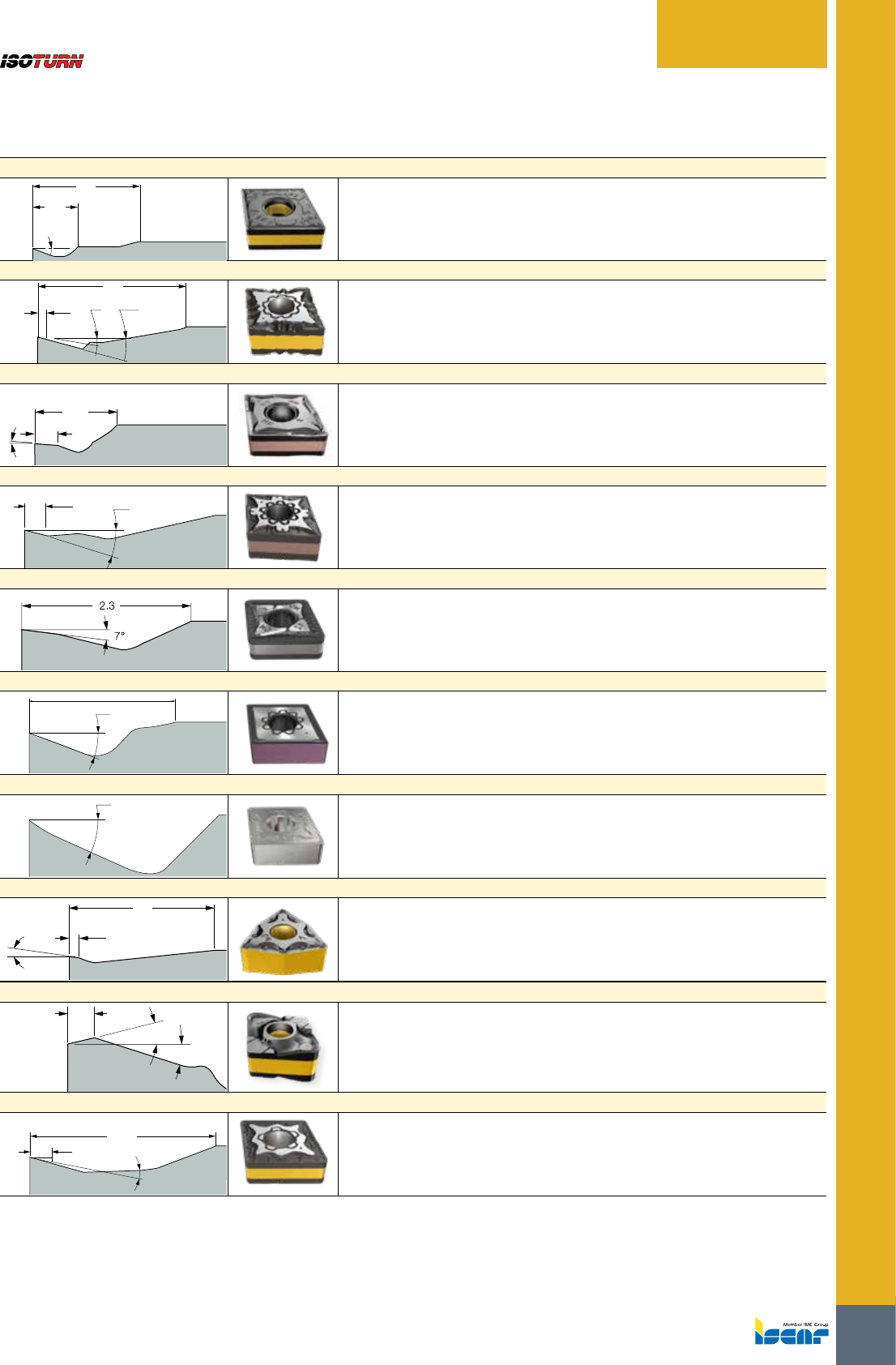

Chipformers

Negative Chipformers

SF Chipformer

0.6

18˚

1.5

A unique super finishing chipformer that controls chip flow at very low

feeds and cutting depths. Designed to reduce crater wear.

F3P Chipformer

1.7

0.1 6° 12.5°

Double-sided insert with a positive rake angle to reduce

cutting forces for finish machining on steel.

NF Chipformer

1.42

0.4

4º

Double-sided for semi-finishing and finishing applications. Low cutting

forces are due to a very sharp edge and positive rake.

F3M Chipformer

0.15

15°

Double-sided insert with a positive rake angle for finish machining on stainless steel.

Its unique deflector geometry with a wavy surface prevents chip hammering.

GN Chipformer

Double-sided for general applications. Secure cutting edge for

medium and semi-roughing on steel and cast iron.

F3S Chipformer

20°

Chipbreaker with positive rake angle for finish

machining superalloys and exotic materials.

F3N Chipformer

24°

Polished and extra sharp positive insert for machining aluminum

and non-ferrous materials for finishing applications.

WF Chipformer

1.7

0.1

8˚

Wiper geometry for high feed finishing on soft and gummy materials. Small depths of cut.

M4PW Chipformer

0.19

14º

17º

Double-sided for roughing applications. Feed range: 0.25 mm/rev to 0.8 mm/rev.

Depth of cut from 2.00 to 10.0 mm.

M3P Chipformer

0.1

1.35

11°

Double-sided insert for medium machining on steel with

a reinforced cutting edge to increase tool life.

ISCAR

130

USER GUIDE

ISOTURN INSERTS

Negative Chipformers

M4MW Chipformer

0.3

13º 21º

Chipformer for heavy machining applications on stainless steel. The inserts

feature a very positive radial helical cutting edge and a positive rake angle.

TF Chipformer

Double-sided positive rake angles to prevent strain hardening. The rake angle varies

along the edge to a negative angle which prevents chipping. Special design reduces

cratering. Used for carbon and alloy steel, stainless steel and high-temp alloys.

M3M Chipformer

11°

0.2

Double-sided insert for medium machining on stainless steel with a reinforced

cutting edge that prevents notch wear at tight radii to increase tool life.

VL Chipformer

3.3

0.47

16°

High positive rake and a special edge preparation used for rough and finish turning on

high temperature alloys. Excellent performance on parts such as automotive valves.

PP Chipformer

Double-sided, very positive rake, sharp- and positive radial edge for heat-

resistant alloys, stainless steel, aluminum alloys and soft, low carbon steel.

A Chipformer

90°

Flat inserts, used for short chipping materials such as cast iron.

EM-M Chipformer

0.07

1.11

16˚

5˚

Double-sided sharp cutting edge with a 16º positive rake angle

for machining high temperature alloys at ap<3 mm.

M3N Chipformer

24°

Polished and extra sharp positive insert for machining aluminum

and non-ferrous materials for medium applications.

12 Chipformer

2.7

0.08

10˚

21˚

Single-sided for medium to rough machining on aluminum and soft materials.

R3P Chipformer

0.12 13.5°

Chipbreaker for rough machining on steel with a positive rake angle and

reinforced cutting edge for better performance and longer tool life.

131

USER GUIDE

ISOTURN INSERTS

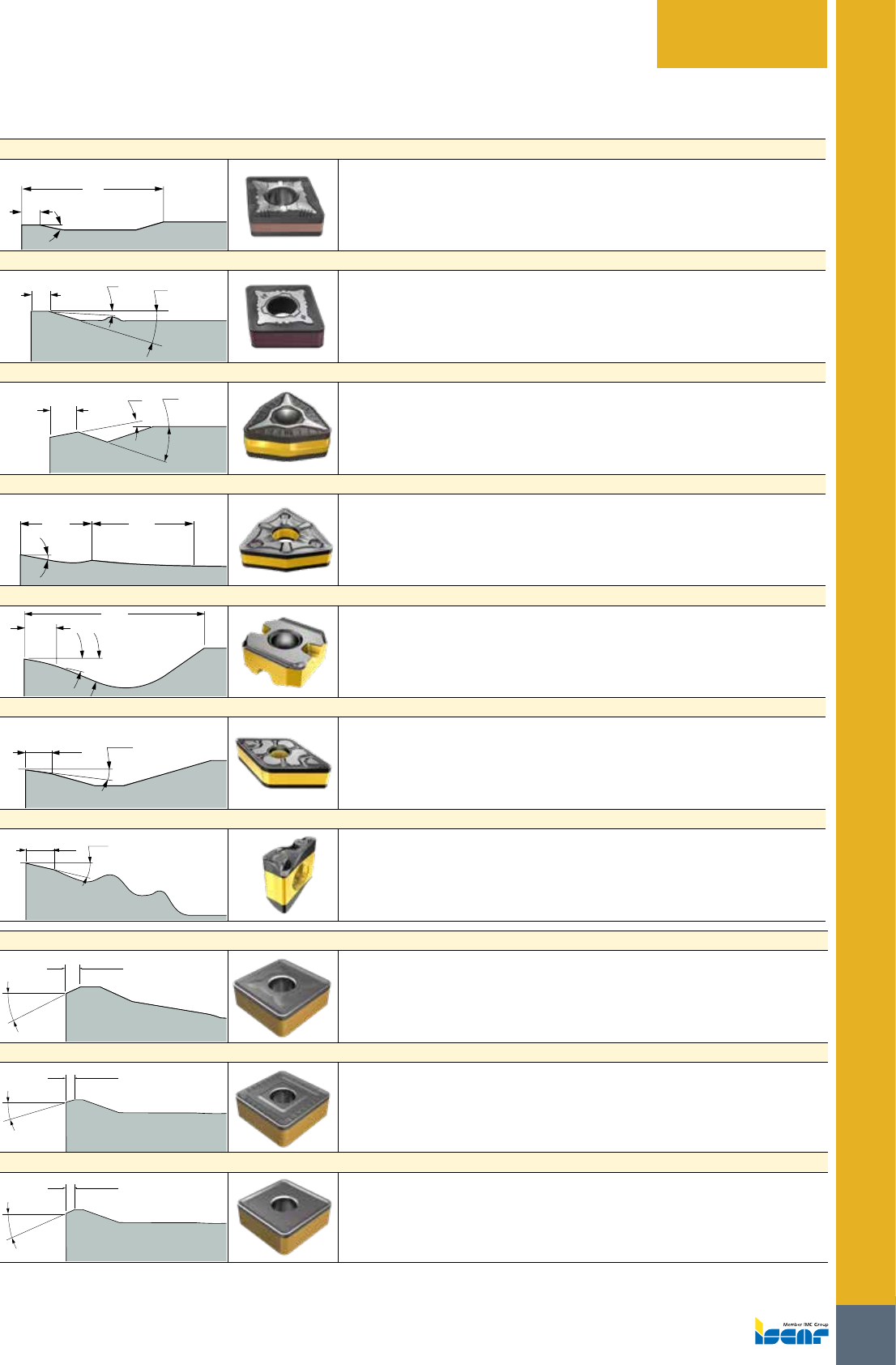

NR Chipformer

11˚

0.4

Double-sided sharp cutting edge with a 13º positive rake angle

for machining high temperature alloys at ap < 6 mm.

R3M Chipformer

0.2

3°

17°

Double-sided insert for rough machining on stainless steel with a unique deflector

geometry to improve chip control. Includes a wavy surface to prevent chip hammering.

T3P Chipformer

0.3

10° 19°

Double-sided 6˚ negative flank trigone insert for high feed turning on steel.

TNM Chipformer

2.9 3.7

8.5˚

Double-sided trigon for roughing applications. Feed ranges:

from 0.25 to 0.65 mm/rev. Depth of cut from 2 to 7 mm.

EM-R Chipformer

0.28

1.55

21º

13º

Double-sided sharp cutting edge with a 13º positive rake angle

for machining high temperature alloys at ap < 6 mm.

HT/WG Chipformer

8˚

0.3

Double-sided for roughing applications. Feed range: 0.25 mm/rev to 0.8 mm/rev.

Depth of cut from 2.00 to 10.0 mm.

HM Chipformer

13˚

0.3

Feed range: 0.08 mm/rev to 0.75 mm/rev. Depth of cut from 1.5 mm to 8.0 mm.

H3P Chipformer

20°

0.25

• For heavy roughing applications

• Low cutting force for low horse power machines

• Excellent chip control due to changeable land and a flexible chip breaker

H4P Chipformer

15°

0.3

• For heavy roughing applications

• For large depth of cut and high feed

• Strong cutting edge credit to a wide land and large land angle

H5P Chipformer

20°

0.3

• For heavy roughing applications

• For large depth of cut and high feed

• Extremely strong cutting edge credit to a wide land and large land angle

• Suitable for high cutting conditions

ISCAR

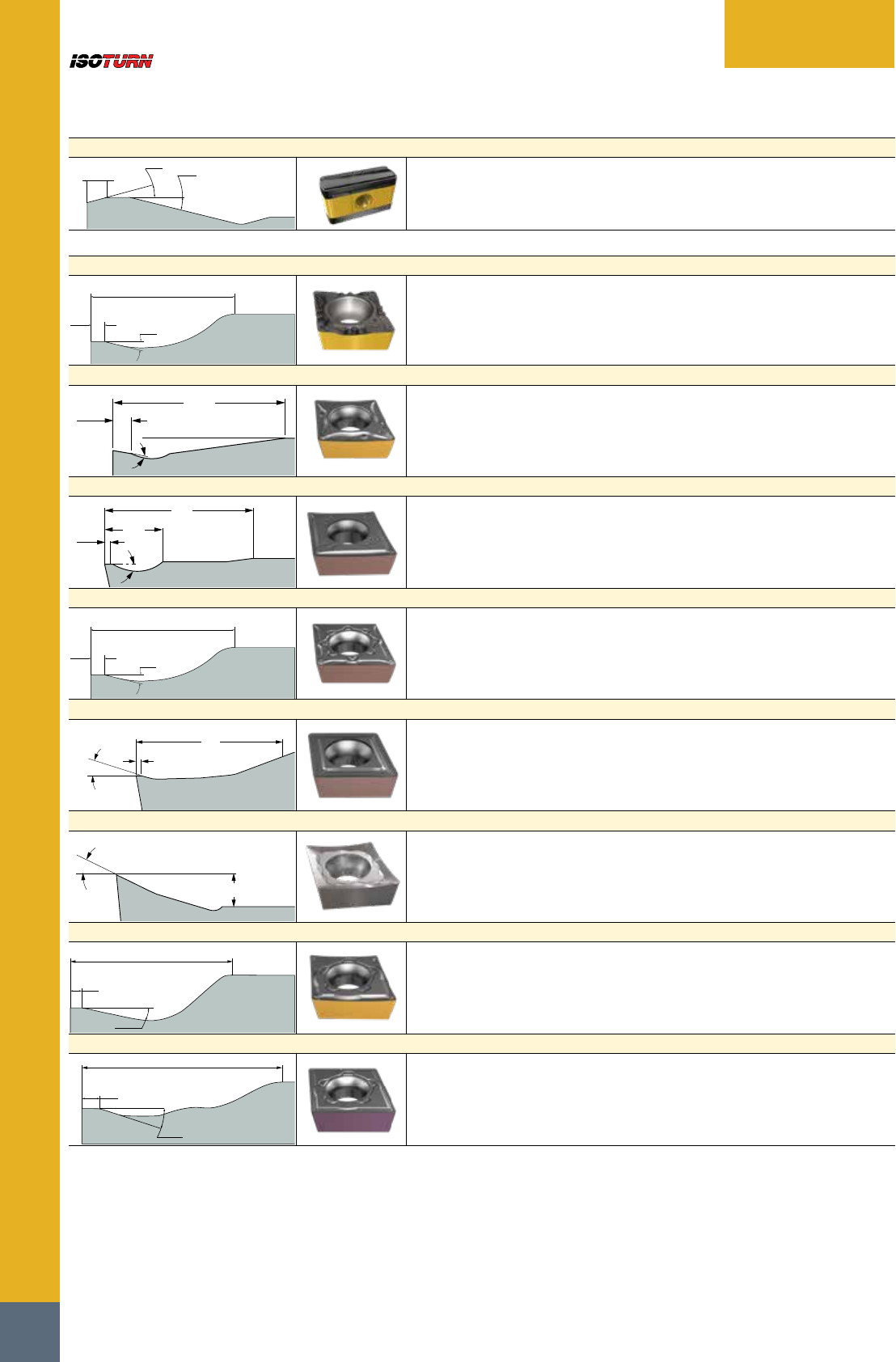

132

USER GUIDE

ISOTURN INSERTS

Negative Chipformers

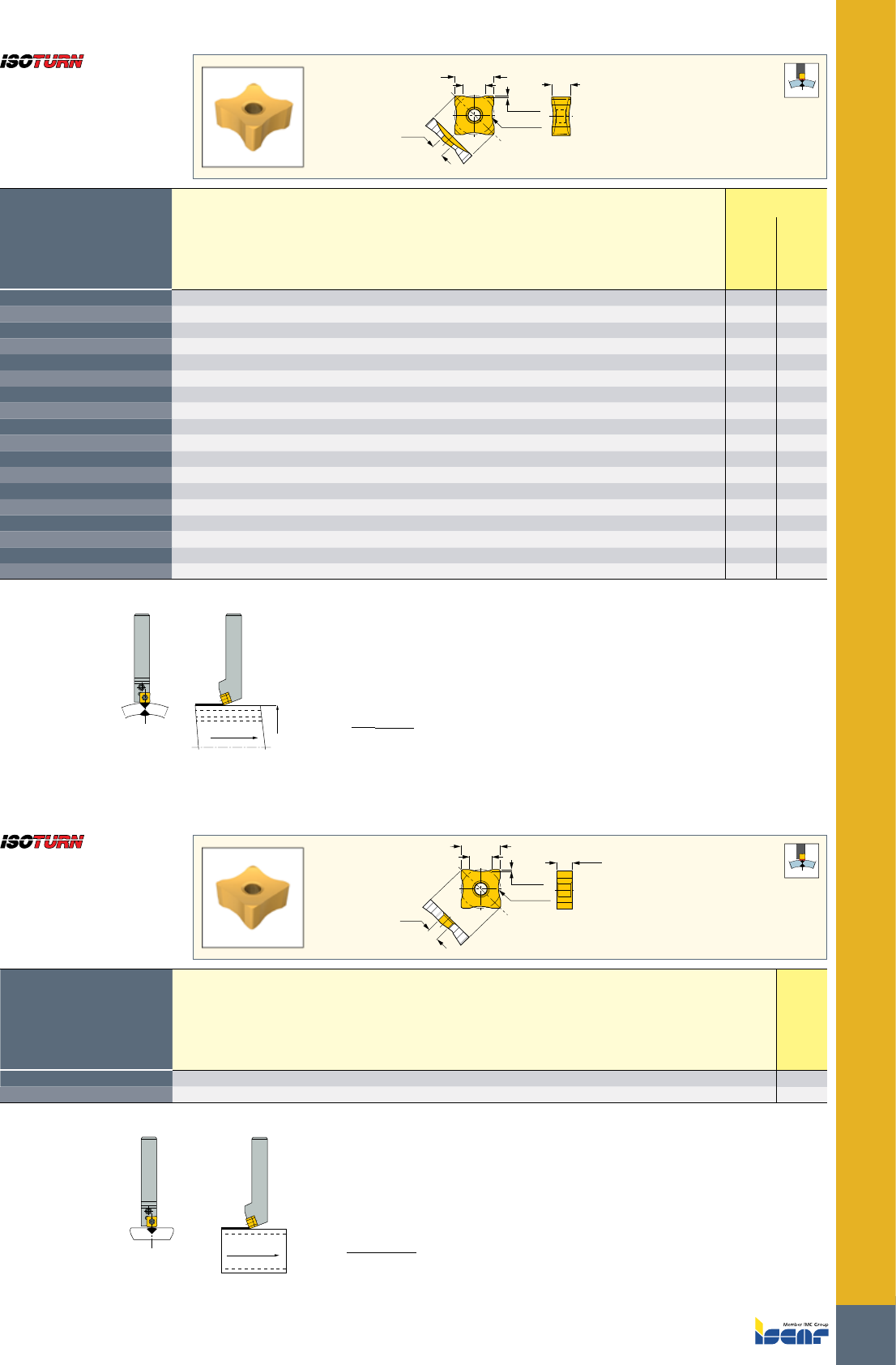

H6P Chipformer

0.31

15o

14o

Tangential insert with 4 cutting edges for high metal removal on steel up to 35 mm DOC

Positive Chipformers

F3P Chipformer

20°

0.1

Super finishing and finishing applications, mainly on positive inserts.

Feed range: 0.03-0.20 mm/rev. DOC 0.25-3.0 mm.

PF Chipformer

0.15

1.6

7˚

Super finishing and finishing applications, mainly on positive inserts.

Feed range: 0.03-0.20 mm/rev. DOC 0.25-3.0 mm.

SM Chipformer

0.07

18˚

0.7

1.8

Finishing and boring applications. Feed range: 0.06-0.25 mm/rev. DOC 0.5-2.5 mm.

F3M Chipformer

20°

0.1

Chipbreaker with positive rake angle for finishing machining of stainless

steel, also suitable for superalloys and exotic materials.

14 Chipformer

1.5

19˚

0.1

Semi-finishing and finishing. Medium feeds.

AS Chipformer

26˚

0.65

For general use machining on aluminum and soft materials.

M3P Chipformer

1.3

0.1

Chipbreaker with reinforced cutting edge and positive rake

angles for medium machining steel conditions.

M3M Chipformer

1.3

0.12

Chipbreaker with reinforced cutting edge and positive rake angles

for medium machining stainless steel conditions.

133

USER GUIDE

ISOTURN INSERTS

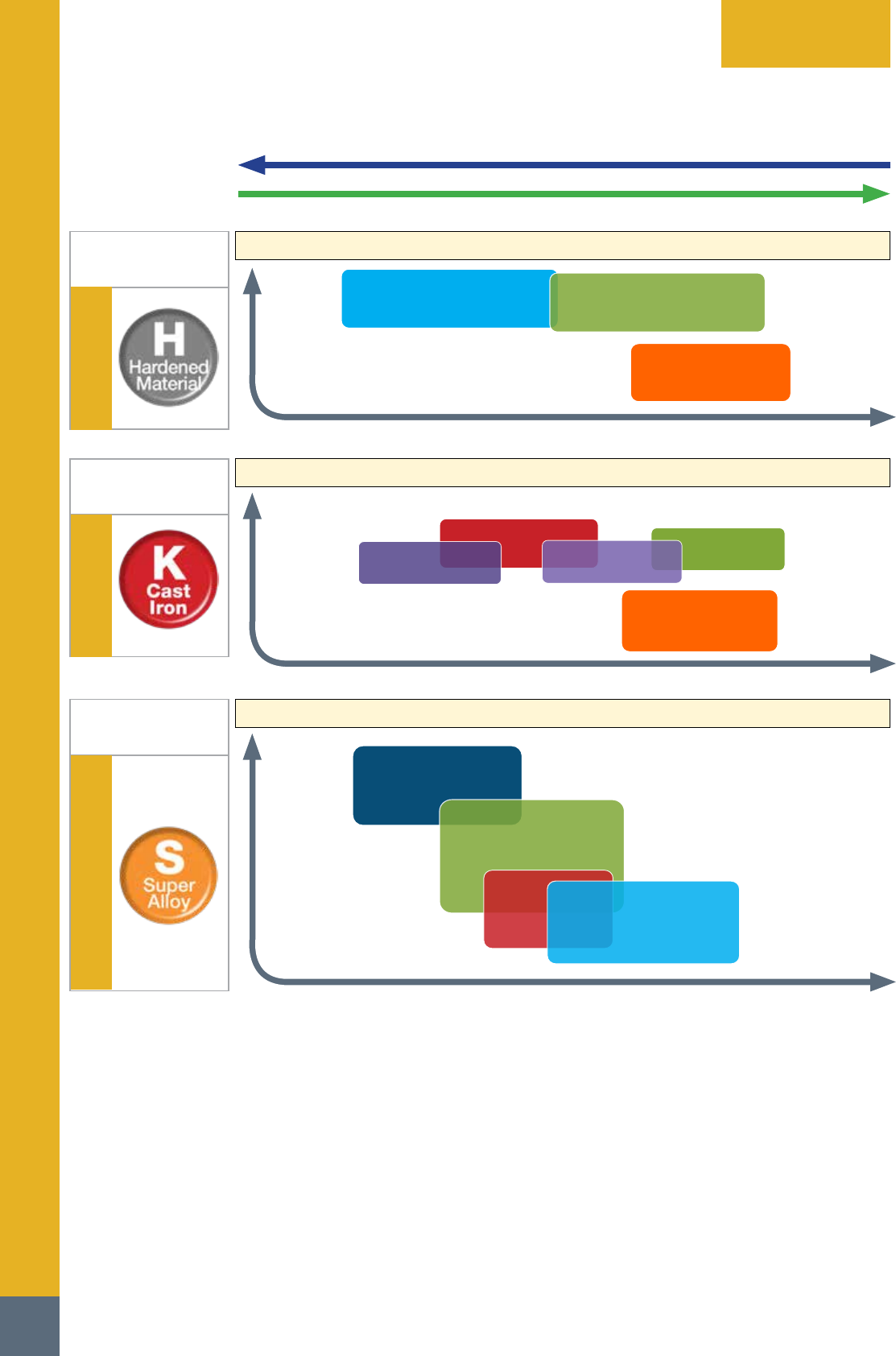

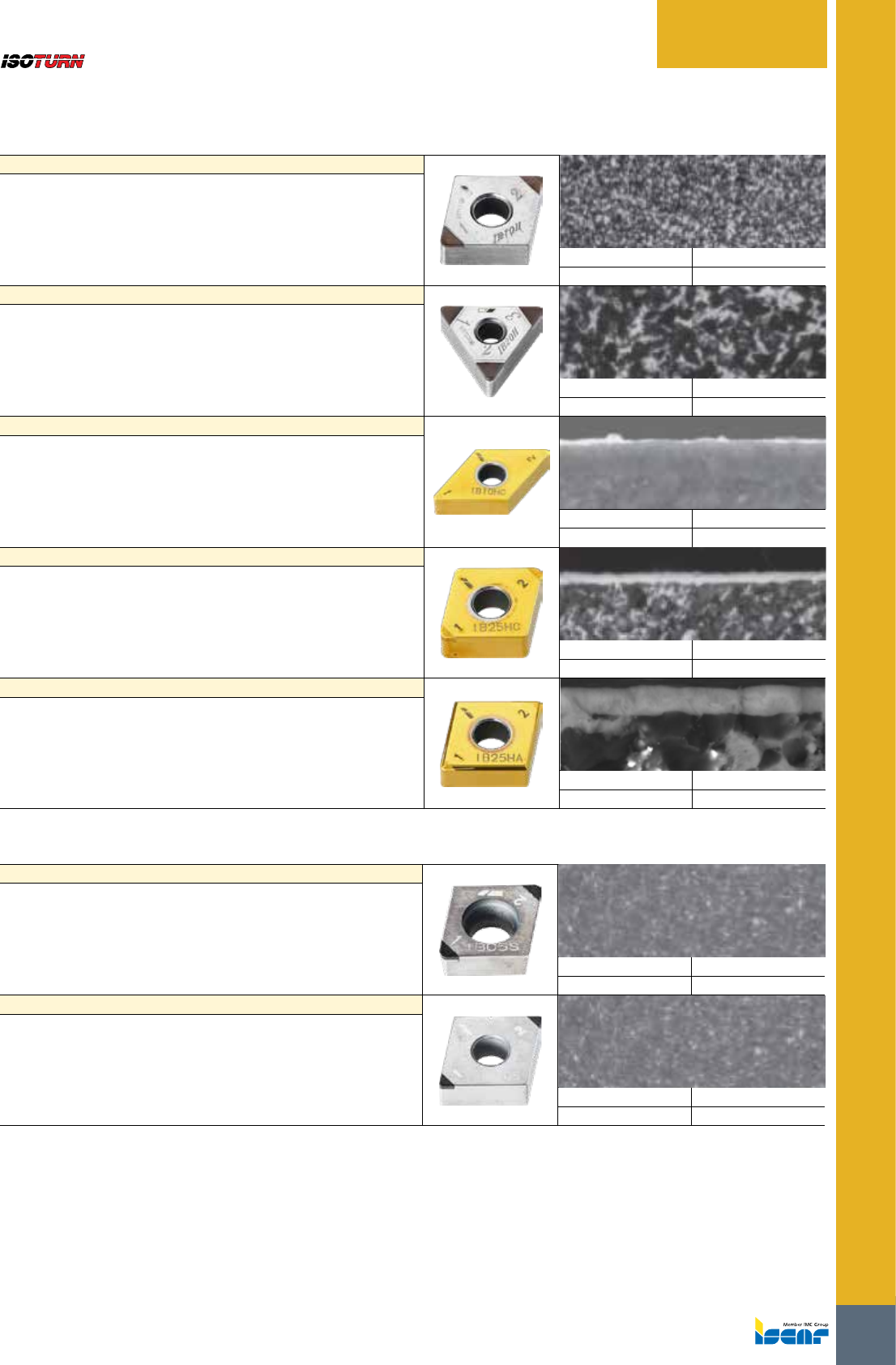

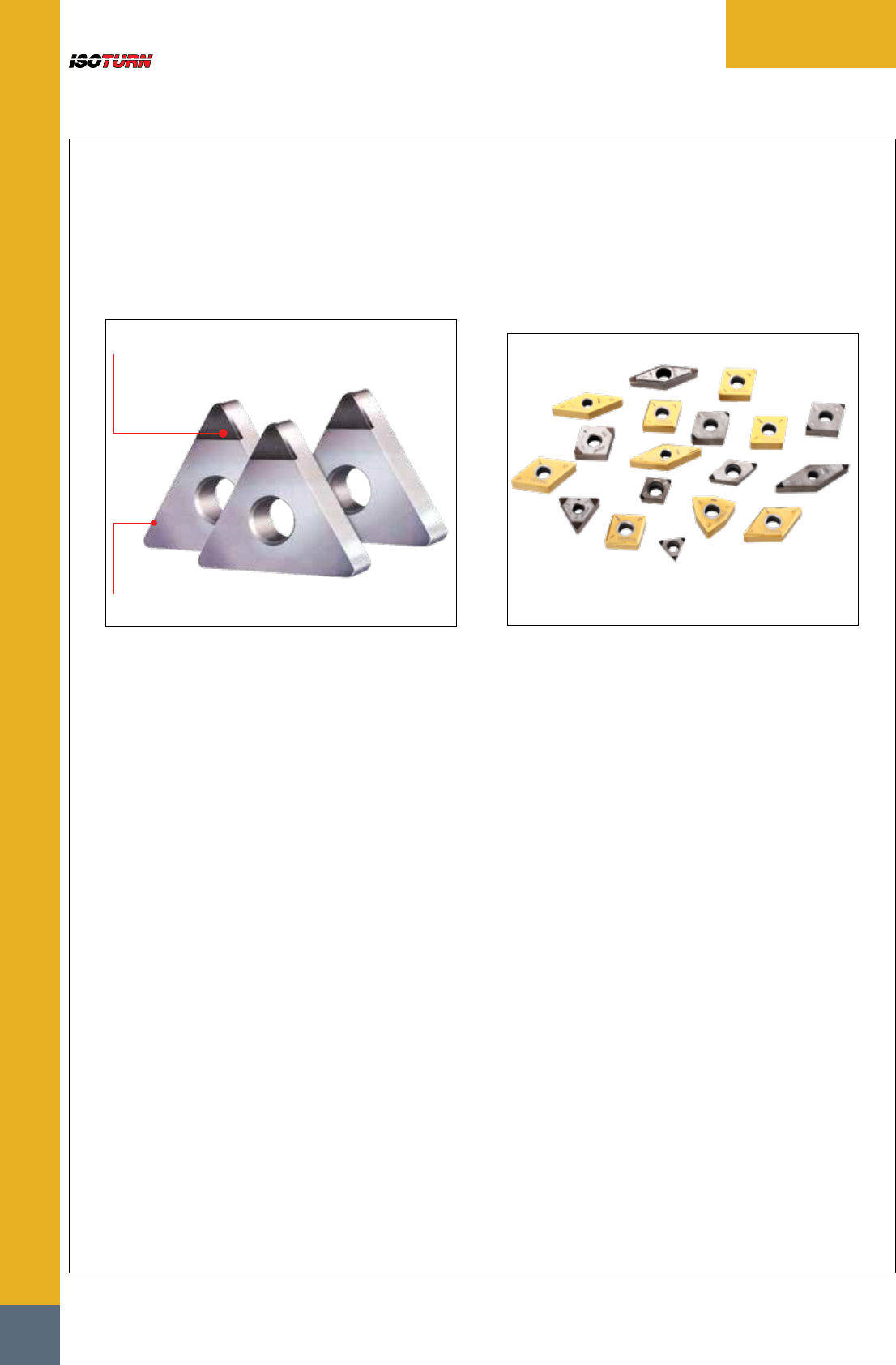

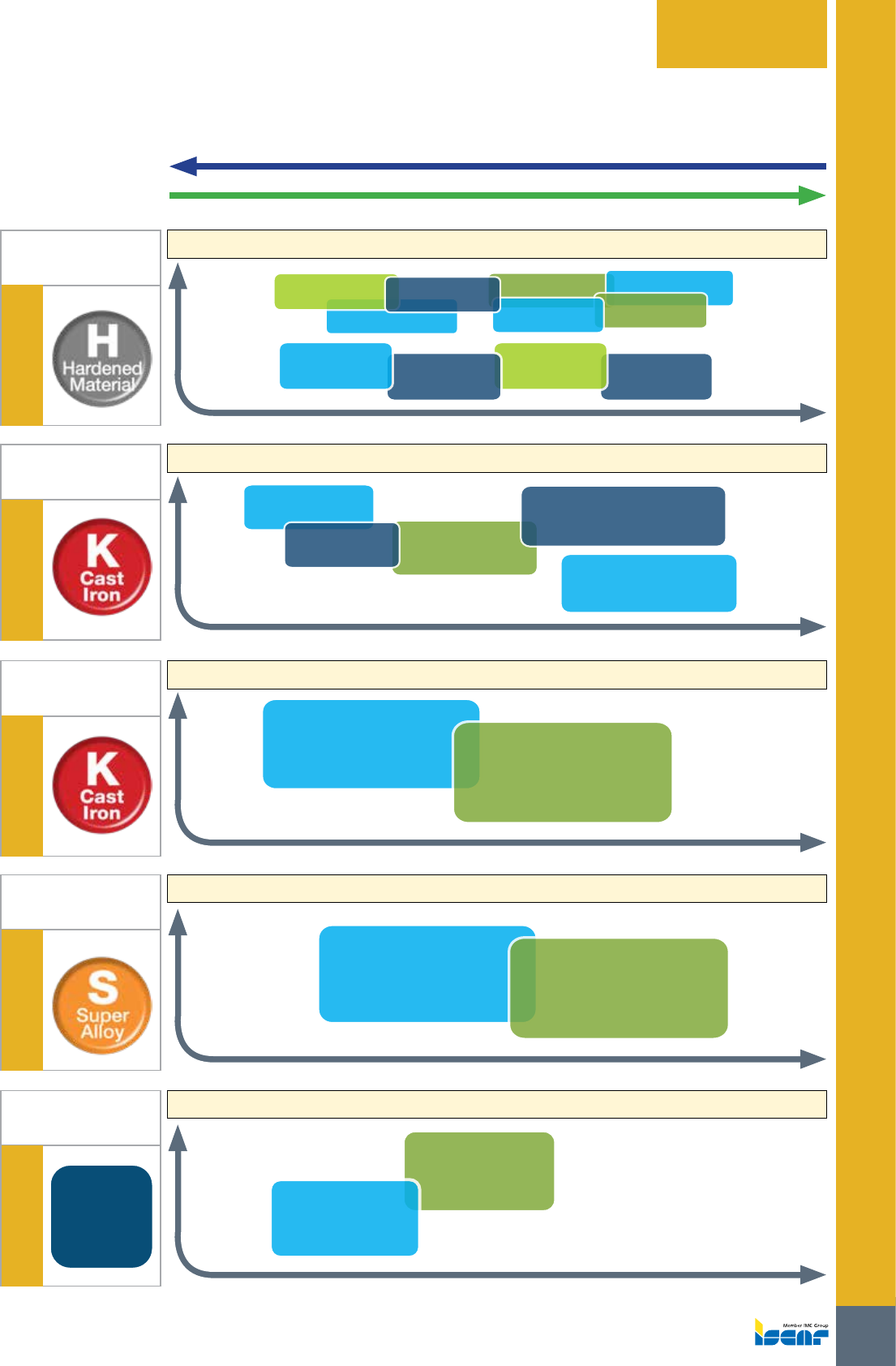

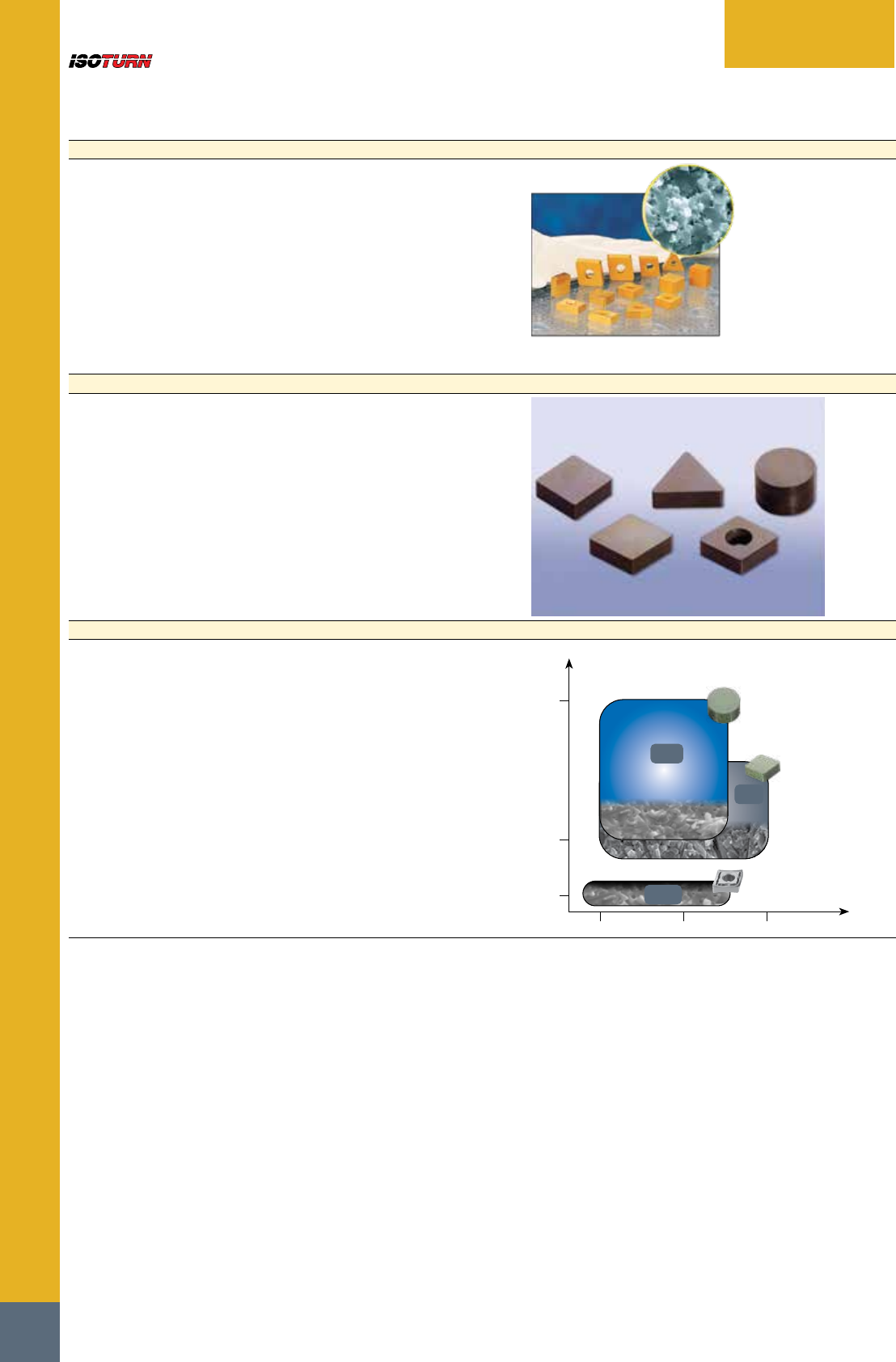

PCBN Grades

Tough

Hard

ISO

H01 H010 H20 H30

Hardened Materials

Uncoated

PCBN

Coated

PCBN

IB10HC IB20HC

IB25HA IB25HC

IB90

IB05H

IB50 IB55 IB25H

IB20H

IB10H

ISO

K01 K010 K20 K30

Gray Cast Iron

Uncoated

PCBN

IB90

IB10S

IB90A

IB05S

IB20KD

Solid CBN

ISO

K01 K010 K20 K30

Ductile Cast Iron

Uncoated

PCBN

IB10K

IB10S

ISO

Uncoated

PCBN

IB05S

IB10S

S01 S010 S20 S30

Heat Resistant Alloys / Nickel Base

ISO

N01 N010 N20 N30

Uncoated

PCBN

Cintered Materials

IB05S

IB10S

Cintered

Materials

ISCAR

134

USER GUIDE

ISOTURN INSERTS

ISO

H01

K01

S01

H10

K10

S10

H20

K20

S20

H30

K30

S30

Hardened Materials

Cast Iron (Gray Cast Iron / Nodular Cast Iron)

Uncoated

Ceramic

Uncoated

Ceramic

Uncoated

Ceramic

Coated

Ceramic

Coated

Ceramic

Heat-Resistant Alloys / Inconel

IN22 IN23

IN420

IN23

IS8

IS6

IN110

IS80

IW7

IS25

IS9 IS35

Tough

Hard

Ceramic Grades

135

ISOTURN INSERTS

80°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC530N

(mm)

(mm/rev)

WNGP 040302R/L-F2P

4.35 6.35 3.18 0.20

•

0.30-2.00 0.08-0.30

WNGP 040304R/L-F2P

4.35 6.35 3.18 0.40

•

0.30-2.00 0.08-0.30

WNGP 040308R/L-F2P

4.35 6.35 3.18 0.80

•

0.30-2.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SWLNR/L-04 (103) • NQCH-SWLNR/L-S-JHP (8) • PWLNR/L-S (8)

WNGP-F2P

Double-Sided Trigon Inserts

for Super Finish Machining

Conditions on Alloyed Steel

80°

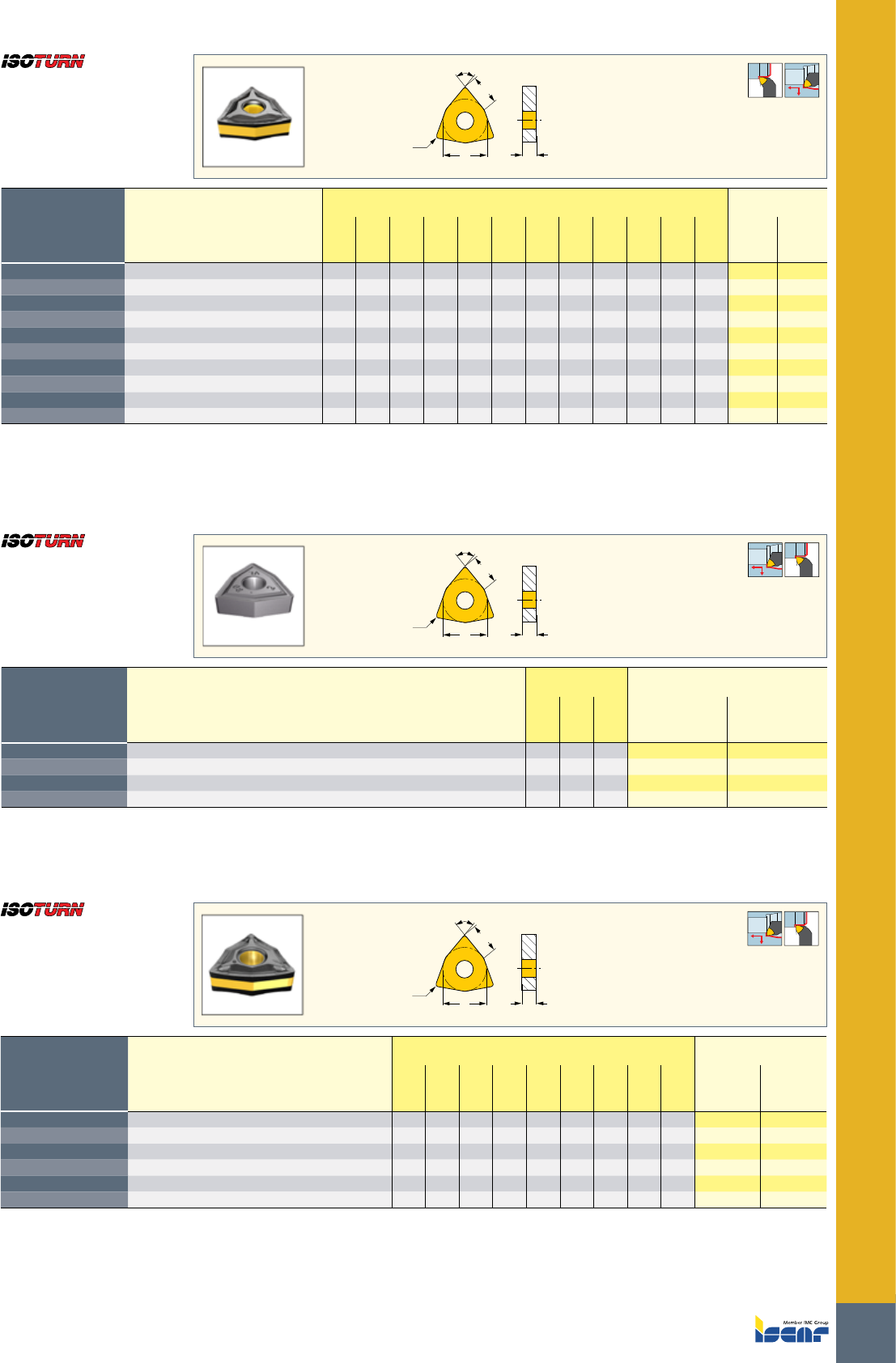

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC20N

IC520N

IC807

(mm)

(mm/rev)

WNMG 060404-F3P

6.52 9.52 4.76 0.40

••••••

0.50-2.50 0.07-0.25

WNMG 060408-F3P

6.52 9.52 4.76 0.80

••••••

0.90-3.00 0.08-0.25

WNMG 060412-F3P

6.52 9.52 4.76 1.20

• • • •

1.30-3.00 0.10-0.25

WNMG 080404-F3P

8.70 12.70 4.76 0.40

• • • •

0.50-3.50 0.07-0.25

WNMG 080408-F3P

8.70 12.70 4.76 0.80

• • • •

0.90-3.50 0.08-0.25

WNMG 080412-F3P

8.70 12.70 4.76 1.20

• • • •

1.30-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-F3P

Double-Sided Trigon Inserts

for Semi-Finishing and

Finishing Applications

80°

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC5010

IC807

(mm)

(mm/rev)

WNMG 06T304-M3P

6.52 9.52 3.97 0.40

•••

0.45-2.50 0.10-0.45

WNMG 06T308-M3P

6.52 9.52 3.97 0.80

•••

0.50-3.00 0.15-0.50

WNMG 06T312-M3P

6.52 9.52 3.97 1.20

• •

0.80-3.00 0.18-0.60

WNMG 060404-M3P

6.52 9.52 4.76 0.40

• • • •

0.45-2.50 0.10-0.45

WNMG 060408-M3P

6.52 9.52 4.76 0.80

• • • •

0.50-3.00 0.15-0.50

WNMG 060412-M3P

6.52 9.52 4.76 1.20

•••

0.80-3.00 0.18-0.60

WNMG 080404-M3P

8.70 12.70 4.76 0.40

• • • •

0.40-3.50 0.10-0.45

WNMG 080408-M3P

8.70 12.70 4.76 0.80

•••••

0.50-4.00 0.15-0.50

WNMG 080412-M3P

8.70 12.70 4.76 1.20

•••••

0.80-4.00 0.18-0.60

WNMG 080416-M3P

8.70 12.70 4.76 1.60

• • •

1.00-4.00 0.23-0.65

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-M3P

Double-Sided Trigon Inserts

for Medium Machining

Conditions on Steel

Negative Inserts

ISCAR

136

ISOTURN INSERTS

80°

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20N

IC520N

(mm)

(mm/rev)

WNMG 06T302-FFC

6.52 9.52 3.97 0.20

• •

1.00-2.50 0.05-0.25

WNMG 06T304-FFC

6.52 9.52 3.97 0.40

• •

1.00-2.50 0.05-0.25

WNMG 06T304-FFG

6.52 9.52 3.97 0.40

•

1.00-2.50 0.05-0.25

WNMG 06T304-FWA (1)

6.52 9.52 3.97 0.40

•

0.50-3.00 0.12-0.50

WNMG 06T308-FFC

6.52 9.52 3.97 0.80

•

1.00-2.50 0.05-0.25

WNMX 060404-FWA (1)

6.52 9.52 4.76 0.40

•

0.50-3.00 0.12-0.50

WNMG 06T302-FFA

6.52 9.92 3.97 0.20

•

0.30-1.50 0.05-0.16

WNMG 080404-FFC

8.70 12.70 4.76 0.40

• •

1.00-2.50 0.05-0.25

WNMG 080408-FFC

8.70 12.70 4.76 0.80

•

1.00-2.50 0.05-0.25

WNMG 080408-FWT

8.70 12.70 4.76 0.80

•

1.40-5.00 0.15-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Insert with wiper geometry

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

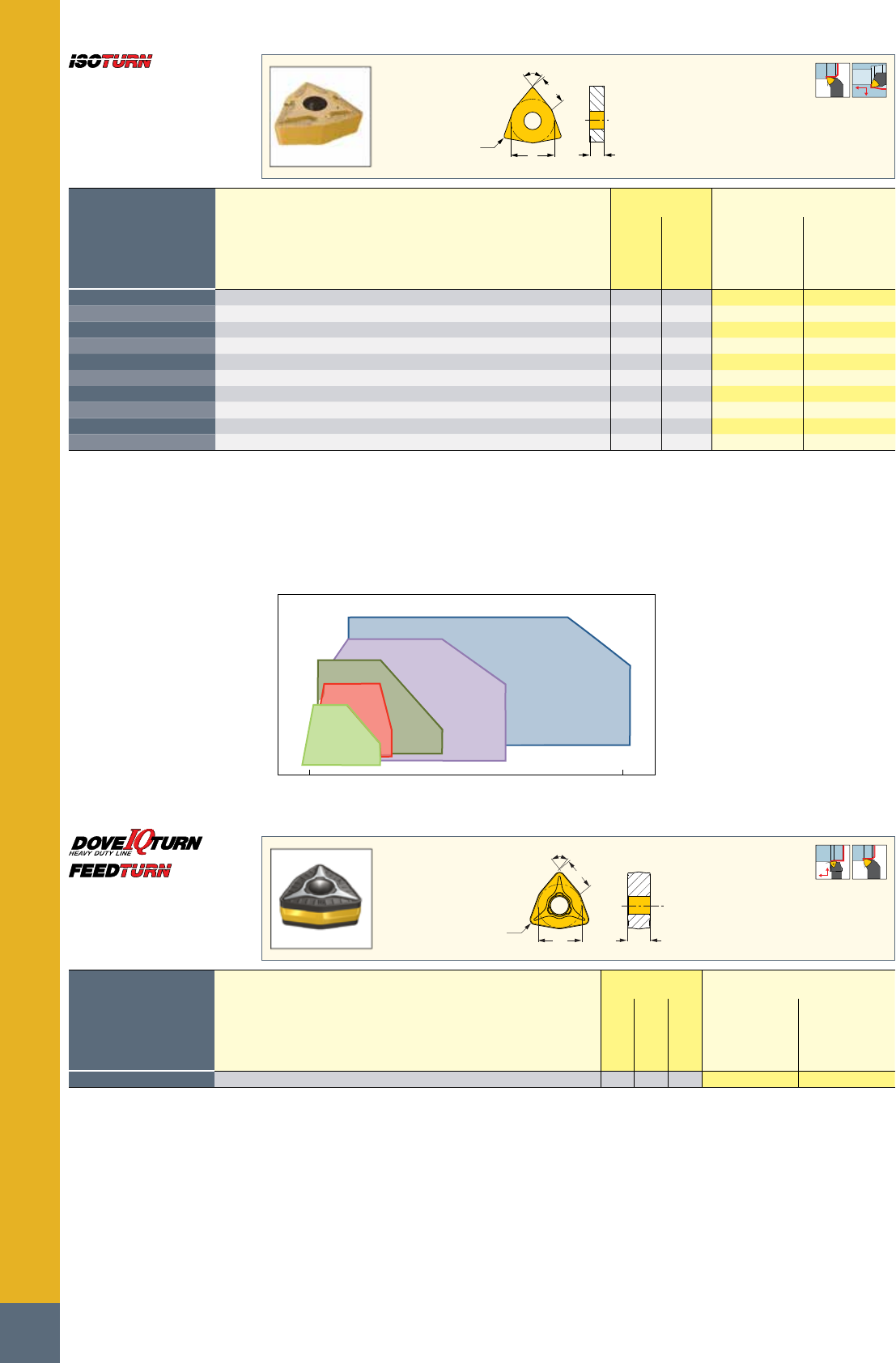

Feed (mm/rev)

D.O.C (mm)

0.1 0.6

FWT

FWA

FFC

FFG

FFA

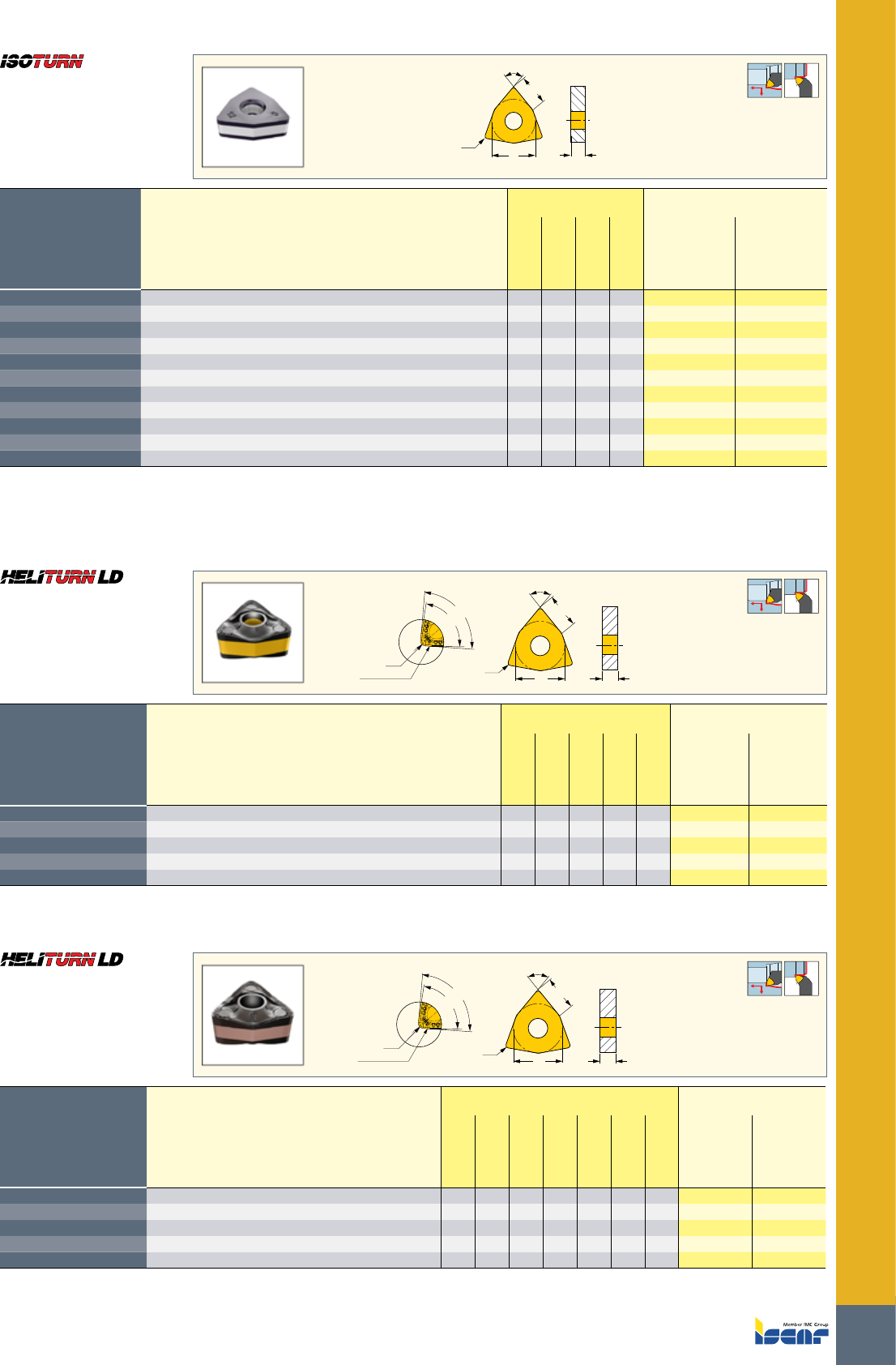

WNMG-CERMET

Double-Sided Trigon Cermet

Grade Inserts for Semi-Finishing

and Finishing Applications

80°

18°

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8350

IC8250

IC8150

(mm)(2)

(mm/rev)(1)

WOMG 100716-T3P-IQ

10.86 15.88 7.94 1.60

•••

1.00-2.80 1.50-3.00

• The specified machining recommendations in the above table are valid only for PWXOR/L-TF-IQ tools. For PWLOR/L-IQ tools: ap= 3-7 mm, ft= 0.3-0.8 mm/rev.

• For user guide, see pages 122-134, 236-248

(1) Fast feed cutting condition. For 95° app. See more info.

(2) Fast feed cutting condition. For 95° app. See more info.

For tools, see pages: PWLOR/L-IQ (18) • PWXOR/L-TF-IQ (19)

WOMG-10-T3P-IQ

Double-Sided 6° Negative

Side Flank Trigon Inserts for

High Feed Turning of Steel

137

ISOTURN INSERTS

80°

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

WOMG 130612-R3P-IQ

13.03 19.05 6.35 1.20

• •

3.50-8.00 0.30-0.80

WOMG 130616-R3P-IQ

13.03 19.05 6.35 1.60

• •

4.00-8.00 0.40-0.85

WOMG 130624-R3P-IQ

13.03 19.05 6.35 2.40

• •

4.00-8.00 0.40-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-PWLOR/L-IQ (19) • PWLOR/L-IQ (18)

WOMG-13-R3P-IQ

Double-Sided 7° Negative

Side Flank Trigon Inserts for

Heavy Turning of Steel

80°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC908

(mm)

(mm/rev)

WNGP 040302R/L-F2M

4.35 6.35 3.18 0.20

•

0.30-2.00 0.08-0.30

WNGP 040304R/L-F2M

4.35 6.35 3.18 0.40

•

0.30-2.00 0.08-0.30

WNGP 040308R/L-F2M

4.35 6.35 3.18 0.80

•

0.30-2.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SWLNR/L-04 (103) • NQCH-SWLNR/L-S-JHP (8) • PWLNR/L-S (8)

WNGP-F2M

Double-Sided Trigon Inserts

for Super Finish Machining

Conditions on Stainless Steel

80°

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

WNMG 060404-F3M

6.52 9.52 4.76 0.40

•••••

0.10-1.50 0.05-0.30

WNMG 060408-F3M

6.52 9.52 4.76 0.80

•••••

0.10-1.50 0.10-0.40

WNMG 060412-F3M

6.52 9.52 4.76 1.20

••••

0.20-2.50 0.15-0.50

WNMG 080404-F3M

8.70 12.70 4.76 0.40

•••••

0.10-1.50 0.05-0.30

WNMG 080408-F3M

8.70 12.70 4.76 0.80

•••••

0.10-1.50 0.10-0.40

WNMG 080412-F3M

8.70 12.70 4.76 1.20

•••••

0.20-2.50 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-F3M

Double-Sided Trigon

Inserts for Stainless Steel

Finishing Applications

ISCAR

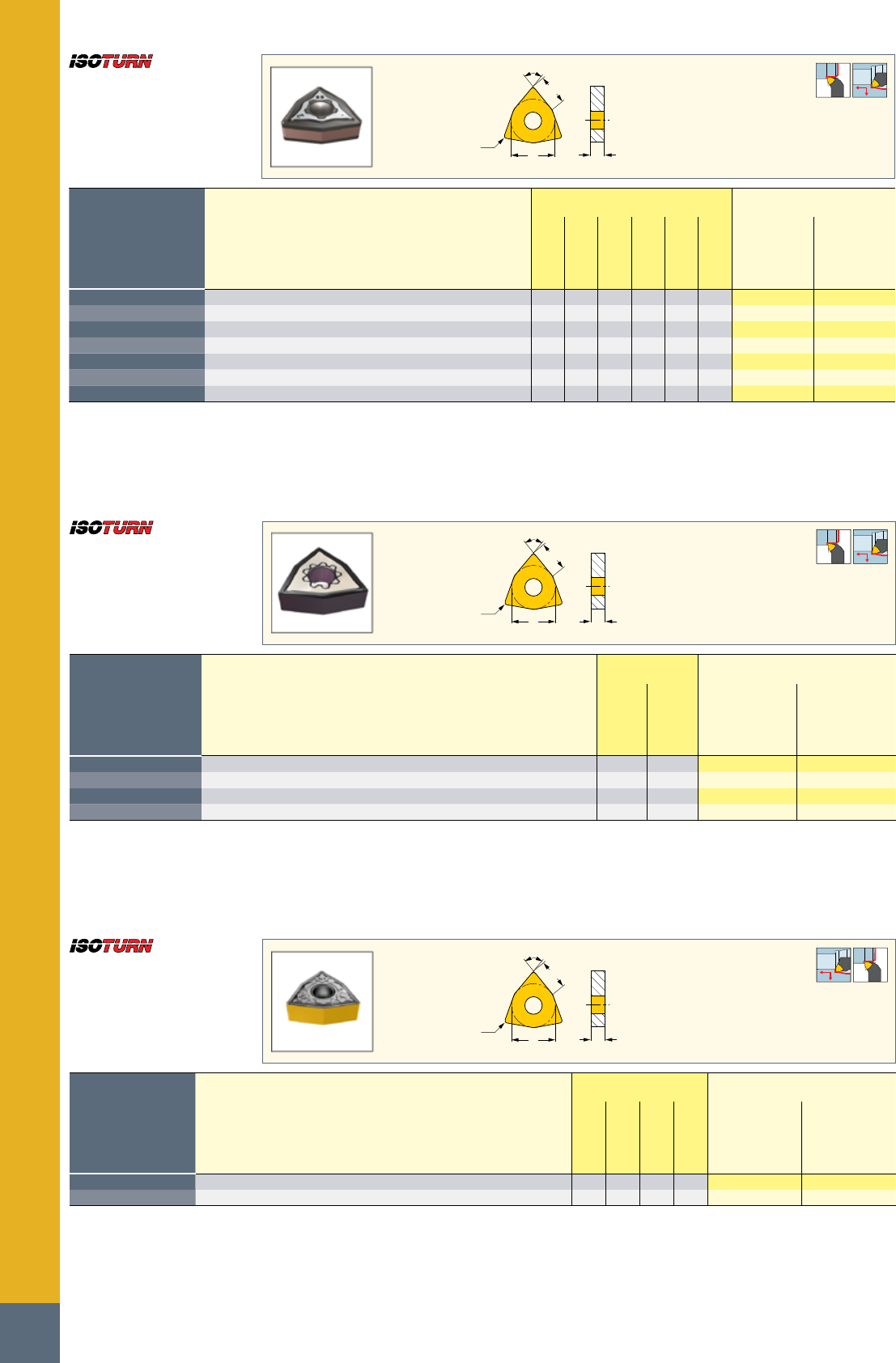

138

ISOTURN INSERTS

80°

95°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

WNMG 060404-M3M

6.52 9.52 4.76 0.40

•••••

0.50-3.50 0.12-0.40

WNMG 060408-M3M

6.52 9.52 4.76 0.80

•••••

0.50-3.50 0.15-0.50

WNMG 060412-M3M

6.52 9.52 4.76 1.20

•••••

0.50-3.50 0.20-0.60

WNMG 080404-M3M

8.70 12.70 4.76 0.40

• •

0.50-5.00 0.12-0.40

WNMG 080408-M3M

8.70 12.70 4.76 0.80

••••••

0.50-5.00 0.15-0.50

WNMG 080412-M3M

8.70 12.70 4.76 1.20

•••••

0.50-5.00 0.20-0.60

WNMG 080416-M3M

8.70 12.70 4.76 1.60

•

0.50-5.00 0.25-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-M3M

Double-Sided Trigon Inserts

for Machining Stainless

and Low Carbon Steel

80°

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

WNMG 060404-F3S

6.52 9.52 4.76 0.40

• •

0.10-1.50 0.05-0.30

WNMG 060408-F3S

6.52 9.52 4.76 0.80

• •

0.10-1.50 0.10-0.35

WNMG 080404-F3S

8.70 12.70 4.76 0.40

• •

0.10-1.50 0.05-0.30

WNMG 080408-F3S

8.70 12.70 4.76 0.80

• •

0.10-1.50 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • DWLNR/L-JHP-MC (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)

WNMG-F3S

Double-Sided 80° Trigon

Inserts for Titanium and

Heat Resistant Materials

for Finishing Applications

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC530N

IC520N

IC807

IC907

(mm)

(mm/rev)

WNMG 06T302-SF

6.52 9.52 3.97 0.20

•

0.30-1.50 0.02-0.15

WNMG 06T304-SF

6.52 9.52 3.97 0.40

••••

0.30-1.50 0.05-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • MWLNR/L-W (18) • PWLNR/L (8)

WNMG-SF

Double-Sided Trigon Inserts

for Super Finishing

139

ISOTURN INSERTS

80°

95°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC8350

IC8250

IC908

IC30N

IC530N

IC10

IC8150

IC20

IC20N

IC520N

IC807

IC907

(mm)

(mm/rev)

WNMG 06T301-NF

6.52 9.52 3.97 0.10

•

0.20-1.00 0.05-0.15

WNMG 06T302-NF

6.52 9.52 3.97 0.20

•• •••• • ••

0.30-1.50 0.08-0.17

WNMG 06T304-NF

6.52 9.52 3.97 0.40

•• •••••••••

0.40-2.50 0.07-0.25

WNMG 06T308-NF

6.52 9.52 3.97 0.80

•• ••••

0.60-3.00 0.08-0.25

WNMG 060402-NF

6.52 9.52 4.76 0.20

• •

0.30-3.00 0.05-0.20

WNMG 060404-NF

6.52 9.52 4.76 0.40

• • •

0.60-3.00 0.08-0.25

WNMG 060408-NF

6.52 9.52 4.76 0.80

•

0.80-3.00 0.08-0.25

WNMG 080404-NF

8.70 12.70 4.76 0.40

• • •

0.40-3.50 0.07-0.25

WNMG 080408-NF

8.70 12.70 4.76 0.80

• • •

0.80-3.50 0.08-0.25

WNMG 080412-NF

8.70 12.70 4.76 1.20

•

1.20-3.50 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-NF

Double-Sided Trigon Inserts

for Semi-Finishing and

Finishing Applications

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC908

IC806

IC907

(mm)

(mm/rev)

WNMG 06T308-VL

6.52 9.52 3.97 0.80

•

0.50-3.00 0.07-0.25

WNMG 080404-VL

8.70 12.70 4.76 0.40

• •

0.30-3.00 0.05-0.15

WNMG 080408-VL

8.70 12.70 4.76 0.80

• •

0.50-4.00 0.10-0.25

WNMG 080412-VL

8.70 12.70 4.76 1.20

•

1.00-4.50 0.12-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

WNMG-VL

Double-Sided Trigon Inserts

with a Chipformer for High

Temperature Alloys and

Stainless Steel Valves

80°

95º

95°

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC L S RE

IC8250

IC530N

IC8150

IC20N

IC520N

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

WNMG 06T304-WG

9.52 6.52 3.97 0.40

•••••

0.40-3.00 0.10-0.35

WNMG 06T308-WG

9.52 6.52 3.97 0.80

• • • • •

0.60-3.50 0.10-0.50

WNMG 060404-WG

9.52 6.52 4.76 0.40

• • • •

0.40-3.00 0.10-0.35

WNMG 060408-WG

9.52 6.52 4.76 0.80

• • •

0.60-3.50 0.10-0.50

WNMG 080408-WG

12.70 8.70 4.76 0.80

••• •••••

1.00-3.50 0.10-0.50

WNMG 080412-WG

12.70 8.70 4.76 1.20

• • • •

1.20-4.00 0.30-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-WG

Double-Sided Trigon Wiper

Inserts for High Surface Finish

at High Feed Turning

ISCAR

140

ISOTURN INSERTS

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC530N

IC8150

IC807

IC907

(mm)

(mm/rev)

WNMG 060402-WF

6.52 9.52 4.76 0.20

•

0.20-3.00 0.05-0.25

WNMG 060404-WF

6.52 9.52 4.76 0.40

• •

0.50-3.00 0.05-0.30

WNMG 060408-WF

6.52 9.52 4.76 0.80

•

0.80-3.50 0.07-0.30

WNMG 080408-WF

8.70 12.70 4.76 0.80

• •

0.80-3.50 0.07-0.35

WNMG 080412-WF

8.70 12.70 4.76 1.20

•

0.80-3.50 0.07-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-WF

Double-Sided Trigon

Wiper Inserts for Finishing

Operations at High Feeds

80°

95°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC28

IC830

IC8350

IC6025

IC8250

IC30N

IC530N

IC10

IC6015

IC8150

IC520M

IC20

IC20N

IC806

IC807

IC907

(mm)

(mm/rev)

WNMG 06T304-PP

6.52 9.52 3.97 0.40

• • • • • • •

1.00-3.00 0.14-0.30

WNMG 06T308-PP

6.52 9.52 3.97 0.80

• • • • • •

1.00-3.00 0.14-0.30

WNMG 060404-PP

6.52 9.52 4.76 0.40

• • • •

1.00-3.00 0.14-0.30

WNMG 060408-PP

6.52 9.52 4.76 0.80

• • •

1.00-3.00 0.14-0.30

WNMG 080404-PP

8.70 12.70 4.76 0.40

•••• ••• ••

1.00-3.50 0.14-0.30

WNMG 080408-PP

8.70 12.70 4.76 0.80

••••• •••• ••••

1.00-4.00 0.14-0.30

WNMG 080412-PP

8.70 12.70 4.76 1.20

• • •

1.50-5.00 0.18-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-PP

Double-Sided Trigon Inserts for

Machining Very Ductile Materials

at Medium Cutting Conditions

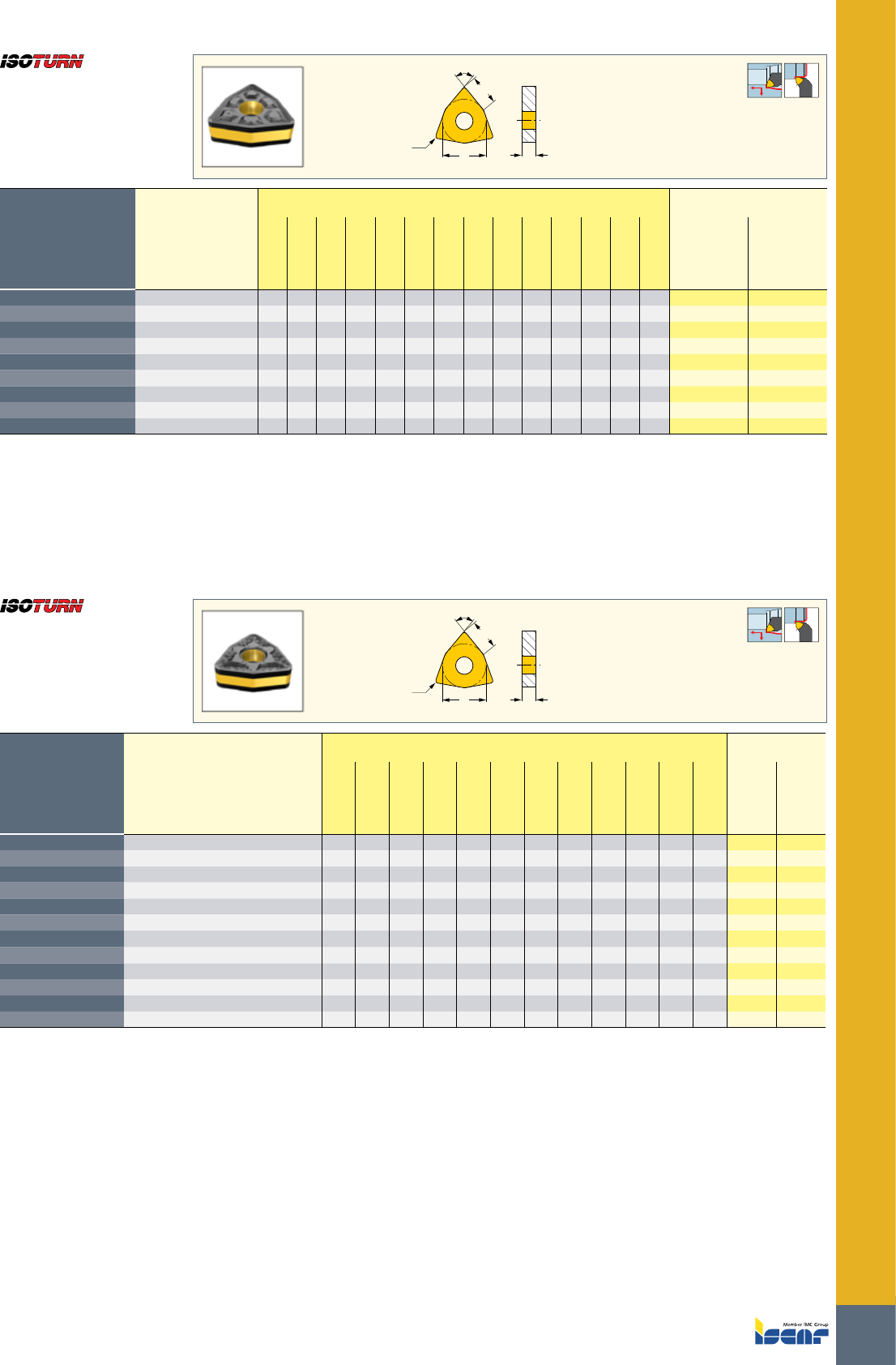

141

ISOTURN INSERTS

80°

95º

95°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC908

IC6015

IC8150

IC520M

IC20

IC20N

IC5010

IC806

IC807

IC907

(mm)

(mm/rev)

WNMG 06T304-TF

6.52 9.52 3.97 0.40

• • • • •

1.00-3.00 0.12-0.35

WNMG 06T308-TF

6.52 9.52 3.97 0.80

• • • • • • • •

1.00-3.00 0.12-0.35

WNMG 06T312-TF

6.52 9.52 3.97 1.20

• •

1.00-4.00 0.15-0.40

WNMG 060404-TF

6.52 9.52 4.76 0.40

• • •

1.00-3.00 0.12-0.35

WNMG 060408-TF

6.52 9.52 4.76 0.80

• • • • •

1.00-3.00 0.12-0.35

WNMG 060412-TF

6.52 9.52 4.76 1.20

• •

1.00-4.00 0.15-0.35

WNMG 080404-TF

8.70 12.70 4.76 0.40

• • • • • • • • •

1.00-4.00 0.12-0.35

WNMG 080408-TF

8.70 12.70 4.76 0.80

••••••••• ••••

1.00-4.00 0.12-0.35

WNMG 080412-TF

8.70 12.70 4.76 1.20

• ••••• • ••

1.50-4.50 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-TF

Double-Sided Trigon Inserts

for Machining a Wide Range

of Materials at Medium

Cutting Conditions

80°

95º

95°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC928

IC8350

IC6025

IC8250

IC6015

IC8150

IC20

IC5010

IC5005

IC807

IC907

(mm)

(mm/rev)

WNMG 06T304-GN

6.52 9.52 3.97 0.40

• • • •

1.00-3.50 0.14-0.40

WNMG 06T308-GN

6.52 9.52 3.97 0.80

••••

1.00-3.50 0.16-0.45

WNMG 06T312-GN

6.52 9.52 3.97 1.20

•

1.50-4.00 0.18-0.45

WNMG 060404-GN

6.52 9.52 4.76 0.40

•

1.00-3.50 0.14-0.40

WNMG 060408-GN

6.52 9.52 4.76 0.80

•

1.00-3.50 0.16-0.45

WNMG 060412-GN

6.52 9.52 4.76 1.20

•

1.50-4.00 0.18-0.45

WNMG 080404-GN

8.70 12.70 4.76 0.40

• • • • •

1.00-4.50 0.14-0.40

WNMG 080408-GN

8.70 12.70 4.76 0.80

••••••••••••

1.00-4.50 0.16-0.45

WNMG 080412-GN

8.70 12.70 4.76 1.20

••••••

1.50-4.50 0.22-0.50

WNMG 080416-GN

8.70 12.70 4.76 1.60

•

2.00-6.00 0.25-0.60

WNMG 130612-GN

13.03 19.05 6.35 1.20

• •

2.50-5.50 0.30-0.50

WNMG 130616-GN

13.03 19.05 6.35 1.60

•

2.50-6.00 0.30-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-GN

Double-Sided Trigon Inserts

for General Applications

ISCAR

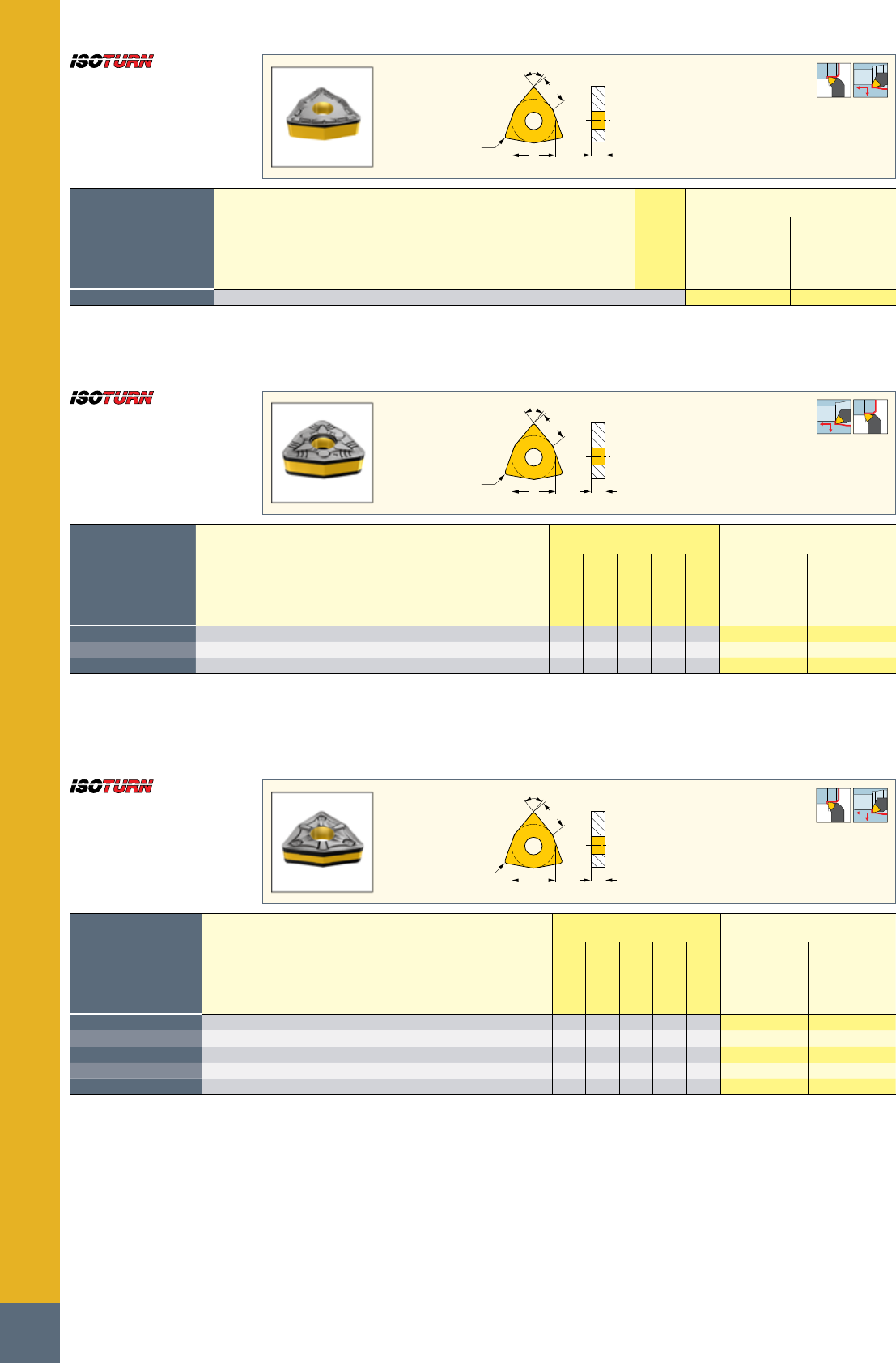

142

ISOTURN INSERTS

80°

95°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8250

(mm)

(mm/rev)

WNMM 080408-NM

8.70 12.70 4.76 0.80

•

1.50-5.00 0.20-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18)

• PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

WNMM-NM

Single-Sided Trigon Inserts

for Roughing Applications

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

IC5010

IC807

IC907

(mm)

(mm/rev)

WNMG 080408-NR

8.70 12.70 4.76 0.80

• • • •

1.00-5.00 0.18-0.50

WNMG 080412-NR

8.70 12.70 4.76 1.20

•••••

2.00-5.00 0.23-0.55

WNMG 080416-NR

8.70 12.70 4.76 1.60

• •

2.00-5.00 0.30-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8)

• PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-NR

Double-Sided Trigon Inserts

with a Special Chipformer

for Heavy Machining

80°

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC807

IC907

(mm)

(mm/rev)

WNMG 080408-TNM

8.70 12.70 4.76 0.80

•

2.00-4.50 0.25-0.45

WNMG 080412-TNM

8.70 12.70 4.76 1.20

•

2.00-4.50 0.25-0.45

WNMG 130612-TNM

13.03 19.05 6.35 1.20

••••

2.50-7.00 0.25-0.65

WNMG 130616-TNM

13.03 19.05 6.35 1.60

• •

2.50-7.00 0.25-0.65

WNMG 130624-TNM

13.03 19.05 6.35 2.40

• •

3.00-7.00 0.30-0.65

• This inserts should be used with SEAT IWSN 635M3 only! • For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-13W (18)

• MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99)

• S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMG-TNM

Double-Sided Trigon Inserts

for Semi-Roughing and

Roughing Applications

143

ISOTURN INSERTS

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8150

IC5010

IC428

IC5005

(mm)

(mm/rev)

WNMA 06T304

6.52 9.52 3.97 0.40

•••

0.50-2.00 0.03-0.30

WNMA 06T308

6.52 9.52 3.97 0.80

•••

1.00-3.00 0.03-0.40

WNMA 06T312

6.52 9.52 3.97 1.20

•

1.50-3.50 0.03-0.45

WNMA 060404

6.52 9.52 4.76 0.40

• •

1.00-3.00 0.03-0.50

WNMA 060408

6.52 9.52 4.76 0.80

•••

1.00-3.00 0.03-0.50

WNMA 060412

6.52 9.52 4.76 1.20

• •

1.00-3.00 0.03-0.50

WNMA 080408

8.70 12.70 4.76 0.80

••••

1.00-4.00 0.03-0.48

WNMA 080408-WG

8.70 12.70 4.76 0.80

•

1.00-3.50 0.10-0.60

WNMA 080412

8.70 12.70 4.76 1.20

•••

1.50-4.00 0.03-0.55

WNMA 080416

8.70 12.70 4.76 1.60

• •

2.00-5.00 0.03-0.55

WNMA 130616

13.03 19.05 6.35 1.60

• •

3.00-8.00 0.03-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9)

• C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • E-PWLNR/L-HEAD (105) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-13W (18) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11)

• PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10)

WNMA/WNMA-WG

Double-Sided Trigon Inserts

for Short Chipping Materials

such as Cast Iron

80°

IC S

80º

88º

Wiper zone

95º

95°

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC RE S L

IC830

IC8250

IC8150

IC520N

IC807

(mm)

(mm/rev)

WNMX 060604-M3PW

9.52 0.40 4.41 6.50

•••

1.00-4.00 0.20-0.50

WNMX 060608-M3PW

9.52 0.80 4.41 6.50

•••••

1.50-4.00 0.25-0.60

WNMX 080708-M4PW

12.70 0.80 6.78 8.70

• • •

1.50-5.00 0.25-0.60

WNMX 080712-M4PW

12.70 1.20 6.78 8.70

• •

2.00-5.00 0.30-0.80

WNMX 080716-M4PW

12.70 1.60 6.78 8.70

• •

2.00-5.00 0.30-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • DWLNR/L-JHP-MC (10)

• PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13)

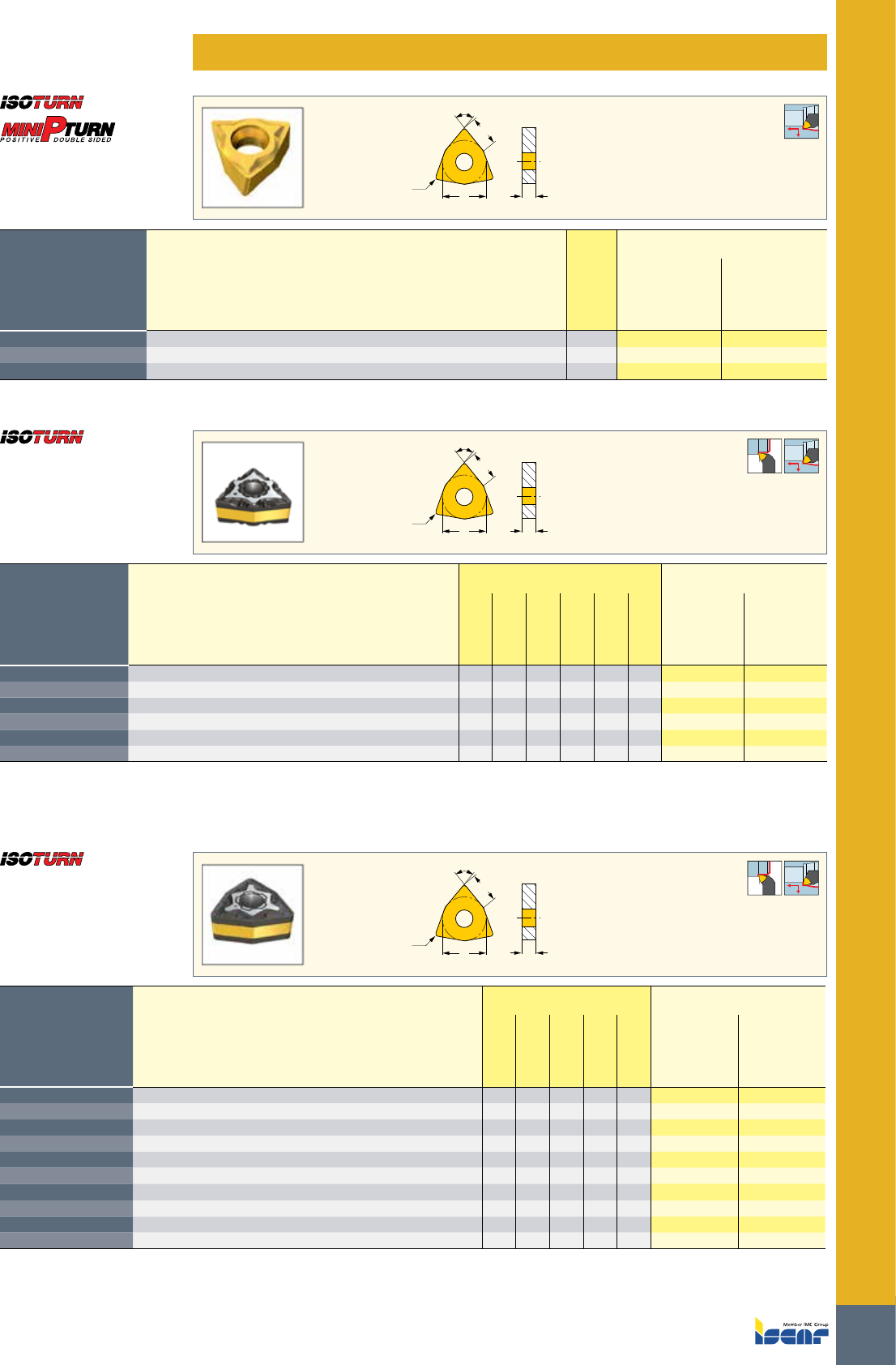

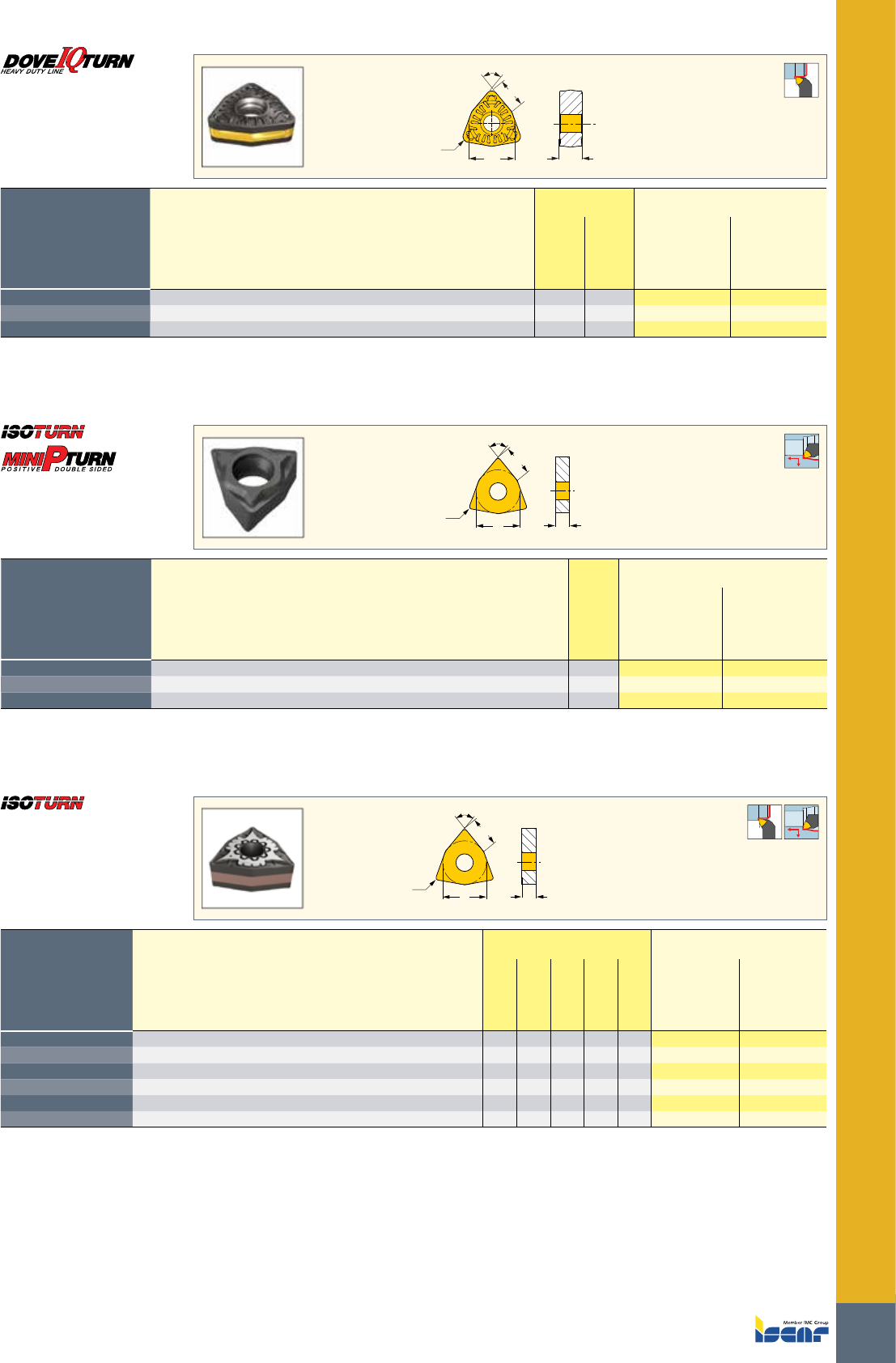

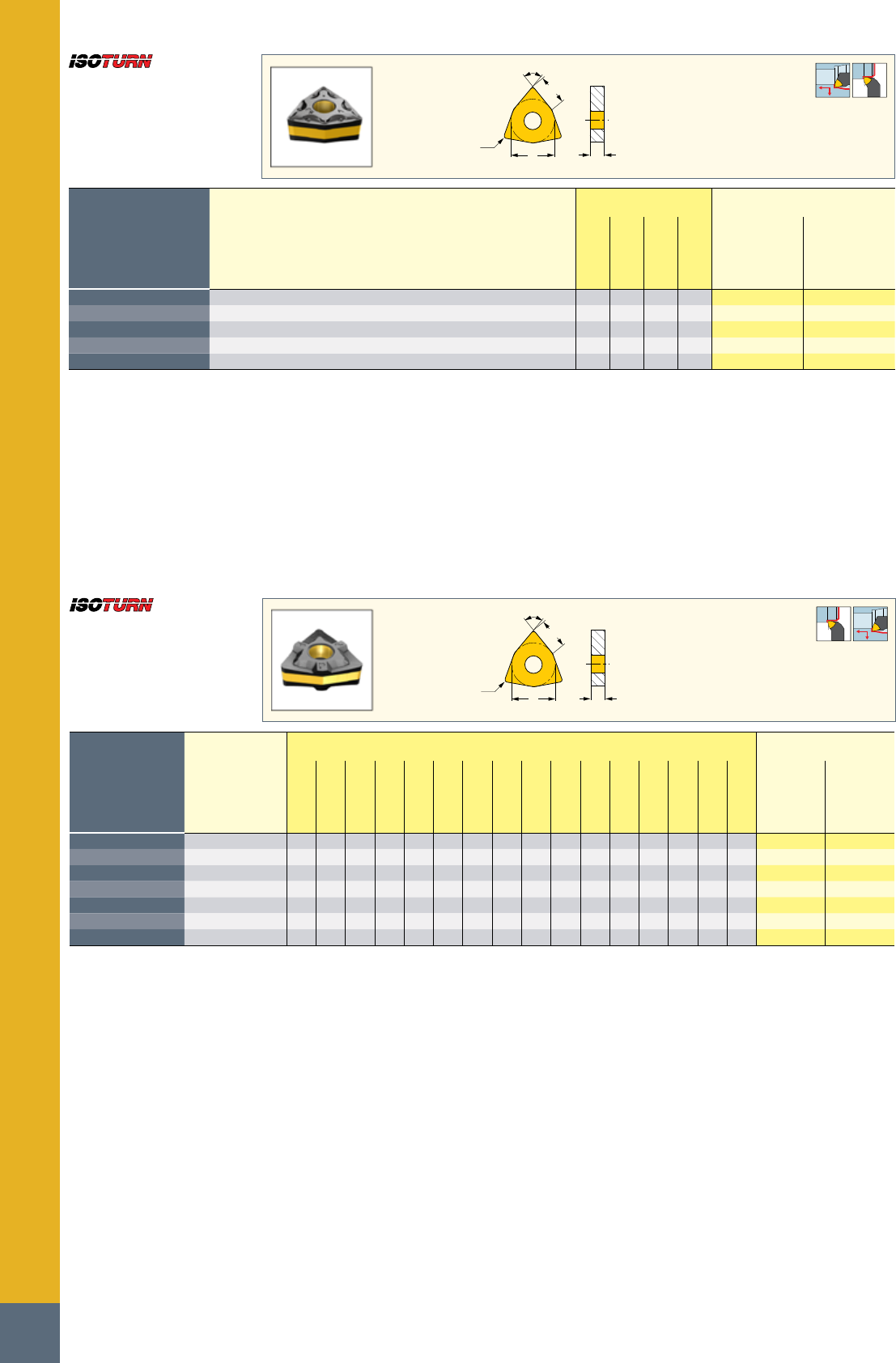

WNMX-M3/4PW

Double-Sided Trigon Inserts

with High Helical Cutting Edge

for High Metal Removal Rates

80°

IC S

80º

88º

Wiper zone

95º

95°

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC RE S L

IC830

IC6025

IC8250

IC6015

IC8150

IC806

IC807

(mm)

(mm/rev)

WNMX 060604-M3MW

9.52 0.40 4.41 6.50

• • •

0.80-4.00 0.15-0.50

WNMX 060608-M3MW

9.52 0.80 4.41 6.50

• • •

1.00-5.00 0.20-0.60

WNMX 080704-M4MW

12.70 0.40 6.78 8.70

••••••

0.80-5.00 0.15-0.50

WNMX 080708-M4MW

12.70 0.80 6.78 8.70

••••••

1.00-5.00 0.20-0.60

WNMX 080712-M4MW

12.70 1.20 6.78 8.70

• • • •

1.20-5.00 0.25-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • C#-PWLNR/L-X (13) • C#-PWLNR/L-X-JHP (14) • DWLNR/L (10) • DWLNR/L-JHP-MC (10) • PWLNR/L-X (11)

• PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13)

WNMX-M3/4MW

Double-Sided Trigon Inserts

for Machining Stainless Steel,

High Temperature Alloys and

Soft, Low Carbon Steel

ISCAR

144

ISOTURN INSERTS

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC8250

IC8150

IC20N

IC520N

IC807

(mm)

(mm/rev)

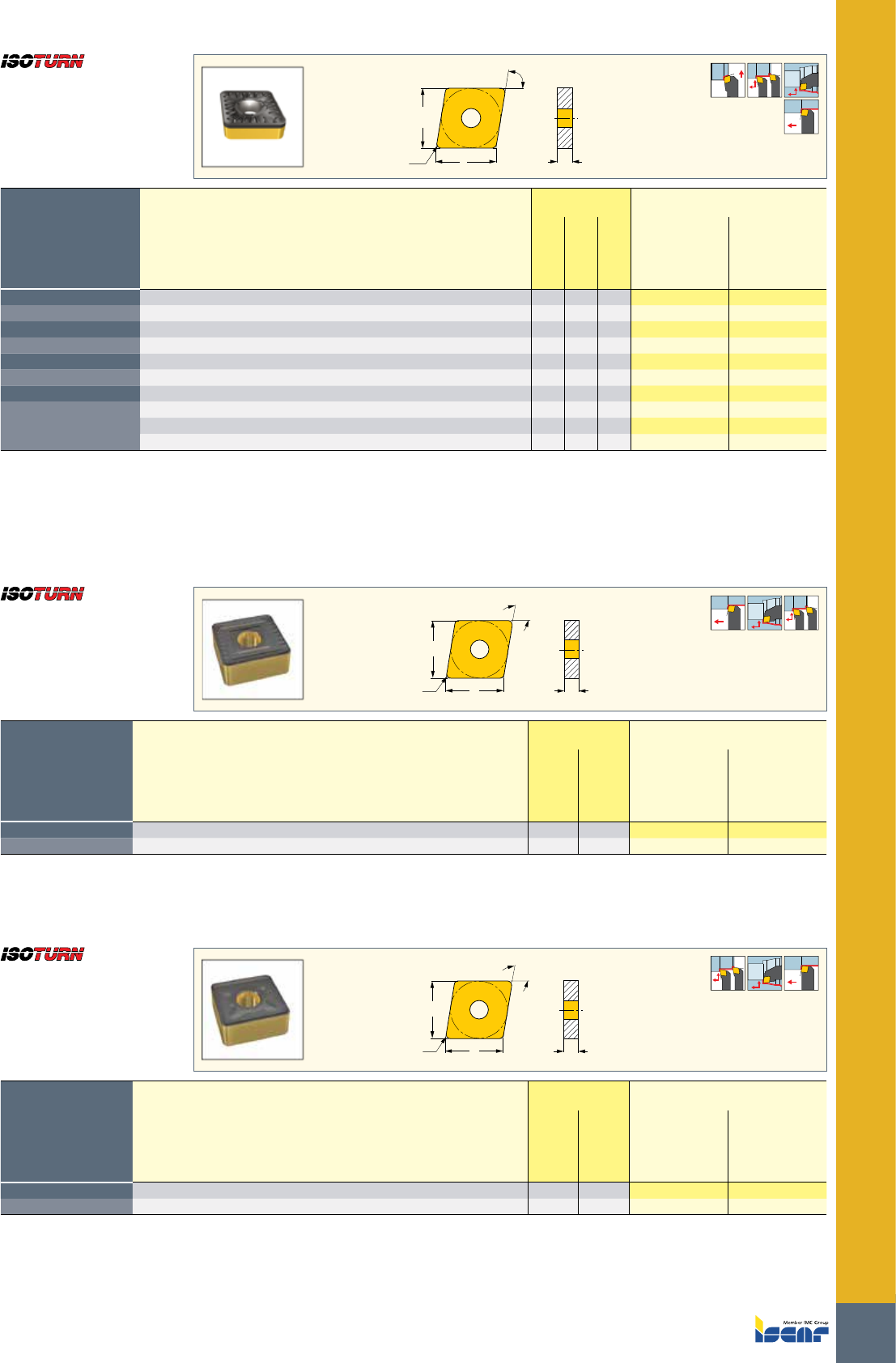

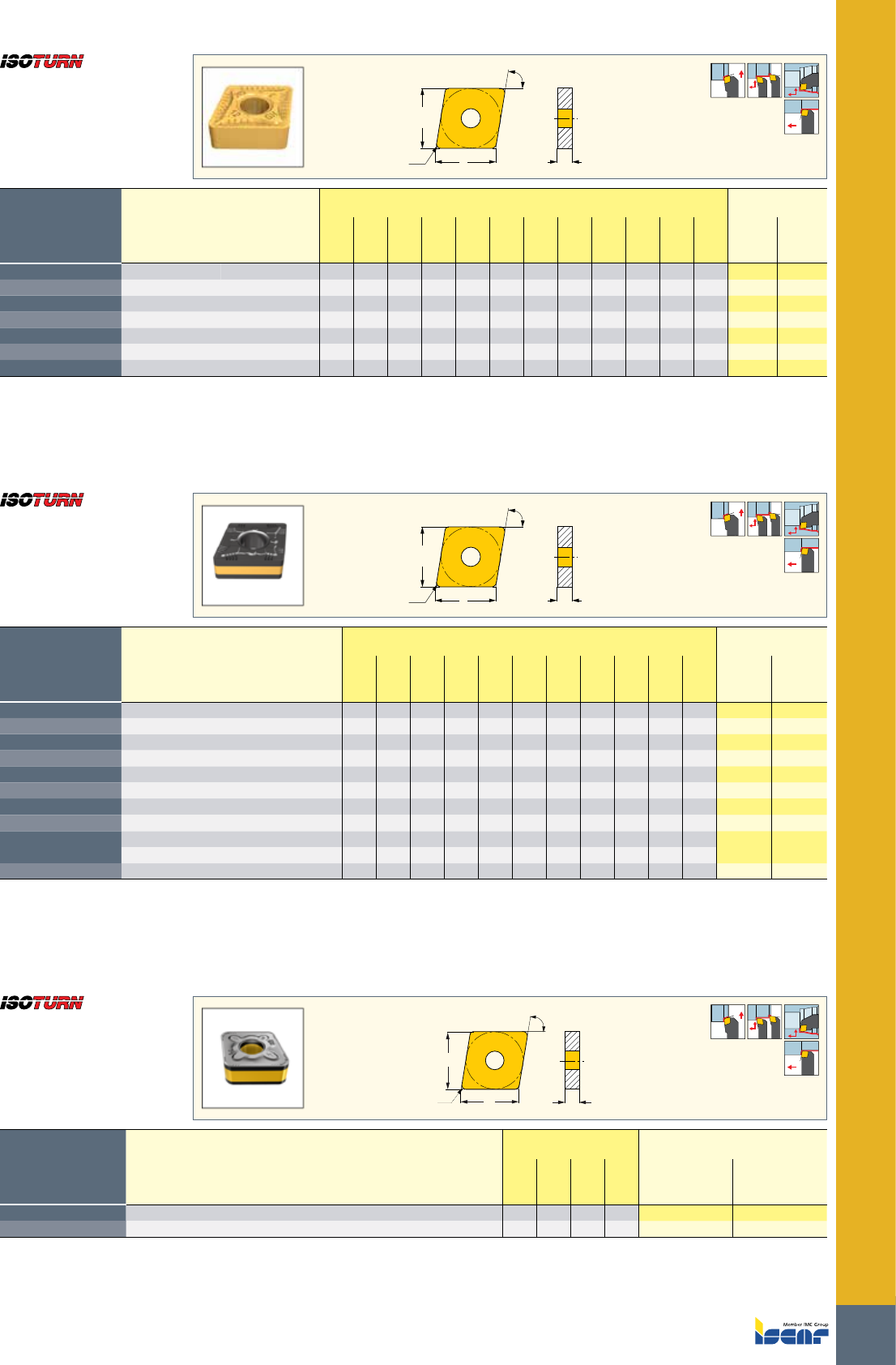

CNMG 090404-F3P

9.67 9.52 4.76 0.40

• •••••

0.50-3.50 0.07-0.25

CNMG 090408-F3P

9.67 9.52 4.76 0.80

• •••••

0.90-3.50 0.08-0.25

CNMG 120404-F3P

12.90 12.70 4.76 0.40

•••• •

0.50-3.50 0.07-0.25

CNMG 120408-F3P

12.90 12.70 4.76 0.80

• • • • •

0.90-3.50 0.08-0.25

CNMG 120412-F3P

12.90 12.70 4.76 1.20

• • • •

1.30-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • AVC-PCLNR/L (96) • DCLNR/L-JHP-MC (25)

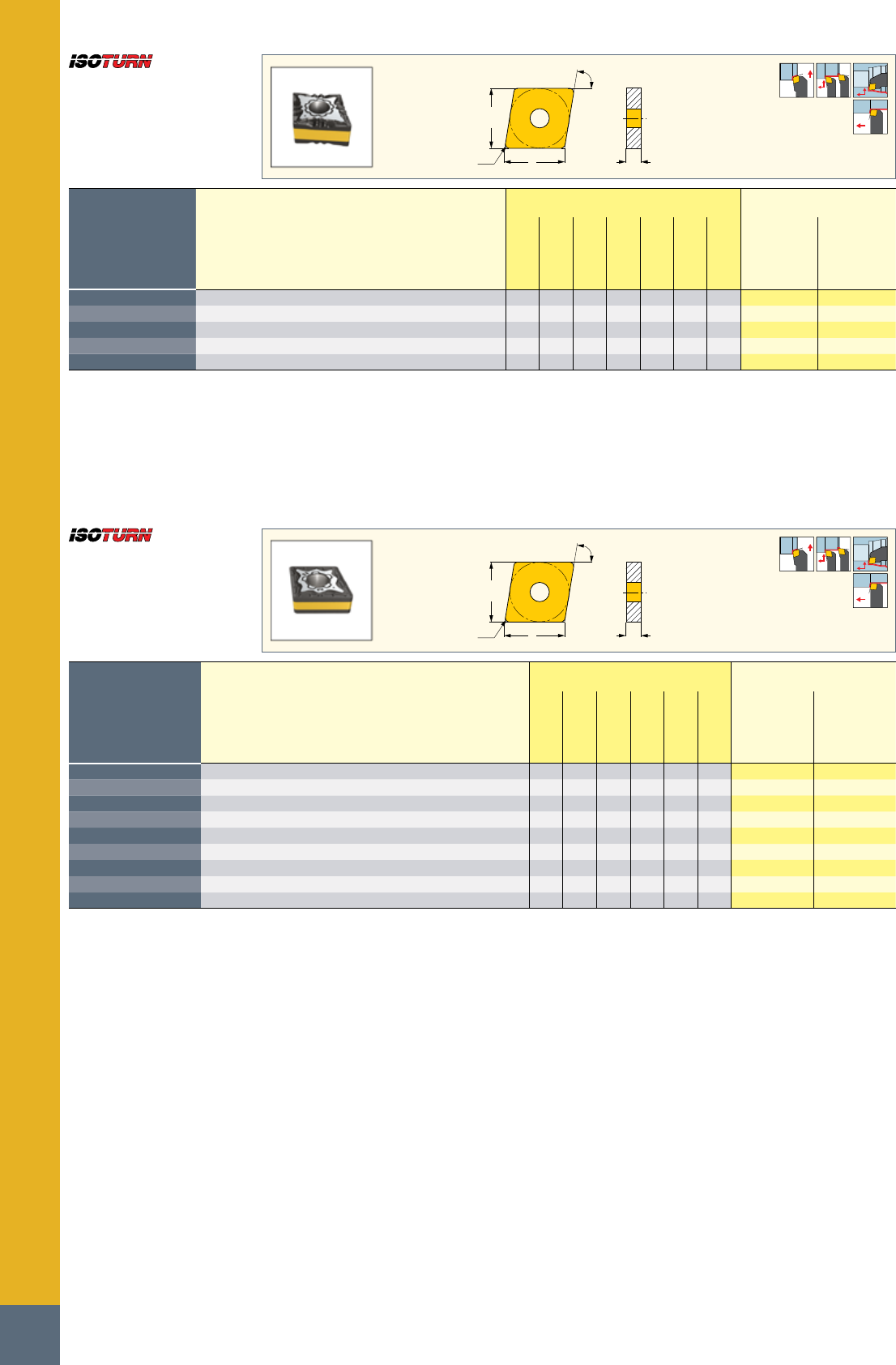

CNMG-F3P

Double-Sided 80° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC5010

IC5005

IC807

(mm)

(mm/rev)

CNMG 090404-M3P

9.67 9.52 4.76 0.40

• • • •

0.40-4.00 0.10-0.30

CNMG 090408-M3P

9.67 9.52 4.76 0.80

• • • •

0.50-4.50 0.15-0.50

CNMG 120404-M3P

12.90 12.70 4.76 0.40

• • • •

0.40-5.50 0.10-0.30

CNMG 120408-M3P

12.90 12.70 4.76 0.80

••••••

0.50-5.50 0.15-0.50

CNMG 120412-M3P

12.90 12.70 4.76 1.20

• • • •

0.80-5.50 0.18-0.60

CNMG 160612-M3P

16.12 15.88 6.35 1.20

• • • •

0.80-7.20 0.18-0.60

CNMG 160616-M3P

16.12 15.88 6.35 1.60

• • • •

0.80-7.20 0.18-0.60

CNMG 190608-M3P

19.30 19.05 6.35 0.80

• • •

0.50-8.60 0.15-0.50

CNMG 190612-M3P

19.30 19.05 6.35 1.20

• • •

0.80-8.60 0.18-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • AVC-PCLNR/L (96) • DCLNR/L-JHP-MC (25)

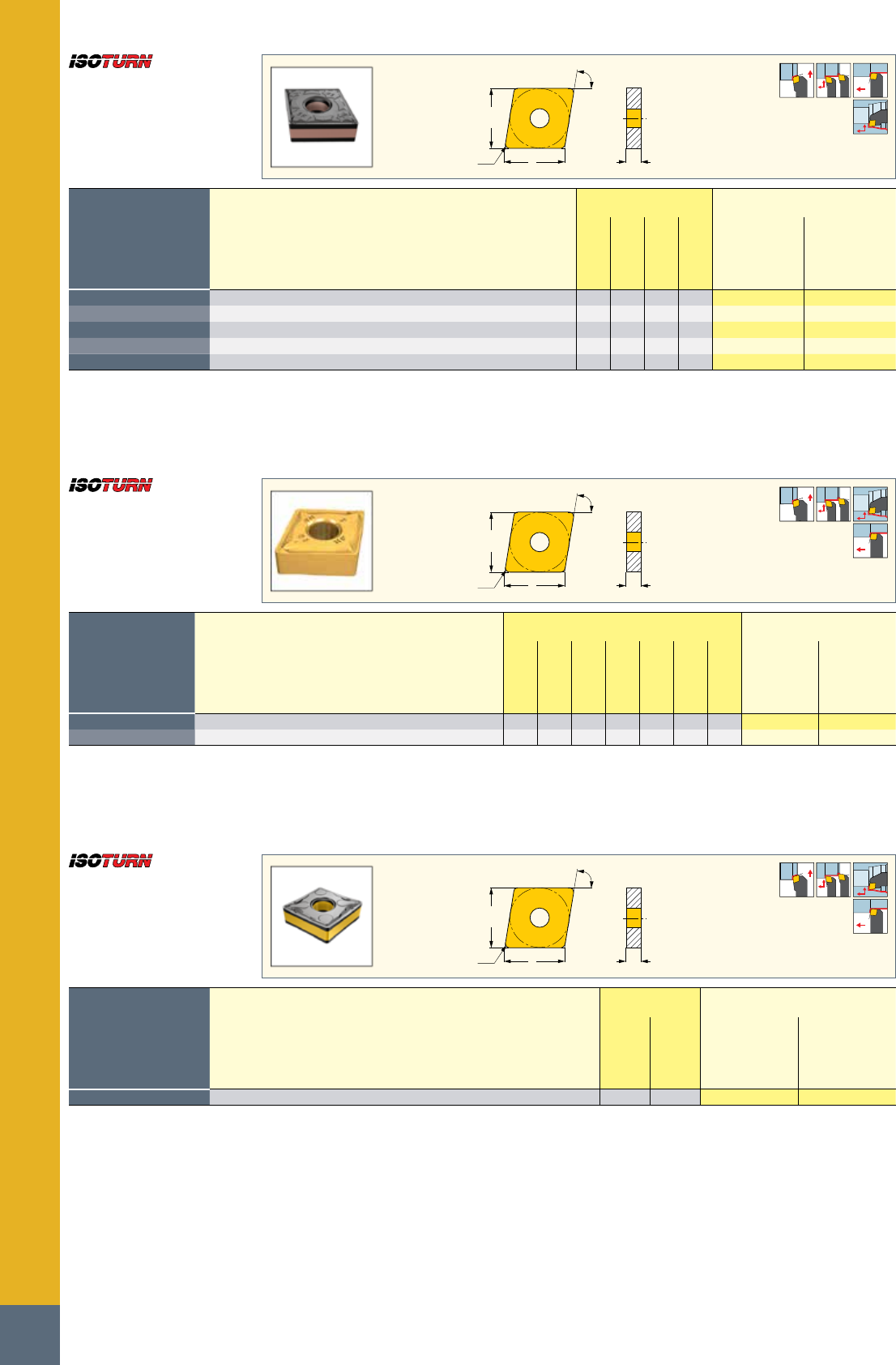

CNMG-M3P

Double-Sided 80° Rhombic

Inserts for Medium Machining

Conditions on Steel

145

ISOTURN INSERTS

80°

RE L S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20N

IC520N

(mm)

(mm/rev)

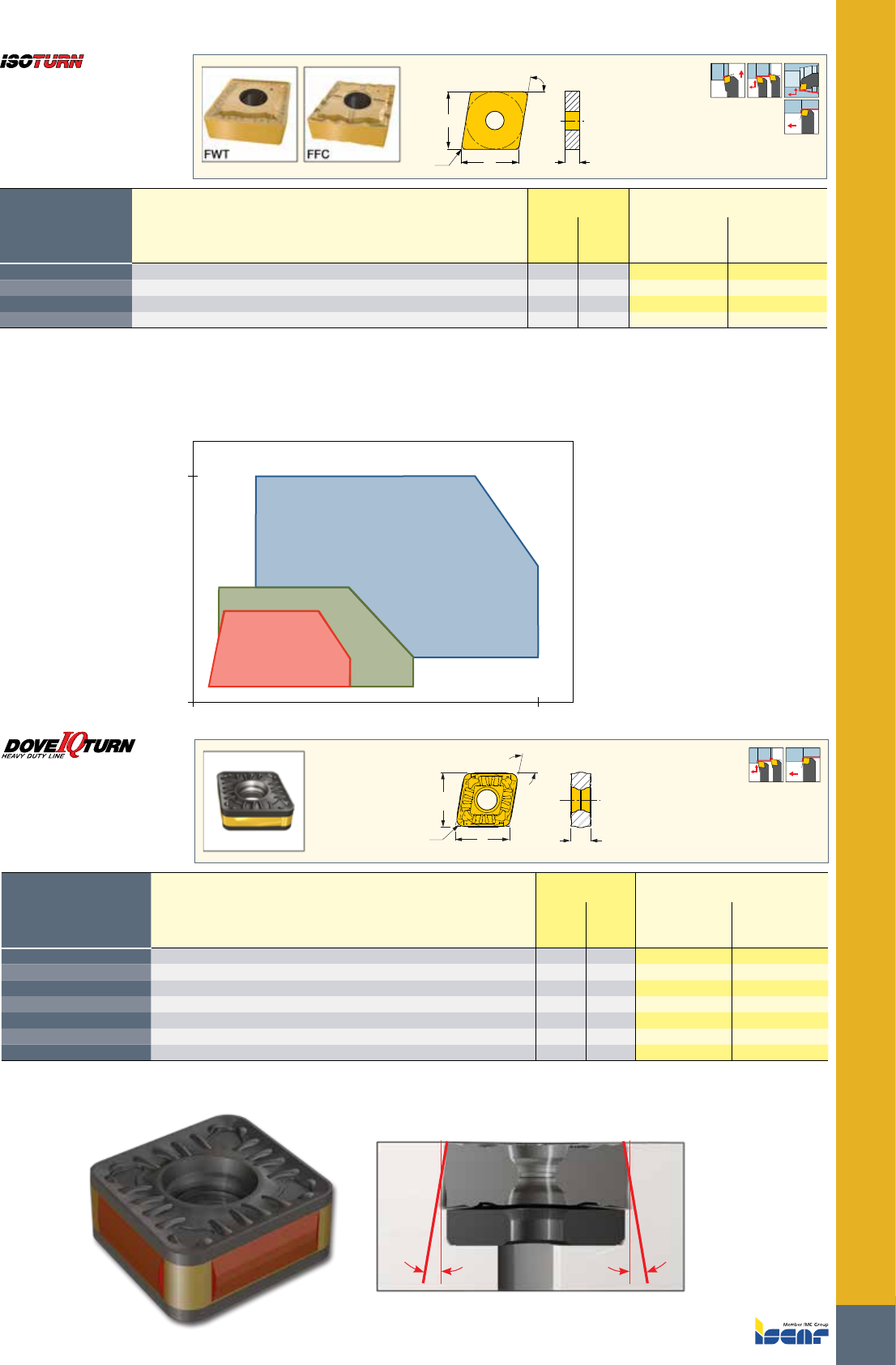

CNMG 120402-FFG

12.90 12.70 4.76 0.20

•

0.40-3.50 0.07-0.25

CNMG 120404-FFC

12.90 12.70 4.76 0.40

• •

0.50-3.50 0.07-0.25

CNMG 120408-FFC

12.90 12.70 4.76 0.80

•

1.00-2.50 0.05-0.25

CNMG 120408-FWT

12.90 12.70 4.76 0.80

•

0.00-5.00 0.15-0.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • DCLNR/L-JHP-MC (25)

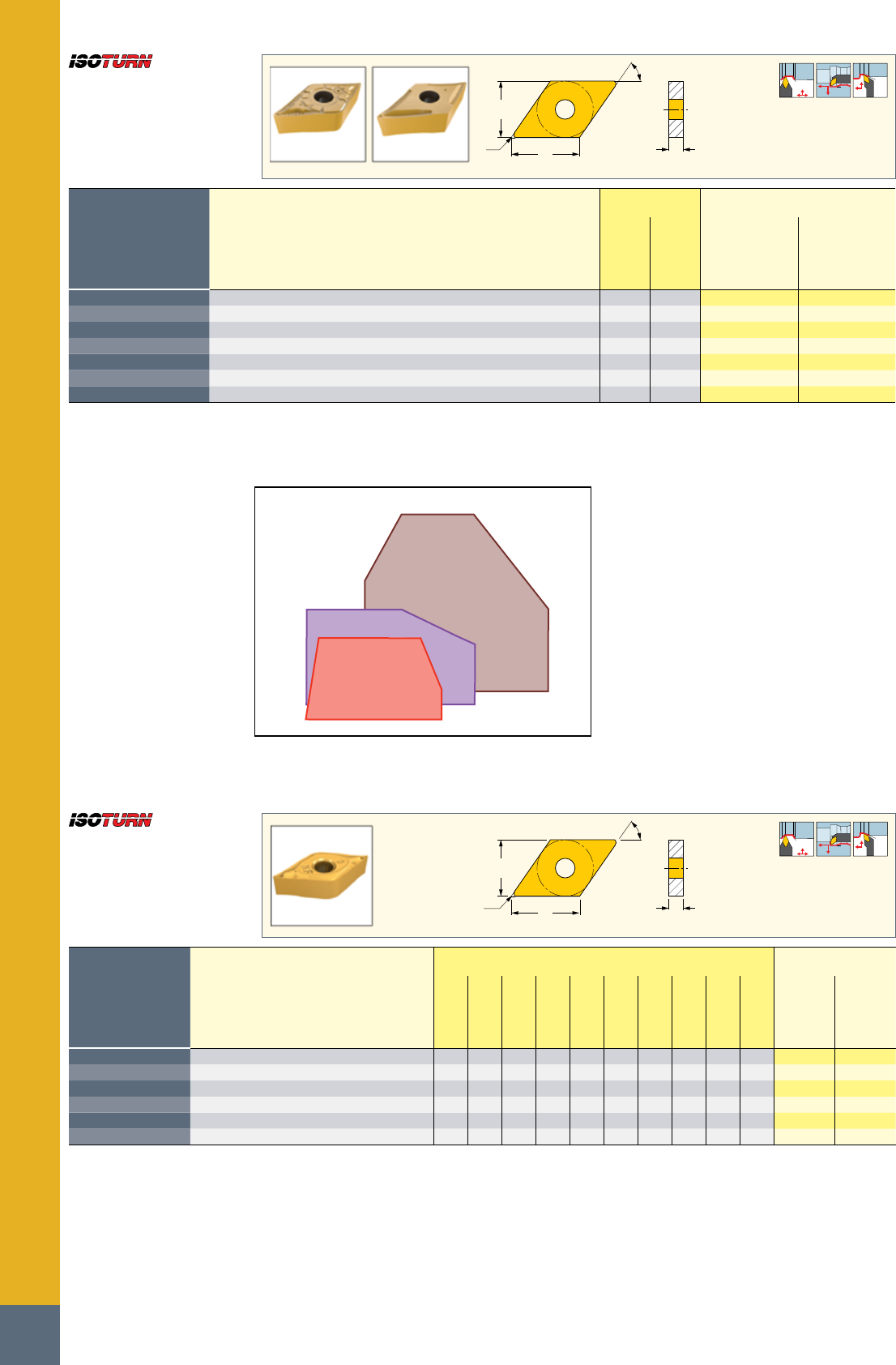

FWT

FFC

FFG

Feed (mm/rev)

D.O.C (mm)

00.6

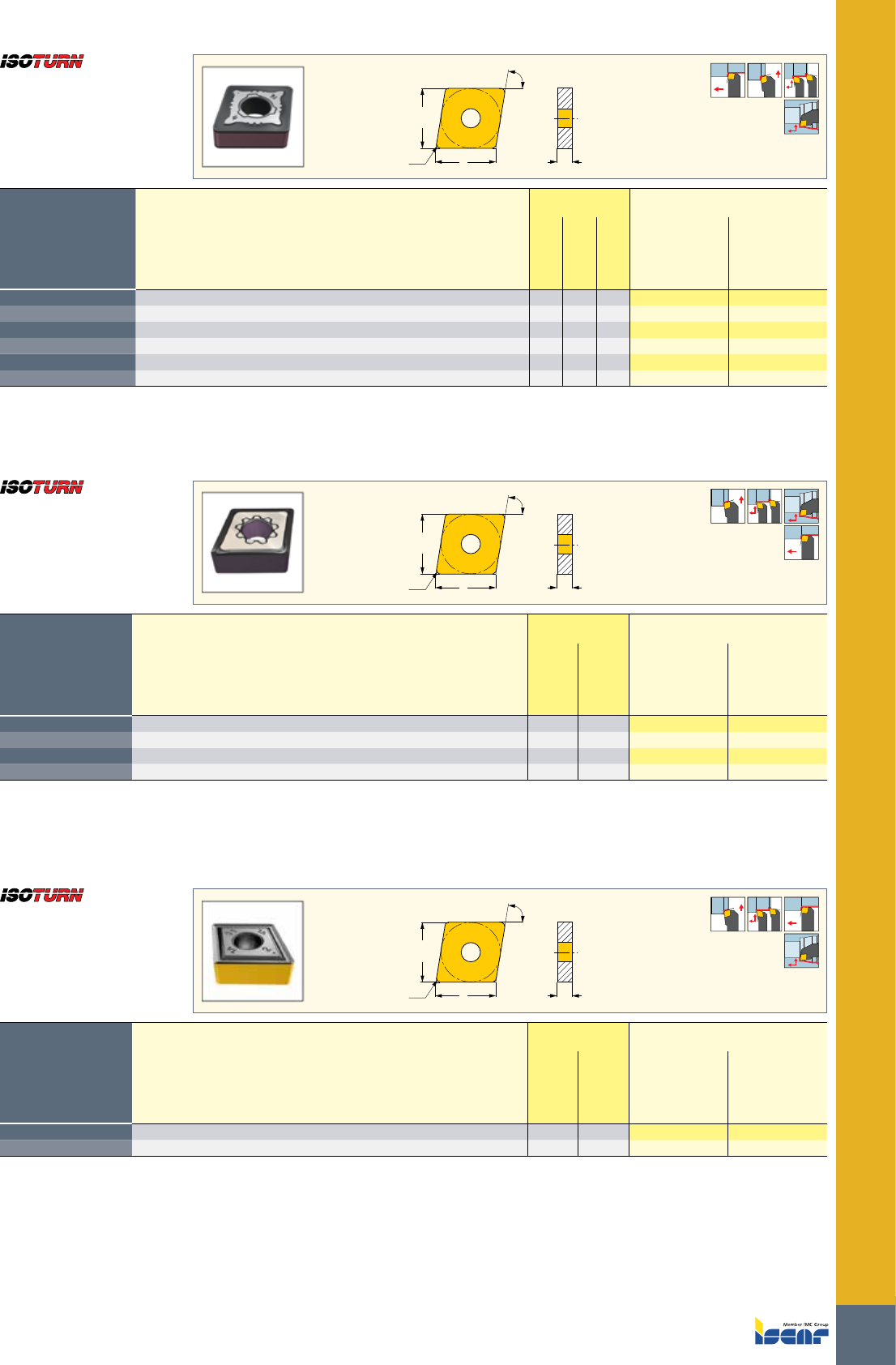

CNMG-CERMET

Double-Sided 80° Rhombic

Cermet Grade Inserts

for Semi-Finishing and

Finishing Applications

RE L

80°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

COMG 160608-R3P-IQ

16.12 15.88 6.35 0.80

• •

2.00-9.00 0.25-0.50

COMG 160612-R3P-IQ

16.12 15.88 6.35 1.20

• •

2.00-9.00 0.30-0.60

COMG 160616-R3P-IQ

16.12 15.88 6.35 1.60

• •

2.00-9.00 0.30-0.70

COMG 190612-R3P-IQ

19.34 19.05 6.35 1.20

• •

3.00-12.00 0.30-0.80

COMG 190616-R3P-IQ

19.34 19.05 6.35 1.60

• •

3.50-12.00 0.35-0.90

COMG 190624-R3P-IQ

19.34 19.05 6.35 2.40

• •

3.50-12.00 0.35-0.90

COMG 250924-R3P-IQ

25.79 25.40 9.52 2.40

• •

4.00-15.00 0.40-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-PCLOR/L-IQ (27) • PCBOR/L-IQ (27) • PCLOR/L-IQ (26)

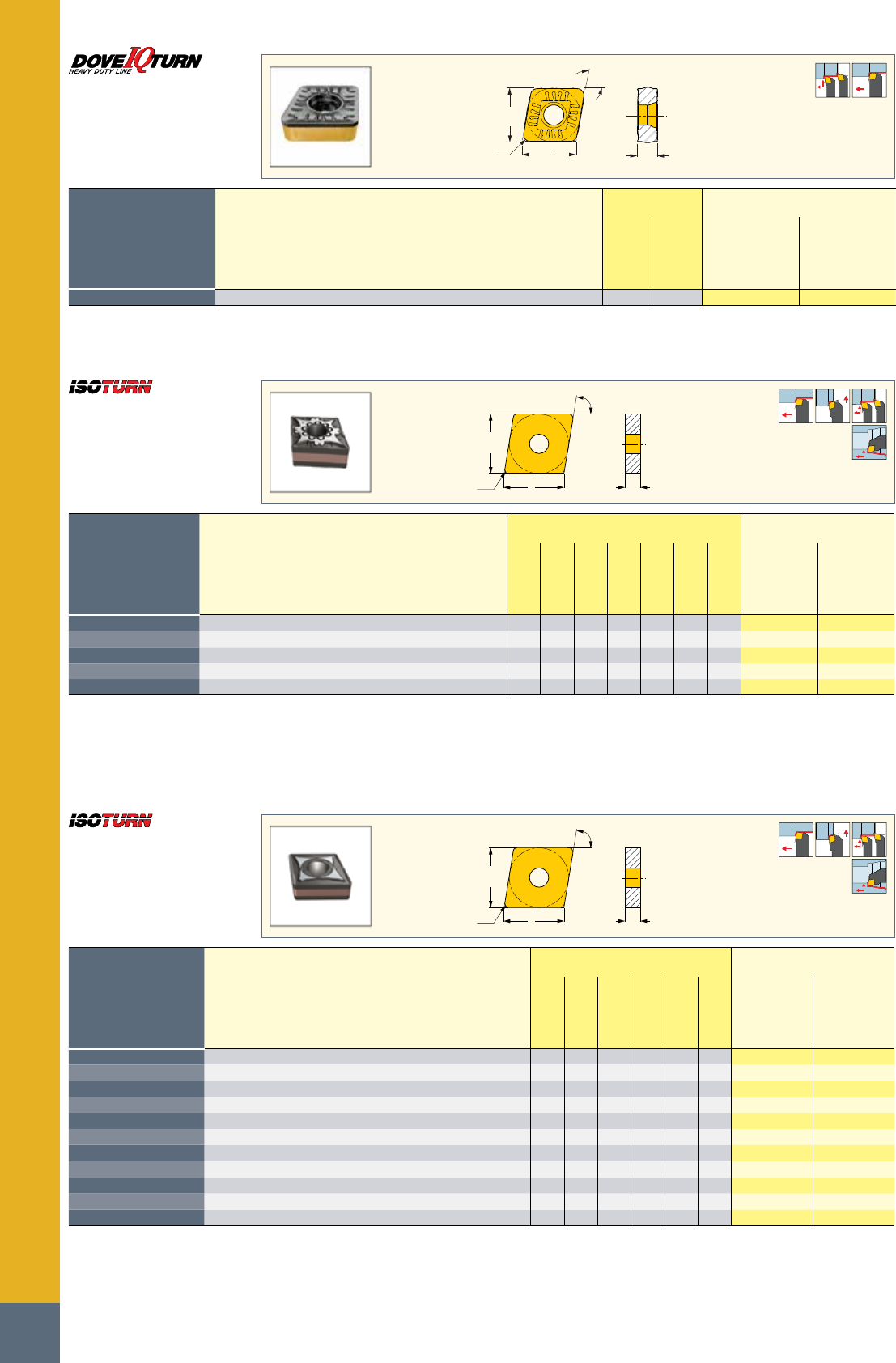

DOVE TAIL GEOMETRY

7º 7º

COMG-R3P-IQ

Double-Sided 7° Negative Side

Flank 80° Rhombic Inserts

for Heavy Turning of Steel

ISCAR

146

ISOTURN INSERTS

RE L

80°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

COMM 190624-R3P-IQ

19.34 19.05 6.35 2.40

• •

3.50-12.00 0.35-1.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-PCLOR/L-IQ (27) • PCBOR/L-IQ (27) • PCLOR/L-IQ (26)

COMM-R3P-IQ

Single-Sided 7° Negative Side

Flank 80° Rhombic Inserts

for Heavy Turning of Steel

80°

RE S

75º

75°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC4

IC804

(mm)

(mm/rev)

CNMG 090404-F3M

9.67 9.52 4.76 0.40

•••••

0.10-1.50 0.05-0.30

CNMG 090408-F3M

9.67 9.52 4.76 0.80

•••••

0.10-1.50 0.10-0.40

CNMG 120404-F3M

12.90 12.70 4.76 0.40

•••••

0.10-1.50 0.05-0.30

CNMG 120408-F3M

12.90 12.70 4.76 0.80

••••• •

0.10-1.50 0.10-0.40

CNMG 120412-F3M

12.90 12.70 4.76 1.20

•••••••

0.20-2.00 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • AVC-PCLNR/L (96) • DCLNR/L-JHP-MC (25)

CNMG-F3M

Double-sided 80° Rhombic

Inserts for Stainless Steel

Finishing Applications

80°

RE S

75º

75°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

CNMG 090404-M3M

9.67 9.52 4.76 0.40

•••••

0.40-4.00 0.12-0.40

CNMG 090408-M3M

9.67 9.52 4.76 0.80

•••••

0.50-4.50 0.15-0.50

CNMG 120404-M3M

12.90 12.70 4.76 0.40

• •

0.50-5.00 0.15-0.50

CNMG 120408-M3M

12.90 12.70 4.76 0.80

••••••

0.50-5.00 0.15-0.50

CNMG 120412-M3M

12.90 12.70 4.76 1.20

••••••

0.50-5.00 0.20-0.60

CNMG 120416-M3M

12.90 12.70 4.76 1.60

••••

0.50-5.00 0.25-0.70

CNMG 160608-M3M

16.12 15.88 6.35 0.80

••••

0.50-7.00 0.15-0.50

CNMG 160612-M3M

16.12 15.88 6.35 1.20

•••••

0.50-7.00 0.20-0.60

CNMG 160616-M3M

16.12 15.88 6.35 1.60

•••••

0.50-7.00 0.25-0.70

CNMG 190608-M3M

19.34 19.05 6.35 0.80

• • • •

3.00-10.00 0.30-0.70

CNMG 190612-M3M

19.34 19.05 6.35 1.20

• • • •

3.00-10.00 0.35-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23)

• PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • AVC-PCLNR/L (96) • DCLNR/L-JHP-MC (25)

CNMG-M3M

Double-Sided 80° Rhombic

Inserts for Machining Stainless

and Low Carbon Steel

147

ISOTURN INSERTS

80°

RE S

75º

75°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC6025

IC806

(mm)

(mm/rev)

CNMG 160612-R3M

16.12 15.88 6.35 1.20

• •

2.00-9.00 0.30-0.90

CNMG 160616-R3M

16.12 15.88 6.35 1.60

• •

2.00-10.00 0.40-1.00

CNMG 160624-R3M

16.12 15.88 6.35 2.40

•

2.00-11.00 0.50-1.20

CNMG 190612-R3M

19.34 19.05 6.35 1.20

•••

2.00-9.00 0.30-0.90

CNMG 190616-R3M

19.34 19.05 6.35 1.60

•••

2.00-10.00 0.40-1.00

CNMG 190624-R3M

19.34 19.05 6.35 2.40

• •

2.00-11.00 0.50-1.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-PCLNR/L-X (24) • DCBNR/L (26) • DCLNR/L (25) ) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-X (22)

• A/S-PCLNR/L-X/G (102)

CNMG-R3M

Double-Sided 80° Rhombic

Inserts for Rough Machining of

Stainless and Low Carbon Steel

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

CNMG 090404-F3S

9.67 9.52 4.76 0.40

• •

0.10-1.50 0.05-0.30

CNMG 090408-F3S

9.67 9.52 4.76 0.80

• •

0.10-1.50 0.05-0.30

CNMG 120404-F3S

12.90 12.70 4.76 0.40

• •

0.10-1.50 0.05-0.30

CNMG 120408-F3S

12.90 12.70 4.76 0.80

• •

0.10-1.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • AVC-PCLNR/L (96) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21)

• C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21)

• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105)

CNMG-F3S

Double-Sided 80° Rhombic

Inserts for Titanium and

Heat Resistant Materials for

Finishing Applications

80°

RE S

75°

95º

75º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

CNMG 120404-VL

12.90 12.70 4.76 0.40

•

0.30-3.00 0.05-0.15

CNMG 120408-VL

12.90 12.70 4.76 0.80

• •

0.50-4.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-VL

Double-Sided 80° Rhombic

Inserts with a Chipformer

for High Temperature Alloys

and Stainless Steel Valves

ISCAR

148

ISOTURN INSERTS

80°

RE S

75°

95º

75º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC6015

IC520N

IC428

IC907

(mm)

(mm/rev)

CNMG 120402-SF

12.90 12.70 4.76 0.20

• •

0.30-2.00 0.03-0.25

CNMG 120404-SF

12.90 12.70 4.76 0.40

•

0.30-2.00 0.05-0.25

CNGG 120401-SF

12.90 12.70 4.76 0.10

•

0.20-1.50 0.03-0.15

CNGG 120402-SF

12.90 12.70 4.76 0.20

•

0.30-2.00 0.03-0.20

CNGG 120404-SF

12.90 12.70 4.76 0.40

•

0.30-2.00 0.03-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG/CNGG-SF

Double-Sided 80° Rhombic

Inserts for Super-Finishing;

Controls Chip Flow at Very Low

Feeds and Depths of Cut

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC8250

IC530N

IC6015

IC8150

IC20N

IC807

IC907

(mm)

(mm/rev)

CNMG 120404-NF

12.90 12.70 4.76 0.40

•••••••

0.40-3.50 0.08-0.25

CNMG 120408-NF

12.90 12.70 4.76 0.80

• ••••

0.80-3.50 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-NF

Double-Sided 80° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

CNMG 120408-WF

12.90 12.70 4.76 0.80

• •

0.80-3.50 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-WF

Double-Sided 80° Rhombic

Wiper Inserts for Finishing

Operations at High Feeds

149

ISOTURN INSERTS

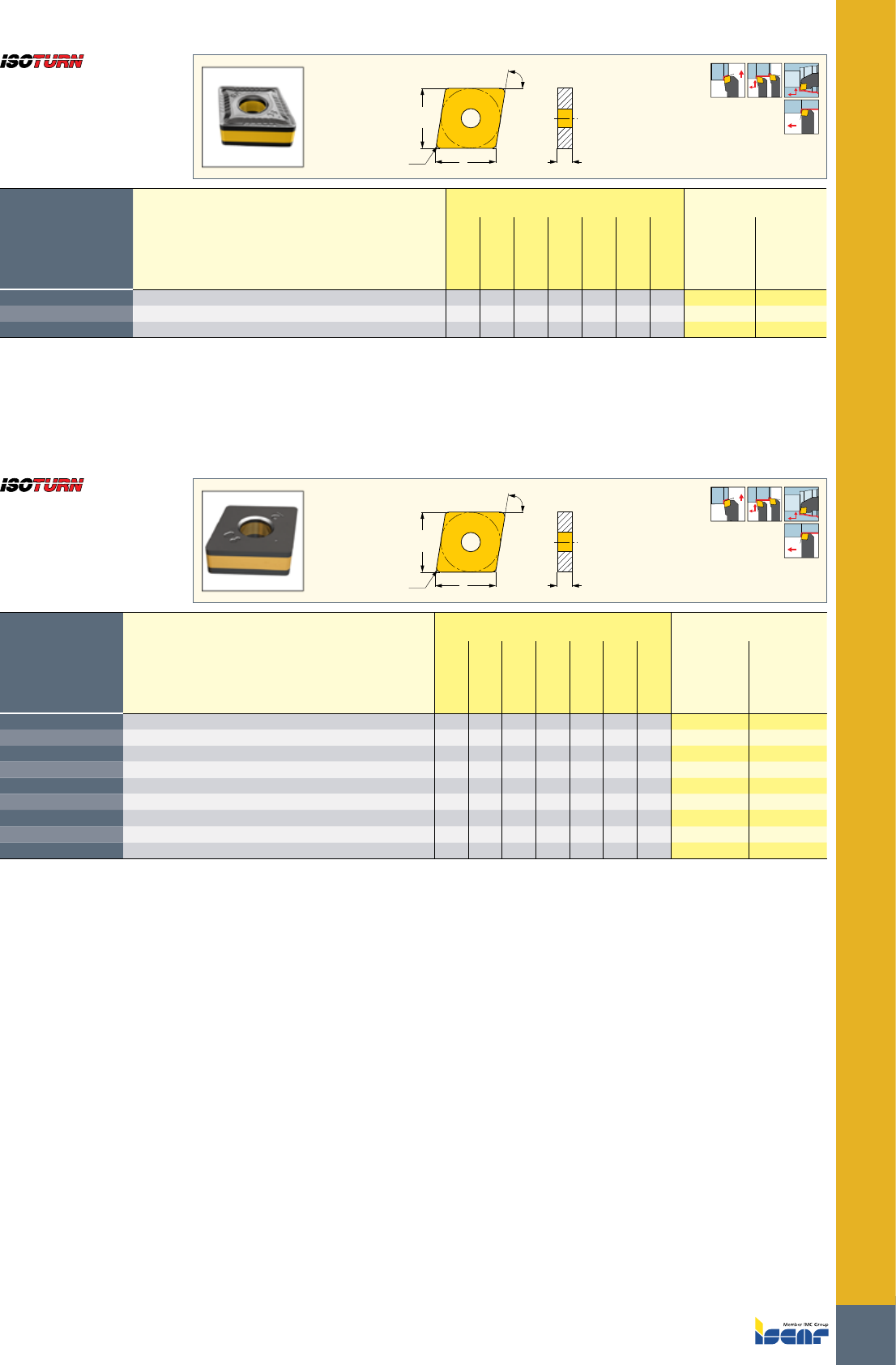

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC8250

IC8150

IC520N

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

CNMG 120408-WG

12.90 12.70 4.76 0.80

•••••••

0.80-3.50 0.10-0.50

CNMG 120412-WG

12.90 12.70 4.76 1.20

• •

1.50-4.00 0.30-0.80

CNMG 120416-NRW

12.90 12.70 4.76 1.60

• •

2.00-4.50 0.30-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-WG/NRW

Double-Sided 80° Rhombic

Wiper Inserts for High Feed

Turning and High Surface Finish

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC8150

IC20

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

CNMA 120404

12.90 12.70 4.76 0.40

•••

1.00-4.00 0.03-0.34

CNMA 120408

12.90 12.70 4.76 0.80

•••••

1.00-4.00 0.05-0.43

CNMA 120408F (1)

12.90 12.70 4.76 0.80

• •

1.00-4.00 0.05-0.50

CNMA 120412

12.90 12.70 4.76 1.20

•••••

1.50-4.50 0.08-0.60

CNMA 120416

12.90 12.70 4.76 1.60

•••

2.00-6.00 0.30-0.60

CNMA 160612

16.12 15.88 6.35 1.20

• •

2.00-10.00 0.10-0.80

CNMA 160616

16.12 15.88 6.35 1.60

• •

2.00-10.00 0.30-0.60

CNMA 190612

19.30 19.05 6.35 1.20

• • •

2.00-10.00 0.10-0.80

CNMA 190616

19.30 19.05 6.35 1.60

•

2.50-10.00 0.30-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Sharp edge

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21)

• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105)

CNMA

Double-Sided 80° Rhombic

Inserts for Short Chipping

Materials such as Cast Iron

ISCAR

150

ISOTURN INSERTS

80°

RE S

75º

75°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC28

IC830

IC8350

IC6025

IC8250

IC10

IC6015

IC8150

IC428

IC806

IC807

IC907

IC804

(mm)

(mm/rev)

CNMG 120404-PP

12.90 12.70 4.76 0.40

•••••• ••

1.00-4.00 0.14-0.30

CNMG 120408-PP

12.90 12.70 4.76 0.80

••••••••••••

1.00-4.00 0.14-0.30

CNMG 120412-PP

12.90 12.70 4.76 1.20

• • •

1.50-4.00 0.18-0.40

CNMG 190612-PP

19.30 19.05 6.35 1.20

• •

2.00-8.00 0.30-0.60

CNGG 120401-PP

12.90 12.70 4.76 0.10

•

0.40-2.00 0.05-0.20

CNGG 120402-PP

12.90 12.70 4.76 0.20

•

0.40-2.50 0.08-0.25

CNGG 120404-PP

12.90 12.70 4.76 0.40

•

0.80-3.00 0.10-0.30

CNGG 120408-PP

12.90 12.70 4.76 0.80

• • •

1.00-4.00 0.10-0.30

CNGG 120412-PP

12.90 12.70 4.76 1.20

•

1.00-4.00 0.10-0.30

CNGG 190612-PP

19.30 19.05 6.35 1.20

•

2.00-9.00 0.30-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • DCLNR/L-JHP-MC (25)

CNMG/CNGG-PP

Double-Sided 80° Rhombic

Inserts for Machining Very

Ductile Materials at Medium

Cutting Conditions

80°

RE S

75º

75°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC908

IC6015

IC8150

IC20

IC20N

IC806

IC807

IC907

(mm)

(mm/rev)

CNMG 090304-TF

9.70 9.52 3.18 0.40

• •

1.00-3.00 0.12-0.35

CNMG 090308-TF

9.70 9.52 3.18 0.80

•••

1.00-4.00 0.12-0.35

CNMG 120404-TF

12.90 12.70 4.76 0.40

• • • • • • • •

1.00-4.00 0.12-0.35

CNMG 120408-TF

12.90 12.70 4.76 0.80

••••••••••••

1.00-4.00 0.12-0.35

CNMG 120412-TF

12.90 12.70 4.76 1.20

• •••••• •••

1.50-4.50 0.15-0.40

CNMG 160608-TF

16.12 15.88 6.35 0.80

• •

1.00-6.00 0.12-0.35

CNMG 160612-TF

16.12 15.88 6.35 1.20

•

1.50-6.00 0.15-0.45

CNMG 190612-TF

19.30 19.05 6.35 1.20

•

1.50-6.50 0.20-0.55

CNGG 120408-TF

12.96 12.70 4.76 0.80

•

1.00-4.00 0.12-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22)

• PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105)

CNMG/CNGG-TF

Double-Sided 80° Rhombic

Inserts for Machining a

Wide Range of Materials at

Medium Cutting Conditions

151

ISOTURN INSERTS

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC6015

IC8150

IC20

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

CNMG 120404-GN

12.90 12.70 4.76 0.40

• • • • • •

1.00-4.00 0.14-0.40

CNMG 120408-GN

12.90 12.70 4.76 0.80

•••••••• •••

1.00-4.50 0.16-0.45

CNMG 120412-GN

12.90 12.70 4.76 1.20

• • • • • • • •

1.50-5.00 0.22-0.50

CNMG 160612-GN

16.12 15.88 6.35 1.20

• • • •

2.00-7.00 0.22-0.60

CNMG 160616-GN

16.12 15.88 6.35 1.60

•

2.00-7.00 0.22-0.75

CNMG 190608-GN

19.30 19.05 6.35 0.80

•

1.50-8.00 0.20-0.70

CNMG 190612-GN

19.30 19.05 6.35 1.20

• • • •

2.00-7.98 0.25-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21)

• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105)

CNMG-GN

Double-Sided 80° Rhombic

Inserts for General Applications

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC6015

IC8150

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

CNMG 120408-NR

12.90 12.70 4.76 0.80

••••••••••

1.00-5.00 0.15-0.50

CNMG 120412-NR

12.90 12.70 4.76 1.20

• • • • • •

1.00-5.00 0.23-0.55

CNMG 120416-NR

12.90 12.70 4.76 1.60

•

1.00-5.00 0.30-0.60

CNMG 160608-NR

16.12 15.88 6.35 0.80

• •

1.50-6.00 0.25-0.50

CNMG 160612-NR

16.12 15.88 6.35 1.20

• • • •

2.00-7.00 0.30-0.60

CNMG 160616-NR

16.12 15.88 6.35 1.60

• • • • • • • •

2.50-7.00 0.30-0.70

CNMG 190608-NR

19.30 19.05 6.35 0.80

• •

3.50-8.00 0.30-0.72

CNMG 190612-NR

19.30 19.05 6.35 1.20

• • • •

3.50-8.00 0.30-0.80

CNMG 190616-NR

19.30 19.05 6.35 1.60

• • • • • •

4.00-10.00 0.40-0.85

CNMG 190624-NR

19.30 19.05 6.35 2.40

•

4.00-10.00 0.40-1.20

CNMG 250924-NR

25.79 25.40 9.52 2.40

•

6.00-12.00 0.40-1.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MCLNR/L (21)

• MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-NR

Double-Sided 80° Rhombic

Inserts with a Special Chipformer

for Heavy Machining

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8350

IC8250

IC8150

IC807

(mm)

(mm/rev)

CNMG 160612-MR

16.12 15.88 6.35 1.20

• • •

2.00-10.00 0.30-0.90

CNMG 190612-MR

19.03 19.05 6.35 1.20

••••

2.00-10.00 0.30-0.90

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-PCLNR/L-X (24) • DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-X (22) • A/S-PCLNR/L-X/G (102)

CNMG-MR

Double-Sided 80° Rhombic

Inserts for Rough Turning on

Stainless Steel and Soft Materials

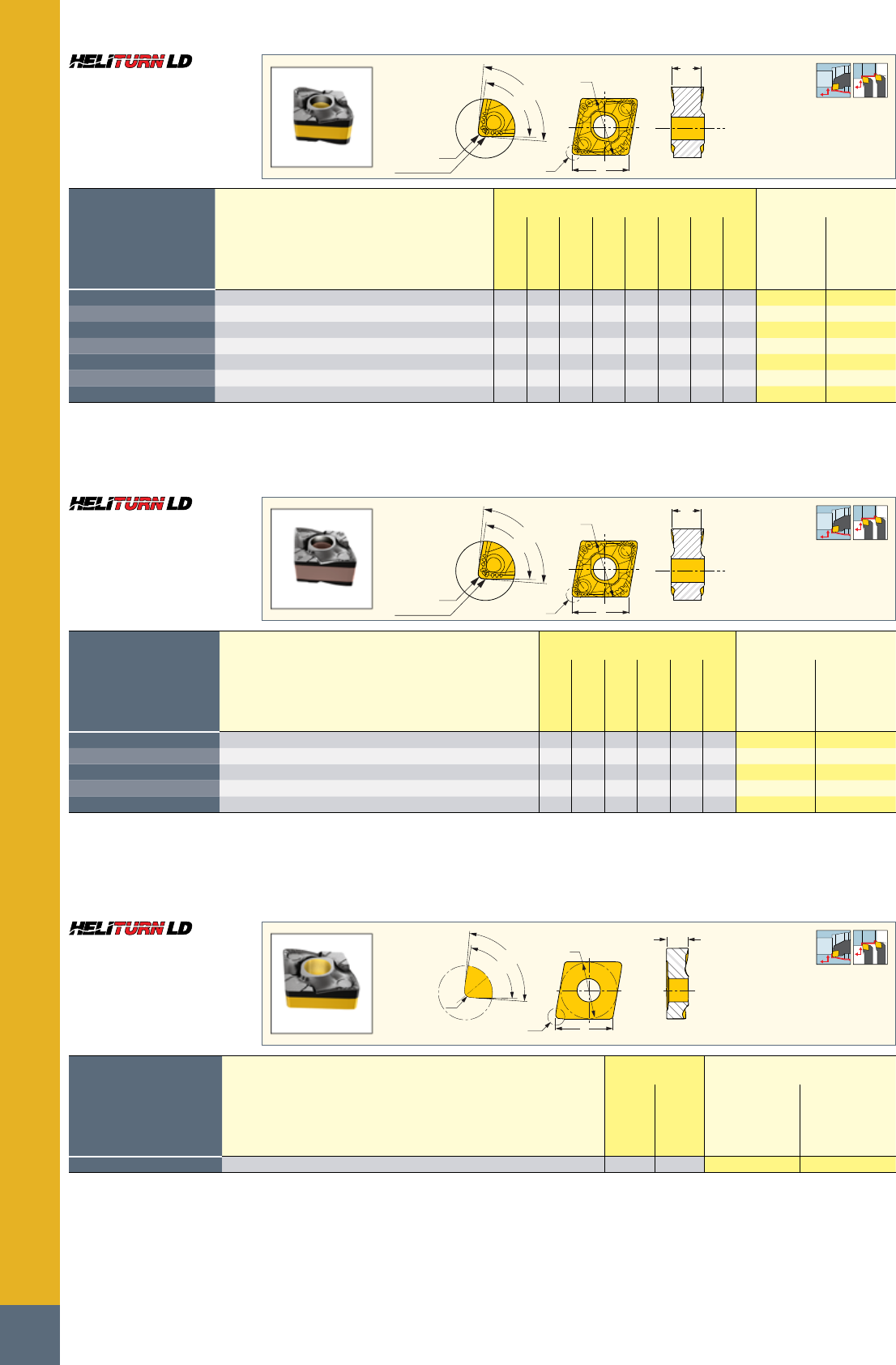

ISCAR

152

ISOTURN INSERTS

80º

88º

Wiper Zone

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC8150

IC20N

IC520N

IC807

IC907

(mm)

(mm/rev)

CNMX 090604-M3PW

9.67 9.52 4.40 0.40

• • •

1.00-4.50 0.20-0.50

CNMX 090608-M3PW

9.67 9.52 4.40 0.80

• ••••

1.50-5.00 0.25-0.60

CNMX 120708-M4PW

12.90 12.70 6.78 0.80

••• ••

1.50-6.00 0.25-0.60

CNMX 120712-M4PW

12.90 12.70 6.78 1.20

••• ••

2.00-6.00 0.30-0.80

CNMX 120716-M4PW

12.90 12.70 6.78 1.60

••• ••

2.00-6.00 0.30-1.00

CNMX 160712-M4PW

16.12 15.88 6.40 1.20

• • •

2.00-8.00 0.30-0.80

CNMX 160716-M4PW

16.12 15.88 6.40 1.60

• • •

2.00-8.00 0.30-1.00

• PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25)

• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

CNMX-M3/4PW

Double-Sided 80° Rhombic

Inserts with a High Helical

Cutting Edge for High

Metal Removal Rates

80º

88º

Wiper Zone

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC8150

IC806

IC807

(mm)

(mm/rev)

CNMX 090604-M3MW

9.67 9.52 4.40 0.40

•••

0.80-4.00 0.15-0.45

CNMX 090608-M3MW

9.67 9.52 4.40 0.80

•••

1.00-5.00 0.20-0.60

CNMX 120704-M4MW

12.90 12.70 6.78 0.40

• • •

0.80-5.00 0.15-0.45

CNMX 120708-M4MW

12.90 12.70 6.78 0.80

••••••

1.00-6.00 0.20-0.60

CNMX 120712-M4MW

12.90 12.70 6.78 1.20

•••••

2.00-6.00 0.30-0.80

• PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25)

• PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

CNMX-M3/4MW

Double-Sided 80° Rhombic

Inserts with a High Helical Cutting

Edge for High Metal Removal

Rates of Stainless Steel

FIC S

80º

88º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE L

IC8250

IC8150

(mm)

(mm/rev)

CNMM 120408-M4PW

12.70 4.76 0.80 12.90

• •

1.50-5.00 0.24-0.59

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • DCLNR/L-JHP-MC (25)

CNMM-M4PW

Very Positive Radial Insert

with a Helical Cutting Edge

and Positive Rake for Heavy

Machining Applications

153

ISOTURN INSERTS

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

(mm)

(mm/rev)

CNMM 120408-R3P

12.90 12.70 4.76 0.80

•••

0.70-7.50 0.20-0.55

CNMM 120412-R3P

12.90 12.70 4.76 1.20

•••

1.00-7.50 0.25-0.70

CNMM 120416-R3P

12.90 12.70 4.76 1.60

•••

1.50-7.50 0.30-0.90

CNMM 160608-R3P

16.12 15.88 6.35 0.80

•••

2.00-9.50 0.20-0.55

CNMM 160612-R3P

16.12 15.88 6.35 1.20

•••

2.00-9.50 0.30-0.70

CNMM 160616-R3P

16.12 15.88 6.35 1.60

•••

2.00-9.50 0.30-0.90

CNMM 190612-R3P

19.34 19.05 6.35 1.20

•••

3.00-12.00 0.25-0.80

CNMM 190616-R3P

19.34 19.05 6.35 1.60

•••

3.50-12.00 0.30-0.90

CNMM 190624-R3P

19.34 19.05 6.35 2.40

•••

3.50-12.00 0.30-1.20

CNMM 250924-R3P

25.79 25.40 9.52 2.40

•••

4.00-15.00 0.40-1.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17)

• MCLNR/L (21) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23)

• PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMM-R3P

Single-Sided 80° Rhombic

Inserts for Rough Turning

Applications on Steel

80°

RE S

75º95º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

CNMM 190624-H3P

19.34 19.05 6.35 2.40

• •

4.00-9.00 0.55-1.20

CNMM 250924-H3P

25.79 25.40 9.52 2.40

• •

5.00-12.00 0.55-1.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20)

CNMM-H3P

Single-Sided 80° Rhombic

Insert with a Strong Cutting

Edge for Extra Rough Turning

80°

RE S

95º

95º75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

CNMM 190624-H4P

19.34 19.05 6.35 2.40

• •

4.00-12.00 0.50-1.10

CNMM 250924-H4P

25.79 25.40 9.52 2.40

• •

5.00-15.00 0.55-1.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20)

CNMM-H4P

Single-Sided 80° Rhombic

Insert with a Strong Cutting

Edge for Extra Rough Turning

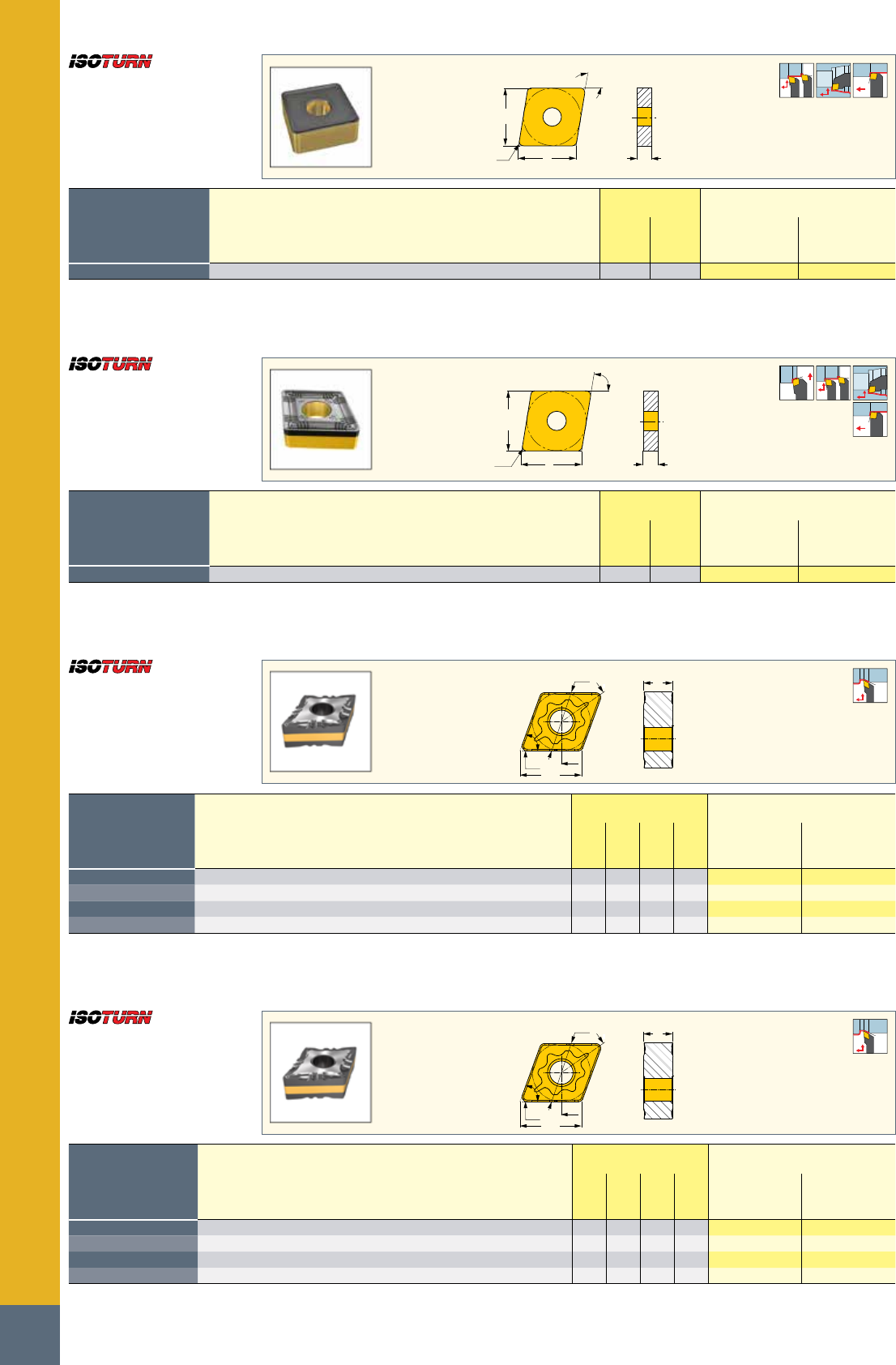

ISCAR

154

ISOTURN INSERTS

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8150

IC907

(mm)

(mm/rev)

CNMM 190616-NR

19.03 19.05 6.35 1.60

• •

2.00-10.00 0.40-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DCBNR/L (26) • DCLNR/L (25) • MCLNR/L (21) • PCBNR/L (22) • PCLNR/L (20)

CNMM-NR

Single-Sided 80° Rhombic Inserts

for Rough Turning Applications

80°

RE S

95º

95º75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

CNMM 250924-H5P

25.79 25.40 9.52 2.40

• •

5.00-15.00 0.55-1.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PCLNR/L (20)

CNMM-H5P

Single-Sided 80° Rhombic

Insert with a Strong Cutting

Edge for Extra Rough Turning

IC A-A

70˚

93º

15°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

XNMG 090404-F3P

10.14 9.53 4.76 0.40

••••

0.50-3.50 0.07-0.25

XNMG 090408-F3P

10.14 9.53 4.76 0.80

••••

0.90-3.50 0.08-0.25

XNMG 120404-F3P

13.52 12.70 4.76 0.40

••••

0.50-3.50 0.07-0.25

XNMG 120408-F3P

13.52 12.70 4.76 0.80

••••

0.90-3.50 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DXJNR/L-X-JHP-MC (27)

XNMG-F3P

Double-Sided 70° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

IC A-A

70˚

93º

15°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

XNMG 090404-M3P

10.14 9.53 4.76 0.40

••••

0.50-3.50 0.07-0.25

XNMG 090408-M3P

10.14 9.53 4.76 0.80

••••

0.90-3.50 0.08-0.25

XNMG 120404-M3P

13.52 12.70 4.76 0.40

••••

0.50-3.50 0.07-0.25

XNMG 120408-M3P

13.52 12.70 4.76 0.80

• • •

0.90-3.50 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DXJNR/L-X-JHP-MC (27)

XNMG-M3P

Double-Sided 70° Rhombic

Inserts for Medium Machining

Conditions on Steel

155

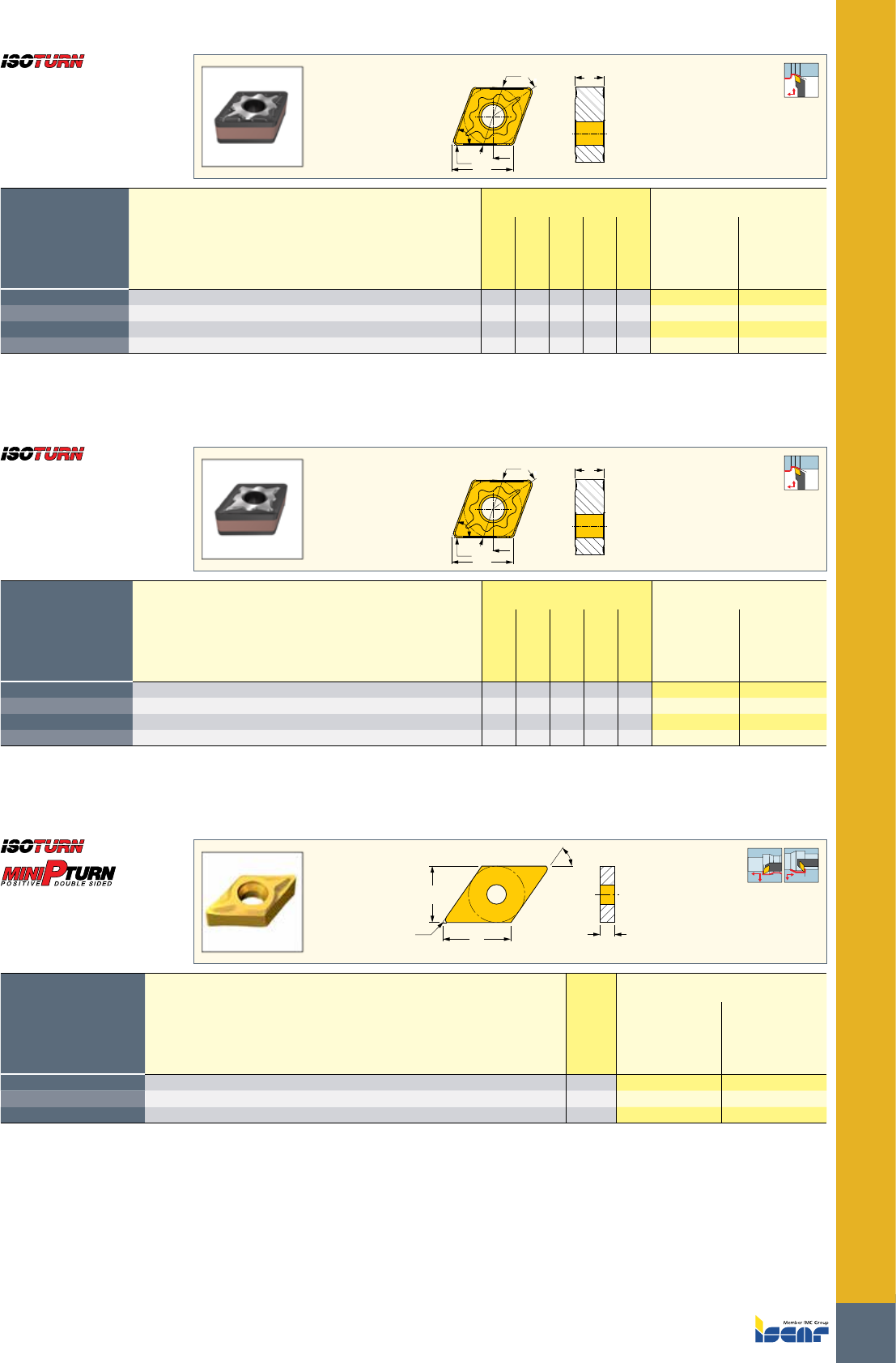

ISOTURN INSERTS

IC A-A

70˚

93º

15°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

XNMG 090404-F3M

10.14 9.53 4.76 0.40

•••••

0.10-1.50 0.05-0.30

XNMG 090408-F3M

10.14 9.53 4.76 0.80

•••••

0.10-1.50 0.10-0.40

XNMG 120404-F3M

13.52 12.70 4.76 0.40

•••••

0.10-1.50 0.05-0.30

XNMG 120408-F3M

13.52 12.70 4.76 0.80

•••••

0.10-1.50 0.10-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DXJNR/L-X-JHP-MC (27)

XNMG-F3M

Double-sided 70° Rhombic

Inserts for Stainless Steel

Finishing Applications

IC A-A

70˚

93º

15°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

XNMG 090404-M3M

10.14 9.53 4.76 0.40

•••••

0.40-4.00 0.12-0.40

XNMG 090408-M3M

10.14 9.53 4.76 0.80

•••••

0.50-4.50 0.15-0.50

XNMG 120404-M3M

13.52 12.70 4.76 0.40

•••••

0.50-5.00 0.15-0.50

XNMG 120408-M3M

13.52 12.70 4.76 0.80

•••••

0.50-5.00 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DXJNR/L-X-JHP-MC (27)

XNMG-M3M

Double-Sided 70° Rhombic

Inserts for Machining Stainless

and Low Carbon Steel

55°

RE L

10 0 º

93º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC530N

(mm)

(mm/rev)

DNGP 070302R/L-F2P

7.70 6.35 3.18 0.20

•

0.30-2.00 0.08-0.30

DNGP 070304R/L-F2P

7.70 6.35 3.18 0.40

•

0.30-2.00 0.08-0.30

DNGP 070308R/L-F2P

7.70 6.35 3.18 0.80

•

0.30-2.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SDXNR/L-07 (107) • A/E-SDZNR/L-07 (107) • NQCH-SDJNR/L-S-JHP (28) • PDJNR/L-S (28)

DNGP-F2P

Double-Sided 55° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

on Alloyed Steel

ISCAR

156

ISOTURN INSERTS

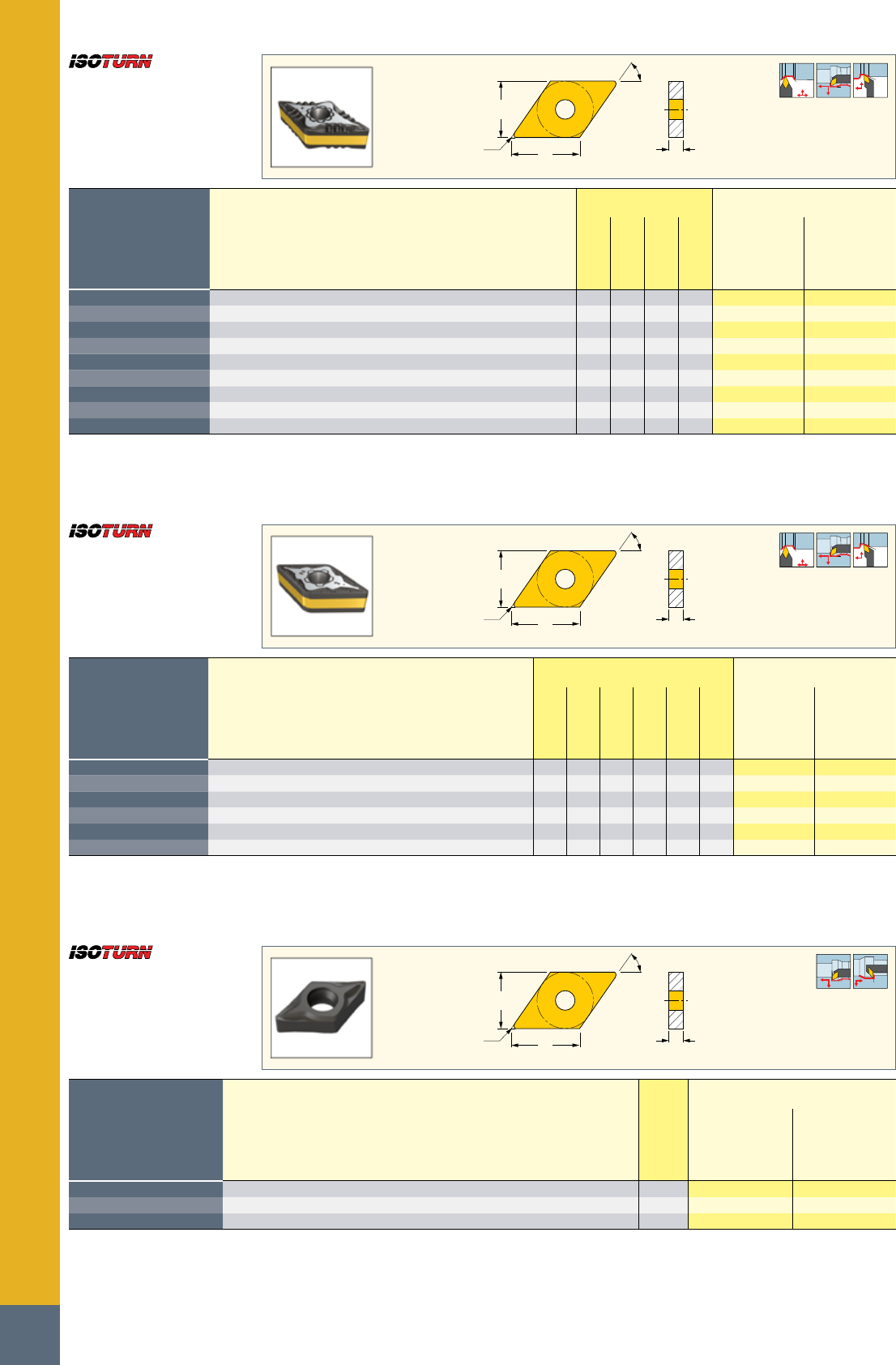

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

DNMG 110404-F3P

11.63 9.52 4.76 0.40

••••

0.80-3.00 0.07-0.25

DNMG 110408-F3P

11.63 9.52 4.76 0.80

••••

1.00-3.50 0.08-0.25

DNMG 110412-F3P

11.63 9.52 4.76 1.20

••••

1.40-4.00 0.10-0.25

DNMG 150404-F3P

15.50 12.70 4.76 0.40

••••

0.80-3.00 0.07-0.25

DNMG 150408-F3P

15.50 12.70 4.76 0.80

••••

1.00-3.50 0.08-0.25

DNMG 150412-F3P

15.50 12.70 4.76 1.20

••••

1.40-4.00 0.10-0.25

DNMG 150604-F3P

15.50 12.70 6.35 0.40

••••

0.80-3.00 0.07-0.25

DNMG 150608-F3P

15.50 12.70 6.35 0.80

••••

1.00-3.50 0.08-0.25

DNMG 150612-F3P

15.50 12.70 6.35 1.20

••••

1.40-4.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-F3P

Double-Sided 55° Rhombic

Inserts for Semi-Finishing

and Finishing on Steel

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC5010

IC5005

IC807

(mm)

(mm/rev)

DNMG 110408-M3P

11.63 9.52 4.76 0.80

• • • •

0.50-5.00 0.15-0.50

DNMG 110412-M3P

11.63 9.52 4.76 1.20

• • •

0.80-5.00 0.18-0.60

DNMG 150408-M3P

15.50 12.70 4.76 0.80

••••••

0.50-6.00 0.15-0.50

DNMG 150412-M3P

15.50 12.70 4.76 1.20

• •

0.80-6.00 0.18-0.60

DNMG 150608-M3P

15.50 12.70 6.35 0.80

• • • •

0.50-6.00 0.15-0.50

DNMG 150612-M3P

15.50 12.70 6.35 1.20

• • • •

0.80-6.00 0.18-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29)

• DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

DNMG-M3P

Double-Sided 55° Rhombic

Inserts for Medium Machining

Conditions on Steel

55°

RE L

10 0 º

93º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC908

(mm)

(mm/rev)

DNGP 070302R/L-F2M

7.70 6.35 3.18 0.20

•

0.30-2.00 0.08-0.30

DNGP 070304R/L-F2M

7.70 6.35 3.18 0.40

•

0.30-2.00 0.08-0.30

DNGP 070308R/L-F2M

7.70 6.35 3.18 0.80

•

0.30-2.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SDXNR/L-07 (107) • A/E-SDZNR/L-07 (107) • NQCH-SDJNR/L-S-JHP (28) • PDJNR/L-S (28)

DNGP-F2M

Double-Sided 55° Rhombic

Inserts for Semi-Finishing and

Finishing on Stainless Steel

157

ISOTURN INSERTS

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

DNMG 110404-F3M

11.63 9.52 4.76 0.40

•••••

0.10-1.50 0.05-0.32

DNMG 110408-F3M

11.63 9.52 4.76 0.80

•••••

0.10-1.50 0.10-0.42

DNMG 110412-F3M

11.63 9.52 4.76 1.20

••••

0.15-2.00 0.15-0.52

DNMG 150404-F3M

15.50 12.70 4.76 0.40

••••••

0.10-1.50 0.05-0.30

DNMG 150408-F3M

15.50 12.70 4.76 0.80

•••••

0.10-1.50 0.10-0.40

DNMG 150412-F3M

15.50 12.70 4.76 1.20

••••

0.20-2.50 0.15-0.50

DNMG 150604-F3M

15.50 12.70 6.35 0.40

•••••

0.10-1.50 0.05-0.30

DNMG 150608-F3M

15.50 12.70 6.35 0.80

•••••

0.10-1.50 0.10-0.40

DNMG 150612-F3M

15.50 12.70 6.35 1.20

•••••

0.20-2.50 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-F3M

Double-Sided 55° Rhombic

Inserts for Finish on Turning

Stainless and Low Carbon Steel

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

DNMG 110404-M3M

11.63 9.52 4.76 0.40

•••••

0.50-3.50 0.12-0.40

DNMG 110408-M3M

11.63 9.52 4.76 0.80

•••••

0.50-4.00 0.15-0.50

DNMG 110412-M3M

11.63 9.52 4.76 1.20

•••••

0.50-4.00 0.20-0.60

DNMG 150408-M3M

15.50 12.70 4.76 0.80

••••••

0.50-5.00 0.15-0.50

DNMG 150412-M3M

15.50 12.70 4.76 1.20

•••••

0.50-5.00 0.20-0.60

DNMG 150608-M3M

15.50 12.70 6.35 0.80

•••••

0.50-5.00 0.15-0.50

DNMG 150612-M3M

15.50 12.70 6.35 1.20

•••••

0.50-5.00 0.20-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-M3M

Double-Sided 55° Rhombic

Inserts for Machining Stainless

and Low Carbon Steel

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

DNMG 110404-F3S

11.63 9.52 4.76 0.40

• •

0.10-1.50 0.05-0.32

DNMG 110408-F3S

11.63 9.52 4.76 0.80

• •

0.10-1.50 0.10-0.40

DNMG 150404-F3S

15.50 12.70 4.76 0.40

• •

0.10-1.50 0.05-0.32

DNMG 150408-F3S

15.50 12.70 4.76 0.80

• •

0.10-1.50 0.10-0.40

DNMG 150604-F3S

15.50 12.70 6.35 0.40

• •

0.10-1.50 0.05-0.32

DNMG 150608-F3S

15.50 12.70 6.35 0.80

• •

0.10-1.50 0.10-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29)

• DDJNR/L (30) • DDJNR/L-JHP-MC (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106)

DNMG-F3S

Double-Sided 55° Rhombic

Inserts for Titanium and

Heat Resistant Materials for

Finishing Applications

ISCAR

158

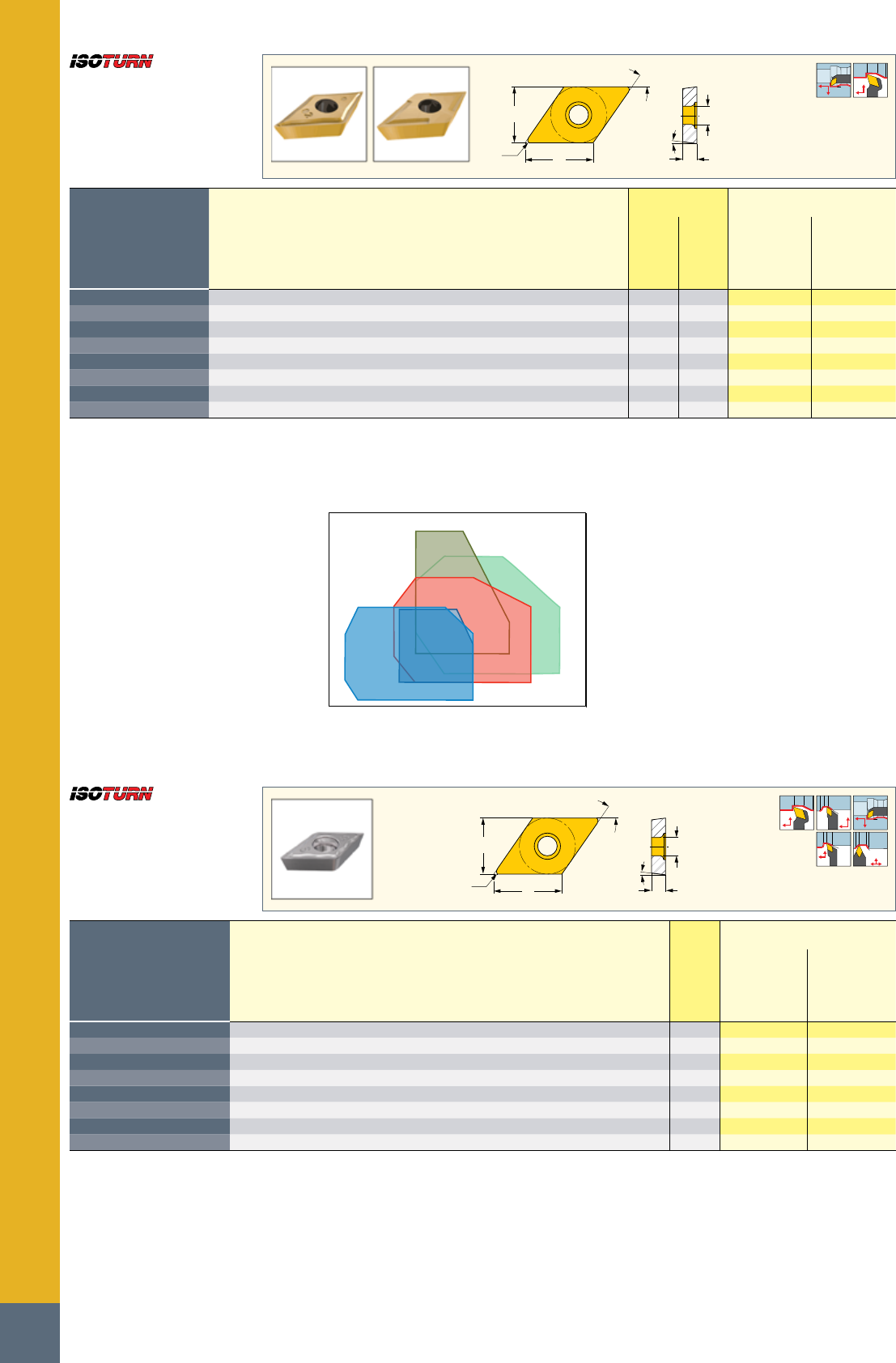

ISOTURN INSERTS

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20N

IC520N

(mm)

(mm/rev)

DNMG 110404-FFG

11.63 9.52 4.76 0.40

•

0.70-2.00 0.07-0.22

DNMG 110402-FFC

11.63 9.52 4.76 0.20

•

0.40-2.50 0.05-0.20

DNMG 110404-FFC

11.63 9.52 4.76 0.40

• •

0.80-3.00 0.07-0.25

DNMG 110408-FFC

11.63 9.52 4.76 0.80

• •

1.00-3.50 0.08-0.25

DNMG 150404-FFC

15.50 12.70 4.76 0.40

•

0.80-3.00 0.07-0.25

DNMG 150604-FB

15.50 12.70 6.35 0.40

•

0.50-3.00 0.07-0.23

DNMG 150604-FFC

15.50 12.70 6.35 0.40

•

0.80-3.00 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)

• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

FFC

FFG

Feed (mm/rev)

D.O.C (mm)

0.4

DNMG-CERMET

Double-Sided 55° Rhombic

Cermet Grade Inserts

for Semi-Finishing and

Finishing Applications

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC530N

IC8150

IC20N

IC520N

IC5010

IC807

IC907

(mm)

(mm/rev)

DNMG 110402-NF

11.63 9.52 4.76 0.20

• • • • • •

0.40-2.50 0.07-0.18

DNMG 110404-NF

11.63 9.52 4.76 0.40

• • ••••••

0.80-3.00 0.07-0.25

DNMG 110408-NF

11.63 9.52 4.76 0.80

• •••• ••

1.00-3.50 0.08-0.25

DNMG 150404-NF

15.50 12.70 4.76 0.40

• • • •

0.80-3.50 0.07-0.25

DNMG 150408-NF

15.50 12.70 4.76 0.80

• •

1.00-3.51 0.08-0.25

DNMG 150604-NF

15.50 12.70 6.35 0.40

• • • •

0.80-3.50 0.07-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-NF

Double-Sided 55° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

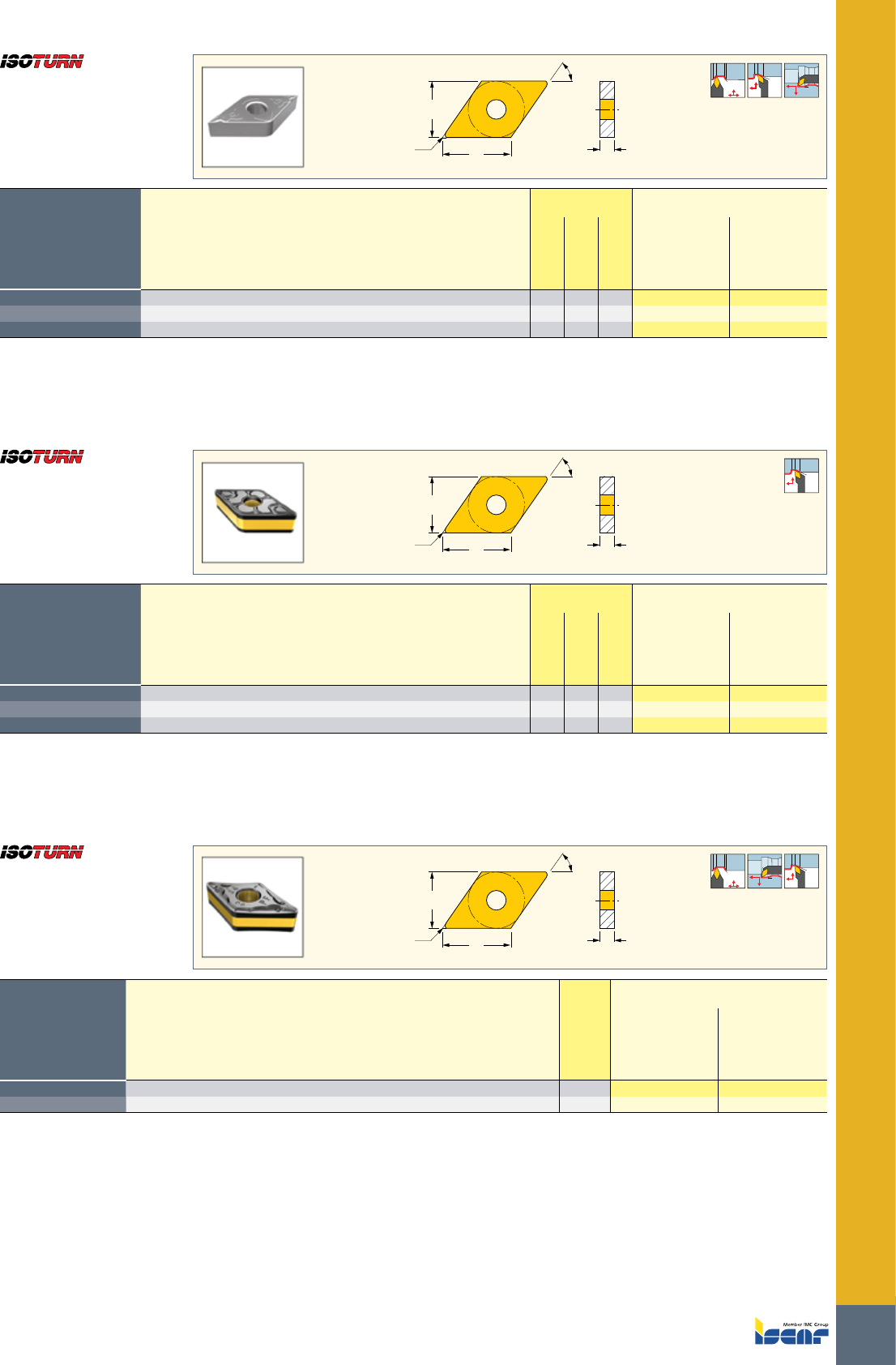

159

ISOTURN INSERTS

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC530N

IC520N

IC907

(mm)

(mm/rev)

DNMG 110404-SF

11.63 9.52 4.76 0.40

• •

0.50-3.00 0.05-0.25

DNGG 150401-SF

15.50 12.70 4.76 0.10

•

0.25-2.00 0.03-0.15

DNGG 150402-SF

15.50 12.70 4.76 0.20

•

0.40-2.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)

• PDJNR/L (28) • PDJNR/L-JHP (29) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG/DNGG-SF

Double-Sided 55° Rhombic

Inserts for Super Finishing;

Controls Chip Flow at Very Low

Feeds and Depths of Cut

55°

RE L

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC5010

IC807

(mm)

(mm/rev)

DNMG 150408-WG

15.50 12.70 4.76 0.80

•

1.00-2.50 0.20-0.50

DNMG 150608-WG

15.50 12.70 6.35 0.80

• •

1.00-2.50 0.18-0.40

DNMG 150612-WG

15.50 12.70 6.35 1.20

• •

1.00-3.00 0.20-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDNNN (31)

• PDJNR/L (28) • PDJNR/L-JHP (29) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-WG

Double-Sided 55° Rhombic

Wiper Inserts for High Surface

Finish at High Feed Turning

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8150

(mm)

(mm/rev)

DNMG 110408-PF

11.63 9.52 4.76 0.80

•

0.30-3.00 0.07-0.30

DNMG 150612-PF

15.50 12.70 6.35 1.20

•

1.00-4.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-PF

Double-Sided 55° Rhombic

Inserts for Finishing Applications

on Alloyed and Stainless Steel

ISCAR

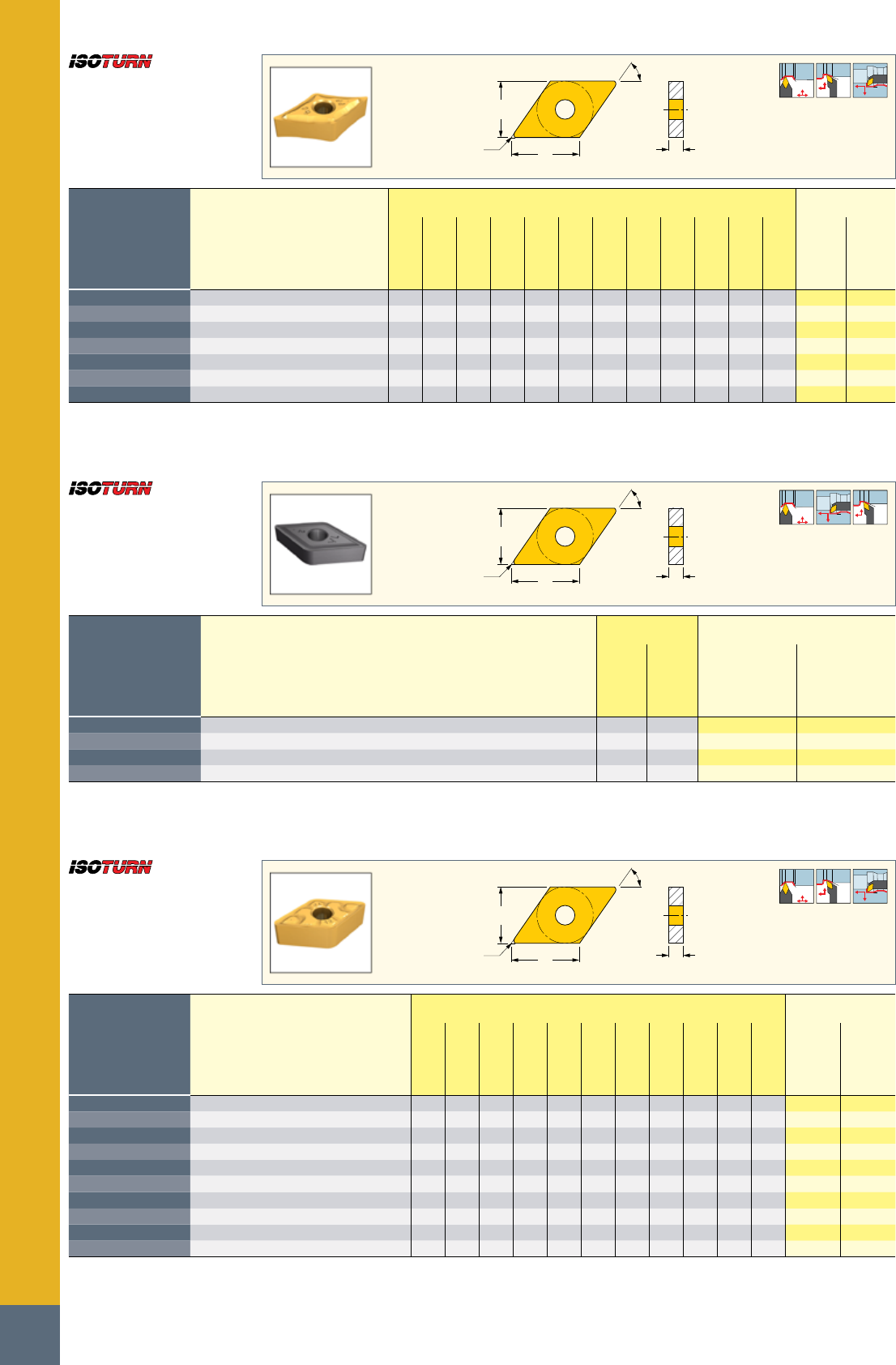

160

ISOTURN INSERTS

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC10

IC6015

IC8150

IC20

IC806

IC807

IC907

IC804

(mm)

(mm/rev)

DNMG 110404-PP

11.63 9.52 4.76 0.40

• • •

0.40-3.00 0.12-0.30

DNMG 110408-PP

11.63 9.52 4.76 0.80

• • • •

1.00-3.50 0.12-0.30

DNMG 150408-PP

15.50 12.70 4.76 0.80

• • •

1.00-4.00 0.12-0.30

DNMG 150604-PP

15.50 12.70 6.35 0.40

• •

0.50-4.00 0.12-0.30

DNMG 150608-PP

15.50 12.70 6.35 0.80

• • • • • • • •

1.00-3.50 0.12-0.30

DNGG 150604-PP

15.50 12.70 6.35 0.40

•

0.50-4.00 0.12-0.30

DNGG 150608-PP

15.50 12.70 6.35 0.80

• • •

1.00-4.00 0.12-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29)

• DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

DNMG/DNGG-PP

55° Double-Sided Rhombic

Inserts for Machining Very

Ductile Materials at Medium

Cutting Conditions

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC908

IC806

(mm)

(mm/rev)

DNMG 110404-VL

11.63 9.52 4.76 0.40

• •

0.50-3.50 0.10-0.25

DNMG 110408-VL

11.63 9.52 4.76 0.80

• •

0.50-3.50 0.10-0.25

DNMG 150404-VL

15.50 12.70 4.76 0.40

•

0.50-3.50 0.10-0.25

DNMG 150408-VL

15.50 12.70 4.76 0.80

• •

0.50-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)

• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-VL

Double-Sided 55° Rhombic

Inserts with a Chipformer

for High Temperature Alloys

and Stainless Steel Valves

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC8250

IC530N

IC6015

IC8150

IC20

IC20N

IC806

IC807

IC907

(mm)

(mm/rev)

DNMG 110404-TF

11.63 9.52 4.76 0.40

• • •

1.00-3.00 0.12-0.30

DNMG 110412-TF

11.63 9.52 4.76 1.20

•

1.50-4.00 0.15-0.35

DNMG 150404-TF

15.50 12.70 4.76 0.40

• • • • •

1.00-3.00 0.15-0.30

DNMG 150408-TF

15.50 12.70 4.76 0.80

••• ••• •••

1.00-3.50 0.15-0.30

DNMG 150412-TF

15.50 12.70 4.76 1.20

•

1.50-4.00 0.12-0.40

DNMG 150604-TF

15.50 12.70 6.35 0.40

•• •••• ••

1.00-3.00 0.14-0.30

DNMG 150608-TF

15.50 12.70 6.35 0.80

••• •••••••

1.00-3.50 0.15-0.30

DNMG 150612-TF

15.50 12.70 6.35 1.20

••• ••• •••

1.50-4.00 0.11-0.35

DNGG 150404-TF

15.50 12.70 4.76 0.40

•

1.00-3.00 0.15-0.30

DNGG 150408-TF

15.50 12.70 4.76 0.80

•

1.00-3.50 0.15-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG/DNGG-TF

Double-Sided 55° Rhombic

Inserts for Machining a

Wide Range of Materials at

Medium Cutting Conditions

161

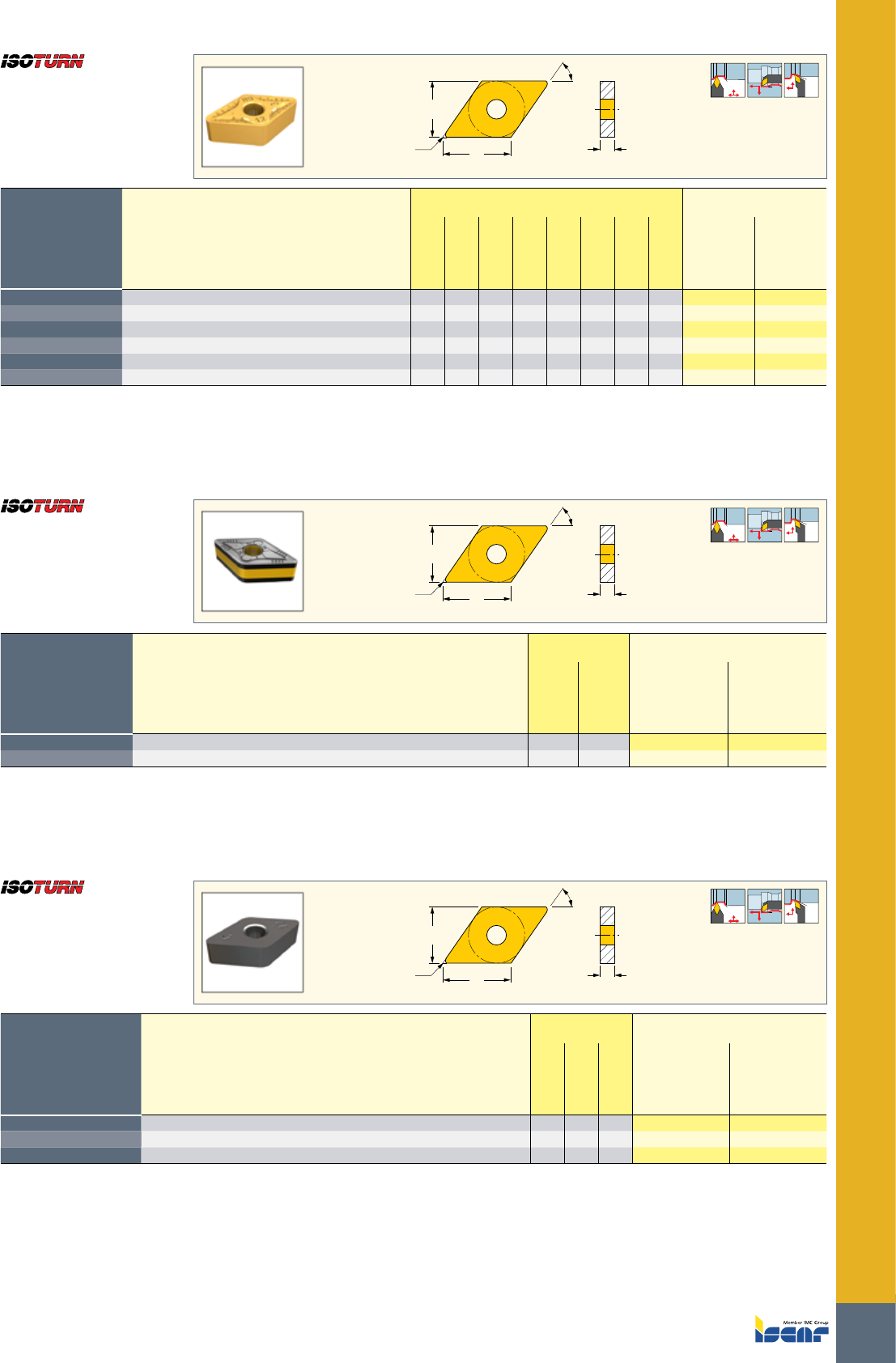

ISOTURN INSERTS

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC8150

IC20N

IC5010

IC428

IC5005

(mm)

(mm/rev)

DNMG 110408-GN

11.63 9.52 4.76 0.80

• • •

1.00-4.00 0.18-0.38

DNMG 110412-GN

11.63 9.52 4.76 1.20

• •

1.50-4.50 0.18-0.38

DNMG 150408-GN

15.50 12.70 4.76 0.80

• • •

1.00-4.00 0.18-0.18

DNMG 150412-GN

15.50 12.70 4.76 1.20

•••• •

1.50-5.00 0.18-0.43

DNMG 150608-GN

15.50 12.70 6.35 0.80

••••• ••

1.00-4.00 0.18-0.38

DNMG 150612-GN

15.50 12.70 6.35 1.20

• • • • •

1.50-5.00 0.18-0.43

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-GN

Double-Sided 55° Rhombic

Inserts for General Applications

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

DNMG 150612-NR

15.50 12.70 6.35 1.20

• •

2.00-6.00 0.23-0.50

DNMG 150616-NR

15.50 12.70 6.35 1.60

• •

2.00-6.00 0.25-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMG-NR

Double-Sided 55° Rhombic

Inserts with a Special Chipformer

for Heavy Machining

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC5010

IC428

IC5005

(mm)

(mm/rev)

DNMA 150412

15.50 12.70 4.76 1.20

• •

1.50-4.00 0.05-0.40

DNMA 150608

15.50 12.70 6.35 0.80

•••

1.50-4.00 0.03-0.40

DNMA 150612

15.50 12.70 6.35 1.20

•••

1.50-4.00 0.05-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMA

Double-Sided 55° Rhombic

Inserts for Short Chipping

Materials such as Cast Iron

ISCAR

162

ISOTURN INSERTS

55°

93º

27°

MAX

62.5º

60°

MAX 93º-95º

50º

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

(mm)

(mm/rev)

DNMM 150608-R3P

15.50 12.70 6.35 0.80

• •

0.70-6.00 0.20-0.55

DNMM 150612-R3P

15.50 12.70 6.35 1.20

• •

1.00-6.00 0.25-0.70

DNMM 150616-R3P

15.50 12.70 6.35 1.60

• •

1.50-6.00 0.32-0.90

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMM-R3P

Single-Sided 55° Rhombic

Inserts for Rough Turning

Applications on Steel

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8250

(mm)

(mm/rev)

DNMM 150612-NM

15.50 12.70 6.35 1.20

•

1.50-4.50 0.25-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMM-NM

Single-Sided 55° Rhombic Inserts

for Roughing Applications

55°

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC6015

IC8150

IC806

IC807

(mm)

(mm/rev)

DNMX 150608-M3P

15.50 12.70 6.35 0.80

• ••••••

2.00-7.00 0.25-0.50

DNMX 150612-M3P

15.50 12.70 6.35 1.20

••••••••

2.50-7.00 0.30-0.60

DNMX 150616-M3P

15.50 12.70 6.35 1.60

• • •

2.50-5.50 0.30-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31)

• PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

DNMX-M3P

Double-Sided 55° Rhombic

Inserts with High Helical

Cutting Edge for High

Metal Removal Rates

163

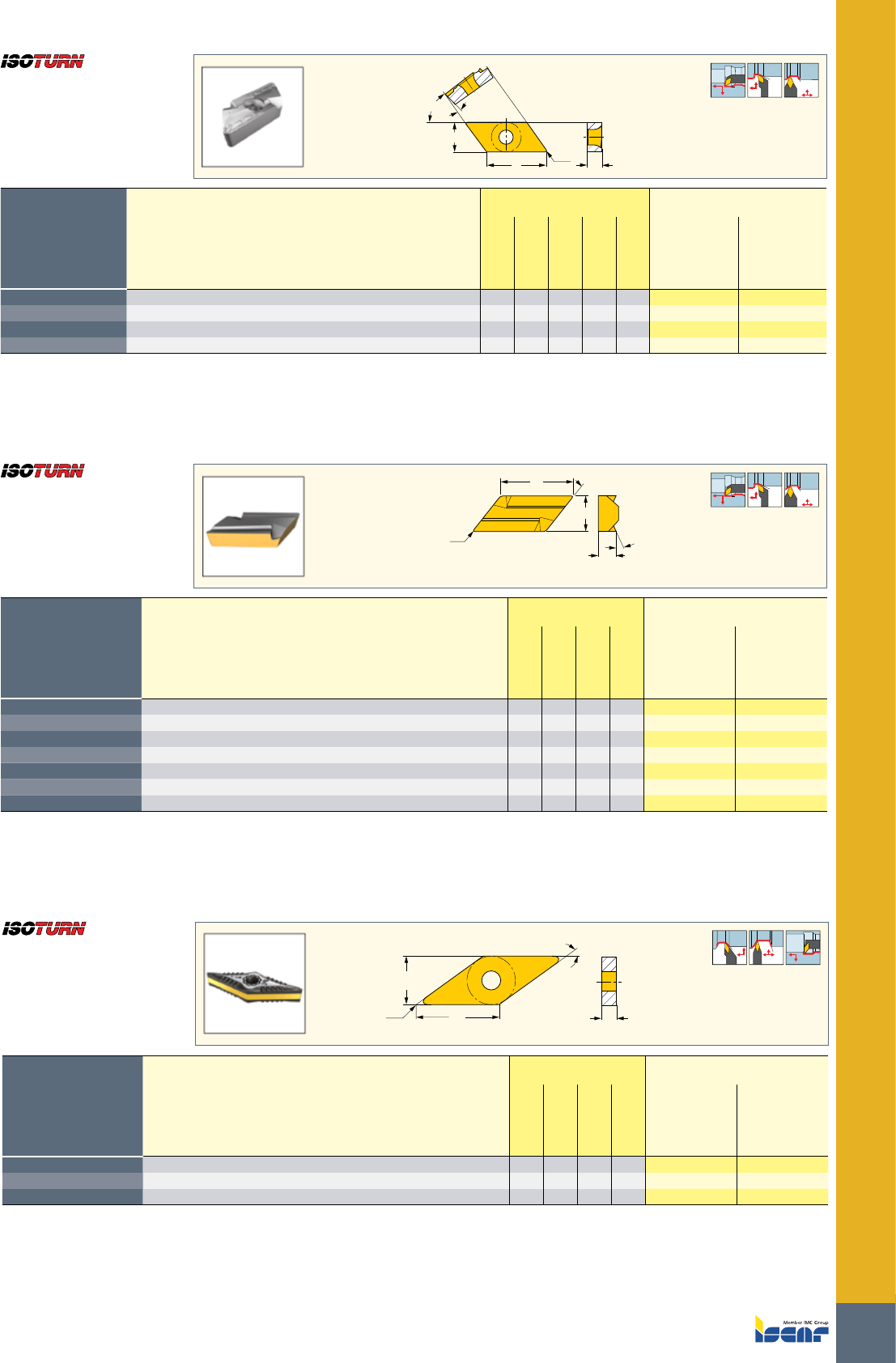

ISOTURN INSERTS

55˚

7˚

93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

IC5010

IC807

IC907

(mm)

(mm/rev)

KNMX 160405-LP

19.72 9.52 4.76 0.50

• • •

1.00-4.00 0.10-0.40

KNMX 160405-RP

19.72 9.52 4.76 0.50

• • • •

1.00-4.00 0.10-0.40

KNMX 160410-LP

19.72 9.52 4.76 1.00

• •

1.50-4.00 0.15-0.45

KNMX 160410-RP

19.72 9.52 4.76 1.00

• • •

1.50-4.00 0.15-0.45

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CKJNR/L (32) • CKNNR/L (32) • SKJNR/L (32)

KNMX

55° Parallelogram Profiling Inserts

RE 12°

55°

93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC9250

IC9025

IC9015

IC20

(mm)

(mm/rev)

KNUX 160405 L11

19.72 9.52 4.76 0.50

•••

1.00-4.00 0.10-0.40

KNUX 160405 R11

19.72 9.52 4.76 0.50

••••

1.00-4.00 0.10-0.40

KNUX 160405 L12

19.72 9.52 4.76 0.50

•

1.50-4.00 0.10-0.40

KNUX 160405 R12

19.72 9.52 4.76 0.50

•

1.50-4.00 0.10-0.40

KNUX 160410 L11

19.72 9.52 4.76 1.00

•

1.50-4.00 0.15-0.45

KNUX 160410 R11

19.72 9.52 4.76 1.00

• •

1.50-4.00 0.15-0.45

KNUX 160410 R/L12

19.72 9.52 4.76 1.00

•

1.50-4.00 0.15-0.45

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CKJNR/L (32) • CKNNR/L (32)

KNUX

55° Parallelogram Profiling Inserts

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

VNMG 12T302-F3P

12.40 7.15 3.89 0.20

•••

0.40-2.00 0.08-0.20

VNMG 160404-F3P

16.60 9.52 4.76 0.40

••••

0.70-2.00 0.07-0.24

VNMG 160408-F3P

16.60 9.52 4.76 0.80

••••

1.00-3.00 0.08-0.24

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)

• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-F3P

Double-Sided 35° Rhombic

Inserts for Semi-Finishing and

Finishing Applications on Steel

ISCAR

164

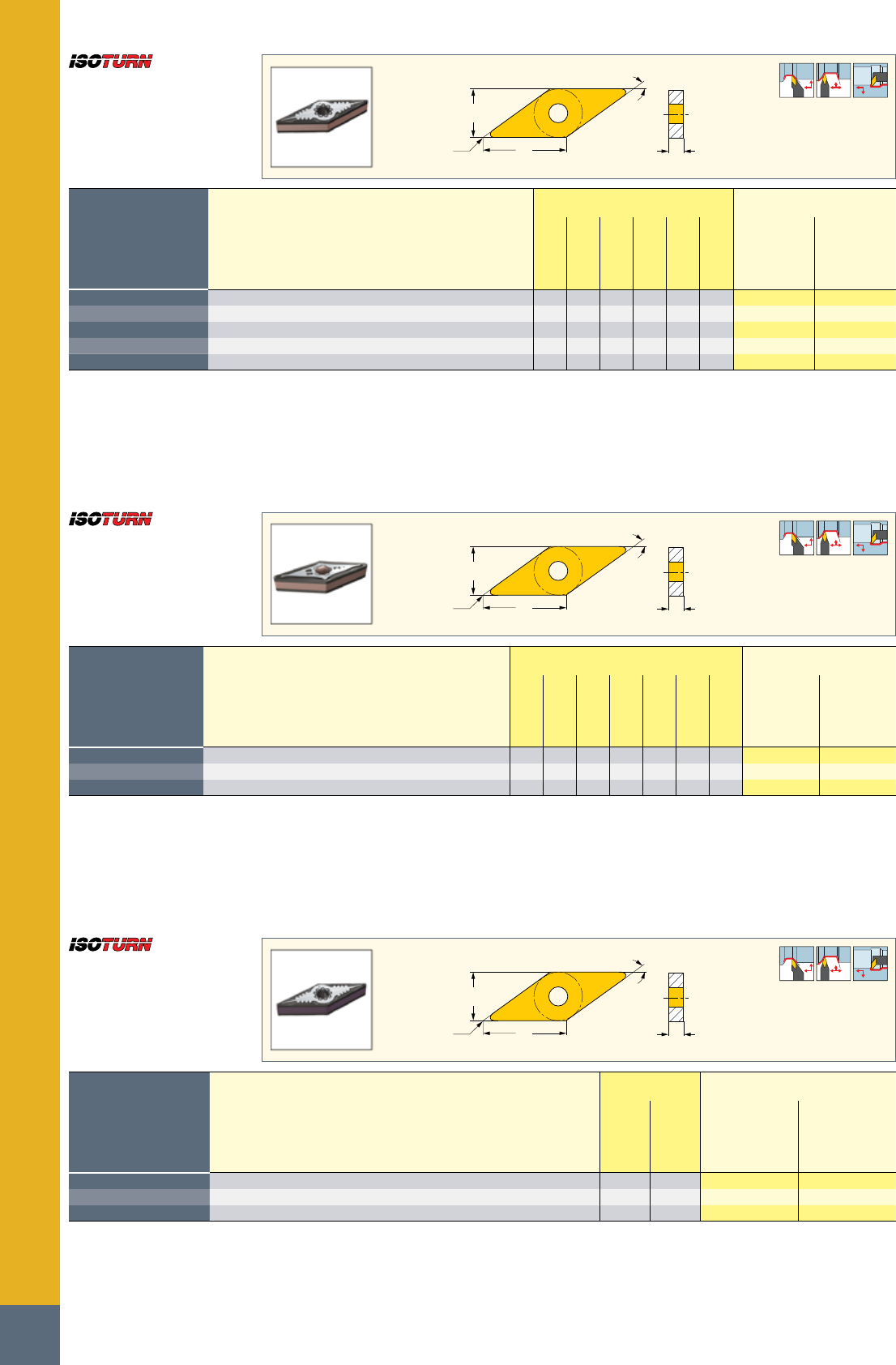

ISOTURN INSERTS

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

VNMG 12T302-F3M

12.40 7.15 3.97 0.20

• •

0.10-1.50 0.03-0.20

VNMG 12T304-F3M

12.40 7.15 3.97 0.40

• •

0.10-1.50 0.05-0.30

VNMG 12T308-F3M

12.40 7.15 3.97 0.80

• •

0.10-1.50 0.05-0.30

VNMG 160404-F3M

16.60 9.52 4.76 0.40

• • • •

0.10-1.50 0.05-0.30

VNMG 160408-F3M

16.60 9.52 4.76 0.80

• • •

0.10-1.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)

• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-F3M

Double-Sided 35° Rhombic

Inserts for Finishing on

Stainless Steel

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC4

IC804

(mm)

(mm/rev)

VNMG 12T308-M3M

12.40 7.15 3.89 0.80

•••••

0.70-2.00 0.08-0.20

VNMG 160404-M3M

16.60 9.52 4.76 0.40

••••

0.70-3.00 0.07-0.20

VNMG 160408-M3M

16.60 9.52 4.76 0.80

•••• ••

0.10-1.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)

• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-M3M

Double-Sided 35° Rhombic

Inserts for Machining Stainless

and Low Carbon Steel

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

VNMG 12T302-F3S

12.40 7.15 3.97 0.20

• •

0.10-1.50 0.05-0.20

VNMG 12T304-F3S

12.40 7.15 3.97 0.40

• •

0.10-1.50 0.05-0.30

VNMG 12T308-F3S

12.40 7.15 3.97 0.80

• •

0.10-1.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-F3S

Double-Sided 35° Rhombic

Inserts for Titanium and

Heat Resistant Materials for

Finishing Applications

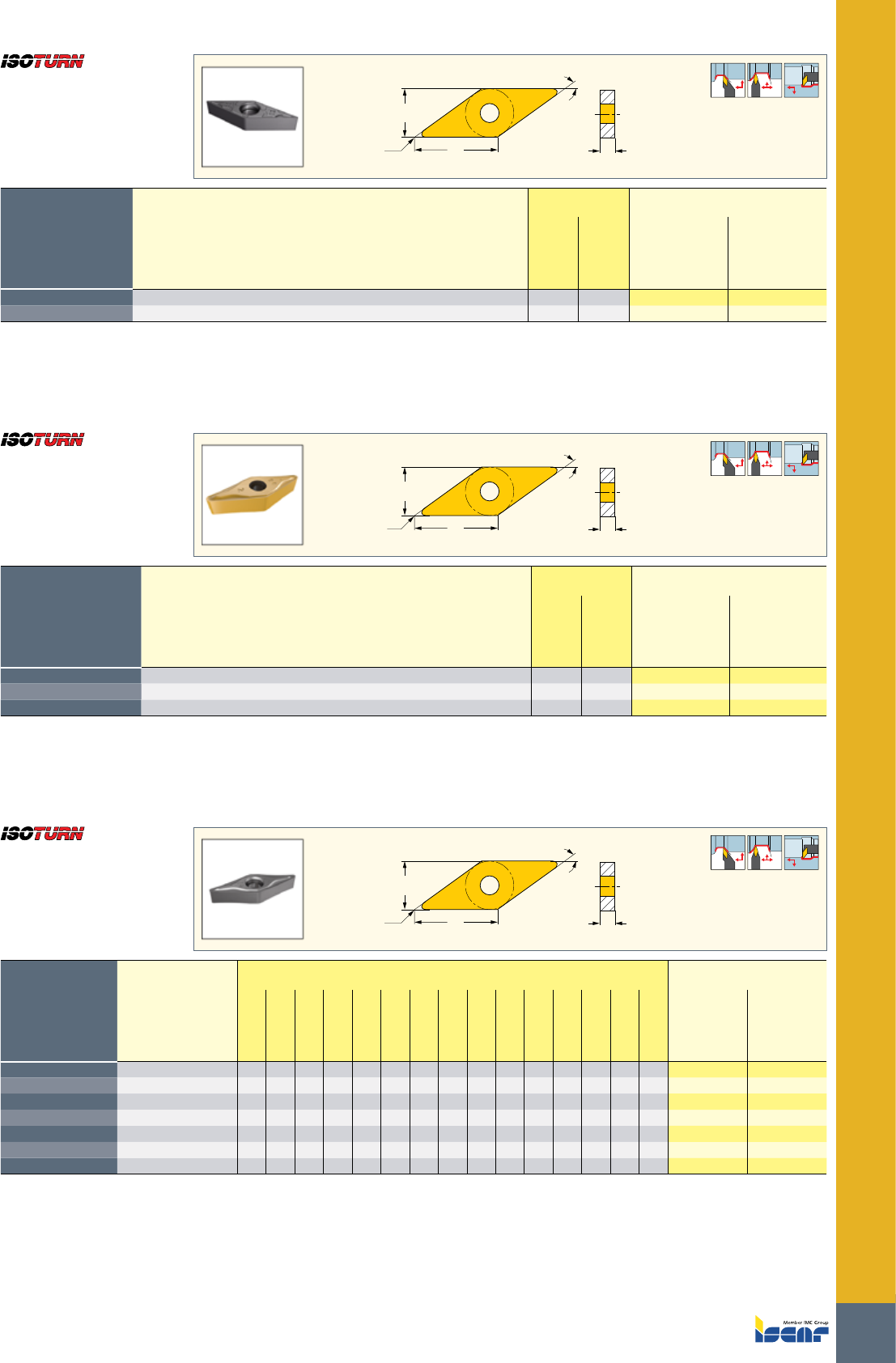

165

ISOTURN INSERTS

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC908

IC570

(mm)

(mm/rev)

VNMG 12T302-SF

12.40 7.15 3.97 0.20

• •

0.30-2.00 0.03-0.20

VNMG 12T304-SF

12.40 7.15 3.97 0.40

• •

0.50-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-SF

Double-Sided 35° Rhombic

Inserts for Super Finishing

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20N

IC520N

(mm)

(mm/rev)

VNMG 12T302-FNF

12.40 7.15 3.97 0.20

•

0.50-3.00 0.07-0.23

VNMG 12T304-FNF

12.40 7.15 3.97 0.40

• •

0.50-3.00 0.07-0.23

VNMG 12T308-FNF

12.40 7.15 3.89 0.80

•

0.50-3.00 0.07-0.23

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG-FNF-CERMET

Double-Sided 35° Rhombic

Cermet Inserts for Semi-Finishing

and Finishing Applications

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8350

IC6025

IC8250

IC530N

IC10

IC6015

IC8150

IC20

IC20N

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

VNMG 12T302-NF

12.40 7.15 3.97 0.20

• • • • • • • •

0.40-2.50 0.07-0.18

VNMG 12T304-NF

12.40 7.15 3.97 0.40

•••••••• • • ••

0.70-2.00 0.07-0.24

VNMG 12T308-NF

12.40 7.15 3.97 0.80

•••• ••• ••••••

1.00-3.00 0.08-0.24

VNMG 160404-NF

16.60 9.52 4.76 0.40

• • • • • • •

0.70-2.50 0.07-0.24

VNMG 160408-NF

16.60 9.52 4.76 0.80

• •

1.00-3.00 0.08-0.25

VNGG 12T302-NF

12.40 7.15 3.90 0.20

•

0.40-2.50 0.05-0.17

VNGG 12T304-NF

12.40 7.15 3.90 0.40

•

0.50-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • AVC-DVUNR/L (97) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • MVJNR/L (33) • MVVNN (35)

• SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMG/VNGG-NF

Double-Sided 35° Rhombic

Inserts for Semi-Finishing

and Finishing Applications

ISCAR

166

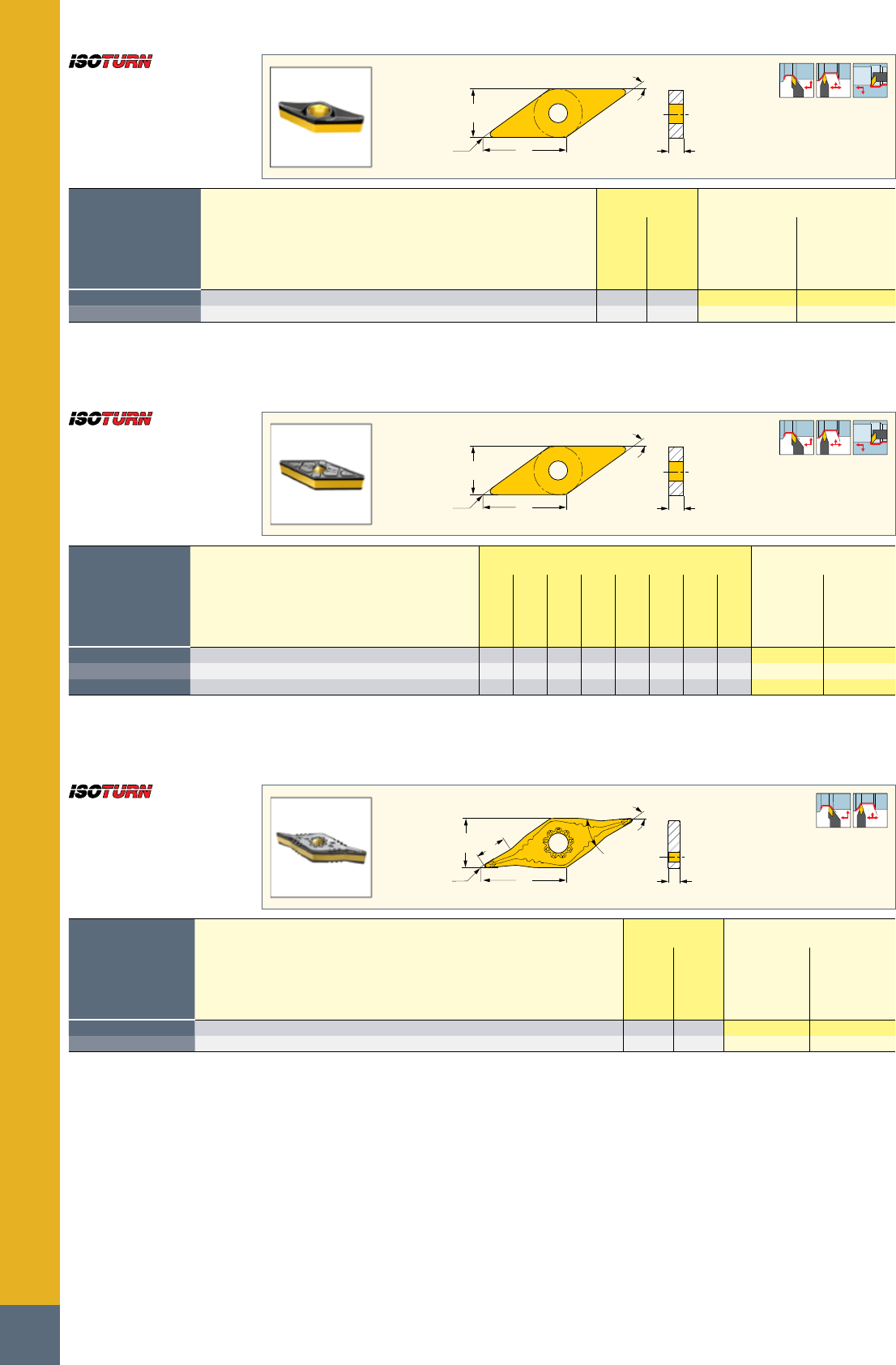

ISOTURN INSERTS

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC20

(mm)

(mm/rev)

VNMM 12T304-PP

12.40 7.15 3.97 0.40

• •

0.80-2.50 0.12-0.20

VNMM 12T308-PP

12.40 7.15 3.97 0.80

• •

1.00-2.50 0.12-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVUNR/L (107) • C#-SVJNR/L-F (33) • HSK A63WH-SVVNN-F (35) • SVANR/L-FS (32) • SVJNR/L-F (33) • SVVNN-F (34)

VNMM-PP

Single-Sided 35° Rhombic

Inserts for Machining Very

Ductile Materials at Medium

Cutting Conditions

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC8250

IC6015

IC8150

IC806

IC807

IC907

(mm)

(mm/rev)

VNMG 160408-TF

16.60 9.52 4.76 0.80

••••••••

1.00-3.50 0.10-0.30

VNMG 160412-TF

16.60 9.52 4.76 1.20

• •

1.00-4.00 0.12-0.38

VNMG 220408-TF

22.00 12.70 4.76 0.80

•

1.00-3.50 0.14-0.36

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: AVC-DVUNR/L (97) • MVJNR/L (33) • MVVNN (35)

VNMG-TF

Double-Sided 35° Rhombic

Inserts for Machining a

Wide Range of Materials at

Medium Cutting Conditions

25°

35°

IC LE

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC LE S RE

IC8250

IC8150

(mm)

(mm/rev)

YNMG 160404-F3P

16.60 9.52 5.7 4.76 0.40

• •

0.40-3.00 0.03-0.12

YNMG 160408-F3P

16.60 9.52 5.3 4.76 0.80

• •

0.90-4.00 0.05-0.15

• Use IYSN 322 seat for these inserts • For user guide, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

YNMG-F3P

Double-Sided 25° Corner Inserts

for Internal and External Deep and

Narrow Profiling and Undercutting

167

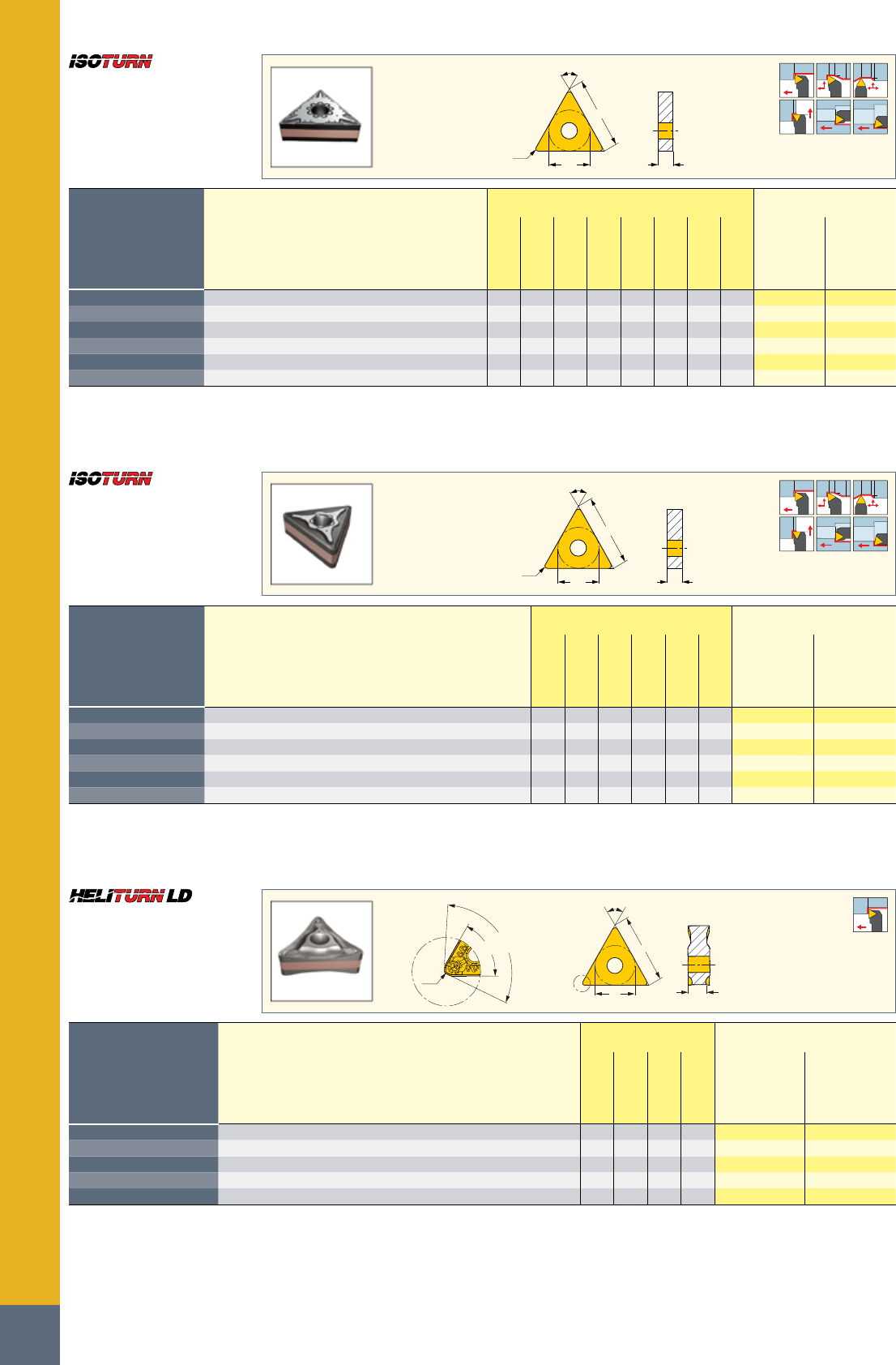

ISOTURN INSERTS

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

TNMG 160404-F3P

16.50 9.52 4.76 0.40

••••

0.50-2.00 0.07-0.25

TNMG 160408-F3P

16.50 9.52 4.76 0.80

••••

0.90-3.00 0.08-0.25

TNMG 160412-F3P

16.50 9.52 4.76 1.20

••••

1.30-4.00 0.10-0.25

TNMG 220408-F3P

22.00 12.70 4.76 0.80

••••

0.90-3.00 0.08-0.25

TNMG 220412-F3P

22.00 12.70 4.76 1.20

••••

1.30-4.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-F3P

Double-Sided Triangular

Inserts for Semi-Finishing

and Finishing Applications

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

TNMG 160404-M3P

16.50 9.52 4.76 0.40

••••

0.40-5.00 0.10-0.30

TNMG 160408-M3P

16.50 9.52 4.76 0.80

••••

0.50-5.00 0.15-0.50

TNMG 160412-M3P

16.50 9.52 4.76 1.20

••••

0.80-5.00 0.18-0.60

TNMG 220408-M3P

22.00 12.70 4.76 0.80

••••

0.50-6.60 0.15-0.50

TNMG 220412-M3P

22.00 12.70 4.76 1.20

• • •

0.80-6.60 0.18-0.60

TNMG 220416-M3P

22.00 12.70 4.76 1.60

••••

1.00-6.60 0.23-0.65

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-M3P

Double-Sided Triangular

Inserts for Medium Machining

Conditions on Steel

60˚ 113˚

60°

IC S

91º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

(mm)

(mm/rev)

TNMX 160604-M3PW

16.50 9.52 4.40 0.40

•••

2.00-5.00 0.25-0.40

TNMX 160608-M3PW

16.50 9.52 4.40 0.80

•••

2.50-5.50 0.30-0.50

TNMX 220712-M4PW

22.00 12.70 7.40 1.20

• •

3.00-6.00 0.35-0.60

TNMX 220716-M4PW

22.00 12.70 7.40 1.60

• •

3.50-6.50 0.40-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37)

TNMX-M3/4PW

Double-Sided Triangular

Inserts with High Helical

Cutting Edge for High Metal

Removal Rates on Steel

ISCAR

168

ISOTURN INSERTS

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC6025

IC6015

IC20N

IC520N

IC806

IC807

IC804

(mm)

(mm/rev)

TNMG 160404-F3M

16.50 9.52 4.76 0.40

•••••••

0.10-1.50 0.05-0.32

TNMG 160408-F3M

16.50 9.52 4.76 0.80

••••••••

0.10-1.50 0.10-0.42

TNMG 160412-F3M

16.50 9.52 4.76 1.20

••• ••

0.15-2.00 0.15-0.52

TNMG 220404-F3M

22.00 12.70 4.76 0.40

••• ••

0.10-1.50 0.05-0.32

TNMG 220408-F3M

22.00 12.70 4.76 0.80

••• ••

0.10-1.50 0.10-0.42

TNMG 220412-F3M

22.00 12.70 4.76 1.20

• • • •

0.15-2.00 0.15-0.52

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-F3M

Double-Sided Triangular Inserts

for Finish Turning on Stainless

and Low Carbon Steel

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC5500

IC6025

IC6015

IC807

IC804

(mm)

(mm/rev)

TNMG 160404-M3M

16.50 9.52 4.76 0.40

• •

0.50-4.00 0.15-0.50

TNMG 160408-M3M

16.50 9.52 4.76 0.80

••••••

0.50-4.00 0.15-0.50

TNMG 160412-M3M

16.50 9.52 4.76 1.20

• • • •

0.50-4.00 0.20-0.60

TNMG 220408-M3M

22.00 12.70 4.76 0.80

• • • •

0.50-5.00 0.15-0.50

TNMG 220412-M3M

22.00 12.70 4.76 1.20

• • • •

0.50-5.00 0.20-0.60

TNMG 220416-M3M

22.00 12.70 4.76 1.60

• • • •

0.50-5.00 0.30-0.65

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-M3M

Double-Sided Triangular

Inserts for Machining Stainless

and Low Carbon Steel

60˚ 113˚

60°

91º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

TNMX 160604-M3MW

16.50 9.52 4.40 0.40

• •

2.00-5.00 0.12-0.40

TNMX 160608-M3MW

16.50 9.52 4.40 0.80

• •

2.50-5.50 0.15-0.50

TNMX 220704-M4MW

22.00 12.70 7.94 0.40

••••

2.00-5.00 0.12-0.40

TNMX 220708-M4MW

22.00 12.70 7.94 0.80

• • •

2.50-5.50 0.15-0.50

TNMX 220712-M4MW

22.00 12.70 7.94 1.20

••••

3.00-6.00 0.18-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37)

TNMX-M3/4MW

Double-Sided Triangular Inserts

with High Helical Cutting

Edge for High Metal Removal

Rates on Stainless Steel

169

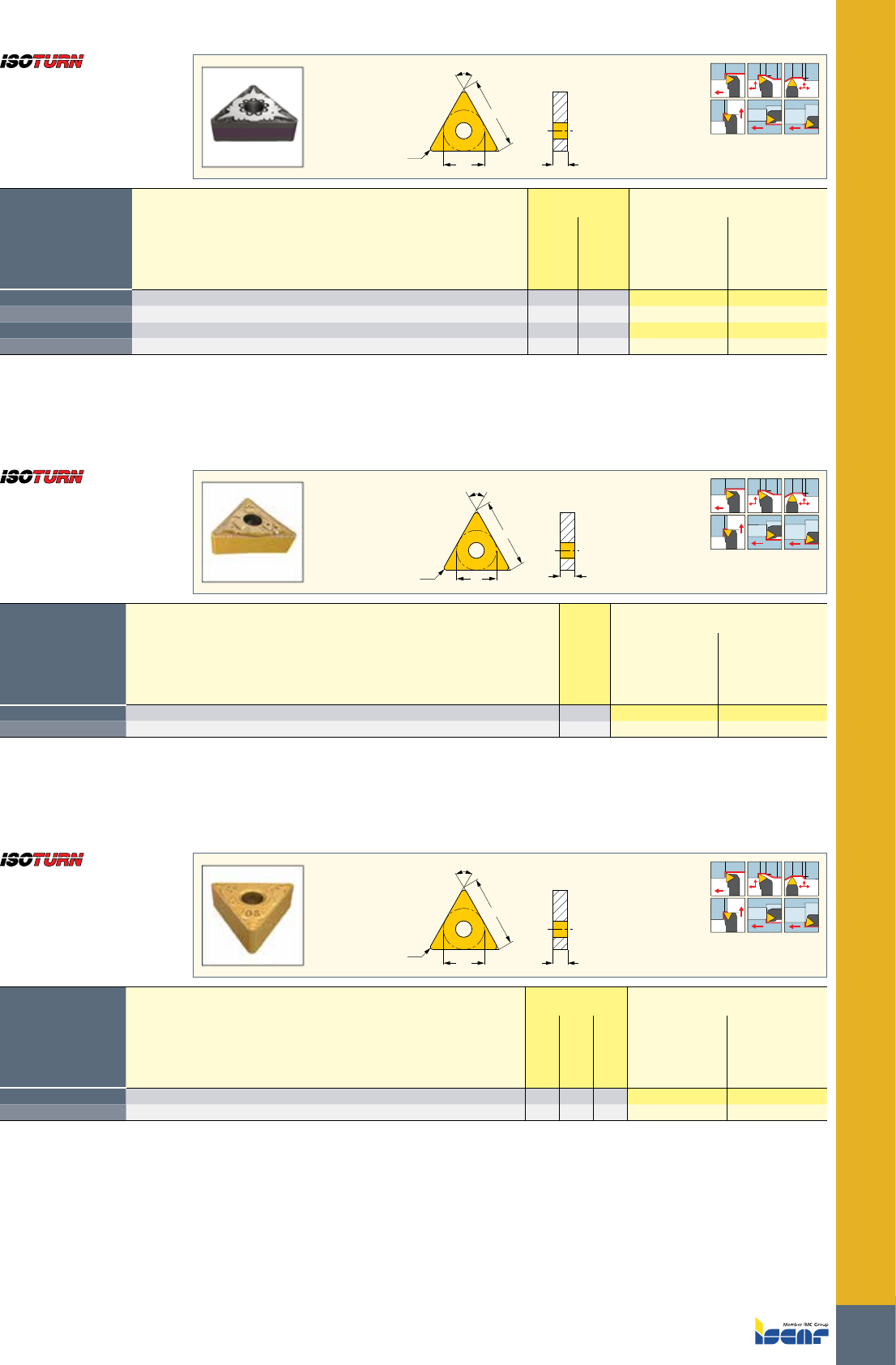

ISOTURN INSERTS

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC806

IC804

(mm)

(mm/rev)

TNMG 160404-F3S

16.50 9.52 4.76 0.40

• •

0.10-1.50 0.05-0.32

TNMG 160408-F3S

16.50 9.52 4.76 0.80

• •

0.10-1.50 0.10-0.40

TNMG 220404-F3S

22.00 12.70 4.76 0.40

• •

0.10-1.50 0.05-0.32

TNMG 220408-F3S

22.00 12.70 4.76 0.80

• •

0.10-1.50 0.10-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-F3S

Double-Sided 60° Triangular

Inserts for Titanium and

Heat Resistant Materials for

Finishing Applications

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC520N

(mm)

(mm/rev)

TNMG 160404-FFG

16.50 9.52 4.76 0.40

•

0.50-2.00 0.07-0.25

TNMG 160408-FFG

16.50 9.52 4.76 0.80

•

0.90-2.50 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-FFG-CERMET

Double-Sided Triangular Cermet

Inserts for Semi-Finishing

and Finishing Applications

on Steel and Cast Iron

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC530N

IC520N

(mm)

(mm/rev)

TNMG 160404-SF

16.50 9.52 4.76 0.40

• •

0.40-2.00 0.04-0.25

TNMG 160408-SF

16.50 9.52 4.76 0.80

• •

1.00-3.00 0.06-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-SF

Triangular Double-Sided

Inserts for Super Finishing;

Controls Chip Flow at Very Low

Feeds and Depths of Cut

ISCAR

170

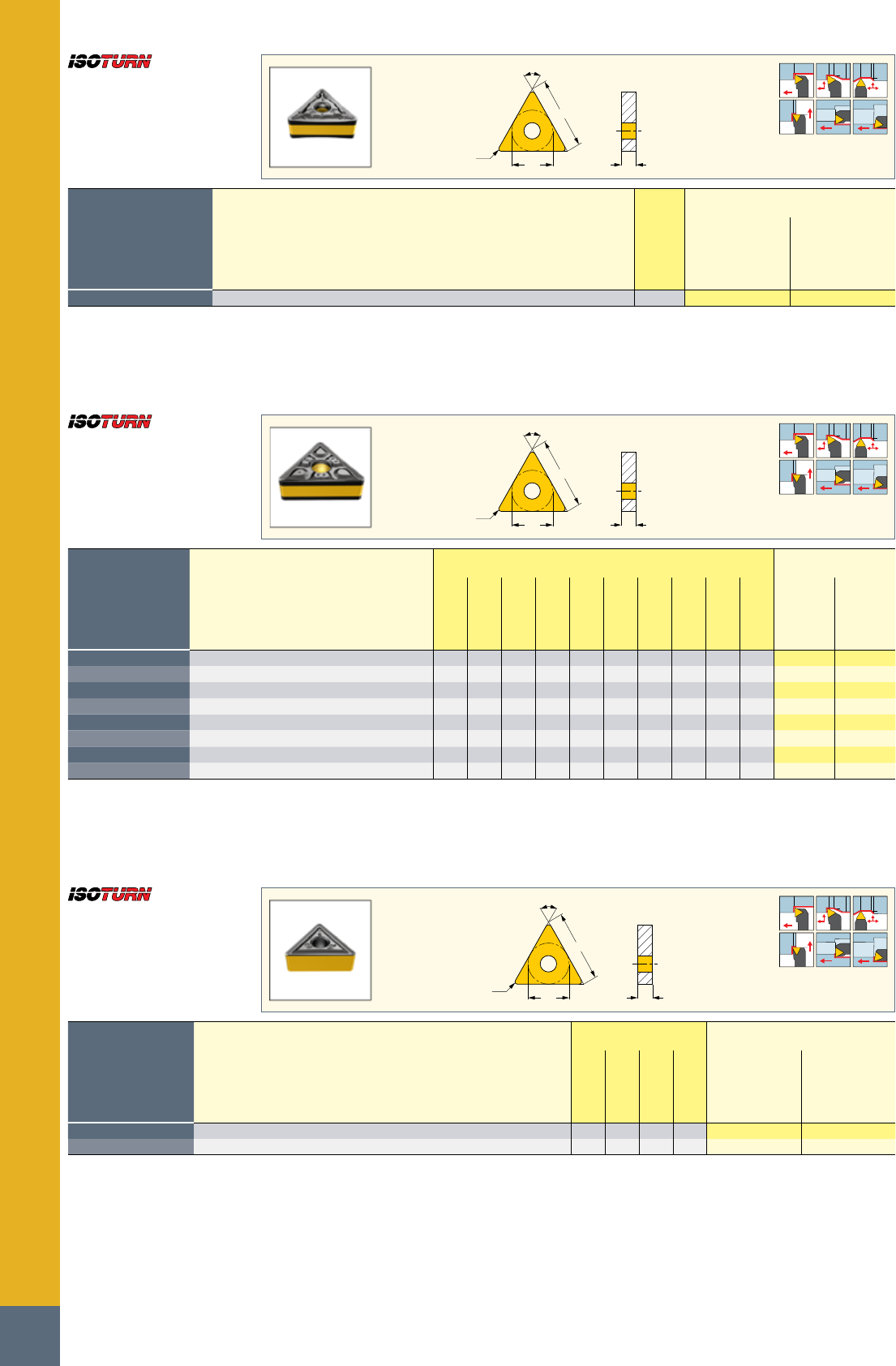

ISOTURN INSERTS

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8150

(mm)

(mm/rev)

TNMG 160408-PF

16.50 9.52 4.76 0.80

•

0.80-3.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-PF

Triangular Double-Sided

Inserts for Finishing on

Alloyed and Stainless Steel

IC S

60°

91º

22°MAX

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8250

IC908

IC6015

IC8150

IC20

IC20N

IC806

IC807

IC907

(mm)

(mm/rev)

TNMG 160304-TF

16.50 9.52 3.18 0.40

•

1.00-3.00 0.12-0.30

TNMG 160308-TF

16.50 9.52 3.18 0.80

•

1.00-3.00 0.12-0.30

TNMG 160404-TF

16.50 9.52 4.76 0.40

•• ••• •••

1.00-3.00 0.12-0.30

TNMG 160408-TF

16.50 9.52 4.76 0.80

••••• ••••

1.00-3.00 0.12-0.30

TNMG 160412-TF

16.50 9.52 4.76 1.20

• • • •

1.00-5.00 0.12-0.40

TNMG 220404-TF

22.00 12.70 4.76 0.40

• • • • •

1.00-3.50 0.14-0.35

TNMG 220408-TF

22.00 12.70 4.76 0.80

• • • • •

1.00-4.00 0.15-0.40

TNMG 220412-TF

22.00 12.70 4.76 1.20

• • •

1.00-4.50 0.18-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-TF

Double-Sided Triangular

Inserts for Machining a

Wide Range of Materials at

Medium Cutting Conditions

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC908

IC806

IC807

IC907

(mm)

(mm/rev)

TNMG 160404-VL

16.50 9.52 4.76 0.40

•

0.80-3.50 0.10-0.25

TNMG 160408-VL

16.50 9.52 4.76 0.80

••••

0.80-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-VL

Double-Sided Triangular

Inserts with a Chipformer

for High Temperature Alloys

and Stainless Steel Valves

171

ISOTURN INSERTS

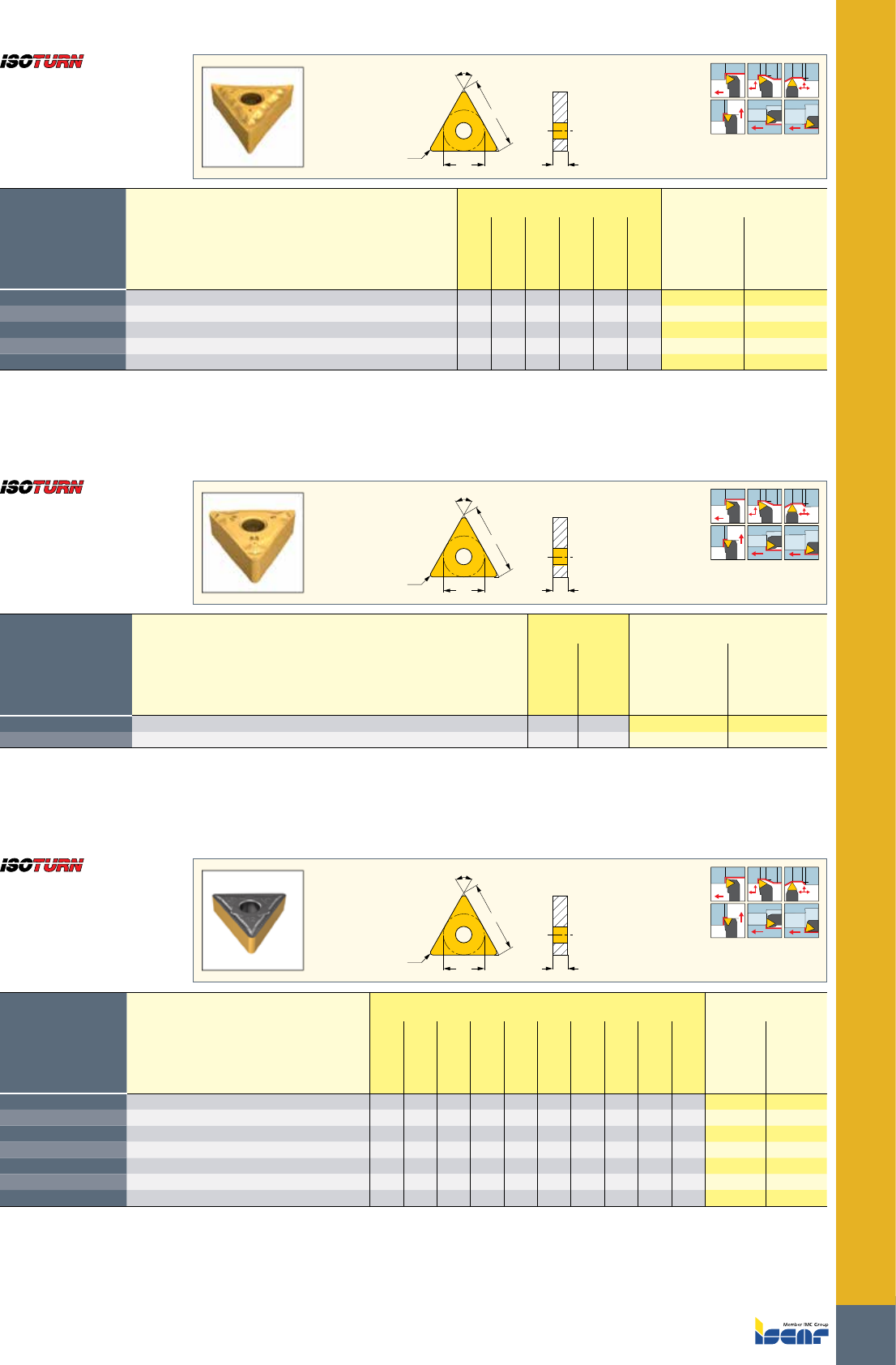

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC8150

IC20

IC907

(mm)

(mm/rev)

TNGG 160402-PP

16.50 9.52 4.76 0.20

•

0.50-1.50 0.05-0.25

TNMG 160404-PP

16.50 9.52 4.76 0.40

• • •

0.50-3.00 0.13-0.30

TNMG 160408-PP

16.50 9.52 4.76 0.80

• • • •

1.00-3.00 0.12-0.30

TNMG 220404-PP

22.00 12.70 4.76 0.40

• •

0.50-3.50 0.14-0.32

TNMG 220408-PP

22.00 12.70 4.76 0.80

•••

1.00-3.50 0.14-0.32

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG/TNGG-PP

Double-Sided Triangular

Inserts for Machining Very

Ductile Materials at Medium

Cutting Conditions

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

(mm)

(mm/rev)

TNMG 110304-NF

11.00 6.35 3.18 0.40

•

0.40-2.00 0.07-0.25

TNMG 160408-NF

16.50 9.52 4.76 0.80

• •

1.00-3.00 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-NF

Double-Sided Triangular

Inserts for Semi-Finishing

and Finishing Applications

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC8150

IC20

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

TNMG 160404-GN

16.50 9.52 4.76 0.40

• •

1.00-3.00 0.12-0.30

TNMG 160408-GN

16.50 9.52 4.76 0.80

••••••••••

1.00-3.50 0.18-0.39

TNMG 160412-GN

16.50 9.52 4.76 1.20

• •

1.50-4.00 0.18-0.43

TNMG 220408-GN

22.00 12.70 4.76 0.80

••••

1.00-4.00 0.18-0.40

TNMG 220412-GN

22.00 12.70 4.76 1.20

•••

1.50-4.50 0.18-0.45

TNMG 220416-GN

22.00 12.70 4.76 1.60

•

2.00-5.00 0.25-0.45

TNMG 270612-GN

27.50 15.88 6.35 1.20

• •

2.00-6.00 0.25-0.45

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMG-GN

Double-Sided Triangular Inserts

for General Applications

ISCAR

172

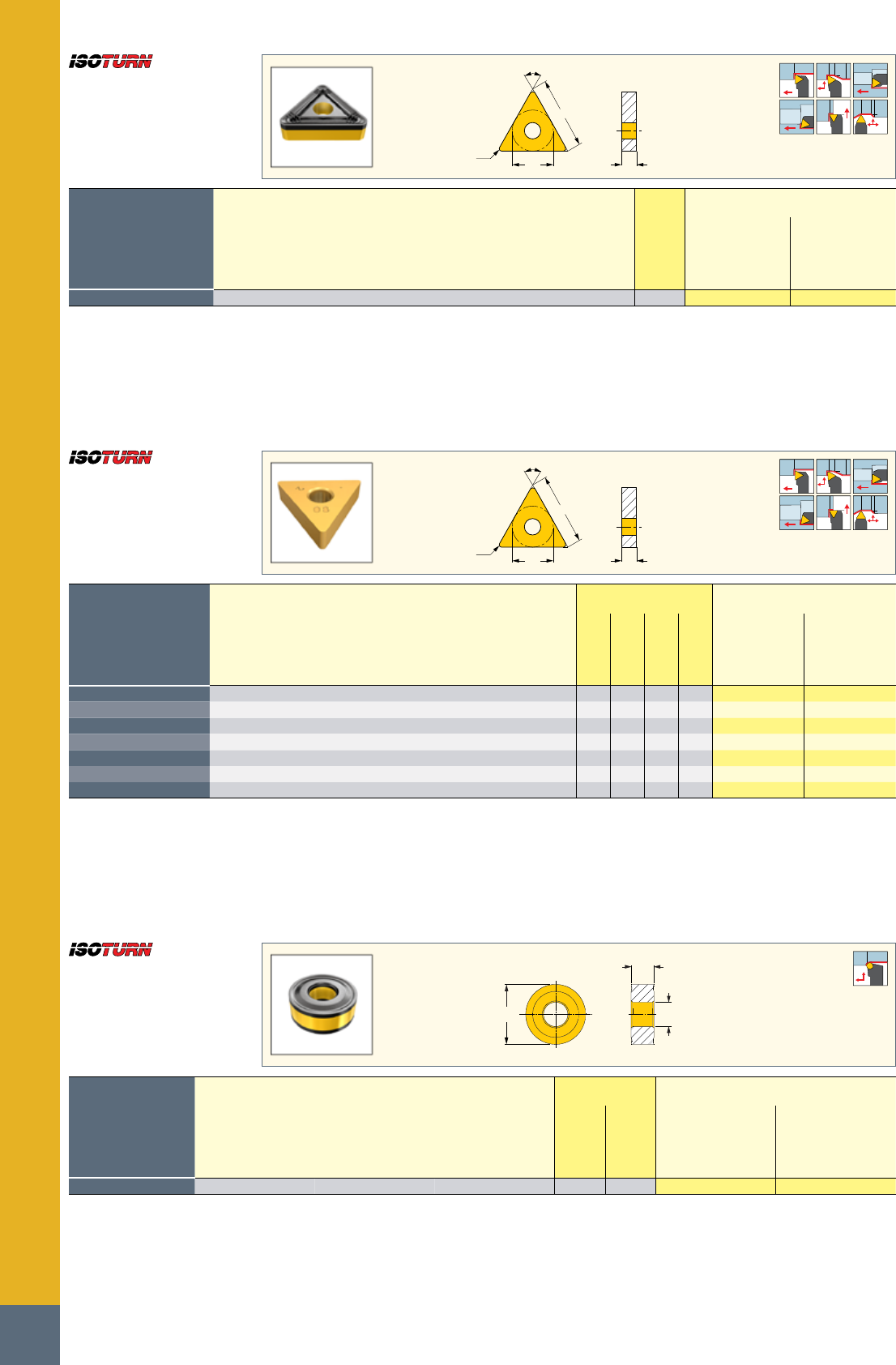

ISOTURN INSERTS

IC S

60°

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8150

(mm)

(mm/rev)

TNMM 220416-NR

22.00 12.70 4.76 1.60

•

2.50-6.00 0.30-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMM-NR

Single-Sided Triangular Inserts

with a Special Chipformer

for Heavy Machining

IC S

60°

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20

IC5010

IC428

IC5005

(mm)

(mm/rev)

TNMA 160404

16.50 9.52 4.76 0.40

•••

0.50-3.00 0.05-0.21

TNMA 160408

16.50 9.52 4.76 0.80

••••

1.00-4.00 0.05-0.25

TNMA 160412

16.50 9.52 4.76 1.20

•••

1.50-4.50 0.10-0.29

TNMA 160416

16.50 9.52 4.76 1.60

•

1.50-4.50 0.10-0.40

TNMA 220408

22.00 12.70 4.76 0.80

• • •

1.50-5.00 0.05-0.33

TNMA 220412

22.00 12.70 4.76 1.20

•••

1.50-5.00 0.10-0.33

TNMA 220416

22.00 12.70 4.76 1.60

•

1.50-5.00 0.10-0.37

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMA

Double-Sided Triangular

Inserts with no Chipformer for

Short Chipping Materials

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S D1

IC8250

IC8150

(mm)

(mm/rev)

RNMG 120400

12.70 4.76 5.15

• •

2.00-5.00 0.30-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

RNMG

Double-Sided Round

Negative Insert for Medium

and Rough Profiling

173

ISOTURN INSERTS

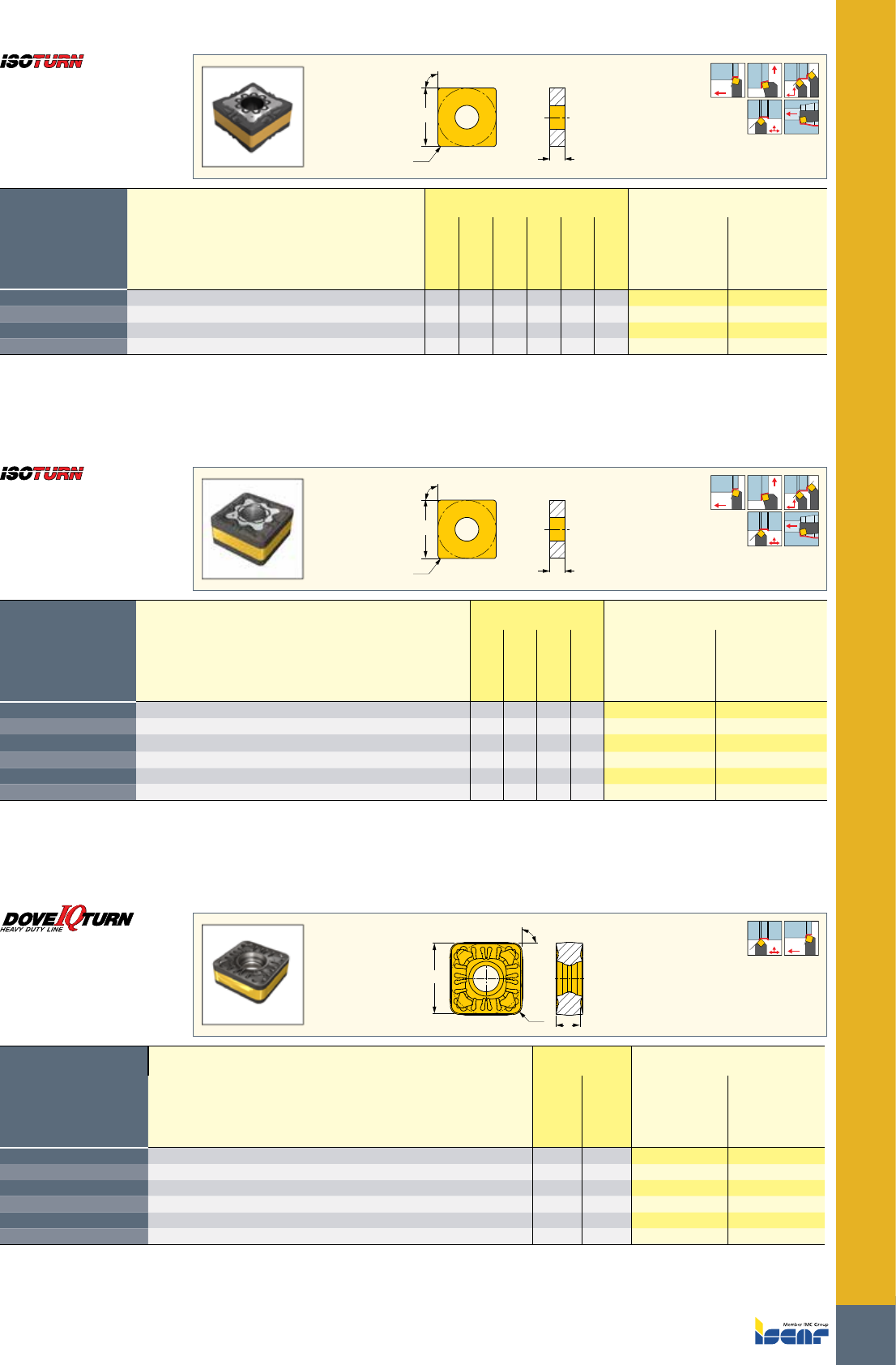

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8250

IC8150

IC20N

IC520N

IC807

(mm)

(mm/rev)

SNMG 090404-F3P

9.52 4.76 0.40

•••• •

0.50-3.50 0.07-0.25

SNMG 090408-F3P

9.52 4.76 0.80

• • • •

0.90-3.50 0.08-0.25

SNMG 120408-F3P

12.70 4.76 0.80

• • • •

0.90-3.50 0.08-0.25

SNMG 120412-F3P

12.70 4.76 1.20

• • • •

0.90-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)

• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-F3P

Double-Sided Square

Inserts for Semi-Finishing

and Finishing on Steel

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

SNMG 090404-M3P

9.52 4.76 0.40

••••

0.50-3.50 0.15-0.50

SNMG 090408-M3P

9.52 4.76 0.80

••••

0.50-3.50 0.15-0.55

SNMG 120408-M3P

12.70 4.76 0.80

••••

0.50-6.00 0.15-0.50

SNMG 120412-M3P

12.70 4.76 1.20

• • •

0.80-6.00 0.18-0.60

SNMG 150612-M3P

15.88 6.35 1.20

• • •

0.80-7.50 0.18-0.60

SNMG 150616-M3P

15.88 6.35 1.60

• • •

1.20-7.50 0.20-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)

• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-M3P

Double-Sided Square Inserts

for Medium Machining

Conditions on Steel

IC=L

RE S

90°

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC8250

IC8150

(mm)

(mm/rev)

SOMG 150612-R3P-IQ

15.88 6.35 1.20

• •

2.00-9.00 0.30-0.60

SOMG 150616-R3P-IQ

15.88 6.35 1.60

• •

2.00-9.00 0.30-0.70

SOMG 190612-R3P-IQ

19.05 6.35 1.20

• •

3.00-12.00 0.30-0.80

SOMG 190616-R3P-IQ

19.05 6.35 1.60

• •

3.50-12.00 0.35-0.85

SOMG 190624-R3P-IQ

19.05 6.35 2.40

• •

3.50-12.00 0.40-1.00

SOMG 250924-R3P-IQ

25.40 9.52 2.40

• •

4.00-15.00 0.40-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-PSROR/L-IQ (43) • PSBOR/L-IQ (43) • PSDON-IQ (40)

SOMG-R3P-IQ

Double-Sided 7° Negative

Side Flank Square Inserts for

Heavy Turning on Steel

ISCAR

174

ISOTURN INSERTS

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

SNMG 090404-F3M

9.52 4.76 0.40

••••

0.50-3.50 0.05-0.30

SNMG 090408-F3M

9.52 4.76 0.80

• • •

0.50-3.50 0.05-0.30

SNMG 120404-F3M

12.70 4.76 0.40

• • •

0.90-3.50 0.10-0.40

SNMG 120408-F3M

12.70 4.76 0.80

••••••

0.90-3.50 0.10-0.40

SNMG 120412-F3M

12.70 4.76 1.20

•••••

0.90-3.50 0.10-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)

• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-F3M

Double-Sided Square

Inserts for Stainless Steel

Finishing Applications

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC6025

IC6015

IC806

IC807

IC804

(mm)

(mm/rev)

SNMG 090404-M3M

9.52 4.76 0.40

• •

0.50-4.50 0.15-0.50

SNMG 090408-M3M

9.52 4.76 0.80

• • • •

0.50-4.50 0.15-0.50

SNMG 120408-M3M

12.70 4.76 0.80

••• ••

0.50-5.00 0.15-0.50

SNMG 120412-M3M

12.70 4.76 1.20

•••••

0.50-5.00 0.20-0.60

SNMG 120416-M3M

12.70 4.76 1.60

•••

0.50-5.00 0.25-0.70

SNMG 150612-M3M

15.88 6.35 1.20

• • • •

0.50-8.00 0.10-0.60

SNMG 150616-M3M

15.88 6.35 1.60

• • • •

0.50-8.00 0.10-0.65

SNMG 190612-M3M

19.05 6.35 1.20

• •

0.10-9.50 0.10-0.60

SNMG 190616-M3M

19.05 6.35 1.60

• •

0.10-9.50 0.10-0.65

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43)

• PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-M3M

Double-Sided Square Inserts

with a Special Chipformer

for Heavy Machining

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC806

(mm)

(mm/rev)

SNMG 190612 R3M

19.05 6.35 1.20

•

2.00-11.00 0.30-0.90

SNMG 190616-R3M

19.05 6.35 1.60

• •

2.00-11.00 0.30-0.90

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMG-R3M

Double-Sided 90° Square

Inserts for Rough Machining on

Stainless and Low Carbon Steel

175

ISOTURN INSERTS

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC806

IC804

(mm)

(mm/rev)

SNMG 090404-F3S

9.52 4.76 0.40

• •

0.10-1.50 0.05-0.35

SNMG 090408-F3S

9.52 4.76 0.80

• •

0.10-1.50 0.05-0.35

SNMG 120404-F3S

12.70 4.76 0.40

• •

0.10-1.50 0.05-0.35

SNMG 120408-F3S

12.70 4.76 0.80

• •

0.10-1.50 0.05-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PSKNR/L-09 (115) • C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41)

• PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-F3S

Double-Sided 90° Rhombic

Inserts for Titanium and

Heat Resistant Materials for

Finishing Applications

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC806

IC907

(mm)

(mm/rev)

SNMG 120404-VL

12.70 4.76 0.40

•

1.00-5.00 0.10-0.25

SNMG 120408-VL

12.70 4.76 0.80

• •

1.00-5.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)

• PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-VL

Double-Sided Square Inserts

with a Chipformer for High

Temperature Alloys and

Stainless Steel Valves

90°

IC=L

75º

45º

45°

75º

Dimensions Recommended Machining Data

Designation

IC S RE

IC830

(mm)

(mm/rev)

SNMG 120408-PP

12.70 4.76 0.80

•

1.00-4.00 0.14-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)

• PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-PP

Double-Sided Square Inserts for

Machining Very Ductile Materials

at Medium Cutting Conditions

ISCAR

176

ISOTURN INSERTS

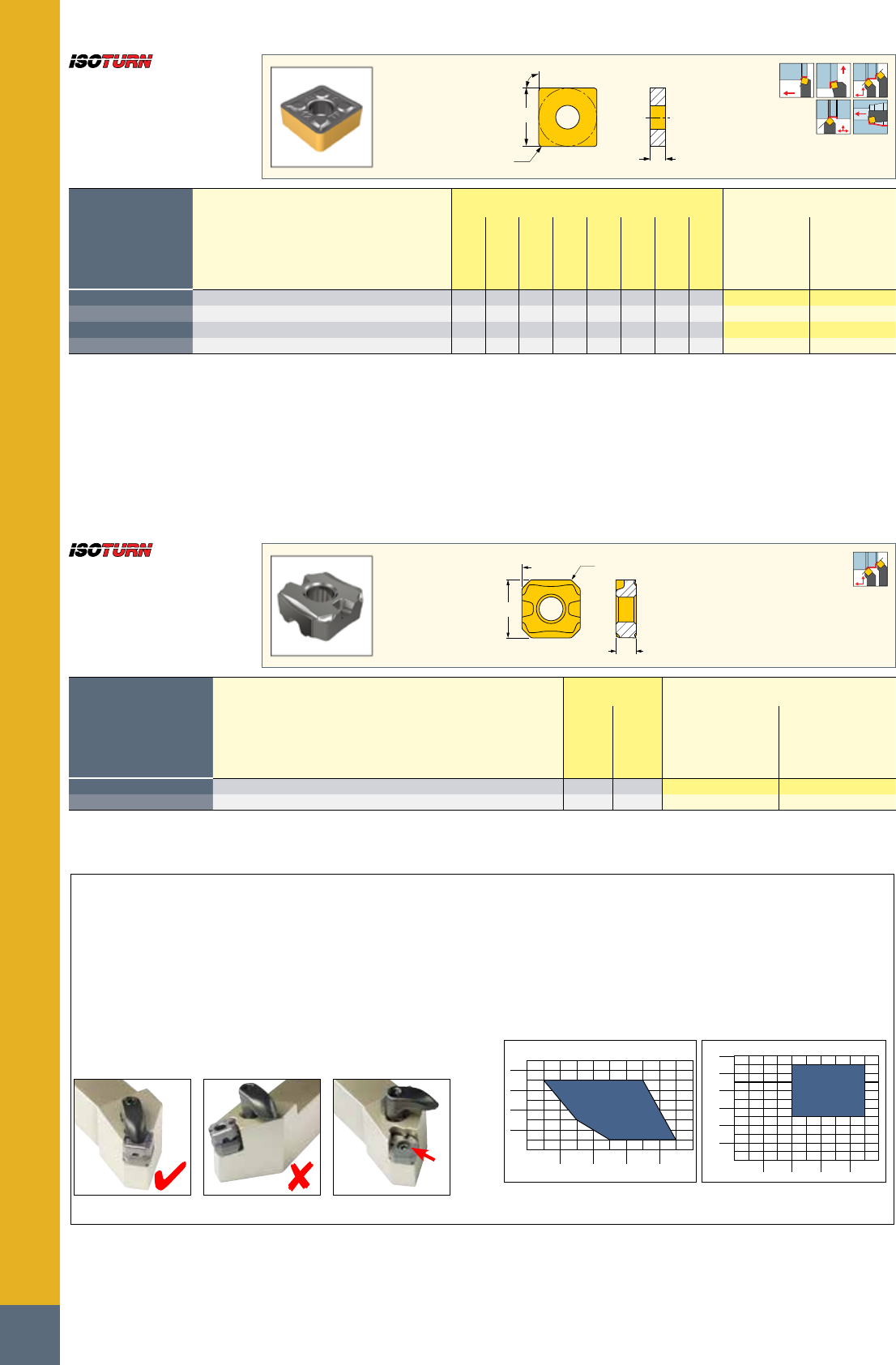

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8250

IC6015

IC8150

IC20

IC806

IC807

IC907

(mm)

(mm/rev)

SNMG 090304-TF

9.52 3.17 0.40

•

0.80-3.00 0.10-0.30

SNMG 120404-TF

12.70 4.76 0.40

• •

1.00-4.00 0.12-0.35

SNMG 120408-TF

12.70 4.76 0.80

••• •••

1.00-4.00 0.13-0.35

SNMG 120412-TF

12.70 4.76 1.20

• • • • • •

1.50-4.00 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)

• PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-TF

Double-Sided Square Inserts

for Machining a Wide Range

of Materials at Medium

Cutting Conditions

IC=L

90º

45º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC806

IC907

(mm)

(mm/rev)

SNMG 120408-EM-M

12.70 4.76 0.80

•

1.00-3.00 0.20-0.40

SNMG 120408-EM-R

12.70 4.76 0.80

• •

3.00-6.00 0.25-0.50

• Requires the use of RST 443R/L SET - seat when used on DSSNR/L tools and TSN 423-PIN SET seat when used on PSSNR/L-JHP and PSDNN-JHP tools

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSDNN (39) • DSSNR/L (39) • PSDNN (41) • PSDNN-JHP (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

The inserts have 4 cutting edges (2 on each side)

with truncated radii – a configuration which facilitates

heat transfer from the cutting area. The two edges

without chipbreakers (flat) are not used.

Toolholders

These inserts require the use of RST 443R/L SET - special

seat when used on DSSNR/L tools and TSN 423-PIN

SET seat when used on PSSNR/L-JHP and PSDNN–

JHP tools. The standard seats should be replaced with

the special ones which have a pin whose purpose is to

prevent using the non-working flat cutting corners.

Advantages

• Increased cutting speed (due to better heat transfer)

• Reduced notch wear (due to 45º approach angle)

• Increased feed (the 45° approach angle produces a thin chip)

• Increased productivity of up to 50%

• Ability to machine in two directions with the same tool,

longitudinal and face turning

Orientation pin

Correct insert

position

Wrong positioning

4.5

3.5

2.5

1.5

ap (mm)

0.1

0.15 0.25 0.35 0.45 f (mm/rev)

0.2 0.3 0.4 0.5

Chipbreaking Range

SNMG 120408-EM-M

Material: Inconel 718 Vc:

50 m/min With coolant

4.5

3.5

2.5

1.5

ap (mm)

5.5

6.5

0.1

0.15 0.25 0.35 0.45 f (mm/rev)

0.2 0.3 0.4 0.5

Chipbreaking Range

SNMG 120408-EM-R

Material: Inconel 718 Vc:

50 m/min With coolant

SNMG-EM-M/R

Double-Sided Square Inserts

for Medium Machining on

High Temperature Alloys

177

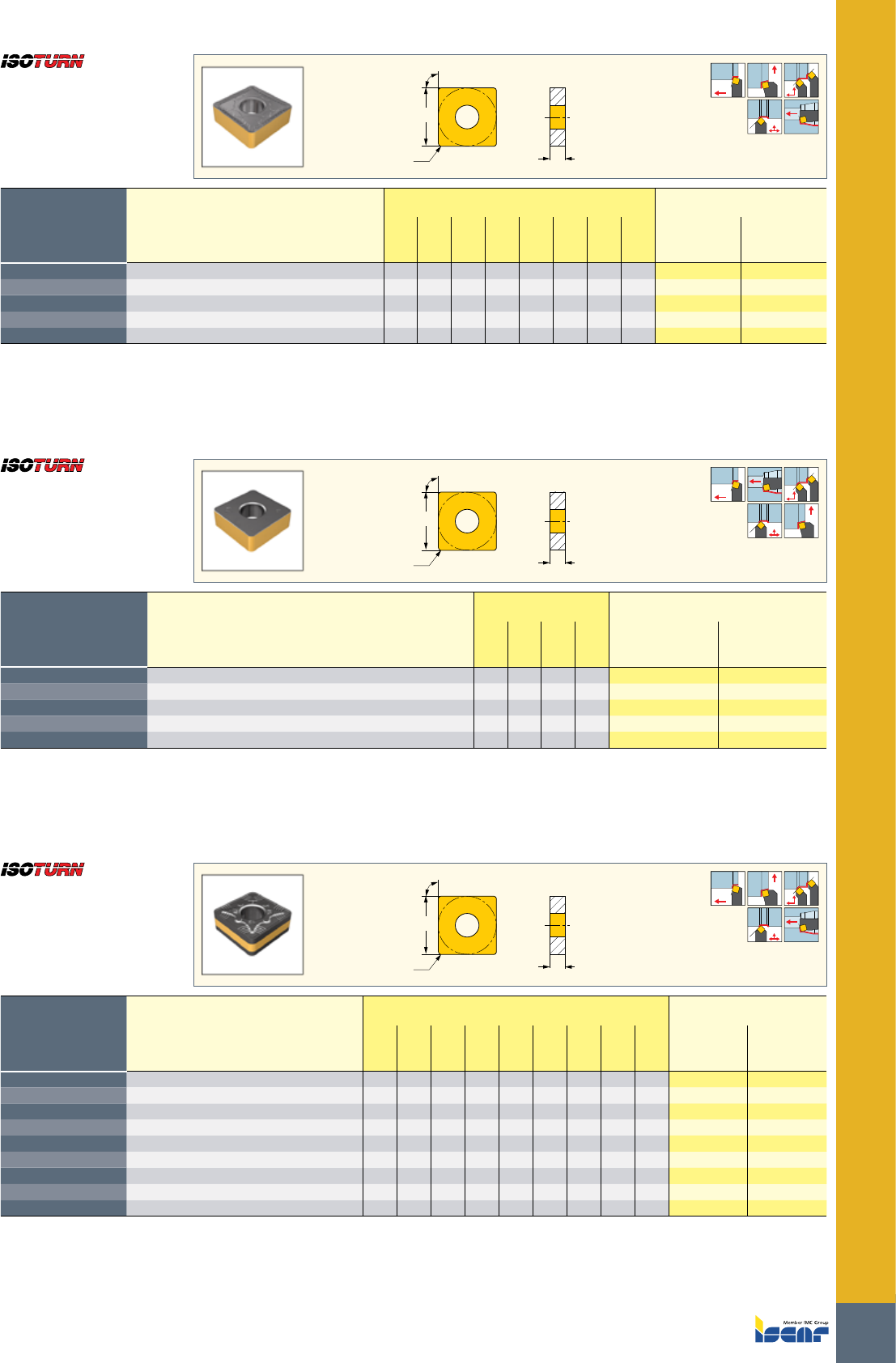

ISOTURN INSERTS

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8350

IC8250

IC8150

IC20

IC5010

IC428

IC5005

(mm)

(mm/rev)

SNMG 120408-GN

12.70 4.76 0.80

•••••••

1.00-5.00 0.20-0.45

SNMG 120412-GN

12.70 4.76 1.20

•

1.40-5.00 0.25-0.50

SNMG 150612-GN

15.88 6.35 1.20

•••

2.00-7.00 0.30-0.60

SNMG 190612-GN

19.05 6.35 1.20

•••

2.00-7.00 0.30-0.60

SNMG 190616-GN

19.05 6.35 1.60

•

2.00-9.00 0.30-0.65

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)

• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-GN

Double-Sided Square Inserts

for General Applications

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC20

IC5010

IC428

IC5005

(mm)

(mm/rev)

SNMA 120408

12.70 4.76 0.80

••••

1.50-5.00 0.05-0.50

SNMA 120412

12.70 4.76 1.20

••••

1.50-5.00 0.10-0.50

SNMA 120416

12.70 4.76 1.60

•••

2.00-6.00 0.10-0.60

SNMA 190612

19.05 6.35 1.20

• • •

2.00-7.00 0.10-0.60

SNMA 190616

19.05 6.35 1.60

• •

2.50-10.00 0.10-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)

• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMA

Double-Sided Square Inserts

Without a Chipformer for

Short Chipping Materials

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC S RE

IC830

IC8350

IC8250

IC8150

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

SNMG 120412-NR

12.70 4.76 1.20

• • •

2.00-5.00 0.30-0.70

SNMG 120416-NR

12.70 4.76 1.60

•••

2.50-6.00 0.30-0.70

SNMG 150608-NR

15.88 6.35 0.80

•

2.50-8.00 0.30-0.70

SNMG 150612-NR

15.88 6.35 1.20

• •

2.50-8.00 0.30-0.70

SNMG 150616-NR

15.88 6.35 1.60

• • • •

2.50-8.00 0.30-0.70

SNMG 190612-NR

19.05 6.35 1.20

• • •

3.00-8.00 0.40-0.70

SNMG 190616-NR

19.05 6.35 1.60

••••

3.50-10.00 0.40-0.70

SNMG 250724-NR

25.40 7.94 2.40

•

5.00-15.00 0.40-1.00

SNMG 250924-NR

25.40 9.52 2.40

•••

5.00-15.00 0.40-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)

• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMG-NR

Double-Sided Square Inserts

with a Special Chipformer

for Heavy Machining

ISCAR

178

ISOTURN INSERTS

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8250

IC8150

(mm)

(mm/rev)

SNMM 120408-R3P

12.70 4.76 0.80

•••

0.70-7.50 0.20-0.55

SNMM 120412-R3P

12.70 4.76 1.20

•••

1.00-7.50 0.25-0.70

SNMM 120416-R3P

12.70 4.76 1.60

• •

2.00-7.50 0.30-0.90

SNMM 150612-R3P

15.88 6.35 1.20

•••

2.00-9.50 0.30-0.70

SNMM 150616-R3P

15.88 6.35 1.60

•••

2.50-9.50 0.30-0.90

SNMM 190612-R3P

19.05 6.35 1.20

•••

3.00-12.00 0.25-0.80

SNMM 190616-R3P

19.05 6.35 1.60

•••

3.50-12.00 0.30-0.90

SNMM 190624-R3P

19.05 6.35 2.40

•••

3.50-12.00 0.30-1.20

SNMM 250924-R3P

25.40 9.52 2.40

•••

4.00-15.00 0.40-1.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41)

• PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42)

SNMM-R3P

Single-Sided Square

Inserts for Rough Turning

Applications on Steel

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC RE S

IC8250

IC8150

(mm)

(mm/rev)

SNMM 190624-H3P

19.05 2.40 6.35

• •

4.00-9.00 0.55-1.20

SNMM 250924-H3P

25.40 2.40 9.52

• •

5.00-12.00 0.55-1.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMM-H3P

Single-Sided Square Inserts

with a Strong Cutting Edge

for Extra Rough Turning

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC RE S

IC8250

IC8150

(mm)

(mm/rev)

SNMM 190624-H4P

19.05 2.40 6.35

• •

4.00-12.00 0.50-1.10

SNMM 250924-H4P

25.40 2.40 9.52

• •

5.00-15.00 0.55-1.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMM-H4P

Single-Sided Square Inserts

with a Strong Cutting Edge

for Extra Rough Turning

179

ISOTURN INSERTS

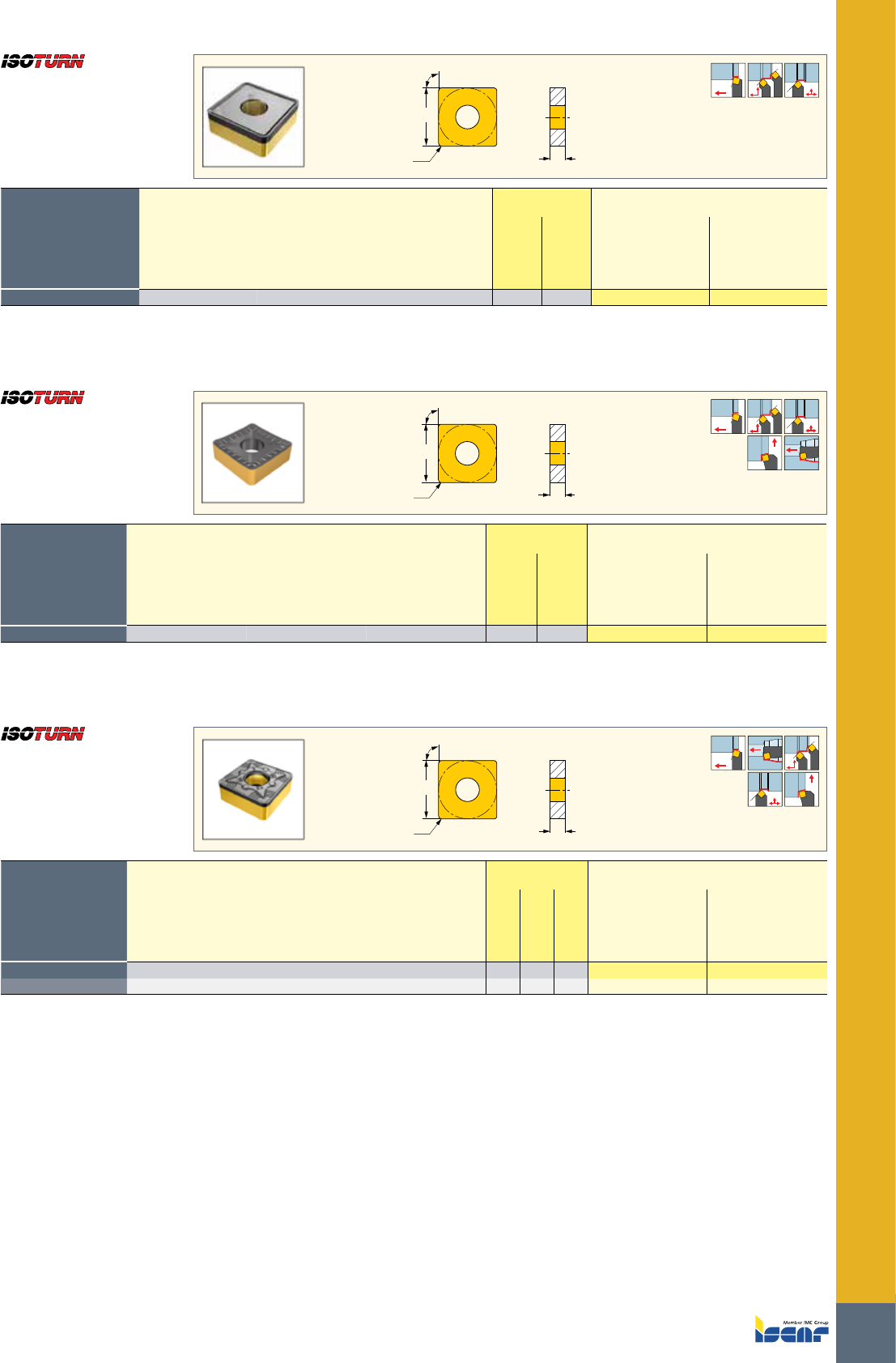

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC830

IC8250

(mm)

(mm/rev)

SNMM 190616-NM

19.05 6.35 1.60

• •

2.50-10.00 0.30-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMM-NM

Single-Sided Square Inserts

for Roughing Applications

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IC8350

IC8250

IC8150

(mm)

(mm/rev)

SNMM 190616-NR

19.05 6.35 1.60

•

2.50-8.00 0.35-1.00

SNMM 250724-NR

25.40 7.94 2.40

•••

5.00-15.00 0.35-1.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: DSBNR/L (40) • DSDNN (39) • DSSNR/L (39) • PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMM-NR

Single-Sided Square Inserts

with a Special Chipformer

for Heavy Machining

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC RE S

IC8250

IC8150

(mm)

(mm/rev)

SNMM 250924-H5P

25.40 2.40 9.52

• •

3.60-16.00 0.60-1.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PSBNR/L (43) • PSDNN (41) • PSSNR/L (42)

SNMM-H5P

Single-Sided Square Insert

with a Strong Cutting Edge

for Extra Rough Turning

ISCAR

180

ISOTURN INSERTS

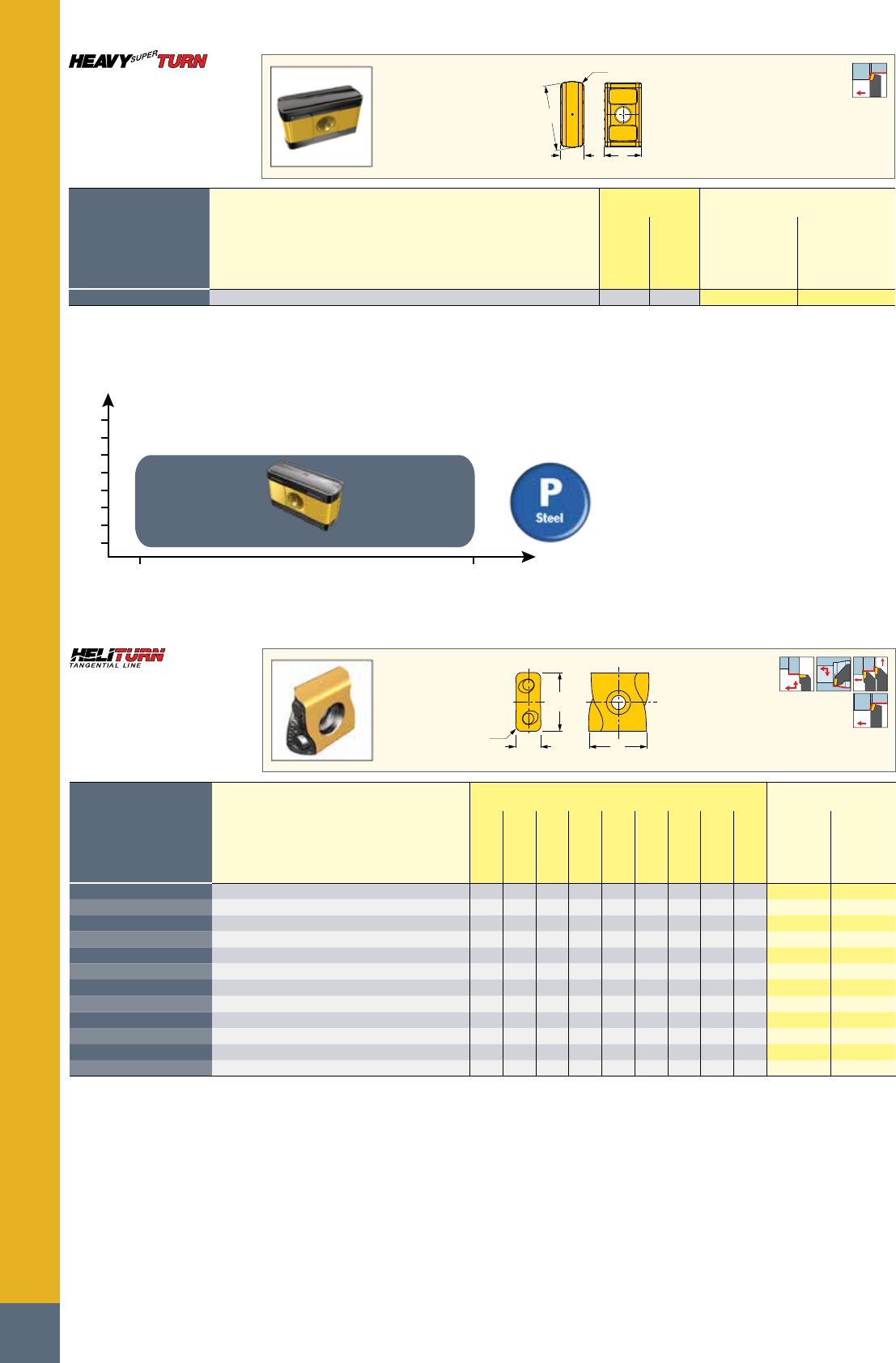

INSL=L

75°

Dimensions Tough

Hard Recommended Machining Data

Designation

W1 INSL S RE

IC8250

IC8150

(mm)

(mm/rev)

LOMX 402224-H6P

14.40 40.30 22.60 2.40

• •

7.00-35.00 1.00-2.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PLBOR/L (45)

1 2

(mm)

F (mm/rev)

Application Range H6P Chipformer

LOMX-H6P

Tangential Inserts with 4 Cutting

Edges for High Metal Removal

of up to 35 mm D.O.C. on Steel

INSL=L

9 1°

93°

93º

75°

Dimensions Tough

Hard Recommended

Machining Data

Designation

W1 INSL S RE

IC830

IC8350

IC8250

IC908

IC8150

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

LNMX 110408L-HT

4.75 11.00 11.40 0.80

•••••• •

0.50-5.00 0.15-0.60

LNMX 110408R-HT

4.75 11.00 11.40 0.80

•••••• ••

0.50-5.00 0.15-0.60

LNMX 110412L-HT

4.75 11.00 11.40 1.20

••••

0.80-5.00 0.20-0.80

LNMX 110412R-HT

4.75 11.00 11.40 1.20

• ••••

0.80-5.00 0.20-0.80

LNMX 150608L-HT

6.40 15.00 13.40 0.80

• ••••• •

1.00-6.00 0.25-0.60

LNMX 150608R-HT

6.40 15.00 13.40 0.80

•••••••••

1.00-6.00 0.25-0.60

LNMX 150612L-HT

6.40 15.00 13.40 1.20

••••• •

1.50-7.00 0.30-0.80

LNMX 150612R-HT

6.40 15.00 13.40 1.20

••••••• •

1.50-7.00 0.30-0.80

LNMX 150616L-HT

6.40 15.00 13.40 1.60

• •••••

2.00-8.00 0.30-1.00

LNMX 150616R-HT

6.40 15.00 13.40 1.60

••••• •

2.00-8.00 0.30-1.00

LNMX 221016R/L-HT

9.40 22.00 20.00 1.60

• • •

4.00-15.00 0.30-1.00

LNMX 221024R/L-HT

9.40 22.00 20.00 2.40

• • •

5.00-15.00 0.30-1.10

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-SLANR/L-TANG (48) • PLANR/L-TANG (46) • S-PLANR-TANG (100) • S-SLANR/L-TANG (100) • SLANR/L-15-TANG-JHP (48)

• SLANR/L-TANG (47) • SLBNR/L-TANG (49) • SLFNR/L-TANG (49)

LNMX-HT

Tangential Inserts with 4 Cutting

Edges and a Positive Rake Angle

for High Metal Removal Rates

181

ISOTURN INSERTS

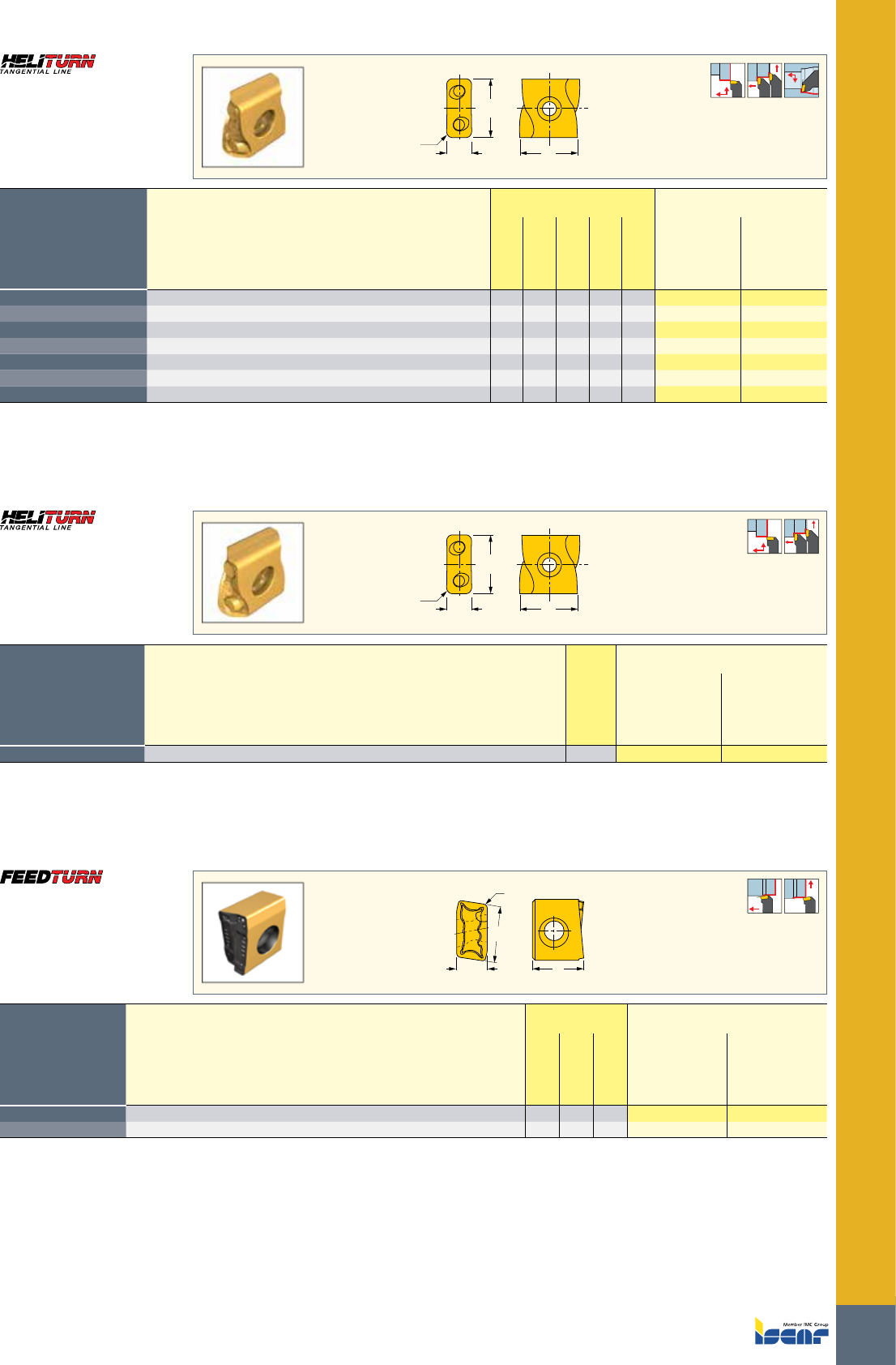

INSL=L

9 1°

93°

93º93º

Dimensions Tough

Hard Recommended Machining Data

Designation

INSL W1 S RE

IC8250

IC6015

IC806

IC807

IC907

(mm)

(mm/rev)

LNMX 110408L-HM

11.00 4.75 11.40 0.80

• •

1.00-5.00 0.10-0.40

LNMX 110408R-HM

11.00 4.75 11.40 0.80

• • •

1.00-5.00 0.10-0.40

LNMX 110412L-HM

11.00 4.75 11.40 1.20

•

1.00-5.00 0.10-0.40

LNMX 110412R-HM

11.00 4.75 11.40 1.20

•

1.00-5.00 0.10-0.40

LNMX 150608L-HM

15.00 6.40 13.40 0.80

•••

1.00-6.00 0.10-0.50

LNMX 150608R-HM

15.00 6.40 13.40 0.80

• • • •

1.00-6.00 0.10-0.50

LNMX 150612R/L-HM

15.00 6.40 13.40 1.20

•••

1.50-7.00 0.15-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-SLANR/L-TANG (48) • PLANR/L-TANG (46) • S-PLANR-TANG (100) • S-SLANR/L-TANG (100) • SLANR/L-15-TANG-JHP (48)

• SLANR/L-TANG (47) • SLFNR/L-TANG (49)

LNMX-HM

Tangential Inserts with a

Positive Rake Angle for

High Metal Removal on Soft

and Ductile Materials

INSL=L

9 1°

93°

93º

Dimensions Recommended Machining Data

Designation

INSL W1 S RE

IC8250

(mm)

(mm/rev)

LNMX 150612R/L-WG

15.00 6.40 13.40 1.20

•

1.50-7.00 0.30-0.80

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-SLANR/L-TANG (48) • PLANR/L-TANG (46) • S-PLANR-TANG (100) • S-SLANR/L-TANG (100) • SLANR/L-15-TANG-JHP (48)

• SLANR/L-TANG (47) • SLFNR/L-TANG (49)

LNMX-WG

Tangentially Clamped Inserts

with a Wiper Corner Design

for High Production Cutting

and Excellent Surface Finish

INSL=L

12°

78°

Dimensions Tough

Hard Recommended Machining Data

Designation

W1 INSL S RE

IC830

IC8250

IC8150

(mm)

(mm/rev)

LNMX 1608L-HF

8.50 16.00 14.00 1.20

• •

0.50-2.40 1.50-2.40

LNMX 1608R-HF

8.50 16.00 14.00 1.20

•••

0.50-2.40 1.50-2.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

LNMX-HF

Tangentially Clamped Rough

Turning Inserts for High Feed

(up to 2.4 mm/Rev)

ISCAR

182

ISOTURN INSERTS

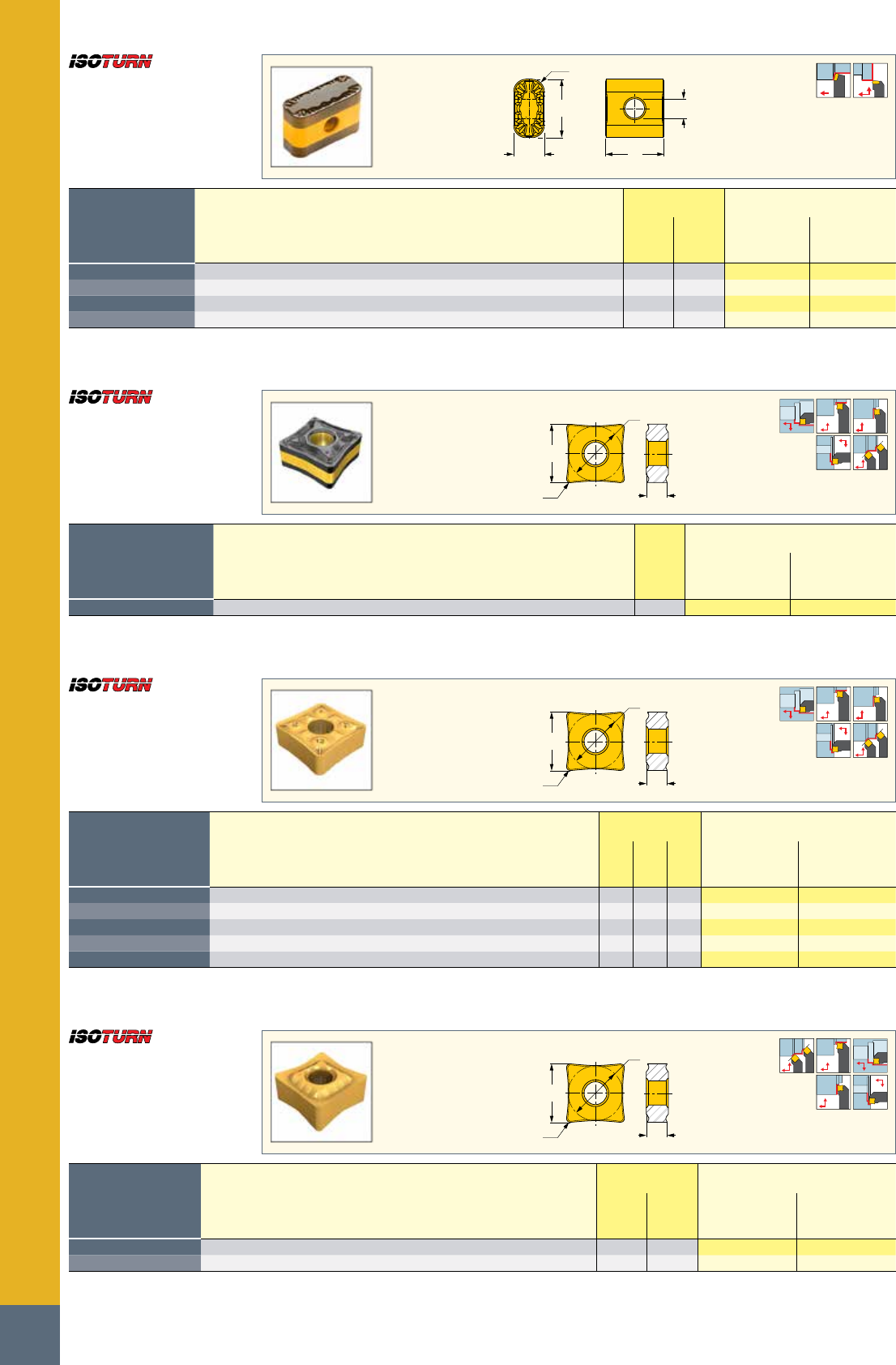

L=INSL

75°

9 1°

93°

Dimensions Tough

Hard Recommended Machining Data

Designation

W1 INSL S RE D1

IC8250

IC8150

(mm)

(mm/rev)

LNMX 191940-WF

10.00 19.05 19.05 4.00 6.35

• •

0.30-5.00 0.25-1.30

LNMX 191940-WM

10.00 19.05 19.05 4.00 6.35

• •

0.30-5.00 0.40-1.50

LNMX 301940-WM

12.00 30.00 19.05 4.00 6.35

• •

0.50-12.00 0.70-1.90

LNMX 301940-WR

12.00 30.00 19.05 4.00 6.35

• •

0.50-12.00 0.80-1.90

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PRWR/L 175-CA (50) • PRWR/L 177-CA (50)

LNMX 19/30

Tangentially Clamped Inserts

for Railroad Wheel Re-Turning

RE S

95º

95°

95º

45º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC8150

(mm)

(mm/rev)

QNMG 120408-NF

13.33 12.70 4.76 0.80

•

0.80-3.00 0.08-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

QNMG-NF

Double-Sided Inserts

with Four 80° Corners for

Finishing Applications

RE S

95º

95°

95º

45º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

(mm)

(mm/rev)

QNMG 090404-TF

10.32 9.52 4.76 0.40

•••

1.00-4.00 0.12-0.35

QNMG 090408-TF

10.32 9.52 4.76 0.80

•••

1.00-4.00 0.12-0.35

QNMG 120404-TF

13.41 12.70 4.76 0.40

• •

1.00-4.00 0.12-0.35

QNMG 120408-TF

13.33 12.70 4.76 0.80

•••

1.00-4.00 0.12-0.35

QNMG 120412-TF

13.25 12.70 4.76 1.20

•

1.50-4.50 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

QNMG-TF

Double-Sided Inserts

with Four 80° Corners for

General Applications

RE S

45º

95°

95º

95°

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

(mm)

(mm/rev)

QNMG 090408-PP

10.32 9.52 4.76 0.80

•

1.00-4.00 0.14-0.30

QNMG 120408-PP

13.33 12.70 4.76 0.80

• •

1.00-4.00 0.14-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

QNMG-PP

Double-Sided Inserts

with Four 80° Corners for

General Applications

183

ISOTURN INSERTS

RE S

95º

95°

95º

45º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8250

IC8150

IC428

(mm)

(mm/rev)

QNMG 090408-GN

10.32 9.52 4.76 0.80

• •

1.00-4.50 0.16-0.45

QNMG 120408-GN

13.33 12.70 4.76 0.80

••••

1.00-4.50 0.16-0.45

QNMG 120412-GN

13.25 12.70 4.76 1.20

••••

1.50-5.00 0.22-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQFNR/L (51) • PQLNR/L (50) • PQSNR/L (51) • S-PQFNR/L (100) • S-PQLNR/L (101)

QNMG-GN

Double-Sided Inserts

with Four 80° Corners for

General Applications

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8150

IC807

(mm)

(mm/rev)

CXMG 090402-F3P

10.40 9.35 4.66 0.20

• •

0.30-2.00 0.03-0.15

CXMG 090404-F3P

10.40 9.35 4.65 0.40

•

0.40-2.00 0.05-0.25

CXMG 12T504-F3P

13.83 12.50 5.80 0.40

• •

0.40-2.00 0.05-0.25

CXMG 12T508-F3P

13.75 12.50 5.80 0.80

• •

0.80-2.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PCLXR/L (99) • AVC-PCLXR/L (96) • PCLXR/L (52) • PCLXR/L-JHP (52) • PCLXR/L-JHP-MC (53) • PCLXR/L-S (52) • PCLXR/L-S-JHP (53)

CXMG-F3P

80° Double-Sided and

Double-Positive Inserts

with a Positive Rake for

Finishing on Alloyed Steel

Positive Inserts

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

IC807

(mm)

(mm/rev)

CXMG 090408-M3P

10.32 9.35 4.65 0.80

•••

0.80-3.00 0.10-0.50

CXMG 12T508-M3P

13.75 12.50 5.80 0.80

•••

0.80-5.00 0.10-0.50

CXMG 12T512-M3P

13.68 12.50 5.80 1.20

•••

1.20-5.00 0.10-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PCLXR/L (99) • AVC-PCLXR/L (96) • PCLXR/L (52) • PCLXR/L-JHP (52) • PCLXR/L-JHP-MC (53) • PCLXR/L-S (52) • PCLXR/L-S-JHP (53)

CXMG-M3P

80° Double-Sided and

Double-Positive Inserts with

a Positive Rake for Medium

Machining on Alloyed Steel

ISCAR

184

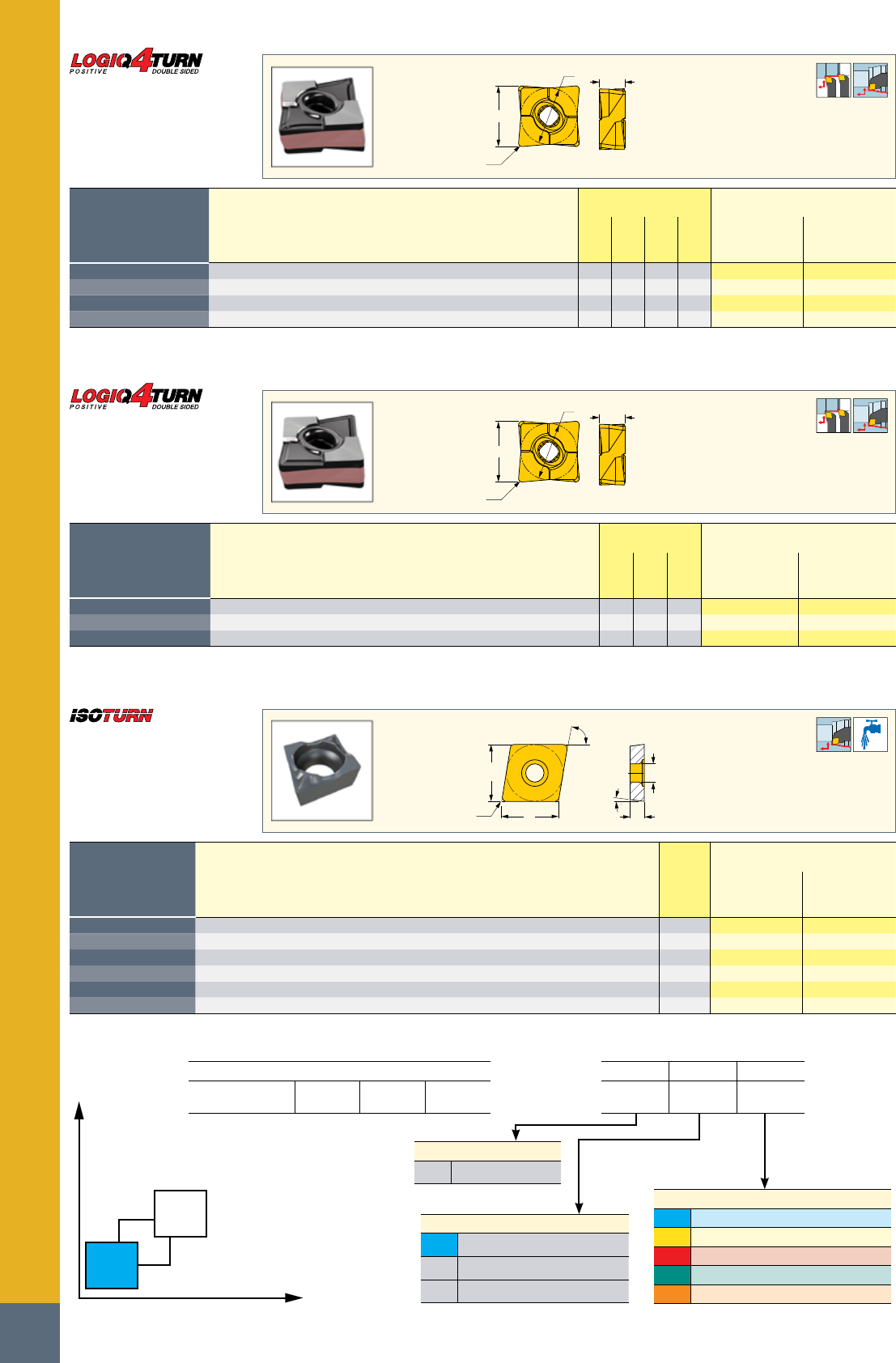

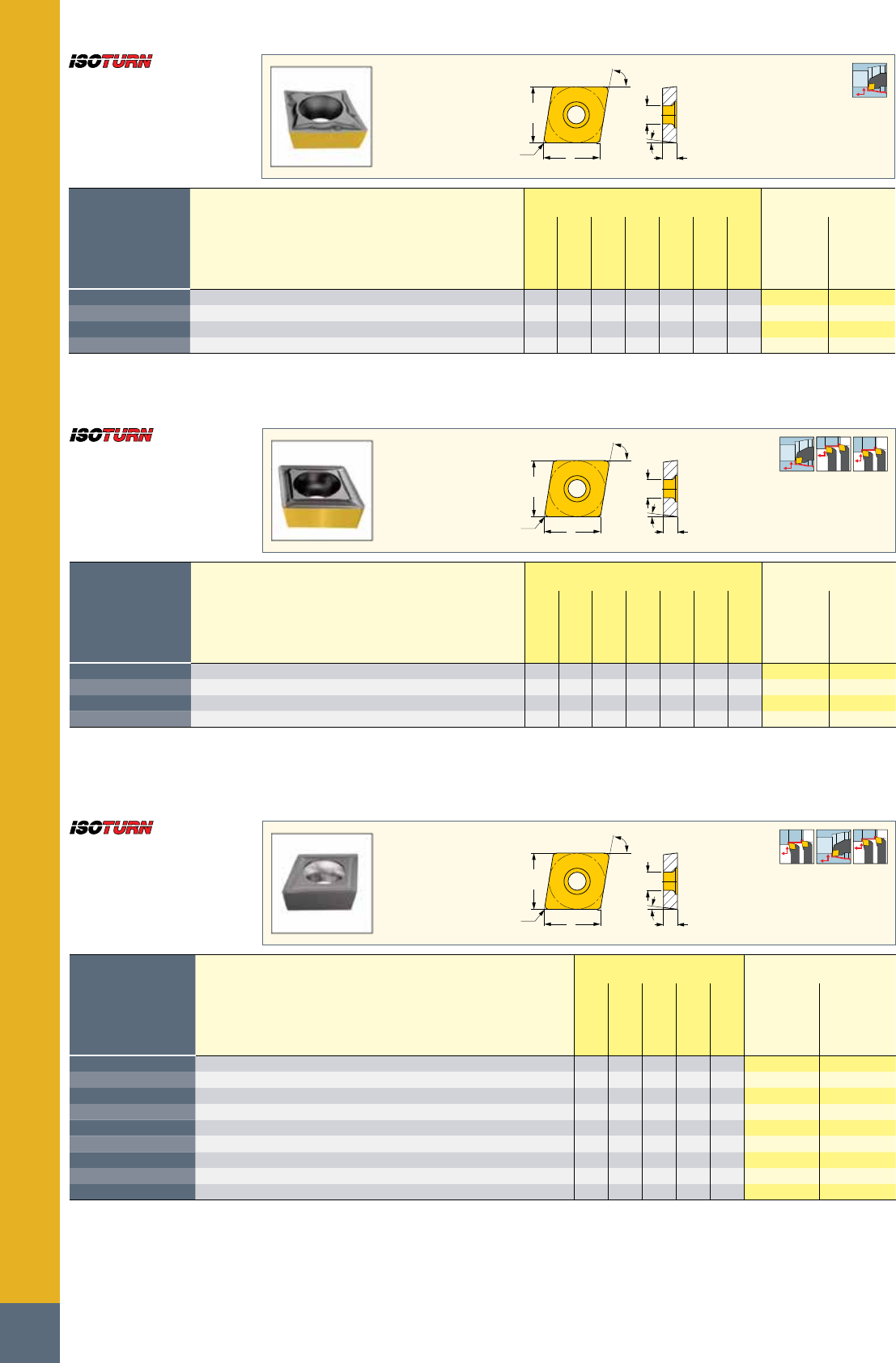

ISOTURN INSERTS

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

CXMG 090402-F3M

10.40 9.35 4.66 0.20

•••

0.30-2.00 0.03-0.15

CXMG 090404-F3M

10.40 9.35 4.65 0.40

••••

0.40-2.00 0.05-0.25

CXMG 12T504-F3M

13.83 12.50 5.80 0.40

• • •

0.40-2.00 0.05-0.25

CXMG 12T508-F3M

13.75 12.50 5.80 0.80

• • •

0.80-2.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PCLXR/L (99) • AVC-PCLXR/L (96) • PCLXR/L (52) • PCLXR/L-JHP (52) • PCLXR/L-JHP-MC (53) • PCLXR/L-S (52)

• PCLXR/L-S-JHP (53)

CXMG-F3M

80° Double-Sided and

Double-Positive Inserts with a

Positive Rake for Finishing on

Stainless Steel and H.T.A.

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC6025

IC806

IC807

(mm)

(mm/rev)

CXMG 090408-M3M

10.32 9.35 4.65 0.80

•••

0.80-3.00 0.15-0.50

CXMG 12T508-M3M

13.75 12.50 5.80 0.80

•••

0.80-5.00 0.15-0.50

CXMG 12T512-M3M

13.68 12.50 5.80 1.20

•••

1.20-5.00 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PCLXR/L (99) • AVC-PCLXR/L (96) • PCLXR/L (52) • PCLXR/L-JHP (52) • PCLXR/L-JHP-MC (53) • PCLXR/L-S (52) • PCLXR/L-S-JHP (53)

CXMG-M3M

80° Double-Sided and Double-

Positive Inserts with a Positive

Rake for Medium Machining

on Stainless Steel and H.T.A.

80°

7°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC908

(mm)

(mm/rev)

CCGT 03X101-F1P

3.60 3.57 1.39 0.10 1.90

•

0.10-0.50 0.01-0.05

CCGT 03X102-F1P

3.60 3.57 1.39 0.20 1.90

•

0.10-0.50 0.02-0.10

CCGT 03X104-F1P

3.60 3.57 1.39 0.40 1.90

•

0.10-0.50 0.05-0.15

CCGT 04T101-F1P

4.40 4.37 1.79 0.10 2.30

•

0.10-0.50 0.01-0.05

CCGT 04T102-F1P

4.40 4.37 1.79 0.20 2.30

•

0.10-0.50 0.02-0.10

CCGT 04T104-F1P

4.40 4.37 1.79 0.40 2.30

•

0.10-0.50 0.05-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • PICIN-SCLCR/L (386)

1. Application

FFinishing

3. Workpiece Material Group

PSteel

MStainless Steel

KCast Iron

NNonferrous & Aluminum

SHigh Temperature Alloys

2. Chip Load

1For super finish

2For low range

3For general range

ISO Standard Designation

CCGT 04 T1 04

123

F 1 P

Finish

CCGT-F1P

80° Rhombic Inserts with a

Positive Flank for Very Low Finish

Turning Conditions on Steel

185

ISOTURN INSERTS

7°

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC8250

IC8150

IC807

(mm)

(mm/rev)

CCMT 060204-M3P

6.30 6.35 2.38 0.40 2.80

•••

0.50-2.00 0.10-0.25

CCMT 060208-M3P

6.30 6.35 2.38 0.80 2.80

•••

1.00-4.00 0.10-0.30

CCMT 09T304-M3P

9.70 9.52 3.97 0.40 4.40

•••

0.50-3.00 0.10-0.20

CCMT 09T308-M3P

9.70 9.52 3.97 0.80 4.40

•••

1.00-4.00 0.10-0.30

CCMT 09T312-M3P

9.70 9.52 3.97 1.20 4.40

•••

1.30-5.00 0.15-0.40

CCMT 120404-M3P

12.90 12.70 4.76 0.40 5.50

•••

0.50-3.00 0.10-0.20

CCMT 120408-M3P

12.90 12.70 4.76 0.80 5.50

•••

1.00-4.00 0.15-0.40

CCMT 120412-M3P

12.90 12.70 4.76 1.20 5.50

•••

1.30-5.00 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT-M3P

80° Rhombic Positive Flank

Inserts for Medium Machining

Conditions on Steel

7°

80°

RE L

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC1008

(mm)

(mm/rev)

CCGT 0602005-F1M-20P

6.45 6.35 2.38 0.05 2.80

•

0.04-4.00 0.03-0.15

CCGT 060201-F1M-20P

6.45 6.35 2.38 0.10 2.80

•

0.07-4.00 0.03-0.15

CCGT 060202-F1M-20P

6.45 6.35 2.38 0.20 2.80

•

0.15-4.00 0.03-0.15

CCGT 060204-F1M-20P

6.45 6.35 2.38 0.40 2.80

•

0.30-4.00 0.03-0.15

CCGT 09T3005-F1M-20P

9.67 9.53 3.97 0.05 4.40

•

0.04-4.00 0.03-0.15

CCGT 09T301-F1M-20P

9.67 9.53 3.97 0.10 4.40

•

0.07-4.00 0.03-0.15

CCGT 09T302-F1M-20P

9.67 9.53 3.97 0.20 4.40

•

0.15-4.00 0.03-0.15

CCGT 09T304-F1M-20P

9.67 9.53 3.97 0.40 4.40

•

0.30-4.00 0.03-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111)

CCGT-F1M-20P

80° Rhombic Inserts with a

Positive Flank for Very Low Finish

Turning Conditions on Steel

7°

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC8250

IC8150

IC807

(mm)

(mm/rev)

CCMT 060202-F3P

6.30 6.35 2.38 0.20 2.80

•••

0.06-1.70 0.03-0.12

CCMT 060204-F3P

6.30 6.35 2.38 0.40 2.80

•••

0.10-1.70 0.05-0.18

CCMT 09T302-F3P

9.70 9.52 3.97 0.20 4.40

•••

0.08-2.00 0.04-0.16

CCMT 09T304-F3P

9.70 9.52 3.97 0.40 4.40

•••

0.11-2.00 0.06-0.25

CCMT 09T308-F3P

9.70 9.52 3.97 0.80 4.40

•••

0.15-2.00 0.08-0.32

CCMT 120404-F3P

12.90 12.70 4.76 0.40 5.50

•••

0.11-2.00 0.06-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-JHP-MC (56) • PCLCR/L-S (55)

• PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54)

CCMT-F3P

80° Rhombic Positive Flank

Inserts for Semi-Finishing and

Finishing Turning of Steel

ISCAR

186

ISOTURN INSERTS

7°

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

CCMT 060202-F3M

6.30 6.35 2.38 0.20 2.80

••••

0.06-1.70 0.03-0.12

CCMT 060204-F3M

6.30 6.35 2.38 0.40 2.80

••••

0.10-1.70 0.05-0.18

CCMT 060208-F3M

6.30 6.35 2.38 0.80 2.80

••••

0.12-1.70 0.08-0.22

CCMT 09T302-F3M

9.70 9.52 3.97 0.20 4.40

••••

0.08-2.00 0.04-0.16

CCMT 09T304-F3M

9.70 9.52 3.97 0.40 4.40

••••

0.11-2.00 0.06-0.25

CCMT 09T308-F3M

9.70 9.52 3.97 0.80 4.40

••••

0.15-2.00 0.08-0.32

CCMT 120402-F3M

12.90 12.70 4.76 0.20 5.50

••••

0.11-2.00 0.06-0.18

CCMT 120404-F3M

12.90 12.70 4.76 0.40 5.50

••••

0.15-2.00 0.08-0.25

CCMT 120408-F3M

12.90 12.70 4.76 0.80 5.50

••••

0.18-2.00 0.10-0.32

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT-F3M

80° Rhombic Positive Flank

Inserts for Stainless Steel

Finishing Applications

7°

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC807

(mm)

(mm/rev)

CCMT 060204-M3M

6.30 6.35 2.38 0.40 2.80

•••

0.40-2.50 0.07-0.23

CCMT 060208-M3M

6.30 6.35 2.38 0.80 2.80

•••

0.80-2.50 0.10-0.25

CCMT 09T304-M3M

9.70 9.52 3.97 0.40 4.40

•••

0.40-3.00 0.07-0.25

CCMT 09T308-M3M

9.70 9.52 3.97 0.80 4.40

•••

0.80-3.00 0.10-0.30

CCMT 120404-M3M

12.90 12.70 4.76 0.40 5.50

•••

0.40-3.50 0.10-0.30

CCMT 120408-M3M

12.90 12.70 4.76 0.80 5.50

•••

0.80-3.50 0.12-0.34

CCMT 120412-M3M

12.90 12.70 4.76 1.20 5.50

•••

1.20-3.50 0.14-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT-M3M

80° Rhombic Positive Flank

Inserts for Machining Stainless

and Low Carbon Steel

187

ISOTURN INSERTS

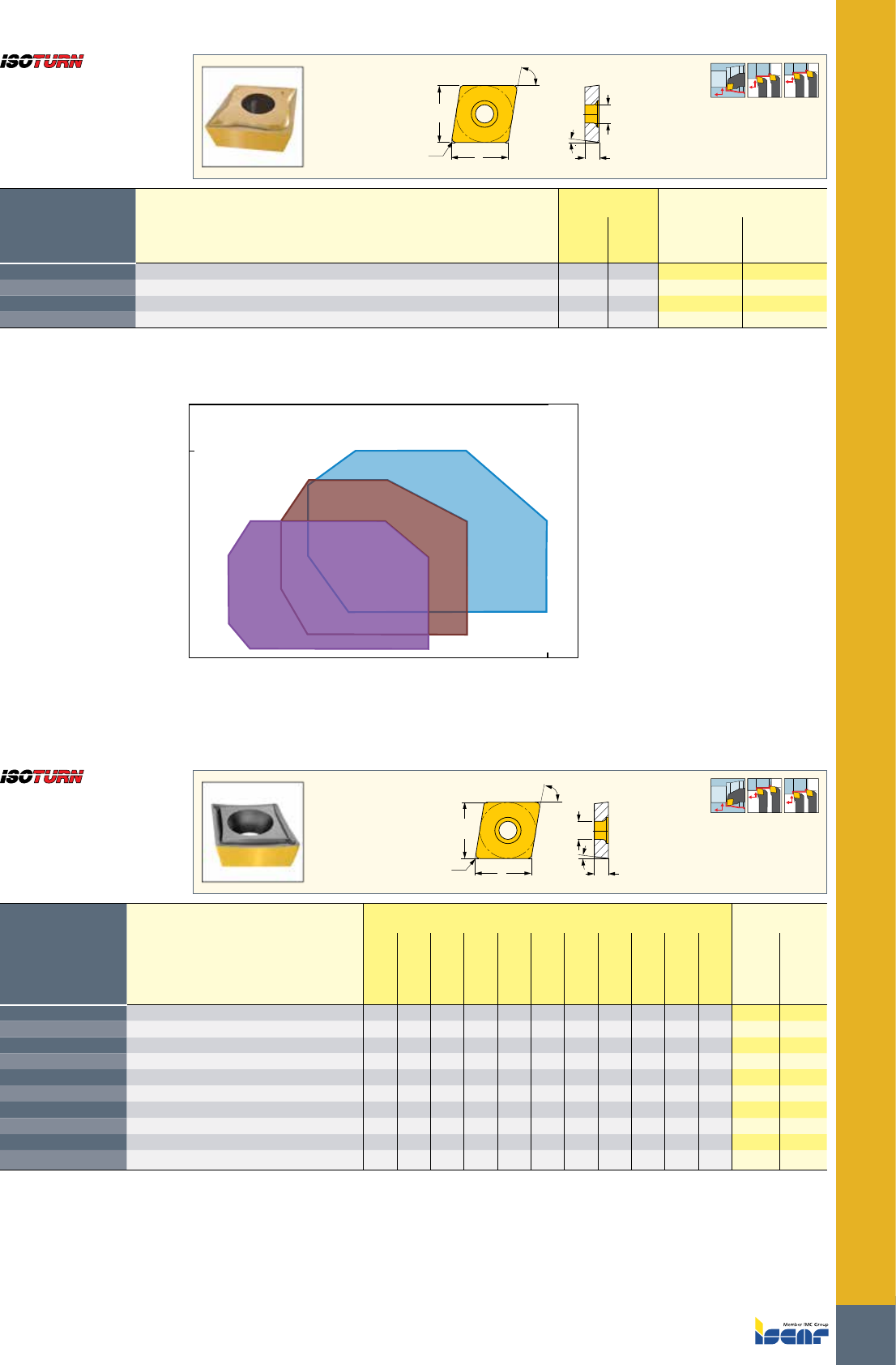

7°

80°

95º

99°

91°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC20N

IC520N

(mm)

(mm/rev)

CCMT 09T302-FFA

9.70 9.52 3.97 0.20 4.40

• •

0.03-2.00 0.04-0.15

CCMT 09T302-FWT

9.70 9.52 3.97 0.20 4.40

•

1.50-3.00 0.00-0.50

CCMT 09T304-FPC

9.70 9.52 3.97 0.40 4.40

• •

0.50-2.50 0.03-0.20

CCMT 09T308-FPC

9.70 9.52 3.97 0.80 4.40

•

0.50-2.80 0.03-0.22

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-JHP-MC (56) • PCLCR/L-S (55)

• PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54)

FWT

FPC

FFA

0.5

Feed (mm/rev)

D.O.C (mm)

CCMT-CERMET

Single-Sided 80° Rhombic

Cermet Grade Inserts

for Semi-Finishing and

Finishing Applications

7°

80°

RE L

95º

99°

91°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC8250

IC6015

IC8150

IC20

IC5010

IC428

IC5005

IC806

IC807

IC907

(mm)

(mm/rev)

CCGT 060201-SM

6.45 6.35 2.38 0.10 2.80

•

0.25-2.00 0.05-0.20

CCGT 060202-SM

6.45 6.35 2.38 0.20 2.80

•

0.25-2.00 0.05-0.25

CCMT 060202-SM

6.45 6.35 2.38 0.20 2.80

• • •

0.25-2.00 0.05-0.25

CCMT 060204-SM

6.45 6.35 2.38 0.40 2.80

•••• •••

0.50-2.50 0.07-0.25

CCMT 060208-SM

6.45 6.35 2.38 0.80 2.80

• • • •

0.50-2.50 0.07-0.25

CCMT 09T302-SM

9.70 9.52 3.97 0.20 4.40

••• •••

0.50-2.50 0.06-0.25

CCMT 09T304-SM

9.70 9.52 3.97 0.40 4.40

•• ••••••••

0.50-2.50 0.06-0.25

CCMT 09T308-SM

9.70 9.52 3.97 0.80 4.40

•••• • ••••

0.50-3.00 0.07-0.25

CCMT 120404-SM

12.90 12.70 4.76 0.40 5.50

• • • • •

0.70-3.50 0.07-0.25

CCMT 120408-SM

12.90 12.70 4.76 0.80 5.50

•••• ••

0.70-3.50 0.07-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT/CCGT-SM

Single-Sided Turning Inserts for

Semi-Finishing and Finishing on

Soft Materials and Exotic Alloys

ISCAR

188

ISOTURN INSERTS

7°

80°

RE L

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC6025

IC6015

IC806

IC807

IC907

IC804

(mm)

(mm/rev)

CCMT 060202-PF

6.30 6.35 2.38 0.20 2.80

••• •••

0.20-2.50 0.04-0.25

CCMT 060204-PF

6.30 6.35 2.38 0.40 2.80

••••••

0.40-2.50 0.04-0.30

CCMT 09T302-PF

9.70 9.52 3.97 0.20 4.40

• ••••

0.50-3.00 0.05-0.30

CCMT 09T304-PF

9.70 9.52 3.97 0.40 4.40

•••••••

0.50-3.50 0.05-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT-PF

80° Rhombic Inserts with a

Positive Flank for

Semi-Finishing and Finishing on

Soft Materials and Exotic Alloys

7°

80°

RE L

95º

99°

91°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8250

IC20

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

CCMT 060204-14

6.30 6.35 2.38 0.40 2.80

• •••••

0.50-2.50 0.14-0.25

CCMT 09T304-14

9.70 9.52 3.97 0.40 4.40

• • •

0.50-3.00 0.14-0.25

CCMT 09T308-14

9.70 9.52 3.97 0.80 4.40

•••••

0.80-3.00 0.14-0.30

CCMT 120408-14

12.90 12.70 4.76 0.80 5.50

• •

0.80-3.00 0.14-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • AVC-SCLCR/L (95) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-JHP-MC (56)

• PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54)

CCMT-14

80° Rhombic Inserts with a 7°

Positive Flank for

Semi-Finishing and Finish Turning

7°

80°

RE L

95º

99°

91°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC8250

IC30N

IC20

IC20N

IC520N

(mm)

(mm/rev)

CCGT 060202

6.45 6.35 2.38 0.20 2.80

•

0.50-2.00 0.10-0.20

CCGT 060202L (1)

6.45 6.35 2.38 0.20 2.80

• •

0.50-2.00 0.10-0.20

CCGT 060204

6.45 6.35 2.38 0.40 2.80

•

0.50-2.00 0.10-0.20

CCGT 060204L (1)

6.45 6.35 2.38 0.40 2.80

•

0.50-2.00 0.10-0.20

CCMT 060202

6.45 6.35 2.38 0.20 2.80

• •

0.50-2.00 0.10-0.20

CCMT 060204

6.45 6.35 2.38 0.40 2.80

• • •

0.50-2.00 0.12-0.22

CCMT 09T302

9.70 9.52 3.97 0.20 4.40

• •

0.50-2.50 0.12-0.25

CCMT 09T304

9.70 9.52 3.97 0.40 4.40

• •

0.50-2.50 0.12-0.25

CCMT 09T308

9.70 9.52 3.97 0.80 4.40

• •

0.80-3.00 0.14-0.25

• Use left-hand inserts for left-hand external tools and for right-hand internal tools • For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Left-hand insert

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT/CCGT

80° Rhombic Inserts with a 7°

Positive Flank for

Semi-Finishing and Finish Turning

189

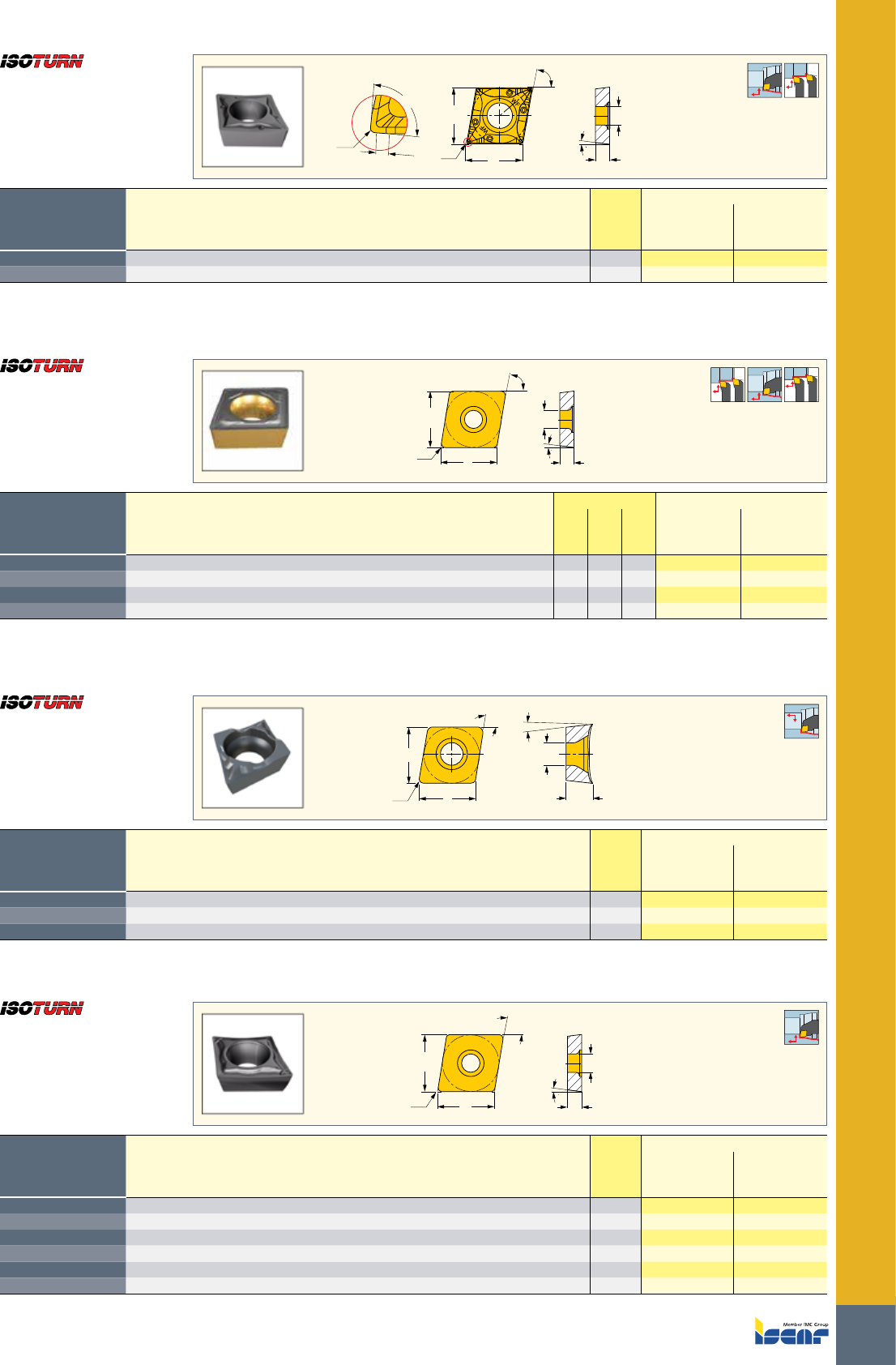

ISOTURN INSERTS

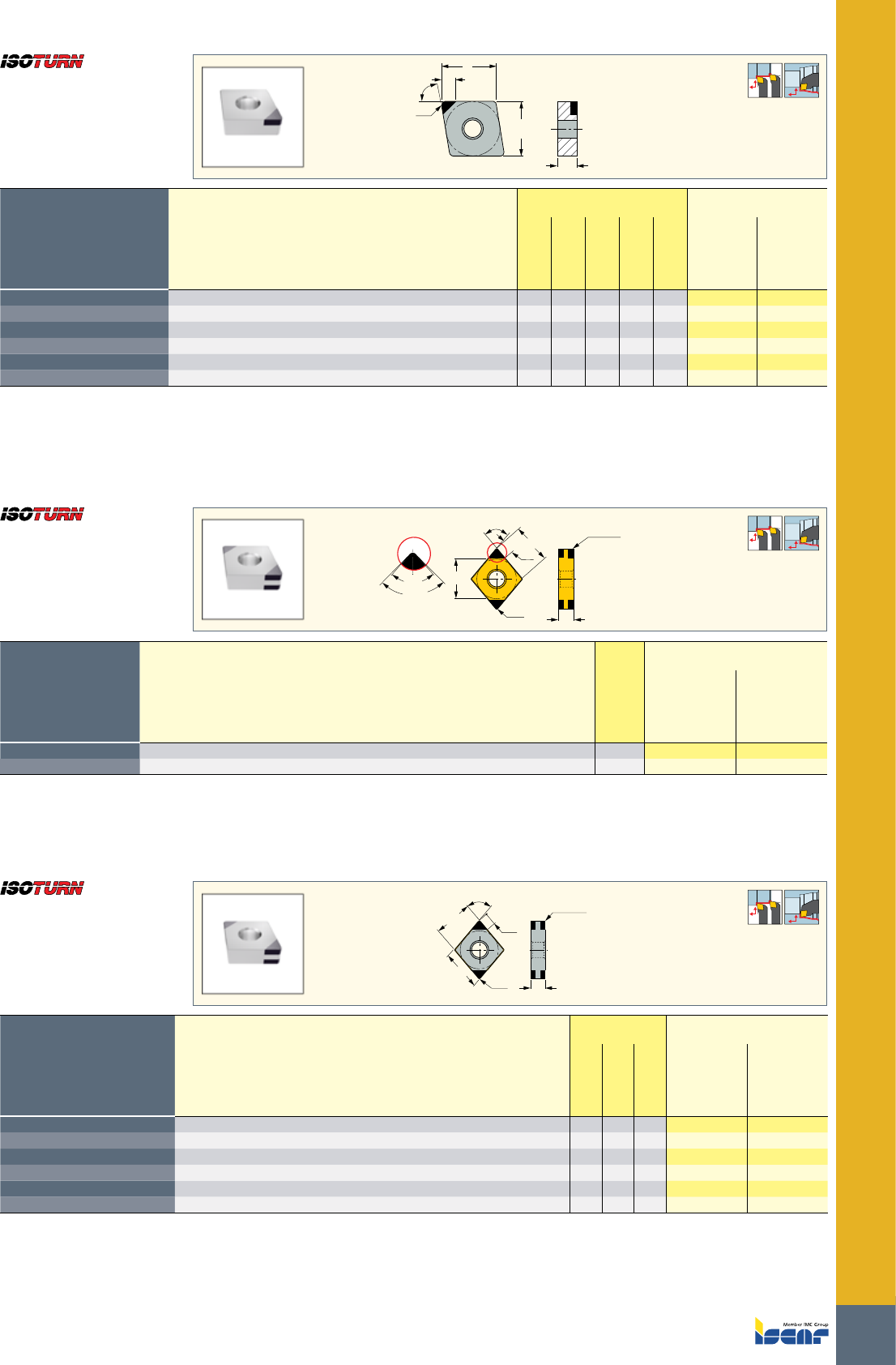

80°

7°

86°

0.3

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC907

(mm)

(mm/rev)

CCET 0602005-WF

6.30 6.35 2.38 0.05 2.80

•

0.05-2.00 0.01-0.20

CCET 09T3005-WF

9.50 9.52 3.97 0.05 4.40

•

0.05-2.00 0.01-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCET-WF

80° Rhombic Inserts with a 7°

Positive Flank and a Wiper Near

the Corner for High Feed Finishing

7°

80°

RE L

95º

99°

91°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC8250

IC807

IC907

(mm)

(mm/rev)

CCMT 060204-WG

6.30 6.35 2.38 0.40 2.80

• •

0.40-2.00 0.10-0.35

CCMT 09T304-WG

9.70 9.52 3.97 0.40 4.40

•

0.40-2.00 0.14-0.30

CCMT 09T308-WG

9.70 9.52 3.97 0.80 4.40

•

0.50-2.50 0.20-0.38

CCMT 120408-WG

12.90 12.70 4.76 0.80 5.50

•

0.50-3.00 0.20-0.36

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT-WG

80° Rhombic Inserts with a 7°

Positive Flank and a Wiper Near

the Corner for High Feed Finishing

11˚

75˚

10 0 º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC908

(mm)

(mm/rev)

EPGT 03X101-F1P

3.70 3.57 1.39 0.10 1.90

•

0.10-0.50 0.01-0.05

EPGT 03X102-F1P

3.70 3.57 1.39 0.20 1.90

•

0.10-0.50 0.02-0.10

EPGT 03X104-F1P

3.70 3.57 1.39 0.40 1.90

•

0.10-0.50 0.05-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SEXPR/L-03 (112)

EPGT-F1P

75° Rhombic Inserts with a

Positive Flank for Very Low Finish

Turning Conditions on Steel

80°

11°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC907

(mm)

(mm/rev)

CPGT 060201-SM

6.45 6.35 2.38 0.10 2.80

•

0.25-2.00 0.05-0.20

CPGT 060202-SM

6.45 6.35 2.38 0.20 2.80

•

0.25-2.00 0.05-0.30

CPGT 060204-SM

6.45 6.35 2.38 0.40 2.80

•

0.50-3.00 0.10-0.35

CPGT 09T301-SM

9.67 9.52 3.97 0.10 4.40

•

0.25-2.00 0.05-0.25

CPGT 09T302-SM

9.67 9.52 3.97 0.20 4.40

•

0.50-2.50 0.10-0.30

CPGT 09T304-SM

9.67 9.52 3.97 0.40 4.40

•

0.60-3.50 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

CPGT-SM

80° Rhombic Inserts with an

11° Positive Flank for

Semi-Finishing and Finish

Turning on Soft Materials

and Exotic Alloys

ISCAR

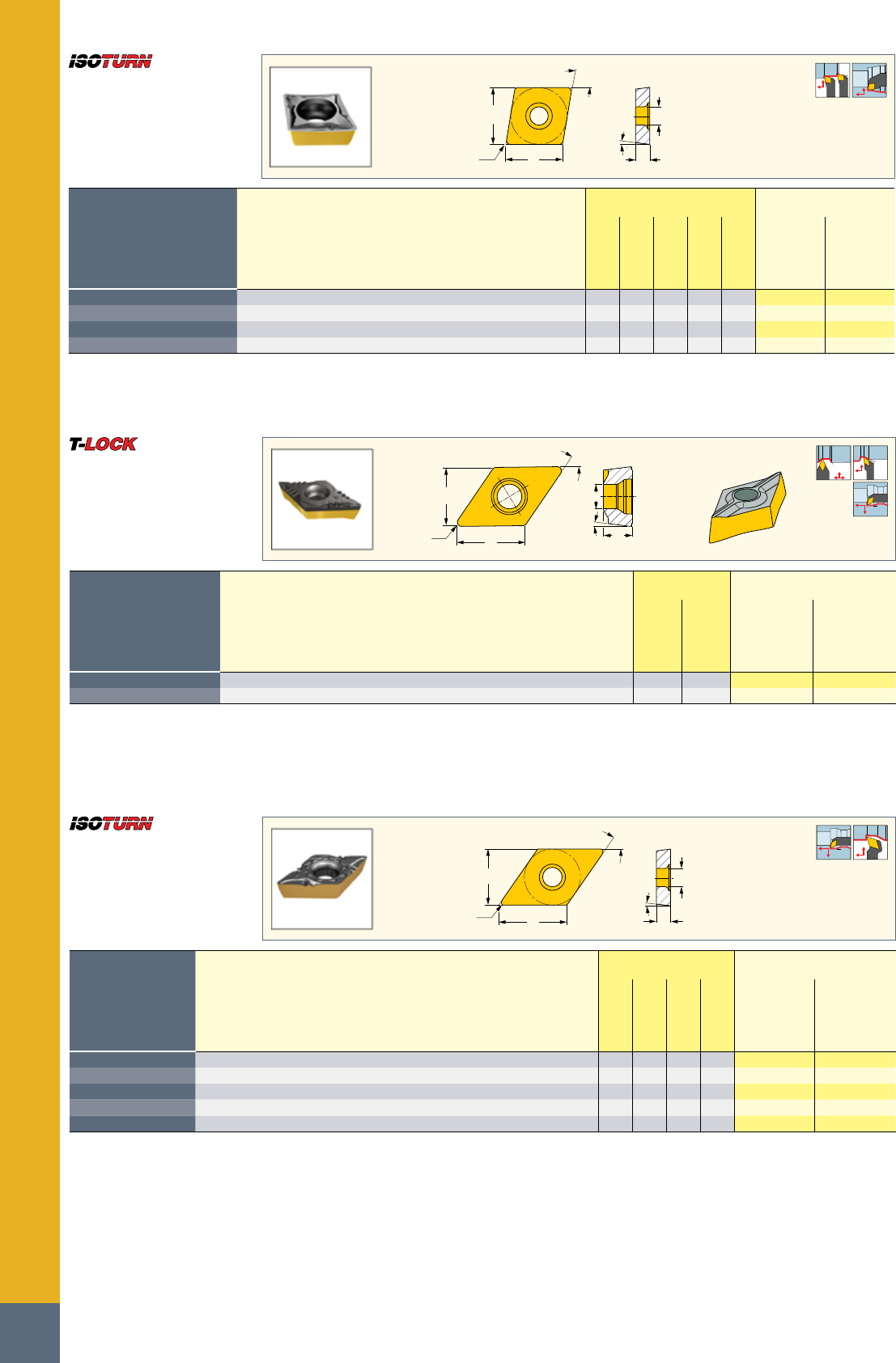

190

ISOTURN INSERTS

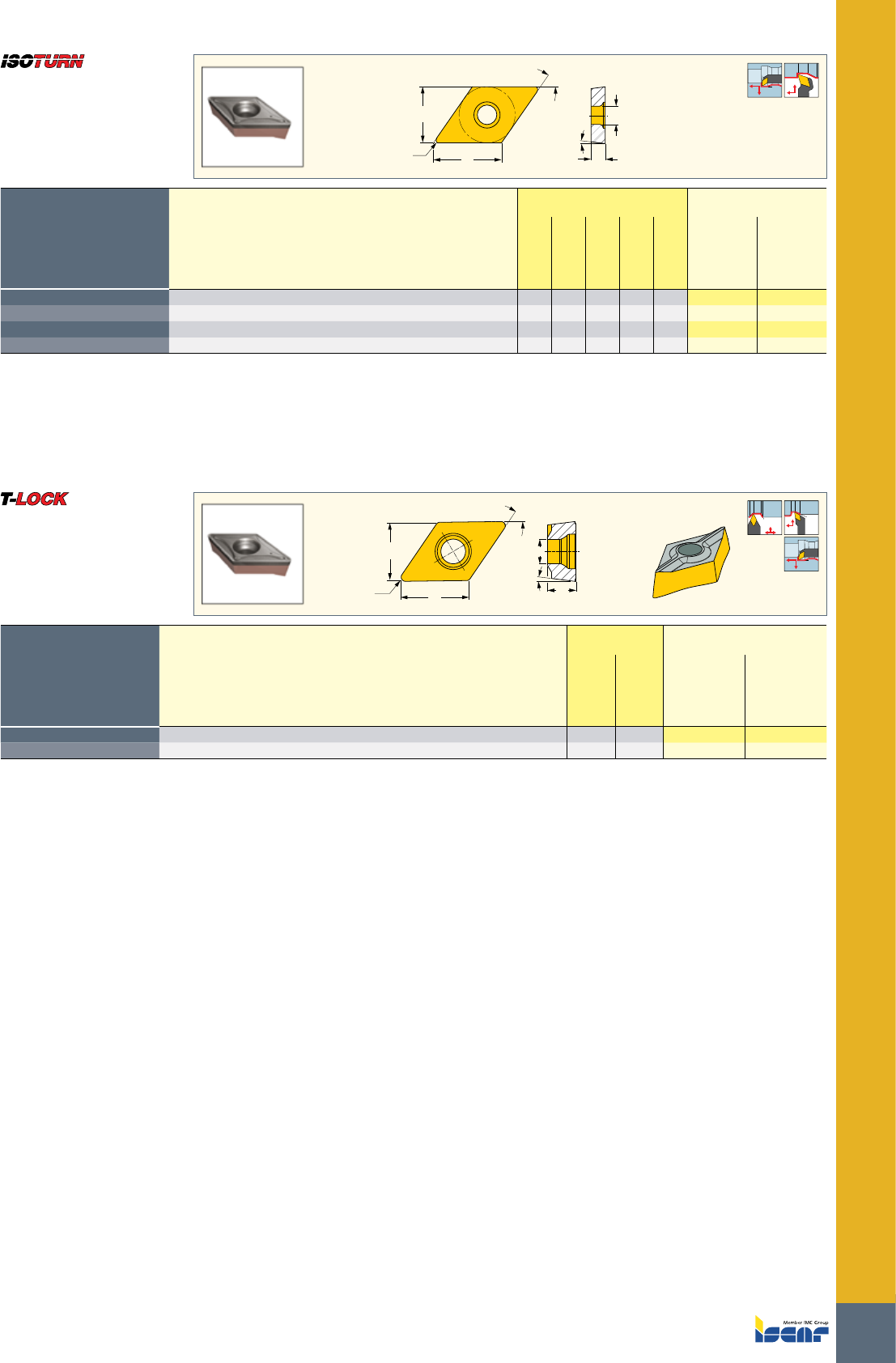

80°

11°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC6025

IC6015

IC807

IC907

(mm)

(mm/rev)

CPMT 060204-PF

6.30 6.35 2.38 0.40 2.80

•••••

0.50-2.50 0.04-0.30

CPMT 060208-PF

6.30 6.35 2.38 0.80 2.80

• • •

0.50-2.50 0.08-0.30

CPMT 09T304-PF

9.50 9.52 3.97 0.40 4.40

• • •

0.50-3.00 0.05-0.35

CPMT 09T308-PF

9.50 9.52 3.97 0.80 4.40

•••••

0.50-3.50 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

CPMT-PF

80° Rhombic Inserts with a

Positive Flank for Semi-Finishing

and Finishing on Soft

Materials and Exotic Alloys

55°

7°

IC D1

RE L

Bottom view

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC8250

IC8150

(mm)

(mm/rev)

DCMT 13T504-F3P-SL

13.40 11.00 5.11 0.40 4.50

• •

0.50-3.00 0.05-0.25

DCMT 13T508-F3P-SL

13.40 11.00 5.11 0.80 4.50

• •

0.90-3.50 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SDUCR/L-13-SL (112) • AVC-SDJCN-Y (76) • C#-SDJCN-13-Y (76) • C#-SDJCR/L-13-SL-JHP (57) • C#-SDNCN-13-SL-JHP (63)

• HSK A63WH-SDJCN-13-Y (75) • SDACR/L-13S-SL-JHP (61) • SDJCR/L-13-SL (57) • SDNCN-13-SL (63)

DCMT-F3P-SL

55° Rhombic Inserts with a

Positive Flank with a Locating

Bottom Ridge for Semi-Finishing

and Finishing on Steel

7°

55°

93º-95º

50º

MAX

10 7. 5 °

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

DCMT 070202-F3P

7.70 6.35 2.38 0.20 2.80

••••

0.06-1.50 0.03-0.12

DCMT 070204-F3P

7.70 6.35 2.38 0.40 2.80

••••

0.08-1.50 0.05-0.18

DCMT 11T302-F3P

11.60 9.52 3.97 0.20 4.40

••••

0.08-2.00 0.04-0.16

DCMT 11T304-F3P

11.60 9.52 3.97 0.40 4.40

••••

0.11-2.00 0.06-0.25

DCMT 11T308-F3P

11.60 9.52 3.97 0.80 4.40

••••

0.15-2.00 0.08-0.32

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-JHP-MC (62)

• PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58)

DCMT-F3P

55° Rhombic Inserts with a

Positive Flank for Semi-Finishing

and Finish Turning on Steel

191

ISOTURN INSERTS

7°

55°

93º-95º

50º

MAX

10 7. 5 °

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC806

IC807

IC907

(mm)

(mm/rev)

DCMT 070204-M3M

7.70 6.35 2.38 0.40 2.80

• • •

0.40-2.50 0.07-0.23

DCMT 070208-M3M

7.70 6.35 2.38 0.80 2.80

• • •

0.80-2.50 0.10-0.25

DCMT 11T304-M3M

11.60 9.52 3.97 0.40 4.40

• • •

0.40-3.00 0.07-0.25

DCMT 11T308-M3M

11.60 9.52 3.97 0.40 4.40

•••••

0.80-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT-M3M

55° Rhombic Positive Flank

Inserts for Machining Stainless

and Low Carbon Steel

55°

7°

IC D1

RE L

Bottom view

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

(mm)

(mm/rev)

DCMT 13T508-M3M-SL

13.40 11.00 5.11 0.80 4.50

• •

0.90-3.50 0.10-0.25

DCMT 13T512-M3M-SL

13.40 11.00 5.11 1.20 4.50

• •

0.90-3.50 0.15-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SDUCR/L-13-SL (112) • AVC-SDJCN-Y (76) • C#-SDJCN-13-Y (76) • C#-SDJCR/L-13-SL-JHP (57) • C#-SDNCN-13-SL-JHP (63)

• HSK A63WH-SDJCN-13-Y (75) • SDACR/L-13S-SL-JHP (61) • SDJCR/L-13-SL (57) • SDNCN-13-SL (63)

DCMT-M3M-SL

55° Rhombic Inserts with a

Positive Flank and Locating

Bottom Ridge for Machining

Stainless and Low Carbon Steel

ISCAR

192

ISOTURN INSERTS

7°

55°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC1008

(mm)

(mm/rev)

DCGT 0702005-F1M-20P

7.75 6.35 2.38 0.05 2.80

•

0.03-0.15 0.04-4.00

DCGT 070201-F1M-20P

7.75 6.35 2.38 0.10 2.80

•

0.03-0.15 0.07-4.00

DCGT 070202-F1M-20P

7.75 6.35 2.38 0.20 2.80

•

0.03-0.15 0.15-4.00

DCGT 070204-F1M-20P

7.75 6.35 2.38 0.40 2.80

•

0.03-0.15 0.30-4.00

DCGT 11T3005-F1M-20P

11.63 9.53 3.97 0.05 4.40

•

0.03-0.15 0.04-4.00

DCGT 11T301-F1M-20P

11.63 9.53 3.97 0.10 4.40

•

0.03-0.15 0.07-4.00

DCGT 11T302-F1M-20P

11.63 9.53 3.97 0.20 4.40

•

0.03-0.15 0.15-4.00

DCGT 11T304-F1M-20P

11.63 9.53 3.97 0.40 4.40

•

0.03-0.15 0.30-4.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • E-SDUCR/L-HEAD (113) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60)

• SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64)

DCGT-F1M-20P

55° Rhombic Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

7°

55°

93º-95º

50º

MAX

10 7. 5 °

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC20N

IC520N

(mm)

(mm/rev)

DCGT 11T302-FSA

11.60 9.52 3.97 0.20 4.40

•

0.30-2.00 0.02-0.15

DCGT 11T304-FSA

11.60 9.52 3.97 0.40 4.40

•

0.40-2.00 0.03-0.15

DCMT 11T302-FCF

11.60 9.52 3.97 0.20 4.40

• •

0.50-2.50 0.07-0.22

DCMT 11T302-FSM

11.60 9.52 3.97 0.20 4.40

•

0.50-3.00 0.05-0.22

DCMT 11T304-FPC

11.60 9.52 3.97 0.40 4.40

• •

0.50-2.70 0.04-0.25

DCMT 11T304-FSM

11.60 9.52 3.97 0.40 4.40

•

0.50-3.00 0.07-0.25

DCMT 11T308-FPC

11.60 9.52 3.97 0.80 4.40

• •

0.50-2.70 0.04-0.25

DCMT 11T312-FMT

11.60 9.52 3.97 1.20 4.40

•

1.50-5.00 0.15-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-JHP-MC (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58)

FMT

FSA

FPC

FSM

FCF

0.6

D.O.C (mm)

Feed (mm/rev)

DCMT-CERMET

Single-Sided 55° Rhombic

Cermet Grade Inserts

for Semi-Finishing and

Finishing Applications

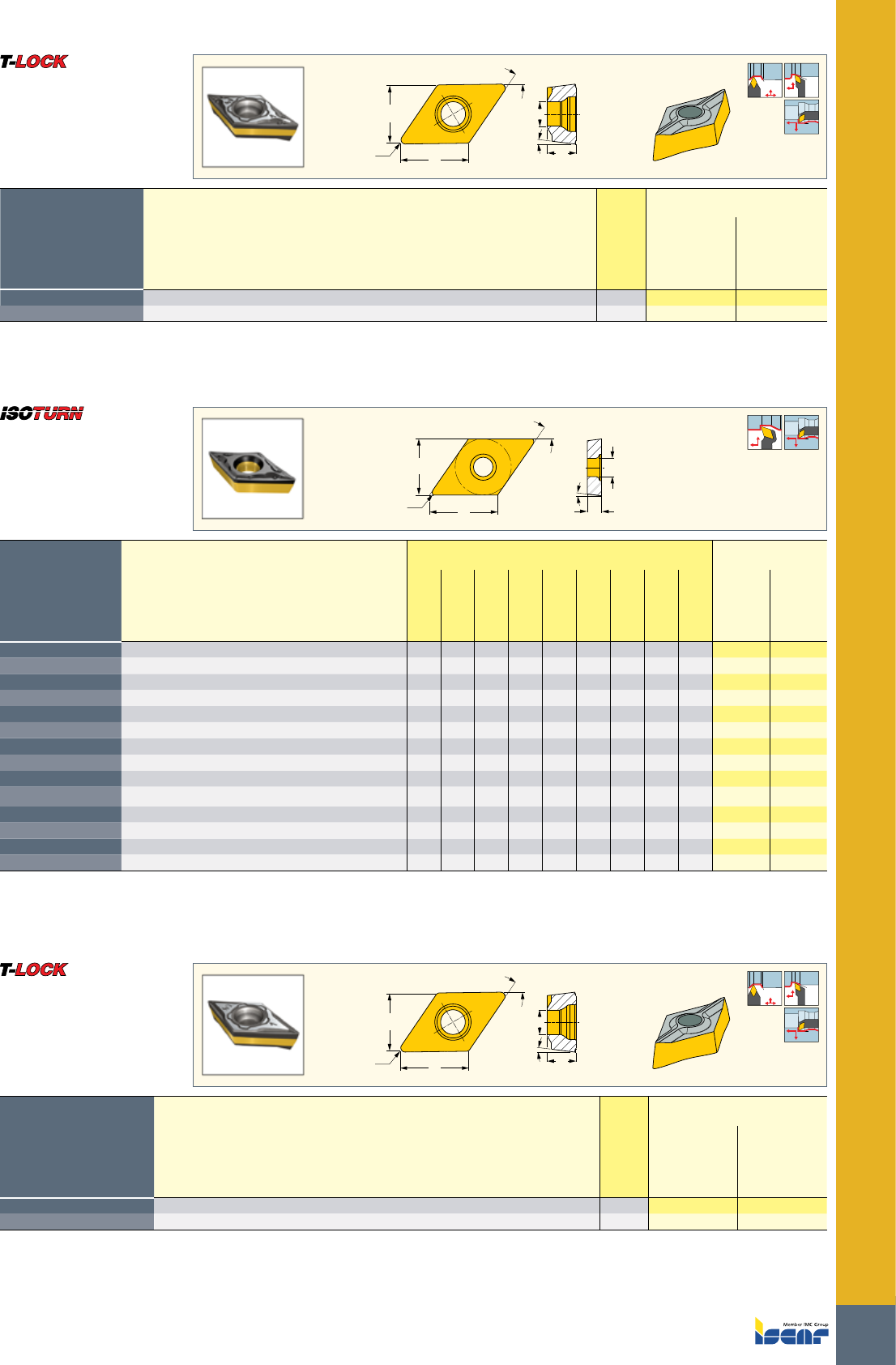

193

ISOTURN INSERTS

7°

55°

10 7. 5 °

93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC6025

IC8250

IC908

IC6015

IC806

IC807

IC907

IC804

(mm)

(mm/rev)

DCGT 070201-PF

7.70 6.35 2.38 0.10 2.80

•

0.30-3.00 0.02-0.25

DCGT 070202-PF

7.70 6.35 2.38 0.20 2.80

•

0.40-3.00 0.03-0.25

DCGT 070204-PF

7.70 6.35 2.38 0.40 2.80

•

0.50-3.00 0.05-0.25

DCMT 070201-PF

7.70 6.35 2.38 0.10 2.80

• •

0.30-3.00 0.02-0.25

DCMT 070202-PF

7.70 6.35 2.38 0.20 2.80

•

0.40-3.00 0.03-0.25

DCMT 070204-PF

7.70 6.35 2.38 0.40 2.80

•

0.50-3.00 0.05-0.25

DCMT 070208-PF

7.70 6.35 2.38 0.80 2.80

• •

0.70-3.00 0.08-0.25

DCGT 11T301-PF

11.60 9.52 3.97 0.10 4.40

•

0.30-3.00 0.03-0.25

DCGT 11T302-PF

11.60 9.52 3.97 0.20 4.40

•

0.40-3.00 0.04-0.25

DCGT 11T304-PF

11.60 9.52 3.97 0.40 4.40

•

0.50-3.00 0.05-0.25

DCGT 11T308-PF

11.60 9.52 3.97 0.80 4.40

•

0.70-3.00 0.10-0.25

DCMT 11T302-PF

11.60 9.52 3.97 0.20 4.40

• ••••

0.30-3.00 0.04-0.25

DCMT 11T304-PF

11.60 9.52 3.97 0.40 4.40

••• •••••

0.50-3.00 0.05-0.25

DCMT 11T308-PF

11.60 9.52 3.97 0.80 4.40

••• •••••

0.70-3.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT/DCGT-PF

55° Rhombic Inserts with a

Positive Flank for

Semi-Finishing and Finishing on

Soft Materials and Exotic Alloys

55°

7°

IC D1

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC8150

(mm)

(mm/rev)

DCMT 13T504-SM-SL

13.40 11.00 5.11 0.40 4.50

•

0.50-2.50 0.07-0.27

DCMT 13T508-SM-SL

13.40 11.00 5.11 0.80 4.50

•

1.00-3.00 0.07-0.27

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SDUCR/L-13-SL (112) • AVC-SDJCN-Y (76) • C#-SDJCN-13-Y (76) • C#-SDJCR/L-13-SL-JHP (57) • C#-SDNCN-13-SL-JHP (63)

• HSK A63WH-SDJCN-13-Y (75) • SDACR/L-13S-SL-JHP (61) • SDJCR/L-13-SL (57) • SDNCN-13-SL (63)

DCMT-SM-SL

55° Rhombic Inserts with a

Positive Flank and Locating

Bottom Ridge for Finish Turning

on Soft Materials & Exotic Alloys

55°

7°

IC D1

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC8150

(mm)

(mm/rev)

DCMT 13T504-PF-SL

13.40 11.00 5.11 0.40 4.50

•

0.50-3.00 0.05-0.25

DCMT 13T508-PF-SL

13.40 11.00 5.11 0.80 4.50

•

0.70-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SDUCR/L-13-SL (112) • AVC-SDJCN-Y (76) • C#-SDJCN-13-Y (76) • C#-SDJCR/L-13-SL-JHP (57) • C#-SDNCN-13-SL-JHP (63)

• HSK A63WH-SDJCN-13-Y (75) • SDACR/L-13S-SL-JHP (61) • SDJCR/L-13-SL (57) • SDNCN-13-SL (63)

DCMT-PF-SL

55° Rhombic Inserts with a

Positive Flank and Locating

Bottom Ridge for Finish Turning

on Soft Materials & Exotic Alloys

ISCAR

194

ISOTURN INSERTS

7°

55°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8250

IC908

IC30N

IC530N

IC8150

IC20N

IC520N

(mm)

(mm/rev)

DCGT 070201R (1)

7.70 6.35 2.38 0.10 2.80

•

0.25-1.50 0.05-0.15

DCGT 070202

7.70 6.35 2.38 0.20 2.80

•

0.50-2.00 0.08-0.20

DCGT 070204

7.70 6.35 2.38 0.40 2.80

•

0.80-2.50 0.10-0.25

DCMT 070202

7.70 6.35 2.38 0.20 2.80

•• •••

0.50-2.00 0.08-0.20

DCMT 070204

7.70 6.35 2.38 0.40 2.80

• • • • • •

0.50-2.00 0.08-0.22

DCGT 11T302

11.60 9.52 3.97 0.20 4.40

•

0.50-2.00 0.08-0.20

DCGT 11T304

11.60 9.52 3.97 0.40 4.40

• •

1.00-2.50 0.12-0.25

DCMT 11T302

11.60 9.52 3.97 0.20 4.40

• • • •

0.50-2.00 0.08-0.20

DCMT 11T304

11.60 9.52 3.97 0.40 4.40

• • •

0.50-2.00 0.12-0.25

DCMT 11T308

11.60 9.52 3.97 0.80 4.40

• • •

1.50-3.00 0.14-0.29

• Right-hand inserts for right-hand external tools and for left-hand internal tools • For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Right-hand insert

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT/DCGT

55° Rhombic Inserts with

a 7° Positive Clearance for

Finishing Applications

7°

55°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8150

IC20

IC428

IC5005

(mm)

(mm/rev)

DCMT 11T304-14

11.60 9.52 3.97 0.40 4.40

•••

1.00-2.50 0.14-0.25

DCMT 11T308-14

11.60 9.52 3.97 0.80 4.40

••••

1.50-3.00 0.14-0.29

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)

• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT-14

55° Rhombic Inserts with a

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

7°

55°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC8350

IC6025

IC8250

IC530N

IC6015

IC8150

IC520N

IC806

IC807

IC907

(mm)

(mm/rev)

DCMT 070202-SM

7.70 6.35 2.38 0.20 2.80

• • • •

0.50-2.00 0.04-0.20

DCMT 070204-SM

7.70 6.35 2.38 0.40 2.80

•• •• •••

0.50-2.50 0.05-0.25

DCMT 070208-SM

7.70 6.35 2.38 0.80 2.80

•

0.50-3.00 0.07-0.25

DCGT 11T302-SM

11.60 9.52 3.97 0.20 4.40

•

0.50-2.50 0.05-0.25

DCGT 11T304-SM

11.60 9.52 3.97 0.40 4.40

•

0.50-2.50 0.05-0.25

DCMT 11T302-SM

11.60 9.52 3.97 0.20 4.40

•••• ••

0.50-2.50 0.05-0.25

DCMT 11T304-SM

11.60 9.52 3.97 0.40 4.40

•••• • •••

0.50-2.50 0.07-0.25

DCMT 11T308-SM

11.60 9.52 3.97 0.80 4.40

••• •• ••

1.00-3.00 0.07-0.25

DCMT 11T312-SM

11.60 9.52 3.97 1.20 4.40

•

1.00-3.50 0.10-0.28

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-JHP-MC (62)

• PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58)

DCMT/DCGT-SM

55° Rhombic Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

195

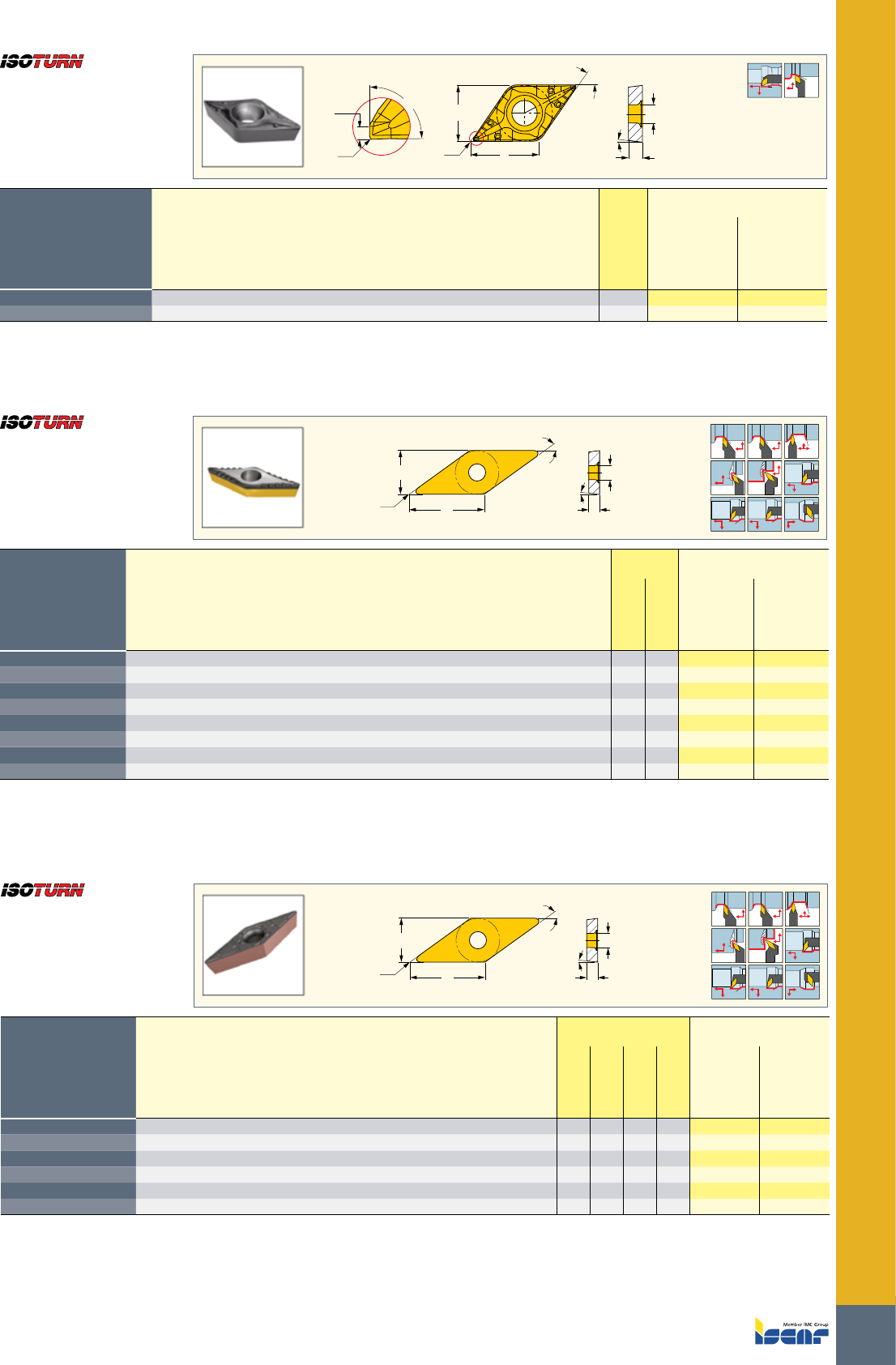

ISOTURN INSERTS

55°

87°

0.3 IC

7°

Right-hand shown

93º-95º

50º

MAX

93º

27°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC907

(mm)

(mm/rev)

DCET 0702005R/L-WF

7.70 6.35 2.38 0.05 2.80

•

0.05-3.00 0.01-0.20

DCET 11T3005R/L-WF

11.60 9.52 3.97 0.05 4.40

•

0.05-3.00 0.01-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60)

• SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCET-WF

55° Rhombic Wiper Inserts

for Finishing Operations

at High Feeds

35°

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Recommended

Machining Data

Designation

L IC S RE D1

IC8150

IC807

(mm)

(mm/rev)

VCMT 110302-F3P

11.10 6.35 3.18 0.20 2.80

• •

0.06-1.70 0.03-0.14

VCMT 110304-F3P

11.10 6.35 3.18 0.40 2.80

• •

0.10-1.70 0.05-0.20

VCMT 110308-F3P

11.10 6.35 3.18 0.80 2.80

• •

0.13-1.70 0.07-0.28

VCMT 110312-F3P

11.10 6.35 3.18 1.20 2.80

• •

0.13-1.70 0.08-0.33

VCMT 160402-F3P

16.60 9.52 4.76 0.20 4.40

• •

0.07-1.80 0.04-0.15

VCMT 160404-F3P

16.60 9.52 4.76 0.40 4.40

• •

0.10-1.80 0.05-0.20

VCMT 160408-F3P

16.60 9.52 4.76 0.80 4.40

• •

0.14-1.80 0.07-0.29

VCMT 160412-F3P

16.60 9.52 4.76 1.20 4.40

• •

0.14-1.80 0.09-0.34

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68)

• PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454)

• SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65) • AVC-SVLCR/L (96)

VCMT-F3P

35° Rhombic Positive Flank

Inserts for Semi-Finishing

and Finish Turning of Steel

35°

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

VCMT 110302-F3M

11.10 6.35 3.18 0.20 2.85

••••

0.06-1.70 0.03-0.14

VCMT 110304-F3M

11.10 6.35 3.18 0.40 2.85

••••

0.10-1.70 0.05-0.20

VCMT 110308-F3M

11.10 6.35 3.18 0.80 2.85

••••

0.13-1.70 0.07-0.28

VCMT 160402-F3M

16.60 9.52 4.76 0.20 4.50

••••

0.06-1.80 0.03-0.14

VCMT 160404-F3M

16.60 9.52 4.76 0.40 4.50

••••

0.10-1.80 0.05-0.20

VCMT 160408-F3M

16.60 9.52 4.76 0.80 4.50

••••

0.13-1.80 0.07-0.28

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96) • AVC-SVLCR/L-VH (98)

• AVC-SVUCR/L (95) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • NQCH-SVACR/L-S-JHP (67)

• NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68) • PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67)

• SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)

VCMT-F3M

35° Rhombic Positive Flank

Inserts for Stainless Steel

Finishing Applications

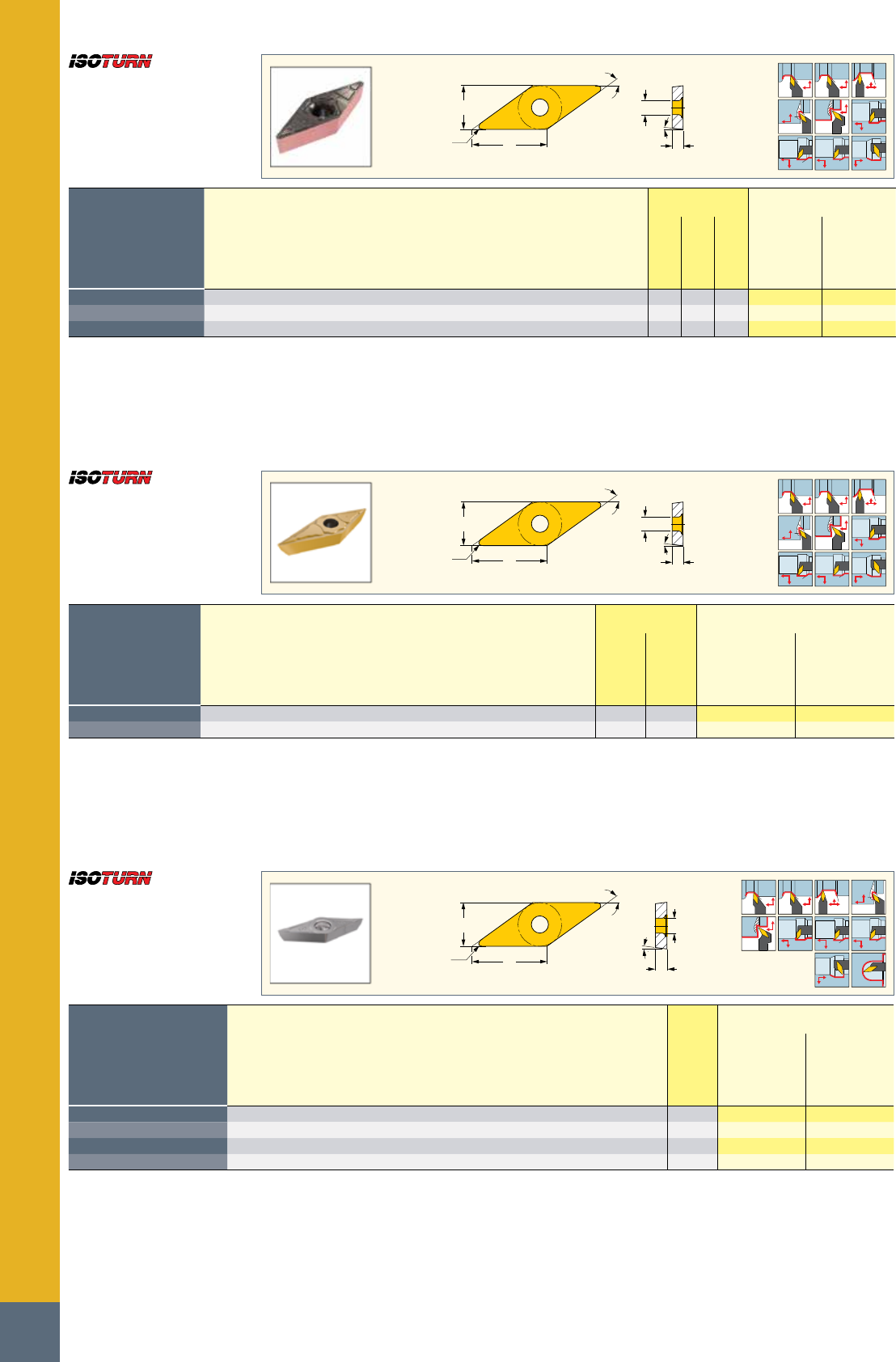

ISCAR

196

ISOTURN INSERTS

35°

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC807

(mm)

(mm/rev)

VCMT 160404-M3M

16.60 9.52 4.76 0.40 4.40

•••

1.00-5.00 0.07-0.25

VCMT 160408-M3M

16.60 9.52 4.76 0.80 4.40

• •

1.00-5.00 0.10-0.30

VCMT 160412-M3M

16.60 9.52 4.76 1.20 4.40

•••

1.00-5.00 0.13-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCMT-M3M

35° Rhombic Positive Flank

Inserts for Machining Stainless

and Low Carbon Steel

35°

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC20N

IC520N

(mm)

(mm/rev)

VCMT 160404-FPC

16.60 9.52 4.76 0.40

• •

0.70-2.00 0.04-0.22

VCMT 160408-FPC

16.60 9.52 4.76 0.80

•

0.70-2.00 0.04-0.22

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCMT-FPC-CERMET

35° Rhombic 7° Cermet Positive

Flank Inserts for

Semi-Finishing Turning of steel

and Automotive Components

35°

RE 7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX

95º

142º

93º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC1008

(mm)

(mm/rev)

VCGT 1103005-F1M-20P

11.07 6.35 3.18 0.10 2.90

•

0.03-0.18 0.07-4.50

VCGT 110301-F1M-20P

11.07 6.35 3.18 0.40 2.90

•

0.03-0.18 0.30-4.50

VCGT 110302-F1M-20P

11.07 6.35 3.18 0.10 2.90

•

0.03-0.15 0.07-4.00

VCGT 110304-F1M-20P

11.07 6.35 3.18 0.40 2.90

•

0.03-0.15 0.30-4.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: AVC-SVUCR/L (95) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65)

• PVACR/L-JHP (68) • PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67) • SVJCR/L (453)

• SVPCR/L (69) • SVVCN (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)

VCGT-F1M-20P

35° Rhombic Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

197

ISOTURN INSERTS

RE S

35°

87°

0.3

RE L

7°

Right-hand shown

93º

30°

MAX

9 1°

52°

MAX

50°

MAX

93°

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC907

(mm)

(mm/rev)

VCET 1103005R/L-WF

11.10 6.35 3.18 0.05 2.90

•

0.05-4.00 0.01-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68)

• PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67) • SVJCR/L (453) • Y-SVJCR (65) • Y-SVJCR-JHP (65) • PVACR/L-JHP-MC (68)

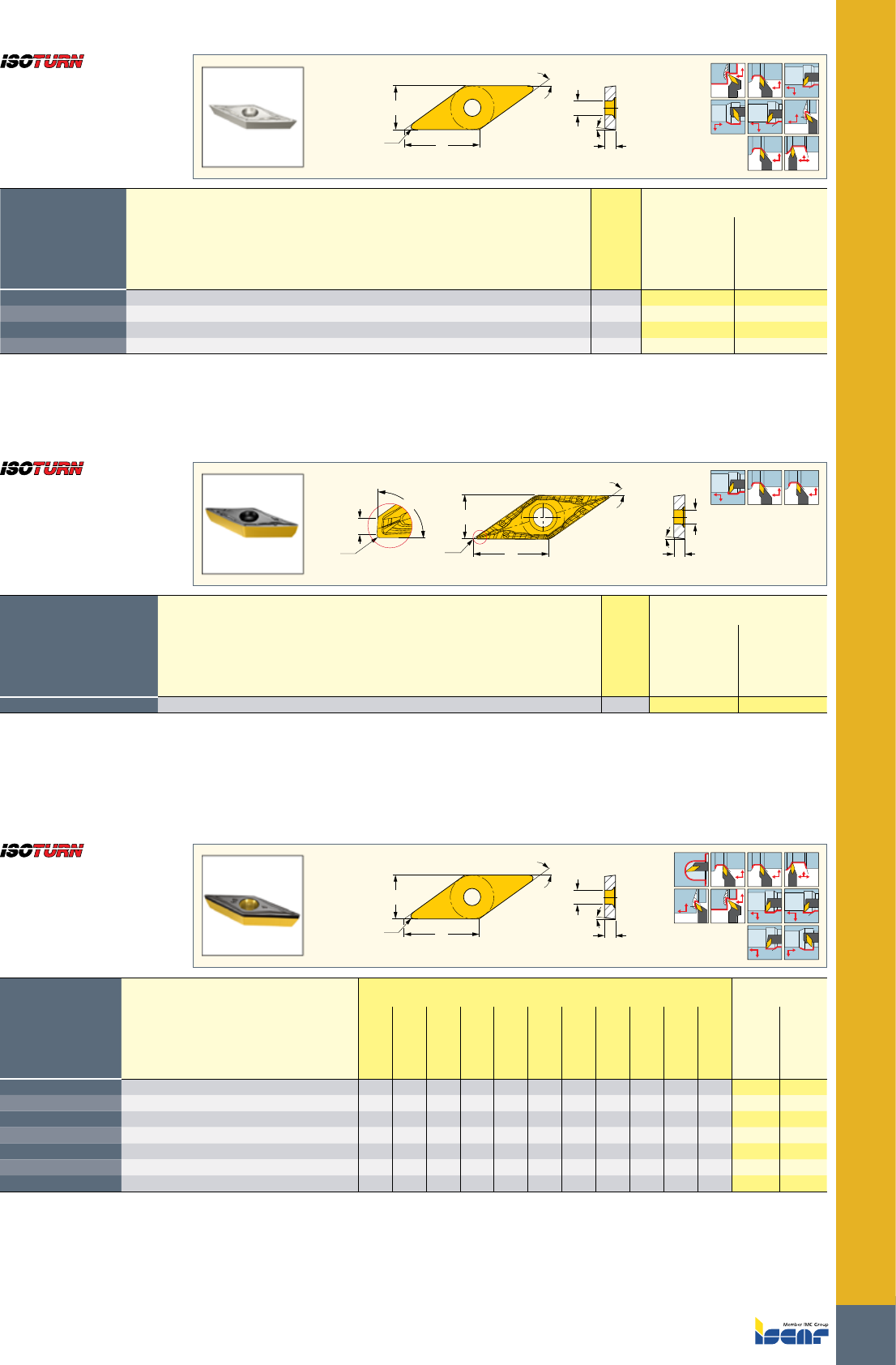

VCET-WF

35° Rhombic Wiper Inserts

for Finishing Operations

at High Feeds

35°

7°

142º

93º

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

93º

30°

MAX

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC6025

IC8250

IC908

IC6015

IC8150

IC806

IC807

IC907

IC4

IC804

(mm)

(mm/rev)

VCMT 110302-SM

11.10 6.35 3.18 0.20 2.90

• • •

0.20-2.50 0.04-0.20

VCMT 110304-SM

11.10 6.35 3.18 0.40 2.90

• • • • • •

0.50-3.00 0.07-0.24

VCMT 110308-SM

11.10 6.35 3.18 0.80 2.90

•

0.50-2.00 0.07-0.25

VCMT 160402-SM

16.60 9.52 4.76 0.20 4.40

• • • •

0.50-2.50 0.05-0.20

VCMT 160404-SM

16.60 9.52 4.76 0.40 4.40

•• ••••

0.50-2.50 0.05-0.25

VCMT 160408-SM

16.60 9.52 4.76 0.80 4.40

••• •••••••

0.90-2.50 0.07-0.25

VCMT 160412-SM

16.60 9.52 4.76 1.20 4.40

• •

0.50-3.00 0.10-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96) • AVC-SVLCR/L-VH (98)

• AVC-SVUCR/L (95) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • NQCH-SVACR/L-S-JHP (67)

• NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68) • PVACR/L-JHP-MC (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67) • SVJCR-PAD (67)

• SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)

VCMT-SM

35° Rhombic Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

35°

7°

11 7. 5 °

9 1°

52°

MAX

107.5º

35°

MAX

95º

48°

MAX

112°

31°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC830

(mm)

(mm/rev)

VCGT 110301-PF

11.10 6.35 3.18 0.10 2.90

•

0.20-2.50 0.03-0.25

VCGT 110302-PF

11.40 6.35 3.18 0.20 2.90

•

0.30-2.50 0.03-0.25

VCGT 110304-PF

11.40 6.35 3.18 0.40 2.90

•

0.50-3.00 0.05-0.25

VCGT 130304-PF

13.00 7.94 3.18 0.40 3.40

•

0.50-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: NQCH-SVACR/L-S-JHP (67) • SVACR/L (67)

VCGT-MD/PF

35° Rhombic Inserts with a

Positive Flank for

Semi-Finishing and Finishing on

Soft Materials and Exotic Alloys

ISCAR

198

ISOTURN INSERTS

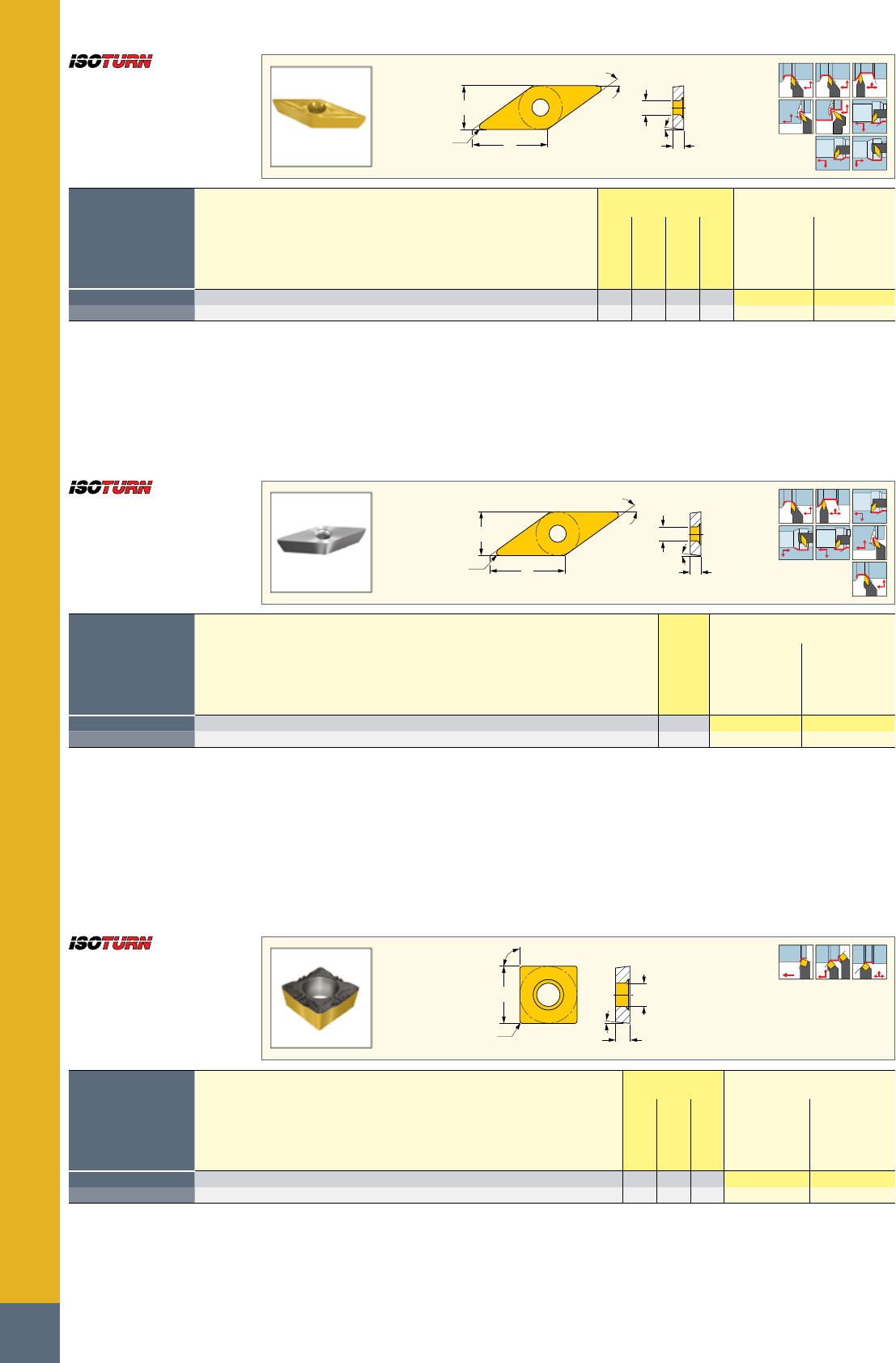

35°

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC20

IC20N

IC520N

(mm)

(mm/rev)

VCMT 160404-14

16.60 9.52 4.76 0.40 4.40

••••

1.00-5.00 0.12-0.25

VCMT 160408-14

16.60 9.52 4.76 0.80 4.40

• • •

1.00-5.00 0.12-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96) • AVC-SVLCR/L-VH (98)

• C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454)

VCMT-14

35° Rhombic Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

35°

Tolerances:

IC= ±0.05

S= ±0.13

7°

50°

MAX

93°

72.5º

70°MAX

107.5º

35°

MAX

95º

48°

MAX

112°

31°

MAX

9 1°

52°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

VCMW 160404

16.60 9.52 4.76 0.40 4.40

•

0.70-4.00 0.05-0.25

VCMW 160408

16.60 9.52 4.76 0.80 4.40

•

1.00-5.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCMW

35° Rhombic Inserts with a 7°

Positive Flank for Short Chipping

Materials such as Cast Iron

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC8250

IC8150

IC807

(mm)

(mm/rev)

SCMT 09T304-F3P

9.52 3.97 0.40 4.40

•••

0.11-2.00 0.06-0.25

SCMT 09T308-F3P

9.52 3.97 0.80 4.40

•••

0.15-2.00 0.08-0.32

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-F3P

Square Positive Flank Inserts

for Semi-Finishing and

Finish Turning of Steel

199

ISOTURN INSERTS

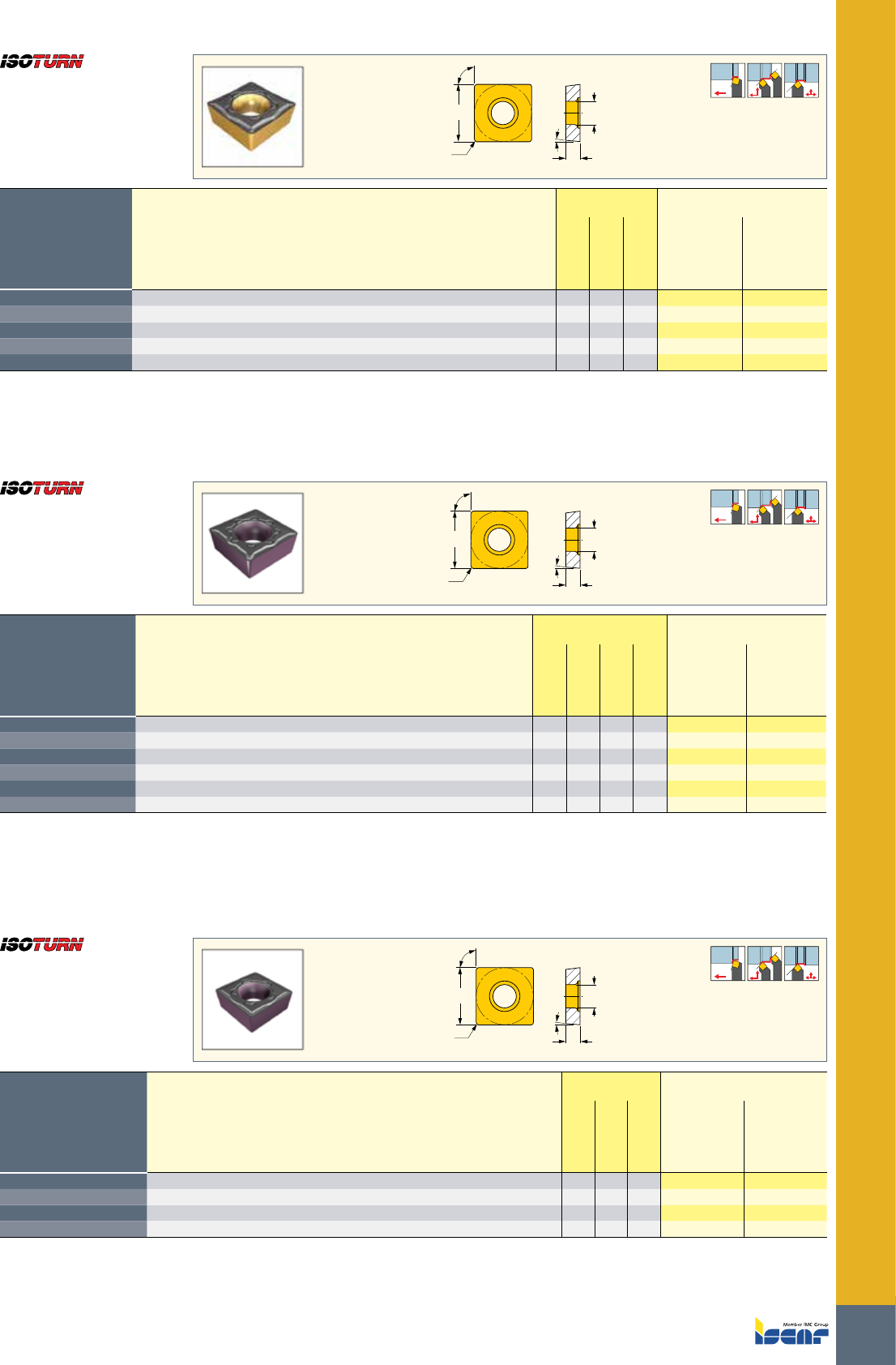

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L S RE D1

IC6025

IC6015

IC806

IC807

(mm)

(mm/rev)

SCMT 09T302-F3M

9.52 3.97 0.20 4.40

••••

0.08-2.00 0.04-0.16

SCMT 09T304-F3M

9.52 3.97 0.40 4.40

••••

0.11-2.00 0.06-0.25

SCMT 09T308-F3M

9.52 3.97 0.80 4.40

••••

0.15-2.00 0.08-0.32

SCMT 120402-F3M

12.70 4.76 0.20 5.50

••••

0.11-2.00 0.06-0.18

SCMT 120404-F3M

12.70 4.76 0.40 5.50

••••

0.15-2.00 0.08-0.25

SCMT 120408-F3M

12.70 4.76 0.80 5.50

••••

0.18-2.00 0.10-0.32

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-F3M

Square Positive Flank

Inserts for Stainless Steel

Finishing Applications

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L S RE D1

IC6025

IC6015

IC807

(mm)

(mm/rev)

SCMT 09T304-M3M

9.52 3.97 0.40 4.40

•••

0.40-3.80 0.07-0.25

SCMT 09T308-M3M

9.52 3.97 0.80 4.40

•••

0.80-3.80 0.10-0.30

SCMT 120404-M3M

12.70 4.76 0.40 5.50

•••

0.40-4.00 0.10-0.25

SCMT 120408-M3M

12.70 4.76 0.80 5.50

•••

0.80-4.00 0.12-0.34

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-M3M

Square Positive Flank Inserts,

for Machining Stainless

and Low Carbon Steel

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC8250

IC8150

IC807

(mm)

(mm/rev)

SCMT 09T304-M3P

9.52 3.97 0.40 4.40

•••

0.50-3.00 0.07-0.25

SCMT 09T308-M3P

9.52 3.97 0.80 4.40

•••

0.50-3.00 0.10-0.30

SCMT 120404-M3P

12.70 4.76 0.40 5.50

•••

0.50-3.50 0.10-0.25

SCMT 120408-M3P

12.70 4.76 0.80 5.50

•••

1.00-4.00 0.10-0.30

SCMT 120412-M3P

12.70 4.76 1.20 5.50

•••

1.20-4.00 0.12-0.34

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-M3P

Square Positive Flank Inserts

for Medium Machining

Conditions on Steel

ISCAR

200

ISOTURN INSERTS

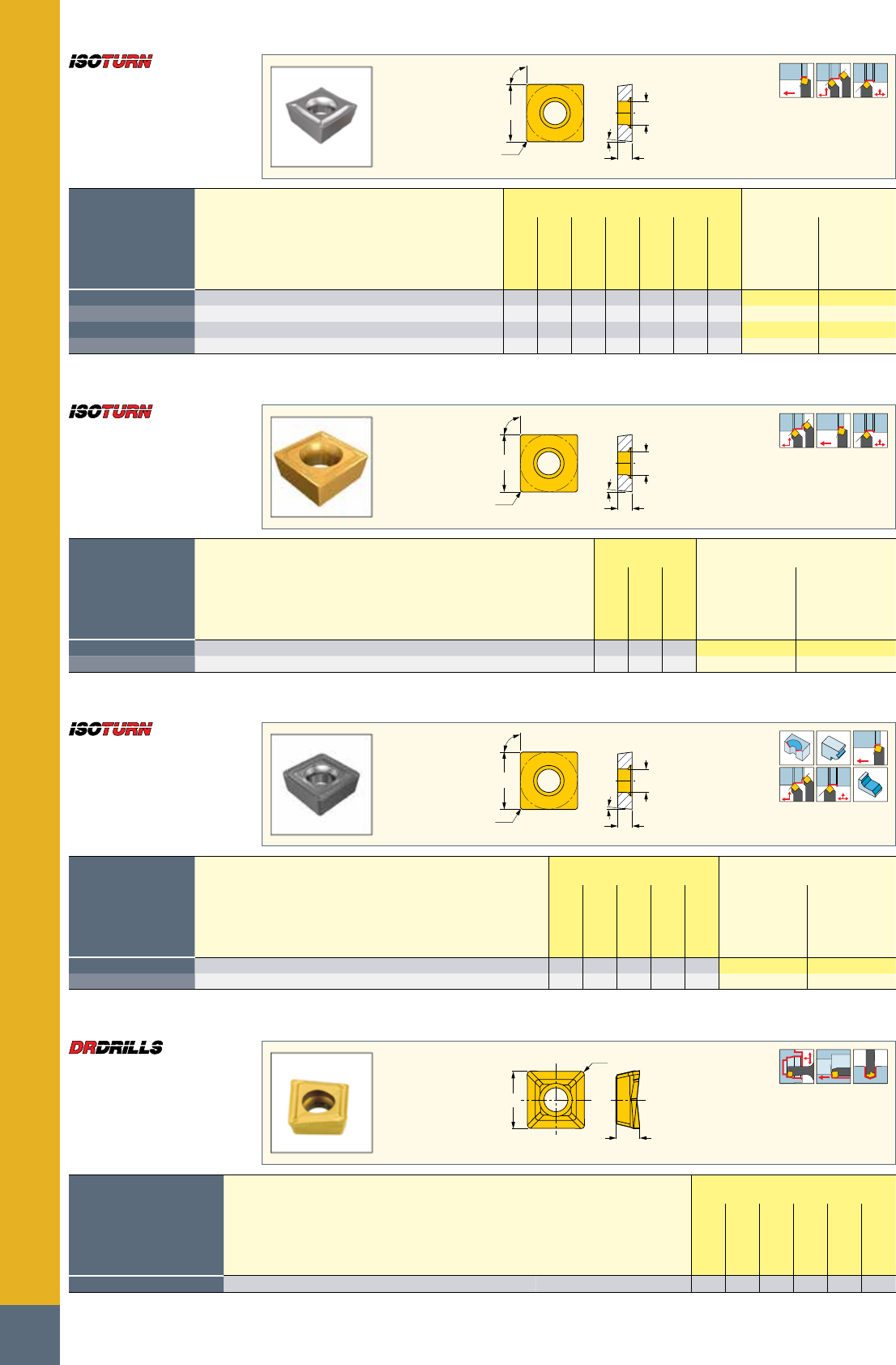

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L S RE D1

IC830

IC6025

IC8250

IC8150

IC5005

IC807

IC907

(mm)

(mm/rev)

SCMT 09T304-SM

9.52 3.97 0.40 4.40

• • • •

0.50-3.00 0.07-0.25

SCMT 09T308-SM

9.52 3.97 0.80 4.40

•••••••

0.50-3.00 0.10-0.30

SCMT 120404-SM

12.70 4.76 0.40 5.50

•

0.50-3.50 0.10-0.25

SCMT 120408-SM

12.70 4.76 0.80 5.50

• • • •

1.00-4.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-SM

Square Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

7°

90°

IC=L

45º

75º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC8250

IC807

IC907

(mm)

(mm/rev)

SCMT 09T304-14

9.52 3.97 0.40 4.40

• •

1.00-3.50 0.12-0.30

SCMT 120404-14

12.70 4.76 0.40 5.50

•

1.00-4.00 0.12-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-14

Square Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

7°

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC830

IC20

IC5005

IC807

IC907

(mm)

(mm/rev)

SCMT 120408-19

12.70 4.76 0.80 5.50

•••••

3.00-8.00 0.08-0.15

SCMT 120412-19

12.70 4.76 1.20 5.50

•

3.00-8.00 0.08-0.15

• For cutting speed recommendations, see pages

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCMT-19

Square Inserts with a 7° Positive

Flank for Semi-Roughing at

Medium to High Feeds

88º

Dimensions Tough

Hard

Designation

IC S RE

IC28

IC328

IC250

IC350

IC908

IC520M

XOMT 060204-DT

6.16 2.56 0.40

••••••

• Two cutting edges • For hard materials and interrupted cut

For tools, see pages: A-SXFOR-DR (120) • A-SXFOR/L (119)

XOMT-DT

Inserts for DR Drills

and Boring Bars

201

ISOTURN INSERTS

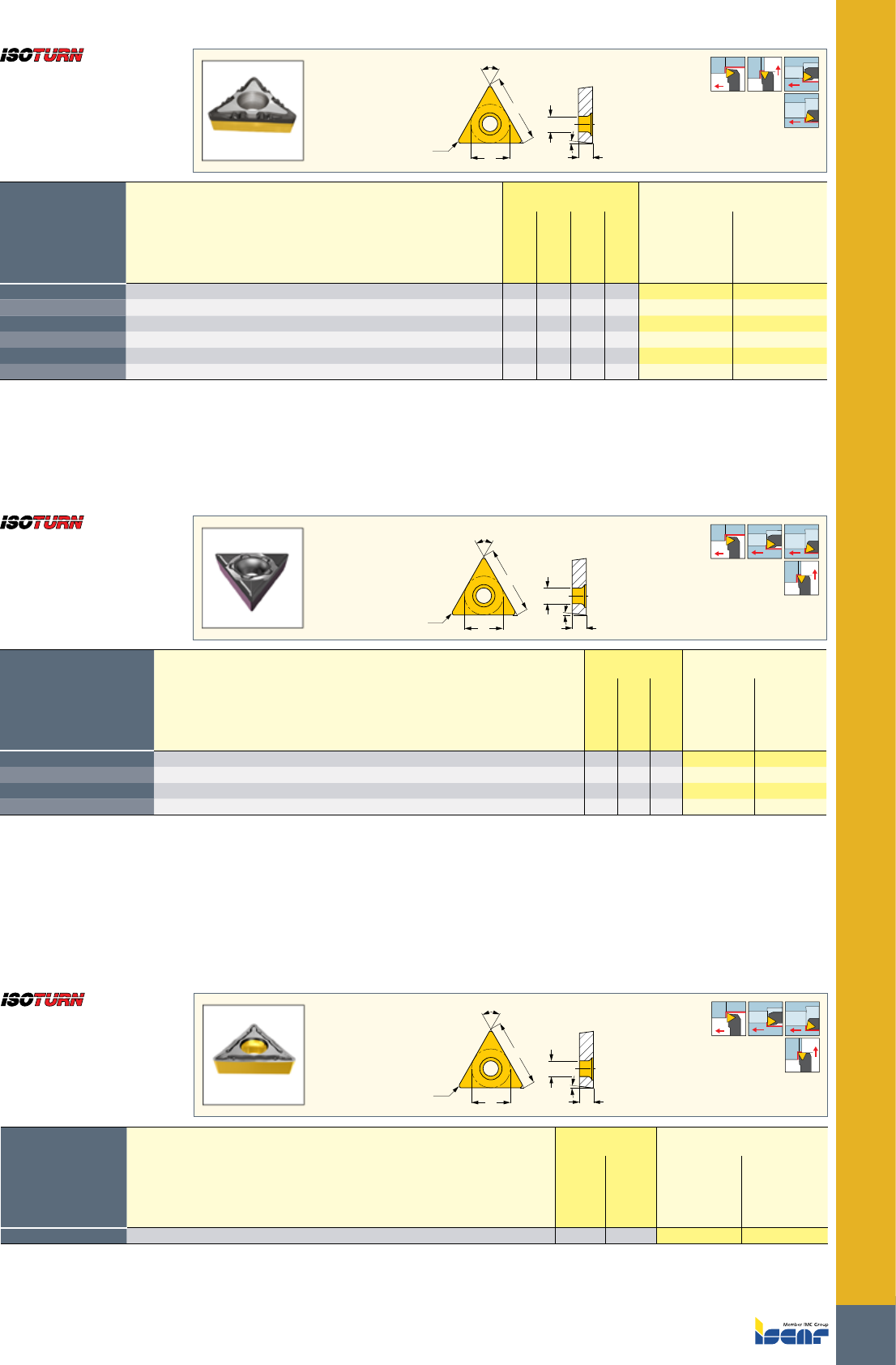

60°

7°

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC830

IC8250

IC8150

IC807

(mm)

(mm/rev)

TCMT 090202-F3P

9.60 2.38 0.20 2.50

••••

0.06-1.70 0.03-0.14

TCMT 090204-F3P

9.60 2.38 0.40 2.50

••••

0.10-1.70 0.05-0.20

TCMT 110202-F3P

11.00 2.38 0.20 2.80

••••

0.06-1.70 0.03-0.14

TCMT 110204-F3P

11.00 2.38 0.40 2.80

••••

0.10-1.70 0.05-0.20

TCMT 110208-F3P

11.00 2.38 0.80 2.80

••••

0.13-1.70 0.07-0.28

TCMT 16T304-F3P

16.50 3.97 0.40 4.40

••••

0.10-1.70 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCMT-F3P

Triangular Inserts with a Positive

Flank for Semi-Finishing and

Finish Turning on Steel

60°

7°

91º91º

95º

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC6025

IC6015

IC807

(mm)

(mm/rev)

TCMT 110204-M3M

11.00 6.35 2.38 0.40 2.80

•••

0.40-2.50 0.07-0.23

TCMT 110208-M3M

11.00 6.35 2.38 0.80 2.80

•••

0.80-2.50 0.10-0.25

TCMT 16T304-M3M

16.50 9.52 3.97 0.40 4.40

•••

0.40-3.00 0.07-0.25

TCMT 16T308-M3M

16.50 9.52 3.97 0.80 4.40

•••

0.80-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCMT-M3M

Triangular Positive Flank

Inserts, for Machining Stainless

and Low Carbon Steel

60°

7°

91º91º

95º

91º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC807

IC907

(mm)

(mm/rev)

TCMT 110202-PF

11.00 6.35 2.38 0.20 2.85

• •

0.20-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCMT-PF

Triangular Inserts with a Positive

Flank for Semi-Finishing

and Finishing on Soft

Materials and Exotic Alloys

ISCAR

202

ISOTURN INSERTS

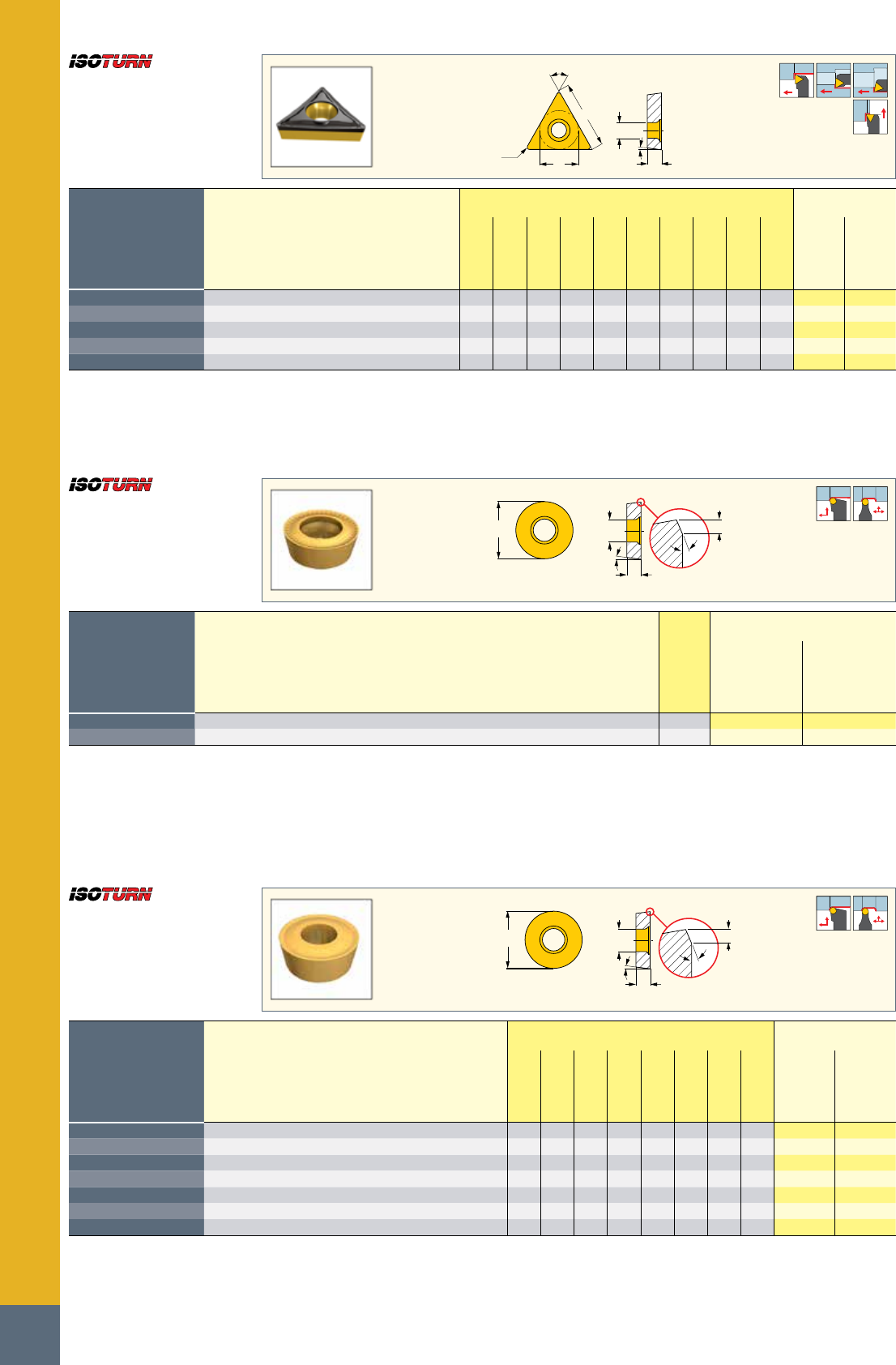

60°

7°

91º91º

95º

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8350

IC8250

IC908

IC8150

IC5010

IC428

IC5005

IC807

IC907

(mm)

(mm/rev)

TCMT 110204-SM

11.00 6.35 2.38 0.40 2.80

••••• •••

0.20-3.00 0.05-0.25

TCMT 110208-SM

11.00 6.35 2.38 0.80 2.80

• • •

0.50-2.50 0.07-0.25

TCMT 16T304-SM

16.50 9.52 3.97 0.40 4.40

• • • • • • •

0.50-3.00 0.06-0.25

TCMT 16T308-SM

16.50 9.52 3.97 0.80 4.40

• • • • • •

0.50-3.00 0.08-0.28

TCMT 16T308-SM*

16.50 9.52 3.97 0.80 4.40

•

0.50-3.00 0.08-0.28

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70)

• STGCR/L (70)

TCMT-SM

Triangular Inserts with a 7°

Positive Flank for Semi-Finishing

and Finish Turning on Soft

Materials and Exotic Alloys

7°

Dimensions Recommended Machining Data

Designation

IC S D1 GB BN

IC8150

(mm)

(mm/rev)

RCMT 0803M0-SR

8.00 3.18 3.40 15.0 0.15

•

1.00-4.50 0.30-0.45

RCMT 1606M0-SR

16.00 6.35 5.50 15.0 0.18

•

2.00-8.00 0.40-0.60

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-RCMT-16-Y (77) • HSK A63WH-RCMT-Y (76) • SRDCN (72) • SRGCR/L (71)

RCMT-SR

Round Inserts with a 7° Positive

Flank for Medium Profiling on

a Wide Range of Materials

7°

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC S D1 GB BN

IC354

IC8250

IC8150

IC20

IC5010

IC806

IC807

IC907

(mm)

(mm/rev)

RCMT 0803M0-14

8.00 3.18 3.40 15.0 0.15

•

1.00-4.00 0.30-0.45

RCMT 0803M0-14*

8.00 3.18 3.40 15.0 0.15

•

1.00-4.00 0.30-0.45

RCMT 10T3M0-14

10.00 3.97 4.40 15.0 0.15

••••

1.50-5.00 0.30-0.50

RCMT 1204M0-14

12.00 4.76 5.50 15.0 0.15

••• •••

1.50-6.00 0.30-0.50

RCMT 1606M0-14

16.00 6.35 5.50 15.0 0.25

•••

2.00-8.00 0.40-0.60

RCMT 2006M0-14

20.00 6.35 6.50 15.0 0.25

•••

2.50-10.00 0.50-0.70

RCMT 2006M0E-14

20.00 6.35 6.50 15.0 0.25

•

2.50-10.00 0.50-0.70

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: AVC-SRDCN-Y (77) • C#-RCMT-16-Y (77) • C#-SRGCR-12-JHP (72) • C#-SRGCR/L (71) • HSK A63WH-RCMT-Y (76)

• SRDCN (72) • SRGCR-12-JHP (71) • SRGCR/L (71)

RCMT-14

Round Inserts with a 7°

Positive Flank for Medium

and Finish Profiling on a

Wide Range of Materials

203

ISOTURN INSERTS

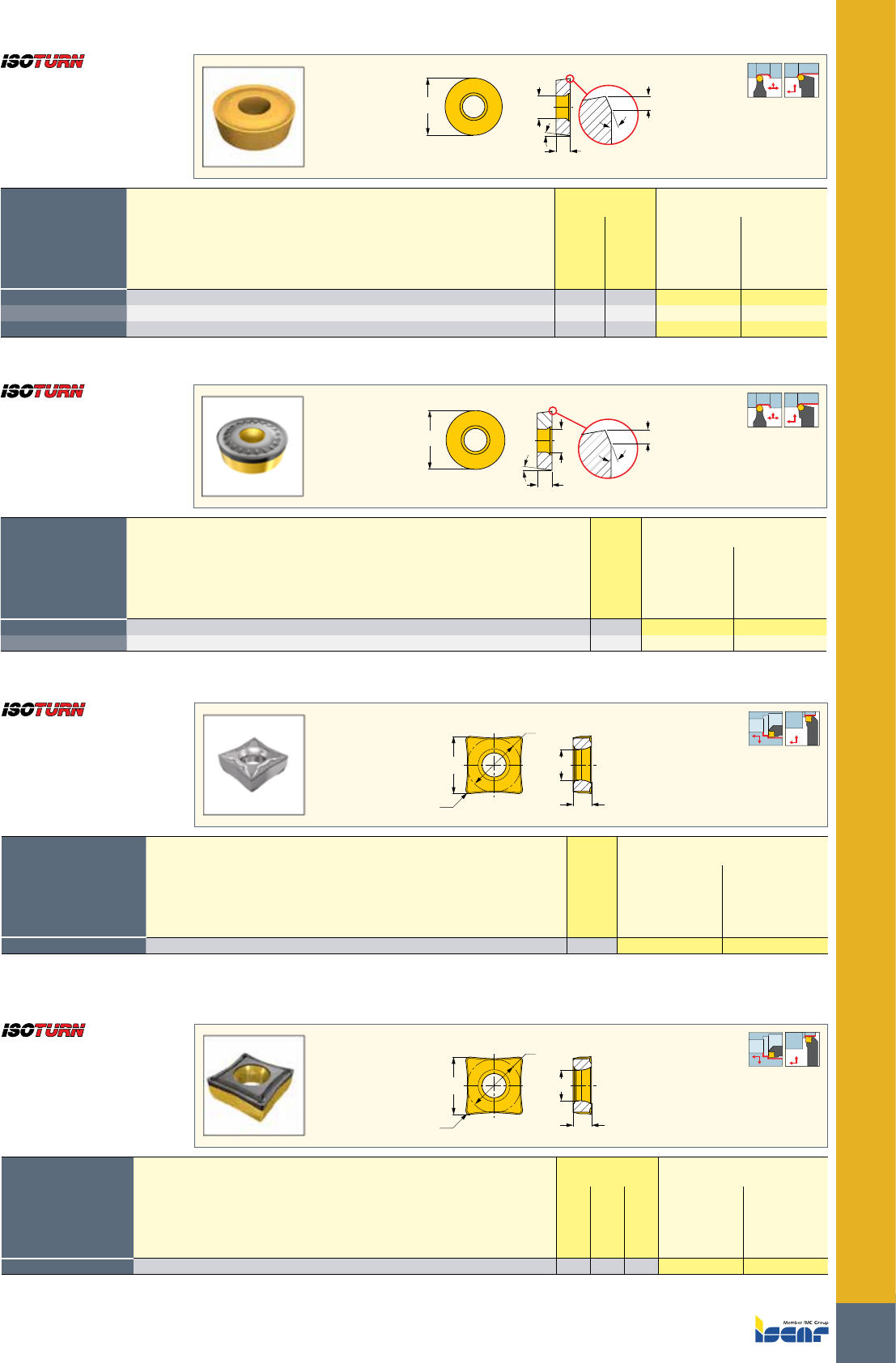

7°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S D1 GB BN

IC8250

IC8150

(mm)

(mm/rev)

RCMX 100300

10.00 3.18 3.60 15.0 0.01

•

1.50-5.00 0.30-0.50

RCMX 120400

12.00 4.76 4.20 15.0 0.15

•

1.50-6.00 0.30-0.50

RCMX 200600

20.00 6.35 6.50 15.0 0.01

•

2.50-10.00 0.50-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

RCMX

Round Inserts with a 7° Positive

Flank and Reinforced Cutting

Edge for Semi-Roughing

and Rough Profiling

RE S

95º

95°

Dimensions Recommended Machining Data

Designation

IC S RE D1

IC908

(mm)

(mm/rev)

QCMT 09T302-PF

9.65 3.97 0.20 4.40

•

0.50-2.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQLCR/L (73) • PQLCR/L-S (73) • S/A-SQLCR/L (110)

QCMT-PF

Four 80° Cornered Insert

with a Positive 7° Clearance

and Chipformer for

Finishing Applications

RE S

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC830

IC8250

IC8150

(mm)

(mm/rev)

QCMT 09T304-SM

10.40 9.65 3.97 0.40 4.40

•••

0.50-2.50 0.06-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PQLCR/L (73) • PQLCR/L-S (73) • S/A-SQLCR/L (110)

QCMT-SM

Inserts with a Positive 7°

Clearance and Chipformer

for Finishing Applications

IC D1

7°

Dimensions Recommended Machining Data

Designation

IC S D1 GB BN

IC8250

(mm)

(mm/rev)

RCMX 250700-NR

25.00 7.94 7.20 17.0 0.30

•

4.00-10.00 0.50-1.50

RCMX 3209M0-NR

32.00 9.52 10.00 17.0 0.30

•

7.00-13.00 0.70-2.00

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: PRDCN (72) • PRGCR (72)

RCMX-NR

Round 7° Inserts with a Positive

Flank and Strong Cutting

Edge for Rough Turning

ISCAR

204

ISOTURN INSERTS

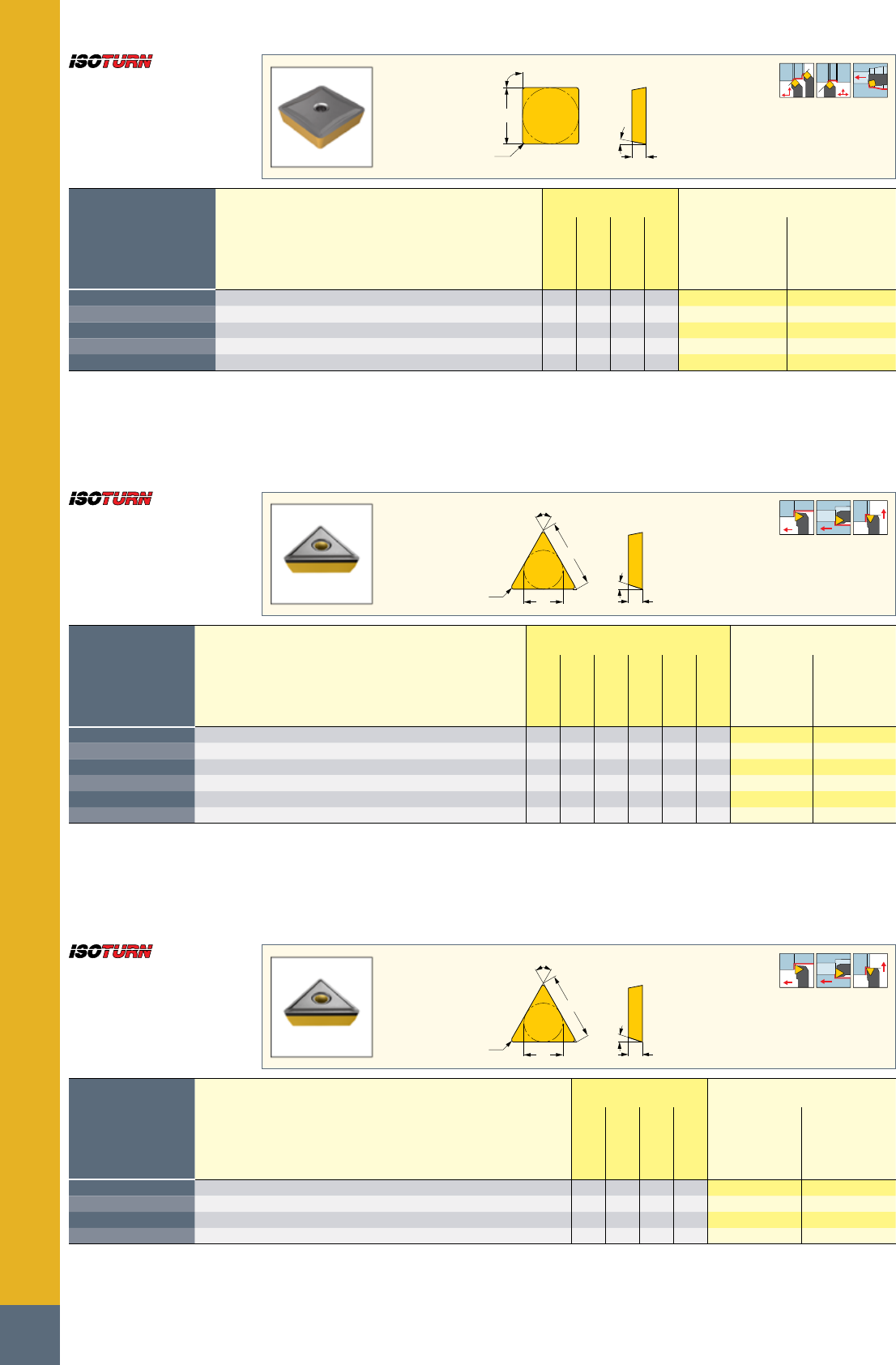

90°

IC=L

11°

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE

IC830

IC8250

IC8150

IC20N

(mm)

(mm/rev)

SPMR 090304

9.52 3.18 0.40

• •

1.50-5.00 0.15-0.30

SPMR 090308

9.52 3.18 0.80

• •

1.50-6.00 0.16-0.35

SPMR 120304

12.70 3.18 0.40

• •

1.50-5.00 0.15-0.35

SPMR 120308

12.70 3.18 0.80

•

1.50-6.00 0.16-0.40

SPMR 120312

12.70 3.18 1.20

• •

1.50-6.00 0.20-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CSDPN (74) • CSSPR/L (74) • S-CSKPR (116)

SPMR

Square Inserts with a Positive

Chipformer Exerting Low Cutting

Forces for Semi-Finishing

and Finishing Applications

RE IC

60°

11°

91º91º91º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC8350

IC8250

IC20N

IC807

IC907

(mm)

(mm/rev)

TPMR 090202

9.60 5.56 2.38 0.20

•

1.00-3.00 0.10-0.20

TPMR 090204

9.60 5.56 2.38 0.40

•

1.00-3.50 0.15-0.20

TPMR 110304

11.00 6.35 3.18 0.40

• •

1.00-3.50 0.15-0.25

TPMR 110308

11.00 6.35 3.18 0.80

•

1.00-3.50 0.15-0.30

TPMR 160304

16.50 9.52 3.18 0.40

•• •••

1.00-4.00 0.15-0.33

TPMR 160308

16.50 9.52 3.18 0.80

• • • •

1.00-4.00 0.15-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CTFPR/L (75) • CTGPR/L (74) • S-CTFPR/L (116)

TPMR

Triangular 11° Positive Inserts

with a Positive Chipformer

Exerting Low Cutting Forces

for Internal Finish Turning

RE IC

60°

11°

91º91º91º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC8250

IC8150

IC807

IC907

(mm)

(mm/rev)

TPMR 110304-PF

11.00 6.35 3.18 0.40

• • •

0.40-3.00 0.08-0.25

TPMR 110308-PF

11.00 6.35 3.18 0.80

• •

0.50-3.50 0.07-0.28

TPMR 160304-PF

16.50 9.52 3.18 0.40

••••

0.50-3.50 0.06-0.25

TPMR 160308-PF

16.50 9.52 3.18 0.80

• • •

0.80-3.00 0.08-0.28

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CTFPR/L (75) • CTGPR/L (74) • S-CTFPR/L (116)

TPMR-PF

Triangular 11° Positive Inserts

with a Positive Chipformer

Exerting Low Cutting Forces

for Internal Finish Turning

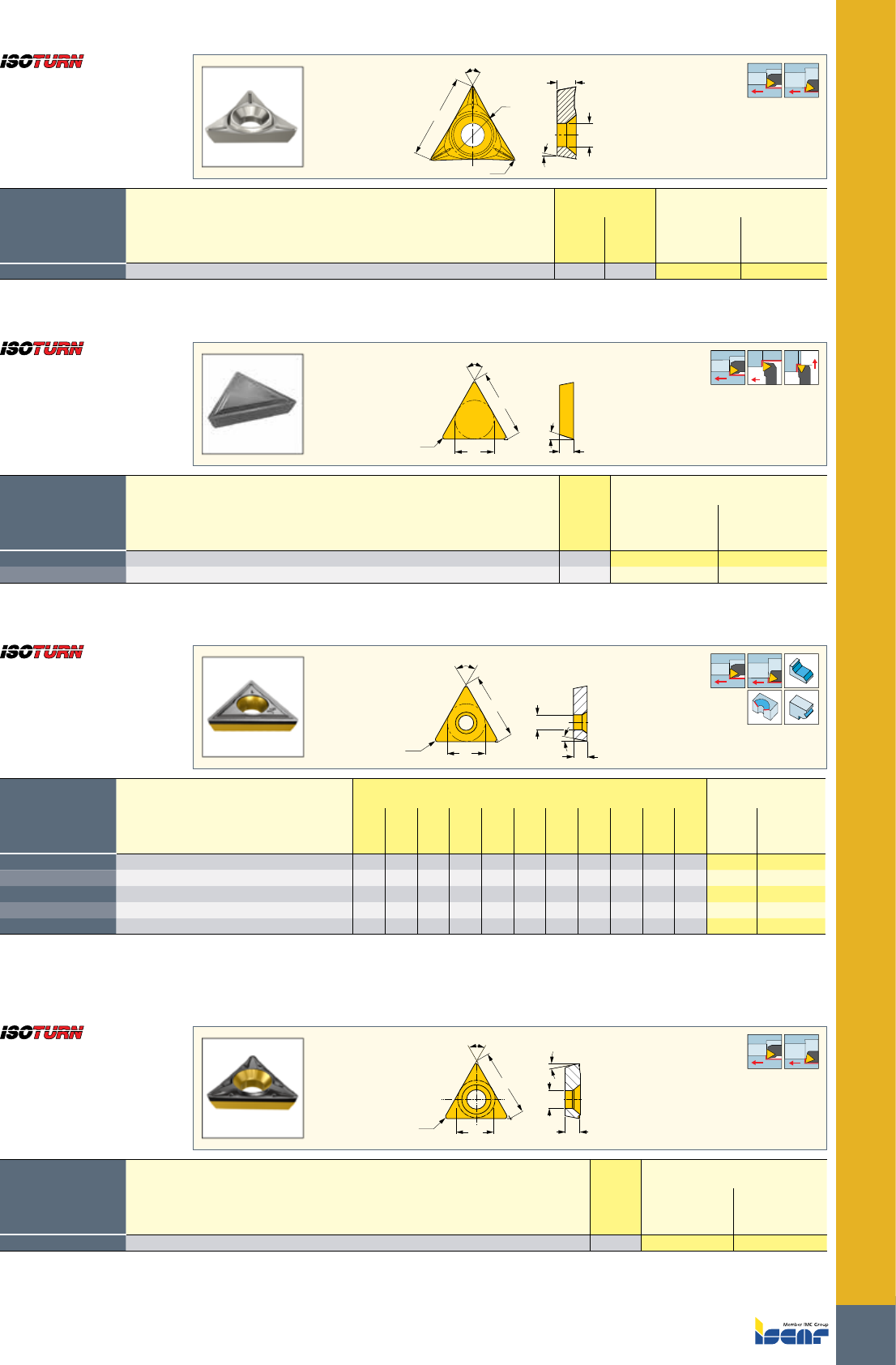

205

ISOTURN INSERTS

11˚

60°

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC908

IC907

(mm)

(mm/rev)

TPGT 110202-SP

11.00 6.35 2.38 0.20 3.00

• •

0.40-1.00 0.05-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFPR-HEAD (116)

TPGT-SP

Super Positive Triangular Inserts

with 11° Clearance for Fine

Boring and Finish Turning

60°

11°

91º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20N

(mm)

(mm/rev)

TPMR 110304-FTF

11.00 6.35 3.18 0.40

•

0.50-3.00 0.07-0.25

TPMR 160304-FTF

16.50 9.52 3.18 0.40

•

0.50-3.00 0.07-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CTFPR/L (75) • CTGPR/L (74) • S-CTFPR/L (116)

TPMR-FTF

Triangular 11° Positive Inserts

with a Positive Chipformer

Exerting, Low Cutting Forces

for Finish Turning Applications

60°

11°

91º

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC635

IC50M

IC8350

IC8250

IC8150

IC520M

IC20

IC806

IC807

IC907

(mm)(1)

(mm/rev)(2)

TPMT 110202

11.00 6.35 2.38 0.20 3.00

• • •

0.20-2.00 0.05-0.25

TPMT 110204

11.00 6.35 2.38 0.40 3.00

• • • • • •

1.00-3.00 0.12-0.30

TPMT 110208

11.00 6.35 2.38 0.80 3.00

• • • •

1.00-4.00 0.15-0.30

TPMT 160304

16.50 9.52 3.18 0.40 4.30

• • • • • •

1.00-4.00 0.12-0.30

TPMT 160308

16.50 9.52 3.18 0.80 4.30

••• • •••••

5.00-12.00 0.15-0.35

• For cutting speed recommendations, see pages ..

(1) For turning

(2) For turning

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

TPMT

Triangular 11° Positive Inserts

with a Positive Chipformer

Exerting Low Cutting Forces

for Internal Finish Turning

RE IC

11°

60°

91º

95º

Dimensions Recommended Machining Data

Designation

L IC(1) S RE D1

IC8150

(mm)

(mm/rev)

TPMT 110204-PF

11.00 6.35 2.38 0.40 3.00

•

0.50-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Actual di=6.28, to be used in 6.35mm pocket size

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

TPMT-PF

Triangular 11° Positive

Inserts for Semi-Finishing

and Finishing Applications

ISCAR

206

ISOTURN INSERTS

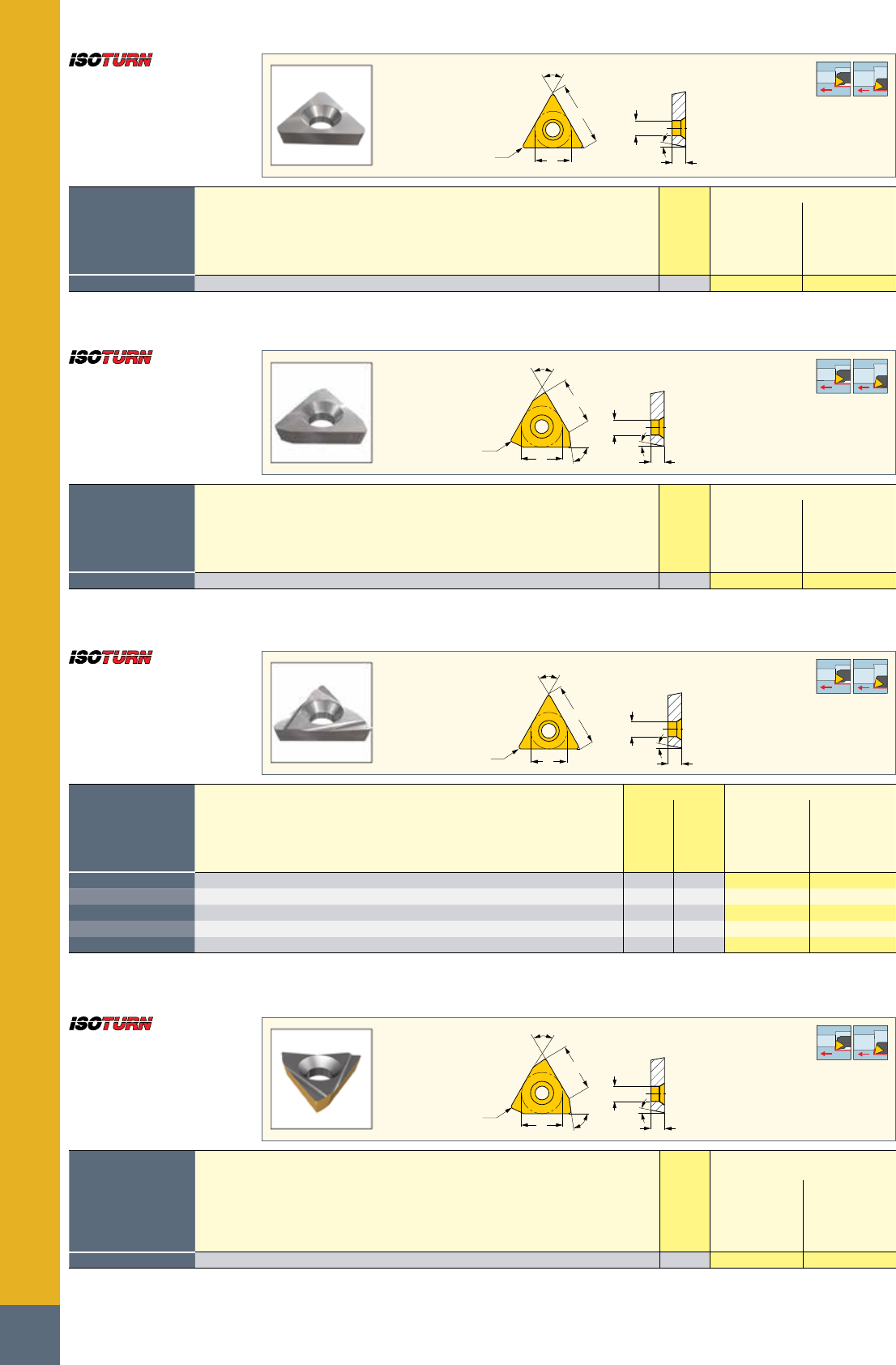

60°

11°

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

TPGB 110204

11.00 6.35 2.38 0.40 3.00

•

1.00-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

TPGB

Triangular Inserts with an

11° Positive Flank for Short

Chipping Materials

80°

60°

11°

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

TPGB 110204-XL

11.00 6.35 2.38 0.40 3.00

•

1.00-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

TPGB-XL

Triangular Inserts with an

11° Positive Flank for Short

Chipping Materials

60°

11°

91º

95º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC908

IC20

(mm)

(mm/rev)

TPGH 110204-L

11.00 6.35 2.38 0.40 3.00

•

1.00-3.00 0.05-0.25

TPGH 110208-L

11.00 6.35 2.38 0.80 3.00

•

1.00-3.00 0.05-0.25

TPGH 160304-L

16.50 9.52 3.18 0.40 4.30

•

1.00-4.00 0.05-0.30

TPGH 160304-R

16.50 9.52 3.18 0.40 4.30 1.00-4.00 0.05-0.30

TPGH 160308-L

16.50 9.52 3.18 0.80 4.30

•

1.00-4.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118)

TPGH-R/L

Triangular Inserts with an

11° Positive and Ground

Chipformer for Finish Turning

80°

60°

11°

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

TPGH 110204-XL

11.00 6.35 2.38 0.40 3.00

•

1.00-3.00 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116)

TPGH-XL

Triangular Inserts with an

11° Positive and Ground

Chipformer for Finish Turning

207

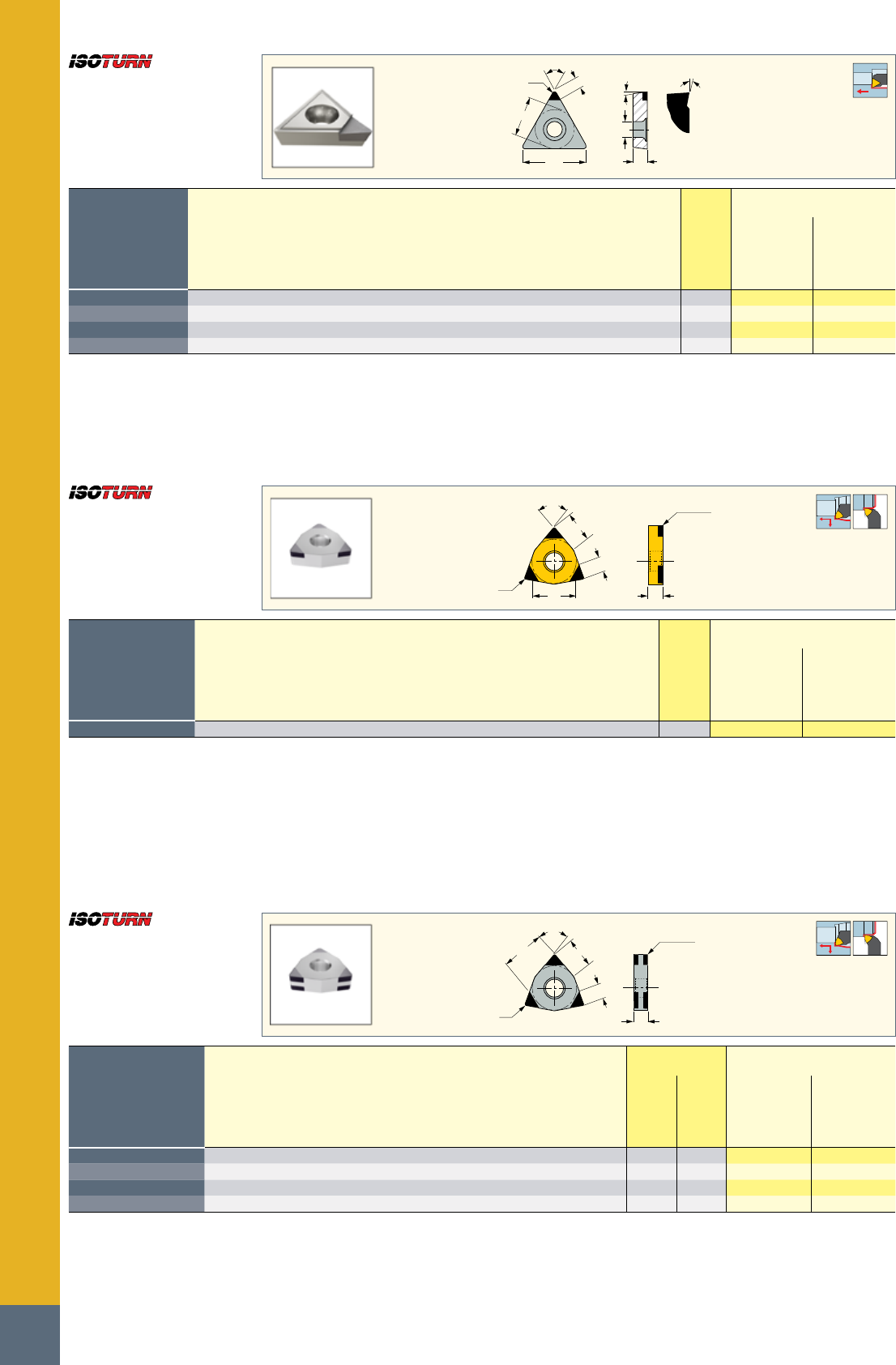

ISOTURN INSERTS

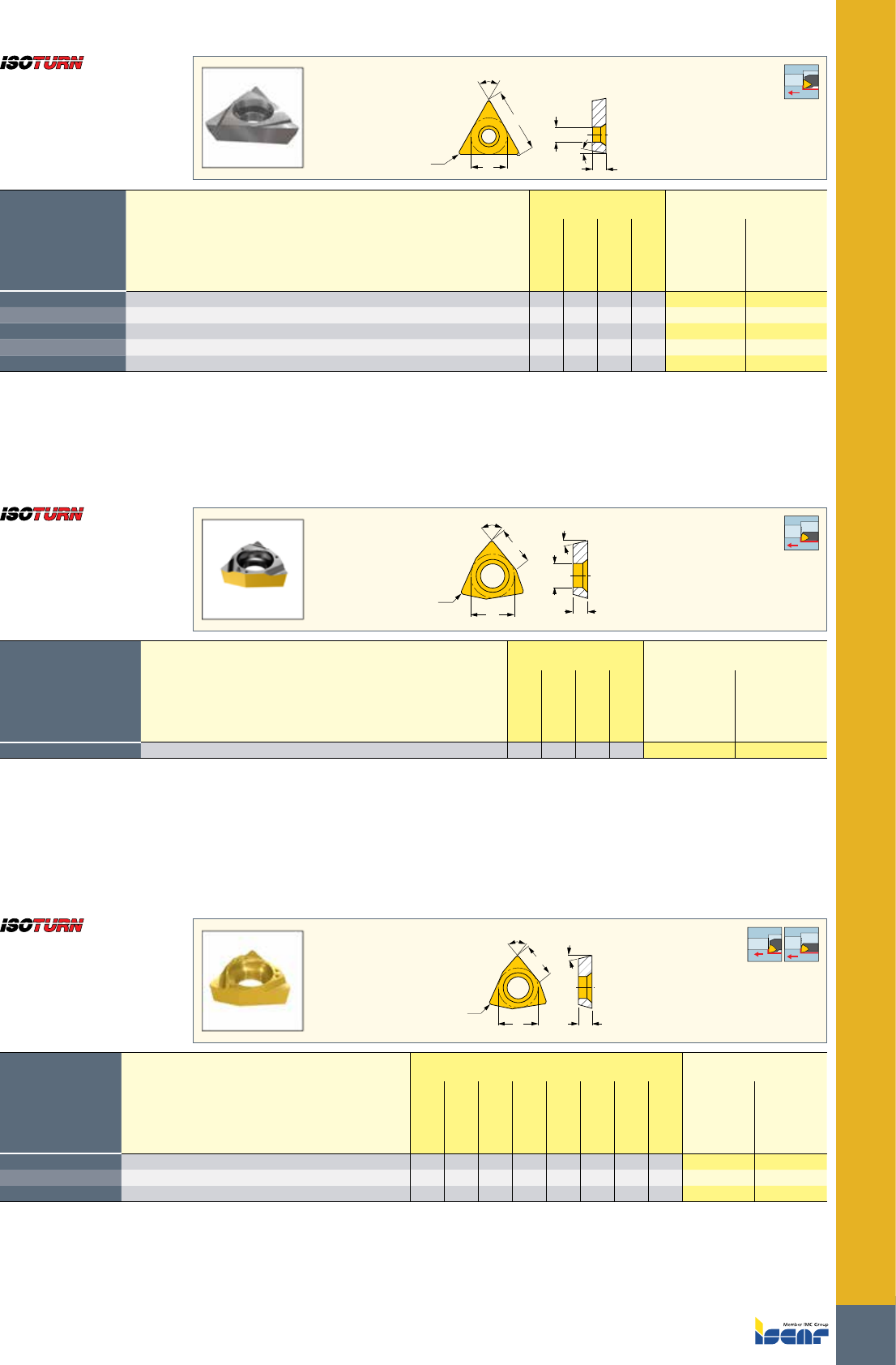

60°

11°

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC908

IC20

IC20N

IC520N

(mm)

(mm/rev)

TPGX 090202-L

9.52 5.56 2.38 0.20 3.00

••••

1.00-2.00 0.10-0.20

TPGX 090204-L

9.52 5.56 2.38 0.40 3.00

••••

1.00-2.50 0.15-0.20

TPGX 110302-L

11.00 6.35 3.18 0.20 3.50

••••

1.00-2.50 0.10-0.20

TPGX 110304-L

11.00 6.35 3.18 0.40 3.50

••••

1.00-3.00 0.15-0.20

TPGX 110308-L

11.00 6.35 3.18 0.80 3.50

•

1.00-3.50 0.15-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117)

TPGX

Triangular Inserts with an 11°

Positive Flank and Ground

Chipformer for Finish Turning

80°

2.24

5°

93º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC830

IC908

IC807

IC907

(mm)

(mm/rev)

WBGT 060102L

2.18 3.97 1.59 0.20

••••

0.10-1.00 0.05-0.10

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386)

WBGT

Trigon Inserts with a 5° Positive

Flank Ground Chipformer

for Finish Turning

80°

5°

9 1°

93º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IC830

IC354

IC350

IC908

IC30N

IC530N

IC20N

IC520N

(mm)

(mm/rev)

WBMT 060101R/L

2.18 3.97 1.59 0.10

•

0.40-2.00 0.10-0.15

WBMT 060102L

2.18 3.97 1.59 0.20

••• ••••

0.40-2.00 0.10-0.15

WBMT 060102R

2.18 3.97 1.59 0.20

• • • •

0.40-2.00 0.10-0.15

• WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386)

WBMT

Trigon Inserts with a 5° Positive

Flank Ground Chipformer

for Finish Turning

ISCAR

208

ISOTURN INSERTS

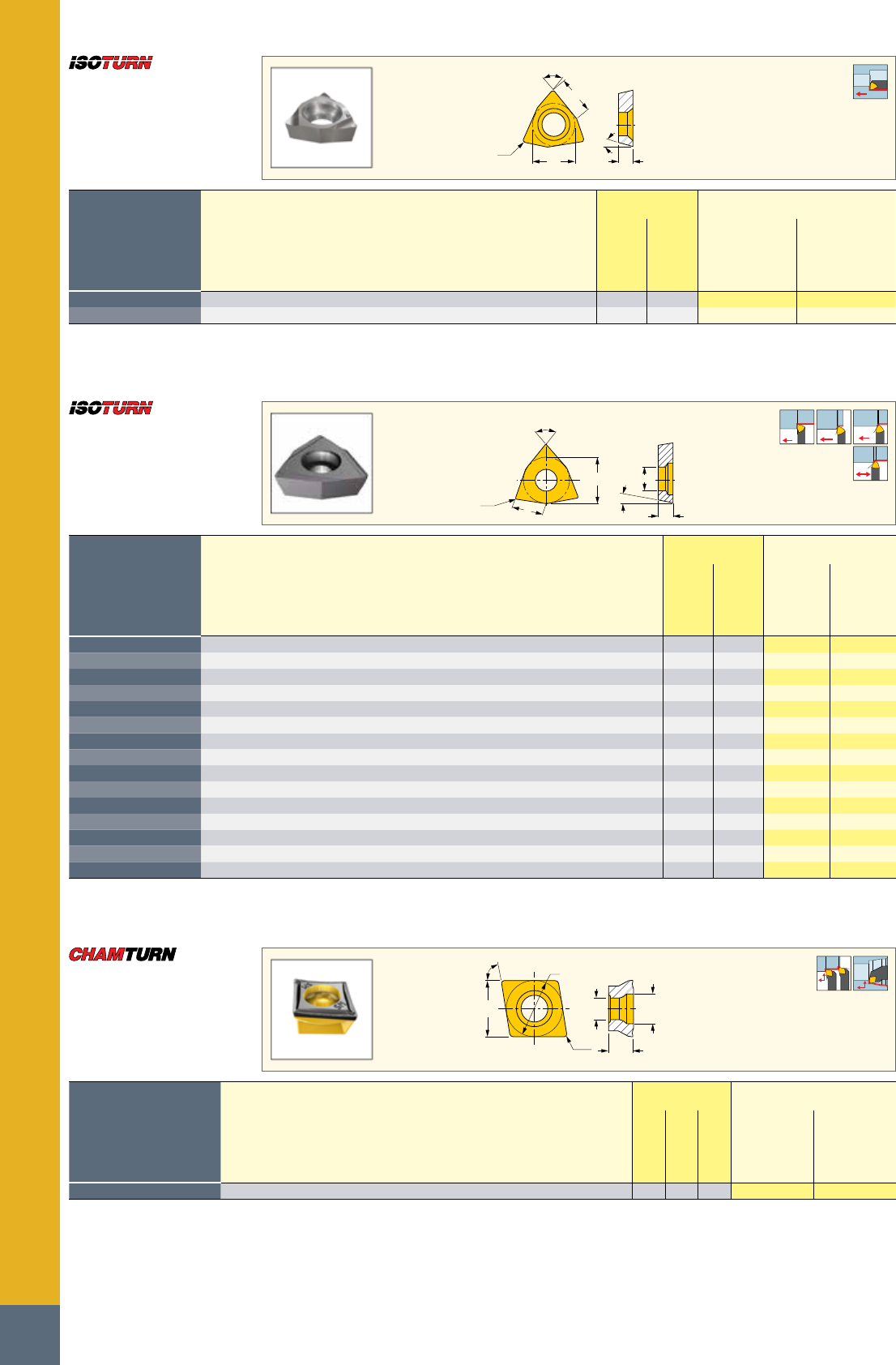

7°

80°

93º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IC908

IC30N

(mm)

(mm/rev)

WCGT 020102L

2.18 3.97 1.59 0.20

• •

0.40-2.00 0.05-0.10

WCGT 020104L

2.18 3.97 1.59 0.40

• •

0.40-2.00 0.10-0.15

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-SWUCR (119) • MG-SWUCR (119)

WCGT

Trigon Inserts with a 7°

Positive Flank and Chipformer

for Finish Turning

IC D1

EPSR

AN°

90° 75° 60°

45°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L S RE IC D1 EPSR AN

IC08

IC908

(mm)

(mm/rev)

WPEX 040200R/L08

4.00 2.50 0.00 6.60 3.20 84.0 8.0

•

0.20-2.00 0.05-0.20

WPEX 040200R12

4.00 2.50 0.00 6.60 3.20 84.0 12.0

•

0.20-2.00 0.05-0.20

WPEX 040202R/L08

4.00 2.50 0.20 6.60 3.20 84.0 8.0

•

0.20-2.00 0.05-0.20

WPEX 050300R/L08

5.00 3.18 0.00 7.94 3.70 80.0 8.0

• •

0.20-2.50 0.05-0.20

WPEX 050300R12

5.00 3.18 0.00 7.94 3.70 80.0 12.0

• •

0.20-2.50 0.05-0.20

WPEX 050302R/L08

5.00 3.18 0.20 7.94 3.70 80.0 8.0

• •

0.20-2.50 0.05-0.20

WPEX 050302R12

5.00 3.18 0.20 7.94 3.70 80.0 12.0

•

0.20-2.50 0.05-0.20

WPEX 050304R/L08

5.00 3.18 0.40 7.94 3.70 80.0 8.0

• •

0.20-2.50 0.05-0.20

WPEX 050304R12

5.00 3.18 0.40 7.94 3.70 80.0 12.0

•

0.20-2.50 0.05-0.20

WPEX 060400R/L08

6.00 4.00 0.00 9.52 3.70 80.0 8.0

• •

0.20-3.00 0.05-0.20

WPEX 060400R/L12

6.00 4.00 0.00 9.52 3.70 80.0 12.0

• •

0.20-3.00 0.05-0.20

WPEX 060402R/L08

6.00 4.00 0.20 9.52 3.70 80.0 8.0

• •

0.20-3.00 0.05-0.20

WPEX 060402R/L12

6.00 4.00 0.20 9.52 3.70 80.0 12.0

• •

0.20-3.00 0.05-0.20

WPEX 060404R/L08

6.00 4.00 0.40 9.52 3.70 80.0 8.0

• •

0.20-3.00 0.05-0.20

WPEX 060404R12

6.00 4.00 0.40 9.52 3.70 80.0 12.0

• •

0.20-3.00 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SWAPR-PAD (73) • SWAPR/L (73) • SWDPR/L (74)

WPEX

80° and 84° Precision

Trigon Inserts with Positive

8° and 12° Clearance for

Finishing Applications

6.2

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC830

IC8250

IC8150

(mm)

(mm/rev)

CC95MT 100504-SM

9.50 9.52 5.00 0.40 4.50

•••

0.50-3.00 0.07-0.24

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: S-SUXCR/L-CM (110) • SUXCR/L-CM (54)

CC95MT-SM

Single-Sided 80° Rhombic Inserts

for Finishing (CHAMELEON

Multifunction Pocket System)

209

ISOTURN INSERTS

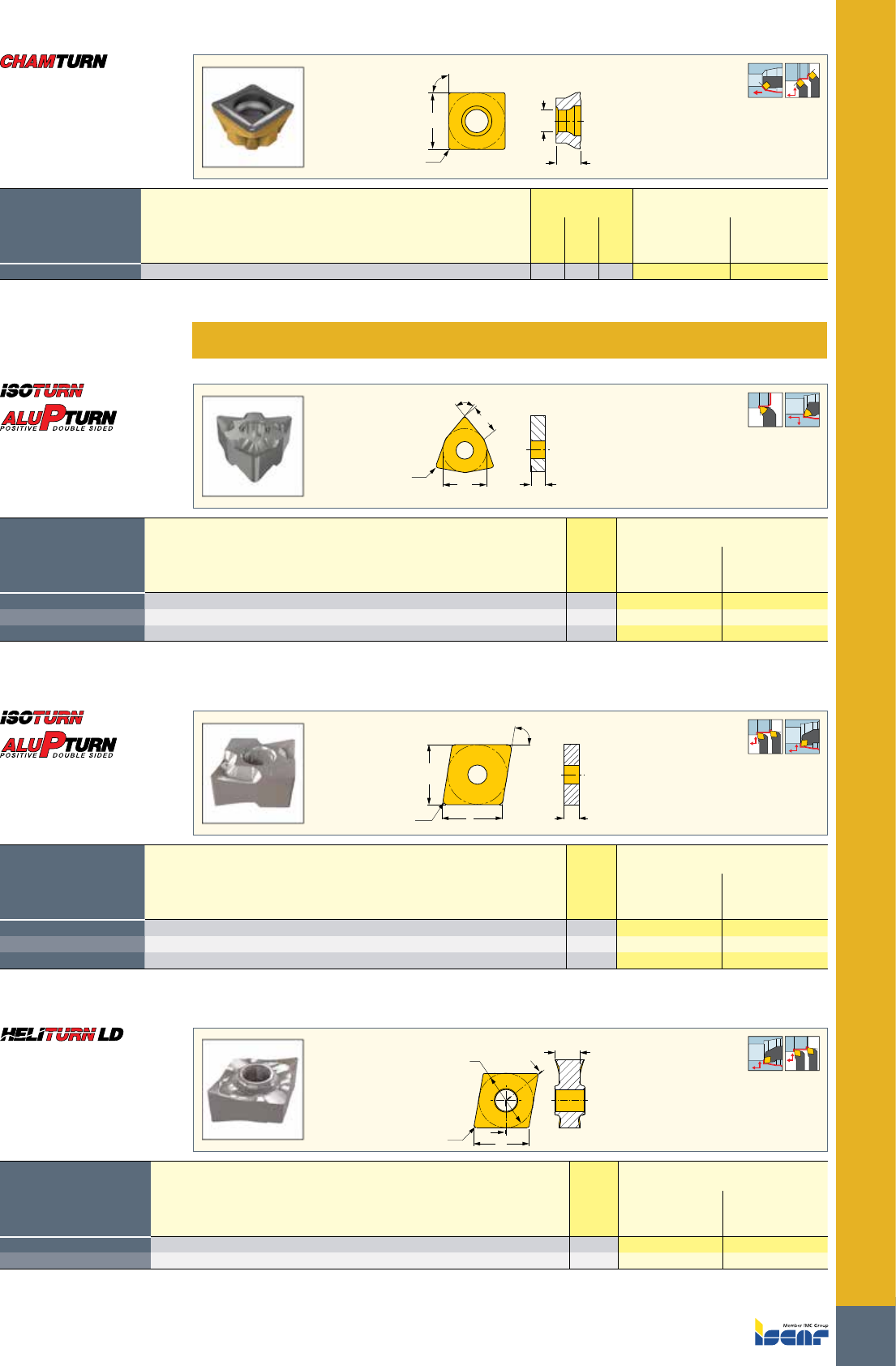

90°

IC=L

45º

Dimensions Tough

Hard Recommended Machining Data

Designation

L S RE D1

IC830

IC8250

IC8150

(mm)

(mm/rev)

SC45MT 100508-SM

9.53 5.00 0.80 4.50

•••

0.50-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: S-SUXCR/L-CM (110) • SUXCR/L-CM (54)

SC45MT-SM

Single-Sided Square Inserts

for Finishing Applications

(CHAMELEON Multifunction

Pocket System)

80°

95°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

WNGG 060402-F3N-P

6.52 9.52 4.76 0.20

•

0.20-3.00 0.10-0.30

WNGG 060404-F3N-P

6.52 9.52 4.76 0.40

•

0.40-3.00 0.12-0.35

WNGG 060408-F3N-P

6.52 9.52 4.76 0.80

•

0.80-3.00 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PWLNR/L-X/G (104) • A/S-MWLNR/L-W (103) • DWLNR/L (10) • MWLNR/L-W (18) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12)

• PWLNR/L-X-JHP-MC (13)

WNGG-F3N

Double-Sided Sharp-Edged

Positive and Polished Rake Inserts

for Finishing on Aluminum and

Other Non-Ferrous Materials

80°

RE S

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

CNGG 090402-F3N-P

9.70 9.52 4.76 0.20

•

0.30-3.00 0.10-0.30

CNGG 090404-F3N-P

9.70 9.52 4.76 0.40

•

0.40-3.00 0.10-0.30

CNGG 090408-F3N-P

9.70 9.52 4.76 0.80

•

0.80-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• AVC-PCLNR/L (96)

CNGG-F3N

Double-Sided Sharp-Edged

Positive and Polished Rake Inserts

for Finishing on Aluminum and

Other Non-Ferrous Materials

A-A

IC 95º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

CNGX 090604-M3N-P

9.70 9.52 4.40 0.40

•

0.40-3.00 0.10-0.30

CNGX 090608-M3N-P

9.70 9.52 4.40 0.80

•

0.80-3.00 0.10-0.30

• PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

CNGX-M3N

Double-Sided Positive

Rake Inserts with High

Helical and Sharp Edge

for Medium Machining on

Non-Ferrous Materials

Inserts for Machining Aluminum

ISCAR

210

ISOTURN INSERTS

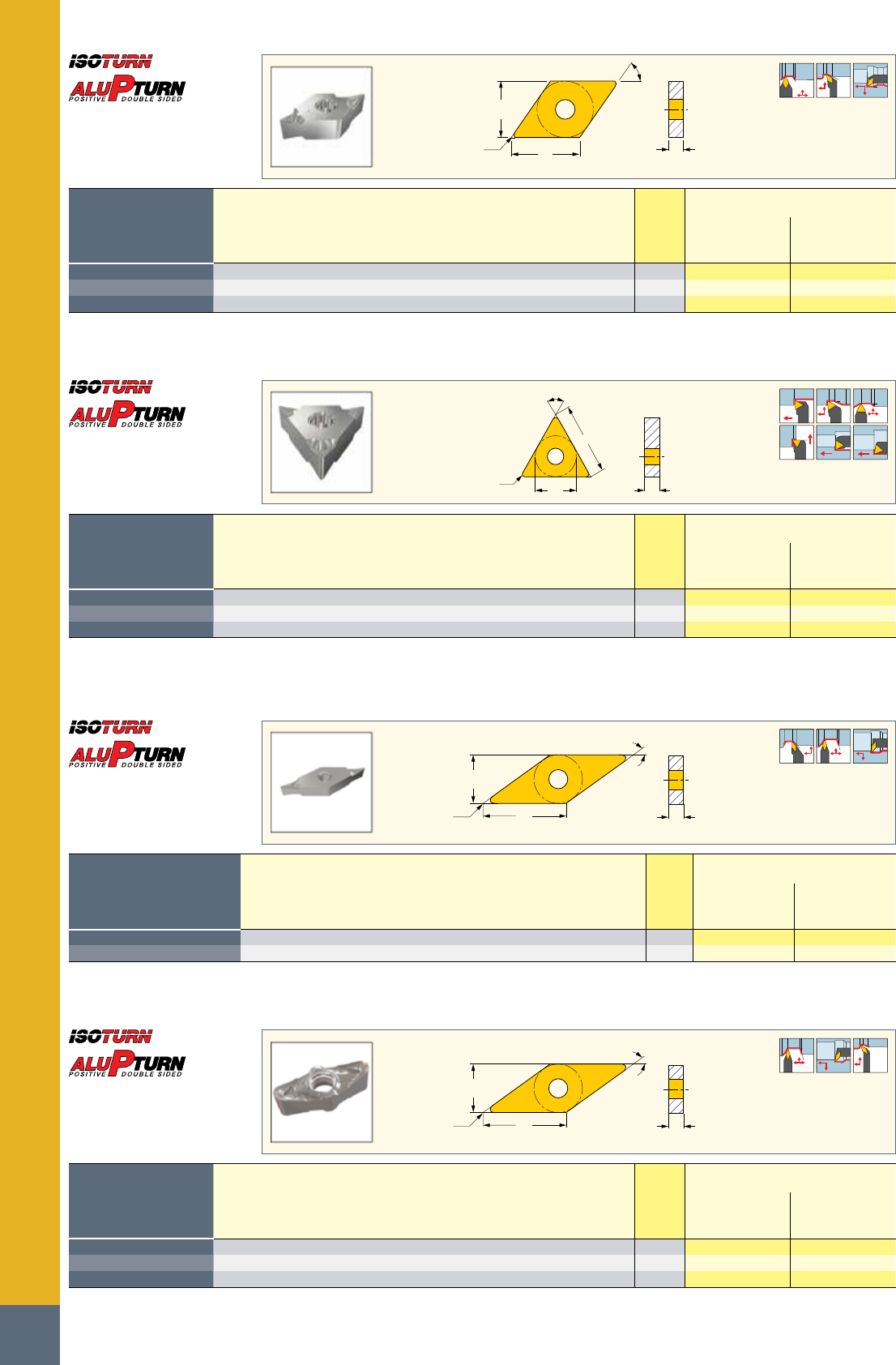

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

DNGG 110402-M3N-P

11.63 9.52 4.76 0.20

•

0.30-3.00 0.10-0.30

DNGG 110404-M3N-P

11.63 9.52 4.76 0.40

•

0.30-3.00 0.10-0.30

DNGG 110408-M3N-P

11.63 9.52 4.76 0.80

•

0.30-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L (97) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • PDJNR/L (28) • PDJNR/L-JHP (29)

DNGG-M3N

Double-Sided Sharp-Edged

Positive and Polished Rake Inserts

for Finishing on Aluminum and

Other Non-Ferrous Materials

IC S

60°

91º

93º

22°MAX

60º

55°

MAX

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

TNGG 160402-M3N-P

16.50 9.52 4.76 0.20

•

0.30-3.00 0.10-0.30

TNGG 160404-M3N-P

16.50 9.52 4.76 0.40

•

0.30-3.00 0.10-0.30

TNGG 160408-M3N-P

16.50 9.52 4.76 0.80

•

0.30-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNGG-M3N

Double-Sided Sharp-Edged

Positive and Polished Rake Inserts

for Finishing on Aluminum and

Other Non-Ferrous Materials

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

VNGG 160402-M3N-P

16.60 9.52 4.76 0.20

•

0.20-3.00 0.10-0.25

VNGG 160404-M3N-P

16.60 9.52 4.76 0.40

•

0.40-3.00 0.12-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: AVC-DVUNR/L (97) • MVJNR/L (33) • MVVNN (35)

VNGG-M3N

Double-Sided Sharp-Edged

Positive and Polished Rake Inserts

for Finishing on Aluminum and

Other Non-Ferrous Materials

35°

72.5º

70°MAX

107.5º

35°

MAX 107.5º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

VNGU 220612-R3N

22.00 12.70 6.77 1.20

•

1.00-4.50 0.10-0.30

VNGU 220616-R3N

22.00 12.70 6.51 1.60

•

1.50-4.50 0.10-0.35

VNGU 220630-R3N

22.00 12.70 6.35 3.00

•

1.50-4.50 0.15-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-SVLFNR-AL-JHP (108) • A-SVQNR/L-AL-JHP (108) • SVHNR/L-AL-JHP (34) • SVVNN-AL-JHP (34)

VNGU-R3N

Double-Sided Sharp-Edged

Positive Rake Inserts for Rough

Machining on Aluminum and

Other Non-Ferrous Materials

211

ISOTURN INSERTS

7°

90˚ IC=L

75º

45º

45°

Dimensions Recommended Machining Data

Designation

IC S RE D1

IC20

(mm)

(mm/rev)

SCGT 09T308-AS

9.52 3.97 0.80 4.40

•

0.50-3.00 0.10-0.30

SCGT 120404-AS

12.70 4.76 0.40 5.50

•

1.00-4.00 0.10-0.30

SCGT 120408-AS

12.70 4.76 0.80 5.50

•

1.00-4.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SSBCR/L (70) • SSSCR/L (70)

SCGT-AS

Square Inserts with a 7° Positive

Flank, Very Positive Rake

Angle and Sharp Cutting Edge

for Machining Aluminum

7°

60˚

91º

91º91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

TCGT 110204-AS

11.00 6.35 2.38 0.40 2.80

•

0.20-3.00 0.05-0.30

TCGT 16T304-AS

16.50 9.52 3.97 0.40 4.40

•

0.50-3.00 0.05-0.30

TCGT 16T308-AS

16.50 9.52 3.97 0.80 4.40

•

0.50-3.00 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-MTLCR/L-W (114) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCGT-AS

Triangular Inserts with a 7°

Positive Flank, Very Positive

Rake Angle and Sharp Cutting

Edge for Machining Aluminum

35˚

7°

11 7. 5 °

142º

93º 93º

30°

MAX

50°

MAX

93° 95º

48°

MAX

72.5º

70°MAX

107.5º

35°

MAX

95º

112°

31°

MAX

9 1°

52°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE D1

IC920

IC20

(mm)

(mm/rev)

VCGT 110302-AS

11.10 6.35 3.18 0.20 2.90

• •

0.20-2.50 0.05-0.20

VCGT 110304-AS

11.10 6.35 3.18 0.40 2.90

•

0.50-3.00 0.05-0.25

VCGT 160401-AS

16.60 9.52 4.76 0.10 4.40

•

0.20-2.50 0.05-0.20

VCGT 160402-AS

16.60 9.52 4.76 0.20 4.40

•

0.50-2.50 0.05-0.25

VCGT 160404-AS

16.60 9.52 4.76 0.40 4.40

•

0.50-3.00 0.05-0.25

VCGT 160408-AS

16.60 9.52 4.76 0.80 4.40

•

0.50-3.00 0.10-0.25

VCGT 160412-AS

16.60 9.52 4.76 1.20 4.40

•

0.50-3.00 0.10-0.25

VCGT 220530-AS

22.10 12.70 5.56 3.00 5.50

•

1.50-4.50 0.15-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • AVC-SVUCR/L (95)

• C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • DTF50 SVXCR-16X2 (452) • DTF50 SVXCR-22 (452) • HSK A63WH-SVJCR/L (67)

• NQCH-SVACR/L-S-JHP (67) • NQCH-Y-SVJCR-S-JHP (65) • PVACR/L-JHP (68) • PVACR/L-S (64) • S/A-SVJCR/L (114) • SVACR/L (67)

• SVJCR-PAD (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVPCR/L (69) • SVVCN (454) • SVXCR/L (454) • Y-SVJCR (65) • Y-SVJCR-JHP (65)

• AVC-SVLCR/L (96) • PVACR/L-JHP-MC (68)

VCGT-AS

35° Rhombic Inserts with a 7°

Positive Flank, Very Positive

Rake Angle and Sharp Cutting

Edge for Machining Aluminum

ISCAR

212

ISOTURN INSERTS

35˚

7°

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

VCGT 220508-AF

22.10 12.70 5.56 0.80 5.50

•

1.00-4.50 0.10-0.25

VCGT 220512-AF

22.10 12.70 5.56 1.20 5.50

•

1.00-4.50 0.10-0.30

VCGT 220516-AF

22.10 12.70 5.56 1.60 5.50

•

1.50-4.50 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • DTF50 SVXCR-22 (452)

VCGT-AF

Inserts with a Very Positive

Rake Angle and Sharp Cutting

Edge for Semi-Finishing and

Finishing on Aluminum

7˚

RE S

80˚

95º

99°

91°

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

CCGT 060201-AS

6.40 6.35 2.38 0.10 2.80

•

0.50-2.00 0.10-0.20

CCGT 060202-AS

6.40 6.35 2.38 0.20 2.80

•

0.50-2.00 0.10-0.20

CCGT 060204-AS

6.40 6.35 2.38 0.40 2.80

•

0.50-2.00 0.10-0.25

CCGT 09T301-AS

9.70 9.52 3.97 0.10 4.40

•

0.50-2.50 0.10-0.25

CCGT 09T302-AS

9.70 9.52 3.97 0.20 4.40

•

0.50-2.50 0.10-0.25

CCGT 09T304-AS

9.70 9.52 3.97 0.40 4.40

•

0.50-2.50 0.10-0.25

CCGT 09T308-AS

9.70 9.52 3.97 0.80 4.40

•

0.80-3.00 0.10-0.30

CCGT 120402-AS

12.90 12.70 4.76 0.20 5.50

•

0.50-2.50 0.10-0.25

CCGT 120404-AS

12.90 12.70 4.76 0.40 5.50

•

0.50-2.50 0.10-0.25

CCGT 120408-AS

12.90 12.70 4.76 0.80 5.50

•

1.00-3.50 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCGT-AS

80° Rhombic Inserts with a 7°

Positive Flank, Very Positive

Rake Angle and Sharp Cutting

Edge for Machining Aluminum

7˚

80˚

95º

99°

91°

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

CCGT 09T308-AF

9.70 9.52 3.97 0.80 4.40

•

0.80-3.00 0.15-0.25

CCGT 120408-AF

12.90 12.70 4.76 0.80 5.50

•

1.00-3.50 0.15-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCLCR-PAD (55)

• SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCGT-AF

80° Rhombic Inserts with a 7°

Positive Flank, Very Positive

Rake Angle and Sharp Cutting

Edge for Machining Aluminum

213

ISOTURN INSERTS

7˚

55˚

10 7. 5 °

93º

27°

MAX

62.5º

60°

MAX

9 1°

29°

MAX 93º-95º

50º

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE D1

IC920

IC20

IC320

IC907

(mm)

(mm/rev)

DCGT 070201-AS

7.75 6.35 2.38 0.10 2.80

•

0.50-2.00 0.03-0.20

DCGT 070202-AS

7.75 6.35 2.38 0.20 2.80

• •

0.50-2.00 0.05-0.20

DCGT 070204-AS

7.75 6.35 2.38 0.40 2.80

•

0.50-2.50 0.05-0.25

DCGT 11T301-AS

11.60 9.52 3.97 0.10 4.40

•

0.50-2.50 0.05-0.25

DCGT 11T302-AS

11.60 9.52 3.97 0.20 4.40

•••

0.50-2.50 0.05-0.26

DCGT 11T304-AS

11.60 9.52 3.97 0.40 4.40

•••

0.50-2.50 0.05-0.25

DCGT 11T308-AS

11.60 9.52 3.97 0.80 4.40

• •

0.80-3.00 0.08-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCGT-AS

55° Rhombic Inserts with a 7°

Positive Flank, Very Positive

Rake Angle and Sharp Cutting

Edge for Machining Aluminum

7˚

55˚

10 7. 5 °

93º

27°

MAX

62.5º

60°

MAX

9 1°

29°

MAX 93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE D1

IC20

(mm)

(mm/rev)

DCGT 11T304-AF

11.60 9.52 3.97 0.40 4.40

•

0.50-2.50 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)

• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCGT-AF

Inserts with a Very Positive

Rake Angle and Sharp Cutting

Edge for Semi-Finishing and

Finishing on Aluminum

7˚

Dimensions Recommended Machining Data

Designation

IC S D1

IC20

(mm)

(mm/rev)

RCGT 0803M0-AS

8.00 3.18 3.40

•

1.00-4.00 0.20-0.40

RCGT 1003M0-AS

10.00 3.18 4.00

•

1.00-5.00 0.20-0.40

RCGT 10T3M0-AS

10.00 3.97 4.40

•

1.00-5.00 0.20-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: SRDCN (72) • SRGCR/L (71)

RCGT-AS

Round Inserts with a 7° Positive

Flank, Very Positive Rake

Angle and Sharp Cutting Edge

for Machining Aluminum

ISCAR

214

ISOTURN INSERTS

IC S

60°

91º

60º

55°

MAX

91º

93º

22°MAX

91º

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

TNMS 160404-12

16.50 9.52 4.76 0.40

•

0.50-3.00 0.07-0.32

TNMS 160408-12

16.50 9.52 4.76 0.80

•

0.50-3.00 0.10-0.35

TNMS 220404-12

22.00 12.70 4.76 0.40

•

1.00-4.00 0.07-0.32

TNMS 220408-12

22.00 12.70 4.76 0.80

•

1.00-4.00 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-PTFNR/L (109)

TNMS-12

Triangular Single-Sided Inserts for

Soft and Nonferrous Materials

55°

RE L

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

DNMS 150408-12

15.50 12.70 4.76 0.80

•

1.00-4.00 0.07-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-PDJNR/L-JHP (29) • PDJNR/L (28) • PDJNR/L-JHP (29)

DNMS-12

55° Rhombic Single-Sided Inserts

for Soft and Nonferrous Materials

80°

RE S

75º

75°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

CNMS 120408-12

12.90 12.70 4.76 0.80

•

1.00-4.00 0.10-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

CNMS-12

80° Rhombic Single-Sided Inserts

for Soft and Nonferrous Materials

35°

50°

MAX

93°

72.5º

70°MAX

93º

30°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE

IC20

(mm)

(mm/rev)

VNMS 160404-12

16.60 9.52 4.76 0.40

•

1.00-3.00 0.07-0.30

VNMS 160408-12

16.60 9.52 4.76 0.80

•

1.00-3.50 0.07-0.33

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

VNMS-12

35° Rhombic Single-Sided Inserts

for Soft and Nonferrous Materials

215

ISOTURN INSERTS

7.8

PRFRAD

5.16

15.87

APMX

Dimensions Tough

Hard

Designation

PRFRAD APMX

IC8150

IC418

SNMX 150708R-11

11.00 1.20

•

SNMX 150708R-13

13.00 1.00

•

SNMX 150708R-15

15.00 0.86

•

SNMX 150708R-18

18.00 0.71

•

SNMX 150708R-20

20.00 0.64

•

SNMX 150708R-22

22.00 0.58

•

SNMX 150708R-25

25.00 0.50

•

SNMX 150708R-27

27.00 0.47

•

SNMX 150708R-30

30.00 0.42

•

SNMX 150708R-35

35.00 0.36

•

SNMX 150708R-40

40.00 0.31

•

SNMX 150708R-45

45.00 0.28

•

SNMX 150708R-50

50.00 0.25

• •

SNMX 150708R-60

60.00 0.21

•

SNMX 150708R-65

65.00 0.19

•

SNMX 150708R-70

70.00 0.18

•

SNMX 150708R-75

75.00 0.17

•

SNMX 150708R-90

90.00 0.14

•

For tools, see pages: PSANR/L (51)

60 MIN

200 MAX

These inserts remove the burr immediately after the welding process

(material temperature is usually 300-400°C). Cutting speed varies from

40 to 150 m/min, depending on the diameter of the tube.

Recommended:

R= D (pipe)

2 + (1-2 mm)

PIPE FEED

SNMX 150708R-..

Pipe Skiving Inserts with a

Positive Rake Used to Remove

the Burr of Welded Tubes

6.35

5.16

15.87

APMX

PRFRAD

Dimensions

Designation

PRFRAD APMX

IC418

SNMX 150608R-15

15.00 0.86

•

SNMX 150608R-90

90.00 0.14

•

For tools, see pages: PSANR/L (51)

These inserts remove the burr immediately after the welding process

(material temperature is usually 300-400° C). Cutting speed varies

from 40 to 150 m/min, depending on the diameter of the tube.

Recommended:

R= D (pipe)

2 +(1-2 mm)

PIPE FEED

SNMX 150608R-..

Pipe Skiving Inserts Used to

Remove the Burr of Welded Tubes

ISCAR

216

ISOTURN INSERTS

80°

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IS8

IS80

IS6

(mm)

(mm/rev)

WNGA 080408T

8.70 12.70 4.76 0.80

•

2.00-4.00 0.20-0.60

WNGA 080412T

8.70 12.70 4.76 1.20

•••

2.00-5.00 0.03-0.95

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18)

• PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

WNGA-Ceramic

Double-Sided Flat Rake Ceramic

Inserts for Machining Cast Iron

80°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IW7

IS35

IS25

IS8

IS80

IN23

IN22

IN420

(mm)

(mm/rev)

CNGN 120404T

12.90 12.70 4.76 0.40

• •

1.00-3.00 0.10-0.43

CNGN 120408E

12.90 12.70 4.76 0.80

•

1.00-3.00 0.10-0.50

CNGN 120408T

12.90 12.70 4.76 0.80

• • • • •

1.00-3.00 0.10-0.50

CNGN 120412E

12.90 12.70 4.76 1.20

•

1.00-5.00 0.10-0.50

CNGN 120412T

12.90 12.70 4.76 1.20

• •

1.00-4.00 0.10-0.50

CNGN 120416T

12.90 12.70 4.76 1.60

•

1.00-5.00 0.10-0.50

CNGN 120708E

12.90 12.70 7.94 0.80

•

1.00-4.00 0.10-0.50

CNGN 120708T

12.90 12.70 7.94 0.80

• • • •

1.00-4.00 0.10-0.50

CNGN 120712E

12.90 12.70 7.94 1.20

•

1.00-5.00 0.10-0.50

CNGN 120712T

12.90 12.70 7.94 1.20

• • •

1.00-4.00 0.10-0.50

CNGN 120716T

12.90 12.70 7.94 1.60

•••

1.00-5.00 0.10-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CCLNR/L (88)

CNGN-Ceramic

80° Rhombic Double-Sided

Ceramic Inserts with a T-Land for

Machining Cast Iron, Hardened

Steel and Nickel Based Alloys

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IN23

IN22

(mm)

(mm/rev)

CNMG 120404T

12.90 12.70 4.76 0.40

•

1.00-3.00 0.05-0.20

CNMG 120408T

12.90 12.70 4.76 0.80

• •

1.00-3.00 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15)

• PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99)

• S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25)

CNMG-Ceramic

80° Rhombic Double-Sided

Inserts with a T-Land

for Machining Cast Iron

and Hardened Steel

217

ISOTURN INSERTS

80°

RE S

75°

95º

75º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE

IS35

IS25

IS8

IS80

IS6

IN23

IN22

IN420

(mm)

(mm/rev)

CNGA 120404T

12.90 12.70 4.76 0.40

•••

1.00-3.00 0.05-0.20

CNGA 120408T

12.90 12.70 4.76 0.80

••••••••

1.00-4.00 0.05-0.20

CNGA 120412T

12.90 12.70 4.76 1.20

• ••••

1.00-4.00 0.05-0.20

CNGA 120416T

12.90 12.70 4.76 1.60

• • •

1.00-5.00 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23)

• PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105)

CNGA-Ceramic

80° Rhombic Double-Sided

Inserts with a T-Land

for Machining Cast Iron

and Hardened Steel

80°

75°

95º

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IS8

IS80

IS6

(mm)

(mm/rev)

CNGX 120712T

12.90 12.70 7.94 1.20

•••

1.00-3.00 0.07-0.43

CNGX 120716T

12.90 12.70 7.94 1.60

•••

1.00-3.00 0.07-0.43

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: TCBNR/L-CH (88) • TCKNR/L-CH (88) • TCLNR/L-CH (88)

CNGX-Ceramic

80° Rhombic Double-Sided

Dimpled Ceramic Inserts with a

T-Land for Machining Cast Iron

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IW7

IS8

IS80

IS6

IN23

IN22

IN420

(mm)

(mm/rev)

SNGN 120404T

12.70 4.76 0.40

•

0.10-3.50 0.10-0.50

SNGN 120408T

12.70 4.76 0.80

•• •••

0.10-3.50 0.10-0.50

SNGN 120412T

12.70 4.76 1.20

•••••••

0.10-5.00 0.10-0.50

SNGN 120416T

12.70 4.76 1.60

••• ••

0.10-5.00 0.10-0.50

SNGN 120708T

12.70 7.94 0.80

• • •

0.10-5.00 0.10-0.50

SNGN 120712T

12.70 7.94 1.20

•••

0.10-5.00 0.10-0.50

SNGN 120716T

12.70 7.94 1.60

• •

0.10-5.00 0.10-0.50

SNGN 150712T

15.88 6.35 1.20

•

0.10-5.00 0.10-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CSDNN-CE/CEA (89)

SNGN-Ceramic

Square Double-Sided Ceramic

Inserts with a Flat Rake for

Machining Cast Iron, Hardened

Steel and Super Alloys

ISCAR

218

ISOTURN INSERTS

90°

IC=L

75º

45º

45°

75º

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IS8

IN23

IN22

IN420

(mm)

(mm/rev)

SNGA 120404T

12.70 4.76 0.40

•

0.10-3.00 0.05-0.30

SNGA 120408T

12.70 4.76 0.80

•••

0.10-3.50 0.05-0.30

SNGA 120412T

12.70 4.76 1.20

• •

0.10-4.00 0.05-0.30

SNGA 120416T

12.70 4.76 1.60

•

0.10-4.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)

• PSSNR/L (42) • PSSNR/L-JHP (42)

SNGA-Ceramic

Square Double-Sided

Ceramic Inserts with a Flat

Rake for Machining Cast

Iron and Hardened Steel

90°

IC=L

75º

45º

45°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S RE

IS8

IS80

IS6

(mm)

(mm/rev)

SNGX 120712T

12.70 7.94 1.20

•••

0.10-5.00 0.10-0.50

SNGX 120716T

12.70 7.94 1.60

•••

0.10-5.00 0.10-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: TSDNN-CH (89)

SNGX-Ceramic

Square Double-Sided Dimpled

Ceramic Inserts with a Flat

Rake for Machining Cast Iron

55°

RE L

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IS8

IN23

IN22

IN420

(mm)

(mm/rev)

DNGA 150404T

15.50 12.70 4.76 0.40

• •

0.10-3.00 0.07-0.50

DNGA 150408T

15.50 12.70 4.76 0.80

••••

0.10-3.50 0.07-0.50

DNGA 150412T

15.50 12.70 4.76 1.20

•

0.10-4.00 0.07-0.50

DNGA 150604T

15.50 12.70 6.35 0.40

• •

0.10-3.50 0.07-0.50

DNGA 150608T

15.50 12.70 6.35 0.80

•••

0.10-4.00 0.07-0.50

DNGA 150612T

15.50 12.70 6.35 1.20

• •

0.10-5.00 0.07-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNGA-Ceramic

55° Rhombic Double-Sided

Ceramic Inserts for Machining

Cast Iron and Hardened Steel

219

ISOTURN INSERTS

55°

RE LS

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IS8

IS80

IS6

(mm)

(mm/rev)

DNGX 150712T

15.50 12.70 7.94 1.20

•••

0.10-4.00 0.10-0.50

DNGX 150716T

15.50 12.70 7.94 1.60

•

0.10-5.00 0.10-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

DNGX-Ceramic

55° Rhombic Double-Sided

Dimpled Ceramic Inserts

for Machining Cast Iron

35°

93º

30°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IN22

IN420

(mm)

(mm/rev)

VNGA 160404T

16.60 9.52 4.76 0.40

• •

0.70-2.50 0.06-0.30

VNGA 160408T

16.60 9.52 4.76 0.80

•

0.80-3.00 0.08-0.35

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

VNGA-Ceramic

35° Rhombic Double-Sided

Ceramic Inserts with a

T-Land for Machining Cast

Iron and Hardened Steel

60°

93°

93º

22°MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IW7

IS8

IS80

IN23

IN22

IN420

(mm)

(mm/rev)

TNGN 160408T

16.50 9.52 4.76 0.80

•••

1.00-3.50 0.10-0.35

TNGN 160412T

16.50 9.52 4.76 1.20

•••

0.10-4.00 0.10-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

TNGN-Ceramic

Triangular Double-Sided

Ceramic Inserts for Machining

Cast Iron, Hardened Steel

and Nickel Based Alloys

IC S

60°

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IN23

IN22

IN420

(mm)

(mm/rev)

TNGA 160404T

16.50 9.52 4.76 0.40

•••

0.10-3.00 0.07-0.50

TNGA 160408T

16.50 9.52 4.76 0.80

•••

0.10-3.50 0.07-0.50

TNGA 160412T

16.50 9.52 4.76 1.20

•

0.10-4.00 0.07-0.50

TNGA 220408T

22.00 12.70 4.76 0.80

•••

0.10-5.00 0.07-0.50

TNGA 220416T

22.00 12.70 4.76 1.60

•

0.10-5.00 0.07-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • C#-DTGNR/L (44) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37)

• PTGNR/L (35) • PTGNR/L-X (36) • PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNGA-Ceramic

Triangular Double-Sided Ceramic

Inserts for Machining Super

Alloys and Hardened Steel

ISCAR

220

ISOTURN INSERTS

RE IC

60°

11°

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE

IN23

IN22

IN420

(mm)

(mm/rev)

TPGN 090204T

9.60 5.56 2.38 0.40

•

0.10-1.50 0.07-0.30

TPGN 110304T

11.00 6.35 3.18 0.40

•••

0.10-1.50 0.07-0.30

TPGN 110308T

11.00 6.35 3.18 0.80

•••

0.10-3.00 0.07-0.40

TPGN 160304T

16.50 9.52 3.18 0.40

•••

0.10-4.00 0.07-0.50

TPGN 160308T

16.50 9.52 3.18 0.80

•••

0.10-4.00 0.07-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: CTFPR/L (75) • CTGPR/L (74) • S-CTFPR/L (116)

TPGN-Ceramic

Triangular Ceramic Inserts

with an 11° Positive Flank for

Machining Hardened Steel

11°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S

IW7

IS35

IS25

(mm)

(mm/rev)

RPGN 090300E

9.52 3.17

•

0.10-2.00 0.07-0.20

RPGN 120400E

12.70 4.76

• •

0.10-3.00 0.07-0.20

RPGN 120400E-CH (1)

12.70 4.76

• •

0.10-3.00 0.07-0.20

RPGN 120400T

12.70 4.76

•••

0.10-3.00 0.07-0.20

RPGN 120400T-CH (1)

12.70 4.76

• •

0.10-3.00 0.07-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Insert with a dimple

RPGN-Ceramic

Round Ceramic Inserts for

Machining Nickel Based

Alloys and Hardened Steel

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S

IW7

IS35

IS25

IN23

IN22

IN420

(mm)

(mm/rev)

RNGN 090300T

9.52 3.18

• •

0.10-2.00 0.07-0.20

RNGN 090400T

9.52 4.76

•

0.10-2.00 0.07-0.20

RNGN 120400T

12.70 4.76

• • •

0.10-3.50 0.07-0.50

RNGN 120700 S6 (1)

12.70 7.94

•

0.10-2.00 -

RNGN 120700E

12.70 7.94

•••

0.10-2.00 0.07-0.20

RNGN 120700E-CH (2)

12.70 7.94

• •

0.10-2.00 0.07-0.20

RNGN 120700T

12.70 7.94

••••••

0.10-4.50 0.07-0.50

RNGN 120700T-CH (2)

12.70 7.94

• •

0.10-4.50 0.07-0.50

RNGN 120700TE

12.70 7.94

• •

0.10-4.50 0.07-0.50

RNGN 120700T02020

12.70 7.94

•

0.10-2.00 0.07-0.20

RNGN 150700T

15.88 7.94

•

0.10-3.00 0.07-0.20

RNGN 190700T

19.05 7.94

•

0.10-3.00 0.07-0.20

RNGN 190700TE

19.05 7.94

• •

0.10-3.00 0.07-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) For milling nickel based superalloys; reference recommendations for milling Inconel 718: 0.12 mm/t 900-1000 m/min

(2) Insert with a dimple

For tools, see pages: CRDNN (90) • CRGNR/L (90)

RNGN-Ceramic

Round Double-Sided Ceramic

Inserts for Machining Cast

Iron, Nickel Based Alloys

and Hardened Steel

221

ISOTURN INSERTS

7°

120°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S GB BN

IW7

IS35

IS25

IN23

(mm)

(mm/rev)

RCGX 090700E

9.52 7.94 25.0 0.20

•••

0.10-3.00 0.07-0.50

RCGX 090700T

9.52 7.94 25.0 0.20

••••

0.10-3.00 0.07-0.50

RCGX 090700TE

9.52 7.94 25.0 0.20

•

0.10-3.00 0.07-0.50

RCGX 120700E

12.70 7.94 25.0 0.20

•••

0.10-4.00 0.07-0.50

RCGX 120700T

12.70 7.94 25.0 0.20

• •

0.10-4.00 0.07-0.50

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

RCGX-Ceramic

Round Ceramic Inserts for

Machining Nickel Based

Alloys and Hardened Steel

11°

120°

Dimensions Tough

Hard Recommended Machining Data

Designation

IC S

IW7

IS35

IS25

(mm)

(mm/rev)

RPGX 090700E

9.52 7.94

• •

0.50-3.00 0.10-0.45

RPGX 090700T

9.52 7.94

•••

0.50-3.00 0.10-0.45

RPGX 120700E

12.70 7.94

• •

0.50-4.50 0.10-0.45

RPGX 120700T

12.70 7.94

•••

0.50-4.50 0.10-0.45

• Tools can be supplied on request. • For user guide and cutting speed recommendations, see pages 122-134, 236-248

RPGX-Ceramic

Round Ceramic Inserts for

Machining Nickel Based

Alloys and Hardened Steel

80°

LE L

10°

5°

95º

Dimensions Recommended Machining Data

Designation

L IC S RE LE

ID5

(mm)

(mm/rev)

CNMA 120404D

12.90 12.70 4.76 0.40 3.9

•

0.10-3.00 0.05-0.26

CNMA 120408D

12.90 12.70 4.76 0.80 3.6

•

0.10-3.00 0.05-0.26

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNMA (PCD)

80° Rhombic Inserts with a Single

PCD Top Corner Tip and Positive

Rake for Finishing Applications

ISCAR

222

ISOTURN INSERTS

7°

80°

LE L

95º

99°

91°

Dimensions Recommended

Machining Data

Designation

L IC S RE LE D1

ID5

(mm)

(mm/rev)

CCMT 060202D

6.30 6.35 2.38 0.20 3.1 2.80

•

0.08-3.00 0.05-0.30

CCMT 060204D

6.30 6.35 2.38 0.40 3.0 2.80

•

0.10-3.00 0.05-0.30

CCMT 09T304D

9.70 9.52 3.97 0.40 3.9 4.40

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCMT (PCD)

Inserts with a Single PCD

Top Corner Tip, 7° Clearance

and Positive Rake Angle

for Finishing Aluminum

55°

7°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Recommended

Machining Data

Designation

L IC S RE LE D1

ID5

(mm)

(mm/rev)

DCMT 11T302D

11.60 9.52 3.97 0.20 3.7 4.40

•

0.10-3.00 0.05-0.30

DCMT 11T304D

11.60 9.52 3.97 0.40 3.6 4.40

•

0.10-3.00 0.05-0.30

DCMT 11T308D

11.60 9.52 3.97 0.80 3.3 4.40

•

0.10-3.00 0.05-0.29

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)

• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT (PCD)

55° Rhombic Inserts with a

PCD Single Top Corner Tip, 7°

Clearance and Positive Rake

Angle for Finishing Applications

7°

35°

LE L

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Recommended Machining Data

Designation

IC S RE L LE D1

IB55

(mm)

(mm/rev)

VCMT 160404T

9.52 4.76 0.40 16.60 4.40 4.40

•

0.10-3.00 0.05-0.30

VCMT 160408T

9.52 4.76 0.80 16.60 4.00 4.40

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCMT (CBN)

35° Rhombic Single

Brazed Tip Corner Inserts

for Finishing Cast Iron

223

ISOTURN INSERTS

7°

35°

LE L

11 7. 5 °

107.5º

35°

MAX

95º

48°

MAX

112°

31°

MAX

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Recommended Machining Data

Designation

L IC S RE LE D1

ID5

(mm)

(mm/rev)

VCGT 160404-DW

16.60 9.52 4.76 0.40 6.60 4.40

•

0.10-3.00 0.05-0.30

VCGT 160408-DW

16.60 9.52 4.76 0.80 6.40 4.40

•

0.10-3.00 0.05-0.30

VCGT 160412-DW

16.60 9.52 4.76 1.20 6.30 4.40

•

0.10-3.00 0.05-0.30

VCGT 220516-DW

22.10 12.70 5.56 1.60 6.30 5.50

•

0.10-3.00 0.05-0.30

VCGT 220520-DW

22.10 12.70 5.56 2.00 6.20 5.50

•

0.10-3.00 0.05-0.30

VCGT 220530-DW

22.10 12.70 5.56 3.00 6.00 5.50

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • DTF50 SVXCR-16X2 (452) • DTF50 SVXCR-22 (452) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453)

• SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCGT-DW (PCD)

Inserts with 7° Clearance

and a Single PCD Top

Corner Tip Chipformer for

Machining Aluminum

35°

4.99

7°

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

112°

31°

MAX

11 7. 5 °

95º

48°

MAX

107.5º

35°

MAX 95º

Dimensions Recommended Machining Data

Designation

IC S RE L D1

ID5

(mm)

(mm/rev)

VCGT 160404D

9.52 4.76 0.40 16.60 4.40

•

0.10-3.00 0.05-0.30

VCGT 160408D

9.52 4.76 0.80 16.60 4.40

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L-VH (98) • C#-SVJCR/L (66)

• C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) • AVC-SVLCR/L (96)

VCGT (PCD)

35° Rhombic Single Brazed

Tip Corner Inserts for

Finishing Aluminum (PCD)

7°

60°

RE 91º91º

95º

91º

Dimensions Recommended

Machining Data

Designation

L IC S RE LE D1

ID5

(mm)

(mm/rev)

TCMT 110204D

11.00 6.35 2.38 0.40 3.8 2.80

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCMT (PCD)

Inserts with a Single PCD

Top Corner Tip, 7° Clearance

and Positive Rake Angle

for Finishing Aluminum

ISCAR

224

ISOTURN INSERTS

60°

7°

11°

91º

Dimensions Recommended Machining Data

Designation

L IC S RE LE D1

ID5

(mm)

(mm/rev)

TPGX 090202

9.52 5.56 2.38 0.20 3.0 2.50

•

0.10-3.00 0.05-0.30

TPGX 090204

9.52 5.56 2.38 0.40 3.0 2.50

•

0.10-3.00 0.05-0.30

TPGX 110302

11.00 6.35 3.18 0.20 3.4 3.50

•

0.10-3.00 0.05-0.30

TPGX 110304

11.00 6.35 3.18 0.40 3.8 3.50

•

0.10-3.00 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117)

TPGX (PCD)

Triangular Inserts with PCD

Single Top Corner Brazed Tip,

11° Clearance and Positive Rake

Angle for Finishing Aluminum

Typ. x 3

80º

95º

95°

Dimensions Recommended Machining Data

Designation

L IC S RE LE

IB20H

(mm)

(mm/rev)

WNGA 080408-M3

8.70 12.70 4.76 0.80 2.2

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18)

• PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

WNGA-M3 (CBN)

Multi-Cornered CBN Inserts for

Machining Hardened Steel

Typ. x 6

80º

IC L

95º

95°

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB55

IB10HC

(mm)

(mm/rev)

WNGA 080404T-MC

8.70 12.70 4.76 0.40 3.1

•

0.05-0.50 0.05-0.20

WNGA 080408-M6

8.70 12.70 4.76 0.80 2.2

•

0.05-0.50 0.05-0.20

WNGA 080408T-MC

8.70 12.70 4.76 0.80 3.1

•

0.05-0.50 0.05-0.20

WNGA 080412T-MC

8.70 12.70 4.76 1.20 3.1

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10)

• HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18)

• PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105)

• DWLNR/L-JHP-MC (10)

WNGA-MC/M6 (CBN)

Multi-Cornered CBN Inserts for

Machining Hardened Steel

225

ISOTURN INSERTS

80°LE

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB90

IB85

IB20H

IB55

IB50

(mm)

(mm/rev)

CNMA 120404T

12.90 12.70 4.76 0.40 3.2

• • •

0.05-0.50 0.05-0.26

CNMA 120408-M1

12.90 12.70 4.76 0.80 3.5

•

0.05-0.50 0.05-0.30

CNMA 120408T

12.90 12.70 4.76 0.80 3.4

• • •

0.05-0.50 0.05-0.30

CNMA 120408T-WG (1)

12.90 12.70 4.76 0.80 3.5

• • • •

0.05-0.50 0.05-0.30

CNMA 120412-M1

12.90 12.70 4.76 1.20 3.5

•

0.05-0.50 0.05-0.30

CNMA 120412T

12.90 12.70 4.76 1.20 4.0

•

0.05-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Wiper insert for high feed finishing, eliminates grinding.

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNMA-T/M1/WG (CBN)

80° Rhombic Inserts with a

Single CBN Top Corner Tip for

Machining Cast Iron, Hardened

Steel and Super Alloys

Typ. x 2

RE S

80º

88º

80º

Wiper

95º

Dimensions Recommended Machining Data

Designation

L IC S RE LE

IB25HC

(mm)

(mm/rev)

CNMA 120408-MW4

12.90 12.70 4.76 0.80 2.2

•

0.05-0.50 0.05-0.40

CNMA 120412-MW4

12.90 12.70 4.76 1.20 2.4

•

0.05-0.50 0.05-0.40

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNMA-MW4 (CBN)

80° Rhombic Inserts with 4

CBN Wiper Edge Tips for

Machining Hardened Steel

Typ. x 4

80º

RE S

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB25HC

IB55

IB10HC

(mm)

(mm/rev)

CNGA 120404T-MC

12.90 12.70 4.76 0.40 3.1

•

0.05-0.50 0.05-0.20

CNGA 120408-M4

12.90 12.70 4.76 0.80 2.2

• •

0.05-0.50 0.05-0.20

CNGA 120408T-MC

12.90 12.70 4.76 0.80 3.1

•

0.05-0.50 0.05-0.20

CNGA 120408T-WG-MC (1)

12.90 12.70 4.76 0.80 3.1

•

0.05-0.50 0.05-0.20

CNGA 120412-M4

12.90 12.70 4.76 1.20 2.4

• •

0.05-0.50 0.05-0.20

CNGA 120412T-MC

12.90 12.70 4.76 1.20 3.1

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

(1) Wiper corner configuration

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNGA-4 (CBN)

4-Cornered CBN Inserts for

Machining Hardened Steel

ISCAR

226

ISOTURN INSERTS

Typ. x 2

RE S

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB10S

IB05S

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

CNGA 120404-F2

12.90 12.70 4.76 0.40 2.3

• •

0.05-0.50 0.05-0.20

CNGA 120404-M2

12.90 12.70 4.76 0.40 2.3

• • • •

0.05-0.30 0.05-0.20

CNGA 120404-R2

12.90 12.70 4.76 0.40 2.2

•

0.05-0.50 0.05-0.20

CNGA 120408-F2

12.90 12.70 4.76 0.80 2.2

• • •

0.05-0.30 0.05-0.18

CNGA 120408-MW2

12.90 12.70 4.76 0.80 2.2

• •

0.05-0.50 0.05-0.20

CNGA 120408-M2

12.90 12.70 4.76 0.80 2.2

•••

0.05-0.30 0.05-0.18

CNGA 120408-R2

12.90 12.70 4.76 0.80 2.2

•

0.05-0.50 0.05-0.20

CNGA 120408-S2

12.90 12.70 4.76 0.80 2.2

•

0.05-0.50 0.05-0.20

CNGA 120412-F2

12.90 12.70 4.76 1.20 2.4

• •

0.05-0.50 0.05-0.20

CNGA 120412-M2

12.90 12.70 4.76 1.20 2.4

• • • •

0.05-0.30 0.05-0.20

CNGA 120412-R2

12.90 12.70 4.76 1.20 2.4

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNGA-2 (CBN)

80° Rhombic Inserts with 2 CBN

Tips for Machining Hardened

Steel, Sintered Metals and

High Temperature Alloys

Typ. x 4

80º

RE S

95º

Dimensions Recommended

Machining Data

Designation

L IC S RE LE

(mm)

(mm/rev)

CNGA 120408-M4-J

12.90 12.70 4.76 0.80 1.50 0.12-0.80 0.10-0.30

CNGA 120408-R4-J

12.90 12.70 4.76 0.80 1.50 0.12-0.80 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105)

CNGA-J(CBN)

Multi-Cornered CBN Inserts for

Machining Hardened Steel

Typ. x 2

80º

RE S

95º

Dimensions Recommended Machining Data

Designation

L IC S RE LE

IB25HA

(mm)

(mm/rev)

CNGG 120408-M4HF

12.90 12.70 4.76 0.80 2.2

•

0.20-0.75 0.05-0.20

CNGG 120412-M4HM

12.90 12.70 4.76 1.20 2.4

•

0.50-1.00 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24)

• DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20)

• PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102)

• DCLNR/L-JHP-MC (25)

CNGG-M4HF/M4HM (CBN)

80° Rhombic Inserts with 4

Chipbreaking CBN Tips for

Machining Hardened Steel

227

ISOTURN INSERTS

Typ. x 2

80º

RE S

95º

Dimensions Recommended

Machining Data

Designation

L IC S RE LE

(mm)

(mm/rev)

CNGG 120408-M4HM-J

12.90 12.70 4.76 0.80 1.50 0.12-0.80 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)

• C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)

• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)

• S-DCLNR/L (99) • S-MULNR-MW (105)

CNGG-J(CBN)

80° Rhombic Inserts with 4

Chipbreaking CBN Tips for

Machining Hardened Steel

7°

80°

LE L

95º

99°

91°

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB05H

IB55

IB10H

(mm)

(mm/rev)

CCGW 03X102T01015-1

3.63 3.57 1.39 0.20 2.0 1.90

• •

0.05-0.50 0.05-0.20

CCGW 03X104T01015-1

3.63 3.57 1.39 0.40 2.3 1.90

• •

0.05-0.50 0.05-0.20

CCGW 04T102T01015-1

4.44 4.37 1.79 0.20 2.0 2.30

• •

0.05-0.50 0.05-0.20

CCGW 04T104T01015-1

4.44 4.37 1.79 0.40 2.3 2.30

• •

0.05-0.50 0.05-0.20

CCMT 060202T

6.30 6.35 2.38 0.20 2.6 2.80

•

0.05-0.50 0.05-0.20

CCMT 060204T

6.30 6.35 2.38 0.40 2.7 2.80

•

0.05-0.50 0.05-0.20

CCMT 09T304T

9.70 9.52 3.97 0.40 2.9 4.40

•

0.05-0.50 0.05-0.20

CCMT 09T308T

9.70 9.52 3.97 0.80 3.6 4.40

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)

• PICIN-SCLCR/L (386) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCGW/CCMT (CBN)

80° Rhombic Inserts with

a Single CBN Top Corner

Tip and 7° Clearance for

Machining Hardened Steel

ISCAR

228

ISOTURN INSERTS

80˚

7°

RE S

95º

99°

91°

95º

Dimensions Tough

Hard Recommended

Machining Data

Designation

IC L S RE LE D1

IB05S

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

CCGW 060202-F2

6.35 6.30 2.38 0.20 2.3 2.80

• •

0.05-0.50 0.05-0.20

CCGW 060204-F2

6.35 6.30 2.38 0.40 2.3 2.80

• •

0.05-0.50 0.05-0.20

CCGW 09T304-F2

9.52 9.70 3.97 0.40 2.3 4.40

• •

0.05-0.50 0.05-0.20

CCGW 09T308-F2

9.52 9.70 3.97 0.80 2.2 4.40

• •

0.05-0.50 0.05-0.20

CCGW 060202-M2

6.35 6.30 2.38 0.20 2.3 2.80

•

0.05-0.50 0.05-0.20

CCGW 060204-M2

6.35 6.30 2.38 0.40 2.3 2.80

• •

0.05-0.50 0.05-0.20

CCMW 060202-M2

6.35 6.30 2.38 0.20 2.3 2.80

• •

0.05-0.50 0.05-0.20

CCMW 060204-M2

6.35 6.30 2.38 0.40 2.3 2.80

• •

0.05-0.50 0.05-0.20

CCGW 09T304-M2

9.52 9.70 3.97 0.40 2.3 4.40

• •

0.05-0.50 0.05-0.30

CCGW 09T308-M2

9.52 9.70 3.97 0.80 2.2 4.40

•••

0.05-0.50 0.05-0.30

CCMW 09T304-M2

9.52 9.70 3.97 0.40 2.3 4.40

• •

0.05-0.50 0.05-0.15

CCMW 09T308-M2

9.52 9.70 3.97 0.80 2.2 4.40

• •

0.05-0.50 0.05-0.30

CCGW 060204-R2

6.35 6.30 2.38 0.40 2.3 2.80

•

0.05-0.50 0.05-0.20

CCGW 09T304-R2

9.52 9.70 3.97 0.40 2.3 4.40

•

0.05-0.50 0.05-0.20

CCGW 09T308-R2

9.52 9.70 3.97 0.80 2.2 4.40

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55)

• PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

CCGW/CCMW-2 (CBN)

80° Positive Rhombic Inserts

with 2 CBN Tips for Machining

Hardened Steel, Sintered Metals

and High Temperature Alloys

55°

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB55

IB50

(mm)

(mm/rev)

DNMA 150404T

15.50 12.70 4.76 0.40 2.8

•

0.05-0.50 0.05-0.20

DNMA 150408T

15.50 12.70 4.76 0.80 3.2

• •

0.05-0.50 0.05-0.20

DNMA 150412T

15.50 12.70 4.76 1.20 3.0

•

0.05-0.50 0.05-0.20

DNMA 150604T

15.50 12.70 6.35 0.40 2.8

•

0.05-0.50 0.05-0.20

DNMA 150608T

15.50 12.70 6.35 0.80 3.2

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNMA (CBN)

CBN Inserts with a Flat Rake

for Machining Hardened Steel

229

ISOTURN INSERTS

55º

LE L

Typ. x 4

RE S

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB25HC

IB55

IB10HC

(mm)

(mm/rev)

DNGA 150404T-MC

15.50 12.70 4.76 0.40 2.9

•

0.05-0.50 0.05-0.18

DNGA 150408-M4

15.50 12.70 4.76 0.80 2.1

• •

0.05-0.50 0.05-0.18

DNGA 150408T-MC

15.50 12.70 4.76 0.80 3.0

•

0.05-0.50 0.05-0.18

DNGA 150412-M4

15.50 12.70 4.76 1.20 2.0

• •

0.05-0.50 0.05-0.18

DNGA 150412T-MC

15.50 12.70 4.76 1.20 3.0

•

0.05-0.50 0.05-0.18

DNGA 150604T-MC

15.50 12.70 6.35 0.40 2.9

•

0.05-0.50 0.05-0.18

DNGA 150608T-MC

15.50 12.70 6.35 0.80 3.0

•

0.05-0.50 0.05-0.18

DNGA 150612T-MC

15.50 12.70 6.35 1.20 3.0

•

0.05-0.50 0.05-0.18

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

DNGA-4 (CBN)

55° Rhombic 4-Cornered

CBN Inserts for Machining

Hardened Steel

55º

Typ. x 2

LE L

RE S

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB10S

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

DNGA 150404-F2

15.50 12.70 4.76 0.40 2.5

• •

0.10-0.50 0.05-0.30

DNGA 150404-M2

15.50 12.70 4.76 0.40 2.5

•••

0.10-0.50 0.05-0.30

DNGA 150408-F2

15.50 12.70 4.76 0.80 2.1

• •

0.10-0.50 0.05-0.30

DNGA 150408-M2

15.50 12.70 4.76 0.80 2.1

•••

0.10-0.50 0.05-0.30

DNGA 150408-R2

15.50 12.70 4.76 0.80 2.1

•

0.05-0.50 0.05-0.20

DNGA 150412-F2

15.50 12.70 4.76 1.20 2.0

• •

0.10-0.50 0.05-0.30

DNGA 150412-M2

15.50 12.70 4.76 1.20 2.0

•••

0.10-0.50 0.05-0.30

DNGA 150412-R2

15.50 12.70 4.76 1.20 2.0

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28)

• PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

DNGA-2 (CBN)

55° Rhombic Inserts with 2 CBN

Tips for Machining Hardened

Steel, Sintered Metals and

High Temperature Alloys

55º

LE L

Typ. x 4

RE S

62.5º

60°

MAX 93º-95º

50º

MAX

93º

27°

MAX

Dimensions Recommended

Machining Data

Designation

L IC RE LE

(mm)

(mm/rev)

DNGA 150408-R4-J

15.50 12.70 0.80 1.60 0.12-0.80 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/S-PDUNR/L (106) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L-JHP-MC (30) • HSK A63WH-DDJNR/L (31)

• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106)

DNGA-J(CBN)

55° Rhombic Multi-Cornered

CBN Inserts for Machining

Hardened Steel

ISCAR

230

ISOTURN INSERTS

55º

LE L

Typ. x 4

RE S

62.5º

60°

MAX

93º

27°

MAX

93º-95º

50º

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE LE

IB25HA

(mm)

(mm/rev)

DNGG 150408-M4HF

15.50 12.70 4.76 0.80 2.1

•

0.20-0.75 0.05-0.20

DNGG 150412-M4HM

15.50 12.70 4.76 1.20 2.0

•

0.50-1.00 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28)

• PDJNR/L-JHP (29) • S-DDUNR/L (106) • DDJNR/L-JHP-MC (30)

DNGG-M4HF/M4HM (CBN)

55° Rhombic Inserts with 4

Chipbreaking CBN Tips for

Machining Hardened Steel

7°

55°

10 7. 5 °

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Recommended Machining Data

Designation

L IC S RE LE D1

IB55

(mm)

(mm/rev)

DCMT 11T304T

11.60 9.52 3.97 0.40 3.4 4.40

•

0.05-0.50 0.05-0.20

DCMT 11T308T

11.60 9.52 3.97 0.80 3.1 4.40

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57) • SDACR/L (60) • SDHCR/L (59)

• SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCMT (CBN)

55° Rhombic Inserts with

a Single CBN Top Corner

Tip and 7° Clearance for

Machining Hardened Steel

55°

7°

LE L

9 1°

29°

MAX 93º-95º

50º

MAX

93º

27°

MAX

62.5º

60°

MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB05S

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

DCGW 070202-F2

7.70 6.35 2.38 0.20 2.5 2.80

• •

0.05-0.50 0.05-0.30

DCGW 070204-F2

7.70 6.35 2.38 0.40 2.5 2.80

• •

0.05-0.50 0.05-0.30

DCGW 11T302-F2

11.60 9.52 3.97 0.20 2.5 4.40

• •

0.05-0.50 0.05-0.30

DCGW 11T304-F2

11.60 9.52 3.97 0.40 2.5 4.40

• •

0.05-0.50 0.05-0.30

DCGW 11T308-F2

11.60 9.52 3.97 0.80 2.1 4.40

• •

0.05-0.50 0.05-0.30

DCGW 070202-M2

7.70 6.35 2.38 0.20 2.5 2.80

• •

0.05-0.50 0.05-0.30

DCGW 070204-M2

7.70 6.35 2.38 0.40 2.5 2.80

•••

0.05-0.50 0.05-0.30

DCGW 070208-M2

7.70 6.35 2.38 0.80 2.5 2.80

•

0.05-0.50 0.05-0.30

DCGW 11T302-M2

11.60 9.52 3.97 0.20 2.1 4.40

• •

0.05-0.50 0.05-0.30

DCMW 11T304-M2

11.60 9.52 3.97 0.40 2.5 4.40

• • •

0.05-0.50 0.05-0.12

DCGW 11T308-M2

11.60 9.52 3.97 0.80 2.1 4.40

•

0.05-0.50 0.05-0.30

DCMW 11T308-M2

11.60 9.52 3.97 0.80 2.1 4.40

• • •

0.05-0.50 0.05-0.15

DCGW 11T304T01315

11.60 9.52 3.97 0.40 2.5 4.40

•

0.05-0.50 0.05-0.30

DCGW 11T304-S2

11.60 9.52 3.97 0.40 2.5 4.40

•

0.05-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E/S-SDUCR/L (112) • AVC-SDUCR/L (95) • AVC-SDUCR/L-VH (98) • C#-SDJCR-JHP (59) • C#-SDJCR/L (59)

• C#-SDNCN (64) • E-SDUCR/L-HEAD (113) • NQCH-SDACR/L-S-JHP (60) • NQCH-Y-SDJCR-S-JHP (58) • PDACR/L-JHP (62) • PDACR/L-S (57)

• SDACR/L (60) • SDHCR/L (59) • SDJCR-PAD (59) • SDJCR/L (58) • SDNCN (64) • Y-SDJCR (58) • Y-SDJCR-JHP (58) • PDACR/L-JHP-MC (62)

DCGW/DCMW-2 (CBN)

55° Positive Rhombic Inserts

with 2 CBN Tips for Machining

Hardened Steel, Sintered Metals

and High Temperature Alloys

231

ISOTURN INSERTS

35°

93º

30°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE

IB10S

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

VNGA 160404-F2

16.60 9.52 4.76 0.40 3.1

• •

0.05-0.50 0.05-0.30

VNGA 160404-M2

16.60 9.52 4.76 0.40 3.1

•••

0.05-0.50 0.05-0.30

VNGA 160408-F2

16.60 9.52 4.76 0.80 2.2

• •

0.05-0.50 0.05-0.30

VNGA 160408-M2

16.60 9.52 4.76 0.80 2.2

• • •

0.05-0.50 0.05-0.30

VNGA 160408-R2

16.60 9.52 4.76 0.80 2.2

•

0.05-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

VNGA-2 (CBN)

35° Rhombic Inserts with 2 CBN

Tips for Machining Hardened

Steel, Sintered Metals and

High Temperature Alloys

35°

LE L

93º

30°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB25HC

IB10HC

(mm)

(mm/rev)

VNGA 160408-M4

16.60 9.52 4.76 0.80 2.2

• •

0.05-0.30 0.02-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

VNGA-4 (CBN)

35° Rhombic Inserts with

4 CBN Tips for Machining

Hardened Steel

35°

93º

30°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Recommended

Machining Data

Designation

L IC S RE LE

(mm)

(mm/rev)

VNGA 160408-R4-J

16.60 9.53 4.76 0.80 1.70 0.12-0.80 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVVNN (35)

VNGA-J(CBN)

35° Rhombic Inserts with

4 CBN Tips for Machining

Hardened Steel

35°

LE L

93º

30°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Recommended Machining Data

Designation

L IC S RE LE

IB25HA

(mm)

(mm/rev)

VNGG 160408-M4HM

16.60 9.52 4.76 0.80 2.2

•

0.50-0.80 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: MVJNR/L (33) • MVVNN (35)

VNGG-M4HM (CBN)

35° Rhombic Insert with 4

Chipbreaking CBN Tips for

Machining Hardened Steel

ISCAR

232

ISOTURN INSERTS

35°

LE L

5°

107.5º

35°

MAX 95º

95º

48°

MAX

112°

31°

MAX

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB55

IB50

(mm)

(mm/rev)

VBMT 160404T

16.60 9.52 4.76 0.40 4.5 4.40

• •

0.05-0.39 0.05-0.11

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

VBMT (CBN)

Single Corner CBN Tipped

Inserts with a Flat Rake for

Machining Hardened Steel

IC D1

35°

5°

LE L107.5º

35°

MAX 95º

95º

48°

MAX

112°

31°

MAX

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB20H

IB20HC

IB10H

IB10HC

(mm)

(mm/rev)

VBGW 110304-F2

11.10 6.35 3.18 0.40 3.1 2.80

• •

0.10-0.50 0.05-0.20

VBGW 160404-F2

16.60 9.52 4.76 0.40 3.1 4.40

• •

0.10-0.50 0.05-0.20

VBGW 160408-F2

16.60 9.52 4.76 0.80 2.2 4.40

• •

0.10-0.50 0.05-0.20

VBMW 110304-M2

11.10 6.35 3.18 0.40 3.1 2.80

• • •

0.05-0.50 0.05-0.20

VBGW 160404-M2

16.60 9.52 4.76 0.40 3.1 4.40

•

0.05-0.50 0.05-0.20

VBMW 160404-M2

16.60 9.52 4.76 0.40 3.1 4.40

• •

0.05-0.50 0.05-0.20

VBGW 160408-M2

16.60 9.52 4.76 0.80 2.2 4.40

•

0.05-0.50 0.05-0.20

VBMW 160408-M2

16.60 9.52 4.76 0.80 2.2 4.40

• •

0.05-0.39 0.05-0.11

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

VBGW/VBMW-2 (CBN)

35° Positive Rhombic

Inserts with 2 CBN Tips for

Machining Hardened Steel

IC D1

35°

7°

LE L

11 7. 5 °

107.5º

35°

MAX 95º

95º

48°

MAX

112°

31°

MAX

9 1°

52°

MAX

50°

MAX

93°

72.5º

70°MAX

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB20HC

IB10HC

(mm)

(mm/rev)

VCGW 160404-F2

16.60 9.52 4.76 0.40 3.1 4.40

• •

0.10-0.50 0.05-0.30

VCGW 160404-M2

16.60 9.52 4.76 0.40 3.1 4.40

• •

0.10-0.50 0.05-0.30

VCGW 160408-F2

16.60 9.52 4.76 0.80 2.2 4.40

• •

0.10-0.50 0.05-0.30

VCGW 160408-M2

16.60 9.52 4.76 0.80 2.2 4.40

• •

0.10-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: AVC-SVLCR/L-VH (98) • A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96)

• C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454)

VCGW-2 (CBN)

35° Positive Rhombic

Inserts with 2 CBN Tips for

Machining Hardened Steel

233

ISOTURN INSERTS

60°

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB85

IB55

IB50

(mm)

(mm/rev)

TNMA 160404T

16.50 9.52 4.76 0.40 3.9

•••

0.05-0.50 0.05-0.25

TNMA 160408T

16.50 9.52 4.76 0.80 3.5

•

0.05-0.50 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNMA (CBN)

Triangular Inserts with a Single

Corner CBN Tip for Machining

Cast Iron and Hardened Steel

60º

RE LE

Typ. x 6 91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Recommended

Machining Data

Designation

L IC RE LE

(mm)

(mm/rev)

TNGA 160408-R6-J

16.50 9.52 0.80 1.60 0.12-0.80 0.10-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNGA-J(CBN)

Triangular Multi-Cornered

CBN Inserts for Machining

Hardened Steel

60º

Typ. x 6 91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB25HC

IB55

IB10HC

(mm)

(mm/rev)

TNGA 160404T-MC

16.50 9.52 4.76 0.40 3.2

•

0.05-0.50 0.05-0.20

TNGA 160408-M6

16.50 9.52 4.76 0.80 1.9

• •

0.05-0.50 0.05-0.20

TNGA 160408T-MC

16.50 9.52 4.76 0.80 1.9

•

0.05-0.50 0.05-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNGA-MC/M6 (CBN)

Triangular Multi-Cornered

CBN Inserts for Machining

Hardened Steel

ISCAR

234

ISOTURN INSERTS

60º

Typ. x 3

91º

93º

22°MAX

91º

95º

91º

60º

55°

MAX

Dimensions Tough

Hard Recommended Machining Data

Designation

L IC S RE LE

IB10S

IB20H

(mm)

(mm/rev)

TNGA 160404-M3

16.50 9.52 4.76 0.40 2.2

•

0.10-0.50 0.05-0.30

TNGA 160408-M3

16.50 9.52 4.76 0.80 1.9

• •

0.05-0.50 0.05-0.30

TNGA 160412-M3

16.50 9.52 4.76 1.20 2.4

•

0.10-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A-PTFNR/L-X/G (108) • DTGNR/L (44) • MTENN-W (38) • MTJNR/L-W (38) • PTFNR/L (37) • PTGNR/L (35) • PTGNR/L-X (36)

• PTGNR/L-X-JHP (36) • PTGNR/L-X-JHP-MC (37) • S-MTLNR/L-W (109) • S-PTFNR/L (109)

TNGA-M3 (CBN)

Triangular Inserts with 3 CBN

Tips for Machining Hardened

Steel, Sintered Metals and

High Temperature Alloys

7°

60°

91º91º

95º

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB55

IB50

(mm)

(mm/rev)

TCMT 110204T

11.00 6.35 2.38 0.40 3.5 2.85

• •

0.05-0.50 0.05-0.13

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: E-STFCR-HEAD (115) • S-STFCR/L (115) • S-STLCR/L (115) • STFCR/L (70) • STGCR/L (70)

TCMT (CBN)

Triangular Positive Inserts with

a Single CBN Flat Rake Tip for

Machining Hardened Steel

60°

11°

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB90

IB50

(mm)

(mm/rev)

TPGX 090202T

9.52 5.56 2.38 0.20 2.5 2.50

• •

0.05-0.50 0.03-0.20

TPGX 090204T

9.52 5.56 2.38 0.40 2.6 2.50

• •

0.05-0.50 0.03-0.20

TPGX 110302T

11.00 6.35 3.18 0.20 3.3 3.50

• •

0.05-0.50 0.03-0.20

TPGX 110304T

11.00 6.35 3.18 0.40 3.0 3.50

• •

0.05-0.50 0.03-0.20

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117)

TPGX (CBN)

Triangular Inserts with CBN

Single Top Corner Brazed Tip,

11° Clearance for Machining

Cast Iron and Hardened Steel

235

ISOTURN INSERTS

60°

11°

IC S

91º

Dimensions Tough

Hard Recommended

Machining Data

Designation

L IC S RE LE D1

IB05S

IB10HC

(mm)

(mm/rev)

TPGW 110204-M3

11.00 6.35 2.38 0.40 2.2 2.80

•

0.05-0.50 0.05-0.30

TPGW 110208-M3

11.00 6.35 2.38 0.80 2.2 2.80

•

0.05-0.50 0.05-0.30

TPGW 110304-M3

11.00 6.35 3.18 0.40 2.2 3.40

• •

0.05-0.50 0.05-0.30

TPGW 110308-M3

11.00 6.35 3.18 0.80 2.1 3.40

•

0.05-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: A/E-STFPR-X (117)

TPGW-M3 (CBN)

Triangular Positive Inserts with

3 CBN Tips for Machining

Sintered Metals and High

Temperature Alloys

90°

IC=L

RE S

75º

45º

45°

75º

Dimensions Recommended Machining Data

Designation

IC S RE LE

IB55

(mm)

(mm/rev)

SNMA 120408T

12.70 4.76 0.80 4.5

•

0.05-0.50 0.05-0.30

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17)

• HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41)

• PSSNR/L (42) • PSSNR/L-JHP (42)

SNMA (CBN)

Square CBN Tipped Inserts with

a Single Flat Rake for Machining

Cast Iron and Hardened Steel

7°

140°

Dimensions Recommended Machining Data

Designation

IC S

IB90

(mm)

(mm/rev)

RCGX 060300T

6.35 3.18

•

0.05-0.50 0.05-0.25

RCGX 090300T

9.52 3.18

•

0.05-0.50 0.05-0.25

RCGX 120400T

12.70 4.76

•

0.05-0.50 0.05-0.25

• For user guide and cutting speed recommendations, see pages 122-134, 236-248

RCGX (CBN)

CBN Round Inserts with a

Flat Rake for Machining Cast

Iron and Hardened Steel

ISCAR

236

USER GUIDE

ISOTURN INSERTS

Application Range of Ceramic Inserts According to ISO Standard

Turning Grey and Nodular Cast Iron

K01

IB85

IN11

IS8

IS80

IS6

K05

K10

K15

IB90

K20

Turning Nickel Based High Temperature Alloys

S01

IB05S

IB10S

IB90

IN11

S05

IW7

S10

S15

IS9

S20

S25

S30

Turning Hardened Steel 45-65 HRC

H01

IB10HC

IB10H

IB50

IN420

H05

IB25HC

IN22

IB20H

H10

IB55

IB25HA

IN23

H15

H20

IB90

H25

H30

237

USER GUIDE

ISOTURN INSERTS

IN11 Al2O3

High Speed Finishing on Cast Iron and Steel

• Improves toughness and wear resistance

• ZrO2 additive

• Good for high speed turning on steel and cast iron

IN22 Al2O3-TiCN

Turning of Hardened Steel and Difficult-to-Cut Material

• High speed machining of steel, tool steel, hardened

steel, chilled cast iron, high chromium steel, etc.

• Suitable for light roughing-to-finishing of cast iron

Application Range for Machining Cast Iron

Cutting

Speed

Feed

IS6

IS8

IN23 Al2O3-T i C

Medium-to-Finishing Cutting on Cast Iron

• Light interrupted turning on grey cast iron and nodular cast iron

• Milling with finishing conditions on grey cast iron

IS6 SiAlON

Features

• High speed roughing and finish machining on cast iron

• Higher cutting speeds, when compared

to SiN based ceramic grades

• Can be used for both wet and dry machining

• Suitable for turning automotive parts such

as brake drums, brake disks, etc.

• High productivity in rough turning on steel mill rolls

composed of high-Cr steel, HSS (High Speed Steel)

and adamite

IS8 Si3N4

Turning and Milling of Grey Cast Iron

• Roughing and interrupted cutting of cast iron

• Machining on nodular cast iron and superalloy

Ceramic Cutting Tools

ISCAR

238

USER GUIDE

ISOTURN INSERTS

IS80 CVD Coated Si3N4

High Speed Rough Turning on Grey Cast Iron

• Multi-layered coating on IS8 matrix

• Roughing and interrupted cutting of cast iron

* Coolant is not recommended for interrupted cutting

IS9 Si3N4

Turning Nickel Based Alloys

• Very tough Si3N4 ceramic grade with high cutting edge stability

• Machining on nickel based high temprature

alloys, in roughing to finishing applications

• Honing is the standard edge preparation

IW7 AL2O3+Sic Whiskers

Main Advantages

• High hardness (HV 2,100)

• High fracture toughness due to SiC (silicon

carbide) whisker - reinforced ceramics

• Excellent thermal shock resistance, which enables

using coolant and interrupted cut machining

• Excellent for roughing and semi-finishing operations at 8-10

times faster cutting speeds when compared with carbide grades

• Good oxidation resistance due to its alumina substrate

IC20

0.1 0.15 0.30

Feed (mm/rev)

150

450

Cutting Speed (m/min)

IW7

IS9

Ceramic Cutting Tools

239

USER GUIDE

ISOTURN INSERTS

ISO-H Hard Materials Turning

IB10H (fine grain 0.5µm)

Uncoated, fine grain PCBN grade.

Application

Used at medium cutting speed, continuous or light

interrupted cut on hardened steels. Provides excellent

surface finish. Workpiece hardness range: 50-65 HRC. CBN Content

53.5%

Binder

TiN-Al

IB20H

Uncoated, general purpose PCBN grade. Good balance

between wear and impact resistance. Composed

of both fine and medium CBN grain sizes.

Application

Continuous to medium interrupted cut on hardened steel. CBN Content

65%

Binder

TiN-Al

IB10HC

TiN coated, PCBN grade with excellent wear

resistance. Composed of very fine grain CBN.

Application

Medium to high speed, continuous machining on hardened steel. CBN Content

53.5%

Binder

TiN-Al

IB25HC

Ti (C, N, O) coated grade, composed of medium CBN grain.

Application

High speed, continuous to light interrupted machining.

CBN Content

75%

Binder

TiN-Al

IB25HA

Ti (C,N,O) coated grade composed of medium CBN grain.

Application

General purpose machining on hardened steel.

CBN Content

65%

Binder

TiN-Al

ISO-S

IB05S

Super fine, CBN grain with a very high CBN content.

Application

Turning on ferrous sintered metals.

CBN Content

95%

Binder

Co-Al-WC

IB10S

A very high CBN content grade, featuring high hardness.

Application

Turning on ferrous sintered metals such as

valve seats and Ti alloys components. CBN Content

95%

Binder

Co-Al-WC

ISCAR

240

USER GUIDE

ISOTURN INSERTS

Features

• Suitable for difficult-to-cut materials such as

sintered metal, hardened steel and super alloys.

• Saves machining costs and shortens the work

cycle by enabling machining of hardened steel.

• Provides an excellent surface finish.

• Significant improvement in productivity by high

speed machining on hardened steel.

• Capable of high speed cutting of cast iron.

Tungsten Carbide

Cubic Boron Nitride

ISCAR’s CBN upgrade supports the worldwide

increase in demand for CBN tipped inserts.

ISCAR features 7 CBN (Cubic Boron Nitride)

grades for two main workpiece material groups:

For hardened steel:

ISO-H: IB10H, IB20H, IB10HC, IB25HC, IB25HA

For high temperature alloys:

ISO-S: IB05S, IB10S

CBN Inserts

241

USER GUIDE

ISOTURN INSERTS

Grades & Applications for Hardened Steel

Material

New

Grade

Composition

(% CBN) Features and Applications

ISO-H

UNCOATED

Hardened

Steels

Wear

Resistance

IB10H 53.5 Excellent surface finish. Super fine grain. Continuous cut.

IB20H 65 Composed of both fine and medium CBN grains.

General-purpose grade for continuous to light interrupted machining.

IB50 50 Finishing on hardened steel (45-65 HRC) and

nodular cast iron. Continuous cutting.

Toughness

IB55 60

Semi-finishing on hardened steel (45-65 HRC)

and nodular cast iron. Interrupted cutting.

ISO-H

COATED

Wear

Resistance IB10HC 53.5 TiN coated grade very fine CBN grain.

High speed continuous machining.

IB25HC 75

Ti (C, N, O) coated CBN grade. High speed

continuous to interrupted machining.

Toughness

IB25HA 65

Ti (C, N) coated CBN grade. High toughness. General purpose

coated grade. Available with two types of chipbreakers (HF, HM).

Grades & Applications for Cast Iron

Material

New

Grade

Composition

(% CBN) Features and Applications

ISO-K Cast Iron &

Hard Metal

Wear

Resistance

IB85 85

Hardened steel and cast iron

(>45 HRC). Grey cast iron and nodular cast irons. Powdered

metal/sintered iron. Super alloys/heat resistant alloys. Sintered

tungsten carbide >17% Co. High speed cutting of cast iron.

Toughness

IB90 90 High speed cutting on cast iron, cutting cemented

tungsten carbide, sintered metal and super alloy.

Grades & Applications for High Temperature Alloys

Material

New

Grade

Composition

(% CBN) Features and Applications

ISO-S Exotic

Materials

Wear

Resistance

IB05S 95 Super fine grain CBN for machining ferrous sintered metals.

IB10S 95 For machining valve seats, sintered metals and Ti alloys.

Toughness IB90 90 Cutting cemented tungsten carbide, sintered metal and super alloy.

CBN Grades

ISCAR

242

USER GUIDE

ISOTURN INSERTS

Edge Preparation and Recommended Applications

T-Land Sizes for Standard Items

Grade T (mm) a°

IN22 0.20 25°

IN23 0.20 25°

IS80 0.20 25°

IS8 0.20 25°

IS9 0.10 25°

IN11 0.20 20°

IB50 0.14 20°

IB55 0.14 20°

IB85 0.14 20°

IB90 0.14 20°

IS6 0.20 25°

IW7 0.10 25°

IN420 0.2 25°

sharp

For finishing and

super finishing

r0.03-0.04

For semi-finishing and

finishing f < 0.2 mm/rev

α°

For semi-roughing and

roughing f > 0.2 mm/rev

α°

0.03-0.04

For heavy roughing and

interrupted cutting

Silicon Nitride for Cast Iron and

High Temperature Alloys

What is ISCANITE?

ISCANITE is a cutting tool material containing over

90 percent silicon nitride. ISCANITE is produced by

unique hot pressing methods to achieve full density,

and provides superior toughness along with high

thermal-shock resistance. These characteristics make

ISCANITE an ideal cutting tool material with impact

resistance near that of coated carbides, and the heat

and wear resistance of aluminum-oxide ceramics.

Which material can ISCANITE machine?

ISCANITE is primarily used on cast iron and high

temperature alloys, brass and composites. Steel

is the only material usually avoided because

of various chemical incompatibilities.

ISCANITE Benefits

ISCANITE will increase your productivity, reduce

your machining costs and can drastically reduce

tool forces. ISCANITE increases productivity through

additional metal removal rates and can fully utilize the

machine’s potential. Machining costs are reduced

with increased tool life, along with less downtime

for indexing, gauging, and adjustments.

Cutting Speed and Cutting Force

It is preferable to machine at higher cutting speeds and

lower cutting forces (Point A is preferred over Point B.)

In this case, pressure is reduced on the workpiece and

any tendency of the workpiece to move or vibrate. If the

available machine power is higher, or the machine can

be stepped up, the use higher cutting speeds

of 750 m/min is possible, with the same cutting

force as at Point B. (See Point C.) The positive

influence of the cutting speed and feed on machining

conditions: higher cutting speeds are recommended

and possible for silicon nitride inserts.

Cutting Force

1000

6000

(N)

(m/min)

5000

4000

3000

2000

150 300 450 600 750 900 1050 1200 1350 15000

7.5kW

18.75kW

37kW

75kW

Cutting Speed

243

USER GUIDE

ISOTURN INSERTS

For the following grades: IB10HC, IB10H,

IB20H, IB25HC, IB25HA, IB05S, IB10S.

Existing

α°

For continuous and

interrupted cut

New Edge Preparation Program

α°

For continuous and

interrupted cut

sharp

For high surface finish

0.13

15°

For finishing at

continuous cut

0.13

25°

For medium, continuous

up to light interrupted cut

0.13

35°

For light to heavy

interrupted cut-

rough machining

Chip Breaking Area for Hardened Steel

Feed rate [mm/rev]

Depth of cut [mm]

0.5

1.0

0.1 0.2

New Innovative Chipbreakers for Hardened Steel

CBN inserts with two types of chipbreakers: HF and HM

Existing Method New Chipbreakers

HF Type

Excellent chip

control at

small depths

of cut

HM Type

Used for large

depth of cut

No chip control

suitable for long

linear cuts

When turning hard materials, long and tangled chips

are produced. The HF or HM chipformers provide

excellent chip control at various depths of cut.

PCD Inserts

Features

• Excellent surface finishing on aluminum,

nonferrous metals and non-metal materials.

• Longer tool life in high speed machining, due to high

wear resistance and excellent thermal conductivity.

Note: Not for use on steel or cast iron

Tungsten

Carbide

Grades and Application

Binder Diamond

Size Grade Feature and Application

High

Cobalt

8-9 µm ID5 Suitable for Al alloy

(Si < 12%), Cu alloy

General purpose cutting

of nonferrous metal

Recommended Cutting Condition Turning

Workpiece

Cutting

Speed

(m/min)

Feed

(mm/rev)

Depth of

Cut (mm) Grades

Al alloy (4-9% Si) 800-2500 0.1-0.3 ID5

Al alloy (9-14% Si) 600-1280 0.1-0.3 0.05-3.0 ID5

Cu alloy 600-1000 0.05-0.2 0.05-3.0 ID5

New Edge Preparations

ISCAR

244

USER GUIDE

ISOTURN INSERTS

Machining Areas of ISO-H Grades

Recommended Edge

Preparation

Continuous Cut Interrupted Cut

F M M R

0.13

15°

0.13

25°

0.13

25°

0.13

35°

Case Hardenend Steel

(55-62 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

Vc [m/min]

0.3 0.35

IB10HC

IB10H IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB20H

Bearing Steel

(58-65 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB10H

IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB25HC

IB20H

High Tensile Steel

(45-56 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB10H IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB25HC

IB20H

Cold Work Tool Steel

(55-64 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB10H

IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB25HC

IB20H

Cutting Parameters and Application Recommendations

245

USER GUIDE

ISOTURN INSERTS

Recommended Edge

Preparation

Continuous Cut Interrupted Cut

F M M R

0.13

15°

0.13

25°

0.13

25°

0.13

35°

Hot Work Tool Steel

(45-56 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB10H IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB25HC

IB20H

High Speed Steel

(58-66 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB10HC

IB10H

IB20H

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB25HC

IB20H

Machining Areas of ISO-S Grades

Recommended Edge

Preparation

Continuous Cut Interrupted Cut

F M M R

0.13

15°

0.13

25°

0.13

25°

0.13

35°

Sintered Metal

(45-68 HRC)

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB05S

IB10S

300

250

200

150

100

0 0.05 0.1 0.15 0.2 0.25

Feed rate [mm/rev]

0.3 0.35

Vc [m/min]

IB05S

IB10S

ISCAR

246

USER GUIDE

ISOTURN INSERTS

Machining Data and Speed Recommendations for Turning

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material Group No.

Cermet Cermet + PVD

Carbide

+ PVD Carbide + CVD

IC20N IC30N IC520N IC530N IC3028/830 IC8250 IC8150 IC5005/428 IC807/907 IC8350

Non-alloy steel and cast

steel, free cutting steel

< 0.25 %C Annealed 420 125 1 250-400 230-380 250-420 230-400 120-200 230-380 280-420 300-450 140-230 125-210

>= 0.25 %C Annealed 650 190 2 220-350 200-330 220-380 200-350 100-170 200-340 240-380 260-400 120-205 110-185

< 0.55 %C Quench and temper 850 250 3 180-320 160-300 180-350 160-320 80-150 170-300 200-340 220-360 100-180 95-165

>= 0.55 %C Annealed 750 220 4 210-340 190-320 210-370 190-340 90-160 190-320 220-360 240-380 115-190 105-175

Quench and temper 1000 300 5 160-300 140-280 160-330 140-300 80-130 160-280 180-320 200-340 95-170 90-155

Low alloy steel and cast steel

(less than 5% all element)

Annealed 600 200 6 180-320 160-300 180-350 160-320 80-150 170-300 200-340 220-360 100-180 95-165

930 275 7 170-300 150-280 170-330 150-300 70-130 160-280 200-320 220-340 95-170 90-155

Quench and tempered 1000 300 8 160-250 140-230 160-280 140-250 60-120 140-250 190-300 210-320 85-150 75-135

1200 350 9 150-220 130-200 150-250 130-230 50-100 120-220 180-280 200-300 70-130 65-120

High alloyed steel, cast steel and tool steel

Annealed 680 200 10 180-300 160-280 180-330 160-300 80-130 170-280 200-320 220-340 100-170 95-155

Quench and temper 1100 325 11 150-220 130-200 150-250 130-230 50-100 120-220 180-280 200-300 70-30 65-120

Ferritic/martensitic 680 200 12 210-340 190-320 210-370 190-340 90-160 190-320 220-360 240-380

Martensitic 820 240 13 180-320 160-300 180-350 160-320 80-150 170-300 240-380 260-400

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Cermet + PVD Carbide + PVD Carbide + CVD

IC520N IC530N IC807/907 IC808/908 IC3028/830 IC6015 IC6025

MStainless steel Austenitic 600 180 14 150-280 140-250 100-200 90-200 50-120 140-250 120-180

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide + CVD Ceramics

Ceramics

+ CVD CBN

IC5005/ 428 IC5010/ 4028 IC8150 IN11 IN23 IS6 IS8 IS80 IB90/85 IB50

Grey cast iron (GG) Pearlitic/ferritic 180 15 160-300 160-300 140-280 150-400 500-900 80-300 200-400

Pearlitic/martensitic 260 16 140-280 140-280 120-240 100-350 500-900 50-250 150-350

Ductile cast iron (nodular)

(GGG)

Ferritic 160 17 350-700 300-600 250-350 300-800 300-600 500-1200 300-1000 400-1000 500-12000

Pearlitic 250 18 300-600 250-500 200-300 200-600 200-500 500-1200 250-800 300-800 400-1000

Malleable cast iron Ferritic 130 19 200-350 250-400 180-320 350-500

Pearlitic 230 20 180-280 200-320 150-250 150-400

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide PCD

IC20 ID5

Aluminum-wrought alloys Not cureable 60 21 1000-2500 600-2500

cured 100 22 300-1000 600-2500

Aluminum-cast alloys

<=12% Si Not cureable 75 23 300-1000 600-2500

cured 90 24 200-600 600-2500

>12% Si High temp. 130 25

Copper alloys

>1% Pb Free cutting 110 26 250-600 600-1000

Brass 90 27 180-400 600-800

Electrolitic copper 100 28 150-300 600-800

Non-metallic Duroplastics, fiber plastics 29

hard rubber 30

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide Carbide + PVD Whiskers CBN

IC07 IC20 IC804 IC806 IC907 IC3028 IW7 IB05S IB10S IB90 IB85

High temp. alloys Fe based Annealed 200 31 40-55 35-45 50-80 30-40

Cured 280 32 30-45 25-35 40-65 20-30

Super alloys Ni or Co based

Annealed 250 33 30-40 25-30 65 - 105 50-80 45-60 20-25 150-450

Cured 350 34 20-30 15-25 50 - 90 40-70 35-45 10-20 100-250 100-250 100-200 120-240

Cast 320 35 25-35 20-30 40 - 85 30-65 30-50 15-25

Titanium

Ti alloys

Rm 400 36 100-160 80-160 150-200 130-160

Alpha+beta alloys cured Rm 1050 37 50-60 50-60 50-100 30-60

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material

Ceramics CBN

Carbide

+ PVD

IN22 IN420 IN23 IS8 IB10HC IB10H IB50/55 IB20H IB25HC IB25HA IB85/90 IC907

Hardened steel Hardened 55 HRC 38 50-150 60 - 170 40-120 150-350 100-220 100-140 100-220 100-220 90-200 80-140 40-100

Hardened 60 HRC 39 50-120 60 - 140 40-100 150-350 100-220 80-120 100-220 100-220 90-200 60-120 30-60

Chilled cast iron Cast 400 40 30-200 30 - 230 70-150

Cast iron Hardened 55 HRC 41 80-120 60-100 100-140

247

USER GUIDE

ISOTURN INSERTS

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material Group No.

Cermet Cermet + PVD

Carbide

+ PVD Carbide + CVD

IC20N IC30N IC520N IC530N IC3028/830 IC8250 IC8150 IC5005/428 IC807/907 IC8350

Non-alloy steel and cast

steel, free cutting steel

< 0.25 %C Annealed 420 125 1 250-400 230-380 250-420 230-400 120-200 230-380 280-420 300-450 140-230 125-210

>= 0.25 %C Annealed 650 190 2 220-350 200-330 220-380 200-350 100-170 200-340 240-380 260-400 120-205 110-185

< 0.55 %C Quench and temper 850 250 3 180-320 160-300 180-350 160-320 80-150 170-300 200-340 220-360 100-180 95-165

>= 0.55 %C Annealed 750 220 4 210-340 190-320 210-370 190-340 90-160 190-320 220-360 240-380 115-190 105-175

Quench and temper 1000 300 5 160-300 140-280 160-330 140-300 80-130 160-280 180-320 200-340 95-170 90-155

Low alloy steel and cast steel

(less than 5% all element)

Annealed 600 200 6 180-320 160-300 180-350 160-320 80-150 170-300 200-340 220-360 100-180 95-165

930 275 7 170-300 150-280 170-330 150-300 70-130 160-280 200-320 220-340 95-170 90-155

Quench and tempered 1000 300 8 160-250 140-230 160-280 140-250 60-120 140-250 190-300 210-320 85-150 75-135

1200 350 9 150-220 130-200 150-250 130-230 50-100 120-220 180-280 200-300 70-130 65-120

High alloyed steel, cast steel and tool steel

Annealed 680 200 10 180-300 160-280 180-330 160-300 80-130 170-280 200-320 220-340 100-170 95-155

Quench and temper 1100 325 11 150-220 130-200 150-250 130-230 50-100 120-220 180-280 200-300 70-30 65-120

Ferritic/martensitic 680 200 12 210-340 190-320 210-370 190-340 90-160 190-320 220-360 240-380

Martensitic 820 240 13 180-320 160-300 180-350 160-320 80-150 170-300 240-380 260-400

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Cermet + PVD Carbide + PVD Carbide + CVD

IC520N IC530N IC807/907 IC808/908 IC3028/830 IC6015 IC6025

MStainless steel Austenitic 600 180 14 150-280 140-250 100-200 90-200 50-120 140-250 120-180

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide + CVD Ceramics

Ceramics

+ CVD CBN

IC5005/ 428 IC5010/ 4028 IC8150 IN11 IN23 IS6 IS8 IS80 IB90/85 IB50

Grey cast iron (GG) Pearlitic/ferritic 180 15 160-300 160-300 140-280 150-400 500-900 80-300 200-400

Pearlitic/martensitic 260 16 140-280 140-280 120-240 100-350 500-900 50-250 150-350

Ductile cast iron (nodular)

(GGG)

Ferritic 160 17 350-700 300-600 250-350 300-800 300-600 500-1200 300-1000 400-1000 500-12000

Pearlitic 250 18 300-600 250-500 200-300 200-600 200-500 500-1200 250-800 300-800 400-1000

Malleable cast iron Ferritic 130 19 200-350 250-400 180-320 350-500

Pearlitic 230 20 180-280 200-320 150-250 150-400

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide PCD

IC20 ID5

Aluminum-wrought alloys Not cureable 60 21 1000-2500 600-2500

cured 100 22 300-1000 600-2500

Aluminum-cast alloys

<=12% Si Not cureable 75 23 300-1000 600-2500

cured 90 24 200-600 600-2500

>12% Si High temp. 130 25

Copper alloys

>1% Pb Free cutting 110 26 250-600 600-1000

Brass 90 27 180-400 600-800

Electrolitic copper 100 28 150-300 600-800

Non-metallic Duroplastics, fiber plastics 29

hard rubber 30

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material No.

Carbide Carbide + PVD Whiskers CBN

IC07 IC20 IC804 IC806 IC907 IC3028 IW7 IB05S IB10S IB90 IB85

High temp. alloys Fe based Annealed 200 31 40-55 35-45 50-80 30-40

Cured 280 32 30-45 25-35 40-65 20-30

Super alloys Ni or Co based

Annealed 250 33 30-40 25-30 65 - 105 50-80 45-60 20-25 150-450

Cured 350 34 20-30 15-25 50 - 90 40-70 35-45 10-20 100-250 100-250 100-200 120-240

Cast 320 35 25-35 20-30 40 - 85 30-65 30-50 15-25

Titanium

Ti alloys

Rm 400 36 100-160 80-160 150-200 130-160

Alpha+beta alloys cured Rm 1050 37 50-60 50-60 50-100 30-60

ISO

Material Condition

Tensile Strength

Rm [N/mm2=MPa] Hardness HB Material

Ceramics CBN

Carbide

+ PVD

IN22 IN420 IN23 IS8 IB10HC IB10H IB50/55 IB20H IB25HC IB25HA IB85/90 IC907

Hardened steel Hardened 55 HRC 38 50-150 60 - 170 40-120 150-350 100-220 100-140 100-220 100-220 90-200 80-140 40-100

Hardened 60 HRC 39 50-120 60 - 140 40-100 150-350 100-220 80-120 100-220 100-220 90-200 60-120 30-60

Chilled cast iron Cast 400 40 30-200 30 - 230 70-150

Cast iron Hardened 55 HRC 41 80-120 60-100 100-140

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

PVD COATED

IC520N

P05-P25

A hard cermet grade with PVD coating. Suitable for

finishing operations on steels and stainless steel at

high cutting speeds and low feeds. Features excellent

surface finish, very good wear resistance and prevents

built-up edge.

M05-M15

TiN

TiCN

Base

IC530N

P25-P35

Tough cermet grade with PVD coating. Recommended

for Semi-Finishing and finishing operations on steels at

medium to high cutting speeds and low feeds. Features

excellent surface finish, high wear resistance, plastic

deformation durability and prevents built-up edge.

M20-M30

TiN

TiCN

Base

IC804

A very hard submicron grain size substrate with PVD

coating and a special SUMOTEC surface treatment.

Suitable for semi-finishing and finishing operations

under stable conditions on high temperature alloys

and Titanium alloys moderate to relatively high cutting

speeds. Features high wear resistance and plastic

deformation durability.

TiAlN

S05-S15 AlTiN

Base

IC806

A hard submicron grain size substrate with PVD coating

and a special SUMOTEC surface treatment. Excellent

for machining high temperature alloys and Titanium

alloys, at moderate to relatively high cutting speeds.

Features high wear resistance and plastic deformation

durability.

M05-M15

TiAlN

S10-S20 AlTiN

Base

IC807

P10-P20 A hard submicron grain size substrate with PVD coating

and a special SUMOTEC surface treatment. Suitable for

machining steels, alloy steels, austenitic stainless steel,

high temperature alloys and hard steels at moderate to

relatively high cutting speeds under stable conditions.

Features high wear resistance and plastic deformation

durability.

M05-M15

K15-K30

TiN

S10-S20 TiAlN

H05-H15 Base

IC830

P30-P45 A tough substrate with PVD coating and a special

SUMOTEC surface treatment. Suitable for machining

steel and stainless steel at low to medium cutting

speeds and moderate to high feeds. The grade features

high toughness and recommended for interrupted cuts

and machining under unstable conditions. May be used

on high temperature alloys at low cutting speeds.

M25-M40

TiN

S20-S30 TiAlN

Base

IC907

P10-P20 A hard submicron grain size substrate with PVD coating

suitable for a wide range of materials such as steels,

alloy steels, hard steels, austenitic stainless steel and

heat resistant alloys at moderate to relatively high

cutting speeds under stable conditions. Features high

wear resistance and plastic deformation durability.

M05-M15

K15-K30

S10-S20 TiAlN

H05-H15 Base

IC908

P15-P30 A tough submicron grain size substrate with PVD

coating, recommended for general use in a large

variety of operations and materials such as steels,

alloy steels, austenitic stainless steel and high

temperature alloys at moderate cutting speeds.

Features high wear resistance and chipping durability.

M20-M30

K20-K40

S15-S30 TiAlN

H20-H30 Base

* For coated grades

ISCAR Turning Grades Chart

ISCAR

248

USER GUIDE

ISOTURN INSERTS

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

CVD COATED

IC428

A hard substrate with multilayer CVD coating.

Recommended for machining gray and nodular cast

iron at moderate to high cutting speeds.

K05-K20

Al2O3

Tic

H15-H25 Base

IC5005

P05-P15

A very hard substrate with MTCVD coating with a

special SUMOTEC surface treatment. Suitable for

machining gray and nodular cast iron at high cutting

speeds under stable conditions.

K05-K15 TiN

Al2O3

TiCN

H15-H25 Base

IC5010

A hard substrate with MTCVD coating with a special

SUMOTEC surface treatment. Recommended for

machining gray and nodular cast iron at moderate to

high cutting speeds, provides very good resistance to

chipping.

K10-K20 TiN

Al2O3

TiCN

Base

IC6015

A hard substrate with cobalt enriched outer layer and

MTCVD coating and a special SUMOTEC surface

treatment. Suitable for finishing and medium turning of

stainless steel at high cutting speeds. Features long tool

life and high wear resistance.

M05-M25

TiN

Al2O3

S10-S20 TiCN

Base

IC6025

A very tough substrate with MTCVD coating with a

special SUMOTEC surface treatment. Recommended

for machining stainless steel at moderate cutting

speeds and medium to high feeds. Features very high

toughness with excellent results in heavy machining

operations, unstable conditions, and interrupted cut.

M15-M35

TiN

Al2O3

S20-S30 TiCN

Base

IC8150

P10-P25 A hard substrate with a cobalt enriched layer, MTCVD

coating with a special SUMOTEC surface treatment.

Recommended for high speed machining of steels, alloy

steels and martensitic stainless steel with moderate

feeds under stable conditions. Features excellent

thermal stability, resistance to wear and plastic

deformation durability.

M10-M20

K10-K25 TiN

Al2O3

TiCN

Base

IC8250

P15-P35 A tough substrate with a cobalt enriched layer and

MTCVD coating with a special SUMOTEC surface

treatment. Recommended for general use machining of

steels, alloy steels and martensitic stainless steel in a

wide range of conditions. Features high toughness and

good wear resistance.

M15-M25

TiN

Al2O3

TiCN

Base

IC8350

P2O-P45 A very tough substrate with cobalt enriched layer and

MTCVD coating and a special SUMOTEC surface

treatment. Suitable for machining steels and alloy steels

at low to medium cutting speeds and medium to high

feeds. Features very high toughness with excellent

results in heavy machining, unstable conditions, and

interrupted cuts.

M20-M30

TiN

Al2O3

TiCN

Base

* For coated grades

ISCAR Turning Grades Chart

249

USER GUIDE

ISOTURN INSERTS

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

UNCOATED

IC4

A very hard-uncoated carbide grade, suitable for

machining aluminum alloys, aluminum alloys with high

silicon content and other non-ferrous materials at high

cutting speeds.

N01-N15

S05-S15

Base

IC08

A tough uncoated submicron carbide grade, suitable for

steels, stainless steel and high temperature alloys at low

cutting speeds. Good choice for non-ferrous materials.

M15-M30

N10-N25

S20-S30

Base

IC20

A hard-uncoated carbide grade for machining aluminum

and other non-ferrous materials at medium to high

cutting speeds. Can be used for cast iron at low cutting

speeds. Suitable also for machining high temperature

and Titanium alloys, at low cutting speeds.

K10-K20

N05-N25

S10-S20

H10-H20 Base

CERMET

IC20N

P05-P25 A very hard cermet grade for turning and grooving.

Recommended for finishing operations on steels and

alloy steels at high cutting speeds and low feeds.

Features excellent surface finish, high wear resistance,

plastic deformation durability and prevents built-up

edge.

M05-M15

Base

IC30N

P10-P30

A hard cermet grade, suitable for machining, steels and

stainless steel at medium to high cutting speeds and

low feeds. Features excellent surface finish, very good

wear resistance and prevents built-up edge.

M10-M20

Base

* For coated grades

ISCAR Turning Grades Chart

ISCAR

250

USER GUIDE

ISOTURN INSERTS

Advanced Cutting Materials

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

CBN

IB05H

A high speed grade for continuous machining. The

binding force between the particles is now improved

by use of coarse PCBN grains which provide excellent

wear resistance results.

H05-H10 Base

IB05S

A high speed grade for continuous machining.

The binding force between the particles is now

improved by use of coarse PCBN grains which provide

excellent wear resistance results.

S05

Base

IB10H

Extra fine PCBN grain size. Suitable for high speed

machining of hardened steels (45-65 HRC) under stable

conditions.

H10 Base

IB10S

Very hard PCBN grade with fine grain size. Suitable for

machining auto engine valve seats, sintered metals and

Titanium alloys.

S10

Base

IB10HC

Extra fine PCBN grain size with PVD coating. Suitable

for high speed machining of hardened steels (45-65

HRC) under stable conditions.

TiN

H10 Base

IB20H A combination of coarse and fine PCBN grain. Suitable

for general and interrupted cutting of hardened steels.

H20 Base

IB20HC

Coated PCBN grade for hardened steel turning.

High chipping resistance & extremely tough substrate

for all-round use.

TiN

H15-H25 Base

IB25HA A tough PCBN grade with PVD coating suitable for

general cutting of hardened steels.

TiN

H25 Base

IB25HC Medium PCBN grain size with PVD coating suitable for

light and medium interrupted cutting of hardened steels.

TiN

H25 Base

* For coated grades

251

USER GUIDE

ISOTURN INSERTS

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

CBN

IB50

A PCBN grade, suitable for finish turning and

grooving operations on hardened steels 45-65

HRC and nodular cast iron in continuous cutting.

K01-K10

H01-H10 Base

IB55

A PCBN grade, suitable for finishing operations on

hardened steels 45-65 HRC and nodular cast iron under

continuous conditions and light interrupted cuts.

K05-K15

H10-H25 Base

IB85

A PCBN grade, suitable for high speed machining of

cast iron, cemented tungsten carbide, heavy alloys

and sintered metals. Excellent for interrupted cutting of

hardened steels.

K01-K15

S05-S10

H05-H10 Base

IB90

A PCBN grade, suitable for high speed machining of

cast iron, cemented tungsten carbide, heavy alloys

and sintered metals. Excellent for interrupted cutting of

hardened steels.

K05-K15

S01-S10

H05-H10 Base

PCD

ID5

A PCD brazed tip, suitable for machining aluminum

alloys (Si < 12%) and other non-ferrous materials.

Features very high wear resistance with high toughness.

Suitable for finishing operations and can be used for

semi roughning operations and interrupted cut.

N01-N10

Base

CERAMICS

IN22

Black ceramic (Al2O3 + TiCN), suitable for semi-roughing

and finishing operations at relatively high cutting speeds

of hardened steels and chilled cast iron.

K05-K10

H05-H25 Base

IN23

Black ceramic (Al2O3 + TiCN), suitable for moderate

machining conditions and finishing operations of nodular

and gray cast iron.

K05-K15

H10-H30 Base

IN110 White ceramic. Features high toughness and wear

resistance. Used for high speed turning of cast iron.

K01-K10

S01-S10

Base

IN420

Black ceramic (Al2O3 + TiCN) with PVD coating

suitable for semi-roughing and finishing operations at

relatively high cutting speeds ofhardened steels and

chilled cast iron.

K05-K10

TiN

H05-H25 Base

* For coated grades

Advanced Cutting Materials

ISCAR

252

USER GUIDE

ISOTURN INSERTS

Advanced Cutting Materials

Grade ISO Grade Description Coating Layers Coating Color* Uncoated

CERAMICS

IS6

SiAlON based ceramic grade for high speed machining

of cast iron. Used for roughing and finishing under

both wet and dry conditions of automotive parts

like brake drum, brake discs and more. Provides

high productivity also in rough turning of mill

rolls made of high-chromium steel and HSS.

K01-K10

Base

IS25

Reinforced SiAlON composite grade, features

high hardness, suitable for machining high

temperature alloys such as Inconel, Waspaloy

and Rene under continuous conditions.

S10-S20

Base

IS35

Reinforced SiAlON composite grade, features

high hardness with excellent toughness. Suitable

for machining high temperature alloys such as

Inconel, Waspaloy and Rene under continuous

and light interrupted cutting conditions.

S15-S25

Base

IS80

A silicon nitride (Si3N4) ceramic grade, with CVD coating

suitable for turning of grey and nodular cast iron at high

cutting speeds in roughing and finishing operations.

Features high wear resistance and good toughness.

K01-K20

TiN

Base

IW7

Whisker reinforced ceramic grade for roughing

and semi finishing operations of high temperature

alloys such as Inconel and Waspaloy on high

cutting speeds under stable conditions. Can be

used also for hardened steels machining.

S20-S30

H05-H25 Base

* For coated grades

253

USER GUIDE

ISOTURN INSERTS

ISCAR

254

USER GUIDE

ISOTURN INSERTS

Benefits of using CBN inserts

1 Can replace grinding operations, which reduces

machining costs.

2 Dimensional stability, which is especially important in

mass production. Minimizes the amount of scrapped parts.

3 “Green” approach, due to minimized usage of coolant.

There are a few guidelines to follow to achieve

the best results and high productivity when

machining hard materials:

• CBN is characterized by hardness of 4500 HV.

The high hardness of CBN enables it to machine

hard materials at high speeds and feeds.

• Successful HPT (Hard Part Turning) demands

not only suitable cutting tools, but also the right

conditions, preparation and environment.

• HPT begins with a correct “soft” state machining design

that will create the best possible conditions for HPT.

The “soft” state (around 20-40 HRC) is the

state in which the workpiece material is yet

to be hardened to its final hardness.

Important points when planning the

“soft” machining process:

• Avoid burrs

• Keep close dimensional tolerances

• Do not enter or exit a cut suddenly

• Enter and exit by planning radius movements

• Use wiper inserts to achieve superior surface finish

• Do not leave sharp corners (round or chamfer)

• Machine stability, rigidity and thermal stability are

vital conditions for producing a high quality finished

part. The better the stability of the overall machine

concept, the closer the tolerances will be achieved.

• Clamping the workpiece with sufficient force will prevent

its movement and improve surface finish. Make sure that

you employ wide clamping jaws which offer better grip on

the workpiece, compared to ordinary three point jaws.

• Using tailstock in long parts will add even more

stability and rigidity to the machining process.

• Large cross section tools further add to system rigidity.

• Coolant-Generally, do not use coolant when machining

hard materials. CBN inserts tolerate high cutting

temperatures, and therefore have no need for coolant.

Avoiding coolant is more economical, environmentally

friendly and better because as the material heats up

during the turning process, it becomes slightly softer

and easier to machine. However, there may be some

applications that require using coolant: in cases of

continuous turning when high surface finish is required.

Rounding and chamfering at the ”soft” state

Rigid clamping of the workpiece and toolholder

Use tailstock in long parts

Key Points for Turning with CBN
