311
REAMERS
HIGH PRECISION REAMING
ISCAR
312
REAMERS
DCONMS
OAL
LBX
L5
DCN/DCX
SSC
Designation
ULDR(1) DCN(2) DCX(3) LBX OAL L5 DCONMS SSC(4)
RM-BNT5-1.5D-16C
1.5 11.501 13.500 20.3 68.25 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K
RM-BNT6-1.5D-16C
1.5 13.501 16.000 24.0 72.00 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K
RM-BNT7-1.5D-20C
1.5 16.001 20.000 30.0 80.00 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K
RM-BNT8-1.5D-20C
1.5 20.001 25.400 38.1 88.10 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K
RM-BNT9-1.5D-25C
1.5 25.401 32.000 48.0 104.00 12.90 25.00 BN9 RM-BN9-SR RM-BN9-K
RM-BNT9-1.5D-32C
1.5 25.401 32.000 48.0 108.00 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K
RM-BNT5-3D-16C
3.0 11.501 13.500 40.5 88.50 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K
RM-BNT6-3D-16C
3.0 13.501 16.000 48.0 96.00 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K
RM-BNT7-3D-20C
3.0 16.001 20.000 60.0 110.00 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K
RM-BNT8-3D-20C
3.0 20.001 25.400 75.0 125.00 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K
RM-BNT9-3D-25C
3.0 25.401 32.000 94.2 150.20 12.90 25.00 BN9 RM-BN9-SR RM-BN9-K
RM-BNT9-3D-32C
3.0 25.401 32.000 94.2 154.20 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K
RM-BNT5-5D-16C
5.0 11.501 13.500 67.7 115.70 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K
RM-BNT6-5D-16C
5.0 13.501 16.000 80.0 128.00 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K
RM-BNT7-5D-20C
5.0 16.001 20.000 100.0 150.00 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K
RM-BNT8-5D-20C
5.0 20.001 25.400 125.0 175.00 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K
RM-BNT9-5D-32C
5.0 25.401 32.000 158.2 218.20 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K
RM-BNT5-8D-16C
8.0 11.501 13.500 108.2 156.20 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K
RM-BNT6-8D-16C
8.0 13.501 16.000 128.0 176.00 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K
RM-BNT7-8D-20C
8.0 16.001 20.000 160.0 210.00 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K
RM-BNT8-8D-20C
8.0 20.001 25.400 200.0 250.00 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K
RM-BNT9-8D-32C
8.0 25.401 32.000 254.2 314.20 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K
(1) Usable length diameter ratio
(2) Reamer min. diameter
(3) Reamer max. diameter
(4) Connection size

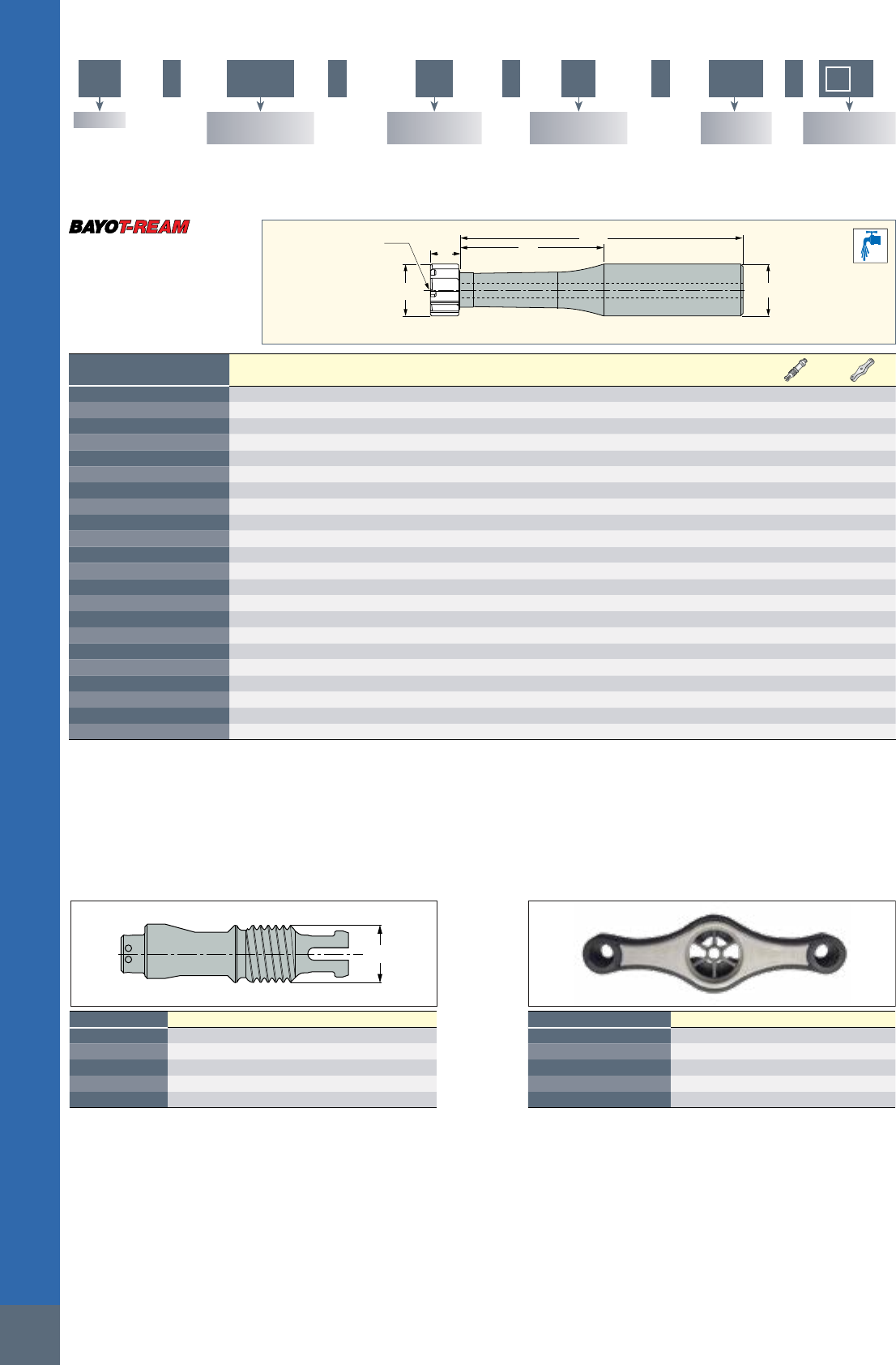

RM-BNT (Shanks)
Shanks for BAYO T-REAM
Interchangeable Head Reamers
Reamer Shank
Diameter
Shank
Type
Shank
Material
Bayonet
Tool Size
Functional
Length
- - -RM BNT6 3D 16
Holder Designation Code Key
- -
(2)
C
(1)
(1) C- cylindrical, W-Weldon, M-Morse
(2) No letter - Steel (default), C-Carbide, W- Heavy metal
Bayonet
Screw
Clamping
Key
M
Designation
Head Diameter Bayonet Size M
RM-BN5-SR
11.501-13.500 BN5 M5
RM-BN6-SR
13.501-16.000 BN6 M6
RM-BN7-SR
16.001-20.000 BN7 M7
RM-BN8-SR
20.001-25.400 BN8 M8
RM-BN9-SR
25.401-32.000 BN9 M9
Designation
Head Diameter Bayonet Size
RM-BN5-K
11.501-13.500 BN5
RM-BN6-K
13.501-16.000 BN6
RM-BN7-K
16.001-20.000 BN7
RM-BN8-K
20.001-25.400 BN8
RM-BN9-K
25.401-32.000 BN9
Reamer Shank
Diameter
Shank
Type
Shank
Material
Bayonet
Tool Size
Functional
Length
---RM BNT6 3D 16
Holder Designation Code Key
- -
(2)
C
(1)
(1)
C- cylindrical, W-Weldon, M-Morse
(2)
No letter - Steel (default), C-Carbide, W- Heavy metal
Bayonet
Screw
Clamping
Key
M
Designation
Head Diameter Bayonet Size M
RM-BN5-SR
11.501-13.500 BN5 M5
RM-BN6-SR
13.501-16.000 BN6 M6
RM-BN7-SR
16.001-20.000 BN7 M7
RM-BN8-SR
20.001-25.400 BN8 M8
RM-BN9-SR
25.401-32.000 BN9 M9
Designation
Head Diameter Bayonet Size
RM-BN5-K
11.501-13.500 BN5
RM-BN6-K
13.501-16.000 BN6
RM-BN7-K
16.001-20.000 BN7
RM-BN8-K
20.001-25.400 BN8
RM-BN9-K
25.401-32.000 BN9
313
REAMERS
OAL
BD
THID
DCONMS DCON
DH7
Designation
BD OAL DCONMS THID SS(1) DCON(2)
RM-BN5-RC-RING
20.00 20.00 16.20 M5x0.5 RM-BNT5 16.00 RM-BN5-RC-SR
RM-BN6-RC-RING
20.00 22.00 16.20 M6x0.5 RM-BNT6 16.00 RM-BN6-RC-SR
RM-BN7-RC-RING
24.00 26.00 20.20 M8x0.5 RM-BNT7 20.00 RM-BN7/8/9-RC-SR
RM-BN8-RC-RING
27.00 33.00 20.20 M8x0.5 RM-BNT8 20.00 RM-BN7/8/9-RC-SR
RM-BN9-RC-RING
39.00 35.00 32.20 M8x0.5 RM-BNT9 32.00 RM-BN7/8/9-RC-SR
(1) Reamer bayonet size
(2) RM-BNT reamer holder shank size
RM-BN-RC-RING
Runout Adjustment Rings for
RM-BNT Reamer Holders
ISCAR

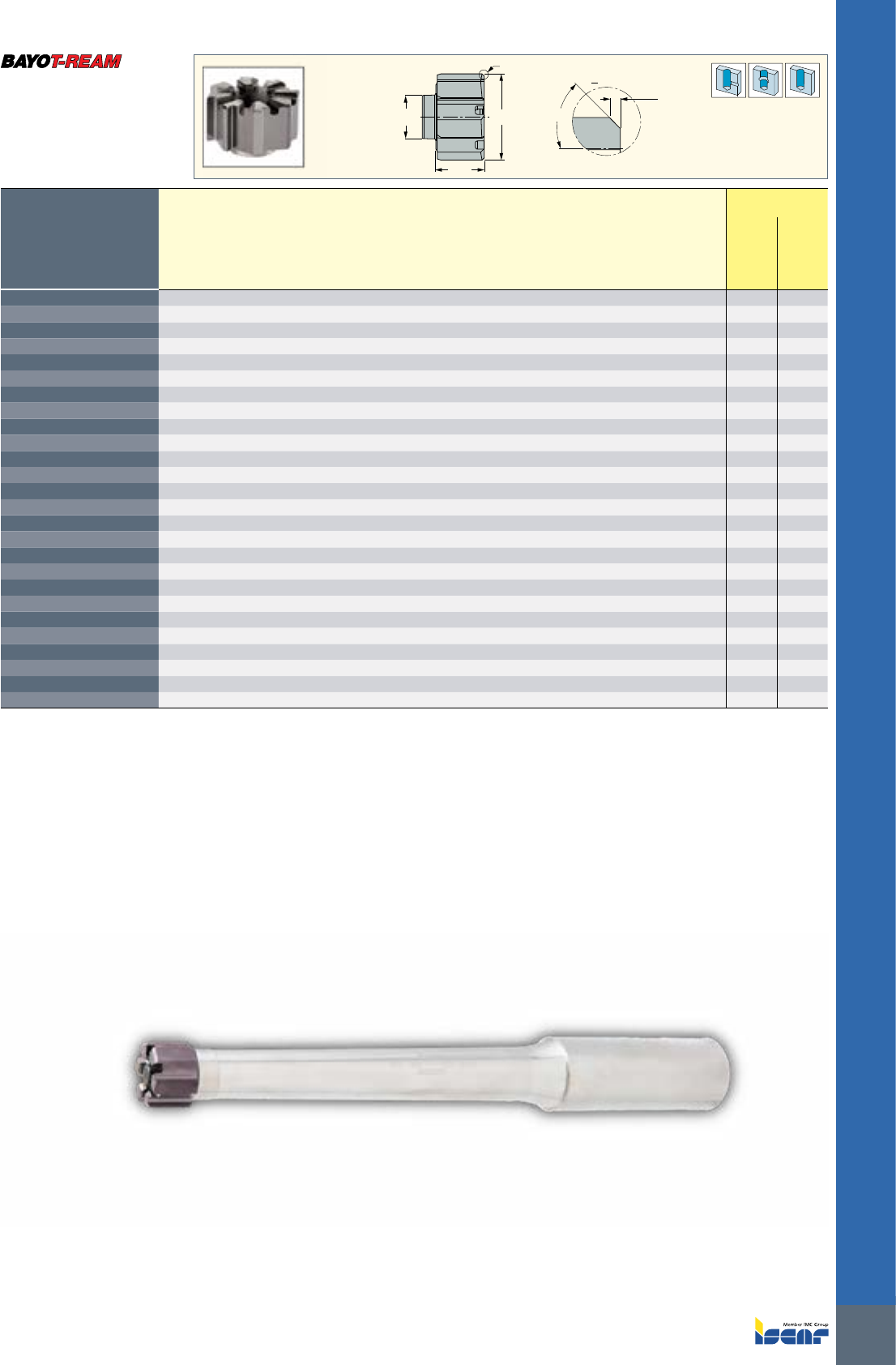

314
REAMERS
V
1.07
V
FHA
25°
DC
LPR
SSC
Dimensions Tough
1
Hard
Designation
SSC(2) DC LPR NOF(3) FHA
IC08
IC908
RM-BN5-11.501-H7LB
BN5 11.501 9.50 6 20.0
• •
RM-BN5-12.000-H7LB
BN5 12.000 9.50 6 20.0
• •
RM-BN5-13.000-H7LB
BN5 13.000 9.50 6 20.0
• •
RM-BN5-13.500-H7LB
BN5 13.500 9.50 6 20.0
• •
RM-BN6-13.501-H7LB
BN6 13.501 9.50 6 20.0
• •
RM-BN6-14.000-H7LB
BN6 14.000 9.50 6 20.0
• •
RM-BN6-15.000-H7LB
BN6 15.000 9.50 6 20.0
• •
RM-BN6-16.000-H7LB
BN6 16.000 9.50 6 20.0
• •
RM-BN7-16.001-H7LB
BN7 16.001 10.70 6 20.0
• •
RM-BN7-17.000-H7LB
BN7 17.000 10.70 6 20.0
• •
RM-BN7-18.000-H7LB
BN7 18.000 10.70 6 20.0
• •
RM-BN7-19.000-H7LB
BN7 19.000 10.70 6 20.0
• •
RM-BN7-20.000-H7LB
BN7 20.000 10.70 6 20.0
• •
RM-BN8-20.001-H7LB
BN8 20.001 12.90 8 20.0
• •
RM-BN8-21.000-H7LB
BN8 21.000 12.90 8 20.0
• •
RM-BN8-22.000-H7LB
BN8 22.000 10.90 8 20.0
• •
RM-BN8-23.000-H7LB
BN8 23.000 12.90 8 20.0
• •
RM-BN8-24.000-H7LB
BN8 24.000 12.90 8 20.0
• •
RM-BN8-25.000-H7LB
BN8 25.000 12.90 8 20.0
• •
RM-BN9-26.000-H7LB (1)
BN9 26.000 12.90 8 20.0
•
RM-BN9-27.000-H7LB (1)
BN9 27.000 12.90 8 20.0
•
RM-BN9-28.000-H7LB (1)
BN9 28.000 12.90 8 20.0
•
RM-BN9-29.000-H7LB (1)
BN9 29.000 12.90 8 20.0
•
RM-BN9-30.000-H7LB (1)
BN9 30.000 12.90 8 20.0
•
RM-BN9-31.000-H7LB (1)
BN9 31.000 12.90 8 20.0
•
RM-BN9-32.000-H7LB (1)
BN9 32.000 12.90 8 20.0
•
• For user guide, see pages 316-321
(1) The uncoated fine grain IC08 is available on request
(2) Seat size code
(3) Number of flutes
Complementary Grades (on request):
IC30N cermet tipped, recommended for reaming the following
materials: non-alloyed (mild) steel,low alloyed steel (<5% of alloying
elements), free cutting steel, tempered steel (tensile strength
<1100 N/mm
2
) and nodular iron (GGG40, GGG60, etc.)
ID5 (PCD) recommended for high speed
reaming of aluminum (special cases).
RN01 (DLC coating) recommended for reaming the
following materials: aluminum alloys (cast, wrought, etc.),
brass, bronze and other nonferrous materials.

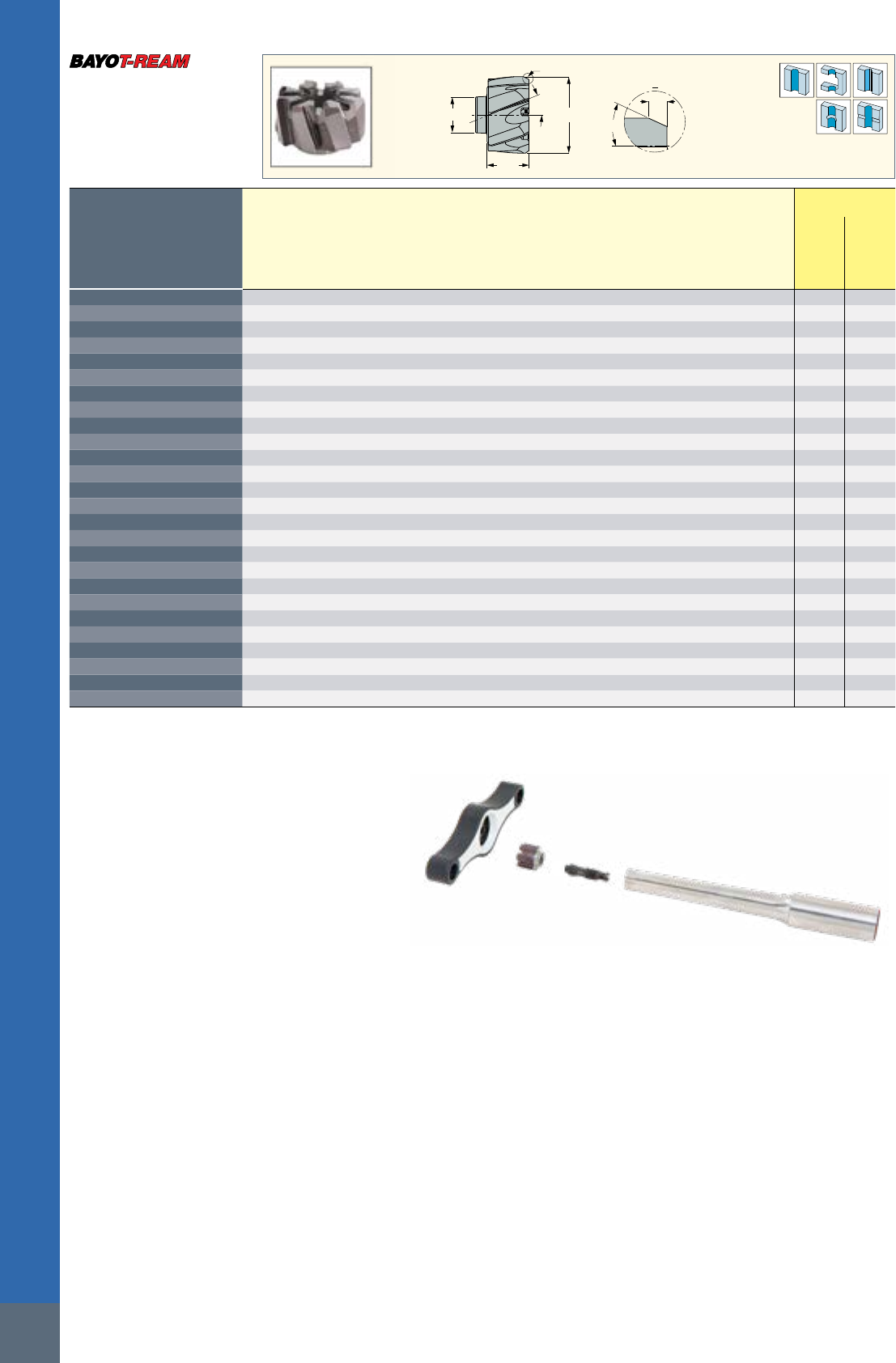

RM-BN-H7LB
Quick Change Left-Hand Flute
Interchangeable Solid Carbide
Reaming Heads for High Speed
Reaming of Through Holes
315
REAMERS
V
0.5
V
45°
DC
LPR
SSC
Dimensions Tough
1
Hard
Designation
SSC(2) DC LPR NOF(3)
IC08
IC908
RM-BN5-11.501-H7SA
BN5 11.501 9.50 6
• •
RM-BN5-12.000-H7SA
BN5 12.000 9.50 6
• •
RM-BN5-13.000-H7SA
BN5 13.000 9.50 6
• •
RM-BN5-13.500-H7SA
BN5 13.500 9.50 6
• •
RM-BN6-13.501-H7SA
BN6 13.501 9.50 6
• •
RM-BN6-14.000-H7SA
BN6 14.000 9.50 6
• •
RM-BN6-15.000-H7SA
BN6 15.000 9.50 6
• •
RM-BN6-16.000-H7SA
BN6 16.000 9.50 6
• •
RM-BN7-16.001-H7SA
BN7 16.001 10.70 6
• •
RM-BN7-17.000-H7SA
BN7 17.000 10.70 6
• •
RM-BN7-18.000-H7SA
BN7 18.000 10.70 6
• •
RM-BN7-19.000-H7SA
BN7 19.000 10.70 6
• •
RM-BN7-20.000-H7SA
BN7 20.000 10.70 6
• •
RM-BN8-20.001-H7SA
BN8 20.001 12.90 8
• •
RM-BN8-21.000-H7SA
BN8 21.000 12.90 8
• •
RM-BN8-22.000-H7SA
BN8 22.000 12.90 8
• •
RM-BN8-23.000-H7SA
BN8 23.000 12.90 8
•
RM-BN8-24.000-H7SA
BN8 24.000 12.90 8
• •
RM-BN8-25.000-H7SA
BN8 25.000 12.90 8
• •
RM-BN9-26.000-H7SA
BN9 26.000 12.90 8
• •
RM-BN9-27.000-H7SA (1)
BN9 27.000 12.90 8
•
RM-BN9-28.000-H7SA (1)
BN9 28.000 12.90 8
•
RM-BN9-29.000-H7SA (1)
BN9 29.000 12.90 8
•
RM-BN9-30.000-H7SA (1)
BN9 30.000 12.90 8
•
RM-BN9-31.000-H7SA (1)
BN9 31.000 12.90 8
•
RM-BN9-32.000-H7SA (1)
BN9 32.000 12.90 8
•
• For user guide, see pages 316-321
(1) The uncoated fine grain IC08 is available on request
(2) Seat size code
(3) Number of flutes
Complementary Grades (on request):
IC30N
cermet tipped, recommended for reaming the following
materials: non-alloyed (mild) steel,low alloyed steel (<5% of alloying
elements), free cutting steel, tempered steel (tensile strength
<1100 N/mm
2
) and nodular iron (GGG40, GGG60, etc.)
ID5 (PCD) recommended for high speed
reaming of aluminum (special cases).
RN01 (DLC coating) recommended for reaming the
following materials: aluminum alloys (cast, wrought, etc.),
brass, bronze and other nonferrous materials.
RM-BN-H7SA
Quick Change Straight Flute
Interchangeable Solid Carbide
Reaming Heads for High Speed
Reaming of Blind Holes
ISCAR

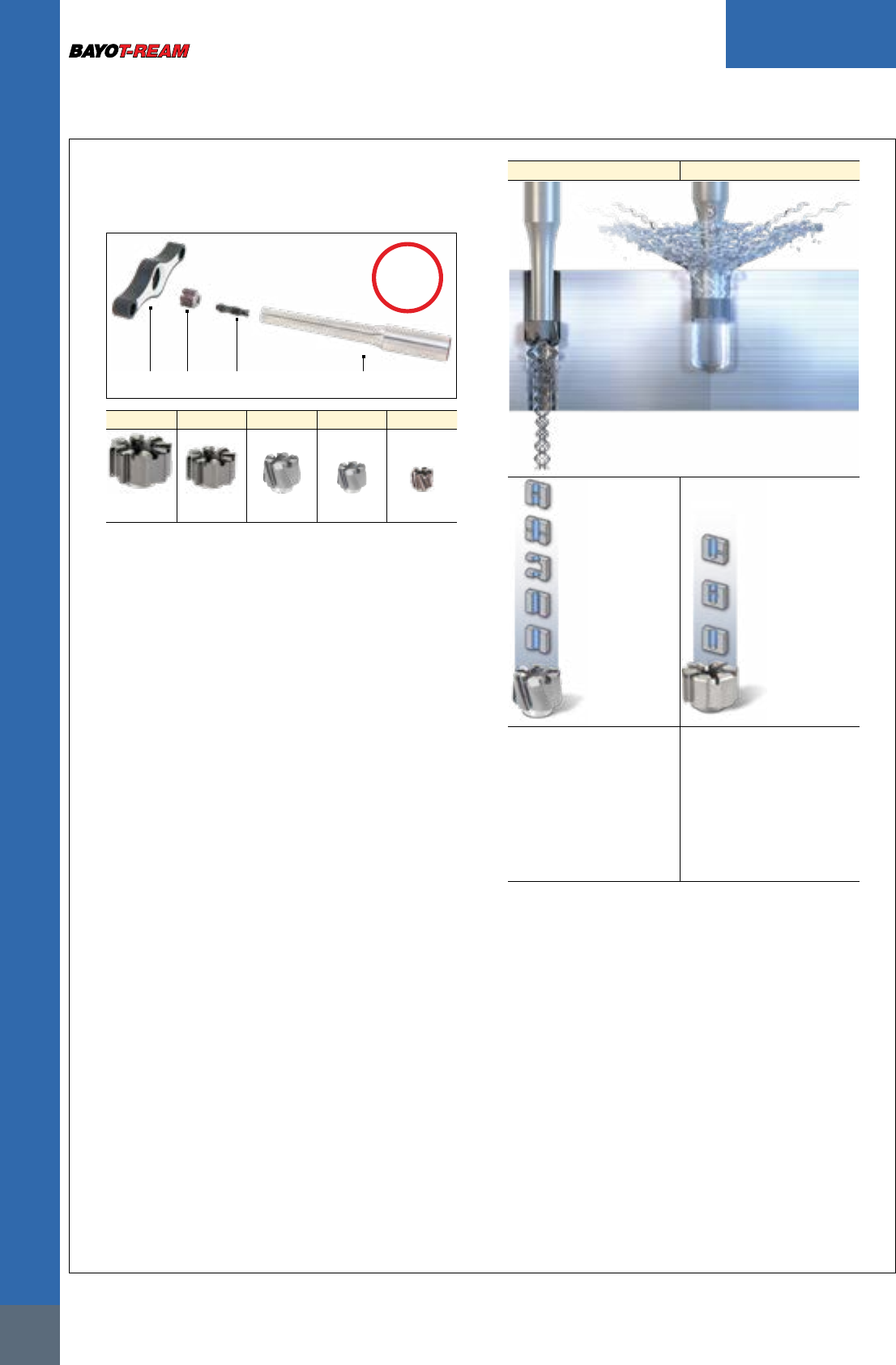

316
USER GUIDE
REAMERS
The BAYO T-REAM Line is Available in 5 Sizes
Each size has its own diameter range and holder.
For example:
The same RM-BN7 holder can hold any
head between Ø16.001–20.000 mm
NO
SETUP
TIME!
Key Reamer
Head
Bayonet
Screw
Holder
RM-BN9 RM-BN8 RM-BN7 RM-BN6 RM-BN5
Ø25.401-32.000
mm
Ø20.001-25.400
mm
Ø16.001-20.000
mm
Ø13.501-16.000
mm
Ø11.500-13.500
mm
Through Hole Blind Hole
Left-Hand Flute
The left-hand spiral is
designed especially for
through hole reaming. Due
to this design, the chips
are being pushed forward
immediately after formation.
Straight Flute
The coolant flow assists the
chip evacuation process. It
directs the just-formed chips
backwards. The chips pass
through the straight flutes and
are thrown out of the hole,
without causing any damage
to the reamer or hole surface.

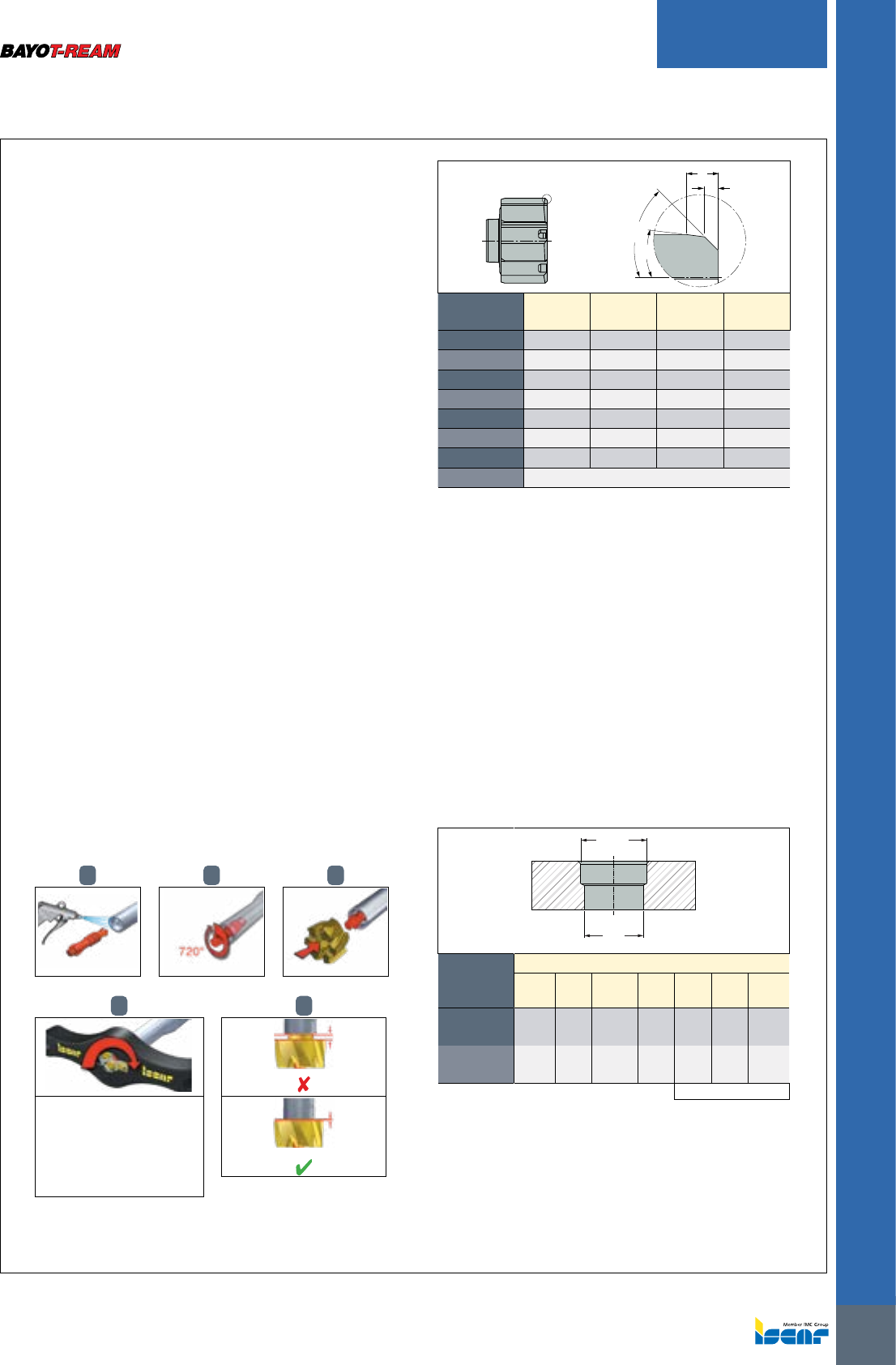

317
USER GUIDE
REAMERS
ATTENTION: Cutting tools can break during use.
To avoid injury always use safety precautions
such as gloves, shields and eye protection.
Assembly Instructions (BN5-BN9)
First Assembly
• Clean the toolholder pocket (Fig. 1)
• Clean the reamer head clamping cone
• Insert the clamping screw into the holder and rotate
it 2-3 turns in a clockwise direction (Fig. 2)
• Clamp the reaming head on the screw; note, BN8
and BN9 can be assembled only in a specific
position relative to the screw (rotate the head
until locating the correct position) (Fig. 3)
• Manually rotate the reaming head until
it sits firmly in the pocket
• Tighten with the special key (Fig. 4)
• Make sure there is no face gap between the
toolholder and the reaming head (Fig. 5)
Indexing
• Release the reaming head with the key, turning in a
counterclockwise direction until it rotates freely
• Rotate another one turn by hand
• Remove the reamer head from the tool; the
clamping screw should remain inside!!!
• Clean the pocket of the toolholder (Fig. 1)
• Clean the cone on the new reamer head
• Clamp the reaming head on the screw; note,
BN8 and BN9 can be assembled only in a
specific position relative to the screw (rotate the
head until locating the correct position) (Fig. 3)
• Manually rotate the reaming head. In the beginning it
should rotate without the screw and then (after 1/6 of
a turn) it should engage with the screw. Rotate until it
sits firmly in the pocket. If the screw rotates together
with the reaming head from the beginning, remove the
reaming head and open the screw another one turn.
• Tighten with the special key (Fig. 4)
• Make sure that there is no face gap between
the toolholder and the reaming head (Fig. 5)
1 2 3
4 5
BN9: 21-23 N*m
BN8: 17-20 N*m
BN7: 13-15 N*m
BN6: 8-10 N*m
BN5: 7-8 N*m
β¡
γ
¡
b
a

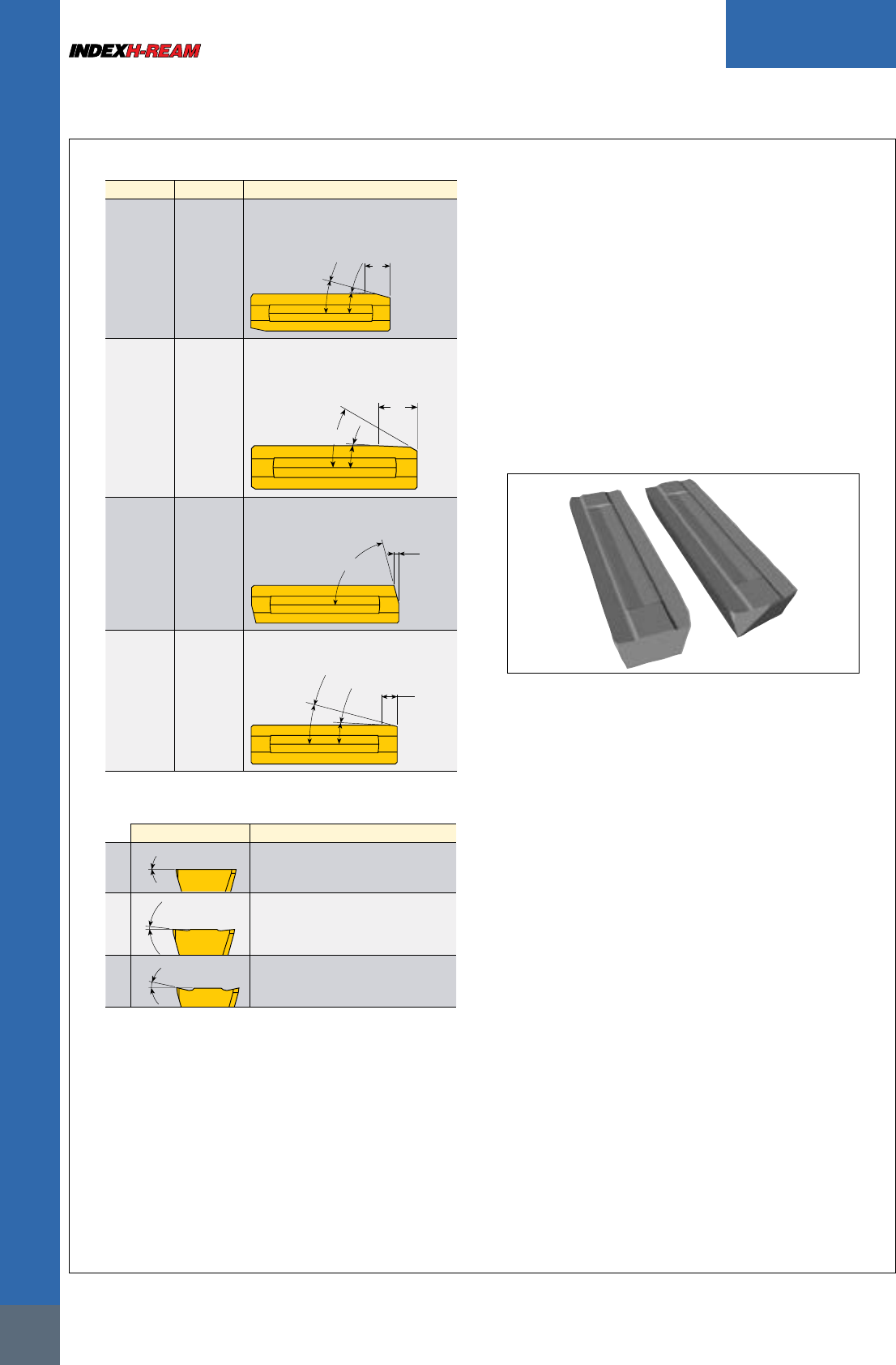

Lead Code /
Parameter β° a [mm] g° b [mm]
A45° 0.5 ־ ־
B25° 1.07 ־ ־
C45° 0.5 8° 0.75
D30° 0.5 4° 1.85
E45° 0.2 ־ ־
F90° ־־־
G75° 0.15 ־ ־
XSpecially Tailored (undesignated)
When choosing a reamer, it is important to select a lead geometry that
covers the reaming allowance.
Reaming Allowance
Reaming allowance is the stock material which should
be removed by reaming. It is recommended to leave
different reaming allowances depending on the workpiece
material and the pre-hole quality. Pre-hole should be
smooth and straight, without deep scratches on it.
Complementary Grades (on request):
IC30N cermet tipped, recommended for reaming
the following materials: non-alloyed (mild) steel, low
alloyed steel (<5% of alloying elements), free cutting
steel, tempered steel (tensile strength <1100 N/mm2)
and nodular iron (GGG40, GGG60, etc.) ID5 (PCD)
recommended for high speed reaming of aluminum (special
cases). RN01 (DLC coating) recommended for reaming
the following materials: aluminum alloys (cast, wrought,
etc.), brass, bronze and other nonferrous materials.
Pre-hole
ØDR
Reaming
ØDP
Material
Hole Ø mm
< 9.5 9.5 -
11.5
11.5 -
13.5
13.5
- 16
16 -
32 >32
Steel and
Cast Iron
0.07-
0.10
0.07-
0.15
0.10-
0.20
0.10-
0.30
0.10-
0.30
0.20-
0.40 mm/Ø
Aluminum
and Brass
0.07-
0.10
0.10-
0.15
0.15-
0.25
0.20-
0.30
0.20-
0.40
0.20-
0.50 mm/Ø
Δ - Reaming allowance Δ = ∅DR - ∅DP
ISCAR
318
USER GUIDE
REAMERS
Recommeded Cutting Conditions for BAYO T-REAM High Speed Reaming Heads
Interrupted Through HoleThrough Hole
Material No.(1)
ConditionMaterial
ISO
Second ChoiceFirst ChoiceSecond ChoiceFirst Choice
SAIC908LBIC908LAIC30NLBIC9081Annealed
Non-alloy
steel and cast
steel, free
cutting steel
P
Vc = 60 - 120Vc = 60 - 120Vc = 90 - 240Vc = 80 - 200 2Annealed
fz = 0.05 - 0.15BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.08 - 0.21BN4 - BN6fz = 0.08 - 0.21BN4 - BN6
3
Quenched &
tempered
4Annealed
fz = 0.07 - 0.16BN7 - BN9fz = 0.09 - 0.21BN7 - BN9fz = 0.12 - 0.27BN7 - BN9fz = 0.12 - 0.27BN7 - BN95
Quenched &
tempered
SAIC908LBIC908LAIC30NLBIC9086
Annealed
Low alloy and
cast steel
(less than 5%
of alloying
elements)
Vc = 60 - 120Vc = 60 - 120Vc = 90 - 240Vc = 80 - 200 7
fz = 0.05 - 0.15BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.08 - 0.21BN4 - BN6fz = 0.08 - 0.21BN4 - BN68
Quenched &
tempered fz = 0.07 - 0.16BN7 - BN9fz = 0.09 - 0.21BN7 - BN9fz = 0.12 - 0.27BN7 - BN9fz = 0.12 - 0.27BN7 - BN99
SAIC908LBIC908SAIC908LBIC908
10Annealed
High alloyed
steel, cast
steel and
tool steel
Vc = 20 - 60Vc = 20 - 60Vc = 20 - 60Vc = 20 - 60
fz = 0.03 - 0.09BN4 - BN6fz = 0.04 - 0.11BN4 - BN6fz = 0.04 - 0.11BN4 - BN6fz = 0.05 - 0.13BN4 - BN6
11
Quenched &
tempered fz = 0.04 - 0.11BN7 - BN9fz = 0.05 - 0.14BN7 - BN9fz = 0.06 - 0.14BN7 - BN9fz = 0.07 - 0.17BN7 - BN9
SAIC908LBIC908SAIC908LBIC908
12
Ferritic /
martensitic
Stainless steel Vc = 20 - 40Vc = 20 - 40Vc = 20 - 40Vc = 20 - 40
fz = 0.03 - 0.09BN4 - BN6fz = 0.04 - 0.11BN4 - BN6fz = 0.04 - 0.11BN4 - BN6fz = 0.05 - 0.13BN4 - BN613Martensitic
fz = 0.04 - 0.11BN7 - BN9fz = 0.05 - 0.14BN7 - BN9fz = 0.06 - 0.14BN7 - BN9fz = 0.07 - 0.17BN7 - BN914AustenticStainless steelM
SAIC908LBIC908SAIC908LBIC908
15Ferritic
Grey iron
(GG)
K
Vc = 80 - 200Vc = 80 - 200Vc = 120 - 220Vc = 120 - 220
fz = 0.05 - 0.13BN4 - BN6fz = 0.05 - 0.13BN4 - BN6fz = 0.08 - 0.16BN4 - BN6fz = 0.08 - 0.18BN4 - BN6
16Pearlitic fz = 0.07 - 0.17BN7 - BN9fz = 0.07 - 0.17BN7 - BN9fz = 0.10 - 0.22BN7 - BN9fz = 0.10 - 0.24BN7 - BN9
SAIC908LBIC908LAIC30NSA or LBIC908
17Pearlitic / ferritic
Nodular
iron (GGG)
Vc = 150 - 250Vc = 150 - 250Vc = 160 - 300Vc = 160 - 280
fz = 0.06 - 0.15BN4 - BN6fz = 0.06 - 0.15BN4 - BN6fz = 0.11 - 0.20BN4 - BN6fz = 0.11 - 0.20BN4 - BN6
18
Pearlitic /
martensitic fz = 0.08 - 0.19BN7 - BN9fz = 0.08 - 0.19BN7 - BN9fz = 0.11 - 0.24BN7 - BN9fz = 0.11 - 0.24BN7 - BN9
SAIC908LBIC908LA or SAIC30NSA or LBIC908
19Ferritic
Malleable
iron, Nodular
iron ferritic
/ pearlitic
Vc = 100 - 220Vc = 100 - 220Vc = 100 - 240Vc = 100 - 220
fz = 0.06 - 0.15BN4 - BN6fz = 0.06 - 0.15BN4 - BN6fz = 0.11 - 0.20BN4 - BN6fz = 0.11 - 0.20BN4 - BN6
20Pearlitic fz = 0.08 - 0.19BN7 - BN9fz = 0.08 - 0.20BN7 - BN9fz = 0.11 - 0.24BN7 - BN9fz = 0.11 - 0.24BN7 - BN9
SGID5LGRN01SGID5LG or SGRN0121Not cureable
Aluminum
wrought alloy
N
Vc = 200 - 500Vc = 150 - 350Vc = 200 - 500Vc = 150 - 400
22Cured
23Not cureable
Aluminum -
cast, alloyed fz = 0.08 - 0.2BN4 - BN6fz = 0.08 - 0.16BN4 - BN6fz = 0.08 - 0.2BN4 - BN6fz = 0.08 - 0.16BN4 - BN624Cured
fz = 0.11 - 0.24BN7 - BN9fz = 0.10 - 0.20BN7 - BN9fz = 0.11 - 0.24BN7 - BN9fz = 0.10 - 0.20BN7 - BN925High temperature
SG or SAIC08SG or SAIC08SA or SGIC30N
26Free cutting
Copper alloys
Brass, bronze
Vc = 30 - 100Vc = 30 - 100Vc = 180 - 240
fz = 0.04 - 0.13BN4 - BN6fz = 0.04 - 0.13BN4 - BN6fz = 0.05 - 0.16BN4 - BN627Brass
fz = 0.05 - 0.16BN7 - BN9fz = 0.05 - 0.16BN7 - BN9fz = 0.04 - 0.20BN7 - BN928Electrolitic copper
LBIC908SAIC908LBIC908SAIC908
29
Duroplastics,
fiber plastics
Non-metallic Vc = 25 - 80Vc = 25 - 80Vc = 25 - 80Vc = 25 - 80
fz = 0.05 - 0.12BN4 - BN6fz = 0.05 - 0.10BN4 - BN6fz = 0.05 - 0.12BN4 - BN6fz = 0.05 - 0.10BN4 - BN6
30Hard rubber fz = 0.10 - 0.23BN7 - BN9fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.23BN7 - BN9fz = 0.10 - 0.20BN7 - BN9
S*IC908L*IC908S*IC908L *IC90831Annealed
* High temp.
alloys
S
Vc = 15 - 50Vc = 15 - 50Vc = 15 - 50Vc = 15 - 50
32Cured
33Annealed
fz = 0.03 - 0.08BN4 - BN6fz = 0.03 - 0.08BN4 - BN6fz = 0.04 - 0.10BN4 - BN6fz = 0.04 - 0.10BN4 - BN6
34Cured
35Cast
fz = 0.04 - 0.11BN7 - BN9fz = 0.04 - 0.11BN7 - BN9fz = 0.05 - 0.13BN7 - BN9fz = 0.05 - 0.13BN7 - BN9
SAIC908LBIC908SAIC908LBIC90838Hardened
Hardened
steel
HVc = 25 - 50Vc = 25 - 50Vc = 25 - 50Vc = 25 - 5039Hardened
fz = 0.05 - 0.13BN4 - BN6fz = 0.06 - 0.15BN4 - BN6fz = 0.05 - 0.13BN4 - BN6fz = 0.06 - 0.15BN4 - BN640Cast
fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.20BN7 - BN941Hardened
* Standard edge geometries are not suitable for reaming titanium and high temperature alloys. In order to choose a proper geometry, please ask for our recommendations.
• The given cutting data recommendations refer to the short holders (3xD effective reaming overhang). For longer holders, the cutting speed should be reduced proportionally.
• For relatively large leading angles (spot-facing geometries), the feed should be reduced up to 30%.
• All the given cutting data recommendations refer to the machines with spindle through coolant supply.
(1) For workpiece materials list, see pages 495-524
319
USER GUIDE
REAMERS
IC08 Interrupted Blind HoleBlind Hole
Material No.
Through Hole - LB
Blind Hole - SA
Second ChoiceFirst ChoiceSecond ChoiceFirst Choice
Vc = 6 - 10
SAIC908SAIC30NSAIC9081
Vc = 60 - 120Vc = 90 - 200Vc = 60-1602
fz = 0.05 - 0.17BN4 - BN6fz = 0.05 - 0.15BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.06 - 0.18BN4 - BN6
3
4
fz = 0.07 - 0.20BN7 - BN9fz = 0.07 - 0.16BN7 - BN9fz = 0.08 - 0.21BN7 - BN9fz = 0.08 - 0.20BN7 - BN95
Vc = 6 - 10
SAIC908SAIC30NSAIC9086
Vc = 60 - 120Vc = 90 - 200Vc = 60-1607
fz = 0.05 - 0.17BN4 - BN6fz = 0.05 - 0.15BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.06 - 0.18BN4 - BN68
fz = 0.07 - 0.20BN7 - BN9fz = 0.07 - 0.16BN7 - BN9fz = 0.08 - 0.21BN7 - BN9fz = 0.08 - 0.20BN7 - BN99
Vc = 6 - 10
SAIC908SAIC908
10 Vc = 20 - 60Vc = 20 - 60
fz = 0.03 - 0.08BN4 - BN6fz = 0.03 - 0.08BN4 - BN6fz = 0.04 - 0.10BN4 - BN6
11 fz = 0.05 - 0.10BN7 - BN9fz = 0.04 - 0.10BN7 - BN9fz = 0.05 - 0.13BN7 - BN9
Vc = 4 - 8
SAIC908SAIC908
12 Vc = 20 - 40Vc = 20 - 40
fz = 0.03 - 0.08BN4 - BN6fz = 0.03 - 0.08BN4 - BN6fz = 0.04 - 0.10BN4 - BN613
fz = 0.05 - 0.10BN7 - BN9fz = 0.05 - 0.10BN7 - BN9fz = 0.05 - 0.13BN7 - BN914
Vc = 8 - 20
SAIC908SAIC908
15 Vc = 60 - 120Vc = 80 - 200
fz = 0.08 - 0.16BN4 - BN6fz = 0.05 - 0.13BN4 - BN6fz = 0.06 - 0.18BN4 - BN6
16 fz = 0.10 - 0.20BN7 - BN9fz = 0.08 - 0.18BN7 - BN9fz = 0.08 - 0.23BN7 - BN9
Vc = 9 - 20
SAIC908SAIC30NSAIC908
17 Vc = 160 - 240Vc = 160 - 280Vc = 160 - 280
fz = 0.06 - 0.16BN4 - BN6fz = 0.06 - 0.16BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.06 - 0.18BN4 - BN6
18 fz = 0.08 - 0.20BN7 - BN9fz = 0.08 - 0.18BN7 - BN9fz = 0.08 - 0.24BN7 - BN9fz = 0.08 - 0.23BN7 - BN9
Vc = 10 - 20
SAIC908SAIC30NSAIC908
19 Vc = 100 - 220Vc = 100 - 240Vc = 100 - 220
fz = 0.05 - 0.15BN4 - BN6fz = 0.05 - 0.15BN4 - BN6fz = 0.06 - 0.18BN4 - BN6fz = 0.06 - 0.18BN4 - BN6
20 fz = 0.08 - 0.15BN7 - BN9fz = 0.08 - 0.20BN7 - BN9fz = 0.08 - 0.23BN7 - BN9fz = 0.08 - 0.23BN7 - BN9
Vc = 10 - 30
SG or SAID5SG or SARN01SG or SAID5
SG or SARN0121
Vc = 200 - 400Vc = 150 - 300Vc = 200 - 400Vc = 150 - 400
22
23
fz = 0.05 - 0.12BN4 - BN6fz = 0.08 - 0.16BN4 - BN6fz = 0.07 - 0.15BN4 - BN6fz = 0.08 - 0.16BN4 - BN6fz = 0.08 - 0.16BN4 - BN624
fz = 0.08 - 0.15BN7 - BN9fz = 0.11- 0.24BN7 - BN9fz = 0.11 - 0.20BN7 - BN9fz = 0.11 - 0.24BN7 - BN9fz = 0.11 - 0.20BN7 - BN925
Vc = 30 - 100
SG or SAIC08SG or SAIC08SG or SAIC30N
26 Vc = 30 - 100Vc = 30 - 100Vc = 180 - 240
fz = 0.04 - 0.13BN4 - BN6fz = 0.04 - 0.13BN4 - BN6fz = 0.04 - 0.13BN4 - BN6fz = 0.05 - 0.16BN4 - BN627
fz = 0.05 - 0.16BN7 - BN9fz = 0.05 - 0.16BN7 - BN9fz = 0.05 - 0.16BN7 - BN9fz = 0.05 - 0.21BN7 - BN928
Vc = 10 - 20
SAIC908SAIC908
29 Vc = 25 - 80Vc = 25 - 80
fz = 0.05 - 0.12BN4 - BN6fz = 0.05 - 0.10BN4 - BN6fz = 0.05 - 0.10BN4 - BN6
30 fz = 0.08 - 0.16BN7 - BN9fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.20BN7 - BN9
S*IC908S*IC90831
Vc = 15 - 50Vc = 15 - 50
32
33
fz = 0.03 - 0.08BN4 - BN6fz = 0.03 - 0.08BN4 - BN6
34
35
fz = 0.04 - 0.11BN7 - BN9fz = 0.04 - 0.11BN7 - BN9
SAIC908SAIC90838
Vc = 25 - 50Vc = 25 - 5039
fz = 0.05 - 0.13BN4 - BN6fz = 0.05 - 0.13BN4 - BN640
fz = 0.10 - 0.20BN7 - BN9fz = 0.10 - 0.20BN7 - BN941
Legend:
Cutting geometry
IC908LB
Grade
Vc = 10 - 20
Cutting speed [m/min]
Feed [mm/tooth]
BN4-BN6fz = 0.04 - 0.15
BAYO T-REAM head size BN7-BN9fz = 0.05 - 0.20
ISCAR
320
USER GUIDE
REAMERS
Solutions
Cutting Data/
Allowance Tool; Toolholder Workpiece Machine Machining Process
Feed fZ
Spindle speed min-1
Diameter allowance
Geometry angle
Runout maximum 5µm
Wear check / Change insert
Optimize tool length and diameter
Floating chuck GFIS
ADJ chuck FineFit/RC RING
Workpiece fixture / Pressure
Coolant mixture
Coolant pressure
Angle error / Centic error
/ Axis deviation
Spindle speed on entry
Entry geomerty / Chamfer /
Oblique surface at entry
Feed in and out same
Chip evacuation

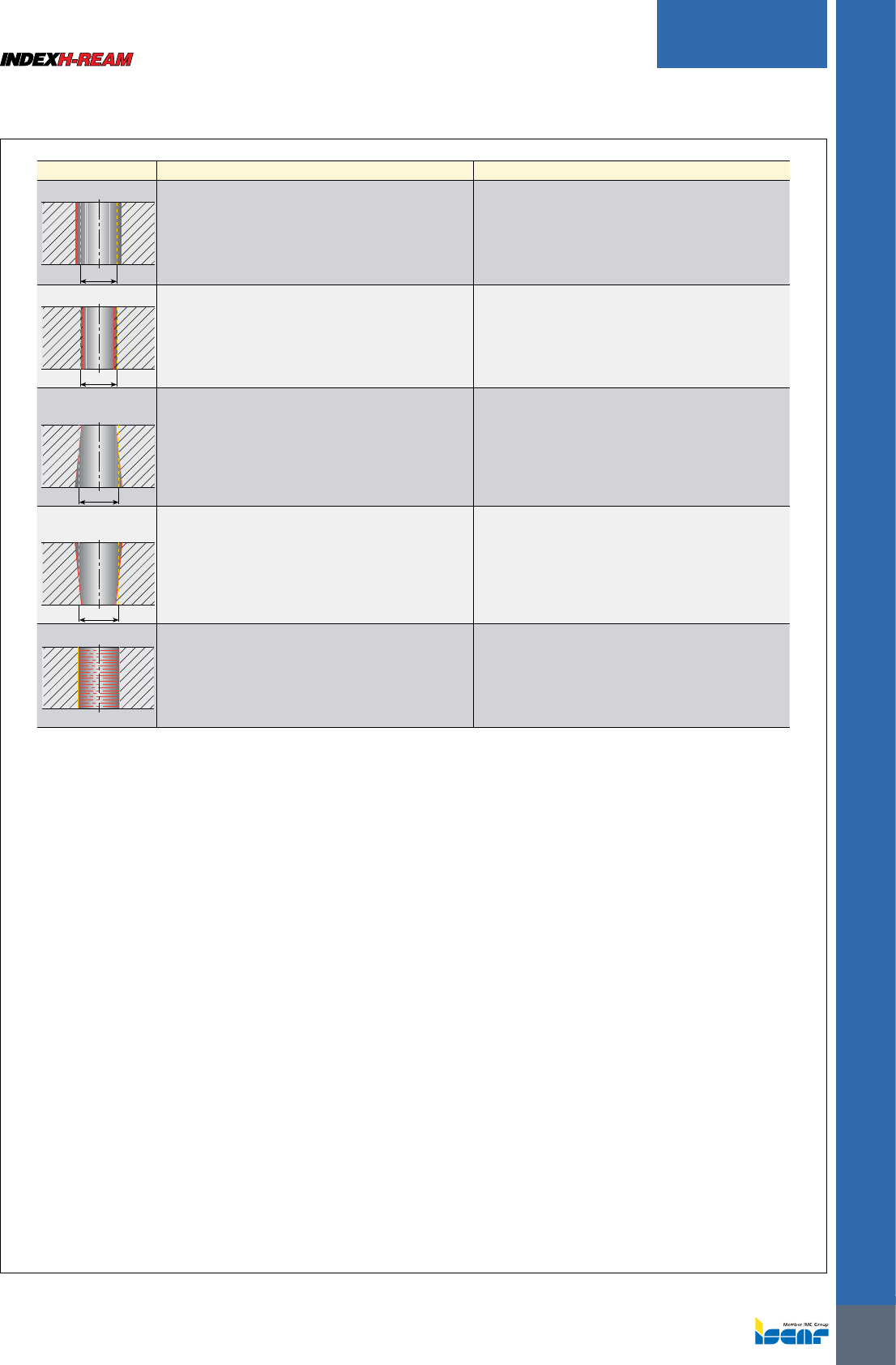

Problem
Hole too large
Vibration
•••••••
Runout
error
•• •
Built up edge
•• • • •
Diameter
allowance
••
Hole too small
Tool wear
• •••••• •
Compression
of material
•• ••••
Compression
of clamping
••
Diameter
allowance
•
Tapered hole
Deformation
by clamping
• ••
Unequal wall
thickness
••
Machine
• • • • •
Chip flow
• • •
Hole shows chatter marks
Vibration
•••• • ••• • ••
Rumout error
••• • •
Insufficient surface
Vibration
•••• • • •• •
Built up edge
•••• •
Runout error
•• •
Cutting
geometry
• • •
Machine
•••

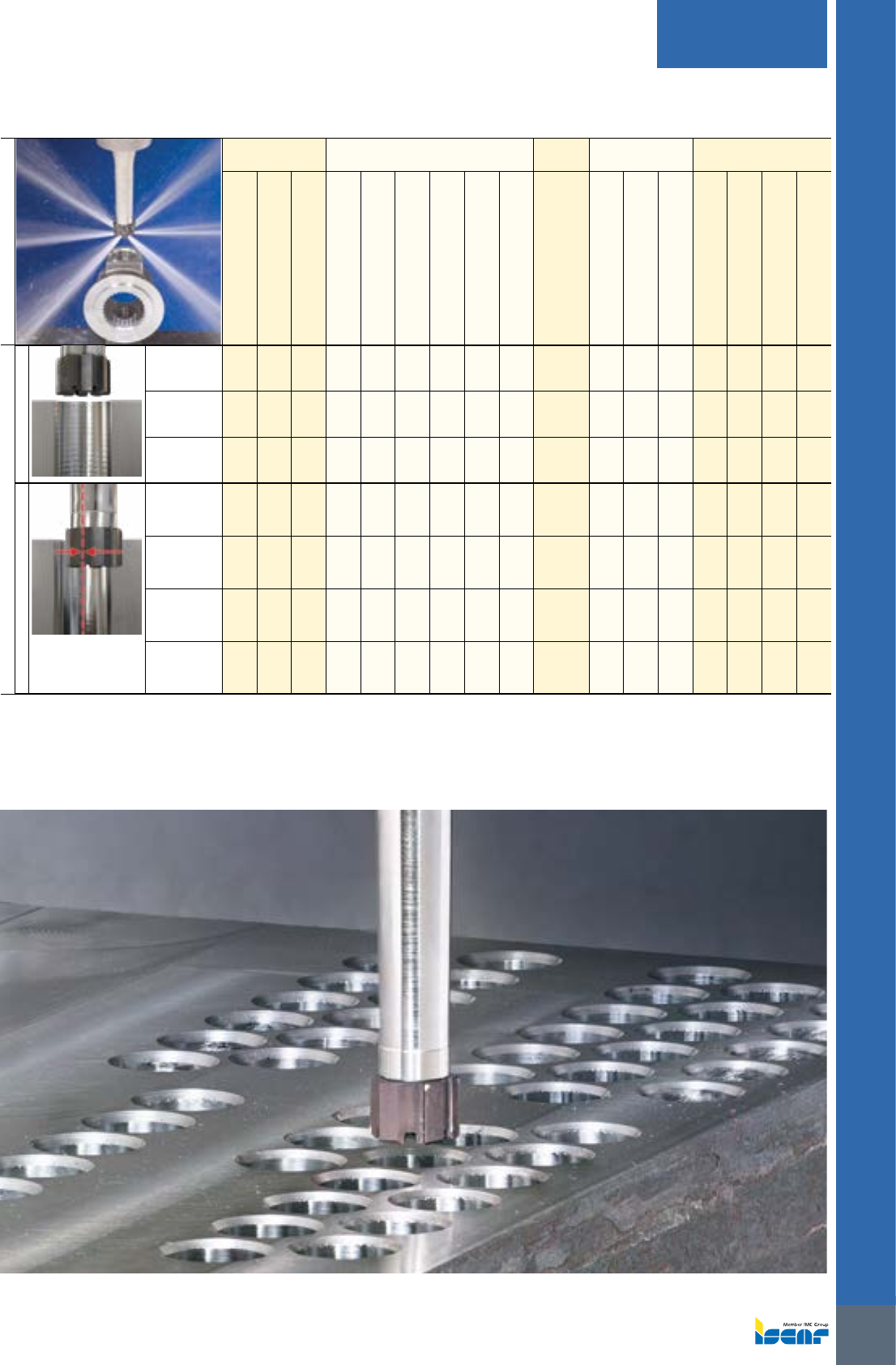

321
USER GUIDE
REAMERS
Solutions
Cutting Data/
Allowance Tool; Toolholder Workpiece Machine Machining Process
Feed fZ
Spindle speed min-1
Diameter allowance
Geometry angle
Runout maximum 5µm
Wear check / Change insert
Optimize tool length and diameter
Floating chuck GFIS
ADJ chuck FineFit/RC RING
Workpiece fixture / Pressure
Coolant mixture
Coolant pressure
Angle error / Centic error
/ Axis deviation
Spindle speed on entry
Entry geomerty / Chamfer /
Oblique surface at entry
Feed in and out same
Chip evacuation
Problem
Retraction marks
Built up edge
•••••• • •• •
Compression
of material
•• ••• • •••
Compression
of clamping
Slight defect in shape / noncircular hole
Tool wear
•••
Chip flow
•• • •
Machine
••••• • • •••
Compression
of clamping
••
• check / optimize
• increase / improve
• reduce / decrease
• apply / use
ISCAR

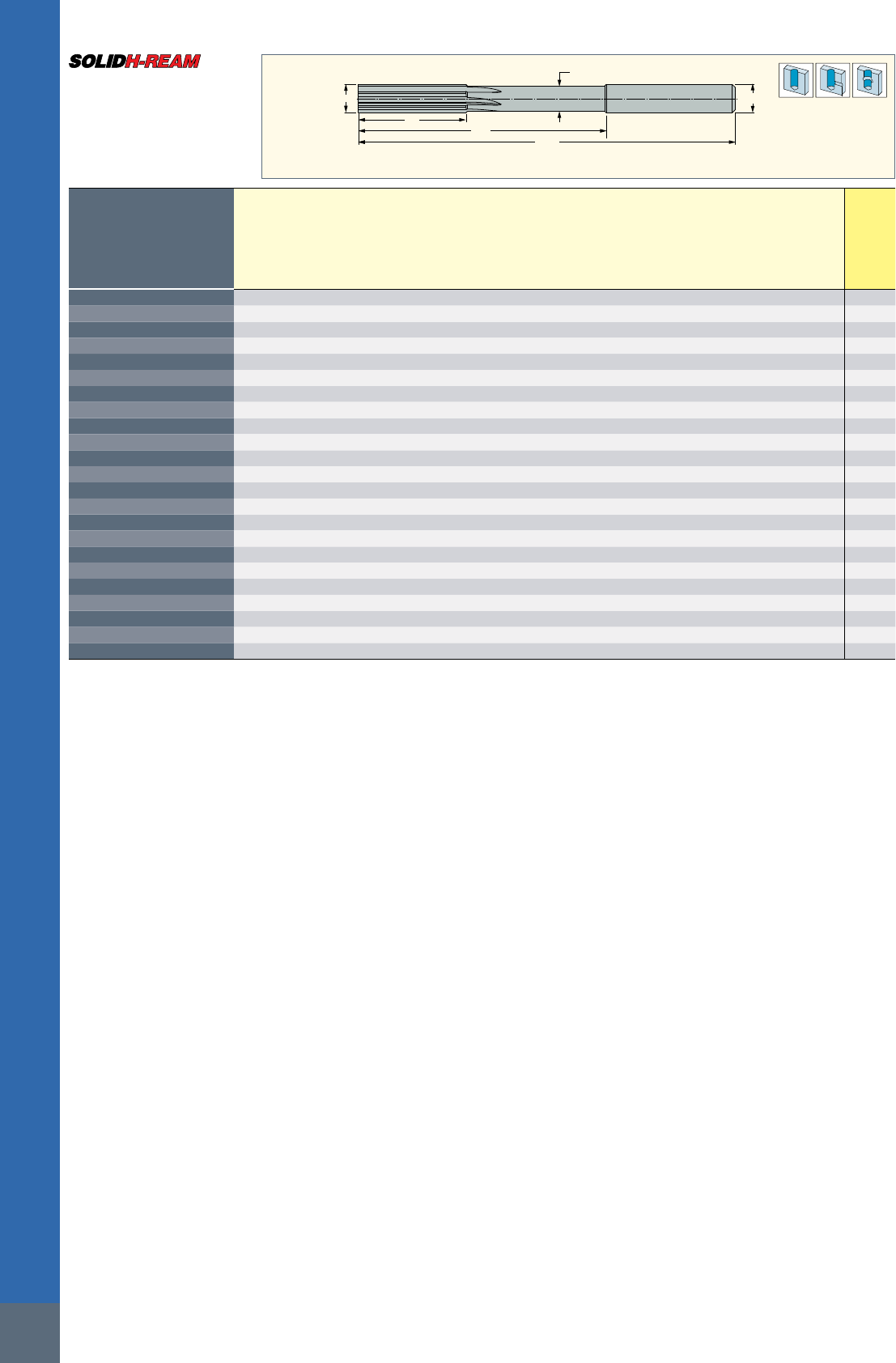

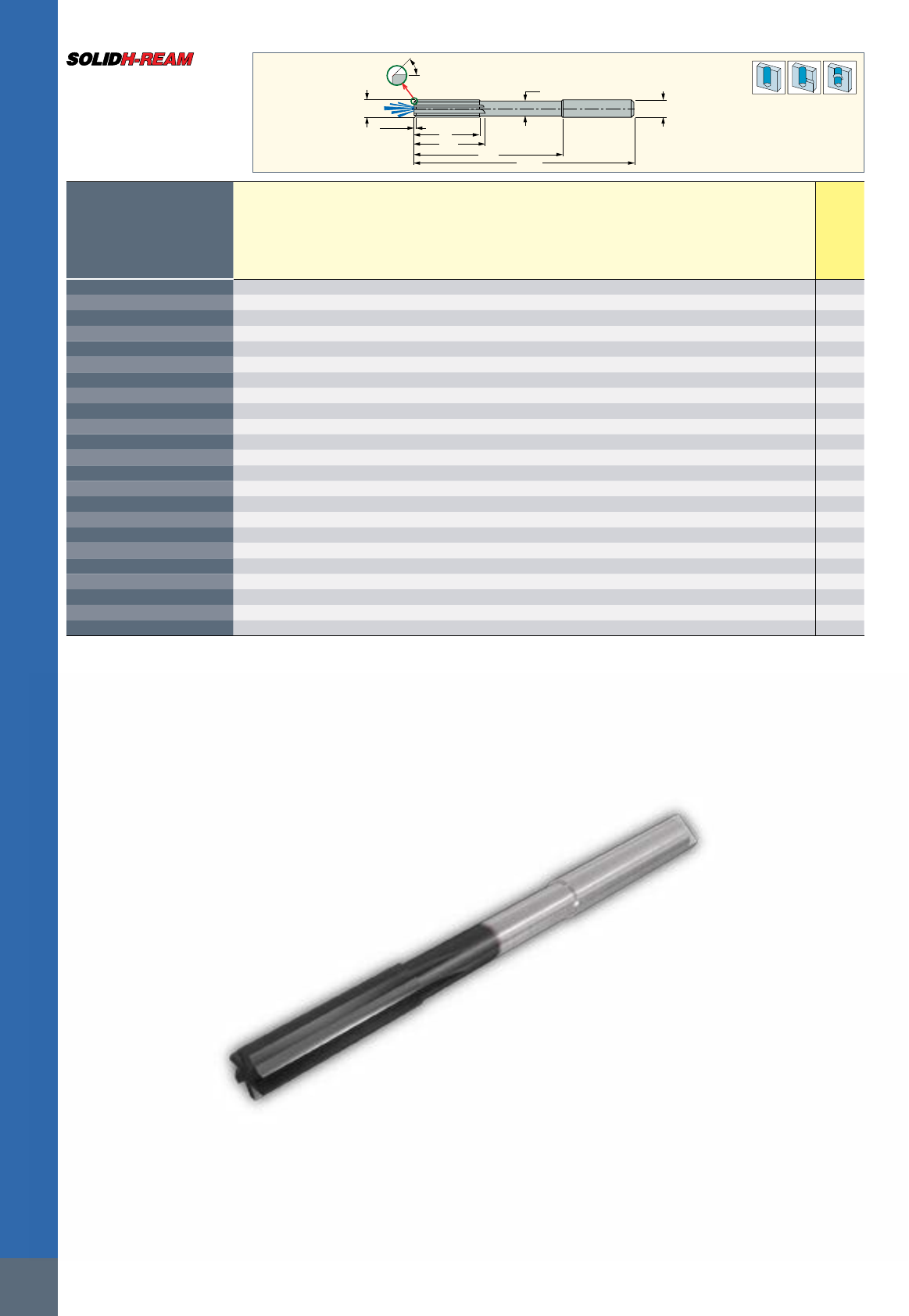

322
REAMERS
DCONMS h6
DC H7
L
PLGL
OAL
LU
LCF
BD
60°
DC 1 - 3 mm: Without internal coolant hole
Dimensions
Designation
DC L PLGL LCF BD LU OAL NOF(1) DCONMS CSP(2)
EVO
RM-MTR-0100-H7S-CS-C
1.000 6.00 0.100 11.0 0.90 21.0 50.00 3 4.00 0
•
RM-MTR-0150-H7S-CS-C
1.500 9.00 0.150 15.0 1.10 21.0 50.00 3 4.00 0
•
RM-MTR-0200-H7S-CS-C
2.000 12.00 0.150 16.0 1.60 21.0 50.00 4 4.00 0
•
RM-MTR-0250-H7S-CS-C
2.500 12.00 0.200 19.0 2.10 31.0 60.00 4 4.00 0
•
RM-MTR-0300-H7S-CS-C
3.000 12.00 0.250 21.0 2.40 31.0 60.00 4 4.00 0
•
RM-MTR-0350-H7S-CS-C
3.500 12.00 0.250 21.0 2.90 40.0 68.00 4 4.00 1
•
RM-MTR-0400-H7S-CS-C
4.000 12.00 0.400 17.0 3.40 40.0 68.00 4 6.00 1
•
RM-MTR-0450-H7S-CS-C
4.500 12.00 0.400 17.0 3.40 40.0 76.00 4 6.00 1
•
RM-MTR-0500-H7S-CS-C
5.000 12.00 0.400 17.0 3.80 40.0 76.00 4 6.00 1
•
RM-MTR-0550-H7S-CS-C
5.500 12.00 0.400 17.0 4.10 40.0 76.00 4 6.00 1
•
RM-MTR-0600-H7S-CS-C
6.000 12.00 0.400 17.0 4.50 40.0 76.00 4 6.00 1
•
RM-MTR-0650-H7S-CS-C
6.500 15.00 0.400 20.0 5.20 65.0 101.00 6 8.00 1
•
RM-MTR-0700-H7S-CS-C
7.000 15.00 0.400 20.0 5.60 65.0 101.00 6 8.00 1
•
RM-MTR-0750-H7S-CS-C
7.500 15.00 0.400 20.0 6.00 65.0 101.00 6 8.00 1
•
RM-MTR-0800-H7S-CS-C
8.000 15.00 0.400 20.0 6.40 65.0 101.00 6 8.00 1
•
RM-MTR-0850-H7S-CS-C
8.500 18.00 0.400 23.0 6.80 61.0 101.00 6 10.00 1
•
RM-MTR-0900-H7S-CS-C
9.000 18.00 0.400 23.0 7.20 61.0 101.00 6 10.00 1
•
RM-MTR-0950-H7S-CS-C
9.500 18.00 0.400 23.0 7.60 61.0 101.00 6 10.00 1
•
RM-MTR-1000-H7S-CS-C
10.000 18.00 0.500 23.0 8.00 61.0 101.00 6 10.00 1
•
RM-MTR-1050-H7S-CS-C
10.500 18.00 0.500 23.0 8.40 85.0 130.00 6 12.00 1
•
RM-MTR-1100-H7S-CS-C
11.000 18.00 0.500 23.0 8.80 85.0 130.00 6 12.00 1
•
RM-MTR-1150-H7S-CS-C
11.500 18.00 0.500 23.0 9.20 85.0 130.00 6 12.00 1
•
RM-MTR-1200-H7S-CS-C
12.000 18.00 0.500 23.0 9.60 85.0 130.00 6 12.00 1
•
• EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology • Hole tolerance: H7
manufacturing tolerance according to DIN 1420
(1) Number of flutes
(2) 0 - Without coolant supply, 1 - With coolant supply
RM-MTR-H7S-CS-C
UOP Solid Carbide Reamers
with Straight Flutes, Unequal
Pitch and Coolant Holes for High
Speed Reaming of Blind Holes

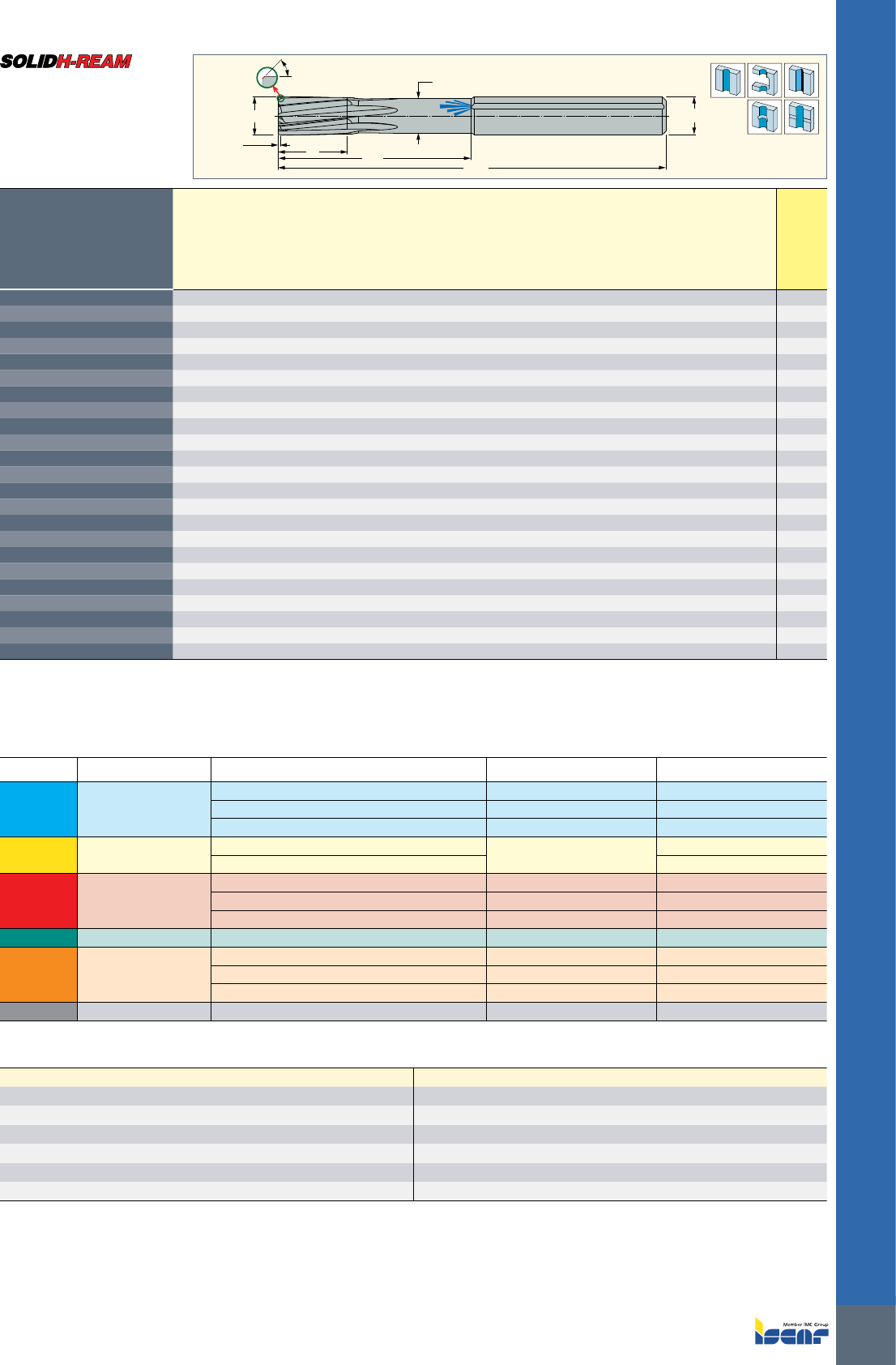

323
REAMERS
DCONMS h6
DC H7
L
PLGL
OAL
LU
BD
30°
Dimensions
Designation
DC L PLGL BD LU OAL NOF(1) DCONMS CSP(2)
EVO
RM-MTR-0100-H7N-CS-C
1.000 6.00 0.200 0.80 21.0 50.00 3 4.00 0
•
RM-MTR-0150-H7N-CS-C
1.500 7.00 0.350 1.10 21.0 50.00 3 4.00 0
•
RM-MTR-0200-H7N-CS-C
2.000 9.00 0.450 1.50 21.0 50.00 4 4.00 0
•
RM-MTR-0250-H7N-CS-C
2.500 12.00 0.550 1.90 31.0 60.00 4 4.00 0
•
RM-MTR-0300-H7N-CS-C
3.000 12.00 0.700 2.20 31.0 60.00 4 4.00 0
•
RM-MTR-0350-H7N-CS-C
3.500 12.00 0.700 2.60 40.0 68.00 4 4.00 0
•
RM-MTR-0400-H7N-CS-C
4.000 12.00 0.700 3.00 40.0 68.00 4 6.00 1
•
RM-MTR-0450-H7N-CS-C
4.500 12.00 0.900 3.40 40.0 76.00 4 6.00 1
•
RM-MTR-0500-H7N-CS-C
5.000 12.00 0.900 3.80 40.0 76.00 4 6.00 1
•
RM-MTR-0550-H7N-CS-C
5.500 12.00 0.900 4.10 40.0 76.00 4 6.00 1
•
RM-MTR-0600-H7N-CS-C
6.000 12.00 0.900 4.50 40.0 76.00 4 6.00 1
•
RM-MTR-0650-H7N-CS-C
6.500 15.00 0.900 5.20 65.0 101.00 6 8.00 1
•
RM-MTR-0700-H7N-CS-C
7.000 15.00 0.900 5.60 65.0 101.00 6 8.00 1
•
RM-MTR-0750-H7N-CS-C
7.500 15.00 0.900 6.00 65.0 101.00 6 8.00 1
•
RM-MTR-0800-H7N-CS-C
8.000 15.00 0.900 6.40 65.0 101.00 6 8.00 1
•
RM-MTR-0850-H7N-CS-C
8.500 18.00 0.950 6.80 61.0 101.00 6 10.00 1
•
RM-MTR-0900-H7N-CS-C
9.000 18.00 0.950 7.20 61.0 101.00 6 10.00 1
•
RM-MTR-0950-H7N-CS-C
9.500 18.00 0.950 7.60 61.0 101.00 6 10.00 1
•
RM-MTR-1000-H7N-CS-C
10.000 18.00 0.950 8.00 61.0 101.00 6 10.00 1
•
RM-MTR-1050-H7N-CS-C
10.500 18.00 1.050 8.40 85.0 130.00 6 12.00 1
•
RM-MTR-1100-H7N-CS-C
11.000 18.00 1.050 8.80 85.0 130.00 6 12.00 1
•
RM-MTR-1150-H7N-CS-C
11.500 18.00 1.050 9.20 85.0 130.00 6 12.00 1
•
RM-MTR-1200-H7N-CS-C
12.000 18.00 1.050 9.60 85.0 130.00 6 12.00 1
•
• EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology • Hole tolerance: H7
manufacturing tolerance according to DIN 1420
(1) Number of flutes
(2) 0 - Without coolant supply, 1 - With coolant supply
RM-MTR Cutting Speed Recommendations
ISO Main Material Group Material Type ISCAR Material Group Vc (m/min)
PSteel
Non-alloy and alloy steel 1-10 120-250
High alloy and tool steel 11 70-120
Ferritic and martensitic stainless steel 12,13 60-120
MStainless steel Austenitic stainless steel 14 60-120
Duplex and super duplex stainless steel 25-60
KCast iron
Grey cast iron 15-16 70-120
Nodular cast iron 17-18 60-110
Malleable cast iron 19-20 60-110
NNon-ferrous metals Aluminium alloys 21-24 150-300
SSuperalloys and titanium
Fe- based HRSA 31-32 40-80
Ni- or Co- based HRSA 33-35 25-50
Titanium or titanium alloys 36-37 30-80
HHard materials Hardened steel and cast iron, chilled cast iron 38,40-41 25-60
Feed Recommendations
Reamer Diameter mm Feed mm/rev
1.00-1.50 0.05-0.10
2.00-3.50 0.10-0.20
4.00-5.00 0.10-0.40
5.50-7.50 0.15-0.70
8.00-10.0 0.50-1.40
10.5-12.0 0.80-1.60
Runout max 0.005 mm
RM-MTR-H7N-CS-C
Solid Carbide Reamers with
Helical Flutes, Unequal Pitch and
Coolant Grooves for High Speed
Reaming of Through Holes
ISCAR
324
REAMERS
DCONMS
L
LH
OAL
BD
DC H7
Dimensions
Designation
DC L LH BD OAL NOF(1) DCONMS
IC07
RM-FCR-0300-H7S-CS-C
3.00 15.00 30.0 - 61.00 6 3.00
•
RM-FCR-0320-H7S-CS-C
3.20 18.00 33.0 - 70.00 6 3.20
•
RM-FCR-0350-H7S-CS-C
3.50 18.00 33.0 - 70.00 6 3.50
•
RM-FCR-0400-H7S-CS-C
4.00 19.00 44.0 3.50 75.00 6 4.00
•
RM-FCR-0450-H7S-CS-C
4.50 21.00 46.0 4.00 80.00 6 4.50
•
RM-FCR-0500-H7S-CS-C
5.00 23.00 53.0 4.30 86.00 6 5.00
•
RM-FCR-0550-H7S-CS-C
5.50 26.00 56.0 4.50 93.00 6 5.60
•
RM-FCR-0600-H7S-CS-C
6.00 26.00 56.0 5.00 93.00 6 5.60
•
RM-FCR-0650-H7S-CS-C
6.50 28.00 63.0 5.50 101.00 6 6.30
•
RM-FCR-0700-H7S-CS-C
7.00 31.00 69.0 6.50 109.00 6 7.10
•
RM-FCR-0750-H7S-CS-C
7.50 31.00 69.0 6.50 109.00 6 7.10
•
RM-FCR-0800-H7S-CS-C
8.00 33.00 75.0 7.00 117.00 6 8.00
•
RM-FCR-0850-H7S-CS-C
8.50 33.00 75.0 7.00 117.00 6 8.00
•
RM-FCR-0900-H7S-CS-C
9.00 36.00 81.0 8.00 125.00 6 9.00
•
RM-FCR-0950-H7S-CS-C
9.50 36.00 81.0 8.00 125.00 6 9.00
•
RM-FCR-1000-H7S-CS-C
10.00 38.00 87.0 9.00 133.00 6 10.00
•
RM-FCR-1050-H7S-CS-C
10.50 38.00 87.0 9.00 133.00 6 10.00
•
RM-FCR-1100-H7S-CS-C
11.00 41.00 96.0 9.00 142.00 6 10.00
•
RM-FCR-1200-H7S-CS-C
12.00 44.00 105.0 9.00 151.00 6 10.00
•
RM-FCR-1300-H7S-CS-C
13.00 44.00 105.0 9.00 151.00 6 10.00
•
RM-FCR-1400-H7S-CS-C
14.00 47.00 110.0 11.50 160.00 8 12.50
•
RM-FCR-1500-H7S-CS-C
15.00 50.00 112.0 11.50 162.00 8 12.50
•
RM-FCR-1600-H7S-CS-C
16.00 52.00 120.0 11.50 170.00 8 12.50
•
• Hole tolerance: H7 manufacturing tolerance according to DIN1420 • Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated • Special diameters are
available on request • For user guide and cutting conditions, see pages 329-332
(1) Number of flutes
RM-FCR-H7S-CS-C
DIN 212C Solid Carbide Reamers
with Straight Flutes and a
Cylindrical Shank for Blind Holes
325
REAMERS
DC H7
DCONMS
OAL
FHA°
L
Dimensions
Designation
DC L OAL NOF(1) FHA DCONMS
IC07
RM-FCR-0300-H7N-CS-C
3.00 15.00 61.00 5 10.0 3.00
•
RM-FCR-0350-H7N-CS-C
3.50 18.00 70.00 5 10.0 3.50
•
RM-FCR-0400-H7N-CS-C
4.00 19.00 75.00 5 10.0 4.00
•
RM-FCR-0450-H7N-CS-C
4.50 21.00 80.00 5 10.0 4.50
•
RM-FCR-0500-H7N-CS-C
5.00 23.00 86.00 5 10.0 5.00
•
RM-FCR-0550-H7N-CS-C
5.50 26.00 93.00 6 10.0 5.50
•
RM-FCR-0600-H7N-CS-C
6.00 26.00 93.00 6 10.0 6.00
•
RM-FCR-0650-H7N-CS-C
6.50 28.00 101.00 6 10.0 6.50
•
RM-FCR-0700-H7N-CS-C
7.00 31.00 109.00 6 10.0 7.00
•
RM-FCR-0750-H7N-CS-C
7.50 33.00 117.00 6 10.0 7.50
•
RM-FCR-0800-H7N-CS-C
8.00 33.00 117.00 6 10.0 8.00
•
RM-FCR-0850-H7N-CS-C
8.50 36.00 125.00 6 10.0 8.50
•
RM-FCR-0900-H7N-CS-C
9.00 36.00 125.00 6 10.0 9.00
•
RM-FCR-0950-H7N-CS-C
9.50 38.00 133.00 6 10.0 9.50
•
RM-FCR-1000-H7N-CS-C
10.00 38.00 133.00 6 10.0 10.00
•
RM-FCR-1050-H7N-CS-C
10.50 41.00 142.00 7 10.0 10.50
•
RM-FCR-1100-H7N-CS-C
11.00 41.00 142.00 7 10.0 11.00
•
RM-FCR-1200-H7N-CS-C
12.00 44.00 151.00 7 10.0 12.00
•
RM-FCR-1300-H7N-CS-C
13.00 44.00 151.00 7 10.0 13.00
•
RM-FCR-1400-H7N-CS-C
14.00 47.00 160.00 7 10.0 14.00
•
RM-FCR-1500-H7N-CS-C
15.00 50.00 162.00 7 10.0 15.00
•
RM-FCR-1600-H7N-CS-C
16.00 52.00 170.00 7 10.0 16.00
•
• Hole tolerance: H7 manufacturing tolerance according to DIN1420 • Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated • Special diameters are
available on request • For user guide and cutting conditions, see pages 329-332
(1) Number of flutes
RM-FCR-H7N-CS-C
DIN 212B Solid Carbide
Reamers with Helical Flutes
and a Cylindrical Shank
for Through Holes
ISCAR
326
REAMERS
LLU OAL
SS
DC
CH
CB
Dimensions
Designation
DC OAL LU L NOF(1) SS
IC07
RM-SHR-0500-H7S-MT1-CH
5.000 133.00 67.5 23.00 4 MT1
•
RM-SHR-0600-H7S-MT1-CH
6.000 138.00 72.5 26.00 4 MT1
•
RM-SHR-0700-H7S-MT1-CH
7.000 150.00 84.5 31.00 4 MT1
•
RM-SHR-0800-H7S-MT1-CH
8.000 156.00 90.5 33.00 4 MT1
•
RM-SHR-0900-H7S-MT1-CH
9.000 162.00 96.5 36.00 4 MT1
•
RM-SHR-1000-H7S-MT1-CH
10.000 168.00 102.5 38.00 6 MT1
•
RM-SHR-1100-H7S-MT1-CH
11.000 175.00 109.5 41.00 6 MT1
•
RM-SHR-1300-H7S-MT1-CH
13.000 182.00 116.5 44.00 6 MT1
•
RM-SHR-1400-H7S-MT1-CH
14.000 189.00 123.5 47.00 6 MT1
•
RM-SHR-1500-H7S-MT2-CH
15.000 204.00 124.0 50.00 6 MT2
•
RM-SHR-1600-H7S-MT2-CH
16.000 210.00 130.0 52.00 6 MT2
•
RM-SHR-1700-H7S-MT2-CB
17.000 214.00 134.0 54.00 6 MT2
•
RM-SHR-1800-H7S-MT2-CB
18.000 219.00 139.0 56.00 6 MT2
•
RM-SHR-1900-H7S-MT2-CB
19.000 223.00 143.0 58.00 6 MT2
•
RM-SHR-2000-H7S-MT2-CB
20.000 228.00 148.0 60.00 6 MT2
•
RM-SHR-2200-H7S-MT2-CB
22.000 237.00 157.0 64.00 8 MT2
•
RM-SHR-2400-H7S-MT3-CB
24.000 268.00 169.0 68.00 8 MT3
•
RM-SHR-2500-H7S-MT3-CB
25.000 268.00 169.0 68.00 8 MT3
•
RM-SHR-2600-H7S-MT3-CB
26.000 273.00 174.0 70.00 8 MT3
•
RM-SHR-2800-H7S-MT3-CB
28.000 277.00 178.0 71.00 8 MT3
•
RM-SHR-3000-H7S-MT3-CB
30.000 281.00 182.0 73.00 8 MT3
•
RM-SHR-3200-H7S-MT4-CB
32.000 317.00 193.0 77.00 8 MT4
•
RM-SHR-3400-H7S-MT4-CB
34.000 321.00 197.0 78.00 8 MT4
•
RM-SHR-3600-H7S-MT4-CB
36.000 325.00 201.0 79.00 8 MT4
•
RM-SHR-4000-H7S-MT4-CB
40.000 329.00 205.0 81.00 8 MT4
•
• Requires a price and delivery time quotation • Available only upon request • -CH: Brazed solid carbide head • -CB: Brazed solid carbide tips • Hole tolerance: H7
manufacturing tolerance according to DIN 1420 • Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated)
• For user guide and cutting conditions, see pages 329-332
(1) Number of flutes
RM-SHR-H7S-MT
DIN 8094 Solid Carbide Reamers
with Straight Flutes and a Morse
Taper Shank for Blind Holes
327
REAMERS
DC
LLU OAL
SS
CH
CB
Dimensions
Designation
DC OAL LU L NOF(1) SS
IC07
RM-SHR-0500-H7N-MT1-CH
5.000 133.00 67.5 23.00 4 MT1
•
RM-SHR-0600-H7N-MT1-CH
6.000 138.00 72.5 26.00 4 TM1
•
RM-SHR-0700-H7N-MT1-CH
7.000 150.00 84.5 31.00 4 MT1
•
RM-SHR-0800-H7N-MT1-CH
8.000 156.00 90.5 33.00 4 MT1
•
RM-SHR-0900-H7N-MT1-CH
9.000 162.00 96.5 36.00 4 MT1
•
RM-SHR-1000-H7N-MT1-CH
10.000 168.00 102.5 38.00 6 MT1
•
RM-SHR-1100-H7N-MT1-CH
11.000 175.00 109.5 41.00 6 MT1
•
RM-SHR-1200-H7N-MT1-CH
12.000 182.00 116.5 44.00 6 MT1
•
RM-SHR-1300-H7N-MT1-CH
13.000 182.00 116.5 44.00 6 MT1
•
RM-SHR-1400-H7N-MT1-CH
14.000 189.00 123.5 47.00 6 MT1
•
RM-SHR-1500-H7N-MT2-CH
15.000 204.00 124.0 50.00 6 MT2
•
RM-SHR-1600-H7N-MT2-CH
16.000 210.00 130.0 52.00 6 MT2
•
RM-SHR-1800-H7N-MT2-CB
18.000 219.00 139.0 56.00 6 MT2
•
RM-SHR-1900-H7N-MT2-CB
19.000 223.00 143.0 58.00 6 MT2
•
RM-SHR-2000-H7N-MT2-CB
20.000 228.00 148.0 60.00 6 MT2
•
RM-SHR-2200-H7N-MT2-CB
22.000 237.00 157.0 64.00 8 MT2
•
RM-SHR-2500-H7N-MT3-CB
25.000 268.00 169.0 68.00 8 MT3
•
RM-SHR-2600-H7N-MT3-CB
26.000 273.00 174.0 70.00 8 MT3
•
RM-SHR-2800-H7N-MT3-CB
28.000 277.00 178.0 71.00 8 MT3
•
RM-SHR-3000-H7N-MT3-CB
30.000 281.00 182.0 73.00 8 MT3
•
RM-SHR-3200-H7N-MT4-CB
32.000 317.00 193.0 77.00 8 MT4
•
RM-SHR-3400-H7N-MT4-CB
34.000 321.00 197.0 78.00 8 MT4
•
RM-SHR-3500-H7N-MT4-CB
35.000 321.00 197.0 78.00 8 MT4
•
RM-SHR-3600-H7N-MT4-CB
36.000 325.00 201.0 79.00 8 MT4
•
RM-SHR-3800-H7N-MT4-CB
38.000 329.00 205.0 81.00 8 MT4
•
• Requires a price and delivery time quotation • Available only upon request • -CH: Brazed solid carbide head • -CB: Brazed solid carbide tips • Hole tolerance: H7
manufacturing tolerance according to DIN 1420 • Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated)
• For user guide and cutting conditions, see pages 329-332
(1) Number of flutes

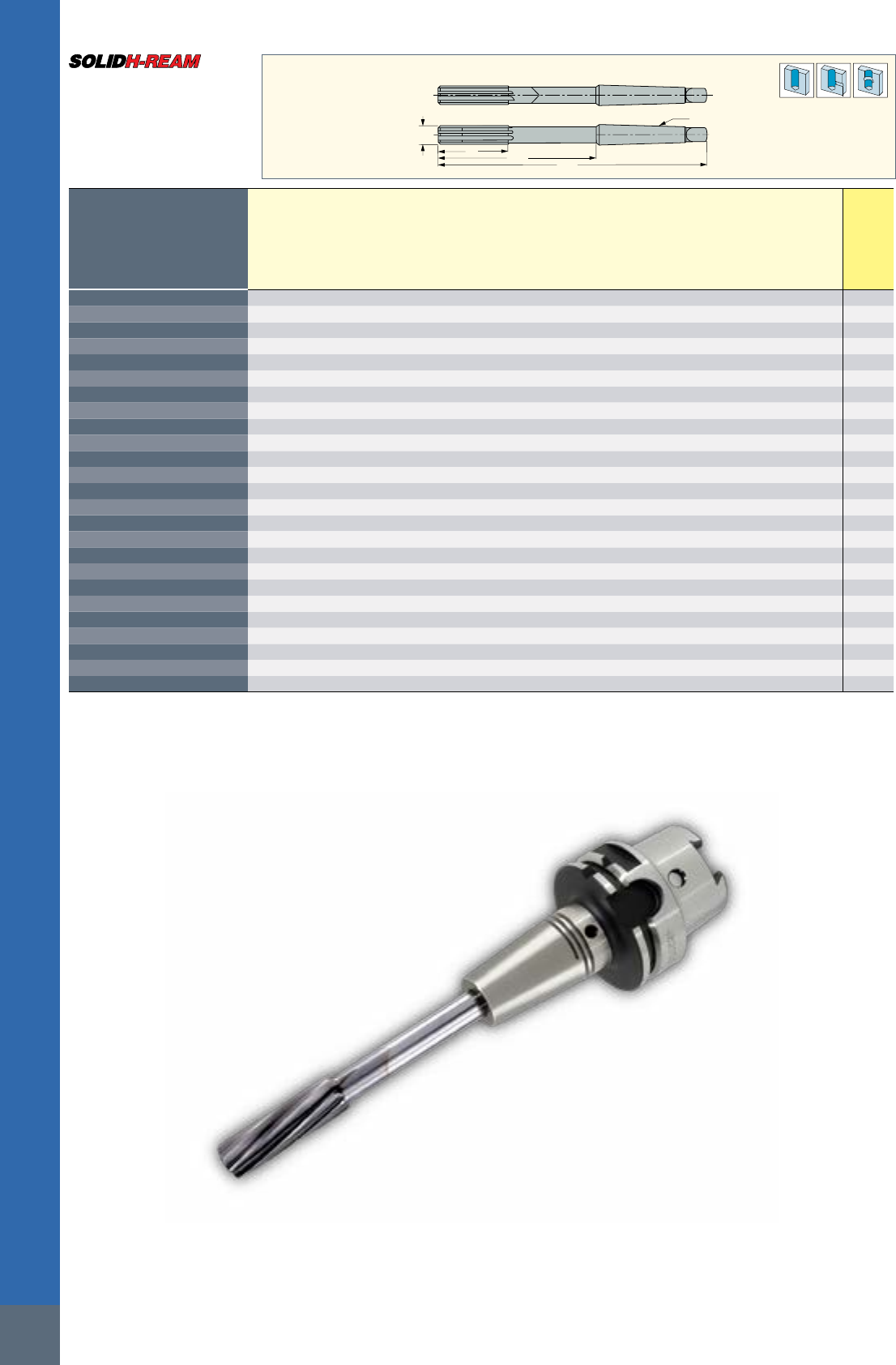

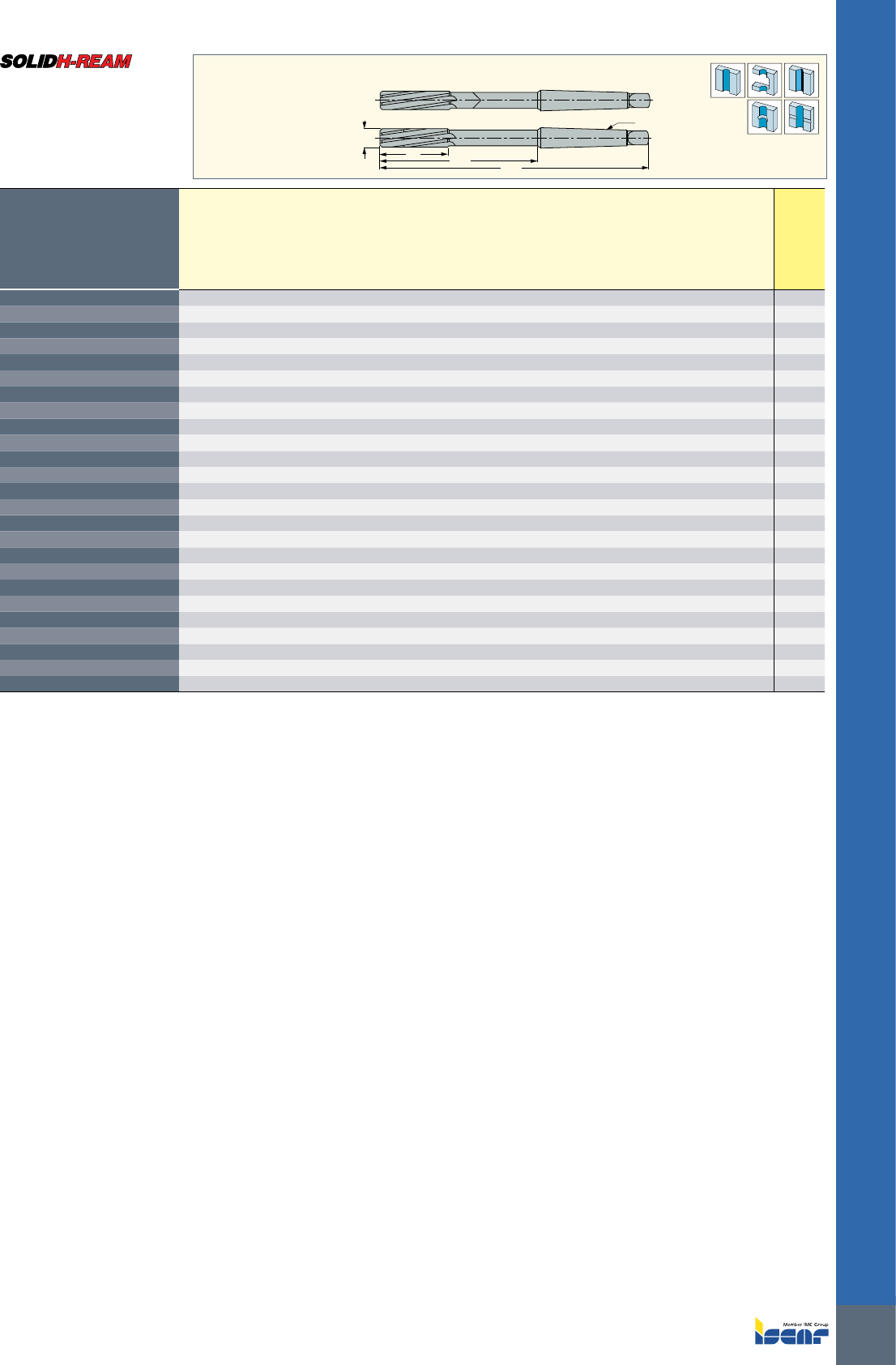

RM-SHR-H7N-MT
DIN 8093 Solid Carbide Reamers
with Spiral Flutes and a Morse
Taper Shank for Through Holes
ISCAR
328
REAMERS
SSC
S
DC H7
L
1:30 conical connection with brazed tips
Dimensions
Designation
DC S L SSC(1) NOF(2)
IC07
RM-SR25.000H7S-13
25.000 45.00 30.00 13.00 6
•
RM-SR30.000H7S-13
30.000 45.00 30.00 13.00 6
•
RM-SR34.000H7S-13
34.000 45.00 30.00 13.00 8
•
RM-SR35.000H7S-13
35.000 45.00 30.00 13.00 8
•
RM-SR36.000H7S-16
36.000 50.00 30.00 16.00 8
•
RM-SR37.000H7S-16
37.000 50.00 30.00 16.00 8
•
RM-SR38.000H7S-16
38.000 50.00 30.00 16.00 8
•
RM-SR40.000H7S-16
40.000 50.00 30.00 16.00 8
•
RM-SR42.000H7S-16
42.000 50.00 30.00 16.00 8
•
RM-SR44.000H7S-16
44.000 50.00 30.00 16.00 8
•
RM-SR45.000H7S-16
45.000 50.00 30.00 16.00 8
•
RM-SR48.000H7S-19
48.000 56.00 30.00 19.00 10
•
RM-SR50.000H7S-19
50.000 56.00 30.00 19.00 10
•
RM-SR55.000H7S-22
55.000 63.00 30.00 22.00 10
•
RM-SR58.000H7S-22
58.000 63.00 30.00 22.00 10
•
RM-SR60.000H7S-22
60.000 63.00 30.00 22.00 10
•
RM-SR70.000H7S-27
70.000 71.00 30.00 27.00 12
•
• Available only upon request • Right-hand, H7 manufacturing tolerance according to DIN 1420 • For user guide and cutting conditions, see pages 329-332
(1) Seat size code

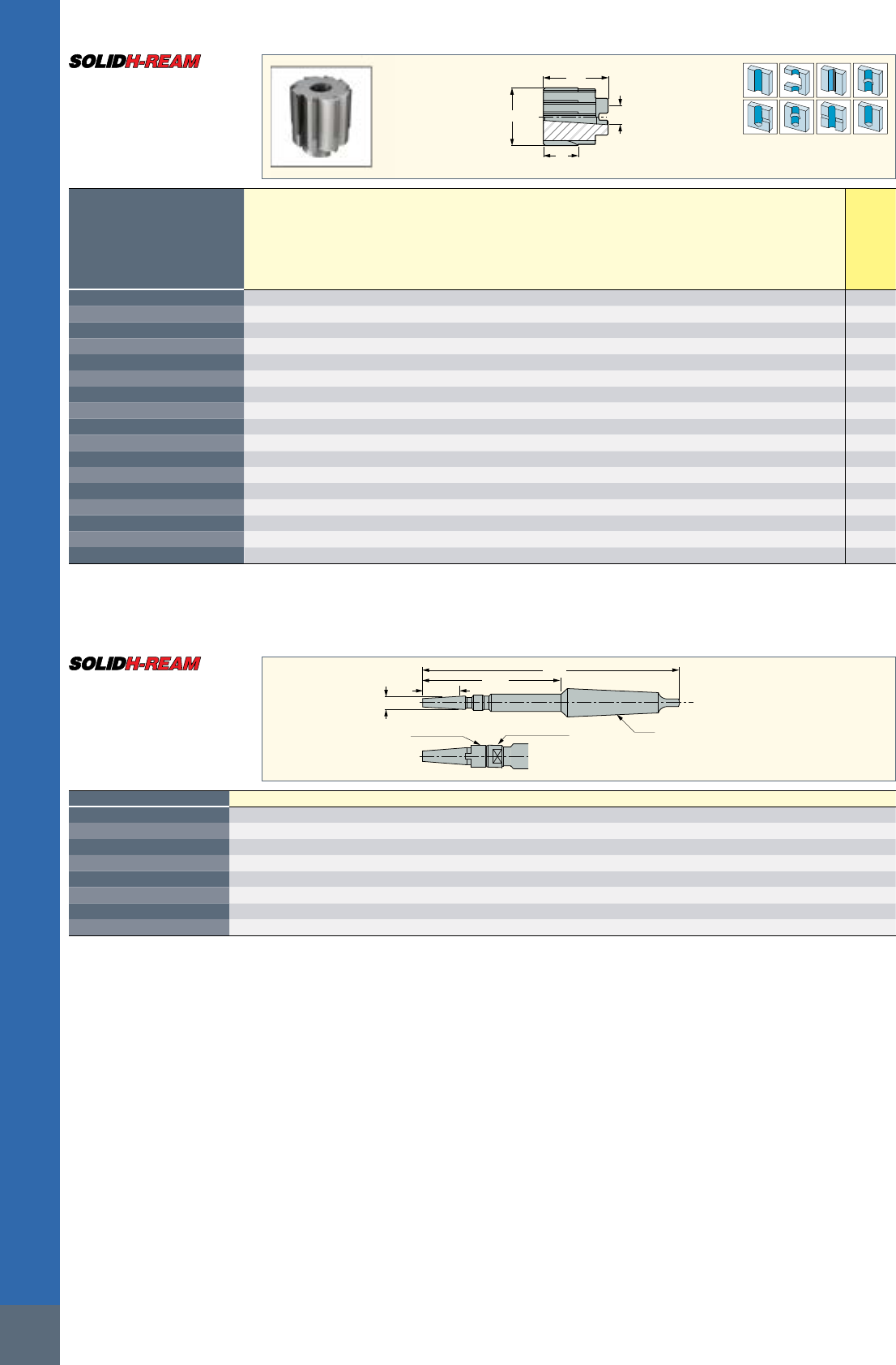

RM-SR-H7S
DIN 8054 Brazed Carbide Tip
Shell Reamers with Straight Flutes
Driving Ring Extracting Nut
OAL
LSCWS
DCONWS
LB
SS
1:30 conical connection with an extraction nut, driving ring and a key.
Designation
DCONWS DCN(1) DCX(2) OAL LB LSCWS SS
RM-SRH Q13-MT3
13.00 25.00 35.00 250.00 149.46 45.00 MT3
RM-SRH Q16-MT3
16.00 36.00 45.00 261.00 160.45 50.00 MT3
RM-SRH Q19-MT3
19.00 48.00 52.00 298.00 173.54 56.00 MT3
RM-SRH Q19-MT4
19.00 48.00 52.00 273.00 174.00 56.00 MT4
RM-SRH Q22-MT3
22.00 55.00 62.00 312.00 187.54 63.00 MT3
RM-SRH Q22-MT4
22.00 55.00 62.00 312.00 188.00 63.00 MT4
RM-SRH Q27-MT4
27.00 65.00 75.00 359.00 198.80 71.00 MT4
RM-SRH Q27-MT5
27.00 65.00 75.00 327.00 200.63 71.00 MT5
• Available only upon request
(1) Minimum insert diameter
(2) Maximum insert diameter
RM-SRH-Q-MT
DIN 217 Shell Reamer Shanks
with a Morse Taper Connection
329
USER GUIDE
REAMERS

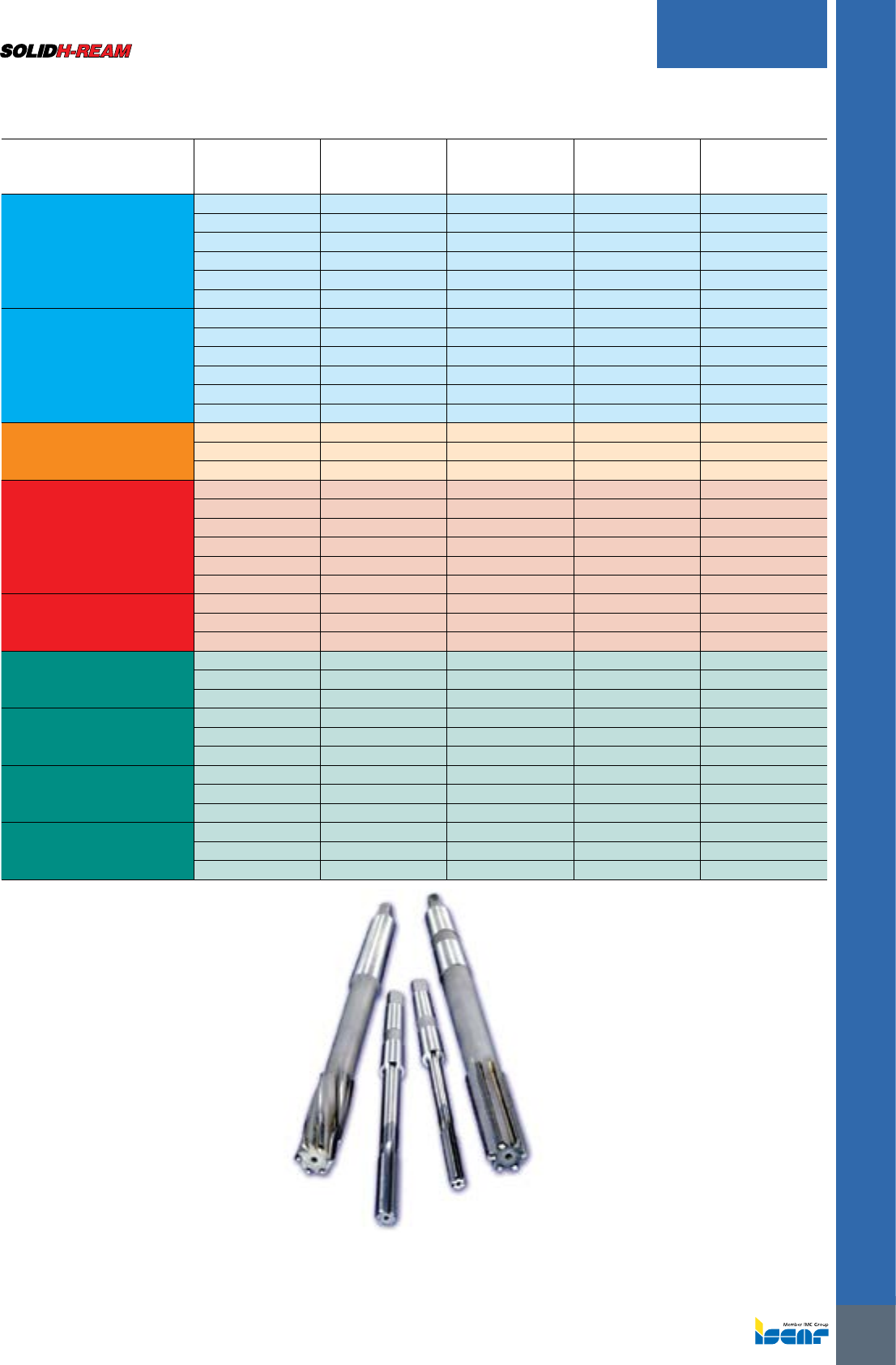

Machining Conditions for Solid Carbide Reamers
Material
Tensile Strength or
Brinell Hardness
N/mm2 bzw. HB
Reamer
Diameter mm
Reaming
Allowance Relative
to Diameter
Feed mm/rev Cutting Speed
m/min
Steel
up to 10 0.04-0.10 0.15-0.25
up to 1000 10-25 0.10-0.25 0.20-0.35 6-20
25-40 0.25-0.40 0.30-0.50
up to 10 0.04-0.10 0.12-0.20
1000-1400 10-25 0.10-0.25 0.15-0.30 6-15
25-40 0.25-0.40 0.20-0.40
Cast steel
up to 10 0.05-0.10 0.15-0.25
400-500 10-25 0.10-0.25 0.20-0.40 10-20
25-40 0.25-0.40 0.30-0.50
up to 10 0.04-0.10 0.12-0.20
500-700 10-25 0.10-0.25 0.15-0.30 6-15
25-40 0.25-0.40 0.20-0.40
Titanium
Titanium Alloy
up to 10 0.06-0.12 0.12-0.20
500-1300 10-25 0.10-0.25 0.15-0.30 6-15
25-40 0.25-0.40 0.20-0.40
Grey cast iron
up to 10 0.06-0.12 0.20-0.30
up to 220 HB 10-25 0.10-0.30 0.30-0.45 10-25
25-40 0.30-0.50 0.40-0.70
up to 10 0.06-0.12 0.15-0.25
over 220 HB 10-25 0.10-0.30 0.20-0.35 10-20
25-40 0.30-0.50 0.30-0.50
Spheroidal graphite
Cast iron
Malleable cast iron
up to 10 0.06-0.12 0.15-0.25
10-25 0.10-0.25 0.20-0.40 8-15
25-40 0.25-0.40 0.30-0.60
Aluminum alloy
up to 10 0.06-0.12 0.20-0.30 Si<7% 10-30
over 80 HB 10-25 0.10-0.30 0.30-0.50
25-40 0.30-0.50 0.40-0.70 Si<7% 30-60
Copper
up to 10 0.10-0.20 0.30-0.60
10-25 0.20-0.40 0.40-0.80 20-60
25-40 0.40-0.60 0.50-1.00
Brass
Red bronze
Cast bronze
up to 10 0.06-0.12 0.20-0.30
10-25 0.10-0.30 0.30-0.50 15-50
25-40 0.30-0.50 0.40-0.70
Thermoset polymers
up to 10 0.10-0.25 0.30-0.60
10-25 0.20-0.40 0.40-0.80 15-30
25-40 0.40-0.60 0.50-1.00
ISCAR
330
USER GUIDE
REAMERS
Nominal Diameter of
Reamer D1 in mm
Reamer Manufacturing Tolerances DIN 1420
Admissible maximum and minimum reamer dimensions of nominal diameter d1 in µm for drilling tolerance range
Over Up to A9 A11 B8 B9 B10 B11 C8 C9 C10 C11
1 3 +291 +321 +151 +161 +174 +191 + 71 + 81 + 94 +111
+282 +300 +146 +152 +160 +170 + 66 + 72 + 80 + 90
3 6 +295 +333 +155 +165 +180 +203 + 85 + 95 +110 +133
+284 +306 +148 +154 +163 +176 + 78 + 84 + 93 +106
6 10 +310 +356 +168 +180 +199 +226 + 98 +110 +129 +156
+297 +324 +160 +167 +178 +194 + 90 + 97 +108 +124
10 18 +326 +383 +172 +186 +209 +243 +117 +131 +154 +188
+310 +344 +162 +170 +184 +204 +107 +115 +129 +149
18 30 +344 +410 +188 +204 +231 +270 +138 +154 +181 +220
+325 +364 +176 +185 +201 +224 +126 +135 +151 +174
30 40 +362 +446 +203 +222 +255 +206 +153 +172 +205 +256
+340 +390 +189 +200 +220 +250 +139 +150 +170 +200
40 50 +372 +456 +213 +232 +265 +316 +163 +182 +215 +266
+350 +400 +199 +210 +230 +260 +149 +160 +180 +210
50 65 +402 +501 +229 +252 +292 +351 +179 +202 +242 +301
+376 +434 +212 +226 +250 +284 +162 +176 +200 +234
65 80 +422 +521 +239 +262 +302 +361 +189 +212 +252 +311
+396 +454 +222 +236 +260 +294 +172 +186 +210 +244
80 100 +453 +567 +265 +293 +339 +407 +215 +243 +289 +357
+422 +490 +246 +262 +290 +330 +196 +212 +240 +280
100 120 +483 +597 +285 +313 +359 +427 +225 +253 +299 +367
+452 +520 +266 +282 +310 +350 +206 +222 +250 +290
120 140 +545 +672 +313 +345 +396 +472 +253 +285 +336 +412
+510 +584 +290 +310 +340 +384 +230 +250 +280 +324
140 160 +605 +732 +333 +365 +416 +492 +263 +295 +346 +422
+570 +644 +310 +330 +360 +404 +240 +260 +290 +334
160 180 +665 +792 +363 +395 +446 +522 +283 +315 +366 +442
+630 +704 +340 +360 +390 +434 +260 +280 +310 +354
Over Up to D8 D9 D10 D11 E7 E8 E9 F6 F7 F8 F9 G6 G7
1 3 + 31 + 41 + 54 + 71 + 22 + 25 + 35 + 11 + 14 + 17 + 27 + 7 + 10
+ 26 + 32 + 40 + 50 + 18 + 20 + 26 + 8 + 10 + 12 + 18 + 4 + 6
3 6 + 45 + 55 + 70 + 93 + 30 + 35 + 45 + 16 + 20 + 25 + 35 + 10 + 14
+ 38 + 44 + 53 + 66 + 25 + 28 + 34 + 13 + 15 + 18 + 24 + 7 + 9
6 10 + 58 + 70 + 89 +116 + 37 + 43 + 55 + 20 + 25 + 31 + 43 + 12 + 17
+ 50 + 57 + 68 + 84 + 31 + 35 + 42 + 16 + 19 + 23 + 30 + 8 + 11
10 18 + 72 + 86 +109 +143 + 47 + 54 + 68 + 25 + 31 + 38 + 52 + 15 + 21
+ 62 + 70 + 84 +104 + 40 + 44 + 52 + 21 + 24 + 28 + 36 + 11 + 14
18 30 + 93 +109 +136 +175 + 57 + 68 + 84 + 31 + 37 + 48 + 64 + 18 + 24
+ 81 + 90 +106 +129 + 49 + 56 + 65 + 26 + 29 + 36 + 45 + 13 + 16
30 50 +113 +132 +165 +216 + 71 + 83 + 102 + 38 + 46 + 58 + 77 + 22 + 30
+ 99 +110 +130 +160 + 62 + 69 + 80 + 32 + 37 + 44 + 55 + 16 + 21
50 80 +139 +162 +202 +261 + 5 + 99 +122 + 46 + 55 + 69 + 92 + 26 + 35
+122 +136 +160 +194 + 74 + 82 + 96 + 39 + 44 + 52 + 66 + 19 + 24
80 120 +165 +193 +239 +307 +101 +117 +145 + 54 + 65 + 81 +109 + 30 + 41
+146 +162 +190 +230 + 88 + 98 +114 + 46 + 52 + 62 + 78 + 22 + 28
120 180 +198 +230 +281 +357 +119 +138 +170 + 64 + 77 + 96 + 128 + 35 + 48
+175 +195 +225 +269 +105 +115 +135 + 55 + 63 + 73 + 93 + 26 + 34
Reamer Manufacturing Tolerances
331
USER GUIDE
REAMERS
Reamer Manufacturing Tolerances (continued)
Nominal Diameter of
Reamer D1 in mm
Reamer Manufacturing Tolerances DIN 1420
Admissible maximum and minimum reamer dimensions of nominal diameter d1 in µm for drilling tolerance range
Over Up to R6 R7 S6 S7 T6 U6 U7 U10 X10 X11 Z10 Z11
1 3 -11 -12 -15 -16 -19 -19 -20 -24 -26 -29 -32 -35
-14 -16 -18 -20 -22 -22 -24 -38 -40 -50 -46 -56
3 6 -14 -13 -18 -17 -22 -22 -21 -31 -36 -40 -43 -47
-17 -18 -21 -22 -25 -25 -26 -48 -53 -67 -60 -56
6 10 -18 -16 -22 -20 -27 -27 -25 -37 -43 -48 -51 -47
-22 -22 -26 -26 -31 -31 -31 -58 -64 -80 -72 -74
10 14 -22 -19 -27 -24 -32 -32 -29 -44 -51 -57 -61 -56
-26 -26 -31 -31 -36 -36 -36 -69 -76 -96 -86 -88
14 18 -22 -19 -27 -24 -32 -32 -29 -44 - 56 -62 -71 -67
-26 -26 -31 -31 -36 -36 -36 -69 - 81 -101 -96 -106
18 24 -26 -24 -33 -31 -39 -39 -37 -54 - 67 -74 -86 -77
-31 -32 -38 -39 -44 -44 -45 -84 - 97 -120 -116 -116
24 30 -26 -24 -33 -31 -39 -46 -44 -61 - 77 -84 -101 -108
-31 -32 -38 -39 -44 -51 -52 -69 -107 -130 -131 -154
30 40 -32 -29 -41 -38 -46 -58 -55 -75 - 95 -104 -127 -136
-38 -38 -47 -47 -52 -64 -64 -110 -130 -160 -162 -192
40 50 -32 -29 -41 -38 -52 -68 -65 -85 -112 -121 -151 -160
-38 -38 -47 -47 -58 -74 -74 -120 -147 -177 -186 -216
50 65 -38 -35 -50 -47 -63 -84 -81 -105 -140 -151 -190 -201
-45 -46 -57 -58 -70 -91 -92 -147 -182 -218 -232 -268
65 80 -40 -37 -56 -53 -72 -99 -96 -120 -164 -175 -228 -239
-47 -48 -63 -64 -79 -106 -107 -162 -206 -242 -170 -306
80 100 -48 -44 -68 -64 -88 -121 -117 -145 -199 -211 -179 -291
-56 -57 -76 -77 -96 -129 -130 -194 -248 -288 -328 -368
100 120 -51 -47 -76 -72 -101 -141 -139 -165 -231 -243 -331 -343
-59 -60 -84 -85 -109 -149 -150 -214 -280 -320 -380 -420
120 140 -60 -54 -89 -83 -119 -167 -161 -194 -272 -286 -389 -403
-69 -68 -98 -97 -128 -176 -175 -250 -328 -374 -445 -491
140 160 -62 -56 -97 -91 -131 -187 -181 -214 -304 -318 -439 -453
-71 -70 -106 -105 -140 -196 -195 -270 -360 -406 -495 -541
Over Up to H6 H7 H8 H9 H10 H11 H12 J6 J7 J8 JS6 JS7 JS8 JS9
1 3 +5 +8 +11 +21 +34 +51 +85 +1 +2 +3 +2 +3 +4 +8
+2 +4 +6 +12 +20 +30 +50 -2 -2 -2 -1 -1 -1 -1
3 6 +6 +10 +15 +25 +40 +63 +102 +3 +4 +7 +2 +4 +6 +10
+3 +5 +8 +14 +23 +30 +60 0 -1 0 -1 -1 -1 -1
6 10 +7 +12 +18 +30 +49 +76 +127 +3 +5 +8 +3 +5 +7 +12
+3 +6 +10 +17 +28 +44 +74 -1 -1 0 -1 -1 -1 -1
10 16 +9 +15 +22 +36 +59 +93 +153 +4 +7 +10 +3 +6 +9 +15
+5 +8 +12 +20 +34 +54 +90 0 0 0 -1 -1 -1 -1
18 30 +11 +17 +28 +44 +71 +110 +178 +6 +8 +15 +4 +7 +11 +18
+6 +9 +16 +25 +41 +64 +104 +1 0 +3 -1 -1 -1 -1
30 50 +13 +21 +33 +52 +85 +136 +212 +7 +10 +18 +5 +8 +13 +21
+7 +12 +19 +30 +50 +80 +124 +1 +1 +4 -1 -1 -1 -1
50 80 +16 +25 +39 +62 +102 +161 +255 +10 +13 +21 +6 +10 +16 +25
+9 +14 +22 +36 +60 +94 +150 +3 +2 +4 -1 -1 -1 -1
90 120 +18 +29 +45 +73 +119 +187 +297 +12 +16 +25 +7 +12 +18 +30
+10 +16 +26 +42 +70 +110 +174 +4 +3 +6 -1 -1 -1 -1
120 180 +21 +34 +53 +85 +136 +212 +360 +14 +20 +31 +8 +16 +72 +35
+12 +20 +30 +50 +80 +124 +200 +5 +6 +8 -1 0 -1 0
Over Up to K6 K7 K8 M6 M7 M8 N6 N7 N8 N9 N10 N11 P6 P7
1 3 -1 -2 -3 -3 -4 -5 -5 -6 -7 -8 -10 -13 -7 -8
-4 -6 -8 -6 -8 -10 -8 -10 -12 -17 -24 -34 -10 -12
3 6 0 +1 +2 -3 -2 -1 -7 -6 -5 -5 -8 -12 -11 -10
-3 -4 -5 -6 -7 -8 -10 -11 -12 -16 -25 -39 -14 -15
6 10 0 +2 +2 -5 -3 -3 -9 -7 -7 -6 -9 -14 -14 -12
-4 -4 -6 -9 -9 -11 -13 -13 -15 -19 -30 -46 -18 -18
10 18 0 +3 +3 -6 -3 -3 -11 -8 -8 -7 -11 -17 -17 -14
-4 -4 -7 -10 -10 -13 -15 -15 -18 -23 -36 -56 -21 -21
18 30 0 +2 +5 -6 -4 -1 -13 -11 -8 -8 -13 -20 -20 -18
-5 -6 -7 -11 -12 -13 -18 -19 -20 -27 -43 -66 -25 -26
30 50 0 +3 +6 -7 -4 -1 -15 -12 -9 -10 -15 -24 -24 -21
-6 -6 -8 -13 -13 -15 -21 -21 -23 -32 -50 -80 -30 -30
50 80 +1 +4 +7 -8 -5 -2 -17 -14 -11 -12 -18 -29 -29 -26
-6 -7 -10 -15 -16 -19 -24 -25 -28 -38 -60 -96 -36 -37
80 120 0 +4 +7 -10 -6 -3 -20 -16 -13 -14 -21 -33 -34 -30
-8 -9 -12 -18 -19 -22 -28 -29 -32 -45 -70 -110 -42 -43
120 180 0 +6 +10 -12 -6 -2 -24 -18 -14 -15 -24 -38 -40 -34
-9 -8 -13 -21 -20 -25 -33 -32 -37 -50 -80 -126 -49 +48
ISCAR
332
USER GUIDE
REAMERS
Cutting Speed
The cutting speed has the highest influence on the
surface quality of the reamed hole and on the life of the
tool. Increasing the cutting speed beyond the optimum
speed will cause increased tool wear due to the increased
cutting temperature. The increased speed also causes
an increase in the built-up edge (material that is welded
to the cutting edge). The built-up edge damages the
surface finish and shortens the life of the tool. In order
to achieve high surface quality and longer tool life, the
cutting speed for reaming should be kept relatively low.
Feed Rate
The feed rate directly influences the wear on the cutting
edge. As the feed rate is increased, the cutting forces
increase almost proportionally. The feed, however,
has less influence on the machined surface quality
and tool wear than the cutting speed (i.e. the feed
can be varied in a relatively wide range without having
material influence the quality of the machined hole and
the respective tool life). It is therefore recommended
to select the highest possible feed in order to shorten
reaming times without significantly reducing the tool life.
Reaming Allowance
The reaming allowance (the amount of material to be
reamed) also influences the tool life. In order to achieve
high tool life, the reaming allowance should be kept
at a reasonable minimum considering the process to
be performed. If the reaming allowance is too small, it
may result in a high dimensional variation (inability to
maintain the required tolerances) and a decrease in the
machined surface quality. When reaming materials that
have surface defects or have been welded or flame
cut, the reaming allowance should be increased so
these factors do not appear on the reamed surface.
Coolant/Lubrication
The high degree of friction between the tool and the
wall being reamed demands the use of a fluid for
lubrication and cooling. Using lubrication is more
critical for maintaining tolerances than using a coolant.
General cutting oils and emulsions may be used. It
should be noted that in some cases emulsions will yield
a better surface finish than cutting oils. Emulsions are
thinner fluids that are able to reach and more uniformly
lubricate the cutting edges better than viscous cutting
oils (especially when performing deep applications).
In order to determine the most suitable lubricant
for a particular application, tests should be run on
the material to be cut, on a case-to-case basis.
Reaming Prerequisites
In order to achieve high tolerances for
reaming applications, there are certain
requirements that must be considered.
1 Condition of the tool - If the tool is reground, both an exact
concentricity and high quality grinding are indispensable.
2 Workpiece material - Axis shifting and warping (i.e.
incorrect hole positioning) can only be corrected to a
certain degree when reaming. A critical factor is the
initial opening in the workpiece. This opening must be
even, or if the prepared hole is countersunk, a cone
countersink must be used. Failure to properly prepare
the initial opening can result in irregular countersinking
that leads to the reamer being pushed out of its
proper alignment. Ideally, pre-machining should be
performed in a chuck to avoid alignment defects.
3 Through holes - For best results, the holes to be reamed
should extend completely through the workpiece
material. This allows for easy exit of both the cutting
fluid and the reamed material. Negative flute reamers
are advantageous in through hole reaming.
4 Blind holes - Use straight flute reamers for blind holes.
333
USER GUIDE
REAMERS

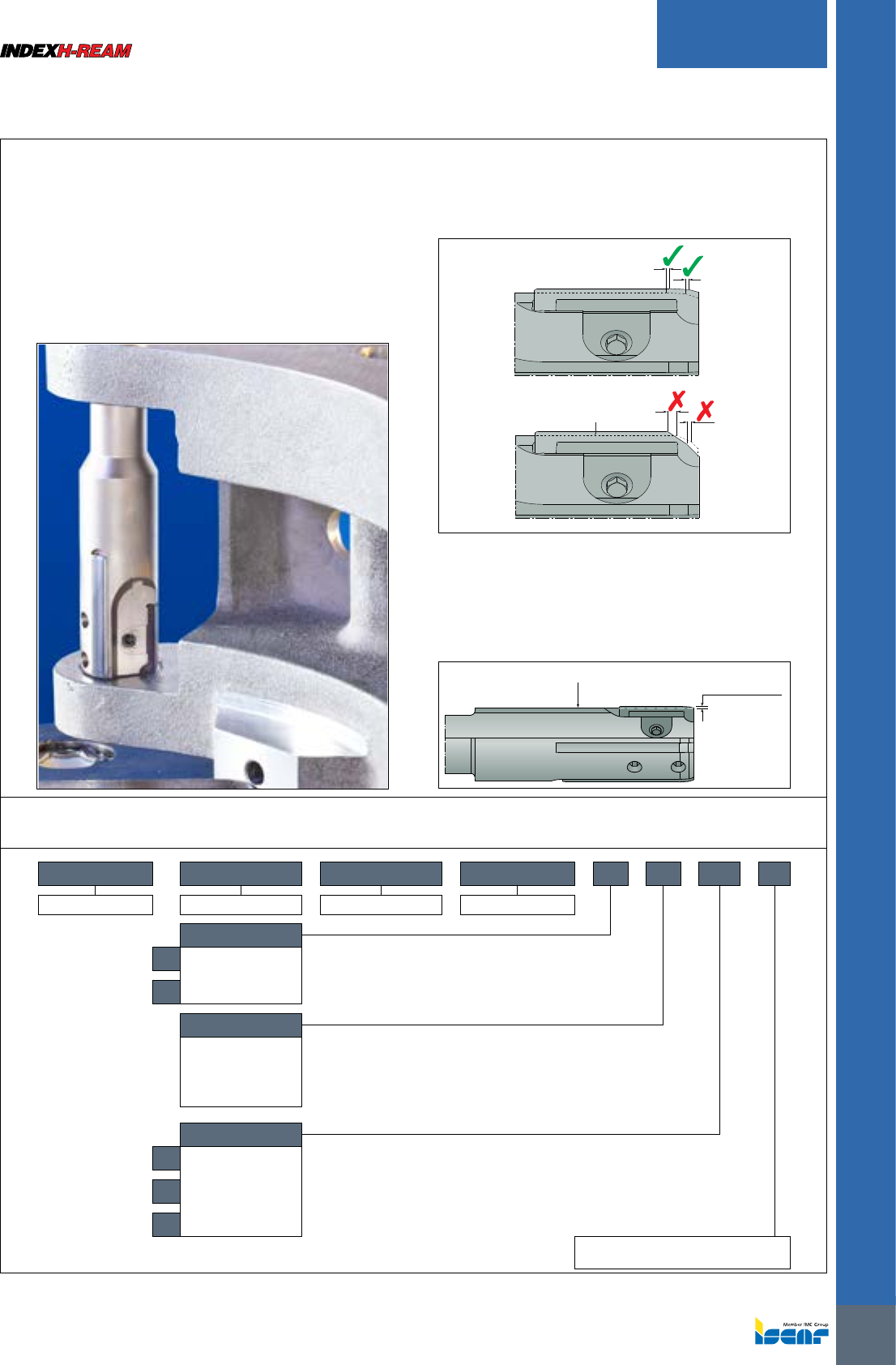

Tool Designation Code Key
RM SET 12.000(1) H6 T B C16 s
Reamer Single-Edged Tool Hole Diameter Hole Tolerance
Hole Type
BBlind
TThrough
Lead Type(2)
A, B, C, D
(see page 338)
Note: A, C,
D - optional
Shank Type
CCylindrical
WWeldon
FFlat
(1) To be ordered for each specific diameter and tolerance
(2) Tool lead type - according to insert’s lead type Reamer Length S-Short
High Speed Reaming System
with Internal Coolant Holes
The INDEXH-REAM standard line covers reaming
applications of 8-32 mm hole diameters. The indexable
cutting insert has two cutting corners with 4 lead
angle options and 3 rake angle variations, covering
most workpiece material types. The INDEXH-REAM
single indexable insert with carbide pads provides
a combination of economical and high precision
results on a very wide range of materials.
Important
Lead type of the tool (pads) should be compatible
with the lead type of the insert. Using an improper
insert will damage the tool and the reamed part.
Guiding Pad Line
The guiding pads are precisely ground for a specific
diameter, and therefore, can only be used for reaming
on appropriate hole sizes. The adjustment mechanism
is designed for a specific diameter setting and for wear
compensation (a few microns only). The same tool
can not be used for reaming different diameters.
≤20µm (≤0.75µin)
Guiding Pad Line
ISCAR
334
REAMERS
LU
L6
OAL
LS
DCONMS
APMX
DC
Designation
DC APMX L6(1) LU LS OAL DCONMS SSC(2)
RM-SET8.000H6T-B-C16S
8.000 15.50 30.00 75.0 45.0 123.50 16.00 1.0
RM-SET9.000H6T-B-C16S
9.000 15.50 30.00 75.0 45.0 123.50 16.00 1.0
RM-SET10.000H6T-B-C16S
10.000 15.50 30.00 75.0 45.0 123.50 16.00 2.0
RM-SET11.000H6T-B-C16S
11.000 15.50 30.00 75.0 45.0 123.50 16.00 2.0
RM-SET12.000H6T-B-C16S
12.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET13.000H6T-B-C16S
13.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET14.000H6T-B-C16S
14.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET15.000H6T-B-C16S
15.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET16.000H6T-B-C20S
16.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET17.000H6T-B-C20S
17.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET18.000H6T-B-C20S
18.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET19.000H6T-B-C20S
19.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET20.000H6T-B-C25S
20.000 17.00 30.00 110.0 56.0 171.00 25.00 3.0
RM-SET21.000H6T-B-C25S
21.000 17.00 30.00 110.0 56.0 171.00 25.00 3.0
RM-SET22.000H6T-B-C25S
22.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET23.000H6T-B-C25S
23.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET24.000H6T-B-C25S
24.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET25.000H6T-B-C25S
25.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET26.000H6T-B-C25S
26.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET27.000H6T-B-C25S
27.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET28.000H6T-B-C25S
28.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET29.000H6T-B-C25S
29.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET30.000H6T-B-C25S
30.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET31.000H6T-B-C25S
31.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET32.000H6T-B-C25S
32.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
• For spare parts, see page 335 • For user guide and cutting conditions, see pages 338-343
(1) Pad length
(2) Insert size
For inserts, see pages: RM-SEI-B (336)
RM-SET-T-B
Single-Edged Indexable
Reamers for Through Holes
335
REAMERS

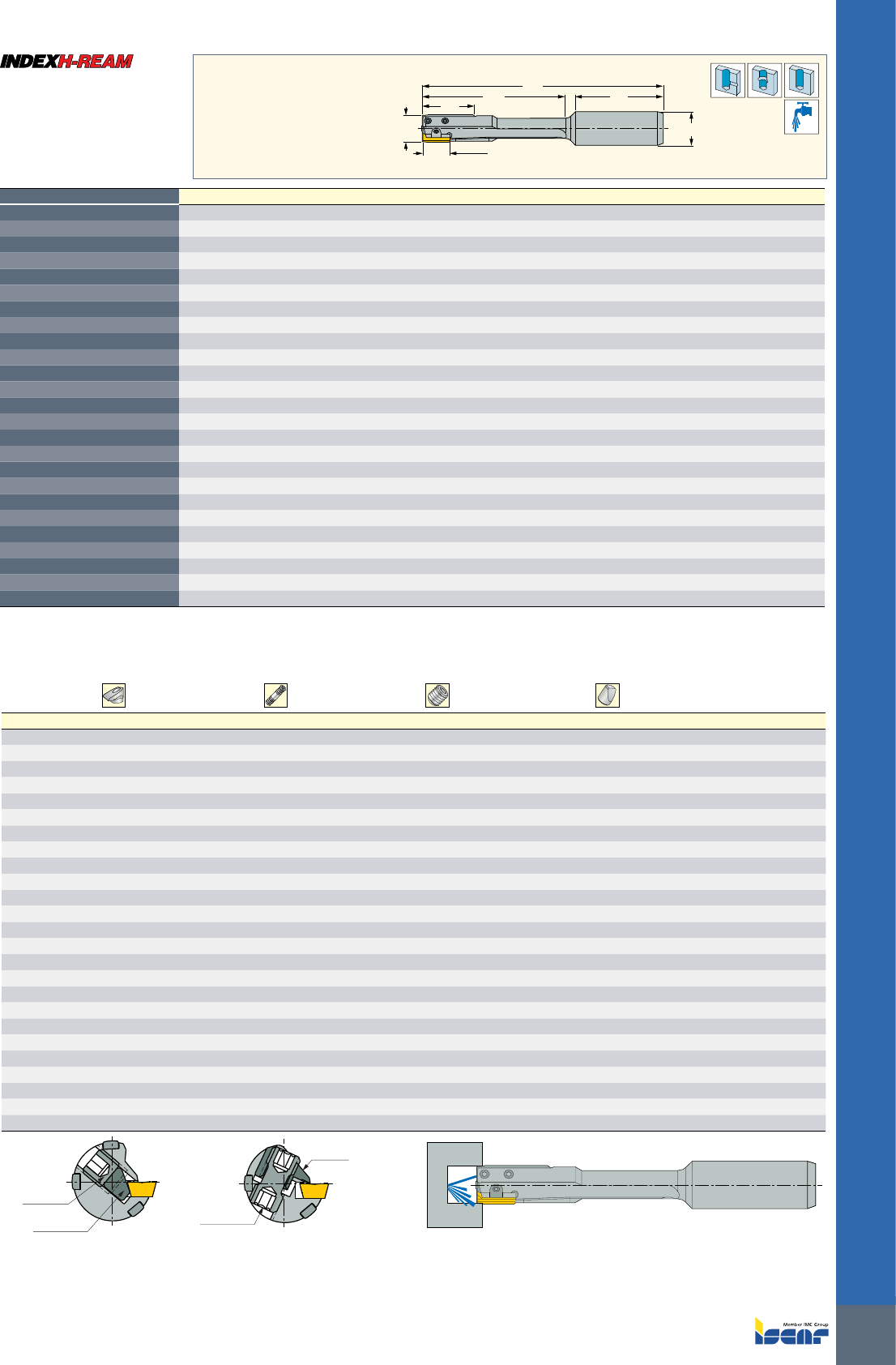

LU
L6
OAL
LS
DCONMS
APMX
DC
Designation
DC APMX OAL LS LU L6(1) DCONMS SSC(2)
RM-SET8.000H6B-B-C16S
8.000 15.50 123.50 45.0 75.0 30.00 16.00 1.0
RM-SET9.000H6B-B-C16S
9.000 15.50 123.50 45.0 75.0 30.00 16.00 1.0
RM-SET10.000H6B-B-C16S
10.000 15.50 123.50 45.0 75.0 30.00 16.00 2.0
RM-SET11.000H6B-B-C16S
11.000 15.50 123.50 45.0 75.0 30.00 16.00 2.0
RM-SET12.000H6B-B-C16S
12.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET13.000H6B-B-C16S
13.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET14.000H6B-B-C16S
14.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET15.000H6B-B-C16S
15.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET16.000H6B-B-C20S
16.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET17.000H6B-B-C20S
17.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET18.000H6B-B-C20S
18.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET19.000H6B-B-C20S
19.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET20.000H6B-B-C25S
20.000 17.00 171.00 56.0 110.0 30.00 25.00 3.0
RM-SET21.000H6B-B-C25S
21.000 17.00 171.00 56.0 110.0 30.00 25.00 3.0
RM-SET22.000H6B-B-C25S
22.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET23.000H6B-B-C25S
23.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET24.000H6B-B-C25S
24.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET25.000H6B-B-C25S
25.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET26.000H6B-B-C25S
26.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET27.000H6B-B-C25S
27.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET28.000H6B-B-C25S
28.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET29.000H6B-B-C25S
29.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET30.000H6B-B-C25S
30.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET31.000H6B-B-C25S
31.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET32.000H6B-B-C25S
32.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
• For user guide and cutting conditions, see pages 338-343
(1) Pad length
(2) Insert size
For inserts, see pages: RM-SEI-B (336)
Adjustment
Screw
Adjustment
Pin
Clamping
Screw
Clamping
Wedge
Adjustment
Screw
Adjustment
Pin
Clamping
Screw
Clamping
Wedge
D [mm] Clamping Wedge Clamping Screw Adjustment Screw Adjustment Pin Insert Size
8 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x2.5 PIN-ADJ-RM-SE-1 1
9 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-1 1
10 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-2 2
11 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x4 PIN-ADJ-RM-SE-2 2
12 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
13 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
14 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
15 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3
16 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3
17 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
18 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
19 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
20 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
21 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
22 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
23 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
24 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
25 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
26 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
27 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
28 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
29 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
30 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
31 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
32 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
Spare Parts
RM-SET-B-B
Single-Edged Indexable
Reamers for Blind Holes
ISCAR
336
REAMERS

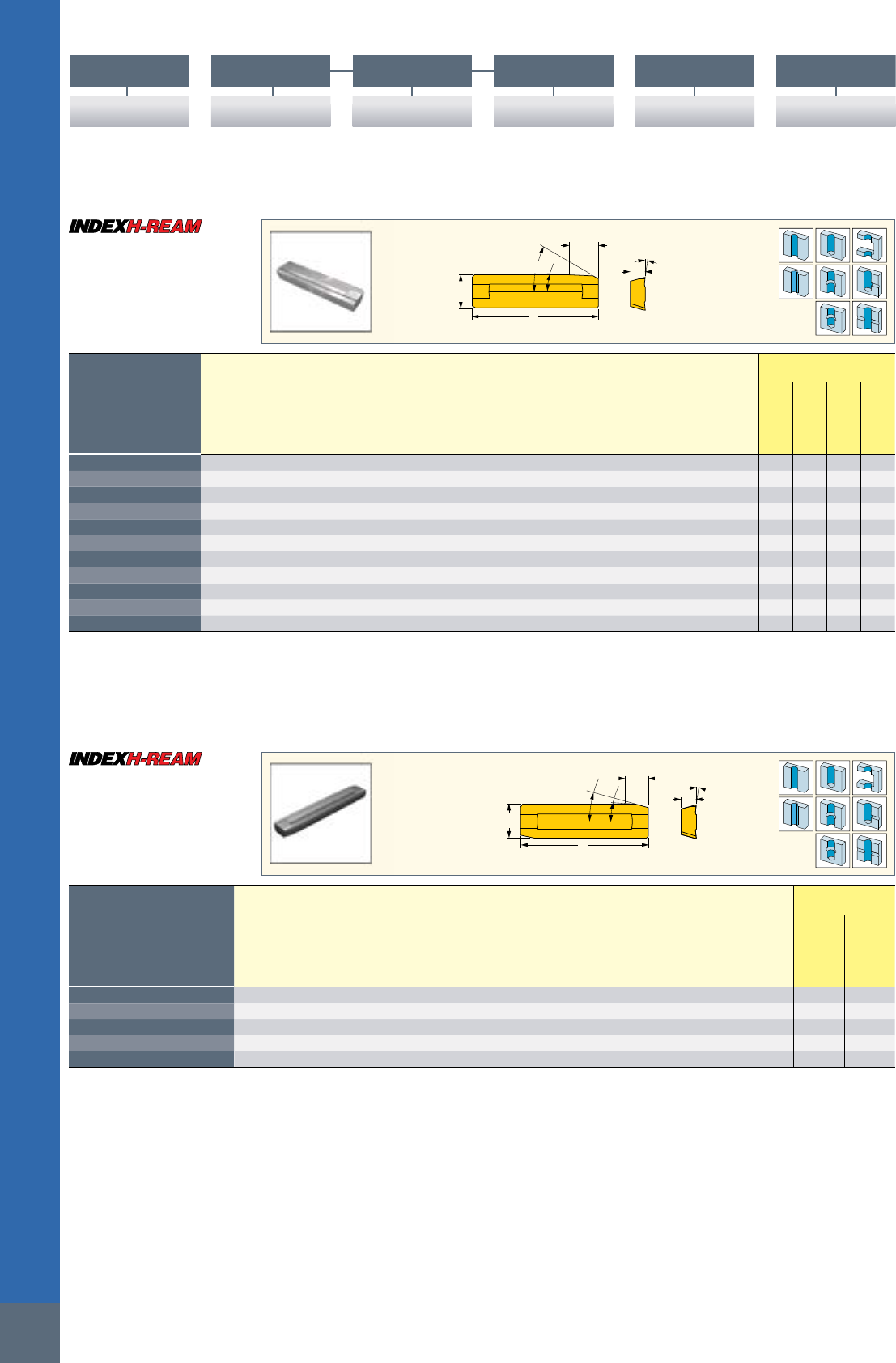

30° 3°
1.3
S
a°
L
W1
Dimensions Tough
1
Hard
Designation
SSC(1) a° L W1 S
IC30N
IC07
IC507
IC907
RM-SEI-1B-00
1.0 0 15.50 2.80 1.50
•
RM-SEI-1B-06
1.0 6 15.50 2.80 1.50
• •
RM-SEI-1B-12
1.0 12 15.50 2.80 1.50
• •
RM-SEI-2B-00
2.0 0 15.50 3.60 1.50
•
RM-SEI-2B-06
2.0 6 15.50 3.60 1.50
• •
RM-SEI-2B-12
2.0 12 15.50 3.60 1.50
• •
RM-SEI-3B-00
3.0 0 17.00 4.40 2.00
•
RM-SEI-3B-06
3.0 6 17.00 4.40 2.00
• •
RM-SEI-3B-12
3.0 12 17.00 4.40 2.00
• •
RM-SEI-4B-06
4.0 6 22.50 6.60 3.00
• • •
RM-SEI-4B-12
4.0 12 22.50 6.60 3.00
• •
• Lead type of insert should be compatible with lead type of the tool
(1) Insert size
For tools, see pages: RM-SET-B-B (335) • RM-SET-T-B (334)
RM-SEI-B
Single-Edged Reaming Inserts
for General Applications at
High Cutting Speeds
S
a°
15° 3°
3.0
L
W1
Dimensions Tough
1
Hard
Designation
SSC(1) a° L W1 S
IC507
IC907
RM-SEI-1A-06
1.0 6 15.50 2.80 1.50
•
RM-SEI-2A-06
2.0 6 15.50 3.60 1.50
•
RM-SEI-3A-06
3.0 6 15.50 4.40 2.00
•
RM-SEI-3A-12
3.0 12 17.00 4.40 2.00
•
RM-SEI-4A-06
4.0 6 22.50 6.60 3.00
•
• Lead type of insert should be compatible with lead type of the tool • Available on request
(1) Insert size
RM-SEI-A
Single-Edged Reaming Inserts
for High Surface Quality at
Low Cutting Conditions
RM
Reamer
SEI
Single Edge Insert
4
Insert
Size
B
Lead Type
A, B, C
12
Rake
Angle
IC907
Carbide
Grade
Insert Designation Code Key
337

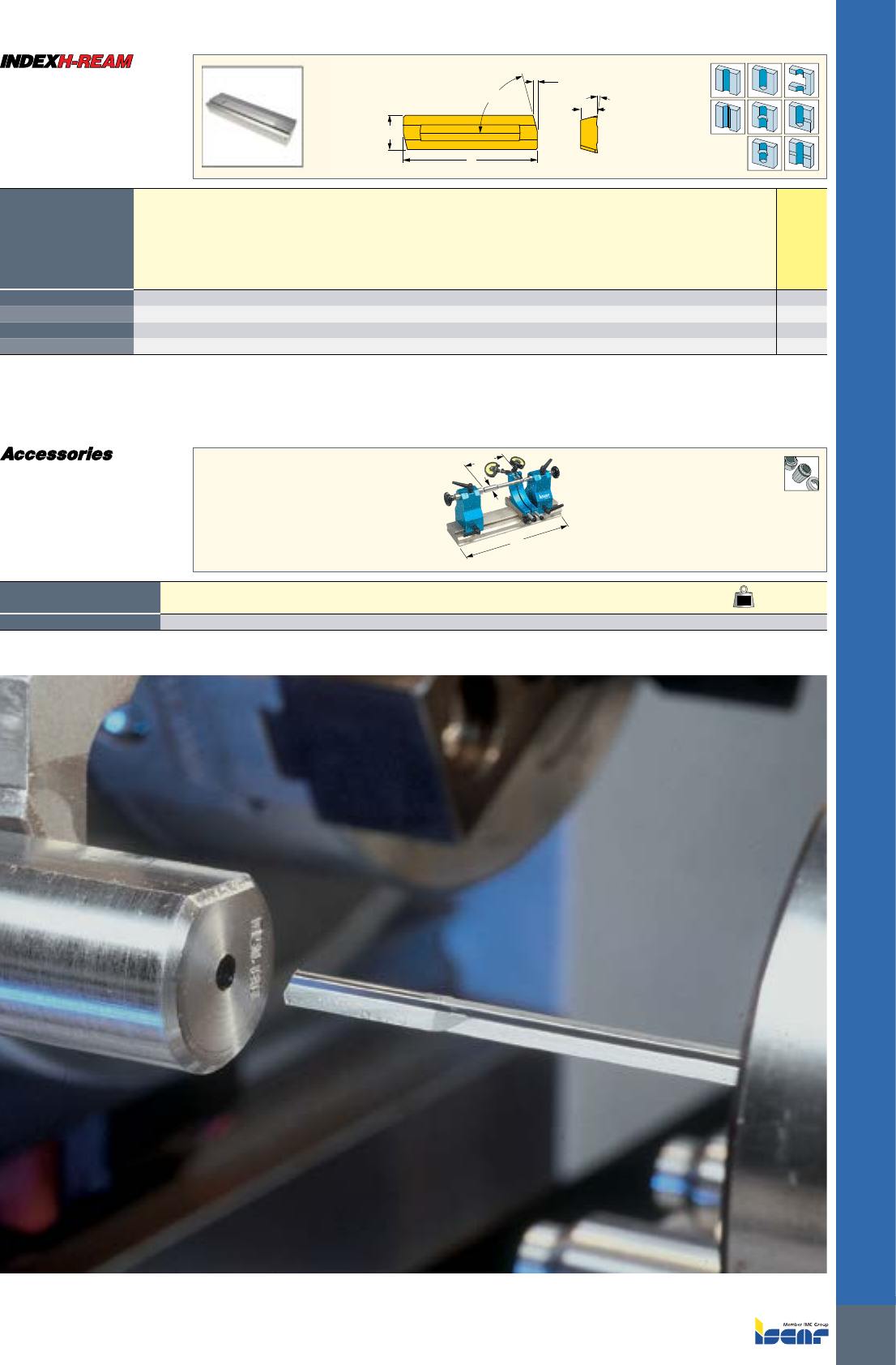

REAMERS
75°
L5
S
a°
L
W1
Dimensions
Designation
SSC(1) a° L W1 S PLGL
IC07
RM-SEI-1C-12
1.0 12 15.50 2.80 1.50 0.550
•
RM-SEI-2C-12
2.0 12 15.50 3.60 1.50 0.550
•
RM-SEI-3C-12
3.0 12 17.00 4.40 2.00 0.550
•
RM-SEI-4C-12
4.0 12 22.50 6.60 3.00 0.550
•
• Lead type of insert should be compatible with lead type of the tool • Available on request
(1) Insert size
RM-SEI-C
Single-Edged Reaming Inserts
for Aluminum and Brass
L
max
l1
dmax
Designation
L max l1 d max
kg
RM SETTING DEVICE
265.0 450.00 170.0 25.00
RM SETTING DEVICE
Reamer Setting Device
ISCAR
338
USER GUIDE
REAMERS
Front Angles and Cutting Geometries
4 standard lead angles are available:
Lead L [mm] Use
A 3
Higher surface quality, lower cutting
conditions (not recommended
for nonferrous materials)
15˚ 3˚ L
B 1.3
Universal use, high speed cutting
conditions. Can be used on
a wide range of materials
L
3˚
30˚
C 0.55
Suitable for aluminum and
brass at high cutting speed
L
75˚
D(1) 0.6
When needed for blind
hole - lower feed
L
3˚
30˚
(1) On request
3 standard cutting angles are available:
Angle [deg.] Use
00
0˚
For cast iron applications
06
6˚
General use
12
12˚
For stainless steel and aluminum
Carbide Grades
IC07 grade is the basic substrate for reaming inserts.
It is a very versatile submicron grade. IC07 features
very high fracture toughness and wear resistance,
which is required for efficient high speed reaming.
An uncoated IC07 can be used for machining
nonferrous (N type material group) applications.
Two types of standard coatings are available:
• IC907 – a TiAlN PVD coating for steel (P) and
stainless steel (M) workpiece material groups
• IC507 - a TiCN+TiN PVD coating for cast iron (K)
workpiece material group.
The following grades can be provided on request:
• PCD grade for machining aluminum
• PCBN grade for machining cast iron
• IC30N (cermet) for machining steel
339
USER GUIDE
REAMERS

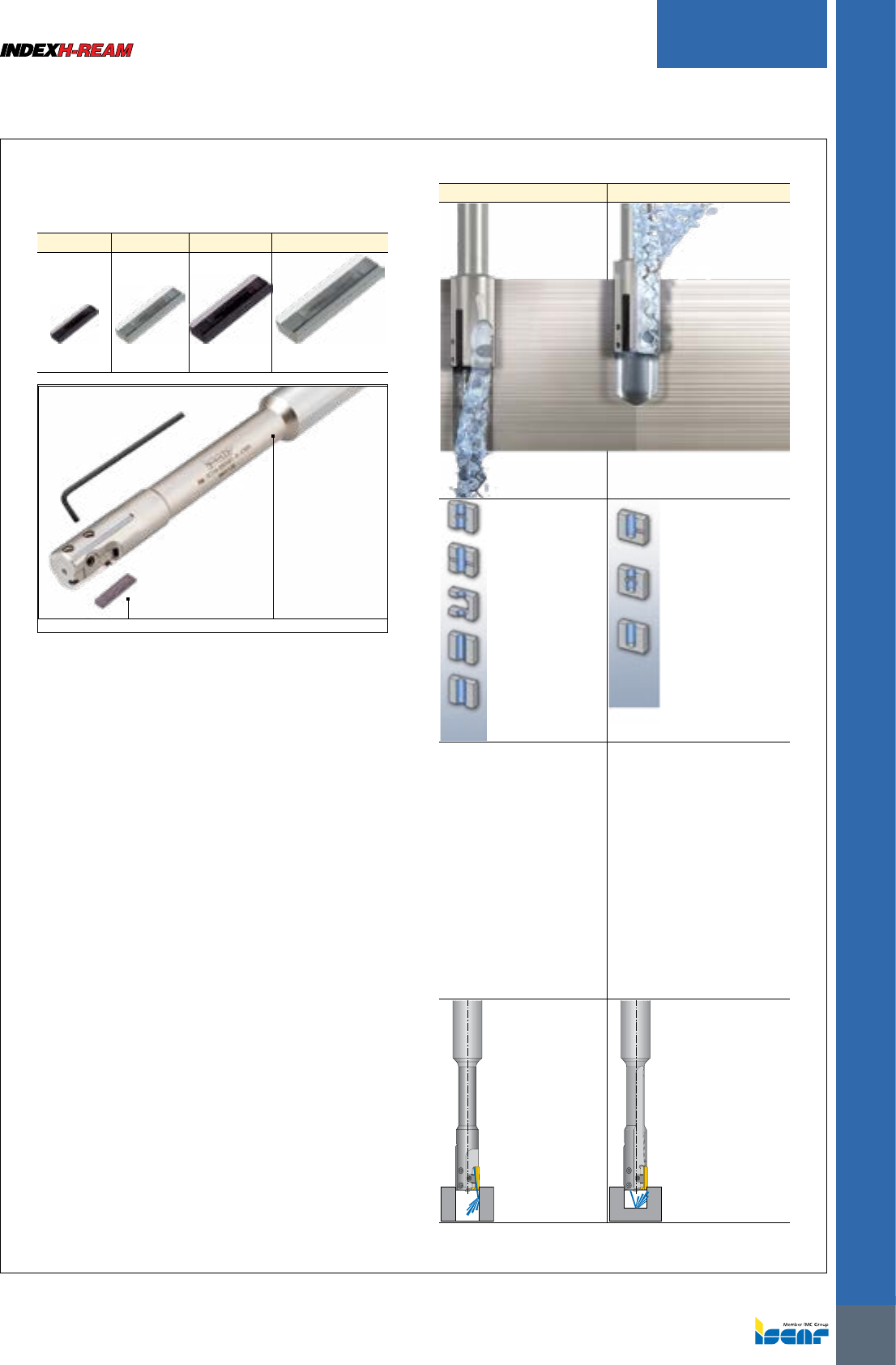

Concept
The INDEXH-REAM Line is available in 4 sizes
and features two different holder geometries
(short flute and long flute). The holder selection
depends on the hole type (through or blind).
RM-SEI-1 RM-SEI-2 RM-SEI-3 RM-SEI-4
Ø8.00-9.99 mm
(Ø.315-.393")
Ø10.00-11.99 mm
(Ø.393-.472")
Ø12.00-25.99 mm
(Ø.472-1.024")
Ø26.00-32.00 mm
(Ø1.024-1.260")
Insert Holder
Applications
Through Hole Blind Hole
Through Hole
Short Flute Holder. This
holder has a lateral coolant
outlet located right above
the insert. The coolant is
pointed directly to the cutting
edge to lubricate it and
divert the chips forward.
Additional coolant outlets
are located behind the
guiding pads. Their purpose
is to reduce high friction
that is created between
the pads and the reamed
surface during machining.
Blind Hole
Long Flute Holder. This
holder has a frontal coolant
outlet. The liquid reaches the
bottom of the blind hole and
evacuates the formed chips.
These chips are conveyed
backwards through the long
chip gullet (flute) of the holder.
ISCAR
340
USER GUIDE
REAMERS

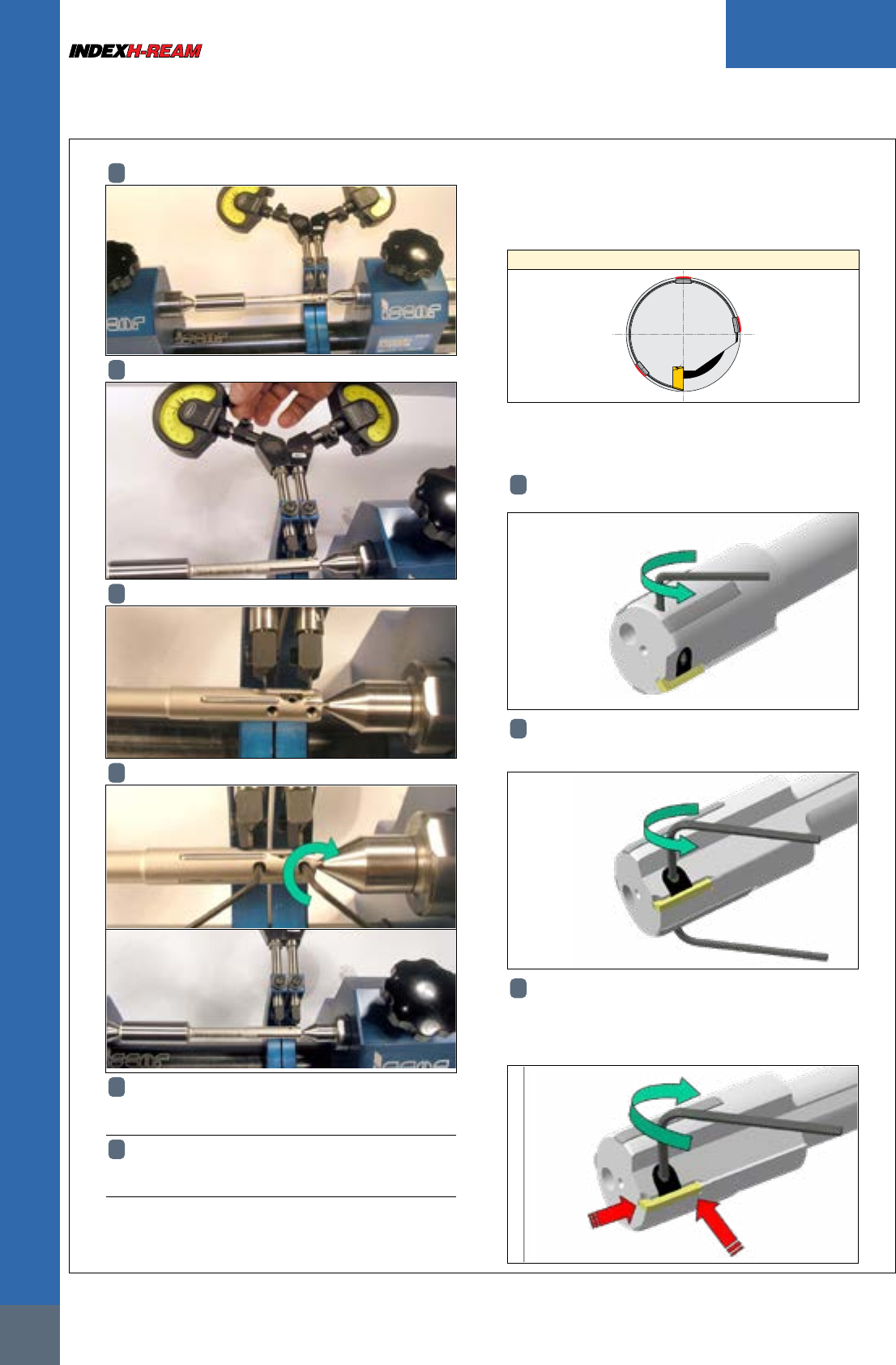

Setting Procedure
1Place the reamer between the centering pins of the device.
2Use the pad as a reference for setting the indicator to zero.
3Rotate and place the inserts against indicators.
4Tighten the adjustment screws in a clockwise direction.
5Adjust the frontal side of the insert to:
+15 µm (+0.6 µin) on D≤9.99,
+20 µm (+0.8 µin) on D≤10.00
6Adjust the rear side of insert to:
+5 µm (+0.2 µin) on D≤9.99,
+10 µm (+0.4 µin) on D≤10.00
Back Taper
The back taper prevents the reamer from jamming, as
well as lowering reaming forces and improving surface
quality. Incorrect back taper may cause unstable
reaming, accelerated wear and rough surface finish.
High Friction Lubricated Zones
Insert Indexing
1Rotate the adjustment screws one turn
counterclockwise (CCW).
2Rotate the clamping screw CCW from the
top and/or clockwise (CW) from the bottom,
turning both sides simultaneously.
3Remove the insert. Clean the insert and the pocket. Place
the sharp edge on the outer position. Press the insert
against the back stopper and the two adjustment pins.
Tighten the clamping wedge by rotating the clamping
screw CW from the top or CCW from the bottom.
341
USER GUIDE
REAMERS

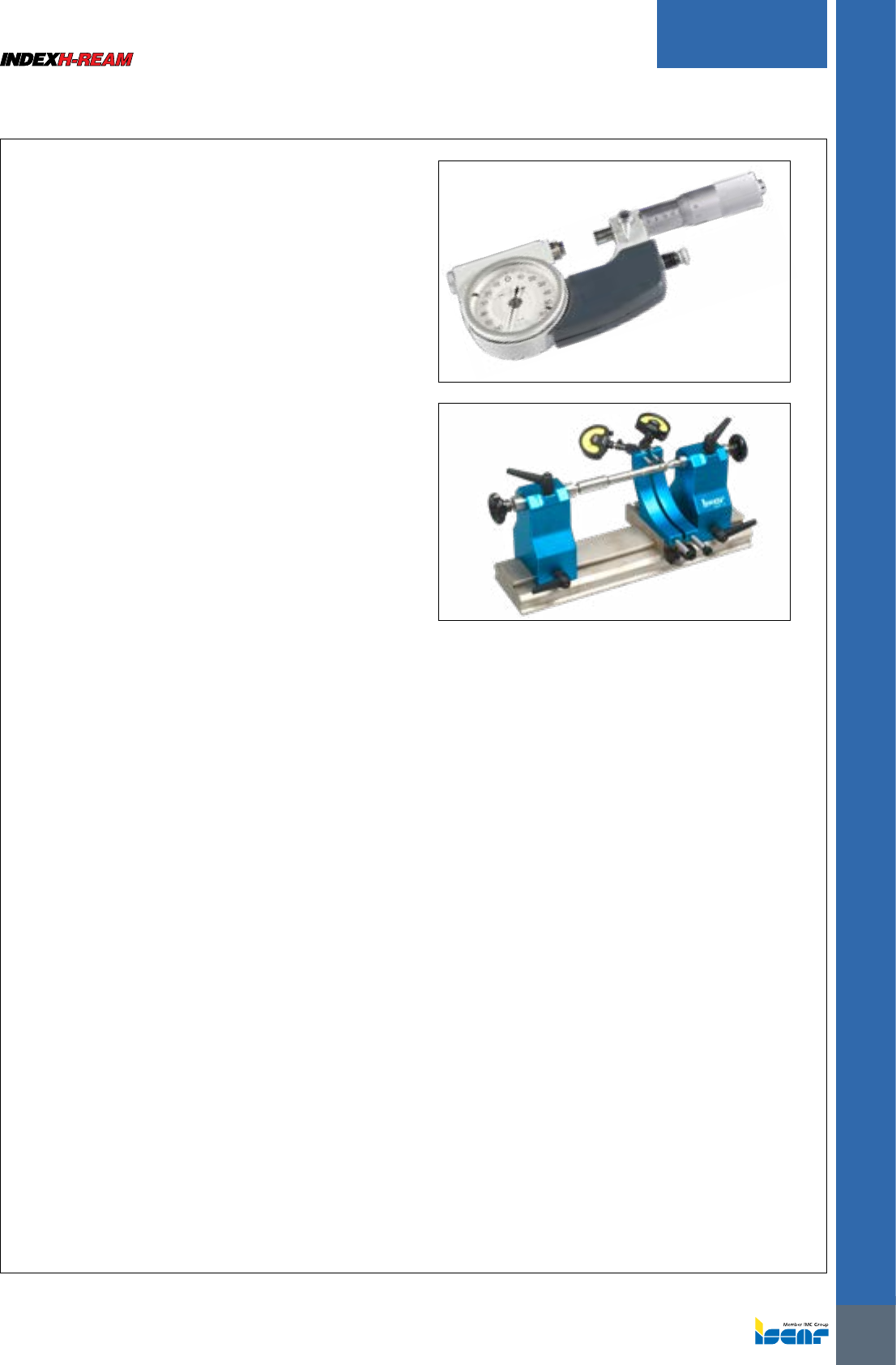

Setting Methods
There are two optional setting methods - comparison
micrometer and setting device. Comparison micrometer
with dial gauge, although a low cost solution and readily
available for small workshops, is prone to damaging
the cutting edge and therefore not recommended.
Using a Comparison Micrometer
Set the micrometer to the correct diameter using the
precision blocks. Adjust the frontal diameter and back
taper by turning the adjustment screw clockwise.
The frontal diameter should be larger than the rear
diameter by approximately 0.015 mm.(0.6 µin).
Using a Setting Device
ISCAR’s mechanical setting device enables easy,
quick and accurate adjustment. Due to its modular
construction, it can be used for standard, special
and more complicated reamer adjustments.
Setting Device Located Between Centers
• Shorter setting time
• Modular system
• Higher accuracy
• No risk of damaging the cutting edge
ISCAR
342
USER GUIDE
REAMERS
The cutting conditions in the table below should be used to start a new application.
Optimal conditions for a specific application should be evaluated by examining
the results and changing the machining conditions accordingly.
Material No.
Material
Lead A=15°/3° L3 (reaming allowance = 0.1-0.3) Lead B=30°/3° L1.3
(reaming allowance = 0.1-0.3)
Feed [mm/rev]
Rake [ ° ]
Cutting Speed Vc [m/min]
Feed [mm/rev]
Rake [ ° ]
Cutting Speed Vc [
m/min]
Carbide
Coated
Carbide
Cermet
PCD
CBN
Carbide
Coated
Carbide
Cermet
PCD
CBN
1-5
Non-alloy steel
and cast steel,
free cutting steel
0.1-0.4 6 40-60 60-80 110-160 0.1-0.3 6 60-80 80-120 110-160
6-9
Low alloy and cast
steel (less than 5%
of alloying elements)
0.1-0.4 6 20-40 40-60 110-160 0.1-0.3 6 60-80 80-120 110-160
10-11
High alloyed
steel, cast steel
and tool steel
0.1-0.4 6 20-40 20-60 20-60 0.1-0.3 6 40-60 40-80 40-80
12-13 Stainless steel
and cast steel 0.1-0.3 12 20-40 40-60 40-60 0.1-0.2 12 40-60 60-80 60-80
15-16 Grey cast iron (GG) 0.1-0.3 0/6 40-60 60-100
Please
ask
0.1-0.3 0/6 60-80 80-120
Please
ask
17-18 Nodular cast
iron (GGG) 0.1-0.3 0/6 40-60 60-100 0.1-0.3 0/6 60-80 80-120
19-20 Malleable cast iron 0.1-0.3 0/6 40-60 60-100 0.1-0.3 0/6 60-80 80-120
21-22 Aluminum
wrought alloy
Please
ask
0.1-0.3 12 160-200
Please
ask
23-25 Aluminum
-cast, alloyed 0.1-0.3 12 160-200
26-28 Copper alloys 0.1-0.2 0 80-100
29-30 Non-metallic 0.1-0.3 0 10-70
Material No.
Material
Lead D=30°/3° L0.6 (reaming allowance = 0.1-0.2) Lead C=75°/3° L0.55 (reaming
allowance = 0.2-0.4)
Feed [mm/rev]
Rake [ ° ]
Cutting Speed Vc [m/min]
Feed [mm/rev]
Rake [ ° ]
Cutting Speed Vc [m/min]
Carbide
Coated
Carbide
Cermet
PCD
CBN
Carbide
Coated
Carbide
Cermet
PCD
CBN
1-5
Non-alloy steel
and cast steel,
free cutting steel
0.05-0.2 6 60-80 80-120 110-160
6-9
Low alloy and cast
steel (less than 5%
of alloying elements)
0.05-0.2 6 60-80 80-120 110-160
10-11
High alloyed steel,
cast steel and tool
steel and tool steel
0.05-0.2 6 40-60 40-80 40-80
12-13 Stainless steel
and cast steel 0.05-0.2 12 40-60 60-80 60-80
15-16 Grey cast iron (GG) 0.05-0.2 0/6 60-80 80-120
Please
ask
Please
ask
17-18 Nodular cast
iron (GGG) 0.05-0.2 0/6 60-80 80-120
19-20 Malleable cast iron 0.05-0.2 0/6 60-80 80-120
21-22 Aluminum
wrought alloy 0.05-0.2 12 110-200
Please
ask
0.15-0.3 12 150-250
Please
ask
23-25 Aluminum
-cast, alloyed 0.05-0.2 12 180-200 0.15-0.3 12 150-250
26-28 Copper alloys 0.05-0.2 0 80-100
29-30 Non-metallic
H-REAM Cutting Conditions
343
USER GUIDE
REAMERS
Troubleshooting
Problem Cause Solution
Hole too large • Reamer or pilot hole not centered
• Reamer too large
• Cooling / lubrication problems
• Use a floating reamer chuck or correct pilot hole
• Check size of reamer and correct if necessary
• Change lubricant and increase coolant pressure
dnom
Hole too small • Worn reamer
• Reaming allowance too small
• Cooling / lubrication problems
• Replace the reamer
• Increase reaming allowance
• Change lubricant and increase coolant pressure
dnom
Conical hole
(larger bottom)
• Misalignment between pre hole
and reamer centers
• Re-align or use a floating reamer chuck
dnom
Conical hole
(larger entrance)
• Misalignment between pre-hole
and reamer centers
• Material jammed between reamer and
hole in the upper hole section
• Re-align or use a floating reamer chuck
• Secure the tool axially
d
nom
Poor surface finish • Worn reamer
• Misalignment between pre-hole
and reamer centers
• Problems with chip evacuation
• Incorrect cutting parameters
• Built-up edge
• Replace the tool
• Re-align or use a floating reamer chuck
• Increase coolant pressure
• Change cutting parameters
• Change cutting parameters or coolant conditions
ISCAR
344
TAPS
Complete Machining Solutions
TAPS
345
TAPS
TABLE OF CONTENTS
Tap Selection Guide .................................................................................... 346
Tap Designation Code Key ........................................................................ 348
Hand Taps ................................................................................................... 349
Hand Taps “W” .............................................................................................349
Machine Taps .............................................................................................. 350
One Taps ..................................................................................................... 350
Gun Point Taps for Through Hole (TPG) ........................................................ 350
Metric Coarse “M” for Multi-Material Application
Metric Fine “M” for Multi-Material Application
Unified Coarse “M” for Multi-Material Application
Unified Fine “M” for Multi-Material Application
Spiral Flute Taps for Blind Hole (TPS)............................................................353
Metric Coarse “M” for Multi-Material Application
Metric Fine “M” for Multi-Material Application
Unified Coarse “M” for Multi-Material Application
Unified Fine “M” for Multi-Material Application
Colored Taps ............................................................................................... 356
Gun Point Taps for Through Hole (TPG) ........................................................ 356
Metric Coarse “S” for Stainless Steel
Metric Coarse “H” for Hardened Steel and H.T.A
Spiral Flute Taps for Blind Hole (TPS) ..........................................................357
Metric Coarse “S” for Low Alloyed Steel
Metric Coarse “H” for Hardened Steel and H.T.A
Straight Flute Taps (TPST) ...........................................................................359
Metric Coarse “G” for Short Chip Materials
Forming Taps (TPF) .....................................................................................360
Metric Coarse “F” for Any Material with 8~10% Elongation
Tap User Guide ........................................................................................... 361
ISCAR
346
USER GUIDE
TAPS
Tap Selection Guide and Cutting Speed Recommendations
Material No.
Hole Type(4) Tap Color Code(1)
Tool Material(1)
Surface Treatment/Coating(2)
Flute Hand and Angle
Lead According to DIN 2197(3)
1 2 3 4 5 Hole Type(4)
Material Condition Tensile Strength
[N/mm2]Hardness HB Chip Coolant
1
Non-alloy steel
and cast steel,
free cutting steel
< 0.25 %C Annealed 420 125 Ext. Long T
2>= 0.25 %C Annealed 650 190 Medium T
3< 0.55 %C Quench and tempered 850 250 Long T
4>= 0.55 %C Annealed 750 220 Long T
7930 275 Long X
8Quench and tempered 1000 300 Long X
91200 350 Long A
10 Non-alloy steel and cast
steel, free cutting steel
Annealed 680 200 Long X
11 Quench and tempered 1100 325 Long X
12 Stainless steel Ferritic/Martensitis 680 200 Medium A
13 Martensitic 820 240 Long A
14 Stainless steel Austenitic 600 180 Long A
15 Grey cast iron (GG) Ferritic/pearlitic 180 Ext. Short X
16 Pearlitic 260 Ext. Short X
17 Cast iron nodular (GGG) Ferritic 160 Short X
18 Pearlitic 250 Ext. Short X
19 Malleable cast iron Ferritic 130 Short X
20 Pearlitic 230 Short X
21 Aluminum-wrought alloy Not cureable 60 Medium T
22 Cured 100 Medium T
23 Aluminum-
cast, alloyed
<=12% Si Not cureable 75 Short T
24 Cured 90 Short T
25 >12% Si High temp. 130 Short T
26
Copper alloys
>1% Pb Free cutting 110 Med/Short T
27 Brass 90 Long T
28 Electrolitic copper 100 Long T
29 Non-metalic Duroplastics, fiber plastics Short Z
31 High temp. alloys Fe based Annealed 200 Long A
32 Cured 280 Long A
33
Super alloys Ni or Co based
Annealed 250 Long A
34 Cured 350 Long A
35 Cast 250 Long A
36 Titanium and Ti alloys Alpha+beta alloys cured 400 Med/Short A
37 1050 Med/Short A
(1) See page 348
(2) See page 362
(3) See page 363
(4) See page 363
Coolant
A - Cutting oil
T - Oil emulsion
X - Oil or emulsion
Z - Dry or emulsion
347
USER GUIDE
TAPS
W(1) M M M M M M SH N H G F
HSS HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E
- - TI ST - TI ST ST -ST ST NI TI
- - - - R40° R40° R40° - - R40° R40° - -
1\2\3 B B B C C C B B C C C C
1-2-3-4-5 4-5 4-5 4-5 1-2-3 1-2-3 1-2-3 4-5 4-5 1-2-3 1-2-3 1-2-3-4-5 1-2-3-4-5
m/min m/min m/min m/min m/min m/min m/min m/min m/min m/min m/min m/min m/min
•10-25 •• 15-45 •8-25 •• 20-25 •• 15-45 •8-25 •• 20-25 •• 8-25 •20-25 •• 20-60
•10-20 •• 12-40 •10-35 •• 15-20 •• 12-40 •10-35 •• 15-20 •• 10-35 •• 15-20 •• 20-60
•12-18 •• 15-25 •6-12 •• 12-18 •• 15-25 •6-12 •• 12-18 •• 12-18 •• 17-55
•12-18 •• 15-40 •6-20 •• 12-18 •• 15-40 •6-20 •• 12-18 •• 12-18 •• 17-55
•10-15 •• 5-25 •4-10 •• 10-15 •• 5-25 •4-10 •• 10-15 •• 10-15 ••
•6-10 •• 5-25 •4-10 •• 6-10 •• 5-25 •4-10 •• 6-10 •• 6-10 ••
•3-5 •• 5-20 •3-5 •• 3-5 •• 5-20 •3-5 •• 3-5 •• 3-5 ••
•10-15 •• 20-30 •7-12 •• 10-15 •• 20-30 •7-12 •• 10-15 •• 10-15 •• 10-30
•7-13 •• 12-25 •5-10 •• 7-13 •• 12-25 •5-10 •• 7-13 •• 7-13 ••
•5-9 •• 8-18 •1-5 •5-9 •• 2-10 •1-5 •2-10 •5-9 •• 7-15
•4-6 •• 8-15 •1-5 •4-6 •• 2-10 •1-5 •2-10 •4-6 ••
•5-9 •• 8-15 •1-4 •5-9 •• 2-10 •1-4 •2-10 •5-9 ••
•10-15 •• 15-45 •• 13-20 •10-15 •• 15-45 •• 13-20 •10-15 •• 10-30 •
•8-12 •• 10-40 •• 21-31 •8-12 •• 10-40 •• 21-31 •8-12 •• 10-30 •
•8-12 •10-25 •• 21-31 •8-12 •10-25 •21-31 •8-12 •• 10-40 •
•8-12 •• 10-20 •• 21-31 •8-12 •• 10-20 •• 21-31 •8-12 •• 10-35 •
•10-15 •15-45 •• 13-20 •10-15 •• 15-45 •• 13-20 •10-15 •• 10-45 •
•10-15 •10-40 •• 13-20 •10-15 •• 10-40 •• 13-20 •10-15 •• 10-40 •
•25-35 •50-70 •12-25 •• 25-35 •30-60 •12-25 •• 12-25 •• 25-35 ••
•25-35 •50-70 •12-25 •• 25-35 •30-60 •12-25 •• 12-25 •• 25-35 ••
•10-15 •10-40 •10-25 •• 10-15 •15-40 •10-25 •• 10-25 •• 10-15 ••
•10-15 •10-40 •10-25 •• 10-15 •15-40 •10-25 •• 10-25 •• 10-15 ••
•10-15 •10-30 •10-20 •• 10-15 •15-30 •10-20 •• 10-20 •• 10-15 ••
•25-35 •50-70 •20-40 •• 25-35 •30-65 •20-40 •• 20-40 •• 25-35 •• 17-40
•15-20 •5-60 •13-30 •• 15-20 •20-45 •13-30 •• 13-30 •• 15-20 •• 20-60
•15-20 •5-25 •10-17 •• 15-20 •15-30 •10-17 •• 10-17 •• 15-20 •• 20-60
•6-10 •5-25 •6-13 •• 6-10 •10-20 •6-13 •• 6-13 •• 6-10 ••
•2-4 •• 4-8 •2-4 •3-7 •• 2-4 2-4 •
•2-4 •• 4-8 •2-4 3-7 •• 2-4 2-4 •
•2-4 •• 4-8 •2-4 3-7 •• 2-4 2-4 •
•2-4 •• 4-8 •2-4 3-7 •• 2-4 2-4 •
•2-4 •• 4-8 •2-4 3-7 •• 2-4 2-4 •
•6-10 •• 6-10 •• 6-10 6-10 •
•6-10 •6-10 •• 6-10 6-10 •
• Recommended
•• Suitable
(1) Hand Tap
ISCAR
348
USER GUIDE
TAPS

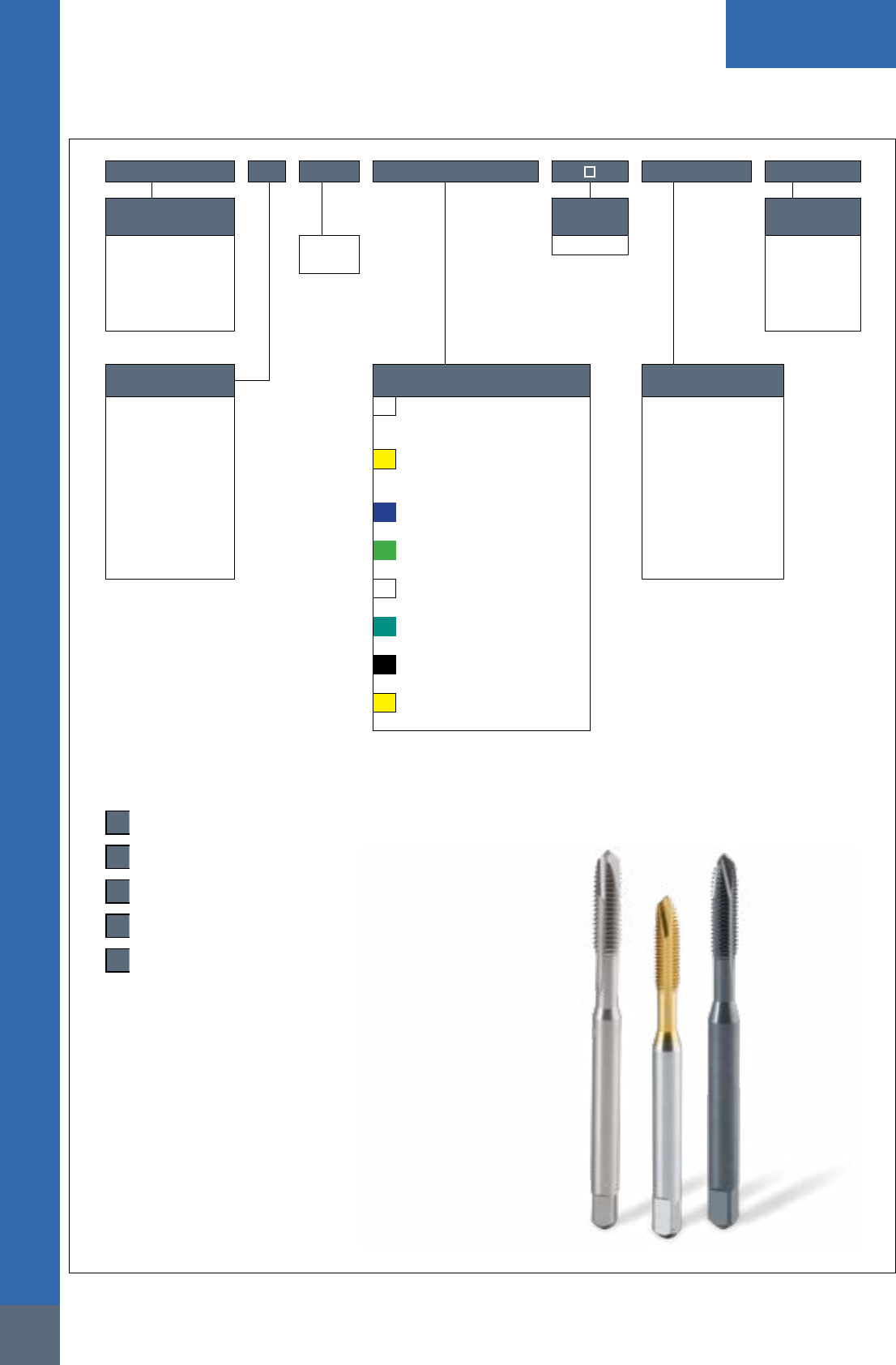

Tap Designation Code Key
TPG UNC 1/4-20 M HE Ti
Tap Style B - Bore
for Coolant
Coating
Types*
TPH - Hand Tap D- TPI (on request) Ni - Nitriding
TPF - Forming Tap D- Pitch Ti - TiN
TPG - Gun Point TC - TiCN
TPS - Spiral Flute TA - TiAlN
TPST - Straight Flute St - Black Oxide
* On request
Thread Standard Tap Color Codes(1) Tap Materials
M - ISO Metric
Coars Thread
DIN-13
M - Multi-Material Application HS - H.S.S. (M2)
MF - ISO Metric
Fine Thread
DIN-13
W - Steel with Good Machinability
Rm<750 N/mm2
HE - H.S.S- E 5% Co.
HSS (M35)
UNF - Unfied Fine
Thread
S- Stainless Steel PM - Compacted Powder
UNC - Unfied Coarse
Thread
H- Hardened Steel and High Temp./
Super Alloys Rm>750 N/mm2
HM - Solid Carbide
G - Grey Cast Iron
N - Low Alloy Steel Rm<600 N/mm2
A- Aluminum and Aluminum Alloys
F - Any Material with at least
8~10% Elongation
(1) The tools have a matching colored
ring around the shank
Chamfer Lead According to DIN2197 (specified for each tool family)
AForm A (Chamfer Lead 5-6 Threads)
BForm B (with Gun-Nose and Chamfer Lead 4-5 Threads)
CForm C (Chamfer Lead 2-3 Threads)
DForm D (Chamfer Lead 4-5 Threads)
EForm E (Chamfer Lead 1.5-2 Threads)
349
TAPS

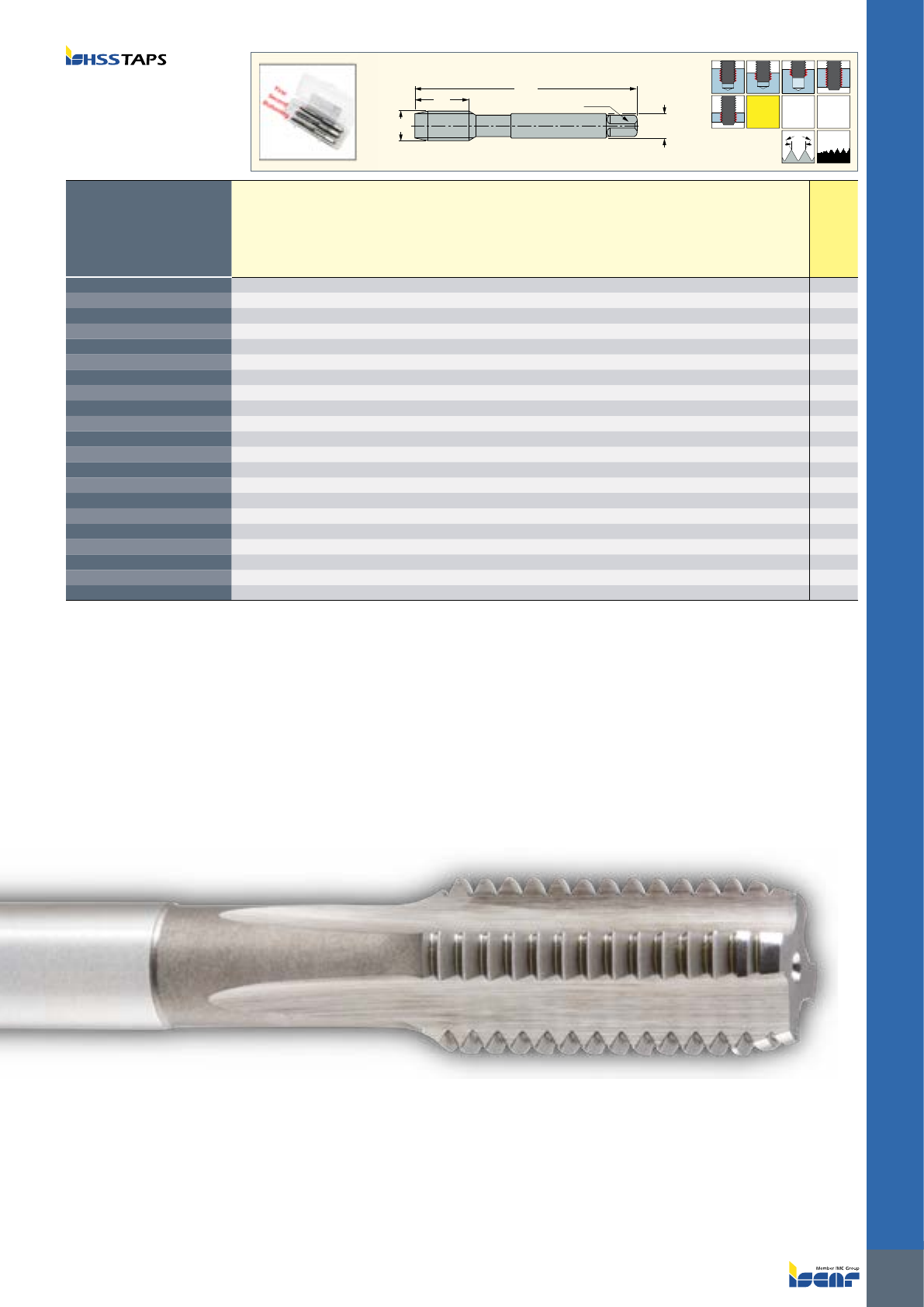

DRVS
TDZ DCONMS
OAL
THL
WHSS 6H
60˚
P
I/II/III
Dimensions
Designation
TDZ TP(2) OAL THL DCONMS NOF(3) DRVS(4) Pre-hole Standard
HS
TPH M-2X0.4-W
M2 0.400 36.00 8.0 2.80 3 2.10 1.60 DIN 352
•
TPH M-2.2X0.45-W
M2.2 0.450 36.00 9.0 2.80 3 2.10 1.75 DIN 352
•
TPH M-2.5X0.45-W
M2.5 0.450 40.00 9.0 2.80 3 2.10 2.05 DIN 352
•
TPH M-2.6X0.45-W (1)
M2.6 0.450 40.00 9.0 2.80 3 2.10 2.10 DIN 352
•
TPH M-3X0.5-W
M3 0.500 40.00 11.0 3.50 3 2.70 2.50 DIN 352
•
TPH M-3.5X0.6-W
M3.5 0.600 45.00 13.0 4.00 3 3.00 2.90 DIN 352
•
TPH M-4X0.7-W
M4 0.700 45.00 13.0 4.50 3 3.40 3.30 DIN 352
•
TPH M-4.5X0.75-W
M4.5 0.750 50.00 16.0 6.00 3 4.90 3.70 DIN 352
•
TPH M-5X0.8-W
M5 0.800 52.00 16.0 6.00 3 4.90 4.20 DIN 352
•
TPH M-5.5X0.9-W
M5.5 0.900 56.00 18.0 6.00 3 4.90 4.60 DIN 352
•
TPH M-6X1.0-W
M6 1.000 56.00 18.0 6.00 3 4.90 5.00 DIN 352
•
TPH M-7X1.0-W
M7 1.000 56.00 18.0 6.00 3 4.90 6.00 DIN 352
•
TPH M-8X1.25-W
M8 1.250 63.00 20.0 6.00 3 4.90 6.80 DIN 352
•
TPH M-9X1.25-W
M9 1.250 63.00 20.0 7.00 4 5.50 7.80 DIN 352
•
TPH M-10X1.5-W
M10 1.500 70.00 22.0 7.00 4 5.50 8.50 DIN 352
•
TPH M-11X1.5-W
M11 1.500 70.00 22.0 8.00 4 6.20 9.50 DIN 352
•
TPH M-12X1.75-W
M12 1.750 80.00 24.0 9.00 4 7.00 10.20 DIN 352
•
TPH M-14X2.0-W
M14 2.000 80.00 26.0 11.00 4 9.00 12.00 DIN 352
•
TPH M-16X2.0-W
M16 2.000 80.00 27.0 12.00 4 9.00 14.00 DIN 352
•
TPH M-18X2.5-W
M18 2.500 95.00 30.0 14.00 4 11.00 15.50 DIN 352
•
TPH M-20X2.5-W
M20 2.500 95.00 32.0 16.00 4 12.00 17.50 DIN 352
•
• NOTE: Each set contains 2 or 3 taps • For user guide and cutting conditions, see pages 346-348, 361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size
TPH M-W (HSS)
DIN 13 HSS Hand Tap Set for
ISO Metric Coarse Threads
ISCAR
350

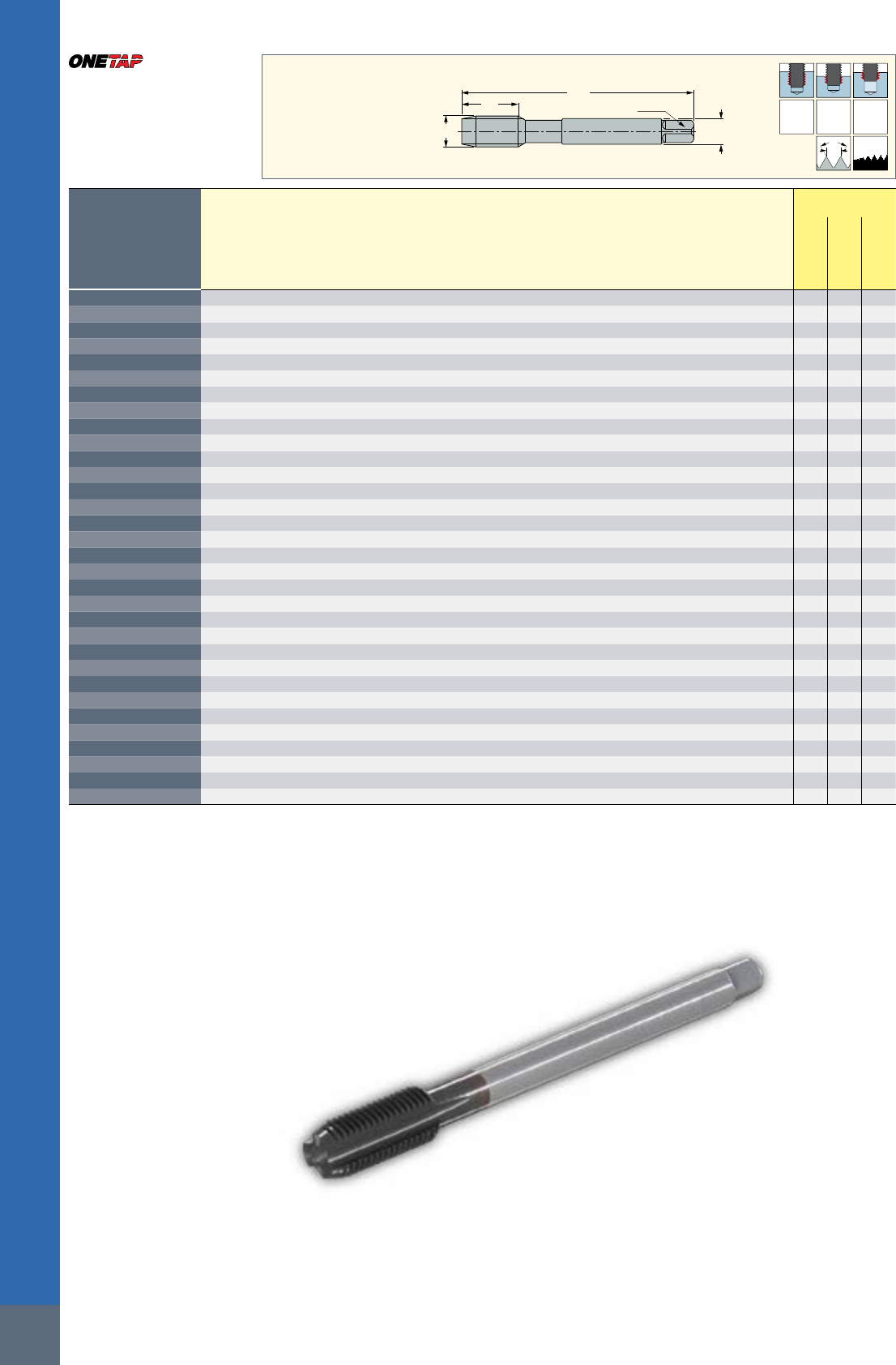

TAPS

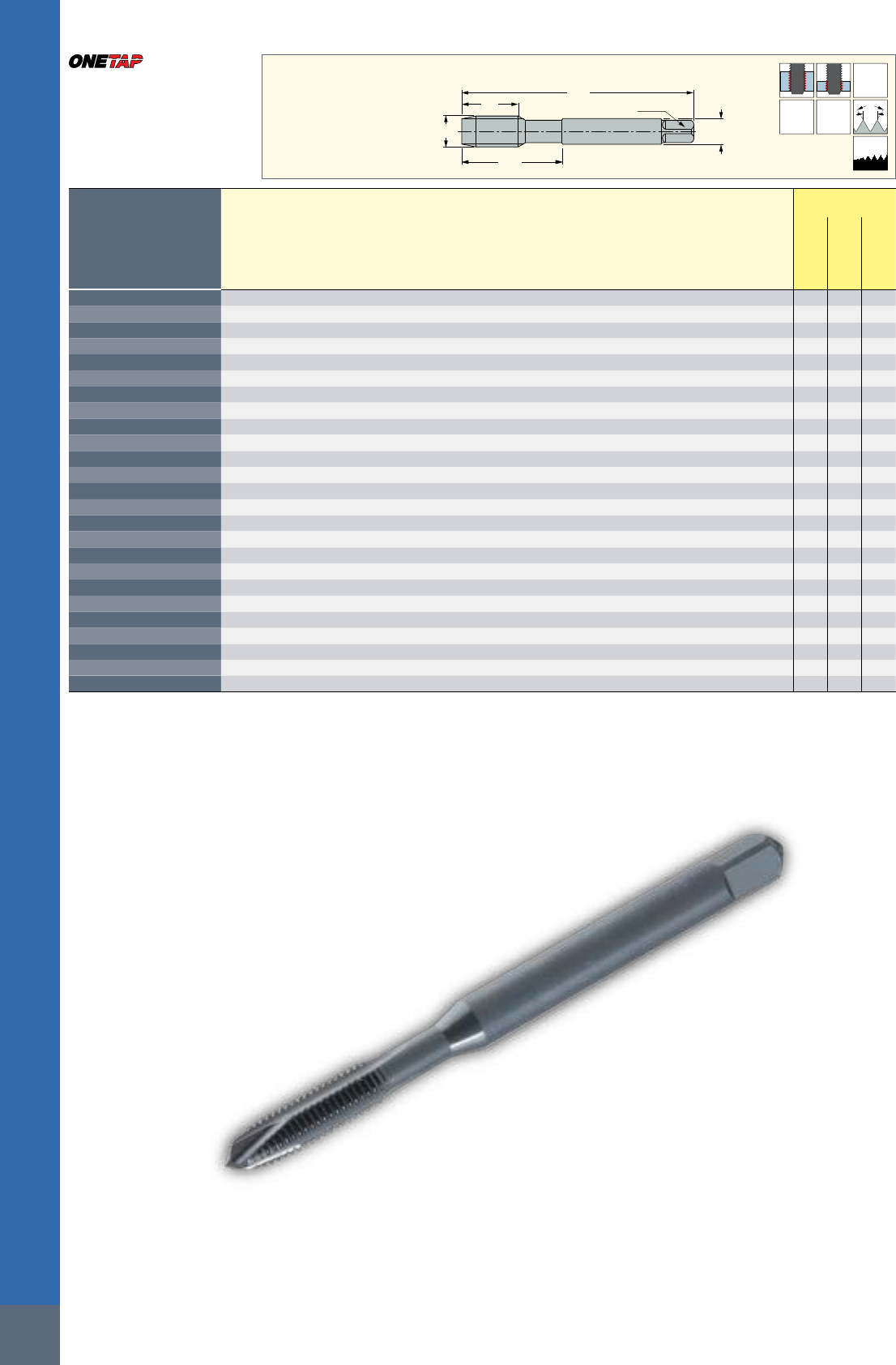

DRVS
TDZ DCONMS
OAL
THL
LU
M
HSS-E 6H
60˚
P
B
Dimensions Tough
1
Hard
Designation
TDZ TP(1) OAL THL LU DCONMS NOF(2) DRVS(3) Pre-hole Standard
HE
HEST
HETI
TPG M-2X0.4-M
M2 0.400 45.00 8.0 13.0 2.80 3 2.10 1.60 DIN 371
• • •
TPG M-2.2X0.45-M
M2.2 0.450 45.00 8.0 13.0 2.80 3 2.10 1.75 DIN 371
• • •
TPG M-2.3X0.4-M
M2.3 0.400 45.00 8.0 13.0 2.80 3 2.10 1.90 DIN 371
• • •
TPG M-2.5X0.45-M
M2.5 0.450 50.00 9.0 15.0 2.80 3 2.10 2.05 DIN 371
• • •
TPG M-2.6X0.45-M
M2.6 0.450 50.00 9.0 15.0 2.80 3 2.10 2.10 DIN 371
• • •
TPG M-3X0.5-M
M3 0.500 56.00 11.0 18.0 3.50 3 2.70 2.50 DIN 371
• • •
TPG M-3.5X0.6-M
M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90 DIN 371
• • •
TPG M-4X0.7-M
M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30 DIN 371
• • •
TPG M-4.5X0.75-M
M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70 DIN 371
• • •
TPG M-5X0.8-M
M5 0.800 70.00 15.0 25.0 6.00 3 4.90 4.20 DIN 371
• • •
TPG M-6X1.0-M
M6 1.000 80.00 17.0 30.0 6.00 3 4.90 5.00 DIN 371
• • •
TPG M-7X1.0-M
M7 1.000 80.00 17.0 30.0 7.00 3 5.50 6.00 DIN 371
• • •
TPG M-8X1.25-M
M8 1.250 90.00 20.0 35.0 8.00 3 6.20 6.80 DIN 371
• • •
TPG M-9X1.25-M
M9 1.250 90.00 20.0 35.0 9.00 3 7.00 7.80 DIN 371
• • •
TPG M-10X1.5-M
M10 1.500 100.00 22.0 39.0 10.00 3 8.00 8.50 DIN 371
• • •
TPG M-11X1.5-M
M11 1.500 100.00 22.0 - 8.00 3 6.20 9.50 DIN 376
• • •
TPG M-12X1.75-M
M12 1.750 110.00 24.0 - 9.00 3 7.00 10.20 DIN 376
• • •
TPG M-14X2.0-M
M14 2.000 110.00 26.0 - 11.00 3 9.00 12.00 DIN 376
• • •
TPG M-16X2.0-M
M16 2.000 110.00 27.0 - 12.00 3 9.00 14.00 DIN 376
• • •
TPG M-18X2.5-M
M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50 DIN 376
• • •
TPG M-20X2.5-M
M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50 DIN 376
• • •
TPG M-22X2.5-M
M22 2.500 140.00 32.0 - 18.00 4 14.50 19.50 DIN 376
• • •
TPG M-24X3.0-M
M24 3.000 160.00 34.0 - 18.00 4 14.50 21.00 DIN 376
• • •
TPG M-27X3.0-M
M27 3.000 160.00 36.0 - 20.00 4 16.00 24.00 DIN 376
• • •
TPG M-30X3.5-M
M30 3.500 180.00 40.0 - 22.00 4 18.00 26.50 DIN 376
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPG M (HSS)
DIN 13 HSS Gun Point
Machine Taps for ISO Metric
Coarse Threads for a Wide
Range of Materials
351
TAPS
DRVS
TDZ DCONMS
OAL
THL
M
HSS-E 6H
60˚
P
B
Dimensions Tough
1
Hard
Designation
TDZ TP(1) OAL THL DCONMS NOF(2) DRVS(3) Pre-hole Standard
HE
HEST
HETI
TPG MF-4X0.5-M
M4 0.500 63.00 10.0 2.80 3 2.10 3.50 DIN 374
• • •
TPG MF-5X0.5-M
M5 0.500 70.00 11.0 3.50 3 2.70 4.50 DIN 374
• • •
TPG MF-6X0.75-M
M6 0.750 80.00 13.0 4.50 3 3.40 5.20 DIN 374
• • •
TPG MF-6X0.5-M
M6 0.500 80.00 13.0 4.50 3 3.40 5.50 DIN 374
• • •
TPG MF-7X0.75-M
M7 0.750 80.00 14.0 5.50 3 4.30 6.20 DIN 374
• • •
TPG MF-8X1.0-M
M8 1.000 90.00 17.0 6.00 3 4.90 7.00 DIN 374
• • •
TPG MF-8X0.75-M
M8 0.750 80.00 14.0 6.00 3 4.90 7.20 DIN 374
• • •
TPG MF-10X1.25-M
M10 1.250 100.00 22.0 7.00 3 5.50 8.80 DIN 374
• • •
TPG MF-10X1.0-M
M10 1.000 90.00 18.0 7.00 3 5.50 9.00 DIN 374
• • •
TPG MF-10X0.75-M
M10 0.750 90.00 18.0 7.00 3 5.50 9.20 DIN 374
• • •
TPG MF-12X1.5-M
M12 1.500 100.00 22.0 9.00 3 7.00 10.50 DIN 374
• • •
TPG MF-12X1.25-M
M12 1.250 100.00 22.0 9.00 3 7.00 10.80 DIN 374
• • •
TPG MF-12X1.0-M
M12 1.000 100.00 18.0 9.00 3 7.00 11.00 DIN 374
• • •
TPG MF-14X1.5-M
M14 1.500 100.00 22.0 11.00 3 9.00 12.50 DIN 374
• • •
TPG MF-14X1.25-M
M14 1.250 100.00 22.0 11.00 3 9.00 12.80 DIN 374
• • •
TPG MF-14X1.0-M
M14 1.000 100.00 18.0 11.00 3 9.00 13.00 DIN 374
• • •
TPG MF-16X1.5-M
M16 1.500 100.00 22.0 12.00 3 9.00 14.50 DIN 374
• •
TPG MF-16X1.0-M
M16 1.000 100.00 18.0 12.00 3 9.00 15.00 DIN 374
• • •
TPG MF-18X1.5-M
M18 1.500 110.00 25.0 14.00 4 11.00 16.50 DIN 374
• • •
TPG MF-18X1.0-M
M18 1.000 110.00 20.0 14.00 4 11.00 17.00 DIN 374
• • •
TPG MF-20X1.5-M
M20 1.500 125.00 25.0 16.00 4 12.00 18.50 DIN 374
• •
TPG MF-20X1.0-M
M20 1.000 125.00 20.0 16.00 4 12.00 19.00 DIN 374
• • •
TPG MF-22X1.5-M
M22 1.500 125.00 25.0 18.00 4 14.50 20.50 DIN 374
• • •
TPG MF-22X1.0-M
M22 1.000 125.00 20.0 18.00 4 14.50 21.00 DIN 374
• • •
TPG MF-24X2.0-M
M24 2.000 140.00 27.0 18.00 4 14.50 22.00 DIN 374
• • •
TPG MF-24X1.5-M
M24 1.500 140.00 27.0 18.00 4 14.50 22.50 DIN 374
• • •
TPG MF-26X1.5-M
M26 1.500 140.00 28.0 18.00 4 14.50 24.50 DIN 374
• • •
TPG MF-27X2.0-M
M27 2.000 140.00 28.0 20.00 4 16.00 25.00 DIN 374
• • •
TPG MF-27X1.5-M
M27 1.500 140.00 28.0 20.00 4 16.00 25.50 DIN 374
• • •
TPG MF-28X1.5-M
M28 1.500 140.00 28.0 20.00 4 16.00 26.50 DIN 374
• • •
TPG MF-30X2.0-M
M30 2.000 150.00 30.0 22.00 4 18.00 28.00 DIN 374
• • •
TPG MF-30X1.5-M
M30 1.500 150.00 30.0 22.00 4 18.00 28.50 DIN 374
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPG MF (HSS)
DIN 13 HSS Gun Point Machine
Taps for ISO Metric Fine Threads
for a Wide Range of Materials
ISCAR
352
TAPS

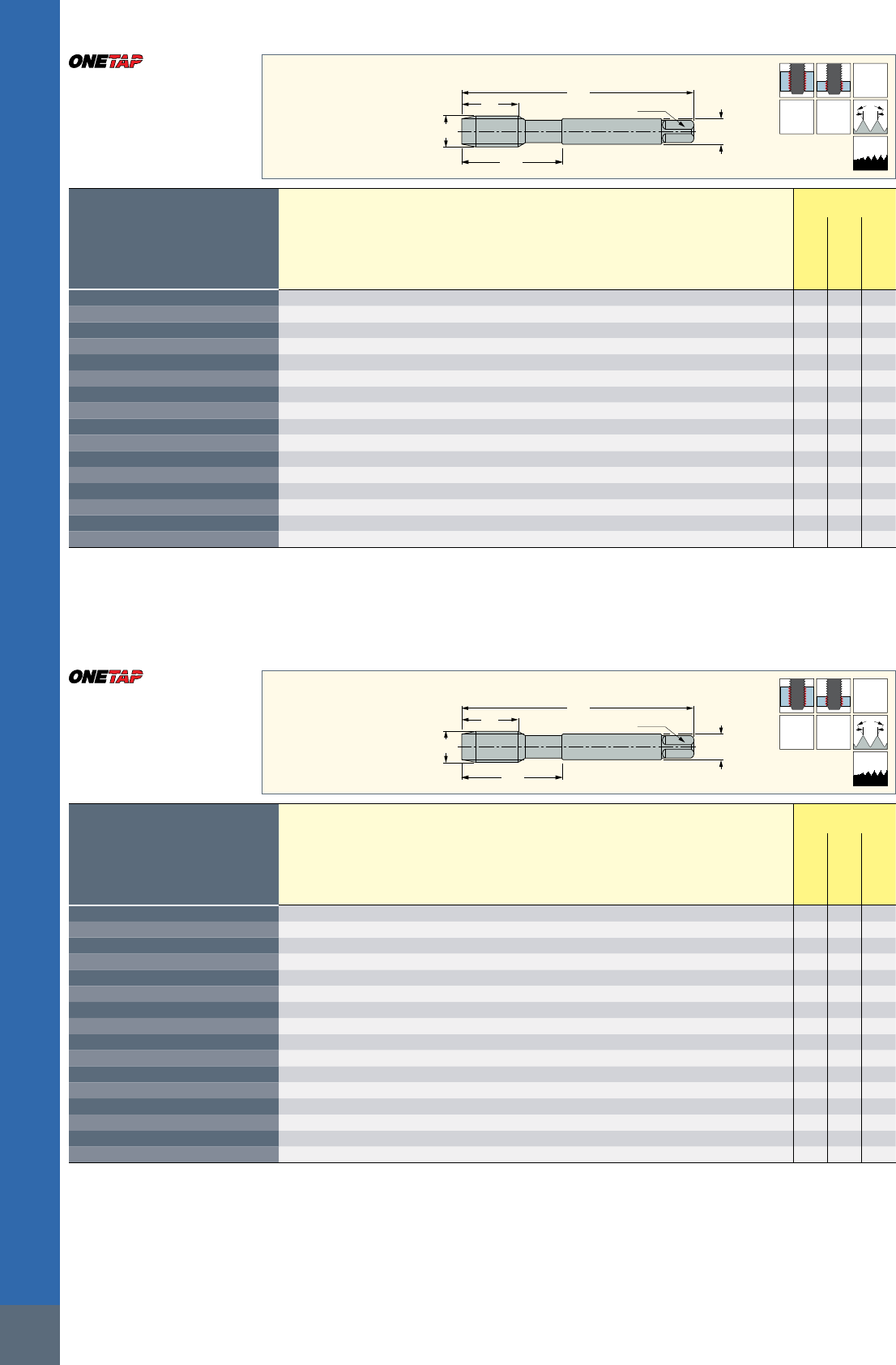

DRVS
TDZ DCONMS
OAL
THL
LU
M
HSS-E 2B
60˚
P
B
Dimensions Tough
1
Hard
Designation
TDZ TPI(1) OAL THL LU DCONMS NOF(2) DRVS(3)
Pre-
hole Standard
HE
HEST
HETI
TPG UNC-#4-40-M
#4 40.0 56.00 11.0 18.0 3.50 3 2.70 2.30 DIN 371
• • •
TPG UNC-#5-40-M
#5 40.0 56.00 11.0 18.0 3.50 3 2.70 2.60 DIN 371
• • •
TPG UNC-#6-32-M
#6 32.0 56.00 12.0 20.0 4.00 3 3.00 2.85 DIN 371
• • •
TPG UNC-#8-32-M
#8 32.0 63.00 13.0 21.0 4.50 3 3.40 3.50 DIN 371
• •
TPG UNC-#10-24-M
#10 24.0 70.00 15.0 25.0 6.00 3 4.90 3.90 DIN 371
• • •
TPG UNC-#12-24-M
#12 24.0 80.00 16.0 30.0 6.00 3 4.90 4.50 DIN 371
• • •
TPG UNC-1/4-20-M
1/4" 20.0 80.00 17.0 30.0 7.00 3 5.50 5.20 DIN 371
• • •
TPG UNC-5/16-18-M
5/16" 18.0 90.00 20.0 35.0 8.00 3 6.20 6.60 DIN 371
• • •
TPG UNC-3/8-16-M
3/8" 16.0 100.00 22.0 39.0 9.00 3 7.00 8.00 DIN 371
• • •
TPG UNC-7/16-14-M
7/16" 14.0 100.00 22.0 - 8.00 3 6.20 9.40 DIN 376
• • •
TPG UNC-1/2-13-M
1/2" 13.0 110.00 25.0 - 9.00 3 7.00 10.75 DIN 376
• • •
TPG UNC-9/16-12-M
9/16" 12.0 110.00 26.0 - 11.00 3 9.00 12.25 DIN 376
• • •
TPG UNC-5/8-11-M
5/8" 11.0 110.00 27.0 - 12.00 3 9.00 13.50 DIN 376
• • •
TPG UNC-3/4-10-M
3/4" 10.0 125.00 30.0 - 14.00 4 11.00 16.50 DIN 376
• • •
TPG UNC-7/8-9-M
7/8" 9.0 140.00 32.0 - 18.00 4 14.50 19.50 DIN 376
• • •
TPG UNC-1-8-M
1" 8.0 160.00 36.0 - 20.00 4 16.00 22.25 DIN 376
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Threads per inch
(2) Number of flutes
(3) Torque key size
TPG UNC (HSS)
HSS Gun Point Machine Taps
for Unified Coarse Threads for
a Wide Range of Materials
DRVS
TDZ DCONMS
OAL
THL
LU
M
HSS-E 2B
60˚
P
B
Dimensions Tough
1
Hard
Designation
TDZ TPI(1) OAL THL LU DCONMS NOF(2) DRVS(3)
Pre-
hole Standard
HE
HEST
HETI
TPG UNF-#4-48-M
#4 48.0 56.00 11.0 18.0 3.50 3 2.70 2.40 DIN 371
• • •
TPG UNF-#5-44-M
#5 44.0 56.00 11.0 18.0 3.50 3 2.70 2.70 DIN 371
• • •
TPG UNF-#6-40-M
#6 40.0 56.00 12.0 20.0 4.00 3 3.00 3.00 DIN 371
• • •
TPG UNF-#8-36-M
#8 36.0 63.00 13.0 21.0 4.50 3 3.40 3.50 DIN 371
• • •
TPG UNF-#10-32-M
#10 32.0 70.00 15.0 25.0 6.00 3 4.90 4.10 DIN 371
• • •
TPG UNF-#12-28-M
#12 28.0 80.00 16.0 30.0 6.00 3 4.90 4.70 DIN 371
• • •
TPG UNF-1/4-28-M
1/4" 28.0 80.00 17.0 30.0 7.00 3 5.50 5.50 DIN 371
• • •
TPG UNF-5/16-24-M
5/16" 24.0 90.00 17.0 35.0 8.00 3 6.20 6.90 DIN 371
• • •
TPG UNF-3/8-24-M
3/8" 24.0 100.00 18.0 39.0 9.00 3 7.00 8.50 DIN 371
• • •
TPG UNF-7/16-20-M
7/16" 20.0 100.00 22.0 - 8.00 3 6.20 9.90 DIN 374
• • •
TPG UNF-1/2-20-M
1/2" 20.0 100.00 22.0 - 9.00 3 7.00 11.50 DIN 374
• • •
TPG UNF-9/16-18-M
9/16" 18.0 100.00 22.0 - 11.00 3 9.00 12.90 DIN 374
• • •
TPG UNF-5/8-18-M
5/8" 18.0 100.00 22.0 - 12.00 3 9.00 14.50 DIN 374
• • •
TPG UNF-3/4-16-M
3/4" 16.0 110.00 25.0 - 14.00 4 11.00 17.50 DIN 374
• • •
TPG UNF-7/8-14-M
7/8" 14.0 125.00 26.0 - 18.00 4 14.50 20.50 DIN 374
• • •
TPG UNF-1-12-M
1" 12.0 140.00 28.0 - 20.00 4 16.00 23.25 DIN 374
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Threads per inch
(2) Number of flutes
(3) Torque key size
TPG UNF (HSS)
HSS Gun Point Machine Taps
for Unified Fine Threads for
a Wide Range of Materials
353
TAPS

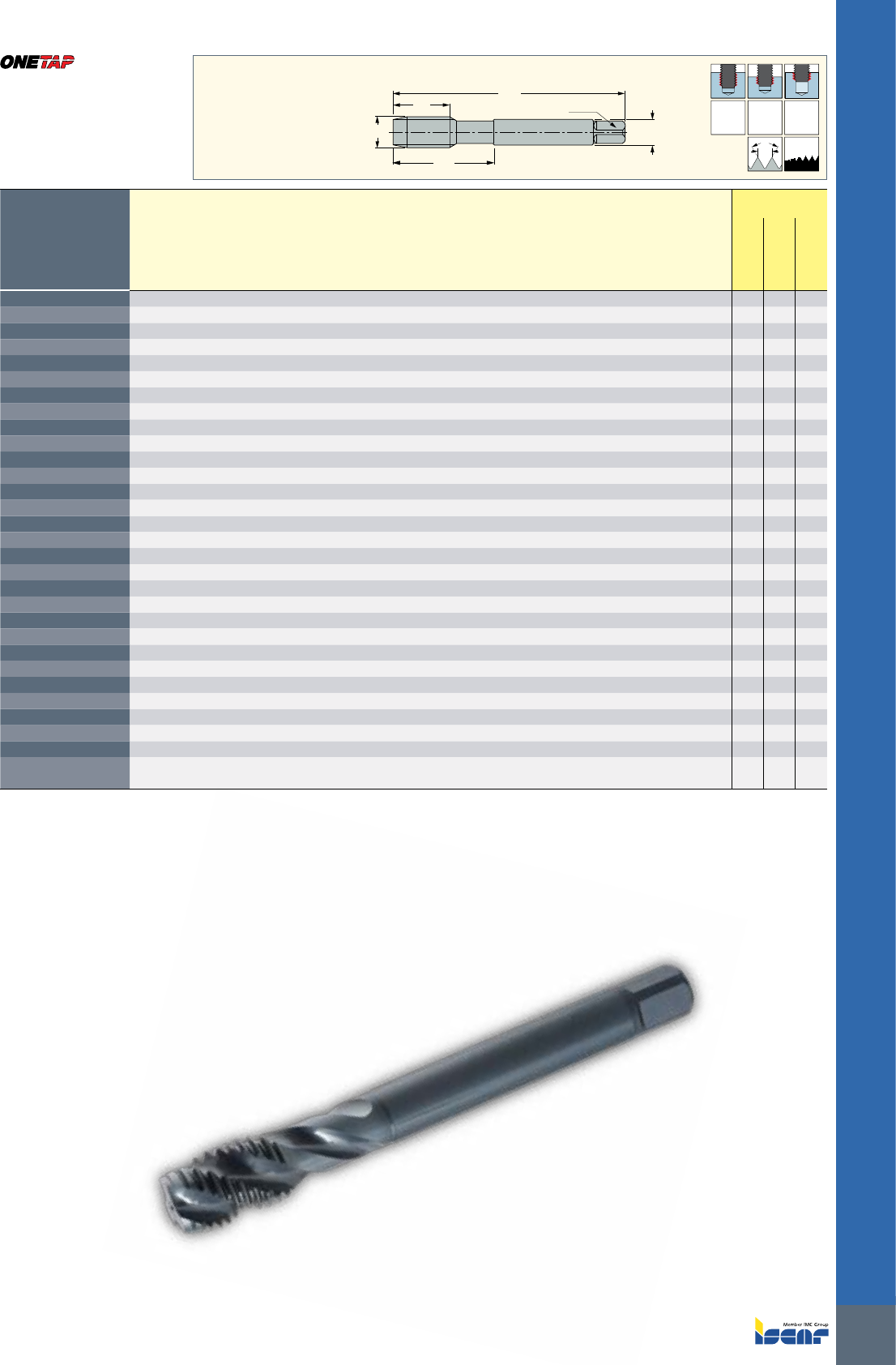

DRVS
TDZ DCONMS
OAL
THL
LU
MHSS-E 6H
60˚
P
C
Dimensions Tough
1
Hard
Designation
TDZ TP(1) OAL THL LU DCONMS NOF(2) DRVS(3)
Pre-
hole Standard CSP(4)
HE
HEST
HETI
TPS M-2X0.4-M
M2 0.400 45.00 8.0 13.0 2.80 3 2.10 1.60 DIN 371 0
• • •
TPS M-2.2X0.45-M
M2.2 0.450 45.00 8.0 13.0 2.80 3 2.10 1.75 DIN 371 0
• • •
TPS M-2.3X0.4-M
M2.3 0.400 45.00 8.0 13.0 2.80 3 2.10 1.90 DIN 371 0
• • •
TPS M-2.5X0.45-M
M2.5 0.450 50.00 9.0 15.0 2.80 3 2.10 2.05 DIN 371 0
• • •
TPS M-2.6X0.45-M
M2.6 0.450 50.00 9.0 15.0 2.80 3 2.10 2.10 DIN 371 0
• • •
TPS M-3X0.5-M
M3 0.500 56.00 6.0 18.0 3.50 3 2.70 2.50 DIN 371 0
• • •
TPS M-3.5X0.6-M
M3.5 0.600 56.00 7.0 20.0 4.00 3 3.00 2.90 DIN 371 0
• • •
TPS M-4X0.7-M
M4 0.700 63.00 7.0 21.0 4.50 3 3.40 3.30 DIN 371 0
• • •
TPS M-4.5X0.75-M
M4.5 0.750 70.00 8.0 25.0 6.00 3 4.90 3.70 DIN 371 0
• • •
TPS M-5X0.8-M
M5 0.800 70.00 8.0 25.0 6.00 3 4.90 4.20 DIN 371 0
• • •
TPS M-6X1.0-M
M6 1.000 80.00 10.0 30.0 6.00 3 4.90 5.00 DIN 371 0
• • •
TPS M-7X1.0-M
M7 1.000 80.00 10.0 30.0 7.00 3 5.50 6.00 DIN 371 0
• • •
TPS M-8X1.25-M
M8 1.250 90.00 13.0 35.0 8.00 3 6.20 6.80 DIN 371 0
• • •
TPS M-9X1.25-M
M9 1.250 90.00 13.0 35.0 9.00 3 7.00 7.80 DIN 371 0
• • •
TPS M-10X1.5-M
M10 1.500 100.00 15.0 39.0 10.00 3 8.00 8.50 DIN 371 0
• • •
TPS M-11X1.5-M
M11 1.500 100.00 17.0 - 8.00 3 6.20 9.50 DIN 376 0
• • •
TPS M-12X1.75-M
M12 1.750 110.00 18.0 - 9.00 3 7.00 10.20 DIN 376 0
• • •
TPS M-14X2.0-M
M14 2.000 110.00 20.0 - 11.00 3 9.00 12.00 DIN 376 0
• • •
TPS M-16X2.0-M
M16 2.000 110.00 20.0 - 12.00 3 9.00 14.00 DIN 376 0
• • •
TPS M-16X2.0-M-B
M16 2.000 110.00 20.0 - 12.00 3 9.00 14.00 DIN 376 1
•
TPS M-18X2.5-M
M18 2.500 125.00 25.0 - 14.00 4 11.00 15.50 DIN 376 0
• • •
TPS M-18X2.5-M-B
M18 2.500 125.00 25.0 - 14.00 4 11.00 15.50 DIN 376 1
•
TPS M-20X2.5-M
M20 2.500 140.00 25.0 - 16.00 4 12.00 17.50 DIN 376 0
• • •
TPS M-20X2.5-M-B
M20 2.500 140.00 25.0 - 16.00 4 12.00 17.50 DIN 376 1
•
TPS M-22X2.5-M
M22 2.500 140.00 25.0 - 18.00 4 14.50 19.50 DIN 376 0
• • •
TPS M-22X2.5-M-B
M22 2.500 140.00 25.0 - 18.00 4 14.50 19.50 DIN 376 1
•
TPS M-24X3.0-M
M24 3.000 160.00 30.0 - 18.00 4 14.50 21.00 DIN 376 0
• • •
TPS M-24X3.0-M-B
M24 3.000 160.00 30.0 - 18.00 4 14.50 21.00 DIN 376 1
•
TPS M-27X3.0-M
M27 3.000 160.00 30.0 - 20.00 4 16.00 24.00 DIN 376 0
• • •
TPS M-30X3.5-M
M30 3.500 180.00 35.0 - 22.00 4 18.00 26.50 DIN 376 0
• • •
TPS M-30X3.5-M-B
M30 3.500 180.00 35.0 - 22.00 4 18.00 26.50 DIN 376 1
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
(4) 0 - Without coolant supply, 1 - With coolant supply
TPS M (HSS)
DIN 13 HSS Spiral Flute Machine
Taps for Metric Coarse Threads
for a Wide Range of Materials
ISCAR
354
TAPS
DRVS
TDZ DCONMS
OAL
THL
MHSS-E 6H
60˚
P
C
Dimensions Tough
1
Hard
Designation
TDZ TP(1) OAL THL DCONMS NOF(2) DRVS(3) Pre-hole Standard
HE
HEST
HETI
TPS MF-4X0.5-M
M4 0.500 63.00 5.0 2.80 3 2.10 3.50 DIN 374
• • •
TPS MF-5X0.5-M
M5 0.500 70.00 5.0 3.50 3 2.70 4.50 DIN 374
• • •
TPS MF-6X0.75-M
M6 0.750 80.00 8.0 4.50 3 3.40 5.20 DIN 374
• • •
TPS MF-6X0.5-M
M6 0.500 80.00 5.0 4.50 3 3.40 5.50 DIN 374
• • •
TPS MF-7X0.75-M
M7 0.750 80.00 10.0 5.50 3 4.30 6.20 DIN 374
• • •
TPS MF-8X1.0-M
M8 1.000 90.00 10.0 6.00 3 4.90 7.00 DIN 374
• • •
TPS MF-8X0.75-M
M8 0.750 80.00 8.0 6.00 3 4.90 7.20 DIN 374
• • •
TPS MF-10X1.25-M
M10 1.250 100.00 16.0 7.00 3 5.50 8.80 DIN 374
• • •
TPS MF-10X1.0-M
M10 1.000 90.00 10.0 7.00 3 5.50 9.00 DIN 374
• • •
TPS MF-10X0.75-M
M10 0.750 90.00 10.0 7.00 3 5.50 9.20 DIN 374
• • •
TPS MF-12X1.5-M
M12 1.500 100.00 15.0 9.00 3 7.00 10.50 DIN 374
• • •
TPS MF-12X1.25-M
M12 1.250 100.00 15.0 9.00 3 7.00 10.80 DIN 374
• • •
TPS MF-12X1.0-M
M12 1.000 100.00 11.0 9.00 3 7.00 11.00 DIN 374
• • •
TPS MF-14X1.5-M
M14 1.500 100.00 15.0 11.00 3 9.00 12.50 DIN 374
• • •
TPS MF-14X1.25-M
M14 1.250 100.00 15.0 11.00 3 9.00 12.80 DIN 374
• • •
TPS MF-14X1.0-M
M14 1.000 100.00 11.0 11.00 3 9.00 13.00 DIN 374
• • •
TPS MF-16X1.5-M
M16 1.500 100.00 15.0 12.00 3 9.00 14.50 DIN 374
• • •
TPS MF-16X1.0-M
M16 1.000 100.00 12.0 12.00 3 9.00 15.00 DIN 374
• • •
TPS MF-18X1.5-M
M18 1.500 110.00 17.0 14.00 4 11.00 16.50 DIN 374
• • •
TPS MF-18X1.0-M
M18 1.000 110.00 13.0 14.00 4 11.00 17.00 DIN 374
• • •
TPS MF-20X1.5-M
M20 1.500 125.00 17.0 16.00 4 12.00 18.50 DIN 374
• • •
TPS MF-20X1.0-M
M20 1.000 125.00 14.0 16.00 4 12.00 19.00 DIN 374
• • •
TPS MF-22X1.5-M
M22 1.500 125.00 17.0 18.00 4 14.50 20.50 DIN 374
• • •
TPS MF-22X1.0-M
M22 1.000 125.00 14.0 18.00 4 14.50 21.00 DIN 374
• • •
TPS MF-24X2.0-M
M24 2.000 140.00 20.0 18.00 4 14.50 22.00 DIN 374
• • •
TPS MF-24X1.5-M
M24 1.500 140.00 20.0 18.00 4 14.50 22.50 DIN 374
• • •
TPS MF-26X1.5-M
M26 1.500 140.00 20.0 18.00 4 14.50 24.50 DIN 374
• • •
TPS MF-27X2.0-M
M27 2.000 140.00 20.0 20.00 4 16.00 25.00 DIN 374
• • •
TPS MF-27X1.5-M
M27 1.500 140.00 20.0 20.00 4 16.00 25.50 DIN 374
• • •
TPS MF-28X1.5-M
M28 1.500 140.00 20.0 20.00 4 16.00 26.50 DIN 374
• • •
TPS MF-30X2.0-M
M30 2.000 150.00 22.0 22.00 4 18.00 28.00 DIN 374
• • •
TPS MF-30X1.5-M
M30 1.500 150.00 22.0 22.00 4 18.00 28.50 DIN 374
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPS MF (HSS)
DIN 13 HSS Spiral Flute Machine
Taps for Metric Fine Threads
for a Wide Range of Materials
355

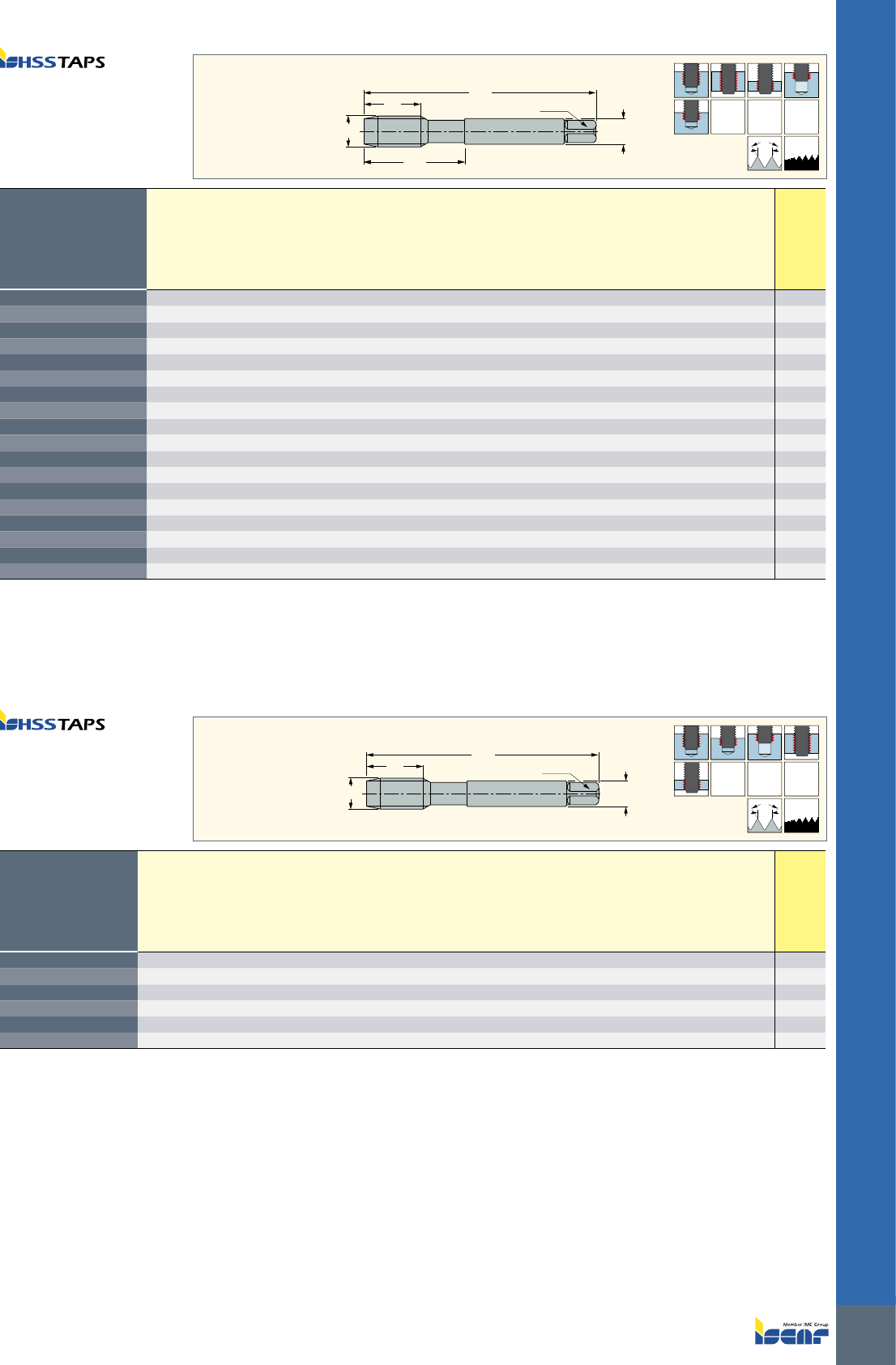

TAPS
DRVS
TDZ DCONMS
OAL
THL
LU
MHSS-E 2B
60˚
P
C
Dimensions Tough
1
Hard
Designation
TDZ TPI(1) OAL THL LU DCONMS NOF(2) DRVS(3)
Pre-
hole Standard
HE
HEST
HETI
TPS UNC-#4-40-M
#4 40.0 56.00 6.0 18.0 3.50 3 2.70 2.30 DIN 371
• • •
TPS UNC-#5-40-M
#5 40.0 56.00 7.0 18.0 3.50 3 2.70 2.60 DIN 371
• • •
TPS UNC-#6-32-M
#6 32.0 56.00 7.0 20.0 4.00 3 3.00 2.85 DIN 371
• • •
TPS UNC-#8-32-M
#8 32.0 63.00 8.0 21.0 4.50 3 3.40 3.50 DIN 371
• • •
TPS UNC-#10-24-M
#10 24.0 70.00 10.0 25.0 6.00 3 4.90 3.90 DIN 371
• • •
TPS UNC-#12-24-M
#12 24.0 80.00 10.0 30.0 6.00 3 4.90 4.50 DIN 371
• • •
TPS UNC-1/4-20-M
1/4" 20.0 80.00 13.0 30.0 7.00 3 5.50 5.20 DIN 371
• • •
TPS UNC-5/16-18-M
5/16" 18.0 90.00 14.0 35.0 8.00 3 6.20 6.60 DIN 371
• • •
TPS UNC-3/8-16-M
3/8" 16.0 100.00 16.0 39.0 9.00 3 7.00 8.00 DIN 371
• • •
TPS UNC-7/16-14-M
7/16" 14.0 100.00 17.0 - 8.00 3 6.20 9.40 DIN 376
• • •
TPS UNC-1/2-13-M
1/2" 13.0 110.00 20.0 - 9.00 3 7.00 10.75 DIN 376
• • •
TPS UNC-9/16-12-M
9/16" 12.0 110.00 20.0 - 11.00 3 9.00 12.25 DIN 376
• • •
TPS UNC-5/8-11-M
5/8" 11.0 110.00 22.0 - 12.00 3 9.00 13.50 DIN 376
• • •
TPS UNC-3/4-10-M
3/4" 10.0 125.00 25.0 - 14.00 4 11.00 16.50 DIN 376
• •
TPS UNC-7/8-9-M
7/8" 9.0 140.00 27.0 - 18.00 4 14.50 19.50 DIN 376
• • •
TPS UNC-1-8-M
1" 8.0 160.00 30.0 - 20.00 4 16.00 22.25 DIN 376
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Threads per inch
(2) Number of flutes
(3) Torque key size
TPS UNC (HSS)
HSS Spiral Flute Machine Taps
for Unified Coarse Threads for
a Wide Range of Materials
DRVS
TDZ DCONMS
OAL
THL
LU
MHSS-E 2B
60˚
P
C
Dimensions Tough
1
Hard
Designation
TDZ TPI(1) OAL THL LU DCONMS NOF(2) DRVS(3)
Pre-
hole Standard
HE
HEST
HETI
TPS UNF-#4-48-M
#4 48.0 56.00 6.0 18.0 3.50 3 2.70 2.40 DIN 371
• • •
TPS UNF-#5-44-M
#5 44.0 56.00 7.0 18.0 3.50 3 2.70 2.70 DIN 371
• • •
TPS UNF-#6-40-M
#6 40.0 56.00 7.0 20.0 4.00 3 3.00 3.00 DIN 371
• • •
TPS UNF-#8-36-M
#8 36.0 63.00 8.0 21.0 4.50 3 3.40 3.50 DIN 371
• • •
TPS UNF-#10-32-M
#10 32.0 70.00 10.0 25.0 6.00 3 4.90 4.10 DIN 371
• • •
TPS UNF-#12-28-M
#12 28.0 80.00 10.0 30.0 6.00 3 4.90 4.70 DIN 371
• • •
TPS UNF-1/4-28-M
1/4" 28.0 80.00 10.0 30.0 7.00 3 5.50 5.50 DIN 371
• • •
TPS UNF-5/16-24-M
5/16" 24.0 90.00 10.0 35.0 8.00 3 6.20 6.90 DIN 371
• • •
TPS UNF-3/8-24-M
3/8" 24.0 100.00 10.0 39.0 9.00 3 7.00 8.50 DIN 371
• • •
TPS UNF-7/16-20-M
7/16" 20.0 100.00 13.0 - 8.00 3 6.20 9.90 DIN 374
• • •
TPS UNF-1/2-20-M
1/2" 20.0 100.00 13.0 - 9.00 3 7.00 11.50 DIN 374
• •
TPS UNF-9/16-18-M
9/16" 18.0 100.00 15.0 - 11.00 3 9.00 12.90 DIN 374
• • •
TPS UNF-5/8-18-M
5/8" 18.0 100.00 15.0 - 12.00 3 9.00 14.50 DIN 374
• • •
TPS UNF-3/4-16-M
3/4" 16.0 110.00 17.0 - 14.00 4 11.00 17.50 DIN 374
• • •
TPS UNF-7/8-14-M
7/8" 14.0 125.00 17.0 - 18.00 4 14.50 20.50 DIN 374
• • •
TPS UNF-1-12-M
1" 12.0 140.00 20.0 - 20.00 4 16.00 23.25 DIN 374
• • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Threads per inch
(2) Number of flutes
(3) Torque key size
TPS UNF (HSS)
HSS Spiral Flute Machine Taps
for Unified Fine Threads for
a Wide Range of Materials
ISCAR
356
TAPS

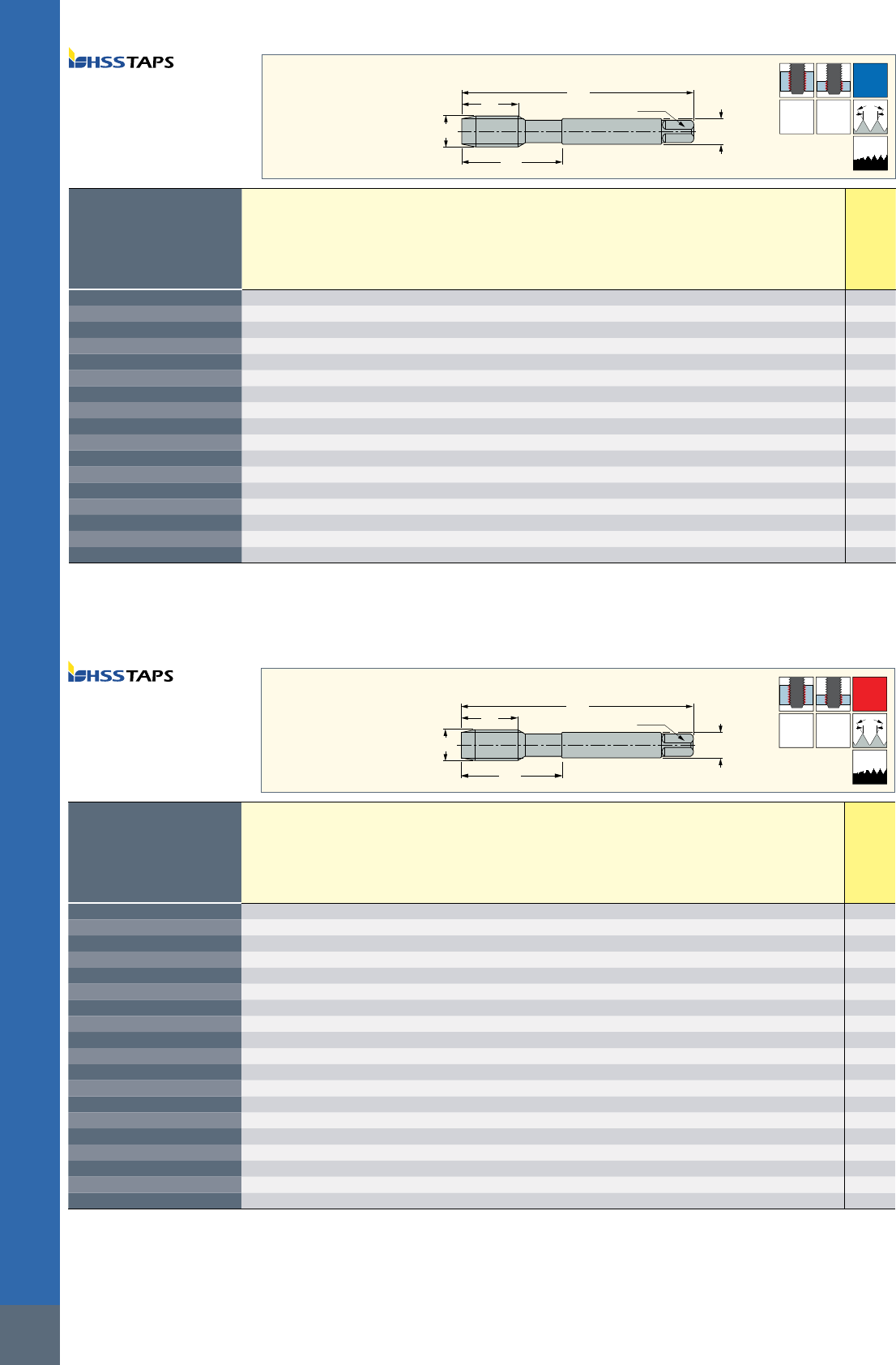

DRVS
TDZ DCONMS
OAL
THL
LU
S
HSS-E 6HX
60˚
P
B
Dimensions
Designation
TDZ TP(1) OAL THL LU DCONMS NOF(2) DRVS(3) Pre-hole
HEST
TPG M-2.2X0.45-S
M2.2 0.450 45.00 8.0 - 2.80 3 2.10 1.75
•
TPG M-2.3X0.4-S
M2.3 0.400 45.00 8.0 - 2.80 3 2.10 1.90
•
TPG M-2.5X0.45-S
M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05
•
TPG M-2.6X0.45-S
M2.6 0.450 50.00 9.0 - 2.80 3 2.10 2.10
•
TPG M-3X0.5-S
M3 0.500 56.00 11.0 18.0 3.50 3 2.70 2.50
•
TPG M-3.5X0.6-S
M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90
•
TPG M-4X0.7-S
M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30
•
TPG M-4.5X0.75-S
M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70
•
TPG M-5X0.8-S
M5 0.800 70.00 15.0 25.0 6.00 3 4.90 4.20
•
TPG M-6X1.0-S
M6 1.000 80.00 17.0 30.0 6.00 3 4.90 5.00
•
TPG M-8X1.25-S
M8 1.250 90.00 20.0 35.0 8.00 3 6.20 6.80
•
TPG M-10X1.5-S
M10 1.500 100.00 22.0 39.0 10.00 3 8.00 8.50
•
TPG M-11X1.5-S
M11 1.500 100.00 22.0 - 8.00 3 6.20 9.50
•
TPG M-12X1.75-S
M12 1.750 110.00 24.0 - 9.00 4 7.00 10.20
•
TPG M-16X2.0-S
M16 2.000 110.00 27.0 - 12.00 4 9.00 14.00
•
TPG M-18X2.5-S
M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50
•
TPG M-20X2.5-S
M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPG M-S (HSS)
HSS Gun Point Machine Taps
According to DIN 13 for ISO
Metric Coarse Threads on
Steel with Good Machinability
DRVS
TDZ DCONMS
OAL
THL
LU
H
HSS-E 6H
60˚
P
B
Dimensions
Designation
TDZ TP(1) OAL THL LU DCONMS NOF(2) DRVS(3) Pre-hole
HE
TPG M-2X0.4-H
M2 0.400 45.00 8.0 - 2.80 3 2.10 1.60
•
TPG M-2.3X0.4-H
M2.3 0.400 45.00 8.0 - 2.80 3 2.10 1.90
•
TPG M-2.5X0.45-H
M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05
•
TPG M-2.6X0.45-H
M2.6 0.450 50.00 9.0 - 2.80 3 2.10 2.10
•
TPG M-3X0.5-H
M3 0.500 56.00 11.0 18.0 3.50 3 2.70 2.50
•
TPG M-3.5X0.6-H
M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90
•
TPG M-4X0.7-H
M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30
•
TPG M-4.5X0.75-H
M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70
•
TPG M-5X0.8-H
M5 0.800 70.00 15.0 25.0 6.00 3 4.90 4.20
•
TPG M-6X1.0-H
M6 1.000 80.00 17.0 30.0 6.00 3 4.90 5.00
•
TPG M-7X1.0-H
M7 1.000 80.00 17.0 30.0 7.00 3 5.50 6.00
•
TPG M-8X1.25-H
M8 1.250 90.00 20.0 35.0 8.00 3 6.20 6.80
•
TPG M-10X1.5-H
M10 1.500 100.00 22.0 39.0 10.00 3 8.00 8.50
•
TPG M-11X1.5-H
M11 1.500 100.00 22.0 - 8.00 3 6.20 9.50
•
TPG M-12X1.75-H
M12 1.750 110.00 24.0 - 9.00 3 7.00 10.20
•
TPG M-14X2.0-H
M14 2.000 110.00 26.0 - 11.00 3 9.00 12.00
•
TPG M-16X2.0-H
M16 2.000 110.00 27.0 - 12.00 3 9.00 14.00
•
TPG M-18X2.5-H
M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50
•
TPG M-20X2.5-H
M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPG M-H (HSS)
DIN 13 HSS Gun Point
Machine Taps for ISO
Metric Coarse Threads for
Hardened Steel and H.T.A.
357
TAPS

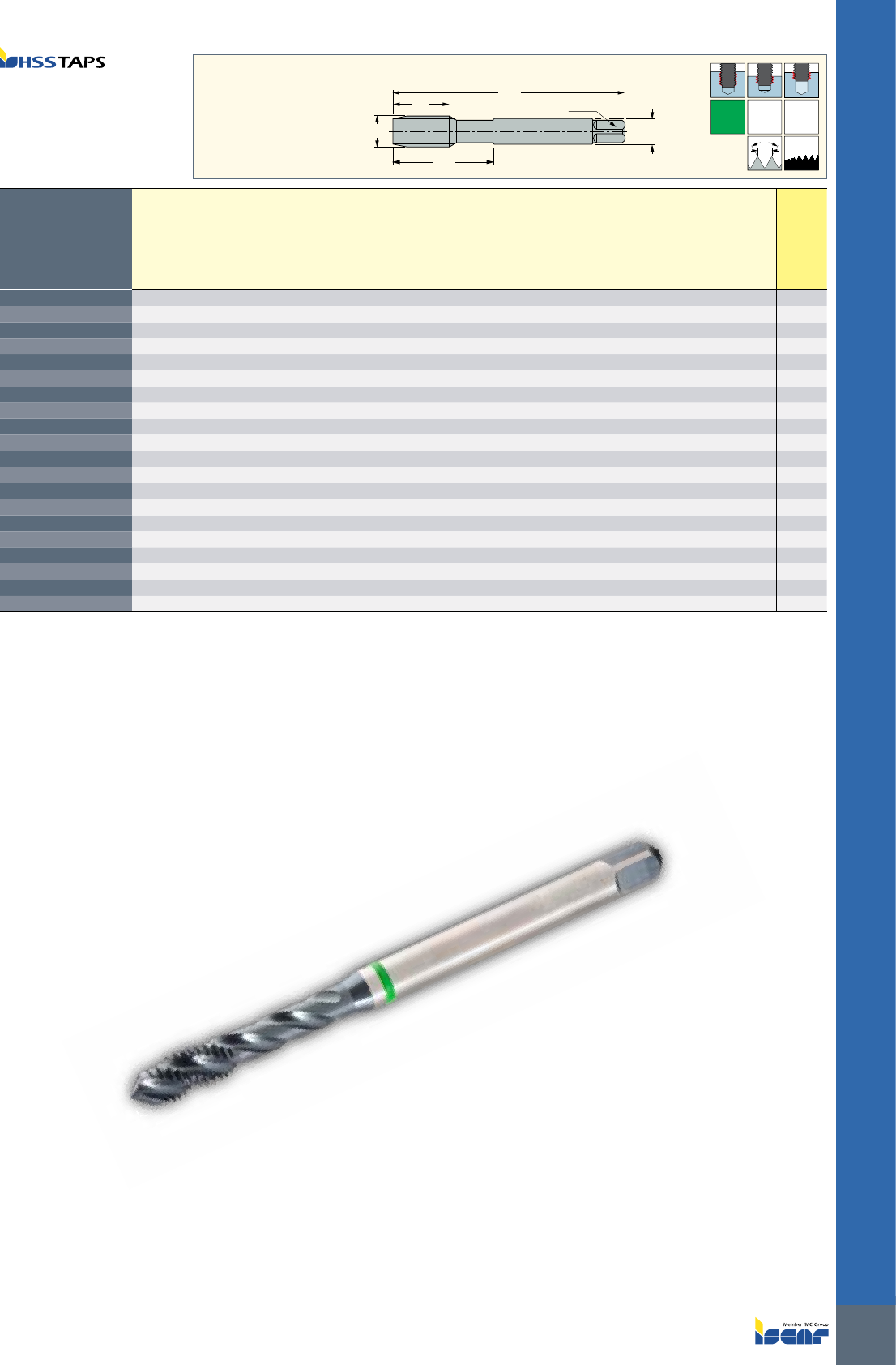

DRVS
TDZ DCONMS
OAL
THL
LU
NHSS-E 6H
60˚
P
C
Dimensions
Designation
TDZ TP(2) OAL THL LU DCONMS NOF(3) DRVS(4) Pre-hole FHA Standard
HEST
TPS M-2X0.4-N
M2 0.400 45.00 8.0 - 2.80 3 2.10 1.60 40.0 DIN 371
•
TPS M-2.2X0.45-N
M2.2 0.450 45.00 8.0 - 2.80 3 2.10 1.75 40.0 DIN 371
•
TPS M-2.3X0.4-N (1)
M2.3 0.400 45.00 8.0 - 2.80 3 2.10 1.90 40.0 DIN 371
•
TPS M-2.5X0.45-N
M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05 40.0 DIN 371
•
TPS M-3X0.5-N
M3 0.500 56.00 6.0 18.0 3.50 3 2.70 2.50 40.0 DIN 371
•
TPS M-3.5X0.6-N
M3.5 0.600 56.00 7.0 20.0 4.00 3 3.00 2.90 40.0 DIN 371
•
TPS M-4X0.7-N
M4 0.700 63.00 7.0 21.0 4.50 3 3.40 3.30 40.0 DIN 371
•
TPS M-4.5X0.75-N
M4.5 0.750 70.00 8.0 25.0 6.00 3 4.90 3.70 40.0 DIN 371
•
TPS M-5X0.8-N
M5 0.800 70.00 8.0 25.0 6.00 3 4.90 4.20 40.0 DIN 371
•
TPS M-6X1.0-N
M6 1.000 80.00 10.0 30.0 6.00 3 4.90 5.00 40.0 DIN 371
•
TPS M-7X1.0-N
M7 1.000 80.00 10.0 30.0 7.00 3 5.50 6.00 40.0 DIN 371
•
TPS M-8X1.25-N
M8 1.250 90.00 13.0 35.0 8.00 3 6.20 6.80 40.0 DIN 371
•
TPS M-9X1.25-N
M9 1.250 90.00 13.0 35.0 9.00 3 7.00 7.80 40.0 DIN 371
•
TPS M-10X1.5-N
M10 1.500 100.00 15.0 39.0 10.00 3 8.00 8.50 40.0 DIN 371
•
TPS M-11X1.5-N
M11 1.500 100.00 17.0 - 8.00 3 6.20 9.50 40.0 DIN 376
•
TPS M-12X1.75-N
M12 1.750 110.00 18.0 - 9.00 3 7.00 10.20 40.0 DIN 376
•
TPS M-14X2.0-N
M14 2.000 110.00 20.0 - 11.00 3 9.00 12.00 40.0 DIN 376
•
TPS M-16X2.0-N
M16 2.000 110.00 20.0 - 12.00 3 9.00 14.00 40.0 DIN 376
•
TPS M-18X2.5-N
M18 2.500 125.00 25.0 - 14.00 4 11.00 15.50 40.0 DIN 376
•
TPS M-20X2.5-N
M20 2.500 140.00 25.0 - 16.00 4 12.00 17.50 40.0 DIN 376
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size
TPS M-N (HSS)
DIN 13 HSS R.H. 40° Spiral
Flute Machine Taps for ISO
Metric Coarse Threads
for Low Alloyed Steel
ISCAR
358
TAPS

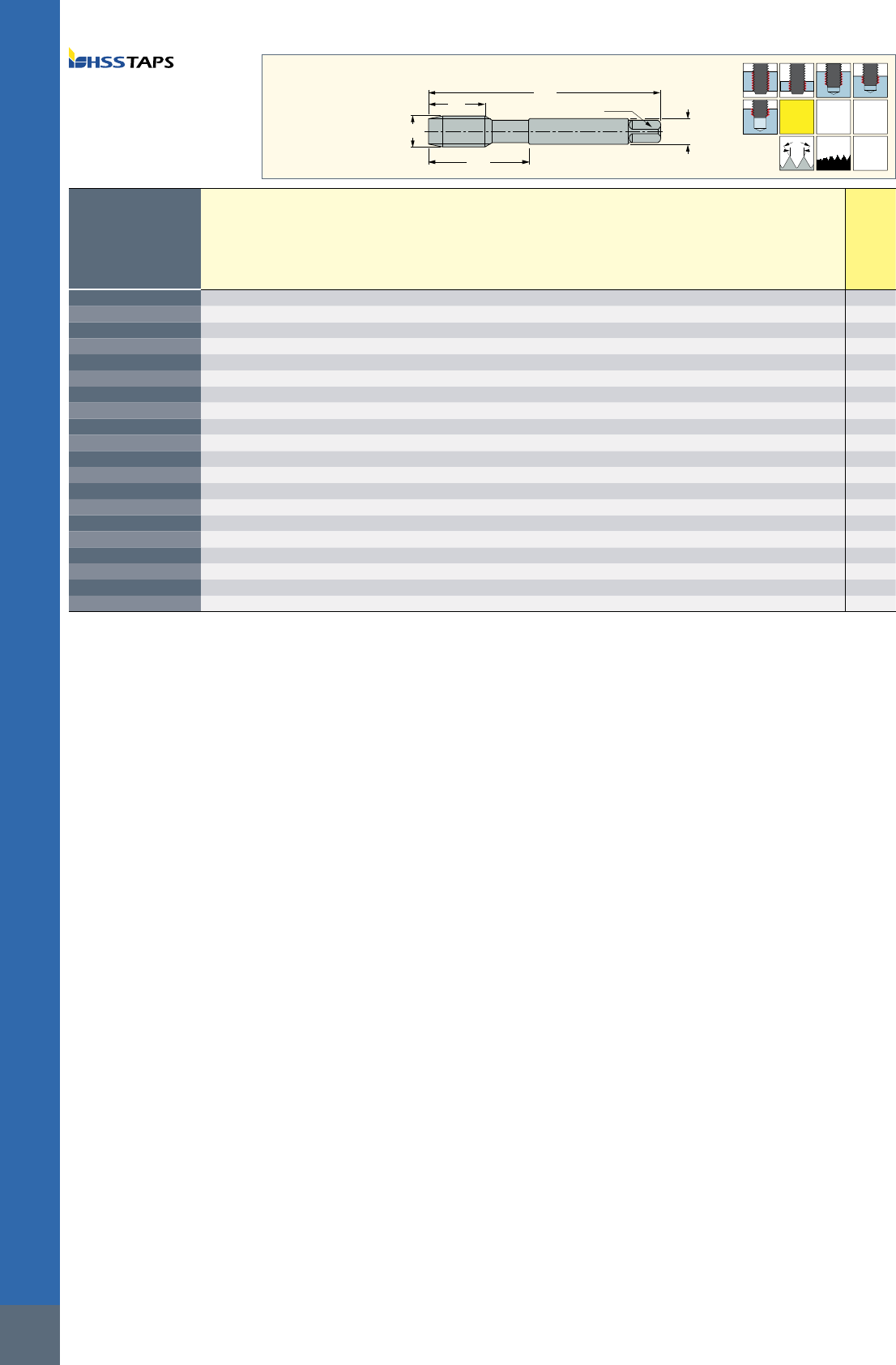

DRVS
TDZ DCONMS
OAL
THL
LU
HHSS-E 6H
60˚
P
C
Dimensions
Designation
TDZ TP(2) OAL THL LU DCONMS NOF(3) DRVS(4) Pre-hole FHA
HEST
TPS M-2X0.4-H
M2 0.400 45.00 8.0 - 2.80 3 2.10 1.60 40.0
•
TPS M-2.2X0.45-H
M2.2 0.450 45.00 8.0 - 2.80 3 2.10 1.75 40.0
•
TPS M-2.5X0.45-H
M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05 40.0
•
TPS M-2.6X0.45-H (1)
M2.6 0.450 50.00 9.0 - 2.80 3 2.10 2.10 40.0
•
TPS M-3X0.5-H
M3 0.500 56.00 6.0 18.0 3.50 3 2.70 2.50 40.0
•
TPS M-3.5X0.6-H
M3.5 0.600 56.00 7.0 20.0 4.00 3 3.00 2.90 40.0
•
TPS M-4X0.7-H
M4 0.700 63.00 7.0 21.0 4.50 3 3.40 3.30 40.0
•
TPS M-4.5X0.75-H
M4.5 0.750 70.00 8.0 25.0 6.00 3 4.90 3.70 40.0
•
TPS M-5X0.8-H
M5 0.800 70.00 8.0 25.0 6.00 3 4.90 4.20 40.0
•
TPS M-6X1.0-H
M6 1.000 80.00 10.0 30.0 6.00 3 4.90 5.00 40.0
•
TPS M-7X1.0-H
M7 1.000 80.00 10.0 30.0 7.00 3 5.50 6.00 40.0
•
TPS M-8X1.25-H
M8 1.250 90.00 13.0 35.0 8.00 3 6.20 6.80 40.0
•
TPS M-9X1.25-H
M9 1.250 90.00 13.0 35.0 9.00 3 7.00 7.80 40.0
•
TPS M-10X1.5-H
M10 1.500 100.00 15.0 39.0 10.00 3 8.00 8.50 40.0
•
TPS M-11X1.5-H
M11 1.500 100.00 17.0 - 8.00 3 6.20 9.50 40.0
•
TPS M-12X1.75-H
M12 1.750 110.00 18.0 - 9.00 3 7.00 10.20 40.0
•
TPS M-14X2.0-H
M14 2.000 110.00 20.0 - 11.00 3 9.00 12.00 40.0
•
TPS M-16X2.0-H
M16 2.000 110.00 20.0 - 12.00 3 9.00 14.00 40.0
•
TPS M-18X2.5-H
M18 2.500 125.00 25.0 - 14.00 4 11.00 15.50 40.0
•
TPS M-20X2.5-H
M20 2.500 140.00 25.0 - 16.00 4 12.00 17.50 40.0
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size

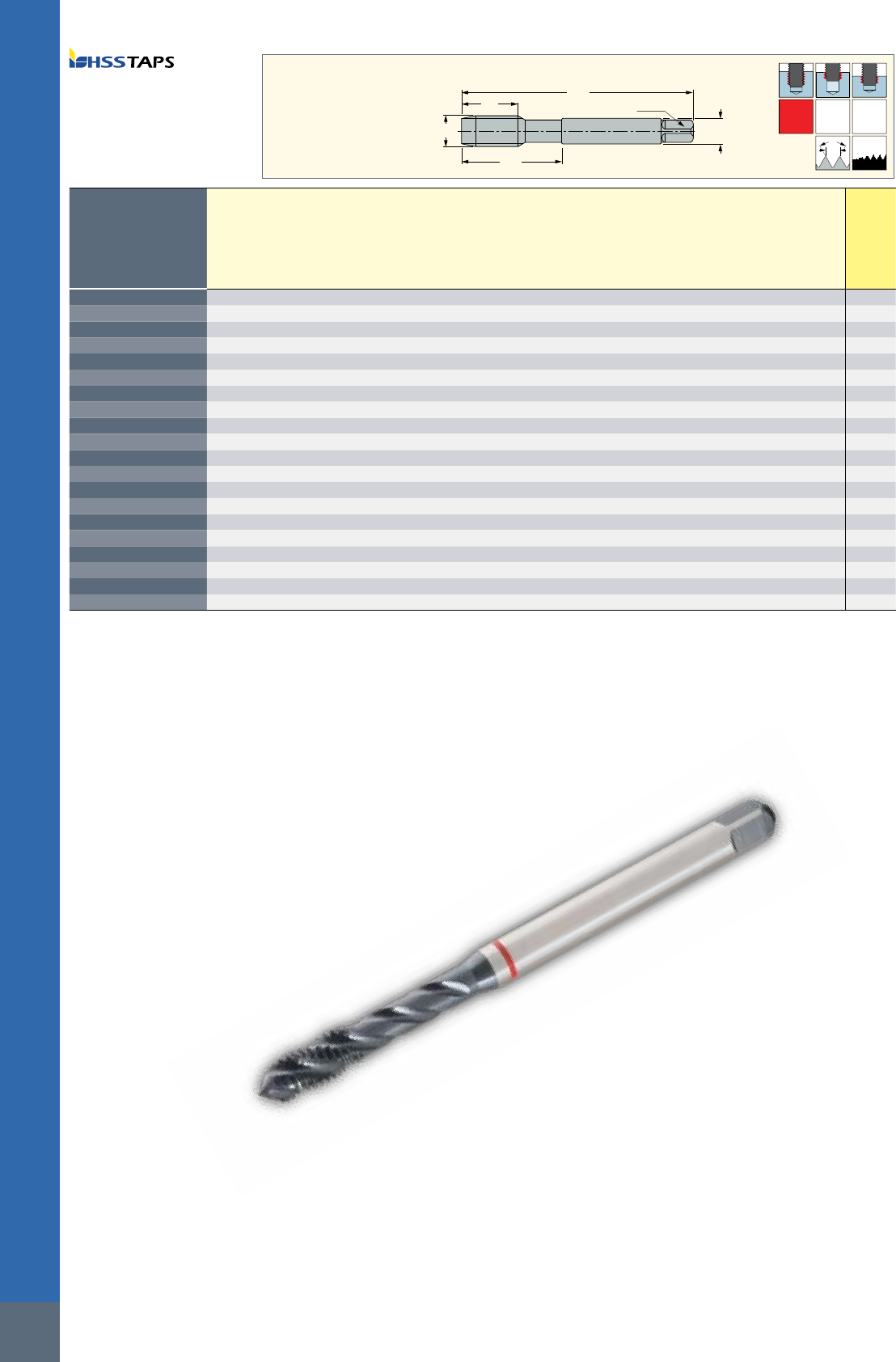

TPS M-H (HSS)
DIN 13 HSS Right-Hand 40°
Spiral Flute Machine Taps for ISO
Metric Coarse Threads for H.T.A.
359
TAPS
DRVS
TDZ DCONMS
OAL
THL
LU
GHSS-E 6HX
60˚
P
C
Dimensions
Designation
TDZ TP(2) OAL THL LU DCONMS NOF(3) DRVS(4) Pre-hole
HENI
TPST M-2.2X0.45-G
M2.2 0.450 45.00 8.0 - 2.80 3 2.10 1.75
•
TPST M-2.3X0.4-G (1)
M2.3 0.400 45.00 8.0 - 2.80 3 2.10 1.90
•
TPST M-2.5X0.45-G
M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05
•
TPST M-2.6X0.45-G (1)
M2.6 0.450 50.00 9.0 - 2.80 3 2.10 2.10
•
TPST M-3.5X0.6-G
M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90
•
TPST M-4X0.7-G
M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30
•
TPST M-4.5X0.75-G
M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70
•
TPST M-5X0.8-G
M5 0.800 70.00 15.0 25.0 6.00 4 4.90 4.20
•
TPST M-6X1.0-G
M6 1.000 80.00 17.0 30.0 6.00 4 4.90 5.00
•
TPST M-8X1.25-G
M8 1.250 90.00 20.0 35.0 8.00 4 6.20 6.80
•
TPST M-9X1.25-G
M9 1.250 90.00 20.0 35.0 9.00 4 7.00 7.80
•
TPST M-10X1.5-G
M10 1.500 100.00 22.0 39.0 10.00 4 8.00 8.50
•
TPST M-11X1.5-G
M11 1.500 100.00 22.0 - 8.00 4 6.20 9.50
•
TPST M-12X1.75-G
M12 1.750 110.00 24.0 - 9.00 4 7.00 10.20
•
TPST M-14X2.0-G
M14 2.000 110.00 26.0 - 11.00 4 9.00 12.00
•
TPST M-16X2.0-G
M16 2.000 110.00 27.0 - 12.00 4 9.00 14.00
•
TPST M-18X2.5-G
M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50
•
TPST M-20X2.5-G
M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size
TPST M-G (HSS)
DIN 13 HSS Straight Flute
Machine Taps for ISO Metric
Coarse Threads for Grey Cast Iron
DRVS
TDZ DCONMS
OAL
THL
GHSS-E 6HX
60˚
P
C
Dimensions
Designation
TDZ TP(1) OAL THL DCONMS NOF(2) DRVS(3) Pre-hole
HENI
TPST MF-10X1.0-G
M10 1.000 90.00 18.0 7.00 3 5.50 9.00
•
TPST MF-10X1.25-G
M10 1.250 100.00 22.0 7.00 3 5.50 8.80
•
TPST MF-12X1.25-G
M12 1.250 100.00 22.0 9.00 3 7.00 10.80
•
TPST MF-14X1.5-G
M14 1.500 100.00 22.0 11.00 3 9.00 12.50
•
TPST MF-16X1.5-G
M16 1.500 100.00 22.0 12.00 4 9.00 14.50
•
TPST MF-22X1.5-G
M22 1.500 125.00 25.0 18.00 4 14.50 20.50
•
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
TPST MF-G (HSS)
DIN 13 HSS Straight Flute
Machine Taps for ISO Metric
Fine Threads for Grey Cast Iron
ISCAR
360
TAPS
DRVS
TDZ DCONMS
OAL
THL
LU
FHSS-E 6HX
60˚
P
C
TI
Dimensions
Designation
TDZ TP(2) OAL THL LU DCONMS NOF(3) DRVS(4) Pre-hole Standard
HETI
TPF M-2X0.4-F
M2 0.400 45.00 8.0 - 2.80 5 2.10 1.83 DIN 371
•
TPF M-2.2X0.45-F
M2.2 0.450 45.00 8.0 - 2.80 5 2.10 2.00 DIN 371
•
TPF M-2.3X0.4-F (1)
M2.3 0.400 45.00 8.0 - 2.80 5 2.10 2.10 DIN 371
•
TPF M-2.5X0.45-F
M2.5 0.450 50.00 9.0 - 2.80 5 2.10 2.30 DIN 371
•
TPF M-3X0.5-F
M3 0.500 56.00 11.0 18.0 3.50 5 2.70 2.80 DIN 371
•
TPF M-3.5X0.6-F
M3.5 0.600 56.00 12.0 20.0 4.00 5 3.00 3.25 DIN 371
•
TPF M-4X0.7-F
M4 0.700 63.00 13.0 21.0 4.50 5 3.40 3.70 DIN 371
•
TPF M-4.5X0.75-F
M4.5 0.750 70.00 14.0 25.0 6.00 5 4.90 4.15 DIN 371
•
TPF M-5X0.8-F
M5 0.800 70.00 15.0 25.0 6.00 5 4.90 4.65 DIN 371
•
TPF M-6X1.0-F
M6 1.000 80.00 17.0 30.0 6.00 5 4.90 5.55 DIN 371
•
TPF M-7X1.0-F
M7 1.000 80.00 17.0 30.0 7.00 5 5.50 6.55 DIN 371
•
TPF M-8X1.25-F
M8 1.250 90.00 20.0 35.0 8.00 5 6.20 7.40 DIN 371
•
TPF M-9X1.25-F
M9 1.250 90.00 20.0 35.0 9.00 5 7.00 8.40 DIN 371
•
TPF M-10X1.5-F
M10 1.500 100.00 22.0 39.0 10.00 5 8.00 9.30 DIN 371
•
TPF M-11X1.5-F
M11 1.500 100.00 22.0 - 8.00 5 6.20 10.30 DIN 376
•
TPF M-12X1.75-F
M12 1.750 110.00 24.0 - 9.00 5 7.00 11.20 DIN 376
•
TPF M-14X2.0-F
M14 2.000 110.00 26.0 - 11.00 5 9.00 13.00 DIN 376
•
TPF M-16X2.0-F
M16 2.000 110.00 27.0 - 12.00 6 9.00 15.00 DIN 376
•
TPF M-18X2.5-F
M18 2.500 125.00 30.0 - 14.00 6 11.00 16.80 DIN 376
•
TPF M-20X2.5-F
M20 2.500 140.00 32.0 - 16.00 6 12.00 18.80 DIN 376
•
• For user guide and cutting conditions, see pages 346-348,361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size
TPF M-F (HSS)
DIN 13 HSS Cold Forming
Machine Taps for ISO
Metric Coarse Threads
361
TAPS
USER GUIDE CONTENTS
Tap Surface Treatment and Coating Types .................................................. 362
Tolerances According to DIN EN 22857.... .................................................. 362
Taps Nomenclature and Standards ............................................................. 363
Pre-Tapping Hole Size .... ............................................................................ 364
Tap Standard Dimensions ............................................................................ 366
Tap Tolerances.... ........................................................................................ 372
Troubleshooting .... ...................................................................................... 374
Regrinding ................................................................................................... 376
Test Report Form......................................................................................... 378
Thread Standards List ................................................................................. 380
Tapping Attachments ................................................................................... 381
ISCAR
362
USER GUIDE
TAPS
Tap Surface Treatments and Coating Types
The high speed steels we use grant high wear resistance
and toughness. For machining certain materials,
various surface treatments are an advantage.
Steam Tempered (ST)
The steam tempered is a Fe3O4 oxide coating
which reduces the friction between the tool
and workpiece and prevents cold welding.
Nitriding (NI)
Recommended surface treatment for machining hard
wear/abrasive materials such as grey cast iron, aluminum
alloys with high silicon percentage (more than 10%).
TiN Coating (TI)
The TiN coating has a hardness of approximately
2,300 HV and is temperature resistant up to
approximately 600°C. This is an excellent golden
colored coating for general applications.
TiCN-COATING – TiCN
TiCN takes place of TiN when the conditions require the
coating to have a different hardness and toughness.
The TiCN brings an advantage to machining very difficult
steels or cutting interrupted bores. The TiCN-coating
has a hardness of approx. 3,000 HV, but is temperature
resistant up to approx. 400° only. That means TiCN
needs excellent cooling for long service life. Color:
Blue-grey coefficient of friction against steel : 0.4
TiAIN-COATING – TiAIN
This is a special coating for machining abrasive materials
such as: grey cast iron, alu-alloys with silicon, fiber
reinforced plastics, etc., or machining under high
temperatures, which means with insufficient cooling, or
high speeds ≥ 600m/min. TiAIN has a hardness of approx.
3,000 HV and is temperature resistant up to approx. 800°.
Color: Violet-grey coefficient of friction against steel : 0.4
Hardslick-COATING – Hardslick
Hardslick combines in a novel way the advantages
of an extremely hard, thermally stable TiAIN-coating
with the sliding and lubricating properties of an outer
WC/C (Tungsten carbide/carbon) coating. The hardslick
coating has a hardness of approx. 3,000 HV and
is temperature-resistant up to approx. 800°. Color:
Violet-grey coefficient of friction against steel : 0.2

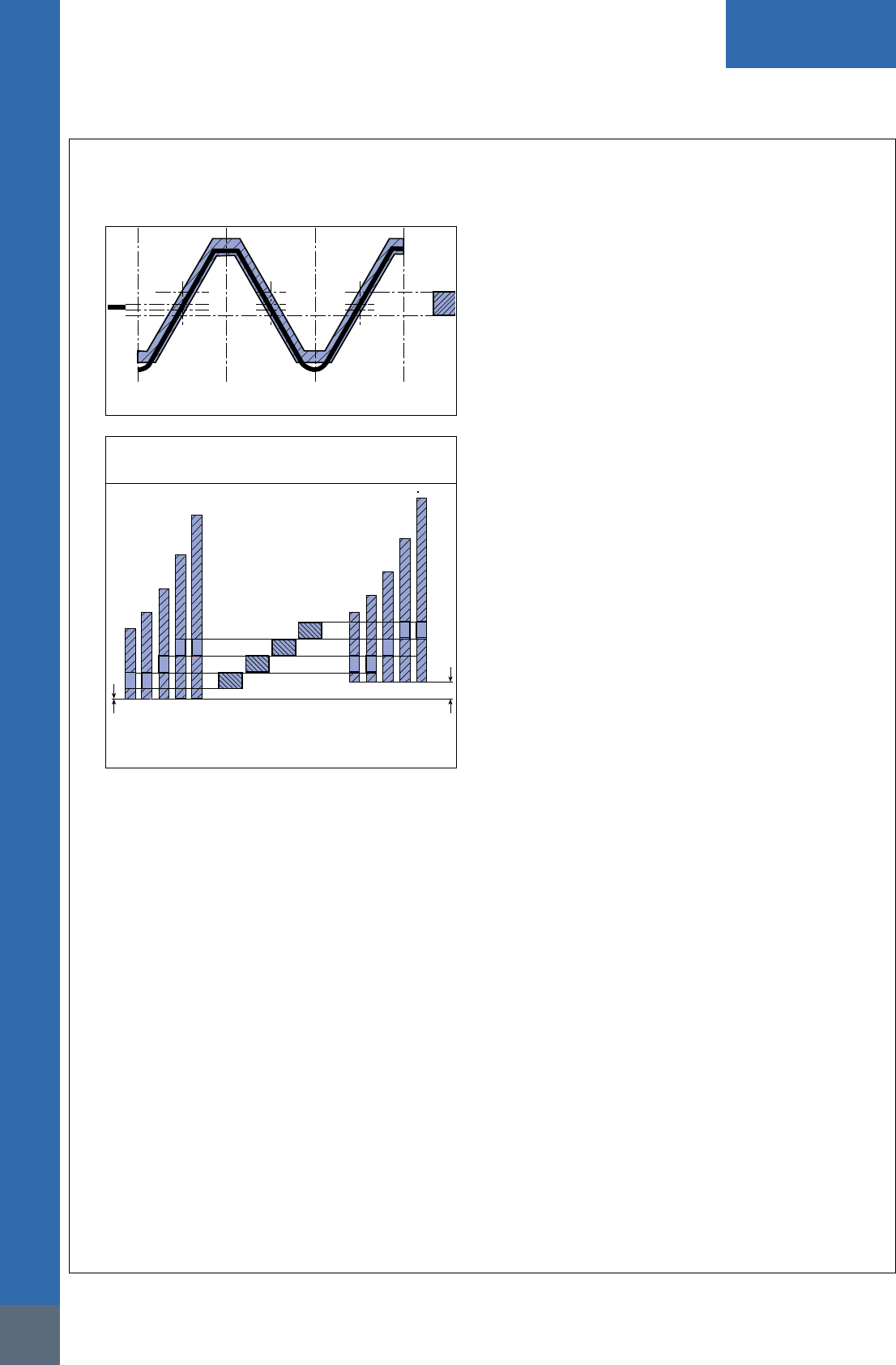

Tolerances According to DIN EN 22857
For taps with ISO metric threads.
The following chart gives a comparison between
the new standard DIN EN 22857 and the withdrawn
standard DIN 802 part 1. An important change is the
re-classification from tap tolerance to tap application class.
Application
class for
taps to DIN
EN 22857
Tolerance
class to
withdrawn
standard DIN
802 part 1
Allotment of the
tolerance zones of the
nut thread to be cut
Class 1 ISO 1 4H 4H 5H - - -
Class 2 ISO 2 6H 5G 5G 6H - -
Class 3 ISO 3 6G - - 6G 7H 8H
- - 7G - - - 7G 8G
A suitable transition period is to be expected.
Codes for tolerance classes 7G/8G and <X> tolerance
zones have yet to be standardized within DIN EN 22857,
and the values from DIN 802 part will remain valid.
363
USER GUIDE
TAPS

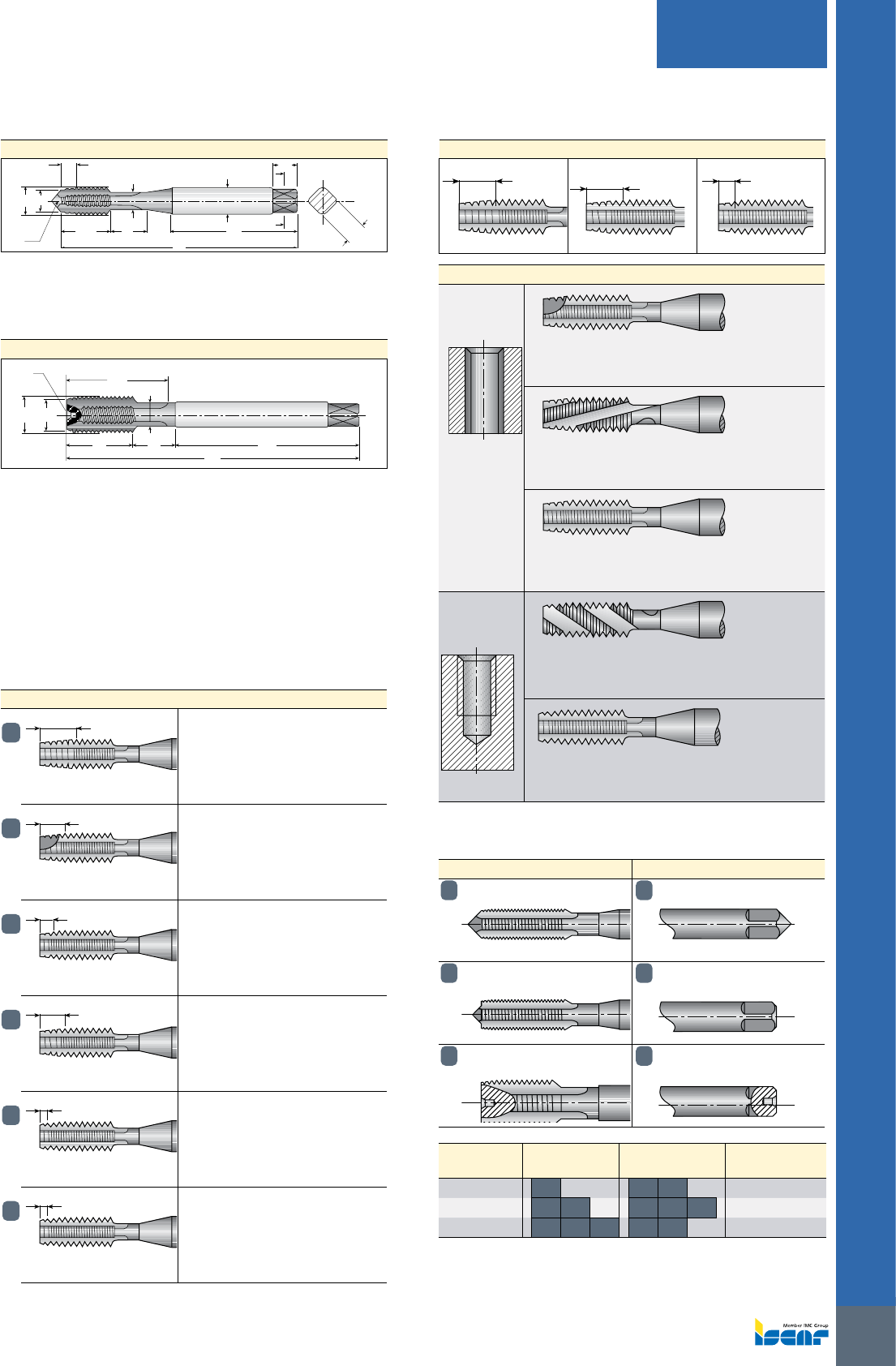

Tap Nomenclature and Standards
DIN 371
Dd3
L1
Cm L4
d4d2
L2S
L3
L
L5
D - Major diameter
d2 - Shank diameter
d3 - Chamfer diameter
d4 - Neck diameter
DIN 376
L6
Cf
d3
L1L4
L
L2
d4
D
L - Total length
L - Total length
L1 - Thread length
L2 - Shank length
L3 - Square length
L4 - Neck length
L5 - Chamfer length
L6 - Flute length
S - Square size
Cm - Center male
Cf - Center female
Chamfer Lead Forms According to DIN 2197
A
6-8 threads
Form A
Long, 6-8 threads for
short through holes.
B
3.5-5 threads
Form B
Medium, 3.5-5 threads, with
spiral point for all through holes
and deep tapping holes.
C
2-3 threads
Form C
Long, 2-3 threads for blind holes
and generally for aluminum
grey cast iron and brass.
D
3.5-5 threads
Form D
Medium, 3.5-5 threads for through
and blind holes with sufficient runout.
E
1.5-2 threads
Form E
Extremely short, 1.5-2 threads
for blind holes with little runout
depth. Avoid use if possible.
F
1-1.5 threads
Form F
Extremely short, 1-1.5 threads
for blind holes with little runout
depth. Avoid use if possible.
Chamfer Lead Length for Sets of 3 Hand Taps
ca. 6 threads
ca. 4 threads
ca. 2 threads
First taper tap Second tap Bottoming tap
Tap Styles for Hole Types
Throughole
1 Straight fluted tap with spiral point
2 Left-hand spiral fluted tap
3 Straight fluted tap with long chamfer lead
Blind hole
1 Right-hand spiral fluted tap
2 Straight fluted tap with short chamfer lead
Front and End Configurations According to DIN2197
Front End Shank End
1
External Center
4
External Center
2
Stepped External Center
5
Chamfer
3
Internal Center
6
Internal Center
Thread Dia.
Range (mm) Front End Shank End Tap Standard
≤Ø61 4 5 DIN352
Ø712 456 DIN371
≥Ø8123 56 DIN376
ISCAR
364
USER GUIDE
TAPS
Pre-Tapping Hole Sizes
ISO Metric Threads Coarse Pitch
MPitch
mm
Max
Core
Dia.mm
Drill
Size mm
1 0.25 0.785 0.75
1.1 0.25 0.885 0.85
1.2 0.25 0.985 0.95
1.4 0.30 1.160 1.10
1.6 0.35 1.321 1.25
1.7 0.35 1.346 1.30
1.8 0.35 1.521 1.45
2 0.40 1.679 1.60
2.2 0.45 1.838 1.75
2.3 0.40 1.920 1.90
2.5 0.45 2.138 2.05
2.6 0.45 2.176 2.10
3 0.50 2.599 2.50
3.5 0.60 3.010 2.90
4 0.70 3.422 3.30
4,5 0.75 3.878 3.70
5 0.80 4.334 4.20
6 1.00 5.153 5.00
7 1.00 6.153 6.00
8 1.25 6.912 6.80
9 1,25 7.912 7.80
10 1.50 8.676 8.50
11 1.50 9.676 9.50
12 1.75 10.441 10.20
14 2.00 12.210 12.00
16 2.00 14.210 14.00
18 2.50 15.744 15.50
20 2.50 17.744 17.50
22 2.50 19.744 19.50
24 3.00 21.252 21.00
27 3.00 24.252 24.00
30 3.50 26.771 26.50
33 3.50 29.771 29.50
36 4.00 32.270 32.00
39 4.00 35.270 35.00
42 4.50 37.799 37.50
45 4.50 40.799 40.50
48 5.00 43.297 43.00
52 5.00 47.297 47.00
56 5.50 50.796 50.50
60 5.50 54.796 54.50
64 6.00 58.305 58.00
68 6.00 62.305 62.00
ISO Metric Threads Fine Pitch
MF Pitch
mm
Max
Core
Dia.mm
Drill Size
mm
2.5 0.35 2.221 2.15
3 0.35 2.271 2.65
3.5 0.35 3.221 3.15
4 0.50 3.599 3.50
4.5 0.50 4.099 4.00
5 0.50 4.599 4.50
5.5 0.50 5.099 5.00
6 0.75 5.378 5.20
7 0.75 6.378 6.20
8 0.75 7.378 7.20
8 1.00 7.153 7.00
9 0.75 8.378 8.20
9 1.00 8.153 8.00
10 0.75 9.378 9.20
10 1.00 9.153 9.00
10 1.25 8.912 8.80
11 0.75 10.378 10.20
11 1.00 10.153 10.00
12 1.00 11.153 11.00
12 1,25 10.912 10.80
12 1,50 10.676 10.50
14 1,00 13.153 13.00
14 1,25 12.912 12.80
14 1.50 12.676 12.50
15 1.00 14.153 14.00
15 1.50 13.676 13.50
16 1.00 15.153 15.00
16 1.50 14.676 14.50
17 1.00 16.153 16.00
17 1.50 15.676 15.50
18 1.00 17.153 17.00
18 1.50 16.676 16.50
18 2.00 16.210 16.00
20 1.00 19.153 19.00
20 1.50 18.676 18.50
20 2.00 18.210 18.00
22 1,00 21.153 21.00
22 1.50 20.676 20.50
22 2.00 20.210 20.00
24 1.00 23.153 23.00
24 1,50 22.676 22.50
24 2,00 22.210 22.00
25 1.00 24.153 24.00
25 1.50 23.676 23.50
ISO Metric Threads Fine Pitch
MF Pitch
mm
Max
Core
Dia.mm
Drill Size
mm
25 2.00 23.210 23.00
26 1.50 24.676 24.50
27 1.00 26.153 26.00
27 1.50 25.676 25.50
27 2.00 25.210 25.00
28 1.00 27.153 27.00
28 1.50 26.676 26.50
28 2.00 26.210 26.00
30 1.00 29.153 29.00
30 1.50 28.676 28.50
30 2.00 28.210 28.00
30 3.00 27.252 27.00
32 1.50 30.675 30.50
32 2.00 30.210 30.00
33 1.50 31.676 31.50
33 2.00 31.210 31.00
33 3.00 30.252 30.00
35 1.50 33.676 33.50
36 1.50 34.676 34.50
36 2.00 34.210 34.00
36 3.00 33.252 33.00
38 1.50 36.676 36.50
39 1.50 37.676 37.50
39 2.00 37.210 37.00
39 3.00 36.252 36.00
40 1,50 38.676 38.50
40 2.00 38.210 38.00
40 3,00 37.252 37.00
42 1,50 40.676 40.50
42 2,00 40.210 40.00
42 3,00 39.252 39.00
45 1.50 43.676 43.50
45 2.00 43.210 43.00
45 3.00 42.252 42.00
48 1.50 46.676 46.50
48 2.00 46.210 46.00
48 3.00 45.252 45.00
50 1.50 48.676 48.50
50 2.00 48.210 48.00
50 3.00 47.252 47.00
52 1.50 50.676 50.50
52 2.00 50.210 50.00
52 3.00 49.252 49.00
365
USER GUIDE
TAPS
Pre-Tapping Hole Sizes - Forming Taps
Recommended
Tap Drill Size
MPitch
mm
Drill
Size
mm
1 0.25 0.9
1.1 0.25 1
1.2 0.25 1.1
1.4 0.3 1.28
1.6 0.35 1.47
1.7 0.35 1.57
1.8 0.35 1.67
2 0.4 1.85
2.2 0.45 2.03
2.3 0.4 2.15
2.5 0.45 2.33
2.6 0.45 2.43
3 0.5 2.8
3.5 0.6 3.25
4 0.7 3.7
4.5 0.75 4.2
5 0.8 4.65
6 1 5.55
7 1 6.55
8 1.25 6.6
9 1.25 7.45
10 1.5 8.45
11 1.5 9.35
12 1.75 11.25
14 2 13.1
16 2 15.1
18 2.5 16.85
20 2.5 18.85
22 2.5 20.85
24 3 22.65
27 3 25.65
30 3.5 28.4
33 3.5 31.4
36 4 34.15
39 4 37.15
42 4.5 39.9
45 4.5 42.9
48 5 45.65
Recommended
Tap Drill Size
MF Pitch
mm
Drill
Size
mm
2.5 0.35 2.37
2.6 0.35 2.47
3 0.35 2.88
3.5 0.35 3.38
4 0.5 3.8
5 0.5 4.8
6 0.5 5.8
6 0.75 5.7
7 0.75 6.7
8 0.75 7.7
8 1 7.6
9 0.75 8.7
9 1 8.6
10 0.75 9.7
10 1 9.6
10 1.25 9.45
11 1 10.6
12 1 11.6
12 1.25 11.45
12 1.5 11.35
14 1 13.6
14 1.25 13.45
14 1.5 13.35
15 1 14.6
15 1.5 14.35
16 1 15.6
16 1.5 15.35
18 4 17.6
18 1.5 17.35
18 2 17.1
20 1 19.6
20 1.5 19.35
20 2 19.1
24 2 23.1
30 2 29.1
36 3 34.65
42 4 40.15
48 3 46.65
Pre-Tapping Hole Sizes - General Taps
American Unified
Coarse Threads
UNC T.P.I
Max.
Core
Dia.
inch
Drill
Size
mm
#1 64 1.585 1.5
#2 56 1.872 1.8
#3 48 2.146 2.1
#4 40 2.385 2.3
#5 40 2.697 2.6
#6 32 2.896 2.85
#8 32 3.528 3.5
#10 24 3.95 3.9
#12 24 4.59 4.5
1/4" 20 5.25 5.2
5/16" 18 6.68 6.6
3/8" 16 8.082 8
7/16" 14 9.441 9.4
1/2" 13 10.881 10.75
9/16" 12 12.301 12.25
5/8" 11 13.693 13.5
3/4" 10 16.624 16.5
7/8" 9 19.52 19.5
1" 8 22.344 22.25
1*1/8" 7 25.082 25
1*1/4" 7 28.258 28.25
1*3/8" 6 30.851 30.75
1*1/2" 6 34.026 34
1*3/4" 5 39.56 39.5
2" 4.5 45.367 45.25
American Unified
Fine Threads
UNF T.P.I
Max.
Core
Dia.
inch
Drill
Size
mm
#0 80 1.306 1.3
#1 72 1.613 1.6
#2 64 1.913 1.9
#3 56 2.197 2.1
#4 48 2.459 2.4
#5 44 2.741 2.7
#6 40 3.012 3
#8 36 3.597 3.5
#10 32 4.168 4.1
#12 28 4.717 4.7
1/4" 28 5.563 5.5
5/16" 24 6.995 6.9
3/8" 24 8.565 8.5
7/16" 20 9.947 9.9
1/2" 20 11.524 11.5
9/16" 18 12.969 12.9
5/8" 18 14.554 14.5
3/4" 16 17.546 17.5
7/8" 14 20.493 20.5
1" 12 23.363 23.25
1*1/8" 12 26.538 26.5
1*1/4" 12 29.713 29.5
1*3/8" 12 32.888 32.7
1*1/2" 12 36.063 36
ISCAR
366
USER GUIDE
TAPS

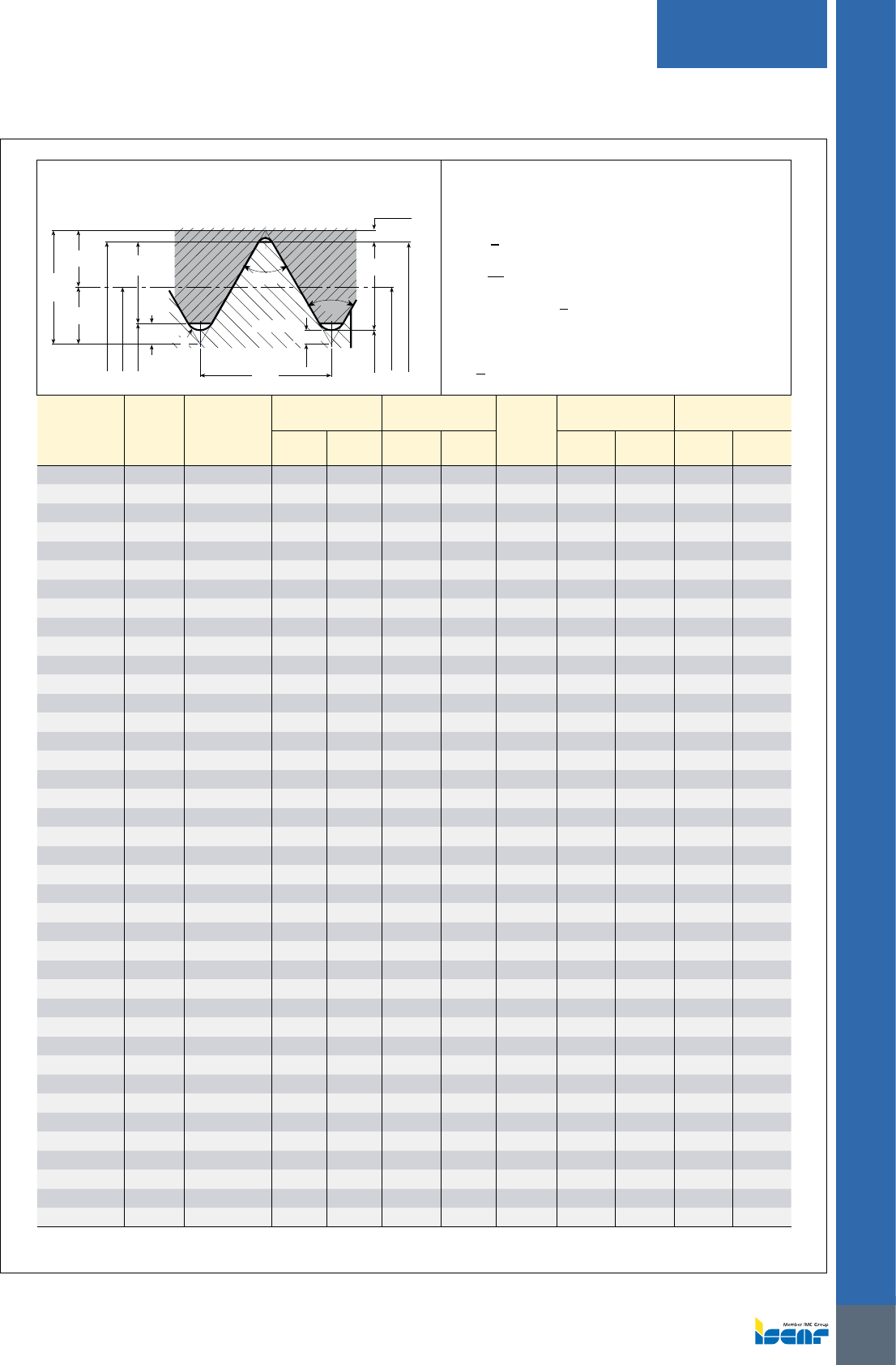

ISO Metric Thread
Nominal Dimensions According to UNI 4535-64
Tap flank diameter production tolerances for ISO 6H Nut
threads limit dimensions - nut threads ISO 6H
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal
Dia. d=D Pitch P Flank Dia.
d2=D2
Minor Diameter Thread Depth
Radius r
Flank Dia. Tap
Tolerance 6H d2
Flank Dia. Tap
Tolerance 6H
Screw
d3 Nut D1 Screw
h3 Nut H1 Min. Max. Min. Max.
M1.6 0.35 1.373 1.171 1.221 0.215 0.189 0.051 1.393 1.407 1.373 1.458
M1.8 0.35 1.573 1.371 1.421 0.215 0.189 0.051 1.593 1.607 1.573 1.658
M2 0.4 1.740 1.509 1.567 0.245 0.217 0.058 1.761 1.776 1.740 1.830
M2.2 0.45 1.908 1.648 1.713 0.276 0.244 0.065 1.931 1.946 1.908 2.003
M2.5 0.45 2.208 1.948 2.013 0.276 0.244 0.065 2.231 2.246 2.208 2.303
M3 0.5 2.675 2.387 2.459 0.307 0.271 0.072 2.699 2.715 2.675 2.775
M3.5 0.6 3.110 2.764 2.850 0.368 0.325 0.087 3.137 3.155 3.110 3.222
M4 0.7 3.545 3.141 3.242 0.429 0.379 0.101 3.574 3.593 3.545 3.663
M4.5 0.75 4.013 3.580 3.688 0.460 0.406 0.108 4.042 4.061 4.013 4.131
M5 0.8 4.480 4.019 4.134 0.491 0.433 0.115 4.510 4.530 4.480 4.605
M6 1 5.350 4.773 4.917 0.613 0.541 0.144 5.385 5.409 5.350 5.500
M7 1 6.350 5.773 5.917 0.613 0.541 0.144 6.385 6.409 6.350 6.500
M8 1.25 7.188 6.466 6.647 0.767 0.677 0.180 7.226 7.251 7.188 7.348
M9 1.25 8.188 7.466 7.647 0.767 0.677 0.180 8.226 8.251 8.188 8.348
M10 1.5 9.026 8.160 8.376 0.920 0.812 0.217 9.068 9.096 9.026 9.206
M11 1.5 10.026 9.160 9.376 0.920 0.812 0.217 10.068 10.096 10.026 10.206
M12 1.75 10.863 9.853 10.106 1.074 0.947 0.253 10.911 10.943 10.863 11.063
M14 2 12.701 11.546 11.835 1.227 1.083 0.289 12.752 12.786 12.701 12.913
M16 2 14.701 13.546 13.835 1.227 1.083 0.289 14.752 14.786 14.701 14.913
M18 2.5 16.376 14.933 15.294 1.534 1.353 0.361 16.430 16.466 16.376 16.600
M20 2.5 18.376 16.933 17.294 1.534 1.353 0.361 18.430 18.466 18.376 18.600
M22 2.5 20.376 18.933 19.294 1.534 1.353 0.361 20.430 20.466 20.376 20.600
M24 3 22.051 20.319 20.752 1.840 1.624 0.433 22.115 22.157 22.051 22.316
M27 3 25.051 23.319 23.752 1.840 1.624 0.433 25.115 25.157 25.051 25.316
M30 3.5 27.727 25.706 26.211 2.147 1.894 0.505 27.794 27.839 27.727 28.007
M33 3.5 30.727 28.706 29.211 2.147 1.894 0.505 30.794 30.839 30.727 31.007
M36 4 33.402 31.093 31.670 2.454 2.165 0.577 33.473 33.520 33.402 33.702
M39 4 36.402 34.093 34.670 2.454 2.165 0.577 36.473 36.520 36.402 36.702
M42 4.5 39.077 36.479 37.129 2.760 2.436 0.650 39.152 39.202 39.077 39.392
M45 4.5 42.077 39.479 40.129 2.760 2.436 0.650 42.152 42.202 42.077 42.392
M48 5 44.752 41.866 42.587 3.067 2.706 0.722 44.832 44.885 44.752 45.087
M52 5 48.752 45.866 46.587 3.067 2.706 0.722 48.832 48.885 48.752 49.087
M56 5.5 52.428 49.252 50.046 3.374 2.977 0.794 52.512 52.568 52.428 52.783
M60 5.5 56.428 53.252 54.046 3.374 2.977 0.794 56.512 56.568 56.428 56.783
M64 6 60.103 56.639 57.505 3.681 3.248 0.866 60.193 60.253 60.103 60.478
M68 6 64.103 60.639 61.505 3.681 3.248 0.866 64.193 64.253 64.103 64.478
Metric Thread MA (old UNI 159 profile) Nut Tolerance SH8
M1.7 0.35 1.473 1.246 1.246 0.227 0.227 0.040 1.493 1,507 1.473 1.529
M2.3 0.4 2.040 1.780 1.780 0.260 0.260 0.040 2.061 2.076 2.040 2.120
M2.6 0.45 2.308 2.016 2.016 0.292 0.292 0.050 2.331 2.346 2.308 2.388
367
USER GUIDE
TAPS

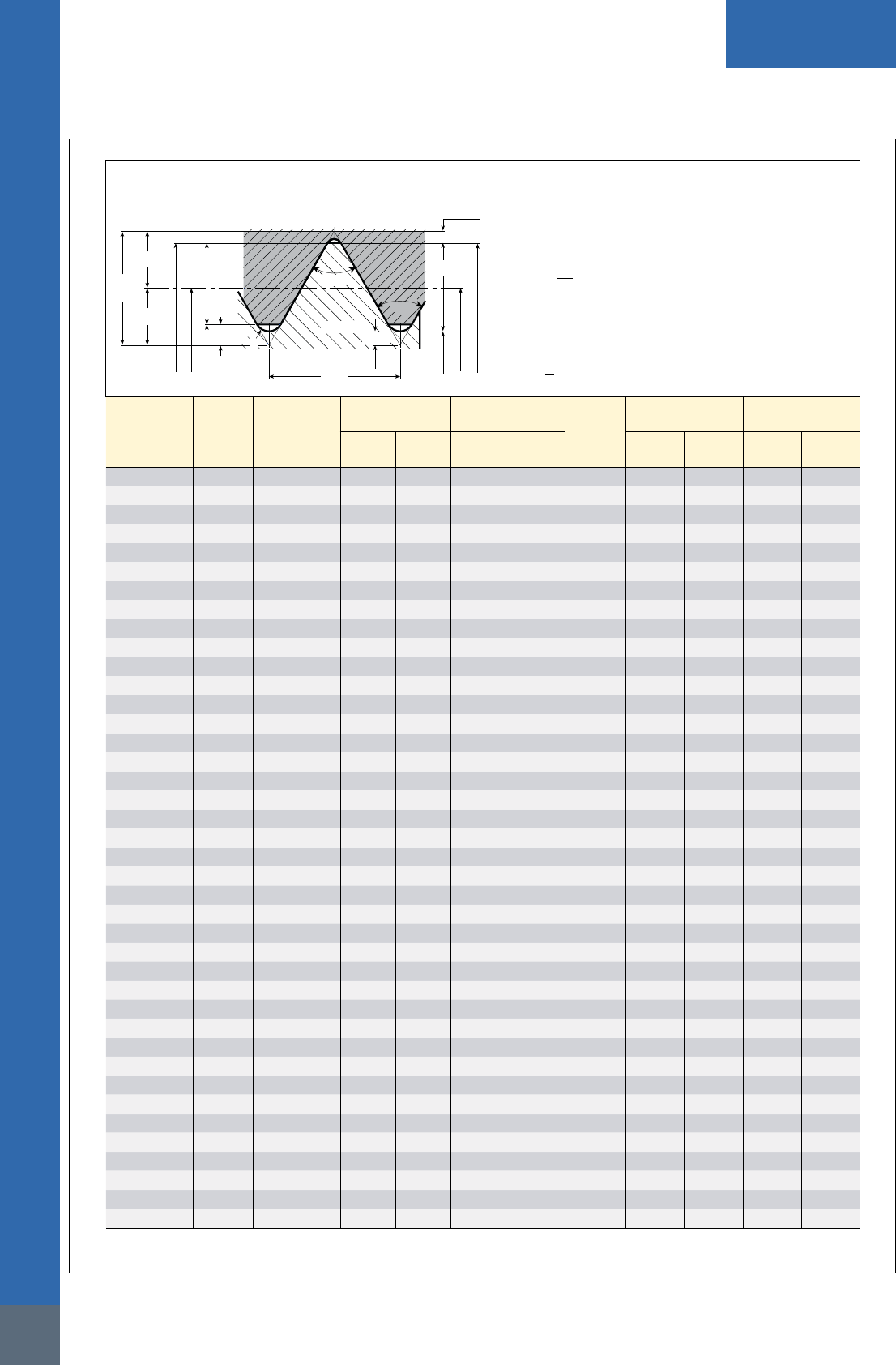

ISO Metric Fine Thread
Nominal Dimensions According to UNI 4535-64
Tap flank diameter production tolerances for ISO 6H Nut
threads limit dimensions - nut threads ISO 6H
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal
Dia. d=D Pitch P Flank Dia.
d2=D2
Minor Diameter Thread Depth
Radius r
Flank Dia. Tap
Tolerance 6H d2
Flank Dia. Tap
Tolerance 6H
Screw
d3 Nut D1 Screw
h3 Nut H1 Min. Max. Min. Max.
M 2 0.25 1.838 1.693 1.729 0.153 0.135 0.036 1.844 1.856 1.838 1.886
M 2.5 0.35 2.273 2.701 2.121 0.215 0.189 0.051 2.293 2.307 2.273 2.358
M 3 0.35 2.773 2.571 2.621 0.215 0.189 0.051 2.794 2.809 2.773 2.863
M 3.5 0.35 3.273 3.071 3.121 0.215 0.189 0.051 3.294 3.309 3.273 3.363
M 4 0.5 3.675 3.387 3.459 0.307 0.271 0.072 3.699 3.715 3.675 3.775
M 4.5 0.5 4.175 3.887 3.959 0.307 0.271 0.072 4.199 4.215 4.175 4.275
M 5 0.5 4.675 4.387 4.459 0.307 0.271 0.072 4.699 4.715 4.675 4.775
M 5.5 0.5 5.175 4.887 4.959 0.307 0.271 0.072 5.199 5.215 5.175 5.275
M 6 0.5 5.675 5.387 5.459 0.307 0.271 0.072 5.702 5.72 5.675 5.787
M 6 0.75 5.513 5.08 5.188 0.46 0.406 0.108 5.545 5.566 5.513 5.645
M 7 0.75 6.513 6.08 6.188 0.46 0.406 0.108 6.545 6.566 6.513 6.645
M 8 0.5 7.675 7.387 7.459 0.307 0.271 0.072 7.702 7.72 7.675 7.787
M 8 0.75 7.513 7.08 7.188 0.46 0.406 0.108 7.545 7.566 7.513 7.645
M 8 1 7.35 6.773 6.917 0.613 0.541 0.144 7.835 7.409 7.35 7.5
M 9 0.75 8.513 8.08 8.188 0.46 0.406 0.108 8.545 8.566 8.513 8.645
M 9 1 8.35 7.773 7.917 0.613 0.541 0.144 8.385 8.409 8.35 8.5
M 10 0.5 9.675 9.387 9.459 0.307 0.271 0.072 9.702 9.72 9.675 9.787
M 10 0.75 9.513 9.08 9.188 0.46 0.406 0.108 9.545 9.566 9.513 9.645
M 10 1 9.35 8.773 8.917 0.613 0.541 0.144 9.385 9.409 9.35 9.5
M 10 1.25 9.188 8.466 8.647 0.767 0.677 0.18 9.226 9.251 9.188 9.348
M 11 0.75 10.513 10.08 10.188 0.46 0.406 0.108 10.545 10.566 10.513 10.645
M 11 1 10.35 9.773 9.917 0.613 0.541 0.144 10.385 10.409 10.35 10.5
M 12 0.75 11.513 11.08 11.188 0.46 0.406 0.108 11.547 11.569 11.513 11.653
M 12 1 11.35 10.773 10.917 0.613 0.541 0.144 11.388 11.413 11.35 11.51
M 12 1.25 11.188 10.466 10.647 0.767 0.677 0.18 11.23 11.258 11.188 11.368
M 12 1.5 11.026 10.16 10.376 0.92 0.812 0.217 11.071 11.101 11.026 11.216
M 13 1 12.35 11.773 11.917 0.613 0.541 0.144 12.388 12.413 12.35 12.51
M 14 1 13.35 12.773 12.917 0.613 0.541 0.144 13.388 13.413 13.35 13.51
M 14 1.25 13.188 12.466 12.647 0.767 0.677 0.18 13.23 13.258 13.188 13.368
M 14 1.5 13.026 12.16 12.376 0.92 0.812 0.217 13.071 13.101 13.026 13.216
M 15 1 14.35 13.773 13.917 0.613 0.541 0.144 14.388 14.413 14.35 14.51
M 15 1.5 14.026 13.16 13.376 0.92 0.812 0.217 14.071 14.101 14.026 14.216
M 16 1 15.35 14.773 14.917 0.613 0.541 0.144 15.388 15.413 15.35 15.51
M 16 1.25 15.188 14.466 14.647 0.767 0.677 0.18 15.23 15.258 15.188 15.368
M 16 1.5 15.026 14.16 14.376 0.92 0.812 0.217 15.071 15.101 15.026 15.216
M 17 1 16.35 15.773 15.917 0.613 0.541 0.144 16.388 16.413 16.35 16.51
M 17 1.5 16.026 15.16 15.376 0.92 0.812 0.217 16.071 16.101 16.026 16.216
M 18 1 17.350 16.773 16.917 0.613 0.541 0.144 17.388 17.413 17.35 17.51
M 18 1.5 17.026 16.16 16.376 0.92 0.812 0.217 17.071 17.101 17.026 17.216
M 18 2 16.701 15.546 15.835 1.227 1.083 0.289 16.752 16.786 16.701 16.913
ISCAR
368
USER GUIDE
TAPS
ISO Metric Fine Thread
Nominal Dimensions According to UNI 4535-64
Tap flank diameter production tolerances for ISO 6H Nut
threads limit dimensions - nut threads ISO 6H
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal
Dia. d=D Pitch P Flank Dia.
d2=D2
Minor Diameter Thread Depth
Radius r
Flank Dia. Tap
Tolerance 6H d2
Flank Dia. Tap
Tolerance 6H
Screw
d3 Nut D1 Screw
h3 Nut H1 Min. Max. Min. Max.
M 20 1 19.35 18.773 18.917 0.613 0.541 0.144 19.388 19.413 19.35 19.51
M 20 1.5 19.026 18.16 18.376 0.92 0.812 0.217 19.071 19.101 19.026 19.216
M 20 2 18.701 17.546 17.835 1.227 1.083 0.289 18.752 18.786 18.701 18.913
M 22 1 21.35 20.773 20.917 0.613 0.541 0.144 21.388 21.413 21.35 21.51
M 22 1.5 21.026 20.16 20.376 0.92 0.812 0.217 21.071 21.101 21.026 21.216
M 22 2 20.701 19.546 19.835 1.227 1.083 0.289 20.752 20.786 20.701 20.913
M 24 1 23.350 22.773 22.917 0.613 0.541 0.144 23.390 23.416 23.350 23.520
M 24 1.5 23.026 22.160 22.376 0.920 0.812 0.217 23.074 23.106 23.026 23.226
M 24 2 22.701 21.546 21.835 1.227 1.083 0.289 22.754 22.791 22.701 22.925
M 25 1 24.350 23.773 23.917 0.613 0.541 0.144 24.390 24.416 24.350 24.520
M 25 1.5 24.026 23.160 23.376 0.920 0.812 0.217 24.074 24.106 24.026 24.226
M 25 2 23.701 22.546 22.835 1.227 1.083 0.289 23.754 23.791 23.701 23.925
M 26 1 25.350 24.773 24.917 0.613 0.541 0.144 25.390 25.416 25.350 25.520
M 26 1.5 25.026 24.160 24.376 0.920 0.812 0.217 25.074 25.106 25.026 25.226
M 26 2 24.701 23.546 23.835 1.227 1.083 0.289 24.754 24.791 24.701 24.925
M 27 1 26.350 25.773 25.917 0.613 0.541 0.144 26.390 26.416 26.350 26.520
M 27 1.5 26.026 25.160 25.376 0.920 0.812 0.217 26.074 26.106 26.026 26.226
M 27 2 25.701 24.546 24.835 1.227 1.083 0.289 25.754 25.791 25.701 25.925
M 28 1 27.350 26.773 26.917 0.613 0.541 0.144 27.390 27.416 27.350 27.520
M 28 1.5 27.026 26.160 26.376 0.920 0.812 0.217 27.074 27.106 27.026 27.226
M 28 2 26.701 25.546 25.835 1.227 1.083 0.289 26.754 26.791 26.701 26.925
M 30 1 29.350 28.773 28.917 0.613 0.541 0.144 29.390 29.416 29.350 29.520
M 30 1.5 29.026 28.160 28.376 0.920 0.812 0.217 29.074 29.106 29.026 29.226
M 30 2 28.701 27.546 27.835 1.227 1.083 0.289 28.754 28.791 28.701 28.925
M 30 3 28.051 26.319 26.752 1.840 1.624 0.433 28.115 28.157 28.051 28.316
M 32 1.5 31.026 30.160 30.376 0.920 0.812 0.217 31.074 31.106 31.026 31.226
M 32 2 30.701 29.546 29.835 1.227 1.083 0.289 30.754 30.791 30.701 30.925
M 33 1.5 32.026 31.160 31.376 0.920 0.812 0.217 32.074 32.106 32.026 32.226
M 33 2 31.701 30.546 30.835 1.227 1.083 0.289 31.754 31.791 31.701 31.925
M 33 3 31.051 29.319 29.752 1.840 1.624 0.433 31.115 31.157 31.051 31.316
M 35 1.5 34.026 33.160 33.376 0.920 0.812 0.217 34.074 34.106 34.026 34.226
M 35 2 33.701 32.546 32.835 1.227 1.083 0.289 33.754 33.791 33.701 33.925
M 36 1.5 35.026 34.160 34.376 0.920 0.812 0.217 35.074 35.106 35.026 35.226
M 36 2 34.701 33.546 33.835 1.227 1.083 0.289 34.754 34.791 34.701 34.925
M 36 3 34.051 32.319 32.752 1.840 1.624 0.433 34.115 34.157 34.051 34.316
M 38 1.5 37.026 36.160 36.376 0.920 0.812 0.217 37.074 37.106 37.026 37.226
M 39 1.5 38.026 37.160 37.376 0.920 0.812 0.217 38.074 38.106 38.026 38.226
M 39 2 37.701 36.546 36.835 1.227 1.083 0.289 37.754 37.791 37.701 37.925
M 39 3 37.051 35.319 35.752 1.840 1.624 0.433 37.115 37.157 37.051 37.316
M 40 1.5 39.026 38.160 38.376 0.920 0.812 0.217 39.074 39.106 39.026 39.226
369
USER GUIDE
TAPS

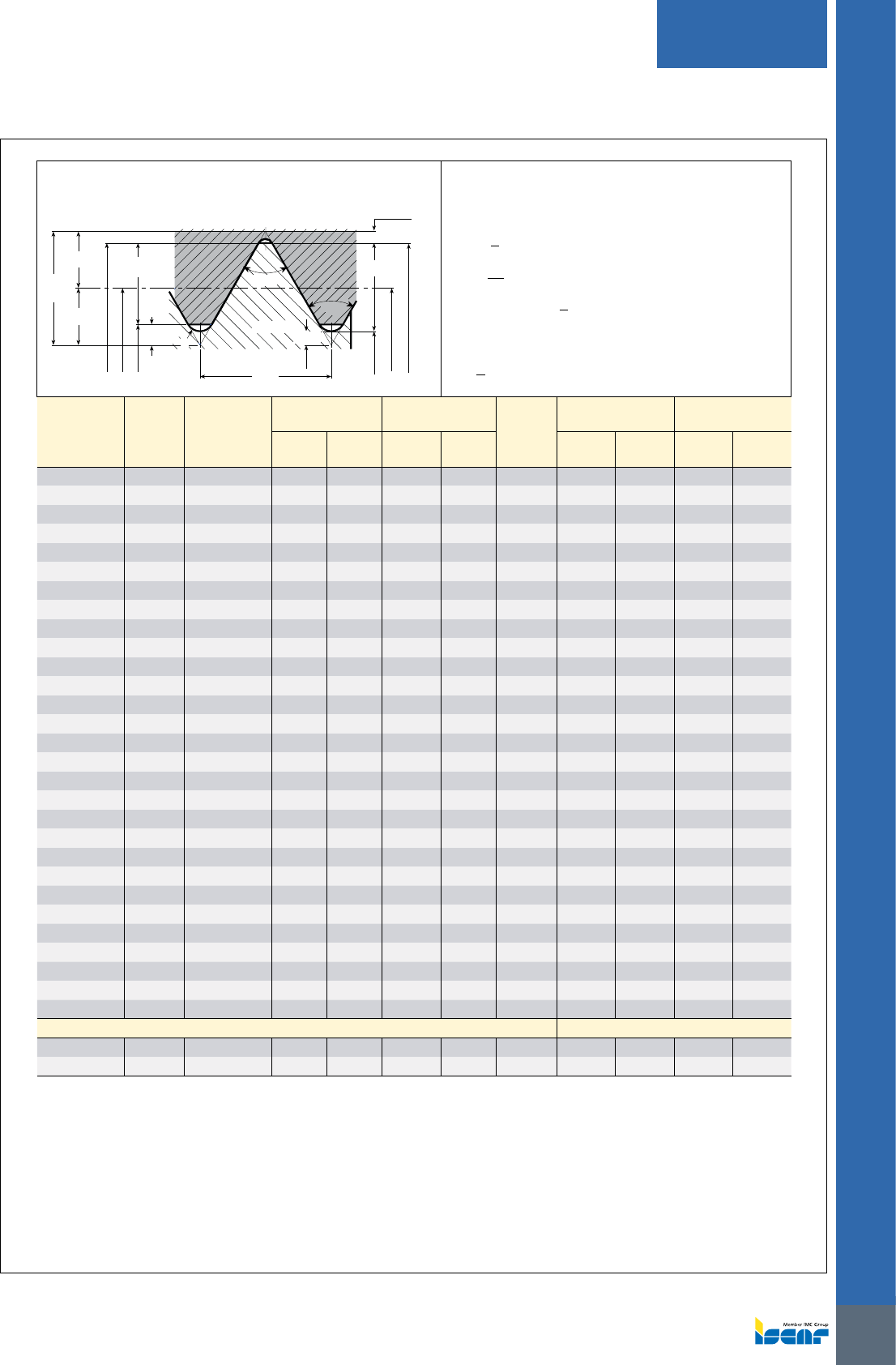

ISO Metric Fine Thread
Nominal Dimensions According to UNI 4535-64
Tap flank diameter production tolerances for ISO 6H Nut
threads limit dimensions - nut threads ISO 6H
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal
Dia. d=D Pitch P Flank Dia.
d2=D2
Minor Diameter Thread Depth
Radius r
Flank Dia. Tap
Tolerance 6H d2
Flank Dia. Tap
Tolerance 6H
Screw
d3 Nut D1 Screw
h3 Nut H1 Min. Max. Min. Max.
M 40 2 38.701 37.546 37.835 1.227 1.083 0.289 38.754 38.791 38.701 38.925
M 40 3 38.051 36.319 36.752 1.840 1.624 0.433 38.115 38.157 38.051 38.316
M 42 1.5 41.026 40.160 40.376 0.920 0.812 0.217 41.074 41.106 41.026 41.226
M 42 2 40.701 39.546 39.835 1.227 1.083 0.289 40.754 40.791 40.701 40.925
M 42 3 40.051 38.319 38.752 1.840 1.624 0.433 40.115 40.157 40.051 40.316
M 45 1.5 44.026 43.160 43.376 0.920 0.812 0.217 44.074 44.106 44.026 44.226
M 45 2 43.701 42.546 42.835 1.227 1.083 0.289 43.754 43.791 43.701 43.925
M 45 3 43.051 41.319 41.752 1.840 1.624 0.433 43.115 43.157 43.051 43.316
M 48 1.5 47.026 46.160 46.376 0.920 0.812 0.217 47.077 47.111 47.026 47.238
M 48 2 46.701 45.546 45.835 1.227 1.083 0.289 46.758 46.796 46.701 46.937
M 48 3 46.051 44.319 44.752 1.840 1.624 0.433 46.118 46.163 46.051 46.331
M 50 1.5 49.026 48.160 48.376 0.920 0.812 0.217 49.077 49.111 49.026 49.238
M 50 2 48.701 47.546 47.835 1.227 1.083 0.289 48.758 48.796 48.701 48.937
M 50 3 48.051 46.319 46.752 1.840 1.624 0.433 48.118 48.163 48.051 48.331
M 52 1.5 51.026 50.160 50.376 0.920 0.812 0.217 51.077 51.111 51.026 51.238
M 52 2 50.701 49.546 49.835 1.227 1.083 0.289 50.758 50.796 50.701 50.937
M 52 3 50.051 48.319 48.752 1.840 1.624 0.433 50.118 50.163 50.051 50.331
M 55 1.5 54.026 53.160 53.376 0.920 0.812 0.217 54.077 54.111 54.026 54.238
M 55 2 53.701 52.546 52.835 1.227 1.083 0.289 53.758 53.796 53.701 53.937
M 55 3 53.051 51.319 51.752 1.840 1.624 0.433 53.118 53.163 53.051 53.331
M 56 1.5 55.026 54.160 54.376 0.920 0.812 0.217 55.077 55.111 55.026 55.238
M 56 2 54.701 53.546 53.835 1.227 1.083 0.289 54.758 54.796 54.701 54.937
M 56 3 54.051 52.319 52.752 1.840 1.624 0.433 54.118 54.163 54.051 54.331
M 58 1.5 57.026 56.160 56.376 0.920 0.812 0.217 57.077 57.111 57.026 57.238
M 58 2 56.701 55.546 55.835 1.227 1.083 0.289 56.758 56.796 56.701 56.937
M 58 3 56.051 54.319 54.752 1.840 1.624 0.433 56.118 56.163 56.051 56.331
M 60 1.5 59.026 58.160 58.376 0.920 0.812 0.217 59.077 59.111 59.026 59.238
M 60 2 58.701 57.546 57.835 1.227 1.083 0.289 58.758 58.796 58.701 58.937
M 60 3 58.051 56.319 56.752 1.840 1.624 0.433 58.118 58.163 58.051 58.331
Metric thread MA (old UNI 160 Profile) Nut Tolerance SH8
M 2,3 0.25 2.138 1.976 1.976 0.162 0.162 0.03 2.144 2.156 2.138 2.194
M 2,6 0.35 2.373 2.146 2.146 0.227 0.227 0.04 2.393 2.407 2.373 2.429
ISCAR
370
USER GUIDE
TAPS

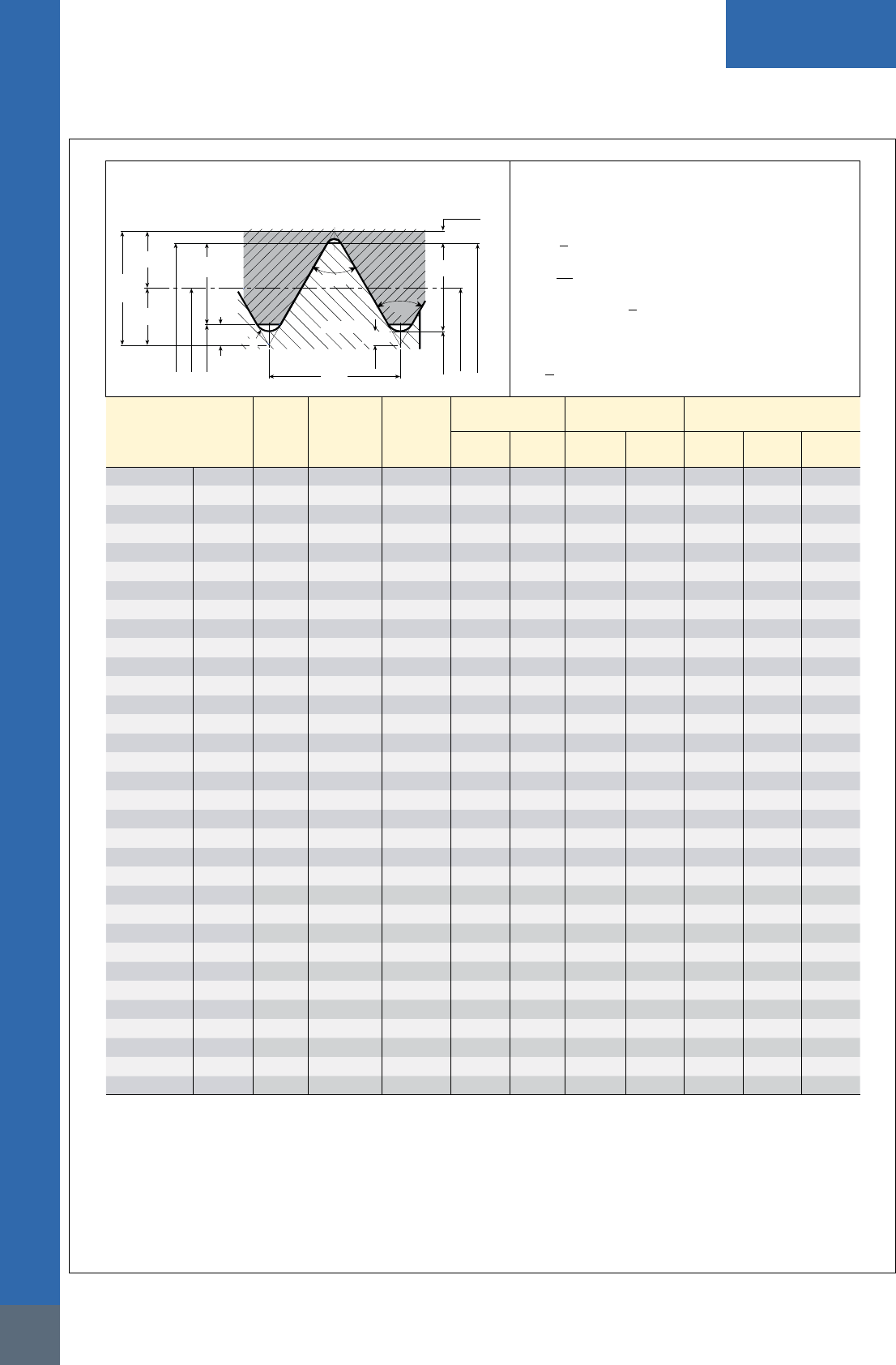

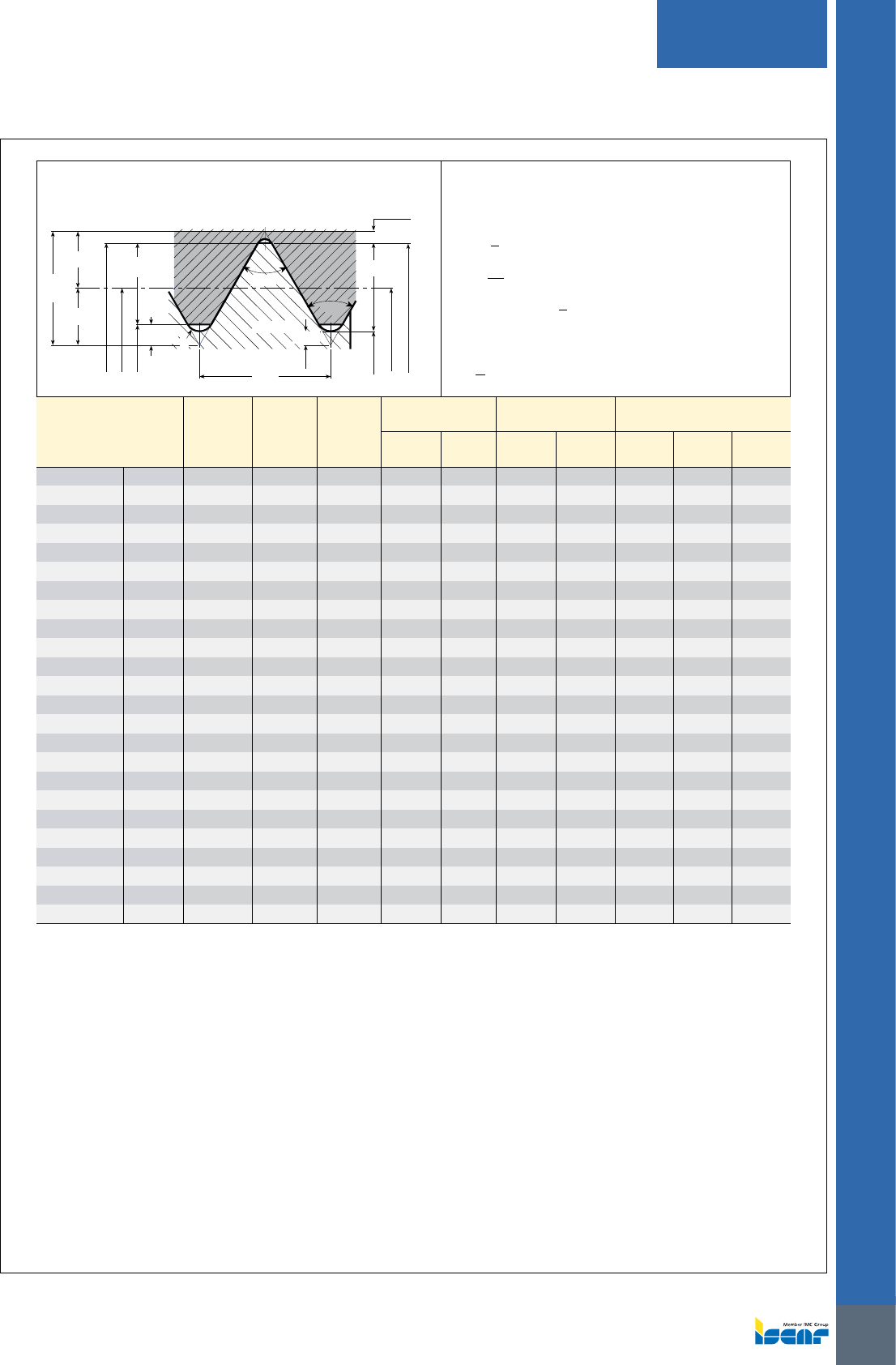

UNIFIED Coarse Thread
Nominal Dimensions According to ANSI B1.1
Tap flank diameter production tolerances for ISO 2B
Nut threads limit dimensions - nut threads ANSI B1.1, 2B-3B
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal T.P.I Dia. Pitch P External
Dia. d=D
Flank Dia.
d2=D2
Minor diameter Pitch diameter
Tap tolerance 2B
Pitch diameter
Nut tolerance
Nut D1 Screw
h3 Min. Max. max.
2B/3B max. 2B max. 3B
UNC#1 64 0.397 1.854 1.598 1.425 1.367 1.610 1.623 1.598 1.664 1.646
UNC# 2 64 0.454 2.184 1.890 1.694 1.628 1.902 1.915 1.890 1.961 1.943
UNC#3 48 0.529 2.515 2.172 1.941 1.864 2.184 2.197 2.172 2.248 2.228
UNC# 4 40 0.635 2.845 2.433 2.156 2.065 2.446 2.459 2.433 2.517 2.494
UNC# 5 40 0.635 3.175 2.764 2.487 2.395 2.776 2.789 2.764 2.847 2.827
UNC# 6 32 0.794 3.505 2.990 2.647 2.532 3.105 3.028 2.990 3.084 3.058
UNC# 8 32 0.794 4.166 3.650 3.307 3.193 3.675 3.688 3.650 3.746 3.721
UNC# 10 24 1.058 4.826 4.138 3.680 3.528 4.163 4.176 4.138 4.247 4.219
UNC# 12 24 1.058 5.486 4.798 4.341 4.188 4.823 4.836 4.798 4.910 4.882
UNC 1/4" 20 1.270 6.350 5.524 4.976 4.793 5.575 5.588 5.524 5.646 5.616
UNC 5/16" 18 1.411 7.938 7.021 6.411 6.205 7.071 7.084 7.021 7.155 7.120
UNC 3/8" 16 1.588 9.525 8.494 7.805 7.577 8.545 8.557 8.494 8.639 8.603
UNC 7/16" 14 1.814 11.112 9.934 9.149 8.887 9.985 9.997 9.934 10.089 10.051
UNC 1/2" 13 1.954 12.700 11.430 10.584 10.302 11.481 11.494 11.430 11.595 11.552
UNC 9/16" 12 2.117 14.288 12.913 11.996 11.692 12.964 12.977 12.913 13.086 13.043
UNC 5/8" 11 2.309 15.875 14.376 13.376 13.043 14.427 14.440 14.376 14.559 14.514
UNC 3/4" 10 2.540 19.050 17.399 16.229 15.933 17.450 17.463 17.399 17.595 17.544
UNC 7/8" 9 2.822 22.225 20.391 19.169 18.763 20.455 20.467 20.391 20.599 20.546
UNC 1" 8 3.175 25.400 23.338 21.963 21.504 23.401 23.414 23.338 23.561 23.505
UNC 1 1/8" 7 3.629 28.575 26.218 24.648 24.122 26.294 26.319 26.218 26.457 26.398
UNC 1 1/4" 7 3.629 31.750 29.393 27.823 27.297 29.469 29.494 29.393 29.637 29.576
UNC 1 3/8" 6 4.233 34.925 32.174 30.343 29.731 32.250 32.276 32.174 32.438 32.372
UNC 1 1/2" 6 4.233 38.100 35.349 33.518 32.906 35.425 35.451 35.349 35.616 35.550
UNC 1 3/4" 5 5.080 44.450 41.151 38.951 38.217 41.241 41.266 41.151 41.445 41.372
UNC 2" 4 1/2 5.644 50.800 47.135 44.689 43.876 47.235 47.260 47.135 47.450 47.371
UNC 2 1/4" 4 1/2 5.644 57.150 53.485 51.039 50.226 53.485 53.805 53.726
UNC 2 1/2" 4 6.350 63.500 59.375 56.627 55.710 59.375 59.718 59.632
UNC 2 3/4" 4 6.350 69.850 65.725 62.977 62.060 65.725 66.073 65.987
UNC 3" 4 6.350 76.200 72.075 69.327 68.410 72.075 72.428 72.339
UNC 3 1/4" 4 6.350 82.550 78.425 75.677 74.760 78.425 78.783 78.694
UNC 3 1/2" 4 6.350 88.900 84.775 82.027 81.110 84.775 85.183 85.049
UNC 3 3/4" 4 6.350 95.250 91.125 88.377 87.460 91.125 91.493 91.402
UNC 4" 4 6.350 101.600 97.475 94.727 93.810 97.475 97.848 97.757
371
USER GUIDE
TAPS
UNIFIED Fine Thread
Nominal Dimensions According to ANSI B1.1
Tap flank diameter production tolerances for ISO 2B
Nut threads limit dimensions - nut threads ANSI B1.1, 2B-3B
Coarse Pitch Threads Dimensions in mm
H
1/2·H
1/2·H
DD
2D1
H1
Nut thread
60°
60°
Screw
P
r
d3
1/8·H
1/4·H
d2
h3
d
1/6·H
H = 0.86603P
H1 = 5
8 H = 0.54127P
h3 = 17
24 H = 0.61343P
d2 = D2 = d- 3
4 H = d-0.64952P
d3 = d-2h3 = d-1.22687P
r = H
6 = 0.14434P
Nominal T.P.I Dia. Pitch P External
Dia. d=D
Flank
Dia.
d2=D2
Minor diameter Pitch diameter
Tap tolerance 2B
Pitch diameter
Nut tolerance
Nut D1 Screw
h3 Min. Max. max.
2B/3B max. 2B max. 3B
UNF#0 80 0.318 1.524 1.318 1.181 1.135 1.331 1.344 1.318 1.377 1.361
UNF#1 72 0.353 1.854 1.626 1.473 1.422 1.638 1.651 1.626 1.689 1.674
UNF#2 64 0.397 2.184 1.928 1.755 1.697 1.941 1.953 1.928 1.996 1.979
UNF#3 56 0.454 2.515 2.220 2.024 1.958 2.233 2.245 2.220 2.291 2.273
UNF#4 48 0.529 2.845 2.502 2.271 2.195 2.515 2.527 2.502 2.581 2.560
UNF#5 44 0.577 3.175 2.799 2.550 2.466 2.812 2.824 2.799 2.880 2.860
UNF#6 40 0.635 3.505 3.094 2.817 2.725 3.108 3.119 3.094 3.180 3.157
UNF#8 36 0.706 4.166 3.708 3.401 3.299 3.721 3.734 3.708 3.800 3.777
UNF#10 32 0.794 4.826 4.310 3.967 3.853 4.336 4.348 4.310 4.409 4.384
UNF#12 28 0.907 5.486 4.897 4.503 4.374 4.923 4.935 4.897 5.004 4.976
UNF 1/4" 28 0.907 6.350 5.761 5.367 5.237 5.799 5.812 5.761 5.870 5.842
UNF 5/16" 24 1.058 7.938 7.249 6.792 6.640 7.287 7.300 7.249 7.371 7.341
UNF 3/8" 24 1.058 9.525 8.837 8.379 8.227 8.875 8.887 8.837 8.961 8.931
UNF 7/16" 20 1.270 11.112 10.287 9.738 9.555 10.338 10.351 10.287 10.424 10.391
UNF 1/2" 20 1.270 12.700 11.874 11.326 11.143 11.925 11.938 11.874 12.017 11.981
UNF 9/16" 18 1.411 14.288 13.371 12.761 12.555 13.421 13.434 13.371 13.520 13.482
UNF 5/8" 18 1.411 15.875 14.958 14.348 14.143 15.009 15.022 14.958 15.110 15.072
UNF 3/4" 16 1.588 19.050 18.019 17.330 17.102 18.070 18.082 18.019 18.184 18.143
UNF 7/8" 14 1.814 22.225 21.046 20.262 20.000 21.110 21.123 21.046 21.224 21.181
UNF 1" 12 2.117 25.400 24.026 23.109 22.804 24.089 24.102 24.026 24.219 24.171
UNF 1*1/8" 12 2.117 28.575 27.201 26.284 25.979 27.252 27.277 27.201 27.339 27.351
UNF 1*1/4" 12 2.117 31.750 30.376 29.459 29.154 30.427 30.452 30.376 30.579 30.528
UNF 1*3/8" 12 2.117 34.925 33.551 32.634 32.329 33.602 33.627 33.551 33.759 33.706
UNF 1*1/2" 12 2.117 38.100 36.726 35.809 35.504 36.777 36.802 36.726 36.937 36.886
ISCAR
372
USER GUIDE
TAPS
Tap Tolerances
Tolerance classes of taps and tolerance positions
for screw threads as per ISO metric standard.
Tap tolerance Nut threads according
to H tolerance
Nut thread
positioning of
H tolerance
Tolerance classes
for taps
Nut thread
positioning of
G tolerance
7H
6H
5H
4H
8H
4H
6H
6G
7G
7G
6G
5G
4G
D2
Au
D2=0
Au
Basic Pitch Diameter
Au = Basic Deviation of Pitch
For Optimum Tapping Conditions, Reduced
Machining Times and Increased Tap Life
Selection of the Most Suitable Tap
As a general rule, materials with deformation
capability of at least 10% can be cold-formed. To
decide on the most suitable tap, please refer to
the tap recommendation table on page 346.
Pre-Tapping Holes
Check that the holes are within the prescribed
size range depending on the application (see table on
page 364) The holes should be clean and swarf-free.
Lubrication
Frequently the lubricant content of the coolant used
for general machining is too low for tapping.
• If it is not possible to increase the lubricant
content, following are some possible solutions:
• A separate Iubricating unit can be connected
to the machine control to deliver the required
quantity of concentrated emulsion into the core
hole or onto the tap.Tapping in separate operations
allows the use of the ideal tapping lubricant.
Tapping Speeds
The tapping speed has a great influence on chip flow
and the life of the tap. It is worthwhile to establish the
ideal speed by tapping trials. For recommended initial
values, see table on page 346. In addition, the following
should be taken into consideration: characteristics
of the material, machine and clamping method.
Effects of Unsuitable Tapping Speed
• forced tapping
• tap lead chipping caused by overloaded cutting tooth
• torn threads
• unsatisfactory tap life
• rejected threads
373
USER GUIDE
TAPS

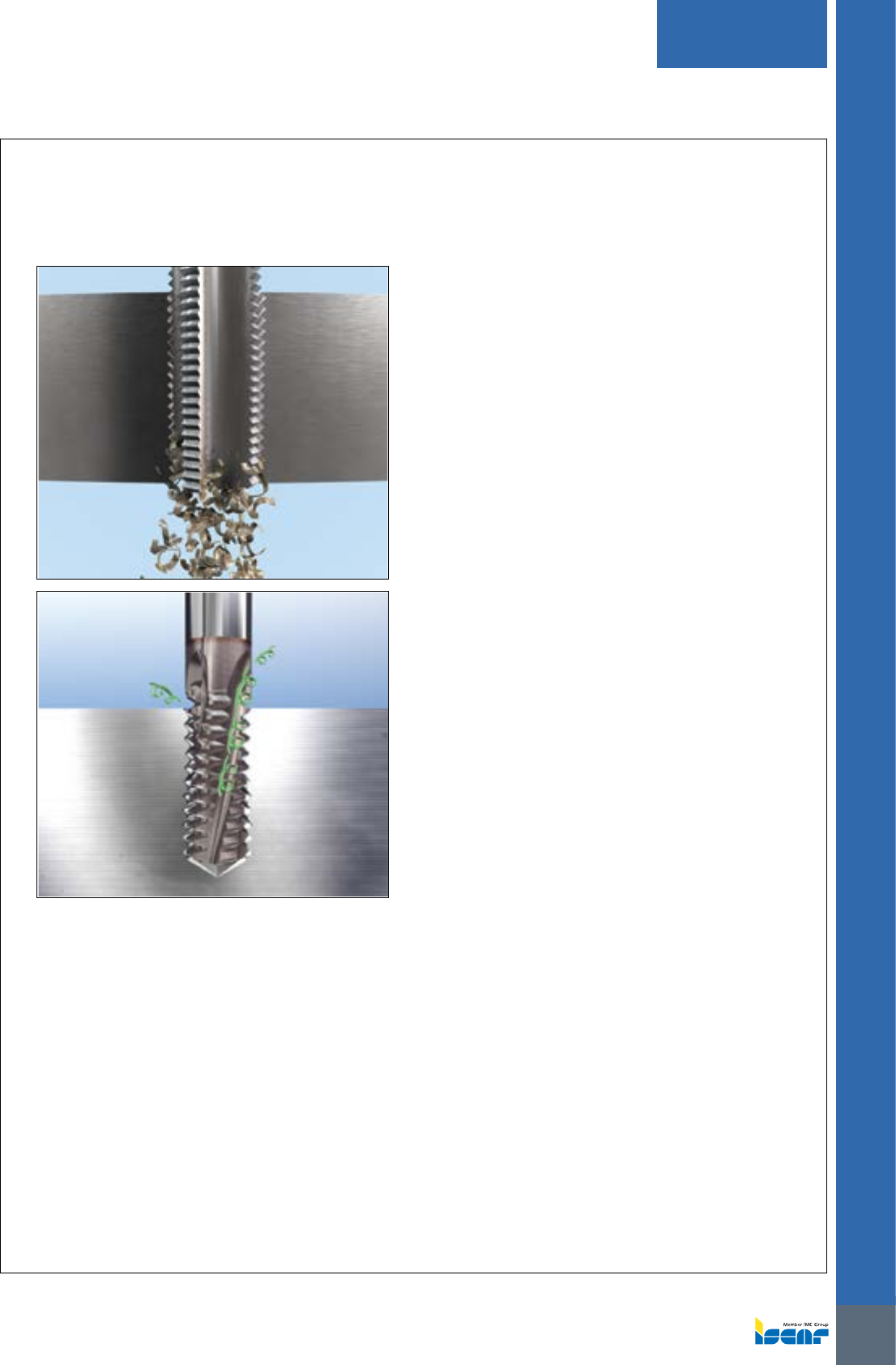

Chip Explusion
Tap selection is also influenced by the type of hole
being threaded. Through hole tapping usually requires
a tap that pushes the chips out in front of the cutting
edge and through the other end of the hole. A bottom
hole tap must pull chips up and out of the hole.
Tap Jamming
Some possible causes of tap jamming are:
• unsuitable tap
• tap with incorrect cutting geometry
• unsuitable coolant for material
• insufficient coolant
• axial pressure (pull or push) on the tap
• core hole too small
• breaks in walls of core hole
• speed too high or too low
• swarf trapped in the hole
• incorrect alignment of tap and core hole
• tap eccentricity
Results of Tap Jamming
• torn threads
• short tap life
• rejected threads
• tap breakage
• scrap workpieces
Tap Mounting
The tap must be mounted on the axis of the core hole.
On non-synchronized machines (feed/speed) we
recommend using a tapping spindle. (ISCAR GTI, GTIN
collets, see pages 381-382)
Tapping Heads
As a rule, with non-synchronized machine spindles
(feed/ speed), the feed rate should be programmed
approximately 5-10% lower than the thread pitch. In
these cases, a tapping chuck must be used which will
compensate the difference between the feed rate and
the thread pitch. It is important that the tension spring
in the axial compensation is set to a minimum pressure
to avoid axially loading the tap. The compression
spring should be tensioned so the tap starts to cut
by compressing the spring up to one-half pitch.
Important
Verify that the correct speed has been selected.
Ensure that ample lubricating coolant is being
used. Machine and equipment stability are
essential for optimal performance and results.
Forming Taps
Forming taps (roll forming or cold forming) produce
threads by deforming the material near the hole walls
rather than by cutting the material. This method often
works well in ductile materials. However, in brittle
materials it often results in unsatisfactory threads.
Torque requirements for forming taps are considerably
higher than for cutting taps. When forming taps
are used, chuck capacity must be decreased by
25%. Forming taps do not produce chips.
ISCAR
374
USER GUIDE
TAPS
Troubleshooting
Problem Cause Solution
Tapped hole
oversized
Incorrect tap (cutting geometry unsuitable for application) Use tap selected from the relevant material group
Faulty alignment Ensure that the tap is correctly aligned with the core hole axis
Tap jamming Improve lubrication and direction of coolant
Adjust cutting speed
Incorrectly reground tap (lead tip is not concentric) Regrind tap
Stripped threads
Incorrect tap (cutting geometry incorrect for application) Use a tap from the relevant material group
Spindle speed and feed rate are not synchronized Check feed rate programming and/or pitch of leading
spindle. Use a tapping spindle with axial float (GTI/GTIN)
Insufficient starting pressure exerted on tap (causes peeling) Increase starting pressure
Bell mouthed
tapped hole Incorrect starting pressure Use a tapping spindle with axial float (GTI/GTIN)
Unsatisfactory
thread surface
finish
Incorrect tap (cutting geometry unsuitable
for application) Select tap for the relevant material group
The tap is blunt Replace or regrind tap
Tap badly re-ground Regrind tap. Check that cutting geometry is suitable for material
Incorrect lubricant, concentration or quantity Ensure the use of a suitable coolant and an ample supply
Partial tap
chipping
Swarf jamming Check cutting speed. Use alternative tap
Tap has jammed against bottom of pre-hole Check hole and thread depths. Drill a deeper pre-hole
Tap incorrectly reground (lead-in diameter too
short, therefore too few cutting teeth) Ensure that correct dimensions are maintained when regrinding
Irregular workpiece material structure Adjust cutting speed. Improve lubricant quality of coolant
Partial tap
chipping
Swarf jamming Check cutting speed. Use alternative tap
Tap has jammed against bottom of pre-hole Check hole and thread depths. Drill a deeper pre-hole
Tap incorrectly reground (lead-in diameter too
short, therefore too few cutting teeth) Ensure that correct dimensions are maintained when regrinding
Irregular workpiece material structure Adjust cutting speed. Improve lubricant quality of coolant
Excessive
tap wear
Incorrect cutting speed Adjust cutting speed to suit workpiece material
Coolant lacking in lubricating qualities
and/or quantity
Ensure the use of a suitable coolant and an ample supply.
Check that the coolant is reaching the cutting zone
Surface of the pre-hole is compacted Check pre-hole drilling conditions (drill carefully to reduce
risk of surface compacting). Check drill cutting edges
Tap breakage
Incorrect tap in use (cutting geometry unsuitable for application) Use tap from the relevant material group
Centering error Ensure that axes of tap and pre-hole are aligned
Blunt tap regrind tap
Tap has reached bottom of pre-hole Use tapping spindle with axial float and
slipping clutch (GTI/GTIN)
Pre-hole too small Check for correct pre-hole size, see pages 364-365
375
USER GUIDE
TAPS
A
d
3
di dm d1
1
A
P
A-A
A
B
B
ε
1
T
S
d5
B-B
γ
Δ
d1 Major diameter
dm Flank diameter
di Minor diameter
d3 Chamfer diameter
P Pitch
aFlank angle
ßChamfer angle
jGun nose angle
ϒGun nose front rake angle
ΔChamfer relief
Δ 1 Pitch diameter relief
on the land
ϒ1Rake angle
TWidth of land
SFlute width
d5 Web thickness
εAngle of spiral flute

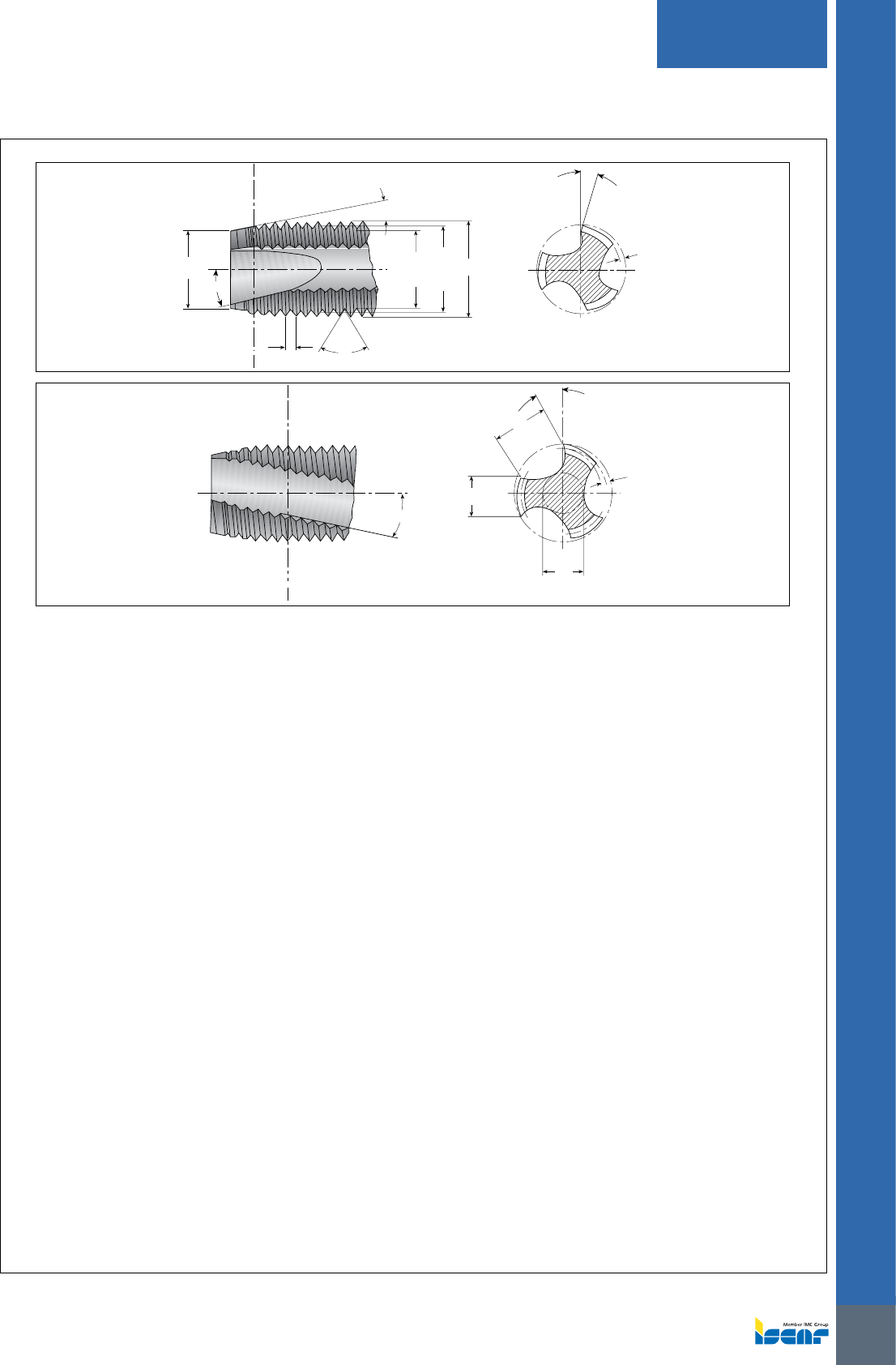

Tap Nomenclature (Regrinding)
ISCAR
376
USER GUIDE
TAPS

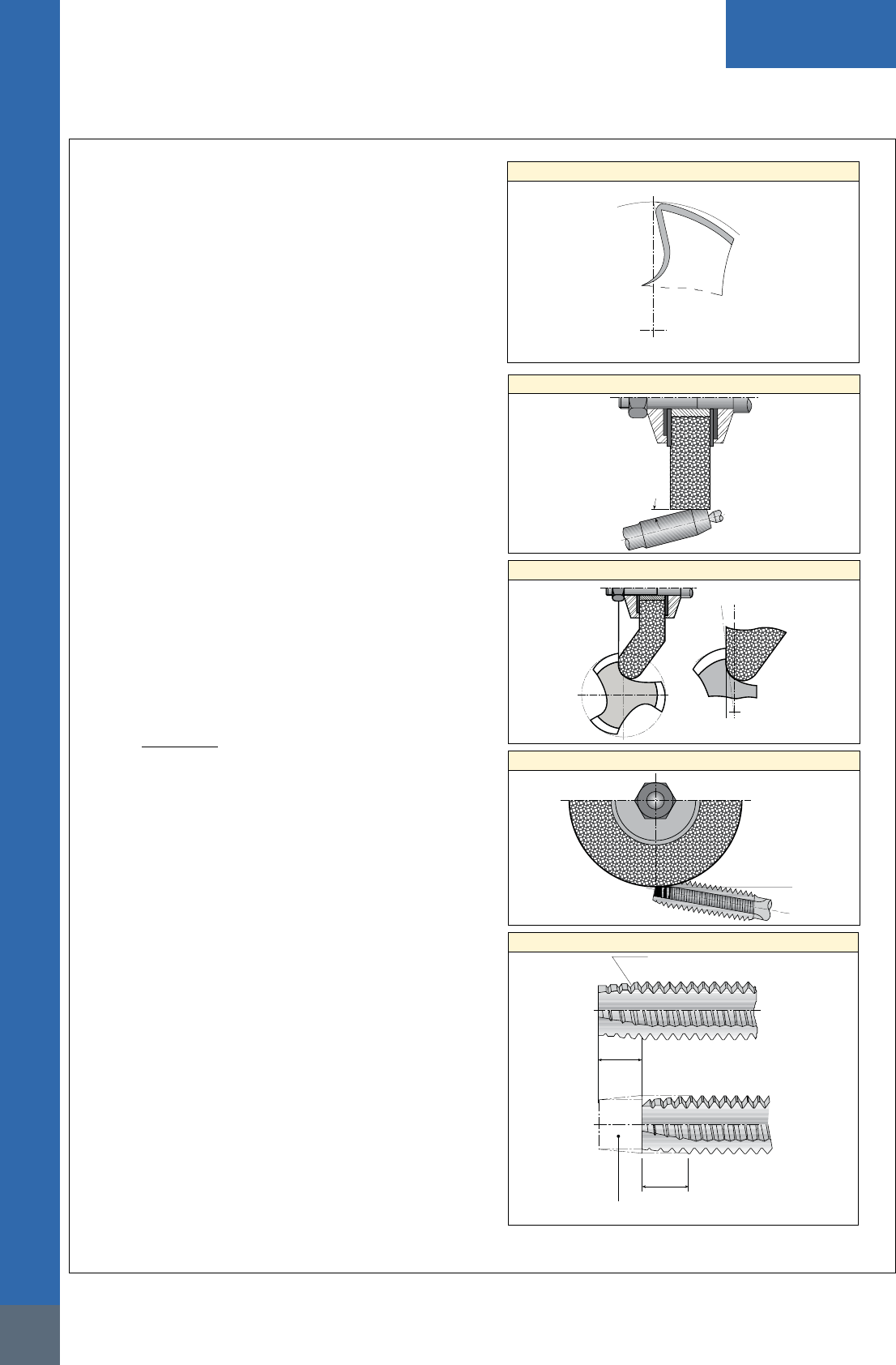

Regrinding
Regrinding
Tap regrinding takes place in two steps:
1 regrinding of relieved chamfer
2 regrinding of flutes (see picture 1)
Regrinding of Relieved Chamfer
It is recommended that the resharpening be executed
either on specific tap regrinding machines or on
conventional resharpening machines equipped with an
auxiliary device to generate the circular back relief.
Picture 2 shows regrinding done with the cylindrical
surface of a grinding wheel. Before regrinding, verify
that the tap, fixed between points or on the pincer, runs
concentrical. Also ensure that angle B is in the correct
order to keep the same number of threads on chamfer.
Resharpening of Flutes
The rake angle g is obtained by moving the tap axis, in
relation to the regrinding surface, of an amount X to be
calculated with the formula: X = 1/2 d1 sin (ϒ)
(see picture 3).
(d1 =tap major diameter)
Example:
Tap 10 X 1,5 to cut on steel
strength = 600 N/mm2
d1 = 10 mm ; ϒ = 15° ;
sin (ϒ) = 0,25882;
X = 0.25885
2 x10 ; X=1.29 mm
On all taps with spiral flutes, it is possible to find the pitch
of the spiral in reference to the lead screw necessary
for resharpening. In case of using taps equipped with
a deburring tool, it is necessary to extend the flutes
according to the supplier’s recommendation. As the wear
on a tap is mainly on the chamfer area, for taps with a gun
nose, regrinding the flutes can be done on the front area
only (see picture 4).
In cases where the thread flanks are worn (in addition
to the active edges), regrinding as described above is
impractical. In this case restoration is done, by cutting
the chamfer away (thus creating a shorter tap) and then
reproducing the chamfer with same angle and relief.
(see picture 5)
In the absence of special regrinding machines,
such restoration is advisable for regrinding taps
with spiral flutes. This is because regrinding
the flutes becomes unnecessary.
Picture 1
Picture 2
β
Picture 3
X
γ
Picture 4
ϕ
Picture 5
Flank wear
Chamfer
New chamfer
Part to be cut away
377
USER GUIDE
TAPS
General Recommendations (Regrinding)
Maintenance
It is important to periodically regrind the worn tap. This
is to avoid permanent damage or even tool breakage.
The Grinding Wheels
The structure and grain of grinding wheels must
be appropriate for the tap to be resharpened.
Taps for Cast Iron
Taps used on cast iron can rarely be resharpened, as
it is very abrasive and tends to wear the flank in such
a way that it becomes grossly out of tolerance.
Taps for Aluminun
After regrinding it is advisable to remove
the steel burrs with a wire brush.
Tap Inspection
It is important to inspect the tap after regrinding
to ensure that all of the dimensions and angles
have remained according to its specifications.
Controls (tests)
Once the tap is resharpened, it is always
best to test it to correctly obtain the same
threads as when the tap was new.
• The chamfer must be perfectly on axis
in order to avoid the effects of picture 6.
The cutters must have correct divisions.
• The results of resharpening with an incorrect
division is shown in picture 7.
• The length and number of threads in chamfer must
be precisely identical to those of the new tap.
Picture 6
Chamfer out
of center
Picture 7
b
a
3
2
1
4
γ
Incorrect division-cutters not concentric
ISCAR
378
USER GUIDE
TAPS

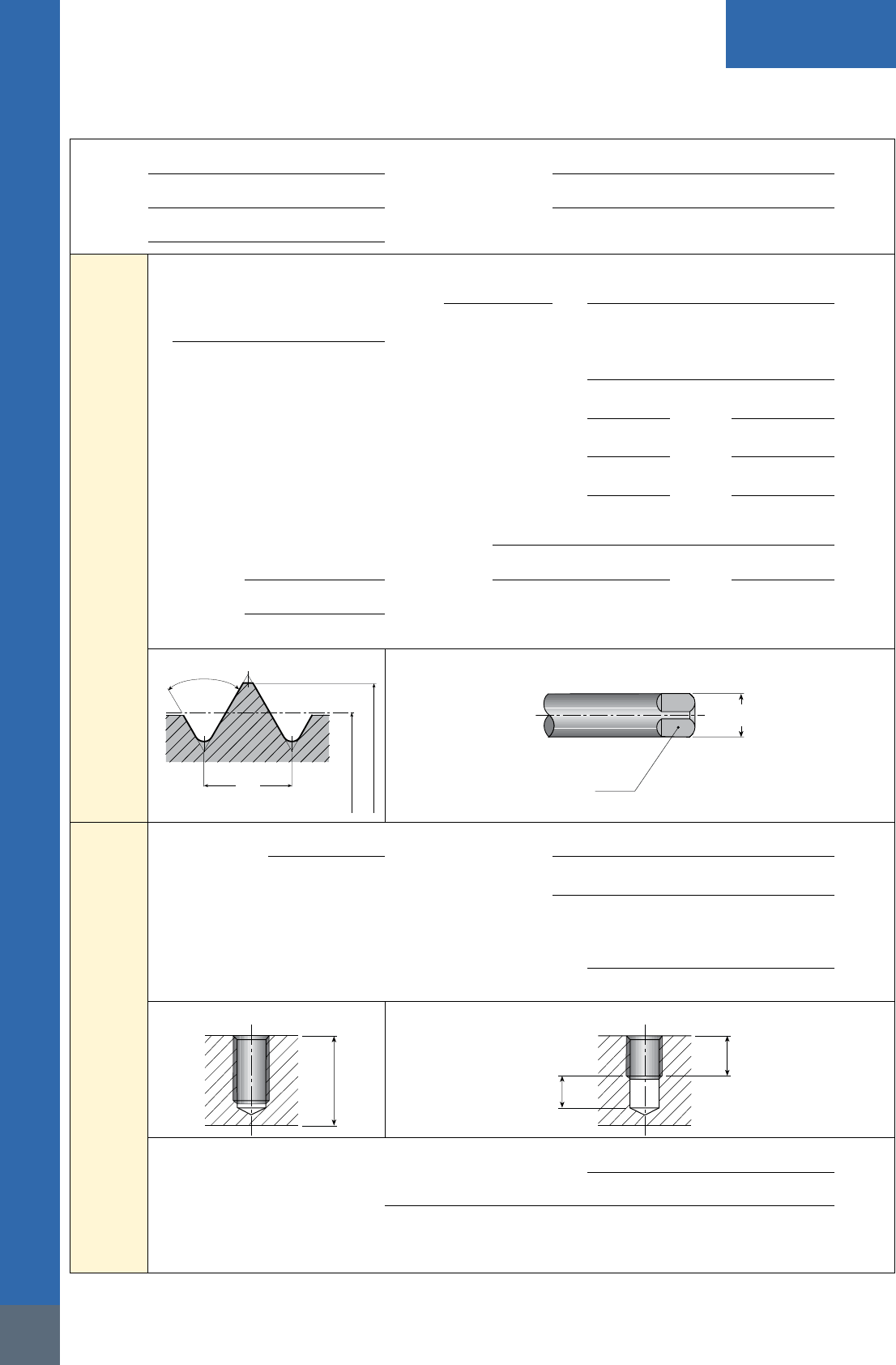

Test Report Form
Company Department
Address Phone
Tool
Description of the tap being used at
present Thread diameter and pitch Make Type
Class of tolerance
oRight-hand cutting oLeft-hand cutting
oFluteless oRight-hand spiral flutes degrees
oStraight flutes oLeft-hand spiral flutes degrees
oSpiral point oLength of chamfer mm
Additional information for special
pitches or thread forms Major diameter
Pitch diameter Flank angle degrees
Minor diameter
P=
Pitch Ø =
major Ø =
d1
=
a=
Hole
Tap drill diameter Length of hole
oThrough hold Depth of full thread
oBlind hole
Special requirements or unusual characteristics of the threaded product
Unusual characteristics of the threaded product or of the tapping method.
ie. counterbore, tapping on an angle, etc.
379
USER GUIDE
TAPS
Test Report Form
Tapping speed m/min
RPM
Lubricant
onone oEmulsion % oCutting oil oOther
oUnder pressure oVaporization
Machine Type oHorizontal Tapping oVertical Tapping
Driving oTap revolvers Number of spindles
oWorkpiece revolvers
Feed oWithout oPower oCNC %
Toolholder oRigid oFloating oSafety clutch
Make Type
Material to be tapped
Material no. or designation
Composition, if known
Tensile strength or hardness N/mm2HB HRc
Chip form oShort oLong
oAnnealed steel oHardened steel oHeat treated steel
More details:
Contact person
Date Signature
ISCAR
380
USER GUIDE
TAPS
Thread Standards
Cylindrical Threads
UNC
Unified coarse thread series
UNF
Unified fine thread series
UNEF
Unified extra-fine thread series
UN
Constant pitch series - threads with constant
pitch of T.P.I. 4, 6, 8, 12, 16, 20, 28, 32
UNS
Selected combinations - threads with
special dia. - pitch combinations
UNJ
Unified threads with constant pitch with radius on
minor diameter from 0.15011 pitch to 0.18042 pitch
UNJC
Unified coarse thread with radius on minor
diameter from 0.15011 pitch to 0.18042 pitch
UNJEF
Unified extra-fine thread with radius on minor
diameter from 0.15011 pitch to 0.18042 pitch
UNJF
Unified fine threads with radius on minor
diameter from 0.15011 pitch to 0.18042 pitch
Pipe Cylindrical Threads
NPS
Cylindrical threads for pipe
NPSC
American Standard for pipe coupling
NPSF
American Standard for internal
threads on pipe, dryseal
NPSH
American Standard for cylindrical threads
for pipes, joints and nipples
NPSI
American Standard for internal cylindrical
threads on pipe (dryseal)
NPSL
American Standard for cylindrical
threads on pipes for nuts
NPSM
American Standard for cylindrical threads
on pipes for mechanical joints
NGO
American National pipe threads for gas exhaust
NGS
American National pipe threads for gas
Taper Pipe Threads
ANPT
Taper pipe threads for Army, Navy and Airforce
F-PTE
Taper pipe fine threads (dryseal)
Taper Pipe Threads
NPT
Taper pipe threads
NPTF
Taper pipe threads (dryseal)
NPTR
Taper pipe threads for railway equipment
PTF-SAE SHORT
Taper pipe short threads (dryseal)-SAE
PTF-SPL
SHORT
Taper pipe special threads (dryseal)-SAE
PTF-SPL EXTRA
SHORT
Extra short special threads (dryseal)-SAE
SPL-PTF
Special taper pipe dryseal threads
NGT
National American taper pipe threads
SGT
Special taper pipe threads
API
American Petroleum Institute
taper pipe threads
Trapezoidal and Saw Tooth Threads
ACME-C ACME
Self-centering threads
ACME-G ACME
Generical application
STUB-ACME
ACME Flat threads with
reduced thread depth
60º STUB-ACME
ACME Flat threads with 60º flank angle
N BUTT
American National Saw tooth threads
British Standard
BSW
Whitworth British Standard coarse pitch
BSF
Whitworth British Standard fine pitch
WHIT
Whitworth Standard special pitch
R
British Standard external threading for
taper pipe (dryseal) (already BSP-Tr)
Rc
British Standard internal threading
taper thread for pipe (BSP-Tr)
Rp
British Standard cylindrical thread
for pipe (already BSP.PI)
BA
British Standard Association threads
BSC
British Standard threads for bicycles
CEI
British Standard for bicycles
381
USER GUIDE
TAPS
GTI / GTIN - Tapping Attachment
Compact tapping collet with tension and compression
floating mechanism for ER32 collet chucks.
A tapping collet for standard and rigid tapping operations.
The GTIN ER32 collet makes tap removal and
replacement easy, quick and reliable.
Designed for stationary and rotating applications,
the GTIN ER32 collets are economical and efficient
due to the ability to use existing ER32 collet
chucks (with various shank sizes and types).
Applications:
The GTIN ER32 tapping collet is designed especially for
CNC mill/turn centers, for regular and rigid tapping.
Advantages:
Quick tap change with a front clamping nut
• Compact design for minimal clearance
between the turret and chuck
• Fits every type of stationary and rotating ER32 collet chuck
• Positive tap drive with internal square driver
• Compensates for machine feed and tap pitch
variance, resulting in greater thread accuracy
• Floating mechanism compensates for
misalignment between tap and workpiece
• High accuracy due to tension and
compression mechanism
• Available for all tap shank standards (DIN, ISO, ANSI, JIS)
• Tapping range M1-M16 (#0 to 5/8”)
• Saves setup time by quick tap changing
without removing GTIN from the machine
• Optimal for machines which have limited
space between the turret and workpiece
ISCAR
382
USER GUIDE
TAPS

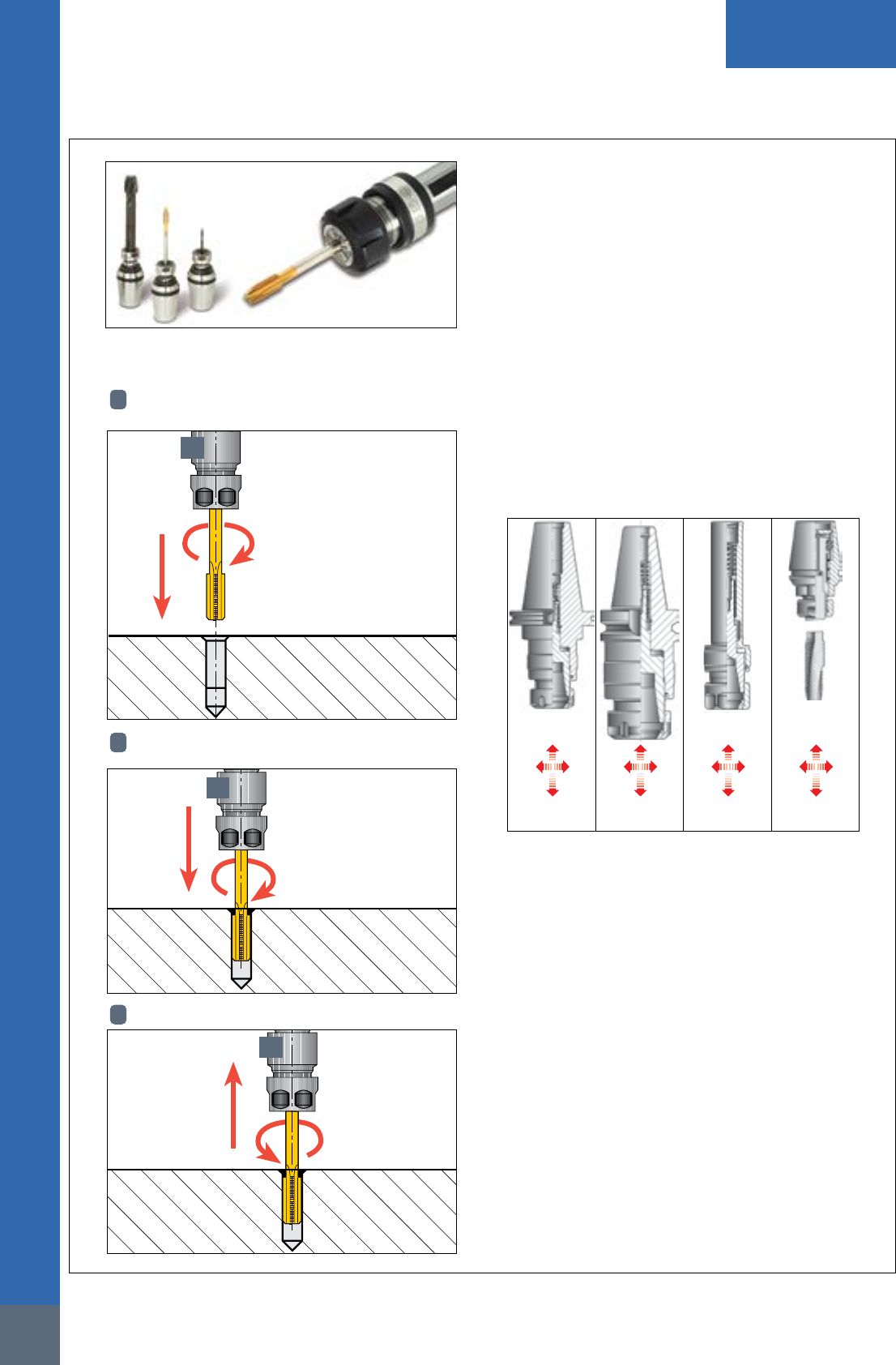

GTI / GTIN - Tapping Attachment
Operation
For through- and blind-hole tapping:
1Enter feed rate according to thread pitch (or 1-2 % lower).
Set spindle to starting point with 0.08 mm clearance.
1
2Start spindle forward with right hand
rotation until reaching desired depth.
2
3Stop feed and rotation and reverse to starting point.
3
Description:
Short tap chucks for ER collets.
Application:
Axial float/tension/compression type for
CNC milling machines and lathes with
reversing motors and rigid tapping.
Features:
• Compensates for machine feed and tap pitch variance
• Floating mechanism compensates for
misalignment between tap and workpiece
• Right- and left-hand tapping
Advantages:
• Practical and efficient tap holding by the ER
spring collet without using jaw drive
• Compact design for minimal clearance applications
• Heavy duty design for high torque drive ensures
the same accuracy as the tap itself
CAT ANSI
B5.50
BT MAS-403 Straight Shank GTIN
