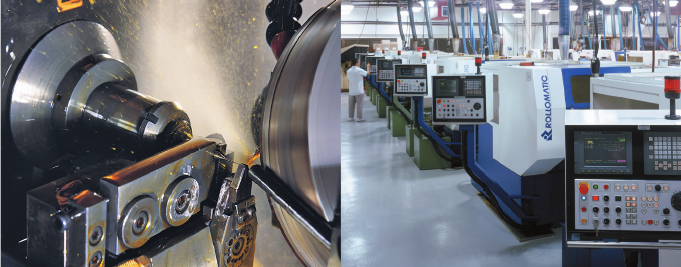

Our state-of-the-art facilities include over 65 Swiss-made Rollomatic CNC grinding centers
and extensive automated optical inspection (AOI) to ensure quality and consistency. Every
tool we build is CAD/CAM designed and has SPC lot traceability as our ISO 9001:2008 and
14001:2004 certications require.
If you have need for advanced technology, consistent quality and technical support, then
Kyocera is the perfect partner for you.
KYOCERA Microtools
2015_KUTDE_MIT_Catalog_TZZ00058.indd 2 04.03.2016 07:51:15
DRILLS
BOHRER | FORET | PUNTE 03 - 31
SPOTTING DRILLS
NC ANBOHRER | FORET A POINTER NC | PUNTE DA CENTRO 03
HIGH PERFORMANCE DRILL
HOCHLEISTUNGSBOHRER | FORET A GRAND RENDEMENT | PUNTE AD ALTA RENDIMENTO 04 - 06
DRILLS
BOHRER | FORET | PUNTE 07 - 23
COOLANT FED DRILLS
BOHRER MIT INNENKÜHLUNG | FORET AVEC ARROSAGE INTERNE
PUNTE CON ADDUZIONE REFRIGERANTE 24 - 27
HIGH PERFORMANCE COOLANT FED DRILL
MIKRO BOHRER MIT INNENKÜHLUNG | MICRO FORET AVEC ARROSAGE INTERNE
MICRO PUNTE CON ADDUZIONE REFRIGERANTE 28 - 30
DRILLS FOR BRASS
BOHRER FÜR MESSING | FORET POUR CUIVRE | PUNTE PER OTTONE 31
END MILLS
SCHAFTFRÄSER | FRAISE | FRESA 32 - 57
END MILLS  Z2
SCHAFTFRÄSER | FRAISE | FRESE 32 - 40
END MILLS  Z3
SCHAFTFRÄSER | FRAISE | FRESE 41 - 46
END MILLS  Z4
SCHAFTFRÄSER | FRAISE | FRESE 47 - 54
END MILLS  Z5
SCHAFTFRÄSER | FRAISE | FRESE 55 - 56
CHAMFER MILLS
ENTGRATFRÄSER | OUTIL DE RETOUCHE BAVURE | FRESE PER SMUSSI 57
ROUTER BITS
SCHAFTFRÄSER MIT DIAMANTPROFIL | FRAISE POUR CARBON
FRESE DISCORDE CON DISEGNO A ROMBI 58 - 60
THREAD MILLS
GEWINDEFRÄSER | FRAISE A TOURBILLONNEURS | FRESE A FILETTARE 61
ENGRAVERS
GRAVIERFRÄSER | FRAISE A GRAVER | UTENSILI PER INICISIONE 62 - 64
BORING BARS
AUSDREHWERKZEUGE | BURINS D ALESAGE | BARRE DI ALESATURA 65 - 66
REAMERS
REIBAHLEN | ALESOIRS | ALESATORE 67 - 78
TECHNICAL INFORMATION
TECHNISCHE INFORMATIONEN | INFORMATIONS TECHNIQUES
INFORMAZIONI TECNICHE 79 - 87
2015 - 2016
KYOCERA Microtools
TECHNICAL INFODRILLS END MILLS THREAD MILLS ENGRAVERS BORING BARSROUTERS REAMERS
Alphanumeric Index on page 2.
2015_KUTDE_MIT_Catalog_TZZ00058.indd 1 04.03.2016 07:51:15
2
INDEX / ALPHANUMERISCHE REIHENFOLGE
INDEX / ORDRE ALPHANUMERIQUE
INDEX / ORDINE ALFANUMERICO
Series Page Name
081 3 MICRO SPOTTING DRILLS MIKRO NC ANBOHRER MICRO FORET A POINTER MICRO NC PUNTE DA CENTRO
16 HMR 39 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
16 HMS 38 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
16 RB 40 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
165 4 HIGH PERFORMANCE DRILL HOCHLEISTUNGSBOHRER FORET A GRAND RENDEMENT PUNTE AD ALTA RENDIMENTO
1610 32 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1620 33 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1625 34 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1635 35 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1640 36 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1645 37 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1703 41 MICRO END MILLS WITH CORNER RADIUS MIKRO SCHAFTFRÄSER MIT ECKENRADIUS MICRO FRAISE TORIQUE MICRO FRESE CON RAGGIO ANGOLARE
1804 47 MICRO END MILLS WITH CORNER RADIUS MIKRO SCHAFTFRÄSER MIT ECKENRADIUS MICRO FRAISE TORIQUE MICRO FRESE CON RAGGIO ANGOLARE
1810 48 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1820 49 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1825 50 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1835 51 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1840 52 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
1845 53 MICRO BALL NOSE END MILLS MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA
1905 55 MICRO END MILLS WITH CORNER RADIUS MIKRO SCHAFTFRÄSER MIT ECKENRADIUS MICRO FRAISE TORIQUE MICRO FRESE CON RAGGIO ANGOLARE
2120 58 DIAMOND PATTERN ROUTER BITS / UP CUT SCHAFTFRÄSER MIT DIAMANTPROFIL /
GEGENLAUFFRÄSEN FRAISE POUR CARBON FRESE DISCORDE CON DISEGNO A ROMBI
2121 59 DIAMOND PATTERN ROUTER BITS / DOWN CUT SCHAFTFRÄSER MIT DIAMANTPROFIL /
GLEICHLAUFFRÄSEN FRAISE POUR CARBON FRESE DISCORDE CON DISEGNO A ROMBI
226 8 MICRO DRILLS MIKRO BOHRER MICRO FORET MICRO PUNTE
226L 17 MICRO DRILLS / LEFT HAND MIKRO BOHRER / LINKSSCHNEIDEND MICRO FORET / COUPE A GAUCHE MICRO PUNTE / ESECUZIONE SINISTRA
2320 60 DIAMOND PATTERN ROUTER BITS / UP CUT SCHAFTFRÄSER MIT DIAMANTPROFIL /
GEGENLAUFFRÄSEN FRAISE POUR CARBON FRESE DISCORDE CON DISEGNO A ROMBI
392 23 MICRO DRILLS MIKRO BOHRER MICRO FORET MICRO PUNTE
813 24 COOLANT FED MICRO DRILLS MIKRO BOHRER MIT INNENKÜHLUNG MICRO FORET AVEC ARROSAGE INTERNE MICRO PUNTE CON ADDUZIONE REFRIGERANTE
865 28 HIGH PERFORMANCE COOLANT FED DRILL HOCHLEISTUNGSBOHRER MIT INNENKÜHLUNG FORET AVEC ARROSAGE INTERNE PUNTE CON ADDUZIONE REFRIGERANTE
885 31 MICRO DRILLS FOR BRASS MIKRO BOHRER FÜR MESSING MICRO FORET POUR CUIVRE MICRO PUNTE PER OTTONE
98M 61 MICRO THREAD MILLS MIKRO GEWINDEFRÄSER MICRO FRAISE A TOURBILLONNEURS MICRO FRESE A FILETTARE
AP4M 54 APOLLO END MILLS / ROUGHING - FINISHING APOLLO SCHAFTFRÄSER / SCHRUPPEN 
SCHLICHTEN MICRO FRAISE / EBAUCHE  FINITION MICRO FRESE / SGROSSATURA  FINITURA
AP5M 56 APOLLO END MILLS / ROUGHING - FINISHING APOLLO SCHAFTFRÄSER / SCHRUPPEN 
SCHLICHTEN MICRO FRAISE / EBAUCHE  FINITION MICRO FRESE / SGROSSATURA  FINITURA
CMM 57 CHAMFER MILLS ENTGRATFRÄSER OUTIL DE RETOUCHE BAVURE FRESE PER SMUSSI
EGR 62 MICROENGRAVING TOOLS MIKRO GRAVIERFRÄSER MICRO FRAISE A GRAVER MICRO UTENSILI PER INICISIONE
HR 63 MICRO HALF ROUND ENGRAVING TOOLS MIKRO GRAVIERSTICHEL MICRO FRAISE A GRAVER MICRO UTENSILI PER INICISIONE
MBE 66 MICRO BORING BARS MIKRO AUSDREHWERKZEUGE MICRO BURINS D ALESAGE MICRO BARRE DI ALESATURA
MBS 65 MICRO BORING BARS MIKRO AUSDREHWERKZEUGE MICRO BURINS D ALESAGE MICRO BARRE DI ALESATURA
MR34 67 MICRO REAMERS MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE
MR46 73 MICRO REAMERS MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE
MR66 76 MICRO REAMERS MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE
MR86 77 MICRO REAMERS MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE
MR106 78 MICRO REAMERS MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE
SPD 64 MICRO SPADE TOOLS MIKRO GRAVIERFRÄSER MICRO FRAISE A GRAVER MICRO UTENSILI PER CENTRATURE A SMUSSO
TITAN AXM 42 MICRO END MILLS MIKRO SCHAFTFRÄSER MICRO FRAISE MICRO FRESE
INDEX / ALPHANUMERIC ORDER
2015_KUTDE_MIT_Catalog_TZZ00058.indd 2 04.03.2016 07:51:16
DRILLS
3
★: Priority Materials ☆: Applicable Materials
MIKRO NC ANBOHRER
MICRO FORET A POINTER NC
MICRO PUNTE DA CENTRO
D (mm)
+0/-0.008 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.15 0.65 3 38 081-0059.90 081-0059L90
0.25 0.90 3 38 081-0098.90 081-0098L90
0.40 1.15 3 38 081-0157.90 081-0157L90
0.50 1.30 3 38 081-0197.90 081-0197L90
1.00 2.30 3 38 081-0394.90 081-0394L90
1.50 5.00 3 38 081-0591.90 081-0591L90
2.00 5.00 3 38 081-0787.90 081-0787L90
3.00 5.00 3 38 081-1181.90 081-1181L90
D (mm)
+0/-0.008 l (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.15 0.65 3 38 081-0059.130 081-0059L130
0.25 0.90 3 38 081-0098.130 081-0098L130
0.40 1.15 3 38 081-0157.130 081-0157L130
0.50 1.30 3 38 081-0197.130 081-0197L130
1.00 2.30 3 38 081-0394.130 081-0394L130
1.50 5.00 3 38 081-0591.130 081-0591L130
2.00 5.00 3 38 081-0787.130 081-0787L130
3.00 5.00 3 38 081-1181.130 081-1181L130
MICRO
GRAIN 90° R2
MICRO
GRAIN 130° R2
MICRO SPOTTING DRILLS SERIES 081
SERIES 081 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
D
dh6
L
4 Facet Point Geometry
2015_KUTDE_MIT_Catalog_TZZ00058.indd 3 04.03.2016 07:51:19
DRILLS
4
★: Priority Materials ☆: Applicable Materials
SERIES 165
D (mm)
m7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
3.00 15.0 4 60 165-1181AG591
3.10 15.5 4 60 165-1220AG610
3.20 16.0 4 60 165-1260AG630
3.30 16.5 4 60 165-1299AG650
3.40 17.0 4 60 165-1339AG669
3.50 17.5 4 60 165-1378AG689
3.60 18.0 4 60 165-1417AG709
3.70 18.5 4 60 165-1457AG728
3.80 19.0 4 60 165-1496AG748
3.90 19.5 4 60 165-1535AG768
4.00 20.0 6 70 165-1575AG787
4.10 20.5 6 70 165-1614AG807
4.20 21.0 6 70 165-1654AG827
4.30 21.5 6 70 165-1693AG846
4.40 22.0 6 70 165-1732AG866
4.50 22.5 6 70 165-1772AG886
4.60 23.0 6 70 165-1811AG906
4.70 23.5 6 70 165-1850AG925
4.80 24.0 6 70 165-1890AG945
4.90 24.5 6 70 165-1929AG965
5.00 25.0 6 70 165-1969AG984
5.10 25.5 6 70 165-2008AG1004
5.20 26.0 6 70 165-2047AG1024
5.30 26.5 6 70 165-2087AG1043
5.40 27.0 6 70 165-2126AG1063
5.50 27.5 6 70 165-2165AG1083
5.60 28.0 6 70 165-2205AG1102
5.70 28.5 6 70 165-2244AG1122
5.80 29.0 6 70 165-2283AG1142
5.90 29.5 6 70 165-2323AG1161
6.00 30.0 8 80 165-2362AG1181
6.10 30.5 8 80 165-2402AG1201
6.20 31.0 8 80 165-2441AG1220
6.30 31.5 8 80 165-2480AG1240
6.40 32.0 8 80 165-2520AG1260
6.50 32.5 8 80 165-2559AG1280
6.60 33.0 8 80 165-2598AG1299
6.70 33.5 8 80 165-2638AG1319
6.80 34.0 8 80 165-2677AG1339
HIGH PERFORMANCE DRILL
HOCHLEISTUNGSBOHRER
FORET A GRAND RENDEMENT
PUNTE AD ALTA RENDIMENTO
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
6 Facet Point Geometry
Ddh6
L
MICRO
GRAIN 142° 3xD R2
SERIES 165 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 4 04.03.2016 07:51:21
DRILLS
5
★: Priority Materials ☆: Applicable Materials
HOCHLEISTUNGSBOHRER
FORET A GRAND RENDEMENT
PUNTE AD ALTA RENDIMENTO
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
HIGH PERFORMANCE DRILL SERIES 165
6 Facet Point Geometry
Ddh6
L
MICRO
GRAIN 142° 3xD R2
D (mm)
m7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
6.90 34.5 8 80 165-2717AG1358
7.00 35.0 8 80 165-2756AG1378
7.10 35.5 8 80 165-2795AG1398
7.20 36.0 8 80 165-2835AG1417
7.30 36.5 8 80 165-2874AG1437
7.40 37.0 8 80 165-2913AG1457
7.50 37.5 8 80 165-2953AG1476
7.60 38.0 8 80 165-2992AG1496
7.70 38.5 8 80 165-3031AG1516
7.80 39.0 8 80 165-3071AG1535
7.90 39.5 8 80 165-3110AG1555
8.00 40.0 10 90 165-3150AG1575
8.10 40.5 10 90 165-3189AG1594
8.20 41.0 10 90 165-3228AG1614
8.30 41.5 10 90 165-3268AG1634
8.40 42.0 10 90 165-3307AG1654
8.50 42.5 10 90 165-3346AG1673
8.60 43.0 10 90 165-3386AG1693
8.70 43.5 10 90 165-3425AG1713
8.80 44.0 10 90 165-3465AG1732
8.90 44.5 10 90 165-3504AG1752
9.00 45.0 10 90 165-3543AG1772
9.10 45.5 10 90 165-3583AG1791
9.20 46.0 10 90 165-3622AG1811
9.30 46.5 10 90 165-3661AG1831
9.40 47.0 10 90 165-3701AG1850
9.50 47.5 10 90 165-3740AG1870
9.60 48.0 10 90 165-3780AG1890
9.70 48.5 10 90 165-3819AG1909
9.80 49.0 10 90 165-3858AG1929
9.90 49.5 10 90 165-3898AG1949
10.00 50.0 12 100 165-3937AG1969
10.10 50.5 12 100 165-3976AG1988
10.20 51.0 12 100 165-4016AG2008
10.30 51.5 12 100 165-4055AG2028
10.40 52.0 12 100 165-4094AG2047
10.50 52.5 12 100 165-4134AG2067
10.60 53.0 12 100 165-4173AG2087
10.70 53.5 12 100 165-4213AG2106
SERIES 165 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 5 04.03.2016 07:51:23
DRILLS
6
★: Priority Materials ☆: Applicable Materials
SERIES 165
HIGH PERFORMANCE DRILL
HOCHLEISTUNGSBOHRER
FORET A GRAND RENDEMENT
PUNTE AD ALTA RENDIMENTO
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
6 Facet Point Geometry
Ddh6
L
MICRO
GRAIN 142° 3xD R2
D (mm)
m7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
10.80 54.0 12 100 165-4252AG2126
10.90 54.5 12 100 165-4291AG2146
11.00 55.0 12 100 165-4331AG2165
11.10 55.5 12 100 165-4370AG2185
11.20 56.0 12 100 165-4409AG2205
11.30 56.5 12 100 165-4449AG2224
11.40 57.0 12 100 165-4488AG2244
11.50 57.5 12 100 165-4528AG2264
11.60 58.0 12 100 165-4567AG2283
11.70 58.5 12 100 165-4606AG2303
11.80 59.0 12 100 165-4646AG2323
11.90 59.5 12 100 165-4685AG2343
12.00 60.0 14 100 165-4724AG2362
SERIES 165 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 6 04.03.2016 07:51:25
DRILLS
7
★: Priority Materials ☆: Applicable Materials
SERIES 226
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.04 0.5 0.5 3 38 226-0016.020
0.05 0.8 0.8 3 38 226-0020.030
0.06 0.8 0.8 3 38 226-0024.030
0.07 1.3 1.3 3 38 226-0028.050
0.08 1.3 1.3 3 38 226-0031.050
0.09 1.3 1.3 3 38 226-0035.050
0.10 1.0 1.2 3 38 226-0039.040
0.11 1.0 1.2 3 38 226-0043.040
0.12 1.0 1.2 3 38 226-0047.040
0.13 1.5 2.2 3 38 226-0051.040
0.14 2.0 2.2 3 38 226-0055.040
0.15 2.0 2.2 3 38 226-0059.080
0.16 2.0 2.2 3 38 226-0063.080
0.17 2.0 2.2 3 38 226-0067.080
0.18 2.5 2.7 3 38 226-0071.100
0.19 2.5 2.7 3 38 226-0075.100
0.20 2.5 2.7 3 38 226-0079.100
0.21 2.5 2.7 3 38 226-0083.100
0.22 2.5 2.7 3 38 226-0087.100
0.23 3.8 4.0 3 38 226-0091.150
0.24 3.8 4.0 3 38 226-0094.150
0.25 3.8 4.0 3 38 226-0098.150
0.26 3.8 4.0 3 38 226-0102.150
0.27 3.8 4.0 3 38 226-0106.150
0.28 3.8 4.0 3 38 226-0110.150
0.29 3.8 4.0 3 38 226-0114.150
0.30 5.7 5.9 3 38 226-0118.225 226-0118L225
0.31 5.7 5.9 3 38 226-0122.225 226-0122L225
0.32 5.7 5.9 3 38 226-0126.225 226-0126L225
0.33 5.7 5.9 3 38 226-0130.225 226-0130L225
MICRO DRILLS
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
D
dh6
L
L14 Facet
Point Geometry
D
> 0.08 mm
2 Facet
Point Geometry
D
≤ 0.08 mm
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 7 04.03.2016 07:51:27
DRILLS
8
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.34 5.7 5.9 3 38 226-0134.225 226-0134L225
0.35 5.7 5.9 3 38 226-0138.225 226-0138L225
0.36 5.7 5.9 3 38 226-0142.225 226-0142L225
0.37 5.7 5.9 3 38 226-0146.225 226-0146L225
0.38 6.4 6.6 3 38 226-0150.250 226-0150L250
0.39 6.4 6.6 3 38 226-0154.250 226-0154L250
0.40 6.4 6.6 3 38 226-0157.250 226-0157L250
0.41 6.4 6.6 3 38 226-0161.250 226-0161L250
0.42 6.4 6.6 3 38 226-0165.250 226-0165L250
0.43 6.4 6.6 3 38 226-0169.250 226-0169L250
0.44 6.4 6.6 3 38 226-0173.250 226-0173L250
0.45 6.4 6.6 3 38 226-0177.250 226-0177L250
0.46 6.4 6.6 3 38 226-0181.250 226-0181L250
0.47 6.4 6.6 3 38 226-0185.250 226-0185L250
0.48 6.6 6.8 3 38 226-0189.260 226-0189L260
0.49 6.6 6.8 3 38 226-0193.260 226-0193L260
0.50 6.6 6.8 3 38 226-0197.260 226-0197L260
0.51 6.6 6.8 3 38 226-0201.260 226-0201L260
0.52 6.6 6.8 3 38 226-0205.260 226-0205L260
0.53 6.6 6.8 3 38 226-0209.260 226-0209L260
0.54 6.6 6.8 3 38 226-0213.260 226-0213L260
0.55 8.6 8.8 3 38 226-0217.340 226-0217L340
0.56 8.6 8.8 3 38 226-0220.340 226-0220L340
0.57 8.6 8.8 3 38 226-0224.340 226-0224L340
0.58 8.6 8.8 3 38 226-0228.340 226-0228L340
0.59 8.6 8.8 3 38 226-0232.340 226-0232L340
0.60 8.6 8.8 3 38 226-0236.340 226-0236L340
0.61 8.6 8.8 3 38 226-0240.340 226-0240L340
0.62 8.6 8.8 3 38 226-0244.340 226-0244L340
0.63 8.6 8.8 3 38 226-0248.340 226-0248L340
0.64 8.6 8.8 3 38 226-0252.340 226-0252L340
0.65 8.6 8.8 3 38 226-0256.340 226-0256L340
0.66 8.6 8.8 3 38 226-0260.340 226-0260L340
0.67 8.6 8.8 3 38 226-0264.340 226-0264L340
0.68 8.6 8.8 3 38 226-0268.340 226-0268L340
0.69 8.6 8.8 3 38 226-0272.340 226-0272L340
0.70 10.2 10.4 3 38 226-0276.400 226-0276L400
0.71 10.2 10.4 3 38 226-0280.400 226-0280L400
0.72 10.2 10.4 3 38 226-0283.400 226-0283L400
SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
4 Facet Point Geometry
D
dh6
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 8 04.03.2016 07:51:29
DRILLS
9
★: Priority Materials ☆: Applicable Materials
SERIES 226
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.73 10.2 10.4 3 38 226-0287.400 226-0287L400
0.74 10.2 10.4 3 38 226-0291.400 226-0291L400
0.75 10.2 10.4 3 38 226-0295.400 226-0295L400
0.76 10.2 10.4 3 38 226-0299.400 226-0299L400
0.77 10.2 10.4 3 38 226-0303.400 226-0303L400
0.78 10.2 10.4 3 38 226-0307.400 226-0307L400
0.79 10.2 10.4 3 38 226-0311.400 226-0311L400
0.80 10.2 10.4 3 38 226-0315.400 226-0315L400
0.81 10.2 10.4 3 38 226-0319.400 226-0319L400
0.82 10.2 10.4 3 38 226-0323.400 226-0323L400
0.83 10.2 10.4 3 38 226-0327.400 226-0327L400
0.84 10.2 10.4 3 38 226-0331.400 226-0331L400
0.85 10.2 10.4 3 38 226-0335.400 226-0335L400
0.86 10.2 10.4 3 38 226-0339.400 226-0339L400
0.87 10.2 10.4 3 38 226-0343.400 226-0343L400
0.88 10.2 10.4 3 38 226-0346.400 226-0346L400
0.89 10.2 10.4 3 38 226-0350.400 226-0350L400
0.90 10.2 10.4 3 38 226-0354.400 226-0354L400
0.91 10.2 10.4 3 38 226-0358.400 226-0358L400
0.92 10.2 10.4 3 38 226-0362.400 226-0362L400
0.93 10.2 10.4 3 38 226-0366.400 226-0366L400
0.94 10.2 10.4 3 38 226-0370.400 226-0370L400
0.95 10.2 10.4 3 38 226-0374.400 226-0374L400
0.96 10.2 10.4 3 38 226-0378.400 226-0378L400
0.97 10.2 10.4 3 38 226-0382.400 226-0382L400
0.98 10.2 10.4 3 38 226-0386.400 226-0386L400
0.99 10.2 10.4 3 38 226-0390.400 226-0390L400
1.00 10.2 10.4 3 38 226-0394.400 226-0394L400
1.01 10.2 10.4 3 38 226-0398.400 226-0398L400
1.02 10.2 10.4 3 38 226-0402.400 226-0402L400
1.03 10.2 10.4 3 38 226-0406.400 226-0406L400
1.04 10.2 10.4 3 38 226-0409.400 226-0409L400
1.05 10.2 10.4 3 38 226-0413.400 226-0413L400
1.06 10.2 10.4 3 38 226-0417.400 226-0417L400
1.07 10.2 10.4 3 38 226-0421.400 226-0421L400
1.08 10.2 10.4 3 38 226-0425.400 226-0425L400
1.09 10.2 10.4 3 38 226.0429.400 226L0429L400
1.10 10.2 10.4 3 38 226-0433.400 226-0433L400
1.11 10.2 10.4 3 38 226-0437.400 226-0437L400
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
4 Facet Point Geometry
D
dh6
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 9 04.03.2016 07:51:31
DRILLS
10
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.12 10.2 10.4 3 38 226-0441.400 226-0441L400
1.13 10.2 10.4 3 38 226-0445.400 226-0445L400
1.14 10.2 10.4 3 38 226-0449.400 226-0449L400
1.15 10.2 10.4 3 38 226-0453.400 226-0453L400
1.16 10.2 10.4 3 38 226-0457.400 226-0457L400
1.17 10.2 10.4 3 38 226-0461.400 226-0461L400
1.18 10.2 10.4 3 38 226-0465.400 226-0465L400
1.19 10.2 10.4 3 38 226-0469.400 226-0469L400
1.20 10.2 10.4 3 38 226-0472.400 226-0472L400
1.21 10.2 10.4 3 38 226-0476.400 226-0476L400
1.22 10.2 10.4 3 38 226-0480.400 226-0480L400
1.23 10.2 10.4 3 38 226-0484.400 226-0484L400
1.24 10.2 10.4 3 38 226-0488.400 226-0488L400
1.25 10.2 10.4 3 38 226-0492.400 226-0492L400
1.26 10.2 10.4 3 38 226-0496.400 226-0496L400
1.27 10.2 10.4 3 38 226-0500.400 226-0500L400
1.28 10.2 10.4 3 38 226-0504.400 226-0504L400
1.29 10.2 10.4 3 38 226-0508.400 226-0508L400
1.30 10.2 10.4 3 38 226-0512.400 226-0512L400
1.31 10.2 10.4 3 38 226-0516.400 226-0516L400
1.32 10.2 10.4 3 38 226-0520.400 226-0520L400
1.33 10.2 10.4 3 38 226-0524.400 226-0524L400
1.34 10.2 10.4 3 38 226-0528.400 226-0528L400
1.35 10.2 10.4 3 38 226-0531.400 226-0531L400
1.36 10.2 10.4 3 38 226-0535.400 226-0535L400
1.37 10.2 10.4 3 38 226-0539.400 226-0539L400
1.38 10.2 10.4 3 38 226-0543.400 226-0543L400
1.39 10.2 10.4 3 38 226-0547.400 226-0547L400
1.40 10.2 10.4 3 38 226-0551.400 226-0551L400
1.41 10.2 10.4 3 38 226-0555.400 226-0555L400
1.42 10.2 10.4 3 38 226-0559.400 226-0559L400
1.43 10.2 10.4 3 38 226-0563.400 226-0563L400
1.44 10.2 10.4 3 38 226-0567.400 226-0567L400
1.45 10.2 10.4 3 38 226-0571.400 226-0571L400
1.46 10.2 10.4 3 38 226-0575.400 226-0575L400
1.47 10.2 10.4 3 38 226-0579.400 226-0579L400
1.48 10.2 10.4 3 38 226-0583.400 226-0583L400
1.49 10.2 10.4 3 38 226-0587.400 226-0587L400
1.50 10.2 10.4 3 38 226-0591.400 226-0591L400
SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 10 04.03.2016 07:51:33
DRILLS
11
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.51 10.2 10.4 3 38 226-0594.400 226-0594L400
1.52 10.2 10.4 3 38 226-0598.400 226-0598L400
1.53 10.2 10.4 3 38 226-0602.400 226-0602L400
1.54 10.2 10.4 3 38 226-0606.400 226-0606L400
1.55 10.2 10.4 3 38 226-0610.400 226-0610L400
1.56 10.2 10.4 3 38 226-0614.400 226-0614L400
1.57 10.2 10.4 3 38 226-0618.400 226-0618L400
1.58 10.2 10.4 3 38 226-0622.400 226-0622L400
1.59 10.2 10.4 3 38 226-0626.400 226-0626L400
1.60 10.2 10.4 3 38 226-0630.400 226-0630L400
1.61 10.2 10.4 3 38 226-0634.400 226-0634L400
1.62 10.2 10.4 3 38 226-0638.400 226-0638L400
1.63 10.2 10.4 3 38 226-0642.400 226-0642L400
1.64 10.2 10.4 3 38 226-0646.400 226-0646L400
1.65 10.2 10.4 3 38 226-0650.400 226-0650L400
1.66 10.2 10.4 3 38 226-0654.400 226-0654L400
1.67 10.2 10.4 3 38 226-0657.400 226-0657L400
1.68 10.2 10.4 3 38 226-0661.400 226-0661L400
1.69 10.2 10.4 3 38 226-0665.400 226-0665L400
1.70 10.2 10.4 3 38 226-0669.400 226-0669L400
1.71 10.2 10.4 3 38 226-0673.400 226-0673L400
1.72 10.2 10.4 3 38 226-0677.400 226-0677L400
1.73 10.2 10.4 3 38 226-0681.400 226-0681L400
1.74 10.2 10.4 3 38 226-0685.400 226-0685L400
1.75 10.2 10.4 3 38 226-0689.400 226-0689L400
1.76 10.2 10.4 3 38 226-0693.400 226-0693L400
1.77 10.2 10.4 3 38 226-0697.400 226-0697L400
1.78 10.2 10.4 3 38 226-0701.400 226-0701L400
1.79 10.2 10.4 3 38 226-0705.400 226-0705L400
1.80 10.2 10.4 3 38 226-0709.400 226-0709L400
1.81 10.2 10.4 3 38 226-0713.400 226-0713L400
1.82 10.2 10.4 3 38 226-0717.400 226-0717L400
1.83 10.2 10.4 3 38 226-0720.400 226-0720L400
1.84 10.2 10.4 3 38 226-0724.400 226-0724L400
1.85 10.2 10.4 3 38 226-0728.400 226-0728L400
1.86 10.2 10.4 3 38 226-0732.400 226-0732L400
1.87 10.2 10.4 3 38 226-0736.400 226-0736L400
1.88 10.2 10.4 3 38 226-0740.400 226-0740L400
1.89 10.2 10.4 3 38 226-0744.400 226-0744L400
SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 11 04.03.2016 07:51:35
DRILLS
12
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.90 10.2 10.4 3 38 226-0748.400 226-0748L400
1.91 10.2 10.4 3 38 226-0752.400 226-0752L400
1.92 10.2 10.4 3 38 226-0756.400 226-0756L400
1.93 10.2 10.4 3 38 226-0760.400 226-0760L400
1.94 10.2 10.4 3 38 226-0764.400 226-0764L400
1.95 10.2 10.4 3 38 226-0768.400 226-0768L400
1.96 10.2 10.4 3 38 226-0772.400 226-0772L400
1.97 10.2 10.4 3 38 226-0776.400 226-0776L400
1.98 10.2 10.4 3 38 226-0780.400 226-0780L400
1.99 10.2 10.4 3 38 226-0783.400 226-0783L400
2.00 10.2 10.4 3 38 226-0787.400 226-0787L400
2.01 10.2 10.4 3 38 226-0791.400 226-0791L400
2.02 10.2 10.4 3 38 226-0795.400 226-0795L400
2.03 10.2 10.4 3 38 226-0799.400 226-0799L400
2.04 10.2 10.4 3 38 226-0803.400 226-0803L400
2.05 10.2 10.4 3 38 226-0807.400 226-0807L400
2.06 10.2 10.4 3 38 226-0811.400 226-0811L400
2.07 10.2 10.4 3 38 226-0815.400 226-0815L400
2.08 10.2 10.4 3 38 226-0819.400 226-0819L400
2.09 10.2 10.4 3 38 226-0823.400 226-0823L400
2.10 10.2 10.4 3 38 226-0827.400 226-0827L400
2.11 10.2 10.4 3 38 226-0831.400 226-0831L400
2.12 10.2 10.4 3 38 226-0835.400 226-0835L400
2.13 10.2 10.4 3 38 226-0839.400 226-0839L400
2.14 10.2 10.4 3 38 226-0843.400 226-0843L400
2.15 10.2 10.4 3 38 226-0846.400 226-0846L400
2.16 10.2 10.4 3 38 226-0850.400 226-0850L400
2.17 10.2 10.4 3 38 226-0854.400 226-0854L400
2.18 10.2 10.4 3 38 226-0858.400 226-0858L400
2.19 10.2 10.4 3 38 226-0862.400 226-0862L400
2.20 10.2 10.4 3 38 226-0866.400 226-0866L400
2.21 10.2 10.4 3 38 226-0870.400 226-0870L400
2.22 10.2 10.4 3 38 226-0874.400 226-0874L400
2.23 10.2 10.4 3 38 226-0878.400 226-0878L400
2.24 10.2 10.4 3 38 226-0882.400 226-0882L400
2.25 10.2 10.4 3 38 226-0886.400 226-0886L400
2.26 10.2 10.4 3 38 226-0890.400 226-0890L400
2.27 10.2 10.4 3 38 226-0894.400 226-0894L400
2.28 10.2 10.4 3 38 226-0898.400 226-0898L400
SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 12 04.03.2016 07:51:37
DRILLS
13
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
2.29 10.2 10.4 3 38 226-0902.400 226-0902L400
2.30 10.2 10.4 3 38 226-0906.400 226-0906L400
2.31 10.2 10.4 3 38 226-0909.400 226-0909L400
2.32 10.2 10.4 3 38 226-0913.400 226-0913L400
2.33 10.2 10.4 3 38 226-0917.400 226-0917L400
2.34 10.2 10.4 3 38 226-0921.400 226-0921L400
2.35 10.2 10.4 3 38 226-0925.400 226-0925L400
2.36 10.2 10.4 3 38 226-0929.400 226-0929L400
2.37 10.2 10.4 3 38 226-0933.400 226-0933L400
2.38 10.2 10.4 3 38 226-0937.400 226-0937L400
2.39 10.2 10.4 3 38 226-0941.400 226-0941L400
2.40 10.2 10.4 3 38 226-0945.400 226-0945L400
2.41 10.2 10.4 3 38 226-0949.400 226-0949L400
2.42 10.2 10.4 3 38 226-0953.400 226-0953L400
2.43 10.2 10.4 3 38 226-0957.400 226-0957L400
2.44 10.2 10.4 3 38 226-0961.400 226-0961L400
2.45 10.2 10.4 3 38 226-0965.400 226-0965L400
2.46 10.2 10.4 3 38 226-0969.400 226-0969L400
2.47 10.2 10.4 3 38 226-0972.400 226-0972L400
2.48 10.2 10.4 3 38 226-0976.400 226-0976L400
2.49 10.2 10.4 3 38 226-0980.400 226-0980L400
2.50 10.2 10.4 3 38 226-0984.400 226-0984L400
2.51 10.2 10.4 3 38 226-0988.400 226-0988L400
2.52 10.2 10.4 3 38 226-0992.400 226-0992L400
2.53 10.2 10.4 3 38 226-0996.400 226-0996L400
2.54 10.2 10.4 3 38 226-1000.400 226-1000L400
2.55 10.2 10.4 3 38 226-1004.400 226-1004L400
2.56 10.2 10.4 3 38 226-1008.400 226-1008L400
2.57 10.2 10.4 3 38 226-1012.400 226-1012L400
2.58 10.2 10.4 3 38 226-1016.400 226-1016L400
2.59 10.2 10.4 3 38 226-1020.400 226-1020L400
2.60 10.2 10.4 3 38 226-1024.400 226-1024L400
2.61 10.2 10.4 3 38 226-1028.400 226-1028L400
2.62 10.2 10.4 3 38 226-1031.400 226-1031L400
2.63 10.2 10.4 3 38 226-1035.400 226-1035L400
2.64 10.2 10.4 3 38 226-1039.400 226-1039L400
2.65 10.2 10.4 3 38 226-1043.400 226-1043L400
2.66 10.2 10.4 3 38 226-1047.400 226-1047L400
2.67 10.2 10.4 3 38 226-1051.400 226-1051L400
SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 13 04.03.2016 07:51:39
DRILLS
14
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
2.68 10.2 10.4 3 38 226-1055.400 226-1055L400
2.69 10.2 10.4 3 38 226-1059.400 226-1059L400
2.70 10.2 10.4 3 38 226-1063.400 226-1063L400
2.71 10.2 10.4 3 38 226-1067.400 226-1067L400
2.72 10.2 10.4 3 38 226-1071.400 226-1071L400
2.73 10.2 10.4 3 38 226-1075.400 226-1075L400
2.74 10.2 10.4 3 38 226-1079.400 226-1079L400
2.75 10.2 10.4 3 38 226-1083.400 226-1083L400
2.76 10.2 10.4 3 38 226-1087.400 226-1087L400
2.77 10.2 10.4 3 38 226-1091.400 226-1091L400
2.78 10.2 10.4 3 38 226-1094.400 226-1094L400
2.79 10.2 10.4 3 38 226-1098.400 226-1098L400
2.80 10.2 10.4 3 38 226-1102.400 226-1102L400
2.81 10.2 10.4 3 38 226-1106.400 226-1106L400
2.82 10.2 10.4 3 38 226-1110.400 226-1110L400
2.83 10.2 10.4 3 38 226-1114.400 226-1114L400
2.84 10.2 10.4 3 38 226-1118.400 226-1118L400
2.85 10.2 10.4 3 38 226-1122.400 226-1122L400
2.86 10.2 10.4 3 38 226-1126.400 226-1126L400
2.87 10.2 10.4 3 38 226-1130.400 226-1130L400
2.88 10.2 10.4 3 38 226-1134.400 226-1134L400
2.89 10.2 10.4 3 38 226-1138.400 226-1138L400
2.90 10.2 10.4 3 38 226-1142.400 226-1142L400
2.91 10.2 10.4 3 38 226-1146.400 226-1146L400
2.92 10.2 10.4 3 38 226-1150.400 226-1150L400
2.93 10.2 10.4 3 38 226-1154.400 226-1154L400
2.94 10.2 10.4 3 38 226-1157.400 226-1157L400
2.95 10.2 10.4 3 38 226-1161.400 226-1161L400
2.96 10.2 10.4 3 38 226-1165.400 226-1165L400
2.97 10.2 10.4 3 38 226-1169.400 226-1169L400
2.98 10.2 10.4 3 38 226-1173.400 226-1173L400
2.99 10.2 10.4 3 38 226-1177.400 226-1177L400
3.00 10.2 10.4 3 38 226-1181.400 226-1181L400
2015_KUTDE_MIT_Catalog_TZZ00058.indd 14 04.03.2016 07:51:41
DRILLS
15
★: Priority Materials ☆: Applicable Materials
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
MICRO DRILLS SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.75 11.0 11.2 3 50 226-0295.433 226-0295L433
0.80 11.0 11.2 3 50 226-0315.433 226-0315L433
0.85 13.0 13.2 3 50 226-0335.512 226-0335L512
0.90 13.0 13.2 3 50 226-0354.512 226-0354L512
0.95 15.0 15.2 3 50 226-0374.591 226-0374L591
1.00 15.0 15.2 3 50 226-0394.591 226-0394L591
1.05 17.0 17.2 3 50 226-0413.670 226-0413L670
1.10 17.0 17.2 3 50 226-0433.670 226-0433L670
1.15 17.0 17.2 3 50 226-0453.670 226-0453L670
1.20 17.0 17.2 3 50 226-0472.670 226-0472L670
1.25 19.0 19.2 3 50 226-0492.749 226-0492L749
1.30 19.0 19.2 3 50 226-0512.749 226-0512L749
1.35 19.0 19.2 3 50 226-0531.749 226-0531L749
1.40 19.0 19.2 3 50 226-0551.749 226-0551L749
1.45 20.0 20.2 3 50 226-0571.788 226-0571L788
1.50 20.0 20.2 3 50 226-0591.788 226-0591L788
1.55 20.0 20.2 3 50 226-0610.788 226-0610L788
1.60 20.0 20.2 3 50 226-0630.788 226-0630L788
1.65 20.0 20.2 3 50 226-0650.788 226-0650L788
1.70 20.0 20.2 3 50 226-0669.788 226-0669L788
1.75 20.0 20.2 3 50 226-0689.788 226-0689L788
1.80 20.0 20.2 3 50 226-0709.788 226-0709L788
1.85 22.8 23.0 3 50 226-0728.898 226-0728L898
1.90 22.8 23.0 3 60 226-0748.898 226-0748L898
1.95 23.4 23.6 3 60 226-0768.945 226-0768L945
2.00 24.0 24.2 3 60 226-0787.945 226-0787L945
2.05 24.6 24.8 3 60 226-0807.992 226-0807L992
2.10 25.2 25.4 3 60 226-0827.992 226-0827L992
2.15 25.8 26.0 3 60 226-0846.1039 226-0846L1039
2.20 26.4 26.6 3 60 226-0866.1039 226-0866L1039
2.25 27.0 27.2 3 60 226-0886.1087 226-0886L1087
2.30 27.6 27.8 3 60 226-0906.1087 226-0906L1087
2.35 28.2 28.4 3 60 226-0925.1134 226-0925L1134
2.40 28.8 29.0 3 60 226-0945.1134 226-0945L1134
2.45 29.4 29.6 3 60 226-0965.1181 226-0965L1181
2.50 30.0 30.2 3 60 226-0984.1181 226-0984L1181
2.55 30.6 30.8 3 60 226-1004.1228 226-1004L1228
2.60 31.2 31.4 3 60 226-1024.1228 226-1024L1228
2.65 31.8 32.0 3 60 226-1043.1276 226-1043L1276
2015_KUTDE_MIT_Catalog_TZZ00058.indd 15 04.03.2016 07:51:43
DRILLS
16
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS SERIES 226
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
L1
SERIES 226 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
2.70 32.4 32.6 3 60 226-1063.1276 226-1063L1276
2.75 33.0 33.2 3 60 226-1083.1299 226-1083L1299
2.80 33.6 33.8 3 60 226-1102.1323 226-1102L1323
2.85 34.2 34.4 3 60 226-1122.1346 226-1122L1346
2.90 34.8 35.0 3 60 226-1142.1370 226-1142L1370
2.95 35.4 35.6 3 60 226-1161.1394 226-1161L1394
3.00 36.0 36.2 3 60 226-1181.1417 226-1181L1417
2015_KUTDE_MIT_Catalog_TZZ00058.indd 16 04.03.2016 07:51:45
DRILLS
17
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.04 0.5 0.5 3 38 226L-0016.020*
0.05 0.8 0.8 3 38 226L-0020.030*
0.06 0.8 0.8 3 38 226L-0024.030*
0.07 1.3 1.3 3 38 226L-0028.050*
0.08 1.3 1.3 3 38 226L-0031.050*
0.09 1.3 1.3 3 38 226L-0035.050*
0.10 1.0 1.2 3 38 226L-0039.040*
0.11 1.0 1.2 3 38 226L-0043.040*
0.12 1.0 1.2 3 38 226L-0047.040*
0.13 1.0 1.2 3 38 226L-0051.040*
0.14 2.0 2.2 3 38 226L-0055.080*
0.15 2.0 2.2 3 38 226L-0059.080*
0.16 2.0 2.2 3 38 226L-0063.080*
0.17 2.0 2.2 3 38 226L-0067.080*
0.18 2.5 2.7 3 38 226L-0071.100*
0.19 2.5 2.7 3 38 226L-0075.100*
0.20 2.5 2.7 3 38 226L-0079.100*
0.21 2.5 2.7 3 38 226L-0083.100*
0.22 2.5 2.7 3 38 226L-0087.100*
0.23 3.8 4.0 3 38 226L-0091.150*
0.24 3.8 4.0 3 38 226L-0094.150*
0.25 3.8 4.0 3 38 226L-0098.150*
0.26 3.8 4.0 3 38 226L-0102.150*
0.27 3.8 4.0 3 38 226L-0106.150*
0.28 3.8 4.0 3 38 226L-0110.150*
0.29 3.8 4.0 3 38 226L-0114.150*
0.30 5.7 5.9 3 38 226L-0118.225* 226L-0118L225*
0.31 5.7 5.9 3 38 226L-0122.225* 226L-0122L225*
0.32 5.7 5.9 3 38 226L-0126.225* 226L-0126L225*
0.33 5.7 5.9 3 38 226L-0130.225* 226L-0130L225*
MICRO DRILLS / LEFT HAND
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
SERIES 226L
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° L2
D
dh6
L
L1
D
dh6
L
L1
4 Facet
Point Geometry
D
> 0.08 mm
2 Facet
Point Geometry
D
≤ 0.08 mm
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 17 04.03.2016 07:51:47
DRILLS
18
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.34 5.7 5.9 3 38 226L-0134.225* 226L-0134L225*
0.35 5.7 5.9 3 38 226L-0138.225* 226L-0138L225*
0.36 5.7 5.9 3 38 226L-0142.225* 226L-0142L225*
0.37 5.7 5.9 3 38 226L-0146.225* 226L-0146L225*
0.38 6.4 6.6 3 38 226L-0150.250* 226L-0150L250*
0.39 6.4 6.6 3 38 226L-0154.250* 226L-0154L250*
0.40 6.4 6.6 3 38 226L-0157.250* 226L-0157L250*
0.41 6.4 6.6 3 38 226L-0161.250* 226L-0161L250*
0.42 6.4 6.6 3 38 226L-0165.250* 226L-0165L250*
0.43 6.4 6.6 3 38 226L-0169.250* 226L-0169L250*
0.44 6.4 6.6 3 38 226L-0173.250* 226L-0173L250*
0.45 6.4 6.6 3 38 226L-0177.250* 226L-0177L250*
0.46 6.4 6.6 3 38 226L-0181.250* 226L-0181L250*
0.47 6.4 6.6 3 38 226L-0185.250* 226L-0185L250*
0.48 6.6 6.8 3 38 226L-0189.260* 226L-0189L260*
0.49 6.6 6.8 3 38 226L-0193.260* 226L-0193L260*
0.50 6.6 6.8 3 38 226L-0197.260* 226L-0197L260*
0.51 6.6 6.8 3 38 226L-0201.260* 226L-0201L260*
0.52 6.6 6.8 3 38 226L-0205.260* 226L-0205L260*
0.53 6.6 6.8 3 38 226L-0209.260* 226L-0209L260*
0.54 6.6 6.8 3 38 226L-0213.260* 226L-0213L260*
0.55 8.6 8.8 3 38 226L-0217.340* 226L-0217L340*
0.56 8.6 8.8 3 38 226L-0220.340* 226L-0220L340*
0.57 8.6 8.8 3 38 226L-0224.340* 226L-0224L340*
0.58 8.6 8.8 3 38 226L-0228.340* 226L-0228L340*
0.59 8.6 8.8 3 38 226L-0232.340* 226L-0232L340*
0.60 8.6 8.8 3 38 226L-0236.340* 226L-0236L340*
0.61 8.6 8.8 3 38 226L-0240.340* 226L-0240L340*
0.62 8.6 8.8 3 38 226L-0244.340* 226L-0244L340*
0.63 8.6 8.8 3 38 226L-0248.340* 226L-0248L340*
0.64 8.6 8.8 3 38 226L-0252.340* 226L-0252L340*
0.65 8.6 8.8 3 38 226L-0256.340* 226L-0256L340*
0.66 8.6 8.8 3 38 226L-0260.340* 226L-0260L340*
0.67 8.6 8.8 3 38 226L-0264.340* 226L-0264L340*
0.68 8.6 8.8 3 38 226L-0268.340* 226L-0268L340*
0.69 8.6 8.8 3 38 226L-0272.340* 226L-0272L340*
0.70 10.2 10.4 3 38 226L-0276.400* 226L-0276L400*
0.71 10.2 10.4 3 38 226L-0280.400* 226L-0280L400*
0.72 10.2 10.4 3 38 226L-0283.400* 226L-0283L400*
MICRO DRILLS / LEFT HAND SERIES 226L
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° L2
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
4 Facet Point Geometry
D
dh6
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 18 04.03.2016 07:51:49
DRILLS
19
★: Priority Materials ☆: Applicable Materials
MICRO DRILLS / LEFT HAND SERIES 226L
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° L2
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
4 Facet Point Geometry
D
dh6
L
L1
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.73 10.2 10.4 3 38 226L-0287.400* 226L-0287L400*
0.74 10.2 10.4 3 38 226L-0291.400* 226L-0291L400*
0.75 10.2 10.4 3 38 226L-0295.400* 226L-0295L400*
0.76 10.2 10.4 3 38 226L-0299.400* 226L-0299L400*
0.77 10.2 10.4 3 38 226L-0303.400* 226L-0303L400*
0.78 10.2 10.4 3 38 226L-0307.400* 226L-0307L400*
0.79 10.2 10.4 3 38 226L-0311.400* 226L-0311L400*
0.80 10.2 10.4 3 38 226L-0315.400* 226L-0315L400*
0.81 10.2 10.4 3 38 226L-0319.400* 226L-0319L400*
0.82 10.2 10.4 3 38 226L-0323.400* 226L-0323L400*
0.83 10.2 10.4 3 38 226L-0327.400* 226L-0327L400*
0.84 10.2 10.4 3 38 226L-0331.400* 226L-0331L400*
0.85 10.2 10.4 3 38 226L-0335.400* 226L-0335L400*
0.86 10.2 10.4 3 38 226L-0339.400* 226L-0339L400*
0.87 10.2 10.4 3 38 226L-0343.400* 226L-0343L400*
0.88 10.2 10.4 3 38 226L-0346.400* 226L-0346L400*
0.89 10.2 10.4 3 38 226L-0350.400* 226L-0350L400*
0.90 10.2 10.4 3 38 226L-0354.400* 226L-0354L400*
0.91 10.2 10.4 3 38 226L-0358.400* 226L-0358L400*
0.92 10.2 10.4 3 38 226L-0362.400* 226L-0362L400*
0.93 10.2 10.4 3 38 226L-0366.400* 226L-0366L400*
0.94 10.2 10.4 3 38 226L-0370.400* 226L-0370L400*
0.95 10.2 10.4 3 38 226L-0374.400* 226L-0374L400*
0.96 10.2 10.4 3 38 226L-0378.400* 226L-0378L400*
0.97 10.2 10.4 3 38 226L-0382.400* 226L-0382L400*
0.98 10.2 10.4 3 38 226L-0386.400* 226L-0386L400*
0.99 10.2 10.4 3 38 226L-0390.400* 226L-0390L400*
1.00 10.2 10.4 3 38 226L-0394.400* 226L-0394L400*
1.05 10.2 10.4 3 38 226L-0413.400* 226L-0413L400*
1.10 10.2 10.4 3 38 226L-0433.400* 226L-0433L400*
1.15 10.2 10.4 3 38 226L-0453.400* 226L-0453L400*
1.20 10.2 10.4 3 38 226L-0472.400* 226L-0472L400*
1.25 10.2 10.4 3 38 226L-0492.400* 226L-0492L400*
1.30 10.2 10.4 3 38 226L-0512.400* 226L-0512L400*
1.35 10.2 10.4 3 38 226L-0531.400* 226L-0531L400*
1.40 10.2 10.4 3 38 226L-0551.400* 226L-0551L400*
1.45 10.2 10.4 3 38 226L-0571.400* 226L-0571L400*
1.50 10.2 10.4 3 38 226L-0591.400* 226L-0591L400*
1.55 10.2 10.4 3 38 226L-0610.400* 226L-0610L400*
2015_KUTDE_MIT_Catalog_TZZ00058.indd 19 04.03.2016 07:51:50
DRILLS
20
★: Priority Materials ☆: Applicable Materials
SERIES 226L
MICRO DRILLS / LEFT HAND
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.60 10.2 10.4 3 38 226L-0630.400* 226L-0630L400*
1.65 10.2 10.4 3 38 226L-0650.400* 226L-0650L400*
1.70 10.2 10.4 3 38 226L-0669.400* 226L-0669L400*
1.75 10.2 10.4 3 38 226L-0689.400* 226L-0689L400*
1.80 10.2 10.4 3 38 226L-0709.400* 226L-0709L400*
1.85 10.2 10.4 3 38 226L-0728.400* 226L-0728L400*
1.90 10.2 10.4 3 38 226L-0748.400* 226L-0748L400*
1.95 10.2 10.4 3 38 226L-0768.400* 226L-0768L400*
2.00 10.2 10.4 3 38 226L-0787.400* 226L-0787L400*
2.05 10.2 10.4 3 38 226L-0807.400* 226L-0807L400*
2.10 10.2 10.4 3 38 226L-0827.400* 226L-0827L400*
2.15 10.2 10.4 3 38 226L-0846.400* 226L-0846L400*
2.20 10.2 10.4 3 38 226L-0866.400* 226L-0866L400*
2.25 10.2 10.4 3 38 226L-0886.400* 226L-0886L400*
2.30 10.2 10.4 3 38 226L-0906.400* 226L-0906L400*
2.35 10.2 10.4 3 38 226L-0925.400* 226L-0925L400*
2.40 10.2 10.4 3 38 226L-0945.400* 226L-0945L400*
2.45 10.2 10.4 3 38 226L-0965.400* 226L-0965L400*
2.50 10.2 10.4 3 38 226L-0984.400* 226L-0984L400*
2.55 10.2 10.4 3 38 226L-1004.400* 226L-1004L400*
2.60 10.2 10.4 3 38 226L-1024.400* 226L-1024L400*
2.65 10.2 10.4 3 38 226L-1043.400* 226L1043L400*
2.70 10.2 10.4 3 38 226L-1063.400* 226L-1063L400*
2.75 10.2 10.4 3 38 226L-1083.400* 226L-1083L400*
2.80 10.2 10.4 3 38 226L-1102.400* 226L-1102L400*
2.85 10.2 10.4 3 38 226L-1122.400* 226L-1122L400*
2.90 10.2 10.4 3 38 226L-1142.400* 226L-1142L400*
2.95 10.2 10.4 3 38 226L-1161.400* 226L-1161L400*
3.00 10.2 10.4 3 38 226L-1181.400* 226L-1181L400*
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° L2
4 Facet Point Geometry
D
dh6
L
L1
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 20 04.03.2016 07:51:52
DRILLS
21
★: Priority Materials ☆: Applicable Materials
SERIES 226L
MICRO DRILLS / LEFT HAND
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.75 11.0 11.2 3 50 226L-0295.433* 226L-0295L433*
0.80 11.0 11.2 3 50 226L-0315.433* 226L-0315L433*
0.85 13.0 13.2 3 50 226L-0335.512* 226L-0335L512*
0.90 13.0 13.2 3 50 226L-0354.512* 226L-0354L512*
0.95 15.0 15.2 3 50 226L-0374.591* 226L-0374L591*
1.00 15.0 15.2 3 50 226L-0394.591* 226L-0394L591*
1.05 17.0 17.2 3 50 226L-0413.670* 226L-0413L670*
1.10 17.0 17.2 3 50 226L-0433.670* 226L-0433L670*
1.15 17.0 17.2 3 50 226L-0453.670* 226L-0453L670*
1.20 17.0 17.2 3 50 226L-0472.670* 226L-0472L670*
1.25 19.0 19.2 3 50 226L-0492.749* 226L-0492L749*
1.30 19.0 19.2 3 50 226L-0512.749* 226L-0512L749*
1.35 19.0 19.2 3 50 226L.0531.749* 226L-0531L749*
1.40 19.0 19.2 3 50 226L-0551.749* 226L-0551L749*
1.45 20.0 20.2 3 50 226L-0571.788* 226L-0571L788*
1.50 20.0 20.2 3 50 226L-0591.788* 226L-0591L788*
1.55 20.0 20.2 3 50 226L-0610.788* 226L-0610L788*
1.60 20.0 20.2 3 50 226L-0630.788* 226L-0630L788*
1.65 20.0 20.2 3 50 226L-0650.788* 226L-0650L788*
1.70 20.0 20.2 3 50 226L-0669.788* 226L-0669L788*
1.75 20.0 20.2 3 50 226L-0689.788* 226L-0689L788*
1.80 20.0 20.2 3 50 226L-0709.788* 226L-0709L788*
1.85 22.8 23.0 3 50 226L-0728.898* 226L-0728L898*
1.90 22.8 23.0 3 60 226L-0748.898* 226L-0748L898*
1.95 23.4 23.6 3 60 226L-0768.921* 226L-0768L921*
2.00 24.0 24.2 3 60 226L-0787.945* 226L-0787L945*
2.05 24.6 24.8 3 60 226L-0807.969* 226L-0807L969*
2.10 25.2 25.4 3 60 226L-0827.992* 226L-0827L992*
2.15 25.8 26.0 3 60 226L-0846.1016* 226L-0846L1016*
2.20 26.4 26.6 3 60 226L-0866.1039* 226L-0866L1039*
2.25 27.0 27.2 3 60 226L-0886.1063* 226L-0886L1063*
2.30 27.6 27.8 3 60 226L-0906.1087* 226L-0906L1087*
2.35 28.2 28.4 3 60 226L-0925.1110* 226L-0925L1110*
2.40 28.8 29.0 3 60 226L-0945.1134* 226L-0945L1134*
2.45 29.4 29.6 3 60 226L-0965.1157* 226L-0965L1157*
2.50 30.0 30.2 3 60 226L-0984.1181* 226L-0984L1181*
2.55 30.6 30.8 3 60 226L-1004.1205* 226L-1004L1205*
2.60 31.2 31.4 3 60 226L-1024.1228* 226L-1024L1228*
2.65 31.8 32.0 3 60 226L-1043.1252* 226L-1043L1252*
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 130° L2
4 Facet Point Geometry
D
dh6
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 21 04.03.2016 07:51:54
DRILLS
22
★: Priority Materials ☆: Applicable Materials
SERIES 226L
MICRO DRILLS / LEFT HAND
MIKRO BOHRER / LINKSSCHNEIDEND
MICRO FORET / COUPE A GAUCHE
MICRO PUNTE / ESECUZIONE SINISTRA
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 130° L2
4 Facet Point Geometry
D
dh6
L
L1
D (mm)
+0/-0.008  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
2.70 32.4 32.6 3 60 226L-1063.1276* 226L-1063L1276*
2.75 33.0 33.2 3 60 226L-1083.1299* 226L-1083L1299*
2.80 33.6 33.8 3 60 226L-1102.1323* 226L-1102L1323*
2.85 34.2 34.4 3 60 226L-1122.1346* 226L-1122L1346*
2.90 34.8 35.0 3 60 226L-1142.1370* 226L-1142L1370*
2.95 35.4 35.6 3 60 226L-1161.1394* 226L-1161L1394*
3.00 36.0 36.2 3 60 226L-1181.1417* 226L-1181L1417*
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
SERIES 226L WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 22 04.03.2016 07:51:56
DRILLS
23
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.008  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.12 1.45 1 25 392-0046.057
0.14 1.45 1 25 392-0054.057
0.16 1.45 1 25 392-0063.057
0.18 1.45 1 25 392-0071.057
0.20 1.45 1 25 392-0079.057
0.25 1.75 1 25 392-0098.069 392-0098L069
0.27 1.75 1 25 392-0106.069 392-0106L069
0.29 3.65 1 25 392-0114.144 392-0114L144
0.30 3.65 1 25 392-0118.144 392-0118L144
0.31 3.65 1 25 392-0122.144 392-0122L144
0.32 3.65 1 25 392-0126.144 392-0126L144
0.34 3.65 1 25 392-0134.144 392-0134L144
0.36 3.65 1 25 392-0142.144 392-0142L144
0.38 3.65 1 25 392-0150.144 392-0150L144
0.40 3.65 1 25 392-0157.144 392-0157L144
0.42 3.65 1 25 392-0165.144 392-0165L144
0.44 3.65 1 25 392-0173.144 392-0173L144
0.46 3.65 1 25 392-0181.144 392-0181L144
0.48 3.65 1 25 392-0189.144 392-0189L144
0.50 3.65 1 25 392-0197.144 392-0197L144
0.52 3.65 1 25 392-0205.144 392-0205L144
0.54 3.65 1 25 392-0213.144 392-0213L144
0.56 3.65 1 25 392-0220.144 392-0220L144
0.58 3.65 1 25 392-0228.144 392-0228L144
0.60 3.65 1 25 392-0236.144 392-0236L144
SERIES 392
MICRO DRILLS
MIKRO BOHRER
MICRO FORET
MICRO PUNTE
SERIES 392 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆☆☆
Uncoated ☆☆★☆★★★ ☆
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 130° R2
4 Facet Point Geometry
D
dh6
L
2015_KUTDE_MIT_Catalog_TZZ00058.indd 23 04.03.2016 07:51:58
DRILLS
24
★: Priority Materials ☆: Applicable Materials
SERIES 813
COOLANT FED MICRO DRILLS
MIKRO BOHRER MIT INNENKÜHLUNG
MICRO FORET AVEC ARROSAGE INTERNE
MICRO PUNTE CON ADDUZIONE REFRIGERANTE
D (mm)
+0.001/-0.002  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.50 15.00 3 60 813-0591.591 813-0591L591
1.55 15.50 3 60 813-0610.611 813-0610L611
1.60 16.00 3 60 813-0630.630 813-0630L630
1.65 16.50 3 60 813-0650.650 813-0650L650
1.70 17.00 3 60 813-0669.670 813-0669L670
1.75 17.50 3 60 813-0689.690 813-0689L690
1.80 18.00 3 60 813-0709.709 813-0709L709
1.85 18.50 3 60 813-0728.729 813-0728L729
1.90 19.00 3 60 813-0748.749 813-0748L749
1.95 19.50 3 60 813-0768.768 813-0768L768
2.00 20.00 3 60 813-0787.788 813-0787L788
2.05 20.50 3 60 813-0807.808 813-0807L808
2.10 21.00 3 62 813-0827.827 813-0827L827
2.15 21.50 3 62 813-0846.847 813-0846L847
2.20 22.00 3 62 813-0866.867 813-0866L867
2.25 22.50 3 62 813-0886.887 813-0886L887
2.30 23.00 3 62 813-0906.906 813-0906L906
2.35 23.50 3 62 813-0925.926 813-0925L926
2.40 24.00 3 64 813-0945.946 813-0945L946
2.45 24.50 3 64 813-0965.965 813-0965L965
2.50 25.00 3 64 813-0984.985 813-0984L985
2.55 25.50 3 64 813-1004.1005 813-1004L1005
2.60 26.00 3 64 813-1024.1024 813-1024L1024
2.65 26.50 3 64 813-1043.1044 813-1043L1044
2.70 27.00 3 66 813-1063.1064 813-1063L1064
2.75 27.50 3 66 813-1083.1084 813-1083L1084
2.80 28.00 3 66 813-1102.1103 813-1102L1103
2.85 28.50 3 66 813-1122.1123 813-1122L1123
2.90 29.00 3 66 813-1142.1143 813-1142L1143
2.95 29.50 3 66 813-1161.1162 813-1161L1162
3.00 30.00 3 66 813-1181.1182 813-1181L1182
6 Facet Point Geometry
D
dh6
L
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 140° 8xD R2
SERIES 813 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆★★
Uncoated ☆☆☆☆☆☆★☆☆☆☆☆☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 24 04.03.2016 07:52:01
DRILLS
25
★: Priority Materials ☆: Applicable Materials
D (mm)
+0.001/-0.010  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.50 27.00 377 813-0591.1064 813-0591L1064
1.55 27.90 3 77 813-0610.1099 813-0610L1099
1.60 28.80 3 77 813-0630.1135 813-0630L1135
1.65 29.70 3 77 813-0650.1170 813-0650L1170
1.70 30.60 3 77 813-0669.1206 813-0669L1206
1.75 31.50 3 77 813-0689.1241 813-0689L1241
1.80 32.40 3 84 813-0709.1277 813-0709L1277
1.85 33.30 3 84 813-0728.1312 813-0728L1312
1.90 34.20 3 84 813-0748.1347 813-0748L1347
1.95 35.10 3 84 813-0768.1383 813-0768L1383
2.00 36.00 3 84 813-0787.1418 813-0787L1418
2.05 36.90 3 84 813-0807.1454 813-0807L1454
2.10 37.80 3 91 813-0827.1489 813-0827L1489
2.15 38.70 3 91 813-0846.1525 813-0846L1525
2.20 39.60 3 91 813-0866.1560 813-0866L1560
2.25 40.50 3 91 813-0886.1596 813-0886L1596
2.30 41.40 3 91 813-0906.1631 813-0906L1631
2.35 42.30 3 91 813-0925.1667 813-0925L1667
2.40 43.20 3 91 813-0945.1702 813-0945L1702
2.45 44.10 3 91 813-0965.1738 813-0965L1738
2.50 45.00 3 91 813-0984.1773 813-0984L1773
2.55 45.90 3 91 813-1004.1808 813-1004L1808
2.60 46.80 3 91 813-1024.1844 813-1024L1844
2.65 47.70 3 91 813-1043.1879 813-1043L1879
2.70 48.60 3 104 813-1063.1915 813-1063L1915
2.75 49.50 3 104 813-1083.1950 813-1083L1950
2.80 50.40 3 104 813-1102.1986 813-1102L1986
2.85 51.30 3 104 813-1122.2021 813-1122L2021
2.90 52.20 3 104 813-1142.2057 813-1142L2057
2.95 53.10 3 104 813-1161.2092 813-1161L2092
3.00 54.00 3 104 813-1181.2128 813-1181L2128
SERIES 813
COOLANT FED MICRO DRILLS
MIKRO BOHRER MIT INNENKÜHLUNG
MICRO FORET AVEC ARROSAGE INTERNE
MICRO PUNTE CON ADDUZIONE REFRIGERANTE
6 Facet Point Geometry
D
dh6
L
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 140° 16xD R2
SERIES 813 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆★★
Uncoated ☆☆☆☆☆☆★☆☆☆☆☆☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 25 04.03.2016 07:52:04
DRILLS
26
★: Priority Materials ☆: Applicable Materials
SERIES 813
COOLANT FED MICRO DRILLS
MIKRO BOHRER MIT INNENKÜHLUNG
MICRO FORET AVEC ARROSAGE INTERNE
MICRO PUNTE CON ADDUZIONE REFRIGERANTE
D (mm)
+0.001/-0.002  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
3.05 30.50 4 70 813-1201.1202 813-1201L1202
3.10 31.00 4 70 813-1220.1221 813-1220L1221
3.15 31.50 4 70 813-1240.1241 813-1240L1241
3.20 32.00 4 70 813-1260.1261 813-1260L1261
3.25 32.50 4 70 813-1280.1281 813-1280L1281
3.30 33.00 4 70 813-1299.1300 813-1299L1300
3.35 33.50 4 70 813-1319.1320 813-1319L1320
3.40 34.00 4 70 813-1339.1340 813-1339L1340
3.45 34.50 4 70 813-1358.1359 813-1358L1359
3.50 35.00 4 70 813-1378.1379 813-1378L1379
3.55 35.50 4 70 813-1398.1399 813-1398L1399
3.60 36.00 4 70 813-1417.1418 813-1417L1418
3.65 36.50 4 76 813-1437.1438 813-1437L1438
3.70 37.00 4 76 813-1457.1458 813-1457L1458
3.75 37.50 4 76 813-1476.1478 813-1476L1478
3.80 38.00 4 76 813-1496.1497 813-1496L1497
3.85 38.50 4 76 813-1516.1517 813-1516L1517
3.90 39.00 4 76 813-1535.1537 813-1535L1537
3.95 39.50 4 76 813-1555.1556 813-1555L1556
4.00 40.00 4 76 813-1575.1576 813-1575L1576
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 140° 8xD R2
6 Facet Point Geometry
D
dh6
L
SERIES 813 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆★★
Uncoated ☆☆☆☆☆☆★☆☆☆☆☆☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 26 04.03.2016 07:52:07
DRILLS
27
★: Priority Materials ☆: Applicable Materials
D (mm)
+0.001/-0.01  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
3.05 54.90 4 104 813-1201.2163 813-1201L2163
3.10 55.80 4 104 813-1220.2199 813-1220L2199
3.15 56.70 4 104 813-1240.2234* 813-1240L2234*
3.20 57.60 4 104 813-1260.2269 813-1260L2269
3.25 58.50 4 104 813-1280.2305* 813-1280L2305*
3.30 59.40 4 104 813-1299.2340 813-1299L2340
3.35 60.30 4 104 813-1319.2376* 813-1319L2376*
3.40 61.20 4 104 813-1339.2411 813-1339L2411
3.45 62.10 4 104 813-1358.2447* 813-1358L2447*
3.50 63.00 4 104 813-1378.2482 813-1378L2482
3.55 63.90 4 104 813-1398.2518* 813-1398L2518*
3.60 64.80 4 104 813-1417.2553 813-1417L2553
3.65 65.70 4 104 813-1437.2589* 813-1437L2589*
3.70 66.60 4 104 813-1457.2624 813-1457L2624
3.75 67.50 4 104 813-1476.2660* 813-1476L2660*
3.80 68.40 4 104 813-1496.2695 813-1496L2695
3.85 69.30 4 104 813-1516.2730* 813-1516L2730*
3.90 70.20 4 104 813-1535.2766 813-1535L2766
3.95 71.10 4 104 813-1555.2801* 813-1555L2801*
4.00 72.00 4 104 813-1575.2837 813-1575L2837
SERIES 813
COOLANT FED MICRO DRILLS
MIKRO BOHRER MIT INNENKÜHLUNG
MICRO FORET AVEC ARROSAGE INTERNE
MICRO PUNTE CON ADDUZIONE REFRIGERANTE
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN 140° 16xD R2
SERIES 813 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆☆☆☆☆★★
Uncoated ☆☆☆☆☆☆★☆☆☆☆☆☆☆☆
*CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE
6 Facet Point Geometry
D
dh6
L
2015_KUTDE_MIT_Catalog_TZZ00058.indd 27 04.03.2016 07:52:11
DRILLS
28
★: Priority Materials ☆: Applicable Materials
SERIES 865
HIGH PERFORMANCE COOLANT FED DRILL
HOCHLEISTUNGSBOHRER MIT INNENKÜHLUNG
FORET AVEC ARROSAGE INTERNE
PUNTE CON ADDUZIONE REFRIGERANTE
D (mm)
h7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
3.00 39.0 3 90 865-1181AG1535
3.10 40.3 4 90 865-1220AG1587
3.20 41.6 4 90 865-1260AG1638
3.30 42.9 4 90 865-1299AG1689
3.40 44.2 4 90 865-1339AG1740
3.50 45.5 4 90 865-1378AG1791
3.60 46.8 4 90 865-1417AG1843
3.70 48.1 4 100 865-1457AG1894
3.80 49.4 4 100 865-1496AG1945
3.90 50.7 4 100 865-1535AG1996
4.00 52.0 4 100 865-1575AG2047
4.10 53.3 6 100 865-1614AG2098
4.20 54.6 6 110 865-1654AG2150
4.30 55.9 6 110 865-1693AG2201
4.40 57.2 6 110 865-1732AG2252
4.50 58.5 6 110 865-1772AG2303
4.60 59.8 6 110 865-1811AG2354
4.70 61.1 6 110 865-1850AG2406
4.80 62.4 6 110 865-1890AG2457
4.90 63.7 6 110 865-1929AG2508
5.00 65.0 6 110 865-1969AG2559
5.10 66.3 6 120 865-2008AG2610
5.20 67.6 6 120 865-2047AG2661
5.30 68.9 6 120 865-2087AG2713
5.40 70.2 6 120 865-2126AG2764
5.50 71.5 6 120 865-2165AG2815
5.60 72.8 6 120 865-2205AG2866
5.70 74.1 6 120 865-2244AG2917
5.80 75.4 6 120 865-2283AG2969
5.90 76.7 6 120 865-2323AG3020
6.00 78.0 6 130 865-2362AG3071
6.10 79.3 8 130 865-2402AG3122
6.20 80.6 8 130 865-2441AG3173
6.30 81.9 8 130 865-2480AG3224
6.40 83.2 8 130 865-2520AG3276
6.50 84.5 8 140 865-2559AG3327
6.60 85.8 8 140 865-2598AG3378
6.70 87.1 8 140 865-2638AG3429
6.80 88.4 8 140 865-2677AG3480
6.90 89.7 8 140 865-2717AG3531
7.00 91.0 8 140 865-2756AG3583
MICRO
GRAIN 135° 10xD R2
D
d
L
6 Facet Point Geometry
SERIES 865 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 28 04.03.2016 07:52:15
DRILLS
29
★: Priority Materials ☆: Applicable Materials
SERIES 865
HIGH PERFORMANCE COOLANT FED DRILL
HOCHLEISTUNGSBOHRER MIT INNENKÜHLUNG
FORET AVEC ARROSAGE INTERNE
PUNTE CON ADDUZIONE REFRIGERANTE
MICRO
GRAIN 135° 10xD R2
D
d
L
6 Facet Point Geometry
SERIES 865 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
D (mm)
h7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
7.10 92.3 8 140 865-2795AG3634
7.20 93.6 8 140 865-2835AG3685
7.30 94.9 8 140 865-2874AG3736
7.40 96.2 8 150 865-2913AG3787
7.50 97.5 8 150 865-2953AG3839
7.60 98.8 8 150 865-2992AG3890
7.70 100.1 8 150 865-3031AG3941
7.80 101.4 8 150 865-3071AG3992
7.90 102.7 8 150 865-3110AG4043
8.00 104.0 8 150 865-3150AG4094
8.10 105.3 10 160 865-3189AG4146
8.20 106.6 10 160 865-3228AG4197
8.30 107.9 10 160 865-3268AG4248
8.40 109.2 10 160 865-3307AG4299
8.50 110.5 10 160 865-3346AG4350
8.60 111.8 10 160 865-3386AG4402
8.70 113.1 10 160 865-3425AG4453
8.80 114.4 10 170 865-3465AG4504
8.90 115.7 10 170 865-3504AG4555
9.00 117.0 10 170 865-3543AG4606
9.10 118.3 10 170 865-3583AG4657
9.20 119.6 10 170 865-3622AG4709
9.30 120.9 10 170 865-3661AG4760
9.40 122.2 10 170 865-3701AG4811
9.50 123.5 10 170 865-3740AG4862
9.60 124.8 10 180 865-3780AG4913
9.70 126.1 10 180 865-3819AG4965
9.80 127.4 10 180 865-3858AG5016
9.90 128.7 10 180 865-3898AG5067
10.00 130.0 10 180 865-3937AG5118
10.10 131.3 12 180 865-3976AG5169
10.20 132.6 12 190 865-4016AG5220
10.30 133.9 12 190 865-4055AG5272
10.40 135.2 12 190 865-4094AG5323
10.50 136.5 12 190 865-4134AG5374
10.60 137.8 12 190 865-4173AG5425
10.70 139.1 12 190 865-4213AG5476
10.80 140.4 12 190 865-4252AG5528
10.90 141.7 12 190 865-4291AG5579
11.00 143.0 12 200 865-4331AG5630
11.10 144.3 12 200 865-4370AG5681
2015_KUTDE_MIT_Catalog_TZZ00058.indd 29 04.03.2016 07:52:18
DRILLS
30
★: Priority Materials ☆: Applicable Materials
SERIES 865
HIGH PERFORMANCE COOLANT FED DRILL
HOCHLEISTUNGSBOHRER MIT INNENKÜHLUNG
FORET AVEC ARROSAGE INTERNE
PUNTE CON ADDUZIONE REFRIGERANTE
MICRO
GRAIN 135° 10xD R2
D
d
L
6 Facet Point Geometry
SERIES 865 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN Nano ★★★★★☆ ☆☆ ☆☆☆★★
D (mm)
h7  (mm) d (mm)
h6 L (mm) Art. No.
(AlTiN NANO coated)
11.20 145.6 12 200 865-4409AG5732
11.30 146.9 12 200 865-4449AG5783
11.40 148.2 12 200 865-4488AG5835
11.50 149.5 12 200 865-4528AG5886
11.60 150.8 12 200 865-4567AG5937
11.70 152.1 12 200 865-4606AG5988
11.80 153.4 12 200 865-4646AG6039
11.90 154.7 12 210 865-4685AG6091
12.00 156.0 12 210 865-4724AG6142
2015_KUTDE_MIT_Catalog_TZZ00058.indd 30 04.03.2016 07:52:22
DRILLS
31
★: Priority Materials ☆: Applicable Materials
MICRO
GRAIN 120° R1
SERIES 885
MICRO DRILLS FOR BRASS
MIKRO BOHRER FÜR MESSING
MICRO FORET POUR CUIVRE
MICRO PUNTE PER OTTONE
D (mm)
+0/-0.008  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(TiCN coated)
0.30 1.65 3 38 885-0118.065 885-0118C065
0.35 1.65 3 38 885-0138.065 885-0138C065
0.40 1.65 3 38 885-0157.065 885-0157C065
0.45 1.65 3 38 885-0177.065 885-0177C065
0.50 2.15 3 38 885-0197.085 885-0197C085
0.55 2.15 3 38 885-0217.085 885-0217C085
0.60 2.15 3 38 885-0236.085 885-0236C085
0.65 2.15 3 38 885-0256.085 885-0256C085
0.70 2.15 3 38 885-0276.085 885-0276C085
0.75 2.15 3 38 885-0295.085 885-0295C085
0.80 2.15 3 38 885-0315.085 885-0315C085
0.85 2.15 3 38 885-0335.085 885-0335C085
0.90 2.15 3 38 885-0354.085 885-0354C085
0.95 2.15 3 38 885-0374.085 885-0374C085
1.00 2.15 3 38 885-0394.085 885-0394C085
1.10 2.85 3 38 885-0433.112 885-0433C112
1.20 2.85 3 38 885-0472.112 885-0472C112
1.30 2.85 3 38 885-0512.112 885-0512C112
1.40 2.85 3 38 885-0551.112 885-0551C112
1.50 2.85 3 38 885-0591.112 885-0591C112
1.60 2.85 3 38 885-0630.112 885-0630C112
1.70 2.85 3 38 885-0669.112 885-0669C112
1.80 2.85 3 38 885-0709.112 885-0709C112
1.90 2.85 3 38 885-0748.112 885-0748C112
2.00 2.85 3 38 885-0787.112 885-0787C112
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
dh6
L
SERIES 885 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
TiCN ☆☆☆☆☆☆☆ ★ ☆☆
Uncoated ☆☆☆☆★★☆☆★ ☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 31 04.03.2016 07:52:24
32
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.30 3 38 1610-0039.012 1610-0039L012
0.15 0.45 3 38 1610-0059.018 1610-0059L018
0.20 0.60 3 38 1610-0079.024 1610-0079L024
0.25 0.75 3 38 1610-0098.029 1610-0098L029
0.30 0.90 3 38 1610-0118.035 1610-0118L035
0.35 1.05 3 38 1610-0138.041 1610-0138L041
0.40 1.20 3 38 1610-0157.047 1610-0157L047
0.45 1.35 3 38 1610-0177.053 1610-0177L053
0.50 1.50 3 38 1610-0197.059 1610-0197L059
0.60 1.80 3 38 1610-0236.071 1610-0236L071
0.70 2.10 3 38 1610-0276.083 1610-0276L083
0.80 2.40 3 38 1610-0315.095 1610-0315L095
0.90 2.70 3 38 1610-0354.106 1610-0354L106
1.00 3.00 3 38 1610-0394.118 1610-0394L118
1.10 3.30 3 38 1610-0433.130 1610-0433L130
1.20 3.60 3 38 1610-0472.142 1610-0472L142
1.30 3.90 3 38 1610-0512.154 1610-0512L154
1.40 4.20 3 38 1610-0551.165 1610-0551L165
1.50 4.50 3 38 1610-0591.177 1610-0591L177
1.60 4.80 3 38 1610-0630.189 1610-0630L189
1.70 5.10 3 38 1610-0669.201 1610-0669L201
1.80 5.40 3 38 1610-0709.213 1610-0709L213
1.90 5.70 3 38 1610-0748.224 1610-0748L224
2.00 6.00 3 38 1610-0787.236 1610-0787L236
2.50 7.50 3 38 1610-0984.295 1610-0984L295
2.80 9.00 3 38 1610-1102.354 1610-1102L354
3.00 9.00 3 38 1610-1181.354 1610-1181L354
3.50 10.50 4 50 1610-1378.413 1610-1378L413
3.80 12.00 5 50 1610-1496.473 1610-1496L473
4.00 12.00 5 50 1610-1575.473 1610-1575L473
4.50 13.50 5 50 1610-1772.532 1610-1772L532
4.80 15.00 5 50 1610-1890.590 1610-1890L590
5.00 15.00 5 50 1610-1968.590 1610-1968L590
5.50 16.50 6 50 1610-2165.650 1610-2165L650
5.80 18.00 6 50 1610-2283.709 1610-2283L709
6.00 18.00 6 50 1610-2362.709 1610-2362L709
SERIES 1610
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
MICRO
GRAIN
30˚ 2
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
dh6
L
SERIES 1610 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 32 04.03.2016 07:52:26
33
END MILLS
★: Priority Materials ☆: Applicable Materials
SERIES 1620
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.15 3 38 1620-0039.006 1620-0039L006
0.15 0.23 3 38 1620-0059.009 1620-0059L009
0.20 0.30 3 38 1620-0079.012 1620-0079L012
0.25 0.38 3 38 1620-0098.015 1620-0098L015
0.30 0.45 3 38 1620-0118.018 1620-0118L018
0.35 0.53 3 38 1620-0138.021 1620-0138L021
0.40 0.60 3 38 1620-0157.024 1620-0157L024
0.45 0.68 3 38 1620-0177.027 1620-0177L027
0.50 0.75 3 38 1620-0197.030 1620-0197L030
0.60 0.90 3 38 1620-0236.035 1620-0236L035
0.70 1.05 3 38 1620-0276.041 1620-0276L041
0.80 1.20 3 38 1620-0315.047 1620-0315L047
0.90 1.35 3 38 1620-0354.053 1620-0354L053
1.00 1.50 3 38 1620-0394.059 1620-0394L059
1.10 1.65 3 38 1620-0433.065 1620-0433L065
1.20 1.80 3 38 1620-0472.071 1620-0472L071
1.30 2.60 3 38 1620-0512.102 1620-0512L102
1.40 2.80 3 38 1620-0551.110 1620-0551L110
1.50 2.25 3 38 1620-0591.089 1620-0591L089
1.60 3.20 3 38 1620-0630.126 1620-0630L126
1.70 3.70 3 38 1620-0669.146 1620-0669L146
1.80 3.60 3 38 1620-0709.142 1620-0709L142
1.90 3.80 3 38 1620-0748.150 1620-0748L150
2.00 3.00 3 38 1620-0787.118 1620-0787L118
2.50 3.75 3 38 1620-0984.148 1620-0984L148
2.80 4.50 3 38 1620-1102.177 1620-1102L177
3.00 4.50 3 38 1620-1181.177 1620-1181L177
3.50 5.25 4 50 1620-1378.207 1620-1378L207
3.80 6.00 5 50 1620-1496.236 1620-1496L236
4.00 6.00 5 50 1620-1575.236 1620-1575L236
4.50 6.75 5 50 1620-1772.266 1620-1772L266
4.80 7.50 5 50 1620-1890.295 1620-1890L295
5.00 7.50 5 50 1620-1968.295 1620-1968L295
5.50 8.25 6 50 1620-2165.325 1620-2165L325
5.80 9.00 6 50 1620-2283.354 1620-2283L354
6.00 9.00 6 50 1620-2362.354 1620-2362L354
MICRO
GRAIN
30˚ 2
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
D
d
L
SERIES 1620 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 33 04.03.2016 07:52:28
34
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.30 3 38 1625-0039.012 1625-0039L012
0.15 0.45 3 38 1625-0059.018 1625-0059L018
0.20 0.60 3 38 1625-0079.024 1625-0079L024
0.25 0.75 3 38 1625-0098.029 1625-0098L029
0.30 0.90 3 38 1625-0118.035 1625-0118L035
0.35 1.05 3 38 1625-0138.041 1625-0138L041
0.40 1.20 3 38 1625-0157.047 1625-0157L047
0.45 1.35 3 38 1625-0177.053 1625-0177L053
0.50 1.50 3 38 1625-0197.059 1625-0197L059
0.60 1.80 3 38 1625-0236.071 1625-0236L071
0.70 2.10 3 38 1625-0276.083 1625-0276L083
0.80 2.40 3 38 1625-0315.095 1625-0315L095
0.90 2.70 3 38 1625-0354.106 1625-0354L106
1.00 3.00 3 38 1625-0394.118 1625-0394L118
1.10 3.30 3 38 1625-0433.130 1625-0433L130
1.20 3.60 3 38 1625-0472.142 1625-0472L142
1.30 3.90 3 38 1625-0512.154 1625-0512L154
1.40 4.20 3 38 1625-0551.165 1625-0551L165
1.50 4.50 3 38 1625-0591.177 1625-0591L177
1.60 4.80 3 38 1625-0630.189 1625-0630L189
1.70 5.10 3 38 1625-0669.201 1625-0669L201
1.80 5.40 3 38 1625-0709.213 1625-0709L213
1.90 5.70 3 38 1625-0748.224 1625-0748L224
2.00 6.00 3 38 1625-0787.236 1625-0787L236
2.50 7.50 3 38 1625-0984.295 1625-0984L295
3.00 9.00 3 38 1625-1181.354 1625-1181L354
3.50 10.50 4 50 1625-1378.413 1625-1378L413
4.00 12.00 5 50 1625-1575.473 1625-1575L473
4.50 13.50 5 50 1625-1772.532 1625-1772L532
5.00 15.00 5 50 1625-1968.590 1625-1968L590
5.50 16.50 6 50 1625-2165.650 1625-2165L650
6.00 18.00 6 50 1625-2362.709 1625-2362L709
SERIES 1625
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
MICRO
GRAIN
30˚ 2
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
dh6
L
SERIES 1625 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 34 04.03.2016 07:52:30
35
END MILLS
★: Priority Materials ☆: Applicable Materials
SERIES 1635
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.15 3 38 1635-0039.006 1635-0039L006
0.15 0.23 3 38 1635-0059.009 1635-0059L009
0.20 0.30 3 38 1635-0079.012 1635-0079L012
0.25 0.38 3 38 1635-0098.015 1635-0098L015
0.30 0.45 3 38 1635-0118.018 1635-0118L018
0.35 0.53 3 38 1635-0138.021 1635-0138L021
0.40 0.60 3 38 1635-0157.024 1635-0157L024
0.45 0.68 3 38 1635-0177.027 1635-0177L027
0.50 0.75 3 38 1635-0197.030 1635-0197L030
0.60 0.90 3 38 1635-0236.035 1635-0236L035
0.70 1.05 3 38 1635-0276.041 1635-0276L041
0.80 1.20 3 38 1635-0315.047 1635-0315L047
0.90 1.35 3 38 1635-0354.053 1635-0354L053
1.00 1.50 3 38 1635-0394.059 1635-0394L059
1.10 1.65 3 38 1635-0433.065 1635-0433L065
1.20 1.80 3 38 1635-0472.071 1635-0472L071
1.30 1.95 3 38 1635-0512.077 1635-0512L077
1.40 2.10 3 38 1635-0551.083 1635-0551L083
1.50 2.25 3 38 1635-0591.089 1635-0591L089
1.60 2.40 3 38 1635-0630.095 1635-0630L095
1.70 2.50 3 38 1635-0669.098 1635-0669L098
1.80 2.70 3 38 1635-0709.106 1635-0709L106
1.90 2.85 3 38 1635-0748.112 1635-0748L112
2.00 3.00 3 38 1635-0787.118 1635-0787L118
2.50 3.75 3 38 1635-0984.148 1635-0984L148
3.00 4.50 3 38 1635-1181.177 1635-1181L177
3.50 5.25 4 50 1635-1378.207 1635-1378L207
4.00 6.00 5 50 1635-1575.236 1635-1575L236
4.50 6.75 5 50 1635-1772.266 1635-1772L266
5.00 7.50 5 50 1635-1968.295 1635-1968L295
5.50 8.25 6 50 1635-2165.325 1635-2165L325
6.00 9.00 6 50 1635-2362.354 1635-2362L354
MICRO
GRAIN
30˚ 2
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
D
dh6
L
SERIES 1635 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 35 04.03.2016 07:52:32
36
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) L1 (mm) L (mm) d (mm)
h6
Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 1.20 3 38 3 1640-0157.118 1640-0157L118
0.50 1.50 4 38 3 1640-0197.157 1640-0197L157
0.60 1.80 5 38 3 1640-0236.197 1640-0236L197
0.65 1.95 6 38 3 1640-0256.236 1640-0256L236
0.70 2.10 7 38 3 1640-0276.276 1640-0276L276
0.75 2.25 8 38 3 1640-0295.315 1640-0295L315
0.80 2.4 9 50 3 1640-0315.354 1640-0315L354
0.90 2.7 10 50 3 1640-0354.394 1640-0354L394
1.00 3.0 10 50 3 1640-0394.394 1640-0394L394
1.50 4.5 15 50 3 1640-0591.591 1640-0591L591
2.00 6.0 20 50 3 1640-0787.787 1640-0787L787
2.50 7.5 23 50 3 1640-0984.906 1640-0984L906
3.00 9.0 23 50 3 1640-1181.906 1640-1181L906
3.50 10.5 25 75 6 1640-1378.984 1640-1378L984
4.00 12.0 25 75 6 1640-1575.984 1640-1575L984
4.50 13.5 30 75 6 1640-1772.1181 1640-1772L1181
5.00 15.0 30 75 6 1640-1968.1181 1640-1968L1181
5.50 16.5 30 75 6 1640-2165.1181 1640-2165L1181
6.00 18.0 30 75 6 1640-2362.1181 1640-2362L1181
SERIES 1640
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
MICRO
GRAIN
30˚ 2
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
D
dh6
L
L1
SERIES 1640 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 36 04.03.2016 07:52:34
37
END MILLS
★: Priority Materials ☆: Applicable Materials
SERIES 1645
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
D (mm)
+0/-0.02  (mm) L1 (mm) L (mm) d (mm)
h6
Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 1.20 3 38 3 1645-0157.118 1645-0157L118
0.50 1.50 4 38 3 1645-0197.157 1645-0197L157
0.60 1.80 5 38 3 1645-0236.197 1645-0236L197
0.65 1.95 6 38 3 1645-0256.236 1645-0256L236
0.70 2.10 7 38 3 1645-0276.276 1645-0276L276
0.75 2.25 8 38 3 1645-0295.315 1645-0295L315
0.80 2.40 9 50 3 1645-0315.354 1645-0315L354
0.90 2.70 10 50 3 1645-0354.394 1645-0354L394
1.00 3.00 10 50 3 1645-0394.394 1645-0394L394
1.50 4.50 15 50 3 1645-0591.591 1645-0591L591
2.00 6.00 20 50 3 1645-0787.787 1645-0787L787
2.50 7.50 23 50 3 1645-0984.906 1645-0984L906
3.00 9.00 23 50 3 1645-1181.906 1645-1181L906
3.50 10.5 25 75 6 1645-1378.984 1645-1378L984
4.00 12.0 25 75 6 1645-1575.984 1645-1575L984
4.50 13.5 30 75 6 1645-1772.1181 1645-1772L1181
5.00 15.0 30 75 6 1645-1968.1181 1645-1968L1181
5.50 16.5 30 75 6 1645-2165.1181 1645-2165L1181
6.00 18.0 30 75 6 1645-2362.1181 1645-2362L1181
MICRO
GRAIN
30˚ 2
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
SERIES 1645 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆★☆★★☆ ☆
D
d
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 37 04.03.2016 07:52:36
38
END MILLS
★: Priority Materials ☆: Applicable Materials
r (mm)
+0/-0.005 D (mm)  (mm) d (mm)
h6 L (mm) Art. No.
(AX coated)
0.10 0.20 0.2 6 45 1625-0079J008S
0.15 0.30 0.3 6 45 1625-0118J012S
0.20 0.40 0.4 6 45 1625-0157J016S
0.25 0.50 0.5 6 45 1625-0197J020S
0.30 0.60 0.6 6 45 1625-0236J024S
0.40 0.80 0.8 6 45 1625-0315J032S
0.50 1.00 1.0 6 45 1625-0394J040S
0.60 1.20 1.2 6 45 1625-0472J048S
0.70 1.40 1.4 6 45 1625-0551J055S
0.75 1.50 1.5 6 45 1625-0591J060S
0.80 1.60 1.6 6 45 1625-0630J063S
0.90 1.80 1.8 6 45 1625-0709J071S
1.00 2.00 2.0 6 45 1625-0787J078S
1.25 2.50 2.5 6 45 1625-0984J098S
1.50 3.00 3.0 6 45 1625-1181J118S
SERIES 16 HMS
MICRO BALL NOSE END MILLS / HARD METAL MILLING
MIKRO STIRNRADIUSFRÄSER / HARTBEARBEITUNG
MICRO FRAISE HEMISPHERIQUE / POUR USINAGE DUR
MICRO FRESE SFERICA / PER MATERIALI DURI
D
dh6
L
SERIES 16 HMS WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ☆☆
MICRO
GRAIN AX
coating
<60HRC
2
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
STRENGTH
PRIORITY
RADIALPRECISION
2015_KUTDE_MIT_Catalog_TZZ00058.indd 38 04.03.2016 07:52:40
39
END MILLS
★: Priority Materials ☆: Applicable Materials
RADIALPRECISION
EXTENDED
REACH
PRIORITY
r (mm)
+0/-0.005 D (mm)  (mm) L1 (mm) L1Ø (mm) d (mm)
h6 L (mm) Art. No.
(AX coated)
0.10 0.20 0.2 2 0.17 4 50 1625-0079J008R
0.15 0.30 0.3 3 0.26 4 50 1625-0118J012R
0.20 0.40 0.4 4 0.36 4 50 1625-0157J016R
0.25 0.50 0.5 5 0.45 4 50 1625-0197J020R
0.30 0.60 0.6 6 0.57 4 50 1625-0236J024R
0.40 0.80 0.8 8 0.76 4 50 1625-0315J032R
0.50 1.00 1.0 10 0.95 4 50 1625-0394J040R
0.60 1.20 1.2 12 1.14 4 50 1625-0472J048R
0.70 1.40 1.4 14 1.33 4 50 1625-0551J055R
0.75 1.50 1.5 15 1.43 4 50 1625-0591J060R
0.80 1.60 1.6 16 1.52 4 50 1625-0630J063R
0.90 1.80 1.8 18 1.71 4 50 1625-0709J071R
1.00 2.00 2.0 20 1.90 4 60 1625-0787J078R
1.25 2.50 2.5 25 2.43 4 60 1625-0984J098R
1.50 3.00 3.0 30 2.91 6 70 1625-1181J118R
SERIES 16 HMR
MICRO BALL NOSE END MILLS / HARD METAL MILLING
MIKRO STIRNRADIUSFRÄSER / HARTBEARBEITUNG
MICRO FRAISE HEMISPHERIQUE / POUR USINAGE DUR
MICRO FRESE SFERICA / PER MATERIALI DURI
SERIES 16 HMR WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ☆☆
MICRO
GRAIN AX
coating
<60HRC
2
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
D
dh6
L
L1
2015_KUTDE_MIT_Catalog_TZZ00058.indd 39 04.03.2016 07:52:43
40
END MILLS
★: Priority Materials ☆: Applicable Materials
RADIALPRECISION
EXTENDED
REACH
PRIORITY
SERIES 16RB
MICRO BALL NOSE END MILLS / HARD METAL MILLING
MIKRO STIRNRADIUSFRÄSER / HARTBEARBEITUNG
MICRO FRAISE HEMISPHERIQUE / POUR USINAGE DUR
MICRO FRESE SFERICA / PER MATERIALI DURI
r (mm)
+0/-0.005
D (mm)
+0/-0.0254  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(AX coated)
0.5 1 1 2 4 50 16RB0394U-2
0.5 1 1 4 4 50 16RB0394U-4
0.5 1 1 6 4 50 16RB0394U-6
0.5 1 1 8 4 50 16RB0394U-8
0.5 1 1 10 4 50 16RB0394U-10
0.5 1 1 12 4 50 16RB0394U-12
0.75 1.5 1.5 2 4 50 16RB0591U-2
0.75 1.5 1.5 4 4 50 16RB0591U-4
0.75 1.5 1.5 6 4 50 16RB0591U-6
0.75 1.5 1.5 8 4 50 16RB0591U-8
0.75 1.5 1.5 10 4 50 16RB0591U-10
0.75 1.5 1.5 12 4 50 16RB0591U-12
1 2 2 2 4 50 16RB0787U-2
1 2 2 4 4 50 16RB0787U-4
1 2 2 6 4 50 16RB0787U-6
1 2 2 8 4 50 16RB0787U-8
1 2 2 10 4 50 16RB0787U-10
1 2 2 12 4 50 16RB0787U-12
1.5 3 3 2 6 60 16RB1181U-2
1.5 3 3 4 6 60 16RB1181U-4
1.5 3 3 6 6 60 16RB1181U-6
1.5 3 3 8 6 60 16RB1181U-8
1.5 3 3 10 6 60 16RB1181U-10
1.5 3 3 12 6 60 16RB1181U-12
MICRO
GRAIN AX
coating
<62HRC
2
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
D
dh6
L
L1
SERIES 16RB WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 40 04.03.2016 07:52:45
41
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) rε (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.00 3 0.10 3 38 1703-0394.118R 1703-0394L118R
1.50 4.5 0.15 3 38 1703-0591.177R 1703-0591L177R
2.00 6 0.20 3 38 1703-0787.236R 1703-0787L236R
2.50 7.5 0.25 3 38 1703-0984.295R 1703-0984L295R
3.00 9 0.30 3 38 1703-1181.354R 1703-1181L354R
3.50 12 0.35 6 50 1703-1378.472R 1703-1378L472R
4.00 12 0.40 5 50 1703-1575.473R 1703-1575L473R
4.50 15 0.45 6 50 1703-1772.591R 1703-1772L591R
5.00 15 0.50 5 50 1703-1968.590R 1703-1968L590R
5.50 18 0.55 6 50 1703-2165.709R 1703-2165L709R
6.00 18 0.60 6 50 1703-2362.709R 1703-2362L709R
SERIES 1703
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
MICRO
GRAIN
50˚ 3
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
dh6
L
rε
SERIES 1703 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
Corner Radius Tolerance
Diameter (D) 1.00 mm - 6.00 mm
+ / - 0.03 mm
2015_KUTDE_MIT_Catalog_TZZ00058.indd 41 04.03.2016 07:52:47
42
END MILLS
★: Priority Materials ☆: Applicable Materials
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) Art. No.
(AX coated)
1.00 6 3.0 63.5 T0394O118
1.50 6 4.5 63.5 T0591O177
2.00 6 6.0 63.5 T0787O236
2.50 6 7.5 63.5 T0984O295
3.00 6 9.0 63.5 T1181O354
4.00 6 12.0 63.5 T1575O472
5.00 6 15.0 63.5 T1969O591
6.00 6 18.0 63.5 T2362O709
8.00 8 24.0 63.5 T3150O945
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) Art. No.
(AX coated)
1.00 6 1.5 63.5 T0394O059
1.50 6 2.5 63.5 T0591O098
2.00 6 3.0 63.5 T0787O118
2.50 6 4.0 63.5 T0984O157
3.00 6 5.0 63.5 T1181O197
4.00 6 6.0 63.5 T1575O236
5.00 6 8.0 63.5 T1969O315
6.00 6 9.0 63.5 T2362O354
8.00 8 12.0 63.5 T3150O472
TITAN AXM
MICRO
GRAIN AX
coating
50˚ 3
MICRO
GRAIN AX
coating
50˚ 3
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
dh6
L
D
dh6
L
TITANAX / TITANAXM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 42 04.03.2016 07:52:50
43
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) L1 (mm) Art. No.
(AlTiN coated)
1.00 6 3.0 75 10 T0394O118ER
1.50 6 4.5 75 15 T0591O177ER
2.00 6 6.0 75 20 T0787O236ER
2.50 6 7.5 75 25 T0984O295ER
3.00 6 9.0 75 30 T1181O354ER
4.00 6 12.0 75 30 T1575O472ER
5.00 6 15.0 75 40 T1969O591ER
6.00 6 18.0 75 45 T2362O709ER
8.00 8 24.0 100 50 T3150O945ER
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
TITAN AXM
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
MICRO
GRAIN
50˚ 3
D
dh6
L
L1
TITANAX / TITANAXM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 43 04.03.2016 07:52:52
44
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) rε Art. No.
(AX coated)
1.00 6 1.5 63.5 0.1 T0394O059CR1
1.00 6 1.5 63.5 0.2 T0394O059CR2
1.00 6 1.5 63.5 0.3 T0394O059CR3
1.50 6 2.5 63.5 0.1 T0591O098CR1
1.50 6 2.5 63.5 0.2 T0591O098CR2
1.50 6 2.5 63.5 0.3 T0591O098CR3
1.50 6 2.5 63.5 0.5 T0591O098CR4
2.00 6 3.0 63.5 0.2 T0787O118CR1
2.00 6 3.0 63.5 0.3 T0787O118CR2
2.00 6 3.0 63.5 0.5 T0787O118CR3
2.50 6 4.0 63.5 0.2 T0984O157CR1
2.50 6 4.0 63.5 0.3 T0984O157CR2
2.50 6 4.0 63.5 0.5 T0984O157CR3
3.00 6 5.0 63.5 0.2 T1181O197CR1
3.00 6 5.0 63.5 0.3 T1181O197CR2
3.00 6 5.0 63.5 0.5 T1181O197CR3
3.00 6 5.0 63.5 1.0 T1181O197CR4
4.00 6 6.0 63.5 0.2 T1575O236CR1
4.00 6 6.0 63.5 0.3 T1575O236CR2
4.00 6 6.0 63.5 0.5 T1575O236CR3
4.00 6 6.0 63.5 1.0 T1575O236CR4
5.00 6 8.0 63.5 0.2 T1969O315CR1
5.00 6 8.0 63.5 0.3 T1969O315CR2
5.00 6 8.0 63.5 0.5 T1969O315CR3
5.00 6 8.0 63.5 1.0 T1969O315CR4
5.00 6 8.0 63.5 1.5 T1969O315CR5
6.00 6 9.0 63.5 0.2 T2362O354CR1
6.00 6 9.0 63.5 0.3 T2362O354CR2
6.00 6 9.0 63.5 0.5 T2362O354CR3
6.00 6 9.0 63.5 1.0 T2362O354CR4
6.00 6 9.0 63.5 1.5 T2362O354CR5
6.00 6 9.0 63.5 2.0 T2362O354CR6
8.00 8 12.0 63.5 0.2 T3150O472CR1
8.00 8 12.0 63.5 0.3 T3150O472CR2
8.00 8 12.0 63.5 0.5 T3150O472CR3
8.00 8 12.0 63.5 1.0 T3150O472CR4
8.00 8 12.0 63.5 1.5 T3150O472CR5
8.00 8 12.0 63.5 2.0 T3150O472CR6
TITAN AXM
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
rε
D
dh6
L
MICRO
GRAIN AX
coating
50˚ 3
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
TITANAX / TITANAXM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel ~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 44 04.03.2016 07:52:54
45
END MILLS
★: Priority Materials ☆: Applicable Materials
TITAN AXM
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) rε Art. No.
(AX coated)
1.00 6 3.0 63.5 0.1 T0394O118CR1
1.00 6 3.0 63.5 0.2 T0394O118CR2
1.00 6 3.0 63.5 0.3 T0394O118CR3
1.50 6 4.5 63.5 0.1 T0591O177CR1
1.50 6 4.5 63.5 0.2 T0591O177CR2
1.50 6 4.5 63.5 0.3 T0591O177CR3
1.50 6 4.5 63.5 0.5 T0591O177CR4
2.00 6 6.0 63.5 0.2 T0787O236CR1
2.00 6 6.0 63.5 0.3 T0787O236CR2
2.00 6 6.0 63.5 0.5 T0787O236CR3
2.50 6 7.5 63.5 0.2 T0984O295CR1
2.50 6 7.5 63.5 0.3 T0984O295CR2
2.50 6 7.5 63.5 0.5 T0984O295CR3
3.00 6 9.0 63.5 0.2 T1181O354CR1
3.00 6 9.0 63.5 0.3 T1181O354CR2
3.00 6 9.0 63.5 0.5 T1181O354CR3
3.00 6 9.0 63.5 1.0 T1181O354CR4
4.00 6 12.0 63.5 0.2 T1575O472CR1
4.00 6 12.0 63.5 0.3 T1575O472CR2
4.00 6 12.0 63.5 0.5 T1575O472CR3
4.00 6 12.0 63.5 1.0 T1575O472CR4
5.00 6 15.0 63.5 0.2 T1969O591CR1
5.00 6 15.0 63.5 0.3 T1969O591CR2
5.00 6 15.0 63.5 0.5 T1969O591CR3
5.00 6 15.0 63.5 1.0 T1969O591CR4
5.00 6 15.0 63.5 1.5 T1969O591CR5
6.00 6 18.0 63.5 0.2 T2362O709CR1
6.00 6 18.0 63.5 0.3 T2362O709CR2
6.00 6 18.0 63.5 0.5 T2362O709CR3
6.00 6 18.0 63.5 1.0 T2362O709CR4
6.00 6 18.0 63.5 1.5 T2362O709CR5
6.00 6 18.0 63.5 2.0 T2362O709CR6
8.00 8 24.0 63.5 0.2 T3150O945CR1
8.00 8 24.0 63.5 0.3 T3150O945CR2
8.00 8 24.0 63.5 0.5 T3150O945CR3
8.00 8 24.0 63.5 1.0 T3150O945CR4
8.00 8 24.0 63.5 1.5 T3150O945CR5
8.00 8 24.0 63.5 2.0 T3150O945CR6
TITANAX / TITANAXM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ★★
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN AX
coating
50˚ 3
rε
D
dh6
L
2015_KUTDE_MIT_Catalog_TZZ00058.indd 45 04.03.2016 07:52:56
46
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02
d (mm)
h6  (mm) L (mm) L1 (mm) rε Art. No.
(AX coated)
1.00 6 3.0 75 10 0.1 T0394O118ECR1
1.00 6 3.0 75 10 0.2 T0394O118ECR2
1.00 6 3.0 75 10 0.3 T0394O118ECR3
1.50 6 4.5 75 15 0.1 T0591O177ECR1
1.50 6 4.5 75 15 0.2 T0591O177ECR2
1.50 6 4.5 75 15 0.3 T0591O177ECR3
1.50 6 4.5 75 15 0.5 T0591O177ECR4
2.00 6 6.0 75 20 0.2 T0787O236ECR1
2.00 6 6.0 75 20 0.3 T0787O236ECR2
2.00 6 6.0 75 20 0.5 T0787O236ECR3
2.50 6 7.5 75 25 0.2 T0984O295ECR1
2.50 6 7.5 75 25 0.3 T0984O295ECR2
2.50 6 7.5 75 25 0.5 T0984O295ECR3
3.00 6 9.0 75 30 0.2 T1181O354ECR1
3.00 6 9.0 75 30 0.3 T1181O354ECR2
3.00 6 9.0 75 30 0.5 T1181O354ECR3
3.00 6 9.0 75 30 1.0 T1181O354ECR4
4.00 6 12.0 75 30 0.2 T1575O472ECR1
4.00 6 12.0 75 30 0.3 T1575O472ECR2
4.00 6 12.0 75 30 0.5 T1575O472ECR3
4.00 6 12.0 75 30 1.0 T1575O472ECR4
5.00 6 15.0 75 40 0.2 T1969O591ECR1
5.00 6 15.0 75 40 0.3 T1969O591ECR2
5.00 6 15.0 75 40 0.5 T1969O591ECR3
5.00 6 15.0 75 40 1.0 T1969O591ECR4
5.00 6 15.0 75 40 1.5 T1969O591ECR5
6.00 6 18.0 75 45 0.2 T2362O709ECR1
6.00 6 18.0 75 45 0.3 T2362O709ECR2
6.00 6 18.0 75 45 0.5 T2362O709ECR3
6.00 6 18.0 75 45 1.0 T2362O709ECR4
6.00 6 18.0 75 45 1.5 T2362O709ECR5
6.00 6 18.0 75 45 2.0 T2362O709ECR6
8.00 8 24.0 100 50 0.2 T3150O945ECR1
8.00 8 24.0 100 50 0.3 T3150O945ECR2
8.00 8 24.0 100 50 0.5 T3150O945ECR3
8.00 8 24.0 100 50 1.0 T3150O945ECR4
8.00 8 24.0 100 50 1.5 T3150O945ECR5
8.00 8 24.0 100 50 2.0 T3150O945ECR6
TITAN AXM
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
MICRO
GRAIN AX
coating
50˚ 3
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
rε
D
dh6
L
L1
TITANAX / TITANAXM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AX ☆☆★★☆☆ ★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 46 04.03.2016 07:52:58
47
END MILLS
★: Priority Materials ☆: Applicable Materials
SERIES 1804
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
D (mm)
+0/-0.02  (mm) rε d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.00 3 0.10 3 38 1804-0394.118R 1804-0394L118R
1.50 4.5 0.15 3 38 1804-0591.177R 1804-0591L177R
2.00 6 0.20 3 38 1804-0787.236R 1804-0787L236R
2.50 7.5 0.25 3 38 1804-0984.295R 1804-0984L295R
3.00 9 0.30 3 38 1804-1181.354R 1804-1181L354R
3.50 12 0.35 6 50 1804-1378.473R 1804-1378L473R
4.00 12 0.40 5 50 1804-1575.473R 1804-1575L473R
4.50 15 0.45 6 50 1804-1772.590R 1804-1772L590R
5.00 15 0.50 5 50 1804-1968.590R 1804-1968L590R
5.50 18 0.55 6 50 1804-2165.709R 1804-2165L709R
6.00 18 0.60 6 50 1804-2362.709R 1804-2362L709R
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
50˚ 4
D
dh6
L
rε
SERIES 1804 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 47 04.03.2016 07:53:00
48
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.30 3 38 1810-0039.012 1810-0039L012
0.15 0.45 3 38 1810-0059.018 1810-0059L018
0.20 0.60 3 38 1810-0079.024 1810-0079L024
0.25 0.75 3 38 1810-0098.029 1810-0098L029
0.30 0.90 3 38 1810-0118.035 1810-0118L035
0.35 1.05 3 38 1810-0138.041 1810-0138L041
0.40 1.20 3 38 1810-0157.047 1810-0157L047
0.45 1.35 3 38 1810-0177.053 1810-0177L053
0.50 1.50 3 38 1810-0197.059 1810-0197L059
0.60 1.80 3 38 1810-0236.071 1810-0236L071
0.70 2.10 3 38 1810-0276.083 1810-0276L083
0.80 2.40 3 38 1810-0315.095 1810-0315L095
0.90 2.70 3 38 1810-0354.106 1810-0354L106
1.00 3.00 3 38 1810-0394.118 1810-0394L118
1.10 3.30 3 38 1810-0433.130 1810-0433L130
1.20 3.60 3 38 1810-0472.142 1810-0472L142
1.30 3.90 3 38 1810-0512.154 1810-0512L154
1.40 4.20 3 38 1810-0551.165 1810-0551L165
1.50 4.50 3 38 1810-0591.177 1810-0591L177
1.60 4.80 3 38 1810-0630.189 1810-0630L189
1.70 5.10 3 38 1810-0669.200 1810-0669L200
1.80 5.40 3 38 1810-0709.213 1810-0709L213
1.90 5.70 3 38 1810-0748.224 1810-0748L224
2.00 6.00 3 38 1810-0787.236 1810-0787L236
2.50 7.50 3 38 1810-0984.295 1810-0984L295
2.80 9.00 3 38 1810-1102.354 1810-1102.354
3.00 9.00 3 38 1810-1181.354 1810-1181L354
3.50 10.50 4 50 1810-1378.413 1810-1378L413
3.80 12.00 5 50 1810-1496.473 1810-1496.473
4.00 12.00 5 50 1810-1575.473 1810-1575L473
4.50 13.50 5 50 1810-1772.532 1810-1772L532
4.80 15.00 5 50 1810-1890.590 1810-1890.590
5.00 15.00 5 50 1810-1968.590 1810-1968L590
5.50 16.50 6 50 1810-2165.650 1810-2165L650
5.80 18.00 6 50 1810-2283.709 1810-2283.709
6.00 18.00 6 50 1810-2362.709 1810-2362L709
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
SERIES 1810
MICRO
GRAIN
30˚ 4
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
D
d
L
SERIES 1810 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 48 04.03.2016 07:53:02
49
END MILLS
★: Priority Materials ☆: Applicable Materials
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
SERIES 1820
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.10 0.15 3 38 1820-0039.006 1820-0039L006
0.15 0.23 3 38 1820-0059.009 1820-0059L009
0.20 0.30 3 38 1820-0079.012 1820-0079L012
0.25 0.38 3 38 1820-0098.015 1820-0098L015
0.30 0.45 3 38 1820-0118.018 1820-0118L018
0.35 0.53 3 38 1820-0138.021 1820-0138L021
0.40 0.60 3 38 1820-0157.024 1820-0157L024
0.45 0.68 3 38 1820-0177.027 1820-0177L027
0.50 0.75 3 38 1820-0197.030 1820-0197L030
0.60 0.90 3 38 1820-0236.035 1820-0236L035
0.70 1.05 3 38 1820-0276.041 1820-0276L041
0.80 1.20 3 38 1820-0315.047 1820-0315L047
0.90 1.35 3 38 1820-0354.053 1820-0354L053
1.00 1.50 3 38 1820-0394.059 1820-0394L059
1.10 1.50 3 38 1820-0433.059 1820-0433.059
1.20 1.50 3 38 1820-0472.059 1820-0472.059
1.30 2.25 3 38 1820-0512.089 1820-0512.089
1.40 2.25 3 38 1820-0551.089 1820-0551.089
1.50 2.25 3 38 1820-0591.089 1820-0591L089
1.60 2.25 3 38 1820-0630.089 1820-0630.089
1.70 2.25 3 38 1820-0669.089 1820-0669.089
1.80 3.00 3 38 1820-0709.118 1820-0709.118
1.90 3.00 3 38 1820-0748.118 1820-0748.118
2.00 3.00 3 38 1820-0787.118 1820-0787L118
2.50 3.75 3 38 1820-0984.148 1820-0984L148
2.80 4.50 3 38 1820-1102.177 1820-1102.177
3.00 4.50 3 38 1820-1181.177 1820-1181L177
3.50 5.25 4 50 1820-1378.207 1820-1378L207
3.80 6.00 5 50 1820-1496.236 1820-1496.236
4.00 6.00 5 50 1820-1575.236 1820-1575L236
4.50 6.75 5 50 1820-1772.266 1820-1772L266
4.80 7.50 5 50 1820-1890.295 1820-1890.295
5.00 7.50 5 50 1820-1968.295 1820-1968L295
5.50 8.25 6 50 1820-2165.325 1820-2165L325
5.80 9.00 6 50 1820-2283.354 1820-2283.354
6.00 9.00 6 50 1820-2362.354 1820-2362L354
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
MICRO
GRAIN
30˚ 4
D
dh6
L
SERIES 1820 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 49 04.03.2016 07:53:04
50
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 1.20 3 38 1825-0157.047 1825-0157L047
0.45 1.35 3 38 1825-0177.053 1825-0177L053
0.50 1.50 3 38 1825-0197.059 1825-0197L059
0.60 1.80 3 38 1825-0236.071 1825-0236L071
0.70 2.10 3 38 1825-0276.083 1825-0276L083
0.80 2.40 3 38 1825-0315.095 1825-0315L095
0.90 2.70 3 38 1825-0354.106 1825-0354L106
1.00 3.00 3 38 1825-0394.118 1825-0394L118
1.10 3.30 3 38 1825-0433.130 1825-0433L130
1.20 3.60 3 38 1825-0472.142 1825-0472L142
1.30 3.90 3 38 1825-0512.154 1825-0512L154
1.40 4.20 3 38 1825-0551.165 1825-0551L165
1.50 4.50 3 38 1825-0591.177 1825-0591L177
1.60 4.80 3 38 1825-0630.189 1825-0630L189
1.70 5.10 3 38 1825-0669.200 1825-0669L200
1.80 5.40 3 38 1825-0709.213 1825-0709L213
1.90 5.70 3 38 1825-0748.224 1825-0748L224
2.00 6.00 3 38 1825-0787.236 1825-0787L236
2.50 7.50 3 38 1825-0984.295 1825-0984L295
3.00 9.00 3 38 1825-1181.354 1825-1181L354
3.50 10.50 4 50 1825-1378.413 1825-1378L413
4.00 12.00 5 50 1825-1575.473 1825-1575L473
4.50 13.50 5 50 1825-1772.532 1825-1772L532
5.00 15.00 5 50 1825-1968.590 1825-1968L590
5.50 16.50 6 50 1825-2165.650 1825-2165L650
6.00 18.00 6 50 1825-2362.709 1825-2362L709
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
SERIES 1825
D
dh6
L
MICRO
GRAIN
30˚ 4
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
SERIES 1825 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 50 04.03.2016 07:53:06
51
END MILLS
★: Priority Materials ☆: Applicable Materials
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
SERIES 1835
D (mm)
+0/-0.02  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 0.60 3 38 1835-0157.024 1835-0157L024
0.45 0.68 3 38 1835-0177.027 1835-0177L027
0.50 0.75 3 38 1835-0197.030 1835-0197L030
0.60 0.90 3 38 1835-0236.035 1835-0236L035
0.70 1.05 3 38 1835-0276.041 1835-0276L041
0.80 1.20 3 38 1835-0315.047 1835-0315L047
0.90 1.35 3 38 1835-0354.053 1835-0354L053
1.00 1.50 3 38 1835-0394.059 1835-0394L059
1.50 2.25 3 38 1835-0591.089 1835-0591L089
2.00 3.00 3 38 1835-0787.118 1835-0787L118
2.50 3.75 3 38 1835-0984.148 1835-0984L148
3.00 4.50 3 38 1835-1181.177 1835-1181L177
3.50 5.25 4 50 1835-1378.207 1835-1378L207
4.00 6.00 5 50 1835-1575.236 1835-1575L236
4.50 6.75 5 50 1835-1772.266 1835-1772L266
5.00 7.50 5 50 1835-1968.295 1835-1968L295
5.50 8.25 6 50 1835-2165.325 1835-2165L325
6.00 9.00 6 50 1835-2362.354 1835-2362L354
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
MICRO
GRAIN
30˚ 4
D
dh6
L
SERIES 1835 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 51 04.03.2016 07:53:08
52
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.02  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 1.20 3 3 38 1840-0157.118 1840-0157L118
0.50 1.50 4 3 38 1840-0197.157 1840-0197L157
0.60 1.80 5 3 38 1840-0236.197 1840-0236L197
0.65 1.95 6 3 38 1840-0256.236 1840-0256L236
0.70 2.10 7 3 38 1840-0276.276 1840-0276L276
0.75 2.25 8 3 38 1840-0295.315 1840-0295L315
0.80 2.40 9 3 50 1840-0315.354 1840-0315L354
0.90 2.70 10 3 50 1840-0354.394 1840-0354L394
1.00 3.00 10 3 50 1840-0394.394 1840-0394L394
1.50 4.50 15 3 50 1840-0591.591 1840-0591L591
2.00 6.00 20 3 50 1840-0787.787 1840-0787L787
2.50 7.50 23 3 50 1840-0984.906 1840-0984L906
3.00 9.00 23 3 50 1840-1181.906 1840-1181L906
3.50 10.5 25 6 75 1840-1378.984 1840-1378L984
4.00 12.0 25 6 75 1840-1575.984 1840-1575L984
4.50 13.5 30 6 75 1840-1772.1181 1840-1772L1181
5.00 15.0 30 6 75 1840-1969.1181 1840-1969L1181
5.50 16.5 30 6 75 1840-2165.1181 1840-2165L1181
6.00 18.0 30 6 75 1840-2362.1181 1840-2362L1181
MICRO END MILLS
MIKRO SCHAFTFRÄSER
MICRO FRAISE
MICRO FRESE
SERIES 1840
D
dh6
L
L1
MICRO
GRAIN
30˚ 4
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
SERIES 1840 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 52 04.03.2016 07:53:10
53
END MILLS
★: Priority Materials ☆: Applicable Materials
MICRO BALL NOSE END MILLS
MIKRO STIRNRADIUSFRÄSER
MICRO FRAISE HEMISPHERIQUE
MICRO FRESE SFERICA
SERIES 1845
D (mm)
+0/-0.02  (mm) L1 (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
0.40 1.20 3 3 38 1845-0157.118 1845-0157L118
0.50 1.50 4 3 38 1845-0197.157 1845-0197L157
0.60 1.80 5 3 38 1845-0236.197 1845-0236L197
0.65 1.95 6 3 38 1845-0256.236 1845-0256L236
0.70 2.10 7 3 38 1845-0276.276 1845-0276L276
0.75 2.25 8 3 38 1845-0295.315 1845-0295L315
0.80 2.40 9 3 50 1845-0315.354 1845-0315L354
0.90 2.70 10 3 50 1845-0354.394 1845-0354L394
1.00 3.00 10 3 50 1845-0394.394 1845-0394L394
1.50 4.50 15 3 50 1845-0591.591 1845-0591L591
2.00 6.00 20 3 50 1845-0787.787 1845-0787L787
2.50 7.50 23 3 50 1845-0984.906 1845-0984L906
3.00 9.00 23 3 50 1845-1181.906 1845-1181L906
3.50 10.5 25 6 75 1845-1378.984 1845-1378L984
4.00 12.0 25 6 75 1845-1575.984 1845-1575L984
4.50 13.5 30 6 75 1845-1772.1181 1845-1772L1181
5.00 15.0 30 6 75 1845-1968.1181 1845-1968L1181
5.50 16.5 30 6 75 1845-2165.1181 1845-2165L1181
6.00 18.0 30 6 75 1845-2362.1181 1845-2362L1181
D
dh6
L
L1
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
MICRO
GRAIN
30˚ 4
SERIES 1845 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 53 04.03.2016 07:53:12
54
END MILLS
★: Priority Materials ☆: Applicable Materials
APOLLO END MILLS / ROUGHING - FINISHING
APOLLO SCHAFTFRÄSER / SCHRUPPEN - SCHLICHTEN
MICRO FRAISE / EBAUCHE  FINITION
MICRO FRESE / SGROSSATURA  FINITURA
SERIES AP4M
D (mm)
h10
d (mm)
h6  (mm) L (mm) rε Art. No.
(ALCrN coated)
4 4 14 51 0.4 AP4M-1575.551
6 6 20 63 0.4 AP4M-2362.787
8 8 20 63 0.4 AP4M-3150.787
10 10 25 70 0.4 AP4M-3937.984
12 12 25 76 0.6 AP4M-4724.984
16 16 32 89 0.7 AP4M-6299.1260
20 20 38 100 0.7 AP4M-7874.1496
25 25 38 100 0.7 AP4M-10000.1496
D (mm)
h10
d (mm)
h6  (mm) L (mm) rε Art. No.
(ALCrN coated)
6 6 25 75 0.4 AP4M-2362.984
8 8 25 75 0.4 AP4M-3150.984
10 10 30 75 0.4 AP4M-3937.1181
12 12 50 100 0.6 AP4M-4724.1969
14 14 50 125 0.6 AP4M-5511.1969
16 16 50 125 0.7 AP4M-6299.1969
18 18 50 125 0.7 AP4M-7087.1969
20 20 50 125 0.8 AP4M-7874.1969
25 25 50 125 0.8 AP4M-10000.1969
D (mm)
h10
d (mm)
h6  (mm) L (mm) rε Art. No.
(ALCrN coated)
3 3 6 38 0.4 AP4M-1181.236
6 6 10 50 0.4 AP4M-2362.394
8 8 12 50 0.4 AP4M-3150.472
10 10 12 50 0.4 AP4M-3937.787
12 12 16 63 0.7 AP4M-4724.630
16 16 20 89 0.7 AP4M-6299.787
20 20 22 101 0.7 AP4M-7874.866
MICRO
GRAIN ALCrN
coating
32/
38˚ 4
Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
SERIES AP4M WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlCrN ☆☆★★★☆ ☆ ★★
Ddh6
L
rε
2015_KUTDE_MIT_Catalog_TZZ00058.indd 54 04.03.2016 07:53:15
55
END MILLS
★: Priority Materials ☆: Applicable Materials
MICRO END MILLS WITH CORNER RADIUS
MIKRO SCHAFTFRÄSER MIT ECKENRADIUS
MICRO FRAISE TORIQUE
MICRO FRESE CON RAGGIO ANGOLARE
SERIES 1905
D (mm)
+0/-0.02  (mm) rε d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
1.00 3 0.10 3 38 1905-0394.118R 1905-0394L118R
1.50 4.5 0.15 3 38 1905-0591.177R 1905-0591L177R
2.00 6 0.20 3 38 1905-0787.236R 1905-0787L236R
2.50 7.5 0.25 3 38 1905-0984.295R 1905-0984L295R
3.00 9 0.30 3 38 1905-1181.354R 1905-1181L354R
3.50 12 0.35 6 50 1905-1378.473R 1905-1378L473R
4.00 12 0.40 5 50 1905-1575.473R 1905-1575L473R
4.50 15 0.45 6 50 1905-1772.590R 1905-1772L590R
5.00 15 0.50 5 50 1905-1968.590R 1905-1968L590R
5.50 15 0.55 6 50 1905-2165.709R 1905-2165L709R
6.00 18 0.60 6 50 1905-2362.709R 1905-2362L709R
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
50˚ 5
D
dh6
L
rε
SERIES 1905 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 55 04.03.2016 07:53:17
56
END MILLS
★: Priority Materials ☆: Applicable Materials
APOLLO END MILLS / ROUGHING - FINISHING SERIES AP5M
D (mm)
h10
d (mm)
h6  (mm) L (mm) rε Art. No.
(ALCrN coated)
4 4 14 51 0.4 AP5M-1575.551
6 6 20 63 0.4 AP5M-2362.787
8 8 20 63 0.4 AP5M-3150.787
10 10 25 70 0.4 AP5M-3937.984
12 12 25 76 0.6 AP5M-4724.984
16 16 32 89 0.7 AP5M-6299.1260
20 20 38 100 0.7 AP5M-7874.1496
25 25 38 100 0.7 AP5M-10000.1496
APOLLO SCHAFTFRÄSER / SCHRUPPEN - SCHLICHTEN
MICRO FRAISE / EBAUCHE  FINITION
MICRO FRESE / SGROSSATURA  FINITURA
Ddh6
L
rε
MICRO
GRAIN ALCrN
coating
32/
38˚ 5
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
SERIES AP5M WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlCrN ☆☆★★★☆ ☆ ☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 56 04.03.2016 07:53:19
57
END MILLS
★: Priority Materials ☆: Applicable Materials
D (mm) d (mm)
h6  (mm) L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
3.00 3 2.5 38 CMM-1181.060 CMM-1181L060
6.00 6 5.2 50 CMM-2362.060 CMM-2362L060
8.00 8 6.9 59 CMM-3150.060 CMM-3150L060
10.00 10 8.6 60 CMM-3937.060 CMM-3937L060
12.00 12 10.3 70 CMM-4724.060 CMM-4724L060
D (mm) d (mm)
h6  (mm) L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
3.00 3 1.5 38 CMM-1181.090 CMM-1181L090
6.00 6 3.0 50 CMM-2362.090 CMM-2362L090
8.00 8 4.0 59 CMM-3150.090 CMM-3150L090
10.00 10 5.0 60 CMM-3937.090 CMM-3937L090
12.00 12 6.0 70 CMM-4724.090 CMM-4724L090
D (mm) d (mm)
h6  (mm) L (mm) Art. No.
(uncoated)
Art. No.
(AlTiN coated)
3.00 3 0.8 38 CMM-1181.120 CMM-1181L120
6.00 6 1.7 50 CMM-2362.120 CMM-2362L120
8.00 8 2.3 59 CMM-3150.120 CMM-3150L120
10.00 10 2.8 60 CMM-3937.120 CMM-3937L120
12.00 12 3.4 70 CMM-4724.120 CMM-4724L120
CHAMFER MILLS
ENTGRATFRÄSER
OUTIL DE RETOUCHE BAVURE
FRESE PER SMUSSI
SERIES CMM
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 60° 2
MICRO
GRAIN 90° 2
MICRO
GRAIN 120° 2
SERIES CMM WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆☆
Uncoated ☆☆☆☆☆☆★ ★ ☆ ☆
L
D
dh6
2015_KUTDE_MIT_Catalog_TZZ00058.indd 57 04.03.2016 07:53:21
58
ROUTERS
★: Priority Materials ☆: Applicable Materials
D (mm)  (mm) d (mm)
h6 L (mm) End Style Art. No.
(uncoated)
Art. No.
(DLC coated)
Art. No.
(Diamond)
0.8 4 3 38 Fish Tail 2120-0315.157F 2120-0315D157F 2120-0315V157F
0.8 4 3 38 Drill Point 2120-0315.157D 2120-0315D157D 2120-0315V157D
1.0 5 3 38 Fish Tail 2120-0394.197F 2120-0394D197F 2120-0394V197F
1.0 5 3 38 Drill Point 2120-0394.197D 2120-0394D197D 2120-0394V197D
1.5 8 3 38 Fish Tail 2120-0591.315F 2120-0591D315F 2120-0591V315F
1.5 8 3 38 Drill Point 2120-0591.315D 2120-0591D315D 2120-0591V315D
2.0 9 3 38 Fish Tail 2120-0787.354F 2120-0787D354F 2120-0787V354F
2.0 9 3 38 Drill Point 2120-0787.354D 2120-0787D354D 2120-0787V354D
3.0 12 3 38 Fish Tail 2120-1181.472F 2120-1181D472F 2120-1181V472F
3.0 12 3 38 Drill Point 2120-1181.472D 2120-1181D472D 2120-1181V472D
4.0 15 4 40 Fish Tail 2120-1575.591F 2120-1575D591F 2120-1575V591F
4.0 15 4 40 Drill Point 2120-1575.591D 2120-1575D591D 2120-1575V591D
5.0 20 5 50 Fish Tail 2120-1968.787F 2120-1968D787F 2120-1968V787F
5.0 20 5 50 Drill Point 2120-1968.787D 2120-1968D787D 2120-1968V787D
6.0 20 6 50 Fish Tail 2120-2362.787F 2120-2362D787F 2120-2362V787F
6.0 20 6 50 Drill Point 2120-2362.787D 2120-2362D787D 2120-2362V787D
8.0 25 8 63 Fish Tail 2120-3150.984F 2120-3150D984F 2120-3150V984F
8.0 25 8 63 Drill Point 2120-3150.984D 2120-3150D984D 2120-3150V984D
DIAMOND PATTERN ROUTER BITS / UP CUT
SCHAFTFRÄSER MIT DIAMANTPROFIL / GEGENLAUFFRÄSEN
FRAISE POUR CARBON / USINAGE EN OPPOSITION
FRESE DISCORDE CON DISEGNO A ROMBI / TAGLIO VERSO L’ALTO
SERIES 2120
D
d
L
End Styles
Fish Tail Drill Point
POINT
ANGLE
CUTTING
DIAMETER
MICRO
GRAIN
SERIES 2120 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
CVD Diamond ☆ ★ ★
DLC ☆ ☆ ☆
Uncoated ☆ ★★☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 58 04.03.2016 07:53:24
59
ROUTERS
★: Priority Materials ☆: Applicable Materials
D (mm)  (mm) d (mm)
h6 L (mm) End Style Art. No.
(uncoated)
Art. No.
(DLC coated)
Art. No.
(Diamond)
0.8 4 3 38 Fish Tail 2121-0315.157F 2121-0315D157F 2121-0315V157F
0.8 4 3 38 Drill Point 2121-0315.157D 2121-0315D157D 2121-0315V157D
1.0 5 3 38 Fish Tail 2121-0394.197F 2121-0394D197F 2121-0394V197F
1.0 5 3 38 Drill Point 2121-0394.197D 2121-0394D197D 2121-0394V197D
1.5 8 3 38 Fish Tail 2121-0591.315F 2121-0591D315F 2121-0591V315F
1.5 8 3 38 Drill Point 2121-0591.315D 2121-0591D315D 2121-0591V315D
2.0 9 3 38 Fish Tail 2121-0787.354F 2121-0787D354F 2121-0787V354F
2.0 9 3 38 Drill Point 2121-0787.354D 2121-0787D354D 2121-0787V354D
3.0 12 3 38 Fish Tail 2121-1181.472F 2121-1181D472F 2121-1181V472F
3.0 12 3 38 Drill Point 2121-1181.472D 2121-1181D472D 2121-1181V472D
4.0 15 4 40 Fish Tail 2121-1575.591F 2121-1575D591F 2121-1575V591F
4.0 15 4 40 Drill Point 2121-1575.591D 2121-1575D591D 2121-1575V591D
5.0 20 5 50 Fish Tail 2121-1968.787F 2121-1968D787F 2121-1968V787F
5.0 20 5 50 Drill Point 2121-1968.787D 2121-1968D787D 2121-1968V787D
6.0 20 6 50 Fish Tail 2121-2362.787F 2121-2362D787F 2121-2362V787F
6.0 20 6 50 Drill Point 2121-2362.787D 2121-2362D787D 2121-2362V787D
8.0 25 8 63 Fish Tail 2121-3150.984F 2121-3150D984F 2121-3150V984F
8.0 25 8 63 Drill Point 2121-3150.984D 2121-3150D984D 2121-3150V984D
SCHAFTFRÄSER MIT DIAMANTPROFIL / GLEICHLAUFFRÄSEN
FRAISE POUR CARBON / USINAGE EN AVALANT
FRESE DISCORDE CON DISEGNO A ROMBI / TAGLIO VERSO IL BASSO
SERIES 2121
DIAMOND PATTERN ROUTER BITS / DOWN CUT
MICRO
GRAIN
SERIES 2121 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
CVD Diamond ☆ ★ ★
DLC ☆ ☆ ☆
Uncoated ☆ ★★☆☆☆
D
dh6
L
End Styles
Fish Tail Drill Point
POINT
ANGLE
CUTTING
DIAMETER
2015_KUTDE_MIT_Catalog_TZZ00058.indd 59 04.03.2016 07:53:25
60
ROUTERS
★: Priority Materials ☆: Applicable Materials
DIAMOND PATTERN ROUTER BITS / UP CUT
SCHAFTFRÄSER MIT DIAMANTPROFIL / GEGENLAUFFRÄSEN
FRAISE POUR CARBON / USINAGE EN AVALANT
FRESE DISCORDE CON DISEGNO A ROMBI / TAGLIO VERSO IL BASSO
SERIES 2320
D (mm)  (mm) d (mm)
h6 L (mm) End Style Art. No.
(uncoated)
Art. No.
(DLC coated)
Art. No.
(Diamond)
0.8 4 3 38 Fish Tail 2320-0315.157F 2320-0315D157F 2320-0315V157F
0.8 4 3 38 Drill Point 2320-0315.157D 2320-0315D157D 2320-0315V157D
1.0 5 3 38 Fish Tail 2320-0394.197F 2320-0394D197F 2320-0394V197F
1.0 5 3 38 Drill Point 2320-0394.197D 2320-0394D197D 2320-0394V197D
1.5 8 3 38 Fish Tail 2320-0591.315F 2320-0591D315F 2320-0591V315F
1.5 8 3 38 Drill Point 2320-0591.315D 2320-0591D315D 2320-0591V315D
2.0 9 3 38 Fish Tail 2320-0787.354F 2320-0787D354F 2320-0787V354F
2.0 9 3 38 Drill Point 2320-0787.354D 2320-0787D354D 2320-0787V354D
3.0 12 3 38 Fish Tail 2320-1181.472F 2320-1181D472F 2320-1181V472F
3.0 12 3 38 Drill Point 2320-1181.472D 2320-1181D472D 2320-1181V472D
4.0 15 4 40 Fish Tail 2320-1575.591F 2320-1575D591F 2320-1575V591F
4.0 15 4 40 Drill Point 2320-1575.591D 2320-1575D591D 2320-1575V591D
5.0 20 5 50 Fish Tail 2320-1968.787F 2320-1968D787F 2320-1968V787F
5.0 20 5 50 Drill Point 2320-1968.787D 2320-1968D787D 2320-1968V787D
6.0 20 6 50 Fish Tail 2320-2362.787F 2320-2362D787F 2320-2362V787F
6.0 20 6 50 Drill Point 2320-2362.787D 2320-2362D787D 2320-2362V787D
8.0 25 8 63 Fish Tail 2320-3150.984F 2320-3150D984F 2320-3150V984F
8.0 25 8 63 Drill Point 2320-3150.984D 2320-3150D984D 2320-3150V984D
MICRO
GRAIN
with chipbreaker | mit Spanbrecher | avec brise-copeaux | con rompitruciolo
D
d
L
End Styles
Fish Tail Drill Point
POINT
ANGLE
CUTTING
DIAMETER
SERIES 2320 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
CVD Diamond ☆ ★ ★
DLC ☆ ☆ ☆
Uncoated ☆ ★★☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 60 04.03.2016 07:53:27
61
THREAD MILLS
★: Priority Materials ☆: Applicable Materials
Metric Thread D (mm) No. of
Flutes
d (mm)
h6 L (mm)  (mm) Art. No.
(uncoated)
Art. No.
(ALTIN coated)
M0.5x0.125 0.30 2 3 38 1.0 98M05-0125.2FA1 98M05-0125L2FA1
M0.6x0.15 0.37 2 3 38 1.0 98M06-0150.2FA1 98M06-0150L2FA1
M0.7x0.175 0.45 2 3 38 2.0 98M07-0175.2FA1 98M07-0175L2FA1
M0.8x0.20 0.51 2 3 38 2.0 98M08-0200.2FA1 98M08-0200L2FA1
M0.9x0.25 0.58 2 3 38 2.0 98M09-0225.2FA1 98M09-0225L2FA1
M1.0x0.25 0.65 2 3 38 5.0 98M10-0250.2FA1 98M10-0250L2FA1
M1.1x0.25 0.75 4 3 38 5.0 98M11-0250.4FA1 98M11-0250L4FA1
M1.2x0.25 0.85 4 3 38 5.0 98M12-0250.4FA1 98M12-0250L4FA1
M1.4x0.30 1.00 4 3 38 5.0 98M14-0300.4FA1 98M14-0300L4FA1
M1.6x0.35 1.15 4 3 38 7.0 98M16-0350.4FA1 98M16-0350L4FA1
M1.8x0.35 1.35 4 3 38 7.0 98M18-0350.4FA1 98M18-0350L4FA1
M2.0x0.40 1.50 4 3 38 7.0 98M20-0400.4FA1 98M20-0400L4FA1
M2.5x0.45 1.95 4 4 50 9.4 98M25-0450.4FB1 98M25-0450L4FB1
M3x0.5 2.40 4 4 50 9.4 98M30-0500.4FB1 98M30-0500L4FB1
M3.5x0.6 2.80 4 4 50 9.4 98M35-0600.4FB1 98M35-0600L4FB1
M4x0.7 3.10 4 6 64 12.7 98M40-0700.4FB1 98M40-0700L4FB1
M5x0.8 3.85 4 6 64 12.7 98M50-0800.4FB1 98M50-0800L4FB1
M6x1 4.65 4 6 64 12.7 98M60-1000.4FB1 98M60-1000L4FB1
M8x1.25 5.95 4 6 64 12.7 98M80-1250.4FB1 98M80-1250L4FB1
MICRO THREAD MILLS
MIKRO GEWINDEFRÄSER
MICRO FRAISE A TOURBILLONNEURS
MICRO FRESE A FILETTARE
SERIES 98M
D dh6
L
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN 1
SERIES 98M WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆
Uncoated ☆ ★★☆☆☆ ★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 61 04.03.2016 07:53:29
62
ENGRAVERS
★: Priority Materials ☆: Applicable Materials
MICRO ENGRAVING TOOLS
MIKRO GRAVIERFRÄSER
MICRO FRAISE A GRAVER
MICRO UTENSILI PER INICISIONE
SERIES EGR
A (°) D (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
30 1.27 3 38 EGR1181-030
60 1.27 3 38 EGR1181-060
90 1.27 3 38 EGR1181-090
End Style
A°
D
dh6
L
MICRO
GRAIN 2
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
SERIES EGR WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★☆☆☆ ☆☆☆☆ ☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 62 04.03.2016 07:53:32
63
ENGRAVERS
★: Priority Materials ☆: Applicable Materials
W (mm) Letter Height (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
0.25 2.40 3 38 HR118SSS025A
0.30 2.75 3 38 HR118SSS030A
0.35 3.10 3 38 HR118SSS035A
0.40 3.45 3 38 HR118SSS040A
0.45 3.80 3 38 HR118SSS045A
0.50 4.75 3 38 HR118SSS050A
0.60 5.50 3 38 HR118SSS060A
0.70 6.25 3 38 HR118SSS070A
0.80 7.00 3 38 HR118SSS080A
MICRO HALF ROUND ENGRAVING TOOLS
MIKRO GRAVIERSTICHEL
MICRO FRAISE A GRAVER
MICRO UTENSILI PER INICISIONE
SERIES HR
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
dh6
L
W
MICRO
GRAIN 1
SERIES HR WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★☆☆☆ ☆☆☆☆ ☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 63 04.03.2016 07:53:34
64
ENGRAVERS
★: Priority Materials ☆: Applicable Materials
MICRO SPADE TOOLS
MIKRO GRAVIERFRÄSER
MICRO FRAISE A GRAVER
MICRO UTENSILI PER CENTRATURE A SMUSSO
SERIES SPD
MICRO
GRAIN 2
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
A (°) d (mm)
h6 L (mm) Art. No.
(uncoated)
30 3 38 SPD1181-030
45 3 38 SPD1181-045
60 3 38 SPD1181-060
90 3 38 SPD1181-090
118 3 38 SPD1181-118
End Style
A° d
L
SERIES SPD WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★☆☆☆ ☆☆☆☆ ☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 64 04.03.2016 07:53:36
65
BORING BARS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.06  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTIN coated)
0.40 1.0 3 38 MBS-0157.039 MBS-0157L039
0.50 1.0 3 38 MBS-0197.039 MBS-0197L039
0.60 1.3 3 38 MBS-0236.051 MBS-0236L051
0.70 1.3 3 38 MBS-0276.051 MBS-0276L051
0.80 1.3 3 38 MBS-0315.051 MBS-0315L051
0.90 1.3 3 38 MBS-0354.051 MBS-0354L051
1.00 2.5 3 38 MBS-0394.098 MBS-0394L098
1.10 2.5 3 38 MBS-0433.098 MBS-0433L098
1.20 2.5 3 38 MBS-0472.098 MBS-0472L098
1.30 2.5 3 38 MBS-0512.098 MBS-0512L098
1.50 6.0 3 38 MBS-0591.236 MBS-0591L236
1.70 7.0 3 38 MBS-0669.276 MBS-0669L276
2.00 8.0 3 38 MBS-0787.315 MBS-0787L315
3.00 15 5 50 MBS-1181.591 MBS-1181L591
3.50 20 5 50 MBS-1378.787 MBS-1378L787
4.00 22 5 50 MBS-1575.866 MBS-1575L866
4.50 23 8 65 MBS-1772.906 MBS-1772L906
5.00 25 8 65 MBS-1969.984 MBS-1969L984
5.50 27 8 65 MBS-2165.1063 MBS-2165L1063
6.00 29 8 65 MBS-2362.1142 MBS-2362L1142
MICRO BORING BARS
MIKRO AUSDREHWERKZEUGE
MICRO BURINS D ALESAGE
MICRO BARRE DI ALESATURA
SERIES MBS
D
dh6
L
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
SERIES MBS WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆ ☆☆
Uncoated ★ ★ ★ ☆ ☆ ☆ ☆ ☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 65 04.03.2016 07:53:38
66
BORING BARS
★: Priority Materials ☆: Applicable Materials
D (mm)
+0/-0.06  (mm) d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTIN coated)
0.40 2 3 38 MBE-0157.079 MBE-0157L079
0.50 2 3 38 MBE-0197.079 MBE-0197L079
0.60 3 3 38 MBE-0236.118 MBE-0236L118
0.70 3 3 38 MBE-0276.118 MBE-0276L118
0.80 3 3 38 MBE-0315.118 MBE-0315L118
0.90 3 3 38 MBE-0354.118 MBE-0354L118
1.00 5 3 38 MBE-0394.197 MBE-0394L197
1.10 5 3 38 MBE-0433.197 MBE-0433L197
1.20 5 3 38 MBE-0472.197 MBE-0472L197
1.30 5 3 38 MBE-0512.197 MBE-0512L197
1.50 10 3 38 MBE-0591.394 MBE-0591L394
1.70 10 3 38 MBE-0669.394 MBE-0669L394
2.00 10 3 38 MBE-0787.394 MBE-0787L394
3.00 20 5 50 MBE-1181.787 MBE-1181L787
3.50 25 5 50 MBE-1378.984 MBE-1378L984
4.00 27 5 50 MBE-1575.1063 MBE-1575L1063
4.50 32 8 65 MBE-1772.1260 MBE-1772L1260
5.00 32 8 65 MBE-1969.1260 MBE-1969L1260
5.50 32 8 65 MBE-2165.1260 MBE-2165L1260
6.00 35 8 65 MBE-2362.1378 MBE-2362L1378
MICRO BORING BARS
MIKRO AUSDREHWERKZEUGE
MICRO BURINS D ALESAGE
MICRO BARRE DI ALESATURA
SERIES MBE
SERIES MBE WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★☆☆☆ ☆ ☆☆
Uncoated ★ ★ ★ ☆ ☆ ☆ ☆ ☆
MICRO
GRAIN
Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga
D
dh6
L
2015_KUTDE_MIT_Catalog_TZZ00058.indd 66 04.03.2016 07:53:40
67
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
0.20 1.5 3 3 50 MR34-0079.059
0.21 1.5 3 3 50 MR34-0083.059
0.22 1.5 3 3 50 MR34-0087.059
0.23 1.5 3 3 50 MR34-0091.059
0.24 1.5 3 3 50 MR34-0094.059
0.25 1.5 3 3 50 MR34-0098.059
0.26 1.5 3 3 50 MR34-0102.059
0.27 1.5 3 3 50 MR34-0106.059
0.28 1.5 3 3 50 MR34-0110.059
0.29 1.5 3 3 50 MR34-0114.059
0.30 2.0 4 3 50 MR34-0118.079
0.31 2.0 4 3 50 MR34-0122.079
0.32 2.0 4 3 50 MR34-0126.079
0.33 2.0 4 3 50 MR34-0130.079
0.34 2.0 4 3 50 MR34-0134.079
0.35 2.0 4 3 50 MR34-0138.079
0.36 2.0 4 3 50 MR34-0142.079
0.37 2.0 4 3 50 MR34-0146.079
0.38 2.0 4 3 50 MR34-0150.079
0.39 2.0 4 3 50 MR34-0154.079
0.40 2.5 5 3 50 MR34-0157.099
0.41 2.5 5 3 50 MR34-0161.099
0.42 2.5 5 3 50 MR34-0165.099
0.43 2.5 5 3 50 MR34-0169.099
0.44 2.5 5 3 50 MR34-0173.099
0.45 2.5 5 3 50 MR34-0177.099
0.46 2.5 5 3 50 MR34-0181.099
0.47 2.5 5 3 50 MR34-0185.099
0.48 2.5 5 3 50 MR34-0189.099
0.49 2.5 5 3 50 MR34-0193.099
0.50 3 6 3 50 MR34-0197.118
0.51 3 6 3 50 MR34-0201.118
0.52 3 6 3 50 MR34-0205.118
0.53 3 6 3 50 MR34-0209.118
0.54 3 6 3 50 MR34-0213.118
0.55 3 6 3 50 MR34-0216.118
0.56 3 6 3 50 MR34-0220.118
0.57 3 6 3 50 MR34-0224.118
0.58 3 6 3 50 MR34-0228.118
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 67 04.03.2016 07:53:42
68
REAMERS
★: Priority Materials ☆: Applicable Materials
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
0.59 3 6 3 50 MR34-0232.118
0.60 7 18 3 50 MR34-0236.281
0.61 7 18 3 50 MR34-0240.281
0.62 7 18 3 50 MR34-0244.281
0.63 7 18 3 50 MR34-0248.281
0.64 7 18 3 50 MR34-0252.281
0.65 7 18 3 50 MR34-0256.281
0.66 7 18 3 50 MR34-0260.281
0.67 7 18 3 50 MR34-0264.281
0.68 7 18 3 50 MR34-0268.281
0.69 7 18 3 50 MR34-0272.281
0.70 7 18 3 50 MR34-0276.281
0.71 7 18 3 50 MR34-0279.281
0.72 7 18 3 50 MR34-0283.281
0.73 7 18 3 50 MR34-0287.281
0.74 7 18 3 50 MR34-0291.281
0.75 7 18 3 50 MR34-0295.281
0.76 7 18 3 50 MR34-0299.281
0.77 7 18 3 50 MR34-0303.281
0.78 7 18 3 50 MR34-0307.281
0.79 7 18 3 50 MR34-0311.281
0.80 7 18 3 50 MR34-0315.281
0.81 7 18 3 50 MR34-0319.281
0.82 7 18 3 50 MR34-0323.281
0.83 7 18 3 50 MR34-0327.281
0.84 7 18 3 50 MR34-0331.281
0.85 7 18 3 50 MR34-0335.281
0.86 7 18 3 50 MR34-0338.281
0.87 7 18 3 50 MR34-0342.281
0.88 7 18 3 50 MR34-0346.281
0.89 7 18 3 50 MR34-0350.281
0.90 7 18 3 50 MR34-0354.281
0.91 7 18 3 50 MR34-0358.281
0.92 7 18 3 50 MR34-0362.281
0.93 7 18 3 50 MR34-0366.281
0.94 7 18 3 50 MR34-0370.281
0.95 7 18 3 50 MR34-0374.281
0.96 7 18 3 50 MR34-0378.281
0.97 7 18 3 50 MR34-0382.281
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 68 04.03.2016 07:53:45
69
REAMERS
★: Priority Materials ☆: Applicable Materials
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
0.98 7 18 3 50 MR34-0386.281
0.99 7 18 3 50 MR34-0390.281
1.00 7 18 3 50 MR34-0394.281
1.01 7 18 3 50 MR34-0398.281
1.02 7 18 3 50 MR34-0401.281
1.03 7 18 3 50 MR34-0405.281
1.04 7 18 3 50 MR34-0409.281
1.05 7 18 3 50 MR34-0413.281
1.06 10 18 3 50 MR34-0417.406
1.07 10 18 3 50 MR34-0421.406
1.08 10 18 3 50 MR34-0425.406
1.09 10 18 3 50 MR34-0429.406
1.10 10 18 3 50 MR34-0433.406
1.11 10 18 3 50 MR34-0437.406
1.12 10 18 3 50 MR34-0441.406
1.13 10 18 3 50 MR34-0445.406
1.14 10 18 3 50 MR34-0449.406
1.15 10 18 3 50 MR34-0453.406
1.16 10 18 3 50 MR34-0457.406
1.17 10 18 3 50 MR34-0461.406
1.18 10 18 3 50 MR34-0464.406
1.19 10 18 3 50 MR34-0468.406
1.20 10 18 3 50 MR34-0472.406
1.21 10 18 3 50 MR34-0476.406
1.22 10 18 3 50 MR34-0480.406
1.23 10 18 3 50 MR34-0484.406
1.24 10 18 3 50 MR34-0488.406
1.25 10 18 3 50 MR34-0492.406
1.26 10 18 3 50 MR34-0496.406
1.27 10 18 3 50 MR34-0500.406
1.28 10 18 3 50 MR34-0504.406
1.29 10 18 3 50 MR34-0508.406
1.30 10 18 3 50 MR34-0512.406
1.31 10 18 3 50 MR34-0516.406
1.32 10 18 3 50 MR34-0520.406
1.33 10 18 3 50 MR34-0523.406
1.34 10 18 3 50 MR34-0527.406
1.35 10 18 3 50 MR34-0531.406
1.36 10 18 3 50 MR34-0535.406
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 69 04.03.2016 07:53:47
70
REAMERS
★: Priority Materials ☆: Applicable Materials
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
1.37 10 18 3 50 MR34-0539.406
1.38 10 18 3 50 MR34-0543.406
1.39 10 18 3 50 MR34-0547.406
1.40 10 18 3 50 MR34-0551.406
1.41 10 18 3 50 MR34-0555.406
1.42 10 18 3 50 MR34-0559.406
1.43 10 18 3 50 MR34-0563.406
1.44 10 18 3 50 MR34-0567.406
1.45 10 18 3 50 MR34-0571.406
1.46 10 18 3 50 MR34-0575.406
1.47 10 18 3 50 MR34-0579.406
1.48 10 18 3 50 MR34-0583.406
1.49 10 18 3 50 MR34-0586.406
1.50 10 18 3 50 MR34-0590.406
1.51 10 18 3 50 MR34-0594.406
1.52 10 18 3 50 MR34-0598.406
1.53 10 18 3 50 MR34-0602.406
1.54 10 18 3 50 MR34-0606.406
1.55 10 18 3 50 MR34-0610.406
1.56 10 18 3 50 MR34-0614.406
1.57 10 18 3 50 MR34-0618.406
1.58 10 18 3 50 MR34-0622.406
1.59 10 18 3 50 MR34-0626.406
1.60 10 18 3 50 MR34-0630.406
1.61 10 18 3 50 MR34-0634.406
1.62 10 18 3 50 MR34-0638.406
1.63 10 18 3 50 MR34-0642.406
1.64 10 18 3 50 MR34-0646.406
1.65 10 18 3 50 MR34-0649.406
1.66 10 18 3 50 MR34-0653.406
1.67 10 18 3 50 MR34-0657.406
1.68 10 18 3 50 MR34-0661.406
1.69 10 18 3 50 MR34-0665.406
1.70 10 18 3 50 MR34-0669.406
1.71 10 18 3 50 MR34-0673.406
1.72 10 18 3 50 MR34-0677.406
1.73 10 18 3 50 MR34-0681.406
1.74 10 18 3 50 MR34-0685.406
1.75 10 18 3 50 MR34-0689.406
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 70 04.03.2016 07:53:49
71
REAMERS
★: Priority Materials ☆: Applicable Materials
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
1.76 10 18 3 50 MR34-0693.406
1.77 10 18 3 50 MR34-0697.406
1.78 10 18 3 50 MR34-0701.406
1.79 10 18 3 50 MR34-0705.406
1.80 10 18 3 50 MR34-0708.406
1.81 10 18 3 50 MR34-0712.406
1.82 10 18 3 50 MR34-0716.406
1.83 10 18 3 50 MR34-0720.406
1.84 10 18 3 50 MR34-0724.406
1.85 10 18 3 50 MR34-0728.406
1.86 10 18 3 50 MR34-0732.406
1.87 10 18 3 50 MR34-0736.406
1.88 10 18 3 50 MR34-0740.406
1.89 10 18 3 50 MR34-0744.406
1.90 10 18 3 50 MR34-0748.406
1.91 10 18 3 50 MR34-0752.406
1.92 10 18 3 50 MR34-0756.406
1.93 10 18 3 50 MR34-0760.406
1.94 10 18 3 50 MR34-0764.406
1.95 10 18 3 50 MR34-0768.406
1.96 11 20.5 3 50 MR34-0771.438
1.97 11 20.5 3 50 MR34-0775.438
1.98 11 20.5 3 50 MR34-0779.438
1.99 11 20.5 3 50 MR34-0783.438
2.00 11 20.5 3 50 MR34-0787.438
2.01 11 20.5 3 50 MR34-0791.438
2.02 11 20.5 3 50 MR34-0795.438
2.03 11 20.5 3 50 MR34-0799.438
2.04 11 20.5 3 50 MR34-0803.438
2.05 11 20.5 3 50 MR34-0807.438
2.06 11 20.5 3 50 MR34-0811.438
2.07 11 20.5 3 50 MR34-0815.438
2.08 11 20.5 3 50 MR34-0819.438
2.09 11 20.5 3 50 MR34-0823.438
2.10 11 20.5 3 50 MR34-0827.438
2.11 11 20.5 3 50 MR34-0830.438
2.12 11 20.5 3 50 MR34-0835.438
2.13 11 20.5 3 50 MR34-0838.438
2.14 11 20.5 3 50 MR34-0843.438
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 71 04.03.2016 07:53:51
72
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR34
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
2.15 11 20.5 3 50 MR34-0846.438
2.16 11 20.5 3 50 MR34-0850.438
2.17 11 20.5 3 50 MR34-0854.438
2.18 11 20.5 3 50 MR34-0858.438
2.19 11 20.5 3 50 MR34-0862.438
2.20 11 20.5 3 50 MR34-0866.438
2.21 11 20.5 3 50 MR34-0870.438
2.22 11 20.5 3 50 MR34-0874.438
2.23 11 20.5 3 50 MR34-0878.438
2.24 11 20.5 3 50 MR34-0882.438
2.25 11 20.5 3 50 MR34-0886.438
2.26 11 20.5 3 50 MR34-0890.438
2.27 11 20.5 3 50 MR34-0894.438
2.28 11 20.5 3 50 MR34-0896.438
2.29 11 20.5 3 50 MR34-0901.438
2.30 11 20.5 3 50 MR34-0906.438
2.31 11 20.5 3 50 MR34-0909.438
2.32 11 20.5 3 50 MR34-0913.438
2.33 11 20.5 3 50 MR34-0917.438
2.34 11 20.5 3 50 MR34-0921.438
2.35 11 20.5 3 50 MR34-0925.438
2.36 11 20.5 3 50 MR34-0929.438
2.37 11 20.5 3 50 MR34-0933.438
2.38 11 20.5 3 50 MR34-0937.438
2.39 11 20.5 3 50 MR34-0941.438
2.40 11 20.5 3 50 MR34-0945.438
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
4
D
dh6
L
R
SERIES MR34 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 72 04.03.2016 07:53:53
73
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR46
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
2.41 14 51 4 75 MR46-0949.563
2.42 14 51 4 75 MR46-0953.563
2.43 14 51 4 75 MR46-0957.563
2.44 14 51 4 75 MR46-0960.563
2.45 14 51 4 75 MR46-0965.563
2.46 14 51 4 75 MR46-0968.563
2.47 14 51 4 75 MR46-0972.563
2.48 14 51 4 75 MR46-0976.563
2.49 14 51 4 75 MR46-0980.563
2.50 14 51 4 75 MR46-0984.563
2.51 14 51 4 75 MR46-0988.563
2.52 14 51 4 75 MR46-0992.563
2.53 14 51 4 75 MR46-0996.563
2.54 14 51 4 75 MR46-1000.563
2.55 14 51 4 75 MR46-1004.563
2.56 14 51 4 75 MR46-1008.563
2.57 14 51 4 75 MR46-1012.563
2.58 14 51 4 75 MR46-1015.563
2.59 14 51 4 75 MR46-1019.563
2.60 14 51 4 75 MR46-1024.563
2.61 14 51 4 75 MR46-1028.563
2.62 14 51 4 75 MR46-1031.563
2.63 14 51 4 75 MR46-1035.563
2.64 14 51 4 75 MR46-1039.563
2.65 14 51 4 75 MR46-1043.563
2.66 14 51 4 75 MR46-1047.563
2.67 14 51 4 75 MR46-1051.563
2.68 14 51 4 75 MR46-1055.538
2.69 14 51 4 75 MR46-1059.563
2.70 14 51 4 75 MR46-1063.563
2.71 14 51 4 75 MR46-1067.563
2.72 14 51 4 75 MR46-1071.563
2.73 14 51 4 75 MR46-1075.563
2.74 14 51 4 75 MR46-1078.563
2.75 14 51 4 75 MR46-1083.563
2.76 14 51 4 75 MR46-1087.563
2.77 14 51 4 75 MR46-1090.563
2.78 14 51 4 75 MR46-1094.563
2.79 14 51 4 75 MR46-1098.563
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
SERIES MR46 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 73 04.03.2016 07:53:55
74
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR46
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
2.80 14 51 4 75 MR46-1102.563
2.81 14 51 4 75 MR46-1106.538
2.82 14 51 4 75 MR46-1110.563
2.83 14 51 4 75 MR46-1114.563
2.84 14 51 4 75 MR46-1118.563
2.85 14 51 4 75 MR46-1122.563
2.87 14 51 4 75 MR46-1130.563
2.88 14 51 4 75 MR46-1134.563
2.89 14 51 4 75 MR46-1138.563
2.90 14 51 4 75 MR46-1141.563
2.91 14 51 4 75 MR46-1146.563
2.92 14 51 4 75 MR46-1149.563
2.93 14 51 4 75 MR46-1154.563
2.94 14 51 4 75 MR46-1157.563
2.95 16 51 4 75 MR46-1161.625
2.96 14 51 4 75 MR46-1164.563
2.97 16 51 4 75 MR46-1169.625
2.98 16 51 4 75 MR46-1173.625
2.99 16 51 4 75 MR46-1177.625
3.00 16 51 4 75 MR46-1181.625
3.01 16 51 4 75 MR461185.625
3.02 16 51 4 75 MR46-1189.625
3.03 16 51 4 75 MR46-1193.625
3.05 16 51 4 75 MR46-1200.625
3.10 16 51 4 75 MR46-1220.625
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
SERIES MR46 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
Uncoated ★★★★★☆☆☆☆☆☆☆☆★★
2015_KUTDE_MIT_Catalog_TZZ00058.indd 74 04.03.2016 07:53:57
75
REAMERS
★: Priority Materials ☆: Applicable Materials
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR46
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTiN coated)
3.20 17.00 36.00 4 64.00 MR46-1260.669 MR46-1260L669
3.30 17.00 36.00 4 64.00 MR46-1299.669 MR46-1299L669
3.40 17.00 36.00 4 64.00 MR46-1339.669 MR46-1339L669
3.50 17.00 36.00 4 64.00 MR46-1378.669 MR46-1378L669
3.60 17.00 36.00 4 64.00 MR46-1417.669 MR46-1417L669
3.70 17.00 36.00 4 64.00 MR46-1457.669 MR46-1457L669
3.80 17.00 36.00 4 64.00 MR46-1496.669 MR46-1496L669
3.90 17.00 36.00 4 64.00 MR46-1535.669 MR46-1535L669
SERIES MR46 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆
Uncoated ☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 75 04.03.2016 07:53:59
76
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR66
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
SERIES MR66 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆
Uncoated ☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTiN coated)
3.97 21.00 45.00 4 77.00 MR46-1563.827 MR46-1563L827
3.98 21.00 45.00 4 77.00 MR46-1567.827 MR46-1567L827
3.99 21.00 45.00 4 77.00 MR46-1571.827 MR46-1571L827
4.00 21.00 45.00 4 77.00 MR46-1575.827 MR46-1575L827
4.01 21.00 45.00 4 77.00 MR46-1579.827 MR46-1579L827
4.02 21.00 45.00 4 77.00 MR46-1583.827 MR46-1583L827
4.03 21.00 45.00 4 77.00 MR46-1587.827 MR46-1587L827
4.10 21.00 45.00 6 77.00 MR66-1614.827 MR66-1614L827
4.20 21.00 45.00 6 77.00 MR66-1654.827 MR66-1654L827
4.30 21.00 45.00 6 77.00 MR66-1693.827 MR66-1693L827
4.40 21.00 45.00 6 77.00 MR66-1732.827 MR66-1732L827
4.50 21.00 45.00 6 77.00 MR66-1772.827 MR66-1772L827
4.60 21.00 45.00 6 77.00 MR66-1811.827 MR66-1811L827
4.70 21.00 45.00 6 77.00 MR66-1850.827 MR66-1850L827
4.80 21.00 45.00 6 77.00 MR66-1890.827 MR66-1890L827
4.90 21.00 45.00 6 77.00 MR66-1929.827 MR66-1929L827
4.97 26.00 59.00 6 93.00 MR66-1957.1024 MR66-1957L1024
4.98 26.00 59.00 6 93.00 MR66-1961.1024 MR66-1961L1024
4.99 26.00 59.00 6 93.00 MR66-1965.1024 MR66-1965L1024
5.00 26.00 59.00 6 93.00 MR66-1968.1024 MR66-1968L1024
5.01 26.00 59.00 6 93.00 MR66-1972.1024 MR66-1972L1024
5.02 26.00 59.00 6 93.00 MR66-1976.1024 MR66-1976L1024
5.03 26.00 59.00 6 93.00 MR66-1980.1024 MR66-1980L1024
5.10 26.00 59.00 6 93.00 MR66-2008.1024 MR66-2008L1024
5.20 26.00 59.00 6 93.00 MR66-2047.1024 MR66-2047L1024
5.30 26.00 59.00 6 93.00 MR66-2087.1024 MR66-2087L1024
5.40 26.00 59.00 6 93.00 MR66-2126.1024 MR66-2126L1024
5.50 26.00 59.00 6 93.00 MR66-2165.1024 MR66-2165L1024
5.60 26.00 59.00 6 93.00 MR66-2205.1024 MR66-2205L1024
5.70 26.00 59.00 6 93.00 MR66-2244.1024 MR66-2244L1024
5.80 26.00 59.00 6 93.00 MR66-2283.1024 MR66-2283L1024
5.90 26.00 59.00 6 93.00 MR66-2323.1024 MR66-2323L1024
2015_KUTDE_MIT_Catalog_TZZ00058.indd 76 04.03.2016 07:54:02
77
REAMERS
★: Priority Materials ☆: Applicable Materials
SERIES MR86 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆
Uncoated ☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTiN coated)
5.97 26.00 59.00 6 93.00 MR66-2350.1024 MR66-2350L1024
5.98 26.00 59.00 6 93.00 MR66-2354.1024 MR66-2354L1024
5.99 26.00 59.00 6 93.00 MR66-2358.1024 MR66-2358L1024
6.00 26.00 59.00 6 93.00 MR66-2362.1024 MR66-2362L1024
6.01 26.00 59.00 6 93.00 MR66-2366.1024 MR66-2366L1024
6.02 26.00 59.00 6 93.00 MR66-2370.1024 MR66-2370L1024
6.03 26.00 59.00 6 93.00 MR66-2374.1024 MR66-2374L1024
6.10 26.00 59.00 8 93.00 MR86-2402.1024 MR86-2402L1024
6.20 26.00 59.00 8 93.00 MR86-2441.1024 MR86-2441L1024
6.30 26.00 59.00 8 93.00 MR86-2480.1024 MR86-2480L1024
6.40 26.00 59.00 8 93.00 MR86-2520.1024 MR86-2520L1024
6.50 26.00 59.00 8 93.00 MR86-2559.1024 MR86-2559L1024
6.60 26.00 59.00 8 93.00 MR86-2598.1024 MR86-2598L1024
6.70 26.00 59.00 8 93.00 MR86-2638.1024 MR86-2638L1024
6.80 26.00 59.00 8 93.00 MR86-2677.1024 MR86-2677L1024
6.90 26.00 59.00 8 93.00 MR86-2717.1024 MR86-2717L1024
6.97 31.00 69.00 8 109.00 MR86-2744.1220 MR86-2744L1220
6.98 31.00 69.00 8 109.00 MR86-2748.1220 MR86-2748L1220
6.99 31.00 69.00 8 109.00 MR86-2752.1220 MR86-2752L1220
7.00 31.00 69.00 8 109.00 MR86-2756.1220 MR86-2756L1220
7.01 31.00 69.00 8 109.00 MR86-2760.1220 MR86-2760L1220
7.02 31.00 69.00 8 109.00 MR86-2764.1220 MR86-2764L1220
7.03 31.00 69.00 8 109.00 MR86-2768.1220 MR86-2768L1220
7.10 31.00 69.00 8 109.00 MR86-2795.1220 MR86-2795L1220
7.20 31.00 69.00 8 109.00 MR86-2835.1220 MR86-2835L1220
7.30 31.00 69.00 8 109.00 MR86-2874.1220 MR86-2874L1220
7.40 31.00 69.00 8 109.00 MR86-2913.1220 MR86-2913L1220
7.50 31.00 69.00 8 109.00 MR86-2953.1220 MR86-2953L1220
7.60 31.00 69.00 8 109.00 MR86-2992.1220 MR86-2992L1220
7.70 31.00 69.00 8 109.00 MR86-3031.1220 MR86-3031L1220
7.80 31.00 69.00 8 109.00 MR86-3071.1220 MR86-3071L1220
7.90 31.00 69.00 8 109.00 MR86-3110.1220 MR86-3110L1220
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR86
2015_KUTDE_MIT_Catalog_TZZ00058.indd 77 04.03.2016 07:54:04
78
REAMERS
★: Priority Materials ☆: Applicable Materials
MICRO REAMERS
MIKRO REIBAHLEN
MICRO ALESOIRS
MICRO ALESATORE
SERIES MR106
Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard
MICRO
GRAIN
45˚
6
D
dh6
L
R
SERIES MR66 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆
Uncoated ☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆
D (mm)
0/+0.003  (mm) R d (mm)
h6 L (mm) Art. No.
(uncoated)
Art. No.
(ALTiN coated)
7.97 33 75 10 133 MR106-3138.1299 MR106-3138L1299
7.98 33 75 10 133 MR106-3142.1299 MR106-3142L1299
7.99 33 75 10 133 MR106-3146.1299 MR106-3146L1299
8.00 33 75 10 133 MR106-3150.1299 MR106-3150L1299
8.01 33 75 10 133 MR106-3154.1299 MR106-3154L1299
8.02 33 75 10 133 MR106-3157.1299 MR106-3157L1299
8.03 33 75 10 133 MR106-3161.1299 MR106-3161L1299
SERIES MR106 WORKPIECE MATERIAL
Coating
~30HRC
Steel
30~40HRC
Steel
~55HRC
Hardened Steel
~68HRC
Hardened Steel Stainless
SteelCast IronAluminumGraphiteCopper
AlloyCFRPPlasticThermoset
PlasticPlastic
High Density Nickel /
Cobalt
Titanium
Alloy
AlTiN ★★★★★☆ ☆☆
Uncoated ☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆
2015_KUTDE_MIT_Catalog_TZZ00058.indd 78 04.03.2016 07:54:08
79
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
*All recommendations should be considered starting points. Parameters should be adjusted based on quality, throughput, material hardness.
REAMERS | REIBAHLEN | ALESOIRS | ALESATORE
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN
f = mm/rev.
ø< 1 ø< 1.5 ø< 3 ø< 6 ø< 10
~30HRC
Steel
<500 N/mm230 - 45 40 - 60 0.018 0.036 0.076 0.15 0.25
<800 N/mm220 - 30 26- 40 0.015 0.030 0.066 0.12 0.18
30~40HRC
Steel <1,200 N/mm215 - 25 20 - 33 0.013 0.025 0.061 0.09 0.15
Stainless
Steel
20 - 30 26 - 40 0.013 0.025 0.071 0.1 0.12
Nickel /
Cobalt
10 - 15 13 - 20 0.018 0.036 0.081 0.1 0.12
Titanium
Alloy
15 - 20 20 - 26 0.015 0.030 0.066 0.1 0.12
Cast Iron25 - 55 33 - 72 0.05 0.041 0.090 0.12 0.15
Copper
Alloy
40 - 65 52 - 85 0.015 0.030 0.080 0.18 0.22
Aluminum
70 - 100 91 - 130 0.020 0.041 0.102 0.2 0.3
PREDRILL DIAMETERS FOR REAMERS | VORBOHRDURCHMESSER REIBAHLEN
DIAMETRE DE PERCAGE AVANT ALESOIR | DIAMETRI PER PREFORI DI ALESATURA
ø of
drill hole
Pre-Drill Diameter (mm)
~30HRC
Steel
30~40HRC
Steel Stainless
Steel
Cast IronAluminumCopper
Alloy
Thermoset
Plastic
Plastic
High Density Nickel /
Cobalt
Titanium
Alloy
0.3 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24
0.4 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32
0.5 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42
0.6 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50
0.8 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68
1.0 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85
2.0 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80
3.0 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80
4.0 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80
5.0 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80
6.0 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80
8.0 7.80 7.80 7.80 7.80 7.80 7.80 7.70 7.70 7.80 7.80
2015_KUTDE_MIT_Catalog_TZZ00058.indd 79 04.03.2016 07:54:10
80
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
MICRO DRILLS | MIKRO BOHRER | MICRO FORET | MICRO PUNTE
Material Property Vc (m/min)
uncoated
Vc (m/min)
coated
f = mm/rev.
ø < 1.0 ø < 1.5 ø < 2.0 ø < 2.5 ø < 3.0
~30HRC
Steel
<500 N/mm215 - 45 20 - 50 0.035 - 0.045 0.040 - 0.055 0.050 - 0.065 0.060 - 0.075 0.065 - 0.080
<800 N/mm215 - 45 20 - 50 0.030 - 0.035 0.035 - 0.045 0.040 - 0.055 0.050 - 0.065 0.055 - 0.070
30~40HRC
Steel
<1,000 N/mm210 - 30 15 - 35 0.020 - 0.025 0.025 - 0.035 0.030 - 0.040 0.035 - 0.045 0.040 - 0.050
<1,300 N/mm28 - 20 10 - 25 0.010 - 0.015 0.010 - 0.015 0.015 - 0.020 0.015 - 0.025 0.020 - 0.025
~55HRC
Hardened Steel 55 HRC 15 - 45 20 - 50 0.015 - 0.020 0.020 - 0.030 0.025 - 0.035 0.030 - 0.040 0.035 - 0.045
Stainless
Steel
austenitic 10 - 35 15 - 40 0.020 - 0.025 0.025 - 0.035 0.030 - 0.040 0.035 - 0.045 0.040 - 0.050
martensitic 8 - 20 10 - 25 0.005 - 0.010 0.005 - 0.010 0.010 - 0.015 0.010 - 0.015 0.015 - 0.020
Nickel /
Cobalt
- 3 - 8 5 - 10 0.010 - 0.015 0.010 - 0.015 0.015 - 0.020 0.020 - 0.025 0.020 - 0.025
Titanium
Alloy
<900 N/mm23 - 8 5 - 10 0.005 - 0.010 0.005 - 0.010 0.010 - 0.015 0.010 - 0.015 0.015 - 0.020
Cast Iron
<180 HB 20 - 60 25 - 65 0.040 - 0.050 0.045 - 0.065 0.060 - 0.075 0.070 - 0.090 0.080 - 0.095
>180 HB 20 - 55 25 - 60 0.040 - 0.050 0.045 - 0.065 0.060 - 0.075 0.070 - 0.090 0.080 - 0.095
Aluminum
Aluminum 40 - 140 50 - 150 0.040 - 0.050 0.045 - 0.065 0.060 - 0.075 0.070 - 0.090 0.080 - 0.095
Silicon <6% 40 - 100 45 - 110 0.040 - 0.050 0.045 - 0.065 0.060 - 0.075 0.070 - 0.090 0.080 - 0.095
Silicon >6% 40 - 100 45 - 110 0.045 - 0.060 0.055 - 0.075 0.070 - 0.090 0.080 - 0.100 0.090 - 0.120
Copper
Alloy
Brass 40 - 80 50 - 90 0.030 - 0.060 0.060 - 0.100 0.100 - 0.150 0.150 - 0.180 0.180 - 0.200
Plastic- 70 - 110 80 - 120 0.030 - 0.060 0.030 - 0.060 0.030 - 0.060 0.030 - 0.060 0.030 - 0.060
CARBIDE COOLANT MICRO DRILLS | HM BORHER MIT KÜHLUNG
FORET AVEC ARROSAGE (CARBURE) | PUNTE CON ADDUZIONE REFRIGERANTE (METALLO DURO)
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN
f = mm/rev.
ø < 1.0 mm ø < 1.5 mm ø < 2.0 mm ø < 2.5 mm ø < 3.0 mm
~30HRC
Steel
<500 N/mm230 - 60 35 - 90 0.02 - 0.04 0.02 - 0.04 0.03 - 0.06 0.04 - 0.08 0.04 - 0.08
<800 N/mm220 - 50 25 - 80 0.02 - 0.04 0.02 - 0.04 0.03 - 0.06 0.04 - 0.08 0.04 - 0.08
30~40HRC
Steel
<1,000 N/mm215 - 35 25 - 80 0.02 - 0.04 0.02 - 0.04 0.03 - 0.06 0.04 - 0.08 0.04 - 0.08
<1,300 N/mm210 - 25 20 - 45 0.02 - 0.04 0.02 - 0.04 0.03 - 0.05 0.04 - 0.06 0.04 - 0.06
Stainless
Steel
ferritic 15 - 40 15 - 35 0.01 - 0.02 0.01 - 0.02 0.02 - 0.04 0.03 - 0.06 0.03 - 0.06
austenitic 10 - 25 20 - 30 0.01 - 0.02 0.01 - 0.02 0.02 - 0.04 0.03 - 0.06 0.03 - 0.06
Titanium
Alloy
<900 N/mm25 - 10 15 - 35 0.01 - 0.02 0.01 - 0.02 0.02 - 0.04 0.03 - 0.06 0.03 - 0.06
Cast Iron
<180 HB 25 - 65 30 - 90 0.02 - 0.05 0.02 - 0.05 0.03 - 0.06 0.04 - 0.09 0.04 - 0.09
>180 HB 25 - 60 25 - 80 0.10 - 0.20 0.10 - 0.20 0.15 - 0.25 0.20 - 0.30 0.02 - 0.30
Aluminum
Silicon <12% 45 - 110 50 - 200 0.03 - 0.06 0.03 - 0.06 0.04 - 0.07 0.07 - 0.12 0.07 - 0.12
Silicon >12% 45 - 110 50 - 200 0.02 - 0.06 0.02 - 0.06 0.03 - 0.07 0.04 - 0.10 0.04 - 0.10
2015_KUTDE_MIT_Catalog_TZZ00058.indd 80 04.03.2016 07:54:12
81
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
CARBIDE DRILLS | HARTMETALL BOHRER | CARBURE FORETS | PUNTE IN METALLO DURO
Material Property Vc (m/min)
uncoated
Vc (m/min)
coated
f = mm/rev.
ø2 ø4 ø8 ø12 ø16
~30HRC
Steel
<500 N/mm280 100 0.04 0.06 0.12 0.17 0.23
<800 N/mm280 100 0.04 0.06 0.12 0.17 0.23
30~40HRC
Steel
<1,000 N/mm265 80 0.03 0.04 0.08 0.13 0.16
<1,300 N/mm240 60 0.02 0.04 0.07 0.11 0.16
~55HRC
Hardened Steel 55 HRC 6 - 10 8 - 12 0.02 0.03 0.06 0.07 0.08
~68HRC
Hardened Steel 68 HRC 6 - 10 8 - 12 0.02 0.03 0.06 0.07 0.08
Stainless
Steel
ferritic 70 80 0.03 0.04 0.08 0.13 0.16
martensitic 50 60 0.03 0.04 0.08 0.13 0.16
austenitic 35 40 0.03 0.04 0.08 0.13 0.16
Nickel /
Cobalt
-35 50 0.02 0.04 0.07 0.11 0.16
25 40 0.02 0.03 0.06 0.07 0.08
Titanium
Alloy
<900 N/mm235 50 0.03 0.04 0.08 0.13 0.16
>900 N/mm225 40 0.04 0.06 0.12 0.17 0.23
Cast Iron
<180 HB 70 80 0.06 0.09 0.20 0.25 0.35
>180 HB 35 50 0.05 0.08 0.12 0.24 0.28
Aluminum
Silicon <10% 130 150 0.05 0.08 0.12 0.24 0.28
Silicon >10% 70 80 0.05 0.08 0.12 0.24 0.28
Copper
Alloy
Brass 80 100 0.06 0.09 0.20 0.25 0.35
Plastic
thermoplastic 100 100 - 120 0.02 0.04 0.07 0.11 0.16
thermoset 100 100 - 120 0.02 0.04 0.07 0.11 0.16
Graphite
- 80 100 - 150 0.02 0.04 0.07 0.11 0.16
CARBIDE CENTERING DRILLS | HM ZENTRIEFRBOHRER | FORETS A CENTRER CARBURE | PUNTE DA CENTRO IN METALLO DURO
Material Property Vc (m/min)
uncoated
Vc (m/min)
coated
f = mm/rev.
ø2 ø3 ø6 ø10 ø16
~30HRC
Steel
<500 N/mm270 - 80 80 - 90 0.10 0.12 0.22 0.33 0.45
<800 N/mm260 - 70 70 - 90 0.10 0.12 0.22 0.33 0.45
30~40HRC
Steel
<1,000 N/mm250 - 60 60 - 70 0.07 0.08 0.15 0.23 0.31
<1,300 N/mm225 - 30 30 - 50 0.06 0.07 0.13 0.20 0.27
Stainless
Steel
- 20 - 30 30 - 40 0.06 0.08 0.15 0.20 0.30
Nickel /
Cobalt
- 20 - 30 30 - 40 0.50 0.70 0.13 0.18 0.27
Titanium
Alloy
<900 N/mm220 - 30 30 - 40 0.06 0.08 0.15 0.20 0.30
Cast Iron
<180 HB 50 - 60 60 - 70 0.10 0.12 0.22 0.33 0.45
>180 HB 35 - 40 40 - 60 0.08 0.10 0.17 0.30 0.40
Aluminum
Silicon <10% 100 100 - 150 0.05 0.08 0.12 0.24 0.28
Silicon >10% 70 70 - 90 0.12 0.15 0.20 0.25 0.40
Copper
Alloy
- 70 70 - 90 0.12 0.15 0.20 0.25 0.40
Plastic- 150 150 - 200 0.13 0.15 0.25 0.40 0.50
2015_KUTDE_MIT_Catalog_TZZ00058.indd 81 04.03.2016 07:54:15
82
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
CARBIDE SPOTTING DRILLS | NC HM-ANBOHRER | FORET A POINTER NC (CARBURE) | PUNTE DA CENTRO (METALLO DURO)
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN
f = mm/rev.
ø2 ø3 ø6 ø10 ø16
~30HRC
Steel
<500 N/mm280 - 100 100 - 120 0.10 0.12 0.22 0.33 0.45
<800 N/mm260 - 90 80 - 110 0.10 0.12 0.22 0.33 0.45
30~40HRC
Steel
<1,000 N/mm255 - 75 60 - 80 0.07 0.08 0.15 0.23 0.31
<1,300 N/mm230 - 50 40 - 60 0.06 0.07 0.13 0.20 0.27
Stainless
Steel
25 - 50 30 - 60 0.06 0.08 0.15 0.20 0.30
Nickel /
Cobalt
25 - 35 30 - 40 0.50 0.70 0.13 0.18 0.27
Titanium
Alloy
<900 N/mm235 - 35 30 - 40 0.06 0.06 0.15 0.20 0.30
Cast Iron
<180 HB 80 - 100 80 - 90 0.10 0.12 0.22 0.33 0.45
>180 HB 60 - 90 70 - 90 0.08 0.10 0.17 0.30 0.40
Copper
Alloy
100 - 180 150 - 200 0.12 0.15 0.20 0.25 0.40
Aluminum
90 - 120 110 - 140 0.12 0.15 0.20 0.25 0.40
Plastic100 - 180 150 - 200 0.12 0.15 0.20 0.25 0.40
CARBIDE CHAMFERING DRILLS | HM ENTRGRATFRÄSER
OUTIL DE RETOUCHE BAVURE (CARBURE) | FRESE PER SMUSSI (METALLO DURO)
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN
f = mm/rev.
ø2 ø4 ø6 ø8 ø10 ø12 ø16 ø20
~30HRC
Steel
<500 N/mm270 75 0.025 0.050 0.080 0.140 0.140 0.190 0.240 0.280
<800 N/mm240 60 0.025 0.050 0.080 0.140 0.140 0.190 0.240 0.280
30~40HRC
Steel
<1,000 N/mm235 40 0.023 0.045 0.070 0.120 0.120 0.180 0.220 0.280
<1,300 N/mm230 35 0.023 0.045 0.070 0.120 0.170 0.170 0.220 0.260
~55HRC
Hardened Steel 55 HRC 25 30 0.020 0.040 0.060 0.110 0.110 0.160 0.220 0.250
~68HRC
Hardened Steel 68 HRC 25 30 0.020 0.040 0.060 0.110 0.110 0.160 0.220 0.250
Stainless
Steel
ferritic 25 30 0.023 0.045 0.070 0.120 0.170 0.170 0.220 0.260
austenitic 25 30 0.020 0.040 0.060 0.110 0.110 0.160 0.220 0.250
Nickel /
Cobalt
20 25 0.020 0.040 0.060 0.110 0.110 0.160 0.220 0.250
Titanium
Alloy
<900 N/mm225 30 0.020 0.040 0.060 0.110 0.110 0.160 0.220 0.250
Cast Iron
<180 HB 35 40 0.023 0.045 0.070 0.120 0.120 0.180 0.220 0.280
>180 HB 30 35 0.023 0.045 0.070 0.120 0.120 0.180 0.220 0.280
Aluminum
150 200 0.025 0.050 0.090 0.150 0.200 0.200 0.270 0.350
Copper
Alloy
80 120 0.050 0.100 0.150 0.250 0.300 0.300 0.350 0.450
Plastic150 - 0.025 0.050 0.090 0.150 0.200 0.200 0.270 0.350
2015_KUTDE_MIT_Catalog_TZZ00058.indd 82 04.03.2016 07:54:18
83
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
HIGH PERFORMANCE COOLANT FED DRILL | MIKRO BOHRER MIT INNENKÜHLUNG |
MICRO FORET AVEC ARROSAGE INTERNE | MICRO PUNTE CON ADDUZIONE REFRIGERANTE
Material Property Vc (m/min)
ALTiN
f = mm/rev.
ø4 Ø8 Ø12 Ø16 Ø20
~30HRC
Steel
<500 N/mm2110 0.12 0.15 0.28 0.34 0.41
<800 N/mm2100 0.18 0.25 0.35 0.38 0.41
30~40HRC
Steel
<1,000 N/mm280 0.16 0.22 0.31 0.34 0.37
<1,300 N/mm265 0.16 0.22 0.31 0.34 0.37
Stainless
Steel
- 40 0.10 0.13 0.19 0.22 0.25
Nickel /
Cobalt
- 25 0.10 0.13 0.19 0.22 0.25
Titanium
Alloy
<900 N/mm2
30 0.08 0.11 0.16 0.18 0.20
>900 N/mm2
Cast Iron
<180 HB 90 0.18 0.22 0.35 0.38 0.41
>180 HB 80 0.16 0.25 0.31 0.34 0.37
Aluminum
Silicon <10% 220 0.18 0.25 0.38 0.45 0.52
Silicon >10% 200 0.18 0.25 0.38 0.45 0.52
Copper
Alloy
Brass 150 0.16 0.22 0.35 0.42 0.49
Bonze 80 0.16 0.22 0.35 0.42 0.49
2015_KUTDE_MIT_Catalog_TZZ00058.indd 83 04.03.2016 07:54:19
84
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
CARBIDE MICRO END MILLS | HM MIKRO SCHAFTFRÄSER | MICRO FRAISE (CARBURE) | MICRO FRESE (METALLO DURO)
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN Application f = mm/tooth
ø0.2 ø0.5 ø0.8 ø1.0 ø1.5 ø2.0 ø3.0
~30HRC
Steel
<500 N/mm260 80 Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
<800 N/mm260 80
Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
30~40HRC
Steel
<1,000 N/mm260 80 Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
<1,300 N/mm240 60 Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Stainless
Steel
- 40 60 Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Nickel /
Cobalt
- 25 45 Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Titanium
Alloy
- 60 80 Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Cast Iron- 100 120 Slotting ap = 1.0; ae = 1.0 0.002 0.005 0.009 0.012 0.018 0.024 0.036
Finishing ap = 1.0; ae = 0.3 0.000 0.001 0.001 0.001 0.002 0.002 0.004
Aluminum
- 150 200 Slotting ap = 1.0; ae = 1.0 0.001 0.001 0.002 0.002 0.003 0.004 0.006
Finishing ap = 1.0; ae = 0.3 0.000 0.000 0.000 0.000 0.000 0.000 0.001
Copper
Alloy
- 150 - Slotting ap = 1.0; ae = 1.0 0.002 0.006 0.008 0.012 0.018 0.024 0.036
Finishing ap = 1.0; ae = 0.3 0.000 0.001 0.001 0.001 0.002 0.002 0.004
Plastic- 200 - Slotting ap = 1.0; ae = 1.0 0.002 0.005 0.008 0.010 0.015 0.020 0.030
Finishing ap = 1.0; ae = 0.3 0.000 0.001 0.001 0.001 0.002 0.002 0.003
Graphite
- 80 - Slotting ap = 1.0; ae = 1.0 0.002 0.005 0.008 0.010 0.015 0.020 0.030
Finishing ap = 1.0; ae = 0.3 0.001 0.001 0.001 0.001 0.002 0.002 0.003
2015_KUTDE_MIT_Catalog_TZZ00058.indd 84 04.03.2016 07:54:20
85
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
TITANAXM, 16 HMS, 16 HMR, 16 RB
MOLD AND DIE MATERIALS | MATERIAL FÜR FORM UND GESENKBAU | MATÉRIAUX MOULISTES | MATERIALI PER STAMPI
Material Property Vc (m/min)
ALTiN Application f = mm/tooth
ø0.2 ø0.5 ø0.8 ø1.0 ø1.5 ø2.0 ø3.0
~30HRC
Steel
<500 N/mm2200 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
<800 N/mm2200 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
30~40HRC
Steel
<1,000 N/mm2200 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
<1,300 N/mm2120 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
~55HRC
Hardened Steel < 55 HRC 80 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
0.001 0.002 0.003 0.004 0.004 0.005 0.006
~68HRC
Hardened Steel < 68 HRC 60 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
0.001 0.002 0.003 0.004 0.004 0.005 0.006
Stainless
Steel
100 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
Nickel /
Cobalt
80 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
Titanium
Alloy
80 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
Cast Iron200 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.002 0.002 0.004 0.005 0.005 0.006 0.007
Copy Milling 0.001 0.002 0.003 0.004 0.004 0.005 0.006
Aluminum
300 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.001 0.003 0.004 0.005 0.006 0.008 0.009
Copy Milling 0.001 0.002 0.003 0.004 0.005 0.006 0.007
Copper
Alloy
200 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.001 0.003 0.004 0.005 0.006 0.008 0.009
Copy Milling 0.001 0.002 0.003 0.004 0.005 0.006 0.007
Graphite
120 High Speed ap = 0.1 x Ø; ae = 1.0 x Ø 0.001 0.003 0.004 0.005 0.006 0.008 0.009
Copy Milling 0.001 0.002 0.003 0.004 0.005 0.006 0.007
2015_KUTDE_MIT_Catalog_TZZ00058.indd 85 04.03.2016 07:54:21
86
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
CARBIDE END MILLS | HM SCHAFTFRÄSER | FRAISE (CARBURE) | FRESE (METALLO DURO)
Material Property Vc (m/min)
uncoated
Vc (m/min)
ALTiN Application fZ = mm/Z
ø4 ø6 ø8 ø10 ø12 ø16 ø20 ø25
~30HRC
Steel
<400 N/mm2100 150
Roughing 0.017 0.035 0.046 0.057 0.071 0.088 0.102 0.113
Finishing 0.024 0.048 0.064 0.080 0.099 0.123 0.143 0.159
Slotting 0.012 0.024 0.032 0.040 0.050 0.062 0.072 0.079
<700 N/mm2100 150
Roughing 0.016 0.032 0.042 0.052 0.065 0.081 0.094 0.104
Finishing 0.022 0.044 0.059 0.073 0.091 0.113 0.132 0.146
Slotting 0.011 0.022 0.029 0.037 0.046 0.057 0.066 0.073
30~40HRC
Steel
<1,000 N/mm270 110
Roughing 0.013 0.026 0.034 0.043 0.053 0.066 0.077 0.085
Finishing 0.018 0.036 0.048 0.060 0.075 0.093 0.108 0.119
Slotting 0.009 0.018 0.024 0.030 0.037 0.046 0.054 0.060
<1,300 N/mm260 100
Roughing 0.012 0.023 0.031 0.038 0.047 0.059 0.068 0.076
Finishing 0.016 0.032 0.043 0.053 0.066 0.082 0.096 0.106
Slotting 0.008 0.016 0.021 0.027 0.033 0.041 0.048 0.053
~55HRC
Hardened Steel 55 HRC 30 60
Roughing 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Finishing 0.014 0.028 0.037 0.047 0.058 0.072 0.084 0.093
Slotting 0.007 0.014 0.019 0.023 0.029 0.036 0.042 0.046
~68HRC
Hardened Steel 68 HRC 20 40
Roughing 0.009 0.017 0.023 0.029 0.036 0.044 0.051 0.057
Finishing 0.012 0.024 0.032 0.040 0.050 0.062 0.072 0.079
Slotting 0.006 0.012 0.016 0.020 0.025 0.031 0.036 0.040
Stainless
Steel
<900 N/mm260 90
Roughing 0.013 0.026 0.034 0.043 0.053 0.066 0.077 0.085
Finishing 0.018 0.036 0.048 0.060 0.075 0.093 0.108 0.119
Slotting 0.009 0.018 0.024 0.030 0.037 0.046 0.054 0.060
>900 N/mm250 80
Roughing 0.012 0.023 0.031 0.038 0.047 0.059 0.068 0.076
Finishing 0.016 0.032 0.043 0.053 0.066 0.082 0.096 0.106
Slotting 0.008 0.016 0.021 0.027 0.033 0.041 0.048 0.053
Nickel /
Cobalt
<900 N/mm240 60
Roughing 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Finishing 0.014 0.028 0.037 0.047 0.058 0.072 0.084 0.093
Slotting 0.007 0.014 0.019 0.023 0.029 0.036 0.042 0.046
>900 N/mm230 50
Roughing 0.009 0.017 0.023 0.029 0.036 0.044 0.051 0.057
Finishing 0.012 0.024 0.032 0.040 0.050 0.062 0.072 0.079
Slotting 0.006 0.012 0.016 0.020 0.025 0.031 0.036 0.040
Titanium
Alloy
<900 N/mm230 50
Roughing 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Finishing 0.014 0.028 0.037 0.047 0.058 0.072 0.084 0.093
Slotting 0.007 0.014 0.019 0.023 0.029 0.036 0.042 0.046
>900 N/mm220 40
Roughing 0.009 0.017 0.023 0.029 0.036 0.044 0.051 0.057
Finishing 0.012 0.024 0.032 0.040 0.050 0.062 0.072 0.079
Slotting 0.006 0.012 0.016 0.020 0.025 0.031 0.036 0.040
Cast Iron
<180 HB 100 150
Roughing 0.016 0.032 0.042 0.052 0.065 0.081 0.094 0.104
Finishing 0.022 0.044 0.059 0.073 0.091 0.113 0.132 0.146
Slotting 0.011 0.022 0.029 0.037 0.046 0.057 0.066 0.073
>180 HB 80 120
Roughing 0.014 0.029 0.038 0.048 0.059 0.074 0.085 0.095
Finishing 0.020 0.040 0.054 0.067 0.083 0.103 0.120 0.132
Slotting 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Aluminum
Sillicon <10% 300 500
Roughing 0.017 0.035 0.046 0.057 0.071 0.088 0.102 0.113
Finishing 0.024 0.048 0.064 0.080 0.099 0.123 0.143 0.159
Slotting 0.012 0.024 0.032 0.040 0.050 0.062 0.072 0.079
Sillicon >10% 200 400
Roughing 0.016 0.032 0.042 0.052 0.065 0.081 0.094 0.104
Finishing 0.022 0.044 0.059 0.073 0.091 0.113 0.132 0.146
Slotting 0.011 0.022 0.029 0.037 0.046 0.057 0.066 0.073
Copper
Alloy
Bronze 100 150
Roughing 0.014 0.029 0.038 0.048 0.059 0.074 0.085 0.095
Finishing 0.020 0.040 0.054 0.067 0.083 0.103 0.120 0.132
Slotting 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Brass 80 120
Roughing 0.014 0.029 0.038 0.048 0.059 0.074 0.085 0.095
Finishing 0.020 0.040 0.054 0.067 0.083 0.103 0.120 0.132
Slotting 0.010 0.020 0.027 0.033 0.041 0.051 0.060 0.066
Graphite
- 300 500
Roughing 0.014 0.029 0.038 0.048 0.059 0.074 0.085 0.095
Finishing 0.020 0.040 0.054 0.067 0.083 0.103 0.120 0.132
Slotting 0.010 0.020 0.027 0.033 0.051 0.051 0.060 0.066
2015_KUTDE_MIT_Catalog_TZZ00058.indd 86 04.03.2016 07:54:22
87
TECHNICAL INFO
RECOMMENDED CUTTING CONDITIONS
EMPFOHLENE SCHNITTBEDINGUNGEN
CONDITIONS DE COUPE RECOMMANDEES
CONDIZIONI DI TAGLIO CONSIGLIATE
TECHNICAL INFO
THREAD MILLS | GEWINDEFRÄSER | FRAISE A TOURBILLONNEURS | FRESE A FILETTARE
Material Property VC m/min
uncoated
VC m/min
AlTiN
f = mm/tooth
Ø 0.5 - 1.5 Ø 1.5 - 2.5 Ø 2.5 - 5.0 Ø 5.0 - 8.0
~30HRC
Steel
< 500 N/mm² 65 - 80 70 - 100 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
< 800 N/mm² 25 - 60 40 - 60 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
30~40HRC
Steel < 1200 N/mm² 10 - 20 25 - 50 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Stainless
Steel
35 - 40 40 - 60 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Nickel /
Cobalt
10 - 20 25 - 50 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Titanium
Alloy
15 - 35 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Cast Iron35 - 50 50 - 100 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Copper
Alloy
60 - 150 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
Aluminum
100 - 200 0.004 - 0.01 0.010 - 0.030 0.020 - 0.040 0.040 - 0.070
2015_KUTDE_MIT_Catalog_TZZ00058.indd 87 04.03.2016 07:54:23
