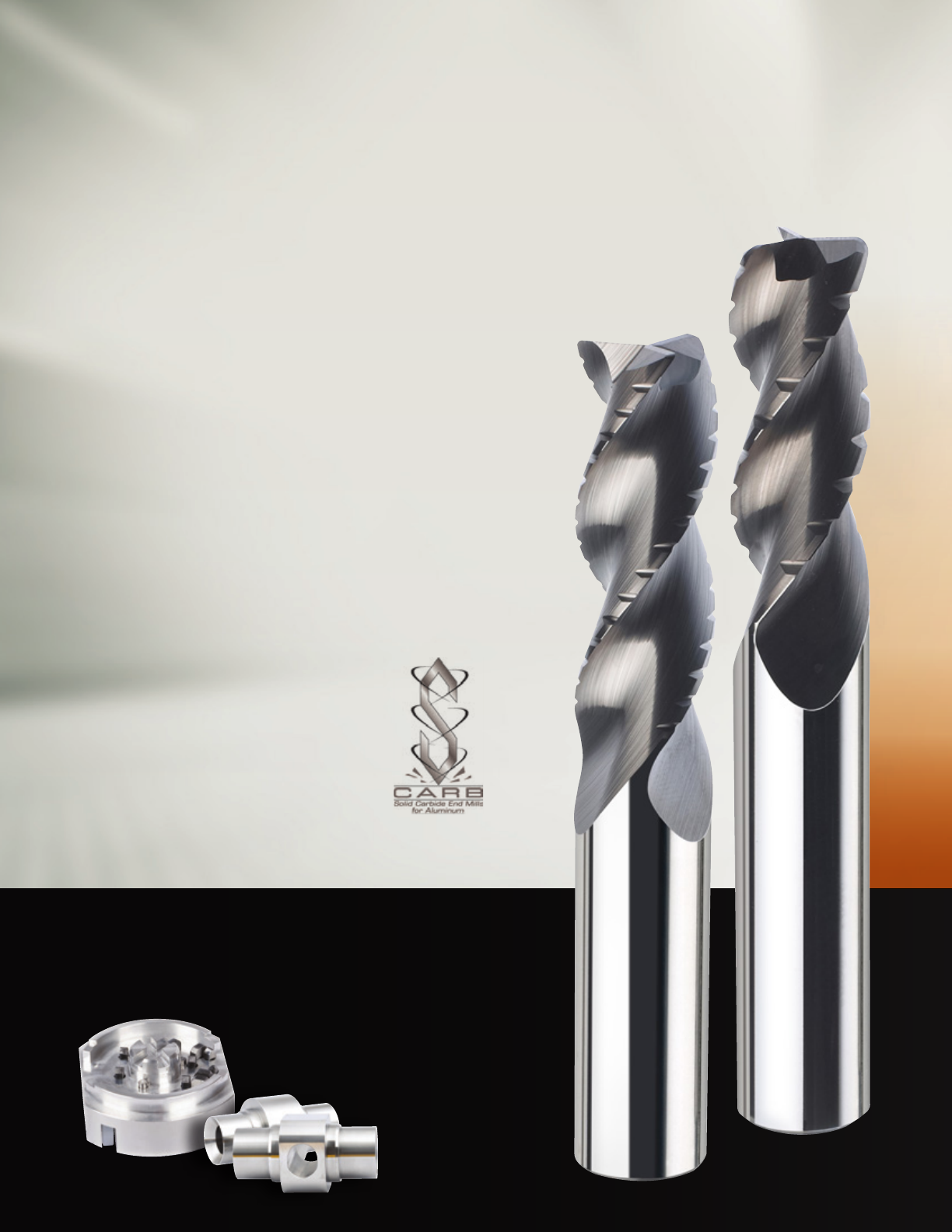

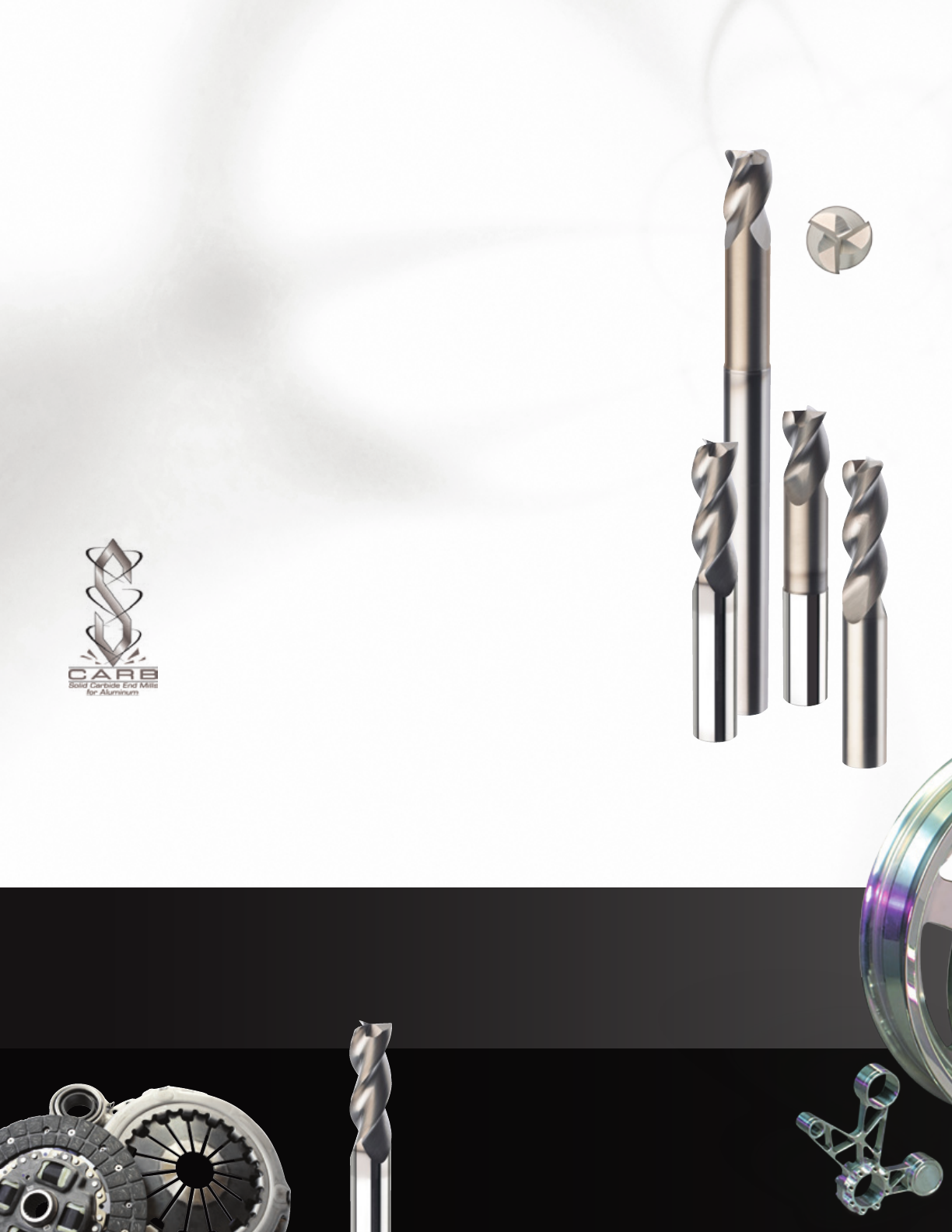

Solid Carbide Tools
Tools for Aluminum
The original, symmetrical ute design features
an engineered ute form that provides high
performance results through a full range of
machining conditions. These tools are designed for
aggressive aluminum, non-ferrous, and non-metallic
machining requiring a high level of material removal.
S-CARB HIGH PERFORMANCE END MILLS
Aluminum

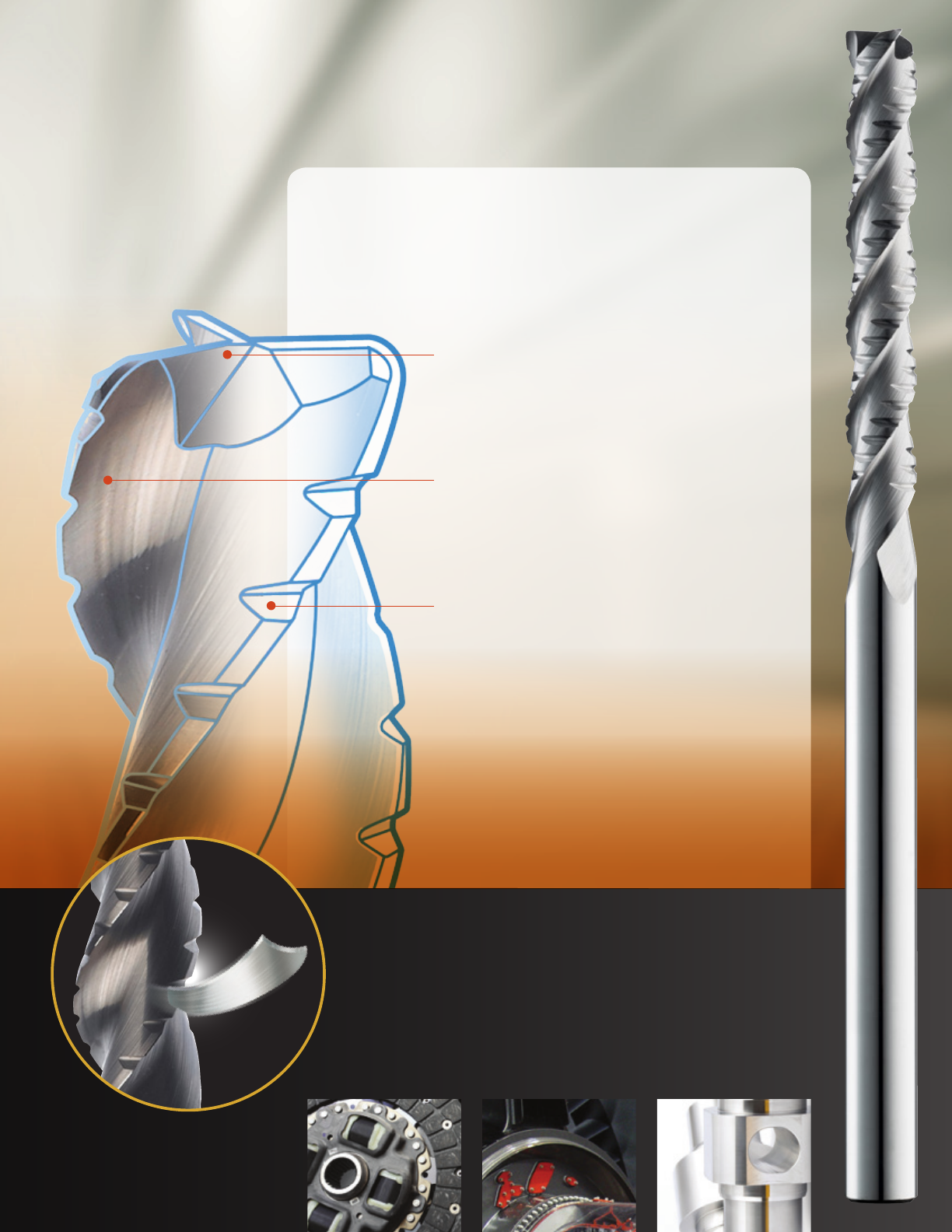

Engineered Flute Design
• Effective chip removal at high
feed rates
• Lower cutting forces than
comparable products
• Improved balance at high
spindle speeds
• Improved workpiece nish
through better balance
• More effective plunging vs.
conventional designs
Circular Land
• Increased control at various
speed and feed levels
• Reduced chatter
Various Reach, Neck and
End Options Available
• Ball End design for complex
workpieces
• Necked design with blended
diameter transitions provide
clearance to reach
• Short utes for maximum
rigidity
• Axial slotting up to 1xD
• Now also available with
HAIMER SAFE-LOCK option
on select diameters
Series 43 Metric Expanded
Tools Now Available with
Polished Flutes
• Polished utes maximize chip
evacuation and enhance nish
allowing for higher feed rates
• Less built up edge due to lower
co-efcient of friction
S-CARB END MILLS FOR
ALUMINUM, NON-FERROUS &
NON-METALLIC MATERIALS
VALUE AT THE SPINDLE
ENHANCED PRODUCTIVITY RESULTING FROM
A SUPERIOR FLUTE DESIGN THAT MANAGES
THE SIZE AND VOLUME OF CHIPS PRODUCED
DURING AGGRESSIVE MACHINING.

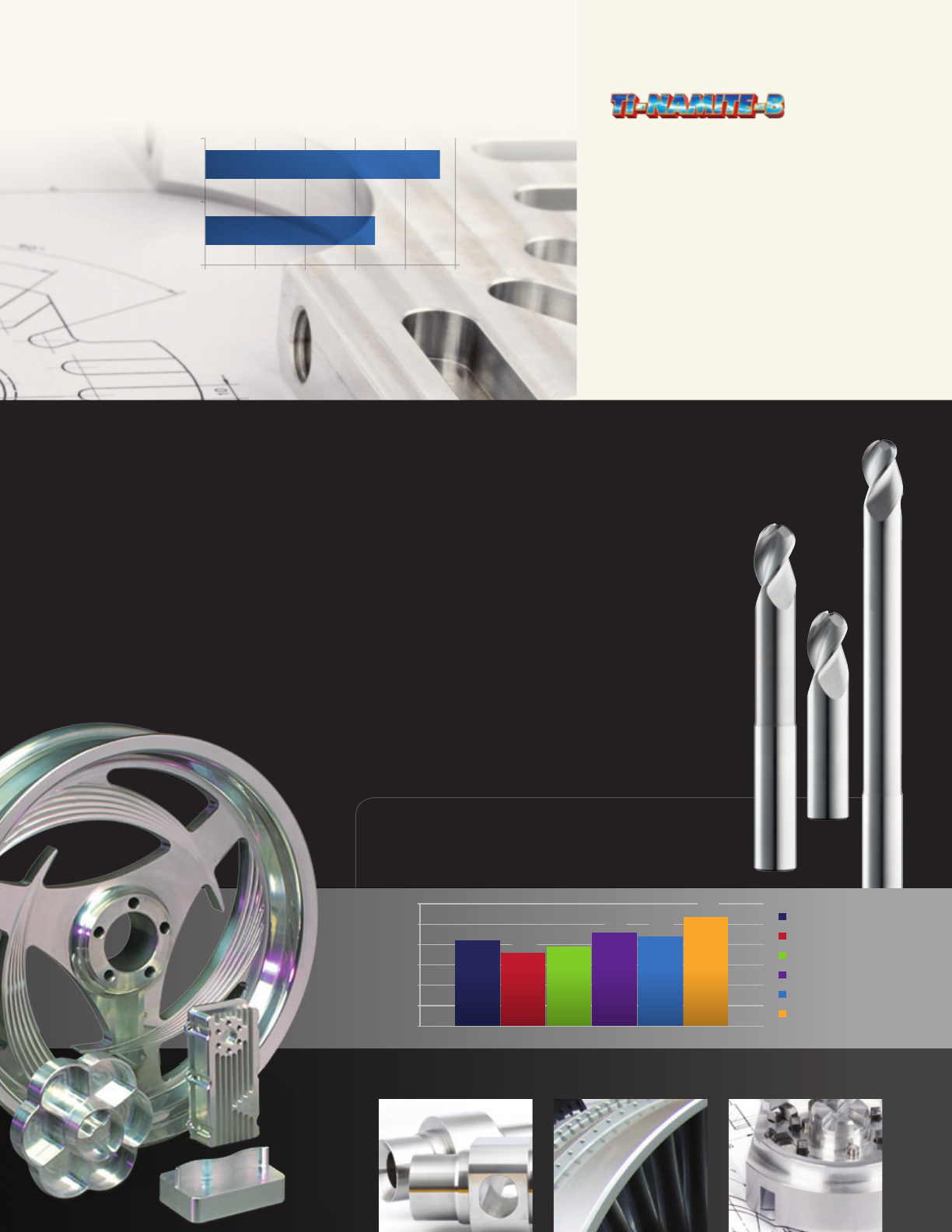

KSPT S-Carb Series 43 Design
2 Flute Aluminum Design
0 5,000 10,000 15,000 20,000 25,000
Results of Independent Lab Balance Analysis Testing per the ISO G2.5 Tolerance
½” Diameter Tools Equal Flute Lengths and Overall Lengths
Maximum RPM Capability
Aluminum
Aerospace
• Structure components
Automotive/Motorbike
• Performance aluminum wheels
• Non-ferrous housings,
transmissions, manifolds,
electronic pumps
S-CARB HIGH PERFORMANCE END MILLS ARE
IDEAL FOR CYCLE TIME REDUCTION IN TARGET
APPLICATIONS SUCH AS:
Mold & Die
• Non-ferrous mold cavities
Firearms
• Aluminum components
Semiconductor
• Aluminum vacuum chambers

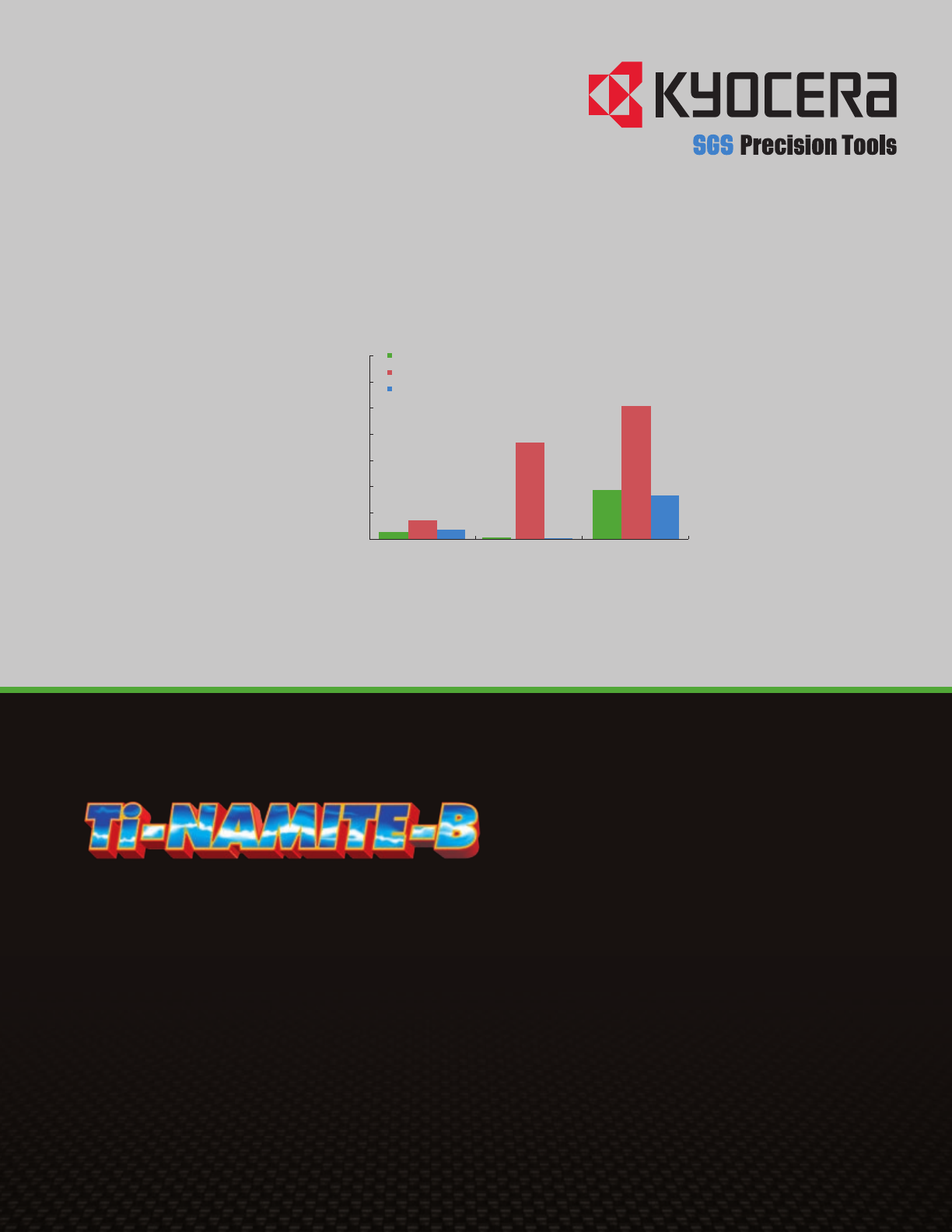

Available with TiB2 Coating (Titanium Diboride).
This ceramic based coating ensures a smooth surface
and a low afnity to cold welding or edge build-up,
which makes it optimal for aluminum and copper
applications. It has high toughness and high hardness.
Microhardness: 4000 HV
Oxidation Temperature: 850°C / 1562°F
Coefcient of Friction: 0.45
Thickness: 1 - 2 Microns (based on tool diameter)

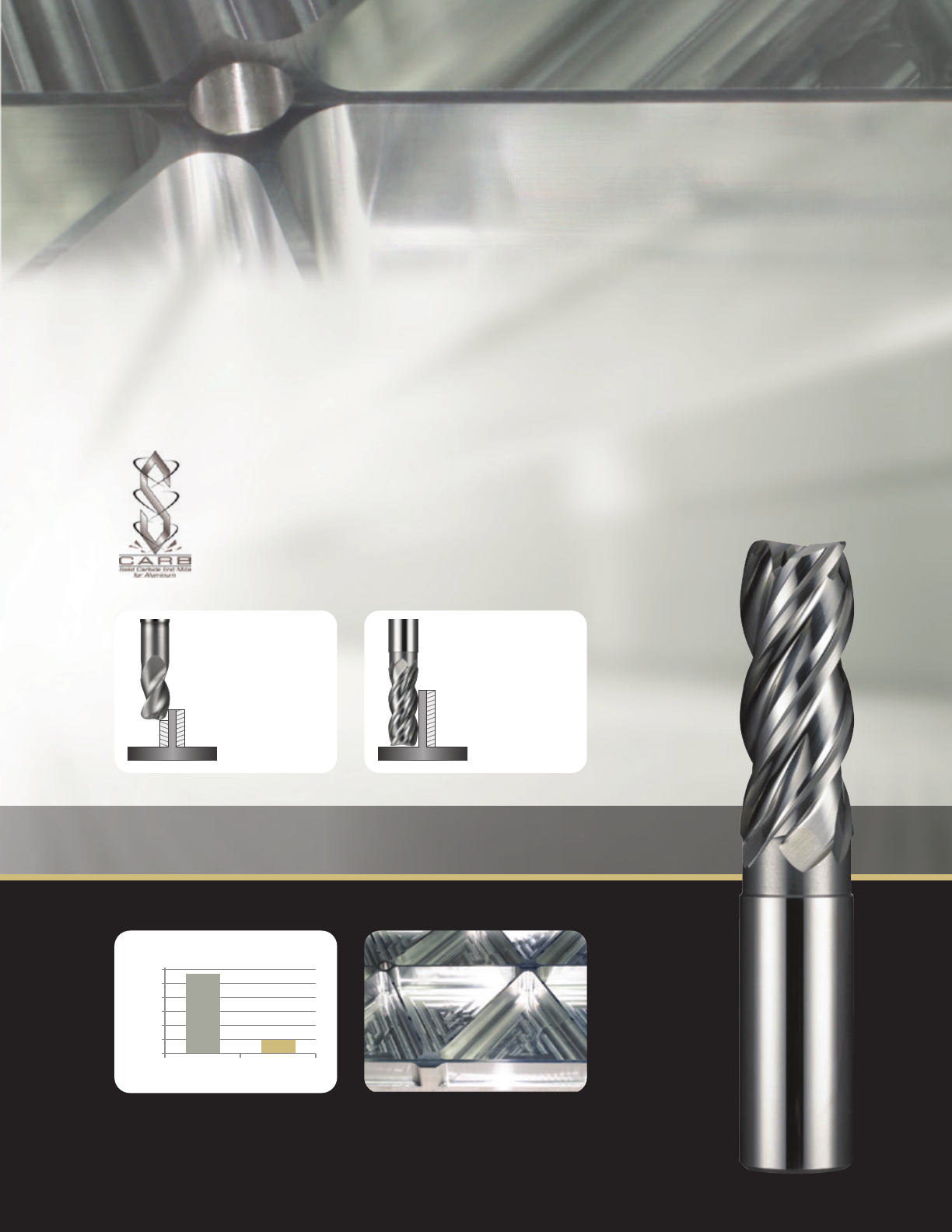

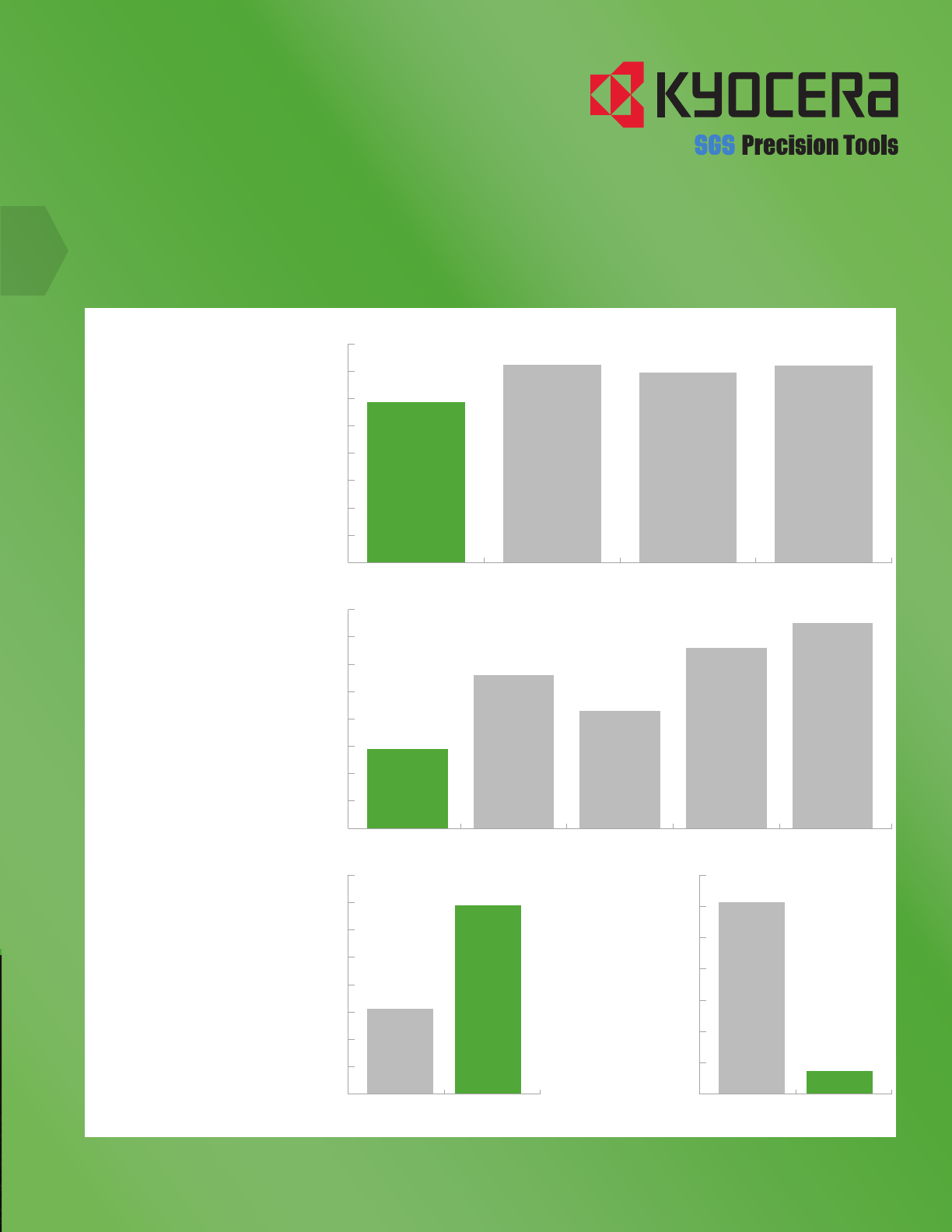

SLOTTING CAPABILITY: 3-FLUTE END MILLS
MAXIMUM FEED RATE ACHIEVED AT 100% SPINDLE
LOAD ON A 30 HP VERTICAL MILL IN 6061 ALUMINUM
@ 10,000 RPM .500” DEEP SLOT .500” DIAMETER TOOL
Competitor 1
300
210
180 195
230 220
270
250
200
150
100
50
0
Tool
Feed Rate in Inches Per Minute
Competitor 2
Competitor 3
Competitor 4
Competitor 5
KSPT S-Carb
Series 43
Maximum Feed Rate Achieved at 100% Spindle Load on a 30 hp Vertical Mill
In 6061 Aluminum @ 10,000 rpm .500” Deep Slot .500” Diameter Tool
Slotting Capability: 3-Flute End Mills
4www.kyocera-sgstool.com

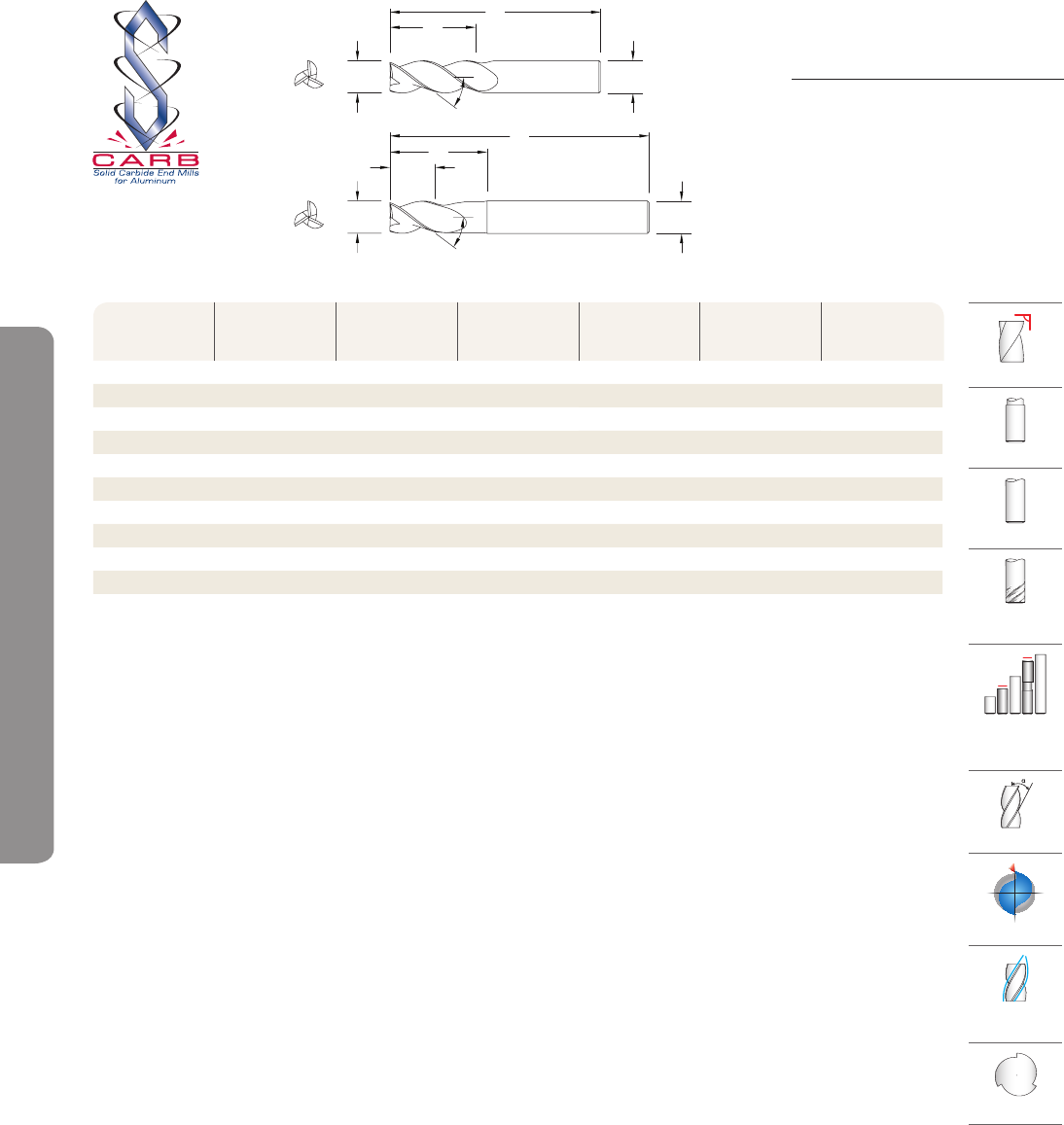

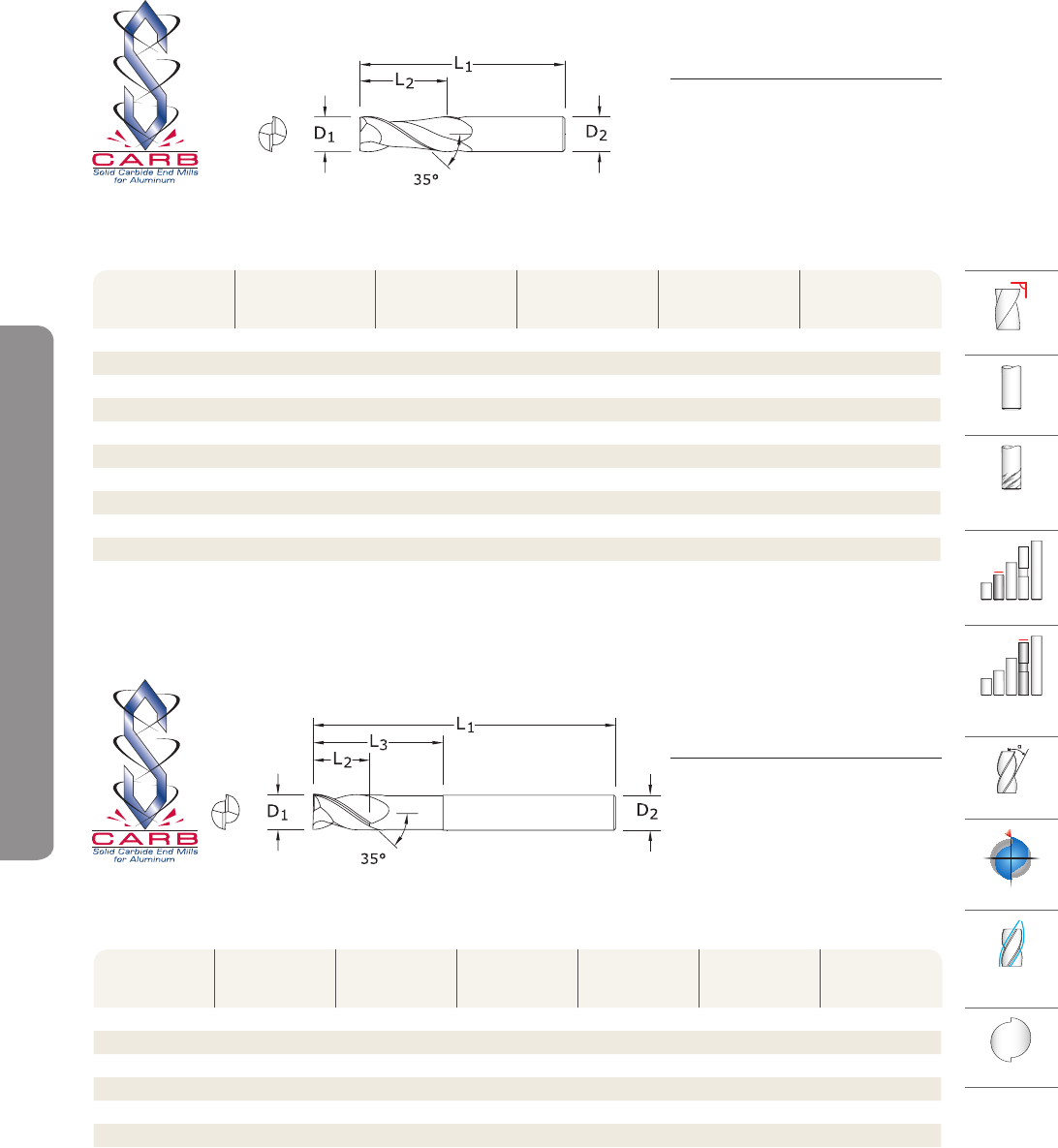

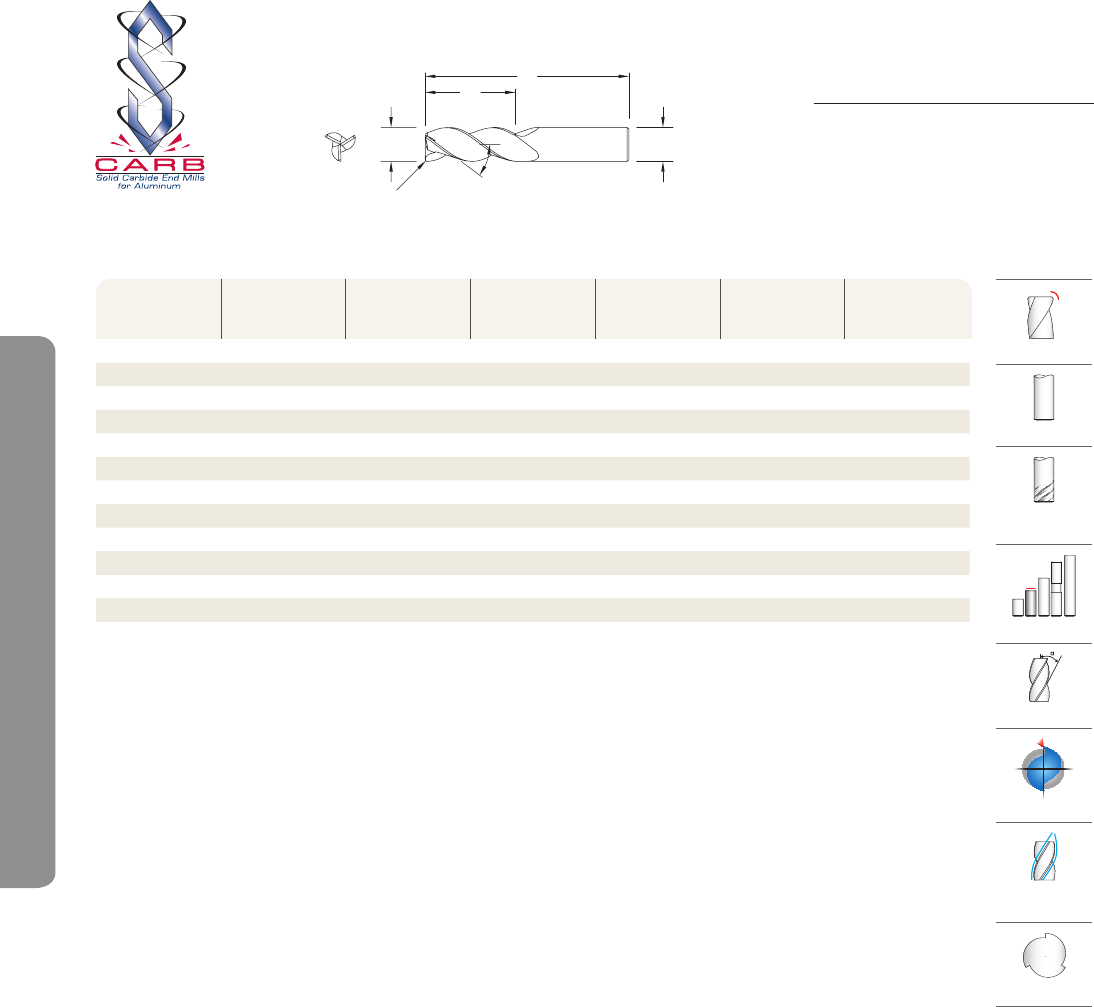

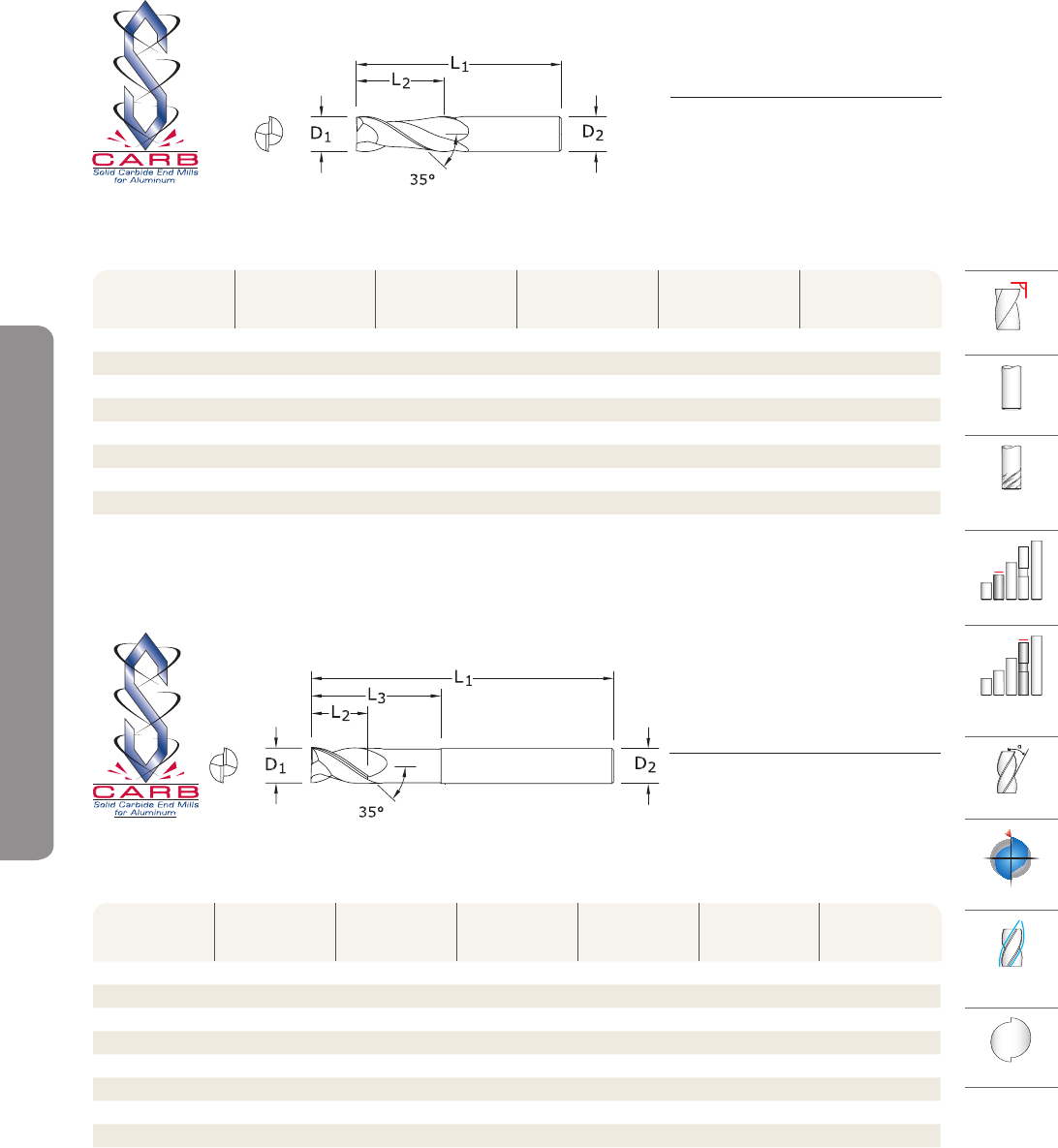

Series 47, 47L
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 3/8 1-1/2 1/8 34620 34660
3/16 9/16 2 3/16 34621 34661
1/4 3/4 2-1/2 1/4 34622 34662
5/16 13/16 2-1/2 5/16 34623 34663
3/8 1 2-1/2 3/8 34624 34664
1/2 1-1/4 3-1/4 1/2 34625 34665
5/8 1-5/8 3-3/4 5/8 34626 34666
3/4 1-5/8 4 3/4 34627 34667
1 2 4-1/2 1 34628 34668
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6

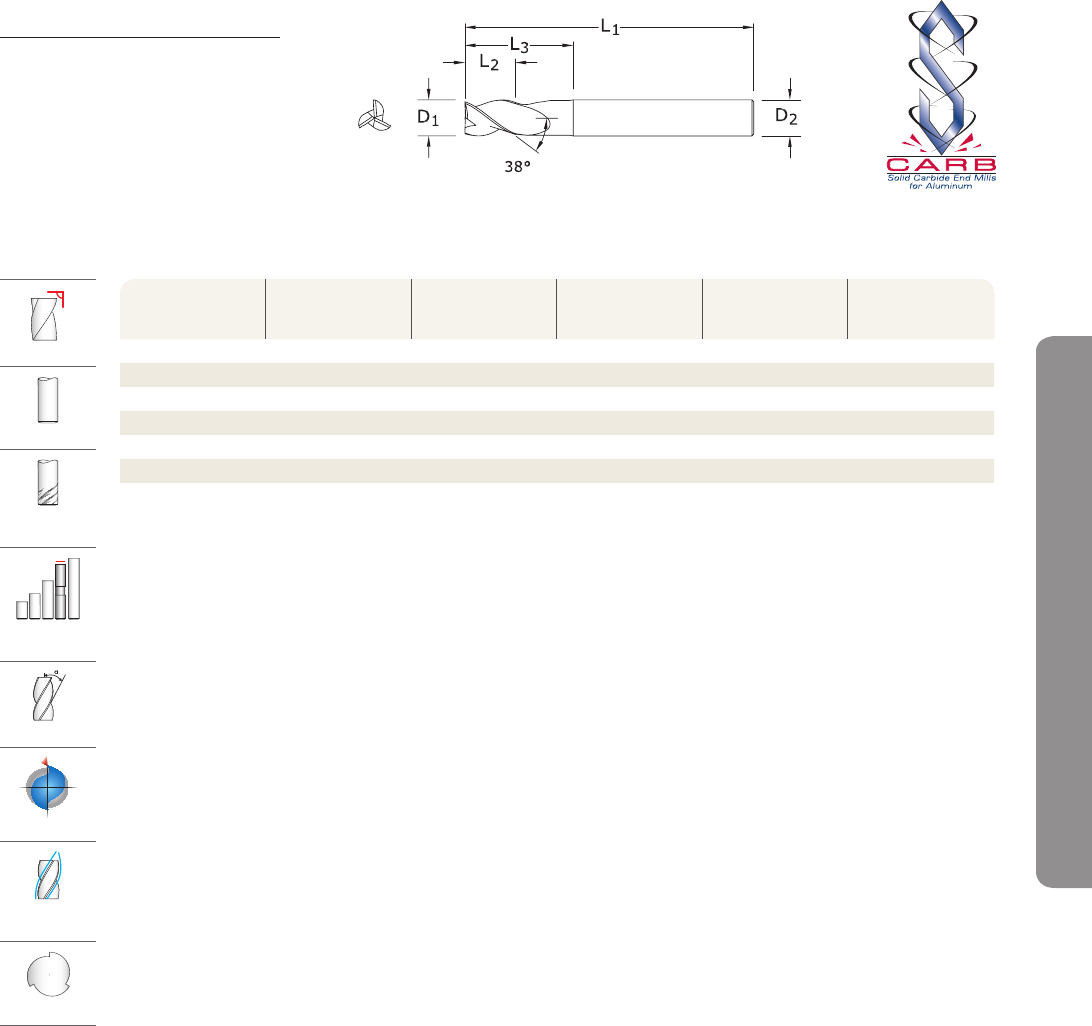

SERIES 47L
SERIES 47
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 4 1/4 2-1/8 34640 34678
3/8 1/2 4 3/8 2-1/8 34641 34679
1/2 5/8 6 1/2 2-1/8 34642 34680
1/2 5/8 6 1/2 3-3/8 34643 34681
5/8 3/4 6 5/8 2-3/8 34644 34682
5/8 3/4 6 5/8 3-3/8 34645 34683
3/4 1 6 3/4 2-1/2 34646 34684
3/4 1 6 3/4 3-3/8 34647 34685
Square
Straight
HAIMER
Safe-Lock
Regular
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
2
Flutes
5
www.kyocera-sgstool.com

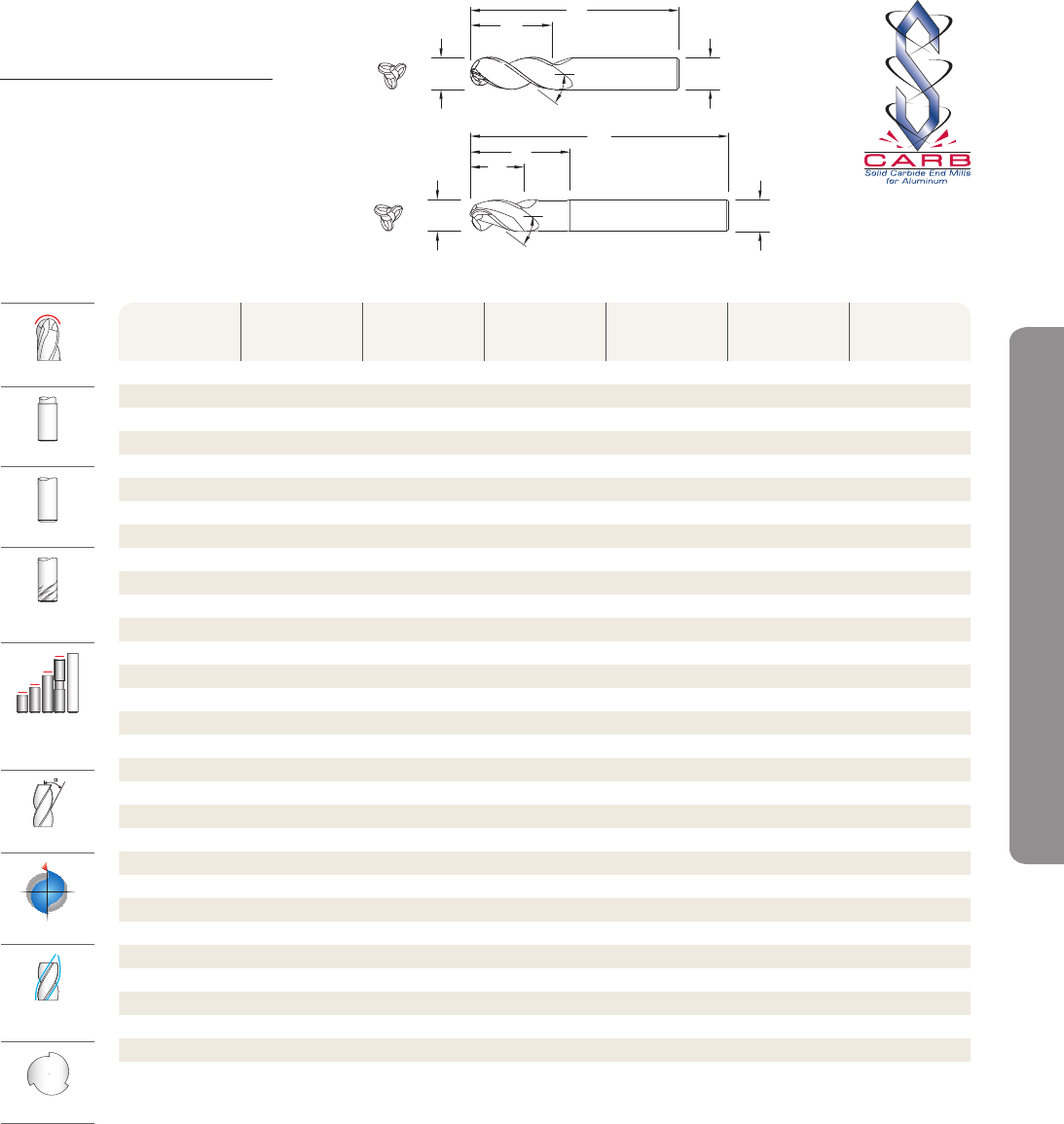

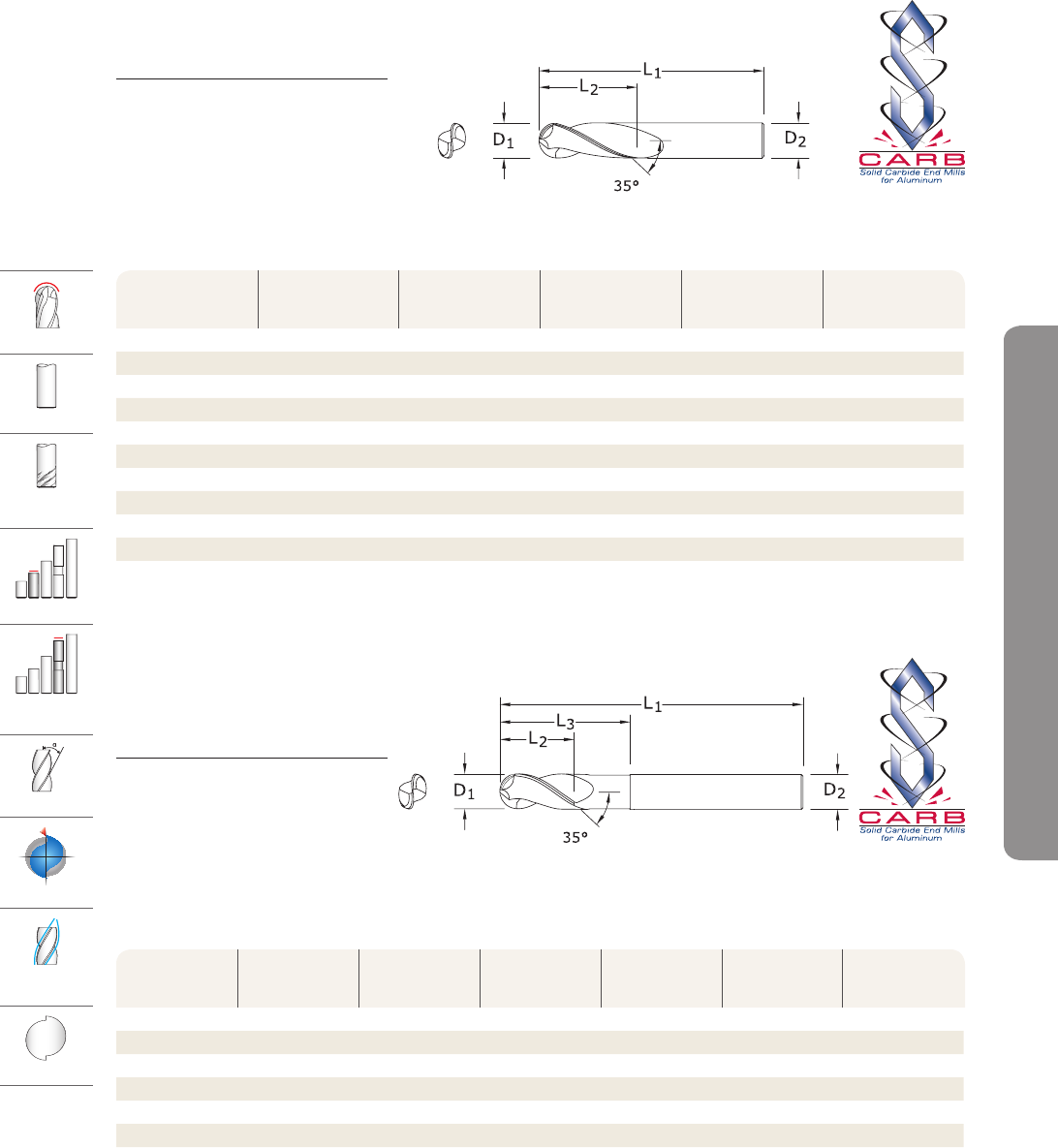

Series 47B, 47LB
|
Fractional
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
SERIES 47LB
SERIES 47B
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 3/8 1-1/2 1/8 34630 34669
3/16 9/16 2 3/16 34631 34670
1/4 3/4 2-1/2 1/4 34632 34671
5/16 13/16 2-1/2 5/16 34633 34672
3/8 1 2-1/2 3/8 34634 34673
1/2 1-1/4 3-1/4 1/2 34635 34674
5/8 1-5/8 3-3/4 5/8 34636 34675
3/4 1-5/8 4 3/4 34637 34676
1 2 4-1/2 1 34638 34677
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 4 1/4 2-1/8 34650 34686
3/8 1/2 4 3/8 2-1/8 34651 34687
1/2 5/8 6 1/2 2-1/8 34652 34688
1/2 5/8 6 1/2 3-3/8 34653 34689
5/8 3/4 6 5/8 3-3/8 34654 34691
5/8 3/4 6 5/8 2-3/8 34655 34690
3/4 1 6 3/4 2-1/2 34656 34693
3/4 1 6 3/4 3-3/8 34657 34692

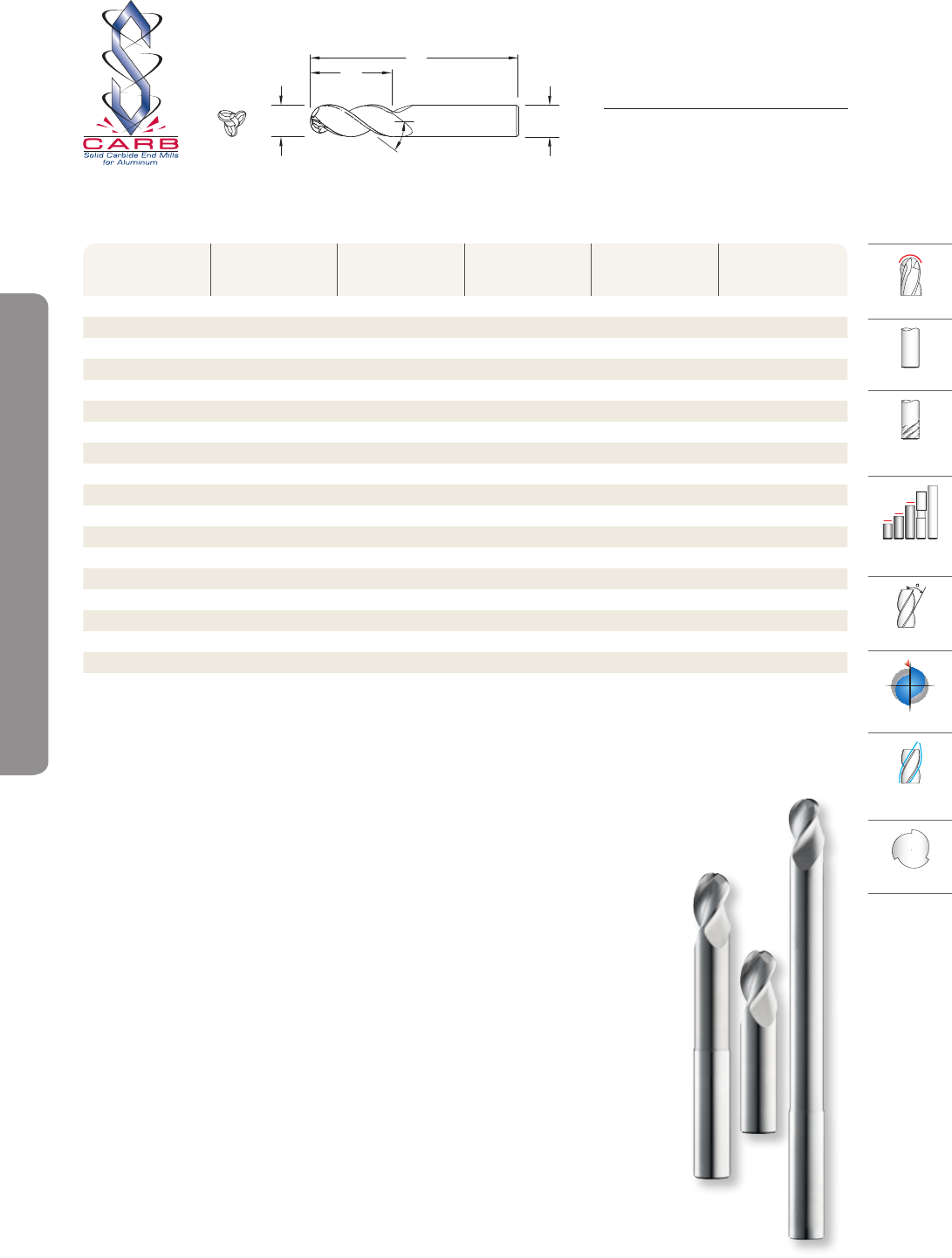

Ball
Straight
HAIMER
Safe-Lock
Regular
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
2
Flutes
6www.kyocera-sgstool.com
Series 47M, 47ML
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
3,0 8,0 38,0 3,0 44550 44587
4,0 11,0 50,0 4,0 44551 44588
5,0 13,0 50,0 5,0 44552 44589
6,0 13,0 57,0 6,0 44553 44590
8,0 19,0 63,0 8,0 44554 44591
10,0 22,0 72,0 10,0 44555 44592
12,0 26,0 83,0 12,0 44556 44593
14,0 26,0 83,0 14,0 44557 44594
16,0 32,0 92,0 16,0 44558 44595
20,0 38,0 104,0 20,0 44559 44596
25,0 44,0 104,0 25,0 44560 44597
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 10,0 100,0 6,0 54,0 44561 44609
8,0 12,0 100,0 8,0 54,0 44562 44610
10,0 12,0 100,0 10,0 54,0 44563 44611
12,0 16,0 150,0 12,0 80,0 44564 44612
16,0 20,0 150,0 16,0 80,0 44565 44613
20,0 25,0 150,0 20,0 80,0 44566 44614
TOLERANCES (mm)
DIAMETER D1D2
3 +0,000 / –0,006 h6
4 - 6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 - 25 +0,000 / –0,013 h6
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
SERIES 47M
SERIES 47ML
Square
Straight
HAIMER
Safe-Lock
Regular
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
2
Flutes
7
www.kyocera-sgstool.com

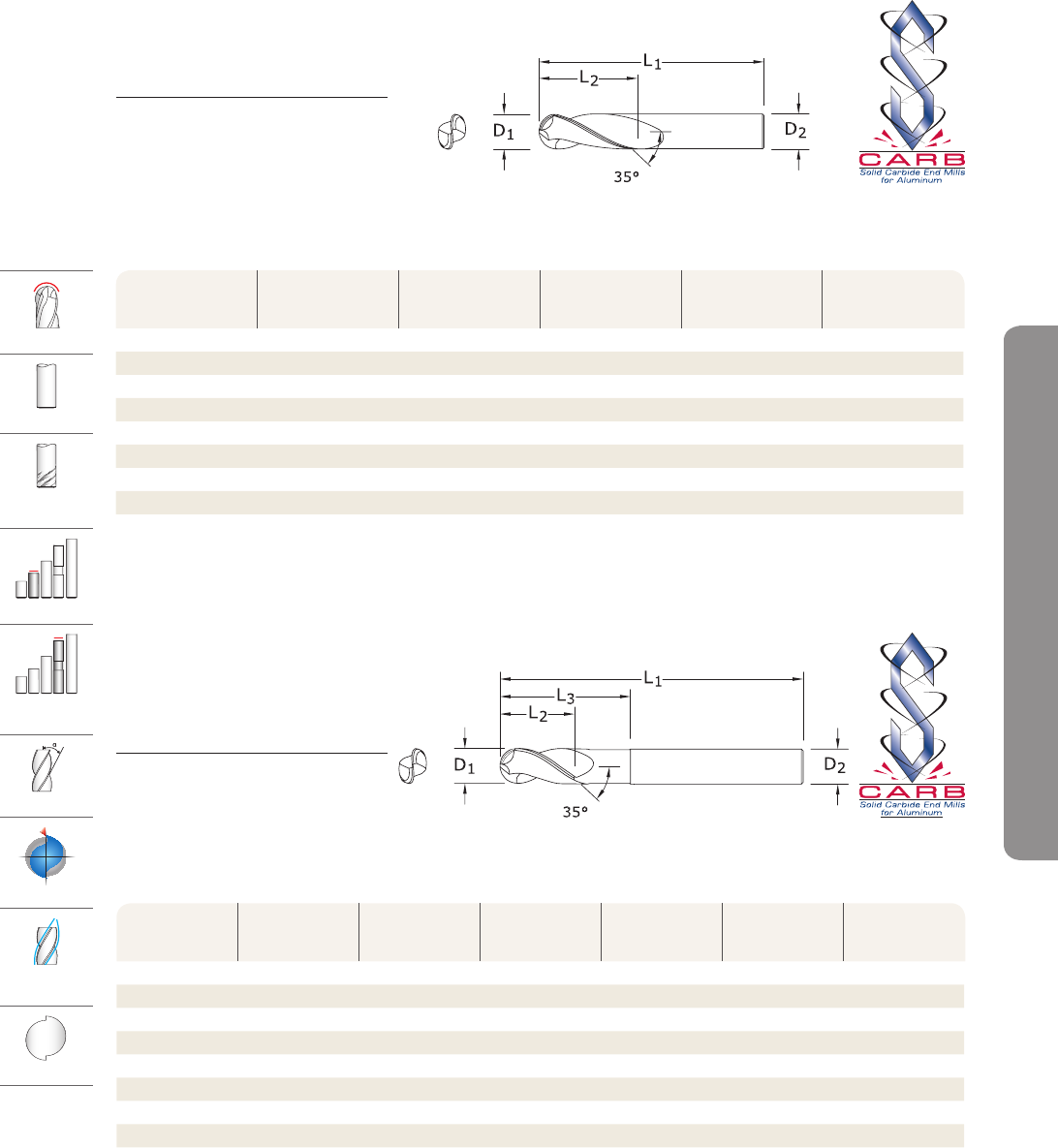

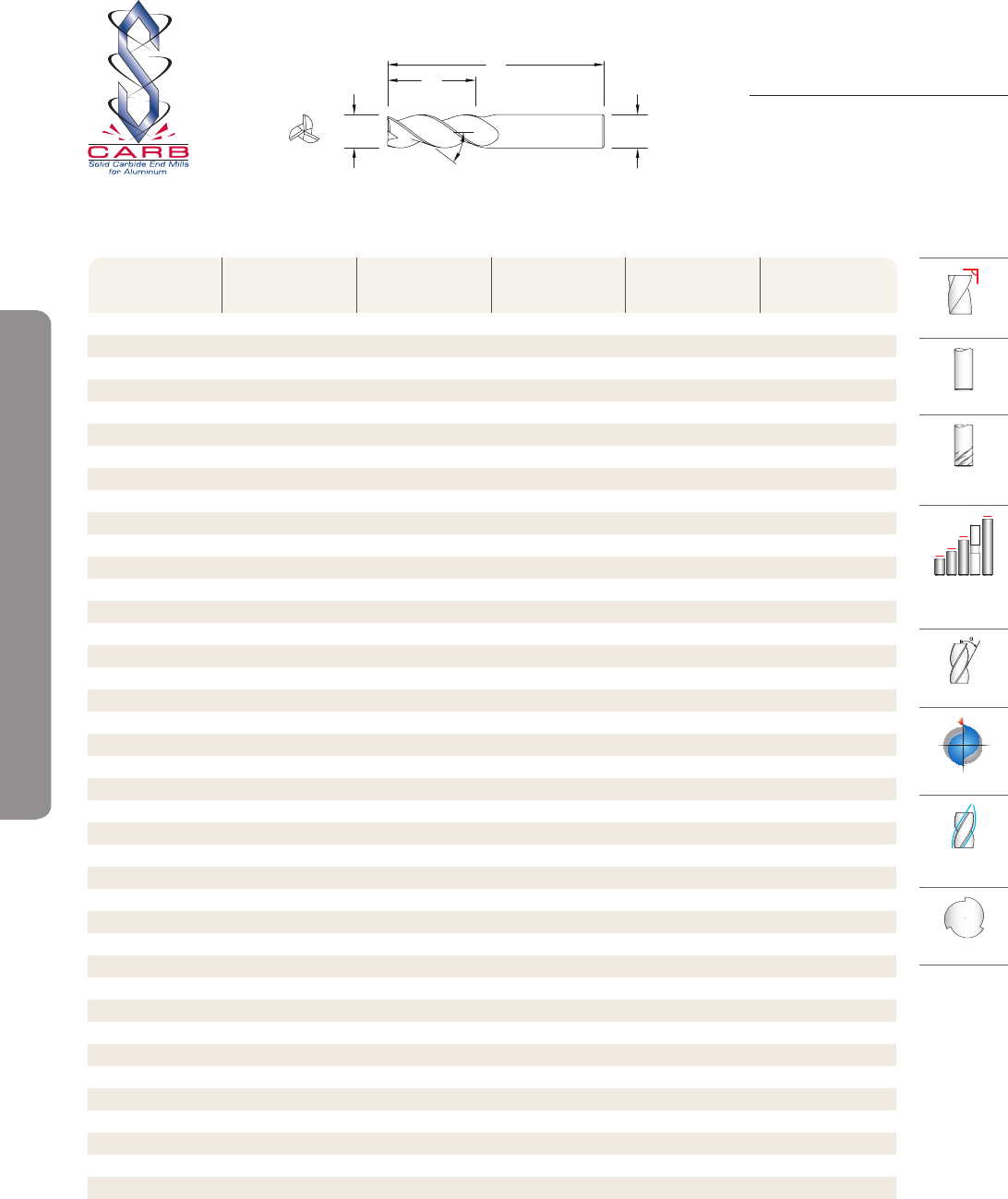

Series 47MB, 47MLB
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
3,0 8,0 38,0 3,0 44570 44598
4,0 11,0 50,0 4,0 44571 44599
5,0 13,0 50,0 5,0 44572 44600
6,0 13,0 57,0 6,0 44573 44601
8,0 19,0 63,0 8,0 44574 44602
10,0 22,0 72,0 10,0 44575 44603
12,0 26,0 83,0 12,0 44576 44604
14,0 26,0 83,0 14,0 44577 44605
16,0 32,0 92,0 16,0 44578 44606
20,0 38,0 104,0 20,0 44579 44607
25,0 44,0 104,0 25,0 44580 44608
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 10,0 100,0 6,0 54,0 44581 44615
8,0 12,0 100,0 8,0 54,0 44582 44616
10,0 12,0 100,0 10,0 54,0 44583 44617
12,0 16,0 150,0 12,0 80,0 44584 44618
16,0 20,0 150,0 16,0 80,0 44585 44619
20,0 25,0 150,0 20,0 80,0 44586 44620
TOLERANCES (mm)
DIAMETER D1D2
3 +0,000 / –0,006 h6
4 - 6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 - 25 +0,000 / –0,013 h6
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
SERIES 47MB
SERIES 47MLB
Ball
Straight
HAIMER
Safe-Lock
Regular
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
2
Flutes
8www.kyocera-sgstool.com

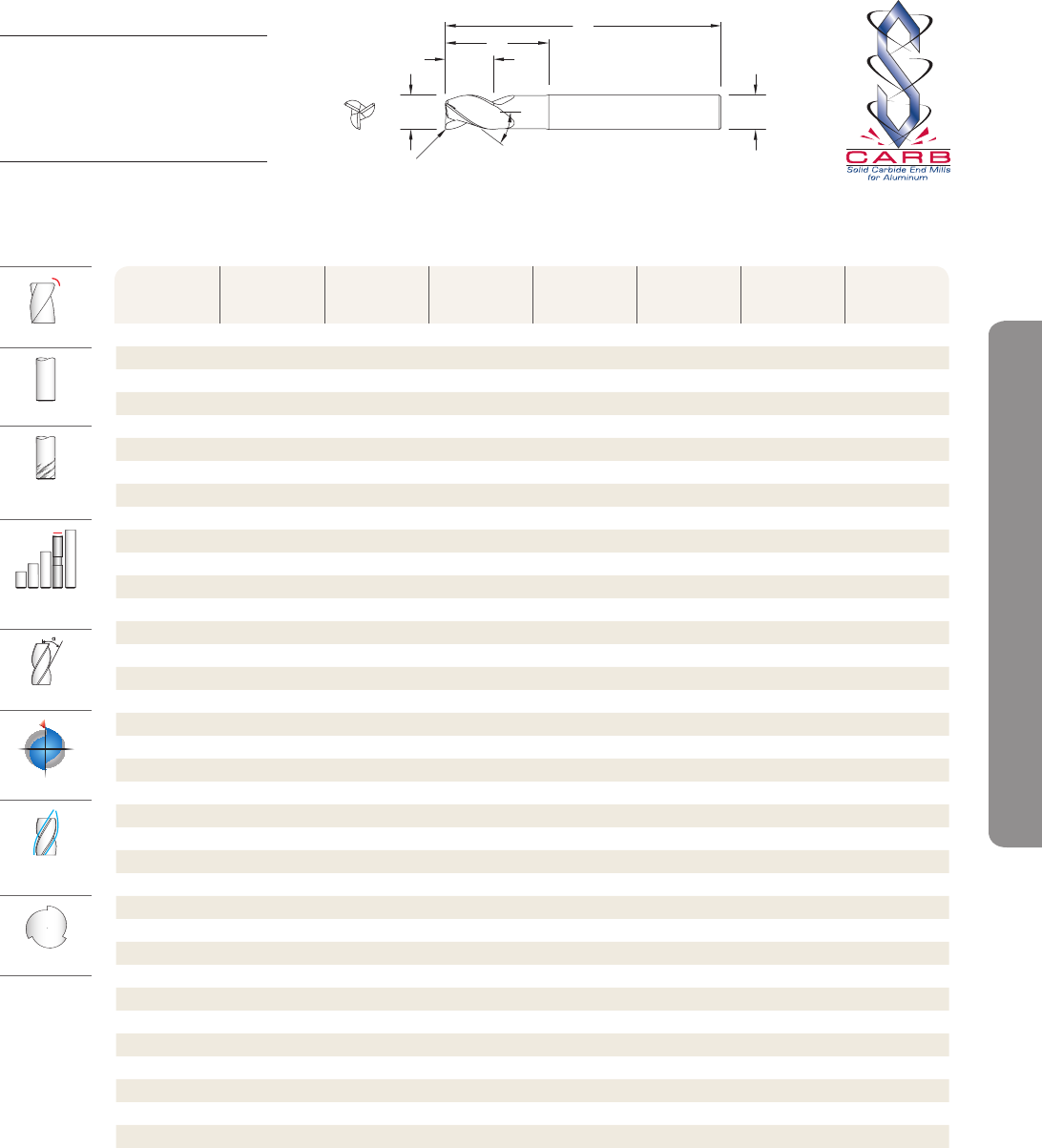

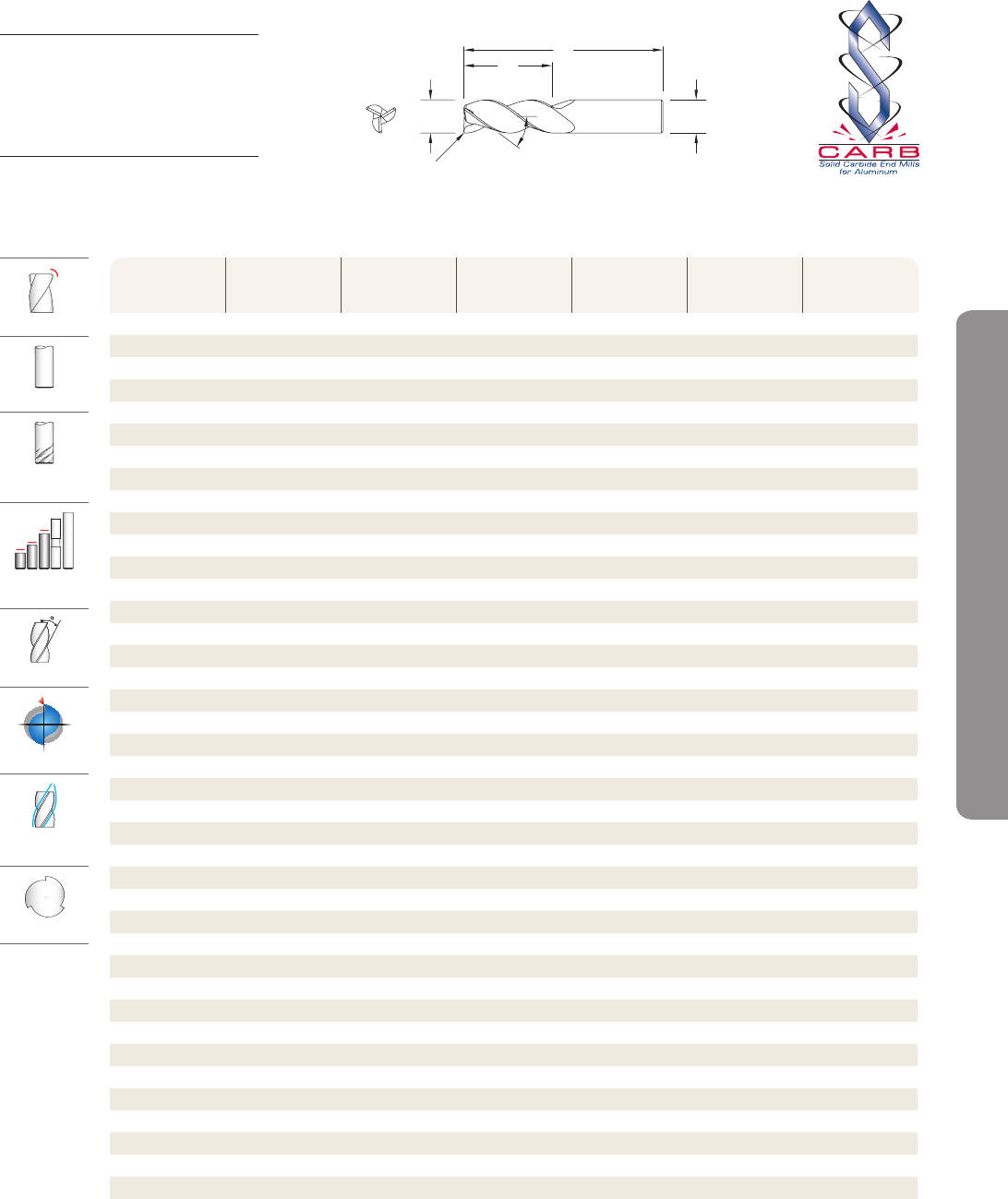

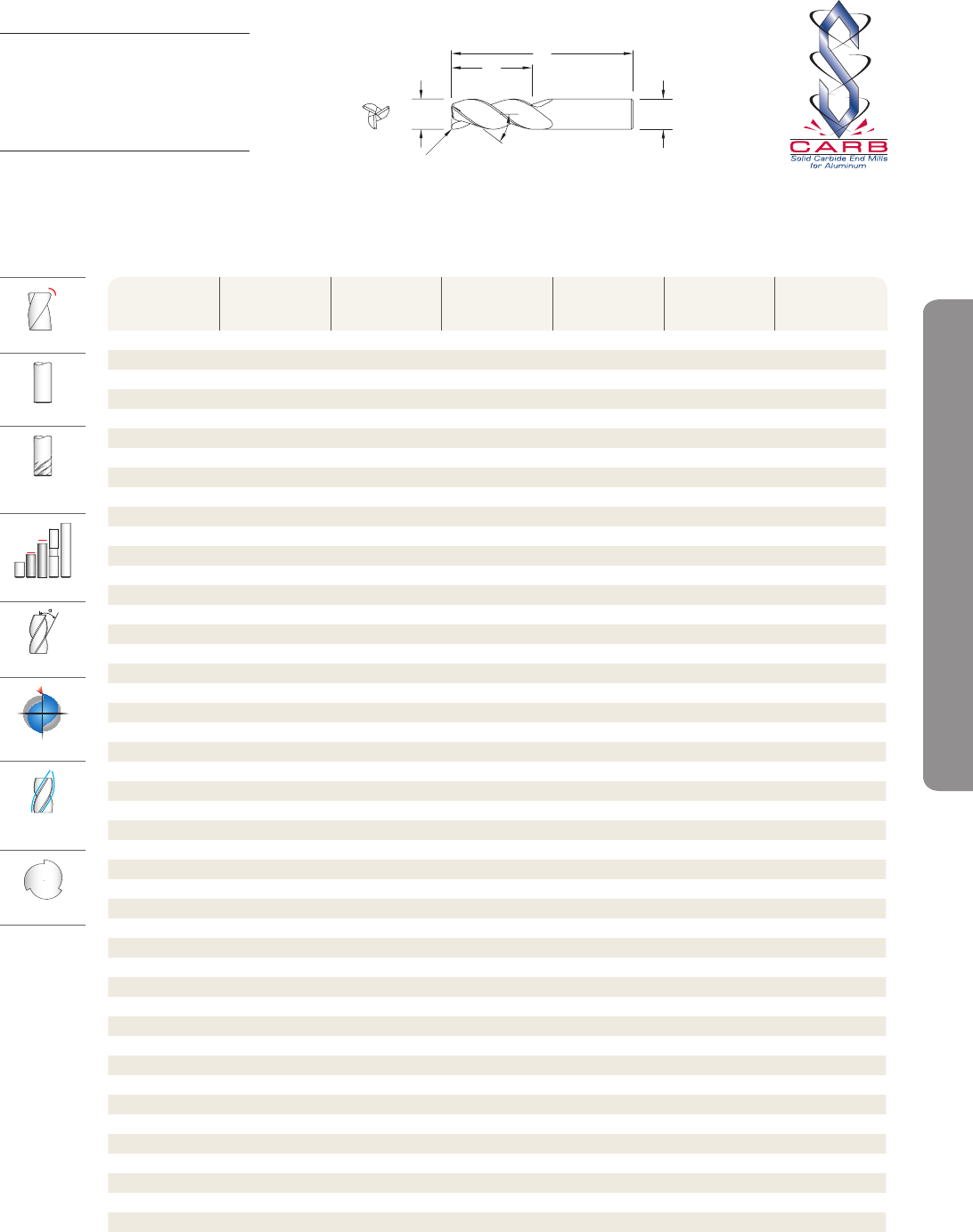

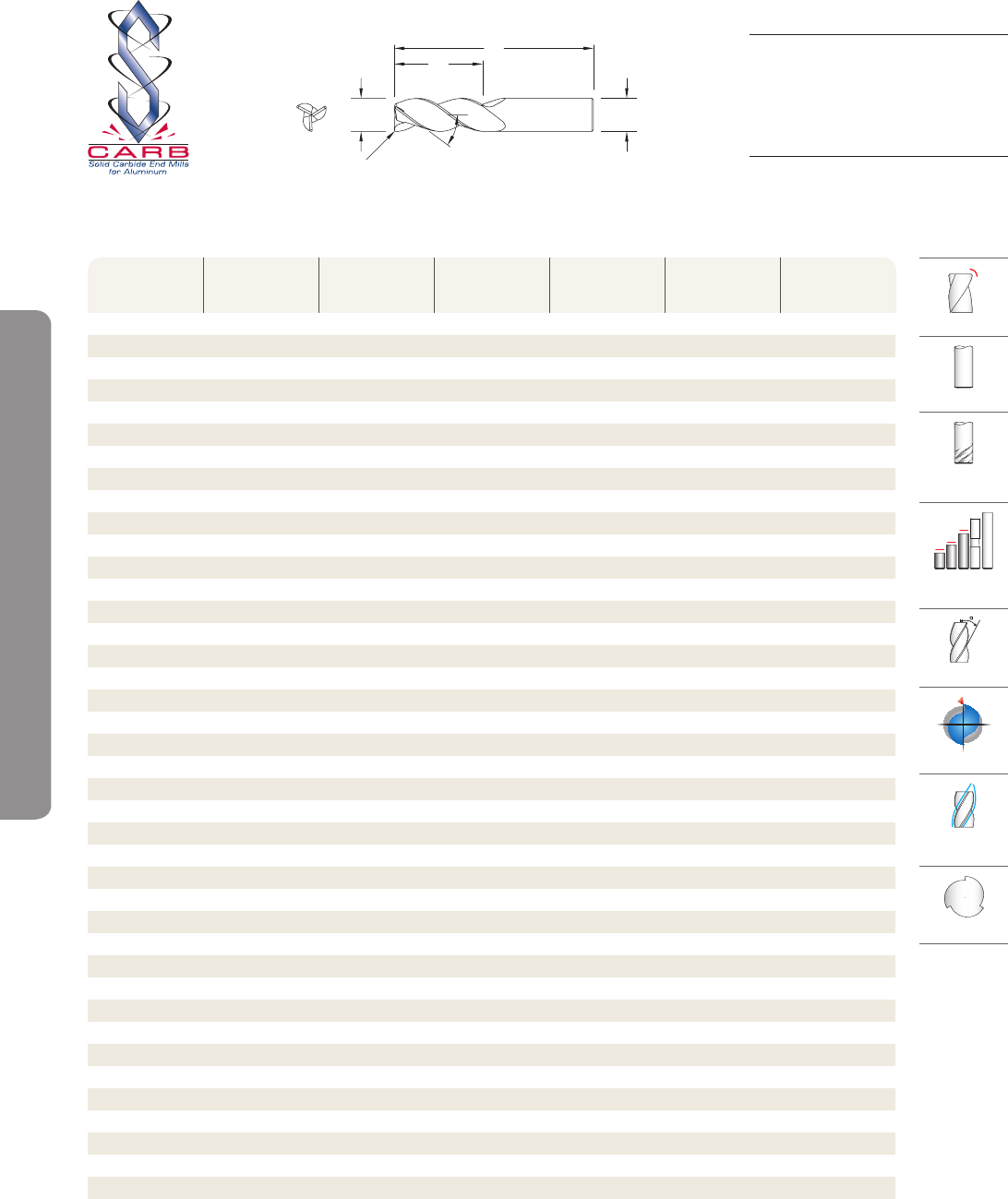

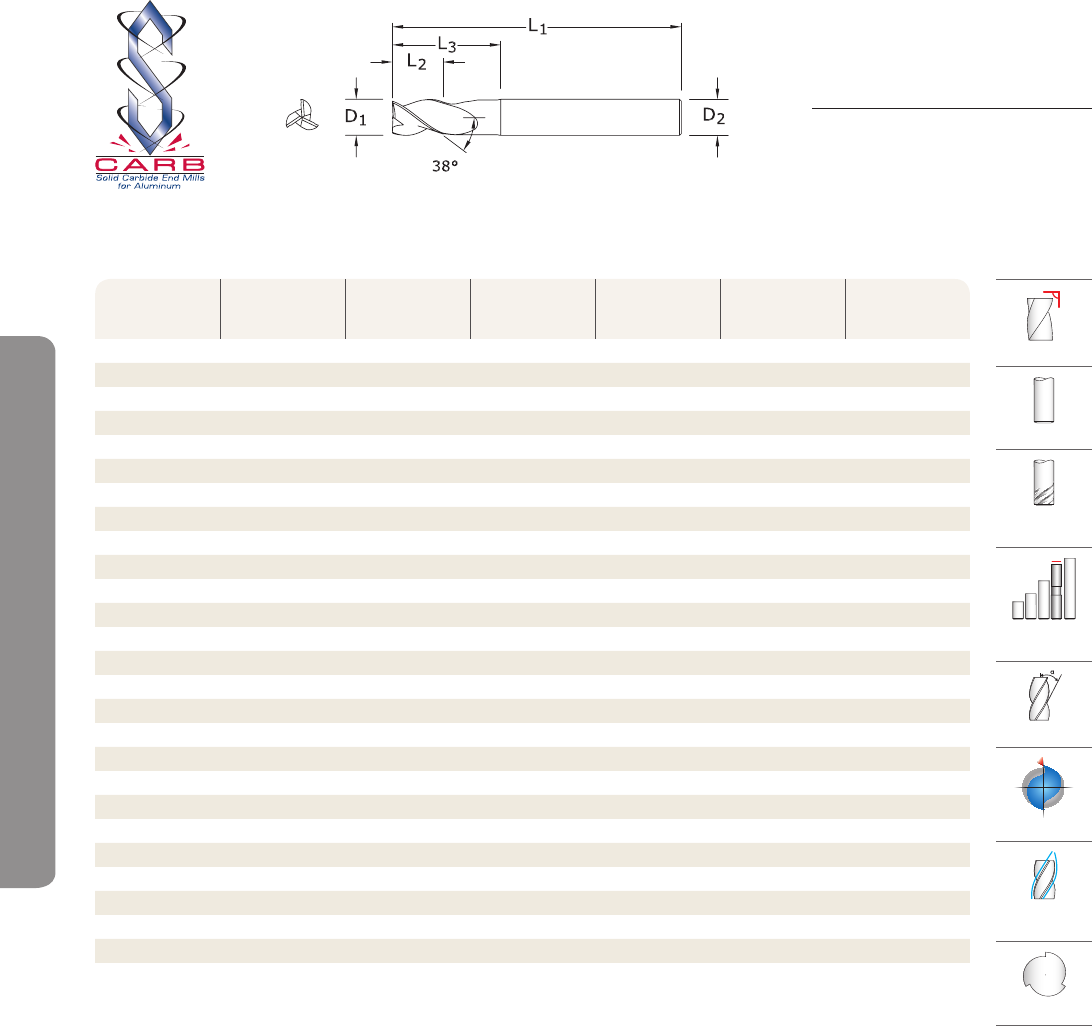

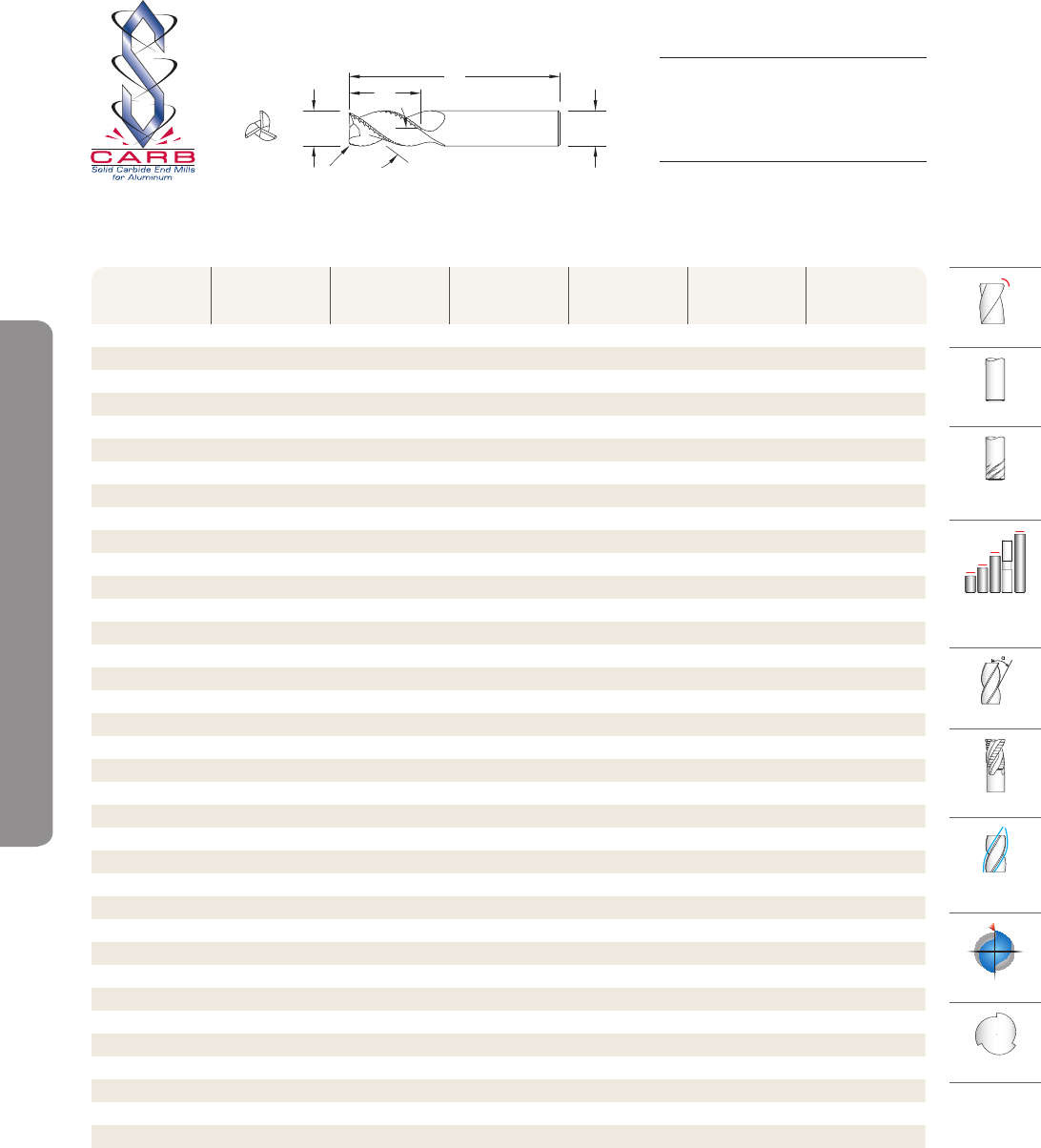

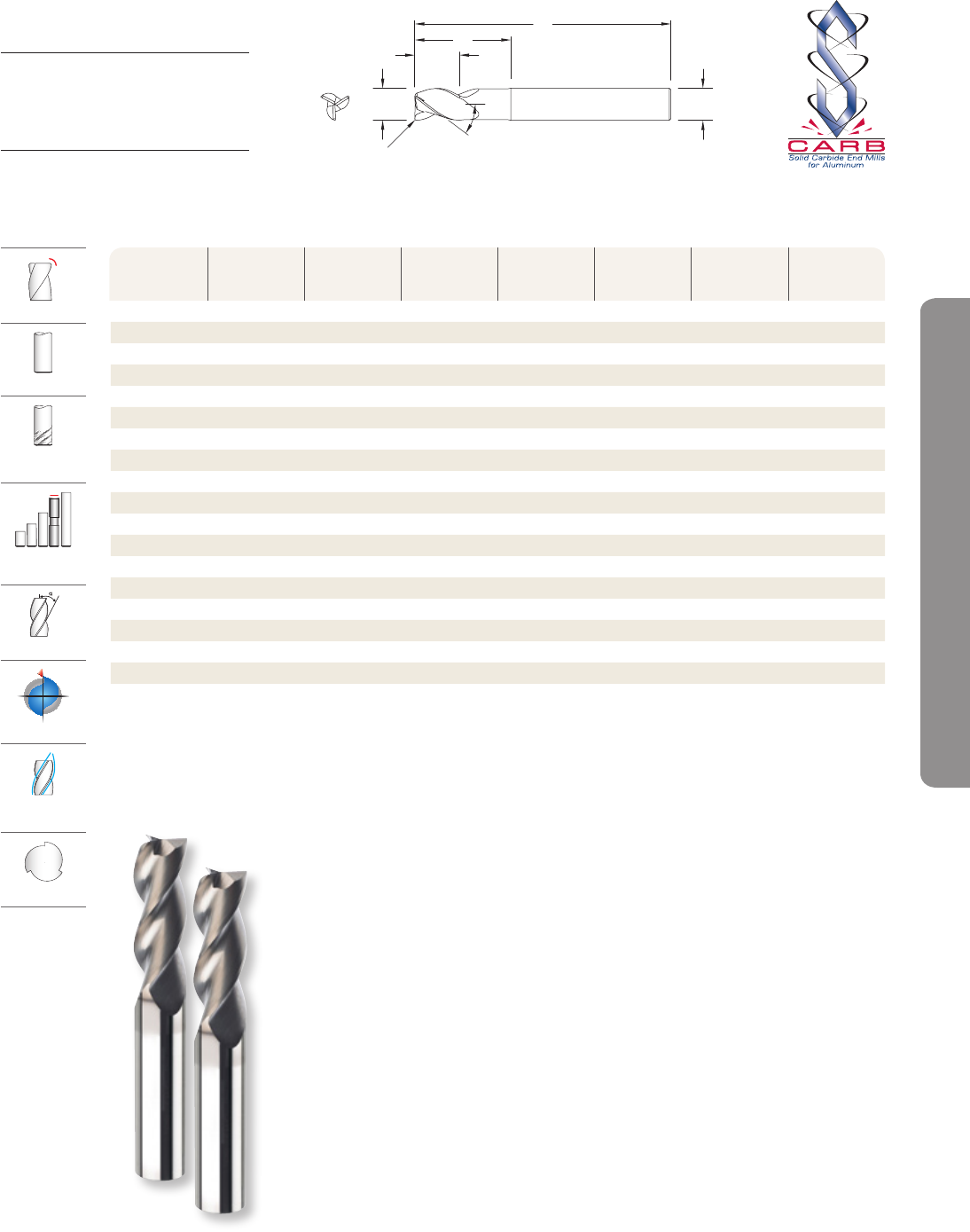

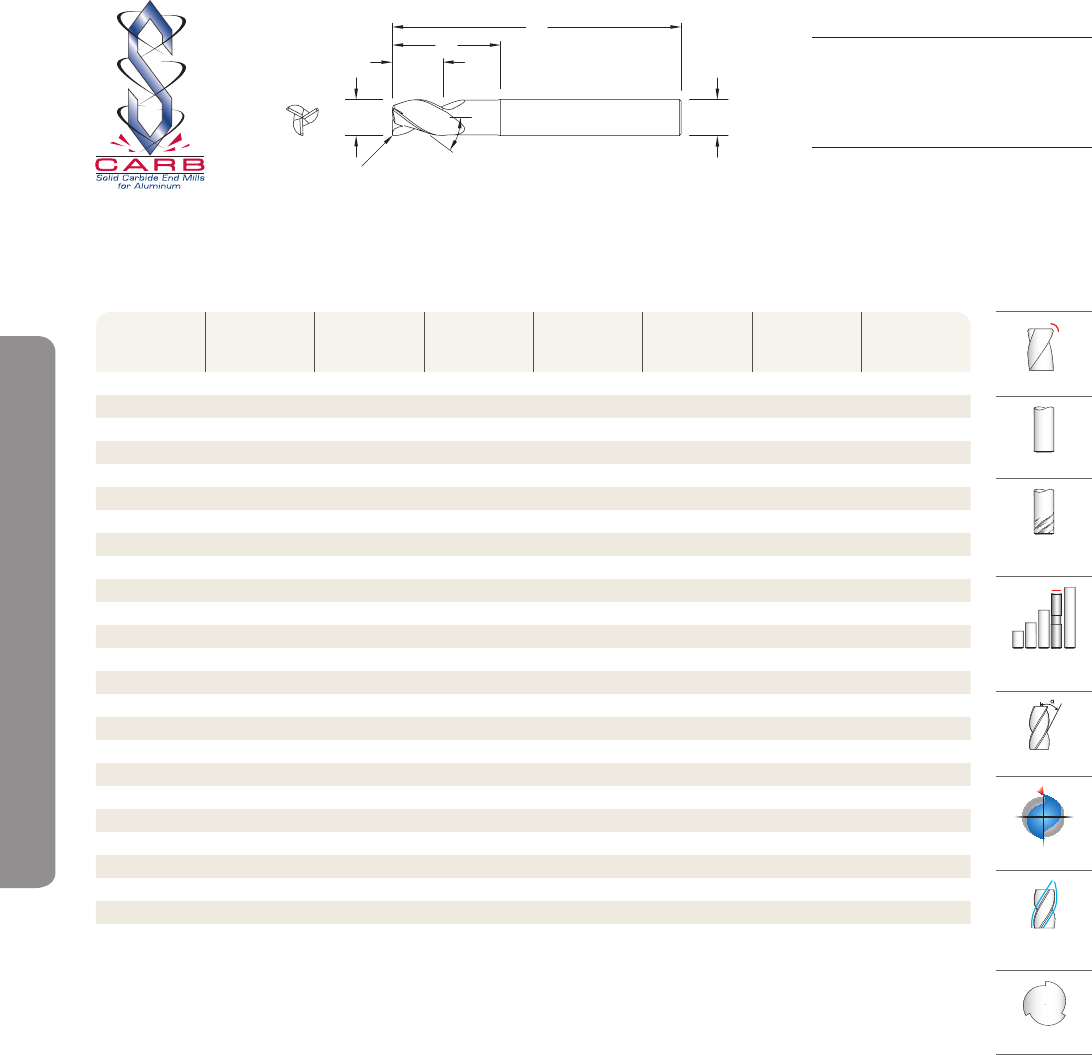

Series 43
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 3/8 1-1/2 1/8 34701 34728
3/16 5/16 2-1/2 3/16 34822 34857
3/16 9/16 2 3/16 34702 34729
3/16 3/4 2-1/2 3/16 34823 34858
1/4 3/8 2 1/4 34703 34730
1/4 1/2 2-1/2 1/4 34824 34859
1/4 3/4 2-1/2 1/4 34704 34731
1/4 1 3 1/4 34825 34860
1/4 1-1/4 3-1/2 1/4 34705 34732
1/4 1-3/4 4 1/4 34826 34861
5/16 7/16 2 5/16 34706 34733
5/16 5/8 2-1/2 5/16 34707 34734
5/16 1-1/4 4 5/16 34708 34735
3/8 1/2 2 3/8 34709 34736
3/8 1 2-1/2 3/8 34710 34737
3/8 1-1/4 3-1/2 3/8 34827 34862
3/8 1-1/2 3-1/2 3/8 34711 34738
3/8 2 4 3/8 34828 34863
1/2 5/8 2-1/2 1/2 34712 34739
1/2 1 3 1/2 34830 34865
1/2 1-1/4 3-1/4 1/2 34713 34740
1/2 1-5/8 4 1/2 34831 34866
1/2 2-1/2 5 1/2 34832 34867
1/2 2 4 1/2 34714 34741
1/2 3-1/8 6 1/2 34715 34742
5/8 3/4 3 5/8 34716 34743
5/8 1-5/8 3-3/4 5/8 34717 34744
5/8 2-1/8 4 5/8 34833 34868
5/8 2-1/2 5 5/8 34718 34745
5/8 3-1/4 6 5/8 34834 34869
5/8 3-3/4 6 5/8 34719 34746
3/4 1 3 3/4 34720 34747
3/4 1-5/8 4 3/4 34721 34748
3/4 2-1/4 5 3/4 34722 34749
3/4 3-1/4 6 3/4 34723 34750
1 1-1/4 4 1 34724 34751
1 2 4-1/2 1 34725 34752
1 2-5/8 6 1 34726 34753
1 3-1/4 6 1 34727 34754
1 4-1/8 7 1 34835 34870
2
D
1
D
38°
L
1
L
2
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
SERIES 43
Square
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long,
Extra Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
9
www.kyocera-sgstool.com
Series 43CR
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 3/8 1-1/2 1/8 .010 34771 34793
3/16 9/16 2 3/16 .010 34772 34794
1/4 3/8 2-1/2 1/4 .010 35575 35665
1/4 3/8 2-1/2 1/4 .015 35576 35666
1/4 3/8 2-1/2 1/4 .030 35577 35667
1/4 3/8 2-1/2 1/4 .060 35578 35668
1/4 3/4 2-1/2 1/4 .010 34773 34795
1/4 3/4 2-1/2 1/4 .015 35579 35669
1/4 3/4 2-1/2 1/4 .030 34774 34796
1/4 3/4 2-1/2 1/4 .060 35580 35670
1/4 1 3 1/4 .010 35581 35671
1/4 1 3 1/4 .015 35582 35672
1/4 1 3 1/4 .030 35583 35673
1/4 1 3 1/4 .060 35584 35674
5/16 5/8 2-1/2 5/16 .030 34775 34797
3/8 1/2 3 3/8 .010 35585 35675
3/8 1/2 3 3/8 .015 35586 35676
3/8 1/2 3 3/8 .030 35587 35677
3/8 1/2 3 3/8 .060 35588 35678
3/8 1/2 3 3/8 .090 35589 35679
3/8 1 2-1/2 3/8 .010 34776 34798
3/8 1 2-1/2 3/8 .030 34777 34799
3/8 1 2-1/2 3/8 .060 32761 32825
3/8 1 3 3/8 .015 35590 35680
3/8 1 3 3/8 .090 35591 35681
3/8 1-1/2 4 3/8 .010 35592 35682
3/8 1-1/2 4 3/8 .015 35593 35683
3/8 1-1/2 4 3/8 .030 35594 35684
3/8 1-1/2 4 3/8 .060 35595 35685
3/8 1-1/2 4 3/8 .090 35596 35686
1/2 5/8 3 1/2 .010 35597 35687
1/2 5/8 3 1/2 .015 35598 35688
1/2 5/8 3 1/2 .030 35599 35689
1/2 5/8 3 1/2 .060 35600 35690
1/2 5/8 3 1/2 .090 35601 35691
1/2 5/8 3 1/2 .120 35602 35692
1/2 1 3 1/2 .010 35603 35693
1/2 1 3 1/2 .015 35604 35694
1/2 1 3 1/2 .030 35605 35695
1/2 1 3 1/2 .060 35606 35696
2
D
1
D
R
38°
L1
L2
(continued on next page)
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
SERIES 43CR
Corner
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
10 www.kyocera-sgstool.com
Series 43CR
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/2 1 3 1/2 .090 35607 35697
1/2 1 3 1/2 .120 35608 35698
1/2 1-1/4 3 1/2 .015 35609 35699
1/2 1-1/4 3-1/4 1/2 .010 34778 34800
1/2 1-1/4 3-1/4 1/2 .030 34779 34801
1/2 1-1/4 3-1/4 1/2 .060 34780 34802
1/2 1-1/4 3-1/4 1/2 .090 34781 34803
1/2 1-1/4 3-1/4 1/2 .120 32766 32830
1/2 1-5/8 4 1/2 .010 35610 35700
1/2 1-5/8 4 1/2 .015 35611 35701
1/2 1-5/8 4 1/2 .030 35612 35702
1/2 1-5/8 4 1/2 .060 35613 35703
1/2 1-5/8 4 1/2 .090 35614 35704
1/2 1-5/8 4 1/2 .120 35615 35705
1/2 2 4 1/2 .010 35616 35706
1/2 2 4 1/2 .015 35617 35707
1/2 2 4 1/2 .030 35618 35708
1/2 2 4 1/2 .060 35619 35709
1/2 2 4 1/2 .090 35620 35710
1/2 2 4 1/2 .120 35621 35711
5/8 3/4 3-1/2 5/8 .030 35622 35712
5/8 3/4 3-1/2 5/8 .060 35623 35713
5/8 3/4 3-1/2 5/8 .090 35624 35714
5/8 3/4 3-1/2 5/8 .120 35625 35715
5/8 1-5/8 3-3/4 5/8 .030 34782 34804
5/8 1-5/8 3-3/4 5/8 .060 34783 34805
5/8 1-5/8 3-3/4 5/8 .090 34784 34806
5/8 1-5/8 3-3/4 5/8 .120 35626 35716
3/4 1 4 3/4 .030 35627 35717
3/4 1 4 3/4 .060 35628 35718
3/4 1 4 3/4 .090 35629 35719
3/4 1 4 3/4 .120 35630 35720
3/4 1 4 3/4 .190 35631 35721
3/4 1 4 3/4 .250 35632 35722
3/4 1-5/8 4 3/4 .030 34785 34807
3/4 1-5/8 4 3/4 .060 34786 34808
3/4 1-5/8 4 3/4 .090 34787 34809
3/4 1-5/8 4 3/4 .120 34815 34817
3/4 1-5/8 4 3/4 .190 35633 35723
3/4 1-5/8 4 3/4 .250 35634 35724
2
D
1
D
R
38°
L1
L2
(continued on next page)
SERIES 43CR (CONTINUED)
Corner
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
11
www.kyocera-sgstool.com
Series 43CR
|
Fractional
2
D
1
D
R
38°
L1
L2
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
3/4 2-1/4 5 3/4 .030 35635 35725
3/4 2-1/4 5 3/4 .060 35636 35726
3/4 2-1/4 5 3/4 .090 35637 35727
3/4 2-1/4 5 3/4 .120 35638 35728
3/4 2-1/4 5 3/4 .190 35639 35729
3/4 2-1/4 5 3/4 .250 35640 35730
1 1-1/4 5 1 .030 35641 35731
1 1-1/4 5 1 .060 35642 35732
1 1-1/4 5 1 .090 35643 35733
1 1-1/4 5 1 .120 35644 35734
1 1-1/4 5 1 .190 35645 35735
1 1-1/4 5 1 .250 35646 35736
1 2 4-1/2 1 .030 34789 34811
1 2 4-1/2 1 .060 34790 34812
1 2 4-1/2 1 .090 34791 34813
1 2 4-1/2 1 .120 34816 34818
1 2 5 1 .190 35647 35737
1 2 5 1 .250 35648 35738
1 3-1/4 6 1 .030 35649 35739
1 3-1/4 6 1 .060 35650 35740
1 3-1/4 6 1 .090 35651 35741
1 3-1/4 6 1 .120 35652 35742
1 3-1/4 6 1 .190 35653 35743
1 3-1/4 6 1 .250 35654 35744
SERIES 43CR (CONTINUED)
Corner
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
12 www.kyocera-sgstool.com
Series 43L
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 5/32 3 1/8 1/2 32700 32725
1/8 5/32 3 1/8 3/4 32691 34888
3/16 7/32 3 3/16 1/2 32701 32726
3/16 7/32 3 3/16 3/4 32692 34889
1/4 3/8 4 1/4 3/4 32702 32727
1/4 3/8 4 1/4 1-1/2 32703 32728
1/4 3/8 4 1/4 2-1/8 32704 32729
5/16 7/16 4 5/16 1-1/8 32705 32730
5/16 7/16 4 5/16 2-1/8 32706 32731
3/8 1/2 4 3/8 1-1/8 32707 32732
3/8 1/2 4 3/8 2-1/8 32708 32733
1/2 5/8 4 1/2 1-3/8 32709 32734
1/2 5/8 6 1/2 2-1/8 32710 32735
1/2 5/8 6 1/2 3-3/8 32711 32736
1/2 5/8 6 1/2 4-1/4 32697 34894
5/8 3/4 4 5/8 1-3/4 32712 32737
5/8 3/4 4 5/8 2-3/8 32713 32738
5/8 3/4 6 5/8 3-3/8 32714 32739
5/8 3/4 6 5/8 4-3/8 32698 34895
3/4 1 4 3/4 1-3/4 32715 32740
3/4 1 6 3/4 2-3/8 32716 32741
3/4 1 6 3/4 3-3/8 32717 32742
3/4 1 6 3/4 4-3/8 32699 34896
1 1-1/4 6 1 2-3/8 32718 32743
1 1-1/4 6 1 3-3/8 32719 32744
1 1-1/4 7 1 4-3/8 32720 32745
SERIES 43L
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
Square
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
13
www.kyocera-sgstool.com

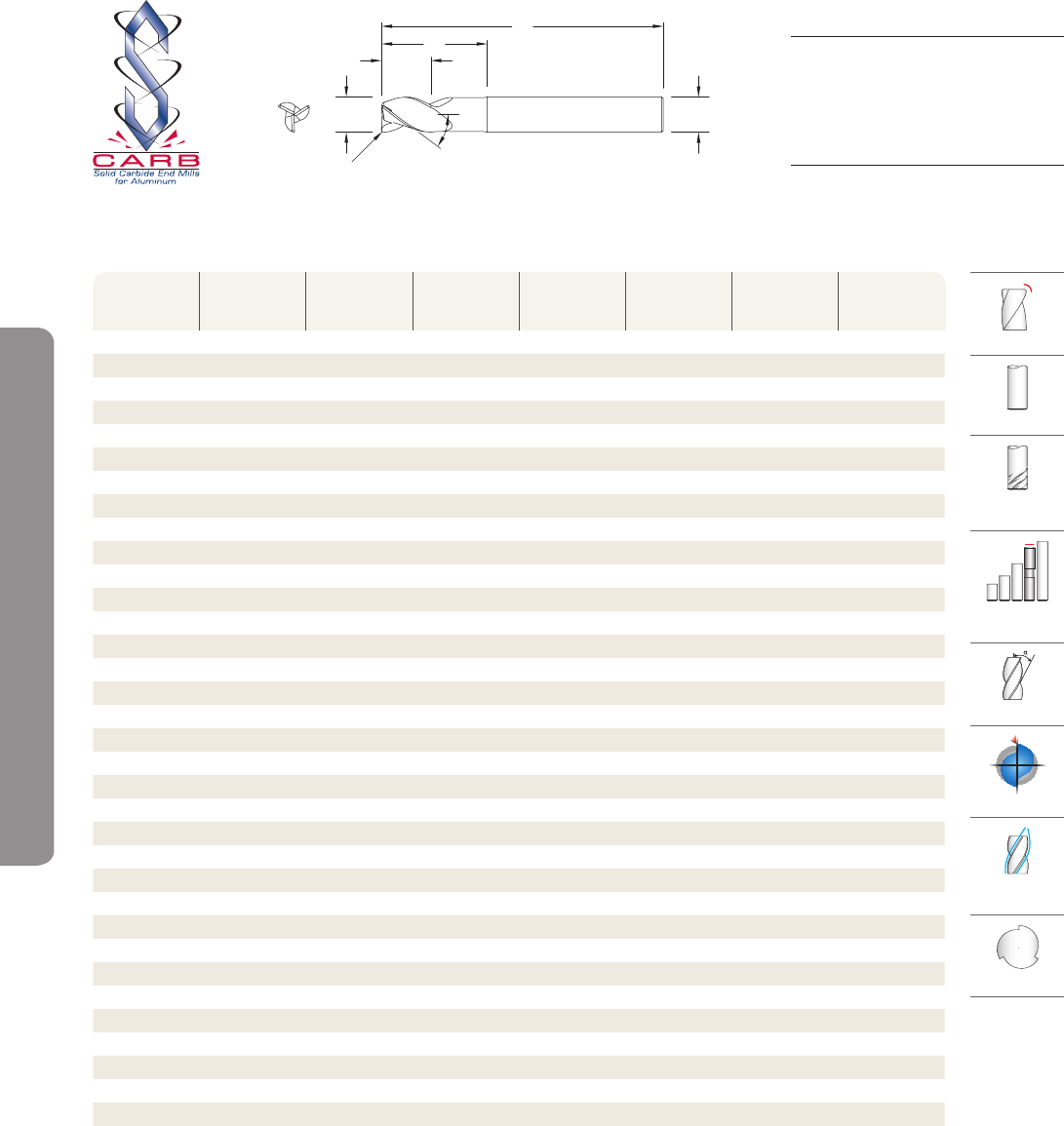

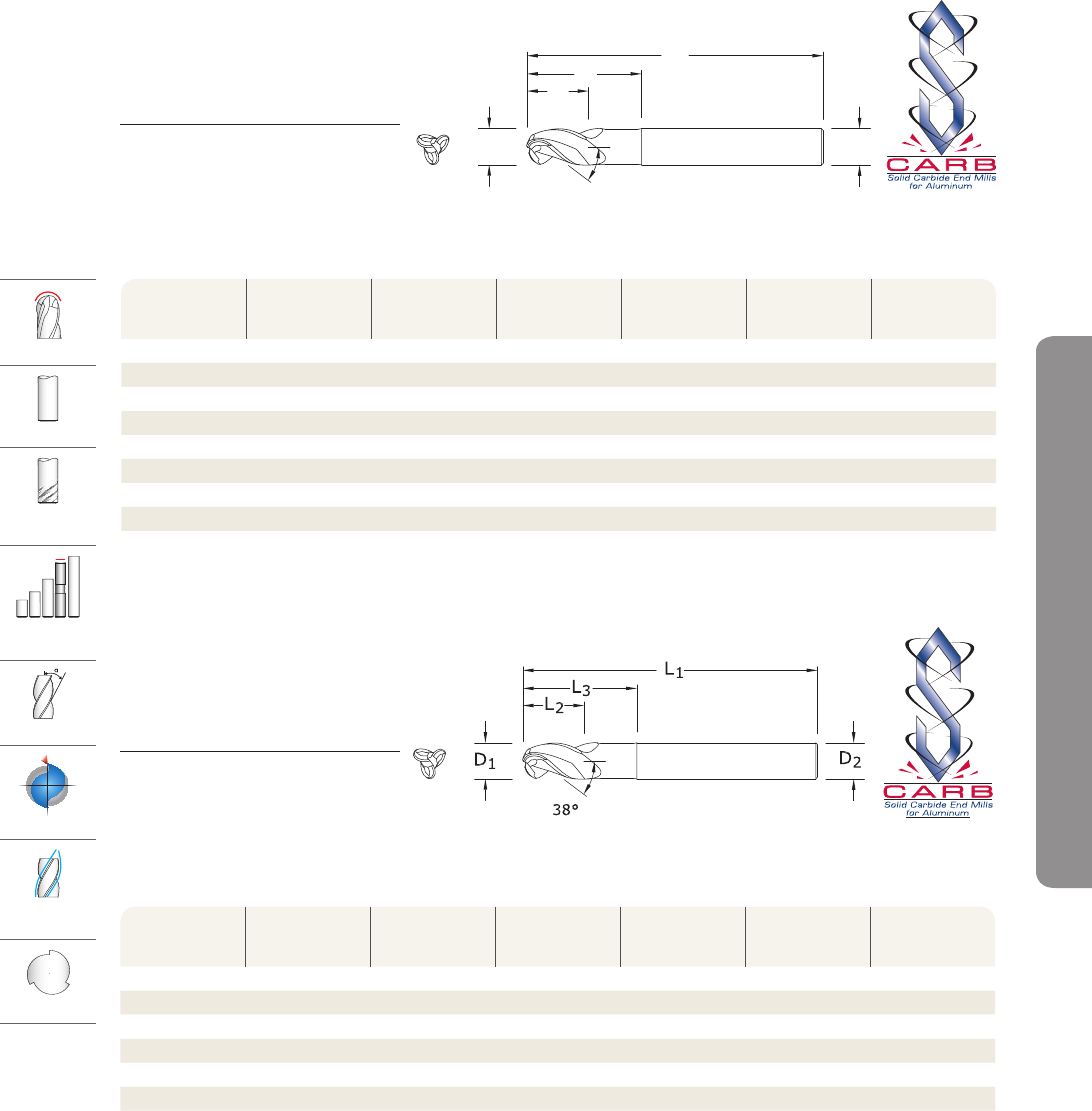

Series 43LC
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/8 5/32 3 1/8 1/2 .010 32751 32815
3/16 7/32 3 3/16 1/2 .010 32752 32816
1/4 3/8 2-1/2 1/4 3/4 .015 35787 36235
1/4 3/8 2-1/2 1/4 3/4 .060 35788 36236
1/4 3/8 4 1/4 3/4 .010 32753 32817
1/4 3/8 4 1/4 3/4 .030 32754 32818
1/4 3/8 4 1/4 1-1/2 .010 32755 32819
1/4 3/8 4 1/4 1-1/2 .030 32756 32820
1/4 3/8 4 1/4 2-1/8 .010 32757 32821
1/4 3/8 4 1/4 2-1/8 .030 32758 32822
5/16 7/16 4 5/16 1-1/8 .030 32759 32823
5/16 7/16 4 5/16 2-1/8 .030 32760 32824
3/8 1/2 3 3/8 1-1/8 .015 35791 36239
3/8 1/2 3 3/8 1-1/8 .090 35792 36240
3/8 1/2 4 3/8 1-1/8 .030 32762 32826
3/8 1/2 4 3/8 1-1/8 .060 32763 32827
3/8 1/2 4 3/8 2-1/8 .030 32764 32828
3/8 1/2 4 3/8 2-1/8 .060 32765 32829
1/2 5/8 3 1/2 1-3/8 .015 35795 36243
1/2 5/8 4 1/2 1-3/8 .030 32767 32831
1/2 5/8 4 1/2 1-3/8 .060 32768 32832
1/2 5/8 4 1/2 1-3/8 .090 32769 32833
1/2 5/8 4 1/2 1-3/8 .120 32770 32834
1/2 5/8 4 1/2 2-1/4 .015 35796 36244
1/2 5/8 6 1/2 2-1/8 .030 32771 32835
1/2 5/8 6 1/2 2-1/8 .060 32772 32836
1/2 5/8 6 1/2 2-1/8 .090 32773 32837
1/2 5/8 6 1/2 2-1/8 .120 32774 32838
1/2 5/8 6 1/2 3-3/8 .030 32775 32839
1/2 5/8 6 1/2 3-3/8 .060 32776 32840
1/2 5/8 6 1/2 3-3/8 .090 32777 32841
1/2 5/8 6 1/2 3-3/8 .120 32778 32842
5/8 3/4 4 5/8 1-3/4 .030 32779 32843
5/8 3/4 4 5/8 1-3/4 .060 32780 32844
5/8 3/4 4 5/8 1-3/4 .090 32781 32845
5/8 3/4 4 5/8 1-3/4 .120 32782 32846
(continued on next page)
2
D
R
1
D
38°
L1
L3
L2
SERIES 43LC
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
14 www.kyocera-sgstool.com
Series 43LC
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
5/8 3/4 4 5/8 2-3/8 .030 32783 32847
5/8 3/4 4 5/8 2-3/8 .060 32784 32848
5/8 3/4 4 5/8 2-3/8 .090 32785 32849
5/8 3/4 4 5/8 2-3/8 .120 32786 32850
5/8 3/4 6 5/8 3-3/8 .030 32787 32851
5/8 3/4 6 5/8 3-3/8 .060 32788 32852
5/8 3/4 6 5/8 3-3/8 .090 32789 32853
5/8 3/4 6 5/8 3-3/8 .120 32790 32854
3/4 1 4 3/4 1-3/4 .030 32791 32855
3/4 1 4 3/4 1-3/4 .060 32792 32856
3/4 1 4 3/4 1-3/4 .090 32793 32857
3/4 1 4 3/4 1-3/4 .120 32794 32858
3/4 1 4 3/4 2 .190 35803 36251
3/4 1 4 3/4 2 .250 35804 36252
3/4 1 6 3/4 2-3/8 .030 32795 32859
3/4 1 6 3/4 2-3/8 .060 32796 32860
3/4 1 6 3/4 2-3/8 .090 32797 32861
3/4 1 6 3/4 2-3/8 .120 32798 32862
3/4 1 6 3/4 3-3/8 .030 32799 32863
3/4 1 6 3/4 3-3/8 .060 32800 32864
3/4 1 6 3/4 3-3/8 .090 32801 32865
3/4 1 6 3/4 3-3/8 .120 32802 32866
1 1-1/4 5 1 2-5/8 .190 35809 36257
1 1-1/4 5 1 2-5/8 .250 35810 36258
1 1-1/4 6 1 2-3/8 .030 32803 32867
1 1-1/4 6 1 2-3/8 .060 32804 32868
1 1-1/4 6 1 2-3/8 .090 32805 32869
1 1-1/4 6 1 2-3/8 .120 32806 32870
1 1-1/4 6 1 3-3/8 .030 32807 32871
1 1-1/4 6 1 3-3/8 .060 32808 32872
1 1-1/4 6 1 3-3/8 .090 32809 32873
1 1-1/4 6 1 3-3/8 .120 32810 32874
1 1-1/4 6 1 3-3/8 .190 35811 36259
1 1-1/4 6 1 3-3/8 .250 35812 36260
SERIES 43LC (CONTINUED)
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 3/16 +0.00000 / –0.00032 h6
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
R
1
D
38°
L1
L3
L2
15
www.kyocera-sgstool.com
Series 43EC
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 3 1/4 1-1/8 .015 35789 36237
1/4 3/8 3 1/4 1-1/8 .060 35790 36238
3/8 1/2 4 3/8 2-1/8 .015 35793 36241
3/8 1/2 4 3/8 2-1/8 .090 35794 36242
1/2 5/8 5 1/2 3-3/8 .015 35797 36245
1/2 5/8 6 1/2 4-1/4 .015 35798 36246
1/2 5/8 6 1/2 4-1/4 .030 35799 36247
1/2 5/8 6 1/2 4-1/4 .060 35800 36248
1/2 5/8 6 1/2 4-1/4 .090 35801 36249
1/2 5/8 6 1/2 4-1/4 .120 35802 36250
3/4 1 6 3/4 3-3/8 .190 35805 36253
3/4 1 6 3/4 3-3/8 .250 35806 36254
1 1-1/4 7 1 4-3/8 .030 35813 36261
1 1-1/4 7 1 4-3/8 .060 35814 36262
1 1-1/4 7 1 4-3/8 .090 35815 36263
1 1-1/4 7 1 4-3/8 .120 35816 36264
1 1-1/4 7 1 4-3/8 .190 35817 36265
1 1-1/4 7 1 4-3/8 .250 35818 36266
SERIES 43EC
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
R
1
D
38°
L1
L3
L2
16 www.kyocera-sgstool.com
Series 43B
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 2 1/4 34916 34972
1/4 3/4 2-1/2 1/4 34917 34973
1/4 1 3 1/4 34918 34974
3/8 1/2 2 3/8 34919 34975
3/8 1 2-1/2 3/8 34920 34976
3/8 1-1/2 3-1/2 3/8 34921 34977
1/2 5/8 2-1/2 1/2 34922 34978
1/2 1 3 1/2 34923 34979
1/2 1-1/4 3 1/2 34924 34980
1/2 1-5/8 4 1/2 34925 34981
1/2 2 4 1/2 34926 34982
5/8 3/4 3 5/8 34927 34983
5/8 1-5/8 4 5/8 34928 34984
3/4 1 3 3/4 34929 34985
3/4 1-5/8 4 3/4 34930 34986
3/4 2-1/4 5 3/4 34931 34987
1 1-1/4 4 1 34932 34988
1 2 5 1 34933 34989
1 3-1/4 6 1 34934 34990
SERIES 43B
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
Ball
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
1
D
38°
L
1
L
2
17
www.kyocera-sgstool.com
Series 43LB, 43EB
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 3 1/4 1-1/8 34942 35006
3/8 1/2 4 3/8 2-1/8 34944 35008
1/2 5/8 5 1/2 3-3/8 34947 35011
1/2 5/8 6 1/2 4-1/4 34948 35012
5/8 3/4 6 5/8 3-3/8 34950 35014
3/4 1 6 3/4 3-3/8 34952 35016
1 1-1/4 7 1 4-3/8 34956 35020
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 2-1/2 1/4 3/4 34941 35005
3/8 1/2 3 3/8 1-1/8 34943 35007
1/2 5/8 3 1/2 1-3/8 34945 35009
1/2 5/8 4 1/2 2-1/4 34946 35010
5/8 3/4 4 5/8 1-5/8 34949 35013
3/4 1 4 3/4 2 34951 35015
1 1-1/4 5 1 2-5/8 34954 35018
1 1-1/4 6 1 3-3/8 34955 35019
SERIES 43LB
SERIES 43EB
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
Ball
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
1
D
38°
L
1
L
3
L
2
18 www.kyocera-sgstool.com
Series 43M
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 13,0 57,0 6,0 44701 44715
6,0 13,0 72,0 6,0 44702 44716
8,0 19,0 63,0 8,0 44703 44717
10,0 22,0 72,0 10,0 44705 44719
12,0 26,0 83,0 12,0 44708 44722
16,0 32,0 92,0 16,0 44711 44725
20,0 38,0 104,0 20,0 44714 44728
25,0 50,0 125,0 25,0 – 44731
2
D
1
D
38°
L
1
L
2
SERIES 43M
Square
Straight
HAIMER
Safe-Lock
Regular
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
19
www.kyocera-sgstool.com

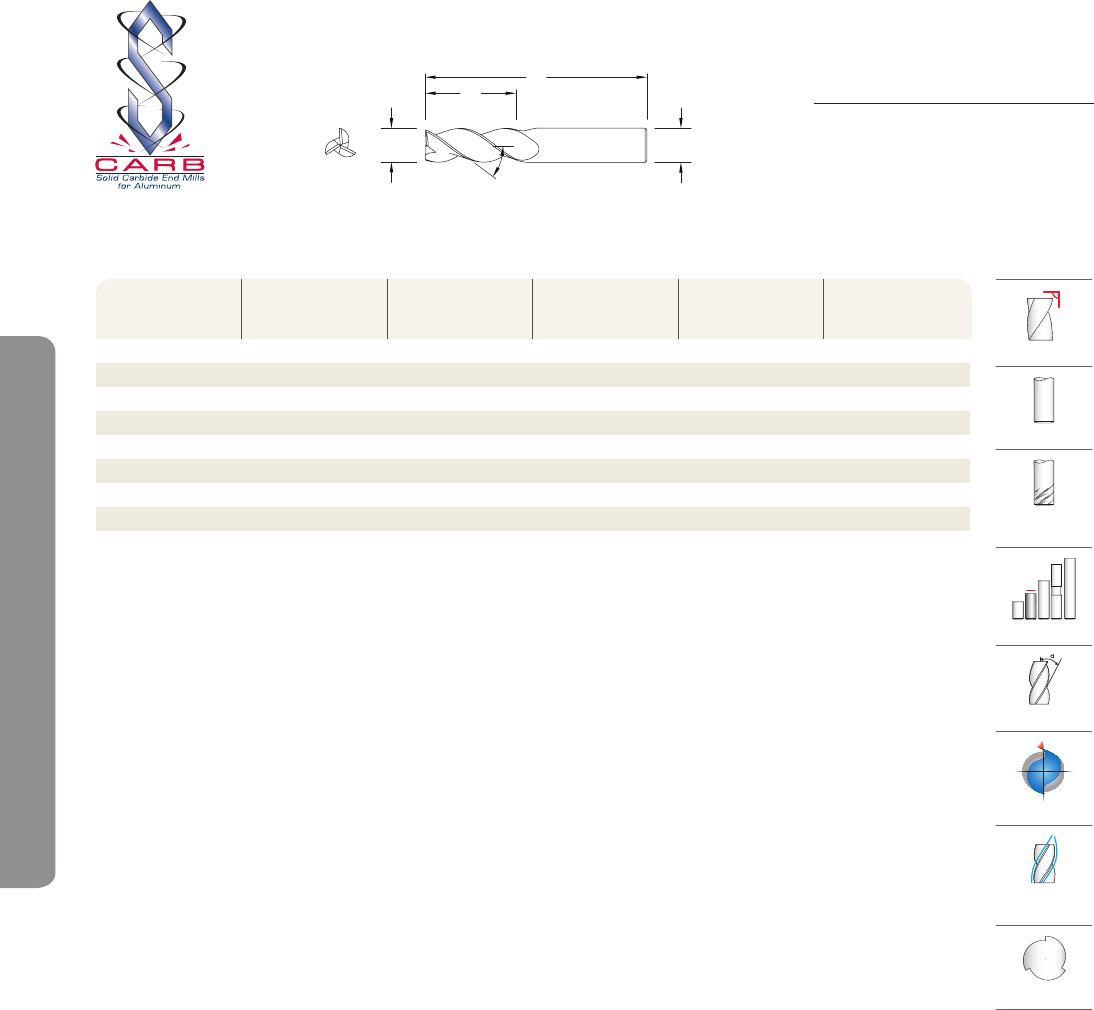

Series 43ML
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 10,0 75,0 6,0 20,0 42706
8,0 12,0 75,0 8,0 25,0 42707
10,0 14,0 100,0 10,0 35,0 42708
12,0 16,0 100,0 12,0 40,0 42709
16,0 20,0 125,0 16,0 50,0 42710
20,0 25,0 150,0 20,0 65,0 42711
SERIES 43ML
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
Square
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
20 www.kyocera-sgstool.com

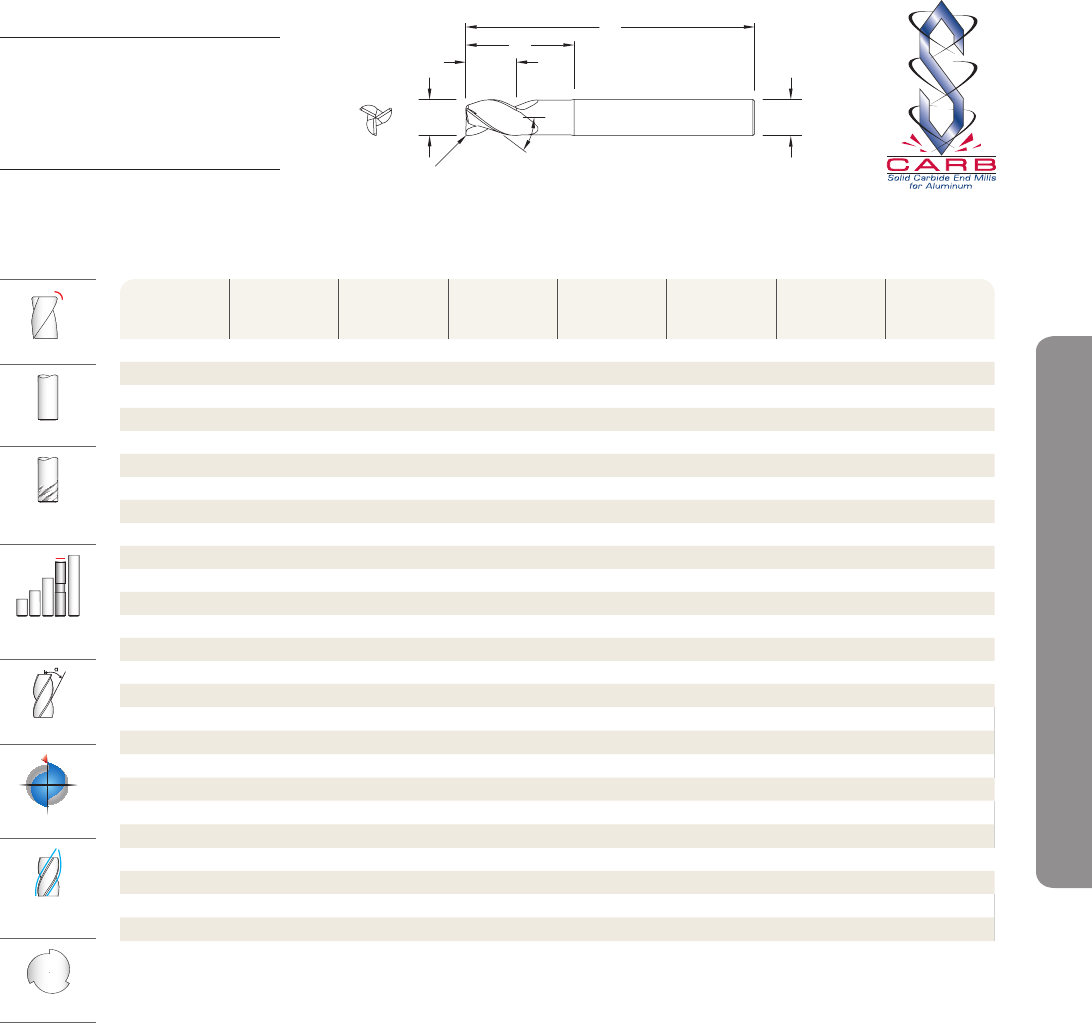

Series 43MCR
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 13,0 57,0 6,0 1,5 – 44732
12,0 26,0 83,0 12,0 1,5 44814 44733
12,0 26,0 83,0 12,0 2,0 44815 44826
12,0 26,0 83,0 12,0 2,5 44816 44827
12,0 26,0 83,0 12,0 3,0 44817 44734
16,0 32,0 92,0 16,0 1,5 44818 44735
16,0 32,0 92,0 16,0 2,0 44819 44828
16,0 32,0 92,0 16,0 2,5 44820 44829
16,0 32,0 92,0 16,0 3,0 44821 44736
20,0 38,0 104,0 20,0 2,0 44822 44830
20,0 38,0 104,0 20,0 2,5 44823 44831
20,0 38,0 104,0 20,0 3,0 44824 44737
SERIES 43MCR
Corner
Straight
HAIMER
Safe-Lock
Regular
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
2
D
1
D
R
38°
L1
L2
21
www.kyocera-sgstool.com

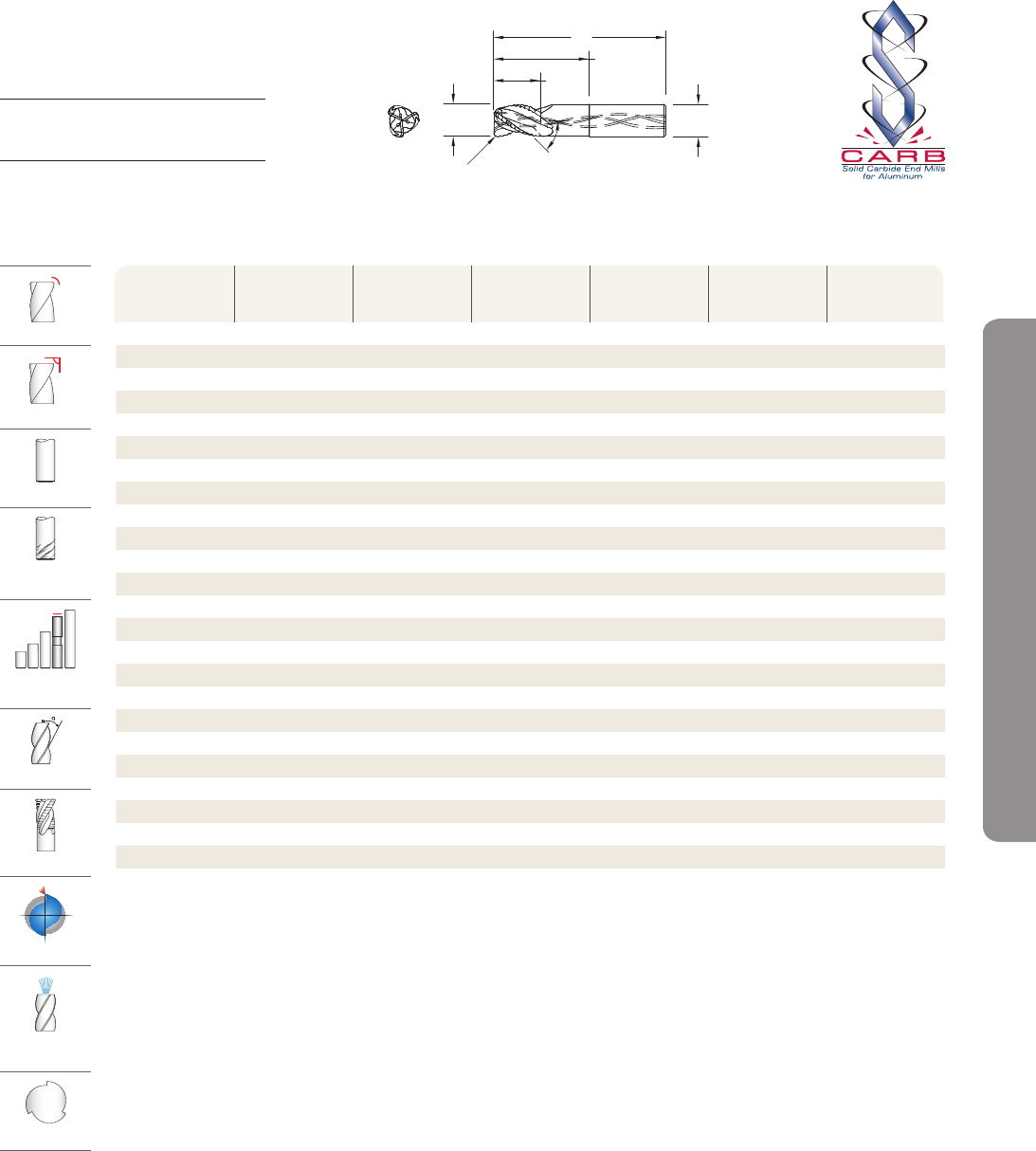

Series 43MLC
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 10,0 63,0 6,0 20,0 0,5 44769 44789
6,0 10,0 63,0 6,0 20,0 1,0 44770 44790
6,0 13,0 72,0 6,0 30,0 0,5 44771 44791
6,0 13,0 72,0 6,0 30,0 1,0 44772 44792
8,0 12,0 75,0 8,0 25,0 0,3 44773 44793
8,0 12,0 75,0 8,0 25,0 0,5 44774 44794
8,0 12,0 75,0 8,0 25,0 1,0 44775 44795
8,0 12,0 75,0 8,0 25,0 1,5 44776 44796
10,0 14,0 100,0 10,0 35,0 0,3 44777 44797
10,0 14,0 100,0 10,0 35,0 0,5 44778 44798
10,0 14,0 100,0 10,0 35,0 1,0 44779 44799
10,0 14,0 100,0 10,0 35,0 1,5 44780 44800
12,0 16,0 100,0 12,0 40,0 0,5 44781 44801
12,0 16,0 100,0 12,0 40,0 1,0 44782 44802
12,0 16,0 100,0 12,0 40,0 1,5 44783 44803
12,0 16,0 100,0 12,0 40,0 2,0 44784 44804
12,0 16,0 100,0 12,0 40,0 2,5 44832 44839
12,0 16,0 100,0 12,0 40,0 3,0 44833 44738
12,0 16,0 100,0 12,0 40,0 4,0 44834 44741
16,0 20,0 125,0 16,0 50,0 2,0 44785 44805
16,0 20,0 125,0 16,0 50,0 2,5 44835 44840
16,0 20,0 125,0 16,0 50,0 3,0 44836 44739
16,0 20,0 125,0 16,0 50,0 4,0 44786 44806
20,0 25,0 150,0 20,0 65,0 2,0 44787 44807
20,0 25,0 150,0 20,0 65,0 2,5 44837 44841
20,0 25,0 150,0 20,0 65,0 3,0 44838 44740
20,0 25,0 150,0 20,0 65,0 4,0 44788 44808
SERIES 43MLC
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
CORNER RADIUS TOLERANCE (mm)
R = +0,00 / –0,05
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
R
1
D
38°
L1
L3
L2
22 www.kyocera-sgstool.com
Series 43M
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Polished
Flute
Ti-NAMITE-B
(TiB2)
EDP No.
3,0 8,0 52,0 6,0 –•44890
4,0 11,0 55,0 6,0 –•44891
5,0 13,0 57,0 6,0 –•44892
6,0 24,0 75,0 6,0 –•44893
8,0 32,0 75,0 8,0 –•44895
10,0 40,0 100,0 10,0 –•44896
12,0 48,0 100,0 12,0 –•44897
14,0 30,0 89,0 14,0 –•44898
14,0 18,0 125,0 14,0 45,0 •44899
16,0 64,0 125,0 16,0 –•44900
20,0 80,0 150,0 20,0 –•44901
2
D
1
D
38°
L
1
L
2
2
D
1
D
38°
L
3
L
1
L
2
TOLERANCES (mm)
DIAMETER D1D2
3 +0,000 / –0,006 h6
4 - 6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
SERIES 43M
Square
Common
Straight
HAIMER
Safe-Lock
Regular,
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
23
www.kyocera-sgstool.com
Series 43MCR
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Polished
Flute
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 13,0 57,0 6,0 0,5 •44902
6,0 13,0 57,0 6,0 1,0 •44894
6,0 13,0 72,0 6,0 0,8 •44842
6,0 13,0 72,0 6,0 1,2 •44843
6,0 24,0 75,0 6,0 0,5 •44844
6,0 24,0 75,0 6,0 1,0 •44845
8,0 19,0 63,0 8,0 0,3 •44846
8,0 19,0 63,0 8,0 0,5 •44847
8,0 19,0 63,0 8,0 1,0 •44848
8,0 19,0 63,0 8,0 1,5 •44849
8,0 32,0 75,0 8,0 0,5 •44850
8,0 32,0 75,0 8,0 1,0 •44851
8,0 32,0 75,0 8,0 1,5 •44852
8,0 32,0 75,0 8,0 2,0 •44853
10,0 22,0 72,0 10,0 0,3 •44854
10,0 22,0 72,0 10,0 0,5 •44855
10,0 22,0 72,0 10,0 1,0 •44856
10,0 22,0 72,0 10,0 1,5 •44857
10,0 40,0 100,0 10,0 0,5 •44858
10,0 40,0 100,0 10,0 1,0 •44859
10,0 40,0 100,0 10,0 1,5 •44860
10,0 40,0 100,0 10,0 2,0 •44861
12,0 48,0 100,0 12,0 0,5 •44862
12,0 48,0 100,0 12,0 1,0 •44863
12,0 48,0 100,0 12,0 1,5 •44864
12,0 48,0 100,0 12,0 2,0 •44865
12,0 48,0 100,0 12,0 2,5 •44866
12,0 48,0 100,0 12,0 3,0 •44867
14,0 30,0 89,0 14,0 1,0 •44868
14,0 30,0 89,0 14,0 2,0 •44869
14,0 30,0 89,0 14,0 3,0 •44870
16,0 32,0 92,0 16,0 4,0 •44871
16,0 64,0 125,0 16,0 0,5 •44872
16,0 64,0 125,0 16,0 1,0 •44873
16,0 64,0 125,0 16,0 1,5 •44874
16,0 64,0 125,0 16,0 2,0 •44875
16,0 64,0 125,0 16,0 2,5 •44876
16,0 64,0 125,0 16,0 3,0 •44877
16,0 64,0 125,0 16,0 4,0 •44878
20,0 38,0 104,0 20,0 4,0 •44879
20,0 80,0 150,0 20,0 0,5 •44880
20,0 80,0 150,0 20,0 1,0 •44881
20,0 80,0 150,0 20,0 1,5 •44882
20,0 80,0 150,0 20,0 2,0 •44883
20,0 80,0 150,0 20,0 2,5 •44884
20,0 80,0 150,0 20,0 3,0 •44885
20,0 80,0 150,0 20,0 4,0 •44886
2
D
1
D
R
38°
L1
L2
SERIES 43MCR
TOLERANCES (mm)
DIAMETER D1D2
6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
CORNER RADIUS TOLERANCE (mm)
R = +0,00 / –0,05
Corner
Straight
HAIMER
Safe-Lock
Regular, Long
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
24 www.kyocera-sgstool.com
Series 43MLC
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Polished
Flute
Ti-NAMITE-B
(TiB2)
EDP No.
8,0 12,0 75,0 8,0 25,0 0,8 •44950
8,0 12,0 75,0 8,0 25,0 1,2 •44951
8,0 12,0 75,0 8,0 25,0 1,6 •44952
10,0 14,0 100,0 10,0 35,0 0,8 •44953
10,0 14,0 100,0 10,0 35,0 1,2 •44954
10,0 14,0 100,0 10,0 35,0 1,6 •44955
10,0 14,0 100,0 10,0 35,0 2,4 •44956
12,0 16,0 100,0 12,0 40,0 0,8 •44957
12,0 16,0 100,0 12,0 40,0 1,2 •44958
12,0 16,0 100,0 12,0 40,0 1,6 •44959
12,0 16,0 100,0 12,0 40,0 2,4 •44960
14,0 18,0 125,0 14,0 45,0 1,0 •44961
14,0 18,0 125,0 14,0 45,0 2,0 •44962
14,0 18,0 125,0 14,0 45,0 3,0 •44963
14,0 18,0 125,0 14,0 45,0 4,0 •44964
16,0 20,0 125,0 16,0 50,0 0,8 •44965
16,0 20,0 125,0 16,0 50,0 1,2 •44966
16,0 20,0 125,0 16,0 50,0 1,6 •44967
16,0 20,0 125,0 16,0 50,0 2,4 •44968
16,0 20,0 125,0 16,0 50,0 3,2 •44969
20,0 25,0 150,0 20,0 65,0 0,8 •44970
20,0 25,0 150,0 20,0 65,0 1,2 •44971
20,0 25,0 150,0 20,0 65,0 1,6 •44972
20,0 25,0 150,0 20,0 65,0 2,4 •44973
20,0 25,0 150,0 20,0 65,0 3,2 •44974
SERIES 43MLC Aero Radius Range
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
CORNER RADIUS TOLERANCE (mm)
R = +0,00 / –0,05
2
D
R
1
D
38°
L1
L3
L2
25
www.kyocera-sgstool.com

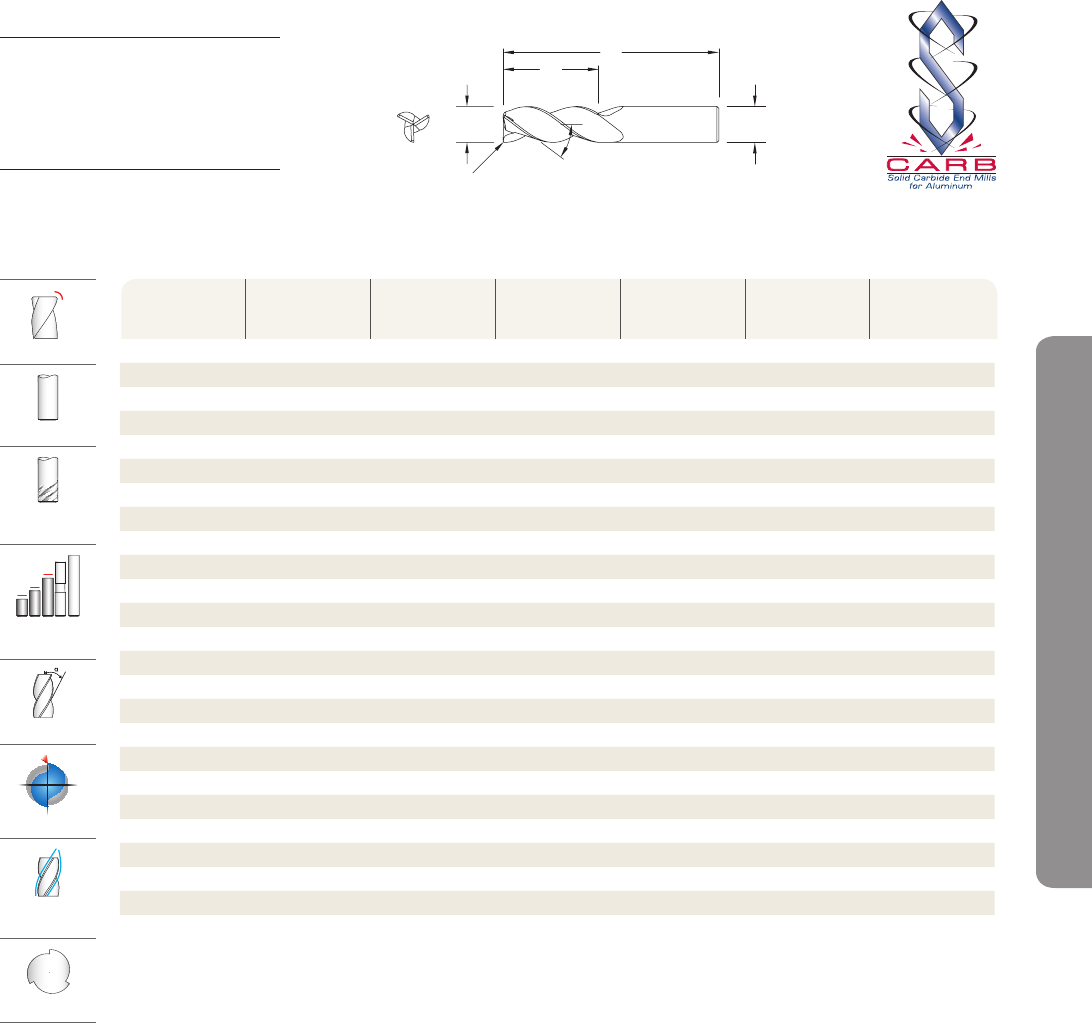

Series 43MB
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Polished
Flute
Ti-NAMITE-B
(TiB2)
EDP No.
3,0 4,5 57,0 6,0 –•44916
3,0 6,0 5 7,0 6,0 10,0 •44917
3,0 9,0 57,0 6,0 16,0 •44918
4,0 6,0 5 7,0 6,0 –•44919
4,0 8,0 57,0 6,0 13,0 •44920
4,0 12,0 57,0 6,0 21,0 •44921
5,0 7,5 57,0 6,0 –•44922
5,0 10,0 63,0 6,0 16,0 •44923
5,0 15,0 63,0 6,0 26,0 •44924
6,0 9,0 5 7,0 6,0 –•44925
6,0 12,0 63,0 6,0 19,0 •44926
6,0 18,0 75,0 6,0 31,0 •44927
8,0 12,0 63,0 8,0 –•44928
8,0 16,0 75,0 8,0 25,0 •44929
8,0 24,0 83,0 8,0 41,0 •44930
10,0 15,0 75,0 10,0 –•44931
10,0 20,0 83,0 10,0 31,0 •44932
10,0 30,0 100,0 10,0 51,0 •44933
12,0 18,0 83,0 12,0 –•44934
12,0 24,0 100,0 12,0 37,0 •44935
12,0 36,0 130,0 12,0 61,0 •44936
16,0 24,0 100,0 16,0 –•44937
16,0 32,0 130,0 16,0 49,0 •44938
16,0 48,0 150,0 16,0 81,0 •44939
20,0 30,0 108,0 20,0 –•44940
20,0 40,0 130,0 20,0 61,0 •44941
20,0 60,0 150,0 20,0 101,0 •44942
25,0 37,5 127,0 25,0 –•44943
25,0 50,0 152,0 25,0 76,0 •44944
25,0 75,0 170,0 25,0 126,0 •44945
SERIES 43MB
TOLERANCES (mm)
DIAMETER D1D2
3 +0,000 / –0,006 h6
4 - 6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 - 25 +0,000 / –0,013 h6
Ball
Common
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long, Long
Reach Neck
Right Spiral
POS
Positive Rake
External
Coolant
3
Flutes
2
D
1
D
38°
L
1
L
2
2
D
1
D
38°
L
1
L
3
L
2
www.sgstool.com
The original, symmetrical 3-ute design
features an engineered ute form that provides
high performance results through a full range
of machining conditions. This expanded offering
includes a variety of standard,
reach, and corner radius options
that are available with exclusive
Ti-NAMITE-B coating for
improved tool life.
VALUE AT THE SPINDLE
DESIGN AND ENGINEERING
ENSURE OUTSTANDING
PERFORMANCE IN A VARIETY
OF ALUMINUM APPLICATIONS.

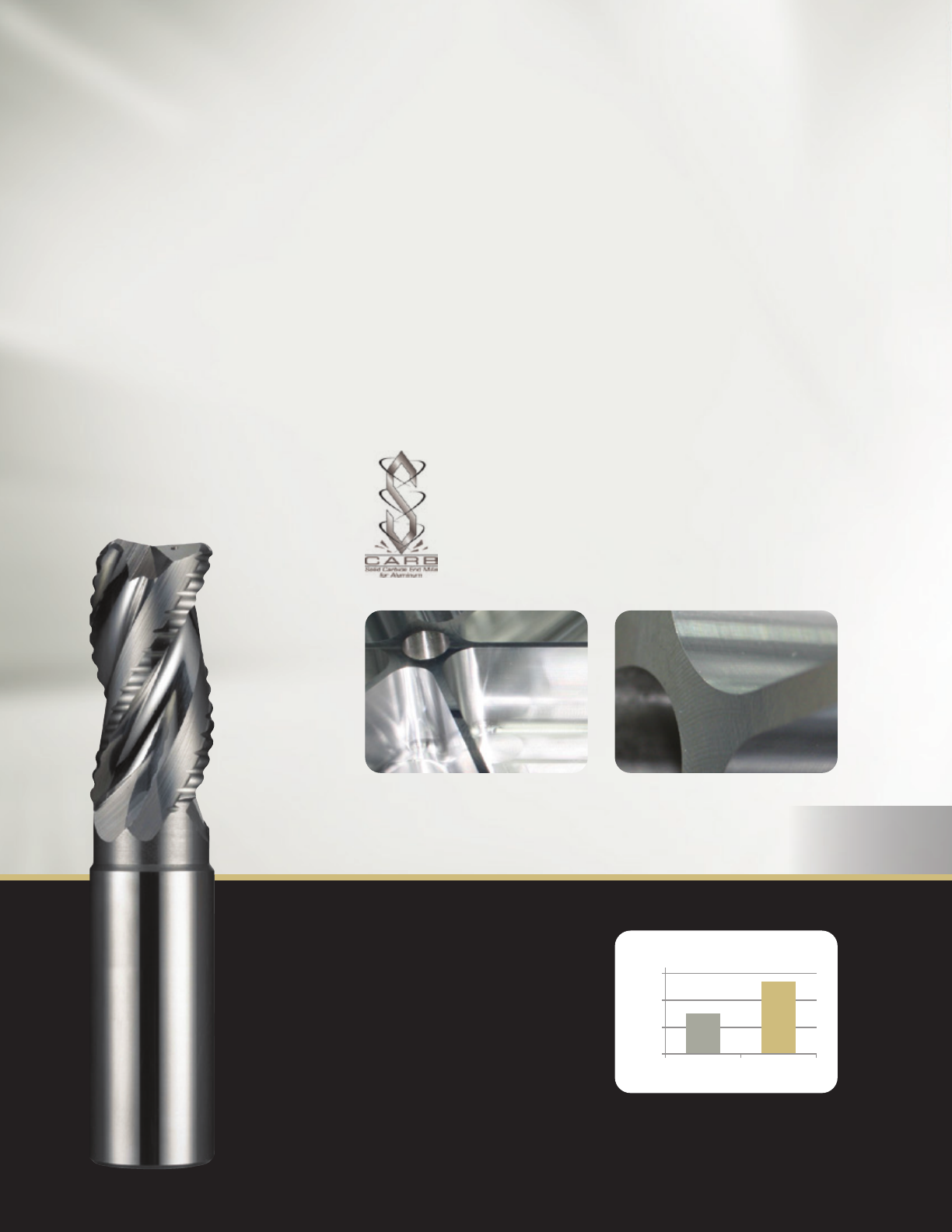

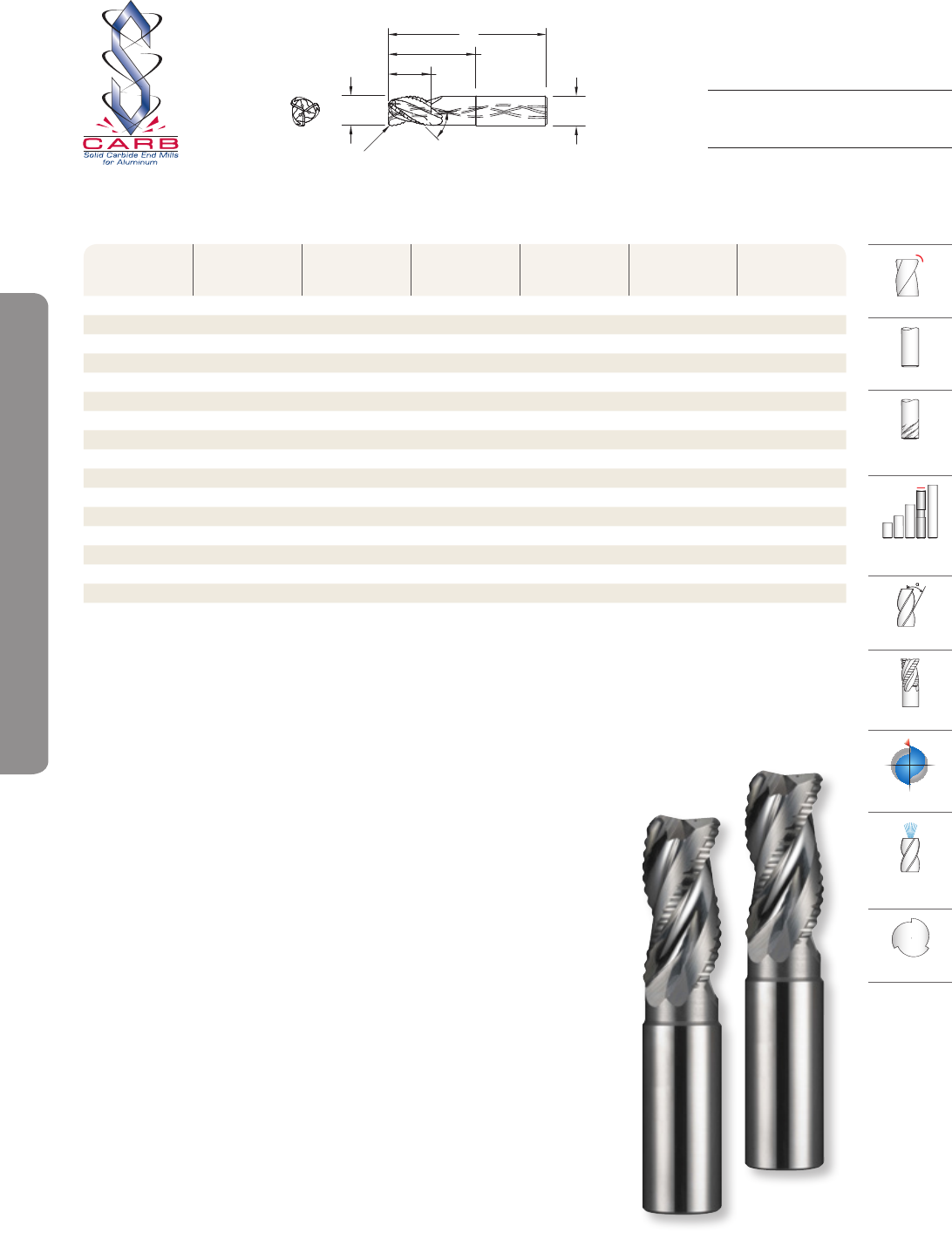

HIGH PERFORMANCE
S-CARB
CHIP BREAKER
ROUGHING
END MILLS
www.sgstool.com
SERIES 43CB & 43MCB FOR
ALUMINUM, NON-FERROUS,
& NON-METALLIC MATERIALS
• Unique symmetrical 3-ute design with
engineered ute form
• Engineered Chip Breakers reduce the load
produced by a typical cutting edge: Ideal
for low horsepower situations
• Unsurpassed plunging and pocketing
capabilities
SYMMETRICAL END GASHING:
Superior balance in a high-speed
environment reduces vibration and
increases plunging capabilities
compared to traditional 3-ute designs
ENGINEERED FLUTE DESIGN:
Unique ute shape facilitates the rapid
movement of the large volume of chips
created during aggressive machining
SPECIALIZED CHIP BREAKER:
The chip breaker disrupts the chip ow
along the cutting edge, resulting in
smaller and more controlled chips,
while preventing material build-up
between the cutting edge and tool
Flute Design
ENGINEEREDENGINEERED
28 www.kyocera-sgstool.com
Series 43CB
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 2-1/2 1/4 .020 33390 33450
1/4 1/2 2-1/2 1/4 .020 33391 33451
1/4 3/4 2-1/2 1/4 .020 33392 33452
1/4 1 3 1/4 .020 33393 33453
1/4 1-1/4 3-1/2 1/4 .020 33394 33454
1/4 1-3/4 4 1/4 .020 33395 33455
5/16 7/16 2-1/2 5/16 .020 33396 33456
5/16 11/16 2-1/2 5/16 .020 33397 33457
5/16 1 3 5/16 .020 33398 33458
5/16 2-1/8 4 5/16 .020 33400 33460
3/8 1/2 3 3/8 .020 33401 33461
3/8 1 2-1/2 3/8 .020 34300 34305
3/8 1-1/4 3-1/2 3/8 .020 33402 33462
3/8 1-1/2 4 3/8 .020 33403 33463
3/8 2 4 3/8 .020 33404 33464
1/2 5/8 3 1/2 .030 33406 33466
1/2 1 3 1/2 .030 33407 33467
1/2 1-1/4 3-1/4 1/2 .030 34301 34306
1/2 1-5/8 4 1/2 .030 33408 33468
1/2 2 4 1/2 .030 33409 33469
1/2 2-1/2 5 1/2 .030 33410 33470
1/2 3-1/8 6 1/2 .030 33411 33471
5/8 3/4 3-1/2 5/8 .030 33412 33472
5/8 1-5/8 3-3/4 5/8 .030 34302 34307
5/8 2-1/8 4 5/8 .030 33413 33473
5/8 3-1/4 6 5/8 .030 33415 33475
5/8 3-3/4 6 5/8 .030 33416 33476
3/4 1 4 3/4 .030 33417 33477
3/4 1-5/8 4 3/4 .030 34303 34308
3/4 2-1/4 4 3/4 .030 33418 33478
3/4 3-1/4 6 3/4 .030 33419 33479
3/4 4 6 3/4 .030 33420 33480
1 1-1/4 5 1 .030 33421 33481
1 2 4-1/2 1 .030 34304 34309
1 2-5/8 6 1 .030 33422 33482
1 3-1/4 6 1 .030 33423 33483
1 4-1/8 7 1 .030 33424 33484
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
SERIES 43CB
Corner
Straight
HAIMER
Safe-Lock
Stub, Regular,
Long,
Extra Long
Right Spiral
Chip Breaker
External
Coolant
POS
Positive Rake
3
Flutes
L
1
L
2
2
D
1
D
R38°
29
www.kyocera-sgstool.com

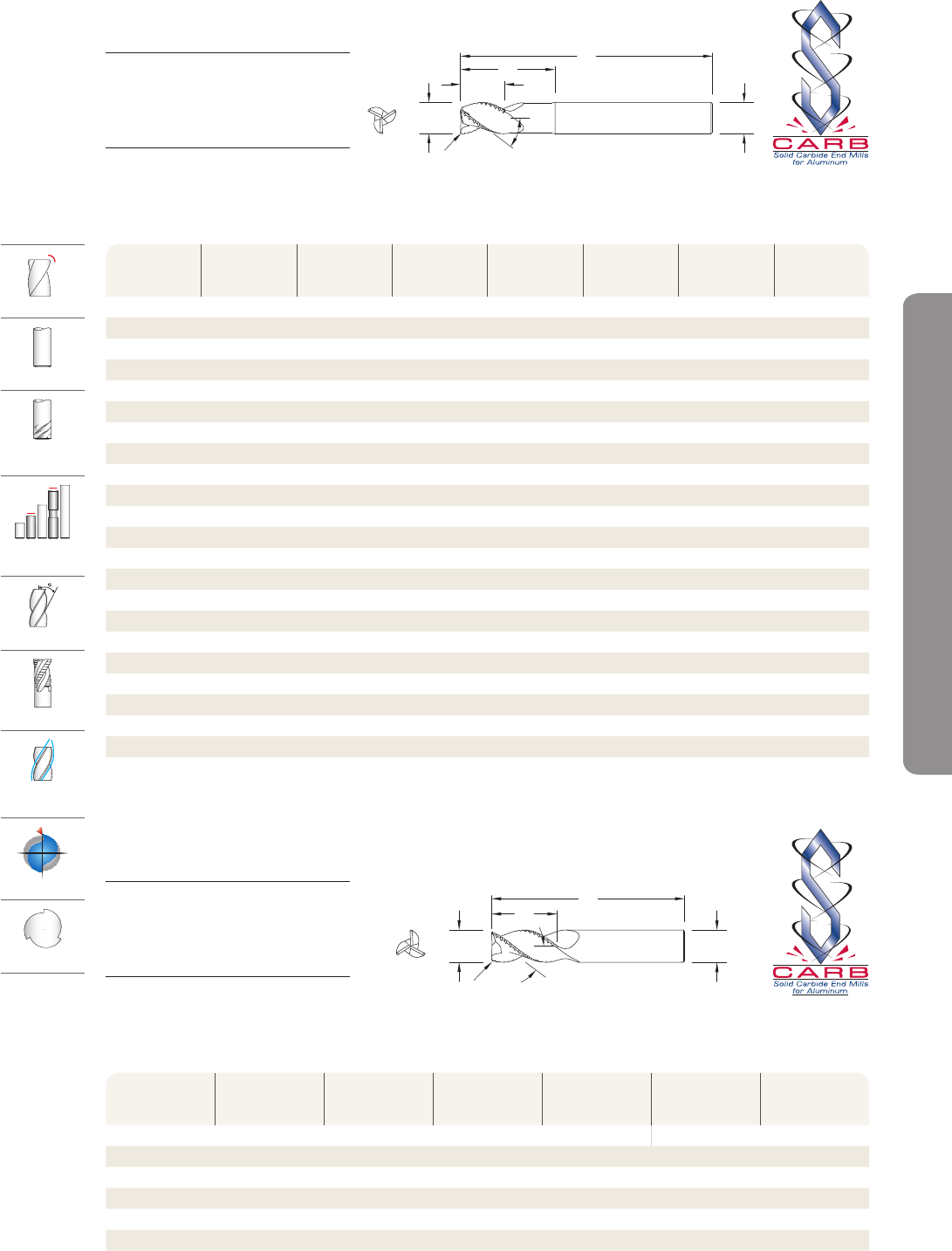

Series 43LCB, 43MCB
|
Fractional & Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 19,0 63,0 6,0 0,3 – 44299
8,0 19,0 63,0 8,0 0,3 44300 44305
10,0 22,0 72,0 10,0 0,3 44301 44306
12,0 26,0 83,0 12,0 1,0 44302 44307
16,0 32,0 92,0 16,0 1,0 44303 44308
20,0 38,0 104,0 20,0 1,0 44304 44309
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 4 1/4 3/4 .020 33500 33540
1/4 3/8 4 1/4 1-1/8 .020 33501 33541
1/4 3/8 4 1/4 2-1/8 .020 33502 33542
5/16 7/16 4 5/16 1-1/8 .020 33503 33543
5/16 7/16 4 5/16 2-1/8 .020 33504 33544
3/8 1/2 4 3/8 1-1/8 .020 33507 33547
3/8 1/2 4 3/8 2-1/8 .020 33508 33548
1/2 5/8 4 1/2 1-3/8 .030 33511 33551
1/2 5/8 4 1/2 2-1/4 .030 33512 33552
1/2 5/8 6 1/2 3-3/8 .030 33513 33553
1/2 5/8 6 1/2 4-1/4 .030 33514 33554
5/8 3/4 4 5/8 1-5/8 .030 33515 33555
5/8 3/4 6 5/8 2-3/8 .030 33516 33556
5/8 3/4 6 5/8 3-3/8 .030 33517 33557
5/8 3/4 6 5/8 4-3/8 .030 33518 33558
3/4 1 4 3/4 2 .030 33519 33559
3/4 1 6 3/4 2-1/2 .030 33520 33560
3/4 1 6 3/4 3-3/8 .030 33521 33561
3/4 1 6 3/4 4-3/8 .030 33522 33562
1 1-1/4 6 1 2-5/8 .030 33523 33563
1 1-1/4 6 1 3-3/8 .030 33524 33564
1 1-1/4 7 1 4-3/8 .030 33525 33565
L
1
L
2
L
3
2
D
1
D
R38°
L
1
L
2
2
D
1
D
R38°
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
TOLERANCES (mm)
DIAMETER D1D2
6 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
CORNER RADIUS TOLERANCE (mm)
R = +0,00 / –0,05
SERIES 43LCB
SERIES 43MCB
Corner
Straight
HAIMER
Safe-Lock
Regular, Long
Reach Neck
Right Spiral
Chip Breaker
External
Coolant
POS
Positive Rake
3
Flutes
L
1
L
2
2
D
1
D
R38°
www.kyocera-sgstool.com
30
HIGH PERFORMANCE
ALUMINUM MACHINING
Developed and engineered for high power, high efciency
machining of aluminum aerospace structural parts.
Material removal rates of 550 cubic inches achievable,
dependent on machine.
• 3 ute design for high feed power roughing
• High feed direct plunge ability
• Through coolant design
• Polished ute design to maximize
chip evacuation
ADVANCED PRODUCTIVITY ROUGHING AND FINISHING
• 4 ute unique variable geometry reduces vibration
and allows nishing of thin walls in one pass
• Through coolant design
• Polished utes for superior nishes
• Signicant reduction in cycle times
APR
S-CARB APR
Developed and engineered for high-feed nishing of thin
wall aluminum applications. Signicant reduction in machining
times, with straighter walls and superior nishes compared
to waterlining.
APF
S-CARB APF
ENGINEERED FLUTE DESIGN
VALUE AT THE SPINDLE
Design and engineering
ensure outstanding
performance in a variety
of aluminum applications.
Superior metal removal rate
achievement over competition.
Dramatic increase in productivity
versus the high speed waterline
nishing method, which requires
multiple passes to produce
acceptable thin walls.
TIME (MINUTES)
HIGH-SPEED
WATERLINE
600
500
400
300
200
10
0
S-CARB
APF
TIME IN MINUTES
METAL REMOVAL RATE
COMPETITOR
600
400
200
0S-CARB
APR
CUBIC INCHES
TYPICAL METHOD
High-speed waterline
nishing, multiple
passes at numerous
levels to produce
acceptable thin walls
APF METHOD
High-speed nishing
at full depth without
wall distortion
ONE HIT
www.kyocera-sgstool.com 31
HIGH PERFORMANCE
ALUMINUM MACHINING
Developed and engineered for high power, high efciency
machining of aluminum aerospace structural parts.
Material removal rates of 550 cubic inches achievable,
dependent on machine.
• 3 ute design for high feed power roughing
• High feed direct plunge ability
• Through coolant design
• Polished ute design to maximize
chip evacuation
ADVANCED PRODUCTIVITY ROUGHING AND FINISHING
• 4 ute unique variable geometry reduces vibration
and allows nishing of thin walls in one pass
• Through coolant design
• Polished utes for superior nishes
• Signicant reduction in cycle times
APR
S-CARB APR
Developed and engineered for high-feed nishing of thin
wall aluminum applications. Signicant reduction in machining
times, with straighter walls and superior nishes compared
to waterlining.
APF
S-CARB APF
ENGINEERED FLUTE DESIGN
VALUE AT THE SPINDLE
Design and engineering
ensure outstanding
performance in a variety
of aluminum applications.
Superior metal removal rate
achievement over competition.
Dramatic increase in productivity
versus the high speed waterline
nishing method, which requires
multiple passes to produce
acceptable thin walls.
TIME (MINUTES)
HIGH-SPEED
WATERLINE
600
500
400
300
200
10
0
S-CARB
APF
TIME IN MINUTES
METAL REMOVAL RATE
COMPETITOR
600
400
200
0S-CARB
APR
CUBIC INCHES
TYPICAL METHOD
High-speed waterline
nishing, multiple
passes at numerous
levels to produce
acceptable thin walls
APF METHOD
High-speed nishing
at full depth without
wall distortion
ONE HIT
32 www.kyocera-sgstool.com
Series 43APR
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
3/4 1-3/8 4-1/4 3/4 2-3/8 .030 34000
3/4 1-3/8 4-1/4 3/4 2-3/8 .060 34001
3/4 1-3/8 4-1/4 3/4 2-3/8 .090 34002
3/4 1-3/8 4-1/4 3/4 2-3/8 .120 34003
3/4 1-1/4 4-7/8 3/4 3 .030 34004
3/4 1-1/4 4-7/8 3/4 3 .060 34005
3/4 1-1/4 4-7/8 3/4 3 .090 34006
3/4 1-1/4 4-7/8 3/4 3 .120 34007
1 1-3/4 4-1/2 1 2-1/2 .030 34008
1 1-3/4 4-1/2 1 2-1/2 .060 34009
1 1-3/4 4-1/2 1 2-1/2 .090 34010
1 1-3/4 4-1/2 1 2-1/2 .120 34011
1 1-1/2 5-1/4 1 3-1/4 .030 34012
1 1-1/2 5-1/4 1 3-1/4 .060 34013
1 1-1/2 5-1/4 1 3-1/4 .090 34014
1 1-1/2 5-1/4 1 3-1/4 .120 34015
Available on request: • JetStream Technology • Side exit coolant holes
TOLERANCES (inch)
DIAMETER D1D2
3/4 - 1 –0.00040/–0.00200 h6
CORNER RADIUS TOLERANCE (inch)
R= +/– 0.0018
SERIES 43APR
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
Chip Breaker
POS
Positive Rake
Internal
Coolant
3
Flutes
2
D
1
D
38°
R
L1
L2
L3
33
www.kyocera-sgstool.com
Series 43MAPR
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
12,0 18,0 83,0 12,0 38,0 – 44650
12,0 18,0 83,0 12,0 38,0 2,0 44685
12,0 18,0 83,0 12,0 38,0 3,0 44686
12,0 18,0 83,0 12,0 38,0 4,0 44687
16,0 24,0 92,0 16,0 51,0 – 44652
16,0 24,0 92,0 16,0 51,0 2,0 44688
16,0 24,0 92,0 16,0 51,0 3,0 44689
16,0 24,0 92,0 16,0 51,0 4,0 44690
20,0 30,0 86,0 20,0 45,0 – 44646
20,0 30,0 86,0 20,0 45,0 3,0 44647
20,0 30,0 86,0 20,0 45,0 4,0 44648
20,0 30,0 86,0 20,0 45,0 5,0 44649
20,0 35,0 104,0 20,0 64,0 – 44653
20,0 35,0 104,0 20,0 64,0 3,0 44691
20,0 35,0 104,0 20,0 64,0 4,0 44692
20,0 35,0 104,0 20,0 64,0 5,0 44693
25,0 35,0 108,0 25,0 55,0 3,0 44809
25,0 35,0 108,0 25,0 55,0 4,0 44810
25,0 35,0 108,0 25,0 55,0 5,0 44811
25,0 35,0 140,0 25,0 80,0 – 44654
25,0 35,0 140,0 25,0 80,0 3,0 44694
25,0 35,0 140,0 25,0 80,0 4,0 44695
25,0 35,0 140,0 25,0 80,0 5,0 44696
25,0 35,0 140,0 25,0 90,0 3,0 44645
Available on request: • JetStream Technology • Side exit coolant holes
TOLERANCES (mm)
DIAMETER D1D2
12 - 25 –0,010/–0,050 h6
CORNER RADIUS TOLERANCE (mm)
R = +/– 0,03
SERIES 43MAPR
Corner
Square
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Right Spiral
Chip Breaker
POS
Positive Rake
Internal
Coolant
3
Flutes
2
D
1
D
38°
R
L1
L2
L3
34 www.kyocera-sgstool.com
Series 43APF
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
1/2 1-1/4 3-1/4 1/2 1-5/8 .030 34016
1/2 1-1/4 3-1/4 1/2 1-5/8 .060 34017
1/2 1-1/4 3-1/4 1/2 1-5/8 .090 34018
1/2 1-1/4 3-1/4 1/2 1-5/8 .120 34019
1/2 2 4 1/2 2-3/8 .030 34020
1/2 2 4 1/2 2-3/8 .060 34021
1/2 2 4 1/2 2-3/8 .090 34022
1/2 2 4 1/2 2-3/8 .120 34023
3/4 1-7/8 4-1/4 3/4 2-3/8 .030 34024
3/4 1-7/8 4-1/4 3/4 2-3/8 .060 34025
3/4 1-7/8 4-1/4 3/4 2-3/8 .090 34026
3/4 1-7/8 4-1/4 3/4 2-3/8 .120 34027
3/4 3 5-3/8 3/4 3-1/2 .030 34028
3/4 3 5-3/8 3/4 3-1/2 .060 34029
3/4 3 5-3/8 3/4 3-1/2 .090 34030
3/4 3 5-3/8 3/4 3-1/2 .120 34031
Available on request: • JetStream Technology
2
D
1
D
R
L1
L2
L3
38°
41°
Corner
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Variable Right
Spiral
≠
Flute Spacing
Unequal
POS
Positive Rake
Internal
Coolant
4
Flutes
TOLERANCES (inch)
DIAMETER D1D2
1/2 - 3/4 –0.00040/–0.00200 h6
CORNER RADIUS TOLERANCE (inch)
R= +/– 0.0018
SERIES 43APF
35
www.kyocera-sgstool.com

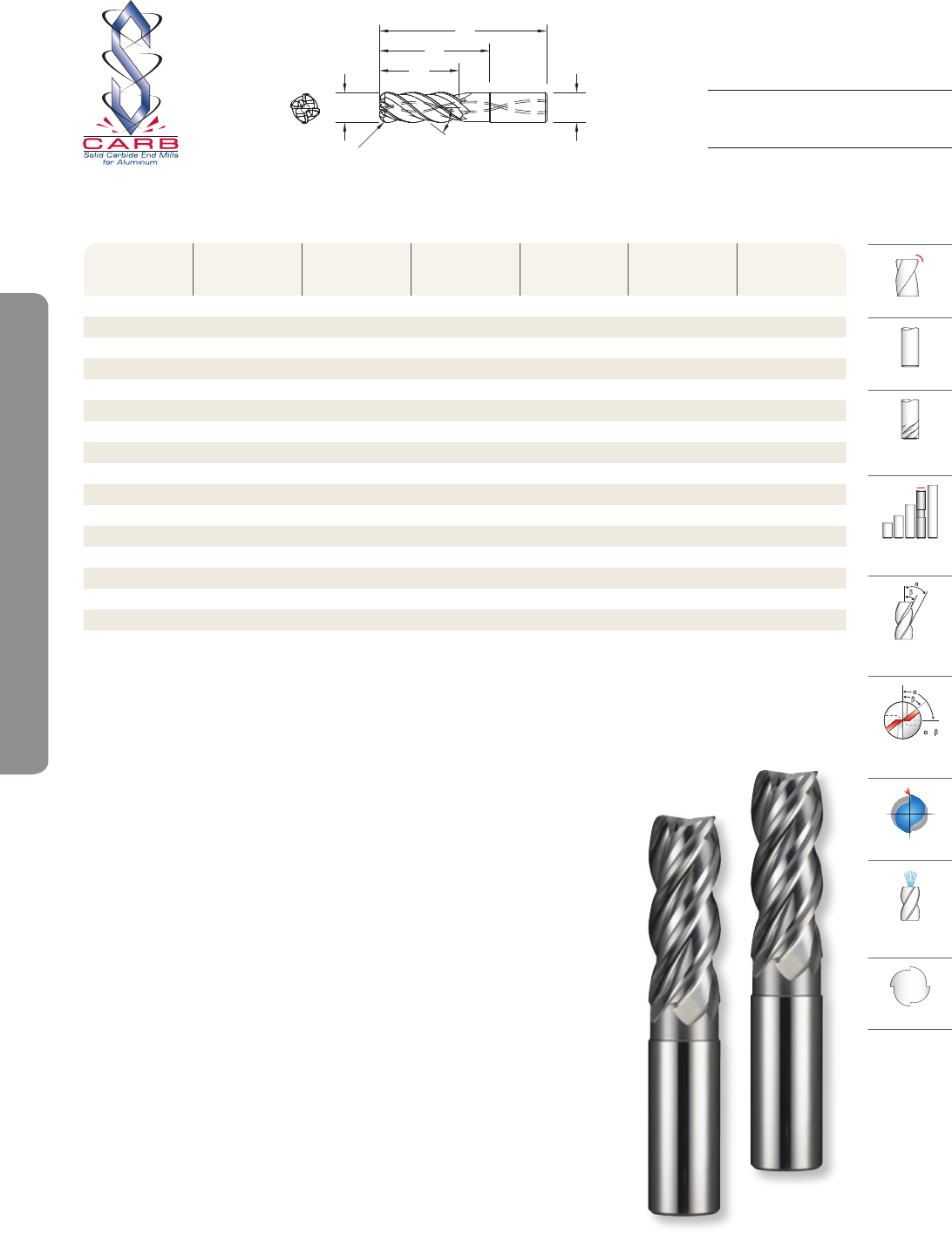

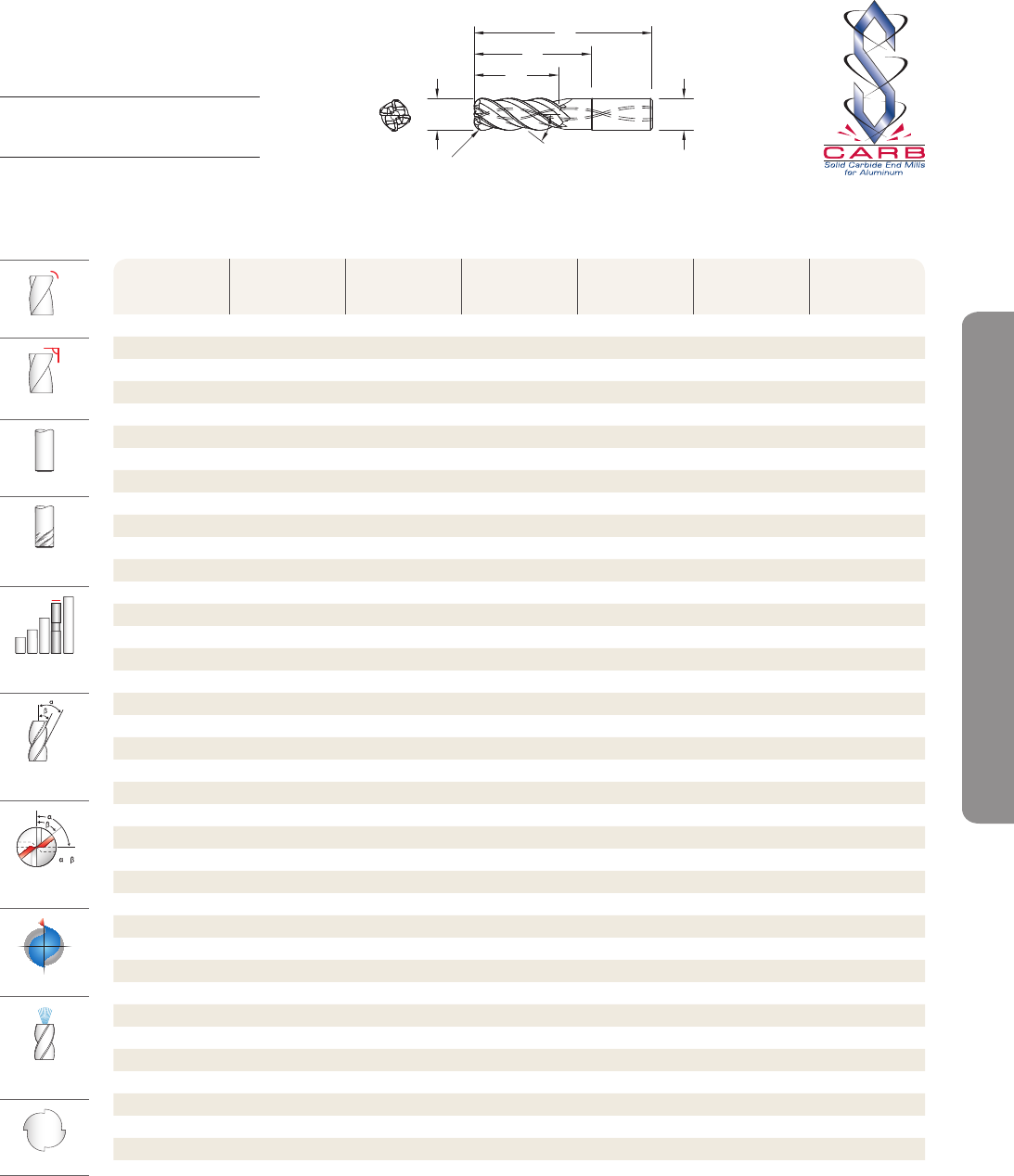

Series 43MAPF
|
Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 24,0 58,0 6,0 30,0 – 44627
8,0 32,0 64,0 8,0 40,0 – 44628
10,0 40,0 80,0 10,0 50,0 – 44629
12,0 30,0 83,0 12,0 40,0 – 44630
12,0 30,0 83,0 12,0 40,0 2,0 44745
12,0 30,0 83,0 12,0 40,0 3,0 44746
12,0 30,0 83,0 12,0 40,0 4,0 44747
12,0 30,0 83,0 12,0 50,0 0,5 44641
12,0 30,0 83,0 12,0 50,0 5,0 44642
12,0 48,0 100,0 12,0 62,0 – 44631
12,0 48,0 100,0 12,0 62,0 2,0 44748
12,0 48,0 100,0 12,0 62,0 3,0 44749
12,0 48,0 100,0 12,0 62,0 4,0 44750
16,0 42,0 93,0 16,0 51,0 5,0 44643
16,0 40,0 92,0 16,0 51,0 – 44634
16,0 40,0 92,0 16,0 51,0 2,0 44751
16,0 40,0 92,0 16,0 51,0 3,0 44752
16,0 40,0 92,0 16,0 51,0 4,0 44753
16,0 64,0 125,0 16,0 82,0 – 44635
16,0 64,0 125,0 16,0 82,0 2,0 44754
16,0 64,0 125,0 16,0 82,0 3,0 44755
16,0 64,0 125,0 16,0 82,0 4,0 44756
20,0 50,0 108,0 20,0 63,0 – 44636
20,0 50,0 108,0 20,0 63,0 3,0 44757
20,0 50,0 108,0 20,0 63,0 4,0 44758
20,0 50,0 108,0 20,0 63,0 5,0 44759
20,0 80,0 150,0 20,0 102,0 – 44637
20,0 80,0 150,0 20,0 102,0 3,0 44760
20,0 80,0 150,0 20,0 102,0 4,0 44761
20,0 80,0 150,0 20,0 102,0 5,0 44762
25,0 63,0 130,0 25,0 79,0 – 44638
25,0 63,0 130,0 25,0 79,0 3,0 44763
25,0 63,0 130,0 25,0 79,0 4,0 44764
25,0 63,0 130,0 25,0 79,0 5,0 44765
25,0 100,0 175,0 25,0 120,0 – 44639
25,0 100,0 175,0 25,0 120,0 3,0 44766
25,0 100,0 175,0 25,0 120,0 4,0 44767
25,0 100,0 175,0 25,0 120,0 5,0 44768
Available on request: • JetStream Technology
2
D
1
D
R
L1
L2
L3
38°
41°
Corner
Square
Straight
HAIMER
Safe-Lock
Long Reach
Neck
Variable Right
Spiral
≠
Flute Spacing
Unequal
POS
Positive Rake
Internal
Coolant
4
Flutes
TOLERANCES (mm)
DIAMETER D1D2
6 - 25 –0,010/–0,050 h6
CORNER RADIUS TOLERANCE (mm)
R = +/– 0,03
SERIES 43MAPF

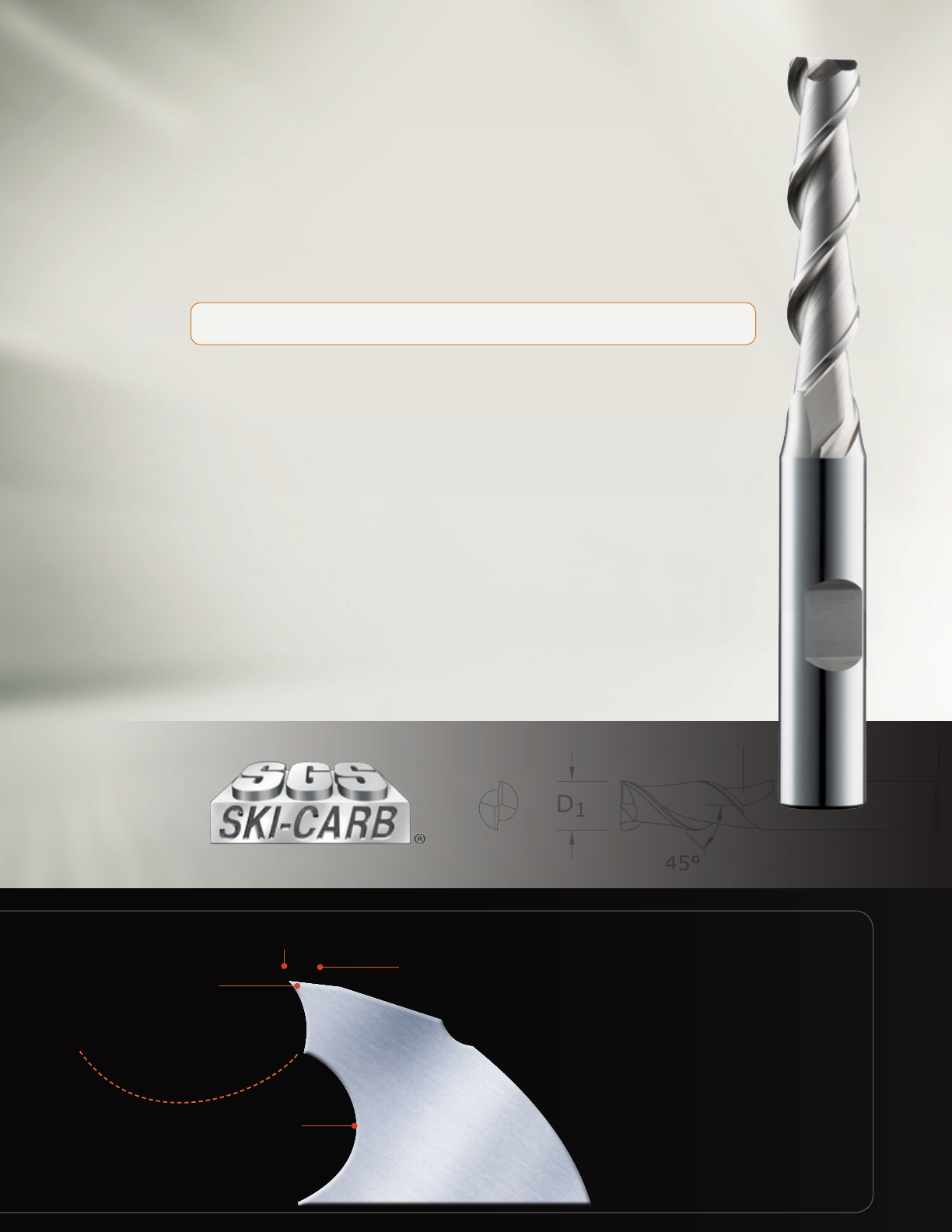

Varied Speed and Feed
• Circular Land reduces edge
aggressiveness for varied speed
and feed rates and allows for
milling into corners while
signicantly reducing chatter.
Superior Chip Control
• Ski Land with primary and
secondary ute wall construction
minimizes chip interference by
directing chips away from
secondary ute.
Optimal Rake
• High Helix (45 degree) increases
effective rake for greater shearing
ability without reducing edge
strength.
Outstanding Rigidity
• Short Length increases rigidity.
Maximum Chip Protection
• Available Corner Radii offer addi-
tional protection against chipping.
• Now also available with
HAIMER SAFE-LOCK option
on select diameters
Tight control of the circular land
width reduces edge aggressiveness,
which allows for a wide variety of
speed and feed rates. It also allows for
milling into corners without chatter.
Unique to the Ski-Carb is the primary-
secondary ute wall construction,
which reduces chip interference.
POLISHED
SKI LAND
CIRCULAR LAND
PRIMARY
SIDE RELIEF
CHIP PATH
SECONDARY
FLUTE
SURFACE
SKI-CARB END MILLS
FOR NON-FERROUS,
ALUMINUM, & NON-METALLIC
APPLICATIONS
The Original 2 Flute High Performance End Mill for Aluminum
Design Features:
Competitor ISki-Carb
120
140
160
100
80
60
40
20
0
Slotting in 6061 - T6 Aluminum
1/2” Diameter - .300” Ad
8% Flood Coolant
50% Faster
Feed Rate in IPM
Competitor ISki-Carb
1,200
1,400
1,000
800
600
400
200
0
66% More
Productivity
Tool Life in Feet
Ti-NAMITE-B is an advanced coating developed specically
for the high performance machining of Aluminum and its
alloys. Ti-NAMITE-B offers the following benets:
TI-NAMITE-B
Ti-NAMITE-B
Uncoated
0 0.002 0.004 0.006 0.008
Wear Comparison
A390 Cast Aluminum
10,000 rpm / 120 ipm
.100 Rw x .300 Ad
Wear (inch)
33% less wear with Ti-NAMITE-B after 400” of Machining
33%
Less Wear
Ti-NAMITE-B
Uncoated
0 0.002 0.004 0.006 0.008
Wear Comparison
A390 Cast Aluminum
10,000 rpm / 120 ipm
.100 Rw x .300 Ad
Wear (inch)
33% less wear with Ti-NAMITE-B after 400” of Machining
33%
Less Wear
Coating
ADVANCED
• Low afnity to Aluminum
helps to prevent edge
build-up
• Smooth surface structure
drastically reducing friction
to maximize chip ow
• High level of hardness
providing excellent wear
protection
Microhardness: 4000 HV
Oxidation Temperature:
850°C / 1562°F
Coefcient of Friction: 0.45
Thickness: 1 – 2 Microns
(based on tool diameter)
38 www.kyocera-sgstool.com

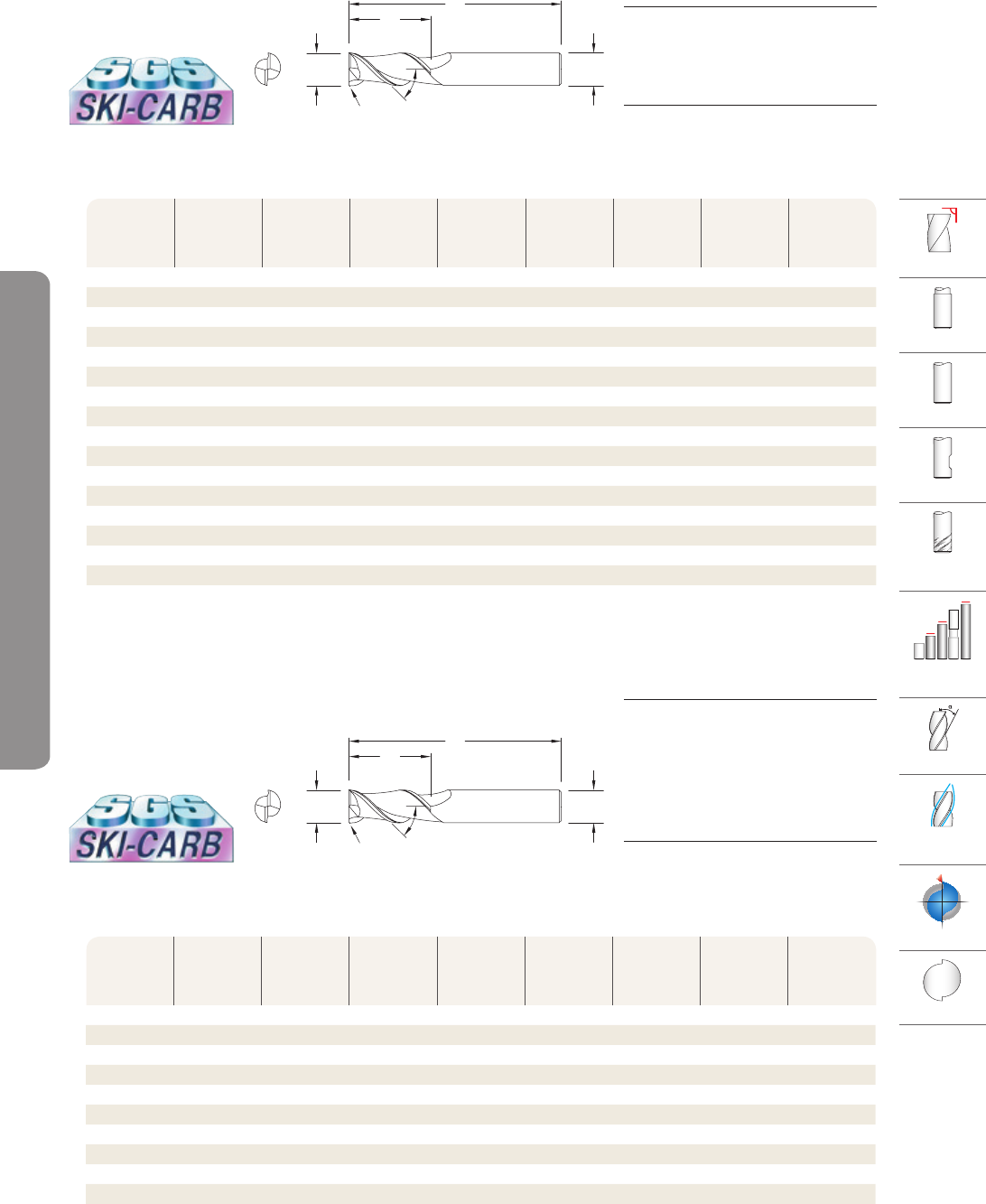

Series 44, 44M
|
Fractional & Metric
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius*
R
(Optional)
Uncoated
EDP No.
w/Flat
Ti-NAMITE-B
(TiB2)
EDP No.
w/Flat
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/4 2-7/16 3/8 .015-.060 34501 34502 32033 32053
1/4 1-1/4 3-1/16 3/8 .015-.060 34503 34504 32034 32054
1/4 1-3/4 3-9/16 3/8 .015-.060 34505 34506 32035 32055
5/16 1-3/8 3-1/8 3/8 .015-.060 34507 34508 32036 32056
3/8 3/4 2-1/2 3/8 .015-.060 34509 34510 32037 32057
3/8 1-1/2 3-1/4 3/8 .015-.060 34511 34512 32038 32058
3/8 2-1/2 4-1/4 3/8 .015-.060 34513 34514 32039 32059
1/2 1-1/4 3-1/4 1/2 .015-.125 34515 34516 32040 32060
1/2 2 4 1/2 .015-.125 34517 34518 32041 32061
1/2 3 5 1/2 .015-.125 34519 34520 32042 32062
5/8 1-5/8 3-3/4 5/8 .015-.125 34521 34522 32043 32063
5/8 2-1/2 4-5/8 5/8 .015-.125 34523 34524 32044 32064
3/4 1-5/8 3-7/8 3/4 .015-.125 34525 34526 32045 32065
3/4 3 5-1/4 3/4 .015-.125 34527 34528 32046 32066
3/4 4 6-1/4 3/4 .015-.125 34529 34530 32047 32067
1 2 4-1/2 1 .015-.125 34531 34532 32048 32068
1 4 6-1/2 1 .015-.125 34533 34534 32049 32069
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius*
R
(Optional)
Uncoated
EDP No.
w/Flat
Ti-NAMITE-B
(TiB2)
EDP No.
w/Flat
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
3,0 8,0 52,0 6,0 0,38-0,76 44505 44506 49663 49674
4,0 11,0 55,0 6,0 0,38-0,76 44509 44510 49664 49675
5,0 13,0 57,0 6,0 0,38-0,76 44513 44514 49665 49676
6,0 13,0 57,0 6,0 0,38-1,52 44517 44518 49666 49677
8,0 19,0 69,0 10,0 0,38-1,52 44521 44522 49667 49678
10,0 22,0 72,0 10,0 0,38-1,52 44525 44526 49668 49679
12,0 26,0 83,0 12,0 0,38-3,17 44529 44530 49669 49680
14,0 26,0 83,0 14,0 0,38-3,17 44533 44534 49670 49681
16,0 32,0 92,0 16,0 0,38-3,17 44537 44538 49671 49682
18,0 32,0 92,0 18,0 0,38-3,17 44541 44542 49672 49683
20,0 38,0 104,0 20,0 0,38-3,17 44545 44546 49673 49684
*Full range of Corner Radius options available.
*Full range of Corner Radius options available.
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
TOLERANCES (mm)
DIAMETER D1D2
3 +0,000 / –0,006 h6
4 - 6 +0,000 / –0,008 h6
8 - 10 +0,000 / –0,009 h6
12 - 16 +0,000 / –0,011 h6
20 +0,000 / –0,013 h6
CORNER RADIUS TOLERANCE (mm)
R = +0,00 / –0,05
Square
Common
Straight
Weldon Flat
HAIMER
Safe-Lock
Regular, Long,
Extra Long
Right Spiral
External
Coolant
POS
Positive Rake
2
Flutes
SERIES 44
SERIES 44M
2
D
1
D
R
45°
L
1
L
2
2
D
1
D
R
45°
L
1
L
2
39
www.kyocera-sgstool.com

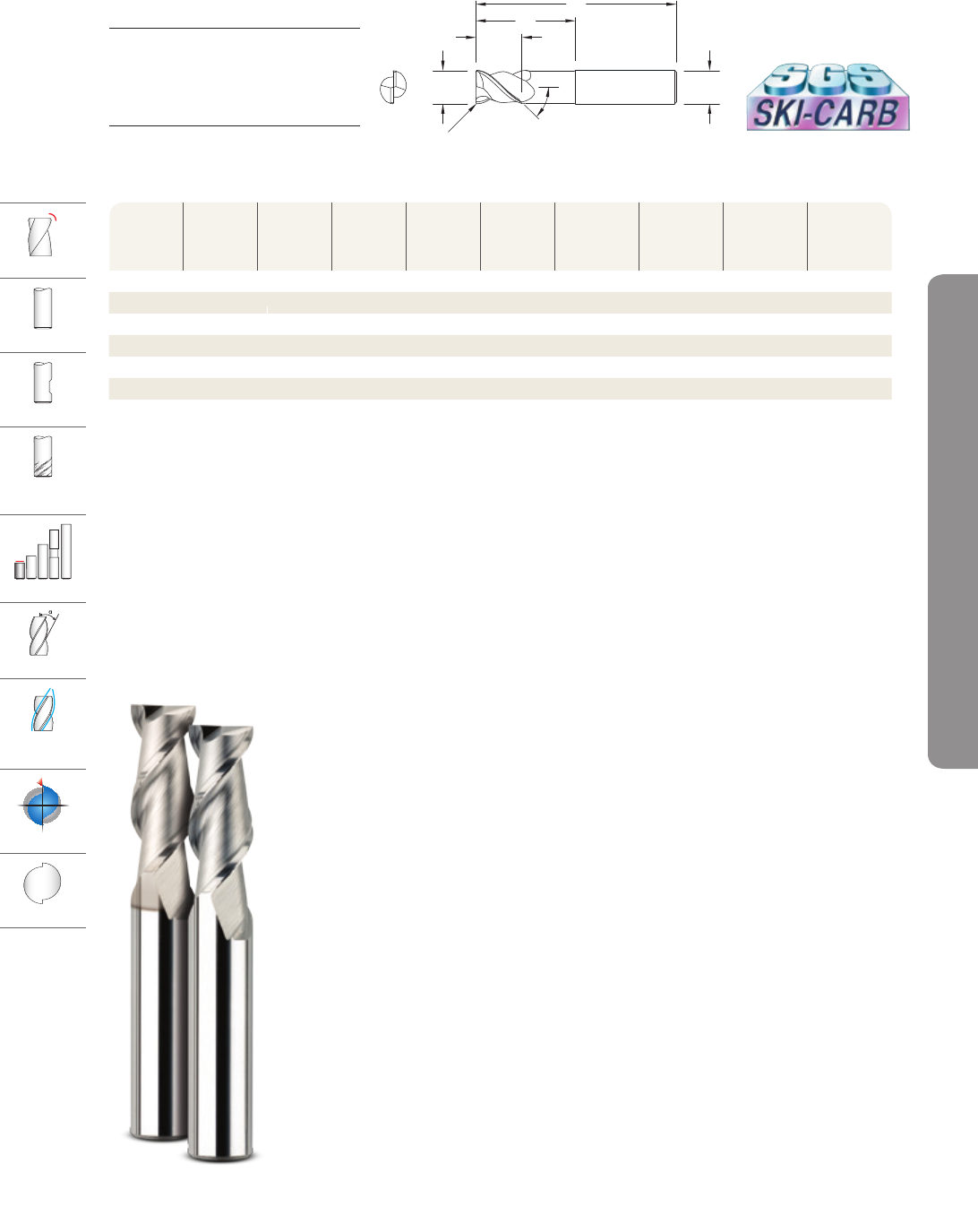

Series 45
|
Fractional
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Reach*
(Optional)
L3
Shank
Diameter
D2
Corner
Radius
R
Uncoated
EDP No.
w/Flat
Ti-NAMITE-B
(TiB2)
EDP No.
w/Flat
Uncoated
EDP No.
Ti-NAMITE-B
(TiB2)
EDP No.
1/4 3/8 2-1/2 1 3/8 .010 91257 91242 91250 91235
5/16 7/16 2-1/2 1-1/8 3/8 .012 91258 91243 91251 91236
3/8 9/16 2-1/2 1-1/8 3/8 .015 91259 91244 91252 91237
1/2 3/4 3 1-1/2 1/2 .020 91260 91245 91253 91238
5/8 7/8 3-1/2 1-3/4 5/8 .025 91261 91246 91254 91239
3/4 1 4 2 3/4 .030 91262 91247 91255 91240
1 1-1/4 4 2-1/8 1 .040 91263 91248 91256 91241
2
D
1
D
45°
L
1
L
2
L
3
R
*Contact your KSPT Sales Representative for more information on Reach options.
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 3/8 +0.00000 / –0.00035 h6
1/2 - 5/8 +0.00000 / –0.00043 h6
3/4 - 1 +0.00000 / –0.00051 h6
CORNER RADIUS TOLERANCE (inch)
R = +0.0000 / –0.0020
Corner
Straight
Weldon Flat
HAIMER
Safe-Lock
Stub
Right Spiral
External
Coolant
POS
Positive Rake
2
Flutes
SERIES 45
40 www.kyocera-sgstool.com

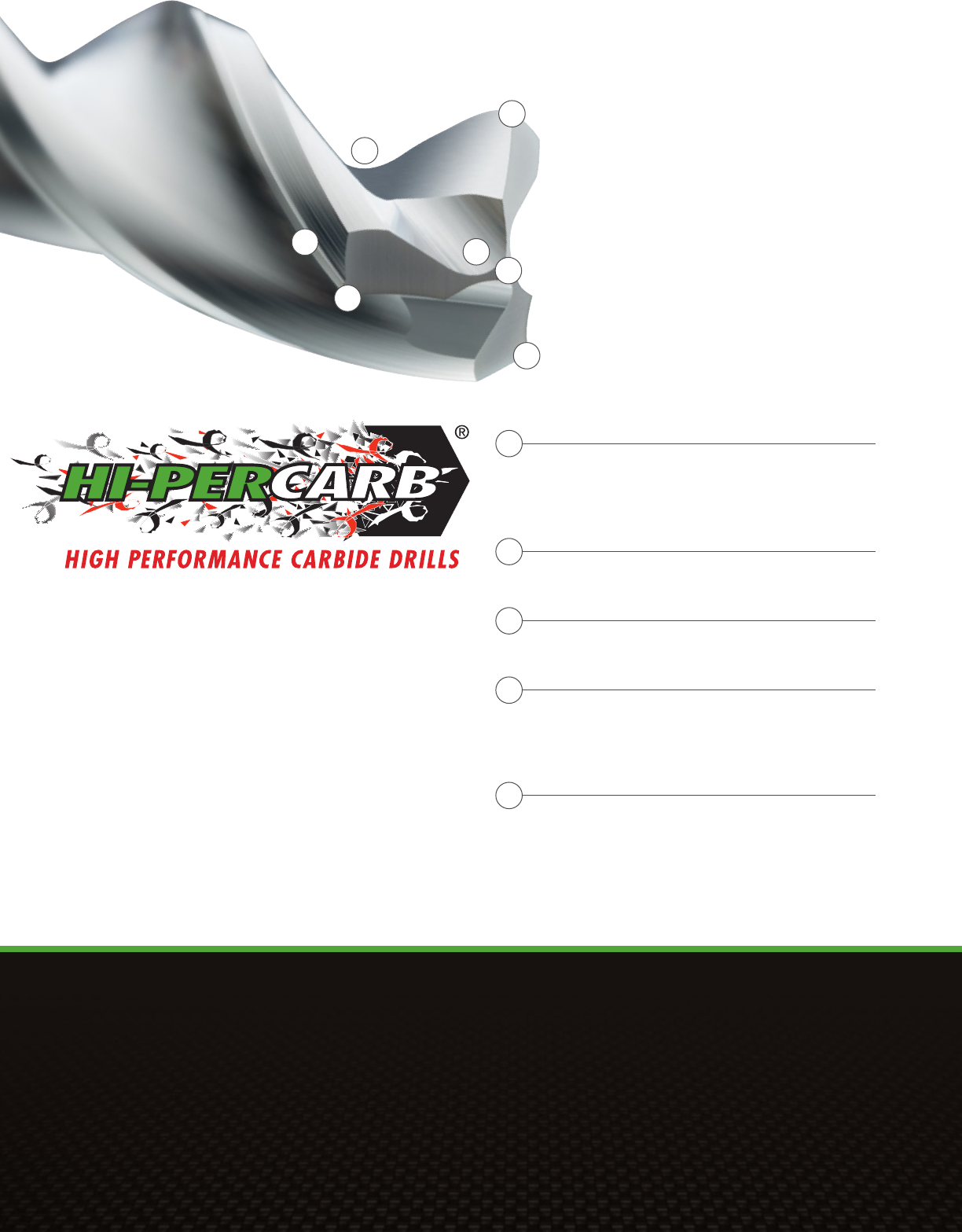

PERFORMANCE. PRECISION. PASSION.
HI-PERCARB SERIES 131N ALUMINUM DRILLS
The key features designed into the Hi-PerCarb Series
131N Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 131N Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.
TRI-MARGIN DESIGN
• improved hole stability over two-flute designs
• superior surface finish, roundness and hole
cylindricity
• unsurpassed hole size control
A
A
A
A
B
B
SELF-STABILIZING POINT
• pyramid design stabilizes the drill
on contact with the workpiece
C
C
OPEN FLUTE STRUCTURE
• efficiently transports chips while
maintaining strength at high feed rates
D
D
SCULPTED GASH
• allows chips to easily flow away from
the drill center
• reduced cutting forces over competitive
three-flute designs
E
E
MINIMAL MARGIN DESIGN
• reduces frictional heat generated by
excessive margin contact with the workpiece
• parallel design maintains contact width
as margin wears for performance consistency
0
0.002
0.004
0.006
0.008
0.01
0.012
0.014
Uncoated Ti-Namite B
0
100
200
300
400
500
600
700
800
Uncoated Ti-Namite B
689
311
USAGE (inches)
WEAR (inches)
0.0015
.0124
0
50
100
150
200
250
300
350
400
SERIES 131N Competitor 1 Competitor 2 Competitor 3
361.2 348 360.2
293.7
FORCE (lbs)
0
10
20
30
40
50
60
70
80
SERIES 131N
29
Competitor 1
56
Competitor 2
43
Competitor 3
66
Competitor 4
75
FINISH (Ra)
FORCE
COMPARISON
SURFACE
FINISH
COMPARISON
USAGE & WEAR
COMPARISONS
Series 131N drills with
15-20 percent less
force than the top
competitors
Series 131N results in
improvement of hole
finishes 30-60 percent
over leading competitors
Ti-NAMITE B coating
significantly improves
wear resistance, which is
particularly beneficial
when drilling high silicon
aluminum alloys
SERIES 131N PERFORMANCE.
41
www.kyocera-sgstool.com
PERFORMANCE. PRECISION. PASSION.
HI-PERCARB SERIES 131N ALUMINUM DRILLS
The key features designed into the Hi-PerCarb Series
131N Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 131N Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.
TRI-MARGIN DESIGN
• improved hole stability over two-flute designs
• superior surface finish, roundness and hole
cylindricity
• unsurpassed hole size control
A
A
A
A
B
B
SELF-STABILIZING POINT
• pyramid design stabilizes the drill
on contact with the workpiece
C
C
OPEN FLUTE STRUCTURE
• efficiently transports chips while
maintaining strength at high feed rates
D
D
SCULPTED GASH
• allows chips to easily flow away from
the drill center
• reduced cutting forces over competitive
three-flute designs
E
E
MINIMAL MARGIN DESIGN
• reduces frictional heat generated by
excessive margin contact with the workpiece
• parallel design maintains contact width
as margin wears for performance consistency
0
0.002
0.004
0.006
0.008
0.01
0.012
0.014
Uncoated Ti-Namite B
0
100
200
300
400
500
600
700
800
Uncoated Ti-Namite B
689
311
USAGE (inches)
WEAR (inches)
0.0015
.0124
0
50
100
150
200
250
300
350
400
SERIES 131N Competitor 1 Competitor 2 Competitor 3
361.2 348 360.2
293.7
FORCE (lbs)
0
10
20
30
40
50
60
70
80
SERIES 131N
29
Competitor 1
56
Competitor 2
43
Competitor 3
66
Competitor 4
75
FINISH (Ra)
FORCE
COMPARISON
SURFACE
FINISH
COMPARISON
USAGE & WEAR
COMPARISONS
Series 131N drills with
15-20 percent less
force than the top
competitors
Series 131N results in
improvement of hole
finishes 30-60 percent
over leading competitors
Ti-NAMITE B coating
significantly improves
wear resistance, which is
particularly beneficial
when drilling high silicon
aluminum alloys
SERIES 131N PERFORMANCE.
42 www.kyocera-sgstool.com
PRECISION.
PASSION.

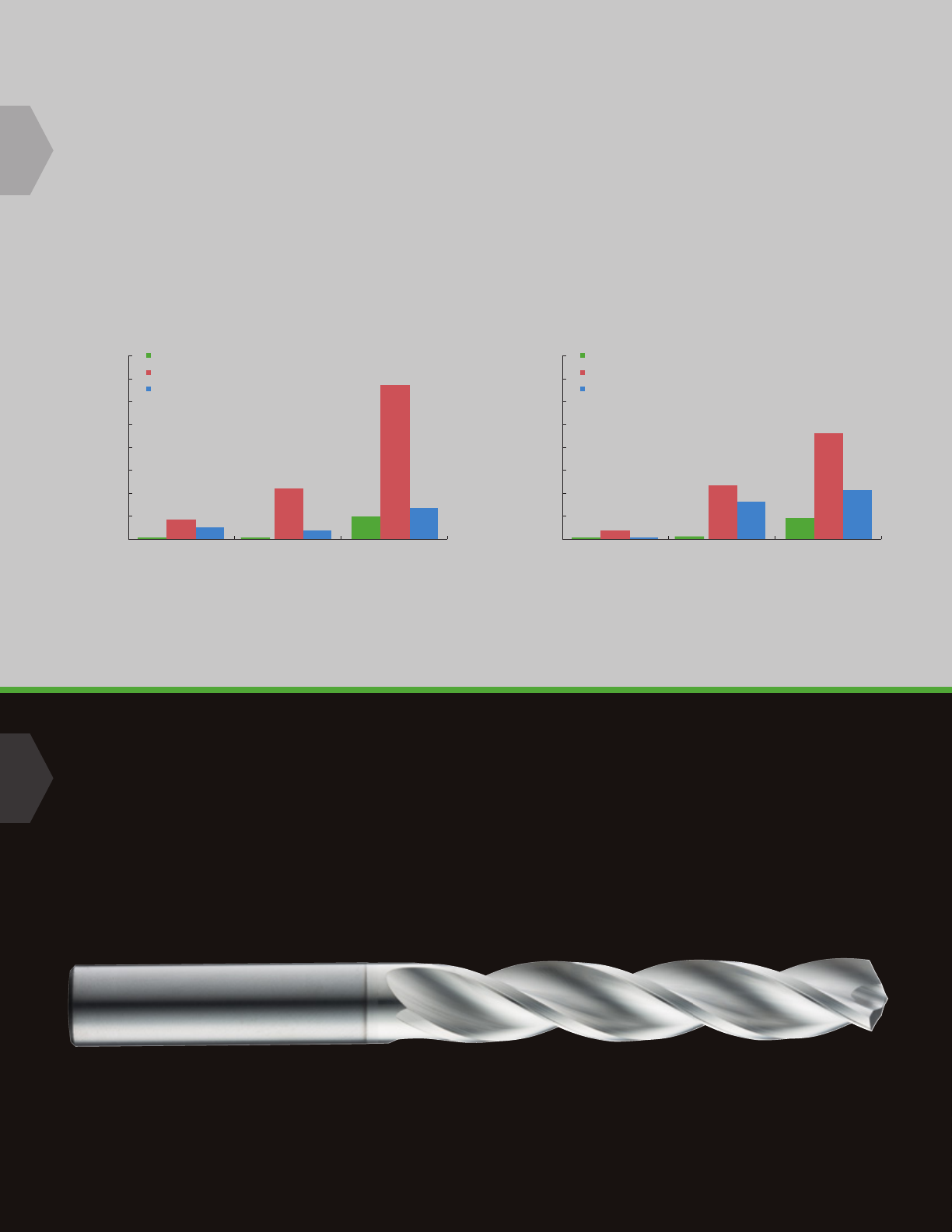

Independent Lab Results Indicate the Hi-PerCarb Series 131N Drill outperforms the competition in measured hole
quality at a variety of speed and feed rates.
www.kyocera-sgstool.com
This ceramic based coating ensures a smooth surface and a low affinity to cold welding or edge build-up, which makes
it optimal for aluminum and copper applications. It has high toughness and high hardness.
Microhardness: 4000 HV
Oxidation Temperature: 850°C / 1562°F
Coefficient of Friction: 0.45
Thickness: 1-2 Microns (based on tool diameter)
6786 RPM
100 INCHES PER MINUTE
9530 RPM
200 INCHES PER MINUTE
SERIES 131N 3 Flute Drill vs. Competition 2 Flute Drill in 2024 Aluminum
4847 RPM
65 INCHES PER MINUTE
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
43
www.kyocera-sgstool.com
PRECISION.
PASSION.
Independent Lab Results Indicate the Hi-PerCarb Series 131N Drill outperforms the competition in measured hole
quality at a variety of speed and feed rates.
www.kyocera-sgstool.com
This ceramic based coating ensures a smooth surface and a low affinity to cold welding or edge build-up, which makes
it optimal for aluminum and copper applications. It has high toughness and high hardness.
Microhardness: 4000 HV
Oxidation Temperature: 850°C / 1562°F
Coefficient of Friction: 0.45
Thickness: 1-2 Microns (based on tool diameter)
6786 RPM
100 INCHES PER MINUTE
9530 RPM
200 INCHES PER MINUTE
SERIES 131N 3 Flute Drill vs. Competition 2 Flute Drill in 2024 Aluminum
4847 RPM
65 INCHES PER MINUTE
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
44 www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
3,0 mm 0.1181 6,0 66,0 28,0 23,0 36,0 64800
3,1 mm 0.1220 6,0 66,0 28,0 23,0 36,0 64801
1/8 0.1250 3.18 6,0 66,0 28,0 23,0 36,0 54800
3,2 mm 0.1260 M3,5 X 0,35 6,0 66,0 28,0 23,0 36,0 64802
3,3 mm 0.1299 M4 X 0,7 6,0 66,0 28,0 23,0 36,0 64803
3,4 mm 0.1339 6,0 66,0 28,0 23,0 36,0 64804
#29 0.1360 3.45 8-32,8-36 6,0 66,0 28,0 23,0 36,0 54801
3,5 mm 0.1378 M4 X 0,5 6,0 66,0 28,0 23,0 36,0 64805
9/64 0.1406 3.57 6,0 66,0 28,0 23,0 36,0 54802
3,6 mm 0.1417 M4 X 0,35 6,0 66,0 28,0 23,0 36,0 64806
3,7 mm 0.1457 M4,5 X 0,75 6,0 66,0 28,0 23,0 36,0 64807
3,8 mm 0.1496 10-24 6,0 74,0 36,0 29,0 36,0 64808
3,9 mm 0.1535 6,0 74,0 36,0 29,0 36,0 64809
5/32 0.1562 3.97 6,0 74,0 36,0 29,0 36,0 54803
4,0 mm 0.1575 M4,5 X 0,5 6,0 74,0 36,0 29,0 36,0 64810
#21 0.1590 4.04 10-32 6,0 74,0 36,0 29,0 36,0 54804
4,1 mm 0.1614 6,0 74,0 36,0 29,0 36,0 64811
4,2 mm 0.1654 M5 / M5 x 0,75 6,0 74,0 36,0 29,0 36,0 64812
4,3 mm 0.1693 6,0 74,0 36,0 29,0 36,0 64813
11/64 0.1719 4.37 6,0 74,0 36,0 29,0 36,0 54805
4,4 mm 0.1732 12-24 6,0 74,0 36,0 29,0 36,0 64814
4,5 mm 0.1772 M5 X 0,5 6,0 74,0 36,0 29,0 36,0 64815
4,6 mm 0.1811 12-28 6,0 74,0 36,0 29,0 36,0 64816
4,7 mm 0.1850 12-32 6,0 74,0 36,0 29,0 36,0 64817
3/16 0.1875 4.76 6,0 82,0 44,0 35,0 36,0 54806
4,8 mm 0.1890 7/32-32 6,0 82,0 44,0 35,0 36,0 64818
4,9 mm 0.1929 6,0 82,0 44,0 35,0 36,0 64819
5,0 mm 0.1969 M6 X 1 6,0 82,0 44,0 35,0 36,0 64820
5,1 mm 0.2008 1/4-20 6,0 82,0 44,0 35,0 36,0 64821
13/64 0.2031 5.16 6,0 82,0 44,0 35,0 36,0 54807
5,2 mm 0.2047 M6 X 0,75 6,0 82,0 44,0 35,0 36,0 64822
5,3 mm 0.2087 6,0 82,0 44,0 35,0 36,0 64823
5,4 mm 0.2126 6,0 82,0 44,0 35,0 36,0 64824
5,5 mm 0.2165 M6 X 0,5 6,0 82,0 44,0 35,0 36,0 64825
7/32 0.2188 5.56 1/4-32 6,0 82,0 44,0 35,0 36,0 54808
5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 64826
5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 64827
5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 64828
5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 64829
15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 54809
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
Series 131N 5XD
|
Fractional & Metric

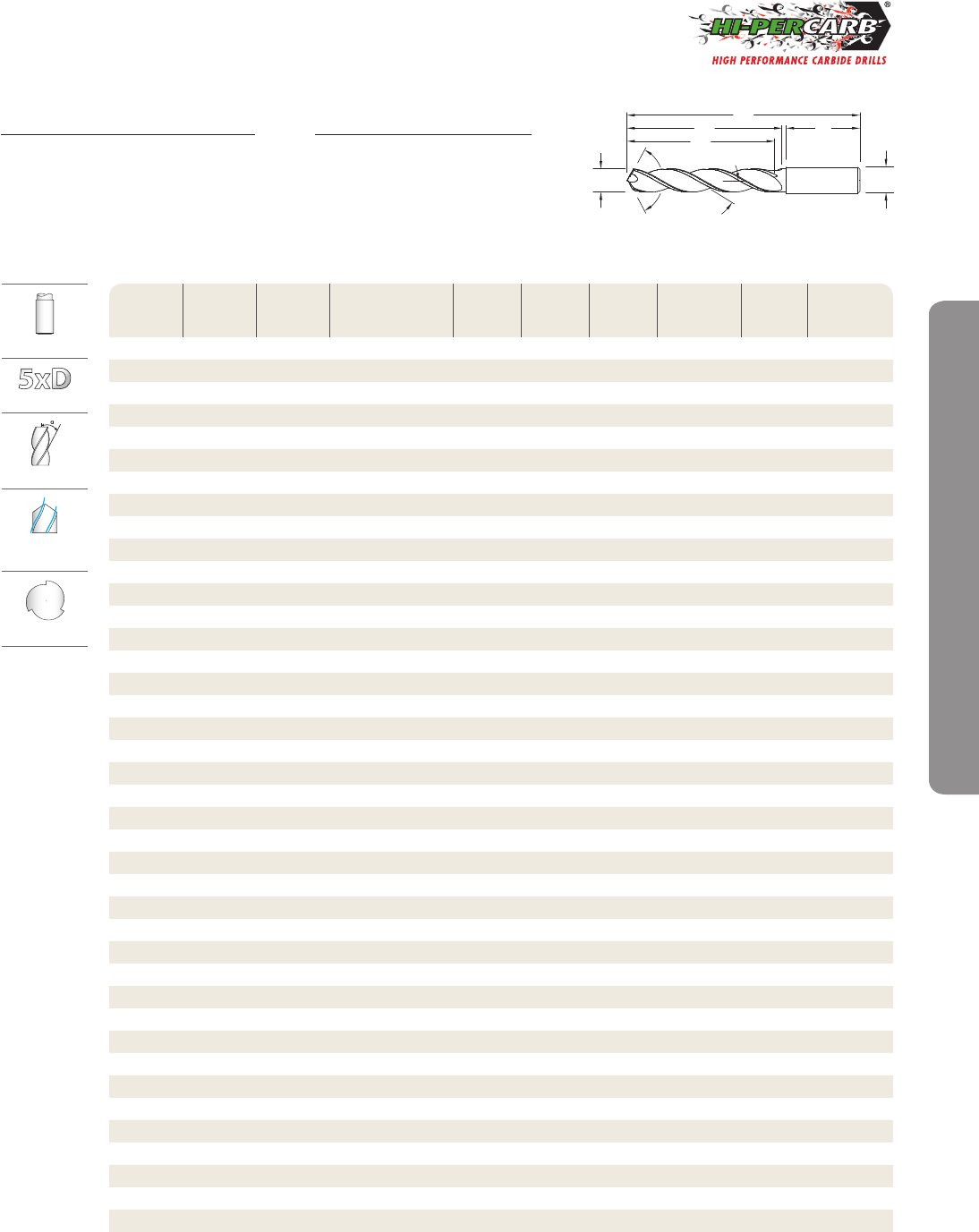

45
www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 64830
6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 64831
6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 64832
6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 64833
1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 54810
6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 64834
6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 64835
F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 54811
6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 64836
6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 64837
17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 54812
6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 64838
6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 64839
7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 64840
7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 64841
9/32 0.2812 7. 1 4 5/16-32 8,0 91,0 53,0 43,0 36,0 54813
7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 64842
7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 64843
7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 64844
7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 64845
19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 54814
7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 64846
7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 64847
7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 64848
7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 64849
5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 54815
8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 64850
8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 64851
8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 64852
8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 64853
21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 54816
8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 64854
Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 54817
8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 64855
8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 64856
8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 64857
11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 54818
8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 64858
8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 64859
9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 64860
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
Series 131N 5XD
|
Fractional & Metric

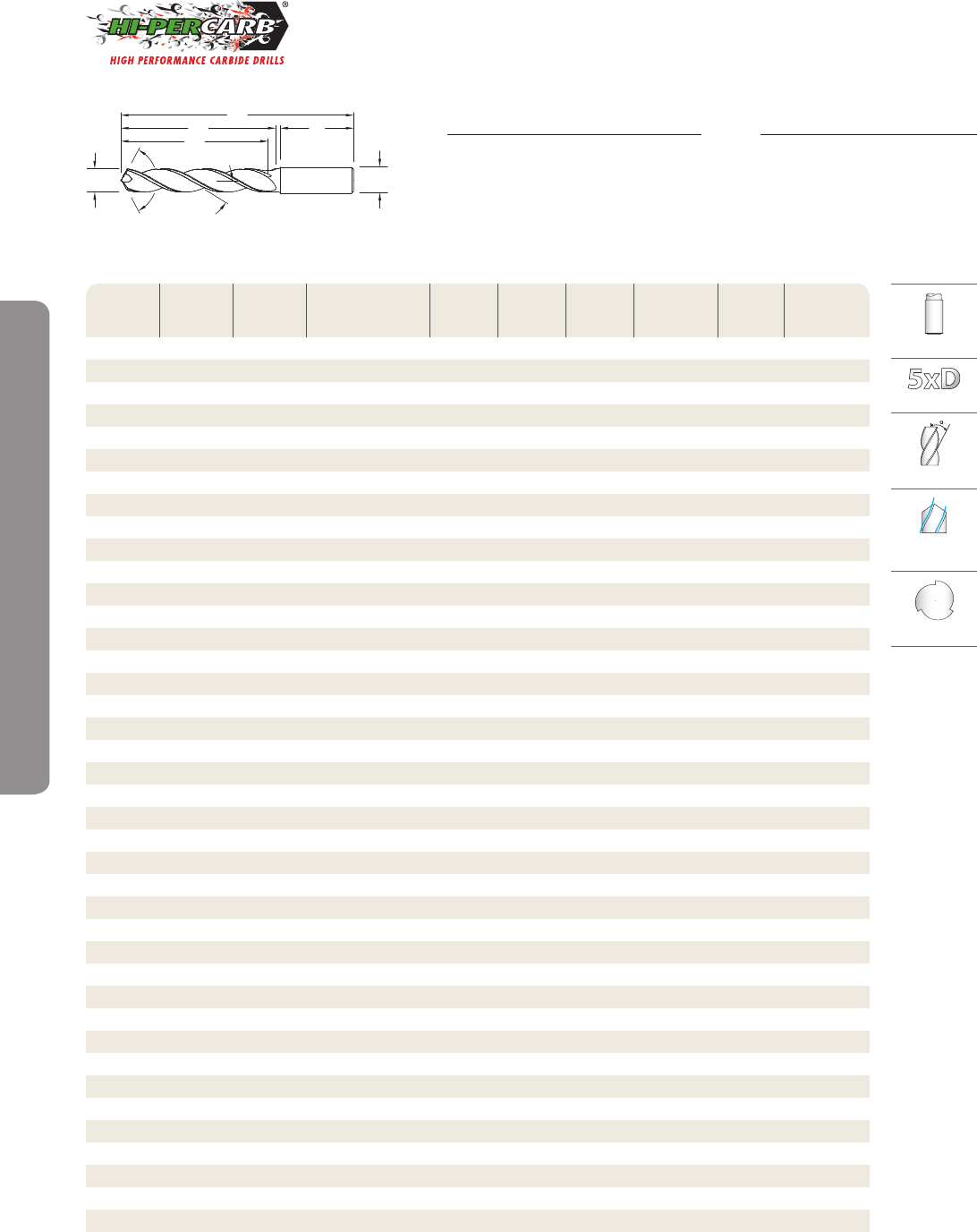

46 www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 64861
23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 54819
9,2 mm 0.3622 M10 X 0,75 10,0 103,0 61,0 49,0 40,0 64862
9,3 mm 0.3661 10,0 103,0 61,0 49,0 40,0 64863
U 0.3680 9.35 7/16-14 10,0 103,0 61,0 49,0 40,0 54820
9,4 mm 0.3701 10,0 103,0 61,0 49,0 40,0 64864
9,5 mm 0.3740 M11 / M10 X 0,5 10,0 103,0 61,0 49,0 40,0 64865
3/8 0.3750 9.53 10,0 103,0 61,0 49,0 40,0 54821
9,6 mm 0.3780 10,0 103,0 61,0 49,0 40,0 64866
9,7 mm 0.3819 10,0 103,0 61,0 49,0 40,0 64867
9,8 mm 0.3858 10,0 103,0 61,0 49,0 40,0 64868
9,9 mm 0.3898 10,0 103,0 61,0 49,0 40,0 64869
25/64 0.3906 9.92 7/16-20 10,0 103,0 61,0 49,0 40,0 54822
10,0 mm 0.3937 10,0 103,0 61,0 49,0 40,0 64870
10,1 mm 0.3976 12,0 118,0 71,0 56,0 45,0 64871
10,2 mm 0.4016 M12 X 1,75 12,0 118,0 71,0 56,0 45,0 64872
10,3 mm 0.4055 12,0 118,0 71,0 56,0 45,0 64873
13/32 0.4062 10.32 12,0 118,0 71,0 56,0 45,0 54823
10,4 mm 0.4094 12,0 118,0 71,0 56,0 45,0 64874
10,5 mm 0.4134 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 64875
10,6 mm 0.4173 12,0 118,0 71,0 56,0 45,0 64876
10,7 mm 0.4213 12,0 118,0 71,0 56,0 45,0 64877
27/64 0.4219 10.72 1/2-13 12,0 118,0 71,0 56,0 45,0 54824
10,8 mm 0.4252 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 64878
10,9 mm 0.4291 12,0 118,0 71,0 56,0 45,0 64879
11,0 mm 0.4331 M12 X 1 12,0 118,0 71,0 56,0 45,0 64880
11,1 mm 0.4370 12,0 118,0 71,0 56,0 45,0 64881
7/16 0.4375 11.11 1/4-18NPT 12,0 118,0 71,0 56,0 45,0 54825
11,2 mm 0.4409 12,0 118,0 71,0 56,0 45,0 64882
11,3 mm 0.4449 12,0 118,0 71,0 56,0 45,0 64883
11,4 mm 0.4488 12,0 118,0 71,0 56,0 45,0 64884
11,5 mm 0.4528 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64885
11,6 mm 0.4567 12,0 118,0 71,0 56,0 45,0 64886
11,7 mm 0.4606 12,0 118,0 71,0 56,0 45,0 64887
11,8 mm 0.4646 12,0 118,0 71,0 56,0 45,0 64888
11,9 mm 0.4685 12,0 118,0 71,0 56,0 45,0 64889
15/32 0.4688 11.91 1/2-28 12,0 118,0 71,0 56,0 45,0 54826
12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 64890
31/64 0.4844 12.30 9/16-12 14,0 124,0 77,0 60,0 45,0 54827
12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 64891
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
Series 131N 5XD
|
Fractional & Metric

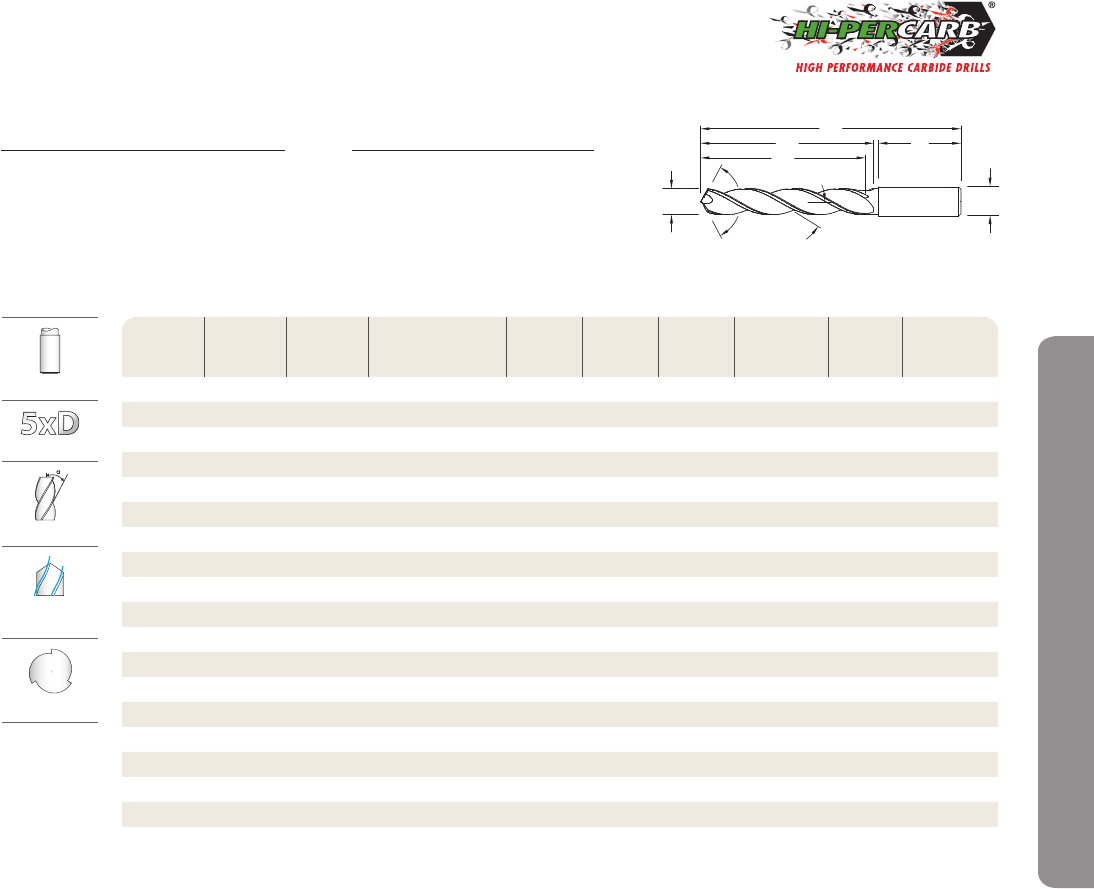

47
www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
1/2 0.5000 12.70 14,0 124,0 77,0 60,0 45,0 54828
12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 64892
13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 64893
33/64 0.5156 13.10 9/16-18 14,0 124,0 77,0 60,0 45,0 54829
13,5 mm 0.5315 5/8-11 14,0 124,0 77,0 60,0 45,0 64894
13,8 mm 0.5433 14,0 124,0 77,0 60,0 45,0 64895
14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 64896
9/16 0.5625 14.29 16,0 133,0 83,0 63,0 48,0 54830
14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 64897
37/64 0.5781 14.68 5/8-18 16,0 133,0 83,0 63,0 48,0 54831
14,8 mm 0.5827 16,0 133,0 83,0 63,0 48,0 64898
15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 64899
15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 64900
15,8 mm 0.6220 16,0 133,0 83,0 63,0 48,0 64901
5/8 0.6250 15.88 11/16-16 16,0 133,0 83,0 63,0 48,0 54832
16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 64902
21/32 0.6562 16.67 3/4-10 18,0 143,0 93,0 71,0 48,0 54833
11/16 0.6875 17.46 3/4-16 18,0 143,0 93,0 71,0 48,0 54834
3/4 0.7500 19.05 13/16-16 20,0 153,0 101,0 77,0 50,0 54835
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
Series 131N 5XD
|
Fractional & Metric
48 www.kyocera-sgstool.com
Fractional
|
Speed & Feed Recommendations
Series
44, 45, 43CR, 43CB,
43LC, 43, 43L, 43LCB,
43B, 43LB, 43EB, 43EC,
47, 47B, 47L, 47LB
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D11/8 1/4 3/8 1/2 3/4 1
N
ALUMINUM ALLOYS
2024, 5052, 5086,
6061, 6073, 7075
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
1600 RPM 48896 24448 16299 12224 8149 6112
(1280-1920)
Fz 0.0009 0.0025 0.0045 0.0060 0.0070 0.0085
Feed
2 flutes (IPM) 88 122 147 147 114 104
Feed
3 flutes (IPM) 132 183 220 220 171 156
Profile
≤ 0.5 ≤ 1.5
2000 RPM 61120 30560 20373 15280 10187 7640
(1600-2400)
Fz 0.0009 0.0025 0.0045 0.0060 0.0070 0.0085
Feed
2 flutes (IPM) 110 153 183 183 143 130
Feed
3 flutes (IPM) 165 229 275 275 214 195
HSM
≤ 0.05 ≤ 2
3300 RPM 100848 50424 33616 25212 16808 12606
(2640-3960)
Fz 0.0021 0.0055 0.0105 0.0140 0.0165 0.0195
Feed
2 flutes (IPM) 424 555 706 706 555 492
Feed
3 flutes (IPM) 635 832 1059 1059 832 737
N
ALUMINUM DIE
CAST ALLOYS
(HIGH SILICON)
A-390, A-392, B-390
≤ 125 Bhn
or
≤ 77 HRb
Slot
1 ≤ 1
600 RPM 18336 9168 6112 4584 3056 2292
(480-720)
Fz 0.0009 0.0025 0.0045 0.0060 0.0070 0.0085
Feed
2 flutes (IPM) 33 46 55 55 43 39
Feed
3 flutes (IPM) 50 69 83 83 64 58
Profile
≤ 0.5 ≤ 1.5
750 RPM 22920 11460 7640 5730 3820 2865
(600-900)
Fz 0.0009 0.0025 0.0045 0.0060 0.0070 0.0085
Feed
2 flutes (IPM) 41 57 69 69 53 49
Feed
3 flutes (IPM) 62 86 103 103 80 73
HSM
≤ 0.05 ≤ 2
1240 RPM 37894 18947 12631 9474 6316 4737
(992-1488)
Fz 0.0021 0.0055 0.0105 0.0140 0.0165 0.0195
Feed
2 flutes (IPM) 159 208 265 265 208 185
Feed
3 flutes (IPM) 239 313 398 398 313 277
N
COPPER ALLOYS
Aluminum Bronze,
Brass, Naval Brass,
Red Brass
≤ 140 Bhn
or
≤ 3 HRc
Slot
1 ≤ 1
865 RPM 26434 13217 8811 6609 4406 3304
(692-1038)
Fz 0.0008 0.0020 0.0040 0.0050 0.0060 0.0070
Feed
2 flutes (IPM) 42 53 70 66 53 46
Feed
3 flutes (IPM) 63 79 106 99 79 69
Profile
≤ 0.5 ≤ 1.5
1080 RPM 33005 16502 11002 8251 5501 4126
(864-1296)
Fz 0.0008 0.0020 0.0040 0.0050 0.0060 0.0070
Feed
2 flutes (IPM) 53 66 88 83 66 58
Feed
3 flutes (IPM) 79 99 132 124 99 87
HSM
≤ 0.05 ≤ 2
1780 RPM 54397 27198 18132 13599 9066 6800
(1424-2136)
Fz 0.0017 0.0045 0.0085 0.0115 0.0140 0.0160
Feed
2 flutes (IPM) 185 245 308 313 254 218
Feed
3 flutes (IPM) 277 367 462 469 381 326
continued on next page
49
www.kyocera-sgstool.com
Fractional
|
Speed & Feed Recommendations
www.sgstoolwizard.com
Series
44, 45, 43CR, 43CB,
43LC, 43, 43L, 43LCB,
43B, 43LB, 43EB, 43EC,
47, 47B, 47L, 47LB
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D11/8 1/4 3/8 1/2 3/4 1
N
COPPER ALLOYS
Beryllium Copper,
C110, Maganese
Bronze, Tin Bronze
≤ 200 Bhn
or
≤ 23 HRc
Slot
1 ≤ 1
345 RPM 10543 5272 3514 2636 1757 1318
(276-414)
Fz 0.0008 0.0020 0.0040 0.0050 0.0060 0.0070
Feed
2 flutes (IPM) 17 21 28 26 21 18
Feed
3 flutes (IPM) 25 32 42 40 32 28
Profile
≤ 0.5 ≤ 1.5
430 RPM 13141 6570 4380 3285 2190 1643
(344-516)
Fz 0.0008 0.0020 0.0040 0.0050 0.0060 0.0070
Feed
2 flutes (IPM) 21 26 35 33 26 23
Feed
3 flutes (IPM) 32 39 53 49 39 34
HSM
≤ 0.05 ≤ 2
710 RPM 21698 10849 7233 5424 3616 2712
(568-852)
Fz 0.0017 0.0045 0.0085 0.0115 0.0140 0.0160
Feed
2 flutes (IPM) 74 98 123 125 101 87
Feed
3 flutes (IPM) 111 146 184 187 152 130
N
PLASTICS
ABS, Polycarbonate,
PVC, Polypropylene
Slot
1 ≤ 1
1600 RPM 48896 24448 16299 12224 8149 6112
(1280-1920)
Fz 0.0015 0.0040 0.0075 0.0100 0.0120 0.0140
Feed
2 flutes (IPM) 147 196 244 244 196 171
Feed
3 flutes (IPM) 220 293 367 367 293 257
Profile
≤ 0.5 ≤ 1.5
2000 RPM 61120 30560 20373 15280 10187 7640
(1600-2400)
Fz 0.0015 0.0040 0.0075 0.0100 0.0120 0.0140
Feed
2 flutes (IPM) 183 244 306 306 244 214
Feed
3 flutes (IPM) 275 367 458 458 367 321
HSM
≤ 0.05 ≤ 2
3300 RPM 100848 50424 33616 25212 16808 12606
(2640-3960)
Fz 0.0034 0.0090 0.0170 0.0230 0.0275 0.0320
Feed
2 flutes (IPM) 686 908 1143 1160 924 807
Feed
3 flutes (IPM) 1029 1361 1714 1740 1387 1210
Note:
• Bhn (Brinell), HRc (Rockwell C), HRb (Rockwell B)
• rpm = sfm x 3.82 / D1
• ipm = Fz x number of flutes x rpm
• reduce speed and feed for materials harder than listed
• reduce cut depth and feed by 50% for long flute or long reach tools
• reduce feed and Ae when finish milling (.02 x D1 maximum)
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
50 www.kyocera-sgstool.com
Metric
|
Speed & Feed Recommendations
Series
44M, 43MCR, 43MLC,
43MCB, 43M, 43MB,
47M, 43ML, 47ML,
47MB, 47MLB
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D13 6 10 12 20 25
N
ALLOYS
2024, 5052, 5086,
6061, 6073, 7075
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
490 RPM 52022 26011 15607 13005 7803 6243
(392-588)
Fz 0.022 0.060 0.120 0.144 0.187 0.213
Feed
2 flutes (mm/min)
2247 3121 3746 3745 2913 2653
Feed
3 flutes (mm/min)
3371 4682 5618 5618 4370 3980
Profile
≤ 0.5 ≤ 1.5
610 RPM 64762 32381 19429 16190 9714 7771
(488-732)
Fz 0.022 0.060 0.120 0.144 0.187 0.213
Feed
2 flutes (mm/min)
2797 3885 4663 4662 3627 3303
Feed
3 flutes (mm/min)
4196 5828 6994 6994 5440 4955
HSM
≤ 0.05 ≤ 2
1005 RPM 106698 53349 32009 26674 16005 12804
(804-1206)
Fz 0.050 0.132 0.280 0.336 0.440 0.488
Feed
2 flutes (mm/min)
10754 14083 17925 17924 14084 12484
Feed
3 flutes (mm/min)
16131 21124 26888 26885 21126 18726
N
ALUMINUM DIE
CAST ALLOYS
(HIGH SILICON)
A-390, A-392, B-390
≤ 125 Bhn
or
≤ 77 HRb
Slot
1 ≤ 1
185 RPM 19641 9820 5892 4910 2946 2357
(148-222)
Fz 0.022 0.060 0.120 0.144 0.187 0.213
Feed
2 flutes (mm/min)
848 1178 1414 1414 1100 1002
Feed
3 flutes (mm/min)
1273 1768 2121 2121 1650 1503
Profile
≤ 0.5 ≤ 1.5
230 RPM 24418 12209 7326 6105 3663 2930
(184-276)
Fz 0.022 0.060 0.120 0.144 0.187 0.213
Feed
2 flutes (mm/min)
1055 1465 1758 1758 1367 1245
Feed
3 flutes (mm/min)
1582 2197 2637 2637 2051 1868
HSM
≤ 0.05 ≤ 2
380 RPM 40343 20172 12103 10086 6052 4841
(304-456)
Fz 0.050 0.132 0.280 0.336 0.440 0.488
Feed
2 flutes (mm/min)
4066 5325 6778 6777 5325 4720
Feed
3 flutes (mm/min)
6099 7987 10166 10166 7988 7081
N
COPPER ALLOYS
Aluminum Bronze,
Brass, Naval Brass,
Red Brass
≤ 140 Bhn
or
≤ 3 HRc
Slot
1 ≤ 1
265 RPM 28134 14067 8440 7034 4220 3376
(212-318)
Fz 0.019 0.048 0.107 0.120 0.160 0.175
Feed
2 flutes (mm/min)
1080 1350 1801 1688 1350 1182
Feed
3 flutes (mm/min)
1620 2025 2701 2532 2026 1773
Profile
≤ 0.5 ≤ 1.5
330 RPM 35035 17518 10511 8759 5255 4204
(264-396)
Fz 0.019 0.048 0.107 0.120 0.160 0.175
Feed
2 flutes (mm/min)
1345 1682 2242 2102 1682 1472
Feed
3 flutes (mm/min)
2018 2522 3363 3153 2523 2207
HSM
≤ 0.05 ≤ 2
545 RPM 57861 28930 17358 14465 8679 6943
(436-654)
Fz 0.041 0.108 0.227 0.276 0.373 0.400
Feed
2 flutes (mm/min)
4721 6248 7869 7984 6480 5555
Feed
3 flutes (m/min)
7082 9373 11804 11976 9721 8332
continued on next page
51
www.kyocera-sgstool.com
Metric
|
Speed & Feed Recommendations
www.sgstoolwizard.com
Series
44M, 43MCR, 43MLC,
43MCB, 43M, 43MB,
47M, 43ML, 47ML,
47MB, 47MLB
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D13 6 10 12 20 25
N
COPPER ALLOYS
Beryllium Copper,
C110, Maganese
Bronze, Tin Bronze
≤ 200 Bhn
or
≤ 23 HRc
Slot
1 ≤ 1
105 RPM 11148 5574 3344 2787 1672 1338
(84-126)
Fz 0.019 0.048 0.107 0.120 0.160 0.175
Feed
2 flutes (mm/min)
428 535 713 669 535 468
Feed
3 flutes (mm/min)
642 803 1070 1003 803 702
Profile
≤ 0.5 ≤ 1.5
130 RPM 13802 6901 4141 3450 2070 1656
(104-156)
Fz 0.019 0.048 0.107 0.120 0.160 0.175
Feed
2 flutes (mm/min)
530 662 883 828 662 580
Feed
3 flutes (mm/min)
795 994 1325 1242 994 870
HSM
≤ 0.05 ≤ 2
215 RPM 22826 11413 6848 5706 3424 2739
(172-258)
Fz 0.041 0.108 0.227 0.276 0.373 0.400
Feed
2 flutes (mm/min)
1862 2465 3104 3150 2556 2191
Feed
3 flutes (mm/min)
2794 3697 4656 4725 3835 3287
N
PLASTICS
ABS, Polycarbonate,
PVC, Polypropylene
Slot
1 ≤ 1
490 RPM 52022 26011 15607 13005 7803 6243
(392-588)
Fz 0.036 0.096 0.200 0.240 0.320 0.350
Feed
2 flutes (mm/min)
3745 4994 6243 6242 4994 4370
Feed
3 flutes (mm/min)
5618 7490 9364 9363 7491 6555
Profile
≤ 0.5 ≤ 1.5
610 RPM 64762 32381 19429 16190 9714 7771
(488-732)
Fz 0.036 0.096 0.200 0.240 0.320 0.350
Feed
2 flutes (mm/min)
4662 6217 7771 7771 6217 5440
Feed
3 flutes (mm/min)
6994 9325 11657 11656 9326 8160
HSM
≤ 0.05 ≤ 2
1005 RPM 106698 53349 32009 26674 16005 12804
(804-1206)
Fz 0.082 0.216 0.453 0.552 0.733 0.800
Feed
2 flutes (mm/min)
17412 23045 29022 29446 23473 20487
Feed
3 flutes (mm/min)
26117 34567 43532 44169 35210 30730
Note:
• Bhn (Brinell), HRc (Rockwell C), HRb (Rockwell B)
• rpm = (1000 x m/min) / (3.14 x D1)
• mm / min = Fz x number of flutes x rpm
• reduce speed and feed for materials harder than listed
• reduce cut depth and feed by 50% for long flute or long reach tools
• reduce feed and Ae when finish milling (.02 x D1 maximum)
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
52 www.kyocera-sgstool.com
Fractional & Metric
|
Speed & Feed Recommendations
www.sgstoolwizard.com
www.sgstoolwizard.com
Series
43MAPR
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D112 16 20 25
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061,
6063, 7075
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
1500 RPM 39788 29841 23873 19098
(1200-1800)
Fz 0.080 0.110 0.150 0.180
Feed (mm/min) 9549 9848 10743 10313
Profile
≤ 0.5 ≤ 1.5
2000 RPM 53050 39788 31830 25464
(1600-2400) Fz 0.080 0.110 0.150 0.180
Feed (mm/min) 12732 13130 14324 13751
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
1200 RPM 31830 23873 19098 15278
(960-1440) Fz 0.060 0.083 0.110 0.140
Feed (mm/min) 11459 5944 6302 6417
Profile
≤ 0.5 ≤ 1.5
1500 RPM 39788 29841 23873 19098
(1200-1800) Fz 0.060 0.083 0.110 0.140
Feed (mm/min) 7162 7430 7878 8021
Note:
• Bhn (Brinell) HRc (Rockwell C)
• surface speed is dependent on machine spindle and fixturing
• balancing is recommended at ultra high surface speeds
• *tool life may be reduced when machining Lithium Alloys
• rpm = (Vc x 1000) / (D1 x 3.14)
• mm/min = Fz x 3 x rpm
• maximum recommended depths shown
• reduce speed and feed for materials harder than listed
• ramp angle = 15˚ (feed rate = 50%)
• plunge depth = 1 x D1 (feed rate = 30%)
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
Series
43APR
Fractional Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D13/4 1
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061,
6063, 7075
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
4920 RPM 25059 18794
(3936-5904)
Fz 0.0060 0.0070
Feed (in/min) 451 395
Profile
≤ 0.5 ≤ 1.5
6560 RPM 33412 25059
(5248-7872) Fz 0.0060 0.0070
Feed (in/min) 601 526
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090
≤ 150 Bhn
or
≤ 7 HRc
Slot
1 ≤ 1
3940 RPM 20068 15051
(3152-4728) Fz 0.0045 0.0053
Feed (in/min) 271 239
Profile
≤ 0.5 ≤ 1.5
4920 RPM 25059 18794
(3936-5904) Fz 0.0045 0.0053
Feed (in/min) 338 299
Note:
• Bhn (Brinell) HRc (Rockwell C)
• surface speed is dependent on machine spindle and fixturing
• balancing is recommended at ultra high surface speeds
• *tool life may be reduced when machining Lithium Alloys
• rpm = Vc x 3.82 / D1
• ipm = Fz x 3 x rpm
• maximum recommended depths shown
• reduce speed and feed for materials harder than listed
• ramp angle = 15˚ (feed rate = 50%)
• plunge depth = 1 x D1 (feed rate = 30%)
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
53
www.kyocera-sgstool.com
Fractional & Metric
|
Speed & Feed Recommendations
www.sgstoolwizard.com
www.sgstoolwizard.com
Series
43MAPF
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D16 8 10 12 16 20 25
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061,
6063, 7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ 0.1 ≤ 2.5
800 RPM 42440 31830 25464 21220 15915 12732 10186
(640-960) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170
Feed (mm/min) 8488 7003 6111 5942 6366 7130 6926
Profile
≤ 0.1 ≤ 4
800 RPM 42440 31830 25464 21220 15915 12732 10186
(640-960) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120
Feed (mm/min) 6790 5729 5093 4244 4456 5093 4889
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ 0.1 ≤ 2.5
600 RPM 31830 23873 19098 15915 11936 9549 7639
(480-720) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170
Feed (mm/min) 6366 5252 4584 4456 4774 5347 5195
Profile
≤ 0.1 ≤ 4
600 RPM 31830 23873 19098 15915 11936 9549 7639
(480-720) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120
Feed (mm/min) 5093 4297 3820 3183 3342 3820 3667
Note:
• Bhn (Brinell) HRc (Rockwell C)
• surface speed is dependent on machine spindle and fixturing
• balancing is recommended at ultra high surface speeds
• *tool life may be reduced when machining Lithium Alloys
• rpm = (Vc x 1000) / (D1 x 3.14)
• mm/min = Fz x 4 x rpm
• maximum recommended depths shown
• reduce speed and feed for materials harder than listed
• finish cuts typically require reduced feed and cutting depths of 0.02 X D1 maximum
• ramp angle = 6˚ (feed rate = 50%)
• plunging not recommended
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
Series
43APF
Fractional Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/2 3/4
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061,
6063, 7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ 0.1 ≤ 2.5
2625 RPM 20055 13370
(2100-3150) Fz 0.0030 0.0050
Feed (in/min) 241 267
Profile
≤ 0.1 ≤ 4
2625 RPM 20055 13370
(2100-3150) Fz 0.0020 0.0040
Feed (in/min) 160 214
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ 0.1 ≤ 2.5
1970 RPM 15051 10034
(1576-2364) Fz 0.0030 0.0050
Feed (in/min) 181 201
Profile
≤ 0.1 ≤ 4
1970 RPM 15051 10034
(1576-2364) Fz 0.0020 0.0040
Feed (in/min) 120 161
Note:
• Bhn (Brinell) HRc (Rockwell C)
• surface speed is dependent on machine spindle and fixturing
• balancing is recommended at ultra high surface speeds
• *tool life may be reduced when machining Lithium Alloys
• rpm = Vc x 3.82 / D1
• ipm = Fz x 4 x rpm
• maximum recommended depths shown
• reduce speed and feed for materials harder than listed
• finish cuts typically require reduced feed and cutting depths of 0.02 X D1 maximum
• ramp angle = 6˚ (feed rate = 50%)
• plunging not recommended
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
54 www.kyocera-sgstool.com
Fractional
|
Speed & Feed Recommendations
Series 131N 5D
Fractional Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
N
ALUMINUM ALLOYS
< 12% SI
6061, 2024, 7075
≤ 150 Bhn
or
≤ 7 HRc
800 RPM 24448 16299 12224 8149 6112 4890 4075
(640-960)
Fr 0.0055 0.0083 0.0110 0.0166 0.0221 0.0276 0.0331
Feed (ipm) 135 135 135 135 135 135 135
ALUMINUM ALLOYS
> 12% SI
A356.0, 390.0, 319.0
≤ 125 Bhn
or
≤ 77 HRb
600 RPM 18336 12224 9168 6112 4584 3667 3056
(480-720)
Fr 0.0055 0.0082 0.0109 0.0164 0.0218 0.0273 0.0327
Feed (ipm) 100 100 100 100 100 100 100
COPPER ALLOYS
Alum Bronze, Muntz
Brass, Navel Brass
≤ 175 Bhn
or
≤ 16 HRc
550 RPM 16808 11205 8404 5603 4202 3362 2801
(440-660)
Fr 0.0020 0.0030 0.0040 0.0061 0.0081 0.0101 0.0121
Feed (ipm) 34 34 34 34 34 34 34
PLASTICS
Acrylic, PVC,
Polypropylene
450 RPM 13752 9168 6876 4584 3438 2750 2292
(360-540)
Fr 0.0025 0.0037 0.0049 0.0074 0.0099 0.0124 0.0148
Feed (ipm) 34 34 34 34 34 34 34
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = Vc x 3.82 / D1
• ipm = Fr x rpm
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
55
www.kyocera-sgstool.com
Metric
|
Speed & Feed Recommendations
Series 131N 5D
Metric Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
N
ALUMINUM ALLOYS
< 12% SI
6061, 2024, 7075
≤ 150 Bhn
or
≤ 7 HRc
244 RPM 25851 12926 9694 7755 6463 5540 4847
(195-293)
Fr 0.133 0.265 0.354 0.442 0.531 0.619 0.708
Feed (mm/min) 3430 3430 3430 3430 3430 3430 3430
ALUMINUM ALLOYS
> 12% SI
A356.0, 390.0, 319.0
≤ 125 Bhn
or
≤ 77 HRb
183 RPM 19388 9694 7271 5816 4847 4155 3635
(146-219)
Fr 0.131 0.262 0.349 0.437 0.524 0.611 0.699
Feed (mm/min) 2540 2540 2540 2540 2540 2540 2540
COPPER ALLOYS
Alum Bronze, Muntz
Brass, Navel Brass
≤ 175 Bhn
or
≤ 16 HRc
168 RPM 17773 8886 6665 5332 4443 3808 3332
(134-201)
Fr 0.049 0.097 0.130 0.162 0.194 0.227 0.259
Feed (mm/min) 864 864 864 864 864 864 864
PLASTICS
Acrylic, PVC,
Polypropylene
137 RPM 14541 7271 5453 4362 3635 3116 2726
(110-165)
Fr 0.059 0.119 0.158 0.198 0.238 0.277 0.317
Feed (mm/min) 864 864 864 864 864 864 864
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = (Vc x 1000) / (D1 x 3.14)
• mm/min = Fr x rpm
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
SOLUTIONS AROUND THE GLOBE
KYOCERA SGS Precision Tools is an
ISO-certied leader of round solid carbide
cutting tool technology for the aerospace,
metalworking, and automotive industries
with manufacturing sites in the United
States and United Kingdom. Our global
network of Sales Representatives,
Industrial Distributors, and Agents
blanket the world selling into more
than 60 countries.
LEADERS IN SOLID CARBIDE
TOOL TECHNOLOGY
Brand names such as Z-Carb, S-Carb,
V-Carb, Hi-PerCarb, Multi-Carb have
become synonymous with high perfor-
mance tooling in the machining and
metalworking industry.
We’re proud to have pioneered some
of the world’s most advanced cutting
technology right here on our Northeast
Ohio manufacturing campus. KSPT high
performance end mills, drills and routers
are increasing productivity and reducing
cost around the world.
EXCEEDING CUSTOMER EXPECTATIONS
As the world’s manufacturing needs change,
so does KSPT. Starting with our lab inspected
substrate materials to our tool designs
and coatings. It’s all about the science. Our
exceptional team of researchers, engineers,
and machinists are dedicated to developing
the absolute best and delivering the
ultimate value at the spindle.
• Incredible batch-to-batch consistency
• Metallurgical lab dedicated to testing
and rigorous quality control
• ISO-certied quality procedures
• Patented geometries that extend tool
life, reduce chatter, cut cycle times,
and improve part quality—even at
extreme parameters
• Specialists in extreme and demanding
product applications
• Comprehensive tooling services
• Experienced Field Sales Engineers
who work to optimize a tool for your
particular application
• Dedicated multi-lingual customer
service representatives
POLAND
KYOCERA SGS Precision Tools
phone: +48 530 432 002
e-mail: SalesEU@kyocera-sgstool.com
SPAIN
KYOCERA SGS Precision Tools IBERICA
e-mail: SalesEU@kyocera-sgstool.com
EASTERN EUROPE
SINTCOM
Sintcom Tools
95 Arsenalski Blvd.
1421 Soa, Bulgaria
phone: (359) 283-64421
fax: (359) 286-52493
e-mail: sintcom@sintcomtools.com
RUSSIA
HALTEC
phone: (7) 495-252-05-00
e-mail: info@haltec.ru
web: www.haltec.ru
CHINA
KYOCERA SGS Precision Tools
Unit 301, Building A, No.200,
Jin Su Road
Jinqiao Export Processing Zone,
Pudong New Area
Shanghai 201206
China
phone: (86) 21-50589822
fax: (86) 21-50817160
e-mail: china@kyocera-sgstool.com
web: www.kyocera-sgstool.com/china
KSPT PRODUCTS ARE DISTRIBUTED BY:
EDP 00046 Rev 1116
KYOCERA SGS Precision Toolswww.kyocera-sgstool.com
UNITED STATES OF AMERICA
KYOCERA SGS Precision Tools
P.O. Box 187
55 South Main Street
Munroe Falls, Ohio 44262 U.S.A.
customer service -
US and Canada: (330) 686-5700
fax - US & Canada: (800) 447-4017
international fax: (330) 686-2146
e-mail: webmaster@kyocera-sgstool.com
web: www.kyocera-sgstool.com
UNITED KINGDOM
KYOCERA SGS Precision Tools Europe Ltd.
10 Ashville Way
Wokingham, Berkshire
RG41 2PL England
phone: (44) 1189-795-200
fax: (44) 1189-795-295
e-mail: SalesEU@kyocera-sgstool.com
web: www.kyocera-sgstool.com
FRANCE
DOGA-KSPTE FRANCE
8, Avenue Gutenburg
78310 Maurepas
France
phone: +33 (0) 1 30 66 41 64
fax: +33 (0) 1 30 66 41 49
e-mail: sgsfrance@kyocera-sgstool.com
web: www.doga.fr
GERMANY
KADIGO Tool Systems
Walramstrasse 27
65510 Idstein
Germany
phone: +49 (0) 212 645573-0
fax: +49 (0) 212 380 89 693
e-mail: info@kadigo-ts.com
web: www.kadigo-ts.com
