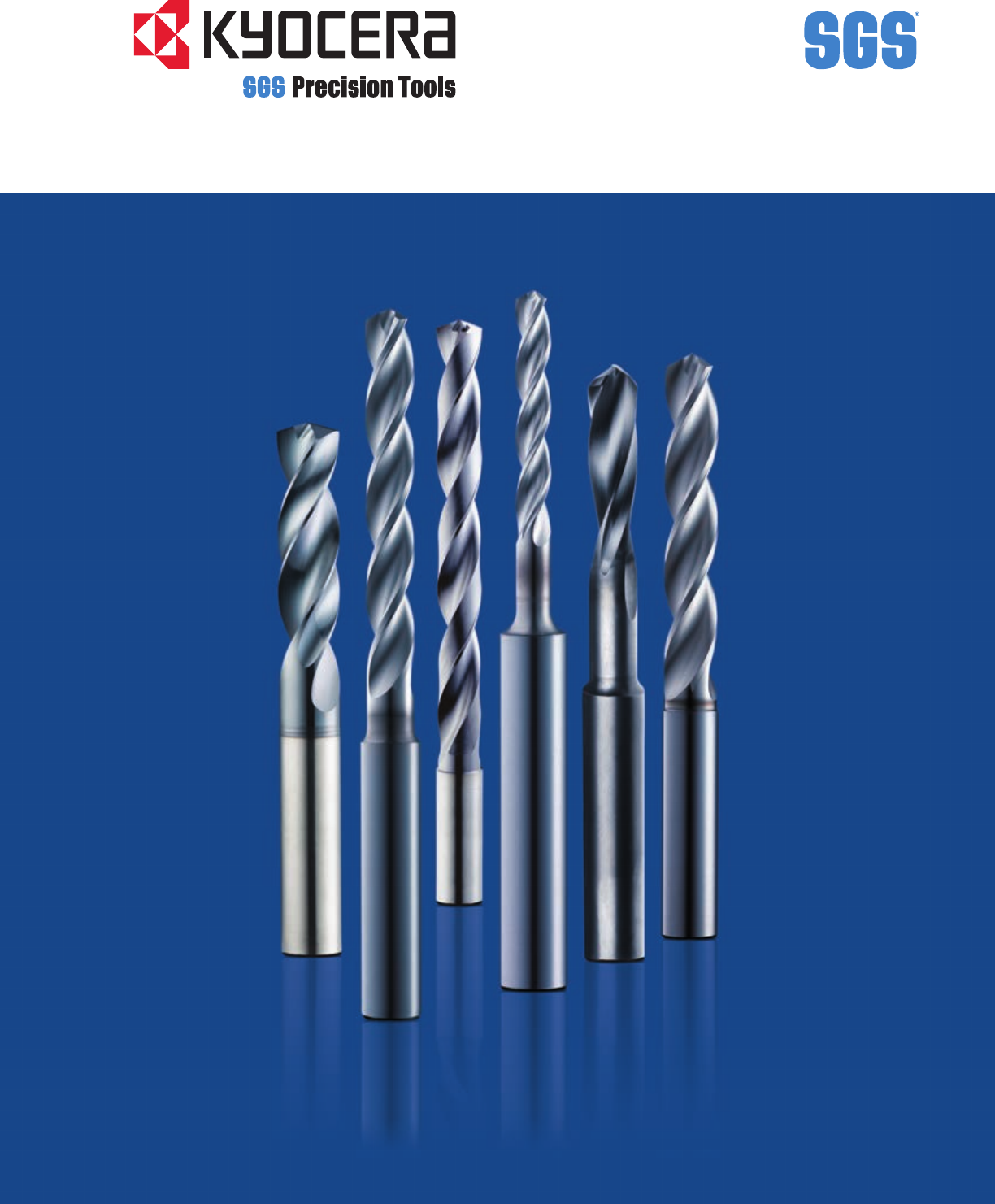

Drilling Solutions
ISO 9001 Certied
www.kyocera-sgstool.com
Solid Carbide Tools
www.kyocera-sgstool.com
The second margin gives the Hi-PerCarb Series 135 Drill a burnishing effect and the flute form effectively controls
and transports chips allowing the drill to offer superior surface finishes and hole size in high production environ-
ments saving cycle time by often avoiding the need for reaming in many applications.
HI-PERCARB SERIES 135 SOLID CARBIDE DRILL AND REAMER
0
10
20
30
40
50
60
70
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MATERIAL GROUPS

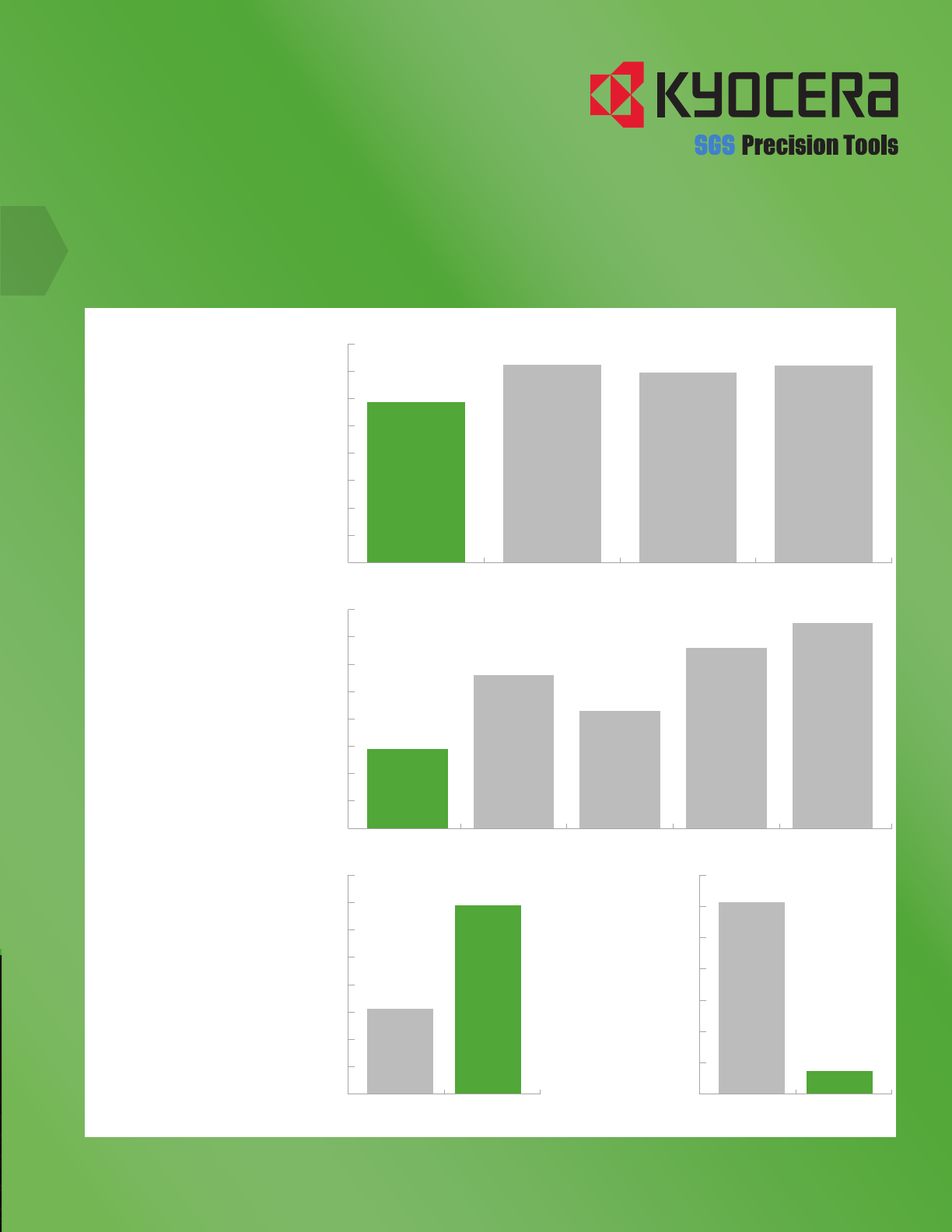

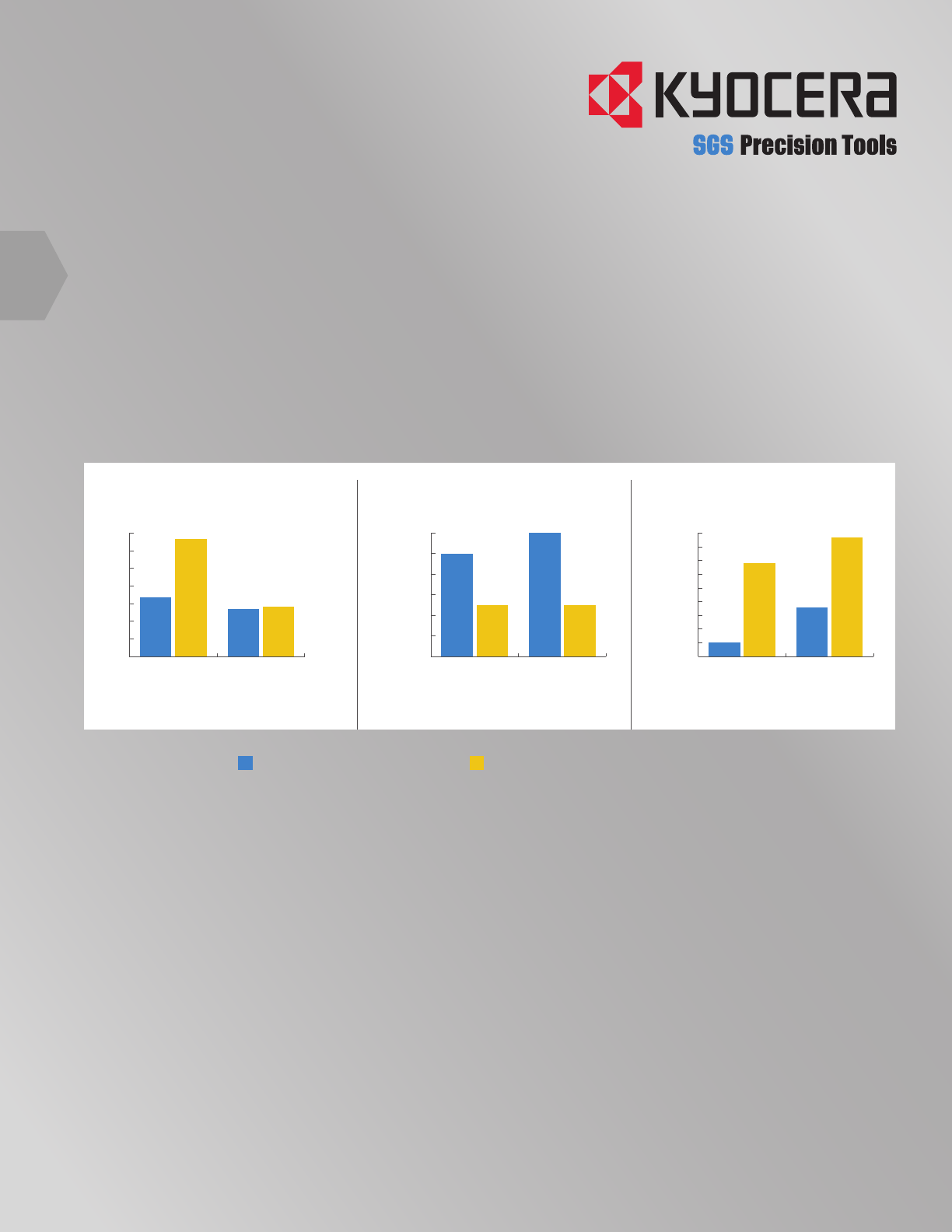

AVERAGE SURFACE FINISH RESULTS
AVERAGE SURFACE FINISH IN RA
MATERIAL GROUPS
ACCURACY OF HOLE PRODUCED
0.3122
0.3124
0.3126
0.3128
0.3130
0.3132
0.3134
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MEASURED HOLE SIZE IN INCHES
0
5
10
15
20
25
30
35
40
45
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MATERIAL GROUPS
TOTAL CYCLE TIME
TIME PER HOLE IN SECONDS
PERFORMANCE.
MACHINING ENVIRONMENT:
Haas VM-3 with 9% Water Soluble Oil Flood Coolant
5/16” (.3125) diameter hole:
4140 application – .650” deep
6Al-4V application – 1.125” deep
PERFORMANCE. PRECISION. PASSION.

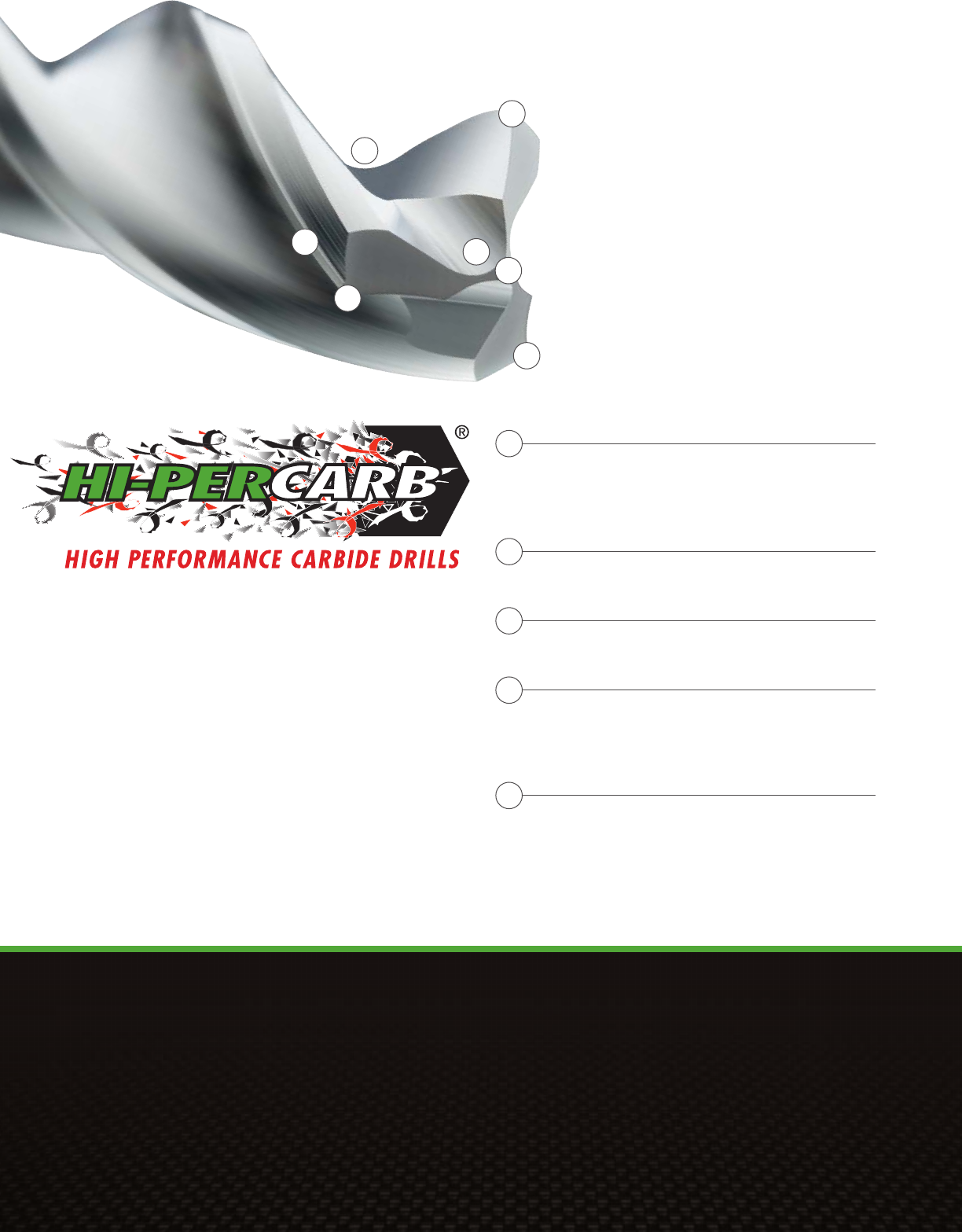

HI-PER CARB SERIES 135 DRILLS

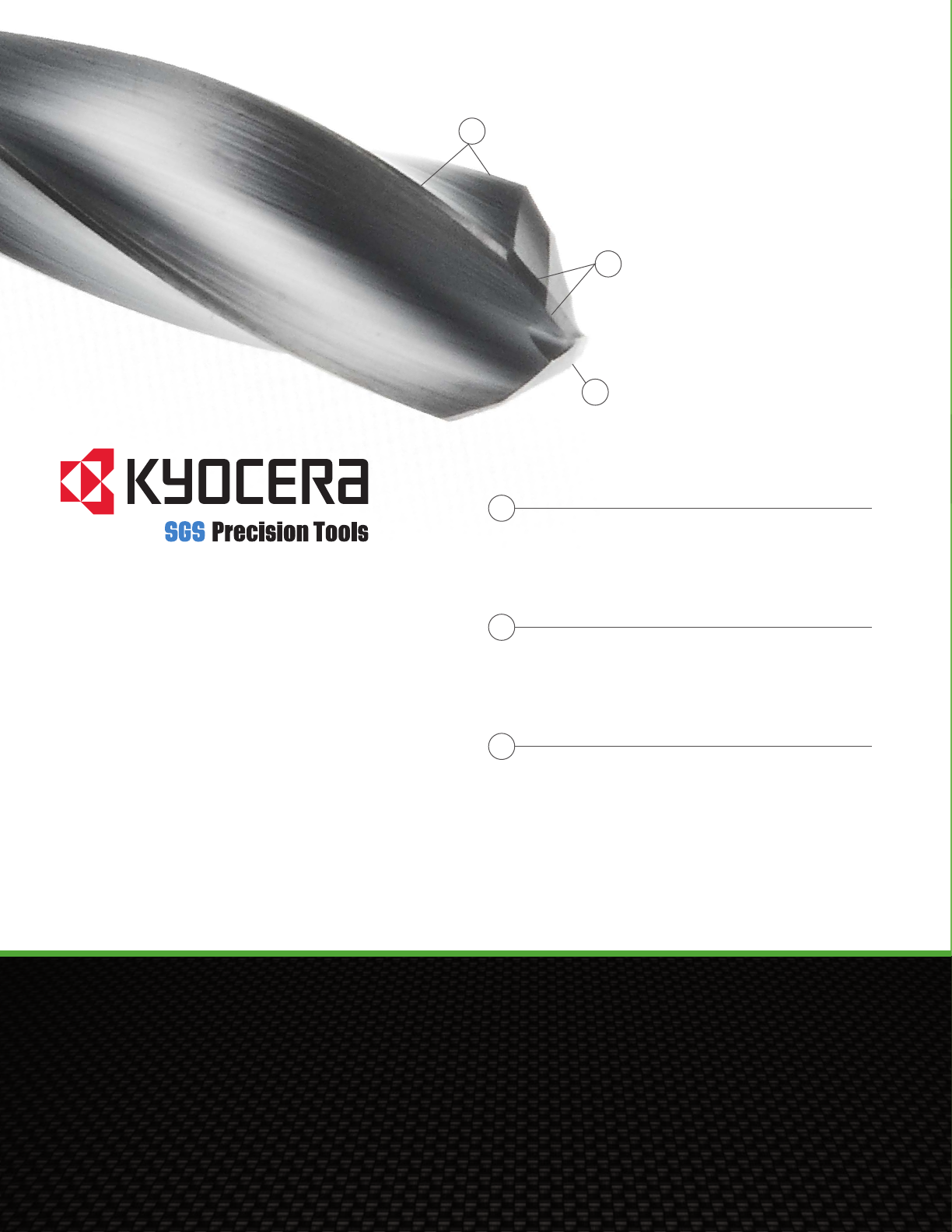

The key features designed into the Hi-PerCarb Series
135 Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 135 Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.

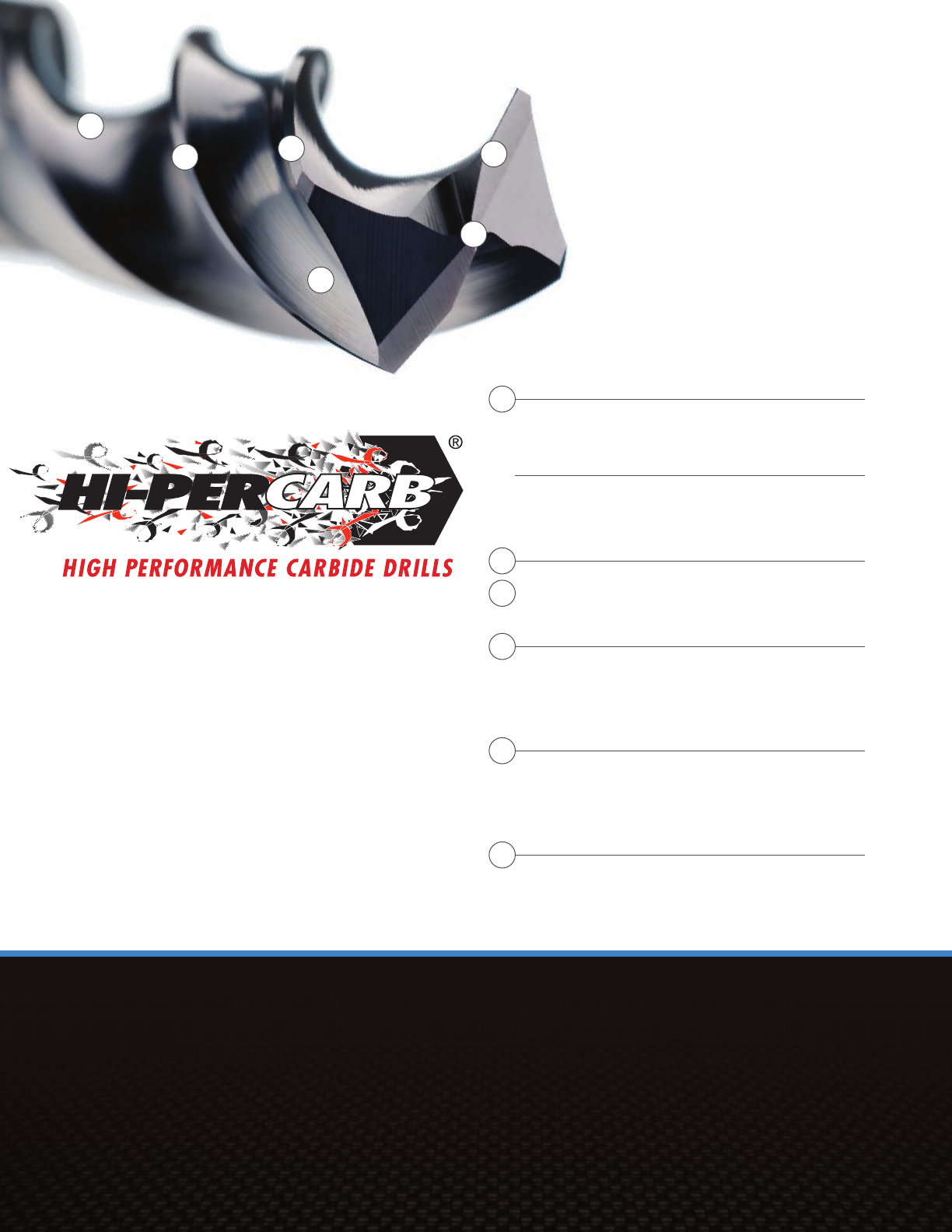

A
B1 B2
C
D
E
HIGH PERFORMANCE FLUTE DESIGN
• efficiently transports chips
• increases strength for aggressive drilling
B1
B2
C
D
E
A
Ti-NAMITE A COATING
• improves resistance to heat and wear
• enhances tool life
DOUBLE MARGIN DESIGN
• improves accuracy and surface finish
• increases stability and rigidity
SECONDARY FLUTE
• improves coolant flow to point
• reduces friction along drill body
• assists in fine swarf evacuation
SPECIALIZED 145° NOTCHED POINT
• self centering eliminates need for spot drill
• improves chip control
• decreases drill thrust and deflection
ENGINEERED EDGE PROTECTION
• improves edge strength
• reduces edge fatigue
• allows increased feed rates
SERIES 135
www.kyocera-sgstool.com
The second margin gives the Hi-PerCarb Series 135 Drill a burnishing effect and the flute form effectively controls
and transports chips allowing the drill to offer superior surface finishes and hole size in high production environ-
ments saving cycle time by often avoiding the need for reaming in many applications.
HI-PERCARB SERIES 135 SOLID CARBIDE DRILL AND REAMER
0
10
20
30
40
50
60
70
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MATERIAL GROUPS
AVERAGE SURFACE FINISH RESULTS
AVERAGE SURFACE FINISH IN RA
MATERIAL GROUPS
ACCURACY OF HOLE PRODUCED
0.3122
0.3124
0.3126
0.3128
0.3130
0.3132
0.3134
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MEASURED HOLE SIZE IN INCHES
0
5
10
15
20
25
30
35
40
45
4140 Steel
@ 28 HRc
6AI4V Titanium
@ 30 HRc
MATERIAL GROUPS
TOTAL CYCLE TIME
TIME PER HOLE IN SECONDS
PERFORMANCE.
MACHINING ENVIRONMENT:
Haas VM-3 with 9% Water Soluble Oil Flood Coolant
5/16” (.3125) diameter hole:
4140 application – .650” deep
6Al-4V application – 1.125” deep
PERFORMANCE. PRECISION. PASSION.
HI-PER CARB SERIES 135 DRILLS
The key features designed into the Hi-PerCarb Series
135 Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 135 Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.
A
B1 B2
C
D
E
HIGH PERFORMANCE FLUTE DESIGN
• efficiently transports chips
• increases strength for aggressive drilling
B1
B2
C
D
E
A
Ti-NAMITE A COATING
• improves resistance to heat and wear
• enhances tool life
DOUBLE MARGIN DESIGN
• improves accuracy and surface finish
• increases stability and rigidity
SECONDARY FLUTE
• improves coolant flow to point
• reduces friction along drill body
• assists in fine swarf evacuation
SPECIALIZED 145° NOTCHED POINT
• self centering eliminates need for spot drill
• improves chip control
• decreases drill thrust and deflection
ENGINEERED EDGE PROTECTION
• improves edge strength
• reduces edge fatigue
• allows increased feed rates
SERIES 135
PRECISION.
The stability of the double margin design and penetration capability of the point geometry allow the Hi-PerCarb
Series 135 Drill to address demanding applications that would normally require reduced operating parameters or
a two step process.
PASSION.
The secondary flute provides a channel for cooling capabilities normally not found in external coolant drills, this
combined with the Ti-NAMITE A tool coating and the high strength edge design results in increased operating
parameters with additional tool life.
ORIGINAL
TOTAL COST
TO DRILL
PER PART
$0.78
$0.12
(16%)
$0.05
(7%)
$0.20
(25%)
$0.15
(19%)
$0.23
(30%)
$0.02
(3%)
NEW
TOTAL COST
TO DRILL
PER PART
$0.17
$0.03
(16%)
$0.01
(7%)
$0.04
(25%)
$0.03
(19%)
$0.05
(30%)
$0.005
(3%)
TOTAL
COST TO DRILL
PER PART
REDUCED BY
$0.61
(79%)
$0.10
(12.51%)
$0.04
(5.47%)
$0.15
(19.55%)
$0.12
(14.86%)
$0.18
(23.46%)
$0.02
(2.35%)
HI-PERCARB
COMPETITOR SERIES 135
NUMBER OF PARTS TO PRODUCE 50000 50000
SURFACE FEET PER MINUTE (SFM) 74 124
SPEED IN REVOLUTIONS PER MINUTE (RPM) 1200 2000
FEED IN INCHES PER MINUTE (IPM) 3.6 10
NUMBER OF PARTS PRODUCED PER TOOL 140 500
DEPTH OF HOLE 0.6800 0.6800
NUMBER OF NEW TOOLS REQUIRED TO COMPLETE JOB 358 100
TOTAL HOURS OF MACHINING TIME 157 57
TOTAL MACHINING COST $10,231.48 $3,683.33
TOOL CHANGE COST $1,939.17 $541.67
TOTAL COST $39,017.07 $8,460.00
COST PER PART $0.78 $0.17
MATERIAL REMOVAL RATE (IN3 / MIN) – DRILLING 0.16 0.44
CUTTING TIME PER PART – MINUTES 0.19 0.07
SAVINGS PER PART – DOLLARS 0 $0.61
TOTAL COST SAVINGS / JOB – PERCENTAGE 0 78.32%
TOTAL COST SAVINGS / JOB – DOLLARS 0 $30,557.07
ACTUAL CUSTOMER APPLICATION USING A 6MM DRILL IN 17-4 PH STAINLESS STEEL
Using 100 tools per job compared to 358 means less inventory and fewer purchase orders
to issue resulting in improved administrative cost and reduced tooling cost per job.
Increasing the feed by 278% has decreased the total hours of machine time by 100 hours
gaining manufacturing capacity; this factored with the hourly shop rate has resulted in the
largest portion of the savings.
With a tool life of 500 parts compared to 140 parts or a 357% improvement in tool life
equates to less time dedicated to changing tools to keep the job running.
Increasing the material removal rate by .28 cubic inches or 275% requires less time
in the cut and a reduced use of coolant.
TOOL COST REDUCED BY
MACHINING COST REDUCED BY
COOLANT COST REDUCED BY
TOOL COST
MACHINING COST
COOLANT COST
MACHINE DOWNTIME COST
TOOL CHANGE COST
ADMINISTRATIVE COST
MACHINE DOWNTIME COST REDUCED BY
TOOL CHANGE COST REDUCED BY
ADMINISTRATIVE COST REDUCED BY
BLIND HOLE THROUGH HOLE CROSS HOLE PRECAST HOLE INTERRUPTIONS
www.kyocera-sgstool.com
PRECISION.
The stability of the double margin design and penetration capability of the point geometry allow the Hi-PerCarb
Series 135 Drill to address demanding applications that would normally require reduced operating parameters or
a two step process.
PASSION.
The secondary flute provides a channel for cooling capabilities normally not found in external coolant drills, this
combined with the Ti-NAMITE A tool coating and the high strength edge design results in increased operating
parameters with additional tool life.
ORIGINAL
TOTAL COST
TO DRILL
PER PART
$0.78
$0.12
(16%)
$0.05
(7%)
$0.20
(25%)
$0.15
(19%)
$0.23
(30%)
$0.02
(3%)
NEW
TOTAL COST
TO DRILL
PER PART
$0.17
$0.03
(16%)
$0.01
(7%)
$0.04
(25%)
$0.03
(19%)
$0.05
(30%)
$0.005
(3%)
TOTAL
COST TO DRILL
PER PART
REDUCED BY
$0.61
(79%)
$0.10
(12.51%)
$0.04
(5.47%)
$0.15
(19.55%)
$0.12
(14.86%)
$0.18
(23.46%)
$0.02
(2.35%)
HI-PERCARB
COMPETITOR SERIES 135
NUMBER OF PARTS TO PRODUCE 50000 50000
SURFACE FEET PER MINUTE (SFM) 74 124
SPEED IN REVOLUTIONS PER MINUTE (RPM) 1200 2000
FEED IN INCHES PER MINUTE (IPM) 3.6 10
NUMBER OF PARTS PRODUCED PER TOOL 140 500
DEPTH OF HOLE 0.6800 0.6800
NUMBER OF NEW TOOLS REQUIRED TO COMPLETE JOB 358 100
TOTAL HOURS OF MACHINING TIME 157 57
TOTAL MACHINING COST $10,231.48 $3,683.33
TOOL CHANGE COST $1,939.17 $541.67
TOTAL COST $39,017.07 $8,460.00
COST PER PART $0.78 $0.17
MATERIAL REMOVAL RATE (IN3 / MIN) – DRILLING 0.16 0.44
CUTTING TIME PER PART – MINUTES 0.19 0.07
SAVINGS PER PART – DOLLARS 0 $0.61
TOTAL COST SAVINGS / JOB – PERCENTAGE 0 78.32%
TOTAL COST SAVINGS / JOB – DOLLARS 0 $30,557.07
ACTUAL CUSTOMER APPLICATION USING A 6MM DRILL IN 17-4 PH STAINLESS STEEL
Using 100 tools per job compared to 358 means less inventory and fewer purchase orders
to issue resulting in improved administrative cost and reduced tooling cost per job.
Increasing the feed by 278% has decreased the total hours of machine time by 100 hours
gaining manufacturing capacity; this factored with the hourly shop rate has resulted in the
largest portion of the savings.
With a tool life of 500 parts compared to 140 parts or a 357% improvement in tool life
equates to less time dedicated to changing tools to keep the job running.
Increasing the material removal rate by .28 cubic inches or 275% requires less time
in the cut and a reduced use of coolant.
TOOL COST REDUCED BY
MACHINING COST REDUCED BY
COOLANT COST REDUCED BY
TOOL COST
MACHINING COST
COOLANT COST
MACHINE DOWNTIME COST
TOOL CHANGE COST
ADMINISTRATIVE COST
MACHINE DOWNTIME COST REDUCED BY
TOOL CHANGE COST REDUCED BY
ADMINISTRATIVE COST REDUCED BY
BLIND HOLE THROUGH HOLE CROSS HOLE PRECAST HOLE INTERRUPTIONS
www.kyocera-sgstool.com
6www.kyocera-sgstool.com

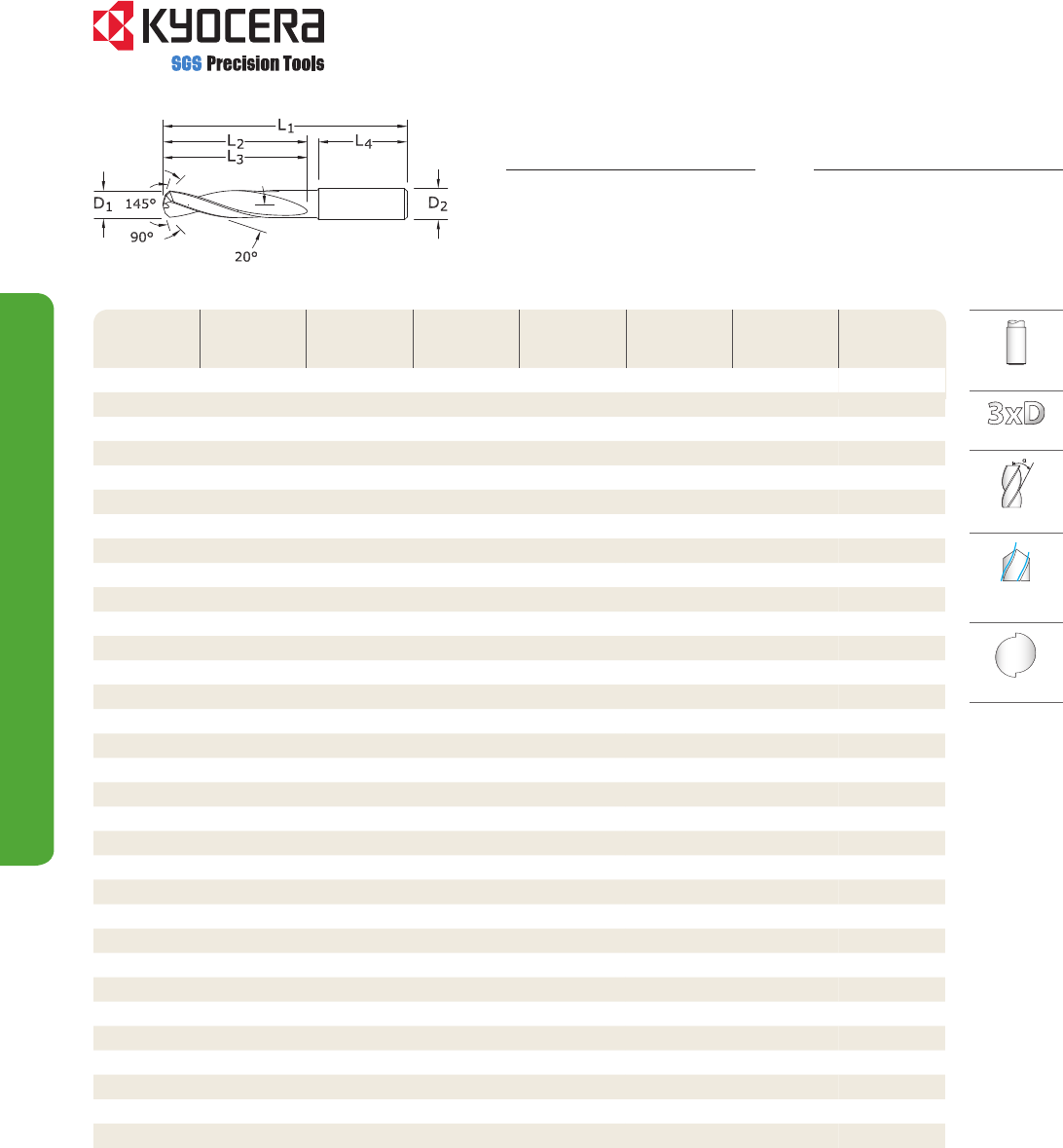

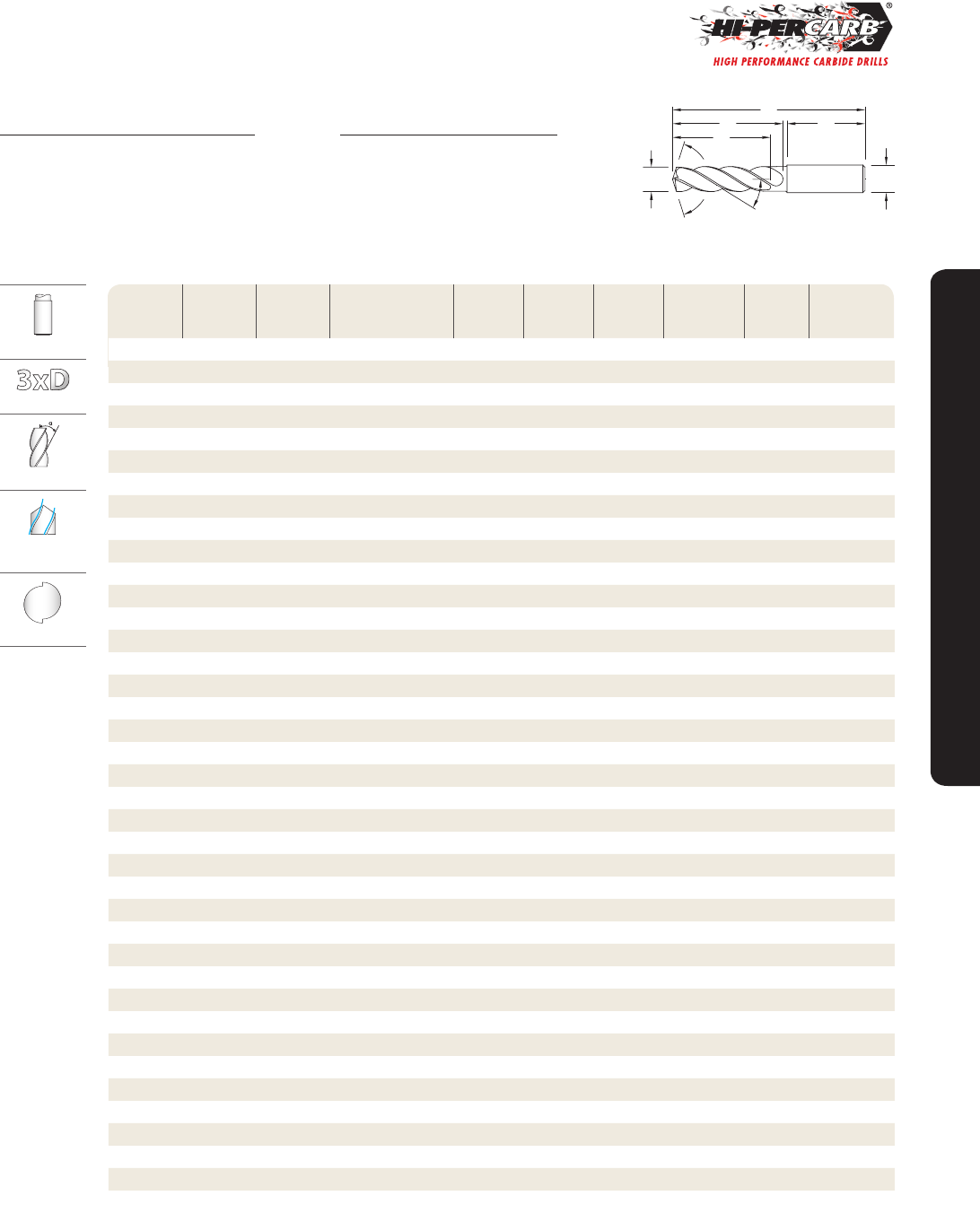

Series 135 3xD
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
1/64 0.0156 0.40 1/8 1-1/2 1/8 5/64 1 51752*
1/32 0.0312 0.79 1/8 1-1/2 1/4 3/16 1 51269*
3/64 0.0469 1.19 1/16-64 1/8 1-1/2 3/8 5/16 1 51270*
1,25 mm 0.0492 3,0 38,0 9,5 8,0 25,0 64500*
1,45 mm 0.0571 3,0 38,0 9,5 8,0 25,0 64501*
#53 0.0595 1.51 1/8 1-1/2 3/8 5/16 1 64502*
1/16 0.0625 1.59 5/64-60 1/8 2 7/16 3/8 1-1/4 51271*
1,6 mm 0.0630 3,0 50,0 11,0 9,0 32,0 64503*
1,75 mm 0.0689 3,0 50,0 11,0 9,0 32,0 64504*
#50 0.0700 1.78 1/8 2 7/16 3/8 1-1/4 64505*
5/64 0.0781 1.98 1/8 2 1/2 7/16 1-1/4 51272*
#47 0.0785 1.99 1/8 2 1/2 7/16 1-1/4 64506*
2,05 mm 0.0807 3,0 50,0 12,0 11,0 32,0 64507*
#46 0.0810 2.06 1/8 2 1/2 7/16 1-1/4 64508*
#43 0.0890 2.26 1/8 2 1/2 7/16 1-1/4 64509*
#42 0.0935 2.37 1/8 2 1/2 7/16 1-1/4 64510*
3/32 0.0938 2.38 1/8-32 1/8 2 1/2 7/16 1-1/4 51273
#40 0.0980 2.49 1/8 2 9/16 1/2 1-1/4 51274
2,5 mm 0.0984 3,0 50,0 14,0 12,0 32,0 64511
#39 0.0995 2.53 1/8 2 9/16 1/2 1-1/4 51753
#38 0.1015 2.58 5-40 1/8 2 9/16 1/2 1-1/4 51754
#37 0.1040 2.64 5-44 1/8 2 9/16 1/2 1-1/4 51755
#36 0.1065 2.71 6-32 1/8 2 9/16 1/2 1-1/4 51756
7/64 0.1094 2.78 1/8 2 5/8 9/16 1-1/4 51275
#35 0.1100 2.79 1/8 2 5/8 9/16 1-1/4 51276
#34 0.1110 2.82 1/8 2 5/8 9/16 1-1/4 51277
#33 0.1130 2.87 6-40 1/8 2 5/8 9/16 1-1/4 51757
2,9 mm 0.1142 3,0 50,0 16,0 14,0 32,0 64512
#32 0.1160 2.95 1/8 2 5/8 9/16 1-1/4 51758
3,0 mm 0.1181 6,0 62,0 20,0 17,0 36,0 63155
#31 0.1200 3.05 1/8 2 5/8 9/16 1-1/4 51759
3,1 mm 0.1220 6,0 62,0 20,0 17,0 36,0 63741
1/8 0.1250 3.18 1/4 2-1/2 3/4 21/32 1-7/16 51330
3,2 mm 0.1260 M3,5 X 0,35 6,0 62,0 20,0 17,0 36,0 63156
#30 0.1285 3.26 1/4 2-1/2 3/4 21/32 1-7/16 51278
3,3 mm 0.1299 M4 X 0,7 6,0 62,0 20,0 17,0 36,0 63157
3,4 mm 0.1339 6,0 62,0 20,0 17,0 36,0 63158
#29 0.1360 3.45 8-32,8-36 1/4 2-1/2 3/4 21/32 1-7/16 51331
3,5 mm 0.1378 M4 X 0,5 6,0 62,0 20,0 17,0 36,0 63159
#28 0.1405 3.57 8-40 1/4 2-1/2 3/4 21/32 1-7/16 51760
9/64 0.1406 3.57 1/4 2-1/2 3/4 21/32 1-7/16 51332
3,6 mm 0.1417 M4 X 0,35 6,0 62,0 20,0 17,0 36,0 63160
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
145°
32°
L
1
L2
L3
L4
D2
D1
*Single Margin
7
Series 135 3xD
|
Fractional & Metric
www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
#27 0.1440 3.66 1/4 2-1/2 3/4 21/32 1-7/16 51761
3,7 mm 0.1457 M4.5 X 0,75 6,0 62,0 20,0 17,0 36,0 63161
#26 0.1470 3.73 3/16-24 1/4 2-1/2 3/4 21/32 1-7/16 51762
#25 0.1495 3.80 10-24 1/4 2-5/8 7/8 23/32 1-7/16 51333
3,8 mm 0.1496 6,0 66,0 24,0 21,0 36,0 63742
#24 0.1520 3.86 10-28 1/4 2-5/8 7/8 23/32 1-7/16 51763
3,9 mm 0.1535 6,0 66,0 24,0 21,0 36,0 63743
#23 0.1540 3.91 1/4 2-5/8 7/8 23/32 1-7/16 51764
5/32 0.1562 3.97 1/4 2-5/8 7/8 23/32 1-7/16 51334
#22 0.1570 3.99 10-30 1/4 2-5/8 7/8 23/32 1-7/16 51765
4,0 mm 0.1575 M4,5 X 0,5 6,0 66,0 24,0 21,0 36,0 63162
#21 0.1590 4.04 10-32 1/4 2-5/8 7/8 23/32 1-7/16 51335
#20 0.1610 4.09 13/64-24 1/4 2-5/8 7/8 23/32 1-7/16 51279
4,1 mm 0.1614 6,0 66,0 24,0 21,0 36,0 63744
4,2 mm 0.1654 M5 / M5 X 0,75 6,0 66,0 24,0 21,0 36,0 63163
#19 0.1660 4.22 1/4 2-5/8 7/8 23/32 1-7/16 51766
4,3 mm 0.1693 6,0 66,0 24,0 21,0 36,0 63164
#18 0.1695 4.31 1/4 2-5/8 7/8 23/32 1-7/16 51767
11/64 0.1719 4.37 1/4 2-5/8 7/8 23/32 1-7/16 51336
#17 0.1730 4.39 1/4 2-5/8 7/8 23/32 1-7/16 51768
4,4 mm 0.1732 6,0 66,0 24,0 21,0 36,0 63745
#16 0.1770 4.50 12-24 1/4 2-5/8 7/8 23/32 1-7/16 51769
4,5 mm 0.1772 M5 X 0,5 6,0 66,0 24,0 21,0 36,0 63165
#15 0.1800 4.57 1/4 2-5/8 7/8 23/32 1-7/16 51770
4,6 mm 0.1811 12-28 6,0 66,0 24,0 21,0 36,0 63166
#14 0.1820 4.62 1/4 2-5/8 7/8 23/32 1-7/16 51771
#13 0.1850 4.70 12-32 1/4 2-5/8 7/8 23/32 1-7/16 51772
4,7 mm 0.1850 6,0 66,0 24,0 21,0 36,0 63746
3/16 0.1875 4.76 1/4 2-5/8 1 53/64 1-7/16 51337
#12 0.1890 4.80 7/32-32 1/4 2-5/8 1 53/64 1-7/16 51773
4,8 mm 0.1890 6,0 66,0 28,0 24,0 36,0 63167
#11 0.1910 4.85 1/4 2-5/8 1 53/64 1-7/16 51774
4,9 mm 0.1929 6,0 66,0 28,0 24,0 36,0 63747
#10 0.1935 4.91 14-20 1/4 2-5/8 1 53/64 1-7/16 51775
#9 0.1960 4.98 1/4 2-5/8 1 53/64 1-7/16 51776
5,0 mm 0.1969 M6 X 1 6,0 66,0 28,0 24,0 36,0 63168
#8 0.1990 5.05 1/4 2-5/8 1 53/64 1-7/16 51777
5,1 mm 0.2008 6,0 66,0 28,0 24,0 36,0 63748
#7 0.2010 5.11 1/4-20 1/4 2-5/8 1 53/64 1-7/16 51338
13/64 0.2031 5.16 1/4 2-5/8 1 53/64 1-7/16 51339
#6 0.2040 5.18 1/4 2-5/8 1 53/64 1-7/16 51778
5,2 mm 0.2047 M6 X 0,75 6,0 66,0 28,0 24,0 36,0 63749
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
145°
32°
L
1
L2
L3
L4
D2
D1
8
Series 135 3xD
|
Fractional & Metric
www.kyocera-sgstool.com
145°
32°
L
1
L2
L3
L4
D2
D1
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
#5 0.2055 5.22 1/4 2-5/8 1 53/64 1-7/16 51779
5,25 mm 0.2067 6,0 66,0 28,0 24,0 36,0 63169
5,3 mm 0.2087 6,0 66,0 28,0 24,0 36,0 63170
#4 0.2090 5.31 1/4-24 1/4 2-5/8 1 53/64 1-7/16 51780
5,4 mm 0.2126 6,0 66,0 28,0 24,0 36,0 63750
#3 0.2130 5.41 1/4-28 1/4 2-5/8 1 53/64 1-7/16 51340
5,5 mm 0.2165 M6 X 0,5 6,0 66,0 28,0 24,0 36,0 63171
7/32 0.2188 5.56 1/4-32 1/4 2-5/8 1 53/64 1-7/16 51341
5,6 mm 0.2205 6,0 66,0 28,0 24,0 36,0 63751
#2 0.2210 5.61 1/4 2-5/8 1 53/64 1-7/16 51781
5,7 mm 0.2244 6,0 66,0 28,0 24,0 36,0 63752
#1 0.2280 5.79 1/4 2-5/8 1 53/64 1-7/16 51782
5,8 mm 0.2283 6,0 66,0 28,0 24,0 36,0 63172
5,9 mm 0.2323 6,0 66,0 28,0 24,0 36,0 63753
A 0.2340 5.94 1/4 2-5/8 1 53/64 1-7/16 51601
15/64 0.2344 5.95 1/4 2-5/8 1 53/64 1-7/16 51342
6,0 0.2362 6.00 M7 X 1 6,0 66,0 28,0 24,0 36,0 63173
B 0.2380 6.05 1/4 3-1/8 1-5/16 1-3/64 1-7/16 51602
6,1 mm 0.2402 8,0 79,0 34,0 28,0 36,0 63754
C 0.2420 6.15 1/4 3-1/8 1-5/16 1-3/64 1-7/16 51603
6,2 mm 0.2441 8,0 79,0 34,0 28,0 36,0 63755
D 0.2460 6.25 1/4 3-1/8 1-5/16 1-3/64 1-7/16 51604
6,25 mm 0.2461 M7 X 0,75 8,0 79,0 34,0 28,0 36,0 63174
6,3 mm 0.2480 8,0 79,0 34,0 28,0 36,0 63756
1/4 0.2500 6.35 1/4 3-1/8 1-5/16 1-3/64 1-7/16 51343
E 0.2500 6.35 1/4 3-1/8 1-5/16 1-3/64 1-7/16 51605
6,4 mm 0.2520 8,0 79,0 34,0 28,0 36,0 63175
6,5 mm 0.2559 8,0 79,0 34,0 28,0 36,0 63213
F 0.2570 6.53 5/16-18 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51344
6,6 mm 0.2598 8,0 79,0 34,0 28,0 36,0 63757
G 0.2610 6.63 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51606
6,7 mm 0.2638 8,0 79,0 34,0 28,0 36,0 63758
17/64 0.2656 6.75 5/16-20 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51345
H 0.2660 6.76 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51607
6,8 mm 0.2677 M8 X 1,25 8,0 79,0 34,0 28,0 36,0 63176
6,9 mm 0.2717 8,0 79,0 34,0 28,0 36,0 63759
I 0.2720 6.91 5/16-24 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51346
7,0 mm 0.2756 M8 X 1 8,0 79,0 34,0 28,0 36,0 63177
J 0.2770 7.04 5/16 3-1/8 1-5/16 1-3/64 1-7/16 51608
7,1 mm 0.2795 8,0 79,0 41,0 34,0 36,0 63760
K 0.2810 7.14 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51609
9/32 0.2812 7.14 5/16-32 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51347
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
9
Series 135 3xD
|
Fractional & Metric
www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
7,2 mm 0.2835 8,0 79,0 41,0 34,0 36,0 63761
7,25 mm 0.2854 M8 X 0,75 8,0 79,0 41,0 34,0 36,0 63178
7,3 mm 0.2874 8,0 79,0 41,0 34,0 36,0 63762
L 0.2900 7.37 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51610
7,4 mm 0.2913 8,0 79,0 41,0 34,0 36,0 63763
M 0.2950 7.49 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51611
7,5 mm 0.2953 M8 X 0,5 8,0 79,0 41,0 34,0 36,0 63179
19/64 0.2969 7.54 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51348
7,6 mm 0.2992 8,0 79,0 41,0 34,0 36,0 63764
N 0.3020 7.67 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51612
7,7 mm 0.3031 8,0 79,0 41,0 34,0 36,0 63765
7,8 mm 0.3071 M9 X 1,25 8,0 79,0 41,0 34,0 36,0 63180
7,9 mm 0.3110 8,0 79,0 41,0 34,0 36,0 63766
5/16 0.3125 7.94 3/8-16 5/16 3-1/8 1-9/16 1-3/16 1-7/16 51349
8,0 mm 0.3150 M9 x 1 8,0 79,0 41,0 34,0 36,0 63181
O 0.3160 8.03 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51613
8,1 mm 0.3189 10,0 89,0 47,0 40,0 40,0 63767
8,2 mm 0.3228 10,0 89,0 47,0 40,0 40,0 63768
P 0.3230 8.20 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51614
8,3 mm 0.3268 10,0 89,0 47,0 40,0 40,0 63769
21/64 0.3281 8.33 3/8-20 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51350
8,4 mm 0.3307 10,0 89,0 47,0 40,0 40,0 63182
Q 0.3320 8.43 3/8-24 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51351
8,5 mm 0.3346 M10 X 1,5 10,0 89,0 47,0 40,0 40,0 63183
8,6 mm 0.3386 10,0 89,0 47,0 40,0 40,0 63770
R 0.3390 8.61 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51615
8,7 mm 0.3425 10,0 89,0 47,0 40,0 40,0 63771
11/32 0.3438 8.73 3/8-32 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51352
8,8 mm 0.3465 M10 X 1,25 10,0 89,0 47,0 40,0 40,0 63184
S 0.3480 8.84 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51616
8,9 mm 0.3504 10,0 89,0 47,0 40,0 40,0 63772
9,0 mm 0.3543 M10 X 1 10,0 89,0 47,0 40,0 40,0 63185
T 0.3580 9.09 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51617
9,1 mm 0.3583 10,0 89,0 47,0 40,0 40,0 63773
23/64 0.3594 9.13 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51353
9,2 mm 0.3622 M10 X 0,75 10,0 89,0 47,0 40,0 40,0 63774
9,25 mm 0.3642 9.25 10,0 89,0 47,0 40,0 40,0 63186
9,3 mm 0.3661 10,0 89,0 47,0 40,0 40,0 63775
U 0.3680 9.35 7/16-14 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51354
9,4 mm 0.3701 10,0 89,0 47,0 40,0 40,0 63776
9,5 mm 0.3740 M10 X 0,5 10,0 89,0 47,0 40,0 40,0 63187
3/8 0.3750 9.53 3/8 3-1/2 1-27/32 1-37/64 1-9/16 51355
(continued on next page)
145°
32°
L
1
L2
L3
L4
D2
D1
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
10
Series 135 3xD
|
Fractional & Metric
www.kyocera-sgstool.com
145°
32°
L
1
L2
L3
L4
D2
D1
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
V 0.3770 9.58 1/2 3-1/2 1-27/32 1-37/64 1-9/16 51618
9,6 mm 0.3780 10,0 89,0 47,0 40,0 40,0 63777
9,7 mm 0.3819 10,0 89,0 47,0 40,0 40,0 63778
9,8 mm 0.3858 10,0 89,0 47,0 40,0 40,0 63779
W 0.3860 1/2 3-1/2 1-27/32 1-37/64 1-9/16 51619
9,9 mm 0.3898 10,0 89,0 47,0 40,0 40,0 63780
25/64 0.3906 9.92 7/16-20 1/2 3-1/2 1-27/32 1-37/64 1-9/16 51356
10,0 mm 0.3937 10,0 89,0 47,0 40,0 40,0 63188
X 0.3970 10.08 7/16-24 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51620
10,1 mm 0.3976 12,0 102,0 55,0 45,0 45,0 63781
10,2 mm 0.4016 M12 X 1,75 12,0 102,0 55,0 45,0 45,0 63189
Y 0.4040 10.26 7/16-28 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51621
10,3 mm 0.4055 12,0 102,0 55,0 45,0 45,0 63782
13/32 0.4062 10.32 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51357
10,4 mm 0.4094 12,0 102,0 55,0 45,0 45,0 63783
Z 0.4130 10.49 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51622
10,5 mm 0.4134 M12 X 1,5 12,0 102,0 55,0 45,0 45,0 63190
10,6 mm 0.4173 12,0 102,0 55,0 45,0 45,0 63784
10,7 mm 0.4213 12,0 102,0 55,0 45,0 45,0 63785
27/64 0.4219 10.72 1/2-13 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51358
10,8 mm 0.4252 M12 X 1,25 12,0 102,0 55,0 45,0 45,0 63191
10,9 mm 0.4291 12,0 102,0 55,0 45,0 45,0 63786
11,0 mm 0.4331 M12 X 1 12,0 102,0 55,0 45,0 45,0 63192
11,1 mm 0.4370 12,0 102,0 55,0 45,0 45,0 63787
7/16 0.4375 11.11 1/4-18 NPT 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51359
11,2 mm 0.4409 12,0 102,0 55,0 45,0 45,0 63788
11,25 mm 0.4429 12,0 102,0 55,0 45,0 45,0 63193
11,3 mm 0.4449 12,0 102,0 55,0 45,0 45,0 63789
11,4 mm 0.4488 12,0 102,0 55,0 45,0 45,0 63790
11,5 mm 0.4528 M12 X 0,5 12,0 102,0 55,0 45,0 45,0 63194
29/64 0.4531 11.51 1/2-20 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51360
11,6 mm 0.4567 12,0 102,0 55,0 45,0 45,0 63791
11,7 mm 0.4606 12,0 102,0 55,0 45,0 45,0 63792
11,8 mm 0.4646 12,0 102,0 55,0 45,0 45,0 63793
11,9 mm 0.4685 12,0 102,0 55,0 45,0 45,0 63794
15/32 0.4688 11.91 1/2-28 1/2 4-1/16 2-3/16 1-51/64 1-49/64 51361
12,0 mm 0.4724 M14 X 2 12,0 102,0 55,0 45,0 45,0 63195
31/64 0.4844 12.30 9/16-12 1/2 4-1/4 2-5/16 1-7/8 1-49/64 51362
12,5 mm 0.4921 M14 X 1,5 14,0 107,0 60,0 49,0 45,0 63196
1/2 0.5000 12.70 1/2 4-1/4 2-5/16 1-7/8 1-49/64 51363
12,8 mm 0.5039 M14 X 1,25 14,0 107,0 60,0 49,0 45,0 63197
13,0 mm 0.5118 M14 X 1 14,0 107,0 60,0 49,0 45,0 63198
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
11
Series 135 3xD
|
Fractional & Metric
www.kyocera-sgstool.com
145°
32°
L
1
L2
L3
L4
D2
D1
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
33/64 0.5156 13.10 9/16-18 5/8 4-1/4 2-5/16 1-7/8 1-49/64 51364
17/32 0.5312 13.49 5/8-11 5/8 4-1/4 2-5/16 1-7/8 1-49/64 51365
13,5 mm 0.5315 14,0 107,0 60,0 49,0 45,0 63199
35/64 0.5469 13.89 5/8-12 5/8 4-1/4 2-5/16 1-7/8 1-49/64 51783
14,0 mm 0.5512 M16 X 2 14,0 107,0 60,0 49,0 45,0 63200
9/16 0.5625 14.29 5/8 4-9/16 2-1/2 2 1-57/64 51366
14,5 mm 0.5709 M16 X 1,5 16,0 115,0 65,0 51,0 48,0 63201
37/64 0.5781 14.68 5/8-18 5/8 4-9/16 2-1/2 2 1-57/64 51367
15,0 mm 0.5906 M16 X 1 16,0 115,0 65,0 51,0 48,0 63202
19/32 0.5938 15.08 11/16-11 5/8 4-9/16 2-1/2 2 1-57/64 51784
39/64 0.6094 15.48 11/16-12 5/8 4-9/16 2-1/2 2 1-57/64 51785
15,5 mm 0.6102 M18 X 2,5 16,0 115,0 65,0 51,0 48,0 63203
5/8 0.6250 15.88 11/16-16 5/8 4-9/16 2-1/2 2 1-57/64 51368
16,0 mm 0.6299 16,0 115,0 65,0 51,0 48,0 63204
41/64 0.6406 16.27 11/16-24 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51786
16,5 mm 0.6496 M18 X 1,5 18,0 123,0 73,0 58,0 48,0 63205
21/32 0.6562 16.67 3/4-10 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51369
17,0 mm 0.6693 18,0 123,0 73,0 58,0 48,0 63206
43/64 0.6719 17.07 3/4-12 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51787
11/16 0.6875 17.46 3/4-16 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51370
17,5 mm 0.6890 M20 X 2,5 18,0 123,0 73,0 58,0 48,0 63207
45/64 0.7031 17.86
3/4-20, 1/2-14 NPT
3/4 4-7/8 2-3/4 2-5/16 1-57/64 51788
18,0 mm 0.7087 18,0 123,0 73,0 58,0 48,0 63208
23/32 0.7188 18.26 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51789
18,5 mm 0.7283 M20 X 1,5 20,0 131,0 79,0 63,0 50,0 63209
47/64 0.7344 18.65 13/16-12 3/4 4-7/8 2-3/4 2-5/16 1-57/64 51790
19,0 mm 0.7480 20,0 131,0 79,0 63,0 50,0 63210
3/4 0.7500 19.05 13/16-16 3/4 5-1/4 3-1/16 2-7/16 1-31/32 51371
49/64 0.7656 19.45 7/8-9 7/8 5-1/4 3-1/16 2-7/16 1-31/32 51372
19,5 mm 0.7677 M22 X 2,5 20,0 131,0 79,0 63,0 50,0 63211
25/32 0.7812 19.84 7/8 6 3-11/16 2-11/16 2-1/8 51791
20,0 mm 0.7874 20,0 131,0 79,0 63,0 50,0 63212
51/64 0.7969 20.24 7/8-12 7/8 6 3-11/16 2-11/16 2-1/8 51792
20,5 mm 0.8071 22,0 150,0 93,0 73,0 53,0 64513
13/16 0.8125 20.64 7/8-14 7/8 6 3-11/16 2-11/16 2-1/8 51373
21,0 mm 0.8268 22,0 150,0 93,0 73,0 53,0 64514
22,0 mm 0.8661 22,0 150,0 93,0 73,0 53,0 64515
7/8 0.8750 22.23 15/16-16, 1-8 7/8 6 3-11/16 2-11/16 2-1/8 51374
59/64 0.9219 23.42 1-12 1 6 3-11/16 2-11/16 2-1/8 51375
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
12
145° 32°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6

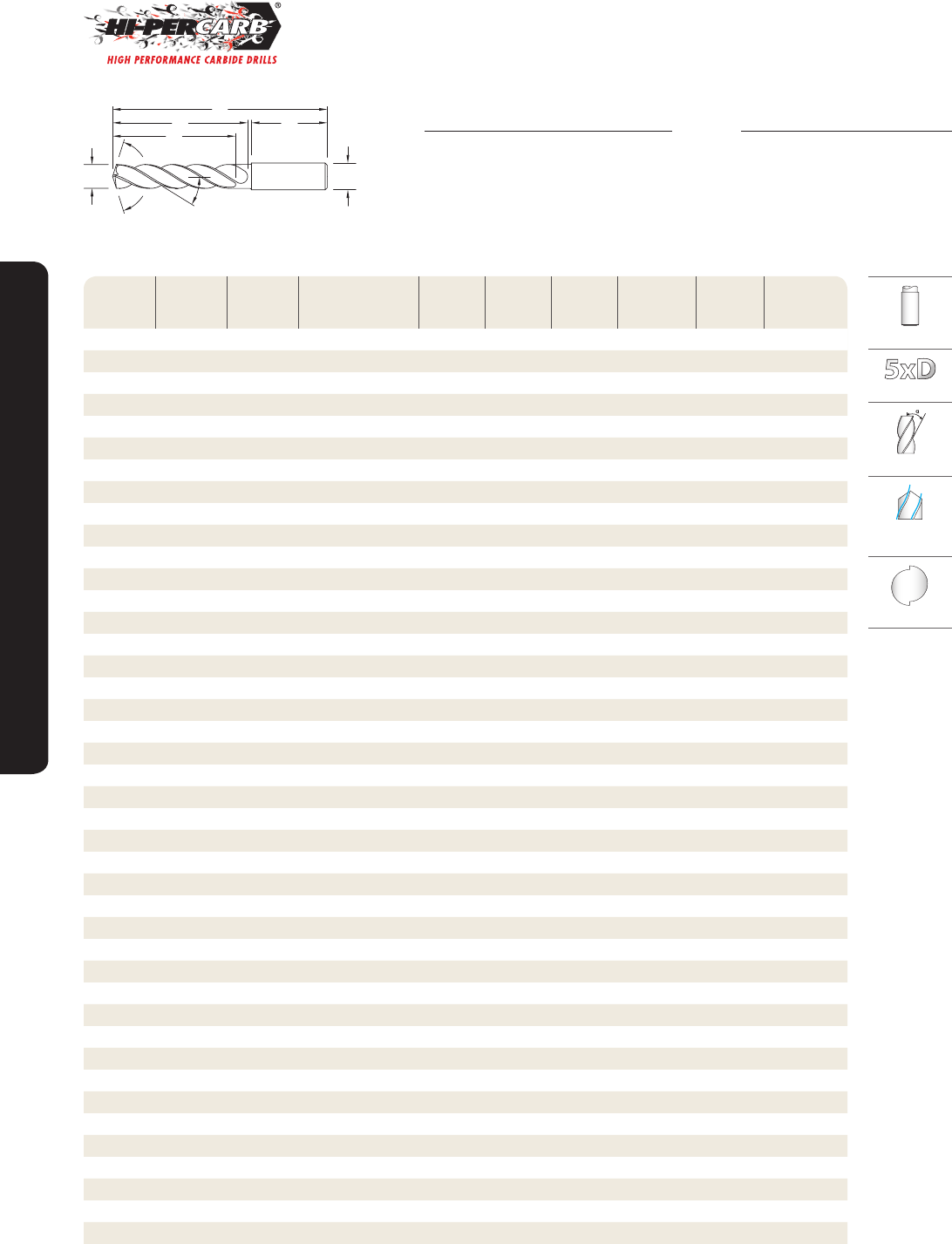

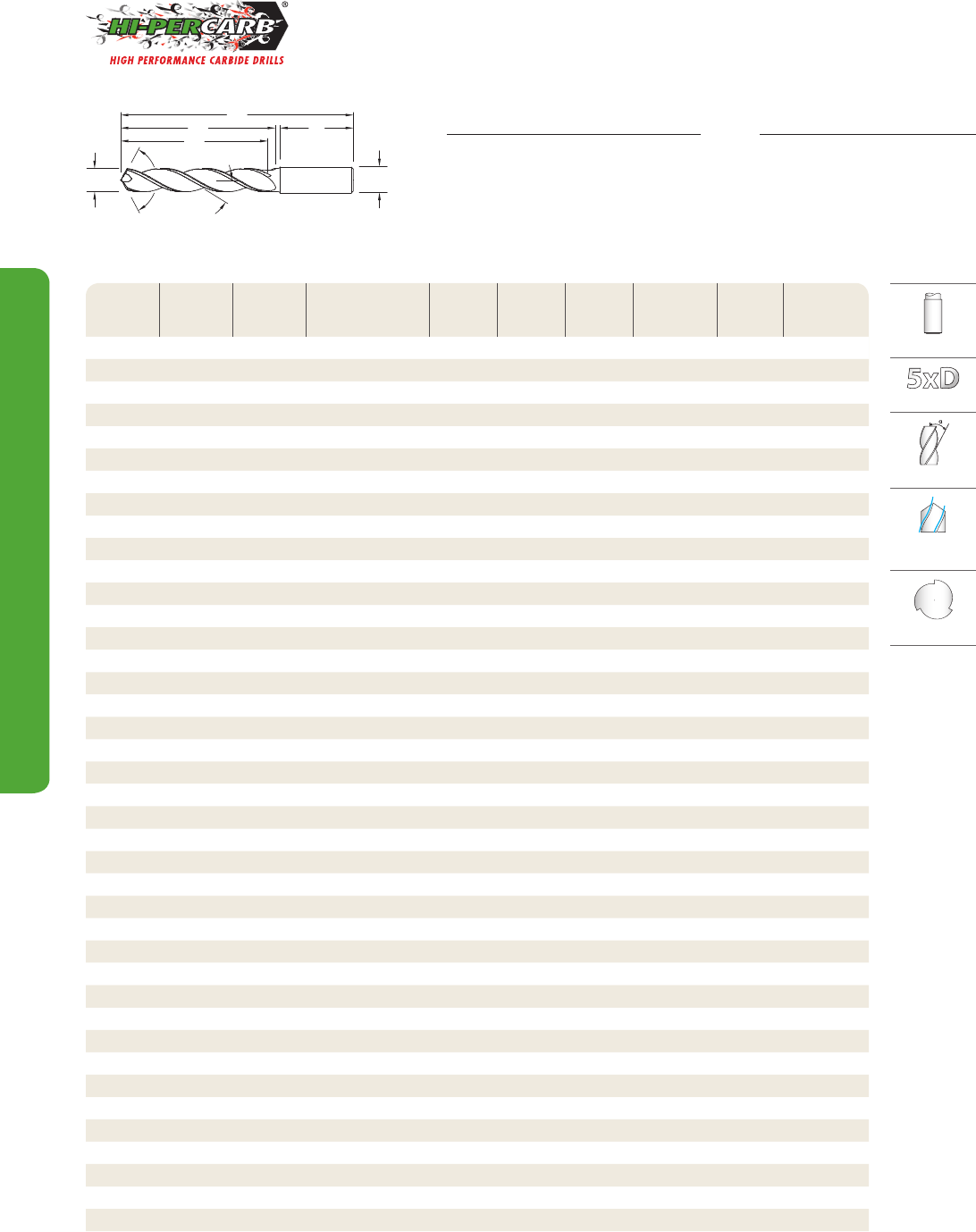

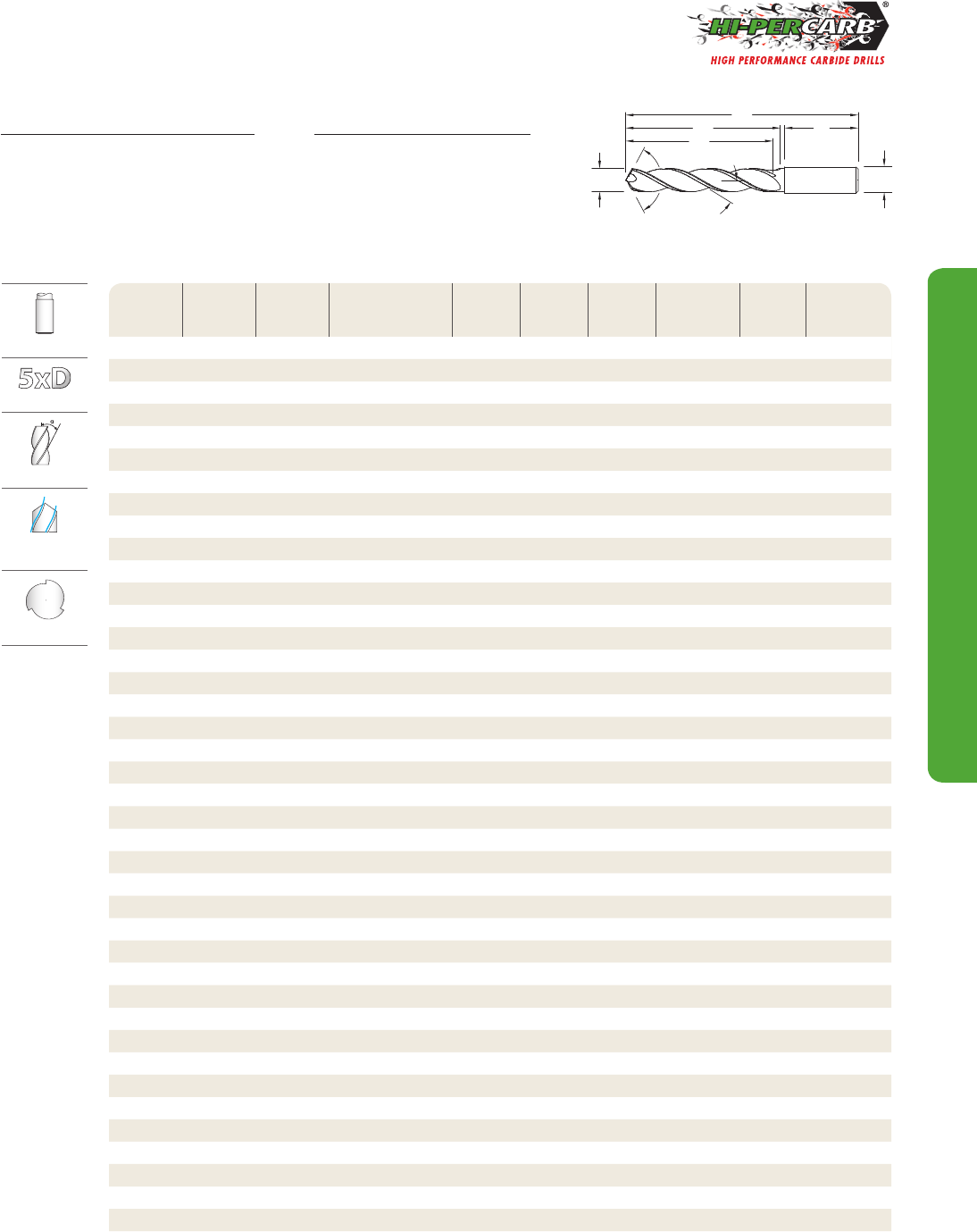

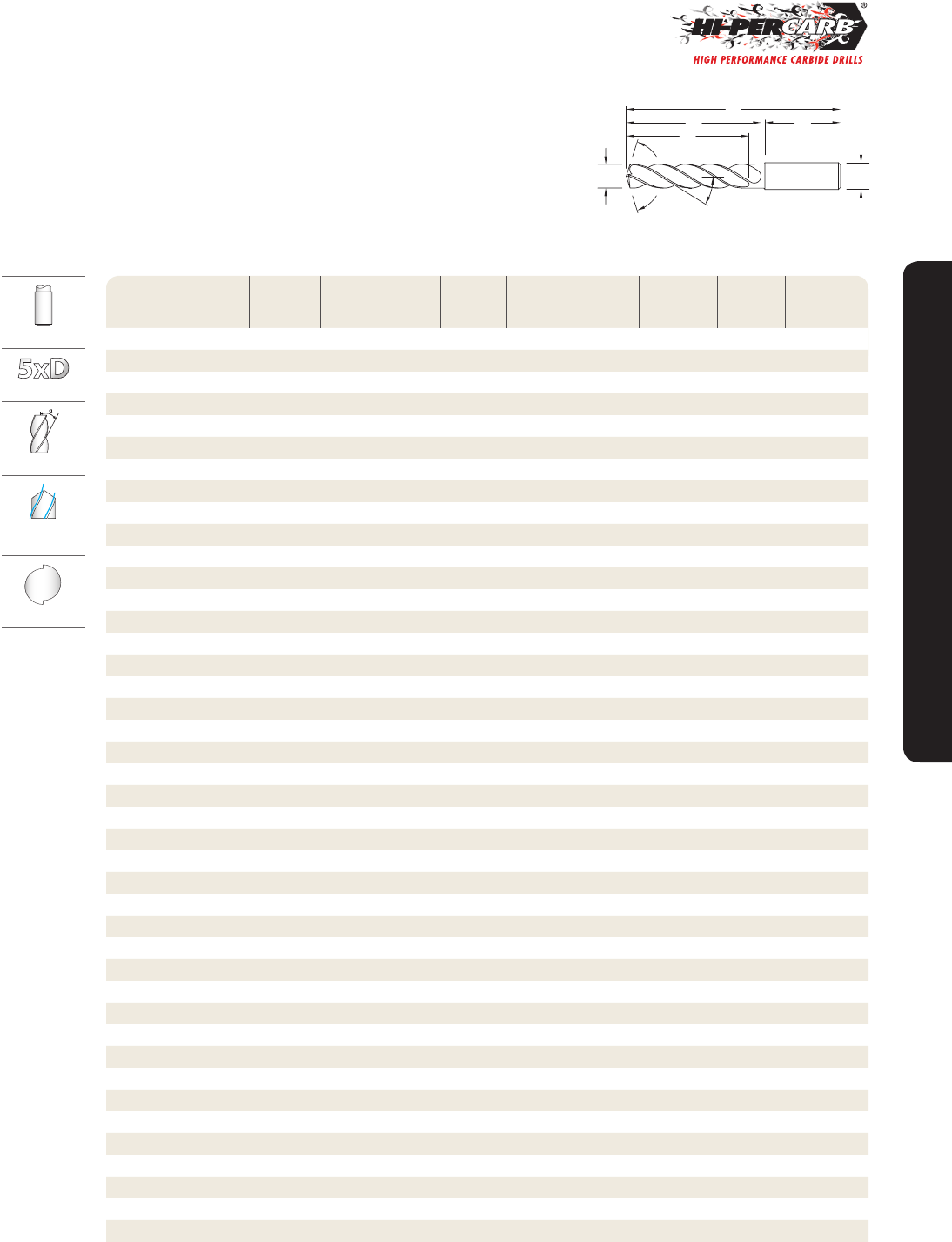

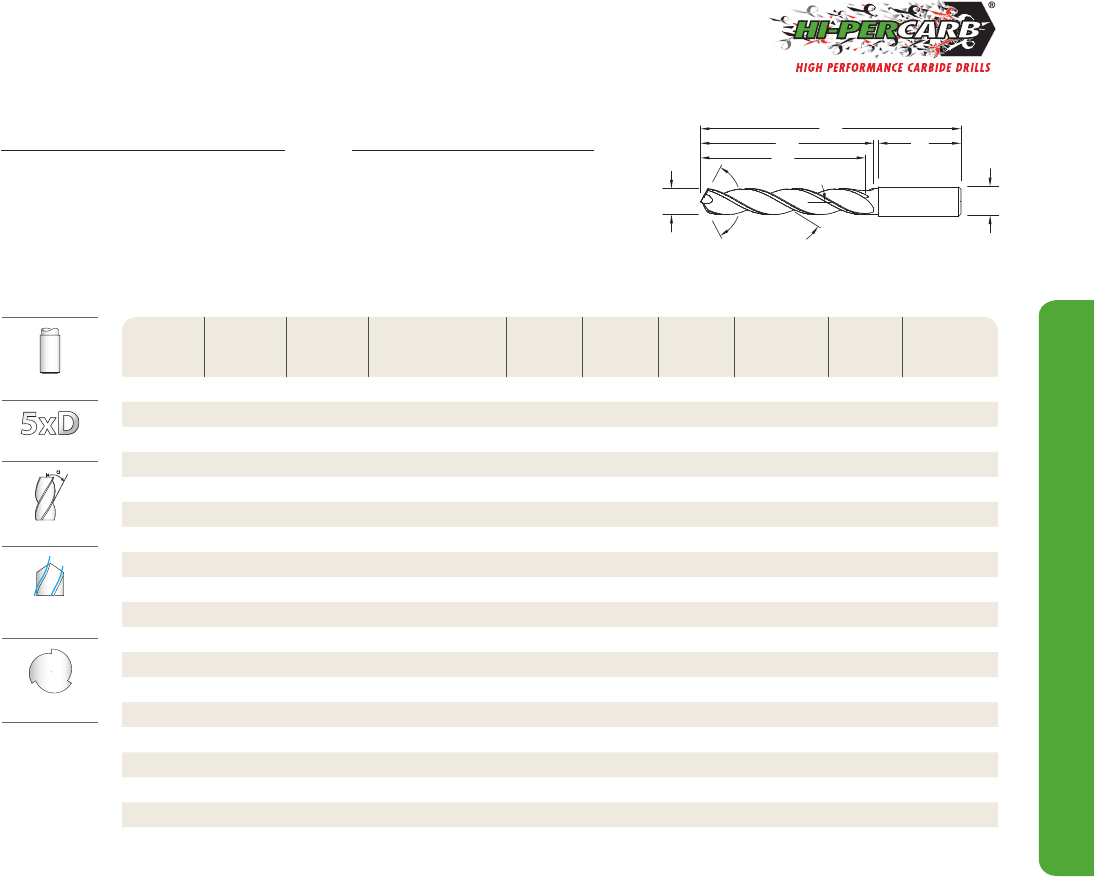

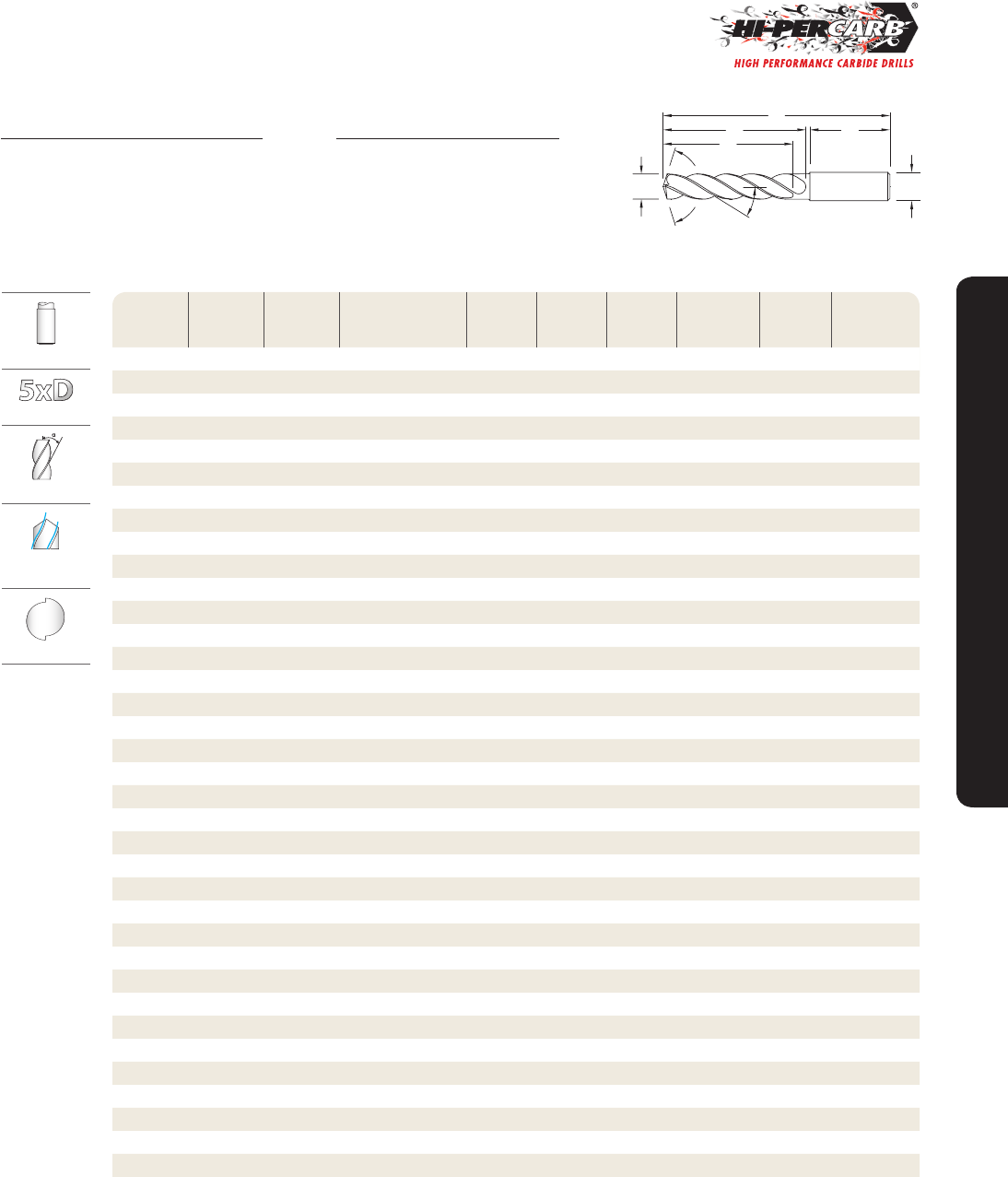

Series 135 5xD
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
1/64 0.0156 0.40 1/8 1 1/2 5/32 7/64 1 52300*
1/32 0.0312 0.79 1/8 1 1/2 5/16 7/32 1 52301*
3/64 0.0469 1.19 1/16-64 1/8 1 1/2 25/64 19/64 1 52302*
1,25 mm 0.0492 3,0 38,0 10,0 7,5 25,0 64520*
1,45 mm 0.0571 3,0 38,0 10,0 7,5 25,0 64521*
#53 0.0595 1.51 1/8 1-1/2 25/64 19/64 1 64522*
1/16 0.0625 1.59 5/64-60 1/8 2 15/32 23/64 1-1/4 52303*
1,6 mm 0.0630 3,0 50,0 12,0 9,0 32,0 64523*
1,75 mm 0.0689 3,0 50,0 12,0 9,0 32,0 64524*
#50 0.0700 1.78 1/8 2 15/32 23/64 1-1/4 64525*
5/64 0.0781 1.98 1/8 2 35/64 27/64 1-1/4 52304*
#47 0.0785 1.99 1/8 2 35/64 27/64 1-1/4 64526*
2,05 mm 0.0807 3,0 50,0 14,0 11,0 32,0 64527*
#46 0.0810 2.06 1/8 2 35/64 27/64 1-1/4 64528*
#43 0.0890 2.26 1/8 2 19/32 15/32 1-1/4 64529*
#42 0.0935 2.37 1/8 2 5/8 1/2 1-1/4 64530*
3/32 0.0938 2.38 1/8-32 1/8 2 5/8 1/2 1-1/4 52305
#40 0.0980 2.49 1/8 2 43/64 17/32 1-1/4 52306
2,5 mm 0.0984 3,0 50,0 17,0 13,0 32,0 64531
#39 0.0995 2.53 1/8 2 43/64 17/32 1-1/4 52307
#38 0.1015 2.58 5-40 1/8 2 43/64 17/32 1-1/4 52308
#37 0.1040 2.64 5-44 1/8 2 45/64 9/16 1-1/4 52309
#36 0.1065 2.71 6-32 1/8 2 45/64 9/16 1-1/4 52310
7/64 0.1094 2.78 1/8 2 3/4 19/32 1-1/4 52311
#35 0.1100 2.79 1/8 2 3/4 19/32 1-1/4 52312
#34 0.1110 2.82 1/8 2 3/4 19/32 1-1/4 52313
#33 0.1130 2.87 6-40 1/8 2 3/4 19/32 1-1/4 52314
2,9 mm 0.1142 3,0 50,0 19,0 15,0 32,0 64532
#32 0.1160 2.95 1/8 2 3/4 39/64 1-1/4 52315
3,0 mm 0.1181 6,0 66,0 28,0 23,0 36,0 64100
#31 0.1200 3.05 1/8 2 3/4 39/64 1-1/4 52316
3,1 mm 0.1220 6,0 66,0 28,0 23,0 36,0 64101
1/8 0.1250 3.18 1/4 3 1 53/64 1-7/16 51580
3,2 mm 0.1260 M3,5 X 0,35 6,0 66,0 28,0 23,0 36,0 64102
#30 0.1285 3.26 1/4 3 1 53/64 1-7/16 51581
3,3 mm 0.1299 M4 X 0,7 6,0 66,0 28,0 23,0 36,0 64103
3,4 mm 0.1339 8-32,8-36 6,0 66,0 28,0 23,0 36,0 64104
#29 0.1360 3.45 1/4 3 1 53/64 1-7/16 51582
3,5 mm 0.1378 6,0 66,0 28,0 23,0 36,0 64105
#28 0.1405 3.57 8-40 1/4 3 1 53/64 1- 7/16 52317
9/64 0.1406 3.57 1/4 3 1 53/64 1-7/16 51583
3,6 mm 0.1417 M4 X 0,35 6,0 66,0 28,0 23,0 36,0 64106
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
*Single Margin
13
Series 135 5xD
|
Fractional & Metric
145° 32°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
#27 0.1440 3.66 1/4 3 1 53/64 1-7/16 52318
3,7 mm 0.1457 M4.5 X 0,75 6,0 66,0 28,0 23,0 36,0 64107
#26 0.1470 3.73 3/16-24 1/4 3 1 53/64 1-7/16 52319
#25 0.1495 3.80 10-24 1/4 3-1/4 1-1/4 1-5/64 1-7/16 51584
3,8 mm 0.1496 6,0 74,0 36,0 29,0 36,0 64108
#24 0.1520 3.86 10-28 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52321
3,9 mm 0.1535 6,0 74,0 36,0 29,0 36,0 64109
#23 0.1540 3.91 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52322
5/32 0.1562 3.97 1/4 3-1/4 1-1/4 1-5/64 1-7/16 51585
#22 0.1570 3.99 10-30 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52323
4,0 mm 0.1575 M4,5 X 0,5 6,0 74,0 36,0 29,0 36,0 64110
#21 0.1590 4.04 10-32 1/4 3-1/4 1-1/4 1-5/64 1-7/16 51586
#20 0.1610 4.09 13/64-24 1/4 3-1/4 1-1/4 1-5/64 1-7/16 51587
4,1 mm 0.1614 6,0 74,0 36,0 29,0 36,0 64111
4,2 mm 0.1654 M5 / M5 X 0,75 6,0 74,0 36,0 29,0 36,0 64112
#19 0.1660 4.22 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52324
4,3 mm 0.1693 6,0 74,0 36,0 29,0 36,0 64113
#18 0.1695 4.31 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52325
11/64 0.1719 4.37 1/4 3-1/4 1-1/4 1-5/64 1-7/16 51588
#17 0.1730 4.39 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52326
4,4 mm 0.1732 6,0 74,0 36,0 29,0 36,0 64114
4,5 mm 0.1772 M5 X 0,5 6,0 74,0 36,0 29,0 36,0 64115
#15 0.1800 4.57 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52327
4,6 mm 0.1811 12-28 6,0 74,0 36,0 29,0 36,0 64116
#14 0.1820 4.62 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52328
#13 0.1850 4.70 12-32 1/4 3-1/4 1-1/4 1-5/64 1-7/16 52329
4,7 mm 0.1850 6,0 74,0 36,0 29,0 36,0 64117
3/16 0.1875 4.76 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51589
#12 0.1890 4.80 7/32-32 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52330
4,8 mm 0.1890 6,0 82,0 44,0 35,0 36,0 64118
4,9 mm 0.1929 6,0 82,0 44,0 35,0 36,0 64119
#10 0.1935 4.91 14-20 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52331
#9 0.1960 4.98 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52332
5,0 mm 0.1969 M6 X 1 6,0 82,0 44,0 35,0 36,0 64120
#8 0.1990 5.05 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52333
5,1 mm 0.2008 6,0 82,0 44,0 35,0 36,0 64121
#7 0.2010 5.11 1/4-20 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51506
13/64 0.2031 5.16 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51507
#6 0.2040 5.18 1/4 3 1/4 1 3/4 1 37/64 1 7/16 52334
5,2 mm 0.2047 M6 X 0,75 6,0 82,0 44,0 35,0 36,0 64122
#5 0.2055 5.22 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51590
5,25 mm 0.2067 6,0 82,0 44,0 35,0 36,0 64123
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
2
Flutes
14
Series 135 5xD
|
Fractional & Metric
145° 32°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
Common
Reach
Right Spiral
External
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
5,3 mm 0.2087 6,0 82,0 44,0 35,0 36,0 64124
#4 0.2090 5.31 1/4-24 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51508
5,4 mm 0.2126 6,0 82,0 44,0 35,0 36,0 64125
#3 0.2130 5.41 1/4-28 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51509
5,5 mm 0.2165 M6 X 0,5 6,0 82,0 44,0 35,0 36,0 64126
7/32 0.2188 5.56 1/4-32 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51510
5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 64127
#2 0.2210 5.61 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52335
5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 64128
#1 0.2280 5.79 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52336
5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 64129
5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 64130
A 0.2340 5.94 1/4 3-1/4 1-3/4 1-37/64 1-7/16 52337
15/64 0.2344 5.95 1/4 3-1/4 1-3/4 1-37/64 1-7/16 51591
6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 64131
B 0.2380 6.05 1/4 3 5/8 2-5/64 1-51/64 1-7/16 52338
6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 64132
C 0.2420 6.15 1/4 3 5/8 2-5/64 1-51/64 1-7/16 52339
6,2 mm 0.2441 8,0 91,0 53,0 43,0 36,0 64133
D 0.2460 6.25 1/4 3 5/8 2-5/64 1-51/64 1-7/16 52340
6,25 mm 0.2461 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 64134
6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 64135
1/4 0.2500 6.35 1/4 3-5/8 2-5/64 1-51/64 1-7/16 51511
6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 64136
6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 64137
F 0.2570 6.53 5/16-18 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51512
6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 64138
G 0.2610 6.63 5/16 3 5/8 2 5/64 1 51/64 1 7/16 52341
6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 64139
17/64 0.2656 6.75 5/16-20 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51513
H 0.2660 6.76 5/16 3-5/8 2-5/64 1-51/64 1-7/16 52342
6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 64140
6,9 mm 0.2717 8,0 91,0 53,0 43,0 36,0 64141
I 0.2720 6.91 5/16-24 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51514
7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 64142
J 0.2770 7.04 5/16 3 5/8 2-5/64 1-51/64 1-7/16 52343
7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 64143
K 0.2810 7.14 5/16 3 5/8 2-5/64 1-51/64 1-7/16 52344
9/32 0.2812 7.14 5/16-32 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51515
7,2 mm 0.2835 8,0 91,0 53,0 43,0 36,0 64144
7,25 mm 0.2854 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 64145
7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 64146
(continued on next page)
15
Series 135 5xD
|
Fractional & Metric
145° 32°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
Common
Reach
Right Spiral
External
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
L 0.2900 7.37 5/16 3-5/8 2-5/64 1-51/64 1-7/16 52345
7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 64147
M 0.2950 7.49 5/16 3-5/8 2-5/64 1-51/64 1-7/16 52346
7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 64148
19/64 0.2969 7.54 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51516
7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 64149
N 0.3020 7.67 5/16 3-5/8 2-5/64 1-51/64 1-7/16 52347
7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 64150
7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 64151
7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 64152
5/16 0.3125 7.94 3/8-16 5/16 3-5/8 2-5/64 1-51/64 1-7/16 51517
8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 64153
O 0.3160 8.03 3/8 4 2-13/32 2-1/8 1-9/16 52348
8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 64154
8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 64155
P 0.3230 8.20 3/8 4 2-13/32 2-1/8 1-9/16 51518
8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 64156
21/64 0.3281 8.33 3/8-20 3/8 4 2-13/32 2-1/8 1-9/16 51519
8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 64157
Q 0.3320 8.43 3/8-24 3/8 4 2-13/32 2-1/8 1-9/16 51520
8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 64158
8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 64159
R 0.3390 8.61 3/8-32 3/8 4 2-13/32 2-1/8 1-9/16 52349
8,7 mm 0.3425 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 64160
11/32 0.3438 8.73 3/8 4 2-13/32 2-1/8 1-9/16 51521
8,8 mm 0.3465 10,0 103,0 61,0 49,0 40,0 64161
S 0.3480 8.84 3/8 4 2-13/32 2-1/8 1-9/16 51522
8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 64162
9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 64163
T 0.3580 9.09 3/8 4 2 13/32 2 1/8 1 9/16 52350
9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 64164
23/64 0.3594 9.13 3/8 4 2-13/32 2-1/8 1-9/16 51523
9,2 mm 0.3622 M10 X 0,75 10,0 103,0 61,0 49,0 40,0 64165
9,25 mm 0.3642 10,0 103,0 61,0 49,0 40,0 64166
9,3 mm 0.3661 10,0 103,0 61,0 49,0 40,0 64167
U 0.3680 9.35 7/16-14 3/8 4 2-13/32 2-1/8 1-9/16 51524
9,4 mm 0.3701 10,0 103,0 61,0 49,0 40,0 64168
9,5 mm 0.3740 M10 X 0,5 10,0 103,0 61,0 49,0 40,0 64169
3/8 0.3750 9.53 3/8 4 2-13/32 2-1/8 1-9/16 51525
V 0.3770 9.58 1/2 4 2-13/32 2-1/8 1-9/16 52351
9,6 mm 0.3780 10,0 103,0 61,0 49,0 40,0 64170
9,7 mm 0.3819 10,0 103,0 61,0 49,0 40,0 64171
(continued on next page)
16
Series 135 5xD
|
Fractional & Metric
www.kyocera-sgstool.com
145° 32°
L
1
L2
L3
L4
D2
D1
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
Common
Reach
Right Spiral
External
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
9,8 mm 0.3858 10,0 103,0 61,0 49,0 40,0 64172
W 0.3860 9.80 1/2 4 2-13/32 2-1/8 1-9/16 51526
9,9 mm 0.3898 10,0 103,0 61,0 49,0 40,0 64173
25/64 0.3906 9.92 7/16-20 1/2 4 2-13/32 2-1/8 1-9/16 51527
10,0 mm 0.3937 10,0 103,0 61,0 49,0 40,0 64174
X 0.3970 10.08 7/16-24 1/2 4-11/16 2-3/4 2-23/64 1-49/64 52352
10,1 mm 0.3976 12,0 118,0 71,0 56,0 45,0 64175
10,2 mm 0.4016 12,0 118,0 71,0 56,0 45,0 64176
Y 0.4040 10.26 7/16-28 1/2 4-11/16 2-3/4 2-23/64 1-49/64 52353
10,3 mm 0.4055 12,0 118,0 71,0 56,0 45,0 64177
13/32 0.4062 10.32 1/2 4-11/16 2-3/4 2-23/64 1-49/64 51528
10,4 mm 0.4095 12,0 118,0 71,0 56,0 45,0 64178
Z 0.4130 10.49 1/2 4-11/16 2-3/4 2-23/64 1-49/64 52354
10,5 mm 0.4134 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 64179
10,6 mm 0.4173 12,0 118,0 71,0 56,0 45,0 64180
10,7 mm 0.4213 12,0 118,0 71,0 56,0 45,0 64181
27/64 0.4219 10.72 1/2-13 1/2 4-11/16 2-3/4 2-23/64 1-49/64 51529
10,8 mm 0.4252 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 64182
10,9 mm 0.4291 12,0 118,0 71,0 56,0 45,0 64183
11,0 mm 0.4331 12,0 118,0 71,0 56,0 45,0 64184
11,1 mm 0.4370 M12 X 1 12,0 118,0 71,0 56,0 45,0 64185
7/16 0.4375 11.11 1/4-18 NPT 1/2 4-11/16 2-3/4 2-23/64 1-49/64 51530
11,2 mm 0.4409 12,0 118,0 71,0 56,0 45,0 64186
11,25 mm 0.4429 12,0 118,0 71,0 56,0 45,0 64187
11,3 mm 0.4449 12,0 118,0 71,0 56,0 45,0 64188
11,4 mm 0.4488 12,0 118,0 71,0 56,0 45,0 64189
11,5 mm 0.4528 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64190
29/64 0.4531 11.51 1/2-20 1/2 4-11/16 2-3/4 2-23/64 1-49/64 51531
11,6 mm 0.4567 12,0 118,0 71,0 56,0 45,0 64191
11,7 mm 0.4606 12,0 118,0 71,0 56,0 45,0 64192
11,8 mm 0.4646 12,0 118,0 71,0 56,0 45,0 64193
11,9 mm 0.4685 12,0 118,0 71,0 56,0 45,0 64194
15/32 0.4688 11.91 1/2-28 1/2 4-11/16 2-3/4 2-23/64 1-49/64 51532
12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 64195
31/64 0.4844 12.30 9/16-12 1/2 4-7/8 3-1/32 2-19/32 1-49/64 51533
12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 64196
1/2 0.5000 12.70 1/2 4-7/8 3-1/32 2-19/32 1-49/64 51534
12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 64197
13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 64198
33/64 0.5156 13.10 9/16-18 5/8 4-7/8 3-1/32 2-19/32 1-49/64 51535
17/32 0.5312 13.49 5/8-11 5/8 4-7/8 3-1/32 2-19/32 1-49/64 51536
13,5 mm 0.5315 14,0 124,0 77,0 60,0 45,0 64199
(continued on next page)
17
Series 135 5xD
|
Fractional & Metric
145° 32°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
> 18 - 30 +0,008/+0,029 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
Common
Reach
Right Spiral
External
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
35/64 0.5469 13.89 5/8-12 5/8 4-7/8 3-1/32 2-19/32 1-49/64 51537
14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 64200
9/16 0.5625 14.29 5/8 5-1/4 3-1/4 2-3/4 1-57/64 51538
14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 64201
37/64 0.5781 14.68 5/8-18 5/8 5-1/4 3-1/4 2-3/4 1-57/64 51539
15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 64202
19/32 0.5938 15.08 11/16-11 5/8 5-1/4 3-1/4 2-3/4 1-57/64 51592
39/64 0.6094 15.48 11/16-12 5/8 5-1/4 3-1/4 2-3/4 1-57/64 51593
15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 64203
5/8 0.6250 15.88 11/16-16 5/8 5-1/4 3-1/4 2-3/4 1-57/64 51540
16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 64204
41/64 0.6406 16.27 11/16-24 3/4 5-5/8 3-5/8 3-3/16 1-57/64 51594
16,5 mm 0.6496 M18 X 1,5 18,0 143,0 93,0 71,0 48,0 64205
21/32 0.6562 16.67 3/4-10 3/4 5-5/8 3-5/8 3-3/16 1-57/64 51541
17,0 mm 0.6693 18,0 143,0 93,0 71,0 48,0 64206
43/64 0.6719 17.07 3/4-12 3/4 5-5/8 3-5/8 3-3/16 1-57/64 51595
11/16 0.6875 17.46 3/4-16 3/4 5-5/8 3-5/8 3-3/16 1-57/64 51542
17,5 mm 0.6890 M20 X 2,5 18,0 143,0 93,0 71,0 48,0 64207
45/64 0.7031 17.86
3/4-20, 1/2-14 NPT
3/4 5-5/8 3-5/8 3-3/16 1-57/64 51543
18,0 mm 0.7087 18,0 143,0 93,0 71,0 48,0 64208
23/32 0.7188 18.26 3/4 6 4 3-3/8 1-31/32 51596
18,5 mm 0.7283 M20 X 1,5 20,0 153,0 101,0 77,0 50,0 64209
47/64 0.7344 18.65 13/16-12 3/4 6 4 3-3/8 1-31/32 51544
19,0 mm 0.7480 20,0 153,0 101,0 77,0 50,0 64210
3/4 0.7500 19.05 13/16-16 3/4 6 4 3-3/8 1-31/32 51545
49/64 0.7656 19.45 7/8-9 7/8 6 4 3-3/8 1-31/32 52355
19,5 mm 0.7677 M22 X 2,5 20,0 153,0 101,0 77,0 50,0 64211
25/32 0.7812 19.84 7/8 6 4 3-3/8 1-31/32 52356
20,0 mm 0.7874 20,0 153,0 101,0 77,0 50,0 64212
51/64 0.7969 20.24 7/8-12 7/8 6 4 3-3/8 1-31/32 52357
20,5 mm 0.8071 22,0 153,0 101,0 77,0 50,0 64533
13/16 0.8125 20.64 7/8-14 7/8 6-1/2 4-1/2 3-7/8 1-31/32 52358
21,0 mm 0.8268 22,0 153,0 101,0 77,0 50,0 64534
22,0 mm 0.8661 22,0 178,0 127,0 108,0 50,0 64535
7/8 0.8750 22.23 15/16-16, 1-8 7/8 6-1/2 4-1/2 3-7/8 1-31/32 52359
59/64 0.9219 23.42 1-12 1 7 5 4-3/8 2-1/8 52360
www.kyocera-sgstool.com18
Series 135 3xD
|
Speed & Feed Recommendations
Series
135 3D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/32 1/8 1/4 3/8 1/2 5/8 7/8
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
385 RPM 47062 11766 5883 3922 2941 2353 1681
(308-462) Fr 0.0010 0.0038 0.0076 0.0115 0.0153 0.0191 0.0268
Feed (ipm) 45.0 45.0 45.0 45.0 45.0 45.0 45.0
≤ 275 Bhn
or
≤ 28 HRc
350 RPM 42784 10696 5348 3565 2674 2139 1528
(280-420) Fr 0.0009 0.0036 0.0071 0.0107 0.0142 0.0178 0.0249
Feed (ipm) 38.0 38.0 38.0 38.0 38.0 38.0 38.0
≤ 425 Bhn
or
≤ 45 HRc
200 RPM 24448 6112 3056 2037 1528 1222 873
(160-240) Fr 0.0007 0.0029 0.0059 0.0088 0.0118 0.0147 0.0206
Feed (ipm) 18.0 18.0 18.0 18.0 18.0 18.0 18.0
ALLOY STEELS
4140, 4150, 4320, 5120, 5150,
8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
300 RPM 36672 9168 4584 3056 2292 1834 1310
(240-360) Fr 0.0007 0.0029 0.0059 0.0088 0.0118 0.0147 0.0206
Feed (ipm) 27.0 27.0 27.0 27.0 27.0 27.0 27.0
≤ 375 Bhn
or
≤ 40 HRc
185 RPM 22614 5654 2827 1885 1413 1131 808
(148-222) Fr 0.0006 0.0026 0.0051 0.0077 0.0103 0.0128 0.0180
Feed (ipm) 14.5 14.5 14.5 14.5 14.5 14.5 14.5
≤ 450 Bhn
or
≤ 48 HRc
130 RPM 15891 3973 1986 1324 993 795 568
(104-156) Fr 0.0004 0.0018 0.0035 0.0053 0.0070 0.0088 0.0123
Feed (ipm) 7.0 7.0 7.0 7.0 7.0 7.0 7.0
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
130 RPM 15891 3973 1986 1324 993 795 568
(104-156) Fr 0.0007 0.0026 0.0053 0.0079 0.0106 0.0132 0.0185
Feed (ipm) 10.5 10.5 10.5 10.5 10.5 10.5 10.5
≤ 375 Bhn
or
≤ 40 HRc
90 RPM 11002 2750 1375 917 688 550 393
(72-108) Fr 0.0003 0.0012 0.0023 0.0035 0.0047 0.0058 0.0081
Feed (ipm) 3.2 3.2 3.2 3.2 3.2 3.2 3.2
≤ 475 Bhn
or
≤ 50 HRc
75 RPM 9168 2292 1146 764 573 458 327
(60-90) Fr 0.0002 0.0008 0.0016 0.0024 0.0031 0.0039 0.0055
Feed (ipm) 1.8 1.8 1.8 1.8 1.8 1.8 1.8
K
CAST IRONS
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
320 RPM 39117 9779 4890 3260 2445 1956 1397
(256-384) Fr 0.0012 0.0046 0.0092 0.0138 0.0184 0.0230 0.0322
Feed (ipm) 45.0 45.0 45.0 45.0 45.0 45.0 45.0
≤ 260 Bhn
or
≤ 26 HRc
285 RPM 34838 8710 4355 2903 2177 1742 1244
(228-342) Fr 0.0011 0.0046 0.0092 0.0138 0.0184 0.0230 0.0321
Feed (ipm) 40.0 40.0 40.0 40.0 40.0 40.0 40.0
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
275 RPM 33616 8404 4202 2801 2101 1681 1201
(220-330) Fr 0.0006 0.0026 0.0051 0.0077 0.0102 0.0128 0.0179
Feed (ipm) 21.5 21.5 21.5 21.5 21.5 21.5 21.5
≤ 275 Bhn
or
≤ 28 HRc
170 RPM 20781 5195 2598 1732 1299 1039 742
(136-204) Fr 0.0005 0.0020 0.0040 0.0061 0.0081 0.0101 0.0141
Feed (ipm) 10.5 10.5 10.5 10.5 10.5 10.5 10.5
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
90 RPM 11002 2750 1375 917 688 550 393
(72-108) Fr 0.0005 0.0020 0.0040 0.0060 0.0080 0.0100 0.0140
Feed (ipm) 5.5 5.5 5.5 5.5 5.5 5.5 5.5
≤ 375 Bhn
or
≤ 40 HRc
65 RPM 7946 1986 993 662 497 397 284
(52-78) Fr 0.0004 0.0018 0.0035 0.0053 0.0070 0.0088 0.0123
Feed (ipm) 3.5 3.5 3.5 3.5 3.5 3.5 3.5
(continued on next page)
www.kyocera-sgstool.com 19
Series 135 3xD
|
Speed & Feed Recommendations
Series
135 3D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/32 1/8 1/4 3/8 1/2 5/8 7/8
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
55 RPM 6723 1681 840 560 420 336 240
(44-66) Fr 0.0002 0.0008 0.0015 0.0023 0.0031 0.0039 0.0054
Feed (ipm) 1.3 1.3 1.3 1.3 1.3 1.3 1.3
≤ 400 Bhn
or
≤ 43 HRc
30 RPM 3667 917 458 306 229 183 131
(24-36) Fr 0.0002 0.0007 0.0013 0.0020 0.0026 0.0033 0.0046
Feed (ipm) 0.6 0.6 0.6 0.6 0.6 0.6 0.6
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
135 RPM 16502 4126 2063 1375 1031 825 589
(108-162) Fr 0.0004 0.0018 0.0035 0.0053 0.0071 0.0088 0.0124
Feed (ipm) 7.3 7.3 7.3 7.3 7.3 7.3 7.3
≤ 350 Bhn
or
≤ 38 HRc
100 RPM 12224 3056 1528 1019 764 611 437
(80-120) Fr 0.0004 0.0016 0.0033 0.0049 0.0065 0.0082 0.0115
Feed (ipm) 5.0 5.0 5.0 5.0 5.0 5.0 5.0
≤ 440 Bhn
or
≤ 47 HRc
55 RPM 6723 1681 840 560 420 336 240
(44-66) Fr 0.0003 0.0012 0.0024 0.0036 0.0048 0.0059 0.0083
Feed (ipm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
700 RPM 85568 21392 10696 7131 5348 4278 3056
(560-840) Fr 0.0012 0.0049 0.0098 0.0147 0.0196 0.0245 0.0344
Feed (ipm) 105.0 105.0 105.0 105.0 105.0 105.0 105.0
≤ 150 Bhn
or
≤ 7 HRc
600 RPM 73344 18336 9168 6112 4584 3667 2619
(480-720) Fr 0.0012 0.0050 0.0099 0.0149 0.0199 0.0248 0.0347
Feed (ipm) 91.0 91.0 91.0 91.0 91.0 91.0 91.0
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
500 RPM 61120 15280 7640 5093 3820 3056 2183
(400-600) Fr 0.0005 0.0020 0.0039 0.0059 0.0079 0.0098 0.0137
Feed (ipm) 30.0 30.0 30.0 30.0 30.0 30.0 30.0
≤ 200 Bhn
or
≤ 23 HRc
400 RPM 48896 12224 6112 4075 3056 2445 1746
(320-480) Fr 0.0005 0.0020 0.0040 0.0060 0.0080 0.0100 0.0140
Feed (ipm) 24.5 24.5 24.5 24.5 24.5 24.5 24.5
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = Vc x 3.82 / D1
•  ipm = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com20
Series 135 3xD
|
Speed & Feed Recommendations
Series
135 3D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
1.5 36810 12 16 20
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
117 RPM 24882 12441 6220 4665 3732 3110 2333 1866
(94-141) Fr 0.047 0.094 0.189 0.252 0.315 0.378 0.504 0.630
Feed (mm/min) 1175 1175 1175 1175 1175 1175 1175 1175
≤ 275 Bhn
or
≤ 28 HRc
107 RPM 22620 11310 5655 4241 3393 2827 2121 1696
(85-128) Fr 0.043 0.086 0.172 0.229 0.286 0.343 0.457 0.572
Feed (mm/min) 970 970 970 970 970 970 970 970
≤ 475 Bhn
or
≤ 45 HRc
61 RPM 12926 6463 3231 2424 1939 1616 1212 969
(49-73) Fr 0.036 0.071 0.142 0.190 0.237 0.285 0.380 0.475
Feed (mm/min) 460 460 460 460 460 460 460 460
ALLOY STEELS
4140, 4150, 4320, 5120, 5150,
8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
91 RPM 19388 9694 4847 3635 2908 2424 1818 1454
(73-110) Fr 0.036 0.071 0.142 0.190 0.237 0.285 0.380 0.475
Feed (mm/min) 690 690 690 690 690 690 690 690
≤ 375 Bhn
or
≤ 40 HRc
56 RPM 11956 5978 2989 2242 1793 1495 1121 897
(45-68) Fr 0.031 0.061 0.122 0.163 0.204 0.244 0.326 0.407
Feed (mm/min) 365 365 365 365 365 365 365 365
≤ 450 Bhn
or
≤ 48 HRc
40 RPM 8402 4201 2100 1575 1260 1050 788 630
(32-48) Fr 0.021 0.042 0.083 0.111 0.139 0.167 0.222 0.278
Feed (mm/min) 175 175 175 175 175 175 175 175
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
40 RPM 8402 4201 2100 1575 1260 1050 788 630
(32-48) Fr 0.032 0.063 0.126 0.168 0.210 0.252 0.336 0.421
Feed (mm/min) 265 265 265 265 265 265 265 265
≤ 375 Bhn
or
≤ 40 HRc
27 RPM 5816 2908 1454 1091 872 727 545 436
(22-33) Fr 0.014 0.028 0.055 0.073 0.092 0.110 0.147 0.183
Feed (mm/min) 80 80 80 80 80 80 80 80
≤ 475 Bhn
or
≤ 50 HRc
23 RPM 4847 2424 1212 909 727 606 454 364
(18-27) Fr 0.009 0.019 0.037 0.050 0.062 0.074 0.099 0.124
Feed (mm/min) 45 45 45 45 45 45 45 45
K
CAST IRONS
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
98 RPM 20681 10340 5170 3878 3102 2585 1939 1551
(78-117) Fr 0.055 0.110 0.220 0.293 0.366 0.439 0.585 0.732
Feed (mm/min) 1135 1135 1135 1135 1135 1135 1135 1135
≤ 260 Bhn
or
≤ 26 HRc
87 RPM 18419 9209 4605 3454 2763 2302 1727 1381
(69-104) Fr 0.055 0.110 0.219 0.292 0.366 0.439 0.585 0.731
Feed (mm/min) 1010 1010 1010 1010 1010 1010 1010 1010
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
84 RPM 17773 8886 4443 3332 2666 2222 1666 1333
(67-101) Fr 0.031 0.061 0.123 0.164 0.204 0.245 0.327 0.409
Feed (mm/min) 545 545 545 545 545 545 545 545
≤ 275 Bhn
or
≤ 28 HRc
52 RPM 10987 5493 2747 2060 1648 1373 1030 824
(41-62) Fr 0.024 0.047 0.095 0.126 0.158 0.189 0.252 0.316
Feed (mm/min) 260 260 260 260 260 260 260 260
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
27 RPM 5816 2908 1454 1091 872 727 545 436
(22-33) Fr 0.023 0.046 0.093 0.124 0.155 0.186 0.248 0.309
Feed (mm/min) 135 135 135 135 135 135 135 135
≤ 375 Bhn
or
≤ 40 HRc
20 RPM 4201 2100 1050 788 630 525 394 315
(16-24) Fr 0.020 0.040 0.081 0.108 0.135 0.162 0.216 0.270
Feed (mm/min) 85 85 85 85 85 85 85 85
(continued on next page)
www.kyocera-sgstool.com 21
Series 135 3xD
|
Speed & Feed Recommendations
Series
135 3D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
1.5 36810 12 16 20
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
17 RPM 3555 1777 889 666 533 444 333 267
(13-20) Fr 0.010 0.020 0.039 0.053 0.066 0.079 0.105 0.131
Feed (mm/min) 35 35 35 35 35 35 35 35
≤ 400 Bhn
or
≤ 43 HRc
9 RPM 1939 969 485 364 291 242 182 145
(7-11) Fr 0.008 0.015 0.031 0.041 0.052 0.062 0.083 0.103
Feed (mm/min) 15 15 15 15 15 15 15 15
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
41 RPM 8725 4362 2181 1636 1309 1091 818 654
(33-49) Fr 0.021 0.042 0.085 0.113 0.141 0.170 0.226 0.283
Feed (mm/min) 185 185 185 185 185 185 185 185
≤ 350 Bhn
or
≤ 38 HRc
30 RPM 6463 3231 1616 1212 969 808 606 485
(24-37) Fr 0.019 0.039 0.077 0.103 0.129 0.155 0.206 0.258
Feed (mm/min) 125 125 125 125 125 125 125 125
≤ 440 Bhn
or
≤ 47 HRc
17 RPM 3555 1777 889 666 533 444 333 267
(13-20) Fr 0.014 0.028 0.056 0.075 0.094 0.113 0.150 0.188
Feed (mm/min) 50 50 50 50 50 50 50 50
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
213 RPM 45239 22620 11310 8482 6786 5655 4241 3393
(171-256) Fr 0.059 0.119 0.238 0.317 0.396 0.476 0.634 0.793
Feed (mm/min) 2690 2690 2690 2690 2690 2690 2690 2690
≤ 150 Bhn
or
≤ 7 HRc
183 RPM 38777 19388 9694 7271 5816 4847 3635 2908
(146-219) Fr 0.060 0.120 0.240 0.320 0.400 0.480 0.640 0.799
Feed (mm/min) 2325 2325 2325 2325 2325 2325 2325 2325
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
152 RPM 32314 16157 8078 6059 4847 4039 3029 2424
(122-183) Fr 0.024 0.048 0.096 0.128 0.160 0.192 0.256 0.320
Feed (mm/min) 776 776 776 776 776 776 776 776
≤ 200 Bhn
or
≤ 23 HRc
122 RPM 25851 12926 6463 4847 3878 3231 2424 1939
(98-146) Fr 0.024 0.049 0.097 0.130 0.162 0.195 0.260 0.325
Feed (mm/min) 630 630 630 630 630 630 630 630
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com22
Series 135 5xD
|
Speed & Feed Recommendations
Series
135 5D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/32 1/8 1/4 3/8 1/2 5/8 7/8
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
345 RPM 42173 10543 5272 3514 2636 2109 1506
(276-414) Fr 0.0010 0.0040 0.0080 0.0120 0.0159 0.0199 0.0279
Feed (ipm) 42.0 42.0 42.0 42.0 42.0 42.0 42.0
≤ 275 Bhn
or
≤ 28 HRc
310 RPM 37894 9474 4737 3158 2368 1895 1353
(248-372) Fr 0.0009 0.0036 0.0072 0.0108 0.0144 0.0179 0.0251
Feed (ipm) 34.0 34.0 34.0 34.0 34.0 34.0 34.0
≤ 425 Bhn
or
≤ 45 HRc
180 RPM 22003 5501 2750 1834 1375 1100 786
(144-216) Fr 0.0007 0.0030 0.0060 0.0090 0.0120 0.0150 0.0210
Feed (ipm) 16.5 16.5 16.5 16.5 16.5 16.5 16.5
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
270 RPM 33005 8251 4126 2750 2063 1650 1179
(216-324) Fr 0.0008 0.0030 0.0061 0.0091 0.0121 0.0151 0.0212
Feed (ipm) 25.0 25.0 25.0 25.0 25.0 25.0 25.0
≤ 375 Bhn
or
≤ 40 HRc
165 RPM 20170 5042 2521 1681 1261 1008 720
(132-198) Fr 0.0006 0.0026 0.0052 0.0077 0.0103 0.0129 0.0180
Feed (ipm) 13.0 13.0 13.0 13.0 13.0 13.0 13.0
≤ 450 Bhn
or
≤ 48 HRc
115 RPM 14058 3514 1757 1171 879 703 502
(92-138) Fr 0.0004 0.0018 0.0035 0.0053 0.0071 0.0088 0.0123
Feed (ipm) 6.2 6.2 6.2 6.2 6.2 6.2 6.2
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
120 RPM 14669 3667 1834 1222 917 733 524
(96-144) Fr 0.0006 0.0026 0.0051 0.0077 0.0103 0.0128 0.0179
Feed (ipm) 9.4 9.4 9.4 9.4 9.4 9.4 9.4
≤ 375 Bhn
or
≤ 40 HRc
80 RPM 9779 2445 1222 815 611 489 349
(64-96) Fr 0.0003 0.0012 0.0024 0.0036 0.0047 0.0059 0.0083
Feed (ipm) 2.9 2.9 2.9 2.9 2.9 2.9 2.9
≤ 475 Bhn
or
≤ 50 HRc
70 RPM 8557 2139 1070 713 535 428 306
(56-84) Fr 0.0002 0.0008 0.0016 0.0024 0.0032 0.0040 0.0056
Feed (ipm) 1.7 1.7 1.7 1.7 1.7 1.7 1.7
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
300 RPM 36672 9168 4584 3056 2292 1834 1310
(240-360) Fr 0.0011 0.0045 0.0089 0.0134 0.0179 0.0224 0.0313
Feed (ipm) 41.0 41.0 41.0 41.0 41.0 41.0 41.0
≤ 260 Bhn
or
≤ 26 HRc
265 RPM 32394 8098 4049 2699 2025 1620 1157
(212-318) Fr 0.0011 0.0046 0.0091 0.0137 0.0183 0.0228 0.0320
Feed (ipm) 37.0 37.0 37.0 37.0 37.0 37.0 37.0
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
250 RPM 30560 7640 3820 2547 1910 1528 1091
(200-300) Fr 0.0006 0.0026 0.0051 0.0077 0.0102 0.0128 0.0179
Feed (ipm) 19.5 19.5 19.5 19.5 19.5 19.5 19.5
≤ 275 Bhn
or
≤ 28 HRc
150 RPM 18336 4584 2292 1528 1146 917 655
(120-180) Fr 0.0005 0.0020 0.0039 0.0059 0.0079 0.0098 0.0137
Feed (ipm) 9.0 9.0 9.0 9.0 9.0 9.0 9.0
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
80 RPM 9779 2445 1222 815 611 489 349
(64-96) Fr 0.0005 0.0020 0.0039 0.0059 0.0079 0.0098 0.0137
Feed (ipm) 4.8 4.8 4.8 4.8 4.8 4.8 4.8
≤ 375 Bhn
or
≤ 40 HRc
55 RPM 6723 1681 840 560 420 336 240
(44-66) Fr 0.0004 0.0018 0.0036 0.0054 0.0071 0.0089 0.0125
Feed (ipm) 3.0 3.0 3.0 3.0 3.0 3.0 3.0
(continued on next page)
www.kyocera-sgstool.com 23
Series 135 5xD
|
Speed & Feed Recommendations
Series
135 5D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/32 1/8 1/4 3/8 1/2 5/8 7/8
S
SUPER ALLOYS
(Nickel , Cobalt,
Iron Base)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
40 RPM 4890 1222 611 407 306 244 175
(32-48) Fr 0.0002 0.0008 0.0016 0.0025 0.0033 0.0041 0.0057
Feed (ipm) 1.0 1.0 1.0 1.0 1.0 1.0 1.0
≤ 400 Bhn
or
≤ 43 HRc
20 RPM 2445 611 306 204 153 122 87
(16-24) Fr 0.0002 0.0007 0.0013 0.0020 0.0026 0.0033 0.0046
Feed (ipm) 0.4 0.4 0.4 0.4 0.4 0.4 0.4
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
105 RPM 12835 3209 1604 1070 802 642 458
(84-126) Fr 0.0005 0.0018 0.0036 0.0054 0.0072 0.0090 0.0127
Feed (ipm) 5.8 5.8 5.8 5.8 5.8 5.8 5.8
≤ 350 Bhn
or
≤ 38 HRc
80 RPM 9779 2445 1222 815 611 489 349
(64-96) Fr 0.0004 0.0016 0.0032 0.0048 0.0064 0.0080 0.0112
Feed (ipm) 3.9 3.9 3.9 3.9 3.9 3.9 3.9
≤ 440 Bhn
or
≤ 47 HRc
42 RPM 5134 1284 642 428 321 257 183
(34-50) Fr 0.0003 0.0012 0.0025 0.0037 0.0050 0.0062 0.0087
Feed (ipm) 1.6 1.6 1.6 1.6 1.6 1.6 1.6
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
635 RPM 77622 19406 9703 6469 4851 3881 2772
(508-762) Fr 0.0012 0.0049 0.0099 0.0148 0.0198 0.0247 0.0346
Feed (ipm) 96.0 96.0 96.0 96.0 96.0 96.0 96.0
≤ 150 Bhn
or
≤ 7 HRc
540 RPM 66010 16502 8251 5501 4126 3300 2357
(432-648) Fr 0.0012 0.0050 0.0099 0.0149 0.0199 0.0248 0.0348
Feed (ipm) 82.0 82.0 82.0 82.0 82.0 82.0 82.0
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
450 RPM 55008 13752 6876 4584 3438 2750 1965
(360-540) Fr 0.0005 0.0020 0.0040 0.0060 0.0080 0.0100 0.0140
Feed (ipm) 27.5 27.5 27.5 27.5 27.5 27.5 27.5
≤ 200 Bhn
or
≤ 23 HRc
360 RPM 44006 11002 5501 3667 2750 2200 1572
(288-432) Fr 0.0005 0.0020 0.0040 0.0060 0.0080 0.0100 0.0140
Feed (ipm) 22.0 22.0 22.0 22.0 22.0 22.0 22.0
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = Vc x 3.82 / D1
•  ipm = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com24
Series 135 5xD
|
Speed & Feed Recommendations
Series
135M 5D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
1.5 36810 12 16 20
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
105 RPM 22297 11148 5574 4181 3344 2787 2090 1672
(84-126) Fr 0.048 0.095 0.190 0.254 0.317 0.380 0.507 0.634
Feed (mm/min) 1060 1060 1060 1060 1060 1060 1060 1060
≤ 275 Bhn
or
≤ 28 HRc
94 RPM 20035 10017 5009 3756 3005 2504 1878 1503
(76-113) Fr 0.043 0.085 0.171 0.228 0.285 0.341 0.455 0.569
Feed (mm/min) 855 855 855 855 855 855 855 855
≤ 425 Bhn
or
≤ 45 HRc
55 RPM 11633 5816 2908 2181 1745 1454 1091 872
(44-66) Fr 0.036 0.071 0.143 0.190 0.238 0.285 0.381 0.476
Feed (mm/min) 415 415 415 415 415 415 415 415
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
82 RPM 17449 8725 4362 3272 2617 2181 1636 1309
(66-99) Fr 0.036 0.072 0.143 0.191 0.239 0.287 0.382 0.478
Feed (mm/min) 625 625 625 625 625 625 625 625
≤ 375 Bhn
or
≤ 40 HRc
50 RPM 10664 5332 2666 1999 1600 1333 1000 800
(40-60) Fr 0.031 0.062 0.124 0.165 0.206 0.248 0.330 0.413
Feed (mm/min) 330 330 330 330 330 330 330 330
≤ 450 Bhn
or
≤ 48 HRc
35 RPM 7432 3716 1858 1394 1115 929 697 557
(28-42) Fr 0.022 0.043 0.086 0.115 0.144 0.172 0.230 0.287
Feed (mm/min) 160 160 160 160 160 160 160 160
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
37 RPM 7755 3878 1939 1454 1163 969 727 582
(29-44) Fr 0.031 0.062 0.124 0.165 0.206 0.248 0.330 0.413
Feed (mm/min) 240 240 240 240 240 240 240 240
≤ 375 Bhn
or
≤ 40 HRc
24 RPM 5170 2585 1293 969 776 646 485 388
(20-29) Fr 0.015 0.029 0.058 0.077 0.097 0.116 0.155 0.193
Feed (mm/min) 75 75 75 75 75 75 75 75
≤ 475 Bhn
or
≤ 50 HRc
21 RPM 4524 2262 1131 848 679 565 424 339
(17-26) Fr 0.010 0.020 0.040 0.053 0.066 0.080 0.106 0.133
Feed (mm/min) 45 45 45 45 45 45 45 45
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
91 RPM 19388 9694 4847 3635 2908 2424 1818 1454
(73-110) Fr 0.054 0.108 0.217 0.289 0.361 0.433 0.578 0.722
Feed (mm/min) 1050 1050 1050 1050 1050 1050 1050 1050
≤ 260 Bhn
or
≤ 26 HRc
81 RPM 17126 8563 4282 3211 2569 2141 1606 1284
(65-97) Fr 0.055 0.109 0.218 0.291 0.364 0.437 0.582 0.728
Feed (mm/min) 935 935 935 935 935 935 935 935
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
76 RPM 16157 8078 4039 3029 2424 2020 1515 1212
(61-91) Fr 0.031 0.061 0.123 0.163 0.204 0.245 0.327 0.408
Feed (mm/min) 495 495 495 495 495 495 495 495
≤ 275 Bhn
or
≤ 28 HRc
46 RPM 9694 4847 2424 1818 1454 1212 909 727
(37-55) Fr 0.024 0.047 0.095 0.127 0.158 0.190 0.253 0.316
Feed (mm/min) 230 230 230 230 230 230 230 230
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
24 RPM 5170 2585 1293 969 776 646 485 388
(20-29) Fr 0.023 0.046 0.093 0.124 0.155 0.186 0.248 0.309
Feed (mm/min) 120 120 120 120 120 120 120 120
≤ 375 Bhn
or
≤ 40 HRc
17 RPM 3555 1777 889 666 533 444 333 267
(13-20) Fr 0.021 0.042 0.084 0.113 0.141 0.169 0.225 0.281
Feed (mm/min) 75 75 75 75 75 75 75 75
continued on next page
www.kyocera-sgstool.com 25
Series 135 5xD
|
Speed & Feed Recommendations
Series
135M 5D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
1.5 36810 12 16 20
S
SUPER ALLOYS
(Nickel , Cobalt,
Iron Base)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
12 RPM 2585 1293 646 485 388 323 242 194
(10-15) Fr 0.010 0.019 0.039 0.052 0.064 0.077 0.103 0.129
Feed (mm/min) 25 25 25 25 25 25 25 25
≤ 400 Bhn
or
≤ 43 HRc
6 RPM 1293 646 323 242 194 162 121 97
(5-7) Fr 0.007 0.014 0.028 0.037 0.046 0.056 0.074 0.093
Feed (mm/min) 9 9 9 9 9 9 9 9
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
32 RPM 6786 3393 1696 1272 1018 848 636 509
(26-38) Fr 0.021 0.043 0.085 0.114 0.142 0.171 0.228 0.285
Feed (mm/min) 145 145 145 145 145 145 145 145
≤ 350 Bhn
or
≤ 38 HRc
24 RPM 5170 2585 1293 969 776 646 485 388
(20-29) Fr 0.019 0.039 0.077 0.103 0.129 0.155 0.206 0.258
Feed (mm/min) 100 100 100 100 100 100 100 100
≤ 440 Bhn
or
≤ 47 HRc
13 RPM 2714 1357 679 509 407 339 254 204
(10-15) Fr 0.015 0.029 0.059 0.079 0.098 0.118 0.157 0.196
Feed (mm/min) 40 40 40 40 40 40 40 40
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
194 RPM 41039 20519 10260 7695 6156 5130 3847 3078
(155-232) Fr 0.059 0.118 0.237 0.316 0.395 0.474 0.632 0.790
Feed (mm/min) 2430 2430 2430 2430 2430 2430 2430 2430
≤ 150 Bhn
or
≤ 7 HRc
165 RPM 34899 17449 8725 6544 5235 4362 3272 2617
(132-198) Fr 0.059 0.118 0.237 0.316 0.394 0.473 0.631 0.789
Feed (mm/min) 2065 2065 2065 2065 2065 2065 2065 2065
Copper Alloys
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
137 RPM 29082 14541 7271 5453 4362 3635 2726 2181
(110-165) Fr 0.027 0.053 0.107 0.142 0.178 0.213 0.284 0.355
Feed (mm/min) 775 775 775 775 775 775 775 775
≤ 200 Bhn
or
≤ 23 HRc
110 RPM 23266 11633 5816 4362 3490 2908 2181 1745
(88-132) Fr 0.027 0.054 0.108 0.144 0.181 0.217 0.289 0.361
Feed (mm/min) 630 630 630 630 630 630 630 630
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = (1000 x m / min) / (3.14 x D1)
•  mm / min = (mm / revolution) x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com
26
PERFORMANCE. PRECISION. PASSION.

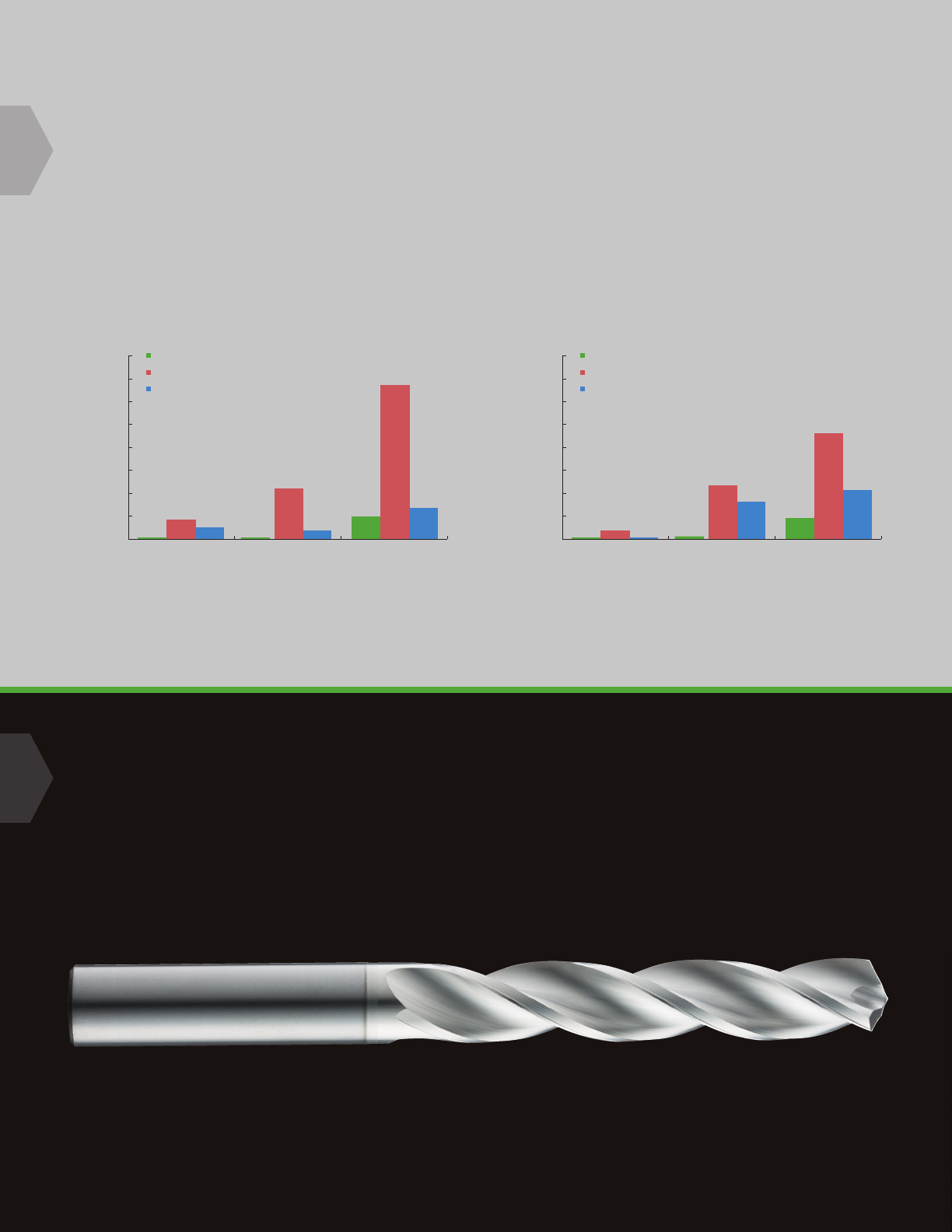

HI-PERCARB SERIES 131N ALUMINUM DRILLS
The key features designed into the Hi-PerCarb Series
131N Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 131N Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.
TRI-MARGIN DESIGN
• improved hole stability over two-flute designs
• superior surface finish, roundness and hole
cylindricity
• unsurpassed hole size control
A
A
A
A
B
B
SELF-STABILIZING POINT
• pyramid design stabilizes the drill
on contact with the workpiece
C
C
OPEN FLUTE STRUCTURE
• efficiently transports chips while
maintaining strength at high feed rates
D
D
SCULPTED GASH
• allows chips to easily flow away from
the drill center
• reduced cutting forces over competitive
three-flute designs
E
E
MINIMAL MARGIN DESIGN
• reduces frictional heat generated by
excessive margin contact with the workpiece
• parallel design maintains contact width
as margin wears for performance consistency
0
0.002
0.004
0.006
0.008
0.01
0.012
0.014
Uncoated Ti-Namite B
0
100
200
300
400
500
600
700
800
Uncoated Ti-Namite B
689
311
USAGE (inches)
WEAR (inches)
0.0015
.0124
0
50
100
150
200
250
300
350
400
SERIES 131N Competitor 1 Competitor 2 Competitor 3
361.2 348 360.2
293.7
FORCE (lbs)
0
10
20
30
40
50
60
70
80
SERIES 131N
29
Competitor 1
56
Competitor 2
43
Competitor 3
66
Competitor 4
75
FINISH (Ra)
FORCE
COMPARISON
SURFACE
FINISH
COMPARISON
USAGE & WEAR
COMPARISONS
Series 131N drills with
15-20 percent less
force than the top
competitors
Series 131N results in
improvement of hole
finishes 30-60 percent
over leading competitors
Ti-NAMITE B coating
significantly improves
wear resistance, which is
particularly beneficial
when drilling high silicon
aluminum alloys
SERIES 131N PERFORMANCE.
www.kyocera-sgstool.com 27
PERFORMANCE. PRECISION. PASSION.
HI-PERCARB SERIES 131N ALUMINUM DRILLS
The key features designed into the Hi-PerCarb Series
131N Drill allow the product to offer application bene-
fits not only beyond that of standard carbide drills, but
also other High Performance drills. Each feature of the
Hi-PerCarb Series 131N Drill was uniquely engineered
as a solution towards addressing the issues commonly
encountered during high production drilling.
TRI-MARGIN DESIGN
• improved hole stability over two-flute designs
• superior surface finish, roundness and hole
cylindricity
• unsurpassed hole size control
A
A
A
A
B
B
SELF-STABILIZING POINT
• pyramid design stabilizes the drill
on contact with the workpiece
C
C
OPEN FLUTE STRUCTURE
• efficiently transports chips while
maintaining strength at high feed rates
D
D
SCULPTED GASH
• allows chips to easily flow away from
the drill center
• reduced cutting forces over competitive
three-flute designs
E
E
MINIMAL MARGIN DESIGN
• reduces frictional heat generated by
excessive margin contact with the workpiece
• parallel design maintains contact width
as margin wears for performance consistency
0
0.002
0.004
0.006
0.008
0.01
0.012
0.014
Uncoated Ti-Namite B
0
100
200
300
400
500
600
700
800
Uncoated Ti-Namite B
689
311
USAGE (inches)
WEAR (inches)
0.0015
.0124
0
50
100
150
200
250
300
350
400
SERIES 131N Competitor 1 Competitor 2 Competitor 3
361.2 348 360.2
293.7
FORCE (lbs)
0
10
20
30
40
50
60
70
80
SERIES 131N
29
Competitor 1
56
Competitor 2
43
Competitor 3
66
Competitor 4
75
FINISH (Ra)
FORCE
COMPARISON
SURFACE
FINISH
COMPARISON
USAGE & WEAR
COMPARISONS
Series 131N drills with
15-20 percent less
force than the top
competitors
Series 131N results in
improvement of hole
finishes 30-60 percent
over leading competitors
Ti-NAMITE B coating
significantly improves
wear resistance, which is
particularly beneficial
when drilling high silicon
aluminum alloys
SERIES 131N PERFORMANCE.
www.kyocera-sgstool.com
28
PRECISION.
PASSION.

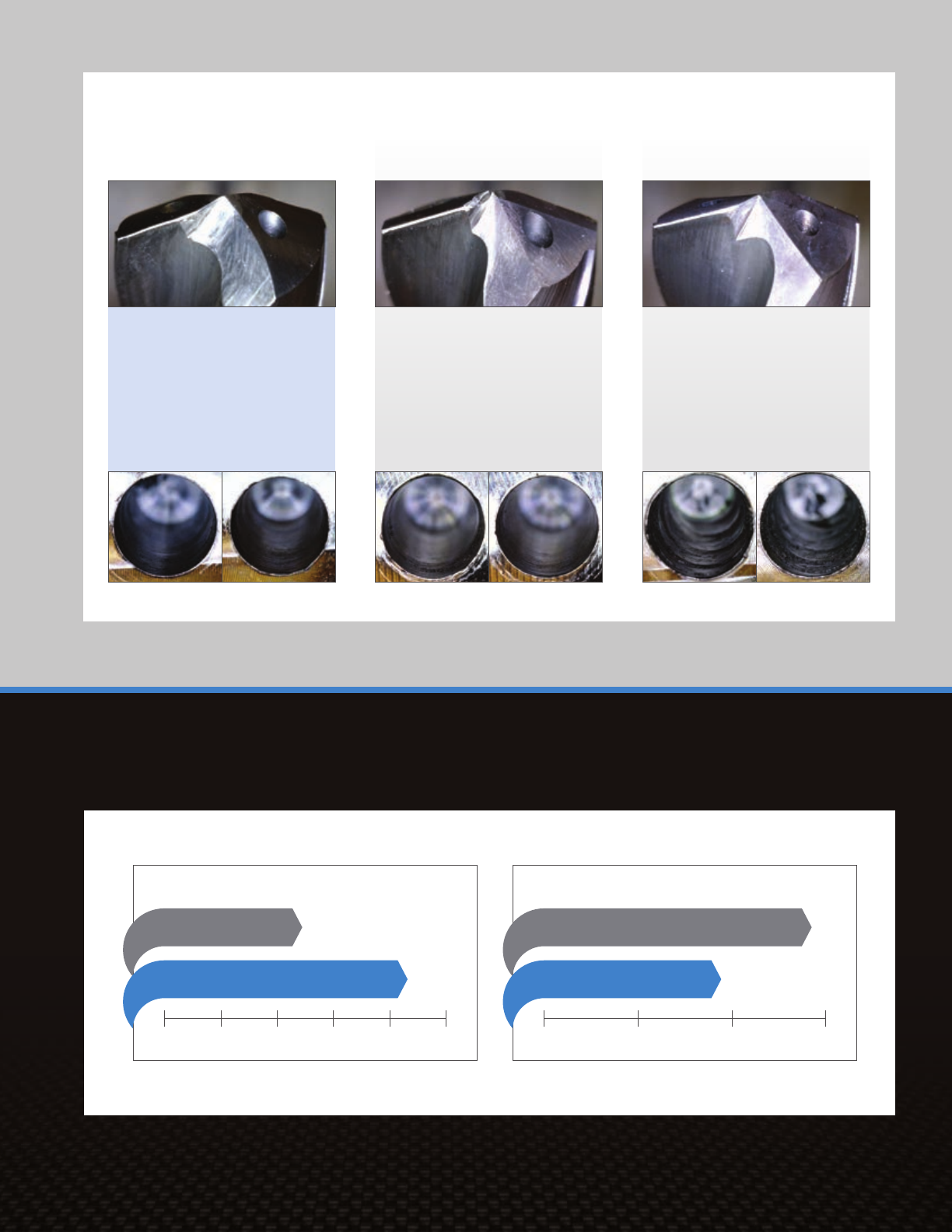

Independent Lab Results Indicate the Hi-PerCarb Series 131N Drill outperforms the competition in measured hole
quality at a variety of speed and feed rates.
www.kyocera-sgstool.com

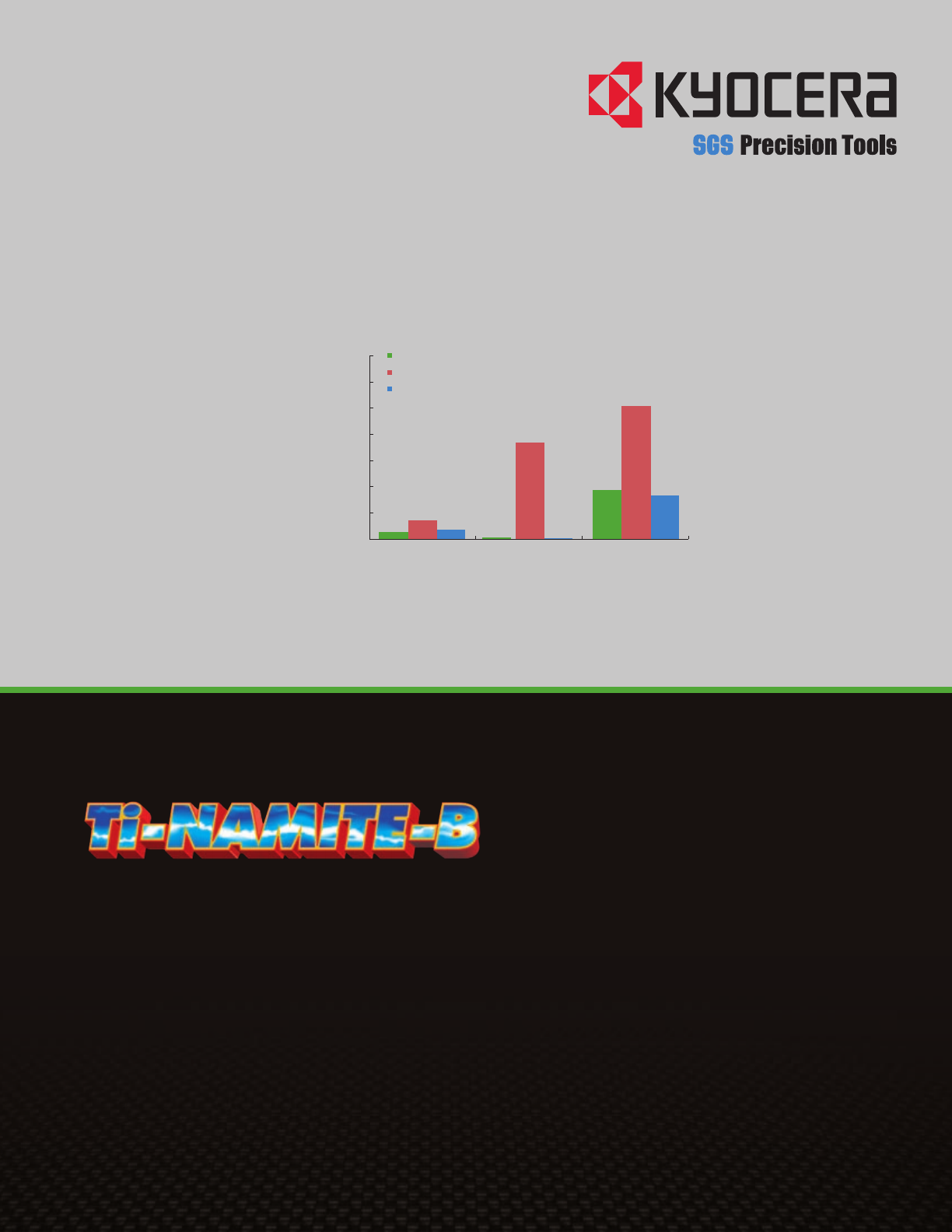

This ceramic based coating ensures a smooth surface and a low affinity to cold welding or edge build-up, which makes
it optimal for aluminum and copper applications. It has high toughness and high hardness.
Microhardness: 4000 HV
Oxidation Temperature: 850°C / 1562°F
Coefficient of Friction: 0.45
Thickness: 1-2 Microns (based on tool diameter)
6786 RPM
100 INCHES PER MINUTE
9530 RPM
200 INCHES PER MINUTE
SERIES 131N 3 Flute Drill vs. Competition 2 Flute Drill in 2024 Aluminum
4847 RPM
65 INCHES PER MINUTE
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
www.kyocera-sgstool.com 29
PRECISION.
PASSION.
Independent Lab Results Indicate the Hi-PerCarb Series 131N Drill outperforms the competition in measured hole
quality at a variety of speed and feed rates.
www.kyocera-sgstool.com
This ceramic based coating ensures a smooth surface and a low affinity to cold welding or edge build-up, which makes
it optimal for aluminum and copper applications. It has high toughness and high hardness.
Microhardness: 4000 HV
Oxidation Temperature: 850°C / 1562°F
Coefficient of Friction: 0.45
Thickness: 1-2 Microns (based on tool diameter)
6786 RPM
100 INCHES PER MINUTE
9530 RPM
200 INCHES PER MINUTE
SERIES 131N 3 Flute Drill vs. Competition 2 Flute Drill in 2024 Aluminum
4847 RPM
65 INCHES PER MINUTE
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
Measured hole size
(Top to Bottom)
Measured hole circularity
(Top To Bottom)
Measured hole
cylindricy
Deviation from Zero
0.00000
0.00050
0.00100
0.00150
0.00200
0.00250
0.00300
0.00350
0.00400 SERIES 131N
Competitor 1
Competitor 2
30 www.kyocera-sgstool.com
Series 131N 5XD
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
3,0 mm 0.1181 6,0 66,0 28,0 23,0 36,0 64800
3,1 mm 0.1220 6,0 66,0 28,0 23,0 36,0 64801
1/8 0.1250 3.18 6,0 66,0 28,0 23,0 36,0 54800
3,2 mm 0.1260 M3,5 X 0,35 6,0 66,0 28,0 23,0 36,0 64802
3,3 mm 0.1299 M4 X 0,7 6,0 66,0 28,0 23,0 36,0 64803
3,4 mm 0.1339 6,0 66,0 28,0 23,0 36,0 64804
#29 0.1360 3.45 8-32,8-36 6,0 66,0 28,0 23,0 36,0 54801
3,5 mm 0.1378 M4 X 0,5 6,0 66,0 28,0 23,0 36,0 64805
9/64 0.1406 3.57 6,0 66,0 28,0 23,0 36,0 54802
3,6 mm 0.1417 M4 X 0,35 6,0 66,0 28,0 23,0 36,0 64806
3,7 mm 0.1457 M4,5 X 0,75 6,0 66,0 28,0 23,0 36,0 64807
3,8 mm 0.1496 10-24 6,0 74,0 36,0 29,0 36,0 64808
3,9 mm 0.1535 6,0 74,0 36,0 29,0 36,0 64809
5/32 0.1562 3.97 6,0 74,0 36,0 29,0 36,0 54803
4,0 mm 0.1575 M4,5 X 0,5 6,0 74,0 36,0 29,0 36,0 64810
#21 0.1590 4.04 10-32 6,0 74,0 36,0 29,0 36,0 54804
4,1 mm 0.1614 6,0 74,0 36,0 29,0 36,0 64811
4,2 mm 0.1654 M5 / M5 x 0,75 6,0 74,0 36,0 29,0 36,0 64812
4,3 mm 0.1693 6,0 74,0 36,0 29,0 36,0 64813
11/64 0.1719 4.37 6,0 74,0 36,0 29,0 36,0 54805
4,4 mm 0.1732 12-24 6,0 74,0 36,0 29,0 36,0 64814
4,5 mm 0.1772 M5 X 0,5 6,0 74,0 36,0 29,0 36,0 64815
4,6 mm 0.1811 12-28 6,0 74,0 36,0 29,0 36,0 64816
4,7 mm 0.1850 12-32 6,0 74,0 36,0 29,0 36,0 64817
3/16 0.1875 4.76 6,0 82,0 44,0 35,0 36,0 54806
4,8 mm 0.1890 7/32-32 6,0 82,0 44,0 35,0 36,0 64818
4,9 mm 0.1929 6,0 82,0 44,0 35,0 36,0 64819
5,0 mm 0.1969 M6 X 1 6,0 82,0 44,0 35,0 36,0 64820
5,1 mm 0.2008 1/4-20 6,0 82,0 44,0 35,0 36,0 64821
13/64 0.2031 5.16 6,0 82,0 44,0 35,0 36,0 54807
5,2 mm 0.2047 M6 X 0,75 6,0 82,0 44,0 35,0 36,0 64822
5,3 mm 0.2087 6,0 82,0 44,0 35,0 36,0 64823
5,4 mm 0.2126 6,0 82,0 44,0 35,0 36,0 64824
5,5 mm 0.2165 M6 X 0,5 6,0 82,0 44,0 35,0 36,0 64825
7/32 0.2188 5.56 1/4-32 6,0 82,0 44,0 35,0 36,0 54808
5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 64826
5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 64827
5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 64828
5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 64829
15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 54809
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
31www.kyocera-sgstool.com
Series 131N 5XD
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 64830
6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 64831
6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 64832
6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 64833
1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 54810
6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 64834
6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 64835
F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 54811
6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 64836
6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 64837
17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 54812
6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 64838
6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 64839
7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 64840
7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 64841
9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 54813
7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 64842
7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 64843
7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 64844
7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 64845
19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 54814
7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 64846
7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 64847
7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 64848
7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 64849
5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 54815
8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 64850
8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 64851
8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 64852
8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 64853
21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 54816
8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 64854
Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 54817
8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 64855
8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 64856
8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 64857
11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 54818
8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 64858
8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 64859
9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 64860
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
32 www.kyocera-sgstool.com
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 64861
23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 54819
9,2 mm 0.3622 M10 X 0,75 10,0 103,0 61,0 49,0 40,0 64862
9,3 mm 0.3661 10,0 103,0 61,0 49,0 40,0 64863
U 0.3680 9.35 7/16-14 10,0 103,0 61,0 49,0 40,0 54820
9,4 mm 0.3701 10,0 103,0 61,0 49,0 40,0 64864
9,5 mm 0.3740
M11 / M10 X 0,5
10,0 103,0 61,0 49,0 40,0 64865
3/8 0.3750 9.53 10,0 103,0 61,0 49,0 40,0 54821
9,6 mm 0.3780 10,0 103,0 61,0 49,0 40,0 64866
9,7 mm 0.3819 10,0 103,0 61,0 49,0 40,0 64867
9,8 mm 0.3858 10,0 103,0 61,0 49,0 40,0 64868
9,9 mm 0.3898 10,0 103,0 61,0 49,0 40,0 64869
25/64 0.3906 9.92 7/16-20 10,0 103,0 61,0 49,0 40,0 54822
10,0 mm 0.3937 10,0 103,0 61,0 49,0 40,0 64870
10,1 mm 0.3976 12,0 118,0 71,0 56,0 45,0 64871
10,2 mm 0.4016 M12 X 1,75 12,0 118,0 71,0 56,0 45,0 64872
10,3 mm 0.4055 12,0 118,0 71,0 56,0 45,0 64873
13/32 0.4062 10.32 12,0 118,0 71,0 56,0 45,0 54823
10,4 mm 0.4094 12,0 118,0 71,0 56,0 45,0 64874
10,5 mm 0.4134 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 64875
10,6 mm 0.4173 12,0 118,0 71,0 56,0 45,0 64876
10,7 mm 0.4213 12,0 118,0 71,0 56,0 45,0 64877
27/64 0.4219 10.72 1/2-13 12,0 118,0 71,0 56,0 45,0 54824
10,8 mm 0.4252 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 64878
10,9 mm 0.4291 12,0 118,0 71,0 56,0 45,0 64879
11,0 mm 0.4331 M12 X 1 12,0 118,0 71,0 56,0 45,0 64880
11,1 mm 0.4370 12,0 118,0 71,0 56,0 45,0 64881
7/16 0.4375 11.11 1/4-18NPT 12,0 118,0 71,0 56,0 45,0 54825
11,2 mm 0.4409 12,0 118,0 71,0 56,0 45,0 64882
11,3 mm 0.4449 12,0 118,0 71,0 56,0 45,0 64883
11,4 mm 0.4488 12,0 118,0 71,0 56,0 45,0 64884
11,5 mm 0.4528 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64885
11,6 mm 0.4567 12,0 118,0 71,0 56,0 45,0 64886
11,7 mm 0.4606 12,0 118,0 71,0 56,0 45,0 64887
11,8 mm 0.4646 12,0 118,0 71,0 56,0 45,0 64888
11,9 mm 0.4685 12,0 118,0 71,0 56,0 45,0 64889
15/32 0.4688 11.91 1/2-28 12,0 118,0 71,0 56,0 45,0 54826
12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 64890
31/64 0.4844 12.30 9/16-12 14,0 124,0 77,0 60,0 45,0 54827
12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 64891
(continued on next page)
Common
Reach
Right Spiral
External
Coolant
3
Flutes
Series 131N 5XD
|
Fractional & Metric
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
33www.kyocera-sgstool.com
Series 131N 5XD
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-B
(TB)
EDP No.
1/2 0.5000 12.70 14,0 124,0 77,0 60,0 45,0 54828
12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 64892
13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 64893
33/64 0.5156 13.10 9/16-18 14,0 124,0 77,0 60,0 45,0 54829
13,5 mm 0.5315 5/8-11 14,0 124,0 77,0 60,0 45,0 64894
13,8 mm 0.5433 14,0 124,0 77,0 60,0 45,0 64895
14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 64896
9/16 0.5625 14.29 16,0 133,0 83,0 63,0 48,0 54830
14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 64897
37/64 0.5781 14.68 5/8-18 16,0 133,0 83,0 63,0 48,0 54831
14,8 mm 0.5827 16,0 133,0 83,0 63,0 48,0 64898
15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 64899
15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 64900
15,8 mm 0.6220 16,0 133,0 83,0 63,0 48,0 64901
5/8 0.6250 15.88 11/16-16 16,0 133,0 83,0 63,0 48,0 54832
16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 64902
21/32 0.6562 16.67 3/4-10 18,0 143,0 93,0 71,0 48,0 54833
11/16 0.6875 17.46 3/4-16 18,0 143,0 93,0 71,0 48,0 54834
3/4 0.7500 19.05 13/16-16 20,0 153,0 101,0 77,0 50,0 54835
Common
Reach
Right Spiral
External
Coolant
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
2
D
L
1
L2
L3
L4
124° 30°
1
D
www.kyocera-sgstool.com34
Series 131N 5XD
|
Speed & Feed Recommendations
Series 131N 5D
Fractional Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
N
ALUMINUM ALLOYS
< 12% SI
6061, 2024, 7075
≤ 150 Bhn
or
≤ 7 HRc
800 RPM 24448 16299 12224 8149 6112 4890 4075
(640-960)
Fr 0.0055 0.0083 0.0110 0.0166 0.0221 0.0276 0.0331
Feed (ipm) 135 135 135 135 135 135 135
ALUMINUM ALLOYS
> 12% SI
A356.0, 390.0, 319.0
≤ 125 Bhn
or
≤ 77 HRb
600 RPM 18336 12224 9168 6112 4584 3667 3056
(480-720)
Fr 0.0055 0.0082 0.0109 0.0164 0.0218 0.0273 0.0327
Feed (ipm) 100 100 100 100 100 100 100
COPPER ALLOYS
Alum Bronze, Muntz
Brass, Navel Brass
≤ 175 Bhn
or
≤ 16 HRc
550 RPM 16808 11205 8404 5603 4202 3362 2801
(440-660)
Fr 0.0020 0.0030 0.0040 0.0061 0.0081 0.0101 0.0121
Feed (ipm) 34 34 34 34 34 34 34
PLASTICS
Acrylic, PVC,
Polypropylene
450 RPM 13752 9168 6876 4584 3438 2750 2292
(360-540)
Fr 0.0025 0.0037 0.0049 0.0074 0.0099 0.0124 0.0148
Feed (ipm) 34 34 34 34 34 34 34
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = Vc x 3.82 / D1
•  ipm = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com 35
Series 131N 5XD
|
Speed & Feed Recommendations
Series 131N 5D
Metric Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
N
ALUMINUM ALLOYS
< 12% SI
6061, 2024, 7075
≤ 150 Bhn
or
≤ 7 HRc
244 RPM 25851 12926 9694 7755 6463 5540 4847
(195-293)
Fr 0.133 0.265 0.354 0.442 0.531 0.619 0.708
Feed (mm/min) 3430 3430 3430 3430 3430 3430 3430
ALUMINUM ALLOYS
> 12% SI
A356.0, 390.0, 319.0
≤ 125 Bhn
or
≤ 77 HRb
183 RPM 19388 9694 7271 5816 4847 4155 3635
(146-219)
Fr 0.131 0.262 0.349 0.437 0.524 0.611 0.699
Feed (mm/min) 2540 2540 2540 2540 2540 2540 2540
COPPER ALLOYS
Alum Bronze, Muntz
Brass, Navel Brass
≤ 175 Bhn
or
≤ 16 HRc
168 RPM 17773 8886 6665 5332 4443 3808 3332
(134-201)
Fr 0.049 0.097 0.130 0.162 0.194 0.227 0.259
Feed (mm/min) 864 864 864 864 864 864 864
PLASTICS
Acrylic, PVC,
Polypropylene
137 RPM 14541 7271 5453 4362 3635 3116 2726
(110-165)
Fr 0.059 0.119 0.158 0.198 0.238 0.277 0.317
Feed (mm/min) 864 864 864 864 864 864 864
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com
36
www.kyocera-sgstool.com
A
A
B
C
D
E
The cutting edges of the ICe-Carb Series 140 are designed to allow the tool to achieve high penetration rates,
while the highly polished Ti-NAMITE A tool coating allows the chips to move smoothly along the flute and out of
the cut. This helps to avoid chip clogging often associated with elevated penetration rates. Through efficient chip
creation and movement, the drill operates at lower loads under identical conditions.
PERFORMANCE.
PERFORMANCE. PRECISION. PASSION.

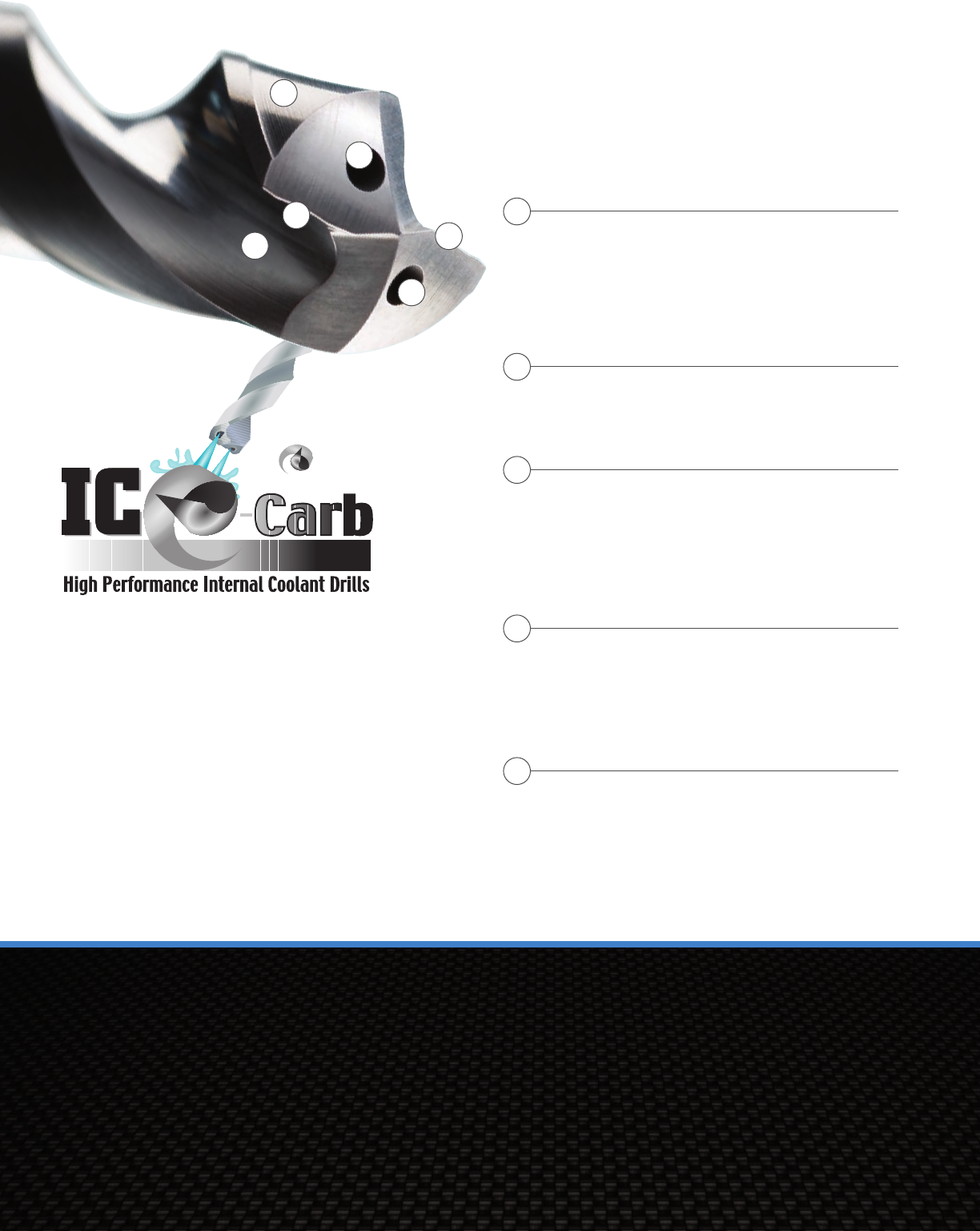

ICe-CARB SERIES 140 INTERNAL COOLANT DRILLS
The design of the ICe-Carb Series 140 was created to
bring to the end user the ability to achieve high perfor-
mance results with high production demands. The
internal coolant design allows for better control of
machining temperatures during these types of applica-
tions, while the geometry features provide effective and
efficient chip creation and removal. The results of the
ICe-Carb Series 140 design are reduced cutting loads,
increased operating parameters and enhanced tool life.
COOLANT THROUGH DESIGN
• promotes controlled and consistent
operating temperatures
• improves coolant flow to the cut while
maintaining strength
• increases tool life at increased
operating parameters
A
BHIGH PERFORMANCE FLUTE DESIGN
• optimized open fluting
• improved surface finish through effective
chip evacuation
CPOLISHED Ti-NAMITE A COATING
• reduces friction between the chip and tool
preventing the impediment of chip flow
• decreased machine loads associated with
chip clogging
• reduced friction reduces heat and
abrasion wear
DHIGH PENETRATION 140° POINT GEOMETRY
• split point geometry for improved drill
penetration and accuracy
• cam relief drill point
• self centering design with high
penetration capabilities
EENGINEERED CUTTING EDGES
• precisely ground with a curvature that
allows efficient chip creation and control
• controlled edge honing for longevity
• negative corner position strengthens
and protects

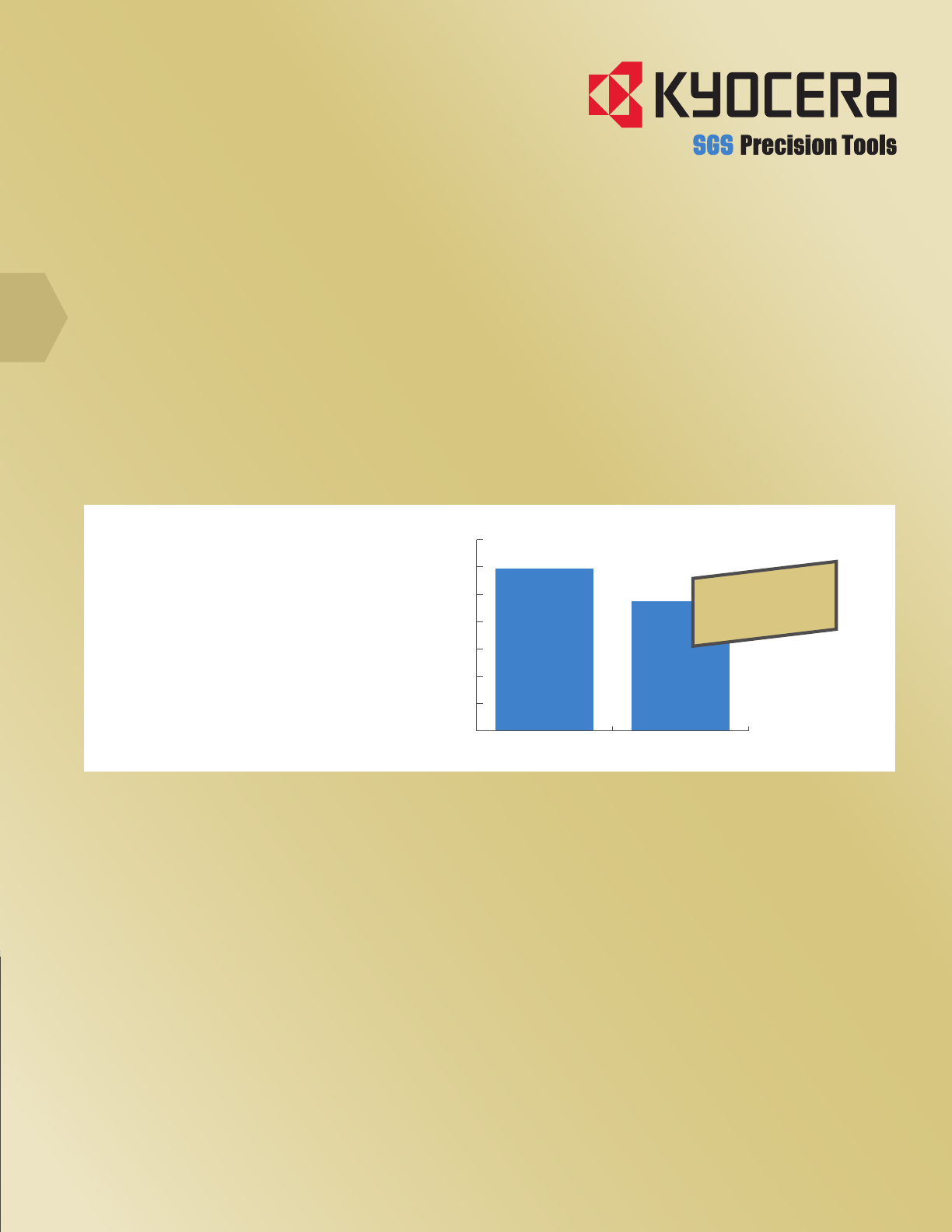

TORQUE COMPARISON
8620 Carbon Steel @ 175 BHN
3/8” Diameter 1.125” Deep
350 sfm / 29 ipm
0
10
20
30
40
50
60
70
Unpolished Polished
TORQUE (in–lbs)
20% LESS
TORQUE
www.kyocera-sgstool.com 37
www.kyocera-sgstool.com
A
A
B
C
D
E
The cutting edges of the ICe-Carb Series 140 are designed to allow the tool to achieve high penetration rates,
while the highly polished Ti-NAMITE A tool coating allows the chips to move smoothly along the flute and out of
the cut. This helps to avoid chip clogging often associated with elevated penetration rates. Through efficient chip
creation and movement, the drill operates at lower loads under identical conditions.
PERFORMANCE.
PERFORMANCE. PRECISION. PASSION.
ICe-CARB SERIES 140 INTERNAL COOLANT DRILLS
The design of the ICe-Carb Series 140 was created to
bring to the end user the ability to achieve high perfor-
mance results with high production demands. The
internal coolant design allows for better control of
machining temperatures during these types of applica-
tions, while the geometry features provide effective and
efficient chip creation and removal. The results of the
ICe-Carb Series 140 design are reduced cutting loads,
increased operating parameters and enhanced tool life.
COOLANT THROUGH DESIGN
• promotes controlled and consistent
operating temperatures
• improves coolant flow to the cut while
maintaining strength
• increases tool life at increased
operating parameters
A
BHIGH PERFORMANCE FLUTE DESIGN
• optimized open fluting
• improved surface finish through effective
chip evacuation
CPOLISHED Ti-NAMITE A COATING
• reduces friction between the chip and tool
preventing the impediment of chip flow
• decreased machine loads associated with
chip clogging
• reduced friction reduces heat and
abrasion wear
DHIGH PENETRATION 140° POINT GEOMETRY
• split point geometry for improved drill
penetration and accuracy
• cam relief drill point
• self centering design with high
penetration capabilities
EENGINEERED CUTTING EDGES
• precisely ground with a curvature that
allows efficient chip creation and control
• controlled edge honing for longevity
• negative corner position strengthens
and protects
TORQUE COMPARISON
8620 Carbon Steel @ 175 BHN
3/8” Diameter 1.125” Deep
350 sfm / 29 ipm
0
10
20
30
40
50
60
70
Unpolished Polished
TORQUE (in–lbs)
20% LESS
TORQUE
www.kyocera-sgstool.com
38
SPEED (RPM) 1600
FEED (IPM) 9.6
HOLE DIAMETER 9.1mm (.3583)
HOLE DEPTH 3.3”
COOLANT PRESSURE 60 psi (BELOW RECOMMENDATIONS)
TYPE OF COOLANT WATER SOLUBLE
TYPE OF MACHINE CNC LATHE – LIVE PART
ICe-CARB SERIES 140 8xD VS. COMPETITOR 1
ACTUAL CUSTOMER TEST IN 17-4 PH STAINLESS STEEL @ 36 HRc
PRECISION.
The more efficient a drill can function, the more precise the results it can produce. The symmetrical grind of the
cam relieved point ensures balanced pressure during cutting, while the split point design ensures fast and accu-
rate engagement into the material. Precision must be maintained throughout the life of the drill, so the ICe-Carb
Series 140 specialized hone, strong margin design and negative corner position help to delay the wear that often
causes a drill to lose precision in the cut and prematurely end tool life.
PASSION.
Controlling temperatures during the cutting process certainly helps to improve the operating parameters and tool
life a tool is capable of achieving. All of the high performance features of the ICe-Carb Series 140 are engineered
to work together to create the
most efficient total cutting
performance beyond what simply
having coolant through the tool
can offer. The flute profile com-
pliments the coolant through
design of the ICe-Carb Series 140
to create a strong cutting tool
that effectively transports the
chips being created, while the
cutting edges offer a balance of
strength and shear.
COST PER PART
$1.50$0.50$– $1.00
Competitor 1
ICe-Carb Series 140
TOOL LIFE
NUMBER OF HOLES
5004003002001000
ICe-Carb Series 140
Competitor 1
DRILL SIZE 3/8” (.3750)
DEPTH OF HOLE 1.875”
MATERIAL 316 STAINLESS STEEL @ 140 BHN
SPEED 1430 RPM (140 sfm)
FEED 8.5 IPM (.0059 ipr)
COOLANT 8% WATER SOLUBLE @ 700 psi
MACHINE HAAS VF-3 VMC
TYPE OF HOLE BLIND
ICe-CARB SERIES 140 VS. 2 COMPETITORS
CONDITION OF DRILLS AFTER 175 HOLES
ICe-CARB SERIES 140 COMPETITOR 1 COMPETITOR 2
FIRST HOLE LAST HOLE FIRST HOLE LAST HOLE FIRST HOLE LAST HOLE
No damage found, good
condition to continue using;
.375” Ø throughout depth
with good finish
Point severely chipped with
wear on margins; Coating
loss below cutting lips; .375”
Ø held but surface finish
deteriorating
Better condition than
Competitor 1 but unacceptable
holes; Holes out of round,
oversized to .385” Ø and
tapered to .392” Ø with
heavy swirl marks
www.kyocera-sgstool.com
www.kyocera-sgstool.com 39
SPEED (RPM) 1600
FEED (IPM) 9.6
HOLE DIAMETER 9.1mm (.3583)
HOLE DEPTH 3.3”
COOLANT PRESSURE 60 psi (BELOW RECOMMENDATIONS)
TYPE OF COOLANT WATER SOLUBLE
TYPE OF MACHINE CNC LATHE – LIVE PART
ICe-CARB SERIES 140 8xD VS. COMPETITOR 1
ACTUAL CUSTOMER TEST IN 17-4 PH STAINLESS STEEL @ 36 HRc
PRECISION.
The more efficient a drill can function, the more precise the results it can produce. The symmetrical grind of the
cam relieved point ensures balanced pressure during cutting, while the split point design ensures fast and accu-
rate engagement into the material. Precision must be maintained throughout the life of the drill, so the ICe-Carb
Series 140 specialized hone, strong margin design and negative corner position help to delay the wear that often
causes a drill to lose precision in the cut and prematurely end tool life.
PASSION.
Controlling temperatures during the cutting process certainly helps to improve the operating parameters and tool
life a tool is capable of achieving. All of the high performance features of the ICe-Carb Series 140 are engineered
to work together to create the
most efficient total cutting
performance beyond what simply
having coolant through the tool
can offer. The flute profile com-
pliments the coolant through
design of the ICe-Carb Series 140
to create a strong cutting tool
that effectively transports the
chips being created, while the
cutting edges offer a balance of
strength and shear.
COST PER PART
$1.50$0.50$– $1.00
Competitor 1
ICe-Carb Series 140
TOOL LIFE
NUMBER OF HOLES
5004003002001000
ICe-Carb Series 140
Competitor 1
DRILL SIZE 3/8” (.3750)
DEPTH OF HOLE 1.875”
MATERIAL 316 STAINLESS STEEL @ 140 BHN
SPEED 1430 RPM (140 sfm)
FEED 8.5 IPM (.0059 ipr)
COOLANT 8% WATER SOLUBLE @ 700 psi
MACHINE HAAS VF-3 VMC
TYPE OF HOLE BLIND
ICe-CARB SERIES 140 VS. 2 COMPETITORS
CONDITION OF DRILLS AFTER 175 HOLES
ICe-CARB SERIES 140 COMPETITOR 1 COMPETITOR 2
FIRST HOLE LAST HOLE FIRST HOLE LAST HOLE FIRST HOLE LAST HOLE
No damage found, good
condition to continue using;
.375” Ø throughout depth
with good finish
Point severely chipped with
wear on margins; Coating
loss below cutting lips; .375”
Ø held but surface finish
deteriorating
Better condition than
Competitor 1 but unacceptable
holes; Holes out of round,
oversized to .385” Ø and
tapered to .392” Ø with
heavy swirl marks
www.kyocera-sgstool.com
40

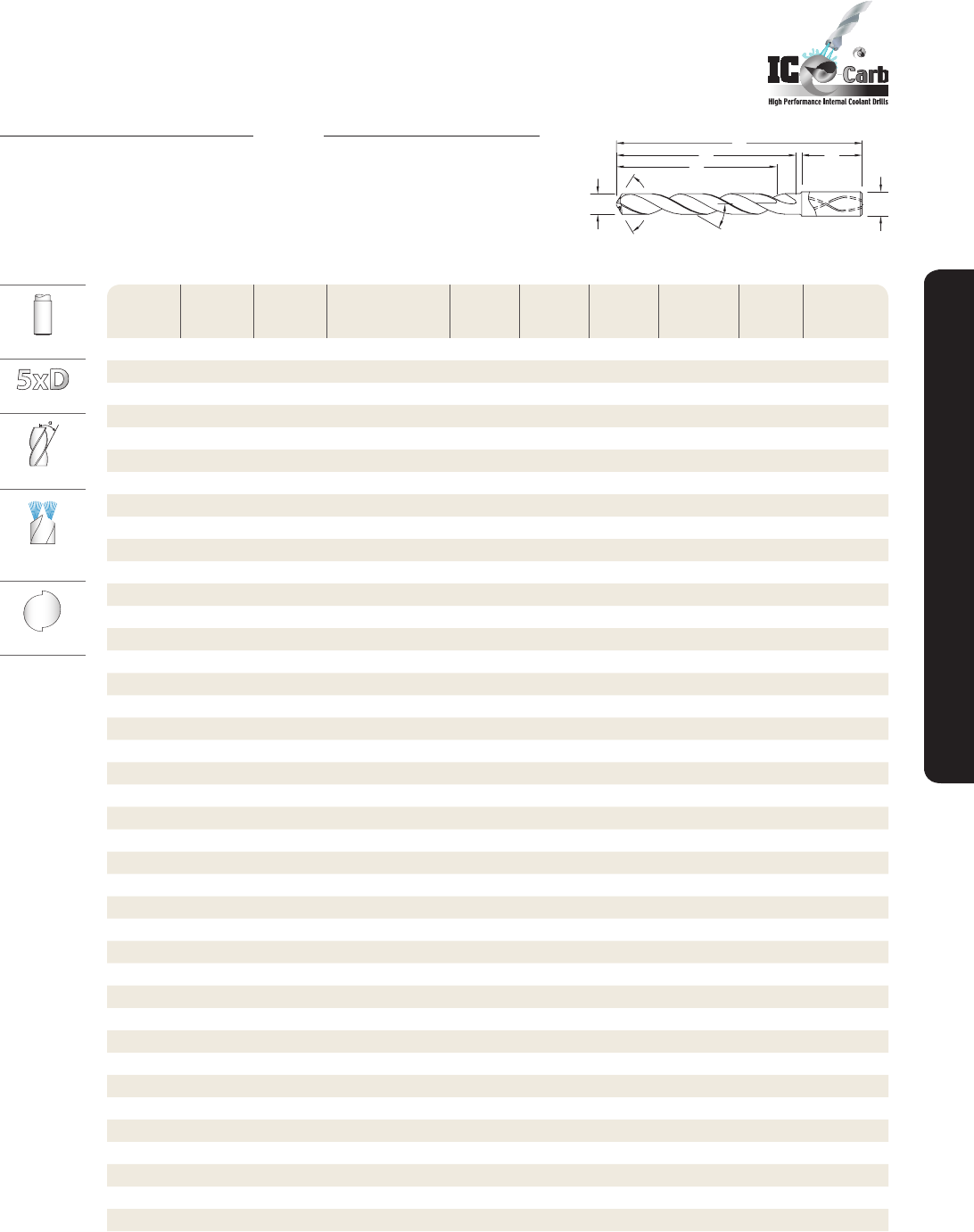

Series 140 5xD
|
Fractional & Metric
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
3,0 mm 0.1181 6,0 66,0 28,0 23,0 36,0 63901
3,1 mm 0.1220 6,0 66,0 28,0 23,0 36,0 63902
1/8 0.1250 3.18 6,0 66,0 28,0 23,0 36,0 51901
3,2 mm 0.1260 M3,5 X 0,35 6,0 66,0 28,0 23,0 36,0 63903
3,3 mm 0.1299 M4 X 0,7 6,0 66,0 28,0 23,0 36,0 63904
3,4 mm 0.1339 6,0 66,0 28,0 23,0 36,0 63905
#29 0.1360 3.45 8-32,8-36 6,0 66,0 28,0 23,0 36,0 51902
3,5 mm 0.1378 M4 X 0,5 6,0 66,0 28,0 23,0 36,0 63906
9/64 0.1406 3.57 6,0 66,0 28,0 23,0 36,0 51903
3,6 mm 0.1417 M4 X 0,35 6,0 66,0 28,0 23,0 36,0 63907
3,7 mm 0.1457 M4,5 X 0,75 6,0 66,0 28,0 23,0 36,0 63908
3,8 mm 0.1496 10-24 6,0 74,0 36,0 29,0 36,0 51904
3,9 mm 0.1535 6,0 74,0 36,0 29,0 36,0 63909
5/32 0.1562 3.97 6,0 74,0 36,0 29,0 36,0 51905
4,0 mm 0.1575 M4,5 X 0,5 6,0 74,0 36,0 29,0 36,0 63910
#21 0.1590 4.04 10-32 6,0 74,0 36,0 29,0 36,0 51906
4,1 mm 0.1614 6,0 74,0 36,0 29,0 36,0 63911
4,2 mm 0.1654 M5 / M5 x 0,75 6,0 74,0 36,0 29,0 36,0 63912
4,3 mm 0.1693 6,0 74,0 36,0 29,0 36,0 63913
11/64 0.1719 4.37 6,0 74,0 36,0 29,0 36,0 51907
4,4 mm 0.1732 12-24 6,0 74,0 36,0 29,0 36,0 63914
4,5 mm 0.1772 M5 X 0,5 6,0 74,0 36,0 29,0 36,0 63915
4,6 mm 0.1811 12-28 6,0 74,0 36,0 29,0 36,0 63916
4,7 mm 0.1850 12-32 6,0 74,0 36,0 29,0 36,0 63917
3/16 0.1875 4.76 6,0 82,0 44,0 35,0 36,0 51908
4,8 mm 0.1890 7/32-32 6,0 82,0 44,0 35,0 36,0 63918
4,9 mm 0.1929 6,0 82,0 44,0 35,0 36,0 63919
5,0 mm 0.1969 M6 X 1 6,0 82,0 44,0 35,0 36,0 63920
5,1 mm 0.2008 1/4-20 6,0 82,0 44,0 35,0 36,0 63900
13/64 0.2031 5.16 6,0 82,0 44,0 35,0 36,0 51910
5,2 mm 0.2047 M6 X 0,75 6,0 82,0 44,0 35,0 36,0 63921
5,3 mm 0.2087 6,0 82,0 44,0 35,0 36,0 63922
5,4 mm 0.2126 6,0 82,0 44,0 35,0 36,0 63998
5,5 mm 0.2165 M6 X 0,5 6,0 82,0 44,0 35,0 36,0 63923
7/32 0.2188 5.56 1/4-32 6,0 82,0 44,0 35,0 36,0 51912
5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 63924
5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 63925
5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 63926
5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 63927
15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 51913
(continued on next page)
30°140°
L
1
L2
L3
L4
D2
D1
41
Series 140 5xD
|
Fractional & Metric
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 63928
6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 63929
6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 63930
6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 63931
1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 51914
6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 63932
6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 63933
F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 51915
6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 63934
6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 63935
17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 51916
6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 63936
6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 63999
7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 63937
7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 63938
9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 51918
7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 63939
7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 63940
7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 63941
7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 63942
19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 51919
7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 63943
7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 63944
7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 63945
7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 63946
5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 51920
8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 63947
8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 63948
8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 63949
8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 63950
21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 51921
8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 63951
Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 51922
8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 63952
8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 63953
8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 63954
11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 51923
8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 63955
8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 63956
9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 63957
(continued on next page)
30°140°
L
1
L2
L3
L4
D2
D1
42
Series 140 5xD
|
Fractional & Metric
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 63958
23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 51924
9,2 mm 0.3622 M10 X 0,75 10,0 103,0 61,0 49,0 40,0 63959
9,3 mm 0.3661 10,0 103,0 61,0 49,0 40,0 63960
U 0.3680 9.35 7/16-14 10,0 103,0 61,0 49,0 40,0 51925
9,4 mm 0.3701 10,0 103,0 61,0 49,0 40,0 63961
9,5 mm 0.3740
M11 / M10 X 0,5
10,0 103,0 61,0 49,0 40,0 63962
3/8 0.3750 9.53 10,0 103,0 61,0 49,0 40,0 51926
9,6 mm 0.3780 10,0 103,0 61,0 49,0 40,0 63963
9,7 mm 0.3819 10,0 103,0 61,0 49,0 40,0 63964
9,8 mm 0.3858 10,0 103,0 61,0 49,0 40,0 63965
9,9 mm 0.3898 10,0 103,0 61,0 49,0 40,0 63966
25/64 0.3906 9.92 7/16-20 10,0 103,0 61,0 49,0 40,0 51927
10,0 mm 0.3937 10,0 103,0 61,0 49,0 40,0 63967
10,1 mm 0.3976 12,0 118,0 71,0 56,0 45,0 63968
10,2 mm 0.4016 M12 X 1,75 12,0 118,0 71,0 56,0 45,0 63969
10,3 mm 0.4055 12,0 118,0 71,0 56,0 45,0 63970
13/32 0.4062 10.32 12,0 118,0 71,0 56,0 45,0 51928
10,4 mm 0.4094 12,0 118,0 71,0 56,0 45,0 63971
10,5 mm 0.4134 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 63972
10,6 mm 0.4173 12,0 118,0 71,0 56,0 45,0 63973
10,7 mm 0.4213 12,0 118,0 71,0 56,0 45,0 63974
27/64 0.4219 10.72 1/2-13 12,0 118,0 71,0 56,0 45,0 51929
10,8 mm 0.4252 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 63975
10,9 mm 0.4291 12,0 118,0 71,0 56,0 45,0 63976
11,0 mm 0.4331 M12 X 1 12,0 118,0 71,0 56,0 45,0 63977
11,1 mm 0.4370 12,0 118,0 71,0 56,0 45,0 63978
7/16 0.4375 11.11 1/4-18NPT 12,0 118,0 71,0 56,0 45,0 51930
11,2 mm 0.4409 12,0 118,0 71,0 56,0 45,0 63979
11,3 mm 0.4449 12,0 118,0 71,0 56,0 45,0 63980
11,4 mm 0.4488 12,0 118,0 71,0 56,0 45,0 63981
11,5 mm 0.4528 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64000
11,6 mm 0.4567 12,0 118,0 71,0 56,0 45,0 63982
11,7 mm 0.4606 12,0 118,0 71,0 56,0 45,0 63983
11,8 mm 0.4646 12,0 118,0 71,0 56,0 45,0 63984
11,9 mm 0.4685 12,0 118,0 71,0 56,0 45,0 63985
15/32 0.4688 11.91 1/2-28 12,0 118,0 71,0 56,0 45,0 51932
12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 63986
31/64 0.4844 12.30 9/16-12 14,0 124,0 77,0 60,0 45,0 51933
12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 63987
(continued on next page)
30°140°
L
1
L2
L3
L4
D2
D1
43
Series 140 5xD
|
Fractional & Metric
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
1/2 0.5000 12.70 14,0 124,0 77,0 60,0 45,0 51934
12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 63988
13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 63989
33/64 0.5156 13.10 9/16-18 14,0 124,0 77,0 60,0 45,0 51935
13,5 mm 0.5315 5/8-11 14,0 124,0 77,0 60,0 45,0 64001
13,8 mm 0.5433 14,0 124,0 77,0 60,0 45,0 63990
14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 63991
9/16 0.5625 14.29 16,0 133,0 83,0 63,0 48,0 51937
14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 63992
37/64 0.5781 14.68 5/8-18 16,0 133,0 83,0 63,0 48,0 51938
14,8 mm 0.5827 16,0 133,0 83,0 63,0 48,0 63993
15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 63994
15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 63995
15,8 mm 0.6220 16,0 133,0 83,0 63,0 48,0 63996
5/8 0.6250 15.88 11/16-16 16,0 133,0 83,0 63,0 48,0 51939
16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 63997
21/32 0.6562 16.67 3/4-10 18,0 143,0 93,0 71,0 48,0 51940
11/16 0.6875 17.46 3/4-16 18,0 143,0 93,0 71,0 48,0 51941
3/4 0.7500 19.05 13/16-16 20,0 153,0 101,0 77,0 50,0 51942
30°140°
L
1
L2
L3
L4
D2
D1
44

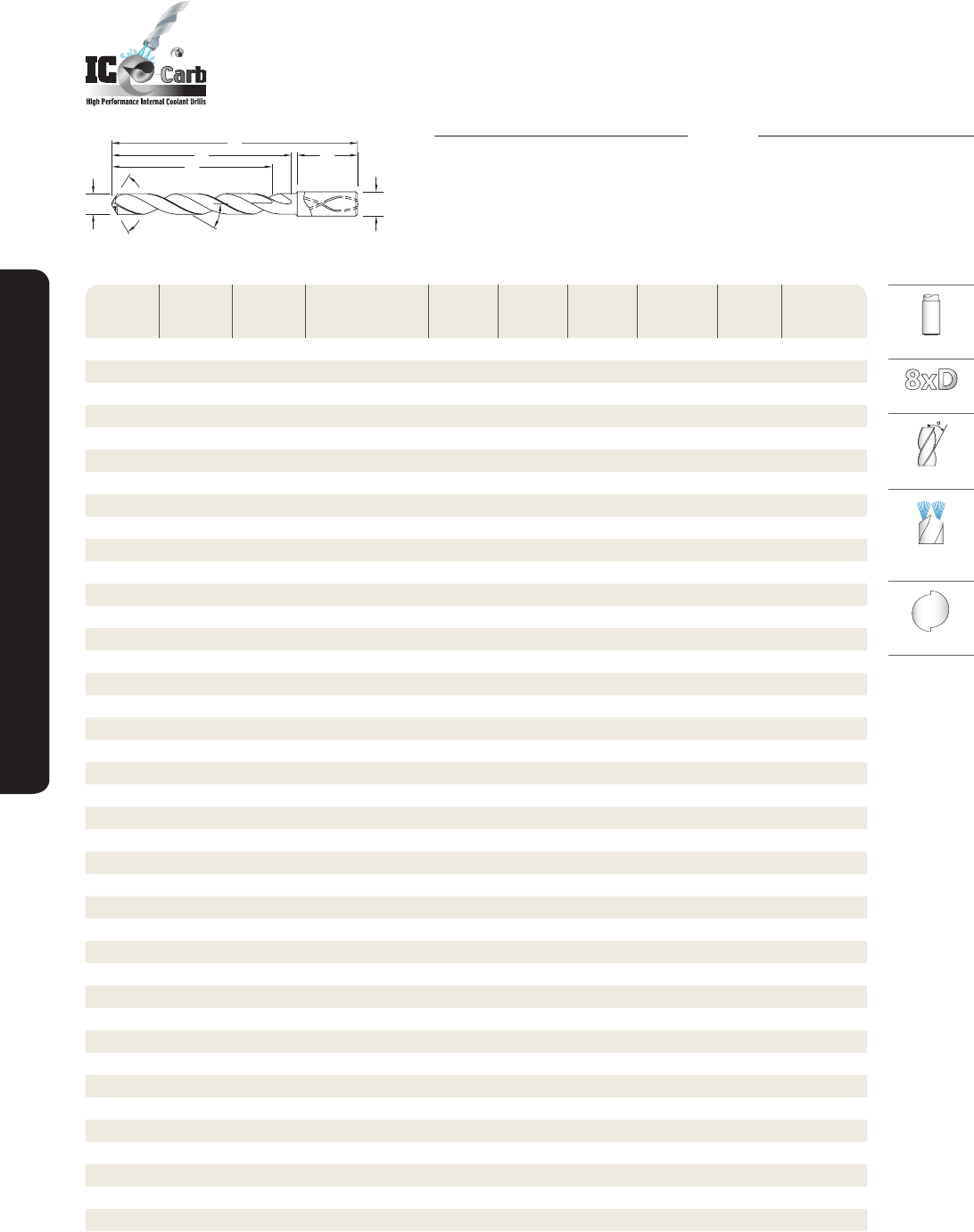

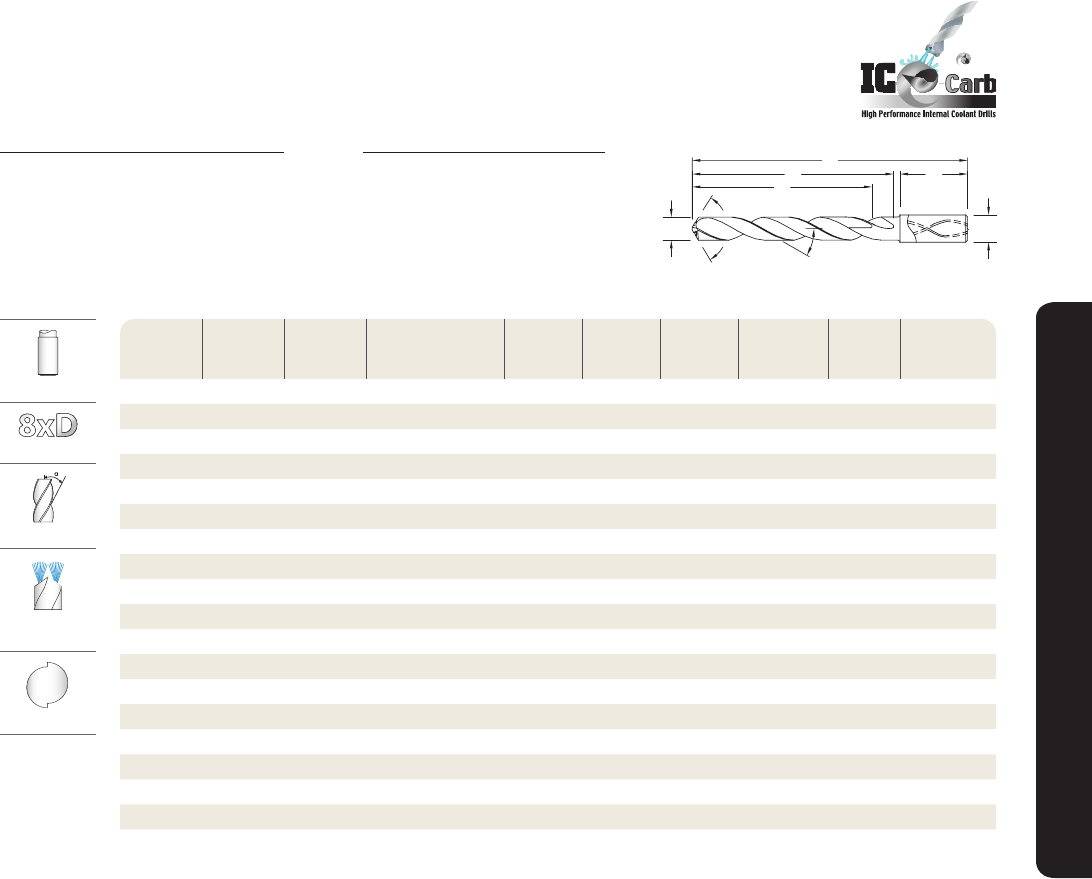

Series 140 8xD
|
Fractional & Metric
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
30°140°
L
1
L2
L3
L4
D2
D1
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
3,0 mm 0.1181 6,0 72,0 34,0 29,0 36,0 63575
3,1 mm 0.1220 6,0 72,0 34,0 29,0 36,0 63576
1/8 0.1250 3.18 6,0 72,0 34,0 29,0 36,0 51801
3,2 mm 0.1260 M3,5 X 0,35 6,0 72,0 34,0 29,0 36,0 63577
3,3 mm 0.1299 M4 X 0,7 6,0 72,0 34,0 29,0 36,0 63578
3,4 mm 0.1339 6,0 72,0 34,0 29,0 36,0 63579
#29 0.1360 3.45 8-32,8-36 6,0 72,0 34,0 29,0 36,0 51802
3,5 mm 0.1378 M4 X 0,5 6,0 72,0 34,0 29,0 36,0 63580
9/64 0.1406 3.57 6,0 72,0 34,0 29,0 36,0 51803
3,6 mm 0.1417 M4 X 0,35 6,0 72,0 34,0 29,0 36,0 63581
3,7 mm 0.1457 M4,5 X 0,75 6,0 72,0 34,0 29,0 36,0 63582
3,8 mm 0.1496 10-24 6,0 81,0 43,0 36,0 36,0 63583
3,9 mm 0.1535 6,0 81,0 43,0 36,0 36,0 63584
5/32 0.1562 3.97 6,0 81,0 43,0 36,0 36,0 51804
4,0 mm 0.1575 M4,5 X 0,5 6,0 81,0 43,0 36,0 36,0 63585
#21 0.1590 4.04 10-32 6,0 81,0 43,0 36,0 36,0 51805
4,1 mm 0.1614 6,0 81,0 43,0 36,0 36,0 63586
4,2 mm 0.1654
M5 / M5 X 0,75
6,0 81,0 43,0 36,0 36,0 63587
4,3 mm 0.1693 6,0 81,0 43,0 36,0 36,0 63588
11/64 0.1719 4.37 6,0 81,0 43,0 36,0 36,0 51806
4,4 mm 0.1732 12-24 6,0 81,0 43,0 36,0 36,0 63589
4,5 mm 0.1772 M5 X 0,5 6,0 81,0 43,0 36,0 36,0 63590
4,6 mm 0.1811 12-28 6,0 81,0 43,0 36,0 36,0 63591
4,7 mm 0.1850 12-32 6,0 81,0 43,0 36,0 36,0 63592
3/16 0.1875 4.76 6,0 95,0 57,0 48,0 36,0 51807
4,8 mm 0.1890 7/32-32 6,0 95,0 57,0 48,0 36,0 63593
4,9 mm 0.1929 6,0 95,0 57,0 48,0 36,0 63594
5,0 mm 0.1969 M6 X 1 6,0 95,0 57,0 48,0 36,0 63595
5,1 mm 0.2008 1/4-20 6,0 95,0 57,0 48,0 36,0 63596
13/64 0.2031 5.16 6,0 95,0 57,0 48,0 36,0 51808
5,2 mm 0.2047 M6 X 0,75 6,0 95,0 57,0 48,0 36,0 63597
5,3 mm 0.2087 6,0 95,0 57,0 48,0 36,0 63598
5,4 mm 0.2126 6,0 95,0 57,0 48,0 36,0 63599
5,5 mm 0.2165 M6 X 0,5 6,0 95,0 57,0 48,0 36,0 63600
7/32 0.2188 5.56 1/4-32 6,0 95,0 57,0 48,0 36,0 51809
5,6 mm 0.2205 6,0 95,0 57,0 48,0 36,0 63601
5,7 mm 0.2244 6,0 95,0 57,0 48,0 36,0 63602
5,8 mm 0.2283 6,0 95,0 57,0 48,0 36,0 63603
5,9 mm 0.2323 6,0 95,0 57,0 48,0 36,0 63604
15/64 0.2344 5.95 6,0 95,0 57,0 48,0 36,0 51810
(continued on next page)
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
45
Series 140 8xD
|
Fractional & Metric
30°140°
L
1
L2
L3
L4
D2
D
1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
6,0 mm 0.2362 M7 X 1 6,0 95,0 57,0 48,0 36,0 63605
6,1 mm 0.2402 8,0 114,0 76,0 64,0 36,0 63606
6,2 mm 0.2441 M7 X 0,75 8,0 114,0 76,0 64,0 36,0 63607
6,3 mm 0.2480 8,0 114,0 76,0 64,0 36,0 63608
1/4 0.2500 6.35 8,0 114,0 76,0 64,0 36,0 51811
6,4 mm 0.2520 8,0 114,0 76,0 64,0 36,0 63609
6,5 mm 0.2559 8,0 114,0 76,0 64,0 36,0 63610
F 0.2570 6.53 5/16-18 8,0 114,0 76,0 64,0 36,0 51812
6,6 mm 0.2598 8,0 114,0 76,0 64,0 36,0 63611
6,7 mm 0.2638 8,0 114,0 76,0 64,0 36,0 63612
17/64 0.2656 6.75 5/16-20 8,0 114,0 76,0 64,0 36,0 51813
6,8 mm 0.2677 M8 X 1,25 8,0 114,0 76,0 64,0 36,0 63613
6,9 mm 0.2717 8,0 114,0 76,0 64,0 36,0 63614
7,0 mm 0.2756 M8 X 1 8,0 114,0 76,0 64,0 36,0 63615
7,1 mm 0.2795 8,0 114,0 76,0 64,0 36,0 63616
9/32 0.2812 7.14 5/16-32 8,0 114,0 76,0 64,0 36,0 51814
7,2 mm 0.2835 M8 X 0,75 8,0 114,0 76,0 64,0 36,0 63617
7,3 mm 0.2874 8,0 114,0 76,0 64,0 36,0 63618
7,4 mm 0.2913 8,0 114,0 76,0 64,0 36,0 63619
7,5 mm 0.2953 M8 X 0,5 8,0 114,0 76,0 64,0 36,0 63620
19/64 0.2969 7.54 8,0 114,0 76,0 64,0 36,0 51815
7,6 mm 0.2992 8,0 114,0 76,0 64,0 36,0 63621
7,7 mm 0.3031 8,0 114,0 76,0 64,0 36,0 63622
7,8 mm 0.3071 M9 X 1,25 8,0 114,0 76,0 64,0 36,0 63623
7,9 mm 0.3110 8,0 114,0 76,0 64,0 36,0 63624
5/16 0.3125 7.94 3/8-16 8,0 114,0 76,0 64,0 36,0 51816
8,0 mm 0.3150 M9 X 1 8,0 114,0 76,0 64,0 36,0 63625
8,1 mm 0.3189 10,0 142,0 95,0 80,0 40,0 63626
8,2 mm 0.3228 10,0 142,0 95,0 80,0 40,0 63627
8,3 mm 0.3268 10,0 142,0 95,0 80,0 40,0 63628
21/64 0.3281 8.33 3/8-20 10,0 142,0 95,0 80,0 40,0 51817
8,4 mm 0.3307 10,0 142,0 95,0 80,0 40,0 63629
Q 0.3320 8.43 3/8-24 10,0 142,0 95,0 80,0 40,0 51818
8,5 mm 0.3346 M10 X 1,5 10,0 142,0 95,0 80,0 40,0 63630
8,6 mm 0.3386 10,0 142,0 95,0 80,0 40,0 63631
8,7 mm 0.3425 10,0 142,0 95,0 80,0 40,0 63632
11/32 0.3438 8.73 3/8-32 10,0 142,0 95,0 80,0 40,0 51819
8,8 mm 0.3465 M10 X 1,25 10,0 142,0 95,0 80,0 40,0 63633
8,9 mm 0.3504 10,0 142,0 95,0 80,0 40,0 63634
9,0 mm 0.3543 M10 X 1 10,0 142,0 95,0 80,0 40,0 63635
(continued on next page)
46
Series 140 8xD
|
Fractional & Metric
30°140°
L
1
L2
L3
L4
D2
D1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
9,1 mm 0.3583 10,0 142,0 95,0 80,0 40,0 63636
23/64 0.3594 9.13 10,0 142,0 95,0 80,0 40,0 51820
9,2 mm 0.3622 M10 X 0,75 10,0 142,0 95,0 80,0 40,0 63637
9,3 mm 0.3661 10,0 142,0 95,0 80,0 40,0 63638
U 0.3680 9.35 7/16-14 10,0 142,0 95,0 80,0 40,0 51821
9,4 mm 0.3701 10,0 142,0 95,0 80,0 40,0 63639
9,5 mm 0.3740
M11 / M10 X 0,5
10,0 142,0 95,0 80,0 40,0 63640
3/8 0.3750 9.53 10,0 142,0 95,0 80,0 40,0 51822
9,6 mm 0.3780 10,0 142,0 95,0 80,0 40,0 63641
9,7 mm 0.3819 10,0 142,0 95,0 80,0 40,0 63642
9,8 mm 0.3858 10,0 142,0 95,0 80,0 40,0 63643
9,9 mm 0.3898 10,0 142,0 95,0 80,0 40,0 63644
25/64 0.3906 9.92 7/16-20 10,0 142,0 95,0 80,0 40,0 51823
10,0 mm 0.3937 10,0 142,0 95,0 80,0 40,0 63645
10,1 mm 0.3976 12,0 162,0 114,0 96,0 45,0 63646
10,2 mm 0.4016 M12 X 1,75 12,0 162,0 114,0 96,0 45,0 63647
10,3 mm 0.4055 12,0 162,0 114,0 96,0 45,0 63648
13/32 0.4062 10.32 12,0 162,0 114,0 96,0 45,0 51824
10,4 mm 0.4094 12,0 162,0 114,0 96,0 45,0 63649
10,5 mm 0.4134 M12 X 1,5 12,0 162,0 114,0 96,0 45,0 63650
10,6 mm 0.4173 12,0 162,0 114,0 96,0 45,0 63651
10,7 mm 0.4213 12,0 162,0 114,0 96,0 45,0 63652
27/64 0.4219 10.72 1/2-13 12,0 162,0 114,0 96,0 45,0 51825
10,8 mm 0.4252 M12 X 1,25 12,0 162,0 114,0 96,0 45,0 63653
10,9 mm 0.4291 12,0 162,0 114,0 96,0 45,0 63654
11,0 mm 0.4331 M12 X 1 12,0 162,0 114,0 96,0 45,0 63655
11,1 mm 0.4370 12,0 162,0 114,0 96,0 45,0 63656
7/16 0.4375 11.11 1/4-18NPT 12,0 162,0 114,0 96,0 45,0 51826
11,2 mm 0.4409 12,0 162,0 114,0 96,0 45,0 63657
11,3 mm 0.4449 12,0 162,0 114,0 96,0 45,0 63658
11,4 mm 0.4488 12,0 162,0 114,0 96,0 45,0 63659
11,5 mm 0.4528 M12 X 0,5 12,0 162,0 114,0 96,0 45,0 63660
11,6 mm 0.4567 12,0 162,0 114,0 96,0 45,0 63661
11,7 mm 0.4606 12,0 162,0 114,0 96,0 45,0 63662
11,8 mm 0.4646 12,0 162,0 114,0 96,0 45,0 63663
11,9 mm 0.4685 12,0 162,0 114,0 96,0 45,0 63664
15/32 0.4688 11.91 1/2-28 12,0 162,0 114,0 96,0 45,0 51827
12,0 mm 0.4724 M14 X 2 12,0 162,0 114,0 96,0 45,0 63665
31/64 0.4844 12.30 9/16-12 14,0 178,0 133,0 112,0 45,0 51828
12,5 mm 0.4921 M14 X 1,5 14,0 178,0 133,0 112,0 45,0 63666
(continued on next page)
47
Series 140 8xD
|
Fractional & Metric
30°140°
L
1
L2
L3
L4
D2
D
1
www.kyocera-sgstool.com
TOLERANCES (inch)
DIAMETER D1D2
≤.1181 +.00008/+.00047 h6
>.1181–.2362 +.00016/+.00063 h6
>.2362–.3937 +.00024/+.00083 h6
>.3937–.7087 +.00028/+.00098 h6
>.7087–1.1811 +.00031/+.00114 h6
TOLERANCES (mm)
DIAMETER D1D2
≤ 3 +0,002/+0,012 h6
> 3 - 6 +0,004/+0,016 h6
> 6 - 10 +0,006/+0,021 h6
> 10 - 18 +0,007/+0,025 h6
Common
Reach
Right Spiral
Internal
Coolant
2
Flutes
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Tap Size
Reference
Only
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2
Min. Cleared
Length
L3
Shank
Length
L4
Ti-NAMITE-A
(AlTiN)
EDP No.
1/2 0.5000 12.70 14,0 178,0 133,0 112,0 45,0 51829
12,8 mm 0.5039 M14 X 1,25 14,0 178,0 133,0 112,0 45,0 63667
13,0 mm 0.5118 M14 X 1 14,0 178,0 133,0 112,0 45,0 63668
33/64 0.5156 13.10 9/16-18 14,0 178,0 133,0 112,0 45,0 51830
13,5 mm 0.5315 5/8-11 14,0 178,0 133,0 112,0 45,0 63669
13,8 mm 0.5433 14,0 178,0 133,0 112,0 45,0 63670
14,0 mm 0.5512 M16 X 2 14,0 178,0 133,0 112,0 45,0 63671
9/16 0.5625 14.29 16,0 203,0 152,0 128,0 48,0 51831
14,5 mm 0.5709 M16 X 1,5 16,0 203,0 152,0 128,0 48,0 63672
37/64 0.5781 14.68 5/8-18 16,0 203,0 152,0 128,0 48,0 51832
14,8 mm 0.5827 16,0 203,0 152,0 128,0 48,0 63673
15,0 mm 0.5906 M16 X 1 16,0 203,0 152,0 128,0 48,0 63674
15,5 mm 0.6102 M18 X 2,5 16,0 203,0 152,0 128,0 48,0 63675
15,8 mm 0.6220 16,0 203,0 152,0 128,0 48,0 63676
5/8 0.6250 15.88 11/16-16 16,0 203,0 152,0 128,0 48,0 51833
16,0 mm 0.6299 16,0 203,0 152,0 128,0 48,0 63677
21/32 0.6562 16.67 3/4-10 18,0 222,0 171,0 144,0 48,0 51834
11/16 0.6875 17.46 3/4-16 18,0 222,0 171,0 144,0 48,0 51835
3/4 0.7500 19.05 13/16-16 20,0 243,0 190,0 160,0 50,0 51836
48 www.kyocera-sgstool.com
Series 140 5xD
|
Speed & Feed Recommendations
Series
140 5D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
425 RPM 12988 8659 6494 4329 3247 2598 2165
(340-510) Fr 0.0039 0.0059 0.0079 0.0118 0.0157 0.0196 0.0236
Feed (ipm) 51.0 51.0 51.0 51.0 51.0 51.0 51.0
≤ 275 Bhn
or
≤ 28 HRc
380 RPM 11613 7742 5806 3871 2903 2323 1935
(304-456) Fr 0.0035 0.0053 0.0071 0.0106 0.0141 0.0177 0.0212
Feed (ipm) 41.0 41.0 41.0 41.0 41.0 41.0 41.0
≤ 425 Bhn
or
≤ 45 HRc
220 RPM 6723 4482 3362 2241 1681 1345 1121
(176-264) Fr 0.0030 0.0045 0.0059 0.0089 0.0119 0.0149 0.0178
Feed (ipm) 20.0 20.0 20.0 20.0 20.0 20.0 20.0
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
330 RPM 10085 6723 5042 3362 2521 2017 1681
(264-396) Fr 0.0030 0.0045 0.0059 0.0089 0.0119 0.0149 0.0178
Feed (ipm) 30.0 30.0 30.0 30.0 30.0 30.0 30.0
≤ 375 Bhn
or
≤ 40 HRc
200 RPM 6112 4075 3056 2037 1528 1222 1019
(160-240) Fr 0.0025 0.0038 0.0051 0.0076 0.0101 0.0127 0.0152
Feed (ipm) 15.5 15.5 15.5 15.5 15.5 15.5 15.5
≤ 450 Bhn
or
≤ 48 HRc
140 RPM 4278 2852 2139 1426 1070 856 713
(112-168) Fr 0.0018 0.0027 0.0036 0.0054 0.0072 0.0090 0.0108
Feed (ipm) 7.7 7.7 7.7 7.7 7.7 7.7 7.7
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
145 RPM 4431 2954 2216 1477 1108 886 739
(116-174) Fr 0.0026 0.0039 0.0052 0.0078 0.0104 0.0130 0.0156
Feed (ipm) 11.5 11.5 11.5 11.5 11.5 11.5 11.5
≤ 375 Bhn
or
≤ 40 HRc
95 RPM 2903 1935 1452 968 726 581 484
(76-114) Fr 0.0012 0.0018 0.0024 0.0036 0.0048 0.0060 0.0072
Feed (ipm) 3.5 3.5 3.5 3.5 3.5 3.5 3.5
≤ 475 Bhn
or
≤ 50 HRc
85 RPM 2598 1732 1299 866 649 520 433
(68-102) Fr 0.0008 0.0012 0.0015 0.0023 0.0031 0.0038 0.0046
Feed (ipm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
360 RPM 11002 7334 5501 3667 2750 2200 1834
(288-432) Fr 0.0045 0.0068 0.0091 0.0136 0.0182 0.0227 0.0273
Feed (ipm) 50.0 50.0 50.0 50.0 50.0 50.0 50.0
≤ 260 Bhn
or
≤ 26 HRc
335 RPM 10238 6825 5119 3413 2559 2048 1706
(268-402) Fr 0.0045 0.0068 0.0091 0.0136 0.0182 0.0227 0.0273
Feed (ipm) 46.5 46.5 46.5 46.5 46.5 46.5 46.5
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
305 RPM 9321 6214 4660 3107 2330 1864 1553
(244-366) Fr 0.0026 0.0039 0.0051 0.0077 0.0103 0.0129 0.0154
Feed (ipm) 24.0 24.0 24.0 24.0 24.0 24.0 24.0
≤ 275 Bhn
or
≤ 28 HRc
195 RPM 5959 3973 2980 1986 1490 1192 993
(156-234) Fr 0.0020 0.0030 0.0040 0.0060 0.0081 0.0101 0.0121
Feed (ipm) 12.0 12.0 12.0 12.0 12.0 12.0 12.0
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
150 RPM 4584 3056 2292 1528 1146 917 764
(120-180) Fr 0.0020 0.0030 0.0040 0.0060 0.0079 0.0099 0.0119
Feed (ipm) 9.1 9.1 9.1 9.1 9.1 9.1 9.1
≤ 375 Bhn
or
≤ 40 HRc
110 RPM 3362 2241 1681 1121 840 672 560
(88-132) Fr 0.0018 0.0027 0.0036 0.0054 0.0071 0.0089 0.0107
Feed (ipm) 6.0 6.0 6.0 6.0 6.0 6.0 6.0
continued on next page
49www.kyocera-sgstool.com
Series 140 5xD
|
Speed & Feed Recommendations
Series
140 5D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
95 RPM 2903 1935 1452 968 726 581 484
(76-114) Fr 0.0008 0.0012 0.0016 0.0024 0.0032 0.0040 0.0048
Feed (ipm) 2.3 2.3 2.3 2.3 2.3 2.3 2.3
≤ 400 Bhn
or
≤ 43 HRc
50 RPM 1528 1019 764 509 382 306 255
(40-60) Fr 0.0007 0.0010 0.0013 0.0020 0.0026 0.0033 0.0039
Feed (ipm) 1.0 1.0 1.0 1.0 1.0 1.0 1.0
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
215 RPM 6570 4380 3285 2190 1643 1314 1095
(172-258) Fr 0.0018 0.0026 0.0035 0.0053 0.0070 0.0088 0.0105
Feed (ipm) 11.5 11.5 11.5 11.5 11.5 11.5 11.5
≤ 350 Bhn
or
≤ 38 HRc
160 RPM 4890 3260 2445 1630 1222 978 815
(128-192) Fr 0.0016 0.0024 0.0032 0.0048 0.0064 0.0080 0.0096
Feed (ipm) 7.8 7.8 7.8 7.8 7.8 7.8 7.8
≤ 440 Bhn
or
≤ 47 HRc
85 RPM 2598 1732 1299 866 649 520 433
(68-102) Fr 0.0012 0.0018 0.0024 0.0036 0.0048 0.0060 0.0072
Feed (ipm) 3.1 3.1 3.1 3.1 3.1 3.1 3.1
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
770 RPM 23531 15687 11766 7844 5883 4706 3922
(616-924) Fr 0.0049 0.0073 0.0098 0.0147 0.0195 0.0244 0.0293
Feed (ipm) 115.0 115.0 115.0 115.0 115.0 115.0 115.0
≤ 150 Bhn
or
≤ 7 HRc
660 RPM 20170 13446 10085 6723 5042 4034 3362
(528-792) Fr 0.0050 0.0074 0.0099 0.0149 0.0198 0.0248 0.0297
Feed (ipm) 100.0 100.0 100.0 100.0 100.0 100.0 100.0
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
550 RPM 16808 11205 8404 5603 4202 3362 2801
(440-660) Fr 0.0020 0.0030 0.0040 0.0060 0.0080 0.0100 0.0120
Feed (ipm) 33.5 33.5 33.5 33.5 33.5 33.5 33.5
≤ 200 Bhn
or
≤ 23 HRc
440 RPM 13446 8964 6723 4482 3362 2689 2241
(352-528) Fr 0.0020 0.0030 0.0040 0.0060 0.0080 0.0100 0.0120
Feed (ipm) 27.0 27.0 27.0 27.0 27.0 27.0 27.0
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = sfm x 3.82 / D1
•  ipm = (inch / revolution) x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
50 www.kyocera-sgstool.com
Series 140 5xD
|
Speed & Feed Recommendations
Series
140M 5D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
130 RPM 13733 6867 5150 4120 3433 2943 2575
(104-155) Fr 0.095 0.189 0.252 0.316 0.379 0.442 0.505
Feed (mm/min) 1300 1300 1300 1300 1300 1300 1300
≤ 275 Bhn
or
≤ 28 HRc
116 RPM 12279 6140 4605 3684 3070 2631 2302
(93-139) Fr 0.086 0.171 0.228 0.285 0.342 0.399 0.456
Feed (mm/min) 1050 1050 1050 1050 1050 1050 1050
≤ 425 Bhn
or
≤ 45 HRc
67 RPM 7109 3555 2666 2133 1777 1523 1333
(54-80) Fr 0.071 0.142 0.189 0.237 0.284 0.332 0.379
Feed (mm/min) 505 505 505 505 505 505 505
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
101 RPM 10664 5332 3999 3199 2666 2285 1999
(80-121) Fr 0.071 0.143 0.190 0.238 0.285 0.333 0.380
Feed (mm/min) 760 760 760 760 760 760 760
≤ 375 Bhn
or
≤ 40 HRc
61 RPM 6463 3231 2424 1939 1616 1385 1212
(49-73) Fr 0.062 0.124 0.165 0.206 0.248 0.289 0.330
Feed (mm/min) 400 400 400 400 400 400 400
≤ 450 Bhn
or
≤ 48 HRc
43 RPM 4524 2262 1696 1357 1131 969 848
(34-51) Fr 0.043 0.086 0.115 0.144 0.172 0.201 0.230
Feed (mm/min) 195 195 195 195 195 195 195
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
44 RPM 4686 2343 1757 1406 1171 1004 879
(35-53) Fr 0.061 0.122 0.162 0.203 0.243 0.284 0.324
Feed (mm/min) 285 285 285 285 285 285 285
≤ 375 Bhn
or
≤ 40 HRc
29 RPM 3070 1535 1151 921 767 658 576
(23-35) Fr 0.029 0.059 0.078 0.098 0.117 0.137 0.156
Feed (mm/min) 90 90 90 90 90 90 90
≤ 475 Bhn
or
≤ 50 HRc
26 RPM 2747 1373 1030 824 687 589 515
(21-31) Fr 0.018 0.036 0.049 0.061 0.073 0.085 0.097
Feed (mm/min) 50 50 50 50 50 50 50
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
110 RPM 11633 5816 4362 3490 2908 2493 2181
(88-132) Fr 0.109 0.218 0.291 0.364 0.437 0.509 0.582
Feed (mm/min) 1270 1270 1270 1270 1270 1270 1270
≤ 260 Bhn
or
≤ 26 HRc
102 RPM 10825 5413 4059 3248 2706 2320 2030
(82-123) Fr 0.109 0.218 0.291 0.363 0.436 0.509 0.581
Feed (mm/min) 1180 1180 1180 1180 1180 1180 1180
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
93 RPM 9856 4928 3696 2957 2464 2112 1848
(74-112) Fr 0.061 0.123 0.164 0.205 0.246 0.286 0.327
Feed (mm/min) 605 605 605 605 605 605 605
≤ 275 Bhn
or
≤ 28 HRc
59 RPM 6301 3151 2363 1890 1575 1350 1181
(48-71) Fr 0.048 0.095 0.127 0.159 0.190 0.222 0.254
Feed (mm/min) 300 300 300 300 300 300 300
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
46 RPM 4847 2424 1818 1454 1212 1039 909
(37-55) Fr 0.047 0.095 0.127 0.158 0.190 0.221 0.253
Feed (mm/min) 230 230 230 230 230 230 230
≤ 375 Bhn
or
≤ 40 HRc
34 RPM 3555 1777 1333 1066 889 762 666
(27-40) Fr 0.042 0.084 0.113 0.141 0.169 0.197 0.225
Feed (mm/min) 150 150 150 150 150 150 150
continued on next page
51www.kyocera-sgstool.com
Series 140 5xD
|
Speed & Feed Recommendations
Series
140M 5D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
29 RPM 3070 1535 1151 921 767 658 576
(23-35) Fr 0.020 0.039 0.052 0.065 0.078 0.091 0.104
Feed (mm/min) 60 60 60 60 60 60 60
≤ 400 Bhn
or
≤ 43 HRc
15 RPM 1616 808 606 485 404 346 303
(12-18) Fr 0.015 0.031 0.041 0.052 0.062 0.072 0.083
Feed (mm/min) 25 25 25 25 25 25 25
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
66 RPM 6947 3474 2605 2084 1737 1489 1303
(52-79) Fr 0.040 0.079 0.106 0.132 0.158 0.185 0.211
Feed (mm/min) 275 275 275 275 275 275 275
≤ 350 Bhn
or
≤ 38 HRc
49 RPM 5170 2585 1939 1551 1293 1108 969
(39-59) Fr 0.039 0.077 0.103 0.129 0.155 0.181 0.206
Feed (mm/min) 200 200 200 200 200 200 200
≤ 440 Bhn
or
≤ 47 HRc
26 RPM 2747 1373 1030 824 687 589 515
(21-31) Fr 0.029 0.058 0.078 0.097 0.117 0.136 0.155
Feed (mm/min) 80 80 80 80 80 80 80
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
235 RPM 24882 12441 9331 7465 6220 5332 4665
(188-282) Fr 0.118 0.237 0.316 0.395 0.473 0.552 0.631
Feed (mm/min) 2945 2945 2945 2945 2945 2945 2945
≤ 150 Bhn
or
≤ 7 HRc
201 RPM 21327 10664 7998 6398 5332 4570 3999
(161-241) Fr 0.119 0.238 0.318 0.397 0.476 0.556 0.635
Feed (mm/min) 2540 2540 2540 2540 2540 2540 2540
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
168 RPM 17773 8886 6665 5332 4443 3808 3332
(134-201) Fr 0.048 0.096 0.128 0.159 0.191 0.223 0.255
Feed (mm/min) 850 850 850 850 850 850 850
≤ 200 Bhn
or
≤ 23 HRc
134 RPM 14218 7109 5332 4265 3555 3047 2666
(107-161) Fr 0.048 0.096 0.128 0.161 0.193 0.225 0.257
Feed (mm/min) 685 685 685 685 685 685 685
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = (1000 x m / min) / (3.14 x D1)
•  mm / min = (mm / revolution) x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
52
Series 140 8xD
|
Speed & Feed Recommendations
www.kyocera-sgstool.com
Series
140 8D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
405 RPM 12377 8251 6188 4126 3094 2475 2063
(324-486) Fr 0.0036 0.0053 0.0071 0.0107 0.0142 0.0178 0.0213
Feed (ipm) 44.0 44.0 44.0 44.0 44.0 44.0 44.0
≤ 275 Bhn
or
≤ 28 HRc
370 RPM 11307 7538 5654 3769 2827 2261 1885
(296-444) Fr 0.0030 0.0045 0.0060 0.0090 0.0120 0.0150 0.0180
Feed (ipm) 34.0 34.0 34.0 34.0 34.0 34.0 34.0
≤ 425 Bhn
or
≤ 45 HRc
210 RPM 6418 4278 3209 2139 1604 1284 1070
(168-252) Fr 0.0026 0.0039 0.0051 0.0077 0.0103 0.0129 0.0154
Feed (ipm) 16.5 16.5 16.5 16.5 16.5 16.5 16.5
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
320 RPM 9779 6519 4890 3260 2445 1956 1630
(256-384) Fr 0.0026 0.0038 0.0051 0.0077 0.0102 0.0128 0.0153
Feed (ipm) 25.0 25.0 25.0 25.0 25.0 25.0 25.0
≤ 375 Bhn
or
≤ 40 HRc
190 RPM 5806 3871 2903 1935 1452 1161 968
(152-228) Fr 0.0020 0.0030 0.0040 0.0059 0.0079 0.0099 0.0119
Feed (ipm) 11.5 11.5 11.5 11.5 11.5 11.5 11.5
≤ 450 Bhn
or
≤ 48 HRc
135 RPM 4126 2750 2063 1375 1031 825 688
(108-162) Fr 0.0016 0.0024 0.0032 0.0047 0.0063 0.0079 0.0095
Feed (ipm) 6.5 6.5 6.5 6.5 6.5 6.5 6.5
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
140 RPM 4278 2852 2139 1426 1070 856 713
(112-168) Fr 0.0020 0.0030 0.0040 0.0060 0.0079 0.0099 0.0119
Feed (ipm) 8.5 8.5 8.5 8.5 8.5 8.5 8.5
≤ 375 Bhn
or
≤ 40 HRc
90 RPM 2750 1834 1375 917 688 550 458
(72-108) Fr 0.0011 0.0016 0.0022 0.0033 0.0044 0.0055 0.0065
Feed (ipm) 3.0 3.0 3.0 3.0 3.0 3.0 3.0
≤ 475 Bhn
or
≤ 50 HRc
80 RPM 2445 1630 1222 815 611 489 407
(64-96) Fr 0.0006 0.0009 0.0012 0.0018 0.0025 0.0031 0.0037
Feed (ipm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
350 RPM 10696 7131 5348 3565 2674 2139 1783
(280-420) Fr 0.0037 0.0056 0.0075 0.0112 0.0150 0.0187 0.0224
Feed (ipm) 40.0 40.0 40.0 40.0 40.0 40.0 40.0
≤ 260 Bhn
or
≤ 26 HRc
310 RPM 9474 6316 4737 3158 2368 1895 1579
(248-372) Fr 0.0039 0.0059 0.0078 0.0117 0.0156 0.0195 0.0234
Feed (ipm) 37.0 37.0 37.0 37.0 37.0 37.0 37.0
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
290 RPM 8862 5908 4431 2954 2216 1772 1477
(232-348) Fr 0.0020 0.0030 0.0039 0.0059 0.0079 0.0099 0.0118
Feed (ipm) 17.5 17.5 17.5 17.5 17.5 17.5 17.5
≤ 275 Bhn
or
≤ 28 HRc
180 RPM 5501 3667 2750 1834 1375 1100 917
(144-216) Fr 0.0018 0.0027 0.0036 0.0055 0.0073 0.0091 0.0109
Feed (ipm) 10.0 10.0 10.0 10.0 10.0 10.0 10.0
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
130 RPM 3973 2649 1986 1324 993 795 662
(104-156) Fr 0.0018 0.0026 0.0035 0.0053 0.0070 0.0088 0.0106
Feed (ipm) 7.0 7.0 7.0 7.0 7.0 7.0 7.0
≤ 375 Bhn
or
≤ 40 HRc
95 RPM 2903 1935 1452 968 726 581 484
(76-114) Fr 0.0016 0.0023 0.0031 0.0047 0.0062 0.0078 0.0093
Feed (ipm) 4.5 4.5 4.5 4.5 4.5 4.5 4.5
(continued on next page)
53
Series 140 8xD
|
Speed & Feed Recommendations
www.kyocera-sgstool.com
Series
140 8D
Fractional
Hardness
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 3/8 1/2 5/8 3/4
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
65 RPM 1986 1324 993 662 497 397 331
(52-78) Fr 0.0009 0.0013 0.0017 0.0026 0.0034 0.0043 0.0051
Feed (ipm) 1.7 1.7 1.7 1.7 1.7 1.7 1.7
≤ 400 Bhn
or
≤ 43 HRc
35 RPM 1070 713 535 357 267 214 178
(28-42) Fr 0.0006 0.0008 0.0011 0.0017 0.0022 0.0028 0.0034
Feed (ipm) 0.6 0.6 0.6 0.6 0.6 0.6 0.6
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
185 RPM 5654 3769 2827 1885 1413 1131 942
(148-222) Fr 0.0016 0.0024 0.0032 0.0048 0.0064 0.0080 0.0096
Feed (ipm) 9.0 9.0 9.0 9.0 9.0 9.0 9.0
≤ 350 Bhn
or
≤ 38 HRc
140 RPM 4278 2852 2139 1426 1070 856 713
(112-168) Fr 0.0012 0.0018 0.0023 0.0035 0.0047 0.0058 0.0070
Feed (ipm) 5.0 5.0 5.0 5.0 5.0 5.0 5.0
≤ 440 Bhn
or
≤ 47 HRc
75 RPM 2292 1528 1146 764 573 458 382
(60-90) Fr 0.0010 0.0015 0.0020 0.0030 0.0040 0.0050 0.0060
Feed (ipm) 2.3 2.3 2.3 2.3 2.3 2.3 2.3
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
730 RPM 22309 14873 11154 7436 5577 4462 3718
(584-876) Fr 0.0045 0.0067 0.0090 0.0134 0.0179 0.0224 0.0269
Feed (ipm) 100.0 100.0 100.0 100.0 100.0 100.0 100.0
≤ 150 Bhn
or
≤ 7 HRc
635 RPM 19406 12937 9703 6469 4851 3881 3234
(508-762) Fr 0.0046 0.0070 0.0093 0.0139 0.0186 0.0232 0.0278
Feed (ipm) 90.0 90.0 90.0 90.0 90.0 90.0 90.0
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
255 RPM 7793 5195 3896 2598 1948 1559 1299
(204-306) Fr 0.0018 0.0027 0.0036 0.0054 0.0072 0.0090 0.0108
Feed (ipm) 14.0 14.0 14.0 14.0 14.0 14.0 14.0
≤ 200 Bhn
or
≤ 23 HRc
235 RPM 7182 4788 3591 2394 1795 1436 1197
(188-282) Fr 0.0018 0.0027 0.0036 0.0054 0.0072 0.0091 0.0109
Feed (ipm) 13.0 13.0 13.0 13.0 13.0 13.0 13.0
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = Vc x 3.82 / D1
•  ipm = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
54
Series 140 8xD
|
Speed & Feed Recommendations
www.kyocera-sgstool.com
Series
140M 8D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
123 RPM 13087 6544 4908 3926 3272 2804 2454
(100-170) Fr 0.085 0.171 0.228 0.285 0.342 0.399 0.455
Feed (mm/min) 1118 1118 1118 1118 1118 1118 1118
≤ 275 Bhn
or
≤ 28 HRc
113 RPM 11956 5978 4484 3587 2989 2562 2242
(90-135) Fr 0.072 0.144 0.193 0.241 0.289 0.337 0.385
Feed (mm/min) 864 864 864 864 864 864 864
≤ 425 Bhn
or
≤ 45 HRc
64 RPM 6786 3393 2545 2036 1696 1454 1272
(51-77) Fr 0.062 0.124 0.165 0.206 0.247 0.288 0.329
Feed (mm/min) 419 419 419 419 419 419 419
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
98 RPM 10340 5170 3878 3102 2585 2216 1939
(78-117) Fr 0.061 0.123 0.164 0.205 0.246 0.287 0.328
Feed (mm/min) 635 635 635 635 635 635 635
≤ 375 Bhn
or
≤ 40 HRc
58 RPM 6140 3070 2302 1842 1535 1316 1151
(46-69) Fr 0.048 0.095 0.127 0.159 0.190 0.222 0.254
Feed (mm/min) 292 292 292 292 292 292 292
≤ 450 Bhn
or
≤ 48 HRc
41 RPM 4362 2181 1636 1309 1091 935 818
(33-49) Fr 0.038 0.076 0.101 0.126 0.151 0.177 0.202
Feed (mm/min) 165 165 165 165 165 165 165
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 200 Bhn
or
≤ 13 HRc
43 RPM 4524 2262 1696 1357 1131 969 848
(34-51) Fr 0.048 0.095 0.127 0.159 0.191 0.223 0.255
Feed (mm/min) 216 216 216 216 216 216 216
≤ 375 Bhn
or
≤ 40 HRc
27 RPM 2908 1454 1091 872 727 623 545
(22-33) Fr 0.026 0.052 0.070 0.087 0.105 0.122 0.140
Feed (mm/min) 76 76 76 76 76 76 76
≤ 475 Bhn
or
≤ 50 HRc
24 RPM 2585 1293 969 776 646 554 485
(20-29) Fr 0.015 0.029 0.039 0.049 0.059 0.069 0.079
Feed (mm/min) 38 38 38 38 38 38 38
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
107 RPM 11310 5655 4241 3393 2827 2424 2121
(85-128) Fr 0.090 0.180 0.240 0.299 0.359 0.419 0.479
Feed (mm/min) 1016 1016 1016 1016 1016 1016 1016
≤ 260 Bhn
or
≤ 26 HRc
94 RPM 10017 5009 3756 3005 2504 2147 1878
(76-113) Fr 0.094 0.188 0.250 0.313 0.375 0.438 0.500
Feed (mm/min) 940 940 940 940 940 940 940
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 185 Bhn
or
≤ 9 HRc
88 RPM 9371 4686 3514 2811 2343 2008 1757
(71-106) Fr 0.047 0.095 0.126 0.158 0.190 0.221 0.253
Feed (mm/min) 445 445 445 445 445 445 445
≤ 275 Bhn
or
≤ 28 HRc
55 RPM 5816 2908 2181 1745 1454 1246 1091
(44-66) Fr 0.044 0.087 0.116 0.146 0.175 0.204 0.233
Feed (mm/min) 254 254 254 254 254 254 254
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH,
15-5PH, 17-4 PH, Custom 450
≤ 275 Bhn
or
≤ 28 HRc
40 RPM 4201 2100 1575 1260 1050 900 788
(32-48) Fr 0.042 0.085 0.113 0.141 0.169 0.198 0.226
Feed (mm/min) 178 178 178 178 178 178 178
≤ 375 Bhn
or
≤ 40 HRc
29 RPM 3070 1535 1151 921 767 658 576
(23-35) Fr 0.037 0.074 0.099 0.124 0.149 0.174 0.199
Feed (mm/min) 114 114 114 114 114 114 114
(continued on next page)
55
Series 140 8xD
|
Speed & Feed Recommendations
www.kyocera-sgstool.com
Series
140M 8D
Metric
Hardness
Vc
(m/min)
Diameter (D1)
(mm)
36810 12 14 16
S
SUPER ALLOYS
(NICKEL , COBALT,
IRON BASE)
Inconel 601, 617, 625, Incoloy,
Monel 400, Rene, Waspaloy
≤ 300 Bhn
or
≤ 32 HRc
20 RPM 2100 1050 788 630 525 450 394
(16-24) Fr 0.021 0.041 0.055 0.069 0.082 0.096 0.110
Feed (mm/min) 43 43 43 43 43 43 43
≤ 400 Bhn
or
≤ 43 HRc
11 RPM 1131 565 424 339 283 242 212
(9-13) Fr 0.013 0.027 0.036 0.045 0.054 0.063 0.072
Feed (mm/min) 15 15 15 15 15 15 15
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si,
Ti-6Al4V
≤ 275 Bhn
or
≤ 28 HRc
56 RPM 5978 2989 2242 1793 1495 1281 1121
(45-68) Fr 0.038 0.076 0.102 0.127 0.153 0.178 0.204
Feed (mm/min) 229 229 229 229 229 229 229
≤ 350 Bhn
or
≤ 38 HRc
43 RPM 4524 2262 1696 1357 1131 969 848
(34-51) Fr 0.028 0.056 0.075 0.094 0.112 0.131 0.150
Feed (mm/min) 127 127 127 127 127 127 127
≤ 440 Bhn
or
≤ 47 HRc
23 RPM 2424 1212 909 727 606 519 454
(18-27) Fr 0.024 0.048 0.064 0.080 0.096 0.112 0.129
Feed (mm/min) 58 58 58 58 58 58 58
N
ALUMINUM ALLOYS
2017, 2024, 356,
6061, 7075
≤ 80 Bhn
or
≤ 47 HRb
223 RPM 23589 11795 8846 7077 5897 5055 4423
(178-267) Fr 0.108 0.215 0.287 0.359 0.431 0.502 0.574
Feed (mm/min) 2540 2540 2540 2540 2540 2540 2540
≤ 150 Bhn
or
≤ 7 HRc
194 RPM 20519 10260 7695 6156 5130 4397 3847
(155-232) Fr 0.111 0.223 0.297 0.371 0.446 0.520 0.594
Feed (mm/min) 2286 2286 2286 2286 2286 2286 2286
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
78 RPM 8240 4120 3090 2472 2060 1766 1545
(62-93) Fr 0.043 0.086 0.115 0.144 0.173 0.201 0.230
Feed (mm/min) 356 356 356 356 356 356 356
≤ 200 Bhn
or
≤ 23 HRc
72 RPM 7594 3797 2848 2278 1898 1627 1424
(57-86) Fr 0.043 0.087 0.116 0.145 0.174 0.203 0.232
Feed (mm/min) 330 330 330 330 330 330 330
Note:
•  Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fr x rpm
•  reduce speed and feed for materials harder than listed
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.kyocera-sgstool.com
56
• Double margin construction design stabilized the drill for greater hole accuracy and improved
surface finish in final hole.
• Minimized delamination at hole entry/exit.
• Manufactured exclusively with Di-NAMITE coating for even wear,
extended tool life and improved finishes.
PERFORMANCE.
PERFORMANCE. PRECISION. PASSION.
SERIES 120 COMPOSITE DRILL
SERIES 120 COMPOSITE DRILL
The key features of the 8 Facet Double Angle Series
120 drill design offers application benefits beyond that
of other high performance drills in its category. Each
feature of this 8 facet design was engineered as a
solution towards addressing the issues commonly
encountered during Composite drilling. This unique
High Performance design successfully creates an accu-
rate hole without splintering or delamination.
A
B
DOUBLE MARGIN CONSTRUCTION
• improves drill stability for better hole finish
and size control
• allows coolant to reach the point for improved
hole quality and extended tool life
A
DOUBLE ANGLE POINT
• minimizes workpiece delamination on drill
entry and exit
• redistributes loads along multiple cutting
edges for improved performance
NOTCHED POINT
• reduces cutting forces at the drill center
for enhanced performance and tool life
• manufactured exclusively with Di-NAMITE
coating for even wear, extended tool life,
and improved finishes.
C
C
B
1ST HOLE 3RD HOLE 50TH HOLE AFTER 50 HOLES
50 holes.0001”
.190” CFRP drill
uncoated
1
TOOL NO. TYPE
DESCRIPTION TIR IN
MACHINE USAGE
SPEED
5,000 rpm
FEED
5.0 ipm
DIAMETER
.190”
HOLE DEPTH
.240”
WORKPIECE
CFRP
MACHINE TYPE
Vertical Machining
Center
COOLANT
none
Good hole quality for 1st 3 holes.
fraying starting by 3rd hole, .0021” wear
INSPECTION
NOTES
1ST HOLE 25TH HOLE 50TH HOLE AFTER 50 HOLES
50 holes.0002”
.190” CFRP drill
diamond
2
TOOL NO. TYPE
DESCRIPTION TIR IN
MACHINE USAGE
Good hole quality all 50 holes
slight fraying, .0013” wear
INSPECTION
NOTES
PASSION.
CRYSTALLINE DIAMOND COATING
®
www.kyocera-sgstool.com
PRECISION.
A test was conducted of our CFRP drill to determine the necessity of coating when drilling Carbon
Fiber material. Fifty holes were drilled using a special size .190” CFRP drill. The tool’s design produces
acceptable quality holes; but as shown in the photos, early edge wear on the uncoated drill resulted
in holes with frayed edges. The diamond coated drill produced all 50 holes with little to no fraying
and edge wear was 38% less than the uncoated drills.
The geometry of the 8 Facet drill with the Di-NAMITE coating is a necessity for additional tool life
and productivity when manufacturing Carbon Fiber material.
• The compound angle creates 4 cutting edges along the drill point.
• Distinct double angle prevents abrasiveness of the Composite from localizing along the point
and diminishing tool life.
www.kyocera-sgstool.com 57
• Double margin construction design stabilized the drill for greater hole accuracy and improved
surface finish in final hole.
• Minimized delamination at hole entry/exit.
• Manufactured exclusively with Di-NAMITE coating for even wear,
extended tool life and improved finishes.
PERFORMANCE.
PERFORMANCE. PRECISION. PASSION.
SERIES 120 COMPOSITE DRILL
SERIES 120 COMPOSITE DRILL
The key features of the 8 Facet Double Angle Series
120 drill design offers application benefits beyond that
of other high performance drills in its category. Each
feature of this 8 facet design was engineered as a
solution towards addressing the issues commonly
encountered during Composite drilling. This unique
High Performance design successfully creates an accu-
rate hole without splintering or delamination.
A
B
DOUBLE MARGIN CONSTRUCTION
• improves drill stability for better hole finish
and size control
• allows coolant to reach the point for improved
hole quality and extended tool life
A
DOUBLE ANGLE POINT
• minimizes workpiece delamination on drill
entry and exit
• redistributes loads along multiple cutting
edges for improved performance
NOTCHED POINT
• reduces cutting forces at the drill center
for enhanced performance and tool life
• manufactured exclusively with Di-NAMITE
coating for even wear, extended tool life,
and improved finishes.
C
C
B
1ST HOLE 3RD HOLE 50TH HOLE AFTER 50 HOLES
50 holes.0001”
.190” CFRP drill
uncoated
1
TOOL NO. TYPE
DESCRIPTION TIR IN
MACHINE USAGE
SPEED
5,000 rpm
FEED
5.0 ipm
DIAMETER
.190”
HOLE DEPTH
.240”
WORKPIECE
CFRP
MACHINE TYPE
Vertical Machining
Center
COOLANT
none
Good hole quality for 1st 3 holes.
fraying starting by 3rd hole, .0021” wear
INSPECTION
NOTES
1ST HOLE 25TH HOLE 50TH HOLE AFTER 50 HOLES
50 holes.0002”
.190” CFRP drill
diamond
2
TOOL NO. TYPE
DESCRIPTION TIR IN
MACHINE USAGE
Good hole quality all 50 holes
slight fraying, .0013” wear
INSPECTION
NOTES
PASSION.
CRYSTALLINE DIAMOND COATING
®
www.kyocera-sgstool.com
PRECISION.
A test was conducted of our CFRP drill to determine the necessity of coating when drilling Carbon
Fiber material. Fifty holes were drilled using a special size .190” CFRP drill. The tool’s design produces
acceptable quality holes; but as shown in the photos, early edge wear on the uncoated drill resulted
in holes with frayed edges. The diamond coated drill produced all 50 holes with little to no fraying
and edge wear was 38% less than the uncoated drills.
The geometry of the 8 Facet drill with the Di-NAMITE coating is a necessity for additional tool life
and productivity when manufacturing Carbon Fiber material.
• The compound angle creates 4 cutting edges along the drill point.
• Distinct double angle prevents abrasiveness of the Composite from localizing along the point
and diminishing tool life.
58 www.kyocera-sgstool.com
Series 120
|
Fractional & Metric
Cutting
Diameter
D1
Decimal
Equivalent
Metric
Equivalent
Shank
Diameter
D2
Overall
Length
L1
Flute
Length
L2 / L3
Shank
Length
L4
Di-NAMITE
(TD)
EDP No.
#40 0.0980 2.49 1/8 2 9/16 1-1/4 50000
2,7 mm 0.1063 6,0 63,0 20,0 32,0 50001
3,0 mm 0.1181 6,0 63,0 20,0 36,0 50002
1/8 0.1250 3.18 1/4 2-1/2 3/4 1-7/16 50003
3,2 mm 0.1260 6,0 63,0 20,0 36,0 50004
#30 0.1285 3.26 1/4 2-1/2 3/4 1-7/16 50005
#28 0.1405 3.57 1/4 2-1/2 3/4 1-7/16 50006
#22 0.1570 3.99 1/4 2-5/8 7/8 1-7/16 50007
#21 0.1590 4.04 1/4 2-5/8 7/8 1-7/16 50008
4,1 mm 0.1614 6,0 66,0 24,0 36,0 50009
#19 0.1660 4.22 1/4 2-5/8 7/8 1-7/16 50010
11/64 0.1719 4.37 1/4 2-5/8 7/8 1-7/16 50011
3/16 0.1875 4.76 1/4 2-5/8 1 1-7/16 50012
#11 0.1910 4.85 1/4 2-5/8 1 1-7/16 50013
#8 0.1990 5.05 1/4 2-5/8 1 1-7/16 50014
#7 0.2010 5.11 1/4 2-5/8 1 1-7/16 50015
#2 0.2210 5.61 1/4 2-5/8 1 1-7/16 50016
6,0 mm 0.2362 6,0 66,0 28,0 36,0 50017
1/4 0.2500 6.35 1/4 3-1/8 1-5/16 1-7/16 50018
.2510 0.2510 6.38 5/16 3-1/8 1-5/16 1-7/16 50019
F 0.2570 6.53 5/16 3-1/8 1-5/16 1-7/16 50020
I 0.2720 6.91 5/16 3-1/8 1-5/16 1-7/16 50021
J 0.2770 7.04 5/16 3-1/8 1-5/16 1-7/16 50022
K 0.2810 7.14 5/16 3-1/8 1-9/16 1-7/16 50023
5/16 0.3125 7.94 5/16 3-1/8 1-9/16 1-7/16 50024
8,0 mm 0.3150 8,0 79,0 41,0 36,0 50025
3/8 0.3750 9.53 3/8 3-1/2 1-27/32 1-9/16 50026
V 0.3770 9.58 1/2 3-1/2 1-27/32 1-9/16 50027
10,0 mm 0.3937 10,0 89,0 47,0 40,0 50028
7/16 0.4375 11.11 1/2 4-1/16 2-3/16 1-9/16 50029
12,0 mm 0.4724 12,0 102,0 55,0 45,0 50030
1/2 0.5000 12.70 1/2 4-1/4 2-5/16 1-3/4 50031
Common
Reach
Right Spiral
External
Coolant
2
Flutes
TOLERANCES (mm)
DIAMETER D1D2
2,7-12 +0,000 / –0,013 h6
TOLERANCES (inch)
DIAMETER D1D2
#40-1/2 +0.0000 / –0.0005 h6
59www.kyocera-sgstool.com
Series 120
|
Speed & Feed Recommendations
Series
120
Fractional
Vc
(sfm)
Diameter (D1)
(inch)
1/8 3/16 1/4 5/16 3/8 7/16 1/2
N
CFRP, AFRP
(Carbon Fiber,
Aramid Fiber)
320 RPM 9779 6519 4890 3912 3260 2794 2445
(256-384)
Fr 0.0006 0.0009 0.0012 0.0015 0.0018 0.0021 0.0024
Feed (ipm) 5.9 5.9 5.9 5.9 5.9 5.9 5.9
GFRP
(Fiberglass)
240 RPM 7334 4890 3667 2934 2445 2096 1834
(192-288)
Fr 0.0006 0.0009 0.0012 0.0015 0.0018 0.0021 0.0024
Feed (ipm) 4.4 4.4 4.4 4.4 4.4 4.4 4.4
CARBON,
GRAPHITE
400 RPM 12224 8149 6112 4890 4075 3493 3056
(320-480)
Fr 0.0008 0.0012 0.0016 0.0020 0.0024 0.0028 0.0032
Feed (ipm) 9.8 9.8 9.8 9.8 9.8 9.8 9.8
Note:
•  rpm = Vc x 3.82 / D1
•  ipm = Fr x rpm
•  adjust speed and / or feed based on resin type and / or fiber structure
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
Series
120
Metric
Vc
(m/min)
Diameter (D1)
(mm)
2.5 346810 12
N
CFRP, AFRP
(Carbon Fiber,
Aramid Fiber)
100 RPM 12722 10602 7951 5301 3976 3181 2650
(80-120)
Fr 0.012 0.014 0.019 0.028 0.038 0.047 0.057
Feed (mm/min) 150 150 150 150 150 150 150
GFRP
(Fiberglass)
75 RPM 9542 7951 5963 3976 2982 2385 1988
(65-90)
Fr 0.012 0.014 0.019 0.029 0.039 0.048 0.058
Feed (mm/min) 115 115 115 115 115 115 115
CARBON,
GRAPHITE
120 RPM 15266 12722 9542 6361 4771 3817 3181
(96-144)
Fr 0.015 0.018 0.025 0.037 0.049 0.062 0.074
Feed (mm/min) 235 235 235 235 235 235 235
Note:
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fr x rpm
•  adjust speed and / or feed based on resin type and / or fiber structure
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.sgstoolwizard.com
www.sgstoolwizard.com
SOLUTIONS AROUND THE GLOBE
KYOCERA SGS Precision Tools is an
ISO-certied leader of round solid carbide
cutting tool technology for the aerospace,
metalworking, and automotive industries
with manufacturing sites in the United
States and United Kingdom. Our global
network of Sales Representatives,
Industrial Distributors, and Agents
blanket the world selling into more
than 60 countries.
LEADERS IN SOLID CARBIDE
TOOL TECHNOLOGY
Brand names such as Z-Carb, S-Carb,
V-Carb, Hi-PerCarb, Multi-Carb have
become synonymous with high perfor-
mance tooling in the machining and
metalworking industry.
We’re proud to have pioneered some
of the world’s most advanced cutting
technology right here on our Northeast
Ohio manufacturing campus. KSPT high
performance end mills, drills and routers
are increasing productivity and reducing
cost around the world.
EXCEEDING CUSTOMER EXPECTATIONS
As the world’s manufacturing needs change,
so does KSPT. Starting with our lab inspected
substrate materials to our tool designs
and coatings. It’s all about the science. Our
exceptional team of researchers, engineers,
and machinists are dedicated to developing
the absolute best and delivering the
ultimate value at the spindle.
