Micro End Mills
Solid Carbide Tools
www.ksptmicrotools.com
KYOCERA SGS Precision Tools (KSPT) is an ISO-certied manufacturer of industry leading round solid carbide
cutting tools. State of the art manufacturing and warehouse facilities have the capacity and processes to meet the
quality and delivery demands of customers in all markets around the world. Complete inspections performed
within its metallurgical lab and manufacturing quality departments ensure the use of high quality carbide and
reliable manufacturing consistency regardless of when a cutting tool is produced.
KSPT is proud to have pioneered some of the world’s most advanced cutting technologies due to rigorous testing
of tools, coatings, and materials within its Global Innovation Center. It is this commitment to innovation that has
launched patented products and technologies like the Z-Carb with its variable geometry and cutting edge prepara-
tion, Series 43 APR and APF ultra high performance aluminum cutting tools, and the JetStream coolant technology.
SGS has become an important part of the KYOCERA Precision Tools family, and while the name has changed, one
thing has not. Its dedicated people and their relentless commitment to the customer. KSPT Technical Sales Engi-
neers, Application Specialists, and Distribution Partners blanket the globe, delivering reliable service and support
to all market segments. It is these people and products that drive innovative application strategies and cutting tool
technologies into the end user, continually exceeding expectations and providing the most value at the spindle.
Solid Carbide Tools
KYOCERA SGS Precision Tools (KSPT) is an ISO-certied manufacturer of industry leading round solid carbide
cutting tools. State of the art manufacturing and warehouse facilities have the capacity and processes to meet the
quality and delivery demands of customers in all markets around the world. Complete inspections performed
within its metallurgical lab and manufacturing quality departments ensure the use of high quality carbide and
reliable manufacturing consistency regardless of when a cutting tool is produced.
KSPT is proud to have pioneered some of the world’s most advanced cutting technologies due to rigorous testing
of tools, coatings, and materials within its Global Innovation Center. It is this commitment to innovation that has
launched patented products and technologies like the Z-Carb with its variable geometry and cutting edge prepara-
tion, Series 43 APR and APF ultra high performance aluminum cutting tools, and the JetStream coolant technology.
SGS has become an important part of the KYOCERA Precision Tools family, and while the name has changed, one
thing has not. Its dedicated people and their relentless commitment to the customer. KSPT Technical Sales Engi-
neers, Application Specialists, and Distribution Partners blanket the globe, delivering reliable service and support
to all market segments. It is these people and products that drive innovative application strategies and cutting tool
technologies into the end user, continually exceeding expectations and providing the most value at the spindle.
Solid Carbide Tools
FRACTIONAL
SERIES DESCRIPTION PAGE
M2 2 Flute Square 1.5xD.............................6
2 Flute Square 3xD ..............................8
M2B 2 Flute Ball 1.5xD............................... 10
2 Flute Ball 3xD ................................12
M4 4 Flute Square 1.5xD............................14
4 Flute Square 3xD .............................16
M4L 4 Flute Square 5xD .............................18
M4E 4 Flute Square 8xD .............................19
M4X 4 Flute Square 12xD ............................20
M4B 4 Flute Ball 1.5xD...............................21
4 Flute Ball 3xD ................................23
M4LB 4 Flute Ball 5xD ................................25
M4EB 4 Flute Ball 8xD ................................26
M4XB 4 Flute Ball 12xD ...............................27
METRIC
SERIES DESCRIPTION PAGE
M2M 2 Flute Square 1.5xD............................28
2 Flute Square 3xD .............................29
M2MB 2 Flute Ball 1.5xD...............................30
2 Flute Ball 3xD ................................31
M4MB 4 Flute Ball 1.5xD...............................32
4 Flute Ball 3xD ................................33
Speed & Feed Recommendations .......................34
4www.ksptmicrotools.com
SEM photography shows the KSPT propri-
etary coating method provides a signicant
reduction in macro particle deposition on
the tool surface, which contributes to
increased performance due to smoother
chip ow. Another benet of the KSPT
micro-tool coating is a signicant reduction
in edge rounding due to excessive thick-
ness, typical of most normal coatings.
One common misconception is that coated
micro tools are often unnecessary because
most machines cannot reach sufcient
spindle speed to warrant the additional
expense of a coated tool. Our testing shows
AlTiN coating increases tool life by 250
percent, even when the cutting speed is
well below that recommended for uncoated
carbide. In other words, coating cost is
justiable, even at low spindle speeds.
KYOCERA SGS PRECISION TOOLS AlTiN COATING PERFORMANCE
(LAB RESULTS)
120
Usage (Inches)
100
80
60
40
20
0
UNCOATED COATED
TOOL LIFE COMPARISON
4140 alloy steel / 30 HRc / dry
15000 rpm / 6 ipm / slotting to failure
1/32 4-ute carbide end mill
With excellent thermal and chemical resistance, Ti-NAMITE-A (AlTiN) allows for dry cutting and improve-
ments in performance of carbide. The coating has a high hardness giving ultimate protection against abra-
sive wear and erosion. Ideal for cast iron, high temperature alloys, steels, and stainless steel applications.
Hardness (HV): 3700
Oxidation Temperature: 1100°C / 2010°F
Coefcient of Friction: 0.30
Thickness: 1 – 4 Microns (based on tool diameter)
NORMAL AlTiN MICRO-TOOL COATING
@ 1.06KX MAGNIFICATION
KSPT PROPRIETARY AlTiN MICRO-TOOL COATING
@ 1.06KX MAGNIFICATION
5
www.ksptmicrotools.com
TO ORDER: Please specify quantity and EDP number.
PARA SU PEDIDO: Por favor especique cantidad y número de EDP.
POUR COMMANDER: Veuillez préciser la quantité et le code article EDP.
RETURN POLICY: An RMA number must accompany all product returns. Contact your Customer
Service Representative for an RMA number.
DEVOLUCIONES: Todo material devuelto debe ir acompañado de un número de RMA correspondiente.
Para solicitarlo, póngase en contacto con su Representante de Servicio.
POLITIQUE DE RETOUR: Tous les produits retournés doivent être accompagnés d’un numéro RMA. Contacter
votre interlocuteur commercial pour obtenir un numéro RMA.
REGULATION SAFETY GLASSES SHOULD ALWAYS BE WORN WHEN
USING HIGH-SPEED CUTTING EQUIPMENT
DEBEN USARSE GAFAS PROTECTORAS CUANDO SE UTILIZA
UN EQUIPO DE ALTA VELOCIDAD
DES LUNNETTES DE SÉCURITE DOIVENT ÊTRE IMPÉRATIVEMENT
PORTÉES LORS D’UTILISATION D’OUTILS À GRANDE VITESSE
INDUSTRY
INDUSTRIAS
INDUSTRIES Aerospace
I
Aeroespacial
I
Aérospatiale
Medical
I
Médica
I
Médical
Power Generation
I
Energética
I
Production d'énergie
Automotive
I
Automotriz
I
Automobile
Mold & Die
I
Moldes y matrices
I
Moules et coquilles
Castings & Foundaries
I
Fundición
I
Moulages et fonderies
General Engineering
I
Ingeniería
I
Ingénierie générale
These icons indicate for
which industry applications
SGS High Performance
Products are best suited.
Estos íconos indican las
aplicaciones industriales
más adecuadas para los
productos SGS de alto
rendimiento.
Ces icônes indiquent les
applications industrielles
pour lesquelles les produits
haute performance SGS
sont les mieux adaptés.
TO ORDER: Please specify quantity and EDP number.
RETURN POLICY: An RMA number must accompany all product returns. Contact your Customer
Service Representative for an RMA number.
REGULATION SAFETY GLASSES SHOULD ALWAYS BE WORN WHEN
USING HIGH-SPEED CUTTING EQUIPMENT
MATERIALS
Steels Stainless Steels Cast Iron High Temp Alloys
Titanium Non-Ferrous Plastics/Composites Hardened Steels
TOOL LENGTH FLUTES
24
Stub Regular Long Extra Long 2 Flutes 4 Flutes
END CONFIGURATIONS SHANK TYPE HELIX ANGLE RAKE ANGLE
POS
Ball Square Common Right Spiral Positive
All tools are in Right Cut Direction unless noted
Micro Tool Legend
The ToolWizard is all new, featuring
responsive design, lter based searching
and search history tracking.
USE THE TOOLWIZARD TO:
t Calculate application parameters
t Search the KSPT catalog
t Select products based on
machining needs
TO SIGN UP FOR THE TOOLWIZARD:
1. Visit www.sgstoolw izar d.com
2. Sign up for an account
3. Start calculating
4. Start saving
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
6www.ksptmicrotools.com

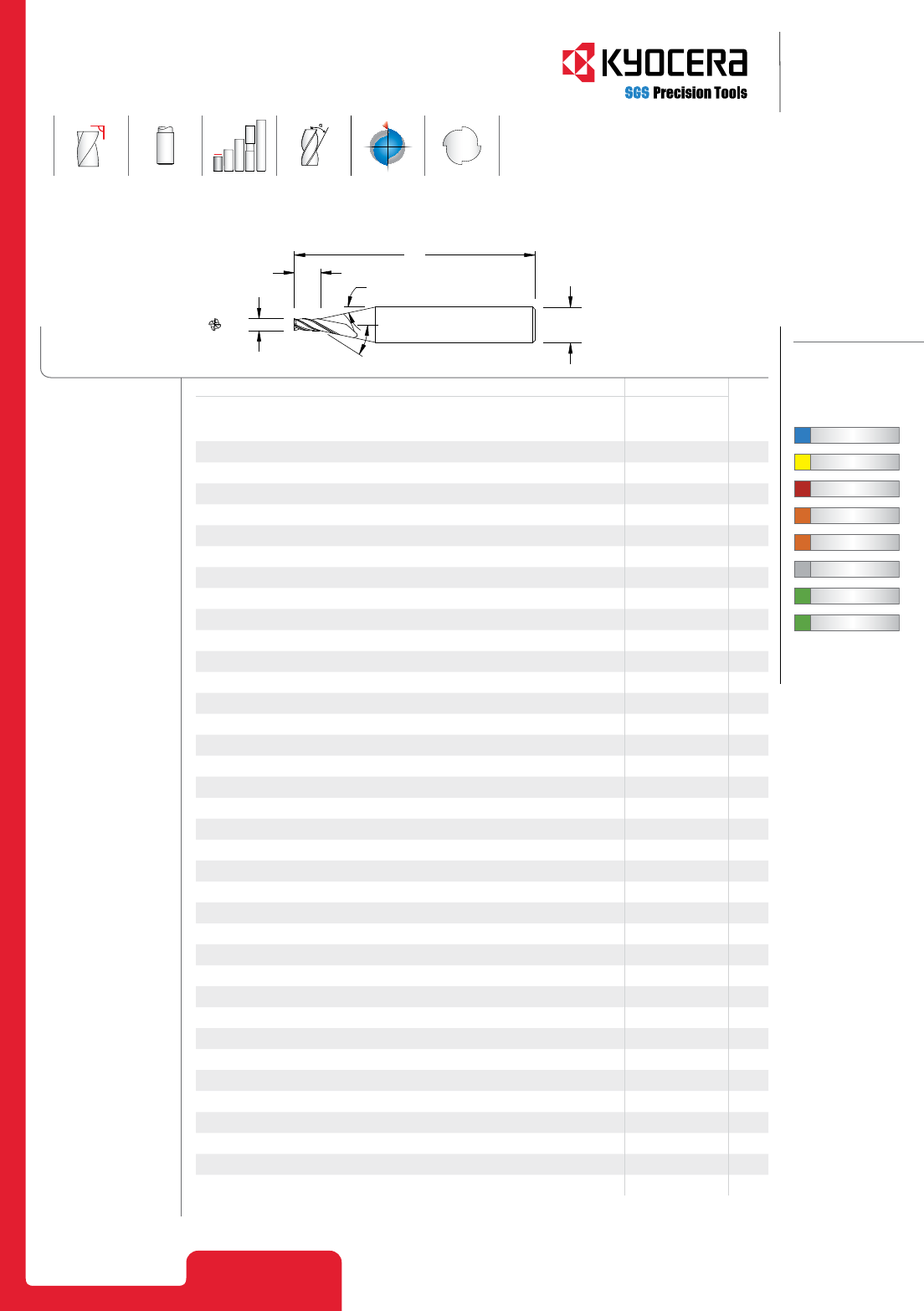

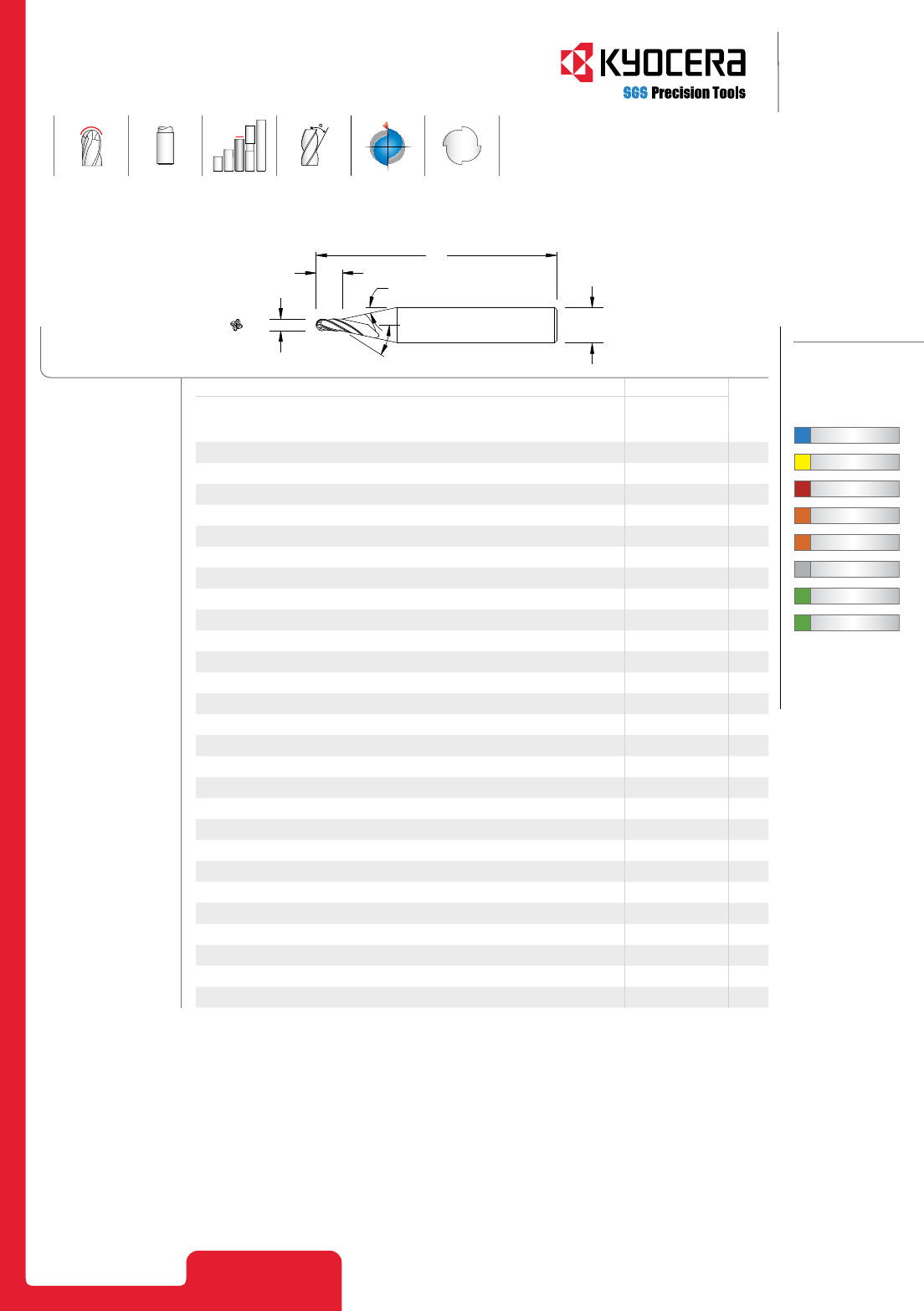

2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
M2 1.5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.008 1-1/2 02201 ●
0.006 1/8 0.009 1-1/2 02202 ●
0.007 1/8 0.011 1-1/2 02203 ●
0.008 1/8 0.012 1-1/2 02204 ●
0.009 1/8 0.014 1-1/2 02205 ●
0.010 1/8 0.015 1-1/2 02206 ●
0.011 1/8 0.017 1-1/2 02207 ●
0.012 1/8 0.018 1-1/2 02208 ●
0.013 1/8 0.020 1-1/2 02209 ●
0.014 1/8 0.021 1-1/2 02210 ●
0.015 1/8 0.023 1-1/2 02211 ●
0.016 1/8 0.024 1-1/2 02212 ●
0.017 1/8 0.026 1-1/2 02213 ●
0.018 1/8 0.027 1-1/2 02214 ●
0.019 1/8 0.029 1-1/2 02215 ●
0.020 1/8 0.030 1-1/2 02216 ●
0.021 1/8 0.032 1-1/2 02217 ●
0.022 1/8 0.033 1-1/2 02218 ●
0.023 1/8 0.035 1-1/2 02219 ●
0.024 1/8 0.036 1-1/2 02220 ●
0.025 1/8 0.038 1-1/2 02221 ●
0.026 1/8 0.039 1-1/2 02222 ●
0.027 1/8 0.041 1-1/2 02223 ●
0.028 1/8 0.042 1-1/2 02224 ●
0.029 1/8 0.044 1-1/2 02225 ●
0.030 1/8 0.045 1-1/2 02226 ●
0.031 1/8 0.047 1-1/2 02227 ●
0.032 1/8 0.048 1-1/2 02228 ●
0.033 1/8 0.050 1-1/2 02229 ●
0.034 1/8 0.051 1-1/2 02230 ●
0.035 1/8 0.053 1-1/2 02231 ●
0.036 1/8 0.054 1-1/2 02232 ●
0.037 1/8 0.056 1-1/2 02233 ●
0.038 1/8 0.057 1-1/2 02234 ●
0.039 1/8 0.059 1-1/2 02235 ●
0.040 1/8 0.060 1-1/2 02236 ●
continued on next page
FRACTIONAL
M2 1.5xD
POS
2
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
7
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M2 1.5xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.062 1-1/2 02368 ●
0.042 1/8 0.063 1-1/2 02369 ●
0.043 1/8 0.065 1-1/2 02370 ●
0.044 1/8 0.066 1-1/2 02371 ●
0.045 1/8 0.068 1-1/2 02372 ●
0.046 1/8 0.069 1-1/2 02373 ●
0.047 1/8 0.071 1-1/2 02374 ●
0.048 1/8 0.072 1-1/2 02375 ●
0.049 1/8 0.074 1-1/2 02376 ●
0.050 1/8 0.075 1-1/2 02377 ●
0.051 1/8 0.077 1-1/2 02378 ●
0.052 1/8 0.078 1-1/2 02379 ●
0.053 1/8 0.080 1-1/2 02380 ●
0.054 1/8 0.081 1-1/2 02381 ●
0.055 1/8 0.083 1-1/2 02382 ●
0.056 1/8 0.084 1-1/2 02383 ●
0.057 1/8 0.086 1-1/2 02384 ●
0.058 1/8 0.087 1-1/2 02385 ●
0.059 1/8 0.089 1-1/2 02386 ●
0.060 1/8 0.090 1-1/2 02387 ●
0.062 1/8 0.093 1-1/2 02388 ●
0.065 1/8 0.098 1-1/2 02389 ●
0.070 1/8 0.105 1-1/2 02390 ●
0.078 1/8 0.117 1-1/2 02391 ●
0.080 1/8 0.120 1-1/2 02392 ●
0.085 1/8 0.128 1-1/2 02393 ●
0.090 1/8 0.135 1-1/2 02394 ●
0.093 1/8 0.140 1-1/2 02395 ●
0.095 1/8 0.143 1-1/2 02396 ●
0.100 1/8 0.150 1-1/2 02397 ●
0.105 1/8 0.158 1-1/2 02398 ●
0.110 1/8 0.165 1-1/2 02399 ●
0.115 1/8 0.173 1-1/2 02400 ●
0.120 1/8 0.180 1-1/2 02401 ●
M2 1.5xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
8www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
POS
2
M2 3xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.015 1-1/2 02275 ●
0.006 1/8 0.018 1-1/2 02276 ●
0.007 1/8 0.021 1-1/2 02277 ●
0.008 1/8 0.024 1-1/2 02278 ●
0.009 1/8 0.027 1-1/2 02279 ●
0.010 1/8 0.030 1-1/2 02280 ●
0.011 1/8 0.033 1-1/2 02281 ●
0.012 1/8 0.036 1-1/2 02282 ●
0.013 1/8 0.039 1-1/2 02283 ●
0.014 1/8 0.042 1-1/2 02284 ●
0.015 1/8 0.045 1-1/2 02285 ●
0.016 1/8 0.048 1-1/2 02286 ●
0.017 1/8 0.051 1-1/2 02287 ●
0.018 1/8 0.054 1-1/2 02288 ●
0.019 1/8 0.057 1-1/2 02289 ●
0.020 1/8 0.060 1-1/2 02290 ●
0.021 1/8 0.063 1-1/2 02291 ●
0.022 1/8 0.066 1-1/2 02292 ●
0.023 1/8 0.069 1-1/2 02293 ●
0.024 1/8 0.072 1-1/2 02294 ●
0.025 1/8 0.075 1-1/2 02295 ●
0.026 1/8 0.078 1-1/2 02296 ●
0.027 1/8 0.081 1-1/2 02297 ●
0.028 1/8 0.084 1-1/2 02298 ●
0.029 1/8 0.087 1-1/2 02299 ●
0.030 1/8 0.090 1-1/2 02300 ●
0.031 1/8 0.093 1-1/2 02301 ●
0.032 1/8 0.096 1-1/2 02302 ●
0.033 1/8 0.099 1-1/2 02303 ●
0.034 1/8 0.102 1-1/2 02304 ●
0.035 1/8 0.105 1-1/2 02305 ●
0.036 1/8 0.108 1-1/2 02306 ●
0.037 1/8 0.111 1-1/2 02307 ●
0.038 1/8 0.114 1-1/2 02308 ●
0.039 1/8 0.117 1-1/2 02309 ●
0.040 1/8 0.120 1-1/2 02310 ●
continued on next page
FRACTIONAL
M2 3xD
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
9
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M2 3xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.123 1-1/2 02436 ●
0.042 1/8 0.126 1-1/2 02437 ●
0.043 1/8 0.129 1-1/2 02438 ●
0.044 1/8 0.132 1-1/2 02439 ●
0.045 1/8 0.135 1-1/2 02440 ●
0.046 1/8 0.138 1-1/2 02441 ●
0.047 1/8 0.141 1-1/2 02442 ●
0.048 1/8 0.144 1-1/2 02443 ●
0.049 1/8 0.147 1-1/2 02444 ●
0.050 1/8 0.150 1-1/2 02445 ●
0.051 1/8 0.153 1-1/2 02446 ●
0.052 1/8 0.156 1-1/2 02447 ●
0.053 1/8 0.159 1-1/2 02448 ●
0.054 1/8 0.162 1-1/2 02449 ●
0.055 1/8 0.165 1-1/2 02450 ●
0.056 1/8 0.168 1-1/2 02451 ●
0.057 1/8 0.171 1-1/2 02452 ●
0.058 1/8 0.174 1-1/2 02453 ●
0.059 1/8 0.177 1-1/2 02454 ●
0.060 1/8 0.180 1-1/2 02455 ●
0.062 1/8 0.186 1-1/2 02456 ●
0.065 1/8 0.195 1-1/2 02457 ●
0.070 1/8 0.210 1-1/2 02458 ●
0.078 1/8 0.234 1-1/2 02459 ●
0.080 1/8 0.240 1-1/2 02460 ●
0.085 1/8 0.255 1-1/2 02461 ●
0.090 1/8 0.270 1-1/2 02462 ●
0.093 1/8 0.279 1-1/2 02463 ●
0.095 1/8 0.285 1-1/2 02464 ●
0.100 1/8 0.300 1-1/2 02465 ●
0.105 1/8 0.315 1-1/2 02466 ●
0.110 1/8 0.330 1-1/2 02467 ●
0.115 1/8 0.345 1-1/2 02468 ●
0.120 1/8 0.360 1-1/2 02469 ●
M2 3xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
10 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
POS
2
M2B 1.5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.008 1-1/2 03029 ●
0.006 1/8 0.009 1-1/2 03030 ●
0.007 1/8 0.011 1-1/2 03031 ●
0.008 1/8 0.012 1-1/2 03032 ●
0.009 1/8 0.014 1-1/2 03033 ●
0.010 1/8 0.015 1-1/2 03034 ●
0.011 1/8 0.017 1-1/2 03035 ●
0.012 1/8 0.018 1-1/2 03036 ●
0.013 1/8 0.020 1-1/2 03037 ●
0.014 1/8 0.021 1-1/2 03038 ●
0.015 1/8 0.023 1-1/2 03039 ●
0.016 1/8 0.024 1-1/2 03040 ●
0.017 1/8 0.026 1-1/2 03041 ●
0.018 1/8 0.027 1-1/2 03042 ●
0.019 1/8 0.029 1-1/2 03043 ●
0.020 1/8 0.030 1-1/2 03044 ●
0.021 1/8 0.032 1-1/2 03045 ●
0.022 1/8 0.033 1-1/2 03046 ●
0.023 1/8 0.035 1-1/2 03047 ●
0.024 1/8 0.036 1-1/2 03048 ●
0.025 1/8 0.038 1-1/2 03049 ●
0.026 1/8 0.039 1-1/2 03050 ●
0.027 1/8 0.041 1-1/2 03051 ●
0.028 1/8 0.042 1-1/2 03052 ●
0.029 1/8 0.044 1-1/2 03053 ●
0.030 1/8 0.045 1-1/2 03054 ●
0.031 1/8 0.047 1-1/2 03055 ●
0.032 1/8 0.048 1-1/2 03056 ●
0.033 1/8 0.050 1-1/2 03057 ●
0.034 1/8 0.051 1-1/2 03058 ●
0.035 1/8 0.053 1-1/2 03059 ●
0.036 1/8 0.054 1-1/2 03060 ●
0.037 1/8 0.056 1-1/2 03061 ●
0.038 1/8 0.057 1-1/2 03062 ●
0.039 1/8 0.059 1-1/2 03063 ●
0.040 1/8 0.060 1-1/2 03064 ●
continued on next page
FRACTIONAL
M2B 1.5xD
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
11
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M2B 1.5xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.062 1-1/2 02504 ●
0.042 1/8 0.063 1-1/2 02505 ●
0.043 1/8 0.065 1-1/2 02506 ●
0.044 1/8 0.066 1-1/2 02507 ●
0.045 1/8 0.068 1-1/2 02508 ●
0.046 1/8 0.069 1-1/2 02509 ●
0.047 1/8 0.071 1-1/2 02510 ●
0.048 1/8 0.072 1-1/2 02511 ●
0.049 1/8 0.074 1-1/2 02512 ●
0.050 1/8 0.075 1-1/2 02513 ●
0.051 1/8 0.077 1-1/2 02514 ●
0.052 1/8 0.078 1-1/2 02515 ●
0.053 1/8 0.080 1-1/2 02516 ●
0.054 1/8 0.081 1-1/2 02517 ●
0.055 1/8 0.083 1-1/2 02518 ●
0.056 1/8 0.084 1-1/2 02519 ●
0.057 1/8 0.086 1-1/2 02520 ●
0.058 1/8 0.087 1-1/2 02521 ●
0.059 1/8 0.089 1-1/2 02522 ●
0.060 1/8 0.090 1-1/2 02523 ●
0.062 1/8 0.093 1-1/2 02524 ●
0.065 1/8 0.098 1-1/2 02525 ●
0.070 1/8 0.105 1-1/2 02526 ●
0.078 1/8 0.117 1-1/2 02527 ●
0.080 1/8 0.120 1-1/2 02528 ●
0.085 1/8 0.128 1-1/2 02529 ●
0.090 1/8 0.135 1-1/2 02530 ●
0.093 1/8 0.140 1-1/2 02531 ●
0.095 1/8 0.143 1-1/2 02532 ●
0.100 1/8 0.150 1-1/2 02533 ●
0.105 1/8 0.158 1-1/2 02534 ●
0.110 1/8 0.165 1-1/2 02535 ●
0.115 1/8 0.173 1-1/2 02536 ●
0.120 1/8 0.180 1-1/2 02537 ●
M2B 1.5xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
12 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
M2B 3xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.015 1-1/2 03103 ●
0.006 1/8 0.018 1-1/2 03104 ●
0.007 1/8 0.021 1-1/2 03105 ●
0.008 1/8 0.024 1-1/2 03106 ●
0.009 1/8 0.027 1-1/2 03107 ●
0.010 1/8 0.030 1-1/2 03108 ●
0.011 1/8 0.033 1-1/2 03109 ●
0.012 1/8 0.036 1-1/2 03110 ●
0.013 1/8 0.039 1-1/2 03111 ●
0.014 1/8 0.042 1-1/2 03112 ●
0.015 1/8 0.045 1-1/2 03113 ●
0.016 1/8 0.048 1-1/2 03114 ●
0.017 1/8 0.051 1-1/2 03115 ●
0.018 1/8 0.054 1-1/2 03116 ●
0.019 1/8 0.057 1-1/2 03117 ●
0.020 1/8 0.060 1-1/2 03118 ●
0.021 1/8 0.063 1-1/2 03119 ●
0.022 1/8 0.066 1-1/2 03120 ●
0.023 1/8 0.069 1-1/2 03121 ●
0.024 1/8 0.072 1-1/2 03122 ●
0.025 1/8 0.075 1-1/2 03123 ●
0.026 1/8 0.078 1-1/2 03124 ●
0.027 1/8 0.081 1-1/2 03125 ●
0.028 1/8 0.084 1-1/2 03126 ●
0.029 1/8 0.087 1-1/2 03127 ●
0.030 1/8 0.090 1-1/2 03128 ●
0.031 1/8 0.093 1-1/2 03129 ●
0.032 1/8 0.096 1-1/2 03130 ●
0.033 1/8 0.099 1-1/2 03131 ●
0.034 1/8 0.102 1-1/2 03132 ●
0.035 1/8 0.105 1-1/2 03133 ●
0.036 1/8 0.108 1-1/2 03134 ●
0.037 1/8 0.111 1-1/2 03135 ●
0.038 1/8 0.114 1-1/2 03136 ●
0.039 1/8 0.117 1-1/2 03137 ●
0.040 1/8 0.120 1-1/2 03138 ●
continued on next page
FRACTIONAL
M2B 3xD
POS
2
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
13
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M2B 3xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.123 1-1/2 02572 ●
0.042 1/8 0.126 1-1/2 02573 ●
0.043 1/8 0.129 1-1/2 02574 ●
0.044 1/8 0.132 1-1/2 02575 ●
0.045 1/8 0.135 1-1/2 02576 ●
0.046 1/8 0.138 1-1/2 02577 ●
0.047 1/8 0.141 1-1/2 02578 ●
0.048 1/8 0.144 1-1/2 02579 ●
0.049 1/8 0.147 1-1/2 02580 ●
0.050 1/8 0.150 1-1/2 02581 ●
0.051 1/8 0.153 1-1/2 02582 ●
0.052 1/8 0.156 1-1/2 02583 ●
0.053 1/8 0.159 1-1/2 02584 ●
0.054 1/8 0.162 1-1/2 02585 ●
0.055 1/8 0.165 1-1/2 02586 ●
0.056 1/8 0.168 1-1/2 02587 ●
0.057 1/8 0.171 1-1/2 02588 ●
0.058 1/8 0.174 1-1/2 02589 ●
0.059 1/8 0.177 1-1/2 02590 ●
0.060 1/8 0.180 1-1/2 02591 ●
0.062 1/8 0.186 1-1/2 02592 ●
0.065 1/8 0.195 1-1/2 02593 ●
0.070 1/8 0.210 1-1/2 02594 ●
0.078 1/8 0.234 1-1/2 02595 ●
0.080 1/8 0.240 1-1/2 02596 ●
0.085 1/8 0.255 1-1/2 02597 ●
0.090 1/8 0.270 1-1/2 02598 ●
0.093 1/8 0.279 1-1/2 02599 ●
0.095 1/8 0.285 1-1/2 02600 ●
0.100 1/8 0.300 1-1/2 02601 ●
0.105 1/8 0.315 1-1/2 02602 ●
0.110 1/8 0.330 1-1/2 02603 ●
0.115 1/8 0.345 1-1/2 02604 ●
0.120 1/8 0.360 1-1/2 02605 ●
M2B 3xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
14 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
M4 1.5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.008 1-1/2 02238 ●
0.006 1/8 0.009 1-1/2 02239 ●
0.007 1/8 0.011 1-1/2 02240 ●
0.008 1/8 0.012 1-1/2 02241 ●
0.009 1/8 0.014 1-1/2 02242 ●
0.010 1/8 0.015 1-1/2 02243 ●
0.011 1/8 0.017 1-1/2 02244 ●
0.012 1/8 0.018 1-1/2 02245 ●
0.013 1/8 0.020 1-1/2 02246 ●
0.014 1/8 0.021 1-1/2 02247 ●
0.015 1/8 0.023 1-1/2 02248 ●
0.016 1/8 0.024 1-1/2 02249 ●
0.017 1/8 0.026 1-1/2 02250 ●
0.018 1/8 0.027 1-1/2 02251 ●
0.019 1/8 0.029 1-1/2 02252 ●
0.020 1/8 0.030 1-1/2 02253 ●
0.021 1/8 0.032 1-1/2 02254 ●
0.022 1/8 0.033 1-1/2 02255 ●
0.023 1/8 0.035 1-1/2 02256 ●
0.024 1/8 0.036 1-1/2 02257 ●
0.025 1/8 0.038 1-1/2 02258 ●
0.026 1/8 0.039 1-1/2 02259 ●
0.027 1/8 0.041 1-1/2 02260 ●
0.028 1/8 0.042 1-1/2 02261 ●
0.029 1/8 0.044 1-1/2 02262 ●
0.030 1/8 0.045 1-1/2 02263 ●
0.031 1/8 0.047 1-1/2 02264 ●
0.032 1/8 0.048 1-1/2 02265 ●
0.033 1/8 0.050 1-1/2 02266 ●
0.034 1/8 0.051 1-1/2 02267 ●
0.035 1/8 0.053 1-1/2 02268 ●
0.036 1/8 0.054 1-1/2 02269 ●
0.037 1/8 0.056 1-1/2 02270 ●
0.038 1/8 0.057 1-1/2 02271 ●
0.039 1/8 0.059 1-1/2 02272 ●
0.040 1/8 0.060 1-1/2 02273 ●
continued on next page
FRACTIONAL
M4 1.5xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
15
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M4 1.5xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.062 1-1/2 02402 ●
0.042 1/8 0.063 1-1/2 02403 ●
0.043 1/8 0.065 1-1/2 02404 ●
0.044 1/8 0.066 1-1/2 02405 ●
0.045 1/8 0.068 1-1/2 02406 ●
0.046 1/8 0.069 1-1/2 02407 ●
0.047 1/8 0.071 1-1/2 02408 ●
0.048 1/8 0.072 1-1/2 02409 ●
0.049 1/8 0.074 1-1/2 02410 ●
0.050 1/8 0.075 1-1/2 02411 ●
0.051 1/8 0.077 1-1/2 02412 ●
0.052 1/8 0.078 1-1/2 02413 ●
0.053 1/8 0.080 1-1/2 02414 ●
0.054 1/8 0.081 1-1/2 02415 ●
0.055 1/8 0.083 1-1/2 02416 ●
0.056 1/8 0.084 1-1/2 02417 ●
0.057 1/8 0.086 1-1/2 02418 ●
0.058 1/8 0.087 1-1/2 02419 ●
0.059 1/8 0.089 1-1/2 02420 ●
0.060 1/8 0.090 1-1/2 02421 ●
0.062 1/8 0.093 1-1/2 02422 ●
0.065 1/8 0.098 1-1/2 02423 ●
0.070 1/8 0.105 1-1/2 02424 ●
0.078 1/8 0.117 1-1/2 02425 ●
0.080 1/8 0.120 1-1/2 02426 ●
0.085 1/8 0.128 1-1/2 02427 ●
0.090 1/8 0.135 1-1/2 02428 ●
0.093 1/8 0.140 1-1/2 02429 ●
0.095 1/8 0.143 1-1/2 02430 ●
0.100 1/8 0.150 1-1/2 02431 ●
0.105 1/8 0.158 1-1/2 02432 ●
0.110 1/8 0.165 1-1/2 02433 ●
0.115 1/8 0.173 1-1/2 02434 ●
0.120 1/8 0.180 1-1/2 02435 ●
M4 1.5xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
16 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
M4 3xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.005 1/8 0.015 1-1/2 02312 ●
0.006 1/8 0.018 1-1/2 02313 ●
0.007 1/8 0.021 1-1/2 02314 ●
0.008 1/8 0.024 1-1/2 02315 ●
0.009 1/8 0.027 1-1/2 02316 ●
0.010 1/8 0.030 1-1/2 02317 ●
0.011 1/8 0.033 1-1/2 02318 ●
0.012 1/8 0.036 1-1/2 02319 ●
0.013 1/8 0.039 1-1/2 02320 ●
0.014 1/8 0.042 1-1/2 02321 ●
0.015 1/8 0.045 1-1/2 02322 ●
0.016 1/8 0.048 1-1/2 02323 ●
0.017 1/8 0.051 1-1/2 02324 ●
0.018 1/8 0.054 1-1/2 02325 ●
0.019 1/8 0.057 1-1/2 02326 ●
0.020 1/8 0.060 1-1/2 02327 ●
0.021 1/8 0.063 1-1/2 02328 ●
0.022 1/8 0.066 1-1/2 02329 ●
0.023 1/8 0.069 1-1/2 02330 ●
0.024 1/8 0.072 1-1/2 02331 ●
0.025 1/8 0.075 1-1/2 02332 ●
0.026 1/8 0.078 1-1/2 02333 ●
0.027 1/8 0.081 1-1/2 02334 ●
0.028 1/8 0.084 1-1/2 02335 ●
0.029 1/8 0.087 1-1/2 02336 ●
0.030 1/8 0.090 1-1/2 02337 ●
0.031 1/8 0.093 1-1/2 02338 ●
0.032 1/8 0.096 1-1/2 02339 ●
0.033 1/8 0.099 1-1/2 02340 ●
0.034 1/8 0.102 1-1/2 02341 ●
0.035 1/8 0.105 1-1/2 02342 ●
0.036 1/8 0.108 1-1/2 02343 ●
0.037 1/8 0.111 1-1/2 02344 ●
0.038 1/8 0.114 1-1/2 02345 ●
0.039 1/8 0.117 1-1/2 02346 ●
0.040 1/8 0.120 1-1/2 02347 ●
continued on next page
FRACTIONAL
M4 3xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
17
www.ksptmicrotools.com
END MILLS
END MILLS
MICRO TOOLS
FRACTIONAL
M4 3xD
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.041 1/8 0.123 1-1/2 02470 ●
0.042 1/8 0.126 1-1/2 02471 ●
0.043 1/8 0.129 1-1/2 02472 ●
0.044 1/8 0.132 1-1/2 02473 ●
0.045 1/8 0.135 1-1/2 02474 ●
0.046 1/8 0.138 1-1/2 02475 ●
0.047 1/8 0.141 1-1/2 02476 ●
0.048 1/8 0.144 1-1/2 02477 ●
0.049 1/8 0.147 1-1/2 02478 ●
0.050 1/8 0.150 1-1/2 02479 ●
0.051 1/8 0.153 1-1/2 02480 ●
0.052 1/8 0.156 1-1/2 02481 ●
0.053 1/8 0.159 1-1/2 02482 ●
0.054 1/8 0.162 1-1/2 02483 ●
0.055 1/8 0.165 1-1/2 02484 ●
0.056 1/8 0.168 1-1/2 02485 ●
0.057 1/8 0.171 1-1/2 02486 ●
0.058 1/8 0.174 1-1/2 02487 ●
0.059 1/8 0.177 1-1/2 02488 ●
0.060 1/8 0.180 1-1/2 02489 ●
0.062 1/8 0.186 1-1/2 02490 ●
0.065 1/8 0.195 1-1/2 02491 ●
0.070 1/8 0.210 1-1/2 02492 ●
0.078 1/8 0.234 1-1/2 02493 ●
0.080 1/8 0.240 1-1/2 02494 ●
0.085 1/8 0.255 1-1/2 02495 ●
0.090 1/8 0.270 1-1/2 02496 ●
0.093 1/8 0.279 1-1/2 02497 ●
0.095 1/8 0.285 1-1/2 02498 ●
0.100 1/8 0.300 1-1/2 02499 ●
0.105 1/8 0.315 1-1/2 02500 ●
0.110 1/8 0.330 1-1/2 02501 ●
0.115 1/8 0.345 1-1/2 02502 ●
0.120 1/8 0.360 1-1/2 02503 ●
M4 3xD
FRACTIONAL SERIES
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
18 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
M4L 5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.050 2-1/2 02640 ●
0.015 1/8 0.075 2-1/2 02641 ●
0.020 1/8 0.100 2-1/2 02642 ●
0.025 1/8 0.125 2-1/2 02643 ●
0.030 1/8 0.150 2-1/2 02644 ●
0.031 1/8 0.155 2-1/2 02645 ●
0.035 1/8 0.175 2-1/2 02646 ●
0.040 1/8 0.200 2-1/2 02647 ●
0.045 1/8 0.225 2-1/2 02648 ●
0.047 1/8 0.235 2-1/2 02649 ●
0.050 1/8 0.250 2-1/2 02650 ●
0.055 1/8 0.275 2-1/2 02651 ●
0.060 1/8 0.300 2-1/2 02652 ●
0.062 1/8 0.310 2-1/2 02653 ●
0.065 1/8 0.325 2-1/2 02654 ●
0.070 1/8 0.350 2-1/2 02655 ●
0.075 1/8 0.375 2-1/2 02656 ●
0.078 1/8 0.390 2-1/2 02657 ●
0.080 1/8 0.400 2-1/2 02658 ●
0.085 1/8 0.425 2-1/2 02659 ●
0.090 1/8 0.450 2-1/2 02660 ●
0.093 1/8 0.465 2-1/2 02661 ●
0.095 1/8 0.475 2-1/2 02662 ●
0.100 1/8 0.500 2-1/2 02663 ●
0.110 1/8 0.550 2-1/2 02664 ●
0.115 1/8 0.575 2-1/2 02665 ●
0.120 1/8 0.600 2-1/2 02666 ●
FRACTIONAL
M4L 5xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
19
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
FRACTIONAL
M4E 8xD
POS
4
M4E 8xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.080 2-1/2 02667 ●
0.015 1/8 0.120 2-1/2 02668 ●
0.020 1/8 0.160 2-1/2 02669 ●
0.025 1/8 0.200 2-1/2 02670 ●
0.030 1/8 0.240 2-1/2 02671 ●
0.031 1/8 0.248 2-1/2 02672 ●
0.035 1/8 0.280 2-1/2 02673 ●
0.040 1/8 0.320 2-1/2 02674 ●
0.045 1/8 0.360 2-1/2 02675 ●
0.047 1/8 0.376 2-1/2 02676 ●
0.050 1/8 0.400 2-1/2 02677 ●
0.055 1/8 0.440 2-1/2 02678 ●
0.060 1/8 0.480 2-1/2 02679 ●
0.062 1/8 0.496 2-1/2 02680 ●
0.065 1/8 0.520 2-1/2 02681 ●
0.070 1/8 0.560 2-1/2 02682 ●
0.075 1/8 0.600 2-1/2 02683 ●
0.078 1/8 0.624 2-1/2 02684 ●
0.080 1/8 0.640 2-1/2 02685 ●
0.085 1/8 0.680 2-1/2 02686 ●
0.090 1/8 0.720 2-1/2 02687 ●
0.093 1/8 0.744 2-1/2 02688 ●
0.095 1/8 0.760 2-1/2 02689 ●
0.100 1/8 0.800 2-1/2 02690 ●
0.110 1/8 0.880 2-1/2 02691 ●
0.115 1/8 0.920 2-1/2 02692 ●
0.120 1/8 0.960 2-1/2 02693 ●
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOE
TVSGBDFøGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (inch)
.015–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
20 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
M4X 12xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.015 1/8 0.180 2-1/2 02694 ●
0.020 1/8 0.240 2-1/2 02695 ●
0.025 1/8 0.300 2-1/2 02696 ●
0.030 1/8 0.360 2-1/2 02697 ●
0.031 1/8 0.372 2-1/2 02698 ●
0.035 1/8 0.420 2-1/2 02699 ●
0.040 1/8 0.480 2-1/2 02700 ●
0.045 1/8 0.540 2-1/2 02701 ●
0.047 1/8 0.564 2-1/2 02702 ●
0.050 1/8 0.600 2-1/2 02703 ●
0.055 1/8 0.660 2-1/2 02704 ●
0.060 1/8 0.720 2-1/2 02705 ●
0.062 1/8 0.744 2-1/2 02706 ●
0.065 1/8 0.780 2-1/2 02707 ●
0.070 1/8 0.840 2-1/2 02708 ●
0.075 1/8 0.900 2-1/2 02709 ●
0.078 1/8 0.936 2-1/2 02710 ●
0.080 1/8 0.960 2-1/2 02711 ●
0.085 1/8 1.020 2-1/2 02712 ●
0.090 1/8 1.080 2-1/2 02713 ●
0.093 1/8 1.116 2-1/2 02714 ●
0.095 1/8 1.140 2-1/2 02715 ●
0.100 1/8 1.200 2-1/2 02716 ●
0.110 1/8 1.320 2-1/2 02717 ●
0.115 1/8 1.380 2-1/2 02718 ●
0.120 1/8 1.440 2-1/2 02719 ●
FRACTIONAL
M4X 12xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
21
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
FRACTIONAL
M4B 1.5xD
POS
4
M4B 1.5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.015 1-1/2 03071 ●
0.011 1/8 0.017 1-1/2 03072 ●
0.012 1/8 0.018 1-1/2 03073 ●
0.013 1/8 0.020 1-1/2 03074 ●
0.014 1/8 0.021 1-1/2 03075 ●
0.015 1/8 0.023 1-1/2 03076 ●
0.016 1/8 0.024 1-1/2 03077 ●
0.017 1/8 0.026 1-1/2 03078 ●
0.018 1/8 0.027 1-1/2 03079 ●
0.019 1/8 0.029 1-1/2 03080 ●
0.020 1/8 0.030 1-1/2 03081 ●
0.021 1/8 0.032 1-1/2 03082 ●
0.022 1/8 0.033 1-1/2 03083 ●
0.023 1/8 0.035 1-1/2 03084 ●
0.024 1/8 0.036 1-1/2 03085 ●
0.025 1/8 0.038 1-1/2 03086 ●
0.026 1/8 0.039 1-1/2 03087 ●
0.027 1/8 0.041 1-1/2 03088 ●
0.028 1/8 0.042 1-1/2 03089 ●
0.029 1/8 0.044 1-1/2 03090 ●
0.030 1/8 0.045 1-1/2 03091 ●
0.031 1/8 0.047 1-1/2 03092 ●
0.032 1/8 0.048 1-1/2 03093 ●
0.033 1/8 0.050 1-1/2 03094 ●
0.034 1/8 0.051 1-1/2 03095 ●
0.035 1/8 0.053 1-1/2 03096 ●
0.036 1/8 0.054 1-1/2 03097 ●
0.037 1/8 0.056 1-1/2 03098 ●
0.038 1/8 0.057 1-1/2 03099 ●
0.039 1/8 0.059 1-1/2 03100 ●
0.040 1/8 0.060 1-1/2 03101 ●
0.041 1/8 0.062 1-1/2 02538 ●
0.042 1/8 0.063 1-1/2 02539 ●
continued on next page
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOETVSGBDF
GJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
22 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
M4B 1.5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.043 1/8 0.065 1-1/2 02540 ●
0.044 1/8 0.066 1-1/2 02541 ●
0.045 1/8 0.068 1-1/2 02542 ●
0.046 1/8 0.069 1-1/2 02543 ●
0.047 1/8 0.071 1-1/2 02544 ●
0.048 1/8 0.072 1-1/2 02545 ●
0.049 1/8 0.074 1-1/2 02546 ●
0.050 1/8 0.075 1-1/2 02547 ●
0.051 1/8 0.077 1-1/2 02548 ●
0.052 1/8 0.078 1-1/2 02549 ●
0.053 1/8 0.080 1-1/2 02550 ●
0.054 1/8 0.081 1-1/2 02551 ●
0.055 1/8 0.083 1-1/2 02552 ●
0.056 1/8 0.084 1-1/2 02553 ●
0.057 1/8 0.086 1-1/2 02554 ●
0.058 1/8 0.087 1-1/2 02555 ●
0.059 1/8 0.089 1-1/2 02556 ●
0.060 1/8 0.090 1-1/2 02557 ●
0.062 1/8 0.093 1-1/2 02558 ●
0.065 1/8 0.098 1-1/2 02559 ●
0.070 1/8 0.105 1-1/2 02560 ●
0.078 1/8 0.117 1-1/2 02561 ●
0.080 1/8 0.120 1-1/2 02562 ●
0.085 1/8 0.128 1-1/2 02563 ●
0.090 1/8 0.135 1-1/2 02564 ●
0.093 1/8 0.140 1-1/2 02565 ●
0.095 1/8 0.143 1-1/2 02566 ●
0.100 1/8 0.150 1-1/2 02567 ●
0.105 1/8 0.158 1-1/2 02568 ●
0.110 1/8 0.165 1-1/2 02569 ●
0.115 1/8 0.173 1-1/2 02570 ●
0.120 1/8 0.180 1-1/2 02571 ●
FRACTIONAL
M4B 1.5xD
POS
4
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
23
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
FRACTIONAL
M4B 3xD
POS
4
M4B 3xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.030 1-1/2 03145 ●
0.011 1/8 0.033 1-1/2 03146 ●
0.012 1/8 0.036 1-1/2 03147 ●
0.013 1/8 0.039 1-1/2 03148 ●
0.014 1/8 0.042 1-1/2 03149 ●
0.015 1/8 0.045 1-1/2 03150 ●
0.016 1/8 0.048 1-1/2 03151 ●
0.017 1/8 0.051 1-1/2 03152 ●
0.018 1/8 0.054 1-1/2 03153 ●
0.019 1/8 0.057 1-1/2 03154 ●
0.020 1/8 0.060 1-1/2 03155 ●
0.021 1/8 0.063 1-1/2 03156 ●
0.022 1/8 0.066 1-1/2 03157 ●
0.023 1/8 0.069 1-1/2 03158 ●
0.024 1/8 0.072 1-1/2 03159 ●
0.025 1/8 0.075 1-1/2 03160 ●
0.026 1/8 0.078 1-1/2 03161 ●
0.027 1/8 0.081 1-1/2 03162 ●
0.028 1/8 0.084 1-1/2 03163 ●
0.029 1/8 0.087 1-1/2 03164 ●
0.030 1/8 0.090 1-1/2 03165 ●
0.031 1/8 0.093 1-1/2 03166 ●
0.032 1/8 0.096 1-1/2 03167 ●
0.033 1/8 0.099 1-1/2 03168 ●
0.034 1/8 0.102 1-1/2 03169 ●
0.035 1/8 0.105 1-1/2 03170 ●
0.036 1/8 0.108 1-1/2 03171 ●
0.037 1/8 0.111 1-1/2 03172 ●
0.038 1/8 0.114 1-1/2 03173 ●
0.039 1/8 0.117 1-1/2 03174 ●
0.040 1/8 0.120 1-1/2 03175 ●
0.041 1/8 0.123 1-1/2 02606 ●
0.042 1/8 0.126 1-1/2 02607 ●
0.043 1/8 0.129 1-1/2 02608 ●
continued on next page
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOETVSGBDF
GJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES

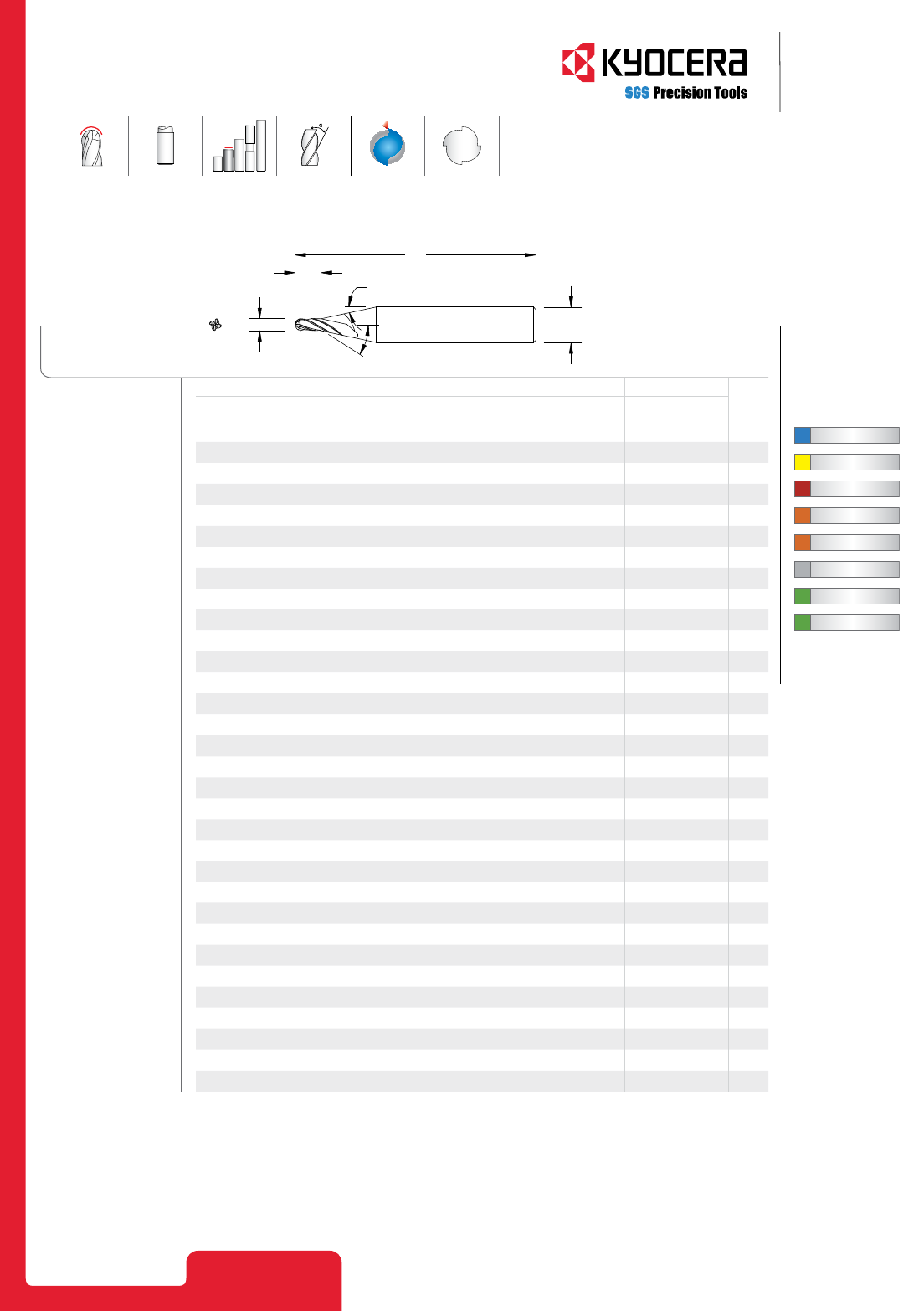

24 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
M4B 3xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.044 1/8 0.132 1-1/2 02609 ●
0.045 1/8 0.135 1-1/2 02610 ●
0.046 1/8 0.138 1-1/2 02611 ●
0.047 1/8 0.141 1-1/2 02612 ●
0.048 1/8 0.144 1-1/2 02613 ●
0.049 1/8 0.147 1-1/2 02614 ●
0.050 1/8 0.150 1-1/2 02615 ●
0.051 1/8 0.153 1-1/2 02616 ●
0.052 1/8 0.156 1-1/2 02617 ●
0.053 1/8 0.159 1-1/2 02618 ●
0.054 1/8 0.162 1-1/2 02619 ●
0.055 1/8 0.165 1-1/2 02620 ●
0.056 1/8 0.168 1-1/2 02621 ●
0.057 1/8 0.171 1-1/2 02622 ●
0.058 1/8 0.174 1-1/2 02623 ●
0.059 1/8 0.177 1-1/2 02624 ●
0.060 1/8 0.180 1-1/2 02625 ●
0.062 1/8 0.186 1-1/2 02626 ●
0.065 1/8 0.195 1-1/2 02627 ●
0.070 1/8 0.210 1-1/2 02628 ●
0.078 1/8 0.234 1-1/2 02629 ●
0.080 1/8 0.240 1-1/2 02630 ●
0.085 1/8 0.255 1-1/2 02631 ●
0.090 1/8 0.270 1-1/2 02632 ●
0.093 1/8 0.279 1-1/2 02633 ●
0.095 1/8 0.285 1-1/2 02634 ●
0.100 1/8 0.300 1-1/2 02635 ●
0.105 1/8 0.315 1-1/2 02636 ●
0.110 1/8 0.330 1-1/2 02637 ●
0.115 1/8 0.345 1-1/2 02638 ●
0.120 1/8 0.360 1-1/2 02639 ●
FRACTIONAL
M4B 3xD
POS
4
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
25
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
FRACTIONAL
M4LB 5xD
POS
4
M4LB 5xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.050 2-1/2 02720 ●
0.015 1/8 0.075 2-1/2 02721 ●
0.020 1/8 0.100 2-1/2 02722 ●
0.025 1/8 0.125 2-1/2 02723 ●
0.030 1/8 0.150 2-1/2 02724 ●
0.031 1/8 0.155 2-1/2 02725 ●
0.035 1/8 0.175 2-1/2 02726 ●
0.040 1/8 0.200 2-1/2 02727 ●
0.045 1/8 0.225 2-1/2 02728 ●
0.047 1/8 0.235 2-1/2 02729 ●
0.050 1/8 0.250 2-1/2 02730 ●
0.055 1/8 0.275 2-1/2 02731 ●
0.060 1/8 0.300 2-1/2 02732 ●
0.062 1/8 0.310 2-1/2 02733 ●
0.065 1/8 0.325 2-1/2 02734 ●
0.070 1/8 0.350 2-1/2 02735 ●
0.075 1/8 0.375 2-1/2 02736 ●
0.078 1/8 0.390 2-1/2 02737 ●
0.080 1/8 0.400 2-1/2 02738 ●
0.085 1/8 0.425 2-1/2 02739 ●
0.090 1/8 0.450 2-1/2 02740 ●
0.093 1/8 0.465 2-1/2 02741 ●
0.095 1/8 0.475 2-1/2 02742 ●
0.100 1/8 0.500 2-1/2 02743 ●
0.110 1/8 0.550 2-1/2 02744 ●
0.115 1/8 0.575 2-1/2 02745 ●
0.120 1/8 0.600 2-1/2 02746 ●
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOETVSGBDF
GJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (inch)
.010–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
26 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
M4EB 8xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.010 1/8 0.080 2-1/2 02747 ●
0.015 1/8 0.120 2-1/2 02748 ●
0.020 1/8 0.160 2-1/2 02749 ●
0.025 1/8 0.200 2-1/2 02750 ●
0.030 1/8 0.240 2-1/2 02751 ●
0.031 1/8 0.248 2-1/2 02752 ●
0.035 1/8 0.280 2-1/2 02753 ●
0.040 1/8 0.320 2-1/2 02754 ●
0.045 1/8 0.360 2-1/2 02755 ●
0.047 1/8 0.376 2-1/2 02756 ●
0.050 1/8 0.400 2-1/2 02757 ●
0.055 1/8 0.440 2-1/2 02758 ●
0.060 1/8 0.480 2-1/2 02759 ●
0.062 1/8 0.496 2-1/2 02760 ●
0.065 1/8 0.520 2-1/2 02761 ●
0.070 1/8 0.560 2-1/2 02762 ●
0.075 1/8 0.600 2-1/2 02763 ●
0.078 1/8 0.624 2-1/2 02764 ●
0.080 1/8 0.640 2-1/2 02765 ●
0.085 1/8 0.680 2-1/2 02766 ●
0.090 1/8 0.720 2-1/2 02767 ●
0.093 1/8 0.744 2-1/2 02768 ●
0.095 1/8 0.760 2-1/2 02769 ●
0.100 1/8 0.800 2-1/2 02770 ●
0.110 1/8 0.880 2-1/2 02771 ●
0.115 1/8 0.920 2-1/2 02772 ●
0.120 1/8 0.960 2-1/2 02773 ●
FRACTIONAL
M4EB 8xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery

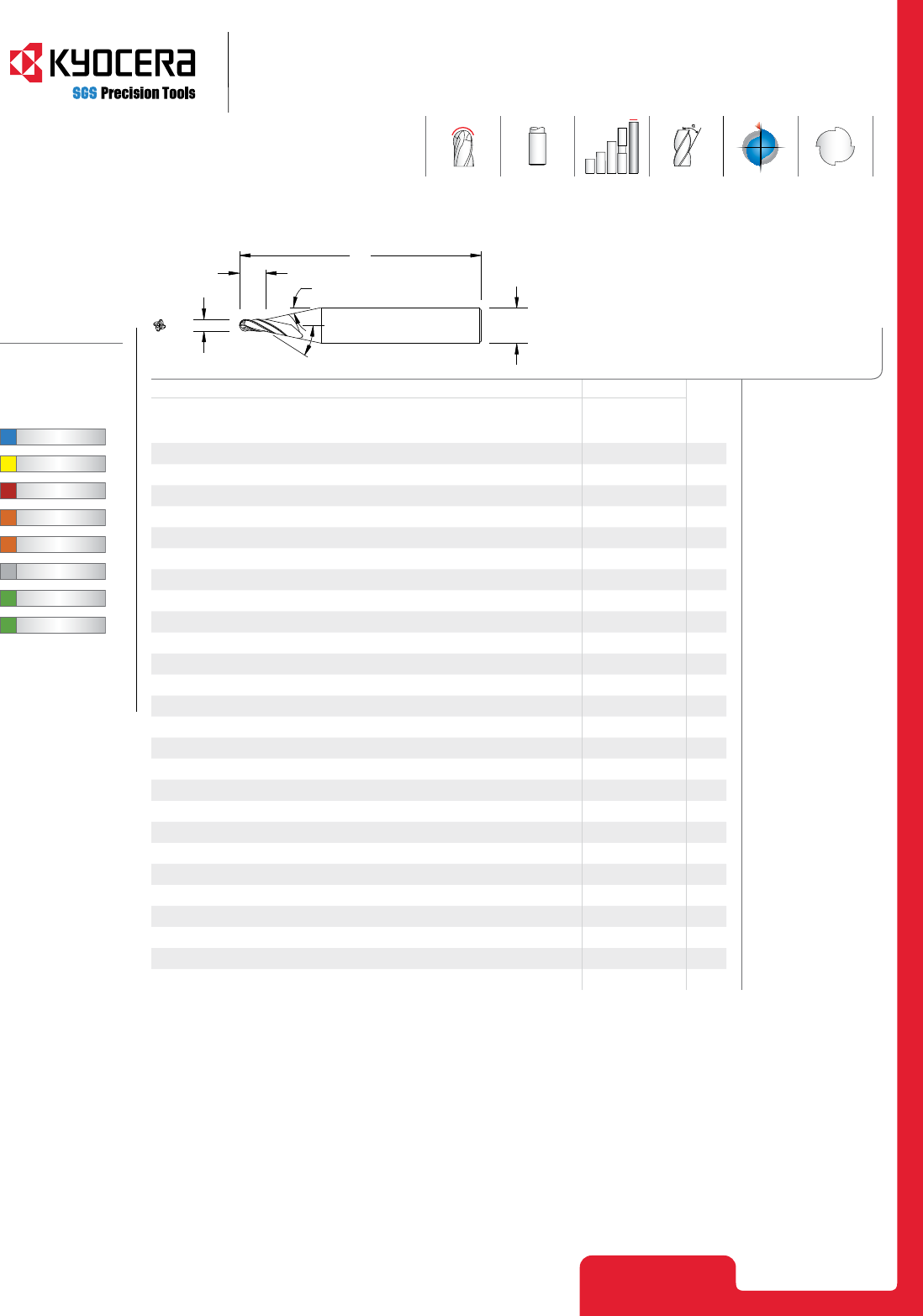

27
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
TOLERANCES (inch)
.015–.120 DIAMETER
D1 = +0.000/–0.001
D2 = h6
FRACTIONAL
M4XB 12xD
POS
4
M4XB 12xD
FRACTIONAL SERIES
inch EDP NO.
STOCK
CUTTING
DIAMETER
D1
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0.015 1/8 0.180 2-1/2 02774 ●
0.020 1/8 0.240 2-1/2 02775 ●
0.025 1/8 0.300 2-1/2 02776 ●
0.030 1/8 0.360 2-1/2 02777 ●
0.031 1/8 0.372 2-1/2 02778 ●
0.035 1/8 0.420 2-1/2 02779 ●
0.040 1/8 0.480 2-1/2 02780 ●
0.045 1/8 0.540 2-1/2 02781 ●
0.047 1/8 0.564 2-1/2 02782 ●
0.050 1/8 0.600 2-1/2 02783 ●
0.055 1/8 0.660 2-1/2 02784 ●
0.060 1/8 0.720 2-1/2 02785 ●
0.062 1/8 0.744 2-1/2 02786 ●
0.065 1/8 0.780 2-1/2 02787 ●
0.070 1/8 0.840 2-1/2 02788 ●
0.075 1/8 0.900 2-1/2 02789 ●
0.078 1/8 0.936 2-1/2 02790 ●
0.080 1/8 0.960 2-1/2 02791 ●
0.085 1/8 1.020 2-1/2 02792 ●
0.090 1/8 1.080 2-1/2 02793 ●
0.093 1/8 1.116 2-1/2 02794 ●
0.095 1/8 1.140 2-1/2 02795 ●
0.100 1/8 1.200 2-1/2 02796 ●
0.110 1/8 1.320 2-1/2 02797 ●
0.115 1/8 1.380 2-1/2 02798 ●
0.120 1/8 1.440 2-1/2 02799 ●
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOETVSGBDF
GJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
TOLERANCES (mm)
0,2–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6

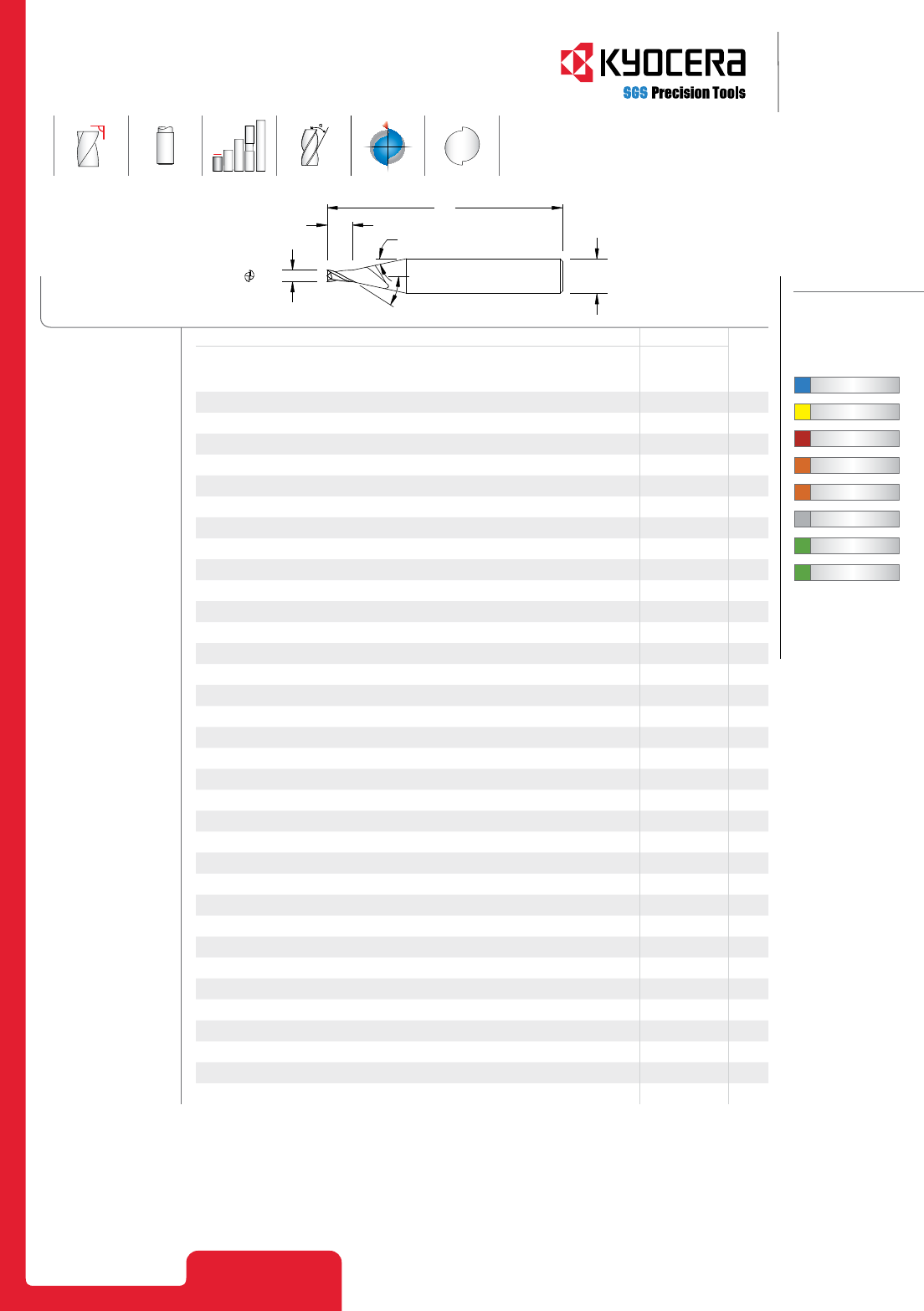

28 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
M2M 1.5xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0,2 0.0079 3,0 0,3 38,0 02801 ●
0,3 0.0118 3,0 0,4 38,0 02802 ●
0,4 0.0157 3,0 0,6 38,0 02803 ●
0,5 0.0197 3,0 0,7 38,0 02804 ●
0,6 0.0236 3,0 0,9 38,0 02805 ●
0,7 0.0276 3,0 1,0 38,0 02806 ●
0,8 0.0315 3,0 1,2 38,0 02807 ●
0,9 0.0354 3,0 1,3 38,0 02808 ●
1,0 0.0394 3,0 1,5 38,0 02809 ●
1,0 0.0394 4,0 1,5 50,0 02819 ●
1,1 0.0433 3,0 1,6 38,0 02860 ●
1,1 0.0433 4,0 1,6 50,0 02892 ●
1,2 0.0472 3,0 1,8 38,0 02861 ●
1,2 0.0472 4,0 1,8 50,0 02893 ●
1,3 0.0512 3,0 1,9 38,0 02862 ●
1,3 0.0512 4,0 1,9 50,0 02894 ●
1,4 0.0551 3,0 2,1 38,0 02863 ●
1,4 0.0551 4,0 2,1 50,0 02895 ●
1,5 0.0591 3,0 2,2 38,0 02864 ●
1,5 0.0591 4,0 2,2 50,0 02896 ●
1,6 0.0630 3,0 2,4 38,0 02865 ●
1,6 0.0630 4,0 2,4 50,0 02897 ●
1,7 0.0669 3,0 2,5 38,0 02866 ●
1,7 0.0669 4,0 2,5 50,0 02898 ●
1,8 0.0709 3,0 2,7 38,0 02867 ●
1,8 0.0709 4,0 2,7 50,0 02899 ●
1,9 0.0748 3,0 2,8 38,0 02868 ●
1,9 0.0748 4,0 2,8 50,0 02900 ●
2,0 0.0787 3,0 3,0 38,0 02869 ●
2,0 0.0787 4,0 3,0 50,0 02901 ●
2,5 0.0984 3,0 3,7 38,0 02870 ●
2,5 0.0984 4,0 3,7 50,0 02902 ●
3,0 0.1181 3,0 4,5 38,0 02871 ●
3,0 0.1181 4,0 4,5 50,0 02903 ●
METRIC
M2M 1.5xD
POS
2
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (mm)
0,2–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6
29
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
METRIC
M2M 3xD
POS
2
M2M 3xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0,2 0.0079 3,0 0,6 38,0 02811 ●
0,2 0.0079 4,0 0,6 50,0 02349 ●
0,3 0.0118 3,0 0,9 38,0 02350 ●
0,3 0.0118 4,0 0,9 50,0 02360 ●
0,4 0.0157 3,0 1,2 38,0 02351 ●
0,4 0.0157 4,0 1,2 50,0 02361 ●
0,5 0.0197 3,0 1,5 38,0 02352 ●
0,5 0.0197 4,0 1,5 50,0 02362 ●
0,6 0.0236 3,0 1,8 38,0 02353 ●
0,6 0.0236 4,0 1,8 50,0 02363 ●
0,7 0.0276 3,0 2,1 38,0 02354 ●
0,7 0.0276 4,0 2,1 50,0 02364 ●
0,8 0.0315 3,0 2,4 38,0 02355 ●
0,8 0.0315 4,0 2,4 50,0 02365 ●
0,9 0.0354 3,0 2,7 38,0 02356 ●
0,9 0.0354 4,0 2,7 50,0 02366 ●
1,0 0.0394 3,0 3,0 38,0 02357 ●
1,0 0.0394 4,0 3,0 50,0 02367 ●
1,1 0.0433 3,0 3,3 38,0 02872 ●
1,1 0.0433 4,0 3,3 50,0 02904 ●
1,2 0.0472 3,0 3,6 38,0 02873 ●
1,2 0.0472 4,0 3,6 50,0 02905 ●
1,3 0.0512 3,0 3,9 38,0 02874 ●
1,3 0.0512 4,0 3,9 50,0 02906 ●
1,4 0.0551 3,0 4,2 38,0 02875 ●
1,4 0.0551 4,0 4,2 50,0 02907 ●
1,5 0.0591 3,0 4,5 38,0 02876 ●
1,5 0.0591 4,0 4,5 50,0 02908 ●
1,6 0.0630 3,0 4,8 38,0 02877 ●
1,6 0.0630 4,0 4,8 50,0 02909 ●
1,7 0.0669 3,0 5,1 38,0 02878 ●
1,7 0.0669 4,0 5,1 50,0 02910 ●
1,8 0.0709 3,0 5,4 38,0 02879 ●
1,8 0.0709 4,0 5,4 50,0 02911 ●
1,9 0.0748 3,0 5,7 38,0 02880 ●
1,9 0.0748 4,0 5,7 50,0 02912 ●
2,0 0.0787 3,0 6,0 38,0 02881 ●
2,0 0.0787 4,0 6,0 50,0 02913 ●
2,1 0.0827 3,0 6,3 38,0 02882 ●
2,2 0.0866 3,0 6,6 38,0 02883 ●
2,3 0.0906 3,0 6,9 38,0 02884 ●
2,4 0.0945 3,0 7,2 38,0 02885 ●
2,5 0.0984 3,0 7,5 38,0 02886 ●
2,5 0.0984 4,0 7,5 50,0 02914 ●
2,6 0.1024 3,0 7,8 38,0 02887 ●
2,7 0.1063 3,0 8,1 38,0 02888 ●
2,8 0.1102 3,0 8,4 38,0 02889 ●
2,9 0.1142 3,0 8,7 38,0 02890 ●
3,0 0.1181 3,0 9,0 38,0 02891 ●
3,0 0.1181 4,0 9,0 50,0 02915 ●
t5XPGMVUFEFTJHO
JTJEFBMGPSTPGUFS
BMMPZFEOPOGFSSPVT
NBUFSJBMBQQMJDBUJPOT
UIBUSFRVJSFTMPUUJOH
PSJOWPMWFIFBWZDIJQ
MPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (mm)
0,5–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6
30 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
M2MB 1.5xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0,5 0.0197 3,0 0,7 38,0 03180 ●
0,6 0.0236 3,0 0,9 38,0 03181 ●
0,7 0.0276 3,0 1,0 38,0 03182 ●
0,8 0.0315 3,0 1,2 38,0 03183 ●
0,9 0.0354 3,0 1,3 38,0 03184 ●
1,0 0.0394 3,0 1,5 38,0 03185 ●
1,0 0.0394 4,0 1,5 50,0 02849 ●
1,1 0.0433 3,0 1,6 38,0 02916 ●
1,1 0.0433 4,0 1,6 50,0 02980 ●
1,2 0.0472 3,0 1,8 38,0 02917 ●
1,2 0.0472 4,0 1,8 50,0 02981 ●
1,3 0.0512 3,0 1,9 38,0 02918 ●
1,3 0.0512 4,0 1,9 50,0 02982 ●
1,4 0.0551 3,0 2,1 38,0 02919 ●
1,4 0.0551 4,0 2,1 50,0 02983 ●
1,5 0.0591 3,0 2,2 38,0 02920 ●
1,5 0.0591 4,0 2,2 50,0 02984 ●
1,6 0.0630 3,0 2,4 38,0 02921 ●
1,6 0.0630 4,0 2,4 50,0 02985 ●
1,7 0.0669 3,0 2,5 38,0 02922 ●
1,7 0.0669 4,0 2,5 50,0 02986 ●
1,8 0.0709 3,0 2,7 38,0 02923 ●
1,8 0.0709 4,0 2,7 50,0 02987 ●
1,9 0.0748 3,0 2,8 38,0 02924 ●
1,9 0.0748 4,0 2,8 50,0 02988 ●
2,0 0.0787 3,0 3,0 38,0 02925 ●
2,0 0.0787 4,0 3,0 50,0 02989 ●
2,5 0.0984 3,0 3,7 38,0 02926 ●
2,5 0.0984 4,0 3,7 50,0 02990 ●
3,0 0.1181 3,0 4,5 38,0 02927 ●
3,0 0.1181 4,0 4,5 50,0 02991 ●
METRIC
M2MB 1.5xD
POS
2
t5XPGMVUFEFTJHOJT
JEFBMGPSTPGUFSBMMPZFE
OPOGFSSPVTNBUFSJBM
BQQMJDBUJPOTUIBUSFRVJSF
TMPUUJOHPSJOWPMWFIFBWZ
DIJQMPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (mm)
0,5–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6

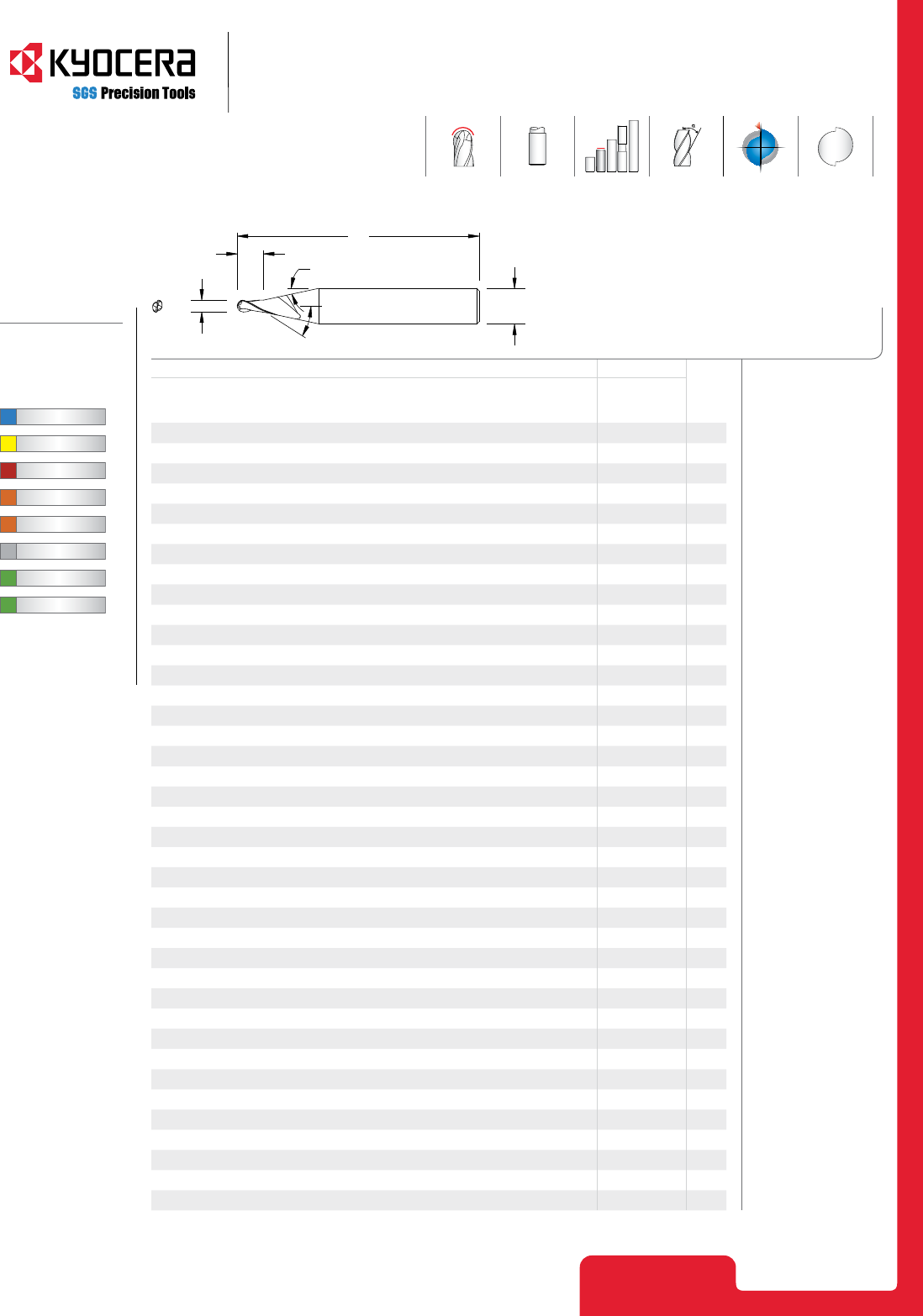

31
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
METRIC
M2MB 3xD
POS
2
M2MB 3xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
0,5 0.0197 4,0 1,5 50,0 03200 ●
0,6 0.0236 4,0 1,8 50,0 03201 ●
0,7 0.0276 4,0 2,1 50,0 03202 ●
0,8 0.0315 4,0 2,4 50,0 03203 ●
0,9 0.0354 4,0 2,7 50,0 03204 ●
1,0 0.0394 3,0 3,0 38,0 02829 ●
1,0 0.0394 4,0 3,0 50,0 03205 ●
1,1 0.0433 3,0 3,3 38,0 02940 ●
1,1 0.0433 4,0 3,3 50,0 03004 ●
1,2 0.0472 3,0 3,6 38,0 02941 ●
1,2 0.0472 4,0 3,6 50,0 03005 ●
1,3 0.0512 3,0 3,9 38,0 02942 ●
1,3 0.0512 4,0 3,9 50,0 03006 ●
1,4 0.0551 3,0 4,2 38,0 02943 ●
1,4 0.0551 4,0 4,2 50,0 03007 ●
1,5 0.0591 3,0 4,5 38,0 02944 ●
1,5 0.0591 4,0 4,5 50,0 03008 ●
1,6 0.0630 3,0 4,8 38,0 02945 ●
1,6 0.0630 4,0 4,8 50,0 03009 ●
1,7 0.0669 3,0 5,1 38,0 02946 ●
1,7 0.0669 4,0 5,1 50,0 03010 ●
1,8 0.0709 3,0 5,4 38,0 02947 ●
1,8 0.0709 4,0 5,4 50,0 03011 ●
1,9 0.0748 3,0 5,7 38,0 02948 ●
1,9 0.0748 4,0 5,7 50,0 03012 ●
2,0 0.0787 3,0 6,0 38,0 02949 ●
2,0 0.0787 4,0 6,0 50,0 03013 ●
2,1 0.0827 3,0 6,3 38,0 02950 ●
2,2 0.0866 3,0 6,6 38,0 02951 ●
2,3 0.0906 3,0 6,9 38,0 02952 ●
2,4 0.0945 3,0 7,2 38,0 02953 ●
2,5 0.0984 3,0 7,5 38,0 02954 ●
2,5 0.0984 4,0 7,5 50,0 03014 ●
2,6 0.1024 3,0 7,8 38,0 02955 ●
2,7 0.1063 3,0 8,1 38,0 02956 ●
2,8 0.1102 3,0 8,4 38,0 02957 ●
2,9 0.1142 3,0 8,7 38,0 02958 ●
3,0 0.1181 3,0 9,0 38,0 02959 ●
3,0 0.1181 4,0 9,0 50,0 03015 ●
t5XPGMVUFEFTJHO
JTJEFBMGPSTPGUFS
BMMPZFEOPOGFSSPVT
NBUFSJBMBQQMJDBUJPOT
UIBUSFRVJSFTMPUUJOH
PSJOWPMWFIFBWZDIJQ
MPBET
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (mm)
1,0–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6
32 www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
M4MB 1.5xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
1,0 0.0394 3,0 1,5 38,0 03195 ●
1,0 0.0394 4,0 1,5 50,0 02859 ●
1,1 0.0433 3,0 1,6 38,0 02928 ●
1,1 0.0433 4,0 1,6 50,0 02992 ●
1,2 0.0472 3,0 1,8 38,0 02929 ●
1,2 0.0472 4,0 1,8 50,0 02993 ●
1,3 0.0512 3,0 1,9 38,0 02930 ●
1,3 0.0512 4,0 1,9 50,0 02994 ●
1,4 0.0551 3,0 2,1 38,0 02931 ●
1,4 0.0551 4,0 2,1 50,0 02995 ●
1,5 0.0591 3,0 2,2 38,0 02932 ●
1,5 0.0591 4,0 2,2 50,0 02996 ●
1,6 0.0630 3,0 2,4 38,0 02933 ●
1,6 0.0630 4,0 2,4 50,0 02997 ●
1,7 0.0669 3,0 2,5 38,0 02934 ●
1,7 0.0669 4,0 2,5 50,0 02998 ●
1,8 0.0709 3,0 2,7 38,0 02935 ●
1,8 0.0709 4,0 2,7 50,0 02999 ●
1,9 0.0748 3,0 2,8 38,0 02936 ●
1,9 0.0748 4,0 2,8 50,0 03000 ●
2,0 0.0787 3,0 3,0 38,0 02937 ●
2,0 0.0787 4,0 3,0 50,0 03001 ●
2,5 0.0984 3,0 3,7 38,0 02938 ●
2,5 0.0984 4,0 3,7 50,0 03002 ●
3,0 0.1181 3,0 4,5 38,0 02939 ●
3,0 0.1181 4,0 4,5 50,0 03003 ●
METRIC
M4MB 1.5xD
POS
4
t'PVSGMVUFEFTJHOBMMPXT
GPSIJHIFSGFFESBUFTBOE
EFDSFBTFEEFGMFDUJPO
JNQSPWJOHQSPEVDUJWJUZ
BOETVSGBDFGJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUITPGDVU
UPFOTVSFBQQMJDBUJPO
EFNBOETBSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
● U.S. Stock Standard
◾ NOT STOCKED—
Call for Delivery
TOLERANCES (mm)
1,0–3,0 DIAMETER
D1 = +0.0000/–0.0254
D2 = h6
33
www.ksptmicrotools.com
2
D
30°
L1
L2
1
D
12°
END MILLS
END MILLS
MICRO TOOLS
METRIC
M4MB 3xD
POS
4
M4MB 3xD
METRIC SERIES
mm EDP NO.
STOCK
CUTTING
DIAMETER
D1
DECIMAL
EQUIVALENT
SHANK
DIAMETER
D2
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
TI-NAMITE-A
(AlTiN)
EDP NO.
1,0 0.0394 3,0 3,0 38,0 02839 ●
1,0 0.0394 4,0 3,0 50,0 03215 ●
1,1 0.0433 3,0 3,3 38,0 02960 ●
1,1 0.0433 4,0 3,3 50,0 03016 ●
1,2 0.0472 3,0 3,6 38,0 02961 ●
1,2 0.0472 4,0 3,6 50,0 03017 ●
1,3 0.0512 3,0 3,9 38,0 02962 ●
1,3 0.0512 4,0 3,9 50,0 03018 ●
1,4 0.0551 3,0 4,2 38,0 02963 ●
1,4 0.0551 4,0 4,2 50,0 03019 ●
1,5 0.0591 3,0 4,5 38,0 02964 ●
1,5 0.0591 4,0 4,5 50,0 03020 ●
1,6 0.0630 3,0 4,8 38,0 02965 ●
1,6 0.0630 4,0 4,8 50,0 03021 ●
1,7 0.0669 3,0 5,1 38,0 02966 ●
1,7 0.0669 4,0 5,1 50,0 03022 ●
1,8 0.0709 3,0 5,4 38,0 02967 ●
1,8 0.0709 4,0 5,4 50,0 03023 ●
1,9 0.0748 3,0 5,7 38,0 02968 ●
1,9 0.0748 4,0 5,7 50,0 03024 ●
2,0 0.0787 3,0 6,0 38,0 02969 ●
2,0 0.0787 4,0 6,0 50,0 03025 ●
2,1 0.0827 3,0 6,3 38,0 02970 ●
2,2 0.0866 3,0 6,6 38,0 02971 ●
2,3 0.0906 3,0 6,9 38,0 02972 ●
2,4 0.0945 3,0 7,2 38,0 02973 ●
2,5 0.0984 3,0 7,5 38,0 02974 ●
2,5 0.0984 4,0 7,5 50,0 03026 ●
2,6 0.1024 3,0 7,8 38,0 02975 ●
2,7 0.1063 3,0 8,1 38,0 02976 ●
2,8 0.1102 3,0 8,4 38,0 02977 ●
2,9 0.1142 3,0 8,7 38,0 02978 ●
3,0 0.1181 3,0 9,0 38,0 02979 ●
3,0 0.1181 4,0 9,0 50,0 03027 ●
t'PVSGMVUFEFTJHO
BMMPXTGPSIJHIFSGFFE
SBUFTBOEEFDSFBTFE
EFGMFDUJPOJNQSPWJOH
QSPEVDUJWJUZBOETVSGBDF
GJOJTI
t1SPQSJFUBSZDPBUJOH
BMMPXTGPSTVQFSJPSDIJQ
GMPXESJWJOHJOEVTUSZ
MFBEJOHQSPEVDUJWJUZ
BOEWBMVFFWFOBUMPX
TQJOEMFTQFFET
t)JHIQFSGPSNBODF
DBSCJEFTVCTUSBUF
EFTJHOFETQFDJGJDBMMZGPS
.JDSP5PPMBQQMJDBUJPOT
t#SPBEQPSUGPMJPPGGFSJOH
DPOTJTUFOUMFOHUIT
PGDVUUPFOTVSF
BQQMJDBUJPOEFNBOET
BSFNFU
t"EWBODFEHFPNFUSJFT
UIBUFYUFOEUPPMMJGF
SFEVDFDIBUUFSDVUDZDMF
UJNFTBOEJNQSPWFQBSU
RVBMJUZ
t"MMUPPMTJOTUPDLUP
NFFUDVTUPNFSPSEFS
SFRVJSFNFOUT
t"MMNJDSPUPPMTBSF
NBOVGBDUVSFEJO
BDDPSEBODFXJUIUIF
,415*40DFSUJGJFE
RVBMJUZQSPDFEVSFT
34 www.ksptmicrotools.com
END MILLS
END MILLS
M2, M2B
1.5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212, 12L15,
1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 12.05 12.05 12.05 12.05 12.05 12.05
Slot
1≤ .20 ≤ .50
290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 9.57 9.57 9.57 9.57 9.57 9.57
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 6.16 6.16 6.16 6.16 6.16 6.16
Slot
1≤ .20 ≤ .50
165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 4.84 4.84 4.84 4.84 4.84 4.84
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000016 0.00005 0.00010 0.00020 0.00030 0.00038
Feed (ipm) 4.28 4.28 4.28 4.28 4.28 4.28
Slot
1≤ .20 ≤ .50
140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000016 0.00005 0.00010 0.00020 0.00030 0.00038
Feed (ipm) 3.42 3.42 3.42 3.42 3.42 3.42
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000022 0.00007 0.00014 0.00027 0.00041 0.00052
Feed (ipm) 10.08 10.08 10.08 10.08 10.08 10.08
Slot
1≤ .20 ≤ .50
245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000022 0.00007 0.00014 0.00027 0.00041 0.00052
Feed (ipm) 8.10 8.10 8.10 8.10 8.10 8.10
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 11.22 11.22 11.22 11.22 11.22 11.22
Slot
1≤ .20 ≤ .50
270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 8.91 8.91 8.91 8.91 8.91 8.91
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 6.90 6.90 6.90 6.90 6.90 6.90
Slot
1≤ .20 ≤ .50
185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 5.43 5.43 5.43 5.43 5.43 5.43
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .30 ≤ .50 ≤ 1
215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 4.46 4.46 4.46 4.46 4.46 4.46
Slot
1≤ .20 ≤ .50
170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 3.53 3.53 3.53 3.53 3.53 3.53
continued on next page
FRACTIONAL
2 Flute: Square, Ball
35
www.ksptmicrotools.com
END MILLS
END MILLS
M2, M2B
1.5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .30 ≤ .50 ≤ 1
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 1.11 1.11 1.11 1.11 1.11 1.11
Slot
1≤ .20 ≤ .50
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 0.83 0.83 0.83 0.83 0.83 0.83
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .30 ≤ .50 ≤ 1
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000008 0.00003 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 0.55 0.55 0.55 0.55 0.55 0.55
Slot
1≤ .20 ≤ .50
35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000008 0.00003 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 0.43 0.43 0.43 0.43 0.43 0.43
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .30 ≤ .50 ≤ 1
160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 3.32 3.32 3.32 3.32 3.32 3.32
Slot
1≤ .20 ≤ .50
130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 2.70 2.70 2.70 2.70 2.70 2.70
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .30 ≤ .50 ≤ 1
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 0.88 0.88 0.88 0.88 0.88 0.88
Slot
1≤ .20 ≤ .50
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 0.66 0.66 0.66 0.66 0.66 0.66
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .30 ≤ .50 ≤ 1
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 97.50 97.50 97.50 97.50 97.50 97.50
Slot
1≤ .20 ≤ .50
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 78.00 78.00 78.00 78.00 78.00 78.00
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .30 ≤ .50 ≤ 1
515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000048 0.00015 0.00030 0.00060 0.00090 0.00115
Feed (ipm) 37.68 37.68 37.68 37.68 37.68 37.68
Slot
1≤ .20 ≤ .50
410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000048 0.00015 0.00030 0.00060 0.00090 0.00115
Feed (ipm) 30.00 30.00 30.00 30.00 30.00 30.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .30 ≤ .50 ≤ 1
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 97.50 97.50 97.50 97.50 97.50 97.50
Slot
1≤ .20 ≤ .50
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 78.00 78.00 78.00 78.00 78.00 78.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 2 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
2 Flute: Square, Ball
36 www.ksptmicrotools.com
END MILLS
END MILLS
M2, M2B
3xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212, 12L15,
1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00047
Feed (ipm) 10.84 10.84 10.84 10.84 10.84 10.84
Slot
1≤ .15 ≤ .35
290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00047
Feed (ipm) 8.61 8.61 8.61 8.61 8.61 8.61
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000017 0.00005 0.00011 0.00022 0.00032 0.00042
Feed (ipm) 5.55 5.55 5.55 5.55 5.55 5.55
Slot
1≤ .15 ≤ .35
165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000017 0.00005 0.00011 0.00022 0.00032 0.00042
Feed (ipm) 4.36 4.36 4.36 4.36 4.36 4.36
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000014 0.00004 0.00009 0.00018 0.00026 0.00034
Feed (ipm) 3.75 3.75 3.75 3.75 3.75 3.75
Slot
1≤ .15 ≤ .35
140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000014 0.00004 0.00009 0.00018 0.00026 0.00034
Feed (ipm) 3.00 3.00 3.00 3.00 3.00 3.00
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000019 0.00006 0.00012 0.00024 0.00037 0.00047
Feed (ipm) 9.09 9.09 9.09 9.09 9.09 9.09
Slot
1≤ .15 ≤ .35
245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000019 0.00006 0.00012 0.00024 0.00037 0.00047
Feed (ipm) 7.30 7.30 7.30 7.30 7.30 7.30
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00047
Feed (ipm) 10.07 10.07 10.07 10.07 10.07 10.07
Slot
1≤ .15 ≤ .35
270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00047
Feed (ipm) 8.00 8.00 8.00 8.00 8.00 8.00
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000017 0.00005 0.00011 0.00022 0.00032 0.00042
Feed (ipm) 6.21 6.21 6.21 6.21 6.21 6.21
Slot
1≤ .15 ≤ .35
185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000017 0.00005 0.00011 0.00022 0.00032 0.00042
Feed (ipm) 4.89 4.89 4.89 4.89 4.89 4.89
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .10 ≤ .25 ≤ 2
215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 4.02 4.02 4.02 4.02 4.02 4.02
Slot
1≤ .15 ≤ .35
170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 3.18 3.18 3.18 3.18 3.18 3.18
continued on next page
FRACTIONAL
2 Flute: Square, Ball
37
www.ksptmicrotools.com
END MILLS
END MILLS
FRACTIONAL
M2, M2B
3xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .10 ≤ .25 ≤ 2
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000011 0.00003 0.00007 0.00014 0.00020 0.00026
Feed (ipm) 1.00 1.00 1.00 1.00 1.00 1.00
Slot
1≤ .15 ≤ .35
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000011 0.00003 0.00007 0.00014 0.00020 0.00026
Feed (ipm) 0.75 0.75 0.75 0.75 0.75 0.75
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .10 ≤ .25 ≤ 2
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000007 0.00002 0.00005 0.00009 0.00014 0.00018
Feed (ipm) 0.50 0.50 0.50 0.50 0.50 0.50
Slot
1≤ .15 ≤ .35
35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000007 0.00002 0.00005 0.00009 0.00014 0.00018
Feed (ipm) 0.39 0.39 0.39 0.39 0.39 0.39
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .10 ≤ .25 ≤ 2
160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 2.99 2.99 2.99 2.99 2.99 2.99
Slot
1≤ .15 ≤ .35
130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 2.43 2.43 2.43 2.43 2.43 2.43
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .10 ≤ .25 ≤ 2
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000009 0.00003 0.00005 0.00011 0.00016 0.00021
Feed (ipm) 0.79 0.79 0.79 0.79 0.79 0.79
Slot
1≤ .15 ≤ .35
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000009 0.00003 0.00005 0.00011 0.00016 0.00021
Feed (ipm) 0.59 0.59 0.59 0.59 0.59 0.59
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .10 ≤ .25 ≤ 2
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000057 0.00018 0.00036 0.00072 0.00107 0.00137
Feed (ipm) 87.50 87.50 87.50 87.50 87.50 87.50
Slot
1≤ .15 ≤ .35
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000057 0.00018 0.00036 0.00072 0.00107 0.00137
Feed (ipm) 70.00 70.00 70.00 70.00 70.00 70.00
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .10 ≤ .25 ≤ 2
515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000043 0.00013 0.00027 0.00054 0.00081 0.00103
Feed (ipm) 33.91 33.91 33.91 33.91 33.91 33.91
Slot
1≤ .15 ≤ .35
410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000043 0.00013 0.00027 0.00054 0.00081 0.00103
Feed (ipm) 27.00 27.00 27.00 27.00 27.00 27.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .10 ≤ .25 ≤ 2
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000057 0.00018 0.00036 0.00072 0.00107 0.00137
Feed (ipm) 87.50 87.50 87.50 87.50 87.50 87.50
Slot
1≤ .15 ≤ .35
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000057 0.00018 0.00036 0.00072 0.00107 0.00137
Feed (ipm) 70.00 70.00 70.00 70.00 70.00 70.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 2 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
2 Flute: Square, Ball
38 www.ksptmicrotools.com
END MILLS
END MILLS
M4, M4B
1.5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212, 12L15,
1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000017 0.00005 0.00011 0.00021 0.00032 0.00041
Feed (ipm) 18.88 18.88 18.88 18.88 18.88 18.88
Slot
1≤ .20 ≤ .50
290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000017 0.00005 0.00011 0.00021 0.00032 0.00041
Feed (ipm) 15.00 15.00 15.00 15.00 15.00 15.00
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 9.80 9.80 9.80 9.80 9.80 9.80
Slot
1≤ .20 ≤ .50
165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 7.70 7.70 7.70 7.70 7.70 7.70
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000013 0.00004 0.00008 0.00016 0.00024 0.00030
Feed (ipm) 6.75 6.75 6.75 6.75 6.75 6.75
Slot
1≤ .20 ≤ .50
140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000013 0.00004 0.00008 0.00016 0.00024 0.00030
Feed (ipm) 5.40 5.40 5.40 5.40 5.40 5.40
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000017 0.00005 0.00011 0.00021 0.00032 0.00041
Feed (ipm) 15.81 15.81 15.81 15.81 15.81 15.81
Slot
1≤ .20 ≤ .50
245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000017 0.00005 0.00011 0.00021 0.00032 0.00041
Feed (ipm) 12.70 12.70 12.70 12.70 12.70 12.70
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000017 0.00005 0.00010 0.00021 0.00031 0.00040
Feed (ipm) 17.38 17.38 17.38 17.38 17.38 17.38
Slot
1≤ .20 ≤ .50
270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000017 0.00005 0.00010 0.00021 0.00031 0.00040
Feed (ipm) 13.80 13.80 13.80 13.80 13.80 13.80
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000015 0.00005 0.00009 0.00019 0.00029 0.00037
Feed (ipm) 10.92 10.92 10.92 10.92 10.92 10.92
Slot
1≤ .20 ≤ .50
185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000015 0.00005 0.00009 0.00019 0.00029 0.00037
Feed (ipm) 8.60 8.60 8.60 8.60 8.60 8.60
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .30 ≤ .50 ≤ 1
215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000011 0.00003 0.00007 0.00013 0.00020 0.00026
Feed (ipm) 7.08 7.08 7.08 7.08 7.08 7.08
Slot
1≤ .20 ≤ .50
170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000011 0.00003 0.00007 0.00013 0.00020 0.00026
Feed (ipm) 5.60 5.60 5.60 5.60 5.60 5.60
continued on next page
FRACTIONAL
4 Flute: Square, Ball
39
www.ksptmicrotools.com
END MILLS
END MILLS
M4, M4B
1.5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .30 ≤ .50 ≤ 1
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000009 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 1.73 1.73 1.73 1.73 1.73 1.73
Slot
1≤ .20 ≤ .50
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000009 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 1.30 1.30 1.30 1.30 1.30 1.30
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .30 ≤ .50 ≤ 1
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 0.87 0.87 0.87 0.87 0.87 0.87
Slot
1≤ .20 ≤ .50
35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 0.68 0.68 0.68 0.68 0.68 0.68
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .30 ≤ .50 ≤ 1
160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000011 0.00003 0.00007 0.00013 0.00020 0.00025
Feed (ipm) 5.17 5.17 5.17 5.17 5.17 5.17
Slot
1≤ .20 ≤ .50
130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000011 0.00003 0.00007 0.00013 0.00020 0.00025
Feed (ipm) 4.20 4.20 4.20 4.20 4.20 4.20
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .30 ≤ .50 ≤ 1
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000007 0.00002 0.00005 0.00009 0.00014 0.00017
Feed (ipm) 1.33 1.33 1.33 1.33 1.33 1.33
Slot
1≤ .20 ≤ .50
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000007 0.00002 0.00005 0.00009 0.00014 0.00017
Feed (ipm) 1.00 1.00 1.00 1.00 1.00 1.00
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .30 ≤ .50 ≤ 1
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000051 0.00016 0.00032 0.00064 0.00096 0.00123
Feed (ipm) 156.25 156.25 156.25 156.25 156.25 156.25
Slot
1≤ .20 ≤ .50
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000051 0.00016 0.00032 0.00064 0.00096 0.00123
Feed (ipm) 125.00 125.00 125.00 125.00 125.00 125.00
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .30 ≤ .50 ≤ 1
515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000038 0.00012 0.00024 0.00048 0.00072 0.00092
Feed (ipm) 60.29 60.29 60.29 60.29 60.29 60.29
Slot
1≤ .20 ≤ .50
410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000038 0.00012 0.00024 0.00048 0.00072 0.00092
Feed (ipm) 48.00 48.00 48.00 48.00 48.00 48.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .30 ≤ .50 ≤ 1
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000051 0.00016 0.00032 0.00064 0.00096 0.00123
Feed (ipm) 156.25 156.25 156.25 156.25 156.25 156.25
Slot
1≤ .20 ≤ .50
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000051 0.00016 0.00032 0.00064 0.00096 0.00123
Feed (ipm) 125.00 125.00 125.00 125.00 125.00 125.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
4 Flute: Square, Ball
40 www.ksptmicrotools.com
END MILLS
END MILLS
M4, M4B
3xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212, 12L15,
1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 16.99 16.99 16.99 16.99 16.99 16.99
Slot
1≤ .15 ≤ .35
290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 13.50 13.50 13.50 13.50 13.50 13.50
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000014 0.00004 0.00009 0.00017 0.00026 0.00033
Feed (ipm) 8.91 8.91 8.91 8.91 8.91 8.91
Slot
1≤ .15 ≤ .35
165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000014 0.00004 0.00009 0.00017 0.00026 0.00033
Feed (ipm) 7.00 7.00 7.00 7.00 7.00 7.00
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000011 0.00003 0.00007 0.00014 0.00021 0.00026
Feed (ipm) 5.88 5.88 5.88 5.88 5.88 5.88
Slot
1≤ .15 ≤ .35
140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000011 0.00003 0.00007 0.00014 0.00021 0.00026
Feed (ipm) 4.70 4.70 4.70 4.70 4.70 4.70
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 14.32 14.32 14.32 14.32 14.32 14.32
Slot
1≤ .15 ≤ .35
245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000015 0.00005 0.00010 0.00019 0.00029 0.00037
Feed (ipm) 11.50 11.50 11.50 11.50 11.50 11.50
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000015 0.00005 0.00009 0.00019 0.00028 0.00036
Feed (ipm) 15.74 15.74 15.74 15.74 15.74 15.74
Slot
1≤ .15 ≤ .35
270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000015 0.00005 0.00009 0.00019 0.00028 0.00036
Feed (ipm) 12.50 12.50 12.50 12.50 12.50 12.50
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000014 0.00004 0.00009 0.00017 0.00026 0.00034
Feed (ipm) 10.04 10.04 10.04 10.04 10.04 10.04
Slot
1≤ .15 ≤ .35
185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000014 0.00004 0.00009 0.00017 0.00026 0.00034
Feed (ipm) 7.90 7.90 7.90 7.90 7.90 7.90
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .10 ≤ .25 ≤ 2
215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00024
Feed (ipm) 6.45 6.45 6.45 6.45 6.45 6.45
Slot
1≤ .15 ≤ .35
170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00024
Feed (ipm) 5.10 5.10 5.10 5.10 5.10 5.10
continued on next page
FRACTIONAL
4 Flute: Square, Ball
41
www.ksptmicrotools.com
END MILLS
END MILLS
M4, M4B
3xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .10 ≤ .25 ≤ 2
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000008 0.00002 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 1.47 1.47 1.47 1.47 1.47 1.47
Slot
1≤ .15 ≤ .35
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000008 0.00002 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 1.10 1.10 1.10 1.10 1.10 1.10
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .10 ≤ .25 ≤ 2
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00013
Feed (ipm) 0.77 0.77 0.77 0.77 0.77 0.77
Slot
1≤ .15 ≤ .35
35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00013
Feed (ipm) 0.60 0.60 0.60 0.60 0.60 0.60
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .10 ≤ .25 ≤ 2
160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00024
Feed (ipm) 4.80 4.80 4.80 4.80 4.80 4.80
Slot
1≤ .15 ≤ .35
130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00024
Feed (ipm) 3.90 3.90 3.90 3.90 3.90 3.90
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .10 ≤ .25 ≤ 2
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000007 0.00002 0.00004 0.00008 0.00012 0.00016
Feed (ipm) 1.20 1.20 1.20 1.20 1.20 1.20
Slot
1≤ .15 ≤ .35
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000007 0.00002 0.00004 0.00008 0.00012 0.00016
Feed (ipm) 0.90 0.90 0.90 0.90 0.90 0.90
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .10 ≤ .25 ≤ 2
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000047 0.00015 0.00029 0.00058 0.00087 0.00112
Feed (ipm) 142.50 142.50 142.50 142.50 142.50 142.50
Slot
1≤ .15 ≤ .35
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000047 0.00015 0.00029 0.00058 0.00087 0.00112
Feed (ipm) 114.00 114.00 114.00 114.00 114.00 114.00
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .10 ≤ .25 ≤ 2
515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000034 0.00011 0.00021 0.00043 0.00064 0.00082
Feed (ipm) 54.01 54.01 54.01 54.01 54.01 54.01
Slot
1≤ .15 ≤ .35
410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000034 0.00011 0.00021 0.00043 0.00064 0.00082
Feed (ipm) 43.00 43.00 43.00 43.00 43.00 43.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .10 ≤ .25 ≤ 2
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000047 0.00015 0.00029 0.00058 0.00087 0.00112
Feed (ipm) 142.50 142.50 142.50 142.50 142.50 142.50
Slot
1≤ .15 ≤ .35
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000047 0.00015 0.00029 0.00058 0.00087 0.00112
Feed (ipm) 114.00 114.00 114.00 114.00 114.00 114.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
4 Flute: Square, Ball
42 www.ksptmicrotools.com
END MILLS
END MILLS
M4L, M4LB
5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212, 12L15,
1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 3
365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 7.11 7.11 7.11 7.11 7.11 7.11
Slot 1≤ .10 ≤ .20
290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 5.65 5.65 5.65 5.65 5.65 5.65
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 3
210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00014
Feed (ipm) 3.64 3.64 3.64 3.64 3.64 3.64
Slot
1≤ .10 ≤ .20
165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00014
Feed (ipm) 2.86 2.86 2.86 2.86 2.86 2.86
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 3
175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000005 0.00001 0.00003 0.00006 0.00009 0.00011
Feed (ipm) 2.50 2.50 2.50 2.50 2.50 2.50
Slot
1≤ .10 ≤ .20
140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000005 0.00001 0.00003 0.00006 0.00009 0.00011
Feed (ipm) 2.00 2.00 2.00 2.00 2.00 2.00
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .10 ≤ .25 ≤ 3
305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 5.95 5.95 5.95 5.95 5.95 5.95
Slot
1≤ .10 ≤ .20
245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 4.78 4.78 4.78 4.78 4.78 4.78
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 3
340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 6.62 6.62 6.62 6.62 6.62 6.62
Slot
1≤ .10 ≤ .20
270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000006 0.00002 0.00004 0.00008 0.00012 0.00015
Feed (ipm) 5.26 5.26 5.26 5.26 5.26 5.26
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 3
235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00014
Feed (ipm) 4.06 4.06 4.06 4.06 4.06 4.06
Slot
1≤ .10 ≤ .20
185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000006 0.00002 0.00004 0.00007 0.00011 0.00014
Feed (ipm) 3.20 3.20 3.20 3.20 3.20 3.20
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .10 ≤ .25 ≤ 3
215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000004 0.00001 0.00003 0.00005 0.00008 0.00010
Feed (ipm) 2.66 2.66 2.66 2.66 2.66 2.66
Slot
1≤ .10 ≤ .20
170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000004 0.00001 0.00003 0.00005 0.00008 0.00010
Feed (ipm) 2.10 2.10 2.10 2.10 2.10 2.10
continued on next page
FRACTIONAL
4 Flute: Square, Ball
43
www.ksptmicrotools.com
END MILLS
END MILLS
M4L, M4LB
5xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.005 0.015 0.031 0.062 0.093 0.120
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .10 ≤ .25 ≤ 3
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000004 0.00001 0.00002 0.00005 0.00007 0.00009
Feed (ipm) 0.67 0.67 0.67 0.67 0.67 0.67
Slot
1≤ .10 ≤ .20
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000004 0.00001 0.00002 0.00005 0.00007 0.00009
Feed (ipm) 0.50 0.50 0.50 0.50 0.50 0.50
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .10 ≤ .25 ≤ 3
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000002 0.00001 0.00001 0.00003 0.00004 0.00006
Feed (ipm) 0.32 0.32 0.32 0.32 0.32 0.32
Slot
1≤ .10 ≤ .20
35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000002 0.00001 0.00001 0.00003 0.00004 0.00006
Feed (ipm) 0.25 0.25 0.25 0.25 0.25 0.25
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .10 ≤ .25 ≤ 3
160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000004 0.00001 0.00003 0.00005 0.00008 0.00010
Feed (ipm) 1.97 1.97 1.97 1.97 1.97 1.97
Slot
1≤ .10 ≤ .20
130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000004 0.00001 0.00003 0.00005 0.00008 0.00010
Feed (ipm) 1.60 1.60 1.60 1.60 1.60 1.60
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .10 ≤ .25 ≤ 3
60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000003 0.00001 0.00002 0.00004 0.00005 0.00007
Feed (ipm) 0.53 0.53 0.53 0.53 0.53 0.53
Slot
1≤ .10 ≤ .20
45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000003 0.00001 0.00002 0.00004 0.00005 0.00007
Feed (ipm) 0.40 0.40 0.40 0.40 0.40 0.40
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .10 ≤ .25 ≤ 3
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000019 0.00006 0.00012 0.00024 0.00035 0.00045
Feed (ipm) 57.50 57.50 57.50 57.50 57.50 57.50
Slot
1≤ .10 ≤ .20
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000019 0.00006 0.00012 0.00024 0.00035 0.00045
Feed (ipm) 46.00 46.00 46.00 46.00 46.00 46.00
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .10 ≤ .25 ≤ 3
515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000014 0.00004 0.00009 0.00018 0.00027 0.00034
Feed (ipm) 22.23 22.23 22.23 22.23 22.23 22.23
Slot
1≤ .10 ≤ .20
410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000014 0.00004 0.00009 0.00018 0.00027 0.00034
Feed (ipm) 17.70 17.70 17.70 17.70 17.70 17.70
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .10 ≤ .25 ≤ 3
1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000019 0.00006 0.00012 0.00024 0.00035 0.00045
Feed (ipm) 57.50 57.50 57.50 57.50 57.50 57.50
Slot
1≤ .10 ≤ .20
800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000019 0.00006 0.00012 0.00024 0.00035 0.00045
Feed (ipm) 46.00 46.00 46.00 46.00 46.00 46.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
4 Flute: Square, Ball
44 www.ksptmicrotools.com
END MILLS
END MILLS
M4E, M4EB
8xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.015 0.031 0.062 0.093 0.120
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .05 ≤ .10 ≤ 4
365 RPM 89378 44689 22309 14865 11619
(292-438) Fz 0.000020 0.000040 0.000081 0.000121 0.000155
Feed (ipm) 7.20 7.20 7.20 7.20 7.20
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .05 ≤ .10 ≤ 4
175 RPM 51423 25712 12835 8552 6685
(140-210) Fz 0.000018 0.000035 0.000070 0.000105 0.000135
Feed (ipm) 3.60 3.60 3.60 3.60 3.60
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .05 ≤ .10 ≤ 4
340 RPM 42853 21426 10696 7127 5571
(272-408) Fz 0.000015 0.000029 0.000058 0.000088 0.000112
Feed (ipm) 2.50 2.50 2.50 2.50 2.50
K
CAST IRONS
(LOW & MEDIUM ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .05 ≤ .10 ≤ 4
305 RPM 74686 37343 18642 12421 9709
(244-366) Fz 0.000020 0.000040 0.000080 0.000121 0.000154
Feed (ipm) 6.00 6.00 6.00 6.00 6.00
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .05 ≤ .10 ≤ 4
340 RPM 83256 41628 20781 13846 10823
(272-408) Fz 0.000020 0.000040 0.000081 0.000121 0.000155
Feed (ipm) 6.70 6.70 6.70 6.70 6.70
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .05 ≤ .10 ≤ 4
235 RPM 57545 28772 14363 9570 7481
(188-282) Fz 0.000018 0.000036 0.000071 0.000107 0.000137
Feed (ipm) 4.10 4.10 4.10 4.10 4.10
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .05 ≤ .10 ≤ 4
215 RPM 52647 26324 13141 8756 6844
(172-258) Fz 0.000012 0.000025 0.000049 0.000074 0.000095
Feed (ipm) 2.60 2.60 2.60 2.60 2.60
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .05 ≤ .10 ≤ 4
60 RPM 14692 7346 3667 2443 1910
(48-72)
Fz 0.000011 0.000022 0.000045 0.000068 0.000086
Feed (ipm) 0.66 0.66 0.66 0.66 0.66
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750, Incoloy,
Waspaloy, Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .05 ≤ .10 ≤ 4
45 RPM 11019 5510 2750 1833 1433
(36-54)
Fz 0.000007 0.000015 0.000030 0.000045 0.000058
Feed (ipm) 0.33 0.33 0.33 0.33 0.33
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .05 ≤ .10 ≤ 4
160 RPM 39179 19590 9779 6516 5093
(128-192) Fz 0.000013 0.000026 0.000051 0.000077 0.000098
Feed (ipm) 2.00 2.00 2.00 2.00 2.00
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,
Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .05 ≤ .10 ≤ 4
60 RPM 14692 7346 3667 2443 1910
(48-72)
Fz 0.000009 0.000018 0.000036 0.000054 0.000069
Feed (ipm) 0.53 0.53 0.53 0.53 0.53
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .05 ≤ .10 ≤ 4
1000 RPM 244872 122436 61120 40725 31833
(800-1200) Fz 0.000059 0.000118 0.000237 0.000356 0.000455
Feed (ipm) 58.00 58.00 58.00 58.00 58.00
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .05 ≤ .10 ≤ 4
515 RPM 126109 63054 31477 20973 16394
(412-618) Fz 0.000046 0.000091 0.000183 0.000274 0.000351
Feed (ipm) 23.00 23.00 23.00 23.00 23.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .05 ≤ .10 ≤ 4
1000 RPM 244872 122436 61120 40725 31833
(800-1200) Fz 0.000059 0.000118 0.000237 0.000356 0.000455
Feed (ipm) 58.00 58.00 58.00 58.00 58.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
4 Flute: Square, Ball
45
www.ksptmicrotools.com
END MILLS
END MILLS
M4X, M4XB
12xD
Fractional Hardness
Ap
Ae Ae
Vc
(SFM)
Diameter (D1)
(inch)
Ae x D1Ap x D10.0156 0.0312 0.0625 0.0938 0.1200
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .03 ≤ .06 ≤ 6
365 RPM 89378 44689 22309 14865 11619
(292-438) Fz 0.000012 0.000025 0.000049 0.000074 0.000095
Feed (ipm) 4.40 4.40 4.40 4.40 4.40
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .03 ≤ .06 ≤ 6
175 RPM 51423 25712 12835 8552 6685
(140-210) Fz 0.000011 0.000021 0.000043 0.000064 0.000082
Feed (ipm) 2.20 2.20 2.20 2.20 2.20
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .03 ≤ .06 ≤ 6
340 RPM 42853 21426 10696 7127 5571
(272-408) Fz 0.000009 0.000018 0.000035 0.000053 0.000067
Feed (ipm) 1.50 1.50 1.50 1.50 1.50
K
CAST IRONS
(LOW & MEDIUM ALLOY)
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .03 ≤ .06 ≤ 6
305 RPM 74686 37343 18642 12421 9709
(244-366) Fz 0.000009 0.000018 0.000036 0.000054 0.000070
Feed (ipm) 2.70 2.70 2.70 2.70 2.70
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .03 ≤ .06 ≤ 6
340 RPM 83256 41628 20781 13846 10823
(272-408) Fz 0.000012 0.000025 0.000049 0.000074 0.000095
Feed (ipm) 4.10 4.10 4.10 4.10 4.10
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .03 ≤ .06 ≤ 6
235 RPM 57545 28772 14363 9570 7481
(188-282) Fz 0.000011 0.000022 0.000044 0.000065 0.000084
Feed (ipm) 2.50 2.50 2.50 2.50 2.50
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .03 ≤ .06 ≤ 6
215 RPM 52647 26324 13141 8756 6844
(172-258) Fz 0.000008 0.000015 0.000030 0.000046 0.000058
Feed (ipm) 1.60 1.60 1.60 1.60 1.60
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .03 ≤ .06 ≤ 6
60 RPM 14692 7346 3667 2443 1910
(48-72)
Fz 0.000007 0.000014 0.000027 0.000041 0.000052
Feed (ipm) 0.40 0.40 0.40 0.40 0.40
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750, Incoloy,
Waspaloy, Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .03 ≤ .06 ≤ 6
45 RPM 11019 5510 2750 1833 1433
(36-54)
Fz 0.000005 0.000009 0.000018 0.000027 0.000035
Feed (ipm) 0.20 0.20 0.20 0.20 0.20
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .03 ≤ .06 ≤ 6
160 RPM 39179 19590 9779 6516 5093
(128-192) Fz 0.000008 0.000015 0.000031 0.000046 0.000059
Feed (ipm) 1.20 1.20 1.20 1.20 1.20
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,
Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .03 ≤ .06 ≤ 6
60 RPM 14692 7346 3667 2443 1910
(48-72)
Fz 0.000005 0.000011 0.000022 0.000033 0.000042
Feed (ipm) 0.32 0.32 0.32 0.32 0.32
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .03 ≤ .06 ≤ 6
1000 RPM 244872 122436 61120 40725 31833
(800-1200) Fz 0.000037 0.000074 0.000147 0.000221 0.000283
Feed (ipm) 36.00 36.00 36.00 36.00 36.00
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .03 ≤ .06 ≤ 6
515 RPM 126109 63054 31477 20973 16394
(412-618) Fz 0.000028 0.000056 0.000111 0.000167 0.000213
Feed (ipm) 14.00 14.00 14.00 14.00 14.00
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .03 ≤ .06 ≤ 6
1000 RPM 244872 122436 61120 40725 31833
(800-1200) Fz 0.000037 0.000074 0.000147 0.000221 0.000283
Feed (ipm) 36.00 36.00 36.00 36.00 36.00
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = Vc x 3.82 / D1
t ipm = Fz x 4 x rpm
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
4 Flute: Square, Ball
46 www.ksptmicrotools.com
END MILLS
END MILLS
M2M, M2MB
1.5xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
111 RPM 353837 70767 35384 23589 17692 14153 11795
(89-134) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01297
Feed (mm/min) 306 306 306 306 306 306 306
Slot
1≤ .20 ≤ .50
88 RPM 281131 56226 28113 18742 14057 11245 9371
(71-106) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01297
Feed (mm/min) 243 243 243 243 243 243 243
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
64 RPM 203577 40715 20358 13572 10179 8143 6786
(51-77) Fz 0.00038 0.00192 0.00384 0.00576 0.00769 0.00961 0.01153
Feed (mm/min) 156 156 156 156 156 156 156
Slot
1≤ .20 ≤ .50
50 RPM 159954 31991 15995 10664 7998 6398 5332
(40-60) Fz 0.00038 0.00192 0.00384 0.00576 0.00769 0.00961 0.01153
Feed (mm/min) 123 123 123 123 123 123 123
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
53 RPM 169648 33930 16965 11310 8482 6786 5655
(43-64) Fz 0.00032 0.00160 0.00320 0.00480 0.00640 0.00800 0.00962
Feed (mm/min) 109 109 109 109 109 109 109
Slot
1≤ .20 ≤ .50
43 RPM 135718 27144 13572 9048 6786 5429 4524
(34-51) Fz 0.00032 0.00160 0.00320 0.00480 0.00640 0.00800 0.00962
Feed (mm/min) 87 87 87 87 87 87 87
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .30 ≤ .50 ≤ 1
93 RPM 295672 59134 29567 19711 14784 11827 9856
(74-112) Fz 0.00043 0.00217 0.00433 0.00650 0.00866 0.01083 0.01301
Feed (mm/min) 256 256 256 256 256 256 256
Slot
1≤ .20 ≤ .50
75 RPM 237507 47501 23751 15834 11875 9500 7917
(60-90) Fz 0.00043 0.00217 0.00433 0.00650 0.00866 0.01083 0.01301
Feed (mm/min) 206 206 206 206 206 206 206
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
104 RPM 329602 65920 32960 21973 16480 13184 10987
(83-124) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01295
Feed (mm/min) 285 285 285 285 285 285 285
Slot
1≤ .20 ≤ .50
82 RPM 261742 52348 26174 17449 13087 10470 8725
(66-99) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01295
Feed (mm/min) 226 226 226 226 226 226 226
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
72 RPM 227813 45563 22781 15188 11391 9113 7594
(57-86) Fz 0.00038 0.00192 0.00385 0.00577 0.00769 0.00961 0.01154
Feed (mm/min) 175 175 175 175 175 175 175
Slot
1≤ .20 ≤ .50
56 RPM 179342 35868 17934 11956 8967 7174 5978
(45-68) Fz 0.00038 0.00192 0.00385 0.00577 0.00769 0.00961 0.01154
Feed (mm/min) 138 138 138 138 138 138 138
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .30 ≤ .50 ≤ 1
66 RPM 208425 41685 20842 13895 10421 8337 6947
(52-79) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00819
Feed (mm/min) 113 113 113 113 113 113 113
Slot
1≤ .20 ≤ .50
52 RPM 164801 32960 16480 10987 8240 6592 5493
(41-62) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00819
Feed (mm/min) 90 90 90 90 90 90 90
continued on next page
METRIC
2 Flute: Square, Ball
47
www.ksptmicrotools.com
END MILLS
END MILLS
M2M, M2MB
1.5xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .30 ≤ .50 ≤ 1
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722
Feed (mm/min) 28 28 28 28 28 28 28
Slot
1≤ .20 ≤ .50
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722
Feed (mm/min) 21 21 21 21 21 21 21
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .30 ≤ .50 ≤ 1
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486
Feed (mm/min) 14 14 14 14 14 14 14
Slot
1≤ .20 ≤ .50
11 RPM 33930 6786 3393 2262 1696 1357 1131
(9-13) Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486
Feed (mm/min) 11 11 11 11 11 11 11
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .30 ≤ .50 ≤ 1
49 RPM 155107 31021 15511 10340 7755 6204 5170
(39-59) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821
Feed (mm/min) 84 84 84 84 84 84 84
Slot
1≤ .20 ≤ .50
40 RPM 126024 25205 12602 8402 6301 5041 4201
(32-48) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821
Feed (mm/min) 69 69 69 69 69 69 69
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .30 ≤ .50 ≤ 1
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585
Feed (mm/min) 22 22 22 22 22 22 22
Slot
1≤ .20 ≤ .50
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585
Feed (mm/min) 17 17 17 17 17 17 17
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477
Slot
1≤ .20 ≤ .50
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .30 ≤ .50 ≤ 1
157 RPM 499249 99850 49925 33283 24962 19970 16642
(126-188) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876
Feed (mm/min) 957 957 957 957 957 957 957
Slot
1≤ .20 ≤ .50
125 RPM 397461 79492 39746 26497 19873 15898 13249
(100-150) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876
Feed (mm/min) 762 762 762 762 762 762 762
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477
Slot
1≤ .20 ≤ .50
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = (Vc x 1000) / (D1 x 3.14)
t mm/min = Fz x 2 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
METRIC
2 Flute: Square, Ball
48 www.ksptmicrotools.com
END MILLS
END MILLS
M2M, M2MB
3xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
111 RPM 353837 70767 35384 23589 17692 14153 11795
(89-134) Fz 0.00039 0.00194 0.00389 0.00583 0.00778 0.00972 0.01168
Feed (mm/min) 275 275 275 275 275 275 275
Slot 1≤ .15 ≤ .35
88 RPM 281131 56226 28113 18742 14057 11245 9371
(71-106) Fz 0.00039 0.00194 0.00389 0.00583 0.00778 0.00972 0.01168
Feed (mm/min) 219 219 219 219 219 219 219
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
64 RPM 203577 40715 20358 13572 10179 8143 6786
(51-77) Fz 0.00035 0.00173 0.00346 0.00519 0.00692 0.00865 0.01041
Feed (mm/min) 141 141 141 141 141 141 141
Slot
1≤ .15 ≤ .35
50 RPM 159954 31991 15995 10664 7998 6398 5332
(40-60) Fz 0.00035 0.00173 0.00346 0.00519 0.00692 0.00865 0.01041
Feed (mm/min) 111 111 111 111 111 111 111
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
53 RPM 169648 33930 16965 11310 8482 6786 5655
(43-64) Fz 0.00028 0.00140 0.00281 0.00421 0.00561 0.00702 0.00840
Feed (mm/min) 95 95 95 95 95 95 95
Slot
1≤ .15 ≤ .35
43 RPM 135718 27144 13572 9048 6786 5429 4524
(34-51) Fz 0.00028 0.00140 0.00281 0.00421 0.00561 0.00702 0.00840
Feed (mm/min) 76 76 76 76 76 76 76
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .10 ≤ .25 ≤ 2
93 RPM 295672 59134 29567 19711 14784 11827 9856
(74-112) Fz 0.00039 0.00195 0.00390 0.00586 0.00781 0.00976 0.01168
Feed (mm/min) 231 231 231 231 231 231 231
Slot
1≤ .15 ≤ .35
75 RPM 237507 47501 23751 15834 11875 9500 7917
(60-90) Fz 0.00039 0.00195 0.00390 0.00586 0.00781 0.00976 0.01168
Feed (mm/min) 185 185 185 185 185 185 185
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
104 RPM 329602 65920 32960 21973 16480 13184 10987
(83-124) Fz 0.00039 0.00194 0.00388 0.00582 0.00776 0.00970 0.01163
Feed (mm/min) 256 256 256 256 256 256 256
Slot
1≤ .15 ≤ .35
82 RPM 261742 52348 26174 17449 13087 10470 8725
(66-99) Fz 0.00039 0.00194 0.00388 0.00582 0.00776 0.00970 0.01163
Feed (mm/min) 203 203 203 203 203 203 203
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
72 RPM 227813 45563 22781 15188 11391 9113 7594
(57-86) Fz 0.00035 0.00173 0.00346 0.00519 0.00693 0.00866 0.01037
Feed (mm/min) 158 158 158 158 158 158 158
Slot
1≤ .15 ≤ .35
56 RPM 179342 35868 17934 11956 8967 7174 5978
(45-68) Fz 0.00035 0.00173 0.00346 0.00519 0.00693 0.00866 0.01037
Feed (mm/min) 124 124 124 124 124 124 124
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .10 ≤ .25 ≤ 2
66 RPM 208425 41685 20842 13895 10421 8337 6947
(52-79) Fz 0.00025 0.00123 0.00245 0.00368 0.00490 0.00613 0.00737
Feed (mm/min) 102 102 102 102 102 102 102
Slot
1≤ .15 ≤ .35
52 RPM 164801 32960 16480 10987 8240 6592 5493
(41-62) Fz 0.00025 0.00123 0.00245 0.00368 0.00490 0.00613 0.00737
Feed (mm/min) 81 81 81 81 81 81 81
continued on next page
METRIC
2 Flute: Square, Ball
49
www.ksptmicrotools.com
END MILLS
END MILLS
M2M, M2MB
3xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .10 ≤ .25 ≤ 2
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00022 0.00109 0.00218 0.00328 0.00437 0.00546 0.00653
Feed (mm/min) 25 25 25 25 25 25 25
Slot
1≤ .15 ≤ .35
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00022 0.00109 0.00218 0.00328 0.00437 0.00546 0.00653
Feed (mm/min) 19 19 19 19 19 19 19
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .10 ≤ .25 ≤ 2
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00015 0.00073 0.00146 0.00219 0.00292 0.00365 0.00442
Feed (mm/min) 13 13 13 13 13 13 13
Slot
1≤ .15 ≤ .35
11 RPM 33930 6786 3393 2262 1696 1357 1131
(9-13) Fz 0.00015 0.00073 0.00146 0.00219 0.00292 0.00365 0.00442
Feed (mm/min) 10 10 10 10 10 10 10
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .10 ≤ .25 ≤ 2
49 RPM 155107 31021 15511 10340 7755 6204 5170
(39-59) Fz 0.00024 0.00122 0.00245 0.00367 0.00490 0.00612 0.00738
Feed (mm/min) 76 76 76 76 76 76 76
Slot
1≤ .15 ≤ .35
40 RPM 126024 25205 12602 8402 6301 5041 4201
(32-48) Fz 0.00024 0.00122 0.00245 0.00367 0.00490 0.00612 0.00738
Feed (mm/min) 62 62 62 62 62 62 62
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .10 ≤ .25 ≤ 2
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00017 0.00086 0.00172 0.00258 0.00344 0.00429 0.00516
Feed (mm/min) 20 20 20 20 20 20 20
Slot
1≤ .15 ≤ .35
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00017 0.00086 0.00172 0.00258 0.00344 0.00429 0.00516
Feed (mm/min) 15 15 15 15 15 15 15
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00115 0.00573 0.01146 0.01719 0.02293 0.02866 0.03439
Feed (mm/min) 2223 2223 2223 2223 2223 2223 2223
Slot
1≤ .15 ≤ .35
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00115 0.00573 0.01146 0.01719 0.02293 0.02866 0.03439
Feed (mm/min) 1778 1778 1778 1778 1778 1778 1778
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .10 ≤ .25 ≤ 2
157 RPM 499249 99850 49925 33283 24962 19970 16642
(126-188) Fz 0.00086 0.00431 0.00863 0.01294 0.01725 0.02157 0.02589
Feed (mm/min) 861 861 861 861 861 861 861
Slot
1≤ .15 ≤ .35
125 RPM 397461 79492 39746 26497 19873 15898 13249
(100-150) Fz 0.00086 0.00431 0.00863 0.01294 0.01725 0.02157 0.02589
Feed (mm/min) 686 686 686 686 686 686 686
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00115 0.00573 0.01146 0.01719 0.02293 0.02866 0.03439
Feed (mm/min) 2223 2223 2223 2223 2223 2223 2223
Slot
1≤ .15 ≤ .35
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00115 0.00573 0.01146 0.01719 0.02293 0.02866 0.03439
Feed (mm/min) 1778 1778 1778 1778 1778 1778 1778
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = (Vc x 1000) / (D1 x 3.14)
t mm/min = Fz x 2 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
METRIC
2 Flute: Square, Ball
50 www.ksptmicrotools.com
END MILLS
END MILLS
M4MB
1.5xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
111 RPM 353837 70767 35384 23589 17692 14153 11795
(89-134) Fz 0.00034 0.00169 0.00339 0.00508 0.00678 0.00847 0.01016
Feed (mm/min) 480 480 480 480 480 480 480
Slot 1≤ .20 ≤ .50
88 RPM 281131 56226 28113 18742 14057 11245 9371
(71-106) Fz 0.00034 0.00169 0.00339 0.00508 0.00678 0.00847 0.01016
Feed (mm/min) 381 381 381 381 381 381 381
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
64 RPM 203577 40715 20358 13572 10179 8143 6786
(51-77) Fz 0.00031 0.00153 0.00306 0.00459 0.00611 0.00764 0.00919
Feed (mm/min) 249 249 249 249 249 249 249
Slot
1≤ .20 ≤ .50
50 RPM 159954 31991 15995 10664 7998 6398 5332
(40-60) Fz 0.00031 0.00153 0.00306 0.00459 0.00611 0.00764 0.00919
Feed (mm/min) 196 196 196 196 196 196 196
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .30 ≤ .50 ≤ 1
53 RPM 169648 33930 16965 11310 8482 6786 5655
(43-64) Fz 0.00025 0.00126 0.00253 0.00379 0.00505 0.00632 0.00757
Feed (mm/min) 171 171 171 171 171 171 171
Slot
1≤ .20 ≤ .50
43 RPM 135718 27144 13572 9048 6786 5429 4524
(34-51) Fz 0.00025 0.00126 0.00253 0.00379 0.00505 0.00632 0.00757
Feed (mm/min) 137 137 137 137 137 137 137
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .30 ≤ .50 ≤ 1
93 RPM 295672 59134 29567 19711 14784 11827 9856
(74-112) Fz 0.00034 0.00170 0.00340 0.00509 0.00679 0.00849 0.01020
Feed (mm/min) 402 402 402 402 402 402 402
Slot
1≤ .20 ≤ .50
75 RPM 237507 47501 23751 15834 11875 9500 7917
(60-90) Fz 0.00034 0.00170 0.00340 0.00509 0.00679 0.00849 0.01020
Feed (mm/min) 323 323 323 323 323 323 323
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
104 RPM 329602 65920 32960 21973 16480 13184 10987
(83-124) Fz 0.00033 0.00167 0.00335 0.00502 0.00670 0.00837 0.01006
Feed (mm/min) 441 441 441 441 441 441 441
Slot
1≤ .20 ≤ .50
82 RPM 261742 52348 26174 17449 13087 10470 8725
(66-99) Fz 0.00033 0.00167 0.00335 0.00502 0.00670 0.00837 0.01006
Feed (mm/min) 351 351 351 351 351 351 351
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .30 ≤ .50 ≤ 1
72 RPM 227813 45563 22781 15188 11391 9113 7594
(57-86) Fz 0.00030 0.00152 0.00305 0.00457 0.00609 0.00761 0.00912
Feed (mm/min) 277 277 277 277 277 277 277
Slot
1≤ .20 ≤ .50
56 RPM 179342 35868 17934 11956 8967 7174 5978
(45-68) Fz 0.00030 0.00152 0.00305 0.00457 0.00609 0.00761 0.00912
Feed (mm/min) 218 218 218 218 218 218 218
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .30 ≤ .50 ≤ 1
66 RPM 208425 41685 20842 13895 10421 8337 6947
(52-79) Fz 0.00022 0.00108 0.00216 0.00324 0.00432 0.00539 0.00646
Feed (mm/min) 180 180 180 180 180 180 180
Slot
1≤ .20 ≤ .50
52 RPM 164801 32960 16480 10987 8240 6592 5493
(41-62) Fz 0.00022 0.00108 0.00216 0.00324 0.00432 0.00539 0.00646
Feed (mm/min) 142 142 142 142 142 142 142
continued on next page
METRIC
4 Flute: Ball
51
www.ksptmicrotools.com
END MILLS
END MILLS
M4MB
1.5xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .30 ≤ .50 ≤ 1
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00019 0.00095 0.00189 0.00284 0.00378 0.00473 0.00567
Feed (mm/min) 44 44 44 44 44 44 44
Slot
1≤ .20 ≤ .50
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00019 0.00095 0.00189 0.00284 0.00378 0.00473 0.00567
Feed (mm/min) 33 33 33 33 33 33 33
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .30 ≤ .50 ≤ 1
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00013 0.00064 0.00127 0.00191 0.00255 0.00318 0.00376
Feed (mm/min) 22 22 22 22 22 22 22
Slot
1≤ .20 ≤ .50
11 RPM 33930 6786 3393 2262 1696 1357 1131
(9-13) Fz 0.00013 0.00064 0.00127 0.00191 0.00255 0.00318 0.00376
Feed (mm/min) 17 17 17 17 17 17 17
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .30 ≤ .50 ≤ 1
49 RPM 155107 31021 15511 10340 7755 6204 5170
(39-59) Fz 0.00021 0.00106 0.00212 0.00317 0.00423 0.00529 0.00637
Feed (mm/min) 131 131 131 131 131 131 131
Slot
1≤ .20 ≤ .50
40 RPM 126024 25205 12602 8402 6301 5041 4201
(32-48) Fz 0.00021 0.00106 0.00212 0.00317 0.00423 0.00529 0.00637
Feed (mm/min) 107 107 107 107 107 107 107
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .30 ≤ .50 ≤ 1
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00015 0.00073 0.00146 0.00218 0.00291 0.00364 0.00430
Feed (mm/min) 34 34 34 34 34 34 34
Slot
1≤ .20 ≤ .50
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00015 0.00073 0.00146 0.00218 0.00291 0.00364 0.00430
Feed (mm/min) 25 25 25 25 25 25 25
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00102 0.00512 0.01023 0.01535 0.02047 0.02559 0.03070
Feed (mm/min) 3969 3969 3969 3969 3969 3969 3969
Slot
1≤ .20 ≤ .50
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00102 0.00512 0.01023 0.01535 0.02047 0.02559 0.03070
Feed (mm/min) 3175 3175 3175 3175 3175 3175 3175
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .30 ≤ .50 ≤ 1
157 RPM 499249 99850 49925 33283 24962 19970 16642
(126-188) Fz 0.00077 0.00383 0.00767 0.01150 0.01534 0.01917 0.02300
Feed (mm/min) 1531 1531 1531 1531 1531 1531 1531
Slot
1≤ .20 ≤ .50
125 RPM 397461 79492 39746 26497 19873 15898 13249
(100-150) Fz 0.00077 0.00383 0.00767 0.01150 0.01534 0.01917 0.02300
Feed (mm/min) 1219 1219 1219 1219 1219 1219 1219
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .30 ≤ .50 ≤ 1
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00102 0.00512 0.01023 0.01535 0.02047 0.02559 0.03070
Feed (mm/min) 3969 3969 3969 3969 3969 3969 3969
Slot
1≤ .20 ≤ .50
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00102 0.00512 0.01023 0.01535 0.02047 0.02559 0.03070
Feed (mm/min) 3175 3175 3175 3175 3175 3175 3175
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = (Vc x 1000) / (D1 x 3.14)
t mm/min = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
METRIC
4 Flute: Ball
52 www.ksptmicrotools.com
END MILLS
END MILLS
M4MB
3xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
111 RPM 353837 70767 35384 23589 17692 14153 11795
(89-134) Fz 0.00030 0.00152 0.00305 0.00457 0.00610 0.00762 0.00915
Feed (mm/min) 432 432 432 432 432 432 432
Slot
1≤ .15 ≤ .35
88 RPM 281131 56226 28113 18742 14057 11245 9371
(71-106) Fz 0.00030 0.00152 0.00305 0.00457 0.00610 0.00762 0.00915
Feed (mm/min) 343 343 343 343 343 343 343
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
64 RPM 203577 40715 20358 13572 10179 8143 6786
(51-77) Fz 0.00028 0.00139 0.00278 0.00417 0.00556 0.00695 0.00835
Feed (mm/min) 226 226 226 226 226 226 226
Slot
1≤ .15 ≤ .35
50 RPM 159954 31991 15995 10664 7998 6398 5332
(40-60) Fz 0.00028 0.00139 0.00278 0.00417 0.00556 0.00695 0.00835
Feed (mm/min) 178 178 178 178 178 178 178
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ .10 ≤ .25 ≤ 2
53 RPM 169648 33930 16965 11310 8482 6786 5655
(43-64) Fz 0.00022 0.00110 0.00220 0.00330 0.00440 0.00550 0.00658
Feed (mm/min) 149 149 149 149 149 149 149
Slot
1≤ .15 ≤ .35
43 RPM 135718 27144 13572 9048 6786 5429 4524
(34-51) Fz 0.00022 0.00110 0.00220 0.00330 0.00440 0.00550 0.00658
Feed (mm/min) 119 119 119 119 119 119 119
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ .10 ≤ .25 ≤ 2
93 RPM 295672 59134 29567 19711 14784 11827 9856
(74-112) Fz 0.00031 0.00154 0.00307 0.00461 0.00615 0.00769 0.00922
Feed (mm/min) 364 364 364 364 364 364 364
Slot
1≤ .15 ≤ .35
75 RPM 237507 47501 23751 15834 11875 9500 7917
(60-90) Fz 0.00031 0.00154 0.00307 0.00461 0.00615 0.00769 0.00922
Feed (mm/min) 292 292 292 292 292 292 292
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
104 RPM 329602 65920 32960 21973 16480 13184 10987
(83-124) Fz 0.00030 0.00152 0.00303 0.00455 0.00607 0.00758 0.00911
Feed (mm/min) 400 400 400 400 400 400 400
Slot
1≤ .15 ≤ .35
82 RPM 261742 52348 26174 17449 13087 10470 8725
(66-99) Fz 0.00030 0.00152 0.00303 0.00455 0.00607 0.00758 0.00911
Feed (mm/min) 318 318 318 318 318 318 318
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ .10 ≤ .25 ≤ 2
72 RPM 227813 45563 22781 15188 11391 9113 7594
(57-86) Fz 0.00028 0.00140 0.00280 0.00420 0.00559 0.00699 0.00841
Feed (mm/min) 255 255 255 255 255 255 255
Slot
1≤ .15 ≤ .35
56 RPM 179342 35868 17934 11956 8967 7174 5978
(45-68) Fz 0.00028 0.00140 0.00280 0.00420 0.00559 0.00699 0.00841
Feed (mm/min) 201 201 201 201 201 201 201
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ .10 ≤ .25 ≤ 2
66 RPM 208425 41685 20842 13895 10421 8337 6947
(52-79) Fz 0.00020 0.00098 0.00197 0.00295 0.00393 0.00491 0.00592
Feed (mm/min) 164 164 164 164 164 164 164
Slot
1≤ .15 ≤ .35
52 RPM 164801 32960 16480 10987 8240 6592 5493
(41-62) Fz 0.00020 0.00098 0.00197 0.00295 0.00393 0.00491 0.00592
Feed (mm/min) 130 130 130 130 130 130 130
continued on next page
METRIC
4 Flute: Ball
53
www.ksptmicrotools.com
END MILLS
END MILLS
M4MB
3xD
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D10.1 0.5 11.5 22.5 3
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ .10 ≤ .25 ≤ 2
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00016 0.00080 0.00160 0.00240 0.00320 0.00400 0.00481
Feed (mm/min) 37 37 37 37 37 37 37
Slot
1≤ .15 ≤ .35
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00016 0.00080 0.00160 0.00240 0.00320 0.00400 0.00481
Feed (mm/min) 28 28 28 28 28 28 28
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ .10 ≤ .25 ≤ 2
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00011 0.00056 0.00112 0.00168 0.00225 0.00281 0.00332
Feed (mm/min) 20 20 20 20 20 20 20
Slot
1≤ .15 ≤ .35
11 RPM 33930 6786 3393 2262 1696 1357 1131
(9-13) Fz 0.00011 0.00056 0.00112 0.00168 0.00225 0.00281 0.00332
Feed (mm/min) 15 15 15 15 15 15 15
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ .10 ≤ .25 ≤ 2
49 RPM 155107 31021 15511 10340 7755 6204 5170
(39-59) Fz 0.00020 0.00098 0.00197 0.00295 0.00393 0.00491 0.00589
Feed (mm/min) 122 122 122 122 122 122 122
Slot
1≤ .15 ≤ .35
40 RPM 126024 25205 12602 8402 6301 5041 4201
(32-48) Fz 0.00020 0.00098 0.00197 0.00295 0.00393 0.00491 0.00589
Feed (mm/min) 99 99 99 99 99 99 99
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ .10 ≤ .25 ≤ 2
18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00013 0.00066 0.00131 0.00197 0.00262 0.00328 0.00395
Feed (mm/min) 30 30 30 30 30 30 30
Slot
1≤ .15 ≤ .35
14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00013 0.00066 0.00131 0.00197 0.00262 0.00328 0.00395
Feed (mm/min) 23 23 23 23 23 23 23
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00093 0.00467 0.00933 0.01400 0.01867 0.02334 0.02801
Feed (mm/min) 3620 3620 3620 3620 3620 3620 3620
Slot
1≤ .15 ≤ .35
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00093 0.00467 0.00933 0.01400 0.01867 0.02334 0.02801
Feed (mm/min) 2896 2896 2896 2896 2896 2896 2896
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile
≤ .10 ≤ .25 ≤ 2
157 RPM 499249 99850 49925 33283 24962 19970 16642
(126-188) Fz 0.00069 0.00343 0.00687 0.01030 0.01374 0.01717 0.02061
Feed (mm/min) 1372 1372 1372 1372 1372 1372 1372
Slot
1≤ .15 ≤ .35
125 RPM 397461 79492 39746 26497 19873 15898 13249
(100-150) Fz 0.00069 0.00343 0.00687 0.01030 0.01374 0.01717 0.02061
Feed (mm/min) 1092 1092 1092 1092 1092 1092 1092
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile
≤ .10 ≤ .25 ≤ 2
305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00093 0.00467 0.00933 0.01400 0.01867 0.02334 0.02801
Feed (mm/min) 3620 3620 3620 3620 3620 3620 3620
Slot
1≤ .15 ≤ .35
244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00093 0.00467 0.00933 0.01400 0.01867 0.02334 0.02801
Feed (mm/min) 2896 2896 2896 2896 2896 2896 2896
Note:
t Bhn (Brinell) HRc (Rockwell C)
t when recommended speed exceeds your capability, use maximum available and recalculate ipm
t rpm = (Vc x 1000) / (D1 x 3.14)
t mm/min = Fz x 4 x rpm
t helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended)
t reduce speed and feed for materials harder than listed
t reduce feed and Ae when finish milling (.02 x D1 maximum)
t refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
METRIC
4 Flute: Ball
54 www.ksptmicrotools.com
02201....................6
02202....................6
02203....................6
02204....................6
02205....................6
02206....................6
02207....................6
02208....................6
02209....................6
02210....................6
02211....................6
02212....................6
02213....................6
02214....................6
02215....................6
02216....................6
02217....................6
02218....................6
02219....................6
02220....................6
02221....................6
02222....................6
02223....................6
02224....................6
02225....................6
02226....................6
02227....................6
02228....................6
02229....................6
02230....................6
02231....................6
02232....................6
02233....................6
02234....................6
02235....................6
02236....................6
02238..................14
02239..................14
02240..................14
02241..................14
02242..................14
02243..................14
02244..................14
02245..................14
02246..................14
02247..................14
02248..................14
02249..................14
02250..................14
02251..................14
02252..................14
02253..................14
02254..................14
02255..................14
02256..................14
02257..................14
02258..................14
02259..................14
02260..................14
02261..................14
02262..................14
02263..................14
02264..................14
02265..................14
02266..................14
02267..................14
02268..................14
02269..................14
02270..................14
02271..................14
02272..................14
02273..................14
02275....................8
02276....................8
02277....................8
02278....................8
02279....................8
02280....................8
02281....................8
02282....................8
02283....................8
02284....................8
02285....................8
02286....................8
02287....................8
02288....................8
02289....................8
02290....................8
02291....................8
02292....................8
02293....................8
02294....................8
02295....................8
02296....................8
02297....................8
02298....................8
02299....................8
02300....................8
02301....................8
02302....................8
02303....................8
02304....................8
02305....................8
02306....................8
02307....................8
02308....................8
02309....................8
02310....................8
02312..................16
02313..................16
02314..................16
02315..................16
02316..................16
02317..................16
02318..................16
02319..................16
02320..................16
02321..................16
02322..................16
02323..................16
02324..................16
02325..................16
02326..................16
02327..................16
02328..................16
02329..................16
02330..................16
02331..................16
02332..................16
02333..................16
02334..................16
02335..................16
02336..................16
02337..................16
02338..................16
02339..................16
02340..................16
02341..................16
02342..................16
02343..................16
02344..................16
02345..................16
02346..................16
02347..................16
02349..................29
02350..................29
02351..................29
02352..................29
02353..................29
02354..................29
02355..................29
02356..................29
02357..................29
02360..................29
02361..................29
02362..................29
02363..................29
02364..................29
02365..................29
02366..................29
02367..................29
02368....................7
02369....................7
02370....................7
02371....................7
02372....................7
02373....................7
02374....................7
02375....................7
02376....................7
02377....................7
02378....................7
02379....................7
02380....................7
02381....................7
02382....................7
02383....................7
02384....................7
02385....................7
02386....................7
02387....................7
02388....................7
02389....................7
02390....................7
02391....................7
02392....................7
02393....................7
02394....................7
02395....................7
02396....................7
02397....................7
02398....................7
02399....................7
02400....................7
02401....................7
02402..................15
02403..................15
02404..................15
02405..................15
02406..................15
02407..................15
02408..................15
02409..................15
02410..................15
02411..................15
02412..................15
02413..................15
02414..................15
02415..................15
02416..................15
02417..................15
02418..................15
02419..................15
02420..................15
02421..................15
02422..................15
02423..................15
02424..................15
02425..................15
02426..................15
02427..................15
02428..................15
02429..................15
02430..................15
02431..................15
02432..................15
02433..................15
02434..................15
02435..................15
02436....................9
02437....................9
02438....................9
02439....................9
02440....................9
02441....................9
02442....................9
02443....................9
02444....................9
02445....................9
02446....................9
02447....................9
02448....................9
02449....................9
02450....................9
02451....................9
02452....................9
02453....................9
02454....................9
02455....................9
02456....................9
02457....................9
02458....................9
02459....................9
02460....................9
02461....................9
02462....................9
02463....................9
02464....................9
02465....................9
02466....................9
02467....................9
02468....................9
02469....................9
02470..................17
02471..................17
02472..................17
02473..................17
02474..................17
02475..................17
02476..................17
02477..................17
02478..................17
02479..................17
02480..................17
02481..................17
02482..................17
02483..................17
02484..................17
02485..................17
02486..................17
02487..................17
02488..................17
02489..................17
02490..................17
02491..................17
02492..................17
02493..................17
02494..................17
02495..................17
02496..................17
02497..................17
02498..................17
02499..................17
02500..................17
02501..................17
02502..................17
02503..................17
02504..................11
02505..................11
02506..................11
02507..................11
02508..................11
02509..................11
02510..................11
02511..................11
02512..................11
02513..................11
02514..................11
02515..................11
02516..................11
02517..................11
02518..................11
02519..................11
02520..................11
02521..................11
02522..................11
02523..................11
02524..................11
02525..................11
02526..................11
02527..................11
02528..................11
02529..................11
02530..................11
02531..................11
02532..................11
02533..................11
02534..................11
02535..................11
02536..................11
02537..................11
02538..................21
02539..................21
02540..................21
02541..................22
02542..................22
02543..................22
02544..................22
02545..................22
02546..................22
02547..................22
02548..................22
02549..................22
02550..................22
02551..................22
02552..................22
02553..................22
02554..................22
02555..................22
02556..................22
02557..................22
02558..................22
02559..................22
02560..................22
02561..................22
02562..................22
02563..................22
02564..................22
02565..................22
02566..................22
02567..................22
02568..................22
02569..................22
02570..................22
02571..................22
02572..................13
02573..................13
02574..................13
02575..................13
02576..................13
02577..................13
02578..................13
02579..................13
02580..................13
02581..................13
02582..................13
02583..................13
02584..................13
02585..................13
02586..................13
02587..................13
02588..................13
02589..................13
02590..................13
02591..................13
02592..................13
02593..................13
02594..................13
02595..................13
02596..................13
02597..................13
02598..................13
02599..................13
02600..................13
02601..................13
02602..................13
02603..................13
02604..................13
02605..................13
02606..................23
02607..................23
02608..................23
02609..................24
02610..................24
02611..................24
02612..................24
02613..................24
02614..................24
02615..................24
02616..................24
02617..................24
02618..................24
02619..................24
02620..................24
02621..................24
02622..................24
02623..................24
02624..................24
02625..................24
02626..................24
02627..................24
02628..................24
02629..................24
02630..................24
02631..................24
02632..................24
02633..................24
02634..................24
02635..................24
02636..................24
02637..................24
02638..................24
02639..................24
02640..................18
02641..................18
02642..................18
02643..................18
02644..................18
02645..................18
02646..................18
02647..................18
02648..................18
02649..................18
02650..................18
02651..................18
02652..................18
02653..................18
02654..................18
02655..................18
02656..................18
02657..................18
02658..................18
02659..................18
02660..................18
02661..................18
02662..................18
02663..................18
02664..................18
02665..................18
02666..................18
02667..................19
02668..................19
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
55
www.ksptmicrotools.com
02669..................19
02670..................19
02671..................19
02672..................19
02673..................19
02674..................19
02675..................19
02676..................19
02677..................19
02678..................19
02679..................19
02680..................19
02681..................19
02682..................19
02683..................19
02684..................19
02685..................19
02686..................19
02687..................19
02688..................19
02689..................19
02690..................19
02691..................19
02692..................19
02693..................19
02694..................20
02695..................20
02696..................20
02697..................20
02698..................20
02699..................20
02700..................20
02701..................20
02702..................20
02703..................20
02704..................20
02705..................20
02706..................20
02707..................20
02708..................20
02709..................20
02710..................20
02711..................20
02712..................20
02713..................20
02714..................20
02715..................20
02716..................20
02717..................20
02718..................20
02719..................20
02720..................25
02721..................25
02722..................25
02723..................25
02724..................25
02725..................25
02726..................25
02727..................25
02728..................25
02729..................25
02730..................25
02731..................25
02732..................25
02733..................25
02734..................25
02735..................25
02736..................25
02737..................25
02738..................25
02739..................25
02740..................25
02741..................25
02742..................25
02743..................25
02744..................25
02745..................25
02746..................25
02747..................26
02748..................26
02749..................26
02750..................26
02751..................26
02752..................26
02753..................26
02754..................26
02755..................26
02756..................26
02757..................26
02758..................26
02759..................26
02760..................26
02761..................26
02762..................26
02763..................26
02764..................26
02765..................26
02766..................26
02767..................26
02768..................26
02769..................26
02770..................26
02771..................26
02772..................26
02773..................26
02774..................27
02775..................27
02776..................27
02777..................27
02778..................27
02779..................27
02780..................27
02781..................27
02782..................27
02783..................27
02784..................27
02785..................27
02786..................27
02787..................27
02788..................27
02789..................27
02790..................27
02791..................27
02792..................27
02793..................27
02794..................27
02795..................27
02796..................27
02797..................27
02798..................27
02799..................27
02801..................28
02802..................28
02803..................28
02804..................28
02805..................28
02806..................28
02807..................28
02808..................28
02809..................28
02811..................29
02819..................28
02829..................31
02839..................33
02849..................30
02859..................32
02860..................28
02861..................28
02862..................28
02863..................28
02864..................28
02865..................28
02866..................28
02867..................28
02868..................28
02869..................28
02870..................28
02871..................28
02872..................29
02873..................29
02874..................29
02875..................29
02876..................29
02877..................29
02878..................29
02879..................29
02880..................29
02881..................29
02882..................29
02883..................29
02884..................29
02885..................29
02886..................29
02887..................29
02888..................29
02889..................29
02890..................29
02891..................29
02892..................28
02893..................28
02894..................28
02895..................28
02896..................28
02897..................28
02898..................28
02899..................28
02900..................28
02901..................28
02902..................28
02903..................28
02904..................29
02905..................29
02906..................29
02907..................29
02908..................29
02909..................29
02910..................29
02911..................29
02912..................29
02913..................29
02914..................29
02915..................29
02916..................30
02917..................30
02918..................30
02919..................30
02920..................30
02921..................30
02922..................30
02923..................30
02924..................30
02925..................30
02926..................30
02927..................30
02928..................32
02929..................32
02930..................32
02931..................32
02932..................32
02933..................32
02934..................32
02935..................32
02936..................32
02937..................32
02938..................32
02939..................32
02940..................31
02941..................33
02942..................33
02943..................33
02944..................31
02945..................31
02946..................31
02947..................31
02948..................31
02949..................31
02950..................31
02951..................31
02952..................31
02953..................31
02954..................31
02955..................31
02956..................31
02957..................31
02958..................31
02959..................31
02960..................33
02961..................33
02962..................33
02963..................33
02964..................33
02965..................33
02966..................33
02967..................33
02968..................33
02969..................33
02970..................33
02971..................33
02972..................33
02973..................33
02974..................33
02975..................33
02976..................33
02977..................33
02978..................33
02979..................33
02980..................30
02981..................30
02982..................30
02983..................30
02984..................30
02985..................30
02986..................30
02987..................30
02988..................30
02989..................30
02990..................30
02991..................30
02992..................32
02993..................32
02994..................32
02995..................32
02996..................32
02997..................32
02998..................32
02999..................32
03000..................32
03001..................32
03002..................32
03003..................32
03004..................31
03005..................31
03006..................31
03007..................31
03008..................31
03009..................31
03010..................31
03011..................31
03012..................31
03013..................31
03014..................31
03015..................31
03016..................33
03017..................33
03018..................33
03019..................33
03020..................33
03021..................33
03022..................33
03023..................33
03024..................33
03025..................33
03026..................33
03027..................33
03029..................10
03030..................10
03031..................10
03032..................10
03033..................10
03034..................10
03035..................10
03036..................10
03037..................10
03038..................10
03039..................10
03040..................10
03041..................10
03042..................10
03043..................10
03044..................10
03045..................10
03046..................10
03047..................10
03048..................10
03049..................10
03050..................10
03051..................10
03052..................10
03053..................10
03054..................10
03055..................10
03056..................10
03057..................10
03058..................10
03059..................10
03060..................10
03061..................10
03062..................10
03063..................10
03064..................10
03071..................21
03072..................21
03073..................21
03074..................21
03075..................21
03076..................21
03077..................21
03078..................21
03079..................21
03080..................21
03081..................21
03082..................21
03083..................21
03084..................21
03085..................21
03086..................21
03087..................21
03088..................21
03089..................21
03090..................21
03091..................21
03092..................21
03093..................21
03094..................21
03095..................21
03096..................21
03097..................21
03098..................21
03099..................21
03100..................21
03101..................21
03103..................12
03104..................12
03105..................12
03106..................12
03107..................12
03108..................12
03109..................12
03110 .................12
03111..................12
03112..................12
03113..................12
03114..................12
03115..................12
03116..................12
03117..................12
03118..................12
03119..................12
03120..................12
03121..................12
03122..................12
03123..................12
03124..................12
03125..................12
03126..................12
03127..................12
03128..................12
03129..................12
03130..................12
03131..................12
03132..................12
03133..................12
03134..................12
03135..................12
03136..................12
03137..................12
03138..................12
03145..................23
03146..................23
03147..................23
03148..................23
03149..................23
03150..................23
03151..................23
03152..................23
03153..................23
03154..................23
03155..................23
03156..................23
03157..................23
03158..................23
03159..................23
03160..................23
03161..................23
03162..................23
03163..................23
03164..................23
03165..................23
03166..................23
03167..................23
03168..................23
03169..................23
03170..................23
03171..................23
03172..................23
03173..................23
03174..................23
03175..................23
03180..................30
03181..................30
03182..................30
03183..................30
03184..................30
03185..................30
03195..................32
03200..................31
03201..................31
03202..................31
03203..................31
03204..................31
03205..................31
03215..................33
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
POLAND
KYOCERA SGS Precision Tools
phone: +48 530 432 002
e-mail: SalesEU@kyocera-sgstool.com
SPAIN
KYOCERA SGS Precision Tools IBERICA
e-mail: SalesEU@kyocera-sgstool.com
EASTERN EUROPE
SINTCOM
Sintcom Tools
95 Arsenalski Blvd.
1421 Soa, Bulgaria
phone: (359) 283-64421
fax: (359) 286-52493
e-mail: sintcom@sintcomtools.com
RUSSIA
HALTEC
phone: (7) 495-252-05-00
e-mail: info@haltec.ru
web: www.haltec.ru
KSPT PRODUCTS ARE DISTRIBUTED BY:
EDP 00016 Rev 0317
KYOCERA SGS Precision Tools
UNITED STATES OF AMERICA
KYOCERA SGS Precision Tools
P. O. B o x 1 8 7
55 South Main Street
Munroe Falls, Ohio 44262 U.S.A.
customer service -
US and Canada: (330) 686-5700
fax - US & Canada: (800) 447-4017
international fax: (330) 686-2146
e-mail: webmaster@kyocera-sgstool.com
web: www.kyocera-sgstool.com
UNITED KINGDOM
KYOCERA SGS Precision Tools Europe Ltd.
10 Ashville Way
Wokingham, Berkshire
RG41 2PL England
phone: (44) 1189-795-200
fax: (44) 1189-795-295
e-mail: SalesEU@kyocera-sgstool.com
web: www.kyocera-sgstool.com
FRANCE
DOGA-KSPTE FRANCE
8, Avenue Gutenburg
78310 Maurepas
France
phone: +33 (0) 1 30 66 41 64
fax: +33 (0) 1 30 66 41 49
e-mail: sgsfrance@kyocera-sgstool.com
web: www.doga.fr
GERMANY
KADIGO Tool Systems
Walramstrasse 27
65510 Idstein
Germany
phone: +49 (0) 212 645573-0
fax: +49 (0) 212 380 89 693
e-mail: info@kadigo-ts.com
web: www.kadigo-ts.com
SOLUTIONS AROUND THE GLOBE
KYOCERA SGS Precision Tools is an
ISO-certified leader of round solid carbide
cutting tool technology for the aerospace,
metalworking, and automotive industries
with manufacturing sites in the United
States and United Kingdom. Our global
network of Sales Representatives,
Industrial Distributors, and Agents
blanket the world selling into more
than 60 countries.
LEADERS IN SOLID CARBIDE
TOOL TECHNOLOGY
Brand names such as Z-Carb, S-Carb,
V-Carb, Hi-PerCarb, Multi-Carb have
become synonymous with high perfor-
mance tooling in the machining and
metalworking industry.
We’re proud to have pioneered some
of the world’s most advanced cutting
technology right here on our Northeast
Ohio manufacturing campus. KSPT high
performance end mills, drills and routers
are increasing productivity and reducing
cost around the world.
EXCEEDING CUSTOMER EXPECTATIONS
As the world’s manufacturing needs change,
so does KSPT. It’s all about the science,
starting with our lab inspected substrate
materials to our tool designs and coatings.
Our exceptional team of researchers,
engineers, and machinists are dedicated to
developing the absolute best and delivering
the ultimate value at the spindle.
t*ODSFEJCMFCBUDIUPCBUDIDPOTJTUFODZ
t.FUBMMVSHJDBMMBCEFEJDBUFEUPUFTUJOH
and rigorous quality control
t*40DFSUJGJFERVBMJUZQSPDFEVSFT
t1BUFOUFEHFPNFUSJFTUIBUFYUFOEUPPM
life, reduce chatter, cut cycle times,
and improve part quality—even at
extreme parameters
t4QFDJBMJTUTJOFYUSFNFBOEEFNBOEJOH
product applications
t$PNQSFIFOTJWFUPPMJOHTFSWJDFT
t&YQFSJFODFE'JFME4BMFT&OHJOFFST
who work to optimize a tool for your
particular application
t%FEJDBUFENVMUJMJOHVBMDVTUPNFS
service representatives
www.kyocera-sgstool.com
