Solid Carbide Tools
ISO 9001 Certified Company
High Performance Tooling
Multi-Flute End Mills
SGS
Multi-Carb
COMPETITOR
7 Flute
Tool Diameter .750 .750
Speed 295 sfm 220 sfm
Feed 40.5 ipm 19.9 ipm
Radial Cut (Ae) .090 .090
Axial Cut (Ap) .5300 .2650
Cycle Time 10.67 minutes 43.34 minutes
Metal Removal Rates 1.93 cubic inches 0.48 cubic inches
SGS Helps Aerospace Company gain over 27 days of production while
reducing the cost per part by nearly 78%!
The SGS Multi-Carb was able to produce the cut at twice the axial depth of
the competition at 204% greater feed rates. This equates into 4 times more
metal removal at 25% of the original cycle time.
SGS was able to accomplish a tool life of 25 parts where the competitor was
only able to obtain 4 parts. This was a tool life improvement of 625%. The
end user was able to gain 653.4 hours of production for a total of 27.2 days
per year gained.
THE SAVINGS WITH SGS
Cycle Time Saved per Part: 32.67 minutes
Number of Parts per Year: 1200
Cycle Time Saved Annually: 653.4 hours
Cost to Machine per Hour: $140.00
Machine Cost Saved Annually: $91,481.65
Tool Life Improvement: 21 additional parts
Tooling Cost Saved per Part: $31.17
Tooling Cost Saved Annually: $39,300
TEST INFORMATION
$131,822.29 ANNUAL COST SAVINGS
SGS
Multi-Carb
COMPETITOR
7 Flute
Tool Diameter .750 .750
Speed 295 sfm 220 sfm
Feed 40.5 ipm 19.9 ipm
Radial Cut (Ae) .090 .090
Axial Cut (Ap) .5300 .2650
Cycle Time 10.67 minutes 43.34 minutes
Metal Removal Rates 1.93 cubic inches 0.48 cubic inches
SGS Helps Aerospace Company gain over 27 days of production while
reducing the cost per part by nearly 78%!
The SGS Multi-Carb was able to produce the cut at twice the axial depth of
the competition at 204% greater feed rates. This equates into 4 times more
metal removal at 25% of the original cycle time.
SGS was able to accomplish a tool life of 25 parts where the competitor was
only able to obtain 4 parts. This was a tool life improvement of 625%. The
end user was able to gain 653.4 hours of production for a total of 27.2 days
per year gained.
THE SAVINGS WITH SGS
Cycle Time Saved per Part: 32.67 minutes
Number of Parts per Year: 1200
Cycle Time Saved Annually: 653.4 hours
Cost to Machine per Hour: $140.00
Machine Cost Saved Annually: $91,481.65
Tool Life Improvement: 21 additional parts
Tooling Cost Saved per Part: $31.17
Tooling Cost Saved Annually: $39,300
TEST INFORMATION
$131,822.29 ANNUAL COST SAVINGS

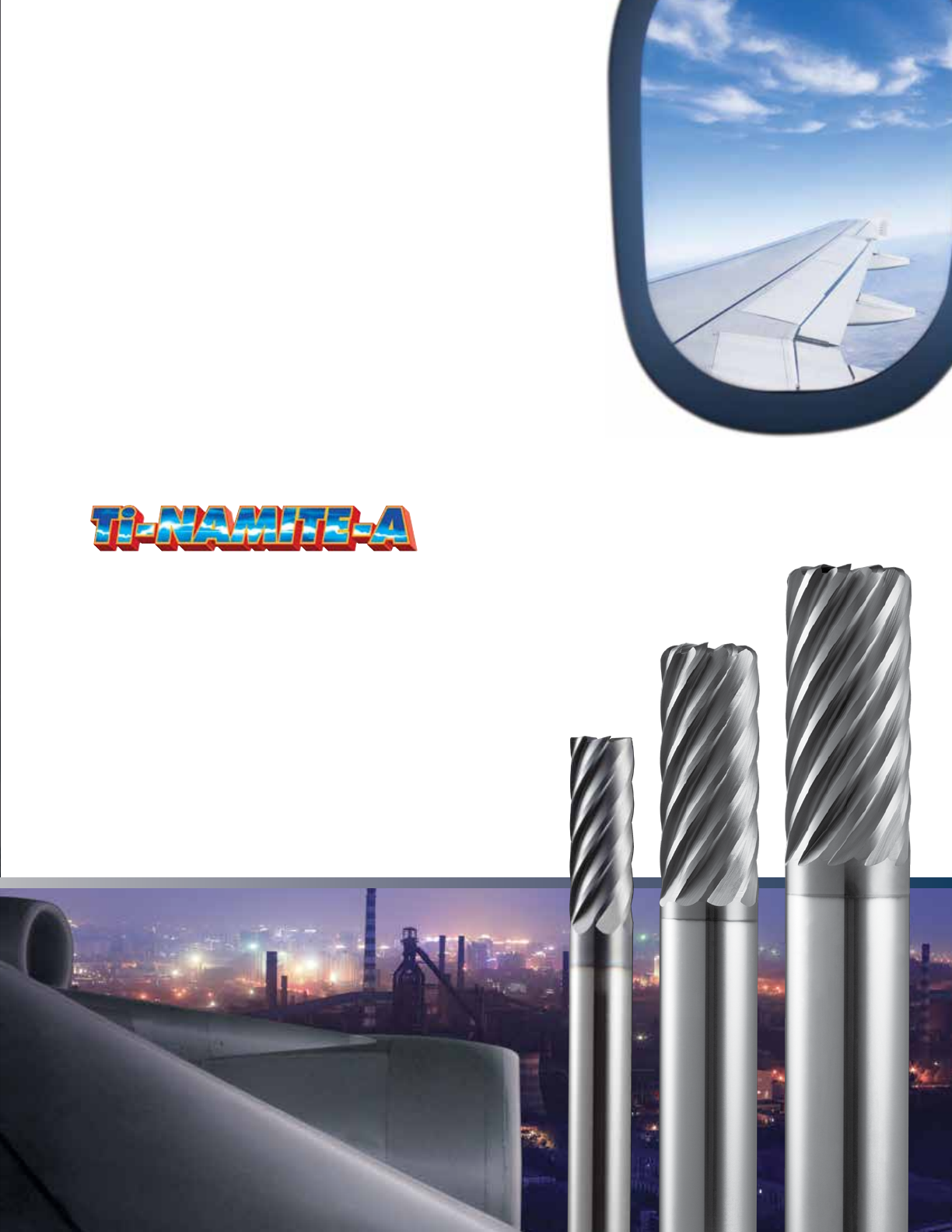

FEATURES & BENEFITS
The Multi-Carb High Performance Finishing End Mill incorporates a
large number of flutes for stability and high feed finishing capabilities
in applications where surface finish and tolerance are critical factors.
The large flute count design allows smoother cutting performance and
increased tool life, positively impacting productivity and quality levels.
• Available with 7, 9 or 11 Flutes based on tool diameter
• Designed with a 35° Helix Angle
• High Flute Count increases feed rates and improves stability
• Odd Number of Flutes control natural harmonics while staggering
entry and exit of the cutting edges
• Large Core Diameter maximizes rigidity and minimizes deflection
• Optimized Cutting Geometry provides superior surface finishes
on challenging materials
• High Performance Material for reliable and consistent performance
• Ti-NAMITE-A with proven performance at high temperatures
The Multi-Carb is exclusively available with the most abrasive resistant
and hardest coating, Aluminum Titanium Nitride (AlTiN) or Ti-NAMITE-A.
With excellent thermal and chemical resistance, Ti-NAMITE-A allows for
dry cutting and improvements in performance of carbide. The TA coating
has a high hardness giving ultimate protection against abrasive
wear and erosion. Ideal for high temperature alloys, titanium,
steels, and stainless steel applications.
Hardness (HV): 3300
Oxidation Temperature: 800°C – 1472°F
Coefficient of Friction: 0.45
Thickness: 1– 4 Microns (based on tool diameter)
www.sgstool.com
4
Series 66
|

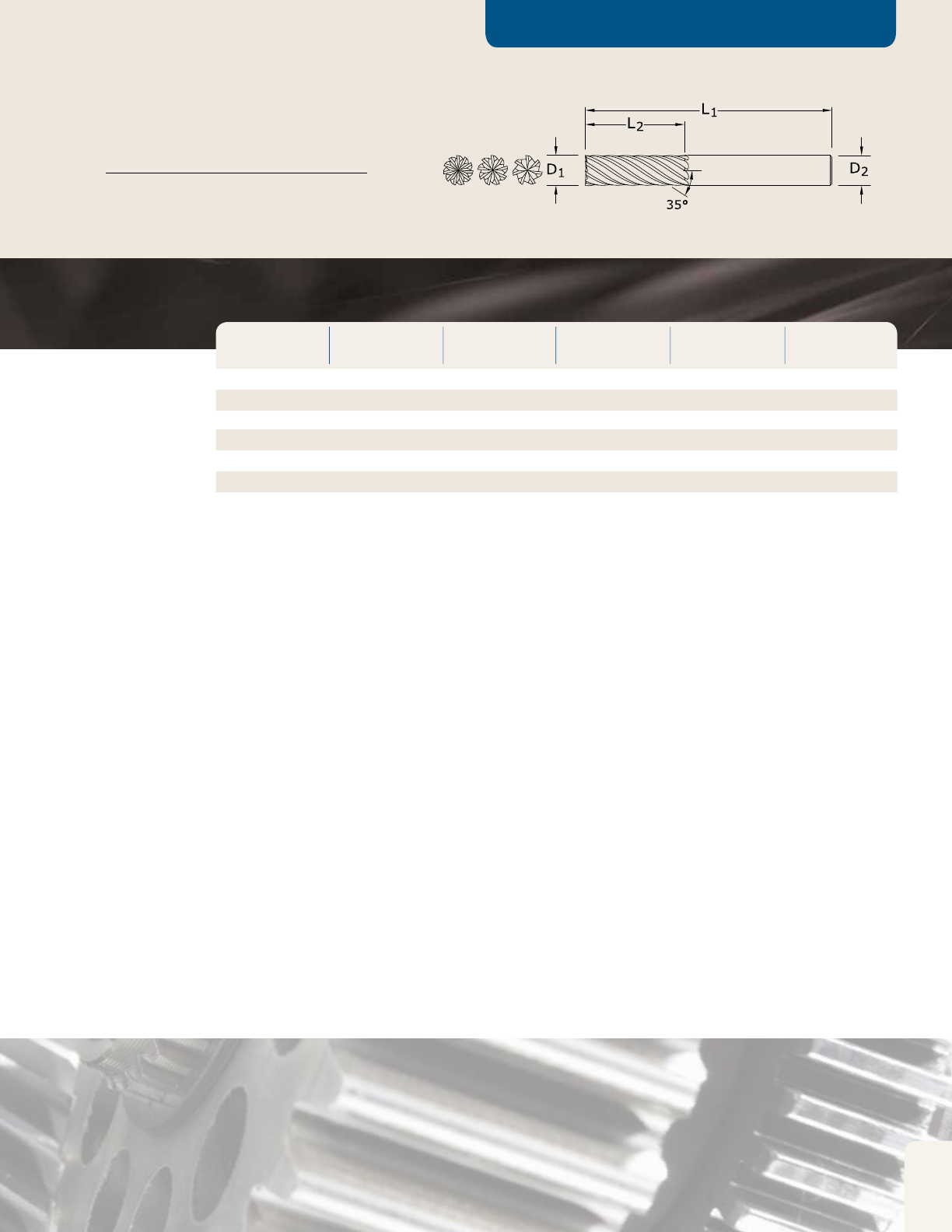

Multi-Carb Square End
SERIES 66
(FRACTIONAL)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Number
Flutes
Ti-NAMITE-A
EDP No.
3/16 5/8 2 3/16 7 36620
1/4 3/4 2-1/2 1/4 7 36621
3/8 1 3 3/8 7 36622
1/2 1-1/4 3 1/2 9 36623
5/8 1-5/8 3-1/2 5/8 9 36624
3/4 1-5/8 4 3/4 11 36625
126111 36626
TOLERANCES (inch)
DIAMETER D1D2
3/16 - 1 +0.0000 / –0.0020 h6
www.sgstool.com 5
Series 66M
|

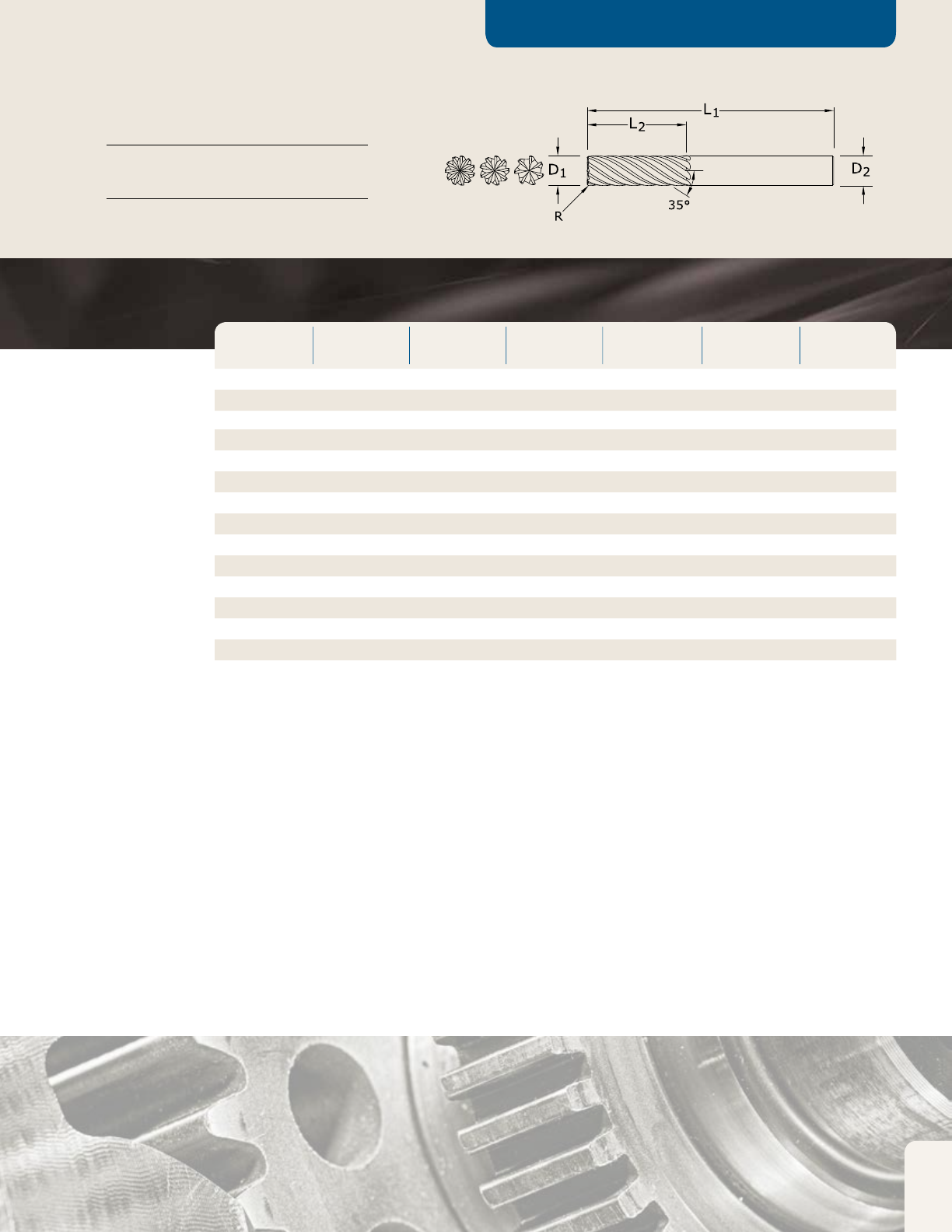

Multi-Carb Corner Radius
SERIES 66M
(METRIC)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Number
Flutes
Ti-NAMITE-A
EDP No.
619 63 6 7 46620
8 20 63 8 7 46621
10 22 75 10 7 46622
12 26 83 12 9 46623
16 32 92 16 9 46624
20 38 104 20 11 46625
25 38 104 25 11 46626
TOLERANCES (mm)
DIAMETER D1D2
6 - 25 +0,000 / -0,050 h6
www.sgstool.com
6

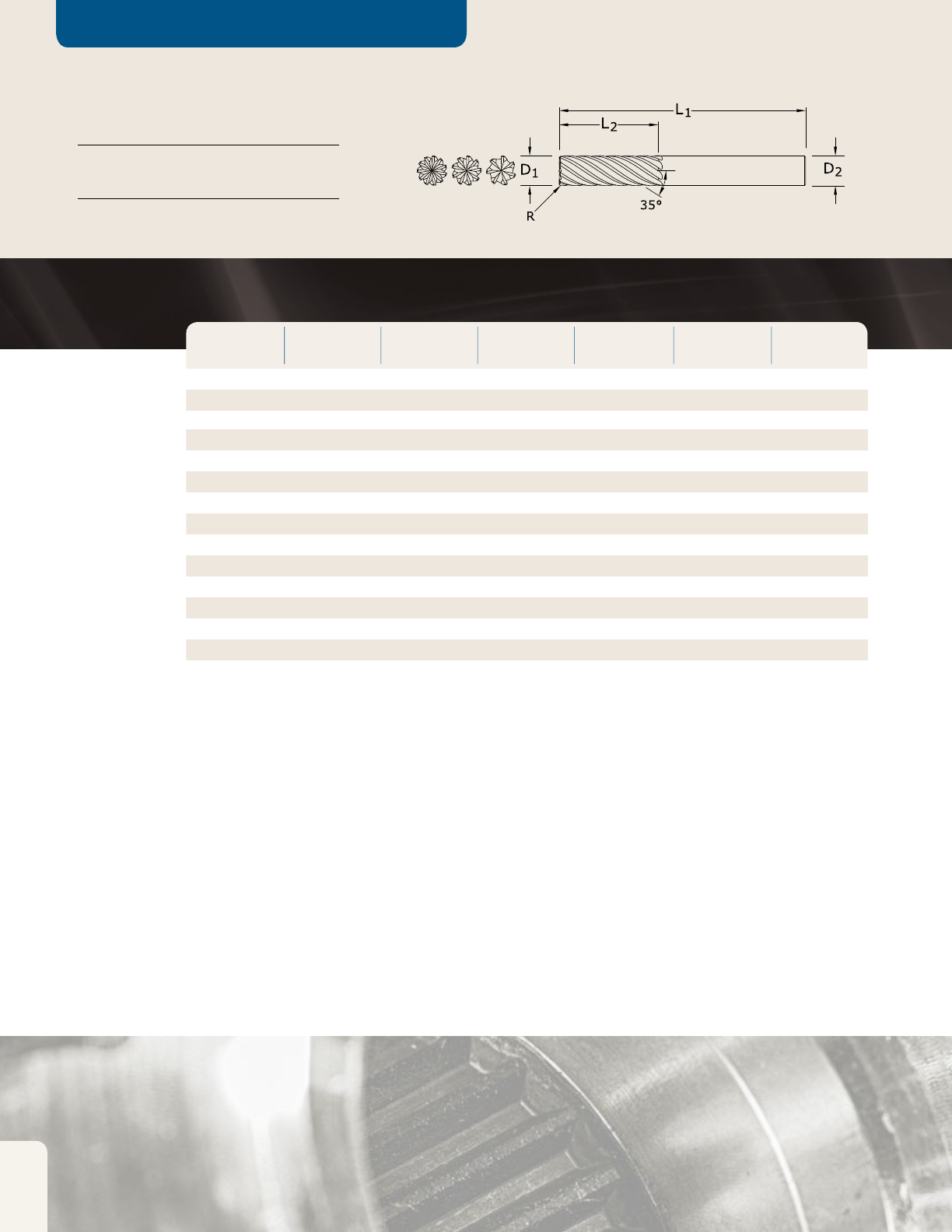

Series 66CR
|

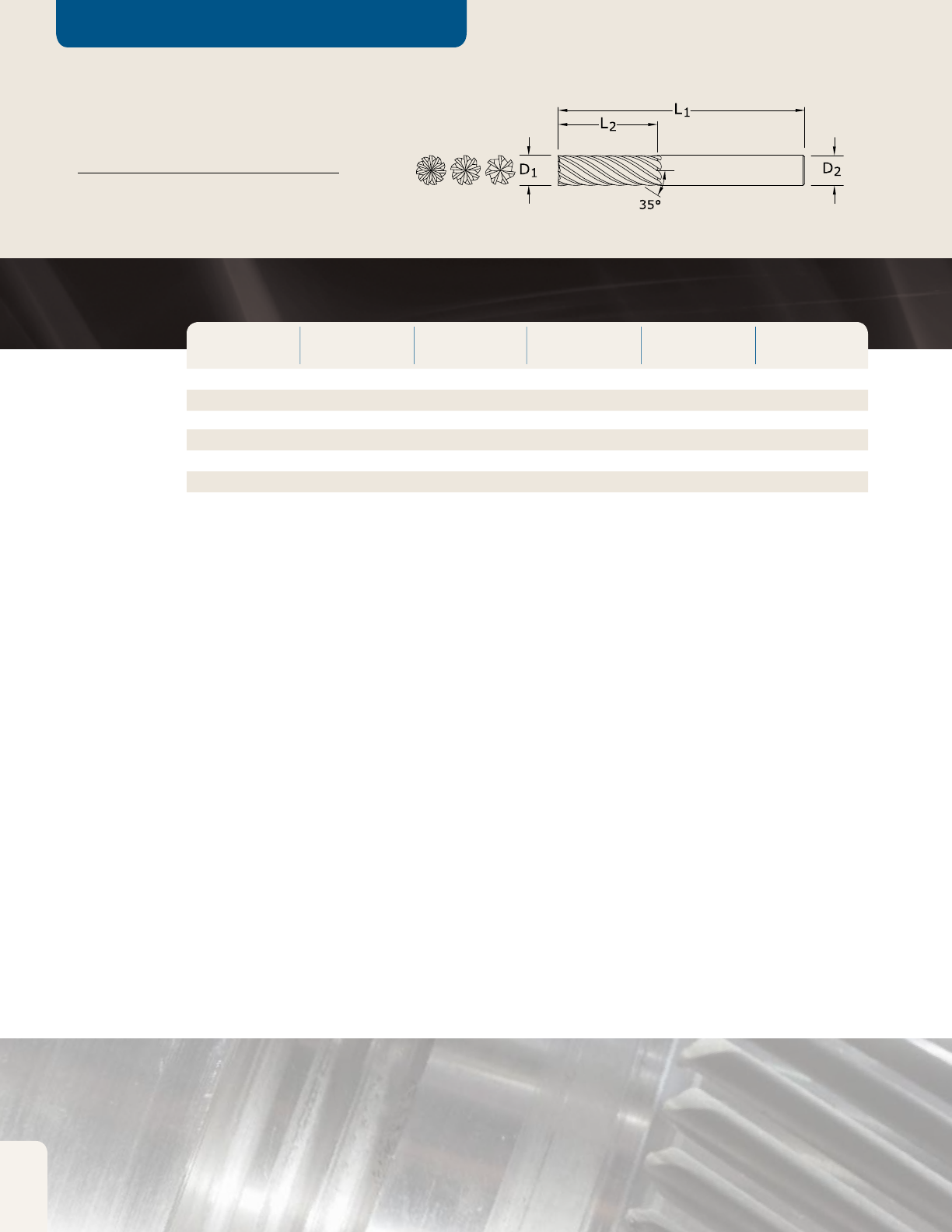

Multi-Carb Corner Radius
TOLERANCES (inch)
DIAMETER D1D2
3/16 - 1 +0.0000 / –0.0020 h6
CORNER RADIUS TOLERANCES (inch)
R = +0.000 / –0.002
SERIES 66CR
(FRACTIONAL)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Number
Flutes
Ti-NAMITE-A
EDP No.
3/16 5/8 2 3/16 .010 7 36627
1/4 3/4 2-1/2 1/4 .015 7 36628
3/8 1 3 3/8 .015 7 36629
1/2 1-1/4 3 1/2 .030 9 36630
1/2 1-1/4 3 1/2 .090 9 36631
1/2 1-1/4 3 1/2 .120 9 36632
5/8 1-5/8 3-1/2 5/8 .030 9 36633
5/8 1-5/8 3-1/2 5/8 .090 9 36634
5/8 1-5/8 3-1/2 5/8 .120 9 36635
3/4 1-5/8 4 3/4 .030 11 36636
3/4 1-5/8 4 3/4 .090 11 33637
3/4 1-5/8 4 3/4 .120 11 36638
1 2 6 1 .030 11 36639
1 2 6 1 .090 11 36640
1 2 6 1 .120 11 36641
www.sgstool.com 7
TOLERANCES (mm)
DIAMETER D1D2
6 - 25 +0,000 / -0,050 h6
CORNER RADIUS TOLERANCES (mm)
R = +0,000 / –0,050
Series 66MCR
|
Multi-Carb Corner Radius
SERIES 66MCR
(METRIC)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Number
Flutes
Ti-NAMITE-A
EDP No.
619 63 6 0.5 7 46627
8 20 63 8 0.5 7 46629
10 22 75 10 0.5 7 46632
12 26 83 12 1. 0 9 46636
12 26 83 12 2.0 9 46638
12 26 83 12 3.0 9 46640
16 32 92 16 1. 0 9 46641
16 32 92 16 2.0 9 46643
16 32 92 16 3.0 9 46645
20 38 104 20 1. 0 11 46647
20 38 104 20 2.0 11 46649
20 38 104 20 3.0 11 46651
25 38 104 25 1. 0 11 46654
25 38 104 25 2.0 11 46656
25 38 104 25 3.0 11 46658
www.sgstool.com
8
Multi-Carb
|
Speed & Feed Recommendations
Ap
Ap x D1
Ae
Ae x D1
Hardness
BRINELL
Series 66, 66CR
Fractional
Vc
(SFM)
Diameter (inch)
3/16 1/4 3/8 1/2 5/8 3/4 1
≤ 175
CARBON STEEL
1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
Profile
1 ≤ 0.05
720 RPM 14669 11002 7334 5501 4401 3667 2750
(576-864)
Fz 0.0009 0.0012 0.0022 0.0030 0.0033 0.0036 0.0042
Feed (IPM) 92 92 113 149 131 145 127
Finish
2 ≤ 0.02
864 RPM 17603 13202 8801 6601 5281 4401 3300
(691-1037)
Fz 0.0007 0.0010 0.0018 0.0024 0.0026 0.0029 0.0034
Feed (IPM) 89 89 108 143 125 139 122
≤ 275
ALLOY STEEL
4140, 4150, 4320, 5120, 5150,
8630, 86L20, 50100
Profile
1 ≤ 0.05
530 RPM 10798 8098 5399 4049 3239 2699 2025
(424-636)
Fz 0.0006 0.0009 0.0017 0.0023 0.0026 0.0028 0.0032
Feed (IPM) 45 51 64 84 76 83 71
Finish
2 ≤ 0.02
636 RPM 12957 9718 6479 4859 3887 3239 2430
(509-763)
Fz 0.0005 0.0007 0.0014 0.0018 0.0021 0.0022 0.0026
Feed (IPM) 44 49 62 80 73 80 68
≤ 375
TOOL STEEL
A2, D2, H13, L2, M2, P20, S7,
T15, W2
Profile
1 ≤ 0.05
290 RPM 5908 4431 2954 2216 1772 1477 1108
(232-348)
Fz 0.0004 0.0006 0.0012 0.0016 0.0018 0.0019 0.0022
Feed (IPM) 17 19 25 32 29 31 27
Finish
2 ≤ 0.02
348 RPM 7090 5317 3545 2659 2127 1772 1329
(278-418)
Fz 0.0003 0.0005 0.0010 0.0013 0.0014 0.0015 0.0018
Feed (IPM) 16 18 24 31 28 30 26
≤ 260
CAST IRON
(LOW / MEDIUM ALLOY)
Gray, Mallable, Ductile
Profile
1 ≤ 0.05
525 RPM 10696 8022 5348 4011 3209 2674 2006
(420-630)
Fz 0.0008 0.0012 0.0022 0.0030 0.0033 0.0036 0.0042
Feed (IPM) 60 67 82 108 95 106 93
Finish
2 ≤ 0.02
630 RPM 12835 9626 6418 4813 3851 3209 2407
(504-756)
Fz 0.0006 0.0010 0.0018 0.0024 0.0026 0.0029 0.0034
Feed (IPM) 58 65 79 104 91 102 89
> 260
≤ 320
CAST IRON
(DIFFICULT / HIGH ALLOY)
Gray, Mallable, Ductile
Profile
1 ≤ 0.05
300 RPM 6112 4584 3056 2292 1834 1528 1146
(240-360)
Fz 0.0002 0.0003 0.0006 0.0008 0.0008 0.0009 0.0011
Feed (IPM) 9 10 12 16 14 15 13
Finish
2 ≤ 0.02
360 RPM 7334 5501 3667 2750 2200 1834 1375
(288-432)
Fz 0.0001 0.0002 0.0005 0.0006 0.0007 0.0007 0.0008
Feed (IPM) 5 9 12 15 13 15 13
≤ 185
STAINLESS STEEL
(FREE MACHINING)
303, 416, 420F, 430F 440F
Profile
1 ≤ 0.05
560 RPM 11409 8557 5705 4278 3423 2852 2139
(448-672)
Fz 0.0006 0.0009 0.0017 0.0023 0.0026 0.0028 0.0032
Feed (IPM) 48 54 68 89 80 88 75
Finish
2 ≤ 0.02
672 RPM 13691 10268 6845 5134 4107 3423 2567
(538-806)
Fz 0.0005 0.0007 0.0014 0.0018 0.0021 0.0022 0.0026
Feed (IPM) 46 52 65 85 77 84 72
www.sgstool.com 9
Multi-Carb
|
Speed & Feed Recommendations
Ap
Ap x D1
Ae
Ae x D1
Hardness
BRINELL
Series 66, 66CR
Fractional
Vc
(SFM)
Diameter (inch)
3/16 1/4 3/8 1/2 5/8 3/4 1
≤ 185
STAINLESS STEEL
(DIFFICULT)
304, 304L, 316, 316L
Profile
1 ≤ 0.05
385 RPM 7844 5883 3922 2941 2353 1961 1471
(308-462)
Fz 0.0005 0.0007 0.0014 0.0018 0.0020 0.0022 0.0026
Feed (IPM) 27 29 38 48 42 47 42
Finish
2 ≤ 0.02
462 RPM 9412 7059 4706 3530 2824 2353 1765
(370-554)
Fz 0.0004 0.0006 0.0011 0.0014 0.0016 0.0018 0.0021
Feed (IPM) 26 28 37 46 41 46 40
≤ 325
STAINLESS STEEL
(PH)
13-8 PH, 15-5PH, 17-4 PH,
Custom 450
Profile
1 ≤ 0.05
355 RPM 7233 5424 3616 2712 2170 1808 1356
(284-426)
Fz 0.0005 0.0007 0.0014 0.0018 0.0020 0.0022 0.0026
Feed (IPM) 25 27 35 44 39 44 39
Finish
2 ≤ 0.02
426 RPM 8679 6509 4340 3255 2604 2170 1627
(341-511)
Fz 0.0004 0.0006 0.0011 0.0014 0.0016 0.0018 0.0021
Feed (IPM) 24 26 34 42 37 42 37
≤ 300
SUPER ALLOYS
(NICKEL, COBALT, IRON BASED)
Inconel 601, 617, 625, Incoly 800,
Monel 400
Profile
1 ≤ 0.05
105 RPM 2139 1604 1070 802 642 535 401
(84-126)
Fz 0.0005 0.0007 0.0014 0.0018 0.0020 0.0022 0.0026
Feed (IPM) 7.5 7.9 10.5 13.0 11.6 12.9 11.5
Finish
2 ≤ 0.02
126 RPM 2567 1925 1284 963 770 642 481
(101-151)
Fz 0.0004 0.0006 0.0011 0.0014 0.0016 0.0018 0.0021
Feed (IPM) 7.2 7.5 10.1 12.5 11.1 12.4 11.0
> 300
SUPER ALLOYS
(NICKEL, COBALT, IRON BASED –
DIFFICULT)
Inconel 718, 750X, Incoly 925,
Waspaloy, Hastelloy, Rene
Profile
1 ≤ 0.05
85 RPM 1732 1299 866 649 520 433 325
(68-102)
Fz 0.0003 0.0005 0.0009 0.0012 0.0014 0.0015 0.0017
Feed (IPM) 3.9 4.5 5.6 7.0 6.4 7.1 6.1
Finish
2 ≤ 0.02
102 RPM 2078 1559 1039 779 623 520 390
(82-122)
Fz 0.0002 0.0004 0.0007 0.0010 0.0011 0.0012 0.0014
Feed (IPM) 2.9 4.3 5.4 6.7 6.1 6.9 5.8
≤ 350
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo, Ti4Al4Mo2Sn0.5Si
Profile
1 ≤ 0.05
390 RPM 7946 5959 3973 2980 2384 1986 1490
(312-468)
Fz 0.0005 0.0008 0.0015 0.0021 0.0023 0.0025 0.0029
Feed (IPM) 28 33 42 56 49 55 48
Finish
2 ≤ 0.02
468 RPM 9535 7151 4767 3576 2860 2384 1788
(374-562)
Fz 0.0004 0.0006 0.0012 0.0017 0.0018 0.0020 0.0023
Feed (IPM) 27 32 40 54 47 52 46
> 350
≤ 450
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn, Ti15V3
Profile
1 ≤ 0.05
140 RPM 2852 2139 1426 1070 856 713 535
(112-168)
Fz 0.0005 0.0008 0.0015 0.0021 0.0023 0.0025 0.0029
Feed (IPM) 10 12 15 20 18 20 17
Finish
2 ≤ 0.02
168 RPM 3423 2567 1711 1284 1027 856 642
(134-202)
Fz 0.0004 0.0006 0.0012 0.0017 0.0018 0.0020 0.0023
Feed (IPM) 10 12 14 19 17 19 16
*Maximum recommended depth shown
*Reduce speed and feed recommendations for materials harder than listed
*Above recommendations are based on ideal conditions. Adjust parameters accordingly for smaller taper machining centers or less rigid conditions
*For additional assistance, please refer to the SGS Tool Wizard (www.sgstool.com)
www.sgstool.com
10
Multi-Carb
|
Speed & Feed Recommendations
Ap
Ap x D1
Ae
Ae x D1
Hardness
BRINELL
Series 66M, 66MCR
Metric
Vc
(m/min)
Diameter (mm)
6 8 10 12 16 20 25
≤ 175
CARBON STEEL
1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
Profile
1 ≤ 0.05
219 RPM 11609 8707 6965 5804 4353 3483 2786
(175-263)
Fz 0.029 0.047 0.059 0.072 0.084 0.096 0.105
Feed (mm/min) 2357 2864 2877 3761 3291 3678 3218
Finish
2 ≤ 0.02
263 RPM 13931 10448 8358 6965 5224 4179 3343
(210-315)
Fz 0.023 0.038 0.047 0.058 0.067 0.077 0.084
Feed (mm/min) 2262 2750 2762 3611 3159 3531 3089
≤ 275
ALLOY STEEL
4140, 4150, 4320, 5120, 5150,
8630, 86L20, 50100
Profile
1 ≤ 0.05
162 RPM 8587 6441 5152 4294 3220 2576 2061
(130-194)
Fz 0.022 0.036 0.045 0.055 0.067 0.075 0.080
Feed (mm/min) 1322 1623 1623 2125 1942 2125 1814
Finish
2 ≤ 0.02
194 RPM 10305 7729 6183 5152 3864 3091 2473
(156-233)
Fz 0.018 0.029 0.036 0.044 0.054 0.060 0.064
Feed (mm/min) 1270 1558 1558 2040 1864 2040 1741
≤ 375
TOOL STEEL
A2, D2, H13, L2, M2, P20, S7,
T15, W2
Profile
1 ≤ 0.05
88 RPM 4665 3499 2799 2332 1749 1399 1120
(70-106)
Fz 0.022 0.036 0.045 0.055 0.067 0.075 0.080
Feed (mm/min) 718 882 882 1155 1055 1155 985
Finish
2 ≤ 0.02
106 RPM 5598 4198 3359 2799 2099 1679 1343
(84-127)
Fz 0.018 0.029 0.036 0.044 0.054 0.060 0.064
Feed (mm/min) 690 846 846 1108 1013 1108 946
≤ 260
CAST IRON
(LOW / MEDIUM ALLOY)
Gray, Mallable, Ductile
Profile
1 ≤ 0.05
160 RPM 8481 6361 5089 4241 3181 2544 2036
(128-192)
Fz 0.029 0.047 0.059 0.072 0.084 0.096 0.105
Feed (mm/min) 1722 2093 2102 2748 2404 2687 2351
Finish
2 ≤ 0.02
192 RPM 10178 7633 6107 5089 3817 3053 2443
(154-230)
Fz 0.023 0.038 0.047 0.058 0.067 0.077 0.084
Feed (mm/min) 1653 2009 2018 2638 2308 2579 2257
> 260
≤ 320
CAST IRON
(DIFFICULT / HIGH ALLOY)
Gray, Mallable, Ductile
Profile
1 ≤ 0.05
91 RPM 4824 3618 2894 2412 1809 1447 1158
(73-109)
Fz 0.007 0.012 0.015 0.018 0.021 0.024 0.027
Feed (mm/min) 240 309 308 397 347 376 340
Finish
2 ≤ 0.02
109 RPM 5789 4341 3473 2894 2171 1737 1389
(87-131)
Fz 0.006 0.010 0.012 0.015 0.017 0.019 0.021
Feed (mm/min) 230 297 296 381 333 361 326
≤ 185
STAINLESS STEEL
(FREE MACHINING)
303, 416, 420F, 430F 440F
Profile
1 ≤ 0.05
171 RPM 9064 6798 5439 4532 3399 2719 2175
(137-205)
Fz 0.022 0.036 0.045 0.055 0.067 0.075 0.080
Feed (mm/min) 1396 1713 1713 2243 2050 2243 1914
Finish
2 ≤ 0.02
205 RPM 10877 8158 6526 5439 4079 3263 2611
(164-246)
Fz 0.018 0.029 0.036 0.044 0.054 0.060 0.064
Feed (mm/min) 1340 1645 1645 2154 1968 2154 1838
www.sgstool.com 11
Multi-Carb
|
Speed & Feed Recommendations
Ap
Ap x D1
Ae
Ae x D1
Hardness
BRINELL
Series 66M, 66MCR
Metric
Vc
(m/min)
Diameter (mm)
6 8 10 12 16 20 25
≤ 185
STAINLESS STEEL
(DIFFICULT)
304, 304L, 316, 316L
Profile
1 ≤ 0.05
117 RPM 6202 4651 3721 3101 2326 1861 1488
(94-140)
Fz 0.022 0.036 0.045 0.055 0.067 0.075 0.080
Feed (mm/min) 955 1172 1172 1535 1402 1535 1310
Finish
2 ≤ 0.02
140 RPM 7442 5582 4465 3721 2791 2233 1786
(112-168)
Fz 0.018 0.029 0.036 0.044 0.054 0.060 0.064
Feed (mm/min) 917 1125 1125 1474 1346 1474 1257
≤ 325
STAINLESS STEEL
(PH)
13-8 PH, 15-5PH, 17-4 PH,
Custom 450
Profile
1 ≤ 0.05
108 RPM 5725 4294 3435 2862 2147 1717 1374
(86-130)
Fz 0.017 0.030 0.037 0.043 0.051 0.059 0.065
Feed (mm/min) 681 902 890 1108 985 1115 982
Finish
2 ≤ 0.02
130 RPM 6870 5152 4122 3435 2576 2061 1649
(104-156)
Fz 0.014 0.024 0.030 0.034 0.041 0.047 0.052
Feed (mm/min) 654 866 854 1063 946 1070 943
≤ 300
SUPER ALLOYS
(NICKEL, COBALT, IRON BASED)
Inconel 601, 617, 625, Incoly 800,
Monel 400
Profile
1 ≤ 0.05
32 RPM 1696 1272 1018 848 636 509 407
(26-38)
Fz 0.017 0.030 0.037 0.043 0.051 0.059 0.065
Feed (mm/min) 202 267 214 328 292 330 291
Finish
2 ≤ 0.02
38 RPM 2036 1527 1221 1018 763 611 489
(31-46)
Fz 0.014 0.024 0.030 0.034 0.041 0.047 0.052
Feed (mm/min) 194 256 253 315 280 317 279
> 300
SUPER ALLOYS
(NICKEL, COBALT, IRON BASED –
DIFFICULT)
Inconel 718, 750X, Incoly 925,
Waspaloy, Hastelloy, Rene
Profile
1 ≤ 0.05
26 RPM 1378 1034 827 689 517 413 331
(21-31)
Fz 0.012 0.020 0.025 0.030 0.035 0.039 0.044
Feed (mm/min) 113 143 142 184 162 176 159
Finish
2 ≤ 0.02
31 RPM 1654 1240 992 827 620 496 397
(25-37)
Fz 0.009 0.016 0.020 0.024 0.028 0.031 0.035
Feed (mm/min) 108 138 137 177 155 169 153
≤ 350
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo, Ti4Al4Mo2Sn0.5Si
Profile
1 ≤ 0.05
119 RPM 6308 4731 3785 3154 2365 1892 1514
(95-143)
Fz 0.019 0.032 0.040 0.050 0.059 0.067 0.073
Feed (mm/min) 839 1060 1060 1419 1256 1395 1216
Finish
2 ≤ 0.02
143 RPM 7570 5677 4542 3785 2839 2271 1817
(114-171)
Fz 0.015 0.026 0.032 0.040 0.047 0.054 0.058
Feed (mm/min) 805 1017 1017 1363 1206 1339 1167
> 350
≤ 450
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn, Ti15V3
Profile
1 ≤ 0.05
43 RPM 2279 1710 1368 1140 855 684 547
(34-52)
Fz 0.019 0.032 0.040 0.050 0.059 0.067 0.073
Feed (mm/min) 303 383 383 513 454 504 439
Finish
2 ≤ 0.02
52 RPM 2735 2051 1641 1368 1026 821 656
(41-62)
Fz 0.015 0.026 0.032 0.040 0.047 0.054 0.058
Feed (mm/min) 291 368 368 492 436 484 422
*Maximum recommended depth shown
*Reduce speed and feed recommendations for materials harder than listed
*Above recommendations are based on ideal conditions. Adjust parameters accordingly for smaller taper machining centers or less rigid conditions
*For additional assistance, please refer to the SGS Tool Wizard (www.sgstool.com)
UNITED STATES OF AMERICA
SGS TOOL COMPANY
World Headquarters
P.O. Box 187
55 South Main Street
Munroe Falls, Ohio 44262 U.S.A.
phone: (330) 688-6667
customer service -
US and Canada: (330) 686-5700
fax - US & Canada: (800) 447-4017
international fax: (330) 686-2146
e-mail: webmaster@sgstool.com
UNITED KINGDOM
SGS CARBIDE TOOL (UK) LTD.
10 Ashville Way
Wokingham, Berkshire
RG41 2PL England
phone: (44) 1189-795-200
fax: (44) 1189-795-295
e-mail: sales@sgstool.co.uk
FRANCE
SGS FRANCE
Business Parc SILIC
20 Rue Saarinen
Case Postale 10248
94568 RUNGIS CEDEX
France
phone: +33 (0) 1 49 79 76 90
fax: +33 (0) 1 49 79 76 94
e-mail: sgsfrance@sgstool.fr
GERMANY
SGS TOOL GmbH
Hitdorfer Strasse 10C
Langenfeld D40764
phone: (49) 2173-9100-91
fax: (49) 2173-9100-99
e-mail: info@sgs-tool.de
CANADA
SGS TOOL CANADA
171 Northport Road, Unit #3
Port Perry, ON L9L 1B2
phone: 905/982-0888
fax: 905/982-0488
e-mail: sgstool@powergate.ca
EASTERN EUROPE
SINTCOM
phone: (359) 283-64421
fax: (359) 286-52493
e-mail: sintcom@cablebg.net
RUSSIA
HALTEC
phone: (7) 842-231-0738
fax: (7) 842-231-0601
e-mail: info@haltec.ru
web: www.haltec.ru
CHINA
SGS TOOL DIVISION
phone: (86) 21-50589822
fax: (86) 21-50817160
e-mail: china@sgstool.com
Performance by Design
EDP 00097 Rev 1213
© SGS Tool Company
SGS Products are distributed by:
sgstool.com
Solutions Around The Globe
SGS Tool Company is a privately-held, ISO-
certied leader of round solid carbide cutting
tool technology for the aerospace, metalworking,
and automotive industries with manufacturing
sites in the United States and United Kingdom.
Our global network of Sales Representatives,
Industrial Distributors, and Agents blanket the
world selling into more than 60 countries.
Leaders in Solid Carbide Tool Technology
Brand names such as Z-Carb, S-Carb, V-Carb,
Hi-PerCarb, Multi-Carb have become synony-
mous with high performance tooling in the
machining and metalworking industry.
We’re proud to have pioneered some of the
world’s most advanced cutting technology
right here in our Northeast Ohio manufactur-
ing campus. SGS high performance end mills,
drills and routers are increasing productivity
and reducing cost around the world.
Exceeding Customer Expectations
In addition to our substantial R&D facilities,
we offer a portfolio of products and services
that have an unparalleled track record in
manufacture, supply and value at the spindle.
• Incredible batch-to-batch consistency
• Metallurgical lab dedicated to testing and
rigorous quality control
• ISO-certied quality procedures
• Patented geometries that extend tool life,
reduce chatter, cut cycle times, and improve
part quality—even at extreme parameters
• Specialists in extreme and demanding
product applications
• Experienced Field Sales Engineers who
work to optimize a tool for your particular
application
• Dedicated multi-lingual customer service
representatives
Solid Carbide Tools
