VALUE AT THE SPINDLE
Aluminum
Tools For Aluminum
ISO 9001 Certified Company
Solid Carbide Tools
APF
S-CARB APF
APR
S-CARB APR
www.sgstool.com
2
HIGH
PERFORMANCE
ALUMINUM
MACHINING
APR - APF
ADVANCED
PRODUCTIVITY
ROUGHING
AND FINISHING
ENDMILLS

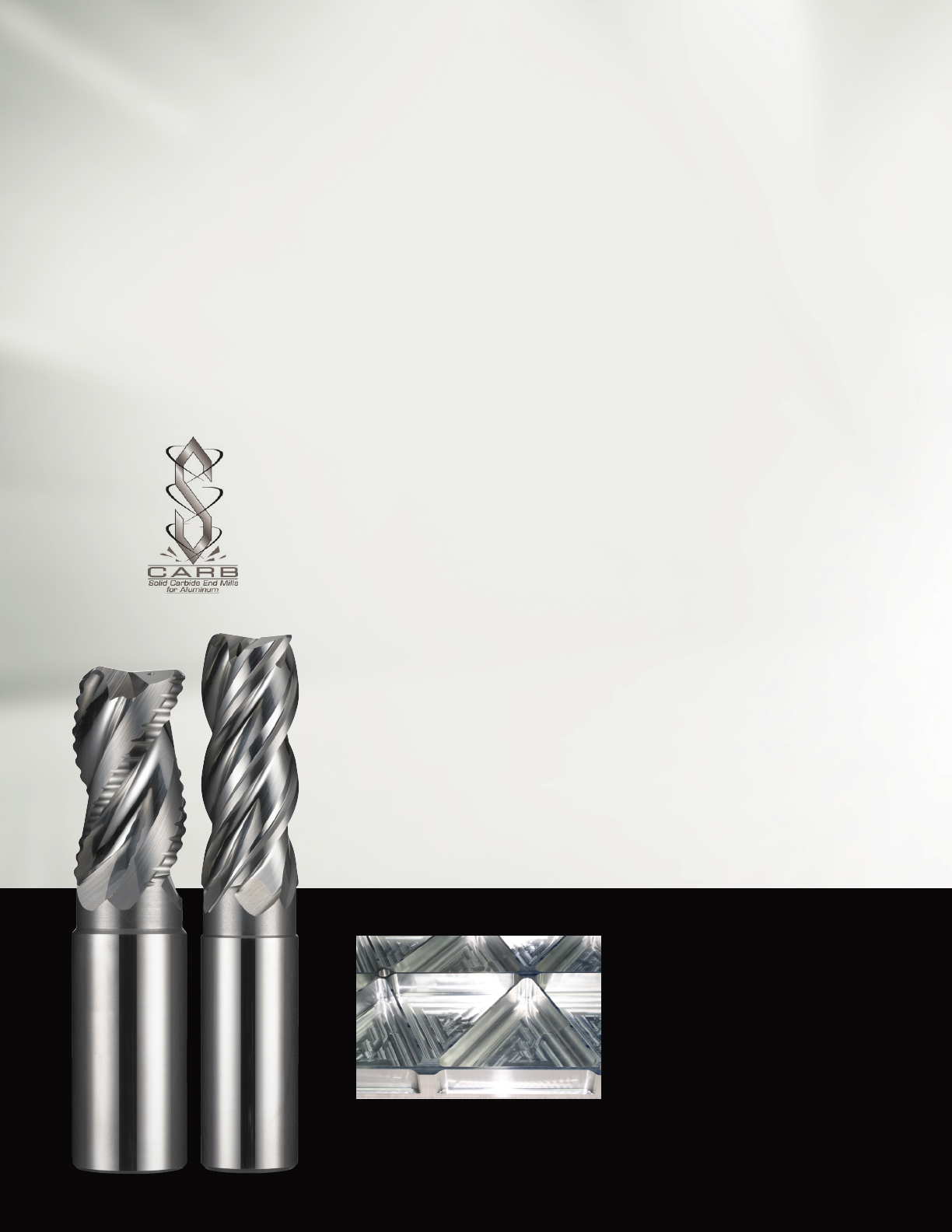

S-Carb APR
Developed and engineered for high power, high
efciency machining of aluminium aerospace structural
parts (i.e. ribs, spars) and their equivalent. Material
removal rates of 550 cubic inches achievable, dependent
on machine.
S-Carb APF
Developed and engineered for high-feed nishing of thin
wall aluminium sections typically on aerospace ribs. Vast
reduction in machining times, with straighter walls and
superior nishes compared to waterlining.
VALUE AT THE SPINDLE
Design and engineering ensure
outstanding performance in a
variety of aluminum applications.
Please contact your SGS representative for more information.
NEW!
www.sgstool.com 3
Please contact your SGS representative for more information.

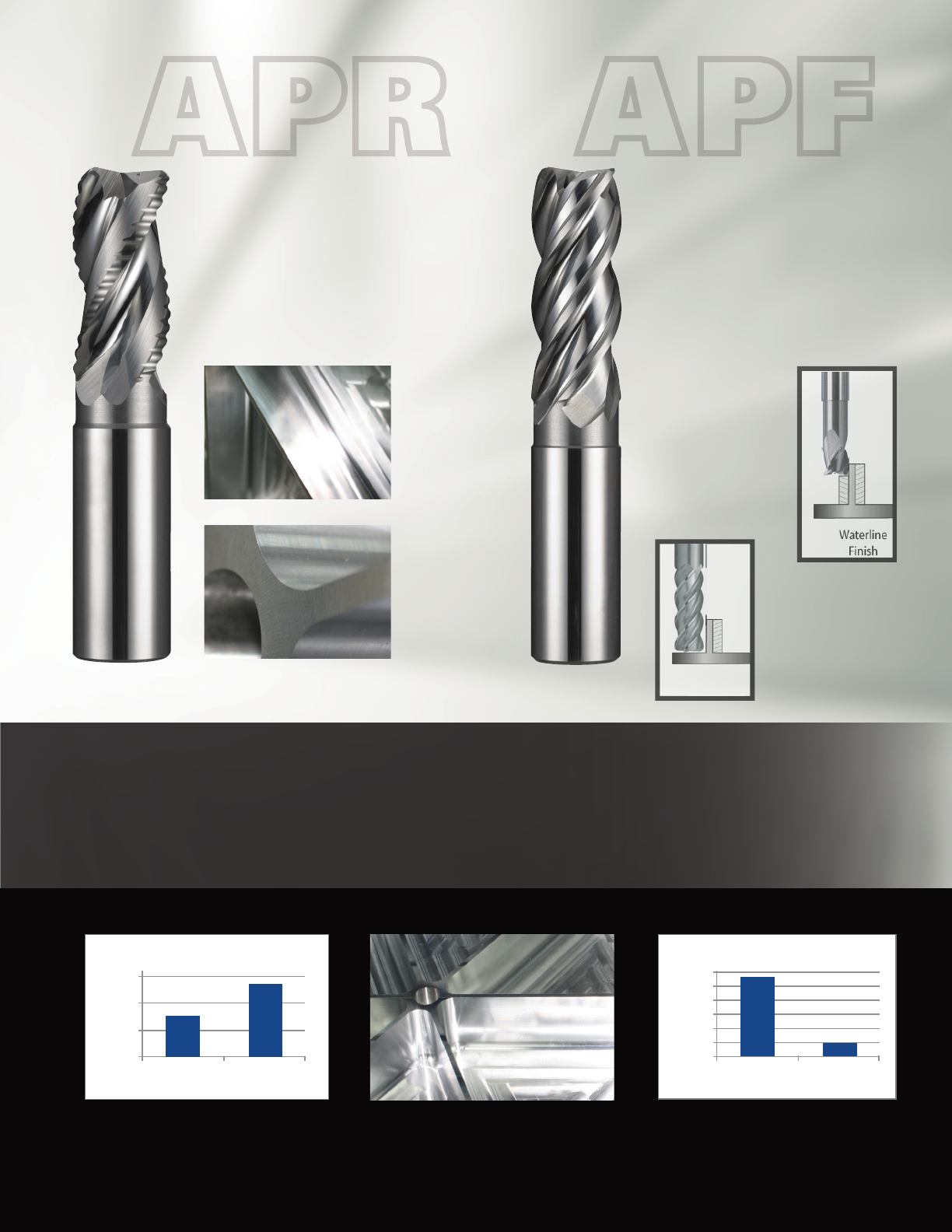

'One Hit'
• 4 ute unique variable geometry
reduces vibration and allows
nishing of thin walls in one pass
• Through coolant design
• Polished utes for superior
nishes
• Signicant reduction
in cycletimes
Typical Method:
High-speed
waterline nishing,
multiple passes at
numerous levels to
produce acceptable
thin walls
APF Method:
High speed nishing
at full depth without
wall distortion
• 3 ute design for high feed
power roughing
• High feed direct plunge ability
• Through coolant design
• Polished ute design to
maximize chip evacuation
Dramatic increase in productivity versus
the high speed waterline nishing
method, which multiple passes are made
to produce acceptable thin walls.
Superior metal removal rate
achievement over competition.
APR
S-CARB APR
APF
S-CARB APF
Metal Removal Rate
Competitor W
600
400
200
0
S-CARB APR
Roughing
Cubic Inches
Time (minutes)
High-Speed
Waterline
Machining
600
500
400
300
200
10
0
S-CARB APF
Finishing
Time in Minutes
ENGINEERED
www.sgstool.com
4
43APR
(FRACTIONAL)
TOLERANCES (inch)
DIAMETER D1D2
3/4 - 1 –0.00040/–0.00200 h6
CORNER RADIUS TOLERANCES (inch)
R= +/– 0.0018
2
D
1
D
45°
R
L
1
L
2
L
3
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
3/4 1-3/8 4-1/4 3/4 2-3/8 .030 34000
3/4 1-3/8 4-1/4 3/4 2-3/8 .060 34001
3/4 1-3/8 4-1/4 3/4 2-3/8 .090 34002
3/4 1-3/8 4-1/4 3/4 2-3/8 .120 34003
3/4 1-1/4 4-7/8 3/4 3 .030 34004
3/4 1-1/4 4-7/8 3/4 3 .060 34005
3/4 1-1/4 4-7/8 3/4 3 .090 34006
3/4 1-1/4 4-7/8 3/4 3 .120 34007
1 1-3/4 4-1/2 1 2-1/2 .030 34008
1 1-3/4 4-1/2 1 2-1/2 .060 34009
1 1-3/4 4-1/2 1 2-1/2 .090 34010
1 1-3/4 4-1/2 1 2-1/2 .120 34011
1 1-1/2 5-1/4 1 3-1/4 .030 34012
1 1-1/2 5-1/4 1 3-1/4 .060 34013
1 1-1/2 5-1/4 1 3-1/4 .090 34014
1 1-1/2 5-1/4 1 3-1/4 .120 34015
TOLERANCES (mm)
DIAMETER D1D2
12 - 25 –0,010/–0,050 h6
CORNER RADIUS TOLERANCES (mm)
R = +/– 0,03
Available on request: •  JetStream Technology •  Side exits for MQL applications
43MAPR
(METRIC)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
12,0 18,0 83,0 12,0 38,0 – 44650
12,0 18,0 83,0 12,0 38,0 2,0 44685
12,0 18,0 83,0 12,0 38,0 3,0 44686
12,0 18,0 83,0 12,0 38,0 4,0 44687
16,0 24,0 92,0 16,0 51,0 – 44652
16,0 24,0 92,0 16,0 51,0 2,0 44688
16,0 24,0 92,0 16,0 51,0 3,0 44689
16,0 24,0 92,0 16,0 51,0 4,0 44690
20,0 30,0 86,0 20,0 45,0 – 44646
20,0 30,0 86,0 20,0 45,0 3,0 44647
20,0 30,0 86,0 20,0 45,0 4,0 44648
20,0 30,0 86,0 20,0 45,0 5,0 44649
20,0 35,0 104,0 20,0 64,0 – 44653
20,0 35,0 104,0 20,0 64,0 3,0 44691
20,0 35,0 104,0 20,0 64,0 4,0 44692
20,0 35,0 104,0 20,0 64,0 5,0 44693
25,0 35,0 108,0 25,0 55,0 3,0 44809
25,0 35,0 108,0 25,0 55,0 4,0 44810
25,0 35,0 108,0 25,0 55,0 5,0 44811
25,0 35,0 140,0 25,0 80,0 – 44654
25,0 35,0 140,0 25,0 80,0 3,0 44694
25,0 35,0 140,0 25,0 80,0 4,0 44695
25,0 35,0 140,0 25,0 80,0 5,0 44696
25,0 35,0 140,0 25,0 90,0 3,0 44645
Series 43
|
S-Carb APR – 3 Flute
www.sgstool.com 5
www.sgstool.com
Series 43
|
S-Carb APF – 4 Flute
43APF
(FRACTIONAL)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
1/2 1-1/4 3-1/4 1/2 1-5/8 .030 34016
1/2 1-1/4 3-1/4 1/2 1-5/8 .060 34017
1/2 1-1/4 3-1/4 1/2 1-5/8 .090 34018
1/2 1-1/4 3-1/4 1/2 1-5/8 .120 34019
1/2 2 4 1/2 2-3/8 .030 34020
1/2 2 4 1/2 2-3/8 .060 34021
1/2 2 4 1/2 2-3/8 .090 34022
1/2 2 4 1/2 2-3/8 .120 34023
3/4 1-7/8 4-1/4 3/4 2-3/8 .030 34024
3/4 1-7/8 4-1/4 3/4 2-3/8 .060 34025
3/4 1-7/8 4-1/4 3/4 2-3/8 .090 34026
3/4 1-7/8 4-1/4 3/4 2-3/8 .120 34027
3/4 3 5-3/8 3/4 3-1/2 .030 34028
3/4 3 5-3/8 3/4 3-1/2 .060 34029
3/4 3 5-3/8 3/4 3-1/2 .090 34030
3/4 3 5-3/8 3/4 3-1/2 .120 34031
2
D
1
D
R
L
1
L
2
L
3
37°
40°
43MAPF
(METRIC)
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-NAMITE-B
(TiB2)
EDP No.
6,0 24,0 58,0 6,0 30,0 – 44627
8,0 32,0 64,0 8,0 40,0 – 44628
10,0 40,0 80,0 10,0 50,0 – 44629
12,0 30,0 83,0 12,0 40,0 – 44630
12,0 30,0 83,0 12,0 40,0 2,0 44745
12,0 30,0 83,0 12,0 40,0 3,0 44746
12,0 30,0 83,0 12,0 40,0 4,0 44747
12,0 30,0 83,0 12,0 50,0 0,5 44641
12,0 30,0 83,0 12,0 50,0 5,0 44642
12,0 48,0 100,0 12,0 62,0 – 44631
12,0 48,0 100,0 12,0 62,0 2,0 44748
12,0 48,0 100,0 12,0 62,0 3,0 44749
12,0 48,0 100,0 12,0 62,0 4,0 44750
16,0 42,0 93,0 16,0 51,0 5,0 44643
16,0 40,0 92,0 16,0 51,0 – 44634
16,0 40,0 92,0 16,0 51,0 2,0 44751
16,0 40,0 92,0 16,0 51,0 3,0 44752
16,0 40,0 92,0 16,0 51,0 4,0 44753
16,0 64,0 125,0 16,0 82,0 – 44635
16,0 64,0 125,0 16,0 82,0 2,0 44754
16,0 64,0 125,0 16,0 82,0 3,0 44755
16,0 64,0 125,0 16,0 82,0 4,0 44756
20,0 50,0 108,0 20,0 63,0 – 44636
20,0 50,0 108,0 20,0 63,0 3,0 44757
20,0 50,0 108,0 20,0 63,0 4,0 44758
20,0 50,0 108,0 20,0 63,0 5,0 44759
20,0 80,0 150,0 20,0 102,0 – 44637
20,0 80,0 150,0 20,0 102,0 3,0 44760
20,0 80,0 150,0 20,0 102,0 4,0 44761
20,0 80,0 150,0 20,0 102,0 5,0 44762
25,0 63,0 130,0 25,0 79,0 – 44638
25,0 63,0 130,0 25,0 79,0 3,0 44763
25,0 63,0 130,0 25,0 79,0 4,0 44764
25,0 63,0 130,0 25,0 79,0 5,0 44765
25,0 100,0 175,0 25,0 120,0 – 44639
25,0 100,0 175,0 25,0 120,0 3,0 44766
25,0 100,0 175,0 25,0 120,0 4,0 44767
25,0 100,0 175,0 25,0 120,0 5,0 44768
TOLERANCES (inch)
DIAMETER D1D2
1/2 - 3/4 –0.00040/–0.00200 h6
CORNER RADIUS TOLERANCES (inch)
R= +/– 0.0018
TOLERANCES (mm)
DIAMETER D1D2
6 - 25 –0,010/–0,050 h6
CORNER RADIUS TOLERANCES (mm)
R = +/– 0,03
Available on request: • JetStream Technology
5
www.sgstool.com
6
Fractional & Metric
|
Speed & Feed Recommendations
Series
S-Carb APR
Fractional
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D13/4 1
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061, 6063,
7075
Slot <40hp
1 ≤ 1
3280 RPM 16706 12530
(2624-3936) Fz 0.0060 0.0070
Feed (IPM) 301 263
Slot >67hp
1 ≤ 1
4920 RPM 25059 18794
(3936-5904)
Fz 0.0090 0.0110
Feed (IPM) 677 620
Profile
≤ 0.5 ≤ 1.5
6560 RPM 33412 25059
(5248-7872) Fz 0.0090 0.0110
Feed (IPM) 902 827
N
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195, 2199,
2297, 8090
Slot <40hp
1 ≤ 1
2620 RPM 13345 10008
(2096-3144) Fz 0.0060 0.0070
Feed (IPM) 240 210
Slot >67hp
1 ≤ 1
3940 RPM 20068 15051
(3152-4728) Fz 0.0090 0.0110
Feed (IPM) 542 497
Profile
≤ 0.5 ≤ 1.5
4920 RPM 25059 18794
(3936-5904) Fz 0.0090 0.0110
Feed (IPM) 677 620
Note:
•  surface speed is dependent on machine spindle & fixturing*
•  balancing is recommended at ultra high surface speeds
•  tool life may be reduced when machining Lithium Alloys
•  rpm = sfm x 3.82 / D1
•  ipm = (inch / flute) x number of flutes x rpm
•  maximum recommended depths shown
•  reduce speed and feed for materials harder than listed
•  ramp angle = 15˚ (feed rate = 30%)
•  maximum ramp depth = 1 x D1
•  plunge depth = 1 x D1 (feed rate = 30%)
•  refer to the SGS Tool Wizard for complete technical information (www.sgstool.com)

Series
S-Carb APR
Metric
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D112 16 20 25
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061, 6063,
7075
Slot <30 kW
1 1
1000 RPM 26525 19894 15915 12732
(800-1200) Fz 0.080 0.110 0.150 0.180
Feed (mm/min) 6366 6565 7162 6875
Slot >50kW
1 ≤ 1
1500 RPM 39788 29841 23873 19098
(1200-1800)
Fz 0.120 0.160 0.220 0.270
Feed (mm/min) 14324 14324 15756 15469
Profile
≤ 0.5 ≤ 1.5
2000 RPM 53050 39788 31830 25464
(1600-2400) Fz 0.120 0.160 0.220 0.270
Feed (mm/min) 19098 19098 21008 20626
N
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195, 2199,
2297, 8090
Slot <30 kW
1 ≤ 1
800 RPM 21220 15915 12732 10186
(640-960) Fz 0.080 0.110 0.150 0.180
Feed (mm/min) 5093 5252 5729 5500
Slot >50kW
1 ≤ 1
1200 RPM 31830 23873 19098 15278
(960-1440) Fz 0.120 0.160 0.220 0.270
Feed (mm/min) 11459 11459 12605 12375
Profile
≤ 0.5 ≤ 1.5
1500 RPM 39788 29841 23873 19098
(1200-1800) Fz 0.120 0.160 0.220 0.270
Feed (mm/min) 14324 14324 15756 15469
Note:
•  surface speed is dependent on machine spindle & fixturing*
•  balancing is recommended at ultra high surface speeds
•  tool life may be reduced when machining Lithium Alloys
•  rpm = (1000 x m/min) / (3.14 x D1)
•  mm/min = (mm / flute) x rpm
•  maximum recommended depths shown
•  reduce speed and feed for materials harder than listed
•  ramp angle = 15˚ (feed rate = 30%)
•  maximum ramp depth = 1 x D1
•  plunge depth = 1 x D1 (feed rate = 30%)
•  refer to the SGS Tool Wizard for complete technical information (www.sgstool.com)
www.sgstool.com 7
Fractional & Metric
|
Speed & Feed Recommendations
Tool Wizard
CALCULATE APPLICATION PARAMETERS
www.sgstool.com
Tool Wizard
CALCULATE APPLICATION PARAMETERS
www.sgstool.com
Series
S-Carb APF
Fractional
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/2 3/4
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061, 6063,
7075
Profile
≤ 0.1 ≤ 2.5
2625 RPM 20055 13370
(2100-3150) Fz 0.0030 0.0050
Feed (IPM) 241 267
Profile
≤ 0.1 ≤ 4
2625 RPM 20055 13370
(2100-3150) Fz 0.0020 0.0040
Feed (IPM) 160 214
N
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195, 2199,
2297, 8090
Profile
≤ 0.1 ≤ 2.5
1970 RPM 15051 10034
(1576-2364) Fz 0.0030 0.0050
Feed (IPM) 181 201
Profile
≤ 0.1 ≤ 4
1970 RPM 15051 10034
(1576-2364) Fz 0.0020 0.0040
Feed (IPM) 120 161
Note:
•  surface speed is dependent on machine spindle & fixturing*
•  balancing is recommended at ultra high surface speeds
•  tool life may be reduced when machining Lithium Alloys
•  rpm = sfm x 3.82 / D1
•  ipm = (inch / flute) x number of flutes x rpm
•  maximum recommended depths shown
•  reduce speed and feed for materials harder than listed
•  finish cuts typically require reduced feed and cutting depths of 0.02 x D1 maximum
•  ramp angle = 6˚ (feed rate = 30%)
•  maximum ramp depth = .25 x D1
•  plunging not recommended
•  refer to the SGS Tool Wizard for complete technical information (www.sgstool.com)
Series
S-Carb APF
Metric
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D16 8 10 12 16 20 25
N
ALUMINUM ALLOYS
2024, 5052, 5086, 6061, 6063,
7075
Profile
≤ 0.1 ≤ 2.5
800 RPM 42440 31830 25464 21220 15915 12732 10186
(640-960) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170
Feed (mm/min) 8488 7003 6111 5942 6366 7130 6926
Profile
≤ 0.1 ≤ 4
800 RPM 42440 31830 25464 21220 15915 12732 10186
(640-960) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120
Feed (mm/min) 6790 5729 5093 4244 4456 5093 4889
N
ALUMINUM ALLOYS
(LITHIUM)*
2090, 2091, 2099, 2195, 2199,
2297, 8090
Profile
≤ 0.1 ≤ 2.5
600 RPM 31830 23873 19098 15915 11936 9549 7639
(480-720) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170
Feed (mm/min) 6366 5252 4584 4456 4774 5347 5195
Profile
≤ 0.1 ≤ 4
600 RPM 31830 23873 19098 15915 11936 9549 7639
(480-720) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120
Feed (mm/min) 5093 4297 3820 3183 3342 3820 3667
Note:
•  surface speed is dependent on machine spindle & fixturing*
•  balancing is recommended at ultra high surface speeds
•  tool life may be reduced when machining Lithium Alloys
•  rpm = (1000 x m/min) / (3.14 x D1)
•  mm/min = (mm / flute) x rpm
•  maximum recommended depths shown
•  reduce speed and feed for materials harder than listed
•  finish cuts typically require reduced feed and cutting depths of 0.02 x D1 maximum
•  ramp angle = 6˚ (feed rate = 30%)
•  maximum ramp depth = .25 x D1
•  plunging not recommended
•  refer to the SGS Tool Wizard for complete technical information (www.sgstool.com)
