SERIES 33 Three Flute End Mills
www.kyocera-sgstool.com
Solid Carbide Tools
AB

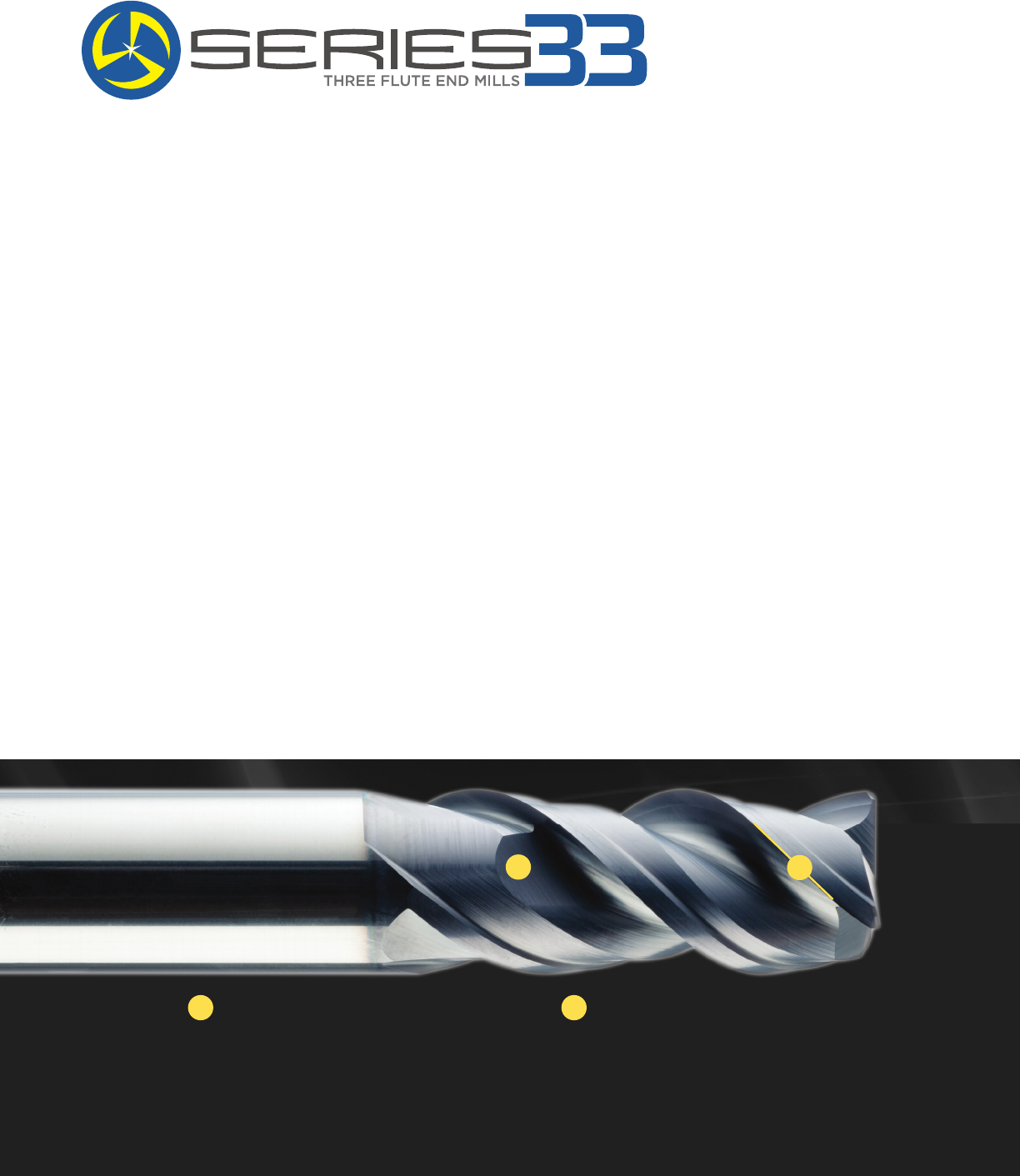

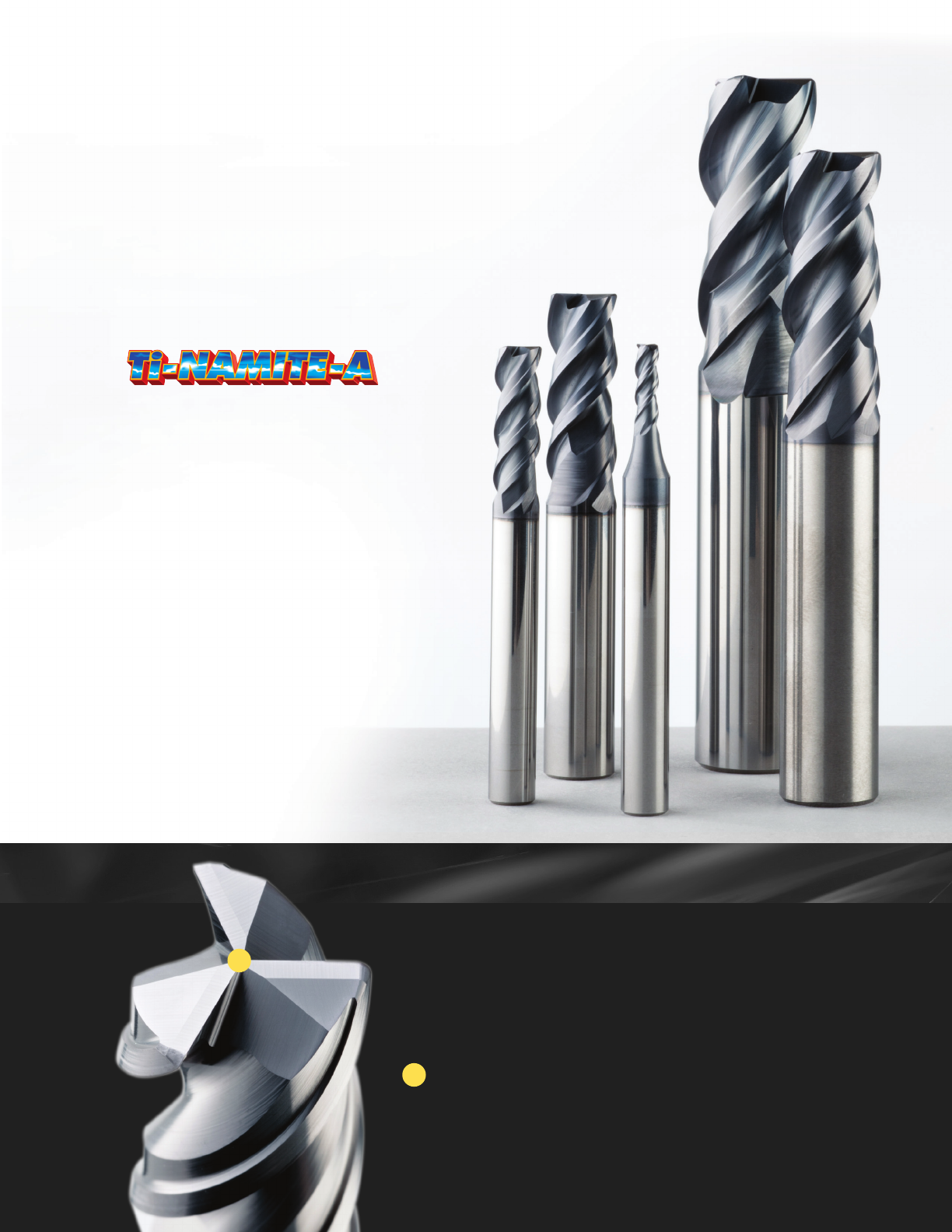

Stepped Core Design
Increased chip space at the axial end of
the tool for aggressive slotting, improved
rigidity, and optimized chip formation.
A
Proprietary Variable Geometry
Engineered variable helix and pitch
conguration offer chatter and vibration
suppression.
B
Using the latest in engineering design and grinding capabilities, Series 33 High
Performance End Mills are ideal for aggressive ramping, pocketing, and slotting in
difcult to machine materials such as Stainless Steel, Titanium, and Inconel. Designed
for applications challenged by heavy chip evacuation, this 3-Flute design offers
increased chip clearance and a reduction in harmonics.
• Proprietary 3-Flute design allows for more controlled chip formation and efcient
chip evacuation.
• Specially engineered stepped core design provides stability for aggressive
ramping and rigidity when utes are completely engaged.
• Open design at the axial end accommodates material ow and load reduction
during operations.
• Variable geometry design provides superior chatter and vibration suppression
during aggressive milling.
• Available with KSPT Patented Jet Stream Technology for precise coolant placement.
• Exclusively coated with Ti-NAMITE-A, which helps to prevent edge build-up while
ensuring superior wear and enhanced tool life.
Series 33 is exclusively available with
the abrasive resistant AlTiN hard coating,
Ti-NAMITE-A. With excellent thermal and
chemical resistance, Ti-NAMITE-A allows
for dry cutting and improved performance
of carbide. Thecoating has a high hardness
ensuring the ultimate protection against
abrasive wear and erosion. Ideal for cast
iron, high temperature alloys, titanium,
steels, and stainless steel applications.
Hardness (HV): 3700
Oxidation Temperature: 1100°C / 2010°F
Coefcient of Friction: 0.30
Thickness: 1 – 4 Microns
(based on tool diameter)
THE SERIES 33 IS IDEAL FOR AGGRESSIVE
RAMPING, POCKETING AND SLOTTING
IN DIFFICULT TO MACHINE MATERIALS:
•
Aerospace Structural Components
•
Medical Implants
•
Automotive Performance Components
•
Stainless Steel Valves
Symmetrical End Gashing
Superior balance combined with a high level
of strength and ramping capabilities.
C
C
BACKGROUND
The hook plate is a primary support piece of a fork lift
assembly and requires precise machining tolerances. The
application calls for machining .230” from the peripheral
of the part at an axial depth of 1-1/2”: the A514 material
used in this application is similar to 4140. The competitor
tool was performing this in four rough passes followed by
a single nish pass. KYOCERA SGS Precision Tools (KSPT)
proposed a single roughing and nishing pass utilizing a
1” Series 33 End Mill.
GOALS
The primary goals of this test were to reduce cycle time,
increase tool life, and decrease overall tooling cost.
STRATEGY
Working with the end user to understand their needs, KSPT
approached the application with a 1” three ute Series 33
End Mill, allowing for increased tool life and greater feed
rates to improve cycle times.
KSPT COMPETITOR
TOOL DIAMETER 1.0 1.0
SPEED 2500 SFM 1578 SFM
FEED 54 IPM 17 IPM
RADIAL CUT (AE) .030” .030”
AXIAL CUT (AP) 1.5” 1.5”
CYCLE TIME 7.69 seconds 24.37 seconds
METAL REMOVAL RATES 2.46 cubic inches .78 cubic inches
INDUSTRY
Lift Equipment
COMPONENT
Hook Plate
MATERIAL
ASTM A514 HTSTL PLT 100 KSI
PRODUCT
KSPT Series 33 End Mill
AlTiN Coated
APPLICATION
Peripheral Machining
CNC INFO
Haas VF7
SPINDLE
CAT 50 Milling Chuck
COMPETITOR
3 Flute End Mill
COOLANT
Water Soluble
TOOL INFORMATION
1” DIA / 2 ¼” LOC / 5” OAL
COMPETITOR KSPT
60.0
50.0
40.0
30.0
20.0
10.0
0.0
FEED
IN INCHES
CYCLE TIME/
SECONDS
The KSPT Series 33 End Mill allowed for a 217% increase
in feed rates and a 68% reduction in cycle time.
$263,100
ANNUAL COST SAVINGS
13 DAYS
ADDITIONAL PRODUCTIVITY
91%
REDUCTION IN TOOLING COST
RESULTS
The changes made to the application combined with the high performance geometry of the
KSPT Series 33 End Mill resulted in an annual gain of 104.25 production hours. In addition to
meeting the goal for improved cycle times, tool life was increased from 20 to 240 parts per
tool. This reduced the tooling cost per part by 91%, allowing the end user to achieve a total
annual cost savings of $263,100.
CASE STUDY
KYOCERA SGS Precision Tools
SAVES AN END USER $263,100 ANNUALLY BY INCREASING
METAL REMOVAL RATE & OPTIMIZING CYCLE TIME
Increased Feed Rates
Increased Material Removal
Increased Tool Life
CONCLUSION
KSPT was able to achieve the pri-
mary goals of cycle time reduc-
tion and decreased tooling cost
by recommending a high per-
formance tool for the applica-
tion. This allowed for increased
feed and speed rates, resulted in
greater metal removal rates and
drastically improved tool life.
MACHINE COST SAVED ANNUALLY $10,425
TOOL LIFE IMPROVEMENT 220 Additional Parts
TOOLING COST SAVED PER PART $11.23
TOOLING COST SAVED ANNUALLY $252,675
CYCLE TIME SAVED PER PART 16.68 Seconds
NUMBER OF PARTS PER YEAR 22,500
CYCLE TIME SAVED ANNUALLY 104.25 Hours
COST TO MACHINE PER HOUR $100
$300,000
$250,000
$200,000
$150,000
$100,000
$50,000
$0
ANNUAL TOOLING
COST SAVINGS
TOTAL ANNUAL
COST SAVINGS
$252,675 $263,100
NUMBER OF PARTS PER TOOL
250
200
150
100
50
0
KSPT
240
PARTS
COMPETITOR
20
PARTS
20
PARTS
COMPETITOR KSPT
The KSPT Series 33 End Mill allowed for a 1100% increase!
BACKGROUND
The hook plate is a primary support piece of a fork lift
assembly and requires precise machining tolerances. The
application calls for machining .230” from the peripheral
of the part at an axial depth of 1-1/2”: the A514 material
used in this application is similar to 4140. The competitor
tool was performing this in four rough passes followed by
a single nish pass. KYOCERA SGS Precision Tools (KSPT)
proposed a single roughing and nishing pass utilizing a
1” Series 33 End Mill.
GOALS
The primary goals of this test were to reduce cycle time,
increase tool life, and decrease overall tooling cost.
STRATEGY
Working with the end user to understand their needs, KSPT
approached the application with a 1” three ute Series 33
End Mill, allowing for increased tool life and greater feed
rates to improve cycle times.
KSPT COMPETITOR
TOOL DIAMETER 1.0 1.0
SPEED 2500 SFM 1578 SFM
FEED 54 IPM 17 IPM
RADIAL CUT (AE) .030” .030”
AXIAL CUT (AP) 1.5” 1.5”
CYCLE TIME 7.69 seconds 24.37 seconds
METAL REMOVAL RATES 2.46 cubic inches .78 cubic inches
INDUSTRY
Lift Equipment
COMPONENT
Hook Plate
MATERIAL
ASTM A514 HTSTL PLT 100 KSI
PRODUCT
KSPT Series 33 End Mill
AlTiN Coated
APPLICATION
Peripheral Machining
CNC INFO
Haas VF7
SPINDLE
CAT 50 Milling Chuck
COMPETITOR
3 Flute End Mill
COOLANT
Water Soluble
TOOL INFORMATION
1” DIA / 2 ¼” LOC / 5” OAL
COMPETITOR KSPT
60.0
50.0
40.0
30.0
20.0
10.0
0.0
FEED
IN INCHES
CYCLE TIME/
SECONDS
The KSPT Series 33 End Mill allowed for a 217% increase
in feed rates and a 68% reduction in cycle time.
$263,100
ANNUAL COST SAVINGS
13 DAYS
ADDITIONAL PRODUCTIVITY
91%
REDUCTION IN TOOLING COST
RESULTS
The changes made to the application combined with the high performance geometry of the
KSPT Series 33 End Mill resulted in an annual gain of 104.25 production hours. In addition to
meeting the goal for improved cycle times, tool life was increased from 20 to 240 parts per
tool. This reduced the tooling cost per part by 91%, allowing the end user to achieve a total
annual cost savings of $263,100.
CASE STUDY
KYOCERA SGS Precision Tools
SAVES AN END USER $263,100 ANNUALLY BY INCREASING
METAL REMOVAL RATE & OPTIMIZING CYCLE TIME
Increased Feed Rates
Increased Material Removal
Increased Tool Life
CONCLUSION
KSPT was able to achieve the pri-
mary goals of cycle time reduc-
tion and decreased tooling cost
by recommending a high per-
formance tool for the applica-
tion. This allowed for increased
feed and speed rates, resulted in
greater metal removal rates and
drastically improved tool life.
MACHINE COST SAVED ANNUALLY $10,425
TOOL LIFE IMPROVEMENT 220 Additional Parts
TOOLING COST SAVED PER PART $11.23
TOOLING COST SAVED ANNUALLY $252,675
CYCLE TIME SAVED PER PART 16.68 Seconds
NUMBER OF PARTS PER YEAR 22,500
CYCLE TIME SAVED ANNUALLY 104.25 Hours
COST TO MACHINE PER HOUR $100
$300,000
$250,000
$200,000
$150,000
$100,000
$50,000
$0
ANNUAL TOOLING
COST SAVINGS
TOTAL ANNUAL
COST SAVINGS
$252,675 $263,100
NUMBER OF PARTS PER TOOL
250
200
150
100
50
0
KSPT
240
PARTS
COMPETITOR
20
PARTS
20
PARTS
COMPETITOR KSPT
The KSPT Series 33 End Mill allowed for a 1100% increase!
www.kyocera-sgstool.com6
Corner
Straight
HAIMER
Safe-Lock
Regular
Variable
Right Spiral
POS
Positive
Rake Angle
External
Coolant
JetStream
≠
Flute Spacing
Unequal
3
Flutes
TOLERANCES (inch)
DIAMETER D1D2
1/8 - 1/4 +0.0000 / –0.0012 h6
> 1/4 - 3/8 +0.0000 / –0.0016 h6
> 3/8 - 1 +0.0000 / –0.0020 h6
CORNER RADIUS TOLERANCES (inch)
R = +0.0000 / –0.0020

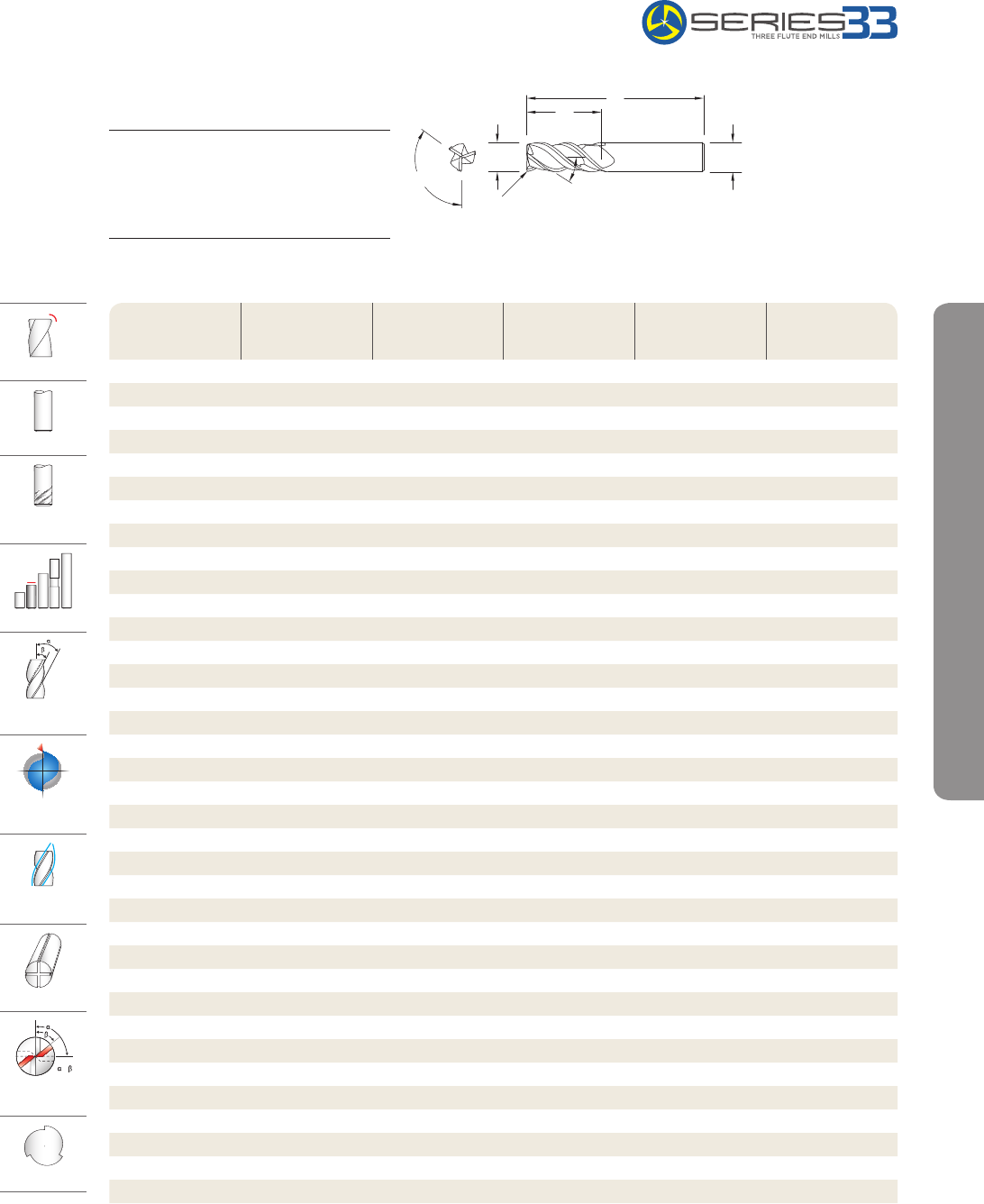

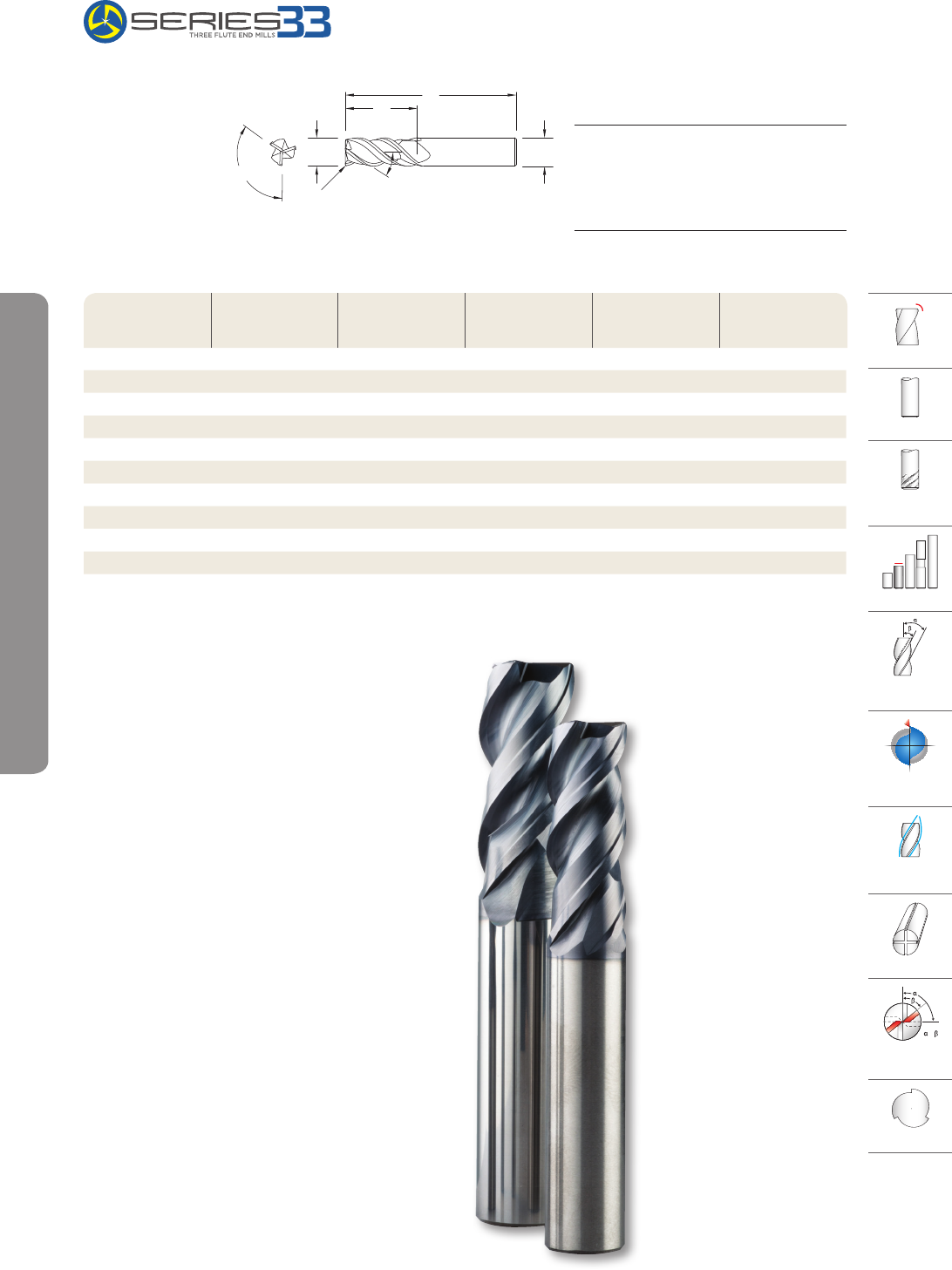

2
D
L
1
L2
1
D
≠
R
32°-48°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Ti-NAMITE-A
(AlTiN)
EDP No.
1/8 3/8 2-1/2 1/4 .015 33345
3/16 9/16 2-1/2 1/4 .015 33346
1/4 3/4 2-1/2 1/4 .020 33347
5/16 13/16 2-1/2 5/16 .020 33348
3/8 1 2-1/2 3/8 .020 33349
7/16 1-1/8 2-3/4 7/16 .020 33350
1/2 1-1/4 3-1/4 1/2 .030 33351
5/8 1-1/2 3-1/2 5/8 .040 33352
3/4 1-3/4 4 3/4 .040 33353
1 2-1/4 5 1 .040 33354
Series 33 CR
|
Fractional
www.kyocera-sgstool.com 7
Corner
Straight
HAIMER
Safe-Lock
Regular
Variable
Right Spiral
POS
Positive
Rake Angle
External
Coolant
JetStream
≠
Flute Spacing
Unequal
3
Flutes
TOLERANCES (mm)
DIAMETER D1D2
3 - 6 +0,000 / –0,030 h6
> 6 - 10 +0,000 / –0,040 h6
> 10 - 20 +0,000 / –0,050 h6
CORNER RADIUS TOLERANCES (mm)
R= +0,000 / –0,050
2
D
L
1
L2
1
D
≠
R
32°-48°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Ti-NAMITE-A
(AlTiN)
EDP No.
3,0 9,0 57,0 6,0 0,3 43445
3,0 9,0 57,0 6,0 0,5 43470
4,0 12,0 57,0 6,0 0,3 43446
4,0 12,0 57,0 6,0 0,5 43471
5,0 15,0 57,0 6,0 0,3 43447
5,0 15,0 57,0 6,0 0,5 43472
6,0 18,0 57,0 6,0 0,5 43448
6,0 18,0 57,0 6,0 1,0 43473
6,0 18,0 57,0 6,0 1,5 43474
6,0 18,0 57,0 6,0 2,0 43475
8,0 20,0 63,0 8,0 0,5 43449
8,0 20,0 63,0 8,0 1,0 43476
8,0 20,0 63,0 8,0 1,5 43477
8,0 20,0 63,0 8,0 2,0 43478
10,0 27,0 72,0 10,0 0,5 43450
10,0 27,0 72,0 10,0 1,0 43479
10,0 27,0 72,0 10,0 1,5 43480
10,0 27,0 72,0 10,0 2,0 43481
10,0 27,0 72,0 10,0 2,5 43482
12,0 30,0 83,0 12,0 0,5 43451
12,0 30,0 83,0 12,0 1,0 43483
12,0 30,0 83,0 12,0 1,5 43484
12,0 30,0 83,0 12,0 2,0 43485
12,0 30,0 83,0 12,0 2,5 43486
12,0 30,0 83,0 12,0 3,0 43487
12,0 30,0 83,0 12,0 4,0 43488
16,0 38,0 92,0 16,0 1,0 43452
16,0 38,0 92,0 16,0 1,5 43489
16,0 38,0 92,0 16,0 2,0 43490
16,0 38,0 92,0 16,0 2,5 43491
16,0 38,0 92,0 16,0 3,0 43492
16,0 38,0 92,0 16,0 4,0 43493
20,0 46,0 104,0 20,0 1,0 43453
20,0 46,0 104,0 20,0 2,0 43494
20,0 46,0 104,0 20,0 2,5 43495
20,0 46,0 104,0 20,0 3,0 43496
20,0 46,0 104,0 20,0 4,0 43497
Series 33 MCR
|
Metric
www.kyocera-sgstool.com8
Series 33
|
Speed & Feed Recommendations
Series
33CR
Fractional
Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/8 1/4 3/8 1/2 5/8 3/4 1
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
550 RPM 16808 8404 5603 4202 3362 2801 2101
(440-660)
Fz 0.0005 0.0012 0.0023 0.0031 0.0039 0.0040 0.0043
Feed (ipm) 25.2 30.3 38.7 39.1 39.3 33.6 27.1
Slot
1 ≤ 1
440 RPM 13446 6723 4482 3362 2689 2241 1681
(352-528)
Fz 0.0005 0.0012 0.0023 0.0031 0.0039 0.0040 0.0043
Feed (ipm) 20.2 24.2 30.9 31.3 31.5 26.9 21.7
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.5 ≤ 1.5
315 RPM 9626 4813 3209 2407 1925 1604 1203
(252-378)
Fz 0.0004 0.0009 0.0017 0.0023 0.0029 0.0030 0.0032
Feed (ipm) 11.6 13.0 16.4 16.6 16.7 14.4 11.6
Slot
1 ≤ 1
250 RPM 7640 3820 2547 1910 1528 1273 955
(200-300)
Fz 0.0004 0.0009 0.0017 0.0023 0.0029 0.0030 0.0032
Feed (ipm) 9.2 10.3 13.0 13.2 13.3 11.5 9.2
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.5 ≤ 1.5
185 RPM 5654 2827 1885 1413 1131 942 707
(148-222)
Fz 0.0003 0.0007 0.0014 0.0018 0.0023 0.0024 0.0025
Feed (ipm) 5.1 5.9 7.9 7.6 7.8 6.8 5.3
Slot
1 ≤ 1
145 RPM 4431 2216 1477 1108 886 739 554
(116-174)
Fz 0.0003 0.0007 0.0014 0.0018 0.0023 0.0024 0.0025
Feed (ipm) 4.0 4.7 6.2 6.0 6.1 5.3 4.2
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ 0.5 ≤ 1.5
445 RPM 13599 6800 4533 3400 2720 2267 1700
(356-534)
Fz 0.0004 0.0011 0.0021 0.0028 0.0035 0.0036 0.0039
Feed (ipm) 14.3 22.4 28.6 28.6 28.6 24.5 19.9
Slot
1 ≤ 1
355 RPM 10849 5424 3616 2712 2170 1808 1356
(284-426)
Fz 0.0004 0.0011 0.0021 0.0028 0.0035 0.0036 0.0039
Feed (ipm) 11.4 17.9 22.8 22.8 22.8 19.5 15.9
CAST IRONS
(HIGH ALLOY)
Gray, Malleable,
Ductile
≤ 260 Bhn
or
≤ 26 HRc
Profile
≤ 0.5 ≤ 1.5
340 RPM 10390 5195 3463 2598 2078 1732 1299
(272-408)
Fz 0.0003 0.0008 0.0016 0.0021 0.0026 0.0027 0.0029
Feed (ipm) 9.4 12.5 16.6 16.4 16.2 14.0 11.3
Slot
1 ≤ 1
270 RPM 8251 4126 2750 2063 1650 1375 1031
(216-324)
Fz 0.0003 0.0008 0.0016 0.0021 0.0026 0.0027 0.0029
Feed (ipm) 7.4 9.9 13.2 13.0 12.9 11.1 9.0
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F,
430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
490 RPM 14974 7487 4991 3744 2995 2496 1872
(392-588)
Fz 0.0004 0.0010 0.0019 0.0025 0.0031 0.0032 0.0035
Feed (ipm) 17.1 22.5 28.5 28.1 27.9 24.0 19.7
Slot
1 ≤ 1
390 RPM 11918 5959 3973 2980 2384 1986 1490
(312-468)
Fz 0.0004 0.0010 0.0019 0.0025 0.0031 0.0032 0.0035
Feed (ipm) 13.6 17.9 22.6 22.3 22.2 19.1 15.6
continued on next page
www.kyocera-sgstool.com 9
Series 33
|
Speed & Feed Recommendations
www.sgstoolwizard.com
Series
33CR
Fractional
Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/8 1/4 3/8 1/2 5/8 3/4 1
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
340 RPM 10390 5195 3463 2598 2078 1732 1299
(272-408)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 9.4 12.5 15.6 15.6 15.6 13.5 10.9
Slot
1 ≤ 1
270 RPM 8251 4126 2750 2063 1650 1375 1031
(216-324)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 7.4 9.9 12.4 12.4 12.4 10.7 8.7
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.5 ≤ 1.5
310 RPM 9474 4737 3158 2368 1895 1579 1184
(248-372)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 8.5 11.4 14.2 14.2 14.2 12.3 9.9
Slot
1 ≤ 1
250 RPM 7640 3820 2547 1910 1528 1273 955
(200-300)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 6.9 9.2 11.5 11.5 11.5 9.9 8.0
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ 0.5 ≤ 1.5
80 RPM 2445 1222 815 611 489 407 306
(64-96)
Fz 0.0003 0.0007 0.0013 0.0017 0.0021 0.0022 0.0024
Feed (ipm) 1.9 2.6 3.2 3.1 3.1 2.7 2.2
Slot
1 ≤ 1
65 RPM 1986 993 662 497 397 331 248
(52-78)
Fz 0.0003 0.0007 0.0013 0.0017 0.0021 0.0022 0.0024
Feed (ipm) 1.5 2.1 2.6 2.5 2.5 2.2 1.8
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.5 ≤ 1.5
62 RPM 1895 947 632 474 379 316 237
(50-74)
Fz 0.0002 0.0005 0.0009 0.0012 0.0015 0.0016 0.0017
Feed (ipm) 1.1 1.4 1.7 1.7 1.7 1.5 1.2
Slot
1 ≤ 1
49 RPM 1497 749 499 374 299 250 187
(39-59)
Fz 0.0002 0.0005 0.0009 0.0012 0.0015 0.0016 0.0017
Feed (ipm) 0.9 1.1 1.3 1.3 1.3 1.2 1.0
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.5 ≤ 1.5
215 RPM 6570 3285 2190 1643 1314 1095 821
(172-258)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 5.9 7.9 9.9 9.9 9.9 8.5 6.9
Slot
1 ≤ 1
170 RPM 5195 2598 1732 1299 1039 866 649
(136-204)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 4.7 6.2 7.8 7.8 7.8 6.8 5.5
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ 0.5 ≤ 1.5
75 RPM 2292 1146 764 573 458 382 287
(60-90)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 2.1 2.8 3.4 3.4 3.4 3.0 2.4
Slot
1 ≤ 1
60 RPM 1834 917 611 458 367 306 229
(48-72)
Fz 0.0003 0.0008 0.0015 0.0020 0.0025 0.0026 0.0028
Feed (ipm) 1.7 2.2 2.8 2.8 2.8 2.4 1.9
Note:
•  Bhn (Brinell) HRc (Rockwell C)
•  rpm = Vc x 3.82 / D1
•  ipm = Fz x 3 x rpm
•  reduce speed and feed for materials harder than listed
•  reduce feed and Ae when finish milling (.02 x D1 maximum)
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
www.kyocera-sgstool.com10
Series 33
|
Speed & Feed Recommendations
Series
33MCR
Metric
Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D136810 12 16 20
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
168 RPM 17773 8886 6665 5332 4443 3332 2666
(134-201)
Fz 0.012 0.029 0.049 0.061 0.074 0.100 0.107
Feed (mm/min) 640 768 981 981 992 998 853
Slot
1 ≤ 1
134 RPM 14218 7109 5332 4265 3555 2666 2133
(107-161)
Fz 0.012 0.029 0.049 0.061 0.074 0.100 0.107
Feed (mm/min) 512 614 785 785 793 798 682
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.5 ≤ 1.5
96 RPM 10179 5089 3817 3054 2545 1909 1527
(77-115)
Fz 0.010 0.022 0.036 0.045 0.055 0.074 0.080
Feed (mm/min) 293 330 415 415 421 425 366
Slot
1 ≤ 1
76 RPM 8078 4039 3029 2424 2020 1515 1212
(61-91)
Fz 0.010 0.022 0.036 0.045 0.055 0.074 0.080
Feed (mm/min) 233 262 330 330 334 337 291
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.5 ≤ 1.5
56 RPM 5978 2989 2242 1793 1495 1121 897
(45-68)
Fz 0.007 0.017 0.030 0.037 0.043 0.059 0.064
Feed (mm/min) 129 151 201 201 194 198 172
Slot
1 ≤ 1
44 RPM 4686 2343 1757 1406 1171 879 703
(35-53)
Fz 0.007 0.017 0.030 0.037 0.043 0.059 0.064
Feed (mm/min) 101 118 157 157 152 155 135
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ 0.5 ≤ 1.5
136 RPM 14380 7190 5392 4314 3595 2696 2157
(109-163)
Fz 0.008 0.026 0.045 0.056 0.067 0.090 0.096
Feed (mm/min) 362 569 725 725 725 725 621
Slot
1 ≤ 1
108 RPM 11471 5736 4302 3441 2868 2151 1721
(87-130)
Fz 0.008 0.026 0.045 0.056 0.067 0.090 0.096
Feed (mm/min) 289 454 578 578 578 578 496
CAST IRONS
(HIGH ALLOY)
Gray, Malleable,
Ductile
≤ 260 Bhn
or
≤ 26 HRc
Profile
≤ 0.5 ≤ 1.5
104 RPM 10987 5493 4120 3296 2747 2060 1648
(83-124)
Fz 0.007 0.019 0.034 0.043 0.050 0.067 0.072
Feed (mm/min) 237 316 422 422 415 411 356
Slot
1 ≤ 1
82 RPM 8725 4362 3272 2617 2181 1636 1309
(66-99)
Fz 0.007 0.019 0.034 0.043 0.050 0.067 0.072
Feed (mm/min) 188 251 335 335 330 327 283
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F,
430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
149 RPM 15834 7917 5938 4750 3958 2969 2375
(119-179)
Fz 0.009 0.024 0.041 0.051 0.060 0.079 0.085
Feed (mm/min) 433 570 722 722 712 707 608
Slot
1 ≤ 1
119 RPM 12602 6301 4726 3781 3151 2363 1890
(95-143)
Fz 0.009 0.024 0.041 0.051 0.060 0.079 0.085
Feed (mm/min) 345 454 575 575 567 563 484
continued on next page
www.kyocera-sgstool.com 11
Series 33
|
Speed & Feed Recommendations
www.sgstoolwizard.com
Series
33MCR
Metric
Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D136810 12 16 20
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.5 ≤ 1.5
104 RPM 10987 5493 4120 3296 2747 2060 1648
(83-124)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 237 316 396 396 395 396 343
Slot
1 ≤ 1
82 RPM 8725 4362 3272 2617 2181 1636 1309
(66-99)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 188 251 314 314 314 314 272
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.5 ≤ 1.5
94 RPM 10017 5009 3756 3005 2504 1878 1503
(76-113)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 216 288 361 361 361 361 313
Slot
1 ≤ 1
76 RPM 8078 4039 3029 2424 2020 1515 1212
(61-91)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 174 233 291 291 291 291 252
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ 0.5 ≤ 1.5
24 RPM 2585 1293 969 776 646 485 388
(20-29)
Fz 0.006 0.017 0.028 0.035 0.041 0.054 0.059
Feed (mm/min) 48 65 81 65 79 78 68
Slot
1 ≤ 1
20 RPM 2100 1050 788 630 525 394 315
(16-24)
Fz 0.006 0.017 0.028 0.035 0.041 0.054 0.059
Feed (mm/min) 39 53 66 66 64 64 55
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.5 ≤ 1.5
19 RPM 2003 1002 751 601 501 376 301
(15-23)
Fz 0.005 0.012 0.019 0.024 0.029 0.038 0.043
Feed (mm/min) 29 36 43 43 43 43 38
Slot
1 ≤ 1
15 RPM 1583 792 594 475 396 297 238
(12-18)
Fz 0.005 0.012 0.019 0.024 0.029 0.038 0.043
Feed (mm/min) 23 28 34 34 34 34 30
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.5 ≤ 1.5
66 RPM 6947 3474 2605 2084 1737 1303 1042
(52-79)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 150 200 250 250 250 250 217
Slot
1 ≤ 1
52 RPM 5493 2747 2060 1648 1373 1030 824
(41-62)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 119 158 198 198 198 198 171
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ 0.5 ≤ 1.5
23 RPM 2424 1212 909 727 606 454 364
(18-27)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 52 70 87 87 87 87 76
Slot
1 ≤ 1
18 RPM 1939 969 727 582 485 364 291
(15-22)
Fz 0.007 0.019 0.032 0.040 0.048 0.064 0.069
Feed (mm/min) 42 56 70 70 70 70 60
Note:
•  Bhn (Brinell) HRc (Rockwell C)
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fz x 3 x rpm
•  reduce speed and feed for materials harder than listed
•  reduce feed and Ae when finish milling (.02 x D1 maximum)
•  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com)
KSPT PRODUCTS ARE DISTRIBUTED BY:
EDP 00011 Rev 417
KYOCERA SGS Precision Toolswww.kyocera-sgstool.com
POLAND
KYOCERA SGS Precision Tools
phone: +48 530 432 002
e-mail: SalesEU@kyocera-sgstool.com
SPAIN
KYOCERA SGS Precision Tools IBERICA
e-mail: SalesEU@kyocera-sgstool.com
EASTERN EUROPE
SINTCOM
Sintcom Tools
95 Arsenalski Blvd.
1421 Soa, Bulgaria
phone: (359) 283-64421
fax: (359) 286-52493
e-mail: sintcom@sintcomtools.com
RUSSIA
HALTEC
phone: (7) 495-252-05-00
e-mail: info@haltec.ru
web: www.haltec.ru
UNITED STATES OF AMERICA
KYOCERA SGS Precision Tools
P.O. Box 187
55 South Main Street
Munroe Falls, Ohio 44262 U.S.A.
customer service -
US and Canada: (330) 686-5700
fax - US & Canada: (800) 447-4017
international fax: (330) 686-2146
e-mail: webmaster@kyocera-sgstool.com
web: www.kyocera-sgstool.com
UNITED KINGDOM
KYOCERA SGS Precision Tools Europe Ltd.
10 Ashville Way
Wokingham, Berkshire
RG41 2PL England
phone: (44) 1189-795-200
fax: (44) 1189-795-295
e-mail: SalesEU@kyocera-sgstool.com
web: www.kyocera-sgstool.com
FRANCE
DOGA-KSPTE FRANCE
8, Avenue Gutenburg
78310 Maurepas
France
phone: +33 (0) 1 30 66 41 64
fax: +33 (0) 1 30 66 41 49
e-mail: sgsfrance@kyocera-sgstool.com
web: www.doga.fr
GERMANY
KADIGO Tool Systems
Walramstrasse 27
65510 Idstein
Germany
phone: +49 (0) 212 645573-0
fax: +49 (0) 212 380 89 693
e-mail: info@kadigo-ts.com
web: www.kadigo-ts.com
SOLUTIONS AROUND THE GLOBE
KYOCERA SGS Precision Tools is an
ISO-certified leader of round solid carbide
cutting tool technology for the aerospace,
metalworking, and automotive industries
with manufacturing sites in the United
States and United Kingdom. Our global
network of Sales Representatives,
Industrial Distributors, and Agents
blanket the world selling into more
than 60 countries.
LEADERS IN SOLID CARBIDE
TOOL TECHNOLOGY
Brand names such as Z-Carb, S-Carb,
V-Carb, Hi-PerCarb, Multi-Carb have
become synonymous with high perfor-
mance tooling in the machining and
metalworking industry.
We’re proud to have pioneered some
of the world’s most advanced cutting
technology right here on our Northeast
Ohio manufacturing campus. KSPT high
performance end mills, drills and routers
are increasing productivity and reducing
cost around the world.
EXCEEDING CUSTOMER EXPECTATIONS
As the world’s manufacturing needs change,
so does KSPT. It’s all about the science,
starting with our lab inspected substrate
materials to our tool designs and coatings.
Our exceptional team of researchers,
engineers, and machinists are dedicated to
developing the absolute best and delivering
the ultimate value at the spindle.
• Incredible batch-to-batch consistency
• Metallurgical lab dedicated to testing
and rigorous quality control
• ISO-certified quality procedures
• Patented geometries that extend tool
life, reduce chatter, cut cycle times,
and improve part quality—even at
extreme parameters
• Specialists in extreme and demanding
product applications
• Comprehensive tooling services
• Experienced Field Sales Engineers
who work to optimize a tool for your
particular application
• Dedicated multi-lingual customer
service representatives
