Micro Tool Catalog
www.sgsmicrotools.com
ISO 9001:2015 Certied
VALUE AT THE SPINDLE®
New Expanded Offering
Solid Carbide Tools

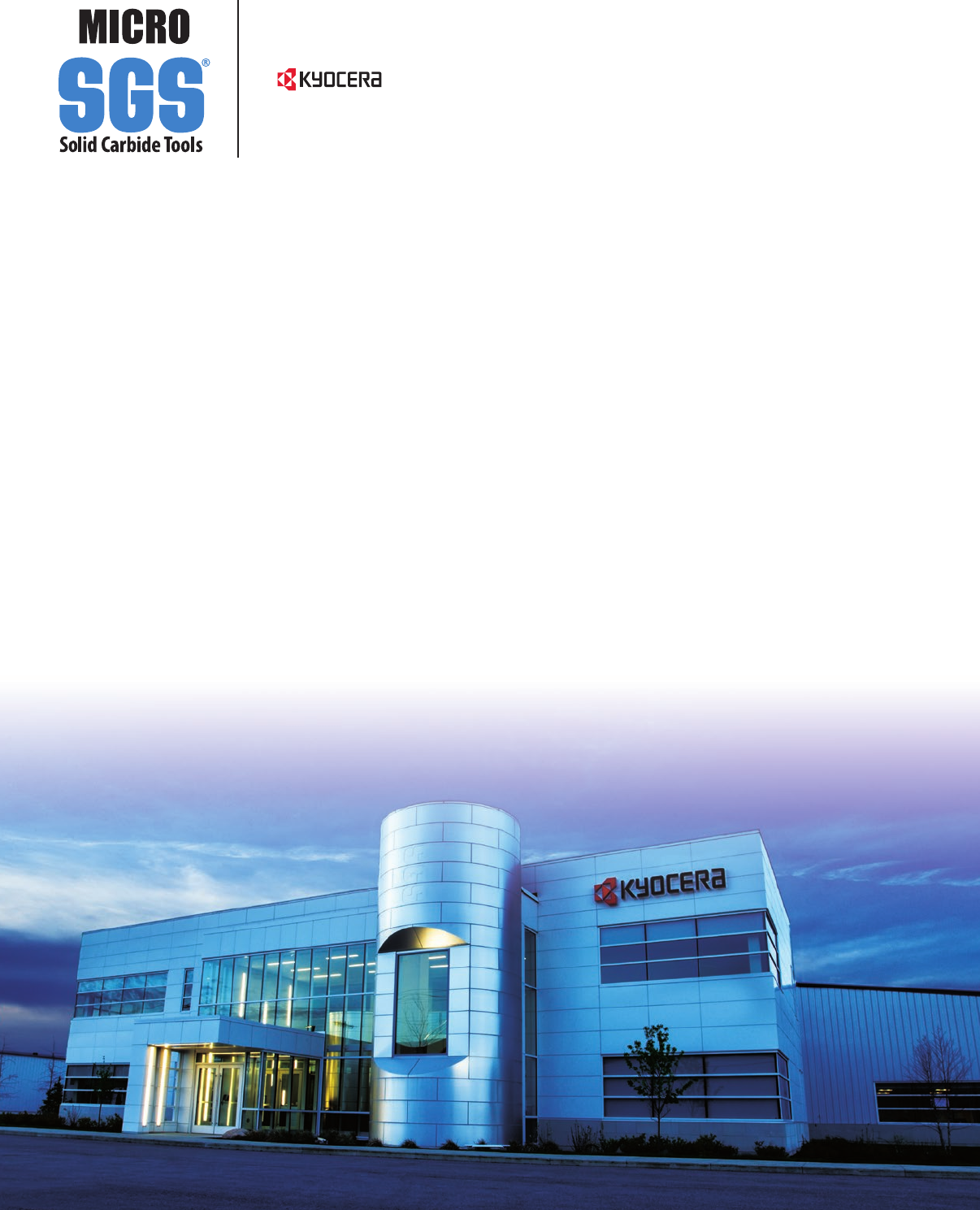

KYOCERA SGS Precision Tools (KSPT) is an ISO-certied manufacturer of industry leading round solid carbide
cutting tools. State of the art manufacturing and warehouse facilities have the capacity and processes to meet the
quality and delivery demands of customers in all markets around the world. Complete inspections performed
within its metallurgical lab and manufacturing quality departments ensure the use of high quality carbide and
reliable manufacturing consistency regardless of when a cutting tool is produced.
KSPT is proud to have pioneered some of the world’s most advanced cutting technologies due to rigorous testing of
tools, coatings, and materials within its Global Innovation Center. It is this commitment to innovation that has
launched patented products and technologies like the Z-Carb with its variable geometry and cutting edge prepara-
tion, Series 43 APR® and APF® ultra high performance aluminum cutting tools, and the JetStream coolant technology.
SGS has become an important part of the KYOCERA Precision Tools family, and while the name has changed, one
thing has not. Its dedicated people and their relentless commitment to the customer. KSPT Technical Sales Engi-
neers, Application Specialists, and Distribution Partners blanket the globe, delivering reliable service and support
to all market segments. It is these people and products that drive innovative application strategies and cutting tool
technologies into the end user, continually exceeding expectations and providing the most Value at the Spindle.
®
Table of Contents
KYOCERA SGS Precision Tools ......................2
KSPT Micro End Mills ..............................4
KSPT Micro Drills ..................................6
Coatings .........................................8
Common Legend..................................9
MILLING
FRACTIONAL
SERIES DESCRIPTION PAGE
M2, M2CR 2 Flute Square & Corner Radius 1.5xD .....10
2 Flute Square & Corner Radius 3xD ......14
2 Flute Square 3xD, 8xD Overall Reach ....18
2 Flute Square 3xD, 12xD Overall Reach ...19
M2B 2 Flute Ball 1.5xD.......................20
2 Flute Ball 3xD ........................22
2 Flute Ball 3xD, 8xD Overall Reach .......24
2 Flute Ball 3xD, 12xD Overall Reach ......25
M3, M3CR 3 Flute Square 1.5xD....................26
3 Flute Square 1.5xD, 3xD Overall Reach...28
3 Flute Square & Corner Radius
1.5xD, 5xD Overall Reach ..............29
3 Flute Square & Corner Radius
1.5xD, 8xD Overall Reach ..............31
3 Flute Square & Corner Radius
1.5xD, 12xD Overall Reach .............33
3 Flute Square 1.5xD, 15xD Overall Reach..35
3 Flute Square 1.5xD, 20xD Overall Reach..36
3 Flute Square 1.5xD, 25xD Overall Reach..37
3 Flute Square 3xD .....................38
3 Flute Square 3xD, 8xD Overall Reach ....40
3 Flute Square 3xD, 12xD Overall Reach ...41
M3L 3 Flute Square 5xD .....................42
M3E 3 Flute Square 8xD .....................43
M3X 3 Flute Square 12xD ....................44
M3B 3 Flute Ball 1.5xD.......................45
3 Flute Ball 1.5xD, 3xD Overall Reach ......47
3 Flute Ball 1.5xD, 5xD Overall Reach ......48
3 Flute Ball 1.5xD, 8xD Overall Reach ......49
3 Flute Ball 1.5xD, 12xD Overall Reach.....50
3 Flute Ball 1.5xD, 15xD Overall Reach.....51
3 Flute Ball 1.5xD, 20xD Overall Reach.....52
3 Flute Ball 1.5xD, 25xD Overall Reach.....53
3 Flute Ball 3xD ........................54
3 Flute Ball 3xD, 8xD Overall Reach .......56
3 Flute Ball 3xD, 12xD Overall Reach ......57
M3LB 3 Flute Ball 5xD ........................58
M3EB 3 Flute Ball 8xD ........................59
M3XB 3 Flute Ball 12xD .......................60
M4, M4CR 4 Flute Square & Corner Radius 1.5xD .....61
4 Flute Square & Corner Radius 3xD ......66
4 Flute Square 3xD, 8xD Overall Reach ....70
4 Flute Square 3xD, 12xD Overall Reach ...71
M4L 4 Flute Square 5xD .....................72
M4E 4 Flute Square 8xD .....................73
M4X 4 Flute Square 12xD ....................74
M4B 4 Flute Ball 1.5xD.......................75
4 Flute Ball 3xD ........................77
4 Flute Ball 3xD, 8xD Overall Reach .......79
4 Flute Ball 3xD, 12xD Overall Reach ......80
M4LB 4 Flute Ball 5xD ........................81
M4EB 4 Flute Ball 8xD ........................82
M4XB 4 Flute Ball 12xD .......................83
METRIC
SERIES DESCRIPTION PAGE
M2M 2 Flute Square 1.5xD....................84
2 Flute Square 3xD .....................85
M2MB 2 Flute Ball 1.5xD.......................87
2 Flute Ball 3xD ........................88
M4M 4 Flute Square 1.5xD....................90
4 Flute Square 3xD .....................91
M4MB 4 Flute Ball 1.5xD.......................92
4 Flute Ball 3xD ........................93
Speed & Feed Recommendations ...............94
M032 3 Flute Square and Corner Radius .......100
Speed & Feed Recommendations ..............103
HOLE MAKING
M080 2 Flute Spotting Drill External Coolant....107
M081 2 Flute Spotting Drill External Coolant....108
Speed & Feed Recommendations ..............109
M105 2 Flute External Coolant Standard and
Extended length ......................111
Speed & Feed Recommendations ..............116
M226 2 Flute External Coolant................117
L226 2 Flute Left Hand Cut External Coolant ...127
Speed & Feed Recommendations ..............133
M814 2 Flute Internal Coolant ................134
Speed & Feed Recommendations ..............136
TECHNICAL INFORMATION
EDP Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Decimal Equivalent Chart.........................150
Hardness Conversion Chart .......................151
New Expanded Tools
M2B, M2MB
M2, M2M
M2CR
M3B
M4, M4M
M4B, M4MB
M032
M3
M3L, M3E, M3X
M3LB, M3EB, M3XB
M3CR
M4CR
KYOCERA SGS Precision Tools (KSPT) commitment to providing superior quality round solid
carbide cutting tools is unwavering, and these efforts are being taken another step further
by introducing an impressive micro tool expansion. With over 1,100 tools in various lengths
of cut, reach variations, end configurations and coating options, the portfolio can satisfy
a variety of machining applications tailored for small diameter milling environments.
Explorethe portfolio below and discover how these small tools can deliver epic
VALUE AT THE SPINDLE®!
EXPANSION HIGHLIGHTS:
• 3 flutes in square and ball nose end
configurations options standard
• Lengths of cut ranging from 1.5 times diameter
through 12 times diameter
• Expansive reach options offered in 8 times
diameter and 12 times diameter overall reach
• Fractional tools on 1/8” common shanks to suit
global application demands
• Uncoated options for tools in expanded and
legacy portfolio
• Offered in Ti-NAMITE®-A coating for superior
chip flow at low spindle speeds in a variety of
applications
• All micro tools are manufactured in accordance
with KSPT ISO 9001:2015 quality standards

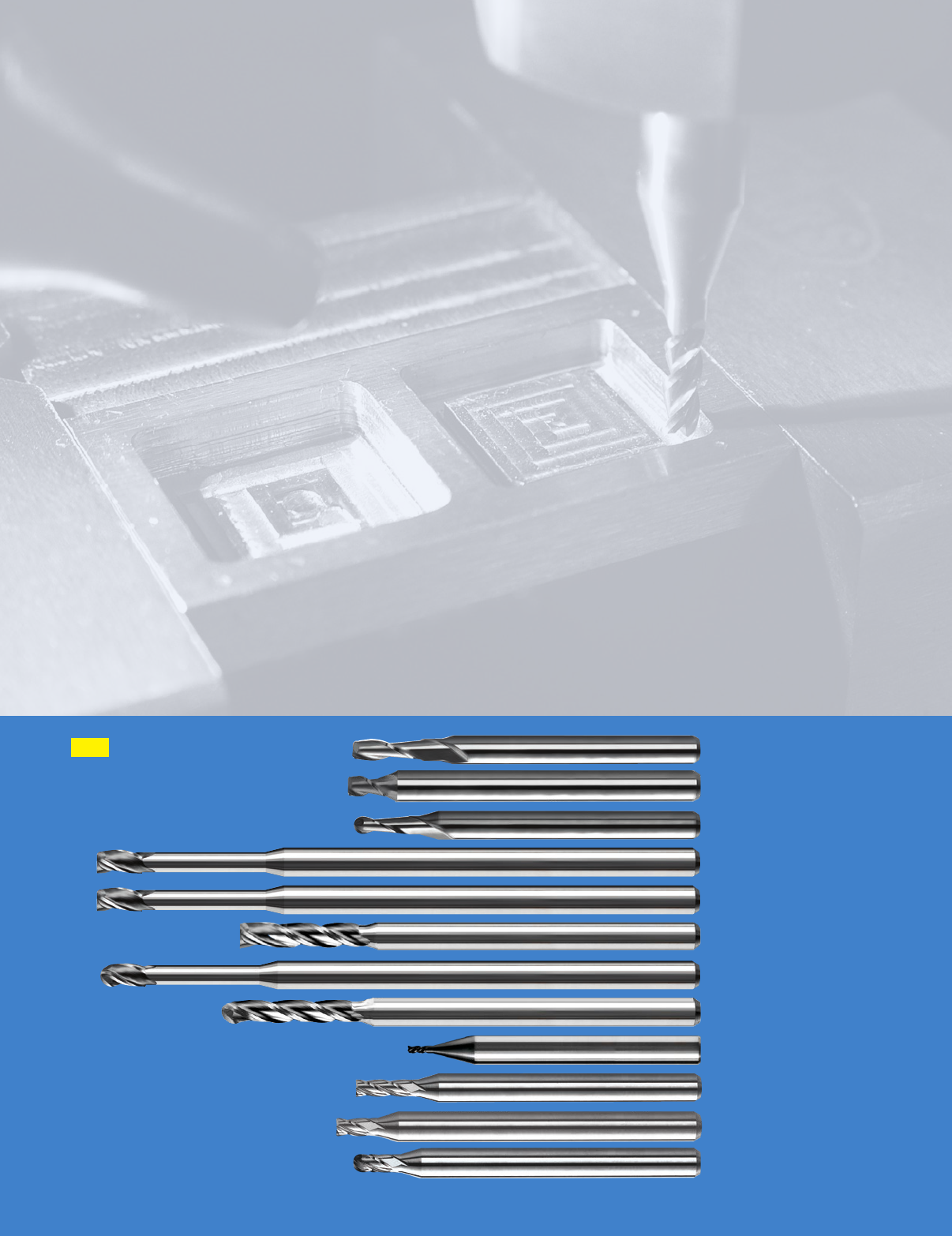

KSPT MICRO END MILLS
New Expanded Tools
INDUSTRY
AEROSPACE
MATERIAL
347 Stainless Steel (28 HRc Hardness)
PRODUCT
M4 8XD Micro End Mills
APPLICATION
Plunging
COMPETITOR
3 Flute Extended Reach Micro End Mill
COOLANT
Soluble Flood
TOOL INFORMATION
0.07" Dia / 0.21" LOC / 2" OAL
CASE STUDY M4 8XD MICRO END MILL
GOALS
The goals of this study were to significantly reduce job cost through the
implementation of superior tooling and increased manufacturing efficiencies.
STRATEGY
KSPT approached the job with a 4 flute 8XD Micro End Mill. The four flute
design allows for higher feed rates and decreased deflection, improving
productivity and surface finish.
RESULTS
The overall findings of this study indicate KSPT’s 4 flute micro end mill blew away the competitor’s 3 flute tool in efficiency
and effectiveness. KSPT's tool was able to capacitate a 94% higher speed and a 100% greater feed rate. Those combined
efficiencies were able to cut the cycle time in half! Because of the higher quality tool, the customer was able to produce 160
parts per KSPT tool. The competitor’s 3 flute end mill was only able to produce 1 part per tool. Thus, the tool change cost was
reduced by over 99%! Additionally, since KSPT only used 3 total tools to complete the job, the customer benefited from a new
tool cost reduction by over 99%. The M4 8XD 4 flute micro end mill ultimately saved the customer a grand total of $12,030.34,
resulting in a 98.88% cost reduction! These tools, albeit small, are an epic step forward for micro machining.
KSPT COMPETITOR
TOOL DIAMETER .07” .07
SPEED 6600 RPM 3400 RPM
FEED 4 IPM 2 IPM
RADIAL CUT (AE) N/A N/A
AXIAL CUT (AP) 0.38 0.38
CYCLE TIME 6 SECONDS 11.4 SECONDS
160
140
120
100
80
60
40
20
0
$3,000
$2,000
$1,000
$0
$15,000
$10,000
$5,000
$0
TOTAL PARTS AVAILABLE PER TOOL NEW TOOLS REQUIRED TO
COMPLETE THE JOB
TOOL CHANGE COST TOTAL COST
KSPT KSPT
KSPT KSPT
Competitor Competitor
Competitor Competitor
1
$18.75 $135.82
160
$2,125.00
$12,166.17
400
200
0
340
3
KYOCERA SGS Precision Tools (KSPT) commitment to providing superior quality round
solid carbide cutting tools is unwavering with an extensive micro drill portfolio. KSPT micro
drills total more than 1,400 tools with a variety of coolant and length options to meet the
demands of global hole making applications. Explore the portfolio below and discover how
these small tools can deliver epic VALUE AT THE SPINDLE®!
DRILL PORTFOLIO HIGHLIGHTS:
• 2 flutes for optimal chip evacuation and cutting
edge strength
• Internal coolant options on select series
promotes controlled and consistent operating
temperatures
• Lengths of cut ranging from 3 times diameter
through 15times diameter
• Fractional tools on 1/8” common shank and
metric tools on 3MM and 4MM shanks to suit
global market demands
• Uncoated options standard in select series
• Offered with Ti-NAMITE®-A coating for superior
tool life and all-around value across a variety
of applications
• Select series offered in new Ti-NAMITE®-Cr
(AlCrN) coating for exceptional wear resistance
in wet and dry drilling of cast iron and steel
materials up to 52 HRc
• All micro tools are manufactured in accordance
with KSPT ISO 9001: 2015 quality standards
KSPT MICRO DRILLS
0.10
0.08
0.06
0.04
0.02
0
–0.02
–0.04
–0.06
–0.08
HOLE DIAMETER VARIATION
SERIES M814
M814 Competitor A
Cutting Conditions:
N = 6468 rpm, Vf = 575 mm/min
Drill Diameter 0,3 mm
Drilling Depth 25,4 mm, 17-4PH-900
Diameter Variation (mm)
Competitor B Competitor C
No. of Holes
Dia. Variation
(mm)
M814 600 0.0937
Competitor A 600 0.1141
Competitor B 269 (Broken) 0.1281
Competitor C 600 0.1347

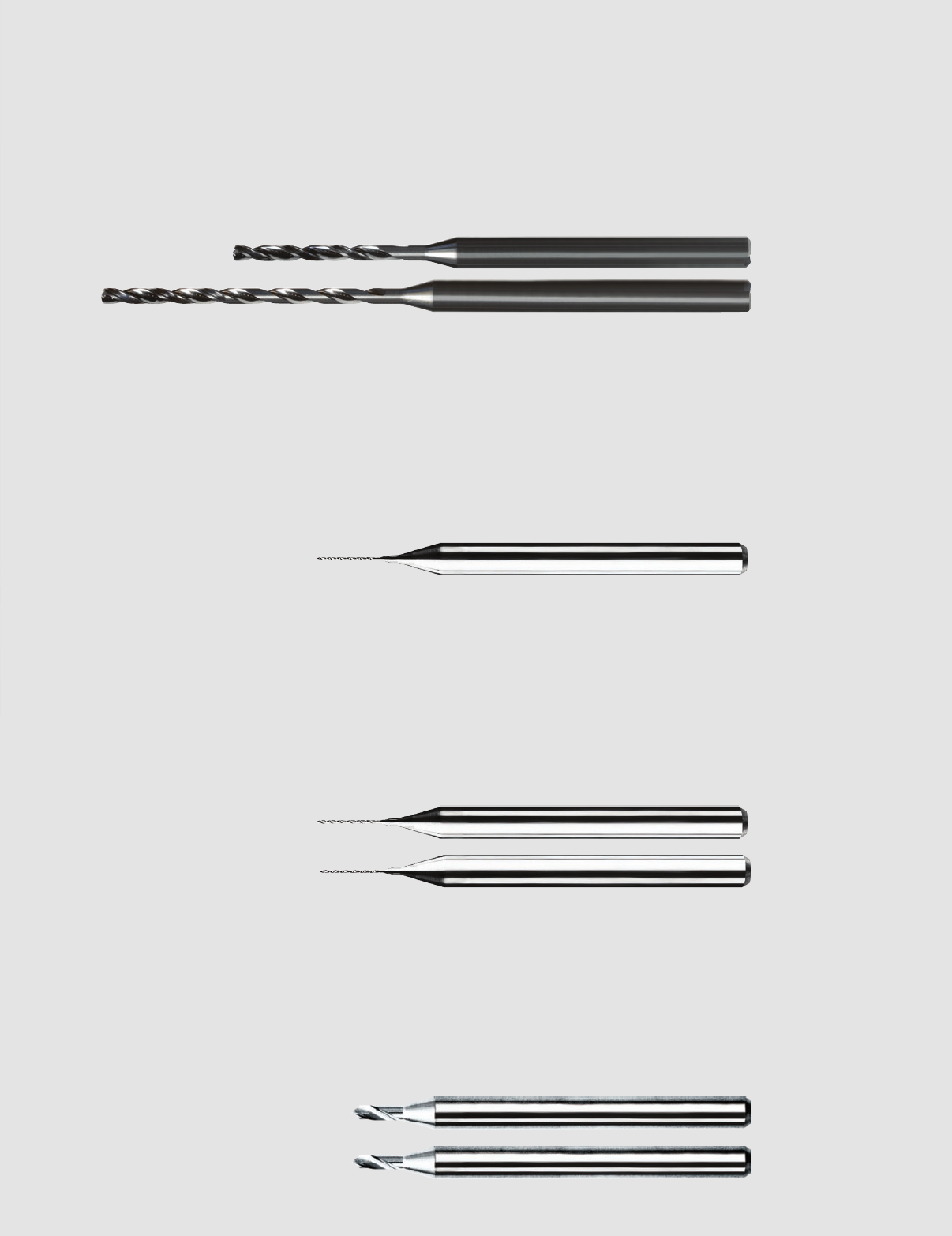

M080
M081
M080 & M081
• 4-facet point design, stub length, and mirror finish provide the highest quality spot
• Ti-NAMITE®-A coating and uncoated options for the ultimate performance and tool life in a variety
of ferrous and non-ferrous workpiece materials
• Available from stock in all popular diameters and point configurations
• Application specific sub-micron grain carbide designed specifically for micro-tool applications
• Manufactured in accordance with KSPT ISO certified quality procedures
M814 8XD
M814 15XD
M814
• Split point and double margin design provide superior hole finish and size control
• Coolant hole feature allows straight through drilling without a peck cycle
• High-performance Ti-NAMITE®-Cr coating and mirror polished fluting increase tool life and productivity
in moderate-to-difficult workpiece materials
• Available from stock in a selection of popular lengths and diameters
• Application specific sub-micron grain carbide designed specifically for micro-tool applications
• Manufactured in accordance with KSPT ISO certified quality procedures
M105
M105
• 4-facet point design stabilizes on entry for superior hole size control and tool life
• Mirror surface finishes improve chip flow as hole depth increases
• Ti-NAMITE®-A coating and uncoated options for the ultimate performance in a variety of ferrous
and non-ferrous workpiece materials
• Available from stock in a selection of popular lengths and diameters
• Application specific sub-micron grain carbide designed specifically for micro-tool applications
• Manufactured in accordance with KSPT ISO certified quality procedures
M226
L226
M226 & L226
• 4-facet point design stabilizes on entry for superior hole size control and tool life (>.08mm)
• Mirror surface finishes improve chip flow as hole depth increases
• Ti-NAMITE®-A coating and uncoated options for the ultimate performance in a variety of ferrous
and non-ferrous workpiece materials
• Right and left hand cut available from stock in a wide selection of popular lengths and diameters
• Application specific sub-micron grain carbide designed specifically for micro-tool applications
• Manufactured in accordance with KSPT ISO certified quality procedures
8www.sgsmicrotools.com
KSPT COATINGS
With very high wear resistance and excellent hot hardness, Ti-NAMITE®-Cr (AlCrN) allows for wet
and dry machining versatility at the highest of cutting speeds for increased machine utilization and
productivity. The coating provides optimal thermal shock stability and is ideal for cast iron and steel
applications up to 52 HRc.
Hardness (HV): 3200
Oxidation Temperature: 1100°C / 2010°F
Coefficient of Friction: 0.35
Thickness: 1 – 4 Microns (based on tool diameter)
KYOCERA SGS PRECISION TOOLS AlTiN COATING PERFORMANCE
(LAB RESULTS)
SEM photography shows the KSPT
proprietary coating method provides a
significant reduction in macro particle
deposition on the tool surface, which
contributes to increased performance
due to smoother chip flow. Another
benefit of the KSPT micro-tool coating is
a significant reduction in edge rounding
due to excessive thick- ness, typical of
most normal coatings.
With excellent thermal and chemical resistance, Ti-NAMITE®-A (AlTiN) allows for dry cutting and
improvements in performance of carbide. The coating has a high hardness giving ultimate protection
against abrasive wear and erosion. Ideal for cast iron, high temperature alloys, steels, and stainless
steelapplications.
Hardness (HV): 3700
Oxidation Temperature: 1100°C / 2010°F
Coefficient of Friction: 0.30
Thickness: 1 – 4 Microns (based on tool diameter)
NORMAL AlTiN MICRO-TOOL COATING
@ 1.06KX MAGNFICATION
KSPT PROPRIETARY AlTiN MICRO-TOOL COATING
@ 1.06KX MAGNFICATION
9
www.sgsmicrotools.com
TO ORDER: Please specify quantity and EDP number.
RETURN POLICY: An RMA number must accompany all product returns. Contact your Customer
Service Representative for an RMA number.
REGULATION SAFETY GLASSES SHOULD ALWAYS BE WORN WHEN
USING HIGH-SPEED CUTTING EQUIPMENT
WARNING: This product can expose you to chemicals including Cobalt,
which is known to the State of California to cause cancer. For more
information go to www.p65warnings.ca.gov
MATERIALS
Steels Stainless Steels Cast Iron High Temp Alloys
Titanium Non-Ferrous Plastics/Composites Hardened Steels
END MILLS
TOOL LENGTH FLUTES
234
Stub Regular Long Long Reach Extra Long 2 Flutes 3 Flutes 4 Flutes
END CONFIGURATIONS SHANK TYPE HELIX ANGLE PROFILE ANGLE RAKE ANGLE
α
POS
Ball Corner Square Common Right Spiral Profile Angle Positive
All tools are in Right Cut Direction unless noted
DRILLS
SHANK TYPE HELIX ANGLES COOLANT OPTIONS POINT ANGLE
Common Straight Right Spiral Left Spiral Internal
Coolant
External
Coolant
Drill Point
REACH
1.5xD Reach 3xD Reach 5xD Reach 8xD Reach 12xD Reach 15xD Reach
Common Legend
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
10 www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
M2 • M2CR
1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.004 1/8 0.006 1-1/2 – 04004 04000
0.005 1/8 0.008 1-1/2 – 00301 02201
0.006 1/8 0.009 1-1/2 – 00302 02202
0.007 1/8 0.011 1-1/2 – 00303 02203
0.008 1/8 0.012 1-1/2 – 00304 02204
0.009 1/8 0.014 1-1/2 – 00305 02205
0.010 1/8 0.015 1-1/2 – 00306 02206
0.011 1/8 0.017 1-1/2 – 00307 02207
0.012 1/8 0.018 1-1/2 – 00308 02208
0.013 1/8 0.020 1-1/2 – 00309 02209
0.014 1/8 0.021 1-1/2 – 00310 02210
0.015 1/8 0.023 1-1/2 – 00311 02211
0.015 1/8 0.023 1-1/2 0.003 08500 08641
0.016 1/8 0.024 1-1/2 – 00312 02212
0.017 1/8 0.026 1-1/2 – 00313 02213
0.018 1/8 0.027 1-1/2 – 00314 02214
0.019 1/8 0.029 1-1/2 – 00315 02215
0.020 1/8 0.030 1-1/2 – 00316 02216
0.020 1/8 0.030 1-1/2 0.003 08502 08643
0.020 1/8 0.030 1-1/2 0.005 08504 08645
0.021 1/8 0.032 1-1/2 – 00317 02217
0.022 1/8 0.033 1-1/2 – 00318 02218
0.023 1/8 0.035 1-1/2 – 00319 02219
0.024 1/8 0.036 1-1/2 – 00320 02220
0.025 1/8 0.038 1-1/2 – 00321 02221
0.025 1/8 0.038 1-1/2 0.010 08505 08646
0.026 1/8 0.039 1-1/2 – 00322 02222
0.027 1/8 0.041 1-1/2 – 00323 02223
0.028 1/8 0.042 1-1/2 – 00324 02224
0.029 1/8 0.044 1-1/2 – 00325 02225
0.030 1/8 0.045 1-1/2 – 00326 02226
0.030 1/8 0.045 1-1/2 0.010 08507 08648
0.031 1/8 0.047 1-1/2 – 00327 02227
0.032 1/8 0.048 1-1/2 – 00328 02228
0.033 1/8 0.050 1-1/2 – 00329 02229
0.034 1/8 0.051 1-1/2 – 00330 02230
continued on next page
FRACTIONAL
M2 • M2CR • 1.5xD
30°
15°
POS
2
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
11
www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
FRACTIONAL
M2 • M2CR • 1.5xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.035 1/8 0.053 1-1/2 – 00331 02231
0.035 1/8 0.053 1-1/2 0.005 08509 08650
0.035 1/8 0.053 1-1/2 0.010 08511 08652
0.036 1/8 0.054 1-1/2 – 00332 02232
0.037 1/8 0.056 1-1/2 – 00333 02233
0.038 1/8 0.057 1-1/2 – 00334 02234
0.039 1/8 0.059 1-1/2 – 00335 02235
0.040 1/8 0.060 1-1/2 – 00336 02236
0.040 1/8 0.060 1-1/2 0.005 08513 08654
0.040 1/8 0.060 1-1/2 0.010 08515 08656
0.041 1/8 0.062 1-1/2 – 00337 02368
0.042 1/8 0.063 1-1/2 – 00338 02369
0.043 1/8 0.065 1-1/2 – 00339 02370
0.044 1/8 0.066 1-1/2 – 00340 02371
0.045 1/8 0.068 1-1/2 – 00341 02372
0.045 1/8 0.068 1-1/2 0.005 08517 08658
0.045 1/8 0.068 1-1/2 0.010 08519 08660
0.046 1/8 0.069 1-1/2 – 00342 02373
0.047 1/8 0.071 1-1/2 – 00343 02374
0.048 1/8 0.072 1-1/2 – 00344 02375
0.049 1/8 0.074 1-1/2 – 00345 02376
0.050 1/8 0.075 1-1/2 – 00346 02377
0.050 1/8 0.075 1-1/2 0.005 08521 08662
0.050 1/8 0.075 1-1/2 0.010 08523 08664
0.050 1/8 0.075 1-1/2 0.015 08525 08666
0.051 1/8 0.077 1-1/2 – 00347 02378
0.052 1/8 0.078 1-1/2 – 00348 02379
0.053 1/8 0.080 1-1/2 – 00349 02380
0.054 1/8 0.081 1-1/2 – 00350 02381
0.055 1/8 0.083 1-1/2 – 00351 02382
0.055 1/8 0.083 1-1/2 0.005 08527 08668
0.055 1/8 0.083 1-1/2 0.010 08529 08670
0.055 1/8 0.083 1-1/2 0.015 08531 08672
0.056 1/8 0.084 1-1/2 – 00352 02383
0.057 1/8 0.086 1-1/2 – 00353 02384
0.058 1/8 0.087 1-1/2 – 00354 02385
continued on next page
M2 • M2CR
1.5xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
12 www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
M2 • M2CR
1.5xD
FRACTIONAL SERIES
FRACTIONAL
M2 • M2CR • 1.5xD
30°
15°
POS
2
continued inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.059 1/8 0.089 1-1/2 – 00355 02386
0.060 1/8 0.090 1-1/2 – 00356 02387
0.060 1/8 0.090 1-1/2 0.005 08533 08674
0.060 1/8 0.090 1-1/2 0.010 08535 08676
0.060 1/8 0.090 1-1/2 0.015 08537 08678
0.062 1/8 0.093 1-1/2 – 00357 02388
0.065 1/8 0.098 1-1/2 – 00358 02389
0.065 1/8 0.098 1-1/2 0.005 08539 08680
0.065 1/8 0.098 1-1/2 0.010 08541 08682
0.065 1/8 0.098 1-1/2 0.015 08543 08684
0.070 1/8 0.105 1-1/2 – 00359 02390
0.070 1/8 0.105 1-1/2 0.005 08545 08686
0.070 1/8 0.105 1-1/2 0.010 08547 08688
0.070 1/8 0.105 1-1/2 0.015 08549 08690
0.075 1/8 0.112 1-1/2 – 04006 04002
0.075 1/8 0.113 1-1/2 0.005 08551 08692
0.075 1/8 0.113 1-1/2 0.010 08553 08694
0.075 1/8 0.113 1-1/2 0.015 08555 08696
0.075 1/8 0.113 1-1/2 0.020 08557 08698
0.078 1/8 0.117 1-1/2 – 00360 02391
0.080 1/8 0.120 1-1/2 – 00361 02392
0.080 1/8 0.120 1-1/2 0.005 08559 08700
0.080 1/8 0.120 1-1/2 0.010 08561 08702
0.080 1/8 0.120 1-1/2 0.015 08563 08704
0.080 1/8 0.120 1-1/2 0.020 08565 08706
0.085 1/8 0.128 1-1/2 – 00362 02393
0.085 1/8 0.128 1-1/2 0.005 08567 08708
0.085 1/8 0.128 1-1/2 0.010 08569 08710
0.085 1/8 0.128 1-1/2 0.015 08571 08712
0.085 1/8 0.128 1-1/2 0.020 08573 08714
0.090 1/8 0.135 1-1/2 – 00363 02394
0.090 1/8 0.135 1-1/2 0.005 08575 08716
0.090 1/8 0.135 1-1/2 0.010 08577 08718
0.090 1/8 0.135 1-1/2 0.015 08579 08720
0.090 1/8 0.135 1-1/2 0.020 08581 08722
0.093 1/8 0.140 1-1/2 – 00364 02395
continued on next page
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
13
www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
FRACTIONAL
M2 • M2CR • 1.5xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.095 1/8 0.143 1-1/2 – 00365 02396
0.095 1/8 0.143 1-1/2 0.005 08583 08724
0.095 1/8 0.143 1-1/2 0.010 08585 08726
0.095 1/8 0.143 1-1/2 0.015 08587 08728
0.095 1/8 0.143 1-1/2 0.020 08589 08730
0.100 1/8 0.150 1-1/2 – 00366 02397
0.100 1/8 0.150 1-1/2 0.005 08591 08732
0.100 1/8 0.150 1-1/2 0.010 08593 08734
0.100 1/8 0.150 1-1/2 0.015 08595 08736
0.100 1/8 0.150 1-1/2 0.020 08597 08738
0.100 1/8 0.150 1-1/2 0.030 08599 08740
0.105 1/8 0.158 1-1/2 – 00367 02398
0.105 1/8 0.158 1-1/2 0.005 08601 08742
0.105 1/8 0.158 1-1/2 0.010 08603 08744
0.105 1/8 0.158 1-1/2 0.015 08605 08746
0.105 1/8 0.158 1-1/2 0.020 08607 08748
0.105 1/8 0.158 1-1/2 0.030 08609 08750
0.110 1/8 0.165 1-1/2 – 00368 02399
0.110 1/8 0.165 1-1/2 0.005 08611 08752
0.110 1/8 0.165 1-1/2 0.010 08613 08754
0.110 1/8 0.165 1-1/2 0.015 08615 08756
0.110 1/8 0.165 1-1/2 0.020 08617 08758
0.110 1/8 0.165 1-1/2 0.030 08619 08760
0.115 1/8 0.173 1-1/2 – 00369 02400
0.115 1/8 0.173 1-1/2 0.005 08621 08762
0.115 1/8 0.173 1-1/2 0.010 08623 08764
0.115 1/8 0.173 1-1/2 0.015 08625 08766
0.115 1/8 0.173 1-1/2 0.020 08627 08768
0.115 1/8 0.173 1-1/2 0.030 08629 08770
0.120 1/8 0.180 1-1/2 – 00370 02401
0.120 1/8 0.180 1-1/2 0.005 08631 08772
0.120 1/8 0.180 1-1/2 0.010 08633 08774
0.120 1/8 0.180 1-1/2 0.015 08635 08776
0.120 1/8 0.180 1-1/2 0.020 08637 08778
0.120 1/8 0.180 1-1/2 0.030 08639 08780
M2 • M2CR
1.5xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
14 www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
30°
15°
POS
2
FRACTIONAL
M2 • M2CR • 3xD
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
M2 • M2CR
3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.004 1/8 0.012 1-1/2 – 04005 04001
0.005 1/8 0.015 1-1/2 – 00811 02275
0.006 1/8 0.018 1-1/2 – 00812 02276
0.007 1/8 0.021 1-1/2 – 00813 02277
0.008 1/8 0.024 1-1/2 – 00814 02278
0.009 1/8 0.027 1-1/2 – 00815 02279
0.010 1/8 0.030 1-1/2 – 00816 02280
0.011 1/8 0.033 1-1/2 – 00817 02281
0.012 1/8 0.036 1-1/2 – 00818 02282
0.013 1/8 0.039 1-1/2 – 00819 02283
0.014 1/8 0.042 1-1/2 – 00820 02284
0.015 1/8 0.045 1-1/2 – 00821 02285
0.015 1/8 0.045 1-1/2 0.003 08501 08642
0.016 1/8 0.048 1-1/2 – 00822 02286
0.017 1/8 0.051 1-1/2 – 00823 02287
0.018 1/8 0.054 1-1/2 – 00824 02288
0.019 1/8 0.057 1-1/2 – 00825 02289
0.020 1/8 0.060 1-1/2 – 00826 02290
0.020 1/8 0.060 1-1/2 0.003 08503 08644
0.020 1/8 0.060 1-1/2 0.005 04020 04021
0.021 1/8 0.063 1-1/2 – 00827 02291
0.022 1/8 0.066 1-1/2 – 00828 02292
0.023 1/8 0.069 1-1/2 – 00829 02293
0.024 1/8 0.072 1-1/2 – 00830 02294
0.025 1/8 0.075 1-1/2 – 00831 02295
0.025 1/8 0.075 1-1/2 0.005 04022 04023
0.025 1/8 0.075 1-1/2 0.010 08506 08647
0.026 1/8 0.078 1-1/2 – 00832 02296
0.027 1/8 0.081 1-1/2 – 00833 02297
0.028 1/8 0.084 1-1/2 – 00834 02298
0.029 1/8 0.087 1-1/2 – 00835 02299
0.030 1/8 0.090 1-1/2 – 00836 02300
0.030 1/8 0.090 1-1/2 0.010 08508 08649
0.031 1/8 0.093 1-1/2 – 00837 02301
0.032 1/8 0.096 1-1/2 – 00838 02302
0.033 1/8 0.099 1-1/2 – 00839 02303
continued on next page
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
15
www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
FRACTIONAL
M2 • M2CR • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.034 1/8 0.102 1-1/2 – 00840 02304
0.035 1/8 0.105 1-1/2 – 00841 02305
0.035 1/8 0.105 1-1/2 0.005 08510 08651
0.035 1/8 0.105 1-1/2 0.010 08512 08653
0.036 1/8 0.108 1-1/2 – 00842 02306
0.037 1/8 0.111 1-1/2 – 00843 02307
0.038 1/8 0.114 1-1/2 – 00844 02308
0.039 1/8 0.117 1-1/2 – 00845 02309
0.040 1/8 0.120 1-1/2 – 00846 02310
0.040 1/8 0.120 1-1/2 0.005 08514 08655
0.040 1/8 0.120 1-1/2 0.010 08516 08657
0.041 1/8 0.123 1-1/2 – 00479 02436
0.042 1/8 0.126 1-1/2 – 00480 02437
0.043 1/8 0.129 1-1/2 – 00481 02438
0.044 1/8 0.132 1-1/2 – 00482 02439
0.045 1/8 0.135 1-1/2 – 00483 02440
0.045 1/8 0.135 1-1/2 0.005 08518 08659
0.045 1/8 0.135 1-1/2 0.010 08520 08661
0.046 1/8 0.138 1-1/2 – 00484 02441
0.047 1/8 0.141 1-1/2 – 00485 02442
0.048 1/8 0.144 1-1/2 – 00486 02443
0.049 1/8 0.147 1-1/2 – 00487 02444
0.050 1/8 0.150 1-1/2 – 00488 02445
0.050 1/8 0.150 1-1/2 0.005 08522 08663
0.050 1/8 0.150 1-1/2 0.010 08524 08665
0.050 1/8 0.150 1-1/2 0.015 08526 08667
0.051 1/8 0.153 1-1/2 – 00489 02446
0.052 1/8 0.156 1-1/2 – 00490 02447
0.053 1/8 0.159 1-1/2 – 00491 02448
0.054 1/8 0.162 1-1/2 – 00492 02449
0.055 1/8 0.165 1-1/2 – 00493 02450
0.055 1/8 0.165 1-1/2 0.005 08528 08669
0.055 1/8 0.165 1-1/2 0.010 08530 08671
0.055 1/8 0.165 1-1/2 0.015 08532 08673
0.056 1/8 0.168 1-1/2 – 00494 02451
0.057 1/8 0.171 1-1/2 – 00495 02452
continued on next page
M2 • M2CR
3xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
16 www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
30°
15°
POS
2
FRACTIONAL
M2 • M2CR • 3xD
continued
M2 • M2CR
3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.058 1/8 0.174 1-1/2 – 00496 02453
0.059 1/8 0.177 1-1/2 – 00865 02454
0.060 1/8 0.180 1-1/2 – 00498 02455
0.060 1/8 0.180 1-1/2 0.005 08534 08675
0.060 1/8 0.180 1-1/2 0.010 08536 08677
0.060 1/8 0.180 1-1/2 0.015 08538 08679
0.062 1/8 0.186 1-1/2 – 00499 02456
0.065 1/8 0.195 1-1/2 – 00500 02457
0.065 1/8 0.195 1-1/2 0.005 08540 08681
0.065 1/8 0.195 1-1/2 0.010 08542 08683
0.065 1/8 0.195 1-1/2 0.015 08544 08685
0.070 1/8 0.210 1-1/2 – 00501 02458
0.070 1/8 0.210 1-1/2 0.005 08546 08687
0.070 1/8 0.210 1-1/2 0.010 08548 08689
0.070 1/8 0.210 1-1/2 0.015 08550 08691
0.075 1/8 0.225 1-1/2 – 04007 04003
0.075 1/8 0.225 1-1/2 0.005 08552 08693
0.075 1/8 0.225 1-1/2 0.010 08554 08695
0.075 1/8 0.225 1-1/2 0.015 08556 08697
0.075 1/8 0.225 1-1/2 0.020 08558 08699
0.078 1/8 0.234 1-1/2 – 00870 02459
0.080 1/8 0.240 1-1/2 – 00503 02460
0.080 1/8 0.240 1-1/2 0.005 08560 08701
0.080 1/8 0.240 1-1/2 0.010 08562 08703
0.080 1/8 0.240 1-1/2 0.015 08564 08705
0.080 1/8 0.240 1-1/2 0.020 08566 08707
0.085 1/8 0.255 1-1/2 – 00504 02461
0.085 1/8 0.255 1-1/2 0.005 08568 08709
0.085 1/8 0.255 1-1/2 0.010 08570 08711
0.085 1/8 0.255 1-1/2 0.015 08572 08713
0.085 1/8 0.255 1-1/2 0.020 08574 08715
0.090 1/8 0.270 1-1/2 – 00505 02462
0.090 1/8 0.270 1-1/2 0.005 08576 08717
0.090 1/8 0.270 1-1/2 0.010 08578 08719
0.090 1/8 0.270 1-1/2 0.015 08580 08721
0.090 1/8 0.270 1-1/2 0.020 08582 08723
continued on next page
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
17
www.sgsmicrotools.com
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
FRACTIONAL
M2 • M2CR • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.093 1/8 0.279 1-1/2 – 00506 02463
0.095 1/8 0.285 1-1/2 – 00507 02464
0.095 1/8 0.285 1-1/2 0.005 08584 08725
0.095 1/8 0.285 1-1/2 0.010 08586 08727
0.095 1/8 0.285 1-1/2 0.015 08588 08729
0.095 1/8 0.285 1-1/2 0.020 08590 08731
0.100 1/8 0.300 1-1/2 – 00508 02465
0.100 1/8 0.300 1-1/2 0.005 08592 08733
0.100 1/8 0.300 1-1/2 0.010 08594 08735
0.100 1/8 0.300 1-1/2 0.015 08596 08737
0.100 1/8 0.300 1-1/2 0.020 08598 08739
0.100 1/8 0.300 1-1/2 0.030 08600 08741
0.105 1/8 0.315 1-1/2 – 00509 02466
0.105 1/8 0.315 1-1/2 0.005 08602 08743
0.105 1/8 0.315 1-1/2 0.010 08604 08745
0.105 1/8 0.315 1-1/2 0.015 08606 08747
0.105 1/8 0.315 1-1/2 0.020 08608 08749
0.105 1/8 0.315 1-1/2 0.030 08610 08751
0.110 1/8 0.330 1-1/2 – 00878 02467
0.110 1/8 0.330 1-1/2 0.005 08612 08753
0.110 1/8 0.330 1-1/2 0.010 08614 08755
0.110 1/8 0.330 1-1/2 0.015 08616 08757
0.110 1/8 0.330 1-1/2 0.020 08618 08759
0.110 1/8 0.330 1-1/2 0.030 08620 08761
0.115 1/8 0.345 1-1/2 – 00511 02468
0.115 1/8 0.345 1-1/2 0.005 08622 08763
0.115 1/8 0.345 1-1/2 0.010 08624 08765
0.115 1/8 0.345 1-1/2 0.015 08626 08767
0.115 1/8 0.345 1-1/2 0.020 08628 08769
0.115 1/8 0.345 1-1/2 0.030 08630 08771
0.120 1/8 0.360 1-1/2 – 00512 02469
0.120 1/8 0.360 1-1/2 0.005 08632 08773
0.120 1/8 0.360 1-1/2 0.010 08634 08775
0.120 1/8 0.360 1-1/2 0.015 08636 08777
0.120 1/8 0.360 1-1/2 0.020 08638 08779
0.120 1/8 0.360 1-1/2 0.030 08640 08781
M2 • M2CR
3xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.004–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000/–0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
18 www.sgsmicrotools.com
30°
15°
POS
2
M2 • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 09353 03400
0.015 1/8 0.045 0.120 0.014 1-1/2 09355 03401
0.020 1/8 0.060 0.160 0.018 1-1/2 09357 03402
0.025 1/8 0.075 0.200 0.023 1-1/2 09359 03403
0.030 1/8 0.090 0.240 0.028 1-1/2 09361 03404
0.031 1/8 0.093 0.248 0.029 1-1/2 09363 03405
0.035 1/8 0.105 0.280 0.032 1-1/2 09365 03406
0.040 1/8 0.120 0.320 0.037 1-1/2 09367 03407
0.045 1/8 0.135 0.360 0.042 2 09369 03408
0.047 1/8 0.141 0.376 0.044 2 09371 03409
0.050 1/8 0.150 0.400 0.047 2 09373 03410
0.055 1/8 0.165 0.440 0.051 2 09375 03411
0.060 1/8 0.180 0.480 0.056 2 09377 03412
0.062 1/8 0.186 0.496 0.058 2 09379 03413
0.065 1/8 0.195 0.520 0.061 2 09381 03414
0.070 1/8 0.210 0.560 0.065 2 09383 03415
0.075 1/8 0.225 0.600 0.070 2 09385 03416
0.078 1/8 0.234 0.624 0.073 2 09387 03417
0.080 1/8 0.240 0.640 0.075 2 09389 03418
0.085 1/8 0.255 0.680 0.079 2 09391 03419
0.090 1/8 0.270 0.720 0.084 2 09393 03420
0.093 1/8 0.279 0.744 0.087 2 09395 03421
0.095 1/8 0.285 0.760 0.089 2 09397 03422
0.100 1/8 0.300 0.800 0.094 2 09399 03423
0.110 1/8 0.330 0.880 0.103 2 09401 03424
0.115 1/8 0.345 0.920 0.108 2 09403 03425
0.120 1/8 0.360 0.960 0.112 2 09405 03426
FRACTIONAL
M2 • 3xD • 8xD Overall Reach
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
D
CON
AP
MX
DN
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
19
www.sgsmicrotools.com
LU
LF
DC
D
CON
AP
MX
DN
30°
15°
POS
2
M2 • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 09352 03427
0.015 1/8 0.045 0.180 0.014 1-1/2 09354 03428
0.020 1/8 0.060 0.240 0.018 1-1/2 09356 03429
0.025 1/8 0.075 0.300 0.023 1-1/2 09358 03430
0.030 1/8 0.090 0.360 0.028 2 09360 03431
0.031 1/8 0.093 0.372 0.029 2 09362 03432
0.035 1/8 0.105 0.420 0.032 2 09364 03433
0.040 1/8 0.120 0.480 0.037 2 09366 03434
0.045 1/8 0.135 0.540 0.042 2 09368 03435
0.047 1/8 0.141 0.564 0.044 2 09370 03436
0.050 1/8 0.150 0.600 0.047 2 09372 03437
0.055 1/8 0.165 0.660 0.051 2 09374 03438
0.060 1/8 0.180 0.720 0.056 2 09376 03439
0.062 1/8 0.186 0.744 0.058 2 09378 03440
0.065 1/8 0.195 0.780 0.061 2 09380 03441
0.070 1/8 0.210 0.840 0.065 2 09382 03442
0.075 1/8 0.225 0.900 0.070 2 09384 03443
0.078 1/8 0.234 0.936 0.073 2-1/2 09386 03444
0.080 1/8 0.240 0.960 0.075 2-1/2 09388 03445
0.085 1/8 0.255 1.020 0.079 2-1/2 09390 03446
0.090 1/8 0.270 1.080 0.084 2-1/2 09392 03447
0.093 1/8 0.279 1.116 0.087 2-1/2 09394 03448
0.095 1/8 0.285 1.140 0.089 2-1/2 09396 03449
0.100 1/8 0.300 1.200 0.094 2-1/2 09398 03450
0.110 1/8 0.330 1.320 0.103 2-1/2 09400 03451
0.115 1/8 0.345 1.380 0.108 2-1/2 09402 03452
0.120 1/8 0.360 1.440 0.112 2-1/2 09404 03453
FRACTIONAL
M2 • 3xD • 12xD Overall Reach
• Two flute design
is ideal for softer
alloyed, non-ferrous
material applications
that require slotting
or involve heavy chip
loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
20 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
2
M2B • 1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.008 1-1/2 00669 03029
0.006 1/8 0.009 1-1/2 00670 03030
0.007 1/8 0.011 1-1/2 00671 03031
0.008 1/8 0.012 1-1/2 00672 03032
0.009 1/8 0.014 1-1/2 00673 03033
0.010 1/8 0.015 1-1/2 00674 03034
0.011 1/8 0.017 1-1/2 00675 03035
0.012 1/8 0.018 1-1/2 00676 03036
0.013 1/8 0.020 1-1/2 00677 03037
0.014 1/8 0.021 1-1/2 00678 03038
0.015 1/8 0.023 1-1/2 00679 03039
0.016 1/8 0.024 1-1/2 00680 03040
0.017 1/8 0.026 1-1/2 00681 03041
0.018 1/8 0.027 1-1/2 00682 03042
0.019 1/8 0.029 1-1/2 00683 03043
0.020 1/8 0.030 1-1/2 00684 03044
0.021 1/8 0.032 1-1/2 00685 03045
0.022 1/8 0.033 1-1/2 00686 03046
0.023 1/8 0.035 1-1/2 00687 03047
0.024 1/8 0.036 1-1/2 00688 03048
0.025 1/8 0.038 1-1/2 00689 03049
0.026 1/8 0.039 1-1/2 00690 03050
0.027 1/8 0.041 1-1/2 00691 03051
0.028 1/8 0.042 1-1/2 00692 03052
0.029 1/8 0.044 1-1/2 00693 03053
0.030 1/8 0.045 1-1/2 00694 03054
0.031 1/8 0.047 1-1/2 00695 03055
0.032 1/8 0.048 1-1/2 00696 03056
0.033 1/8 0.050 1-1/2 00697 03057
0.034 1/8 0.051 1-1/2 00698 03058
0.035 1/8 0.053 1-1/2 00699 03059
0.036 1/8 0.054 1-1/2 00700 03060
0.037 1/8 0.056 1-1/2 00701 03061
0.038 1/8 0.057 1-1/2 00702 03062
0.039 1/8 0.059 1-1/2 00703 03063
0.040 1/8 0.060 1-1/2 00704 03064
continued on next page
FRACTIONAL
M2B • 1.5xD
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
21
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
FRACTIONAL
M2B • 1.5xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.041 1/8 0.062 1-1/2 00705 02504
0.042 1/8 0.063 1-1/2 00706 02505
0.043 1/8 0.065 1-1/2 00707 02506
0.044 1/8 0.066 1-1/2 00708 02507
0.045 1/8 0.068 1-1/2 00709 02508
0.046 1/8 0.069 1-1/2 00710 02509
0.047 1/8 0.071 1-1/2 00711 02510
0.048 1/8 0.072 1-1/2 00712 02511
0.049 1/8 0.074 1-1/2 00713 02512
0.050 1/8 0.075 1-1/2 00714 02513
0.051 1/8 0.077 1-1/2 00715 02514
0.052 1/8 0.078 1-1/2 00716 02515
0.053 1/8 0.080 1-1/2 00717 02516
0.054 1/8 0.081 1-1/2 00718 02517
0.055 1/8 0.083 1-1/2 00719 02518
0.056 1/8 0.084 1-1/2 00720 02519
0.057 1/8 0.086 1-1/2 00721 02520
0.058 1/8 0.087 1-1/2 00722 02521
0.059 1/8 0.089 1-1/2 00723 02522
0.060 1/8 0.090 1-1/2 00724 02523
0.062 1/8 0.093 1-1/2 00725 02524
0.065 1/8 0.098 1-1/2 00726 02525
0.070 1/8 0.105 1-1/2 00727 02526
0.075 1/8 0.112 1-1/2 04010 04008
0.078 1/8 0.117 1-1/2 00728 02527
0.080 1/8 0.120 1-1/2 00729 02528
0.085 1/8 0.128 1-1/2 00730 02529
0.090 1/8 0.135 1-1/2 00731 02530
0.093 1/8 0.140 1-1/2 00732 02531
0.095 1/8 0.143 1-1/2 00733 02532
0.100 1/8 0.150 1-1/2 00734 02533
0.105 1/8 0.158 1-1/2 00735 02534
0.110 1/8 0.165 1-1/2 00736 02535
0.115 1/8 0.173 1-1/2 00737 02536
0.120 1/8 0.180 1-1/2 00738 02537
M2B • 1.5xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
22 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M2B • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.015 1-1/2 00443 03103
0.006 1/8 0.018 1-1/2 00444 03104
0.007 1/8 0.021 1-1/2 00445 03105
0.008 1/8 0.024 1-1/2 00446 03106
0.009 1/8 0.027 1-1/2 00447 03107
0.010 1/8 0.030 1-1/2 00448 03108
0.011 1/8 0.033 1-1/2 00449 03109
0.012 1/8 0.036 1-1/2 00450 03110
0.013 1/8 0.039 1-1/2 00451 03111
0.014 1/8 0.042 1-1/2 00452 03112
0.015 1/8 0.045 1-1/2 00453 03113
0.016 1/8 0.048 1-1/2 00454 03114
0.017 1/8 0.051 1-1/2 00455 03115
0.018 1/8 0.054 1-1/2 00456 03116
0.019 1/8 0.057 1-1/2 00457 03117
0.020 1/8 0.060 1-1/2 00458 03118
0.021 1/8 0.063 1-1/2 00459 03119
0.022 1/8 0.066 1-1/2 00460 03120
0.023 1/8 0.069 1-1/2 00461 03121
0.024 1/8 0.072 1-1/2 00462 03122
0.025 1/8 0.075 1-1/2 00463 03123
0.026 1/8 0.078 1-1/2 00464 03124
0.027 1/8 0.081 1-1/2 00465 03125
0.028 1/8 0.084 1-1/2 00466 03126
0.029 1/8 0.087 1-1/2 00467 03127
0.030 1/8 0.090 1-1/2 00468 03128
0.031 1/8 0.093 1-1/2 00469 03129
0.032 1/8 0.096 1-1/2 00470 03130
0.033 1/8 0.099 1-1/2 00471 03131
0.034 1/8 0.102 1-1/2 00472 03132
0.035 1/8 0.105 1-1/2 00473 03133
0.036 1/8 0.108 1-1/2 00474 03134
0.037 1/8 0.111 1-1/2 00475 03135
0.038 1/8 0.114 1-1/2 00476 03136
0.039 1/8 0.117 1-1/2 00477 03137
0.040 1/8 0.120 1-1/2 00478 03138
continued on next page
FRACTIONAL
M2B • 3xD
30°
15°
POS
2
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
23
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
FRACTIONAL
M2B • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.041 1/8 0.123 1-1/2 00847 02572
0.042 1/8 0.126 1-1/2 00848 02573
0.043 1/8 0.129 1-1/2 00849 02574
0.044 1/8 0.132 1-1/2 00850 02575
0.045 1/8 0.135 1-1/2 00851 02576
0.046 1/8 0.138 1-1/2 00852 02577
0.047 1/8 0.141 1-1/2 00853 02578
0.048 1/8 0.144 1-1/2 00854 02579
0.049 1/8 0.147 1-1/2 00855 02580
0.050 1/8 0.150 1-1/2 00856 02581
0.051 1/8 0.153 1-1/2 00857 02582
0.052 1/8 0.156 1-1/2 00858 02583
0.053 1/8 0.159 1-1/2 00859 02584
0.054 1/8 0.162 1-1/2 00860 02585
0.055 1/8 0.165 1-1/2 00861 02586
0.056 1/8 0.168 1-1/2 00862 02587
0.057 1/8 0.171 1-1/2 00863 02588
0.058 1/8 0.174 1-1/2 00864 02589
0.059 1/8 0.177 1-1/2 00497 02590
0.060 1/8 0.180 1-1/2 00866 02591
0.062 1/8 0.186 1-1/2 00867 02592
0.065 1/8 0.195 1-1/2 00868 02593
0.070 1/8 0.210 1-1/2 00869 02594
0.075 1/8 0.225 1-1/2 04011 04009
0.078 1/8 0.234 1-1/2 00502 02595
0.080 1/8 0.240 1-1/2 00871 02596
0.085 1/8 0.255 1-1/2 00872 02597
0.090 1/8 0.270 1-1/2 00873 02598
0.093 1/8 0.279 1-1/2 00874 02599
0.095 1/8 0.285 1-1/2 00875 02600
0.100 1/8 0.300 1-1/2 00876 02601
0.105 1/8 0.315 1-1/2 00877 02602
0.110 1/8 0.330 1-1/2 00510 02603
0.115 1/8 0.345 1-1/2 00879 02604
0.120 1/8 0.360 1-1/2 00880 02605
M2B • 3xD
FRACTIONAL SERIES
continued
30°
15°
POS
2
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
24 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LU
DC
D
APMX
DN
RE
END MILLS
END MILLS
30°
15°
POS
2
M2B • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 09299 03697
0.015 1/8 0.045 0.120 0.014 1-1/2 09301 03698
0.020 1/8 0.060 0.160 0.018 1-1/2 09303 03699
0.025 1/8 0.075 0.200 0.023 1-1/2 09305 03700
0.030 1/8 0.090 0.240 0.028 1-1/2 09307 03701
0.031 1/8 0.093 0.248 0.029 1-1/2 09309 03702
0.035 1/8 0.105 0.280 0.032 1-1/2 09311 03703
0.040 1/8 0.120 0.320 0.037 1-1/2 09313 03704
0.045 1/8 0.135 0.360 0.042 2 09315 03705
0.047 1/8 0.141 0.376 0.044 2 09317 03706
0.050 1/8 0.150 0.400 0.047 2 09319 03707
0.055 1/8 0.165 0.440 0.051 2 09321 03708
0.060 1/8 0.180 0.480 0.056 2 09323 03709
0.062 1/8 0.186 0.496 0.058 2 09325 03710
0.065 1/8 0.195 0.520 0.061 2 09327 03711
0.070 1/8 0.210 0.560 0.065 2 09329 03712
0.075 1/8 0.225 0.600 0.070 2 09331 03713
0.078 1/8 0.234 0.624 0.073 2 09333 03714
0.080 1/8 0.240 0.640 0.075 2 09335 03715
0.085 1/8 0.255 0.680 0.079 2 09337 03716
0.090 1/8 0.270 0.720 0.084 2 09339 03717
0.093 1/8 0.279 0.744 0.087 2 09341 03718
0.095 1/8 0.285 0.760 0.089 2 09343 03719
0.100 1/8 0.300 0.800 0.094 2 09345 03720
0.110 1/8 0.330 0.880 0.103 2 09347 03721
0.115 1/8 0.345 0.920 0.108 2 09349 03722
0.120 1/8 0.360 0.960 0.112 2 09351 03723
FRACTIONAL
M2B • 3xD • 8xD Overall Reach
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
25
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LU
LF
DC
D
CON
APMX
DN
RE
END MILLS
END MILLS
30°
15°
POS
2
FRACTIONAL
M2B • 3xD • 12xD Overall Reach
M2B • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 09298 03724
0.015 1/8 0.045 0.180 0.014 1-1/2 09300 03725
0.020 1/8 0.060 0.240 0.018 1-1/2 09302 03726
0.025 1/8 0.075 0.300 0.023 1-1/2 09304 03727
0.030 1/8 0.090 0.360 0.028 2 09306 03728
0.031 1/8 0.093 0.372 0.029 2 09308 03729
0.035 1/8 0.105 0.420 0.032 2 09310 03730
0.040 1/8 0.120 0.480 0.037 2 09312 03731
0.045 1/8 0.135 0.540 0.042 2 09314 03732
0.047 1/8 0.141 0.564 0.044 2 09316 03733
0.050 1/8 0.150 0.600 0.047 2 09318 03734
0.055 1/8 0.165 0.660 0.051 2 09320 03735
0.060 1/8 0.180 0.720 0.056 2 09322 03736
0.062 1/8 0.186 0.744 0.058 2 09324 03737
0.065 1/8 0.195 0.780 0.061 2 09326 03738
0.070 1/8 0.210 0.840 0.065 2 09328 03739
0.075 1/8 0.225 0.900 0.070 2 09330 03740
0.078 1/8 0.234 0.936 0.073 2-1/2 09332 03741
0.080 1/8 0.240 0.960 0.075 2-1/2 09334 03742
0.085 1/8 0.255 1.020 0.079 2-1/2 09336 03743
0.090 1/8 0.270 1.080 0.084 2-1/2 09338 03744
0.093 1/8 0.279 1.116 0.087 2-1/2 09340 03745
0.095 1/8 0.285 1.140 0.089 2-1/2 09342 03746
0.100 1/8 0.300 1.200 0.094 2-1/2 09344 03747
0.110 1/8 0.330 1.320 0.103 2-1/2 09346 03748
0.115 1/8 0.345 1.380 0.108 2-1/2 09348 03749
0.120 1/8 0.360 1.440 0.112 2-1/2 09350 03750
• Two flute design
is ideal for softer
alloyed, non-ferrous
material applications
that require slotting
or involve heavy chip
loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
26 www.sgsmicrotools.com
LF
DC
D
CON
APMX
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3 • 1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.008 1-1/2 04040 01085
0.006 1/8 0.009 1-1/2 04041 01086
0.007 1/8 0.011 1-1/2 04042 01087
0.008 1/8 0.012 1-1/2 04043 01088
0.009 1/8 0.014 1-1/2 04044 01089
0.010 1/8 0.015 1-1/2 04045 01090
0.011 1/8 0.017 1-1/2 04046 01091
0.012 1/8 0.018 1-1/2 04047 01092
0.013 1/8 0.020 1-1/2 04048 01093
0.014 1/8 0.021 1-1/2 04049 01094
0.015 1/8 0.023 1-1/2 04050 01095
0.016 1/8 0.024 1-1/2 04051 01096
0.017 1/8 0.026 1-1/2 04052 01097
0.018 1/8 0.027 1-1/2 04053 01098
0.019 1/8 0.029 1-1/2 04054 01099
0.020 1/8 0.030 1-1/2 04055 01100
0.021 1/8 0.032 1-1/2 04056 01101
0.022 1/8 0.033 1-1/2 04057 01102
0.023 1/8 0.035 1-1/2 04058 01103
0.024 1/8 0.036 1-1/2 04059 01104
0.025 1/8 0.038 1-1/2 04060 01105
0.026 1/8 0.039 1-1/2 04061 01106
0.027 1/8 0.041 1-1/2 04062 01107
0.028 1/8 0.042 1-1/2 04063 01108
0.029 1/8 0.044 1-1/2 04064 01109
0.030 1/8 0.045 1-1/2 04065 01110
0.031 1/8 0.047 1-1/2 04066 01111
0.032 1/8 0.048 1-1/2 04067 01112
0.033 1/8 0.050 1-1/2 04068 01113
0.034 1/8 0.051 1-1/2 04069 01114
0.035 1/8 0.053 1-1/2 04070 01115
0.036 1/8 0.054 1-1/2 04071 01116
0.037 1/8 0.056 1-1/2 04072 01117
0.038 1/8 0.057 1-1/2 04073 01118
0.039 1/8 0.059 1-1/2 04074 01119
0.040 1/8 0.060 1-1/2 04075 01120
continued on next page
FRACTIONAL
M3 • 1.5xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
27
www.sgsmicrotools.com
LF
DC
D
CON
APMX
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3 • 1.5xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.041 1/8 0.062 1-1/2 04076 01121
0.042 1/8 0.063 1-1/2 04077 01122
0.043 1/8 0.065 1-1/2 04078 01123
0.044 1/8 0.066 1-1/2 04079 01124
0.045 1/8 0.068 1-1/2 04080 01125
0.046 1/8 0.069 1-1/2 04081 01126
0.047 1/8 0.071 1-1/2 04082 01127
0.048 1/8 0.072 1-1/2 04083 01128
0.049 1/8 0.074 1-1/2 04084 01129
0.050 1/8 0.075 1-1/2 04085 01130
0.051 1/8 0.077 1-1/2 04086 01131
0.052 1/8 0.078 1-1/2 04087 01132
0.053 1/8 0.080 1-1/2 04088 01133
0.054 1/8 0.081 1-1/2 04089 01134
0.055 1/8 0.083 1-1/2 04090 01135
0.056 1/8 0.084 1-1/2 04091 01136
0.057 1/8 0.086 1-1/2 04092 01137
0.058 1/8 0.087 1-1/2 04093 01138
0.059 1/8 0.089 1-1/2 04094 01139
0.060 1/8 0.090 1-1/2 04095 01140
0.062 1/8 0.093 1-1/2 04096 01141
0.065 1/8 0.098 1-1/2 04097 01142
0.070 1/8 0.105 1-1/2 04098 01143
0.075 1/8 0.113 1-1/2 04099 01144
0.078 1/8 0.117 1-1/2 04100 01145
0.080 1/8 0.120 1-1/2 04101 01146
0.085 1/8 0.128 1-1/2 04102 01147
0.090 1/8 0.135 1-1/2 04103 01148
0.093 1/8 0.140 1-1/2 04104 01149
0.095 1/8 0.143 1-1/2 04105 01150
0.100 1/8 0.150 1-1/2 04106 01151
0.105 1/8 0.158 1-1/2 04107 01152
0.110 1/8 0.165 1-1/2 04108 01153
0.115 1/8 0.173 1-1/2 04109 01154
0.120 1/8 0.180 1-1/2 04110 01155
M3 • 1.5xD
FRACTIONAL SERIES
continued
New Expanded Tools
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
28 www.sgsmicrotools.com
END MILLS
END MILLS
30°
15°
POS
3
M3 • 1.5xD
3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.030 0.009 2-1/2 09599 03508
0.015 1/8 0.023 0.045 0.014 2-1/2 09606 03509
0.020 1/8 0.030 0.060 0.018 2-1/2 09613 03510
0.025 1/8 0.038 0.075 0.023 2-1/2 09620 03511
0.030 1/8 0.045 0.090 0.028 2-1/2 09627 03512
0.031 1/8 0.047 0.093 0.029 2-1/2 09634 03513
0.035 1/8 0.053 0.105 0.032 2-1/2 09641 03514
0.040 1/8 0.060 0.120 0.037 2-1/2 09648 03515
0.045 1/8 0.068 0.135 0.042 2-1/2 09655 03516
0.047 1/8 0.071 0.141 0.044 2-1/2 09662 03517
0.050 1/8 0.075 0.150 0.047 2-1/2 09669 03518
0.055 1/8 0.083 0.165 0.051 2-1/2 09676 03519
0.060 1/8 0.090 0.180 0.056 2-1/2 09683 03520
0.062 1/8 0.093 0.186 0.058 2-1/2 09690 03521
0.065 1/8 0.098 0.195 0.061 2-1/2 09697 03522
0.070 1/8 0.105 0.210 0.065 2-1/2 09704 03523
0.075 1/8 0.113 0.225 0.070 2-1/2 09711 03524
0.078 1/8 0.117 0.234 0.073 2-1/2 09718 03525
0.080 1/8 0.120 0.240 0.075 2-1/2 09725 03526
0.085 1/8 0.128 0.255 0.079 2-1/2 09732 03527
0.090 1/8 0.135 0.270 0.084 2-1/2 09739 03528
0.093 1/8 0.140 0.279 0.087 2-1/2 09746 03529
0.095 1/8 0.143 0.285 0.089 2-1/2 09753 03530
0.100 1/8 0.150 0.300 0.094 2-1/2 09760 03531
0.110 1/8 0.165 0.330 0.103 2-1/2 09767 03532
0.115 1/8 0.173 0.345 0.108 2-1/2 09774 03533
0.120 1/8 0.180 0.360 0.112 2-1/2 09781 03534
FRACTIONAL
M3 • 1.5xD • 3xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
DCON
APMX
DN
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
29
www.sgsmicrotools.com
END MILLS
END MILLS
30°
15°
POS
3
M3 • M3CR • 1.5xD
5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.050 0.009 2-1/2 – 09600 03535
0.015 1/8 0.023 0.075 0.014 2-1/2 – 09607 03536
0.015 1/8 0.023 0.075 0.014 2-1/2 0.003 08782 08884
0.020 1/8 0.030 0.100 0.018 2-1/2 – 09614 03537
0.020 1/8 0.030 0.100 0.018 2-1/2 0.005 08785 08887
0.025 1/8 0.038 0.125 0.023 2-1/2 – 09621 03538
0.025 1/8 0.038 0.125 0.023 2-1/2 0.005 08788 08890
0.030 1/8 0.045 0.150 0.028 2-1/2 – 09628 03539
0.030 1/8 0.045 0.150 0.028 2-1/2 0.005 08791 08893
0.031 1/8 0.047 0.155 0.029 2-1/2 – 09635 03540
0.035 1/8 0.053 0.175 0.032 2-1/2 – 09642 03541
0.035 1/8 0.053 0.175 0.032 2-1/2 0.005 08794 08896
0.035 1/8 0.053 0.175 0.032 2-1/2 0.010 08797 08899
0.040 1/8 0.060 0.200 0.037 2-1/2 – 09649 03542
0.040 1/8 0.060 0.200 0.037 2-1/2 0.005 08800 08902
0.040 1/8 0.060 0.200 0.037 2-1/2 0.010 08803 08905
0.045 1/8 0.068 0.225 0.042 2-1/2 – 09656 03543
0.045 1/8 0.068 0.225 0.042 2-1/2 0.005 08806 08908
0.045 1/8 0.068 0.225 0.042 2-1/2 0.010 08809 08911
0.047 1/8 0.071 0.235 0.044 2-1/2 – 09663 03544
0.050 1/8 0.075 0.250 0.047 2-1/2 – 09670 03545
0.050 1/8 0.075 0.250 0.047 2-1/2 0.005 08812 08914
0.050 1/8 0.075 0.250 0.047 2-1/2 0.010 08815 08917
0.050 1/8 0.075 0.250 0.047 2-1/2 0.015 08818 08920
0.055 1/8 0.083 0.275 0.051 2-1/2 – 09677 03546
0.060 1/8 0.090 0.300 0.056 2-1/2 – 09684 03547
0.060 1/8 0.090 0.300 0.056 2-1/2 0.005 08821 08923
0.060 1/8 0.090 0.300 0.056 2-1/2 0.010 08824 08926
0.060 1/8 0.090 0.300 0.056 2-1/2 0.015 08827 08929
0.062 1/8 0.093 0.310 0.058 2-1/2 – 09691 03548
0.065 1/8 0.098 0.325 0.061 2-1/2 – 09698 03549
0.070 1/8 0.105 0.350 0.065 2-1/2 – 09705 03550
0.070 1/8 0.105 0.350 0.065 2-1/2 0.005 08830 08932
0.070 1/8 0.105 0.350 0.065 2-1/2 0.010 08833 08935
continued on next page
FRACTIONAL
M3 • M3CR • 1.5xD • 5xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
D
CON
AP
MX
DC
RE
DN
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
30 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
30°
15°
POS
3
M3 • M3CR • 1.5xD
5xD
FRACTIONAL SERIES
FRACTIONAL
M3 • M3CR • 1.5xD • 5xD Overall Reach
continued inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.070 1/8 0.105 0.350 0.065 2-1/2 0.015 08836 08938
0.075 1/8 0.113 0.375 0.070 2-1/2 – 09712 03551
0.078 1/8 0.117 0.390 0.073 2-1/2 – 09719 03552
0.080 1/8 0.120 0.400 0.075 2-1/2 – 09726 03553
0.080 1/8 0.120 0.400 0.075 2-1/2 0.005 08839 08941
0.080 1/8 0.120 0.400 0.075 2-1/2 0.010 08842 08944
0.080 1/8 0.120 0.400 0.075 2-1/2 0.015 08845 08947
0.085 1/8 0.128 0.425 0.079 2-1/2 – 09733 03554
0.090 1/8 0.135 0.450 0.084 2-1/2 – 09740 03555
0.090 1/8 0.135 0.450 0.084 2-1/2 0.005 08848 08950
0.090 1/8 0.135 0.450 0.084 2-1/2 0.010 08851 08953
0.090 1/8 0.135 0.450 0.084 2-1/2 0.015 08854 08956
0.093 1/8 0.140 0.465 0.087 2-1/2 – 09747 03556
0.095 1/8 0.143 0.475 0.089 2-1/2 – 09754 03557
0.100 1/8 0.150 0.500 0.094 2-1/2 – 09761 03558
0.100 1/8 0.150 0.500 0.094 2-1/2 0.005 08857 08959
0.100 1/8 0.150 0.500 0.094 2-1/2 0.010 08860 08962
0.100 1/8 0.150 0.500 0.094 2-1/2 0.015 08863 08965
0.110 1/8 0.165 0.550 0.103 2-1/2 – 09768 03559
0.110 1/8 0.165 0.550 0.103 2-1/2 0.005 08866 08968
0.110 1/8 0.165 0.550 0.103 2-1/2 0.010 08869 08971
0.110 1/8 0.165 0.550 0.103 2-1/2 0.015 08872 08974
0.115 1/8 0.173 0.575 0.108 2-1/2 – 09775 03560
0.120 1/8 0.180 0.600 0.112 2-1/2 – 09782 03561
0.120 1/8 0.180 0.600 0.112 2-1/2 0.005 08875 08977
0.120 1/8 0.180 0.600 0.112 2-1/2 0.010 08878 08980
0.120 1/8 0.180 0.600 0.112 2-1/2 0.015 08881 08983
LU
LF
D
CON
AP
MX
DC
RE
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
31
www.sgsmicrotools.com
END MILLS
END MILLS
M3 • M3CR • 1.5xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.080 0.009 2-1/2 – 09601 03562
0.015 1/8 0.023 0.120 0.014 2-1/2 – 09608 03563
0.015 1/8 0.023 0.120 0.014 2-1/2 0.003 08783 08885
0.020 1/8 0.030 0.160 0.018 2-1/2 – 09615 03564
0.020 1/8 0.030 0.160 0.018 2-1/2 0.005 08786 08888
0.025 1/8 0.038 0.200 0.023 2-1/2 – 09622 03565
0.025 1/8 0.038 0.200 0.023 2-1/2 0.005 08789 08891
0.030 1/8 0.045 0.240 0.028 2-1/2 – 09629 03566
0.030 1/8 0.045 0.240 0.028 2-1/2 0.005 08792 08894
0.031 1/8 0.047 0.248 0.029 2-1/2 – 09636 03567
0.035 1/8 0.053 0.280 0.032 2-1/2 – 09643 03568
0.035 1/8 0.053 0.280 0.032 2-1/2 0.005 08795 08897
0.035 1/8 0.053 0.280 0.032 2-1/2 0.010 08798 08900
0.040 1/8 0.060 0.320 0.037 2-1/2 – 09650 03569
0.040 1/8 0.060 0.320 0.037 2-1/2 0.005 08801 08903
0.040 1/8 0.060 0.320 0.037 2-1/2 0.010 08804 08906
0.045 1/8 0.068 0.360 0.042 2-1/2 – 09657 03570
0.045 1/8 0.068 0.360 0.042 2-1/2 0.005 08807 08909
0.045 1/8 0.068 0.360 0.042 2-1/2 0.010 08810 08912
0.047 1/8 0.071 0.376 0.044 2-1/2 – 09664 03571
0.050 1/8 0.075 0.400 0.047 2-1/2 – 09671 03572
0.050 1/8 0.075 0.400 0.047 2-1/2 0.005 08813 08915
0.050 1/8 0.075 0.400 0.047 2-1/2 0.010 08816 08918
0.050 1/8 0.075 0.400 0.047 2-1/2 0.015 08819 08921
0.055 1/8 0.083 0.440 0.051 2-1/2 – 09678 03573
0.060 1/8 0.090 0.480 0.056 2-1/2 – 09685 03574
0.060 1/8 0.090 0.480 0.056 2-1/2 0.005 08822 08924
0.060 1/8 0.090 0.480 0.056 2-1/2 0.010 08825 08927
0.060 1/8 0.090 0.480 0.056 2-1/2 0.015 08828 08930
0.062 1/8 0.093 0.496 0.058 2-1/2 – 09692 03575
0.065 1/8 0.098 0.520 0.061 2-1/2 – 09699 03576
0.070 1/8 0.105 0.560 0.065 2-1/2 – 09706 03577
0.070 1/8 0.105 0.560 0.065 2-1/2 0.005 08831 08933
0.070 1/8 0.105 0.560 0.065 2-1/2 0.010 08834 08936
0.070 1/8 0.105 0.560 0.065 2-1/2 0.015 08837 08939
0.075 1/8 0.113 0.600 0.070 2-1/2 – 09713 03578
continued on next page
FRACTIONAL
M3 • M3CR • 1.5xD • 8xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
30°
15°
POS
3
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
LU
LF
D
CON
AP
MX
DC
RE
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
32 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
30°
15°
POS
3
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.078 1/8 0.117 0.624 0.073 2-1/2 – 09720 03579
0.080 1/8 0.120 0.640 0.075 2-1/2 – 09727 03580
0.080 1/8 0.120 0.640 0.075 2-1/2 0.005 08840 08942
0.080 1/8 0.120 0.640 0.075 2-1/2 0.010 08843 08945
0.080 1/8 0.120 0.640 0.075 2-1/2 0.015 08846 08948
0.085 1/8 0.128 0.680 0.079 2-1/2 – 09734 03581
0.090 1/8 0.135 0.720 0.084 2-1/2 – 09741 03582
0.090 1/8 0.135 0.720 0.084 2-1/2 0.005 08849 08951
0.090 1/8 0.135 0.720 0.084 2-1/2 0.010 08852 08954
0.090 1/8 0.135 0.720 0.084 2-1/2 0.015 08855 08957
0.093 1/8 0.140 0.744 0.087 2-1/2 – 09748 03583
0.095 1/8 0.143 0.760 0.089 2-1/2 – 09755 03584
0.100 1/8 0.150 0.800 0.094 2-1/2 09762 03585
0.100 1/8 0.150 0.800 0.094 2-1/2 0.005 08858 08960
0.100 1/8 0.150 0.800 0.094 2-1/2 0.010 08861 08963
0.100 1/8 0.150 0.800 0.094 2-1/2 0.015 08864 08966
0.110 1/8 0.165 0.880 0.103 2-1/2 09769 03586
0.110 1/8 0.165 0.880 0.103 2-1/2 0.005 08867 08969
0.110 1/8 0.165 0.880 0.103 2-1/2 0.010 08870 08972
0.110 1/8 0.165 0.880 0.103 2-1/2 0.015 08873 08975
0.115 1/8 0.173 0.920 0.108 2-1/2 09776 03587
0.120 1/8 0.180 0.960 0.112 2-1/2 09783 03588
0.120 1/8 0.180 0.960 0.112 2-1/2 0.005 08876 08978
0.120 1/8 0.180 0.960 0.112 2-1/2 0.010 08879 08981
0.120 1/8 0.180 0.960 0.112 2-1/2 0.015 08882 08984
FRACTIONAL
M3 • M3CR • 1.5xD • 8xD Overall Reach
continued
M3 • M3CR • 1.5xD
8xD
FRACTIONAL SERIES
LU
LF
D
CON
AP
MX
DC
RE
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
33
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
30°
15°
POS
3
M3 • M3CR • 1.5xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED
TI-
NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.120 0.009 2-1/2 – 09595 03589
0.015 1/8 0.023 0.180 0.014 2-1/2 – 09602 03590
0.015 1/8 0.023 0.180 0.014 2-1/2 0.003 08784 08886
0.020 1/8 0.030 0.240 0.018 2-1/2 – 09609 03591
0.020 1/8 0.030 0.240 0.018 2-1/2 0.005 08787 08889
0.025 1/8 0.038 0.300 0.023 2-1/2 – 09616 03592
0.025 1/8 0.038 0.300 0.023 2-1/2 0.005 08790 08892
0.030 1/8 0.045 0.360 0.028 2-1/2 – 09623 03593
0.030 1/8 0.045 0.360 0.028 2-1/2 0.005 08793 08895
0.031 1/8 0.047 0.372 0.029 2-1/2 – 09630 03594
0.035 1/8 0.053 0.420 0.032 2-1/2 – 09637 03595
0.035 1/8 0.053 0.420 0.032 2-1/2 0.005 08796 08898
0.035 1/8 0.053 0.420 0.032 2-1/2 0.010 08799 08901
0.040 1/8 0.060 0.480 0.037 2-1/2 – 09644 03596
0.040 1/8 0.060 0.480 0.037 2-1/2 0.005 08802 08904
0.040 1/8 0.060 0.480 0.037 2-1/2 0.010 08805 08907
0.045 1/8 0.068 0.540 0.042 2-1/2 – 09651 03597
0.045 1/8 0.068 0.540 0.042 2-1/2 0.005 08808 08910
0.045 1/8 0.068 0.540 0.042 2-1/2 0.010 08811 08913
0.047 1/8 0.071 0.564 0.044 2-1/2 – 09658 03598
0.050 1/8 0.075 0.600 0.047 2-1/2 – 09665 03599
0.050 1/8 0.075 0.600 0.047 2-1/2 0.005 08814 08916
0.050 1/8 0.075 0.600 0.047 2-1/2 0.010 08817 08919
0.050 1/8 0.075 0.600 0.047 2-1/2 0.015 08820 08922
0.055 1/8 0.083 0.660 0.051 2-1/2 – 09672 03600
0.060 1/8 0.090 0.720 0.056 2-1/2 – 09679 03601
0.060 1/8 0.090 0.720 0.056 2-1/2 0.005 08823 08925
0.060 1/8 0.090 0.720 0.056 2-1/2 0.010 08826 08928
0.060 1/8 0.090 0.720 0.056 2-1/2 0.015 08829 08931
0.062 1/8 0.093 0.744 0.058 2-1/2 – 09686 03602
0.065 1/8 0.098 0.780 0.061 2-1/2 – 09693 03603
0.070 1/8 0.105 0.840 0.065 2-1/2 – 09700 03604
0.070 1/8 0.105 0.840 0.065 2-1/2 0.005 08832 08934
0.070 1/8 0.105 0.840 0.065 2-1/2 0.010 08835 08937
0.070 1/8 0.105 0.840 0.065 2-1/2 0.015 08838 08940
0.075 1/8 0.113 0.900 0.070 2-1/2 – 09707 03605
continued on next page
FRACTIONAL
M3 • M3CR • 1.5xD • 12xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
D
CON
AP
MX
DC
RE
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
34 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED
TI-
NAMITE-A
(AlTiN)
0.078 1/8 0.117 0.936 0.073 2-1/2 – 09714 03606
0.080 1/8 0.120 0.960 0.075 2-1/2 – 09721 03607
0.080 1/8 0.120 0.960 0.075 2-1/2 0.005 08841 08943
0.080 1/8 0.120 0.960 0.075 2-1/2 0.010 08844 08946
0.080 1/8 0.120 0.960 0.075 2-1/2 0.015 08847 08949
0.085 1/8 0.128 1.020 0.079 2-1/2 – 09728 03608
0.090 1/8 0.135 1.080 0.084 2-1/2 – 09735 03609
0.090 1/8 0.135 1.080 0.084 2-1/2 0.005 08850 08952
0.090 1/8 0.135 1.080 0.084 2-1/2 0.010 08853 08955
0.090 1/8 0.135 1.080 0.084 2-1/2 0.015 08856 08958
0.093 1/8 0.140 1.116 0.087 2-1/2 – 09742 03610
0.095 1/8 0.143 1.140 0.089 2-1/2 – 09749 03611
0.100 1/8 0.150 1.200 0.094 2-1/2 – 09756 03612
0.100 1/8 0.150 1.200 0.094 2-1/2 0.005 08859 08961
0.100 1/8 0.150 1.200 0.094 2-1/2 0.010 08862 08964
0.100 1/8 0.150 1.200 0.094 2-1/2 0.015 08865 08967
0.110 1/8 0.165 1.320 0.103 2-1/2 – 09763 03613
0.110 1/8 0.165 1.320 0.103 2-1/2 0.005 08868 08970
0.110 1/8 0.165 1.320 0.103 2-1/2 0.010 08871 08973
0.110 1/8 0.165 1.320 0.103 2-1/2 0.015 08874 08976
0.115 1/8 0.173 1.380 0.108 2-1/2 – 09770 03614
0.120 1/8 0.180 1.440 0.112 2-1/2 – 09777 03615
0.120 1/8 0.180 1.440 0.112 2-1/2 0.005 08877 08979
0.120 1/8 0.180 1.440 0.112 2-1/2 0.010 08880 08982
0.120 1/8 0.180 1.440 0.112 2-1/2 0.015 08883 08985
30°
15°
POS
3
M3 • M3CR • 1.5xD
12xD
FRACTIONAL SERIES
FRACTIONAL
M3 • M3CR • 1.5xD • 12xD Overall Reach
continued
LU
LF
D
CON
AP
MX
DC
RE
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
35
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3 • 1.5xD
15xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.150 0.009 2-1/2 09596 03616
0.015 1/8 0.023 0.225 0.014 2-1/2 09603 03617
0.020 1/8 0.030 0.300 0.018 2-1/2 09610 03618
0.025 1/8 0.038 0.375 0.023 2-1/2 09617 03619
0.030 1/8 0.045 0.450 0.028 2-1/2 09624 03620
0.031 1/8 0.047 0.465 0.029 2-1/2 09631 03621
0.035 1/8 0.053 0.525 0.032 2-1/2 09638 03622
0.040 1/8 0.060 0.600 0.037 2-1/2 09645 03623
0.045 1/8 0.068 0.675 0.042 2-1/2 09652 03624
0.047 1/8 0.071 0.705 0.044 2-1/2 09659 03625
0.050 1/8 0.075 0.750 0.047 2-1/2 09666 03626
0.055 1/8 0.083 0.825 0.051 2-1/2 09673 03627
0.060 1/8 0.090 0.900 0.056 2-1/2 09680 03628
0.062 1/8 0.093 0.930 0.058 2-1/2 09687 03629
0.065 1/8 0.098 0.975 0.061 2-1/2 09694 03630
0.070 1/8 0.105 1.050 0.065 2-1/2 09701 03631
0.075 1/8 0.113 1.125 0.070 2-1/2 09708 03632
0.078 1/8 0.117 1.170 0.073 2-1/2 09715 03633
0.080 1/8 0.120 1.200 0.075 2-1/2 09722 03634
0.085 1/8 0.128 1.275 0.079 2-1/2 09729 03635
0.090 1/8 0.135 1.350 0.084 2-1/2 09736 03636
0.093 1/8 0.140 1.395 0.087 3 09743 03637
0.095 1/8 0.143 1.425 0.089 3 09750 03638
0.100 1/8 0.150 1.500 0.094 3 09757 03639
0.110 1/8 0.165 1.650 0.103 3 09764 03640
0.115 1/8 0.173 1.725 0.108 3 09771 03641
0.120 1/8 0.180 1.800 0.112 3 09778 03642
FRACTIONAL
M3 • 1.5xD • 15xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
DCON
APMX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
36 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
LU
LF
DC
DCON
APMX
DN
30°
15°
POS
3
M3 • 1.5xD
20xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.200 0.009 2-1/2 09597 03643
0.015 1/8 0.023 0.300 0.014 2-1/2 09604 03644
0.020 1/8 0.030 0.400 0.018 2-1/2 09611 03645
0.025 1/8 0.038 0.500 0.023 2-1/2 09618 03646
0.030 1/8 0.045 0.600 0.028 2-1/2 09625 03647
0.031 1/8 0.047 0.620 0.029 2-1/2 09632 03648
0.035 1/8 0.053 0.700 0.032 2-1/2 09639 03649
0.040 1/8 0.060 0.800 0.037 2-1/2 09646 03650
0.045 1/8 0.068 0.900 0.042 2-1/2 09653 03651
0.047 1/8 0.071 0.940 0.044 2-1/2 09660 03652
0.050 1/8 0.075 1.000 0.047 2-1/2 09667 03653
0.055 1/8 0.083 1.100 0.051 2-1/2 09674 03654
0.060 1/8 0.090 1.200 0.056 2-1/2 09681 03655
0.062 1/8 0.093 1.240 0.058 2-1/2 09688 03656
0.065 1/8 0.098 1.300 0.061 3 09695 03657
0.070 1/8 0.105 1.400 0.065 3 09702 03658
0.075 1/8 0.113 1.500 0.070 3 09709 03659
0.078 1/8 0.117 1.560 0.073 3 09716 03660
0.080 1/8 0.120 1.600 0.075 3 09723 03661
0.085 1/8 0.128 1.700 0.079 3 09730 03662
0.090 1/8 0.135 1.800 0.084 3 09737 03663
0.093 1/8 0.140 1.860 0.087 3 09744 03664
0.095 1/8 0.143 1.900 0.089 3 09751 03665
0.100 1/8 0.150 2.000 0.094 4 09758 03666
0.110 1/8 0.165 2.200 0.103 4 09765 03667
0.115 1/8 0.173 2.300 0.108 4 09772 03668
0.120 1/8 0.180 2.400 0.112 4 09779 03669
FRACTIONAL
M3 • 1.5xD • 20xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
37
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3 • 1.5xD
25xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.250 0.009 2-1/2 09598 03670
0.015 1/8 0.023 0.375 0.014 2-1/2 09605 03671
0.020 1/8 0.030 0.500 0.018 2-1/2 09612 03672
0.025 1/8 0.038 0.625 0.023 2-1/2 09619 03673
0.030 1/8 0.045 0.750 0.028 2-1/2 09626 03674
0.031 1/8 0.047 0.775 0.029 2-1/2 09633 03675
0.035 1/8 0.053 0.875 0.032 2-1/2 09640 03676
0.040 1/8 0.060 1.000 0.037 2-1/2 09647 03677
0.045 1/8 0.068 1.125 0.042 2-1/2 09654 03678
0.047 1/8 0.071 1.175 0.044 2-1/2 09661 03679
0.050 1/8 0.075 1.250 0.047 2-1/2 09668 03680
0.055 1/8 0.083 1.375 0.051 3 09675 03681
0.060 1/8 0.090 1.500 0.056 3 09682 03682
0.062 1/8 0.093 1.550 0.058 3 09689 03683
0.065 1/8 0.098 1.625 0.061 3 09696 03684
0.070 1/8 0.105 1.750 0.065 3 09703 03685
0.075 1/8 0.113 1.875 0.070 3 09710 03686
0.078 1/8 0.117 1.950 0.073 4 09717 03687
0.080 1/8 0.120 2.000 0.075 4 09724 03688
0.085 1/8 0.128 2.125 0.079 4 09731 03689
0.090 1/8 0.135 2.250 0.084 4 09738 03690
0.093 1/8 0.140 2.325 0.087 4 09745 03691
0.095 1/8 0.143 2.375 0.089 4 09752 03692
0.100 1/8 0.150 2.500 0.094 4 09759 03693
0.110 1/8 0.165 2.750 0.103 4 09766 03694
0.115 1/8 0.173 2.875 0.108 4 09773 03695
0.120 1/8 0.180 3.000 0.112 4 09780 03696
FRACTIONAL
M3 • 1.5xD • 25xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
DCON
APMX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
38 www.sgsmicrotools.com
LF
DC
D
CON
APMX
END MILLS
END MILLS
30°
15°
POS
3
M3 • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.015 1-1/2 04111 01156
0.006 1/8 0.018 1-1/2 04112 01157
0.007 1/8 0.021 1-1/2 04113 01158
0.008 1/8 0.024 1-1/2 04114 01159
0.009 1/8 0.027 1-1/2 04115 01160
0.010 1/8 0.030 1-1/2 04116 01161
0.011 1/8 0.033 1-1/2 04117 01162
0.012 1/8 0.036 1-1/2 04118 01163
0.013 1/8 0.039 1-1/2 04119 01164
0.014 1/8 0.042 1-1/2 04120 01165
0.015 1/8 0.045 1-1/2 04121 01166
0.016 1/8 0.048 1-1/2 04122 01167
0.017 1/8 0.051 1-1/2 04123 01168
0.018 1/8 0.054 1-1/2 04124 01169
0.019 1/8 0.057 1-1/2 04125 01170
0.020 1/8 0.060 1-1/2 04126 01171
0.021 1/8 0.063 1-1/2 04127 01172
0.022 1/8 0.066 1-1/2 04128 01173
0.023 1/8 0.069 1-1/2 04129 01174
0.024 1/8 0.072 1-1/2 04130 01175
0.025 1/8 0.075 1-1/2 04131 01176
0.026 1/8 0.078 1-1/2 04132 01177
0.027 1/8 0.081 1-1/2 04133 01178
0.028 1/8 0.084 1-1/2 04134 01179
0.029 1/8 0.087 1-1/2 04135 01180
0.030 1/8 0.090 1-1/2 04136 01181
0.031 1/8 0.093 1-1/2 04137 01182
0.032 1/8 0.096 1-1/2 04138 01183
0.033 1/8 0.099 1-1/2 04139 01184
0.034 1/8 0.102 1-1/2 04140 01185
0.035 1/8 0.105 1-1/2 04141 01186
0.036 1/8 0.108 1-1/2 04142 01187
0.037 1/8 0.111 1-1/2 04143 01188
0.038 1/8 0.114 1-1/2 04144 01189
0.039 1/8 0.117 1-1/2 04145 01190
0.040 1/8 0.120 1-1/2 04146 01191
continued on next page
FRACTIONAL
M3 • 3xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
39
www.sgsmicrotools.com
LF
DC
D
CON
APMX
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3 • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.041 1/8 0.123 1-1/2 04147 01192
0.042 1/8 0.126 1-1/2 04148 01193
0.043 1/8 0.129 1-1/2 04149 01194
0.044 1/8 0.132 1-1/2 04150 01195
0.045 1/8 0.135 1-1/2 04151 01196
0.046 1/8 0.138 1-1/2 04152 01197
0.047 1/8 0.141 1-1/2 04153 01198
0.048 1/8 0.144 1-1/2 04154 01199
0.049 1/8 0.147 1-1/2 04155 01200
0.050 1/8 0.150 1-1/2 04156 01201
0.051 1/8 0.153 1-1/2 04157 01202
0.052 1/8 0.156 1-1/2 04158 01203
0.053 1/8 0.159 1-1/2 04159 01204
0.054 1/8 0.162 1-1/2 04160 01205
0.055 1/8 0.165 1-1/2 04161 01206
0.056 1/8 0.168 1-1/2 04162 01207
0.057 1/8 0.171 1-1/2 04163 01208
0.058 1/8 0.174 1-1/2 04164 01209
0.059 1/8 0.177 1-1/2 04165 01210
0.060 1/8 0.180 1-1/2 04166 01211
0.062 1/8 0.186 1-1/2 04167 01212
0.065 1/8 0.195 1-1/2 04168 01213
0.070 1/8 0.210 1-1/2 04169 01214
0.075 1/8 0.225 1-1/2 04170 01215
0.078 1/8 0.234 1-1/2 04171 01216
0.080 1/8 0.240 1-1/2 04172 01217
0.085 1/8 0.255 1-1/2 04173 01218
0.090 1/8 0.270 1-1/2 04174 01219
0.093 1/8 0.279 1-1/2 04175 01220
0.095 1/8 0.285 1-1/2 04176 01221
0.100 1/8 0.300 1-1/2 04177 01222
0.105 1/8 0.315 1-1/2 04178 01223
0.110 1/8 0.330 1-1/2 04179 01224
0.115 1/8 0.345 1-1/2 04180 01225
0.120 1/8 0.360 1-1/2 04181 01226
M3 • 3xD
FRACTIONAL SERIES
continued
New Expanded Tools
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
40 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3 • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 01311 04266
0.015 1/8 0.045 0.120 0.014 1-1/2 01312 04267
0.020 1/8 0.060 0.160 0.019 1-1/2 01313 04268
0.025 1/8 0.075 0.200 0.024 1-1/2 01314 04269
0.030 1/8 0.090 0.240 0.028 1-1/2 01315 04270
0.031 1/8 0.093 0.248 0.029 1-1/2 01316 04271
0.035 1/8 0.105 0.280 0.033 1-1/2 01317 04272
0.040 1/8 0.120 0.320 0.038 1-1/2 01318 04273
0.045 1/8 0.135 0.360 0.042 2 01319 04274
0.047 1/8 0.141 0.376 0.044 2 01320 04275
0.050 1/8 0.150 0.400 0.047 2 01321 04276
0.055 1/8 0.165 0.440 0.052 2 01322 04277
0.060 1/8 0.180 0.480 0.056 2 01323 04278
0.062 1/8 0.186 0.496 0.058 2 01324 04279
0.065 1/8 0.195 0.520 0.061 2 01325 04280
0.070 1/8 0.210 0.560 0.066 2 01326 04281
0.075 1/8 0.225 0.600 0.071 2 01327 04282
0.078 1/8 0.234 0.624 0.073 2 01328 04283
0.080 1/8 0.240 0.640 0.075 2 01329 04284
0.085 1/8 0.255 0.680 0.080 2 01330 04285
0.090 1/8 0.270 0.720 0.085 2 01331 04286
0.093 1/8 0.279 0.744 0.087 2 01332 04287
0.095 1/8 0.285 0.760 0.089 2 01333 04288
0.100 1/8 0.300 0.800 0.094 2 01334 04289
0.105 1/8 0.315 0.840 0.099 2 01335 04290
0.110 1/8 0.330 0.880 0.103 2 01336 04291
0.115 1/8 0.345 0.920 0.108 2 01337 04292
0.120 1/8 0.360 0.960 0.113 2 01338 04293
FRACTIONAL
M3 • 3xD • 8xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
LU
LF
DC
DCON
APMX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
41
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3 • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 01339 04294
0.015 1/8 0.045 0.180 0.014 1-1/2 01340 04295
0.020 1/8 0.060 0.240 0.019 1-1/2 01341 04296
0.025 1/8 0.075 0.300 0.024 1-1/2 01342 04297
0.030 1/8 0.090 0.360 0.028 2 01343 04298
0.031 1/8 0.093 0.372 0.029 2 01344 04299
0.035 1/8 0.105 0.420 0.033 2 01345 04300
0.040 1/8 0.120 0.480 0.038 2 01346 04301
0.045 1/8 0.135 0.540 0.042 2 01347 04302
0.047 1/8 0.141 0.564 0.044 2 01348 04303
0.050 1/8 0.150 0.600 0.047 2 01349 04304
0.055 1/8 0.165 0.660 0.052 2 01350 04305
0.060 1/8 0.180 0.720 0.056 2 01351 04306
0.062 1/8 0.186 0.744 0.058 2 01352 04307
0.065 1/8 0.195 0.780 0.061 2 01353 04308
0.070 1/8 0.210 0.840 0.066 2 01354 04309
0.075 1/8 0.225 0.900 0.071 2 01355 04310
0.078 1/8 0.234 0.936 0.073 2-1/2 01356 04311
0.080 1/8 0.240 0.960 0.075 2-1/2 01357 04312
0.085 1/8 0.255 1.020 0.080 2-1/2 01358 04313
0.090 1/8 0.270 1.080 0.085 2-1/2 01359 04314
0.093 1/8 0.279 1.116 0.087 2-1/2 01360 04315
0.095 1/8 0.285 1.140 0.089 2-1/2 01361 04316
0.100 1/8 0.300 1.200 0.094 2-1/2 01362 04317
0.105 1/8 0.315 1.260 0.099 2-1/2 01363 04318
0.110 1/8 0.330 1.320 0.103 2-1/2 01364 04319
0.115 1/8 0.345 1.380 0.108 2-1/2 01365 04320
0.120 1/8 0.360 1.440 0.113 2-1/2 01366 04321
FRACTIONAL
M3 • 3xD • 12xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
LU
LF
DC
DCON
APMX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
42 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3L • 5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.050 2-1/2 01227 04182
0.015 1/8 0.075 2-1/2 01228 04183
0.020 1/8 0.100 2-1/2 01229 04184
0.025 1/8 0.125 2-1/2 01230 04185
0.030 1/8 0.150 2-1/2 01231 04186
0.031 1/8 0.155 2-1/2 01232 04187
0.035 1/8 0.175 2-1/2 01233 04188
0.040 1/8 0.200 2-1/2 01234 04189
0.045 1/8 0.225 2-1/2 01235 04190
0.047 1/8 0.235 2-1/2 01236 04191
0.050 1/8 0.250 2-1/2 01237 04192
0.055 1/8 0.275 2-1/2 01238 04193
0.060 1/8 0.300 2-1/2 01239 04194
0.062 1/8 0.310 2-1/2 01240 04195
0.065 1/8 0.325 2-1/2 01241 04196
0.070 1/8 0.350 2-1/2 01242 04197
0.075 1/8 0.375 2-1/2 01243 04198
0.078 1/8 0.390 2-1/2 01244 04199
0.080 1/8 0.400 2-1/2 01245 04200
0.085 1/8 0.425 2-1/2 01246 04201
0.090 1/8 0.450 2-1/2 01247 04202
0.093 1/8 0.465 2-1/2 01248 04203
0.095 1/8 0.475 2-1/2 01249 04204
0.100 1/8 0.500 2-1/2 01250 04205
0.105 1/8 0.525 2-1/2 01251 04206
0.110 1/8 0.550 2-1/2 01252 04207
0.115 1/8 0.575 2-1/2 01253 04208
0.120 1/8 0.600 2-1/2 01254 04209
FRACTIONAL
M3L • 5xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
LF
DC
D
CON
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
43
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3E • 8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.080 2-1/2 01255 04210
0.015 1/8 0.120 2-1/2 01256 04211
0.020 1/8 0.160 2-1/2 01257 04212
0.025 1/8 0.200 2-1/2 01258 04213
0.030 1/8 0.240 2-1/2 01259 04214
0.031 1/8 0.248 2-1/2 01260 04215
0.035 1/8 0.280 2-1/2 01261 04216
0.040 1/8 0.320 2-1/2 01262 04217
0.045 1/8 0.360 2-1/2 01263 04218
0.047 1/8 0.376 2-1/2 01264 04219
0.050 1/8 0.400 2-1/2 01265 04220
0.055 1/8 0.440 2-1/2 01266 04221
0.060 1/8 0.480 2-1/2 01267 04222
0.062 1/8 0.496 2-1/2 01268 04223
0.065 1/8 0.520 2-1/2 01269 04224
0.070 1/8 0.560 2-1/2 01270 04225
0.075 1/8 0.600 2-1/2 01271 04226
0.078 1/8 0.624 2-1/2 01272 04227
0.080 1/8 0.640 2-1/2 01273 04228
0.085 1/8 0.680 2-1/2 01274 04229
0.090 1/8 0.720 2-1/2 01275 04230
0.093 1/8 0.744 2-1/2 01276 04231
0.095 1/8 0.760 2-1/2 01277 04232
0.100 1/8 0.800 2-1/2 01278 04233
0.105 1/8 0.840 2-1/2 01279 04234
0.110 1/8 0.880 2-1/2 01280 04235
0.115 1/8 0.920 2-1/2 01281 04236
0.120 1/8 0.960 2-1/2 01282 04237
FRACTIONAL
M3E • 8xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
LF
DC
D
CON
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
44 www.sgsmicrotools.com
END MILLS
END MILLS
30°
15°
POS
3
M3X • 12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.120 2-1/2 01283 04238
0.015 1/8 0.180 2-1/2 01284 04239
0.020 1/8 0.240 2-1/2 01285 04240
0.025 1/8 0.300 2-1/2 01286 04241
0.030 1/8 0.360 2-1/2 01287 04242
0.031 1/8 0.372 2-1/2 01288 04243
0.035 1/8 0.420 2-1/2 01289 04244
0.040 1/8 0.480 2-1/2 01290 04245
0.045 1/8 0.540 2-1/2 01291 04246
0.047 1/8 0.564 2-1/2 01292 04247
0.050 1/8 0.600 2-1/2 01293 04248
0.055 1/8 0.660 2-1/2 01294 04249
0.060 1/8 0.720 2-1/2 01295 04250
0.062 1/8 0.744 2-1/2 01296 04251
0.065 1/8 0.780 2-1/2 01297 04252
0.070 1/8 0.840 2-1/2 01298 04253
0.075 1/8 0.900 2-1/2 01299 04254
0.078 1/8 0.936 2-1/2 01300 04255
0.080 1/8 0.960 2-1/2 01301 04256
0.085 1/8 1.020 2-1/2 01302 04257
0.090 1/8 1.080 2-1/2 01303 04258
0.093 1/8 1.116 2-1/2 01304 04259
0.095 1/8 1.140 2-1/2 01305 04260
0.100 1/8 1.200 2-1/2 01306 04261
0.105 1/8 1.260 2-1/2 01307 04262
0.110 1/8 1.320 2-1/2 01308 04263
0.115 1/8 1.380 2-1/2 01309 04264
0.120 1/8 1.440 2-1/2 01310 04265
FRACTIONAL
M3X • 12xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LF
DC
D
CON
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
45
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3B • 1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 1-1/2 01367 04322
0.011 1/8 0.017 1-1/2 01368 04323
0.012 1/8 0.018 1-1/2 01369 04324
0.013 1/8 0.020 1-1/2 01370 04325
0.014 1/8 0.021 1-1/2 01371 04326
0.015 1/8 0.023 1-1/2 01372 04327
0.016 1/8 0.024 1-1/2 01373 04328
0.017 1/8 0.026 1-1/2 01374 04329
0.018 1/8 0.027 1-1/2 01375 04330
0.019 1/8 0.029 1-1/2 01376 04331
0.020 1/8 0.030 1-1/2 01377 04332
0.021 1/8 0.032 1-1/2 01378 04333
0.022 1/8 0.033 1-1/2 01379 04334
0.023 1/8 0.035 1-1/2 01380 04335
0.024 1/8 0.036 1-1/2 01381 04336
0.025 1/8 0.038 1-1/2 01382 04337
0.026 1/8 0.039 1-1/2 01383 04338
0.027 1/8 0.041 1-1/2 01384 04339
0.028 1/8 0.042 1-1/2 01385 04340
0.029 1/8 0.044 1-1/2 01386 04341
0.030 1/8 0.045 1-1/2 01387 04342
0.031 1/8 0.047 1-1/2 01388 04343
0.032 1/8 0.048 1-1/2 01389 04344
0.033 1/8 0.050 1-1/2 01390 04345
0.034 1/8 0.051 1-1/2 01391 04346
0.035 1/8 0.053 1-1/2 01392 04347
0.036 1/8 0.054 1-1/2 01393 04348
0.037 1/8 0.056 1-1/2 01394 04349
0.038 1/8 0.057 1-1/2 01395 04350
0.039 1/8 0.059 1-1/2 01396 04351
0.040 1/8 0.060 1-1/2 01397 04352
0.041 1/8 0.062 1-1/2 01398 04353
0.042 1/8 0.063 1-1/2 01399 04354
0.043 1/8 0.065 1-1/2 01400 04355
continued on next page
FRACTIONAL
M3B • 1.5xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
New Expanded Tools
D
C
D
CON
RE
LF
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
46 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
M3B • 1.5xD
FRACTIONAL SERIES
FRACTIONAL
M3B • 1.5xD
continued
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.044 1/8 0.066 1-1/2 01401 04356
0.045 1/8 0.068 1-1/2 01402 04357
0.046 1/8 0.069 1-1/2 01403 04358
0.047 1/8 0.071 1-1/2 01404 04359
0.048 1/8 0.072 1-1/2 01405 04360
0.049 1/8 0.074 1-1/2 01406 04361
0.050 1/8 0.075 1-1/2 01407 04362
0.051 1/8 0.077 1-1/2 01408 04363
0.052 1/8 0.078 1-1/2 01409 04364
0.053 1/8 0.080 1-1/2 01410 04365
0.054 1/8 0.081 1-1/2 01411 04366
0.055 1/8 0.083 1-1/2 01412 04367
0.056 1/8 0.084 1-1/2 01413 04368
0.057 1/8 0.086 1-1/2 01414 04369
0.058 1/8 0.087 1-1/2 01415 04370
0.059 1/8 0.089 1-1/2 01416 04371
0.060 1/8 0.090 1-1/2 01417 04372
0.062 1/8 0.093 1-1/2 01418 04373
0.065 1/8 0.098 1-1/2 01419 04374
0.070 1/8 0.105 1-1/2 01420 04375
0.075 1/8 0.113 1-1/2 01421 04376
0.078 1/8 0.117 1-1/2 01422 04377
0.080 1/8 0.120 1-1/2 01423 04378
0.085 1/8 0.128 1-1/2 01424 04379
0.090 1/8 0.135 1-1/2 01425 04380
0.093 1/8 0.140 1-1/2 01426 04381
0.095 1/8 0.143 1-1/2 01427 04382
0.100 1/8 0.150 1-1/2 01428 04383
0.105 1/8 0.158 1-1/2 01429 04384
0.110 1/8 0.165 1-1/2 01430 04385
0.115 1/8 0.173 1-1/2 01431 04386
0.120 1/8 0.180 1-1/2 01432 04387
D
C
D
CON
RE
LF
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
47
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
M3B • 1.5xD
3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.030 0.009 2-1/2 09410 03805
0.015 1/8 0.023 0.045 0.014 2-1/2 09417 03806
0.020 1/8 0.030 0.060 0.018 2-1/2 09424 03807
0.025 1/8 0.038 0.075 0.023 2-1/2 09431 03808
0.030 1/8 0.045 0.090 0.028 2-1/2 09438 03809
0.031 1/8 0.047 0.093 0.029 2-1/2 09445 03810
0.035 1/8 0.053 0.105 0.032 2-1/2 09452 03811
0.040 1/8 0.060 0.120 0.037 2-1/2 09459 03812
0.045 1/8 0.068 0.135 0.042 2-1/2 09466 03813
0.047 1/8 0.071 0.141 0.044 2-1/2 09473 03814
0.050 1/8 0.075 0.150 0.047 2-1/2 09480 03815
0.055 1/8 0.083 0.165 0.051 2-1/2 09487 03816
0.060 1/8 0.090 0.180 0.056 2-1/2 09494 03817
0.062 1/8 0.093 0.186 0.058 2-1/2 09501 03818
0.065 1/8 0.098 0.195 0.061 2-1/2 09508 03819
0.070 1/8 0.105 0.210 0.065 2-1/2 09515 03820
0.075 1/8 0.113 0.225 0.070 2-1/2 09522 03821
0.078 1/8 0.117 0.234 0.073 2-1/2 09529 03822
0.080 1/8 0.120 0.240 0.075 2-1/2 09536 03823
0.085 1/8 0.128 0.255 0.079 2-1/2 09543 03824
0.090 1/8 0.135 0.270 0.084 2-1/2 09550 03825
0.093 1/8 0.140 0.279 0.087 2-1/2 09557 03826
0.095 1/8 0.143 0.285 0.089 2-1/2 09564 03827
0.100 1/8 0.150 0.300 0.094 2-1/2 09571 03828
0.110 1/8 0.165 0.330 0.103 2-1/2 09578 03829
0.115 1/8 0.173 0.345 0.108 2-1/2 09585 03830
0.120 1/8 0.180 0.360 0.112 2-1/2 09592 03831
FRACTIONAL
M3B • 1.5xD • 3xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
APMX
DC
DCON
DN
RE
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
48 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
LU
LF
APMX
DC
DCON
DN
RE
30°
15°
POS
3
M3B • 1.5xD
5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.050 0.009 2-1/2 09411 03832
0.015 1/8 0.023 0.075 0.014 2-1/2 09418 03833
0.020 1/8 0.030 0.100 0.018 2-1/2 09425 03834
0.025 1/8 0.038 0.125 0.023 2-1/2 09432 03835
0.030 1/8 0.045 0.150 0.028 2-1/2 09439 03836
0.031 1/8 0.047 0.155 0.029 2-1/2 09446 03837
0.035 1/8 0.053 0.175 0.032 2-1/2 09453 03838
0.040 1/8 0.060 0.200 0.037 2-1/2 09460 03839
0.045 1/8 0.068 0.225 0.042 2-1/2 09467 03840
0.047 1/8 0.071 0.235 0.044 2-1/2 09474 03841
0.050 1/8 0.075 0.250 0.047 2-1/2 09481 03842
0.055 1/8 0.083 0.275 0.051 2-1/2 09488 03843
0.060 1/8 0.090 0.300 0.056 2-1/2 09495 03844
0.062 1/8 0.093 0.310 0.058 2-1/2 09502 03845
0.065 1/8 0.098 0.325 0.061 2-1/2 09509 03846
0.070 1/8 0.105 0.350 0.065 2-1/2 09516 03847
0.075 1/8 0.113 0.375 0.070 2-1/2 09523 03848
0.078 1/8 0.117 0.390 0.073 2-1/2 09530 03849
0.080 1/8 0.120 0.400 0.075 2-1/2 09537 03850
0.085 1/8 0.128 0.425 0.079 2-1/2 09544 03851
0.090 1/8 0.135 0.450 0.084 2-1/2 09551 03852
0.093 1/8 0.140 0.465 0.087 2-1/2 09558 03853
0.095 1/8 0.143 0.475 0.089 2-1/2 09565 03854
0.100 1/8 0.150 0.500 0.094 2-1/2 09572 03855
0.110 1/8 0.165 0.550 0.103 2-1/2 09579 03856
0.115 1/8 0.173 0.575 0.108 2-1/2 09586 03857
0.120 1/8 0.180 0.600 0.112 2-1/2 09593 03858
FRACTIONAL
M3B • 1.5xD • 5xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
49
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M3B • 1.5xD • 8xD Overall Reach
M3B • 1.5xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.080 0.009 2-1/2 09412 03859
0.015 1/8 0.023 0.120 0.014 2-1/2 09419 03860
0.020 1/8 0.030 0.160 0.018 2-1/2 09426 03861
0.025 1/8 0.038 0.200 0.023 2-1/2 09433 03862
0.030 1/8 0.045 0.240 0.028 2-1/2 09440 03863
0.031 1/8 0.047 0.248 0.029 2-1/2 09447 03864
0.035 1/8 0.053 0.280 0.032 2-1/2 09454 03865
0.040 1/8 0.060 0.320 0.037 2-1/2 09461 03866
0.045 1/8 0.068 0.360 0.042 2-1/2 09468 03867
0.047 1/8 0.071 0.376 0.044 2-1/2 09475 03868
0.050 1/8 0.075 0.400 0.047 2-1/2 09482 03869
0.055 1/8 0.083 0.440 0.051 2-1/2 09489 03870
0.060 1/8 0.090 0.480 0.056 2-1/2 09496 03871
0.062 1/8 0.093 0.496 0.058 2-1/2 09503 03872
0.065 1/8 0.098 0.520 0.061 2-1/2 09510 03873
0.070 1/8 0.105 0.560 0.065 2-1/2 09517 03874
0.075 1/8 0.113 0.600 0.070 2-1/2 09524 03875
0.078 1/8 0.117 0.624 0.073 2-1/2 09531 03876
0.080 1/8 0.120 0.640 0.075 2-1/2 09538 03877
0.085 1/8 0.128 0.680 0.079 2-1/2 09545 03878
0.090 1/8 0.135 0.720 0.084 2-1/2 09552 03879
0.093 1/8 0.140 0.744 0.087 2-1/2 09559 03880
0.095 1/8 0.143 0.760 0.089 2-1/2 09566 03881
0.100 1/8 0.150 0.800 0.094 2-1/2 09573 03882
0.110 1/8 0.165 0.880 0.103 2-1/2 09580 03883
0.115 1/8 0.173 0.920 0.108 2-1/2 09587 03884
0.120 1/8 0.180 0.960 0.112 2-1/2 09594 03885
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
30°
15°
POS
3
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
50 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3B • 1.5xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.120 0.009 2-1/2 09406 03886
0.015 1/8 0.023 0.180 0.014 2-1/2 09413 03887
0.020 1/8 0.030 0.240 0.018 2-1/2 09420 03888
0.025 1/8 0.038 0.300 0.023 2-1/2 09427 03889
0.030 1/8 0.045 0.360 0.028 2-1/2 09434 03890
0.031 1/8 0.047 0.372 0.029 2-1/2 09441 03891
0.035 1/8 0.053 0.420 0.032 2-1/2 09448 03892
0.040 1/8 0.060 0.480 0.037 2-1/2 09455 03893
0.045 1/8 0.068 0.540 0.042 2-1/2 09462 03894
0.047 1/8 0.071 0.564 0.044 2-1/2 09469 03895
0.050 1/8 0.075 0.600 0.047 2-1/2 09476 03896
0.055 1/8 0.083 0.660 0.051 2-1/2 09483 03897
0.060 1/8 0.090 0.720 0.056 2-1/2 09490 03898
0.062 1/8 0.093 0.744 0.058 2-1/2 09497 03899
0.065 1/8 0.098 0.780 0.061 2-1/2 09504 03900
0.070 1/8 0.105 0.840 0.065 2-1/2 09511 03901
0.075 1/8 0.113 0.900 0.070 2-1/2 09518 03902
0.078 1/8 0.117 0.936 0.073 2-1/2 09525 03903
0.080 1/8 0.120 0.960 0.075 2-1/2 09532 03904
0.085 1/8 0.128 1.020 0.079 2-1/2 09539 03905
0.090 1/8 0.135 1.080 0.084 2-1/2 09546 03906
0.093 1/8 0.140 1.116 0.087 2-1/2 09553 03907
0.095 1/8 0.143 1.140 0.089 2-1/2 09560 03908
0.100 1/8 0.150 1.200 0.094 2-1/2 09567 03909
0.110 1/8 0.165 1.320 0.103 2-1/2 09574 03910
0.115 1/8 0.173 1.380 0.108 2-1/2 09581 03911
0.120 1/8 0.180 1.440 0.112 2-1/2 09588 03912
FRACTIONAL
M3B • 1.5xD • 12xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
51
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M3B • 1.5xD • 15xD Overall Reach
M3B • 1.5xD
15xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.150 0.009 2-1/2 09407 03913
0.015 1/8 0.023 0.225 0.014 2-1/2 09414 03914
0.020 1/8 0.030 0.300 0.018 2-1/2 09421 03915
0.025 1/8 0.038 0.375 0.023 2-1/2 09428 03916
0.030 1/8 0.045 0.450 0.028 2-1/2 09435 03917
0.031 1/8 0.047 0.465 0.029 2-1/2 09442 03918
0.035 1/8 0.053 0.525 0.032 2-1/2 09449 03919
0.040 1/8 0.060 0.600 0.037 2-1/2 09456 03920
0.045 1/8 0.068 0.675 0.042 2-1/2 09463 03921
0.047 1/8 0.071 0.705 0.044 2-1/2 09470 03922
0.050 1/8 0.075 0.750 0.047 2-1/2 09477 03923
0.055 1/8 0.083 0.825 0.051 2-1/2 09484 03924
0.060 1/8 0.090 0.900 0.056 2-1/2 09491 03925
0.062 1/8 0.093 0.930 0.058 2-1/2 09498 03926
0.065 1/8 0.098 0.975 0.061 2-1/2 09505 03927
0.070 1/8 0.105 1.050 0.065 2-1/2 09512 03928
0.075 1/8 0.113 1.125 0.070 2-1/2 09519 03929
0.078 1/8 0.117 1.170 0.073 2-1/2 09526 03930
0.080 1/8 0.120 1.200 0.075 2-1/2 09533 03931
0.085 1/8 0.128 1.275 0.079 2-1/2 09540 03932
0.090 1/8 0.135 1.350 0.084 2-1/2 09547 03933
0.093 1/8 0.140 1.395 0.087 3 09554 03934
0.095 1/8 0.143 1.425 0.089 3 09561 03935
0.100 1/8 0.150 1.500 0.094 3 09568 03936
0.110 1/8 0.165 1.650 0.103 3 09575 03937
0.115 1/8 0.173 1.725 0.108 3 09582 03938
0.120 1/8 0.180 1.800 0.112 3 09589 03939
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
30°
15°
POS
3
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
52 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3B • 1.5xD
20xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.200 0.009 2-1/2 09408 03940
0.015 1/8 0.023 0.300 0.014 2-1/2 09415 03941
0.020 1/8 0.030 0.400 0.018 2-1/2 09422 03942
0.025 1/8 0.038 0.500 0.023 2-1/2 09429 03943
0.030 1/8 0.045 0.600 0.028 2-1/2 09436 03944
0.031 1/8 0.047 0.620 0.029 2-1/2 09443 03945
0.035 1/8 0.053 0.700 0.032 2-1/2 09450 03946
0.040 1/8 0.060 0.800 0.037 2-1/2 09457 03947
0.045 1/8 0.068 0.900 0.042 2-1/2 09464 03948
0.047 1/8 0.071 0.940 0.044 2-1/2 09471 03949
0.050 1/8 0.075 1.000 0.047 2-1/2 09478 03950
0.055 1/8 0.083 1.100 0.051 2-1/2 09485 03951
0.060 1/8 0.090 1.200 0.056 2-1/2 09492 03952
0.062 1/8 0.093 1.240 0.058 2-1/2 09499 03953
0.065 1/8 0.098 1.300 0.061 3 09506 03954
0.070 1/8 0.105 1.400 0.065 3 09513 03955
0.075 1/8 0.113 1.500 0.070 3 09520 03956
0.078 1/8 0.117 1.560 0.073 3 09527 03957
0.080 1/8 0.120 1.600 0.075 3 09534 03958
0.085 1/8 0.128 1.700 0.079 3 09541 03959
0.090 1/8 0.135 1.800 0.084 3 09548 03960
0.093 1/8 0.140 1.860 0.087 3 09555 03961
0.095 1/8 0.143 1.900 0.089 3 09562 03962
0.100 1/8 0.150 2.000 0.094 4 09569 03963
0.110 1/8 0.165 2.200 0.103 4 09576 03964
0.115 1/8 0.173 2.300 0.108 4 09583 03965
0.120 1/8 0.180 2.400 0.112 4 09590 03966
FRACTIONAL
M3B • 1.5xD • 20xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
53
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
FRACTIONAL
M3B • 1.5xD • 25xD Overall Reach
M3B • 1.5xD
25xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 0.250 0.009 2-1/2 09409 03967
0.015 1/8 0.023 0.375 0.014 2-1/2 09416 03968
0.020 1/8 0.030 0.500 0.018 2-1/2 09423 03969
0.025 1/8 0.038 0.625 0.023 2-1/2 09430 03970
0.030 1/8 0.045 0.750 0.028 2-1/2 09437 03971
0.031 1/8 0.047 0.775 0.029 2-1/2 09444 03972
0.035 1/8 0.053 0.875 0.032 2-1/2 09451 03973
0.040 1/8 0.060 1.000 0.037 2-1/2 09458 03974
0.045 1/8 0.068 1.125 0.042 2-1/2 09465 03975
0.047 1/8 0.071 1.175 0.044 2-1/2 09472 03976
0.050 1/8 0.075 1.250 0.047 2-1/2 09479 03977
0.055 1/8 0.083 1.375 0.051 3 09486 03978
0.060 1/8 0.090 1.500 0.056 3 09493 03979
0.062 1/8 0.093 1.550 0.058 3 09500 03980
0.065 1/8 0.098 1.625 0.061 3 09507 03981
0.070 1/8 0.105 1.750 0.065 3 09514 03982
0.075 1/8 0.113 1.875 0.070 3 09521 03983
0.078 1/8 0.117 1.950 0.073 4 09528 03984
0.080 1/8 0.120 2.000 0.075 4 09535 03985
0.085 1/8 0.128 2.125 0.079 4 09542 03986
0.090 1/8 0.135 2.250 0.084 4 09549 03987
0.093 1/8 0.140 2.325 0.087 4 09556 03988
0.095 1/8 0.143 2.375 0.089 4 09563 03989
0.100 1/8 0.150 2.500 0.094 4 09570 03990
0.110 1/8 0.165 2.750 0.103 4 09577 03991
0.115 1/8 0.173 2.875 0.108 4 09584 03992
0.120 1/8 0.180 3.000 0.112 4 09591 03993
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
54 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
3
M3B • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 1-1/2 01433 04388
0.011 1/8 0.033 1-1/2 01434 04389
0.012 1/8 0.036 1-1/2 01435 04390
0.013 1/8 0.039 1-1/2 01436 04391
0.014 1/8 0.042 1-1/2 01437 04392
0.015 1/8 0.045 1-1/2 01438 04393
0.016 1/8 0.048 1-1/2 01439 04394
0.017 1/8 0.051 1-1/2 01440 04395
0.018 1/8 0.054 1-1/2 01441 04396
0.019 1/8 0.057 1-1/2 01442 04397
0.020 1/8 0.060 1-1/2 01443 04398
0.021 1/8 0.063 1-1/2 01444 04399
0.022 1/8 0.066 1-1/2 01445 04400
0.023 1/8 0.069 1-1/2 01446 04401
0.024 1/8 0.072 1-1/2 01447 04402
0.025 1/8 0.075 1-1/2 01448 04403
0.026 1/8 0.078 1-1/2 01449 04404
0.027 1/8 0.081 1-1/2 01450 04405
0.028 1/8 0.084 1-1/2 01451 04406
0.029 1/8 0.087 1-1/2 01452 04407
0.030 1/8 0.090 1-1/2 01453 04408
0.031 1/8 0.093 1-1/2 01454 04409
0.032 1/8 0.096 1-1/2 01455 04410
0.033 1/8 0.099 1-1/2 01456 04411
0.034 1/8 0.102 1-1/2 01457 04412
0.035 1/8 0.105 1-1/2 01458 04413
0.036 1/8 0.108 1-1/2 01459 04414
0.037 1/8 0.111 1-1/2 01460 04415
0.038 1/8 0.114 1-1/2 01461 04416
0.039 1/8 0.117 1-1/2 01462 04417
0.040 1/8 0.120 1-1/2 01463 04418
0.041 1/8 0.123 1-1/2 01464 04419
0.042 1/8 0.126 1-1/2 01465 04420
0.043 1/8 0.129 1-1/2 01466 04421
continued on next page
FRACTIONAL
M3B • 3xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
D
C
D
CON
RE
LF
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
55
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M3B • 3xD
FRACTIONAL SERIES
30°
15°
POS
3
FRACTIONAL
M3B • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.044 1/8 0.132 1-1/2 01467 04422
0.045 1/8 0.135 1-1/2 01468 04423
0.046 1/8 0.138 1-1/2 01469 04424
0.047 1/8 0.141 1-1/2 01470 04425
0.048 1/8 0.144 1-1/2 01471 04426
0.049 1/8 0.147 1-1/2 01472 04427
0.050 1/8 0.150 1-1/2 01473 04428
0.051 1/8 0.153 1-1/2 01474 04429
0.052 1/8 0.156 1-1/2 01475 04430
0.053 1/8 0.159 1-1/2 01476 04431
0.054 1/8 0.162 1-1/2 01477 04432
0.055 1/8 0.165 1-1/2 01478 04433
0.056 1/8 0.168 1-1/2 01479 04434
0.057 1/8 0.171 1-1/2 01480 04435
0.058 1/8 0.174 1-1/2 01481 04436
0.059 1/8 0.177 1-1/2 01482 04437
0.060 1/8 0.180 1-1/2 01483 04438
0.062 1/8 0.186 1-1/2 01484 04439
0.065 1/8 0.195 1-1/2 01485 04440
0.070 1/8 0.210 1-1/2 01486 04441
0.075 1/8 0.225 1-1/2 01487 04442
0.078 1/8 0.234 1-1/2 01488 04443
0.080 1/8 0.240 1-1/2 01489 04444
0.085 1/8 0.255 1-1/2 01490 04445
0.090 1/8 0.270 1-1/2 01491 04446
0.093 1/8 0.279 1-1/2 01492 04447
0.095 1/8 0.285 1-1/2 01493 04448
0.100 1/8 0.300 1-1/2 01494 04449
0.105 1/8 0.315 1-1/2 01495 04450
0.110 1/8 0.330 1-1/2 01496 04451
0.115 1/8 0.345 1-1/2 01497 04452
0.120 1/8 0.360 1-1/2 01498 04453
continued
New Expanded Tools
D
C
DCON
RE
LF
APMX
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
56 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3B • 3xD • 8xD Overall Reach
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
M3B • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 01583 04538
0.015 1/8 0.045 0.120 0.014 1-1/2 01584 04539
0.020 1/8 0.060 0.160 0.019 1-1/2 01585 04540
0.025 1/8 0.075 0.200 0.024 1-1/2 01586 04541
0.030 1/8 0.090 0.240 0.028 1-1/2 01587 04542
0.031 1/8 0.093 0.248 0.029 1-1/2 01588 04543
0.035 1/8 0.105 0.280 0.033 1-1/2 01589 04544
0.040 1/8 0.120 0.320 0.038 1-1/2 01590 04545
0.045 1/8 0.135 0.360 0.042 2 01591 04546
0.047 1/8 0.141 0.376 0.044 2 01592 04547
0.050 1/8 0.150 0.400 0.047 2 01593 04548
0.055 1/8 0.165 0.440 0.052 2 01594 04549
0.060 1/8 0.180 0.480 0.056 2 01595 04550
0.062 1/8 0.186 0.496 0.058 2 01596 04551
0.065 1/8 0.195 0.520 0.061 2 01597 04552
0.070 1/8 0.210 0.560 0.066 2 01598 04553
0.075 1/8 0.225 0.600 0.071 2 01599 04554
0.078 1/8 0.234 0.624 0.073 2 01600 04555
0.080 1/8 0.240 0.640 0.075 2 01601 04556
0.085 1/8 0.255 0.680 0.080 2 01602 04557
0.090 1/8 0.270 0.720 0.085 2 01603 04558
0.093 1/8 0.279 0.744 0.087 2 01604 04559
0.095 1/8 0.285 0.760 0.089 2 01605 04560
0.100 1/8 0.300 0.800 0.094 2 01606 04561
0.105 1/8 0.315 0.840 0.099 2 01607 04562
0.110 1/8 0.330 0.880 0.103 2 01608 04563
0.115 1/8 0.345 0.920 0.108 2 01609 04564
0.120 1/8 0.360 0.960 0.113 2 01610 04565
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
57
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3B • 3xD • 12xD Overall Reach
M3B • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 01611 04566
0.015 1/8 0.045 0.180 0.014 1-1/2 01612 04567
0.020 1/8 0.060 0.240 0.019 1-1/2 01613 04568
0.025 1/8 0.075 0.300 0.024 1-1/2 01614 04569
0.030 1/8 0.090 0.360 0.028 2 01615 04570
0.031 1/8 0.093 0.372 0.029 2 01616 04571
0.035 1/8 0.105 0.420 0.033 2 01617 04572
0.040 1/8 0.120 0.480 0.038 2 01618 04573
0.045 1/8 0.135 0.540 0.042 2 01619 04574
0.047 1/8 0.141 0.564 0.044 2 01620 04575
0.050 1/8 0.150 0.600 0.047 2 01621 04576
0.055 1/8 0.165 0.660 0.052 2 01622 04577
0.060 1/8 0.180 0.720 0.056 2 01623 04578
0.062 1/8 0.186 0.744 0.058 2 01624 04579
0.065 1/8 0.195 0.780 0.061 2 01625 04580
0.070 1/8 0.210 0.840 0.066 2 01626 04581
0.075 1/8 0.225 0.900 0.071 2 01627 04582
0.078 1/8 0.234 0.936 0.073 2-1/2 01628 04583
0.080 1/8 0.240 0.960 0.075 2-1/2 01629 04584
0.085 1/8 0.255 1.020 0.080 2-1/2 01630 04585
0.090 1/8 0.270 1.080 0.085 2-1/2 01631 04586
0.093 1/8 0.279 1.116 0.087 2-1/2 01632 04587
0.095 1/8 0.285 1.140 0.089 2-1/2 01633 04588
0.100 1/8 0.300 1.200 0.094 2-1/2 01634 04589
0.105 1/8 0.315 1.260 0.099 2-1/2 01635 04590
0.110 1/8 0.330 1.320 0.103 2-1/2 01636 04591
0.115 1/8 0.345 1.380 0.108 2-1/2 01637 04592
0.120 1/8 0.360 1.440 0.113 2-1/2 01638 04593
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LU
LF
APMX
DC
DCON
DN
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
58 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3LB • 5xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
M3LB • 5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.050 2-1/2 01499 04454
0.015 1/8 0.075 2-1/2 01500 04455
0.020 1/8 0.100 2-1/2 01501 04456
0.025 1/8 0.125 2-1/2 01502 04457
0.030 1/8 0.150 2-1/2 01503 04458
0.031 1/8 0.155 2-1/2 01504 04459
0.035 1/8 0.175 2-1/2 01505 04460
0.040 1/8 0.200 2-1/2 01506 04461
0.045 1/8 0.225 2-1/2 01507 04462
0.047 1/8 0.235 2-1/2 01508 04463
0.050 1/8 0.250 2-1/2 01509 04464
0.055 1/8 0.275 2-1/2 01510 04465
0.060 1/8 0.300 2-1/2 01511 04466
0.062 1/8 0.310 2-1/2 01512 04467
0.065 1/8 0.325 2-1/2 01513 04468
0.070 1/8 0.350 2-1/2 01514 04469
0.075 1/8 0.375 2-1/2 01515 04470
0.078 1/8 0.390 2-1/2 01516 04471
0.080 1/8 0.400 2-1/2 01517 04472
0.085 1/8 0.425 2-1/2 01518 04473
0.090 1/8 0.450 2-1/2 01519 04474
0.093 1/8 0.465 2-1/2 01520 04475
0.095 1/8 0.475 2-1/2 01521 04476
0.100 1/8 0.500 2-1/2 01522 04477
0.105 1/8 0.525 2-1/2 01523 04478
0.110 1/8 0.550 2-1/2 01524 04479
0.115 1/8 0.575 2-1/2 01525 04480
0.120 1/8 0.600 2-1/2 01526 04481
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LF
D
C
D
CON
APMX
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
59
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
FRACTIONAL
M3EB • 8xD
30°
15°
POS
3
M3EB • 8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.080 2-1/2 01527 04482
0.015 1/8 0.120 2-1/2 01528 04483
0.020 1/8 0.160 2-1/2 01529 04484
0.025 1/8 0.200 2-1/2 01530 04485
0.030 1/8 0.240 2-1/2 01531 04486
0.031 1/8 0.248 2-1/2 01532 04487
0.035 1/8 0.280 2-1/2 01533 04488
0.040 1/8 0.320 2-1/2 01534 04489
0.045 1/8 0.360 2-1/2 01535 04490
0.047 1/8 0.376 2-1/2 01536 04491
0.050 1/8 0.400 2-1/2 01537 04492
0.055 1/8 0.440 2-1/2 01538 04493
0.060 1/8 0.480 2-1/2 01539 04494
0.062 1/8 0.496 2-1/2 01540 04495
0.065 1/8 0.520 2-1/2 01541 04496
0.070 1/8 0.560 2-1/2 01542 04497
0.075 1/8 0.600 2-1/2 01543 04498
0.078 1/8 0.624 2-1/2 01544 04499
0.080 1/8 0.640 2-1/2 01545 04500
0.085 1/8 0.680 2-1/2 01546 04501
0.090 1/8 0.720 2-1/2 01547 04502
0.093 1/8 0.744 2-1/2 01548 04503
0.095 1/8 0.760 2-1/2 01549 04504
0.100 1/8 0.800 2-1/2 01550 04505
0.105 1/8 0.840 2-1/2 01551 04506
0.110 1/8 0.880 2-1/2 01552 04507
0.115 1/8 0.920 2-1/2 01553 04508
0.120 1/8 0.960 2-1/2 01554 04509
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LF
D
C
D
CON
APMX
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
60 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
END MILLS
END MILLS
30°
15°
POS
3
FRACTIONAL
M3XB • 12xD
• Three flute design
features improved chip
space over four flutes
and increased strength
and feed capability over
two flutes.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
M3XB • 12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.120 2-1/2 01555 04510
0.015 1/8 0.180 2-1/2 01556 04511
0.020 1/8 0.240 2-1/2 01557 04512
0.025 1/8 0.300 2-1/2 01558 04513
0.030 1/8 0.360 2-1/2 01559 04514
0.031 1/8 0.372 2-1/2 01560 04515
0.035 1/8 0.420 2-1/2 01561 04516
0.040 1/8 0.480 2-1/2 01562 04517
0.045 1/8 0.540 2-1/2 01563 04518
0.047 1/8 0.564 2-1/2 01564 04519
0.050 1/8 0.600 2-1/2 01565 04520
0.055 1/8 0.660 2-1/2 01566 04521
0.060 1/8 0.720 2-1/2 01567 04522
0.062 1/8 0.744 2-1/2 01568 04523
0.065 1/8 0.780 2-1/2 01569 04524
0.070 1/8 0.840 2-1/2 01570 04525
0.075 1/8 0.900 2-1/2 01571 04526
0.078 1/8 0.936 2-1/2 01572 04527
0.080 1/8 0.960 2-1/2 01573 04528
0.085 1/8 1.020 2-1/2 01574 04529
0.090 1/8 1.080 2-1/2 01575 04530
0.093 1/8 1.116 2-1/2 01576 04531
0.095 1/8 1.140 2-1/2 01577 04532
0.100 1/8 1.200 2-1/2 01578 04533
0.105 1/8 1.260 2-1/2 01579 04534
0.110 1/8 1.320 2-1/2 01580 04535
0.115 1/8 1.380 2-1/2 01581 04536
0.120 1/8 1.440 2-1/2 01582 04537
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
New Expanded Tools
LF
D
C
D
CON
APMX
RE
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
61
www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
30°
15°
POS
4
FRACTIONAL
M4 • M4CR • 1.5xD
M4 • M4CR
1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.008 1-1/2 – 00372 02238
0.006 1/8 0.009 1-1/2 – 00373 02239
0.007 1/8 0.011 1-1/2 – 00374 02240
0.008 1/8 0.012 1-1/2 – 00375 02241
0.009 1/8 0.014 1-1/2 – 00376 02242
0.010 1/8 0.015 1-1/2 – 00377 02243
0.011 1/8 0.017 1-1/2 – 00378 02244
0.012 1/8 0.018 1-1/2 – 00379 02245
0.013 1/8 0.020 1-1/2 – 00380 02246
0.014 1/8 0.021 1-1/2 – 00381 02247
0.015 1/8 0.023 1-1/2 – 00382 02248
0.015 1/8 0.023 1-1/2 0.003 08986 09126
0.016 1/8 0.024 1-1/2 – 00383 02249
0.017 1/8 0.026 1-1/2 – 00384 02250
0.018 1/8 0.027 1-1/2 – 00385 02251
0.019 1/8 0.029 1-1/2 – 00386 02252
0.020 1/8 0.030 1-1/2 – 00387 02253
0.020 1/8 0.030 1-1/2 0.003 08988 09128
0.020 1/8 0.030 1-1/2 0.005 04024 04025
0.021 1/8 0.032 1-1/2 – 00388 02254
0.022 1/8 0.033 1-1/2 – 00389 02255
0.023 1/8 0.035 1-1/2 – 00390 02256
0.024 1/8 0.036 1-1/2 – 00391 02257
0.025 1/8 0.038 1-1/2 – 00392 02258
0.025 1/8 0.038 1-1/2 0.005 04026 04027
0.025 1/8 0.038 1-1/2 0.010 08990 09130
0.026 1/8 0.039 1-1/2 – 00393 02259
0.027 1/8 0.041 1-1/2 – 00394 02260
0.028 1/8 0.042 1-1/2 – 00395 02261
0.029 1/8 0.044 1-1/2 – 00396 02262
0.030 1/8 0.045 1-1/2 – 00397 02263
0.030 1/8 0.045 1-1/2 0.010 08992 09132
0.031 1/8 0.047 1-1/2 – 00398 02264
0.032 1/8 0.048 1-1/2 – 00399 02265
0.033 1/8 0.050 1-1/2 – 00400 02266
0.034 1/8 0.051 1-1/2 – 00401 02267
continued on next page
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
62 www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
M4 • M4CR
1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.035 1/8 0.053 1-1/2 – 00402 02268
0.035 1/8 0.053 1-1/2 0.005 08994 09134
0.035 1/8 0.053 1-1/2 0.010 08996 09136
0.036 1/8 0.054 1-1/2 – 00403 02269
0.037 1/8 0.056 1-1/2 – 00404 02270
0.038 1/8 0.057 1-1/2 – 00405 02271
0.039 1/8 0.059 1-1/2 – 00406 02272
0.040 1/8 0.060 1-1/2 – 00407 02273
0.040 1/8 0.060 1-1/2 0.005 08998 09138
0.040 1/8 0.060 1-1/2 0.010 09000 09140
0.041 1/8 0.062 1-1/2 – 00408 02402
0.042 1/8 0.063 1-1/2 – 00409 02403
0.043 1/8 0.065 1-1/2 – 00410 02404
0.044 1/8 0.066 1-1/2 – 00411 02405
0.045 1/8 0.068 1-1/2 – 00412 02406
0.045 1/8 0.068 1-1/2 0.005 09002 09142
0.045 1/8 0.068 1-1/2 0.010 09004 09144
0.046 1/8 0.069 1-1/2 – 00413 02407
0.047 1/8 0.071 1-1/2 – 00414 02408
0.048 1/8 0.072 1-1/2 – 00415 02409
0.049 1/8 0.074 1-1/2 – 00416 02410
0.050 1/8 0.075 1-1/2 – 00417 02411
0.050 1/8 0.075 1-1/2 0.005 09006 09146
0.050 1/8 0.075 1-1/2 0.010 09008 09148
0.050 1/8 0.075 1-1/2 0.015 09010 09150
0.051 1/8 0.077 1-1/2 – 00418 02412
0.052 1/8 0.078 1-1/2 – 00419 02413
0.053 1/8 0.080 1-1/2 – 00420 02414
0.054 1/8 0.081 1-1/2 – 00421 02415
0.055 1/8 0.083 1-1/2 – 00422 02416
0.055 1/8 0.083 1-1/2 0.005 09012 09152
0.055 1/8 0.083 1-1/2 0.010 09014 09154
0.055 1/8 0.083 1-1/2 0.015 09016 09156
0.056 1/8 0.084 1-1/2 – 00423 02417
continued on next page
FRACTIONAL
M4 • M4CR • 1.5xD
30°
15°
POS
4
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
63
www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
FRACTIONAL
M4 • M4CR • 1.5xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.057 1/8 0.086 1-1/2 – 00424 02418
0.058 1/8 0.087 1-1/2 – 00425 02419
0.059 1/8 0.089 1-1/2 – 00426 02420
0.060 1/8 0.090 1-1/2 – 00427 02421
0.060 1/8 0.090 1-1/2 0.005 09018 09158
0.060 1/8 0.090 1-1/2 0.010 09020 09160
0.060 1/8 0.090 1-1/2 0.015 09022 09162
0.062 1/8 0.093 1-1/2 – 00428 02422
0.065 1/8 0.098 1-1/2 – 00429 02423
0.065 1/8 0.098 1-1/2 0.005 09024 09164
0.065 1/8 0.098 1-1/2 0.010 09026 09166
0.065 1/8 0.098 1-1/2 0.015 09028 09168
0.070 1/8 0.105 1-1/2 – 00430 02424
0.070 1/8 0.105 1-1/2 0.005 09030 09170
0.070 1/8 0.105 1-1/2 0.010 09032 09172
0.070 1/8 0.105 1-1/2 0.015 09034 09174
0.075 1/8 0.1125 1-1/2 – 04014 04012
0.075 1/8 0.113 1-1/2 0.005 09036 09176
0.075 1/8 0.113 1-1/2 0.010 09038 09178
0.075 1/8 0.113 1-1/2 0.015 09040 09180
0.075 1/8 0.113 1-1/2 0.020 09042 09182
0.078 1/8 0.117 1-1/2 – 00431 02425
0.080 1/8 0.120 1-1/2 – 00432 02426
0.080 1/8 0.120 1-1/2 0.005 09044 09184
0.080 1/8 0.120 1-1/2 0.010 09046 09186
0.080 1/8 0.120 1-1/2 0.015 09048 09188
0.080 1/8 0.120 1-1/2 0.020 09050 09190
0.085 1/8 0.128 1-1/2 – 00433 02427
0.085 1/8 0.128 1-1/2 0.005 09052 09192
0.085 1/8 0.128 1-1/2 0.010 09054 09194
0.085 1/8 0.128 1-1/2 0.015 09056 09196
0.085 1/8 0.128 1-1/2 0.020 09058 09198
0.090 1/8 0.135 1-1/2 – 00434 02428
0.090 1/8 0.135 1-1/2 0.005 09060 09200
continued on next page
M4 • M4CR
1.5xD
FRACTIONAL SERIES
continued
30°
15°
POS
4
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
64 www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.090 1/8 0.135 1-1/2 0.010 09062 09202
0.090 1/8 0.135 1-1/2 0.015 09064 09204
0.090 1/8 0.135 1-1/2 0.020 09066 09206
0.093 1/8 0.140 1-1/2 – 00435 02429
0.095 1/8 0.143 1-1/2 – 00436 02430
0.095 1/8 0.143 1-1/2 0.005 09068 09208
0.095 1/8 0.143 1-1/2 0.010 09070 09210
0.095 1/8 0.143 1-1/2 0.015 09072 09212
0.095 1/8 0.143 1-1/2 0.020 09074 09214
0.100 1/8 0.150 1-1/2 – 00437 02431
0.100 1/8 0.150 1-1/2 0.005 09076 09216
0.100 1/8 0.150 1-1/2 0.010 09078 09218
0.100 1/8 0.150 1-1/2 0.015 09080 09220
0.100 1/8 0.150 1-1/2 0.020 09082 09222
0.100 1/8 0.150 1-1/2 0.030 09084 09224
0.105 1/8 0.158 1-1/2 – 00438 02432
0.105 1/8 0.158 1-1/2 0.005 09086 09226
0.105 1/8 0.158 1-1/2 0.010 09088 09228
0.105 1/8 0.158 1-1/2 0.015 09090 09230
0.105 1/8 0.158 1-1/2 0.020 09092 09232
0.105 1/8 0.158 1-1/2 0.030 09094 09234
0.110 1/8 0.165 1-1/2 – 00439 02433
0.110 1/8 0.165 1-1/2 0.005 09096 09236
0.110 1/8 0.165 1-1/2 0.010 09098 09238
0.110 1/8 0.165 1-1/2 0.015 09100 09240
0.110 1/8 0.165 1-1/2 0.020 09102 09242
0.110 1/8 0.165 1-1/2 0.030 09104 09244
0.115 1/8 0.173 1-1/2 – 00440 02434
0.115 1/8 0.173 1-1/2 0.005 09106 09246
0.115 1/8 0.173 1-1/2 0.010 09108 09248
0.115 1/8 0.173 1-1/2 0.015 09110 09250
0.115 1/8 0.173 1-1/2 0.020 09112 09252
0.115 1/8 0.173 1-1/2 0.030 09114 09254
0.120 1/8 0.180 1-1/2 – 00441 02435
continued on next page
M4 • M4CR
1.5xD
FRACTIONAL SERIES
FRACTIONAL
M4 • M4CR • 1.5xD
30°
15°
POS
4
continued
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
65
www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
FRACTIONAL
M4 • M4CR • 1.5xD
30°
15°
POS
4
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.120 1/8 0.180 1-1/2 0.005 09116 09256
0.120 1/8 0.180 1-1/2 0.010 09118 09258
0.120 1/8 0.180 1-1/2 0.015 09120 09260
0.120 1/8 0.180 1-1/2 0.020 09122 09262
0.120 1/8 0.180 1-1/2 0.030 09124 09264
M4 • M4CR
1.5xD
FRACTIONAL SERIES
continued
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
66 www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
M4 • M4CR • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.005 1/8 0.015 1-1/2 – 00514 02312
0.006 1/8 0.018 1-1/2 – 00515 02313
0.007 1/8 0.021 1-1/2 – 00516 02314
0.008 1/8 0.024 1-1/2 – 00517 02315
0.009 1/8 0.027 1-1/2 – 00518 02316
0.010 1/8 0.030 1-1/2 – 00519 02317
0.011 1/8 0.033 1-1/2 – 00520 02318
0.012 1/8 0.036 1-1/2 – 00521 02319
0.013 1/8 0.039 1-1/2 – 00522 02320
0.014 1/8 0.042 1-1/2 – 00523 02321
0.015 1/8 0.045 1-1/2 – 00524 02322
0.015 1/8 0.045 1-1/2 0.003 08987 09127
0.016 1/8 0.048 1-1/2 – 00525 02323
0.017 1/8 0.051 1-1/2 – 00526 02324
0.018 1/8 0.054 1-1/2 – 00527 02325
0.019 1/8 0.057 1-1/2 – 00528 02326
0.020 1/8 0.060 1-1/2 – 00529 02327
0.020 1/8 0.060 1-1/2 0.003 08989 09129
0.020 1/8 0.060 1-1/2 0.005 04028 04029
0.021 1/8 0.063 1-1/2 – 00530 02328
0.022 1/8 0.066 1-1/2 – 00531 02329
0.023 1/8 0.069 1-1/2 – 00532 02330
0.024 1/8 0.072 1-1/2 – 00533 02331
0.025 1/8 0.075 1-1/2 – 00534 02332
0.025 1/8 0.075 1-1/2 0.005 04030 04031
0.025 1/8 0.075 1-1/2 0.010 08991 09131
0.026 1/8 0.078 1-1/2 – 00535 02333
0.027 1/8 0.081 1-1/2 – 00536 02334
0.028 1/8 0.084 1-1/2 – 00537 02335
0.029 1/8 0.087 1-1/2 – 00538 02336
0.030 1/8 0.090 1-1/2 – 00539 02337
0.030 1/8 0.090 1-1/2 0.010 08993 09133
0.031 1/8 0.093 1-1/2 – 00540 02338
0.032 1/8 0.096 1-1/2 – 00541 02339
0.033 1/8 0.099 1-1/2 – 00542 02340
0.034 1/8 0.102 1-1/2 – 00543 02341
continued on next page
FRACTIONAL
M4 • M4CR • 3xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Enhanced corner
geometry with tight
tolerance corner radii
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
67
www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
FRACTIONAL
M4 • M4CR • 3xD
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.035 1/8 0.105 1-1/2 – 00544 02342
0.035 1/8 0.105 1-1/2 0.005 08995 09135
0.035 1/8 0.105 1-1/2 0.010 08997 09137
0.036 1/8 0.108 1-1/2 – 00545 02343
0.037 1/8 0.111 1-1/2 – 00546 02344
0.038 1/8 0.114 1-1/2 – 00547 02345
0.039 1/8 0.117 1-1/2 – 00548 02346
0.040 1/8 0.120 1-1/2 – 00549 02347
0.040 1/8 0.120 1-1/2 0.005 08999 09139
0.040 1/8 0.120 1-1/2 0.010 09001 09141
0.041 1/8 0.123 1-1/2 – 00550 02470
0.042 1/8 0.126 1-1/2 – 00551 02471
0.043 1/8 0.129 1-1/2 – 00552 02472
0.044 1/8 0.132 1-1/2 – 00553 02473
0.045 1/8 0.135 1-1/2 – 00554 02474
0.045 1/8 0.135 1-1/2 0.005 09003 09143
0.045 1/8 0.135 1-1/2 0.010 09005 09145
0.046 1/8 0.138 1-1/2 – 00555 02475
0.047 1/8 0.141 1-1/2 – 00556 02476
0.048 1/8 0.144 1-1/2 – 00557 02477
0.049 1/8 0.147 1-1/2 – 00558 02478
0.050 1/8 0.150 1-1/2 – 00559 02479
0.050 1/8 0.150 1-1/2 0.005 09007 09147
0.050 1/8 0.150 1-1/2 0.010 09009 09149
0.050 1/8 0.150 1-1/2 0.015 09011 09151
0.051 1/8 0.153 1-1/2 – 00560 02480
0.052 1/8 0.156 1-1/2 – 00561 02481
0.053 1/8 0.159 1-1/2 – 00562 02482
0.054 1/8 0.162 1-1/2 – 00563 02483
0.055 1/8 0.165 1-1/2 – 00564 02484
0.055 1/8 0.165 1-1/2 0.005 09013 09153
0.055 1/8 0.165 1-1/2 0.010 09015 09155
0.055 1/8 0.165 1-1/2 0.015 09017 09157
0.056 1/8 0.168 1-1/2 – 00565 02485
0.057 1/8 0.171 1-1/2 – 00566 02486
0.058 1/8 0.174 1-1/2 – 00567 02487
continued on next page
M4 • M4CR • 3xD
FRACTIONAL SERIES
continued
30°
15°
POS
4
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
68 www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.059 1/8 0.177 1-1/2 – 00568 02488
0.060 1/8 0.180 1-1/2 – 00569 02489
0.060 1/8 0.180 1-1/2 0.005 09019 09159
0.060 1/8 0.180 1-1/2 0.010 09021 09161
0.060 1/8 0.180 1-1/2 0.015 09023 09163
0.062 1/8 0.186 1-1/2 – 00570 02490
0.065 1/8 0.195 1-1/2 – 00571 02491
0.065 1/8 0.195 1-1/2 0.005 09025 09165
0.065 1/8 0.195 1-1/2 0.010 09027 09167
0.065 1/8 0.195 1-1/2 0.015 09029 09169
0.070 1/8 0.210 1-1/2 – 00572 02492
0.070 1/8 0.210 1-1/2 0.005 09031 09171
0.070 1/8 0.210 1-1/2 0.010 09033 09173
0.070 1/8 0.210 1-1/2 0.015 09035 09175
0.075 1/8 0.225 1-1/2 – 04015 04013
0.075 1/8 0.225 1-1/2 0.005 09037 09177
0.075 1/8 0.225 1-1/2 0.010 09039 09179
0.075 1/8 0.225 1-1/2 0.015 09041 09181
0.075 1/8 0.225 1-1/2 0.020 09043 09183
0.078 1/8 0.234 1-1/2 – 00573 02493
0.080 1/8 0.240 1-1/2 – 00574 02494
0.080 1/8 0.240 1-1/2 0.005 09045 09185
0.080 1/8 0.240 1-1/2 0.010 09047 09187
0.080 1/8 0.240 1-1/2 0.015 09049 09189
0.080 1/8 0.240 1-1/2 0.020 09051 09191
0.085 1/8 0.255 1-1/2 – 00575 02495
0.085 1/8 0.255 1-1/2 0.005 09053 09193
0.085 1/8 0.255 1-1/2 0.010 09055 09195
0.085 1/8 0.255 1-1/2 0.015 09057 09197
0.085 1/8 0.255 1-1/2 0.020 09059 09199
0.090 1/8 0.270 1-1/2 – 00576 02496
0.090 1/8 0.270 1-1/2 0.005 09061 09201
0.090 1/8 0.270 1-1/2 0.010 09063 09203
0.090 1/8 0.270 1-1/2 0.015 09065 09205
0.090 1/8 0.270 1-1/2 0.020 09067 09207
0.093 1/8 0.279 1-1/2 – 00577 02497
continued on next page
M4 • M4CR • 3xD
FRACTIONAL SERIES
FRACTIONAL
M4 • M4CR • 3xD
30°
15°
POS
4
continued
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
69
www.sgsmicrotools.com
LF
DCON
APMX
DC
RE
END MILLS
END MILLS
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
UNCOATED TI-NAMITE-A
(AlTiN)
0.095 1/8 0.285 1-1/2 – 00578 02498
0.095 1/8 0.285 1-1/2 0.005 09069 09209
0.095 1/8 0.285 1-1/2 0.010 09071 09211
0.095 1/8 0.285 1-1/2 0.015 09073 09213
0.095 1/8 0.285 1-1/2 0.020 09075 09215
0.100 1/8 0.300 1-1/2 – 00579 02499
0.100 1/8 0.300 1-1/2 0.005 09077 09217
0.100 1/8 0.300 1-1/2 0.010 09079 09219
0.100 1/8 0.300 1-1/2 0.015 09081 09221
0.100 1/8 0.300 1-1/2 0.020 09083 09223
0.100 1/8 0.300 1-1/2 0.030 09085 09225
0.105 1/8 0.315 1-1/2 – 00580 02500
0.105 1/8 0.315 1-1/2 0.005 09087 09227
0.105 1/8 0.315 1-1/2 0.010 09089 09229
0.105 1/8 0.315 1-1/2 0.015 09091 09231
0.105 1/8 0.315 1-1/2 0.020 09093 09233
0.105 1/8 0.315 1-1/2 0.030 09095 09235
0.110 1/8 0.330 1-1/2 – 00581 02501
0.110 1/8 0.330 1-1/2 0.005 09097 09237
0.110 1/8 0.330 1-1/2 0.010 09099 09239
0.110 1/8 0.330 1-1/2 0.015 09101 09241
0.110 1/8 0.330 1-1/2 0.020 09103 09243
0.110 1/8 0.330 1-1/2 0.030 09105 09245
0.115 1/8 0.345 1-1/2 – 00582 02502
0.115 1/8 0.345 1-1/2 0.005 09107 09247
0.115 1/8 0.345 1-1/2 0.010 09109 09249
0.115 1/8 0.345 1-1/2 0.015 09111 09251
0.115 1/8 0.345 1-1/2 0.020 09113 09253
0.115 1/8 0.345 1-1/2 0.030 09115 09255
0.120 1/8 0.360 1-1/2 – 00583 02503
0.120 1/8 0.360 1-1/2 0.005 09117 09257
0.120 1/8 0.360 1-1/2 0.010 09119 09259
0.120 1/8 0.360 1-1/2 0.015 09121 09261
0.120 1/8 0.360 1-1/2 0.020 09123 09263
0.120 1/8 0.360 1-1/2 0.030 09125 09265
30°
15°
POS
4
FRACTIONAL
M4 • M4CR • 3xD
M4 • M4CR • 3xD
FRACTIONAL SERIES
continued
TOLERANCES (inch)
.005–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.0000 / –0.0005
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
70 www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
4
M4 • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 09839 03454
0.015 1/8 0.045 0.120 0.014 1-1/2 09841 03455
0.020 1/8 0.060 0.160 0.018 1-1/2 09843 03456
0.025 1/8 0.075 0.200 0.023 1-1/2 09845 03457
0.030 1/8 0.090 0.240 0.028 1-1/2 09847 03458
0.031 1/8 0.093 0.248 0.029 1-1/2 09849 03459
0.035 1/8 0.105 0.280 0.032 1-1/2 09851 03460
0.040 1/8 0.120 0.320 0.037 1-1/2 09853 03461
0.045 1/8 0.135 0.360 0.042 2 09855 03462
0.047 1/8 0.141 0.376 0.044 2 09857 03463
0.050 1/8 0.150 0.400 0.047 2 09859 03464
0.055 1/8 0.165 0.440 0.051 2 09861 03465
0.060 1/8 0.180 0.480 0.056 2 09863 03466
0.062 1/8 0.186 0.496 0.058 2 09865 03467
0.065 1/8 0.195 0.520 0.061 2 09867 03468
0.070 1/8 0.210 0.560 0.065 2 09869 03469
0.075 1/8 0.225 0.600 0.070 2 09871 03470
0.078 1/8 0.234 0.624 0.073 2 09873 03471
0.080 1/8 0.240 0.640 0.075 2 09875 03472
0.085 1/8 0.255 0.680 0.079 2 09877 03473
0.090 1/8 0.270 0.720 0.084 2 09879 03474
0.093 1/8 0.279 0.744 0.087 2 09881 03475
0.095 1/8 0.285 0.760 0.089 2 09883 03476
0.100 1/8 0.300 0.800 0.094 2 09885 03477
0.110 1/8 0.330 0.880 0.103 2 09887 03478
0.115 1/8 0.345 0.920 0.108 2 09889 03479
0.120 1/8 0.360 0.960 0.112 2 09891 03480
FRACTIONAL
M4 • 3xD • 8xD Overall Reach
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
D
CON
AP
MX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
71
www.sgsmicrotools.com
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
4
M4 • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 09838 03481
0.015 1/8 0.045 0.180 0.014 1-1/2 09840 03482
0.020 1/8 0.060 0.240 0.018 1-1/2 09842 03483
0.025 1/8 0.075 0.300 0.023 1-1/2 09844 03484
0.030 1/8 0.090 0.360 0.028 2 09846 03485
0.031 1/8 0.093 0.372 0.029 2 09848 03486
0.035 1/8 0.105 0.420 0.032 2 09850 03487
0.040 1/8 0.120 0.480 0.037 2 09852 03488
0.045 1/8 0.135 0.540 0.042 2 09854 03489
0.047 1/8 0.141 0.564 0.044 2 09856 03490
0.050 1/8 0.150 0.600 0.047 2 09858 03491
0.055 1/8 0.165 0.660 0.051 2 09860 03492
0.060 1/8 0.180 0.720 0.056 2 09862 03493
0.062 1/8 0.186 0.744 0.058 2 09864 03494
0.065 1/8 0.195 0.780 0.061 2 09866 03495
0.070 1/8 0.210 0.840 0.065 2 09868 03496
0.075 1/8 0.225 0.900 0.070 2 09870 03497
0.078 1/8 0.234 0.936 0.073 2-1/2 09872 03498
0.080 1/8 0.240 0.960 0.075 2-1/2 09874 03499
0.085 1/8 0.255 1.020 0.079 2-1/2 09876 03500
0.090 1/8 0.270 1.080 0.084 2-1/2 09878 03501
0.093 1/8 0.279 1.116 0.087 2-1/2 09880 03502
0.095 1/8 0.285 1.140 0.089 2-1/2 09882 03503
0.100 1/8 0.300 1.200 0.094 2-1/2 09884 03504
0.110 1/8 0.330 1.320 0.103 2-1/2 09886 03505
0.115 1/8 0.345 1.380 0.108 2-1/2 09888 03506
0.120 1/8 0.360 1.440 0.112 2-1/2 09890 03507
FRACTIONAL
M4 • 3xD • 12xD Overall Reach
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
LU
LF
DC
D
CON
AP
MX
DN
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
72 www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M4L • 5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.050 2-1/2 00584 02640
0.015 1/8 0.075 2-1/2 00585 02641
0.020 1/8 0.100 2-1/2 00586 02642
0.025 1/8 0.125 2-1/2 00587 02643
0.030 1/8 0.150 2-1/2 00588 02644
0.031 1/8 0.155 2-1/2 00589 02645
0.035 1/8 0.175 2-1/2 00590 02646
0.040 1/8 0.200 2-1/2 00591 02647
0.045 1/8 0.225 2-1/2 00592 02648
0.047 1/8 0.235 2-1/2 00593 02649
0.050 1/8 0.250 2-1/2 00594 02650
0.055 1/8 0.275 2-1/2 00595 02651
0.060 1/8 0.300 2-1/2 00596 02652
0.062 1/8 0.310 2-1/2 00597 02653
0.065 1/8 0.325 2-1/2 00598 02654
0.070 1/8 0.350 2-1/2 00599 02655
0.075 1/8 0.375 2-1/2 00600 02656
0.078 1/8 0.390 2-1/2 00601 02657
0.080 1/8 0.400 2-1/2 00602 02658
0.085 1/8 0.425 2-1/2 00603 02659
0.090 1/8 0.450 2-1/2 00604 02660
0.093 1/8 0.465 2-1/2 00605 02661
0.095 1/8 0.475 2-1/2 00606 02662
0.100 1/8 0.500 2-1/2 00607 02663
0.110 1/8 0.550 2-1/2 00608 02664
0.115 1/8 0.575 2-1/2 00609 02665
0.120 1/8 0.600 2-1/2 00610 02666
FRACTIONAL
M4L • 5xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
73
www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M4E • 8xD
30°
15°
POS
4
M4E • 8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.080 2-1/2 00611 02667
0.015 1/8 0.120 2-1/2 00612 02668
0.020 1/8 0.160 2-1/2 00613 02669
0.025 1/8 0.200 2-1/2 00614 02670
0.030 1/8 0.240 2-1/2 00615 02671
0.031 1/8 0.248 2-1/2 00616 02672
0.035 1/8 0.280 2-1/2 00617 02673
0.040 1/8 0.320 2-1/2 00618 02674
0.045 1/8 0.360 2-1/2 00619 02675
0.047 1/8 0.376 2-1/2 00620 02676
0.050 1/8 0.400 2-1/2 00621 02677
0.055 1/8 0.440 2-1/2 00622 02678
0.060 1/8 0.480 2-1/2 00623 02679
0.062 1/8 0.496 2-1/2 00624 02680
0.065 1/8 0.520 2-1/2 00625 02681
0.070 1/8 0.560 2-1/2 00626 02682
0.075 1/8 0.600 2-1/2 00627 02683
0.078 1/8 0.624 2-1/2 00628 02684
0.080 1/8 0.640 2-1/2 00629 02685
0.085 1/8 0.680 2-1/2 00630 02686
0.090 1/8 0.720 2-1/2 00631 02687
0.093 1/8 0.744 2-1/2 00632 02688
0.095 1/8 0.760 2-1/2 00633 02689
0.100 1/8 0.800 2-1/2 00634 02690
0.110 1/8 0.880 2-1/2 00635 02691
0.115 1/8 0.920 2-1/2 00636 02692
0.120 1/8 0.960 2-1/2 00637 02693
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and
surfacefinish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
74 www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (inch)
.015–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M4X • 12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.015 1/8 0.180 2-1/2 00639 02694
0.020 1/8 0.240 2-1/2 00640 02695
0.025 1/8 0.300 2-1/2 00641 02696
0.030 1/8 0.360 2-1/2 00642 02697
0.031 1/8 0.372 2-1/2 00643 02698
0.035 1/8 0.420 2-1/2 00644 02699
0.040 1/8 0.480 2-1/2 00645 02700
0.045 1/8 0.540 2-1/2 00646 02701
0.047 1/8 0.564 2-1/2 00647 02702
0.050 1/8 0.600 2-1/2 00648 02703
0.055 1/8 0.660 2-1/2 00649 02704
0.060 1/8 0.720 2-1/2 00650 02705
0.062 1/8 0.744 2-1/2 00651 02706
0.065 1/8 0.780 2-1/2 00652 02707
0.070 1/8 0.840 2-1/2 00653 02708
0.075 1/8 0.900 2-1/2 00654 02709
0.078 1/8 0.936 2-1/2 00655 02710
0.080 1/8 0.960 2-1/2 00656 02711
0.085 1/8 1.020 2-1/2 00657 02712
0.090 1/8 1.080 2-1/2 00658 02713
0.093 1/8 1.116 2-1/2 00659 02714
0.095 1/8 1.140 2-1/2 00660 02715
0.100 1/8 1.200 2-1/2 00661 02716
0.110 1/8 1.320 2-1/2 00662 02717
0.115 1/8 1.380 2-1/2 00663 02718
0.120 1/8 1.440 2-1/2 00664 02719
FRACTIONAL
M4X • 12xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
75
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M4B • 1.5xD
30°
15°
POS
4
M4B • 1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.015 1-1/2 00745 03071
0.011 1/8 0.017 1-1/2 00746 03072
0.012 1/8 0.018 1-1/2 00747 03073
0.013 1/8 0.020 1-1/2 00748 03074
0.014 1/8 0.021 1-1/2 00749 03075
0.015 1/8 0.023 1-1/2 00750 03076
0.016 1/8 0.024 1-1/2 00751 03077
0.017 1/8 0.026 1-1/2 00752 03078
0.018 1/8 0.027 1-1/2 00753 03079
0.019 1/8 0.029 1-1/2 00754 03080
0.020 1/8 0.030 1-1/2 00755 03081
0.021 1/8 0.032 1-1/2 00756 03082
0.022 1/8 0.033 1-1/2 00757 03083
0.023 1/8 0.035 1-1/2 00758 03084
0.024 1/8 0.036 1-1/2 00759 03085
0.025 1/8 0.038 1-1/2 00760 03086
0.026 1/8 0.039 1-1/2 00761 03087
0.027 1/8 0.041 1-1/2 00762 03088
0.028 1/8 0.042 1-1/2 00763 03089
0.029 1/8 0.044 1-1/2 00764 03090
0.030 1/8 0.045 1-1/2 00765 03091
0.031 1/8 0.047 1-1/2 00766 03092
0.032 1/8 0.048 1-1/2 00767 03093
0.033 1/8 0.050 1-1/2 00768 03094
0.034 1/8 0.051 1-1/2 00769 03095
0.035 1/8 0.053 1-1/2 00770 03096
0.036 1/8 0.054 1-1/2 00771 03097
0.037 1/8 0.056 1-1/2 00772 03098
0.038 1/8 0.057 1-1/2 00773 03099
0.039 1/8 0.059 1-1/2 00774 03100
0.040 1/8 0.060 1-1/2 00775 03101
0.041 1/8 0.062 1-1/2 00776 02538
0.042 1/8 0.063 1-1/2 00777 02539
0.043 1/8 0.065 1-1/2 00778 02540
continued on next page
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
76 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M4B • 1.5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.044 1/8 0.066 1-1/2 00779 02541
0.045 1/8 0.068 1-1/2 00780 02542
0.046 1/8 0.069 1-1/2 00781 02543
0.047 1/8 0.071 1-1/2 00782 02544
0.048 1/8 0.072 1-1/2 00783 02545
0.049 1/8 0.074 1-1/2 00784 02546
0.050 1/8 0.075 1-1/2 00785 02547
0.051 1/8 0.077 1-1/2 00786 02548
0.052 1/8 0.078 1-1/2 00787 02549
0.053 1/8 0.080 1-1/2 00788 02550
0.054 1/8 0.081 1-1/2 00789 02551
0.055 1/8 0.083 1-1/2 00790 02552
0.056 1/8 0.084 1-1/2 00791 02553
0.057 1/8 0.086 1-1/2 00792 02554
0.058 1/8 0.087 1-1/2 00793 02555
0.059 1/8 0.089 1-1/2 00794 02556
0.060 1/8 0.090 1-1/2 00795 02557
0.062 1/8 0.093 1-1/2 00796 02558
0.065 1/8 0.098 1-1/2 00797 02559
0.070 1/8 0.105 1-1/2 00798 02560
0.075 1/8 0.112 1-1/2 04018 04016
0.078 1/8 0.117 1-1/2 00799 02561
0.080 1/8 0.120 1-1/2 00800 02562
0.085 1/8 0.128 1-1/2 00801 02563
0.090 1/8 0.135 1-1/2 00802 02564
0.093 1/8 0.140 1-1/2 00803 02565
0.095 1/8 0.143 1-1/2 00804 02566
0.100 1/8 0.150 1-1/2 00805 02567
0.105 1/8 0.158 1-1/2 00806 02568
0.110 1/8 0.165 1-1/2 00807 02569
0.115 1/8 0.173 1-1/2 00808 02570
0.120 1/8 0.180 1-1/2 00809 02571
FRACTIONAL
M4B • 1.5xD
30°
15°
POS
4
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
77
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M4B • 3xD
30°
15°
POS
4
M4B • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 1-1/2 00887 03145
0.011 1/8 0.033 1-1/2 00888 03146
0.012 1/8 0.036 1-1/2 00889 03147
0.013 1/8 0.039 1-1/2 00890 03148
0.014 1/8 0.042 1-1/2 00891 03149
0.015 1/8 0.045 1-1/2 00892 03150
0.016 1/8 0.048 1-1/2 00893 03151
0.017 1/8 0.051 1-1/2 00894 03152
0.018 1/8 0.054 1-1/2 00895 03153
0.019 1/8 0.057 1-1/2 00896 03154
0.020 1/8 0.060 1-1/2 00897 03155
0.021 1/8 0.063 1-1/2 00898 03156
0.022 1/8 0.066 1-1/2 00899 03157
0.023 1/8 0.069 1-1/2 00900 03158
0.024 1/8 0.072 1-1/2 00901 03159
0.025 1/8 0.075 1-1/2 00902 03160
0.026 1/8 0.078 1-1/2 00903 03161
0.027 1/8 0.081 1-1/2 00904 03162
0.028 1/8 0.084 1-1/2 00905 03163
0.029 1/8 0.087 1-1/2 00906 03164
0.030 1/8 0.090 1-1/2 00907 03165
0.031 1/8 0.093 1-1/2 00908 03166
0.032 1/8 0.096 1-1/2 00909 03167
0.033 1/8 0.099 1-1/2 00910 03168
0.034 1/8 0.102 1-1/2 00911 03169
0.035 1/8 0.105 1-1/2 00912 03170
0.036 1/8 0.108 1-1/2 00913 03171
0.037 1/8 0.111 1-1/2 00914 03172
0.038 1/8 0.114 1-1/2 00915 03173
0.039 1/8 0.117 1-1/2 00916 03174
0.040 1/8 0.120 1-1/2 00917 03175
0.041 1/8 0.123 1-1/2 00918 02606
0.042 1/8 0.126 1-1/2 00919 02607
0.043 1/8 0.129 1-1/2 00920 02608
continued on next page
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
78 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M4B • 3xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.044 1/8 0.132 1-1/2 00921 02609
0.045 1/8 0.135 1-1/2 00922 02610
0.046 1/8 0.138 1-1/2 00923 02611
0.047 1/8 0.141 1-1/2 00924 02612
0.048 1/8 0.144 1-1/2 00925 02613
0.049 1/8 0.147 1-1/2 00926 02614
0.050 1/8 0.150 1-1/2 00927 02615
0.051 1/8 0.153 1-1/2 00928 02616
0.052 1/8 0.156 1-1/2 00929 02617
0.053 1/8 0.159 1-1/2 00930 02618
0.054 1/8 0.162 1-1/2 00931 02619
0.055 1/8 0.165 1-1/2 00932 02620
0.056 1/8 0.168 1-1/2 00933 02621
0.057 1/8 0.171 1-1/2 00934 02622
0.058 1/8 0.174 1-1/2 00935 02623
0.059 1/8 0.177 1-1/2 00936 02624
0.060 1/8 0.180 1-1/2 00937 02625
0.062 1/8 0.186 1-1/2 00938 02626
0.065 1/8 0.195 1-1/2 00939 02627
0.070 1/8 0.210 1-1/2 00940 02628
0.075 1/8 0.225 1-1/2 04019 04017
0.078 1/8 0.234 1-1/2 00941 02629
0.080 1/8 0.240 1-1/2 00942 02630
0.085 1/8 0.255 1-1/2 00943 02631
0.090 1/8 0.270 1-1/2 00944 02632
0.093 1/8 0.279 1-1/2 00945 02633
0.095 1/8 0.285 1-1/2 00946 02634
0.100 1/8 0.300 1-1/2 00947 02635
0.105 1/8 0.315 1-1/2 00948 02636
0.110 1/8 0.330 1-1/2 00949 02637
0.115 1/8 0.345 1-1/2 00950 02638
0.120 1/8 0.360 1-1/2 00951 02639
FRACTIONAL
M4B • 3xD
30°
15°
POS
4
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
79
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LU
LF
DC
D
CON
AP
MX
DN
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
4
FRACTIONAL
M4B • 3xD • 8xD Overall Reach
M4B • 3xD
8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.080 0.009 1-1/2 09785 03751
0.015 1/8 0.045 0.120 0.014 1-1/2 09787 03752
0.020 1/8 0.060 0.160 0.018 1-1/2 09789 03753
0.025 1/8 0.075 0.200 0.023 1-1/2 09791 03754
0.030 1/8 0.090 0.240 0.028 1-1/2 09793 03755
0.031 1/8 0.093 0.248 0.029 1-1/2 09795 03756
0.035 1/8 0.105 0.280 0.032 1-1/2 09797 03757
0.040 1/8 0.120 0.320 0.037 1-1/2 09799 03758
0.045 1/8 0.135 0.360 0.042 2 09801 03759
0.047 1/8 0.141 0.376 0.044 2 09803 03760
0.050 1/8 0.150 0.400 0.047 2 09805 03761
0.055 1/8 0.165 0.440 0.051 2 09807 03762
0.060 1/8 0.180 0.480 0.056 2 09809 03763
0.062 1/8 0.186 0.496 0.058 2 09811 03764
0.065 1/8 0.195 0.520 0.061 2 09813 03765
0.070 1/8 0.210 0.560 0.065 2 09815 03766
0.075 1/8 0.225 0.600 0.070 2 09817 03767
0.078 1/8 0.234 0.624 0.073 2 09819 03768
0.080 1/8 0.240 0.640 0.075 2 09821 03769
0.085 1/8 0.255 0.680 0.079 2 09823 03770
0.090 1/8 0.270 0.720 0.084 2 09825 03771
0.093 1/8 0.279 0.744 0.087 2 09827 03772
0.095 1/8 0.285 0.760 0.089 2 09829 03773
0.100 1/8 0.300 0.800 0.094 2 09831 03774
0.110 1/8 0.330 0.880 0.103 2 09833 03775
0.115 1/8 0.345 0.920 0.108 2 09835 03776
0.120 1/8 0.360 0.960 0.112 2 09837 03777
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
80 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
30°
15°
POS
4
M4B • 3xD
12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.030 0.120 0.009 1-1/2 09784 03778
0.015 1/8 0.045 0.180 0.014 1-1/2 09786 03779
0.020 1/8 0.060 0.240 0.018 1-1/2 09788 03780
0.025 1/8 0.075 0.300 0.023 1-1/2 09790 03781
0.030 1/8 0.090 0.360 0.028 2 09792 03782
0.031 1/8 0.093 0.372 0.029 2 09794 03783
0.035 1/8 0.105 0.420 0.032 2 09796 03784
0.040 1/8 0.120 0.480 0.037 2 09798 03785
0.045 1/8 0.135 0.540 0.042 2 09800 03786
0.047 1/8 0.141 0.564 0.044 2 09802 03787
0.050 1/8 0.150 0.600 0.047 2 09804 03788
0.055 1/8 0.165 0.660 0.051 2 09806 03789
0.060 1/8 0.180 0.720 0.056 2 09808 03790
0.062 1/8 0.186 0.744 0.058 2 09810 03791
0.065 1/8 0.195 0.780 0.061 2 09812 03792
0.070 1/8 0.210 0.840 0.065 2 09814 03793
0.075 1/8 0.225 0.900 0.070 2 09816 03794
0.078 1/8 0.234 0.936 0.073 2-1/2 09818 03795
0.080 1/8 0.240 0.960 0.075 2-1/2 09820 03796
0.085 1/8 0.255 1.020 0.079 2-1/2 09822 03797
0.090 1/8 0.270 1.080 0.084 2-1/2 09824 03798
0.093 1/8 0.279 1.116 0.087 2-1/2 09826 03799
0.095 1/8 0.285 1.140 0.089 2-1/2 09828 03800
0.100 1/8 0.300 1.200 0.094 2-1/2 09830 03801
0.110 1/8 0.330 1.320 0.103 2-1/2 09832 03802
0.115 1/8 0.345 1.380 0.108 2-1/2 09834 03803
0.120 1/8 0.360 1.440 0.112 2-1/2 09836 03804
FRACTIONAL
M4B • 3xD • 12xD Overall Reach
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
81
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M4LB • 5xD
30°
15°
POS
4
M4LB • 5xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.050 2-1/2 00952 02720
0.015 1/8 0.075 2-1/2 00953 02721
0.020 1/8 0.100 2-1/2 00954 02722
0.025 1/8 0.125 2-1/2 00955 02723
0.030 1/8 0.150 2-1/2 00956 02724
0.031 1/8 0.155 2-1/2 00957 02725
0.035 1/8 0.175 2-1/2 00958 02726
0.040 1/8 0.200 2-1/2 00959 02727
0.045 1/8 0.225 2-1/2 00960 02728
0.047 1/8 0.235 2-1/2 00961 02729
0.050 1/8 0.250 2-1/2 00962 02730
0.055 1/8 0.275 2-1/2 00963 02731
0.060 1/8 0.300 2-1/2 00964 02732
0.062 1/8 0.310 2-1/2 00965 02733
0.065 1/8 0.325 2-1/2 00966 02734
0.070 1/8 0.350 2-1/2 00967 02735
0.075 1/8 0.375 2-1/2 00968 02736
0.078 1/8 0.390 2-1/2 00969 02737
0.080 1/8 0.400 2-1/2 00970 02738
0.085 1/8 0.425 2-1/2 00971 02739
0.090 1/8 0.450 2-1/2 00972 02740
0.093 1/8 0.465 2-1/2 00973 02741
0.095 1/8 0.475 2-1/2 00974 02742
0.100 1/8 0.500 2-1/2 00975 02743
0.110 1/8 0.550 2-1/2 00976 02744
0.115 1/8 0.575 2-1/2 00977 02745
0.120 1/8 0.600 2-1/2 00978 02746
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
82 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (inch)
.010–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
M4EB • 8xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.010 1/8 0.080 2-1/2 00979 02747
0.015 1/8 0.120 2-1/2 00980 02748
0.020 1/8 0.160 2-1/2 00981 02749
0.025 1/8 0.200 2-1/2 00982 02750
0.030 1/8 0.240 2-1/2 00983 02751
0.031 1/8 0.248 2-1/2 00984 02752
0.035 1/8 0.280 2-1/2 00985 02753
0.040 1/8 0.320 2-1/2 00986 02754
0.045 1/8 0.360 2-1/2 00987 02755
0.047 1/8 0.376 2-1/2 00988 02756
0.050 1/8 0.400 2-1/2 00989 02757
0.055 1/8 0.440 2-1/2 00990 02758
0.060 1/8 0.480 2-1/2 00991 02759
0.062 1/8 0.496 2-1/2 00992 02760
0.065 1/8 0.520 2-1/2 00993 02761
0.070 1/8 0.560 2-1/2 00994 02762
0.075 1/8 0.600 2-1/2 00995 02763
0.078 1/8 0.624 2-1/2 00996 02764
0.080 1/8 0.640 2-1/2 00997 02765
0.085 1/8 0.680 2-1/2 00998 02766
0.090 1/8 0.720 2-1/2 00999 02767
0.093 1/8 0.744 2-1/2 01000 02768
0.095 1/8 0.760 2-1/2 01001 02769
0.100 1/8 0.800 2-1/2 01002 02770
0.110 1/8 0.880 2-1/2 01003 02771
0.115 1/8 0.920 2-1/2 01004 02772
0.120 1/8 0.960 2-1/2 01005 02773
FRACTIONAL
M4EB • 8xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
83
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (inch)
.015–.120 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
FRACTIONAL
M4XB • 12xD
30°
15°
POS
4
M4XB • 12xD
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0.015 1/8 0.180 2-1/2 01007 02774
0.020 1/8 0.240 2-1/2 01008 02775
0.025 1/8 0.300 2-1/2 01009 02776
0.030 1/8 0.360 2-1/2 01010 02777
0.031 1/8 0.372 2-1/2 01011 02778
0.035 1/8 0.420 2-1/2 01012 02779
0.040 1/8 0.480 2-1/2 01013 02780
0.045 1/8 0.540 2-1/2 01014 02781
0.047 1/8 0.564 2-1/2 01015 02782
0.050 1/8 0.600 2-1/2 01016 02783
0.055 1/8 0.660 2-1/2 01017 02784
0.060 1/8 0.720 2-1/2 01018 02785
0.062 1/8 0.744 2-1/2 01019 02786
0.065 1/8 0.780 2-1/2 01020 02787
0.070 1/8 0.840 2-1/2 01021 02788
0.075 1/8 0.900 2-1/2 01022 02789
0.078 1/8 0.936 2-1/2 01023 02790
0.080 1/8 0.960 2-1/2 01024 02791
0.085 1/8 1.020 2-1/2 01025 02792
0.090 1/8 1.080 2-1/2 01026 02793
0.093 1/8 1.116 2-1/2 01027 02794
0.095 1/8 1.140 2-1/2 01028 02795
0.100 1/8 1.200 2-1/2 01029 02796
0.110 1/8 1.320 2-1/2 01030 02797
0.115 1/8 1.380 2-1/2 01031 02798
0.120 1/8 1.440 2-1/2 01032 02799
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
84 www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M2M • 1.5xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,1 38,0 05002 05000
0,2 0.0079 3,0 0,3 38,0 01801 02801
0,3 0.0118 3,0 0,4 38,0 01802 02802
0,4 0.0157 3,0 0,6 38,0 01803 02803
0,5 0.0197 3,0 0,7 38,0 01804 02804
0,6 0.0236 3,0 0,9 38,0 01805 02805
0,7 0.0276 3,0 1,0 38,0 01806 02806
0,8 0.0315 3,0 1,2 38,0 01807 02807
0,9 0.0354 3,0 1,3 38,0 01808 02808
1,0 0.0394 3,0 1,5 38,0 01809 02809
1,0 0.0394 4,0 1,5 50,0 01861 02819
1,1 0.0433 3,0 1,6 38,0 01810 02860
1,1 0.0433 4,0 1,6 50,0 01862 02892
1,2 0.0472 3,0 1,8 38,0 01811 02861
1,2 0.0472 4,0 1,8 50,0 01863 02893
1,3 0.0512 3,0 1,9 38,0 01812 02862
1,3 0.0512 4,0 1,9 50,0 01864 02894
1,4 0.0551 3,0 2,1 38,0 01813 02863
1,4 0.0551 4,0 2,1 50,0 01865 02895
1,5 0.0591 3,0 2,2 38,0 01814 02864
1,5 0.0591 4,0 2,2 50,0 01866 02896
1,6 0.0630 3,0 2,4 38,0 01815 02865
1,6 0.0630 4,0 2,4 50,0 01867 02897
1,7 0.0669 3,0 2,5 38,0 01816 02866
1,7 0.0669 4,0 2,5 50,0 01868 02898
1,8 0.0709 3,0 2,7 38,0 01817 02867
1,8 0.0709 4,0 2,7 50,0 01869 02899
1,9 0.0748 3,0 2,8 38,0 01818 02868
1,9 0.0748 4,0 2,8 50,0 01870 02900
2,0 0.0787 3,0 3,0 38,0 01819 02869
2,0 0.0787 4,0 3,0 50,0 01871 02901
2,5 0.0984 3,0 3,7 38,0 01820 02870
2,5 0.0984 4,0 3,7 50,0 01872 02902
3,0 0.1181 3,0 4,5 38,0 01821 02871
3,0 0.1181 4,0 4,5 50,0 01873 02903
METRIC
M2M • 1.5xD
30°
15°
POS
2
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
85
www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
METRIC
M2M • 3xD
30°
15°
POS
2
M2M • 3xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,3 38,0 05003 05001
0,2 0.0079 3,0 0,6 38,0 01823 02811
0,2 0.0079 4,0 0,6 50,0 01875 02349
0,3 0.0118 3,0 0,9 38,0 01824 02350
0,3 0.0118 4,0 0,9 50,0 01876 02360
0,4 0.0157 3,0 1,2 38,0 01825 02351
0,4 0.0157 4,0 1,2 50,0 01877 02361
0,5 0.0197 3,0 1,5 38,0 01826 02352
0,5 0.0197 4,0 1,5 50,0 01878 02362
0,6 0.0236 3,0 1,8 38,0 01827 02353
0,6 0.0236 4,0 1,8 50,0 01879 02363
0,7 0.0276 3,0 2,1 38,0 01828 02354
0,7 0.0276 4,0 2,1 50,0 01880 02364
0,8 0.0315 3,0 2,4 38,0 01829 02355
0,8 0.0315 4,0 2,4 50,0 01881 02365
0,9 0.0354 3,0 2,7 38,0 01830 02356
0,9 0.0354 4,0 2,7 50,0 01882 02366
1,0 0.0394 3,0 3,0 38,0 01831 02357
1,0 0.0394 4,0 3,0 50,0 01883 02367
1,1 0.0433 3,0 3,3 38,0 01832 02872
1,1 0.0433 4,0 3,3 50,0 01884 02904
1,2 0.0472 3,0 3,6 38,0 01833 02873
1,2 0.0472 4,0 3,6 50,0 01885 02905
1,3 0.0512 3,0 3,9 38,0 01834 02874
1,3 0.0512 4,0 3,9 50,0 01886 02906
1,4 0.0551 3,0 4,2 38,0 01835 02875
1,4 0.0551 4,0 4,2 50,0 01887 02907
1,5 0.0591 3,0 4,5 38,0 01836 02876
1,5 0.0591 4,0 4,5 50,0 01888 02908
1,6 0.0630 3,0 4,8 38,0 01837 02877
1,6 0.0630 4,0 4,8 50,0 01889 02909
1,7 0.0669 3,0 5,1 38,0 01838 02878
1,7 0.0669 4,0 5,1 50,0 01890 02910
1,8 0.0709 3,0 5,4 38,0 01839 02879
continued on next page
• Two flute design
is ideal for softer
alloyed, non-ferrous
material applications
that require slotting
or involve heavy chip
loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
86 www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M2M • 3xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
1,8 0.0709 4,0 5,4 50,0 01891 02911
1,9 0.0748 3,0 5,7 38,0 01840 02880
1,9 0.0748 4,0 5,7 50,0 01892 02912
2,0 0.0787 3,0 6,0 38,0 01841 02881
2,0 0.0787 4,0 6,0 50,0 01893 02913
2,1 0.0827 3,0 6,3 38,0 01842 02882
2,2 0.0866 3,0 6,6 38,0 01843 02883
2,3 0.0906 3,0 6,9 38,0 01844 02884
2,4 0.0945 3,0 7,2 38,0 01845 02885
2,5 0.0984 3,0 7,5 38,0 01846 02886
2,5 0.0984 4,0 7,5 50,0 01894 02914
2,6 0.1024 3,0 7,8 38,0 01847 02887
2,7 0.1063 3,0 8,1 38,0 01848 02888
2,8 0.1102 3,0 8,4 38,0 01849 02889
2,9 0.1142 3,0 8,7 38,0 01850 02890
3,0 0.1181 3,0 9,0 38,0 01851 02891
3,0 0.1181 4,0 9,0 50,0 01895 02915
METRIC
M2M • 3xD
30°
15°
POS
2
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
87
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
METRIC
M2MB • 1.5xD
30°
15°
POS
2
M2MB • 1.5xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,1 38,0 05017 05004
0,2 0.0079 3,0 0,3 38,0 05019 05006
0,3 0.0118 3,0 0,3 38,0 05021 05008
0,4 0.0157 3,0 0,6 38,0 05023 05010
0,5 0.0197 3,0 0,7 38,0 01900 03180
0,6 0.0236 3,0 0,9 38,0 01901 03181
0,7 0.0276 3,0 1,0 38,0 01902 03182
0,8 0.0315 3,0 1,2 38,0 01903 03183
0,9 0.0354 3,0 1,3 38,0 01904 03184
1,0 0.0394 3,0 1,5 38,0 01905 03185
1,0 0.0394 4,0 1,5 50,0 02009 02849
1,1 0.0433 3,0 1,6 38,0 01906 02916
1,1 0.0433 4,0 1,6 50,0 02010 02980
1,2 0.0472 3,0 1,8 38,0 01907 02917
1,2 0.0472 4,0 1,8 50,0 02011 02981
1,3 0.0512 3,0 1,9 38,0 01908 02918
1,3 0.0512 4,0 1,9 50,0 02012 02982
1,4 0.0551 3,0 2,1 38,0 01909 02919
1,4 0.0551 4,0 2,1 50,0 02013 02983
1,5 0.0591 3,0 2,2 38,0 01910 02920
1,5 0.0591 4,0 2,2 50,0 02014 02984
1,6 0.0630 3,0 2,4 38,0 01911 02921
1,6 0.0630 4,0 2,4 50,0 02015 02985
1,7 0.0669 3,0 2,5 38,0 01912 02922
1,7 0.0669 4,0 2,5 50,0 02016 02986
1,8 0.0709 3,0 2,7 38,0 01913 02923
1,8 0.0709 4,0 2,7 50,0 02017 02987
1,9 0.0748 3,0 2,8 38,0 01914 02924
1,9 0.0748 4,0 2,8 50,0 02018 02988
2,0 0.0787 3,0 3,0 38,0 01915 02925
2,0 0.0787 4,0 3,0 50,0 02019 02989
2,5 0.0984 3,0 3,7 38,0 01916 02926
2,5 0.0984 4,0 3,7 50,0 02020 02990
3,0 0.1181 3,0 4,5 38,0 01917 02927
3,0 0.1181 4,0 4,5 50,0 02021 02991
• Two flute design
is ideal for softer
alloyed, non-ferrous
material applications
that require slotting
or involve heavy chip
loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
88 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M2MB • 3xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,3 38,0 05018 05005
0,2 0.0079 3,0 0,6 38,0 05020 05007
0,3 0.0118 3,0 0,9 38,0 05022 05009
0,4 0.0157 3,0 1,2 38,0 05024 05011
0,5 0.0197 3,0 1,5 38,0 05025 05012
0,5 0.0197 4,0 1,5 50,0 02048 03200
0,6 0.0236 3,0 1,8 38,0 05026 05013
0,6 0.0236 4,0 1,8 50,0 02049 03201
0,7 0.0276 3,0 2,1 38,0 05027 05014
0,7 0.0276 4,0 2,1 50,0 02050 03202
0,8 0.0315 3,0 2,4 38,0 05028 05015
0,8 0.0315 4,0 2,4 50,0 02051 03203
0,9 0.0354 3,0 2,7 38,0 05029 05016
0,9 0.0354 4,0 2,7 50,0 02052 03204
1,0 0.0394 3,0 3,0 38,0 01949 02829
1,0 0.0394 4,0 3,0 50,0 02053 03205
1,1 0.0433 3,0 3,3 38,0 01950 02940
1,1 0.0433 4,0 3,3 50,0 02054 03004
1,2 0.0472 3,0 3,6 38,0 01951 02941
1,2 0.0472 4,0 3,6 50,0 02055 03005
1,3 0.0512 3,0 3,9 38,0 01952 02942
1,3 0.0512 4,0 3,9 50,0 02056 03006
1,4 0.0551 3,0 4,2 38,0 01953 02943
1,4 0.0551 4,0 4,2 50,0 02057 03007
1,5 0.0591 3,0 4,5 38,0 01954 02944
1,5 0.0591 4,0 4,5 50,0 02058 03008
1,6 0.0630 3,0 4,8 38,0 01955 02945
1,6 0.0630 4,0 4,8 50,0 02059 03009
1,7 0.0669 3,0 5,1 38,0 01956 02946
1,7 0.0669 4,0 5,1 50,0 02060 03010
1,8 0.0709 3,0 5,4 38,0 01957 02947
1,8 0.0709 4,0 5,4 50,0 02061 03011
1,9 0.0748 3,0 5,7 38,0 01958 02948
1,9 0.0748 4,0 5,7 50,0 02062 03012
continued on next page
METRIC
M2MB • 3xD
30°
15°
POS
2
• Two flute design is
ideal for softer alloyed,
non-ferrous material
applications that require
slotting or involve heavy
chip loads.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
89
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
APMX
DC
DCON
RE
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M2MB • 3xD
METRIC SERIES
30°
15°
POS
2
METRIC
M2MB • 3xD
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
2,0 0.0787 3,0 6,0 38,0 01959 02949
2,0 0.0787 4,0 6,0 50,0 02063 03013
2,1 0.0827 3,0 6,3 38,0 01960 02950
2,2 0.0866 3,0 6,6 38,0 01961 02951
2,3 0.0906 3,0 6,9 38,0 01962 02952
2,4 0.0945 3,0 7,2 38,0 01963 02953
2,5 0.0984 3,0 7,5 38,0 01964 02954
2,5 0.0984 4,0 7,5 50,0 02064 03014
2,6 0.1024 3,0 7,8 38,0 01965 02955
2,7 0.1063 3,0 8,1 38,0 01966 02956
2,8 0.1102 3,0 8,4 38,0 01967 02957
2,9 0.1142 3,0 8,7 38,0 01968 02958
3,0 0.1181 3,0 9,0 38,0 01969 02959
3,0 0.1181 4,0 9,0 50,0 02065 03015
continued
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
90 www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M4M • 1.5xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,15 38,0 05112 05076
0,2 0.0079 3,0 0,30 38,0 05113 05077
0,3 0.0118 3,0 0,45 38,0 05114 05078
0,4 0.0157 3,0 0,60 38,0 05115 05079
0,5 0.0197 3,0 0,75 38,0 05116 05080
0,6 0.0236 3,0 0,90 38,0 05117 05081
0,7 0.0276 3,0 1,05 38,0 05118 05082
0,8 0.0315 3,0 1,20 38,0 05119 05083
0,9 0.0354 3,0 1,35 38,0 05120 05084
1,0 0.0394 3,0 1,50 38,0 05121 05085
1,1 0.0433 3,0 1,65 38,0 09282 09290
1,2 0.0472 3,0 1,80 38,0 09283 09291
1,3 0.0512 3,0 1,95 38,0 09284 09292
1,4 0.0551 3,0 2,10 38,0 09285 09293
1,5 0.0591 3,0 2,25 38,0 05122 05086
1,6 0.0630 3,0 2,40 38,0 09286 09294
1,7 0.0669 3,0 2,55 38,0 09287 09295
1,8 0.0709 3,0 2,70 38,0 09288 09296
1,9 0.0748 3,0 2,85 38,0 09289 09297
2,0 0.0787 3,0 3,00 38,0 05123 05087
2,1 0.0827 3,0 3,15 38,0 09270 09278
2,2 0.0866 3,0 3,30 38,0 09271 09279
2,3 0.0906 3,0 3,45 38,0 09272 09280
2,4 0.0945 3,0 3,60 38,0 09273 09281
2,5 0.0984 3,0 3,75 38,0 05124 05088
3,0 0.1181 3,0 4,50 38,0 05125 05089
METRIC
M4M • 1.5xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
91
www.sgsmicrotools.com
LF
DC
DCON
APMX
END MILLS
END MILLS
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
METRIC
M4M • 3xD
M4M • 3xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,1 0.0039 3,0 0,3 38,0 05090 05054
0,2 0.0079 3,0 0,6 38,0 05091 05055
0,3 0.0118 3,0 0,9 38,0 05092 05056
0,4 0.0157 3,0 1,2 38,0 05093 05057
0,5 0.0197 3,0 1,5 38,0 05094 05058
0,6 0.0236 3,0 1,8 38,0 05095 05059
0,7 0.0276 3,0 2,1 38,0 05096 05060
0,8 0.0315 3,0 2,4 38,0 05097 05061
0,9 0.0354 3,0 2,7 38,0 05098 05062
1,0 0.0394 3,0 3,0 38,0 05099 05063
1,1 0.0433 3,0 3,3 38,0 05100 05064
1,2 0.0472 3,0 3,6 38,0 05101 05065
1,3 0.0512 3,0 3,9 38,0 05102 05066
1,4 0.0551 3,0 4,2 38,0 05103 05067
1,5 0.0591 3,0 4,5 38,0 05104 05068
1,6 0.0630 3,0 4,8 38,0 05105 05069
1,7 0.0669 3,0 5,1 38,0 05106 05070
1,8 0.0709 3,0 5,4 38,0 05107 05071
1,9 0.0748 3,0 5,7 38,0 05108 05072
2,0 0.0787 3,0 6,0 38,0 05109 05073
2,1 0.0827 3,0 6,3 38,0 09266 09274
2,2 0.0866 3,0 6,6 38,0 09267 09275
2,3 0.0906 3,0 6,9 38,0 09268 09276
2,4 0.0945 3,0 7,2 38,0 09269 09277
2,5 0.0984 3,0 7,5 38,0 05110 05074
3,0 0.1181 3,0 9,0 38,0 05111 05075
30°
15°
POS
4
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and
surfacefinish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
92 www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (mm)
0,4–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
M4MB • 1.5xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,4 0.0157 3,0 0,6 38,0 05042 05030
0,5 0.0197 3,0 0,7 38,0 05044 05032
0,6 0.0236 3,0 0,9 38,0 05046 05034
0,7 0.0276 3,0 1,0 38,0 05048 05036
0,8 0.0315 3,0 1,2 38,0 05050 05038
0,9 0.0354 3,0 1,3 38,0 05052 05040
1,0 0.0394 3,0 1,5 38,0 01927 03195
1,0 0.0394 4,0 1,5 50,0 02031 02859
1,1 0.0433 3,0 1,6 38,0 01928 02928
1,1 0.0433 4,0 1,6 50,0 02032 02992
1,2 0.0472 3,0 1,8 38,0 01929 02929
1,2 0.0472 4,0 1,8 50,0 02033 02993
1,3 0.0512 3,0 1,9 38,0 01930 02930
1,3 0.0512 4,0 1,9 50,0 02034 02994
1,4 0.0551 3,0 2,1 38,0 01931 02931
1,4 0.0551 4,0 2,1 50,0 02035 02995
1,5 0.0591 3,0 2,2 38,0 01932 02932
1,5 0.0591 4,0 2,2 50,0 02036 02996
1,6 0.0630 3,0 2,4 38,0 01933 02933
1,6 0.0630 4,0 2,4 50,0 02037 02997
1,7 0.0669 3,0 2,5 38,0 01934 02934
1,7 0.0669 4,0 2,5 50,0 02038 02998
1,8 0.0709 3,0 2,7 38,0 01935 02935
1,8 0.0709 4,0 2,7 50,0 02039 02999
1,9 0.0748 3,0 2,8 38,0 01936 02936
1,9 0.0748 4,0 2,8 50,0 02040 03000
2,0 0.0787 3,0 3,0 38,0 01937 02937
2,0 0.0787 4,0 3,0 50,0 02041 03001
2,5 0.0984 3,0 3,7 38,0 01938 02938
2,5 0.0984 4,0 3,7 50,0 02042 03002
3,0 0.1181 3,0 4,5 38,0 01939 02939
3,0 0.1181 4,0 4,5 50,0 02043 03003
METRIC
M4MB • 1.5xD
30°
15°
POS
4
• Four flute design allows
for higher feed rates and
decreased deflection,
improving productivity
and surface finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths of cut,
to ensure application
demands are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
93
www.sgsmicrotools.com
RE = 1/2 Cutting Diameter (DC)
LF
DC
DCON
APMX
RE
END MILLS
END MILLS
TOLERANCES (mm)
0,4–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
METRIC
M4MB • 3xD
30°
15°
POS
4
M4MB • 3xD
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
OVERALL
LENGTH
LF
UNCOATED TI-NAMITE-A
(AlTiN)
0,4 0.0157 3,0 1,2 38,0 05043 05031
0,5 0.0197 3,0 1,5 38,0 05045 05033
0,6 0.0236 3,0 1,8 38,0 05047 05035
0,7 0.0276 3,0 2,1 38,0 05049 05037
0,8 0.0315 3,0 2,4 38,0 05051 05039
0,9 0.0354 3,0 2,7 38,0 05053 05041
1,0 0.0394 3,0 3,0 38,0 01979 02839
1,0 0.0394 4,0 3,0 50,0 02075 03215
1,1 0.0433 3,0 3,3 38,0 01980 02960
1,1 0.0433 4,0 3,3 50,0 02076 03016
1,2 0.0472 3,0 3,6 38,0 01981 02961
1,2 0.0472 4,0 3,6 50,0 02077 03017
1,3 0.0512 3,0 3,9 38,0 01982 02962
1,3 0.0512 4,0 3,9 50,0 02078 03018
1,4 0.0551 3,0 4,2 38,0 01983 02963
1,4 0.0551 4,0 4,2 50,0 02079 03019
1,5 0.0591 3,0 4,5 38,0 01984 02964
1,5 0.0591 4,0 4,5 50,0 02080 03020
1,6 0.0630 3,0 4,8 38,0 01985 02965
1,6 0.0630 4,0 4,8 50,0 02081 03021
1,7 0.0669 3,0 5,1 38,0 01986 02966
1,7 0.0669 4,0 5,1 50,0 02082 03022
1,8 0.0709 3,0 5,4 38,0 01987 02967
1,8 0.0709 4,0 5,4 50,0 02083 03023
1,9 0.0748 3,0 5,7 38,0 01988 02968
1,9 0.0748 4,0 5,7 50,0 02084 03024
2,0 0.0787 3,0 6,0 38,0 01989 02969
2,0 0.0787 4,0 6,0 50,0 02085 03025
2,1 0.0827 3,0 6,3 38,0 01990 02970
2,2 0.0866 3,0 6,6 38,0 01991 02971
2,3 0.0906 3,0 6,9 38,0 01992 02972
2,4 0.0945 3,0 7,2 38,0 01993 02973
2,5 0.0984 3,0 7,5 38,0 01994 02974
2,5 0.0984 4,0 7,5 50,0 02086 03026
2,6 0.1024 3,0 7,8 38,0 01995 02975
2,7 0.1063 3,0 8,1 38,0 01996 02976
2,8 0.1102 3,0 8,4 38,0 01997 02977
2,9 0.1142 3,0 8,7 38,0 01998 02978
3,0 0.1181 3,0 9,0 38,0 01999 02979
3,0 0.1181 4,0 9,0 50,0 02087 03027
• Four flute design
allows for higher feed
rates and decreased
deflection, improving
productivity and surface
finish.
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• High performance
carbide substrate
designed specifically for
Micro Tool applications.
• Broad portfolio, offering
consistent lengths
of cut, to ensure
application demands
are met.
• Advanced geometries
that extend tool life,
reduce chatter, cut cycle
times, and improve part
quality.
• All tools in stock to
meet customer order
requirements.
• All micro tools are
manufactured in
accordance with the
KSPT ISO certified
quality procedures.
94 www.sgsmicrotools.com
END MILLS
END MILLS
FRACTIONAL & METRIC
Speeds and Feeds
INCH
2-Flute, Square,
Corner Radius
& Ball
Without Reach
Flute Length 1.5 x DC 3 x DC
Feed Multiplier 1 0.9
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.50 ≤1 ≤.10 ≤.25 ≤2H
K
M
Slot 1 ≤.20 ≤.50 1 ≤.15 ≤.35S
N
METRIC
2-Flute
Square & Ball
Without Reach
Flute Length 1.5 x DC 3 x DC
Feed Multiplier 10.9
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.50 ≤1 ≤.10 ≤.25 ≤2H
K
M
Slot 1 ≤.20 ≤.50 1 ≤.15 ≤.35S
N
METRIC
4-Flute
Square & Ball
Without Reach
Flute Length 1.5 x DC 3 x DC
Feed Multiplier 1.57 1.41
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.50 ≤1 ≤.10 ≤.25 ≤2H
K
M
Slot 1 ≤.20 ≤.50 1 ≤.15 ≤.35S
N
INCH
4-Flute, Square,
Corner Radius
& Ball
Without Reach
Flute Length 1.5 x DC 3 x DC 5 x DC 8 x DC 12 x DC
Feed Multiplier 1.57 1.41 0.59 0.59 0.36
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.50 ≤1 ≤.10 ≤.25 ≤2 ≤.05 ≤.10 ≤3 ≤.05 ≤.10 ≤4 ≤.03 ≤.06 ≤6H
K
M
Slot 1 ≤.20 ≤.50 1 ≤.15 ≤.35S
N
INCH
3-Flute, Square,
Corner Radius
& Ball
Without Reach
Flute Length 1.5 x DC 3 x DC 5 x DC 8 x DC 12 x DC
Feed Multiplier 1.35 1.22 0.65 0.33 0.2
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.50 ≤1 ≤.10 ≤.25 ≤2 ≤.10 ≤.25 ≤3 ≤.05 ≤.10 ≤4 ≤.03 ≤.06 ≤6H
K
M
Slot 1 ≤.20 ≤.50 1 ≤.15 ≤.35 1 ≤.10 ≤.20S
N
Instructions:
• rpm = use speed from INCH or METRIC Baseline chart
• ipm = INCH Baseline Feed (ipm) x Feed Multiplier [from selected chart below]
• mm/min = METRIC Baseline Feed (mm/min) x Feed Multiplier [from selected chart below]
• Reduce speed and feed 30 percent when using uncoated tools
• Find Width of Cut (Ae) and Depth of Cut (Ap) recommendations on chart below
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for detailed technical charts by series
Ap
Ae Ae
95
www.sgsmicrotools.com
END MILLS
END MILLS
FRACTIONAL
Speeds and Feeds
INCH
2-Flute
Square & Ball
With Reach
Flute Length 8 x DC 12 x DC
Feed Multiplier 0.6 0.5
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.25 ≤.50 ≤.30 ≤.22 ≤.45 ≤.25H
K
M
Slot 1 ≤.07 ≤.17 1 ≤.06 ≤.15S
N
INCH
4-Flute
Square & Ball
With Reach
Flute Length 8 x DC 12 x DC
Feed Multiplier 0.95 0.75
Width/Depth Ae x DC Ap x DC Ae x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.25 ≤.50 ≤.30 ≤.22 ≤.45 ≤.25H
K
M
Slot 1 ≤.07 ≤.17 1 ≤.06 ≤.15S
N
INCH
3-Flute
Square, Corner
Radius & Ball
With Reach
Flute Length 3 x DC 5 x DC 8 x DC 12 x DC 15 x DC 20 x DC 25 x DC
Feed Multiplier 1.4 1.15 0.9 0.7 0.6 0.45 0.35
Width/Depth
Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ae x DC Ap x DC Ap x DC Ap x DC
Diameter (DC) ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312 ≤0.0312 >0.0312
P
ALL
Profile ≤.30 ≤.60 ≤.5 ≤.30 ≤.60 ≤.35 ≤.25 ≤.50 ≤.30 ≤.22 ≤.45 ≤.25 ≤.15 ≤.30 ≤.25 ≤.12 ≤.25 ≤.20 ≤.12 ≤.25 ≤.20H
K
M
Slot 1 ≤.15 ≤.30 1 ≤.08 ≤.20 1 ≤.07 ≤.17 1 ≤.06 ≤.15 1 ≤.06 ≤.15 1 ≤.04 ≤.10 1 ≤.04 ≤.10S
N
Note:
• Bhn (Brinell) HRc (Rockwell C)
• reduce speed and feed 30 percent when using uncoated tools
• Fz x No. of Flutes x max available rpm when recommendation exceeds machine limit
• helical ramp at 1 degrees or less, using slotting speed and feed rates (plunging is not recommended)
• reduce speed and feed for materials harder than listed
• reduce feed and Ae when finish milling (.02 x DC maximum)
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for detailed technical charts by series
Instructions:
• rpm = use speed from INCH or METRIC Baseline chart
• ipm = INCH Baseline Feed (ipm) x Feed Multiplier [from selected chart below]
• mm/min = METRIC Baseline Feed (mm/min) x Feed Multiplier [from selected chart below]
• Reduce speed and feed 30 percent when using uncoated tools
• Find Width of Cut (Ae) and Depth of Cut (Ap) recommendations on chart below
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for detailed technical charts by series
Ap
Ae Ae
96 www.sgsmicrotools.com
END MILLS
END MILLS
INCH Baseline
Speed and Feed
Square, Corner Radius
& Ball End
With and Without Reach Hardness
Vc
(sfm)
DC • in
0.0050 0.0156 0.0312 0.0625 0.0938 0.1200
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile 365 RPM 278860 89378 44689 22309 14865 11619
(292-438) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 12.05 12.05 12.05 12.05 12.05 12.05
Slot 290 RPM 221560 71013 35506 17725 11810 9232
(232-348) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 9.57 9.57 9.57 9.57 9.57 9.57
P
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile 210 RPM 160440 51423 25712 12835 8552 6685
(168-252) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 6.16 6.16 6.16 6.16 6.16 6.16
Slot 165 RPM 126060 40404 20202 10085 6720 5253
(132-198) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 4.84 4.84 4.84 4.84 4.84 4.84
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile 340 RPM 259760 83256 41628 20781 13846 10823
(272-408) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 11.22 11.22 11.22 11.22 11.22 11.22
Slot 270 RPM 206280 66115 33058 16502 10996 8595
(216-324) Fz 0.000022 0.00007 0.00013 0.00027 0.00041 0.00052
Feed (ipm) 8.91 8.91 8.91 8.91 8.91 8.91
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile 235 RPM 179540 57545 28772 14363 9570 7481
(188-282) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 6.90 6.90 6.90 6.90 6.90 6.90
Slot 185 RPM 141340 45301 22651 11307 7534 5889
(148-222) Fz 0.000019 0.00006 0.00012 0.00024 0.00036 0.00046
Feed (ipm) 5.43 5.43 5.43 5.43 5.43 5.43
M
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile 215 RPM 164260 52647 26324 13141 8756 6844
(172-258) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 4.46 4.46 4.46 4.46 4.46 4.46
Slot 170 RPM 129880 41628 20814 10390 6923 5412
(136-204) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 3.53 3.53 3.53 3.53 3.53 3.53
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile 305 RPM 233020 74686 37343 18642 12421 9709
(244-366) Fz 0.000022 0.00007 0.00014 0.00027 0.00041 0.00052
Feed (ipm) 10.08 10.08 10.08 10.08 10.08 10.08
Slot 245 RPM 187180 59994 29997 14974 9978 7799
(196-294) Fz 0.000022 0.00007 0.00014 0.00027 0.00041 0.00052
Feed (ipm) 8.10 8.10 8.10 8.10 8.10 8.10
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile 1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 97.50 97.50 97.50 97.50 97.50 97.50
Slot 800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 78.00 78.00 78.00 78.00 78.00 78.00
N
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile 515 RPM 393460 126109 63054 31477 20973 16394
(412-618) Fz 0.000048 0.00015 0.00030 0.00060 0.00090 0.00115
Feed (ipm) 37.68 37.68 37.68 37.68 37.68 37.68
Slot 410 RPM 313240 100397 50199 25059 16697 13052
(328-492) Fz 0.000048 0.00015 0.00030 0.00060 0.00090 0.00115
Feed (ipm) 30.00 30.00 30.00 30.00 30.00 30.00
continued on next page
FRACTIONAL
Baseline
97
www.sgsmicrotools.com
END MILLS
END MILLS
INCH Baseline
Speed and Feed
Square, Corner Radius
& Ball End
With and Without Reach Hardness
Vc
(sfm)
DC • in
0.0050 0.0156 0.0312 0.0625 0.0938 0.1200
N
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile 1000 RPM 764000 244872 122436 61120 40725 31833
(800-1200) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 97.50 97.50 97.50 97.50 97.50 97.50
Slot 800 RPM 611200 195897 97949 48896 32580 25467
(640-960) Fz 0.000064 0.00020 0.00040 0.00080 0.00120 0.00153
Feed (ipm) 78.00 78.00 78.00 78.00 78.00 78.00
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile 60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 1.11 1.11 1.11 1.11 1.11 1.11
Slot 45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000012 0.00004 0.00008 0.00015 0.00023 0.00029
Feed (ipm) 0.83 0.83 0.83 0.83 0.83 0.83
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile 45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000008 0.00003 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 0.55 0.55 0.55 0.55 0.55 0.55
Slot 35 RPM 26740 8571 4285 2139 1425 1114
(28-42) Fz 0.000008 0.00003 0.00005 0.00010 0.00015 0.00019
Feed (ipm) 0.43 0.43 0.43 0.43 0.43 0.43
S
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile 160 RPM 122240 39179 19590 9779 6516 5093
(128-192) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 3.32 3.32 3.32 3.32 3.32 3.32
Slot 130 RPM 99320 31833 15917 7946 5294 4138
(104-156) Fz 0.000014 0.00004 0.00008 0.00017 0.00025 0.00033
Feed (ipm) 2.70 2.70 2.70 2.70 2.70 2.70
S
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile 60 RPM 45840 14692 7346 3667 2443 1910
(48-72) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 0.88 0.88 0.88 0.88 0.88 0.88
Slot 45 RPM 34380 11019 5510 2750 1833 1433
(36-54) Fz 0.000010 0.00003 0.00006 0.00012 0.00018 0.00023
Feed (ipm) 0.66 0.66 0.66 0.66 0.66 0.66
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile 175 RPM 133700 42853 21426 10696 7127 5571
(140-210) Fz 0.000016 0.00005 0.00010 0.00020 0.00030 0.00038
Feed (ipm) 4.28 4.28 4.28 4.28 4.28 4.28
Slot 140 RPM 106960 34282 17141 8557 5701 4457
(112-168) Fz 0.000016 0.00005 0.00010 0.00020 0.00030 0.00038
Feed (ipm) 3.42 3.42 3.42 3.42 3.42 3.42
Note:
• Bhn (Brinell) HRc (Rockwell C)
• when recommended speed exceeds your capability, use maximum available and recalculate ipm
• rpm = Vc x 3.82 / DC
• ipm = Fz x No. of flutes x rpm
• reduce speed and feed for materials harder than listed
• reduce feed and Ae when finish milling (.02 x DC maximum)
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for detailed technical charts by series
FRACTIONAL
Baseline
98 www.sgsmicrotools.com
END MILLS
END MILLS
METRIC
Baseline
METRIC Baseline
Speed and Feed
Square & Ball End
With and Without Reach Hardness
Vc
(m/min)
DC • (mm)
0.1 0.5 11.5 22.5 3
P
CARBON STEELS
1018, 1040, 1080, 1090,
10L50, 1140, 1212,
12L15, 1525, 1536
≤ 275 Bhn
or
≤ 28 HRc
Profile 111 RPM 353837 70767 35384 23589 17692 14153 11795
(89-134) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01297
Feed (mm/min) 306 306 306 306 306 306 306
Slot 88 RPM 281131 56226 28113 18742 14057 11245 9371
(71-106) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01297
Feed (mm/min) 243 243 243 243 243 243 243
P
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20,
50100
≤ 375 Bhn
or
≤ 40 HRc
Profile 64 RPM 203577 40715 20358 13572 10179 8143 6786
(51-77) Fz 0.00038 0.00192 0.00384 0.00576 0.00769 0.00961 0.01153
Feed (mm/min) 156 156 156 156 156 156 156
Slot 50 RPM 159954 31991 15995 10664 7998 6398 5332
(40-60) Fz 0.00038 0.00192 0.00384 0.00576 0.00769 0.00961 0.01153
Feed (mm/min) 123 123 123 123 123 123 123
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F,
440F
≤ 275 Bhn
or
≤ 28 HRc
Profile 104 RPM 329602 65920 32960 21973 16480 13184 10987
(83-124) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01295
Feed (mm/min) 285 285 285 285 285 285 285
Slot 82 RPM 261742 52348 26174 17449 13087 10470 8725
(66-99) Fz 0.00043 0.00216 0.00432 0.00648 0.00865 0.01081 0.01295
Feed (mm/min) 226 226 226 226 226 226 226
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile 72 RPM 227813 45563 22781 15188 11391 9113 7594
(57-86) Fz 0.00038 0.00192 0.00385 0.00577 0.00769 0.00961 0.01154
Feed (mm/min) 175 175 175 175 175 175 175
Slot 56 RPM 179342 35868 17934 11956 8967 7174 5978
(45-68) Fz 0.00038 0.00192 0.00385 0.00577 0.00769 0.00961 0.01154
Feed (mm/min) 138 138 138 138 138 138 138
M
STAINLESS STEELS
(PH)
13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
Profile 66 RPM 208425 41685 20842 13895 10421 8337 6947
(52-79) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00819
Feed (mm/min) 113 113 113 113 113 113 113
Slot 52 RPM 164801 32960 16480 10987 8240 6592 5493
(41-62) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00819
Feed (mm/min) 90 90 90 90 90 90 90
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile 93 RPM 295672 59134 29567 19711 14784 11827 9856
(74-112) Fz 0.00043 0.00217 0.00433 0.00650 0.00866 0.01083 0.01301
Feed (mm/min) 256 256 256 256 256 256 256
Slot 75 RPM 237507 47501 23751 15834 11875 9500 7917
(60-90) Fz 0.00043 0.00217 0.00433 0.00650 0.00866 0.01083 0.01301
Feed (mm/min) 206 206 206 206 206 206 206
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061,
7075
≤ 150 Bhn
or
≤ 7 HRc
Profile 305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477
Slot 244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981
N
COPPER ALLOYS
Alum Bronze, C110,
Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
Profile 157 RPM 499249 99850 49925 33283 24962 19970 16642
(126-188) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876
Feed (mm/min) 957 957 957 957 957 957 957
Slot 125 RPM 397461 79492 39746 26497 19873 15898 13249
(100-150) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876
Feed (mm/min) 762 762 762 762 762 762 762
continued on next page
99
www.sgsmicrotools.com
END MILLS
END MILLS
METRIC
Baseline
METRIC Baseline
Speed and Feed
Square & Ball End
With and Without Reach Hardness
Vc
(m/min)
DC • (mm)
0.1 0.5 11.5 22.5 3
N
PLASTICS
Polycarbonate, PVC,
Polypropylene
Profile 305 RPM 969416 193883 96942 64628 48471 38777 32314
(244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477
Slot 244 RPM 775533 155107 77553 51702 38777 31021 25851
(195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832
Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile 18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722
Feed (mm/min) 28 28 28 28 28 28 28
Slot 14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722
Feed (mm/min) 21 21 21 21 21 21 21
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile 14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486
Feed (mm/min) 14 14 14 14 14 14 14
Slot 11 RPM 33930 6786 3393 2262 1696 1357 1131
(9-13) Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486
Feed (mm/min) 11 11 11 11 11 11 11
S
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile 49 RPM 155107 31021 15511 10340 7755 6204 5170
(39-59) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821
Feed (mm/min) 84 84 84 84 84 84 84
Slot 40 RPM 126024 25205 12602 8402 6301 5041 4201
(32-48) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821
Feed (mm/min) 69 69 69 69 69 69 69
S
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile 18 RPM 58165 11633 5816 3878 2908 2327 1939
(15-22) Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585
Feed (mm/min) 22 22 22 22 22 22 22
Slot 14 RPM 43624 8725 4362 2908 2181 1745 1454
(11-16) Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585
Feed (mm/min) 17 17 17 17 17 17 17
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile 53 RPM 169648 33930 16965 11310 8482 6786 5655
(43-64) Fz 0.00032 0.00160 0.00320 0.00480 0.00640 0.00800 0.00962
Feed (mm/min) 109 109 109 109 109 109 109
Slot 43 RPM 135718 27144 13572 9048 6786 5429 4524
(34-51) Fz 0.00032 0.00160 0.00320 0.00480 0.00640 0.00800 0.00962
Feed (mm/min) 87 87 87 87 87 87 87
Note:
• Bhn (Brinell) HRc (Rockwell C)
• when recommended speed exceeds your capability, use maximum available and recalculate mm/min
• rpm = (Vc x 1000) / (DC x 3.14)
• mm/min = Fz x No. of flutes x rpm
• reduce speed and feed for materials harder than listed
• reduce feed and Ae when finish milling (.02 x DC maximum)
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for detailed technical charts by series
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
100 www.sgsmicrotools.com
DCON
LF
LU
DC DN
RE
APMX
END MILLS
END MILLS
TOLERANCES (inch)
.031–.109 DIAMETER
DC =
+0.000/–0.001
DCON =
h6
RE =
+0.002/–0.002
M032
FRACTIONAL SERIES
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
TI-NAMITE-A
(AlTiN)
0.0312 1/4 0.063 – – 2-1/2 – 05271
0.0312 1/4 0.063 0.155 0.029 2-1/2 – 05272
0.0312 1/4 0.063 – – 2-1/2 0.006 05270
0.0312 1/4 0.094 – – 2-1/2 – 05274
0.0312 1/4 0.094 – – 2-1/2 0.006 05273
0.0312 1/4 0.094 0.155 0.029 2-1/2 0.006 05275
0.0469 1/4 0.094 – – 2-1/2 – 05277
0.0469 1/4 0.094 0.230 0.043 2-1/2 – 05278
0.0469 1/4 0.094 – – 2-1/2 0.010 05276
0.0469 1/4 0.141 – – 2-1/2 – 05280
0.0469 1/4 0.141 – – 2-1/2 0.010 05279
0.0469 1/4 0.141 0.230 0.043 2-1/2 0.010 05281
0.0625 1/4 0.140 – – 2-1/2 – 05283
0.0625 1/4 0.140 0.312 0.058 2-1/2 – 05284
0.0625 1/4 0.140 – – 2-1/2 0.010 05282
0.0625 1/4 0.188 – – 2-1/2 – 05286
0.0625 1/4 0.188 – – 2-1/2 0.010 05285
0.0625 1/4 0.188 0.312 0.058 2-1/2 0.010 05287
0.0781 1/4 0.140 – – 2-1/2 – 05289
0.0781 1/4 0.140 0.390 0.072 2-1/2 – 05290
0.0781 1/4 0.140 – – 2-1/2 0.010 05288
0.0781 1/4 0.234 – – 2-1/2 – 05292
0.0781 1/4 0.234 – – 2-1/2 0.010 05291
0.0781 1/4 0.234 0.390 0.072 2-1/2 0.010 05293
0.0938 1/4 0.188 – – 2-1/2 – 05295
0.0938 1/4 0.188 0.465 0.086 2-1/2 – 05296
0.0938 1/4 0.188 – – 2-1/2 0.010 05294
0.0938 1/4 0.375 – – 2-1/2 – 05298
0.0938 1/4 0.375 – – 2-1/2 0.010 05297
0.0938 1/4 0.375 0.465 0.086 2-1/2 0.010 05299
0.1094 1/4 0.188 – – 2-1/2 – 05301
0.1094 1/4 0.188 0.545 0.101 2-1/2 – 05302
0.1094 1/4 0.188 – – 2-1/2 0.010 05300
0.1094 1/4 0.438 – – 2-1/2 – 05304
0.1094 1/4 0.438 – – 2-1/2 0.010 05303
0.1094 1/4 0.438 0.545 0.101 2-1/2 0.010 05305
FRACTIONAL
M032
• Variable helix design
improves stability,
extends tool life, and
improves part quality in
challenging applications
• Reinforced shank
maximizes rigidity,
especially in applications
requiring additional tool
extension
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• Available from stock in
a selection of popular
diameters, flute lengths,
and end configurations
• Application specific
sub-micron grain carbide
designed specifically for
micro-tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
32°–48°
POS
3
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
101
www.sgsmicrotools.com
DCON
LF
LU
DC DN
RE
APMX
END MILLS
END MILLS
TOLERANCES (mm)
1,0–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
RE =
+0,050/–0,050
METRIC
M032
32°–48°
POS
3
M032
METRIC SERIES
mm EDP NO,
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
TI-NAMITE-A
(AlTiN)
1,0 6,0 1,5 – – 63,5 – 05324
1,0 6,0 1,5 – – 63,5 0,1 05321
1,0 6,0 1,5 – – 63,5 0,2 05322
1,0 6,0 1,5 – – 63,5 0,3 05323
1,0 6,0 3,0 – – 63,5 – 05328
1,0 6,0 3,0 – – 63,5 0,1 05325
1,0 6,0 3,0 – – 63,5 0,2 05326
1,0 6,0 3,0 – – 63,5 0,3 05327
1,0 6,0 3,0 10,0 0,92 75,0 – 05332
1,0 6,0 3,0 10,0 0,92 75,0 0,1 05329
1,0 6,0 3,0 10,0 0,92 75,0 0,2 05330
1,0 6,0 3,0 10,0 0,92 75,0 0,3 05331
1,5 6,0 2,5 – – 63,5 – 05310
1,5 6,0 2,5 – – 63,5 0,1 05306
1,5 6,0 2,5 – – 63,5 0,2 05307
1,5 6,0 2,5 – – 63,5 0,3 05308
1,5 6,0 2,5 – – 63,5 0,5 05309
1,5 6,0 4,5 – – 63,5 – 05315
1,5 6,0 4,5 – – 63,5 0,1 05311
1,5 6,0 4,5 – – 63,5 0,2 05312
1,5 6,0 4,5 – – 63,5 0,3 05313
1,5 6,0 4,5 – – 63,5 0,5 05314
1,5 6,0 4,5 15,0 1,38 75,0 – 05320
1,5 6,0 4,5 15,0 1,38 75,0 0,1 05316
1,5 6,0 4,5 15,0 1,38 75,0 0,2 05317
1,5 6,0 4,5 15,0 1,38 75,0 0,3 05318
1,5 6,0 4,5 15,0 1,38 75,0 0,5 05319
2,0 6,0 3,0 – – 63,5 – 05348
2,0 6,0 3,0 – – 63,5 0,2 05345
2,0 6,0 3,0 – – 63,5 0,3 05346
2,0 6,0 3,0 – – 63,5 0,5 05347
2,0 6,0 6,0 – – 63,5 – 05352
2,0 6,0 6,0 – – 63,5 0,2 05349
2,0 6,0 6,0 – – 63,5 0,3 05350
continued on next page
• Variable helix design
improves stability,
extends tool life, and
improves part quality in
challenging applications
• Reinforced shank
maximizes rigidity,
especially in
applications requiring
additional tool
extension
• Proprietary coating
allows for superior chip
flow, driving industry
leading productivity
and value, even at low
spindle speeds.
• Available from stock
in a selection of
popular diameters,
flute lengths, and end
configurations
• Application specific
sub-micron grain
carbide designed
specifically for micro-
tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
102 www.sgsmicrotools.com
DCON
LF
LU
DC DN
RE
APMX
END MILLS
END MILLS
TOLERANCES (mm)
1,0–3,0 DIAMETER
DC =
+0,0000/–0,0254
DCON =
h6
RE =
+0,050/–0,050
M032
METRIC SERIES
METRIC
M032
continued mm EDP NO,
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
LENGTH
OF CUT
APMX
REACH
LU
NECK
DIAMETER
DN
OVERALL
LENGTH
LF
CORNER
RADIUS
RE
TI-NAMITE-A
(AlTiN)
2,0 6,0 6,0 – – 63,5 0,5 05351
2,0 6,0 6,0 20,0 1,84 75,0 – 05356
2,0 6,0 6,0 20,0 1,84 75,0 0,2 05353
2,0 6,0 6,0 20,0 1,84 75,0 0,3 05354
2,0 6,0 6,0 20,0 1,84 75,0 0,5 05355
2,5 6,0 4,0 – – 63,5 – 05336
2,5 6,0 4,0 – – 63,5 0,2 05333
2,5 6,0 4,0 – – 63,5 0,3 05334
2,5 6,0 4,0 – – 63,5 0,5 05335
2,5 6,0 7,5 – – 63,5 – 05340
2,5 6,0 7,5 – – 63,5 0,2 05337
2,5 6,0 7,5 – – 63,5 0,3 05338
2,5 6,0 7,5 – – 63,5 0,5 05339
2,5 6,0 7,5 25,0 2,3 75,0 – 05344
2,5 6,0 7,5 25,0 2,3 75,0 0,2 05341
2,5 6,0 7,5 25,0 2,3 75,0 0,3 05342
2,5 6,0 7,5 25,0 2,3 75,0 0,5 05343
3,0 6,0 5,0 – – 63,5 – 05361
3,0 6,0 5,0 – – 63,5 0,2 05357
3,0 6,0 5,0 – – 63,5 0,3 05358
3,0 6,0 5,0 – – 63,5 0,5 05359
3,0 6,0 5,0 – – 63,5 1,0 05360
3,0 6,0 9,0 – – 63,5 – 05366
3,0 6,0 9,0 – – 63,5 0,2 05362
3,0 6,0 9,0 – – 63,5 0,3 05363
3,0 6,0 9,0 – – 63,5 0,5 05364
3,0 6,0 9,0 – – 63,5 1,0 05365
3,0 6,0 9,0 30,0 2,76 75,0 – 05371
3,0 6,0 9,0 30,0 2,76 75,0 0,2 05367
3,0 6,0 9,0 30,0 2,76 75,0 0,3 05368
3,0 6,0 9,0 30,0 2,76 75,0 0,5 05369
3,0 6,0 9,0 30,0 2,76 75,0 1,0 05370
32°–48°
POS
3
103
www.sgsmicrotools.com
END MILLS
END MILLS
FRACTIONAL
Series M032
Series
M032
Fractional Hardness
Ap
Ae Ae
Vc
(sfm)
DC • in
Ae x DC Ap x DC 1/32 5/64 7/64
P
CARBON STEELS
1018, 1040, 1080,
1090, 10L50, 1140,
1212, 12L15, 1525,
1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.25 ≤ 1
790 RPM 96570 38628 27591
(632-948) Fz 0.00009 0.00022 0.00031
Feed (ipm) 26.0 26.0 26.0
Slot
1 ≤ .5
630 RPM 77011 30804 22003
(504-756) Fz 0.00009 0.00022 0.00031
Feed (ipm) 20.5 20.5 20.5
Finish
≤ .02 1
1565 RPM 191306 76522 54659
(1252-1878) Fz 0.00017 0.00041 0.00058
Feed (ipm) 95.0 95.0 95.0
P
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.25 ≤ 1
450 RPM 55008 22003 15717
(360-540) Fz 0.00007 0.00017 0.00023
Feed (ipm) 11.0 11.0 11.0
Slot
1 ≤ .5
360 RPM 44006 17603 12573
(288-432) Fz 0.00007 0.00017 0.00024
Feed (ipm) 8.9 8.9 8.9
Finish
≤ .02 1
895 RPM 109405 43762 31259
(716-1074) Fz 0.00012 0.00030 0.00043
Feed (ipm) 40.0 40.0 40.0
P
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 560 Bhn
or
≤ 55 HRc
Profile
≤ 0.25 ≤ 1
93 RPM 11368 4547 3248
(74-112) Fz 0.00003 0.00007 0.00010
Feed (ipm) 0.9 0.9 0.9
Slot
1 ≤ .5
65 RPM 7946 3178 2270
(52-78) Fz 0.00003 0.00006 0.00009
Feed (ipm) 0.6 0.6 0.6
Finish
≤ .02 1
167 RPM 20414 8166 5833
(134-200) Fz 0.00004 0.00011 0.00016
Feed (ipm) 2.8 2.8 2.8
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.25 ≤ 1
69 RPM 8435 3374 2410
(55-83) Fz 0.00003 0.00007 0.00010
Feed (ipm) 0.8 0.8 0.8
Slot
1 ≤ .5
50 RPM 6112 2445 1746
(40-60) Fz 0.00002 0.00006 0.00009
Feed (ipm) 0.5 0.5 0.5
Finish
≤ .02 1
124 RPM 15158 6063 4331
(99-149) Fz 0.00005 0.00012 0.00017
Feed (ipm) 2.2 2.2 2.2
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ 0.25 ≤ 1
620 RPM 75789 30316 21654
(496-744) Fz 0.00011 0.00028 0.00039
Feed (ipm) 25.5 25.5 25.5
Slot
1 ≤ .5
450 RPM 55008 22003 15717
(360-540) Fz 0.00010 0.00024 0.00034
Feed (ipm) 16.0 16.0 16.0
Finish
≤ .02 1
1115 RPM 136298 54519 38942
(892-1338) Fz 0.00018 0.00045 0.00062
Feed (ipm) 73.0 73.0 73.0
continued on next page
104 www.sgsmicrotools.com
END MILLS
END MILLS
Series
M032
Fractional Hardness
Ap
Ae Ae
Vc
(sfm)
DC • in
Ae x DC Ap x DC 1/32 5/64 7/64
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.25 ≤ 1
335 RPM 40950 16380 11700
(268-402) Fz 0.00008 0.00020 0.00028
Feed (ipm) 9.9 9.9 9.9
Slot
1 ≤ .5
245 RPM 29949 11980 8557
(196-294) Fz 0.00007 0.00017 0.00023
Feed (ipm) 6.0 6.0 6.0
Finish
≤ .02 1
605 RPM 73955 29582 21130
(484-726) Fz 0.00012 0.00031 0.00043
Feed (ipm) 27.5 27.5 27.5
M
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.25 ≤ 1
310 RPM 37894 15158 10827
(248-372) Fz 0.00008 0.00020 0.00028
Feed (ipm) 9.0 9.0 9.0
Slot
1 ≤ .5
225 RPM 27504 11002 7858
(180-270) Fz 0.00007 0.00017 0.00023
Feed (ipm) 5.5 5.5 5.5
Finish
≤ .02 1
555 RPM 67843 27137 19384
(444-666) Fz 0.00013 0.00031 0.00044
Feed (ipm) 25.5 25.5 25.5
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.5 ≤ 1.5
200 RPM 24448 9779 6985
(160-240) Fz 0.00007 0.00017 0.00024
Feed (ipm) 5.1 5.1 5.1
Slot
1 ≤ 1
145 RPM 17725 7090 5064
(116-174) Fz 0.00006 0.00015 0.00021
Feed (ipm) 3.2 3.2 3.2
Finish
≤ .02 1
360 RPM 44006 17603 12573
(288-432) Fz 0.00011 0.00027 0.00038
Feed (ipm) 14.5 14.5 14.5
S
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.5 ≤ 1.5
245 RPM 29949 11980 8557
(196-294) Fz 0.00007 0.00018 0.00025
Feed (ipm) 6.3 6.3 6.3
Slot
1 ≤ 1
180 RPM 22003 8801 6287
(144-216) Fz 0.00006 0.00015 0.00021
Feed (ipm) 3.9 3.9 3.9
Finish
≤ .02 1
440 RPM 53786 21514 15367
(352-528) Fz 0.00011 0.00028 0.00039
Feed (ipm) 18.0 18.0 18.0
Bhn (Brinell) HRc (Rockwell C)
rpm = Vc x 3.82 / DC
ipm = Fz x 3 x rpm (Fz x 3 x max available rpm when recommendation exceeds machine limit)
ramp up to 5 degrees using slotting speed and feed rates. Do not plunge.
reduce speed and feed for materials harder than listed
refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
FRACTIONAL
Series M032
105
www.sgsmicrotools.com
END MILLS
END MILLS
METRIC
Series M032
Series
M032
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
DC • mm
Ae x DC Ap x DC 123
P
CARBON STEELS
1018, 1040, 1080,
1090, 10L50, 1140,
1212, 12L15, 1525,
1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.25 ≤ 1
241 RPM 76584 38292 25528
(193-289) Fz 0.0029 0.0057 0.0086
Feed (mm/min) 660 660 660
Slot
1 ≤ .5
192 RPM 61073 30537 20358
(154-230) Fz 0.0028 0.0057 0.0085
Feed (ipm) 521 521 521
Finish
≤ .02 1
477 RPM 151714 75857 50571
(382-572) Fz 0.0053 0.0106 0.0159
Feed (ipm) 2413 2413 2413
P
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.25 ≤ 1
137 RPM 43624 21812 14541
(110-165) Fz 0.0021 0.0043 0.0064
Feed (ipm) 279 279 279
Slot
1 ≤ .5
110 RPM 34899 17449 11633
(88-132) Fz 0.0022 0.0043 0.0065
Feed (ipm) 226 226 226
Finish
≤ .02 1
273 RPM 86763 43381 28921
(218-327) Fz 0.0039 0.0078 0.0117
Feed (ipm) 1016 1016 1016
P
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 560 Bhn
or
≤ 55 HRc
Profile
≤ 0.25 ≤ 1
28 RPM 9016 4508 3005
(23-34) Fz 0.0009 0.0018 0.0026
Feed (ipm) 24 24 24
Slot
1 ≤ .5
20 RPM 6301 3151 2100
(16-24) Fz 0.0008 0.0016 0.0025
Feed (ipm) 15 15 15
Finish
≤ .02 1
51 RPM 16189 8095 5396
(41-61) Fz 0.0014 0.0029 0.0043
Feed (ipm) 70 70 70
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.25 ≤ 1
21 RPM 6689 3344 2230
(17-25) Fz 0.0009 0.0019 0.0028
Feed (ipm) 19 19 19
Slot
1 ≤ .5
15 RPM 4847 2424 1616
(12-18) Fz 0.0008 0.0016 0.0024
Feed (ipm) 11 11 11
Finish
≤ .02 1
38 RPM 12021 6010 4007
(30-45) Fz 0.0015 0.0031 0.0046
Feed (ipm) 56 56 56
K
CAST IRONS
(LOW & MEDIUM
ALLOY)
Gray, Malleable,
Ductile
≤ 220 Bhn
or
≤ 19 HRc
Profile
≤ 0.25 ≤ 1
189 RPM 60104 30052 20035
(151-227) Fz 0.0036 0.0072 0.0108
Feed (ipm) 648 648 648
Slot
1 ≤ .5
137 RPM 43624 21812 14541
(110-165) Fz 0.0031 0.0062 0.0093
Feed (ipm) 406 406 406
Finish
≤ .02 1
340 RPM 108090 54045 36030
(272-408) Fz 0.0057 0.0114 0.0172
Feed (ipm) 1854 1854 1854
continued on next page
106 www.sgsmicrotools.com
END MILLS
END MILLS
Series
M032
Metric Hardness
Ap
Ae Ae
Vc
(m/min)
DC • mm
Ae x DC Ap x DC 123
M
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.25 ≤ 1
102 RPM 32475 16238 10825
(82-123) Fz 0.0026 0.0052 0.0077
Feed (ipm) 251 251 251
Slot
1 ≤ .5
75 RPM 23751 11875 7917
(60-90) Fz 0.0021 0.0043 0.0064
Feed (ipm) 152 152 152
Finish
≤ .02 1
184 RPM 58650 29325 19550
(148-221) Fz 0.0040 0.0079 0.0119
Feed (ipm) 699 699 699
M
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.25 ≤ 1
94 RPM 30052 15026 10017
(76-113) Fz 0.0025 0.0051 0.0076
Feed (ipm) 229 229 229
Slot
1 ≤ .5
69 RPM 21812 10906 7271
(55-82) Fz 0.0021 0.0043 0.0064
Feed (ipm) 140 140 140
Finish
≤ .02 1
169 RPM 53803 26901 17934
(135-203) Fz 0.0040 0.0080 0.0120
Feed (ipm) 648 648 648
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.5 ≤ 1.5
61 RPM 19388 9694 6463
(49-73) Fz 0.0022 0.0045 0.0067
Feed (ipm) 130 130 130
Slot
1 ≤ 1
44 RPM 14057 7028 4686
(35-53) Fz 0.0019 0.0039 0.0058
Feed (ipm) 81 81 81
Finish
≤ .02 1
110 RPM 34899 17449 11633
(88-132) Fz 0.0035 0.0070 0.0106
Feed (ipm) 368 368 368
S
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.5 ≤ 1.5
75 RPM 23751 11875 7917
(60-90) Fz 0.0022 0.0045 0.0067
Feed (ipm) 160 160 160
Slot
1 ≤ 1
55 RPM 17449 8725 5816
(44-66) Fz 0.0019 0.0038 0.0057
Feed (ipm) 99 99 99
Finish
≤ .02 1
134 RPM 42654 21327 14218
(107-161) Fz 0.0036 0.0071 0.0107
Feed (ipm) 457 457 457
Bhn (Brinell) HRc (Rockwell C)
rpm = (Vc x 1000) / (DC x 3.14)
mm/min = Fz x 3 x rpm (Fz x 3 x max available rpm when recommendation exceeds machine limit)
reduce speed and feed for materials harder than listed
refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
METRIC
Series M032
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
107
www.sgsmicrotools.com
DCON
OAL
LCF
DC
TOLERANCES (inch)
.005–.125 DIAMETER
DC =
+0.0000/–0.0003
DCON =
h6
FRACTIONAL
2 Flute Spotting External Coolant
inch EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0.0050 1/8 0.025 1-1/2 90 07016 07000
0.0100 1/8 0.035 1-1/2 90 07017 07001
0.0150 1/8 0.045 1-1/2 90 07018 07002
0.0200 1/8 0.050 1-1/2 90 07019 07003
0.0312 1/8 0.090 1-1/2 90 07020 07004
0.0625 1/8 0.200 1-1/2 90 07021 07005
0.0938 1/8 0.200 1-1/2 90 07022 07006
0.1250 1/8 0.200 1-1/2 90 07023 07007
0.0050 1/8 0.025 1-1/2 130 07024 07008
0.0100 1/8 0.035 1-1/2 130 07025 07009
0.0150 1/8 0.045 1-1/2 130 07026 07010
0.0200 1/8 0.050 1-1/2 130 07027 07011
0.0312 1/8 0.090 1-1/2 130 07028 07012
0.0625 1/8 0.200 1-1/2 130 07029 07013
0.0938 1/8 0.200 1-1/2 130 07030 07014
0.1250 1/8 0.200 1-1/2 130 07031 07015
• 4-facet point design,
stub length, and mirror
finish provide the
highest quality spot
• Ti-Namite A coating
and uncoated options
for the ultimate
performance and tool
life in a variety of
ferrous and non-ferrous
workpiece materials
• Available from stock in
all popular diameters
and point configurations
• Application specific
sub-micron grain
carbide designed
specifically for micro-
tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
M080
FRACTIONAL SERIES
90° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
108 www.sgsmicrotools.com
DCON
OAL
LCF
DC
TOLERANCES (mm)
0,15–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
METRIC
2 Flute Spotting External Coolant
M081
METRIC SERIES
• 4-facet point design,
stub length, and mirror
finish provide the highest
quality spot
• Ti-Namite A coating and
uncoated options for the
ultimate performance
and tool life in a
variety of ferrous and
non-ferrous workpiece
materials
• Available from stock in
all popular diameters
and point configurations
• Application specific
sub-micron grain carbide
designed specifically for
micro-tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
mm EDP NO.
CUTTING
DIAMETER
DC
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,15 3,0 0,65 38,0 90 07048 07032
0,25 3,0 0,90 38,0 90 07049 07033
0,40 3,0 1,15 38,0 90 07050 07034
0,50 3,0 1,30 38,0 90 07051 07035
1,00 3,0 2,30 38,0 90 07052 07036
1,50 3,0 5,00 38,0 90 07053 07037
2,00 3,0 5,00 38,0 90 07054 07038
3,00 3,0 5,00 38,0 90 07055 07039
0,15 3,0 0,65 38,0 130 07056 07040
0,25 3,0 0,90 38,0 130 07057 07041
0,40 3,0 1,15 38,0 130 07058 07042
0,50 3,0 1,30 38,0 130 07059 07043
1,00 3,0 2,30 38,0 130 07060 07044
1,50 3,0 5,00 38,0 130 07061 07045
2,00 3,0 5,00 38,0 130 07062 07046
3,00 3,0 5,00 38,0 130 07063 07047
90° 130°
2
DRILLS
DRILLS 109
www.sgsmicrotools.com
Series M080 Hardness
Vc
(sfm)
DC • in
0.005 0.010 0.020 0.040 0.080 0.125
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
280
(224-336)
RPM 213920 106960 53480 26740 13370 8557
Fz 0.00010 0.00021 0.0004 0.0008 0.0016 0.0026
Feed (ipm) 22.0 22.0 22.0 22.0 22.0 22.0
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
180
(144-216)
RPM 137520 68760 34380 17190 8595 5501
Fz 0.00010 0.00019 0.0004 0.0008 0.0015 0.0024
Feed (ipm) 13.3 13.3 13.3 13.3 13.3 13.3
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
70
(56-84)
RPM 53480 26740 13370 6685 3343 2139
Fz 0.00004 0.00008 0.0002 0.0003 0.0006 0.0010
Feed (ipm) 2.1 2.1 2.1 2.1 2.1 2.1
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
280
(224-336)
RPM 213920 106960 53480 26740 13370 8557
Fz 0.00007 0.00015 0.0003 0.0006 0.0012 0.0018
Feed (ipm) 15.8 15.8 15.8 15.8 15.8 15.8
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 250 Bhn
or
≤ 24 HRc
210
(168-252)
RPM 160440 80220 40110 20055 10028 6418
Fz 0.00011 0.00021 0.0004 0.0008 0.0017 0.0026
Feed (ipm) 17.0 17.0 17.0 17.0 17.0 17.0
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 275 Bhn
or
≤ 28 HRc
180
(144-216)
RPM 137520 68760 34380 17190 8595 5501
Fz 0.0001 0.0002 0.0004 0.0008 0.0015 0.0024
Feed (ipm) 13.3 13.3 13.3 13.3 13.3 13.3
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy
800, Monel 400, Rene,
Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
70
(56-84)
RPM 53480 26740 13370 6685 3343 2139
Fz 0.00006 0.00012 0.0002 0.0005 0.0010 0.0015
Feed (ipm) 3.2 3.2 3.2 3.2 3.2 3.2
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
120
(96-144)
RPM 91680 45840 22920 11460 5730 3667
Fz 0.00006 0.00012 0.0002 0.0005 0.0010 0.0015
Feed (ipm) 5.6 5.6 5.6 5.6 5.6 5.6
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
600
(480-720)
RPM 458400 229200 114600 57300 28650 18336
Fz 0.00012 0.00024 0.0005 0.0009 0.0019 0.0029
Feed (ipm) 54.0 54.0 54.0 54.0 54.0 54.0
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
190
(152-228)
RPM 145160 72580 36290 18145 9073 5806
Fz 0.00010 0.00019 0.0004 0.0008 0.0016 0.0024
Feed (ipm) 14.1 14.1 14.1 14.1 14.1 14.1
PLASTICS
Polycarbonate, PVC
500
(400-600)
RPM 382000 191000 95500 47750 23875 15280
Fz 0.00012 0.00024 0.0005 0.0009 0.0019 0.0029
Feed (ipm) 45.0 45.0 45.0 45.0 45.0 45.0
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = Vc x 3.82 / DC
• ipm = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
FRACTIONAL
Series M080
DRILLS
DRILLS
110 www.sgsmicrotools.com
METRIC
Series M081
Series M081 Hardness
Vc
(m/min)
DC • mm
0.15 0.25 0.5 123
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
85
(68-102)
RPM 180958 108575 54287 27144 13572 9048
Fz 0.0031 0.0051 0.0103 0.0206 0.0412 0.0618
Feed (mm/min) 559 559 559 559 559 559
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
55
(44-66)
RPM 116330 69798 34899 17449 8725 5816
Fz 0.0029 0.0048 0.0097 0.0194 0.0387 0.0581
Feed (mm/min) 338 338 338 338 338 338
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
21
(17-26)
RPM 45239 27144 13572 6786 3393 2262
Fz 0.0012 0.0020 0.0039 0.0079 0.0157 0.0236
Feed (mm/min) 53 53 53 53 53 53
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
85
(68-102)
RPM 180958 108575 54287 27144 13572 9048
Fz 0.0022 0.0037 0.0074 0.0148 0.0296 0.0444
Feed (mm/min) 401 401 401 401 401 401
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 250 Bhn
or
≤ 24 HRc
64
(51-77)
RPM 135718 81431 40715 20358 10179 6786
Fz 0.0032 0.0053 0.0106 0.0212 0.0424 0.0636
Feed (mm/min) 432 432 432 432 432 432
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 275 Bhn
or
≤ 28 HRc
55
(44-66)
RPM 116330 69798 34899 17449 8725 5816
Fz 0.0029 0.0048 0.0097 0.0194 0.0387 0.0581
Feed (mm/min) 338 338 338 338 338 338
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy
800, Monel 400, Rene,
Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
21
(17-26)
RPM 45239 27144 13572 6786 3393 2262
Fz 0.0018 0.0030 0.0060 0.0120 0.0240 0.0359
Feed (mm/min) 81 81 81 81 81 81
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
37
(29-44)
RPM 77553 46532 23266 11633 5816 3878
Fz 0.0018 0.0031 0.0061 0.0122 0.0245 0.0367
Feed (mm/min) 142 142 142 142 142 142
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
183
(146-219)
RPM 387767 232660 116330 58165 29082 19388
Fz 0.0035 0.0059 0.0118 0.0236 0.0472 0.0707
Feed (mm/min) 1372 1372 1372 1372 1372 1372
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
58
(46-69)
RPM 122793 73676 36838 18419 9209 6140
Fz 0.0029 0.0049 0.0097 0.0194 0.0389 0.0583
Feed (mm/min) 358 358 358 358 358 358
PLASTICS
Polycarbonate, PVC
152
(122-183)
RPM 323139 193883 96942 48471 24235 16157
Fz 0.0035 0.0059 0.0118 0.0236 0.0472 0.0707
Feed (mm/min) 1143 1143 1143 1143 1143 1143
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = (Vc x 1000) / (DC x 3.14)
• mm/min = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
NON-FERROUS
HARDENED STEELS
111
www.sgsmicrotools.com
DC
DCON
OAL
LCF
FRACTIONAL & METRIC
2 Flute External Coolant •
Standard & Extended Length
inch & mm
EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,1mm 0.0040 1/8 0.040 1-1/2 118 07088 07098
0,1mm 0.0040 1/8 0.070 1-1/2 118 07089 07099
0,13mm 0.0050 1/8 0.040 1-1/2 118 07064 07066
0,13mm 0.0050 1/8 0.070 1-1/2 118 07065 07067
#97 0.0059 1/8 0.080 1-1/2 118 07236 07068
#97 0.0059 1/8 0.120 1-1/2 118 07237 07069
#96 0.0063 1/8 0.080 1-1/2 118 07238 07070
#96 0.0063 1/8 0.120 1-1/2 118 07239 07071
#95 0.0067 1/8 0.080 1-1/2 118 07240 07072
#95 0.0067 1/8 0.120 1-1/2 118 07241 07073
#94 0.0071 1/8 0.100 1-1/2 118 07242 07074
#94 0.0071 1/8 0.150 1-1/2 118 07243 07075
#93 0.0075 1/8 0.100 1-1/2 118 07244 07076
#93 0.0075 1/8 0.150 1-1/2 118 07245 07077
#92 0.0079 1/8 0.100 1-1/2 118 07246 07078
#92 0.0079 1/8 0.150 1-1/2 118 07247 07079
#91 0.0083 1/8 0.100 1-1/2 118 07248 07080
#91 0.0083 1/8 0.150 1-1/2 118 07249 07081
#90 0.0087 1/8 0.100 1-1/2 118 07250 07082
#90 0.0087 1/8 0.150 1-1/2 118 07251 07083
#89 0.0091 1/8 0.150 1-1/2 118 07252 07084
#89 0.0091 1/8 0.220 1-1/2 118 07253 07085
#88 0.0095 1/8 0.150 1-1/2 118 07254 07086
#88 0.0095 1/8 0.220 1-1/2 118 07255 07087
0,25mm 0.0098 1/8 0.150 1-1/2 118 07108 07114
0,25mm 0.0098 1/8 0.220 1-1/2 118 07109 07115
#87 0.0100 1/8 0.150 1-1/2 118 07258 07090
#87 0.0100 1/8 0.220 1-1/2 118 07259 07091
#86 0.0105 1/8 0.150 1-1/2 118 07260 07092
#86 0.0105 1/8 0.220 1-1/2 118 07261 07093
#85 0.0110 1/8 0.150 1-1/2 118 07262 07094
#85 0.0110 1/8 0.220 1-1/2 118 07263 07095
#84 0.0115 1/8 0.150 1-1/2 118 07264 07096
#84 0.0115 1/8 0.220 1-1/2 118 07265 07097
0,3mm 0.0118 1/8 0.225 1-1/2 118 07127 07132
0,3mm 0.0118 1/8 0.280 1-1/2 118 07129 07134
continued on next page
• 4-facet point design
stabilizes on entry
for superior hole size
control and tool life
• Mirror surface finishes
improve chip flow as
hole depth increases
• Ti-Namite A coating
and uncoated options
for the ultimate
performance in a
variety of ferrous and
non-ferrous workpiece
materials
• Available from stock in
a selection of popular
lengths and diameters
• Application specific
sub-micron grain
carbide designed
specifically for micro-
tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
M105
FRACTIONAL & METRIC SERIES
118° 130°
2
TOLERANCES (inch)
≤.125 DIAMETER
DC =
+.0000/+.0003
DCON =
h6
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,000/+0,008
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
NON-FERROUS
HARDENED STEELS
112 www.sgsmicrotools.com
DC
DCON
OAL
LCF
FRACTIONAL & METRIC
2 Flute External Coolant •
Standard & Extended Length
inch & mm
EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
#83 0.0120 1/8 0.225 1-1/2 118 07268 07100
#83 0.0120 1/8 0.280 1-1/2 118 07269 07101
#82 0.0125 1/8 0.225 1-1/2 118 07270 07102
#82 0.0125 1/8 0.280 1-1/2 118 07271 07103
#81 0.0130 1/8 0.225 1-1/2 118 07272 07104
#81 0.0130 1/8 0.280 1-1/2 118 07273 07105
#80 0.0135 1/8 0.225 1-1/2 130 07274 07106
#80 0.0135 1/8 0.280 1-1/2 130 07275 07107
0,35mm 0.0138 1/8 0.225 1-1/2 130 07118 07122
0,35mm 0.0138 1/8 0.280 1-1/2 130 07119 07123
#79 0.0145 1/8 0.225 1-1/2 130 07278 07110
#79 0.0145 1/8 0.280 1-1/2 130 07279 07111
1/64 0.0156 1/8 0.250 1-1/2 130 07280 07112
1/64 0.0156 1/8 0.295 1-1/2 130 07281 07113
0,4mm 0.0157 1/8 0.250 1-1/2 130 07148 07233
0,4mm 0.0157 1/8 0.295 1-1/2 130 07232 07234
#78 0.0160 1/8 0.250 1-1/2 130 07284 07116
#78 0.0160 1/8 0.295 1-1/2 130 07285 07117
0,45mm 0.0177 1/8 0.250 1-1/2 130 07137 07143
0,45mm 0.0177 1/8 0.295 1-1/2 130 07140 07145
#77 0.0180 1/8 0.250 1-1/2 130 07288 07120
#77 0.0180 1/8 0.295 1-1/2 130 07289 07121
0,5mm 0.0197 1/8 0.260 1-1/2 130 07257 07267
0,5mm 0.0197 1/8 0.310 1-1/2 130 07266 07276
#76 0.0200 1/8 0.260 1-1/2 130 07292 07124
#76 0.0200 1/8 0.310 1-1/2 130 07293 07125
#75 0.0210 1/8 0.310 1-1/2 130 07294 07126
0,55mm 0.0217 1/8 0.340 1-1/2 130 07235 07256
#74 0.0225 1/8 0.340 1-1/2 130 07296 07128
0,6mm 0.0236 1/8 0.340 1-1/2 130 07283 07286
#73 0.0240 1/8 0.340 1-1/2 130 07298 07130
#72 0.0250 1/8 0.340 1-1/2 130 07299 07131
0,65mm 0.0256 1/8 0.340 1-1/2 130 07277 07282
#71 0.0260 1/8 0.340 1-1/2 130 07301 07133
continued on next page
M105
FRACTIONAL & METRIC SERIES
continued
118° 130°
2
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,000/+0,008
DCON =
h6
TOLERANCES (inch)
≤.125 DIAMETER
DC =
+.0000/+.0003
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
NON-FERROUS
HARDENED STEELS
113
www.sgsmicrotools.com
DC
DCON
OAL
LCF
FRACTIONAL & METRIC
2 Flute External Coolant •
Standard & Extended Length
inch & mm
EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,7mm 0.0276 1/8 0.400 1-1/2 130 07291 07295
#70 0.0280 1/8 0.400 1-1/2 130 07303 07135
#69 0.0292 1/8 0.400 1-1/2 130 07304 07136
0,75mm 0.0295 1/8 0.400 1-1/2 130 07287 07290
#68 0.0310 1/8 0.400 1-1/2 130 07306 07138
1/32 0.0312 1/8 0.400 1-1/2 130 07307 07139
0,8mm 0.0315 1/8 0.400 1-1/2 130 07302 07305
#67 0.0320 1/8 0.400 1-1/2 130 07309 07141
#66 0.0330 1/8 0.400 1-1/2 130 07310 07142
0,85mm 0.0335 1/8 0.400 1-1/2 130 07297 07300
#65 0.0350 1/8 0.400 1-1/2 130 07312 07144
0,9mm 0.0354 1/8 0.400 1-1/2 130 07313 07316
#64 0.0360 1/8 0.400 1-1/2 130 07314 07146
#63 0.0370 1/8 0.400 1-1/2 130 07315 07147
0,95mm 0.0374 1/8 0.400 1-1/2 130 07308 07311
#62 0.0380 1/8 0.400 1-1/2 130 07317 07149
#61 0.0390 1/8 0.400 1-1/2 130 07318 07150
1,0mm 0.0394 1/8 0.400 1-1/2 130 07319 07151
#60 0.0400 1/8 0.400 1-1/2 130 07320 07152
#59 0.0410 1/8 0.400 1-1/2 130 07321 07153
1,05mm 0.0413 1/8 0.400 1-1/2 130 07322 07154
#58 0.0420 1/8 0.400 1-1/2 130 07323 07155
#57 0.0430 1/8 0.400 1-1/2 130 07324 07156
1,1mm 0.0433 1/8 0.400 1-1/2 130 07325 07157
1,12mm 0.0440 1/8 0.400 1-1/2 130 07326 07158
1,15mm 0.0453 1/8 0.400 1-1/2 130 07327 07159
#56 0.0465 1/8 0.400 1-1/2 130 07328 07160
3/64 0.0469 1/8 0.400 1-1/2 130 07329 07161
1,2mm 0.0472 1/8 0.400 1-1/2 130 07330 07162
1,25mm 0.0492 1/8 0.400 1-1/2 130 07331 07163
1,3mm 0.0512 1/8 0.400 1-1/2 130 07332 07164
#55 0.0520 1/8 0.400 1-1/2 130 07333 07165
1,35mm 0.0531 1/8 0.400 1-1/2 130 07334 07166
#54 0.0550 1/8 0.400 1-1/2 130 07335 07167
continued on next page
continued
M105
FRACTIONAL & METRIC SERIES
118° 130°
2
TOLERANCES (inch)
≤.125 DIAMETER
DC =
+.0000/+.0003
DCON =
h6
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,000/+0,008
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
NON-FERROUS
HARDENED STEELS
114 www.sgsmicrotools.com
DC
DCON
OAL
LCF
FRACTIONAL & METRIC
2 Flute External Coolant •
Standard & Extended Length
inch & mm
EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,4mm 0.0551 1/8 0.400 1-1/2 130 07336 07168
1,45mm 0.0571 1/8 0.400 1-1/2 130 07337 07169
1,5mm 0.0591 1/8 0.400 1-1/2 130 07338 07170
#53 0.0595 1/8 0.400 1-1/2 130 07339 07171
1,55mm 0.0610 1/8 0.400 1-1/2 130 07340 07172
1/16 0.0625 1/8 0.400 1-1/2 130 07341 07173
1,6mm 0.0630 1/8 0.400 1-1/2 130 07342 07174
#52 0.0635 1/8 0.400 1-1/2 130 07343 07175
1,65mm 0.0650 1/8 0.400 1-1/2 130 07344 07176
1,7mm 0.0669 1/8 0.400 1-1/2 130 07345 07177
#51 0.0670 1/8 0.400 1-1/2 130 07346 07178
1,75mm 0.0689 1/8 0.400 1-1/2 130 07347 07179
#50 0.0700 1/8 0.400 1-1/2 130 07348 07180
1,8mm 0.0709 1/8 0.400 1-1/2 130 07349 07181
1,85mm 0.0728 1/8 0.400 1-1/2 130 07350 07182
#49 0.0730 1/8 0.400 1-1/2 130 07351 07183
1,9mm 0.0748 1/8 0.400 1-1/2 130 07352 07184
#48 0.0760 1/8 0.400 1-1/2 130 07353 07185
1,95mm 0.0768 1/8 0.400 1-1/2 130 07354 07186
5/64 0.0781 1/8 0.400 1-1/2 130 07355 07187
#47 0.0785 1/8 0.400 1-1/2 130 07356 07188
2,0mm 0.0787 1/8 0.400 1-1/2 130 07357 07189
2,05mm 0.0807 1/8 0.400 1-1/2 130 07358 07190
#46 0.0810 1/8 0.400 1-1/2 130 07359 07191
#45 0.0820 1/8 0.400 1-1/2 130 07360 07192
2,1mm 0.0827 1/8 0.400 1-1/2 130 07361 07193
2,15mm 0.0846 1/8 0.400 1-1/2 130 07362 07194
#44 0.0860 1/8 0.400 1-1/2 130 07363 07195
2,2mm 0.0866 1/8 0.400 1-1/2 130 07364 07196
2,25mm 0.0886 1/8 0.400 1-1/2 130 07365 07197
#43 0.0890 1/8 0.400 1-1/2 130 07366 07198
2,3mm 0.0906 1/8 0.400 1-1/2 130 07367 07199
2,35mm 0.0925 1/8 0.400 1-1/2 130 07368 07200
#42 0.0935 1/8 0.400 1-1/2 130 07369 07201
continued on next page
M105
FRACTIONAL & METRIC SERIES
continued
118° 130°
2
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,000/+0,008
DCON =
h6
TOLERANCES (inch)
≤.125 DIAMETER
DC =
+.0000/+.0003
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
NON-FERROUS
HARDENED STEELS
115
www.sgsmicrotools.com
DC
DCON
OAL
LCF
FRACTIONAL & METRIC
2 Flute External Coolant •
Standard & Extended Length
inch & mm
EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
3/32 0.0938 1/8 0.400 1-1/2 130 07370 07202
2,4mm 0.0945 1/8 0.400 1-1/2 130 07371 07203
#41 0.0960 1/8 0.400 1-1/2 130 07372 07204
2,45mm 0.0965 1/8 0.400 1-1/2 130 07373 07205
#40 0.0980 1/8 0.400 1-1/2 130 07374 07206
2,5mm 0.0984 1/8 0.400 1-1/2 130 07375 07207
#39 0.0995 1/8 0.400 1-1/2 130 07376 07208
2,55mm 0.1004 1/8 0.400 1-1/2 130 07377 07209
#38 0.1015 1/8 0.400 1-1/2 130 07378 07210
2,6mm 0.1024 1/8 0.400 1-1/2 130 07379 07211
#37 0.1040 1/8 0.400 1-1/2 130 07380 07212
2,65mm 0.1043 1/8 0.400 1-1/2 130 07381 07213
2,7mm 0.1063 1/8 0.400 1-1/2 130 07382 07214
#36 0.1065 1/8 0.400 1-1/2 130 07383 07215
2,75mm 0.1083 1/8 0.400 1-1/2 130 07384 07216
7/64 0.1094 1/8 0.400 1-1/2 130 07385 07217
#35 0.1100 1/8 0.400 1-1/2 130 07386 07218
2,8mm 0.1102 1/8 0.400 1-1/2 130 07387 07219
#34 0.1110 1/8 0.400 1-1/2 130 07388 07220
2,85mm 0.1122 1/8 0.400 1-1/2 130 07389 07221
#33 0.1130 1/8 0.400 1-1/2 130 07390 07222
2,9mm 0.1142 1/8 0.400 1-1/2 130 07391 07223
#32 0.1160 1/8 0.400 1-1/2 130 07392 07224
2,95mm 0.1161 1/8 0.400 1-1/2 130 07393 07225
3,0mm 0.1181 1/8 0.400 1-1/2 130 07394 07226
#31 0.1200 1/8 0.400 1-1/2 130 07395 07227
3,05mm 0.1201 1/8 0.400 1-1/2 130 07396 07228
3,1mm 0.1220 1/8 0.400 1-1/2 130 07397 07229
3,15mm 0.1240 1/8 0.400 1-1/2 130 07398 07230
1/8 0.1250 1/8 0.400 1-1/2 130 07399 07231
continued
M105
FRACTIONAL & METRIC SERIES
118° 130°
2
TOLERANCES (inch)
≤.125 DIAMETER
DC =
+.0000/+.0003
DCON =
h6
TOLERANCES (mm)
0,1–3,0 DIAMETER
DC =
+0,000/+0,008
DCON =
h6
DRILLS
DRILLS
116 www.sgsmicrotools.com
Series M105 Hardness
Vc
(sfm)
DC • in
0.004 0.010 0.020 0.040 0.080 0.125
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
130
(104-156)
RPM 124150 49660 24830 12415 6208 3973
Fz 0.00012 0.00029 0.0006 0.0012 0.0023 0.0036
Feed (ipm) 14.3 14.3 14.3 14.3 14.3 14.3
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
195
(156-234)
RPM 186225 74490 37245 18623 9311 5959
Fz 0.00010 0.00026 0.0005 0.0010 0.0021 0.0033
Feed (ipm) 19.4 19.4 19.4 19.4 19.4 19.4
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
80
(64-96)
RPM 76400 30560 15280 7640 3820 2445
Fz 0.00005 0.00013 0.0003 0.0005 0.0010 0.0016
Feed (ipm) 4.0 4.0 4.0 4.0 4.0 4.0
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
280
(224-336)
RPM 267400 106960 53480 26740 13370 8557
Fz 0.00007 0.00016 0.0003 0.0007 0.0013 0.0020
Feed (ipm) 17.5 17.5 17.5 17.5 17.5 17.5
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
65
(52-78)
RPM 62075 24830 12415 6208 3104 1986
Fz 0.00009 0.00022 0.0004 0.0009 0.0017 0.0027
Feed (ipm) 5.4 5.4 5.4 5.4 5.4 5.4
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
40
(32-48)
RPM 38200 15280 7640 3820 1910 1222
Fz 0.0001 0.0002 0.0004 0.0007 0.0014 0.0022
Feed (ipm) 2.7 2.7 2.7 2.7 2.7 2.7
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy
800, Monel 400, Rene,
Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
50
(40-60)
RPM 47750 19100 9550 4775 2388 1528
Fz 0.00004 0.00011 0.0002 0.0004 0.0009 0.0014
Feed (ipm) 2.1 2.1 2.1 2.1 2.1 2.1
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
50
(40-60)
RPM 47750 19100 9550 4775 2388 1528
Fz 0.00005 0.00013 0.0003 0.0005 0.0010 0.0016
Feed (ipm) 2.5 2.5 2.5 2.5 2.5 2.5
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
245
(196-294)
RPM 233975 93590 46795 23398 11699 7487
Fz 0.00020 0.00049 0.0010 0.0020 0.0039 0.0062
Feed (ipm) 46.1 46.1 46.1 46.1 46.1 46.1
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
180
(144-216)
RPM 171900 68760 34380 17190 8595 5501
Fz 0.00020 0.00049 0.0010 0.0020 0.0039 0.0062
Feed (ipm) 33.9 33.9 33.9 33.9 33.9 33.9
PLASTICS
Polycarbonate, PVC
245
(196-294)
RPM 233975 93590 46795 23398 11699 7487
Fz 0.00020 0.00049 0.0010 0.0020 0.0039 0.0062
Feed (ipm) 46.1 46.1 46.1 46.1 46.1 46.1
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = Vc x 3.82 / DC
• ipm = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
FRACTIONAL
Series M105
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
117
www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6• 4-facet point design
stabilizes on entry
for superior hole size
control and tool life
(>.08mm). 2-facet point
on 0,08 and smaller.
• Mirror surface finishes
improve chip flow as
hole depth increases
• Ti-Namite A coating
and uncoated options
for the ultimate
performance in a
variety of ferrous and
non-ferrous workpiece
materials
• Available from stock in
a selection of popular
lengths and diameters
• Application specific
sub-micron grain
carbide designed
specifically for micro-
tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
M226
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,04 0.0016 3,0 0,5 38,0 118 07722 –
0,04 0.0018 3,0 0,6 38,0 118 07723 –
0,05 0.0020 3,0 0,8 38,0 118 07724 –
0,06 0.0024 3,0 0,8 38,0 118 07725 –
0,07 0.0028 3,0 1,3 38,0 118 07726 –
0,08 0.0031 3,0 1,3 38,0 118 07727 –
0,09 0.0035 3,0 1,3 38,0 118 07728 –
0,10 0.0039 3,0 1,0 38,0 118 07729 –
0,11 0.0043 3,0 1,0 38,0 118 07730 –
0,12 0.0047 3,0 1,0 38,0 118 07731 –
0,13 0.0051 3,0 1,0 38,0 118 07732 –
0,14 0.0055 3,0 1,0 38,0 118 07733 –
0,15 0.0059 3,0 2,0 38,0 118 07734 –
0,16 0.0063 3,0 2,0 38,0 118 07735 –
0,17 0.0067 3,0 2,0 38,0 118 07736 –
0,18 0.0071 3,0 2,5 38,0 118 07737 –
0,19 0.0075 3,0 2,5 38,0 118 07738 –
0,20 0.0079 3,0 2,5 38,0 118 07739 –
0,21 0.0083 3,0 2,5 38,0 118 07740 –
0,22 0.0087 3,0 2,5 38,0 118 07741 –
0,23 0.0091 3,0 3,8 38,0 118 07742 –
0,24 0.0094 3,0 3,8 38,0 118 07743 –
0,25 0.0098 3,0 3,8 38,0 118 07744 07400
0,26 0.0102 3,0 3,8 38,0 118 07745 07401
0,27 0.0106 3,0 3,8 38,0 118 07746 07402
0,28 0.0110 3,0 3,8 38,0 118 07747 07403
0,29 0.0114 3,0 3,8 38,0 118 07748 07404
0,30 0.0118 3,0 5,7 38,0 118 07749 07405
0,31 0.0122 3,0 5,7 38,0 118 07750 07406
0,32 0.0126 3,0 5,7 38,0 118 07751 07407
0,33 0.0130 3,0 5,7 38,0 118 07752 07408
0,34 0.0134 3,0 5,7 38,0 118 07753 07409
0,35 0.0138 3,0 5,7 38,0 130 07754 07410
0,36 0.0142 3,0 5,7 38,0 130 07755 07411
0,37 0.0146 3,0 5,7 38,0 130 07756 07412
0,38 0.0150 3,0 6,4 38,0 130 07757 07413
continued on next page
METRIC
2 Flute External Coolant
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
118 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
METRIC
2 Flute External Coolant
M226
METRIC SERIES
continued
118° 130°
2
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,39 0.0154 3,0 6,4 38,0 130 07758 07414
0,40 0.0157 3,0 6,4 38,0 130 07759 07415
0,41 0.0161 3,0 6,4 38,0 130 07760 07416
0,42 0.0165 3,0 6,4 38,0 130 07761 07417
0,43 0.0169 3,0 6,4 38,0 130 07762 07418
0,44 0.0173 3,0 6,4 38,0 130 07763 07419
0,45 0.0177 3,0 6,4 38,0 130 07764 07420
0,46 0.0181 3,0 6,4 38,0 130 07765 07421
0,47 0.0185 3,0 6,4 38,0 130 07766 07422
0,48 0.0189 3,0 6,6 38,0 130 07767 07423
0,49 0.0193 3,0 6,6 38,0 130 07768 07424
0,50 0.0197 3,0 6,6 38,0 130 07769 07425
0,51 0.0201 3,0 6,6 38,0 130 07770 07426
0,52 0.0205 3,0 6,6 38,0 130 07771 07427
0,53 0.0209 3,0 6,6 38,0 130 07772 07428
0,54 0.0213 3,0 6,6 38,0 130 07773 07429
0,55 0.0217 3,0 8,6 38,0 130 07774 07430
0,56 0.0220 3,0 8,6 38,0 130 07775 07431
0,57 0.0224 3,0 8,6 38,0 130 07776 07432
0,58 0.0228 3,0 8,6 38,0 130 07777 07433
0,59 0.0232 3,0 8,6 38,0 130 07778 07434
0,60 0.0236 3,0 8,6 38,0 130 07779 07435
0,61 0.0240 3,0 8,6 38,0 130 07780 07436
0,62 0.0244 3,0 8,6 38,0 130 07781 07437
0,63 0.0248 3,0 8,6 38,0 130 07782 07438
0,64 0.0252 3,0 8,6 38,0 130 07783 07439
0,65 0.0256 3,0 8,6 38,0 130 07784 07440
0,66 0.0260 3,0 8,6 38,0 130 07785 07441
0,67 0.0264 3,0 8,6 38,0 130 07786 07442
0,68 0.0268 3,0 8,6 38,0 130 07787 07443
0,69 0.0272 3,0 8,6 38,0 130 07788 07444
0,70 0.0276 3,0 10,2 38,0 130 07789 07445
0,71 0.0280 3,0 10,2 38,0 130 07790 07446
0,72 0.0283 3,0 10,2 38,0 130 07791 07447
0,73 0.0287 3,0 10,2 38,0 130 07792 07448
0,74 0.0291 3,0 10,2 38,0 130 07793 07449
continued on next page
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
119
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,75 0.0295 3,0 10,2 38,0 130 07794 07450
0,75 0.0295 3,0 11,0 50,0 130 07795 07451
0,76 0.0299 3,0 10,2 38,0 130 07796 07452
0,77 0.0303 3,0 10,2 38,0 130 07797 07453
0,78 0.0307 3,0 10,2 38,0 130 07798 07454
0,79 0.0311 3,0 10,2 38,0 130 07799 07455
0,80 0.0315 3,0 10,2 38,0 130 07800 07456
0,80 0.0315 3,0 11,0 50,0 130 07801 07457
0,81 0.0319 3,0 10,2 38,0 130 07802 07458
0,82 0.0323 3,0 10,2 38,0 130 07803 07459
0,83 0.0327 3,0 10,2 38,0 130 07804 07460
0,84 0.0331 3,0 10,2 38,0 130 07805 07461
0,85 0.0335 3,0 10,2 38,0 130 07806 07462
0,85 0.0335 3,0 13,0 50,0 130 07807 07463
0,86 0.0339 3,0 10,2 38,0 130 07808 07464
0,87 0.0343 3,0 10,2 38,0 130 07809 07465
0,88 0.0346 3,0 10,2 38,0 130 07810 07466
0,89 0.0350 3,0 10,2 38,0 130 07811 07467
0,90 0.0354 3,0 10,2 38,0 130 07812 07468
0,90 0.0354 3,0 13,0 50,0 130 07813 07469
0,91 0.0358 3,0 10,2 38,0 130 07814 07470
0,92 0.0362 3,0 10,2 38,0 130 07815 07471
0,93 0.0366 3,0 10,2 38,0 130 07816 07472
0,94 0.0370 3,0 10,2 38,0 130 07817 07473
0,95 0.0374 3,0 10,2 38,0 130 07818 07474
0,95 0.0374 3,0 15,0 50,0 130 07819 07475
0,96 0.0378 3,0 10,2 38,0 130 07820 07476
0,97 0.0382 3,0 10,2 38,0 130 07821 07477
0,98 0.0386 3,0 10,2 38,0 130 07822 07478
0,99 0.0390 3,0 10,2 38,0 130 07823 07479
1,00 0.0394 3,0 10,2 38,0 130 07824 07480
1,00 0.0394 3,0 15,0 50,0 130 07825 07481
1,01 0.0398 3,0 10,2 38,0 130 07826 07482
1,02 0.0402 3,0 10,2 38,0 130 07827 07483
1,03 0.0406 3,0 10,2 38,0 130 07828 07484
1,04 0.0409 3,0 10,2 38,0 130 07829 07485
continued on next page
continued
M226
METRIC SERIES
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
120 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,05 0.0413 3,0 10,2 38,0 130 07830 07486
1,05 0.0413 3,0 17,0 50,0 130 07831 07487
1,06 0.0417 3,0 10,2 38,0 130 07832 07488
1,07 0.0421 3,0 10,2 38,0 130 07833 07489
1,08 0.0425 3,0 10,2 38,0 130 07834 07490
1,09 0.0429 3,0 10,2 38,0 130 07835 07491
1,10 0.0433 3,0 10,2 38,0 130 07836 07492
1,10 0.0433 3,0 17,0 50,0 130 07837 07493
1,11 0.0437 3,0 10,2 38,0 130 07838 07494
1,12 0.0441 3,0 10,2 38,0 130 07839 07495
1,13 0.0445 3,0 10,2 38,0 130 07840 07496
1,14 0.0449 3,0 10,2 38,0 130 07841 07497
1,15 0.0453 3,0 10,2 38,0 130 07842 07498
1,15 0.0453 3,0 17,0 50,0 130 07843 07499
1,16 0.0457 3,0 10,2 38,0 130 07844 07500
1,17 0.0461 3,0 10,2 38,0 130 07845 07501
1,18 0.0465 3,0 10,2 38,0 130 07846 07502
1,19 0.0469 3,0 10,2 38,0 130 07847 07503
1,20 0.0472 3,0 10,2 38,0 130 07848 07504
1,20 0.0472 3,0 17,0 50,0 130 07849 07505
1,21 0.0476 3,0 10,2 38,0 130 07850 07506
1,22 0.0480 3,0 10,2 38,0 130 07851 07507
1,23 0.0484 3,0 10,2 38,0 130 07852 07508
1,24 0.0488 3,0 10,2 38,0 130 07853 07509
1,25 0.0492 3,0 10,2 38,0 130 07854 07510
1,25 0.0492 3,0 19,0 50,0 130 07855 07511
1,26 0.0496 3,0 10,2 38,0 130 07856 07512
1,27 0.0500 3,0 10,2 38,0 130 07857 07513
1,28 0.0504 3,0 10,2 38,0 130 07858 07514
1,29 0.0508 3,0 10,2 38,0 130 07859 07515
1,30 0.0512 3,0 10,2 38,0 130 07860 07516
1,30 0.0512 3,0 19,0 50,0 130 07861 07517
1,31 0.0516 3,0 10,2 38,0 130 07862 07518
1,32 0.0520 3,0 10,2 38,0 130 07863 07519
1,33 0.0524 3,0 10,2 38,0 130 07864 07520
1,34 0.0528 3,0 10,2 38,0 130 07865 07521
continued on next page
M226
METRIC SERIES
continued
METRIC
2 Flute External Coolant
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
121
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,35 0.0531 3,0 10,2 38,0 130 07866 07522
1,35 0.0531 3,0 19,0 50,0 130 07867 07523
1,36 0.0535 3,0 10,2 38,0 130 07868 07524
1,37 0.0539 3,0 10,2 38,0 130 07869 07525
1,38 0.0543 3,0 10,2 38,0 130 07870 07526
1,39 0.0547 3,0 10,2 38,0 130 07871 07527
1,40 0.0551 3,0 10,2 38,0 130 07872 07528
1,40 0.0551 3,0 19,0 50,0 130 07873 07529
1,41 0.0555 3,0 10,2 38,0 130 07874 07530
1,42 0.0559 3,0 10,2 38,0 130 07875 07531
1,43 0.0563 3,0 10,2 38,0 130 07876 07532
1,44 0.0567 3,0 10,2 38,0 130 07877 07533
1,45 0.0571 3,0 10,2 38,0 130 07878 07534
1,45 0.0571 3,0 20,0 50,0 130 07879 07535
1,46 0.0575 3,0 10,2 38,0 130 07880 07536
1,47 0.0579 3,0 10,2 38,0 130 07881 07537
1,48 0.0583 3,0 10,2 38,0 130 07882 07538
1,49 0.0587 3,0 10,2 38,0 130 07883 07539
1,50 0.0591 3,0 10,2 38,0 130 07884 07540
1,50 0.0591 3,0 20,0 50,0 130 07885 07541
1,51 0.0594 3,0 10,2 38,0 130 07886 07542
1,52 0.0598 3,0 10,2 38,0 130 07887 07543
1,53 0.0602 3,0 10,2 38,0 130 07888 07544
1,54 0.0606 3,0 10,2 38,0 130 07889 07545
1,55 0.0610 3,0 10,2 38,0 130 07890 07546
1,55 0.0610 3,0 20,0 50,0 130 07891 07547
1,56 0.0614 3,0 10,2 38,0 130 07892 07548
1,57 0.0618 3,0 10,2 38,0 130 07893 07549
1,58 0.0622 3,0 10,2 38,0 130 07894 07550
1,59 0.0626 3,0 10,2 38,0 130 07895 07551
1,60 0.0630 3,0 10,2 38,0 130 07896 07552
1,60 0.0630 3,0 20,0 50,0 130 07897 07553
1,61 0.0634 3,0 10,2 38,0 130 07898 07554
1,62 0.0638 3,0 10,2 38,0 130 07899 07555
1,63 0.0642 3,0 10,2 38,0 130 07900 07556
1,64 0.0646 3,0 10,2 38,0 130 07901 07557
continued on next page
continued
M226
METRIC SERIES
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
122 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,65 0.0650 3,0 10,2 38,0 130 07902 07558
1,65 0.0650 3,0 20,0 50,0 130 07903 07559
1,66 0.0654 3,0 10,2 38,0 130 07904 07560
1,67 0.0657 3,0 10,2 38,0 130 07905 07561
1,68 0.0661 3,0 10,2 38,0 130 07906 07562
1,69 0.0665 3,0 10,2 38,0 130 07907 07563
1,70 0.0669 3,0 10,2 38,0 130 07908 07564
1,70 0.0669 3,0 20,0 50,0 130 07909 07565
1,71 0.0673 3,0 10,2 38,0 130 07910 07566
1,72 0.0677 3,0 10,2 38,0 130 07911 07567
1,73 0.0681 3,0 10,2 38,0 130 07912 07568
1,74 0.0685 3,0 10,2 38,0 130 07913 07569
1,75 0.0689 3,0 10,2 38,0 130 07914 07570
1,75 0.0689 3,0 20,0 50,0 130 07915 07571
1,76 0.0693 3,0 10,2 38,0 130 07916 07572
1,77 0.0697 3,0 10,2 38,0 130 07917 07573
1,78 0.0701 3,0 10,2 38,0 130 07918 07574
1,79 0.0705 3,0 10,2 38,0 130 07919 07575
1,80 0.0709 3,0 10,2 38,0 130 07920 07576
1,80 0.0709 3,0 20,0 50,0 130 07921 07577
1,81 0.0713 3,0 10,2 38,0 130 07922 07578
1,82 0.0717 3,0 10,2 38,0 130 07923 07579
1,83 0.0720 3,0 10,2 38,0 130 07924 07580
1,84 0.0724 3,0 10,2 38,0 130 07925 07581
1,85 0.0728 3,0 10,2 38,0 130 07926 07582
1,85 0.0728 3,0 22,8 60,0 130 07927 07583
1,86 0.0732 3,0 10,2 38,0 130 07928 07584
1,87 0.0736 3,0 10,2 38,0 130 07929 07585
1,88 0.0740 3,0 10,2 38,0 130 07930 07586
1,89 0.0744 3,0 10,2 38,0 130 07931 07587
1,90 0.0748 3,0 10,2 38,0 130 07932 07588
1,90 0.0748 3,0 22,8 60,0 130 07933 07589
1,91 0.0752 3,0 10,2 38,0 130 07934 07590
1,92 0.0756 3,0 10,2 38,0 130 07935 07591
1,93 0.0760 3,0 10,2 38,0 130 07936 07592
1,94 0.0764 3,0 10,2 38,0 130 07937 07593
continued on next page
M226
METRIC SERIES
continued
METRIC
2 Flute External Coolant
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
123
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,95 0.0768 3,0 10,2 38,0 130 07938 07594
1,95 0.0768 3,0 24,0 60,0 130 07939 07595
1,96 0.0772 3,0 10,2 38,0 130 07940 07596
1,97 0.0776 3,0 10,2 38,0 130 07941 07597
1,98 0.0780 3,0 10,2 38,0 130 07942 07598
1,99 0.0783 3,0 10,2 38,0 130 07943 07599
2,00 0.0787 3,0 10,2 38,0 130 07944 07600
2,00 0.0787 3,0 24,0 60,0 130 07945 07601
2,01 0.0791 3,0 10,2 38,0 130 07946 07602
2,02 0.0795 3,0 10,2 38,0 130 07947 07603
2,03 0.0799 3,0 10,2 38,0 130 07948 07604
2,04 0.0803 3,0 10,2 38,0 130 07949 07605
2,05 0.0807 3,0 10,2 38,0 130 07950 07606
2,05 0.0807 3,0 25,2 60,0 130 07951 07607
2,06 0.0811 3,0 10,2 38,0 130 07952 07608
2,07 0.0815 3,0 10,2 38,0 130 07953 07609
2,08 0.0819 3,0 10,2 38,0 130 07954 07610
2,09 0.0823 3,0 10,2 38,0 130 07955 07611
2,10 0.0827 3,0 10,2 38,0 130 07956 07612
2,10 0.0827 3,0 25,2 60,0 130 07957 07613
2,11 0.0831 3,0 10,2 38,0 130 07958 07614
2,12 0.0835 3,0 10,2 38,0 130 07959 07615
2,13 0.0839 3,0 10,2 38,0 130 07960 07616
2,14 0.0843 3,0 10,2 38,0 130 07961 07617
2,15 0.0846 3,0 10,2 38,0 130 07962 07618
2,15 0.0846 3,0 26,4 60,0 130 07963 07619
2,16 0.0850 3,0 10,2 38,0 130 07964 07620
2,17 0.0854 3,0 10,2 38,0 130 07965 07621
2,18 0.0858 3,0 10,2 38,0 130 07966 07622
2,19 0.0862 3,0 10,2 38,0 130 07967 07623
2,20 0.0866 3,0 10,2 38,0 130 07968 07624
2,20 0.0866 3,0 26,4 60,0 130 07969 07625
2,21 0.0870 3,0 10,2 38,0 130 07970 07626
2,22 0.0874 3,0 10,2 38,0 130 07971 07627
2,23 0.0878 3,0 10,2 38,0 130 07972 07628
2,24 0.0882 3,0 10,2 38,0 130 07973 07629
continued on next page
continued
M226
METRIC SERIES
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
124 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
2,25 0.0886 3,0 10,2 38,0 130 07974 07630
2,25 0.0886 3,0 27,6 60,0 130 07975 07631
2,26 0.0890 3,0 10,2 38,0 130 07976 07632
2,27 0.0894 3,0 10,2 38,0 130 07977 07633
2,28 0.0898 3,0 10,2 38,0 130 07978 07634
2,29 0.0902 3,0 10,2 38,0 130 07979 07635
2,30 0.0906 3,0 10,2 38,0 130 07980 07636
2,30 0.0906 3,0 27,6 60,0 130 07981 07637
2,31 0.0909 3,0 10,2 38,0 130 07982 07638
2,32 0.0913 3,0 10,2 38,0 130 07983 07639
2,33 0.0917 3,0 10,2 38,0 130 07984 07640
2,34 0.0921 3,0 10,2 38,0 130 07985 07641
2,35 0.0925 3,0 10,2 38,0 130 07986 07642
2,35 0.0925 3,0 28,8 60,0 130 07987 07643
2,36 0.0929 3,0 10,2 38,0 130 07988 07644
2,37 0.0933 3,0 10,2 38,0 130 07989 07645
2,38 0.0937 3,0 10,2 38,0 130 07990 07646
2,39 0.0941 3,0 10,2 38,0 130 07991 07647
2,40 0.0945 3,0 10,2 38,0 130 07992 07648
2,40 0.0945 3,0 28,8 60,0 130 07993 07649
2,41 0.0949 3,0 10,2 38,0 130 07994 07650
2,42 0.0953 3,0 10,2 38,0 130 07995 07651
2,43 0.0957 3,0 10,2 38,0 130 07996 07652
2,44 0.0961 3,0 10,2 38,0 130 07997 07653
2,45 0.0965 3,0 10,2 38,0 130 07998 07654
2,45 0.0965 3,0 30,0 60,0 130 07999 07655
2,46 0.0969 3,0 10,2 38,0 130 08000 07656
2,47 0.0972 3,0 10,2 38,0 130 08001 07657
2,48 0.0976 3,0 10,2 38,0 130 08002 07658
2,49 0.0980 3,0 10,2 38,0 130 08003 07659
2,50 0.0984 3,0 10,2 38,0 130 08004 07660
2,50 0.0984 3,0 30,0 60,0 130 08005 07661
2,51 0.0988 3,0 10,2 38,0 130 08006 07662
2,52 0.0992 3,0 10,2 38,0 130 08007 07663
2,53 0.0996 3,0 10,2 38,0 130 08008 07664
2,54 0.1000 3,0 10,2 38,0 130 08009 07665
continued on next page
M226
METRIC SERIES
continued
METRIC
2 Flute External Coolant
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
125
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
2,55 0.1004 3,0 10,2 38,0 130 08010 07666
2,55 0.1004 3,0 31,2 60,0 130 08011 07667
2,56 0.1008 3,0 10,2 38,0 130 08012 07668
2,57 0.1012 3,0 10,2 38,0 130 08013 07669
2,58 0.1016 3,0 10,2 38,0 130 08014 07670
2,59 0.1020 3,0 10,2 38,0 130 08015 07671
2,60 0.1024 3,0 10,2 38,0 130 08016 07672
2,60 0.1024 3,0 31,2 60,0 130 08017 07673
2,61 0.1028 3,0 10,2 38,0 130 08018 07674
2,62 0.1031 3,0 10,2 38,0 130 08019 07675
2,63 0.1035 3,0 10,2 38,0 130 08020 07676
2,64 0.1039 3,0 10,2 38,0 130 08021 07677
2,65 0.1043 3,0 10,2 38,0 130 08022 07678
2,65 0.1043 3,0 32,4 60,0 130 08023 07679
2,66 0.1047 3,0 10,2 38,0 130 08024 07680
2,67 0.1051 3,0 10,2 38,0 130 08025 07681
2,68 0.1055 3,0 10,2 38,0 130 08026 07682
2,69 0.1059 3,0 10,2 38,0 130 08027 07683
2,70 0.1063 3,0 10,2 38,0 130 08028 07684
2,70 0.1063 3,0 32,4 60,0 130 08029 07685
2,71 0.1067 3,0 10,2 38,0 130 08030 07686
2,72 0.1071 3,0 10,2 38,0 130 08031 07687
2,73 0.1075 3,0 10,2 38,0 130 08032 07688
2,74 0.1079 3,0 10,2 38,0 130 08033 07689
2,75 0.1083 3,0 10,2 38,0 130 08034 07690
2,75 0.1083 3,0 33,6 60,0 130 08035 07691
2,76 0.1087 3,0 10,2 38,0 130 08036 07692
2,77 0.1091 3,0 10,2 38,0 130 08037 07693
2,78 0.1094 3,0 10,2 38,0 130 08038 07694
2,79 0.1098 3,0 10,2 38,0 130 08039 07695
2,80 0.1102 3,0 10,2 38,0 130 08040 07696
2,80 0.1102 3,0 33,6 60,0 130 08041 07697
2,81 0.1106 3,0 10,2 38,0 130 08042 07698
2,82 0.1110 3,0 10,2 38,0 130 08043 07699
2,83 0.1114 3,0 10,2 38,0 130 08044 07700
2,84 0.1118 3,0 10,2 38,0 130 08045 07701
continued on next page
continued
M226
METRIC SERIES
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
126 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
2,85 0.1122 3,0 10,2 38,0 130 08046 07702
2,85 0.1122 3,0 34,8 60,0 130 08047 07703
2,86 0.1126 3,0 10,2 38,0 130 08048 07704
2,87 0.1130 3,0 10,2 38,0 130 08049 07705
2,88 0.1134 3,0 10,2 38,0 130 08050 07706
2,89 0.1138 3,0 10,2 38,0 130 08051 07707
2,90 0.1142 3,0 10,2 38,0 130 08052 07708
2,90 0.1142 3,0 34,8 60,0 130 08053 07709
2,91 0.1146 3,0 10,2 38,0 130 08054 07710
2,92 0.1150 3,0 10,2 38,0 130 08055 07711
2,93 0.1154 3,0 10,2 38,0 130 08056 07712
2,94 0.1157 3,0 10,2 38,0 130 08057 07713
2,95 0.1161 3,0 10,2 38,0 130 08058 07714
2,95 0.1161 3,0 36,0 60,0 130 08059 07715
2,96 0.1165 3,0 10,2 38,0 130 08060 07716
2,97 0.1169 3,0 10,2 38,0 130 08061 07717
2,98 0.1173 3,0 10,2 38,0 130 08062 07718
2,99 0.1177 3,0 10,2 38,0 130 08063 07719
3,00 0.1181 3,0 10,2 38,0 130 08064 07720
3,00 0.1181 3,0 36,0 60,0 130 08065 07721
M226
METRIC SERIES
continued
METRIC
2 Flute External Coolant
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
127
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute Left Hand Cut External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,04 0.0016 3,0 0,5 38,0 118 08228 –
0,05 0.0020 3,0 0,8 38,0 118 08229 –
0,06 0.0024 3,0 0,8 38,0 118 08230 –
0,07 0.0028 3,0 1,3 38,0 118 08231 –
0,08 0.0031 3,0 1,3 38,0 118 08232 –
0,09 0.0035 3,0 1,3 38,0 118 08233 –
0,10 0.0039 3,0 1,0 38,0 118 08234 –
0,11 0.0043 3,0 1,0 38,0 118 08235 –
0,12 0.0047 3,0 1,0 38,0 118 08236 –
0,13 0.0051 3,0 1,0 38,0 118 08237 –
0,14 0.0055 3,0 2,0 38,0 118 08238 –
0,15 0.0059 3,0 2,0 38,0 118 08239 –
0,16 0.0063 3,0 2,0 38,0 118 08240 –
0,17 0.0067 3,0 2,0 38,0 118 08241 –
0,18 0.0071 3,0 2,5 38,0 118 08242 –
0,19 0.0075 3,0 2,5 38,0 118 08243 –
0,20 0.0079 3,0 2,5 38,0 118 08244 –
0,21 0.0083 3,0 2,5 38,0 118 08245 –
0,22 0.0087 3,0 2,5 38,0 118 08246 –
0,23 0.0091 3,0 3,8 38,0 118 08247 –
0,24 0.0094 3,0 3,8 38,0 118 08248 –
0,25 0.0098 3,0 3,8 38,0 118 08249 08066
0,26 0.0102 3,0 3,8 38,0 118 08250 08067
0,27 0.0106 3,0 3,8 38,0 118 08251 08068
0,28 0.0110 3,0 3,8 38,0 118 08252 08069
0,29 0.0114 3,0 3,8 38,0 118 08253 08070
0,30 0.0118 3,0 5,7 38,0 118 08254 08071
0,31 0.0122 3,0 5,7 38,0 118 08255 08072
0,32 0.0126 3,0 5,7 38,0 118 08256 08073
0,33 0.0130 3,0 5,7 38,0 118 08257 08074
0,34 0.0134 3,0 5,7 38,0 118 08258 08075
0,35 0.0138 3,0 5,7 38,0 130 08259 08076
0,36 0.0142 3,0 5,7 38,0 130 08260 08077
0,37 0.0146 3,0 5,7 38,0 130 08261 08078
continued on next page
• 4-facet point design
stabilizes on entry
for superior hole size
control and tool life
(>.08mm). 2-facet point
on 0,08 and smaller.
• Mirror surface finishes
improve chip flow as
hole depth increases
• Ti-Namite A coating
and uncoated options
for the ultimate
performance in a
variety of ferrous and
non-ferrous workpiece
materials
• Available from stock in
a selection of popular
lengths and diameters
• Application specific
sub-micron grain
carbide designed
specifically for micro-
tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
L226
METRIC SERIES
118° 130°
2
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
128 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
METRIC
2 Flute Left Hand Cut External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,38 0.0150 3,0 6,4 38,0 130 08262 08079
0,39 0.0154 3,0 6,4 38,0 130 08263 08080
0,40 0.0157 3,0 6,4 38,0 130 08264 08081
0,41 0.0161 3,0 6,4 38,0 130 08265 08082
0,42 0.0165 3,0 6,4 38,0 130 08266 08083
0,43 0.0169 3,0 6,4 38,0 130 08267 08084
0,44 0.0173 3,0 6,4 38,0 130 08268 08085
0,45 0.0177 3,0 6,4 38,0 130 08269 08086
0,46 0.0181 3,0 6,4 38,0 130 08270 08087
0,47 0.0185 3,0 6,4 38,0 130 08271 08088
0,48 0.0189 3,0 6,6 38,0 130 08272 08089
0,49 0.0193 3,0 6,6 38,0 130 08273 08090
0,50 0.0197 3,0 6,6 38,0 130 08274 08091
0,51 0.0201 3,0 6,6 38,0 130 08275 08092
0,52 0.0205 3,0 6,6 38,0 130 08276 08093
0,53 0.0209 3,0 6,6 38,0 130 08277 08094
0,54 0.0213 3,0 6,6 38,0 130 08278 08095
0,55 0.0217 3,0 8,6 38,0 130 08279 08096
0,56 0.0220 3,0 8,6 38,0 130 08280 08097
0,57 0.0224 3,0 8,6 38,0 130 08281 08098
0,58 0.0228 3,0 8,6 38,0 130 08282 08099
0,59 0.0232 3,0 8,6 38,0 130 08283 08100
0,60 0.0236 3,0 8,6 38,0 130 08284 08101
0,61 0.0240 3,0 8,6 38,0 130 08285 08102
0,62 0.0244 3,0 8,6 38,0 130 08286 08103
0,63 0.0248 3,0 8,6 38,0 130 08287 08104
0,64 0.0252 3,0 8,6 38,0 130 08288 08105
0,65 0.0256 3,0 8,6 38,0 130 08289 08106
0,66 0.0260 3,0 8,6 38,0 130 08290 08107
0,67 0.0264 3,0 8,6 38,0 130 08291 08108
0,68 0.0268 3,0 8,6 38,0 130 08292 08109
0,69 0.0272 3,0 8,6 38,0 130 08293 08110
0,70 0.0276 3,0 10,2 38,0 130 08294 08111
0,71 0.0280 3,0 10,2 38,0 130 08295 08112
continued on next page
L226
METRIC SERIES
continued
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
129
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute Left Hand Cut External Coolant
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
0,72 0.0283 3,0 10,2 38,0 130 08296 08113
0,73 0.0287 3,0 10,2 38,0 130 08297 08114
0,74 0.0291 3,0 10,2 38,0 130 08298 08115
0,75 0.0295 3,0 10,2 38,0 130 08299 08116
0,75 0.0295 3,0 11,0 50,0 130 08300 08117
0,76 0.0299 3,0 10,2 38,0 130 08301 08118
0,77 0.0303 3,0 10,2 38,0 130 08302 08119
0,78 0.0307 3,0 10,2 38,0 130 08303 08120
0,79 0.0311 3,0 10,2 38,0 130 08304 08121
0,80 0.0315 3,0 10,2 38,0 130 08305 08122
0,80 0.0315 3,0 11,0 50,0 130 08306 08123
0,81 0.0319 3,0 10,2 38,0 130 08307 08124
0,82 0.0323 3,0 10,2 38,0 130 08308 08125
0,83 0.0327 3,0 10,2 38,0 130 08309 08126
0,84 0.0331 3,0 10,2 38,0 130 08310 08127
0,85 0.0335 3,0 10,2 38,0 130 08311 08128
0,85 0.0335 3,0 13,0 50,0 130 08312 08129
0,86 0.0339 3,0 10,2 38,0 130 08313 08130
0,87 0.0343 3,0 10,2 38,0 130 08314 08131
0,88 0.0346 3,0 10,2 38,0 130 08315 08132
0,89 0.0350 3,0 10,2 38,0 130 08316 08133
0,90 0.0354 3,0 10,2 38,0 130 08317 08134
0,90 0.0354 3,0 13,0 50,0 130 08318 08135
0,91 0.0358 3,0 10,2 38,0 130 08319 08136
0,92 0.0362 3,0 10,2 38,0 130 08320 08137
0,93 0.0366 3,0 10,2 38,0 130 08321 08138
0,94 0.0370 3,0 10,2 38,0 130 08322 08139
0,95 0.0374 3,0 10,2 38,0 130 08323 08140
0,95 0.0374 3,0 15,0 50,0 130 08324 08141
0,96 0.0378 3,0 10,2 38,0 130 08325 08142
0,97 0.0382 3,0 10,2 38,0 130 08326 08143
0,98 0.0386 3,0 10,2 38,0 130 08327 08144
0,99 0.0390 3,0 10,2 38,0 130 08328 08145
1,00 0.0394 3,0 10,2 38,0 130 08329 08146
continued on next page
continued
L226
METRIC SERIES
118° 130°
2
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
130 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
METRIC
2 Flute Left Hand Cut External Coolant
L226
METRIC SERIES
continued mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,00 0.0394 3,0 15,0 50,0 130 08330 08147
1,05 0.0413 3,0 10,2 38,0 130 08331 08148
1,05 0.0413 3,0 17,0 50,0 130 08332 08149
1,10 0.0433 3,0 10,2 38,0 130 08333 08150
1,10 0.0433 3,0 17,0 50,0 130 08334 08151
1,15 0.0453 3,0 10,2 38,0 130 08335 08152
1,15 0.0453 3,0 17,0 50,0 130 08336 08153
1,20 0.0472 3,0 10,2 38,0 130 08337 08154
1,20 0.0472 3,0 17,0 50,0 130 08338 08155
1,25 0.0492 3,0 10,2 38,0 130 08339 08156
1,25 0.0492 3,0 19,0 50,0 130 08340 08157
1,30 0.0512 3,0 10,2 38,0 130 08341 08158
1,30 0.0512 3,0 19,0 50,0 130 08342 08159
1,35 0.0531 3,0 10,2 38,0 130 08343 08160
1,35 0.0531 3,0 19,0 50,0 130 08344 08161
1,40 0.0551 3,0 10,2 38,0 130 08345 08162
1,40 0.0551 3,0 19,0 50,0 130 08346 08163
1,45 0.0571 3,0 10,2 38,0 130 08347 08164
1,45 0.0571 3,0 20,0 50,0 130 08348 08165
1,50 0.0591 3,0 10,2 38,0 130 08349 08166
1,50 0.0591 3,0 20,0 50,0 130 08350 08167
1,55 0.0610 3,0 10,2 38,0 130 08351 08168
1,55 0.0610 3,0 20,0 50,0 130 08352 08169
1,60 0.0630 3,0 10,2 38,0 130 08353 08170
1,60 0.0630 3,0 20,0 50,0 130 08354 08171
1,65 0.0650 3,0 10,2 38,0 130 08355 08172
1,65 0.0650 3,0 20,0 50,0 130 08356 08173
1,70 0.0669 3,0 10,2 38,0 130 08357 08174
1,70 0.0669 3,0 20,0 50,0 130 08358 08175
1,75 0.0689 3,0 10,2 38,0 130 08359 08176
1,75 0.0689 3,0 20,0 50,0 130 08360 08177
1,80 0.0709 3,0 10,2 38,0 130 08361 08178
1,80 0.0709 3,0 20,0 50,0 130 08362 08179
1,85 0.0728 3,0 10,2 38,0 130 08363 08180
continued on next page
118° 130°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
131
www.sgsmicrotools.com
DC
DCON
OAL
LCF
METRIC
2 Flute Left Hand Cut External Coolant
continued
L226
METRIC SERIES
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
1,85 0.0728 3,0 22,8 60,0 130 08364 08181
1,90 0.0748 3,0 10,2 38,0 130 08365 08182
1,90 0.0748 3,0 22,8 60,0 130 08366 08183
1,95 0.0768 3,0 10,2 38,0 130 08367 08184
1,95 0.0768 3,0 23,4 60,0 130 08368 08185
2,00 0.0787 3,0 10,2 38,0 130 08369 08186
2,00 0.0787 3,0 24,0 60,0 130 08370 08187
2,05 0.0807 3,0 10,2 38,0 130 08371 08188
2,05 0.0807 3,0 25,2 60,0 130 08372 08189
2,10 0.0827 3,0 10,2 38,0 130 08373 08190
2,10 0.0827 3,0 25,2 60,0 130 08374 08191
2,15 0.0846 3,0 10,2 38,0 130 08375 08192
2,15 0.0846 3,0 26,4 60,0 130 08376 08193
2,20 0.0866 3,0 10,2 38,0 130 08377 08194
2,20 0.0866 3,0 26,4 60,0 130 08378 08195
2,25 0.0886 3,0 10,2 38,0 130 08379 08196
2,25 0.0886 3,0 27,6 60,0 130 08380 08197
2,30 0.0906 3,0 10,2 38,0 130 08381 08198
2,30 0.0906 3,0 27,6 60,0 130 08382 08199
2,35 0.0925 3,0 10,2 38,0 130 08383 08200
2,35 0.0925 3,0 28,8 60,0 130 08384 08201
2,40 0.0945 3,0 10,2 38,0 130 08385 08202
2,40 0.0945 3,0 28,8 60,0 130 08386 08203
2,45 0.0965 3,0 10,2 38,0 130 08387 08204
2,45 0.0965 3,0 30,0 60,0 130 08388 08205
2,50 0.0984 3,0 10,2 38,0 130 08389 08206
2,50 0.0984 3,0 30,0 60,0 130 08390 08207
2,55 0.1004 3,0 10,2 38,0 130 08391 08208
2,55 0.1004 3,0 31,2 60,0 130 08392 08209
2,60 0.1024 3,0 10,2 38,0 130 08393 08210
2,60 0.1024 3,0 31,2 60,0 130 08394 08211
2,65 0.1043 3,0 10,2 38,0 130 08395 08212
2,65 0.1043 3,0 32,4 60,0 130 08396 08213
2,70 0.1063 3,0 10,2 38,0 130 08397 08214
continued on next page
118° 130°
2
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
132 www.sgsmicrotools.com
DC
DCON
OAL
LCF
TOLERANCES (mm)
0,04–3,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
METRIC
2 Flute Left Hand Cut External Coolant
L226
METRIC SERIES
continued mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIV.
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
OVERALL
LENGTH
OAL
POINT
ANGLE UNCOATED TI-NAMITE-A
(AlTiN)
2,70 0.1063 3,0 32,4 60,0 130 08398 08215
2,75 0.1083 3,0 10,2 38,0 130 08399 08216
2,75 0.1083 3,0 33,6 60,0 130 08400 08217
2,80 0.1102 3,0 10,2 38,0 130 08401 08218
2,80 0.1102 3,0 33,6 60,0 130 08402 08219
2,85 0.1122 3,0 10,2 38,0 130 08403 08220
2,85 0.1122 3,0 34,8 60,0 130 08404 08221
2,90 0.1142 3,0 10,2 38,0 130 08405 08222
2,90 0.1142 3,0 34,8 60,0 130 08406 08223
2,95 0.1161 3,0 10,2 38,0 130 08407 08224
2,95 0.1161 3,0 36,0 60,0 130 08408 08225
3,00 0.1181 3,0 10,2 38,0 130 08409 08226
3,00 0.1181 3,0 36,0 60,0 130 08410 08227
118° 130°
2
DRILLS
DRILLS 133
www.sgsmicrotools.com
Series M226 • L226 Hardness
Vc
(m/min)
DC • mm
0.04 0.25 0.5 123
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
40
(32-48)
RPM 315060 50410 25205 12602 6301 4201
Fz 0.001 0.007 0.014 0.029 0.058 0.086
Feed (mm/min) 363 363 363 363 363 363
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
59
(48-71)
RPM 472590 75614 37807 18904 9452 6301
Fz 0.001 0.007 0.013 0.026 0.052 0.078
Feed (mm/min) 493 493 493 493 493 493
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
24
(20-29)
RPM 193883 31021 15511 7755 3878 2585
Fz 0.001 0.003 0.007 0.013 0.026 0.039
Feed (mm/min) 102 102 102 102 102 102
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
85
(68-102)
RPM 678591 108575 54287 27144 13572 9048
Fz 0.001 0.004 0.008 0.016 0.033 0.049
Feed (mm/min) 445 445 445 445 445 445
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
20
(16-24)
RPM 157530 25205 12602 6301 3151 2100
Fz 0.001 0.005 0.011 0.022 0.044 0.065
Feed (mm/min) 137 137 137 137 137 137
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
12
(10-15)
RPM 96942 15511 7755 3878 1939 1293
Fz 0.001 0.004 0.009 0.018 0.035 0.053
Feed (mm/min) 69 69 69 69 69 69
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy
800, Monel 400, Rene,
Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
15
(12-18)
RPM 121177 19388 9694 4847 2424 1616
Fz 0.000 0.003 0.006 0.011 0.022 0.033
Feed (mm/min) 53 53 53 53 53 53
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
15
(12-18)
RPM 121177 19388 9694 4847 2424 1616
Fz 0.001 0.004 0.008 0.017 0.034 0.051
Feed (mm/min) 82 82 82 82 82 82
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
75
(60-90)
RPM 593768 95003 47501 23751 11875 7917
Fz 0.002 0.012 0.025 0.049 0.099 0.148
Feed (mm/min) 1171 1171 1171 1171 1171 1171
COPPER ALLOYS
Alum Bronze, C110, Muntz
Brass
≤ 140 Bhn
or
≤ 3 HRc
55
(44-66)
RPM 436237 69798 34899 17449 8725 5816
Fz 0.002 0.012 0.025 0.049 0.099 0.148
Feed (mm/min) 861 861 861 861 861 861
PLASTICS
Polycarbonate, PVC
75
(60-90)
RPM 593768 95003 47501 23751 11875 7917
Fz 0.002 0.012 0.025 0.049 0.099 0.148
Feed (mm/min) 1171 1171 1171 1171 1171 1171
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = Vc x 3.82 / DC
• ipm = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
METRIC
Series M226 • L226
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
134 www.sgsmicrotools.com
LU
DC
DCON
OAL
LCF
TOLERANCES (mm)
1,0–4,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
CLEARED
LENGTH
LU
OVERALL
LENGTH
OAL
TI-NAMITE-CR
(AlCrN)
1,0 0.0394 4,0 13,3 8,0 53,0 06000
1,1 0.0433 4,0 14,1 8,8 53,0 06001
1,2 0.0472 4,0 14,9 9,6 53,0 06002
1,3 0.0512 4,0 15,7 10,4 53,0 06003
1,4 0.0551 4,0 16,5 11,2 53,0 06004
1,5 0.0591 4,0 17,3 12,0 53,0 06005
1,6 0.0630 4,0 18,1 12,8 64,0 06006
1,7 0.0669 4,0 18,9 13,6 64,0 06007
1,8 0.0709 4,0 20,4 14,4 64,0 06008
1,9 0.0748 4,0 21,2 15,2 64,0 06009
2,0 0.0787 4,0 22,0 16,0 64,0 06010
2,1 0.0827 4,0 22,8 16,8 64,0 06011
2,2 0.0866 4,0 25,7 17,6 64,0 06012
2,3 0.0906 4,0 26,5 18,4 64,0 06013
2,4 0.0945 4,0 27,3 19,2 64,0 06014
2,5 0.0984 4,0 28,1 20,0 64,0 06015
2,6 0.1024 4,0 28,9 20,8 76,0 06016
2,7 0.1063 4,0 29,7 21,6 76,0 06017
2,8 0.1102 4,0 30,5 22,4 76,0 06018
2,9 0.1142 4,0 32,2 23,2 76,0 06019
3,0 0.1181 4,0 33,0 24,0 76,0 06020
3,1 0.1220 4,0 33,8 24,8 76,0 06021
3,2 0.1260 4,0 34,6 25,6 76,0 06022
3,3 0.1299 4,0 35,4 26,4 76,0 06023
3,4 0.1339 4,0 38,1 27,2 76,0 06024
3,5 0.1378 4,0 38,9 28,0 76,0 06025
3,6 0.1417 4,0 39,7 28,8 76,0 06026
3,7 0.1457 4,0 40,5 29,6 76,0 06027
3,8 0.1496 4,0 41,3 30,4 76,0 06028
3,9 0.1535 4,0 42,1 31,2 76,0 06029
4,0 0.1575 4,0 42,9 32,0 76,0 06030
1,0 0.0394 4,0 20,3 15,0 64,0 06031
1,1 0.0433 4,0 21,8 16,5 64,0 06032
1,2 0.0472 4,0 23,3 18,0 64,0 06033
continued on next page
METRIC
2 Flute Internal Coolant
M814
METRIC SERIES
• Split point and double
margin design provide
superior hole finish and
size control
• Coolant hole feature
allows straight through
drilling without a peck
cycle
• Proprietary high-
performance coating and
mirror polished fluting
increase tool life and
productivity in moderate-
to-difficult workpiece
materials
• Available from stock in
a selection of popular
lengths and diameters
• Application specific
sub-micron grain carbide
designed specifically for
micro-tool applications
• Manufactured in
accordance with KSPT
ISO certified quality
procedures
28° 140°
2
DRILLS
DRILLS
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS
PLASTICS/COMPOSITES
135
www.sgsmicrotools.com
LU
DC
DCON
OAL
LCF
METRIC
2 Flute Internal Coolant
continued
M814
METRIC SERIES
28° 140°
2
mm EDP NO.
CUTTING
DIAMETER
DC
DECIMAL
EQUIVALENT
SHANK
DIAMETER
DCON
FLUTE
LENGTH
LCF
CLEARED
LENGTH
LU
OVERALL
LENGTH
OAL
TI-NAMITE-CR
(AlCrN)
1,3 0.0512 4,0 24,8 19,5 64,0 06034
1,4 0.0551 4,0 26,3 21,0 64,0 06035
1,5 0.0591 4,0 27,8 22,5 64,0 06036
1,6 0.0630 4,0 29,3 24,0 81,0 06037
1,7 0.0669 4,0 30,8 25,5 81,0 06038
1,8 0.0709 4,0 33,0 27,0 81,0 06039
1,9 0.0748 4,0 34,5 28,5 81,0 06040
2,0 0.0787 4,0 36,0 30,0 81,0 06041
2,1 0.0827 4,0 37,5 31,5 81,0 06042
2,2 0.0866 4,0 41,1 33,0 81,0 06043
2,3 0.0906 4,0 42,6 34,5 81,0 06044
2,4 0.0945 4,0 44,1 36,0 81,0 06045
2,5 0.0984 4,0 45,6 37,5 90,0 06046
2,6 0.1024 4,0 47,1 39,0 90,0 06047
2,7 0.1063 4,0 48,6 40,5 90,0 06048
2,8 0.1102 4,0 50,1 42,0 90,0 06049
2,9 0.1142 4,0 52,5 43,5 90,0 06050
3,0 0.1181 4,0 54,0 45,0 90,0 06051
3,1 0.1220 4,0 55,5 46,5 106,0 06052
3,2 0.1260 4,0 57,0 48,0 106,0 06053
3,3 0.1299 4,0 58,5 49,5 106,0 06054
3,4 0.1339 4,0 61,9 51,0 106,0 06055
3,5 0.1378 4,0 63,4 52,5 106,0 06056
3,6 0.1417 4,0 64,9 54,0 106,0 06057
3,7 0.1457 4,0 66,4 55,5 106,0 06058
3,8 0.1496 4,0 67,9 57,0 106,0 06059
3,9 0.1535 4,0 69,4 58,6 106,0 06060
4,0 0.1575 4,0 70,9 60,0 106,0 06061
TOLERANCES (mm)
1,0–4,0 DIAMETER
DC =
+0,000/–0,008
DCON =
h6
DRILLS
DRILLS
136 www.sgsmicrotools.com
Series M814 8xD Hardness
Vc
(m/min)
DC • mm
1234
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
125
(100-150)
RPM 39746 19873 13249 9937
Fz 0.0229 0.0458 0.0686 0.0915
Feed (mm/min) 909 909 909 909
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
94
(76-113)
RPM 30052 15026 10017 7513
Fz 0.0216 0.0431 0.0647 0.0862
Feed (mm/min) 648 648 648 648
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
46
(37-55)
RPM 14541 7271 4847 3635
Fz 0.0101 0.0203 0.0304 0.0405
Feed (mm/min) 147 147 147 147
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
110
(88-132)
RPM 34899 17449 11633 8725
Fz 0.0318 0.0636 0.0954 0.1272
Feed (mm/min) 1110 1110 1110 1110
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
55
(44-66)
RPM 17449 8725 5816 4362
Fz 0.0178 0.0355 0.0533 0.0710
Feed (mm/min) 310 310 310 310
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH,
17-4 PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
38
(30-46)
RPM 12118 6059 4039 3029
Fz 0.0140 0.0281 0.0421 0.0562
Feed (mm/min) 170 170 170 170
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy 800,
Monel 400, Rene, Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
27
(22-33)
RPM 8725 4362 2908 2181
Fz 0.0096 0.0192 0.0288 0.0384
Feed (mm/min) 84 84 84 84
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
46
(37-55)
RPM 14541 7271 4847 3635
Fz 0.0093 0.0185 0.0278 0.0370
Feed (mm/min) 135 135 135 135
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
130
(104-155)
RPM 41200 20600 13733 10300
Fz 0.0395 0.0789 0.1184 0.1578
Feed (mm/min) 1626 1626 1626 1626
COPPER ALLOYS
Alum Bronze, C110, Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
99
(79-119)
RPM 31506 15753 10502 7877
Fz 0.0407 0.0814 0.1221 0.1629
Feed (mm/min) 1283 1283 1283 1283
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = (Vc x 1000) / (DC x 3.14)
• mm/min = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
METRIC
Series M814 8xD
DRILLS
DRILLS 137
www.sgsmicrotools.com
Series M814 15xD Hardness
Vc
(m/min)
DC • mm
1234
P
CARBON STEELS
1018, 1040, 1080, 1090, 10L50,
1140, 1212, 12L15, 1525, 1536
≤ 175 Bhn
or
≤ 7 HRc
125
(100-150)
RPM 39746 19873 13249 9937
Fz 0.0160 0.0320 0.0479 0.0639
Feed (mm/min) 635 635 635 635
ALLOY STEELS
4140, 4150, 4320, 5120,
5150, 8630, 86L20, 50100
≤ 275 Bhn
or
≤ 28 HRc
94
(76-113)
RPM 30052 15026 10017 7513
Fz 0.0139 0.0279 0.0418 0.0558
Feed (mm/min) 419 419 419 419
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 475 Bhn
or
≤ 50 HRc
46
(37-55)
RPM 14541 7271 4847 3635
Fz 0.0070 0.0140 0.0210 0.0279
Feed (mm/min) 102 102 102 102
KCAST IRONS
Gray, Malleable, Ductile
≤ 220 Bhn
or
≤ 19 HRc
110
(68-132)
RPM 34899 17449 11633 8725
Fz 0.0229 0.0459 0.0688 0.0917
Feed (mm/min) 800 800 800 800
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F, 430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
55
(44-66)
RPM 17449 8725 5816 4362
Fz 0.0127 0.0253 0.0380 0.0507
Feed (mm/min) 221 221 221 221
STAINLESS STEELS
(DIFFICULT)
304, 316, 321, 13-8 PH, 15-5PH, 17-4
PH, CUSTOM 450
≤ 325 Bhn
or
≤ 35 HRc
38
(30-46)
RPM 12118 6059 4039 3029
Fz 0.0094 0.0189 0.0283 0.0377
Feed (mm/min) 114 114 114 114
S
SUPER ALLOYS
(NICKEL, COBALT, IRON BASE)
Inconel 601, 617, 625, Incoloy 800,
Monel 400, Rene, Waspaloy
≤ 320 Bhn
or
≤ 34 HRc
27
(22-33)
RPM 8725 4362 2908 2181
Fz 0.0064 0.0128 0.0192 0.0256
Feed (mm/min) 56 56 56 56
TITANIUM ALLOYS
Pure Titanium, Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
46
(37-55)
RPM 14541 7271 4847 3635
Fz 0.0077 0.0154 0.0231 0.0307
Feed (mm/min) 112 112 112 112
N
ALUMINUM ALLOYS
2017, 2024, 356, 6061, 7075
≤ 150 Bhn
or
≤ 7 HRc
130
(104-155)
RPM 41200 20600 13733 10300
Fz 0.0287 0.0573 0.0860 0.1147
Feed (mm/min) 1181 1181 1181 1181
COPPER ALLOYS
Alum Bronze, C110, Muntz Brass
≤ 140 Bhn
or
≤ 3 HRc
99
(79-119)
RPM 31506 15753 10502 7877
Fz 0.0286 0.0572 0.0859 0.1145
Feed (mm/min) 902 902 902 902
Note:
• Bhn (Brinell) HRc (Rockwell C) HRb (Rockwell B)
• rpm = (Vc x 1000) / (DC x 3.14)
• mm/min = Fr x rpm (Fr x maximum available rpm when recommendation exceeds machine limit)
• reduce speed and feed 30% when using uncoated drills
• reduce speed and feed for materials harder than listed
• refer to the KYOCERA SGS Tool Wizard® or sgsmicrotools.com for complete technical information
METRIC
Series M814 15xD
138 www.sgsmicrotools.com
00301..................10
00302..................10
00303..................10
00304..................10
00305..................10
00306..................10
00307..................10
00308..................10
00309..................10
00310..................10
00311..................10
00312..................10
00313..................10
00314..................10
00315..................10
00316..................10
00317..................10
00318..................10
00319..................10
00320..................10
00321..................10
00322..................10
00323..................10
00324..................10
00325..................10
00326..................10
00327..................10
00328..................10
00329..................10
00330..................10
00331..................11
00332..................11
00333..................11
00334..................11
00335..................11
00336..................11
00337..................11
00338..................11
00339..................11
00340..................11
00341..................11
00342..................11
00343..................11
00344..................11
00345..................11
00346..................11
00347..................11
00348..................11
00349..................11
00350..................11
00351..................11
00352..................11
00353..................11
00354..................11
00355..................12
00356..................12
00357..................12
00358..................12
00359..................12
00360..................12
00361..................12
00362..................12
00363..................12
00364..................12
00365..................13
00366..................13
00367..................13
00368..................13
00369..................13
00370..................13
00372..................61
00373..................61
00374..................61
00375..................61
00376..................61
00377..................61
00378..................61
00379..................61
00380..................61
00381..................61
00382..................61
00383..................61
00384..................61
00385..................61
00386..................61
00387..................61
00388..................61
00389..................61
00390..................61
00391..................61
00392..................61
00393..................61
00394..................61
00395..................61
00396..................61
00397..................61
00398..................61
00399..................61
00400..................61
00401..................61
00402..................62
00403..................62
00404..................62
00405..................62
00406..................62
00407..................62
00408..................62
00409..................62
00410..................62
00411..................62
00412..................62
00413..................62
00414..................62
00415..................62
00416..................62
00417..................62
00418..................62
00419..................62
00420..................62
00421..................62
00422..................62
00423..................62
00424..................63
00425..................63
00426..................63
00427..................63
00428..................63
00429..................63
00430..................63
00431..................63
00432..................63
00433..................63
00434..................63
00435..................64
00436..................64
00437..................64
00438..................64
00439..................64
00440..................64
00441..................64
00443..................22
00444..................22
00445..................22
00446..................22
00447..................22
00448..................22
00449..................22
00450..................22
00451..................22
00452..................22
00453..................22
00454..................22
00455..................22
00456..................22
00457..................22
00458..................22
00459..................22
00460..................22
00461..................22
00462..................22
00463..................22
00464..................22
00465..................22
00466..................22
00467..................22
00468..................22
00469..................22
00470..................22
00471..................22
00472..................22
00473..................22
00474..................22
00475..................22
00476..................22
00477..................22
00478..................22
00479..................15
00480..................15
00481..................15
00482..................15
00483..................15
00484..................15
00485..................15
00486..................15
00487..................15
00488..................15
00489..................15
00490..................15
00491..................15
00492..................15
00493..................15
00494..................15
00495..................15
00496..................16
00497..................23
00498..................16
00499..................16
00500..................16
00501..................16
00502..................23
00503..................16
00504..................16
00505..................16
00506..................17
00507..................17
00508..................17
00509..................17
00510..................23
00511..................17
00512..................17
00514..................66
00515..................66
00516..................66
00517..................66
00518..................66
00519..................66
00520..................66
00521..................66
00522..................66
00523..................66
00524..................66
00525..................66
00526..................66
00527..................66
00528..................66
00529..................66
00530..................66
00531..................66
00532..................66
00533..................66
00534..................66
00535..................66
00536..................66
00537..................66
00538..................66
00539..................66
00540..................66
00541..................66
00542..................66
00543..................66
00544..................67
00545..................67
00546..................67
00547..................67
00548..................67
00549..................67
00550..................67
00551..................67
00552..................67
00553..................67
00554..................67
00555..................67
00556..................67
00557..................67
00558..................67
00559..................67
00560..................67
00561..................67
00562..................67
00563..................67
00564..................67
00565..................67
00566..................67
00567..................67
00568..................68
00569..................68
00570..................68
00571..................68
00572..................68
00573..................68
00574..................68
00575..................68
00576..................68
00577..................68
00578..................69
00579..................69
00580..................69
00581..................69
00582..................69
00583..................69
00584..................72
00585..................72
00586..................72
00587..................72
00588..................72
00589..................72
00590..................72
00591..................72
00592..................72
00593..................72
00594..................72
00595..................72
00596..................72
00597..................72
00598..................72
00599..................72
00600..................72
00601..................72
00602..................72
00603..................72
00604..................72
00605..................72
00606..................72
00607..................72
00608..................72
00609..................72
00610..................72
00611..................73
00612..................73
00613..................73
00614..................73
00615..................73
00616..................73
00617..................73
00618..................73
00619..................73
00620..................73
00621..................73
00622..................73
00623..................73
00624..................73
00625..................73
00626..................73
00627..................73
00628..................73
00629..................73
00630..................73
00631..................73
00632..................73
00633..................73
00634..................73
00635..................73
00636..................73
00637..................73
00639..................74
00640..................74
00641..................74
00642..................74
00643..................74
00644..................74
00645..................74
00646..................74
00647..................74
00648..................74
00649..................74
00650..................74
00651..................74
00652..................74
00653..................74
00654..................74
00655..................74
00656..................74
00657..................74
00658..................74
00659..................74
00660..................74
00661..................74
00662..................74
00663..................74
00664..................74
00669..................20
00670..................20
00671..................20
00672..................20
00673..................20
00674..................20
00675..................20
00676..................20
00677..................20
00678..................20
00679..................20
00680..................20
00681..................20
00682..................20
00683..................20
00684..................20
00685..................20
00686..................20
00687..................20
00688..................20
00689..................20
00690..................20
00691..................20
00692..................20
00693..................20
00694..................20
00695..................20
00696..................20
00697..................20
00698..................20
00699..................20
00700..................20
00701..................20
00702..................20
00703..................20
00704..................20
00705..................21
00706..................21
00707..................21
00708..................21
00709..................21
00710..................21
00711..................21
00712..................21
00713..................21
00714..................21
00715..................21
00716..................21
00717..................21
00718..................21
00719..................21
00720..................21
00721..................21
00722..................21
00723..................21
00724..................21
00725..................21
00726..................21
00727..................21
00728..................21
00729..................21
00730..................21
00731..................21
00732..................21
00733..................21
00734..................21
00735..................21
00736..................21
00737..................21
00738..................21
00745..................75
00746..................75
00747..................75
00748..................75
00749..................75
00750..................75
00751..................75
00752..................75
00753..................75
00754..................75
00755..................75
00756..................75
00757..................75
00758..................75
00759..................75
00760..................75
00761..................75
00762..................75
00763..................75
00764..................75
00765..................75
00766..................75
00767..................75
00768..................75
00769..................75
00770..................75
00771..................75
00772..................75
00773..................75
00774..................75
00775..................75
00776..................75
00777..................75
00778..................75
00779..................76
00780..................76
00781..................76
00782..................76
00783..................76
00784..................76
00785..................76
00786..................76
00787..................76
00788..................76
00789..................76
00790..................76
00791..................76
00792..................76
00793..................76
00794..................76
00795..................76
00796..................76
00797..................76
00798..................76
00799..................76
00800..................76
00801..................76
00802..................76
00803..................76
00804..................76
00805..................76
00806..................76
00807..................76
00808..................76
00809..................76
00811..................14
00812..................14
00813..................14
00814..................14
00815..................14
00816..................14
00817..................14
00818..................14
00819..................14
00820..................14
00821..................14
00822..................14
00823..................14
00824..................14
00825..................14
00826..................14
00827..................14
00828..................14
00829..................14
00830..................14
00831..................14
00832..................14
00833..................14
00834..................14
00835..................14
00836..................14
00837..................14
00838..................14
00839..................14
00840..................15
00841..................15
00842..................15
00843..................15
00844..................15
00845..................15
00846..................15
00847..................23
00848..................23
00849..................23
00850..................23
00851..................23
00852..................23
00853..................23
00854..................23
00855..................23
00856..................23
00857..................23
00858..................23
00859..................23
00860..................23
00861..................23
00862..................23
00863..................23
00864..................23
00865..................16
00866..................23
00867..................23
00868..................23
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
EDP NO. PAGE
139
www.sgsmicrotools.com
00869..................23
00870..................16
00871..................23
00872..................23
00873..................23
00874..................23
00875..................23
00876..................23
00877..................23
00878..................17
00879..................23
00880..................23
00887..................77
00888..................77
00889..................77
00890..................77
00891..................77
00892..................77
00893..................77
00894..................77
00895..................77
00896..................77
00897..................77
00898..................77
00899..................77
00900..................77
00901..................77
00902..................77
00903..................77
00904..................77
00905..................77
00906..................77
00907..................77
00908..................77
00909..................77
00910..................77
00911..................77
00912..................77
00913..................77
00914..................77
00915..................77
00916..................77
00917..................77
00918..................77
00919..................77
00920..................77
00921..................78
00922..................78
00923..................78
00924..................78
00925..................78
00926..................78
00927..................78
00928..................78
00929..................78
00930..................78
00931..................78
00932..................78
00933..................78
00934..................78
00935..................78
00936..................78
00937..................78
00938..................78
00939..................78
00940..................78
00941..................78
00942..................78
00943..................78
00944..................78
00945..................78
00946..................78
00947..................78
00948..................78
00949..................78
00950..................78
00951..................78
00952..................81
00953..................81
00954..................81
00955..................81
00956..................81
00957..................81
00958..................81
00959..................81
00960..................81
00961..................81
00962..................81
00963..................81
00964..................81
00965..................81
00966..................81
00967..................81
00968..................81
00969..................81
00970..................81
00971..................81
00972..................81
00973..................81
00974..................81
00975..................81
00976..................81
00977..................81
00978..................81
00979..................82
00980..................82
00981..................82
00982..................82
00983..................82
00984..................82
00985..................82
00986..................82
00987..................82
00988..................82
00989..................82
00990..................82
00991..................82
00992..................82
00993..................82
00994..................82
00995..................82
00996..................82
00997..................82
00998..................82
00999..................82
01000..................82
01001..................82
01002..................82
01003..................82
01004..................82
01005..................82
01007..................83
01008..................83
01009..................83
01010..................83
01011..................83
01012..................83
01013..................83
01014..................83
01015..................83
01016..................83
01017..................83
01018..................83
01019..................83
01020..................83
01021..................83
01022..................83
01023..................83
01024..................83
01025..................83
01026..................83
01027..................83
01028..................83
01029..................83
01030..................83
01031..................83
01032..................83
01085..................26
01086..................26
01087..................26
01088..................26
01089..................26
01090..................26
01091..................26
01092..................26
01093..................26
01094..................26
01095..................26
01096..................26
01097..................26
01098..................26
01099..................26
01100..................26
01101..................26
01102..................26
01103..................26
01104..................26
01105..................26
01106..................26
01107..................26
01108..................26
01109..................26
01110..................26
01111..................26
01112..................26
01113..................26
01114..................26
01115..................26
01116..................26
01117..................26
01118..................26
01119..................26
01120..................26
01121..................27
01122..................27
01123..................27
01124..................27
01125..................27
01126..................27
01127..................27
01128..................27
01129..................27
01130..................27
01131..................27
01132..................27
01133..................27
01134..................27
01135..................27
01136..................27
01137..................27
01138..................27
01139..................27
01140..................27
01141..................27
01142..................27
01143..................27
01144..................27
01145..................27
01146..................27
01147..................27
01148..................27
01149..................27
01150..................27
01151..................27
01152..................27
01153..................27
01154..................27
01155..................27
01156..................38
01157..................38
01158..................38
01159..................38
01160..................38
01161..................38
01162..................38
01163..................38
01164..................38
01165..................38
01166..................38
01167..................38
01168..................38
01169..................38
01170..................38
01171..................38
01172..................38
01173..................38
01174..................38
01175..................38
01176..................38
01177..................38
01178..................38
01179..................38
01180..................38
01181..................38
01182..................38
01183..................38
01184..................38
01185..................38
01186..................38
01187..................38
01188..................38
01189..................38
01190..................38
01191..................38
01192..................39
01193..................39
01194..................39
01195..................39
01196..................39
01197..................39
01198..................39
01199..................39
01200..................39
01201..................39
01202..................39
01203..................39
01204..................39
01205..................39
01206..................39
01207..................39
01208..................39
01209..................39
01210..................39
01211..................39
01212..................39
01213..................39
01214..................39
01215..................39
01216..................39
01217..................39
01218..................39
01219..................39
01220..................39
01221..................39
01222..................39
01223..................39
01224..................39
01225..................39
01226..................39
01227..................42
01228..................42
01229..................42
01230..................42
01231..................42
01232..................42
01233..................42
01234..................42
01235..................42
01236..................42
01237..................42
01238..................42
01239..................42
01240..................42
01241..................42
01242..................42
01243..................42
01244..................42
01245..................42
01246..................42
01247..................42
01248..................42
01249..................42
01250..................42
01251..................42
01252..................42
01253..................42
01254..................42
01255..................43
01256..................43
01257..................43
01258..................43
01259..................43
01260..................43
01261..................43
01262..................43
01263..................43
01264..................43
01265..................43
01266..................43
01267..................43
01268..................43
01269..................43
01270..................43
01271..................43
01272..................43
01273..................43
01274..................43
01275..................43
01276..................43
01277..................43
01278..................43
01279..................43
01280..................43
01281..................43
01282..................43
01283..................44
01284..................44
01285..................44
01286..................44
01287..................44
01288..................44
01289..................44
01290..................44
01291..................44
01292..................44
01293..................44
01294..................44
01295..................44
01296..................44
01297..................44
01298..................44
01299..................44
01300..................44
01301..................44
01302..................44
01303..................44
01304..................44
01305..................44
01306..................44
01307..................44
01308..................44
01309..................44
01310..................44
01311..................40
01312..................40
01313..................40
01314..................40
01315..................40
01316..................40
01317..................40
01318..................40
01319..................40
01320..................40
01321..................40
01322..................40
01323..................40
01324..................40
01325..................40
01326..................40
01327..................40
01328..................40
01329..................40
01330..................40
01331..................40
01332..................40
01333..................40
01334..................40
01335..................40
01336..................40
01337..................40
01338..................40
01339..................41
01340..................41
01341..................41
01342..................41
01343..................41
01344..................41
01345..................41
01346..................41
01347..................41
01348..................41
01349..................41
01350..................41
01351..................41
01352..................41
01353..................41
01354..................41
01355..................41
01356..................41
01357..................41
01358..................41
01359..................41
01360..................41
01361..................41
01362..................41
01363..................41
01364..................41
01365..................41
01366..................41
01367..................45
01368..................45
01369..................45
01370..................45
01371..................45
01372..................45
01373..................45
01374..................45
01375..................45
01376..................45
01377..................45
01378..................45
01379..................45
01380..................45
01381..................45
01382..................45
01383..................45
01384..................45
01385..................45
01386..................45
01387..................45
01388..................45
01389..................45
01390..................45
01391..................45
01392..................45
01393..................45
01394..................45
01395..................45
01396..................45
01397..................45
01398..................45
01399..................45
01400..................45
01401..................46
01402..................46
01403..................46
01404..................46
01405..................46
01406..................46
01407..................46
01408..................46
01409..................46
01410..................46
01411..................46
01412..................46
01413..................46
01414..................46
01415..................46
01416..................46
01417..................46
01418..................46
01419..................46
01420..................46
01421..................46
01422..................46
01423..................46
01424..................46
01425..................46
01426..................46
01427..................46
01428..................46
01429..................46
01430..................46
01431..................46
01432..................46
01433..................54
01434..................54
01435..................54
01436..................54
01437..................54
01438..................54
01439..................54
01440..................54
01441..................54
01442..................54
01443..................54
01444..................54
01445..................54
01446..................54
01447..................54
01448..................54
01449..................54
01450..................54
01451..................54
01452..................54
01453..................54
01454..................54
01455..................54
01456..................54
01457..................54
01458..................54
01459..................54
01460..................54
01461..................54
01462..................54
01463..................54
01464..................54
01465..................54
01466..................54
01467..................55
01468..................55
01469..................55
01470..................55
01471..................55
01472..................55
01473..................55
01474..................55
01475..................55
01476..................55
01477..................55
01478..................55
01479..................55
01480..................55
01481..................55
01482..................55
01483..................55
01484..................55
01485..................55
01486..................55
01487..................55
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
EDP NO. PAGE
140 www.sgsmicrotools.com
01488..................55
01489..................55
01490..................55
01491..................55
01492..................55
01493..................55
01494..................55
01495..................55
01496..................55
01497..................55
01498..................55
01499..................58
01500..................58
01501..................58
01502..................58
01503..................58
01504..................58
01505..................58
01506..................58
01507..................58
01508..................58
01509..................58
01510..................58
01511..................58
01512..................58
01513..................58
01514..................58
01515..................58
01516..................58
01517..................58
01518..................58
01519..................58
01520..................58
01521..................58
01522..................58
01523..................58
01524..................58
01525..................58
01526..................58
01527..................59
01528..................59
01529..................59
01530..................59
01531..................59
01532..................59
01533..................59
01534..................59
01535..................59
01536..................59
01537..................59
01538..................59
01539..................59
01540..................59
01541..................59
01542..................59
01543..................59
01544..................59
01545..................59
01546..................59
01547..................59
01548..................59
01549..................59
01550..................59
01551..................59
01552..................59
01553..................59
01554..................59
01555..................60
01556..................60
01557..................60
01558..................60
01559..................60
01560..................60
01561..................60
01562..................60
01563..................60
01564..................60
01565..................60
01566..................60
01567..................60
01568..................60
01569..................60
01570..................60
01571..................60
01572..................60
01573..................60
01574..................60
01575..................60
01576..................60
01577..................60
01578..................60
01579..................60
01580..................60
01581..................60
01582..................60
01583..................56
01584..................56
01585..................56
01586..................56
01587..................56
01588..................56
01589..................56
01590..................56
01591..................56
01592..................56
01593..................56
01594..................56
01595..................56
01596..................56
01597..................56
01598..................56
01599..................56
01600..................56
01601..................56
01602..................56
01603..................56
01604..................56
01605..................56
01606..................56
01607..................56
01608..................56
01609..................56
01610..................56
01611..................57
01612..................57
01613..................57
01614..................57
01615..................57
01616..................57
01617..................57
01618..................57
01619..................57
01620..................57
01621..................57
01622..................57
01623..................57
01624..................57
01625..................57
01626..................57
01627..................57
01628..................57
01629..................57
01630..................57
01631..................57
01632..................57
01633..................57
01634..................57
01635..................57
01636..................57
01637..................57
01638..................57
01801..................84
01802..................84
01803..................84
01804..................84
01805..................84
01806..................84
01807..................84
01808..................84
01809..................84
01810..................84
01811..................84
01812..................84
01813..................84
01814..................84
01815..................84
01816..................84
01817..................84
01818..................84
01819..................84
01820..................84
01821..................84
01823..................85
01824..................85
01825..................85
01826..................85
01827..................85
01828..................85
01829..................85
01830..................85
01831..................85
01832..................85
01833..................85
01834..................85
01835..................85
01836..................85
01837..................85
01838..................85
01839..................85
01840..................86
01841..................86
01842..................86
01843..................86
01844..................86
01845..................86
01846..................86
01847..................86
01848..................86
01849..................86
01850..................86
01851..................86
01861..................84
01862..................84
01863..................84
01864..................84
01865..................84
01866..................84
01867..................84
01868..................84
01869..................84
01870..................84
01871..................84
01872..................84
01873..................84
01875..................85
01876..................85
01877..................85
01878..................85
01879..................85
01880..................85
01881..................85
01882..................85
01883..................85
01884..................85
01885..................85
01886..................85
01887..................85
01888..................85
01889..................85
01890..................85
01891..................86
01892..................86
01893..................86
01894..................86
01895..................86
01900..................87
01901..................87
01902..................87
01903..................87
01904..................87
01905..................87
01906..................87
01907..................87
01908..................87
01909..................87
01910..................87
01911..................87
01912..................87
01913..................87
01914..................87
01915..................87
01916..................87
01917..................87
01927..................92
01928..................92
01929..................92
01930..................92
01931..................92
01932..................92
01933..................92
01934..................92
01935..................92
01936..................92
01937..................92
01938..................92
01939..................92
01949..................88
01950..................88
01951..................88
01952..................88
01953..................88
01954..................88
01955..................88
01956..................88
01957..................88
01958..................88
01959..................89
01960..................89
01961..................89
01962..................89
01963..................89
01964..................89
01965..................89
01966..................89
01967..................89
01968..................89
01969..................89
01979..................93
01980..................93
01981..................93
01982..................93
01983..................93
01984..................93
01985..................93
01986..................93
01987..................93
01988..................93
01989..................93
01990..................93
01991..................93
01992..................93
01993..................93
01994..................93
01995..................93
01996..................93
01997..................93
01998..................93
01999..................93
02009..................87
02010..................87
02011..................87
02012..................87
02013..................87
02014..................87
02015..................87
02016..................87
02017..................87
02018..................87
02019..................87
02020..................87
02021..................87
02031..................92
02032..................92
02033..................92
02034..................92
02035..................92
02036..................92
02037..................92
02038..................92
02039..................92
02040..................92
02041..................92
02042..................92
02043..................92
02048..................88
02049..................88
02050..................88
02051..................88
02052..................88
02053..................88
02054..................88
02055..................88
02056..................88
02057..................88
02058..................88
02059..................88
02060..................88
02061..................88
02062..................88
02063..................89
02064..................89
02065..................89
02075..................93
02076..................93
02077..................93
02078..................93
02079..................93
02080..................93
02081..................93
02082..................93
02083..................93
02084..................93
02085..................93
02086..................93
02087..................93
02201..................10
02202..................10
02203..................10
02204..................10
02205..................10
02206..................10
02207..................10
02208..................10
02209..................10
02210..................10
02211..................10
02212..................10
02213..................10
02214..................10
02215..................10
02216..................10
02217..................10
02218..................10
02219..................10
02220..................10
02221..................10
02222..................10
02223..................10
02224..................10
02225..................10
02226..................10
02227..................10
02228..................10
02229..................10
02230..................10
02231..................11
02232..................11
02233..................11
02234..................11
02235..................11
02236..................11
02238..................61
02239..................61
02240..................61
02241..................61
02242..................61
02243..................61
02244..................61
02245..................61
02246..................61
02247..................61
02248..................61
02249..................61
02250..................61
02251..................61
02252..................61
02253..................61
02254..................61
02255..................61
02256..................61
02257..................61
02258..................61
02259..................61
02260..................61
02261..................61
02262..................61
02263..................61
02264..................61
02265..................61
02266..................61
02267..................61
02268..................62
02269..................62
02270..................62
02271..................62
02272..................62
02273..................62
02275..................14
02276..................14
02277..................14
02278..................14
02279..................14
02280..................14
02281..................14
02282..................14
02283..................14
02284..................14
02285..................14
02286..................14
02287..................14
02288..................14
02289..................14
02290..................14
02291..................14
02292..................14
02293..................14
02294..................14
02295..................14
02296..................14
02297..................14
02298..................14
02299..................14
02300..................14
02301..................14
02302..................14
02303..................14
02304..................15
02305..................15
02306..................15
02307..................15
02308..................15
02309..................15
02310..................15
02312..................66
02313..................66
02314..................66
02315..................66
02316..................66
02317..................66
02318..................66
02319..................66
02320..................66
02321..................66
02322..................66
02323..................66
02324..................66
02325..................66
02326..................66
02327..................66
02328..................66
02329..................66
02330..................66
02331..................66
02332..................66
02333..................66
02334..................66
02335..................66
02336..................66
02337..................66
02338..................66
02339..................66
02340..................66
02341..................66
02342..................67
02343..................67
02344..................67
02345..................67
02346..................67
02347..................67
02349..................85
02350..................85
02351..................85
02352..................85
02353..................85
02354..................85
02355..................85
02356..................85
02357..................85
02360..................85
02361..................85
02362..................85
02363..................85
02364..................85
02365..................85
02366..................85
02367..................85
02368..................11
02369..................11
02370..................11
02371..................11
02372..................11
02373..................11
02374..................11
02375..................11
02376..................11
02377..................11
02378..................11
02379..................11
02380..................11
02381..................11
02382..................11
02383..................11
02384..................11
02385..................11
02386..................12
02387..................12
02388..................12
02389..................12
02390..................12
02391..................12
02392..................12
02393..................12
02394..................12
02395..................12
02396..................13
02397..................13
02398..................13
02399..................13
02400..................13
02401..................13
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
141
www.sgsmicrotools.com
02402..................62
02403..................62
02404..................62
02405..................62
02406..................62
02407..................62
02408..................62
02409..................62
02410..................62
02411..................62
02412..................62
02413..................62
02414..................62
02415..................62
02416..................62
02417..................62
02418..................63
02419..................63
02420..................63
02421..................63
02422..................63
02423..................63
02424..................63
02425..................63
02426..................63
02427..................63
02428..................63
02429..................64
02430..................64
02431..................64
02432..................64
02433..................64
02434..................64
02435..................64
02436..................15
02437..................15
02438..................15
02439..................15
02440..................15
02441..................15
02442..................15
02443..................15
02444..................15
02445..................15
02446..................15
02447..................15
02448..................15
02449..................15
02450..................15
02451..................15
02452..................15
02453..................16
02454..................16
02455..................16
02456..................16
02457..................16
02458..................16
02459..................16
02460..................16
02461..................16
02462..................16
02463..................17
02464..................17
02465..................17
02466..................17
02467..................17
02468..................17
02469..................17
02470..................67
02471..................67
02472..................67
02473..................67
02474..................67
02475..................67
02476..................67
02477..................67
02478..................67
02479..................67
02480..................67
02481..................67
02482..................67
02483..................67
02484..................67
02485..................67
02486..................67
02487..................67
02488..................68
02489..................68
02490..................68
02491..................68
02492..................68
02493..................68
02494..................68
02495..................68
02496..................68
02497..................68
02498..................69
02499..................69
02500..................69
02501..................69
02502..................69
02503..................69
02504..................21
02505..................21
02506..................21
02507..................21
02508..................21
02509..................21
02510..................21
02511..................21
02512..................21
02513..................21
02514..................21
02515..................21
02516..................21
02517..................21
02518..................21
02519..................21
02520..................21
02521..................21
02522..................21
02523..................21
02524..................21
02525..................21
02526..................21
02527..................21
02528..................21
02529..................21
02530..................21
02531..................21
02532..................21
02533..................21
02534..................21
02535..................21
02536..................21
02537..................21
02538..................75
02539..................75
02540..................75
02541..................76
02542..................76
02543..................76
02544..................76
02545..................76
02546..................76
02547..................76
02548..................76
02549..................76
02550..................76
02551..................76
02552..................76
02553..................76
02554..................76
02555..................76
02556..................76
02557..................76
02558..................76
02559..................76
02560..................76
02561..................76
02562..................76
02563..................76
02564..................76
02565..................76
02566..................76
02567..................76
02568..................76
02569..................76
02570..................76
02571..................76
02572..................23
02573..................23
02574..................23
02575..................23
02576..................23
02577..................23
02578..................23
02579..................23
02580..................23
02581..................23
02582..................23
02583..................23
02584..................23
02585..................23
02586..................23
02587..................23
02588..................23
02589..................23
02590..................23
02591..................23
02592..................23
02593..................23
02594..................23
02595..................23
02596..................23
02597..................23
02598..................23
02599..................23
02600..................23
02601..................23
02602..................23
02603..................23
02604..................23
02605..................23
02606..................77
02607..................77
02608..................77
02609..................78
02610..................78
02611..................78
02612..................78
02613..................78
02614..................78
02615..................78
02616..................78
02617..................78
02618..................78
02619..................78
02620..................78
02621..................78
02622..................78
02623..................78
02624..................78
02625..................78
02626..................78
02627..................78
02628..................78
02629..................78
02630..................78
02631..................78
02632..................78
02633..................78
02634..................78
02635..................78
02636..................78
02637..................78
02638..................78
02639..................78
02640..................72
02641..................72
02642..................72
02643..................72
02644..................72
02645..................72
02646..................72
02647..................72
02648..................72
02649..................72
02650..................72
02651..................72
02652..................72
02653..................72
02654..................72
02655..................72
02656..................72
02657..................72
02658..................72
02659..................72
02660..................72
02661..................72
02662..................72
02663..................72
02664..................72
02665..................72
02666..................72
02667..................73
02668..................73
02669..................73
02670..................73
02671..................73
02672..................73
02673..................73
02674..................73
02675..................73
02676..................73
02677..................73
02678..................73
02679..................73
02680..................73
02681..................73
02682..................73
02683..................73
02684..................73
02685..................73
02686..................73
02687..................73
02688..................73
02689..................73
02690..................73
02691..................73
02692..................73
02693..................73
02694..................74
02695..................74
02696..................74
02697..................74
02698..................74
02699..................74
02700..................74
02701..................74
02702..................74
02703..................74
02704..................74
02705..................74
02706..................74
02707..................74
02708..................74
02709..................74
02710..................74
02711..................74
02712..................74
02713..................74
02714..................74
02715..................74
02716..................74
02717..................74
02718..................74
02719..................74
02720..................81
02721..................81
02722..................81
02723..................81
02724..................81
02725..................81
02726..................81
02727..................81
02728..................81
02729..................81
02730..................81
02731..................81
02732..................81
02733..................81
02734..................81
02735..................81
02736..................81
02737..................81
02738..................81
02739..................81
02740..................81
02741..................81
02742..................81
02743..................81
02744..................81
02745..................81
02746..................81
02747..................82
02748..................82
02749..................82
02750..................82
02751..................82
02752..................82
02753..................82
02754..................82
02755..................82
02756..................82
02757..................82
02758..................82
02759..................82
02760..................82
02761..................82
02762..................82
02763..................82
02764..................82
02765..................82
02766..................82
02767..................82
02768..................82
02769..................82
02770..................82
02771..................82
02772..................82
02773..................82
02774..................83
02775..................83
02776..................83
02777..................83
02778..................83
02779..................83
02780..................83
02781..................83
02782..................83
02783..................83
02784..................83
02785..................83
02786..................83
02787..................83
02788..................83
02789..................83
02790..................83
02791..................83
02792..................83
02793..................83
02794..................83
02795..................83
02796..................83
02797..................83
02798..................83
02799..................83
02801..................84
02802..................84
02803..................84
02804..................84
02805..................84
02806..................84
02807..................84
02808..................84
02809..................84
02811..................85
02819..................84
02829..................88
02839..................93
02849..................87
02859..................92
02860..................84
02861..................84
02862..................84
02863..................84
02864..................84
02865..................84
02866..................84
02867..................84
02868..................84
02869..................84
02870..................84
02871..................84
02872..................85
02873..................85
02874..................85
02875..................85
02876..................85
02877..................85
02878..................85
02879..................85
02880..................86
02881..................86
02882..................86
02883..................86
02884..................86
02885..................86
02886..................86
02887..................86
02888..................86
02889..................86
02890..................86
02891..................86
02892..................84
02893..................84
02894..................84
02895..................84
02896..................84
02897..................84
02898..................84
02899..................84
02900..................84
02901..................84
02902..................84
02903..................84
02904..................85
02905..................85
02906..................85
02907..................85
02908..................85
02909..................85
02910..................85
02911..................86
02912..................86
02913..................86
02914..................86
02915..................86
02916..................87
02917..................87
02918..................87
02919..................87
02920..................87
02921..................87
02922..................87
02923..................87
02924..................87
02925..................87
02926..................87
02927..................87
02928..................92
02929..................92
02930..................92
02931..................92
02932..................92
02933..................92
02934..................92
02935..................92
02936..................92
02937..................92
02938..................92
02939..................92
02940..................88
02941..................88
02942..................88
02943..................88
02944..................88
02945..................88
02946..................88
02947..................88
02948..................88
02949..................89
02950..................89
02951..................89
02952..................89
02953..................89
02954..................89
02955..................89
02956..................89
02957..................89
02958..................89
02959..................89
02960..................93
02961..................93
02962..................93
02963..................93
02964..................93
02965..................93
02966..................93
02967..................93
02968..................93
02969..................93
02970..................93
02971..................93
02972..................93
02973..................93
02974..................93
02975..................93
02976..................93
02977..................93
02978..................93
02979..................93
02980..................87
02981..................87
02982..................87
02983..................87
02984..................87
02985..................87
02986..................87
02987..................87
02988..................87
02989..................87
02990..................87
02991..................87
02992..................92
02993..................92
02994..................92
02995..................92
02996..................92
02997..................92
02998..................92
02999..................92
03000..................92
03001..................92
03002..................92
03003..................92
03004..................88
03005..................88
03006..................88
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
142 www.sgsmicrotools.com
03007..................88
03008..................88
03009..................88
03010..................88
03011..................88
03012..................88
03013..................89
03014..................89
03015..................89
03016..................93
03017..................93
03018..................93
03019..................93
03020..................93
03021..................93
03022..................93
03023..................93
03024..................93
03025..................93
03026..................93
03027..................93
03029..................20
03030..................20
03031..................20
03032..................20
03033..................20
03034..................20
03035..................20
03036..................20
03037..................20
03038..................20
03039..................20
03040..................20
03041..................20
03042..................20
03043..................20
03044..................20
03045..................20
03046..................20
03047..................20
03048..................20
03049..................20
03050..................20
03051..................20
03052..................20
03053..................20
03054..................20
03055..................20
03056..................20
03057..................20
03058..................20
03059..................20
03060..................20
03061..................20
03062..................20
03063..................20
03064..................20
03071..................75
03072..................75
03073..................75
03074..................75
03075..................75
03076..................75
03077..................75
03078..................75
03079..................75
03080..................75
03081..................75
03082..................75
03083..................75
03084..................75
03085..................75
03086..................75
03087..................75
03088..................75
03089..................75
03090..................75
03091..................75
03092..................75
03093..................75
03094..................75
03095..................75
03096..................75
03097..................75
03098..................75
03099..................75
03100..................75
03101..................75
03103..................22
03104..................22
03105..................22
03106..................22
03107..................22
03108..................22
03109..................22
03110 .................22
03111..................22
03112..................22
03113..................22
03114..................22
03115..................22
03116..................22
03117..................22
03118..................22
03119..................22
03120..................22
03121..................22
03122..................22
03123..................22
03124..................22
03125..................22
03126..................22
03127..................22
03128..................22
03129..................22
03130..................22
03131..................22
03132..................22
03133..................22
03134..................22
03135..................22
03136..................22
03137..................22
03138..................22
03145..................77
03146..................77
03147..................77
03148..................77
03149..................77
03150..................77
03151..................77
03152..................77
03153..................77
03154..................77
03155..................77
03156..................77
03157..................77
03158..................77
03159..................77
03160..................77
03161..................77
03162..................77
03163..................77
03164..................77
03165..................77
03166..................77
03167..................77
03168..................77
03169..................77
03170..................77
03171..................77
03172..................77
03173..................77
03174..................77
03175..................77
03180..................87
03181..................87
03182..................87
03183..................87
03184..................87
03185..................87
03195..................92
03200..................88
03201..................88
03202..................88
03203..................88
03204..................88
03205..................88
03215..................93
03400..................18
03401..................18
03402..................18
03403..................18
03404..................18
03405..................18
03406..................18
03407..................18
03408..................18
03409..................18
03410..................18
03411..................18
03412..................18
03413..................18
03414..................18
03415..................18
03416..................18
03417..................18
03418..................18
03419..................18
03420..................18
03421..................18
03422..................18
03423..................18
03424..................18
03425..................18
03426..................18
03427..................19
03428..................19
03429..................19
03430..................19
03431..................19
03432..................19
03433..................19
03434..................19
03435..................19
03436..................19
03437..................19
03438..................19
03439..................19
03440..................19
03441..................19
03442..................19
03443..................19
03444..................19
03445..................19
03446..................19
03447..................19
03448..................19
03449..................19
03450..................19
03451..................19
03452..................19
03453..................19
03454..................70
03455..................70
03456..................70
03457..................70
03458..................70
03459..................70
03460..................70
03461..................70
03462..................70
03463..................70
03464..................70
03465..................70
03466..................70
03467..................70
03468..................70
03469..................70
03470..................70
03471..................70
03472..................70
03473..................70
03474..................70
03475..................70
03476..................70
03477..................70
03478..................70
03479..................70
03480..................70
03481..................71
03482..................71
03483..................71
03484..................71
03485..................71
03486..................71
03487..................71
03488..................71
03489..................71
03490..................71
03491..................71
03492..................71
03493..................71
03494..................71
03495..................71
03496..................71
03497..................71
03498..................71
03499..................71
03500..................71
03501..................71
03502..................71
03503..................71
03504..................71
03505..................71
03506..................71
03507..................71
03508..................28
03509..................28
03510..................28
03511..................28
03512..................28
03513..................28
03514..................28
03515..................28
03516..................28
03517..................28
03518..................28
03519..................28
03520..................28
03521..................28
03522..................28
03523..................28
03524..................28
03525..................28
03526..................28
03527..................28
03528..................28
03529..................28
03530..................28
03531..................28
03532..................28
03533..................28
03534..................28
03535..................29
03536..................29
03537..................29
03538..................29
03539..................29
03540..................29
03541..................29
03542..................29
03543..................29
03544..................29
03545..................29
03546..................29
03547..................29
03548..................29
03549..................29
03550..................29
03551..................30
03552..................30
03553..................30
03554..................30
03555..................30
03556..................30
03557..................30
03558..................30
03559..................30
03560..................30
03561..................30
03562..................31
03563..................31
03564..................31
03565..................31
03566..................31
03567..................31
03568..................31
03569..................31
03570..................31
03571..................31
03572..................31
03573..................31
03574..................31
03575..................31
03576..................31
03577..................31
03578..................31
03579..................32
03580..................32
03581..................32
03582..................32
03583..................32
03584..................32
03585..................32
03586..................32
03587..................32
03588..................32
03589..................33
03590..................33
03591..................33
03592..................33
03593..................33
03594..................33
03595..................33
03596..................33
03597..................33
03598..................33
03599..................33
03600..................33
03601..................33
03602..................33
03603..................33
03604..................33
03605..................33
03606..................34
03607..................34
03608..................34
03609..................34
03610..................34
03611..................34
03612..................34
03613..................34
03614..................34
03615..................34
03616..................35
03617..................35
03618..................35
03619..................35
03620..................35
03621..................35
03622..................35
03623..................35
03624..................35
03625..................35
03626..................35
03627..................35
03628..................35
03629..................35
03630..................35
03631..................35
03632..................35
03633..................35
03634..................35
03635..................35
03636..................35
03637..................35
03638..................35
03639..................35
03640..................35
03641..................35
03642..................35
03643..................36
03644..................36
03645..................36
03646..................36
03647..................36
03648..................36
03649..................36
03650..................36
03651..................36
03652..................36
03653..................36
03654..................36
03655..................36
03656..................36
03657..................36
03658..................36
03659..................36
03660..................36
03661..................36
03662..................36
03663..................36
03664..................36
03665..................36
03666..................36
03667..................36
03668..................36
03669..................36
03670..................37
03671..................37
03672..................37
03673..................37
03674..................37
03675..................37
03676..................37
03677..................37
03678..................37
03679..................37
03680..................37
03681..................37
03682..................37
03683..................37
03684..................37
03685..................37
03686..................37
03687..................37
03688..................37
03689..................37
03690..................37
03691..................37
03692..................37
03693..................37
03694..................37
03695..................37
03696..................37
03697..................24
03698..................24
03699..................24
03700..................24
03701..................24
03702..................24
03703..................24
03704..................24
03705..................24
03706..................24
03707..................24
03708..................24
03709..................24
03710..................24
03711..................24
03712..................24
03713..................24
03714..................24
03715..................24
03716..................24
03717..................24
03718..................24
03719..................24
03720..................24
03721..................24
03722..................24
03723..................24
03724..................25
03725..................25
03726..................25
03727..................25
03728..................25
03729..................25
03730..................25
03731..................25
03732..................25
03733..................25
03734..................25
03735..................25
03736..................25
03737..................25
03738..................25
03739..................25
03740..................25
03741..................25
03742..................25
03743..................25
03744..................25
03745..................25
03746..................25
03747..................25
03748..................25
03749..................25
03750..................25
03751..................79
03752..................79
03753..................79
03754..................79
03755..................79
03756..................79
03757..................79
03758..................79
03759..................79
03760..................79
03761..................79
03762..................79
03763..................79
03764..................79
03765..................79
03766..................79
03767..................79
03768..................79
03769..................79
03770..................79
03771..................79
03772..................79
03773..................79
03774..................79
03775..................79
03776..................79
03777..................79
03778..................80
03779..................80
03780..................80
03781..................80
03782..................80
03783..................80
03784..................80
03785..................80
03786..................80
03787..................80
03788..................80
03789..................80
03790..................80
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
143
www.sgsmicrotools.com
03791..................80
03792..................80
03793..................80
03794..................80
03795..................80
03796..................80
03797..................80
03798..................80
03799..................80
03800..................80
03801..................80
03802..................80
03803..................80
03804..................80
03805..................47
03806..................47
03807..................47
03808..................47
03809..................47
03810..................47
03811..................47
03812..................47
03813..................47
03814..................47
03815..................47
03816..................47
03817..................47
03818..................47
03819..................47
03820..................47
03821..................47
03822..................47
03823..................47
03824..................47
03825..................47
03826..................47
03827..................47
03828..................47
03829..................47
03830..................47
03831..................47
03832..................48
03833..................48
03834..................48
03835..................48
03836..................48
03837..................48
03838..................48
03839..................48
03840..................48
03841..................48
03842..................48
03843..................48
03844..................48
03845..................48
03846..................48
03847..................48
03848..................48
03849..................48
03850..................48
03851..................48
03852..................48
03853..................48
03854..................48
03855..................48
03856..................48
03857..................48
03858..................48
03859..................49
03860..................49
03861..................49
03862..................49
03863..................49
03864..................49
03865..................49
03866..................49
03867..................49
03868..................49
03869..................49
03870..................49
03871..................49
03872..................49
03873..................49
03874..................49
03875..................49
03876..................49
03877..................49
03878..................49
03879..................49
03880..................49
03881..................49
03882..................49
03883..................49
03884..................49
03885..................49
03886..................50
03887..................50
03888..................50
03889..................50
03890..................50
03891..................50
03892..................50
03893..................50
03894..................50
03895..................50
03896..................50
03897..................50
03898..................50
03899..................50
03900..................50
03901..................50
03902..................50
03903..................50
03904..................50
03905..................50
03906..................50
03907..................50
03908..................50
03909..................50
03910..................50
03911..................50
03912..................50
03913..................51
03914..................51
03915..................51
03916..................51
03917..................51
03918..................51
03919..................51
03920..................51
03921..................51
03922..................51
03923..................51
03924..................51
03925..................51
03926..................51
03927..................51
03928..................51
03929..................51
03930..................51
03931..................51
03932..................51
03933..................51
03934..................51
03935..................51
03936..................51
03937..................51
03938..................51
03939..................51
03940..................52
03941..................52
03942..................52
03943..................52
03944..................52
03945..................52
03946..................52
03947..................52
03948..................52
03949..................52
03950..................52
03951..................52
03952..................52
03953..................52
03954..................52
03955..................52
03956..................52
03957..................52
03958..................52
03959..................52
03960..................52
03961..................52
03962..................52
03963..................52
03964..................52
03965..................52
03966..................52
03967..................53
03968..................53
03969..................53
03970..................53
03971..................53
03972..................53
03973..................53
03974..................53
03975..................53
03976..................53
03977..................53
03978..................53
03979..................53
03980..................53
03981..................53
03982..................53
03983..................53
03984..................53
03985..................53
03986..................53
03987..................53
03988..................53
03989..................53
03990..................53
03991..................53
03992..................53
03993..................53
04000..................10
04001..................14
04002..................12
04003..................16
04004..................10
04005..................14
04006..................12
04007..................16
04008..................21
04009..................23
04010..................21
04011..................23
04012..................63
04013..................68
04014..................63
04015..................68
04016..................76
04017..................78
04018..................76
04019..................78
04020..................14
04021..................14
04022..................14
04023..................14
04024..................61
04025..................61
04026..................61
04027..................61
04028..................66
04029..................66
04030..................66
04031..................66
04040..................26
04041..................26
04042..................26
04043..................26
04044..................26
04045..................26
04046..................26
04047..................26
04048..................26
04049..................26
04050..................26
04051..................26
04052..................26
04053..................26
04054..................26
04055..................26
04056..................26
04057..................26
04058..................26
04059..................26
04060..................26
04061..................26
04062..................26
04063..................26
04064..................26
04065..................26
04066..................26
04067..................26
04068..................26
04069..................26
04070..................26
04071..................26
04072..................26
04073..................26
04074..................26
04075..................26
04076..................27
04077..................27
04078..................27
04079..................27
04080..................27
04081..................27
04082..................27
04083..................27
04084..................27
04085..................27
04086..................27
04087..................27
04088..................27
04089..................27
04090..................27
04091..................27
04092..................27
04093..................27
04094..................27
04095..................27
04096..................27
04097..................27
04098..................27
04099..................27
04100..................27
04101..................27
04102..................27
04103..................27
04104..................27
04105..................27
04106..................27
04107..................27
04108..................27
04109..................27
04110..................27
04111..................38
04112..................38
04113..................38
04114..................38
04115..................38
04116..................38
04117..................38
04118..................38
04119..................38
04120..................38
04121..................38
04122..................38
04123..................38
04124..................38
04125..................38
04126..................38
04127..................38
04128..................38
04129..................38
04130..................38
04131..................38
04132..................38
04133..................38
04134..................38
04135..................38
04136..................38
04137..................38
04138..................38
04139..................38
04140..................38
04141..................38
04142..................38
04143..................38
04144..................38
04145..................38
04146..................38
04147..................39
04148..................39
04149..................39
04150..................39
04151..................39
04152..................39
04153..................39
04154..................39
04155..................39
04156..................39
04157..................39
04158..................39
04159..................39
04160..................39
04161..................39
04162..................39
04163..................39
04164..................39
04165..................39
04166..................39
04167..................39
04168..................39
04169..................39
04170..................39
04171..................39
04172..................39
04173..................39
04174..................39
04175..................39
04176..................39
04177..................39
04178..................39
04179..................39
04180..................39
04181..................39
04182..................42
04183..................42
04184..................42
04185..................42
04186..................42
04187..................42
04188..................42
04189..................42
04190..................42
04191..................42
04192..................42
04193..................42
04194..................42
04195..................42
04196..................42
04197..................42
04198..................42
04199..................42
04200..................42
04201..................42
04202..................42
04203..................42
04204..................42
04205..................42
04206..................42
04207..................42
04208..................42
04209..................42
04210..................43
04211..................43
04212..................43
04213..................43
04214..................43
04215..................43
04216..................43
04217..................43
04218..................43
04219..................43
04220..................43
04221..................43
04222..................43
04223..................43
04224..................43
04225..................43
04226..................43
04227..................43
04228..................43
04229..................43
04230..................43
04231..................43
04232..................43
04233..................43
04234..................43
04235..................43
04236..................43
04237..................43
04238..................44
04239..................44
04240..................44
04241..................44
04242..................44
04243..................44
04244..................44
04245..................44
04246..................44
04247..................44
04248..................44
04249..................44
04250..................44
04251..................44
04252..................44
04253..................44
04254..................44
04255..................44
04256..................44
04257..................44
04258..................44
04259..................44
04260..................44
04261..................44
04262..................44
04263..................44
04264..................44
04265..................44
04266..................40
04267..................40
04268..................40
04269..................40
04270..................40
04271..................40
04272..................40
04273..................40
04274..................40
04275..................40
04276..................40
04277..................40
04278..................40
04279..................40
04280..................40
04281..................40
04282..................40
04283..................40
04284..................40
04285..................40
04286..................40
04287..................40
04288..................40
04289..................40
04290..................40
04291..................40
04292..................40
04293..................40
04294..................41
04295..................41
04296..................41
04297..................41
04298..................41
04299..................41
04300..................41
04301..................41
04302..................41
04303..................41
04304..................41
04305..................41
04306..................41
04307..................41
04308..................41
04309..................41
04310..................41
04311..................41
04312..................41
04313..................41
04314..................41
04315..................41
04316..................41
04317..................41
04318..................41
04319..................41
04320..................41
04321..................41
04322..................45
04323..................45
04324..................45
04325..................45
04326..................45
04327..................45
04328..................45
04329..................45
04330..................45
04331..................45
04332..................45
04333..................45
04334..................45
04335..................45
04336..................45
04337..................45
04338..................45
04339..................45
04340..................45
04341..................45
04342..................45
04343..................45
04344..................45
04345..................45
04346..................45
04347..................45
04348..................45
04349..................45
04350..................45
04351..................45
04352..................45
04353..................45
04354..................45
04355..................45
04356..................46
04357..................46
04358..................46
04359..................46
04360..................46
04361..................46
04362..................46
04363..................46
04364..................46
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
144 www.sgsmicrotools.com
04365..................46
04366..................46
04367..................46
04368..................46
04369..................46
04370..................46
04371..................46
04372..................46
04373..................46
04374..................46
04375..................46
04376..................46
04377..................46
04378..................46
04379..................46
04380..................46
04381..................46
04382..................46
04383..................46
04384..................46
04385..................46
04386..................46
04387..................46
04388..................54
04389..................54
04390..................54
04391..................54
04392..................54
04393..................54
04394..................54
04395..................54
04396..................54
04397..................54
04398..................54
04399..................54
04400..................54
04401..................54
04402..................54
04403..................54
04404..................54
04405..................54
04406..................54
04407..................54
04408..................54
04409..................54
04410..................54
04411..................54
04412..................54
04413..................54
04414..................54
04415..................54
04416..................54
04417..................54
04418..................54
04419..................54
04420..................54
04421..................54
04422..................55
04423..................55
04424..................55
04425..................55
04426..................55
04427..................55
04428..................55
04429..................55
04430..................55
04431..................55
04432..................55
04433..................55
04434..................55
04435..................55
04436..................55
04437..................55
04438..................55
04439..................55
04440..................55
04441..................55
04442..................55
04443..................55
04444..................55
04445..................55
04446..................55
04447..................55
04448..................55
04449..................55
04450..................55
04451..................55
04452..................55
04453..................55
04454..................58
04455..................58
04456..................58
04457..................58
04458..................58
04459..................58
04460..................58
04461..................58
04462..................58
04463..................58
04464..................58
04465..................58
04466..................58
04467..................58
04468..................58
04469..................58
04470..................58
04471..................58
04472..................58
04473..................58
04474..................58
04475..................58
04476..................58
04477..................58
04478..................58
04479..................58
04480..................58
04481..................58
04482..................59
04483..................59
04484..................59
04485..................59
04486..................59
04487..................59
04488..................59
04489..................59
04490..................59
04491..................59
04492..................59
04493..................59
04494..................59
04495..................59
04496..................59
04497..................59
04498..................59
04499..................59
04500..................59
04501..................59
04502..................59
04503..................59
04504..................59
04505..................59
04506..................59
04507..................59
04508..................59
04509..................59
04510..................60
04511..................60
04512..................60
04513..................60
04514..................60
04515..................60
04516..................60
04517..................60
04518..................60
04519..................60
04520..................60
04521..................60
04522..................60
04523..................60
04524..................60
04525..................60
04526..................60
04527..................60
04528..................60
04529..................60
04530..................60
04531..................60
04532..................60
04533..................60
04534..................60
04535..................60
04536..................60
04537..................60
04538..................56
04539..................56
04540..................56
04541..................56
04542..................56
04543..................56
04544..................56
04545..................56
04546..................56
04547..................56
04548..................56
04549..................56
04550..................56
04551..................56
04552..................56
04553..................56
04554..................56
04555..................56
04556..................56
04557..................56
04558..................56
04559..................56
04560..................56
04561..................56
04562..................56
04563..................56
04564..................56
04565..................56
04566..................57
04567..................57
04568..................57
04569..................57
04570..................57
04571..................57
04572..................57
04573..................57
04574..................57
04575..................57
04576..................57
04577..................57
04578..................57
04579..................57
04580..................57
04581..................57
04582..................57
04583..................57
04584..................57
04585..................57
04586..................57
04587..................57
04588..................57
04589..................57
04590..................57
04591..................57
04592..................57
04593..................57
05000..................84
05001..................85
05002..................84
05003..................85
05004..................87
05005..................88
05006..................87
05007..................88
05008..................87
05009..................88
05010..................87
05011..................88
05012..................88
05013..................88
05014..................88
05015..................88
05016..................88
05017..................87
05018..................88
05019..................87
05020..................88
05021..................87
05022..................88
05023..................87
05024..................88
05025..................88
05026..................88
05027..................88
05028..................88
05029..................88
05030..................92
05031..................93
05032..................92
05033..................93
05034..................92
05035..................93
05036..................92
05037..................93
05038..................92
05039..................93
05040..................92
05041..................93
05042..................92
05043..................93
05044..................92
05045..................93
05046..................92
05047..................93
05048..................92
05049..................93
05050..................92
05051..................93
05052..................92
05053..................93
05054..................91
05055..................91
05056..................91
05057..................91
05058..................91
05059..................91
05060..................91
05061..................91
05062..................91
05063..................91
05064..................91
05065..................91
05066..................91
05067..................91
05068..................91
05069..................91
05070..................91
05071..................91
05072..................91
05073..................91
05074..................91
05075..................91
05076..................90
05077..................90
05078..................90
05079..................90
05080..................90
05081..................90
05082..................90
05083..................90
05084..................90
05085..................90
05086..................90
05087..................90
05088..................90
05089..................90
05090..................91
05091..................91
05092..................91
05093..................91
05094..................91
05095..................91
05096..................91
05097..................91
05098..................91
05099..................91
05100..................91
05101..................91
05102..................91
05103..................91
05104..................91
05105..................91
05106..................91
05107..................91
05108..................91
05109..................91
05110..................91
05111..................91
05112..................90
05113..................90
05114..................90
05115..................90
05116..................90
05117..................90
05118..................90
05119..................90
05120..................90
05121..................90
05122..................90
05123..................90
05124..................90
05125..................90
05270................100
05271................100
05272................100
05273................100
05274................100
05275................100
05276................100
05277................100
05278................100
05279................100
05280................100
05281................100
05282................100
05283................100
05284................100
05285................100
05286................100
05287................100
05288................100
05289................100
05290................100
05291................100
05292................100
05293................100
05294................100
05295................100
05296................100
05297................100
05298................100
05299................100
05300................100
05301................100
05302................100
05303................100
05304................100
05305................100
05306................101
05307................101
05308................101
05309................101
05310................101
05311................101
05312................101
05313................101
05314................101
05315................101
05316................101
05317................101
05318................101
05319................101
05320................101
05321................101
05322................101
05323................101
05324................101
05325................101
05326................101
05327................101
05328................101
05329................101
05330................101
05331................101
05332................101
05333................102
05334................102
05335................102
05336................102
05337................102
05338................102
05339................102
05340................102
05341................102
05342................102
05343................102
05344................102
05345................101
05346................101
05347................101
05348................101
05349................101
05350................101
05351................102
05352................101
05353................102
05354................102
05355................102
05356................102
05357................102
05358................102
05359................102
05360................102
05361................102
05362................102
05363................102
05364................102
05365................102
05366................102
05367................102
05368................102
05369................102
05370................102
05371................102
06000................134
06001................134
06002................134
06003................134
06004................134
06005................134
06006................134
06007................134
06008................134
06009................134
06010................134
06011................134
06012................134
06013................134
06014................134
06015................134
06016................134
06017................134
06018................134
06019................134
06020................134
06021................134
06022................134
06023................134
06024................134
06025................134
06026................134
06027................134
06028................134
06029................134
06030................134
06031................134
06032................134
06033................134
06034................135
06035................135
06036................135
06037................135
06038................135
06039................135
06040................135
06041................135
06042................135
06043................135
06044................135
06045................135
06046................135
06047................135
06048................135
06049................135
06050................135
06051................135
06052................135
06053................135
06054................135
06055................135
06056................135
06057................135
06058................135
06059................135
06060................135
06061................135
07000................107
07001................107
07002................107
07003................107
07004................107
07005................107
07006................107
07007................107
07008................107
07009................107
07010................107
07011................107
07012................107
07013................107
07014................107
07015................107
07016................107
07017................107
07018................107
07019................107
07020................107
07021................107
07022................107
07023................107
07024................107
07025................107
07026................107
07027................107
07028................107
07029................107
07030................107
07031................107
07032................108
07033................108
07034................108
07035................108
07036................108
07037................108
07038................108
07039................108
07040................108
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
145
www.sgsmicrotools.com
07041................108
07042................108
07043................108
07044................108
07045................108
07046................108
07047................108
07048................108
07049................108
07050................108
07051................108
07052................108
07053................108
07054................108
07055................108
07056................108
07057................108
07058................108
07059................108
07060................108
07061................108
07062................108
07063................108
07064................111
07065................111
07066................111
07067................111
07068................111
07069................111
07070................111
07071................111
07072................111
07073................111
07074................111
07075................111
07076................111
07077................111
07078................111
07079................111
07080................111
07081................111
07082................111
07083................111
07084................111
07085................111
07086................111
07087................111
07088................111
07089................111
07090................111
07091................111
07092................111
07093................111
07094................111
07095................111
07096................111
07097................111
07098................111
07099................111
07100................112
07101................112
07102................112
07103................112
07104................112
07105................112
07106................112
07107................112
07108................111
07109................111
07110................112
07111................112
07112................112
07113................112
07114................111
07115................111
07116................112
07117................112
07118................112
07119................112
07120................112
07121................112
07122................112
07123................112
07124................112
07125................112
07126................112
07127................111
07128................112
07129................111
07130................112
07131................112
07132................111
07133................112
07134................111
07135................113
07136................113
07137................112
07138................113
07139................113
07140................112
07141................113
07142................113
07143................112
07144................113
07145................112
07146................113
07147................113
07148................112
07149................113
07150................113
07151................113
07152................113
07153................113
07154................113
07155................113
07156................113
07157................113
07158................113
07159................113
07160................113
07161................113
07162................113
07163................113
07164................113
07165................113
07166................113
07167................113
07168................114
07169................114
07170................114
07171................114
07172................114
07173................114
07174................114
07175................114
07176................114
07177................114
07178................114
07179................114
07180................114
07181................114
07182................114
07183................114
07184................114
07185................114
07186................114
07187................114
07188................114
07189................114
07190................114
07191................114
07192................114
07193................114
07194................114
07195................114
07196................114
07197................114
07198................114
07199................114
07200................114
07201................114
07202................115
07203................115
07204................115
07205................115
07206................115
07207................115
07208................115
07209................115
07210................115
07211................115
07212................115
07213................115
07214................115
07215................115
07216................115
07217................115
07218................115
07219................115
07220................115
07221................115
07222................115
07223................115
07224................115
07225................115
07226................115
07227................115
07228................115
07229................115
07230................115
07231................115
07232................112
07233................112
07234................112
07235................112
07236................111
07237................111
07238................111
07239................111
07240................111
07241................111
07242................111
07243................111
07244................111
07245................111
07246................111
07247................111
07248................111
07249................111
07250................111
07251................111
07252................111
07253................111
07254................111
07255................111
07256................112
07257................112
07258................111
07259................111
07260................111
07261................111
07262................111
07263................111
07264................111
07265................111
07266................112
07267................112
07268................112
07269................112
07270................112
07271................112
07272................112
07273................112
07274................112
07275................112
07276................112
07277................112
07278................112
07279................112
07280................112
07281................112
07282................112
07283................112
07284................112
07285................112
07286................112
07287................113
07288................112
07289................112
07290................113
07291................113
07292................112
07293................112
07294................112
07295................113
07296................112
07297................113
07298................112
07299................112
07300................113
07301................112
07302................113
07303................113
07304................113
07305................113
07306................113
07307................113
07308................113
07309................113
07310................113
07311................113
07312................113
07313................113
07314................113
07315................113
07316................113
07317................113
07318................113
07319................113
07320................113
07321................113
07322................113
07323................113
07324................113
07325................113
07326................113
07327................113
07328................113
07329................113
07330................113
07331................113
07332................113
07333................113
07334................113
07335................113
07336................114
07337................114
07338................114
07339................114
07340................114
07341................114
07342................114
07343................114
07344................114
07345................114
07346................114
07347................114
07348................114
07349................114
07350................114
07351................114
07352................114
07353................114
07354................114
07355................114
07356................114
07357................114
07358................114
07359................114
07360................114
07361................114
07362................114
07363................114
07364................114
07365................114
07366................114
07367................114
07368................114
07369................114
07370................115
07371................115
07372................115
07373................115
07374................115
07375................115
07376................115
07377................115
07378................115
07379................115
07380................115
07381................115
07382................115
07383................115
07384................115
07385................115
07386................115
07387................115
07388................115
07389................115
07390................115
07391................115
07392................115
07393................115
07394................115
07395................115
07396................115
07397................115
07398................115
07399................115
07400................117
07401................117
07402................117
07403................117
07404................117
07405................117
07406................117
07407................117
07408................117
07409................117
07410................117
07411................117
07412................117
07413................117
07414................118
07415................118
07416................118
07417................118
07418................118
07419................118
07420................118
07421................118
07422................118
07423................118
07424................118
07425................118
07426................118
07427................118
07428................118
07429................118
07430................118
07431................118
07432................118
07433................118
07434................118
07435................118
07436................118
07437................118
07438................118
07439................118
07440................118
07441................118
07442................118
07443................118
07444................118
07445................118
07446................118
07447................118
07448................118
07449................118
07450................119
07451................119
07452................119
07453................119
07454................119
07455................119
07456................119
07457................119
07458................119
07459................119
07460 ...............119
07461................119
07462................119
07463................119
07464................119
07465................119
07466................119
07467................119
07468................119
07469................119
07470................119
07471................119
07472................119
07473................119
07474................119
07475................119
07476................119
07477................119
07478................119
07479................119
07480................119
07481................119
07482................119
07483................119
07484................119
07485................119
07486................120
07487................120
07488................120
07489................120
07490................120
07491................120
07492................120
07493................120
07494................120
07495................120
07496................120
07497................120
07498................120
07499................120
07500................120
07501................120
07502................120
07503................120
07504................120
07505................120
07506................120
07507................120
07508................120
07509................120
07510................120
07511................120
07512................120
07513................120
07514................120
07515................120
07516................120
07517................120
07518................120
07519................120
07520................120
07521................120
07522................121
07523................121
07524................121
07525................121
07526................121
07527................121
07528................121
07529................121
07530................121
07531................121
07532................121
07533................121
07534................121
07535................121
07536................121
07537................121
07538................121
07539................121
07540................121
07541................121
07542................121
07543................121
07544................121
07545................121
07546................121
07547................121
07548................121
07549................121
07550................121
07551................121
07552................121
07553................121
07554................121
07555................121
07556................121
07557................121
07558................122
07559................122
07560................122
07561................122
07562................122
07563................122
07564................122
07565................122
07566................122
07567................122
07568................122
07569................122
07570................122
07571................122
07572................122
07573................122
07574................122
07575................122
07576................122
07577................122
07578................122
07579................122
07580................122
07581................122
07582................122
07583................122
07584................122
07585................122
07586................122
07587................122
07588................122
07589................122
07590................122
07591................122
07592................122
07593................122
07594................123
07595................123
07596................123
07597................123
07598................123
07599................123
07600................123
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
146 www.sgsmicrotools.com
07601................123
07602................123
07603................123
07604................123
07605................123
07606................123
07607................123
07608................123
07609................123
07610................123
07611................123
07612................123
07613................123
07614................123
07615................123
07616................123
07617................123
07618................123
07619................123
07620................123
07621................123
07622................123
07623................123
07624................123
07625................123
07626................123
07627................123
07628................123
07629................123
07630................124
07631................124
07632................124
07633................124
07634................124
07635................124
07636................124
07637................124
07638................124
07639................124
07640................124
07641................124
07642................124
07643................124
07644................124
07645................124
07646................124
07647................124
07648................124
07649................124
07650................124
07651................124
07652................124
07653................124
07654................124
07655................124
07656................124
07657................124
07658................124
07659................124
07660................124
07661................124
07662................124
07663................124
07664................124
07665................124
07666................125
07667................125
07668................125
07669................125
07670................125
07671................125
07672................125
07673................125
07674................125
07675................125
07676................125
07677................125
07678................125
07679................125
07680................125
07681................125
07682................125
07683................125
07684................125
07685................125
07686................125
07687................125
07688................125
07689................125
07690................125
07691................125
07692................125
07693................125
07694................125
07695................125
07696................125
07697................125
07698................125
07699................125
07700................125
07701................125
07702................126
07703................126
07704................126
07705................126
07706................126
07707................126
07708................126
07709................126
07710................126
07711................126
07712................126
07713................126
07714................126
07715................126
07716................126
07717................126
07718................126
07719................126
07720................126
07721................126
07722................117
07723................117
07724................117
07725................117
07726................117
07727................117
07728................117
07729................117
07730................117
07731................117
07732................117
07733................117
07734................117
07735................117
07736................117
07737................117
07738................117
07739................117
07740................117
07741................117
07742................117
07743................117
07744................117
07745................117
07746................117
07747................117
07748................117
07749................117
07750................117
07751................117
07752................117
07753................117
07754................117
07755................117
07756................117
07757................117
07758................118
07759................118
07760................118
07761................118
07762................118
07763................118
07764................118
07765................118
07766................118
07767................118
07768................118
07769................118
07770................118
07771................118
07772................118
07773................118
07774................118
07775................118
07776................118
07777................118
07778................118
07779................118
07780................118
07781................118
07782................118
07783................118
07784................118
07785................118
07786................118
07787................118
07788................118
07789................118
07790................118
07791................118
07792................118
07793................118
07794................119
07795................119
07796................119
07797................119
07798................119
07799................119
07800................119
07801................119
07802................119
07803................119
07804................119
07805................119
07806................119
07807................119
07808................119
07809................119
07810................119
07811................119
07812................119
07813................119
07814................119
07815................119
07816................119
07817................119
07818................119
07819................119
07820................119
07821................119
07822................119
07823................119
07824................119
07825................119
07826................119
07827................119
07828................119
07829................119
07830................120
07831................120
07832................120
07833................120
07834................120
07835................120
07836................120
07837................120
07838................120
07839................120
07840................120
07841................120
07842................120
07843................120
07844................120
07845................120
07846................120
07847................120
07848................120
07849................120
07850................120
07851................120
07852................120
07853................120
07854................120
07855................120
07856................120
07857................120
07858................120
07859................120
07860................120
07861................120
07862................120
07863................120
07864................120
07865................120
07866................121
07867................121
07868................121
07869................121
07870................121
07871................121
07872................121
07873................121
07874................121
07875................121
07876................121
07877................121
07878................121
07879................121
07880................121
07881................121
07882................121
07883................121
07884................121
07885................121
07886................121
07887................121
07888................121
07889................121
07890................121
07891................121
07892................121
07893................121
07894................121
07895................121
07896................121
07897................121
07898................121
07899................121
07900................121
07901................121
07902................122
07903................122
07904................122
07905................122
07906................122
07907................122
07908................122
07909................122
07910................122
07911................122
07912................122
07913................122
07914................122
07915................122
07916................122
07917................122
07918................122
07919................122
07920................122
07921................122
07922................122
07923................122
07924................122
07925................122
07926................122
07927................122
07928................122
07929................122
07930................122
07931................122
07932................122
07933................122
07934................122
07935................122
07936................122
07937................122
07938................123
07939................123
07940................123
07941................123
07942................123
07943................123
07944................123
07945................123
07946................123
07947................123
07948................123
07949................123
07950................123
07951................123
07952................123
07953................123
07954................123
07955................123
07956................123
07957................123
07958................123
07959................123
07960................123
07961................123
07962................123
07963................123
07964................123
07965................123
07966................123
07967................123
07968................123
07969................123
07970................123
07971................123
07972................123
07973................123
07974................124
07975................124
07976................124
07977................124
07978................124
07979................124
07980................124
07981................124
07982................124
07983................124
07984................124
07985................124
07986................124
07987................124
07988................124
07989................124
07990................124
07991................124
07992................124
07993................124
07994................124
07995................124
07996................124
07997................124
07998................124
07999................124
08000................124
08001................124
08002................124
08003................124
08004................124
08005................124
08006................124
08007................124
08008................124
08009................124
08010................125
08011................125
08012................125
08013................125
08014................125
08015................125
08016................125
08017................125
08018................125
08019................125
08020................125
08021................125
08022................125
08023................125
08024................125
08025................125
08026................125
08027................125
08028................125
08029................125
08030................125
08031................125
08032................125
08033................125
08034................125
08035................125
08036................125
08037................125
08038................125
08039................125
08040................125
08041................125
08042................125
08043................125
08044................125
08045................125
08046................126
08047................126
08048................126
08049................126
08050................126
08051................126
08052................126
08053................126
08054................126
08055................126
08056................126
08057................126
08058................126
08059................126
08060................126
08061................126
08062................126
08063................126
08064................126
08065................126
08066................127
08067................127
08068................127
08069................127
08070................127
08071................127
08072................127
08073................127
08074................127
08075................127
08076................127
08077................127
08078................127
08079................128
08080................128
08081................128
08082................128
08083................128
08084................128
08085................128
08086................128
08087................128
08088................128
08089................128
08090................128
08091................128
08092................128
08093................128
08094................128
08095................128
08096................128
08097................128
08098................128
08099................128
08100................128
08101................128
08102................128
08103................128
08104................128
08105................128
08106................128
08107................128
08108................128
08109................128
08110................128
08111................128
08112................128
08113................129
08114................129
08115................129
08116................129
08117................129
08118................129
08119................129
08120................129
08121................129
08122................129
08123................129
08124................129
08125................129
08126................129
08127................129
08128................129
08129................129
08130................129
08131................129
08132................129
08133................129
08134................129
08135................129
08136................129
08137................129
08138................129
08139................129
08140................129
08141................129
08142................129
08143................129
08144................129
08145................129
08146................129
08147................130
08148................130
08149................130
08150................130
08151................130
08152................130
08153................130
08154................130
08155................130
08156................130
08157................130
08158................130
08159................130
08160................130
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
147
www.sgsmicrotools.com
08161................130
08162................130
08163................130
08164................130
08165................130
08166................130
08167................130
08168................130
08169................130
08170................130
08171................130
08172................130
08173................130
08174................130
08175................130
08176................130
08177................130
08178................130
08179................130
08180................130
08181................131
08182................131
08183................131
08184................131
08185................131
08186................131
08187................131
08188................131
08189................131
08190................131
08191................131
08192................131
08193................131
08194................131
08195................131
08196................131
08197................131
08198................131
08199................131
08200................131
08201................131
08202................131
08203................131
08204................131
08205................131
08206................131
08207................131
08208................131
08209................131
08210................131
08211................131
08212................131
08213................131
08214................131
08215................132
08216................132
08217................132
08218................132
08219................132
08220................132
08221................132
08222................132
08223................132
08224................132
08225................132
08226................132
08227................132
08228................127
08229................127
08230................127
08231................127
08232................127
08233................127
08234................127
08235................127
08236................127
08237................127
08238................127
08239................127
08240................127
08241................127
08242................127
08243................127
08244................127
08245................127
08246................127
08247................127
08248................127
08249................127
08250................127
08251................127
08252................127
08253................127
08254................127
08255................127
08256................127
08257................127
08258................127
08259................127
08260................127
08261................127
08262................128
08263................128
08264................128
08265................128
08266................128
08267................128
08268................128
08269................128
08270................128
08271................128
08272................128
08273................128
08274................128
08275................128
08276................128
08277................128
08278................128
08279................128
08280................128
08281................128
08282................128
08283................128
08284................128
08285................128
08286................128
08287................128
08288................128
08289................128
08290................128
08291................128
08292................128
08293................128
08294................128
08295................128
08296................129
08297................129
08298................129
08299................129
08300................129
08301................129
08302................129
08303................129
08304................129
08305................129
08306................129
08307................129
08308................129
08309................129
08310................129
08311................129
08312................129
08313................129
08314................129
08315................129
08316................129
08317................129
08318................129
08319................129
08320................129
08321................129
08322................129
08323................129
08324................129
08325................129
08326................129
08327................129
08328................129
08329................129
08330................130
08331................130
08332................130
08333................130
08334................130
08335................130
08336................130
08337................130
08338................130
08339................130
08340................130
08341................130
08342................130
08343................130
08344................130
08345................130
08346................130
08347................130
08348................130
08349................130
08350................130
08351................130
08352................130
08353................130
08354................130
08355................130
08356................130
08357................130
08358................130
08359................130
08360................130
08361................130
08362................130
08363................130
08364................131
08365................131
08366................131
08367................131
08368................131
08369................131
08370................131
08371................131
08372................131
08373................131
08374................131
08375................131
08376................131
08377................131
08378................131
08379................131
08380................131
08381................131
08382................131
08383................131
08384................131
08385................131
08386................131
08387................131
08388................131
08389................131
08390................131
08391................131
08392................131
08393................131
08394................131
08395................131
08396................131
08397................131
08398................132
08399................132
08400................132
08401................132
08402................132
08403................132
08404................132
08405................132
08406................132
08407................132
08408................132
08409................132
08410................132
08500..................10
08501..................14
08502..................10
08503..................14
08504..................10
08505..................10
08506..................14
08507..................10
08508..................14
08509..................11
08510..................15
08511..................11
08512..................15
08513..................11
08514..................15
08515..................11
08516..................15
08517..................11
08518..................15
08519..................11
08520..................15
08521..................11
08522..................15
08523..................11
08524..................15
08525..................11
08526..................15
08527..................11
08528..................15
08529..................11
08530..................15
08531..................11
08532..................15
08533..................12
08534..................16
08535..................12
08536..................16
08537..................12
08538..................16
08539..................12
08540..................16
08541..................12
08542..................16
08543..................12
08544..................16
08545..................12
08546..................16
08547..................12
08548..................16
08549..................12
08550..................16
08551..................12
08552..................16
08553..................12
08554..................16
08555..................12
08556..................16
08557..................12
08558..................16
08559..................12
08560..................16
08561..................12
08562..................16
08563..................12
08564..................16
08565..................12
08566..................16
08567..................12
08568..................16
08569..................12
08570..................16
08571..................12
08572..................16
08573..................12
08574..................16
08575..................12
08576..................16
08577..................12
08578..................16
08579..................12
08580..................16
08581..................12
08582..................16
08583..................13
08584..................17
08585..................13
08586..................17
08587..................13
08588..................17
08589..................13
08590..................17
08591..................13
08592..................17
08593..................13
08594..................17
08595..................13
08596..................17
08597..................13
08598..................17
08599..................13
08600..................17
08601..................13
08602..................17
08603..................13
08604..................17
08605..................13
08606..................17
08607..................13
08608..................17
08609..................13
08610..................17
08611..................13
08612..................17
08613..................13
08614..................17
08615..................13
08616..................17
08617..................13
08618..................17
08619..................13
08620..................17
08621..................13
08622..................17
08623..................13
08624..................17
08625..................13
08626..................17
08627..................13
08628..................17
08629..................13
08630..................17
08631..................13
08632..................17
08633..................13
08634..................17
08635..................13
08636..................17
08637..................13
08638..................17
08639..................13
08640..................17
08641..................10
08642..................14
08643..................10
08644..................14
08645..................10
08646..................10
08647..................14
08648..................10
08649..................14
08650..................11
08651..................15
08652..................11
08653..................15
08654..................11
08655..................15
08656..................11
08657..................15
08658..................11
08659..................15
08660..................11
08661..................15
08662..................11
08663..................15
08664..................11
08665..................15
08666..................11
08667..................15
08668..................11
08669..................15
08670..................11
08671..................15
08672..................11
08673..................15
08674..................12
08675..................16
08676..................12
08677..................16
08678..................12
08679..................16
08680..................12
08681..................16
08682..................12
08683..................16
08684..................12
08685..................16
08686..................12
08687..................16
08688..................12
08689..................16
08690..................12
08691..................16
08692..................12
08693..................16
08694..................12
08695..................16
08696..................12
08697..................16
08698..................12
08699..................16
08700..................12
08701..................16
08702..................12
08703..................16
08704..................12
08705..................16
08706..................12
08707..................16
08708..................12
08709..................16
08710..................12
08711..................16
08712..................12
08713..................16
08714..................12
08715..................16
08716..................12
08717..................16
08718..................12
08719..................16
08720..................12
08721..................16
08722..................12
08723..................16
08724..................13
08725..................17
08726..................13
08727..................17
08728..................13
08729..................17
08730..................13
08731..................17
08732..................13
08733..................17
08734..................13
08735..................17
08736..................13
08737..................17
08738..................13
08739..................17
08740..................13
08741..................17
08742..................13
08743..................17
08744..................13
08745..................17
08746..................13
08747..................17
08748..................13
08749..................17
08750..................13
08751..................17
08752..................13
08753..................17
08754..................13
08755..................17
08756..................13
08757..................17
08758..................13
08759..................17
08760..................13
08761..................17
08762..................13
08763..................17
08764..................13
08765..................17
08766..................13
08767..................17
08768..................13
08769..................17
08770..................13
08771..................17
08772..................13
08773..................17
08774..................13
08775..................17
08776..................13
08777..................17
08778..................13
08779..................17
08780..................13
08781..................17
08782..................29
08783..................31
08784..................33
08785..................29
08786..................31
08787..................33
08788..................29
08789..................31
08790..................33
08791..................29
08792..................31
08793..................33
08794..................29
08795..................31
08796..................33
08797..................29
08798..................31
08799..................33
08800..................29
08801..................31
08802..................33
08803..................29
08804..................31
08805..................33
08806..................29
08807..................31
08808..................33
08809..................29
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
148 www.sgsmicrotools.com
08810..................31
08811..................33
08812..................29
08813..................31
08814..................33
08815..................29
08816..................31
08817..................33
08818..................29
08819..................31
08820..................33
08821..................29
08822..................31
08823..................33
08824..................29
08825..................31
08826..................33
08827..................29
08828..................31
08829..................33
08830..................29
08831..................31
08832..................33
08833..................29
08834..................31
08835..................33
08836..................30
08837..................31
08838..................33
08839..................30
08840..................32
08841..................34
08842..................30
08843..................32
08844..................34
08845..................30
08846..................32
08847..................34
08848..................30
08849..................32
08850..................34
08851..................30
08852..................32
08853..................34
08854..................30
08855..................32
08856..................34
08857..................30
08858..................32
08859..................34
08860..................30
08861..................32
08862..................34
08863..................30
08864..................32
08865..................34
08866..................30
08867..................32
08868..................34
08869..................30
08870..................32
08871..................34
08872..................30
08873..................32
08874..................34
08875..................30
08876..................32
08877..................34
08878..................30
08879..................32
08880..................34
08881..................30
08882..................32
08883..................34
08884..................29
08885..................31
08886..................33
08887..................29
08888..................31
08889..................33
08890..................29
08891..................31
08892..................33
08893..................29
08894..................31
08895..................33
08896..................29
08897..................31
08898..................33
08899..................29
08900..................31
08901..................33
08902..................29
08903..................31
08904..................33
08905..................29
08906..................31
08907..................33
08908..................29
08909..................31
08910..................33
08911..................29
08912..................31
08913..................33
08914..................29
08915..................31
08916..................33
08917..................29
08918..................31
08919..................33
08920..................29
08921..................31
08922..................33
08923..................29
08924..................31
08925..................33
08926..................29
08927..................31
08928..................33
08929..................29
08930..................31
08931..................33
08932..................29
08933..................31
08934..................33
08935..................29
08936..................31
08937..................33
08938..................30
08939..................31
08940..................33
08941..................30
08942..................32
08943..................34
08944..................30
08945..................32
08946..................34
08947..................30
08948..................32
08949..................34
08950..................30
08951..................32
08952..................34
08953..................30
08954..................32
08955..................34
08956..................30
08957..................32
08958..................34
08959..................30
08960..................32
08961..................34
08962..................30
08963..................32
08964..................34
08965..................30
08966..................32
08967..................34
08968..................30
08969..................32
08970..................34
08971..................30
08972..................32
08973..................34
08974..................30
08975..................32
08976..................34
08977..................30
08978..................32
08979..................34
08980..................30
08981..................32
08982..................34
08983..................30
08984..................32
08985..................34
08986..................61
08987..................66
08988..................61
08989..................66
08990..................61
08991..................66
08992..................61
08993..................66
08994..................62
08995..................67
08996..................62
08997..................67
08998..................62
08999..................67
09000..................62
09001..................67
09002..................62
09003..................67
09004..................62
09005..................67
09006..................62
09007..................67
09008..................62
09009..................67
09010..................62
09011..................67
09012..................62
09013..................67
09014..................62
09015..................67
09016..................62
09017..................67
09018..................63
09019..................68
09020..................63
09021..................68
09022..................63
09023..................68
09024..................63
09025..................68
09026..................63
09027..................68
09028..................63
09029..................68
09030..................63
09031..................68
09032..................63
09033..................68
09034..................63
09035..................68
09036..................63
09037..................68
09038..................63
09039..................68
09040..................63
09041..................68
09042..................63
09043..................68
09044..................63
09045..................68
09046..................63
09047..................68
09048..................63
09049..................68
09050..................63
09051..................68
09052..................63
09053..................68
09054..................63
09055..................68
09056..................63
09057..................68
09058..................63
09059..................68
09060..................63
09061..................68
09062..................64
09063..................68
09064..................64
09065..................68
09066..................64
09067..................68
09068..................64
09069..................69
09070..................64
09071..................69
09072..................64
09073..................69
09074..................64
09075..................69
09076..................64
09077..................69
09078..................64
09079..................69
09080..................64
09081..................69
09082..................64
09083..................69
09084..................64
09085..................69
09086..................64
09087..................69
09088..................64
09089..................69
09090..................64
09091..................69
09092..................64
09093..................69
09094..................64
09095..................69
09096..................64
09097..................69
09098..................64
09099..................69
09100..................64
09101..................69
09102..................64
09103..................69
09104..................64
09105..................69
09106..................64
09107..................69
09108..................64
09109..................69
09110..................64
09111..................69
09112..................64
09113..................69
09114..................64
09115..................69
09116..................65
09117..................69
09118..................65
09119..................69
09120..................65
09121..................69
09122..................65
09123..................69
09124..................65
09125..................69
09126..................61
09127..................66
09128..................61
09129..................66
09130..................61
09131..................66
09132..................61
09133..................66
09134..................62
09135..................67
09136..................62
09137..................67
09138..................62
09139..................67
09140..................62
09141..................67
09142..................62
09143..................67
09144..................62
09145..................67
09146..................62
09147..................67
09148..................62
09149..................67
09150..................62
09151..................67
09152..................62
09153..................67
09154..................62
09155..................67
09156..................62
09157..................67
09158..................63
09159..................68
09160..................63
09161..................68
09162..................63
09163..................68
09164..................63
09165..................68
09166..................63
09167..................68
09168..................63
09169..................68
09170..................63
09171..................68
09172..................63
09173..................68
09174..................63
09175..................68
09176..................63
09177..................68
09178..................63
09179..................68
09180..................63
09181..................68
09182..................63
09183..................68
09184..................63
09185..................68
09186..................63
09187..................68
09188..................63
09189..................68
09190..................63
09191..................68
09192..................63
09193..................68
09194..................63
09195..................68
09196..................63
09197..................68
09198..................63
09199..................68
09200..................63
09201..................68
09202..................64
09203..................68
09204..................64
09205..................68
09206..................64
09207..................68
09208..................64
09209..................69
09210..................64
09211..................69
09212..................64
09213..................69
09214..................64
09215..................69
09216..................64
09217..................69
09218..................64
09219..................69
09220..................64
09221..................69
09222..................64
09223..................69
09224..................64
09225..................69
09226..................64
09227..................69
09228..................64
09229..................69
09230..................64
09231..................69
09232..................64
09233..................69
09234..................64
09235..................69
09236..................64
09237..................69
09238..................64
09239..................69
09240..................64
09241..................69
09242..................64
09243..................69
09244..................64
09245..................69
09246..................64
09247..................69
09248..................64
09249..................69
09250..................64
09251..................69
09252..................64
09253..................69
09254..................64
09255..................69
09256..................65
09257..................69
09258..................65
09259..................69
09260..................65
09261..................69
09262..................65
09263..................69
09264..................65
09265..................69
09266..................91
09267..................91
09268..................91
09269..................91
09270..................90
09271..................90
09272..................90
09273..................90
09274..................91
09275..................91
09276..................91
09277..................91
09278..................90
09279..................90
09280..................90
09281..................90
09282..................90
09283..................90
09284..................90
09285..................90
09286..................90
09287..................90
09288..................90
09289..................90
09290..................90
09291..................90
09292..................90
09293..................90
09294..................90
09295..................90
09296..................90
09297..................90
09298..................25
09299..................24
09300..................25
09301..................24
09302..................25
09303..................24
09304..................25
09305..................24
09306..................25
09307..................24
09308..................25
09309..................24
09310..................25
09311..................24
09312..................25
09313..................24
09314..................25
09315..................24
09316..................25
09317..................24
09318..................25
09319..................24
09320..................25
09321..................24
09322..................25
09323..................24
09324..................25
09325..................24
09326..................25
09327..................24
09328..................25
09329..................24
09330..................25
09331..................24
09332..................25
09333..................24
09334..................25
09335..................24
09336..................25
09337..................24
09338..................25
09339..................24
09340..................25
09341..................24
09342..................25
09343..................24
09344..................25
09345..................24
09346..................25
09347..................24
09348..................25
09349..................24
09350..................25
09351..................24
09352..................19
09353..................18
09354..................19
09355..................18
09356..................19
09357..................18
09358..................19
09359..................18
09360..................19
09361..................18
09362..................19
09363..................18
09364..................19
09365..................18
09366..................19
09367..................18
09368..................19
09369..................18
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
149
www.sgsmicrotools.com
09370..................19
09371..................18
09372..................19
09373..................18
09374..................19
09375..................18
09376..................19
09377..................18
09378..................19
09379..................18
09380..................19
09381..................18
09382..................19
09383..................18
09384..................19
09385..................18
09386..................19
09387..................18
09388..................19
09389..................18
09390..................19
09391..................18
09392..................19
09393..................18
09394..................19
09395..................18
09396..................19
09397..................18
09398..................19
09399..................18
09400..................19
09401..................18
09402..................19
09403..................18
09404..................19
09405..................18
09406..................50
09407..................51
09408..................52
09409..................53
09410..................47
09411..................48
09412..................49
09413..................50
09414..................51
09415..................52
09416..................53
09417..................47
09418..................48
09419..................49
09420..................50
09421..................51
09422..................52
09423..................53
09424..................47
09425..................48
09426..................49
09427..................50
09428..................51
09429..................52
09430..................53
09431..................47
09432..................48
09433..................49
09434..................50
09435..................51
09436..................52
09437..................53
09438..................47
09439..................48
09440..................49
09441..................50
09442..................51
09443..................52
09444..................53
09445..................47
09446..................48
09447..................49
09448..................50
09449..................51
09450..................52
09451..................53
09452..................47
09453..................48
09454..................49
09455..................50
09456..................51
09457..................52
09458..................53
09459..................47
09460..................48
09461..................49
09462..................50
09463..................51
09464..................52
09465..................53
09466..................47
09467..................48
09468..................49
09469..................50
09470..................51
09471..................52
09472..................53
09473..................47
09474..................48
09475..................49
09476..................50
09477..................51
09478..................52
09479..................53
09480..................47
09481..................48
09482..................49
09483..................50
09484..................51
09485..................52
09486..................53
09487..................47
09488..................48
09489..................49
09490..................50
09491..................51
09492..................52
09493..................53
09494..................47
09495..................48
09496..................49
09497..................50
09498..................51
09499..................52
09500..................53
09501..................47
09502..................48
09503..................49
09504..................50
09505..................51
09506..................52
09507..................53
09508..................47
09509..................48
09510..................49
09511..................50
09512..................51
09513..................52
09514..................53
09515..................47
09516..................48
09517..................49
09518..................50
09519..................51
09520..................52
09521..................53
09522..................47
09523..................48
09524..................49
09525..................50
09526..................51
09527..................52
09528..................53
09529..................47
09530..................48
09531..................49
09532..................50
09533..................51
09534..................52
09535..................53
09536..................47
09537..................48
09538..................49
09539..................50
09540..................51
09541..................52
09542..................53
09543..................47
09544..................48
09545..................49
09546..................50
09547..................51
09548..................52
09549..................53
09550..................47
09551..................48
09552..................49
09553..................50
09554..................51
09555..................52
09556..................53
09557..................47
09558..................48
09559..................49
09560..................50
09561..................51
09562..................52
09563..................53
09564..................47
09565..................48
09566..................49
09567..................50
09568..................51
09569..................52
09570..................53
09571..................47
09572..................48
09573..................49
09574..................50
09575..................51
09576..................52
09577..................53
09578..................47
09579..................48
09580..................49
09581..................50
09582..................51
09583..................52
09584..................53
09585..................47
09586..................48
09587..................49
09588..................50
09589..................51
09590..................52
09591..................53
09592..................47
09593..................48
09594..................49
09595..................33
09596..................35
09597..................36
09598..................37
09599..................28
09600..................29
09601..................31
09602..................33
09603..................35
09604..................36
09605..................37
09606..................28
09607..................29
09608..................31
09609..................33
09610..................35
09611..................36
09612..................37
09613..................28
09614..................29
09615..................31
09616..................33
09617..................35
09618..................36
09619..................37
09620..................28
09621..................29
09622..................31
09623..................33
09624..................35
09625..................36
09626..................37
09627..................28
09628..................29
09629..................31
09630..................33
09631..................35
09632..................36
09633..................37
09634..................28
09635..................29
09636..................31
09637..................33
09638..................35
09639..................36
09640..................37
09641..................28
09642..................29
09643..................31
09644..................33
09645..................35
09646..................36
09647..................37
09648..................28
09649..................29
09650..................31
09651..................33
09652..................35
09653..................36
09654..................37
09655..................28
09656..................29
09657..................31
09658..................33
09659..................35
09660..................36
09661..................37
09662..................28
09663..................29
09664..................31
09665..................33
09666..................35
09667..................36
09668..................37
09669..................28
09670..................29
09671..................31
09672..................33
09673..................35
09674..................36
09675..................37
09676..................28
09677..................29
09678..................31
09679..................33
09680..................35
09681..................36
09682..................37
09683..................28
09684..................29
09685..................31
09686..................33
09687..................35
09688..................36
09689..................37
09690..................28
09691..................29
09692..................31
09693..................33
09694..................35
09695..................36
09696..................37
09697..................28
09698..................29
09699..................31
09700..................33
09701..................35
09702..................36
09703..................37
09704..................28
09705..................29
09706..................31
09707..................33
09708..................35
09709..................36
09710..................37
09711..................28
09712..................30
09713..................31
09714..................34
09715..................35
09716..................36
09717..................37
09718..................28
09719..................30
09720..................32
09721..................34
09722..................35
09723..................36
09724..................37
09725..................28
09726..................30
09727..................32
09728..................34
09729..................35
09730..................36
09731..................37
09732..................28
09733..................30
09734..................32
09735..................34
09736..................35
09737..................36
09738..................37
09739..................28
09740..................30
09741..................32
09742..................34
09743..................35
09744..................36
09745..................37
09746..................28
09747..................30
09748..................32
09749..................34
09750..................35
09751..................36
09752..................37
09753..................28
09754..................30
09755..................32
09756..................34
09757..................35
09758..................36
09759..................37
09760..................28
09761..................30
09762..................32
09763..................34
09764..................35
09765..................36
09766..................37
09767..................28
09768..................30
09769..................32
09770..................34
09771..................35
09772..................36
09773..................37
09774..................28
09775..................30
09776..................32
09777..................34
09778..................35
09779..................36
09780..................37
09781..................28
09782..................30
09783..................32
09784..................80
09785..................79
09786..................80
09787..................79
09788..................80
09789..................79
09790..................80
09791..................79
09792..................80
09793..................79
09794..................80
09795..................79
09796..................80
09797..................79
09798..................80
09799..................79
09800..................80
09801..................79
09802..................80
09803..................79
09804..................80
09805..................79
09806..................80
09807..................79
09808..................80
09809..................79
09810..................80
09811..................79
09812..................80
09813..................79
09814..................80
09815..................79
09816..................80
09817..................79
09818..................80
09819..................79
09820..................80
09821..................79
09822..................80
09823..................79
09824..................80
09825..................79
09826..................80
09827..................79
09828..................80
09829..................79
09830..................80
09831..................79
09832..................80
09833..................79
09834..................80
09835..................79
09836..................80
09837..................79
09838..................71
09839..................70
09840..................71
09841..................70
09842..................71
09843..................70
09844..................71
09845..................70
09846..................71
09847..................70
09848..................71
09849..................70
09850..................71
09851..................70
09852..................71
09853..................70
09854..................71
09855..................70
09856..................71
09857..................70
09858..................71
09859..................70
09860..................71
09861..................70
09862..................71
09863..................70
09864..................71
09865..................70
09866..................71
09867..................70
09868..................71
09869..................70
09870..................71
09871..................70
09872..................71
09873..................70
09874..................71
09875..................70
09876..................71
09877..................70
09878..................71
09879..................70
09880..................71
09881..................70
09882..................71
09883..................70
09884..................71
09885..................70
09886..................71
09887..................70
09888..................71
09889..................70
09890..................71
09891..................70
EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE EDP NO. PAGE
EDP Number Index
150 www.sgsmicrotools.com
Fraction • Number • Letter • Metric Sizes
Decimal Equivalents
INCH METRIC DECIMAL
EQUIVALENT
– 0,10 0.0039
– 0,20 0.0079
– 0,25 0.0098
– 0,30 0.0118
#80 0,34 0.0135
– 0,35 0.0138
#79 0,37 0.0145
1/64 0,40 0.0156
#78 0,41 0.0160
– 0,45 0.0177
#77 0,46 0.0180
– 0,50 0.0197
#76 0,51 0.0200
#75 0,53 0.0210
– 0,55 0.0217
#74 0,57 0.0225
– 0,60 0.0236
#73 0,61 0.0240
#72 0,64 0.0250
– 0,65 0.0256
#71 0,66 0.0260
– 0,70 0.0276
#70 0,71 0.0280
#69 0,74 0.0292
– 0,75 0.0295
#68 0,79 0.0310
1/32 0,79 0.0313
– 0,80 0.0315
#67 0,81 0.0320
#66 0,84 0.0330
– 0,85 0.0335
#65 0,89 0.0350
– 0,90 0.0354
#64 0,91 0.0360
#63 0,94 0.0370
– 0,95 0.0374
#62 0,97 0.0380
#61 0,99 0.0390
– 1,00 0.0394
#60 1,02 0.0400
#59 1,04 0.0410
– 1,05 0.0413
#58 1,07 0.0420
#57 1,09 0.0430
– 1,10 0.0433
– 1,15 0.0453
#56 1,18 0.0465
3/64 1,19 0.0469
– 1,20 0.0472
– 1,25 0.0492
– 1,30 0.0512
#55 1,32 0.0520
– 1,35 0.0531
#54 1,40 0.0550
#53 1,51 0.0595
– 1,55 0.0610
1/16 1,59 0.0625
INCH METRIC DECIMAL
EQUIVALENT
– 1,60 0.0630
#52 1,61 0.0635
– 1,65 0.0650
#51 1,70 0.0669
– 1,75 0.0689
#50 1,78 0.0700
– 1,80 0.0709
#49 1,85 0.0728
– 1,90 0.0748
#48 1,93 0.0760
– 1,95 0.0768
5/64 1,98 0.0781
#47 1,99 0.0785
– 2,00 0.0787
– 2,05 0.0807
#46 2,06 0.0810
#45 2,08 0.0820
– 2,10 0.0827
– 2,15 0.0846
#44 2,18 0.0860
– 2,20 0.0866
– 2,25 0.0886
#43 2,26 0.0890
– 2,30 0.0906
– 2,35 0.0925
#42 2,37 0.0935
3/32 2,38 0.0938
– 2,40 0.0945
#41 2,44 0.0960
– 2,45 0.0965
#40 2,50 0.0984
#39 2,53 0.0995
#38 2,58 0.1015
– 2,60 0.1024
#37 2,64 0.1040
– 2,70 0.1063
#36 2,71 0.1065
– 2,75 0.1083
7/64 2,78 0.1094
#35 2,79 0.1100
– 2,80 0.1102
#34 2,82 0.1110
#33 2,87 0.1130
–2,90 0.1142
#32 2,95 0.1160
– 3,00 0.1181
#31 3,05 0.1200
– 3,10 0.1220
1/8 3,18 0.1250
– 3,20 0.1260
– 3,25 0.1280
#30 3,26 0.1285
– 3,30 0.1299
– 3,40 0.1339
#29 3,45 0.1360
– 3,50 0.1378
#28 3,57 0.1405
INCH METRIC DECIMAL
EQUIVALENT
9/64 3,57 0.1406
– 3,60 0.1417
#27 3,66 0.1440
– 3,70 0.1457
#26 3,73 0.1470
– 3,75 0.1476
#25 3,80 0.1495
– 3,80 0.1496
#24 3,86 0.1520
– 3,90 0.1535
#23 3,91 0.1540
5/32 3,97 0.1562
#22 3,99 0.1570
– 4,00 0.1575
#21 4,04 0.1590
#20 4,09 0.1610
– 4,10 0.1614
– 4,20 0.1654
#19 4,22 0.1660
– 4,25 0.1673
– 4,30 0.1693
#18 4,31 0.1695
11/64 4,37 0.1719
#17 4,39 0.1730
– 4,40 0.1732
#16 4,50 0.1770
– 4,50 0.1772
#15 4,57 0.1800
– 4,60 0.1811
#14 4,62 0.1820
#13 4,70 0.1850
– 4,75 0.1870
3/16 4,76 0.1875
#12 4,80 0.1890
#11 4,85 0.1910
– 4,90 0.1929
#10 4,91 0.1935
#9 4,98 0.1960
– 5,00 0.1969
#8 5,05 0.1990
– 5,10 0.2008
#7 5,11 0.2010
13/64 5,16 0.2031
#6 5,18 0.2040
– 5,20 0.2047
#5 5,22 0.2055
– 5,25 0.2067
– 5,3 0.2087
#4 5,31 0.2090
– 5,40 0.2126
#3 5,41 0.2130
– 5,50 0.2165
7/32 5,56 0.2188
– 5,60 0.2205
#2 5,61 0.2210
– 5,70 0.2244
– 5,75 0.2264
INCH METRIC DECIMAL
EQUIVALENT
#1 5,79 0.2280
– 5,80 0.2283
– 5,90 0.2323
A 5,94 0.2340
15/64 5,95 0.2344
– 6,00 0.2362
B 6,05 0.2380
– 6,10 0.2402
C 6,15 0.2420
– 6,20 0.2441
D 6,25 0.2461
– 6,30 0.2480
E 6,35 0.2500
1/4 6,35 0.2500
– 6,40 0.2520
– 6,50 0.2559
F 6,53 0.2570
– 6,60 0.2598
G 6,63 0.2610
– 6,70 0.2638
17/64 6,75 0.2656
H 6,76 0.2660
– 6,80 0.2677
– 6,90 0.2717
I 6,91 0.2720
– 7,00 0.2756
J 7,04 0.2770
– 7,10 0.2795
K 7,14 0.2810
9/32 7,14 0.2812
– 7,20 0.2835
– 7,25 0.2854
– 7,30 0.2874
L 7,37 0.2900
– 7,40 0.2913
M 7,49 0.2950
– 7,50 0.2953
19/64 7,54 0.2969
– 7,60 0.2992
N 7,67 0.3020
– 7,70 0.3031
– 7,75 0.3051
– 7,80 0.3071
–7,90 0.3110
5/16 7,94 0.3125
– 8,00 0.3150
O 8,03 0.3160
– 8,10 0.3189
– 8,20 0.3228
P 8,20 0.3230
– 8,25 0.3248
– 8,30 0.3268
21/64 8,33 0.3281
– 8,40 0.3307
Q 8,43 0.3320
– 8,50 0.3346
– 8,60 0.3386
INCH METRIC DECIMAL
EQUIVALENT
R 8,61 0.3390
– 8,70 0.3425
11/32 8,73 0.3438
– 8,75 0.3445
– 8,80 0.3465
S 8,84 0.3480
– 8,90 0.3504
– 9,00 0.3543
T 9,09 0.3580
– 9,10 0.3583
23/64 9,13 0.3594
– 9,20 0.3622
– 9,25 0.3642
– 9,30 0.3661
U 9,35 0.3680
– 9,40 0.3701
– 9,50 0.3740
3/8 9,53 0.3750
V 9,56 0.3770
– 9,60 0.3780
– 9,70 0.3819
– 9,75 0.3839
W 9,80 0.3858
– 9,90 0.3898
25/64 9,92 0.3906
– 10,00 0.3937
X 10,08 0.3970
– 10,10 0.3976
– 10,20 0.4016
Y 10,26 0.4040
– 10,30 0.4055
13/32 10,32 0.4062
– 10,40 0.4094
Z 10,49 0.4130
– 10,50 0.4134
– 10,60 0.4173
– 10,70 0.4213
27/64 10,72 0.4219
– 10,80 0.4252
– 10,90 0.4291
– 11,00 0.4331
– 11,10 0.4370
7/16 11,11 0.4375
–11,20 0.4409
– 11,30 0.4449
– 11,40 0.4488
– 11,50 0.4528
29/64 11,51 0.4531
– 11,60 0.4567
– 11,70 0.4606
– 11,80 0.4646
– 11,90 0.4685
15/32 11,91 0.4688
– 12,00 0.4724
31/64 12,30 0.4844
– 12,50 0.4921
1/2 12,70 0.5000
INCH METRIC DECIMAL
EQUIVALENT
– 13,00 0.5118
33/64 13,10 0.5156
17/32 13,49 0.5312
– 13,50 0.5315
35/64 13,89 0.5469
– 14,00 0.5512
9/16 14,29 0.5625
– 14,50 0.5709
37/64 14,68 0.5781
– 15,00 0.5906
19/32 15,08 0.5938
39/64 15,48 0.6094
– 15,50 0.6102
5/8 15,88 0.6250
– 16,00 0.6299
41/64 16,27 0.6406
– 16,50 0.6496
21/32 16,67 0.6562
– 17,00 0.6693
43/64 17,07 0.6719
11/16 17,46 0.6875
– 17,50 0.6890
45/64 17,86 0.7031
– 18,00 0.7087
23/32 18,26 0.7188
– 18,50 0.7283
47/64 18,65 0.7344
– 19,00 0.7480
3/4 19,05 0.7500
49/64 19,45 0.7656
– 19,50 0.7677
25/32 19,84 0.7812
– 20,00 0.7874
51/64 20,24 0.7969
– 20,50 0.8071
13/16 20,64 0.8125
– 21,00 0.8268
53/64 21,03 0.8281
27/32 21,43 0.8438
– 21,50 0.8465
55/64 21,84 0.8594
– 22,00 0.8661
7/8 22,23 0.8750
–22,50 0.8858
57/64 22,62 0.8906
– 23,00 0.9055
29/32 23,02 0.9062
59/64 23,42 0.9219
– 23,50 0.9252
15/16 23,81 0.9375
– 24,00 0.9449
61/64 24,21 0.9531
– 24,50 0.9646
31/32 24,61 0.9688
– 25,00 0.9843
63/64 25,00 0.9844
1 25,40 1.0000
151
www.sgsmicrotools.com
Hardness Conversion Chart
ROCKWELL
HARDNESS
(HRb)
ROCKWELL
HARDNESS
(HRc)
BRINELL
HARDNESS
(HB)
VICKERS
HARDNESS
(HV)
TENSILE
STRENGTH
(N/mm2)
PSI
(1000lb/in2)
67 – 121 122 401 58
70 – 126 127 432 63
73 – 132 132 448 65
75 – 136 137 455 66
77 – 140 143 463 67
80 – 147 150 479 69
82 – 153 156 494 72
84 – 159 163 525 76
86 – 165 171 540 78
89 – 177 178 556 81
91 – 186 188 602 88
93 – 197 196 632 92
96 – 216 212 664 97
97 – 223 218 695 101
98 21 230 234 756 110
– 22 236 241 772 112
– 23 242 247 787 114
– 24 248 255 818 118
– 25 254 261 849 123
– 27 266 269 865 125
– 28 272 275 895 130
– 29 278 284 911 132
– 30 284 292 942 136
– 31 293 300 973 141
– 32 302 308 988 143
– 33 310 318 1019 147
– 34 319 327 1050 152
– 35 328 337 1096 159
– 37 345 349 1127 163
– 38 353 359 1158 168
– 39 362 370 1189 172
– 40 370 381 1235 179
– 41 381 395 1266 183
– 42 391 408 1312 190
– 44 411 422 1359 197
– 45 422 437 1420 206
– 46 433 452 1467 212
– 48 455 470 1513 219
– 50 479 497 1559 226
– 51 485 517 1621 235
– 52 497 532 1668 241
– 54 – 573 1729 250
– 56 – 609 1807 262
– 57 – 630 1884 273
– 59 – 670 1961 284
– 60 – 698 2039 295
– 61 – 725 – –
– 62 – 740 – –
– 63 – 780 – –
– 64 – 812 – –
– 65 – 847 – –
– 66 – 885 – –
– 67 – 926 – –
– 68 – 971 – –
Conversions from each scale are approximate
