New Expanded Offering
ISO 9001 Certied
Six Flute High Performance End Mills
www.kyocera-sgstool.com
Solid Carbide Tools
®
2www.kyocera-sgstool.com
®

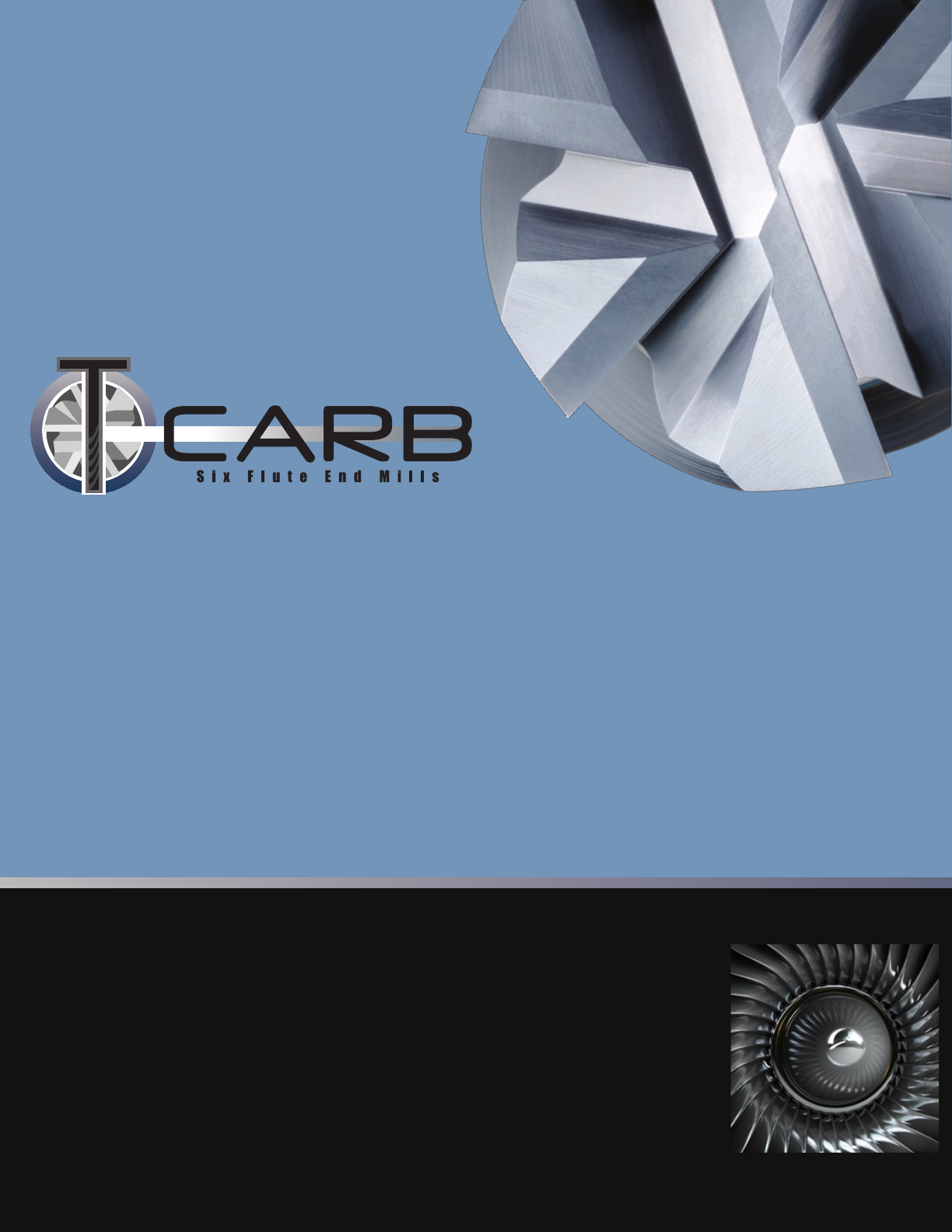

FEATURES & BENEFITS
• Incorporates unique 6-Flute design for High Speed Machining
operations requiring high accuracy and less deection
• Designed for aggressive ramping at high speeds where
evacuation and load might be a factor
• Engineered for High Speed Milling using Trochoidal and
Peel Milling techniques
• Exceptional performance with minimal deection in difcult
materials such as titanium alloys and stainless steels
• Eccentric relief provides superior strength and smoother
surface nish
• Variable Flute Geometry maximizes productivity and tool
life by reducing the harmful harmonics associated with
aggressive milling
• Available in a variety of corner radius and reach options
• Exclusively coated with Ti-NAMITE-X for superior wear
and increased tool life
• New Expanded tools
Ti-NAMITE-X provides outstanding results in a diverse range of applications
including medium-hard to very hard steels (40–65 HRC) and titanium alloys.
The layered design of the coating, along with the nanocomposite grain
structure provides the hardness necessary for extreme wear resistance with
the toughness required to withstand interrupted cutting. Ti-NAMITE-X
allows for a broad spectrum of high-performance machining from
aggressive material removal rates to high speed
machining and nishing.
Hardness (HV): 3600
Oxidation Temperature: 1150°C – 2100°F
Coefcient of Friction: 0.45
Thickness: 1 – 4 Microns (based on tool diameter)
T-CARB® HIGH SPEED MACHINING END MILLS ARE
IDEAL FOR AGGRESSIVE MILLING APPLICATIONS
IN THESE TARGET MARKETS:
Aerospace Structural and Titanium Components
Medical Replacement Parts and Joints
Automotive & Motorized Vehicles
Energy and Power Generation
T-Carb® 6-Flute High Performance End Mills are ideal for aggressive high speed machining
using Trochoidal and Peel Milling techniques. The additional utes allow higher feed rates
at reduced tool loads, ultimately preventing breakage and failure. The variable pitch
geometry allows the T-Carb® to excel in multiple operations calling for aggressive roughing
and nishing, resulting in faster cycle times and lower costs. The series is offered in
a variety of length, neck and corner radius options and is coated with Ti-NAMITE-X for
ultimate thermal barrier protection.
Titanium
®
3www.kyocera-sgstool.com
®

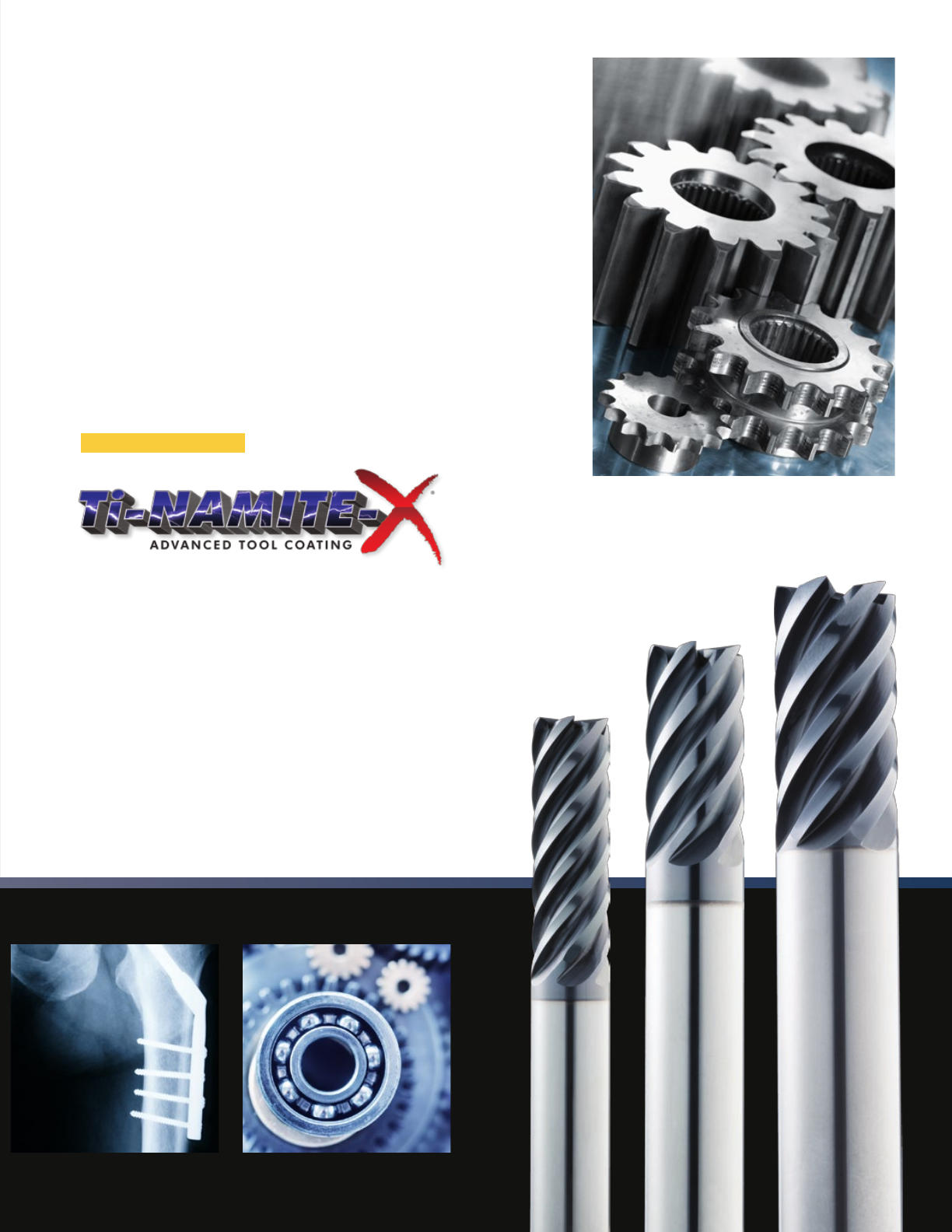

FEATURES & BENEFITS
• Incorporates unique 6-Flute design for High Speed Machining
operations requiring high accuracy and less deection
• Designed for aggressive ramping at high speeds where
evacuation and load might be a factor
• Engineered for High Speed Milling using Trochoidal and
Peel Milling techniques
• Exceptional performance with minimal deection in difcult
materials such as titanium alloys and stainless steels
• Eccentric relief provides superior strength and smoother
surface nish
• Variable Flute Geometry maximizes productivity and tool
life by reducing the harmful harmonics associated with
aggressive milling
• Available in a variety of corner radius and reach options
• Exclusively coated with Ti-NAMITE-X for superior wear
and increased tool life
• New Expanded tools
Ti-NAMITE-X provides outstanding results in a diverse range of applications
including medium-hard to very hard steels (40–65 HRC) and titanium alloys.
The layered design of the coating, along with the nanocomposite grain
structure provides the hardness necessary for extreme wear resistance with
the toughness required to withstand interrupted cutting. Ti-NAMITE-X
allows for a broad spectrum of high-performance machining from
aggressive material removal rates to high speed
machining and nishing.
Hardness (HV): 3600
Oxidation Temperature: 1150°C – 2100°F
Coefcient of Friction: 0.45
Thickness: 1 – 4 Microns (based on tool diameter)
T-CARB® HIGH SPEED MACHINING END MILLS ARE
IDEAL FOR AGGRESSIVE MILLING APPLICATIONS
IN THESE TARGET MARKETS:
Aerospace Structural and Titanium Components
Medical Replacement Parts and Joints
Automotive & Motorized Vehicles
Energy and Power Generation
T-Carb® 6-Flute High Performance End Mills are ideal for aggressive high speed machining
using Trochoidal and Peel Milling techniques. The additional utes allow higher feed rates
at reduced tool loads, ultimately preventing breakage and failure. The variable pitch
geometry allows the T-Carb® to excel in multiple operations calling for aggressive roughing
and nishing, resulting in faster cycle times and lower costs. The series is offered in
a variety of length, neck and corner radius options and is coated with Ti-NAMITE-X for
ultimate thermal barrier protection.
Titanium
®
4www.kyocera-sgstool.com
®

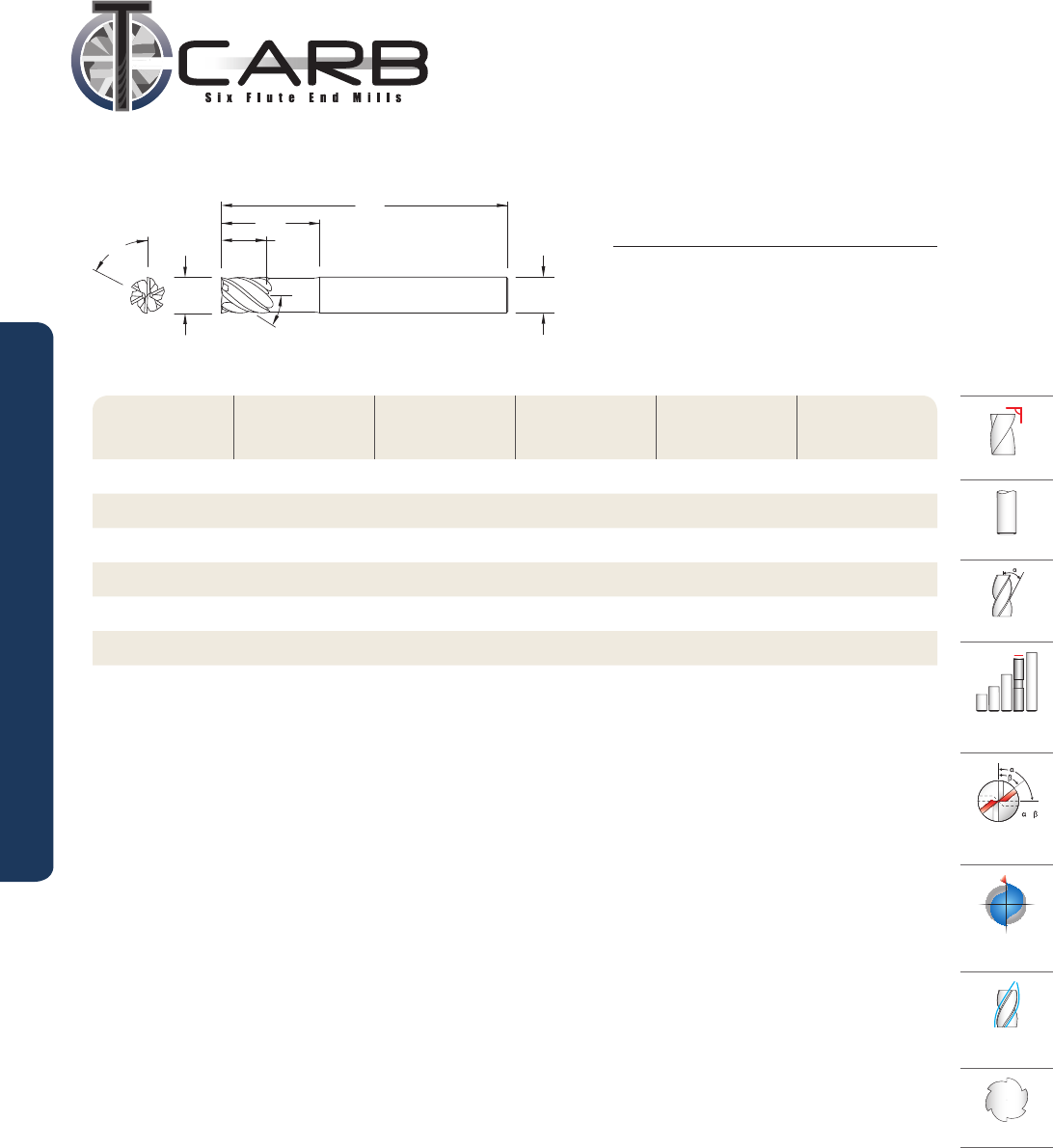

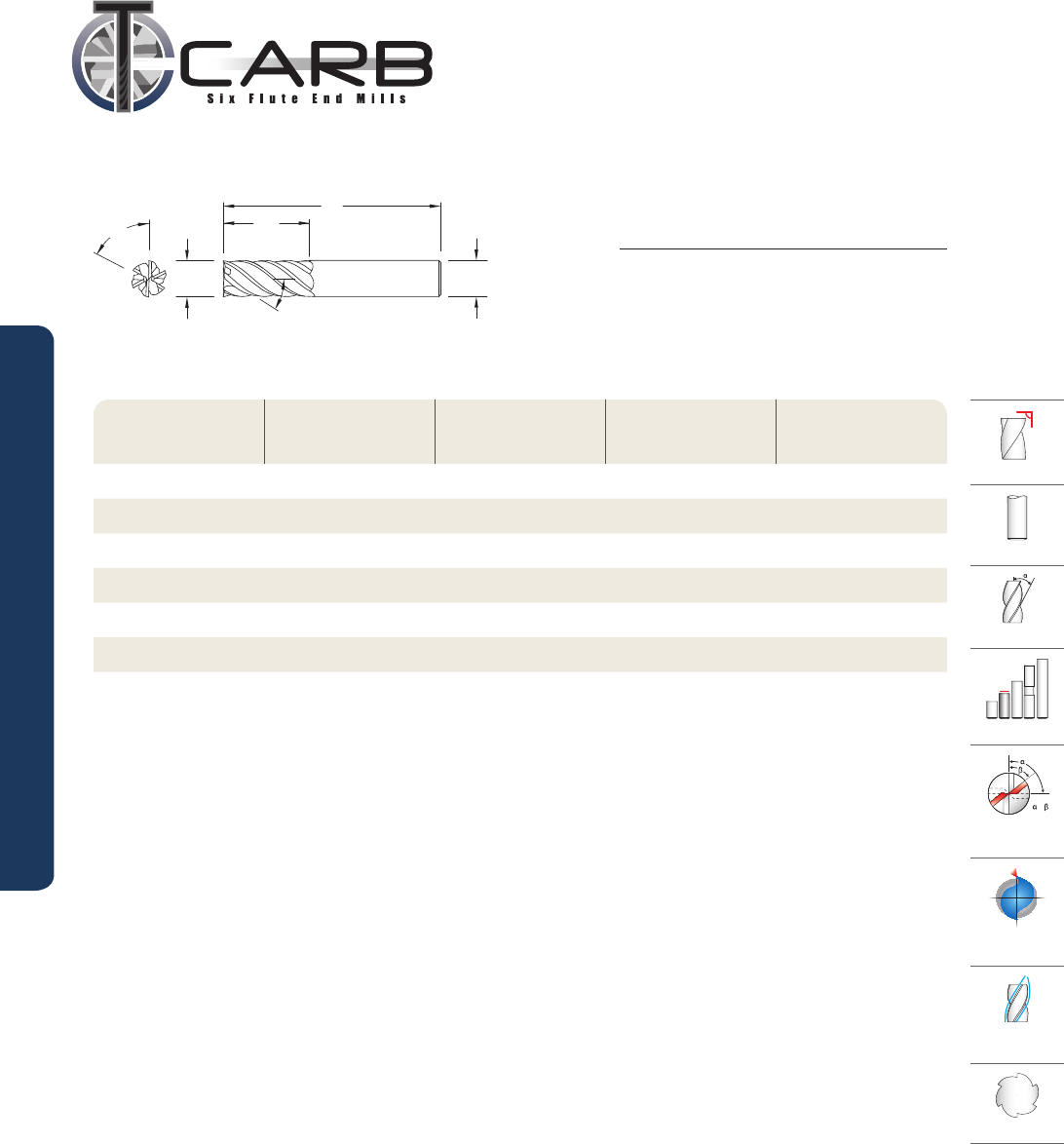

Series 51
|
Fractional
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 1 +0.000 / –0.002 h6
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Ti-Namite-X
(TX)
EDP No.
1/4 3/4 2-1/2 1/4 35100
3/8 1 2-1/2 3/8 35101
1/2 1-1/4 3 1/2 35102
5/8 1-5/8 3-1/2 5/8 35103
3/4 1-5/8 4 3/4 35104
1 2-5/8 6 1 35105
Square
Straight
Right Spiral
Regular
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
2
D
L
1
L2
1
D
41°
5www.kyocera-sgstool.com
®

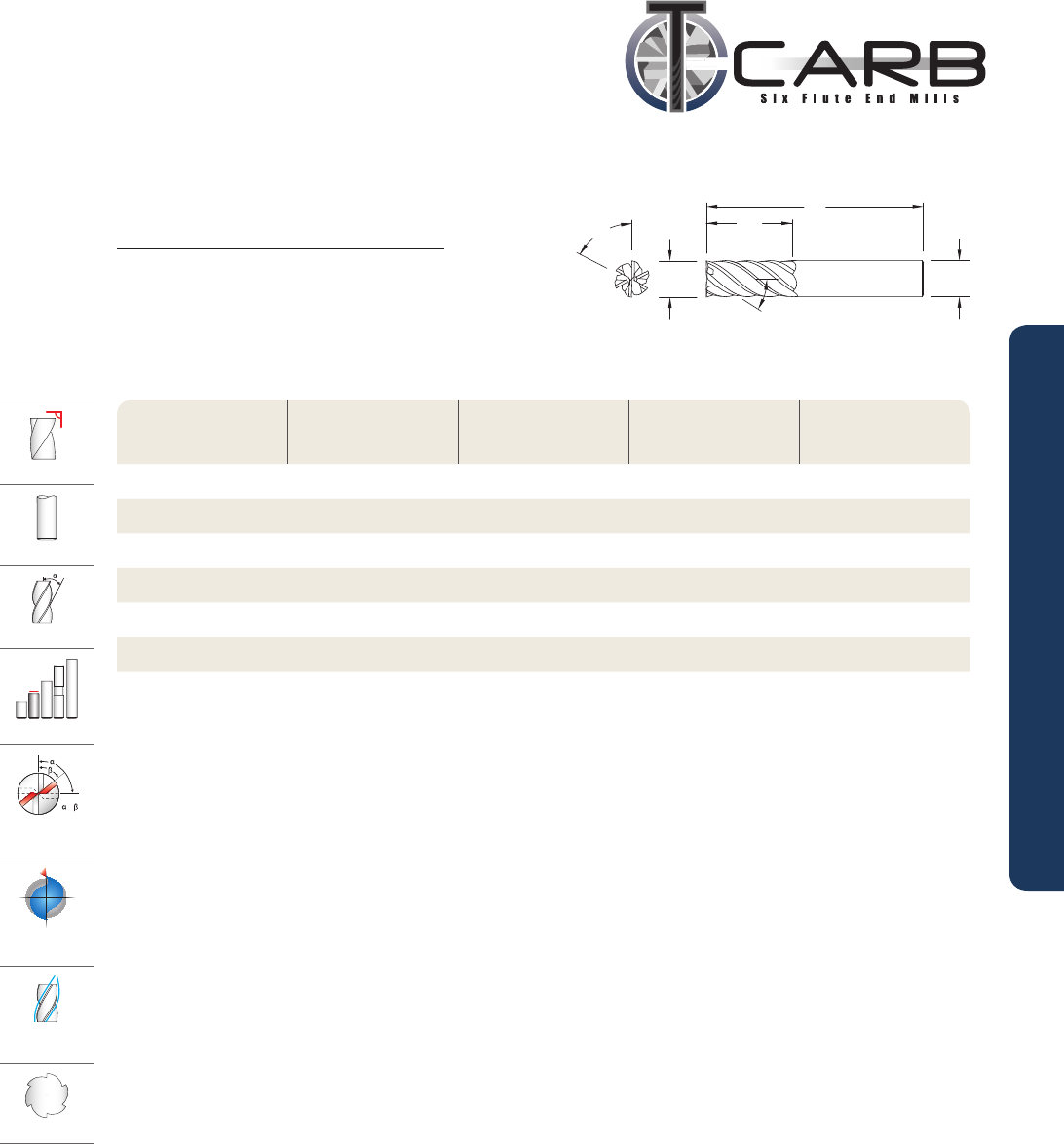

Series 51M
|
Metric
TOLERANCES (mm)
DIAMETER D1D2
6 - 20 +0,000 / -0,050 h6
Square
Straight
Right Spiral
Regular
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
2
D
L
1
L2
1
D
41°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Ti-Namite-X
(TX)
EDP No.
6,0 19,0 63,0 6,0 45100
8,0 20,0 63,0 8,0 45101
10,0 22,0 75,0 10,0 45102
12,0 26,0 83,0 12,0 45103
16,0 32,0 92,0 16,0 45104
20,0 38,0 104,0 20,0 45105
6www.kyocera-sgstool.com
®
Series 51L
|
Fractional
TOLERANCES (inch)
DIAMETER D1D2
1/4 - 1 +0.000 / –0.002 h6
2
D
L
1
L2
L3
1
D
41°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Ti-Namite-X
(TX)
EDP No.
1/4 3/8 4 1/4 1-1/8 35106
3/8 1/2 4 3/8 2-1/8 35107
1/2 5/8 4 1/2 2-1/4 35108
5/8 3/4 5 5/8 2-1/2 35109
3/4 1 6 3/4 3-3/8 35110
1 1-1/4 6 1 3-3/8 3 5 111
Square
Straight
Right Spiral
Long Reach
Neck
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
7www.kyocera-sgstool.com
®

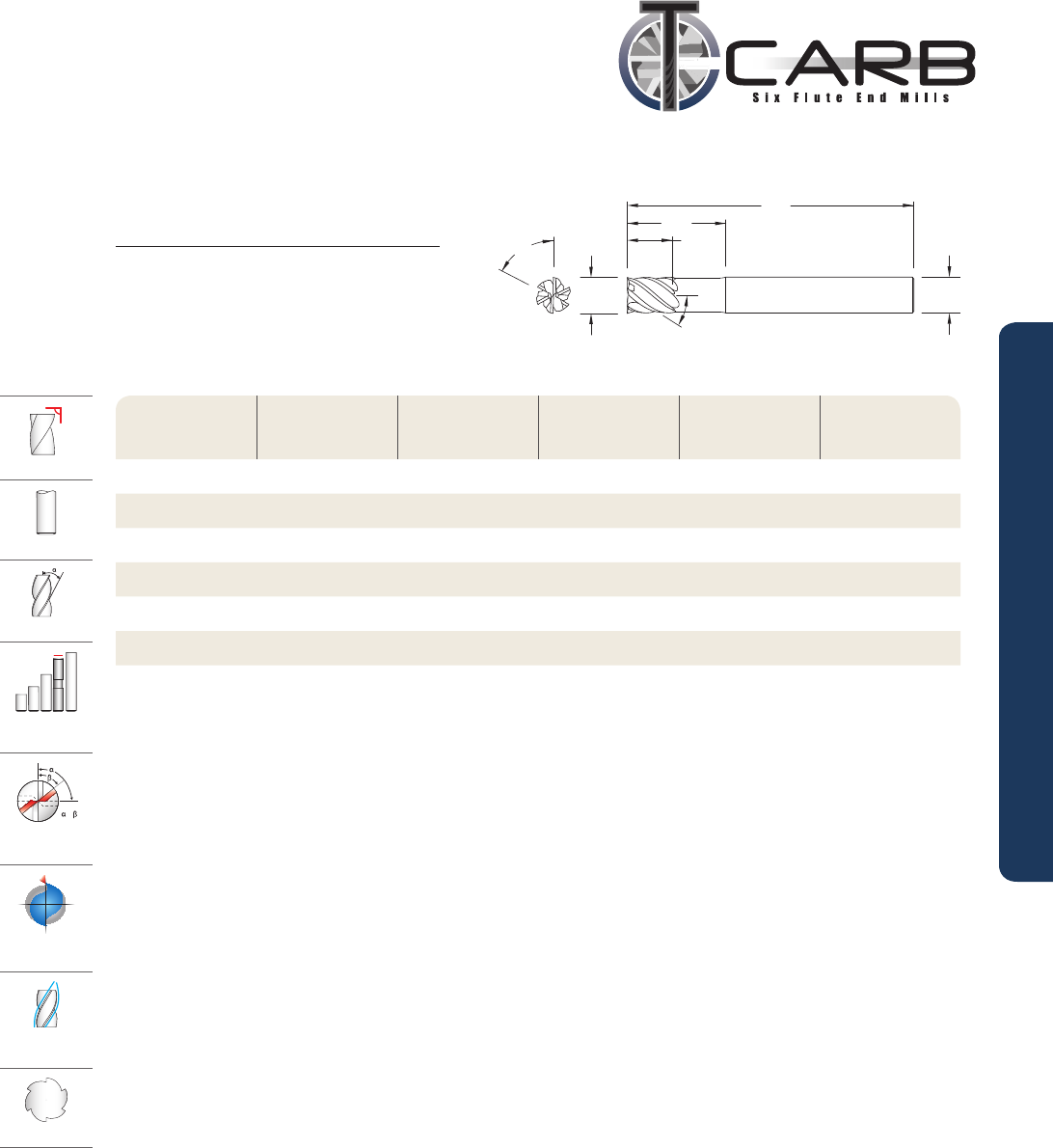

Series 51ML
|
Metric
TOLERANCES (mm)
DIAMETER D1D2
6 - 20 +0,000 / -0,050 h6
2
D
L
1
L2
L3
1
D
41°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Ti-Namite-X
(TX)
EDP No.
6,0 8,0 75,0 6,0 32,0 45106
8,0 10,0 75,0 8,0 32,0 45107
10,0 12,0 100,0 10,0 40,0 45108
12,0 15,0 100,0 12,0 48,0 45109
16,0 20,0 115,0 16,0 65,0 45110
20,0 24,0 150,0 20,0 80,0 45 111
Square
Straight
Right Spiral
Long Reach
Neck
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
8www.kyocera-sgstool.com
®

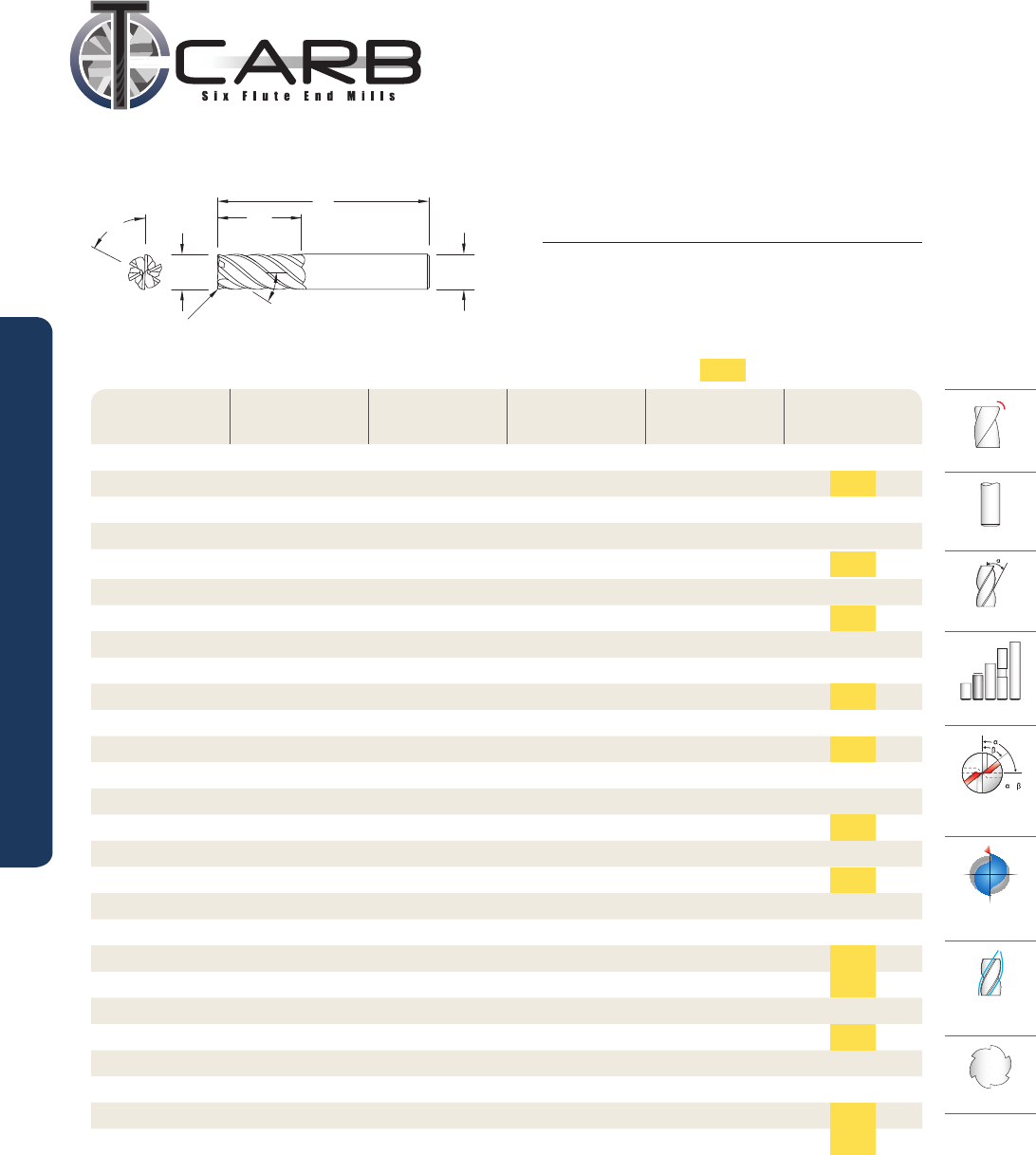

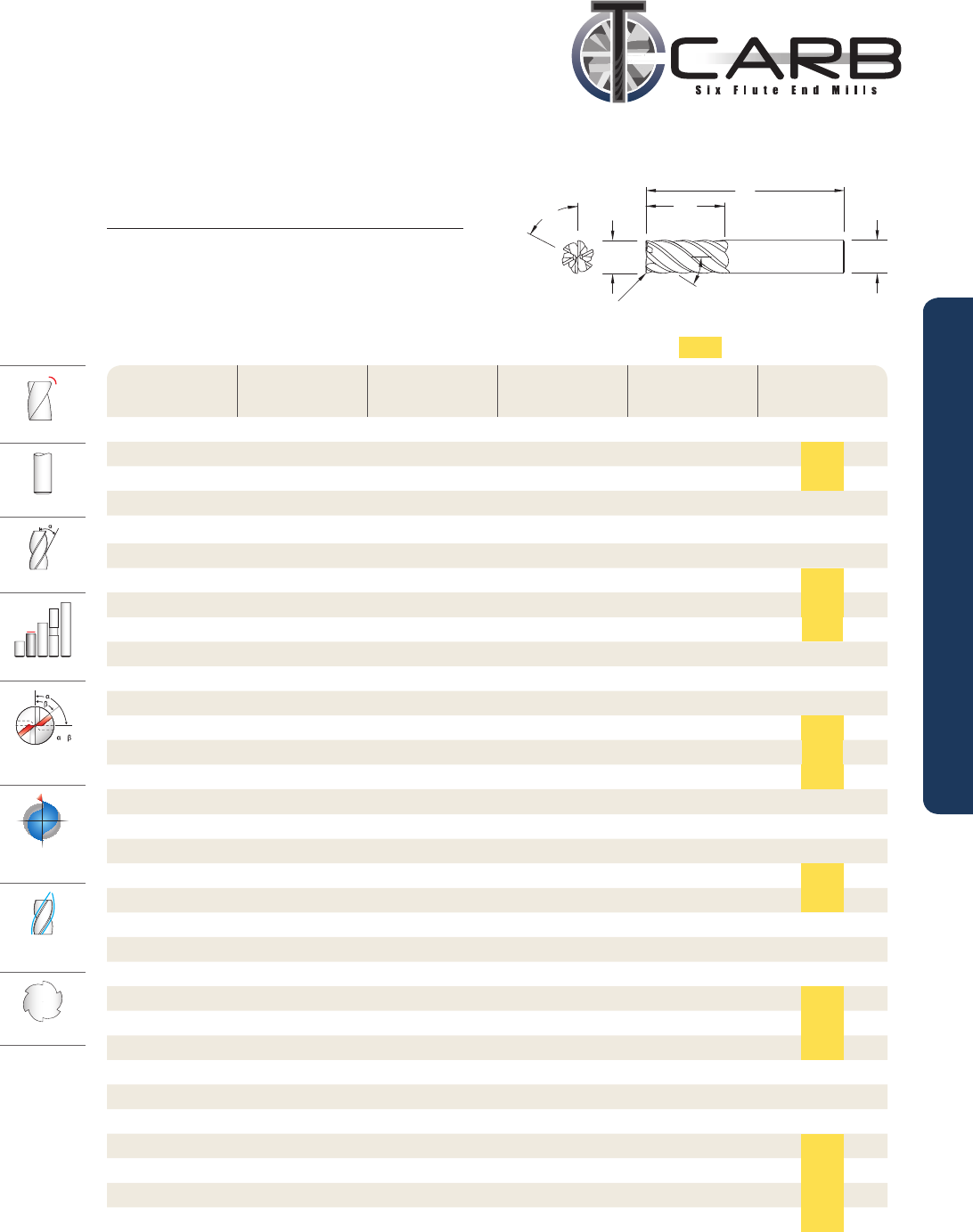

Series 51CR
|
Fractional
TOLERANCES (inch)
DIAMETER D1D2R
1/4 - 1 +0.000 / –0.002 h6 +0.000 / –0.002
Corner
Straight
Right Spiral
Regular
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
New Expanded Tools
2
D
L
1
L2
1
D
R
41°
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Ti-Namite-X
(TX)
EDP No.
1/4 3/4 2-1/2 1/4 .015 35112
1/4 3/4 2-1/2 1/4 .030 35150
3/8 1 2-1/2 3/8 .015 35113
3/8 1 2-1/2 3/8 .030 35114
1/2 1-1/4 3 1/2 .015 35151
1/2 1-1/4 3 1/2 .030 35115
1/2 1-1/4 3 1/2 .060 35152
1/2 1-1/4 3 1/2 .090 35116
1/2 1-1/4 3 1/2 .120 35117
5/8 1-5/8 3-1/2 5/8 .015 35153
5/8 1-5/8 3-1/2 5/8 .030 35118
5/8 1-5/8 3-1/2 5/8 .060 35154
5/8 1-5/8 3-1/2 5/8 .090 35119
5/8 1-5/8 3-1/2 5/8 .120 35120
5/8 1-5/8 3-1/2 5/8 .190 35155
3/4 1-5/8 4 3/4 .030 35121
3/4 1-5/8 4 3/4 .060 35156
3/4 1-5/8 4 3/4 .090 35122
3/4 1-5/8 4 3/4 .120 35123
3/4 1-5/8 4 3/4 .190 35157
3/4 1-5/8 4 3/4 .250 35158
1 2-5/8 6 1 .030 35124
1 2-5/8 6 1 .060 35159
1 2-5/8 6 1 .090 35125
1 2-5/8 6 1 .120 35126
1 2-5/8 6 1 .190 35160
1 2-5/8 6 1 .250 35161
9www.kyocera-sgstool.com
®

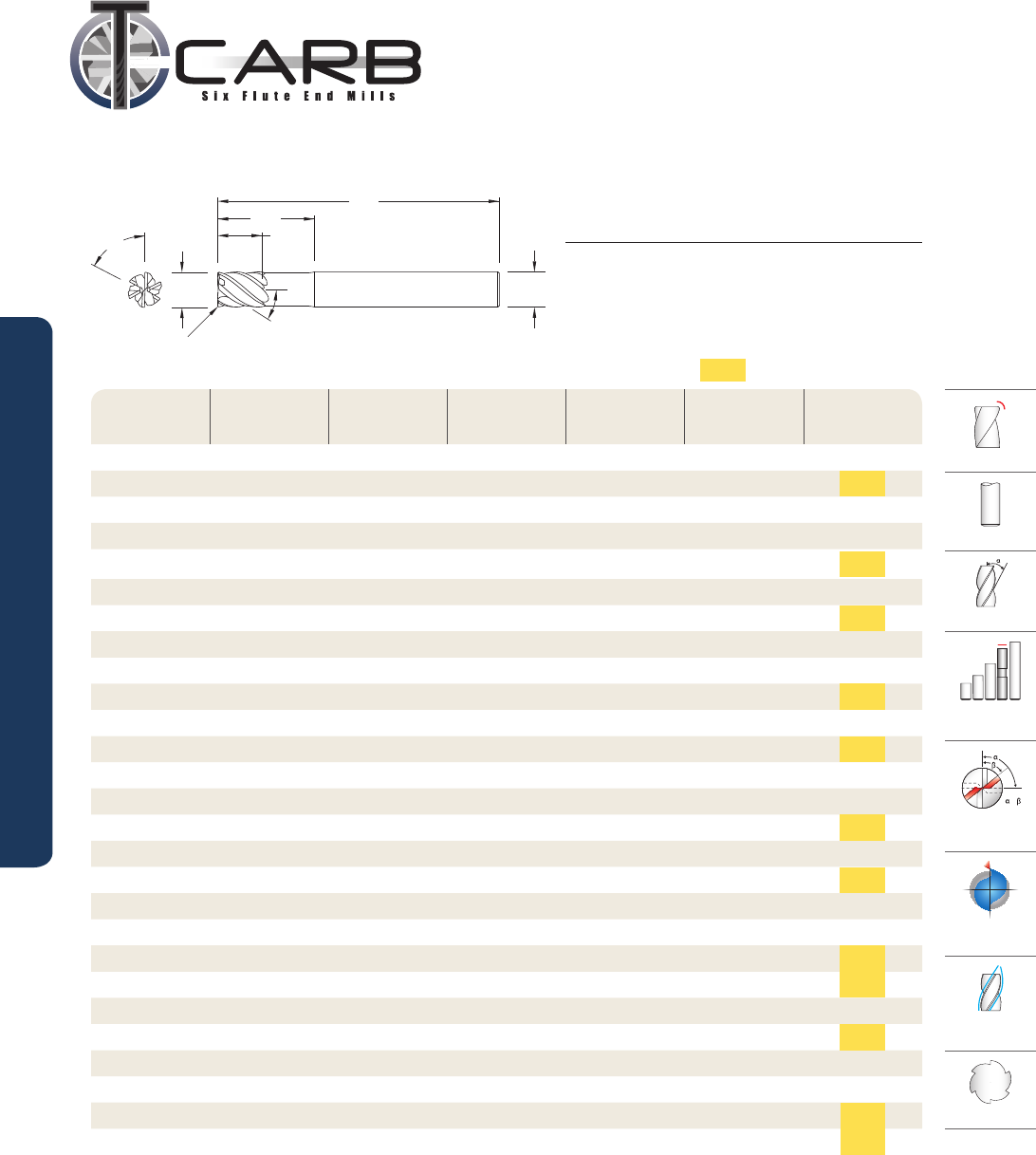

Series 51MCR
|
Metric
TOLERANCES (mm)
DIAMETER D1D2R
6 - 20 +0,000 / -0,050 h6 +0,000 / -0,050
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Corner
Radius
R
Ti-Namite-X
(TX)
EDP No.
6,0 19,0 63,0 6,0 0,5 45112
6,0 19,0 63,0 6,0 1,0 45170
6,0 19,0 63,0 6,0 1,5 45171
8,0 20,0 63,0 8,0 0,5 45113
8,0 20,0 63,0 8,0 1,0 45114
8,0 20,0 63,0 8,0 1,2 45150
8,0 20,0 63,0 8,0 1,5 45172
8,0 20,0 63,0 8,0 2,0 45173
10,0 22,0 75,0 10,0 0,5 45174
10,0 22,0 75,0 10,0 1,0 45115
10,0 22,0 75,0 10,0 1,5 45116
10,0 22,0 75,0 10,0 2,0 45117
10,0 22,0 75,0 10,0 2,5 45175
12,0 26,0 83,0 12,0 0,5 45176
12,0 26,0 83,0 12,0 0,76 45177
12,0 26,0 83,0 12,0 1,0 45118
12,0 26,0 83,0 12,0 1,5 45119
12,0 26,0 83,0 12,0 2,0 45120
12,0 26,0 83,0 12,0 2,5 45178
12,0 26,0 83,0 12,0 3,0 45179
16,0 32,0 92,0 16,0 1,0 45121
16,0 32,0 92,0 16,0 1,5 45122
16,0 32,0 92,0 16,0 2,0 45123
16,0 32,0 92,0 16,0 2,5 45180
16,0 32,0 92,0 16,0 3,0 45181
16,0 32,0 92,0 16,0 4,0 45182
20,0 38,0 104,0 20,0 1,0 45124
20,0 38,0 104,0 20,0 1,5 45125
20,0 38,0 104,0 20,0 2,0 45126
20,0 38,0 104,0 20,0 2,5 45183
20,0 38,0 104,0 20,0 3,0 45184
20,0 38,0 104,0 20,0 4,0 45185
20,0 38,0 104,0 20,0 5,0 45186
Corner
Straight
Right Spiral
Regular
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
New Expanded Tools
2
D
L
1
L2
1
D
R
41°
10 www.kyocera-sgstool.com
®
Series 51LC
|
Fractional
TOLERANCES (inch)
DIAMETER D1D2R
1/4 - 1 +0.000 / –0.002 h6 +0.000 / –0.002
2
D
L
1
L2
L3
1
D
41°
R
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-Namite-X
(TX)
EDP No.
1/4 3/8 4 1/4 1-1/8 .015 35127
1/4 3/8 4 1/4 1-1/8 .030 35180
3/8 1/2 4 3/8 2-1/8 .015 35128
3/8 1/2 4 3/8 2-1/8 .030 35129
1/2 5/8 4 1/2 2-1/4 .015 35181
1/2 5/8 4 1/2 2-1/4 .030 35130
1/2 5/8 4 1/2 2-1/4 .060 35182
1/2 5/8 4 1/2 2-1/4 .090 35131
1/2 5/8 4 1/2 2-1/4 .120 35132
5/8 3/4 5 5/8 2-1/2 .015 35183
5/8 3/4 5 5/8 2-1/2 .030 35133
5/8 3/4 5 5/8 2-1/2 .060 35184
5/8 3/4 5 5/8 2-1/2 .090 35134
5/8 3/4 5 5/8 2-1/2 .120 35135
5/8 3/4 5 5/8 2-1/2 .190 35185
3/4 1 6 3/4 3-3/8 .030 35136
3/4 1 6 3/4 3-3/8 .060 35186
3/4 1 6 3/4 3-3/8 .090 35137
3/4 1 6 3/4 3-3/8 .120 35138
3/4 1 6 3/4 3-3/8 .190 35187
3/4 1 6 3/4 3-3/8 .250 35188
1 1-1/4 6 1 3-3/8 .030 35139
1 1-1/4 6 1 3-3/8 .060 35189
1 1-1/4 6 1 3-3/8 .090 35140
1 1-1/4 6 1 3-3/8 .120 35141
1 1-1/4 6 1 3-3/8 .190 35190
1 1-1/4 6 1 3-3/8 .250 35191
New Expanded Tools
Corner
Straight
Right Spiral
Long Reach
Neck
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
11www.kyocera-sgstool.com
®
Series 51MLC
|
Metric
TOLERANCES (mm)
DIAMETER D1D2R
6 - 20 +0,000 / -0,050 h6 +0,000 / -0,050
2
D
L
1
L2
L3
1
D
41°
R
Cutting
Diameter
D1
Length
of Cut
L2
Overall
Length
L1
Shank
Diameter
D2
Reach
L3
Corner
Radius
R
Ti-Namite-X
(TX)
EDP No.
6,0 8,0 75,0 6,0 32,0 0,5 45127
6,0 8,0 75,0 6,0 32,0 1,0 45187
6,0 8,0 75,0 6,0 32,0 1,5 45188
8,0 10,0 75,0 8,0 32,0 0,5 45128
8,0 10,0 75,0 8,0 32,0 1,0 45129
8,0 10,0 75,0 8,0 32,0 1,5 45189
8,0 10,0 75,0 8,0 32,0 2,0 45190
10,0 12,0 100,0 10,0 40,0 0,5 45191
10,0 12,0 100,0 10,0 40,0 1,0 45130
10,0 12,0 100,0 10,0 40,0 1,5 45131
10,0 12,0 100,0 10,0 40,0 2,0 45132
10,0 12,0 100,0 10,0 40,0 2,5 45192
12,0 15,0 100,0 12,0 48,0 0,5 45193
12,0 15,0 100,0 12,0 48,0 0,76 45194
12,0 15,0 100,0 12,0 48,0 1,0 45133
12,0 15,0 100,0 12,0 48,0 1,5 45134
12,0 15,0 100,0 12,0 48,0 2,0 45135
12,0 15,0 100,0 12,0 48,0 2,5 45195
12,0 15,0 100,0 12,0 48,0 3,0 45196
16,0 20,0 115,0 16,0 65,0 1,0 45136
16,0 20,0 115,0 16,0 65,0 1,5 45137
16,0 20,0 115,0 16,0 65,0 2,0 45138
16,0 20,0 115,0 16,0 65,0 2,5 45197
16,0 20,0 115,0 16,0 65,0 3,0 45198
16,0 20,0 115,0 16,0 65,0 4,0 45199
20,0 24,0 150,0 20,0 80,0 1,0 45139
20,0 24,0 150,0 20,0 80,0 1,5 45140
20,0 24,0 150,0 20,0 80,0 2,0 45141
20,0 24,0 150,0 20,0 80,0 2,5 45200
20,0 24,0 150,0 20,0 80,0 3,0 45201
20,0 24,0 150,0 20,0 80,0 4,0 45202
20,0 24,0 150,0 20,0 80,0 5,0 45203
New Expanded Tools
Corner
Straight
Right Spiral
Long Reach
Neck
Flute Spacing
Unequal
POS
Positive
Rake Angle
External
Coolant
6
Flutes
12 www.kyocera-sgstool.com
®
Series 51
|
Speed & Feed Recommendations
Series
51, 51CR,
51L, 51LC
Fractional
Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/4 3/8 1/2 5/8 3/4 1
P
CARBON STEELS
1018, 1040, 1080,
1090, 10L50, 1140,
1212, 12L15, 1525,
1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
720 RPM 11002 7334 5501 4401 3667 2750
(576-864)
Fz 0.0020 0.0035 0.0050 0.0055 0.0061 0.0071
Feed (ipm) 132 154 165 145 134 117
HSM
≤ 0.05 ≤ 2
915 RPM 13981 9321 6991 5592 4660 3495
(732-1098)
Fz 0.0028 0.0053 0.0070 0.0077 0.0085 0.0100
Feed (ipm) 235 296 294 258 238 210
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.1 ≤ 1
490 RPM 7487 4991 3744 2995 2496 1872
(392-588)
Fz 0.0015 0.0029 0.0038 0.0042 0.0046 0.0054
Feed (ipm) 67 87 85 75 69 61
HSM
≤ 0.05 ≤ 2
620 RPM 9474 6316 4737 3789 3158 2368
(496-744)
Fz 0.0021 0.0039 0.0052 0.0057 0.0062 0.0073
Feed (ipm) 119 148 148 130 117 104
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.1 ≤ 1
240 RPM 3667 2445 1834 1467 1222 917
(192-288)
Fz 0.0012 0.0023 0.0030 0.0034 0.0037 0.0043
Feed (ipm) 26 34 33 30 27 24
HSM
≤ 0.05 ≤ 2
305 RPM 4660 3107 2330 1864 1553 1165
(244-366)
Fz 0.0017 0.0032 0.0042 0.0046 0.0050 0.0059
Feed (ipm) 48 60 59 51 47 41
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F,
430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
510 RPM 7793 5195 3896 3117 2598 1948
(459-561)
Fz 0.0015 0.0028 0.0038 0.0041 0.0045 0.0053
Feed (ipm) 70 87 89 77 70 62
HSM
≤ 0.05 ≤ 2
650 RPM 9932 6621 4966 3973 3311 2483
(585-715)
Fz 0.0021 0.0038 0.0051 0.0056 0.0061 0.0072
Feed (ipm) 125 151 152 133 121 107
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
350 RPM 5348 3565 2674 2139 1783 1337
(315-385)
Fz 0.0012 0.0023 0.0030 0.0033 0.0036 0.0042
Feed (ipm) 39 49 48 42 39 34
HSM
≤ 0.05 ≤ 2
450 RPM 6876 4584 3438 2750 2292 1719
(405-495)
Fz 0.0017 0.0032 0.0042 0.0046 0.0050 0.0059
Feed (ipm) 70 88 87 76 69 61
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.1 ≤ 1
325 RPM 4966 3311 2483 1986 1655 1242
(293-358)
Fz 0.0012 0.0023 0.0030 0.0033 0.0036 0.0042
Feed (ipm) 36 46 45 39 36 31
HSM
≤ 0.05 ≤ 2
410 RPM 6265 4177 3132 2506 2088 1566
(369-451)
Fz 0.0017 0.0032 0.0042 0.0046 0.0050 0.0059
Feed (ipm) 64 80 79 69 63 55
continued on next page
13www.kyocera-sgstool.com
®
Series 51
|
Speed & Feed Recommendations
Series
51, 51CR,
51L, 51LC
Fractional
Hardness
Ap
Ae Ae
Vc
(sfm)
Diameter (D1)
(inch)
Ae x D1Ap x D11/4 3/8 1/2 5/8 3/4 1
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ 0.1 ≤ 1
105 RPM 1604 1070 802 642 535 401
(84-126)
Fz 0.0014 0.0027 0.0036 0.0039 0.0043 0.0050
Feed (ipm) 13 17 17 15 14 12
HSM
≤ 0.05 ≤ 2
130 RPM 1986 1324 993 795 662 497
(104-156)
Fz 0.0016 0.0036 0.0048 0.0053 0.0058 0.0067
Feed (ipm) 19 29 29 25 23 20
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.1 ≤ 1
80 RPM 1222 815 611 489 407 306
(64-96)
Fz 0.0010 0.0018 0.0025 0.0027 0.0029 0.0034
Feed (ipm) 7 9 9 8 7 6
HSM
≤ 0.05 ≤ 2
100 RPM 1528 1019 764 611 509 382
(80-120)
Fz 0.0013 0.0025 0.0034 0.0037 0.0041 0.0047
Feed (ipm) 12 15 16 14 13 11
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.1 ≤ 1
280 RPM 4278 2852 2139 1711 1426 1070
(224-336)
Fz 0.0010 0.0018 0.0025 0.0027 0.0029 0.0034
Feed (ipm) 26 31 32 28 25 22
HSM
≤ 0.05 ≤ 2
355 RPM 5424 3616 2712 2170 1808 1356
(284-426)
Fz 0.0013 0.0025 0.0034 0.0037 0.0041 0.0047
Feed (ipm) 42 54 55 48 44 38
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ 0.1 ≤ 1
155 RPM 2368 1579 1184 947 789 592
(124-186)
Fz 0.0010 0.0018 0.0025 0.0027 0.0029 0.0034
Feed (ipm) 14 17 18 15 14 12
HSM
≤ 0.05 ≤ 2
200 RPM 3056 2037 1528 1222 1019 764
(160-240)
Fz 0.0013 0.0025 0.0034 0.0037 0.0041 0.0047
Feed (ipm) 24 31 31 27 25 22
Note:
•  Bhn (Brinell) HRc (Rockwell C) HSM (High Speed Machining)
•  rpm = Vc x 3.82 / D1
•  ipm = Fz x 6 x rpm
•  reduce speed and feed for materials harder than listed
•  reduce feed and Ae when finish milling (.02 x D1 maximum)
•  refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
TOOLWIZARD 2.1
www.sgstoolwizard.com
®
14 www.kyocera-sgstool.com
®
Series 51
|
Speed & Feed Recommendations
Series
51M, 51MCR,
51ML, 51MLC
Metric
Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D16 8 10 12 16 20
P
CARBON STEELS
1018, 1040, 1080,
1090, 10L50, 1140,
1212, 12L15, 1525,
1536
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
219 RPM 11633 8725 6980 5816 4362 3490
(176-263)
Fz 0.048 0.081 0.101 0.121 0.142 0.158
Feed (mm/min) 3350 4240 4230 4223 3717 3308
HSM
≤ 0.05 ≤ 2
279 RPM 14784 11088 8870 7392 5544 4435
(223-335)
Fz 0.066 0.113 0.141 0.169 0.197 0.220
Feed (mm/min) 5854 7517 7504 7495 6553 5854
ALLOY STEELS
4140, 4150, 4320,
5120, 5150, 8630,
86L20, 50100
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.1 ≤ 1
149 RPM 7917 5938 4750 3958 2969 2375
(119-179)
Fz 0.036 0.061 0.077 0.092 0.107 0.119
Feed (mm/min) 1710 2173 2195 2185 1906 1696
HSM
≤ 0.05 ≤ 2
189 RPM 10017 7513 6010 5009 3756 3005
(151-227)
Fz 0.049 0.083 0.104 0.125 0.146 0.163
Feed (mm/min) 2945 3741 3750 3756 3291 2939
H
TOOL STEELS
A2, D2, H13, L2, M2,
P20, S7, T15, W2
≤ 375 Bhn
or
≤ 40 HRc
Profile
≤ 0.1 ≤ 1
73 RPM 3878 2908 2327 1939 1454 1163
(59-88)
Fz 0.029 0.049 0.061 0.073 0.086 0.096
Feed (mm/min) 675 855 852 849 750 670
HSM
≤ 0.05 ≤ 2
93 RPM 4928 3696 2957 2464 1848 1478
(74-112)
Fz 0.040 0.069 0.086 0.103 0.120 0.134
Feed (mm/min) 1183 1530 1526 1523 1331 1189
M
STAINLESS STEELS
(FREE MACHINING)
303, 416, 420F,
430F, 440F
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
155 RPM 8240 6180 4944 4120 3090 2472
(140-171)
Fz 0.035 0.060 0.075 0.090 0.105 0.117
Feed (mm/min) 1730 2225 2225 2225 1947 1735
HSM
≤ 0.05 ≤ 2
198 RPM 10502 7877 6301 5251 3938 3151
(178-218)
Fz 0.048 0.082 0.102 0.122 0.143 0.159
Feed (mm/min) 3025 3875 3856 3844 3379 3006
STAINLESS STEELS
(DIFFICULT)
304, 304L, 316, 316L
≤ 275 Bhn
or
≤ 28 HRc
Profile
≤ 0.1 ≤ 1
107 RPM 5655 4241 3393 2827 2121 1696
(96-117)
Fz 0.029 0.049 0.061 0.073 0.086 0.096
Feed (mm/min) 984 1247 1242 1238 1094 977
HSM
≤ 0.05 ≤ 2
137 RPM 7271 5453 4362 3635 2726 2181
(123-151)
Fz 0.040 0.069 0.086 0.103 0.120 0.134
Feed (mm/min) 1745 2258 2251 2247 1963 1754
STAINLESS STEELS
(PH)
13-8 PH, 15-5 PH,
17-4 PH, Custom 450
≤ 325 Bhn
or
≤ 35 HRc
Profile
≤ 0.1 ≤ 1
99 RPM 5251 3938 3151 2626 1969 1575
(89-109)
Fz 0.029 0.049 0.061 0.073 0.086 0.096
Feed (mm/min) 914 1158 1153 1150 1016 907
HSM
≤ 0.05 ≤ 2
125 RPM 6624 4968 3975 3312 2484 1987
(112-137)
Fz 0.040 0.069 0.086 0.103 0.120 0.134
Feed (mm/min) 1590 2057 2051 2047 1789 1598
continued on next page
15www.kyocera-sgstool.com
®
Series
51M, 51MCR,
51ML, 51MLC
Metric
Hardness
Ap
Ae Ae
Vc
(m/min)
Diameter (D1)
(mm)
Ae x D1Ap x D16 8 10 12 16 20
S
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 601, 617, 625,
Incoloy, Monel 400
≤ 300 Bhn
or
≤ 32 HRc
Profile
≤ 0.1 ≤ 1
32 RPM 1696 1272 1018 848 636 509
(26-38)
Fz 0.034 0.057 0.071 0.085 0.100 0.110
Feed (mm/min) 346 435 434 433 382 336
HSM
≤ 0.05 ≤ 2
40 RPM 2100 1575 1260 1050 788 630
(32-48)
Fz 0.046 0.077 0.097 0.120 0.140 0.150
Feed (mm/min) 580 728 733 756 662 567
SUPER ALLOYS
(NICKEL, COBALT,
IRON BASE)
Inconel 718, X-750,
Incoloy, Waspaloy,
Hastelloy, Rene
≤ 400 Bhn
or
≤ 43 HRc
Profile
≤ 0.1 ≤ 1
24 RPM 1293 969 776 646 485 388
(20-29)
Fz 0.023 0.039 0.049 0.059 0.068 0.077
Feed (mm/min) 178 227 228 229 198 179
HSM
≤ 0.05 ≤ 2
30 RPM 1616 1212 969 808 606 485
(24-37)
Fz 0.032 0.054 0.068 0.081 0.095 0.110
Feed (mm/min) 310 393 396 393 345 320
TITANIUM ALLOYS
Pure Titanium,
Ti6Al4V,
Ti6Al2Sn4Zr2Mo,
Ti4Al4Mo2Sn0.5Si
≤ 350 Bhn
or
≤ 38 HRc
Profile
≤ 0.1 ≤ 1
85 RPM 4524 3393 2714 2262 1696 1357
(68-102)
Fz 0.023 0.039 0.049 0.059 0.068 0.077
Feed (mm/min) 624 794 798 801 692 627
HSM
≤ 0.05 ≤ 2
108 RPM 5736 4302 3441 2868 2151 1721
(87-130)
Fz 0.032 0.054 0.068 0.081 0.095 0.110
Feed (mm/min) 1101 1394 1404 1394 1226 1136
TITANIUM ALLOYS
(DIFFICULT)
Ti10Al2Fe3Al,
Ti5Al5V5Mo3Cr,
Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo,
Ti6Al6V6Sn,
Ti15V3 Cr3Sn3Al
≤ 440 Bhn
or
≤ 47 HRc
Profile
≤ 0.1 ≤ 1
47 RPM 2504 1878 1503 1252 939 751
(38-57)
Fz 0.023 0.039 0.049 0.059 0.068 0.077
Feed (mm/min) 346 440 442 443 383 347
HSM
≤ 0.05 ≤ 2
61 RPM 3231 2424 1939 1616 1212 969
(49-73)
Fz 0.032 0.054 0.068 0.081 0.095 0.110
Feed (mm/min) 620 785 791 785 691 640
Note:
•  Bhn (Brinell) HRc (Rockwell C) HSM (High Speed Machining)
•  rpm = (Vc x 1000) / (D1 x 3.14)
•  mm/min = Fz x 6 x rpm
•  reduce speed and feed for materials harder than listed
•  reduce feed and Ae when finish milling (.02 x D1 maximum)
•  refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
Series 51
|
Speed & Feed Recommendations
TOOLWIZARD 2.1
www.sgstoolwizard.com
®
KSPT PRODUCTS ARE DISTRIBUTED BY:
EDP 00012 Rev 0118
KYOCERA SGS Precision Tools
SOLUTIONS AROUND THE GLOBE
KYOCERA SGS Precision Tools is an
ISO-certified leader of round solid carbide
cutting tool technology for the aerospace,
metalworking, and automotive industries
with manufacturing sites in the United
States and United Kingdom. Our global
network of Sales Representatives,
Industrial Distributors, and Agents
blanket the world selling into more
than 60 countries.
LEADERS IN SOLID CARBIDE
TOOL TECHNOLOGY
Brand names such as Z-Carb, S-Carb®,
V-Carb, Hi-PerCarb, Multi-Carb have
become synonymous with high perfor-
mance tooling in the machining and
metalworking industry.
We’re proud to have pioneered some
of the world’s most advanced cutting
technology right here on our Northeast
Ohio manufacturing campus. KSPT high
performance end mills, drills and routers
are increasing productivity and reducing
cost around the world.
EXCEEDING CUSTOMER EXPECTATIONS
As the world’s manufacturing needs change,
so does KSPT. Its all about the science,
starting with our lab inspected substrate
materials to our tool designs and coatings.
Our exceptional team of researchers,
engineers, and machinists are dedicated to
developing the absolute best and delivering
the ultimate Value at the spindle.®
• Incredible batch-to-batch consistency
Metallurgical lab dedicated to testing
and rigorous quality control
• ISO-certified quality procedures
Patented geometries that extend tool
life, reduce chatter, cut cycle times,
and improve part quality—even at
extreme parameters
Specialists in extreme and demanding
product applications
• Comprehensive tooling services
Experienced Field Sales Engineers
who work to optimize a tool for your
particular application
Dedicated multi-lingual customer
service representatives
www.kyocera-sgstool.com
SPAIN
KYOCERA SGS Precision Tools IBERICA
e-mail: SalesEU@kyocera-sgstool.com
EASTERN EUROPE
SINTCOM
Sintcom Tools
95 Arsenalski Blvd.
1421 Soa, Bulgaria
phone: (359) 283-64421
fax: (359) 286-52493
e-mail: sintcom@sintcomtools.com
RUSSIA
HALTEC
phone: (7) 495-252-05-00
e-mail: info@haltec.ru
web: www.haltec.ru
UNITED STATES OF AMERICA
KYOCERA SGS Precision Tools
P.O. Box 187
55 South Main Street
Munroe Falls, Ohio 44262 U.S.A.
customer service -
US and Canada: (330) 686-5700
fax - US & Canada: (800) 447-4017
international fax: (330) 686-2146
web: www.kyocera-sgstool.com
UNITED KINGDOM
KYOCERA SGS Precision Tools Europe Ltd.
10 Ashville Way
Wokingham, Berkshire
RG41 2PL England
phone: (44) 1189-795-200
fax: (44) 1189-795-295
e-mail: SalesEU@kyocera-sgstool.com
web: www.kyocera-sgstool.com
FRANCE
DOGA-KSPTE FRANCE
8, Avenue Gutenburg
78310 Maurepas
France
phone: +33 (0) 1 30 66 41 64
fax: +33 (0) 1 30 66 41 49
e-mail: KSPTF@kyocera-sgstool.com
web: www.doga.fr
POLAND
KYOCERA SGS Precision Tools
phone: +48 530 432 002
e-mail: SalesEU@kyocera-sgstool.com
