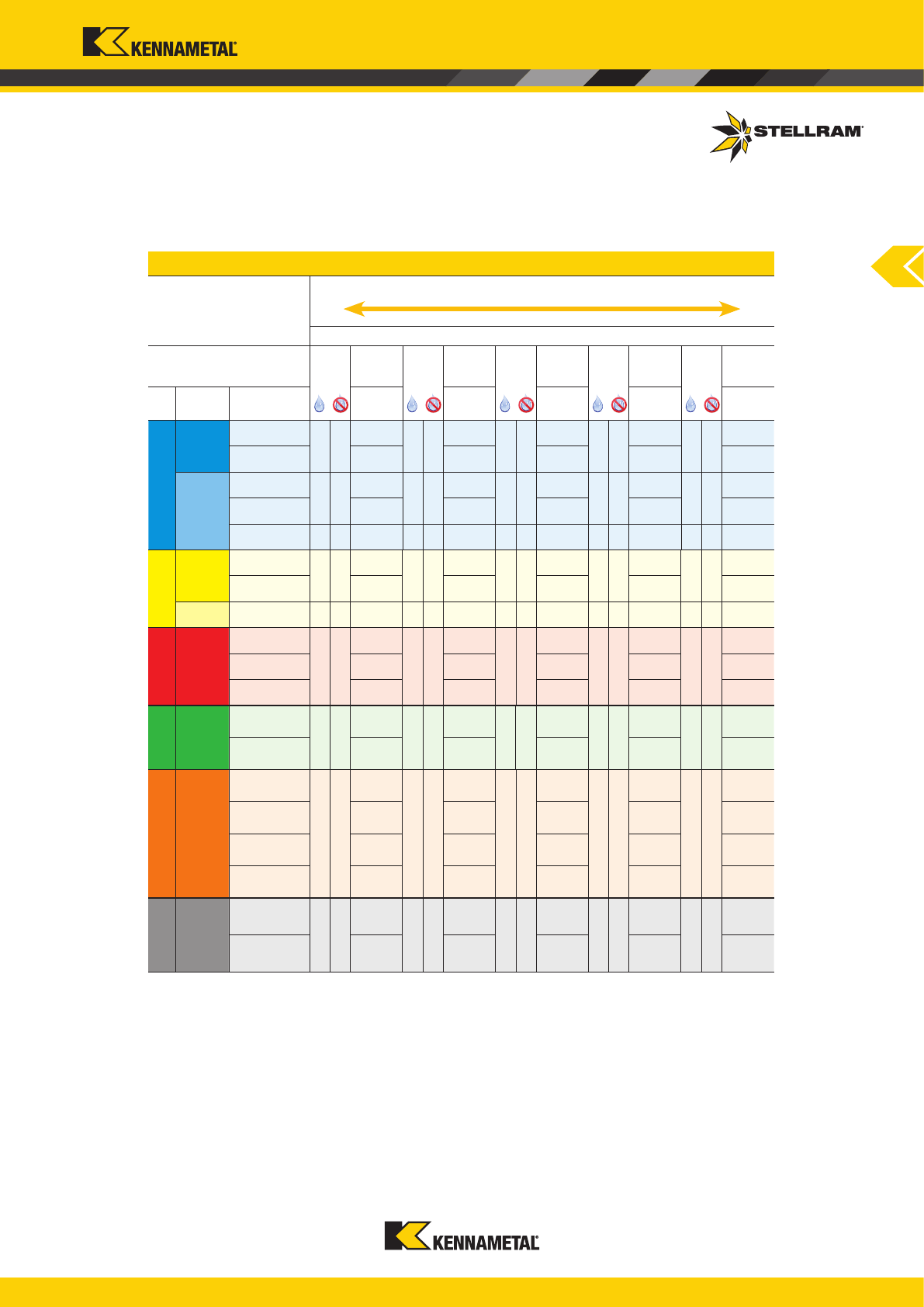

A216
F-701-X4
10,00 0,25 0,02 0,06 0,13 0,38
10,00 0,50 0,02 0,06 0,09 0,27
10,00 0,75 0,02 0,06 0,07 0,22
10,00 1,00 0,02 0,06 0,06 0,19
10,00 1,25 0,02 0,06 0,06 0,17
10,00 1,50 0,02 0,06 0,05 0,15
10,00 2,00 0,02 0,06 0,04 0,13
E-701-X4
10,00 0,25 0,03 0,07 0,19 0,44
10,00 0,50 0,03 0,07 0,13 0,31
10,00 0,75 0,03 0,07 0,11 0,26
10,00 1,00 0,03 0,07 0,09 0,22
10,00 1,25 0,03 0,07 0,08 0,20
10,00 1,50 0,03 0,07 0,08 0,18
10,00 2,00 0,03 0,07 0,07 0,16
E-421-X4
10,00 0,25 0,04 0,08 0,25 0,51
10,00 0,50 0,04 0,08 0,18 0,36
10,00 0,75 0,04 0,08 0,15 0,29
10,00 1,00 0,04 0,08 0,13 0,25
10,00 1,25 0,04 0,08 0,11 0,23
10,00 1,50 0,04 0,08 0,10 0,21
10,00 2,00 0,04 0,08 0,09 0,18
E-41-X4
10,00 0,25 0,04 0,08 0,25 0,51
10,00 0,50 0,04 0,08 0,18 0,36
10,00 0,75 0,04 0,08 0,15 0,29
10,00 1,00 0,04 0,08 0,13 0,25
10,00 1,25 0,04 0,08 0,11 0,23
10,00 1,50 0,04 0,08 0,10 0,21
10,00 2,00 0,04 0,08 0,09 0,18
E-422-X4
10,00 0,25 0,03 0,13 0,19 0,82
10,00 0,50 0,03 0,13 0,13 0,58
10,00 0,75 0,03 0,13 0,11 0,47
10,00 1,00 0,03 0,13 0,09 0,41
10,00 1,25 0,03 0,13 0,08 0,37
10,00 1,50 0,03 0,13 0,08 0,34
10,00 2,00 0,03 0,13 0,07 0,29
RPHT_T-X4
10,00 0,25 0,07 0,14 0,44 0,89
10,00 0,50 0,07 0,14 0,31 0,63
10,00 0,75 0,07 0,14 0,26 0,51
10,00 1,00 0,07 0,14 0,22 0,44
10,00 1,25 0,07 0,14 0,20 0,40
10,00 1,50 0,07 0,14 0,18 0,36
10,00 2,00 0,07 0,14 0,16 0,31
RPMW_T-X4
10,00 0,25 0,10 0,16 0,63 1,01
10,00 0,50 0,10 0,16 0,45 0,72
10,00 0,75 0,10 0,16 0,37 0,58
10,00 1,00 0,10 0,16 0,32 0,51
10,00 1,25 0,10 0,16 0,28 0,45
10,00 1,50 0,10 0,16 0,26 0,41
10,00 2,00 0,10 0,16 0,22 0,36
F-701
6,00 0,25 0,02 0,05 0,10 0,24
6,00 0,50 0,02 0,05 0,07 0,17
6,00 0,75 0,02 0,05 0,06 0,14
6,00 1,00 0,02 0,05 0,05 0,12
6,00 1,25 0,02 0,05 0,04 0,11
6,00 1,50 0,02 0,05 0,04 0,10
E-41
6,00 0,25 0,03 0,06 0,15 0,29
6,00 0,50 0,03 0,06 0,10 0,21
6,00 0,75 0,03 0,06 0,08 0,17
6,00 1,00 0,03 0,06 0,07 0,15
6,00 1,25 0,03 0,06 0,07 0,13
6,00 1,50 0,03 0,06 0,06 0,12
T
6,00 0,25 0,05 0,08 0,24 0,39
6,00 0,50 0,05 0,08 0,17 0,28
6,00 0,75 0,05 0,08 0,14 0,23
6,00 1,00 0,05 0,08 0,12 0,20
6,00 1,25 0,05 0,08 0,11 0,18
6,00 1,50 0,05 0,08 0,10 0,16
F-701
8,00 0,25 0,02 0,05 0,11 0,28
8,00 0,50 0,02 0,05 0,08 0,20
8,00 0,75 0,02 0,05 0,07 0,16
8,00 1,00 0,02 0,05 0,06 0,14
8,00 1,25 0,02 0,05 0,05 0,13
8,00 1,50 0,02 0,05 0,05 0,12
E-701
8,00 0,25 0,02 0,05 0,11 0,28
8,00 0,50 0,02 0,05 0,08 0,20
8,00 0,75 0,02 0,05 0,07 0,16
8,00 1,00 0,02 0,05 0,06 0,14
8,00 1,25 0,02 0,05 0,05 0,13
8,00 1,50 0,02 0,05 0,05 0,12
E-41
8,00 0,25 0,03 0,06 0,17 0,34
8,00 0,50 0,03 0,06 0,12 0,24
8,00 0,75 0,03 0,06 0,10 0,20
8,00 1,00 0,03 0,06 0,08 0,17
8,00 1,25 0,03 0,06 0,08 0,15
8,00 1,50 0,03 0,06 0,07 0,14
E-422
8,00 0,25 0,03 0,07 0,17 0,40
8,00 0,50 0,03 0,07 0,12 0,28
8,00 0,75 0,03 0,07 0,10 0,23
8,00 1,00 0,03 0,07 0,08 0,20
8,00 1,25 0,03 0,07 0,08 0,18
8,00 1,50 0,03 0,07 0,07 0,16

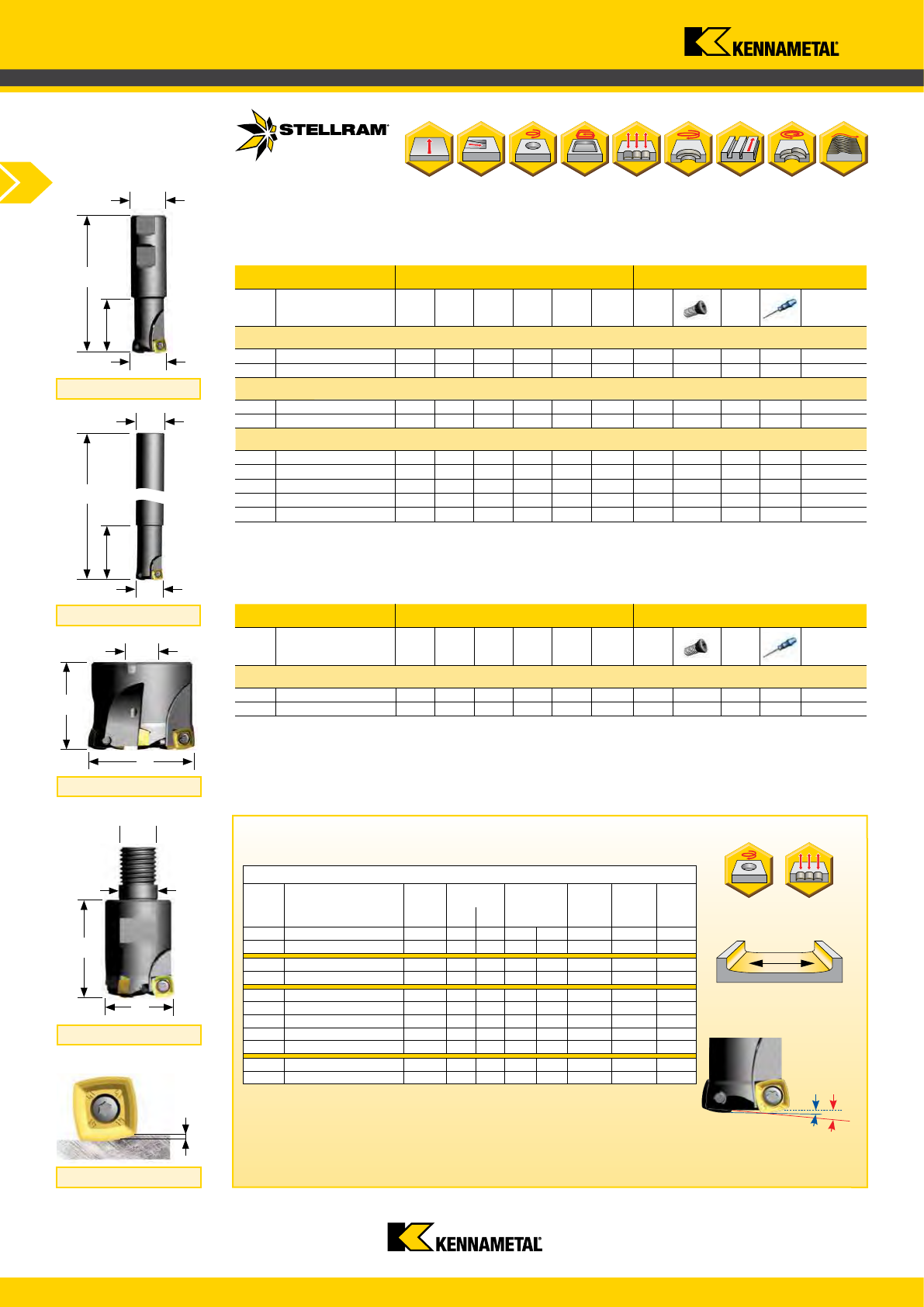

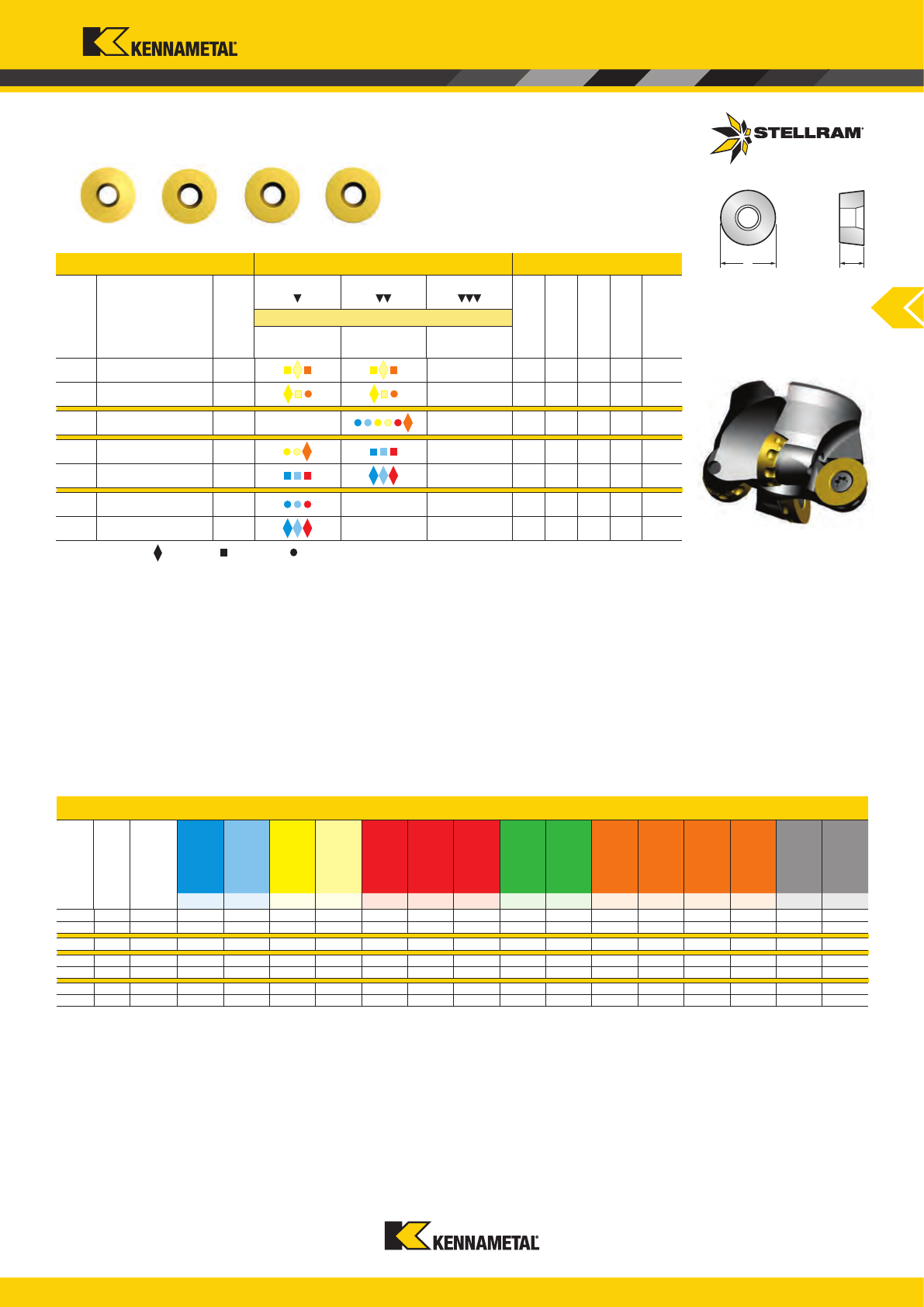

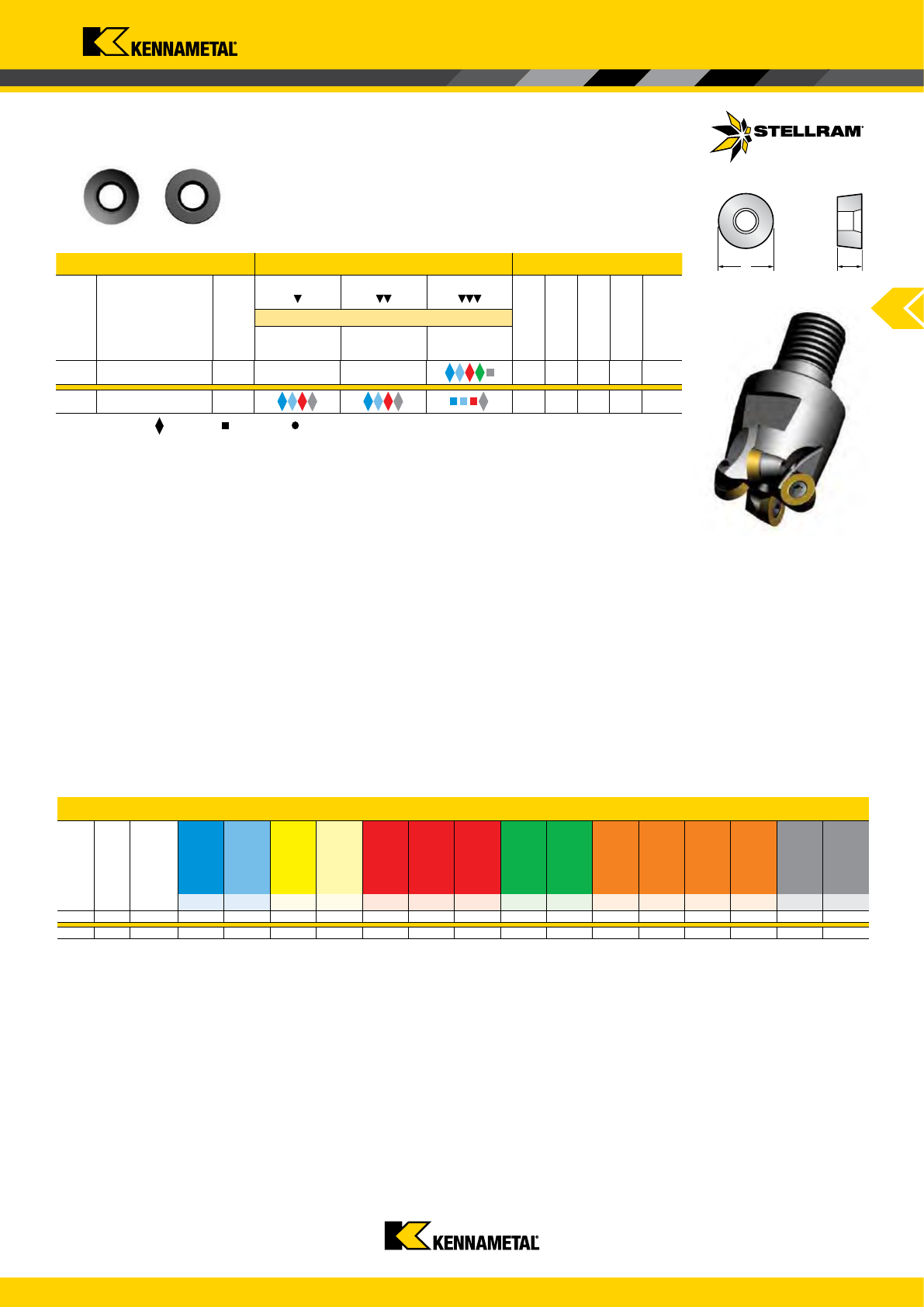

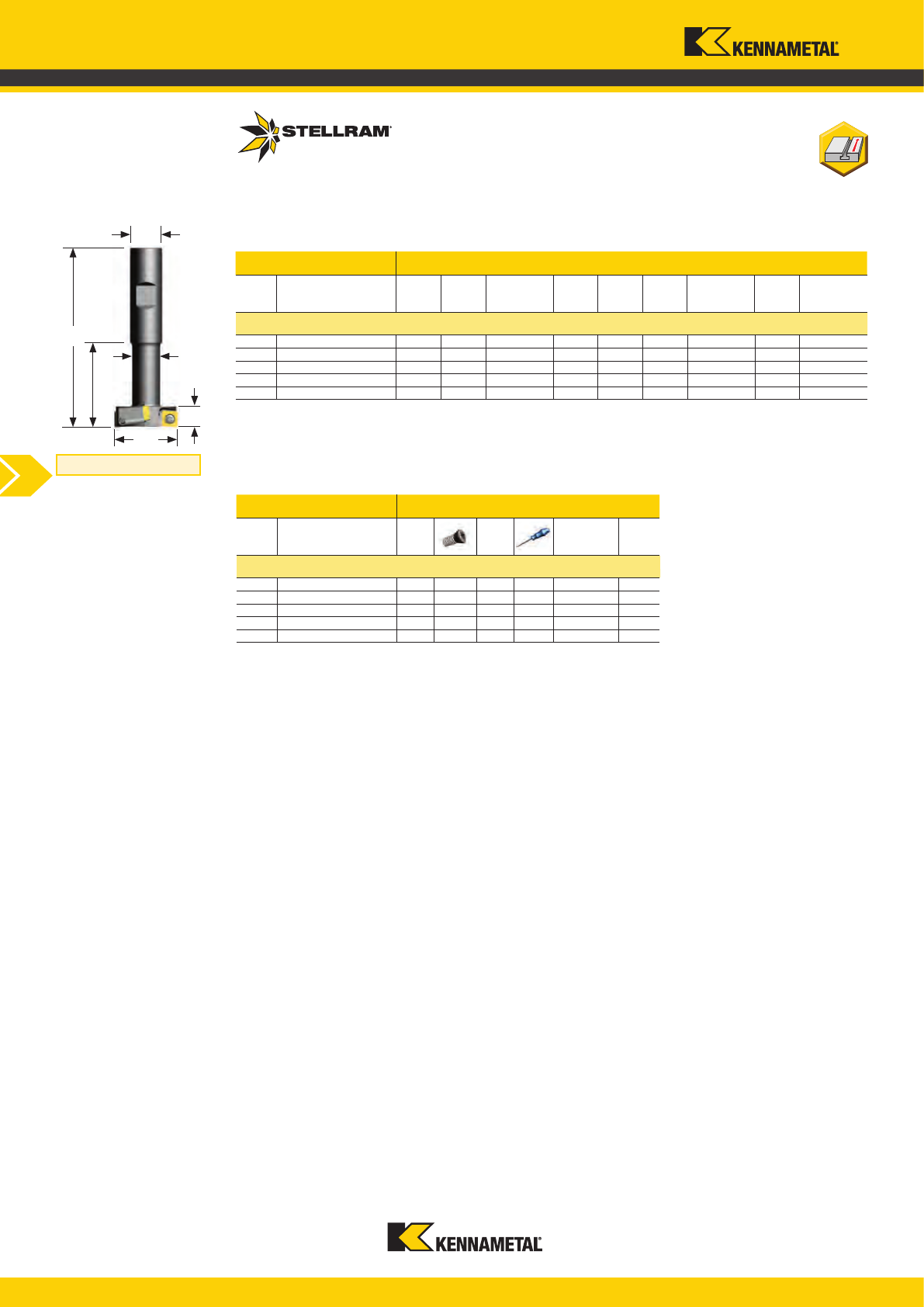

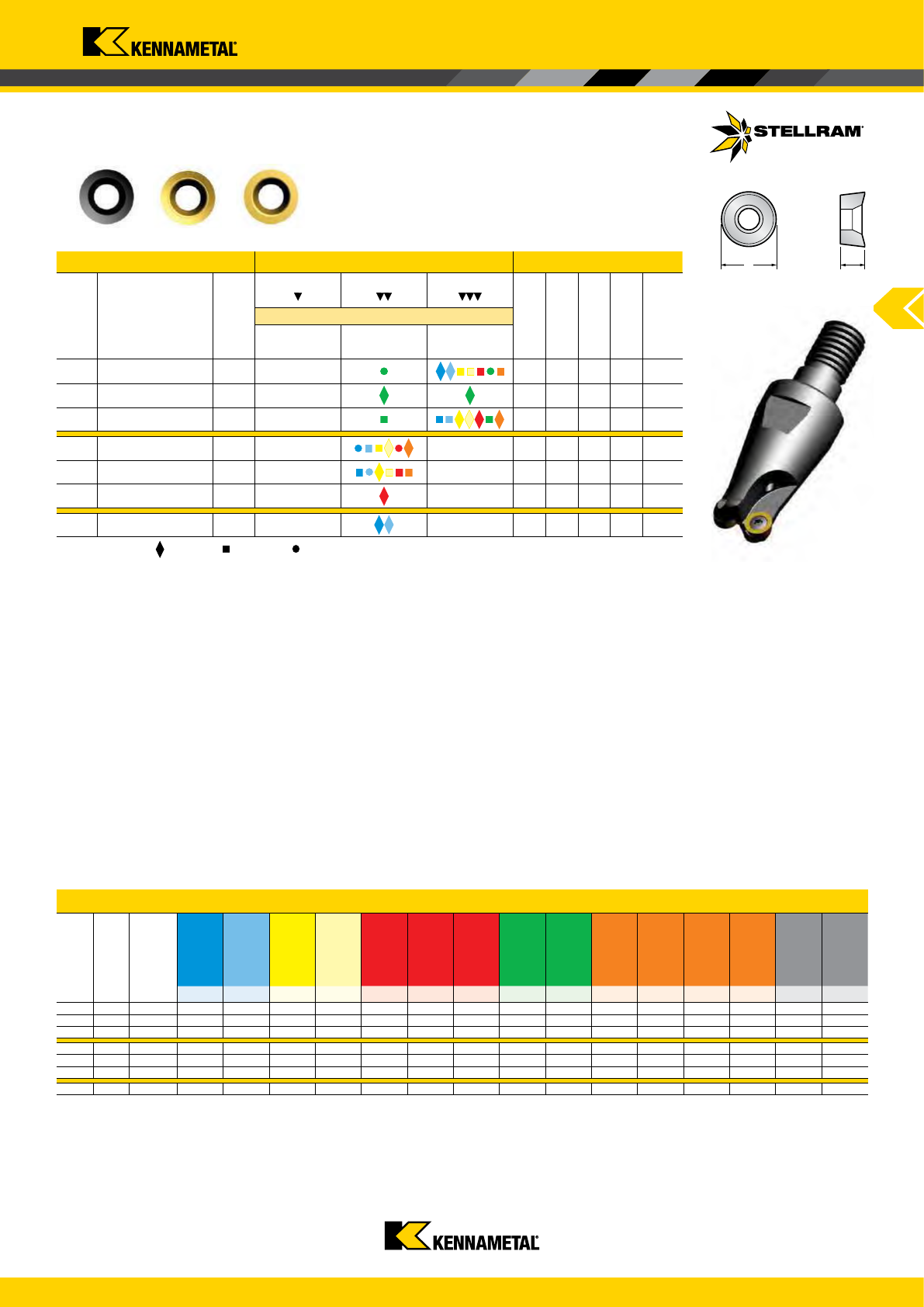

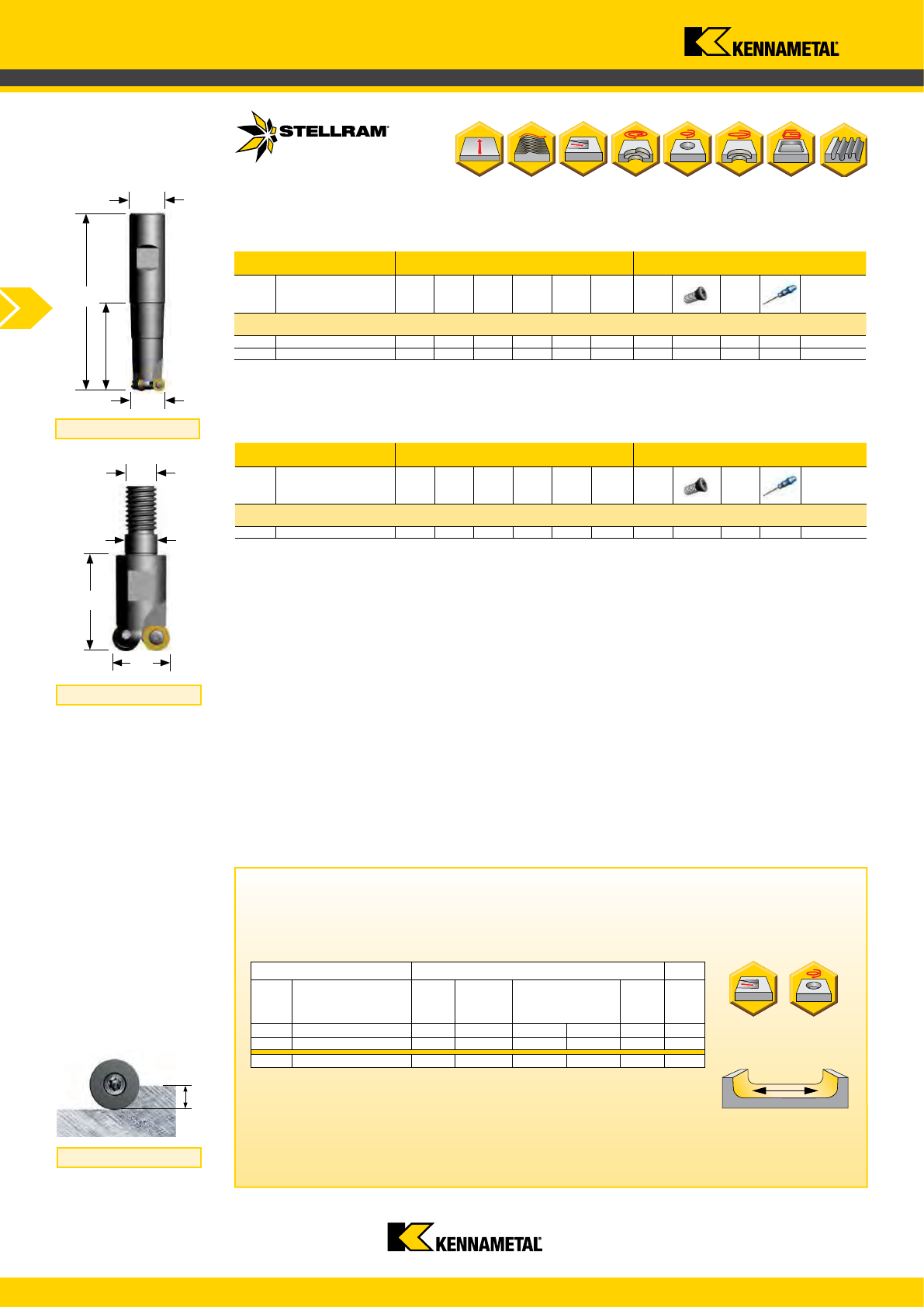

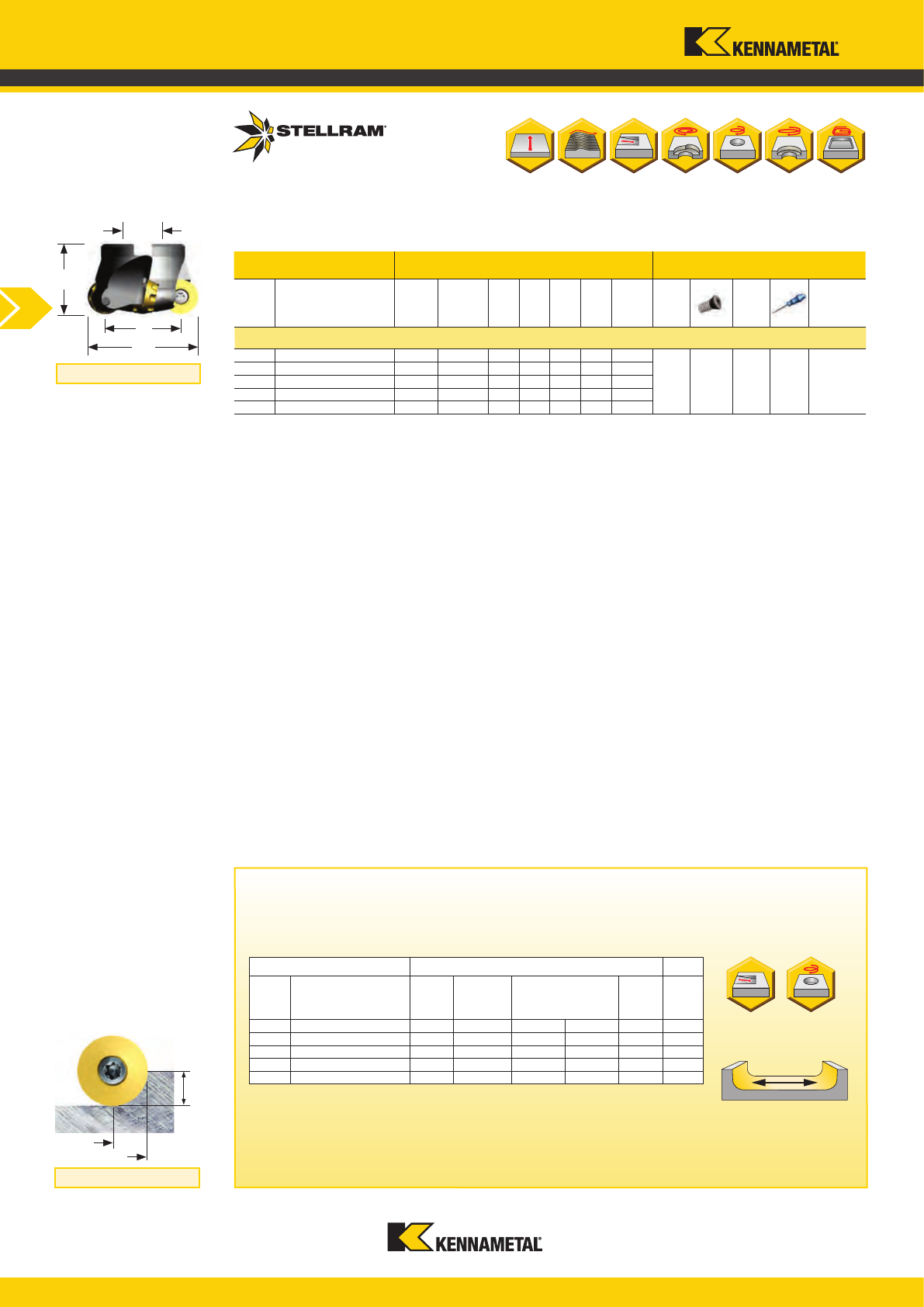

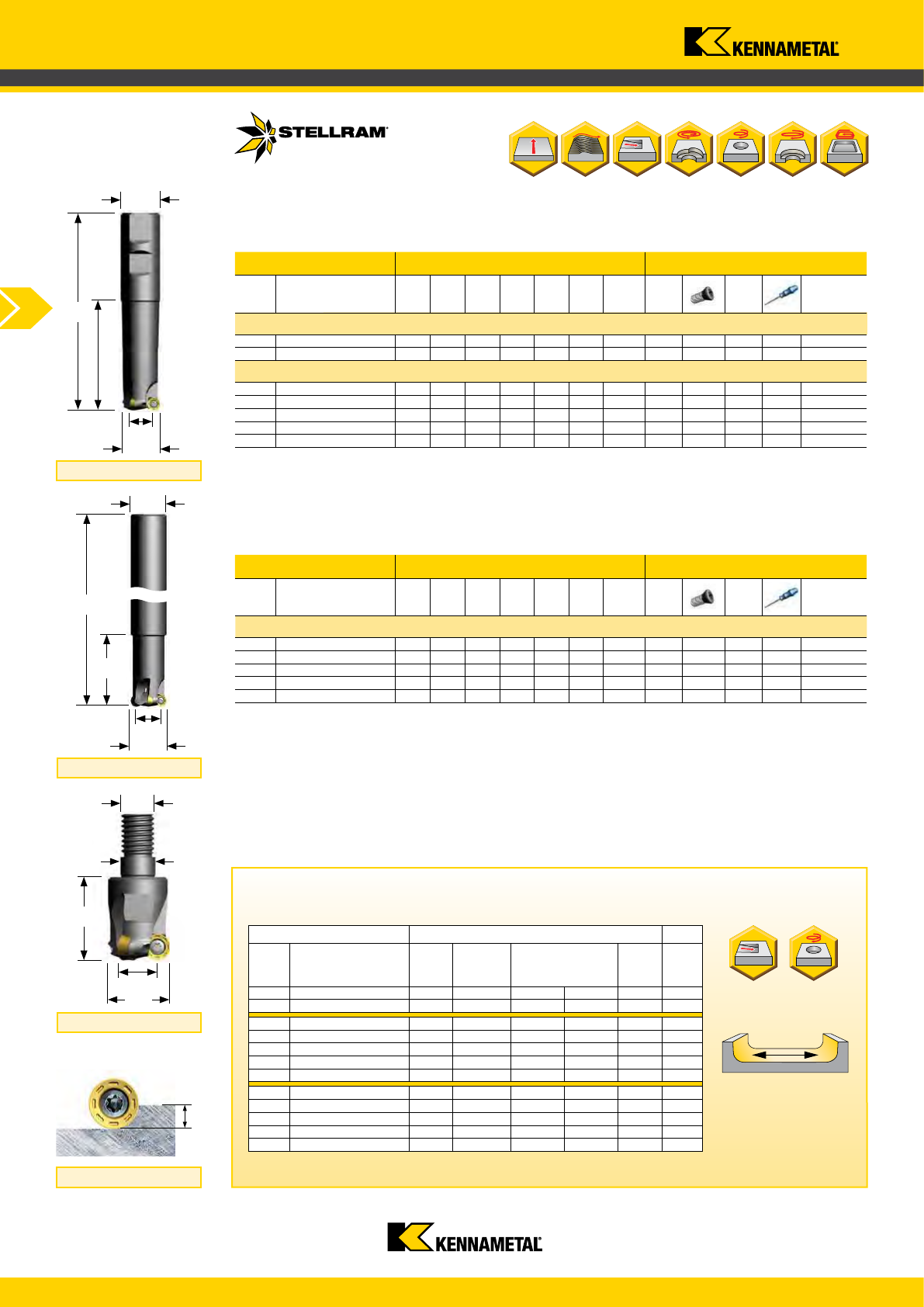

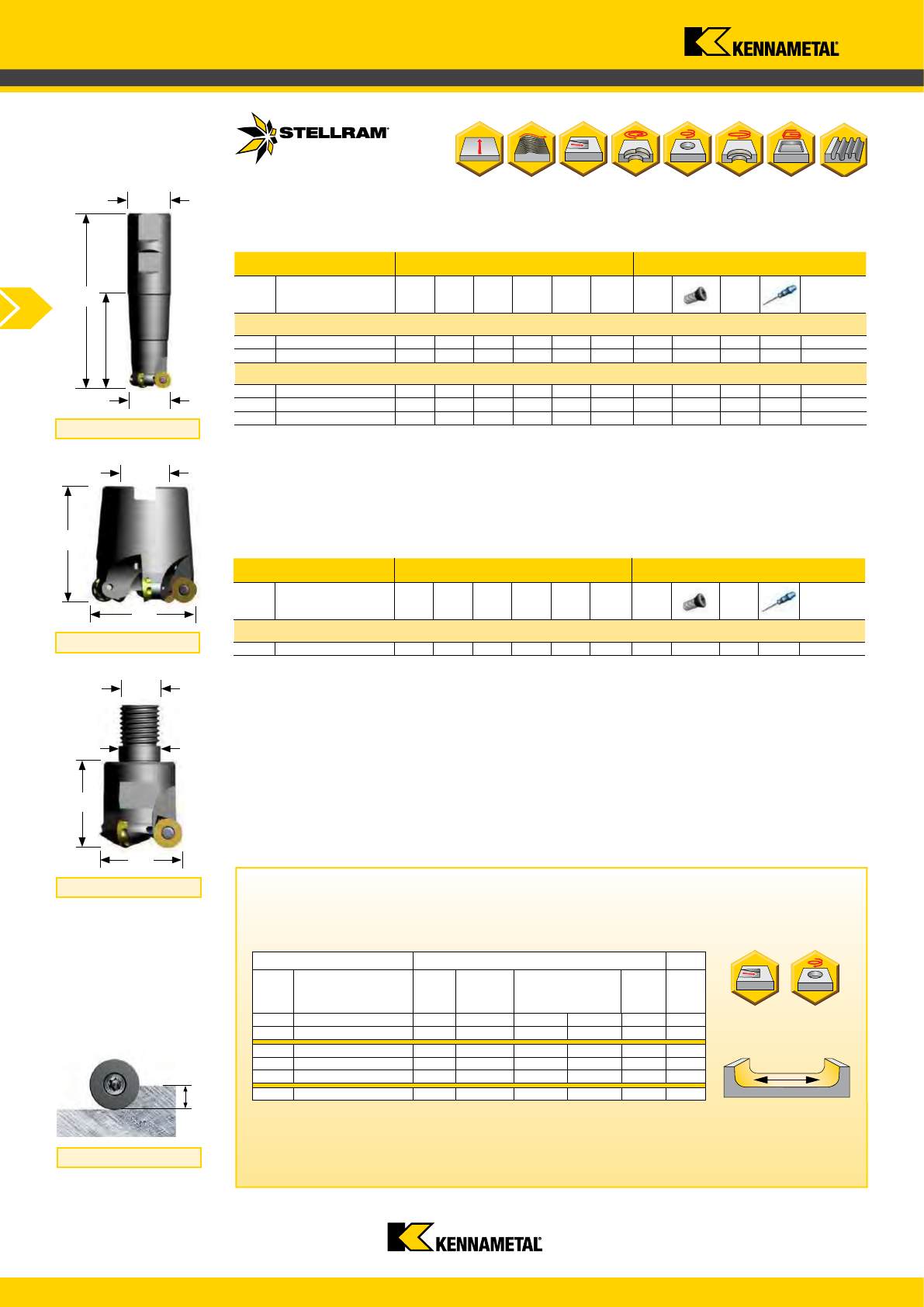

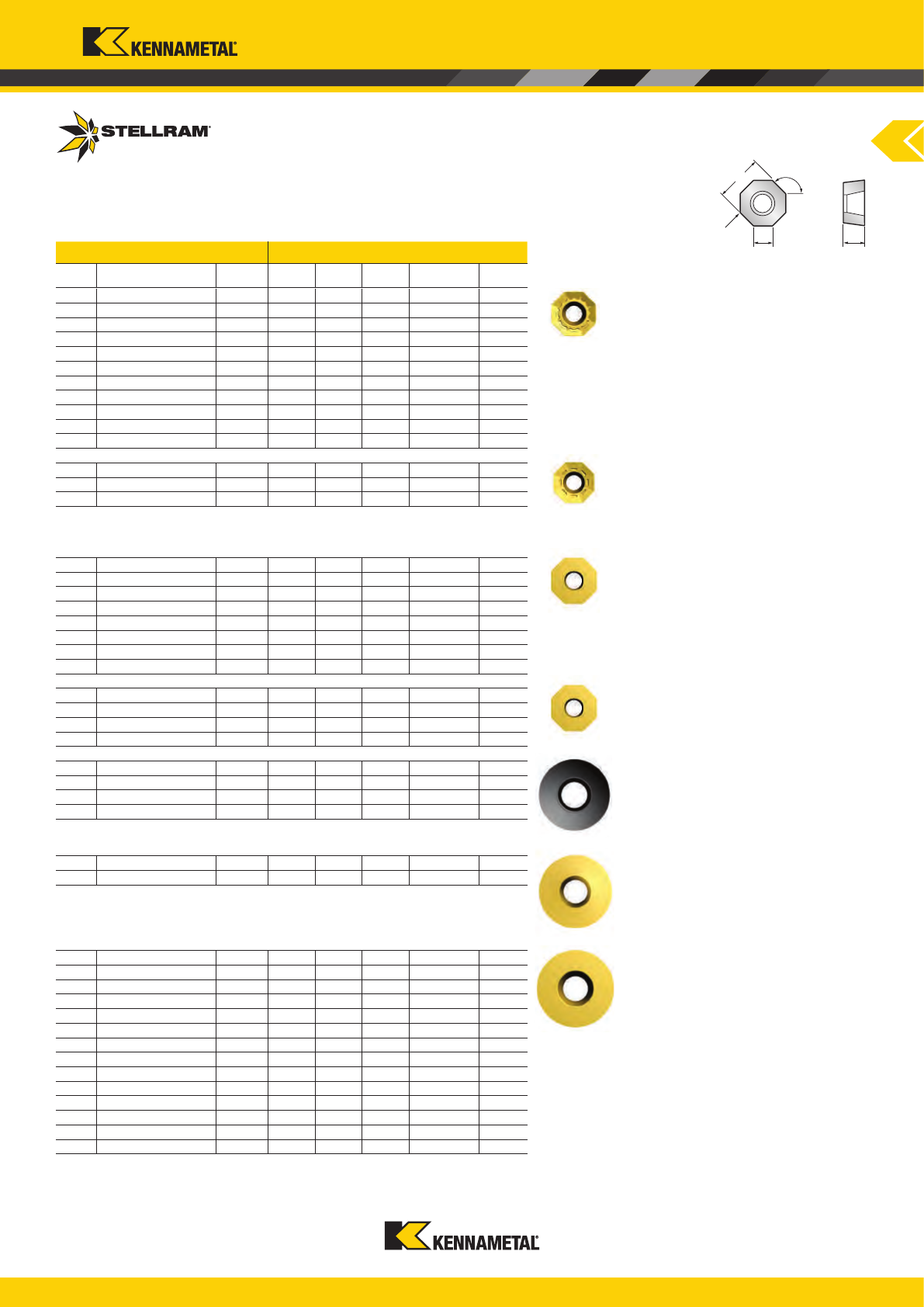

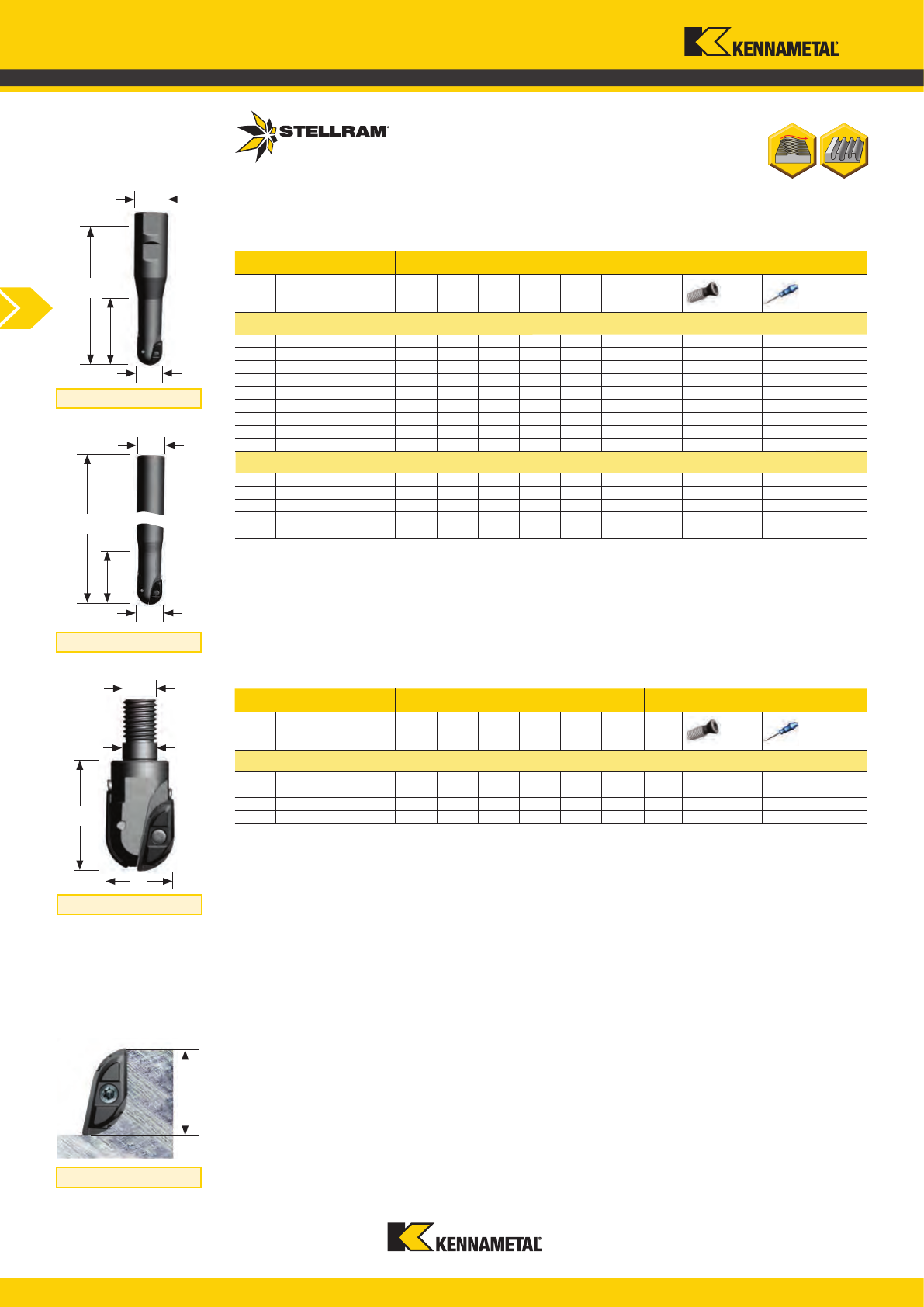

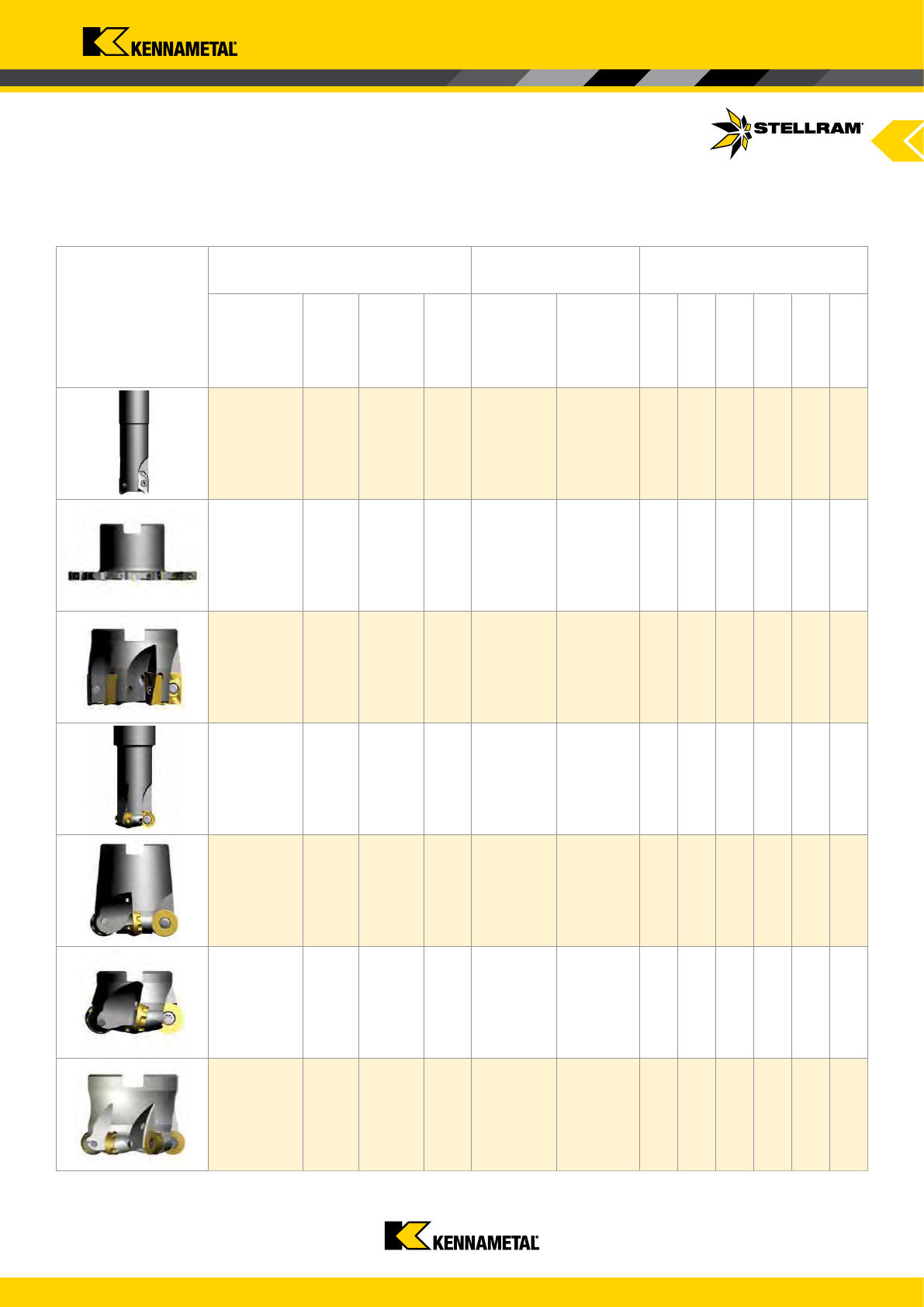

Contour Mills

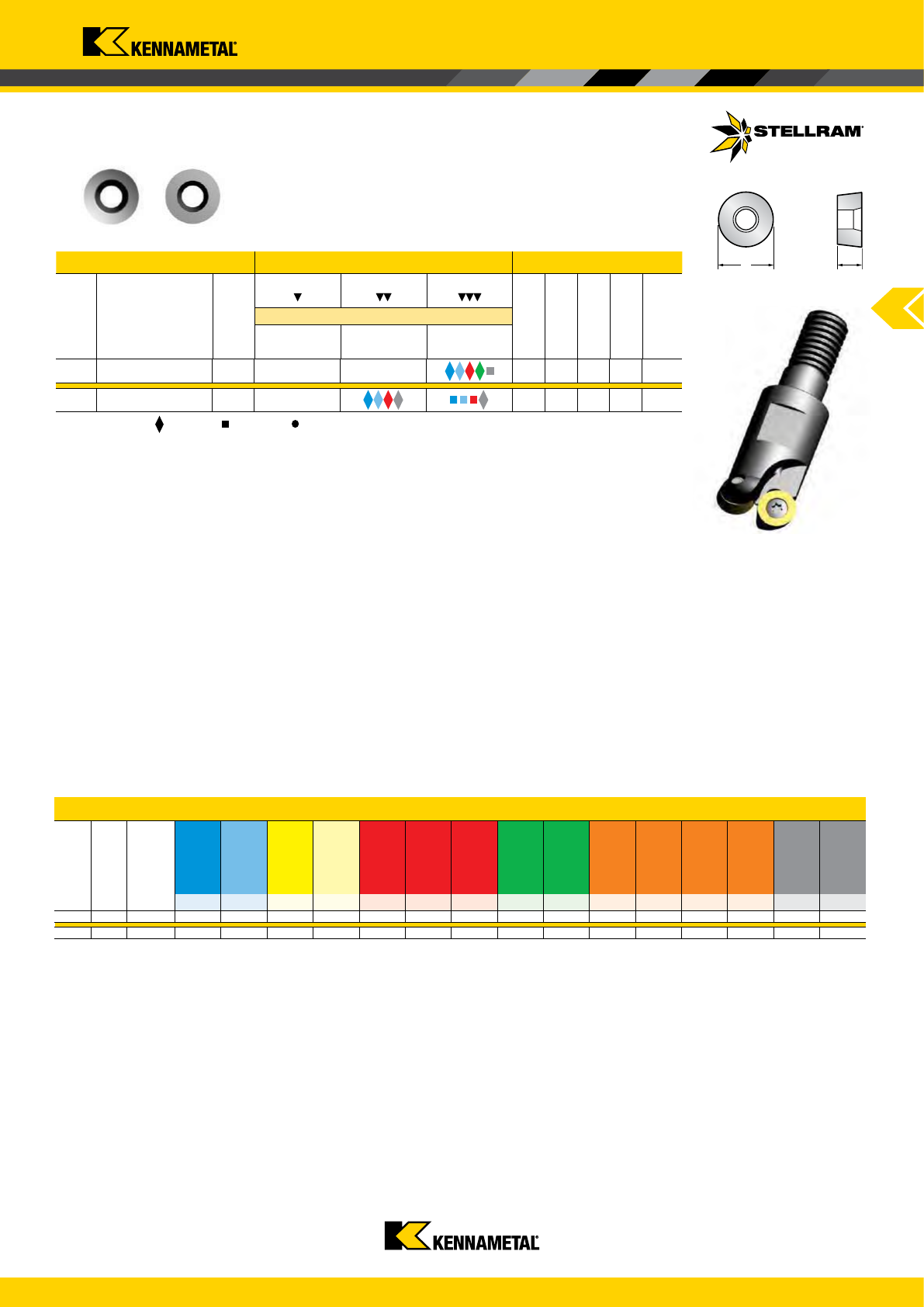

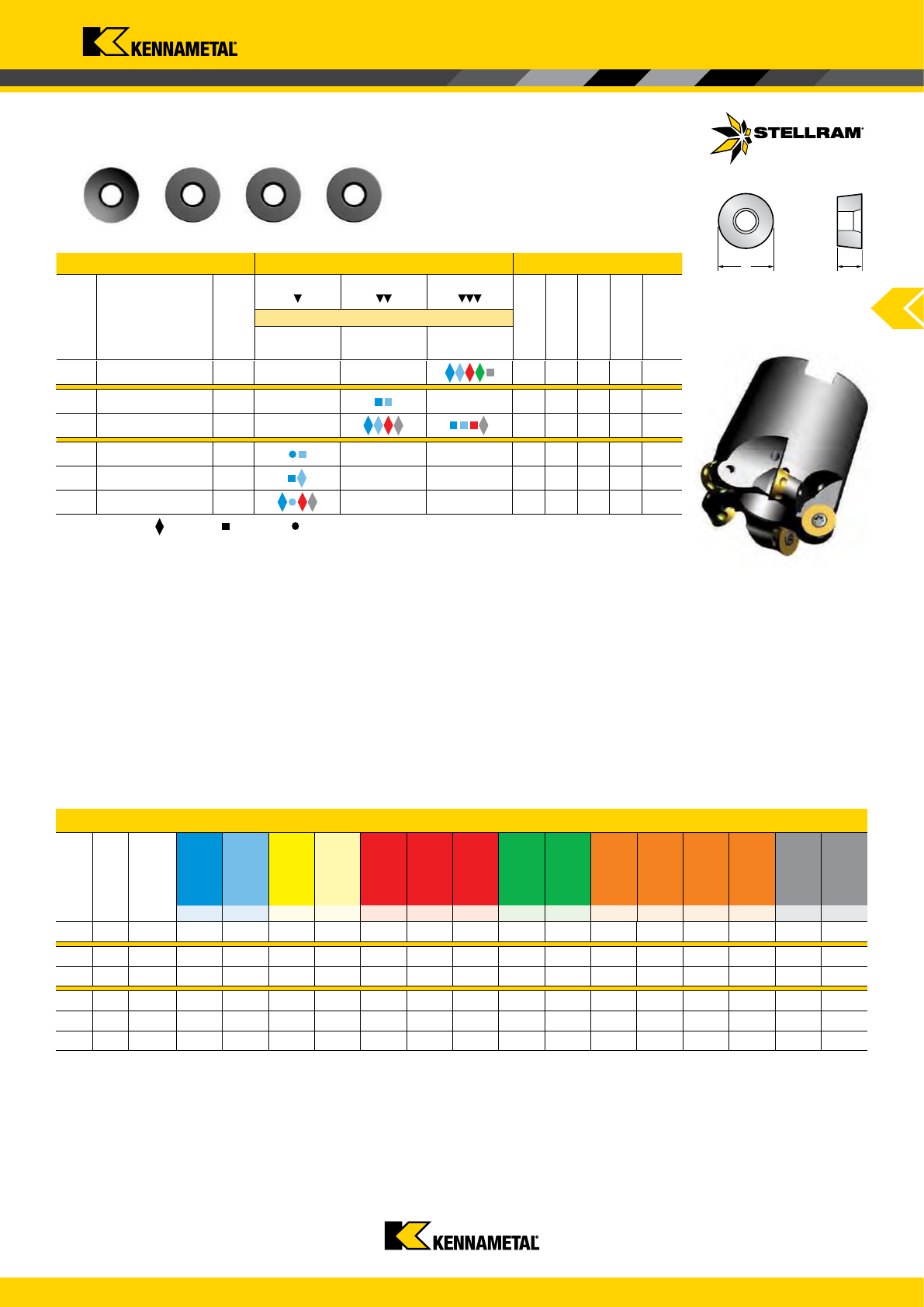

7700VR08 Inserts RP..0803..
Dimensions (mm)
Inserts
Geometry Insert
Size
ap
Axial
d.o.c.
hm
min. hm
max. fz
min. fz
max.
7700VR06 Inserts RP..0603..
Dimensions (mm)
Inserts
Geometry Insert
Size
ap
Axial
d.o.c.
hm
min. hm
max. fz
min. fz
max.
7700VR10 Inserts RP..10T3..
Dimensions (mm)
Inserts
Geometry Insert
Size
ap
Axial
d.o.c.
hm
min. hm
max. fz
min. fz
max.

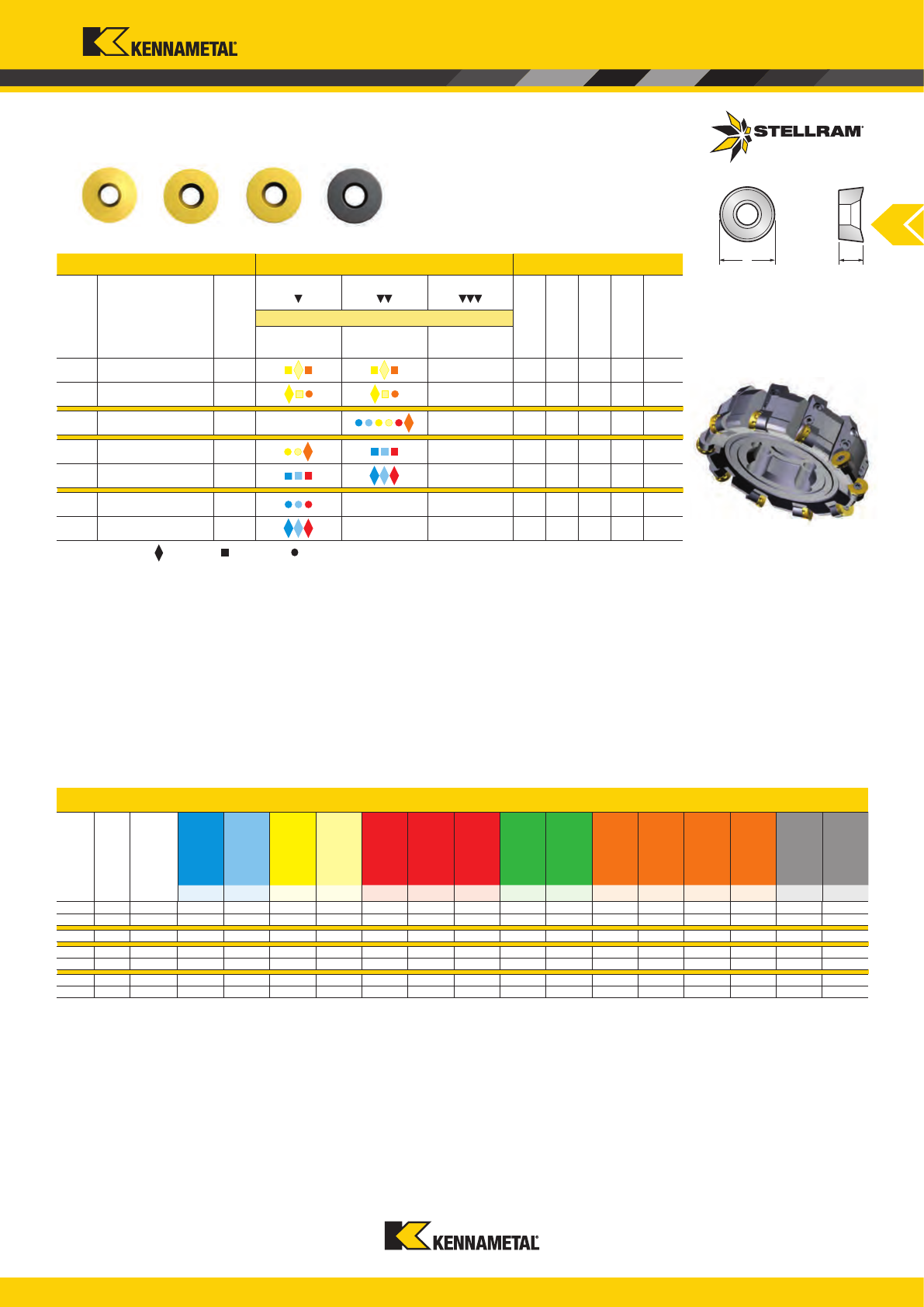

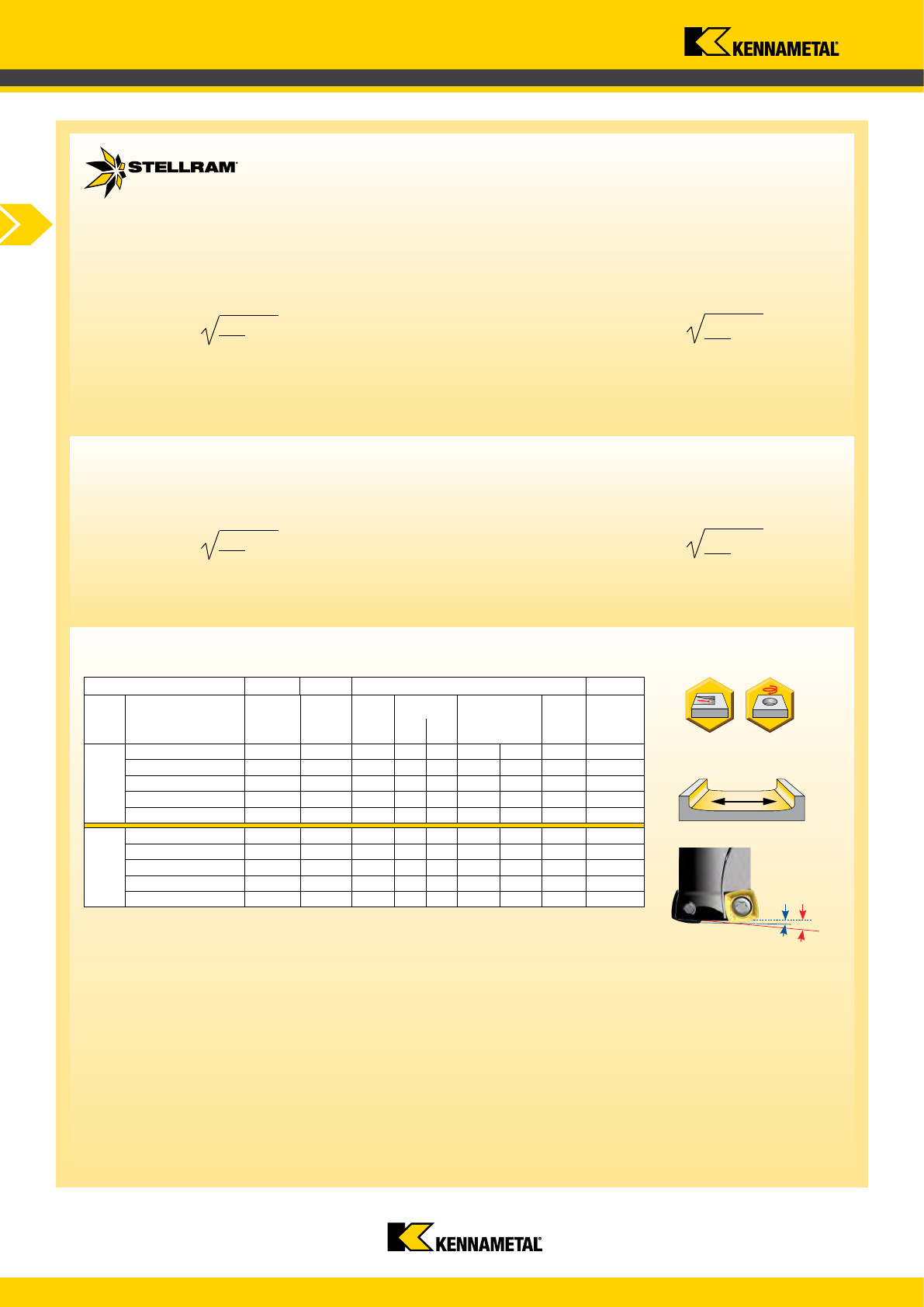

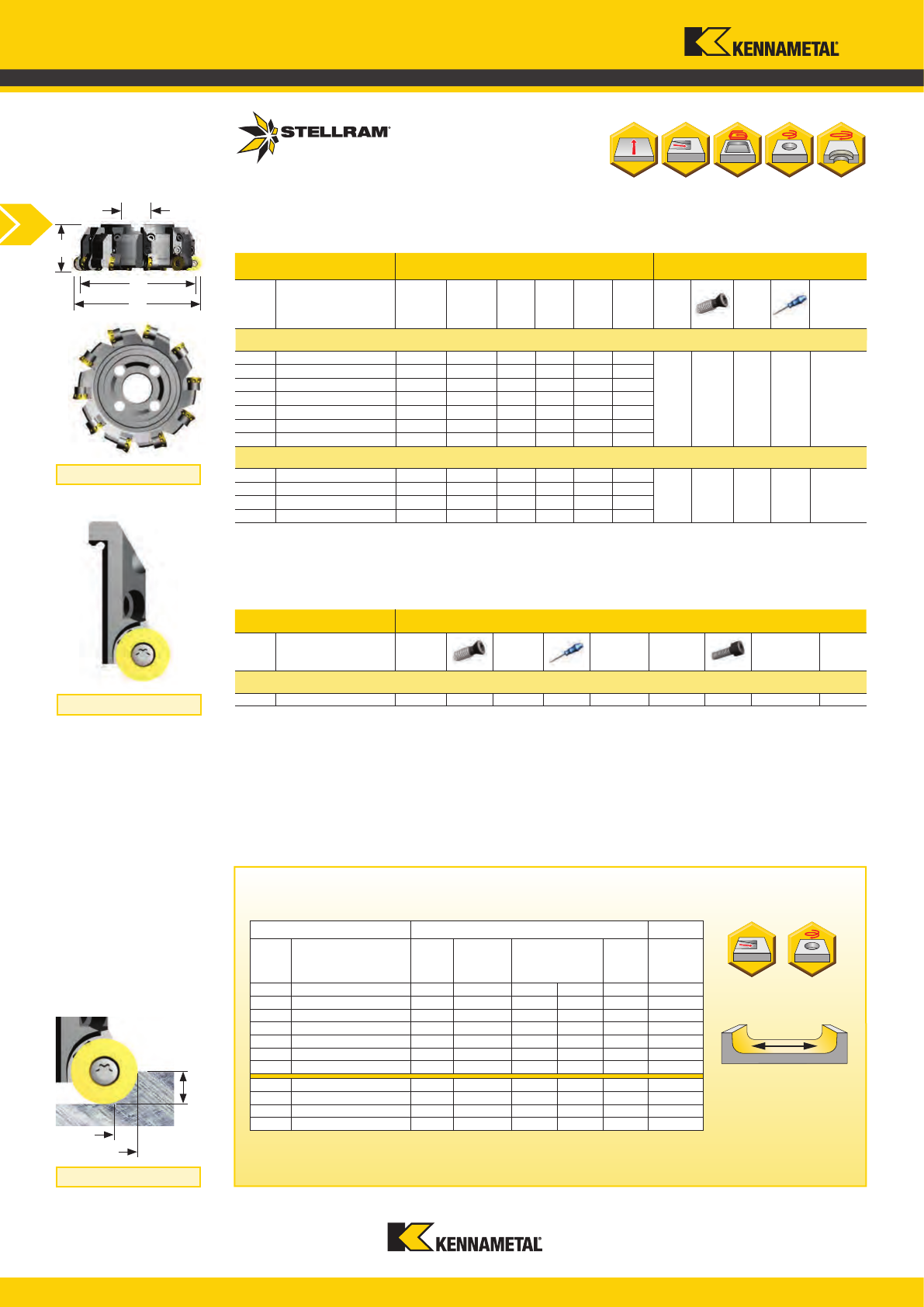

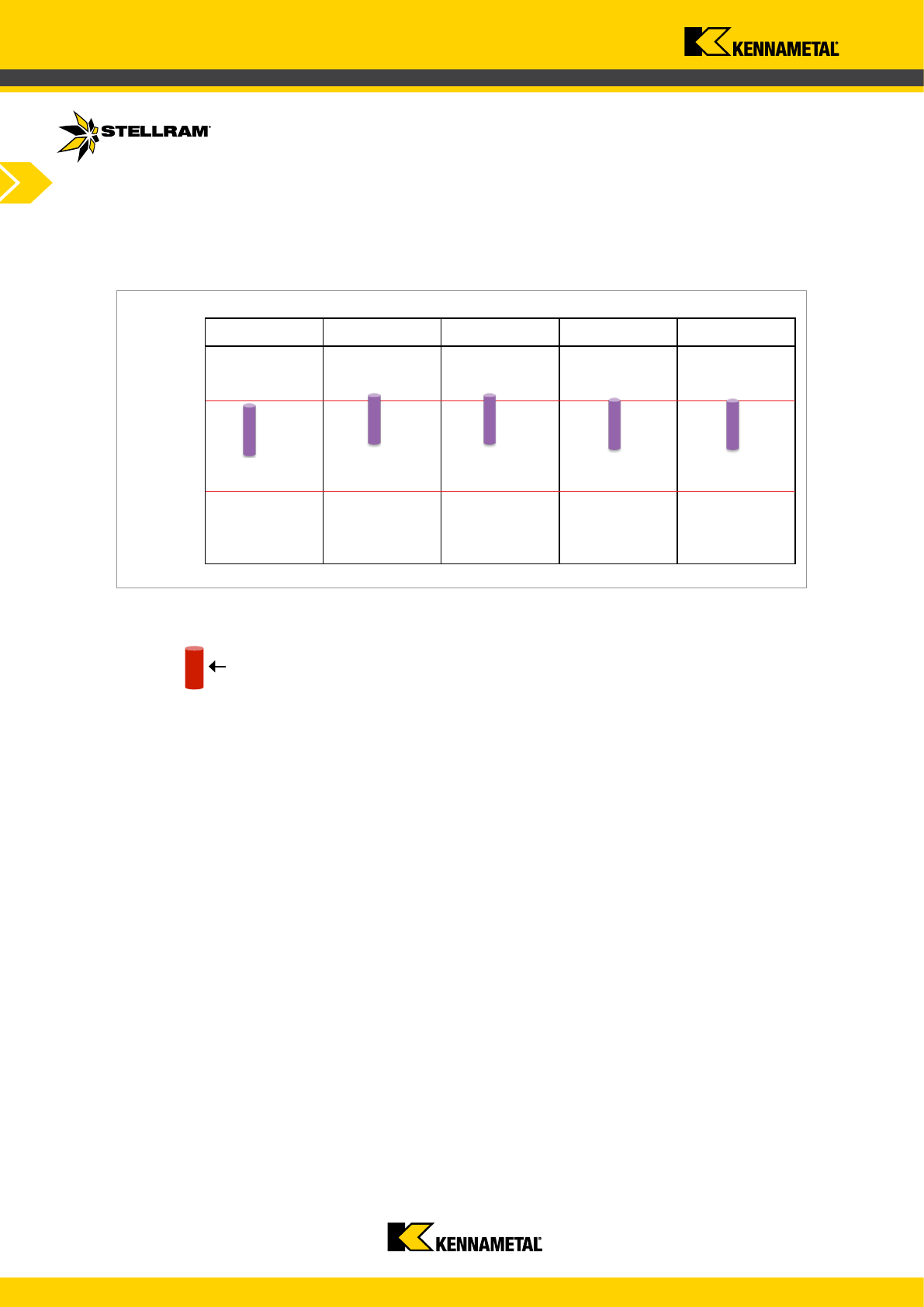

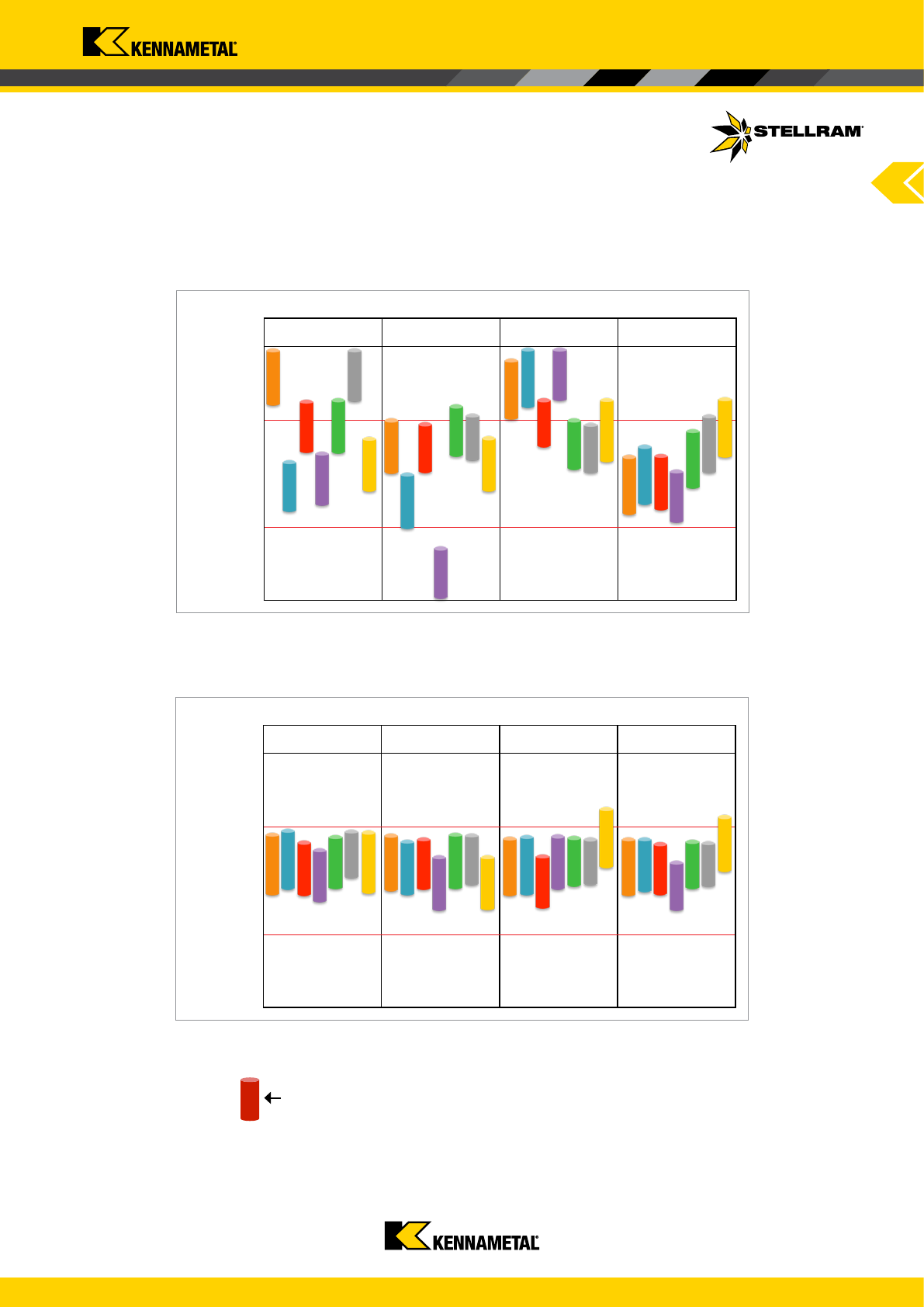

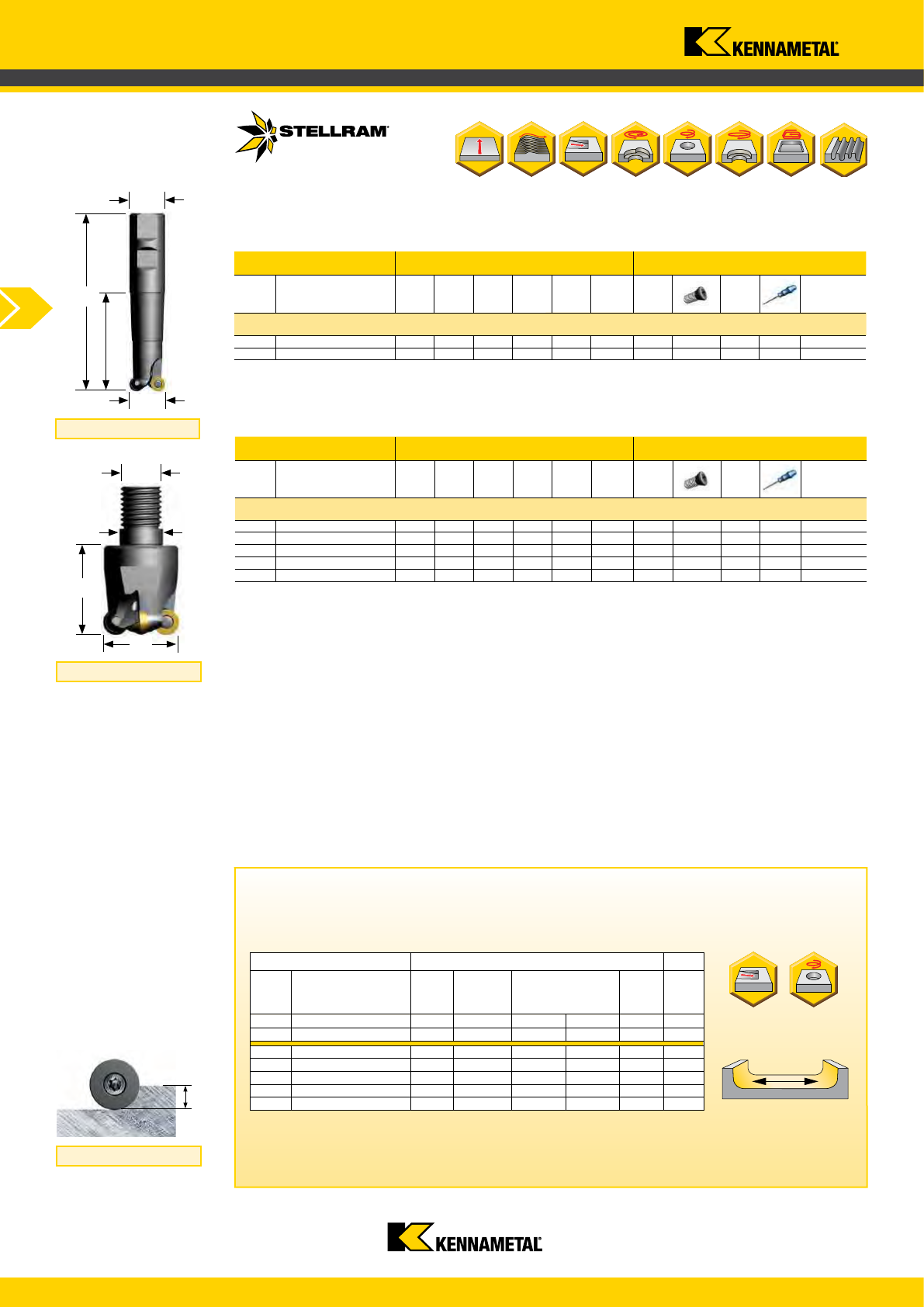

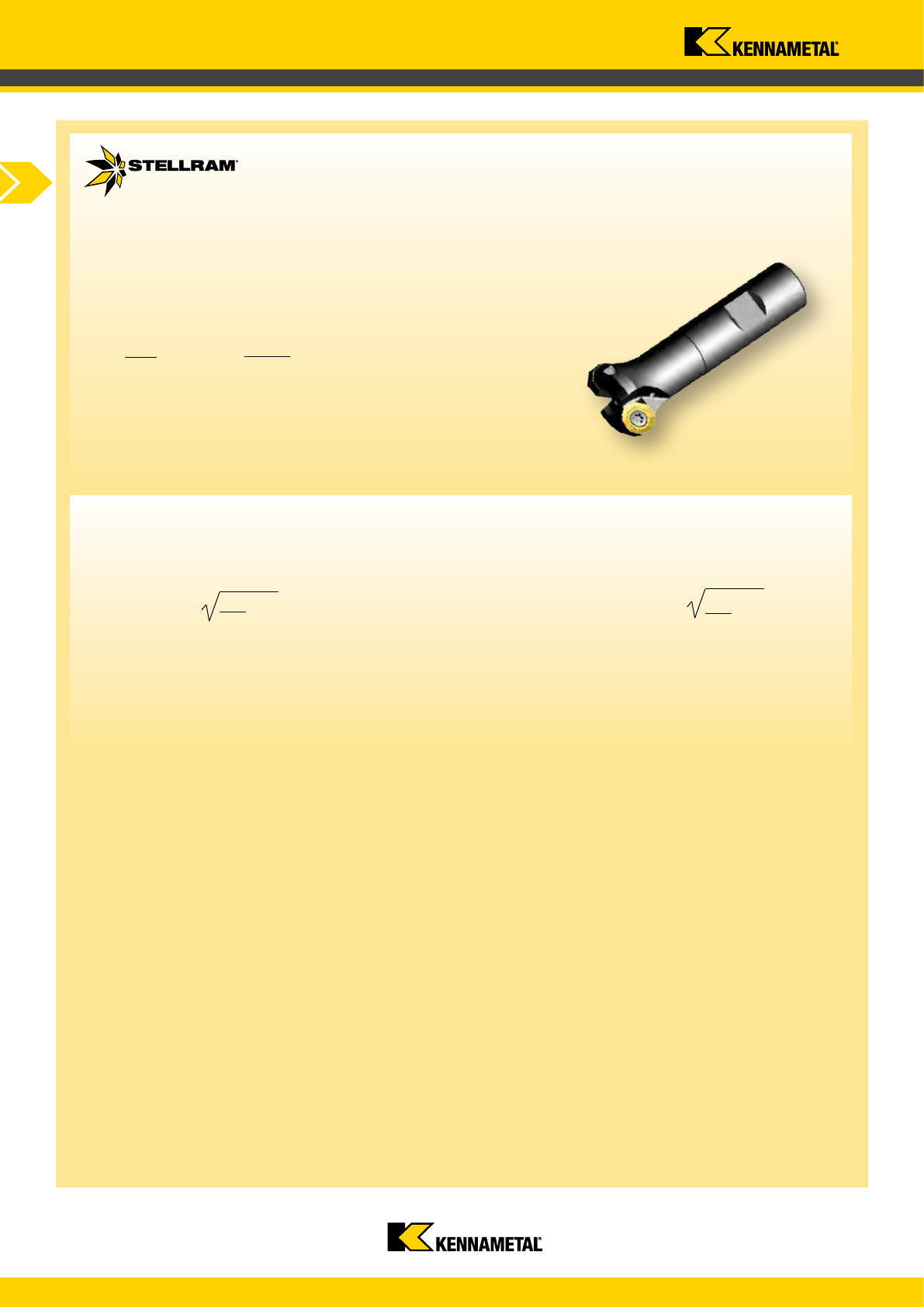

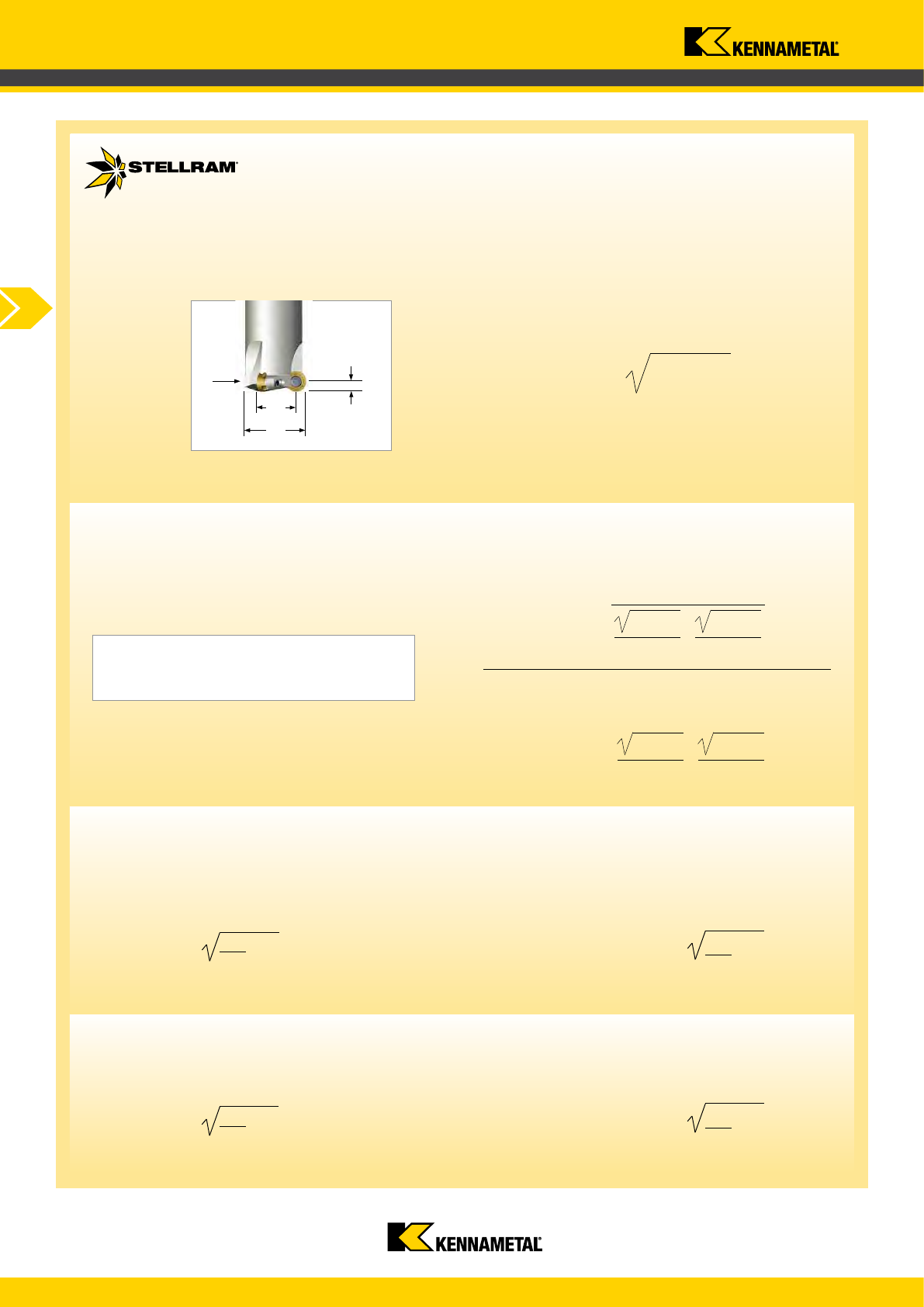

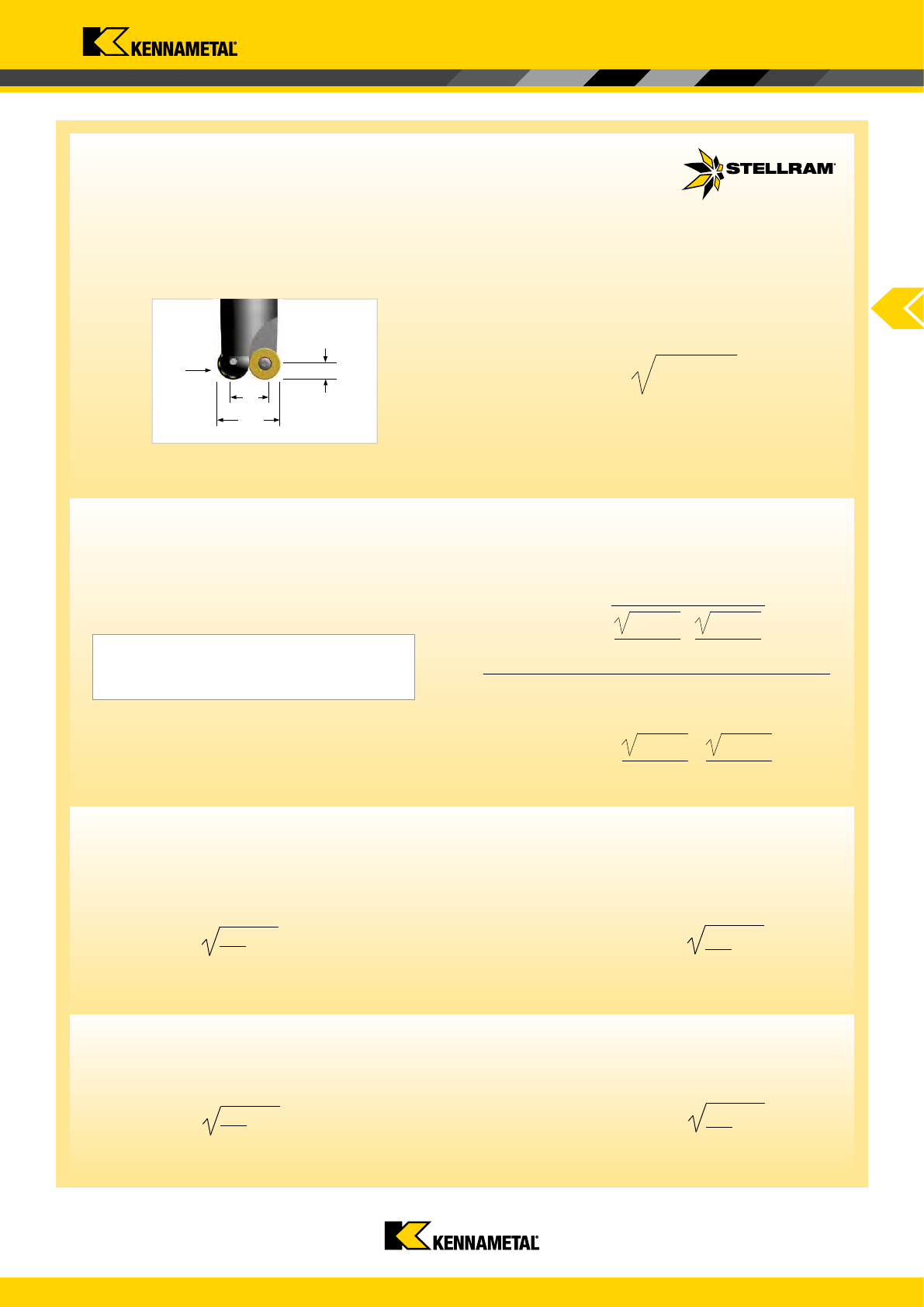

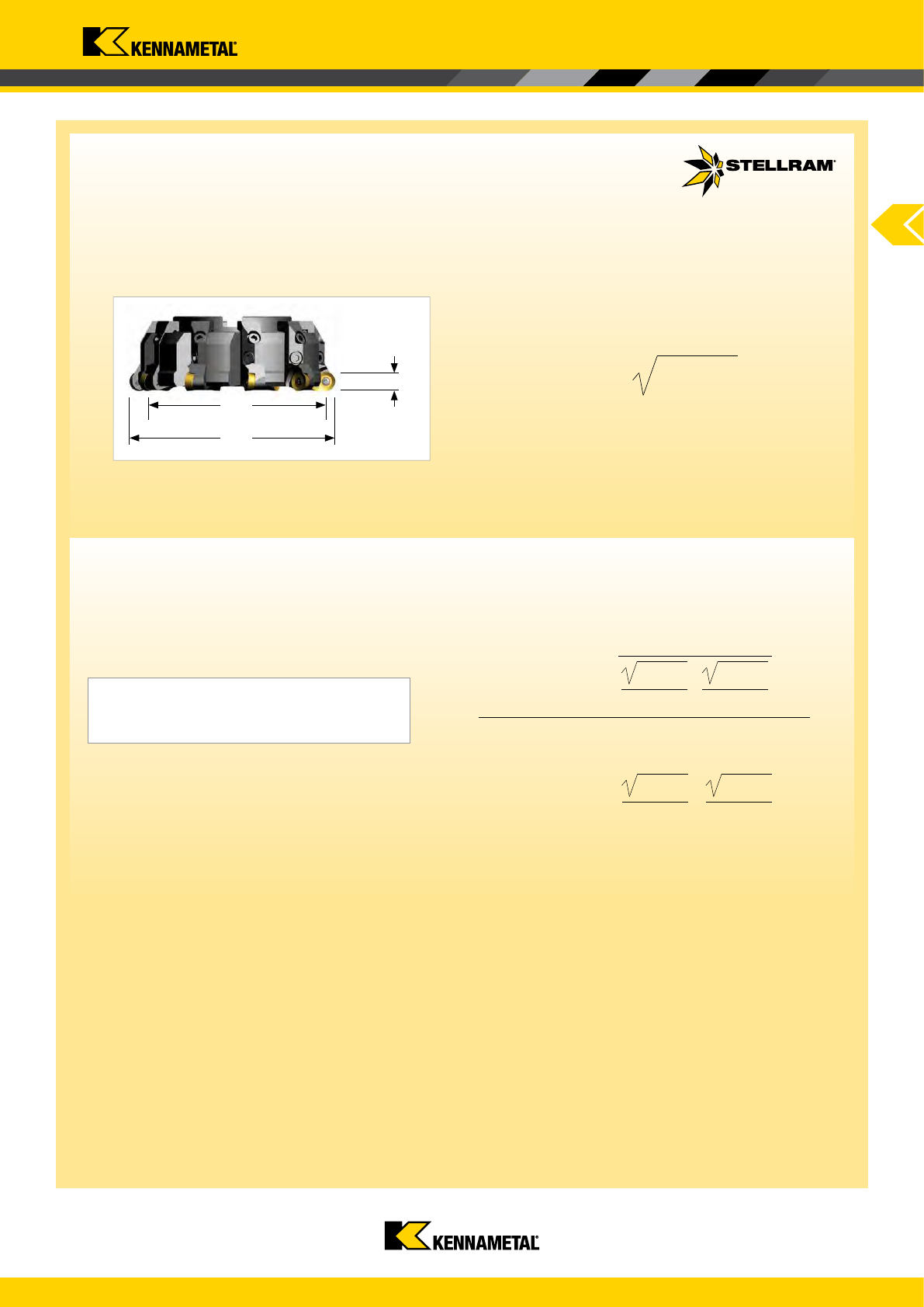

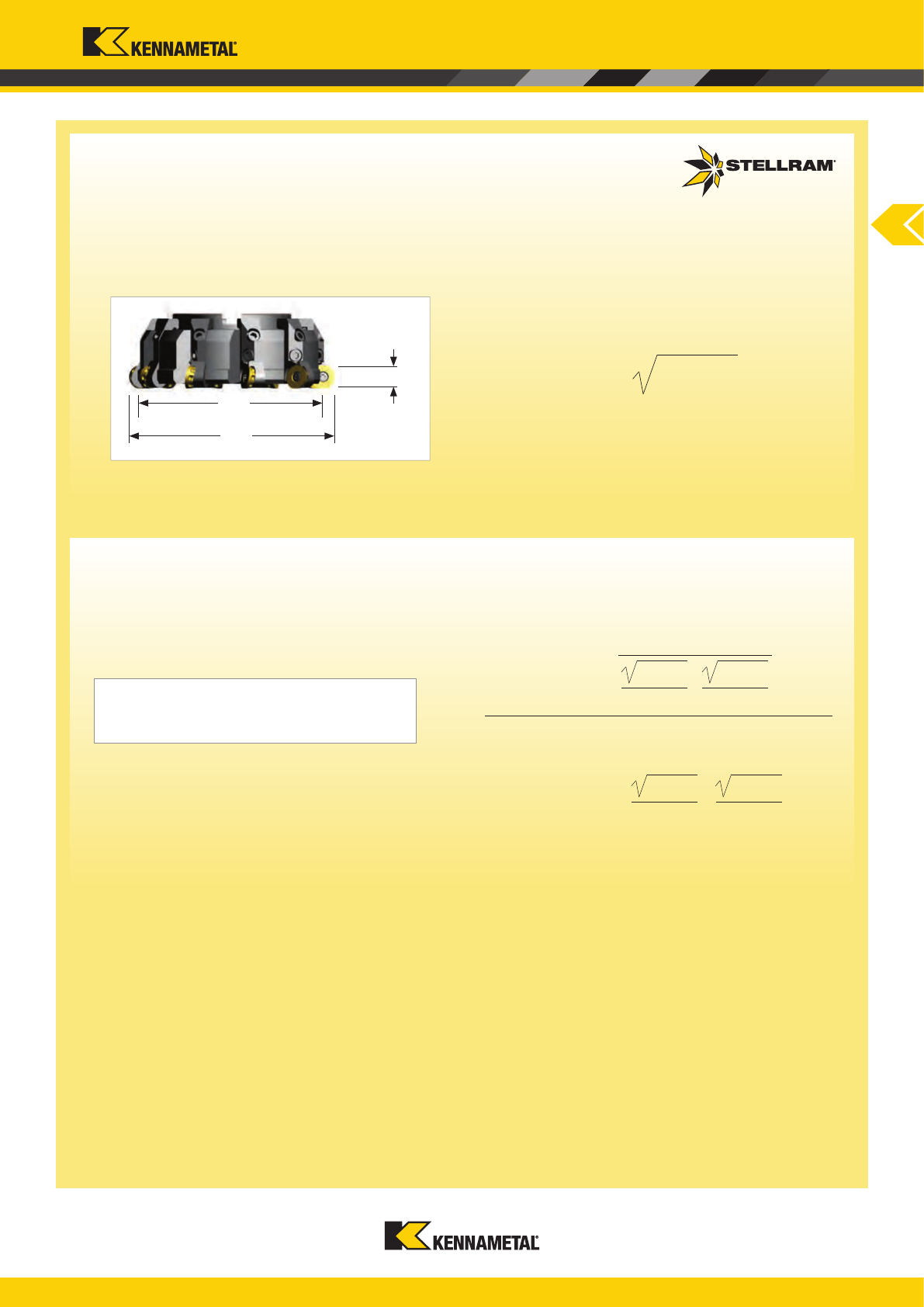

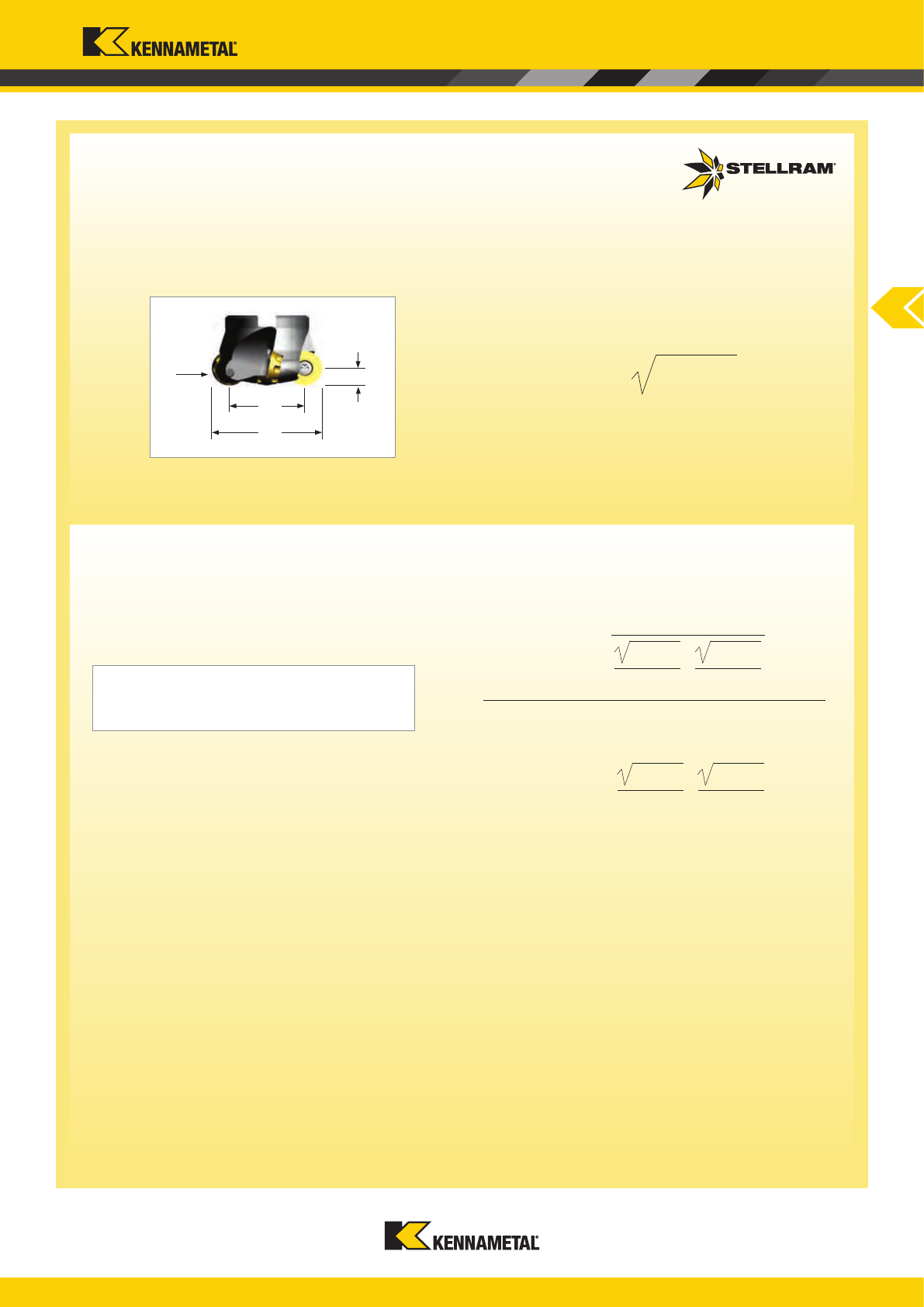

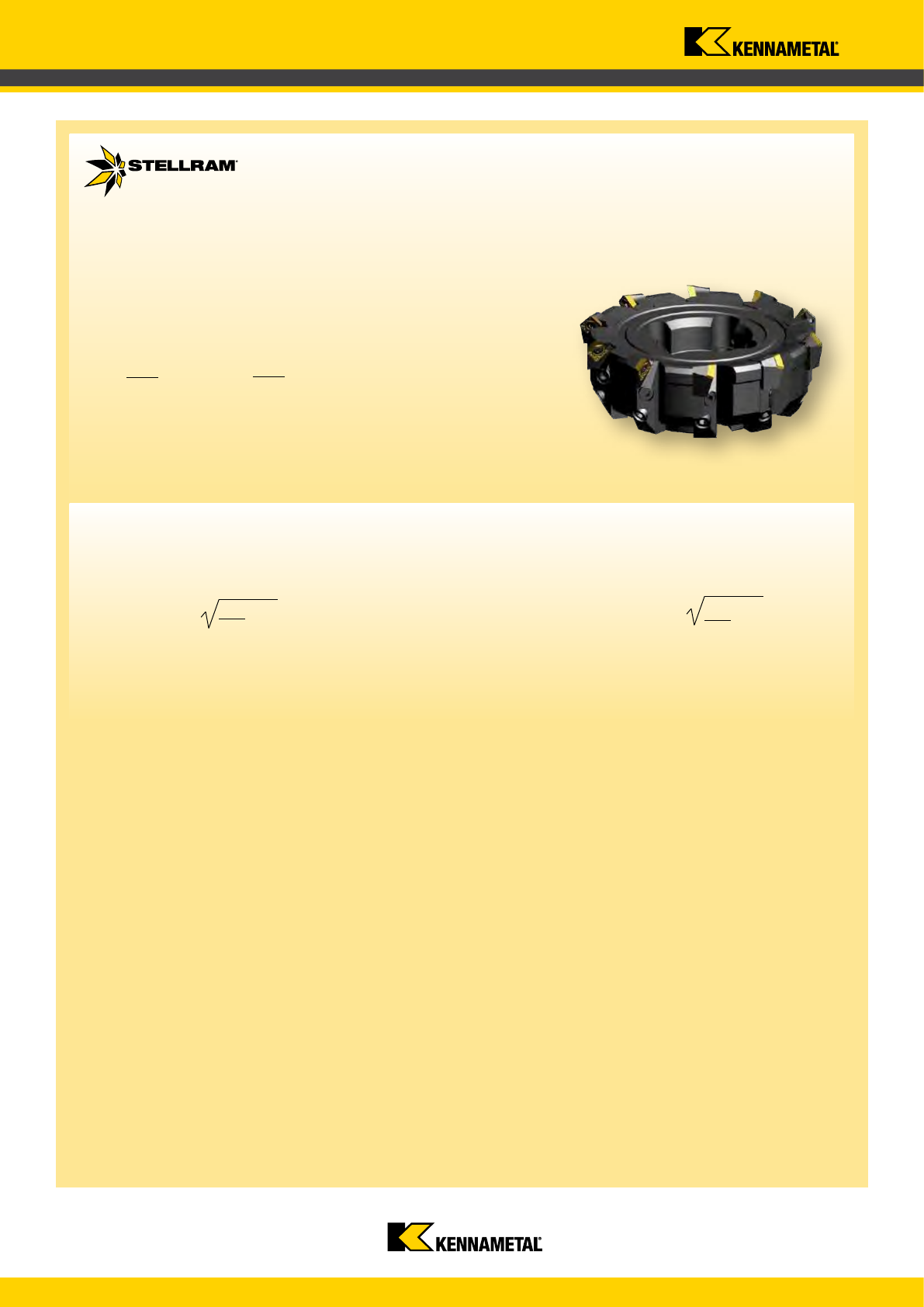

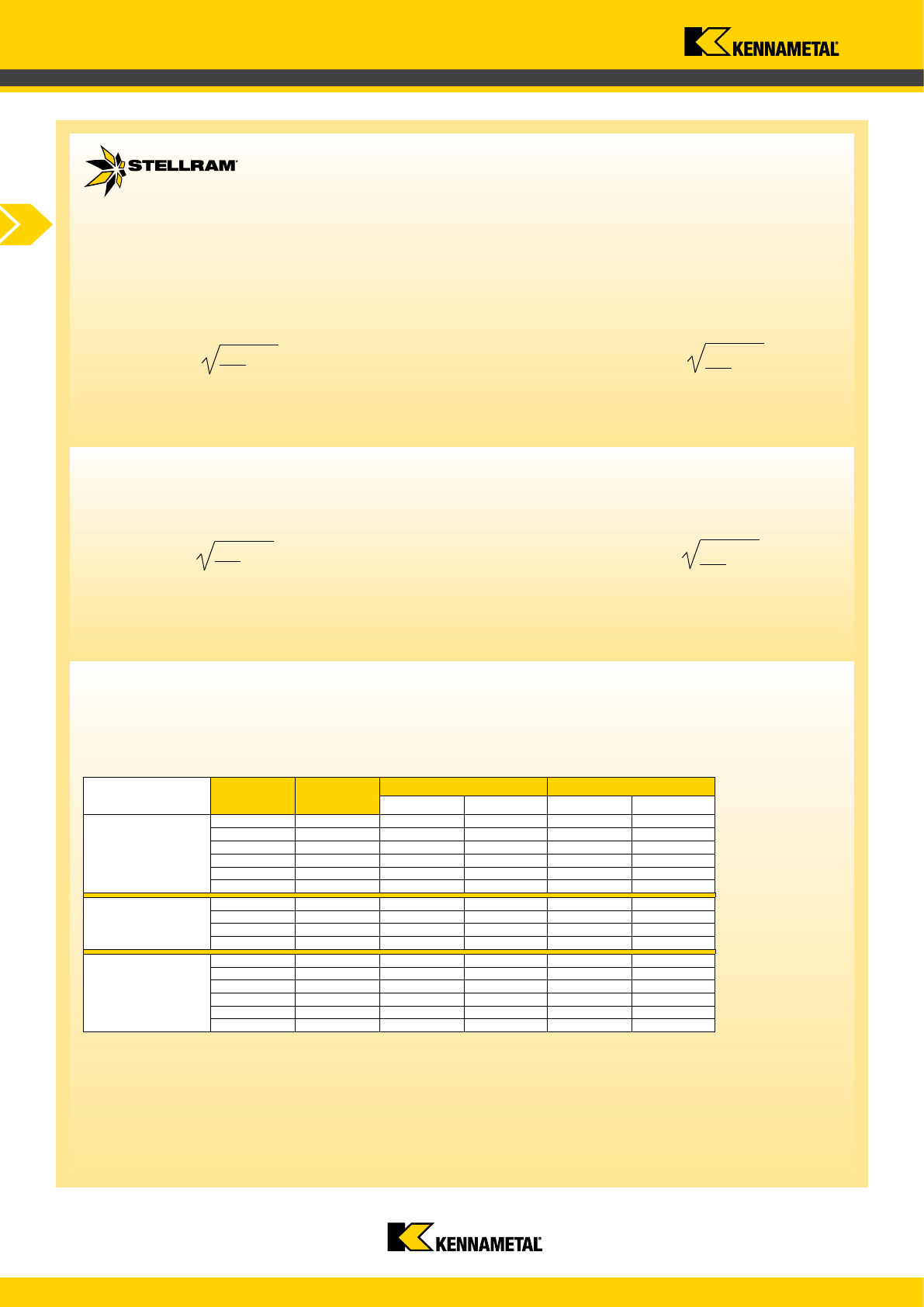

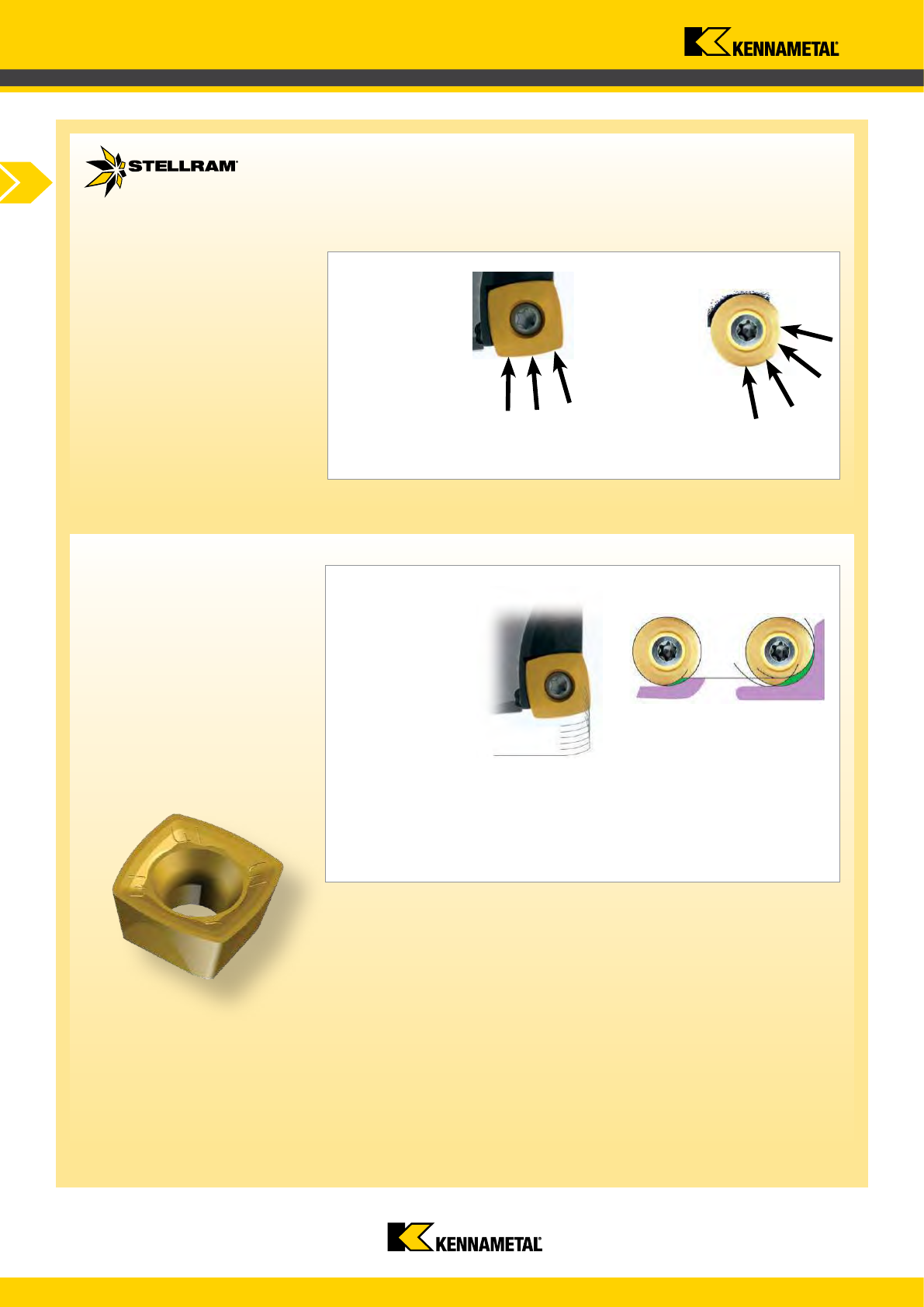

With round inserts, the thickness of the chip varies depending on the axial depth of cut (ap) and is related to the size of the cutting edge-preparation.
For best tool life it is important to maintain the proper chip thickness as shown below.
7700VR

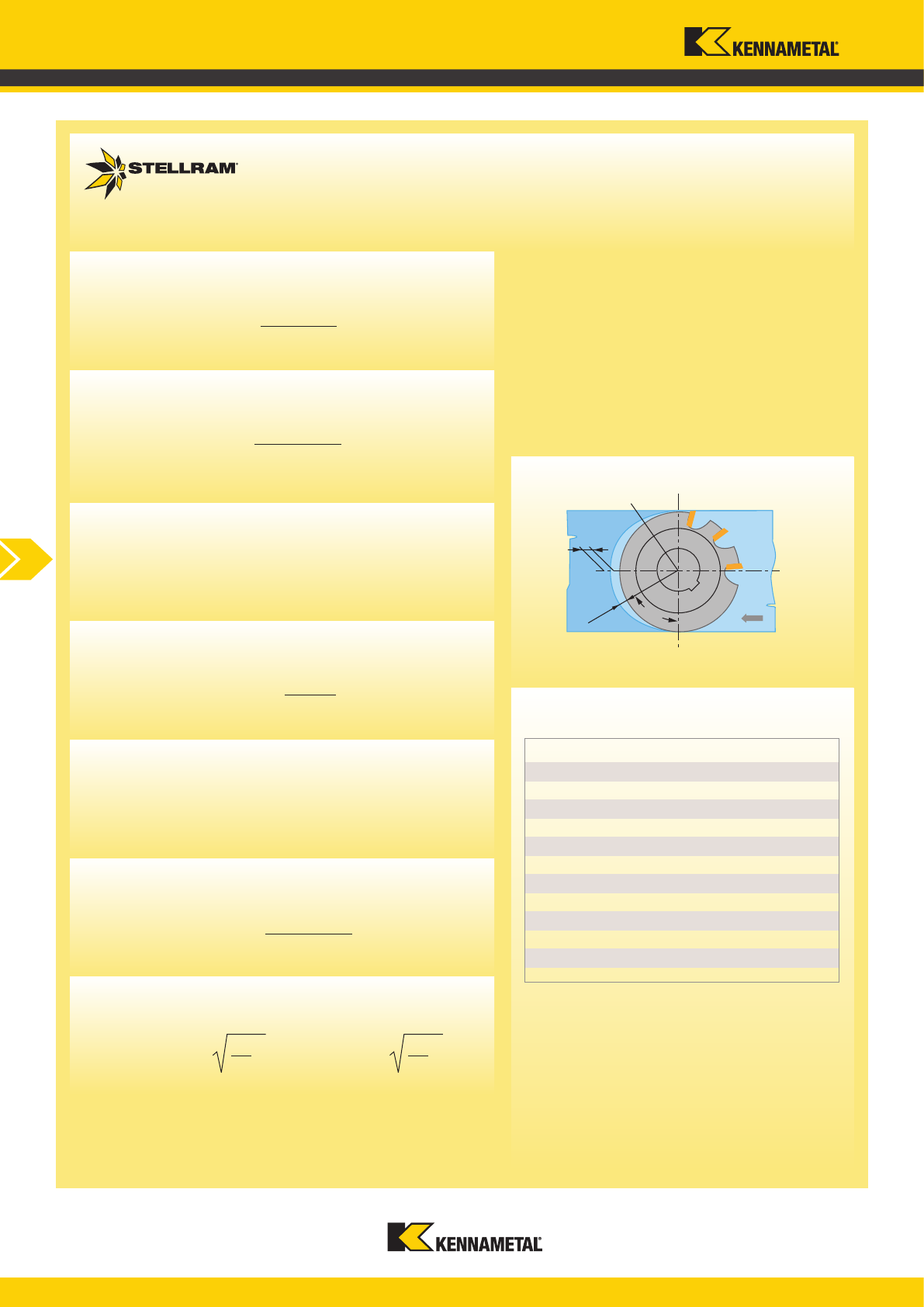

Technical Information
