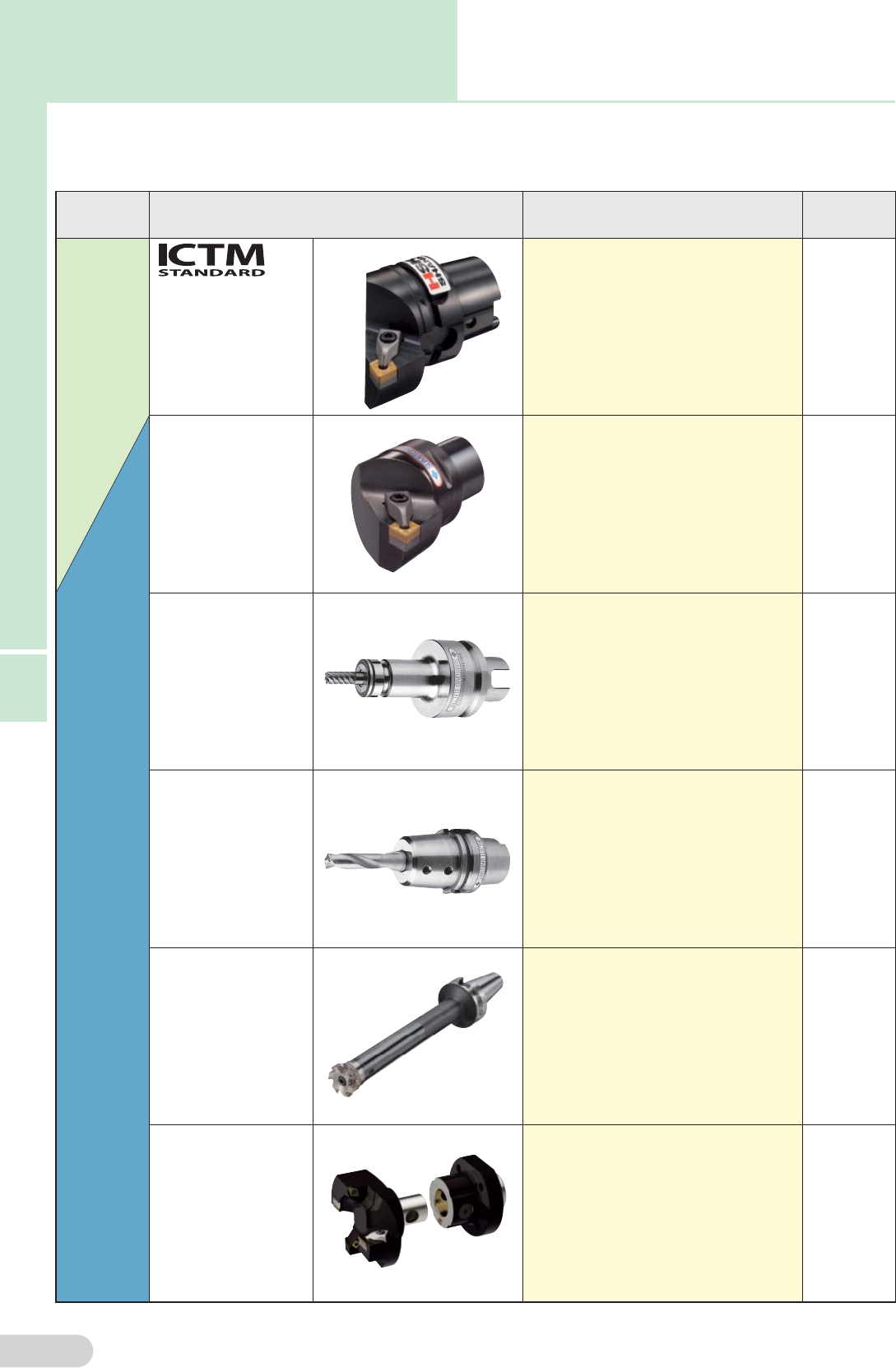

General Features of Tooling Systems
* Smart Damper
TM
is a trademark of BIG DAISHOWA SEIKI CO., LTD.
G3
G
Tooling

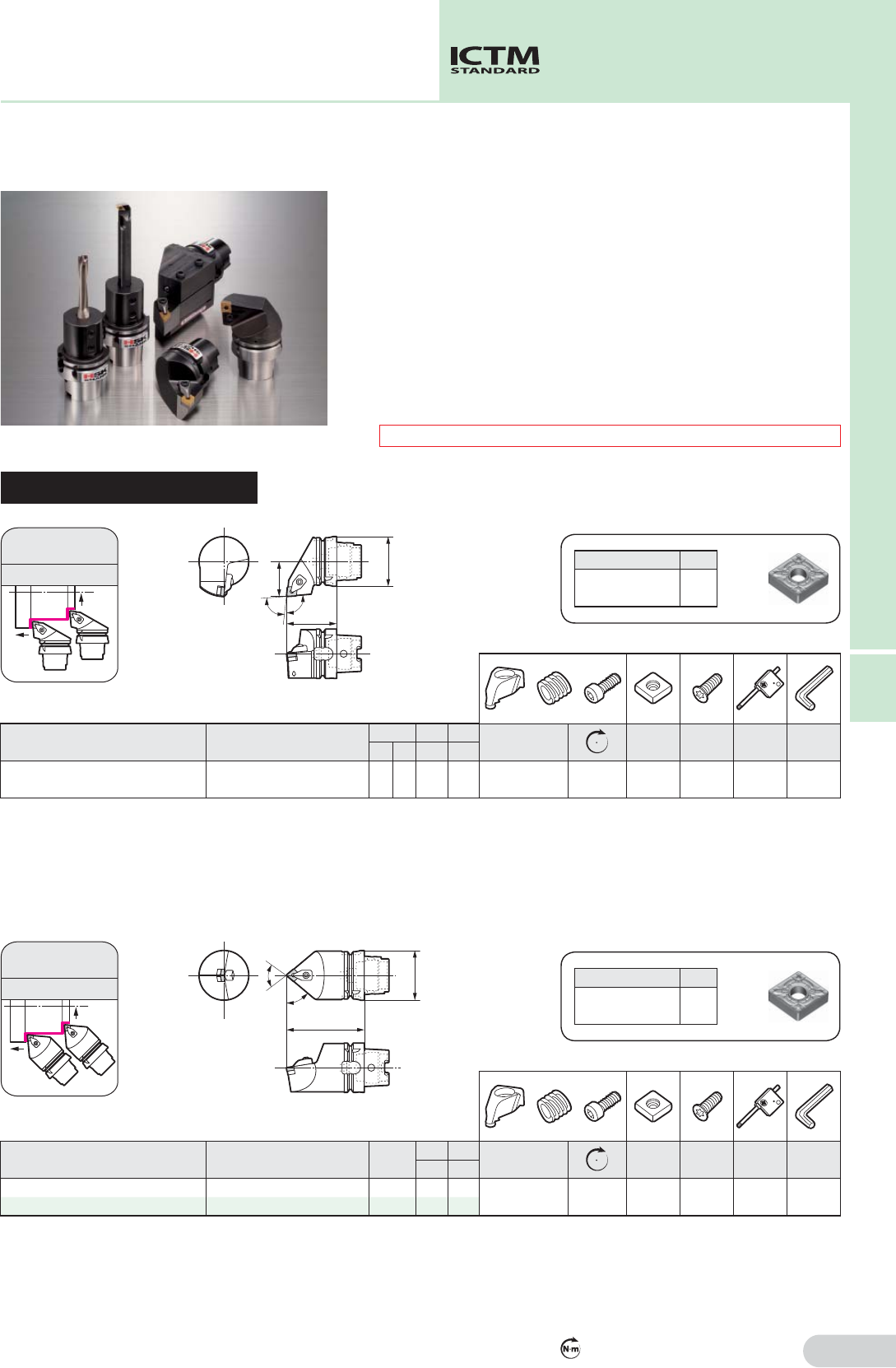

General Features
The HSK tooling system has been adopted by Japanese 17 major
machine tool manufacturers as the interface for turning tools in
compound endmilling machines. It is based on the ICTM (Interface
Committee for Turning Mill) standard.
Based on the ISO standard HSK shank, this standard attempts to
improve precision in turning applications, and maintains compatibility
with the HSK-A type in widespread use on machining centers.
* Catalog numbers have been changed due to ISO standardisation (ISO
12164-3:2008).
For support with non-standard specifications, contact us directly.
General Turning and Facing
Spare Parts * Item is sold separately.
Holders Above figures show right hand tools.
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
R L LF WF
HSK63TH-DCLN R/L-DX12
H63A-WH-DCLN R/L-DX12
65 45 SCP-2 5.0
CNS1204
BFTX0409N
TRX15
(*)LH040
Spare Parts * Item is sold separately.
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
LF
HSK63TH-DCMN N-H12
H63A-WH-DCMN N-H12
100 SCP-2 5.0
CNS1204
BFTX0409N
TRX15
(*)LH040
HSK63TH-DCMN N-L12
H63A-WH-DCMN N-L12
140
Inserts
DCLN
General Turning & Facing
LF
95°
80°
WF
ø63
DCMN
General Turning & Facing
LF
50°
ø63
80°
Inserts
CNMG120408N-GE
Applicable Insert
Ref. Page
CN 1204 From
B22
(Representative example)
CNMG120408N-GE
Applicable Insert
Ref. Page
CN 1204 From
B22
(Representative example)

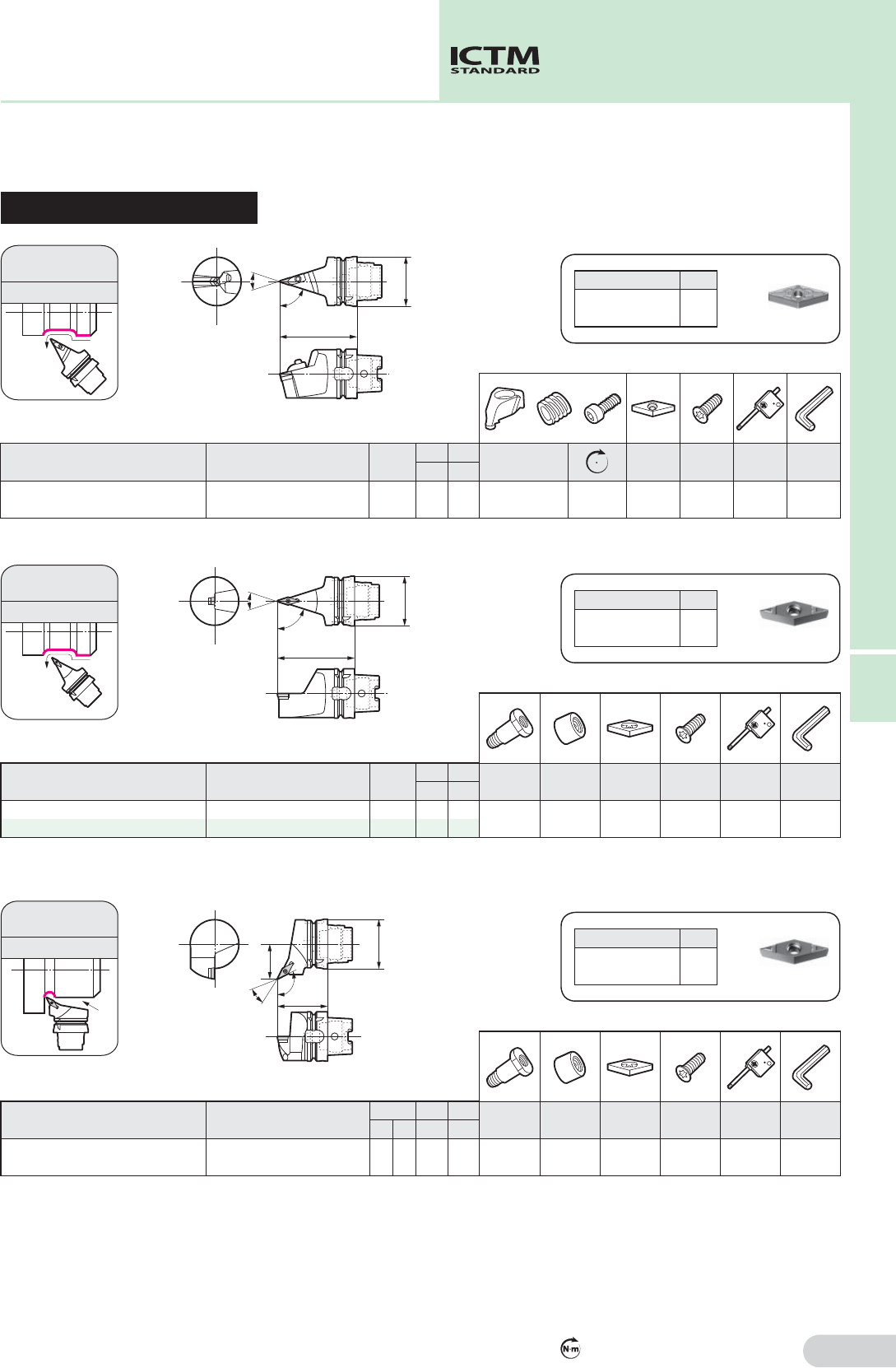

HSK Tooling
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)
G4
G
Tooling

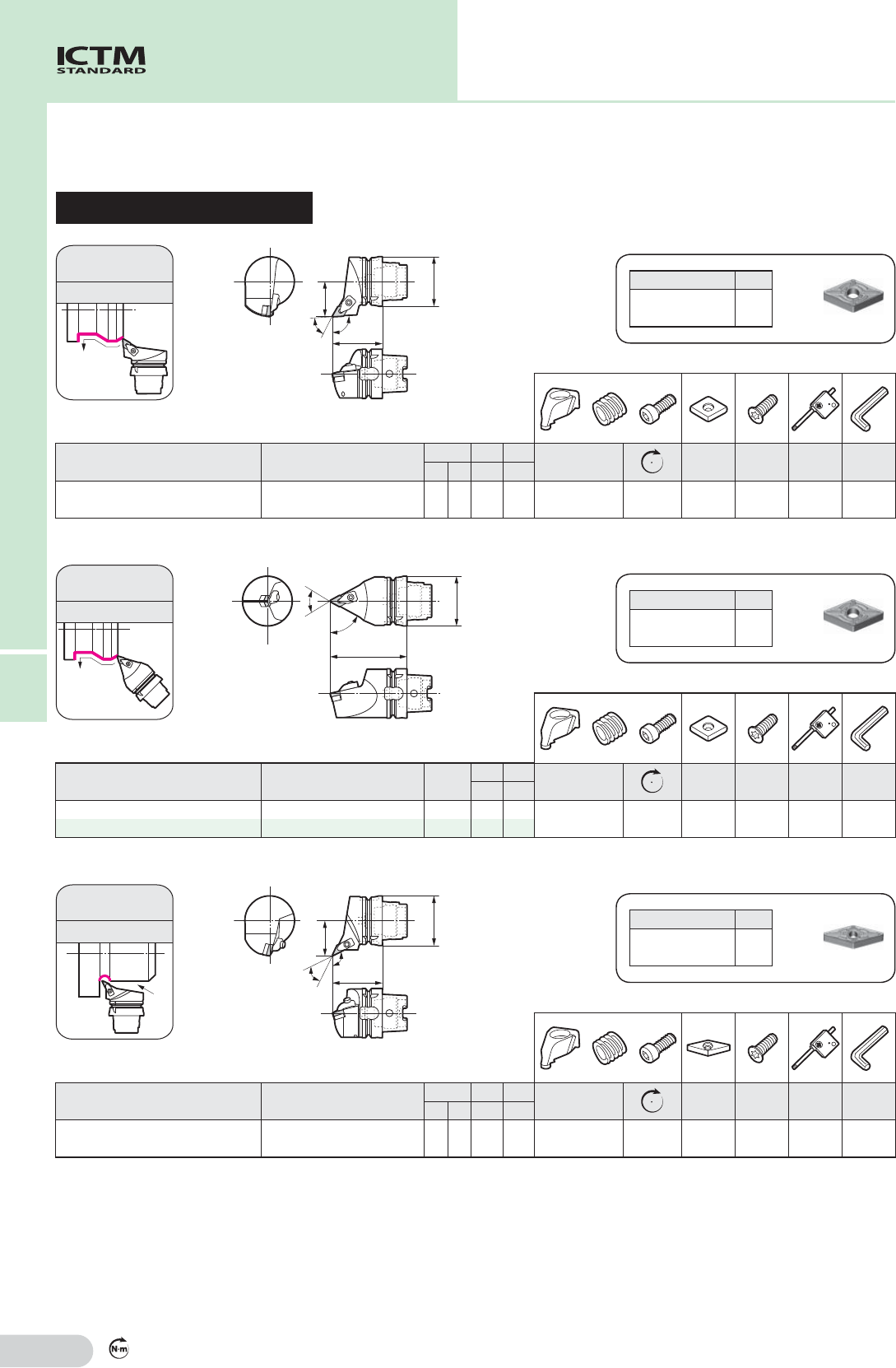

Spare Parts * Item is sold separately.
Holders Above figures show right hand tools.
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
R L LF WF
HSK63TH-DDJN R/L-DX15
H63A-WH-DDJN R/L-DX15
65 45 SCP-2 5.0
DNS1504
BFTX0409N
TRX15
(*)LH040
Inserts
Spare Parts * Item is sold separately.
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
LF
HSK63TH-DDNN N-H15
H63A-WH-DDNN N-H15
100 SCP-2 5.0
DNS1504
BFTX0409N
TRX15
(*)LH040
HSK63TH-DDNN N-L15
H63A-WH-DDNN N-L15
140
Spare Parts * Item is sold separately.
Holders Above figures show right hand tools.
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
R L LF WF
HSK63TH-DVPN R/L-DX16
H63A-WH-DVPN R/L-DX16
65 45 SCP-4 5.0
VNS1604
BFTX0307N
TRX10
(*)LH040
Inserts
General Turning and Profiling
DDJN
General Turning & Profiling
LF
93°
55°
WF
ø63
Inserts
DDNN
General Turning & Profiling
LF
62°30'
ø63
55°
DVPN
Necking
LF
117°30'
WF
ø63
35°
DNMG150408N-GE
Applicable Insert
Ref. Page
DN 1504 From
B32
(Representative example)
DNMG150408N-GE
Applicable Insert
Ref. Page
DN 1504 From
B32
(Representative example)
VNMG 160408N-GE
Applicable Insert
Ref. Page
VN 1604 From
B66
(Representative example)
HSK Tooling
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)
G5
G
Tooling
General Turning and Profiling
Spare Parts * Item is sold separately.
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
LF
HSK63TH-DVVN N-H16
H63A-WH-DVVN N-H16
100 SCP-4 5.0
VNS1604
BFTX0307N
TRX10
(*)LH040
Spare Parts * Item is sold separately.
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Pin Nut Shim Screw Shim
Wrench Wrench
LF
HSK63TH-SVVC N-H16
H63A-WH-SVVC N-H16
100 VP25 CPV33N SVP32
BFTX03508
TRX10
(*)LH025
HSK63TH-SVVC N-L16
H63A-WH-SVVC N-L16
140
Inserts
Spare Parts * Item is sold separately.
Holders Above figures show right hand tools.
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Pin Nut Shim Screw Shim
Wrench Wrench
R L LF WF
HSK63TH-SVPC R/L-DX16
H63A-WH-SVPC R/L-DX16
65 45 VP20 CPV33N SVP32
BFTX03508
TRX10
(*)LH025
Inserts
DVVN
General Turning & Profiling
LF
72°30'
ø63
35°
SVVC
General Turning & Profiling
LF
72°30'
ø63
35°
SVPC
Necking
LF
117°30'
WF
ø63
35°
Inserts
VNMG 160408N-GE
Applicable Insert
Ref. Page
VN 1604 From
B66
(Representative example)
VCMT160404N-SU
Applicable Insert
Ref. Page
VC 1604 From
B123
(Representative example)
VCMT160404N-SU
Applicable Insert
Ref. Page
VC 1604 From
B123
(Representative example)
HSK Tooling
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)
G6
G
Tooling

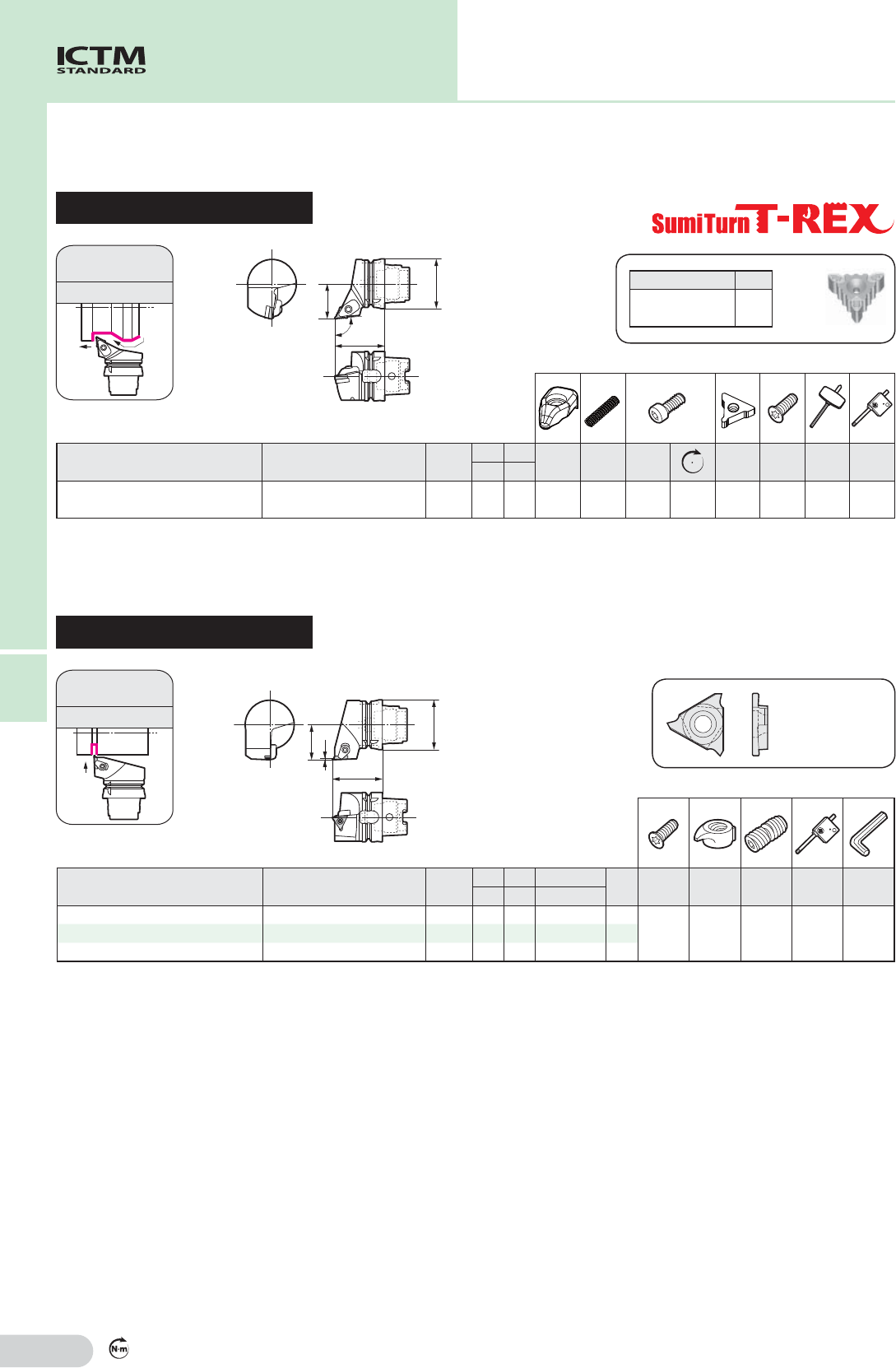

General Turning and Profiling
Spare Parts * Item is sold separately.
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Clamp Spring Cap
Screw N m Shim Shim
Screw
Wrench Wrench
LF WF
HSK63TH-DTR55C R-DX17
H63A-WH-DTR55C R-DX17
65 45
TRCP3
S-SP4-20
BX0520
3.5 to 4.5
TRW5505
BFTX0307N
TSW040
TRX10
(*)
* Refer to page C12 for applicable TRM type inserts.
Inserts
External Grooving
Spare Parts
Holders
Cat. No. Conventional Cat. No. Stock
Overhang
Edge Distance
Cutting Width
* Group
Number
Screw Clamp Double
Screw
Wrench Wrench
LF WF CW
HSK63TH-GWC R-DX412
H63A-WH-GWC R-DX412
65 45 1.25 to 1.45
BFTX0511N
CCM8UL
WB8-22T
TRX20 LT27
HSK63TH-GWC R-DX415
H63A-WH-GWC R-DX415
65 45 1.50 to 2.30
HSK63TH-GWC R-DX425
H63A-WH-GWC R-DX425
65 45
2.50 to 4.80
* Refer to pages F6 F7 F8 for applicable TGA type inserts. Select applicable inserts for the holders by using matching group numbers.
Inserts
TGAR4150
General Turning & Profiling
DTR
ø63
LF
95°30'
WF
GWC
External Grooving
LF
CW
WF
ø63
Applicable Insert
Ref. Page
TRM5517 C12
TRM551708-LU
(Representative example)
(Representative example)
Ref. Page F6 to F8
HSK Tooling
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)
G7
G
Tooling

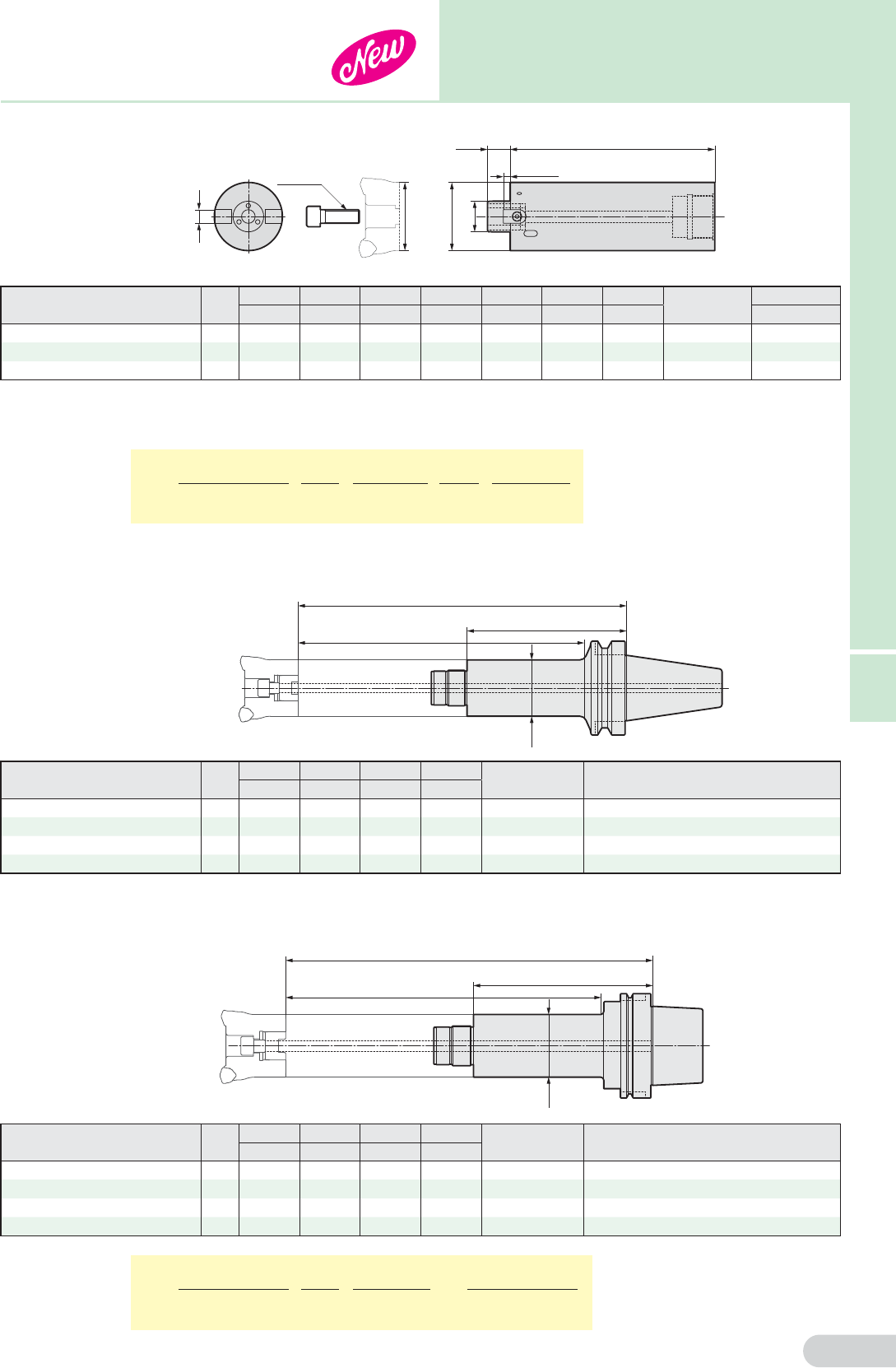

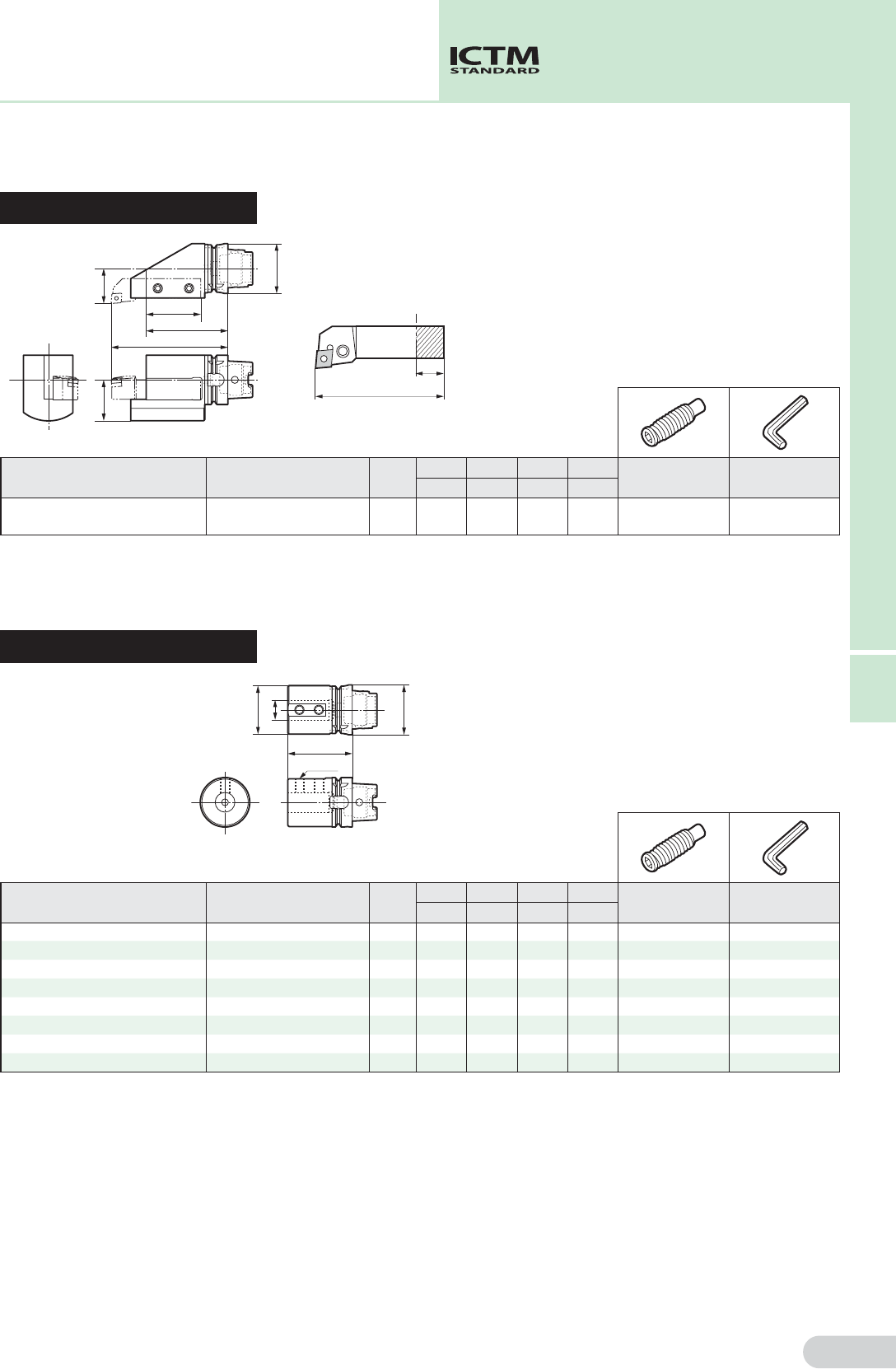

Square Shank Holder
Holder for Boring Bar
Spare Parts
Holders
Cat. No. Conventional Cat. No. Stock
Bore dia.
Body Dia.
Overhang
Screws Set Screws Wrenches
DCB BD LF2 CRKS
HSK63TH-C08-65 H63A-WH-C08-65 8 28 65 M8 BTD0809 LH040
HSK63TH-C10-70 H63A-WH-C10-70 10 35 70 M8 BTD0812 LH040
HSK63TH-C12-70 H63A-WH-C12-70 12 42 70 M8 BTD0812 LH040
HSK63TH-C16-75 H63A-WH-C16-75 16 48 75 M10 BTD1015 LH050
HSK63TH-C20-75 H63A-WH-C20-75 20 52 75 M10 BTD1015 LH050
HSK63TH-C25-83 H63A-WH-C25-83 25 62 83 M12 BTD1218 LH060
HSK63TH-C32-87 H63A-WH-C32-87 32 62 87 M12 BTD1215 LH060
HSK63TH-C40-97 H63A-WH-C40-97 40 65 97 M16 BTD1610 LH080
* Cut the boring bar to fit.
Spare Parts
Holders
Cat. No. Conventional Cat. No. Stock
Overhang Overhang
Clamping Length
Edge Distance
Set Screw Wrench
LF LF2 LSCX WF
HSK63TH-S2525 R-105
H63A-WH-S2525 R-105
150 105 70 45 BTD0809 LH040
LF2
LF
LSCX
WF53
ø63
150
35
Cut
* Cut a 25 square shank as
shown below.
LF2
CRKS
DCB
BD
ø63
HSK Tooling
Dimensions (mm)
Dimensions (mm)
G8
G
Tooling

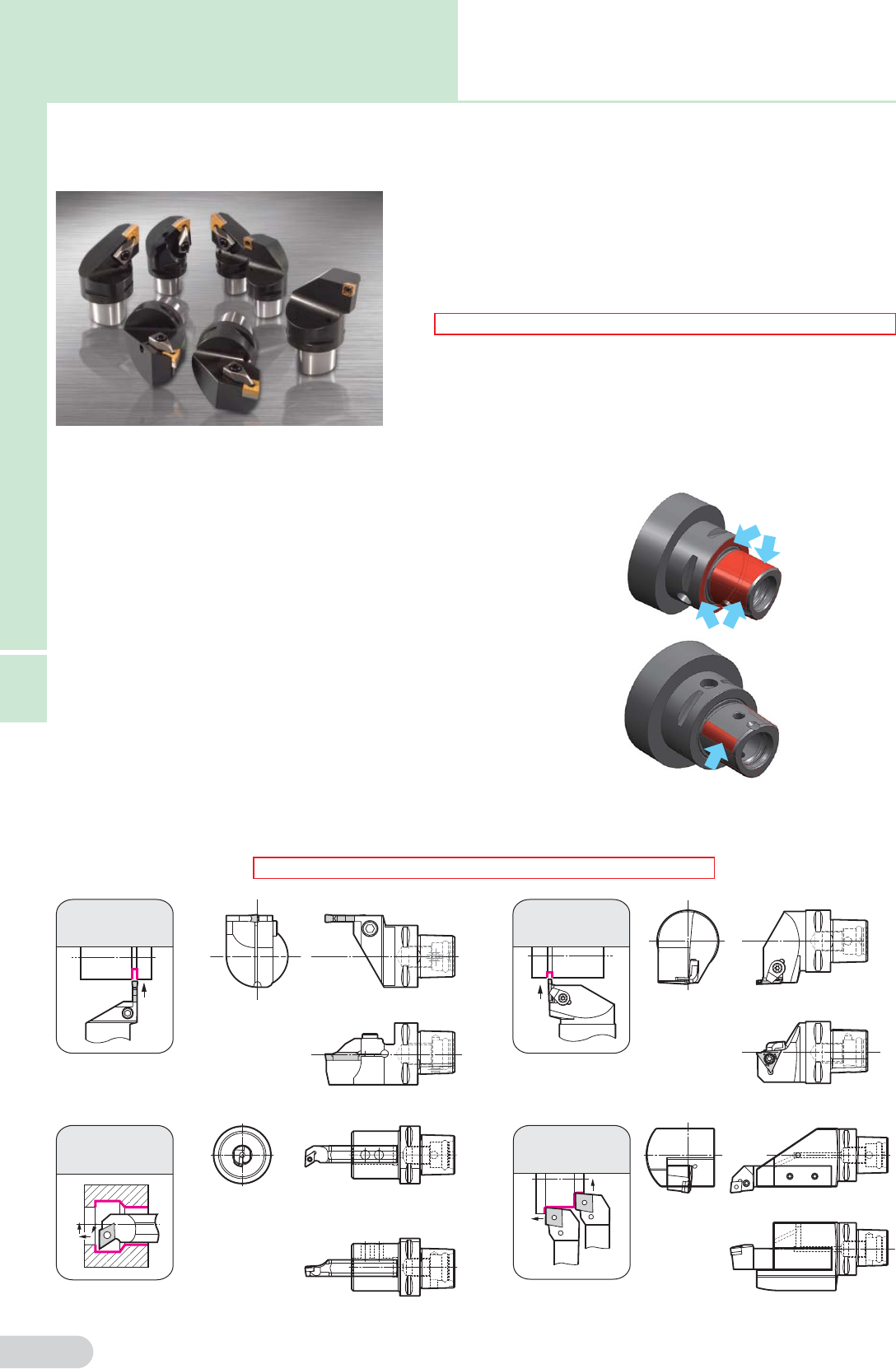

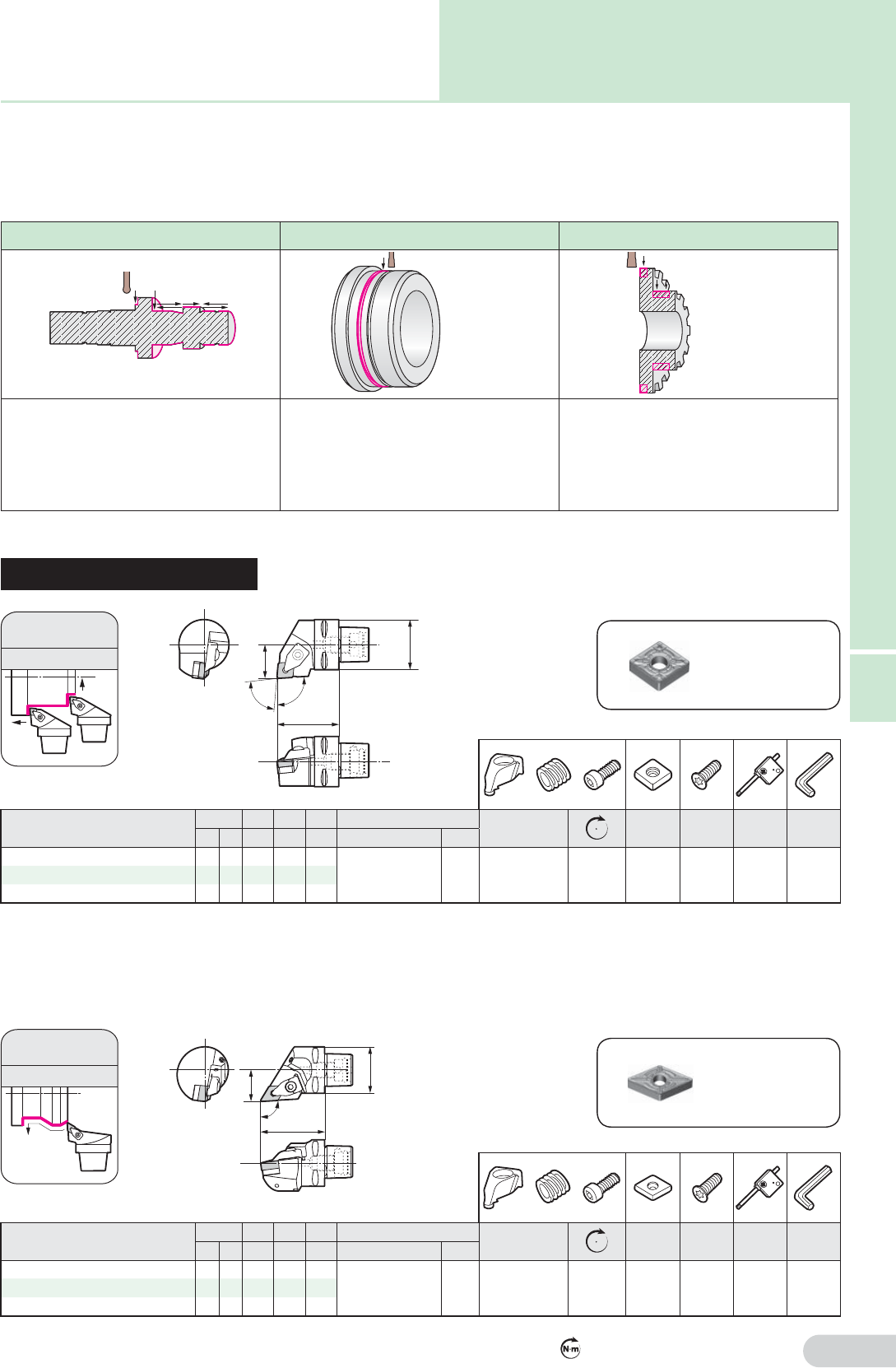

General Features
Polygon shanks feature keyless couplings with a characteristic
polygon shape, which bear cutting torque evenly on three
surfaces to provide high rigidity and high index accuracy.
Custom Examples For support with non-standard design specifications, contact us.
For support with non-standard design specifications, contact us directly.
Characteristics
Sizes
Supports polygon shank size PSC32(DCSFMS=32mm) to
PSC80(DCSFMS=80mm)
High rigidity, High precision
High rigidity from two faces contact with the 1/20
tapered polygon shape and end face.
Cutting torque is equally distributed to three faces with keyless
coupling, and variations in cutting edge height are also reduced.
Repeat accuracy when changing tools is ±2μm for all
three axes.
Faster tool replacement
Tool replacement time can be greatly reduced because
inserts do not need to be replaced while in the machine.
Supports internal coolant
Coupling Structure
Two faces contact with
the taper + end face
Improved centering
External Shallow Grooving
Internal Profiling
Uses a SEC-Boring Bar S-SDUC Type
General Facing
Uses a SEC-External Holder PCLN Type
External Deep Grooving
Uses a GND type grooving tool insert Uses a TGA BF type grooving insert.
Polygon Shank
G
Tooling
G9
General Turning and Copying
Spare Parts * Item is sold separately.
Holders
Above figures show right hand tools.
Cat. No. Stock
Overhang
Edge Distance
Diameter
Applicable Insert Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
RLLF
WF
DCSFMS
Cat. No.
Ref. Page
PSC40 DCLN R/L 27050-12
50 27 40
CN 1204 From
B22 SCP-2 5.0
CNS1204
BFTX0409N
TRX15
(*) LH040
PSC50 DCLN R/L 35060-12
60 35 50
PSC63 DCLN R/L 45065-12
65 45 63
Inserts
Spare Parts * Item is sold separately.
Holders
Above figures show right hand tools.
Cat. No. Stock
Overhang
Edge Distance
Diameter
Applicable Insert Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
RLLF
WF
DCSFMS
Cat. No.
Ref. Page
PSC40 DDJN R/L 27050-15
50 27 40
DN 1504 From
B32 SCP-2 5.0
DNS1504
BFTX0409N
TRX15
(*) LH040
PSC50 DDJN R/L 35060-15
60 35 50
PSC63 DDJN R/L 45065-15
65 45 63
Inserts
DCLN
General Turning & Facing
LF
95°
80°
WF
DCSFMS
DDJN
General Turning & Profiling
WF
DCSFMS
LF
93°
CNMG120408N-GE
(Representative example)
DNMG150408N-GE
(Representative example)
Nickel chromium molybdenum alloy output shaft grooving
Holders
Inserts
Cutting
Conditions
PSC40 Special Tool
GCMN4020 RG (AC425K)
vc = 120-140m/min, f = 0.2-0.35mm/rev
ap = 2mm Wet
No chattering or abnormal vibration
Stainless steel socket joint grooving
Holders
Inserts
Cutting
Conditions
PSC40 Special Tool
GCMN4008 MG (AC530U)
vc = 100m/min, f = 0.1mm/rev
ap = 3mm Wet
No chattering or abnormal vibration
Sintered alloy sprocket grooving and facing
Holders
Insert
Cutting
Conditions
PSC40 Special Tool
Special insert MG (AC530U)
(CW
= 6.35mm)
Grooving
v
c
=
180m/min, f
=
0.16mm/rev, a
p
=
4mm
x
2passes Wet
Facing
vc = 190m/min, f = 0.18mm/rev, ap = 0.2mm Wet
No chattering or abnormal vibration
Custom Examples
Polygon Shank
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)
G10
G
Tooling

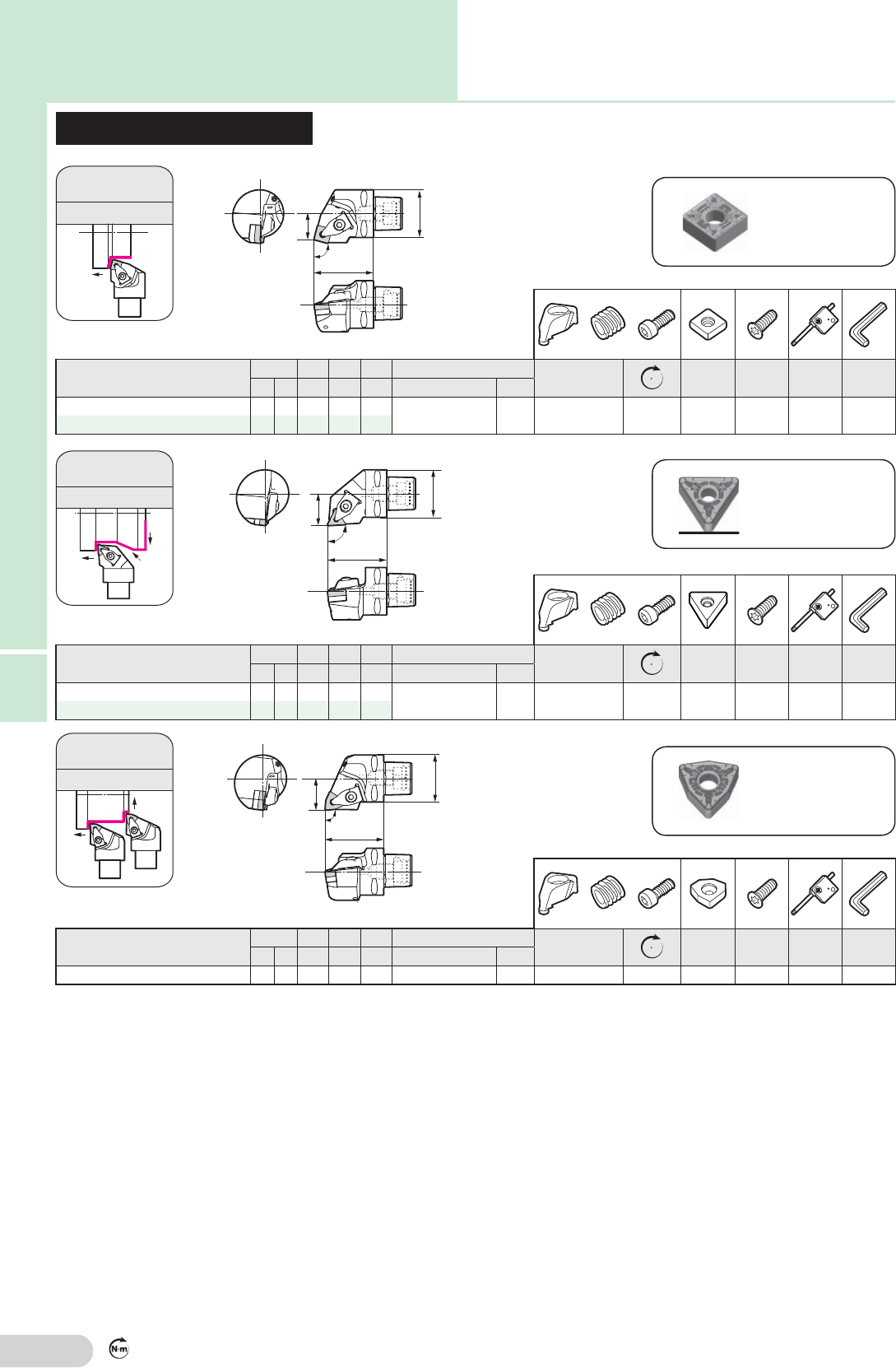

General Turning and Profiling
Spare Parts * Item is sold separately.
Holders
Cat. No. Stock
Overhang
Edge Distance
Diameter
Applicable Insert Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
RLLF
WF
DCSFMS
Cat. No.
Ref. Page
PSC40 DSBN R/L 27050-12
50 27 40 SN 1204 From
B41 SCP-2 5.0
SNS1204
BFTX0409N
TRX15
(*) LH040
PSC50 DSBN R/L 35060-12
60 35 50
Inserts
DSBN
General Turning
WF
DCSFMS
LF
75°
SNMG120408N-GE
(Representative example)
Spare Parts * Item is sold separately.
Holders
Above figures show right hand tools.
Cat. No. Stock
Overhang
Edge Distance
Diameter
Applicable Insert Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
RLLF
WF
DCSFMS
Cat. No.
Ref. Page
PSC40 DTJN R/L 27050-16
50 27 40 TN 1604 From
B56 SCP-1 5.0
TNS1604
BFTX0307N
TRX15
(*) LH040
PSC50 DTJN R/L 35060-16
60 35 50
Inserts
DTJN
General Turning & Profiling
WF
DCSFMS
LF
93°
TNMG160408N-GE
(Representative example)
Spare Parts * Item is sold separately.
Holders
Cat. No. Stock
Overhang
Edge Distance
Diameter
Applicable Insert Clamp Set N m Shim Shim
Screw
Shim
Wrench Wrench
RLLF
WF
DCSFMS
Cat. No.
Ref. Page
PSC40 DWLN R/L 27050-08
50 27 40
WN 0804
From B71
SCP-2 5.0
WNS0804
BFTX0409N
TRX15(*)
LH040
Inserts
DWLN
General Turning & Facing
WF
DCSFMS
LF
95°
WNMG080408N-SE
(Representative example)
Polygon Shank
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Recommended tightening torque (N m)

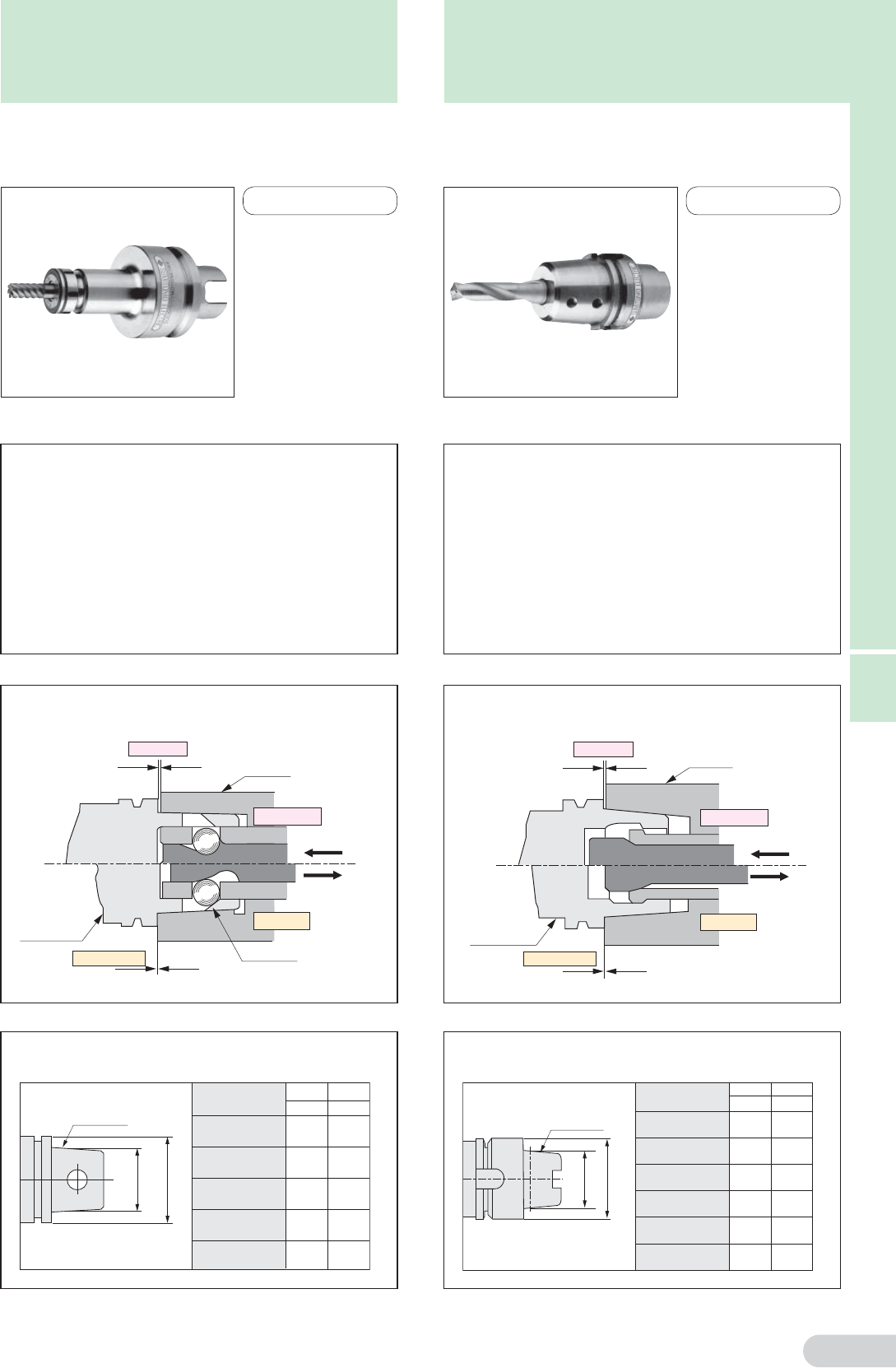

Supported by 2 Faces
Modular Taper Shank
Supported by 2 Faces
HSK Tooling
Sizes Sizes
Mechanism Mechanism
Characteristics
Tool shape suitable for high speed spindles.
This clamping system supports the tool by 2 faces,
on the taper and the flange, enabling high rigidity at
high speeds and high precision machining.
The hollow short tapered design reduces weight
and shortens ATC times.
Characteristics
The DIN standard for supporting tools by 2 faces.
Support by 2 faces, on the taper and flange,
for high precision and high rigidity machining.
The hollow short tapered design reduces
weight and allows for high speed ATC.
It is in widespread use
throughout Europe and
the United States.
This hollow shank was
developed by RWTH
Aachen University and
the German Industry
Association, and has
been adopted as an
ISO standard.
Modular Taper Shank
HSK Tooling
Face Contact
Modular
Taper
Shank
Clearance
Spindle
Unclamped
Clamped
Steel Ball
Cat. No.
Diameter
DCON
Diameter
DCON2
DCON
DCON2
TS32 32 24
TS40 40 30
TS50 50 40
TS63 63 50
TS80 80 64
1/10 Taper
Clearance
Spindle
Unclamped
Clamped
Face Contact
HSK Shank
DCON
DCON2
Cat. No.
HSK A32 32 24
HSK A40 40 30
HSK A50 50 38
HSK A63 63 48
HSK A80 80 60
HSK A100 100 75
1/10 Taper
Diameter
DCON
Diameter
DCON2
* Catalog numbers have been changed due to ISO standardisation
(ISO 26622-1:2008).
G
G11
Tooling
(mm) (mm)
G
Tooling
G12

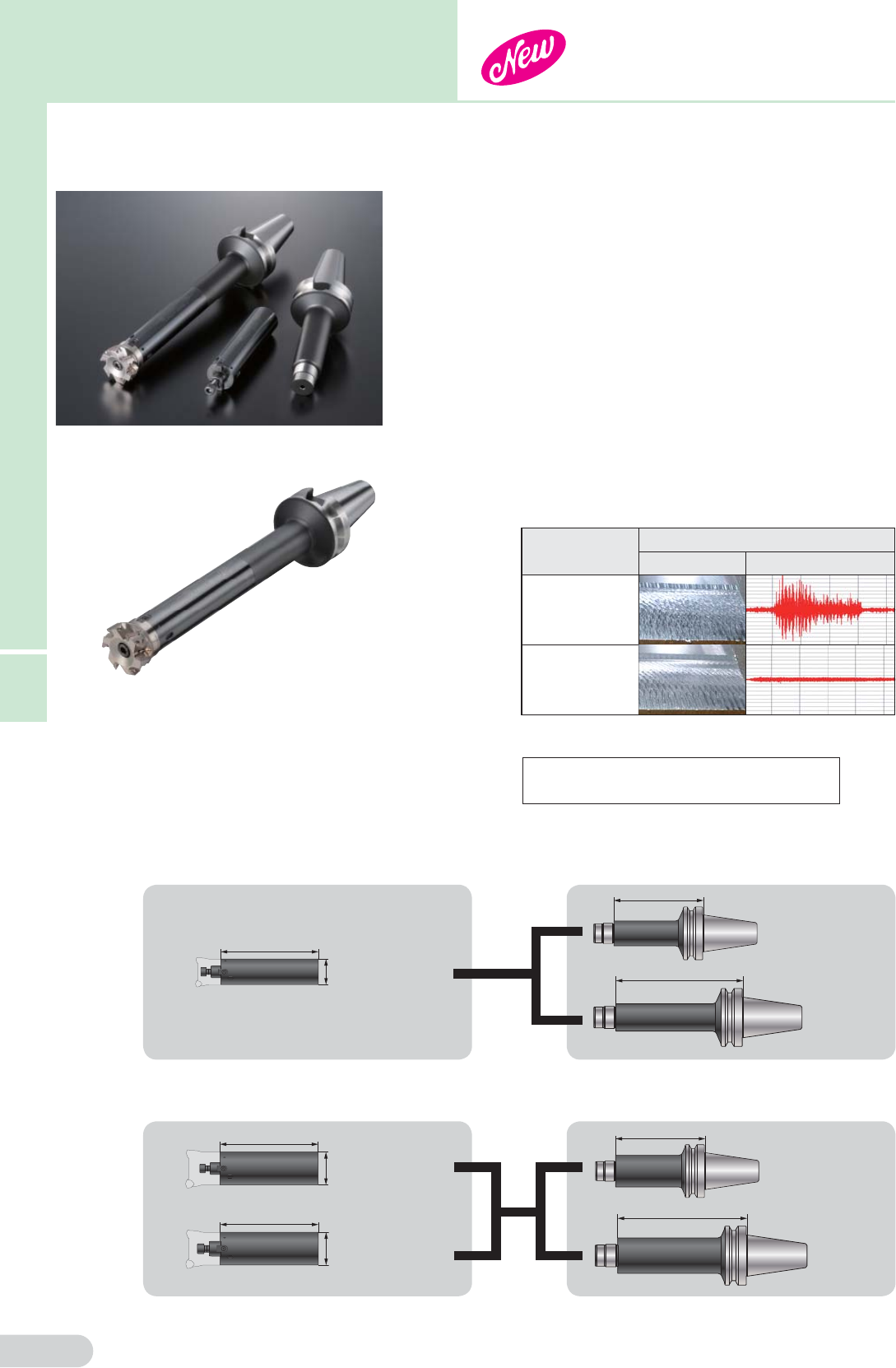

General Features
Smart DamperTM* is an arbor that incorporates a special anti-
vibration mechanism that acts as both a counter and friction
damper.
It is capable of reducing chattering in machining with a large amount of
overhang to prevent reductions in machined surface quality and tool life.
A basic toolholder and damper head are used together
The basic toolholder supports BBT50 (BIG-PLUSTM*) and HSK-A100
arbors, with a lineup of products with different lengths
Supports internal coolant
Characteristics
Example Smart DamperTM* Combinations (BBT50 Type)
Work material S50C
Tool Tool Diameter ø63 (5 flutes)
Cutting Conditions vc=100m/min, fz=1.0mm/t, ap=1.4mm, ae=30mm
Example of Face Milling with a 347mm Overhang
Reduce chattering with Smart DamperTM*!
Arbor Results
Machined Surface
Vibration
Competitor's arbor
without anti-vibration
mechanism
Smart DamperTM*
with anti-vibration
mechanism
170
220
170
220
180
ø47
180
ø60
180
ø60
* Smart Damper
TM
and BIG-PLUS
TM
are trademarks of BIG DAISHOWA SEIKI CO., LTD.
L170
FMHL22
FMHL22
FMHL27
L170
L220
L220
S-SDF3647L -BBT50S-SDF3647FMH L180
S-SDF3660FMH L180 S-SDF3660L -BBT50
Basic ToolholderDamper Head
ø47
Type
ø60
Type
Smart DamperTM*
G
Tooling
G13
Cat. No. Stock
Shank Dia.
Body Dia.
Overhang
Shank Length
Key Width
Key Depth
Screw Weight
(kg)
Diameter
DMM BD LF LS KWW KDP CRKS DCSFMS
S-SDF3647FMH22L180 22 47 180 18 10 5 M10 3.0 From 36
3660FMH22L180 22 60 180 18 10 5 M10 4.5 From 49
3660FMH27L180 27 60 180 20 12 6 M12 4.5 From 46
For attaching the damper head to the basic toolholder, refer to the instruction manual included with the product.
The cutter is not included in the weight.
A hook-type spanner and clamp bolt for attaching the cutter are included with the product.
DCSFMS indicates the cutter attachment surface diameter. Use caution when the attachment surface diameter is smaller than the cutter external diameter.
Cat. No. Stock
Body Dia.
Overhang Overhang
Usable Length
Weight
(kg)Applicable Damper Head
BD LF LF2 LUX
S-SDF3647L170-BBT50 47 350 170 297 5.6 S-SDF3647FMH
3647L220-BBT50 47 400 200 347 6.3 S-SDF3647FMH
3660L170-BBT50 60 350 170 297 6.7 S-SDF3660FMH
3660L220-BBT50 60 400 200 347 7.8 S-SDF3660FMH
Cat. No. Stock
Body Dia.
Overhang Overhang
Usable Length
Weight
(kg)Applicable Damper Head
BD LF LF2 LUX
S-SDF3647L170-HSKA100 47 350 170 310 4.4 S-SDF3647FMH
3647L220-HSKA100 47 400 220 360 5.0 S-SDF3647FMH
3660L170-HSKA100 60 350 170 310 5.5 S-SDF3660FMH
3660L220-HSKA100 60 400 220 360 6.0 S-SDF3660FMH
Damper Head
Head
BBT50 Type
HSK-A100 Type
Basic Toolholder
LF
CRKS
LS
KDP
BD
DCSFMS
KWW
DMM
LF
BD
LUX LF2
LF
BD
LUX LF2
Identification Details
S-SDF36 47 FMH 22 L180
(1)
Connection Series
(3)
Series Code
(2)
Body Diameter
(4)
Attachment Diameter
(5)
Effective Length(LF)
Identification Details
S-SDF36 47 L170 - BBT50
(1)
Connection Series
(3)
Effective Length(LF2)
(2)
Body Diameter
(4)
Shank Type
Smart DamperTM*
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
* Smart Damper
TM
is a trademark of BIG DAISHOWA SEIKI CO., LTD.
G14
G
Tooling

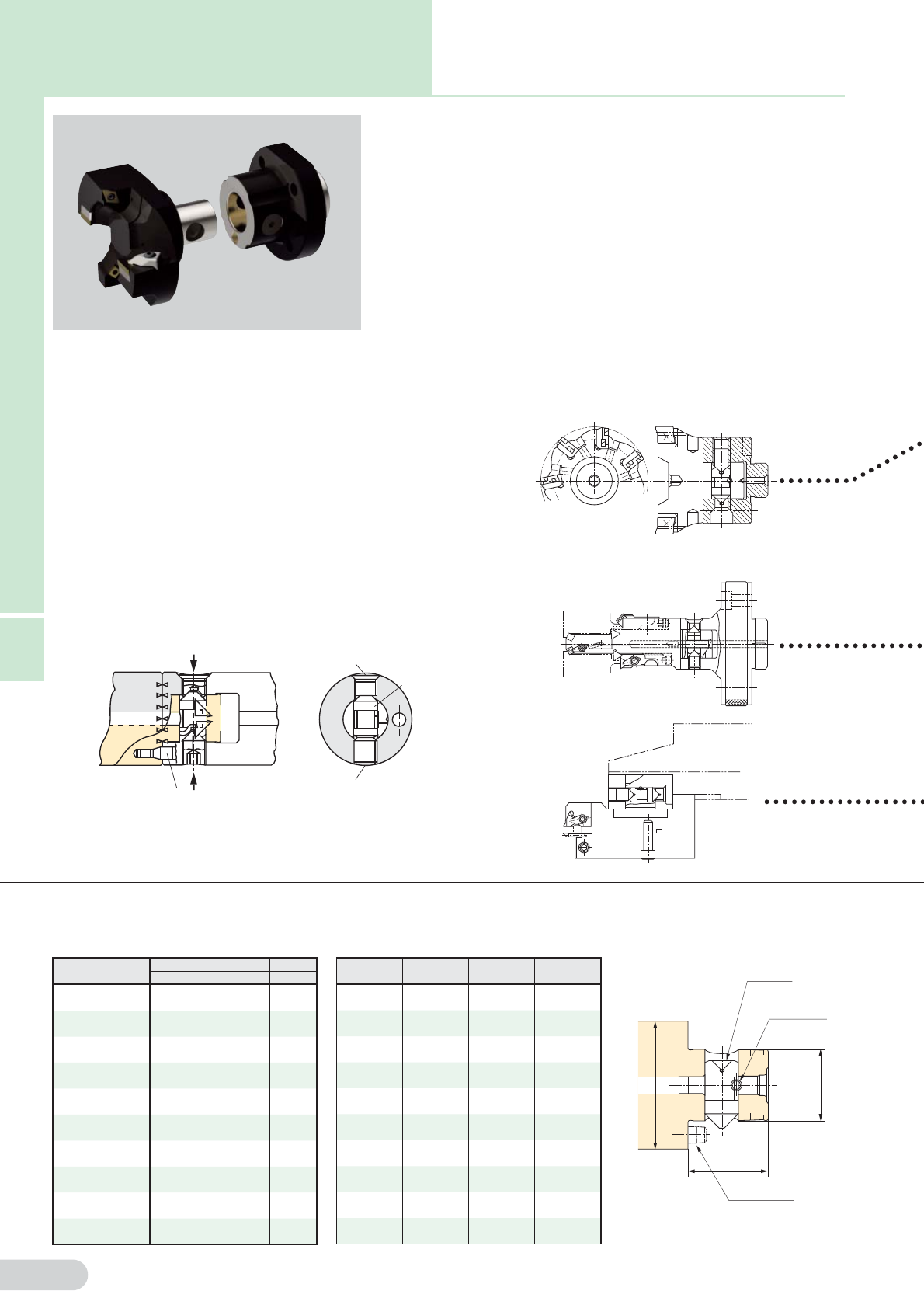

Indexable Cutters
Boring Quills
Tool Posts
General Features
The Igetalloy ABS system receives high marks worldwide for
its strong clamping force, high rigidity, and high precision. The
ABS system is a quick change system for round tools that gives
customers the ability to increase productivity, and simplify and
standardise on special tooling.
The SBA system is also available. For details of the SBA
system, please contact us.
Characteristics and Applications
The clamp screw, taper screw, slide pin act as a wedge for
strong holding force.
High rigidity, high precision. High index accuracy during tool changes.
A wide array of sizes are available to meet a variety of tools.
Easy handling allows short tool change times.
Allows coolant supply from inside the spindle.
Strong clamping force even with small diameters.
ABS Design Examples
Clamp Mechanism
ABS Standard (Head)
Head Dimensions
Cat. No. Body Dia. Shank Dia.
Shank Length
BD DMM LS
ABS 25M 25 13 20
ABS 32M 32 16 23
ABS 40M 40 20 26
ABS 50M 50 28 31
ABS 63M 63 34 38
ABS 80M 80 46 43
ABS100M 100 56 55
ABS125M 125 70 70
ABS160M 160 90 90
ABS200M 200 112 110
Spare Parts
Set Cat. No.
Slide Pin
Position Pin
Stopper Screws
ABS 25-ES-M ABS 25-E3 ABS 25-E4 ABS 25-E5
ABS 32-ES-M ABS 32-E3 ABS 32-E4 ABS 32-E5
ABS 40-ES-M ABS 40-E3 ABS 40-E4 ABS 40-E5
ABS 50-ES-M ABS 50-E3 ABS 50-E4 ABS 50-E5
ABS 63-ES-M ABS 63-E3 ABS 63-E4 ABS 63-E5
ABS 80-ES-M ABS 80-E3 ABS 80-E4 ABS 80-E5
ABS100-ES-M ABS100-E3 ABS100-E4 ABS100-E5
ABS125-ES-M ABS125-E3 ABS125-E4 ABS125-E5
ABS160-ES-M ABS160-E3 ABS160-E4 ABS160-E5
ABS200-ES-M ABS200-E3 ABS200-E4 ABS200-E5
LS
DMM
BD
Slide Pin
Stopper Screws
Position Pin
Taper Screw
Slide Pin
Clamp Screw
Position Pin
Igetalloy
ABS System
Dimensions (mm)
G15
G
Tooling

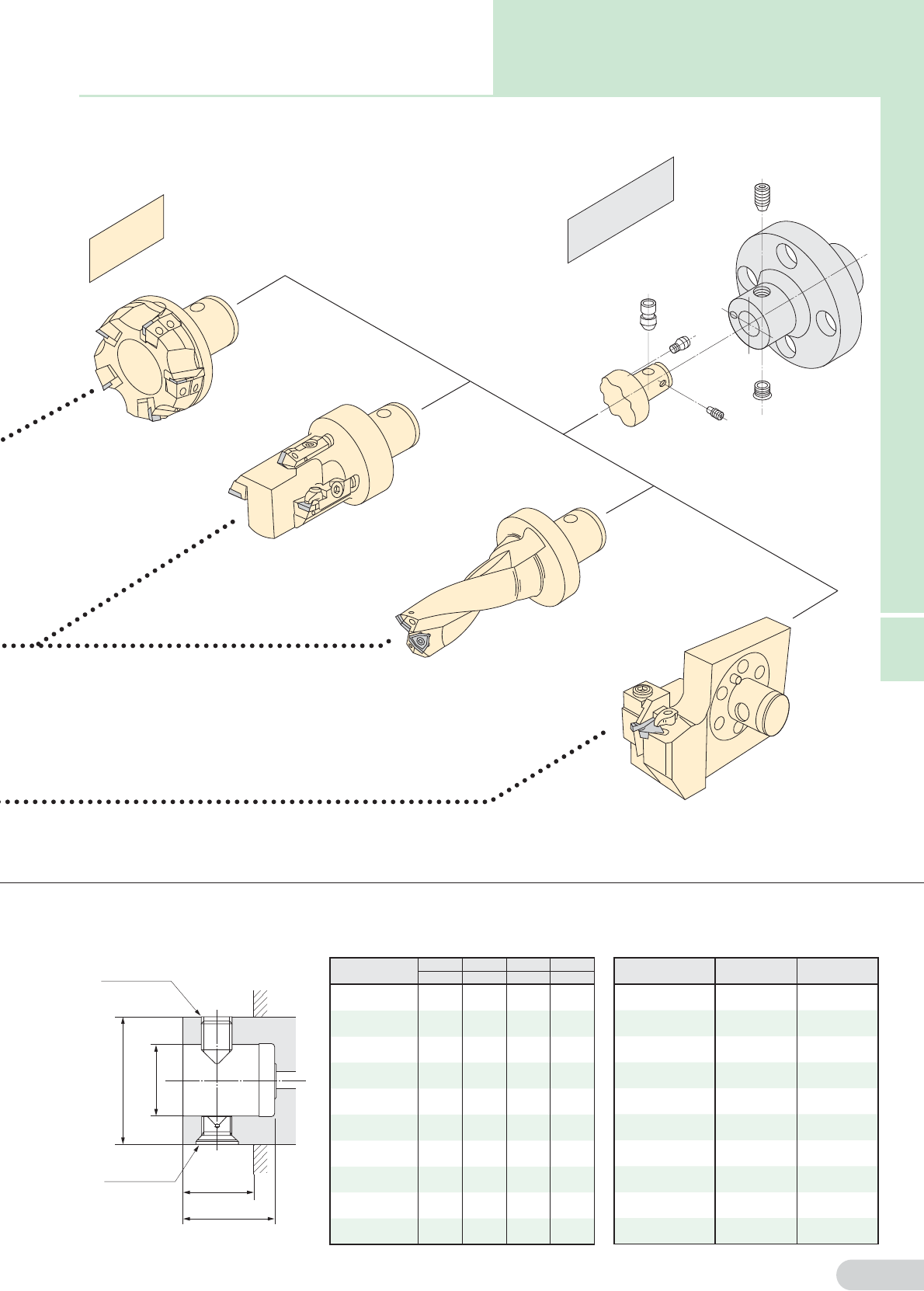

Adaptor
Head
For indexable cutters…
For boring quills…
For drills…
For tool posts…
Slide Pin
Position Pin
Clamp Screw
Taper Screw
Stopper Screw
Adaptor Dimensions
Cat. No.
Body Dia.
Bore dia.
Bore Depth
Clamping Length
BD DCB CBDP LB
ABS 25W 25 13 22 13.0
ABS 32W 32 16 25 16.0
ABS 40W 40 20 30 18.5
ABS 50W 50 28 34 22.0
ABS 63W 63 34 41 28.0
ABS 80W 80 46 48 34.0
ABS100W 100 56 58 40.5
ABS125W 125 70 76 51.0
ABS160W 160 90 96 53.0
ABS200W 200 112 116 82.0
Spare Parts
Set Cat. No. Clamp Screw Taper Screw
ABS 25-FS-W
ABS 25-F1 ABS 25-F2
ABS 32-FS-W
ABS 32-F1 ABS 32-F2
ABS 40-FS-W
ABS 40-F1 ABS 40-F2
ABS 50-FS-W
ABS 50-F1 ABS 50-F2
ABS 63-FS-W
ABS 63-F1 ABS 63-F2
ABS 80-FS-W
ABS 80-F1 ABS 80-F2
ABS100-FS-W
ABS100-F1 ABS100-F2
ABS125-FS-W
ABS125-F1 ABS125-F2
ABS160-FS-W
ABS160-F1 ABS160-F2
ABS200-FS-W
ABS200-F1 ABS200-F2
ABS Standard (Adaptor)
CBDP
LB Min.
Clamp Screw
Taper Screw
BD
DCB
Igetalloy
ABS System
Dimensions (mm)
G16
G
Unit
Note: Please recommend using MUP type micro units when designing
new tooling. MUN type should only be used as replacement parts for
existing tooling which are already using these micro units.

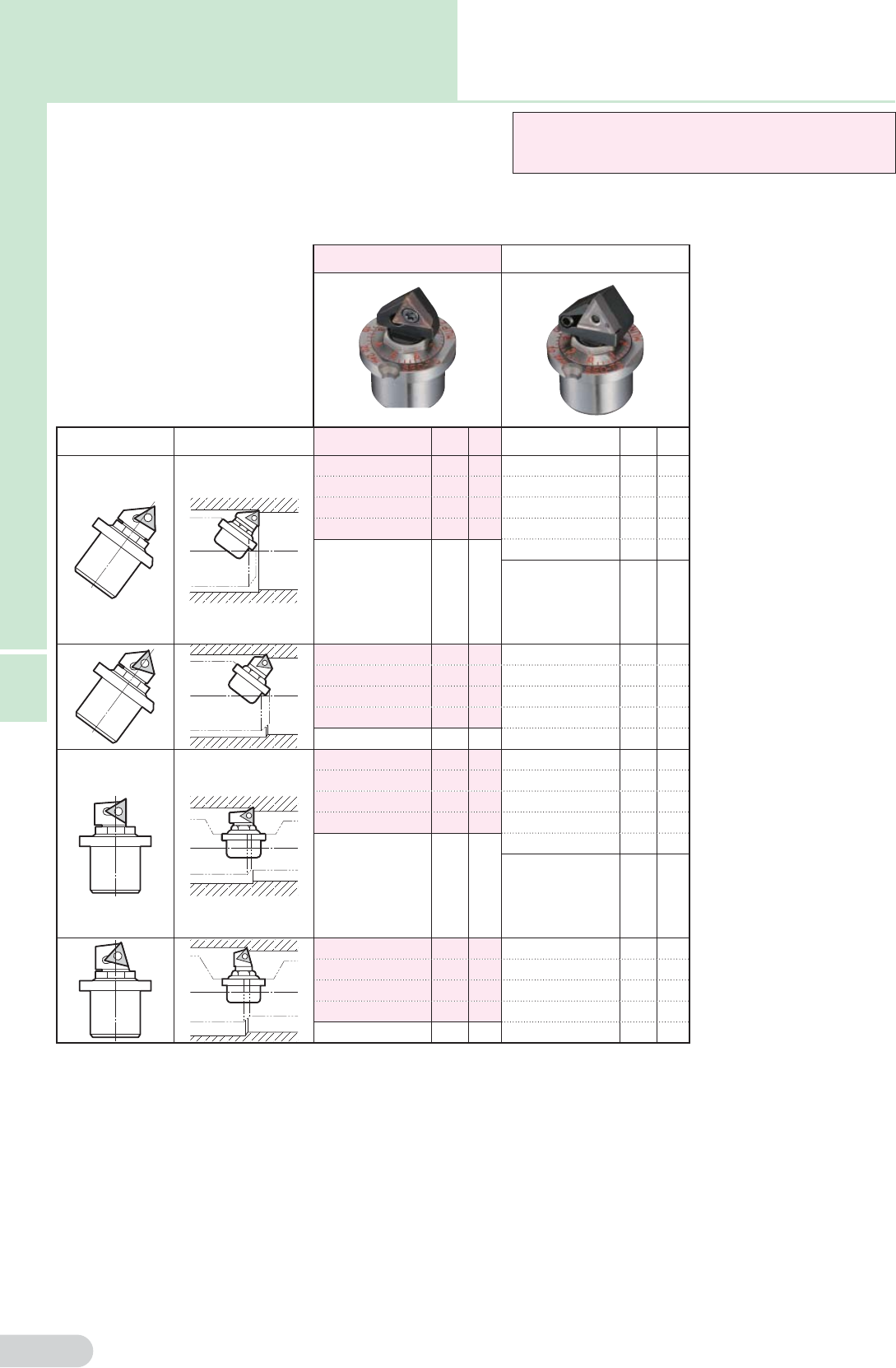

Typical Toolings
MUP Type MUN Type
Illustrations Applications Cat. No. Min.
Bore Dia.
(mm)
Stock
Cat. No. Min.
Bore Dia.
(mm)
Stock
MUP1-A0 25 MUN2 -A0 36
MUP2-A0 36 MUN3 -A0 47
MUP3-A0 47 MUN3L-A0 54
MUP4-A0 73 MUN4 -A0 73
MUN4L-A0 78
MUP1-A15 25 MUN2 -A15 36
MUP2-A15 36 MUN3 -A15 47
MUP3-A15 47 MUN3L-A15 54
MUP4-A15 73 MUN4 -A15 73
MUN4L-A15 78
MUP1-V0 25 MUN2 -V0 36
MUP2-V0 36 MUN3 -V0 47
MUP3-V0 47 MUN3L-V0 54
MUP4-V0 73 MUN4 -V0 73
MUN4L-V0 78
MUP1-V15 25 MUN2 -V15 36
MUP2-V15 36 MUN3 -V15 47
MUP3-V15 47 MUN3L-V15 54
MUP4-V15 73 MUN4 -V15 73
MUN4L-V15 78
* If a left-hand unit is required, include "LH" after the catalog number (ex. MUP1-A0-LH, MUP1-V0-LH)
* Micro Units do not include inserts or spanners.
SEC-
Micro Units
G17
G
Unit

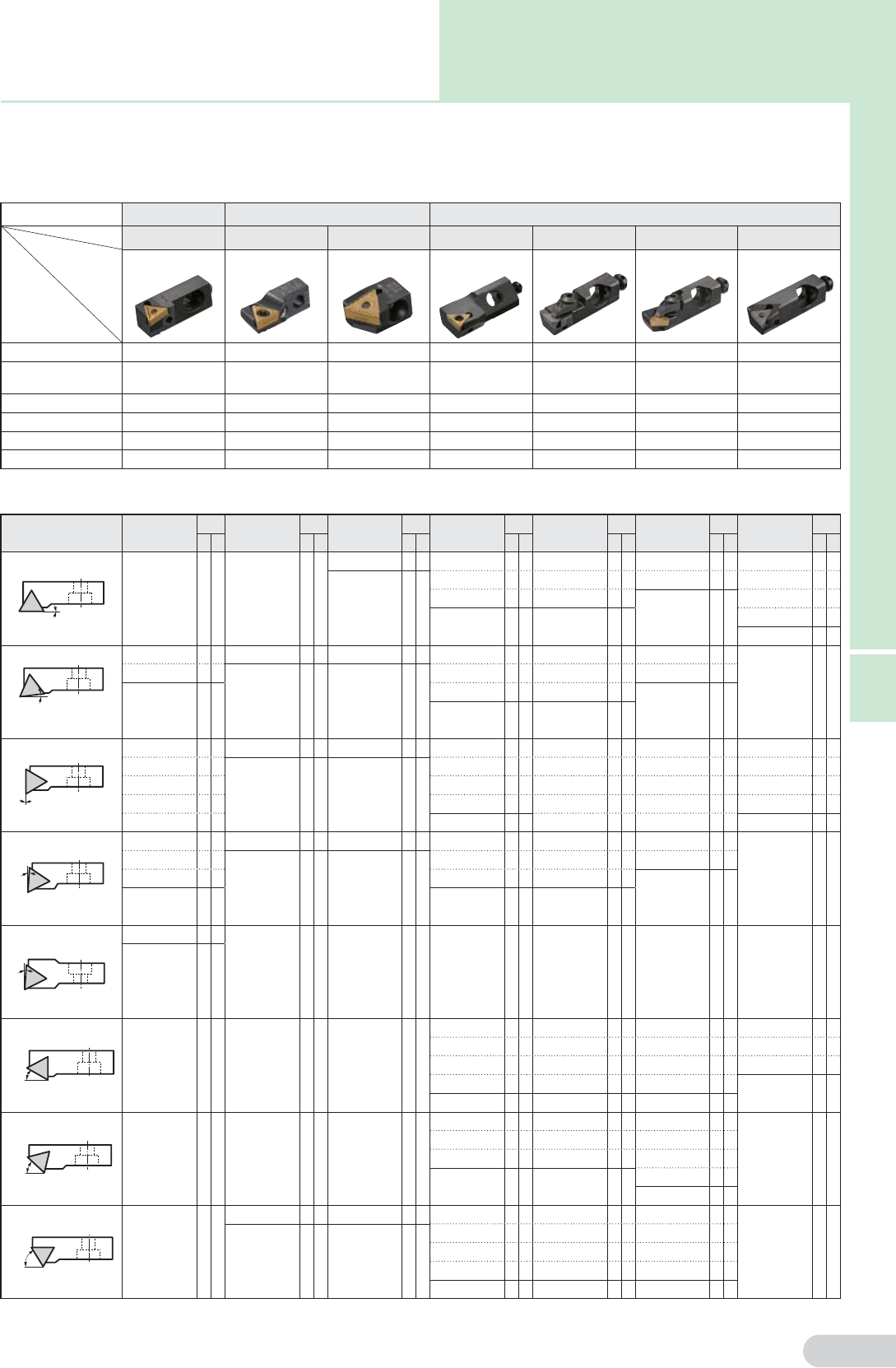

Features
Classification Standard Type
MINIT Type
ISO Type
Type
Shape
Functions
BU Type
MINIT P24 Type
MINIT N38 Type
SP Type CP Type CE Type PN Type
The most common type
of cartridge units
Mini type with good edge
sharpness and chip control
Compact type for multi-
tooling configurations
Screw-locked positive edge type
with good edge sharpness and
chip control
Positive edge type for
low rigidity work
High rake type for Non-
ferrous metal machining
Economical type using
common negative inserts
Clamp Mechanism
Eccentric Pin
Screw On Pin Lock Screw On Clamp On Clamp On Pin Lock
Adjustability Yes Axial: No
Radial: Yes
No
(By using shims) Ye s Ye s Ye s Ye s
Rake Angle Neg. Pos. Neg. Pos. Pos. Pos. Neg.
Relief Angle 0° 11° 0° 11° 11° 20° 0°
Cutting Edge Position
Above Center Above Center Above Center On Center On Center On Center On Center
Min. Effective Diameter (mm)
ø24 ø24 ø38 ø30 ø30 ø30 ø38
Typical Toolings (For Triangular Inserts) ( ) Indicate Smallest Applicable Diameter.
Illustrations BU Type
Stock
MINIT P24 Type
Stock
MINIT N38 Type
Stock
SP Type
Stock
CP Type
Stock
CE Type
Stock
PN Type
Stock
RL RL RL RL RL RL RL
MTGN3 R/L(38)
STGP R/L-10CA(38) CTGP R/L10CA(38) CTGE R/L10CA(38)
PTGN R/L10CA(38)
STGP R/L-12CA(50) CTGP R/L12CA(50) CTGE R/L12CA(50)
PTGN R/L12CA(50)
STGP R/L-16CA(60) CTGP R/L16CA(60)
PTGN R/L16CA(60)
PTGN R/L20CA(70)
< > : MINIT P24
BU224 R/L(48)
MTJP22 R/L(24)
MTJN3 R/L(38)
STJP R/L-10CA(38) CTJP R/L10CA(38) CTJE R/L10CA(38)
BU225 R/L(60)
STJP R/L-12CA(50) CTJP R/L12CA(50) CTJE R/L12CA(50)
STJP R/L-16CA(55) CTJP R/L16CA(55)
BU252 R/L(24)
MTFP22 R/L(24)
MTFN3 R/L(38)
STFP R/L- 8CA(30) CTFP R/L 8CA(30) CTFE R/L 8CA(30) PTFN R/L10CA(38)
BU253 R/L(30)
STFP R/L-10CA(38) CTFP R/L10CA(38) CTFE R/L10CA(38) PTFN R/L12CA(50)
BU254 R/L(38)
STFP R/L-12CA(50) CTFP R/L12CA(50) CTFE R/L12CA(50) PTFN R/L16CA(55)
BU255 R/L(48)
STFP R/L-16CA(55) CTFP R/L16CA(55) CTFE R/L16CA(55) PTFN R/L20CA(70)
BU256 R/L(55)
CTFP R/L20CA(70) CTFE R/L20CA(70)
< > : MINIT P24·N38
BU293 R/L(30)
MTUP22 R/L(24)
MTUN3 R/L(38)
STUP R/L-10CA(38)
CTUP R/L10CA(38) CTUE R/L10CA(38)
BU294 R/L(38)
STUP R/L-12CA(50)
CTUP R/L12CA(50) CTUE R/L12CA(50)
BU295 R/L(48)
STUP R/L-16CA(55)
CTUP R/L16CA(55)
BU295ER/L(48)
STTP R/L- 8CA(30)
CTTP R/L 8CA(30) CTTE R/L 8CA(30) PTTN R/L10CA(38)
STTP R/L-10CA(38)
CTTP R/L10CA(38) CTTE R/L10CA(38) PTTN R/L12CA(50)
STTP R/L-12CA(50)
CTTP R/L12CA(50) CTTE R/L12CA(50) PTTN R/L16CA(60)
STTP R/L-16CA(60)
CTTP R/L16CA(60) CTTE R/L16CA(60)
STSP R/L-10CA(38)
CTSP R/L10CA(38) CTSE R/L 8CA(30)
STSP R/L-12CA(50)
CTSP R/L12CA(50) CTSE R/L10CA(38)
STSP R/L-16CA(55)
CTSP R/L16CA(55) CTSE R/L12CA(50)
CTSE R/L16CA(55)
MTWP22 R/L(24) MTWN3 R/L(38)
STWP R/L- 8CA(30) CTWP R/L 8CA(30) CTWE R/L 8CA(30)
STWP R/L-10CA(38) CTWP R/L10CA(38) CTWE R/L10CA(38)
STWP R/L-12CA(50) CTWP R/L12CA(50) CTWE R/L12CA(50)
STWP R/L-16CA(55) CTWP R/L16CA(55) CTWE R/L16CA(55)
* Cartridge Units do not include inserts or toolholders.
5°
0°
0°
5° <3°>
45°
30°
5° <3°>
60°
mark : To be replaced by new item (Please confirm stock availability)
SEC-
Cartridge Units
mark : To be replaced by new item (Please confirm stock availability)
G18
G
Unit

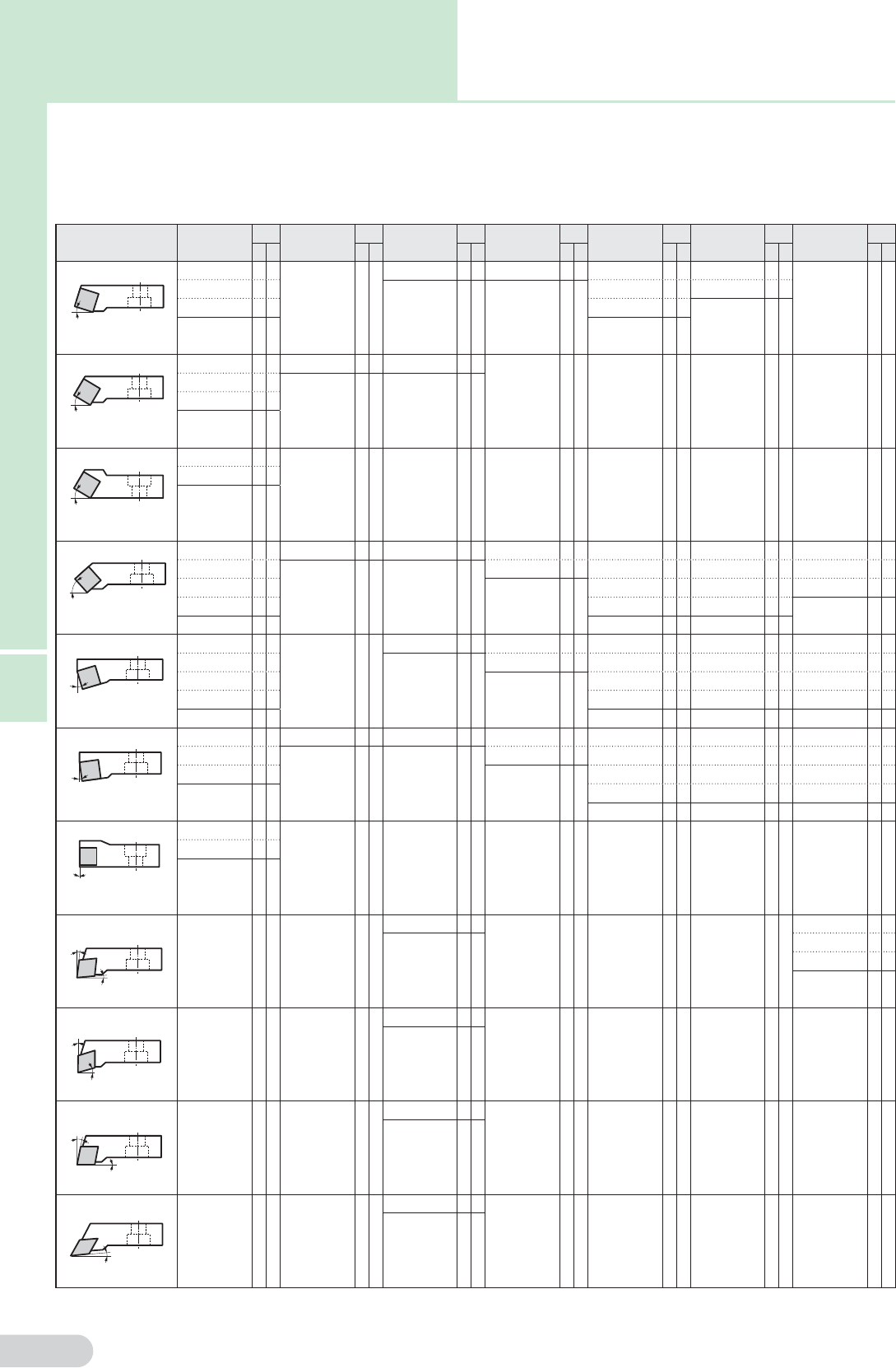

Typical Toolings (For Square Inserts, 55°/ 80°Diamond Inserts) ( ) Indicate Smallest Applicable Diameter.
Illustrations BU Type
Stock
MINIT P24 Type
Stock
MINIT N38 Type
Stock
SP Type
Stock
CP Type
Stock
CE Type
Stock
PN Type
Stock
RL RL RL RL RL RL RL
BU113 R/L(30)
MSRN4 R/L(38)
SSRP R/L-10CA(38) CSRP R/L10CA(38) CSRE R/L10CA(38)
BU114 R/L(38)
CSRP R/L12CA(50) CSRE R/L12CA(50)
BU115 R/L(48)
CSRP R/L16CA(55)
BU133 R/L(30)
MSTP04 R/L(24)
MSTN4 R/L(38)
BU134 R/L(38)
BU135 R/L(48)
BU134E R/L(30)
BU135E R/L(38)
BU142 R/L(24)
MSSP04 R/L(24)
MSSN4 R/L(38)
SSSP R/L- 8CA(30) CSSP R/L 8CA(30) CSSE R/L 8CA(30) PSSN R/L10CA(38)
BU143 R/L(30)
SSSP R/L-10CA(38) CSSP R/L10CA(38) CSSE R/L10CA(38) PSSN R/L12CA(50)
BU144 R/L(38)
CSSP R/L12CA(50) CSSE R/L12CA(50) PSSN R/L16CA(55)
BU145 R/L(48)
CSSP R/L16CA(55) CSSE R/L16CA(55)
BU152 R/L(24)
MSKN4 R/L(38)
SSKP R/L- 8CA(30) CSKP R/L 8CA(30) CSKE R/L 8CA(30) PSKN R/L10CA(38)
BU153 R/L(30)
SSKP R/L-10CA(38) CSKP R/L10CA(38) CSKE R/L10CA(38) PSKN R/L12CA(50)
BU154 R/L(38)
CSKP R/L12CA(50) CSKE R/L12CA(50) PSKN R/L16CA(55)
BU155 R/L(48)
CSKP R/L16CA(55) CSKE R/L16CA(55) PSKN R/L20CA(70)
BU183 R/L(30)
MSYP04 R/L(24)
MSYN4 R/L(38)
SSYP R/L- 8CA(30) CSYP R/L 8CA(30) CSYE R/L 8CA(30) PSYN R/L10CA(38)
BU184 R/L(38)
SSYP R/L-10CA(38) CSYP R/L10CA(38) CSYE R/L10CA(38) PSYN R/L12CA(50)
BU185 R/L(48)
CSYP R/L12CA(50) CSYE R/L12CA(50) PSYN R/L16CA(55)
CSYP R/L16CA(55) CSYE R/L16CA(55) PSYN R/L20CA(70)
BU194 R/L(30)
BU195 R/L(38)
MCLN4 R/L(38)
PCLN R/L12CA(50)
PCLN R/L16CA(55)
PCLN R/L20CA(70)
MCFN4 R/L(38)
MCGN4 R/L(38)
MDJN4 R/L(38)
* Cartridge Units do not include inserts or spanners.
30°
0°
0°
10°
10°
0°
5°
5°
3°
15°
15°
45°
30°
5°
SEC-
Cartridge Units
G19
G
Unit

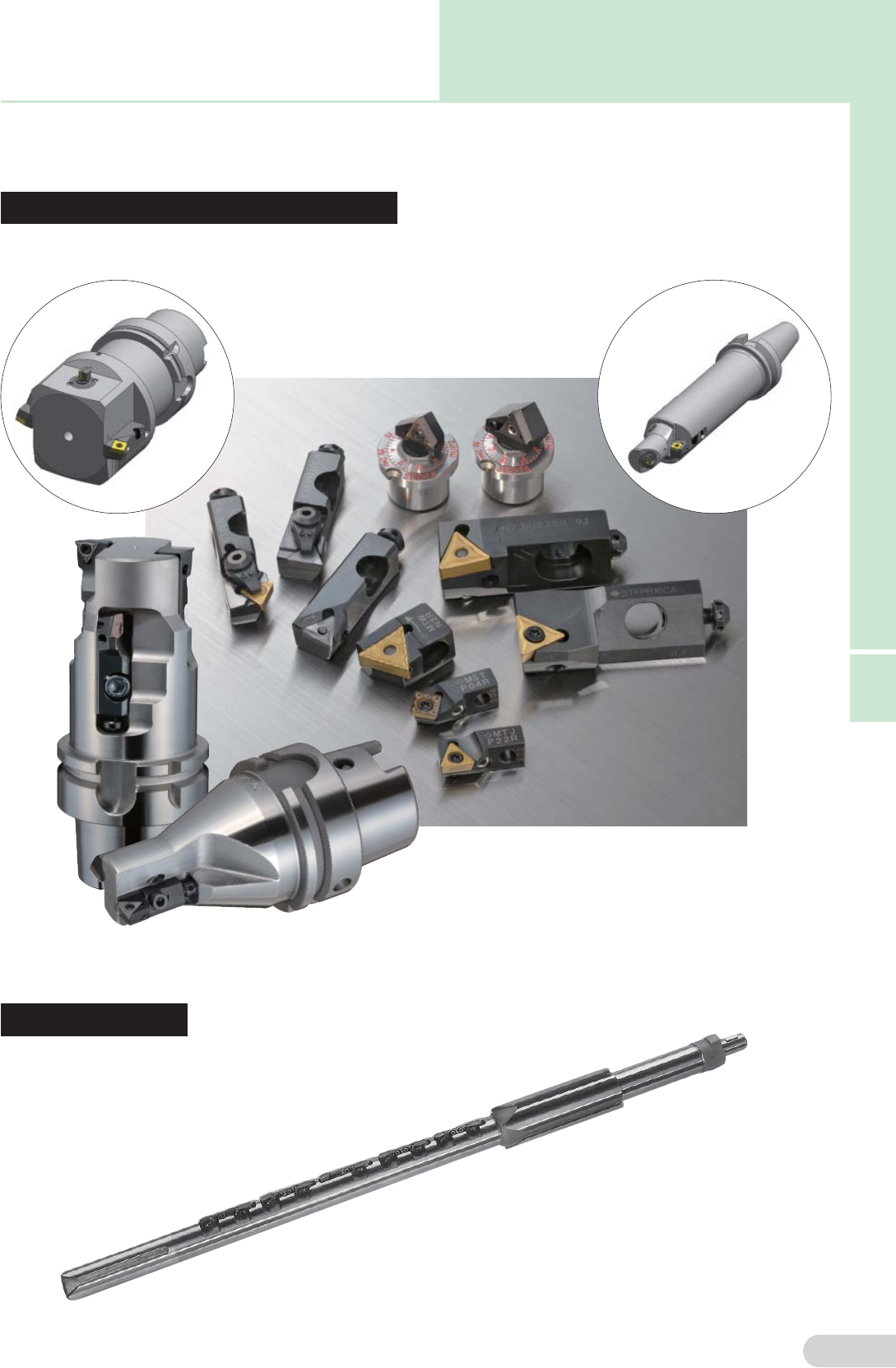

Indexable Cartridges and Boring Quills
Carbide Line Boring Bar
Boring Quills /
Carbide Line Boring Bar
Carbide Line Boring Bar Equipped with Cartridge
G20
