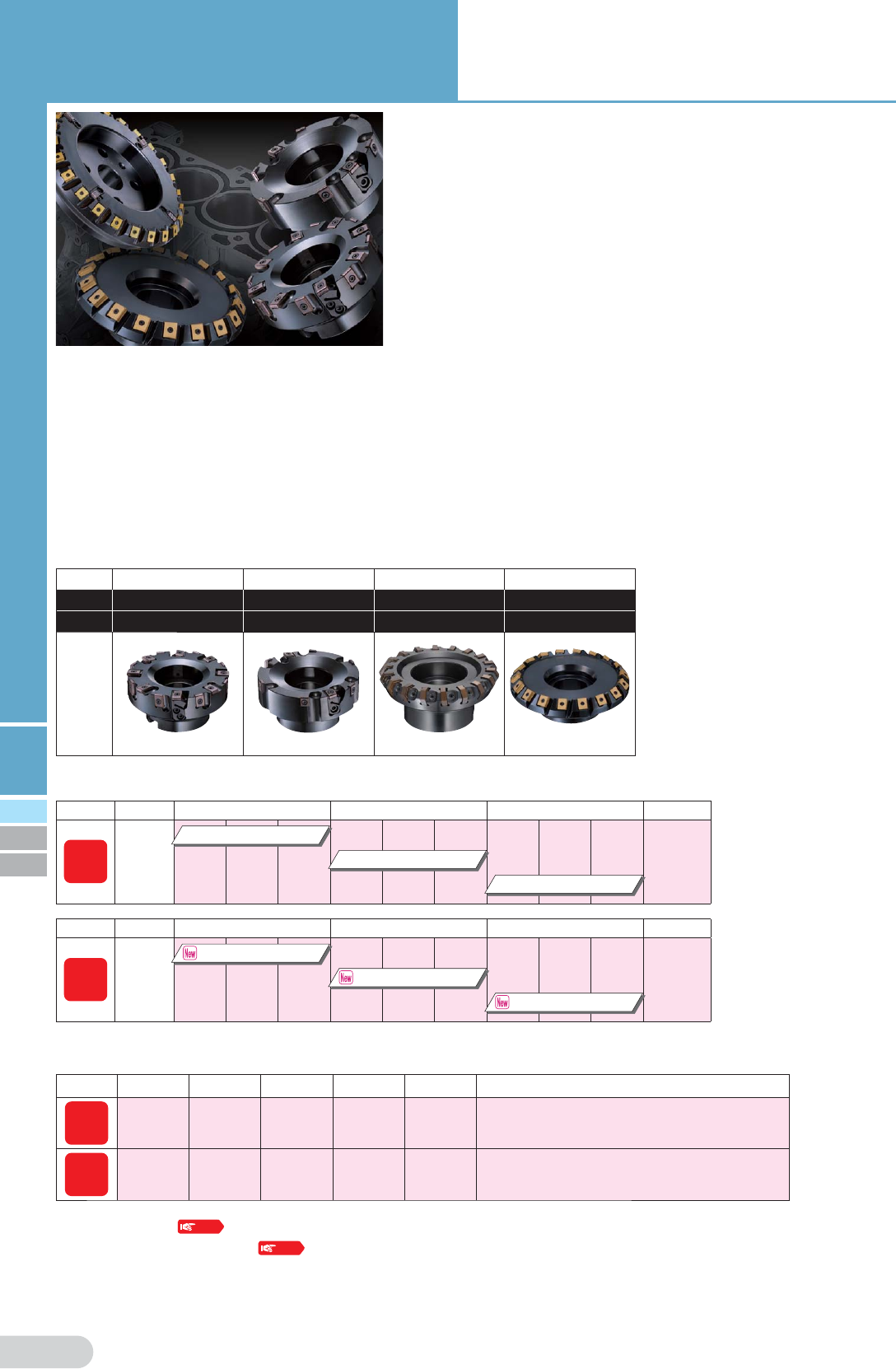

SEC-Goal Mill
GFX / GFS / GRHN / GRV Type
General Features
SEC-Goal Mill Series cutters were developed for high
efficiency roughing and finishing of cast iron parts,
such as engine cylinder blocks and transmission
cases.
Series
Series Code
GFX GFS GRHN GRV
Application
Finishing
Finishing/Shoulder Milling
Roughing Roughing
Surface Roughness
Ra3.2 Ra3.2 Ra12.5 Ra12.5
Appearance
Refer to pages H172 and H173 for details and specifications on the two piece mounting system and adapter.
Characteristics
Special cutters for high feed machining of cast iron
Highly reliable shoulder milling cutter with tangential inserts
Multi-edged design (approx. 3 edges per inch)
Finishing models feature an easy-to-use edge runout fine adjustment
Inserts with chipbreaker for low cutting force
Classification
Grade Hardness
Toughness (GPa)
Main Coating Components
Coating Thickness (μm)
Characteristics
K
Cast Iron
ACK260 92.6HRA 2.6 Super ZX
Coat 3
For finishing to general machining of cast iron and ductile cast iron.
Employs new PVD coating consisting of multiple nanometre-thin
layers of TiAlN and AlCrN, coupled with a tough, heat-resistant
substrate for long and stable tool life.
K
Cast Iron
ACK280 91.7HRA 3.0 Super ZX
Coat 3
For heavy interrupted cutting and wet cutting of cast iron and ductile cast iron.
Employs new PVD coating consisting of multiple nanometre-thin layers
of TiAlN and AlCrN, coupled with an ultra-tough substrate for superior
fracture resistance, and thermal crack resistance during wet cutting.
Characteristic of Grades
Work material
Application High Speed Finishing Finishing to General Cutting Interrupted Cutting
Applicable Cutter
K
Cast Iron
Finishing GFX Type
GFS Type
ACK260
BN7000
ACK280
Work material
Application Light Cutting General Cutting Heavy Interrupted Cutting
Applicable Cutter
K
Cast Iron
Roughing GRHN Type
GRV Type
ACK200/ACK200
ACK100/ACK100
ACK300/ACK300
H
H162 to H163
H165 to H166H164 H167
BN7000 Characteristic
ACK100, ACK200, and ACK300 Characteristic
H13
H13
H159
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
H
SEC-Goal Mill
GFX / GFS / GRHN / GRV Type

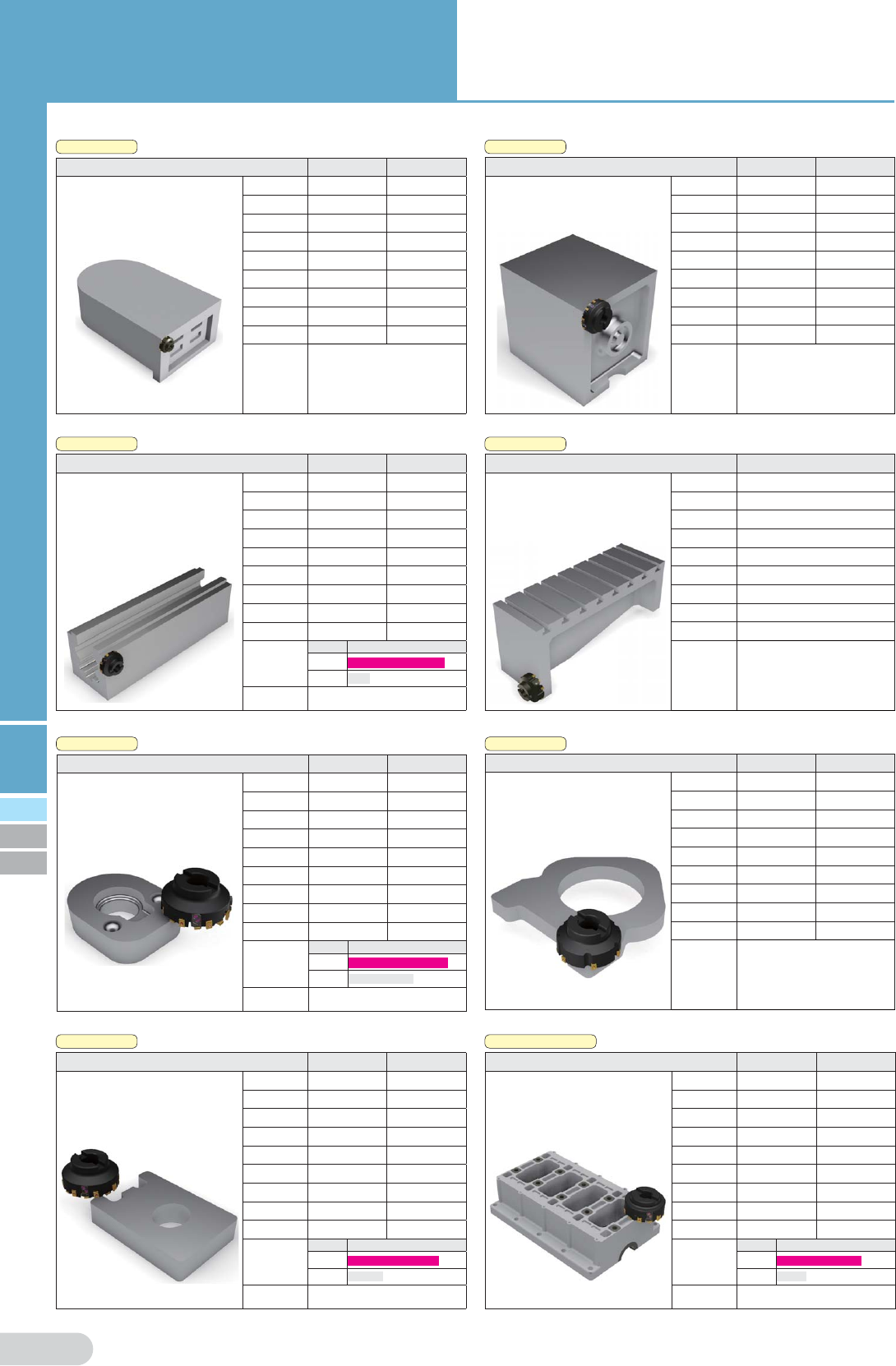

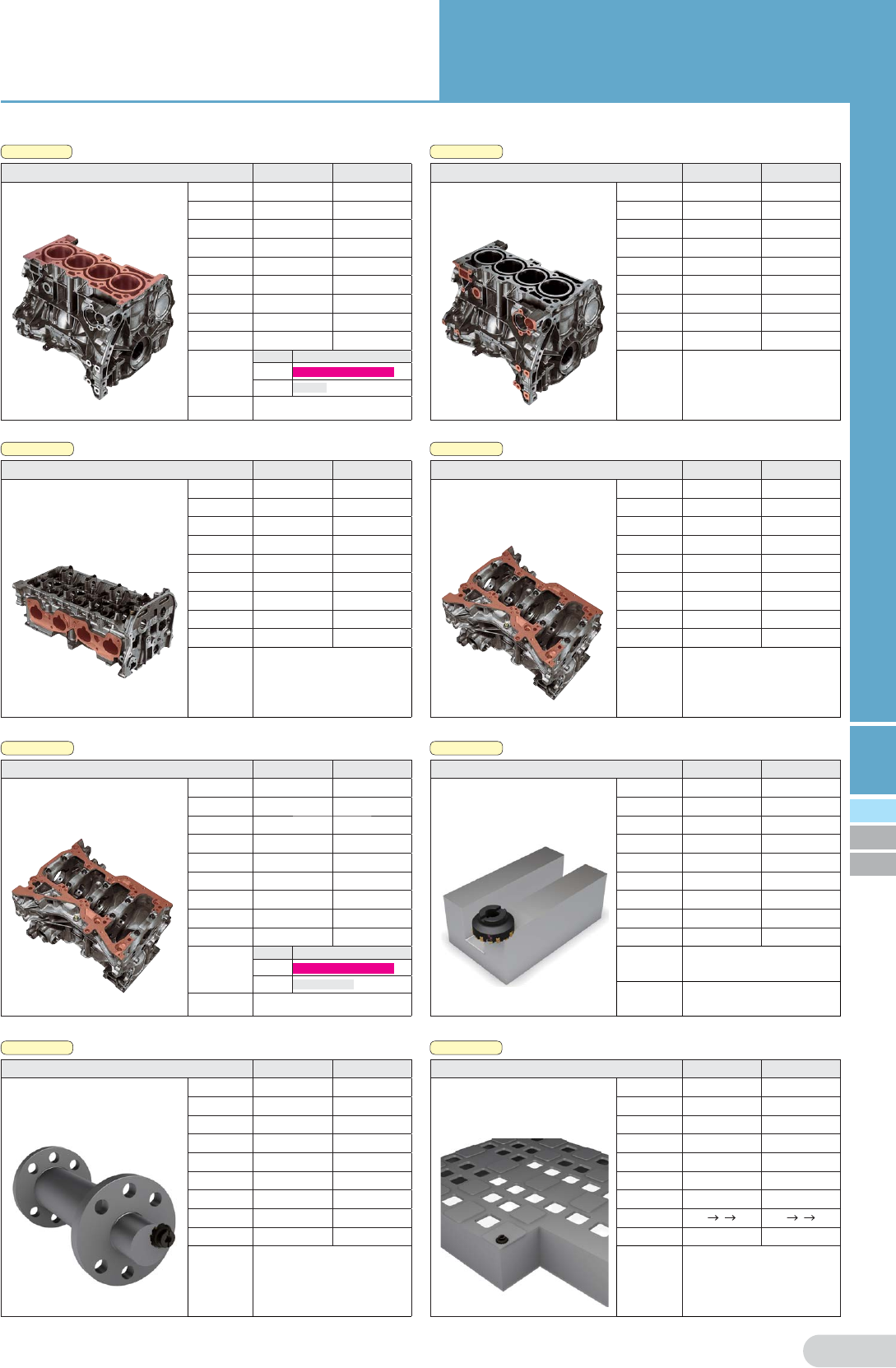

Application Examples
Application Rough Cutting
Work Top Face Of Cylinder Block SEC-Goal Mill Current Tool
Work Material FC250
Roughness Standard Ra 6.3μm
Equipment Special Machine
Tool GRV16250R ø250 Special
Grade ACK100 PVD
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 30 30
vc m/min 80 80
vf (mm/min) 611 611
fZ mm/t 0.20 0.20
ap mm
3.0 Some Areas6.0 3.0 Some Areas6.0
Coolant Remainder Wet Remainder Wet
Results
Tool Workpieces/Corner
GRV
Current Tool
Evaluation
Eliminates breakage for extended tool life.
300 Units
100 Units
100 200 300
Application Finishing
Application Finishing
Work Side Face Of Cylinder Head SEC-Goal Mill
Competitor's Product
Work Material FC250
Roughness Standard Rz 12.5μm
Equipment
Horizontal Machining Center
Tool GFXC13125R ø125
Grade BN7000 PVD
Tool Shape
Tangential Screw Locked Horizontal Screw Locked
No. of Teeth 412
vc m/min 1,000 216
vf (mm/min) 6,000 376
fZ mm/t 0.59 0.057
ap mm 0.5 1.0
Coolant Dry Dry
Results
vf =6,000mm/min
Improves efficiency by 16 times and
provides better surface roughness than
our competitors' products.
Work Bottom Face Of Cylinder Block SEC-Goal Mill
Competitor's Product
Work Material FC250
Roughness Standard Ra 3.2μm
Equipment Special Machine
Tool
Special
ø315
Grade ACK260 PVD
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 44(effective) 40
vc m/min 148 148
vf (mm/min) 720 720
fZ mm/t 0.11 0.12
ap mm 0.5 0.5
Coolant Dry Dry
Results
Tool Workpieces/Corner
GSV
Competitor's Product
Evaluation
Provides a tool life that is approximately 1.5
times longer than our competitors' products.
3,500 Units
2,300 Units
1,500 2,500 3,500
Application Finishing
Work Side Face Of Cylinder Block SEC-Goal Mill
Competitor's Product
Work Material FC250
Roughness Standard Rz 12.5μm
Equipment Horizontal Machining Center
Tool GFXC13100R ø100
Grade BN7000 CVD
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 410
vc m/min 1,200 251
vf (mm/min) 10,000 500
fZ mm/t 0.65 0.063
ap mm 0.5 0.5
Coolant Dry Dry
Results
vf =10,000mm/min
Achieves a vf value that is 20
times larger than our competitors'
products.
Application Finishing
Work Bottom Face Of Cylinder Block SEC-Goal Mill
Conventional Grade
Work Material FC250
Roughness Standard Ra 6.3μm
Equipment Horizontal Machining Center
Tool GFXC13125R ø125
Grade ACK260 CBN
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 10 4
vc m/min 250 510
vf (mm/min) 1,020 1,020
fZ mm/t 0.16 0.20
ap mm 0.5 0.5
Coolant Remainder Wet Remainder Wet
Results
Carbide tool achieving similar
tool life as CBN tool.
Reduces costs.
Application Finishing
Work Lathe Bed SEC-Goal Mill
Competitor's Product
Work Material FC250
Roughness Standard Ra 6.3μm
Equipment Double Column Machining Center
Tool GFX16125R ø125
Grade ACK260 Ceramics
Tool Shape
Tangential Screw Locked
No. of Teeth 16 10
vc m/min 300 785
vf (mm/min) 3,057 3,000
fZ mm/t 0.25 0.15
ap mm 0.3 0.3
Coolant Dry Dry
Results Equivalent
vf
value to ceramics
achieved with carbide
Evaluation Reduced running costs
Work: Machine Tool Components SEC-Goal Mill
Competitor's Product
Work Material FC300
Equipment : Double Column Machining Center
Tool
GRHNM17160R
ø160
Grade ACK200 CVD
Tool Shape Screw Locked Wedge Type
No. of Teeth 16 8
vc m/min 250 140
vf (mm/min) 1,780 549
fZ mm/t 0.20 0.245
ap mm 3 5 235 2
Coolant Dry Dry
Results
Achieves 3.2x better machining
efficiency.
Application Rough Cutting
Work: Printing Press Roller SEC-Goal Mill
Competitor's Product
Work Material FCD450
Equipment : Horizontal Machining Center
Tool
GRHNM17080R
ø80
Grade ACK200 PVD
Tool Shape Screw Locked Screw Locked
No. of Teeth 89
vc m/min 230 151
vf (mm/min) 732.5 541
fZ mm/t 0.1 0.1
ap mm 3 to 53
to 5
Coolant Dry Dry
Results
Achieves 1.4x better machining
efficiency.
Application Rough Cutting
H160
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)
250 Units
100 Units
148 Units
100 Units
Work Crankcase SEC-Goal Mill
Competitor's Product
Work Material AI + FC250
Roughness Standard Ra 3.2μm
Equipment Vertical Machining Center
Tool GFX13100R ø100
Grade ACK260 PVD
Tool Shape
Tangential Screw Locked
Vertical Drawing Pins
No. of Teeth 12 12
vc m/min 400 314
vf (mm/min) 1,529 1,440
fZ mm/t 0.10 0.12
ap mm 0.3 0.3
Coolant Wet Wet
Results
Tool Workpieces/Corner
GFX
Competitor's Product
Evaluation
Provides a tool life that is approximately
2.5 times longer than competitors'.
Work Hydraulic Component SEC-Goal Mill
Competitor's Product
Work Material FCD450
Roughness Standard Ra 3.2μm
Equipment
Horizontal Machining Center
Tool GFX13080R ø80
Grade ACK260 PVD
Tool Shape
Tangential Screw Locked Horizontal Screw Locked
No. of Teeth 86
vc m/min 218 180
vf (mm/min) 1,600 650
fZ mm/t 0.23 0.15
ap mm 0.1 0.1
Coolant Wet Wet
Results
Tool Workpieces/Corner
GFX
Competitor's Product
Evaluation
Provides a tool life that is approximately
1.5 times longer than conventional.
SEC-Goal Mill
GFX / GFS / GRHN / GRV Type
H
Application Examples
Work Housing SEC-Goal Mill
Competitor's Product
Work Material FC250
Roughness Standard Ra 1.6μm
Equipment Horizontal Machining Center
Tool GFXC13100R ø100
Grade ACK260 CVD
Tool Shape
Tangential Screw Locked Horizontal Screw Locked
No. of Teeth 810
vc m/min 250 250
vf (mm/min) 960 530
fZ mm/t 0.15 0.066
ap mm 0.1 0.1
Coolant Dry Dry
Results
Provides higher efficiency, accuracy, and visually
better compared to our competitors' products.
Achieves a tool life that is over 2.5 times
longer than our competitors' products.
Work Rear Hub Carrier SEC-Goal Mill Current Tool
Work Material FCD450
Roughness Standard Rz 25μm
Equipment Horizontal Machining Center
Tool GFX16100R ø100
Grade ACK260 CVD
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 12 14
vc m/min 250 150
vf (mm/min) 3,150 800
fZ mm/t 0.33 0.12
ap mm 0.5-1.0 0.5-1.0
Coolant Wet Wet
Results
Current tools make level
differences in machined
surfaces.
Efficiency improved.
Application : Finishing
Application : Finishing
Application : Finishing
Application : Finishing
Application : Finishing
Application : Finishing
Application : Finishing
Application Simultaneous Finishing
Work Large Diesel Engine (Base Plate) SEC-Goal Mill Current Tool
Work Material FC250-FC300
Roughness Standard Ra 3.2μm
Size 1,600mm×1,800mm
Equipment Horizontal Machining Center
Tool GFX16160R ø160
Grade ACK260 CBN
Tool Shape
Tangential Screw Locked
Blade Type
No. of Teeth 20 10
vc m/min 300 980
vf (mm/min) 2,980 1,950
fZ mm/t 0.25 0.10
ap mm 0.3 0.3
Coolant Dry Dry
Results
Carbide tools achieve 1.5 times
the efficiency of CBN and provides
machined surfaces equivalent to those
machined with CBN on visual inspection.
Work Angle Plate SEC-Goal Mill
Work Material FC300
Roughness Standard Ra 3.2μm
Equipment Horizontal Machining Center
Tool GFS13125R
Grade ACK260
Tool Shape Tangential Screw Locked
No. of Teeth 6
vc m/min 137
vf (mm/min) 1,000
fZ mm/t 0.47
ap mm 0.015
Coolant Dry
Results
Surface roughness: Ra 1.0μm
No level differences.
Final grinding process eliminated.
Work Side of Lathe Bed (11m Long) SEC-Goal Mill
Competitor's Product
Work Material FC300
Roughness Standard Ra 3.2μm
Equipment Horizontal Machining Center
Tool GFX16160R ø160
Grade ACK260 CVD
Tool Shape
Tangential Screw Locked Horizontal Screw Locked
No. of Teeth 20 8
vc m/min 120 125
vf (mm/min) 477 400
fZ mm/t 0.10 0.20
ap mm 0.3 0.3
Coolant Dry Dry
Results
Tool
Cutting Length/Corner
GFX
Competitor's Product
Evaluation Achieves a cutting distance 4
times longer than competitor's.
Work Hydraulic Component SEC-Goal Mill Conventional
Work Material FCD600
Roughness Standard Ra 1.6μm
Equipment Horizontal Machining Center
Tool
GFX16125R Special
ø125
Grade ACK260 PVD
Tool Shape
Tangential Screw Locked
Wedge Type
No. of Teeth 66
vc m/min 160 150
vf (mm/min) 733 110
fZ mm/t 0.30/1.20 0.05
ap mm 0.25 0.25
Coolant Wet Wet
Results
Tool
Life Time/Corner
GFX
Competitor's Product
Evaluation
Provides a tool life that is approximately
2.3 times longer than conventional.
40m
350 min
10m
150 min
20m 40m
200min 400min.
50 100 150
100 200 3 00
H161
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
SEC-Goal Mill
GFX Type
Set Screw For Fine Adjustment
Of Cutting Edge Height
Finishing Edge
Front Roughing Edge
Finishing edge run-out can be adjusted by 5μm or less
simply by turning set screw.
Peripheral Roughing Edge
Finishing Edge
Front Roughing Edge
Arraying the same number of vertical and
horizontal inserts allows 8-corner configuration.
GFX Type Features
Easy Run-out Adjustment
Economical, 8-Cornered Insert
Peripheral Roughing Edge
DC
LF
Front Roughing Edge
Peripheral Roughing Edge
Finishing Edge
0.03 to 0.04mm
Finishing Edge Adjustment on GFX Type
Finishing Edge
Fine Adjustment
Screw
Peripheral Roughing Edge

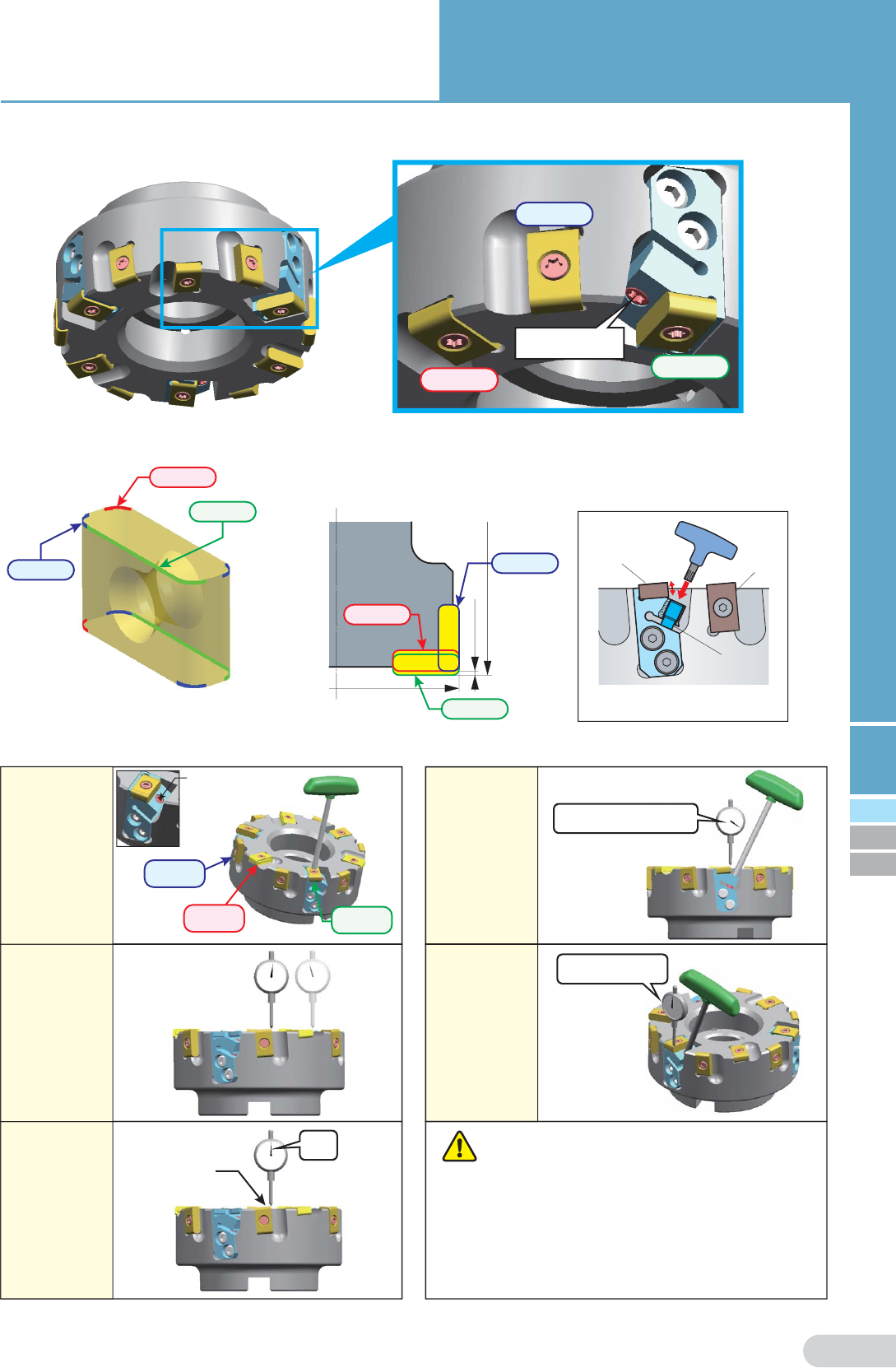

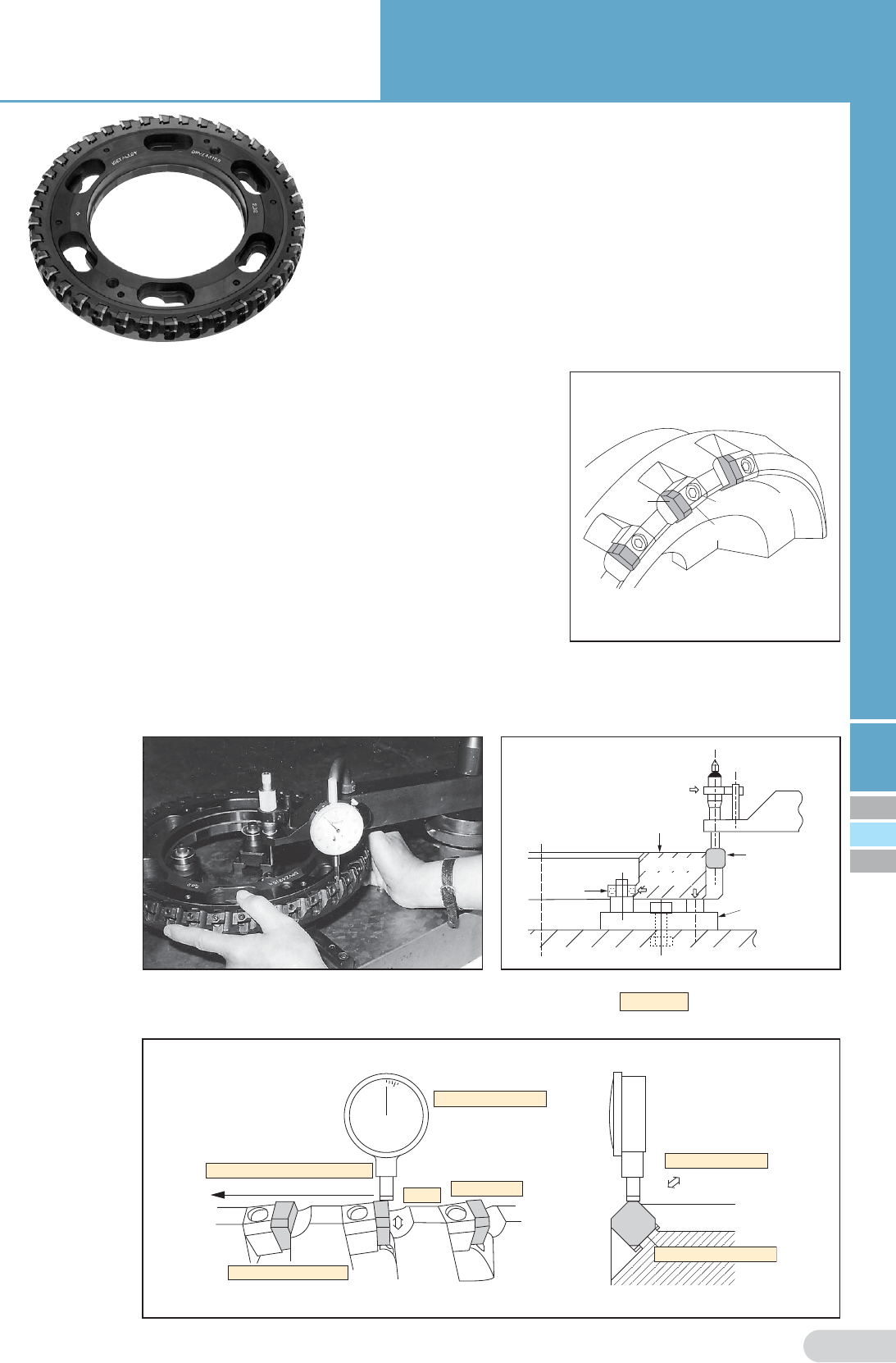

GFX Type Finishing Edge Run-Out Adjustment Procedure
Highest Roughing
Edge
• Always adjust finishing edge height before use.
• Using the tool with the set screw loosened may result
in tool breakage.
*Adjusting finishing edge run-out to 2μm or less will result in
a better machined surface.
+0.03 to 0.04mm
Run-Out: 5μm or less
*
(4)
Adjust Finishing
Edge Height
(5)
Adjust Run-Out
Select a finishing edge
and adjust the set
screw so that the edge
sticks up around 0.03 to
0.04mm compared to
(3).
With the finishing edge from
(4) as a reference, adjust
the position of the other
finishing edges so that
run-out is equal to or less
than 5μm.
Adjustment Set Screw
Finishing Edge
(Cartridges)
Front Roughing Edge
(Direct-Mounted)
Peripheral Roughing Edge
(Direct-Mounted)
(1)Attach Insert
Attach insert to cutter
body. When doing so,
check that the cartridge
adjustment set screw is
completely loose.
(2)
Check Roughing
Edge Run-Out
(3)
Set Reference
Roughing Edge
Measure face run-out of
roughing edge and
check the cutting edge
that sticks up the most.
Set the cutting edge
height checked in (2) as
"0".
H
H162
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)

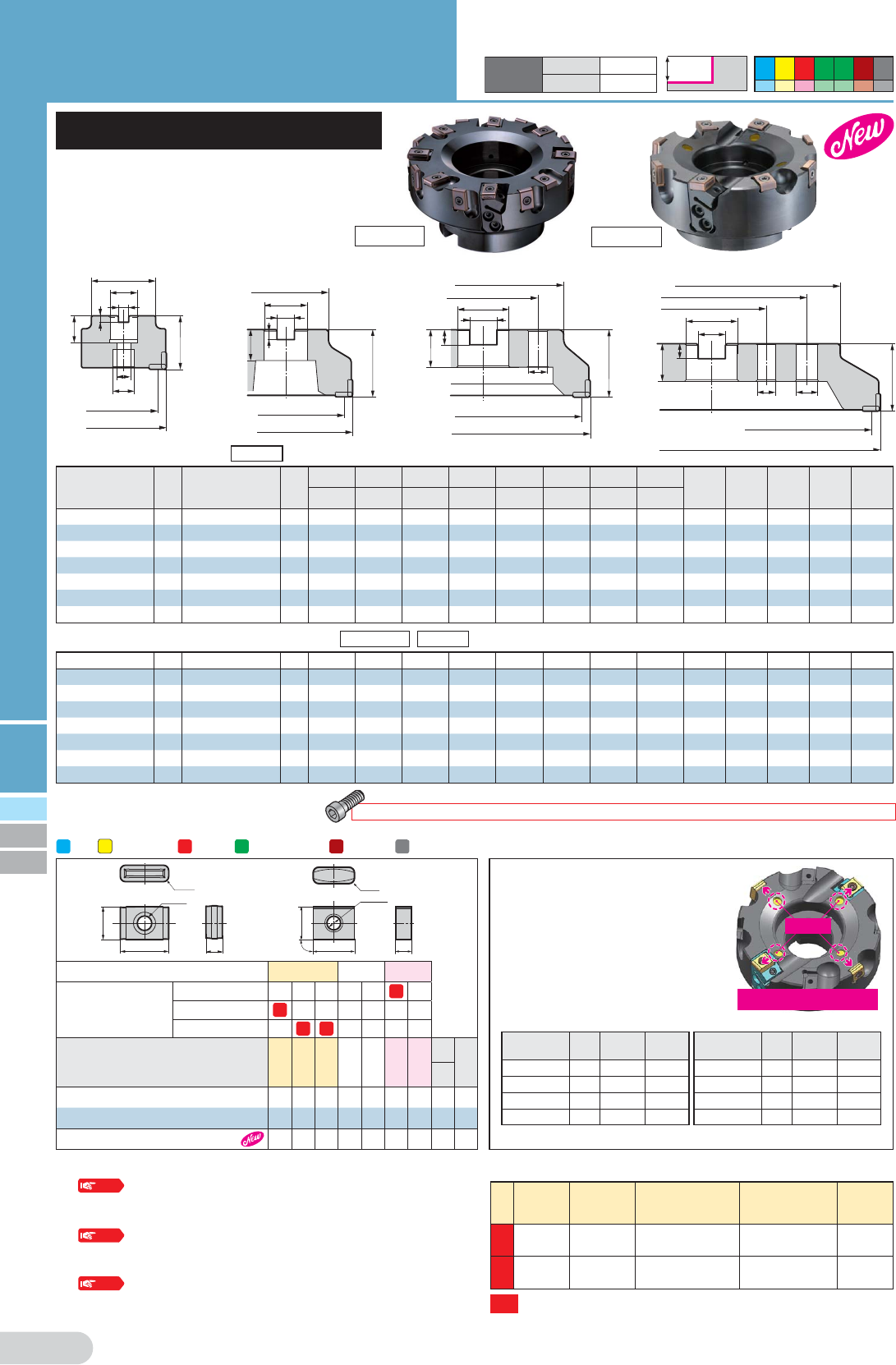

Body (GFXC 13000 Course Pitch) Metric Inch
Note: The GFXC13063 RS/LS are only available in metric sizes.
GFXC 13063RS GFXC 13063LS
63 50.3 50 50 22 10.4 6 20 4 1 4 0.9 1
GFXC 13080R GFXC 13080L
80 67.3 60 50 25.4 9.5 6 25 6 1 6 1.4 1
13100R 13100L
100 87.3 70 50 31.75 12.7 8 32 8 2 8 1.9 2
13125R
1
3
125L
125 112.3 80 63 38.1 15.9 10 38 10 2 10 3.3 2
13160R
1
3
160L
160 147.3 120 63 50.8 19 11 38 12 3 12 6.4 2
13200R
13
2
00L
200 187.3 150 63 47.625 25.4 14 35 16 4 16 7.8 3
13250R
13
2
50L
250 237.3 200 63 47.625 25.4 14 35 20 5 20 12.6 3
13315R
13
3
15L
315 302.3 240 80 47.625 25.4 14 35 24 6 24 20.2 4
Inserts are not included.
ø20*2 4-ø18
ø13*1
ø101.7
ø177.8
4-ø18 4-ø22
DCSFMS
DC
DCX
LF
KWW
DCB
KDP
CBDP
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
ø101.6
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
Body (GFX 13000) Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Max. Diameter
Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
No. of Finishing
Edges
Effective
Teeth
Weight
(kg)
Fig
DCX DC
DCSFMS
LF DCB KWW KDP CBDP
GFX 13080R GFX 13080L 80 67.3 60 50 25.4 9.5 6 25 8 2 8 1.4 1
13100R 13100L 100 87.3 70 50 31.75 12.7 8 32 12 3 12 1.9 2
13125R 13125L 125 112.3 80 63 38.1 15.9 10 38 16 4 16 3.3 2
13160R 13160L 160 147.3 120 63 50.8 19 11 38 20 5 20 6.4 2
13200R 13200L 200 187.3 150 63 47.625 25.4 14 35 28 7 28 7.8 3
13250R 13250L 250 237.3 200 63 47.625 25.4 14 35 36 9 36 12.6 3
13315R 13315L 315 302.3 240 80 47.625 25.4 14 35 44 11 44 20.2 4
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.
SEC-Goal Mill
GFX 13000 / GFXC 13000 Type
1
89
to
89 30
8
5
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
High Feed Finishing Of Cast Iron
Recommended Cutting Conditions
Work
Material Hardness
Cutting Speed vc (m/min)
Min. - Optimum - Max.
Feed Rate f
z
(mm/t)
Min. - Optimum - Max.
Grade
KCast Iron 250HB 200- 250- 350 0.1- 0.3-0.5 ACK260
KCast Iron 250HB 800-1000-1200 0.1- 0.3-0.5 BN7000
Calculate cutting conditions based on effective teeth.
Note
GFXC
GFX
Fig 1 Fig 2 Fig 3 Fig 4
Inserts
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
Fig 5
12.700
9.525
ø4.2
4.76
RE
Fig 6
12.70
90˚
9.615
4.76
ø4.2
RE
Grade
Coated Carbide
Carbide
CBN
Application
High Speed Finishing
K
Finishing/Medium Cutting
K
Roughing K K
Cat. No.
ACK260
ACK280
ACK300
H10E
BN7000
Corner
Radius
Fig
RE
LNGX 130508PNFN-W
0.8 5
130516PNFN-W
1.6 5
LNGX 130516PNTN-W
1.6 6
Parts
Application Examples
Allowable Spindle Speeds by Size When Using CBN Inserts
mark: Standard stocked item (expanded item)
GFXC Important Notes
The GFXC can be used with a reduced
number of attached teeth. In this
case, attach the inserts only to the
attachment positions indicated by the
markings. Remove the screws for the
attachment positions that are not used.
No. of Total Teeth and No. of Attached Inserts When Reducing Teeth for GFXC
Cat. No.
Diameter
DC
Total Teeth
No. of Attached Inserts
When Reducing Teeth
Cat. No.
Diameter
DC
Total Teeth
No. of Attached Inserts
When Reducing Teeth
GFXC 13063RS/LS
63mm
42
GFXC 13160R/L
160mm
12 6
13080R/L
80mm
62
13200R/L
200mm
16 8
13100R/L
100mm
84
13250R/L
250mm
20 10
13125R/L
125mm
10 4
13315R/L
315mm
24 12
* The number of attached inserts must always be either "Total Teeth" or "No. of Attached Inserts When Reducing Teeth".
Markings
Attach the inserts only to the attachment
positions indicated by the markings.
H
H163
H159
H163
Dimensions (mm)
*1 GFXC13063RS/LS is ø11.
*2 GFXC13063RS/LS is ø18.
Dimensions
(mm)
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change

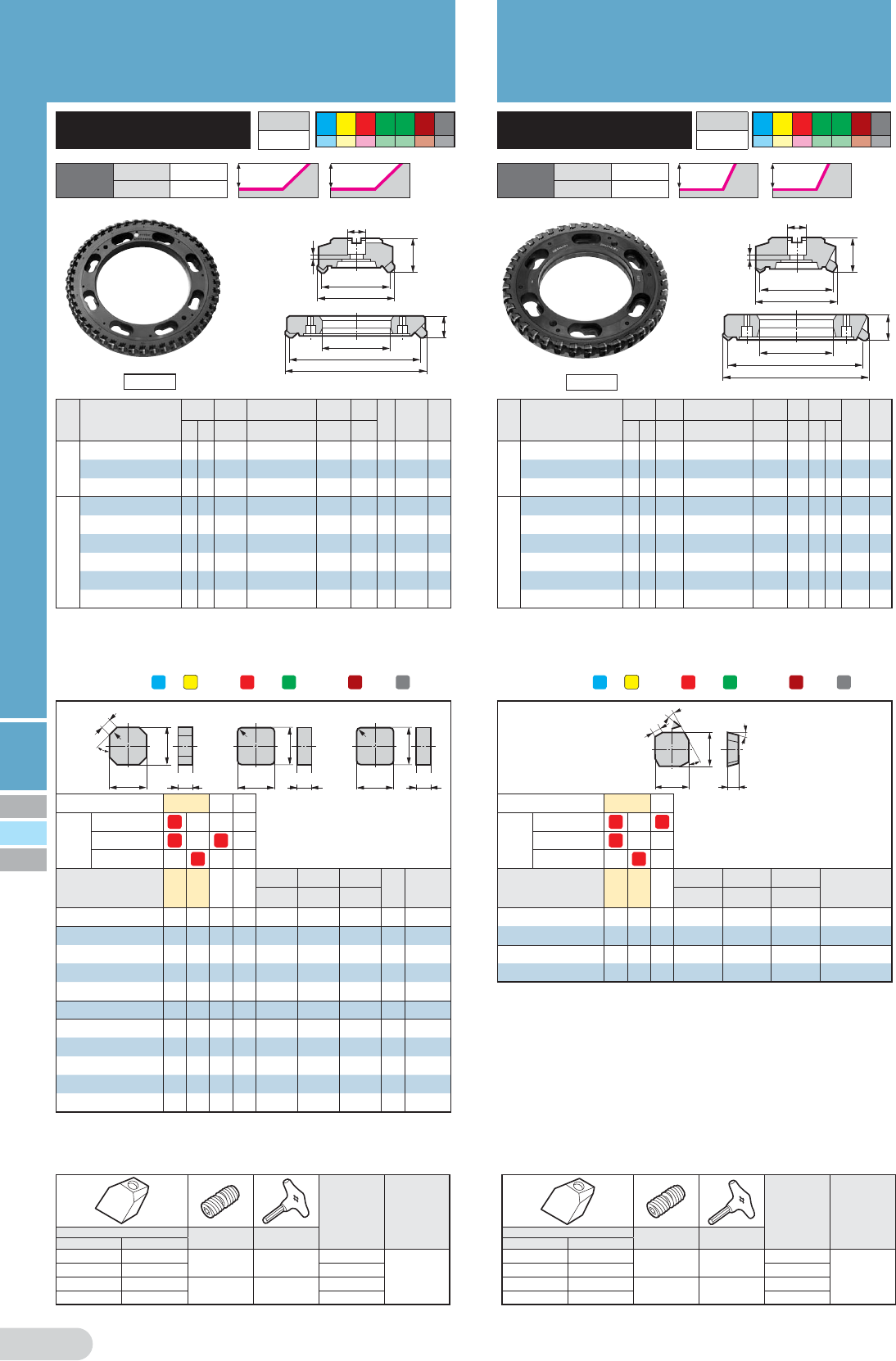

Body (GFX 16000) Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Max. Diameter
Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
No. of Finishing
Edges
Effective
Teeth
Weight
(kg)
Fig
DCX DC
DCSFMS
LF DCB KWW KDP
CBDP
GFX 16080R GFX 16080L 80 64.1 60 50 25.4 9.5 6 25 8 2 8 1.4 1
16100R 16100L 100 84.1 70 50 31.75 12.7 8 32 12 3 12 1.9 2
16125R 16125L 125 109.1 80 63 38.1 15.9 10 38 16 4 16 3.3 2
16160R 16160L 160 144.1 120 63 50.8 19 11 38 20 5 20 6.4 2
16200R 16200L 200 184.1 150 63 47.625 25.4 14 35 28 7 28 7.8 3
16250R 16250L 250 234.1 200 63 47.625 25.4 14 35 36 9 36 12.6 3
16315R 16315L 315 299.1 240 80 47.625 25.4 14 35 44 11 44 20.2 4
Inserts are not included.
H163
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.
1
89
to
89 30
8
5
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
SEC-Goal Mill
GFX 16000 Type
High Feed Finishing Of Cast Iron
H
ø20*2 4-ø18
ø13*1
ø101.7
ø177.8
4-ø18 4-ø22
DCSFMS
DC
DCX
LF
KWW
DCB
KDP
CBDP
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
ø101.6
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
DC
DCX
LF
DCSFMS
KWW
DCB
KDP
CBDP
Fig 1 Fig 2 Fig 3 Fig 4
Inserts
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
Fig 5 Fig 6
15.875
9.525
ø4.2
4.76
R1.6
15.875
90˚
9.615
4.76
ø4.2
R1.6
Grade
Coated Carbide
Carbide CBN
Application
High Speed Finishing
K
Finishing/Medium Cutting
K
Roughing K K
Cat. No.
ACK260
ACK280
ACK300
H10E
BN7000
Fig
LNGX 160516PNFN-W 5
160516PNTN-W 6
Recommended Cutting Conditions
Work
Material Hardness
Cutting Speed cm/min
Min. - Optimum - Max
Feed Rate zmm/t
Min. - Optimum - Max
Grade
KCast Iron 250HB 200- 250- 350 0.1- 0.3-0.5 ACK260
KCast Iron 250HB 800-1000-1200 0.1- 0.3-0.5 BN7000
Calculate cutting conditions based on effective teeth.
Note
Allowable Spindle Speeds by Size When Using CBN Inserts
Cutter Diameter (mm)
Allowable Spindle Speed (min
-1
)
n max.
Cutter Diameter (mm)
Allowable Spindle Speed (min
-1
)
n max.
ø63 6,000 ø160 2,300
ø80 4,700 ø200 1,900
ø100 3,800 ø250 1,500
ø125 3,000 ø315 1,200
Parts
Cartridge
(For 13000)
Cartridge
(For 16000)
Fine adjustment
screw
Wrench Insert
Screw
Wrench
(For Adjustment)
Cap Screw
(For GFXK4R/L)
Cap Screw
(For GFVK5R/L)
Wrench
(For Cartridges)
Anti-seizure
Cream
N m
GFXK4R/L GFVK5R/L BTD05F09 TT X15W
BFTX03588 LT15
BX0414 BX0418 TH030 SUMI-P 3.0
*Finishing cartridges do not come assembled with inserts.
N m Recommended Tightening Torque N m
Application Examples
H159
Dimensions (mm)
H164
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)

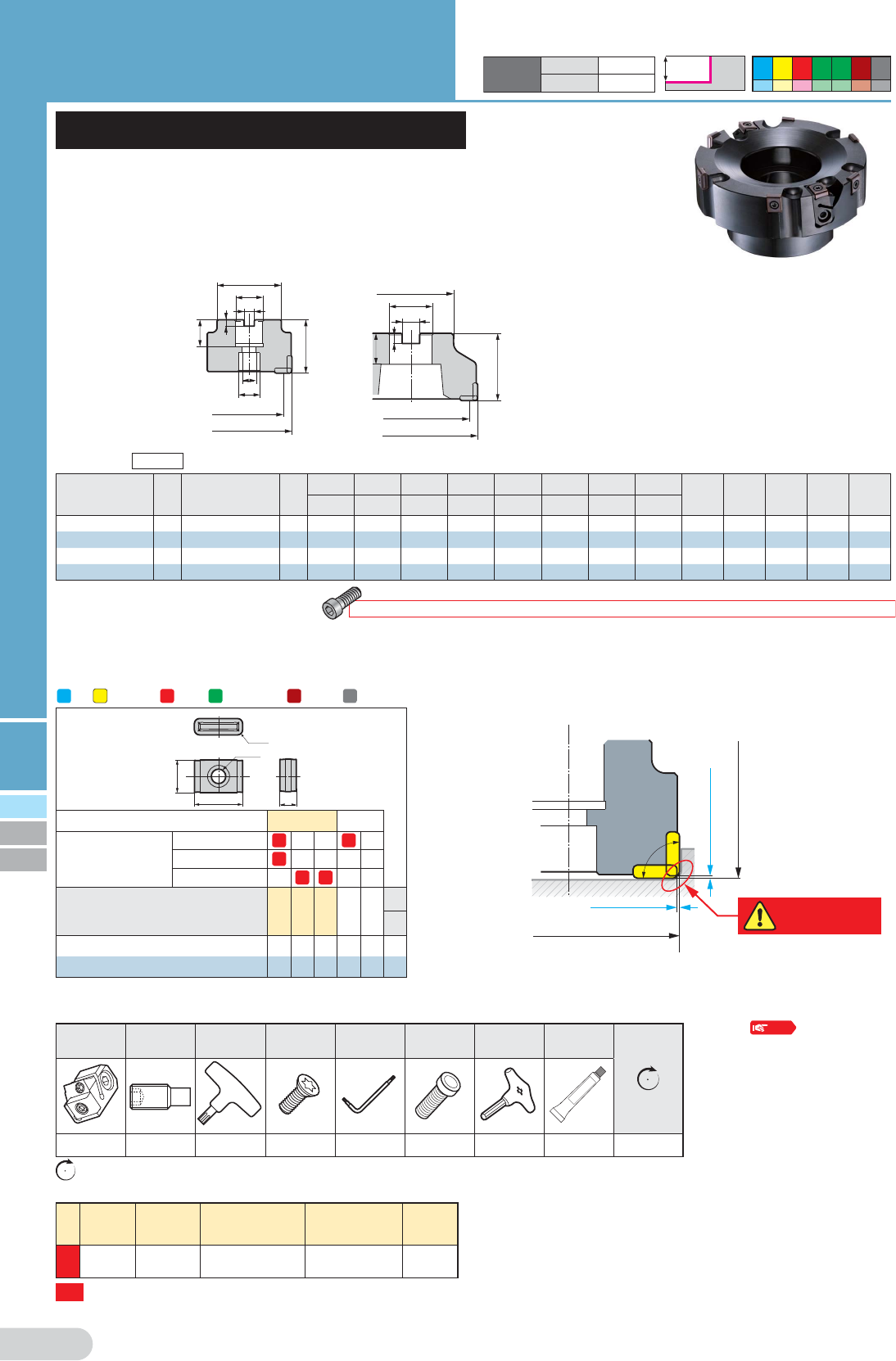

SEC-Goal Mill
GFS 13000 Type
10
90
11
3
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
High Feed Finishing/Shoulder Milling Of Cast Iron
Recommended Cutting Conditions
ISO
Work
Material Hardness
Cutting Speed cm/min
Min. - Optimum - Max
Feed Rate zmm/t
Min. - Optimum - Max
Grade
KCast Iron 250HB 200- 250 -300 0.10- 0.15 -0.30 ACK260
Calculate cutting conditions based on effective teeth.
Note
ø20
ø13
DCSFMS
DC
DCX
LF
KWW
DCB
KDP
CBDP
DCSFMS
DC
DCX
LF
KWW
DCB
KDP
CBDP
Fig 1 Fig 2
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.
Body Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Max. Diameter
Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
No. of Finishing
Edges
Effective
Teeth
Weight
(kg)
Fig
DCX DC
DCSFMS
LF DCB KWW KDP CBDP
GFS 13080R GFS 13080L 80 66.9 60 50 25.4 9.5 6 25 5 1 4 1.4 1
13100R 13100L 100 86.9 70 50 31.75 12.7 8 32 6 1 5 1.9 2
13125R 13125L 125 111.9 80 63 38.1 15.9 10 38 8 2 6 3.3 2
13160R 13160L 160 147.3 120 63 50.8 19 11 38 10 2 8 6.4 2
Inserts are not included.
H
Parts
Finishing
Cartridge*
Fine adjustment
screw
Wrench Insert
Screw
Wrench
(For Adjustment)
Cap Screw
(For Cartridges)
Wrench
(For Cartridges)
Anti-seizure
Cream
N m
GFSK4R/L BTD05F09 TTX15W
BFTX03588 LT15
BX0520 TH040 SUMI-P 3.0
*Finishing cartridges do not come assembled with inserts.
Application Examples
H160
Dimensions (mm)
N m Recommended Tightening Torque N m
Dimensions
(mm)
Inserts
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
12.700
9.525
ø4.2
4.76
RE
Grade
Coated Carbide
Carbide
Application
High Speed/Light
K K
General Purpose
K
Roughing K K
Cat. No.
ACK260
ACK280
ACK300
H10E
Corner
Radius
RE
LNGX 130508PNFN-W 0.8
130516PNFN-W 1.6
90°
0.05mm
0.2mm
Gap On Corner
DC
LF
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
H165
6
60
-6
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel

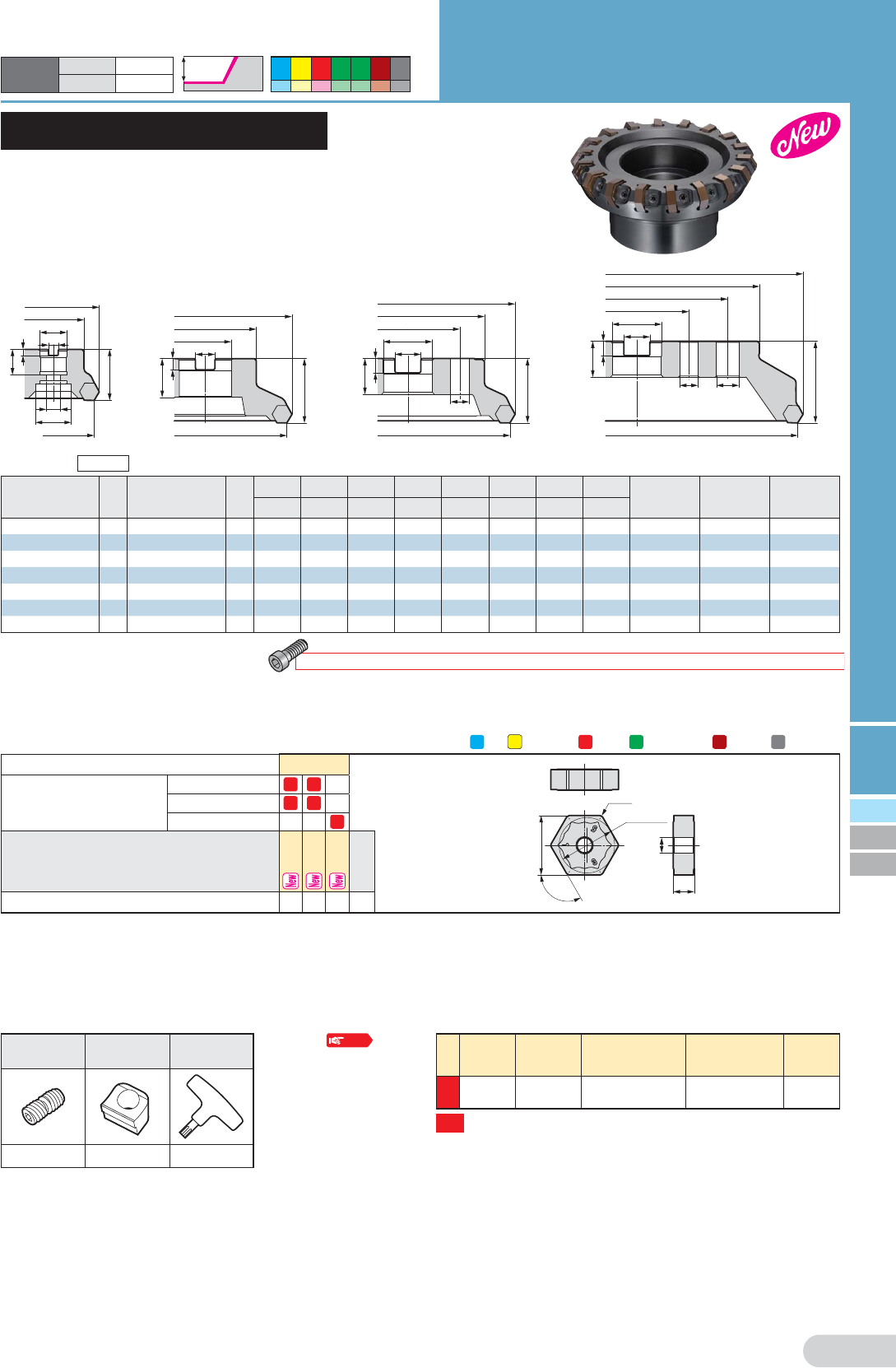

SEC-Goal Mill
GRHNF 17000 Type
Roughing of Cast Iron
H
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
Grade
Coated Carbide
6.00
ø4.4
R0.8
ø15.875
120
17.00
Fig 5
Application
High Speed/Light
K K
General Purpose
K K
Roughing K
Cat. No.
ACK100
ACK200
ACK300
Fig
HNEF 100608DNEN-G 5
DC
DCX
KWW
DCSFMS
DCB
LF
KDP
CBDP
ø13
ø35
DC
DCX
DCB
DCSFMS
KWW
KDP
CBDP
LF
DC
DCX
KWW
DCB
DCSFMS
ø101.6
4-ø18
KDP
CBDP
LF
DCSFMS
ø101.6
ø177.8
DCX
DC
KWW
DCB
4-ø18 4-ø22
KDP
CBDP
LF
Fig 1 Fig 2 Fig 3 Fig 4
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.
Body Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Diameter
Max. Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
Weight
(kg) Fig
DC DCX
DCSFMS
LF DCB KWW KDP
CBDP
GRHNF 17080R GRHNF 17080L
80 90.5 60 50 25.4 9.5 6 25 10 1.2 1
17100R 17100L
100 110.5 70 50 31.75 12.7 8 32 14 1.8 2
17125R 17125L
125 135.5 80 63 38.1 15.9 10 38 18 2.9 2
17160R 17160L
160 170.5 100 63 50.8 19.1 11 38 22 4.5 2
17200R 17200L
200 210.5 150 63 47.625 25.4 14 35 28 7.3 3
17250R 17250L
250 260.5 200 63 47.625 25.4 14 35 36 13.1 3
17315R 17315L
315 325.5 240 80 47.625 25.4 14 35 44 24.5 4
Inserts are not included.
Parts
Double Screw
Clamp Wrench
WB6-20T GRHNW TTX20
Recommended Cutting Conditions
ISO
Work
Material Hardness
Cutting Speed cm/min
Min. - Optimum - Max
Feed Rate zmm/t
Min. - Optimum - Max
Grade
KCast Iron 250HB 200-250-300 0.15- 0.23 -0.30 ACK200
Calculate cutting conditions based on effective teeth.
Note
Application Examples
H159
Dimensions (mm)
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)
H166
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.

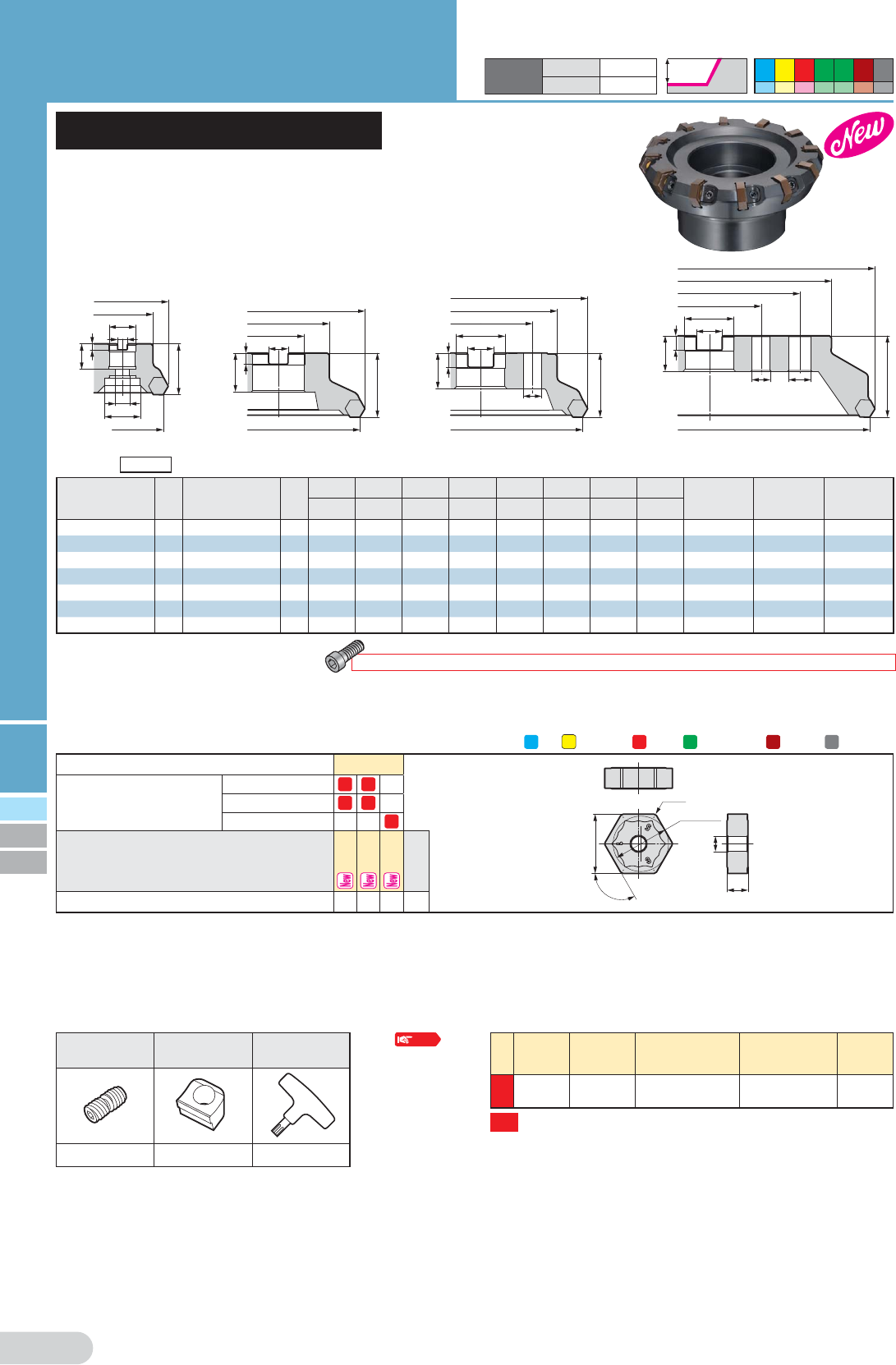

SEC-Goal Mill
GRHNM 17000 Type -6
Rake
Angle Axial
Radial 6
60
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
H
DC
DCX
KWW
DCSFMS
DCB
LF
KDP
CBDP
ø13
ø35
DC
DCX
DCB
DCSFMS
KWW
KDP
CBDP
LF
DC
DCX
KWW
DCB
DCSFMS
ø101.6
4-ø18
KDP
CBDP
LF
DCSFMS
ø101.6
ø177.8
DCX
DC
KWW
DCB
4-ø18 4-ø22
KDP
CBDP
LF
Body Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Diameter
Max. Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
Weight
(kg) Fig
DC DCX
DCSFMS
LF DCB KWW KDP
CBDP
GRHNM 17080R GRHNM 17080L
80 90.5 60 50 25.4 9.5 6 25 8 1.2 1
17100R 17100L
100 110.5 70 50 31.75 12.7 8 32 10 1.7 2
17125R 17125L
125 135.5 80 63 38.1 15.9 10 38 12 2.9 2
17160R 17160L
160 170.5 100 63 50.8 19.1 11 38 16 4.5 2
17200R 17200L
200 210.5 150 63 47.625 25.4 14 35 20 7.3 3
17250R 17250L
250 260.5 200 63 47.625 25.4 14 35 24 13.1 3
17315R 17315L
315 325.5 240 80 47.625 25.4 14 35 28 24.5 4
Inserts are not included.
Fig 1 Fig 2 Fig 3 Fig 4
Parts
Double Screw
Clamp Wrench
WB6-20T GRHNW TTX20
Recommended Cutting Conditions
ISO
Work
Material Hardness
Cutting Speed cm/min
Min. - Optimum - Max
Feed Rate zmm/t
Min. - Optimum - Max
Grade
KCast Iron 250HB 200-250-300 0.15- 0.23 -0.30 ACK200
Calculate cutting conditions based on effective teeth.
Note
Application Examples
H159
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
Grade
Coated Carbide
6.00
ø4.4
R0.8
ø15.875
120
17.00
Fig 5
Application
High Speed/Light K K
General Purpose K K
Roughing K
Cat. No.
ACK100
ACK200
ACK300
Fig
HNEF 100608DNEN-G 5
Dimensions (mm)
Roughing of Cast Iron
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
H167
*Please use JIS B1176 hexagonal bolt (M12×30 to 35mm) for securing ø80 cutter to the arbor.

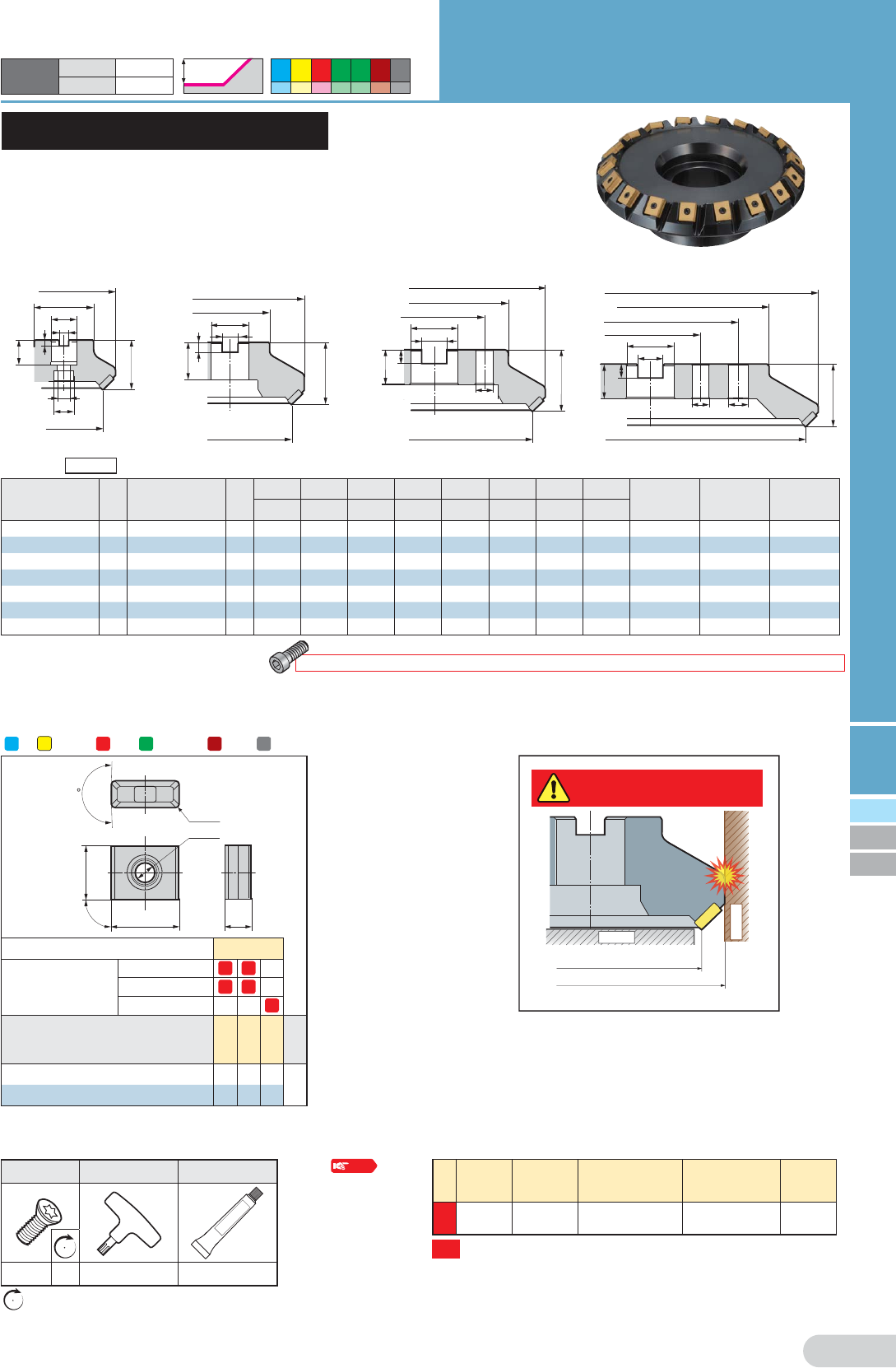

SEC-GoalMill
GRV 16000 Type
High Feed Roughing for Cast Iron
8
45
14 to 6
5
Rake
Angle Axial
Radial P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
H
ø101.6
4-ø18
ø101.7
ø177.8
4-ø18 4-ø22
ø20
ø13
BD BD BD BD
DCSFMS DCSFMS DCSFMS DCSFMS
KWW
KWW KWW
KWW
DCB DCB DCB
DCB
CBDP
CBDP
CBDP
CBDP
KDP
KDP
KDP
KDP
LF
LF
LF
LF
DC DC DC DC
Fig 1 Fig 2 Fig 3 Fig 4
Body Inch
Cat. No. (R)
Stock
Cat. No. (L)
Stock
Diameter
Max. Diameter
Boss Height
Hole Size
Grooving Width
Grooving Depth Mounting Depth
Total
Teeth
Weight
(kg) Fig
DC BD
DCSFMS
LF DCB KWW KDP CBDP
GRV 16080R GRV 16080L 80 104 60 50 25.4 9.5 6 25 9 1.9 1
16100R 16100L 100 124 70 50 31.75 12.7 8 32 12 3.2 2
16125R 16125L 125 149 80 63 38.1 15.9 10 38 15 4.3 2
16160R 16160L 160 184 120 63 50.8 19.1 11 38 18 5.7 2
16200R 16200L 200 225 150 63 47.625 25.4 14 35 24 8.1 3
16250R 16250L 250 275 200 63 47.625 25.4 14 35 30 13.5 3
16315R 16315L 315 340 240 80 47.625 25.4 14 35 36 21.6 4
Inserts are not included.
Recommended Cutting Conditions
Work
Material Hardness
Cutting Speed cm/min
Min. - Optimum - Max
Feed Rate zmm/t
Min. - Optimum - Max
Grade
KCast Iron 250HB 200-250-300 0.15- 0.23 -0.30 ACK200
ACK300
Calculate cutting conditions based on effective teeth.
Note
N m
Recommended Tightening Torque (N m)
Parts
Screw Wrench
Anti-seizure Cream
N m
BFTX0412N
3.0 TTX15W SUMI-P
Inserts
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
5 giF
16.1
90˚
184
6.29
12.7
ø4.6
R0.8
Grade
Coated Carbide
Application
High Speed/Light
K K
General Purpose
K K
Roughing K
Cat. No.
ACK100
ACK200
ACK300
Fig
LNMX 160608PNSN-G 5
160608PNSN-H
Max. Cutter Diameter
Work Material
BD
Cutter External Diameter
DC
Obstacle
Check that there are no obstacles in the
way of the outer edge of the cutter.
Application Examples
H159
Dimensions (mm)
H168
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)
General Features
Sumitomo Electric Hardmetal SEC-High Feed facemills
make high performance milling particularly suited for cast
irons, aluminum and exotic materials. Edge reference system
design is rugged, simple and easy to maintain.
Characteristics
Unique design for high speed, high feed machining.
Edge reference system provides simple, easy and fast insert indexing. ( H169)
Cutter design makes it ideal for use on low-horsepowered machines with high performance.
An excellent range of cutter designs and insert grades to suit various applications.
Quick change system provides fast setting on the machine. ( H172)
Specifications
Recommended Conditions
Cat. No. Insert Grade Cutting Conditions (Min. - Optimum - Max.)
v(m /min) f(mm/t) a(mm)
NRV 4000 Type SNC43MW ACK200 80 - 10 0 - 120 0.1 - 0.15 - 0.2 Up to 3
NRV 5000 Type SNC535 ACK200 80 - 10 0 - 120 0.1 - 0.15 - 0.2 Up to 3
DPV 4000 Type SDCN42R/L G10E 80 - 10 0 - 120 0.1 - 0.15 - 0.2 Up to 3
DPV 5000 Type SDCN53R/L G10E 80 - 10 0 - 120 0.1 - 0.15 - 0.2 Up to 5
NFV 4000 Type 6SS43M H10E 120 - 160 - 200 0.1 - 0.15 - 0.2 Up to 0.5
NFV 5000 Type 6SS53M H10E 120 - 160 - 200 0.1 - 0.15 - 0.2 Up to 0.5
APV 5000 Type SDC53R/L H1 < 400 0.1 - 0.20 - 0.3 Up to 3
Applicable Cutter Cat. No. A.A. & Max D.O.C.
(5000 Type)
Rake Angle Cutter Insert
Page
Application
Surface Roughness
Axial
Rake
Radial
Rake
Rough 25S
NRV 4000 Type
5.5
(8.5)
45°
5° 6°
SNC43MW
H170
NRV 5000 Type SNC535
Roughing /
Finishing 18S
DPV 4000 Type
7
(7.5)
25°
10°
SDCN42R/L
H170
DPV 5000 Type SDCN53R/L
Finishing 12.5S
NFV 4000 Type
0.5
5° 6°
6SS43M
H171
NFV 5000 Type 6SS53M
Roughing / Finishing
of Non-Ferrous Metal
12.5S APV 5000 Type
(10)
25°
18° SDC53R/L
H171
Cat. No. Specifications Applicable Cutter Size
(1) F type/NF type* Quick Change System ø160mm or less
(2)
2 piece type
2 piece set indication
ø200mm or more
(3) 2 piece with center bolt
* The Quick Change System NF type is a made-to-order item. For details, please
SEC-
High-Feed Facemills
H
H169
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
General Features
Conventional milling cutters are designed with several
parts to locate and clamp each insert. The edge reference
system on the other hand, utilises only one part for the same
purposes. (Refer to Fig.1) This system is adopted by our
entire high-feed cutter series.
Characteristics
Axial run-out of the inserts is kept within 5 to 10m to
ensure fine surface finish and longer too life.
Simple design with fewer parts facilitates cleaning of
cutter body and is comparatively inexpensive.
Fewer parts allow for high-density cutter design, for
higher efficiency and longer too life.
Assembly Jig
Application of the special assembly jig (as shown in the figure
below) is recommended to accurately assemble the cutter.
Guide Surface
Guide Roller
Bar Micrometer
Cutter Body
Indexable Insert
Movable
3 Places
Supporting Surface
Setting Inserts
When setting the inserts, please pay careful attention to the points noted below in the coloured boxes
Dial Gauge
Cutter rotation when setting (opposite direction not permitted)
Axial run-out 10µm or less
Flat Terminal
Clean before setting
Torque 7Nm to 8Nm
Slide direction of insert
Fits nicely onto sliding surfaces
Fig.1
Insert
Clamp
Double Screw (M8)
Cutting Edge Reference System
H
H170
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)
Recommended
Cutting Conditions
H168
Recommended
Cutting Conditions
H168
SEC-High-Feed Mill
NRV 4000 / 5000 Type
Body Inserts are not included.
Type
Cat. No.
Stock
Diameter
Max. Diameter
Hole Size
Height
No. of Teeth
Weight
(kg)
Fig
R L DC DCX* DCB LF
F Type
NRV 100QR/L
100 112(118)
31.75
60 10 2.7 1
125QR/L
125 137(143)
38.1
60 14 3.8 1
160QR/L
160 172(177)
50.8
60 18 6.3 1
Two Piece Type
NRVZ 200R/L
200 212(218)
80
40 24 5.8 2
250R/L
250 262(268)
120
40 30 9.0 2
315R/L
315 326(332)
180
40 36 12.5 2
355R/L
355 366(372)
220
40 42 15.5 2
400R/L
400 411(417)
250
40 48 18.8 2
450R/L
450 461(467)
300
40 54 22.0 2
• 4 or 5 must be filed in " ".
• Refer to page H172 for special arbor for Fig. 1 type cutters.
• Refer to page H172 for special adaptor for Fig. 2 type cutters.
*: Dimensions in parentheses are for 5000 Type.
Body Inserts are not included.
Type
Cat. No.
Stock
Diameter
Max. Diameter
Hole Size
Height
No. of Teeth
Weight
kg Fig
R L DC DCX* DCB LF
4000 5000
F Type
DPV 100QR/L
100
107.2(109.6)
31.75
60
12 10
2.6
1
125QR/L
125
131.5(133.6)
38.1
60
16 14
3.6
1
160QR/L
160
165.8(176.6)
50.8
60
20 18
6.0
1
Two Piece Type
DPVZ 200R/L
200
206.5(208)
80
40
26 24
5.5
2
250R/L
250
256 (258)
120
40
32 30
9.0
2
315R/L
315
322.5(323)
180
40
38 36
12.0
2
355R/L
355
361.5(363)
220
40
44 42
15.0
2
400R/L
400
406.5(408)
250
40
50 48
17.8
2
450R/L
450
456.5(458)
300
40
56 54
20.8
2
• 4 or 5 must be filed in " ".
• Refer to page H172 for special arbor for Fig. 1 type cutters.
• Refer to page H172 for special adaptor for Fig. 2 type cutters.
*: Dimensions in parentheses are for 5000 Type.
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
IC
IC
45°
CH
W
Fig 3 Fig 4
IC 4.76 IC 4.76
R150
RE
IC
Fig 5
IC 4.76
RE
Grade
Coated Carbide
Carbide
Application
High Speed/Light
K
General Purpose
K K
Roughing K
Cat. No.
ACK200
ACK300
G10E
Inscribed Circle
Chamfering
Corner Radius
Fig
Applicable
Cutters
IC CHW RE
SNC 43MW
12.70
3.0 3
NRV4000
SNC 433
12.70
1.2 4
NRV4000
434
12.70
1.6 4
NRV4000
435
12.70
2.0 4
NRV4000
436
12.70
2.4 4
NRV4000
SNC 535
15.875
2.0 4
NRV5000
SNMN 432
12.70
0.8 5
NRV4000
433
12.70
1.2 5
NRV4000
434
12.70
1.6 5
NRV4000
435
12.70
2.0 5
NRV4000
436
12.70
2.4 5
NRV4000
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
15°
25°
15°
IC
IC
CHW
S
Grade
Coated Carbide
Carbide
Application
High Speed/Light
K K
General Purpose
K
Roughing K
Cat. No.
ACK200
ACK300
H10E
Inscribed Circle
Thickness
Chamfering
Applicable
Cutters
IC S CHW
SDCN 42R 12.70 3.18 3.5
DPV4000R
42L 12.70 3.18 3.5
DPV4000L
SDCN 53R 15.875 5.0 5.0
DPV5000R
53L 15.875 5.0 5.0
DPV5000L
Parts
Applicable
Cutters
The above
cutters
must be used
with:
Clamps
Double Screws
Wrenches
Below ø160 Above ø200
NW41RR NW42RR WB6-20 TH030 NRV4000R Arbor for F
Type
• 2 Pc Type
Adaptor
NW41RL NW42RL NRV4000L
NW51R NW52R WV6-20 TH030 NRV5000R
NW51L NW52L NRV5000L
Parts
Applicable
Cutters
The above
cutters
must be used
with:
Clamps
Double Screws
Wrenches
Below ø160 Above ø200
HTW40R HTW41R WB6-20 TH030 DPV4000R • Arbor for F
Type
• 2 Pc Type
Adaptor
HTW40L HTW41L DPV4000L
HTW50R HTW51R WB6-20 TH030 DPV5000R
HTW50L HTW51L DPV5000L
High Feed Roughing Of
Cast Iron
High Feed Medium
Finishing Of Cast Iron
45
5.5
45
8.5
(4000 Type) (5000 Type)
6
5
Axial
Radial
Rake
Angle
65
7
65
7.5
(4000 Type) (4000 Type)
5
10
Axial
Radial
Rake
Angle
Fig 1
Fig 2
DCX
DCB
DC
LF
DCX
DCB
DC
7
LF
Fig 1
Fig 2
DCX
DCB
DC
LF
DCX
DCB
DC
7
LF
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
SEC-High-Feed Mill
DPV 4000 / 5000 Type
Inch Inch
H
Dimensions (mm)
Dimensions (mm) Dimensions (mm)
Dimensions (mm)
H171
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
H168H168

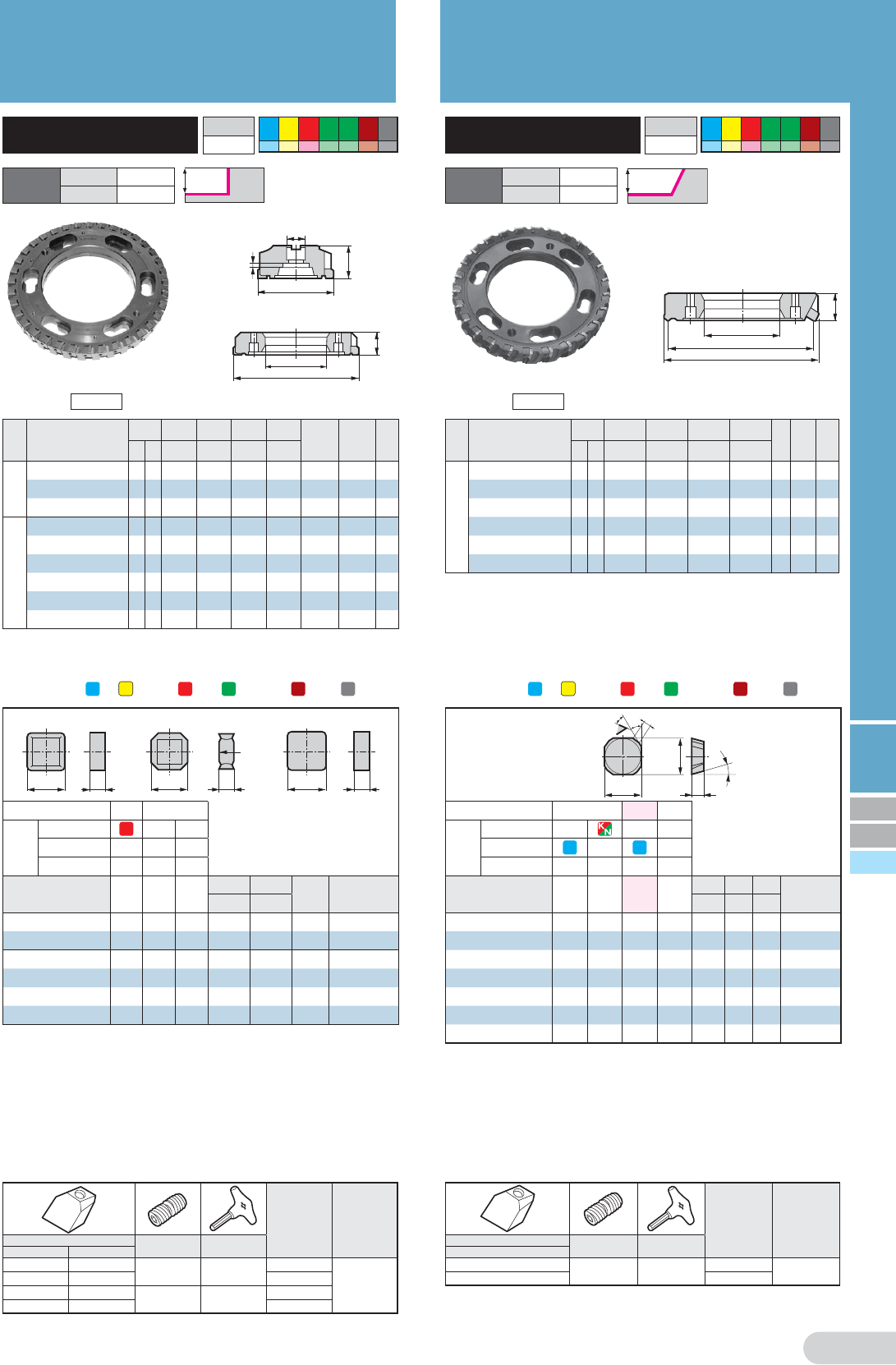

Body Inserts are not included.
Type
Cat. No.
Stock
Diameter
Hole Size
Height
No. of
Teeth
Weight
kg Fig
RL DC DCB LF
F Type
NFV 100QR/L
100
31.75
60 10 2.6 1
125QR/L
125
38.1
60 14 3.9 1
160QR/L
160
50.8
60 18 6.3 1
Two Piece Type
NFVZ 200R/L
200
80
40 24 5.3 2
250R/L
250
120
40 30 9.0 2
315R/L
315
180
40 36 11.3 2
355R/L
355
220
40 42 14.0 2
400R/L
400
250
40 48 16.5 2
450R/L
450
300
40 54 21.0 2
• 4 or 5 must be filed in " ".
• Refer to page H172 for special arbor for Fig. 1 type cutters.
• Refer to page H172 for special adaptor for Fig. 2 type cutters.
Body Inserts are not included.
Type
Cat. No.
Stock
Diameter
Max. Diameter
Hole Size
Height
No. of Teeth
Weight
kg
Fig
R L DC DCX DCB LF
Two Piece Type
APVZ 5200R/L
200 211 80 40
18
7. 0
1
5250R/L
250 261 120 40
22
10.8
1
5315R/L
315 326 180 40
26
13.7
1
5355R/L
355 366 220 40
32
16.3
1
5400R/L
400 411 250 40
36
20.0
1
5450R/L
450 461 300 40
40
23.6
1
Parts
Applicable
Cutters
The above
cutters
must be used
with:
Clamps
Double Screws
Wrenches
Below ø160 Above ø200
NW41FR NW42FR
WB6-20 TH030
NFV4000R
Arbor for F
Type
• 2 Pc Type
Adaptor
NW41FL NW42FL
NFV4000L
NW51R NW52R
WB6-20 TH030
NFV5000R
NW51L NW52L
NFV5000L
Parts
Applicable
Cutters
The above
cutters
must be used
with:
Clamps Double Screw Wrench
Above ø200
AW52R WB6-20 TH030
APV5000R
• 2 Pc Type
Adaptor
AW52L
APV5000L
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
R50
IC IC
IC
Fig 3 Fig 4 Fig 5
SSS
Grade
Carbide
Application
High Speed/Light
K
General Purpose
Roughing
Cat. No.
H10E
Inscribed Circle
Thickness
Fig Applicable
Cutters
IC S
SNEF 43W
12.70
4.76 3 NFV4000
6SS 43M
12.70
4.76 4 NFV4000
SNEF 53W
15.875
4.76 3 NFV5000
53WT
15.875
4.76 3 NFV5000
6SS 53M
15.875
4.76 4 NFV5000
SNEN 535W
15.875
4.76 5 NFV5000
High Feed Finishing Of
Cast Iron
High Feed Medium Finishing Of Non-
Ferrous Metal/Thin Work Pieces
65
10
2
18
Axial
Radial
Rake
Angle
90
0.5
6
5
Axial
Radial
Rake
Angle
DCB
DC
LF
DCB
DC
7
LF
Fig 1
Fig 2
DCX
DCB
DC
LF
Fig 1
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
25°
25°
C
HW
15°
IC
IC S
Grade Carbide
Cermet
Application
High Speed/Light
General Purpose
P P
Roughing
Cat. No.
A30N
H1
T250A
Inscribed Circle
Thickness
Chamfering
Applicable
Cutters
IC S
CHW
SDC 53R
15.88
4.76
2.5
APV5000R
53L
15.88
4.76
2.5
APV5000L
53TR
15.88
4.76
2.5
APV5000R
53TL
15.88
4.76
2.5
APV5000L
53TR-R
15.88
4.76
2.5
APV5000R
SDCH 53TR
15.88
4.76
2.5
APV5000R
53TR-R
15.88
4.76
2.5
APV5000R
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
SEC-High-Feed Mill
NFV 4000 / 5000 Type
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminum
S
Exotic Alloy
H
Hardened Steel
SEC-High-Feed Mill
APV 5000 Type
Inch Inch
H
Dimensions (mm) Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
H172
GOAL
MILL
HIGH
FEED
Quick
Change
Milling Cutters
(Special Purpose)

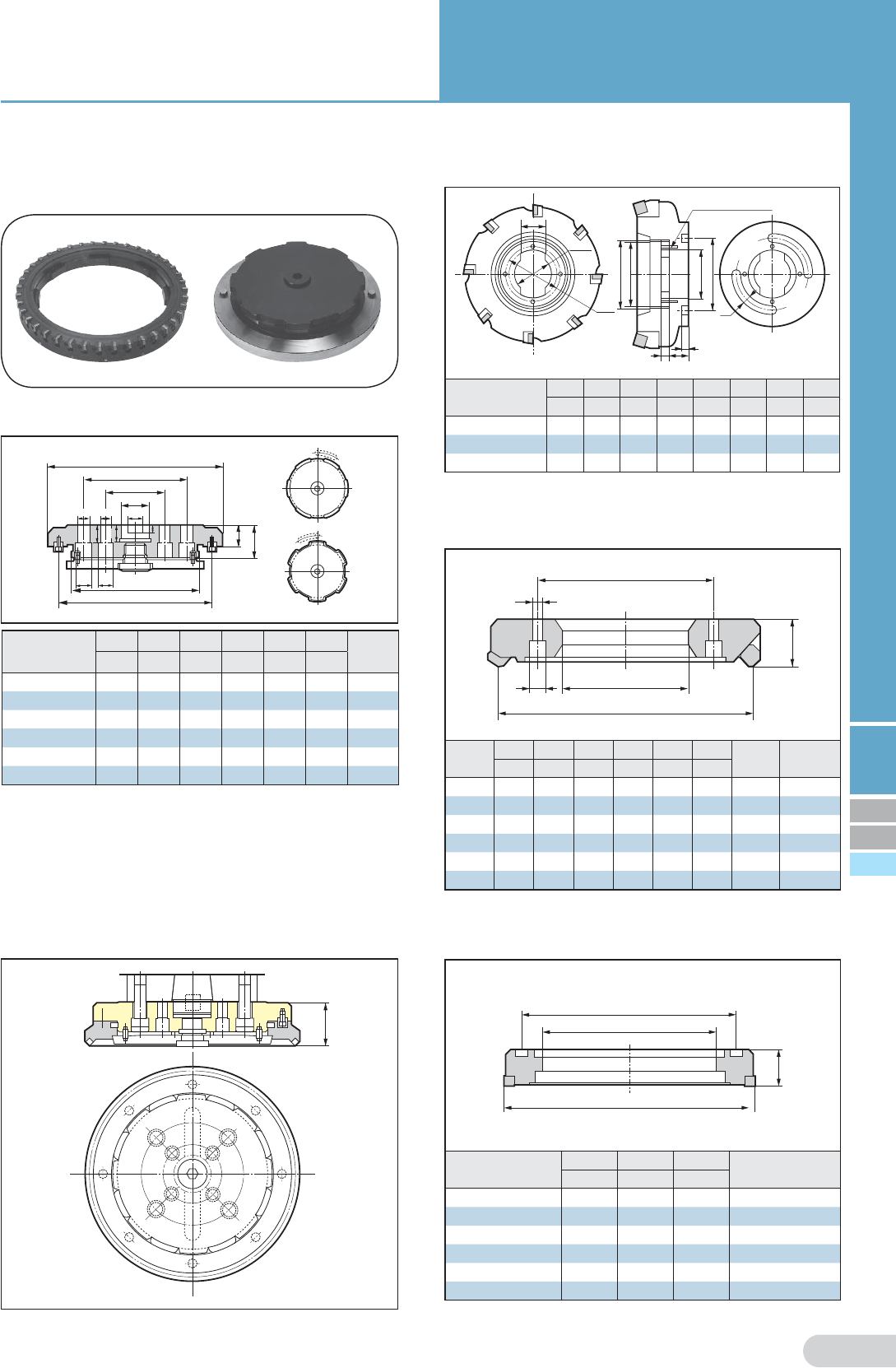

Quick Change Systems
QC System for High-feed Facemills
Quick-F Series Two Piece Cutter
Structure Appearance
Arbor
DMM
CRKS
D1
SNT1
L10
L9
L8
KP1
10
6
2-ø10
Adaptor
DCB
ø18D2
D1
ø26
25.4
DMM
BDX
ø177.8
ø101.6
DBC
40
13.5
57
Bolts
Features
(1)
Requires less time for mounting and removing.
(2)
Applicable to cutter diameters 4" (ø100) to 6" (ø160).
Cat. No.
Shank
Max. External
Diameter
Hole Size
Bolt Bolt
Hole Position
No. of
Bolts
Cutter
Size
(mm)
DMM
BDX DCB D1 D2
DBC
QAD 200 80 180
47.625
120 4 ø200
250 120 230
47.625
170 4 ø250
315 180 295
47.625
32 22 230 6 ø315
355 220 335
63.50
32 22 270 6 ø355
400 250 370
63.50
32 22 300 6 ø400
450 300 420
63.50
32 22 350 6 ø450
Features
(1)
Light weight ring cutter body.
(2)
Cutter changing function without removing bolt.
(3)
Tapered spline system is used to connect the adaptor to the cutter.
(4)
Applicable to cutters over ø200.
(5)
Effective when mounting several cutter body sizes on the same adapter.
Cutter Mounting Diagram
80
Quick-NF Series (Applicable to cutter diameters 3" (ø80) to 6" (ø160))
*Made-to-order product. Please contact us directly when ordering.
QNF3R/L to QNF5R/L QNF6R/L
Cat. No.
Shank
Bolt Screw
Keyway
Width
Length Length Length
Key Position
DMM
D1
CRKS
SNT1
L8 L9 L10
KP1
QF4R/L
31.75 30.75
M14 P2.0
18 22 22 13
27.5
QF5R/L
38.10 37.10
M16 P2.0
20 20 24 14
27.5
QF6R/L
50.80 49.80
M20 P2.5
24 20 30 16
34
Taper code must be filed in " ". (Ex. BT50-QF4R)
Cutter Body
Key Groove
Clamping Nut Stopper Pin
Fastener Bolt
Clamping Nut
Clamping Ring
Clamping Ring Pin
Arbor
Drive Key
Spigot
Arbor
Cutter
3 to 5 Inch 6 Inch
H
Dimensions (mm)
Dimensions (mm)
H173
GOAL
MILL
HIGH
FEED
Milling Cutters
(Special Purpose)
Quick
Change
Cutter Mounting Diagram
80
Two Piece Cutter With Center Bolt
Appearance
Adaptor
DCB
D2
D1
ø18
DMM
25.4
ø26
ø101.6
BDX
ø177.8
DBC
30
55
35
13.5
32
Cutter Setting
Cutter Removal
Cat. No.
Shank
Max. Diameter
Hole Size
Bolt Bolt
Hole Position
Cutter
Size
(mm)
DMM BDX DCB D1 D2
DBC
NQAD 200 105 180
47.625
155 ø200
250 155 240
47.625
205 ø250
315 220 305
47.625
32 22 270 ø315
355 260 345
63.50
32 22 310 ø355
400 305 390
63.50
32 22 355 ø400
450 355 440
63.50
32 22 405 ø450
Features
(1)
With one clamping bolt, total weight of cutter is relatively
lighter.
(2)
Quick mounting.
(3)
Tapered spline system is used to connect the adaptor to
the cutter.
(4)
Applica ble to cutters over ø200.
Quick-F QF Type Cutter
D2
DBC1
DBC2
D3
D4
DCB
SNT2
78
CBDP
12
ø3 Spring Pin (x4)
Cutter Size
(mm)
Hole Size
Bolt Bolt
Diameter
Hole Position Hole Position
Keyway Width
Mounting Depth
DCB
D2
D3 D4
DBC1 DBC2 SNT2 CBDP
ø100
31.75
22
43.75
43.5
37.75
55 20 24
ø125
38.10
29
50.10
49.8
44.10
55 22 22
ø160
50.80
41
62.80
62.5
56.80
68 26 22
• This design applies to all F type high feed cutters ( H170 to H171).
*
Conventional cutter can be easily adapted to quick change through slight modification.
DCB
D1
D2
DC
DBC
LF
Cutter Size
(mm)
Diameter
Hole Size
Bolt Bolt
Hole Position
Height
No. of
Bolts
Adaptor Cat.
No.
DC DCB D1 D2 DBC LF
ø200 200 80 24 14 120 40 4 QAD200
ø250 250 120 30 18 170 40 4 QAD250
ø315 315 180 30 18 230 40 6 QAD315
ø355 355 220 30 18 270 40 6 QAD355
ø400 400 250 30 18 300 40 8 QAD400
ø450 450 300 30 18 350 40 8 QAD450
This design applies to all two piece type high feed cutters ( H170 to H171).
QAD Cutter (Two Piece Type)
DBC
DCB
DC
45
Cutter Size
(mm)
Diameter
Hole Size
Hole Position
Adaptor
Cat. No.
DC DCB DBC
ø200 200 105 155 NQAD200
ø250 250 155 205 NQAD250
ø315 315 220 270 NQAD315
ø355 355 260 310 NQAD355
ø400 400 305 355 NQAD400
ø450 450 355 405 NQAD450
This design applies to all two piece with center bolt type high feed cutters (H170 to H171).
NQAD Cutter (Two Piece Type With Center Bolt)
Applicable Cutter for
QC-system
H
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
