General Features
In 1977, Sumitomo Electric Hardmetal successfully developed a revolutionary
CBN sintered tool - SUMIBORON.
The main component in SUMIBORON is Cubic Boron Nitride with a special
ceramic binder sintered under super high pressure and temperature. As
compared to other conventional tool materials, CBN has higher hardness and
excellent heat resistance. With these distinct characteristics, SUMIBORON can
perform machining of hardened steel, high hardness cast iron and exotic metals
where previously only grinding was done. Furthermore, excellent efficiency and
longer tool life can also be achieved from high speed machining of cast irons.
The sintered CBN tool - SUMIBORON is mainly used for the machining of ferrous metals due to its
low chemical reactivity with iron. There are 3 different classifications of CBN grades as follows:
A) in the chart below shows high CBN content group, where each grain is fused together. Applicable
for the machining of high hardness materials like cast iron, heat resistant alloys and carbides.
B) below shows a group where CBN grains are held together with a special ceramic binder which has a strong binding
force. These provide excellent wear resistance and toughness in the machining of hardened steel and cast iron.
C) below shows SUMIBORON with a special ceramic coating (Coated SUMIBORON). The CBN
substrate along with the coating layer exhibit hardness, toughness, heat resistance and oxidation
resistance, required by a tool material for excellent cutting performance.
Characteristics
Classifications/
Applications
Classifications Microstructure Diagram Grade Work Material
A) Mainly CBN grains
fused together
Metal binder
CBN grain
BN700
Cast lron FC
Sintered
lloy
Sintered Alloy
Exotic Alloys
BN7000
BN7500
Sintered
lloy
Sintered Alloy
BNS800
Cast lron FC Exotic Alloys
B)
Mainly CBN grains
held together with a
binder
Ceramic binder
CBN grain
BN1000
Hardened Steel
BN2000
BN350
BNX10
BNX20
BNX25
BN500 Cast lron FC/FCD
C)
Sintered CBN body
with special ceramic
coating
Special
ceramic coating
CBN Layer
BNC2010
Hardened Steel
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500 Cast lron FCD

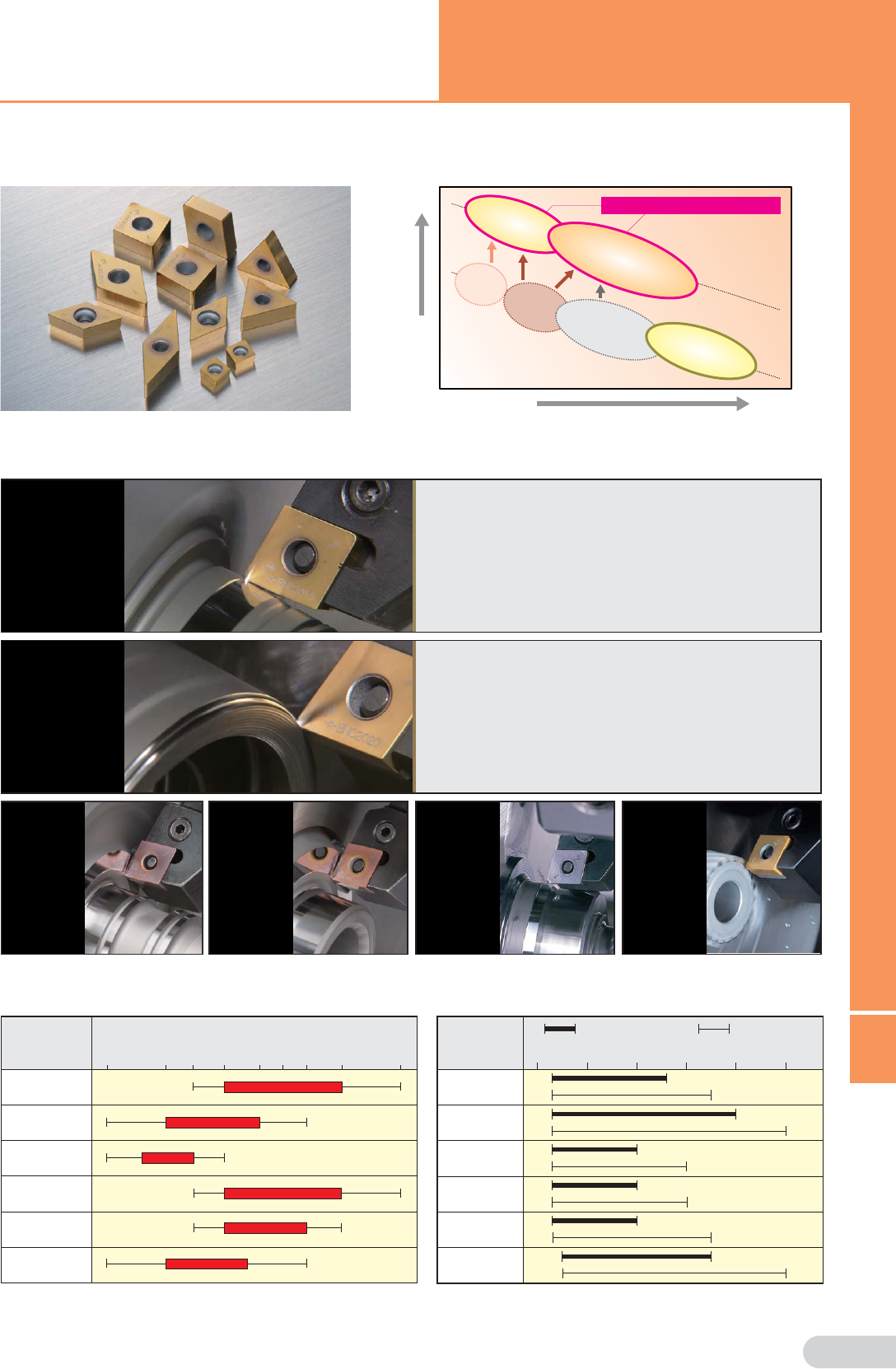

CBN Tools
SUMIBORON Series
SUMIBORON
L3
Coated SUMIBORON Series
100 200 300 400 500
BNC200 BNC100
BNC2020
BNC2010
BNC2020
BNC2010
BNC200
BNC300
BNC160
BNC500
BNC2010 BNC2020
BNC100 BNC160 BNC200 BNC300 BNC500

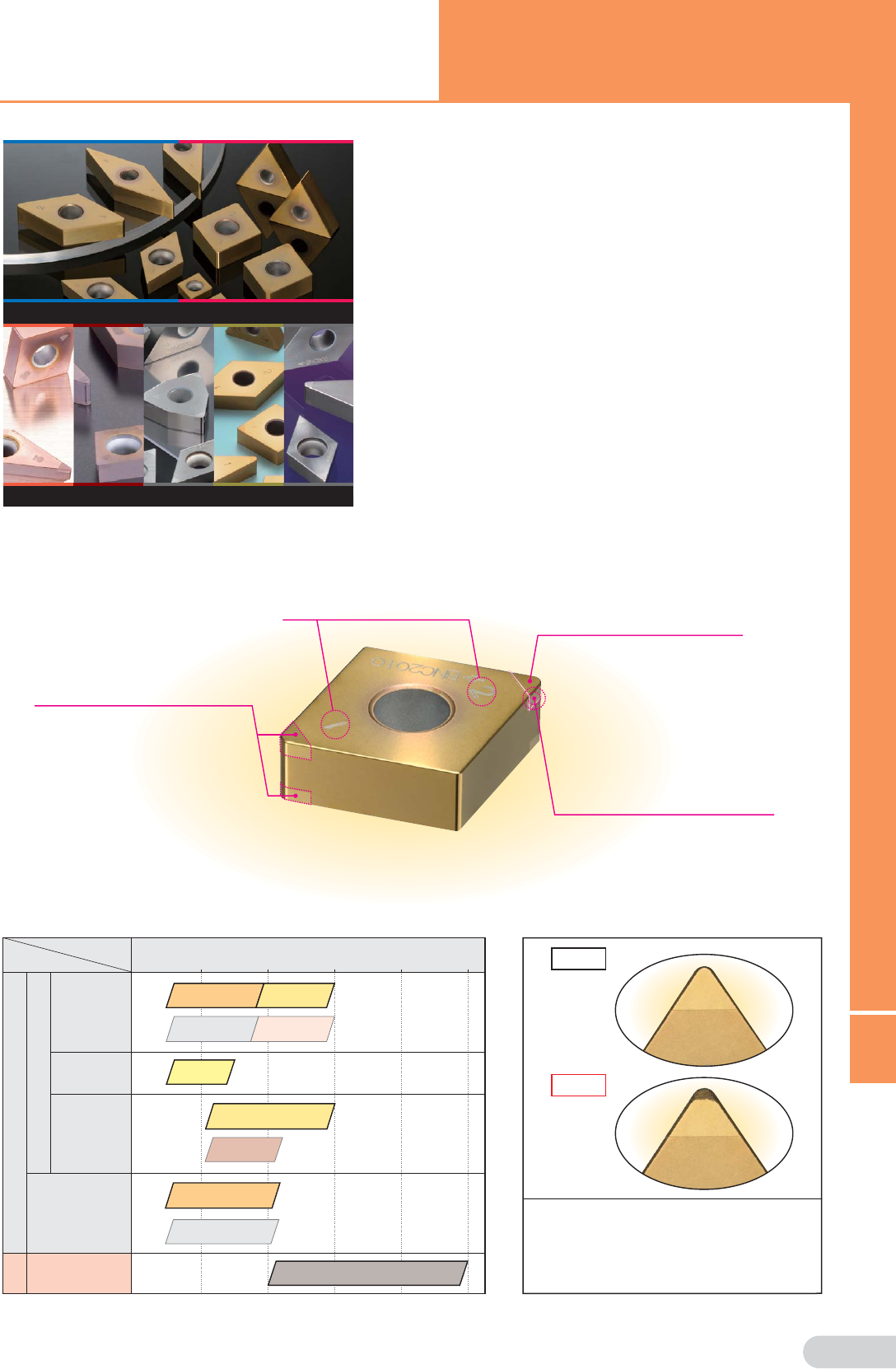

General Features
Coated SUMIBORON Series, achieving higher
speed, efficiency and precision.
Using a high heat resistant and tough CBN substrate coupled with a special
ceramic coating, this series caters to a wide variety of applications with
improved precision and longer tool life as compared to conventional CBN.
There is a comprehensive lineup of economical and easy-to-use insert
selection, such as the cost effective double-sided, multi-cornered, one-use
type inserts.
Cutting edge specications in the Coated SUMIBORON Series have been
expanded to deliver performance in high precision machining and burr control.
Characteristics
Special Ceramic Coating and
Newly Developed CBN Substrate
Provides longer tool life.
Strong Brazing
Utilizing a new brazing method with improved strength.
Double sided,Multi-cornered One-use Insert
More cost effective than conventional One-use inserts.
Easy Edge Management
Numbering of all the cutting edges.
General Purpose
High Precision
Rz 1.6 to 3.2
Heavy Interrupted
Cutting Performance
Ductile Cast Iron
Finishing
Hardened Steel
Cast Iron
Application
Condition
High Efficiency
(Caburized layer removal)
Continuous to
Light interrupted
Above 3.2
Cutting Speed
Cutting Edge Management
The edge numbers are still visible after machining, which
makes the management of used cutting edges easy.
BNC2010 and BNC2020 are coated in gold,
which makes it easy to distinguish used edges.
Before use
After use
L
SUMIBORON

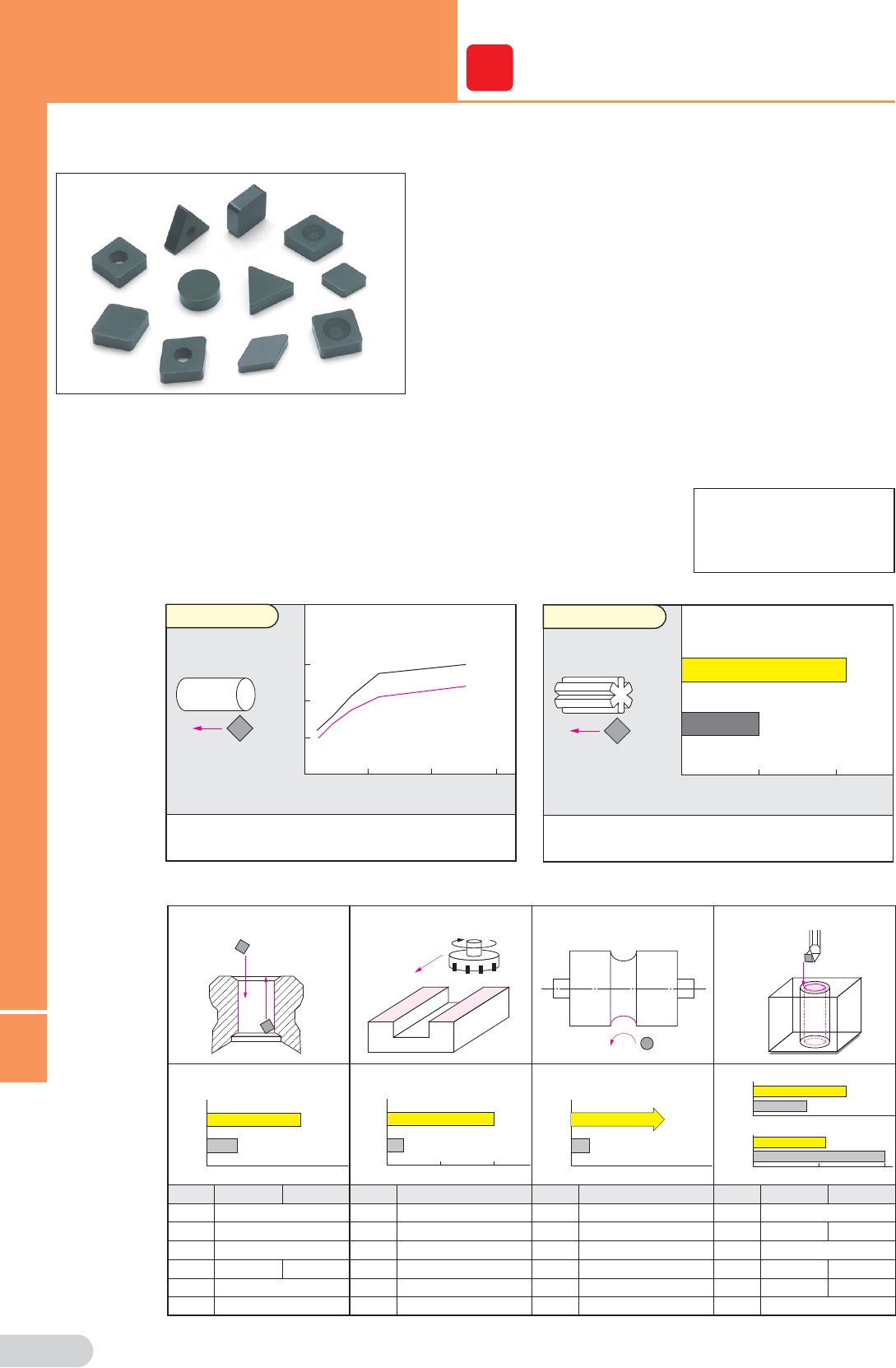

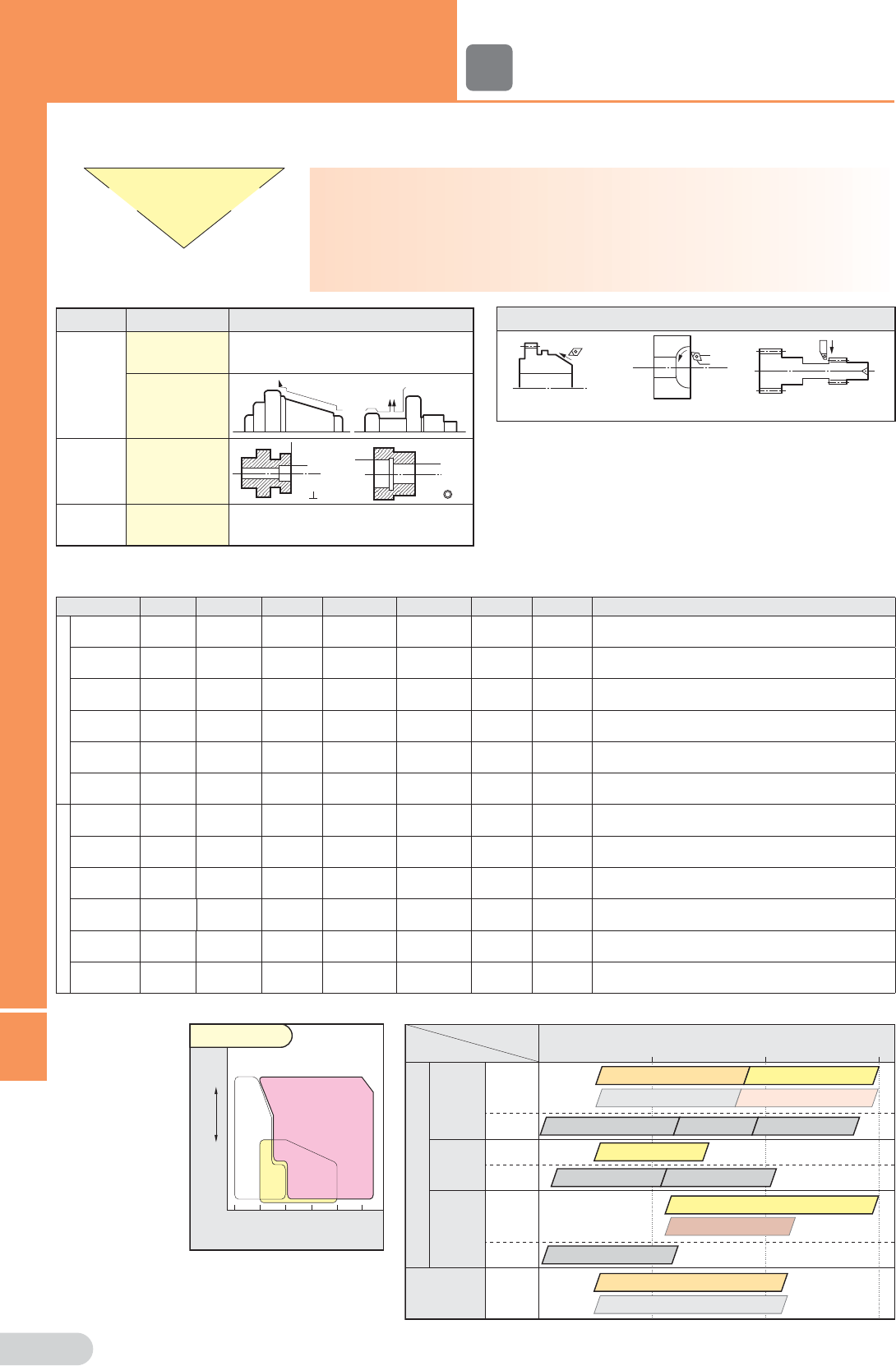

Advantages of Hardened Steel Cutting with SUMIBORON
Below is an analysis on the use of CBN as compared to grinding:
In terms of cost investments, it is much lower in machine cost and overhead cost due to the fact
that a CNC lathe is cheaper than a grinding machine. As for the quality of surface finish, inserts
can machine different profiles with excellent surface finish, in a single set-up. Environmentally,
sludge treatment for grinding is a hazard to the environment but the chips from the turning process
can be collected and recycled.
Application Range
Hardened Steel Machining
Ceramic
SUMIBORON
Coated
Cermet
Heavy
Light
Interrupted CutContinuous Cut
40 45 50 55 60 65
Workpiece Hardness (HRC)
Recommended Grade
Grade Binder
CBN Content Grain Size
Hardness
TRS Coating
Thickness
Characteristics
Coated
BNC2010 TiCN 50 to 55 2 30 to 32 1.10 to 1.20 TiCN
multi-layered 1. 5 Improved wear resistant coating and substrate achieve excellent
and stable surface roughness.
BNC2020 TiN 70 to 75 5 34 to 36 1.20 to 1.30 TiAIN
multi-layered 1. 5
Provides long tool life in general and high-efficiency cutting thanks to
tough substrate coated with a highly wear-resistant, highly adhesive layer.
BNC300 TiN 60 to 65 1 33 to 35 1.15 to 1.25 TiAIN 1 Suitable for finishing work materials with both continuous and
interrupted cutting.
BNC100 TiN 40 to 45 1 29 to 32 1.05 to 1.15 TiAIN/TiCN 2 Suitable for high-speed finishing thanks to highly wear-resistant
coating.
BNC160 TiN 60 to 65 3 31 to 33 1.10 to 1.20 TiAIN/TiCN 2 Achieves stable, high-precision finishing of hardened steel.
BNC200 TiN 65 to 70 4 33 to 35 1.15 to 1.25 TiAIN 2 Provides long tool life thanks to tough substrate and highly wear-
resistant coating.
Uncoated
BN1000 TiCN 40 to 45 1 27 to 31 0.90 to 1.00 — — Achieves ultimate wear and fracture resistance. Suitable for high-
speed cutting.
BN2000 TiN 50 to 55 2 31 to 34 1.05 to 1.15 — — General-purpose grade for hardened steel machining with high
degree of fracture and wear resistance.
BNX20 TiN 55 to 60 3 31 to 33 0.95 to 1.10 — — Achieves excellent crater wear resistance. Suitable for high-
efficiency cutting under high temperature conditions.
BN350 TiN 60 to 65 1 33 to 35 1.20 to 1.30 — — Achieves ultimate cutting edge strength. Suitable for heavy
interrupted cutting.
BNX10 TiCN 40 to 45 3 27 to 31 0.80 to 0.90 — — Excellent wear resistance. Suitable for continuous high-speed
cutting.
BNX25 TiN 65 to 70 4 29 to 31 1.00 to 1.10 — — Exhibits superior fracture resistance in high speed cutting. Suitable
for high-speed interrupted cutting of hardened steel.
Advantages Details
Cost
Facility Investment
is low
·
Cheaper machines.
·
Streamlined processes.
·
Improved efficiency with less machine required.
Profile finishing
in a single set-
up
Quality Improved
precision
Environment
Environmentally
friendly
Sludge management Chips management
(Recyclable)
Machining Versatility In Using CBN
HARDENED STEEL MACHINING
(1)
(A)
(B)
(A) (B)
(A) (B)
(A) (B)
Internal
(
Profile
)
Borin
g
Groovin
g
/Profilin
g
Ta
p
er turnin
g
Application
Conditions Cutting Speed (m/min)
100 200 300
BNC2020 BNC2010
BNC2010
BNC200 BNC100
BN2000 BNX20
BN1000 / BNX10
BNC300
BN350 BNX25
BNC160
BN2000
BNC200
BNC2020
General
Purpose
(Continuous to
Light Interrupted
Rz=Above 3.2)
Medium to
Heavy
Interrupted
High
Precision
(Rz=1.6 to 3.2)
High Efficiency
(Caburized layer removal)
Finishing
Uncoated
SUMIBORON
Uncoated
SUMIBORON
Uncoated
SUMIBORON
Coated
SUMIBORON
Coated
SUMIBORON
Coated
SUMIBORON
Coated
SUMIBORON
H
Hardened Steel
SUMIBORON/Coated SUMIBORON
Guidance for SUMIBORON Grades
L
L4
SUMIBORON
H
Hardened Steel
SUMIBORON
Guidance for SUMIBORON Grades

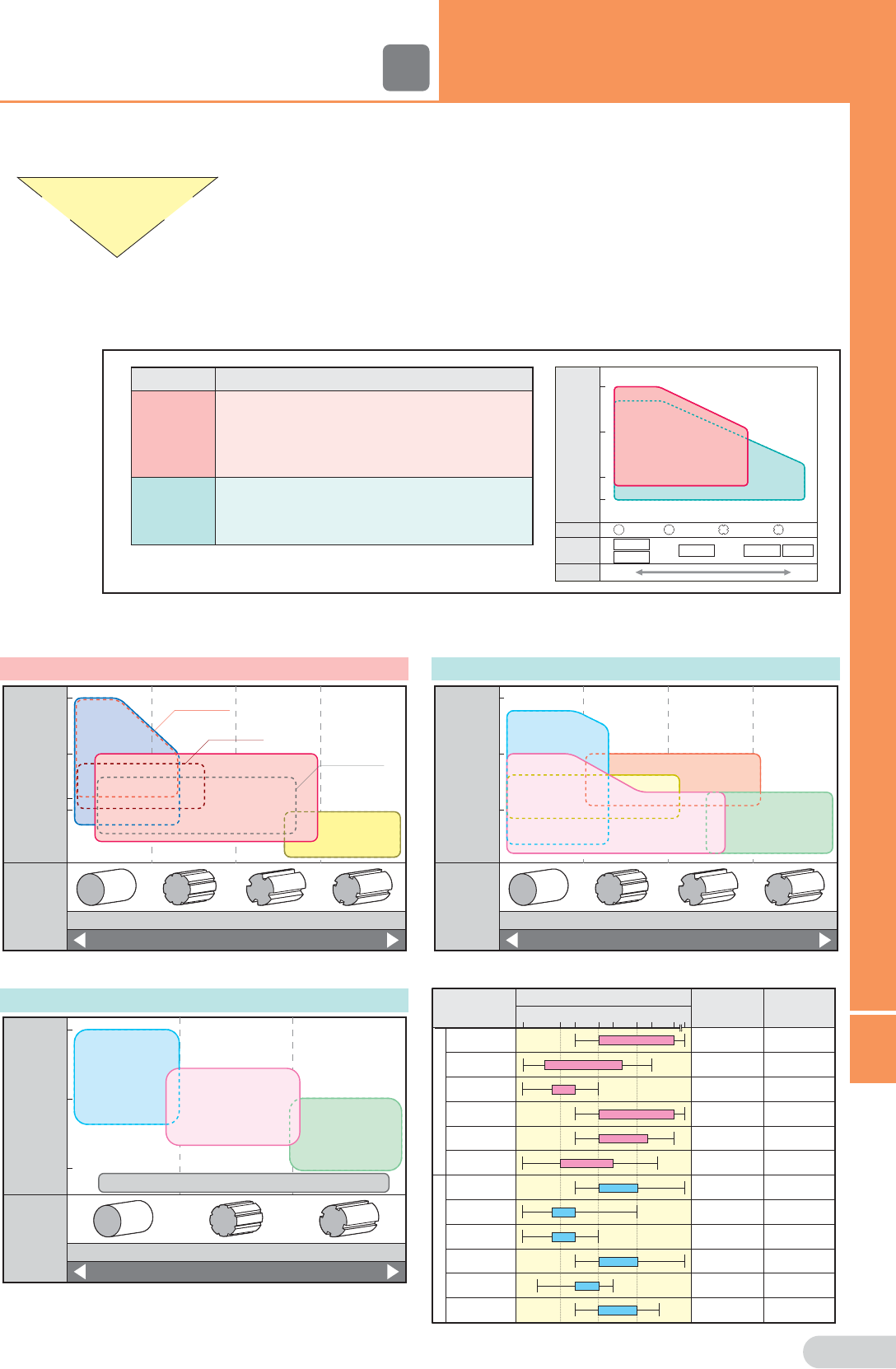

HARDENED STEEL MACHINING
(2)
300
200
100
50
(80)
Cutting Speed v
C
(m/min)
Uncoated SUMIBORON
Coated
SUMIBORON
Frequency of
Interruption
Work
Material
Machine
Rigidity
Light Medium Heavy
Continuous
High Low
Induction Hardened Steel
Carburized Steel
Bearing Steel
Die Steel HSS
Applications Coated SUMIBORON: 1st recommendation for hardened steel machining, best performance in high speed and efficiency machining.
Uncoated SUMIBORON: Optimal for machining small items with a limited cutting speed and hardened steel.
Application Range
Recommended Cutting Conditions
Series Applications
Coated
SUMIBORON
First recommendation for hardened steel machining
Machining requiring high speed and accuracy
Machining requiring high efficiency, such as
carburized layer removal
Uncoated
SUMIBORON
Machining where the cutting speed cannot be increased, such as small part machining
Machining materials that contain a large amount of hard particles, such as die parts
Machining with low-rigidity tooling
300
200
120
100
BNC100BNC100
BNC2010BNC2010 BNC160BNC160
BNC2020BNC2020
BNC300BNC300
BNC200BNC200
Coated SUMIBORON
Induction Hardened Steel S45C / S55C etc. , Carburized steel
Continuous
Cutting Speed vC (m/min)
Interruption
Light Interrupted Medium Interrupted Heavy Interrupted
Small Impact Force on Cutting Edge Strong
150
100
50
BN1000
BN2000
BN350
Uncoated SUMIBORON
Die Steel SKD11 / SKD61 etc. , HSS
Cutting Speed vC (m/min)
Interruption
BN7000
HSS Machining
Continuous Light Interrupted Heavy Interrupted
Small Impact Force on Cutting Edge Strong
300
200
100
BNX20BNX20
BNX25BNX25
BN1000BN1000
BN2000BN2000
BN350BN350
Induction Hardened Steel S45C / S55C etc. , Carburized steel
Uncoated SUMIBORON
Cutting Speed vC (m/min)
Interruption
Continuous Light Interrupted Medium Interrupted Heavy Interrupted
Small Impact Force on Cutting Edge Strong
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BN1000
BN2000
BN350
BNX10
BNX20
BNX25
50 100(120) (170) (220)150 200 250 300
0.03 to 0.25
0.03 to 0.40
0.03 to 0.20
0.03 to 0.20
0.03 to 0.20
0.05 to 0.35
0.03 to 0.15
0.03 to 0.20
0.03 to 0.20
0.03 to 0.15
0.03 to 0.30
0.03 to 0.30
0.03 to 0.35
0.03 to 0.50
0.03 to 0.30
0.03 to 0.30
0.03 to 0.35
0.05 to 0.50
0.03 to 0.20
0.03 to 0.30
0.03 to 0.30
0.03 to 0.20
0.03 to 0.50
0.03 to 0.50
Grade
CoatedUncoated
f
(mm/rev)
ap
(mm)
Cutting Speed vc(m/min)L
L5
SUMIBORON
SUMIBORON
Guidance for SUMIBORON Grades
H
Hardened Steel
50 100
BN2000
BNC300
BN350
BNX25
Work Material
: SCr420H
58-62HRC
Cutting Conditions
Cutting speed: 200m/min
Feed Rate: 0.1mm/rev
Depth of cut: 0.2mm
Dry
Insert: CNMA120408
Grade Tool life
tool
Hi Speed Int. - face with 8 holes (Freq, of Int, 50%)
50 100
BN2000
BNC300
BN350
BNX25
ø100
Work Material
: SCr420H
58-62HRC
Cutting Conditions
Cutting speed: 100m/min
Feed Rate: 0.1mm/rev
Depth of cut: 0.2mm
Dry
Insert: CNMA120408
Grade Tool life
Heavy Int. - U grooved face (Freq, of Int, 100%)
tool
50 100
BN2000
BNC300
BN350
BNX25
Work Material
: SCr420H
58-62HRC
Cutting Conditions
Cutting speed: 100m/min
Feed Rate: 0.1mm/rev
Depth of cut: 0.2mm
Dry
Insert: CNMA120408
Grade Tool life
Med. Int. - face with 8 holes (Freq, of Int, 50%)
tool
50 100
BN2000
BNC300
BN350
BNX25
Work Material
: SCr420H
58-62HRC
Cutting Conditions
Cutting speed: 100m/min
Feed Rate: 0.1mm/rev
Depth of cut: 0.2mm
Dry
Insert: CNMA120408
Light Int. - face with 4 holes (Freq, of Int, 25%)
tool
Tool life
Grade

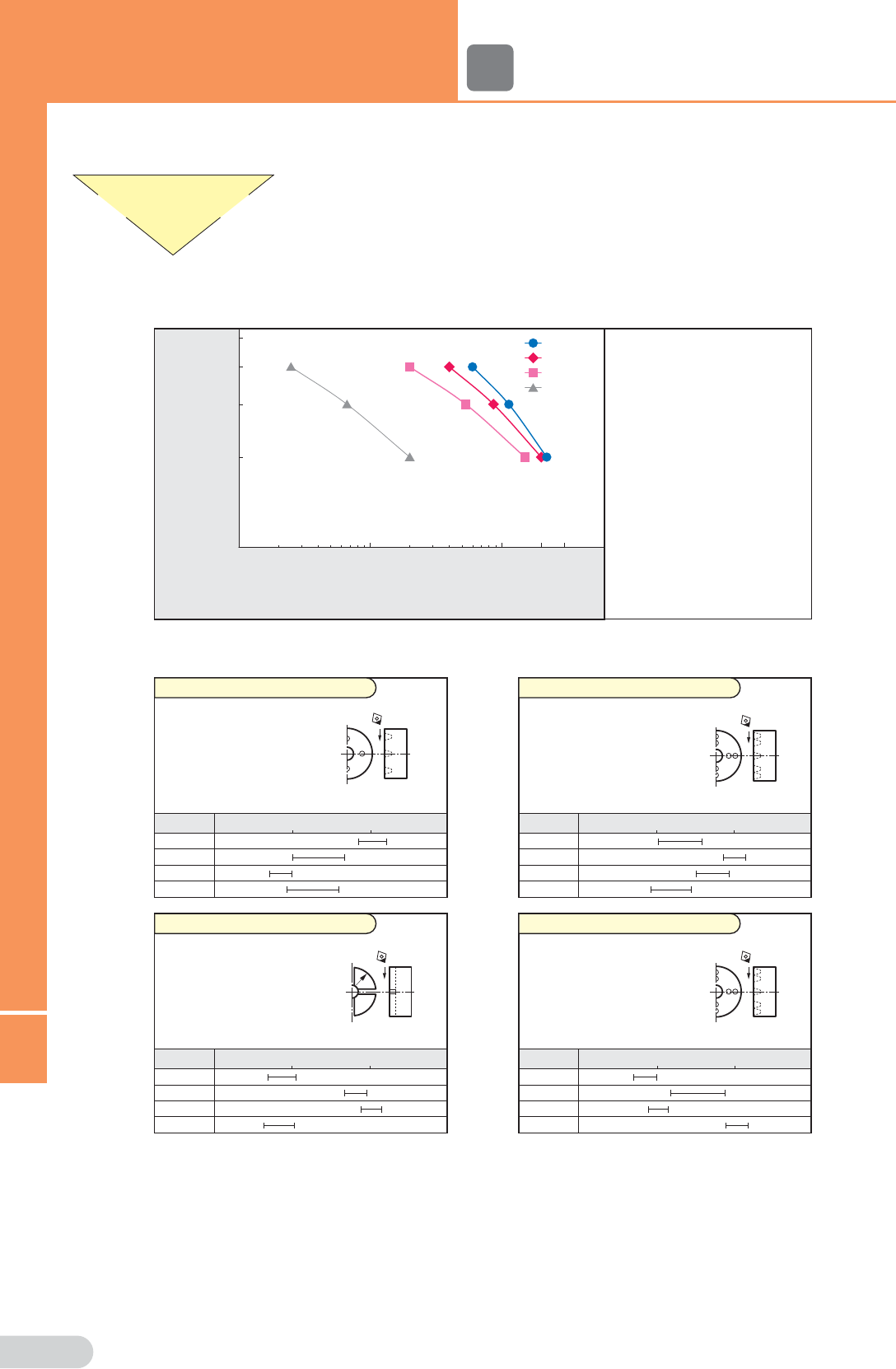

HARDENED STEEL MACHINING
(3)
Application Examples Continuous cutting
1
100
50
150
200
300
10 100 300200
BNC2010
BNC2020
BN2000
Tool life (min)
Tool life limit set at: VBmax=0.1
Cutting Speed v
C
(m/min)
Work Material
:
SCM415 Bar (58-62HRC)
Insert: DNGA150408
Cutting Conditions:
f=0.1mm/rev
ap=0.2mm
Wet
Ceramic
Application Examples Interrupted cutting
L
L6
SUMIBORON
K
Cast Iron
SUMIBORON/Coated SUMIBORON
Guidance for SUMIBORON Grades

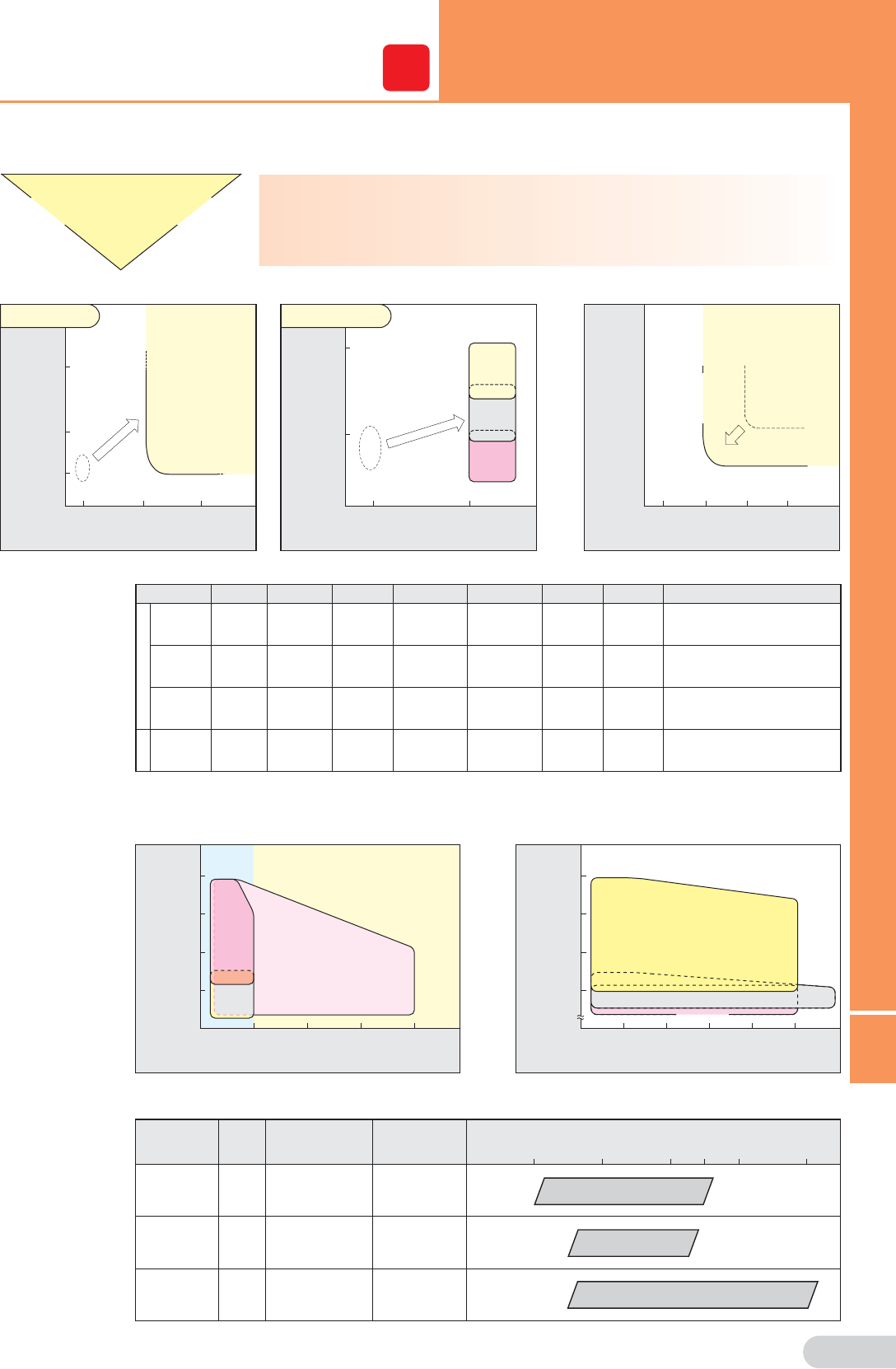

CAST IRON MACHINING
High Speed Machining High Speed Machining High Precision Machining
1,000
500
200
11020
BNS800
BN7000
BN500
Gray Cast Iron
Tool Life
Ceramic
Coated carbide
Cermet
Cutting Speed vC(m/min)
500
200
110
BNX10
BNC500
BN7000
Tool Life
Ceramic
Coated carbide
Cermet
Ductile Cast Iron
Cutting Speed vC(m/min)
0.4 0.8 1. 6 3.2
BNS800
BN7000
BNC500
Surface Roughness Ra (μm)
Ceramic
Coated carbide
Cermet
Tolerance
Good
Good
* Refer to pages L9 and L10 for machining of sintered components, rolls, hard facing alloys and heat resistive alloys.
Recommended Grade
Application Range
Grade Binder
CBN Content
Grain Size μm
Hardness
TRS Coating
Thickness
Characteristics
Uncoated
BNS800
AI Compound
85 to 90 8 39 to 42
0.95 to 1.10
Grade with 100% solid CBN structure
and excellent thermal shock resistance.
BN7000
Co Compound
90 to 95 2 41 to 44
1.30 to 1.40
Exhibits improved wear and fracture
resistance in cutting of cast iron and
exotic alloys.
BN500 65 to 70 6 32 to 34
1.00 to 1.10
Optimized for cast iron cutting.
Provides superior wear and fracture
resistance.
Coated
BNC500
(Ductile Cast Iron)
60 to 65 4 32 to 34
1.00 to 1.10
TiAIN 2
Suitable for machining of hard-to-cut
cast iron thanks to the highly wear-
resistant substrate and coating.
100 200 300 350 500400
2,000
0
500
1,000
1,500
4.0
1.0 2.0 3.0
BNS800
BN7000
BN500
500
0
200
300
400
0.30.2 0.40.1 0.5
AC405K / AC415K / AC420K
BN7000
BNC500
BNC500
BNS800
BNC500
Depth of Cut (mm)
<Gray Cast Iron> <Ductile Cast Iron>
Finishing
Roughing
Depth of Cut (mm)
Cutting Speed (m/min)
Cutting Speed (m/min)
<Special Cast Iron>
Ni-resist
Cast Iron
High-Cr
Cast Iron
FCV
(CGI)
Work Structure Examples
Austenite
Austenite
Pearlite
Piston ring
Pump parts
Engine block
Cylinder head
Disc brakes
Hardness
(HB)
150
200
to
to
to
250
350
400
580
Cutting Speed (m/min)
Advantages of using CBN
Following chart shows advantages of using CBN in cast iron machining compared with
conventional tool, such as carbide, cermet or ceramics.
SUMIBORON has longer tool life than conventional tools in high speed machining and brings
higher efficiency and superior precision.
L
L7
SUMIBORON
K
Cast Iron
SUMIBORON/Coated SUMIBORON
Guidance for SUMIBORON Grades

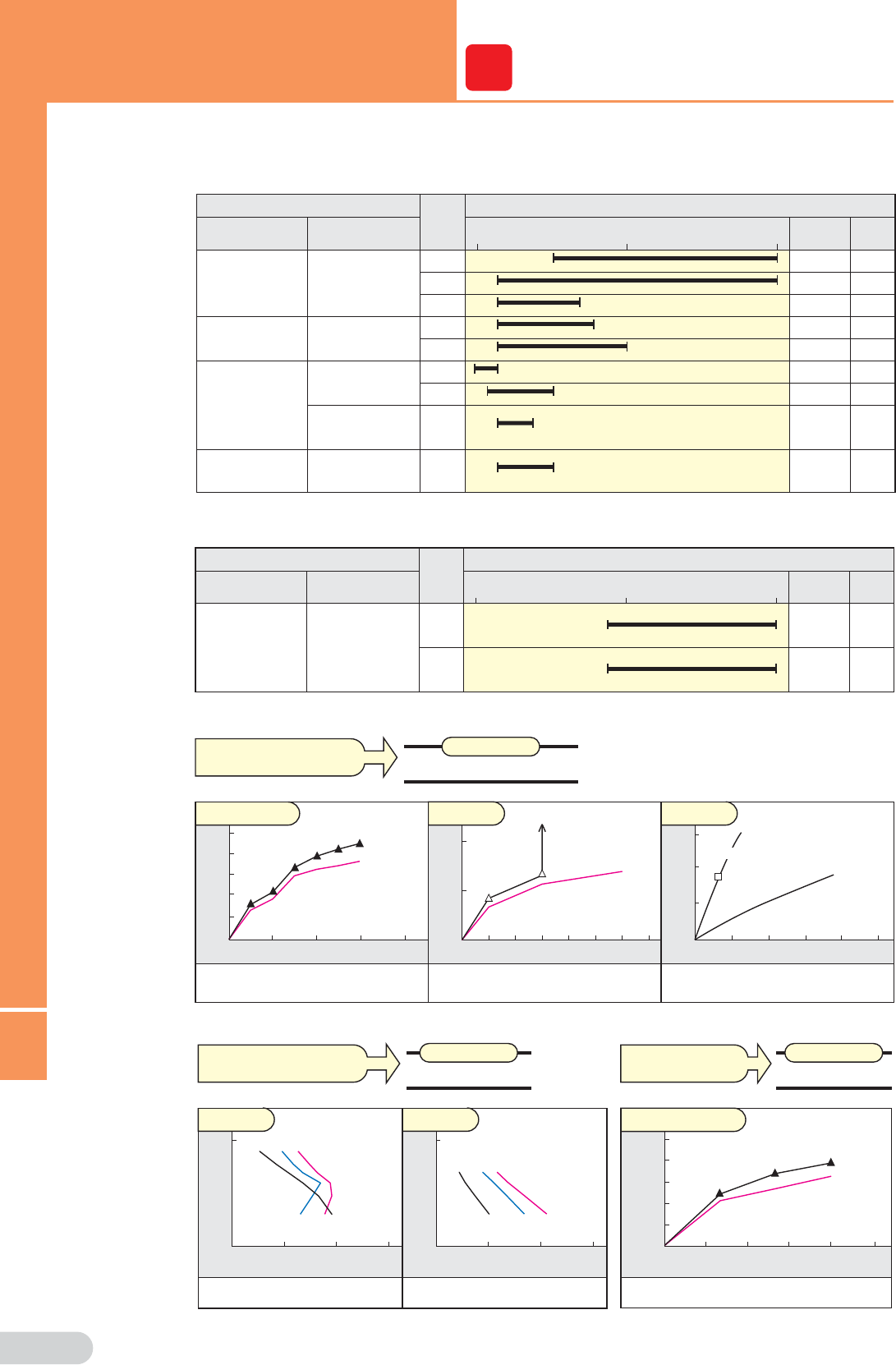

Recommended Cutting
Conditions
Turning
100
BN7000
BNS800
BN7000
BNS800
BNC500
BN7000
BNC500
BNC500
500 2,000
200 2,000
200 700
200 800
200
20080
1,000
1,000 2,000
v
c(m/min)
(mm/rev)
ap
(mm)
200 400
200 500
150 500
BN500
f
Work Material
Material Name
Gray Cast Iron
Alloy Cast Iron
Ductile Cast Iron
Vermicular Cast Iron
FCV (CGI)
FC200 to FC300
(HB≤230)
FCD450
to FCD550
FCD600
to FCD700
(HB≥200)
Hardness Code Grade
Recommended Cutting Conditions
0.1 to 0.5 ≤1.0
0.1 to 0.4 ≤0.5
0.1 to 1.0 ≤4.0
0.1 to 0.5 ≤1.0
0.1 to 0.8 ≤2.0
0.1 to 0.4
0.1 to 0.4
≤0.5
≤0.6
0.1 to 0.4 ≤0.5
0.1 to 0.4 ≤0.4
Coolant recommendation: Wet (BNS800: Wet or Dry)
Milling
100
BN7000
1,000 2,000
v
c(m/min)
2,000800
BNS800
2,000800
Work Material
Grade
Material Name Hardness Code
FC200 to FC300
(HB≤200)
Gray Cast Iron
Recommended Cutting Conditions
(mm/rev)
ap
(mm)
0.1 to 1.0 ≤4.0
0.1 to 0.5 ≤0.5
Cutting Performance
BN7000/BNS800/BN500
0
BNS800
7123456
0.05
0.1
0.1
0.2
0.3
020406080100
BN500
0.06
0.04
0.02
0.08
0.10
02040 60 80
BN7000
High speed continuous cutting
Cutting Distance (km)
Work Material: FC300 (Pearlite) Insert: 2NU-CNGA120408
Cutting Conditions:
vc=800m/min, f=0.15mm/rev,
ap=0.2mm, Wet
Previous CBN
Flank Wear Width (mm)
Interrupted cutting
Breakage
Comp. Solid
CBN
Cutting Distance (km)
Work Material: FC300 Insert: SNGN090308
Cutting Conditions:
vc=600m/min, f=0.3mm/rev,
ap=0.5mm, Dry
Flank Wear Width (mm)
Int. cutting
possible
Continuous cutting
Cutting Distance (km)
Work Material: FC300 Insert: SNGN120412
Cutting Conditions:
vc=500m/min, f=0.3mm/rev,
ap=0.15mm, Wet
Flank Wear Width (mm)
Ceramics
Gray Cast Iron turning
Recommended Grade
BNC500
BNS800/BN700
0
300200 400 5000100
0.04
0.02
0.10
0.08
0.06
BNC500
BN7000
BN500
1,000
100
0 1 10 100
1,000
100
0.1 1 10 100
BN7000 BNC500
BN500
BN7000
FCD450 (Continuous cutting)
f=0.2mm/rev, ap=0.2mm, Wet
Ductile Cast Iron turning
Recommended Grade
FCD450
Tool life (km) Tool life limit set at: V
B
max=0.2mm
Cutting Speed (m/min)
Work Material
Cutting Conditions
FCD700 (Continuous cutting)
f=0.2mm/rev, ap=0.2mm, Wet
Tool life (km) Tool life limit set at: V
B
max=0.2mm
Cutting Speed (m/min)
:
:
Work Material
Cutting Conditions
:
:
Work Material
Cutting Conditions
FC250 (Pearlite) Insert: FMU4100R SNEW1203ADTR
vc=1,500m/min, f=0.2mm/rev, ap=0.3mm, Dry
Cast Iron Milling
Chip Removal Rate (cm3)
Previous CBN
Flank Wear Width (mm)
Gray Cast Iron milling
Recommended Grade
:
:
Coolant recommendation: Dry
L
L8
SUMIBORON
SUMIBORON/Coated SUMIBORON
Guidance for SUMIBORON Grades
Sintered
Alloy
Advantages of Sintered Component machining with SUMIBORON
As compared to carbide or cermet, edge wear is very small for SUMIBORON, which also has better wear resistance and can be form to a sharp edge easily.
Good machining precision and surface finish can be achieved because SUMIBORON is able to prevent burrs and chipping on the edges of the workpiece.
Sintered Alloy
Valve Seat Ring (VSR)
Recommended Grade
Cutting Performance
Recommended Grade
Application Examples
Recommended Cutting Conditions
Grade Performance Comparision
Grade Performance Comparison
General Sintered Alloy
High Density/Hardened Sintered Alloy
* VSR has both (Intake: IN) and (Exhaust: EX) with the exhaust being hardened.
12
050100
10
8
6
4
2
150 200
0.1
050100
0.2
0.3
0.4
0.5
150 200 050100
0.7
0.6
0.5
0.4
0.3
0.2
0.1
150 200
SUMIBORON
Carbide Cermet
Cutting Speed (m/min) Cutting Speed (m/min)
Work Material: SMF4040 equivalent
Process details
: ø80-ø100mm heavy interrupted facing with grooves and
drilled holes. (after 40 passes)
Insert: TNGA160404
Cutting Conditions
: f=0.1mm/rev, ap=0.1mm, Wet
Flank Wear Width (mm)
Surface Roughness, Rz (μm)
Cutting Speed (m/min)
For general sintered alloy, carbide and cermet can perform up to
vc=100m/min. But around vc=120m/min, wear growth becomes rapid and
surface roughness deteriorates with increased burrs. On the other hand,
SUMIBORON exhibits stability and superior wear resistance, burr
prevention and surface roughness especially at high speeds.
Max. height of burr (mm)
BN350
BN500
BN7000
BN7500
BN7000
BN7500
BN7000
BN7500
BN7000
BN7500 BN500
BN350
300HV 300HVhighlow highlow
Gasoline VSR material Diesel VSR material
Plunge cut
Traverse cut
Hardness (HV)
SINTERED COMPONENT
MACHINING
Cutting Speed
vc(m/min)
Feed Rate
f (mm/rev)
Depth of Cut
ap(mm)
50 to 125 0.03 to 0.2 0.05 to 0.5
BN7000BN7000 3,200pcs
800pcs
Comp
CBN
Work Material
:Sintered alloy
(150-250HV)
Process: VSR(IN)
45° Surface Finishing
Insert : TBGN060104B
BN7000
Cutting Conditions
:
vc=100m/min
f=0.08mm/rev
Wet
With superior fracture resistance, BN7000 can
achieve double of competitor's tool life
300
200
100
0 0.1 0.2 0.3 0.4 0.5
0.30.20.15 0.250.10.05
BN7500
BN7000
Finishing
Region Roughing
Region
General Sintered Alloy (50-90HRB)
Depth of Cut a
p
(mm)
Feed Rate f (mm/rev)
Cutting Speed Vc (m/min)
300
200
100
0 0.1 0.2 0.3 0.4 0.5
BN7500
BN7000
Roughing
Region
Cutting Speed
vC(m/min)
Finishing
Region
Depth of Cut a
p
(mm)
Feed Rate f (mm/rev)
High Density / Hardened Sintered Alloy (30-65HRC)
0.30.20.15 0.250.10.05
Grade Binder
CBN Content %
Grain Size
μm
Hardness
GPa TRS GPa Coating
Thickness μm
Characteristics
BN7500
Co Compound
90 to 95 1 41 to 44 1.40 to 1.50
Maintains excellent cutting edge sharpness.
Suitable for finishing of sintered alloys.
BN7000
Co Compound
90 to 95 2 41 to 44 1.30 to 1.40
Exhibits improved wear and fracture resistance
in roughing of sintered materials.
L
L9
SUMIBORON
SUMIBORON/Coated SUMIBORON
Guidance for SUMIBORON Grades
ROLL MACHINING
Recommended Grade
Recommended Cutting Conditions
90
BN500
BNS800
BN7000
BNX20
80
70
60
50
BNX20
Finish Intermediate Rough
Roll stand (Example for bar steel rolling)
High
speed
steel
Die Steel
Ductile
cast
iron Adamite
High hardness
steel
Chilled
cast iron
High alloy
cast iron
Workpiece hardness (HS)
20 40 60 80 100 120 140
f
(
mm/rev
)
≥40
≥60
≥60
≥70
Adamite
Chilled
cast iron
High speed
steel
High alloy
cast iron
Work
Material
type
Hardness
(HS)
Recommended Cutting Conditions
vc(m/min)
0.1 to 0.5
0.1 to 0.5
0.1 to 0.5
0.1 to 0.4
0.2 to 3.0
0.2 to 3.0
0.2 to 3.0
0.1 to 3.0
ap
(mm)
HARD FACING ALLOYS MACHINING
Cutting Performance
Recommended Cutting Conditions
50 100 200 300
vc(m/min)
Colmonoy
No.6
Stellite
Ni-based
Self-fluxing
alloy
Co-based
Self-fluxing
alloy
Work Recommended Cutting Conditions
Material
type
Material
f
(
mm/rev
)
ap
(mm)
0.05 to 0.2
0.05 to 0.2
0.1 to 3.0
0.1 to 1.0
HEAT RESISTANT ALLOYS MACHINING
Recommended Grade
Recommended Cutting Conditions
50
30
0.1
100
200
400
0.2 0.3 0.4
BN350
BN7000
Feed Rate (mm/rev)
Carbide (Roughing med. Finishing)
Cutting Speed (m/min)
50 100 150 200
Inconel
718
Stellite
Ni-based
heart resistant
alloy
Co-based
heart resistant
alloy
Work Recommended Cutting Conditions
Material
type
Material
f
(
mm/rev
)ap
(mm)
0.05 to 0.2
0.05 to 0.2
0.1 to 1.0
0.1 to 1.0
vc(m/min)
SUMIBORON is best suited for finishing of heat resistant alloy
H
Hardened Steel
K
Cast Iron
S
Exotic alloy
Cutting Distance (km)
0.20
0.05
0.1
0.4 0.6 0.8 1.0
Whisker Reinforced Ceramic
v
c
=50m/min
BN7000
v
c
=300m/min
BNS800
v
c
=300m/min
Work Material: Colmonoy No.6 (NiCr-based self-fluxing alloy)
Insert: SNGN090308
Cutting Conditions: f=0.1mm/rev, ap=0.2mm, Dry
BN7000 has a long service life with little wear, even in high speed cutting
Flank Wear Width (mm)
Advantages of Roll Machining with SUMIBORON
Enables the machining of high hardness rolls which were difficult to machine by conventional
tools, thus drastically improving machining efficiency.
Advantages of machining Hard Facing Alloys with SUMIBORON
Enables the machining of Hard Facing Alloys, once considered difficult to machine.
BN7000 is the first recommended grade, and BNS800 is the second recommended grade.
Advantages of cutting heat resistant alloys with SUMIBORON
Provides long tool life in the finishing of heat resistant alloys.
L
L10
SUMIBORON

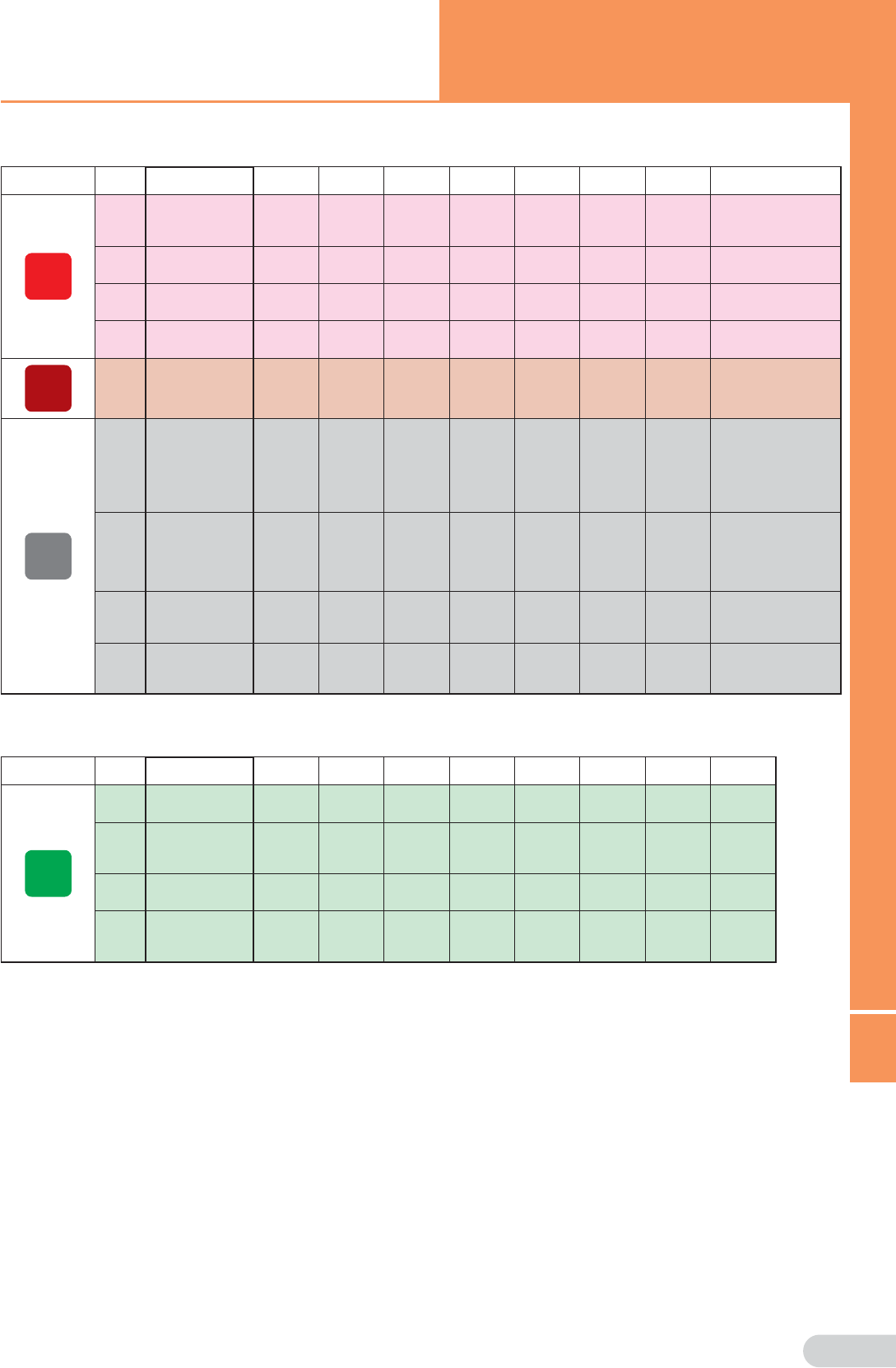

Grade Comparison Chart
Polycrystalline Diamond
Work Material
Classification
Sumitomo Electric
Mitsubishi Tungaloy Kyocera NTK Chukyo Sandvik Kennametal SECO Tools
N
Non-Ferrous Metal
N01 DA1000
DA90 MD205 DX180
DX160 KPD001 PD1 CD05
CD10 KD1400
N10 DA1000
DA150
MD205
MD220
DX140
DX110
KPD001
KPD010
KPD230
PD2
HD100
HD30
HD60
CD1810 KD1400
KD1425
PCD05
PCD10
N20 DA1000
DA2200
MD220
MD230
DX120
DX110 KPD230 PD2
HD100,HD30
HD50
KD1400
KD1425
PCD05
PCD20
N30 DA1000
DA2200
MD2030
MD230 DX110
HD30,HD50
HD700
HD100
KD1400
PCD05
PCD30
PCD30M
(Note) The above data was collected from the various published catalogues therefore the information may not be updated.
CBN Grades
Work Material
Classification
Sumitomo Electric
Mitsubishi Tungaloy Kyocera NTK Chukyo Sandvik Kennametal SECO Tools
K
Cast Iron
K01 BNC500*
BN7000
BN500
MB710
MB5015
BX910
BX930
BX870
KBN475
KBN60M
B30
B16
CB50
CB7525 KB1340
K10 BN7000
BN500
MB710,MB5015
MB4020
BX470,BX480
BX950
KBN60M
KBN900
B23
B16
HB55,HB569
HB580,HB57
CB7925
CBN200,CBN300
CBN300P,CBN400C
K20 BN7000
BNS800
MB730,MB4020
MBS140
BX470,BX480
BXC90,BX90S
KBN900
HB56,HB569
HB580,HB57
K30 BNS800 MBS140 BXC90
BX90S HB57 KB5630 CBN500
S
Exotic Alloy
S01 BN7000 MB730
MB4020
BX940
BX950
BX470
BX480
HB55
HB580
HB52
KB5630
KB1340
H
Hardened Steel
H01
BNC2010
BNC100
BN1000
BN2000
BNX10
BC8105
BC8110
MBC010
MB810
BXM10
BX310
KBN05M
KBN10M
KBN510
B5K
B52
HB55
HB550
HB580
KB5610
CH0550
CBN10
CBN100
CBN060K
H10
BNC2010
BNC2020
BNC160
BNC200
BN2000
BC8110
BC8120
MBC020
MB8025
MB825
BXM10
BX330
KBN05M
KBN25M
KBN525
B5K
B6K
B52
B36
HB55
HB59
HB550
HB580
HB52
CB7015
CB20
KBH20
KB5610
KB5625
CBN10
CBN100
CBN150
CBN060K
CBN160C
H20 BNC2020
BNC200
BNX20
BC8120,BC8020
MBC020
MB8025
BXA20
BXM20
BX360
KBN30M
KBN35M
KBN900
B36
B40
B6K
HB57,HB59
HB590
HB580
CB7025
CB50
KBH20
KB5625
KB5630
CH2540
CBN150
CBN160C
H30 BNC300
BN350
BNX25
BC8130
MB835
BXM20
BXC50
BX380
B40 HB57
HB580 CB7525 KB5630 CH3515
*: For ductile cast iron cutting
L
L11
SUMIBORON
BNC2010
BNC2020
120 250150 200 300 50 200100 150 220

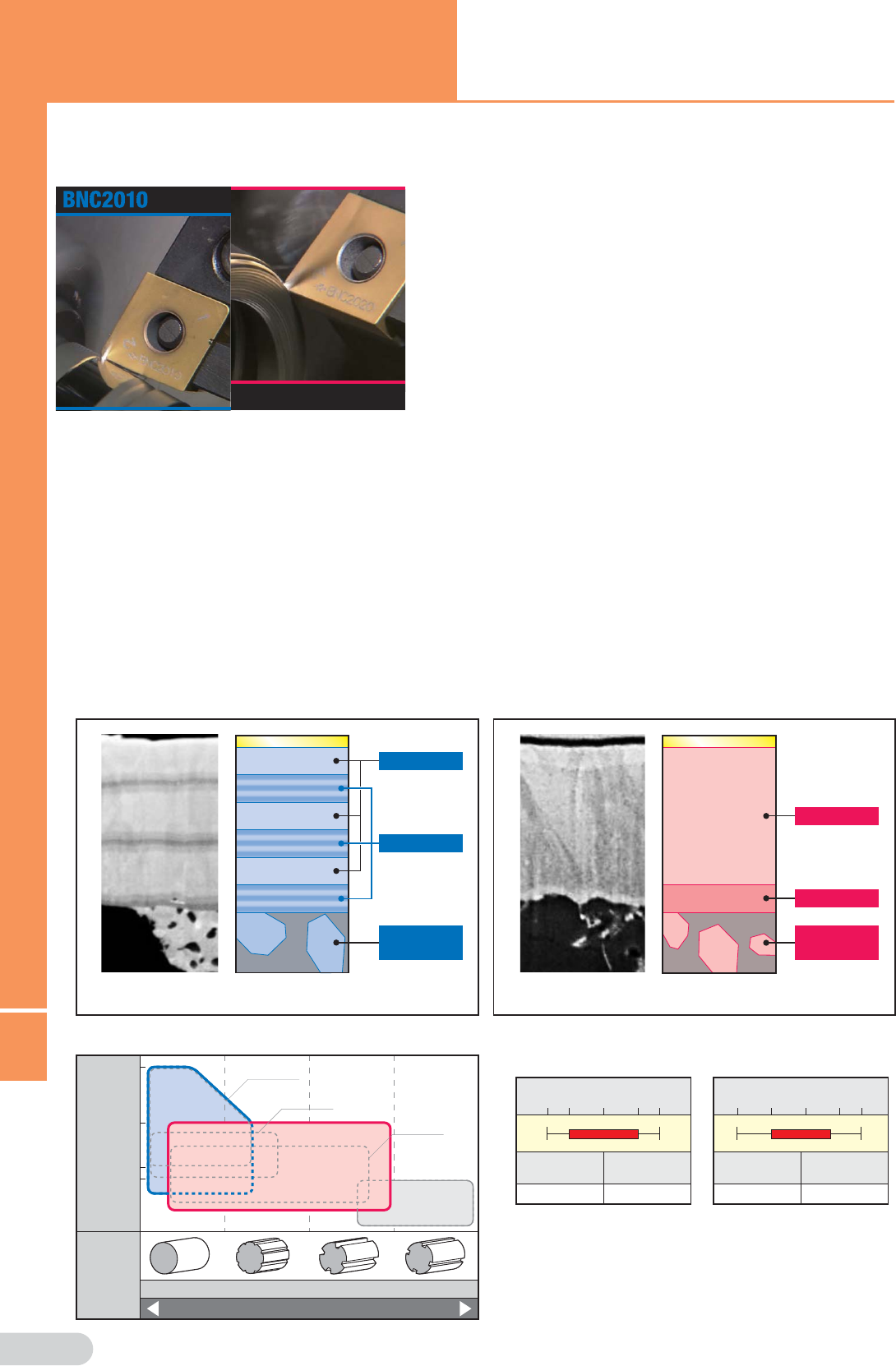

Achieving excellent notch wear resistance with a coating structure of
TiCN layers and special multi-layered coatings.
Coating
Special Multi-layered
Coating
TiCN Coating
TiCN Coating
TiCN Coating
Improved Wear Resistance
High wear resistant
CBN substrate
Reduced Boundary Wear
Special Multi-layered
Coating
Special Multi-layered
Coating
BNC2020
300
200
120
100
BNC100BNC100
BNC2010BNC2010 BNC160BNC160
BNC2020BNC2020
BNC300BNC300
BNC200BNC200

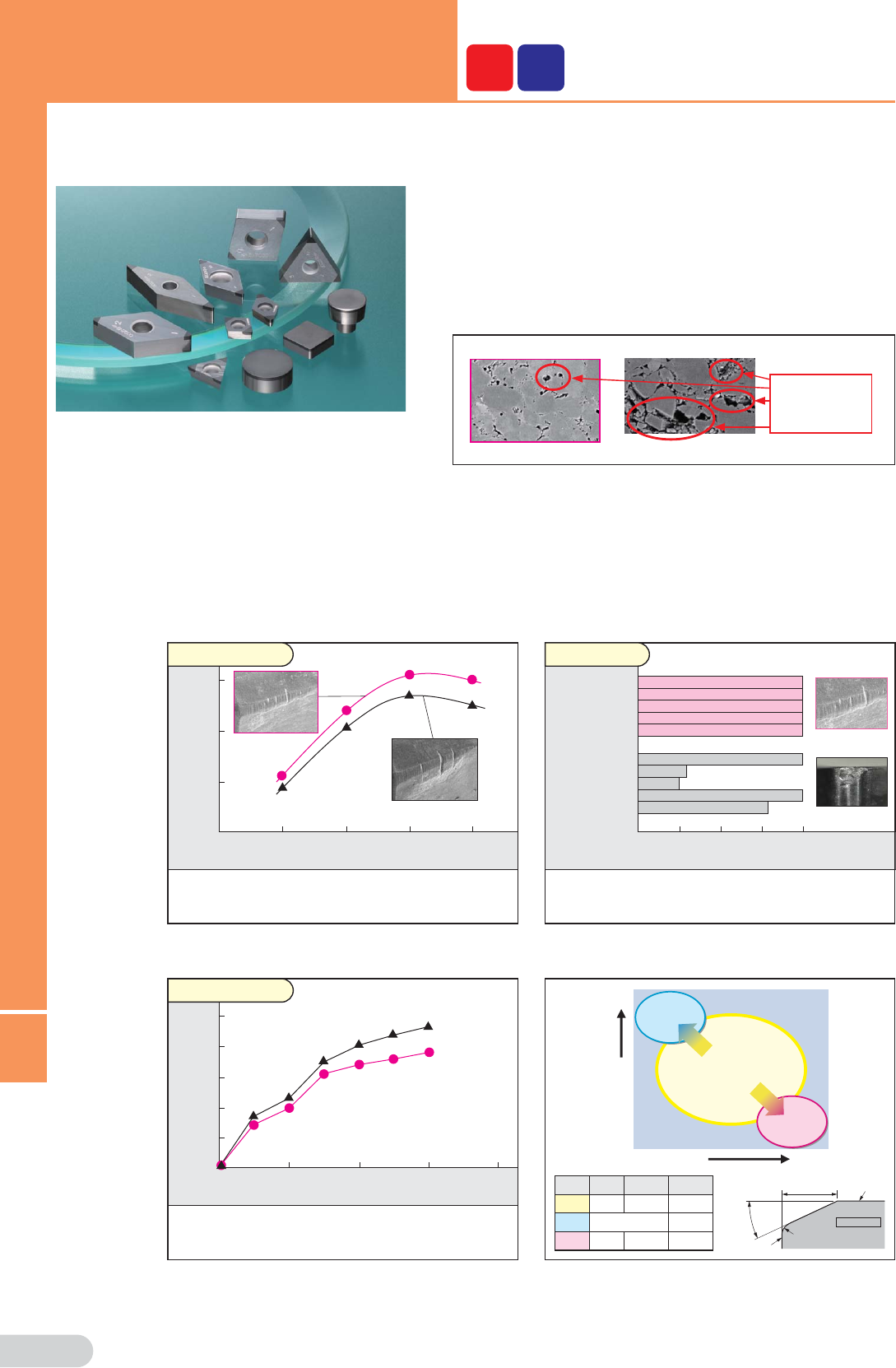

General Features
Provides improved machining accuracy and longer tool life as compared
to conventional Coated SUMIBORON by combining newly developed CBN
substrate and ceramic coating.
Exhibits excellent performance in high-precision and general cutting of
hardened steel and enables reductions in machining costs.
First choice for Longer Tool Life and Cost Reduction
Characteristics
Ideal for high-precision machining thanks to excellent wear resistance.
Further maintains excellent surface roughness.
Consistently excellent surface roughness thanks to coating with high notch wear resistance and CBN substrate.
General-purpose grade suitable for typical hardened steel machining applications.
Achieves further stability in machining of a wide range of hardened steel components.
Achieves long tool life thanks to highly wear-resistant, highly adhesive coating and tough CBN substrate.
Achieves stable and long tool life even in high-efciency and interrupted machining.
CBN Substrate and Coating Structure of BNC2010 and BNC2020
Achieving even better stability with a TiAlN layer
and a highly adhesive coating layer.
Coating
Coating
Highly Adhesive Layer
Tough
CBN Substrate
Improved Adhesion
Improved Wear Resistance
Recommended Cutting Conditions
Cutting Speed c(m/min)
Feed Rate
(mm/rev) Depth of Cut p
(mm)
0.03 to 0.25 0.03 to 0.35
Cutting Speed c(m/min)
Feed Rate
(mm/rev) Depth of Cut p
(mm)
0.03 to 0.40 0.03 to 0.50
Application
Cutting Speed vC (m/min)
Continuous
Interruption
Light Interrupted Medium Interrupted Heavy Interrupted
Smaller Impact Force on Cutting Edge Larger
BNC2010 BNC2020
BNC2010 BNC2020
For high-precision nishing requiring good surface roughness and dimensional accuracy.
Coated SUMIBORON for Hardened Steel Machining
BNC2010/BNC2020
L
L12
SUMIBORON

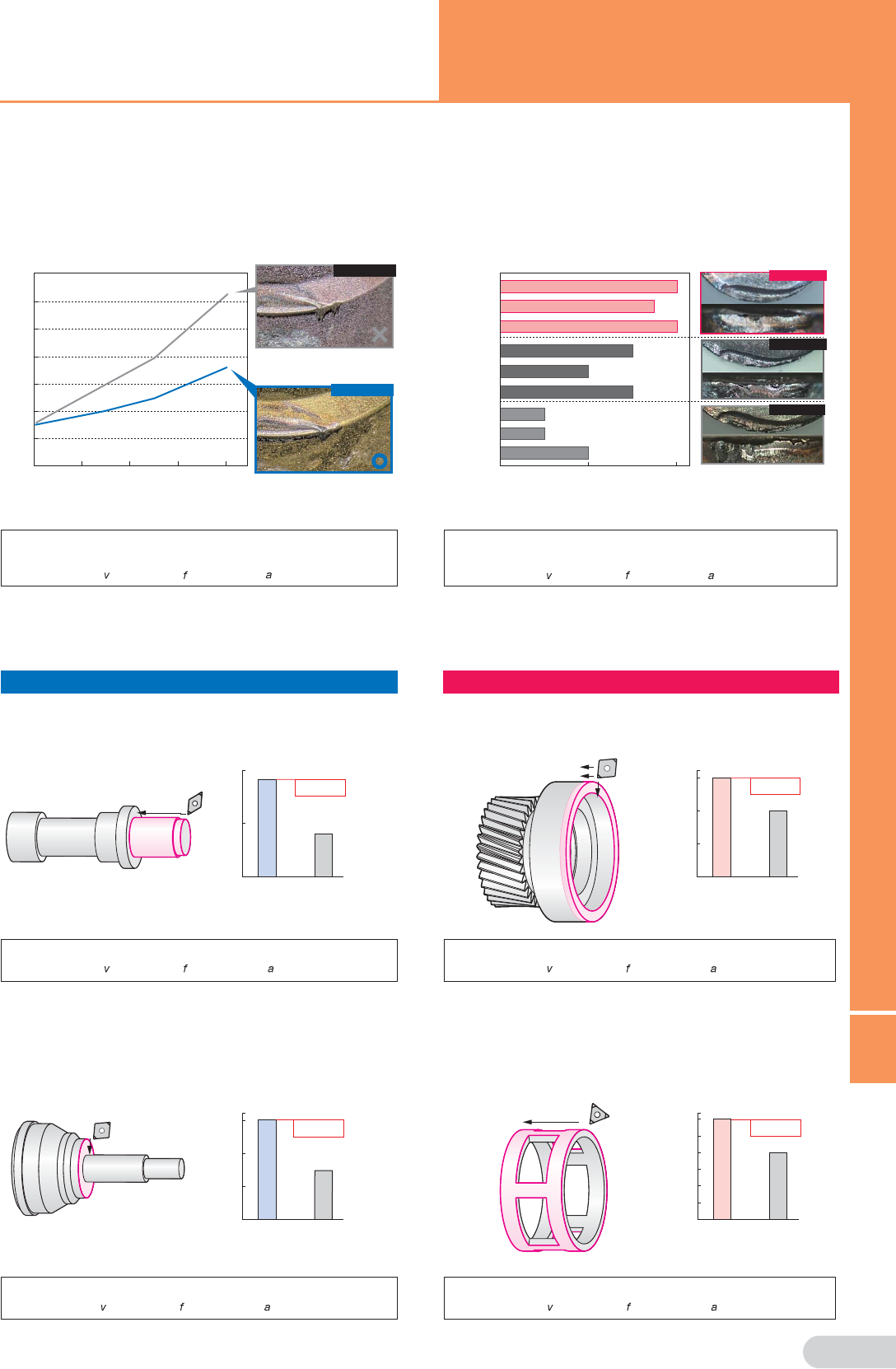

BNC2010 BNC2020
7
6
5
4
3
2
1
5.00 2.5
100
50
0
BNC2010
700
300
500
0
100
200
300
0
300
200
100
0
BNC2020
024 68
BNC2010
BNC2010
Conventional Coated CBN
Cutting Distance
Performance
Surface Roughness
Notch wear
Minimal notch wear
After
After
Work Material SCM415 58-62HRC Continuous
Insert 4NC-DNGA150408 Edge Treatment S01225
Cutting Conditions c=160m/min =0.08mm/rev p=0.1mm Wet
Application Examples
Continuous External Turning of Main Shaft
58 to 60HRC
Insert 4NC-DNGA150408 BNC2010
Cutting Conditions c=200m/min =0.10mm/rev p=0.35mm Dry
BNC2010 provides excellent wear resistance and achieves
excellent surface roughness.
Conventional
Coated CBN
No.of Workpieces
tool life 2.3x
Surface Roughness Ra=0.6 m
Cutting Distance 5.7km
CVJ Outer Race Facing
58 to 60HRC
BNC2010 with a WH type wiper insert maintains excellent surface
roughness for a long time.
Insert 2NC-CNGA120412WH BNC2010
Cutting Conditions c=150m/min =0.2mm/rev p=0.2mm Dry
Conventional
Coated CBN
No.of Workpieces
tool life 1.8x
BNC2010
WHType
Wiper Insert
Surface Roughness Rz=1.6 m
Cutting Distance 4km
Work Material SCM415-5V 58-62HRC Interrupted
Insert 4NC-CNGA120412 Edge Treatment S01225
Cutting Conditions c=130m/min =0.1mm/rev p=0.6mm Dry
BNC2020
Conventional
Coated CBN
Competitor's
Coated CBN
Tool Life
BNC2020
After 2.5km
After 3km
After 5km
Insert 4NC-CNGA120408 BNC2020
Cutting Conditions c=100m/min =0.15mm/rev p=0.5mm Wet
Carburized Layer Removal for Sun Gear
58 to 60HRC
BNC2020 achieves long tool life in high load cutting.
Conventional
Coated CBN
No.of Workpieces
tool life 1.5x
Interrupted Machining of CVJ Cage Window
58 to 60HRC
Strong edged HS type BNC2020 exhibits stability in interrupted
cutting.
Insert 3NC-TNGA160420HS BNC2020
Cutting Conditions c=120m/min =0.10mm/rev p=0.15mm Dry
Conventional
Coated CBN
No.of Workpieces
tool life 1.5x
BNC2020
HSType
Strong edge type
Coated SUMIBORON for Hardened Steel Machining
BNC2010/BNC2020
L
L13
SUMIBORON
General Features
BNC300
CBN substrate that emphasizes on toughness coupled with a
highly wear resistant TiAIN based coating layer that has improved
adhesion strength. With a good balance of fracture and wear
resistance, stable and longer tool life can be achieve in interrupted
cut or in a mixture of continuous and interrupted cutting.
BN350
SUMIBORON series highest fracture resistance and
toughest CBN. Reliable grade for achieving stable tool life
in heavy interrupted cutting conditions.
Characteristics
BNC300
BN350
Stable and long tool life in interrupted cutting
Achieving stable and long tool life in heavy interrupted cutting, with superior fracture resistance.
Superior dimensional precision
Good adhesion strength, TiAIN based, high wear resistance coating. Achieving superior dimensional precision even in interrupted cutting.
Suitable for different types of workpieces
Achieving significantly longer tool life even on workpieces that have a mixture of continuous and interrupted cutting.
Stable and long tool life in interrupted cutting
Stable and long tool life with superior fracture resistance, that prevents fractures which commonly occurs during interrupted cutting.
Cutting Performance
Application Range
Recommended Cutting Conditions
(For BNC300/BN350)
50 80 120100 150
0.03 to 0.20 0.03 to 0.30
Cutting Speed vc(m/min)
Feed Rate f
(mm/rev) D.O.C. ap
(mm)
* Cutting Conditions: Dry
2 301
0.05
0.10
Heavy Interrupted Cutting (Interruption Frequency 100%)
Cutting Distance (km)
BNC300: Breakage
Comp. CBN: Breakage
BN350
Able to continue
Work Material: SCr420 (58-62HRC) Insert: 2NU-CNGA120408
Cutting Conditions: vc=100m/min, f=0.1mm/rev, ap=0.2mm, Dry
Flank Wear Width (mm)
BN350 exhibits very good fracture resistance.
23401
0.05
0.10
BN350
Continuous Cutting + Mid Interrupted Cutting (Interruption Frequency 50%)
Cutting Distance (km)
Coating
chip-off
Comp Coated
CBN: Breakage
Work Material: SCr420 (58-62HRC) Insert: 4NC-CNGA120408
Cutting Conditions: vc=120m/min, f=0.1mm/rev, ap=0.2mm, Dry
BNC300
Able to continue
Flank Wear Width (mm)
BN300 has superior balance of fracture and wear resistance.
BNX20
BNX20
BNX25
BNX25
BN1000
BN1000
BN2000
BN2000
BNC100
BNC100
BNC2010
BNC2010
BNC160
BNC160
BNC2020
BNC2020
BNC200
BNC200
BNC300
BNC300
BN350
BN350
300
200
100
300
200
120
100
Coated SUMIBORON
Light Interrupted Medium Interrupted Heavy InterruptedContinuous
Cutting Speed vC (m/min)
Interruption
Smaller Impact Force on Cutting Edge Larger
SUMIBORON
Cutting Speed vC (m/min)
Interruption
Light Interrupted Medium Interrupted Heavy InterruptedContinuous
Smaller Impact Force on Cutting Edge Larger
The Ultimate in Interrupted Machining of Hardened Steel!
BNC300
BN350
Coated SUMIBORON / SUMIBORON for Hardened Steel Machining
BNC300 / BN350
H
Hardened Steel
L
L14
SUMIBORON
BNC100BNC100
BNC2010BNC2010
BNC160BNC160
BNC2020BNC2020
BNC300BNC300
BNC200BNC200
50 100 200 250 300
150
120 180 220
00.1 0.2 0.3 0.4 0.5
0.03
0.03
0.20
0.30
0.03
0.03
0.20
0.35
0.03
0.03
0.20
0.30
0.03
0.03
0.25
0.35
0.03
0.03
0.40
0.50
0.05
0.05
0.35
0.50
Newly developed CBN substrate with high crater wear resistance
coated with special multi-layered TiCN, which exhibits excellent
notch wear resistance.
Ideal for nishing of hardened steel requiring excellent accuracy
or surface roughness. Able to stably maintain 1.6S nishing.
Newly developed tough CBN substrate with highly wear-resistant TiAlN
coating. Provides improved stability by inserting a highly adhesive layer
between the substrate and the TiAlN layer.
Ideal for general machining including nishing and interrupted cutting as
well as high-efficiency machining such as carburized layer removal.
BNC2010
BNC2020
BNC100
BNC100
BNC2010
BNC2020
BNC160
BNC200
BNC300
BNC100
BNC2010
BNC2020
BNC160
BNC200
BNC300
BNC160 BNC200 BNC300
Excellent
High Precision MachinningHigh Precision Machinning
High Speed CuttingHigh Speed Cutting
High Precision MachinningHigh Precision Machinning
General and High Efficiency CuttingGeneral and High Efficiency Cutting
General and High Efficiency CuttingGeneral and High Efficiency Cutting
Heavy Interrupted CuttingHeavy Interrupted Cutting

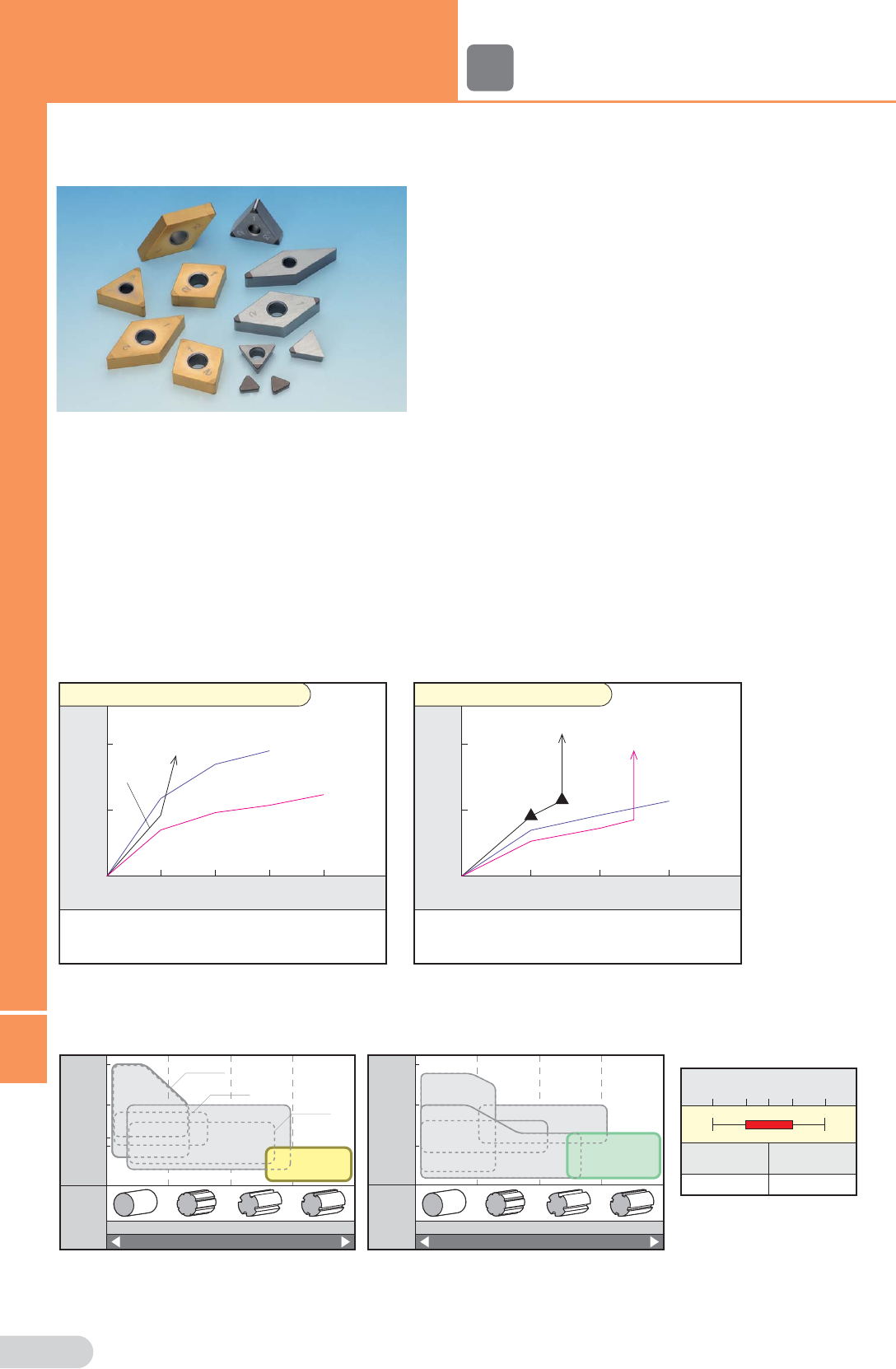

New-Generation Coated SUMIBORON
HighCutting Speed
Fracture Resistance
New-Generation Coated SUMIBORON Released
High Precision MachinningHigh Precision Machinning
General and High Efficiency CuttingGeneral and High Efficiency Cutting
Characteristics of Grades
CBN Content
Grain Size
Hardness HV
TRS
Main Coating
Components
Coating Thickness
: 50 to 55%
: 2μm
: 30 to 32GPa
: 1.10 to1.2 0G Pa
:
Multi-layered TiCN
: 1.5μm
CBN Content
Grain Size
Hardness HV
TRS
Main Coating
Components
Coating Thickness
: 70 to 75%
: 5μm
: 34 to 36GPa
:
1.2 0 to 1.3 0G Pa
:
Multi-layered TiAlN
: 1.5μm
High Speed CuttingHigh Speed Cutting
High Precision MachinningHigh Precision Machinning
CBN
Content
Grain Size
Hardness HV
TRS
Main Coating
Components
Coating
Thickness
:
40 to 45
:
1μm
:
29 to 32GPa
:
1.05 to 1.15GPa
:
TiAlN/TiCN
:
2.0μm
5
a
a
iCN
CBN
Content
Grain Size
Hardness HV
TRS
Main Coating
Components
Coating
Thickness
:
60 to 6
:
3μm
:
31 to 33GP
:
1.10 to 1. 20 GP
:
TiAlN/T
:
2.0μm
General and High Efficiency CuttingGeneral and High Efficiency Cutting
Heavy Interrupted CuttingHeavy Interrupted Cutting
a
Pa
CBN
Content
Grain Size
Hardness HV
Main Coating
Components
Coating
Thickness
:
65 to 70
:
4μm
:
33 to 35GP
:
1.15 to 1.25G
:
TiAlN
:
2.0μm
CBN
Content
Grain Size
Hardness HV
TRSTRS
Main Coating
Components
Coating
Thickness
:
60 to 65
:
1μm
:
33 to 35GPa
:
1.15 to 1. 25 GP a
:
TiAlN
:
1.0μm
Grade
Cutting Speed vcm/min
Recommended Cutting Conditions
Grade
Feed Rate mm/rev Depth of Cut mm
Characteristics of Coated Grades
L
L15
SUMIBORON

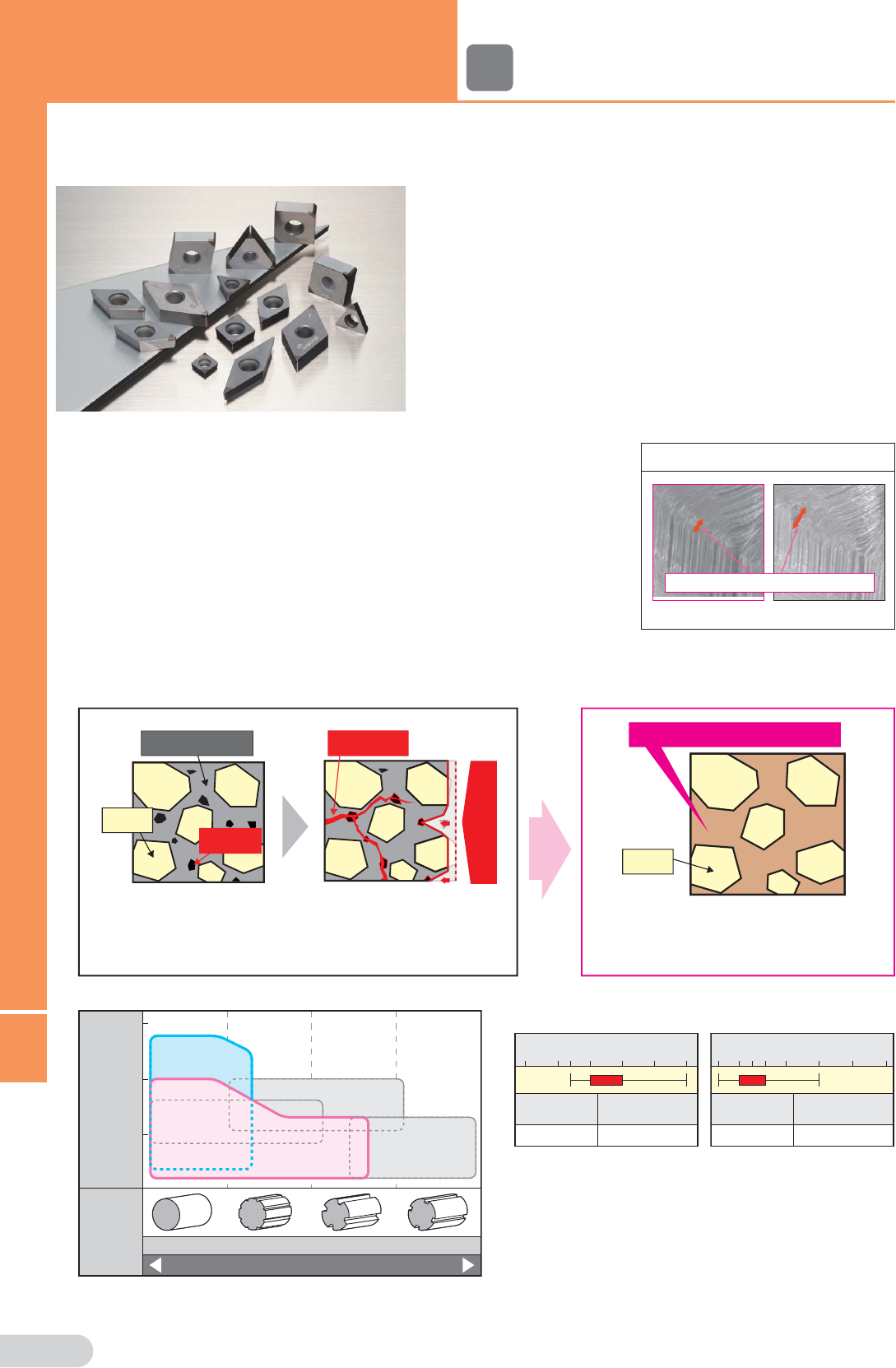

General Features
An uncoated type of SUMIBORON that has a newly
developed high-purity ceramic binder.
Both fracture and wear resistance are combined to achieve
a stable tool life in a wide variety of hardened steel
machining.
We offer a wide selection of tools starting with single-
cornered types.
Characteristics
BN1000
Superior high-speed machining grade with the highest wear resistance of any uncoated SUMIBORON.
Delivers excellent tool life in continuous cutting to light-interrupted cutting.
Improved fracture resistance while also emphasizing wear resistance.
Improved hardness and heat resistance from the high-purity TiCN ceramic binder.
Uncoated SUMIBORON for Hardened Steel Machining
BN1000 / BN2000
Sharpness Comparison
BN2000
Conventional Grade
Newly Developed High-Purity Ceramic Binder
Application Range
Recommended Cutting Conditions
Cutting Speed vc
Feed Rate fD.O.C.ap
0.03 to 0.15 0.03 to 0.2
50 100120 150 200 250 300
300
200
100
BNX20
BNX20
BNX25
BNX25
BN1000
BN1000
BN2000
BN2000
BN350
BN350
Smaller
Continuous
Cutting Speed vC (m/min)
Interruption
Light Interrupted Medium Interrupted Heavy Interrupted
Impact Force on Cutting Edge Larger
BN1000
Cutting Speed vc
Feed Rate fD.O.C. ap
0.03 to 0.2 0.03 to 0.3
50 80 120100 150 200 250 300
BN2000
CBN
High-Purity Ceramic Binder
With the newly developed high-purity
ceramic binder, the BN1000/BN2000 achieve
toughness and improved heat resistance
by decreasing impurities to an extreme!
BN1000/BN2000Conventional Grade
The impurities contained in the ceramic binder for conventional
grades brings about a strengthening in the sintered body and
a decrease in heat resistance, which becomes the cause of cracks
(chipping) and wear.
Ceramic Binder
Cracks
CBN
Impurities
Increased Wear/
Reduced Sharpness
BN2000
General purpose grade suitable for typical hardened steel machining applications.
Provides stable tool life in everything from continuous cutting to light-to-medium interrupted cutting.
High degrees of both fracture resistance and wear resistance.
Significant improvements in the performance of both by employing a high-purity ceramic binder.
Stable surface roughness by increasing sharpness (Figure on right).
* Coolant: Continuous Cutting Dry, Wet
Interrupted Cutting Dry
Compared to conventional grades, small cutting edge roundness
H
Hardened Steel
BN2000
BN1000
L
L16
SUMIBORON
Uncoated SUMIBORON for Hardened Steel Machining
BN1000 / BN2000

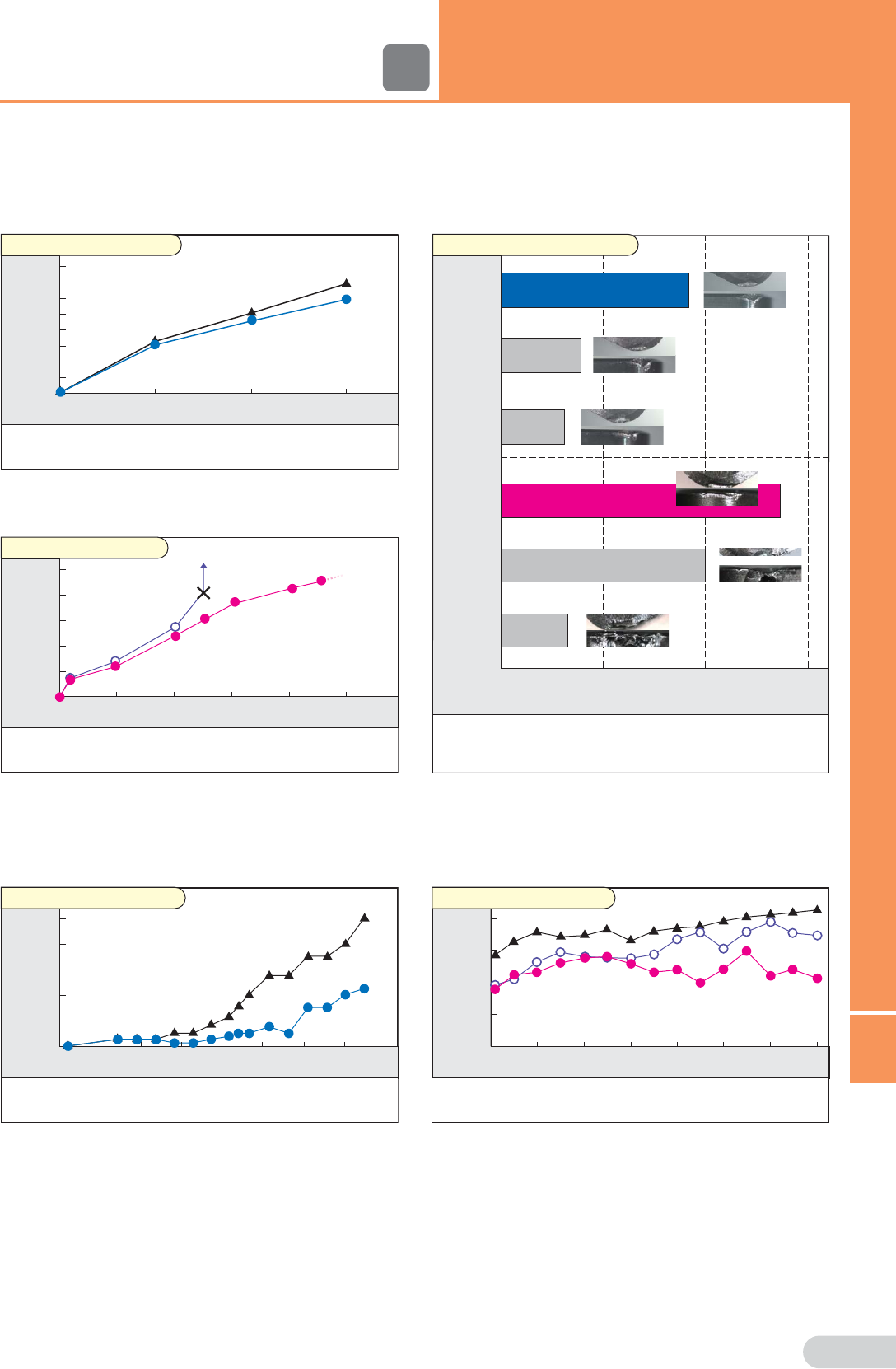

Cutting Performance
BN1000 BN1000/BN2000
BN2000
BN1000 BN2000
Machining Precision
0 1 2 3
BN1000
0.16
0.14
0.12
0.08
0.10
0.04
0.02
0.06
Comp. CBN
Wear Resistance (Continuous Cut)
Flank Wear Width (mm)
Cutting Distance (km)
Work Material: SUJ2 Bar (58-62HRC)
Cutting Conditions: vc=150m/min, f=0.1mm/rev, ap=0.2mm, Dry
Work Material: SCM415H 8V Grooved (58-62HRC)
Insert 2NU-CNGA120408
Cutting Conditions: vc=150m/min, f=0.1mm/rev, ap=0.2mm, Dry
Tool Life Ratio (%) BN2000's previous CBN as 100%
Approx 2x Tool life!
Chipping Resistance (Interrupted Cut)
0 50 100 150
Previous CBN (1)
Comp. CBN (1)
BN1000
Previous CBN (2)
Comp. CBN(2)
Approx 1.4x Tool life!
BN2000
0 2 4 6 8 10
0.25
0.20
0.15
0.10
0.05
Comp. CBN
BN2000
Wear Resistance (Continuous Cut)
Breakage -
Cannot Continue
Able to continue
Flank Wear Width (mm)
Cutting Distance (km)
Work Material: SCM415H Bar (58-62HRC)
Cutting Conditions: vc=100m/min, f=0.1mm/rev, ap=0.2mm, Dry
0 0.5 1.0 1.5 2.0 2.5 3.0 4.03.5
4
2
6
8
10
BN1000
Size Accuracy Comparison (Continuous Cut)
Comp. CBN
Diameter
Variance (μm)
Work Material: SCM415H 130 Diameter (58-62HRC)
Insert 2NU-CNGA120408
Cutting Conditions: vc=200m/min, f=0.1mm/rev, ap=0.1mm, Wet
Cutting Distance (km)
0 1 2 3 4 5 6 7
1
2
3
4
Previous CBN
Comp. CBN
BN2000
Surface Roughness Comparison (Continuous Cut)
Surface Roughness,Rz (μm)
Work Material: SCM415H Bar (58-62HRC)
Insert: 2NU-CNGA120408
Cutting Conditions: vc=100m/min, f=0.08mm/rev, ap=0.2mm, Dry
Cutting Distance (km)
H
Hardened Steel
L
L17
SUMIBORON
General Features
Medium-grain CBN sintered to a high density to achieve the
maximum content percentage.
Also delivers superior fracture resistance by increasing the binding strength
between CBN particles. Provides stable, long tool life for high-speed finishing
work with cast iron, Sintered alloys, and difficult-to-machine materials.
SUMIBORON for Cast Iron/Sintered Alloy Machining
BN7000
For high-speed finishing of cast iron, Sintered alloys, and difficult-to-machine materials!
Characteristics
Excellent for high speed finishing of Cast Iron!
Good wear and fracture resistance in high speed machining of Gray Cast Iron.
High efficiency machining of Sintered alloys
With 4 different types of edge treatment, stable and long tool life can be achieved from machining of Sintered Alloys of any shape or hardness.
Able to machine any Exotic Alloys.
Long tool life can also be achieved for the machining of exotic Alloys such as Roll, HSS and Heat-Resistant Alloy etc.
BN7000
Competitor's CBN for Cast Iron
Few Holes
Holes made by the
binder melting from
the acid treatment.
Acid-treated CBN Sintered Body Structure
Cutting Performance
0500 1,000 1,500 2,000
1,500
1,000
500
BN7000
Chip Removal Rate (cm3)
Previous CBN
Cutting Speed (m/min)
Work Material: FC250 (Pearlite)
Insert: FMU4100R SNEW1203ADTR
Cutting Conditions: v
c
=500 to 2,000m/min, f=0.2mm/rev, a
p
=0.3mm, Dry
Cast Iron Milling
025 50 75 100
BN7000
BN7000 Able to Continue
Previous CBN
Breakage
Breakage
Conventional Tool Breakage
Output (Times)
Work Material: SMF4040 (70HRB, Interrupted Machining)
Insert: 2NU-CNGA120408
Cutting Conditions: vc=250m/min, f=0.1mm/rev, ap=0.3mm, Dry
Turning of Sintered Alloy
No chipping in any of the samples!
Breakage
Recommended Edge Treatment
020 40 60 80
0.10
0.08
0.06
0.04
0.02
BN7000
Flank Wear Width (mm)
Previous CBN
Cutting Distance (km)
Work Material: FC300 (Pearlite)
Insert: 2NU-CNGA120408
Cutting Conditions: vc=800m/min, f=0.15mm/rev, ap=0.2mm, Wet
Cast Iron Turning
Sharper Edge
LFtype
Poor surface finish
Poor surface finish
For higher
tolerance
with minimal
burr
For higher
tolerance
with minimal
burr
Standard
Chipping
Chipping
Strong Edge
HStype
Rake Face
Negative land width W
Negative land angle
Negative land angle
Flank
Honing
CBN Layer
Interruption degree
Frequent
Machined surface quality
Good
Many Holes
Sintered
Alloy
K
Cast Iron
W
Honing
Standard
15°
0.12mm
No
LF type
Sharp Edge
No
HS type
25°
0.12mm
Ye s

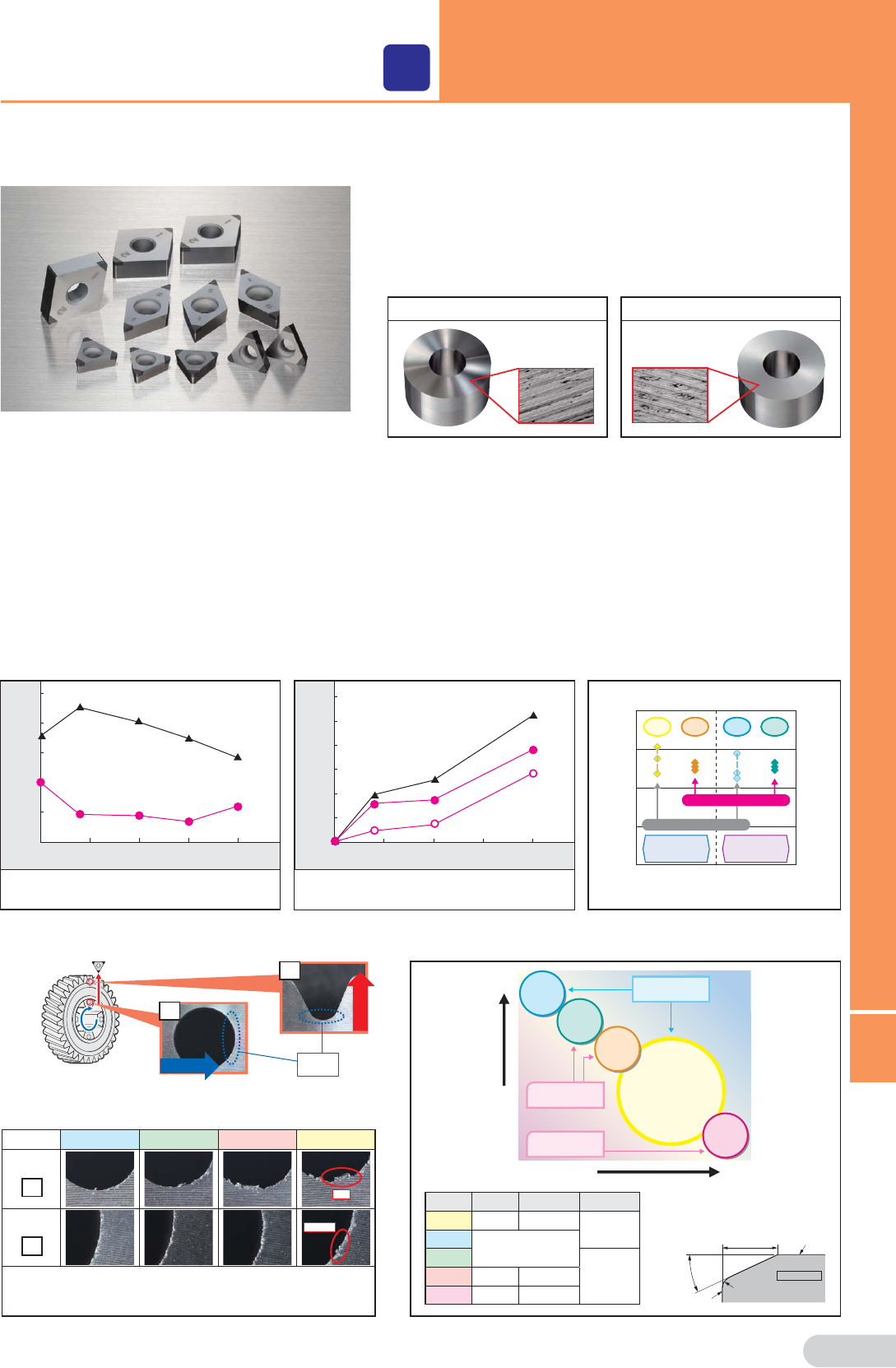

L
L18
SUMIBORON
General Features
High density sintered material made of micro-grained CBN
grains provide excellent sharpness and wear resistance for
high quality surfaces in sintered alloy finishing.
Achieves High Precision, and Efficiency Machining of Sintered Alloy
Cutting Performance
The previous CBN left white blemishes on the finished surface whereas the
BN7500 leaves a better, glossy surface finish.
Surface finish using the BN7500 Surface finish using previous CBN
Characteristics
Excellent for finishing of Sintered Alloy
Excellent machined surface finish and surface appearance.
Available with 5 different types of edge treatment for machining sintered alloys of any shape or hardness
The LF type has a sharper edge designed specifically for machining sintered alloys with minimal burr and improved machining
precision. The HS Type has a strengthened cutting edge for stable chipping resistance during interrupted cutting and finishing.
Provides machining stability by reducing the variation in early milling surface roughness with the LE edge treatment, which emphasizes superior surface finish.
The LS Type, excelling in fracture resistance and cutting edge balance, also supports finishing that includes light interrupted cutting.
0.1
0.2
0.3
0.4
0.5
0.6
0 50 100 150 200
2
4
6
8
10
0 50 100 150 200
0
0.2
0.4
0.6
0.8
BN7500
standard
Early Milling Finishing Surface Roughness
No. of Passes
Work Material
Insert
Cutting Conditions
:
:
:
Sintered ferrous alloy SMF4040 equivalent (70HRB, Continuous cut)
2NU-CNGA120408LF
v
c=200m/min,
f
=0.1mm/rev,
a
p=0.1mm, Wet
BN7500
LF type
50% reduction in burr height
Surface Roughness, Rz ( m)
Previous CBN Sharp Edge
BN7500 LF type
Excellent surface nish and stability
No. of Passes
Work Material
Insert
Cutting Conditions
:
:
:
Sintered ferrous alloy SMF4040 equivalent (70HRB, Continuous cut)
2NU-CNGA120408LF
v
c
=200m/min, f=0.1mm/rev, a
p
=0.1mm, Wet
Average Burr Height (mm)
Previous CBN standard
Surface Roughness, Ra (μm)
Standard
LS LF LE
Control Variations in Early Surface Roughness
Control Variations in Early Surface Roughness
No R Honing
Negative Land
=15°
No Negative Land
=0°
Able to control early surface roughness
variations by applying R honing to the edge.
R Honing
B
A
A
B
Tool Feed Direction
Work Rotation Direction
When
Withdrawn
The LF Type without R honing has a cutting edge sharpness superior to the LE Type with R honing and can control burrs better.
For a feed rate 0.1 mm/rev or higher, LS Type has a cutting edge sharpness superior to the standard type and can control burrs better.
LF type LE type LS type Standard
Diagram
Diagram
Burr
Edge Chip
Work Material: VVT Facing
Insert: 3NU-TNGA160404
Cutting Conditions: vc=200m/min, f=0.1mm/rev, ap=0.1mm, Wet
Feed and Burr Relationship Recommended Edge Treatment
Flank
Honing
Negative land angle
Negative land angle
Negative land width W
Rake Face
CBN Layer
Cutting Edge Sharpness
Good
LF
type
LE
type
LS
type
No R Honing
(Burr Control Emphasis)
R Honing
(Surface Roughness Emphasis)
R Honing
(Breakage Control Emphasis)
Standard
HS
type
Interruption degree
Frequent
SUMIBORON for Sintered Alloy Machining
BN7500
Sintered
Alloy
W Honing
Standard
15°
0.12mm
No
LF type
= 0°
(No Negative Land)
LE type
Ye s
LS type
15°
0.07mm
HS type
25°
0.05mm
L
L19
SUMIBORON
From Finishing to Roughing of Cast lron and Exotic Alloys!
General Features
New solid structure CBN insert. As all the edges can be used, total
machining cost will be lower, compared to conventional CBN inserts.
Biggest demand for this insert will be in Cast Iron machining. As
conventional brazed CBN inserts are not suitable for high speed cutting
and roughing, BNS800 can be used even for high speed finishing
processes with many times the tool life of ceramic inserts. Additionally,

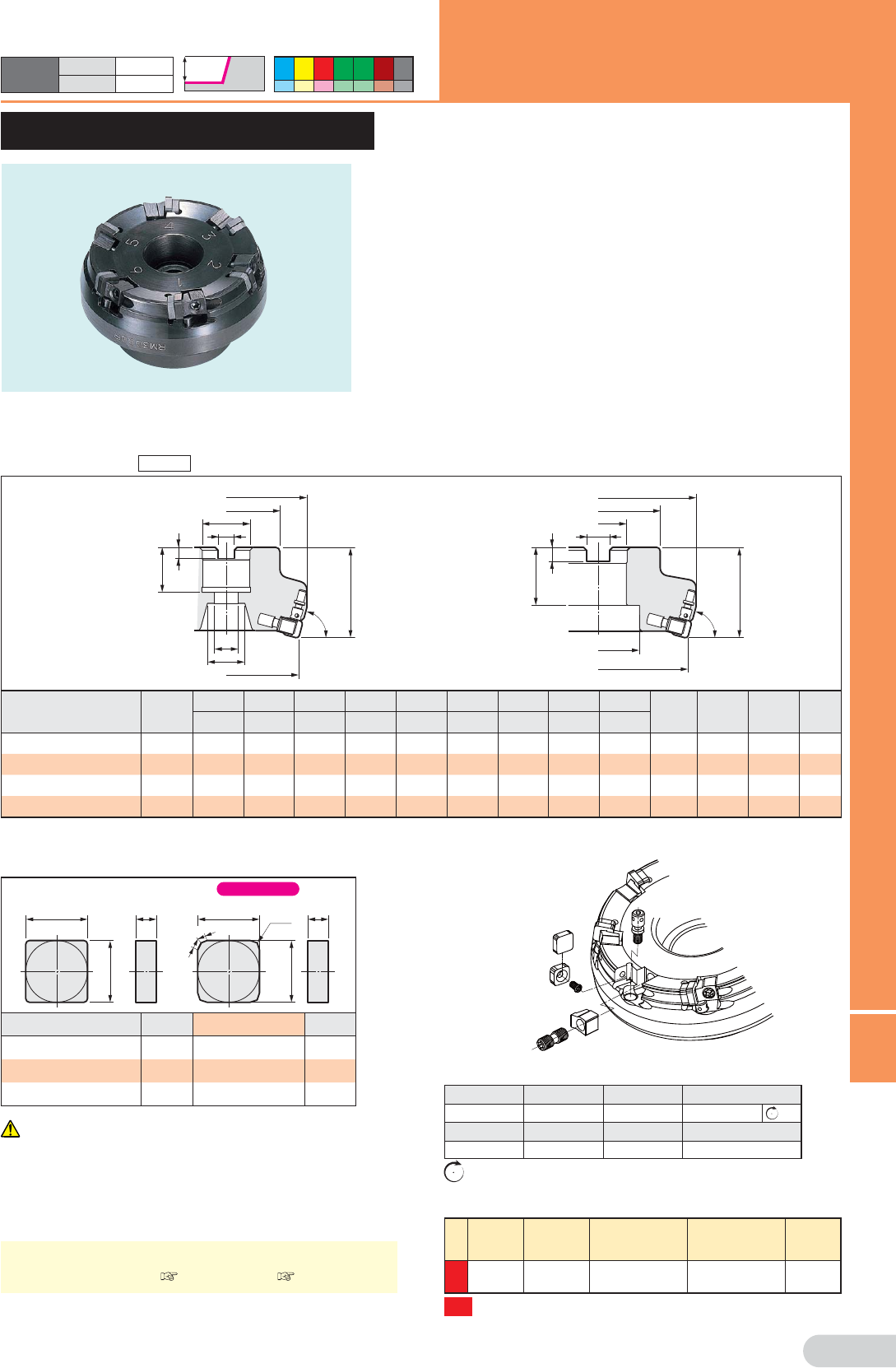

RM type cutter is developed exclusively for Solid SUMIBORON and is
suitable for high-speed rough milling.
Characteristics
Larger Cutting Depths
100% solid CBN structure where the whole edge can be use.
High Precision Machining
Excellent balance of wear resistance and toughness.
Total Cost Effectiveness
All corners of the insert can be utilized.
Cutting Performance
6
0
3
Double the competitor’s fracture resistance.
BNS800
Interrupted Cutting
Comp.
Solid
CBN
Int. cut OK.
Chipping
0.14mm
Fracture
Int. cut. NG.
Cutting Distance (km)
Work Material
Cutting Conditions
:
:
Bar-6V grooves (FC300) Insert: SNGN090308
vc=600m/min, f=0.3mm/rev, ap=0.5mm, Dry
20 30010
0.02
0.04
0.06
BNS800
Wear resistance is better than competitor’s.
Continuous Cutting
Flank Wear Width (mm)
Comp. CBN
Cutting Distance (km)
Work Material
Cutting Conditions
:
:
Bar (FC300) Insert: SNGN090308
vc=800m/min, f=0.2mm/rev, ap=0.5mm, Dry
Application Example
Cylinder Bore
FC250
Medium Finishing
Finishing
Machine Bed
FC250
Milling RM3125R
Carbide Roll
Turning
Carbide (Co 15%)
Sprayed Face Bore
Boring
Colmonoy
<Tool life criteria: Finishing>
BNS800
Comp.
Solid
CBN
7,500 Bore
2,500 Bore
<Tool life criteria: Finishing>
200 400
BNS800
Carbide
60min (Vc=500m/min)
Cutting Duration (min)
400 min
<Tool life criteria: breakage>
BNS800
Comp.
CBN
1 pass Breakage
5 pass
Int. cut OK.
<Tool life criteria: breakage>
BNS800
Comp. CBN
6 pcs
10 pcs
<machining cost / corner>
0.5 1
BNS800
Comp. CBN
Ratio
Cutting Conditions
Med. Finish Finishing
Cutting Conditions
Roughing
Cutting Conditions
Finishing
Cutting Conditions
Roughing Finishing
Grade BNS800 Grade BNS800 Grade BNS800 Grade BNS800
Cat.No. SNGN090308 Cat.No. SNEN090308W Cat.No. RNGN090300 Cat.No.
SNGN090312 SNGN090308
vc1,000m/min vc1,500m/min vc40m/min vc80m/min
f0.3mm/rev 0.25mm/rev fz0.2mm/t f0.15mm/rev f0.04mm/rev 0.03mm/rev
ap0.2mm ap2.5mm (2 pass) ap0.2mm ap to 3mm 0.5mm
Coolant Wet Coolant Dry Coolant Wet Coolant Wet
Solid SUMIBORON for Cast Iron Machining
BNS800
K
Cast Iron
Refer to pages L98 to L99
for BNS800 special holders
and page L113 for RM Type
milling cutter.
L
L20
SUMIBORON

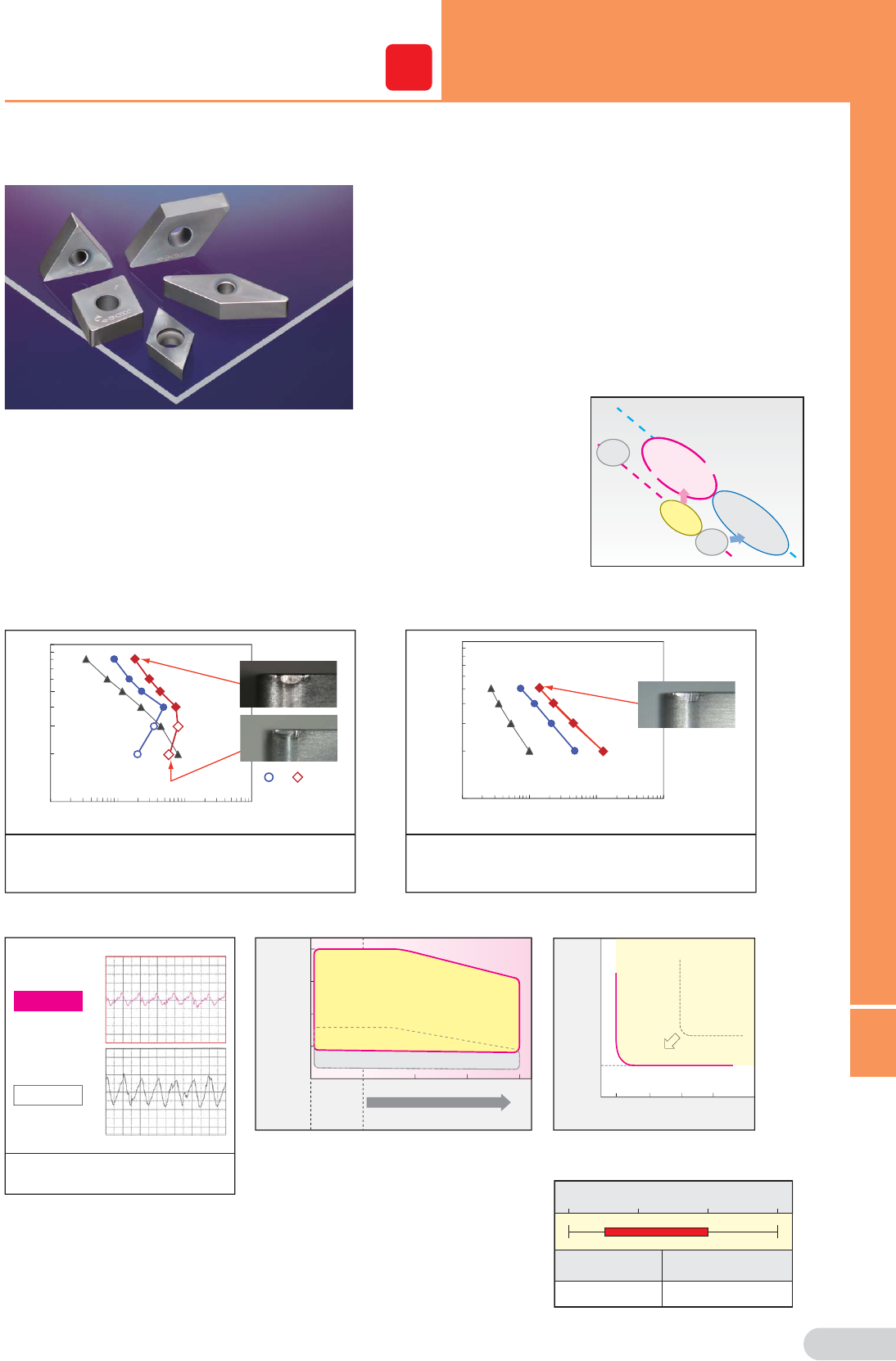

General Features
Broad improvements in the toughness of the CBN sintered body and
wear resistance from the application of a newly developed high-purity
TiC binder. In addition, it demonstrates exceptional wear resistance
by combining a ceramic coating with excellent heat resistance. High-
speed and high-precision machining is achieved when finishing
ductile cast iron. It also provides a long, stable tool life in machining
high-strength ductile cast iron, special cast irons such as vermicular
cast iron, and centrifugally-cast cast iron.
Coated CBN Grades for Ductile Cast Iron Machining
Characteristics
Achieves a Long, Stable Tool Life in High Speed Machining of Ductile Cast Iron
Superior wear resistance, makes stable machining possible under high-speed conditions.
Supports High-precision Machining
Can maintain excellent dimensional tolerance and surface roughness over many hours.
BNX10
BN500
BN700
BNC500
BN7000
Impact on Cutting Edge LargeSmall
HighLow Cutting Speed
200 300 400 500
0.10 to 0.40
Cutting Speed vc(m/min)
Feed Rate f
(mm/rev)
D.O.C.ap
(mm)
≤ 0.50
Recommended Cutting Conditions
Coated SUMIBORON for Ductile Cast Iron Machining
BNC500
K
Cast Iron
FCD450 Continuous Cut (V-T Chart)
BNC500
BN500
BN7000
1,000
500
100
0101 100
Work Material:
FCD450(160HB) Insert: 4NC-CNGA120408
Cutting Conditions: f=0.2mm/rev, ap=0.2mm, Wet
Tool life limit set at: VBmax=0.2mm
Tool Life (km)
* and indicate
development of front
cutting edge boundary
wear.
Cutting Speed Vc (m/min)
FCD700 Continuous Cut (V-T Chart)
BNC500
BN500
BN7000
1,000
500
100
0101 100
Work Material:
FCD700(260HB)
Insert: 4NC-CNGA120408
Cutting Conditions: f=0.2mm/rev, ap=0.2mm, Wet
Tool life limit set at: VBmax=0.2mm
Tool Life (km)
Cutting Speed Vc (m/min)
Machined Surface Quality
10.0
5.0
0
-5.0
-10.0
10.0
5.0
0
-5.0
-10.0
BNC500
Ceramic
Ra=0.6μm
Cutting Distance 3km
Surface Roughness
Ra=2.3μm
Work Material: FCD700 (260HB)
Cutting Conditions: vc=400m/min,
f=0.2mm/rev, ap=0.2mm, Wet
500
0
200
300
400
FCD450 FCD700FCD600
AC405K / AC415K / AC420K
BNC500
()
FCV
CGI
Hard
Strength
Ductile cast iron
Vermicular
Cast Iron
Cutting Speed (m/min)
Application Range
0.4
IT6
0.8 1.6 3.2
BNC500
Surface Roughness Ra μm
Good
Tolerance
Ceramic
Coated carbide
Cermet
Good
High Precision Machining
* Coolant: Wet
L
L21
SUMIBORON
Regrindable Type
One-use Type
CNMA
120408(-)B
(1) ISO Code
(ISO Standard Classification)
B2/B3
(1)
(2) Additional Information
Chart 1
(2)
Chart 1 (2) Additional Information
Symbol
Old symbol
Code Description
–BB
Full-top CBN insert
–BSTN –BSN
Full-top CBN insert
(Small edge treatment)
2NU - CNGA120408LT
(4)
Additional Information
Chart 4
(4)
(3) ISO Code
(ISO Standard Classification)
B2/B3
(3)
(2)
Type Code
Chart 3
(2)(1)
(1)
No. of Cutting Edges
Chart 2
Chart 2 (1) No. of Cutting Edges
Code
No. of Cutting Edges
Type
(No Code)
1 cutting edge
Single Corner
2
2 cutting edges
Multi-Corner
3
3 cutting edges
4
4 cutting edges
6
6 cutting edges
Chart 3 (2) Type Code
Code Series Grade
NC Coated
SUMIBORON
BNC2010,2020,
BNC100,160,
BNC200, 300, 500
NU
SUMIBORON
BNX10, 20
BN1000, 2000, 350
BN500, 700, 7000, 7500
NS BNX25
* NS type is the one-use type insert, using the latest
brazing technique, for BNX25 grade. The shape is
similar to NU type.
Chart 4 (4) Additional Information
New
symbol Old
symbol
Code Description
SUMIBORON
Coated SUMIBORON
(No
Code)
(No
Code) Standard Type
LF
LE FSharp Edge
Type
Sharp Edge
Type
LT SSmall Edge
Treatment Type
Small Edge
Treatment Type
LS M
General Type for
Continuous Cutting
Fine Boring
Type
ES High Efficiency
Type
HT
HS TStrong Edge
Type
Strong Edge
Type
WG
WH
W
WWiper Insert
N-FV
N-LV
N-SV
N-SV Chipbreaker Type
SUMIBORON
Insert Identification
L26
*
Catalog numbers that begin with "T-" are 10-piece packs.

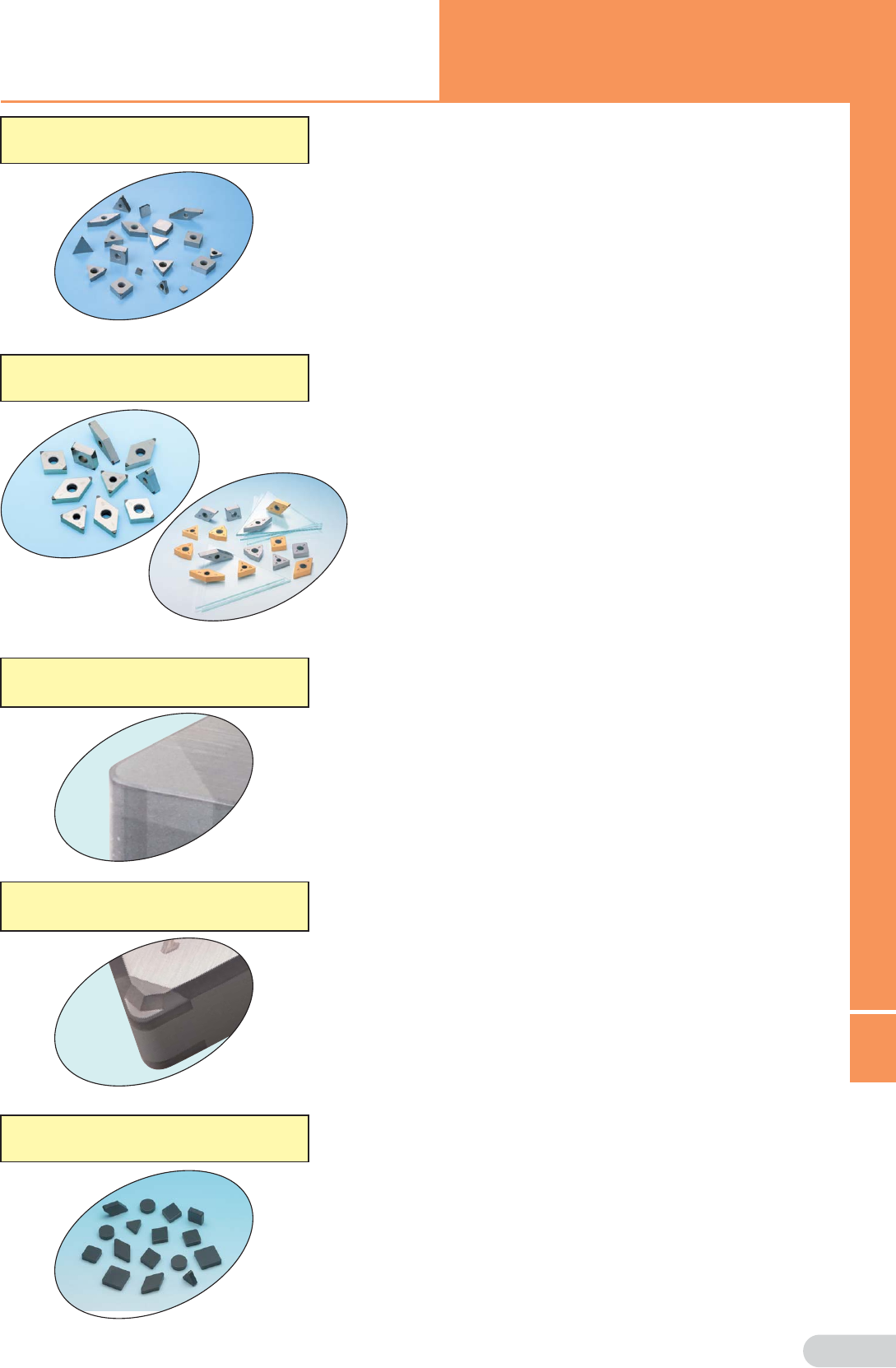

L
L22
SUMIBORON
One-use Insert NU Type / NS Type
Multi-cornered, One-use Insert
Solid SUMIBORON
Characteristics
Affordable version of the once expensive sintered CBN
material, at its best size.
One-use type eliminates regrinding thus making tool
management easy.
Reduce required storage space with 10pcs pack.
Characteristics
Insert with several brazed SUMIBORON one-use corners.
Price per edge is more reasonable compared to normal
single cornered, one-use type insert.
Coated SUMIBORON is available as a double-faced insert.
Diamond shaped inserts have 4 cutting edges and Triangle
shaped inserts have 6 cutting edges etc.
Multi-cornered, one-use type has G-class specification with side faces ground.
In addition, all edges are numbered for easy cutting edge management.
Characteristics
SUMIBORON one-use insert with wiper edge for Hardened Steel machining.
Excellent surface roughness comparable to grinding.
Improved efficiency with higher speeds and feeds.
Lineup includes WG Type for low-feed cutting and WH Type for high-feed cutting.
Characteristics
SUMIBORON one-use insert with chipbreaker. The SV
Type is suited to carburized layer removal, and the LV
Type/FV Type are suited to finishing hardened steel.
Breaker included on the CBN edge, chipbreaking effect
can be maintained throughout.
Unique breaker design can be applied to both hardened
and non-hardened parts with effective chip control.
Characteristics
100% solid CBN structure. With no brazed portion, this grade
is excellent for the roughing of Cast Iron at large depth of cut.
SUMIBORON Inserts
Guidance for SUMIBORON Inserts
One-use insert with chipbreaker
Break Master FV Type / LV Type / SV Type
One-use Wiper Insert
WG Type / WH Type
L
L23
SUMIBORON

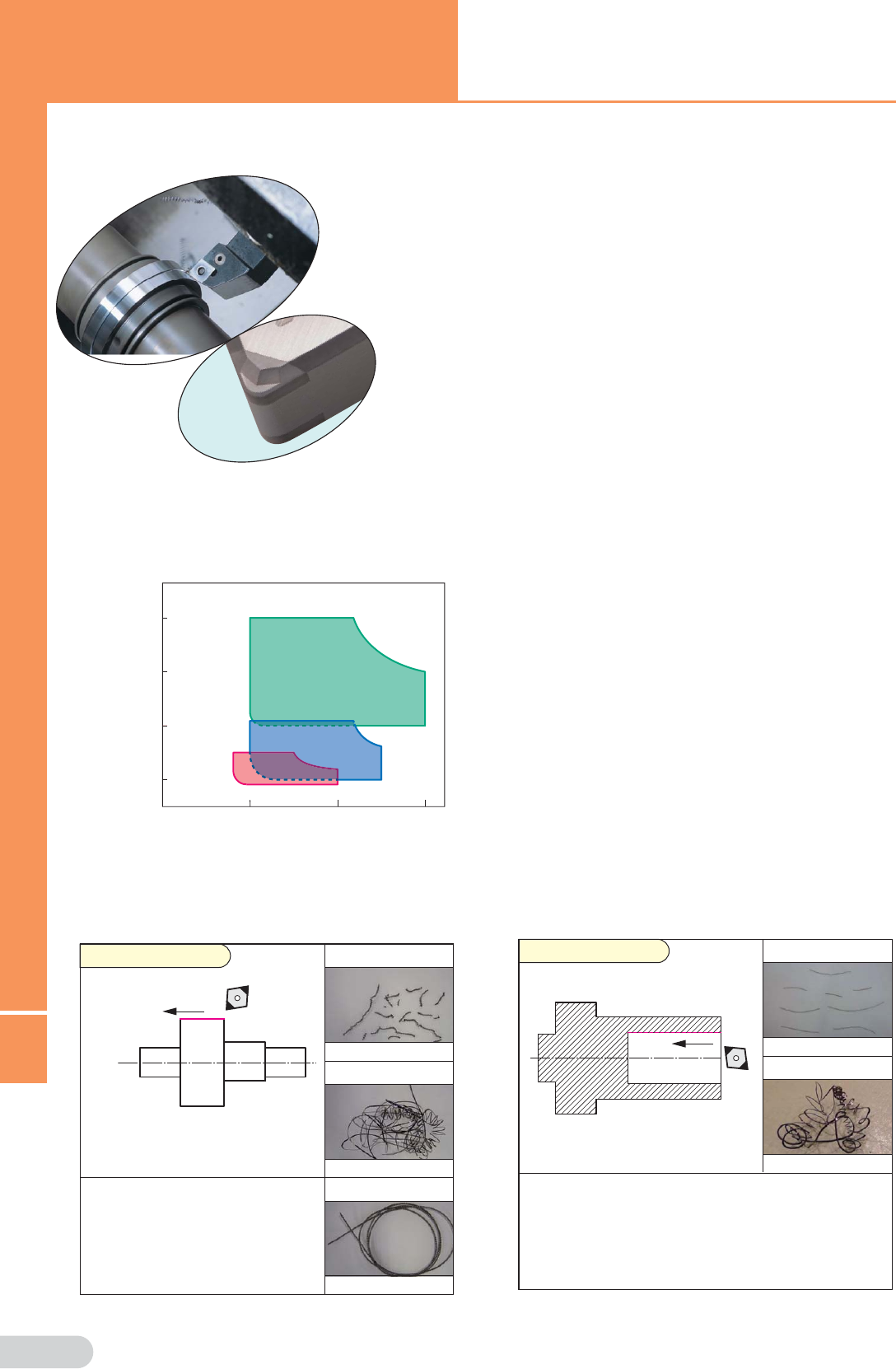

One-use Inserts With Chipbreaker
Break Master FV Type / LV Type / SV Type
Application Example
External Caburized Layer Removal
Break Master-SV Type
BNC200 (no breaker)
Tool life = 200pc s
Tool life = 200pc s
Tool life=100pcs
Comp CBN (with breaker)
·
No constant stoppages or incorrect part
dimension problems and the chips are small.
·
Double the tool life of competitor's CBN
Work Material
:SCr420 Carburized Steel (shaft)
Insert: 4NC-CNGG120408N-SV(BNC200)
Cutting Conditions
: vc=150m/min, f=0.15mm/rev,
ap=0.5mm × 2 passes, Wet
Finishing of Hardened Steel
Work Material: Carburized Steel 60HRC (Automotive Component)
Insert: 2NC-CCGT060204N-FV(BNC200)
Cutting Conditions
: vc=80m/min, f=0.08mm/rev,
ap=0.15mm, Wet
Break Master-FV Type
BNC200 (no breaker)
Tool life=300pcs
Tool life=300pcs
· Improved chip control during boring.
Application Range
0.1 0.2 0.30
0.1
0.3
0.5
0.7
Feed Rate (mm/rev)
Depth of Cut (mm)
SV Type
SV Type
SV Type
LV Type
LV Type
LV Type
FV Type
FV Type
FV Type
* For hardened parts (above 50HRC), please use
less than 0.5mm depth of cut.
L
L24
Characteristics
SUMIBORON one-use insert with chipbreaker.
SV type is perfect for carburised layer removal while FV /
LV types are best suited to finishing of hardened steel.
Breaker included on the CBN edge, chipbreaking effect
can be maintained throughout machining process.
Unique chipbreaker design can be applied to both
hardened and non-hardened parts with effective chip
control.
The SV Type lineup includes both the BNC2010 / BNC160
for
good wear resistance and the BNC2020 / BNC200 with
Coated
SUMIBORON, which enables high efficiency machining.
The FV Type and LV Type lineups include the BNC2010/
BNC160 for good wear resistance, the general-purpose
BN2000 with Uncoated SUMIBORON, and the general-
purpose BNC2020/BNC200 with Coated SUMIBORON.
SUMIBORON

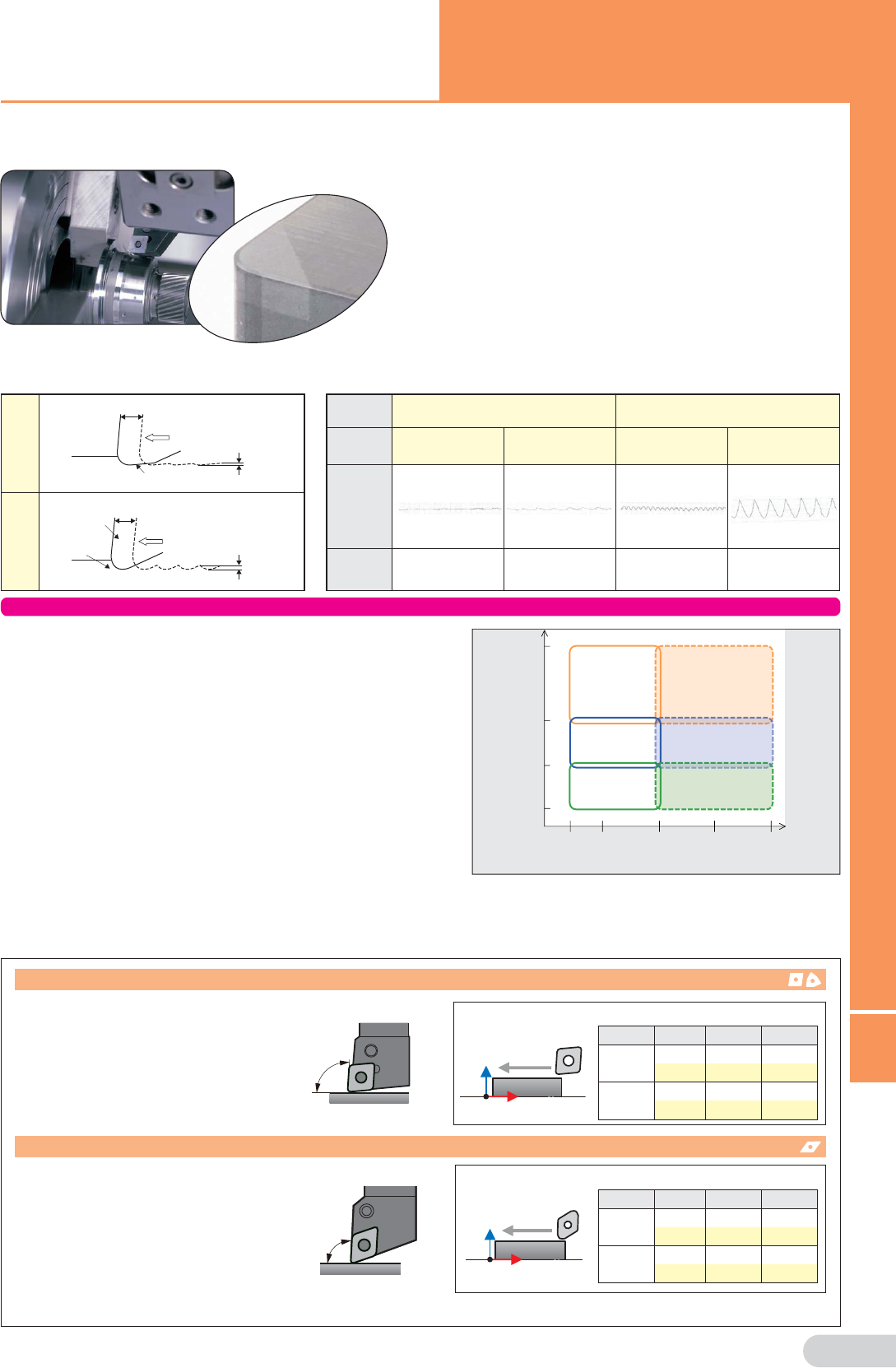

SUMIBORON One-use Wiper Inserts
WG Type / WH Type
Characteristics
SUMIBORON one-use insert with wiper
flat for Hardened Steel machining.
Excellent surface finish similar to grinding
Improved efficiency with higher speeds and feeds
Lineup includes WG type for low-feed
cutting and WH type for high-feed cutting.
Recommended Cutting Conditions (Surface Roughness
Standard: 1.6s to 3.2s)
For optimum effectiveness, use wiper inserts for
continuous cutting. For copy turning, inserts with nose-
radius are recommended.
Chattering and undulation may occur, please use work
material and machines with high rigidity.

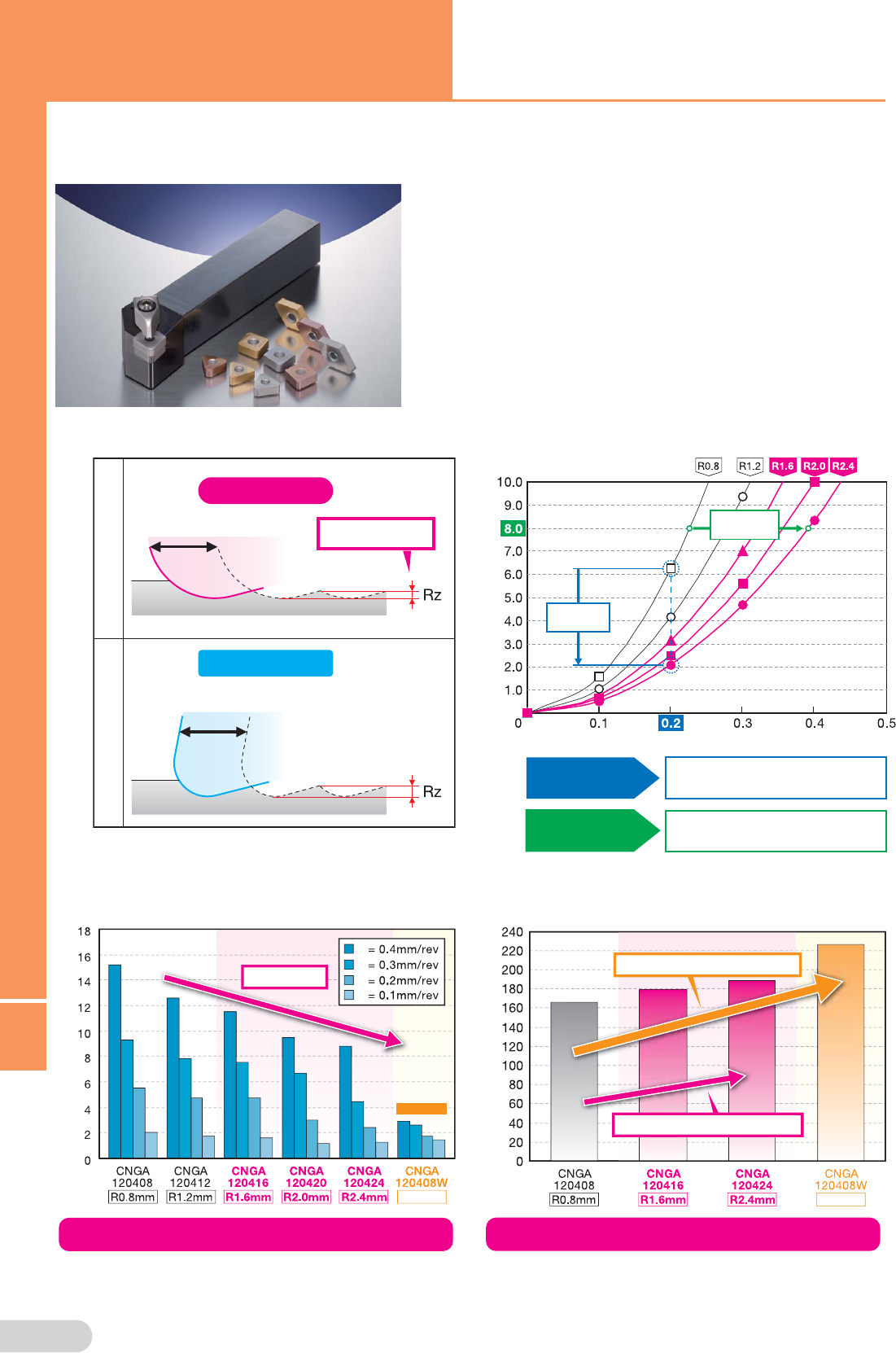

Purpose of Wiper Edge
Wiper Insert
Rz (Highest peak)
f: Feed rate
Feed
direction
Wiper edge
Normal Insert
Insert
Work
f: Feed rate
Rz (Highest peak)
Feed
direction
Surface Roughness of Wiper Insert
Wiper Insert (WG Type/WH Type) Standard Insert
(No Wiper Nose Radius R0.8)
Low feed cutting
(f = 0.10)
High feed cutting
(f = 0.30)
Low feed cutting
(f = 0.10)
High feed cutting
(f = 0.30)
Surface
Roughness
Surface
Roughness Rz
(Highest peak)
0.63 m 1.39 m 1.98 m 9.20 m
0.1 0.3
0.2
150
0.4
0.05
220
100
50
BNC2010
BNC2020
BN2000
Feed Rate
f
(mm/rev)
Cutting Speed vC (m/min)
WG Type WH Type
WG Type WH Type
WG Type WH Type
The wiper flat offers good surface finish and improved efficiency.
WG Type: Recommended feed rate of f = 0.20 or lower (Surface Finish Rz = 1.6 to 3.2 μm)
WH Type: Recommended feed rate of f = 0.20 or higher (Surface Finish Rz = 1.6 to 3.2 μm)
Lineup includes five grades (BN2000, BNC2010, BNC2020, BNC200, BNC160) to suit different
cutting speeds.
WG Type WH Type
X axis (+)
Z axis
(
+
)
External Turning
CNGA Type/CCGW Type/WNGA Type Breaker Cutting Edge Position Compensation (WG Type/WH Type)
Nose Radius
Type
X direction Z direction
R0.4
WG Type
-0.02 -0.02
WH Type
-0.06 -0.06
R0.8/R1.2
WG Type
-0.01 -0.01
WH Type
-0.06 -0.06
CNGA Type/CCGW Type/WNGA Type
WG Type/WH Type Breaker
Use a toolholder with a 95° cutting angle.
To ol compensation required
CN GA Ty p e / CC G W Ty p e / W N GA Ty p e
wiper inserts do not follow the ISO
standard. Correct the cutting edge (tool
offset) as explained on the right.
95°
cutting
angle
93°
cutting
angle
X axis (+)
Z axis (+)
External Turning
Nose Radius
Type
X direction Z direction
R0.4
WG Type
-0.17 -0.01
WH Type
-0.70 -0.06
R0.8
WG Type
-0.05 0
WH Type
-0.58 -0.05
DNGA Type/DCGW Type Breaker Cutting Edge Position Compensation (WG Type/WH Type)
DNGA Type/DCGW Type
WG Type/WH Type Breaker
Use a toolholder with a 93° cutting angle.
To ol compensation required
DNGA Type/DCGW Type wiper inserts
do not follow the ISO standard. Correct
the cutting edge position (tool offset) as
explained on the right.
Note) Unlike the other profiles, the DNGA Type and DCGW Type are only effective for external turning and internal boring. They cannot be used for facing.
Important Notes About Wiper Inserts
L
L25
SUMIBORON
Edge Specification of SUMIBORON Inserts
SUMIBORON Insert Cutting Edge Specification List
Series Work
Material Grade
Negative/
Positive
Standard
Low Resistance Type High Efficiency Type
Strong Edge Type
Identification Code
W Honing Notation Code W Honing Notation Code W Honing
Uncoated SUMIBORON
Hardened
Steel
BNX10
Neg./Pos.
T01225 25° 0.12 No
BNX20
Neg./Pos.
S01225 25° 0.12 Yes LT
T01215
15° 0.12 No
BNX25
Neg./Pos.
S01725 25° 0.17 Yes
BN1000
Neg./Pos.
S01225 25° 0.12 Yes
BN2000
Neg./Pos.
S01225 25° 0.12 Yes LT T01215 15° 0.12 No HS S01235 35° 0.12 Yes
BN350 Neg. T01225 25° 0.12 No HT T01235 35° 0.12 No
Pos. T01235 35° 0.12 No
Cast Iron
Exotic
Alloy
BN500
Neg./Pos.
T01215 15° 0.12 No
BN700
Neg./Pos.
T01215 15° 0.12 No LF
(Sharp edge)
0° 0 No HS S01225 25° 0.12 Yes
BN7000
Neg./Pos.
T01215 15° 0.12 No LF
(Sharp edge)
0° 0 No HS S01225 25° 0.12 Yes
BN7500
Neg./Pos.
T01215 15° 0.12 No
LF
(Sharp edge)
0° 0 No
HS S00525 25° 0.05 Yes
LE
(Sharp edge)
0° 0 Yes
LS S00715 15° 0.07 Yes
BNS800 Neg. T02020 20° 0.20 No LF
(Sharp edge)
0° 0 No
Coated SUMIBORON
Hardened
Steel
BNC2010
Neg./Pos.
S01225 25° 0.12 Yes LE
(Sharp edge)
0° 0 Yes HS S01730 30° 0.17 Yes
BNC2020
Neg./Pos.
S01225 25° 0.12 Yes LT T00515 15° 0.05 No HS S02735 35° 0.27 Yes
ES S00535 35° 0.05 Yes
BNC100
Neg./Pos.
S01225 25° 0.12 Yes LS S01715 15° 0.17 Yes
BNC160
Neg./Pos.
S01225 25° 0.12 Yes LS S01020 20° 0.10 Yes HS S01730 30° 0.17 Yes
BNC200
Neg./Pos.
S01225 25° 0.12 Yes LS S01015 15° 0.10 Yes HS S01735 35° 0.17 Yes
BNC300
Neg./Pos.
S01225 25° 0.12 Yes LS S00515 15° 0.05 Yes HS S01735 35° 0.17 Yes
Cast Iron BNC500
Neg./Pos.
S01215 15° 0.12 Yes HS S01225 25° 0.12 Yes
Neg.=Negative Pos.= Positive
* BNX20 Identification code will be T00715 for inserts with inscribed circle of less than Ø4.76.
LEH
Nose radius
Rake face
Flank
Negative land
CBN layer
Cutting edge
AA
A'A'A'
Close-up of cutting edge
Cutting Edge Specification Identification Code
Notation of Edge Preparation
No Standard type
L
Low cutting forces
E
High Efficiency
H
Strong edge type
WG/WH/W
Wiper
N-FV/N-LV/
N-SV
With Chipbreaker
FSharp edge
EHoning
TNegative land
SNegative land + Honing
Cutting edge Preparation of inserts with wipers / chipbreakers
Series Work
Material Grade Other Types
Notation
Code W Honing Type
Uncoated
SUMIBORON
Hardened
Steel BN2000
WG S01215 15° 0.12 Yes Wiper
WH S01215 15° 0.12 Yes Wiper
N-FV —0° 0 Yes With breaker
N-LV S00535 35° 0.05 Yes With breaker
Cast Iron
Exotic
Alloy
BNS800 WT02020 20° 0.20 No Wiper
LFW
(Sharp edge)
0° 0 No
Wiper Sharp edge
Coated
SUMIBORON
Hardened
Steel
BNC2010
BNC2020
WG S01215 15° 0.12 Yes Wiper
WH S01215 15° 0.12 Yes Wiper
N-FV —0° 0 Yes With breaker
N-LV S00535 35° 0.05 Yes With breaker
N-SV S01235 35° 0.12 Yes With breaker
BNC100 WS01715 15° 0.17 Yes Wiper
BNC160
BNC200
WG S01215 15° 0.12 Yes Wiper
WH S01215 15° 0.12 Yes Wiper
WS01215 15° 0.12 Yes Wiper
N-FV —0° 0 Yes With breaker
N-LV S00535 35° 0.05 Yes With breaker
N-SV S01235 35° 0.12 Yes With breaker
Cast Iron BNC500 WS01215 15° 0.12 Yes Wiper
Section A-A'
Rake face
Negative land width
Relief face
CBN layer
Honing
Negative land
angle
Negative land
angle
Preparation
type
T Negative land
S Negative land + honing
Ex S01225
25°/0.12mm width negative land with honing
Negative land
width
Negative land
angle
S01225
Edge Preparation identification code
Rake face
Negative land width
Relief face
CBN layer
Honing
Negative land
angle
Negative land
angle
SUMIBORON Insert and Edge Preparation
All SUMIBORON inserts are enhanced with the optimum cutting edge
preparation for the various grades and geometries (shown on the right).
This is to avoid cutting edge fracture caused by the heavy loads generated
during the machining of high hardness materials such as Hardened Steel.
As the pioneer of CBN tools "SUMIBORON," various selection of grades
and edge preparation combinations is our strong point for Hardened Steel
machining.
L
L26
SUMIBORON
Machining of Hardened Steel Sintered Alloy Machining
HSType
LFType
LEType
Breakage Control Emphasis
Surface Roughness Emphasis
Burr Control Emphasis
LSType
Standard
No R Honing
No R Honing
R Honing
R Honing
R Honing
Sintered
Alloy
Good
Sharpness of edge
Interruption
Frequent
Good
Sharpness of edge
Interruption
Frequent
Breakage control during
interrupted cutting
Breakage control at
high speeds/high feed rates
Emphasis on dimensional
tolerance/surface roughness
Emphasis on dimensional
tolerance/burr control
Burr control during
interrupted cutting
Standard
R Honing
LEType
R Honing
HTType
HSType
R Honing
LTType
No R Honing
LSType
R Honing
ESType
R Honing

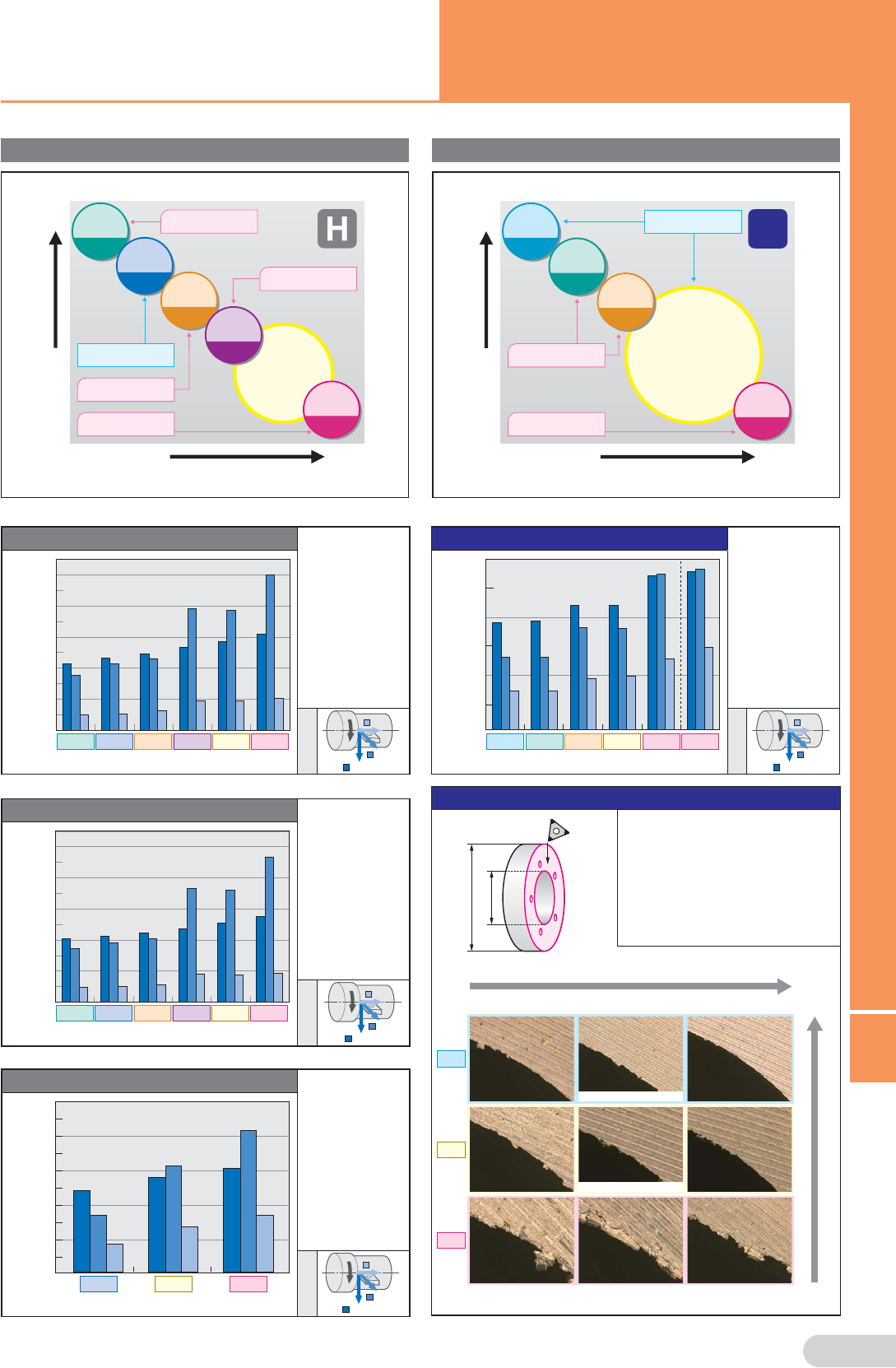

Edge Preparation Performance
Edge Specification of SUMIBORON Inserts
Coated SUMIBORON Cutting Force Comparison vc=100mm/min
Work Material: SCM415
Cutting Conditions:
vc=100m/min
f =0.1mm/rev
ap=0.1mm
Dry
Insert:
DNGA150408
LE LT LS ES
Standard
HS
Cutting Force (N)
Without negative
land With honing
0
20
40
60
80
100
110
BNC2010 BNC2020 BNC300
BNC2020 BNC2020
BNC2020
10
30
50
70
90
T00515 S00515 S00535 S01225 S02735
Legend
Cutting Force Comparison (Feed Rate: f = 0.05mm/rev)
Work Material: SMF4040
Cutting Conditions:
vc=200m/min
f=0.05mm/rev
a=0.2mm
Dry
Insert:
CNGA120408
LELF LS
Standard
HS HS
Sharp Edge
No Honing
Without negative
land With honing
S00715 T01215 S00525 S01225
10
20
30
40
50
60 BN7500
BN7000
0
Cutting Force (N)
Legend
Coated SUMIBORON Cutting Force Comparison c=200mm/min
Work Material: SCM415
Cutting Conditions:
vc=200m/min
f =0.1mm/rev
ap=0.1mm
Dry
Insert:
DNGA150408
20
40
60
80
100
110
BNC2010 BNC2020 BNC300
0
10
30
50
70
90
LE LT LS ES
Standard
HS
Without negative
land With honing
T00515 S00515 S00535 S01225 S02735
Cutting Force (N)
BNC2020 BNC2020
BNC2020
Legend
Uncoated SUMIBORON Cutting Force Comparison Work Material: SUJ2
Cutting Conditions:
vc=200m/min
f =0.1mm/rev
ap=0.2mm
Dry
Insert:
CNGA120408
20
40
60
80
100
120
140
160
180
200 BN2000
0
LT
Standard
HS
T01215 S01225 S01235
Cutting Force (N)
Legend
Relationship between Edge Preparation and Machined Surface Quality
ø120mm
ø60mm
GoodSurface Roughness
Burr
vc =100m/mi n vc =200m/min vc =300m/min
Small
Good
Surface Roughness
Small
Insert: 3NU-TNGA 160408 (BN7500)
Edge Specification: LF Type, Standard, HS Type
Work Material: SMF4040 90HRB
Cutting Conditions: vc=100
,
200
,
300m/min
f=0.1mm/rev
ap=0.2mm
Wet
LF
Standard
HS
L
L27
L28
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted

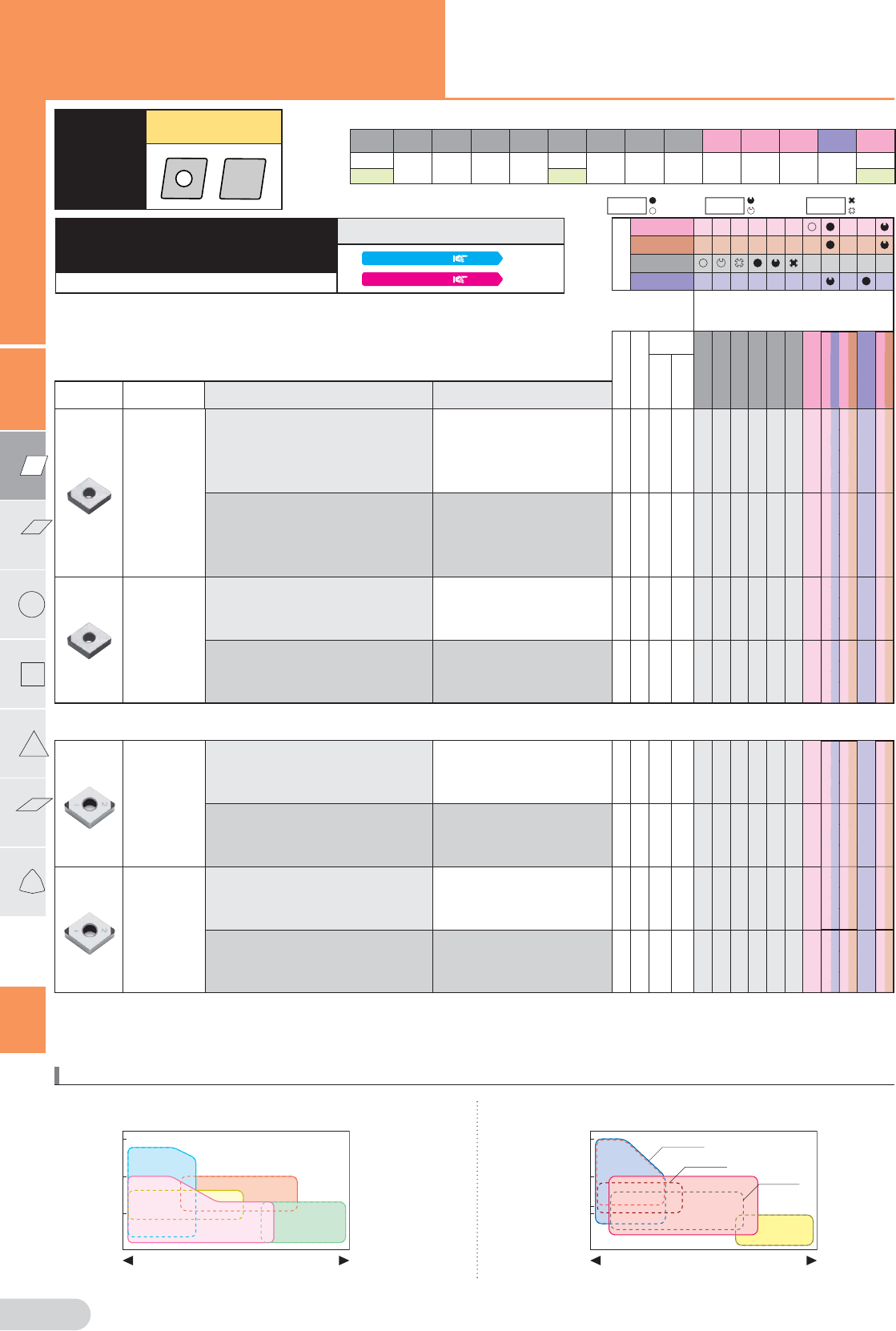

L
SUMIBORON
Negative Inserts
Standard
NU-CNMA 120402
120404
120408
120412
11
0.2 2.5
0.4 2.5
0.8 2.4
1.2 2.3
T-NU-CNMA 120402
120404
120408
120412
10 1
0.2 2.5
0.4 2.5
0.8 2.4
1.2 2.3
Standard
NS-CNMA 120404
120408
120412
11
0.4 2.5
0.8 2.4
1.2 2.3
T-NS-CNMA 120404
120408
120412
10 1
0.4 2.5
0.8 2.4
1.2 2.3
C
80° Diamond Type
Legend:
Continuous Cut
1st Choice
Medium Cut
:
1st Choice
Interrupted Cut
:
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
One-use Type/Negative (With Hole)
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C7, 8
Applicable Internal Holders
E23 to E25
CN¢¢1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-CNGA 120404
120408
120412
12
0.4 2.5
0.8 2.4
1.2 2.3
T-2NU-CNGA 120404
120408
120412
10 2
0.4 2.5
0.8 2.4
1.2 2.3
Standard
2NS-CNGA 120404
120408
120412
12
0.4 2.5
0.8 2.4
1.2 2.3
T-2NS-CNGA 120404
120408
120412
10 2
0.4 2.5
0.8 2.4
1.2 2.3
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy

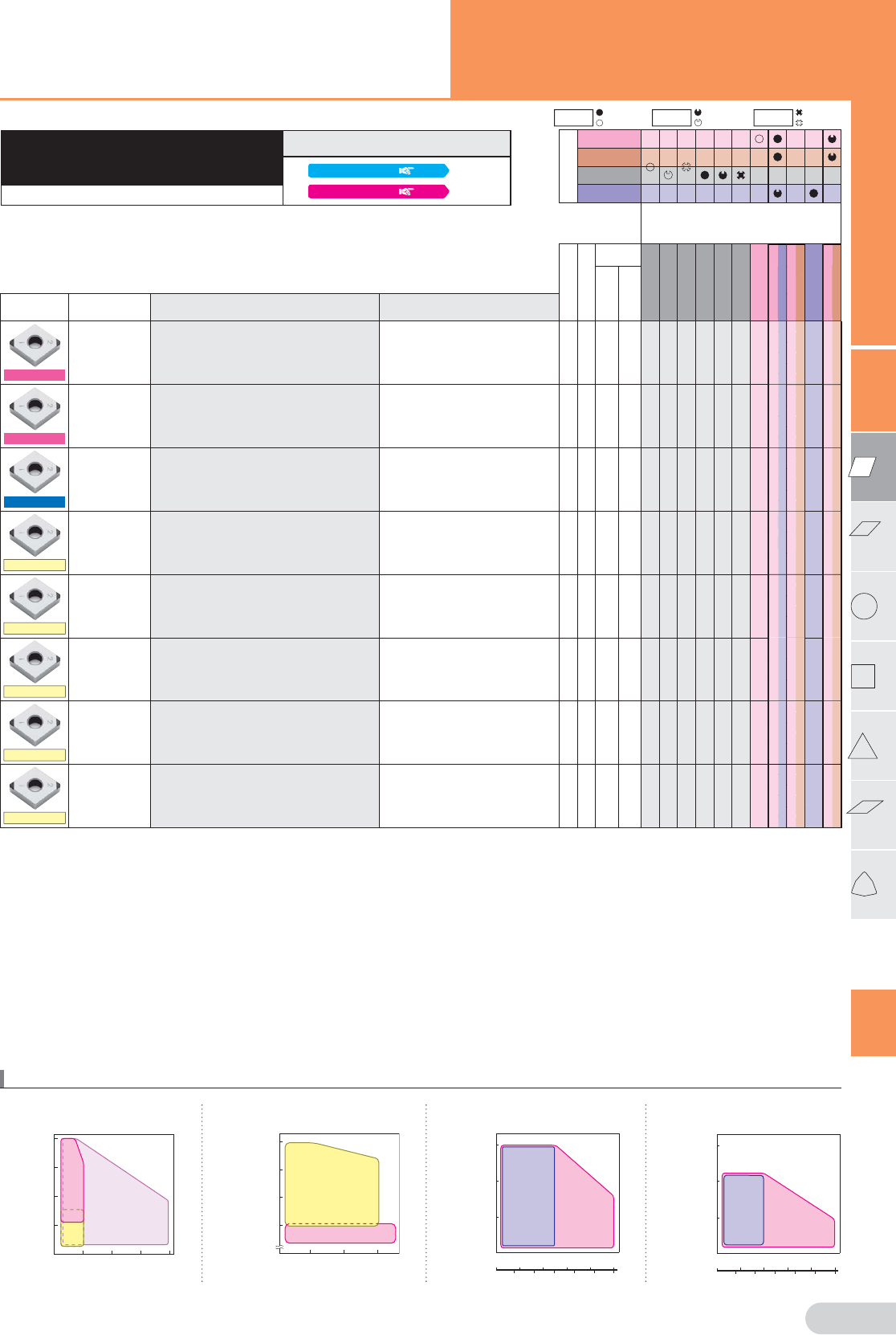

Wiper Insert
S01215
2NU-CNGA 120404WG
120408WG
120412WG
12
0.4 2.4
0.8 2.4
1.2 2.3
Wiper Insert
S01215
2NU-CNGA 120404WH
120408WH
120412WH
12
0.4 2.4
0.8 2.3
1.2 2.2
Break Master
S00535
2NU-CNGM 120404N-LV
120408N-LV
120412N-LV
12
0.4 2.5
0.8 2.4
1.2 2.3
Less Cutting force
Sharp
Edge
2NU-CNGA 120404LF
120408LF
120412LF
2NU-CNGA 120404F
120408F
120412F
12
0.4 2.5
0.8 2.4
1.2 2.3
Less Cutting force
Honing
2NU-CNGA 120404LE
120408LE 12
0.4 2.5
0.8 2.4
Sharper edge
T01215
2NU-CNGA 120404LT
120408LT
120412LT
12
0.4 2.5
0.8 2.4
1.2 2.3
Sharper edge
S00715
2NU-CNGA 120404LS
120408LS 12
0.4 2.5
0.8 2.4
Stronger edge
T01235
2NU-CNGA 120404HT
120408HT
120412HT
2NU-CNGA 120404T
120408T
120412T
12
0.4 2.5
0.8 2.4
1.2 2.3
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L29
Applicable holder ref. page, (Example)
Applicable External Holders
C7, 8
Applicable Internal Holders
E23 to E25
CN¢¢1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts
Stronger edge
BN2000 S01235
BN7000 S01225
BN700 S01225
BN7500 S00525
2NU-CNGA 120404HS
120408HS
120412HS
2NU-CNGA 120404T
120408T
120412T
12
0.4 2.5
0.8 2.4
1.2 2.3
L30
C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C7, 8
Applicable Internal Holders
E23 to E25
CN¢¢1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Depth-of-cut for one-use type is 0.5mm or less
Standard
CNMA 120404
120408
120412
11
0.4 4.6
0.8 4.5
1.2 4.4
Negative Type (With Hole)
Standard
CNGA 120408
120412 1
Solid
0.8 12.9
1.2 12.9
Solid Type/Negative (With Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
:
1st Choice
Interrupted Cut
:
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
L31

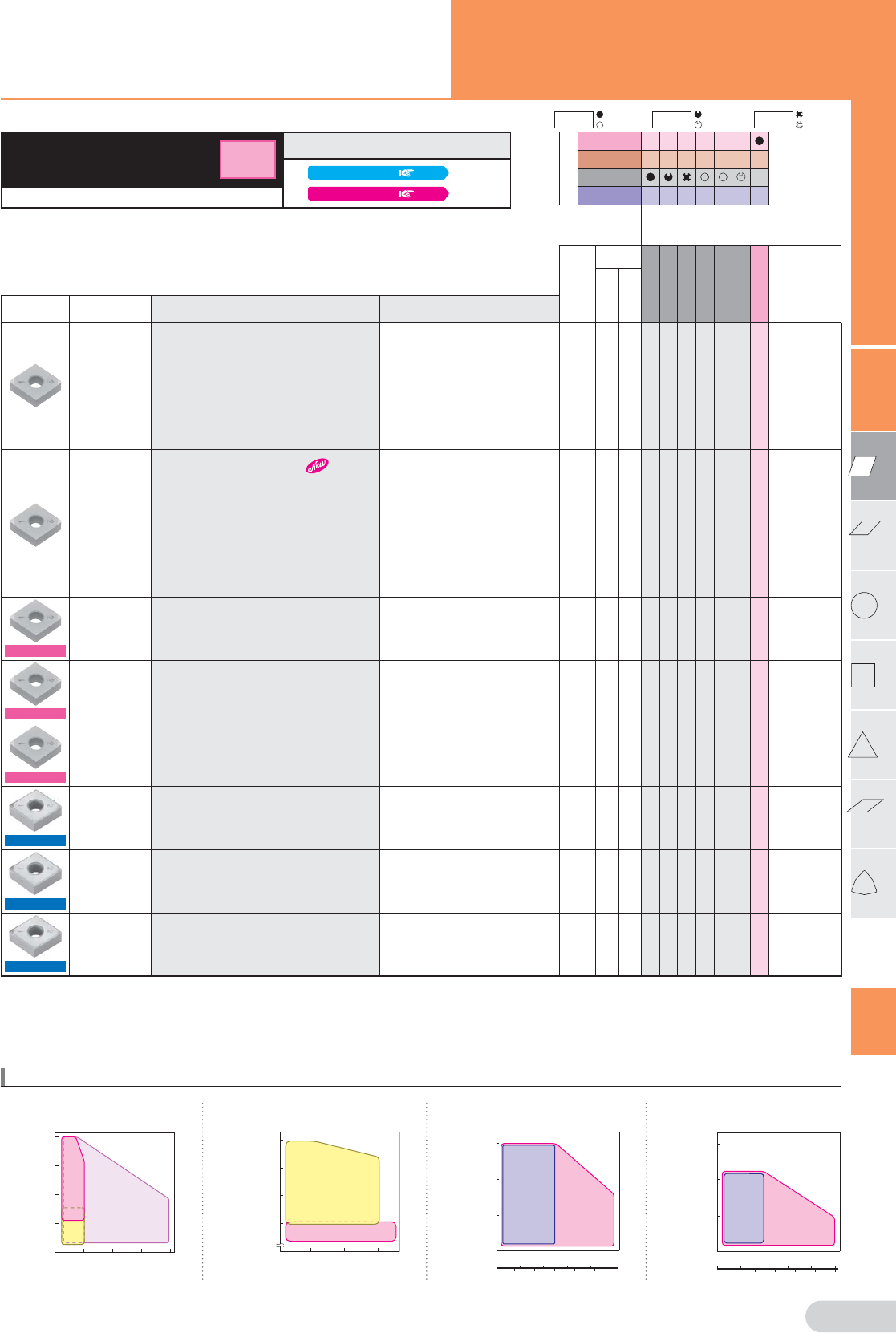

Standard
2NC-CNGA 120404
120408
120412
120416*
120420*
120424*
12
0.4 2.5
0.8 2.4
1.2 2.3
1.6 3.3
2.0 3.2
2.4 3.1
Standard
4NC-CNGA 120402
120404
120408
120412
120416*
120420*
120424*
14
0.2 2.5
0.4 2.5
0.8 2.4
1.2 2.3
1.6 3.3
2.0 3.2
2.4 3.1
Wiper Insert
S01215
4NC-CNGA 120404WG
120408WG
120412WG
14
0.4 2.4
0.8 2.4
1.2 2.3
Wiper Insert
S01215
4NC-CNGA 120404WH
120408WH
120412WH
14
0.4 2.4
0.8 2.3
1.2 2.2
Wiper Insert
BNC100 S01715
BNC160 S01215
BNC200 S01215
BNC500 S01215
4NC-CNGA 120404W
120408W
120412W
14
0.4 2.5
0.8 2.4
1.2 2.3
Break Master
Honing
4NC-CNGG 120404N-FV
120408N-FV
120412N-FV
14
0.4 2.5
0.8 2.4
1.2 2.3
Break Master
S00535
4NC-CNGG 120404N-LV
120408N-LV
120412N-LV
14
0.4 2.5
0.8 2.4
1.2 2.3
Break Master
S01235
4NC-CNGG 120404N-SV
120408N-SV
120412N-SV
14
0.4 2.5
0.8 2.4
1.2 2.3
Applicable holder ref. page, (Example)
Applicable External Holders
C7, 8
Applicable Internal Holders
E23 to E25
CNG¢
1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
*For use with SUMIBORON holders for high-ef ciency machining shown on page L101.
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts

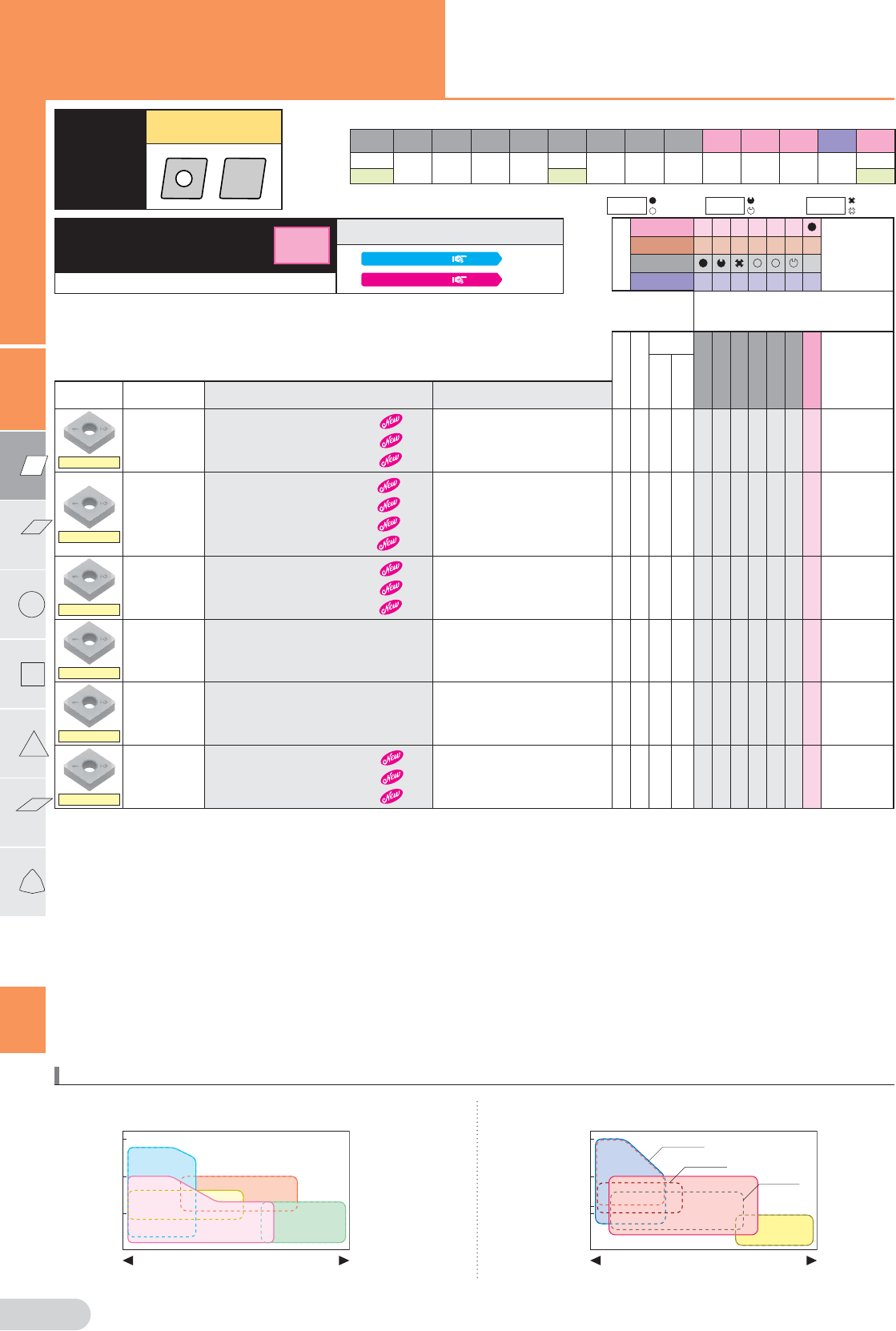

Less Cutting force
Honing
2NC-CNGA 120404LE
120408LE
120412LE
12
0.4 2.5
0.8 2.4
1.2 2.3
Sharper edge
T00515
2NC-CNGA 120402LT
120404LT
120408LT
120412LT
12
0.2 2.5
0.4 2.5
0.8 2.4
1.2 2.3
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-CNGA 120404LS
120408LS
120412LS
12
0.4 2.5
0.8 2.4
1.2 2.3
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
4NC-CNGA 120404LS
120408LS
120412LS
14
0.4 2.5
0.8 2.4
1.2 2.3
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
4NC-CNGA 120404HS
120408HS
120412HS
14
0.4 2.5
0.8 2.4
1.2 2.3
High Ef ciency
S00535
4NC-CNGA 120404ES
120408ES
120412ES
14
0.4 2.5
0.8 2.4
1.2 2.3
Legend:
Continuous Cut
1st Choice
Medium Cut
:
1st Choice
Interrupted Cut
:
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L32
C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C7, 8
Applicable Internal Holders
E23 to E25
CNG¢
1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235

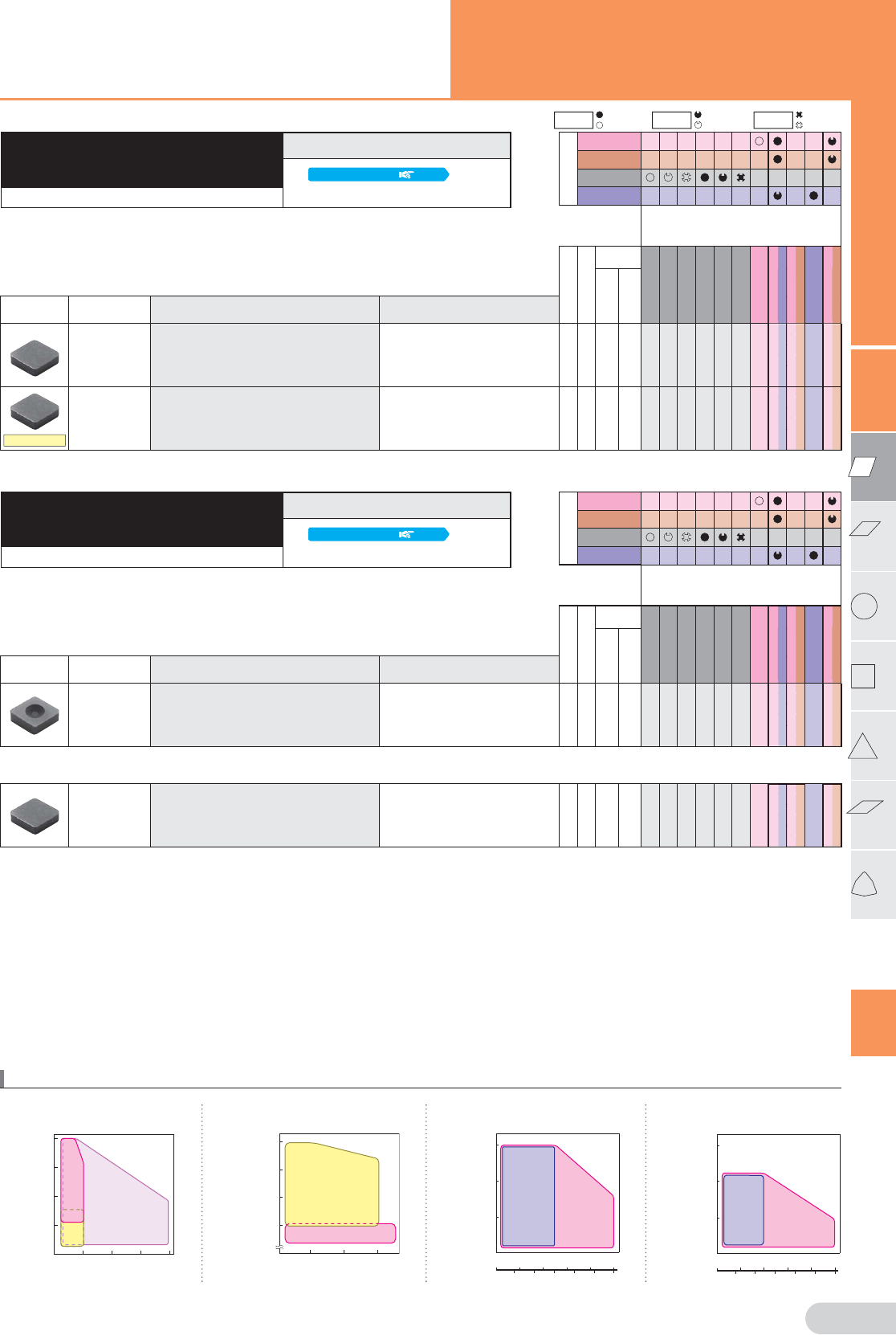

W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy

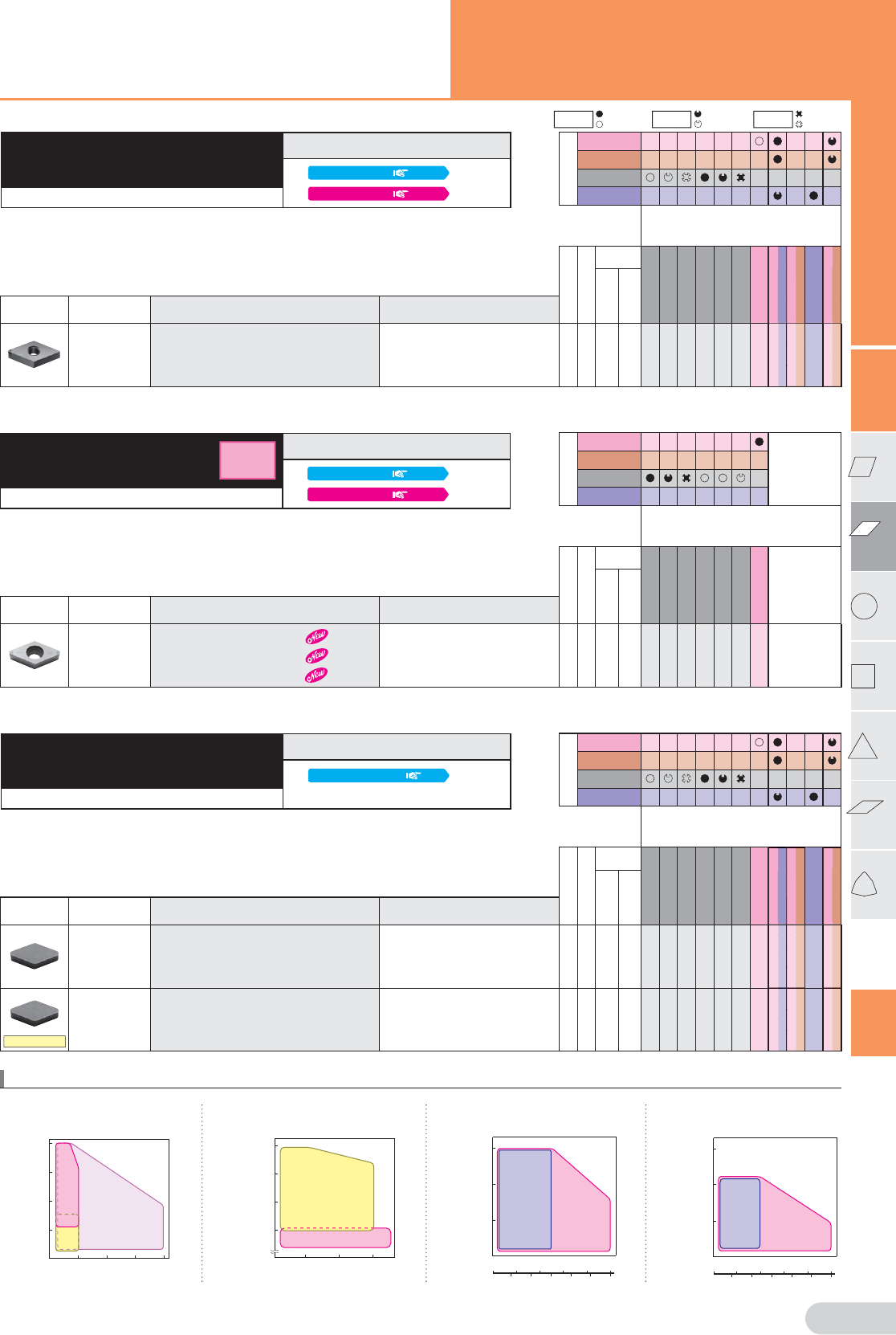

Standard
CNGX 120408
120412
120416
1
Solid
0.8 12.7
1.2 12.6
1.6 12.5
Standard
CNGN 090308
090312 1
Solid
0.8 9.5
1.2 9.4
Less Cutting force
Sharp
Edge
CNGN 090308LF
090312LF
CNGN 090308F
090312F 1
Solid
0.8 9.5
1.2 9.4
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L33
Applicable holder ref. page, (Example)
Applicable External Holders
L98
CNGN0903
I.C.: ø9.525 Thickness: 3.18 Hole:
Solid Type/Negative (Without Hole)
Applicable holder ref. page, (Example)
Applicable External Holders
L98
CNG¢
1204
I.C.: ø12.7 Thickness: 4.76 Hole:
Solid Type/Negative (Dimple Lock)
Standard
CNGN 120408
120412
120416
1
Solid
0.8 12.7
1.2 12.6
1.6 12.5
Solid Type/Negative (Without Hole)
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts

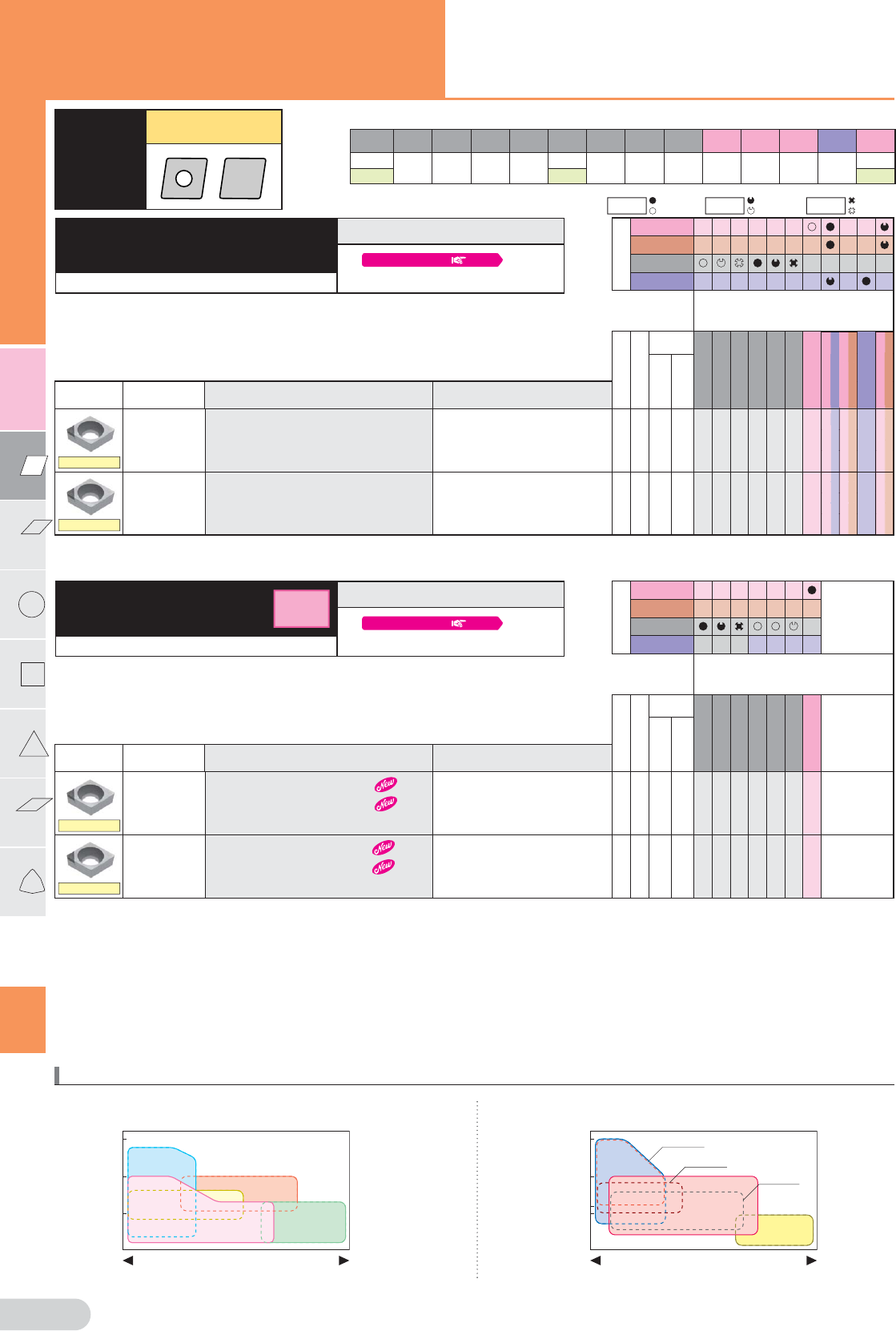

Less Cutting force
Sharp
Edge
NU-CCEW 03X102LF
03X104LF
NU-CCEW 03X102F
03X104F 11
0.2 1.2
0.4 1.1
Sharper edge
T00715
NU-CCEW 03X102LT
03X104LT
NU-CCEW 03X102S
03X104S 11
0.2 1.2
0.4 1.1
Less Cutting force
Honing
NC-CCEW 03X102LE
03X104LE
11
0.2 1.2
0.4 1.1
Sharper edge
T00515
NC-CCEW 03X102LT
03X104LT
11
0.2 1.2
0.4 1.1
L34
C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
12, 13
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
12, 13
CCEW03X1
CCEW03X1
I.C.: ø3.5 Thickness: 1.4 Hole: ø1.9
I.C.: ø3.5 Thickness: 1.4 Hole: ø1.9
One-use Type/7 Positive (With Hole)
One-use Type/7 Positive (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*Depth-of-cut for one-use type is 0.5mm or less
Coated
SUMIBORON
Positive Inserts
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
L35

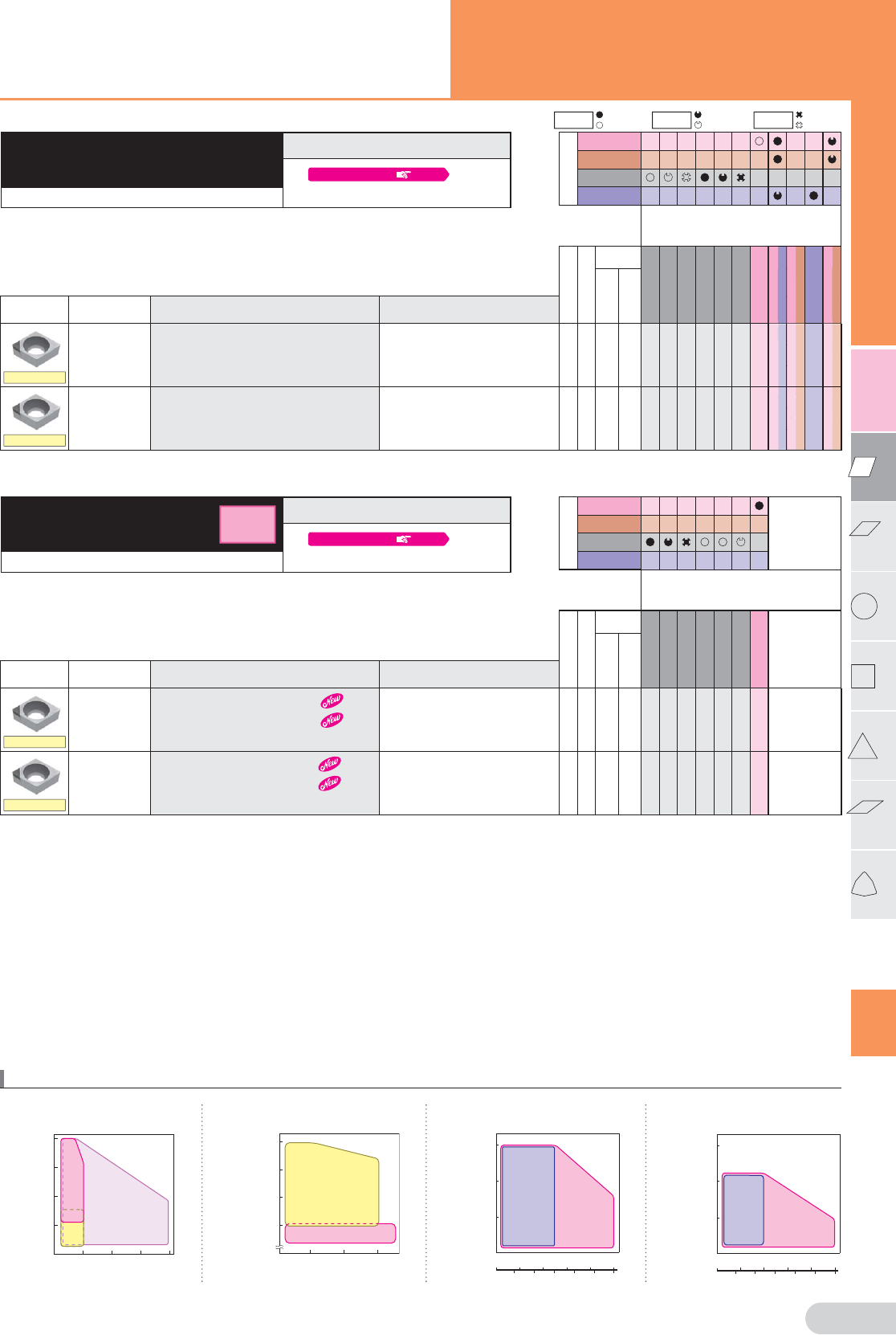

Applicable holder ref. page, (Example)
Applicable Internal Holders
E12, 13

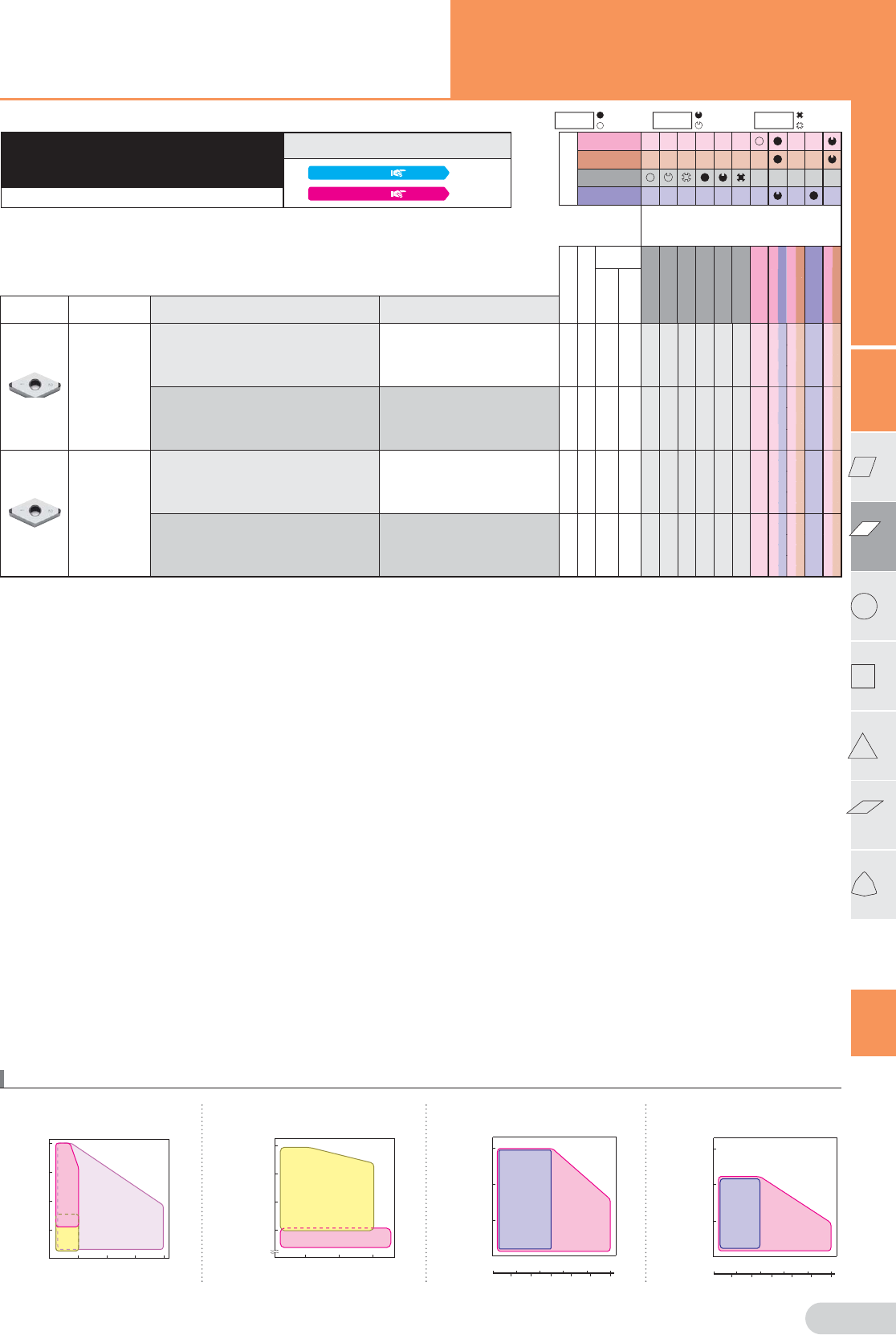

Less Cutting force
Sharp
Edge
NU-CCEW 04X102LF
04X104LF
NU-CCEW 04X102F
04X104F 11
0.2 2.0
0.4 1.9
Sharper edge
T00715
NU-CCEW 04X102LT
04X104LT
NU-CCEW 04X102S
04X104S 11
0.2 2.0
0.4 1.9
CCEW04X1
I.C.: ø4.3 Thickness: 1.8 Hole: ø2.2
One-use Type/7 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E12, 13
Less Cutting force
Honing
NC-CCEW 04X102LE
04X104LE
11
0.2 2.0
0.4 1.9
Sharper edge
T00515
NC-CCEW 04X102LT
04X104LT
11
0.2 2.0
0.4 1.9
CCEW04X1
I.C.: ø4.3 Thickness: 1.8 Hole: ø2.3
One-use Type/7 Positive (With Hole)
Coated
SUMIBORON
Positive Inserts
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts
L36

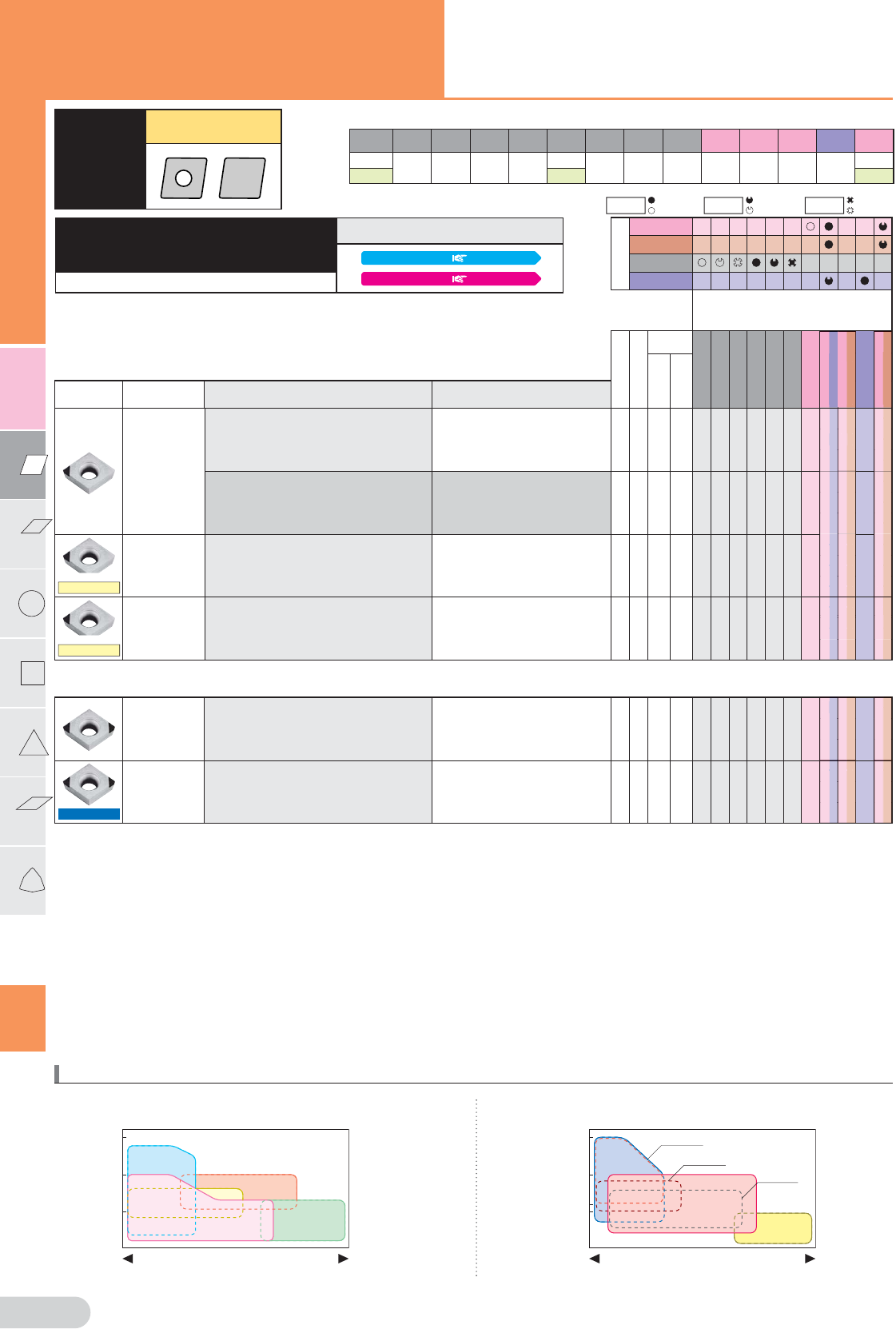

C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C9, D13, 16, 19
Applicable Internal Holders
E12 to E14
Standard
NU-CCGW 060202
060204
060208
11
0.2 2.5
0.4 2.5
0.8 2.4
T-NU-CCGW 060202
060204
060208
10 1
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
T01215
NU-CCGW 060202LT
060204LT
060208LT
11
0.2 2.5
0.4 2.5
0.8 2.5
Stronger edge
S01235
NU-CCGW 060202HS
060204HS 11
0.2 2.5
0.4 2.5
CCG¢
0602
I.C.: ø6.35 Thickness: 2.38 Hole: ø2.8
One-use Type/7 Positive (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*For BNX25, use NS type code (NS-CCGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-CCGW 060204
12
0.4 2.5
Break Master
Honing
2NU-CCGT 060204N-FV
12
0.4 2.3
Multi-cornered,One-use Type/7 Positive (With Hole)
*For BNX25, use 2NS type code (2NS-CCGW) *Depth-of-cut for one-use type is 0.5mm or less
Positive Inserts
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L37
Applicable holder ref. page, (Example)
Applicable External Holders
C9, D13, 16, 19
Applicable Internal Holders
E12 to E14

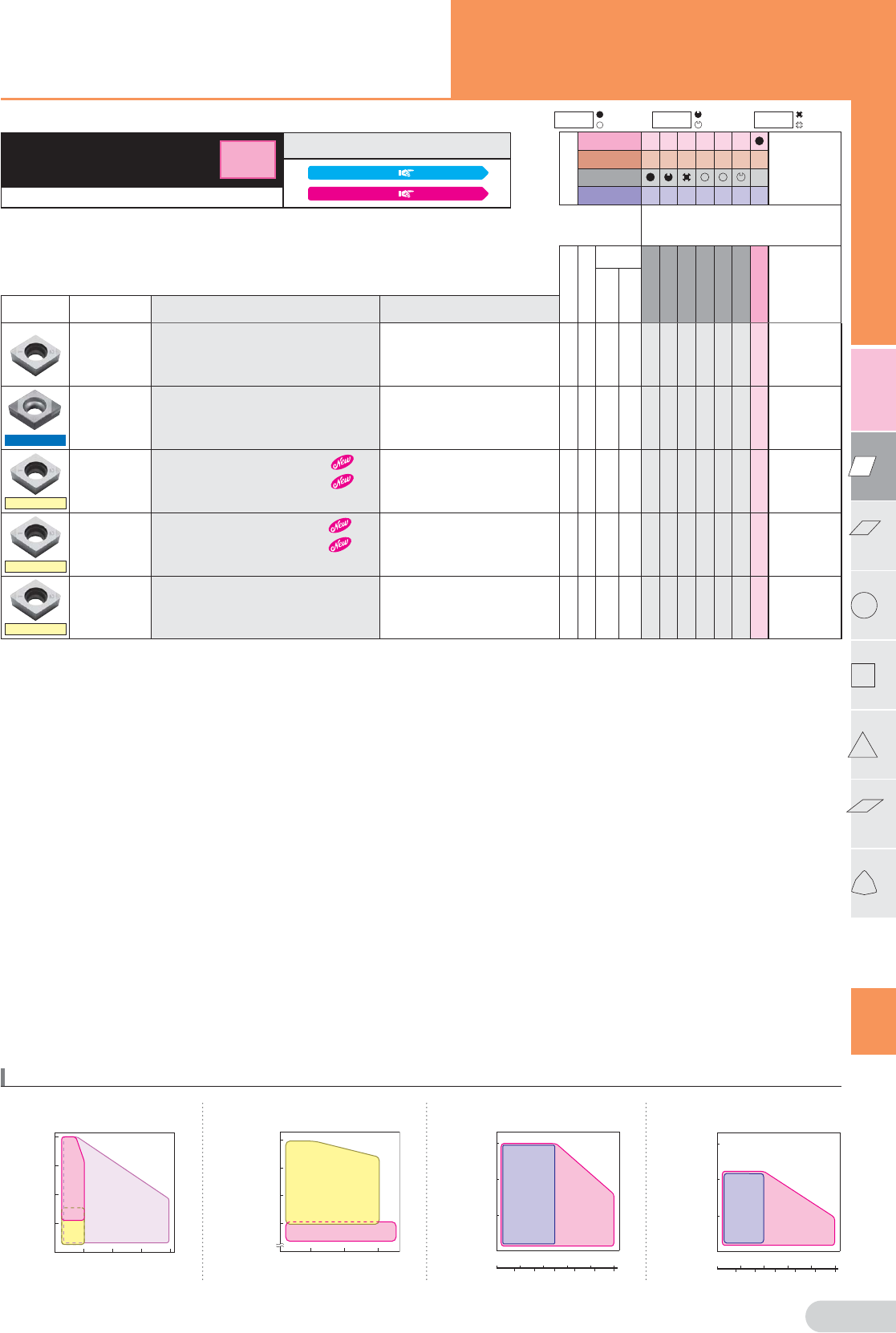

Standard
2NC-CCGW 060202
060204
060208
12
0.2 2.4
0.4 2.3
0.8 2.4
Break Master
Honing
2NC-CCGT 060204N-FV
12
0.4 2.3
Less Cutting force
Honing
2NC-CCGW 060202LE
060204LE
12
0.2 2.4
0.4 2.3
Sharper edge
T00515
2NC-CCGW 060202LT
060204LT
12
0.2 2.4
0.4 2.3
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-CCGW 060202LS
060204LS 12
0.2 2.4
0.4 2.3
CCG¢
0602
I.C.: ø6.35 Thickness: 2.38 Hole: ø2.8
Multi-cornered,One-use Type/7 Positive (With Hole)
Coated
SUMIBORON
Positive Inserts
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts

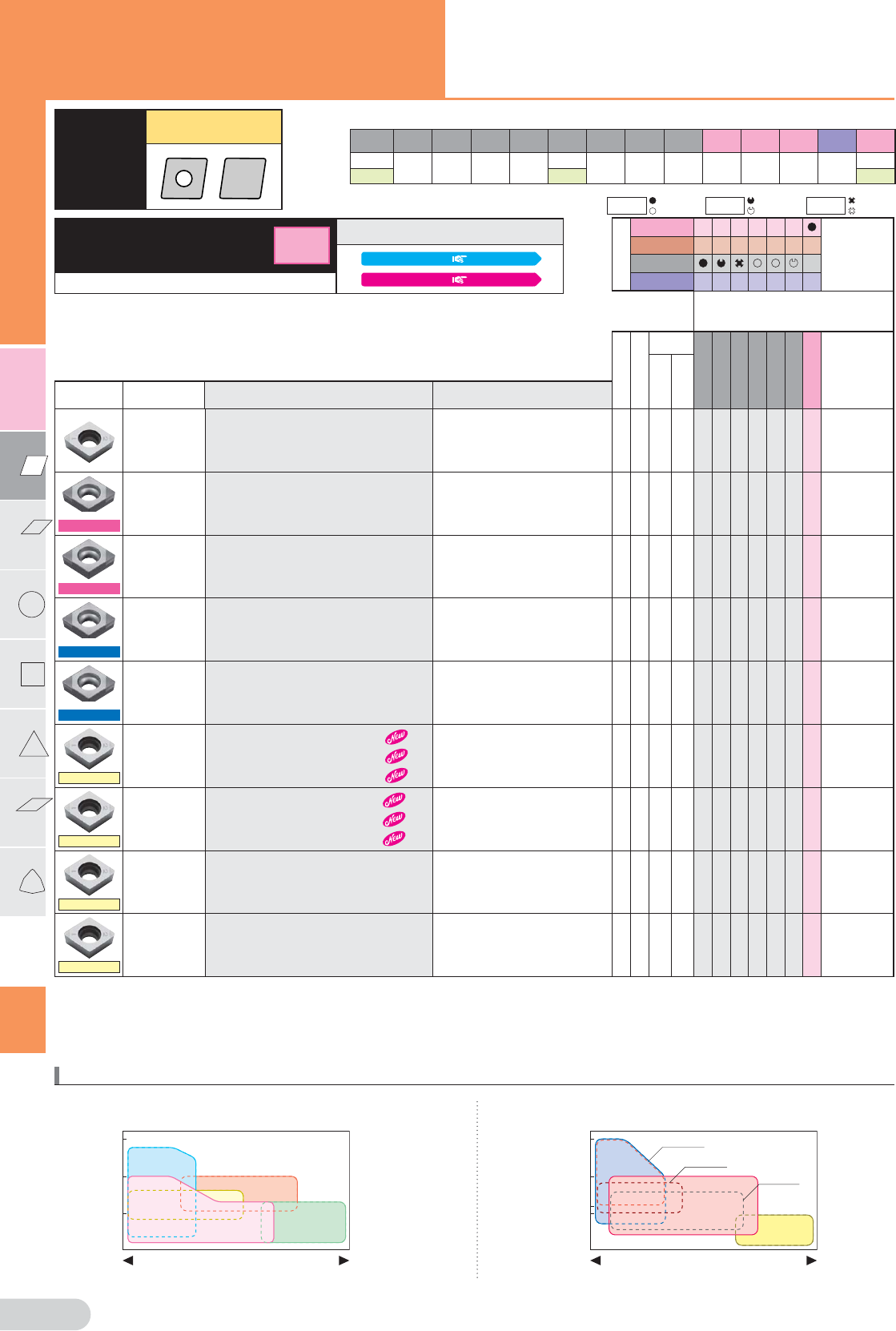

Standard
NU-CCGW 09T302
09T304
09T308
11
0.2 2.5
0.4 2.5
0.8 2.4
T-NU-CCGW 09T302
09T304
09T308
10 1
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
T01215
NU-CCGW 09T302LT
09T304LT
09T308LT
11
0.2 2.5
0.4 2.5
0.8 2.4
Stronger edge
S01235
NU-CCGW 09T302HS
09T304HS
09T308HS
11
0.2 2.5
0.4 2.5
0.8 2.4
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L38

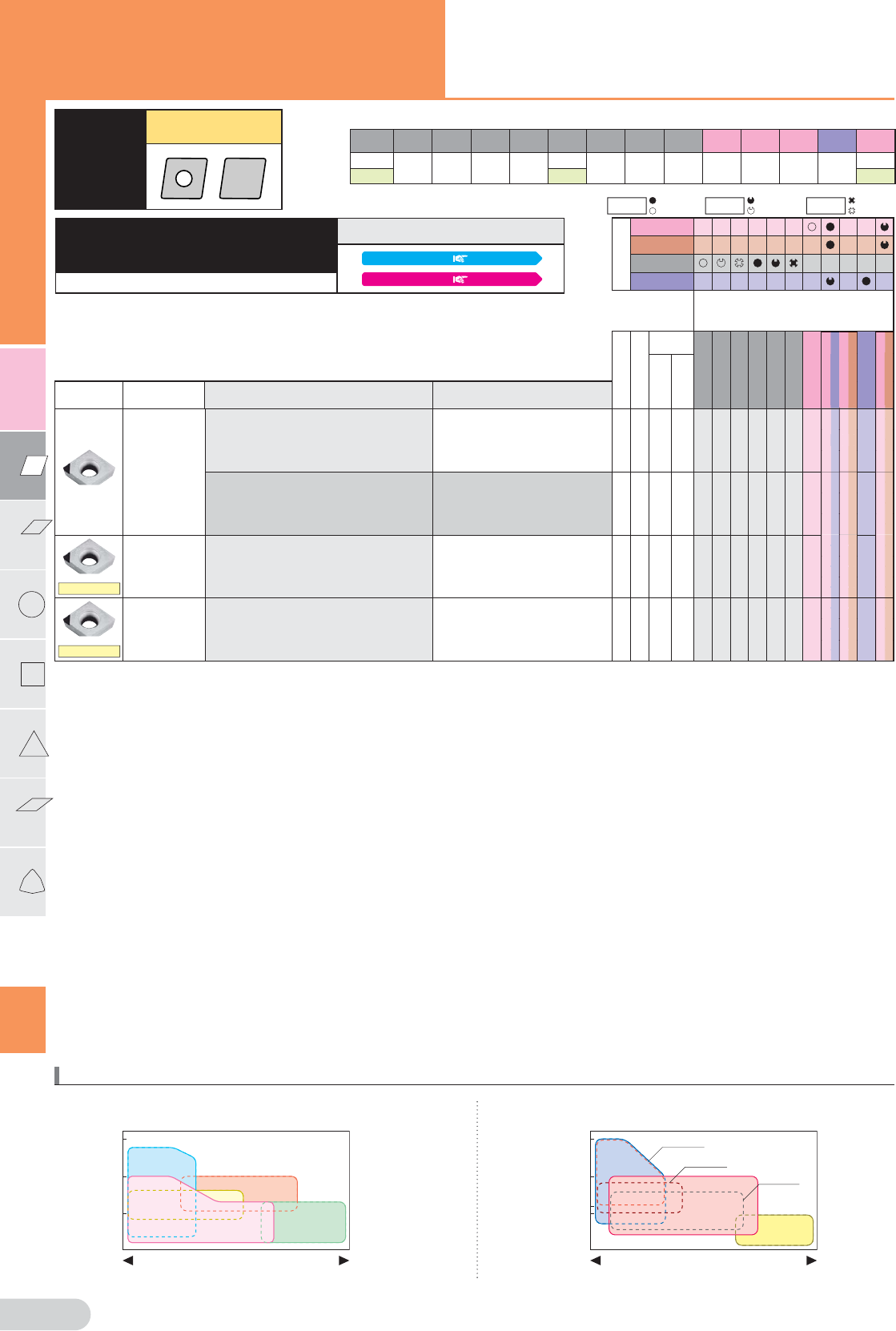

C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C9, D13, 16, 19
Applicable Internal Holders
E12 to E14
CCG¢
09T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
One-use Type/7 Positive (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*For BNX25, use NS type code (NS-CCGW) *Depth-of-cut for one-use type is 0.5mm or less
Positive Inserts
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy

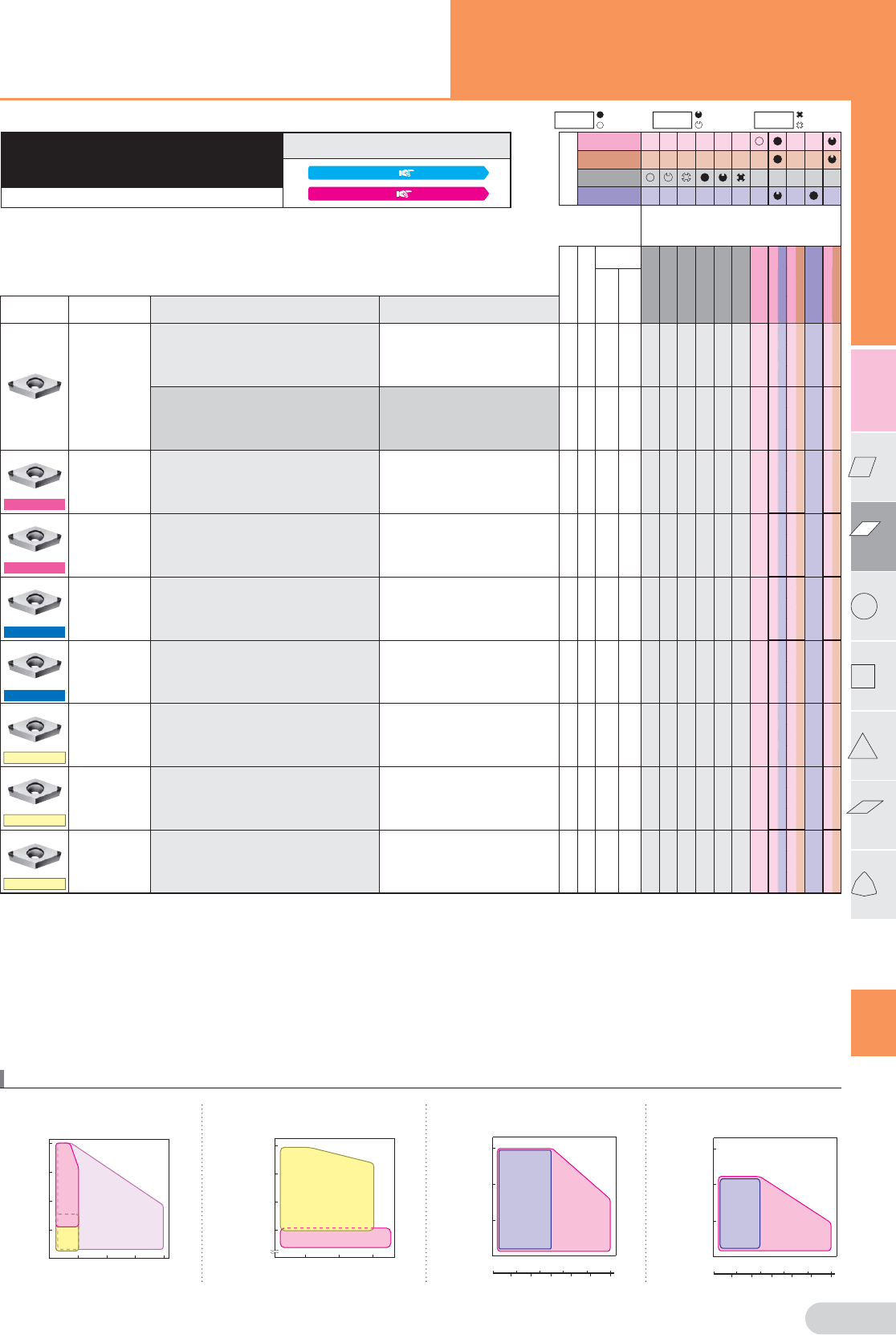

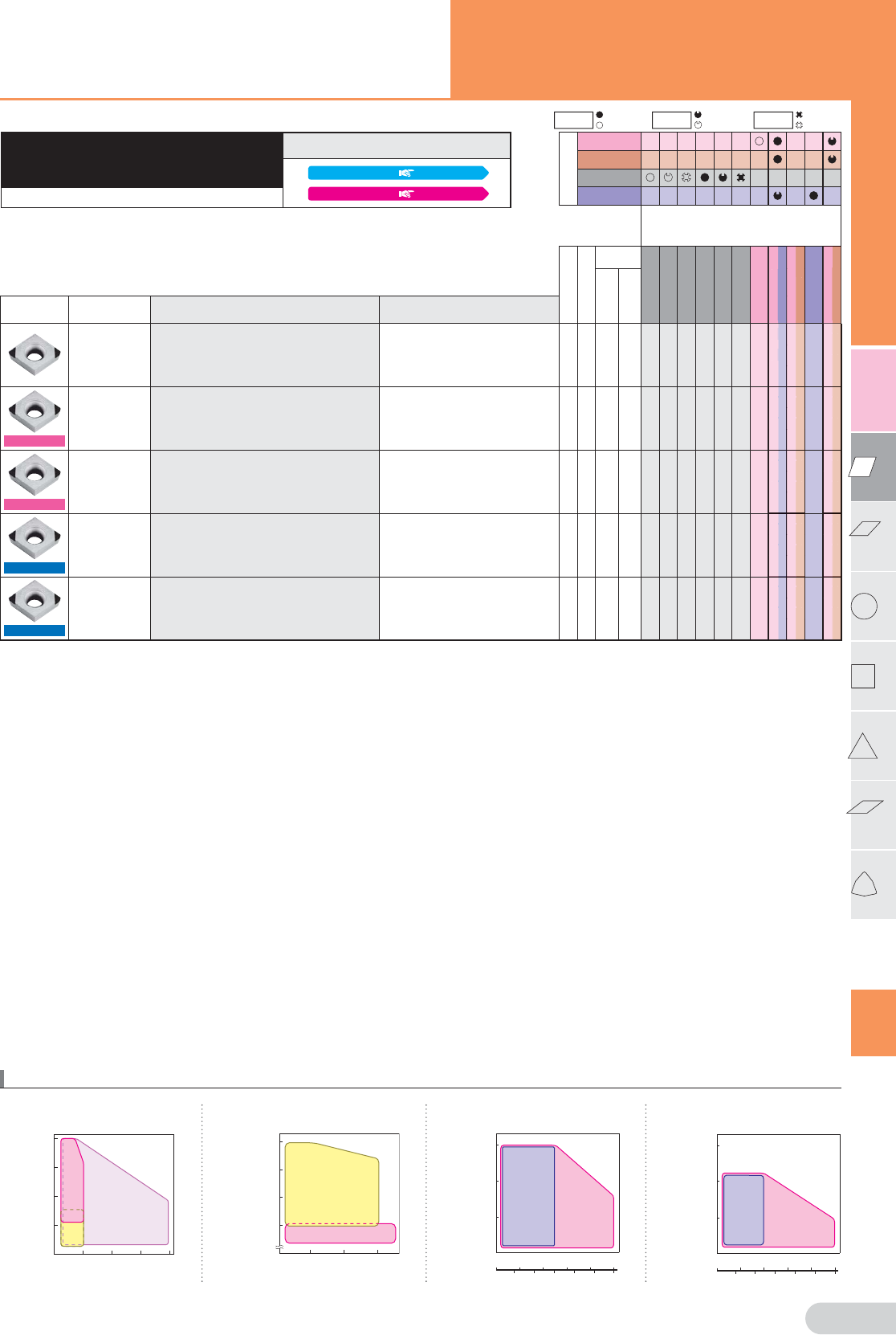

Standard
2NU-CCGW 09T304
09T308 12
0.4 2.5
0.8 2.4
Wiper Insert
S01215
2NU-CCGW 09T304WG
09T308WG 12
0.4 2.4
0.8 2.4
Wiper Insert
S01215
2NU-CCGW 09T304WH
09T308WH 12
0.4 2.4
0.8 2.3
Break Master
Honing
2NU-CCGT 09T304N-FV
09T308N-FV 12
0.4 2.4
0.8 2.3
Break Master
S00535
2NU-CCGT 09T304N-LV
09T308N-LV 12
0.4 2.4
0.8 2.3
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L39
Applicable holder ref. page, (Example)
Applicable External Holders
C9, D13, 16, 19
Applicable Internal Holders
E12 to E14
CCG¢
09T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
Multi-cornered,One-use Type/7 Positive (With Hole)
*For BNX25, use NS type code (NS-CCGW) *Depth-of-cut for one-use type is 0.5mm or less
Positive Inserts
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts
Standard
2NC-CCGW 09T302
09T304
09T308
12
0.2 2.5
0.4 2.5
0.8 2.4
Wiper Insert
S01215
2NC-CCGW 09T304WG
09T308WG 12
0.4 2.4
0.8 2.4
Wiper Insert
S01215
2NC-CCGW 09T304WH
09T308WH 12
0.4 2.4
0.8 2.3
Break Master
Honing
2NC-CCGT 09T304N-FV
09T308N-FV 12
0.4 2.4
0.8 2.3
Break Master
S00535
2NC-CCGT 09T304N-LV
09T308N-LV 12
0.4 2.4
0.8 2.3
Less Cutting force
Honing
2NC-CCGW 09T302LE
09T304LE
09T308LE
12
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
T00515
2NC-CCGW 09T302LT
09T304LT
09T308LT
12
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-CCGW 09T302LS
09T304LS
09T308LS
12
0.2 2.5
0.4 2.5
0.8 2.4
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
2NC-CCGW 09T304HS
09T308HS 12
0.4 2.5
0.8 2.4
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L40
C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C9, D13, 16, 19
Applicable Internal Holders
E12 to E14
CCG¢
09T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
Multi-cornered,One-use Type/7 Positive (With Hole)
Coated
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Positive Inserts
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts

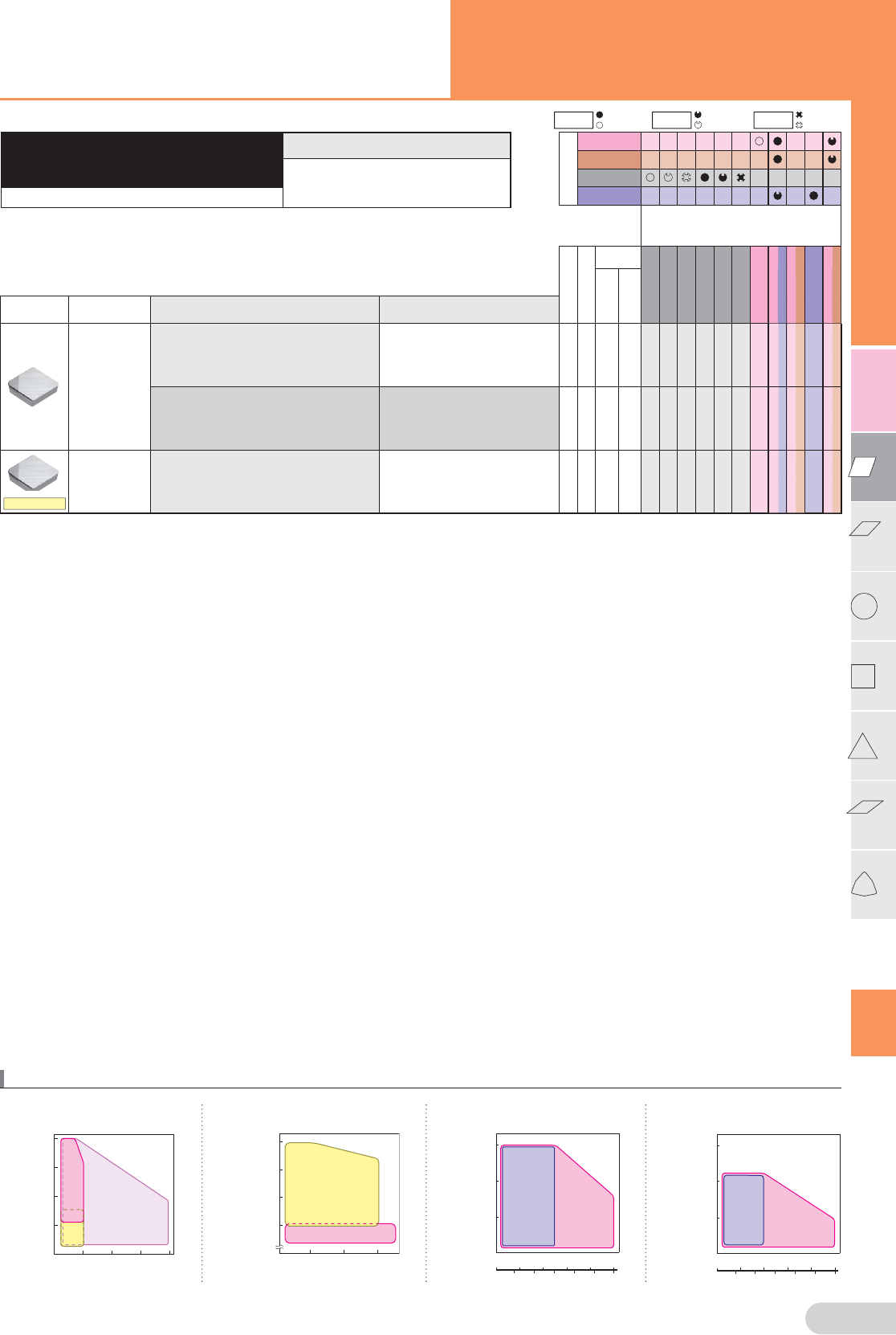

SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
NU-CCGN 040104
040108 11
0.4 2.5
0.8 2.4
T-NU-CCGN 040104
040108 10 1
0.4 2.5
0.8 2.4
Stronger edge
S01235
NU-CCGN 040104HS
040108HS 11
0.4 2.5
0.8 2.4
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L41
Applicable holder ref. page, (Example)
(Special holder)
CCGN0401
I.C.: ø4.76 Thickness: 1.59 Hole:
One-use Type/7 Positive (Without Hole)
*For BNX25, use NS type code (NS-CCGN) *Depth-of-cut for one-use type is 0.5mm or less
Positive Inserts
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Negative Inserts
Standard
2NC-CPGW 080202
080204
12
0.2 2.5
0.4 2.5
Standard
NU-CPGW 080202
080204
080208
11
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
T01215
NU-CPGW 080204LT
11
0.4 2.5
Stronger edge
S01235
NU-CPGW 080202HS
080204HS
080208HS
11
0.2 2.5
0.4 2.5
0.8 2.4
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L42
C
80° Diamond Type
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
19, 20
CPGW0802
I.C.: ø7.94 Thickness: 2.38 Hole: ø3.4
One-use Type/11 Positive (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*For BNX25, use NS type code (NS-CPGW) *Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
19, 20
CPGW0802
I.C.: ø7.94 Thickness: 2.38 Hole: ø3.4
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
Positive Inserts
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm/rev
)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(
mm
/
r
e
v
)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
2NC-CPGW 090302
090304
12
0.2 2.5
0.4 2.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L43
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
19, 20
Standard
NU-CPGW 090302
090304
090308
11
0.2 2.5
0.4 2.5
0.8 2.4
Sharper edge
T01215
NU-CPGW 090302LT
090304LT
090308LT
11
0.2 2.5
0.4 2.5
0.8 2.4
Stronger edge
S01235
NU-CPGW 090302HS
090304HS
090308HS
11
0.2 2.5
0.4 2.5
0.8 2.4
CPGW0903
I.C.: ø9.525 Thickness: 3.18 Hole: ø4.4
One-use Type/11 Positive (With Hole)
*For BNX25, use NS type code (NS-CPGW) *Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E
19, 20
CPGW0903
I.C.: ø9.525 Thickness: 3.18 Hole: ø4.4
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
Positive Inserts

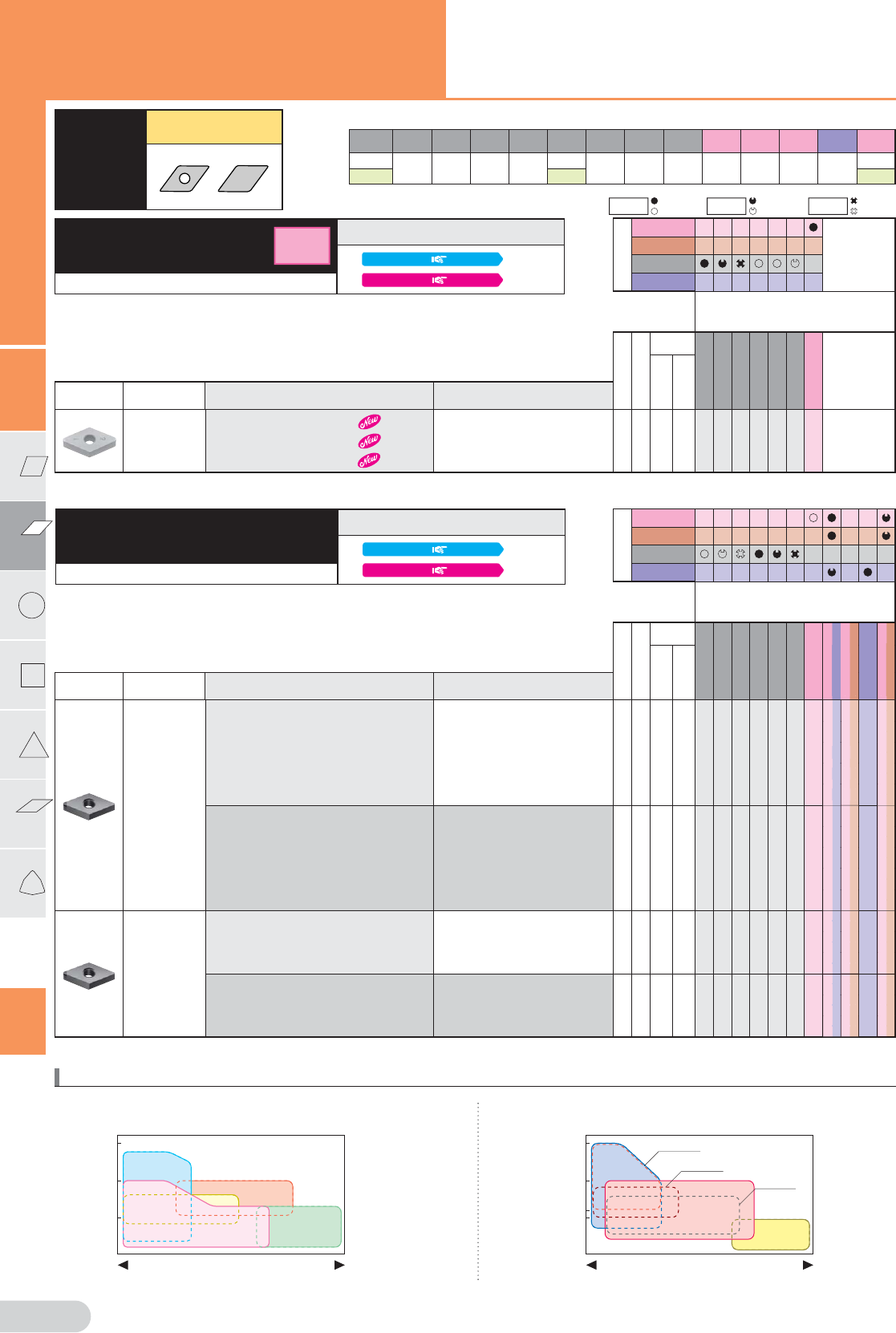

L44

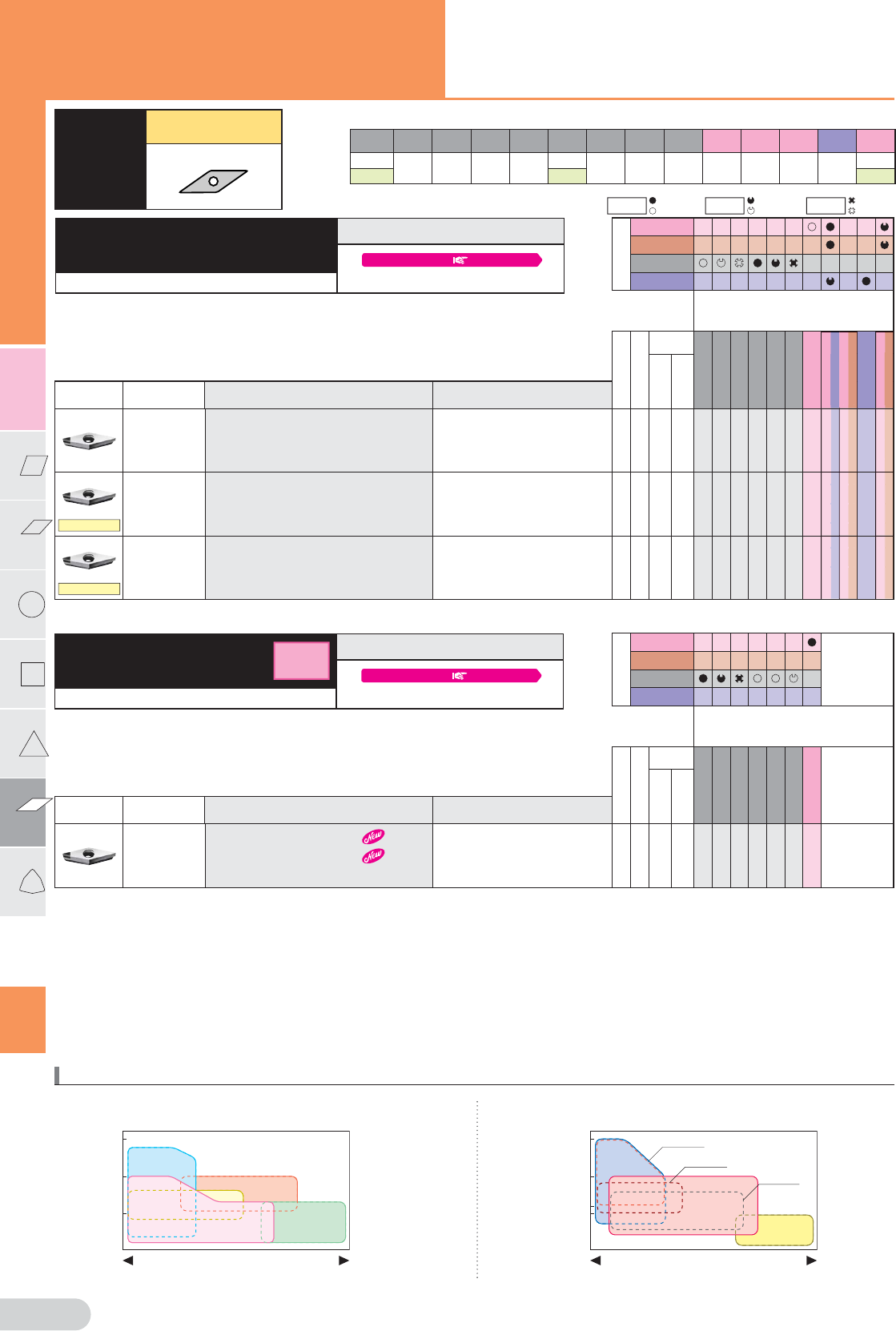

C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
NU-DNMA 150401
150402
150404
150408
150412
11
0.1 2.7
0.2 2.5
0.4 2.5
0.8 2.1
1.2 2.0
T-NU-DNMA 150401
150402
150404
150408
150412
10 1
0.1 2.7
0.2 2.5
0.4 2.5
0.8 2.1
1.2 2.0
Standard
NS-DNMA 150404
150408
150412
11
0.4 2.5
0.8 2.1
1.2 2.0
T-NS-DNMA 150404
150408
150412
10 1
0.4 2.5
0.8 2.1
1.2 2.0
Standard
2NC-DNGA 110404
110408
110412
12
0.4 2.5
0.8 2.1
1.2 2.0
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.

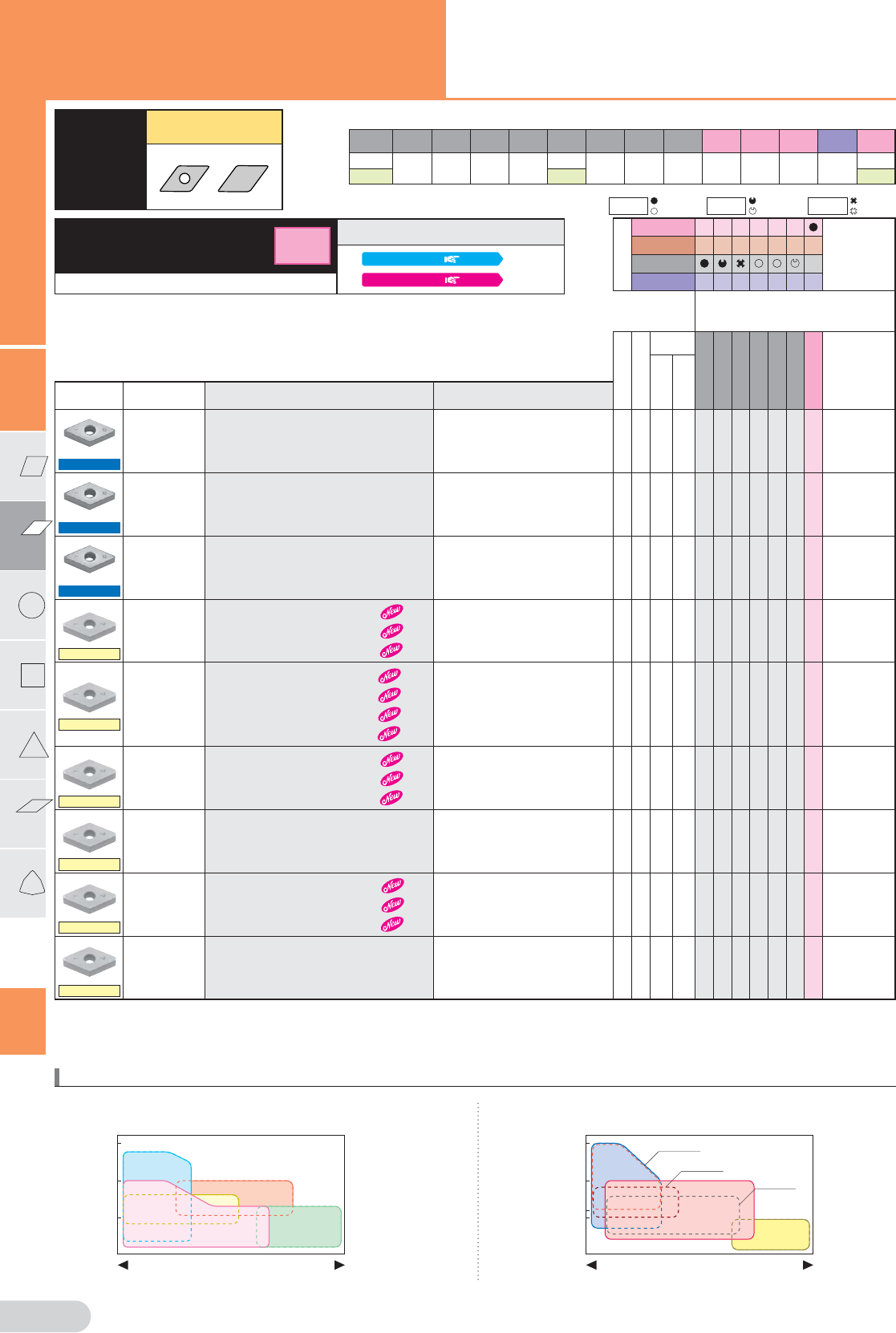

D
55° Diamond Type
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders
E35 to E37
DN¢¢1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
One-use Type/Negative (With Hole)
Applicable holder ref. page, (Example)
Applicable External Holders
C11
Applicable Internal Holders
E35 to E37
DNGA1104
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
Negative Inserts
SUMIBORON
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
2NU-DNGA 150404
150408
150412
12
0.4 2.5
0.8 2.1
1.2 2.0
T-2NU-DNGA 150404
150408
150412
10 2
0.4 2.5
0.8 2.1
1.2 2.0
Standard
2NS-DNGA 150404
150408
150412
12
0.4 2.5
0.8 2.1
1.2 2.0
T-2NS-DNGA 150404
150408
150412
10 2
0.4 2.5
0.8 2.1
1.2 2.0
L45
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders E65 to E67
DN¢¢1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Wiper Insert
S01215
2NU-DNGA 150404WG
150408WG 12
0.4 2.3
0.8 2.0
Wiper Insert
S01215
2NU-DNGA 150404WH
150408WH 12
0.4 2.1
0.8 1.8
Break Master
S00535
2NU-DNGM 150404N-LV
150408N-LV
150412N-LV
12
0.4 2.5
0.8 2.1
1.2 2.0
Less Cutting force
Sharp
Edge
2NU-DNGA 150404LF
150408LF
150412LF
2NU-DNGA 150404F
150408F
150412F
12
0.4 2.5
0.8 2.1
1.2 2.0
Sharper edge
T01215
2NU-DNGA 150404LT
150408LT
150412LT
12
0.4 2.5
0.8 2.1
1.2 2.0
Stronger edge
T01235
2NU-DNGA 150404HT
150408HT
150412HT
2NU-DNGA 150404T
150408T
150412T
12
0.4 2.5
0.8 2.1
1.2 2.0
Stronger edge
BN2000 S01235
BN7000 S01225
BN700
S01225
BN7500 S00525
2NU-DNGA 150404HS
150408HS
150412HS
2NU-DNGA 150404T
150408T
150412T
12
0.4 2.5
0.8 2.1
1.2 2.0
L46
D
55° Diamond Type
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders
E35 to E37
DN¢¢1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
Negative Inserts
SUMIBORON
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
DNMA 150404
150408
150412
11
0.4 5.0
0.8 4.7
1.2 4.3
L47
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders
E35 to E37
DN¢¢1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Negative Type (With Hole)
Standard
2NC-DNGA 150404
150408
150412
150416*
150420*
150424*
12
0.4 2.5
0.8 2.1
1.2 2.0
1.6 3.4
2.0 3.0
2.4 2.7
Standard
4NC-DNGA 150402
150404
150408
150412
150416*
150420*
150424*
14
0.2 2.6
0.4 2.5
0.8 2.1
1.2 2.0
1.6 3.4
2.0 3.0
2.4 2.7
Wiper Insert
S01215
4NC-DNGA 150404WG*
150408WG*
14
0.4 2.3
0.8 2.0
Wiper Insert
S01215
4NC-DNGA 150404WH*
150408WH* 14
0.4 2.1
0.8 1.8
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders
E35 to E37
DNG¢
1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
*1 For use with SUMIBORON holders for high-efficiency machining shown on page L101.
*2 Use a toolholder with a 93° cutting angle.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice

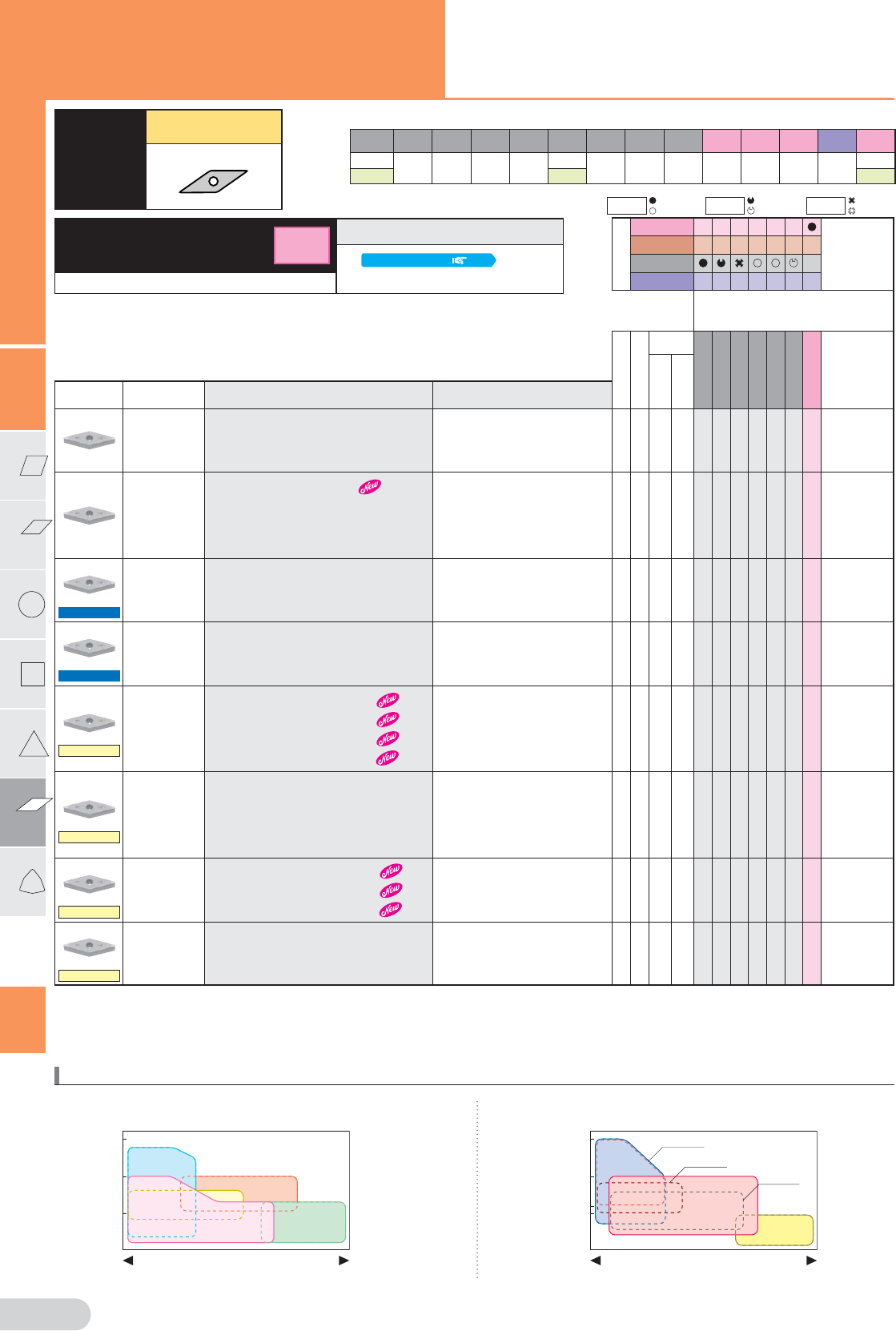

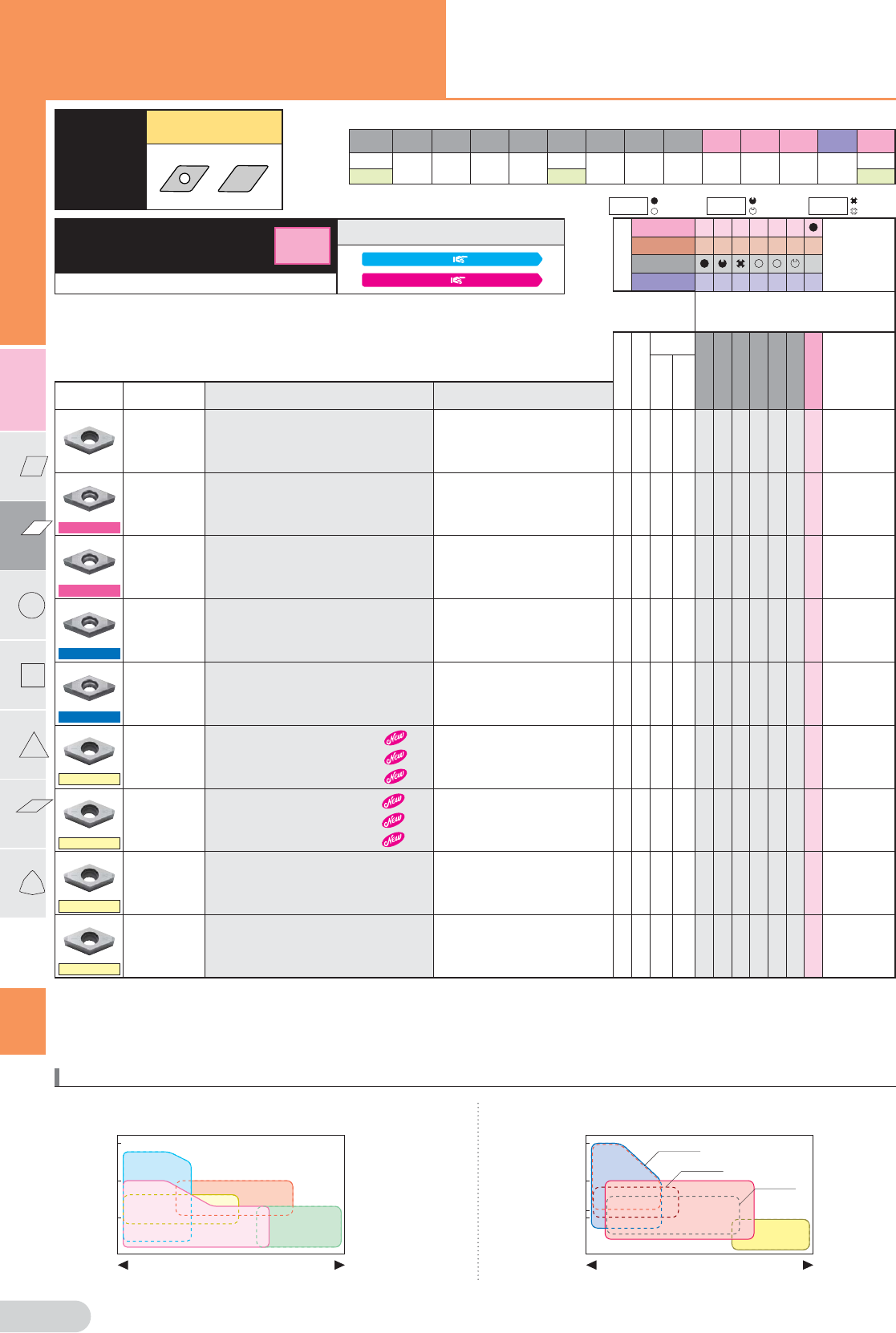

C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Break Master
Honing
4NC-DNGG 150404N-FV
150408N-FV
150412N-FV
14
0.4 2.5
0.8 2.1
1.2 2.0
Break Master
S00535
4NC-DNGG 150404N-LV
150408N-LV
150412N-LV
14
0.4 2.5
0.8 2.1
1.2 2.0
Break Master
S01235
4NC-DNGG 150404N-SV
150408N-SV
150412N-SV
14
0.4 2.5
0.8 2.1
1.2 2.0
Less Cutting force
Honing
2NC-DNGA 150404LE
150408LE
150412LE
12
0.4 2.5
0.8 2.1
1.2 2.0
Sharper edge
T00515
2NC-DNGA 150402LT
150404LT
150408LT
150412LT
12
0.2 2.6
0.4 2.5
0.8 2.1
1.2 2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-DNGA 150404LS
150408LS
150412LS
12
0.4 2.5
0.8 2.1
1.2 2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
4NC-DNGA 150404LS
150408LS
150412LS
14
0.4 2.5
0.8 2.1
1.2 2.0
High Efficiency
S00535
4NC-DNGA 150404ES
150408ES
150412ES
14
0.4 2.5
0.8 2.1
1.2 2.0
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
4NC-DNGA 150404HS
150408HS
150412HS
14
0.4 2.5
0.8 2.1
1.2 2.0
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L48
D
55° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C10, 11
Applicable Internal Holders E35 to E37
DNG¢
1504
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
49
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
Negative Inserts
SUMIBORON
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
4NC-DNGA 150604
150608
150612
14
0.4 2.5
0.8 2.1
1.2 2.0
Standard
NU-DNMA 150604
150608
150612
11
0.4 2.5
0.8 2.1
1.2 2.0
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L49
Applicable holder ref. page, (Example)
Applicable External Holders
C10 11
Applicable Internal Holders
E35
DNMA1506
I.C.: ø12.7 Thickness: 6.35 Hole: ø5.16
One-use Type/Negative (With Hole)
*For BNX25, use NS type code (NS-DNMA) *Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable External Holders
C10 11
Applicable Internal Holders
E35
DNGA1506
I.C.: ø12.7 Thickness: 6.35 Hole: ø5.16
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
Standard
DNGN 110308
110312 1
Solid
0.8 10.8
1.2 10.5
Less Cutting force
Sharp
Edge
DNGN 110308LF
110312LF
DNGN 110308F
110312F 1
Solid
0.8 10.8
1.2 10.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
L99
DNGN1103
I.C.: ø9.525 Thickness: 3.18 Hole:
Solid Type/Negative (Without Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
50
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Positive Inserts
SUMIBORON
Uncoated SUMIBORON Coated SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
NU-DCGW 070202
070204
070208
11
0.2 2.7
0.4 2.5
0.8 2.1
T-NU-DCGW 070202
070204
070208
10 1
0.2 2.7
0.4 2.5
0.8 2.1
Sharper edge
T01215
NU-DCGW 070202LT
070204LT
070208LT
11
0.2 2.7
0.4 2.5
0.8 2.1
Stronger edge
S01235
NU-DCGW 070202HS
070204HS
11
0.2 2.7
0.4 2.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L50
D
55° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C14, D14, 17, 23
Applicable Internal Holders
E27 to E30
DCG¢
0702
I.C.: ø6.35 Thickness: 2.38 Hole: ø2.8
One-use Type/7 Positive (With Hole)
*For BNX25, use NS type code (NS-DCGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-DCGW 070204
070208
12
0.4 2.5
0.8 2.1
Break Master
Honing
2NU-DCGT 070204N-FV
12
0.4 2.4
Multi-cornered,One-use Type/7 Positive (With Hole)
*For BNX25, use 2NS type code (2NS-DCGW) *Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
51
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy

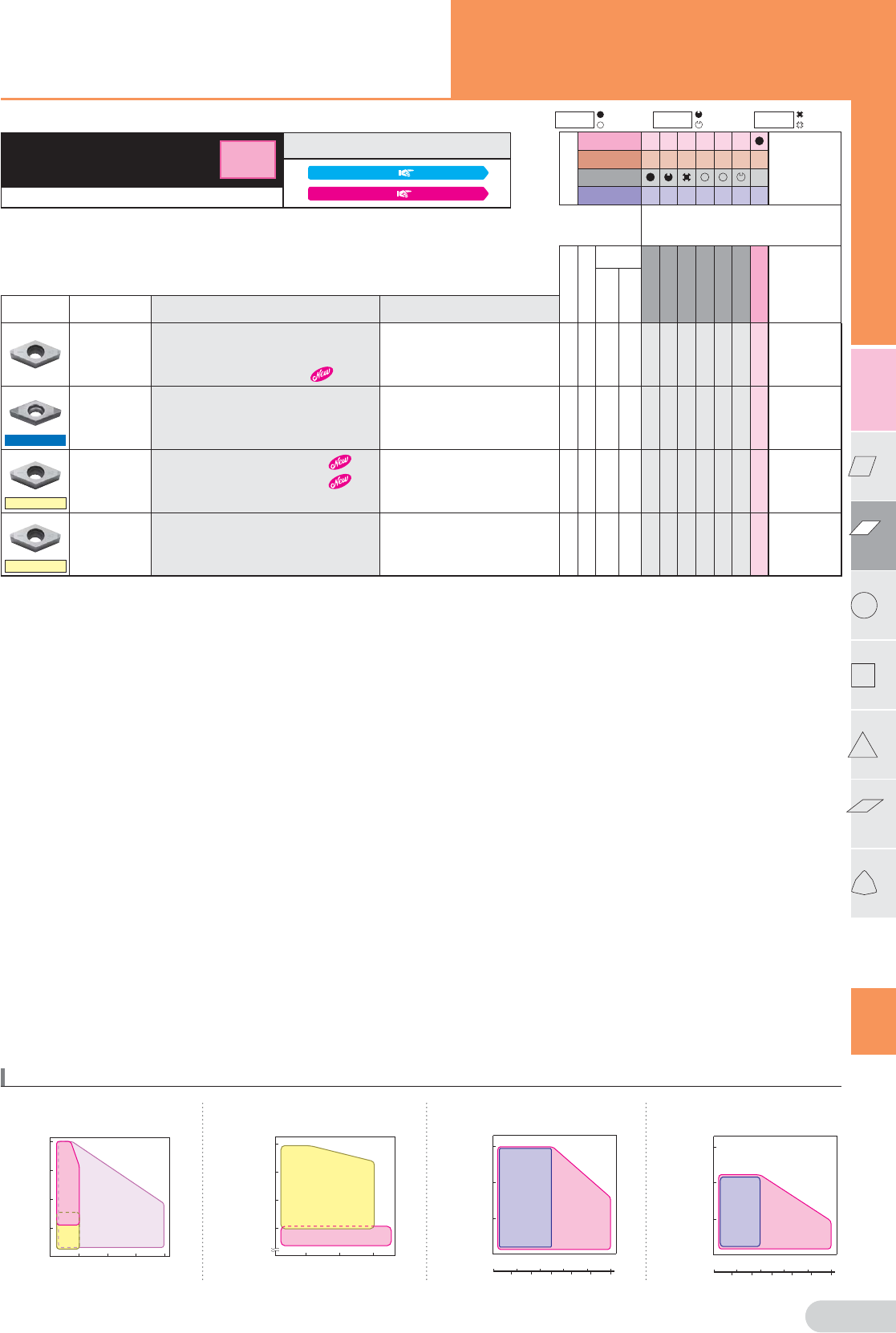

Standard
2NC-DCGW 070202
070204
070208
12
0.2 2.6
0.4 2.5
0.8 2.1
Break Master
Honing
2NC-DCGT 070204N-FV
12
0.4 2.4
Sharper edge
T00515
2NC-DCGW 070202LT
070204LT
12
0.2 2.6
0.4 2.5
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-DCGW 070202LS
070204LS 12
0.2 2.6
0.4 2.5
L51
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C14, D14, 17, 23
Applicable Internal Holders
E27 to E30
DCG¢
0702
I.C.: ø6.35 Thickness: 2.38 Hole: ø2.8
Multi-cornered,One-use Type/7 Positive (With Hole)
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
52
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Positive Inserts
SUMIBORON
Uncoated SUMIBORON Coated SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
NU-DCGW 11T302
11T304
11T308
11T312
11
0.2 2.7
0.4 2.5
0.8 2.1
1.2 2.0
T-NU-DCGW 11T302
11T304
11T308
11T312
10 1
0.2 2.7
0.4 2.5
0.8 2.1
1.2 2.0
Less Cutting force
Sharp
Edge
NU-DCGW 11T302LF
11T304LF
11T308LF
NU-DCGW 11T302F
11T304F
11T308F
11
0.2 2.7
0.4 2.5
0.8 2.1
Sharper edge
T01215
NU-DCGW 11T302LT
11T304LT
11T308LT
11T312LT
11
0.2 2.7
0.4 2.5
0.8 2.1
1.2 2.0
Stronger edge
S01235
NU-DCGW 11T302HS
11T304HS
11T308HS
11
0.2 2.7
0.4 2.5
0.8 2.1
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L52
D
55° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C14 D14, 17, 23
Applicable Internal Holders
E27 to E30
DCG¢
11T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
One-use Type/7° Positive (With Hole)
*For BNX25, use NS type code (NS-DCGW) *Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
53
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
Standard
2NU-DCGW 11T302
11T304
11T308
12
0.2 2.7
0.4 2.5
0.8 2.1
T-2NU-DCGW 11T302
11T304
11T308
10 2
0.2 2.7
0.4 2.5
0.8 2.1
Wiper Insert
S01215
2NU-DCGW 11T304WG*
11T308WG* 12
0.4 2.3
0.8 2.1
Wiper Insert
S01215
2NU-DCGW 11T304WH*
11T308WH* 12
0.4 2.1
0.8 1.8
Break Master
Honing
2NU-DCGT 11T304N-FV
11T308N-FV 12
0.4 2.4
0.8 2.0
Break Master
S00535
2NU-DCGT 11T304N-LV
11T308N-LV 12
0.4 2.4
0.8 2.0
Less Cutting force
Sharp
Edge
2NU-DCGW 11T302LF
11T304LF
11T308LF
12
0.2 2.7
0.4 2.5
0.8 2.1
Less Cutting force
Honing
2NU-DCGW 11T302LE
11T304LE
11T308LE
12
0.2 2.7
0.4 2.5
0.8 2.1
Sharper edge
S00715
2NU-DCGW 11T302LS
11T304LS
11T308LS
12
0.2 2.7
0.4 2.5
0.8 2.1
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L53
Applicable holder ref. page, (Example)
Applicable External Holders
C14, D14, 17, 23
Applicable Internal Holders
E27 to E30
DCG¢
11T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
Multi-cornered,One-use Type/7° Positive (With Hole)
*For BNX25, use 2NS type code (2NS-DCGW) *Depth-of-cut for one-use type is 0.5mm or less *Use a toolholder with a 93° cutting angle.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Positive Inserts
SUMIBORON
Uncoated SUMIBORON Coated SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
2NC-DCGW 11T302
11T304
11T308
12
0.2 2.7
0.4 2.5
0.8 2.1
Wiper Insert
S01215
2NC-DCGW 11T304WG*
11T308WG* 12
0.4 2.3
0.8 2.1
Wiper Insert
S01215
2NC-DCGW 11T304WH*
11T308WH* 12
0.4 2.1
0.8 1.8
Break Master
Honing
2NC-DCGT 11T304N-FV
11T308N-FV 12
0.4 2.4
0.8 2.0
Break Master
S00535
2NC-DCGT 11T304N-LV
11T308N-LV 12
0.4 2.4
0.8 2.0
Less Cutting force
Honing
2NC-DCGW 11T302LE
11T304LE
11T308LE
12
0.2 2.7
0.4 2.5
0.8 2.1
Sharper edge
T00515
2NC-DCGW 11T302LT
11T304LT
11T308LT
12
0.2 2.7
0.4 2.5
0.8 2.1
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-DCGW 11T302LS
11T304LS
11T308LS
12
0.2 2.7
0.4 2.5
0.8 2.1
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
2NC-DCGW 11T304HS
11T308HS 12
0.4 2.5
0.8 2.1
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L54
Applicable holder ref. page, (Example)
Applicable External Holders
C14, D14, 17, 23
Applicable Internal Holders
E27 to E30
DCG¢
11T3
I.C.: ø9.525 Thickness: 3.97 Hole: ø4.4
Multi-cornered,One-use Type/7° Positive (With Hole)
*Use a toolholder with a 93° cutting angle.
Coated
SUMIBORON
D
55° Diamond Type
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
L55
Negative Inserts
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L

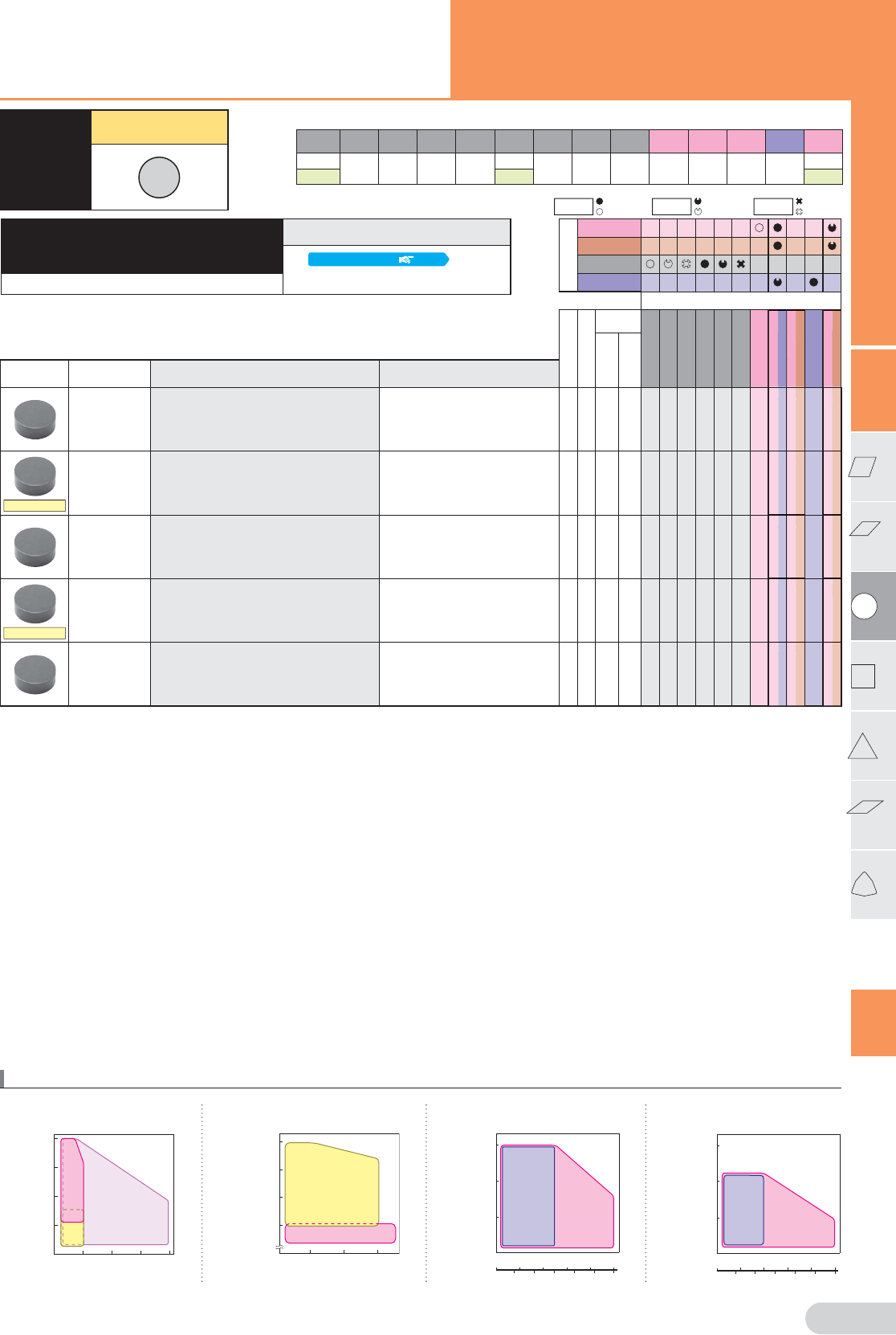

R
Round Type
Applicable holder ref. page, (Example)
Applicable External Holders
L99
Standard
RNGN 090300
1
Solid
9.5 3.1
Less Cutting force
Sharp
Edge
RNGN 090300LF RNGN 090300F
1
Solid
9.5 3.1
Standard
RNGN 120300
1
Solid
12.7
3.1
Less Cutting force
Sharp
Edge
RNGN 120300LF RNGN 120300F
1
Solid
12.7
3.1
Standard
RNGN 120400
1
Solid
12.7
4.7
RNGN
I.C.: 9.525 to 12.7 Thickness: 3.18 to 4.76 Hole:
Solid Type/Negative (Without Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Cutting Edge
Length
Thickness
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON
L56

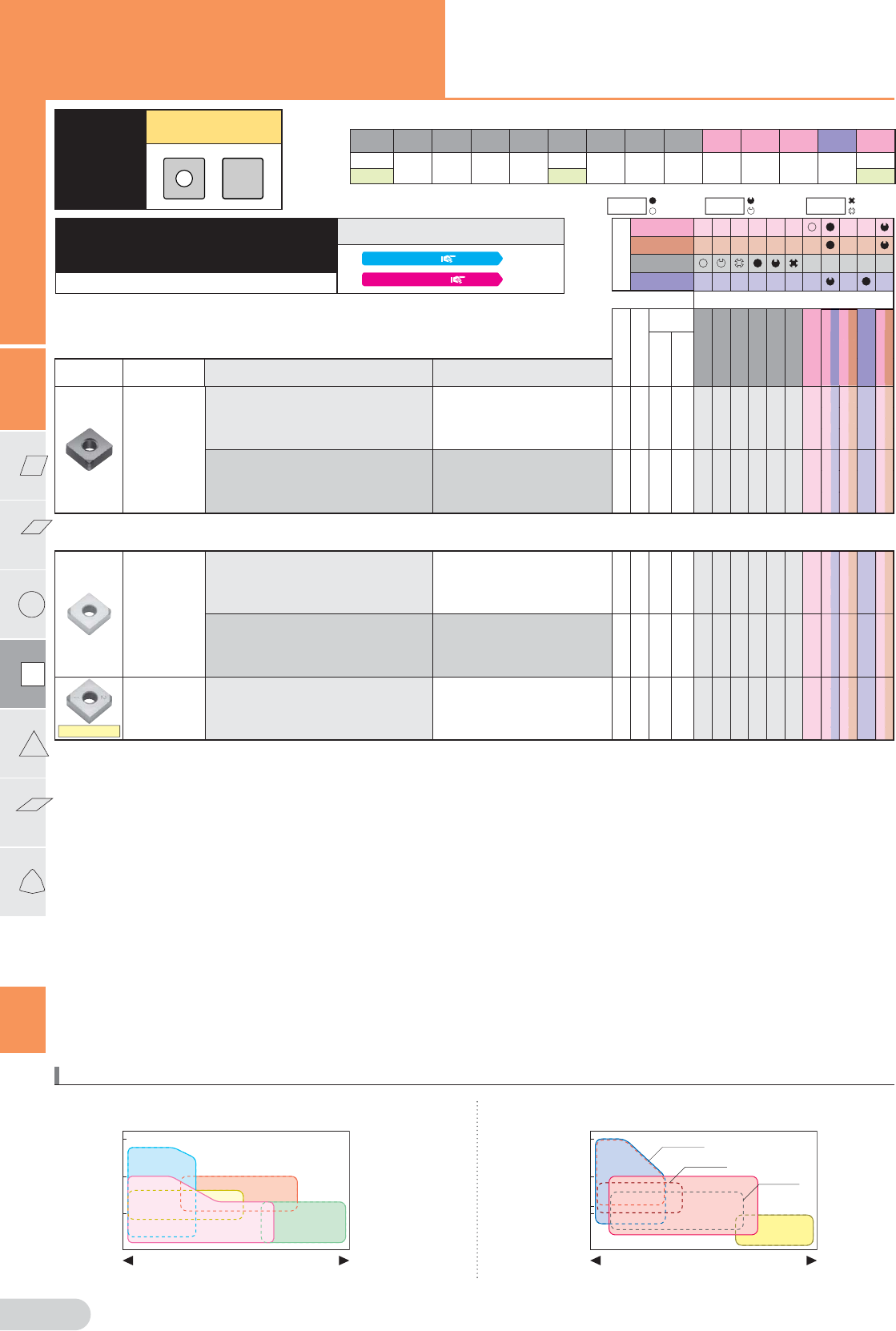

SSquare
Applicable holder ref. page, (Example)
Applicable External Holders C16 to C21
Applicable Internal Holders E53, 54
Standard
NU-SNMA 120404
120408
120412
11
0.4 2.5
0.8 2.3
1.2 2.1
T-NU-SNMA 120404
120408
120412
10 1
0.4 2.5
0.8 2.3
1.2 2.1
SN¢
A1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-SNGA 120404
120408
120412
12
0.4
0.8
1. 2
2.5
2.3
2.1
T-2NU-SNGA 120404
120408
120412
10 2
0.4
0.8
1. 2
2.5
2.3
2.1
Sharper edge
T01215
2NU-SNGA 1120404LT
1120408LT
1120412LT
12
0.4
0.8
1. 2
2.5
2.3
2.1
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
One-use Type/Negative (With Hole)
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
Negative Inserts
SUMIBORON
L57
Applicable holder ref. page, (Example)
Applicable External Holders C16 to C21
Applicable Internal Holders E53, 54
Stronger edge
S01235
2NU-SNGA 120404HS
120408HS
120412HS
12
0.4
0.8
1. 2
2.5
2.3
2.1
SN¢
A1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
*Depth-of-cut for one-use type is 0.5mm or less
Standard
SNMA 120404
120408
120412
11
0.4
0.8
1. 2
4.8
4.8
4.8
Negative Type (With Hole)
Standard
SNGA 120408
120412 1
Solid
0.8
1. 2
12.7
12.7
Solid Type/Negative (With Hole)
Standard
2NC-SNGA 120408
120412 12
0.8
1. 2
2.3
2.1
Standard
4NC-SNGA 120404
120408
120412
14
0.4
0.8
1. 2
2.5
2.3
2.1
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Multi-cornered,One-use Type/Negative (With Hole)
Multi-cornered,One-use Type/Negative (With Hole)
Applicable holder ref. page, (Example)
Applicable External Holders
C16 to C21
Applicable Internal Holders
E53, 54
SNGA1204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Coated
SUMIBORON
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON

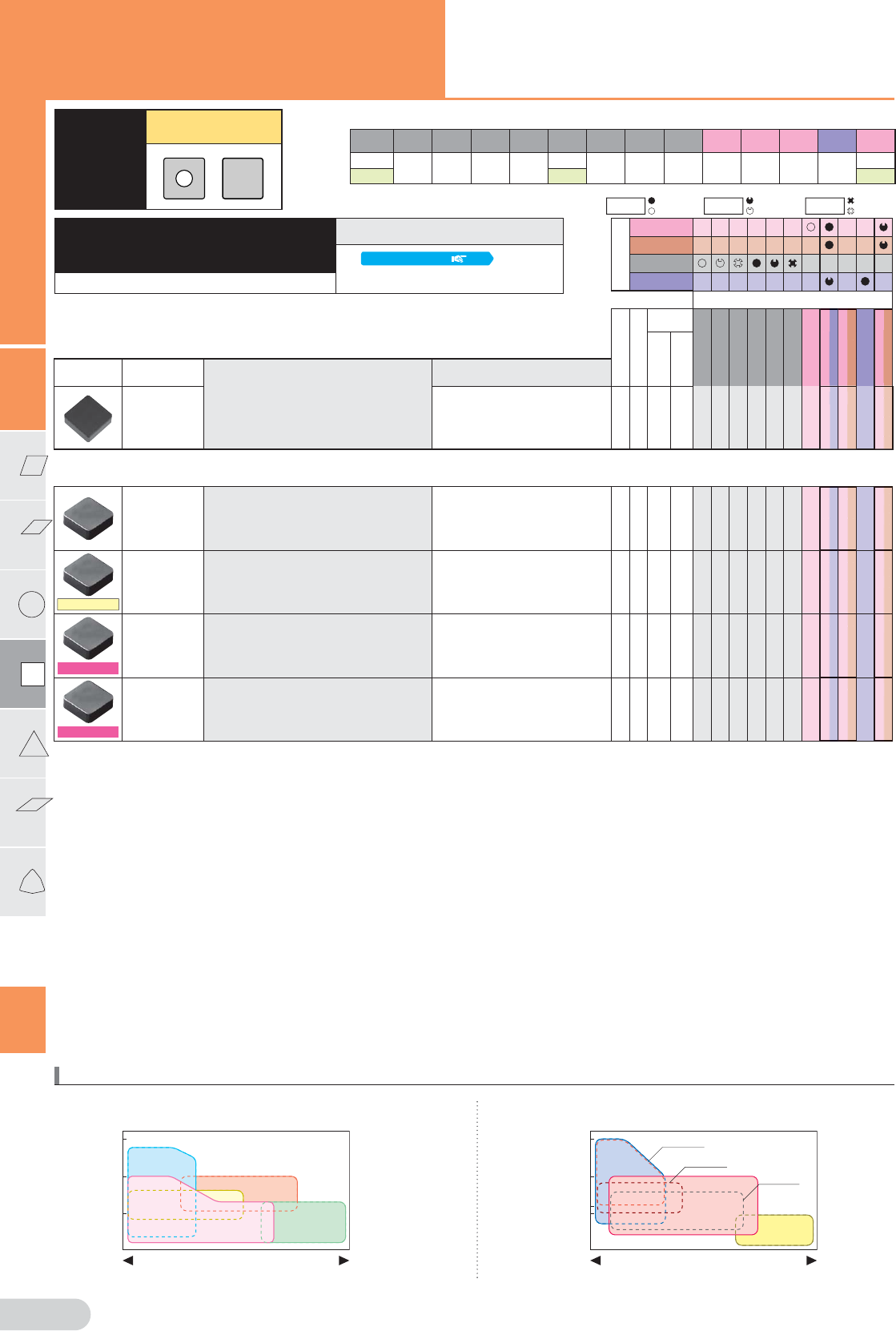

L58
Applicable holder ref. page, (Example)
Applicable External Holders
L98
Standard
SNGN 090308
090312 1
Solid
0.8
1. 2
9.5
9.5
Less Cutting force
Sharp
Edge
SNGN 090308LF
090312LF
SNGN 090308F
090312F 1
Solid
0.8
1. 2
9.5
9.5
Wiper Insert
T02020
SNEN 090308W
1
Solid
0.8 9.5
Wiper Sharp Edge Type
No edge
treatment
SNEN 090308LFW SNEN 090308FW
1
Solid
0.8 9.5
SN¢
N0903
I.C.: ø9.525 Thickness: 3.18 Hole:
Solid Type/Negative (Without Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Negative Type (Without Hole)
SSquare
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
SNGN 090308-B
090312-B
090316-B
14
0.8
1. 2
1. 6
9.5
9.5
9.5
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
Negative Inserts
SUMIBORON
L59

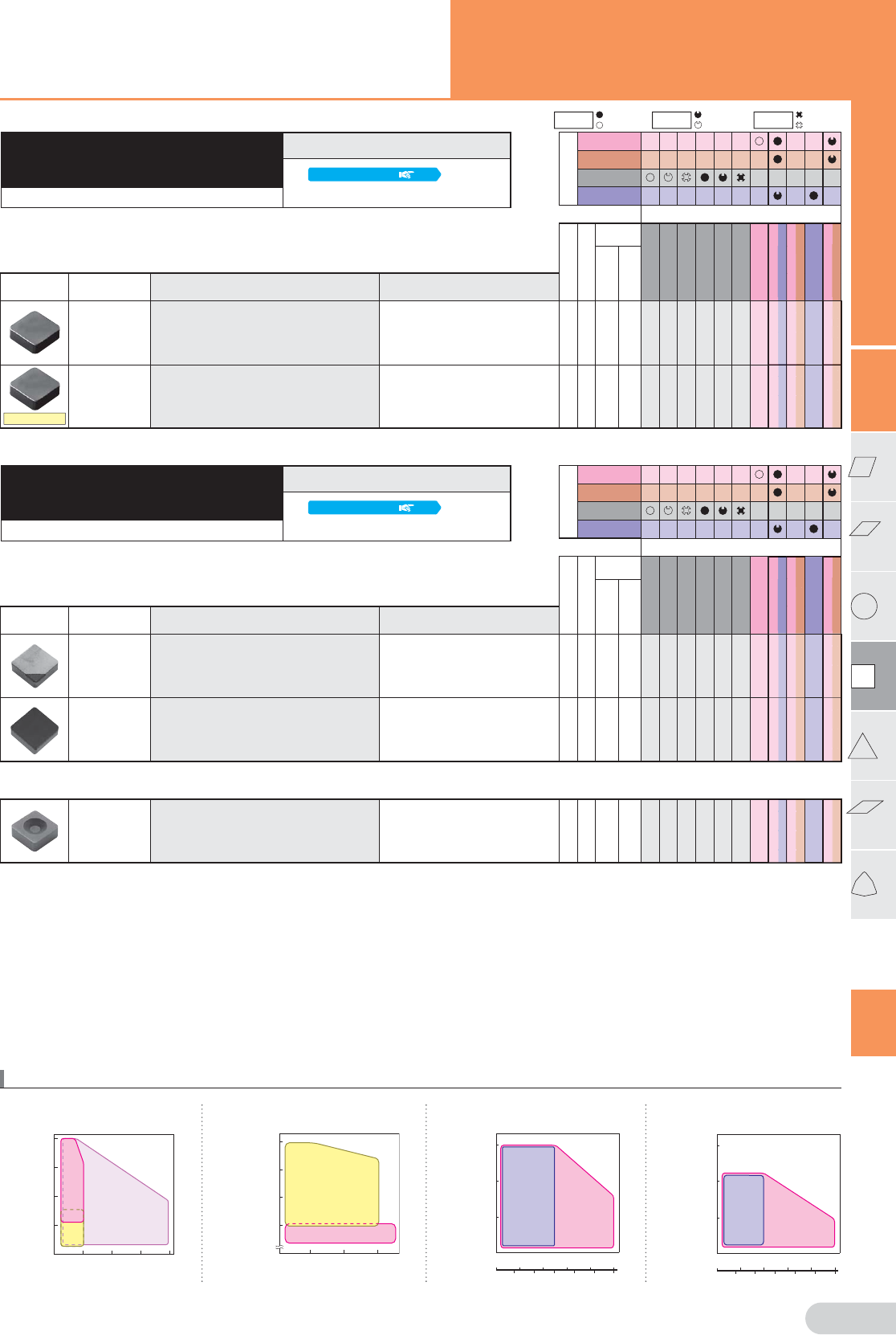

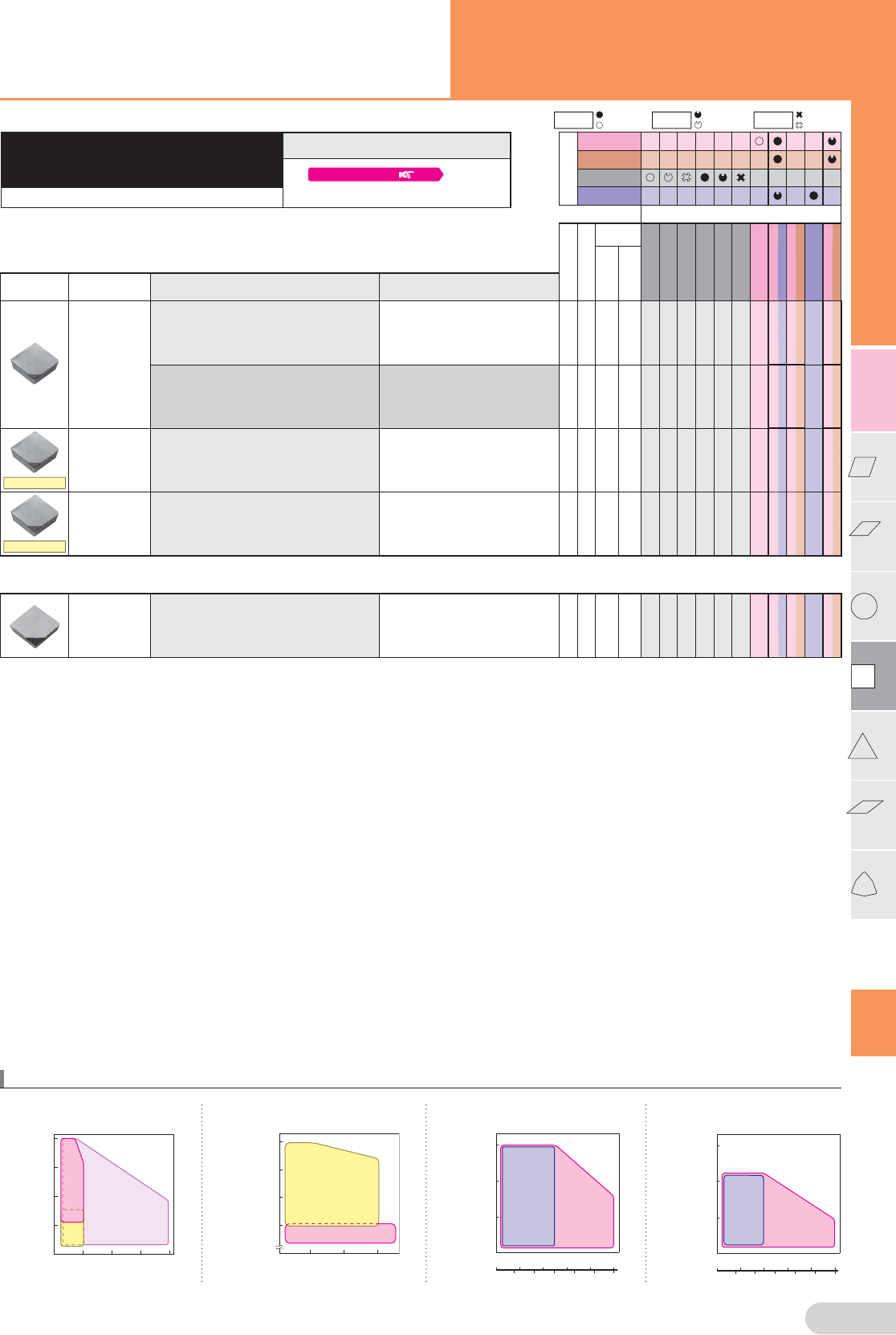

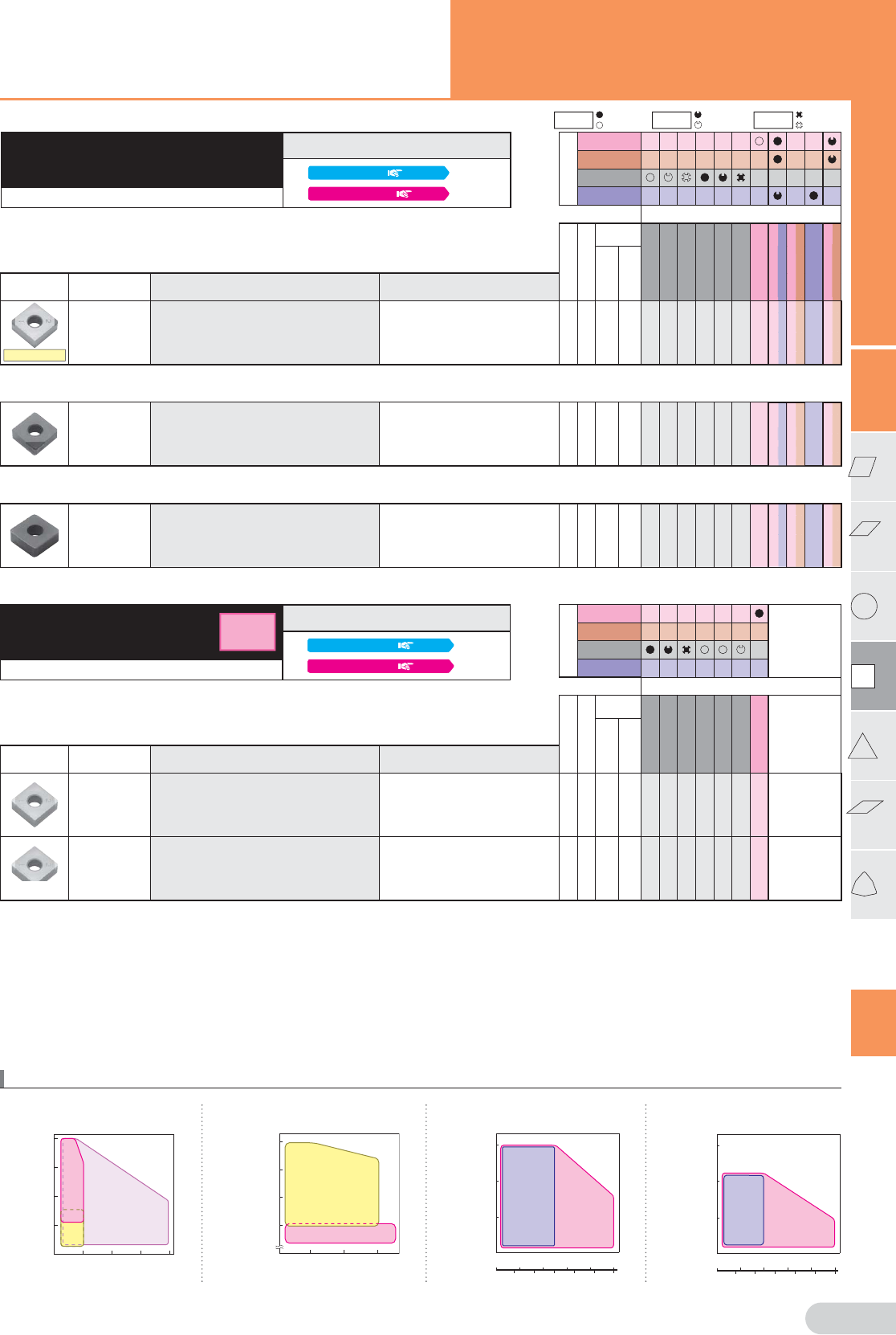

Applicable holder ref. page, (Example)
Applicable External Holders
L98
Standard
SNGN 120408
120412 11
0.8
1. 2
4.8
4.8
Standard
SNGN 120408-B
120412-B
120416-B
14
0.8
1. 2
1. 6
12.7
12.7
12.7
SNG¢
1204
I.C.: ø12.7 Thickness: 4.76 Hole:
Standard
SNGX 120408
120412
120416
1
Solid
0.8
1. 2
1. 6
12.7
12.7
12.7
Applicable holder ref. page, (Example)
Applicable External Holders
L98
Standard
SNGN 120308
120312 1
Solid
0.8
1. 2
12.7
12.7
Less Cutting force
Sharp
Edge
SNGN 120308LF
120312LF
SNGN 120308F
120312F 1
Solid
0.8
1. 2
12.7
12.7
SNGN1203
I.C.: ø12.7 Thickness: 3.18 Hole:
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Solid Type/Negative (Without Hole)
Negative (Without Hole)
Solid Type/Negative (Dimple Lock)
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
Negative Inserts
SUMIBORON
L60

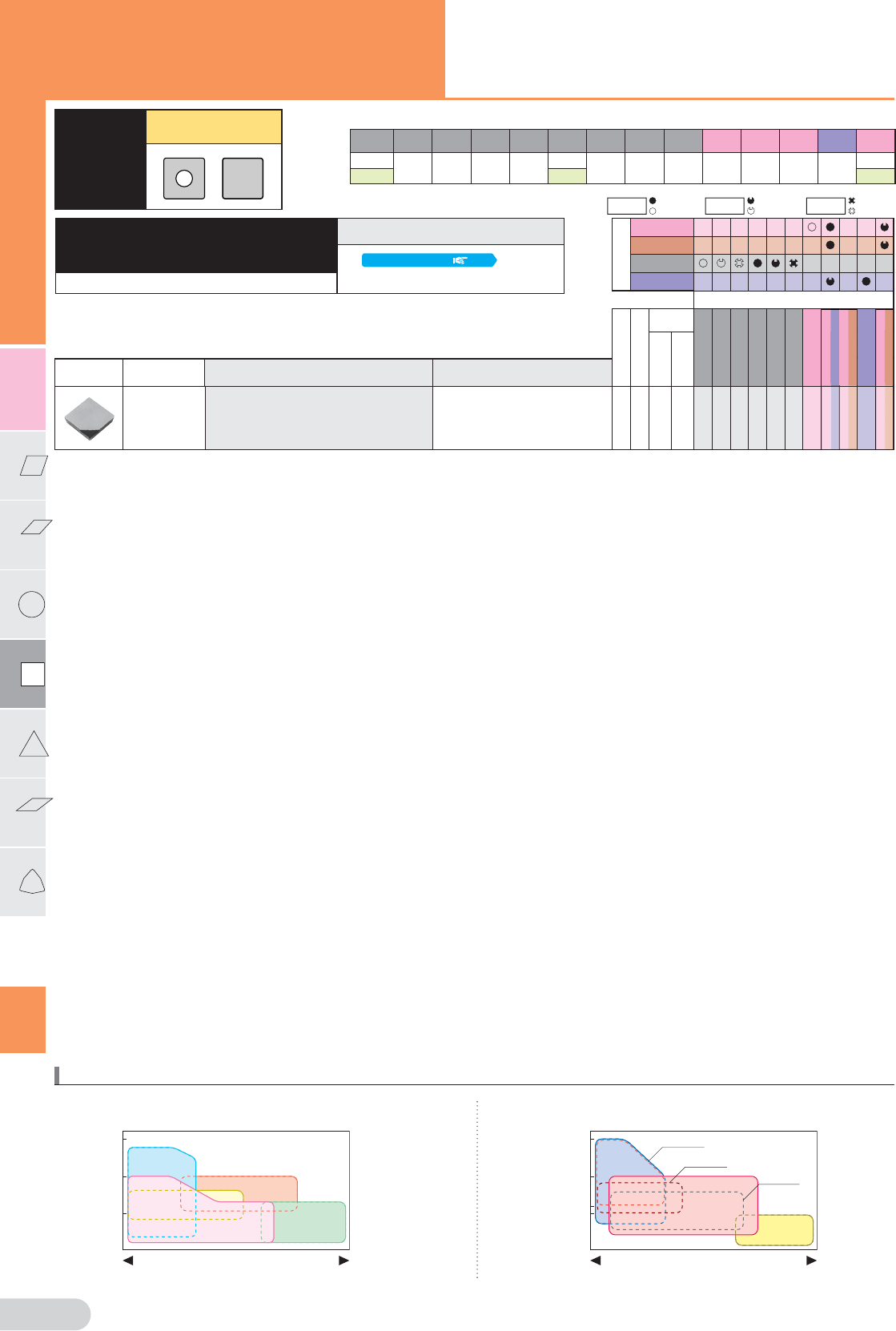

SSquare
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable External Holders
L98
SNG¢
1204
I.C.: ø12.7 Thickness: 4.76 Hole:
Standard
SNGN 120408
120412
120416
120420
1
Solid
0.8
1. 2
1. 6
2.0
12.7
12.7
12.7
12.7
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Solid Type/Negative (Without Hole)
61
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L61
Applicable holder ref. page, (Example)
Applicable Internal Holders
E50
Standard
NU-SPGN 090304
090308 11
0.4
0.8
2.5
2.5
T-NU-SPGN 090304
090308 10 1
0.4
0.8
2.5
2.5
Sharper edge
T01215
NU-SPGN 090304LT
090308LT 11
0.4
0.8
2.5
2.5
Stronger edge
S01235
NU-SPGN 090304HS
090308HS 11
0.4
0.8
2.5
2.5
SPGN0903
I.C.: ø9.525 Thickness: 3.18 Hole:
*For BNX25, use NS type code (NS-SPGN) *Depth-of-cut for one-use type is 0.5mm or less
Standard
SPGN 090304
090308
090312
11
0.4
0.8
1. 2
4.8
4.8
4.8
11° Positive Type (Without Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
One-use Type/11° Positive (Without Hole)

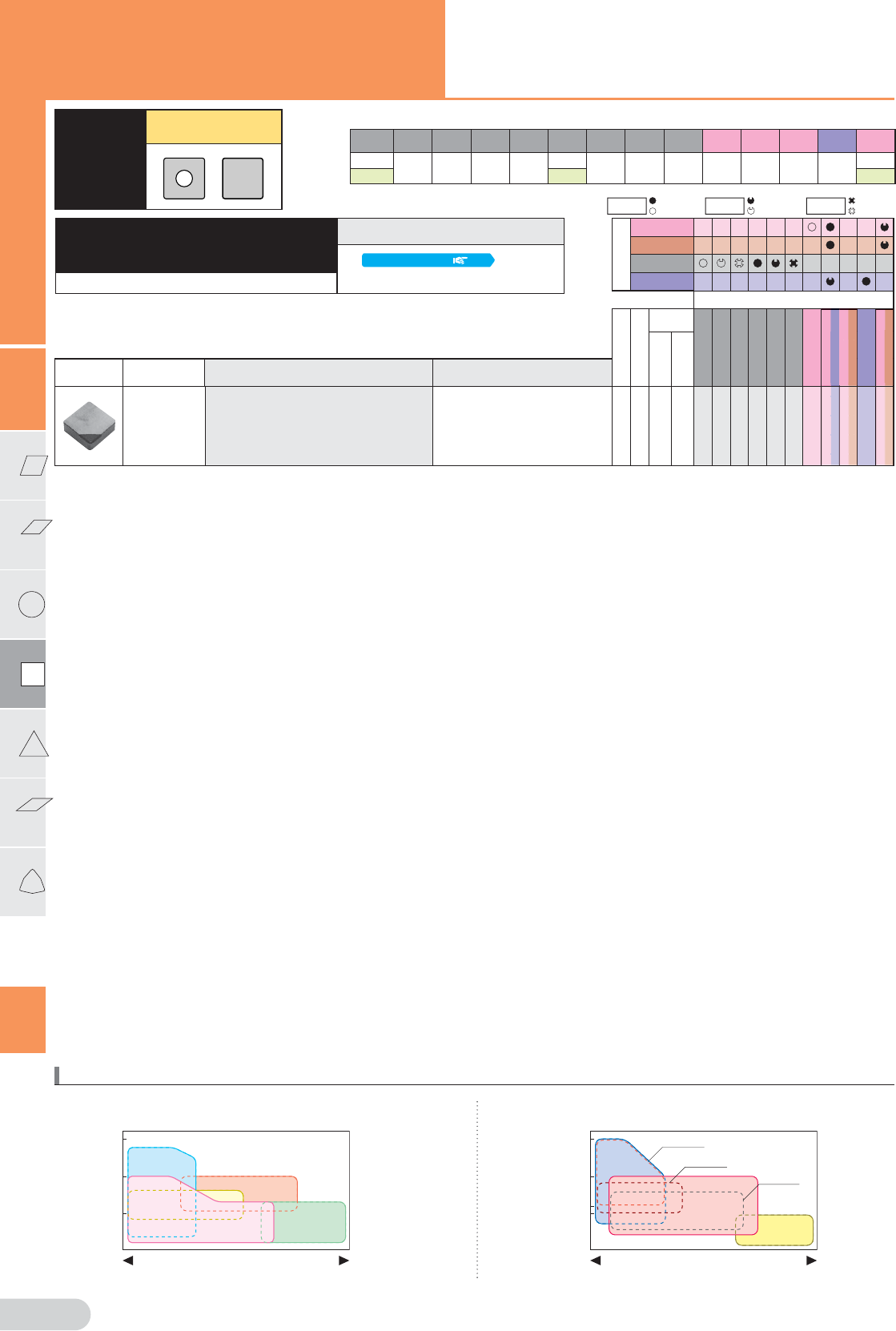

62
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L62
Applicable holder ref. page, (Example)
Applicable External Holders
C22
Standard
SPGN 120308
120312 11
0.8
1. 2
4.8
4.8
SPGN1203
I.C.: ø12.7 Thickness: 3.18 Hole:
SSquare
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
11° Positive Type (Without Hole)
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L

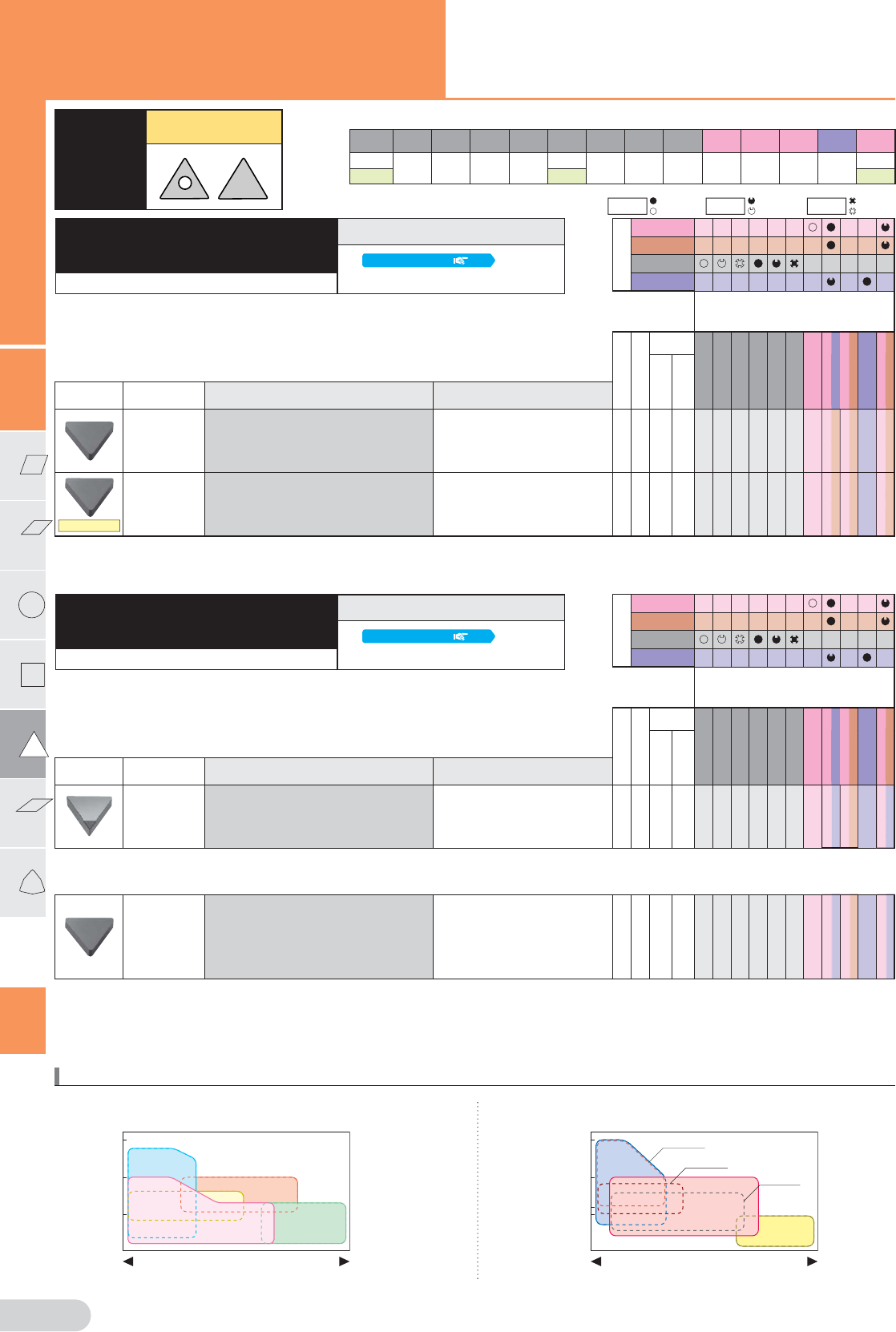

SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Negative Inserts
High Density Sintered Alloy

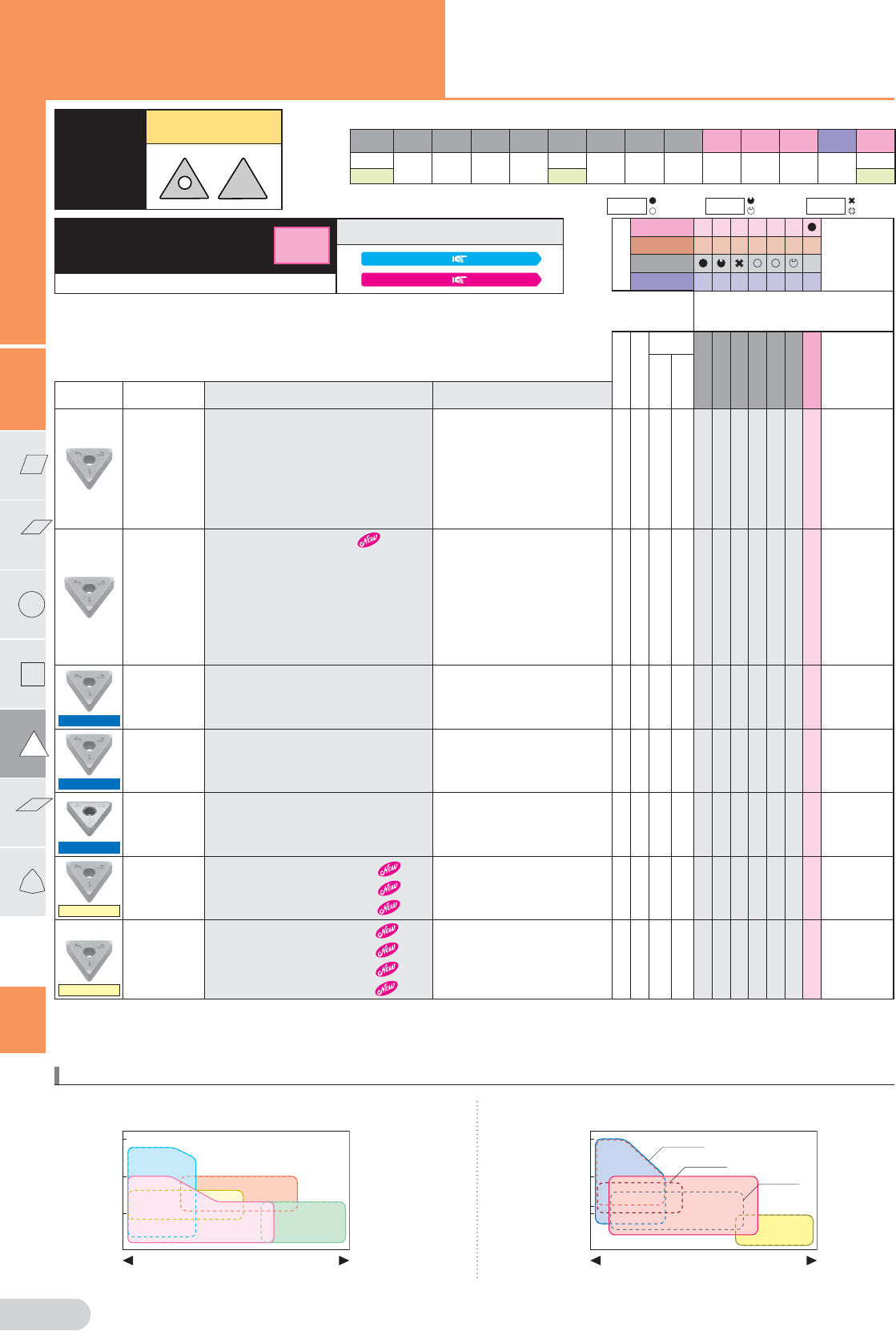

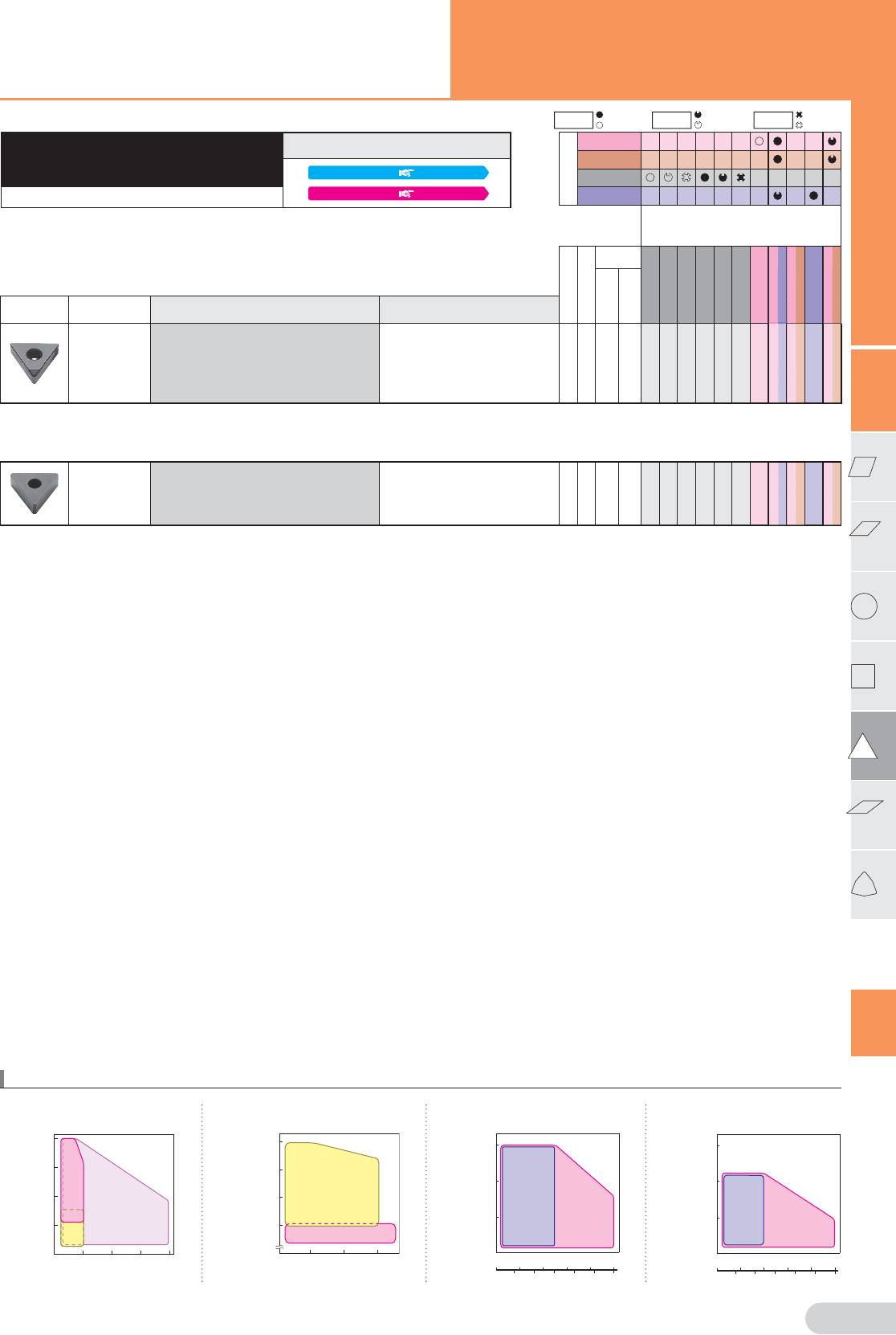

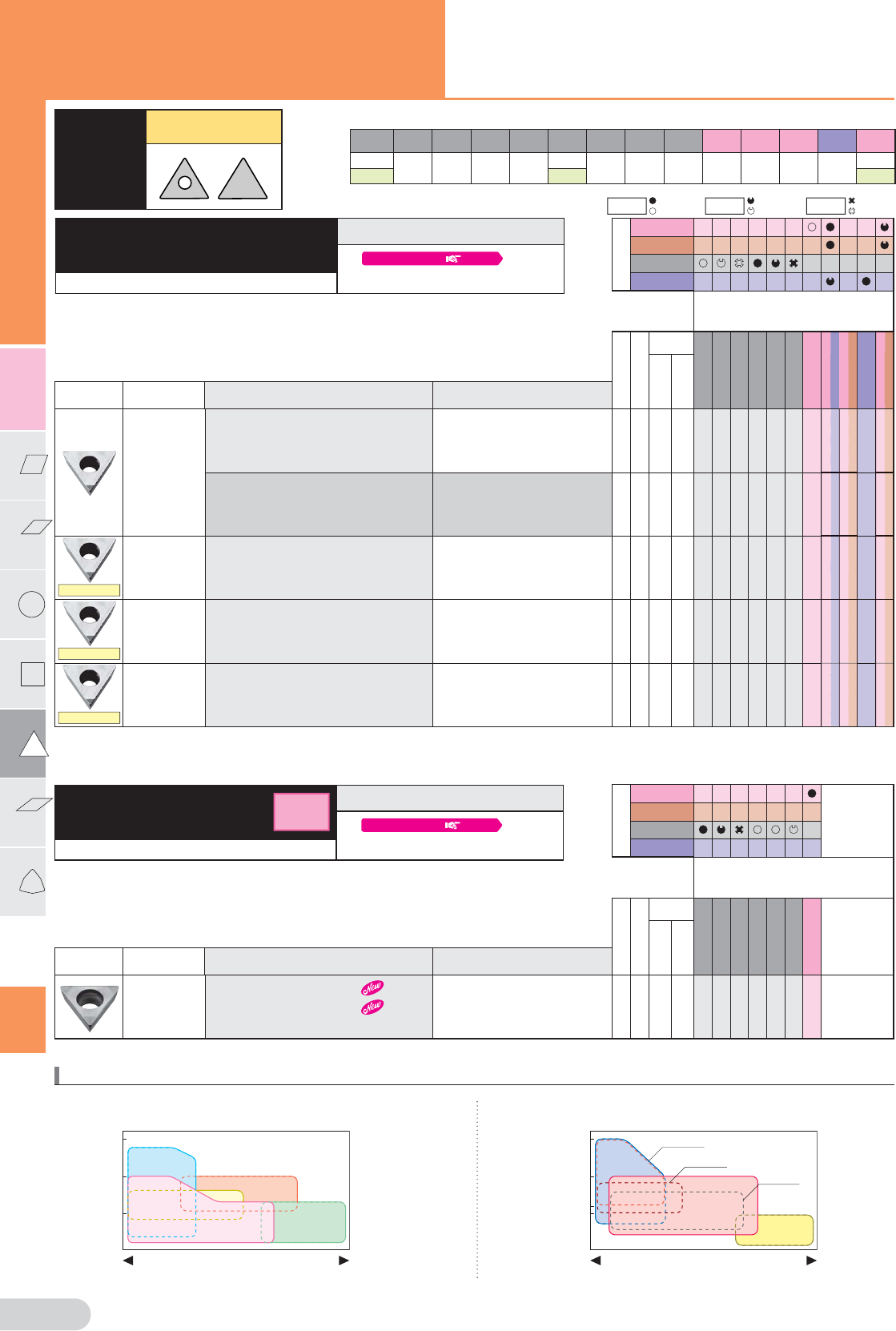

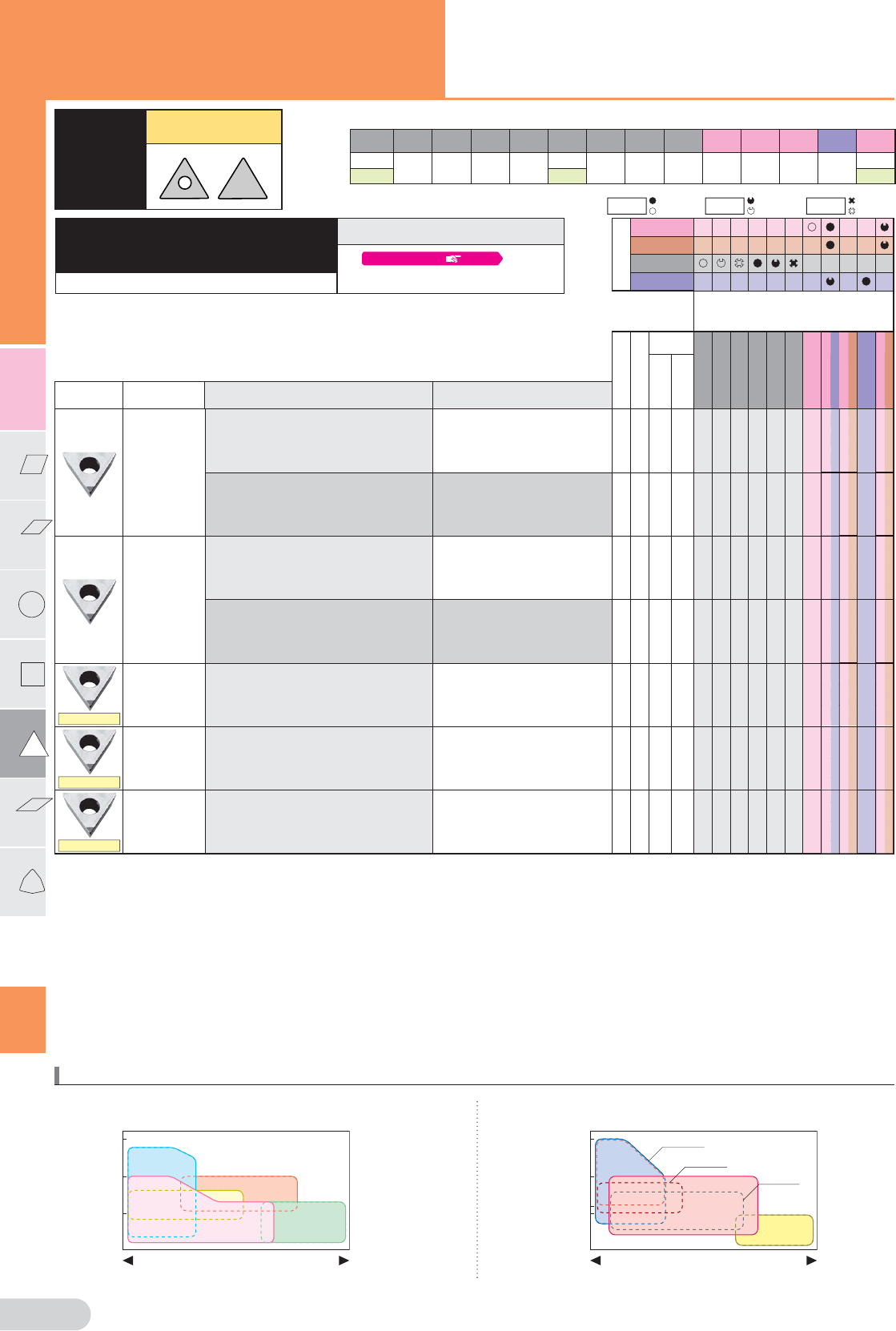

Standard
NU-TNMA 160401
160402
160404
160408
160412
11
0.1
0.2
0.4
0.8
1. 2
2.5
2.4
2.3
2.0
2.0
T-NU-TNMA 160401
160402
160404
160408
160412
10 1
0.1
0.2
0.4
0.8
1. 2
2.5
2.4
2.3
2.0
2.0
Standard
NS-TNMA 160404
160408
160412
11
0.4
0.8
1. 2
2.3
2.0
2.0
T-NS-TNMA 160404
160408
160412
10 1
0.4
0.8
1. 2
2.3
2.0
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L63

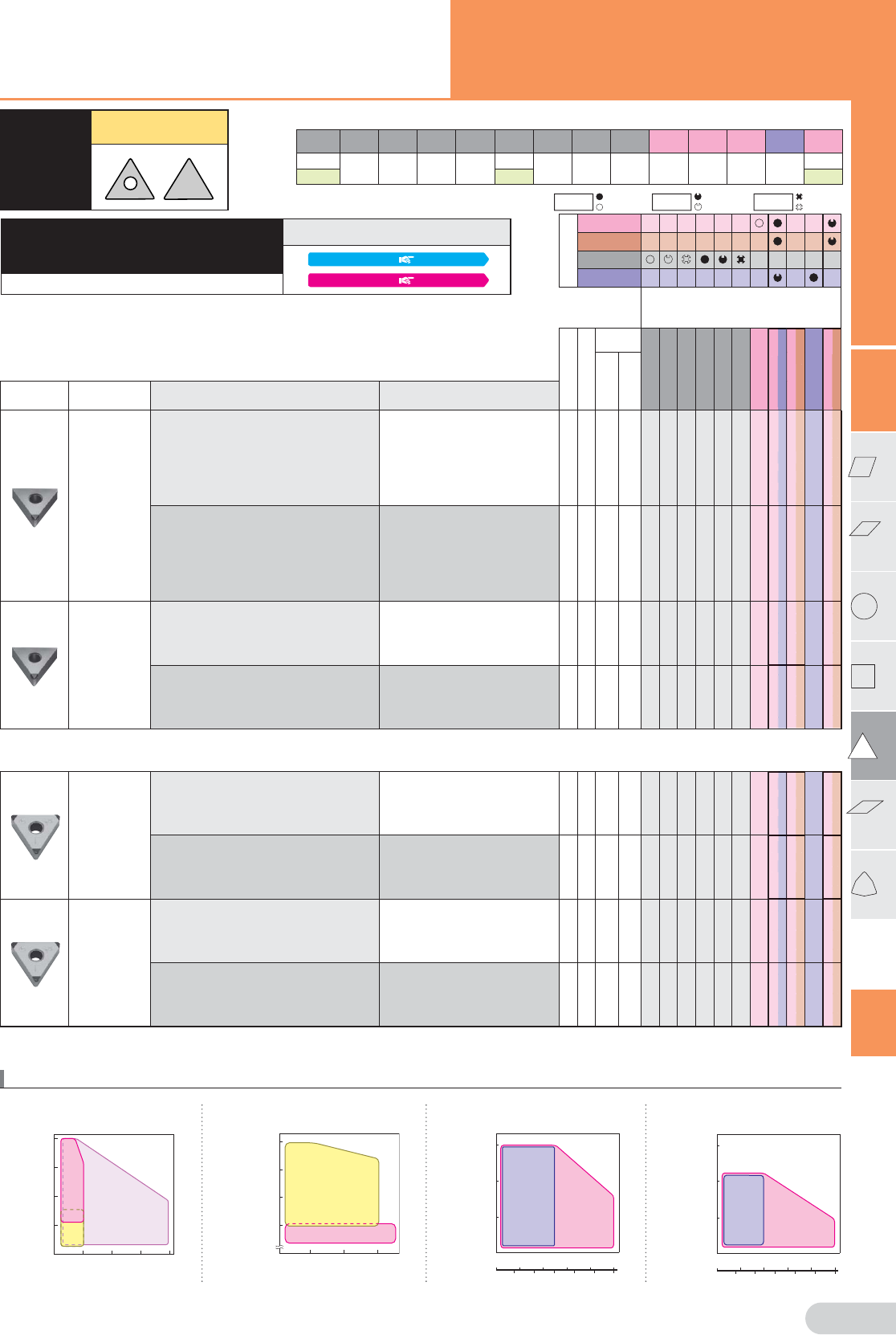

T
Triangular Type
Applicable holder ref. page, (Example)
Applicable External Holders
C23 to C29, D15, 18
Applicable Internal Holders
E68 to E70
TN¢¢1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235

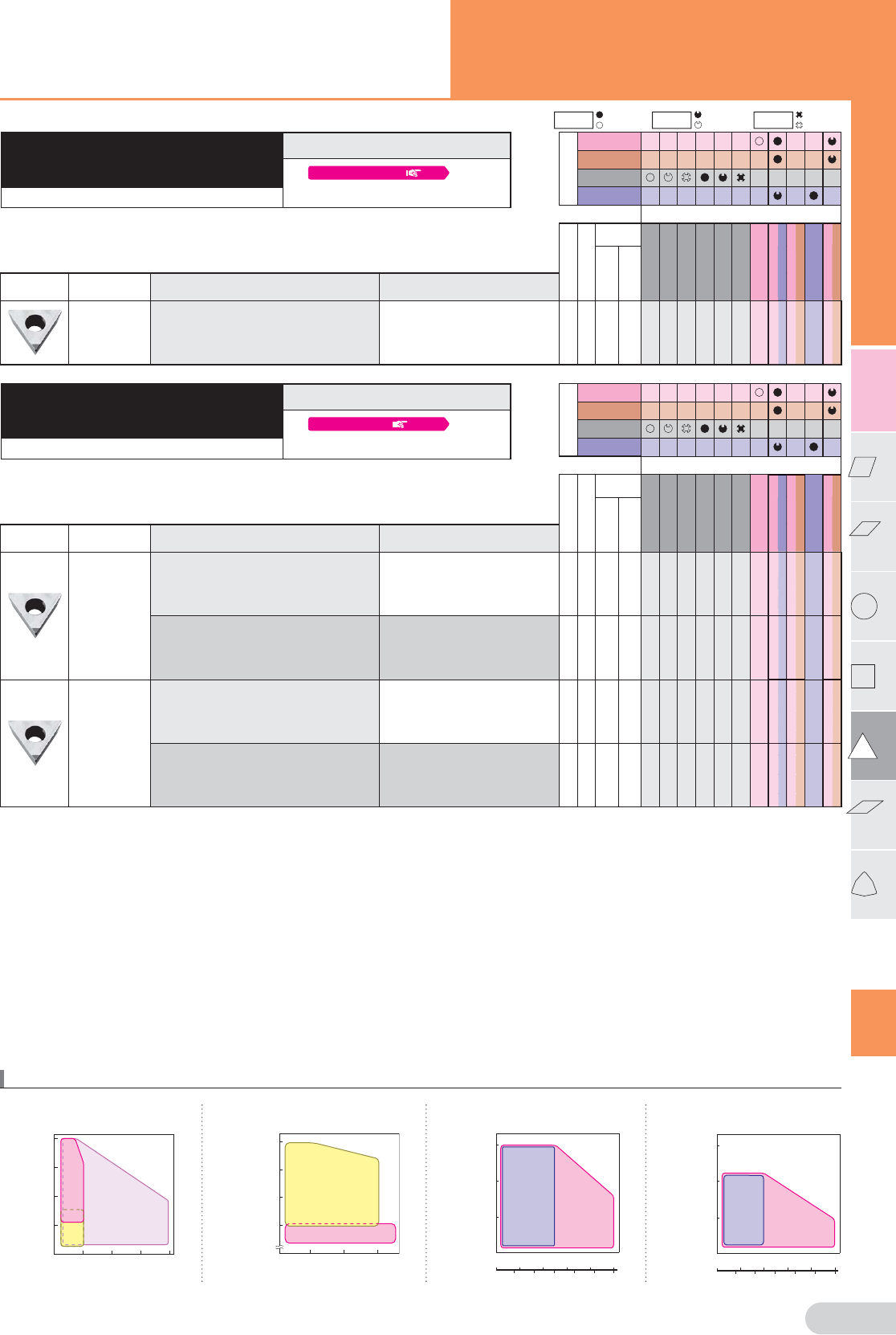

Standard
3NU-TNGA 160404
160408
160412
13
0.4
0.8
1. 2
2.3
2.0
2.0
T-3NU-TNGA 160404
160408
160412
10 3
0.4
0.8
1. 2
2.3
2.0
2.0
Standard
3NS-TNGA 160404
160408
160412
13
0.4
0.8
1. 2
2.3
2.0
2.0
T-3NS-TNGA 160404
160408
160412
10 3
0.4
0.8
1. 2
2.3
2.0
2.0
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Negative Inserts

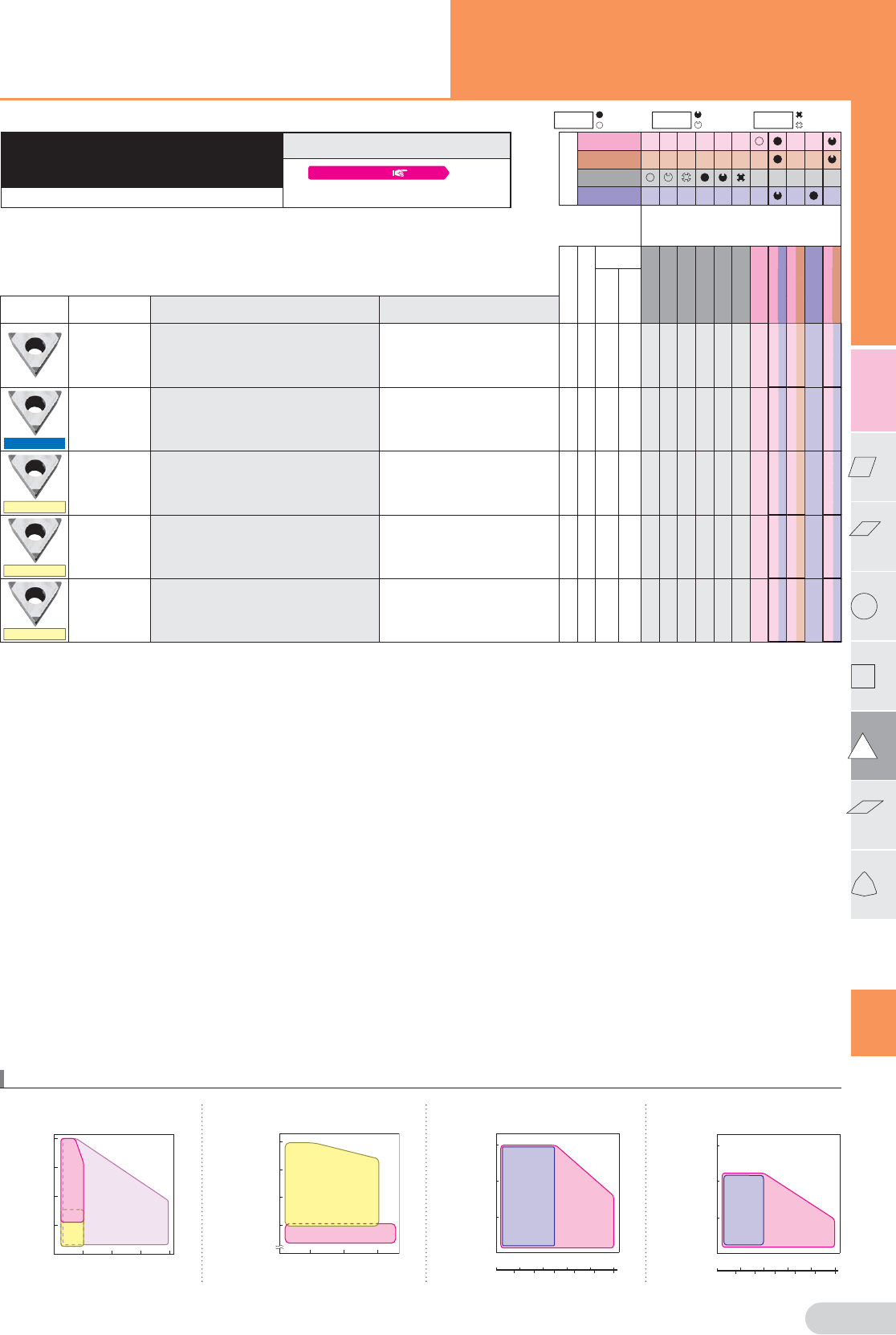

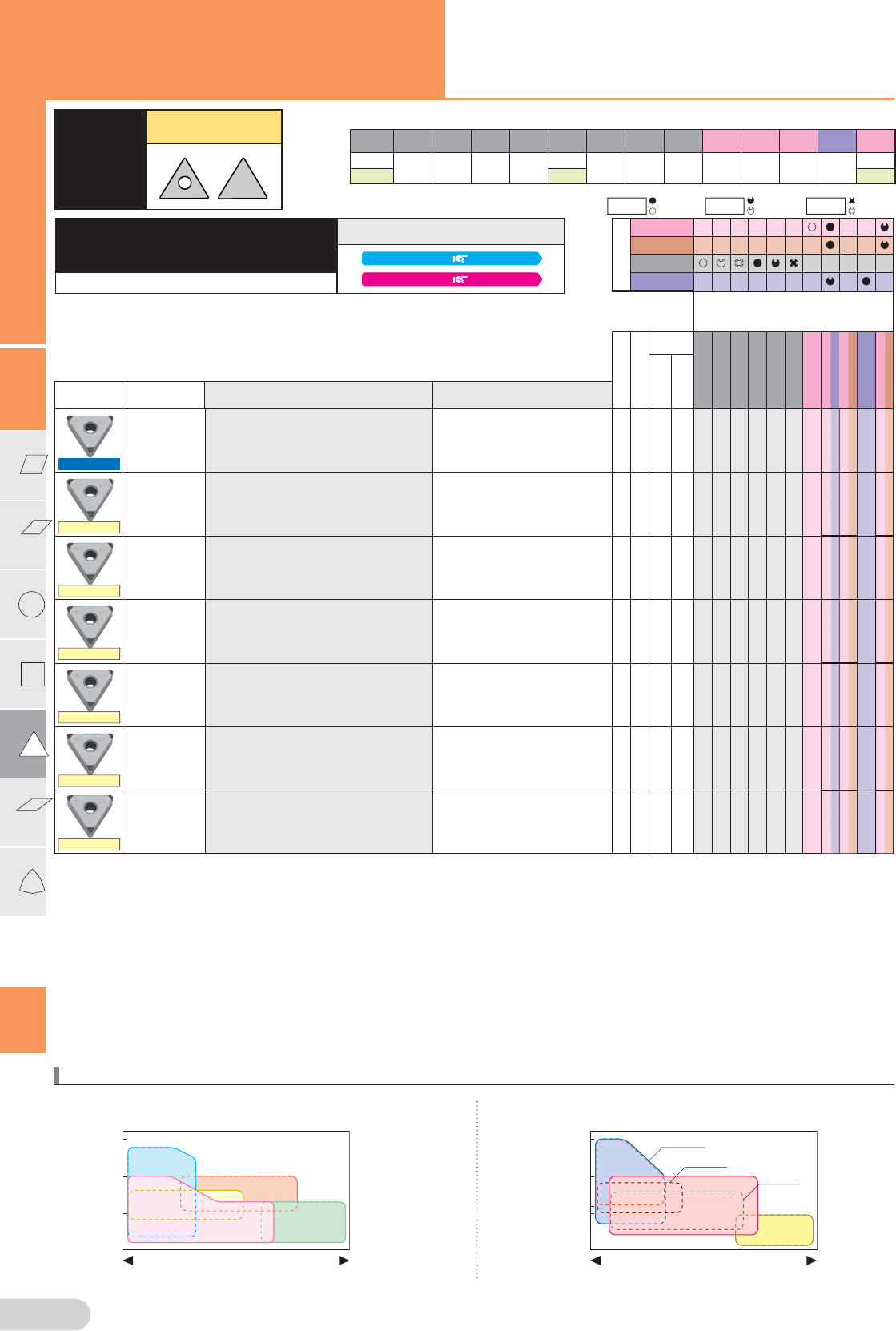

Break Master
S00535
3NU-TNGM 160404N-LV
160408N-LV
160412N-LV
13
0.4
0.8
1. 2
2.3
2.0
2.0
Less Cutting force
Sharp
Edge
3NU-TNGA 160404LF
160408LF
160412LF
3NU-TNGA 160404F
160408F
160412F
13
0.4
0.8
1. 2
2.3
2.0
2.0
Less Cutting force
Honing
3NU-TNGA 160404LE
160408LE 13
0.4
0.8
2.3
2.0
Sharper edge
T01215
3NU-TNGA 160404LT
160408LT
160412LT
13
0.4
0.8
1. 2
2.3
2.0
2.0
Sharper edge
S00715
3NU-TNGA 160404LS
160408LS 13
0.4
0.8
2.3
2.0
Stronger edge
T01235
3NU-TNGA 160404HT
160408HT
160412HT
3NU-TNGA 160404T
160408T
160412T
13
0.4
0.8
1. 2
2.3
2.0
2.0
Stronger edge
BN2000 S01235
BN7000 S01225
BN700 S01225
BN7500 S00525
3NU-TNGA 160404HS
160408HS
160412HS
3NU-TNGA 160404T
160408T
160412T
13
0.4
0.8
1. 2
2.3
2.0
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L64
T

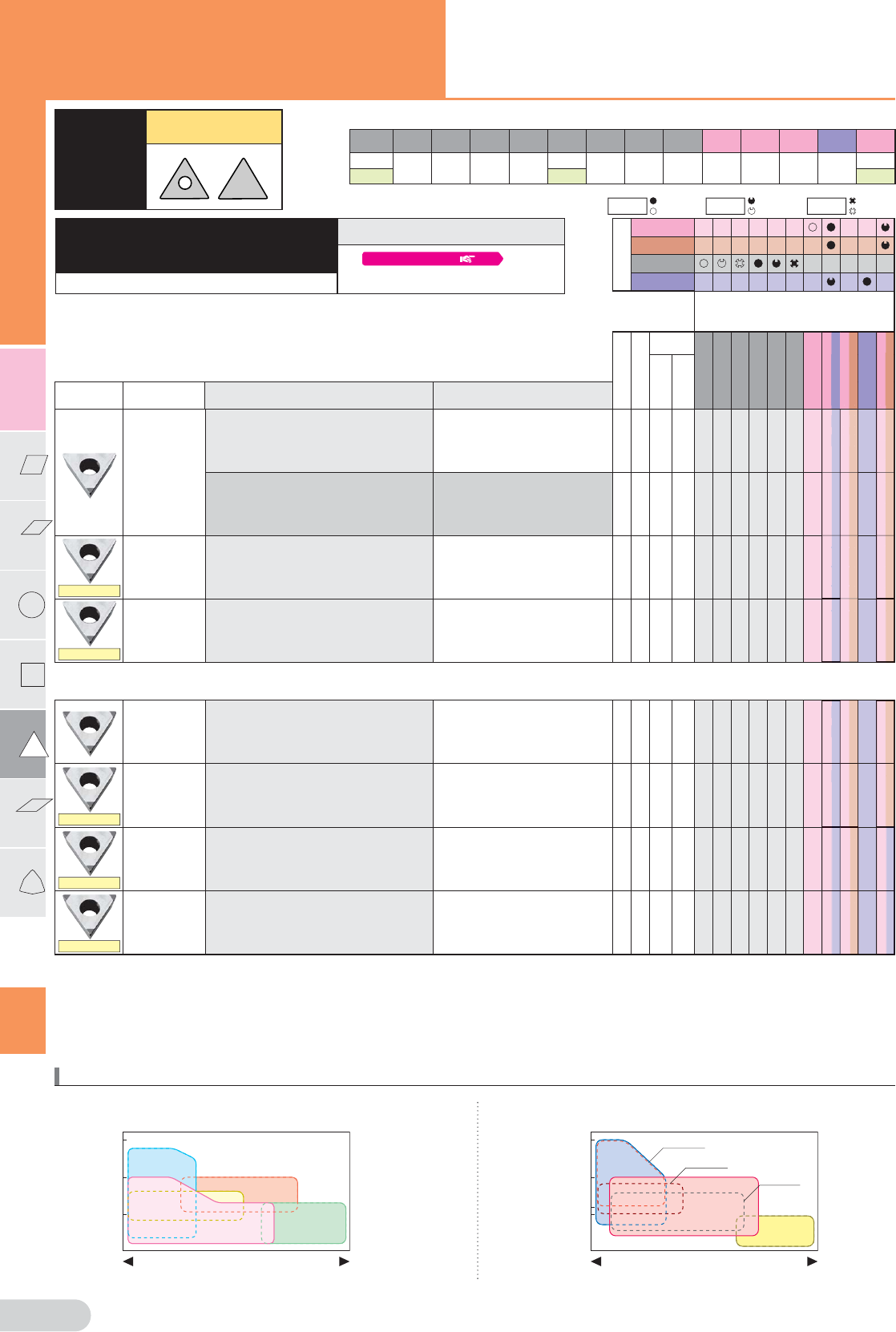

Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable External Holders
C23 to C29, D15, 18
Applicable Internal Holders
E68 to E70
TN¢¢1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Multi-cornered,One-use Type/Negative (With Hole)
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Negative Inserts
High Density Sintered Alloy
Standard
TNMA 160402
160404
160408
160412
11
0.2
0.4
0.8
1. 2
3.6
3.5
3.2
2.9
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L65
Applicable holder ref. page, (Example)
Applicable External Holders
C23 to C29, D15, 18
Applicable Internal Holders
E68 to E70
TN¢¢1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Negative Type (With Hole)
Standard
TNGA 160408
160412 1
Solid
0.8
1. 2
15.3
15.7
Solid Type/Negative (With Hole)
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L

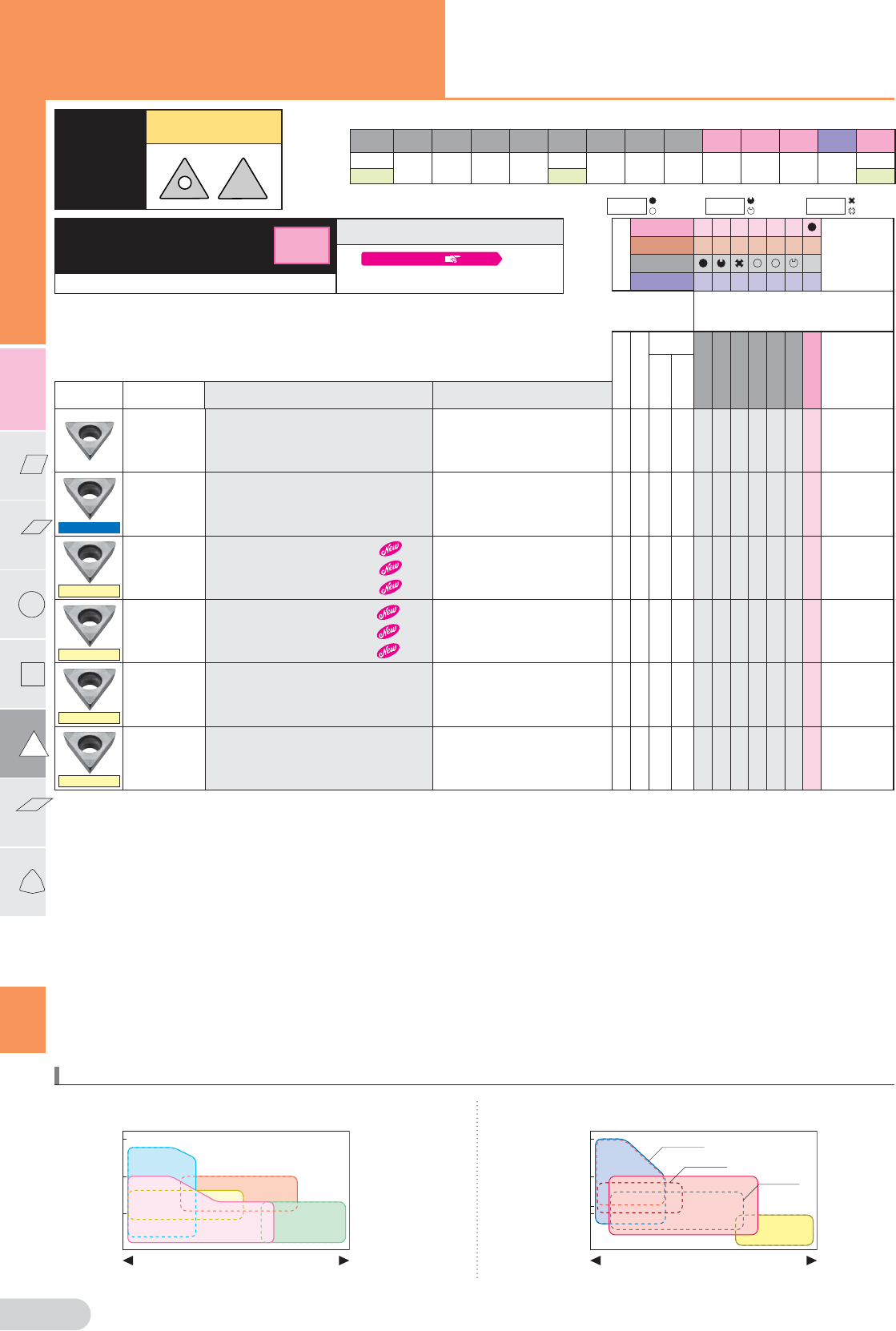

SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Negative Inserts
Standard
3NC-TNGA 160404
160408
160412
160416*
160420*
160424*
13
0.4
0.8
1. 2
1. 6
2.0
2.4
2.3
2.0
2.0
3.3
3.0
2.7
Standard
6NC-TNGA 160402
160404
160408
160412
160416*
160420*
160424*
16
0.2
0.4
0.8
1. 2
1. 6
2.0
2.4
2.4
2.3
2.0
2.0
3.3
3.0
2.7
Break Master
Honing
6NC-TNGG 160404N-FV
160408N-FV
160412N-FV
16
0.4
0.8
1. 2
2.3
2.0
2.0
Break Master
S00535
6NC-TNGG 160404N-LV
160408N-LV
160412N-LV
16
0.4
0.8
1. 2
2.3
2.0
2.0
Break Master
S01235
6NC-TNGG 160404N-SV
160408N-SV
160412N-SV
16
0.4
0.8
1. 2
2.3
2.0
2.0
Less Cutting force
Honing
3NC-TNGA 160404LE
160408LE
160412LE
13
0.4
0.8
1. 2
2.3
2.0
2.0
Sharper edge
T00515
3NC-TNGA 160402LT
160404LT
160408LT
160412LT
13
0.2
0.4
0.8
1. 2
2.4
2.3
2.0
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L66
T
Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable External Holders
C23 to C29, D15, 18
Applicable Internal Holders
E68 to E70
TNG¢
1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Coated
SUMIBORON
Multi-cornered,One-use Type/Negative (With Hole)
*For use with SUMIBORON holders for high-ef ciency machining shown on page L102.
W
V
T
S
R
D
C

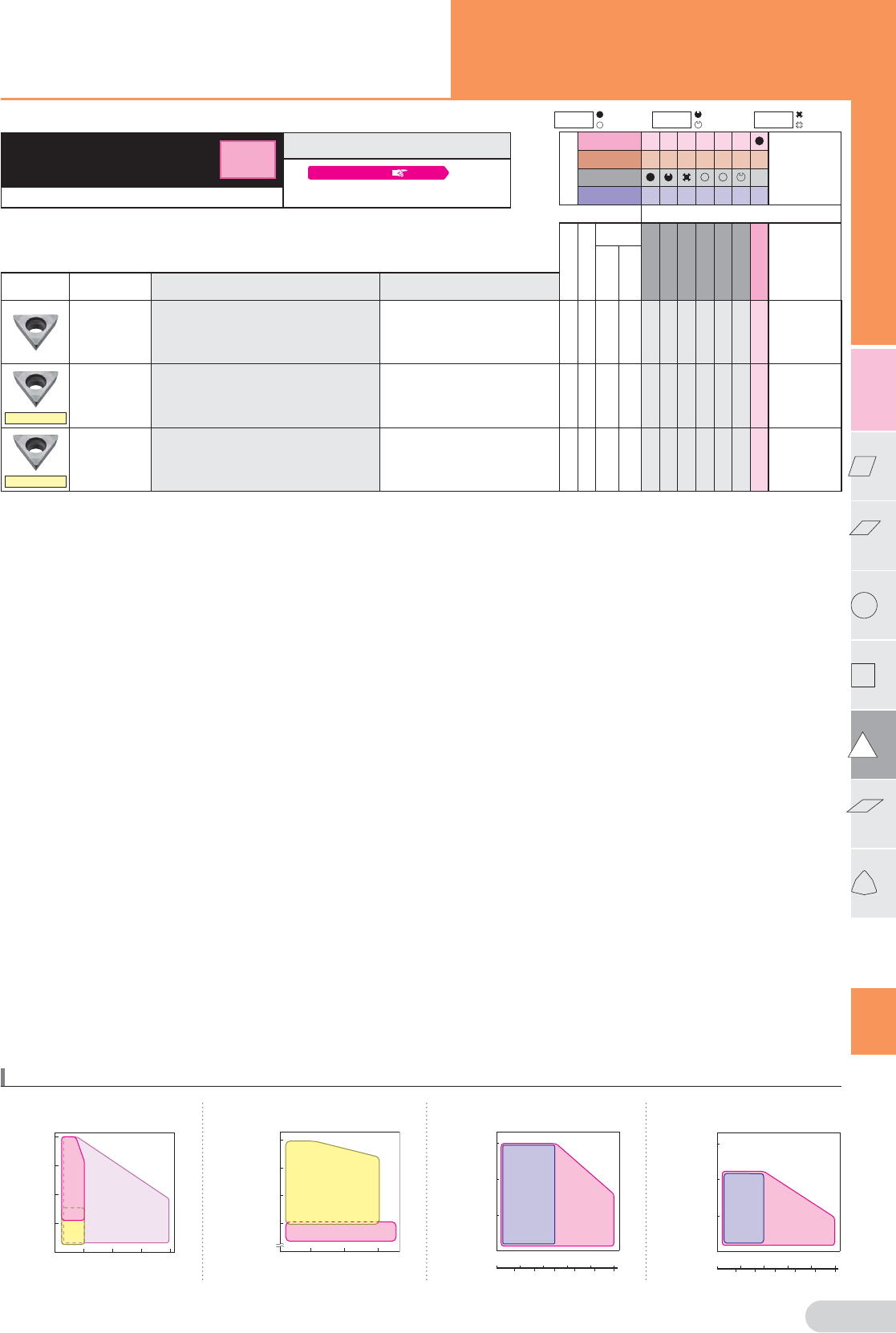

SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L

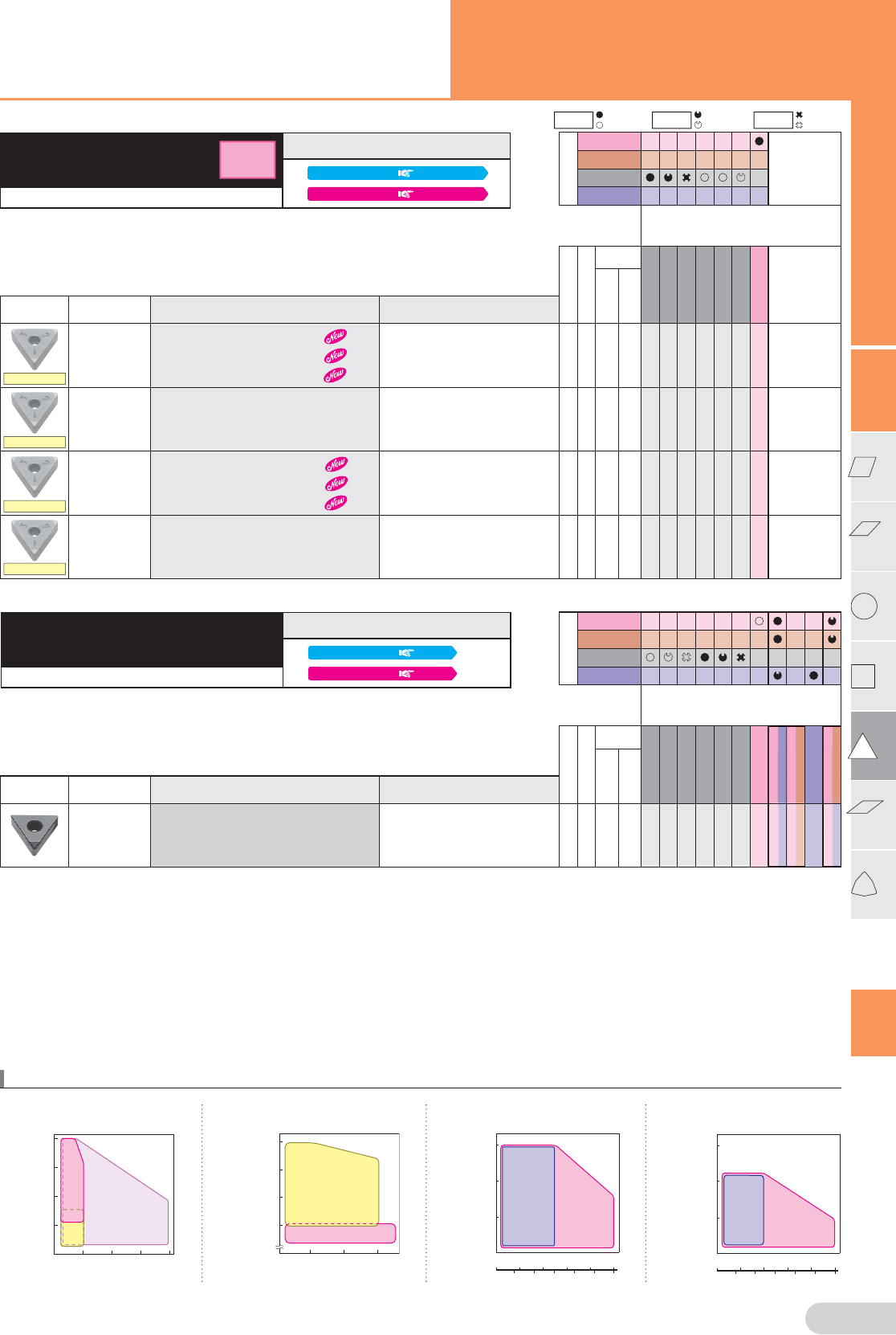

SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Negative Inserts
High Density Sintered Alloy
Standard
TNMA 220408
220412 11
0.8
1. 2
3.2
2.9
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
3NC-TNGA 160404LS
160408LS
160412LS
13
0.4
0.8
1. 2
2.3
2.0
2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
6NC-TNGA 160404LS
160408LS
160412LS
16
0.4
0.8
1. 2
2.3
2.0
2.0
High Ef ciency
S00535
6NC-TNGA 160404ES
160408ES
160412ES
16
0.4
0.8
1. 2
2.3
2.0
2.0
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
6NC-TNGA 160404HS
160408HS
160412HS
16
0.4
0.8
1. 2
2.3
2.0
2.0
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L67
Applicable holder ref. page, (Example)
Applicable External Holders
C24 to C29
Applicable Internal Holders
E69, 70
TNMA2204
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Negative Type (With Hole)
Applicable holder ref. page, (Example)
Applicable External Holders
C23 to C29, D15, 18
Applicable Internal Holders
E68 to E70
TNG¢
1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Multi-cornered,One-use Type/Negative (With Hole)
*For use with SUMIBORON holders for high-ef ciency machining shown on page L102.
Coated
SUMIBORON
68
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON

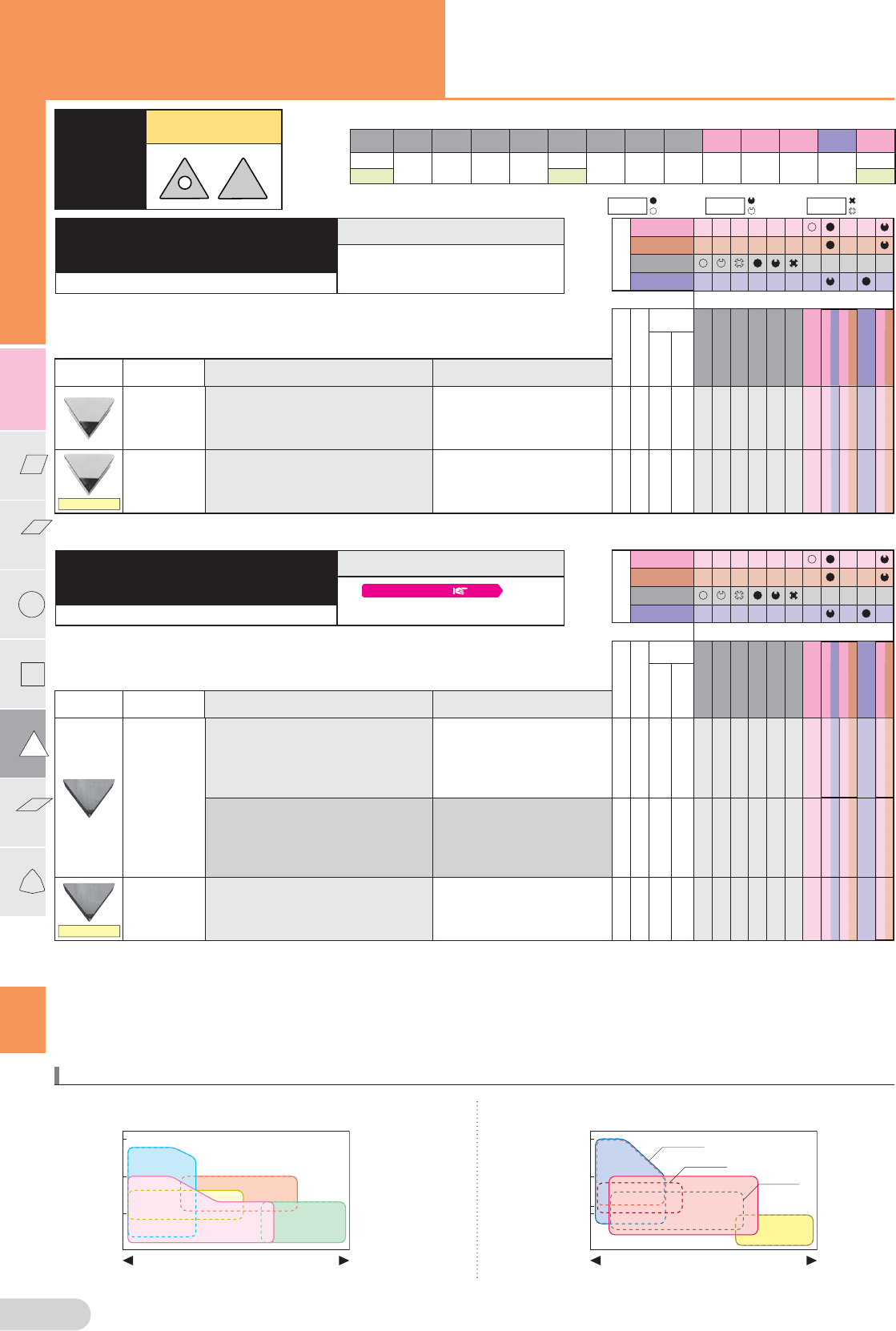

SUMIBORON
Negative Inserts
Standard
TNGN 160404
160408
160412
11
0.4
0.8
1. 2
3.5
3.2
2.9
Standard
TNGN 110308
110312 1
Solid
0.8
1. 2
9.8
9.2
Less Cutting force
Sharp
Edge
TNGN 110308LF
110312LF
TNGN 110308F
110312F 1
Solid
0.8
1. 2
9.8
9.2
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L68
T
Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable External Holders
L98
TNGN1103
I.C.: ø6.35 Thickness: 3.18 Hole:
Solid Type/Negative (Without Hole)
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
L98
TNGN1604
I.C.: ø9.525 Thickness: 4.76 Hole:
Negative Type (Without Hole)
Standard
TNGN 160408
160412
160416
160420
1
Solid
0.8
1. 2
1. 6
2.0
15.3
14.8
14.2
13.6
Solid Type/Negative (Without Hole)
69
W
V
T
S
R
D
C

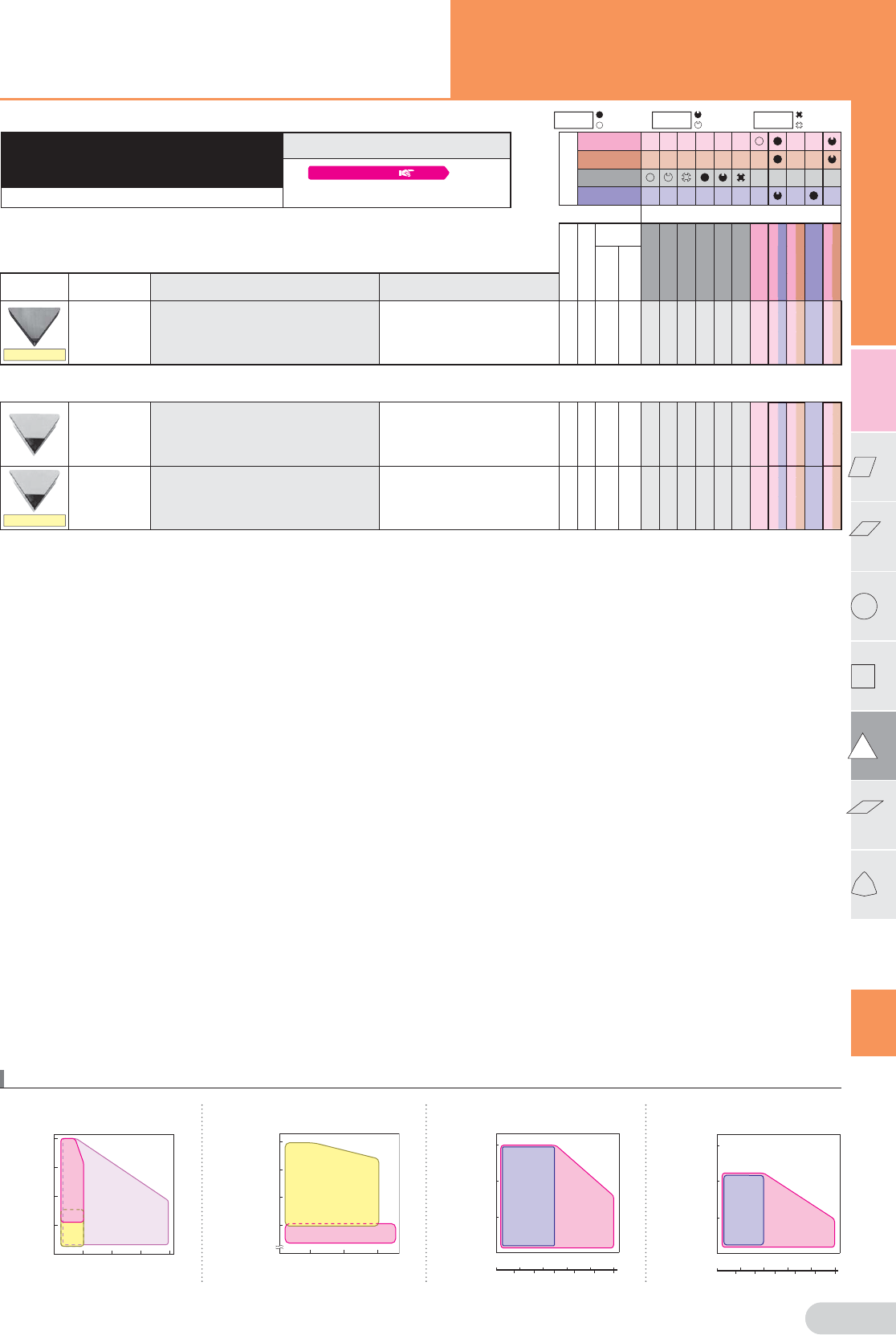

SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
Standard
TBGN 060102B
060104B
060108B
13
0.2
0.4
0.8
6.5
6.3
5.7
Fine Boring type
Standard
TBGN 060102-BSTN
060104-BSTN
060108-BSTN
TBGN 060102-BSN
060104-BSN
060108-BSN
13
0.2
0.4
0.8
6.5
6.3
5.7
Less Cutting force
Sharp
Edge
NU-TBEW 060102LF NU-TBEW 060102F
11
0.2 2.1
Sharper edge
T00715
NU-TBEW 060102LT NU-TBEW 060102S
11
0.2 2.1
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L69
Applicable holder ref. page, (Example)
TBGN0601
I.C.: ø3.97 Thickness: 1.59 Hole:
5 Positive (Without Hole)
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58, 60
TBEW0601
I.C.: ø3.97 Thickness: 1.59 Hole: ø2.2
One-use Type/5 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Applicable Internal Holders
E78
70
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
Standard
NU-TPGW 080202
080204
080208
11
0.2
0.4
0.8
2.6
2.5
2.2
T-NU-TPGW 080202
080204
080208
10 1
0.2
0.4
0.8
2.6
2.5
2.2
Less Cutting force
Sharp
Edge
NU-TPGW 080202LF
080204LF
080208LF
NU-TPGW 080202F
080204F
080208F
11
0.2
0.4
0.8
2.6
2.5
2.2
Sharper edge
T01215
NU-TPGW 080202LT
080204LT
080208LT
NU-TPGW 080202S
080204S
080208S
11
0.2
0.4
0.8
2.6
2.5
2.2
Stronger edge
S01235
NU-TPGW 080202HS
080204HS
080208HS
11
0.2
0.4
0.8
2.6
2.5
2.2
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L70
T
Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPGW0802
I.C.: ø4.76 Thickness: 2.38 Hole: ø2.4
One-use Type/11 Positive (With Hole)
*For BNX25, use NS type code (NS-TPGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
3NC-TPGW 080202
080204
13
0.2
0.4
2.6
2.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPGW0802
I.C.: ø4.76 Thickness: 2.38 Hole: ø2.4
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
71
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
Standard
3NC-TPGW 090202
090204 13
0.2
0.4
2.6
2.5
Standard
NU-TPGW 090202
090204
090208
11
0.2
0.4
0.8
2.6
2.5
2.2
Sharper edge
T01215
NU-TPGW 090202LT
090204LT 11
0.2
0.4
2.6
2.5
Stronger edge
S01235
NU-TPGW 090202HS
090204HS 11
0.2
0.4
2.6
2.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L71
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58
TPGW0902
I.C.: ø5.56 Thickness: 2.38 Hole: ø2.8
One-use Type/11 Positive (With Hole)
*For BNX25, use NS type code (NS-TPGW) *Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58
TPGW0902
I.C.: ø5.56 Thickness: 2.38 Hole: ø2.8
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
72
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON

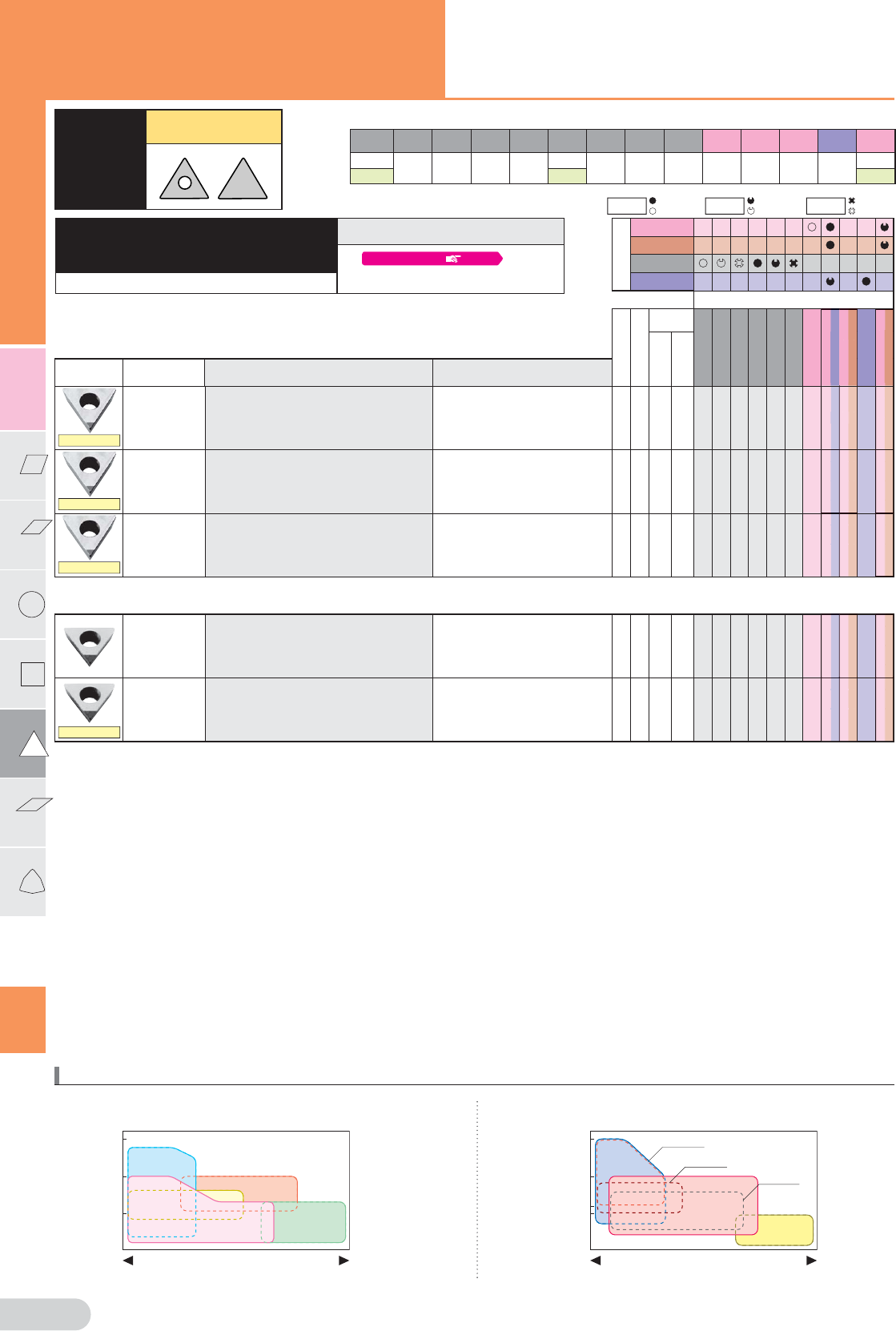

Positive Inserts
Standard
NU-TPGW 110202
110204
110208
11
0.2
0.4
0.8
2.5
2.3
2.0
T-NU-TPGW 110202
110204
110208
10 1
0.2
0.4
0.8
2.5
2.3
2.0
Sharper edge
T01215
NU-TPGW 110202LT
110204LT
110208LT
NU-TPGW 110202S
110204S
110208S
11
0.2
0.4
0.8
2.5
2.3
2.0
Stronger edge
S01235
NU-TPGW 110204HS
11
0.4 2.3
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L72
T
Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58
TPGW1102
I.C.: ø6.35 Thickness: 2.38 Hole: ø2.8
One-use Type/11 Positive (With Hole)
*For BNX25, use NS type code (NS-TPGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
3NU-TPGW 110204
110208 13
0.4
0.8
2.3
2.0
Less Cutting force
Sharp
Edge
3NU-TPGW 110204LF
13
0.4 2.3
Less Cutting force
Honing
3NU-TPGW 110204LE
13
0.4 2.3
Sharper edge
S00715
3NU-TPGW 110204LS
13
0.4 2.3
Multi-cornered,One-use Type/11 Positive (With Hole)
*For BNX25, use 3NS type code (3NS-TPGW) *Depth-of-cut for one-use type is 0.5mm or less
73
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
Standard
3NU-TPGW 110304
110308 13
0.4
0.8
2.5
2.2
Break Master
Honing
3NU-TPGT 110304N-FV
110308N-FV 13
0.4
0.8
2.2
1. 9
Less Cutting force
Sharp
Edge
3NU-TPGW 110302LF
110304LF
110308LF
13
0.2
0.4
0.8
2.6
2.5
2.2
Less Cutting force
Honing
3NU-TPGW 110304LE
13
0.4 2.5
Sharper edge
S00715
3NU-TPGW 110304LS
13
0.4 2.5
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L73
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPG¢
1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø3.4
Multi-cornered,One-use Type/11 Positive (With Hole)
*For BNX25, use 3NS type code (3NS-TPGW) *Depth-of-cut for one-use type is 0.5mm or less
74
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
Standard
NU-TPGW 110302
110304
110308
11
0.2
0.4
0.8
2.6
2.5
2.2
T-NU-TPGW 110302
110304
110308
10 1
0.2
0.4
0.8
2.6
2.5
2.2
Standard
NS-TPGW 110302
110304
110308
11
0.2
0.4
0.8
2.6
2.5
2.2
T-NS-TPGW 110302
110304
110308
10 1
0.2
0.4
0.8
2.6
2.5
2.2
Less Cutting force
Sharp
Edge
NU-TPGW 110302LF
110304LF
110308LF
NU-TPGW 110302F
110304F
110308F
11
0.2
0.4
0.8
2.6
2.5
2.2
Sharper edge
T01215
NU-TPGW 110302LT
110304LT
110308LT
NU-TPGW 110302S
110304S
110308S
11
0.2
0.4
0.8
2.6
2.5
2.2
Stronger edge
S01235
NU-TPGW 110302HS
110304HS
110308HS
11
0.2
0.4
0.8
2.6
2.5
2.2
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L74
T
Triangular Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPG¢
1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø3.4
One-use Type/11 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
75
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON

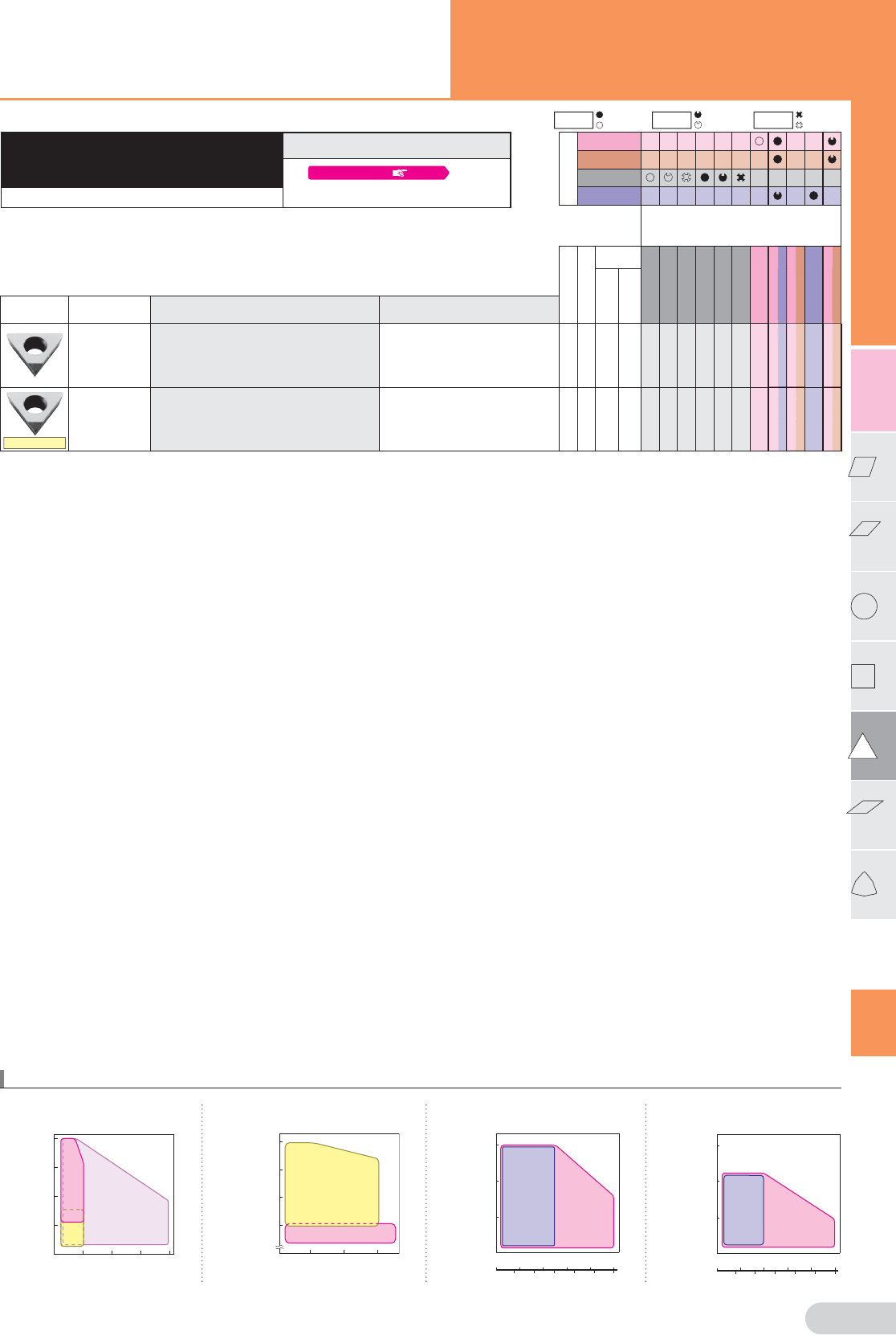

Positive Inserts
High Density Sintered Alloy
Standard
TPGW 110304
110308 11
0.4
0.8
3.5
3.2
Stronger edge
S01235
TPGW 110304HS
110308HS 11
0.4
0.8
3.5
3.2
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L75
11 Positive Type (With Hole)
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPG¢
1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø3.4
76
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
Standard
3NC-TPGW 110302
110304
110308
13
0.2
0.4
0.8
2.4
2.3
2.0
Break Master
Honing
3NC-TPGT 110304N-FV
110308N-FV 13
0.4
0.8
2.2
1. 9
Less Cutting force
Honing
3NC-TPGW 110302LE
110304LE
110308LE
13
0.2
0.4
0.8
2.4
2.3
2.0
Sharper edge
T00515
3NC-TPGW 110302LT
110304LT
110308LT
13
0.2
0.4
0.8
2.4
2.3
2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
3NC-TPGW 110304LS
110308LS 13
0.4
0.8
2.3
2.0
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
3NC-TPGW 110304HS
110308HS 13
0.4
0.8
2.3
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
L76
T
Triangular Type
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPG¢
1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø3.4
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
77
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
L77
Standard
NU-TPGW 160402
160404
160408
11
0.2
0.4
0.8
2.6
2.5
2.2
T-NU-TPGW 160402
160404
160408
10 1
0.2
0.4
0.8
2.6
2.5
2.2
Standard
NS-TPGW 160402
160404
160408
11
0.2
0.4
0.8
2.6
2.5
2.2
T-NS-TPGW 160402
160404
160408
10 1
0.2
0.4
0.8
2.6
2.5
2.2
Standard
NU-TPGW 160302
160304
160308
11
0.2
0.4
0.8
2.4
2.3
2.0
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58
TPGW1603
I.C.: ø9.525 Thickness: 3.18 Hole: ø4.4
One-use Type/11 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
One-use Type/11 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
78
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
L78
T
Triangular Type
Less Cutting force
Sharp
Edge
NU-TPGW 160402LF
160404LF
160408LF
NU-TPGW 160402F
160404F
160408F
11
0.2
0.4
0.8
2.6
2.5
2.2
Sharper edge
T01215
NU-TPGW 160402LT
160404LT
160408LT
NU-TPGW 160402S
160404S
160408S
11
0.2
0.4
0.8
2.6
2.5
2.2
Stronger edge
S01235
NU-TPGW 160404HS
160408HS 11
0.4
0.8
2.5
2.5
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
One-use Type/11 Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Standard
TPGW 160404
160408
160412
11
0.4
0.8
1.2
3.5
3.2
2.9
Stronger edge
S01235
TPGW 160404HS
160408HS 11
0.4
0.8
3.5
3.5
11 Positive Type (With Hole)
79
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
L79
Standard
3NC-TPGW 160402
160404
160408
13
0.2
0.4
0.8
2.4
2.3
2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
3NC-TPGW 160404LS
160408LS 13
0.4
0.8
2.3
2.0
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
3NC-TPGW 160404HS
160408HS 13
0.4
0.8
2.3
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable Internal Holders
E58 to E60
TPGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
Multi-cornered,One-use Type/11 Positive (With Hole)
Coated
SUMIBORON
80
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
L80
T
Triangular Type
Standard
NU-TPGN 110302
110304
110308
110312
11
0.2
0.4
0.8
1. 2
2.4
2.3
2.0
2.0
T-NU-TPGN 110302
110304
110308
110312
10 1
0.2
0.4
0.8
1. 2
2.4
2.3
2.0
2.0
Sharper edge
T01215
NU-TPGN 110302LT
110304LT
110308LT
11
0.2
0.4
0.8
2.4
2.3
2.0
Standard
TPGN 090204
090208 11
0.4
0.8
3.5
3.2
Stronger edge
S01235
TPGN 090204HS
11
0.4 3.5
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
TPGN0902
I.C.: ø5.56 Thickness: 2.38 Hole:
11 Positive Type (Without Hole)
Applicable holder ref. page, (Example)
Applicable Internal Holders
E66
TPGN1103
I.C.: ø6.35 Thickness: 3.18 Hole:
One-use Type/11 Positive (Without Hole)
*For BNX25, use NS type code (NS-TPGN) *Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
81
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
L81
Stronger edge
S01235
NU-TPGN 110304HS
110308HS 11
0.4
0.8
2.3
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable Internal Holders
E66
TPGN1103
I.C.: ø6.35 Thickness: 3.18 Hole:
One-use Type/11 Positive (Without Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Standard
TPGN 110304
110308 11
0.4
0.8
3.5
3.2
Stronger edge
S01235
TPGN 110304HS
110308HS 11
0.4
0.8
2.3
2.0
11 Positive Type (Without Hole)
82
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
SUMIBORON
Positive Inserts
L82
T
Triangular Type
Standard
NU-TPGN 160302
160304
160308
11
0.2
0.4
0.8
2.4
2.3
2.0
T-NU-TPGN 160302
160304
160308
10 1
0.2
0.4
0.8
2.4
2.3
2.0
Sharper edge
T01215
NU-TPGN 160304LT
160308LT 11
0.4
0.8
2.3
2.0
Stronger edge
S01235
NU-TPGN 160304HS
160308HS 11
0.4
0.8
2.3
2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable External Holders
C30
Applicable Internal Holders
E66
TPGN1603
I.C.: ø9.525 Thickness: 3.18 Hole:
One-use Type/11 Positive (Without Hole)
*For BNX25, use NS type code (NS-TPGN) *Depth-of-cut for one-use type is 0.5mm or less
Standard
TPGN 160304
160308
160312
11
0.4
0.8
1. 2
3.5
3.2
2.9
Stronger edge
S01235
TPGN 160304HS
160308HS 11
0.4
0.8
3.5
3.5
11 Positive Type (Without Hole)
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
SUMIBORON
Positive Inserts
High Density Sintered Alloy
L83
Standard
TPGN 220408
11
0.8 3.2
Stronger edge
S01235
TPGN 220408HS
11
0.8 3.2
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C30
TPGN2204
I.C.: ø12.7 Thickness: 4.76 Hole:
11 Positive Type (Without Hole)
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
Negative Inserts
SUMIBORON
L84
V
35° Diamond Type
Applicable holder ref. page, (Example)
Applicable External Holders
C31
Standard
NU-VNMA 160401
160402
160404
160408
160412
11
0.1
0.2
0.4
0.8
1. 2
3.5
3.3
2.8
2.0
1. 7
T-NU-VNMA 160401
160402
160404
160408
160412
10 1
0.1
0.2
0.4
0.8
1. 2
3.5
3.3
2.8
2.0
1. 7
Standard
NS-VNMA 160404
160408 11
0.4
0.8
2.8
2.0
T-NS-VNMA 160404
160408 10 1
0.4
0.8
2.8
2.0
VN¢¢1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
One-use Type/Negative (With Hole)
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
*Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-VNGA 160404
160408 12
0.4
0.8
2.8
2.0
T-2NU-VNGA 160404
160408 10 2
0.4
0.8
2.8
2.0
Standard
2NS-VNGA 160404
160408 12
0.4
0.8
2.8
2.0
T-2NS-VNGA 160404
160408 10 2
0.4
0.8
2.8
2.0
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
Negative Inserts
SUMIBORON
L85
Applicable holder ref. page, (Example)
Applicable External Holders
C31
Break Master
S00535
2NU-VNGM 160404N-LV
160408N-LV 12
0.4
0.8
2.8
2.0
Sharper edge
T01215
2NU-VNGA 160404LT
160408LT 12
0.4
0.8
2.8
2.0
Stronger edge
T01235
2NU-VNGA 160404HT
160408HT
2NU-VNGA 160404T
160408T 12
0.4
0.8
2.8
2.0
Stronger edge
BN2000 S01235
BN7000 S01225
BN700 S01225
BN7500 S00525
2NU-VNGA 160404HS
160408HS
2NU-VNGA 160404T
160408T 12
0.4
0.8
2.8
2.0
VN¢¢1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Multi-cornered,One-use Type/Negative (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Standard
VNMA 160404
160408 11
0.4
0.8
5.0
4.1
Negative Type (With Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
86
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
Negative Inserts
SUMIBORON
L86
V
35° Diamond Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable External Holders
C31
Standard
2NC-VNGA 160404
160408
160412
12
0.4
0.8
1. 2
2.8
2.0
1. 7
Standard
4NC-VNGA 160402
160404
160408
160412
14
0.2
0.4
0.8
1. 2
3.3
2.8
2.0
1. 7
Break Master
Honing
4NC-VNGG 160404N-FV
160408N-FV 14
0.4
0.8
2.8
2.0
Break Master
S00535
4NC-VNGG 160404N-LV
160408N-LV 14
0.4
0.8
2.8
2.0
Sharper edge
T00515
2NC-VNGA 160402LT
160404LT
160408LT
160412LT
12
0.2
0.4
0.8
1. 2
3.3
2.8
2.0
1. 7
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
4NC-VNGA 160404LS
160408LS
160412LS 14
0.4
0.8
1. 2
2.8
2.0
1. 7
High Efficiency
S00535
4NC-VNGA 160404ES
160408ES
160412ES
14
0.4
0.8
1. 2
2.8
2.0
1. 7
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
4NC-VNGA 160404HS
160408HS
160412HS
14
0.4
0.8
1. 2
2.8
2.0
1. 7
VNG¢
1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø3.81
Multi-cornered,One-use Type/Negative (With Hole)
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
87
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L87
Applicable holder ref. page, (Example)
Applicable Internal Holders
E38, 39, 41, 43
Standard
NU-VBGW 110302
110304
110308
11
0.2
0.4
0.8
3.2
2.8
2.0
Sharper edge
T01215
NU-VBGW 110302LT
110304LT
110308LT
11
0.2
0.4
0.8
3.2
2.8
2.0
Stronger edge
S01235
NU-VBGW 110302HS
110304HS
110308HS
11
0.2
0.4
0.8
3.2
2.8
2.0
VBGW1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø2.8
One-use Type/5° Positive (With Hole)
*For BNX25, use NS type code (NS-VBGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
2NU-VBGW 110304
110308 12
0.4
0.8
2.8
2.0
Multi-cornered,One-use Type/5° Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
88
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L88
V
35° Diamond Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E38, 39, 41, 43
Standard
2NC-VBGW 110302
110304
110308
12
0.2
0.4
0.8
3.2
2.8
2.0
Sharper edge
T00515
2NC-VBGW 110302LT
110304LT
12
0.2
0.4
3.2
2.8
VBGW1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø2.8
Multi-cornered,One-use Type/5° Positive (With Hole)
Coated
SUMIBORON
Applicable holder ref. page, (Example)
Applicable Internal Holders
E38 39 41 43
Standard
NU-VBGW 160402
160404
160408
11
0.2
0.4
0.8
3.8
3.3
2.5
Sharper edge
T01215
NU-VBGW 160402LT
160404LT
160408LT
11
0.2
0.4
0.8
3.8
3.3
2.5
Stronger edge
S01235
NU-VBGW 160404HS
160408HS 11
0.4
0.8
3.3
2.5
VBGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
One-use Type/5° Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
89
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L89
Applicable holder ref. page, (Example)
Applicable Internal Holders E38, 39, 41, 43
Standard
2NU-VBGW 160404
160408 12
0.4
0.8
3.3
2.5
VBGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
Multi-cornered,One-use Type/5° Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders E38, 39, 41, 43
Standard
2NC-VBGW 160402
160404
160408
12
0.2
0.4
0.8
3.8
3.3
2.5
Less Cutting force
Honing
2NC-VBGW 160402LE
160404LE
160408LE
12
0.2
0.4
0.8
3.8
3.3
2.5
Sharper edge
T00515
2NC-VBGW 160402LT
160404LT
160408LT
12
0.2
0.4
0.8
3.8
3.3
2.5
VBGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
Multi-cornered,One-use Type/5° Positive (With Hole)
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
90
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L90
V
35° Diamond Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Applicable holder ref. page, (Example)
Applicable Internal Holders
E38, 40, 42, 44
Standard
NU-VCGW 080202
080204
080208
11
0.2
0.4
0.8
3.3
2.8
2.0
Sharper edge
T01215
NU-VCGW 080202LT
080204LT
080208LT
11
0.2
0.4
0.8
3.3
2.8
2.0
Stronger edge
S01235
NU-VCGW 080204HS
080208HS 11
0.4
0.8
2.8
2.0
VCGW0802
I.C.: ø4.76 Thickness: 2.38 Hole: ø2.3
One-use Type/7° Positive (With Hole)
*Depth-of-cut for one-use type is 0.5mm or less
Applicable holder ref. page, (Example)
Applicable Internal Holders
E38, 40, 42, 44
Standard
2NC-VCGW 080202
080204
12
0.2
0.4
3.3
2.8
VCGW0802
I.C.: ø4.76 Thickness: 2.38 Hole: ø2.3
Multi-cornered,One-use Type/7° Positive (With Hole)
Coated
SUMIBORON
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
91
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Gray Cast Iron Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
L91
Applicable holder ref. page, (Example)
Applicable External Holders C32, 33, D15, 18, 31
Applicable Internal Holders
E40, 42, 44
Standard
NU-VCGW 110302
110304 11
0.2
0.4
3.3
2.8
Stronger edge
S01235
NU-VCGW 110302HS
110304HS 11
0.2
0.4
3.3
2.8
VCGW1103
I.C.: ø6.35 Thickness: 3.18 Hole: ø2.8
One-use Type/7° Positive (With Hole)
*For BNX25, use NS type code (NS-VCGW) *Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
92
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L92
V
35° Diamond Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
NU-VCGW 160404
160408 11
0.4
0.8
5.2
4.3
One-use Type/7° Positive (With Hole)
*For BNX25, use NS type code (NS-VCGW) *Depth-of-cut for one-use type is 0.5mm or less
Standard
VCMW 160404
160408 11
0.4
0.8
5.2
4.3
7° Positive Type (With Hole)
Standard
2NC-VCGW 160404
160408 12
0.4
0.8
2.8
1. 9
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
2NC-VCGW 160404LS
160408LS 12
0.4
0.8
2.8
1. 9
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
2NC-VCGW 160404HS
160408HS 12
0.4
0.8
2.8
1. 9
Multi-cornered,One-use Type/7° Positive (With Hole)
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
BN
S8
S8
S8
00
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C32, 33
Applicable Internal Holders
E40, 42, 44
VCGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
Coated
SUMIBORON
Applicable holder ref. page, (Example)
Applicable External Holders
C32, 33
Applicable Internal Holders
E40, 42, 44
VCGW1604
I.C.: ø9.525 Thickness: 4.76 Hole: ø4.4
93
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Negative Inserts
SUMIBORON Application Range Map
Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
Gray Cast Iron
L93
W
Trigon Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
NU-WNMA 080404
080408 11
0.4
0.8
3.3
2.8
*For BNX25, use NS type code (NS-WNMA) *Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C34
Applicable Internal Holders
E25, 26
WNMA0804
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Standard
WNMA 080404
080408
080412
11
0.4
0.8
1. 2
4.5
4.4
4.3
Negative Type (With Hole)
One-use Type/Negative (With Hole)
94
C
D
R
S
T
V
W
SUMIBORON Indexable Inserts
300
200
120
100
0
BNC100
BNC2010 BNC160
BNC2020
BNC300
BNC200
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Uncoated SUMIBORON Coated SUMIBORON
300
200
100
0
BNX20
BNX25
BN1000
BN2000
BN350
Cutting Speed (m/min)
Heavy
Interrupted
Continuous Interrupted
L94
W
Trigon Type
Standard Cutting Edge Specification (Refer to L26 to L27 for details on symbols.)
BNX10 BNX20 BNX25 BN1000
BN2000 BN350 BN2010
BN2020
BNC100
BNC160
BNC200
BNC300 BNC500 BN500 BN7000
BN700 BN7500 BNS800
Negative T01225 S01225 S01725 S01225 T01225 S01225 S01225 S01225 S01215 T01215 T01215 T01215 T02020
Positive
T01235
Standard
6NC-WNGA 080404
080408
080412
16
0.4
0.8
1. 2
2.3
2.0
2.0
Wiper Insert
S01215
6NC-WNGA 080408WG
16
0.8 2.0
Wiper Insert
S01215
6NC-WNGA 080408WH
16
0.8 1.9
Sharper edge
T00515
3NC-WNGA 080408LT
13
0.8 2.0
Sharper edge
BNC100 S01715
BNC160 S01020
BNC200 S01015
BNC300 S00515
6NC-WNGA 080408LS
16
0.8 2.0
Stronger edge
BNC2010 S01730
BNC2020 S02735
BNC160 S01730
BNC200 S01735
BNC300 S01735
BNC500 S01225
6NC-WNGA 080408HS
16
0.8 2.0
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
Coated CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNC2010
BNC2020
BNC300
BNC100
BNC160
BNC200
BNC500
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Applicable holder ref. page, (Example)
Applicable External Holders
C34
Applicable Internal Holders
E25, 26
WNGA0804
I.C.: ø12.7 Thickness: 4.76 Hole: ø5.16
Coated
SUMIBORON
Multi-cornered,One-use Type/Negative (With Hole)
95
W
V
T
S
R
D
C
SUMIBORON Indexable Inserts
L
SUMIBORON
Positive Inserts
SUMIBORON Application Range Map
Ductile Cast Iron General Sintered Alloy
High Density Sintered Alloy
0 0.1 0.3 0.5
300
500
200
400
BN7000
BNC500
Cutting Speed (m/min)
Depth of Cut (mm)
BN7500
BN7000
100
200
300
00.1
0.150.10.05 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
BN7500
BN7000
100
200
300
00.1
0.150.05 0.1 0.2 0.25 0.3
0.2 0.3 0.4 0.5
Cutting Speed (m/min)
Depth of
Cut (mm)
Feedrate
(mm/rev)
0 1.0 2.0 3.0 4.0
1,000
2,000
500
1,500
BNS800
BN7000
BN500
Cutting Speed (m/min)
Depth of Cut (mm)
Gray Cast Iron
L95
Less Cutting force
Sharp
Edge
NU-WBEW 060102L-LF
060104L-LF
NU-WBEW 060102L-F
060104L-F 11
0.2
0.4
1. 3
1. 2
Sharper edge
T00715
NU-WBEW 060102L-LT
060104L-LT
NU-WBEW 060102L-S
060104L-S 11
0.2
0.4
1. 3
1. 2
*Depth-of-cut for one-use type is 0.5mm or less
Less Cutting force
Sharp
Edge
NU-WBEW 080202L-LF
080204L-LF
NU-WBEW 080202L-F
080204L-F 11
0.2
0.4
1. 7
1. 6
Sharper edge
T01215
NU-WBEW 080202L-LT
080204L-LT
NU-WBEW 080202L-S
080204L-S
11
0.2
0.4
1. 7
1. 6
*Depth-of-cut for one-use type is 0.5mm or less
Legend:
Continuous Cut
1st Choice
Medium Cut
1st Choice
Interrupted Cut
1st Choice
2nd Choice 2nd Choice 2nd Choice
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
Recommended
Application
K
cast iron
S
exotic alloy
H
hardened steel
sintered component
CBN
Pcs./Pack
No. of Cutting Edges
Dimensions
(mm)
BNX10
BNX20
BNX25
BN1000
BN2000
BN350
BN500
BN
BN
BN
70
70
70
00
00
00
BN
BN
BN
70
70
70
0
0
0
BN7500
BN
BN
S8
S8
00
00
Nose
Radius
Cutting Edge
Length
Appearance
Cutting Edge
Speci cation Cat. No. Old Cat. No.
One-use Type/5 Positive (With Hole)
Applicable holder ref. page, (Example)
Applicable Internal Holders
E55
WBEW0601
I.C.: ø3.97 Thickness: 1.59 Hole: ø2.2
Applicable holder ref. page, (Example)
Applicable Internal Holders
E55
WBEW0802
I.C.: ø4.76 Thickness: 2.38 Hole: ø2.2
One-use Type/5 Positive (With Hole)
mark: To be replaced by new item (Please confirm stock availability)
L
SUMIBORON
Turning Inserts
Appearance Shape Cat. No.
Stock Dimension (mm)
Applicable
Holder
BN1000
BN2000
BNX20
BN350
BNX25 *
BNX10
BN500
BN7000
BN700
Inscribed
Circle
Thickness
Nose
Radius
Hole
Size
IC S RE
80°
IC
S
RE 7°
NU-ZNEX 040102
4.76 1.59
0.2
2.3
SUMIBORON
Small Hole Boring Bar
BNZ Type
L104
NU-ZNEX 040104 0.4
T-NU-ZNEX 040102 0.2
T-NU-ZNEX 040104 0.4
* BNX25, use NS type code (NS-ZNEX).
* T-NU-ZNEX is a 10 pieces pack.
Milling Inserts
Appearance Shape Cat. No.
Stock Dimension (mm)
Fig Applicable
Cutter
BN1000
BN2000
BN7000
BN700
Inscribed
Circle Thickness
IC S
Fig1
S
IC
CSN 43MT 12.70 4.76
1
SEC-ACE Mill
DNF Type
H54
IC
IC
45°
45°
15°
15°
R300
2
2
S
Fig1 Fig2
SNEN 1504ADTR 15.875 4.76 1 BN Finish Mill
FM, FMF Types
L116
SNEN 1504ADTL
SNEN 1504ADTR-S
15.875 4.76 2
SNEN 1504ADTL-S
45° 45°
15°
R300
2
2
S
IC
IC
Fig1 Fig2
SNEW 1203ADTR
12.70 3.18 1 BN Finish Mill EASY
FMU Types
L114
SNEW 1203ADTR-S
12.70 3.18 2
SUMIBORON Indexable Inserts
Round Inserts
Appearance Shape Cat. No.
Stock Dimension (mm)
Fig Applicable
Holder
BN1000
BN2000
BNX20
BN350
BNX25
BNX10
BN500
BN7000
BN700
BNS800
Inscribed
Circle
Thickness Thickness
of CBN
IC S S3
Fig1
IC
S
S3 RNGA 0906M0
9.00
6.35 0.80
1
SUMIBORON
Tool Holder for
Round Insert
(PRGN Type)
L109
Fig1 Fig2
RNGN 120400-B
12.70
4.76 0.80 1 Special Holder
RNGN 150400-B
15.88
RNGN 090300
9.525
3.18 3.18 2
Tool Holder for
Solid SUMIBORON
(CRDN, CRSN
Types)
L99
RNGN 090300 LF
RNGN 120300
12.70
RNGN 120300 LF
RNGN 120400
12.70
4.76 4.76
Fig1
S
5°
IC
S3
RBG 08-B
8.00
6.50
0.80 1
SUMIBORON
Tool Holder
for Roll Turning
(BNRN Type)
L110
RBG 10-B
10.00
9.00
RBG 12-B
12.00
11.00
RBG 16-B
16.00
13.00
RBG 20-B
20.00
15.00
RBG 26-B
26.00
15.00
Fig1
S
5°
IC
RBGN 12S3M0-B
12.00
3.60 0.80 1 Special Holder
RBGN 16S3M0-B
16.00
RBGN 20S3M0-B
20.00
RBGN 29S3M0-B
29.00
Fig1
S
IC
ø8.4
7°
S3 RCGA 0906M0
9.00
6.35 0.80
1
SUMIBORON Tool
Holder for Small
Round Insert
(PRGC, PRDC Types)
L109
Fig1
S
IC 6°
12°
S3
RTGN 0508M0
5.00
7.50
0.80 1
SUMIBORON
Tool Holder for
Small Round
Insert
(TRGT Type)
L108
RTGN 0608M0
6.00
RTGN 0711M0
7.00
11.00
RTGN 0811M0
8.00
RTGN 0914M0
9.00
14.00
RTGN 1014M0
10.00
RTGN 1214M0
12.00
S=S3
IC
S
S3
L96
SUMIBORON
Grooving and Threading Inserts
Appearance Shape
(Right-hand tool) Cat. No.
Stock Dimension (mm)
Fig Applicable
Holder
Width
Groove
Depth
Corner
Radius
Total
Length
Edge
Distance
BN2000
BN250 BNX20 BN350
R L R L R L R L CW CDX RE L WF3
Fig1
CDX
L
30'
30'
6°
17
WF3
RE
RE
5.5
CW
0.05
Back
taper
Back
taper
BNGNT 0200 R/L 2.0 4.0
0.2
25 6.0
1
SUMIBORON
Grooving Holder
BNGG Type
L112
BNGNT 0250 R/L 2.5 4.0
0.2
25 6.0
BNGNT 0300 R/L 3.0 5.0
0.4
25 6.0
BNGNT 0400 R/L 4.0 6.0
0.4
26 6.0
BNGNT 0500 R/L 5.0 6.0
0.4
26 6.0
BNGNT 0600 R/L 6.0 7.0
0.4
27 6.0
Fig1
L
RE
WF3
60°
6.0
17
BNTT 1020 R/L
Pitch=1.0-2.0
0.14
25 4.0 1SUMIBORON
Grooving Holder
BNGG Type
L112
BNTT 1530 R/L
Pitch=1.5-3.0
0.20
25 4.0
Turning Inserts
Appearance Shape Cat. No.
Stock Dimension (mm)
Applicable
Holder
BN2000
Inscribed
Circle
Edge
Width
Nose
Radius
Max. Groove
Depth
Hole
Size
IC CW RE CDX
IC
CW±0.025
RE
RE
CDX
5.5
4.76
TGA R/L4125
12.70
1.25
0.2
2.0
5.5
SEC-Grooving Holder
(GWC, GWCS, GWCI Type)
F4 to F5
TGA R/L4150
1.50
3.5
TGA R/L4200
2.00
3.5
TGA R/L4250
2.50
4.0
TGA R/L4300
3.00
4.0
TGA R/L4350
3.50
5.0
TGA R/L4400
4.00
5.0
Endmill Inserts
Appearance Shape Cat. No.
Stock Dimension (mm)
Fig Applicable
Cutter
BN350
BN500
BN7000
BN700
Radius of
ballnose
Total Length
Width
Cutting Edge
Thickness
RE L W1 APMX S
W1
L
RE
APMX
APMX
S
W1
L
RE
S
Fig1
Fig2
BEST 160S 8.0 13.0 6.8 10.0 3.5
1
SUMIBORON
Ball Endmill
BES Type
L117
BEST 160L 8.0 13.0 6.8 13.0 3.5
BEST 200S 10.0 20.0 8.5 13.0 4.5
BEST 200L 10.0 20.0 8.5 20.0 4.5
BEST 250S 12.5 22.5 10.5 15.5 5.0
BEST 250L 12.5 22.5 10.5 22.5 5.0
BEST 300S 15.0 25.0 12.0 18.0 6.0
BEST 300L 15.0 25.0 12.0 25.0 6.0
BEST 400S 20.0 30.0 16.0 23.0 7.5
2
BEST 400L 20.0 30.0 16.0 30.0 7.5
BEST 500S 25.0 35.0 20.0 28.0 8.0
BEST 500L 25.0 35.0 20.0 35.0 8.0
Fig1 15°
L±0.013 S±0.025
RDHX 0701M0T 7.0 1.99
1
SUMIBORON
Radius Endmill
BRC Type
L118
RDHX 0702M0T 7.0 2.38
RDHX 1003M0T 10.0 3.18
RDHX 12T3M0T 12.0 3.97
SUMIBORON Indexable Inserts
Refer to page L111 for CGA Type SUMIBORON grooving inserts for hardened steel. (Applicable Toolholder GWB type L111 )
mark: To be replaced by new item (Please confirm stock availability) L97
L
SUMIBORON
Top Clamp Type Refer to page B130 for Solid
SUMIBORON stock items.
External Turning
CSBN/FN11
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Fig Applicable
Inserts Clamps
Chip
Breakers
Double
Screws
Shims
Shim Pin
Spring
Wrenches
R L H B LF WF HF LH
CSBN R/L2525-32
25 25 160
21.5
25 30 1
SNGN0903
CCM8UL
CBS13
WB8-22T SSN0903
SPP3
LT27
R/L2525-42
25 25 160
21.5
25 35 1
SNGN1203
CCM8UL
CBS14
WB8-22T SSND423
LT27
FN11 R/L-44A
25 25 160
21.5
25 33 2
SNGN1204
DCR/L1
CBD4R/L
BH0830R/L
SSND423
DSP5 LH040
Insert
(1) SNGN0903
(2) SNGN1203
(3) SNGN1204
CSKN
Facing
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Fig Applicable
Inserts Clamp Chip
Breakers
Double
Screw Shims Shim Pin
Wrenches
R L H B LF WF HF LH
WF2
CSKN R/L2525-32
25 25 160 32 25 25 7 1
SNGN0903
CCM8UL
CBS13
WB8-22T SSN0903
SPP3 LT27
R/L2525-42
25 25 160 32 25 25 7 1
SNGN1203
CBS14
SSND423
LT27
Insert
(1) SNGN0903
(2) SNGN1203
CTGN/FN21
External Turning
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Fig Applicable
Inserts Clamps
Chip
Breakers
Double
Screws Shims
Shim Pin
Spring
Wrenches
R L H B LF WF HF LH
WF2
CTGN R/L2525-22
25 25 160 32 25 20 7 1
TNGN1103 CCM6UL
CBT12
WB6-16T STN1103
SPP3 LT20
FN21 R/L-44A
25 25 160 25 25 32 2
TNGN1604
DCR/L2
CBD4R/L
BH0830R/L
STND323
DSP5 LH040
Insert
(1) TNGN1103
(2) TNGN1604
CCLN/FCLN
External Turning & Facing
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Fig Applicable
Inserts Clamps Chip
Breakers
Double
Screws Shims Shim Pin
Wrenches
R L H B LF WF HF LH
WF2
CCLN R/L2525-32
25 25 150 32 25 25 7 1
CNGN0903
CCM8UL
CBC0903 WB8-22T SCN0903
SPP3 LT27
FCLN R/L2525-43
25 25 150 32 25 30 7 2
CNGN1204
CCM8-LONG
CBC4 WB8-30
SCND433
LH040
Insert
(1) CNGN0903
(2) CNGN1204
WF
WF2
15° LF
BH
HF
LH
Fig 1
-5°
-6°
B
HF
H
Fig 2
WF
91°
LF
WF2
LH
Fig 1
-6°
-5°
BH
HF
LF
WF
95°
WF2
Fig 2Fig 1
LH
-5°
-5°
SEC-Tool Holders for
Solid SUMIBORON
WF
75°
LF
Fig 1
B
H
LH
HF
Fig 2
-6°
-5°
L
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
L98
SUMIBORON
CDJN
External Turning & Profiling
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Applicable
Insert Clamp Chip
Breaker
Double
Screw Shim Shim Pin Wrench
R L H B LF WF HF LH
WF2
CDJN R/L2525-32 25 25 150 32 25 30 7
DNGN1103
CCM8UL
CBD1103 WB8-22T SDN1103
SPP3 LT27
Insert
(1) DNGN1103
CRDN
External Turning & Profiling
Holder Parts
Cat. No. Stock
Inscribed
circle
Height
Width
Length
Edge
Height
Head
Machining
depth
Applicable
Inserts Clamp Double
Screw Shims Shim Pin Wrench
IC H B LF HF LH
CDX
CRDN N2525-32
9.525
25 25 150 25 35 15
RNGN090300
CCM8-LONG
WB8-22T
SRND32
SPP3 LT27
N2525-42 12.7 25 25 150 25 35 20
RNGN120300
SRND42
N2525-43 12.7 25 25 150 25 35 20
RNGN120400
SRND42
Insert
(1) RNGN090300
(2) RNGN120300
(3) RNGN120400
CRSN
External Turning & Facing
Holder Parts
Cat. No. Stock
Inscribed
circle
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Applicable
Inserts Clamp Double
Screw Shims Shim Pin Wrench
R L IC H B LF WF HF LH
WF2
CRSN R/L2525-32
9.525
25 25 150 32 25 30 7
RNGN090300
CCM8-LONG
WB8-22T
SRND32
SPP3 LT27
R/L2525-42 12.7 25 25 150 32 25 30 7
RNGN120300
SRND42
R/L2525-43 12.7 25 25 150 32 25 30 7
RNGN120400
SRND42
Insert
(1) RNGN090300
(2) RNGN120300
(3) RNGN120400
Dimple Lock Type
XSBN
External Turning
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable
Insert Clamp Bolt Shim Shim Pin Spring Wrench
R L H B LF WF HF LH
XSBN R/L2525-43 25 25 150
21.5
25 38
SNGX1204
DSLX8 BH0825
SSND433
SPP3 GSP10 LH050
Insert
(1) SNGX1204
XCLN
External Turning & Facing
Holder Parts
Cat. No. Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Offset
Applicable
Insert Clamp Bolt Shim Shim Pin Spring Wrench
R L H B LF WF HF LH
WF2
XCLN R/L2525-43 25 25 150 32 25 33 7
CNGX1204
DSLX8 BH0825
SCND433
SPP3 GSP10 LH050
Insert
(1) CNGX1204
WF
B
WF2
HF
H
LF
LH
93°
-5°
-5°
BH
HF
LF
LH
WF
-6°
-6°
IC
WF2
BH
75°
LF
LH
WF
HF
-6°
-5°
B
H
WF
HF
LF
LH
5°
WF2
-5°
-5°
SEC-Tool Holders for
Solid SUMIBORON
CDX
LH
LF
BH
HF
0°
IC
-6°
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
L99
L
L
SUMIBORON
Characteristics
Improved surface roughness in high-feed cutting.
Perfect for copying where good surface roughness is
required.
SUMIBORON
Insert for High Efficiency Machining & Special Holders
Effect of Different Nose Radii
Good Surface Roughness
Large Nose RadiusSmall Nose Radius
f : Feed Rate
f : Feed Rate
Work Material
Work Material
Large Nose Radius
Small Nose Radius
Nose Radius (mm)
Theoretical Surface Roughness (μm)
Same surface
roughness at
approx. 2x efficiency
Less than 1/3 of
theoretical surface
roughness
Nose radius of 0.8mm compared to 2.4mm
Feed Rate (mm/rev)
Feed Rate
Required Theoretical
Surface Roughness
Theoretical surface roughness 1/3 or lower
Nose radius of 0.8mm compared to 2.4mm
Same surface roughness at approx. 2x efficiency
* Actual value of surface roughness is approximately 1.5 to 3 times higher (for steel).
* Theoretical surface roughness is calculated using the following formula: h = (f2/8r) × 103
f=0.2mm/rev
Rz 8.0 μm
Comparison of Cutting Force by Different Nose Radii
f
f
f
f
Work Material:
Surface Roughness Rz (μm)
Inserts with a larger nose radius also give better surface roughness during actual machining.
Good Surface Roughness
Cutting Conditions:
SCM415H(60HRC)
vc=100m/min, ap=0.1mm, Dry
Wiper Insert
Wiper
Cutting force (Back Force) N
Lower cutting force than wiper inserts allows high-feed cutting.
10 to 15% Increase With Large Nose Inserts
Work Material:
Cutting Conditions:
SCM415H(60HRC)
vc=150m/min, f=0.3mm/rev, ap=0.1mm, Dry
Wiper
35% Increase With Wiper Insert
Comparison of Theoretical Surface Roughness
Comparison of Machined Surface Finish by Different Nose Radii
L100
SUMIBORON
SUMIBORON
Insert for High Efficiency Machining & Special Holders
Inserts
(1)
2NC-CNGA120416
(2)
2NC-CNGA120420
(3)
2NC-CNGA120424
BH
LF
95˚
WF
HF
LH
–5˚
80˚
–5˚
DCLN
External Turning & Facing
95˚
95˚
Above figures show right hand tools
Holders
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
R L H B LF WF HF LH
DCLN R/L 2525M12-R24
25 25 150 32 25 32
NC-CNGA1204
SCP-2 5.0
CNS1204
-R24
BFTX
0409N
TRX15 LH040 LH025
R/L 3225P12-R24
32 25 170 32 32 32
R/L 3232P12-R24
32 32 170 40 32 32
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes.
*Item is sold separately.
Parts
(4)
4NC-CNGA120416
(5)
4NC-CNGA120420
(6)
4NC-CNGA120424
93° 63˚
107.5˚
Inserts
(1)
2NC-DNGA150416
(2)
2NC-DNGA150420
(3)
2NC-DNGA150424
Above figures show right hand tools
Holders
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
R L H B LF WF HF LH
DDJN R/L 2525M15-R24
25 25 150 32 25 32
NC-DNGA1504
SCP-2 5.0
DNS1504
-R24
BFTX
0409N
TRX15 LH040 LH025
R/L 3225P15-R24
32 25 170 32 32 38
R/L 3232P15-R24
32 32 170 40 32 38
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes.
*Item is sold separately.
Parts
(4)
4NC-DNGA150416
(5)
4NC-DNGA150420
(6)
4NC-DNGA150424
DDJN
External Turning & Profiling
LF
93˚
WF
HF
B
H
–7˚
55˚
–5˚ LH
Inserts
(1)
2NC-DNGA150416
(2)
2NC-DNGA150420
(3)
2NC-DNGA150424
Above figures show right hand tools
Holder
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
R L H B LF WF HF LH
DDHN R/L 2525M15-R24
25 25 150 35 25 35
NC-DNGA1504
SCP-2 5.0
DNS1504
-R24
BFTX
0409N
TRX15 LH040 LH025
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes
*Item is sold separately.
Parts
(4)
4NC-DNGA150416
(5)
4NC-DNGA150420
(6)
4NC-DNGA150424
WF
HF
BH
107.5˚
LF
-
8˚
-
5˚
55˚
LH
DDHN
External Turning & Profiling
Inserts
(1)
2NC-DNGA150416
(2)
2NC-DNGA150420
(3)
2NC-DNGA150424
Above figures show right hand tools
Holder
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
H B LF WF HF LH
DDNN N 2525M15-R24
25 25 150 13 25 40
NC-DNGA1504
SCP-2 5.0
DNS1504
-R24
BFTX
0409N
TRX15 LH040 LH025
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes
*Item is sold separately.
Parts
WF
HF
BH
63˚
LF
-
10˚
55˚
LH
DDNN
External Turning & Profiling
(4)
4NC-DNGA150416
(5)
4NC-DNGA150420
(6)
4NC-DNGA150424
L102
L102
L102
L102
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Recommended Tightening Torque (N·m)
L101
L
L
SUMIBORON
SUMIBORON
Insert for High Efficiency Machining & Special Holders
Inserts
(1)
3NC-TNGA160416
(2)
3NC-TNGA160420
(3)
3NC-TNGA160424
Above figures show right hand tools
Holders
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
R L H B LF WF HF LH
DTGN R/L 2525M16-R24
25 25 150 32 25 32
NC-TNGA1604
SCP-1 5.0
TNS1604
-R24
BFTX
0307N
TRX10 LH040 LH025
R/L 3225P16-R24
32 25 170 32 32 32
R/L 3232P16-R24
32 32 170 40 32 32
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes.
*Item is sold separately.
Parts
(4)
6NC-TNGA160416
(5)
6NC-TNGA160420
(6)
6NC-TNGA160424
Inserts
(1)
3NC-TNGA160416
(2)
3NC-TNGA160420
(3)
3NC-TNGA160424
Above figures show right hand tools
Holder
Cat. No Stock
Height
Width
Length
Cutting
edge
Edge
Height
Head
Applicable Insert Clamp
Set Shim Shim
Screw
Shim
Wrench
Wrench for
Upper Surface
Wrench for
Lower Surface
R L H B LF WF HF LH
DTFN R/L 2525M16-R24
25 25 150 32 25 30
NC-TNGA1604
SCP-1 5.0
TNS1604
-R24
BFTX
0307N
TRX10 LH040 LH025
* Holders are intended for use with inserts with a nose radius of 1.6mm, 2.0mm, or 2.4mm. They cannot be used with other sizes.
*Item is sold separately.
Parts
(4)
6NC-TNGA160416
(5)
6NC-TNGA160420
(6)
6NC-TNGA160424
Application Example (Automotive Component)
Work Material:
Cutting Conditions:
Carburised Steel (60HRC)
[R2.4] Vc=120m/min f=0.35mm/rev ap=0.2mm Work Material:
Cutting Conditions:
Carburised Steel (60HRC)
Vc=100m/min f=0.15mm/rev ap=0.1mm
[R0.8] Vc=120m/min f=0.20mm/rev a
p
=0.2mm
Nose radius of 2.4mm extends tool life by 2x
(compared to nose radius of 0.8mm).
Nose radius of 1.6mm extends tool life by 1.5x
(compared to nose radius of 0.8mm).
Competitor's CBN Competitor's CBN
No. of Workpieces No. of Workpieces
91°
91˚
DTGN
External Turning
91˚
LF
HF WF
B
H
–5˚
–5˚
LH
DTFN
Facing –5˚
–5˚
LH
WF
HF
BH
91˚
LF
Single-sided Type
Appearance
Inserts
No. of Cutting Edges
Coated CBN Dimensions (mm)
BNC2010
BNC2020
BNC160
BNC200
BNC300
Nose Radius
Cutting Edge Length
Inscribed Circle
Thickness
Hole
2NC-CNGA 120416
2
1.6 3.3
12.70
4.76 5.16
120420
2.0 3.2
120424
2.4 3.1
2NC-DNGA 150416
2
1.6 3.4
12.70
4.76 5.16
150420
2.0 3.0
150424
2.4 2.7
3NC-TNGA 160416
3
1.6 3.3
9.525
4.76 3.81
160420
2.0 3.0
160424
2.4 2.7
Inserts
Double-sided Type
Appearance
Inserts
No. of Cutting Edges
Coated CBN Dimensions (mm)
BNC2010
BNC2020
BNC160
BNC200
BNC300
Nose Radius
Cutting Edge Length
Inscribed Circle
Thickness
Hole
4NC-CNGA 120416
4
1.6 3.3
12.70
4.76 5.16
120420
2.0 3.2
120424
2.4 3.1
4NC-DNGA 150416
4
1.6 3.4
12.70
4.76 5.16
150420
2.0 3.0
150424
2.4 2.7
6NC-TNGA 160416
6
1.6 3.3
9.525
4.76 3.81
160420
2.0 3.0
160424
2.4 2.7
Recommended Tightening Torque (N·m)
Dimensions (mm)
Dimensions (mm)
L102
SUMIBORON
Brazed Boring Bars
LF
H
DMIN Min Bore Dia
DCON
3°
RE
Cat. No. Stock
Min. Dia.
Diameter
Height
Length
Nose radius
Applicable
Sleeves
BN2000 BN7000
BN700 DMIN
DCON
HLFRE
BNBX 020R 2.5 2.0 1.8 40 0.2 HBX 2016
025R 3.0 2.5 2.2 40 0.2 HBX 2516
030R 3.5 3.0 2.7 40 0.2 HBX 3016
035R 4.0 3.5 3.2 40 0.2 HBX 3516
040R 4.5 4.0 3.7 40 0.2 HBX 4016
045R 5.0 4.5 4.2 40 0.2 HBX 4516
050R 5.5 5.0 4.7 60 0.2 HBX 5016
055R 6.0 5.5 5.2 60 0.2 HBX 5516
060R 6.5 6.0 5.7 60 0.2 HBX 6016
BNBX 065R 7.0 6.5 6.2 60 0.2 HBB 6516
070R 7.5 7.0 6.7 80 0.2 HBB 716
075R 8.0 7.5 7.2 80 0.2 HBB 7516
080R 8.5 8.0 7.7 80 0.2 HBB 816
Adaptor Sleeves
ø16
100
1515
DCB
Cat. No. Stock
Diameter
Applicable Bar
DCB
HBX 2016 2.0 BNBX 020R
2516 2.5 BNBX 025R
3016 3.0 BNBX 030R
3516 3.5 BNBX 035R
4016 4.0 BNBX 040R
4516 4.5 BNBX 045R
5016 5.0 BNBX 050R
5516 5.5 BNBX 055R
6016 6.0 BNBX 060R
ø16 DCB
15 100
HBB 6516 6.5 BNBX 065R
716 7.0 BNBX 070R
7516 7.5 BNBX 075R
816 8.0 BNBX 080R
Recommended Cutting Conditions
Spindle speed nMore than
2,000min-1
Low speed may cause
chattering and chipping on the
cutting edge.
Depth of cut ap0.01 to 0.2mm
Excessive depth of cut may cause
larger tool deformation resulting in
deterioration of bore accuracy.
Feed rate f0.01 to 0.1mm/rev
Important notes
(1) Shorten overhang as much as possible (Max. L/D=5).
(2) Even minor workpiece run-out may affect tool life.
(3) Select a boring bar with a diameter closest to the bore
diameter.
(4) Although it is difficult to increase the rotational speed in
small diameter boring applications, higher speeds are
recommended whenever possible.
BNBX
Boring & Facing
Newly developed high rigidity slit-clamping system,
excellent for small hole boring
• Maximum overhang of L/D=5 possible.
• Minimal bar deformation produces excellent boring accuracy.
• Minimal vibration produces superior surface finish.
• Easy bar indexing without sleeve removal.
BN2000 for hardened steel and BN7000 for sintered
alloy are available
* BNBX bars can be use with HBB type sleeves, however, HBX type sleeves are recommended for bars below ø6mm.
SUMIBORON
BNBX Type
Small Hole
Boring Bars
Dimensions (mm)
Parts (For Sleeve)
Screw Set Screws Wrenches Applicable
Sleeves
BFTX0409N
1. 5
BT06035T TRD15
HBX2
3.0
HBX3
HBX4
HBX5
HBX6
BT0404 TH020
HBB
(For Torx
holes)
TRDBT06035T
BT0404
TH
Recommended Tightening Torque (N·m) mark : To be replaced by new item (Please confirm stock availability) L103
L
L
SUMIBORON
Recommended Cutting Conditions
Spindle speed nMore than
2,000min-1
Low speed may cause chattering
and chipping on the cutting edge.
Depth of cut a0.03 to 0.2mm
Excessive depth of cut may cause
larger tool deformation resulting in
deterioration of bore accuracy.
Feed rate f0.03 to 0.1mm/rev
Important notes
(1) Shorten overhang as much as possible (Max. L/D = 5).
(2) Even minor workpiece run-out may affect tool life.
(3) Select a boring bar with a diameter closest to the bore
diameter.
(4) Although it is difficult to increase the rotational speed in
small diameter boring applications, higher speeds are
recommended whenever possible.
Sleeves
ø16 DCB
15 100
Cat. No. Stock
Diameter
Applicable
Holders
DCB
HBB 616 6.0 BNZ 606R
816 8.0 BNZ 608R
Parts (for Adapter Sleeve)
Set Screw Wrench
BT0404 TH020
Parts (for Holder)
Screw
Wrench
BFTX
0204N
0.5 TRX06
Holders
LF
5°
GAMF
H
DCON
DMIN Min Bore Dia
Cat. No. Stock
Min. Dia. Diameter
Height Length
Rake angle
DMIN DCON H LF GAMF
BNZ 606R 7.0 6.0 5.5 80 14
608R 9.0 8.0 7.5 100 12
610R 11.0 10.0 9.5 125 10
612R 13.0 12.0 11.0 130 8
616R 17.0 16.0 15.0 145 6
620R 21.0 20.0 19.0 160 5
Inserts are not included.
BNZ
Boring & Facing
ø7mm minimum bore diameter with special insert.
High rigidity indexable type boring bar with full
carbide holder.
Economical and easy tool management with one-
use type inserts.
SUMIBORON
BNZ Type
Small Hole
Boring Bars
Inserts (1 piece pack)
NU-
ZNEX
80°
ø4.76
1.59
RE
7°
Stock
Dimension
(mm)
BNC2010
BNC2020
BN1000
BN2000
BN7000
BN700
Nose Radius RE
Cat. No.
NU-ZNEX 040102 0.2
040104 0.4
NC-ZNEX 040102LE 0.2
040104LE 0.4
NC-ZNEX 040102LT 0.2
040104LT 0.4
Inserts (10 pieces pack)
T-NU-
ZNEX
80°
ø4.76
1.59
RE
7°
Stock
Dimension
(mm)
BN1000
BN2000
BN7000
BN700
Nose Radius RE
Cat. No.
T-NU-ZNEX 040102 0.2
040104 0.4
Dimensions (mm)
Dimensions (mm)
Recommended Tightening Torque (N·m) mark : To be replaced by new item (Please confirm stock availability)
L104
mark : To be replaced by new item (Please confirm stock availability)
SUMIBORON
Inserts
TBGN
ø3.97
60°
RE
1. 5 9
5°
5°
*2 Cat. No.
Dimension
(mm)
SUMIBORON
SUMIDIA
Nose Radius RE
BNX10
BNX20
BN2000
BN350
BN500
BN7000
BN700
DA150
DA1000
Cat. No.
TBGN 060102B 0.2
060104B 0.4
060108B 0.8
060102-BSTN*1 0.2
060104-BSTN*1 0.4
060108-BSTN*1 0.8
NF-TBGN 060102*2 0.2
060104*2 0.4
Holders
GAMF
2° DCON
H
LF
DMIN Min Bore Dia
Cat. No. Stock
Min. Dia. Diameter
Height Length
Rake angle
DMIN DCON H LF GAMF
BNB 508R 10.0 8.0 7.0 140 9
510R 12.0 10.0 9.0 140 8
512R 14.0 12.0 11.0 160 6
516R 18.0 16.0 14.0 180 5
520R 22.0 20.0 18.0 180 4
Inserts are not included.
General Turning & Facing
BNB High rigidity full carbide boring bar
Minimal bar deformation produces excellent boring accuracy.
Minimal vibration produces superior surface finish.
Full-Top SUMIBORON insert enables 3 cutting edges
Can be used with SUMIDIA inserts for non-ferrous metal machining
Now with economical one-corner NF Type SUMIDIA insert
Parts
Applicable
Holders
Clamp Bolts Nuts Wrench
BNBC
BH0306 BNBW-2
TH020
BNB 508R
FBUP3-
A0-9
BNBW-4
BNB 510R
BNB 512R
BH0310 BNB 516R
BNBW-7
BNB 520R
*1 TBGN
-BSTN is only available in BNX20
grade and it has a smaller negative land angle (-15°) as
compared to the B type (-25°).
*2 NF-TBGN is a single corner insert.
(This is not a Full-Top insert)
Cutting Performance
30
20
10
020
40 60 80 100 120
BNB508R
BNB512R
BNB516R
BNB520R
ە
ە
ە
ە
ە
DCON
Work materials
: SKD61 (60HRC)
Insert
: TBGN060104B
Conditions
: v=100m/min
f =0.1mm/rev a=0.2mm
Holder Shank DCON (mm)
Tool Overhang (mm)
Steel Shank
Carbide Shank
Stable Cutting
Vibration occurs
30
20
10
020
40 60 80 100 120 140
BNB512R
BNB516R
BNB520R
BNB525R
DCON
Work materials
:
SCM415 (61HRC) ø45 (6U-grooves)
Insert
: TBGN060104B
Conditions
: v=100m/min
f =0.1mm/rev a=0.2mm
Interrupted cut (SCM415)
Continuous cut (SKD61)
Stable Cutting
Vibration occurs
Tool Overhang (mm)
Holder Shank DCON (mm)
SUMIBORON
BNB Type
Small Hole
Boring Bars
Dimensions (mm)
L105
L
L106
L
SUMIBORON
SUMIBORON Small Diameter Boring Bars
BSME Type
Tools
Cat. No.
Grades Min. Dia. Diameter
Neck diameter
Length
Cutting edge
Depth of cut
Nose radius
Fig Applicable
Sleeves
BN2000 DMIN DCON DN LF WF CDX RE
RL
BSME R/L25020D2S6 2.5 6.0 2.0 32.0 1.20 5.3 0.2
1
HBSM6020
BSME R/L25020D3S6 2.5 6.0 2.0 34.5 1.20 7.8 0.2
BSME R/L25020D4S6 2.5 6.0 2.0 37.0 1.20 10.3 0.2
BSME R/L30020D2S6 3.0 6.0 2.5 32.8 1.45 6.3 0.2
2
BSME R/L30020D3S6 3.0 6.0 2.5 35.8 1.45 9.3 0.2
BSME R/L30020D4S6 3.0 6.0 2.5 38.8 1.45 12.3 0.2
BSME R/L35020D2S6 3.5 6.0 3.0 33.5 1.70 7.3 0.2
BSME R/L35020D3S6 3.5 6.0 3.0 37.0 1.70 10.8 0.2
BSME R/L35020D4S6 3.5 6.0 3.0 40.5 1.70 14.3 0.2
BSME R/L40020D2S6 4.0 6.0 3.5 33.9 1.95 8.3 0.2
BSME R/L40020D3S6 4.0 6.0 3.5 37.9 1.95 12.3 0.2
BSME R/L40020D4S6 4.0 6.0 3.5 41.9 1.95 16.3 0.2
BSME R/L45020D2S6 4.5 6.0 4.0 35.0 2.20 9.3 0.2
BSME R/L45020D3S6 4.5 6.0 4.0 39.5 2.20 13.8 0.2
BSME R/L45020D4S6 4.5 6.0 4.0 44.0 2.20 18.3 0.2
BSME R/L50020D2S6 5.0 6.0 4.5 35.8 2.45 10.3 0.2
BSME R/L50020D3S6 5.0 6.0 4.5 40.8 2.45 15.3 0.2
BSME R/L50020D4S6 5.0 6.0 4.5 45.8 2.45 20.3 0.2
BSME type requires separately sold sleeve HBSM6020.
SUMIBORON
BSME
Internal / Facing
Sleeves
ø20 DCB
LF
Cat. No. Stock Dia. Length Set Screw Wrench
DCB LF
HBSM6020 6.0 80 BT0506 TH025
Sleeve is sold separately.
Alignment Jig*
Cat. No. Stock
AFBSM60
Characteristics
Fig 1 Fig 2
DMIN Min. diameter DMIN Min. diameter
10°
RE CDX CDX
LF LF
WF
RE
WF
DCON
DN
DCON
10°
DN
High precision cutting edge positioning is achieved
through a combination of tool/holder with taper on the
rear end, and a sleeve with an internal positioning pin.
(Common to BSME Type / SEXC Type)
Set screw
Sleeve
Tool / Holder
Positioning pin
Back end taper face
Newly Developed Clamp Mechanism
*
This is a jig for centering the sleeve when installing the sleeve into the sleeve holder.
Dimensions (mm)
Dimensions (mm)
Achieves minimum machineable diameter of ø2.5 mm for
hardened steel internal machining
Achieves high precision cutting edge positioning through
newly developed clamp mechanism
Achieves high performance machining comparable to grinding
machining with further cutting in the small hole region
Brazed type BSME type handles machining diameters
from ø2.5 mm up to ø5.0 mm
Indexable insert type SEXC type handles machining
diameters from ø4.0 mm up to ø6.0 mm
L107
SUMIBORON
L
SUMIBORON Small Diameter Boring Bars
SEXC Type
SUMIBORON
SEXC
Internal / Facing
Sleeves
ø20 DCB
LF
Cat. No. Stock Bore dia. Length Set Screw Wrench
DCB LF
HBSM6020 6.0 80 BT0506 TH025
Sleeve is sold separately.
Inserts
75°
ø3.31
RE
7°
1. 1 5
Cat. No.
Grades
Dimensions
(mm)
BN2000
BN7000
Nose
radius
RE
2NU-ECXA 030X02LE
0.2
2NU-ECXA 030X02LF
0.2
The part number suffixes stand for the following:
LE: With honing LF: Sharp edge
Alignment Jig*
Cat. No. Stock
AFBSM60
Recommended Cutting Conditions
Main axis
rotation speed
n
Over 2,000 min-1
Low speed machining may cause
chattering and cutting edge chipping
Depth of cut
ap0.01–0.15 mm
Extreme depths of cut may cause
tool bending and degraded
accuracy of dimensions.
Feed rate
f0.01–0.10 mm/rev
DMIN Min. diameter
10°
WF
DCON
CDX
LF
GAMF
DN
2.0 3.0 4.0 5.0 6.0
Machining diameter (mm)
Machining
accuracy
Good
SEXC Type
Indexable insert type
BSME Type
Brazed type
0 500 1,000 1,500 2,000
BSME
BSME
ø5.0
SEXC
SEXC
0 500 1,000 1,500
ø4.0
Cutting conditions v
c
135m/min 7,500min-1 f=0.02mm/rev a
p
=0.10mm Dry Cutting conditions v
c
50m/min 4,000min-1 f=0.02mm/rev a
p
=0.02mm Wet
Work material: Hardened steel alloy valve part (automotive related)
Tools: BSME R50020D2S6 Grade: BN2000
Work material: Bearing steel small automotive part (60HRC)
Holder: E06D2-SEXC R/L03-04P Insert: 2NU-ECXA 030X02LF(BN2000)
BSME type demonstrates extended life of over two times the life of CBN tools
from our competitors and achieves stable machining.
Competitor
CBN tools
Number of Parts (Pcs)
Hardened steel alloy valve component
SEXC type achieves 1.5 times extended life compared with brazed CBN tools
from our competitors, and achieves greatly reduced tooling costs.
Bearing steel small automotive component
Indexable insert typeBrazed type
Competitor s brazed
CBN tools
Number of Parts (Pcs)
600
1,700
1,000
1,500
Application Ranges
Application Examples
Parts
Holders
Cat. No. Stock
Min. Dia.
Diameter
Neck
diameter Length Cutting
edge
Depth of cut
Rake
angle Applicable
Sleeve
Clamp
Bolts Wrench
RL
DMIN
DCON
DN LF WF CDX
GAMF
E06D2-SEXC R/L03-04P 4.0 6.0 3.75 33.75 1.95 8
13
HBSM6020
MIB1.6-2
0.2 SDBSM
E06D3-SEXC R/L03-04P 4.0 6.0 3.75 37.75 1.95 12
13
E06D2-SEXC R/L03-05P 5.0 6.0 4.75 35.25 2.45 10
12 MIB1.6-2.5
E06D3-SEXC R/L03-05P 5.0 6.0 4.75 40.25 2.45 15
12
E06D2-SEXC R/L03-06P 6.0 6.0 5.75 36.75 2.95 12
11
MIB1.6-3
E06D3-SEXC R/L03-06P 6.0 6.0 5.75 42.75 2.95 18
11
SEXC type requires separately sold sleeve HBSM6020.
*
This is a jig for centering the sleeve when installing the sleeve into the sleeve holder.
Recommended tightening torque (N·m)
Dimensions (mm)
Dimensions (mm)
L
SUMIBORON
External Turning & Profiling
TRGT Clamping by cutting force alone
Secure clamping is achieved by inserting the tapered portion of the insert into the holder.
The lack of protruding clamp mechanisms allow for smooth chip flow.
Various machining operations possible
Small round insert with stable clamping can be applied to various
machining operations.
Holders
IC
HF
B
H
LF
45°
LH
Cat. No. Stock
Inscribed
circle
Height
Width
Length
Edge
Height
Head
Applicable
Inserts
RLIC H B LF HF LH
TRGT R/L2020K05 5 20 20 125 20 16 RTGN 0508M0
R/L2020K06 6 20 20 125 20 16 RTGN 0608M0
R/L2525M07 7 25 25 150 25 20 RTGN 0711M0
R/L2525M08 8 25 25 150 25 20 RTGN 0811M0
TRGT R/L3225P09 9 32 25 170 32 25 RTGN 0914M0
10 32 25 170 32 25 RTGN 1014M0
TRGT R/L3225P12 12 32 25 170 32 25 RTGN 1214M0
Inserts are not included.
Above figures show right hand tools.
Inserts
S4
S
IC
D7
12°
6°
Cat. No. Stock
Inscribed
circle
Diameter
Thickness
Thickness 2
BN2000
BNX20
BN7000
IC D7 S S4
RTGN 0508M0 5 2.5 7.5 3.5
0608M0 6 3.5 7.5 3.5
RTGN 0711M0 7 3.5 11.0 5.0
0811M0 8 4.5 11.0 5.0
RTGN 0914M0 9 5.5 14.0 6.0
1014M0 10 5.5 14.0 6.0
1214M0 12 7.5 14.0 6.0
Insert Clamping
D8
D7
ab
IC
H
0
12°–10´
0
0.3–0.3
Applicable Insert Diameter IC
HD7D8ab
5 4.0 2.5 1.9 1.85 3.2
6 4.0 3.5 2.9 2.35 3.7
7 6.0 3.5 2.5 2.75 4.3
8 6.0 4.5 3.5 3.25 4.8
9 7.5 5.5 4.2 4.15 5.9
10 7.5 5.5 4.2 4.15 5.9
12 7.5 7.5 6.2 5.15 6.9
SUMIBORON
TRGT Type
Tool Holders with
Small Round Inserts
Dimensions (mm)
Dimensions (mm)
L108
SUMIBORON
SUMIBORON
PR Type
Tool Holders with
Small Round Inserts
SUMIBORON
SJB Type
JIG Boring
Tools
Holders
PRGC Type
External Profiling
LF
IC
7°
HF WF
BH
30°
15°
LH
Cat. No.
Stock
I. C.
Height
Width
Length
Cutting edge
Edge
Height
Head
Applicable
Insert
R L IC H B LF
WF
HF LH
PRGC R/L3225P9 93225
170
32 32 18 RCGA 0906M0
Lever Lock clamping system
Easy to use, the lack of protruding clamp mechanism allow for
smooth chip flow.
Versatile
round insert
can be applied
to various
operations.
PRDC Type
External General Turning
LF
IC
15°
HF WF
B
H
LH
Cat. No.
Stock
I. C.
Height
Width
Length
Cutting edge
Edge
Height
Head
Applicable
Insert
IC H B LF
WF
HF LH
PRDC N 3225P9 93225
170
12.5
32 25 RCGA 0906M0
PRGN Type
External General Turning
IC
B
H
WF
HF
LH
LF
Cat. No.
Stock
I. C.
Height
Width
Length
Cutting edge
Edge
Height
Head
Applicable
Insert
R L IC H B LF
WF
HF LH
PRGN R/L3225P9 93225
170
32 32 10 RNGA 0906M0
Inserts are not included.
Inserts
ø9
ø9
ø8.4
6.35 6.35
7°
Fig 1 Fig 2
Cat. No. Stock Fig
BN2000
BNX20 BN350
BN7000
RCGA 0906M0 1
RNGA 0906M0 2
Parts
Applicable
Inserts
Shims Lever Pin Bolt Shim Pin Wrench
LSR817
LCL3S LCS3 LSP3
LH025
PRGC R/L3225P9
PRDCN 3225P9
LSR917
PRGN R/L3225P9
Tool Bodies
45° 45°
5°
0.4 ~ 0.5
LF
DMIN
Grinding direction
of rake surface
DCON–0.015
0
LS
Cat. No. Stock
Diameter
Min. Dia. Length Length
BN250
DCON DMIN LF LS
SJB 0804 8 44532
0805 8 54532
0806 8 65030
0808 8 86030
SJB 1006 10 6 50 30
1008 10 8 60 30
1010 10 10 70 30
1012 10 12 70 30
1015 10 15 70 30
Recommended Cutting Conditions
Spindle Speed nabove 800min-1 Low speeds may cause chattering
and chipping on the cutting edge.
Depth of cut a
0.03 to 0.3 mm/radius
Excessive depth of cut may cause
larger tool deformation resulting in
deterioration of bore accuracy.
Feed Rate f
0.03 to 0.1mm/rev
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
L109
L
L
SUMIBORON
External Roll Turning
BNRN Reground insert can be used.
Same holder can be used for reground insert by adjusting slide locator.
Reliable holder design.
The tip of the clamp is a carbide chipbreaker, which can withstand wear from
chips.
Slide locator uses HSS for durability.
Holders
WF
HB
60°
60° LF
CDX
CDX
Cat. No. Stock
Height
Width
Length
Cutting edge
Head
Applicable Insert
H B LF WF LH New Insert
Regrindable range
BNRN 3232-08-07
32 32 200 16 13 RBG08-B
8.0 to 7.0
BNRN 4038-10-09
40 38 250 19 17 RBG10-B
10.0 to 9.0
4038-12-11
40 38 250 19 20 RBG12-B
12.0 to 11.0
BNRN 5050-14-12
50 50 350 25 25 *
14.0 to 12.0
5050-16-14
50 50 350 25 25 RBG16-B
16.0 to 14.0
5050-18-16
50 50 350 25 30 *
18.0 to 16.0
5050-20-18
50 50 350 25 30 RBG20-B
20.0 to 18.0
5050-22-20
50 50 350 25 35 *
22.0 to 20.0
5050-24-22
50 50 350 25 35 *
24.0 to 22.0
5050-26-24
50 50 350 25 35 RBG26-B
26.0 to 24.0
* Blank space indicates holders for reground inserts. Inserts are not included.
Inserts
IC
D7
5°
S
S3
Cat. No. Stock I. C.
Diameter
Thickness 2
Thickness
BN7000
BN700 BN500
IC D7 S3 S
RBG 08-B
8.0 4.0 4.0 6.5
10-B
10.0 5.0 5.0 9.0
12-B
12.0 6.0 6.0 11.0
16-B
16.0 8.0 8.0 13.0
20-B
20.0 10.0 10.0 15.0
26-B
26.0 14.0 10.0 15.0
Structure
Clamp
Clamp
Holder
Cassette
Slide Locator
Parts
Applicable Holder
Slide Locators Clamps Cassettes Clamps Cap Screws Set Screws
Double Screws
Wrenches
BNRN 3232-08-07
BNRS R-08 BNRC-08 BNRE-08 BNRW-08 BX0425 BTD0609 WB5-18 LH025
LH030
BNRN 4038-10-09
BNRS R-10 BNRE-10
BNRN 4038-12-11
BNRS R-12 BNRC-12 BNRE-12 BNRW-12 BX0635
BTD0812
WB6-20 LH030
LH040
LH050
BNRN 5050-14-12
BNRS R-14 BNRE-14
BX0640
WB6-30
BNRN 5050-16-14
BNRS R-16 BNRC-16 BNRE-16 BNRW-16
WB8-30
LH040
LH050
BNRN 5050-18-16
BNRS R-18 BNRE-18
BNRN 5050-20-18
BNRS R-20 BNRC-20 BNRE-20 BNRW-20
BNRN 5050-22-20
BNRS R-22 BNRE-22
BNRN 5050-24-22
BNRS R-24 BNRC-26 BNRE-24 BNRW-26 BX0840 BTD0818 LH040
LH060
BNRN 5050-26-24
BNRS R-26 BNRE-26
SUMIBORON
BNRN Type
Roll Turning
Tool Holder
Dimensions (mm)
Dimensions (mm)
L110
SUMIBORON
SUMIBORON Grooving Tool holder
GWB Type
Characteristics
Tangentially-mounted insert enhances tool rigidity.
D
ouble clamping holder design improves stability during
continuous and interrupted cutting. Can also be used for turning.
Long tool life in interrupted cutting applications with the
Coated SUMIBORON BNC30G special grade for grooving
(BN2000 recommended for continuous cutting applications).
Suited for grooving various types of hardened steel. Range
of widths available from 1.5 to 6.0mm.
External Grooving
GWB
B
WF
HFHBH CW
H
CDX
LF
3˚
Cat. No. Stock
Height
Width
Length Cutting
Edge
Edge
Height
Step
Width of Teeth(mm)
Max. Groove Depth (mm)
App
Insert No.
Clamps
Cap Screw
N m Screw Spring Wrench
R L H B LF WF HF
HBH
CW CDX
GWB R/L 2020-45
20 20 151
(150) 25 20 5
1.5≤cw≤4.5 3.5~5.0
TF-72
(Right-hand tool)
TF-73
(Left-hand tool)
BX0520T
5.0
BFTX0511N
GSP06 TRX20
GWB R/L 2525-45
25 25 151
(150) 30 25 —
GWB R/L 2525-60
25 25 151 30 25 — 4.5<cw≤6.0 5.0
Dimension in parentheses for groove width CW = below 3.0. * Right handed toolholders are applicable with right handed inserts.
Holders
Parts
CDX
IC
2-R02
CW±0.025
S
Cat. No.
Stock Width
of cut
Groove
depth
Inscribed
circle
Thickness
Insert
No.
Applicable Holders
BN2000 BNC30G
RLRL
CW CDX IC S
CGA R/L 1504150 1.5 3.5
15.875 4.76
GWB R/L 2020-45
GWB R/L 2525-45
CGA R/L 1504200 2.0 3.5
CGA R/L 1504250 2.5 4.0
CGA R/L 1504300 3.0 4.0
CGA R/L 1504350 3.5 5.0
CGA R/L 1504400 4.0 5.0
CGA R/L 1504450 4.5 5.0
CGA R/L 1506500 5.0 5.0
15.875 6.35
GWB R/L 2525-60
CGA R/L 1506550 5.5 5.0
CGA R/L 1506600 6.0 5.0
* It is also possible to manufacture grooving widths other than those listed above (CW = 1.5 to 6.0mm).
Inserts
Grades Application Features HV GPa
TRS GPa
BN2000 Continuous
Grooving
General purpose grade with superior wear resistance
31 to 34 1.0 to 1.1
BNC30G Interrupted
Grooving
Grade suited for interrupted cutting. Features a
tough substrate, and special ceramic coating that
exhibits both peel-off and wear resistance.
33 to 35 1.1 to 1.2
Characteristics of Grades
Cutting Conditions H
Hardened Steel
Cutting Speed vc (m/min)
80 to 120
Feed rate f (mm/rev) 0.04 to 0.08
Recommended Cutting Conditions
*
In order to avoid thermal cracking of the SUMIBORON
cutting edge during interrupted cutting, ensure that
the work is thoroughly dry before cutting.
Process Work Material Insert
Cutting Conditions
Tool Life Comparison
Shaft Grooving:
Continuous
Required finish on groove sides: Ra0.4μm
Carburised Steel
58 to 62HRC
CGAR1504200
BN2000
vc: 120m/min
f: 0.05mm/rev
Groove Depth : 2mm
Dry
500 1,000
0
GWB type
BN2000
No. of Workpieces
Conventional
Tool
Chipping
No Chipping
Spline depth:
Interrupted Carburised Steel
58 to 62HRC
CGAR1504200
BNC30G
vc: 100m/min
f: 0.05mm/rev
Groove Depth : 1.6mm
Dry
400 600
0200
No Chipping
Chipping
GWB type
BNC30G
Comp.
No. of Workpieces
Application Examples
Hardened Steel, Shallow Grooves
External
Dimensions (mm)
Dimensions (mm)
Recommended Tightening Torque (N·m)
L111
L
L
SUMIBORON
SUMIBORON Grooving Tool Holder
BNGG Type
Holders Inserts are not included.
Fig1 Grooving
CDX
LF
25
WF
25
25
Fig2 Threading
CDX
LF
25
WF
Cat. No. Stock Cutting
Edge
Groove depth
Length
Fig Applicable
Holders
R L WF CDX LF
Grooving
BNGG R/L2525-200
30.5 4 150
1
BNGNT0200 R/L
BNGG R/L2525-250
30.5 4 150 BNGNT0250 R/L
BNGG R/L2525-300
30.5 5 150 BNGNT0300 R/L
BNGG R/L2525-400
30.5 6 151 BNGNT0400 R/L
BNGG R/L2525-500
30.5 6 151 BNGNT0500 R/L
BNGG R/L2525-600
30.5 7 152 BNGNT0600 R/L
Threading
BNGG R/L2525-TT
28.5 5 150 2 BNTT1020 R/L
BNTT1530 R/L
* Holder can be configured for grooving or threading by changing the support.
Inserts
L
L
5.5
17
6°
2-RE
WF3
CDX
CW
0.05
17
RE
6.0
WF3
60°
Fig 1 Grooving
Fig 2 Threading
back taper 30’
back taper 30’
Cat. No.
Stock
Width
of cut
Groove
depth
Corner
radius
Length
Cutting
edge
Fig Applicable
Holders
BN250 BNX20 BN350 BNX25
RLRLRLRL
CW
CDX
RE
L
WF3
Grooving
BNGNT0200 R/L
2.0 4.0 0.2 25 6.0
1
BNGG R/L 2525-200
BNGNT0250 R/L
2.5 4.0 0.2 25 6.0
BNGG R/L 2525-250
BNGNT0300 R/L
3.0 5.0 0.4 25 6.0
BNGG R/L 2525-300
BNGNT0400 R/L
4.0 6.0 0.4 26 6.0
BNGG R/L 2525-400
BNGNT0500 R/L
5.0 6.0 0.4 26 6.0
BNGG R/L 2525-500
BNGNT0600 R/L
6.0 7.0 0.4 27 6.0
BNGG R/L 2525-600
Threading
BNTT1020 R/L
Pitch 1.0 to 2.0
0.14 25 4.0 2
BNGG R/L 2525-TT
BNTT1530 R/L
Pitch 1.5 to 3.0
0.2 25 4.0
Parts
Applicable Holder
Supports Clamp
Adjustment Screw
Spring
Cap Screws
Wrenches
BNGG R/L2525-200
BNGS R/L 200
BNGC R/L FMJ GSP06
BX0615
(Clamp)
BX0414
(Support)
LH050
(Clamp)
LH030
(Support)
1.8 45
BNGG R/L2525-250
BNGS R/L 250
BNGG R/L2525-300
BNGS R/L 300
BNGG R/L2525-400
BNGS R/L 400
BNGG R/L2525-500
BNGS R/L 500
BNGG R/L2525-600
BNGS R/L 600
BNGG R/L2525-TT
BNGS R/L TT
Recommended Cutting Conditions
For Grooving
Cutting Conditions
H
Hardened Steel
Cutting Speed vc (m/min)
80 to 120
Feed Rate f (mm/rev)
0.03
to
0.07
For Threading
Cutting Conditions
H
Hardened Steel
Cutting Speed vc (m/min)
80 to 120
Feed Rate f (mm/rev)
Largest Pitch 3.0
High rigidity improves tool life
Strong clamping reduces vibration and enhance chipping resistance.
Grooving and Threading operations
Grooving and Threading can be adopted by changing the support.
SEC-Grooving Holder + SUMIBORON Insert can be used for Hardened
steel grooving.
BNGG
External Grooving
BNGG-TT
External Threading
Hardened Steel, Shallow Grooves
Characteristics
External
Dimensions (mm)
Dimensions (mm)
L112
SUMIBORON
High Speed and High Efficiency Milling for Cast Iron
Cutter Bodies Inch
75°
LF
KDP
Fig 1
DCSFMS
DCB
KWW
ø13
ø20
DC
BD
CBDP
75°
LF
KDP
DCSFMS
DCB
KWW
Fig 2
DC
D1
BD
CBDP
Cat. No. Stock
Diameter Diameter
Boss Bolt Height
Diameter
Groove width
Groove depth
Attaching depth
No. of
teeth
Maximum
Spindle Speed
min-1
Weight
(kg) Fig
DC BD
DCSFMS
D1 LF DCB KWW KDP CBDP
RM 3080R 80 90 60 50 25.40 9.5 6 25 6 9,000 1.6 1
3100R 100 110 70 46 50 31.75 12.7 8 32 8 8,000 2.1 2
3125R 125 135 80 59 63 38.10 15.9 10 38 10 7,000 3.9 2
3160R 160 170 100 80 63 50.80 19.1 11 38 12 6,000 5.9 2
Inserts are not included.
High speed, high efficiency milling of Grey Cast Iron
Utilising solid SumiBoron BNS800 for high speed milling of
vc =1,500m/min.
High speed roughing of up to ap=3.0mm.
Wiper insert for high speed finishing.
Low cost
Cost effective 8 cornered inserts.
Insert regrinding possible.
Simple construction for insert run-out
Simple design for direct insert mounting.
Insert run-out can be easily adjusted.
CAUTION
• Do not use a mix of standard and wiper inserts on a single
cutter setting.
•
Do not mix new and reground inserts on a single cutter setting.
• Inserts can only be reground once (inscribed circle dimension
must be at least 9.125mm)
Wrench
TTX20 Clamp Screw
TH015 For Adjustment Screw
TH020 For Adjustment Screw
Insert
Shim
RMS
Shim Screw
BFTX0307N
Double Screw
WB6-16T Clamp
RMW
Adjustment Screw
SRFJ
For hardened steel machining use the SEC ACE Mill DNF Type.
Cutter Body… H54 Insert L96
SUMIBORON
RM Type
High-Speed Mill
for Cast lron
75
3
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminium
S
Exotic Alloy
H
Hardened Steel
Recommended Cutting Conditions
ISO
Work Hardness
Cutting Speed vc (m/min)
Min. - Optimum - Max.
Feed Rate fz (mm/t)
Min. - Optimum - Max.
Grade
K
Gray
Cast Iron
250HB 800-1150 -1500 0.05- 0.13 -0.20 BNS800
(Dry)
Inserts
Cat. No. Stock SUMIBORON Fig
SNGN 090308 BNS800 3
090312 BNS800 3
SNEN 090308W BNS800 4
9.525
9.525
3.18
Fig 3 9.525
9.525
3.18
0.8
0.8
0.8
Fig 4
Wiper Inserts
The cutting conditions above are a guide. Actual conditions will need to be adjusted
according to machine rigidity, work clamp rigidity, cutting depth, and other factors.
Note
Dimensions (mm)
Parts
Clamp
Double Screw
Shim
Shim Screw
RMW WB6-16T RMS BFTX0307N N m 2.0
Adjustment Screw
Wrench (Clamp Screw)
Wrench
(For Adjustment Screw)
Wrench (For Adjustment Screw)
SRF J TTX20 TH015 TH020
N m Recommended Tightening Torque (N·m)
L113
L
L
SUMIBORON
High-speed Finishing for Gray Cast Iron
High speed finishing cutter for Gray Cast Iron milling, that uses
removable cartridges for easy insert run-out
Utilising BN7000 / BN700 grade with both good wear and fracture
resistance.
Available in shell and small diameter endmill types.
Characteristics
High speed machining vc=2,000m/min
Surface Roughness Rz=3.2 (1.0Ra)
Safety structure for the centrifugal force under high speed cutting conditions
Run-out is less than 10μm
Easy assembly method using the setting gauge
Running cost is reduced with economical inserts.
Performance
Tool life diagram Estimated tool life
0.25
0.20
0.15
0.10
0.05
0200 400 600 800
vc=600
vc=800
vc=1,000
vc=2,000
vc=1,500
Flank Wear Width B (mm)
Work Material FC250 240HB (Pearlite)
Cutting Speed vc = 600 to 2,000m/min Feed Rate : fz = 0.15mm/t
Depth of cut a
p
= 0.5mm Dry Grade : BN700
Chip Removal Rate (cm3)
1,500
1,000
500
0 500 1,000 1,500 2,000
BN7000
Work Material FC250 (Pearlite)
Cutting Speed vc = 500 to 2,000m/min Feed Rate : fz = 0.2mm/rev
Depth of cut a
p
= 0.3mm Dry Tool :
FMU4100R SNEW1203ADTR
Cutting Speed (m/min)
Chip Removal Rate (cm3)
Conventional
CBN
Milling of ductile cast iron and alloy steel casting do not produce the best results.
Dry cutting is recommended. Wet cutting will result in chipping of cutting edges in the early stages due to thermal cracking.
Application
FC250 to FC300 (200 to 250HB) Gray Cast Iron with Pearlite
matrix, and Ferrite matrix (HB130 to160) Application Examples:
engine block, cylinder block, etc.
Specifications Recommended Cutting Conditions
Body
Standrd type
Low cutting orce type
ø80 to ø315mm (FMU Type)
ø40 to ø63mm (FMU-E Type)
SNEW1203ADTR/L
SNEW1203ADTR/L-S
Cutting Speed
Feed Rate
Depth of cut
Coolant
vc800 to 2,000m/min
fz0.1 to 0.3mm/t
ap0.5mm or less
Dry
SUMIBORON
BN Finish Mill EASY
Type
FMU
FMU-E
L114
SUMIBORON
Bodies inch Structure
DC
DCX
Approach Angle 0°
Axial Rake +8°
Radial Rake +2°
ap0.5mm
Insert
Cartridge
Screw
Setting Clamp Double Screw
Screw
FMUUE/FMUU
Engraved Mark
DCSFMS
DC
DCB
KWW
LF
DCSFMS
ø101.6
DC
DCB ø18
ø26
KWW
LF
32
DCSFMS
DC
ø13
ø20
DCB
KWW
LF
KDP
DC
LF 80
DCSFMS
DC
ø177.8
ø101.6
DCB ø18 ø22
ø26 ø32
KWW
LF
32
Fig 2Fig 1 Fig 3 Fig 4 Fig 5
ø32
CBDP
CBDP
CBDP
CBDP
KDP
KDP
KDP
Cat. No. Stock
Diameter Max. Dia.
Boss Height
Diameter
Groove width
Groove depth
Attaching depth
No. of
teeth
Weight
kg Fig
DC DCX
DCSFMS
LF DCB KWW KDP CBDP
FMU 4040ER 37 40 63 2 1.0 1
4050ER 47 50 63 3 1.2 1
4063ER 60 63 60 63 25.4 9.5 6 25 4 1.0 2
FMU 4080R 80 82.8 60 63 25.4 9.5 6 25 6 1.7 2
4100R 100 102.8 75 63 31.75 12.7 8 38 8 2.5 3
4125R 125 127.8 75 63 38.1 15.9 10 38 10 3.9 3
4160R 160 162.8 100 63 50.8 19.1 11 38 12 6.3 3
4200R 200 202.8 130 63 47.625 25.4 14 40 16 9.3 4
4250R 250 252.8 130 63 47.625 25.4 14 40 20 14.5 4
4315R 315 317.8 240 80 47.625 25.4 14 40 24 25.0 5
Inserts are not included.
Parts
(For Cartridges)
(For Stopper Screw)
(For Stoppers)
Screw Screw
Setting clampDouble screw
Wrench Wrench Wrench
BH0620 BTD0609 FMUE WB5-10 TH040 LH030 LH025
* Screw for FMU4040ER/4050ER/4063ER is BH0615
* Anti-seizure cream SUMI-P included in the package.
Setting Gauge
FMU-SET
* Dial-gauge is not included
Cartridge
(For Screws)
Cartridge
Setting Screw
Adjustment Bolt
O-ring Wrench Wrench
FMUU(E)
BFTX0509N
5.0 FMUJ P3 TTX20 TH015
* FMU4040ER/4050ER/4063ERS uses FMUUE type cartridge
* FMUU/FMUUE uses similar screw (BFTX0509N), adjustment screw (FMUJ) and O-ring (P3)
Inserts
12.70
12.70
2
45°
12.70
R300
12.70
2
45° 15°
3.18
Fig 6 Fig 7
15°
Cat. No. Stock Fig
BN7000 BN700
SNEW1203ADTR 6
1203ADTR-S 7
* -S denotes low cutting force insert
SUMIBORON
BN Finish Mill EASY
Type
90
0.5
2
8
Axial
Radial
Rake
Angle
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminium
S
Exotic Alloy
H
Hardened Steel
Recommended Cutting Conditions
ISO
Work
Material Hardness
Cutting Speed vc (m/min)
Min. - Optimum - Max.
Feed Rate fz (mm/t)
Min. - Optimum - Max.
Grade
K
Gray Cast Iron
250HB 800- 1400 -2000 0.10- 0.20 -0.30 BN7000(Dry)
The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity,
work clamp rigidity, cutting depth, and other factors.
Note
Dimensions (mm)
FMU
FMU-E
Recommended Tightening Torque (N·m)
L115
L
L
SUMIBORON
High-speed Finishing for Gray Cast Iron
90
0.5
2°
8°
Axial
Radial
Rake
Angle
Specially designed for use with SUMIBORON BN7000 / BN700 in the high
speed milling of Gray Cast Iron
Body Inch Structure
DC
DCX
Approach Angle 0°
Axial Rake +8°
Radial Rake +2°
a
p
: 0.5mm
Double Screw
Adjustable
Wedge
Double Screw
Insert
DCSFMS
DCB
KWW
ø13
ø20 DC
CBDP
KDP
KDP
KDP
LF
DCSFMS DCSFMS DCSFMS
ø177.8
ø101.6
DCB
DCB ø101.6
DCB ø18 ø18 ø22
KWW KWW
KWW
DC DC DC
ø26 ø26 ø32
CBDP
LF
LF
CBDP
CBDP
LF
32
32
Fig 1 Fig 2 Fig 3 Fig 4
KDP
Cat. No. Stock
Diameter Max. Dia.
Boss Height
Diameter
Groove width Groove depth
Attaching depth
No. of
teeth
Weight
(kg) Fig
DC DCX
DCSFMS
LF DCB KWW KDP CBDP
FM 5080 R/L 80 82.8 60 50 25.4 9.5 6 25 6 1.6 1
5100 R/L 100 102.8 75 50 31.75 12.7 8 32 8 2.4 2
5125 R/L 125 127.8 75 63 38.1 15.9 10 38 10 3.4 2
5160 R/L 160 162.8 100 63 50.8 19.1 11 38 12 5.6 2
5200 R/L 200 202.8 130 63 47.625 25.4 14 40 16 8.3 3
5250 R/L 250 252.8 130 63 47.625 25.4 14 40 20 14.3 3
5315 R/L 315 317.8 240 80 47.625 25.4 14 40 24 27.8 4
FMF 5125 R/L 125 127.8 75 63 38.1 15.9 10 38 12 3.4 2
5160 R/L 160 162.8 100 63 50.8 19.1 11 38 16 5.6 2
5200 R/L 200 202.8 130 63 47.625 25.4 14 40 20 8.3 3
5250 R/L 250 252.8 130 63 47.625 25.4 14 40 24 14.3 3
5315 R/L 315 317.8 240 80 47.625 25.4 14 40 28 27.8 4
Inserts are not included.
Inserts
45°
15°
15°
45°
15.875 15.875
15.875
15.875
R300
2
2
Fig 1 Fig 2
Cat. No.
Stock Fig
BN7000 BN700
SNEN 1504ADT R/L
1
1504ADT R/L-S
2
* -S denotes low cutting force insert
Parts
Applicable
Cutter
Wedge Adjustable
Seat
Adjustment
Screw
Double
Screw Wrench Wrench
FMW
FMJ
WB7F-20TL
TT25
1.8 x 45
FM5080R/L
FME
FM5100R/L
to
FM5315R/L
SUMIBORON
BN Finish Mill Type
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminium
S
Exotic Alloy
H
Hardened Steel
Dimensions (mm)
FM
FMF
L116
SUMIBORON
High Speed Finish Endmilling of Gray Cast Iron Die Molds
• Balanced cutting with 2 effective teeth for high efficiency finishing
process
• Unique insert design to prevent chipping at the tip of the ball for
high precision machining
• Good chipping and wear resistance with SUMIBORON BN500
grade for longer tool life.
Bodies
DMM h7
DC
LF
RE
Fig 1
APMX LH LS
DMM h7
DC
LF
RE
Fig 2
LH LS
APMX
Cat. No. Stock
Radius
Dia.
Depth
Neck
Shank
Length
Shank
Fig
RE DC
APMX
LH LS LF
DMM
BES 160S 8.0 16 10.0 50 60 110 20 1
200S 10.0 20 13.0 60 80 140 25 1
250S 12.5 25 15.5 70 80 150 32 1
300S 15.0 30 18.0 80 80 160 32 1
BES 400S 20.0 40 23.0 100 100 200 42 2
500S 25.0 50 28.0 120 100 220 50 2
Inserts are not included.
Inserts
W1
L
RE
S
Fig 1
APMX
W1
L
RE
S
Fig 2
APMX
Cat. No. Stock
Radius
Depth
Length
Width
Thickness
Fig Applicable
Endmills
BN500
RE
APMX
LW1S
BEST 160S 8.0 10.0 13.0 6.8 3.5 1 BES 160S
160L 8.0 13.0 13.0 6.8 3.5 1 BES 160S
BEST 200S 10.0 13.0 20.0 8.5 4.5 1 BES 200S
200L 10.0 20.0 20.0 8.5 4.5 1 BES 200S
BEST 250S 12.5 15.5 22.5 10.5 5.0 1 BES 250S
250L 12.5 22.5 22.5 10.5 5.0 1 BES 250S
BEST 300S 15.0 18.0 25.0 12.0 6.0 1 BES 300S
300L 15.0 25.0 25.0 12.0 6.0 1 BES 300S
BEST 400S 20.0 23.0 30.0 16.0 7.5 2 BES 400S
400L 20.0 30.0 30.0 16.0 7.5 2 BES 400S
BEST 500S 25.0 28.0 35.0 20.0 8.0 2 BES 500S
500L 25.0 35.0 35.0 20.0 8.0 2 BES 500S
Recommended Cutting Conditions
ISO
Cat. No. Gray Cast Iron (FC) Ductile Cast Iron (FCD)
Cutting Speed vc(m/min)
Feed Rate f (mm/rev)
Depth of cut ap(mm)
Pitch feed
pf(mm)
Cutting Speed vc(m/min)
Feed Rate f (mm/rev)
Depth of cut ap(mm)
Pitch feed
pf(mm)
K
BES 160S 250-500-1000 0.1-0.2-0.4 0.1-0.3-0.4 0.2-0.3-0.5 250-500-1000 0.1-0.2-0.3 0.1-0.2-0.3 0.2-0.3-0.5
BES 200S 250-600-1250 0.2-0.4-0.6 0.1-0.3-0.4 0.3-0.5-0.7 250-600-1250 0.1-0.3-0.5 0.1-0.2-0.4 0.3-0.5-0.7
BES 250S 300-750-1500 0.3-0.5-0.7 0.2-0.4-0.5 0.4-0.6-0.9 300-750-1500 0.2-0.4-0.6 0.2-0.3-0.5 0.4-0.6-0.9
BES 300S 350-800-1500 0.3-0.5-0.7 0.2-0.4-0.5 0.5-0.8-1.1 350-800-1500 0.2-0.4-0.6 0.2-0.3-0.5 0.5-0.8-1.1
BES 400S
500-1000-1500
0.3-0.6-1.0 0.3-0.5-0.7 0.6-1.0-1.4
500-1000-1500
0.2-0.5-0.8 0.3-0.4-0.7 0.6-1.0-1.4
BES 500S
600-1200-1500
0.3-0.6-1.0 0.3-0.5-0.7 0.8-1.3-1.8
600-1200-1500
0.2-0.5-0.8 0.3-0.4-0.7 0.8-1.3-1.8
Parts
Applicable
Endmills
Clamps Double
Screws Screws
Wrenches Wrenches
BFTX 0306N
2.0 TRX 10
BES 160S
BFTX 0407N
3.0 TRX 15
BES 200S
BFTX 0509N
5.0 TRX 20
BES 250S
BFTX 0511N
5.0 TRX 20
BES 300S
CCM 6BL
WB 6-13
BXF 0616
LH 030
LH 040
BES 400S
CCM 6BL
WB 6-16
BXF 0616
LH 030
LH 040
BES 500S
Important Notes
(1) Use rigid machine components and select high Cutting
Speed with low Feed Rate.
(2) Use dry cutting conditions
0°
0°
Axial
Radial
Rake
Angle
0.4
to
0.7
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminium
S
Exotic Alloy
H
Hardened Steel
(Min. - Optimum - Max.)
Dimensions (mm)
Dimensions (mm)
Recommended Tightening Torque (N·m)
SUMIBORON
BES Type
Ball Nose
Endmills
L117
L
L
SUMIBORON
0°
0°
Axial
Radial
Rake
Angle
SUMIBORON
BRC Type
Radius
Endmills
Bodies (Endmill Type)
DCX
DMM h7
DN2
LF
L2 LS
APMX
DCX
DMM h7
DN2
DN3
LF
L2 LSL3
APMX
DCX
DMM h7
DN2
DN3
LF
L2 L3 LS
APMX
Cat. No.
Stock
Max.
Dia.
Shank
Diameter Diameter
Max.
Depth
Length Length
Shank
Length
No. of
teeth
Fig
Group No.
DCX
DMM
DN2 DN3
APMX
L2 L3 LS LF
BRC 071207ES10
12 10 11.0 3.5 23 52 75 2 1
071207ES12
12 12 11.0 11.5 3.5 22 8 45 75 2 2
071208ES16
12 16 11.0 15.5 3.5 16 8 48 88 2 3
071210ES16
12 16 11.0 15.5 3.5 16 8 48 108 2 3
071212ES16
12 16 11.0 15.5 3.5 16 8 48 128 2 3
071507ES12
15 12 12.5 3.5 16 59 75 3 1
071507ES16
15 16 12.5 13.0 3.5 19 11 48 78 3 2
BRC 071508ES16
15 16 13.5 15.5 3.5 20 8 48 88 2
3
071510ES16
15 16 13.5 15.5 3.5 20 8 48 108 2
071513ES20
15 20 13.5 19.5 3.5 22 8 50 130 2
071515ES20
15 20 13.5 19.5 3.5 22 8 50 150 2
071517ES25
15 25 13.5 24.5 3.5 22 8 56 176 2
BRC 102009ES20
20 20 17.0 19.5 5.0 20 8 50 90 2
3
102011ES20
20 20 17.0 19.5 5.0 22 8 50 110 2
102012ES25
20 25 17.0 24.5 5.0 24 8 56 136 2
102015ES25
20 25 17.0 24.5 5.0 24 8 56 156 2
102017ES25
20 25 17.0 24.5 5.0 24 8 56 176 2
Inserts are not included.
Bodies (Shell Type) Metric
KDP
APMX LF
DCX
KWW
DCB H7
D2
CBDP
Cat. No.
Stock
Max.
Dia. Dia. Bolt
Max.
Depth
Height Depth
Groove
width
Groove
depth
No. of
teeth
Group No.
DCX DCB
D2
APMX
LF
CBDP KWW
KDP
BRC 10042R
42 16 9 5 44 20 8.5 6 6
10052R
52 22 11 5 50 30 10.5 7 7
BRC 12042R
42 16 9 6 42 20 8.5 6 5
12052R
52 22 11 6 52 30 10.5 7 5
12066R
66 27 13 6 52 30 12.5 7 6
Inserts are not included.
Parts
Screws Wrenches
Applicable Endmill
(Using Group No.)
N m
BFTB 025048 1. 0 TRD07
BFTB 02505 1. 0 TRD07
BFTB 035074 3.4 TRD15
Fig 1
Fig 2
Fig 3
Inserts P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
S
Exotic Alloy
H
Hardened Steel
15°
IC 0.013 S0.025
Grade CBN
Application
High Speed/Light
K K
General Purpose
S S
Roughing H
Cat. No.
BN350
BN7000
BN700
I. C.
Thickness
Applicable Endmill
(Using Group No.)
IC S
RDHX 0701M0T 7 1.99
0702M0T 7 2.38
1003M0T 10 3.18
12T3M0T 12 3.97
N m
Recommended Tightening
Torque (N·m)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
Application Example
Coated
Carbide
Tool BRC12052R
Work material SNCM435 (Machine components) 55 to 60HRC Grade BN350
vC=250m/min f=0.1mm/t ap=0.5mm ae=50mm
Cost/workpiece
BRC has higher efficiency
at half the machining cost!
BRC
(BN350)
Recommended Cutting Conditions
ISO
Work
material Hardness
Depth of cut
ap
(mm)
Cutting Speed vc (m/min)
Min. - Optimum - Max.
Feed Rate fz (mm/t)
Min. - Optimum - Max.
Grade
H
Hardened Steel
40 to 45HRC Up to 0.5
200-500-800 0.1- 0.25 -0.4 BN7000
47 to 55HRC Up to 0.5
150-275-400 0.1- 0.2 -0.3 BN7000
58 to 62HRC Up to 0.5
80-140 -200 0.1- 0.15 -0.2 BN350
K
Gray Cast Iron
Up to 0.5
300-900-1500 0.1- 0.25 -0.4 BN7000
Use BRC Type cutter/endmill and RDHX Type inserts in combination with the applicable group number.
Dry cut (Air Blow) and Down cut are recommended.
The cutting conditions above are a guide. Actual conditions will need to be adjusted
according to machine rigidity, work clamp rigidity, cutting depth, and other factors.
Note
General Features
High speed, high efficiency milling of
hardened mold material.
Cost effective with full-top CBN inserts,
multiple corner usage.
Strong clamping with conical insert screw hole design.
mark : To be replaced by new item (Please confirm stock availability)
0.5
P
Steel M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metal
N
Aluminium
S
Exotic Alloy
H
Hardened Steel
L118
SUMIBORON
Performance
Long Tool Life and High Efficiency Excellent Surface Roughness
aeA
B
ap
2 m
2 m
0.25mm
2 m
2 m
0.25mm
0.25mm 0.25mm
· Work material : SCr15
+DUGHQHG 55 to 58HRC
· Conditions : vc = 130m/min
vf = 310mm/min
Down cut, Dry
ap = 4mm ae = 0.05mm
Conditions
· Side cut
Tooling
(1) BNES1080
(2) Straight flute
type (ø8)
Results
A Dir. B Dir.
A Dir. B Dir.
Results
Conditions
ae
ap
0.12
0.10
0.08
0.06
0.04
0.02
0510 15 20 25
· Work material : SKD11(Hardened) 60HRC
· Conditions : (1) vc=100m/min
vf=186mm/min
(2) vc=40m/min
vf=186mm/min
Down cut, Dry
ap=8mm ae=0.05mm
Tooling · Side cut
Flank Wear Width (mm)
Notch wear Chattering
(1) BNES1120
(2)
Comp. A’s Coated endmill
for hardened steel
Cutting Distance (m)
Able to continue
Special Endmill for Hardened Steel
Cutter Body
LF
APMX
LU
R0.2
DMM
DC 0
–0.1
Cat. No. Stock
Diameter
Depth of cut
Length Length Shank
BN350
DC APMX LU LF DMM
BNES 1060 6.0 7.0 11.0 60 10
1080 8.0 10.0 14.0 70 10
1100 10.0 12.0 17.0 75 12
1120 12.0 14.0 20.0 80 12
1140 14.0 16.0 21.5 80 16
BNES 1160 16.0 18.0 24.0 80 16
Recommended Cutting Conditions
ae
ap
Max
p
= Endmill Diameter
H50 to 57HRC H58 to 65HRC
Cutting Speed 100 to 170m/min Cutting Speed 80 to 150m/min
Cutting Speed n
(min-1)
Feed Rate vf
(mm/min)
Depth of Cut ae
(mm)
Cutting Speed n
(min-1)
Feed Rate vf
(mm/min)
Depth of Cut ae
(mm)
ø6 to 8 4,000 to 9,000 240 to 540 Up to 0.1 3,200 to 8,000 150 to 370 Up to 0.08
ø10 to 12 2,700 to 5,400 180 to 360 Up to 0.15 2,100 to 4,800 120 to 370 Up to 0.12
ø14 to 16 2,000 to 3,800 140 to 260 Up to 0.2 1,600 to 3,400 110 to 230 Up to 0.15
Dry cut (Air Blow) and Down cut are recommended.
Make the tool overhang as short as possible and use a rigid machine.
Hardness of work
Conditions
External
øDc (mm)
Special Pocket Design
SumiBoron
BN350 Grade
Helical Cutting Edge
SUMIBORON
Helical Master BNES Type
1
1
15
Helix An
g
le
For 3-dimensional profile milling, use SUMIBORON Ball
Endmill BNBS Type, or MOLD FINISH MASTER BNBR Type
or BNBP Type.
Grades
CFRP
45 to 55
HRC 55 to 60
HRC 60 to 65
HRC
Hardened Steel
Coated
Carbide
Carbon
Steel
Alloy
Steel
Pre-hardened
Steel
Tempered Steel
Die Steel
Stainless
Steel
Ti Alloy
Heat Resistant Alloy
Copper
Alloy
Cast Iron
Al Alloy
Graphite
1
1
Side Milling
Dimensions (mm)
L119
L
L
SUMIBORON
Catalogue No. Stock
Dimensions (mm)
Wiper Edge
Cutting diameter
DC
Radius
RE
Depth of cut
APMX
Cutting Edge Length
LU
Length
LF
Head diameter
DN
Shank diameter
DMM
BNBR 2D020R005-0054 0.2 0.05 0.1 0.5 50 0.17 4
No
2D030R005-0054 0.3 0.05 0.15 0.5 50 0.27 4
2D040R005-0054 0.4 0.05 0.2 0.5 50 0.37 4
2D050R005-0054 0.5 0.05 0.3 0.5 50 0.47 4
2D050R005-0154 0.5 0.05 0.3 1.5 50 0.47 4
BNBR 2D050R005-0254 0.5 0.05 0.3 2.5 50 0.47 4
No
2D050R010-0154 0.5 0.10 0.3 1.5 50 0.47 4
2D050R010-0254 0.5 0.10 0.3 2.5 50 0.47 4
2D100R005-0304 1.0 0.05 0.7 3.0 50 0.97 4 Ye s
2D100R005-0504 1.0 0.05 0.7 5.0 50 0.97 4
BNBR 2D100R010-0304 1.0 0.10 0.7 3.0 50 0.97 4
Ye s
2D100R010-0504 1.0 0.10 0.7 5.0 50 0.97 4
2D100R020-0304 1.0 0.20 0.7 3.0 50 0.97 4
2D100R020-0504 1.0 0.20 0.7 5.0 50 0.97 4
2D100R030-0304 1.0 0.30 0.7 3.0 50 0.97 4
BNBR 2D100R030-0504 1.0 0.30 0.7 5.0 50 0.97 4
Ye s
2D150R010-0454 1.5 0.10 1.2 4.5 50 1.47 4
2D150R010-0754 1.5 0.10 1.2 7.5 50 1.47 4
2D150R020-0454 1.5 0.20 1.2 4.5 50 1.47 4
2D150R020-0754 1.5 0.20 1.2 7.5 50 1.47 4
BNBR 2D150R030-0454 1.5 0.30 1.2 4.5 50 1.47 4
Ye s
2D150R030-0754 1.5 0.30 1.2 7.5 50 1.47 4
2D200R010-0604 2.0 0.10 1.5 6.0 50 1.97 4
2D200R020-0604 2.0 0.20 1.5 6.0 50 1.97 4
2D200R030-0604 2.0 0.30 1.5 6.0 50 1.97 4
BNBR 2D200R050-0604 2.0 0.50 1.5 6.0 50 1.97 4 Ye s
Bodies
Endmill Identification
BNBR 2 D050 R010 - 015 4
No. of Flutes
Series Code
Diameter
Corner Radius
Length Below Neck
Shank Diameter
Flutes
Flutes
2
2
Grade
Side Millin
g
Face Millin
g
Profile Millin
g
Coated
Carbide
Carbon
Steel
Alloy
Steel
Pre-hardened
Steel
Tempered Steel
Die Steel
Stainless
Steel
Ti Alloy
Heat Resistant Alloy
Cast Iron
Al Alloy
Copper
Alloy
Graphite
CFRP
Hardened Steel
45 to 55
HRC
55 to 60
HRC 60 to 65
HRC
0.005
15
h6
0
-0.01
LF
DC
DN
LU
APMX
RE
DMM
MOLD FINISH MASTER
BNBR Type
SUMIBORON
Radius Endmills
Flutes
Flutes
2
2
Grade: BNX20
L120
SUMIBORON
MOLD FINISH MASTER
Recommended Cutting Conditions
1. Use a machine with high rigidity for stable cutting.
2. Non-water soluble coolant recommended. Supply as a mist or external coolant. Take fire prevention precautions to avoid fire
hazards caused by sparks igniting during machining or tool breakage.
3. Shorten overhang as much as possible.
4. Adjust cutting conditions as necessary as machine rigidity and other conditions may vary.
5.
Depth of cut shown in the table of conditions are maximum depths. Adjust the actual depth of cut to the desired machined surface finish.
Work Material STAVAX, NAK80, SKD61 (Up to 52HRC) ELMAX, DC53, SKD11
improved (Up to 62HRC)
YXR3, SKH (Up to 70HRC)
DC
(mm)
RE
(mm
)
LU
(mm)
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) ae( )
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) ae( )
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) ae( )
0.2 0.05 0.5 40,000 400 0.005 0.03 40,000 400 0.005 0.03 40,000 250 0.005 0.02
0.3 0.05 0.5 40,000 500 0.010 0.05 40,000 500 0.010 0.05 40,000 300 0.005 0.03
0.4 0.05 0.5 40,000 600 0.015 0.1 40,000 600 0.015 0.1 40,000 400 0.01 0.05
0.5
0.05 0.5 40,000
600
0.02 0.15 40,000
600
0.02 0.15 40,000
400 0.01
0.1
0.05 1.5 40,000 0.02 0.1 40,000 0.02 0.1 35,000
0.05
0.1 40,000 40,000 35,000
0.05 2.5 40,000 0.01 0.05 40,000 0.01 0.05 35,000
0.1 40,000 40,000 35,000
1.0
0.05
3.0
35,000
800
0.03 0.3
35,000
800 0.03 0.2
30,000
600 0.01 0.1
0.1 35,000 35,000 30,000
0.2 35,000 35,000 30,000
0.3 35,000 35,000 30,000
0.05
5.0
35,000
0.02 0.2
35,000
800 0.02 0.1
30,000
600 0.01 0.1
0.1 35,000 35,000 30,000
0.2 35,000 35,000 30,000
0.3 35,000 35,000 30,000
1.5
0.1
4.5
26,000
800
0.03 0.5
26,000
800 0.03 0.3
20,000
600 0.02 0.30.2 26,000 26,000 20,000
0.3 26,000 26,000 20,000
0.1
7.5
26,000
0.03 0.5
26,000
800 0.03 0.3
20,000
600 0.02 0.30.2 26,000 26,000 20,000
0.3 26,000 26,000 20,000
2.0
0.1
6.0
20,000
800 0.03 0.7
20,000
800 0.03 0.7
15,000
600 0.03 0.7
0.2 20,000 20,000 15,000
0.3 20,000 20,000 15,000
0.5 20,000 20,000 15,000
ap
ae
BNBR Type
SUMIBORON
Radius Endmills
L121
L
L
SUMIBORON
Catalogue No. Stock
Dimensions (mm)
Radius
RE
Cutting diameter
DC
Depth of cut
APMX
Cutting Edge Length
LU
Length
LF
Neck diameter
DN
Shank diameter
DMM
BNBP 2R020-0124 0.20 0.4 0.3 1.2 50 0.37 4
2R020-0126 0.20 0.4 0.3 1.2 50 0.37 6
2R020-0204 0.20 0.4 0.3 2.0 50 0.37 4
2R020-0304 0.20 0.4 0.3 3.0 50 0.37 4
2R020-0404 0.20 0.4 0.3 4.0 50 0.37 4
BNBP 2R030-0154 0.30 0.6 0.4 1.5 50 0.57 4
2R030-0156 0.30 0.6 0.4 1.5 50 0.57 6
2R030-0304 0.30 0.6 0.4 3.0 50 0.57 4
2R030-0404 0.30 0.6 0.4 4.0 50 0.57 4
2R030-0504 0.30 0.6 0.4 5.0 50 0.57 4
BNBP 2R030-0604 0.30 0.6 0.4 6.0 50 0.57 4
2R050-0254 0.50 1.0 0.6 2.5 50 0.97 4
2R050-0256 0.50 1.0 0.6 2.5 50 0.97 6
2R050-0304 0.50 1.0 0.6 3.0 50 0.97 4
2R050-0404 0.50 1.0 0.6 4.0 50 0.97 4
BNBP 2R050-0604 0.50 1.0 0.6 6.0 50 0.97 4
2R050-0804 0.50 1.0 0.6 8.0 50 0.97 4
2R075-0404 0.75 1.5 0.9 4.0 50 1.47 4
2R075-0406 0.75 1.5 0.9 4.0 50 1.47 6
2R100-0554 1.00 2.0 1.4 5.5 50 1.97 4
BNBP 2R100-0556 1.00 2.0 1.4 5.5 50 1.97 6
2R100-0804 1.00 2.0 1.4 8.0 50 1.97 4
Grade: BN350
Bodies
Grade
Flutes
Flutes
2
2
Flutes
Flutes
2
2
MOLD FINISH MASTER
SUMIBORON
Ballnose Endmills BNBP Type
Side Milling Face Milling
Profile Milling
R-Groove Milling
0.005
15
LF
DC
DN
LU
APMX
DMM
RE
h6
Coated
Carbide
Carbon
Steel
Alloy
Steel
Pre-hardened
Steel
Tempered Steel
Die Steel
Stainless
Steel
Ti Alloy
Heat Resistant Alloy
Cast Iron
Al Alloy
Copper
Alloy
Graphite
CFRP
Hardened Steel
45 to 55
HRC
55 to 60
HRC 60 to 65
HRC
Endmill Identification
BNBP 2 R030 - 015 4
No. of Flutes
Ballnose Radius
Length Below Neck
Shank Diameter
Series Code
L122
SUMIBORON
I137
Recommended Cutting Conditions
1. Use a machine with high rigidity for stable cutting.
2. Non-water soluble coolant recommended. Supply as a mist or external coolant.
Take fire prevention precautions to avoid fire hazards caused by sparks igniting during machining or tool breakage.
3. Shorten overhang as much as possible.
4. Adjust cutting conditions as necessary as machine rigidity and other conditions may vary.
5.
Depth of cut shown in the table of conditions are maximum depths. Adjust the actual depth of cut to the desired machined surface finish.
Work Material STAVAX, NAK80, SKD61 (Up to 52HRC) ELMAX, DC53, SKD11 improved (Up to 62HRC) YXR3, SKH (Up to 70HRC)
RE
(mm)
LU
(mm)
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) pf( )
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) pf( )
Spindle Speed
(min-1)
Feed Rate
(mm/min) ap( ) pf( )
0.2
1.2 40,000 1,000 0.005 0.010 40,000 800 0.005 0.010 40,000 600 0.005 0.005
2.0 40,000 800 0.005 0.010 40,000 600 0.005 0.010 40,000 400 0.005 0.005
3.0 40,000 600 0.005 0.010 40,000 500 0.005 0.010 40,000 300 0.005 0.005
4.0 40,000 500 0.005 0.010 40,000 400 0.005 0.005 40,000 200 0.005 0.005
0.3
1.5 40,000 1,600 0.020 0.020 40,000 1,400 0.010 0.020 40,000 1,200 0.010 0.020
2.0 40,000 1,500 0.010 0.020 40,000 1,300 0.010 0.020 40,000 1,100 0.010 0.010
3.0 40,000 1,400 0.010 0.020 40,000 1,200 0.010 0.020 40,000 1,000 0.010 0.010
4.0 30,000 1,200 0.010 0.010 30,000 1,000 0.010 0.010 30,000 700 0.005 0.010
5.0 30,000 800 0.010 0.010 30,000 700 0.005 0.010 30,000 600 0.005 0.005
6.0 30,000 600 0.005 0.010 30,000 500 0.005 0.005 30,000 400 0.005 0.005
0.5
2.5 40,000 2,800 0.040 0.050 40,000 2,800 0.030 0.040 40,000 2,200 0.020 0.030
3.0 40,000 2,600 0.040 0.050 40,000 2,600 0.030 0.040 40,000 2,100 0.020 0.030
4.0 40,000 2,400 0.030 0.050 40,000 2,400 0.020 0.030 40,000 2,000 0.020 0.020
6.0 25,000 1,500 0.020 0.030 25,000 1,500 0.010 0.020 25,000 1,300 0.010 0.010
8.0 16,000 1,200 0.020 0.020 16,000 1,100 0.010 0.020 16,000 850 0.010 0.010
0.75 4.0 32,000 2,400 0.030 0.030 32,000 2,200 0.020 0.030 32,000 2,000 0.020 0.020
1.0 5.5 40,000 4,000 0.050 0.050 40,000 4,000 0.030 0.030 40,000 3,000 0.020 0.030
8.0 32,000 3,000 0.030 0.050 32,000 2,600 0.020 0.030 32,000 2,200 0.010 0.020
ap
pf
MOLD FINISH MASTER
BNBP Type
SUMIBORON
Ballnose Endmills
L123
L
L
SUMIBORON
Cat No. Stock
Dimensions (mm)
Radius
RE
Cutting diameter
DC
Depth of cut
APMX
Cutting Edge Length
LU
Length
LF
Neck diameter
DN
Shank diameter
DMM
BNBC 2R010-0034 0.1 0.2 0.2 0.3 50 0.17 4
2R010-0104 0.1 0.2 0.2 1.0 50 0.17 4
2R020-0054 0.2 0.4 0.3 0.5 50 0.37 4
2R020-0204 0.2 0.4 0.3 2.0 50 0.37 4
2R030-0104 0.3 0.6 0.4 1.0 50 0.57 4
BNBC 2R030-0304 0.3 0.6 0.4 3.0 50 0.57 4
2R050-0304 0.5 1.0 0.6 3.0 50 0.97 4
Grade: BN700
Bodies
Flutes
Flutes
2
2
Flutes
Flutes
2
2
MOLD FINISH MASTER
BNBC Type
SUMIBORON For Copper Electrodes
Ballnose Endmills
Grade
Side Milling Face Milling
Profile Milling
R-Groove Millin
g
Coated
Carbide
Carbon
Steel
Alloy
Steel
Pre-hardened
Steel
Tempered Steel
Die Steel
Stainless
Steel
Ti Alloy
Heat Resistant Alloy
Cast Iron
Al Alloy
Copper
Alloy
Graphite
CFRP
Hardened Steel
45 to 55
HRC
55 to 60
HRC 60 to 65
HRC
0.005
15
LF
DN
LU
RE
DMM h6
DC
APMX
ap
pf
Side Millings
Cat. No.
Work Material
Cutting Conditions
Copper Alloy
Spindle Speed
(min 1)
Feed Rate
(mm/min)
Standard Depth-of-cut (mm)
appf
BNBC 2R010-0034 20,000
-50,000
350 0.01 0.02
2R010-0104 350 0.007 0.015
BNBC 2R020-0054 20,000
-50,000
800 0.025 0.05
2R020-0204 700 0.02 0.03
BNBC 2R030-0104 20,000
-50,000
1,400 0.05 0.15
2R030-0304 1,200 0.04 0.1
BNBC 2R050-0304 20,000
-50,000 2,200 0.15 0.35
Recommended Cutting Conditions
1. Use a machine with high rigidity for stable cutting.
2. Non-water soluble coolant recommended. Supply as a mist or external coolant.
Take fire prevention precautions to avoid fire hazards caused by sparks igniting during machining or tool breakage.
3. Shorten overhang as much as possible.
4. Adjust cutting conditions as necessary as machine rigidity and other conditions may vary.
5.
Depth of cut shown in the table of conditions are maximum depths. Adjust the actual depth of cut to the desired machined surface finish.
Endmill Identification
No. of Flutes
BNBC 2 R030 - 010 4
Ballnose Radius
Length Below Neck
Shank Diameter
Series Code
L124
SUMIBORON
Combination of Special Grade and Spiral Cutting Edge Design
The combination of special SUMIBORON grade with unique sprial cutting
edge design is a breakthrough for high efficiency and smooth end-milling of
hardened steels.
Cutter Bodies
LF
RE 0.02
DC
DMM
0.03
APMX
Performances
5,000 5,000
BN350
250m/min
0.04mm/t
0.3mm
0.3mm
BNBS2100S
Cutting Speed
Feed Rate
Pitch feed
Depth of cut
Tool
Work : SKD11 (60HRC)
Cutting length : 110m, VB=0.128mm able to continue
Surface roughness : Radial feed Ry1.8µm,
Feed dir. Ry2.2µm
Results
Radial feed Feed dir.
Cat. No. Stock
Ballnose radius
Diameter
Depth of cut
Length Shank
BN350 RE DC
APMX
LF DMM
BNBS 2020S 1.0 2.0 1.5 50 4
2030S 1.5 3.0 2.0 60 6
2040S 2.0 4.0 3.0 70 6
2060S 3.0 6.0 4.5 80 6
2080S 4.0 8.0 5.5 90 8
BNBS 2100S 5.0 10.0 6.5 100 10
2120S 6.0 12.0 7.5 110 12
2140S 7.0 14.0 8.5 120 16
2160S 8.0 16.0 9.5 120 16
2180S 9.0 18.0 10.5 130 20
BNBS 2200S 10.0 20.0 11.5 130 20
Grade BN350 Important Notes
(1) Use a rigid machine and select a high cutting speed with low
feedrate.
(2) Use dry cutting conditions.
(3) Make overhang as short as possible.
(4) If work hardness is lower than HRC50, try a coated or
uncoated carbide ballnose endmill instead. (¦I58)
Recommended Cutting Conditions
R(mm)
Work Material
Conditions
Hardened Steel
(50-57HRC)
Hardened Steel
(58-65HRC)
Spindle Speed
(min-1)
Feed Rate
(mm/min)
Spindle Speed
(min-1)
Feed Rate
(mm/min)
1.0 26,000 1,100 22,000 670
1.5 18,000 700 15,000 450
2.0 13,000 530 11,000 330
3.0 8,800 610 7,400 450
4.0 6,600 460 5,600 330
5.0 5,300 630 4,500 400
6.0 4,400 530 3,700 330
8.0 3,300 390 2,800 250
10.0 2,600 320 2,200 200
Depth
of cut
ap0.01Dc0.01Dc
pf0.02Dc0.02Dc
Flutes
Flutes
2
2
Grades
CFRP
45 to 55
HRC
55 to 60
HRC
60 to 65
HRC
Hardened Steel
General
Steel
Carbon
Steel
Alloy
Steel
Pre-hardened
Steel
Tempered Steel
Die Steel
Stainless
Steel
Ti Alloy /Heat
Resistant Alloy
Copper
Alloy
Cast Iron
Al Alloy
Graphite
20 40 60 80 100
10
0
20
30
40
BNBS
Units (mm)
( )
(øc)
2
2
Side Milling Face Milling
Profile Milling
R-Groove Milling
Dimensions (mm)
SUMIBORON
BNBS Type
Ball Nose
Endmills
L125
L
L126
