C1
SEC-External Holder Series C2
Holder Identification and Cutting Edge Positional Dimensions
C4
SEC-Double Clamp D Type C6
Negative CN Applicable Insert Holders DCLN Type / PCLN Type C7
PCBN Type / PCFN Type C8
Positive CC Applicable Insert Holders SCLC Type C9
Negative
DN Applicable Insert Holders DDJN Type / DDHN Type / DDNN Type C10
PDJN Type C11
T-REX Holders SumiTurn T-REX Holders C12
Positive DC Applicable Insert Holders SDJC Type C14
RCM Applicable Insert Holders PRGC Type / PRDC Type C15
Negative
SN Applicable Insert Holders DSBN Type / DSDN Type C16
DSSN Type C17
PSBN Type / PSDN Type C18
PSSN Type / PSKN Type C19
ESBN Type / ESDN Type C20
ESSN Type / ESKN Type C21
Positive
SP Applicable Insert (Without Hole) Holders
CSRP Type / CSDP Type / CSKP Type (FP11/14/15 Type)
C22
Negative
TN Applicable Insert Holders DTGN Type / DTFN Type C23
PTGN Type / PTTN Type C24
PTFN Type C25
ETGN Type / ETAN Type C26
ETFN Type C27
ETEN Type / ETXN Type C28
MTJN Type / MTXN Type C29
Positive
TP Applicable Insert (Without Hole) Holders
CTGP Type / CTAP Type / CTFP Type (FP22/21/25 Type)
C30
Negative VN Applicable Insert Holders DVJN Type / DVVN Type / DVQN Type C31
Positive VC Applicable Insert Holders SVLC Type / SVJC Type / SVVC Type C32
SVPC Type C33
Negative WN Applicable Insert Holders DWLN Type / PWLN Type / MWLN Type C34
Positive
For Aluminum Wheel Machining Holder Series for Aluminum Wheel Machining C35
SEC-MV Type Profiling Tool Holders C36
SEC-GD Type Profiling Tool Holders C37
Double Clamp Holders Parts for Clamp Set C38
CC
External
Holders
C
D
R
S
T
V
W
C2
C
Tooling List
SCLC SCAC
PCLC PCLN PDJC PTGN
SDAC STGC STAC
PTTN PTFN
PCBN PCFN PDJN
ETFN ETEN ETXN
32° 35°
32°
32°
SDJC
PTXN
MTJN MTXN
DTGNDDNNDDHN DTFN
DCLN DDJN
DTR55C
T-REX
DTR55Q
T-REX
C29C29C23C23
C28C28C27C26
C26
C10C10
C12C12
C10C7
D29D29D23D17D23D19D19 D17D16D16 C14C9
D18C25C24C24D23D17C7D19
C10C8C8
D16
SDNC
CTGP/CTAP
FP22/FP21
CTFP
FP25
62.5°
SDPC
C30C30D17D23
Insert shape
Structure Type
General Turning & Facing General Turning & Profiling General Turning
Application
C
80 Diamond Type
D
55 Diamond Type
T
Triangular Type
Screw-on Pin Lock
Marking for rear clamp holders
Mini Holders SEC-70 SEC-30
Clamp-on
Type 40 Holders
T-REX
Double Clamp
SEC-M
SEC-D
Lever Lock
ETGN
ETAN
Overview
As a pioneer of indexable insert tools, and after being the first in Japan
to sell indexable insert holders (clamp-on type Type 2 SEC Holders in
1959, and cam-lock type Type 3 SEC Holders on the following year),
our company has accumulated constantly, developing improvements
over a long history of 50 years, and delivered many various SEC
tools . Currently, we offer a variety of series which are available
according to the applications as shown in the below illustrations.
SEC Abbreviation for Steady & Easy Clamp, and the appelation used for our company indexable insert tools
SEC-

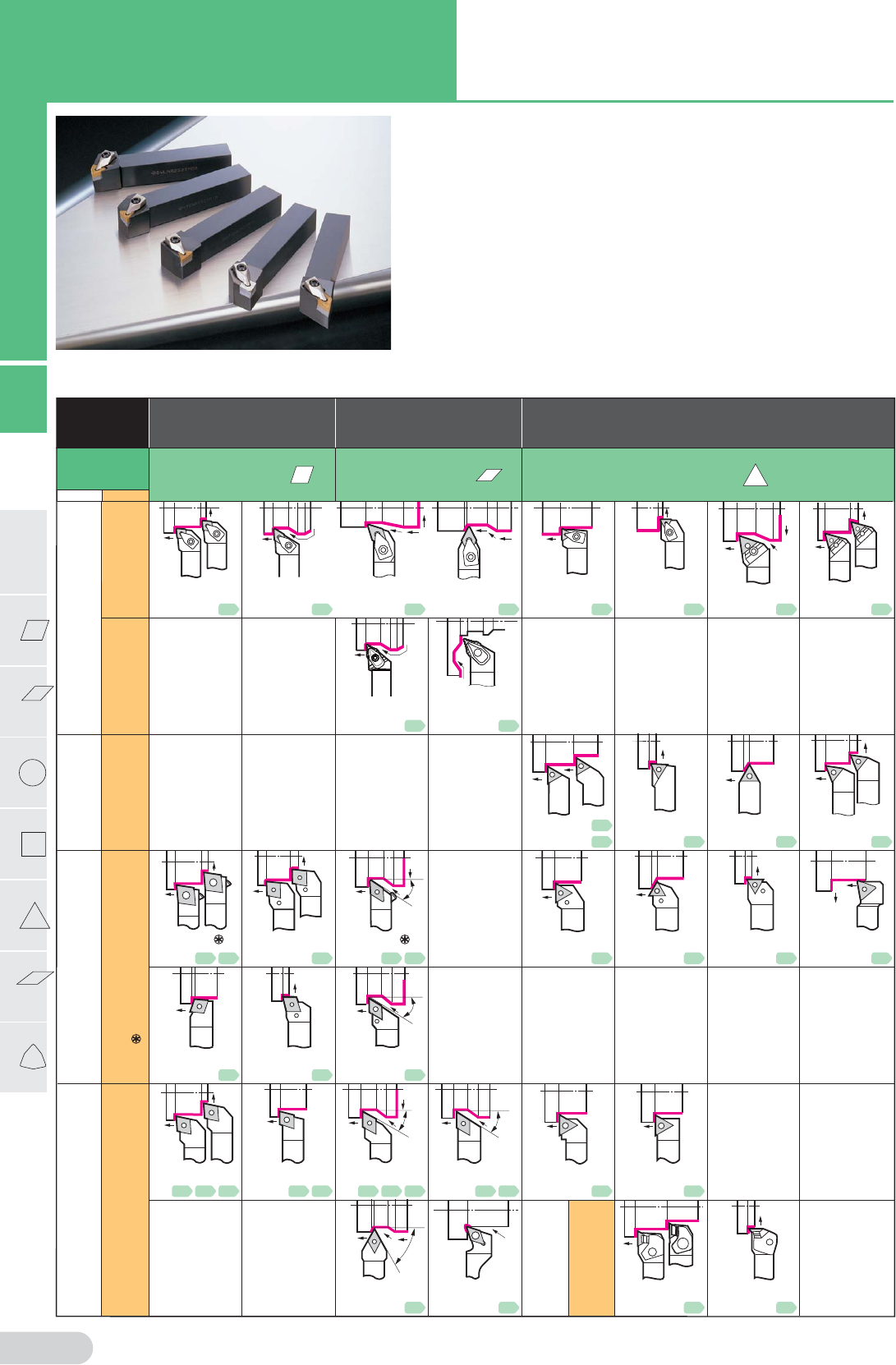

External Holder Series
Note: Conventional types in the ( ). Holder’s front cutting edge angle in the . Be careful with interferences during machining.
External
Holders
W
V
T
S
R
D
C
C3
C
LegendSeries
Rigidity
Clamp
Operability
Accuracy
Index
Chip
evacuation
P E C M S D
Negative
Positive
Clamp mechanism
Rake angle
SEC-70 Type Holders
SEC-30 Type Holders
SEC-M Type Holders
SumiTurn T-REX Holder
SEC-D Type Holders
SUMIBORON PR Type Holder
<Clamp Mechanism>
P: Lever Lock Type
E: Pin Lock Type
C: Clamp-on Type
M: Pin + Clamp-on Type
S: Screw-on Type
D: Double Clamp Type
<Feature>: Excellent : Superior
: Good
Tooling List
Clamp-on
SEC-40
PWLN PSSN PSKNPSBN PSDN PRGC
ESBN ESDN
MWLN DVJN
DVQN
DVVN
DWLN
ESKN
ESSN
DSBN DSDN DSSN
C17C16C16
C21 C21C20C20
C19 C19 C15C18C18
C31C31C34
C34
SVPC SVLC
SVJC SVVC BNRN
CSRP
FP11
CSDP
FP14
CSKP
FP15
SVPP SVLP
C22 C22 L110C22
D33D33
C32D18C32
D31D31
C32C33
PRDC
SSBC
C15
D28
General
Turning General Turning & Profiling General Turning
Lever LockScrew-on
Mini Holders
Pin Lock
SEC-SV
Special
Turning
SEC-70 SEC-30
Double Clamp
SEC-R
SEC-M
SEC-D
C31C34
Insert shape
Structure Type
Application
V
35 Diamond Type
S
Square Type
W
Trigon Type
R
Round Type

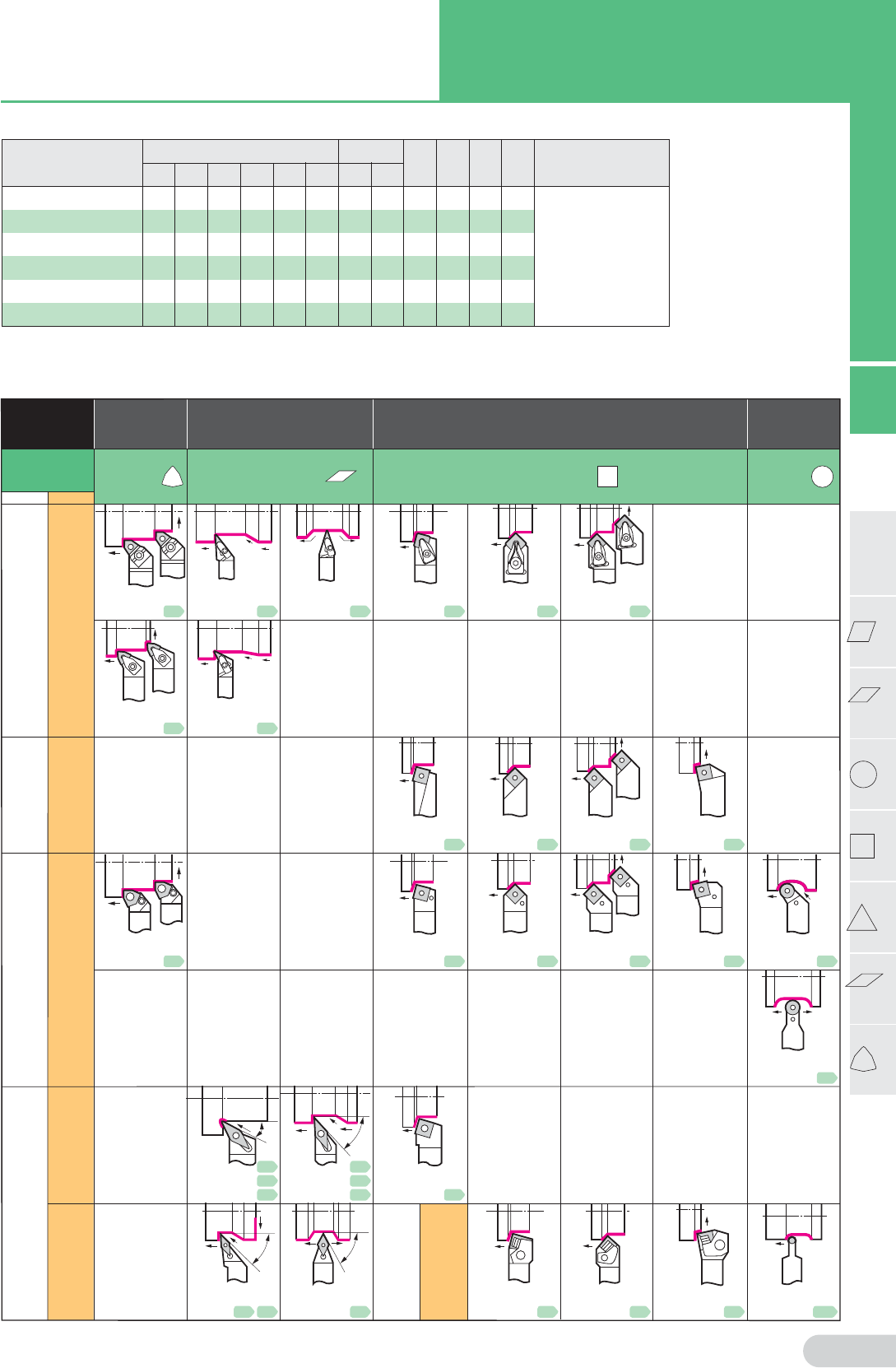

Performance Comparison Table
SEC-
External Holder Series
Note: Conventional types in the ( ). Holder’s front cutting edge angle in the . Be careful with interferences during machining.
mark: 1st recommendation
External
Holders
C
D
R
S
T
V
W
C4
C

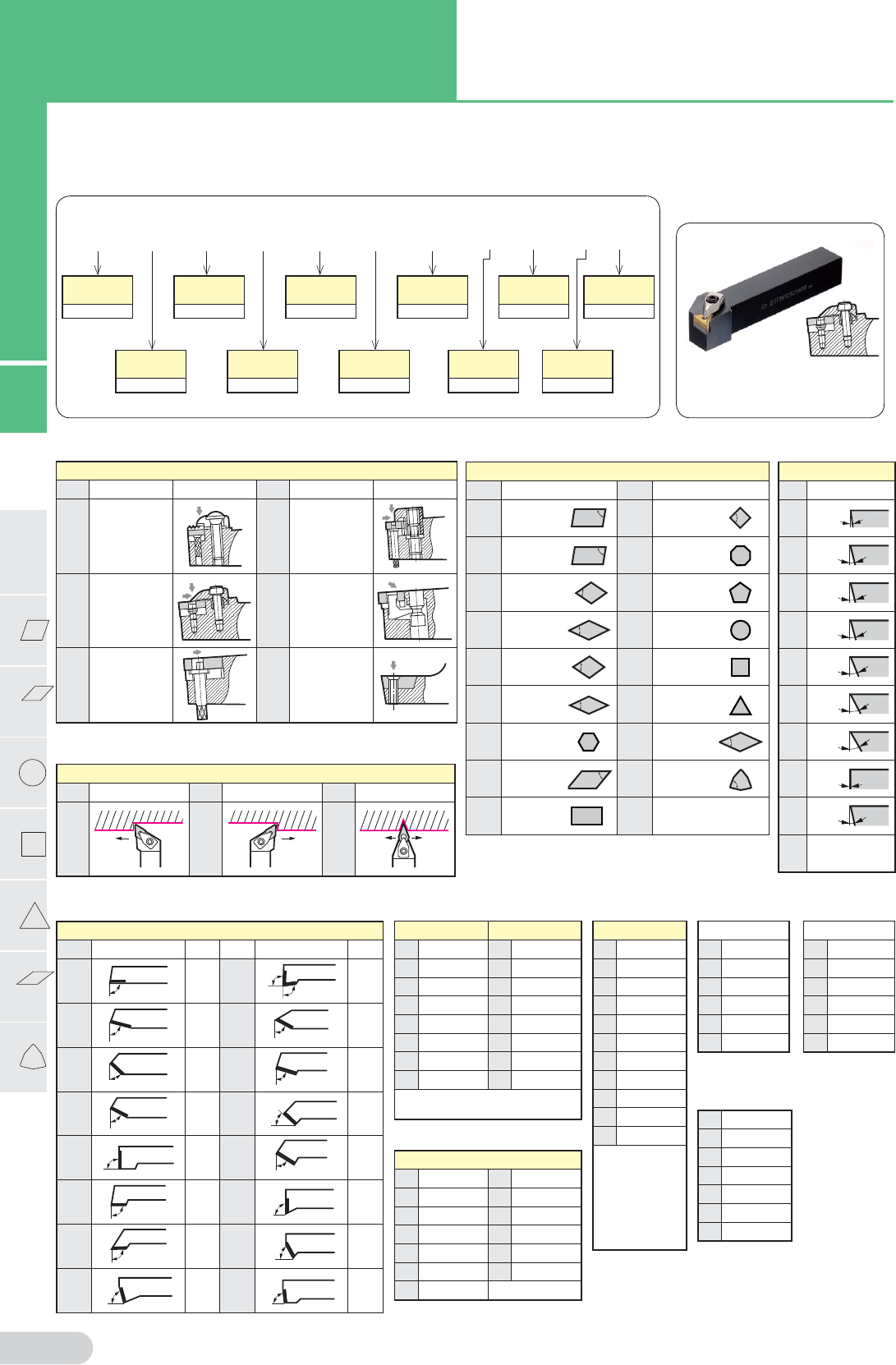

SEC-Tool Holder Identification
Clamping system
Symbol
Clamp type
Mechanism example
Symbol
Clamp type
Mechanism example
CTop clamp MTop clamp +
Pin lock
DDouble Clamp
Typ e PLever Lock Type
(supported by
2 lathes)
E+ Pin Lock Type
(supported by
1 lathe)
SScrew lock
Insert shape
Symbol
Insert shape
Symbol
Insert shape
AParallelogram
Angle: 85 MDiamond Type
Angle 86
BParallelogram
Angle: 82 OOctagonal
CDiamond Type
Angle 80 PPentagonal
DDiamond Type
Angle 55 RRound
EDiamond Type
Angle 75 SSquare
FDiamond Type
Angle 50 TTriang le
HHexagonal VDiamond Type
Angle 35
KParallelogram
Angle 55 WTri gon
Tri gon Type
LRectangular
85˚
82˚
80˚
55˚
75˚
50˚
55˚
86˚
35˚
80˚
Relief angle
Symbol
Relief angle
A
3°
B
5°
C
7°
D
15°
E
20°
F
25°
G
30°
N
0°
P
11°
OSpecial relief
angle
Holder Style ( indicates the main cutting edge)
Symbol
Shape Offset
Symbol
Shape Offset
A90˚
None L
95˚
95˚
Yes
B75˚
None N63˚
None
D45˚
None R75˚
Yes
E60˚
None S45˚ Yes
F90˚ Yes T
60˚
Yes
G90˚
Yes U93˚ Yes
J93˚
Yes W60˚ Yes
K75˚ Yes Y85˚ Yes
Insert thickness
Symbol
Thickness (mm)
2 3.18
3 4.76
4 6.35
5 7.94
6 9.52
Insert inscribed circle
Symbol
Inscribed circle (mm)
3 9.525
4 12.70
5 15.875
6 19.05
8 25.40
Symbol
Inscribed circle (mm)
10 10
12 12
16 16
20 20
25 25
32 32
Shank length
Symbol
Length (mm)
F 80
H100
K125
M150
N160
P170
Q180
S 250
T 300
U 350
In some cases,
a hyphen (-) may
be used for the
conventional model
number.
In the case of a round insert
Shank height
Shank width
Symbol
Height (mm)
Symbol
Width (mm)
12 12 12 12
16 16 16 16
20 20 20 20
25 25 25 25
32 32 32 32
40 40 40 40
50 50 50 50
Regarding shank height and width, dimensions
integer is shown in two-digit mm units
(Chart 1) (Chart 4)(Chart 2)
(Chart 3) (Chart 6) (Chart 8) (Chart 9)
Note:
Applicable only for conventional parts No.
(Chart 7)
Clamping
system
Chart 1
Holder
style
Chart 3
Feed
direction
Chart 5
Shank
width
Chart 7
Insert cutting
edge length
Page B3 (Chart 5)
Insert
shape
Chart 2
Relief
angle
Chart 4
Shank
height
Chart 6
Shank
length
Chart 8
Insert
thickness
Chart 10
(Example)
D Identification example
Clamping: Double Clamp Type
Shape: With triangular inserts, and 91
cutting edge angle
Shank: 25mm height, 25mm width,
150mm length
Feed direction
Symbol
Right hand
Symbol
Left hand
Symbol
Neutral
R
(Chart 5)
SEC-
Tool Holder Identification
DTFNR2525M16
TFNR2525M16(04 W)
* 91 for our company products
Insert thickness
Symbol
Thickness (mm)
Symbol
Thickness (mm)
X1 1.40/1.80 04 4.76
01 1.59 05 5.56
02 2.38 06 6.35
T2 2.78 07 7.94
03 3.18 09 9.52
T3 3.97
(Chart 10)
* CCET03X1 1.40, CCET04X1 1.80
For conventional Cat. No., inscribed circle and insert
thickness are combined and displayed in two-digit figures
Shim
Additional remark only for articles with planking
Insert thickness with same Cat. No.
Additional remark only on different articles
See Chart 9 for
conventional Cat. No.
With Type 30/GD Type Holders
Additional remark only for
articles with planking
External
Holders
W
V
T
S
R
D
C
C5
C

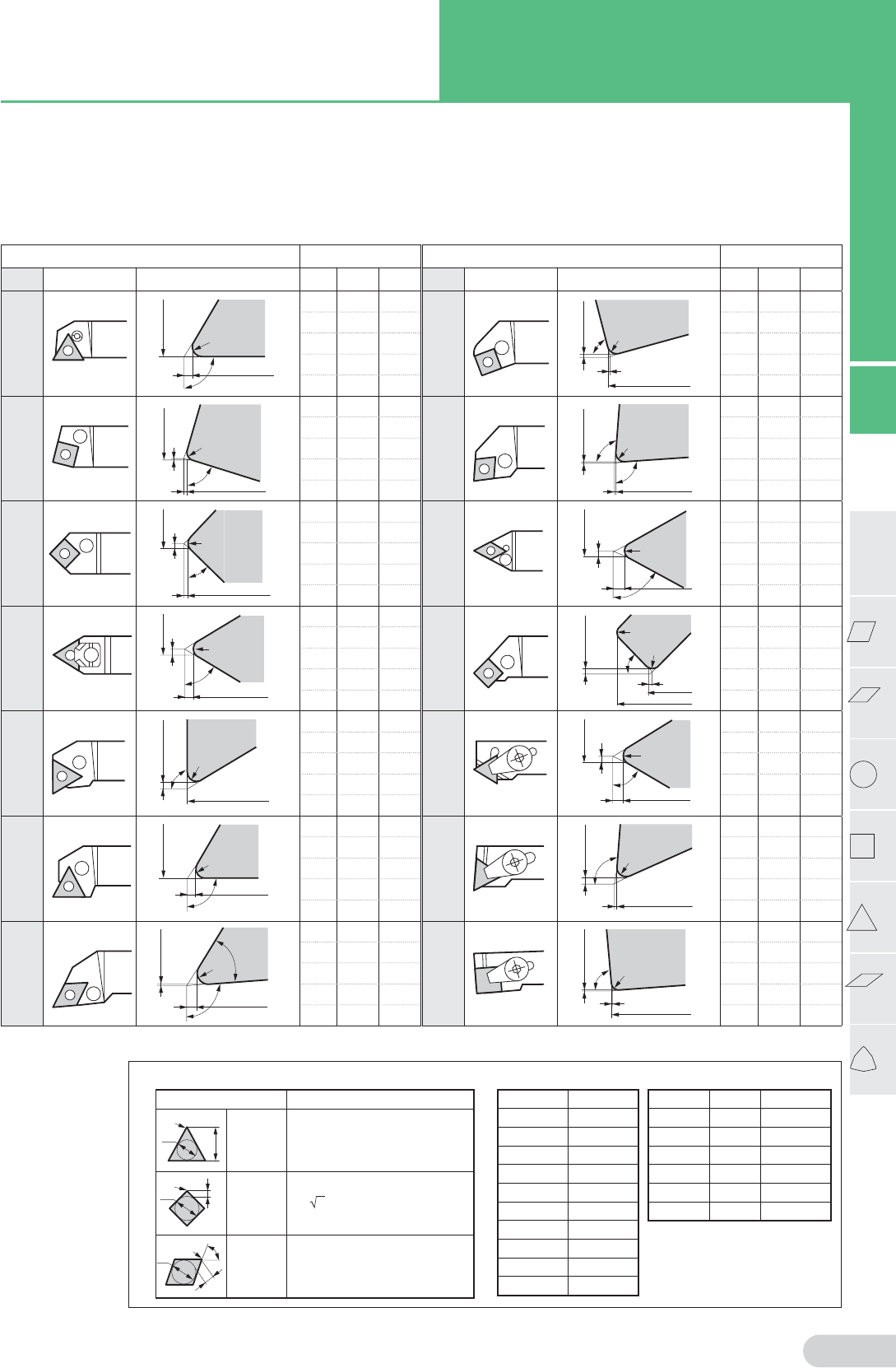

Cutting Edge and Nose Position
Cutting edge shape Dimensions (mm)
Symbol Shape Enlarged view of cutting edge RE X Y
A
0.4 0.291
0.8 0.581
1.2 0.872
1.6 1.162
2.4 1.743
B
0.4 0.089 0.024
0.8 0.178 0.048
1.2 0.268 0.072
1.6 0.357 0.096
2.4 0.535 0.143
D
0.4 0.164 0.164
0.8 0.329 0.329
1.2 0.493 0.493
1.6 0.658 0.658
2.4 0.986 0.986
E
0.4 0.396 0.229
0.8 0.793 0.458
1.2 1.190 0.687
1.6 1.587 0.916
2.4 2.381 1.374
F
0.4 0.291
0.8 0.581
1. 2 0.872
1. 6 1. 16 2
2.4 1. 74 3
G
0.4 0.291
0.8 0.581
1.2 0.872
1.6 1.162
2.4 1.743
J
0.4 0.344 0.033
0.8 0.687 0.079
1.2 1.031 0.118
1.6 1.375 0.157
2.4 2.062 0.236
LF
90°
RE
WF
LF
75˚
R
X
WF
Y
RE
LF
45˚
X
WF
Y
RE
LF
60˚
X
WF
Y
RE
LF
90˚
WF
Y
RE
LF
90˚
X
WF
RE
LF
93˚
X
WF
Y
RE
55˚
Cutting edge shape Dimensions (mm)
Symbol Shape Enlarged view of cutting edge RE X Y
K
0.4 0.024 0.089
0.8 0.048 0.178
1.2 0.072 0.268
1.6 0.096 0.357
2.4 0.143 0.535
L
0.4 0.040 0.040
0.8 0.079 0.079
1.2 0.119 0.119
1.6 0.159 0.159
2.4 0.238 0.238
N
0.4 0.463 0.263
0.8 0.925 0.471
1.2 1.388 0.707
1.6 1.850 0.943
2.4 2.776 1.414
S
0.4 0.164 0.164
0.8 0.329 0.329
1.2 0.493 0.493
1.6 0.658 0.658
2.4 0.986 0.986
T
0.4 0.396 0.229
0.8 0.793 0.458
1.2 1.190 0.687
1.6 1.587 0.916
2.4 2.381 1.374
U
0.4 0.253 0.058
0.8 0.506 0.116
1.2 0.759 0.175
1.6 1.013 0.233
2.4 1.519 0.350
Y
0.4 0.002 0.033
0.8 0.005 0.066
1.2 0.008 0.099
1.6 0.011 0.132
2.4 0.017 0.198
LF
75˚
X
WF
Y
RE
LF
95˚
95˚
X
WF
Y
RE
LF
63˚
X
WF
Y
RE
OAL
45˚
RE
RE
WF
LF
LF
X60˚
Y
WF
RE
LF
X
95˚
YWF
RE
LF
X
85˚
YWF
RE
Cutting Edge Position by Nose Radius (ISO Standards)
(In the table, value of X and Y is shown for when the value of horizontal rake angle and cutting edge inclining angle is 0 )
How to obtain the insert nose position
Shape Calculation formula
Triangle B=3/2d−RE
Tetrahedron B=( 2−1)×(d/2−RE)
Diamond B=(1/Sin(/2)−1)×(d/2−RE)
Inscribed circle
nominal value
IC for calculation
3.97 3.9688
4.76 4.7625
5.56 5.5562
6.35 6.3500
7.94 7.9375
9.525 9.5250
12.70 12.7000
15.875 15.8750
19.05 19.0500
25.40 25.4000
Nose symbol
Nominal value
RE for calculation
02 0.2 0.203
04 0.4 0.397
08 0.8 0.794
12 1.2 1.191
16 1.6 1.588
24 2.4 2.381
RE
ød
B
RE
ød
B
RE
ød
B
Calculation method for nose position
Value of IC and RE used in the calculation of B
Cutting edge position
(mm)(mm)
External
Holders
Negative
Inserts
C
D
R
S
T
V
W
Special
type
C6
C

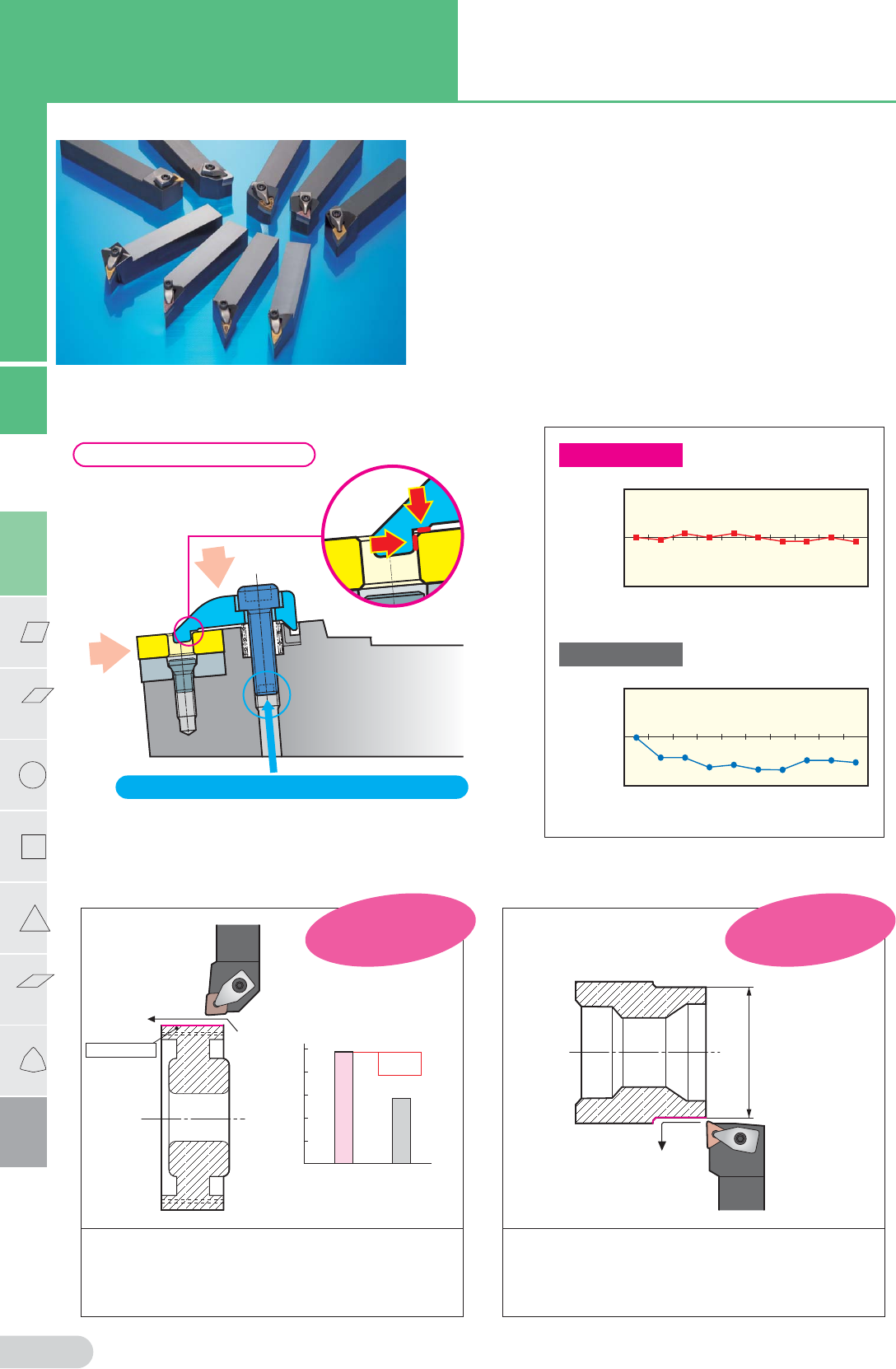

SEC-
Double Clamp D Type
Characteristic
Insert fracture resistance improved by stable clamp
Dimensional accuracy improved by high-index accuracy
Insert exchange operation possible from back side
Optimal for highly efficient, interrupted, and high hardness
materials cutting
12345678910
0
0.02
-0.02
-0.02
12345678910
0
0.02
ø40.0 0.01
1,000
800
600
400
200
0
Number of cycles
Number of cycles
Dimensional variation
mm
D Type Holders
Lever Lock
Holder: DCLNL2525M12
Insert: CNMG 120408N-SU
Grade: EH510Z ( switching to AC510U completed)
Work material: Sintered alloy
Cutting conditions:
v
c
=150m/min f =0.3mm/rev a
p
=0.2mm Wet
Holder: DTGNR2525M16
Insert: 6NC-TNGA160408
Grade: BNC150 ( switching to BNC160)
Work material: SCR420H 60HRC
Cutting conditions:
v
c
=150m/min f =0.15mm/rev a
p
=0.1mm Dry
Interrupted Cut
Improved fracture resistance
for interrupted cutting!
Stable
dimensional accuracy!
Insert replacement operations possible from back side
Secured in two directions and supported by two faces
Wear
Breakage
D Type
Holders
Conventional
Holders
1.7 times
Number of workpieces
Dimensional variation
mm
Clamp Mechanism Index Accuracy Comparison (Lengthswise)
Application Examples
External
Holders
Negative
Inserts
W
V
T
S
R
D
C
C7
C
SEC- External Holders
DCLN Type / PCLN Type
This figure shows right handed tools.
Holder
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim
Screw
for shim
Wrenches
for shim
Wrenches for
upper surface
Wrenches for
lower surface
RLH B LF WF HF LH Cat. No. Page
DCLN R/L2020K12
20 20 125 25 20 32 CN 1204 From
B22 SCP-2 5.0
CNS1204
BFTX0409N
TRX15
(*) LH040 LH025
DCLN R/L2525M12
25 25 150 32 25 32
DCLN R/L2525M16
25 25 150 32 25 32 CN 1606 From
B26 SCP-3 5.0
CNS1606
BFTX0509N
TRX20
(*) LH040 LH025
DCLN R/L3232P16
32 32 170 40 32 32
DCLN R/L3232P19
32 32 170 40 32 42 CN 1906 From
B28 SCP-5 5.0
CNS1906
BFTX0511N
TRX20
(*) LH040 LH025
DCLN R/L4040S19
40 40 250 50 40 42
DCLN R/L4040S25
40 40 250 50 40 53 CN 2509 B30 SCP-6 6.0
CNS2509
BFTX0615N
TRD25 (*)
LH060
* Wrench for shim is not included in the model body.
Spare Parts
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
RL H B LF WF HF LH Cat. No. Page
PCLN R/L1616H0903 PCLN R/L1616-32
16 16 100 20 16 20 CN 0903 B20 LCL3 LCS3 LSC32 LSP3 LH025
PCLN R/L2020K0904 PCLN R/L2020-33
20 20 125 25 20 20 CN 0904 B21 LCL3 LCS3 LSC317 LSP3 LH025
PCLN R/L2525M0904 PCLN R/L2525-33
25 25 150 32 25 20
PCLN R/L2020K12 PCLN R/L2020-43
20 20 125 25 20 28
CN 1204 From
B22 LCL4 LCS4 LSC42 LSP4 LH030
PCLN R/L2520M12 PCLN R/L2520-43
25 20 150 25 25 28
PCLN R/L2525M12 PCLN R/L2525-43
25 25 150 32 25 28
PCLN R/L3225P12 PCLN R/L3225-43
32 25 170 32 32 28
PCLN R/L3232P12 PCLN R/L3232-43
32 32 170 40 32 28
PCLN R/L2525M16 PCLN R/L2525-54
25 25 150 32 25 33
CN 1606 From
B26 LCL5 LCS5 LSC53 LSP5 LH030
PCLN R/L3225P16 PCLN R/L3225-54
32 25 170 32 32 33
PCLN R/L3232P16 PCLN R/L3232-54
32 32 170 40 32 33
PCLN R/L3225P19 PCLN R/L3225-64
32 25 170 32 32 38
CN 1906 From
B28 LCL6 LCS6 LSC63 LSP6 LH040
PCLN R/L3232P19 PCLN R/L3232-64
32 32 170 40 32 38
PCLN R/L4040R19 PCLN R/L4040-64
40 40 200 50 40 38
Holder This figure shows right handed tools.
Spare Parts
BH
LF
95˚
WF
HF
LH
–5˚
80˚
–5˚
–5˚
80˚
95˚
LF
–5˚
HF
H
WF
B
LH
DCLN
General Turning
& Facing
PCLN
General Turning
& Facing
TRX
TRD
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
95˚
95˚
Applicable inserts
DCLN Type / PCLN Type / PCBN Type / PCFN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
(for Torx hole)
C38
Parts for Clamp Set
BNC500 is for ductile iron cast.
Dimensions (mm)
Dimensions (mm)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
N m Recommended tightning torque (N m)
External
Holders
Negative
Inserts
D
R
S
T
V
W
C
C8
C

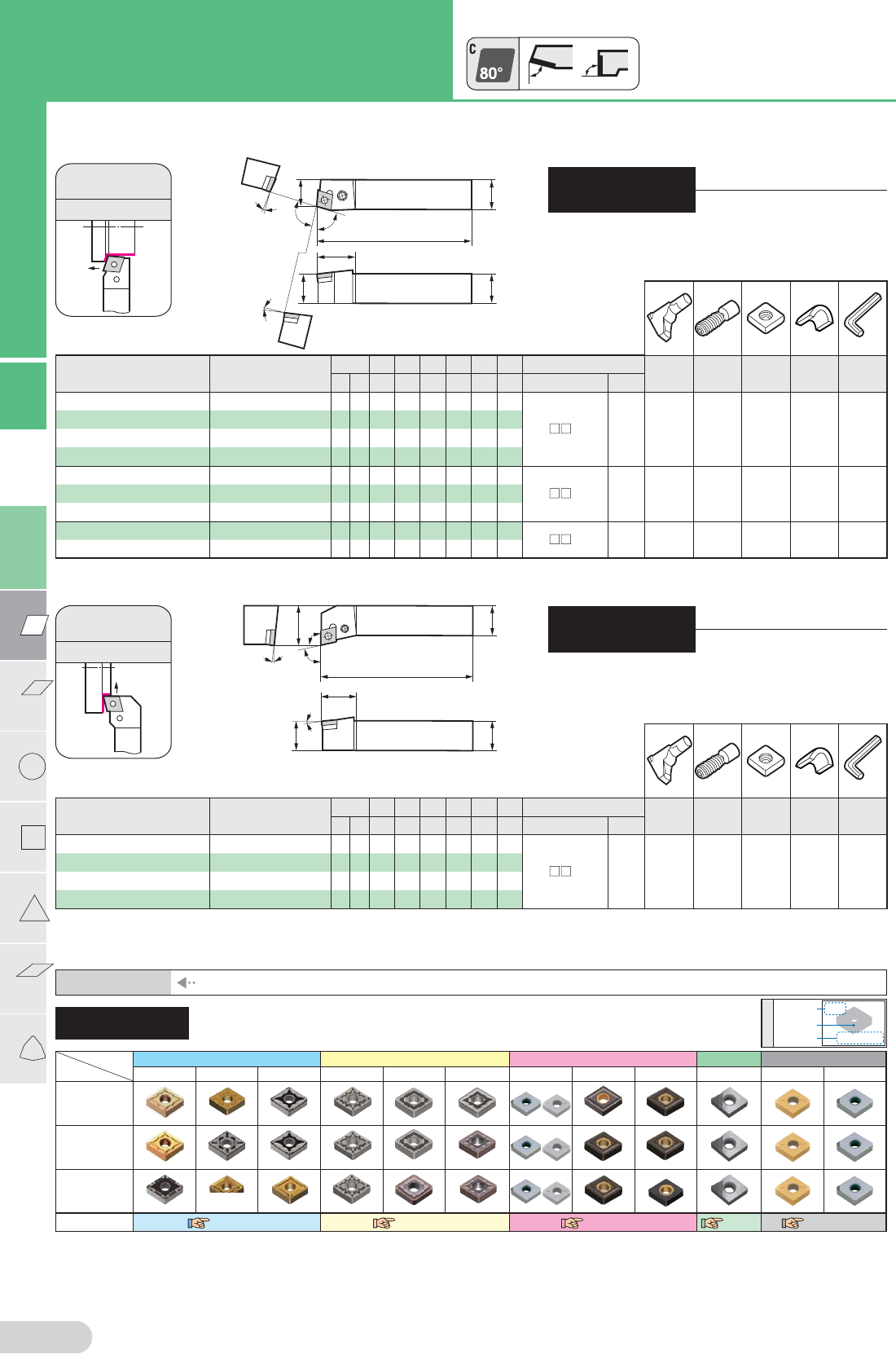

Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer Wrench
R L H B LF WF HF LH Cat. No. Page
PCFN R/L2020K12 PCFN R/L2020-43
20 20 125 25 20 28
CN 1204 From
B22 LCL4 LCS4 LSC42 LSP4 LH030
PCFN R/L2520M12 PCFN R/L2520-43
25 20 150 25 25 28
PCFN R/L2525M12 PCFN R/L2525-43
25 25 150 32 25 28
PCFN R/L3225P12 PCFN R/L3225-43
32 25 170 32 32 28
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
This figure shows right handed tools.
Spare Parts
LF
BH
WF
HF
–5˚
–5˚
80˚
91˚
LH
Facing
PCFN
LF
BH
WF
HF
–5˚
–6˚
100˚
75˚
LH
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PCBN R/L2020K12 PCBN R/L2020-43
20 20 125 17 20 27
CN 1204 From
B22 LCL4 LCS4 LSC42 LSP4 LH030
PCBN R/L2520M12 PCBN R/L2520-43
25 20 150 17 25 27
PCBN R/L2525M12 PCBN R/L2525-43
25 25 150 22 25 27
PCBN R/L3225P12 PCBN R/L3225-43
32 25 170 22 32 27
PCBN R/L2525M16 PCBN R/L2525-54
25 25 150 22 25 33
CN 1606 From
B26 LCL5 LCS5 LSC53 LSP5 LH030
PCBN R/L3225P16 PCBN R/L3225-54
32 25 170 22 32 33
PCBN R/L3232P16 PCBN R/L3232-54
32 32 170 27 32 33
PCBN R/L3232P19 PCBN R/L3232-64
32 32 170 27 32 38 CN 1906 From
B28 LCL6 LCS6 LSC63 LSP6 LH040
PCBN R/L4040R19 PCBN R/L4040-64
40 40 200 35 40 38
Holder
This figure shows right handed tools.
Spare Parts
General Turning
PCBN
SEC- External Holders
PCBN Type / PCFN Type
91°
75˚
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DCLN Type / PCLN Type / PCBN Type / PCFN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
BNC500 is for ductile iron cast.
Dimensions (mm)
Dimensions (mm)
External
Holders
C9
C
Positive
Inserts
W
C
V
D
S
T
R
SEC-
Top Clamp
General turning and edge face
SC Type
Tool Holders

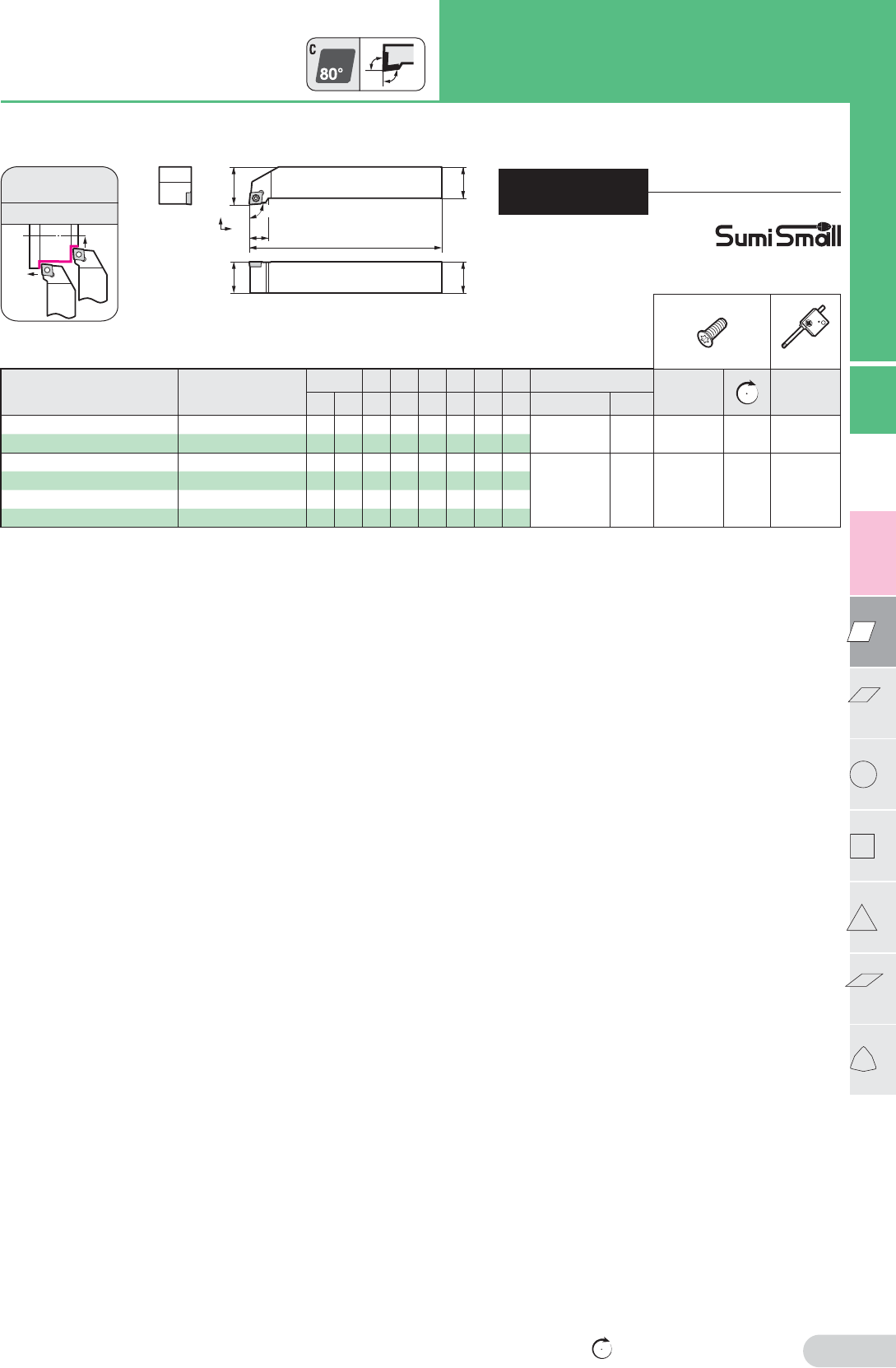

SEC- External Holders
SCLC Type
95˚
95˚
SCLC
General Turning
& Facing
Spare Parts
Holder
Cat. No. Conventional Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts
Screw N m Wrenches
RLH B LF WF HF LH Cat. No. Page
SCLC R/L0808H06 SCLC R/L0808-06 8 8 100 10 8 − CC 0602 From
B75
BFTX02506N
1. 5 TRX08
SCLC R/L1010H06 SCLC R/L1010-06 10 10 100 12 10 15
SCLC R/L1212H09 SCLC R/L1212-09 12 12 100 16 12 15
CC 09T3 From
B78
BFTX0409N
3.4 TRX15
SCLC R/L1616H09 SCLC R/L1616-09 16 16 100 20 16 15
SCLC R/L2020K09 SCLC R/L2020-09 20 20 125 24 20 15
SCLC R/L2525M09 SCLC R/L2525M09 25 25 150 30 25 15
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
This figure shows right handed tools.
WF
LH
LF
HF
HB
95°
0°
0°
(for Torx hole)
Dimensions (mm)
N m Recommended tightning torque (N m)
C
External
Holders
Negative
Inserts
R
S
T
V
W
D
C10
C

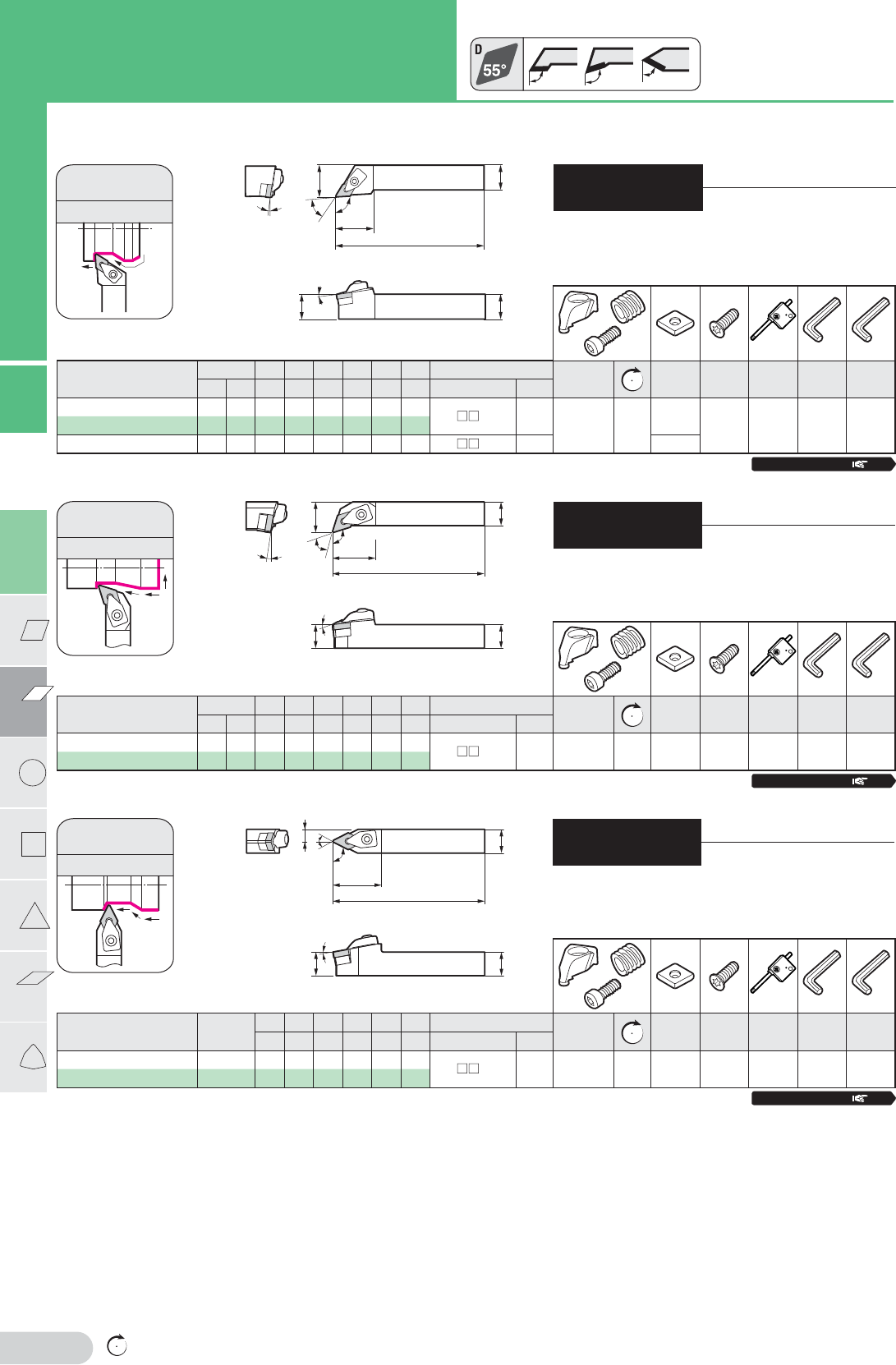

SEC- External Holders
DDJN Type / DDHN Type / DDNN Type
93° 63˚
107.5˚
N m Recommended tightning torque (N m)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
WF
HF
BH
63˚
LF
-
10˚
55˚
LH
WF
HF
B
H
107.5˚
LF
-
8˚
-
5˚
55˚
LH
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Clamp
set N m Shim Wrench
for shim
Wrench
for shim
Wrench
for upper
surface
Wrench
for lower
surface
R L H B LF WF HF LH Cat. No. Page
DDJN R/L2020K15
20 20 125 25 20 38 DN 1504 From
B32 SCP-2 5.0
DNS1504
BFTX0409N
TRX15 LH040 LH025
DDJN R/L2525M15
25 25 150 32 25 38
DDJN R/L2525M15E
25 25 150 32 25 38 DN 1506
From B36
DNS1506
Holder This figure shows right handed tools.
This figure shows right handed tools.
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Clamp
set N m Shim Wrench
for shim
Wrench
for shim
Wrench
for upper
surface
Wrench
for lower
surface
R L H B LF WF HF LH Cat. No. Page
DDHN R/L2020K15
20 20 125 25 20 35 DN 1504 From
B32 SCP-2 5.0
DNS1504
BFTX0409N
TRX15 LH040 LH025
DDHN R/L2525M15
25 25 150 32 25 35
Holder
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Clamp
set N m Shim Wrench
for shim
Wrench
for shim
Wrench
for upper
surface
Wrench
for lower
surface
H B LF WF HF LH Cat. No. Page
DDNN N2020K15
20 20 125 10.5 20 40 DN 1504 From
B32 SCP-2 5.0
DNS1504
BFTX0409N
TRX15 LH040 LH025
DDNN N2525M15
25 25 150 13.0 25 40
Holder
Note: Wrench for shim is not included in the model body.
Spare Parts
Note: Wrench for shim is not included in the model body.
Spare Parts
* Wrench for shim is not included in the model body.
Spare Parts
DDJN
General Turning
& Profiling
LF
93˚
WF
HF
B
H
–7˚
55˚
–5˚ LH
DDHN
General Turning
& Profiling
DDNN
General Turning
& Profiling
(for Torx hole)
(for Torx hole)
(for Torx hole)
C38
Parts for Clamp Set
C38
Parts for Clamp Set
C38
Parts for Clamp Set
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
External
Holders
Negative
Inserts
W
V
T
S
R
C
D

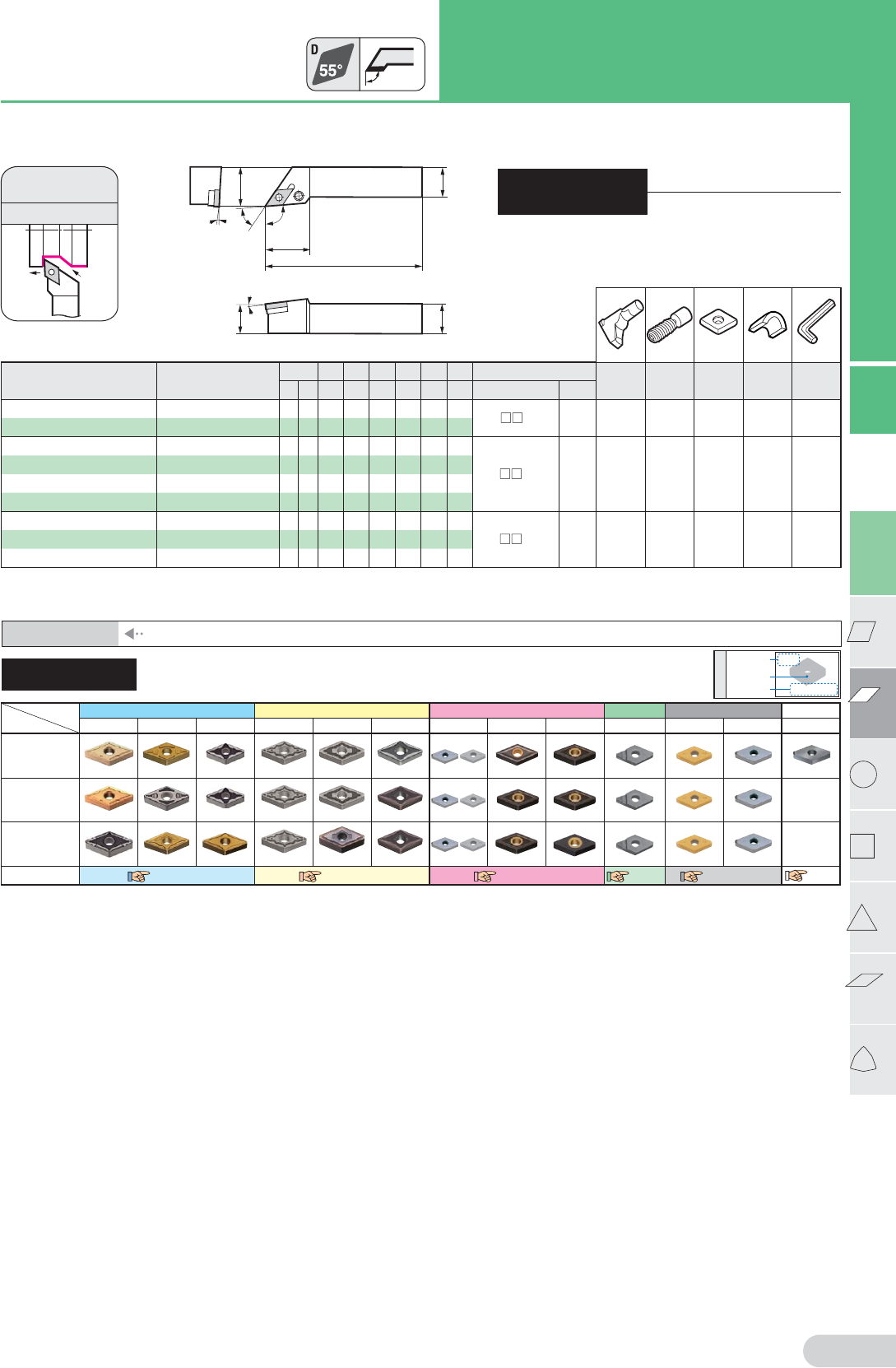

C11
C
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PDJN R/L2020K11 PDJN R/L2020-33
20 20 125 25 20 25 DN 1104 From
B31 LCL3 LCS3 LSD317 LSP3 LH025
PDJN R/L2525M11 PDJN R/L2525-33
25 25 150 32 25 25
PDJN R/L2020K1504 PDJN R/L2020-43
20 20 125 25 20 35
DN 1504 From
B32 LCL4 LCS4 LSD42 LSP4 LH030
PDJN R/L2525M1504 PDJN R/L2525-43
25 25 150 32 25 35
PDJN R/L3225P1504 PDJN R/L3225-43
32 25 170 32 32 35
PDJN R/L3232P1504 PDJN R/L3232-43
32 32 170 40 32 35
PDJN R/L2525M1506 PDJN R/L2525-44
25 25 150 32 25 35
DN 1506 From
B36 LCL4 LCS4 LSD42 LSP4 LH030
PDJN R/L3225P1506 PDJN R/L3225-44
32 25 170 32 32 35
PDJN R/L3232P1506 PDJN R/L3232-44
32 32 170 40 32 35
Holder
This figure shows right handed tools.
Spare Parts
B
H
LF
WF
HF
–7˚
93˚
55˚
–5˚ LH
PDJN
General Turning
& Profiling
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Hard brittle material
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated Finishing
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
SUMIDIA BinderlessSUMIDIA Binderless
NPD10NPD10
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
–
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420KAC420K
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
–
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
From M4
BNC500 is for ductile iron cast.
Dimensions (mm)
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DDJN Type / DDHN Type / DDNN Type / PDJN Type
93°
SEC- External Holders
PDJN Type
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
External
Holders
Negative
Inserts
C
D
R
S
T
V
W
Special
Type

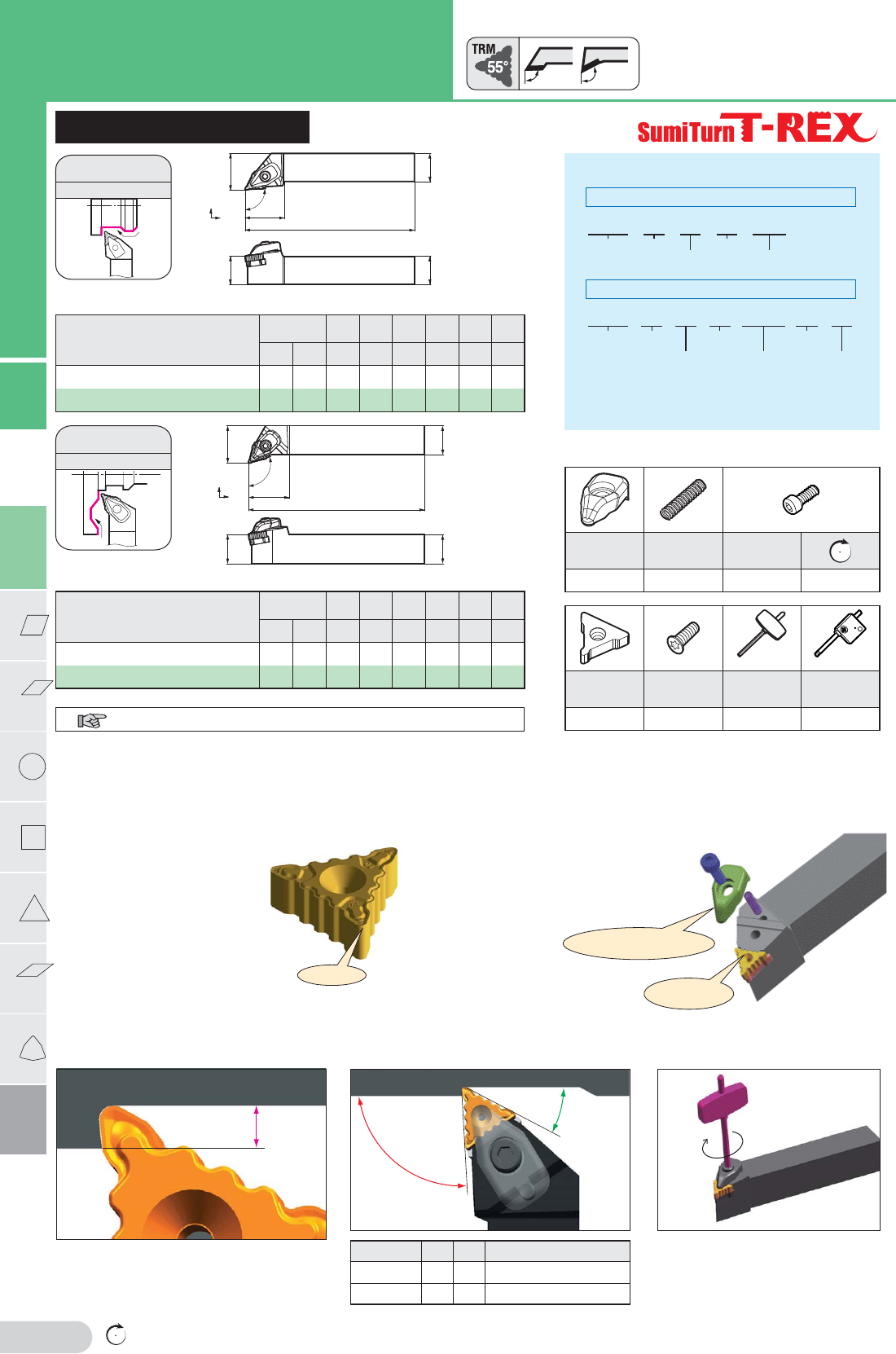

C12
C
A
B
93 27
15105
BA
Please use for a depth of cut of 2.5 mm or less.
Depth of cut Cutting Edge Angle
At the time of clamp-changing,
please use the special wrench (TSW040) included,
and tight it between 3.5 and 4.5 N m.
Tightening torque
Less than
2.5 mm
DTR55C Type
DTR55Q Type
Approach angle for the main edge is 95.5
Approach angle for the main edge is 107.5
Holder Cat. No.
Caution
Precautions when using
Feature
Compared to DNMG inserts, it has 1.5 times more cutting edges.
Significantly reduces the machining cost.
55 corner for 6 cutting edges
With corrugated fitting and new-type Clamp-on-Lock,
firmly clamps the insert.
Extra-strong Clamping
New Type Clamp-on-Lock
Serration
Angle 55
Clamp Spring Cap screw N m
TRCP3 S-SP4-20 BX0520 3.5 4.5
*
Wrench for shim is not included
in the model body
Spare Parts (common)
Holder
Holder
Cat. No.
Stock
Height
Width
Total
length
Cutting
edge
Cutting edge
height
Head
R L H B LF WF HF LH
DTR55C R/L2020-K17 20 20 125 25 20 35
DTR55C R/L2525-M17 25 25 150 32 25 35
This figure shows right handed tools.
This figure shows right handed tools.
Extermnal Profiling
-7
-5
WF
93
LH
HF
LF
BH
-8
-8
WF
105
LH
LF
B
HF
H
Cat. No.
Stock
Height
Width
Total
length
Cutting
edge
Cutting edge
height
Head
R L H B LF WF HF LH
DTR55Q R/L2020-K17 20 20 125 28.5 20 35
DTR55Q R/L2525-M17 25 25 150 32.0 25 35
DTR55C
External Profiling
DTR55Q
General Turning & Face Profiling
TRM 55 08 -GU17
DTR 55 17R 2525 -MC
Given name for T-REX Insert Holder
Insert
Angle Insert
size
T-REX
Inserts
T-REX
Holders
Nose Radius
Name of
chipbreaker
External Holder
Angle
Approach
angle
Feed
direction
Shank
size
Shank
length Insert
size
(Caution) About the cutting angleC 93 (however, main cut-lip part is 95.5 )
Q 105 (however, main cut-lip part is 107.5 )
Please look at page E37 to find the S-DTR55C for internal profiling machining.
Shim
Screw for shim
Wrench
Wrench for shim
TRW5505 BFTX0307N TSW040 TRX10
(for trigon hole) (for Torx hole)
SumiTurn
T-REX Holders 93° 105˚
Dimensions (mm)
Dimensions (mm)
Positioning cutting edge
with profiling machining
Without variance
Safe even for interrupted
machining
N m Recommended tightning torque (N m)
External
Holders
Negative
Inserts

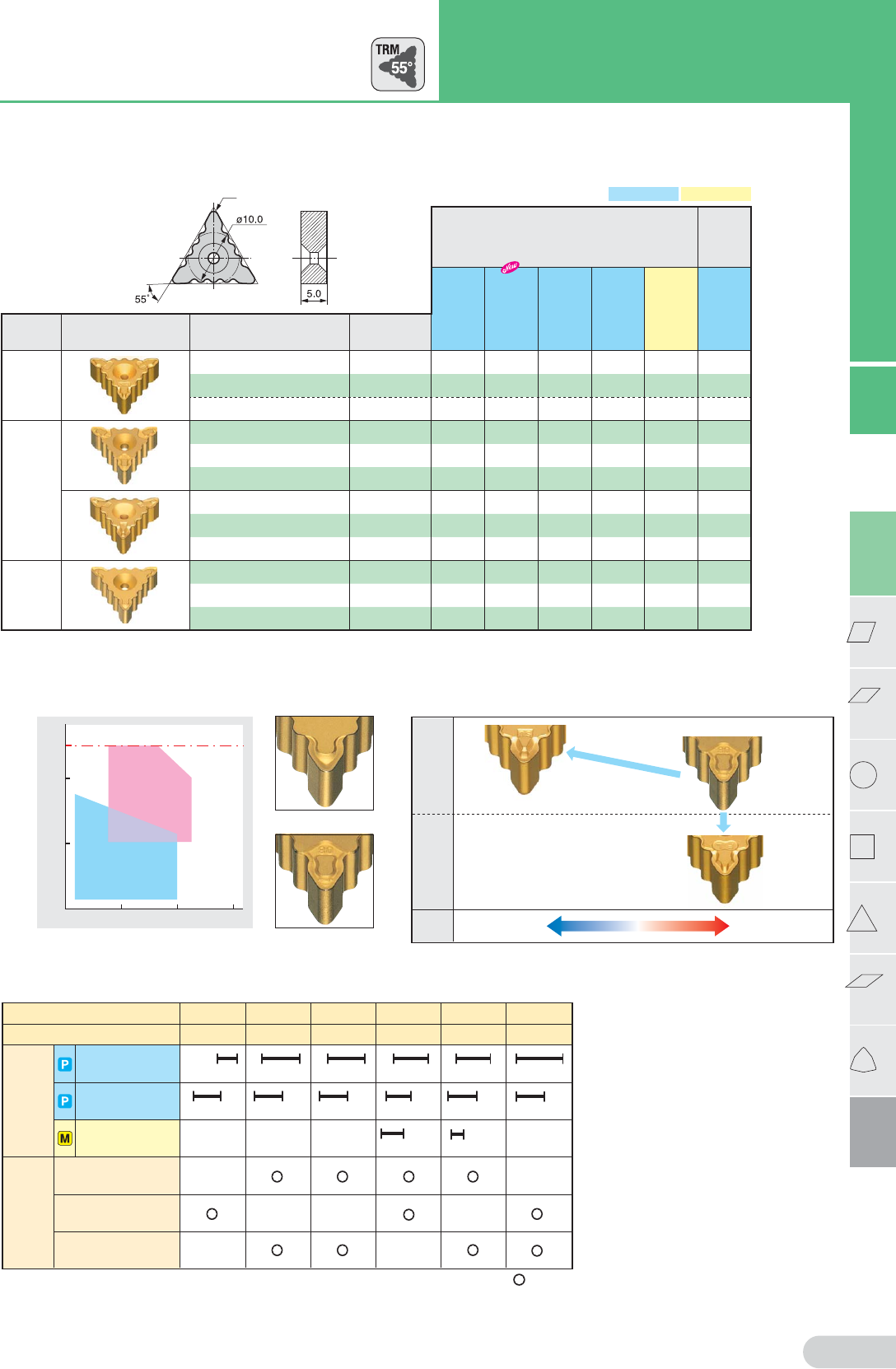

C13
C
W
V
T
S
R
C
Special
Type
D
AC630M T3000Z
AC8025P
AC810P AC830P
100 400
100 250
120 300
200 400
150 300
150 350
100 250 80 230
100 160
120 300
80 200
50 150
0
0
1. 0
2.0
2.5
0.2 0.4 0.6
AC820P
150 350
100 250
GU type
SU type
Main breaker
LU type
LU type
Grade
Grade class
Coated cermetCoated carbideCoated carbide Coated carbide Coated carbide
Low-carbon steel
Stainless steel
General steel
/ Alloyed steel
Finishing
Medium cutting
Interrupted cut
Application
Work
material
GU type
LU type
Feed rate (mm/rev)
Depth of cut
mm
Finishing
Fine cutting
Serious consideration
given to cutting quality
Cutting quality
Good
Cutting edge strength
High
Main Chipbreaker Sub-Chipbreaker for finishing
Depth of cut limit
Medium
cutting
Finishing
Serious consideration given
to chip control
: Optimal : Suitable
FL type
Chipbreaker Application Range
Application Range by Grades (Numbers in the table are the recommended cutting speed (m/min))
Coated carbide
SumiTurn
T-REX Holders
C
Inserts Application P Steel
M Stainless steel
Coated carbide
Coated
Cermet
AC810P
AC8025P
AC820P
AC830P
AC630M
T3000Z
Application
Appearance Cat. No.
Nose radius RE
Fine cutting
FL
TRM 551704-FL 0.4
551708-FL 0.8
Finishing
LU
TRM 551704-LU 0.4
551708-LU 0.8
551712-LU 1. 2
SU
TRM 551704-SU 0.4
551708-SU 0.8
551712-SU 1. 2
Medium
cutting
GU
TRM 551704-GU 0.4
551708-GU 0.8
551712-GU 1. 2
RE
V
External
Holders
C
D
R
W
S
T
Positive
Inserts
C14
C

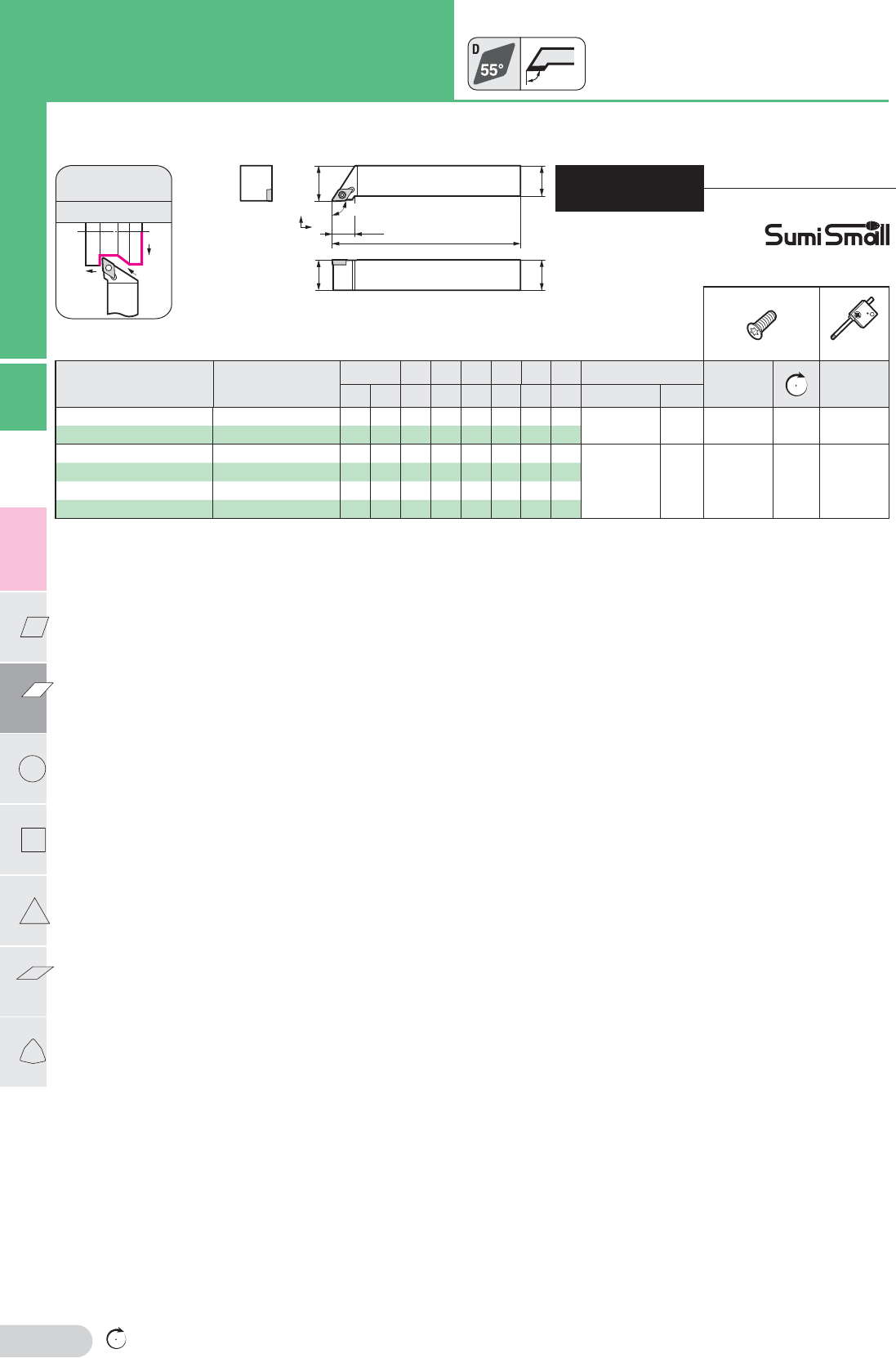

SEC- External Holders
SDJC Type 93°
SEC-
Top Clamp
General turning and profiling
SD Type Profiling
Tool Holders
SDJC
General Turning
& Facing
Spare Parts
Holder
Cat. No. Conventional Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Screw N m Wrenches
RLH B LF WF HF
HBKL
Cat. No.
Page
SDJC R/L0808H07 SDJC R/L0808-07 8 8 100 10 8 15 DC 0702 From
B85
BFTX02506N
1. 5 TRX08
SDJC R/L1010H07 SDJC R/L1010-07 10 10 100 12 10 18
SDJC R/L1212H11 SDJC R/L1212-11 12 12 100 16 12 18
DC 11T3 From
B88
BFTX0409N
3.4 TRX15
SDJC R/L1616H11 SDJC R/L1616-11 16 16 100 20 16 18
SDJC R/L2020K11 SDJC R/L2020-11 20 20 125 24 20 18
SDJC R/L2525M11 SDJC R/L2525M11 25 25 150 29 25 18
This figure shows right handed tools.
93°
WF
HBKL
LF
HF
H
0°
0°
B
(for Torx hole)
Dimensions (mm)
N m Recommended tightning torque (N m)
Positive
Inserts
W
C
External
Holders
V
D
S
T
R

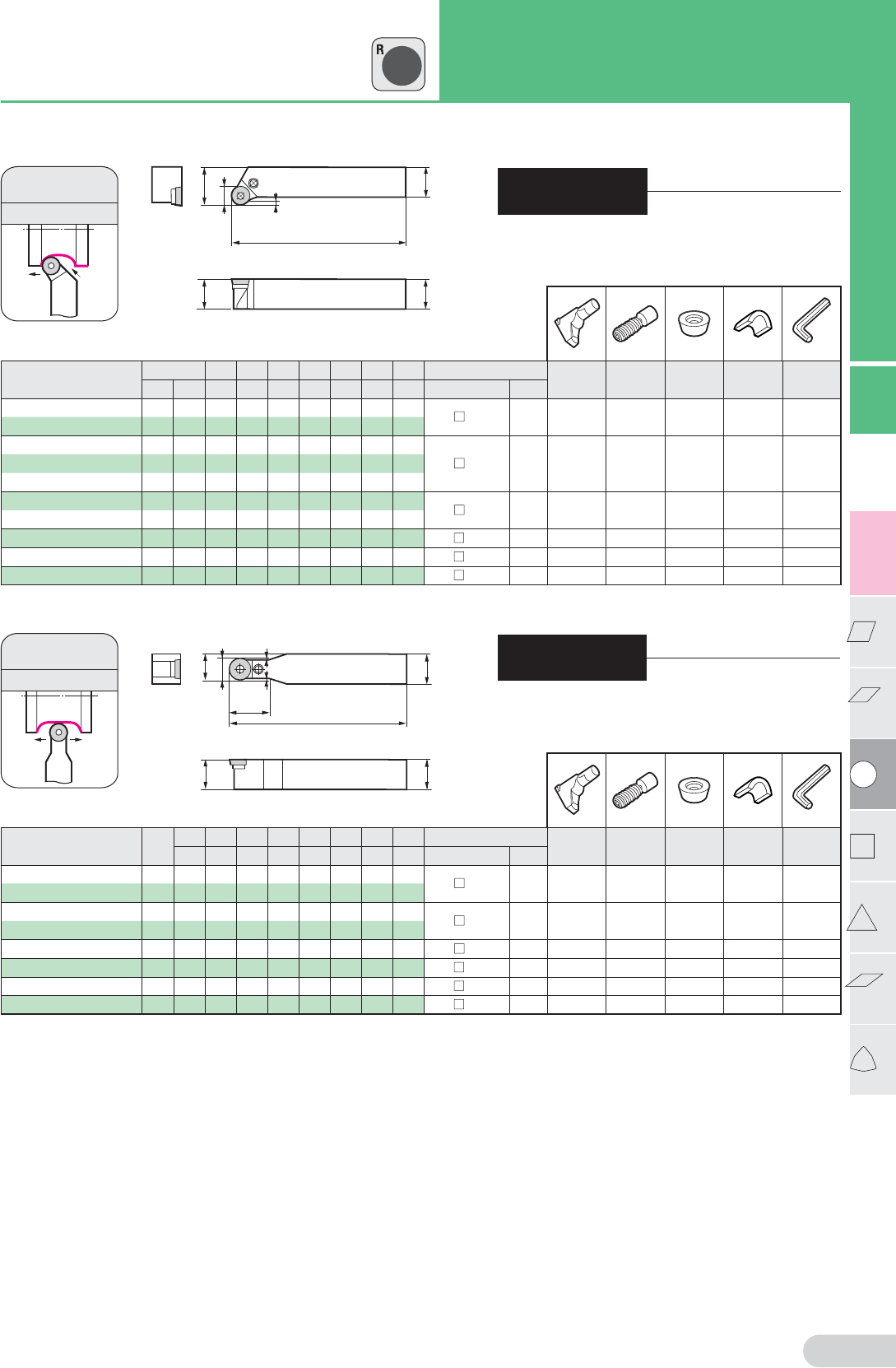

C15
C
SEC-External Holders
PRGC Type / PRDC Type
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Cutting edge
distance
Inscribed
circle
Applicable inserts Lever pin Bolt Shim Shim
retainer Wrenches
RLH B LF WF HF E1 IC Cat. No. Page
PRGC R/L2020K10
20 20 125 25 20 1.5 10
RCM 1003M0
B92
LCL10 LCS10 LSR10 LSP10 LH020
PRGC R/L2525M10
25 25 150 32 25 1.5 10
PRGC R/L2020K12
20 20 125 25 20 2.5 12
RCM 1204M0
B92
LCL12 LCS12 LSR12 LSP10 LH025
PRGC R/L2525M12
25 25 150 32 25 2.5 12
PRGC R/L3225P12
32 25 170 32 32 2.5 12
PRGC R/L2525M16
25 25 150 32 25 3.0 16
RCM 1606M0
B92
LCL16 LCS16 LSR16 LSP16 LH025
PRGC R/L3225P16
32 25 170 32 32 3.0 16
PRGC R/L3232P20
32 32 170 40 32 4.0 20
RCM 2006M0
B92
LCL20 LCS20 LSR20 LSP20 LH030
PRGC R/L4040S25
40 40 250 50 40 4.5 25
RCM 2507M0
B92
LCL25 LCS25 LSR25 LSP25 LH040
PRGC R/L5050T32
50 50 300 63 50 5.5 32
RCM 3209M0
B92
LCL32 LCS32 LSR32 LSP32 LH050
Holder
This figure shows right handed tools.
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Cutting edge
distance
Inscribed
circle
Applicable inserts Lever pin Bolt Shim Shim
retainer Wrenches
H B LF WF HF LH E1 IC Cat. No. Page
PRDC N2020M10 20 20 150 15.0 20 22 1.0 10
RCM 1003M0
B92
LCL10 LCS10 LSR10 LSP10 LH020
PRDC N2525M10 25 25 150 17.5 25 22 1.0 10
PRDC N2525M12 25 25 150 18.5 25 24 1.2 12
RCM 1204M0
B92
LCL12 LCS12 LSR12 LSP10 LH025
PRDC N3225Q12 32 25 180 18.5 32 24 1.2 12
PRDC N3225Q16 32 25 180 20.5 32 28 1.5 16
RCM 1606M0
B92
LCL16 LCS16 LSR16 LSP16 LH025
PRDC N3232Q20 32 32 180 26.0 32 32 1.7 20
RCM 2006M0
B92
LCL20 LCS20 LSR20 LSP20 LH030
PRDC N4040T25 40 40 300 32.5 40 42 2.0 25
RCM 2507M0
B92
LCL25 LCS25 LSR25 LSP25 LH040
PRDC N5050U32 50 50 350 41.0 50 52 2.5 32
RCM 3209M0
B92
LCL32 LCS32 LSR32 LSP32 LH050
Holder
Spare Parts
LF
LH
B
E1 E1
H
WF
HF
IC
LF
B
E1
H
WF
HF
IC
PRGC
General Turning
& Profiling
General Turning
& Profiling
PRDC
Dimensions (mm)
Dimensions (mm)
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
External
Holders
Negative
Inserts
C
D
R
T
V
W
S
C16
C
Spare Parts
Holder
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Clamp
set N m Shim Screw for
shim
Wrenches for
shim
Wrenches for
upper surface
Wrenches for
lower surface
R L H B LF WF HF LH Cat. No. Page
DSBN R/L2020K12
20 20 125 17 20 36
SN 1204
From
B41 SCP-2 5.0
SNS1204
BFTX0409N
TRX15 LH040 LH025
DSBN R/L2525M12
25 25 150 22 25 36
DSBN R/L2525M15
25 25 150 22 25 36
SN 1506
From
B45 SCP-3 5.0
SNS1506
BFTX0509N
TRX20 LH040 LH025
DSBN R/L3232P15
32 32 170 27 32 36
DSBN R/L3232P19
32 32 170 27 32 45
SN 1906
From
B47 SCP-5 5.0
SNS1906
BFTX0511N
TRX20 LH040 LH025
DSBN R/L4040S19
40 40 250 35 40 45
DSBN R/L4040S2507
40 40 250 35 40 58
SN 2507
B49 SCP-6 6.0
SNS2507
BFTX0615N
TRD25 LH060
DSBN R/L4040S2509
40 40 250 35 40 58
SN 2509
B50
SNS2509
This figure shows right handed tools.
* Wrench for shim is not included in the model body.
WF
LH
LF
HF
H
75°
-5°
-6°
B
TRX
TRD
Spare Parts
Holder
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw for
shim
Wrench for
shim
Wrench for
upper surface
Wrench for
lower surface
H B LF WF HF LH Cat. No. Page
DSDN N2020K12 20 20 125 10.0 20 36
SN 1204
From
B41 SCP-2 5.0
SNS1204
BFTX0409N
TRX15 LH040 LH025
DSDN N2525M12 25 25 150 12.5 25 36
* Wrench for shim is not included in the model body.
WF
LH
LF
HF
H
45°
-6°
-6°
B
General Turning
DSBN
General Turning
& Chamfering
DSDN
(for Torx hole)
(for Torx hole)
Parts for Clamp Set
C38
Parts for Clamp Set
C38
SEC-External Holders
DSBN Type / DSDN Type
75˚ 45˚
Dimensions (mm)
Dimensions (mm)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
N m Recommended tightning torque (N m)
C
External
Holders
Negative
Inserts
W
V
T
R
D
S

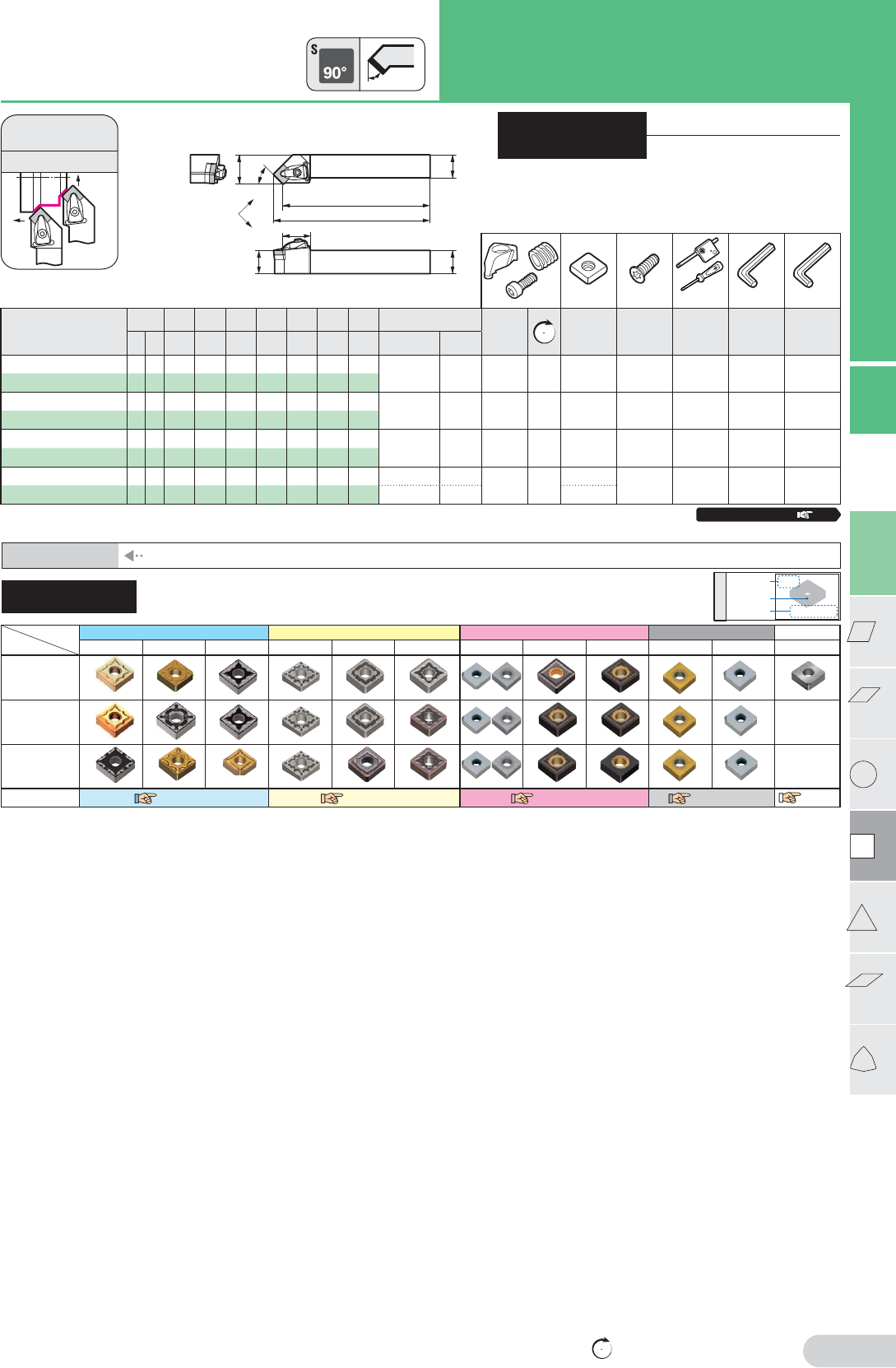

C17
C
General Turning
& Facing
DSSN
SEC-External Holders
DSSN Type
Spare Parts
Holder
Cat. No.
Stock
Height
Width
Tota l
length
Tota l
length 2
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw for
shim
Wrenches for
shim
Wrenches for
upper surface
Wrenches for
lower surface
R L H B LF LF2 WF HF LH Cat. No. Page
DSSN R/L2020K12
20 20
133.3
125 25 20 30
SN 1204
From
B41 SCP-2 5.0
SNS1204
BFTX0409N
TRX15 LH040 LH025
DSSN R/L2525M12
25 25
158.3
150 32 25 30
DSSN R/L2525M15
25 25
160.2
150 32 25 30
SN 1506
From
B45 SCP-3 5.0
SNS1506
BFTX0509N
TRX20 LH040 LH025
DSSN R/L3232P15
32 32
180.2
170 40 32 30
DSSN R/L3232P19
32 32
182.5
170 40 32 36
SN 1906
From
B47 SCP-5 5.0
SNS1906
BFTX0511N
TRX20 LH040 LH025
DSSN R/L4040S19
40 40
262.5
250 50 40 36
DSSN R/L4040S2507
40 40
266.0
250 50 40 47
SN 2507
B49 SCP-6 6.0
SNS2507
BFTX0615N
TRD25 LH060
DSSN R/L4040S2509
40 40
266.0
250 50 40 47
SN 2509
B50
SNS2509
* Wrench for shim is not included in the model body.
WF
LH
LF
LF2
HF
H
45˚
0˚
-8˚
B
TRX
45˚
This figure shows right handed tools. TRD
(for Torx hole)
Parts for Clamp Set
C38
Dimensions (mm)
N m Recommended tightning torque (N m)
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron) H (hardened steel)
Hard brittle material
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Finishing
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
SUMIDIA BinderlessSUMIDIA Binderless
NPD10NPD10
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
–
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420KAC420K
Without breakerWithout breaker
AC420KAC420K
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
–
Recommended
cutting conditions From A8 From A12 From A14 From A18
From M4
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
BNC500 is for ductile iron cast.
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DSBN Type / DSDN Type / DSSN Type / PSSN Type / PSDN Type / PSBN Type / PSKN Type / ESBN Type / ESDN Type / ESKN Type / ESSN Type
External
Holders
Negative
Inserts
C
D
R
T
V
W
S

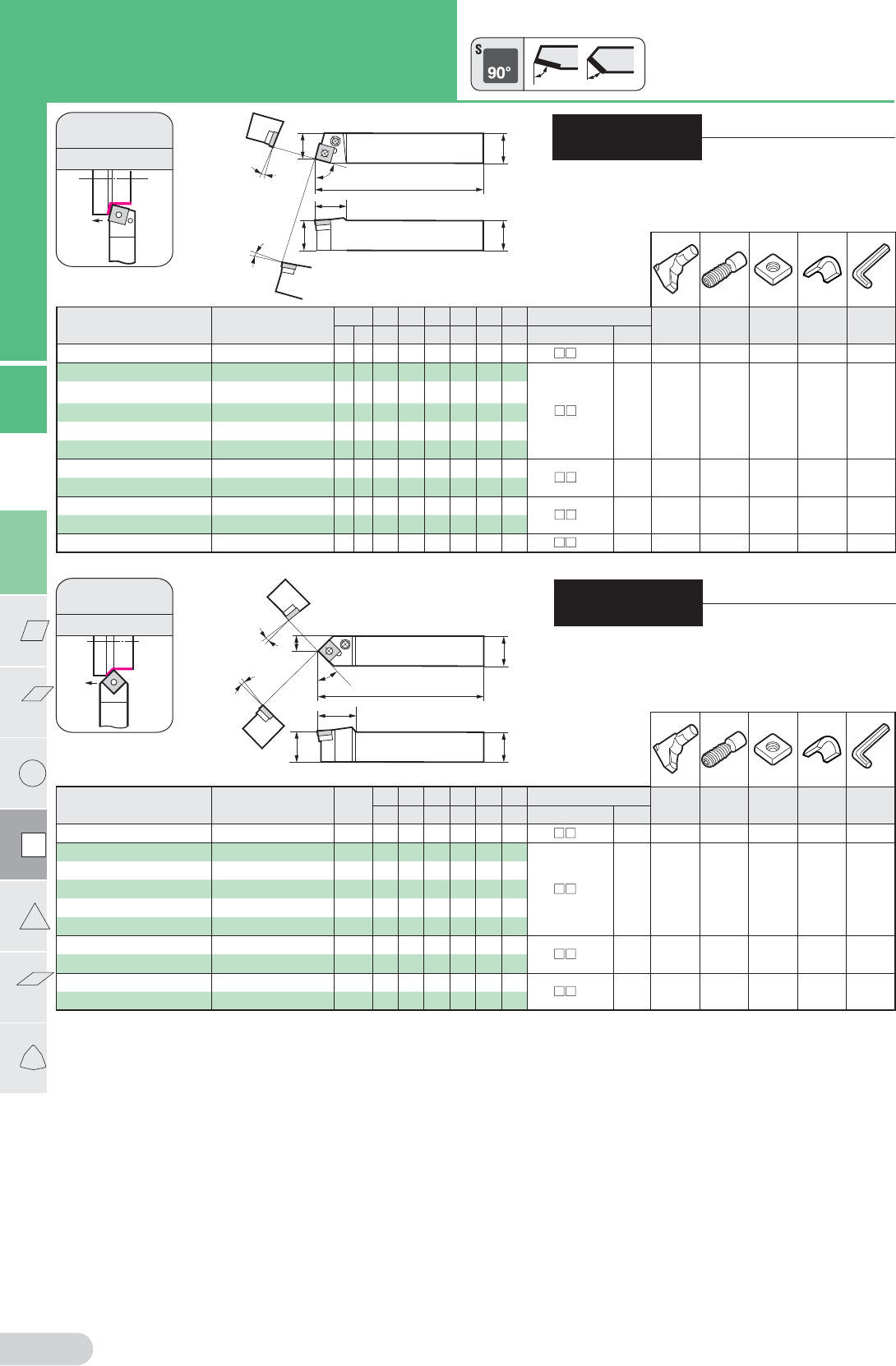

C18
C
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PSBN R/L1616H09 PSBN R/L1616-32 16 16 100 13 16 22 SN 0903 B40 LCL3 LCS3 LSS32 LSP3 LH025
PSBN R/L2020K12 PSBN R/L2020-43 20 20 125 17 20 28
SN 1204 From
B41 LCL4 LCS4 LSS42 LSP4 LH030
PSBN R/L2520M12 PSBN R/L2520-43 25 20 150 17 25 28
PSBN R/L2525M12 PSBN R/L2525-43 25 25 150 22 25 28
PSBN R/L3225P12 PSBN R/L3225-43 32 25 170 22 32 28
PSBN R/L3232P12 PSBN R/L3232-43 32 32 170 27 32 35
PSBN R/L3225P15 PSBN R/L3225-54 32 25 170 22 32 35 SN 1506 From
B45 LCL5 LCS5 LSS53 LSP5 LH030
PSBN R/L3232P15 PSBN R/L3232-54 32 32 170 27 32 35
PSBN R/L3232P19 PSBN R/L3232-64 32 32 170 27 32 40 SN 1906 From
B47 LCL6 LCS6 LSS63 LSP6 LH040
PSBN R/L4040R19 PSBN R/L4040-64 40 40 200 35 40 40
PSBN R/L5050S25 PSBN R/L5050-85 50 50 250 43 50 50 SN 2507 B49 LCL8 LCS8 LSS84 LSP8 LH050
Holder
Spare Parts
BH
LF
–6˚
75˚
WF
HF
–5˚
LH
General Turning
PSBN
Holder
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
H B LF WF HF LH Cat. No. Page
PSDN N1616H09 PSDN N1616-32 16 16 100
8.0
16 22 SN 0903 B40 LCL3 LCS3 LSS32 LSP3 LH025
PSDN N2020K12 PSDN N2020-43 20 20 125
10.0
20 30
From
B41 LCL4 LCS4 LSS42 LSP4 LH030
PSDN N2520M12 PSDN N2520-43 25 20 150
10.0
25 30
PSDN N2525M12 PSDN N2525-43 25 25 150
12.5
25 30 SN 1204
PSDN N3225P12 PSDN N3225-43 32 25 170
12.5
32 30
PSDN N3232P12 PSDN N3232-43 32 32 170
16.0
32 40
PSDN N3225P15 PSDN N3225-54 32 25 170
12.5
32 40 SN 1506 From
B45 LCL5 LCS5 LSS53 LSP5 LH030
PSDN N3232P15 PSDN N3232-54 32 32 170
16.0
32 40
PSDN N3232P19 PSDN N3232-64 32 32 170
16.0
32 40 SN 1906 From
B47 LCL6 LCS6 LSS63 LSP6 LH040
PSDN N4040R19 PSDN N4040-64 40 40 200
20.0
40 40
Spare Parts
BH
LF
–6˚
WF
HF
–6˚
LH
45˚
PSDN
General Turning
& Chamfering
This figure shows right handed tools.
SEC-External Holders
PSBN Type / PSDN Type
75˚ 45˚
Dimensions (mm)
Dimensions (mm)
C
External
Holders
Negative
Inserts
W
V
T
R
D
S
C19
C

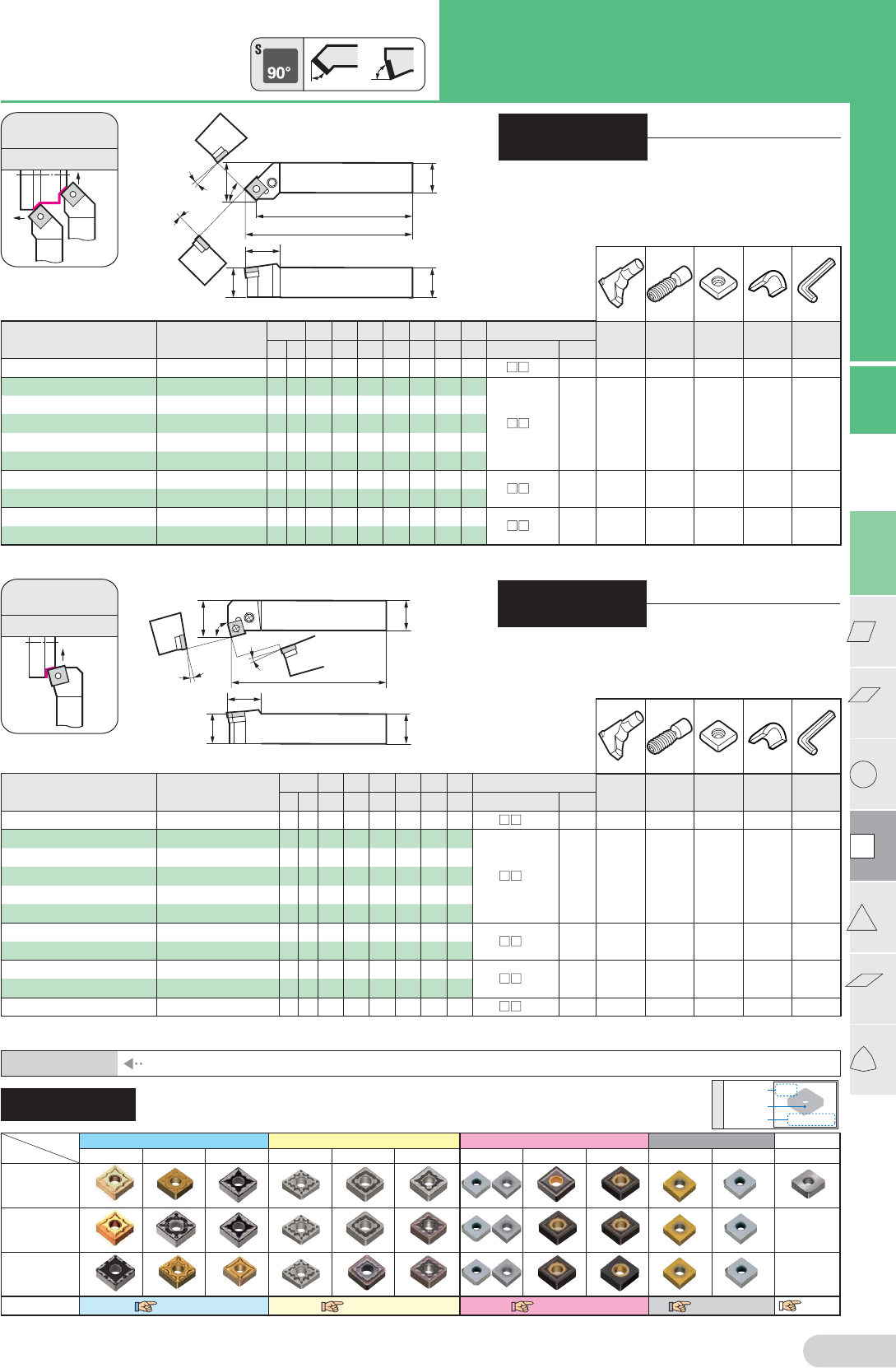

SEC-External Holders
PSSN Type / PSKN Type
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PSKN R/L1616H09 PSKN R/L1616-32 16 16 100 20 16 20 SN 0903 B40 LCL3 LCS3 LSS32 LSP3 LH025
PSKN R/L2020K12 PSKN R/L2020-43 20 20 125 25 20 26
SN 1204 From
B41 LCL4 LCS4 LSS42 LSP4 LH030
PSKN R/L2520M12 PSKN R/L2520-43 25 20 150 25 25 26
PSKN R/L2525M12 PSKN R/L2525-43 25 25 150 32 25 26
PSKN R/L3225P12 PSKN R/L3225-43 32 25 170 32 32 26
PSKN R/L3232P12 PSKN R/L3232-43 32 32 170 32 32 26
PSKN R/L3225P15 PSKN R/L3225-54 32 25 170 32 32 32 SN 1506 From
B45 LCL5 LCS5 LSS53 LSP5 LH030
PSKN R/L3232P15 PSKN R/L3232-54 32 32 170 32 32 32
PSKN R/L3232P19 PSKN R/L3232-64 32 32 170 40 32 36 SN 1906 From
B47 LCL6 LCS6 LSS63 LSP6 LH040
PSKN R/L4040R19 PSKN R/L4040-64 40 40 200 50 40 36
PSKN R/L5050S25 PSKN R/L5050-85 50 50 250 60 50 50 SN 2507 B49 LCL8 LCS8 LSS84 LSP8 LH050
Holder
This figure shows right handed tools.
Spare Parts
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
BH
LF
–5˚
HF
–6˚
LH
WF
75˚
Facing
PSKN
75˚
45˚
Cat. No.
Conventional Cat. No.
Stock
Height
Width
Tota l
length
Tota l
lenght 2
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF LF2 WF HF LH Cat. No. Page
PSSN R/L1616H09
PSSN R/L1616-32
16 16 100
93.8
20 16 22
SN 0903
B40 LCL3 LCS3 LSS32 LSP3 LH025
PSSN R/L2020K12
PSSN R/L2020-43
20 20 125
116.7
25 20 30
From
B41 LCL4 LCS4 LSS42 LSP4 LH030
PSSN R/L2520M12
PSSN R/L2520-43
25 20 150
141.7
25 25 30
PSSN R/L2525M12
PSSN R/L2525-43
25 25 150
141.7
32 25 30
SN 1204
PSSN R/L3225P12
PSSN R/L3225-43
32 25 170
161.7
32 32 30
PSSN R/L3232P12
PSSN R/L3232-43
32 32 170
161.7
40 32 30
PSSN R/L3225P15
PSSN R/L3225-54
32 25 170
159.8
32 32 40
SN 1506
From
B45 LCL5 LCS5 LSS53 LSP5 LH030
PSSN R/L3232P15
PSSN R/L3232-54
32 32 170
159.8
40 32 40
PSSN R/L3232P19
PSSN R/L3232-64
32 32 170
157.5
40 32 40
SN 1906
From
B47 LCL6 LCS6 LSS63 LSP6 LH040
PSSN R/L4040R19
PSSN R/L4040-64
40 40 200
187.5
50 40 40
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
Spare Parts
BH
LF
LF2
0˚
WF
HF
–8˚
LH
45˚
General Turning
& Facing
PSSN
This figure shows right handed tools.
Dimensions (mm)
Dimensions (mm)
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DSBN Type / DSDN Type / DSSN Type / PSSN Type / PSDN Type / PSBN Type / PSKN Type / ESBN Type / ESDN Type / ESKN Type / ESSN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron) H (hardened steel)
Hard brittle material
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Finishing
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
SUMIDIA BinderlessSUMIDIA Binderless
NPD10NPD10
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
–
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420KAC420K
Without breakerWithout breaker
AC420KAC420K
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
–
Recommended
cutting conditions From A8 From A12 From A14 From A18
From M4
BNC500 is for ductile iron cast.
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
External
Holders
Negative
Inserts
C
D
R
T
V
W
S

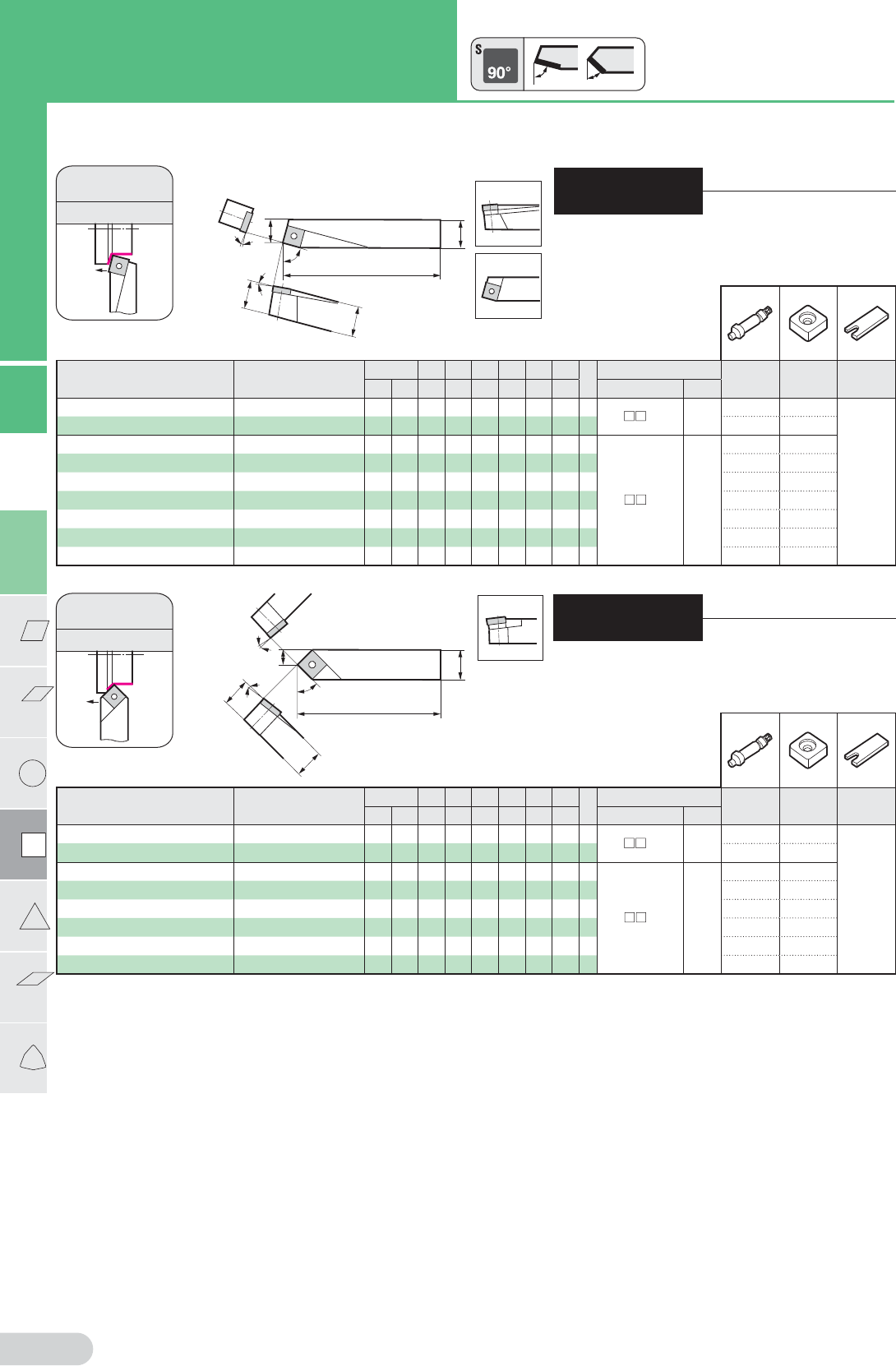

C20
C
SEC-
Pin Lock
General turing
30 Type
Tool Holders
SEC-
Pin Lock
General turing
30 Type
Tool Holders
B
H
LF
WF
HF
–5˚
–6˚
45˚
Fig2
Fig1
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Fig Applicable inserts Eccentric
shaft Shim Wrench
R L H B LF WF HF Cat. No. Page
ESDN R/L1212F09 ESDN R/L1212 12 12 80
6.0 11.5
1SN 0903 B40
P321US
−
KY40
ESDN R/L1616H09 ESDN R/L1616H32 16 16 100
8.0 15.5
1
P322US
−
ESDN R/L2020K12 ESDN R/L2020 20 20 125
10.0 19.5
1
SN 1204 From
B41
P433U −
ESDN R/L2020K12W ESDN R/L2020W 20 20 125
10.0 19.5
2 P433W ESS42
ESDN R/L2520M12 ESDN R/L2520 25 20 150
10.0 24.5
1 P434U −
ESDN R/L2520M12W ESDN R/L2520W 25 20 150
10.0 24.5
2 P434W ESS42
ESDN R/L2525M12 ESDN R/L2525 25 25 150
12.5 24.5
1 P434U −
ESDN R/L2525M12W ESDN R/L2525W 25 25 150
12.5 24.5
2P434W ESS42
Holder
This figure shows right
handed tools.
Spare Parts
General Turning
& Chamfering
ESDN
SEC-External Holders
ESBN Type / ESDN Type
45˚
75˚
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Fig Applicable inserts Eccentric
shaft Shim Wrench
R L H B LF WF HF Cat. No. Page
ESBN R/L1212F09 ESBN R/L1212 12 12 80
9.5 11.5
1SN 0903 B40
P321US
−
KY40
ESBN R/L1616H09 ESBN R/L1616H32 16 16 100
13.0 15.5
1
P322US
−
ESBN R/L1616H12 ESBN R/L1616H43 16 16 100
13.0 15.5
3
SN 1204 From
B41
P432U −
ESBN R/L2020K12 ESBN R/L2020 20 20 125
17.0 19.5
1 P433U −
ESBN R/L2020K12W ESBN R/L2020W 20 20 125
17.0 19.5
2 P433W ESS42
ESBN R/L2520M12 ESBN R/L2520 25 20 150
17.0 24.5
3 P434U −
ESBN R/L2520M12W ESBN R/L2520W 25 20 150
17.0 24.5
2 P434W ESS42
ESBN R/L2525M12 ESBN R/L2525 25 25 150
22.0 24.5
1 P434U −
ESBN R/L2525M12W ESBN R/L2525W 25 25 150
22.0 24.5
2P434W ESS42
Holder
This figure shows right
handed tools.
Spare Parts
B
H
LF
WF
HF
–5˚
–6˚
75˚
Fig1
Fig2
Fig3
General Turning
ESBN
Dimensions (mm)
Dimensions (mm)
C
External
Holders
Negative
Inserts
W
V
R
D
T
S

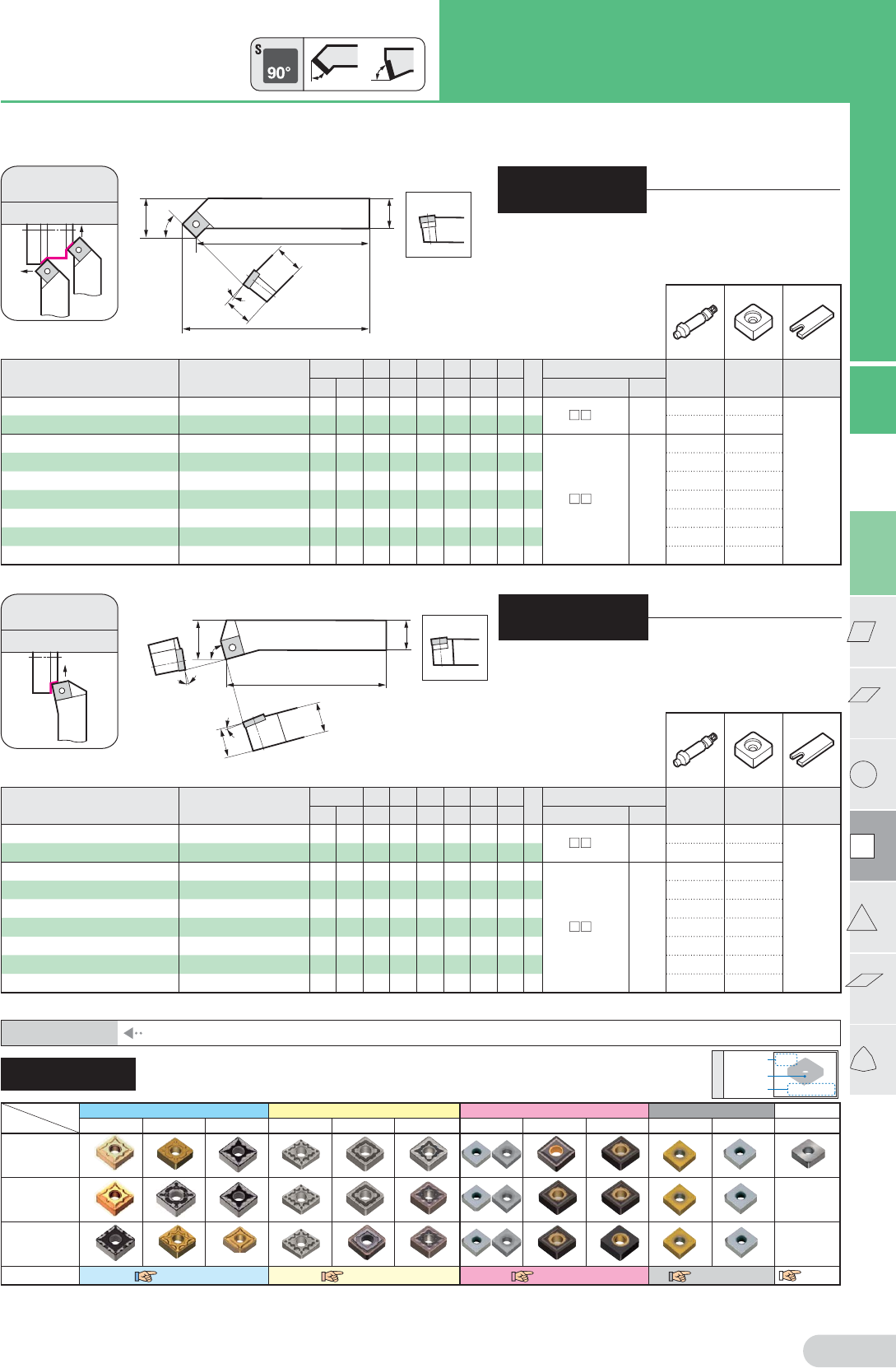

C21
C
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Tota l
length 2
Cutting
edge
Cutting
edge height
Fig Applicable inserts Eccentric
shaft Shim Wrench
R L H B LF LF2 WF HF Cat. No. Page
ESSN R/L1212F09 ESSN R/L1212 12 12 80
73.8
16
11.5
1SN 0903 B40
P321US
−
KY40
ESSN R/L1616H09 ESSN R/L1616H32 16 16 100
93.8
20
15.5
1
P322US
−
ESSN R/L1616H12 ESSN R/L1616H43 16 16 100
91.7
20
15.5
1
SN 1204 From
B41
P432U −
ESSN R/L2020K12 ESSN R/L2020 20 20 125
116.7
25
19.5
1 P433U −
ESSN R/L2020K12W ESSN R/L2020W 20 20 125
116.7
25
19.5
2 P433W ESS42
ESSN R/L2520M12 ESSN R/L2520 25 20 150
141.7
25
24.5
1 P434U −
ESSN R/L2520M12W ESSN R/L2520W 25 20 150
141.7
25
24.5
2 P434W ESS42
ESSN R/L2525M12 ESSN R/L2525 25 25 150
141.7
32
24.5
1 P434U −
ESSN R/L2525M12W ESSN R/L2525W 25 25 150
141.7
32
24.5
2P434W ESS42
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder This figure shows
right handed tools.
This figure shows
right handed tools.
Spare Parts
General Turning
& Facing
ESSN
SEC-External Holders
ESSN Type / ESKN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
B
H
LF
LF2
WF
HF
–8˚
45˚
Fig2
Fig1
75˚
45˚
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Fig Applicable inserts Eccentric
shaft Shim Wrench
R L H B LF WF HF Cat. No. Page
ESKN R/L1212F09 ESKN R/L1212 12 12 80 16
11.5
1SN 0903 B40
P321US
−
KY40
ESKN R/L1616H09 ESKN R/L1616H32 16 16 100 20
15.5
1
P322US
−
ESKN R/L1616H12 ESKN R/L1616H43 16 16 100 20
15.5
1
SN 1204 From
B41
P432U −
ESKN R/L2020K12 ESKN R/L2020 20 20 125 25
19.5
1 P433U −
ESKN R/L2020K12W ESKN R/L2020W 20 20 125 25
19.5
2 P433W ESS42
ESKN R/L2520M12 ESKN R/L2520 25 20 150 25
24.5
1 P434U −
ESKN R/L2520M12W ESKN R/L2520W 25 20 150 25
24.5
2 P434W ESS42
ESKN R/L2525M12 ESKN R/L2525 25 25 150 32
24.5
1 P434U −
ESKN R/L2525M12W ESKN R/L2525W 25 25 150 32
24.5
2P434W ESS42
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
Spare Parts
B
H
LF
WF
HF
–6˚
–5˚
75˚
Fig2
Fig1
Facing
ESKN
Dimensions (mm)
Dimensions (mm)
SEC-
Pin Lock
General turing
30 Type
Tool Holders
SEC-
Pin Lock
General turing
30 Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DSBN Type / DSDN Type / DSSN Type / PSSN Type / PSDN Type / PSBN Type / PSKN Type / ESBN Type / ESDN Type / ESKN Type / ESSN Type
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron) H (hardened steel)
Hard brittle material
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Finishing
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EFEF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
SUMIDIA BinderlessSUMIDIA Binderless
NPD10NPD10
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
–
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420KAC420K
Without breakerWithout breaker
AC420KAC420K
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
–
Recommended
cutting conditions From A8 From A12 From A14 From A18
From M4
BNC500 is for ductile iron cast.
External
Holders
C
D
R
T
V
W
S

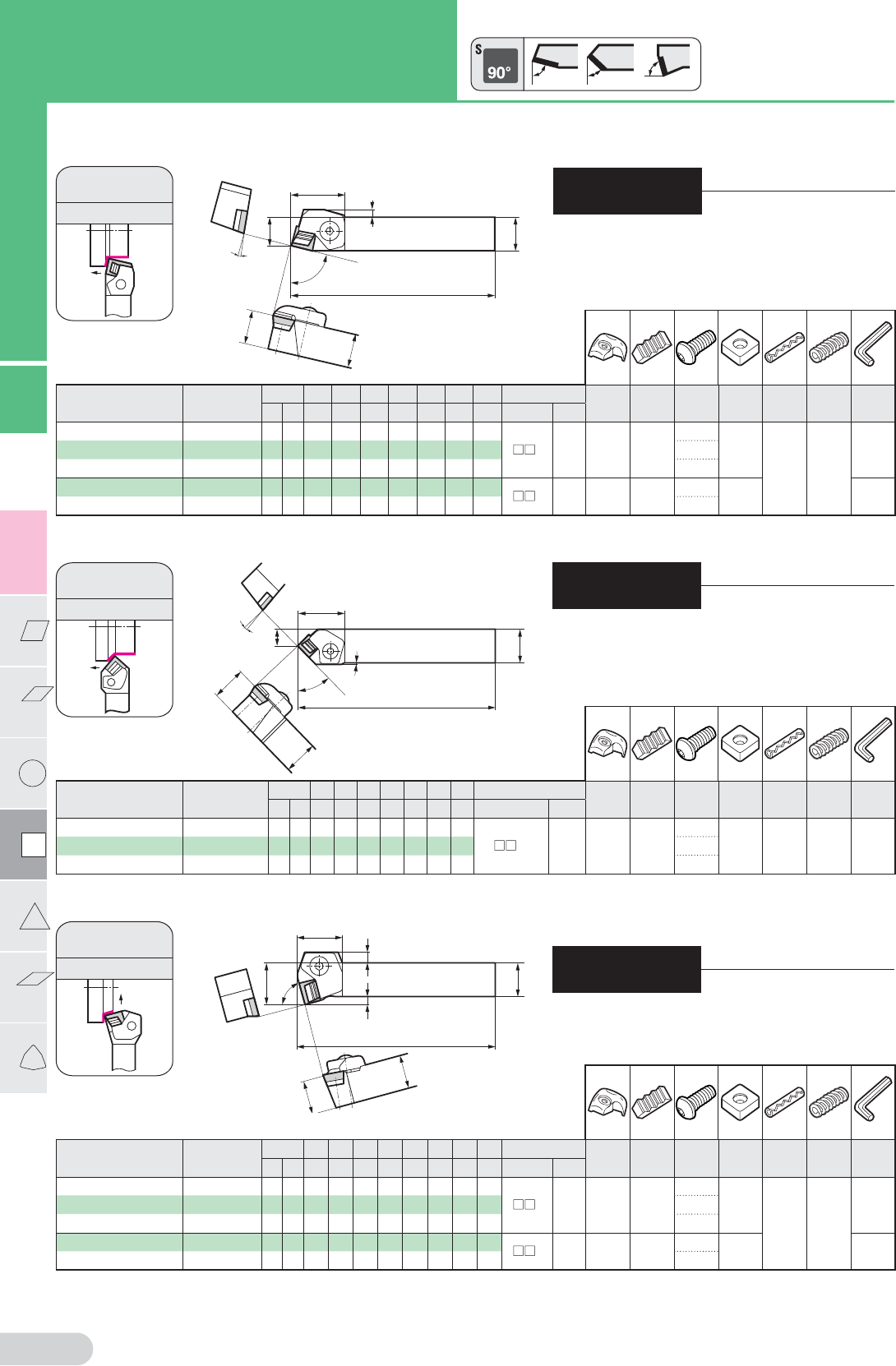

C22
C
Positive
Inserts
5˚
45˚
B
LF
LH
WF
B2
HF
H
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Level
difference
Applicable inserts
Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer Spring
Wrenches
RL H B LF WF HF LH
HBKW
Cat. No. Page
CSRP R/L1919-L12
FP11 R/L-33
19 19
140
15.5
19
34.5
5.0
SP 1203
B101
DCR/L1
CBD4R/L
BH0824R/L
SSPD422
SPP3 DSP5
LH040
CSRP R/L2525-N12
FP11 R/L-44A
25 25
160
21.5
25
34.5
−
BH0830R/L
CSRP R/L3225-N12
FP11 R/L-45A
32 25
160
21.5
32
34.5
−
BH0830R/L
CSRP R/L2525-N15
FP11 R/L-44B
25 25
160
21.5
25
40.0
4.5
SP 1504
B102
DCR/L3
CBD5R/L
BH1030R/L
SSPD522
LH050
CSRP R/L3232-N15
FP11 R/L-55
32 32
180
26.0
32
40.0
−
BH1036R/L
Holder This figure shows right handed tools.
This figure shows right handed tools.
Spare Parts
Cat. No.
Conventional Cat.
No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Level
difference
Applicable inserts Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer
Spring
Wrench
RLH B LF WF HF LH B2 Cat. No. Page
CSDP R/L1919-L12
FP14 R/L-33
19 19
140
10.5
19
35
6
SP 1203 B101
DCR/L1
CBD4R/L
BH0824R/L
SSPD422
SPP3 DSP5 LH040
CSDP R/L2525-N12
FP14 R/L-44A
25 25
160
12.5
25
35
2
BH0830R/L
CSDP R/L3225-N12
FP14 R/L-45A
32 25
160
12.5
32
35
2
BH0830R/L
Holder
Spare Parts
5˚
B
HF
H
LF
LH
WF
HBKW
75˚
CSRP
General Turning
CSDP
General Turning
& Chamfering
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Offset
Level
difference
Applicable inserts
Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer
Spring
Wrenches
RL H B LF WF HF LH
WF2
HBKW
Cat. No. Page
CSKP R/L1919-L12
FP15 R/L-33
19 19
140
25 19 22 6 7
SP 1203
B101
DCL/R1
CBD4L/R
BH0824L/R
SSPD422
SPP3 DSP5
LH040
CSKP R/L2525-N12
FP15 R/L-44A
25 25
160
32 25 22 7 −
BH0830L/R
CSKP R/L3225-N12
FP15 R/L-45A
32 25
160
32 32 22 7 −
BH0830L/R
CSKP R/L2525-N15
FP15 R/L-44B
25 25
160
31 25 28 6 7
SP 1504
B102
DCL/R3
CBD5L/R
BH1030L/R
SSPD522
LH050
CSKP R/L3232-Q15
FP15 R/L-55
32 32
180
38 32 28 6 −
BH1036L/R
Holder This figure shows right handed tools.
Spare Parts
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
B
LF
LH
WF
WF2 HBKW
HF
H
75˚
CSKP
Facing
SEC-External Holders
CSRP Type / CSDP Type / CSKP Type
75˚ 45˚
75˚
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
SEC-
Clamp-on
General turing
40 Type
Tool Holders
SEC-
Clamp-on
General turing
40 Type
Tool Holders
SEC-
Clamp-on
General turing
40 Type
Tool Holders
C
External
Holders
Negative
Inserts
W
V
R
D
T
S

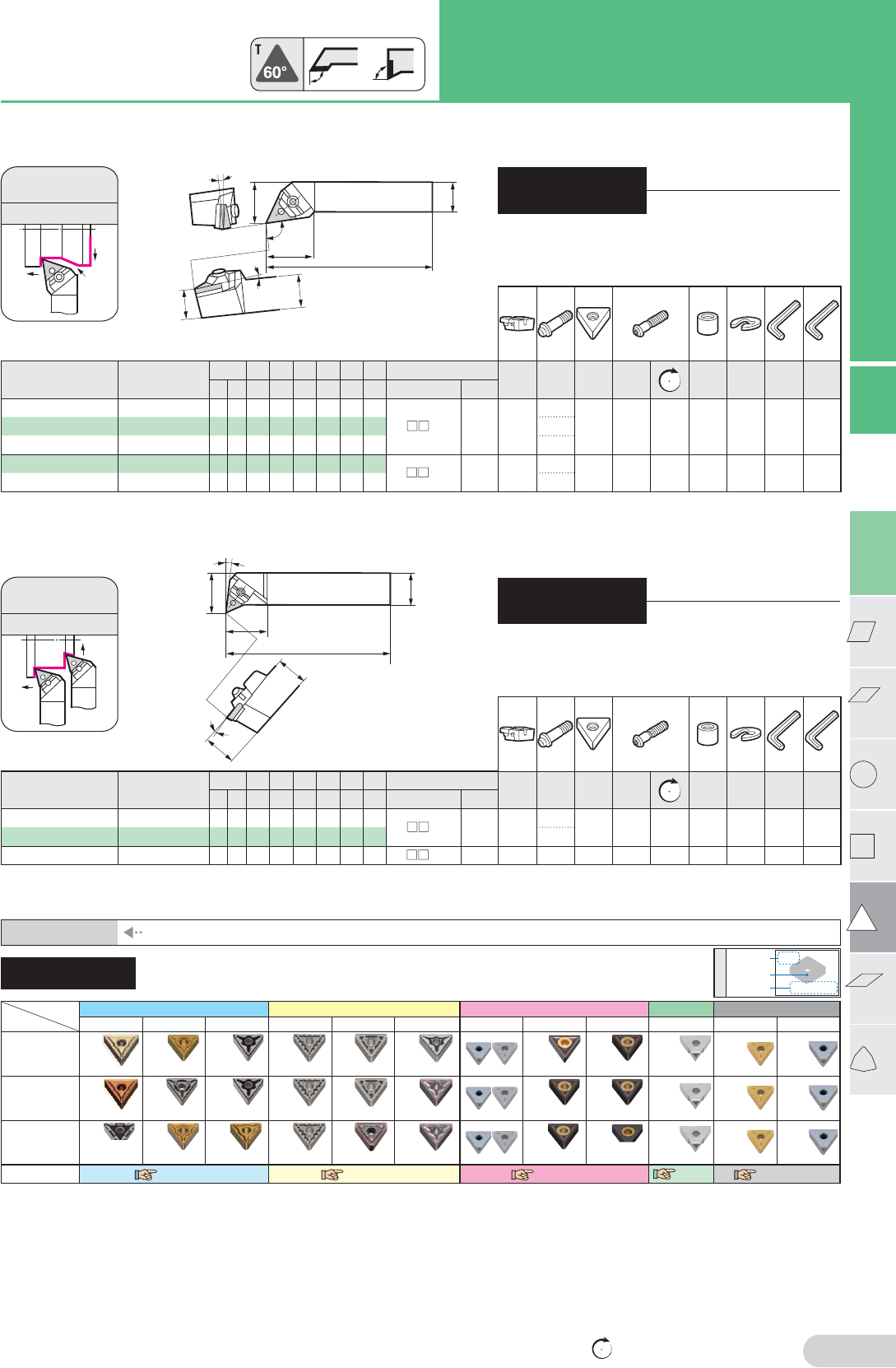

C23
C

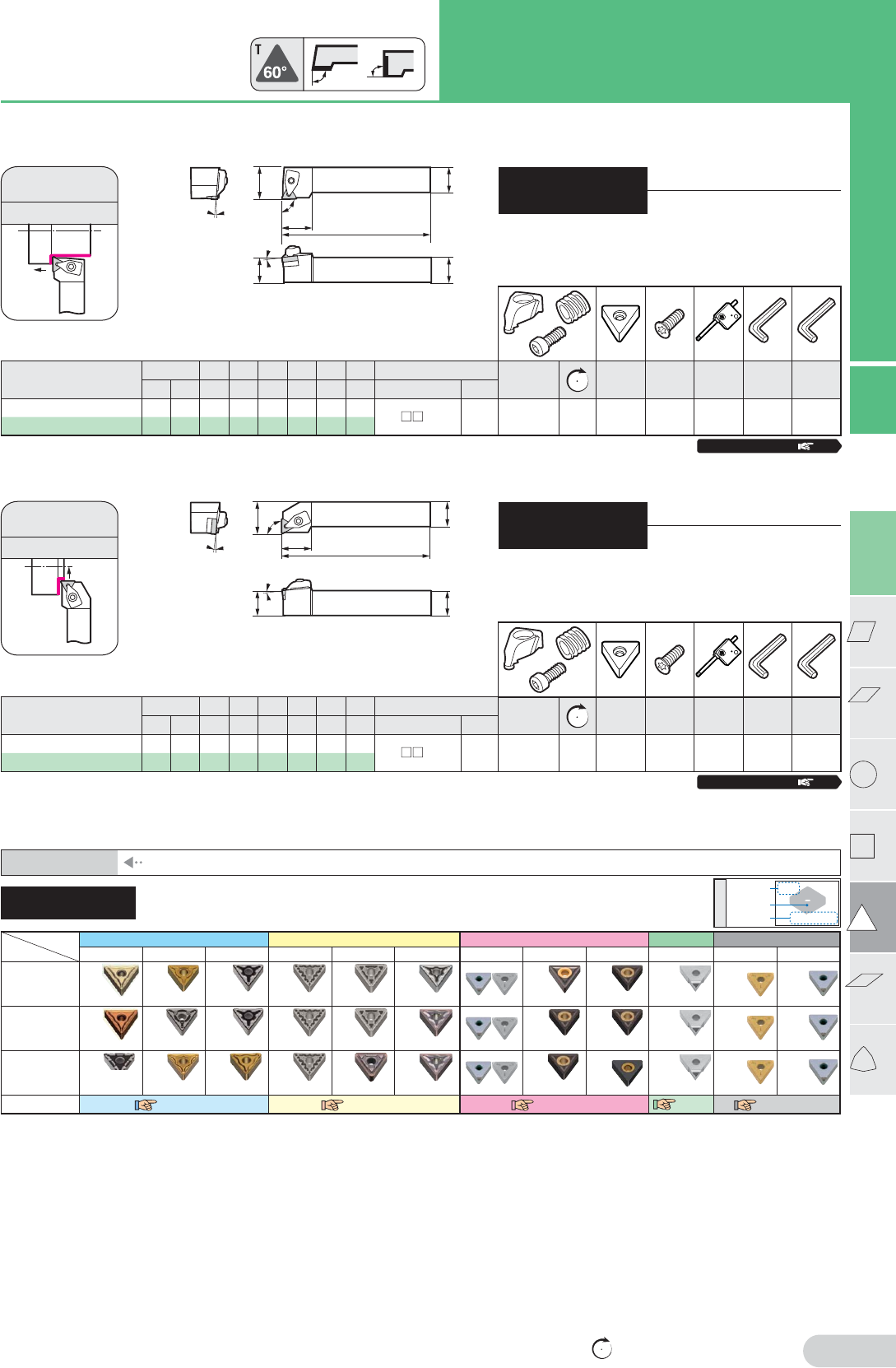

Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
RLH B LF WF HF LH Cat. No. Page
DTGN R/L2020K16
20 20 125 25 20 31 TN 1604 From
B56 SCP-1 5.0
TNS1604
BFTX0307N
TRX10 LH040 LH025
DTGN R/L2525M16
25 25 150 32 25 31
Holder
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
RLH B LF WF HF LH Cat. No. Page
DTFN R/L2020K16
20 20 125 25 20 30 TN 1604 From
B56 SCP-1 5.0
TNS1604
BFTX0307N
TRX10 LH040 LH025
DTFN R/L2525M16
25 25 150 32 25 30
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder This figure shows right handed tools.
* Wrench for shim is not included in the model body.
Spare Parts
This figure shows right handed tools.
* Wrench for shim is not included in the model body.
Spare Parts
DTGN
General Turning
DTFN
Facing
91˚
LF
HF WF
B
H
–5˚
–5˚
LH
WF
HF
B
H
91˚
LF
–5˚
–5˚
LH
SEC-External Holders
DTGN Type / DTFN Type
91°
91˚
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
– Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
(for Torx hole)
(for Torx hole)
Parts for Clamp Set
C38
Parts for Clamp Set
C38
BNC500 is for ductile iron cast.
Dimensions (mm)
Dimensions (mm)
N m Recommended tightning torque (N m)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DTGN Type / DTFN Type / PTGN Type / PTTN Type / PTFN Type / ETGN Type / ETAN Type / ETFN Type / ETEN Type / ETXN Type / MTJN Type / MTXN Type
External
Holders
Negative
Inserts
C
D
R
V
W
T
S

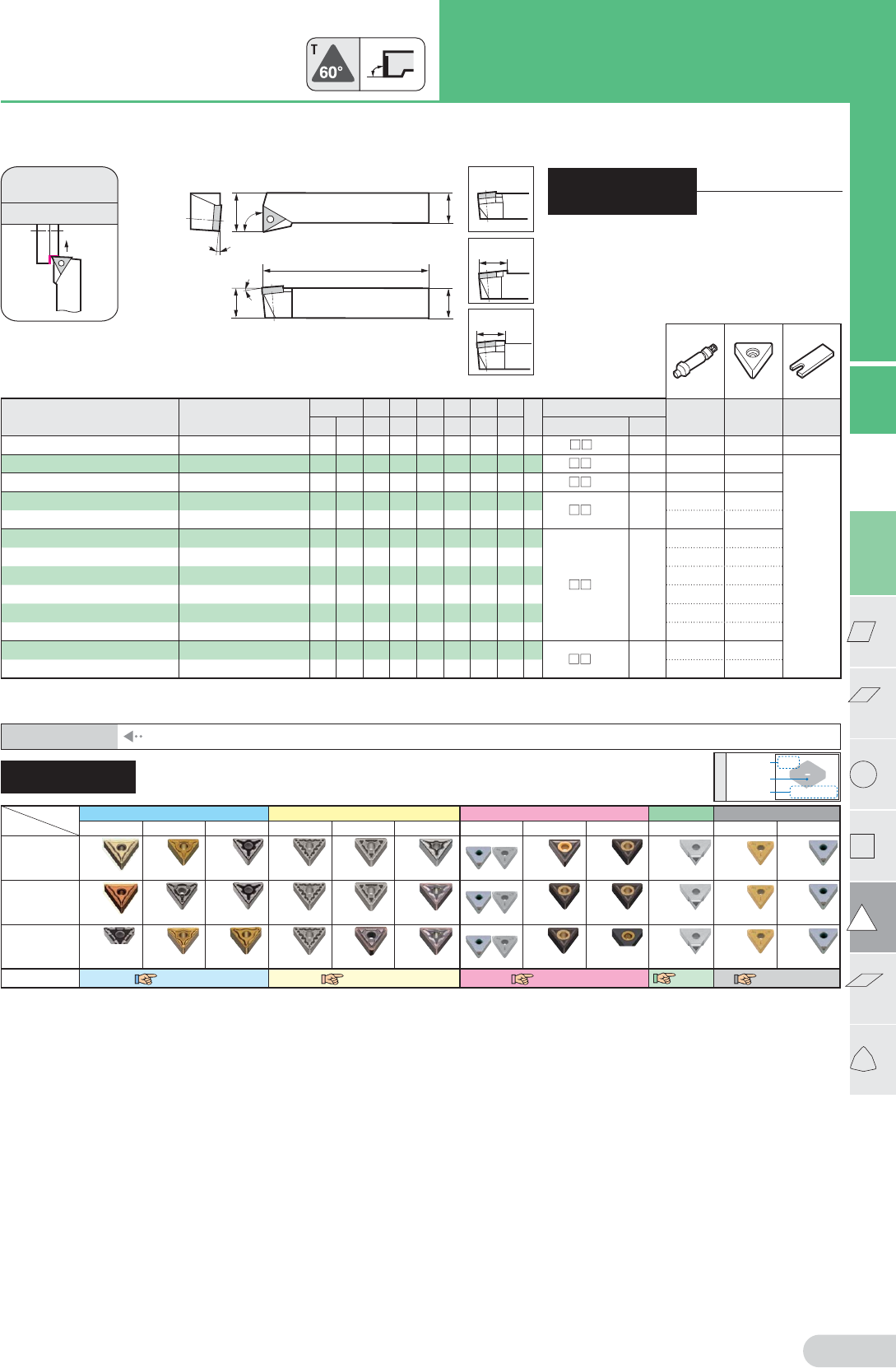

C24
C

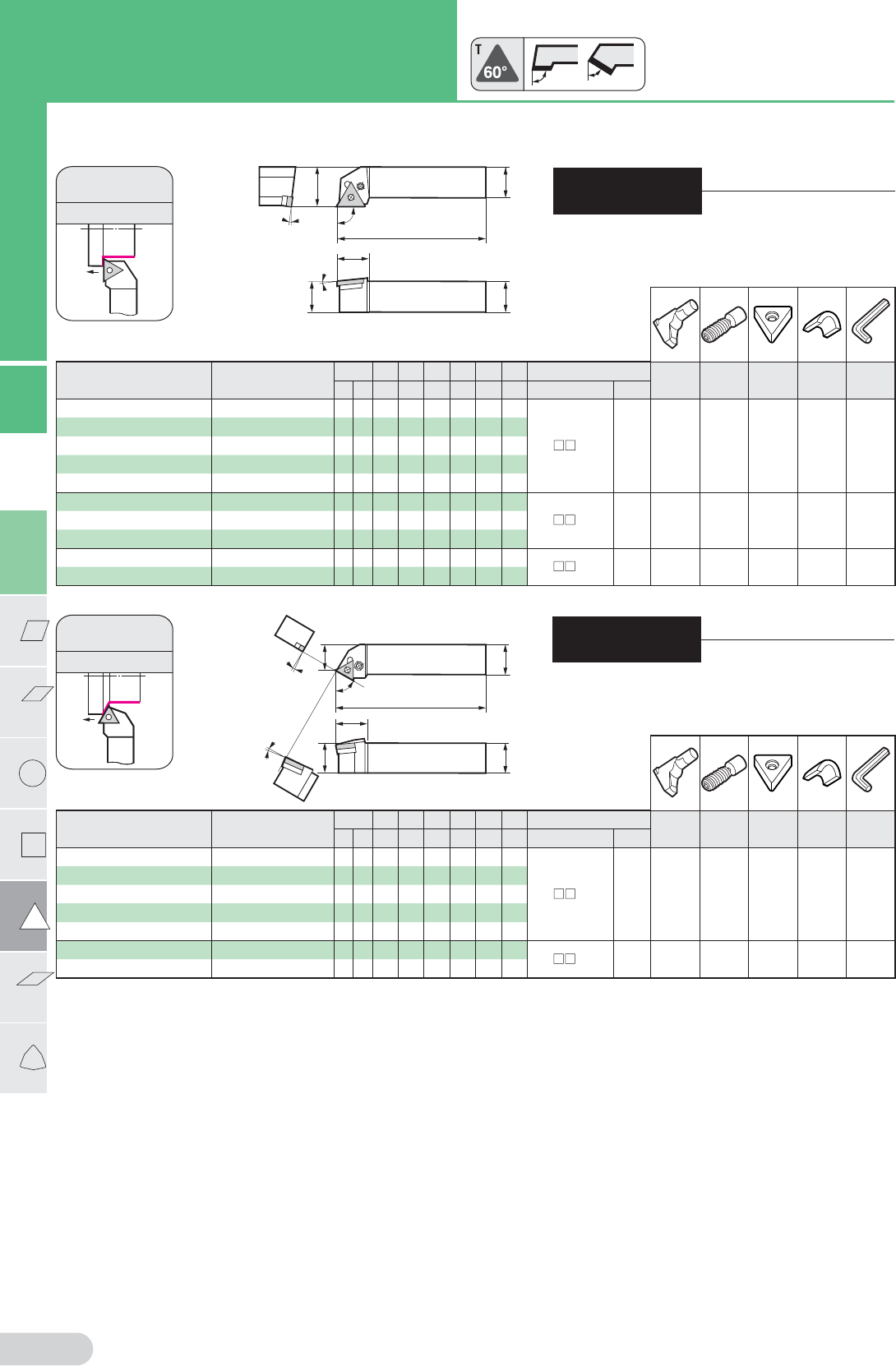

LF
BH
WF
HF
–5˚
–5˚
60˚
LH
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PTTN R/L1616H16 PTTN R/L1616-33 16 16 100 13 16 25
TN 1604 From
B56 LCL3 LCS3 LST317 LSP3 LH025
PTTN R/L2020K16 PTTN R/L2020-33 20 20 125 17 20 25
PTTN R/L2520M16 PTTN R/L2520-33 25 20 150 17 25 25
PTTN R/L2525M16 PTTN R/L2525-33 25 25 150 22 25 25
PTTN R/L3225P16 PTTN R/L3225-33 32 25 170 22 32 25
PTTN R/L2525M22 PTTN R/L2525-43 25 25 150 22 25 25 TN 2204 From
B61 LCL4 LCS4 LST42 LSP4 LH030
PTTN R/L3225P22 PTTN R/L3225-43 32 25 170 22 32 25
Holder
This figure shows right
handed tools.
Spare Parts
General Turning
PTTN
SEC-External Holders
PTGN Type / PTTN Type
Holder
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
RL H B LF WF HF LH Cat. No. Page
PTGN R/L1616H16 PTGN R/L1616-33 16 16 100 20 16 20
TN 1604 From
B56 LCL3 LCS3 LST317 LSP3 LH025
PTGN R/L2020K16 PTGN R/L2020-33 20 20 125 25 20 20
PTGN R/L2520M16 PTGN R/L2520-33 25 20 150 25 25 20
PTGN R/L2525M16 PTGN R/L2525-33 25 25 150 32 25 20
PTGN R/L3225P16 PTGN R/L3225-33 32 25 170 32 32 20
PTGN R/L2525M22 PTGN R/L2525-43 25 25 150 32 25 28
TN 2204 From
B61 LCL4 LCS4 LST42 LSP4 LH030
PTGN R/L3225P22 PTGN R/L3225-43 32 25 170 32 32 28
PTGN R/L3232P22 PTGN R/L3232-43 32 32 170 40 32 28
PTGN R/L3232P27 PTGN R/L3232-54 32 32 170 40 32 33 TN 2706 B63 LCL5 LCS5 LST53 LSP5 LH030
PTGN R/L4040R27 PTGN R/L4040-54 40 40 200 50 40 33
This figure shows right handed tools.
Spare Parts
LF
BH
WF
HF
–5˚
–5˚
91˚
LH
General Turning
PTGN
91˚ 60˚
Dimensions (mm)
Dimensions (mm)
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
C
External
Holders
Negative
Inserts
W
V
R
D
T
S
C25
C

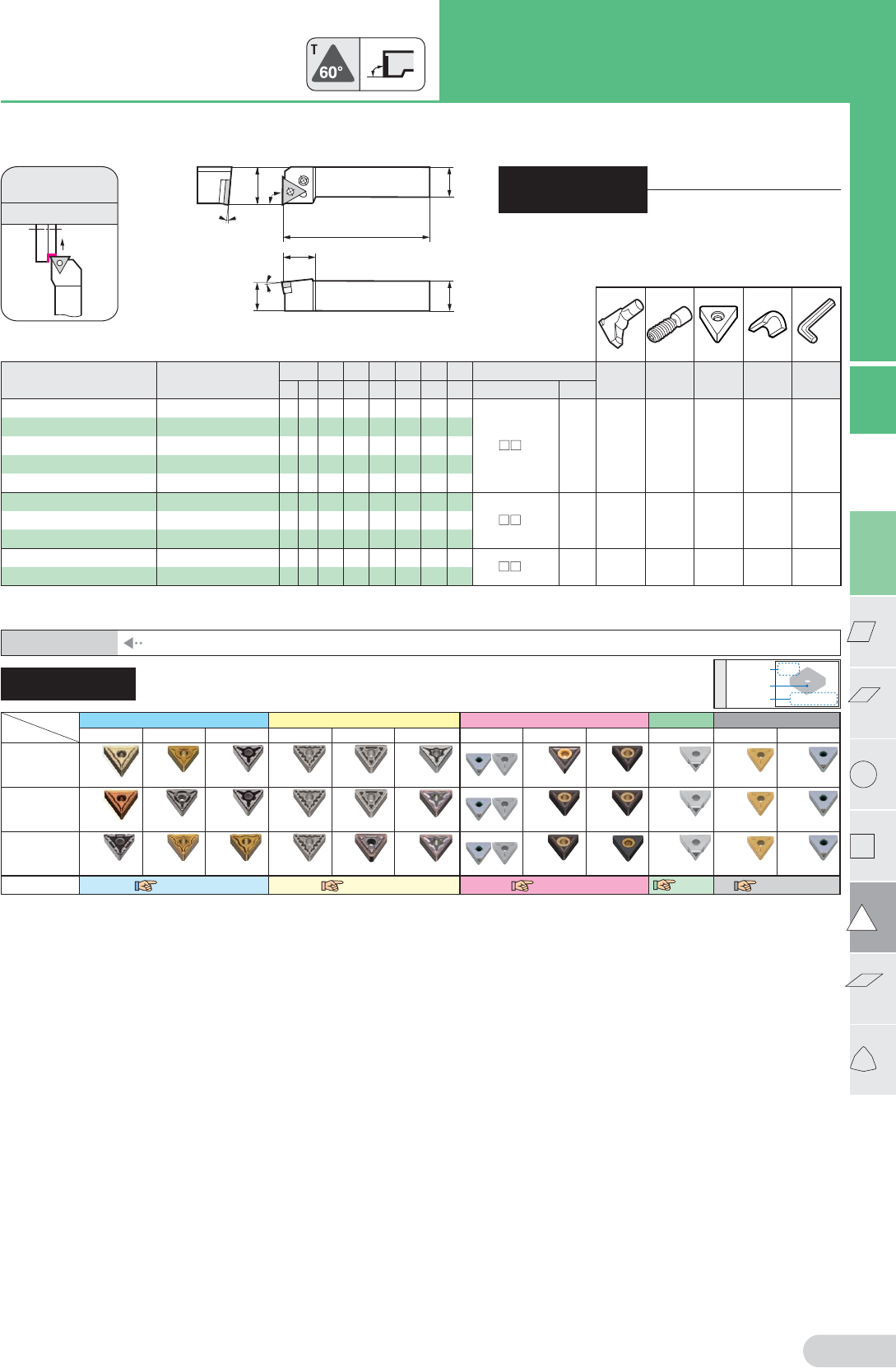

SEC-External Holders
PTFN Type
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
pin Bolt Shim Shim
retainer
Wrenches
R L H B LF WF HF LH Cat. No. Page
PTFN R/L1616H16 PTFN R/L1616-33 16 16 100 20 16 20
TN 1604 From
B56 LCL3 LCS3 LST317 LSP3 LH025
PTFN R/L2020K16 PTFN R/L2020-33 20 20 125 25 20 20
PTFN R/L2520M16 PTFN R/L2520-33 25 20 150 25 25 20
PTFN R/L2525M16 PTFN R/L2525-33 25 25 150 32 25 20
PTFN R/L3225P16 PTFN R/L3225-33 32 25 170 32 32 20
PTFN R/L2525M22 PTFN R/L2525-43 25 25 150 32 25 25
TN 2204 From
B61 LCL4 LCS4 LST42 LSP4 LH030
PTFN R/L3225P22 PTFN R/L3225-43 32 25 170 32 32 25
PTFN R/L3232P22 PTFN R/L3232-43 32 32 170 40 32 25
PTFN R/L3232P27 PTFN R/L3232-54 32 32 170 40 32 34 TN 2706 B63 LCL5 LCS5 LST53 LSP5 LH030
PTFN R/L4040R27 PTFN R/L4040-54 40 40 200 50 40 34
Holder
This figure shows right
handed tools.
Spare Parts
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
B
H
LF
WF
HF
–5˚
–5˚
91˚
LH
Facing
PTFN
91°
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Dimensions (mm)
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DTGN Type / DTFN Type / PTGN Type / PTTN Type / PTFN Type / ETGN Type / ETAN Type / ETFN Type / ETEN Type / ETXN Type / MTJN Type / MTXN Type
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
– Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
BNC500 is for ductile iron cast.
External
Holders
Negative
Inserts
C
D
R
V
W
T
S
C26
C

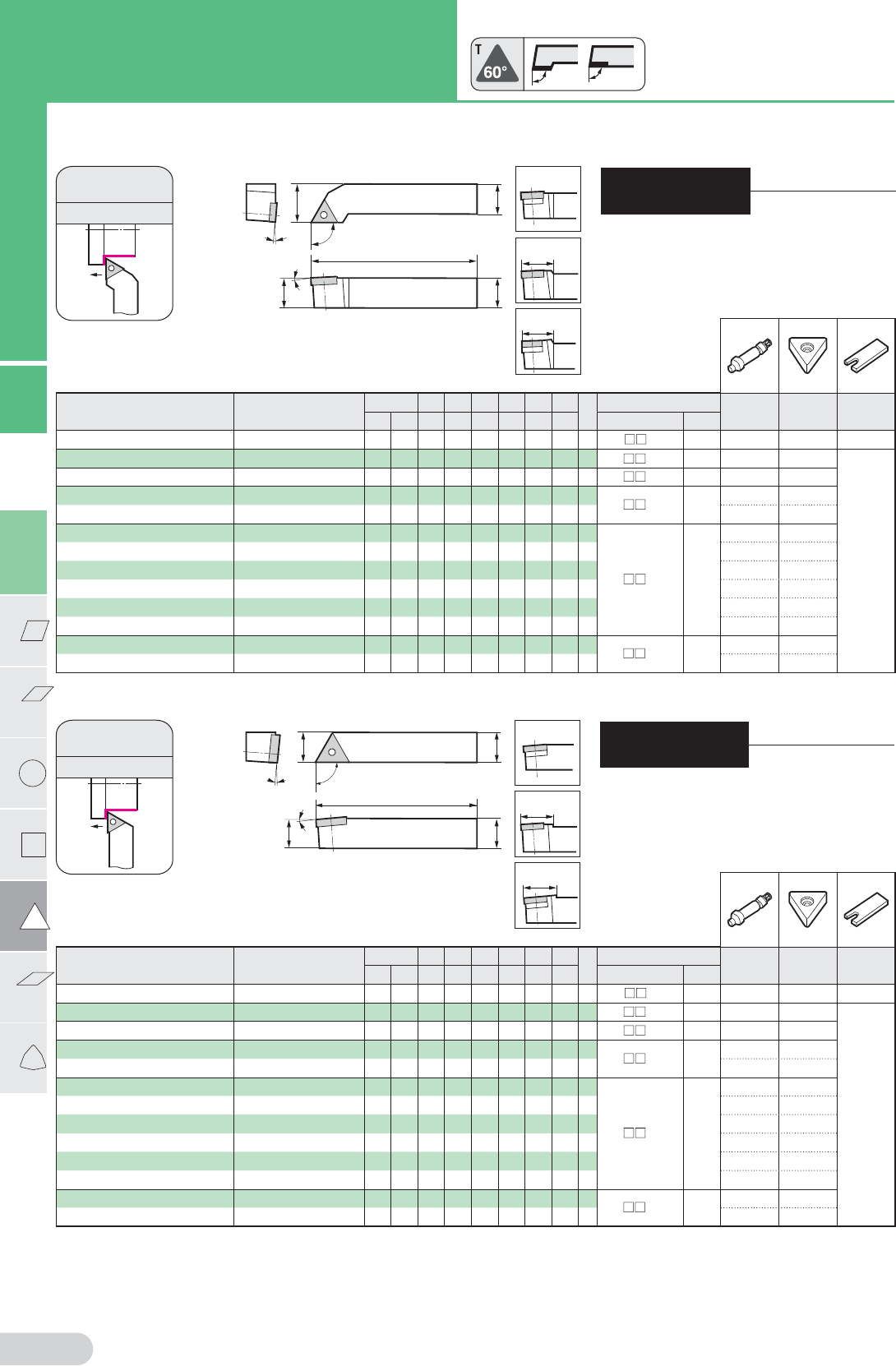

SEC-External Holders
ETGN Type / ETAN Type
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Fig Applicable inserts Eccentric
shaft Shim
Wrenches
R L H B LF WF HF LH Cat. No. Page
ETGN R/L1212F11 ETGN R/L1212
12 12 80 16
11.5
−1TN 110 3 B54
P221US
− KY25
ETGN R/L1616H1603 ETGN R/L1616H32
16 16 100 20
15.5
−1TN 1603
From B55
P322US
−
KY40
ETGN R/L1616H1604 ETGN R/L1616H33
16 16 100 20
15.5
−1TN 1604
From B56
P332US
−
ETGN R/L2020K1603 ETGN R/L2020K32
20 20 125 25
19.5
−1TN 1603 From
B55
P323US
−
ETGN R/L2020K1603W ETGN R/L2020K32W
20 20 125 25
19.5
−2
P323WS
EST32
ETGN R/L2020K1604 ETGN R/L2020K33
20 20 125 25
19.5
−1
TN 1604 From
B56
P333US
−
ETGN R/L2020K1604W ETGN R/L2020K33W
20 20 125 25
19.5
−2
P333WS
EST32
ETGN R/L2520M1604 ETGN R/L2520
25 20 150 25
24.5
−1
P334US
−
ETGN R/L2520M1604W ETGN R/L2520W
25 20 150 25
24.5
−2
P334WS
EST32
ETGN R/L2525M1604 ETGN R/L2525M33
25 25 150 32
24.5
−1
P334US
−
ETGN R/L2525M1604W ETGN R/L2525M33W
25 25 150 32
24.5
−2
P334WS
EST32
ETGN R/L2525M22 ETGN R/L2525M43
25 25 150 32
24.5
30 3 TN 2204 From
B61
P434U −
ETGN R/L2525M22W ETGN R/L2525M43W
25 25 150 32
24.5
30 4 P434W EST43
Holder This figure shows right
handed tools.
Spare Parts
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Fig Applicable inserts Eccentric
shaft Shim
Wrenches
R L H B LF WF HF LH Cat. No. Page
ETAN R/L1212F11 ETAN R/L1212
12 12 80 12
11.5
−1TN 110 3 B54
P221US
− KY25
ETAN R/L1616H1603 ETAN R/L1616H32
16 16 100 16
15.5
−1TN 1603
From B55
P322US
−
KY40
ETAN R/L1616H1604 ETAN R/L1616H33
16 16 100 16
15.5
−1TN 1604
From B56
P332US
−
ETAN R/L2020K1603 ETAN R/L2020K32
20 20 125 20
19.5
−1TN 1603 From
B55
P323US
−
ETAN R/L2020K1603W ETAN R/L2020K32W
20 20 125 20
19.5
−2
P323WS
EST32
ETAN R/L2020K1604 ETAN R/L2020K33
20 20 125 20
19.5
−1
TN 1604 From
B56
P333US
−
ETAN R/L2020K1604W ETAN R/L2020K33W
20 20 125 20
19.5
−2
P333WS
EST32
ETAN R/L2520M1604 ETAN R/L2520
25 20 150 20
24.5
−1
P334US
−
ETAN R/L2520M1604W ETAN R/L2520W
25 20 150 20
24.5
−2
P334WS
EST32
ETAN R/L2525M1604 ETAN R/L2525M33
25 25 150 25
24.5
−1
P334US
−
ETAN R/L2525M1604W ETAN R/L2525M33W
25 25 150 25
24.5
−2
P334WS
EST32
ETAN R/L2525M22 ETAN R/L2525M43
25 25 150 25
24.5
30 3 TN 2204 From
B61
P434U −
ETAN R/L2525M22W ETAN R/L2525M43W
25 25 150 25
24.5
30 4 P434W EST43
Holder This figure shows right
handed tools.
Spare Parts
B
H
LF
WF
HF
91˚
–5˚
–5˚
Fig1
Fig2
Fig3
Fig4
LH
LH
B
H
LF
WF
HF
91˚
–5˚
–5˚
Fig2
Fig3
Fig4
Fig1
LH
LH
ETGN
General Turning
General Turning
ETAN
91˚ 91˚
Dimensions (mm)
Dimensions (mm)
SEC-
Pin Lock
General turning
30 Type
Tool Holders
SEC-
Pin Lock
General turing
30 Type
Tool Holders
C
External
Holders
Negative
Inserts
W
V
R
D
T
S
C27
C
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Fig Applicable inserts Eccentric
shaft Shim
Wrenches
R L H B LF WF HF LH Cat. No. Page
ETFN R/L1212F11 ETFN R/L1212
12 12 80 16
11.5
−1TN 110 3 B54
P221US
− KY25
ETFN R/L1616H1603 ETFN R/L1616H32
16 16 100 20
15.5
−1TN 1603
From B55
P322US
−
KY40
ETFN R/L1616H1604 ETFN R/L1616H33
16 16 100 20
15.5
−1TN 1604
From B56
P332US
−
ETFN R/L2020K1603 ETFN R/L2020K32
20 20 125 25
19.5
−1TN 1603 From
B55
P323US
−
ETFN R/L2020K1603W ETFN R/L2020K32W
20 20 125 25
19.5
−2
P323WS
EST32
ETFN R/L2020K1604 ETFN R/L2020K33
20 20 125 25
19.5
−1
TN 1604 From
B56
P333US
−
ETFN R/L2020K1604W ETFN R/L2020K33W
20 20 125 25
19.5
−2
P333WS
EST32
ETFN R/L2520M1604 ETFN R/L2520
25 20 150 25
24.5
−1
P334US
−
ETFN R/L2520M1604W ETFN R/L2520W
25 20 150 25
24.5
−2
P334WS
EST32
ETFN R/L2525M1604 ETFN R/L2525M33
25 25 150 32
24.5
−1
P334US
−
ETFN R/L2525M1604W ETFN R/L2525M33W
25 25 150 32
24.5
−2
P334WS
EST32
ETFN R/L2525M22 ETFN R/L2525M43
25 25 150 32
24.5
30 3 TN 2204 From
B61
P434U −
ETFN R/L2525M22W ETFN R/L2525M43W
25 25 150 32
24.5
30 4 P434W EST43
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
Note: This figure shows
right handed tools.
Spare Parts
B
H
LF
WF
HF
91˚
–5˚
Fig1 Fig2
Fig3
Fig4
LH
LH
–5˚
Facing
ETFN
SEC-External Holders
ETFN Type
91°
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Dimensions (mm)
SEC-
Pin Lock
General turing
30 Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DTGN Type / DTFN Type / PTGN Type / PTTN Type / PTFN Type / ETGN Type / ETAN Type / ETFN Type / ETEN Type / ETXN Type / MTJN Type / MTXN Type
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
– Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
BNC500 is for ductile iron cast.
External
Holders
Negative
Inserts
C
D
R
V
W
T
S
C28
C

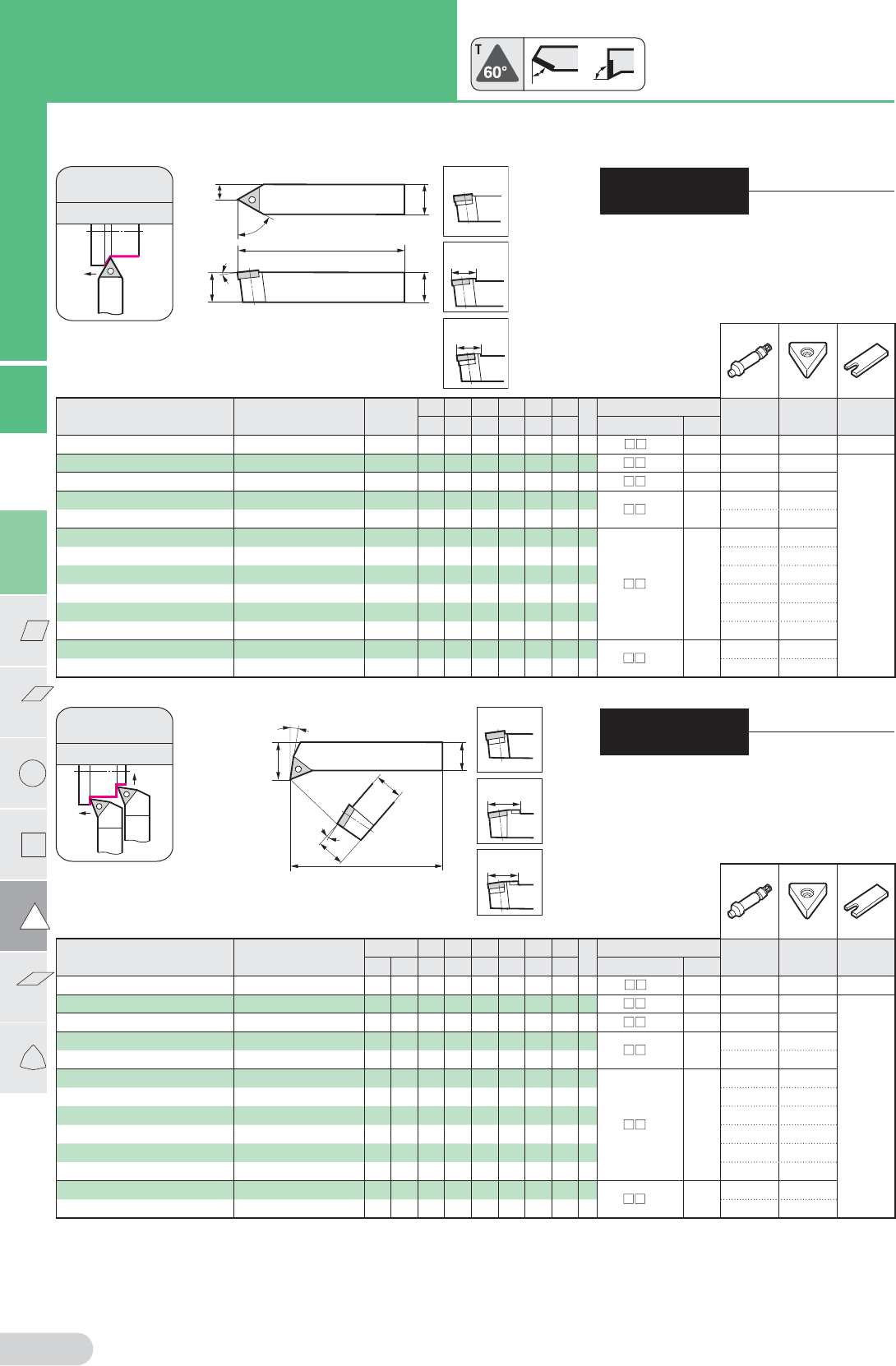

SEC-External Holders
ETEN Type / ETXN Type
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Fig Applicable inserts Eccentric
shaft Shim Wrenches
RLH B LF WF HF LH Cat. No. Page
ETXN R/L1212F11 ETXN R/L1212
12 12 80 16
11.5
−1TN 110 3 B54
P221US
− KY25
ETXN R/L1616H1603 ETXN R/L1616H32
16 16 100 20
15.5
−1TN 1603
From B55
P322US
−
KY40
ETXN R/L1616H1604 ETXN R/L1616H33
16 16 100 20
15.5
−1TN 1604
From B56
P332US
−
ETXN R/L2020K1603 ETXN R/L2020K32
20 20 125 25
19.5
−1TN 1603 From
B55
P323US
−
ETXN R/L2020K1603W ETXN R/L2020K32W
20 20 125 25
19.5
−2
P323WS
EST32
ETXN R/L2020K1604 ETXN R/L2020K33
20 20 125 25
19.5
−1
TN 1604 From
B56
P333US
−
ETXN R/L2020K1604W ETXN R/L2020K33W
20 20 125 25
19.5
−2
P333WS
EST32
ETXN R/L2520M1604 ETXN R/L2520
25 20 150 25
24.5
−1
P334US
−
ETXN R/L2520M1604W ETXN R/L2520W
25 20 150 25
24.5
−2
P334WS
EST32
ETXN R/L2525M1604 ETXN R/L2525M33
25 25 150 32
24.5
−1
P334US
−
ETXN R/L2525M1604W ETXN R/L2525M33W
25 25 150 32
24.5
−2
P334WS
EST32
ETXN R/L2525M22 ETXN R/L2525M43
25 25 150 32
24.5
30 3 TN 2204 From
B61
P434U −
ETXN R/L2525M22W ETXN R/L2525M43W
25 25 150 32
24.5
30 4 P434W EST43
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder This figure shows right
handed tools.
Spare Parts
10˚
B
H
LF
WF
HF
–7˚
Fig2
Fig1
Fig3
Fig4
LH
LH
General Turning
& Facing
ETXN
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Fig Applicable inserts Eccentric
shaft Shim Wrenches
H B LF WF HF LH Cat. No. Page
ETEN N1212F11 ETEN N1212 12 12 80
6.0 11.5
−1TN 110 3 B54
P221US
− KY25
ETEN N1616H1603 ETEN N1616H32 16 16 100
8.0 15.5
−1TN 1603
From B55
P322US
−
KY40
ETEN N1616H1604 ETEN N1616H33 16 16 100
8.0 15.5
−1TN 1604
From B56
P332US
−
ETEN N2020K1603 ETEN N2020K32 20 20 125
10.0 19.5
−1TN 1603 From
B55
P323US
−
ETEN N2020K1603W ETEN N2020K32W 20 20 125
10.0 19.5
−2
P323WS
EST32
ETEN N2020K1604 ETEN N2020K33 20 20 125
10.0 19.5
−1
TN 1604 From
B56
P333US
−
ETEN N2020K1604W ETEN N2020K33W 20 20 125
10.0 19.5
−2
P333WS
EST32
ETEN N2520M1604 ETEN N2520 25 20 150
10.0 24.5
−1
P334US
−
ETEN N2520M1604W ETEN N2520W 25 20 150
10.0 24.5
−2
P334WS
EST32
ETEN N2525M1604 ETEN N2525M33 25 25 150
12.5 24.5
−1
P334US
−
ETEN N2525M1604W ETEN N2525M33W 25 25 150
12.5 24.5
−2
P334WS
EST32
ETEN N2525M22 ETEN N2525M43 25 25 150
12.5 24.5
30 3 TN 2204 From
B61
P434U −
ETEN N2525M22W ETEN N2525M43W 25 25 150
12.5 24.5
30 4 P434W EST43
Holder
Spare Parts
B
H
LF
WF
HF
60˚
–7˚
Fig2
Fig3
Fig4
Fig1
LH
LH
General Turning
& Profiling
ETEN
60˚
100˚
Dimensions (mm)
Dimensions (mm)
SEC-
Pin Lock
General turing
30 Type
Tool Holders
SEC-
Pin Lock
General turing
30 Type
Tool Holders
C
External
Holders
Negative
Inserts
W
V
R
D
T
S
C29
C
10˚
H
B
LF
LH
WF
-7˚
HF
SEC-External Holders
MTJN Type / MTXN Type
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Wedge Pin Shim Bolt N m Not of
metal
Snap
Ring
Wrenches
for bolt
Wrenches
for nut
RL H B LF WF HF LH Cat. No. Page
MTJN R/L2020K16 MTJN R/L2020-33
20 20
125
25 20 32
TN 1604 From
B56
MMW30
MP317S
STW323
BHA0525
4.0
CPM32N
ER04
LH030 LH030
MTJN R/L2520M16 MTJN R/L2520-33
25 20
150
25 25 32
MP320S
MTJN R/L2525M16 MTJN R/L2525-33
25 25
150
32 25 32
MP320S
MTJN R/L2525M22 MTJN R/L2525-43
25 25
150
32 25 38 TN 2204 From
B61
MMW40
MP420
STW434
BHA0625
4.5
CPM43N
ER05
LH040 LH030
MTJN R/L3225P22 MTJN R/L3225-43
32 25
170
32 32 38
MP420
Holder
Note: This figure shows
right handed tools.
When using a CIS standard insert for the holder marked with an asterisk (*) or double asterisk (**), the pin Cat. No. for the insert marked with an asterisk is [MP317], and [MP320] for the insert marked with a double asterisk.
Spare Parts
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Wedge Pin Shim Bolt N m Not of
metal
Snap
Ring
Wrenches
for bolt
Wrenches
for nut
RL H B LF WF HF LH Cat. No. Page
MTXN R/L2020K16
MTXN R/L2020-33
20 20
125
25 20 32 TN 1604 From
B56
MMW30
MP317S
STW323
BHA0525
4.0
CPM32N
ER04
LH030 LH030
MTXN R/L2525M16
MTXN R/L2525-33
25 25
150
32 25 32
MP320S
MTXN R/L2525M22
MTXN R/L2525-43
25 25
150
32 25 38 TN 2204
From B61
MMW40
MP420
STW434
BHA0625
4.5
CPM43N
ER05
LH040 LH030
Holder
This figure shows right handed tools.
When using a CIS standard insert for the holder marked with an asterisk (*) or double asterisk (**), the pin Cat. No. for the insert marked with an asterisk is [MP317], and [MP320] for the insert marked with a double asterisk.
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Spare Parts
–6˚
–5˚
93˚
B
H
LF
LH
WF
HF
General Turning
& Profiling
MTJN
General Turning
& Facing
MTXN
*
**
**
*
**
**
93°
100˚
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
Dimensions (mm)
Dimensions (mm)
SEC-
Clamp-on + Pin Lock
General turning and profiling
M Type
Tool Holders
SEC-
Clamp-on + Pin Lock
General turning and profiling
M Type
Tool Holders
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not available in order-to-made production.
Applicable inserts
DTGN Type / DTFN Type / PTGN Type / PTTN Type / PTFN Type / ETGN Type / ETAN Type / ETFN Type / ETEN Type / ETXN Type / MTJN Type / MTXN Type
N m Recommended tightning torque (N m)
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
– Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
Without breakerWithout breaker
AC420KAC420K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
BNC500 is for ductile iron cast.
External
Holders
C
D
R
W
S
T
Positive
Inserts
V
C30
C

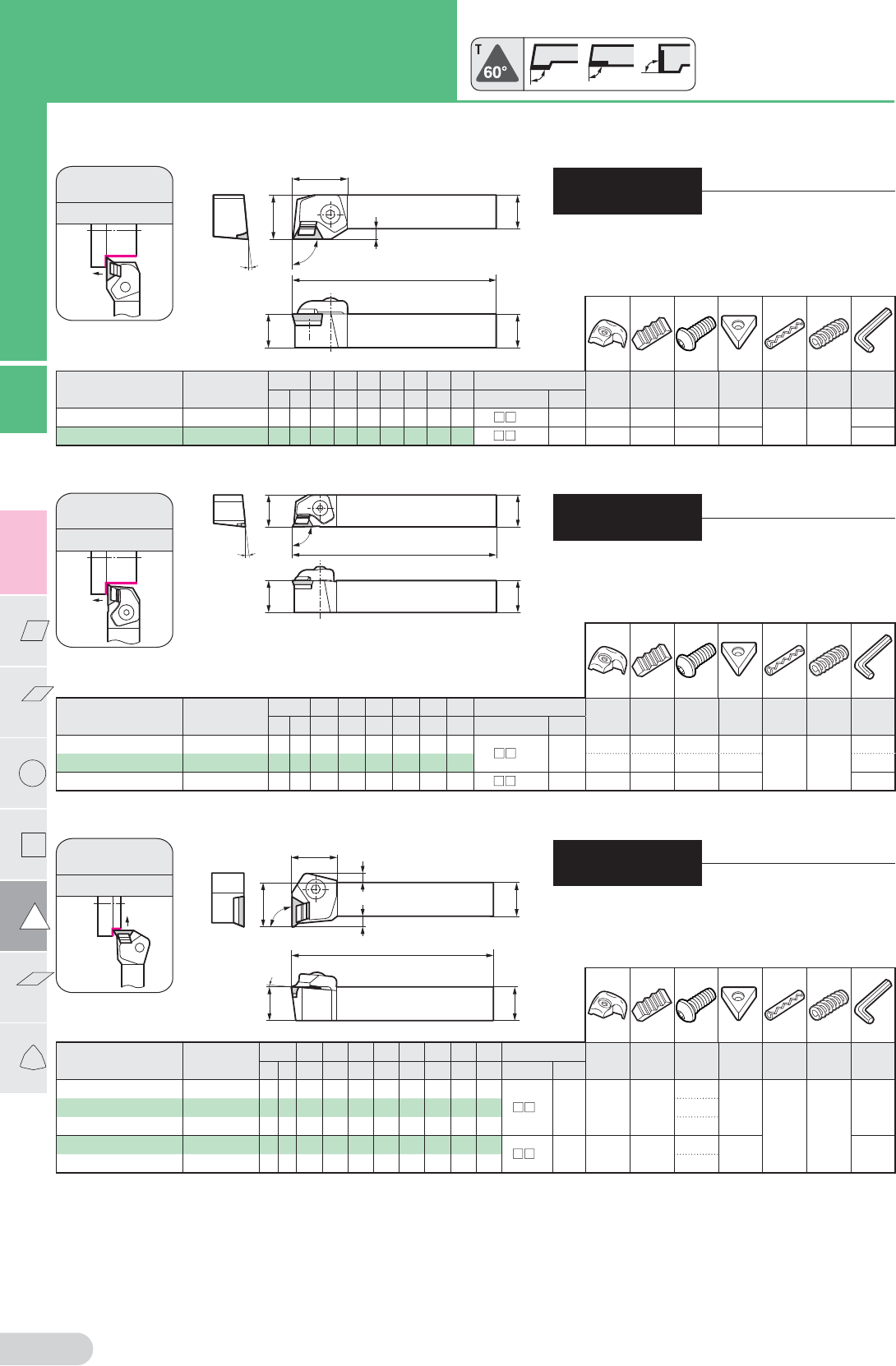

SEC-External Holders
CTGP Type / CTAP Type / CTFP Type
5˚
91˚
B
HF
H
LF
LH
WF
WF2
Cat. No.
Conventional Cat.
No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Offset
Applicable inserts Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer Spring
Wrenches
for upper
surface
RLH B LF WF HF LH
WF2
Cat. No. Page
CTGP R/L1919-L16
FP22 R/L-33
19 19
140
25 19
34.5
6
TP 1603 B116
DCR/L2
CBD4R/L
BH0824R/L
STPD322
SPP3 DSP5 LH040
CTGP R/L2525-N22
FP22 R/L-44B
25 25
160
32 25
41.0
7
TP 2204 B117
DCR/L3
CBD5R/L
BH1030R/L
STPD422
LH050
Holder
This figure shows
right handed tools.
This figure shows
right handed tools.
This figure shows
right handed tools.
Spare Parts
General Turning
CTGP
91˚
91˚
91˚
91˚ LF
WF
5˚
HF
BH
Cat. No.
Conventional Cat.
No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer Spring
Wrenches
for upper
surface
RL H B LF WF HF LH Cat. No. Page
CTAP R/L2525-N16
FP21 R/L-44A
25 25
160
25 25
34.5
TP 1603 B116
DCR/L2
CBD4R/L
BH0830R/L
STPD322
SPP3 DSP5
LH040
CTAP R/L3225-N16
FP21 R/L-45A
32 25
160
25 32
34.5
DCR/L2
CBD4R/L
BH0830R/L
STPD322
LH040
CTAP R/L3232-Q22
FP21 R/L-55
32 32
180
32 32
41.0
TP 2204 B117
DCR/L3
CBD5R/L
BH1036R/L
STPD422
LH050
Holder
Spare Parts
General Turning
CTAP
Cat. No.
Conventional Cat.
No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Offset
Level
difference
Applicable inserts
Clamp
Insert
Chipbreaker
Piece
Bolt Shim Shim
retainer Spring
Wrenches
for upper
surface
RL H B LF WF HF
HBKL
WF2
HBKW
Cat. No. Page
CTFP R/L1919-L16
FP25 R/L-33
19 19
140
25 19 26 6 8
TP 1603
B116
DCL/R2
CBD4L/R
BH0824L/R
STPD322
SPP3 DSP5
LH040
CTFP R/L2525-N16
FP25 R/L-44A
25 25
160
32 25 26 7 −
BH0830L/R
CTFP R/L3225-N16
FP25 R/L-45A
32 25
160
32 32 26 7 −
BH0830L/R
CTFP R/L2525-N22
FP25 R/L-44B
25 25
160
32 25 33 7 7
TP 2204
B117
DCL/R3
CBD5L/R
BH1030L/R
STPD422
LH040
CTFP R/L3232-Q22
FP25 R/L-55
32 32
180
39 32 33 7 −
BH1036L/R
Holder
Spare Parts
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
91˚
B
HF
H
LF
HBKL
WF
WF2
HBKW
5˚
CTFP
Facing
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
SEC-
Clamp-on
General turing
40 Type
Tool Holders
SEC-
Clamp-on
General turing
40 Type
Tool Holders
SEC-
Clamp-on
General turing
40 Type
Tool Holders
W
C
External
Holders
V
D
T
R
S
C31
C
Negative
Inserts
This figure shows
right handed tools.
This figure shows
right handed tools.

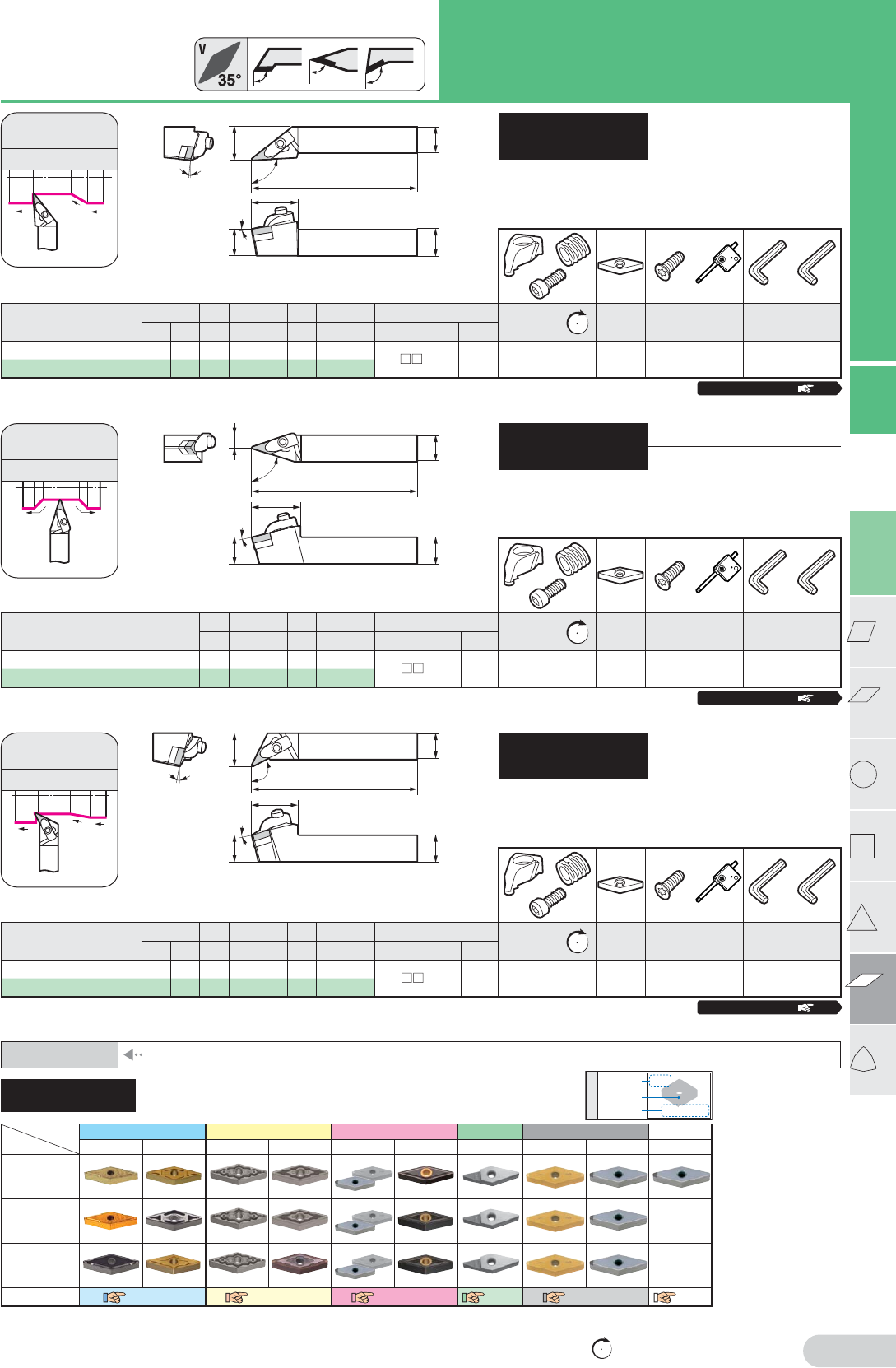

Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
RLH B LF WF HF LH Cat. No. Page
DVJN R/L2020K16
20 20 125 25 20 35 VN 1604 From
B66 SCP-4 5.0
VNS1604
BFTX0307N
TRX10
(*) LH040 LH025
DVJN R/L2525M16
25 25 150 32 25 35
Holder
* Wrench for shim is not included in the model body.
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
RLH B LF WF HF LH Cat. No. Page
DVQN R/L2020K16
20 20 125 25 20 35 VN 1604 From
B66 SCP-4 5.0
VNS1604
BFTX0307N
TRX10
(*) LH040 LH025
DVQN R/L2525M16
25 25 150 32 25 35
Holder
* Wrench for shim is not included in the model body.
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
H B LF WF HF LH Cat. No. Page
DVVN N2020K16 20 20 125 10.0 20 37 VN 1604 From
B66 SCP-4 5.0
VNS1604
BFTX0307N
TRX10
(*) LH040 LH025
DVVN N2525M16 25 25 150 12.5 25 37
Holder
* Wrench for shim is not included in the model body.
Spare Parts
BH
LF
LH
93˚
WFHF 9˚
5˚
BH
LF
LH
WF
HF 13˚
117.5˚
10˚
BH
LF
LH
72.5˚
WFHF 14˚
General Turning
& Profiling
DVJN
General Turning
& Profiling
DVVN
General Turning,
Profiling & Necking
DVQN
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron)
N (non-ferrous metal)
H (hardened steel)
Hard brittle material
Finishing
Medium cutting
Finishing
Medium cutting
High-speed finishing
Finishing–Medium cutting
Coated Non-coated Finishing
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
UZUZ
AC405KAC405K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
SUMIDIA BinderlessSUMIDIA Binderless
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC415KAC415K
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500BN7000/BNC500
GZGZ
AC420AC420KK
SUMIDIASUMIDIA
DA1000DA1000
SUMIBORONSUMIBORON
BNC300BNC300
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14
From A20
From A18
From M4
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced
or not available in order-to-made production.
Applicable inserts
DVJN Type / DVVN Type / DVQN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
(for Torx hole)
(for Torx hole)
(for Torx hole)
Parts for Clamp Set
C38
Parts for Clamp Set
C38
Parts for Clamp Set
C38
SEC-External Holders
DVJN Type / DVVN Type / DVQN Type
93° 72.5˚ 117.5
˚
BNC500 is for ductile iron cast.
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
N m Recommended tightning torque (N m)
V
External
Holders
C
D
R
W
S
T
Positive
Inserts
C32
C

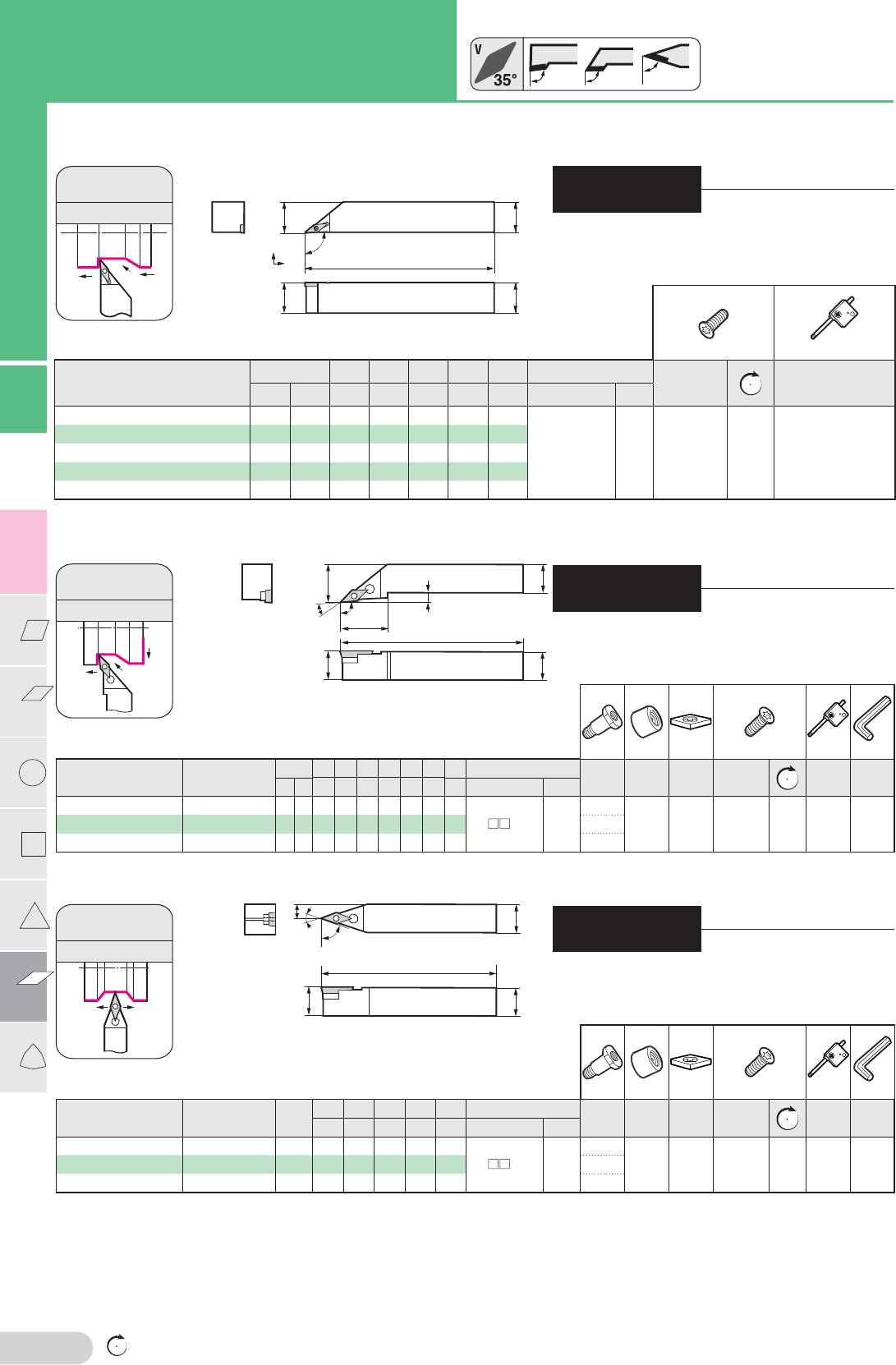

Cat. No. Conventional
Cat. No. Stock
Height
Width Tota l
length
Cutting
edge
Cutting
edge height
Applicable inserts Pin Nut Shim Screw N m
Wrench Wrench
for nut
H B LF WF HF Cat. No. Page
SVVC N2020K16
SVVC N2020-33
20 20 125 10.0 20
VC 1604 From
B123
VP20
CPV33N
SVP32
BFTX03508
2.0
TRX10 LH025
SVVC N2525M16
SVVC N2525-33
25 25 150 12.5 25 VP25
SVVC N3225P16
SVVC N3225-33
32 25 170 12.5 32 VP32
Holder
Spare Parts
HF
LF
WF
35˚
72.5˚
B
H
SVVC
External Turning
SVLC
General Turning
& Profiling
SEC-External Holders
SVLC Type / SVJC Type / SVVC Type
Spare Parts
Holder
Cat. No.
Stock
Height
Width
Total length
Cutting edge
Cutting
edge height
Applicable inserts
Screw N m Wrench
R L H B LF WF HF Cat. No. Page
SVLC R/L1010-H11 10 10 100 10.5 10
VC 110 3 From
B122
BFTX02508NV
1. 5 TRX08
SVLC R/L1212-H11 12 12 100 12.5 12
SVLC R/L1616-H11 16 16 100 16.5 16
SVLC R/L2020-K11 20 20 125 20.5 20
SVLC R/L2525-M11 25 25 150 25.5 25
WF
LF
95°
0°
0°
HF
HB
* Former Cat. No. is SVLC R/L 2020-H11
95˚ 72.5˚
93°
(for Torx hole)
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Offset
Applicable inserts Pin Nut Shim Screw N m
Wrench Wrench
for nut
RL HBLF
WF
HF LH
WF2
Cat. No. Page
SVJC R/L2020K16 SVJC R/L2020-33
20 20
125
25 20 41 5
VC 1604 From
B123
VP20
CPV33N
SVP32
BFTX03508
2.0
TRX10 LH025
SVJC R/L2525M16 SVJC R/L2525-33
25 25
150
32 25 41 7 VP25
SVJC R/L3225P16 SVJC R/L3225-33
32 25
170
32 32 41 7 VP32
Holder
Spare Parts
B
H
LF
LH
WF
HF
93˚
35˚
WF2
SVJC
General Turning
& Profiling
(for Torx hole)
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
This figure shows right handed tools.
This figure shows right handed tools.
SEC-
Top Clamp
General turning and profiling
SV Type
MINI Tool Holders
SEC-
Top Clamp
General Turning & profiling
SV Type
Profiling Tool Holders
SEC-
Top Clamp
External profiling
SV Type
Profiling Tool Holders
N m Recommended tightning torque (N m)
Positive
Inserts
External
Holders
C33
C
W
C
V
D
T
R
S

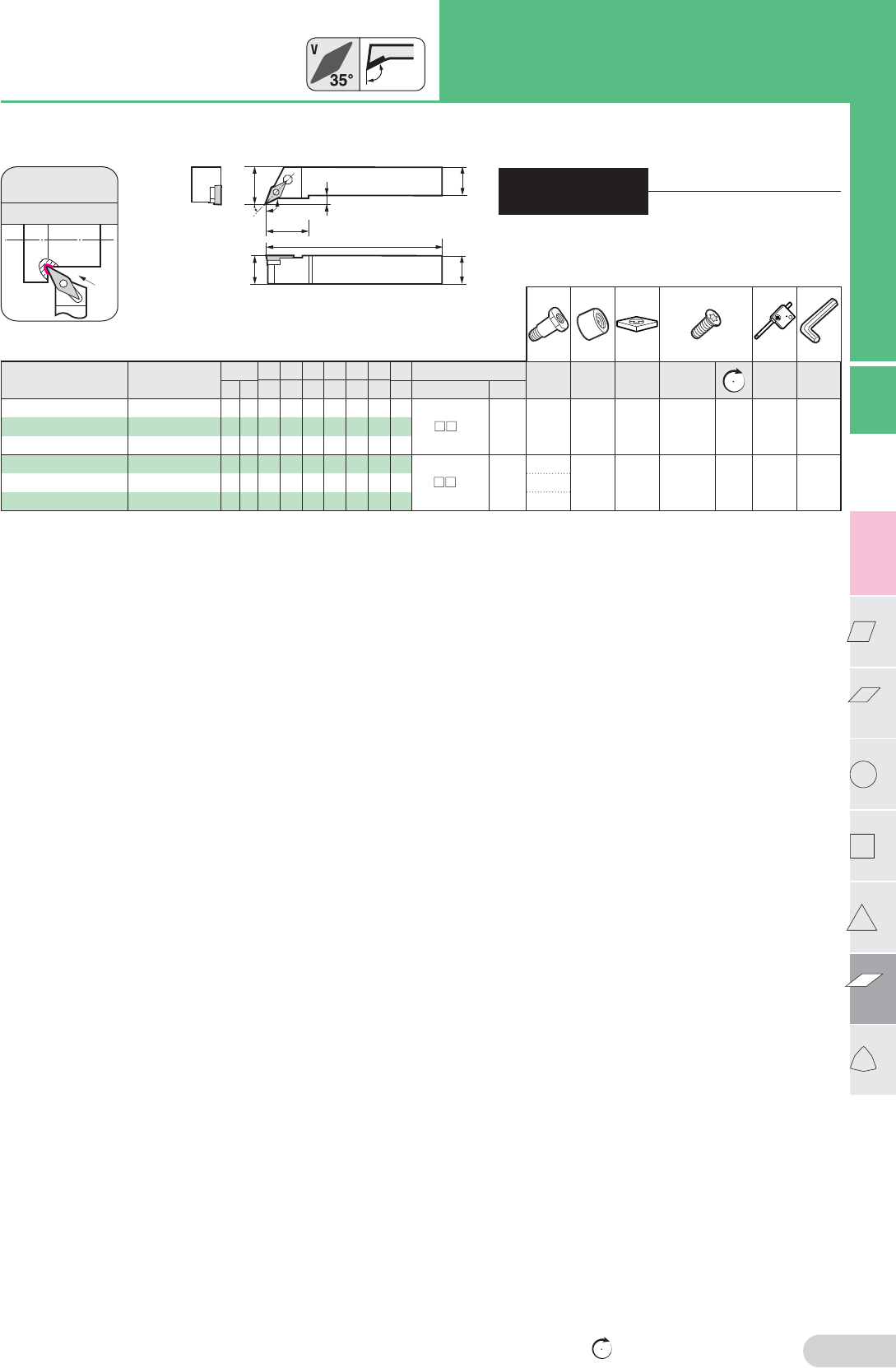

Holder
Spare Parts
HF
B
H
LF
LH
WF2
WF
117.5˚
45˚
SVPC
Necking
SEC-External Holders
SVPC Type
117. 5 ˚
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Offset
Applicable inserts Pin Nut Shim Screw N m
Wrenches
Wrench
for nut
RL H B LF WF HF LH
WF2
Cat. No. Page
SVPC R/L1010-H11
−
10 10 100
14.5
10
−
4.5
VC 110 3 From
B122 ———
BFTX02508NV
1. 5
TRX08
—
SVPC R/L1212-H11
−
12 12 100
16.5
12
−
4.5
SVPC R/L1616-H11
−
16 16 100
20.5
16
−
4.5
SVPC R/L2020K16
SVPC R/L2020-33
20 20 125 25 20 35 5.0
VC 1604 From
B123
VP20
CPV33N
SVP32
BFTX03508
2.0
TRX10 LH025
SVPC R/L2525M16
SVPC R/L2525-33
25 25 150 32 25 35 7.0
VP25
SVPC R/L3225P16
SVPC R/L3225-33
32 25 170 32 32 35 7.0
VP32
(for Torx hole)
Dimensions (mm)
This figure shows right handed tools.
SEC-
Top Clamp
Necking
SV Type
Profiling Tool Holders
N m Recommended tightning torque (N m)
External
Holders
Negative
Inserts

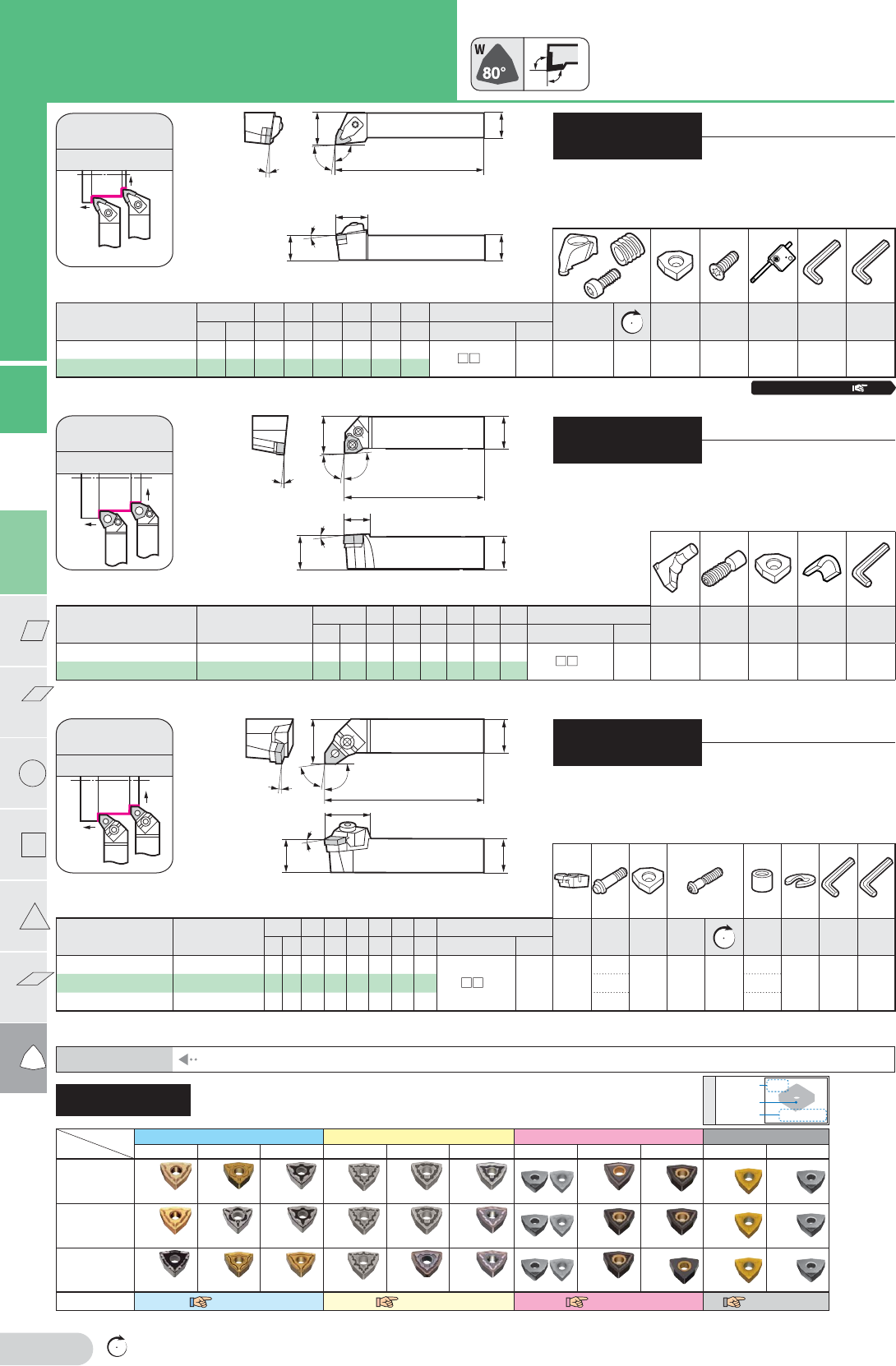

C
D
R
W
S
T
V
C34
C
Cat. No. Conventional
Cat. No.
Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Wedge Pin Shim Bolt N m Nut Snap
ring
Wrench
for bolt
Wrench
for nut
RL H B LF WF HF LH Cat. No. Page
MWLN R/L2020K08 MWLN R/L2020-43
20 20
125
25 20 32
WN 0804 From
B71
MWW40
MP416
SWW433
BHA0625
4.5
CPM43S
ER05
LH040 LH030
MWLN R/L2525M08 MWLN R/L2525-43
25 25
150
32 25 32
MP420
CPM43N
MWLN R/L3225P08 MWLN R/L3225-43
32 25
170
32 32 32
MP420
CPM43N
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
This figure shows right handed tools.
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head Applicable inserts Clamp
set N m Shim Screw
for shim
Wrench
for shim
Wrench for
upper surface
Wrench for
lower surface
RLH B LF WF HF LH Cat. No. Page
DWLN R/L2020K08
20 20 125 25 20 32 WN 0804 From
B71 SCP-2 5.0
WNS0804
BFTX0409N
TRX15 LH040 LH025
DWLN R/L2525M08
25 25 150 32 25 32
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
Holder
This figure shows right handed tools.
* Wrench for shim is not included in the model body.
Spare Parts
Holder
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Applicable inserts Lever
Pin Bolt Shim Shim
retainer Wrench
RLH B HF WF HF LH Cat. No. Page
PWLN R/L2020K06
PWLN R/L2020-33
20 20 125 25 20 17 WN 0604 From
B69 LCL3 LCS3
LSW317
LSP3 LH025
PWLN R/L2525M06
PWLN R/L2525-33
25 25 150 32 25 17
Note: When using a handed chipbreaker insert for facing, the holder and insert are oppositely handed.
This figure shows right handed tools.
Spare Parts
DWLN
General Turning
& Facing 95˚
WF
LF
LH
HF
BH
−6˚
80˚
−6˚
−5˚
80˚
95˚
LF
LH
−5˚
HF
H
WF
B
B
H
LF
LH
WF
HF
80˚
95˚
–6˚
–6˚
PWLN
General Turning
& Facing
MWLN
General Turning
& Facing
Cutting range
Cutting state
P (steel) M (stainless steel) K (cast iron) H (hardened steel)
Finishing
Medium cutting
Rough cutting
Finishing
Medium cutting
Rough cutting
High-speed finishing
Finishing–Medium cutting
Medium–Rough cutting
Coated Non-coated
Continuous cut
SUSU
T1500ZT1500Z
GU
AC810PAC810P
MUMU
AC8025PAC8025P
EF
AC6020MAC6020M
EGEG
AC6020MAC6020M
EMEM
AC6030MAC6030M
SUMIBORONSUMIBORON
BN7000/BNC500*BN7000/BNC500*
UZUZ
AC405KAC405K
GZGZ
AC405KAC405K
SUMIBORONSUMIBORON
BNC2010BNC2010
SUMIBORONSUMIBORON
BN1000BN1000
General cut
SUSU
AC810PAC810P
GUGU
AC8025PAC8025P
MUMU
AC8025PAC8025P
EFEF
AC6030MAC6030M
EGEG
AC6030MAC6030M
EM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500*BN7000/BNC500*
GZGZ
AC415KAC415K
GZGZ
AC415KAC415K
SUMIBORONSUMIBORON
BNC2020BNC2020
SUMIBORONSUMIBORON
BN2000BN2000
Interrupted cut
SXSX
AC8025PAC8025P
UX
AC830PAC830P
MXMX
AC830PAC830P
EFEF
AC6030MAC6030M
EGEG
AC6040MAC6040M
EMEM
AC6040MAC6040M
SUMIBORONSUMIBORON
BN7000/BNC500*BN7000/BNC500*
GZGZ
AC420KAC420K
Without breakerWithout breaker
AC420KAC420K
SUMIBORONSUMIBORON
BNC300*BNC300*
SUMIBORONSUMIBORON
BN350BN350
Recommended
cutting conditions From A8 From A12 From A14 From A18
1st Recommended
Inserts
Also see the insert selection guide (from page A8).
Depending on the size, there are some combinations that cannot be produced or not
available in order-to-made production.
Applicable inserts
DWLN Type / PWLN Type / MWLN Type
GU
Name of chipbreaker /
CBN/PCD
Shape photography
Grade
Legend
AC8025P
(for Torx hole)
Parts for Clamp Set
C38
* Made-to-order item
SEC-External Holders
DWLN Type / PWLN Type / MWLN Type
95˚
95˚
BNC500 is for ductile iron cast.
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
SEC-
Lever Lock
General turning and profiling
70 Type
Tool Holders
SEC-
Double Clamp
General turning and profiling
D Type
Tool Holders
SEC-
Clamp-on + Pin Lock
General turning and profiling
M Type
Tool Holders
N m Recommended tightning torque (N m)
External
Holders
C35

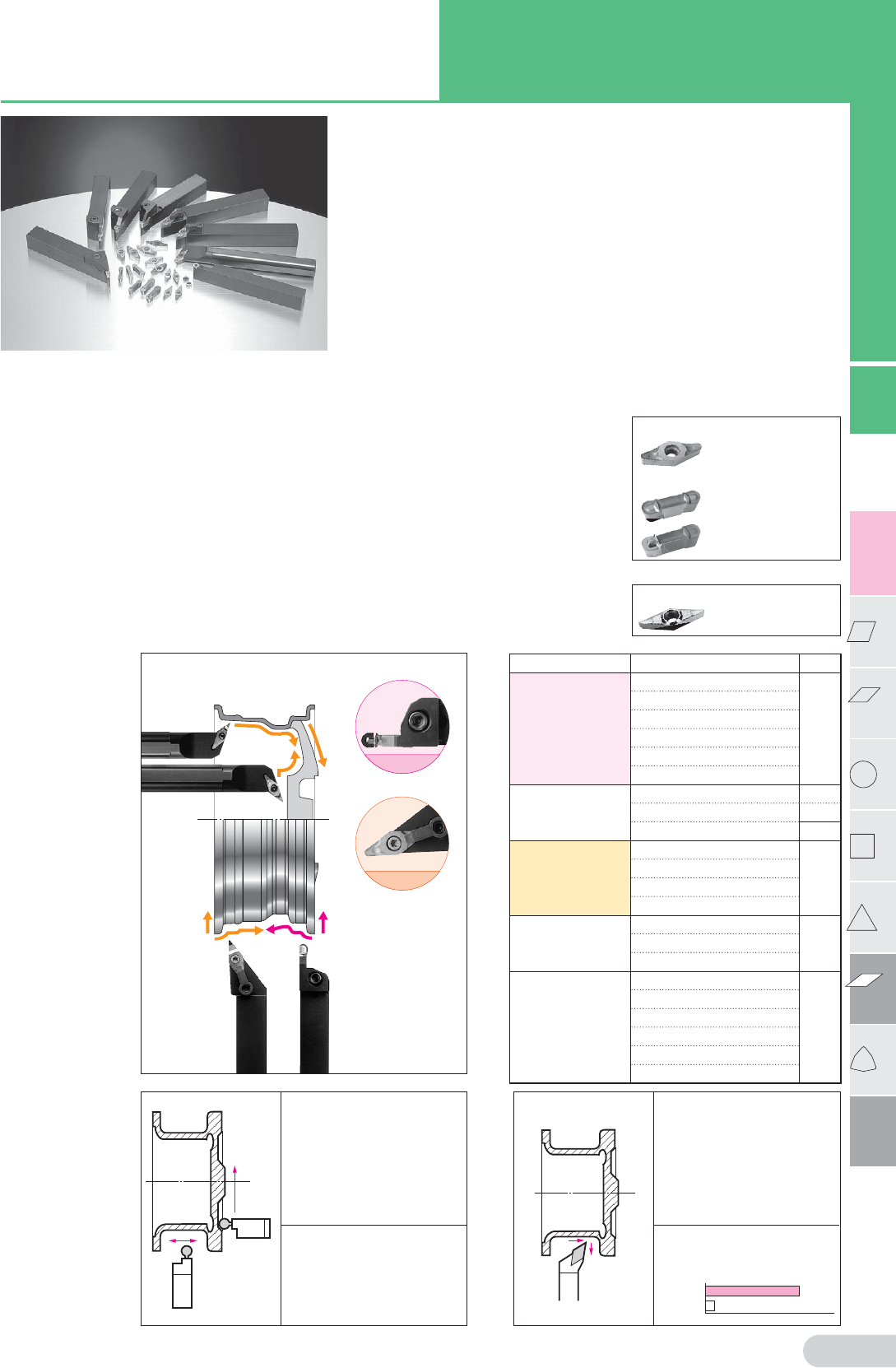

C
Positive
Inserts
W
C
V
D
T
R
S
Special
Type
Description Type Page
SEC-GD Type Holders
GDE R/L2525-600W/S
C37
GDE R/L2525-800W/S
GDE R/L2525-615W/S
GDE R/L2525-815W/S
GDE R/L2525-645W/S
GDE R/L2525-845W/S
SEC-SV Type Holders
SVJC R/L2525M16
C32
SVVC N2525M16
C32
SVPC R/L2525M16
C33
SEC-MV Type Holders
MVXC R/L2525-22-20
C36
MVXC R/L2525-22-30
MVPC R/L2525-22-20
MVPC R/L2525-22-30
SEC-D Type Holders
DVJN R/L2525 M16
C31
DVVN N2525 M16
DVQN R/L2525 M16
SEC-Bowling Bars
S25R-SVQC R/L1604-35
E40
E42
S32S-SVQC R/L1604-40
S40T-SVQC R/L1604-50
S25R-SVUC R/L1604-35
S32S-SVUC R/L1604-40
S40T-SVUC R/L1604-50
By adopting carbide and diamond sintered body (SUMIDIA) as cutting edge
materials5, and lining-up a large variety of tools such as Dog Bone Type, 35
Diamond Type, and many others, all kinds of tooling were made possible, from
outer rim rough machining up to design-related finishing.
General Features
Characteristics
and Application
Series
Application
Example
The 35 Diamond Type is covering a wider range of
applications between rough and finishing
In addition to strong clamp rigidity obtained with the new-design
holder, a stable rough machining is achieved from a reduction of
cutting resistance by the AW Type Chipbreaker
Rich variations of the Dog Bone Type
With newly designed special holders and AW Type Chipbreaker high rake design,
it supports all kinds of tooling (3 types: straight shape, 15 shape, and 45 shape)
AW Type Chipbreaker offers smooth chip control
AG Type Chipbreaker offers no-chip-deposit on the mirror face.
AW Type Chipbreaker
35 Diamond Type
VCGT220520N-AW
(H1)
Dog Bone Type
MDE4R-AW
(H1)
MDE4R-AW
(DA2200)
AG Type Chipbreaker
35 Diamond Type
VCGT160408N-AG
(H1)
DA1000
vc=2,500 m/min
f=0.35 mm/rev
ap=0.2 mm Wet
n=2,000 min-1
f=0.4-0.6 mm/rev
ap=2.0 mm Wet
Cutting conditions
Cat. No.: GDER2525-800W
Insert: MDE4R-AW
Grade: H1 Results
AW Type Breaker s high-level of chip
control Improved performance and
workability!
Cutting conditions
Cat. No.: SVJCR2525-33
Insert: VCMT160412
Grade: DA1000 Results
No breakage occurred, and a tool lifespan multiplied
by 17 compared to other companies PCD!
Other Companies
PCD
Tool Lifespan
3,500 units
200 units
GD Type Holders
MV Type Holders
SEC-Holders for Aluminum Wheel Turning
MV Type / GD Type Profiling Tool Holders
External
Holders
C
D
R
W
S
T
Positive
Inserts
V
C36
C
( Coated Carbide / Carbide / SUMIDIA)

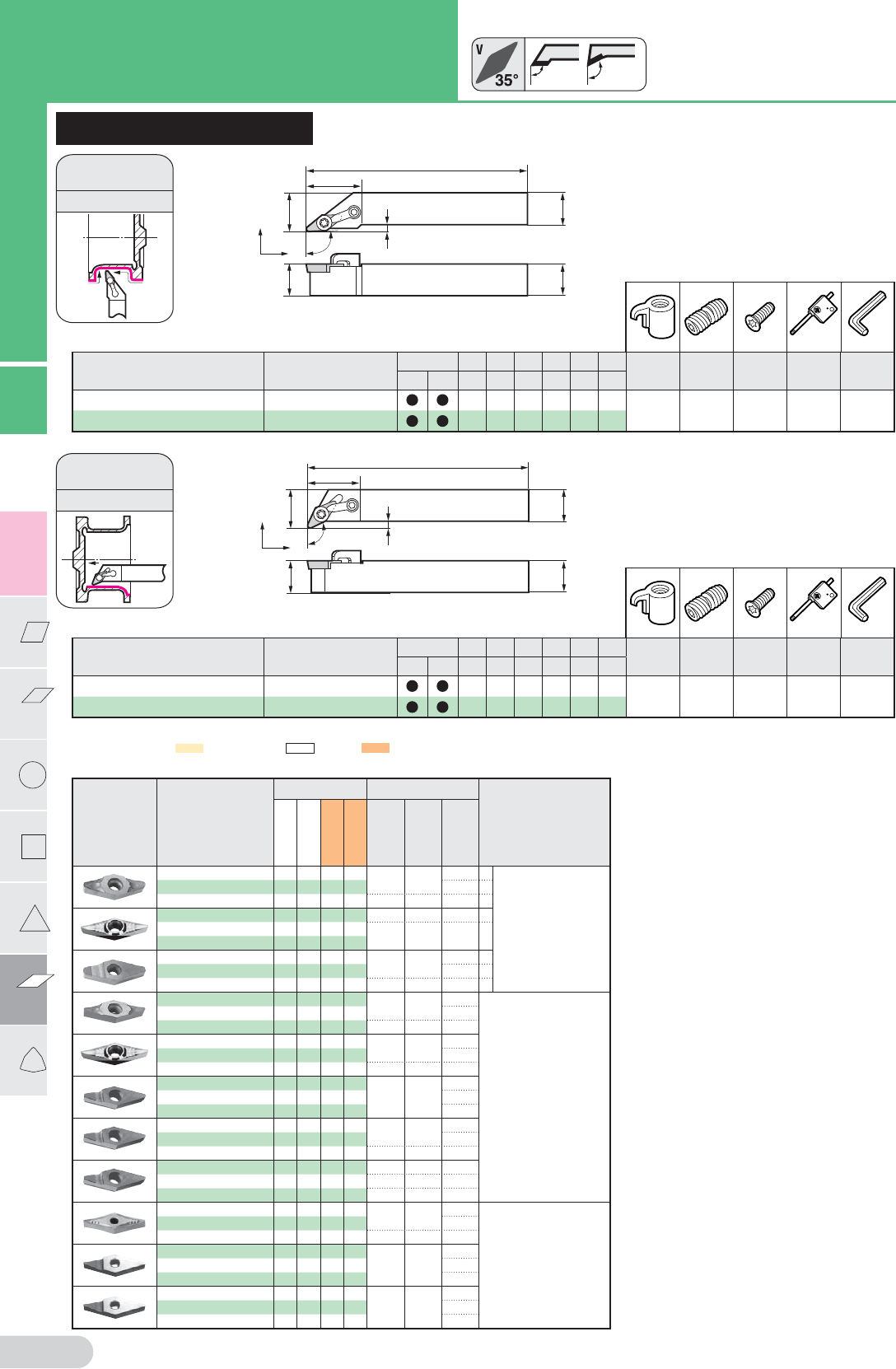

SEC-
MV Type Profiling Tool Holders
35 Diamond Type
0˚
0˚
LF
LH
HB
WF
HF
7
95˚
Spare Parts
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Clamp Double
screw Screw Wrench Wrench
for clamp
R L H B LF WF HF LH
MVXC R/L2525-22-20 MVXC R/L2525-2220 25 25 180 32 25 45
CCM8-LONG
WB8-24
BFTX0515N
TRX20 LH040
MVXC R/L2525-22-30 MVXC R/L2525-2230 25 25 180 32 25 45
Holder
This figure shows right handed tools.
This figure shows right handed tools.
mark: For 2.0 mm nose radius insert mark: For 3.0 mm nose radius insert
0˚
0˚
LF
LH
7
WF
HF
117.5˚
BH
Spare Parts
Cat. No. Conventional Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Head
Clamp Double
screw Screw Wrench Wrench
for clamp
R L H B LF WF HF LH
MVPC R/L2525-22-20 MVPC R/L2525-2220 25 25 180 32 25 41
CCM8-LONG
WB8-24
BFTX0515N
TRX20 LH040
MVPC R/L2525-22-30 MVPC R/L2525-2230 25 25 180 32 25 41
Holder
mark: For 2.0 mm nose radius insert mark: For 3.0 mm nose radius insert
Inserts
35 Diamond Type
Shape Cat. No.
Stock Dimensions (mm)
Applicable holder
E01G
1H
0001AD
0022AD
Inscribed
circle
Thickness
Nose radius
AW
VCGT220520N-AW
12.70 5.56 2.0
MVXC Type
(shown above)
MVPC Type
(shown above)
VCGT220530N-AW
3.0
AG
VCGT220530N-AG
12.70 5.56 3.0
VCMT220520
12.70 5.56 2.0
VCMT220530
3.0
AW
VCGT160408N-AW
9.525 4.76 0.8
SVJC Type ( C32)
SVVC Type ( C32)
SVPC Type ( C33)
VCGT160412N-AW
1. 2
AG
VCGT160408N-AG
9.525 4.76 0.8
VCGT160412N-AG
1. 2
NF-VCMT160404
9.525 4.76
0.4
NF-VCMT160408
0.8
NF-VCMT160412
1. 2
VCMT160408
9.525 4.76 0.8
VCMT160412
1. 2
WF
VCMT160412-WF
9.525 4.76 1.2
UP
VNMG160404N-UP
9.525 4.76 0.4
DVVN Type ( C31)
DVJN Type ( C31)
DVQN Type ( C31)
VNMG160408N-UP
0.8
NF-VNMX160404
9.525 4.76
0.4
NF-VNMX160408
0.8
NF-VNMX160412
1. 2
VNMX160404
9.525 4.76
0.4
VNMX160408
0.8
VNMX160412
1. 2
VNMG1604 N-UP (UP type chipbreaker) is also available in AC820P, AC830P, AC6030M, AC6040M and AC630M grades.
95˚ 117.5˚
MVXC
Profiling
MVPC
Internal Profiling
(for Torx hole)
(for Torx hole)
Dimensions (mm)
Dimensions (mm)
mark: To be replaced by a new item, shifted to made-to-order production, discondinued, etc. (Confirm the stock availability.)
Positive
Inserts
W
C
External
Holders
V
D
T
R
S
Special
Type
C37
C
(30)
H
B
19
WF
HF
ø280
15˚
LF
7˚
CW
15˚
+7˚
0˚

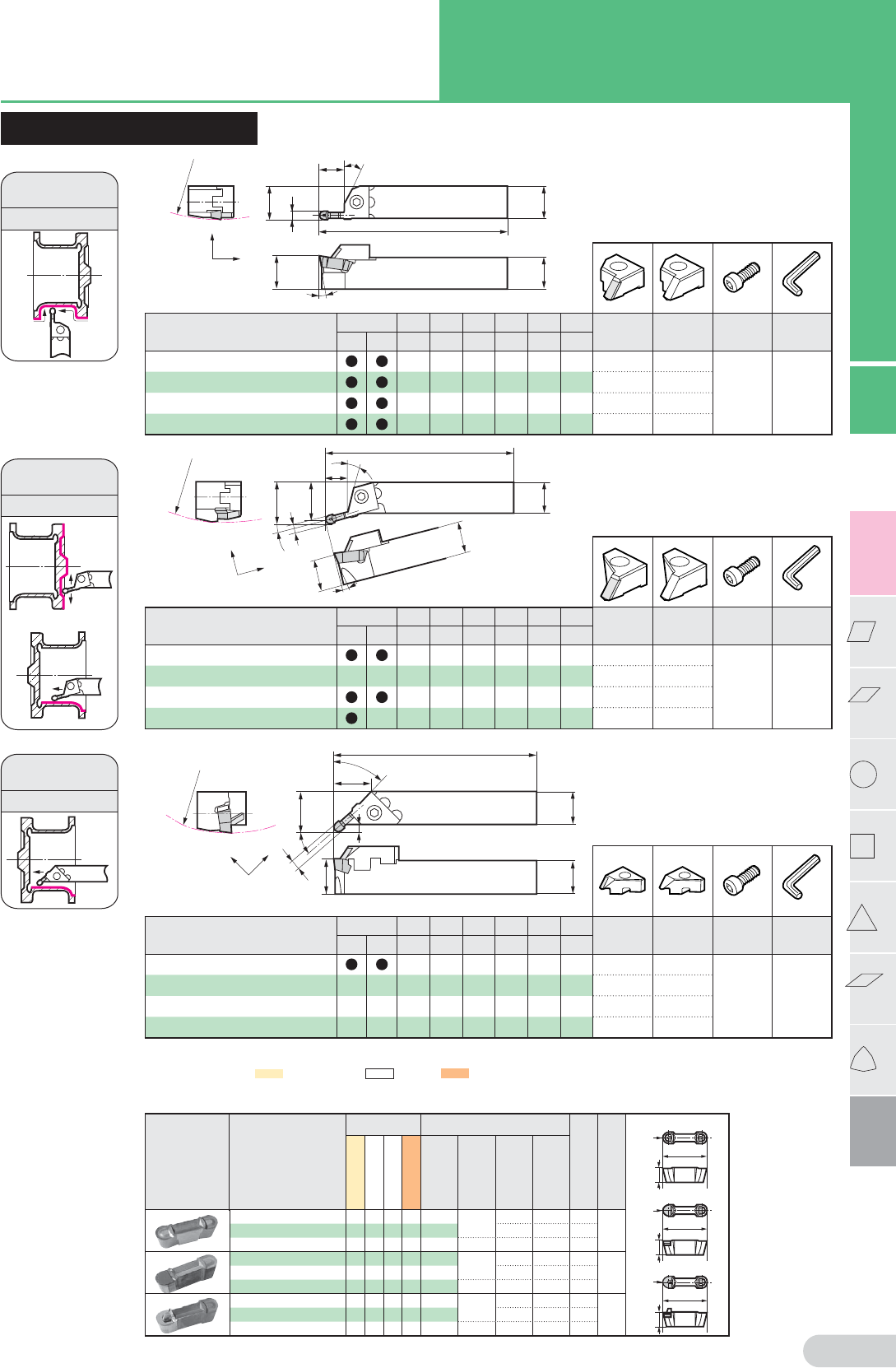

SEC-
GD Type Profiling Tool Holders
GDE600S(W)
800S(W)
Profiling
Dogbone Insert
+7˚
0˚
BH
LF
25˚
20
7˚
CW
HF WF
ø325
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Width
of cut
Carbide
piece clamp
Special
steel clamp
Cap
screw Wrench
R L H B LF WF HF CW
GDE R/L2525-600S 25 25 150 26 25 6 —
GDS600R/L
BX0625 LH050
GDE R/L2525-800S 25 25 150 26 25 8 —
GDS800R/L
GDE R/L2525-600W 25 25 150 26 25 6
GDW600R/L
—
GDE R/L2525-800W 25 25 150 26 25 8
GDW800R/L
—
Holder
This figure shows right handed tools.
mark: For 3.0 mm nose radius insert
mark: For 4.0 mm nose radius insert
Profiling Facing &
Inner Diameter)
GDE615S(W)
815S(W)
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Width
of cut
Carbide
piece clamp
Special
steel clamp
Cap
screw Wrench
RLH B LF WF HF CW
GDE R/L2525-615S 25 25 150 32.2 25 6 —
GDS615R/L
BX0625 LH050
GDE R/L2525-815S 25 25 150 33.2 25 8 —
GDS815R/L
GDE R/L2525-615W 25 25 150 32.2 25 6
GDW615R/L
—
GDE R/L2525-815W 25 25 150 33.2 25 8
GDW815R/L
—
Holder
This figure shows right handed tools.
mark: For 3.0 mm nose radius insert
mark: For 4.0 mm nose radius insert
GDE645S(W)
845S(W)
Profiling (Inner Diameter)
+7˚
0˚
BH
LF
45˚
45˚
CW
5
WF
HF
ø280
(26)
Spare Parts
Cat. No. Stock
Height
Width
Tota l
length
Cutting
edge
Cutting
edge height
Width
of cut
Carbide
piece clamp
Special
steel clamp
Cap
screw Wrench
RLH B LF WF HF CW
GDE R/L2525-645S 25 25 150 30 25 6 —
GDS6
45
R/L
BX0625 LH050
GDE R/L2525-845S 25 25 150 30 25 8 —
GDS8
45
R/L
GDE R/L2525-645W 25 25 150 30 25 6
GDW645R/L
—
GDE R/L2525-845W 25 25 150 30 25 8
GDW845R/L
—
Holder
This figure shows right handed tools.
mark: For 3.0 mm nose radius insert
mark: For 4.0 mm nose radius insert
Dog Bone Type
Inserts ( Coated Carbide / Carbide / SUMIDIA)
Stock Dimensions (mm)
Applicable holder
Fig
Fig1
RE
S
L
Fig2
RE
S
L
Fig3
RE
S
L
Z01HE
E01G
1H
0022AD
Total lenght (L)
Thickness (S)
Nose radius
(RE)
Cutting part
width (CW)
AW
MDE3R-AW
26 8.5 3.0 6
1
MDE4R-AW
30 4.0 8
MDE3R
26 8.5 3.0 6
2
MDE4R
30 4.0 8
AW
MDE3R-AW
26 8.5 3.0 6
3
MDE4R-AW
30 4.0 8
Shape Cat. No.
Dimensions (mm)
Dimensions (mm)
Dimensions (mm)
External
Holders
C
D
R
T
V
W
C38
S
C
Double Clamp Holders
Parts for Clamp Set
Spare Parts
Applicable
clamp set
Cat. No.
Spring Cap screw
N m
Cat. No. Stock Cat. No. Stock
SCP-1 CSP08 CP-M5-20-1
5.0
SCP-2 CSP08 CP-M5-20-1
SCP-3 CSP08 CP-M5-20-1
SCP-4 CSP25 CP-M5-20-1
SCP-5 CSP08 CP-M5-20-1
SCP-6 CSP12 CP-M8-25-1 6.0
N m Recommended tightning torque (N m)
Note: CP-M5-20-1 can also be fastened from under the screw.
