Tungaloy’s Insights –
Smart Manufacturing
Tungaloy, as one of the leaders in the
metal removal industry, offers the latest
innovations in grades and geometries for
superb performance and tool life.
In a competitive world eager to embrace
Industry 4.0, Tungaloy provides an
extensive portfolio with the latest digital
tools to support our customers in making
better tooling decisions to improve their
competitiveness and productivity.
we improve...
we evolve...
we ADD
Find all product
details in Tungaloy
updated e-catalog.
Tungaloy Accelerated Lines
Leading in Innovation
6 GRADE
10 GROOVING &
PARTING-OFF
12 AddForceCut

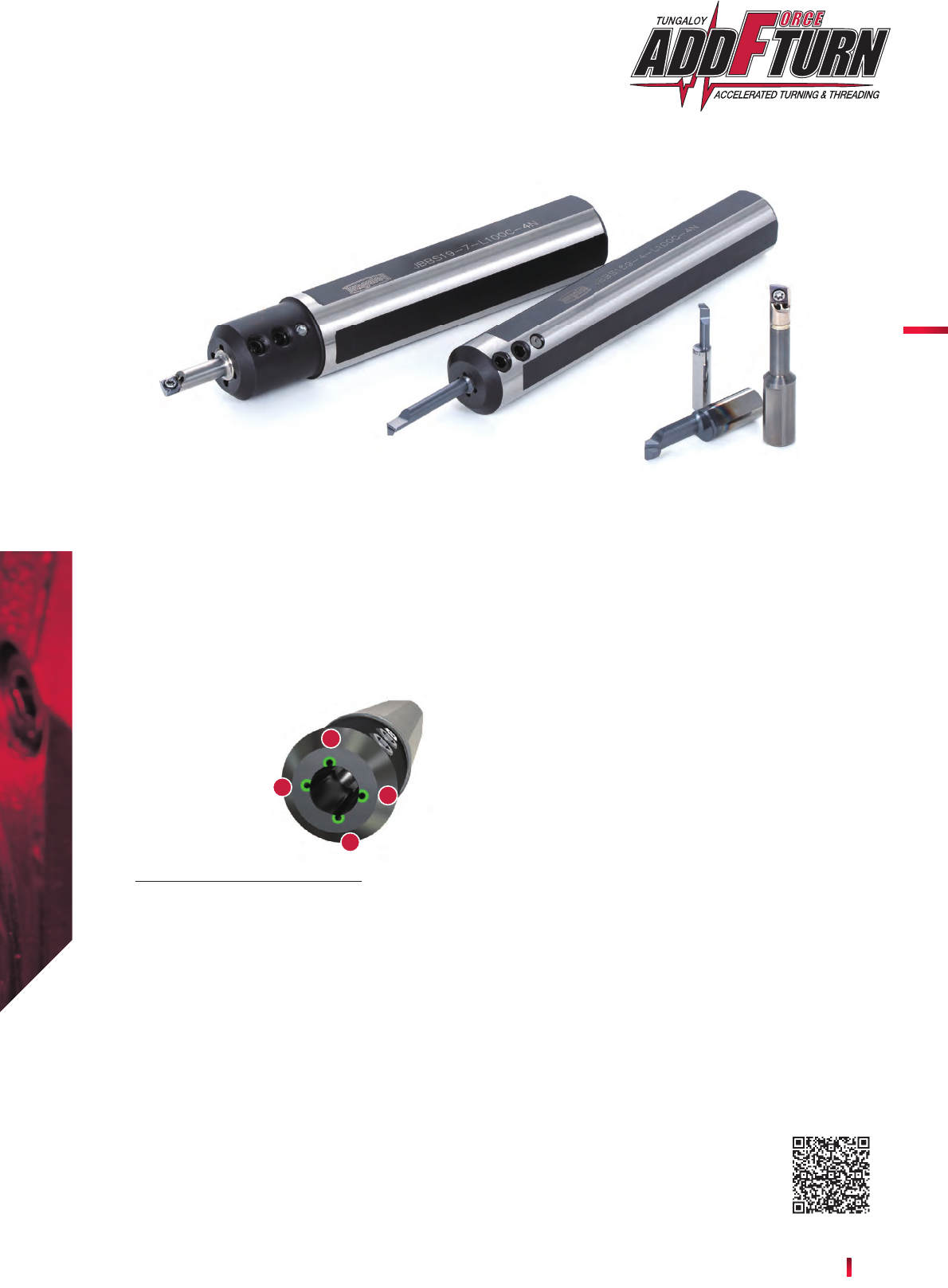

20 AddInternalCut

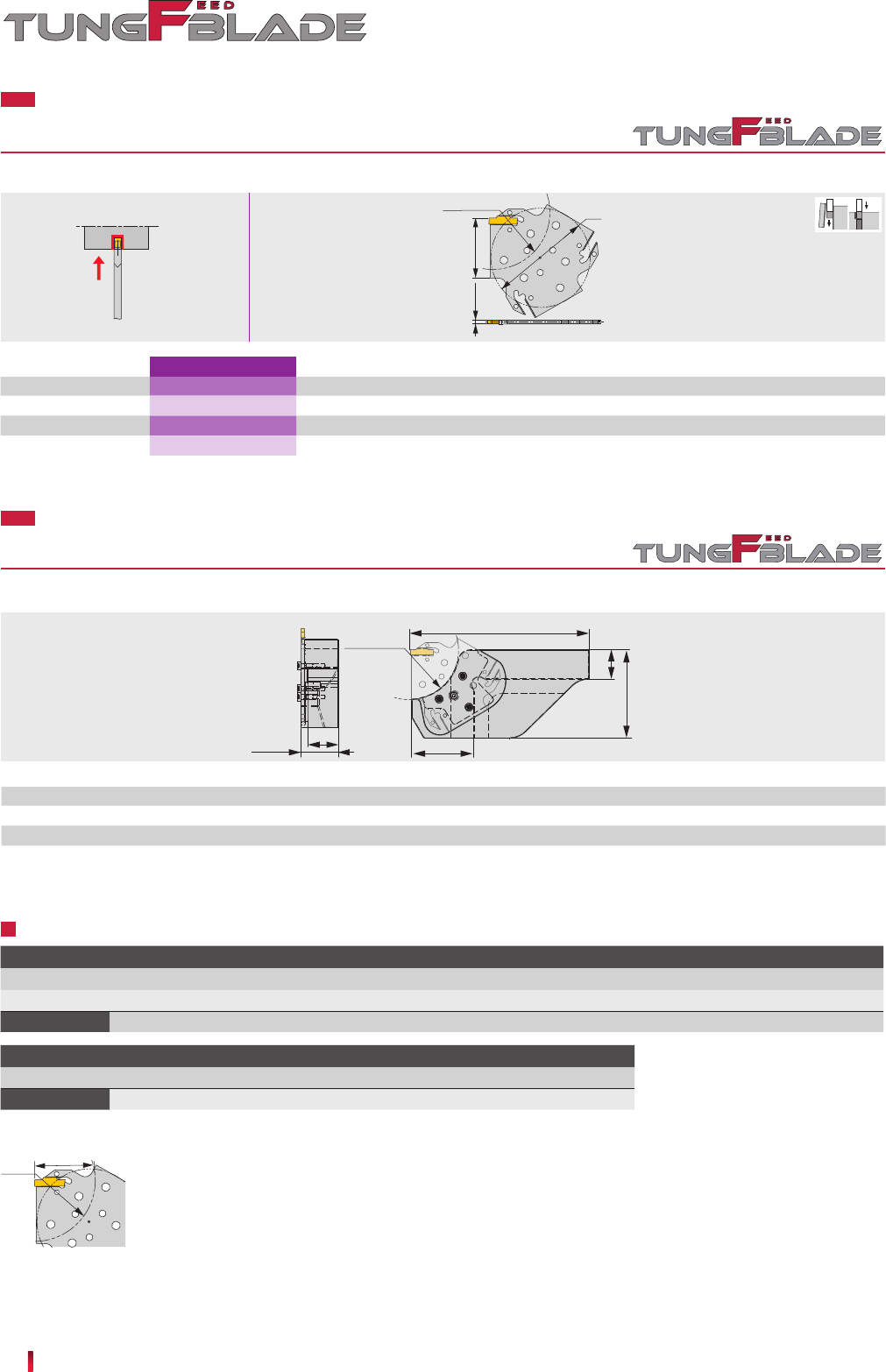

24 TungFeedBlade
28 TetraForce-Cut

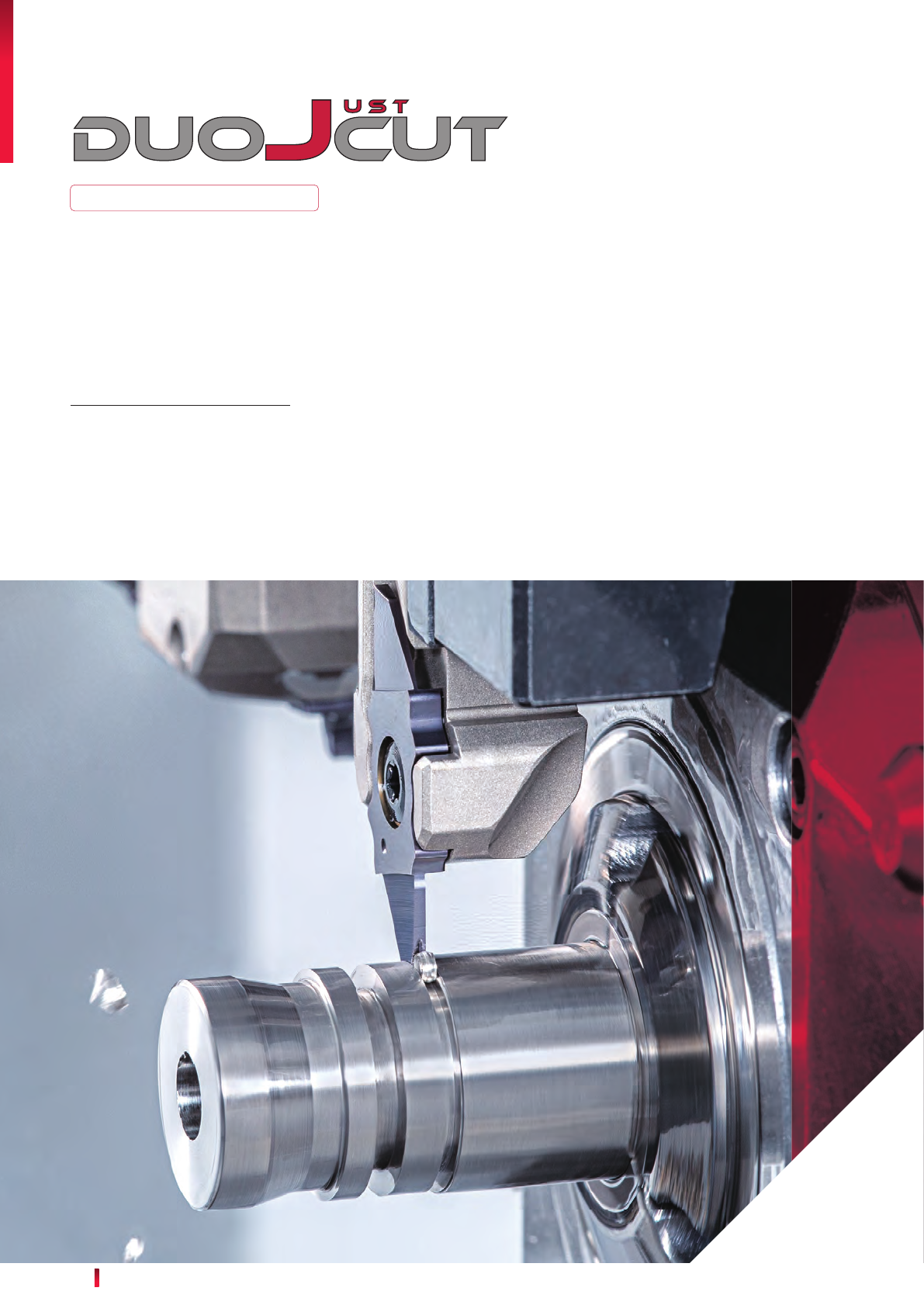

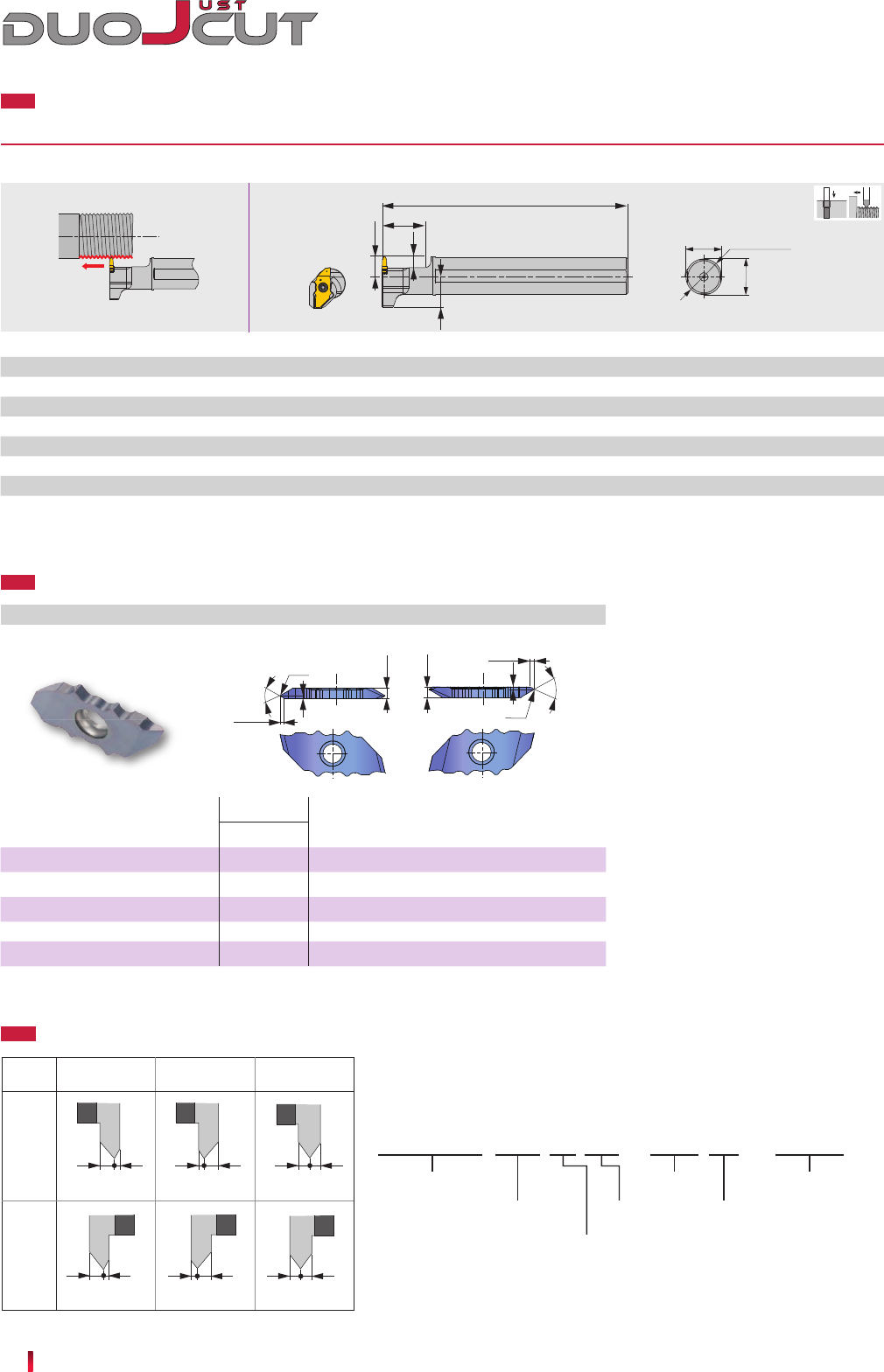

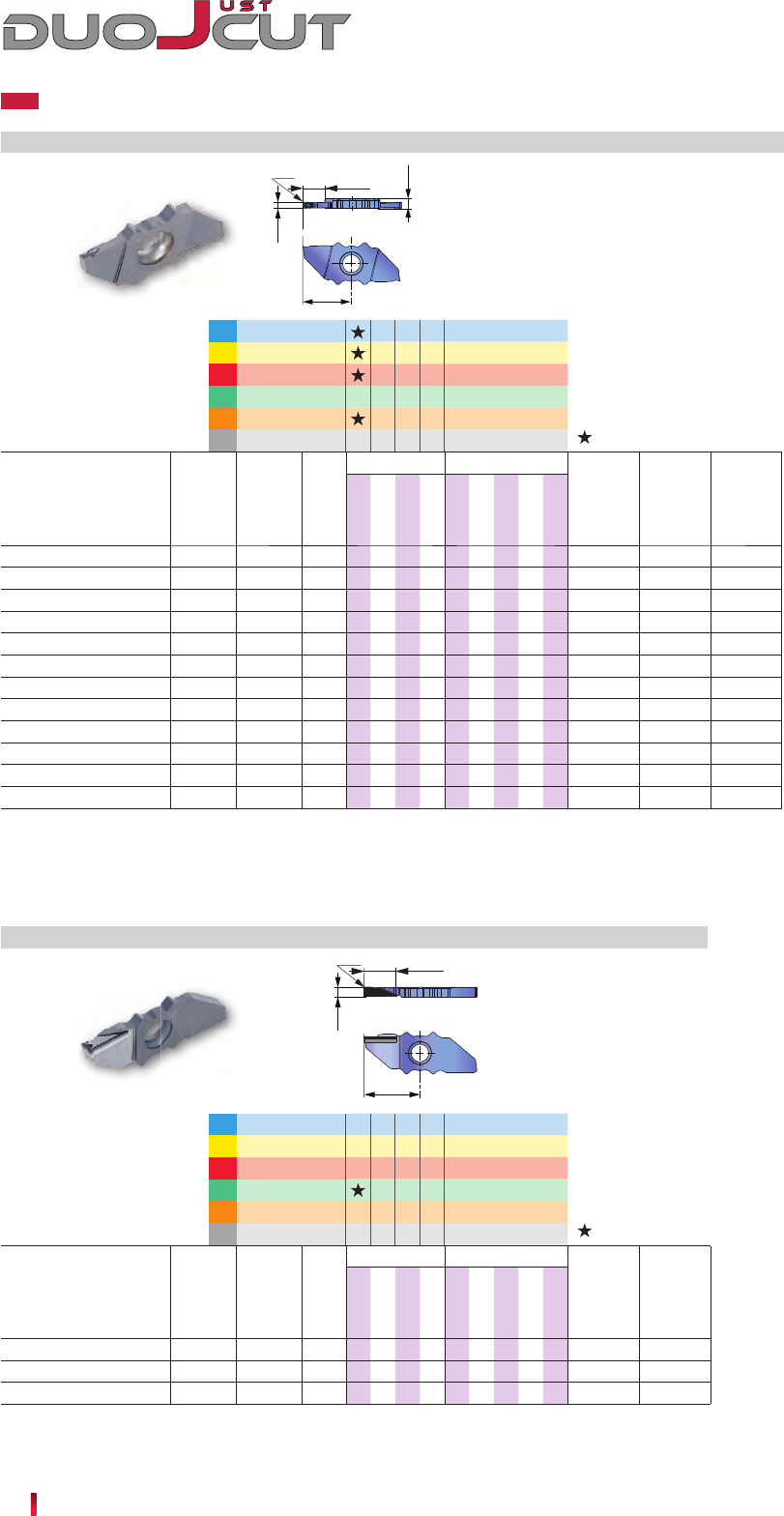

32 DuoJust-Cut
40 TURNING

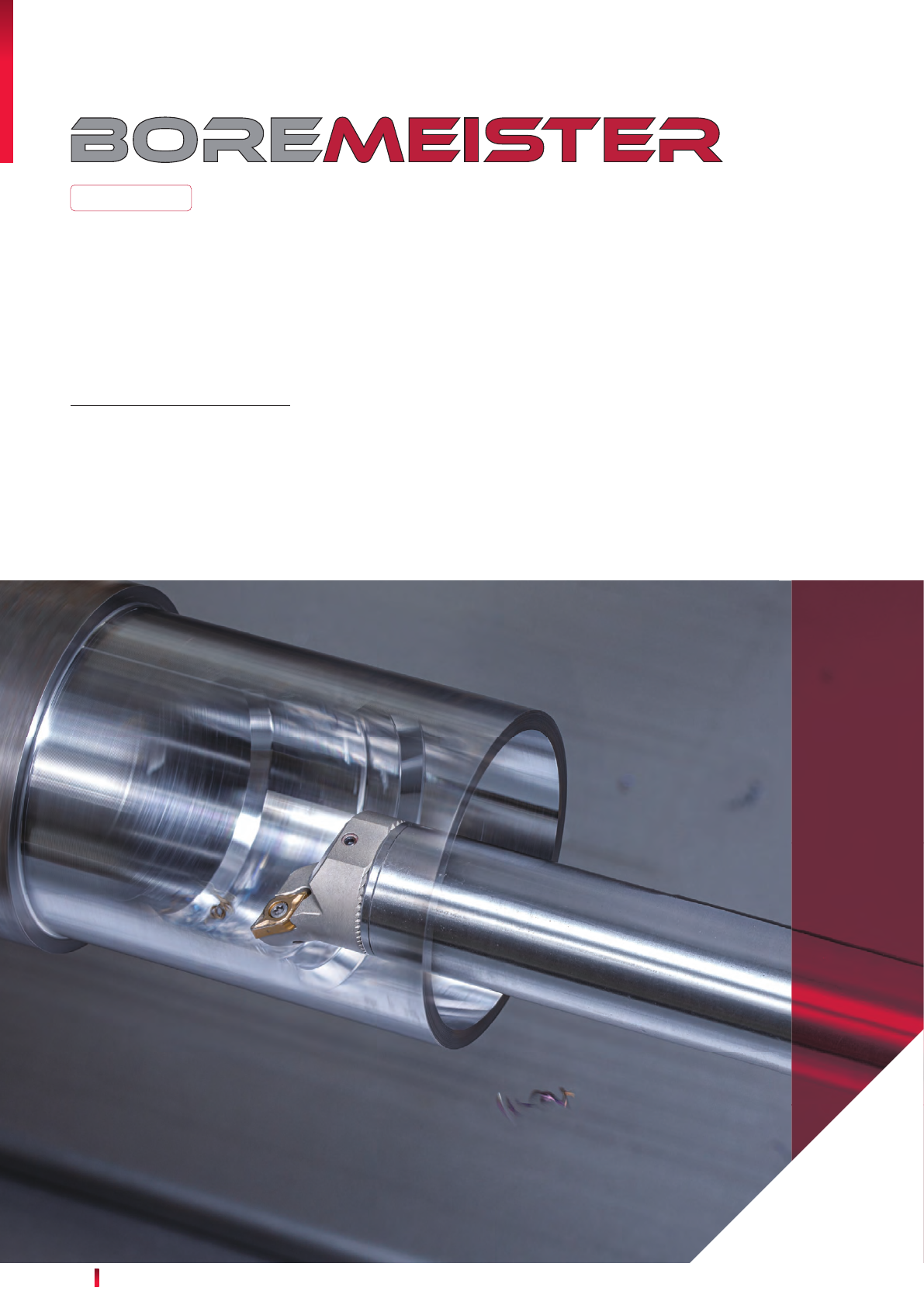

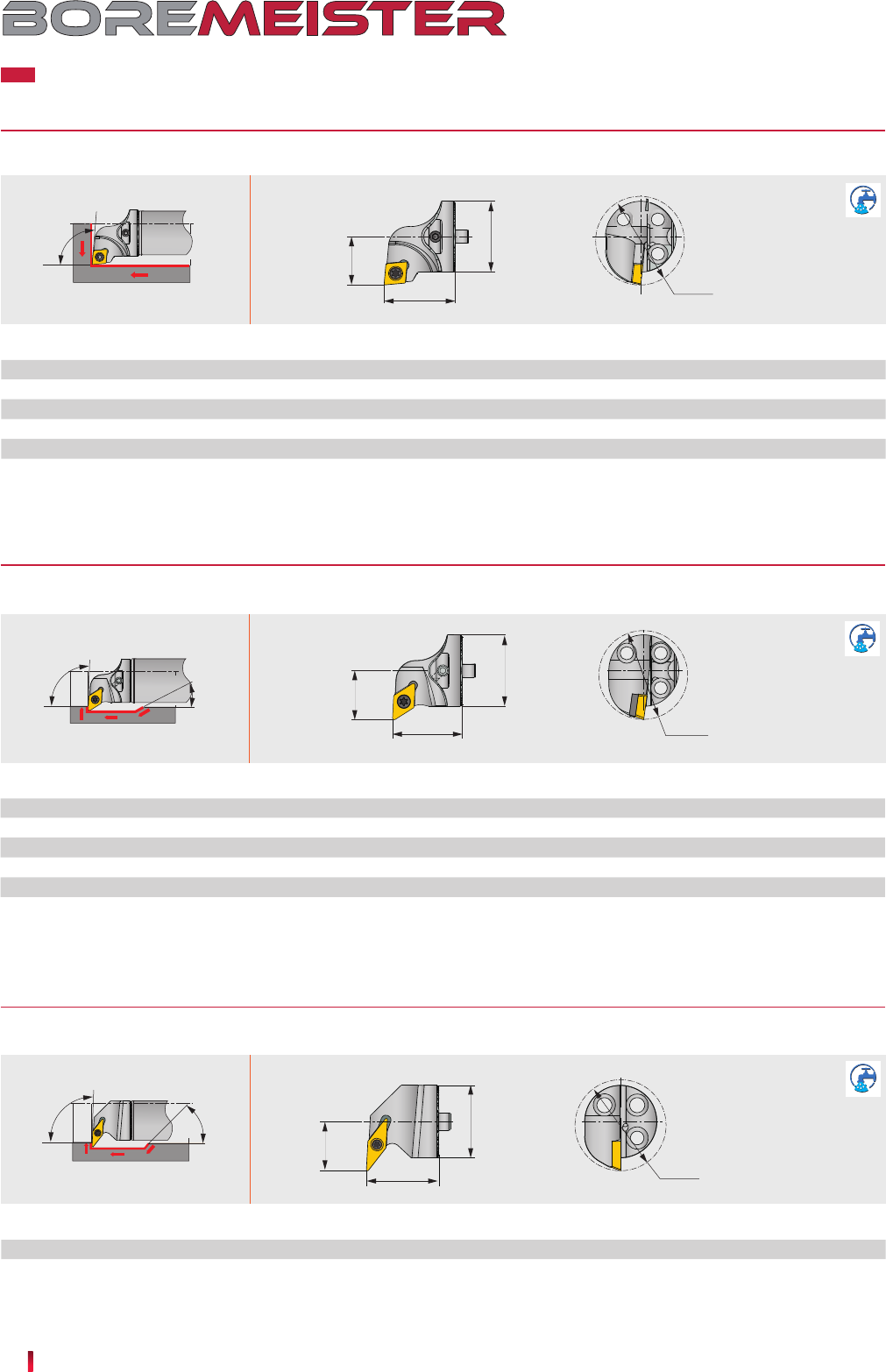

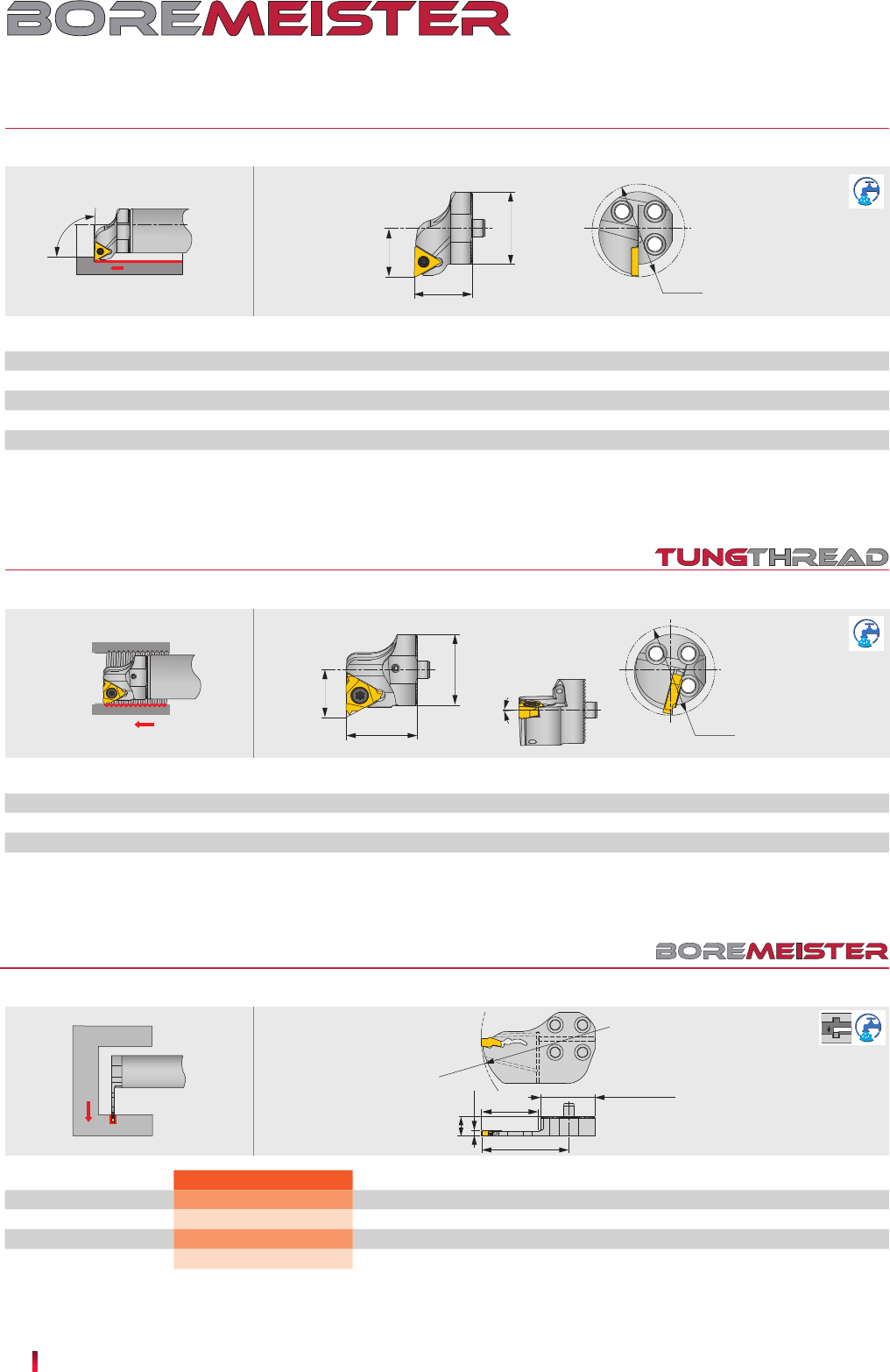

42 BoreMeister

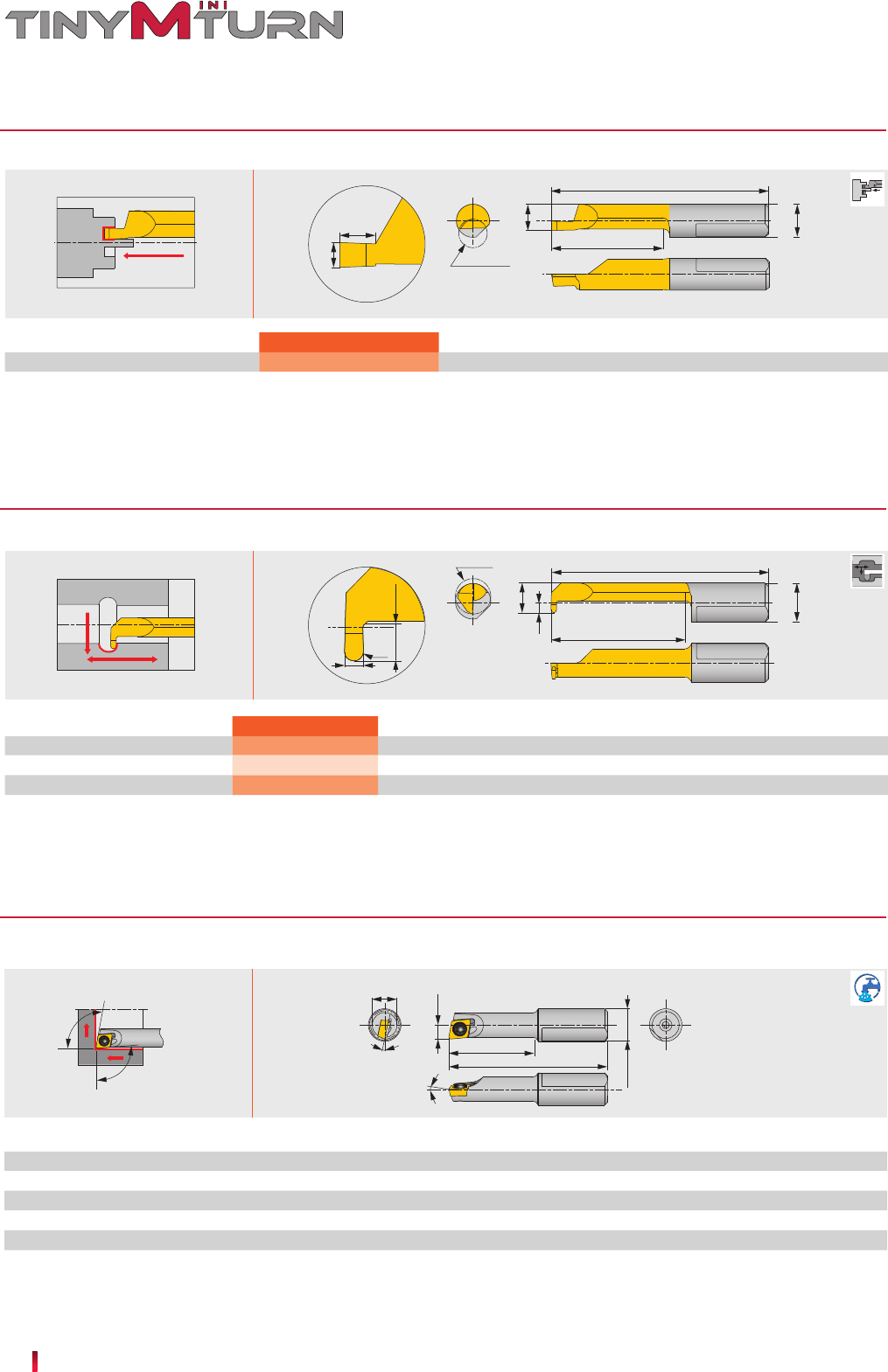

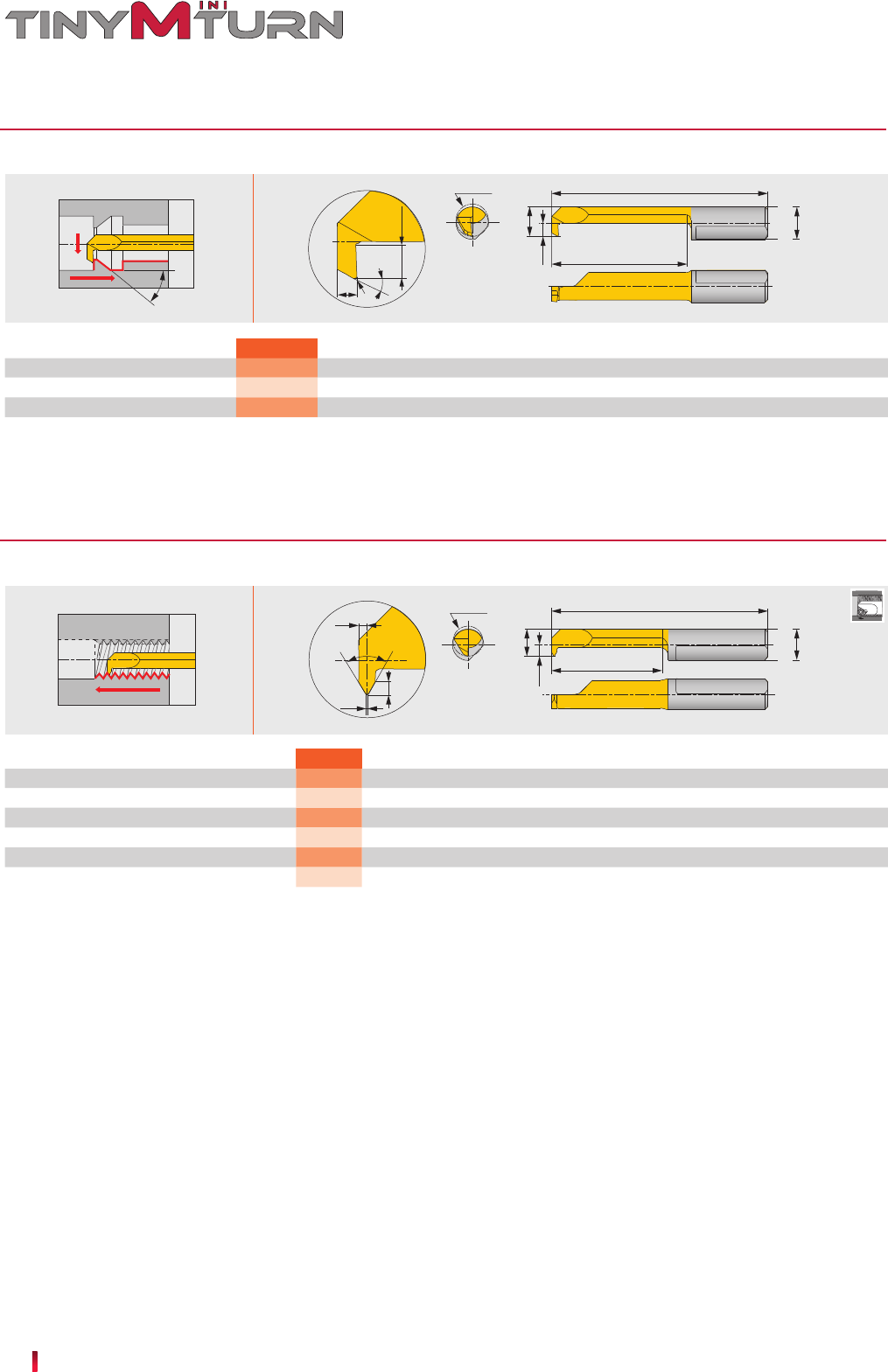

52 TinyMiniTurn

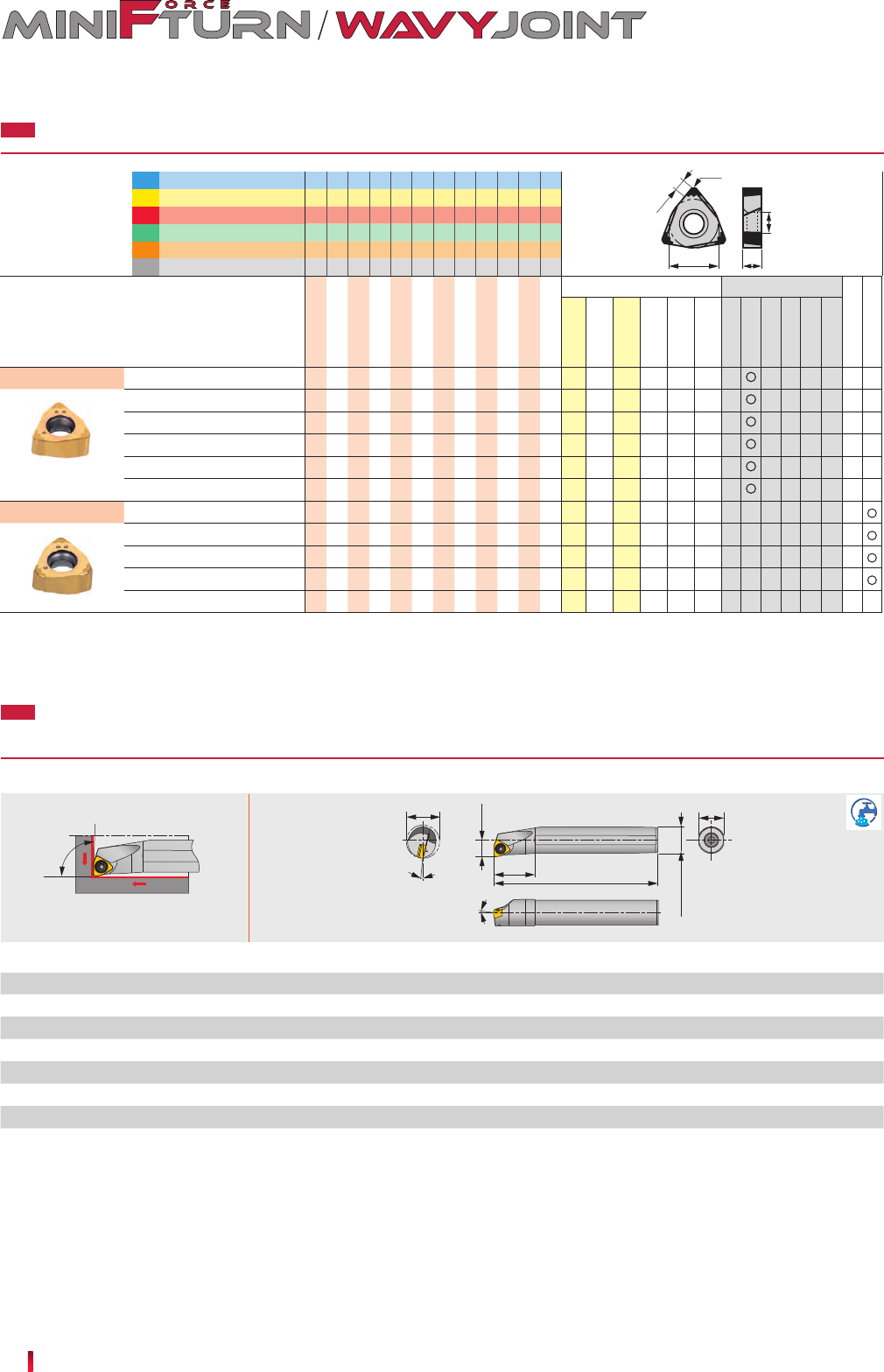

60 MiniForceTurn /
WavyJoint CBN

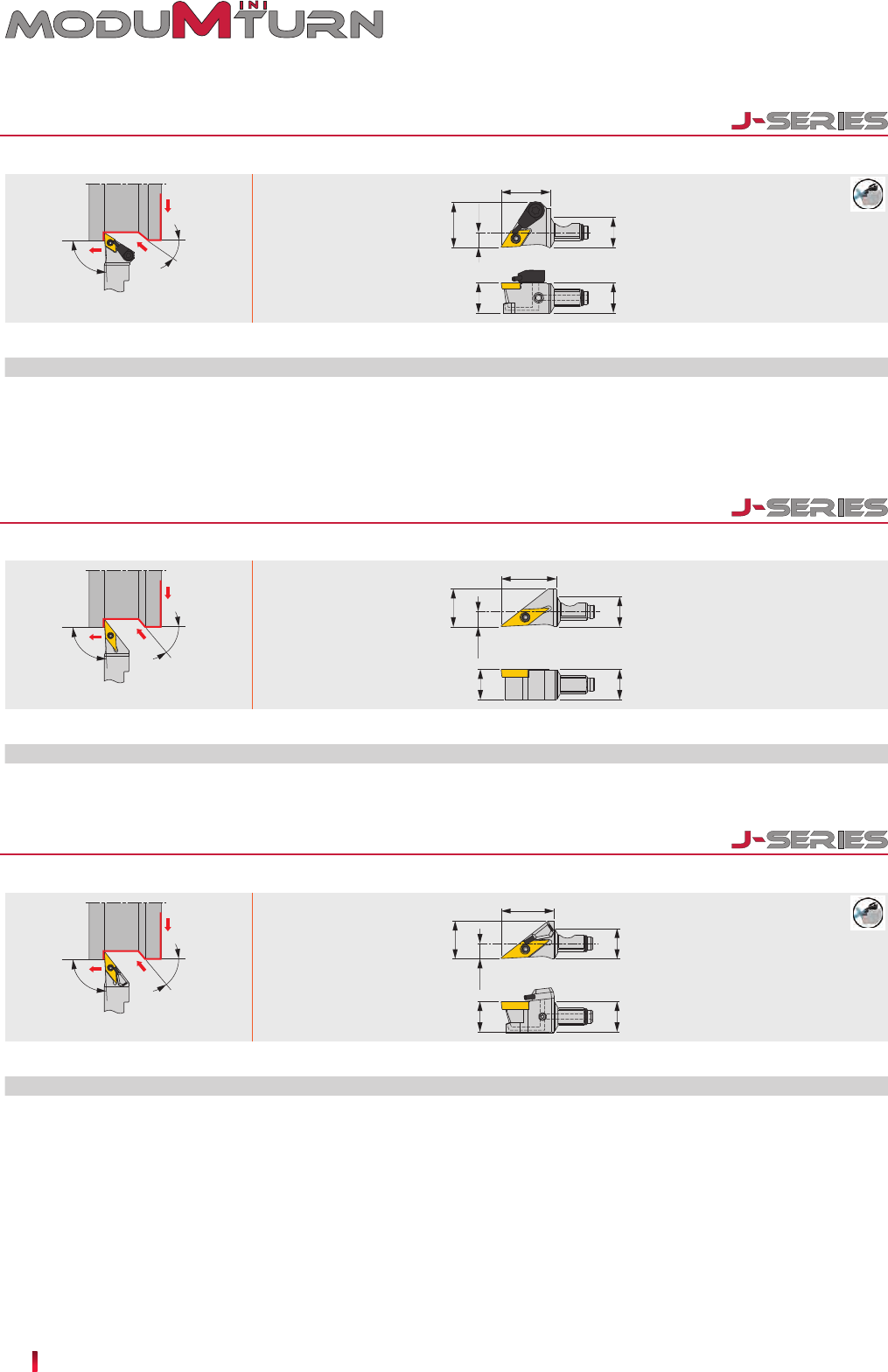

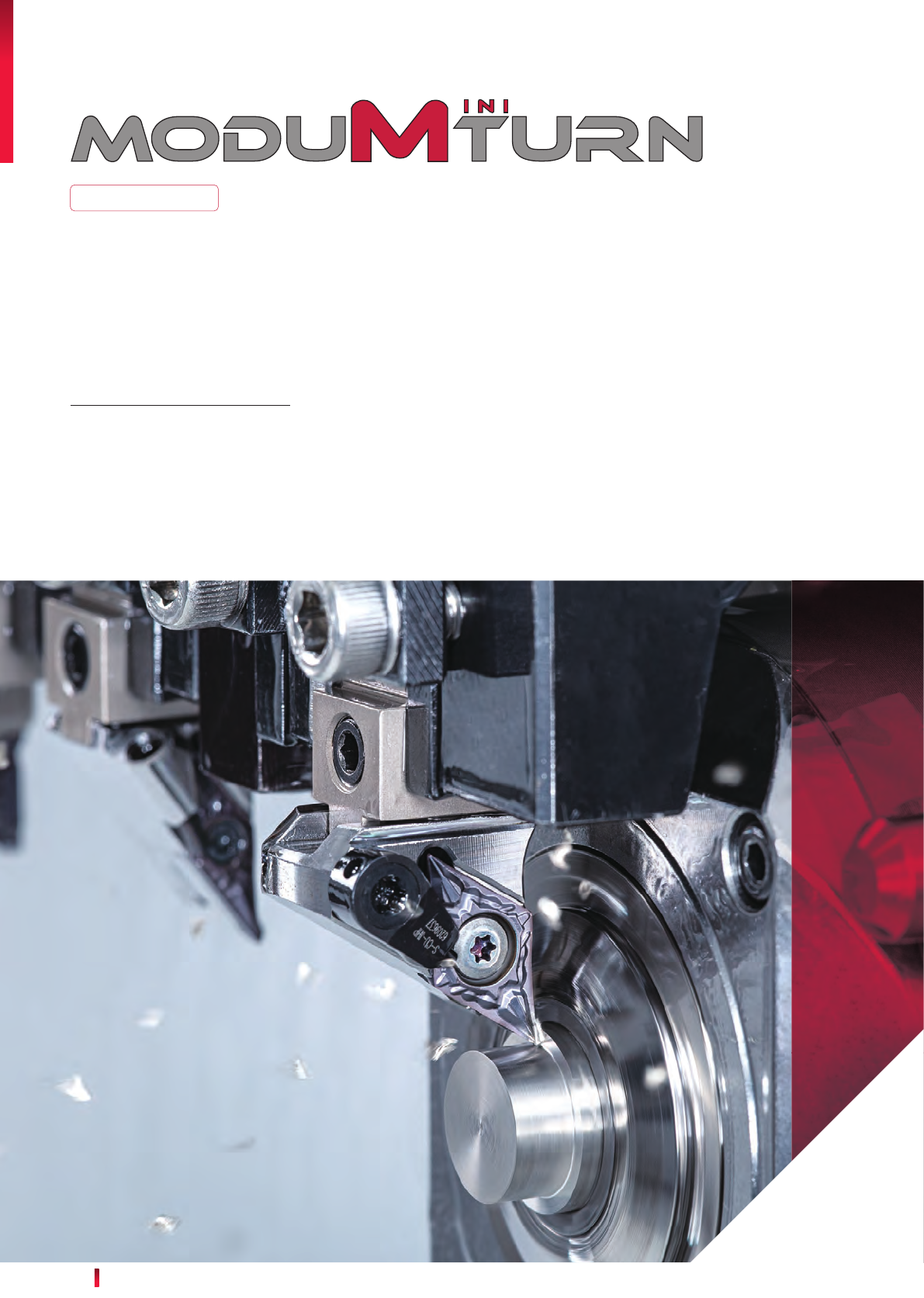

64 ModuMiniTurn
78 MILLING
80 AddDoFeed

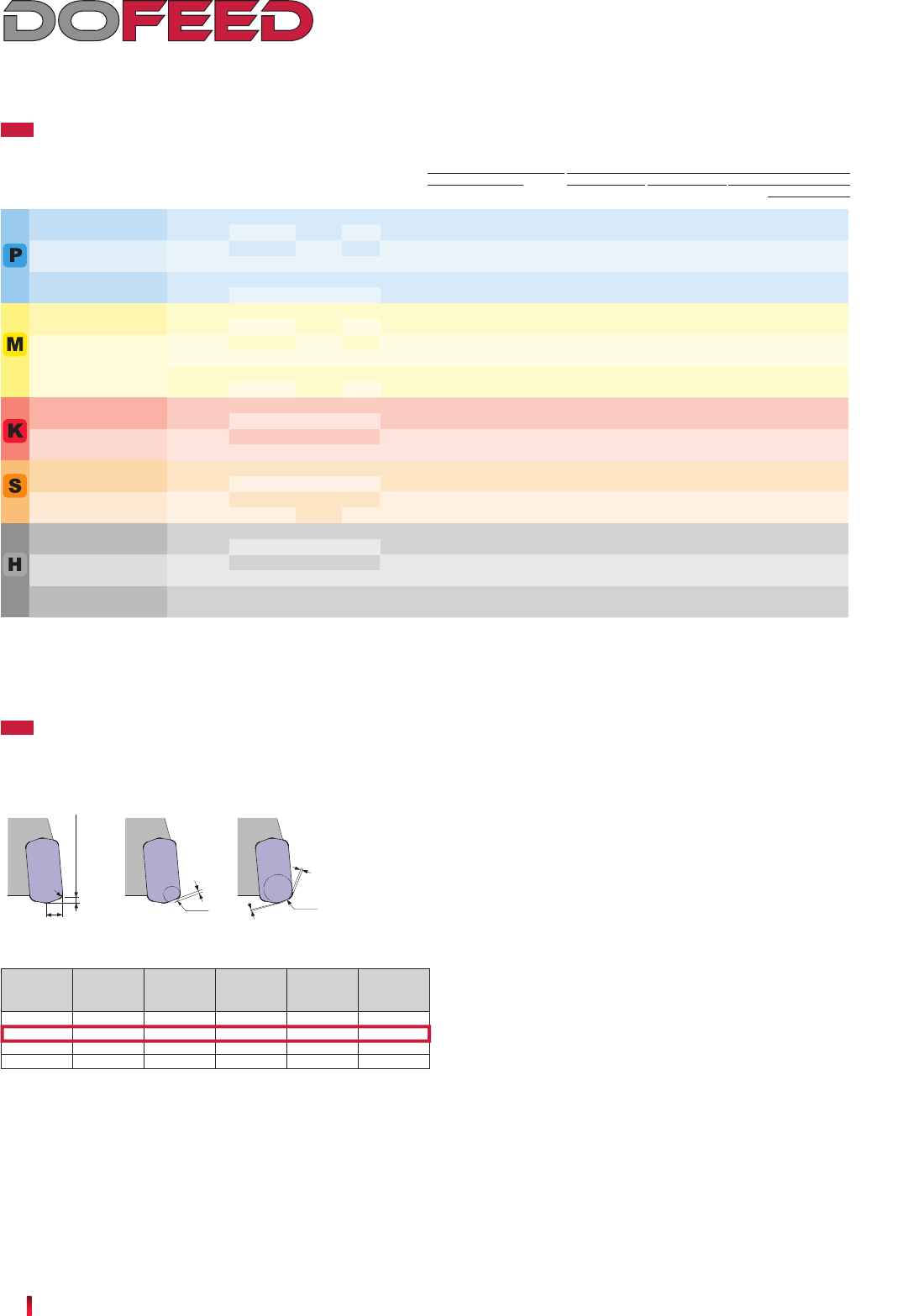

86 DoFeed

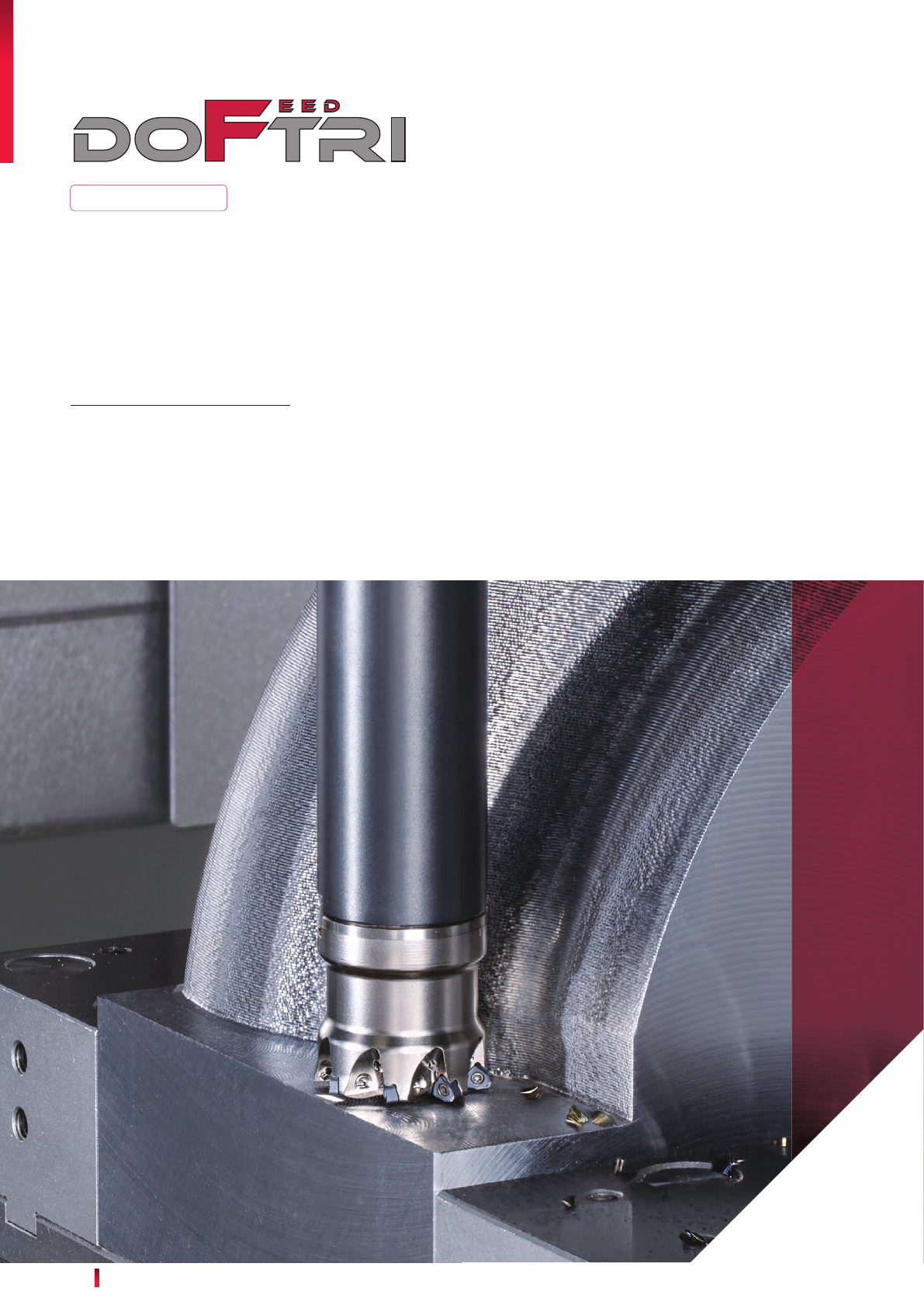

94 DoFeedTri
100 Tung-Tri

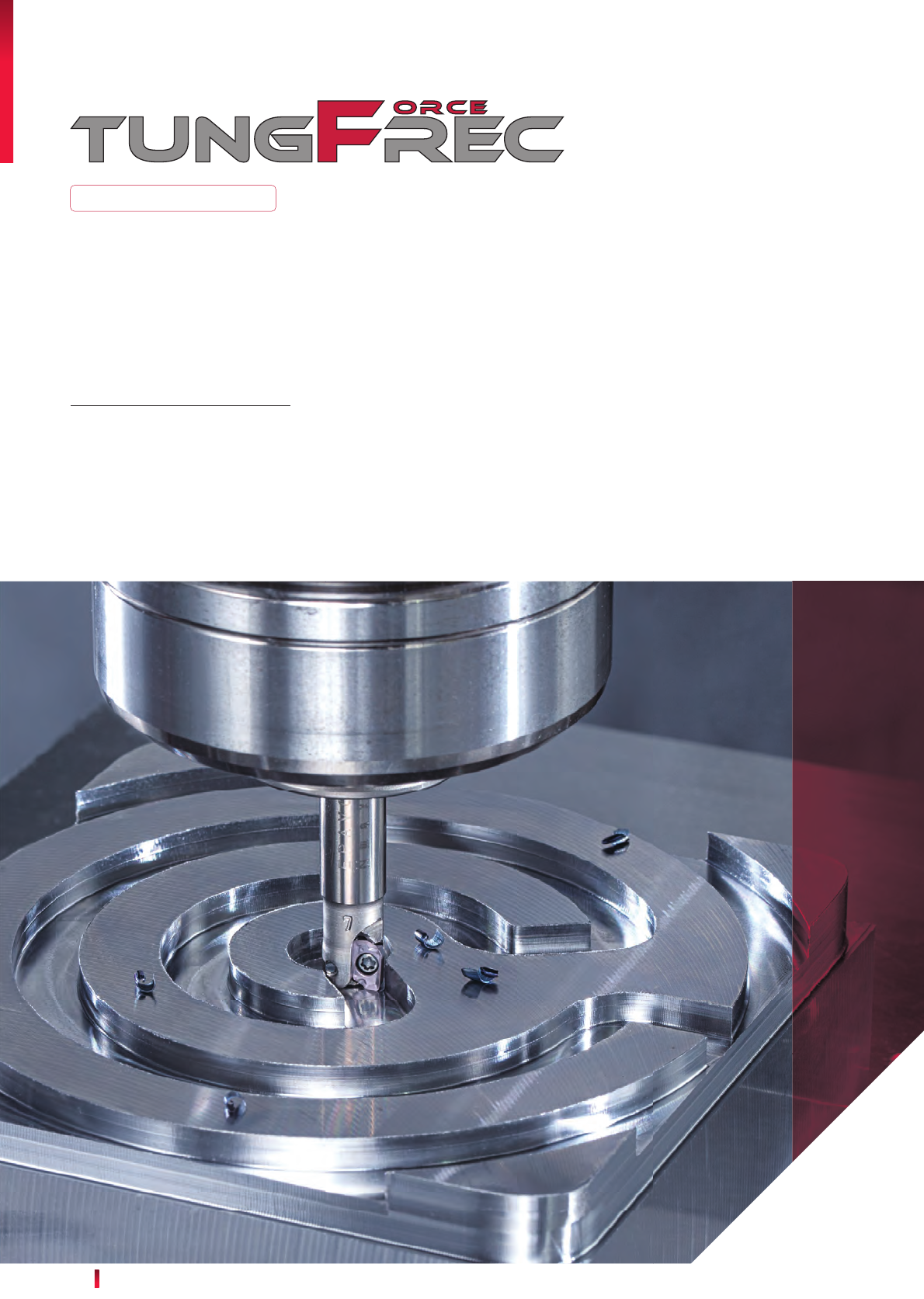

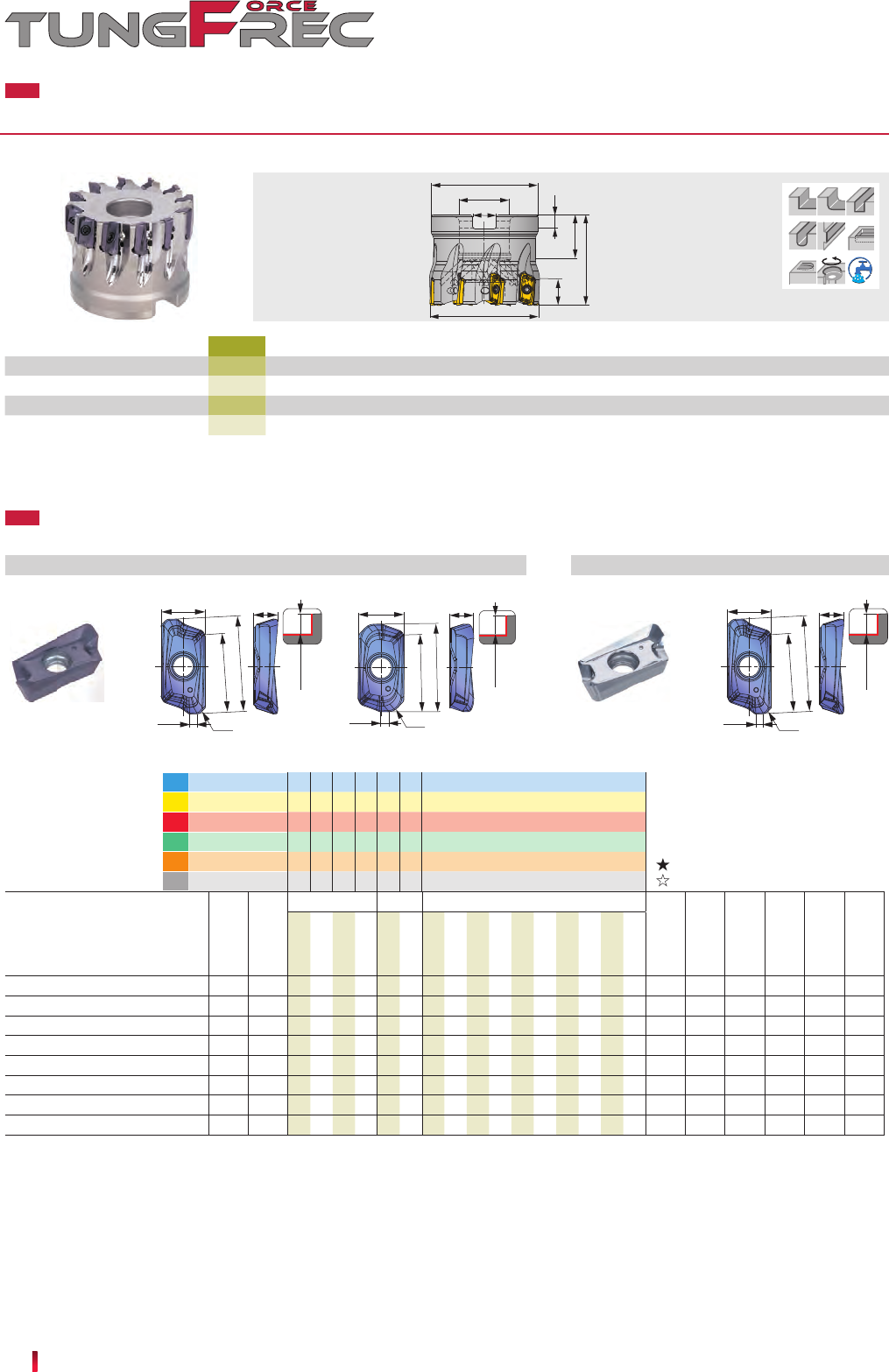

104 TungForce-Rec
112 DoMultiRec

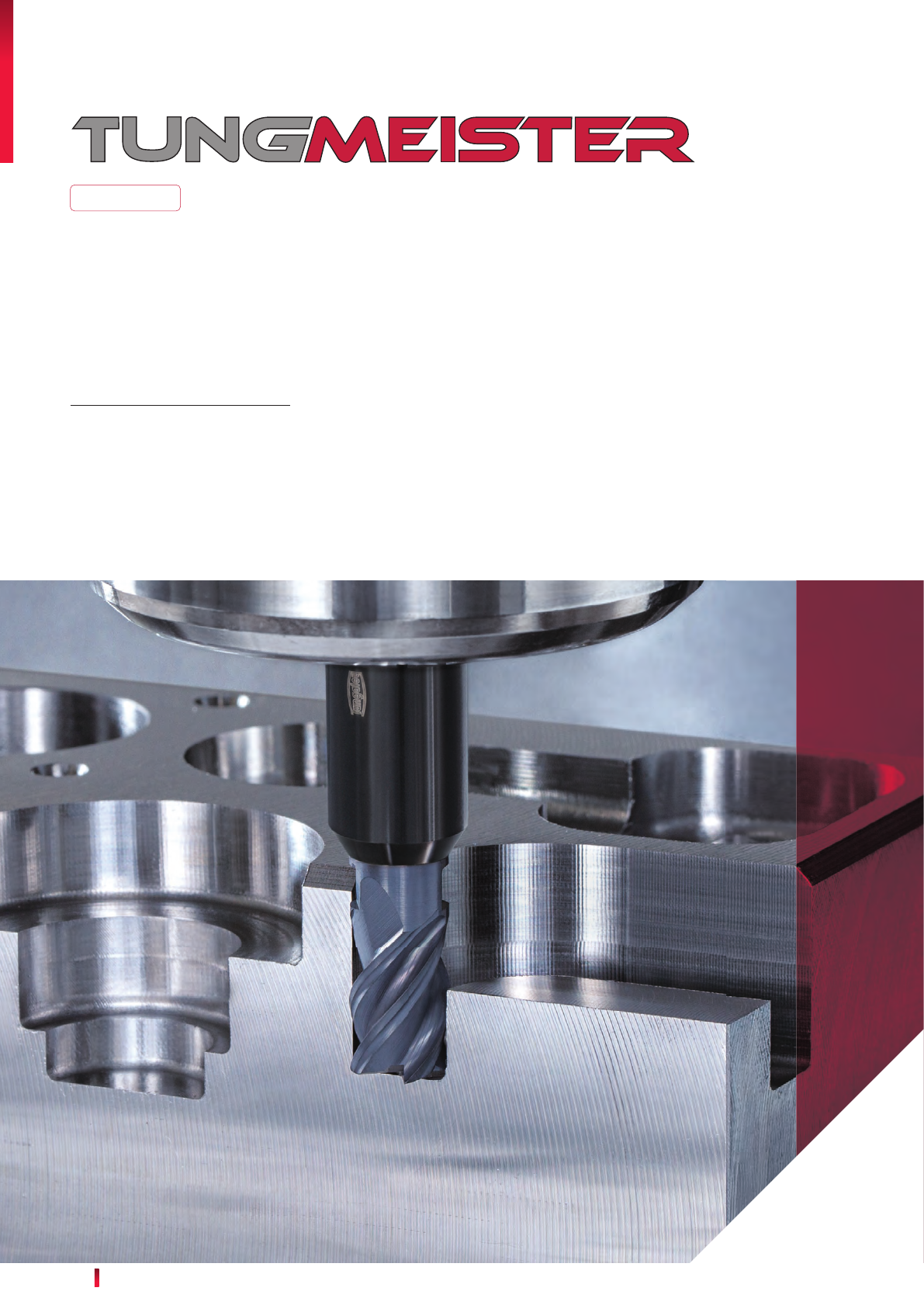

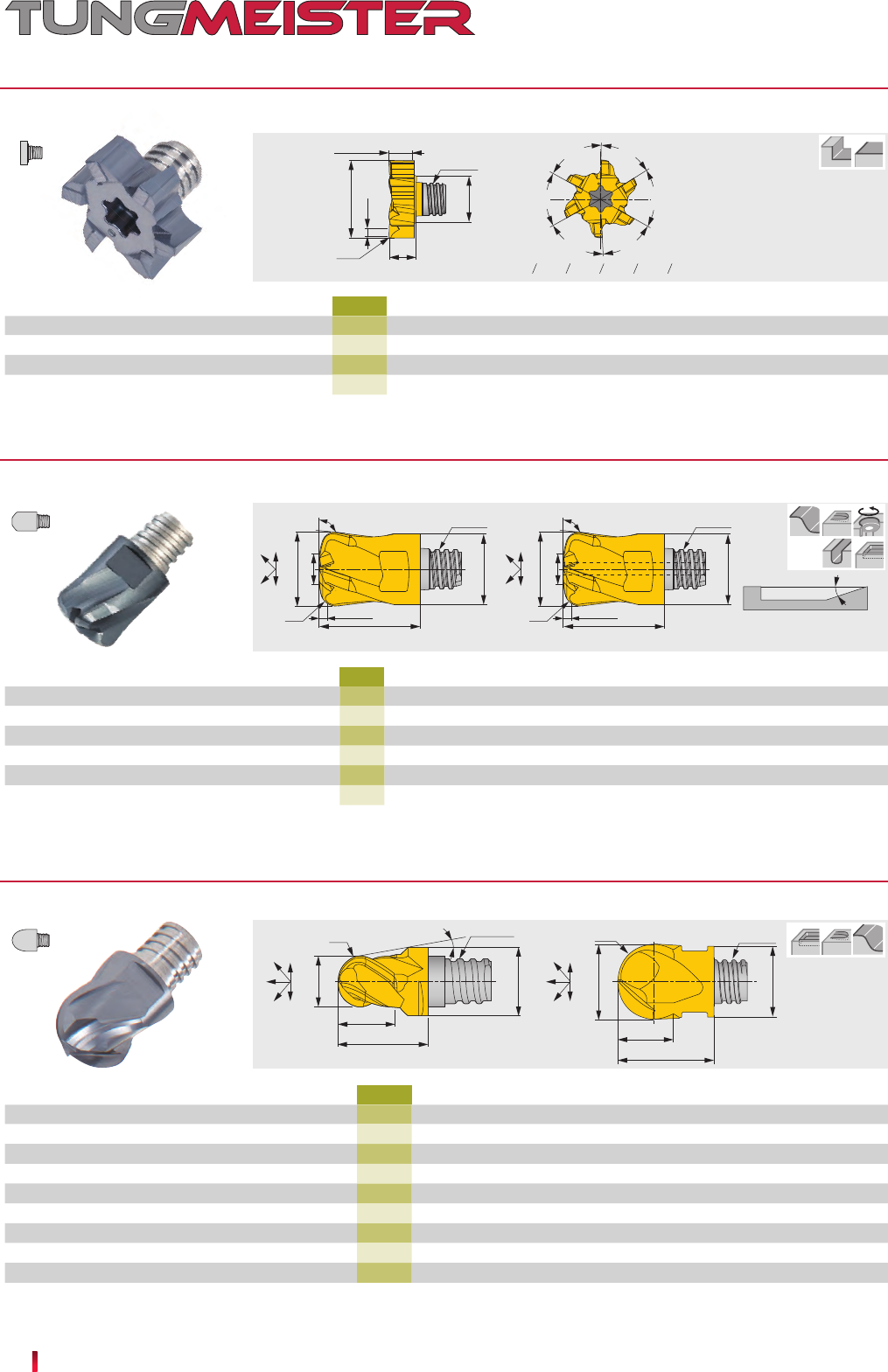

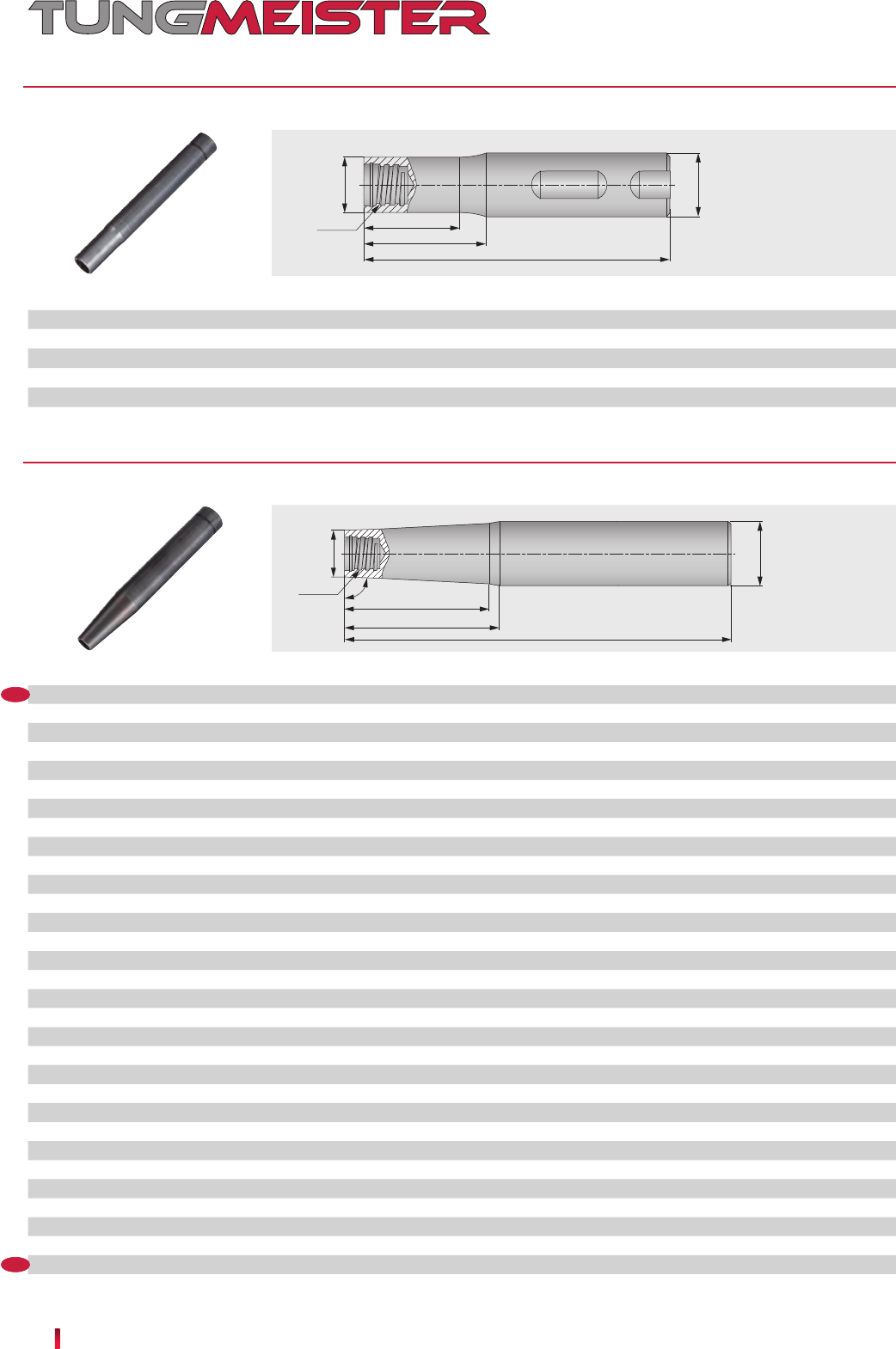

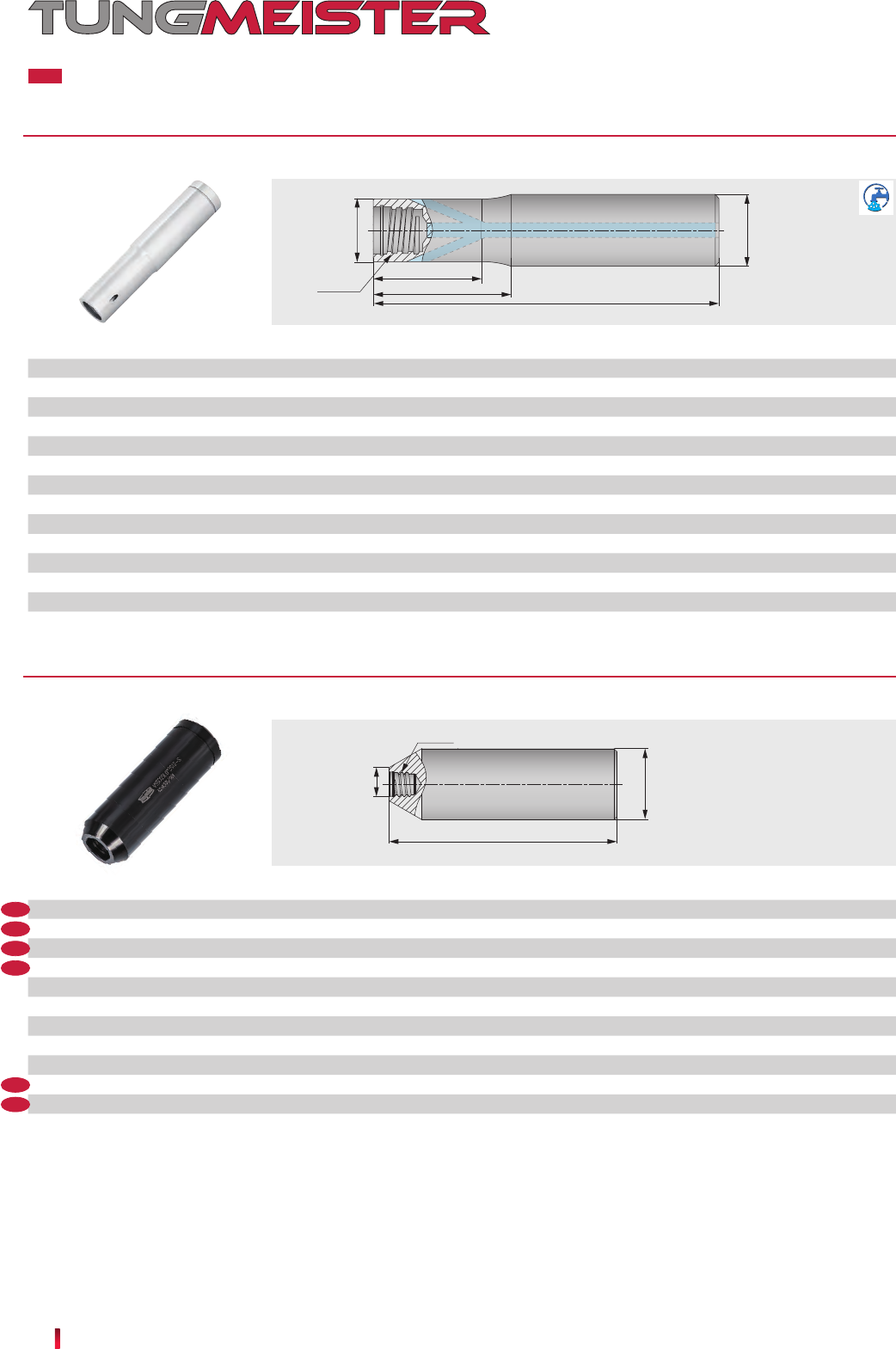

116 TungMeister
138 HOLEMAKING

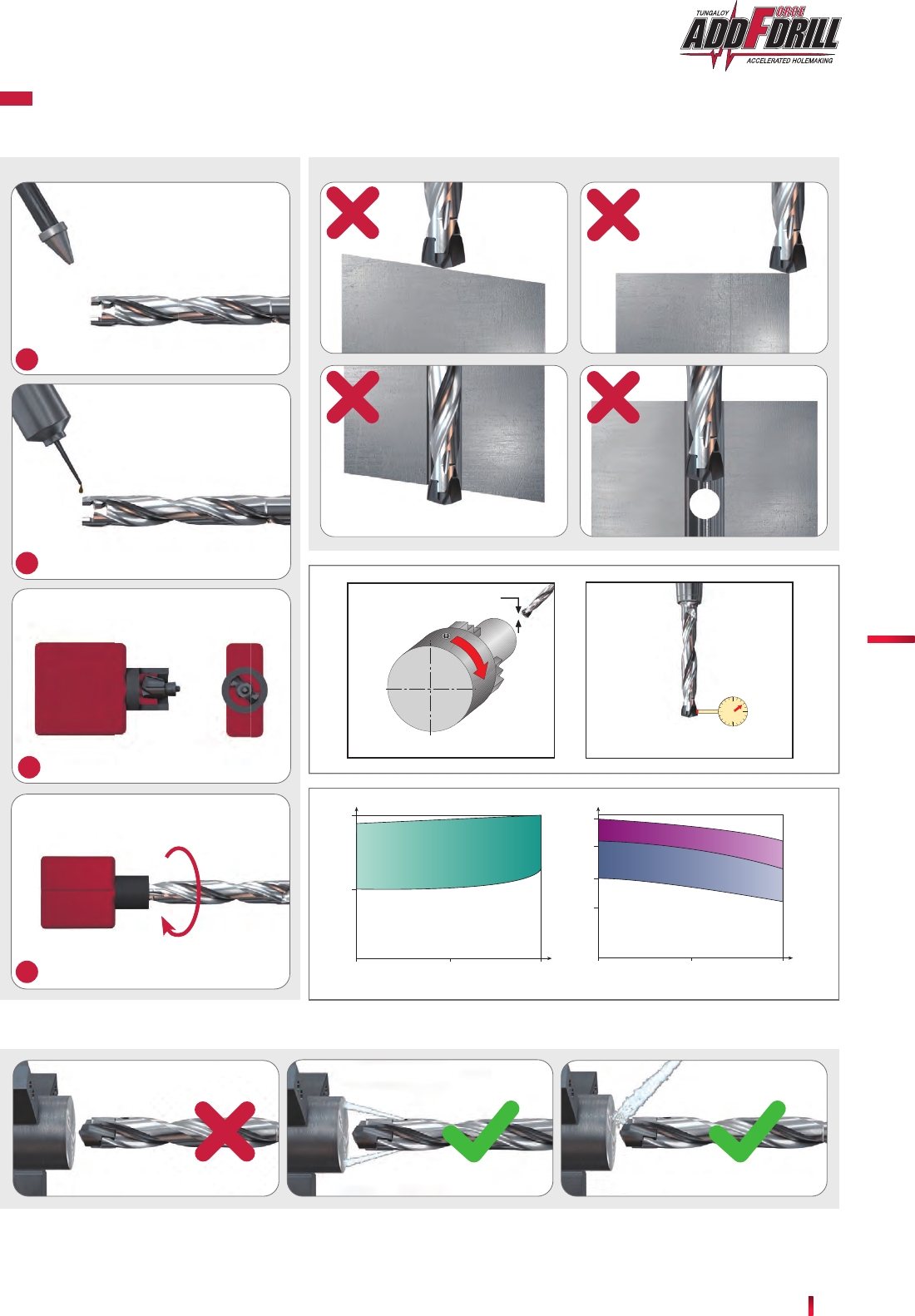

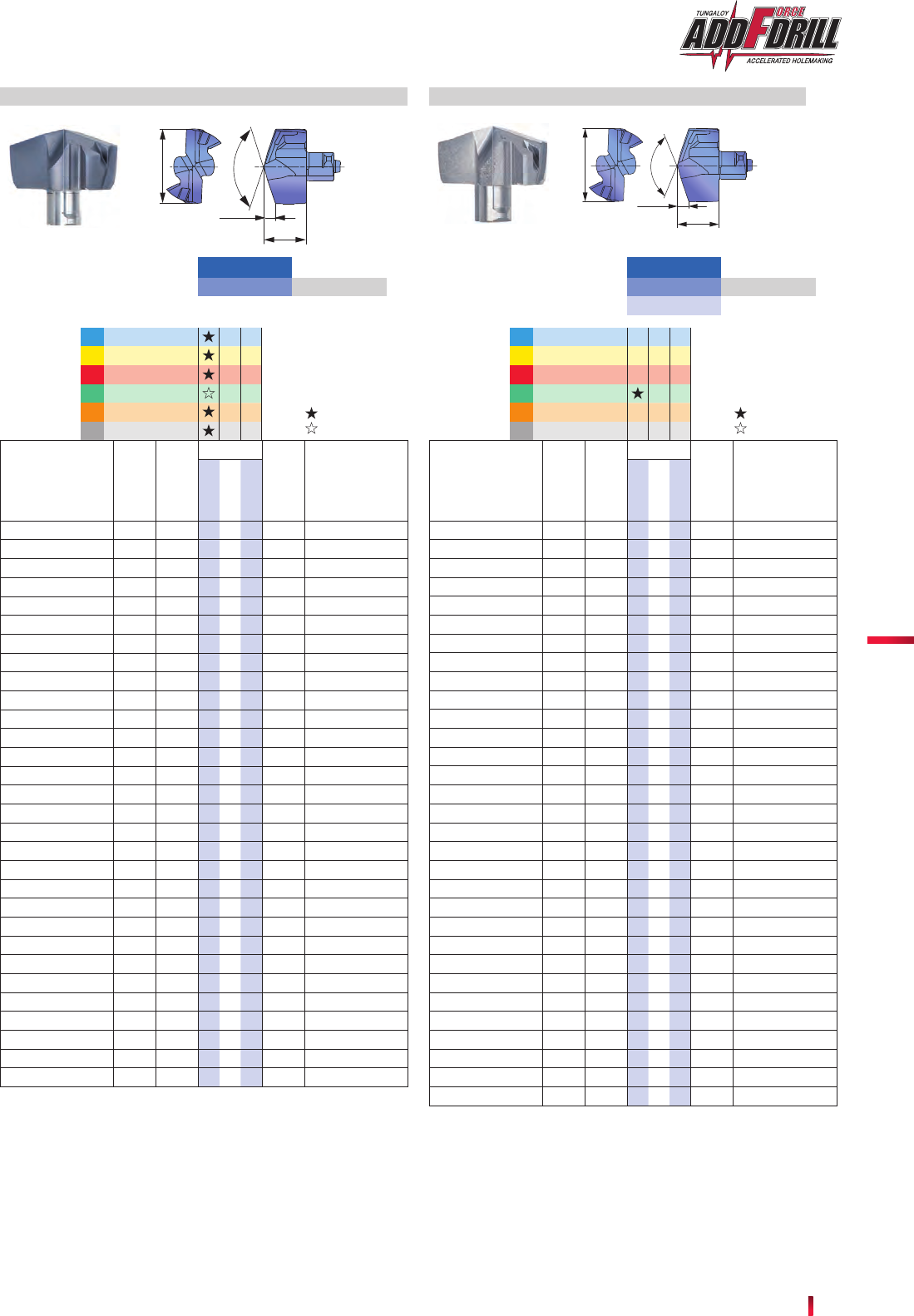

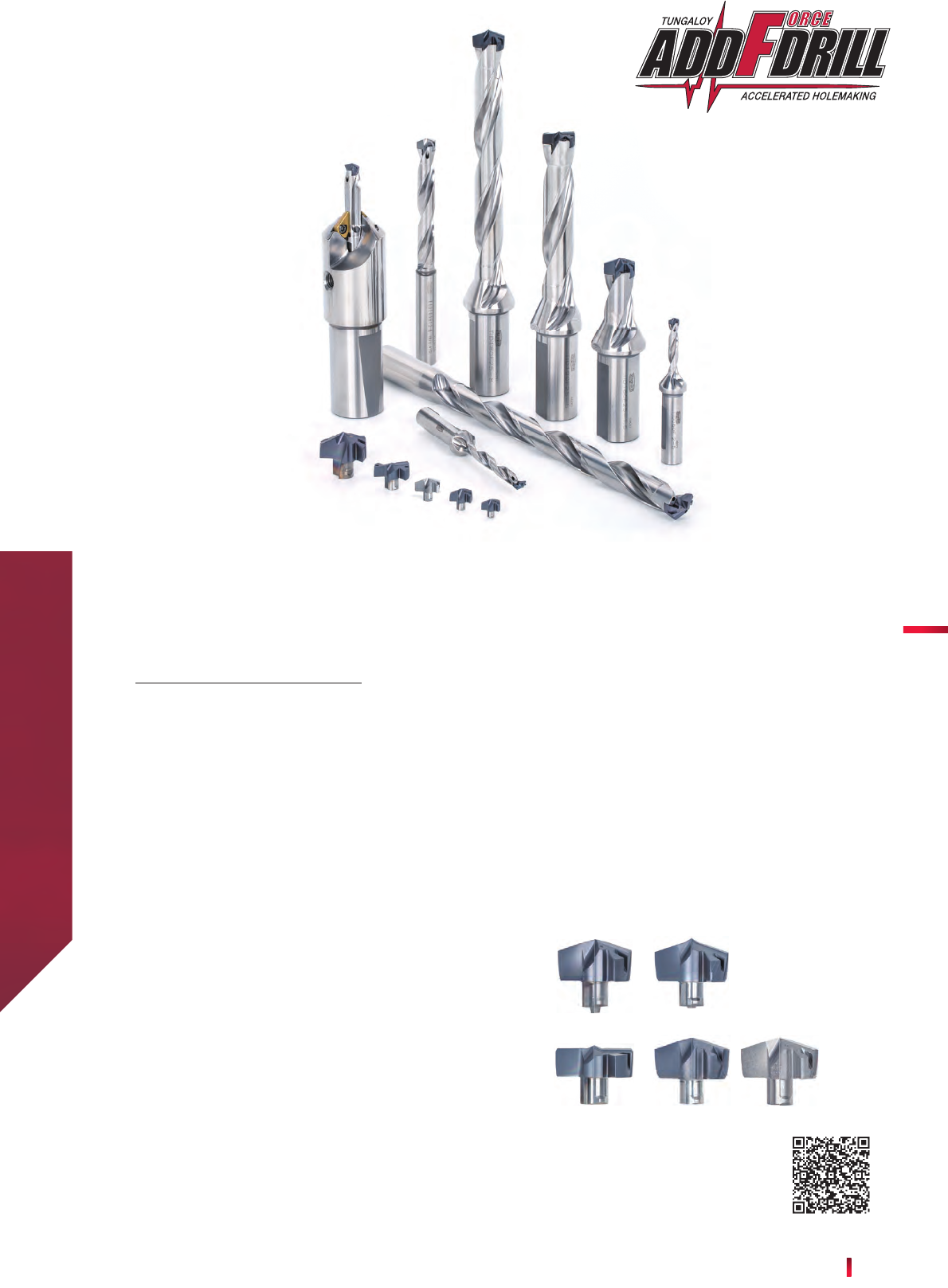

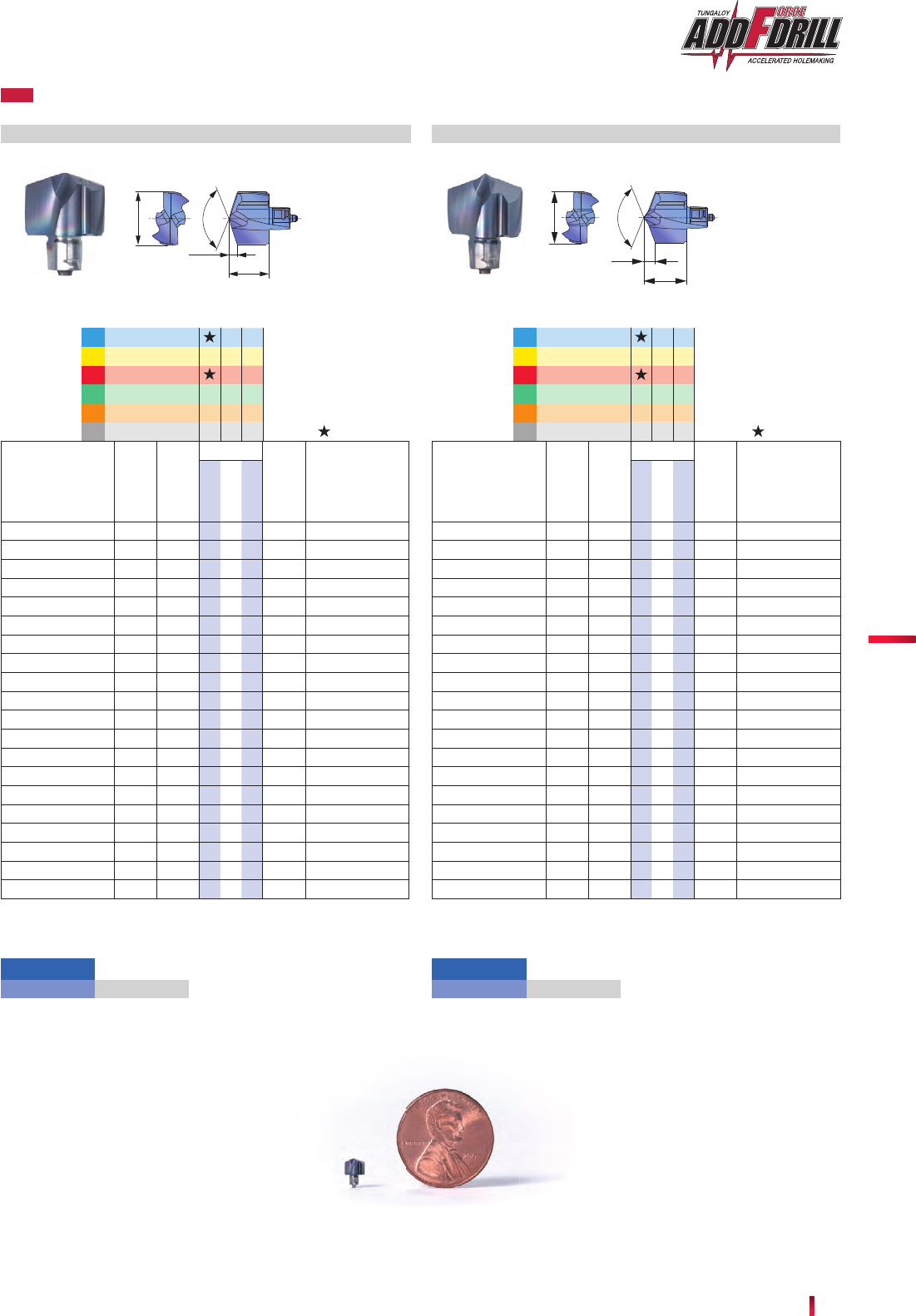

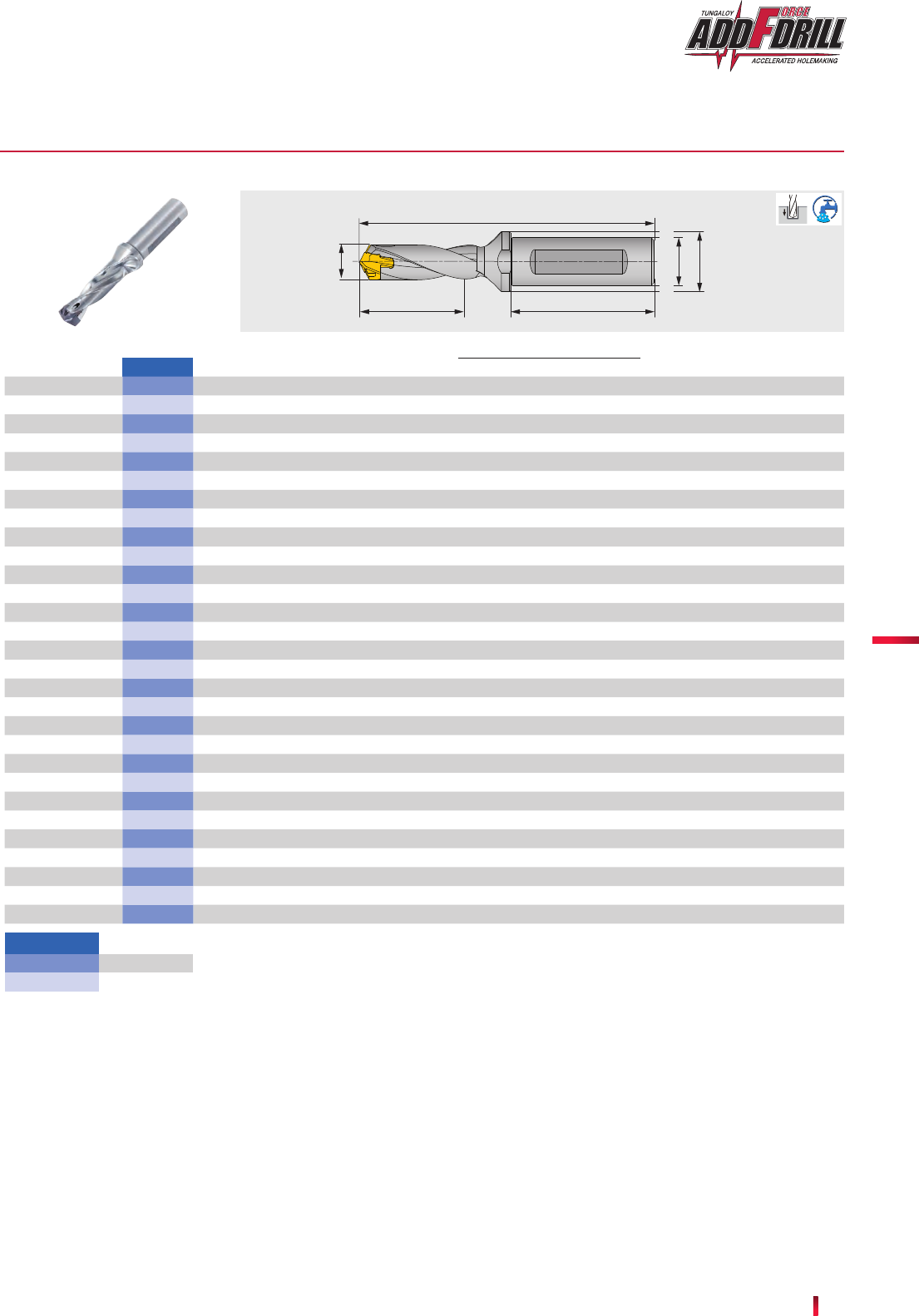

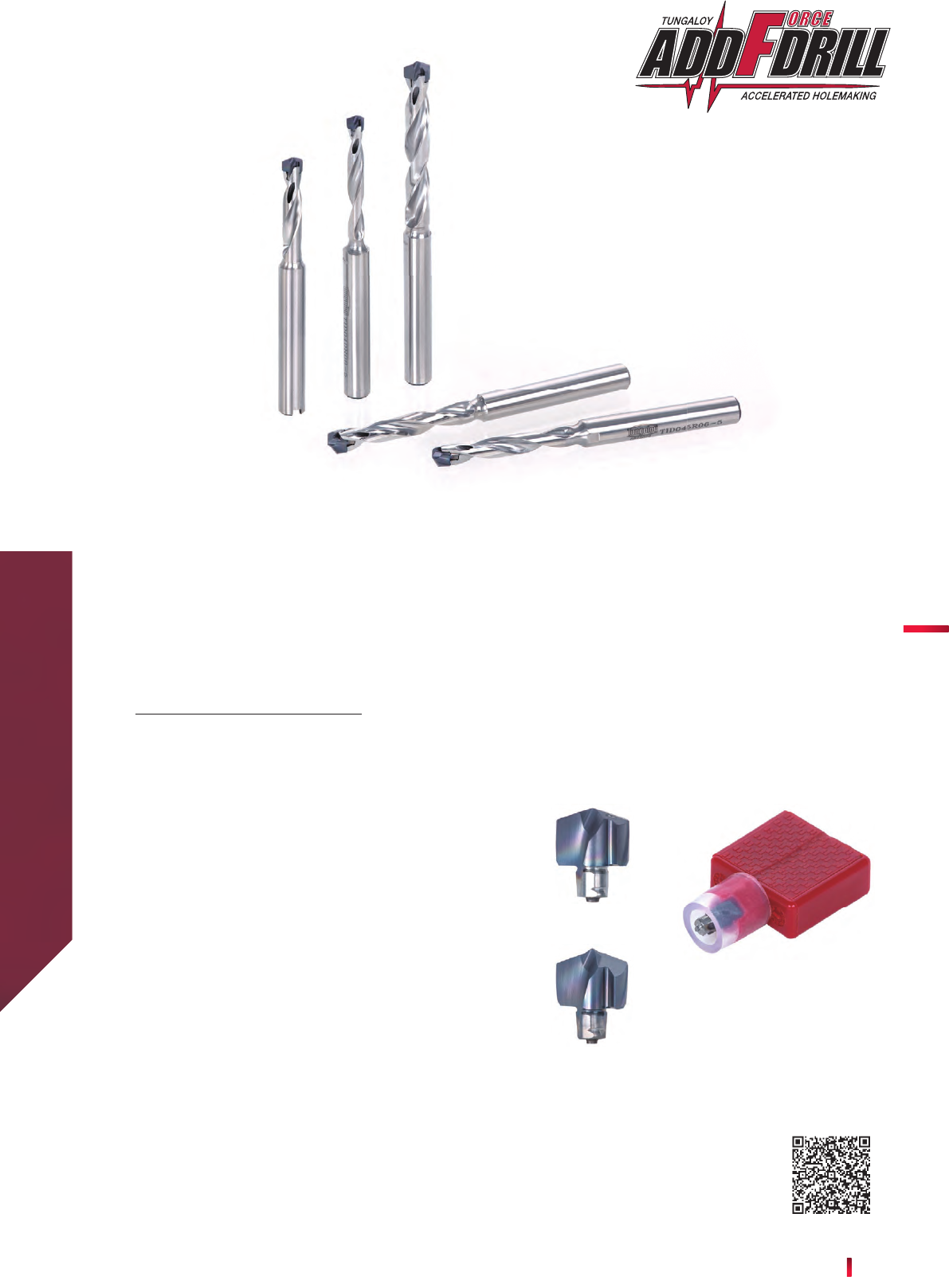

140 AddMeisterDrill

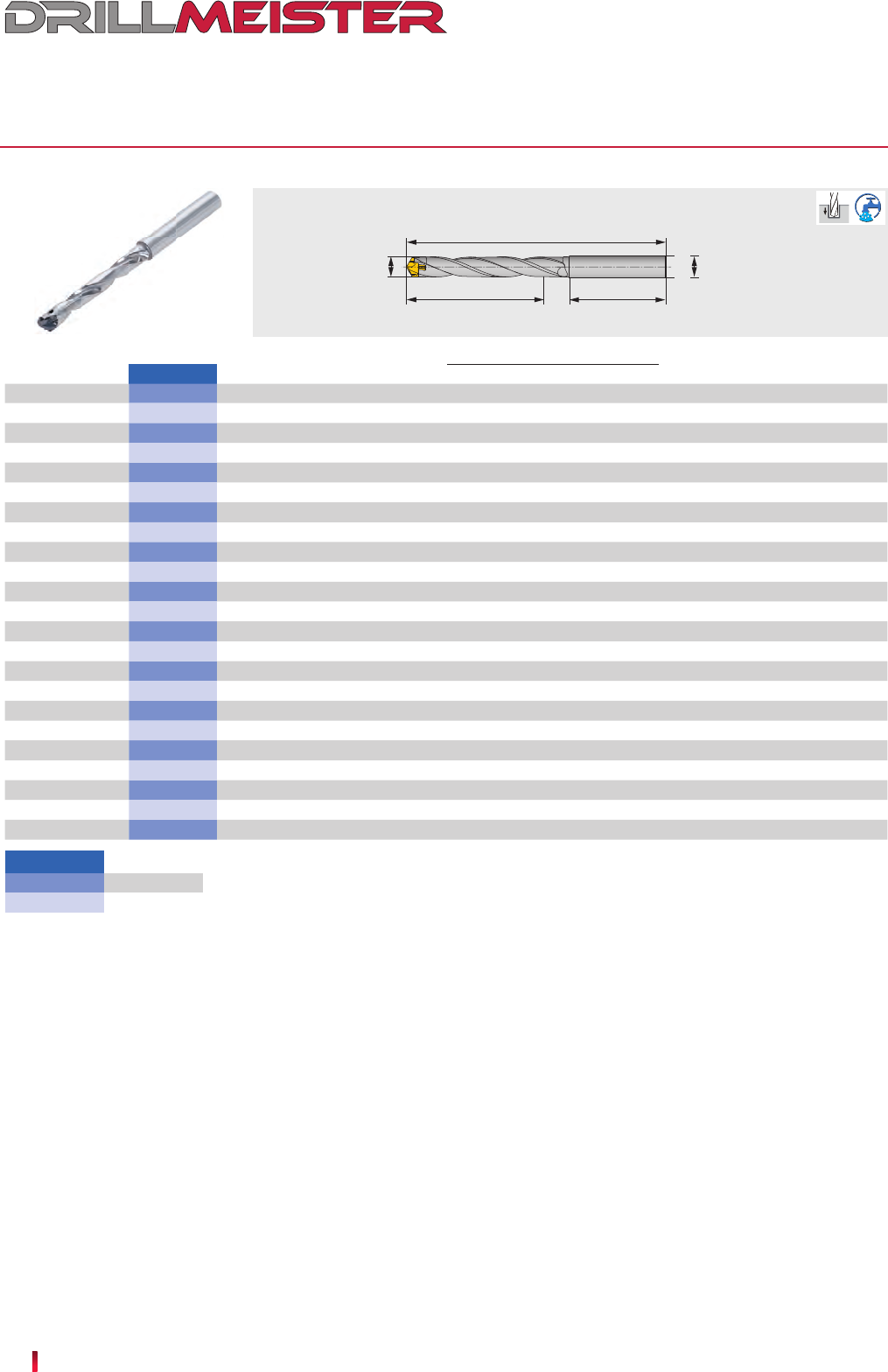

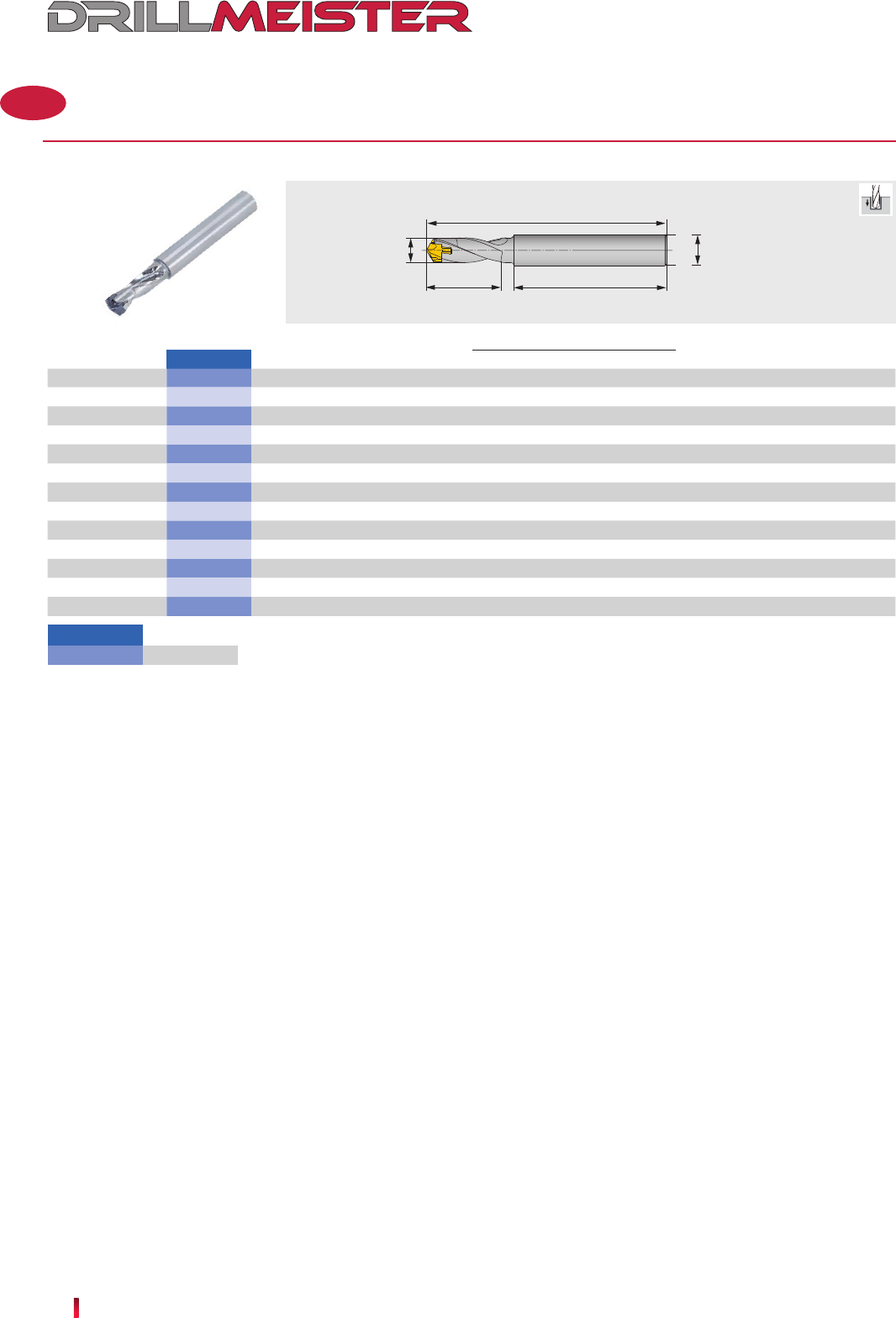

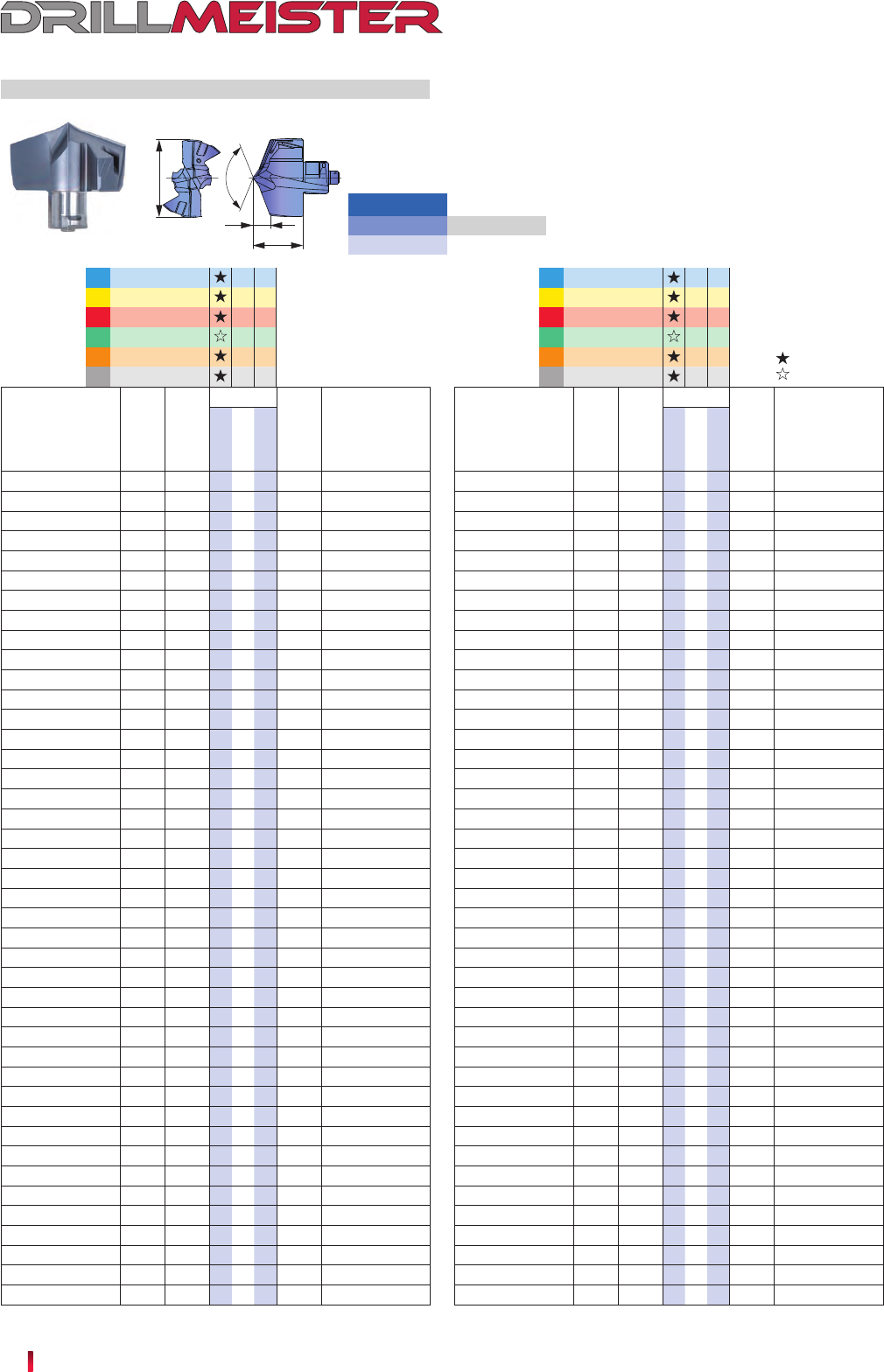

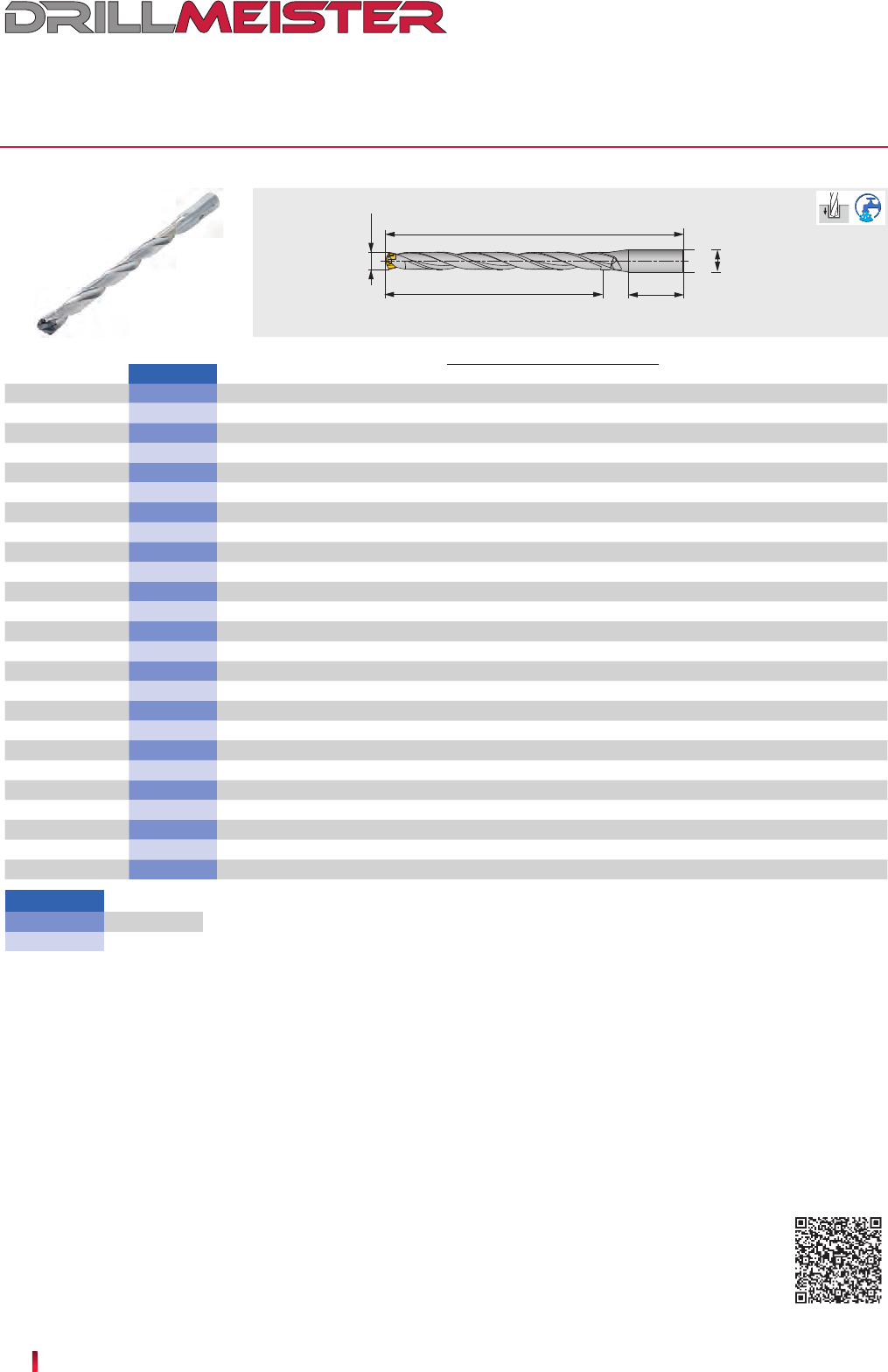

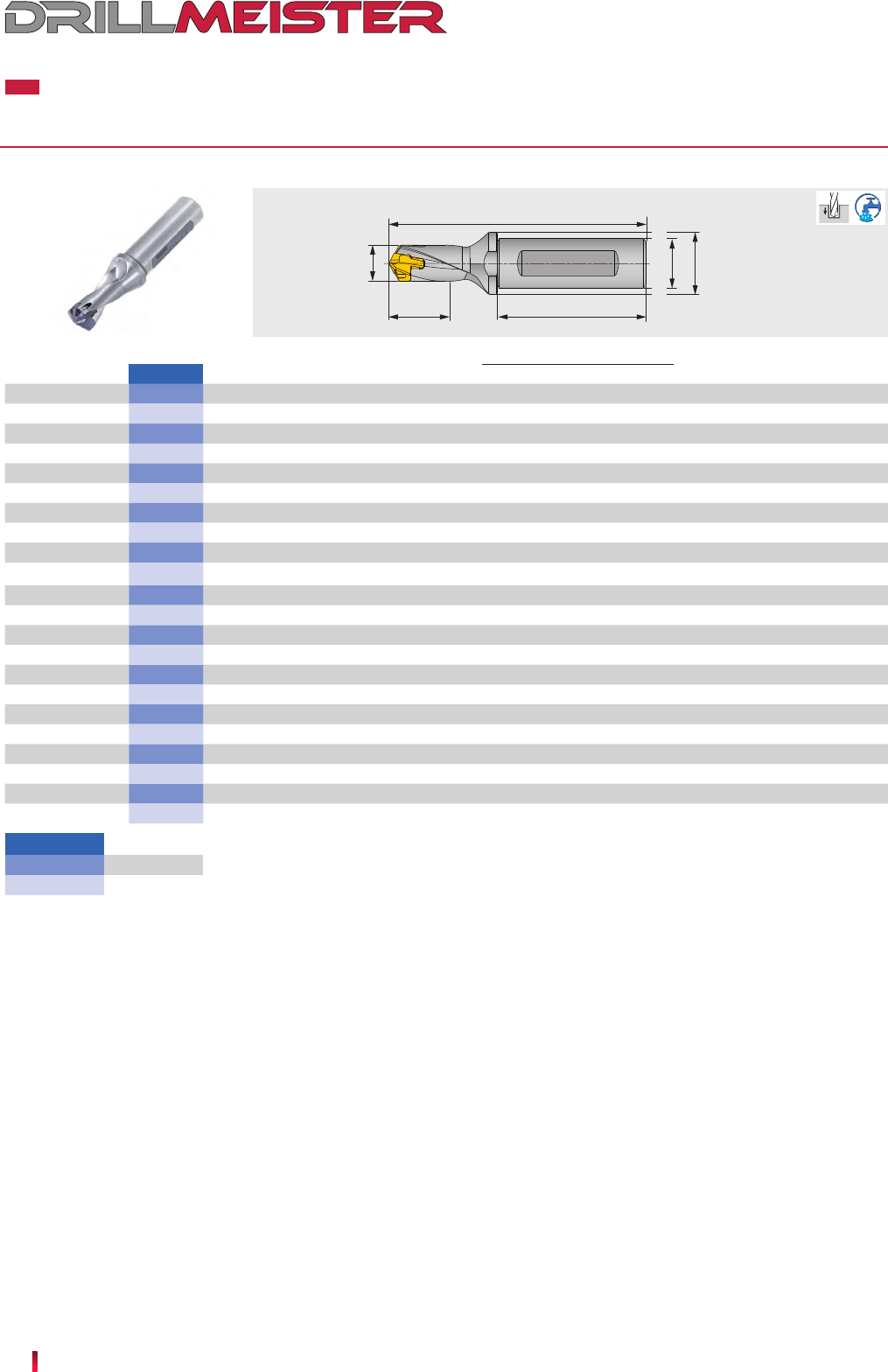

146 DrillMeister

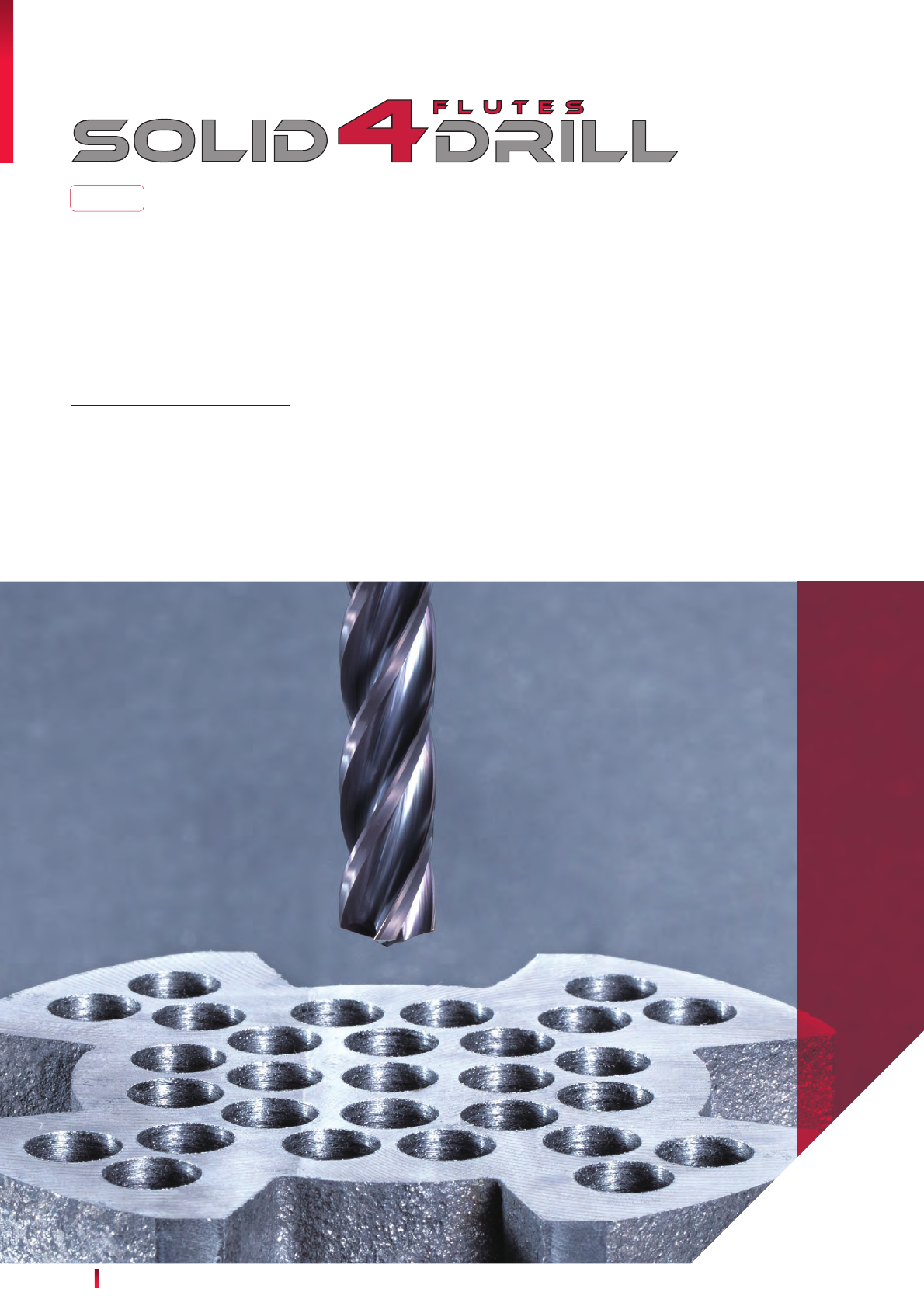

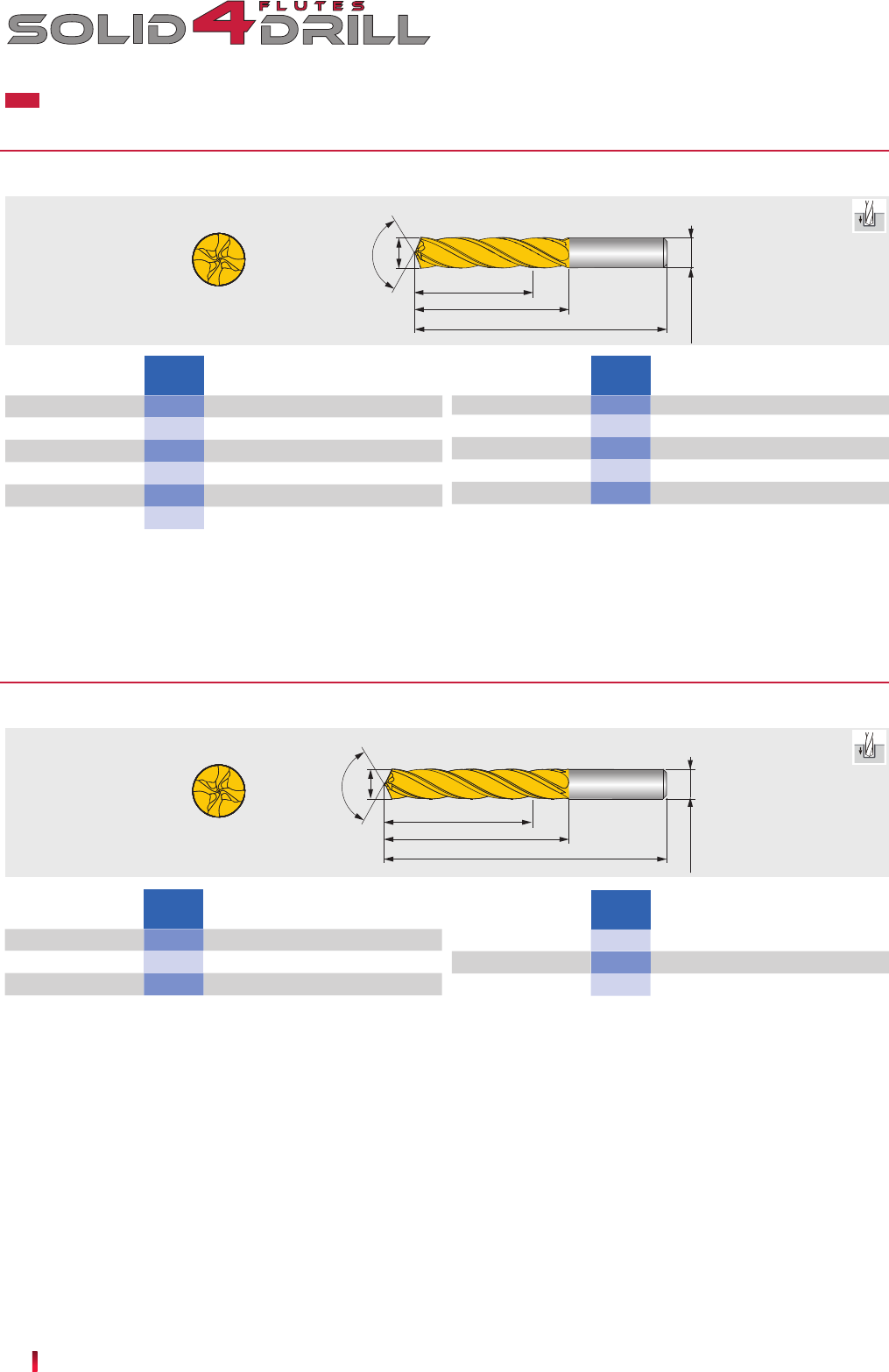

166 Solid4FlutesDrill

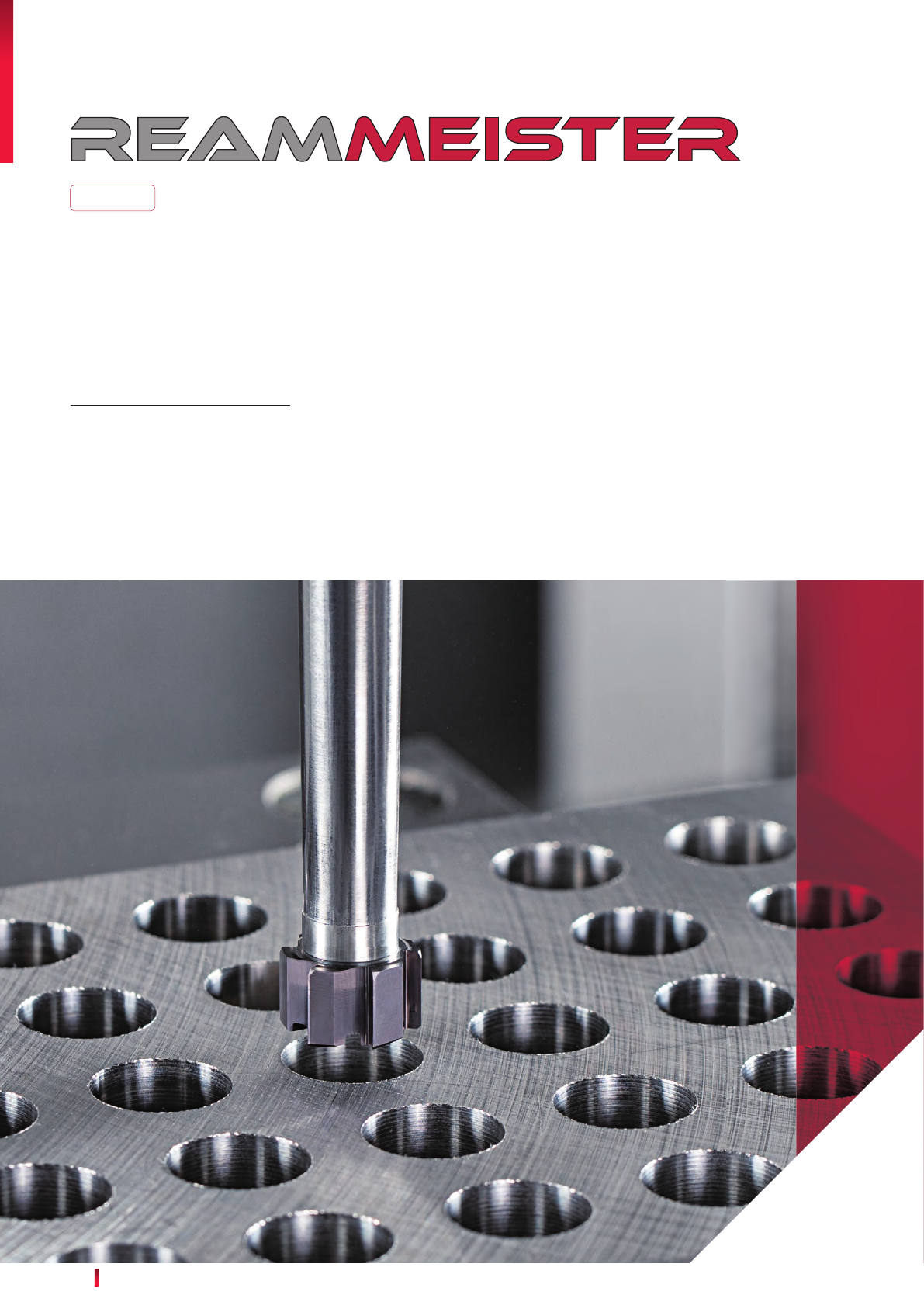

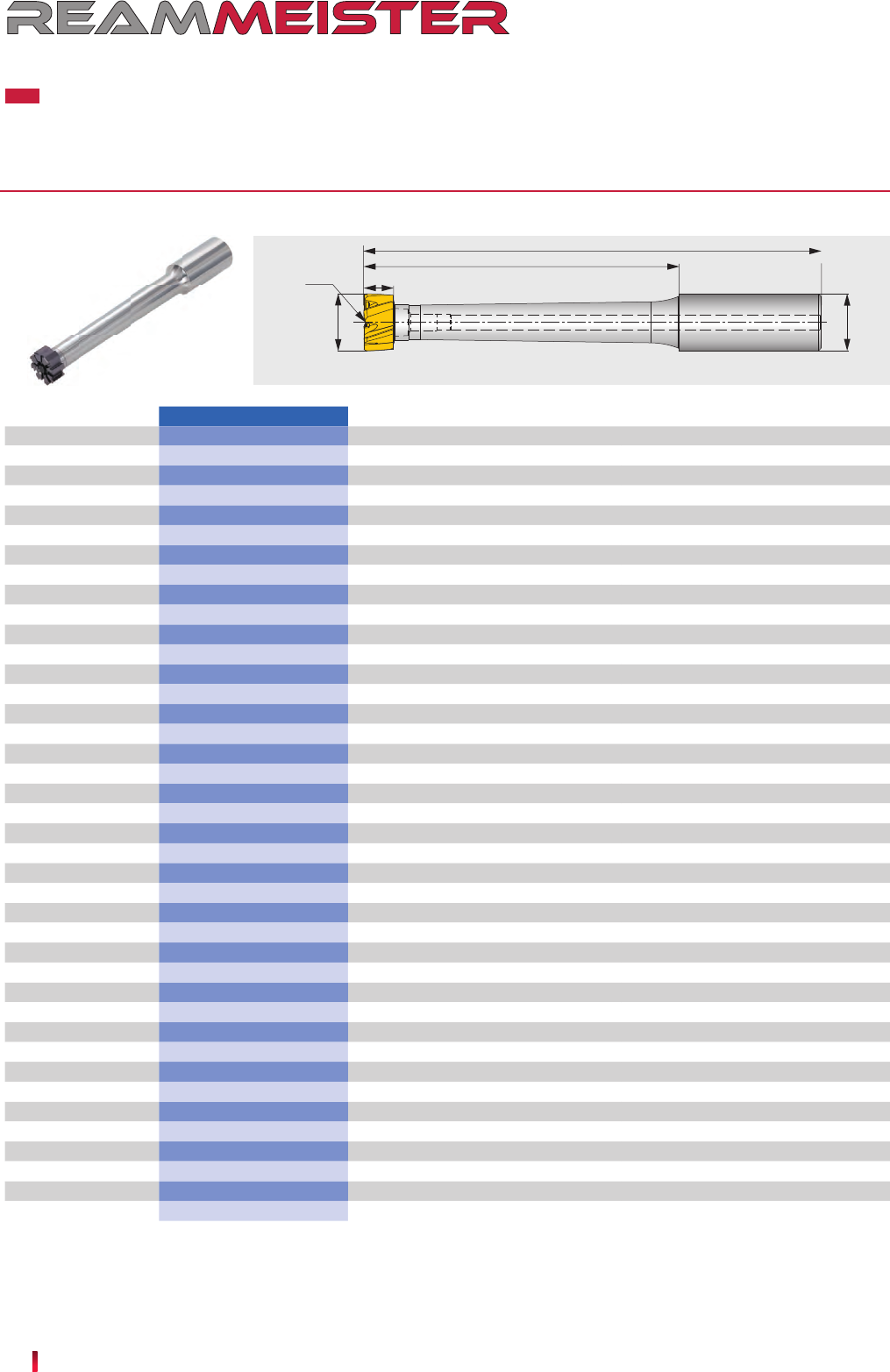

170 ReamMeister
index
Grade
8NEW PRODUCTS
T6215
P10 - P30
M10 - M30
TiCN-Al2O38
T3225
P20 - P35
M20 - M35
TiCN-Al2O310
T1215
K10 - K25 TiCN-Al2O310
T505
K05 - K20 TiCN + Al2O3 23
AH120
P15 - P25
M15 - M25
K15 - K30
S10 - S25
(Ti, Al)N 3
AH130
P25 - P40
M25 - M40
(Ti, Al)N 3
AH715
P15 - P30
M15 - M30
(Ti, Al)N 5
AH725
P15 - P30
M15 - M30
K25 - K30
S15 - S25
(Ti, Al)N 2
AH6225
P20 - P30
M20 - M30
(TiAI)N-Ti(C,N) 5.5
AH6235
P30 - P40
M30 - M40
(TiAI)N-Ti(C,N) 5.5
AH7025
P20 - P30
M20 - M30
S15 - S25
(Ti, Al)N 3.5
AH750
H15 - H30 (Ti, Al)N 3
AH8005
M01 - M10
S01 - S10
(Al,Ti)N 3.5
AH8015
M10 - M20
S10 - S20
(Al,Ti)N 3.5
AH3225
P20 - P35
M20 - M35
(Ti, Al)N 5
New
New
New
New
New
PVD
CVD
- Good balance between wear and fracture resistance
- Suitable for machining steel, stainless steel, and cast iron under general
cutting conditions
- High chipping and fracture resistance
- Designed for machining austenitic stainless steel under general cutting
conditions
- Good balance between wear and chipping resistance
- Suitable for machining steel and stainless steel under general cutting
conditions
- Excellent wear resistance and high rigidity
- First choice for grooving of various materials
- High chipping and fracture resistance
- Suitable for milling steel and stainless steel
- Good balance between wear and chipping resistance
- Suitable for milling cast iron
- High wear resistance
- Designed for milling high-hardened material
- Good resistance to wear and adhesion
- Excellent performance in machining heat-resistant alloy at high speed
- Good balance between wear and fracture resistance
- First choice for machining heat-resistant alloy under general cutting
conditions
Grade Main
composition
Applica-
tion Feature
Thick-
ness
/ μm
Coating
Turning
Grooving
Milling
Drilling
Turning
Grooving
Milling
Drilling
Grade Main
composition
Applica-
tion Feature
Thick-
ness
/ μm
Coating
- Good balance between wear and fracture resistance
- Suitable for steel and stainless steel
Grade
Coating
- Demonstrates excellent wear resistance for high speed continuous
stainless steel cuts
- The best grade with high wear resistance for high speed machining of
cast iron
- Demonstrates superior fracture resistance in stainless steel
- Provides high reliability for interrupted cuts and heavy-duty machining
- First choice for stainless steel
- Excellent versatility for stainless steel machining, demonstrates a good
combination of wear and fracture resistance
- Ideal grade for end milling with the latest nano-multilayered PVD coating
- Exclusive substrate with a good balance of wear and fracture resistance
9Tungaloy
KS05F
K05
S05
N05
93 2.9
KS15F
N15 91.5 3
AH3035
P20 - P45
H20 - H30
(Ti, Al)N 5
AH9130
P15 - P35
M25 - M35
K10 - K25
S15 - S30
(Ti, Al)N 4.5
SH725
P20 - P30
M20 - M30
(Ti, Al)N 2
SH730
P20 - P35
M20 - M35
S05 - S15
(Ti, Al)N 1
PCD (T-DIA)
PVD
DX110 < 1 8500 1.8
BXA10 3200 ~ 3400 1.00 ~ 1.10
BXA20 3300 ~ 3500 1.30 ~ 1.50
CBN
Grade
Uncoated
Hardness
(HRA)
T.R.S.
(GPa)
Grade Applica-
tion
- Good balance between wear and chipping resistance
- Suitable for machining high-hardened steel at high feed
Turning
Grooving
Milling
Drilling
Grade Main
composition
Applica-
tion Feature
Thick-
ness
/ μm
Coating
- High wear resistance
- Designed for drilling various materials
- High wear resistance
- Designed for machining steel, stainless steel, and di cult-to-cut material
- High wear resistance
- Designed for machining steel and stainless steel
Feature
- Good balance between wear resistance and toughness
- Incredibly reliable in milling of non-ferrous metals
- Fine edge sharpness with high wear resistance
- Outstanding tool life for machining of non-ferrous metals
Cemented Carbide
- Excellent sharpness for high surface quality
- Suitable for fi nishing non-ferrous metal and nonmetal
Turning
Grooving
Milling
Drilling
Appli-
cation
Grain
size
(μm)
Turning
Grooving
Milling
Drilling
Feature
Grade Hardness
(Hv)
T.R.S.
(GPa)
T.R.S.
GPa
- Coated T-CBN for excellent performance in machining hardened steel
Turning
Grooving
Milling
Drilling
Grade Applica-
tion Feature
Hardness
(Hv)
- Coated T-CBN for excellent performance in continuous cutting of hardened
steel
12 AddForceCut
20 AddInternalCut
24 TungFeedBlade
28 TetraForce-Cut
32 DuoJust-Cut
Grooving &
)9IJ@E>Fĩ
12 NEW PRODUCTS

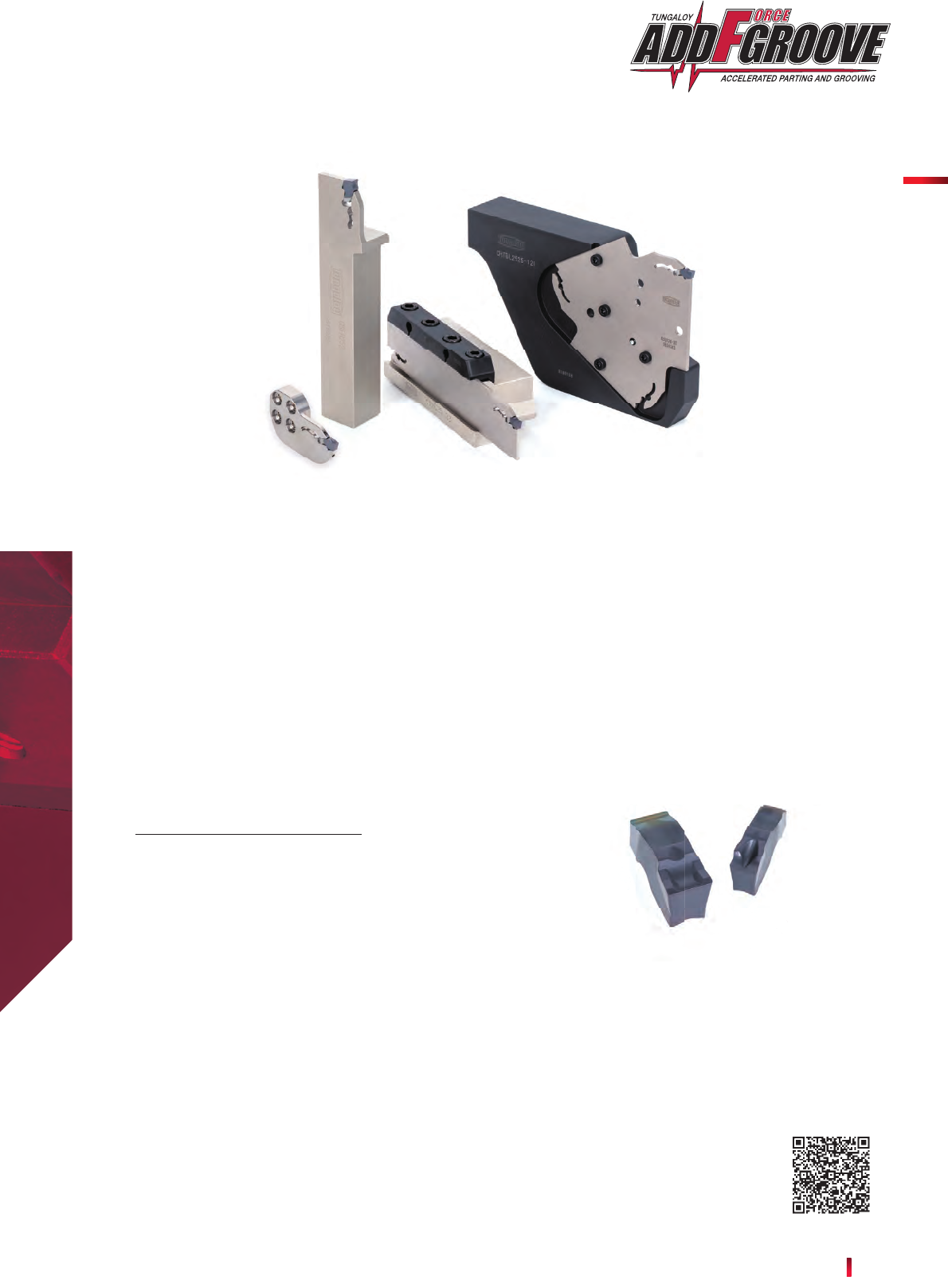

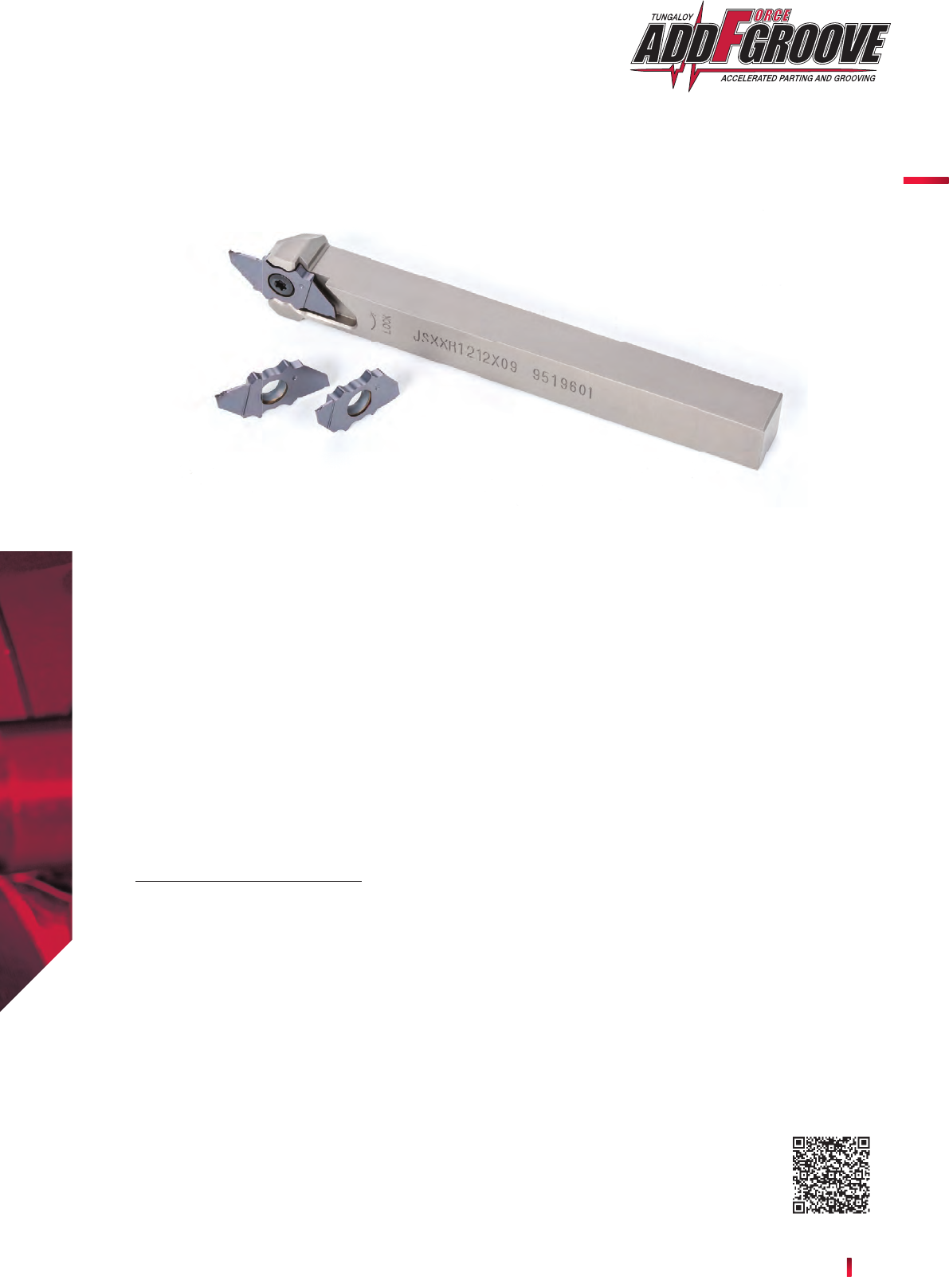

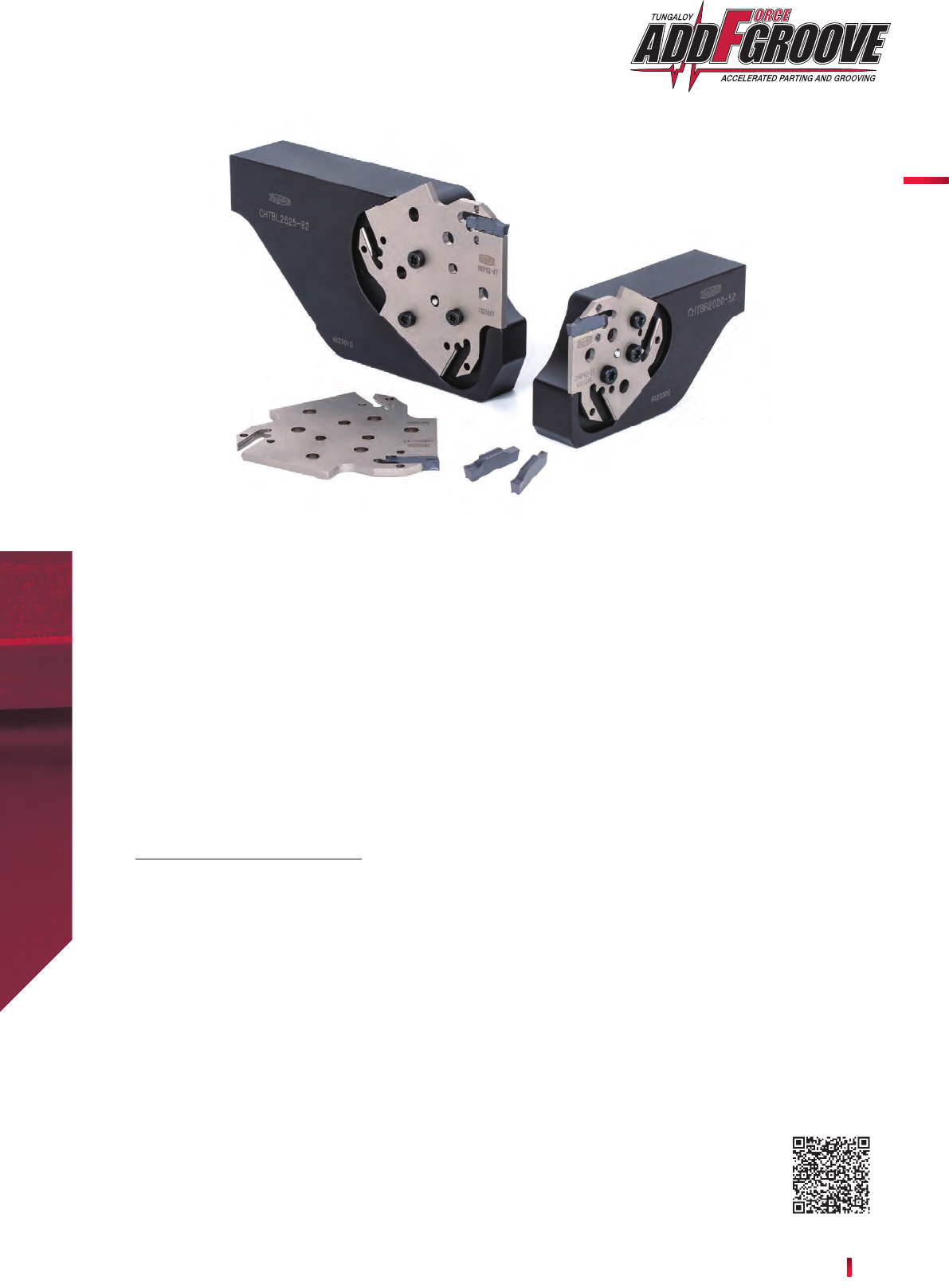

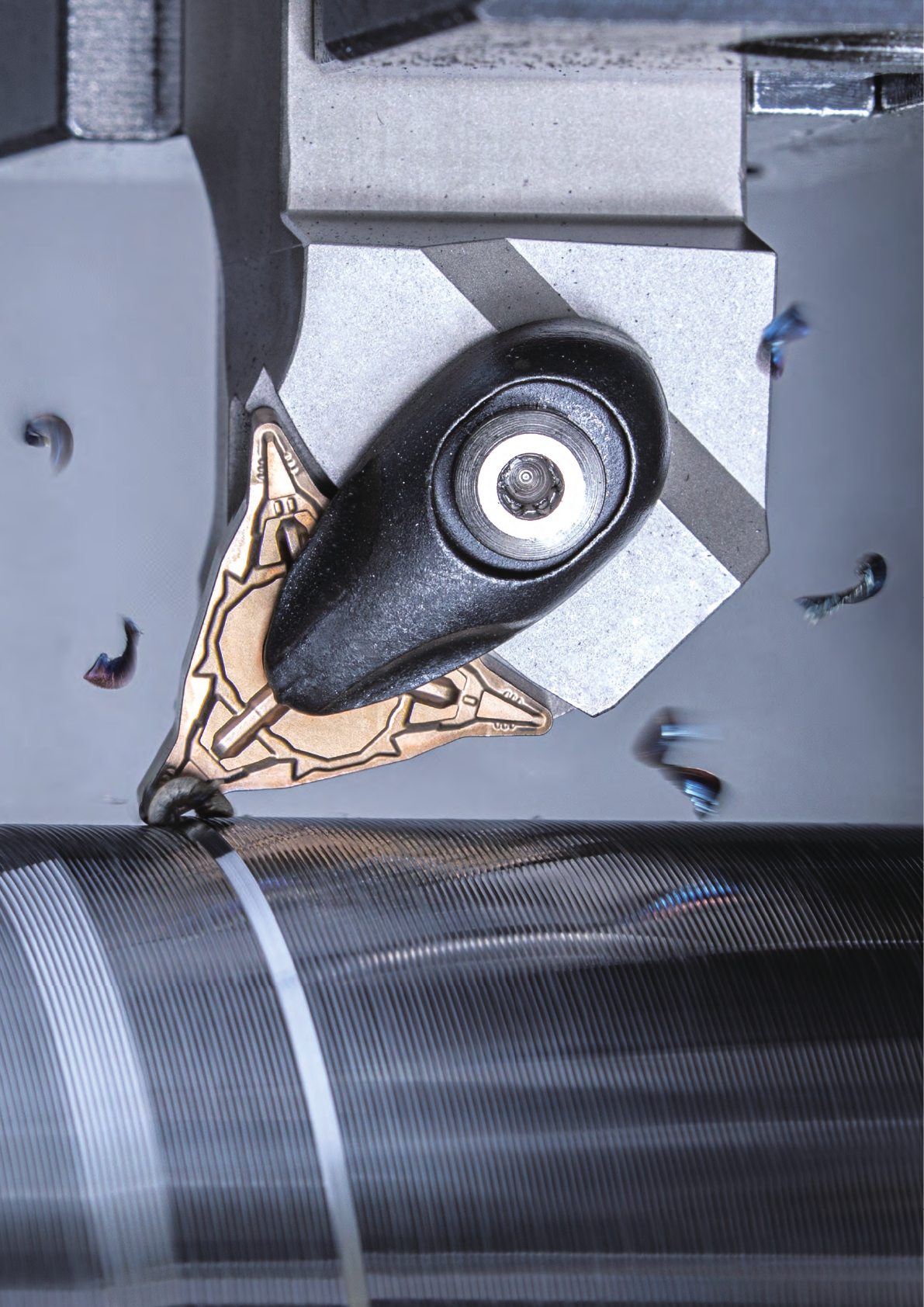

External grooving, Parting-off
SUPERB STABILITY AND PRODUCTIVITY
IN DEEP GROOVING AND PARTING-OFF
OPERATIONS
ADD highly rigid self-clamping system to improve productivity in
deep grooving and parting-off operations
13Tungaloy
QGM...
QGS...
Grooving & Parting
Scan this QR code
to nd out more
about this tool!
Lineup
- Single-ended ADDForceCut insert
features a smart self-locking design
requiring no clamping screw to hold the
insert. This enables deep grooving and
parting-off operations of large-diameter
bar stocks.
- The insert is locked at three positions
with the use of an insert stopper in the
pocket. This design provides extremely
rigid insert clamping.
Inserts
- QGM... and QGS...
CW = 2, 3, 4, and 5 mm
Max grooving depths (for monoblock shanks): CDX = 33 mm
Toolholder s
- Monoblock shanks: QSER/L... in size 2020 and 2525
- Blades: QSP... and QSG...
- Blocks: CTBU... and CHTBR/L...

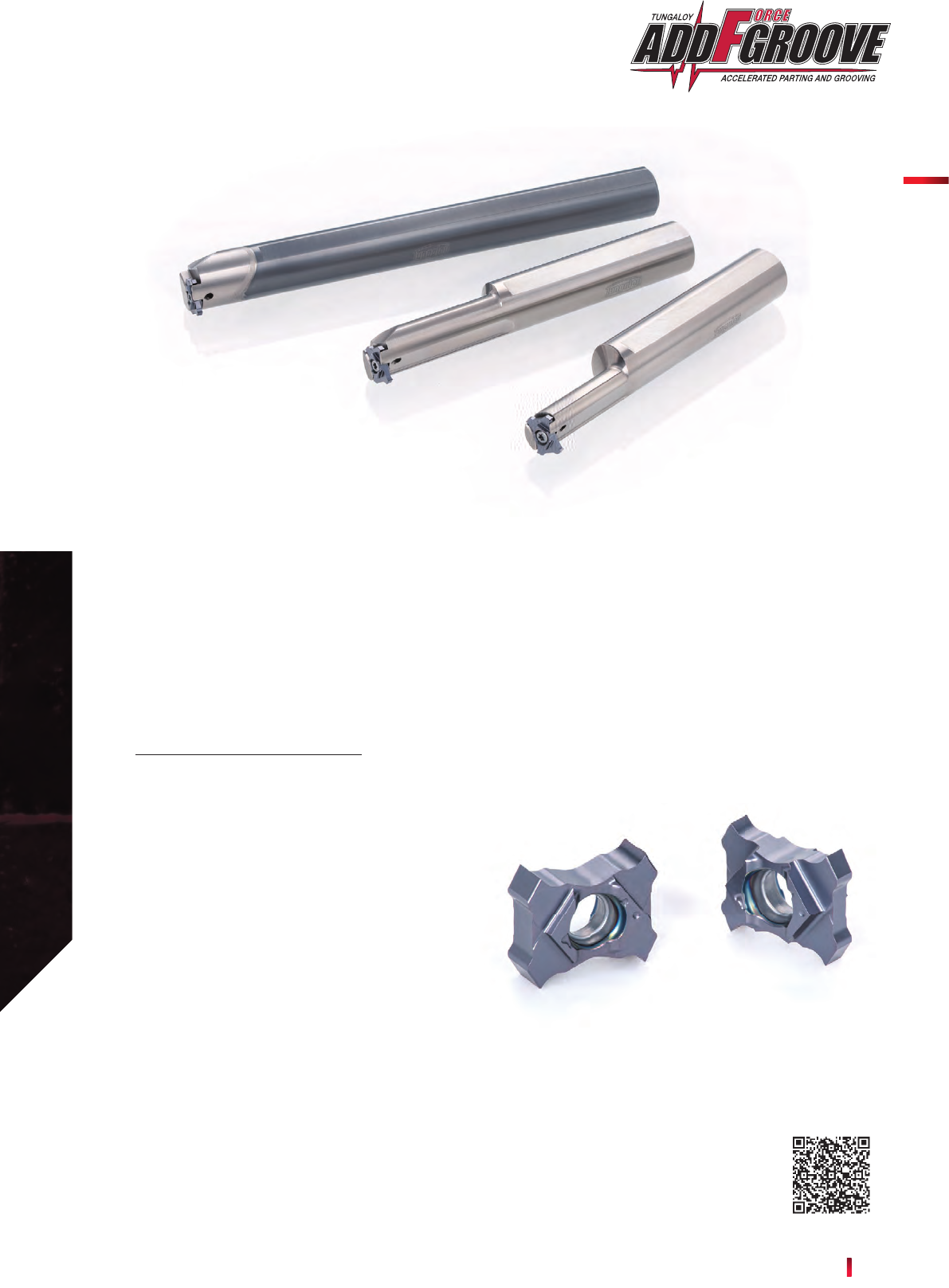

- ID grooving heads for BoreMeister: S25-QSIR/L... and S32-QSIR/L...
Grade
- AH7025: Dedicated grade for grooving applications featuring a good
balance of wear and chipping resistance
- Newly designed insert profile ensures
unobstructed chip flow and consistent
chip evacuation.
Scan this QR code
to nd out more
about this tool!
14 NEW PRODUCTS
CW CDX H B LF LH HF WF
QSER/L2020-2T26 2 26 2 20 20 125 36 20 20.1
QSER/L2020-2T33 2 33 2 20 20 125 42 20 20.1
QSER/L2525-2T26 2 26 2 25 25 150 36 25 25.1
QSER/L2525-2T33 2 33 2 25 25 150 42 25 25.1
QSER/L2020-3T26 3 26 3 20 20 125 36 20 20.3
QSER/L2020-3T33 3 33 3 20 20 125 42 20 20.3
QSER/L2525-3T26 3 26 3 25 25 150 36 25 25.3
QSER/L2525-3T33 3 33 3 25 25 150 42 25 25.3
QSER/L2020-4T33 4 33 4 20 20 125 42 20 20.4
QSER/L2525-4T33 4 33 4 25 25 150 42 25 25.4
QSER/L2525-5T33 5 33 5 25 25 150 42 25 25.5
QSER/L
B
CW
LF
WF
CDX
LH
H
HF
CW CDX DMIN DCONMS LF WF
S25-QSIR/L2T26D550-H 2 26 55 25 2 8.5 40.1 D25
S25-QSIR/L3T26D550-H 3 26 55 25 3 9 40.1 D25
S32-QSIR/L3T32D700-H 3 32 70 32 3 11 49.6 D32
S32-QSIR/L4T32D700-H 4 32 70 32 4 11.5 49.6 D32
S-QSIR/L-H
WF
CDX
DCONMS
DMIN
CW
LF

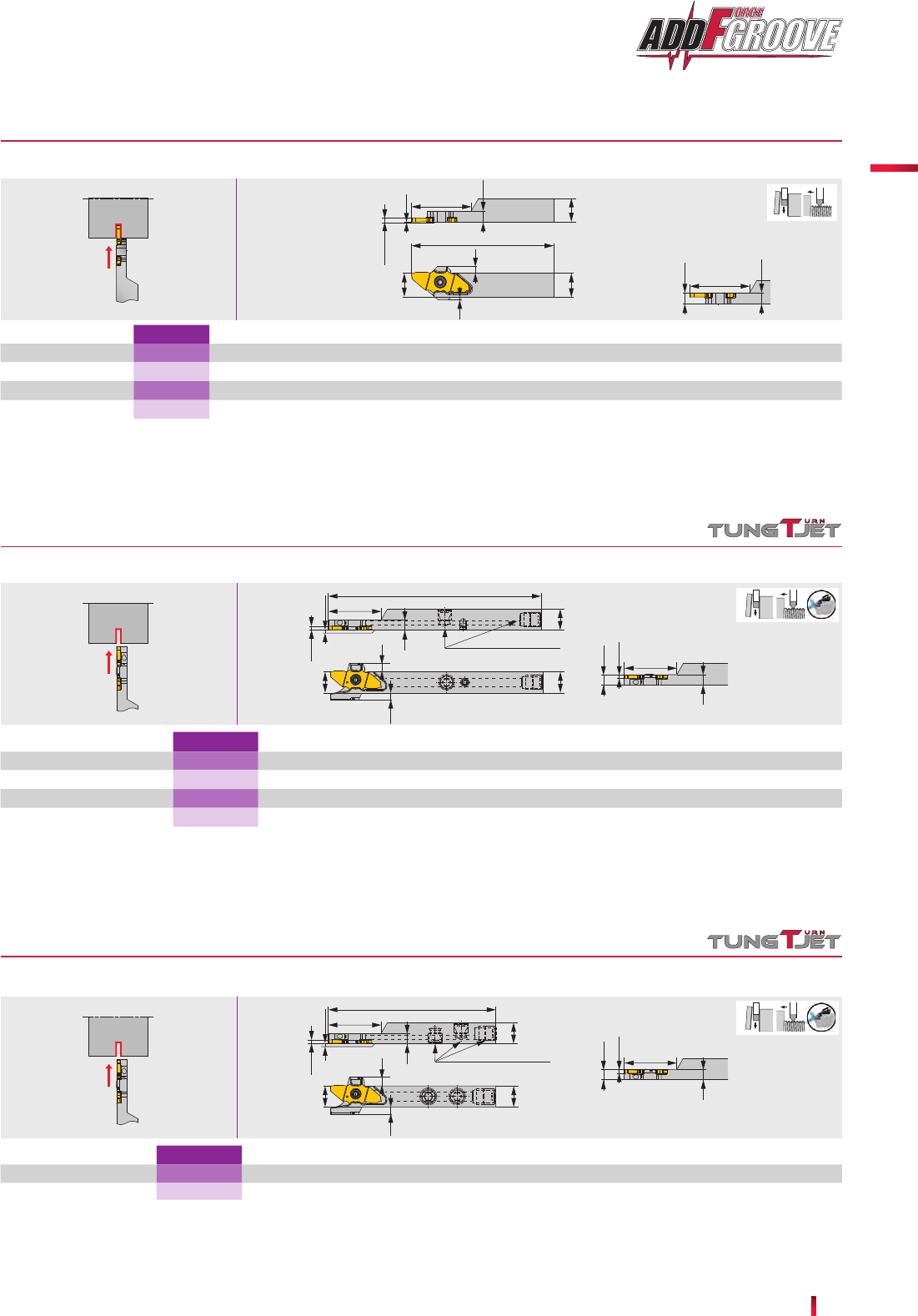

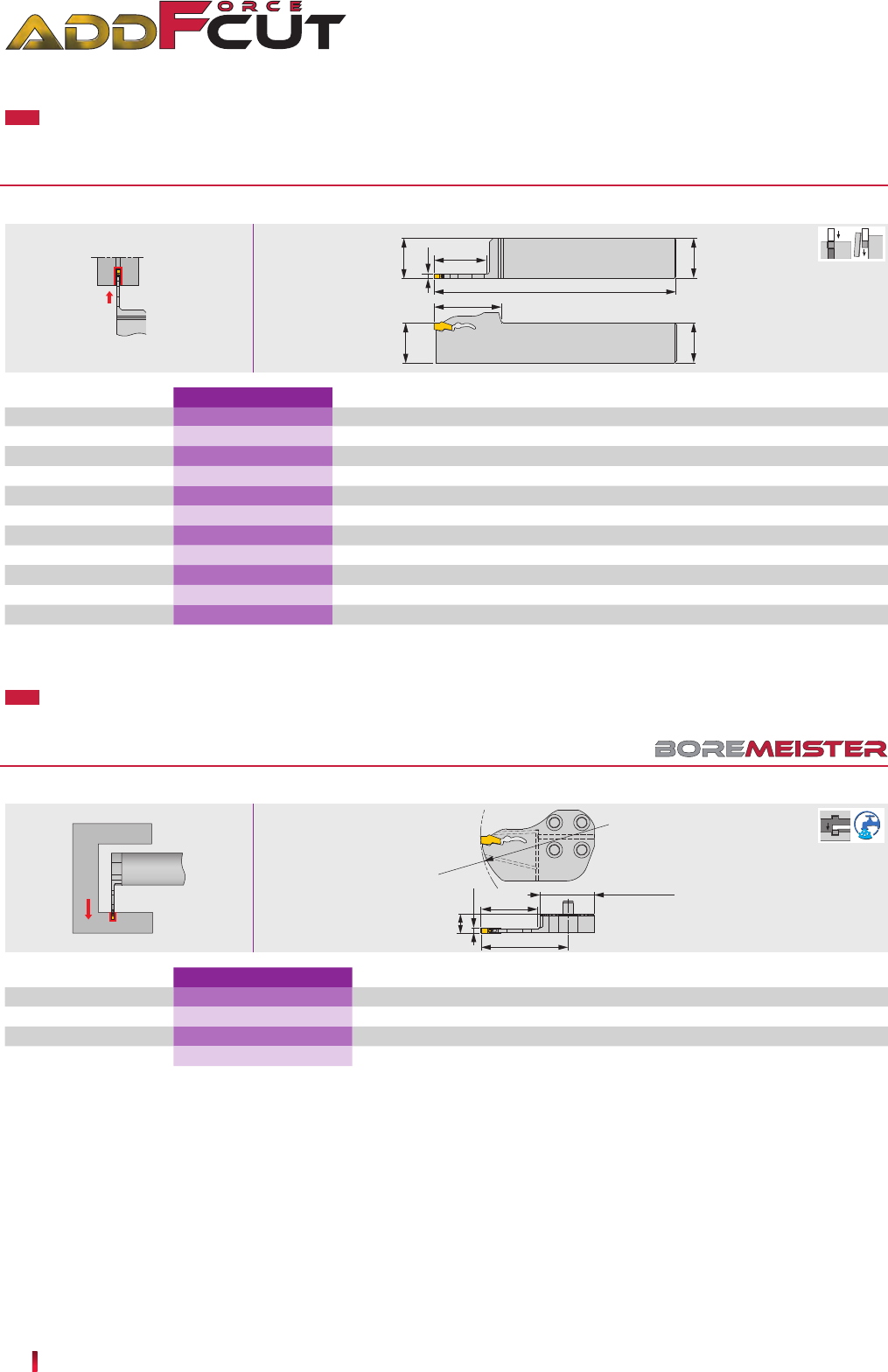

External toolholders for grooving and parting
Designation
TOOLHOLDERS
Seat size
Exchangeable boring head, for internal grooving
Designation
MODULAR HEAD
ShankSeat size
Please refer to the BoreMeister Tungaloy Report (TR517) for shank information that is applicable to the head.
Right hand (R) shown.
Left hand (L) shown.
15Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
CW CUTDIA H B LF HF
QSP26-2D 2 50 2 26 1.8 150 21.1
QSP32-2D 2 66 2 32 1.8 150 24.5
QSP26-3D 3 75 3 26 2.4 150 21.1
QSP32-3D 3 120 3 32 2.4 150 24.5
QSP26-4D 4 80 4 26 3.2 150 21
QSP32-4D 4 120 4 32 3.2 150 24.4
QSP32-5D 5 120 5 32 4 150 24.4
CW
LF
HF
CUTDIA
H
B
OAL
B
OAW
OAH
HBH H
LH
H B OAL LH HBH OAH OAW

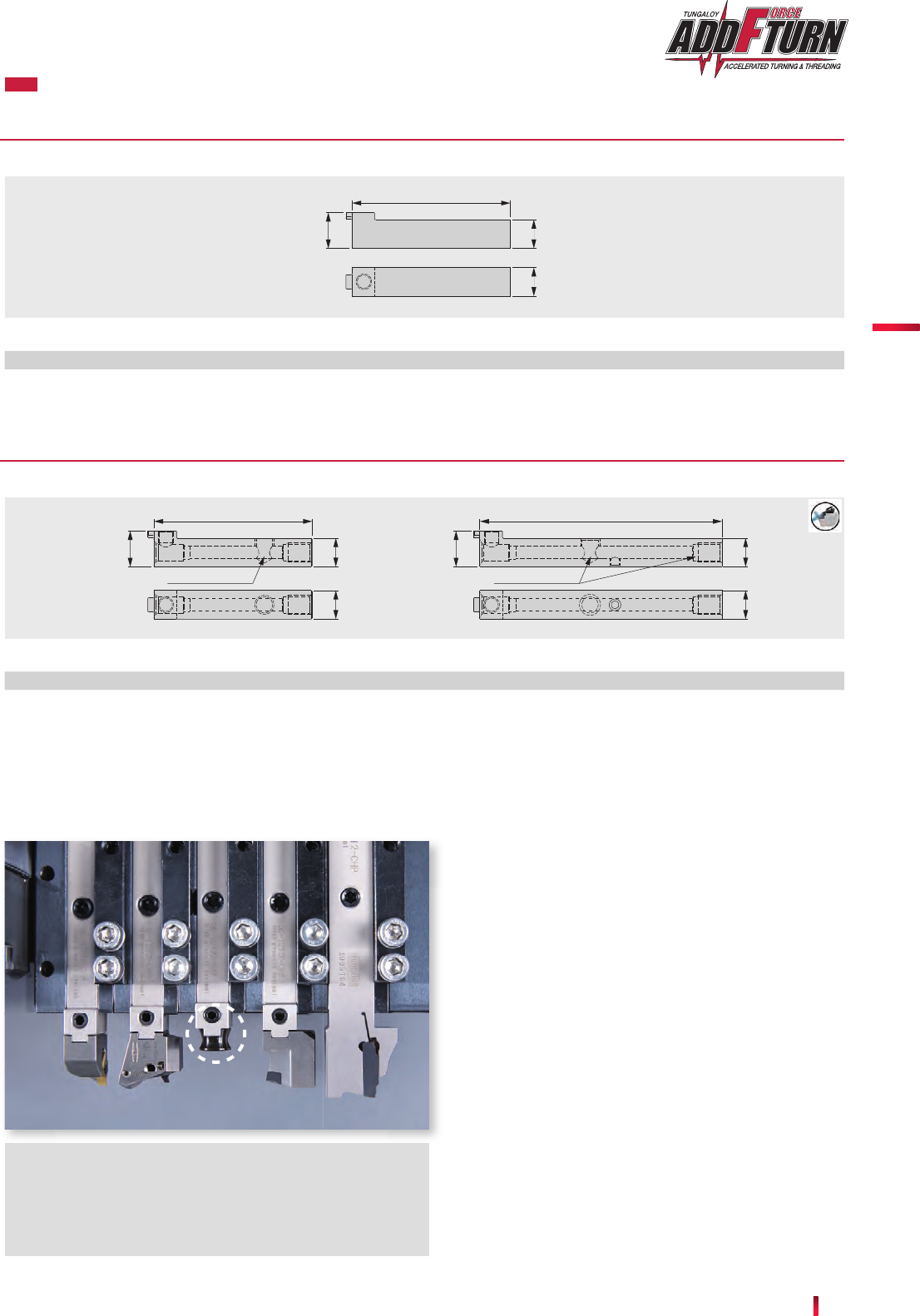

CTBU20-26 20 21 86 21.4 9 43 38 QSP26...
CTBU25-26 25 23 110 21.4 5 45 43 QSP26...
CTBU20-32 20 19 100 24.8 13 50 38 QSP32...
CTBU25-32 25 23 110 24.8 8 50 42 QSP32...
CTBU32-32 32 29 110 24.8 5 54 48 QSP32...
QSP
CTBU
Grooving & Parting
Designation Seat size
Blade
(Optional)
Designation
BLADE
TOOL BLOCK

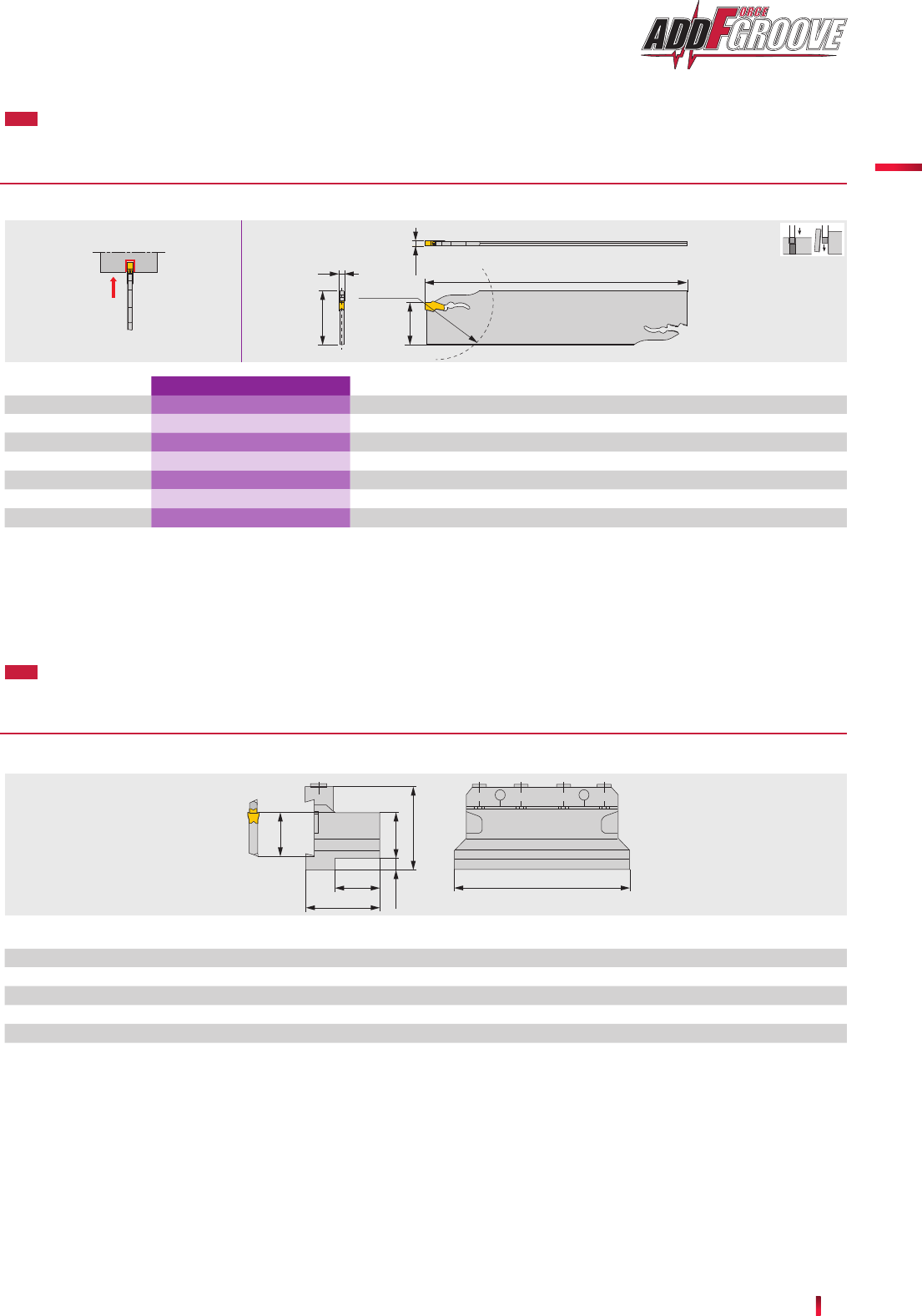

Blades for external deep grooving and parting
Tool block for QSP blades
16 NEW PRODUCTS
CW
D
CUTDIA
HF
CW CUTDIA HF D
QSG52-2T 2 2 52 27 48.3
QSG82-2T 2 2 82 42 69.3
QSG52-3T 3 3 52 27 48.3
QSG82-3T 3 3 82 42 69.3
QSG120-3T 3 3 120 61 88
QSG52-4T 4 4 52 27 69.3
QSG82-4T 4 4 82 42 69.3
QSG120-4T 4 4 120 61 88
QSG120-5T 5 5 120 61 88

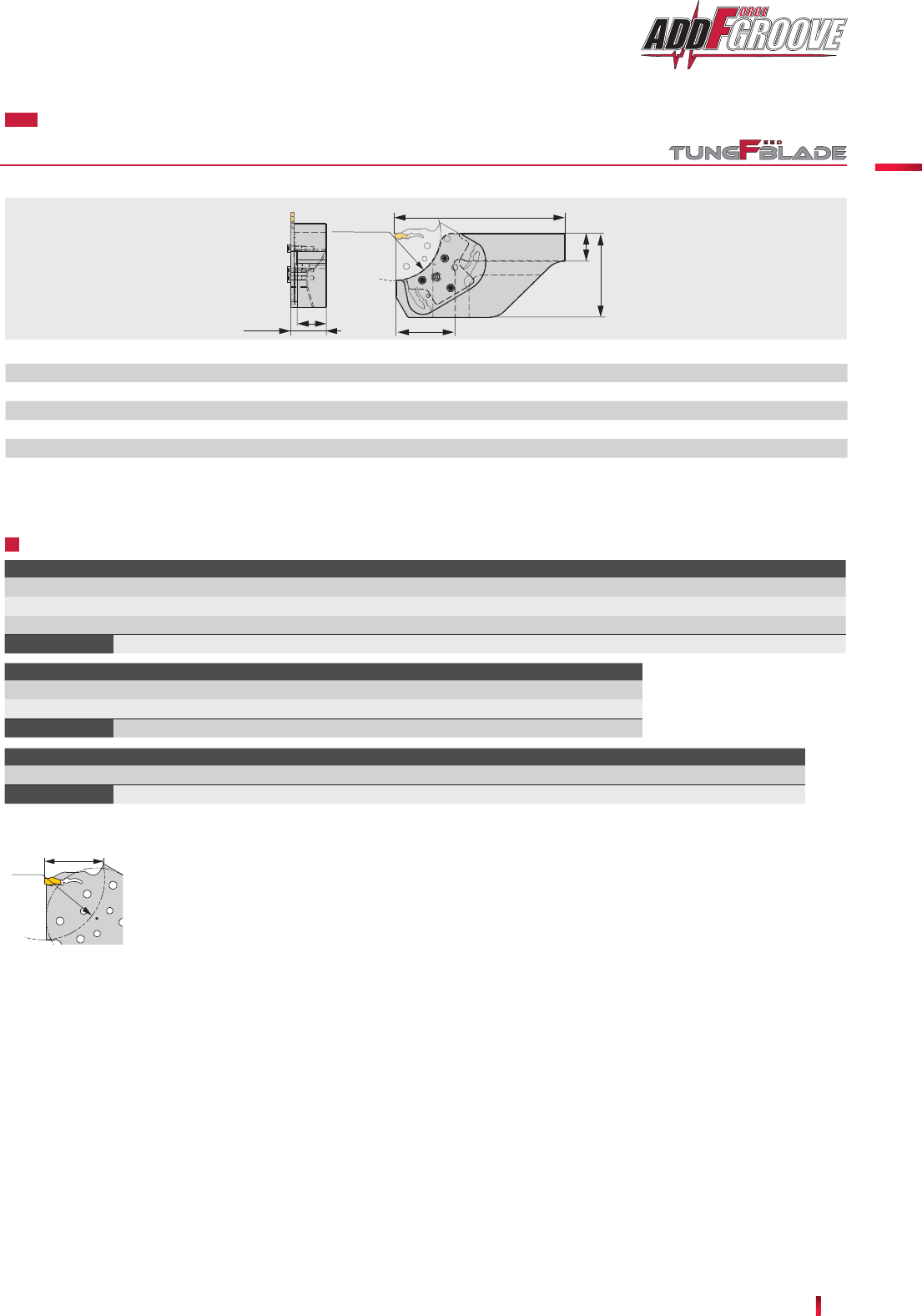

QSG
Designation Seat size
BLADE

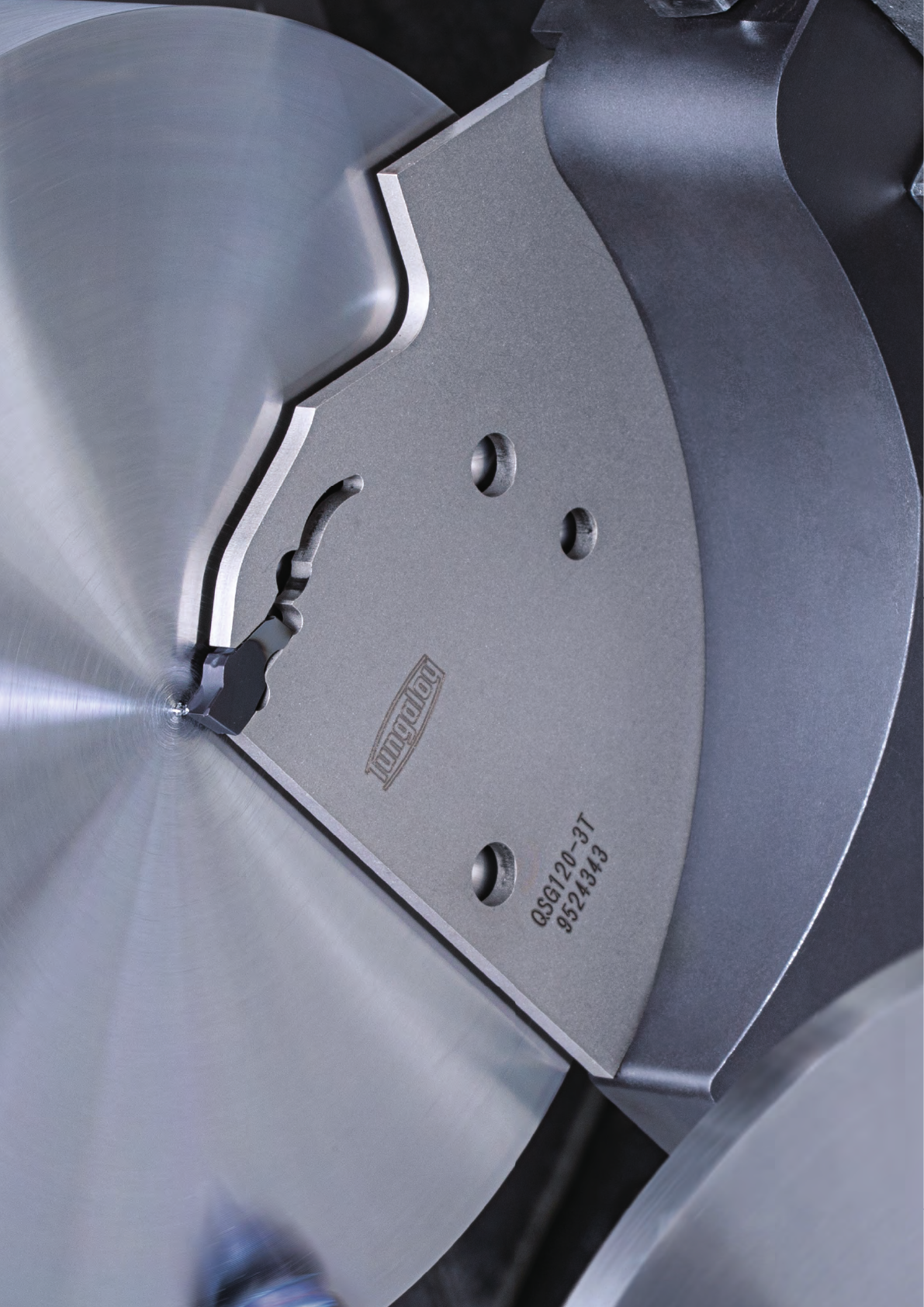

Parting-off and external grooving blade
17Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
H
OAH
B
OAW
OAL
LB
CUTDIA
CUTDIA H B OAL OAH OAW LB
CHTBR/L2020-52 52 20 20.5 100 50 26.5 37
CHTBR/L2525-52 52 25 25.5 125 50 31.5 37
CHTBR/L2020-82 82 20 20.5 140 75 26.5 53
CHTBR/L2525-82 82 25 25.5 150 75 31.5 53
CHTBR/L2525-120 120 25 25.5 165 100 31.5 67
CHTBR/L3232-120 120 32 32.5 165 100 38.5 67
øD1
CHTBR/L****-D52 53 54 55 56 58 60 62 65 68 72 78 84 92 102 115 133 159 198
CHTBR/L****-D82 104 108 112 116 121 127 134 142 151 162 176 192 212 237 270 313 375 468
CHTBR/L****-D120 205 214 224 235 247 261 278 297 319 345 376 414 462 522 601 709 865 1112
T max 212019181716151413121110987654
øD1
CHTBR/L****-D82 83 84 84 85 86 87 89 90 92 94 96 98 101
CHTBR/L****-D120 144 147 150 153 156 160 164 168 173 178 184 190 197
T max 34 33 32 31 30 29 28 27 26 25 24 23 22
øD1
CHTBR/L****-D120 121 122 123 124 125 126 127 128 129 130 131 133 134 136 138 140 142
T max 55 52 50 48 47 46 45 44 43 42 41 40 39 38 37 36 35
CHTBR/L
øD1
T max
Grooving & Parting
Right hand (R) shown.
Designation
Maximum groove depth : T max as function of workpiece diameter : øD1
The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point.
Maintain the clearance from the chucking device to avoid interference.
Designation
Designation
Designation
TOOL BLOCK
Tool block for QSG blade
18 NEW PRODUCTS

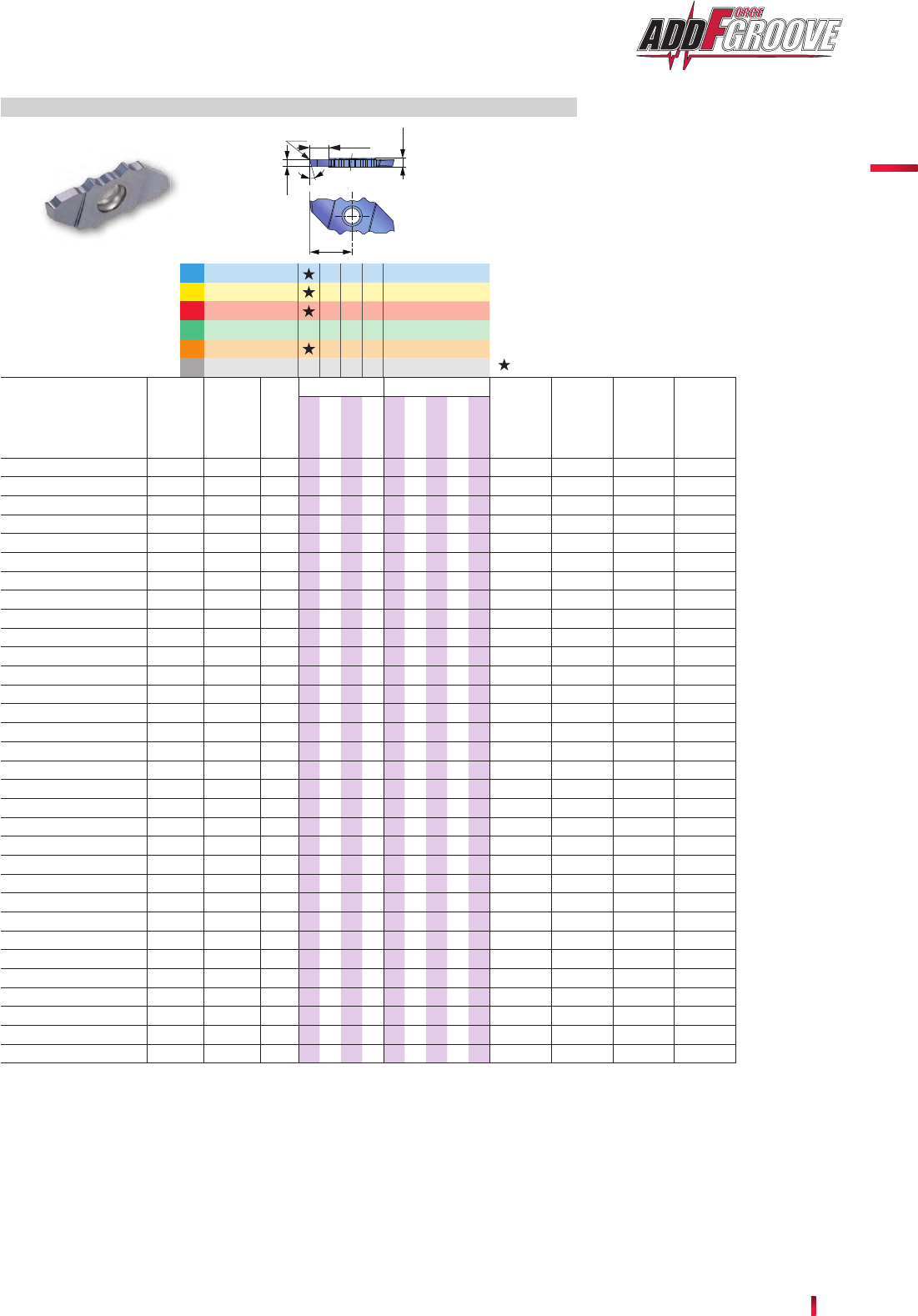

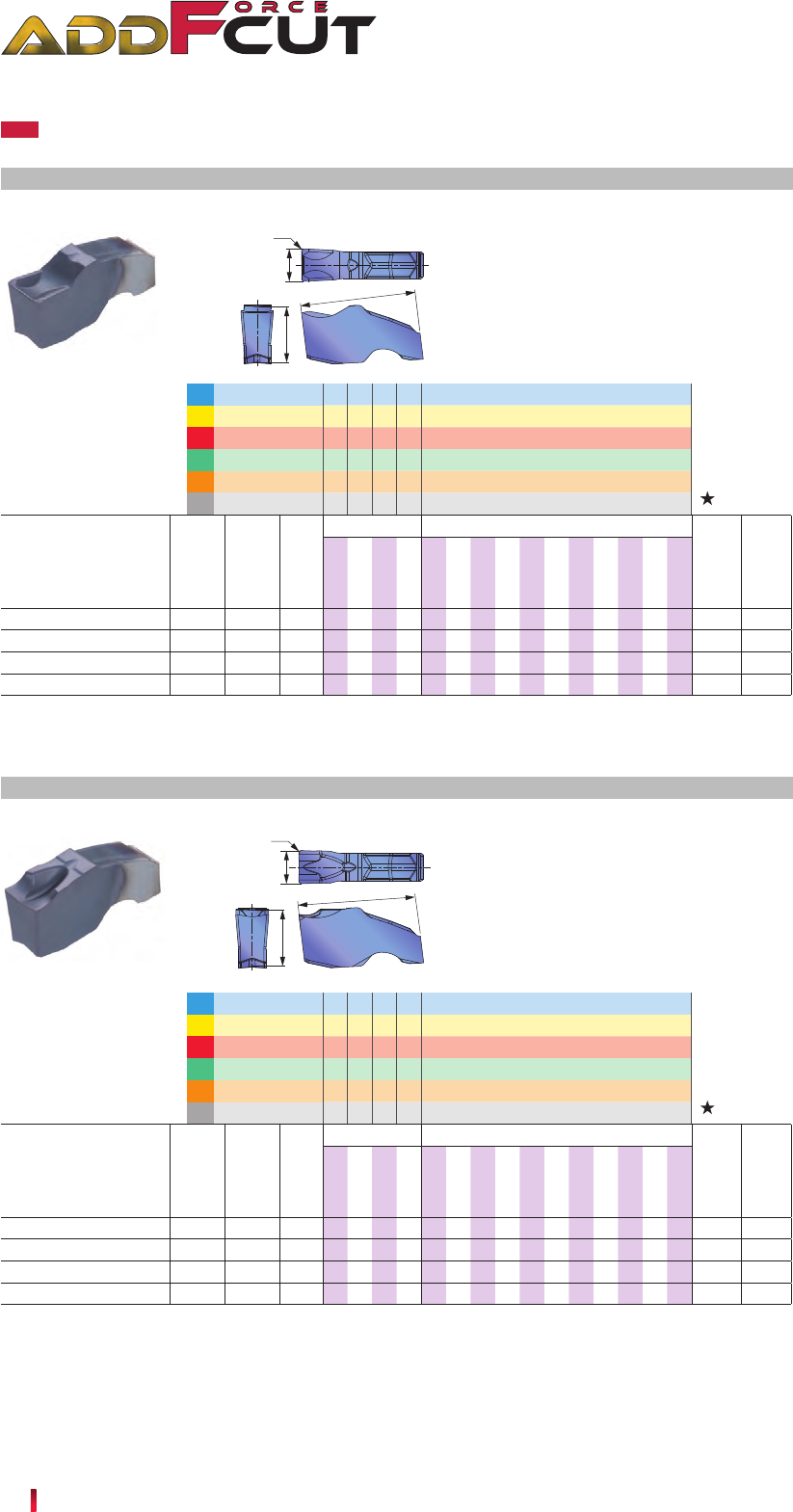

QGM
RE
CW
h
INSL
Ref.
P
M
K
N
S
H
CW±0.05
RE INSL h
AH7025
QGM2-020 2 2 0.2 11 5.3
QGM3-020 3 3 0.2 11 5.3
QGM4-030 4 4 0.3 13 7.3
QGM5-030 5 5 0.3 13 7.3
QGS
RE
CW
h
INSL
Ref.
P
M
K
N
S
H
CW±0.05
RE INSL h
AH7025
QGS2-020 2 2 0.2 11 5.3
QGS3-020 3 3 0.2 11 5.3
QGS4-030 4 4 0.3 13 7.3
QGS5-030 5 5 0.3 13 7.3
External deep grooving and parting
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
: First choice
: First choice
Coated
Seat
size
: New
INSERTS
External deep grooving and parting
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
Seat
size
: New
19Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
ISO Vc (m/min) QGM QGS
< 300 HB AH7025 50 - 180 0.05 - 0.35 0.04 - 0.2
< 200 HB AH7025 50 - 120 0.05 - 0.35 0.04 - 0.2
- AH7025 50 - 180 0.05 - 0.35 0.04 - 0.2
- AH7025 50 - 120 0.05 - 0.35 0.04 - 0.2
< HRC 40 AH7025 20 - 60 0.05 - 0.35 0.04 - 0.2
< HRC 40 AH7025 20 - 80 0.05 - 0.35 0.04 - 0.2
Grooving & Parting
Workpiece material Hardness Grade
Cutting speed
Steels
C45, 34CrMo4, etc.
Stainless steel
X10CrNiS18-9, etc.
Gray cast iron
GG25, 250, etc.
Ductile cast irons
GGG45, 450-10S, etc.
Superalloys
Inconel718, etc.
Titanium alloys
Ti-6Al-4V, etc.
STANDARD CUTTING CONDITIONS
Feed: f (mm/rev)
20 NEW PRODUCTS

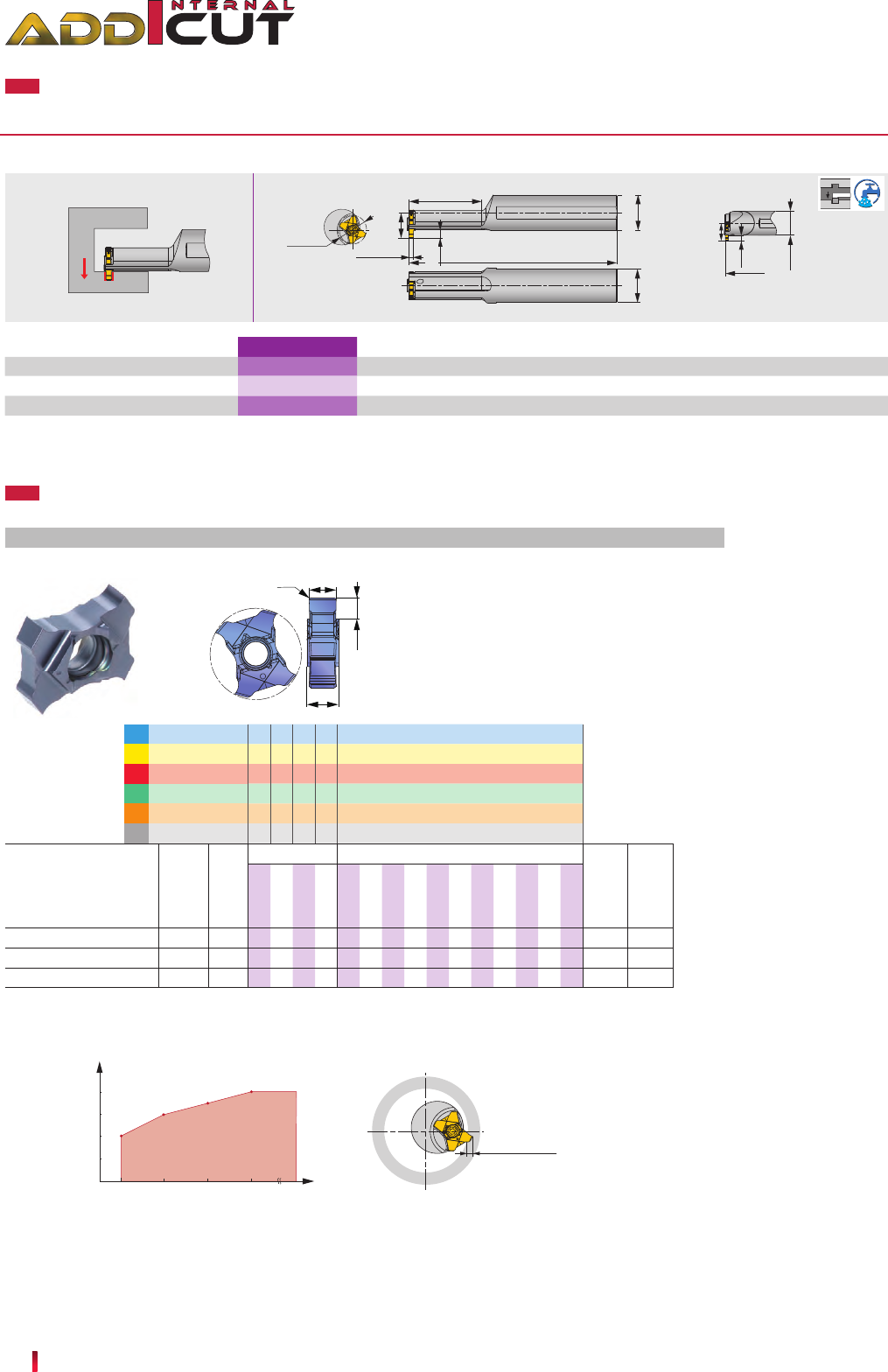

ADD stability and repeatability in small internal grooving operations
with the unique insert clamping system
UNIQUE 4-EDGED INSERT FOR SMALL
INTERNAL GROOVING OPERATIONS
Internal grooving
21Tungaloy
Grooving & Parting
Scan this QR code
to nd out more
about this tool!
Lineup
Insert
- TCIG10...
CW = 1.5, 2 and 2.5 mm
Max. insert cutting depth: CDX = 2 mm
Min grooving dia: DMIN = ø10.5 mm
Toolholders
- A12H-STCIR/L...
- E12K-STCIR/L...
Grade
- AH725: General purpose grade with superior chipping resistance.
Suitable in all material groups
- Unique insert clamping provides
secure insert edge position for good
repeatability and accuracy, ensuring
high quality internal grooves.
- The innovative clamping system
eliminates insert movement caused by
cutting forces.
- Through-coolant holder delivers
coolant from the outlet located near
the insert, promoting effective chip
evacuation from the cutting area.
- Neutral designed insert can be
mounted on either right- or left-handed
holder.
22 NEW PRODUCTS
TCIG
P
M
K
N
S
H
CW±0.025
RE CDX S
AH725
TCIG10-150-010 1.5 0.1 2 3.5
TCIG10-200-010 2 0.1 2 3.5
TCIG10-250-020 2.5 0.2 2 3.5
CDX
CW
RE
S
CWN CWX DMIN DCONMS LH LF WF H
A12H-STCIR/L10-D105 1.5 2.5 10 10.5 12 24 100 8.3 11 TCIG10... 1
A12H-STCIR/L10-D120 1.5 2.5 10 12 12 30 100 8.3 11 TCIG10... 1
E12K-STCIR/L10-D150 1.5 2.5 10 15 12 - 125 8.3 11 TCIG10... 1
A/E-STCIR/L
WF
LH
LF
WF
LF
DCONMS
CDX
CWN-CWX
H
DCONMS
DMIN
CDX
2
1.5
1
0.5
10.5 11 11.5 12
T max (mm)
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
INSERTS
Coated
Internal grooving toolholder
Designation Torque*
TOOLHOLDERS
InsertSeat size
*Torque: Recommended clamping torque (N∙m)
Material
Steel
Steel
Carbide
Right hand (R) shown.
Note: Max groove depth for small holes
For hole diameters less than 11.5 mm, the maximum groove depth (T max) for the insert becomes smaller
than the specified value. Check the actual value in the chart below for hole diameters < 11.5 mm.
Max. groove depth
T max (mm)
Hole dia: ø (mm)
Application range
: New
23Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
ISO
Vc (m/min) f (mm/rev)
< 300 HB 50 - 180 0.02 - 0.08
< 200 HB 50 - 120 0.02 - 0.08
< HRC 40 20 - 80 0.02 - 0.08
Grooving & Parting
Workpiece material Hardness Priority
Cutting speed Feed
Steels
S45C, C45,
SCM435, 34CrMo4, etc.
Stainless steel
SUS303, X10CrNiS18-9, etc.
Titanium alloys
Ti-6Al-4V, etc.
First choice
First choice
First choice
STANDARD CUTTING CONDITIONS
24 NEW PRODUCTS

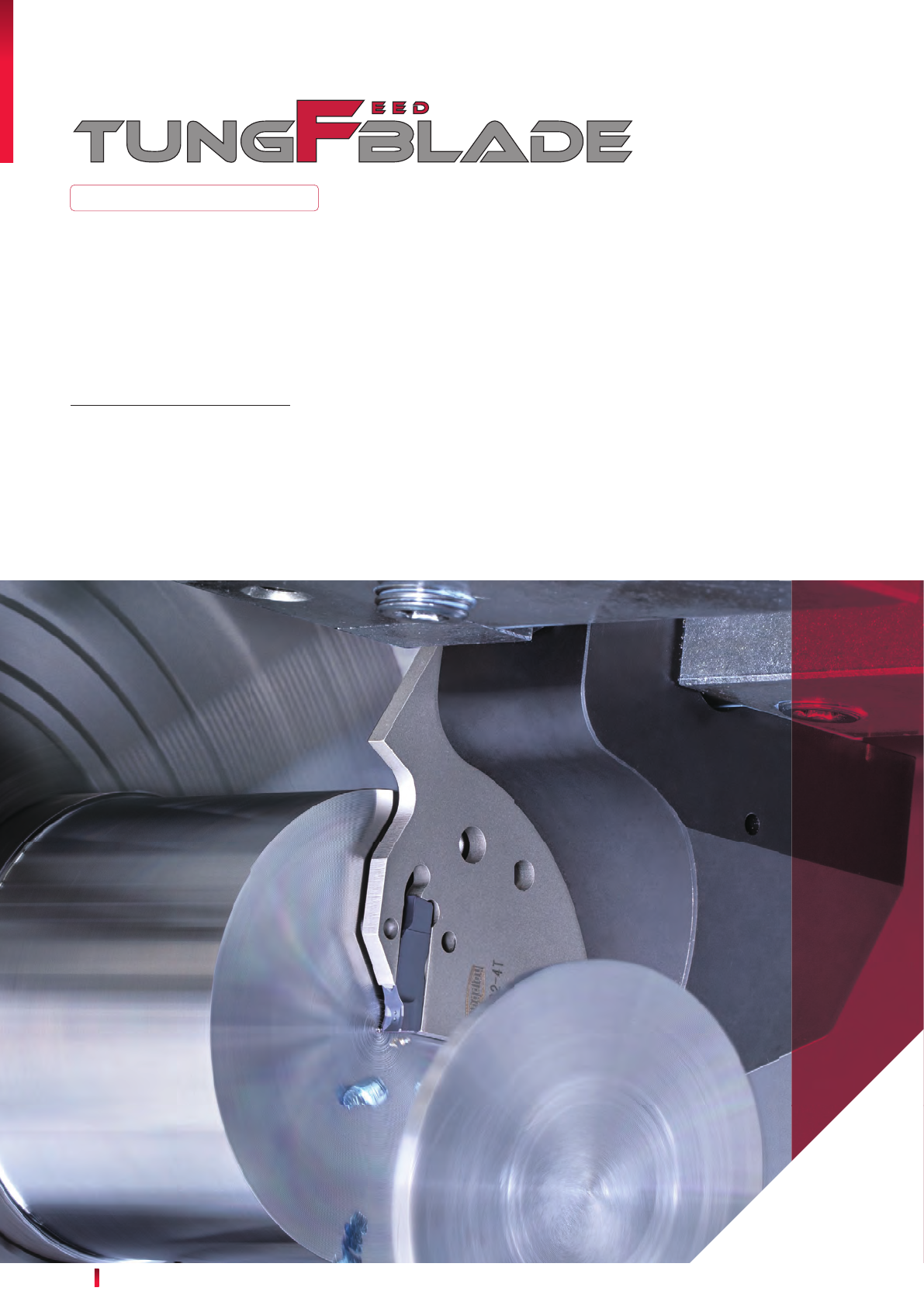

ADD speed and feed to your grooving and
parting-off operations
EXTREMELY RIGID POCKET DESIGN FOR
THE MOST DEMANDING CUTTING
CONDITIONS
External grooving, Parting-off
25Tungaloy
Grooving & Parting
Scan this QR code
to nd out more
about this tool!
Lineup
- Strong holder design ensures tool
stability and productivity gain during
demanding cutting conditions.
- Specially designed tool block has two
contact faces to provide enhanced tool
rigidity.
- The blade provides reduced tooling
cost with three insert pockets, while
its strong backing beneath the insert
withstands heavy cutting loads during
machining.
Inserts
- DGM..., DGS..., SGM..., SGS..., and DGL...
Blade
- CHGP...
CW = 2 - 4 mm
Max cut-off diameters: CUTDIA = ø52 and 82 mm
Blocks
- CHTBR/L... in sizes 2020 and 2525
- The blades for TungCut series and the
blades for the latest ADDForceCut can
share the same tool block.
- The blade for TungCut inserts also
ensures strong insert clamping,
providing high tool reliability.
- The latest ADDForceCut blades that
use a single-ended insert improves
grooving /parting-off operations at
increased feed rates.
26 NEW PRODUCTS

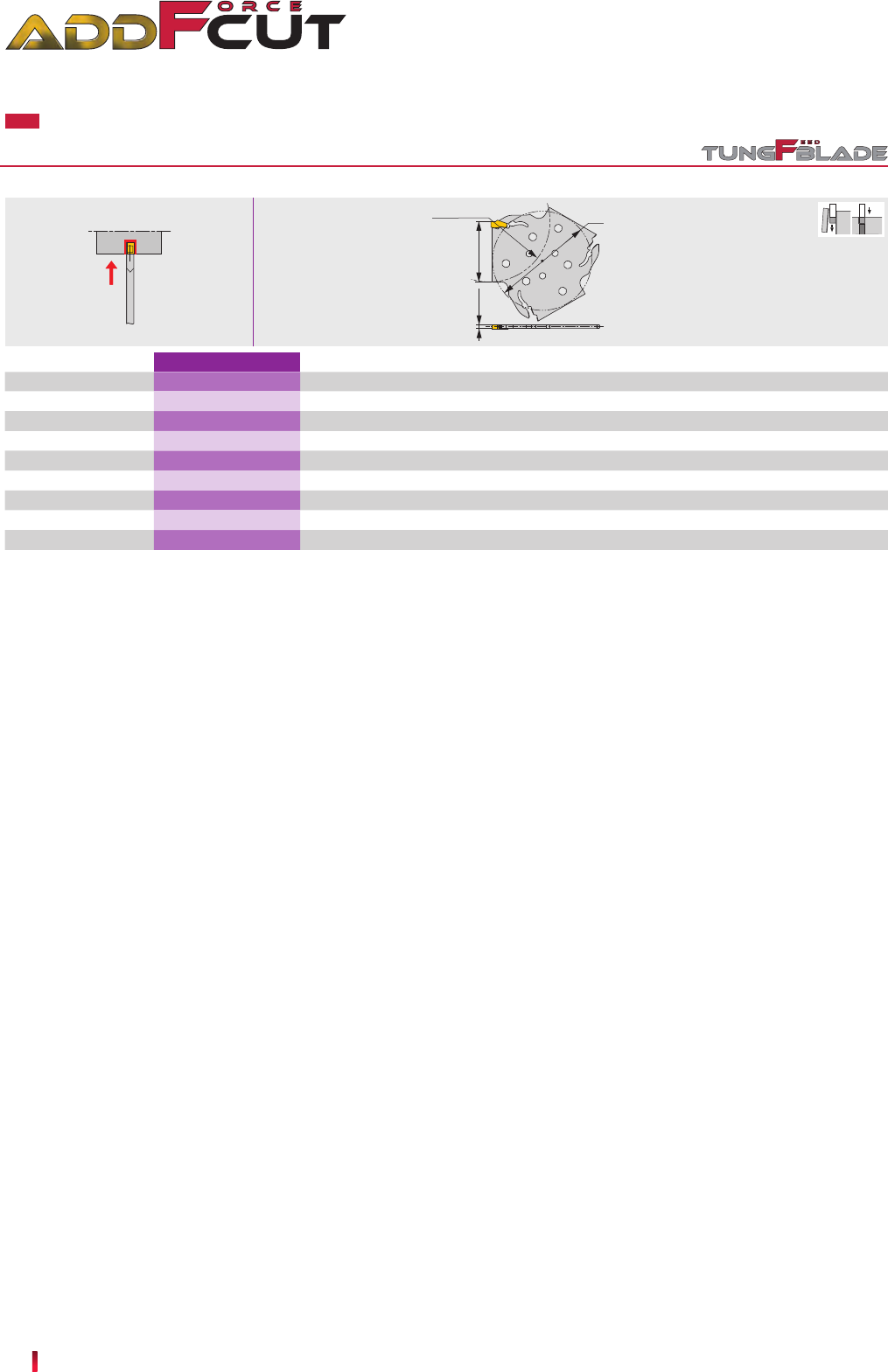

CW
CUTDIA D
HF
CHGP
CW CUTDIA HF D
CHGP52-2T 2 2 52 27 48.3
CHGP52-3T 3 3 52 27 48.3
CHGP82-3T 3 3 82 42 69.3
CHGP82-4T 4 4 82 42 69.3
H
OAH
B
OAW
OAL
LB
CUTDIA
CUTDIA H B OAL OAH OAW LB
CHTBR/L2020-52 52 20 20.5 100 50 26.5 37
CHTBR/L2525-52 52 25 25.5 125 50 31.5 37
CHTBR/L2020-82 82 20 20.5 140 75 26.5 53
CHTBR/L2525-82 82 25 25.5 150 75 31.5 53
CHTBR/L
øD1
CHTBR/L****-D52 53 54 55 56 58 60 62 65 68 72 78 84 92 102 115 133 159 198
CHTBR/L****-D82 104 108 112 116 121 127 134 142 151 162 176 192 212 237 270 313 375 468
T max 212019181716151413121110987654
øD1
CHTBR/L****-D82 83 84 85 86 87 89 90 92 94 96 98 101
T max 34 33 31 30 29 28 27 26 25 24 23 22
øD1T max
Designation Seat size
Parting-off and external grooving blade
When depth is deeper than insert length - 1.5 mm, 1 corner type is recommended.
Right hand (R) shown.
Tool block for CHGP blade
Designation
Designation
Designation
Maximum groove depth : T max as function of workpiece diameter : øD1
Note: The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point.
Maintain the clearance from the chucking device to avoid interference.
BLADE
TOOL BLOCK
27Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
ISO
Vc (m/min)
< 300 HB AH7025 50 - 180
< 200 HB AH7025 50 - 120
- AH7025 50 - 180
- AH7025 50 - 120
< HRC 40 AH7025 20 - 60
< HRC 40 AH7025 20 - 80
Grooving & Parting
STANDARD CUTTING CONDITIONS
Workpiece material Hardness Grade
Steels
C45, 34CrMo4, etc.
Stainless steel
X10CrNiS18-9, etc.
Gray cast iron
GG25, 250, etc.
Ductile cast irons
GGG45, 450-10S, etc.
Superalloys
Inconel718, etc.
Titanium alloys
Ti-6Al-4V, etc.
Scan this QR code
to nd out insert
information.
Cutting speed

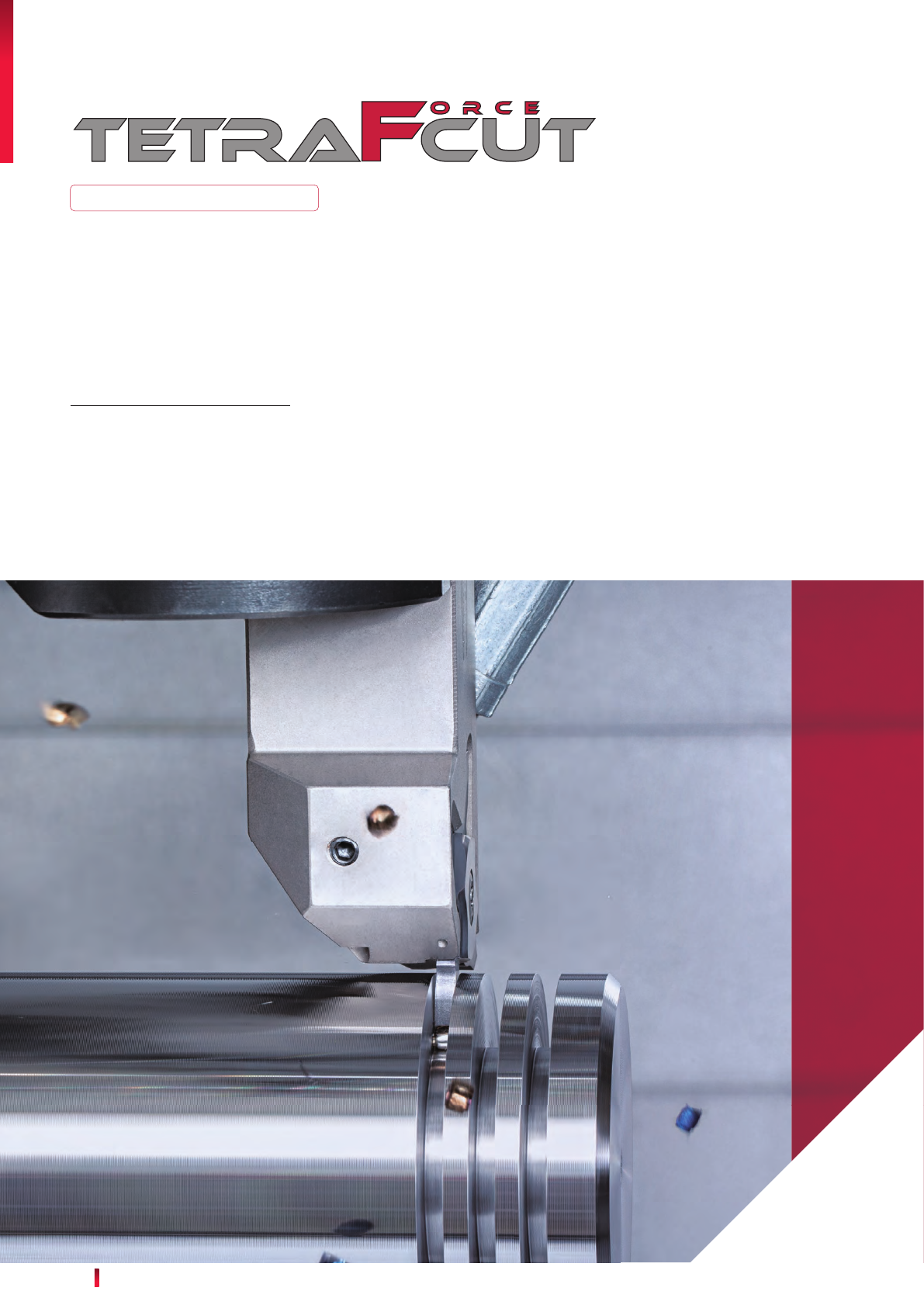

28 NEW PRODUCTS
ADD deeper and accurate grooves
to your machining operations
TCL38 INSERT FOR UP TO 10 MM
GROOVE DEPTH
External grooving, Parting-off

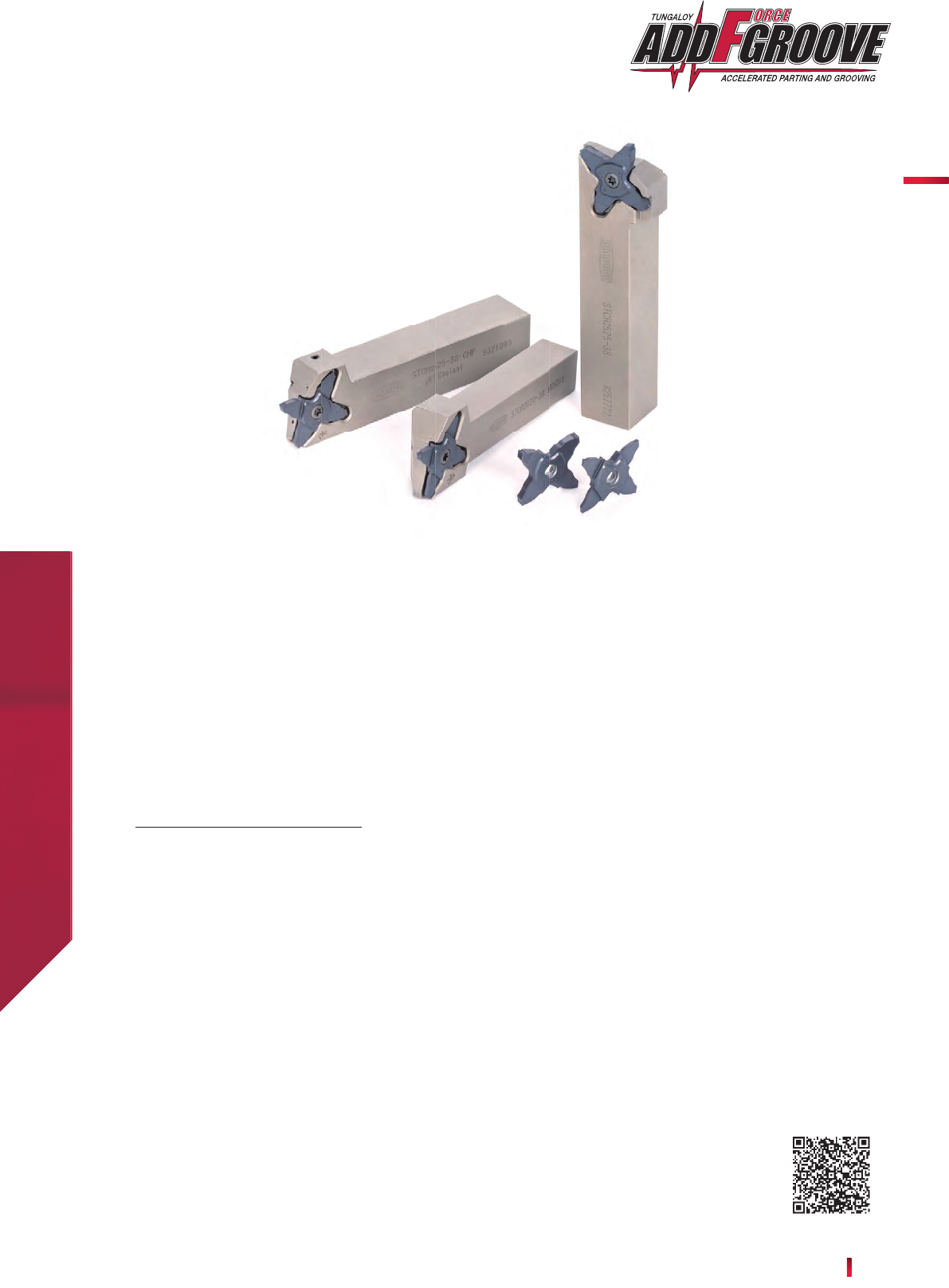

29Tungaloy
Grooving & Parting
Scan this QR code
to nd out more
about this tool!
Lineup
- Unique insert seat design ensures
secure insert clamping, providing
excellent indexing accuracy and
repeatability.
- Neutral design insert can be mounted
on either right- or left-handed holder.
- Insert clamping screw can be
operated from either side of the holder,
significantly reducing tool change time.
Insert
- TCL38...
CW = 1.5 - 4 mm
Max. insert cutting depth: CDX = 10 mm
Max. parting diameters: CUTDIA = ø20 mm
Toolholders
Mono block shanks:
- STCR/L**38 in sizes 2020, 2525 and 3232
- STCR/L**38-CHP (for precision internal coolant supply) in size 2525
Grade
- AH7025: Dedicated grade for grooving applications featuring
a good balance of wear and chipping resistance
- Newest TCL38 insert is capable of up
to 10 mm groove depth, making it an
effective tool for cutting off thick-walled
tubes, as well as precision grooving
operations.
- Through-coolant toolholders are also
available for improved chip evacuations,
promoting long tool life and superior
part quality.

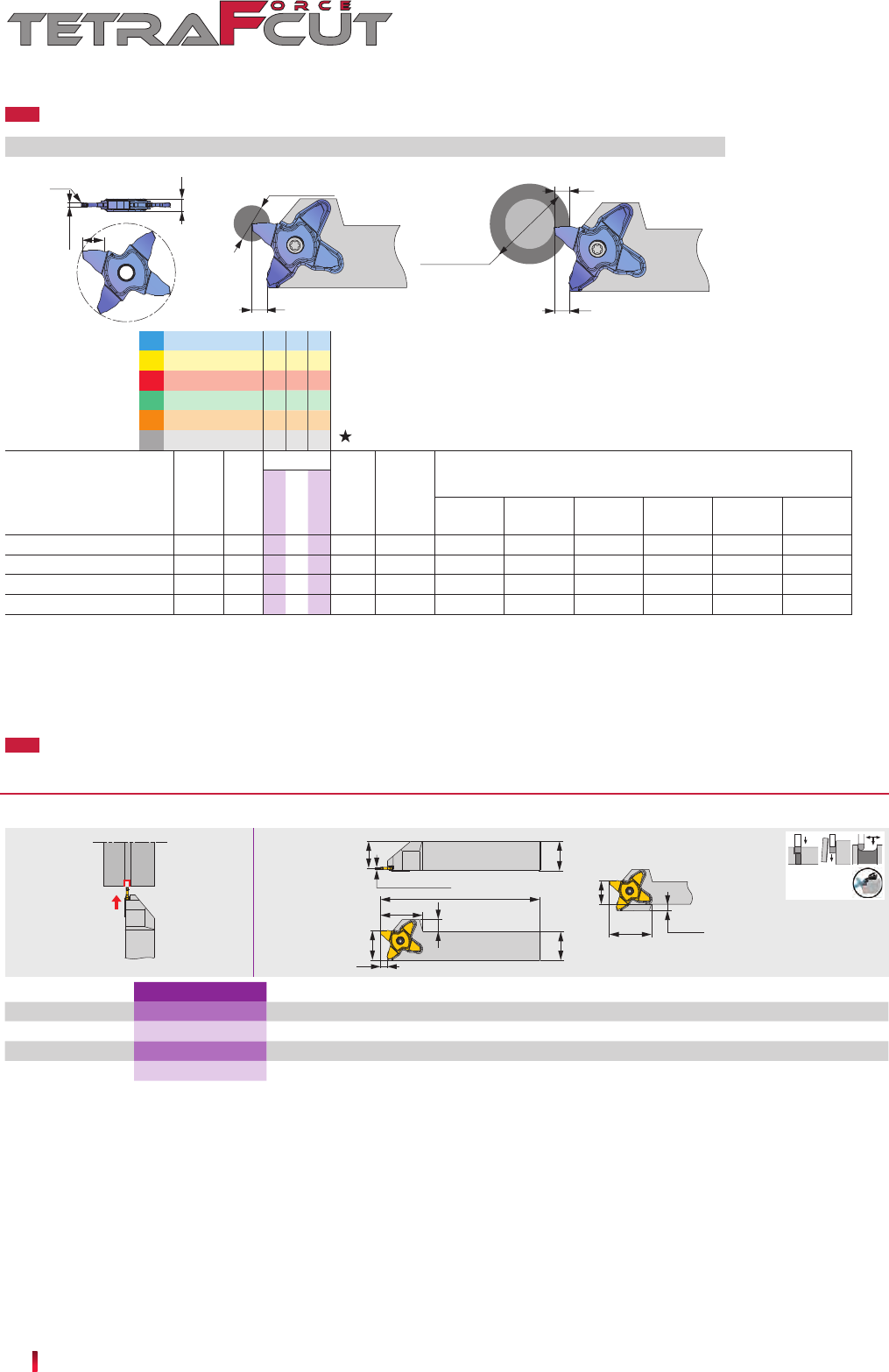

30 NEW PRODUCTS
TCL38
P
M
K
N
S
H
CW±0.02
RE
CDX
CUTDIA
AH7025
TCL38-150-020 1.5 0.2 9 18 ∞ 950 315 190 45 -
TCL38-200-020 2 0.2 9 18 ∞ 950 315 190 45 -
TCL38-300-020 3 0.2 10 20 ∞ 950 315 190 130 50
TCL38-400-030 4 0.3 10 20 ∞ 950 315 190 130 50
CUTDIA
øD max
T
CDX
4.8
6
CW
RE
6
CWN CWX H B LF HF WF HBH HBL
STCR/L2020-38 1.5 4 20 20 120 20 18.1 5 35 TCL38… 2.5
STCR/L2525-38 1.5 4 25 25 135 25 23.1 - - TCL38… 2.5
STCR/L3232-38 1.5 4 32 32 135 32 30.1 - - TCL38… 2.5
STCR/L2525-38-CHP 1.5 4 25 25 135 25 23.1 - - TCL38… 2.5
10
B
CWN-CWX
36
WF
LF
H
6
HF
HBL HBH
HF
STCR/L2020-38
STCR/L-38 (-CHP)
Relation of groove depth (T) and Max. diameter (øD max)
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
: First choice
T ≤ 5 T ≤ 6 T ≤ 7 T ≤ 8 T ≤ 9 T ≤ 10
Designation
*Torque: Recommended clamping torque (N∙m)
Insert Torque*
Right hand (R) shown.
External grooving and parting toolholder
TOOLHOLDERS
INSERTS
: New
31Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
ISO
AH7025 80 - 180 0.03 - 0.18
AH7025 50 - 180 0.03 - 0.18
AH7025 50 - 150 0.03 - 0.14
AH7025 50 - 180 0.03 - 0.14
AH7025 50 - 120 0.03 - 0.14
AH7025 30 - 60 0.03 - 0.14
AH7025 20 - 50 0.03 - 0.14
Grooving & Parting
STANDARD CUTTING CONDITIONS
Carbon steel
S45C, C45, etc.
Grey cast iron
FC250, 250, GG25, etc.
Ductile cast iron
FCD400, 400-15, GGG400, etc.
Titanium alloys
Ti-6Al-4V, etc.
Alloy steel
SCM435, 34CrMo4, etc.
Alloy steel
SCM435, 34CrMo4, etc.
Workpiece materials Grades Cutting speed
Vc (m/min)
Feed
f (mm/rev)
Superalloys
Inconel718, etc.
32 NEW PRODUCTS
ADD secure parting-off and threading operations of < ø20 mm
bar stocks
PARTING-OFF TOOL WITH OPTIMIZED
INSERT CLAMPING
External grooving, Parting-off
33Tungaloy
Grooving & Parting
Scan this QR code
to nd out more
about this tool!
Lineup
- Innovative insert clamping design
ensures process security in all parting
operations and protects unused cutting
edge from damage.
- Four different sizes of inserts fit
the same cutter body, enabling the
selection of optimum insert overhang
for the workpiece diameter.
- Pressed-to-form 3D chipbreaker
provides flexible and effective chip
control. This eliminates chip re-cutting,
preventing edge chipping and poor
surface quality.
Inserts
- JXPS06R/L06F
CW = 0.6 mm
Max. parting diameters: CUTDIA = ø6 mm
- JXPS12R/L08F
CW = 0.8 mm
Max. parting diameters: CUTDIA = ø12 mm
- JXDX12R..., 16R...
CW = 2, 2.5 mm
CDX = 7 mm
- 0.6 mm and 0.8 mm width inserts now
have a pressed-to-form chipbreaker,
saving material waste for improved tool
economy for mass production.
- Offers toolholders ideal for the use
on Swiss machines. In combination
with TungTurn-Jet through-coolant
toolholders, the inserts provide
productivity gains.
- New JXDX type PCD-tipped
grooving inserts with 3D laser-
etched chipbreaker for machining of
complicated aluminum parts are now
available.
Toolholders
- JSXXR/L…
- JSXXR/L**-S
- JSXXR/L**-CHP
(for precision internal coolant supply)
-JSXXR/L**-S-CHP
(for precision internal coolant supply)
Grades
- SH725 : Well balanced combination of the latest coating layer and
tough carbide substrate provides long tool life
- DX110 : Excellent cutting edge integrity that maintains sharpness
over long period of time

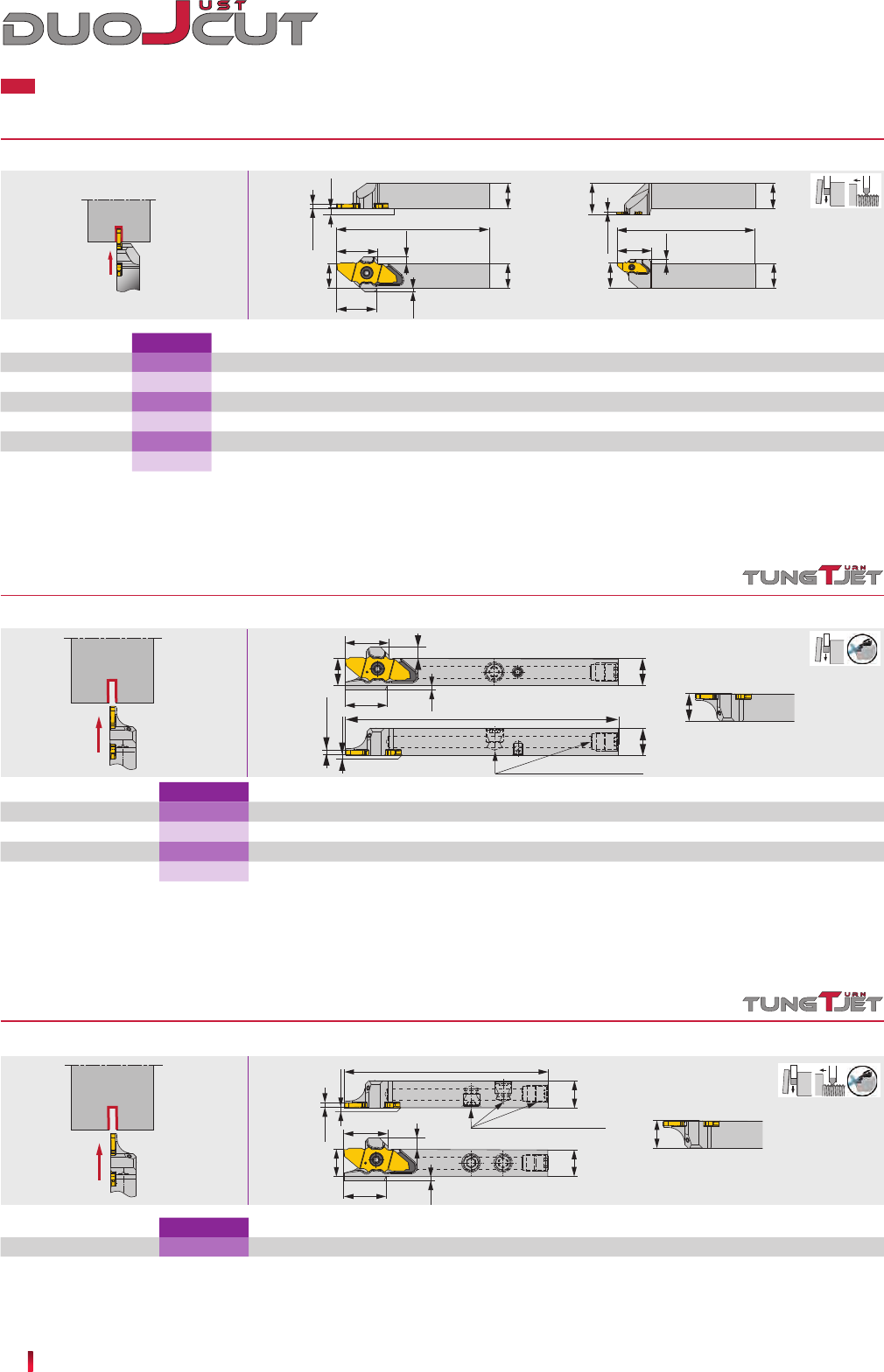

34 NEW PRODUCTS
CWN CWX H B LF** LH** HF WF HBL** HBH
JSXXR/L1012H09-CHP 1 2 10 12 102 19.2 10 0.2/11.8 18.7 3 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1212X09-CHP 1 2 12 12 120 19.4 12 0.2/11.8 18.8 2 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1616X09-CHP*** 1 2 16 16 120 19.4 16 0.2 /15.8 18.7 2.5 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1616X09B-CHP 1 2 16 16 120 19.4 16 0.2 /15.8 18.7 - JX**06 ,12 ,16 ,20 1.2
5
LH
HF
HBL
HBH
H
WF
WF
B
LF
5/16”-24UNF
CWN-
CWX
JSXXR/L-X-CHP
JSXXR/L
LF
LH
HF
HBH
H
3.2
B
WF
CWN-
CWX
B
H
LF
3.2
LH
HF
WF
CWN-
CWX
HBL
CWN CWX H B LF** LH** HF WF HBL** HBH
JSXXR/L1010X09 1 2 10 10 120 19.65 10 0.2 19 3 JX**06 ,12 ,16 , 20 1.2 1
JSXXR/L1212F09 1 2 12 12 85 19.65 12 0.2 19 1.5 JX**06 ,12 ,16 , 20 1.2 1
JSXXR/L1212X09 1 2 12 12 120 19.65 12 0.2 19 1.5 JX**06 ,12 ,16 , 20 1.2 1
JSXXR/L1616X09 1 2 16 16 120 19.65 16 0.2 - - JX**06 ,12 ,16 , 20 1.2 1
JSXXR/L2020H09 1 2 20 20 100 22.5 20 0.2 - - JX**06 ,12 ,16 , 20 1.2 1
JSXXR/L2525Z09 1 2 25 25 135 34 25 30 - - JX**06 ,12 ,16 , 20 1.2 2
5
LH
HF
HBL
HBH
H
WF
CWN-
CWX
WF
B
LF
5/16”-24UNF
JSXXR/L-F-CHP
CWN CWX H B LF** LH** HF WF HBL** HBH
JSXXR/L1212F09-CHP 1 2 12 12 85 19.4 12 0.2/11.8 18.8 2 JX**06 ,12 ,16 ,20 1.2
Insert Torque*
Designation
Right-hand
Left-hand
Parting-off tool for swiss lathes, coolant-through
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) LH (Head Length), and HBL (Head-bottom Offset Length) values shown above are true with JX**16... insert. LF, LH, and HBL will all be 2 mm
shorter than the above values with JX**12... and JX**20... inserts, and 4 mm shorter for JX**06... insert.
***To be replaced with the new design
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) LH (Head Length), and HBL (Head-bottom Offset Length) values shown above are true with JX**16... insert. LF, LH, and HBL will all be 2 mm
shorter than the above values with JX**12... and JX**20...inserts, and 4 mm shorter for JX**06... insert.
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
Insert Torque*
Designation
Right-hand (R) shown.
Parting-off and grooving tools
Fig. 1 Fig. 2
Fig.
Right-hand
Left-hand
Parting-off tool for swiss lathes
Insert Torque*
Designation
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) LH (Head Length), and HBL (Head-bottom Offset Length) values shown above are true with JX**16... insert. LF, LH, and HBL will all be 2 mm
shorter than the above values with JX**12... and JX**20... inserts, and 4 mm shorter for JX**06... insert.
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
TOOLHOLDERS
35Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
LF
HF
HBH
3.2
H
LH
WF
5.7
LH
B
WF
WB
CWN-
CWM
JSXXR/L-S
CWN CWM H B LF** LH** HF WF HBH
JSXXR/L1010X09-S*** 1 2 10 10 120 26 10 0.2/5.5 3 JX**06 ,12 ,16 *** 1.2
JSXXR/L1212F09-S*** 1 2 12 12 85 26 12 0.2/5.5 1.5 JX**06 ,12 ,16 *** 1.2
JSXXR/L1212X09-S*** 1 2 12 12 120 30 12 0.2/5.5 1.5 JX**06 ,12 ,16 *** 1.2
JSXXR/L1616X09-S 1 2 16 16 120 30 16 0.2/5.5 - JX**06 ,12 ,16 , 20... 1.2
B
LH
HF
HBH
5.7
5/16”-24UNF
CWN-
CWX
WF
H
5
LH
CW
WF
LF
5.7
JSXXR/L-X-S-CHP
CWN CWX H B LF** LH** HF WF HBH
JSXXR/L1212X09-S-CHP*** 1 2 12 12 120 30 12 0.2/5.5 4 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1212X09B-S-CHP 1 2 12 12 120 30 12 0.2/5.5 2 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1616X09-S-CHP*** 1 2 16 16 120 30 16 0.2/5.5 1.5 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1616X09B-S-CHP 1 2 16 16 120 30 16 0.2/5.5 - JX**06 ,12 ,16 ,20 1.2
B
LH
HF
HBH
5/16”-24UNF
CWN-
CWX
WF
H
5
LH
CW
WF
LF
5.7
5.7
JSXXR/L-F-S-CHP
CWN CWX H B LF** LH** HF WF HBH
JSXXR/L1212F09-S-CHP*** 1 2 12 12 85 26 12 0.2/5.5 4 JX**06 ,12 ,16 ,20 1.2
JSXXR/L1212F09B-S-CHP 1 2 12 12 85 30 12 0.2 /5.5 2 JX**06 ,12 ,16 ,20 1.2
Grooving & Parting
Right-hand Left-hand
Insert
Designation
Parting-off tool for sub spindle in swiss lathes
Torque*
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12...
and JX**20... inserts; 4 mm shorter with JX**06... insert.
***JX**20... insert will not fit.
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
Right-hand
Left-hand
Insert Torque*
Designation
Parting-off tool for sub spindle in swiss lathes, coolant-through
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12...
and JX**20... inserts; 4 mm shorter with JX**06... insert.
***To be replaced with the new design
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
Right-hand Left-hand
Insert Torque*
Designation
Parting-off tool for sub spindle in swiss lathes
*Torque: Recommended torque (N∙m) for clamping
**LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12...
and JX**20... inserts; 4 mm shorter with JX**06... insert.
***To be replaced with the new design
Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...).
36 NEW PRODUCTS
INSL
CW
RE
2.5
CDX
JXPS**R/L-F
P
M
K
N
S
H
CW±0.025
RE CUTDIA CDX* INSL
SH725
JXPS06R06F R 0.6 0.05 6 3.5 10.5
JXPS06L06F L 0.6 0.05 6 3.5 10.5
JXPS12R08F R 0.8 0.05 12 6.5 12.5
JXPS12L08F L 0.8 0.05 12 6.5 12.5
JXPS12R10F R 1 0.05 12 6.5 12.5
JXPS12L10F L 1 0.05 12 6.5 12.5
JXPS12R15F R 1.5 0.05 12 6.5 12.5
JXPS12L15F L 1.5 0.05 12 6.5 12.5
JXPS16R15F R 1.5 0.05 16 8.5 14.5
JXPS16L15F L 1.5 0.05 16 8.5 14.5
JXPS20R20F R 2 0.05 20 10.5 16.5
JXPS20L20F L 2 0.05 20 10.5 16.5
CW
RE CDX
INSL
JXDX**R-F
P
M
K
N
S
H
CW±0.025
RE
PCD
CDX INSL
DX110
JXDX12R20F R 2 < 0.1 6 12.5
JXDX12R25F R 2.5 < 0.1 6.5 12.5
JXDX16R25F R 2.5 < 0.1 7 14.5
Right-hand (R) shown.
: Will be released in December 2021
䖃 : Line-up
*Max grooving depth (CDX) varies depending on
workpiece diameters.
(with 3D chipbreaker, sharp edge)
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
HAND
: First choice
(PCD insert)
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation HAND
: First choice
INSERTS
: New
37Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
CW
RE
INSL
PSIRR
CDX
2.5
JXPG**R/L-F
P
M
K
N
S
H
CW±0.025
RE CUTDIA CDX* INSL
PSIRR/L**
SH725
JXPG06R10F R 1 0.05 6 3.5 10.5 0°
JXPG06L10F L 1 0.05 6 3.5 10.5 0°
JXPG06R15F R 1.5 0.05 6 3.5 10.5 0°
JXPG06L15F L 1.5 0.05 6 3.5 10.5 0°
JXPG06R10F-15 R 1 0.05 6 3.5 10.5 15°
JXPG06L10F-15 L 1 0.05 6 3.5 10.5 15°
JXPG06R15F-15 R 1.5 0.05 6 3.5 10.5 15°
JXPG06L15F-15 L 1.5 0.05 6 3.5 10.5 15°
JXPG12R15F R 1.5 0.05 12 6.5 12.5 0°
JXPG12L15F L 1.5 0.05 12 6.5 12.5 0°
JXPG12R20F R 2 0.05 12 6.5 12.5 0°
JXPG12L20F L 2 0.05 12 6.5 12.5 0°
JXPG12R15F-15 R 1.5 0.05 12 6.5 12.5 15°
JXPG12L15F-15 L 1.5 0.05 12 6.5 12.5 15°
JXPG12R20F-15 R 2 0.05 12 6.5 12.5 15°
JXPG12L20F-15 L 2 0.05 12 6.5 12.5 15°
JXPG16R15F R 1.5 0.05 16 8.5 14.5 0°
JXPG16L15F L 1.5 0.05 16 8.5 14.5 0°
JXPG16R20F R 2 0.05 16 8.5 14.5 0°
JXPG16L20F L 2 0.05 16 8.5 14.5 0°
JXPG16R15F-15 R 1.5 0.05 16 8.5 14.5 15°
JXPG16L15F-15 L 1.5 0.05 16 8.5 14.5 15°
JXPG16R20F-15 R 2 0.05 16 8.5 14.5 15°
JXPG16L20F-15 L 2 0.05 16 8.5 14.5 15°
JXPG20R15F R 1.5 0.05 20 10.5 16.5 0°
JXPG20L15F L 1.5 0.05 20 10.5 16.5 0°
JXPG20R20F R 2 0.05 20 10.5 16.5 0°
JXPG20L20F L 2 0.05 20 10.5 16.5 0°
JXPG20R15F-15 R 1.5 0.05 20 10.5 16.5 15°
JXPG20L15F-15 L 1.5 0.05 20 10.5 16.5 15°
JXPG20R20F-15 R 2 0.05 20 10.5 16.5 15°
JXPG20L20F-15 L 2 0.05 20 10.5 16.5 15°
Grooving & Parting
(Sharp edge)
Right-hand (R) shown.
䖃 : Line-up
*Max grooving depth (CDX) varies depending on workpiece diameters.
**PSIRL for Left-hand insert.
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
HAND
: First choice
38 NEW PRODUCTS
JS-SXXL09
DCONMS H B LF LH WB WF** f2**
JS19G-SXXL09 19.05 18 18 90 21 15.43 10 6
JX**06,12*R
1.2
JS19X-SXXL09 19.05 18 18 120 21 15.43 10 6
JX**06,12*R
1.2
JS20G-SXXL09 20 19 19 90 21 15.4 10 6
JX**06,12*R
1.2
JS20X-SXXL09 20 19 19 120 21 15.4 10 6
JX**06,12*R
1.2
JS22X-SXXL09 22 21 21 120 21 15.4 10 6
JX**06,12*R
1.2
JS25H-SXXL09 25 24 24 100 21 15.4 10 6
JX**06,12*R
1.2
JS254X-SXXL09 25.4 24 24 120 21 15.4 10 6
JX**06,12*R
1.2
LF
LH
WB
f2
WF
H
B
DCONMS
JXTG12FR/L-60
RE SH725
R L PDX CDX PNA
JXTG12FR/L-60A-000 0.2 - 0.4 0.25 0.4 60
JXTG12FR/L-60B-000 0.2 - 0.4 2.25 0.4 60
JXTG12FR/L-60A-005 0.05 0.4 - 1 0.6 0.99 60
JXTG12FR/L-60B-005 0.05 0.4 - 1 1.9 0.99 60
JXTG12FR/L-60N-010 0.1 1 - 1.5 1.25 2.07 60
RE
CDX
2.5
PDX
PNA
RE
CDX
PNA
PDX
2.5
JXTG 12 F R - 60 A - 005
ba
a > b
ba
a < b
ba
a = b
ba
a > b
ba
a < b
ba
a = b
Insert Torque*
Designation
* Torque: Recommended torque (N∙m) for clamping
** When using JX..06... insert, both WF and f2 sizes will be 2 mm shorter than the values provided above.
Round shanks, for threading
(For Threading / Sharp edge)
Right hand Left hand
Designation
䖃 : Line-up
Pitches
flat
(0.05 max)
flat
(0.05 max)
Insert shape
Insert size
F: sharp edge
Hand
Thread angle
Edge orientation
Corner radius
EDGE ORIENTATION AND DESCRIPTION OF THREADING INSERTS
INSERTS
TOOLHOLDERS
39Tungaloy
ACCELERATED PARTING AND GROOVING
TUNGALOY
GROOVE
ISO
SH725 50 - 200 0.01 - 0.05
SH725 50 - 200 0.01 - 0.05
SH725 50 - 200 0.01 - 0.05
SH725 50 - 200 0.01 - 0.05
SH725 150 - 200 0.01 - 0.05
SH725 100 - 200 0.01 - 0.05
SH725 30 - 80 0.01 - 0.05
SH725 30 - 80 0.01 - 0.05
ISO
DX110 100 - 300 0.03 - 0.15 -
DX110 100 - 300 0.03 - 0.15 < 6
Grooving & Parting
Cutting speed
Vc (m/min)
Feed
f (mm/rev)
Workpiece materials Grades
Low carbon steels
S15C, SS400, etc. C15E4, E275A, etc.
Carbon steels, Alloy steels
S55C, SCM440, etc. C55, 42CrMo4, etc.
Stainless steels
SUS304, X5CrNi18-9, etc.
Titanium alloys
Ti-6AI-4V, etc.
Superalloys
Inconel718, etc.
Free cutting steels
SUH22, SUH23, etc.
Aluminium alloys
A5056, A6061, etc.
Copper alloy
C2600, C280C, etc.
STANDARD CUTTING CONDITIONS
Cutting speed
Vc (m/min)
Feed
f (mm/rev)
Workpiece materials Operation
Aluminium alloys
A5056, A6061, etc.
Depth of cut
ap (mm)
Grooving
Turning
For aluminium and non-ferrous metal PCD insert
Parting, Grooving
Grades
Turning
42 BoreMeister
52 TinyMiniTurn
60 MiniForceTurn /
WavyJoint CBN
64 ModuMiniTurn
42 NEW PRODUCTS

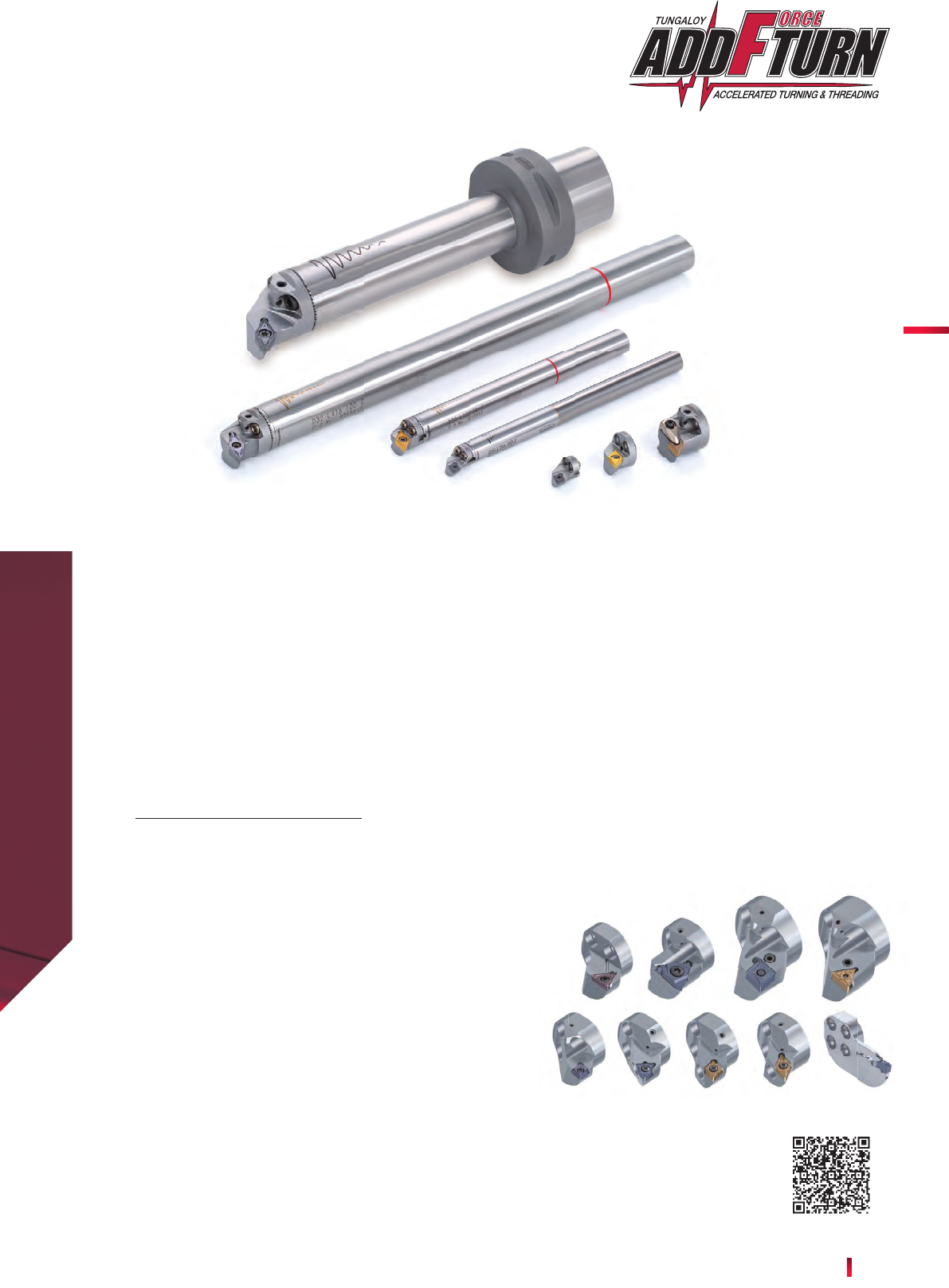

Internal turning
ADD stability and precision
VIBRATION-FREE SOLUTION FOR
DEEP-HOLE BORING
43Tungaloy
Turning
Scan this QR code
to nd out more
about this tool!
Lineup
- Ultimate solution to conquer tool
overhang challenges, chattering, noise
and short tool life of up to 10xD.
- Exchangeable head boring tool
system with serrated interfaces for high
precision and high rigidity indexing.
- Through-coolant capability allows
smooth chip evacuation in deep boring
operations of up to 10xD.
Heads
BoreMeister heads are available for:
- ISO-EcoTurn economical inserts
- MiniForce-Turn double-sided positive inserts
- TungBore-Mini inserts for hole making and
turning
- TungThread ST-style inserts for threading
- AddForceCut: Single corner insert for internal
grooving
- PSC holders are also available, allowing
coupling with a range of machine tools.
- A wide range of boring heads are
available, providing high parts quality in
various boring operations.
- Dedicated setting device allows quick
and accurate center height settings of
the boring bar.
Shanks
- Steel shanks: 4xD, 7xD, 10xD
DCONMS = ø16 - 60 mm
- Carbide shanks: 10xD
DCONMS = ø16 - 20 mm
- PSC adapter: 2.5xD, 3xD, 5xD, 9xD
PSC size = C4, C6

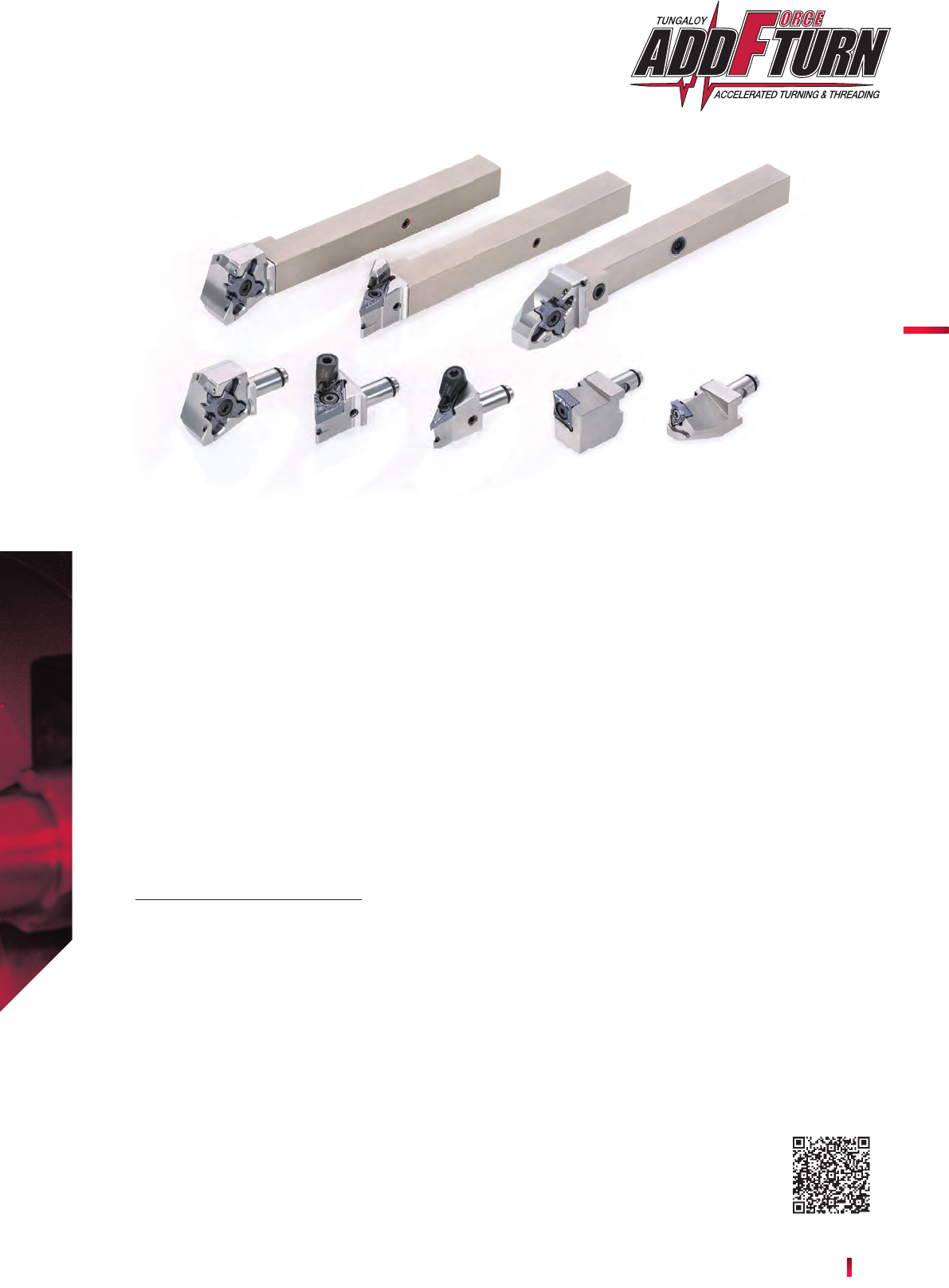

A wide range of boring heads are available.
44 NEW PRODUCTS
95°
DMIN
DCONMS
LF
WF
DMIN DCONMS WF LF
S16-SCLCR/L06-H 20 16 11 20 D/G16 CC**0602...
S20-SCLCR/L09-H 25 20 13 20 D/G20 CC**09T3...
S25-SCLCR/L09-H 32 25 17 22 D25 CC**09T3...
S32-SCLCR/L09-H 40 30 22 32 D32 CC**09T3...
S40-SCLCR/L12T-H 50 40 27 38 D40, D50, D60 CC**1204...
S-SCLCR/L-H
DMIN
WF
LF
DCONMS
30˚
93°
DMIN DCONMS WF LF
S16-SDUCR/L07-H 20 16 11 20 D/G16 DC**0702...
S20-SDUCR/L11-H 25 20 13 20 D/G20 DC**11T3...
S25-SDUCR/L11-H 32 25 17 20 D25 DC**11T3...
S32-SDUCR/L11T-H 40 32 22 32 D32 DC**11T3...
S40-SDUCR/L11T-H 50 40 27 32 D40, D50, D60 DC**11T3...
S-SDUCR/L-H
LF
WF
DCONMS
DMIN
50˚
93°
DMIN DCONMS WF LF
S20-SVUCR/L11-H 27 20 16 20 D/G20 VC**1103...
S25-SVUCR/L11-H 31 25 17 25 D25 VC**1103...
S-SVUCR/L-H
Screw-on clamp interchangeable boring heads for positive 80° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
Note: When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand
toolholders (SCLCR** type).
Screw-on clamp interchangeable boring heads for positive 55° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
Note: When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SDUCL** type), and the left hand insert (L) is used for the right hand
toolholders (SDUCR** type).

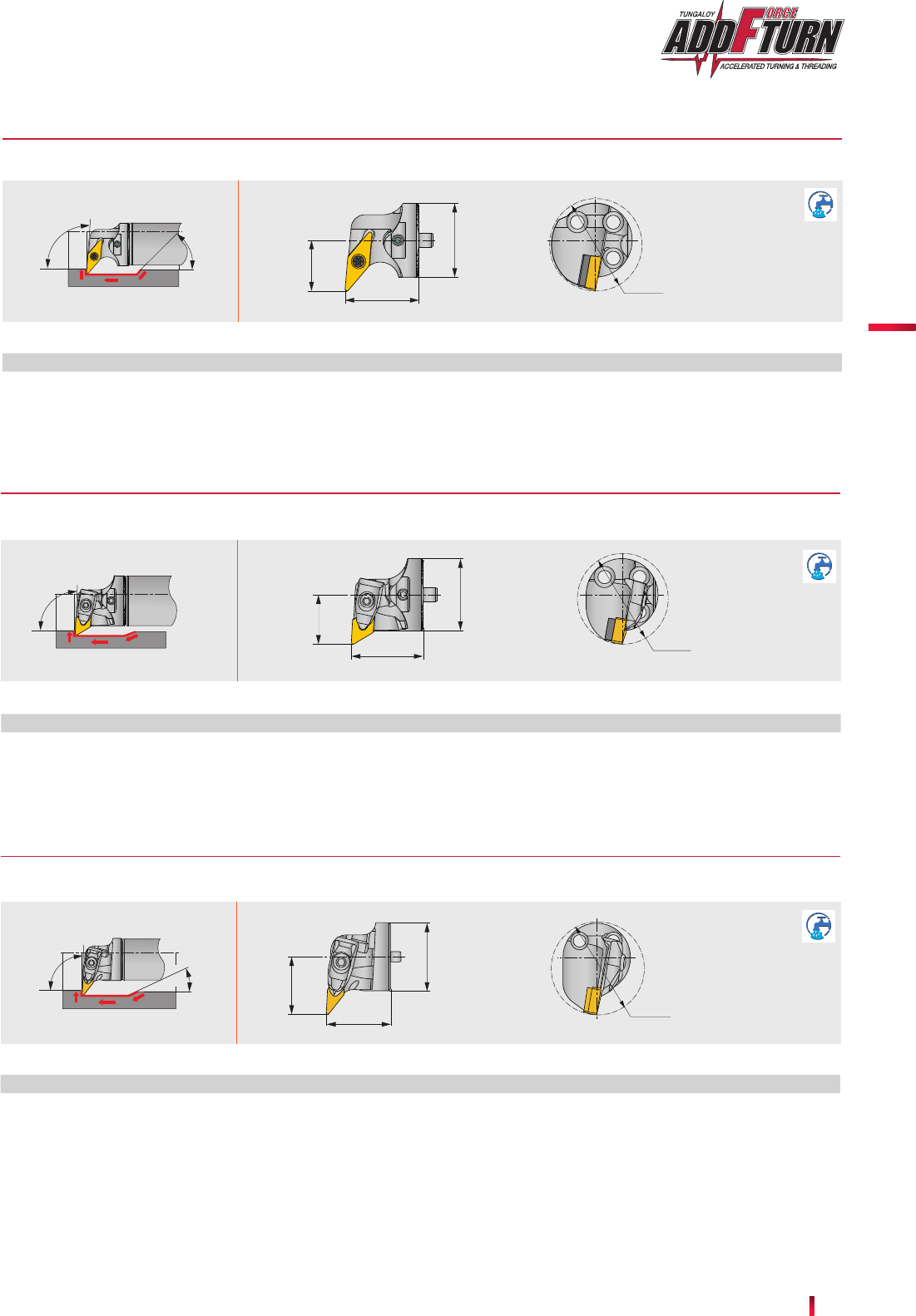

Screw-on clamp interchangeable boring heads for positive 35° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
Note: When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVUCL** type), and the left hand insert (L) is used for the right hand
toolholders (SVUCR** type).
HEAD
45Tungaloy
DMIN
WF
LF
DCONMS
50˚
95°
DMIN DCONMS WF LF
S32-SVLCR/L16T-H 40 32 22 32 D32 VC**1604...
S40-SVLCR/L16T-H 50 40 27 32 D40, D50, D60 VC**1604...
S-SVLCR/L-H
DMIN
WF
LF
DCONMS
93°
DMIN DCONMS WF LF
S32-DDUNR/L11T-H 40 32 22 32 D32 DN**1104...
S40-DDUNR/L15T-H 50 40 27 32 D40, D50, D60 DN**1504/06...
S-DDUNR/L-H
DMIN
WF
LF
DCONMS
25°
93°
DMIN DCONMS WF LF
S40-DVUNR/L16T-H 56 40 34 38 D40, D50, D60 VN**1604...
S-DVUNR/L-H
Turning
Screw-on clamp interchangeable boring heads for positive 35° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
Note: When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVLCL** type), and the left hand insert (L) is used for the right hand
toolholders (SVLCR** type).
Double clamp interchangeable boring heads for negative 55° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
Note: When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (DDUNL** type), and the left hand insert (L) is used for the right hand
toolholders (DDUNR** type).
Double clamp interchangeable boring heads for negative 35° rhombic inserts
Designation Shank size Insert
Right hand (R) shown.
46 NEW PRODUCTS
95°
WF
LF
DCONMS
DMIN
WF
LF
DCONMS
DMIN
100°
S-SCLXR/L-H
S-SDXXR/L-H
DMIN DCONMS WF LF
S25-SCLXR/L06-H 32 25 17 20 D25 CXMU…
S32-SCLXR/L06-H 40 32 22 32 D32 CXMU…
S40-SCLXR/L06-H 50 40 27 32 D40, D50, D60 CXMU…
DMIN DCONMS WF LF
S25-SDXXR/L07-H 32 25 17 20 D25 DXG/MU…
S32-SDXXR/L07-H 40 32 22 32 D32 DXG/MU…
S40-SDXXR/L07-H 50 40 27 32 D40, D50, D60 DXG/MU…
95°
WF
LF
DCONMS
DMIN
S-SWLXR/L-H
DMIN DCONMS WF LF
S25-SWLXR/L04-H 32 25 17 20 D25 WXGU…
S32-SWLXR/L04-H 40 32 22 32 D32 WXGU…
S40-SWLXR/L04-H 50 40 27 32 D40, D50, D60 WXGU…

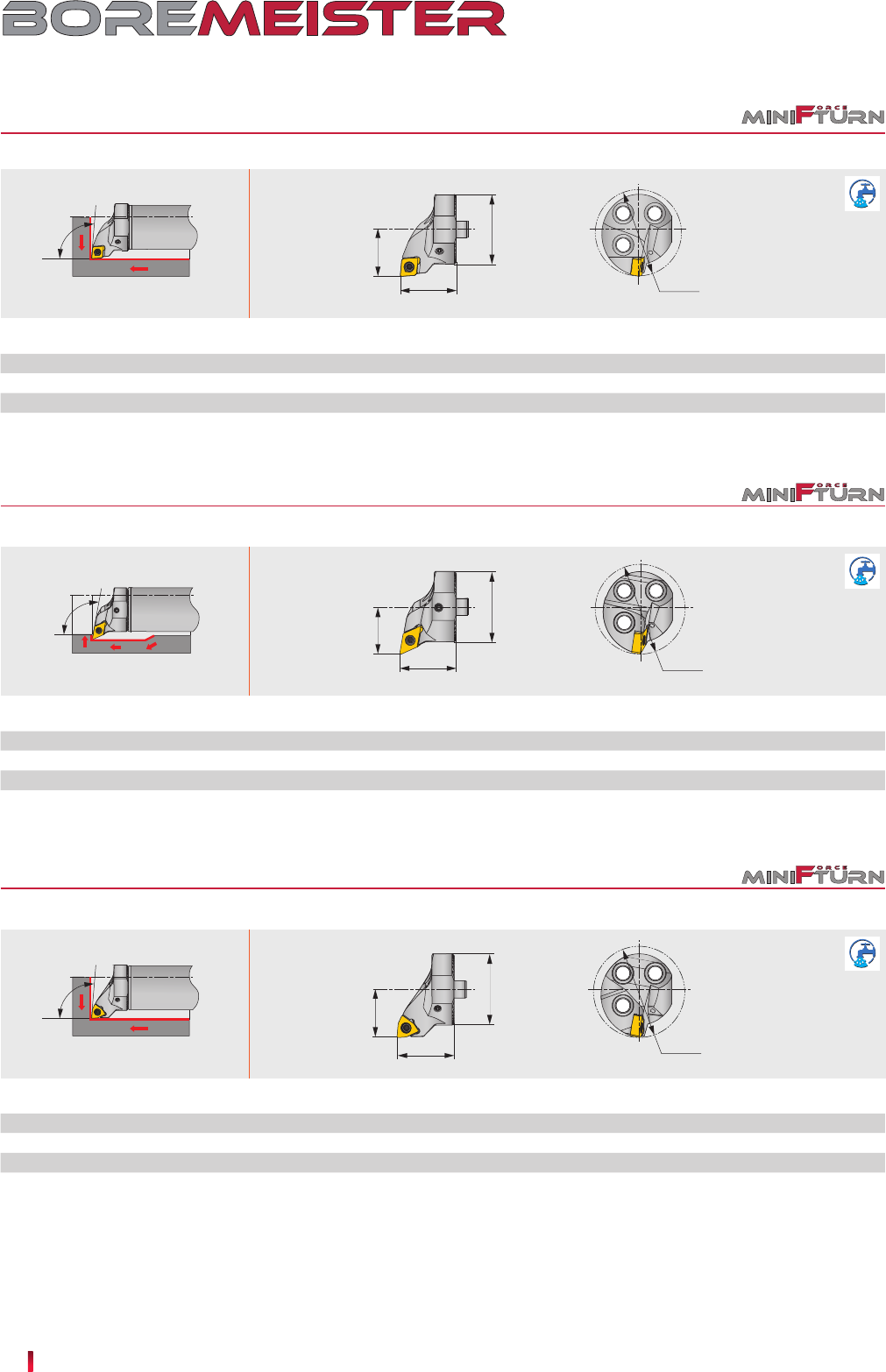

Screw-on clamp exchangeable boring head, for CXMU inserts
Screw-on clamp exchangeable boring head, for DXG/MU inserts
Designation
Designation
Shank
Shank
Insert
Insert
Right hand (R) shown.
Right hand (R) shown.
Cutting edge style L
Cutting edge style X
Note: Use right-hand toolholders (SCLXR**) with left-hand inserts (L); and left-hand toolholders (SCLXL**) with right-hand inserts (R).
Note: Use right-hand toolholders (SDXXR**) with left-hand inserts (L); and left-hand toolholders (SDXXL**) with right-hand inserts (R).
Screw-on clamp exchangeable boring head, for WXGU inserts
Designation Shank Insert
Right hand (R) shown.
Cutting edge style L
Note: Use right-hand toolholders (SWLXR**) with left-hand inserts (L); and left-hand toolholders (SWLXL**) with right-hand inserts (R).
47Tungaloy
WF
LF
DCONMS
DMIN
93°
S-SXUOR05-H
DMIN DCONMS WF LF
S20-SXUOR05-H 25 20 13 20 D20 XOMU...
S25-SXUOR05-H 32 25 17 20 D25 XOMU...
95°
WF
LF
DCONMS
DMIN
S-PCLNR/L-H
DMIN DCONMS WF LF
S32-PCLNR/L09-H 40 32 22 32 D32 CNMG0904...
S40-PCLNR/L09-H 50 40 27 32 D40, D50, D60 CNMG0904...
WF
LF
DCONMS
DMIN
91°
S-PTFNR/L-H
DMIN DCONMS WF LF
S32-PTFNR/L11-H 40 32 22 32 D32 TNMG1104...
S40-PTFNR/L11-H 50 40 27 32 D40, D50, D60 TNMG1104...
Turning
Screw-on clamp exchangeable boring head, for XOMU inserts
Designation Shank Insert
Right hand (R) shown.
Cutting edge style U
Lever-lock clamp exchangeable boring head, for negative 80° rhombic inserts
Designation Shank Insert
Right hand (R) shown.
Cutting edge style L
Note: Use right-hand toolholders (PCLNR**) with left-hand inserts (L); and left-hand toolholders (PCLNL**) with right-hand inserts (R).
Lever-lock clamp exchangeable boring head, for negative 60° triangular inserts
Designation Shank Insert
Right hand (R) shown.
Cutting edge style F
Note: Use right-hand toolholders (PTFNR**) with left-hand inserts (L); and left-hand toolholders (PTFNL**) with right-hand inserts (R).
48 NEW PRODUCTS
WF
LF
DCONMS
DMIN
91°
WF
LF
DCONMS
DMIN
1°
S-STFPR/L-H
S-SNR-H
DMIN DCONMS WF LF
S16-STFPR/L09-H 20 16 11 20 D16 TPMT0902...
S16-STFPR/L11-H 20 16 11 20 D16 TPMT1102...
S20-STFPR/L11-H 25 20 13 20 D20 TPMT1102...
S25-STFPR/L11-H 32 25 17 20 D25 TPMT1102...
S32-STFPR/L16-H 40 32 22 32 D32 TPMT16T3...
S40-STFPR/L16-H 50 40 27 32 D40, D50, D60 TPMT16T3...
DMIN DCONMS WF LF
S20-SNR16-H 25 20 14 25 D20 16IR...
S25-SNR16-H 32 25 17 25 D25 16IR...
S32-SNR16-H 40 32 22 32 D32 16IR...
S40-SNR16-H 50 40 27 32 D40, D50, D60 16IR...
CW CDX DMIN DCONMS LF WF
S25-QSIR/L2T26D550-H 2 26 55 25 2 8.5 40.1 D25
S25-QSIR/L3T26D550-H 3 26 55 25 3 9 40.1 D25
S32-QSIR/L3T32D700-H 3 32 70 32 3 11 49.6 D32
S32-QSIR/L4T32D700-H 4 32 70 32 4 11.5 49.6 D32
S-QSIR/L-H
WF
CDX
DCONMS
DMIN
CW
LF
Screw-on clamp exchangeable boring head, for positive 60° triangular inserts
Screw-on clamp exchangeable boring head, for threading inserts
Designation
Designation
Shank
Shank
Insert
Insert
Right hand (R) shown.
Right hand (R) shown.
Cutting edge style F
Note: Use right-hand toolholders (STFPR**) with left-hand inserts (L); and left-hand toolholders (STFPL**) with right-hand inserts (R).
Exchangeable boring head, for internal grooving
Designation ShankSeat size
Please refer to the BoreMeister Tungaloy Report (TR517) for shank information that is applicable to the head.
Left hand (L) shown.
49Tungaloy

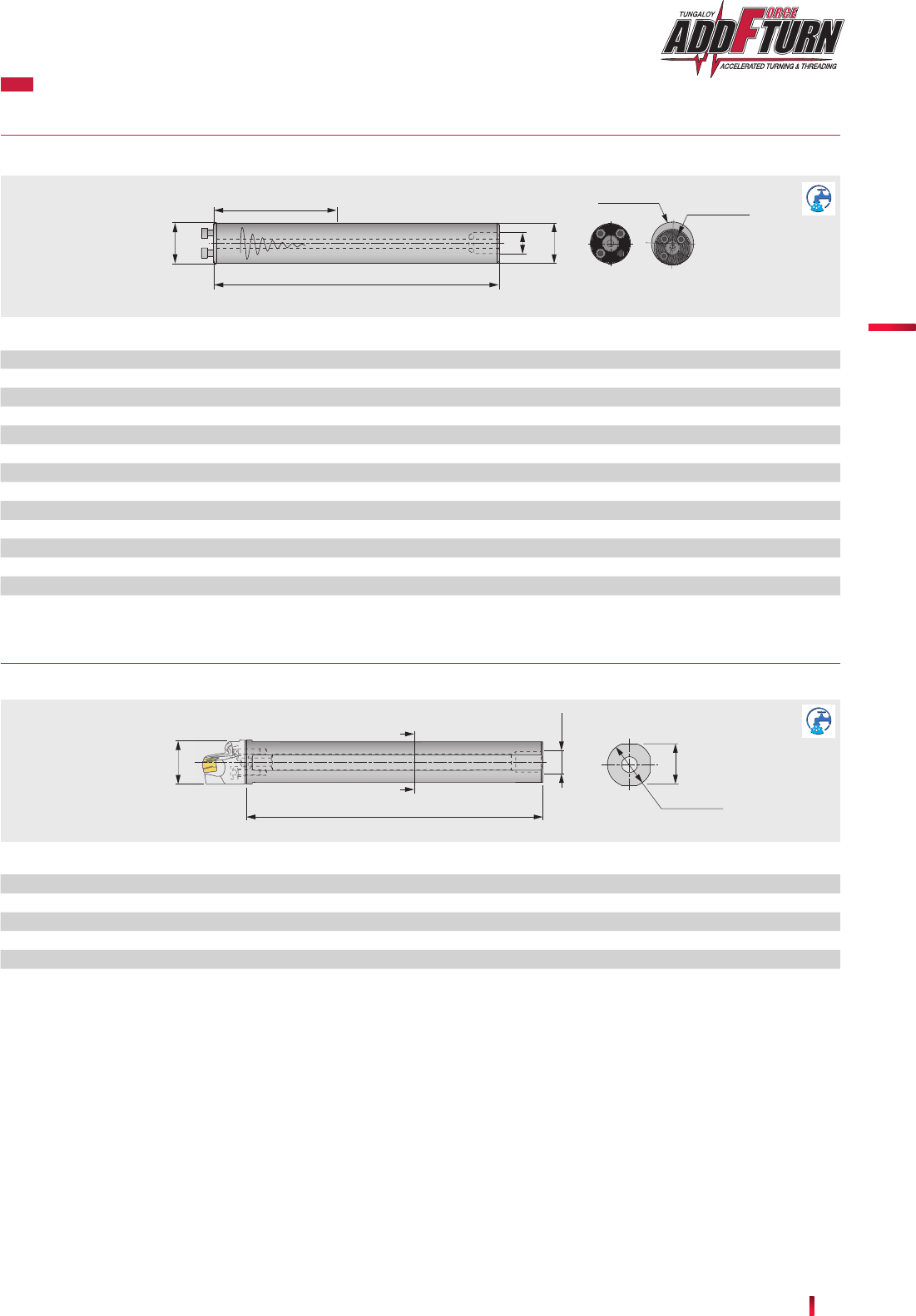

DCONWS
H
DCONMS
A
A
CNT
OAL
DCONWS DCONMS OAL CNT H
D16-L105-4D-SH 16 16 105 UNC-2B 3/8"-16 15
D20-L140-4D-SH 20 20 140 UNFC-2B 3/8"-24 18
D25-L200-4D-SH 25 25 200 UNF-2B 1/2"-20 23
D32-L218-4D-SH 32 32 218 UNF-2B 1/2"-20 29
D40-L283-4D-SH 40 40 283 UNF-2B 1/2"-20 36
D#4D-SH
DCONWS
50 & 60 mm shanks
DCONMS
DCONWS
OHX
OAL
DCONMS
CNT
DCONWS DCONMS OAL OHX CNT
D16-L156-7D-C 16 16 156.3 92 G1/8
G16-L204-10D-E 16 16 204.3 140 -
D20-L200-7D-C 20 20 200.3 120 G1/4
G20-L260-10D-E 20 20 260.3 180 -
D25-L255-7D-C 25 25 257.5 155 G1/4
D25-L330-10D-C 25 25 332.5 230 G1/4
D32-L320-7D-C 32 32 323 192 G3/8
D32-L416-10D-C 32 32 419 288 G3/8
D40-L408-7D-C 40 40 411 248 G1/2
D40-L528-10D-C 40 40 531 368 G1/2
D50-L518-7D-C 40 50 523 318 G1/2
D50-L668-10D-C 40 50 673 468 G1/2
D60-L628-7D-C 40 60 633 388 G3/4
D60-L808-10D-C 40 60 813 568 G3/4
Turning

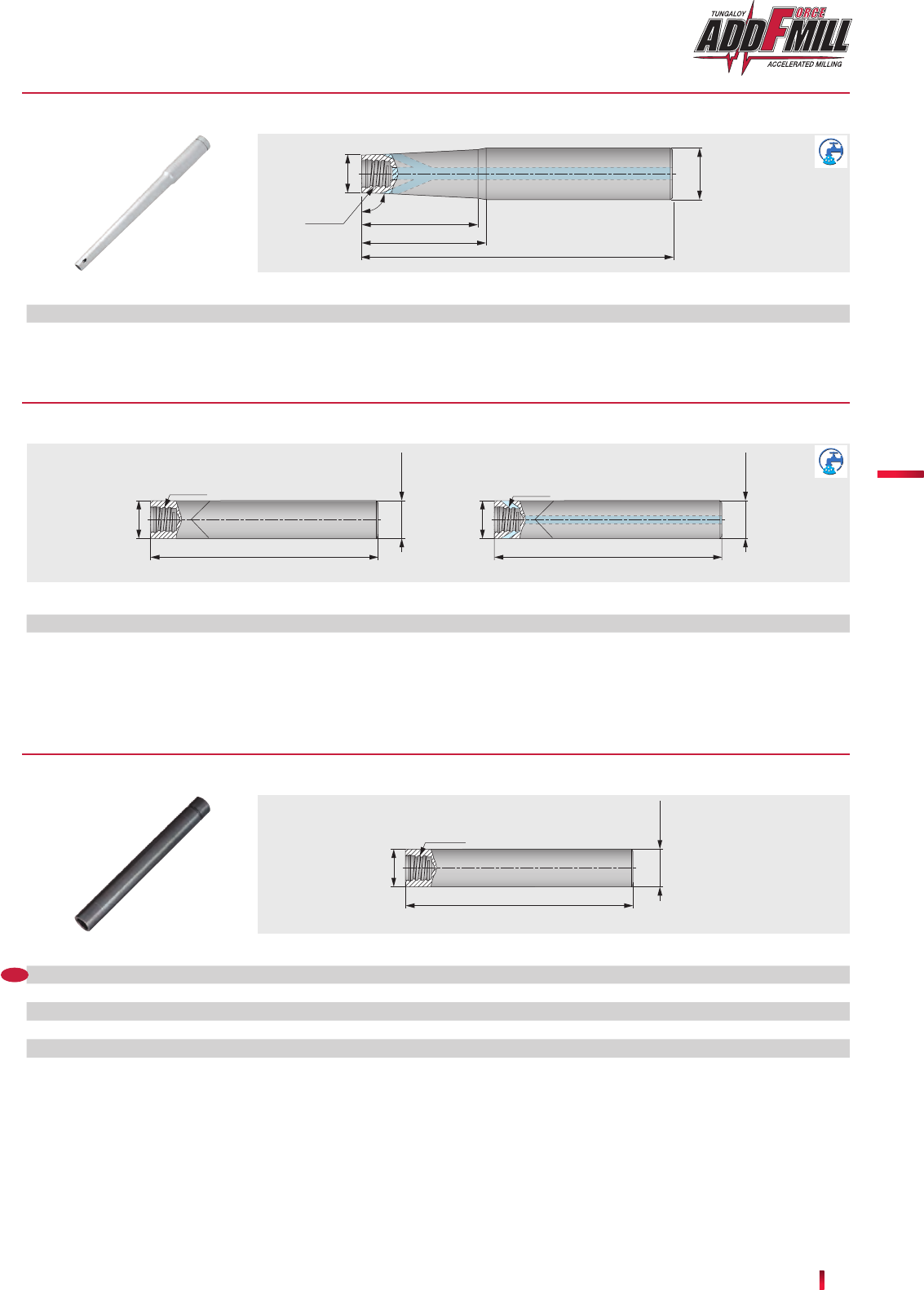

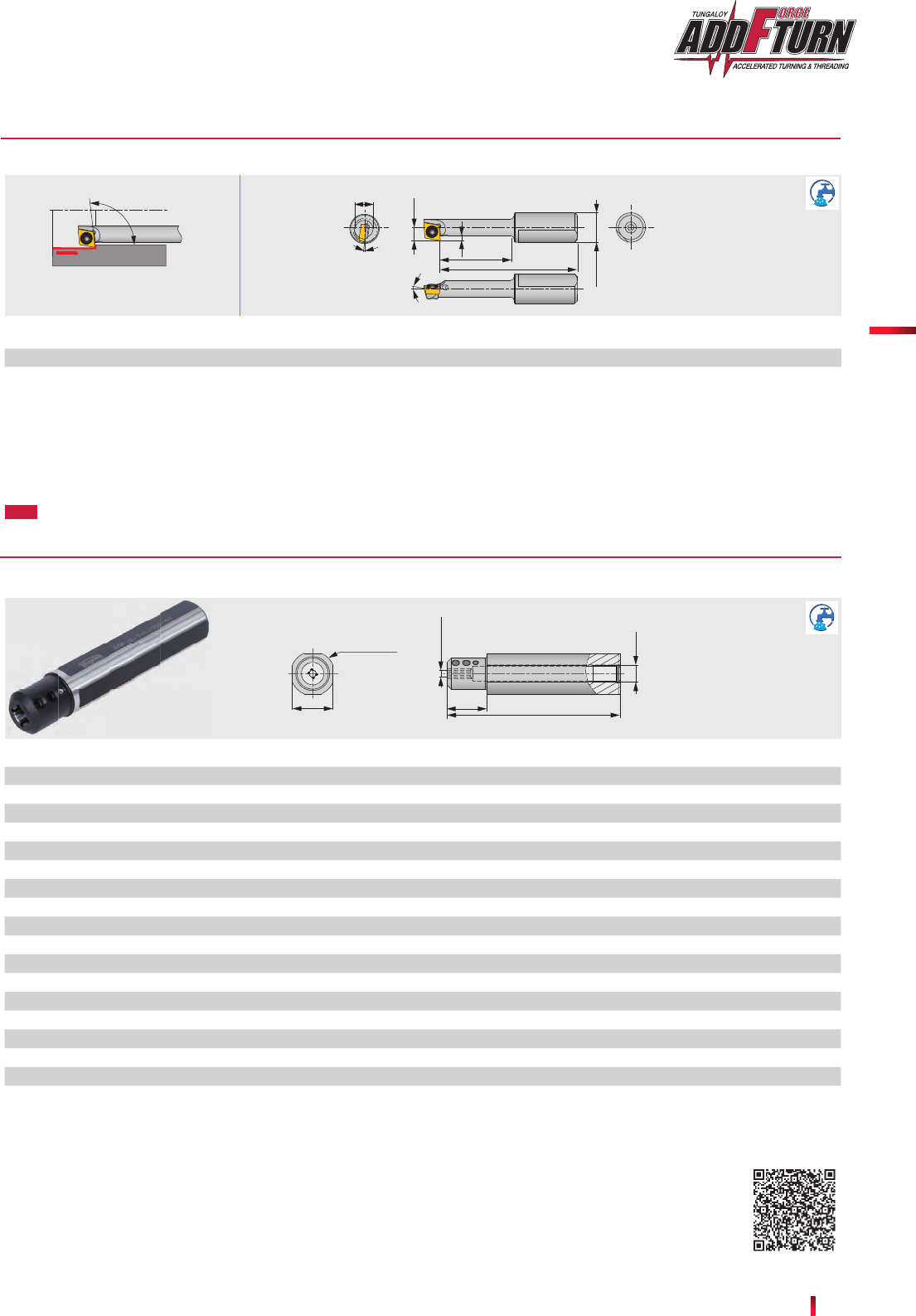

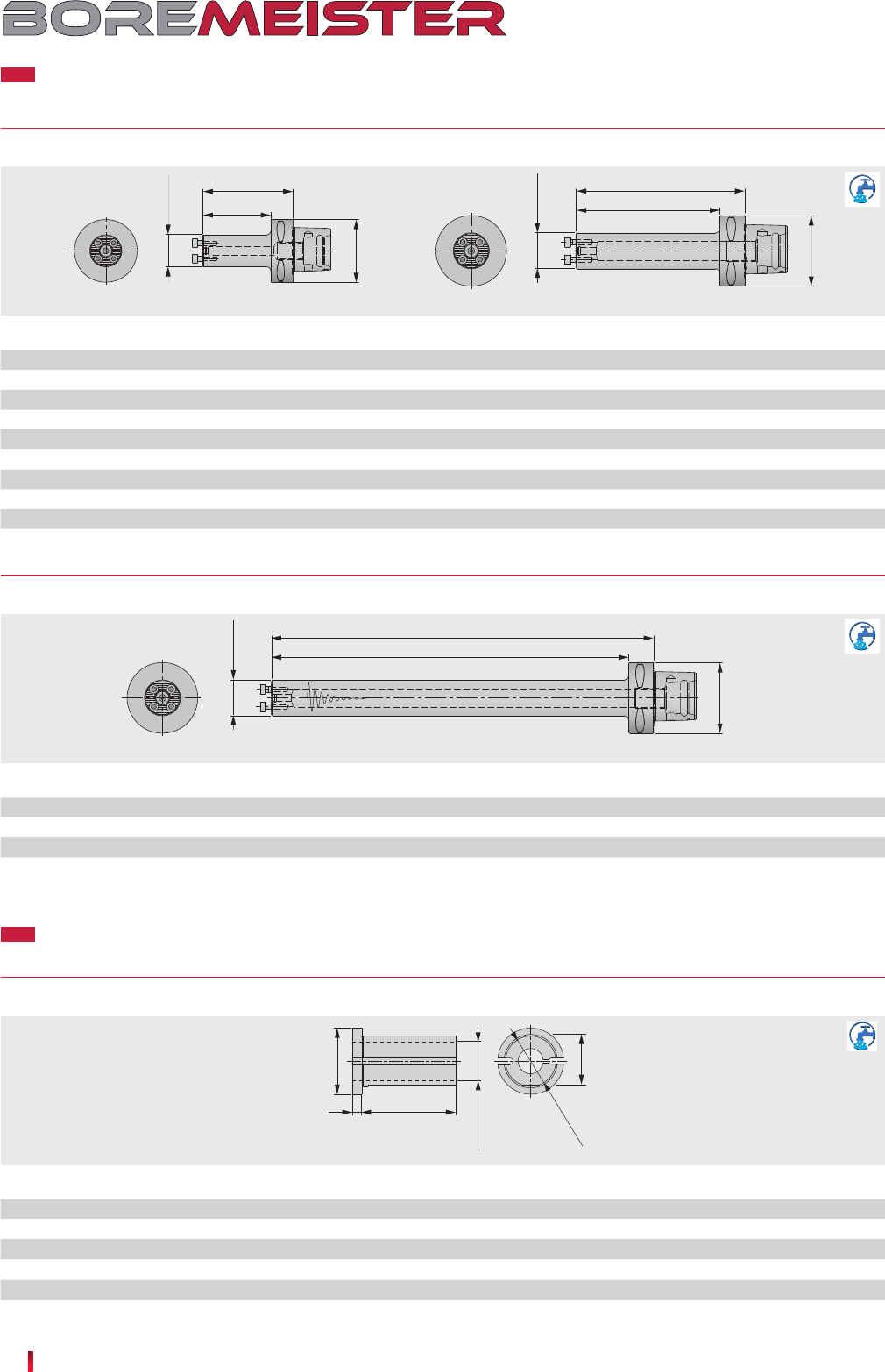

Steel shank for internal turning, with through coolant
Steel
Steel
Steel
Steel
Steel
Designation Material
A-A cross section
Anti-vibration bars with through coolant for interchangeable turning heads
Designation Material
Steel
Carbide
Steel
Carbide
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Straight Shank
SHANKS
50 NEW PRODUCTS
LPR
LB
DCONMS
DCONMS
DCONWS
DCONWS
LPR
LB
DCONWS DCONMS LPR LB
C4-SH-D16-2.5D-CHP 16 40 40 20 1
C4-SH-D20-2.5D-CHP 20 40 50 30 1
C4-SH-D25-2.5D-CHP 25 40 55 35 1
C4-SH-D32-2.5D-CHP 32 40 75 55 1
C4-SH-D40-3D-CHP 40 40 80 80 1
C6-SH-D20-5D-E-CHP 20 63 100 78 2
C6-SH-D25-5D-E-CHP 25 63 115 93 2
C6-SH-D32-5D-E-CHP 32 63 150 128 2
C6-SH-D40-5D-E-CHP 40 63 185 163 2
C#-SH-CHP / C#-SH-E-CHP
DCONWS DCONMS BD LB H
RSL-32-16-L66 16 32 42 60 31
RSL-32-20-L66 20 32 42 60 31
RSL-32-25-L66 25 32 42 60 31
RSL-40-16-L76 16 40 50 70 38.5
RSL-40-20-L76 20 40 50 70 38.5
RSL-40-25-L76 25 40 50 70 38.5
H
BD
DCONWS
DCONMS
LB6
DCONMS
DCONWS
LPR
LB
DCONWS DCONMS LPR LB WT (kg)
C6-D25-L230-9D-C 25 63 230.5 200.1 1.65
C6-D32-L288-9D-C 32 63 288.5 259.5 2.73
C6-D40-L368-9D-C 40 63 368.5 339 4.45
C6-9D-C
PSC compatible adapter with steel or carbide core
FigDesignation Material
Steel
Steel
Steel
Steel
Steel
Carbide
Carbide
Carbide
Carbide
Fig. 1 Fig. 2
Designation
RSL sleeve
Split sleeve for anti-vibration bar
PSC adapter with anti vibration, L/D = 9
Designation Material
Steel
Steel
Steel
SLEEVE
ADAPTER
51Tungaloy
LB LPR
H
DCONMS
DCONMS H LPR LB
AVC-SET 16-25 20 15 14.5 8.9 16, 20, 25
AVC-SET 32-60 29 16 17.5 11.43 32, 40, 50, 60
AVC-SET
Turning

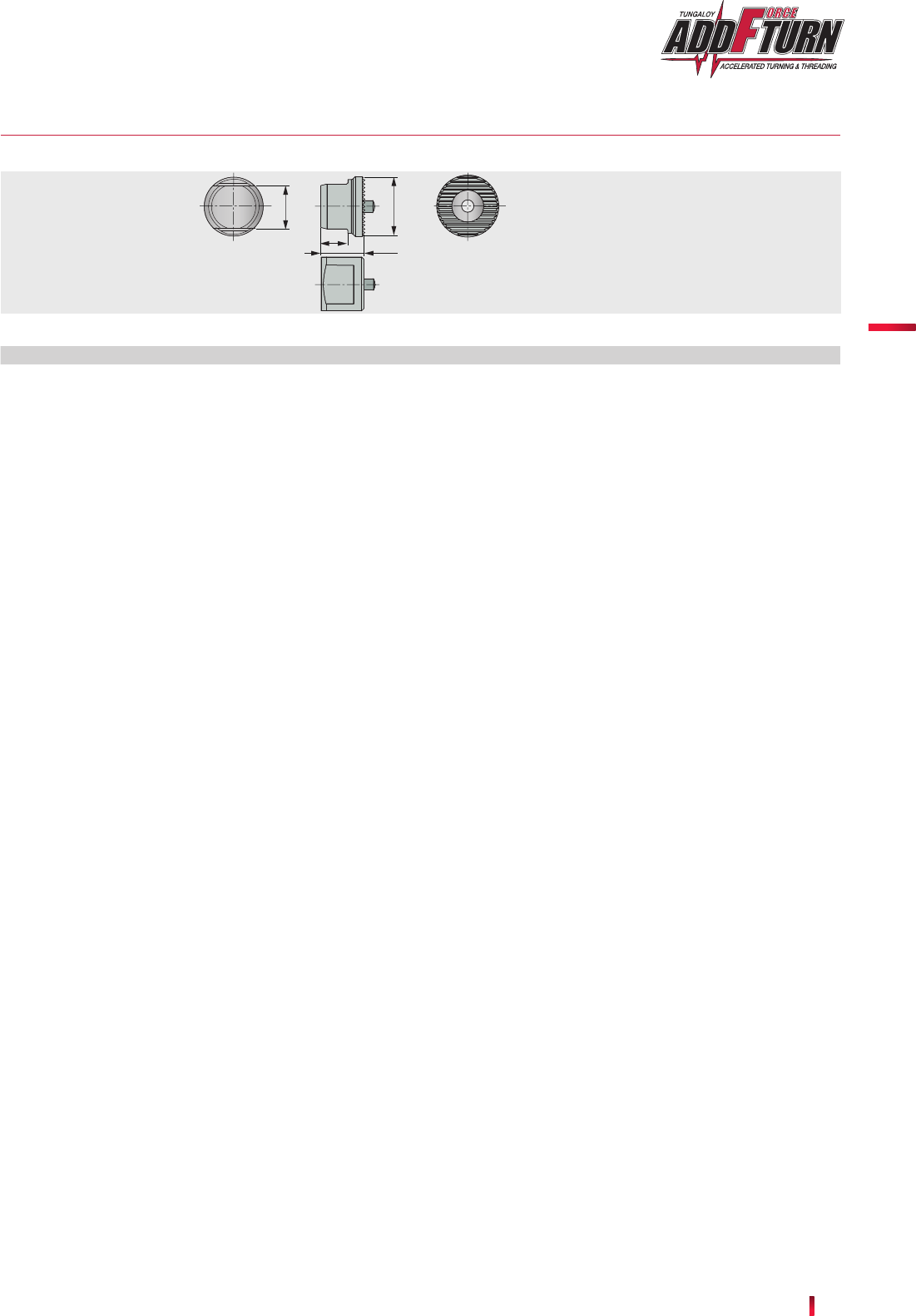

Center height set up device
Designation Applicable shank
52 NEW PRODUCTS
Internal turning
ADD efficiency and profitability to your small
boring operations as small as ø0.6 mm
MINIATURE SOLID BORING TOOLS
FOR HIGH ACCURACY
53Tungaloy
1
2
3
4
Turning
Scan this QR code
to nd out more
about this tool!
Lineup
- Ingenious through-coolant sleeve
design optimally directs 4 streams of
coolant jets close to the cutting zone,
providing long tool life, controlled chips
formation and evacuation for better part
quality.
Solid bars
- Available for boring, profiling, chamfering, threading, and grooving
Grade
- New SH725 grade provides a good
combination of wear and fracture
resistance, ensuring long tool life and
wear prediction.
- Expanded indexable type boring bars,
and inserts with 3D chip breaker for
better chip control.
- Ideal for machining extremely small
diameter bores in a wide range of
materials.
- SH725 : Well balanced combination of the latest coating layer
dedicated for boring applications and tough carbide substrate
provides long tool life
Sleeves
- Available in sleeve that accepts both 4 mm and 7 mm diameter boring bars, dedicated
sleeve for internal coolant supply, collet chuck sleeve, and sleeve with four coolant holes
- Sleeve shank diameter range: 12 - 25.4 mm

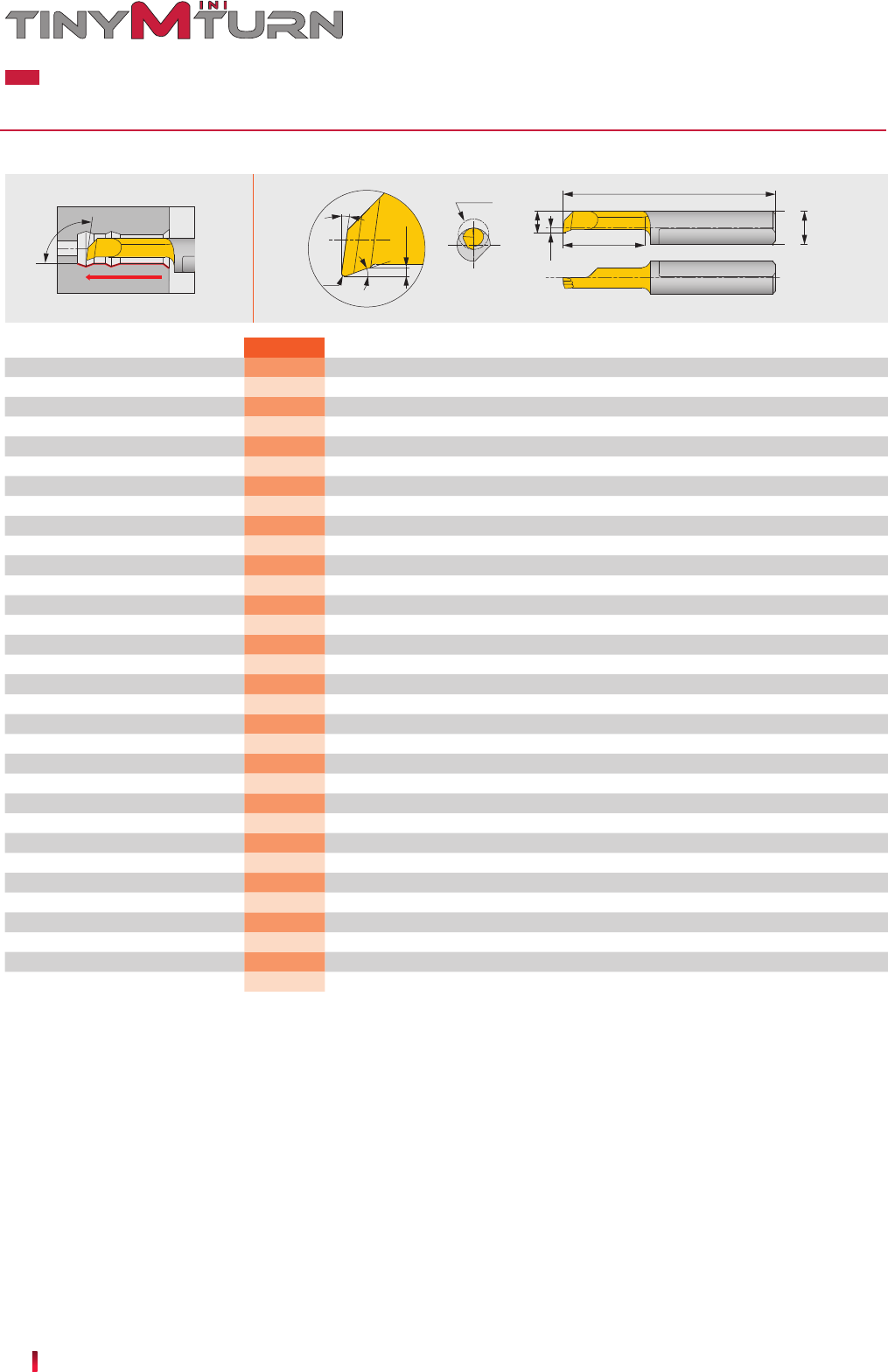

54 NEW PRODUCTS
LF
a
98°
LH
WF
DMIN
RE
20º
8º
CDX
DCONMSh6
TBTR/L
SH725 DMIN DCONMS WF a LF LH CDX RE
TBTR04045005-D010 1 4 -1.1 0.9 21 4.5 0.1 0.05
TBTR04065005-D010 1 4 -1.1 0.9 23 6.5 0.1 0.05
TBTR04040005-D020 2 4 -0.3 1.7 20.5 4 0.1 0.05
TBTR04090005-D020 2 4 -0.3 1.7 25.5 9 0.1 0.05
TBTR04140005-D020 2 4 -0.3 1.7 30.5 14 0.1 0.05
TBTR/L04090010-D028 2.8 4 0.9 2.6 25.5 9 0.2 0.1
TBTR04150010-D028 2.8 4 0.9 2.6 31.5 15 0.2 0.1
TBTR04190010-D028 2.8 4 0.9 2.6 35.5 19 0.2 0.1
TBTR04090010-D040 44 1.5 3.5 25.5 9 0.3 0.1
TBTR04150010-D040 4 4 1.5 3.5 31.5 15 0.3 0.1
TBTR04190010-D040 4 4 1.5 3.5 35.5 19 0.3 0.1
TBTR04230010-D040 4 4 1.5 3.5 39.5 23 0.3 0.1
TBTR04270010-D040 4 4 1.5 3.5 43.5 27 0.3 0.1
TBTR07090015-D050 5 7 0.9 4.4 25 9 0.5 0.15
TBTR07140015-D050 5 7 0.9 4.4 30 14 0.5 0.15
TBTR07190015-D050 5 7 0.9 4.4 35 19 0.5 0.15
TBTR07240015-D050 5 7 0.9 4.4 40 24 0.5 0.15
TBTR07290015-D050 5 7 0.9 4.4 45 29 0.5 0.15
TBTR07340015-D050 5 7 0.9 4.4 50 34 0.5 0.15
TBTR07140015-D060 6 7 1.8 5.3 30 14 0.5 0.15
TBTR/L07210015-D060 6 7 1.8 5.3 37 21 0.5 0.15
TBTR07240015-D060 6 7 1.8 5.3 40 24 0.5 0.15
TBTR07290015-D060 6 7 1.8 5.3 45 29 0.5 0.15
TBTR07340015-D060 6 7 1.8 5.3 50 34 0.5 0.15
TBTR07410015-D060 6 7 1.8 5.3 57 41 0.5 0.15
TBTR07190015-D068 6.8 7 2.8 6.3 35 19 0.6 0.15
TBTR07240015-D068 6.8 7 2.8 6.3 40 24 0.6 0.15
TBTR07290015-D068 6.8 7 2.8 6.3 45 29 0.6 0.15
TBTR07340015-D070 7 7 2.8 6.3 50 34 0.6 0.15
TBTR07390015-D070 7 7 2.8 6.3 55 39 0.6 0.15
TBTR07440015-D070 7 7 2.8 6.3 60 44 0.6 0.15
TBTR07490015-D070 7 7 2.8 6.3 65 49 0.6 0.15
+0.05
0
Solid boring bar for boring, profiling, and chamfering
Right hand (R) shown.
Details of edge
Designation
: Will be released in December 2021.
SOLID BARS
55Tungaloy

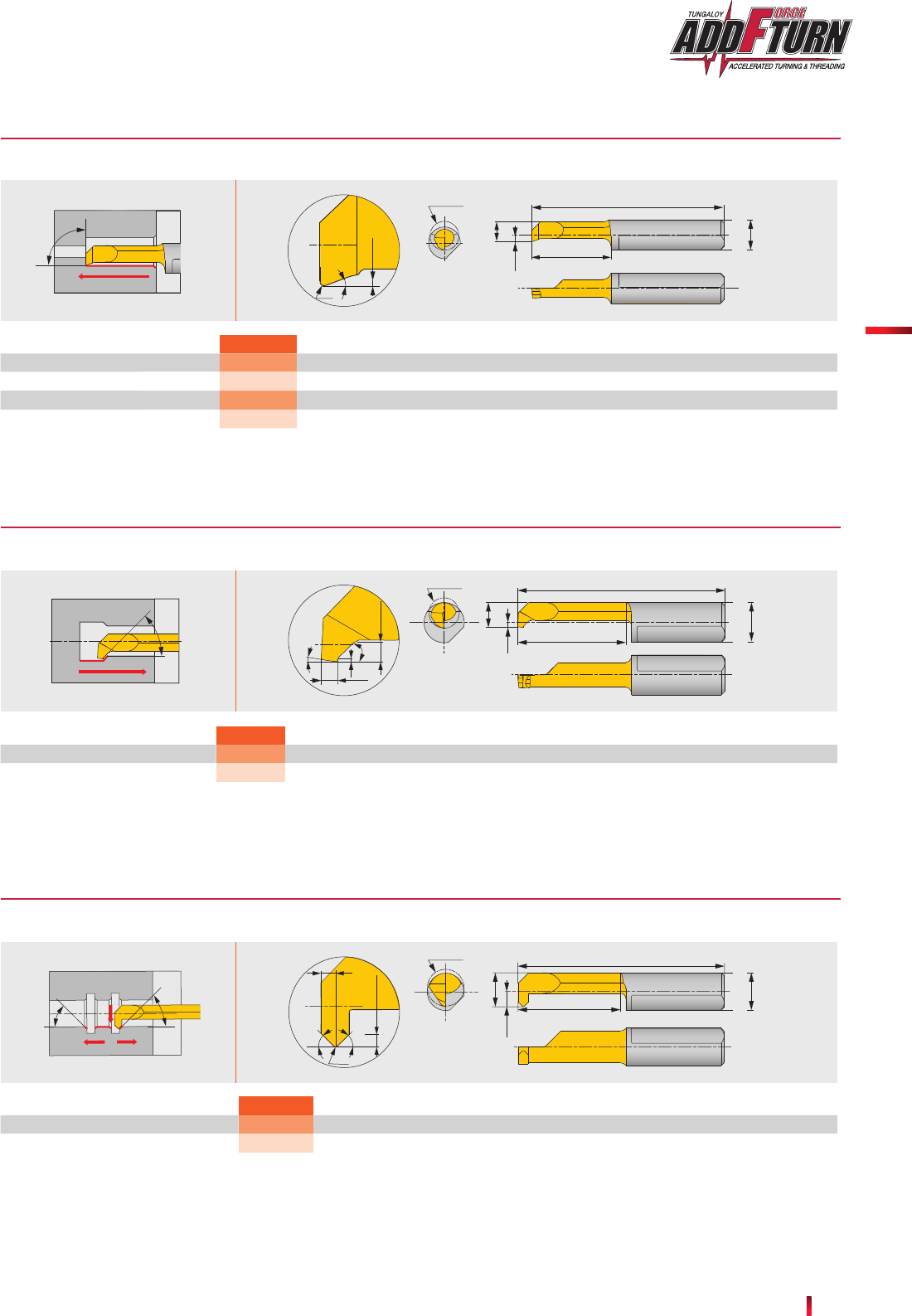

90°
LF
a
LH
WF
DMIN
DCONMSh6
20º
CDX
RE
TBPR
SH725 DMIN DCONMS WF a LF LH CDX RE
TBPR04090010-D028 2.8 4 0.9 2.6 25.5 9 0.2 0.1
TBPR04150010-D040 44 1.5 3.5 31.5 15 0.3 0.1
TBPR07140015-D050 5 7 0.9 4.4 30 14 0.5 0.15
TBPR07190015-D050 5 7 0.9 4.4 35 19 0.5 0.15
TBUR
45°
45º
f2
8º
LF
a
LH
WF
DMIN
CDX
CW
DCONMSh6
SH725 DMIN DCONMS WF a LF LH f2 CDX CW
TBUR07140010-D050 5 7 0.9 4.4 30 14 0.2 1 1
TBUR07190010-D050 5 7 0.9 4.4 35 19 0.2 1 1
+0.05
0
+0.05
0
TBCR
45º
45º
1
45°
45°
LF
a
LH
WF
DMIN
CDX
RE
DCONMSh6
SH725 DMIN DCONMS WF a LF LH CDX RE
TBCR07140020-D050 5 7 0.9 4.4 30 14 0.7 0.2
TBCR07190020-D068 6.8 7 2.8 6.3 35 19 0.7 0.2
+0.05
0
Turning
Solid boring bar for boring and chamfering
Details of edge
Designation
Solid boring bar for back boring and chamfering
Details of edge
Designation
Details of edge
Solid boring bar for boring and 45° chamfering
Designation
: Will be released in December 2021.
: Will be released in December 2021.
: Will be released in December 2021.
56 NEW PRODUCTS
30º
1.5
28°
LF
a
LH
WF
DMIN
CDX
RE
DCONMSh6
TBBR
SH725 DMIN DCONMS WF a LF LH CDX RE
TBBR04140020-D030 3 4 0.6 2.6 30 14 0.5 0.2
TBBR04140015-D040 4 4 1.5 3.5 30 14 0.8 0.15
TBBR07190020-D050 5 7 0.9 4.4 35 19 1 0.2
+0.05
0
60º
DCONMSh6
LF
a
LH
WF
DMIN
CDX
CF
PDX
TBIR
SH725 DMIN CF DCONMS WF a LF LH CDX PDX
TBIR04140050-D040 0.5 4 0.06 4 1.5 3.5 30 14 0.3 0.35
TBIR07140050-D050 0.5 5 0.06 7 0.9 4.4 30 14 0.3 0.35
TBIR07140075-D050 0.75 5 0.09 7 0.9 4.4 30 14 0.4 0.45
TBIR07140100-D048 1 4.8 0.12 7 0.9 4.4 30 14 0.6 0.55
TBIR07140100-D060 1 6 0.12 7 1.8 5.3 30 14 0.6 0.55
TBIR07140150-D060 1.5 6 0.18 7 1.8 5.3 30 14 0.8 0.75
0
0.02
-
Details of edge
Solid boring bar for back boring
Designation
Details of edge
Solid boring bar for threading (metric)
Designation Pitch
: Will be released in December 2021
: Will be released in December 2021
57Tungaloy
SH725 CW DMIN DCONMS a LF LH
CDX
TBFR07110100-D060 1 6 7 5.2 26 10 1.5
TBFR07110200-D060 2 6 7 5.2 26 10 3
TBFR07110100-D080 1 8 7 5.9 27 11 1.5
TBFR07110250-D080 2.5 8 7 5.9 27 11 3.5
TBFR07300300-D080 3 8 7 5.9 46 30 3.5
TBFR07200250-D150 2.5 15 7 5.9 36 20 20
TBFR07200300-D150 3 15 7 5.9 36 20 20
TBFR07300300-D150 3 15 7 5.9 46 30 30
LF
a
LH
DMIN
CDX
CW
DCONMSh6
TBFR
+0.05
0
SH725 CW DMIN DCONMS WF a LF LH
CDX
TBGR04100050-D020 0.5 2 4 -0.2 1.8 26 10 0.4
TBGR04090100-D040 1 4 4 1.5 3.5 25.5 9 0.8
TBGR04150100-D040 1 4 4 1.5 3.5 31.5 15 0.8
TBGR07090200-D050 2 5 7 0.9 4.4 25 9 1
TBGR07090100-D060 1 6 7 1.8 5.3 25 9 1.8
TBGR07140100-D060 1 6 7 1.8 5.3 30 14 1.8
TBGR07090150-D060 1.5 6 7 1.8 5.3 25 9 1.8
TBGR07090200-D060 2 6 7 1.8 5.3 25 9 1.8
TBGR07140200-D060 2 6 7 1.8 5.3 30 14 1.8
TBGR07090100-D068 1 6.8 7 2.7 6.2 25 9 2.5
TBGR07090150-D068 1.5 6.8 7 2.7 6.2 25 9 2.5
TBGR07140150-D068 1.5 6.8 7 2.7 6.2 30 14 2.5
TBGR07090200-D068 2 6.8 7 2.7 6.2 25 9 2.5
TBGR07140200-D068 2 6.8 7 2.7 6.2 30 14 2.5
TBGR07210200-D068 2 6.8 7 2.7 6.2 37 21 2.5
TBGR07290200-D068 2 6.8 7 2.7 6.2 45 29 2.5
LF
a
LH
WF
DMIN
CDX
CW
DCONMSh6
TBGR
+0.05
0
Turning
Solid boring bar for face grooving
* Corner radius : less than 0.1 mm.
Designation
Details of edge
Solid boring bar for internal grooving
Details of edge
* Corner radius : less than 0.1 mm.
Designation
: Will be released in December 2021
: Will be released in December 2021
58 NEW PRODUCTS
SH725 CW DMIN DCONMS a LF LH
CDX
TBSR07200200-D060 2 6 7 5.2 36 20 4
DCONMSh6
LF
a
LH
DMIN
CDX
CW
TBSR
LF
a
LH
DMIN
CDX
WF
CW
RE
DCONMSh6
TBRR
SH725 CW DMIN DCONMS WF a LF LH
CDX RE
TBRR07190050-D050 1 5 7 0.9 4.4 35 19 1 0.5
TBRR07240050-D060 1 6 7 1.8 5.3 40 24 1.8 0.5
TBRR07290050-D068 1 6.8 7 2.8 6.3 45 29 2.5 0.5
+0.05
0
+0.05
0
100°
DMIN
GAMF
GAMP
WF
LH
LF
DCONMS
100°
DMIN DCONMS WF LF LH GAMP GAMF RE**
A07050-SEXPR03-3 5 7 2.5 31 15 0° -13° 0.2 EPGT03X1... 0.6
A07060-SEXPR04-3 6 7 3.1 34 18 0° -12° 0.2 EPGT0401... 0.6
E07050-SEXPR03-4 5 7 2.5 37 20 0° -13° 0.2 EPGT03X1... 0.6
E07050-SEXPR03-5 5 7 2.5 42 25 0° -13° 0.2 EPGT03X1... 0.6
E07060-SEXPR04-5 6 7 3.1 46 30 0° -12° 0.2 EPGT0401... 0.6
A/E-SEXPR
Solid boring bar for face grooving (for shaft)
* Corner radius : less than 0.1 mm.
Details of edge
Solid boring bar for boring and profiling
Designation
Details of edge
Designation
: Will be released in December 2021
: Will be released in December 2021
Cutting edge style X
*Torque: Recommended clamping torque (N∙m)
**RE : Standard corner radius
Designation Material Insert Torque*
Screw-on boring bar, for positive 75° rhombic inserts
Steel
Steel
Carbide
Carbide
Carbide
59Tungaloy
DMIN
GAMP
LH LF
DCONMS
GAMF
WF
f2
95°
DMIN DCONMS WF LF LH f2 GAMP GAMF RE**
A07055-SEZPR03-3 5.5 7 3.2 32.5 16.5 1.2 0° -8° 0.2 EPGT03X1... 0.6
E07055-SEZPR03-5 5.5 7 3.2 44.7 27.5 1.2 0° -8° 0.2 EPGT03X1... 0.6
A/E-SEZPR
H
DCONMS
CNT
LH LF
DCONWS
JBBS-4N
DCONMS DCONWS LF LH H CNT
JBBS12-4-L80C-4N
12 4 80 10 10.3 Rc1/16
JBBS127-4-L80C-4N
12.7 4 80 10 11.6 Rc1/16
JBBS14-4-L80C-4N
14 4 80 10 12 Rc1/8
JBBS159-4-L100C-4N
15.875 4 100 10 14.58 Rc1/8
JBBS159-7-L100C-4N
15.875 7 100 10 14.58 Rc1/8
JBBS16-4-L100C-4N
16 4 100 10 15 Rc1/8
JBBS16-7-L100C-4N
16 7 100 10 15 Rc1/8
JBBS19-4-L100C-4N
19.05 4 100 20 17.2 Rc1/8
JBBS19-7-L100C-4N
19.05 7 100 20 17.2 Rc1/8
JBBS20-4-L100C-4N
20 4 100 20 18 Rc1/8
JBBS20-7-L100C-4N
20 7 100 20 18 Rc1/8
JBBS22-4-L100C-4N
22 4 100 20 20 Rc1/8
JBBS22-7-L100C-4N
22 7 100 20 20 Rc1/8
JBBS25-4-L100C-4N
25 4 100 23 23 Rc1/8
JBBS25-7-L100C-4N
25 7 100 23 23 Rc1/8
JBBS254-4-L100C-4N
25.4 4 100 23 23.4 Rc1/8
JBBS254-7-L100C-4N
25.4 7 100 23 23.4 Rc1/8
Turning
Cutting edge style Z
*Torque: Recommended clamping torque (N∙m)
**RE : Standard corner radius
Designation Material Insert Torque*
Screw-on boring bar, for positive 75° rhombic inserts
Steel
Carbide
Designation
Sleeve for internal coolant supply with 4 coolant holes
SLEEVE
Scan this
QR code for
additional sleeve
information.
60 NEW PRODUCTS
CBN
Internal turning
ADD double-sided CBN inserts with WavyJoint brazing technology
for light cutting action of positive inserts for hard turning applications
UNIQUE NEW CBN INSERTS ENABLE HARD
PART TURNING TO BE MORE RELIABLE,
ECONOMICAL, AND PRODUCTIVE

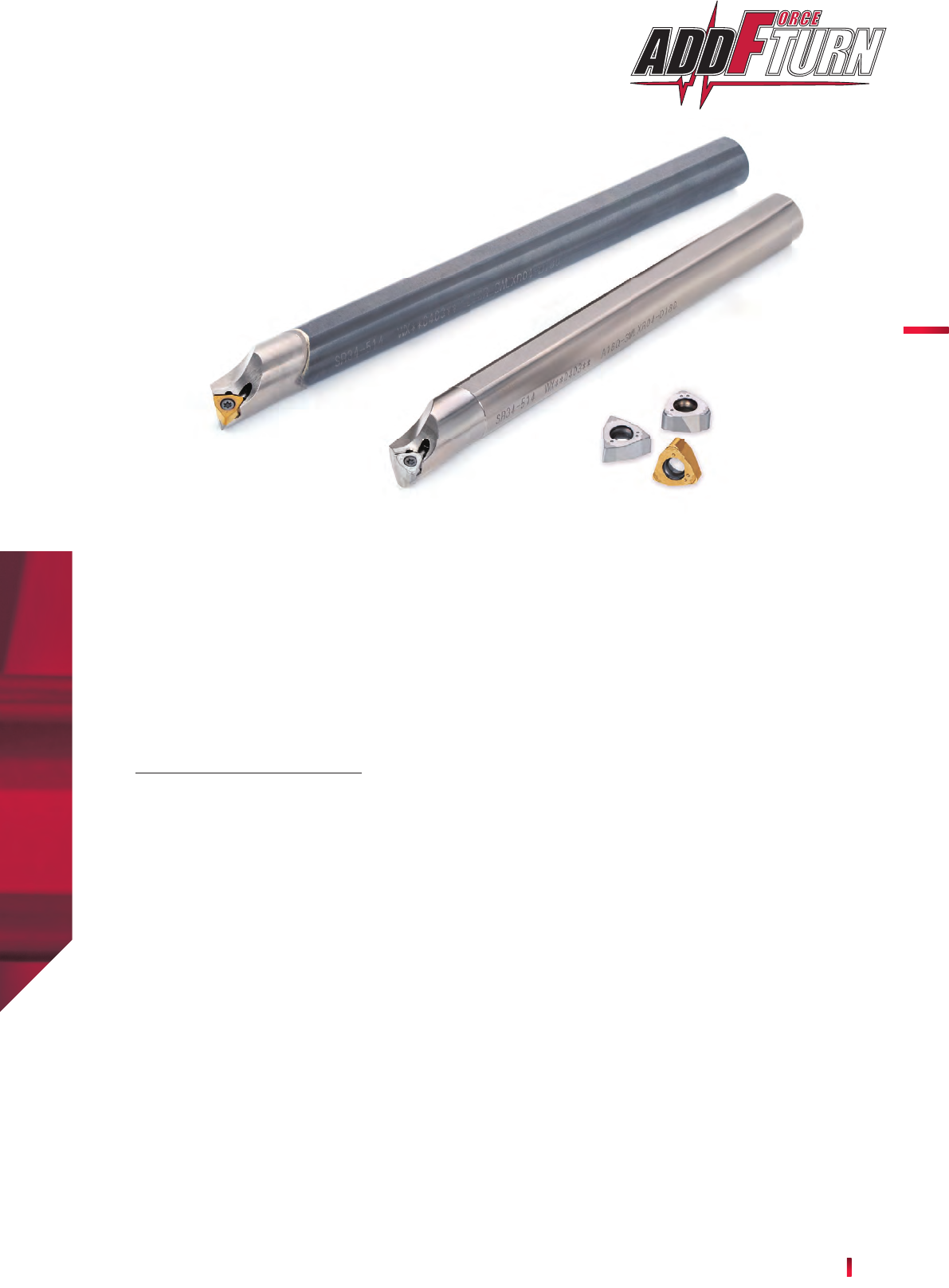

61Tungaloy
ACCELERATED TURNING & THREADING
TUNGALOY
TURN
Turning
Lineup
- Innovative insert geometry and secure
insert clamping method ensures
machining stability.
- Available in two grades: BXA20 grade
for general applications and BXA10
grade suited for continuous cuts,
providing reliability and long tool life
from continuous to interrupted cuts.
- HP type chipbreaker guarantees
short chips, ensuring good chip
breaking and control at 0.2 mm and
lighter d.o.c.
- Double-sided insert with six positive
cutting edges for excellent cost-per-
edge economy for reduced tool cost.
Inserts
- 6QS-WXGQ...
RE = 0.2 0.8 mm
- 6QS-WXGU**-HP
RE = 0.4, 0.8 mm
Chipbreaker
- HP type: For chatter prevention and the finest machined surfaces.
Suitable for turning operations of hardened steel materials
Toolholders
- A-SWLXR/L...
- E-SWLXR/L...
DCONMS = ø10 ø20 mm
Grades
- BXA10: Incredible reliability in hardened steel turning.
First choice for continuous to light interrupted cuts.
- BXA20: Incredible reliability in hardened steel turning.
Covers a wide range of application areas from continuous to heavy interrupted cutting.
62 NEW PRODUCTS
WF
LH LF
GAMP
GAMF
DMIN
DCONMS
H
95°
DMIN
DCONMS
WF LF LH H GAMP GAMF RE**
A10K-SWLXR/L04-D120 12 10 6 125 20 9 -10 -16 0.4 WXGU0403**L/R (...) 0.9
A12M-SWLXR/L04-D140 14 12 7 150 24 11 -10 -14 0.4 WXGU0403**L/R (...) 0.9
A16Q-SWLXR/L04-D180 18 16 9 180 32 15 -10 -11 0.4 WXGU0403**L/R (...) 0.9
A20R-SWLXR/L04-D220 22 20 11 200 36 18 -10 -10 0.4 WXGU0403**L/R (...) 0.9
E10M-SWLXR/L04-D120 12 10 6 150 25 9 -10 -16 0.4 WXGU0403**L/R (...) 0.9
E12Q-SWLXR/L04-D140 14 12 7 180 27 11 -10 -14 0.4 WXGU0403**L/R (...) 0.9
E16R-SWLXR/L04-D180 18 16 9 200 32 15 -10 -11 0.4 WXGU0403**L/R (...) 0.9
E20S-SWLXR/L04-D220 22 20 11 250 36 18 -10 -10 0.4 WXGU0403**L/R (...) 0.9
A/E-SWLXR/L
P
M
K
N
S
HCCL
BXA10
BXA20
LE RE IC S D1
SP L FLCLH
6QS-WXGQ 6QS-WXGQ040302SPR 6 1.8 0.2 6.35 3.18 2.7
6QS-WXGQ040302SPL 6 1.8 0.2 6.35 3.18 2.7
6QS-WXGQ040304SPR 6 1.8 0.4 6.35 3.18 2.7
6QS-WXGQ040304SPL 6 1.8 0.4 6.35 3.18 2.7
6QS-WXGQ040308SPR 6 1.7 0.8 6.35 3.18 2.7
6QS-WXGQ040308SPL 6 1.7 0.8 6.35 3.18 2.7
6QS-WXGU**-HP
6QS-WXGU040304R-HP 6
1.8 0.4 6.35 3.18 2.7
6QS-WXGU040304L-HP 6
1.8 0.4 6.35 3.18 2.7
6QS-WXGU040308R-HP 6
1.7 0.8 6.35 3.18 2.7
6QS-WXGU040308L-HP 6
1.7 0.8 6.35 3.18 2.7
LE
S
D1
RE
IC
CBN
For trigon insert with 6 edges
Insert Torque*
STEEL
STEEL
STEEL
STEEL
CARBIDE
CARBIDE
CARBIDE
CARBIDE
Right hand (R) shown.
Cutting edge style L
*Torque: Recommended torque (N∙m) for clamping **RE: The holder measurements are true with this insert radius
Note: Use the right hand toolholder (R) for the left hand insert (L). Use the left hand toolholder (L) for the right hand insert (R)
Shape Designation
Dimension (mm) Edge prep.
Standard
No. of
corners
Chipbreaker
Wiper
C : Continuous cutting
L : Light interrupted cutting
H : Heavy interrupted cutting
Steel
Stainless
Cast iron
Non-ferrous
Superalloy
Hard material
INSERT POSITIVE TYPE
TOOLHOLDERS
: Will be released in December 2021
䖃 : Line-up
Designation Material
63Tungaloy
ACCELERATED TURNING & THREADING
TUNGALOY
TURN
ISO
BXA10
100 - 230 0.05 - 0.5 0.03 - 0.3
100 - 230 0.05 - 0.5 0.03 - 0.2
-HP 100 - 230 0.05 - 0.2 0.03 - 0.2
60 - 180 0.05 - 0.5 0.03 - 0.3
60 - 180 0.05 - 0.5 0.03 - 0.2
-HP 60 - 180 0.05 - 0.2 0.03 - 0.2
Turning
STANDARD CUTTING CONDITIONS
Feed
f (mm/rev)
Cutting speed
Vc (m/min)
Grade Depth of cut
ap(mm)
Workpiece condition
Continuous
Light interrupted
Continuous
Interrupted
Continuous
Continuous
No symbol
Edge preparation
No symbol
64 NEW PRODUCTS
External turning
ADD flexibility and productivity
to your turning operations
INNOVATIVE MODULAR HEAD SYSTEM
FOR SWISS MACHINES
65Tungaloy
Turning
Scan this QR code
to nd out more
about this tool!
Lineup
- Modularity and productivity with a
wide selection of turning, grooving and
threading heads.
- Substantially reduced setup time for
maximum machine utilization.
- Quick tool change and setup is
possible with simple exchanges of
turning heads.
- Unique coupling method provides
stable head-shank connection and
secure insert edge position for good
repeatability and accuracy.
Inserts
- J-Series for ISO insert
- MiniForce-Turn for double-sided positive inserts
- Y-axis heads for J-Series, MiniForce-Turn, and TetraMini-Cut for
grooving and threading inserts
Shanks
- QC-1212...
- QC-1212-CHP (for precision internal coolant supply)
- Positioning accuracy for the same
insert: ±5 μm.
- ModuMiniTurn offers precision internal
coolant delivery, which improves chip
control and tool life.
- By feeding in the Y-axis direction,
downward-facing chipbreaker directs
the chip flow down and away from the
cutting point.
- Many types of heads can be mounted
on a single holder.

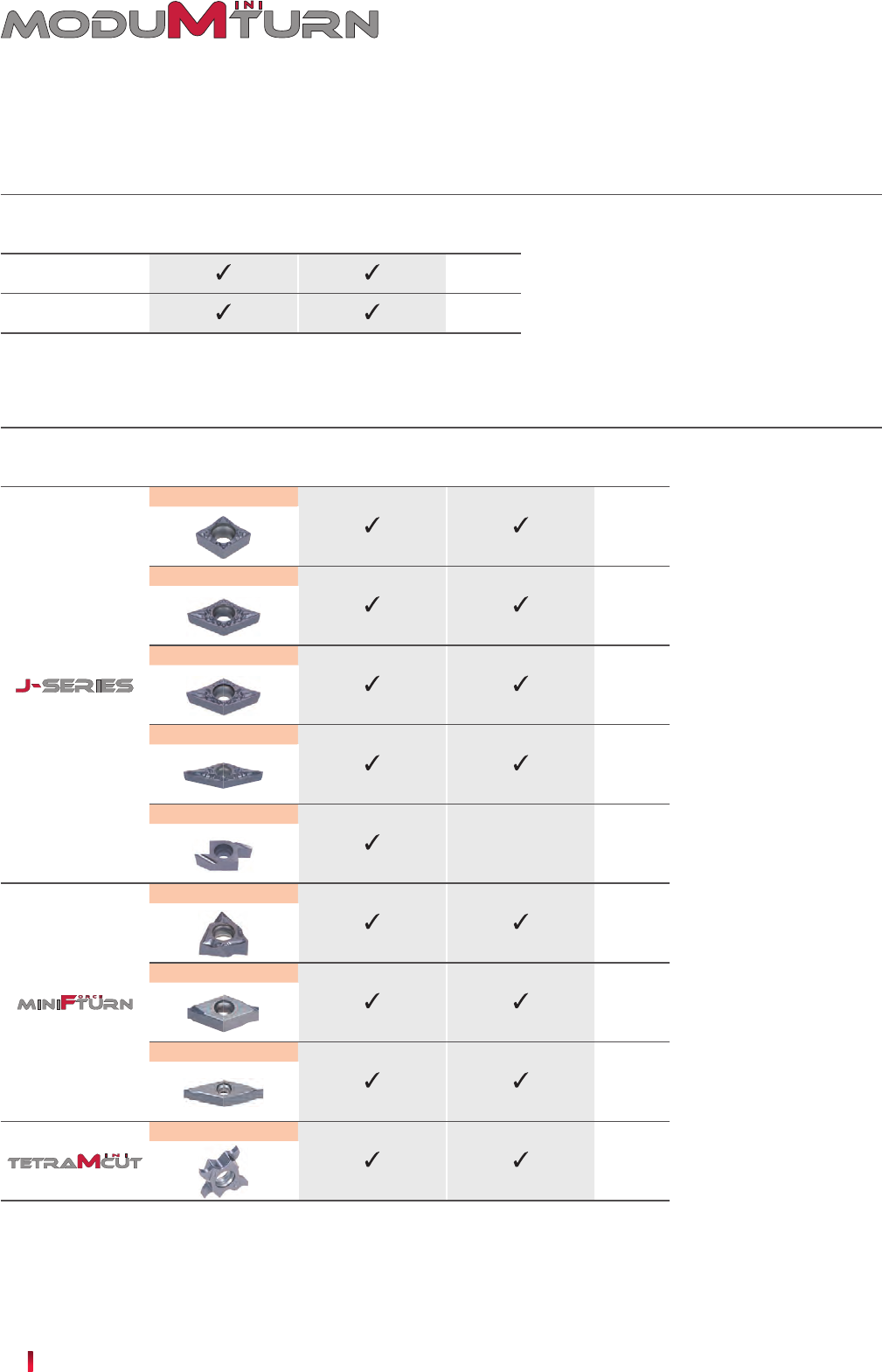

66 NEW PRODUCTS
85 77
120 77
CC**09T3... 67
72
73
DC**0702...
67
68
DC**11T3... 67
68
73
VB**1103...
68
J10ER...
69
WXGU0403**L...
69
74
DXGU0703**L... 70
74
75
VXGU09T2**L...
70
71
TC*18R/L... 71
72
75
76
Lineup
Overall length*
(mm)
Insert shape
*With the head attached
Without coolant hole
Without coolant hole
With coolant hole
With coolant hole
Page
Page
Shanks (size: 12 mm x 12 mm)
Modular heads
Tool series
-

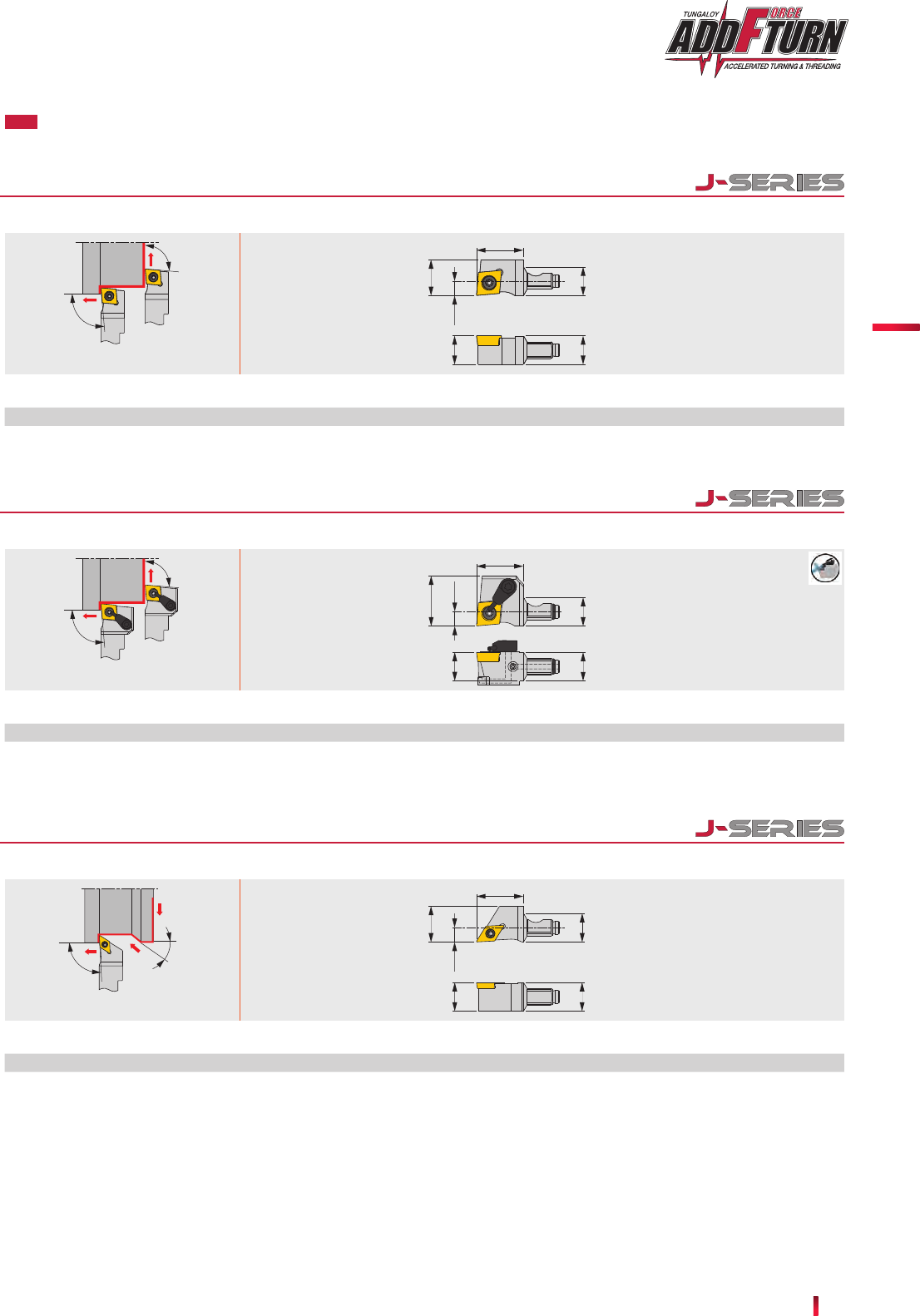

67Tungaloy
95°
95°
HF
OAW
H B
WF
LH
95°
95°
HF
HB
OAW
WF
LH
H B LH HF WF OAW RE**
QC12-JSCL2CR09 12 12 19.5 12 6 15 0.2 CC**09T3... 1.2
H B LH HF WF OAW RE**
QC12-JSCL2CR09-CHP 12 12 19.5 12 6 21 0.2 CC**09T3... 1.2
QC12-JSCL2CR
QC12-JSCL2CR-CHP
93°
30°
OAW
WF
LH
B
HF
H
H B LH HF WF OAW RE**
QC12-JSDJ2CR07 12 12 19.5 12 6 15 0.2 DC**0702... 1.2
QC12-JSDJ2CR11 12 12 19.5 12 6 15 0.2 DC**11T3... 1.2
QC12-JSDJ2CR
Turning
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Cutting edge style L2
Cutting edge style L2
Screw-on modular head with 95° approach angle, for positive 80° rhombic inserts
Screw-on modular head with 95° approach angle, for positive 80° rhombic inserts, with high pressure
coolant capability
Designation
Designation
Torque*
Torque*
Insert
Insert
Without offset
Right hand (R) shown.
Right hand (R) shown.
Without offset
MODULAR HEADS
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for positive 55° rhombic inserts
Designation Torque*Insert
Right hand (R) shown.
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
68 NEW PRODUCTS
93°
30°
B
LH
HF
H
OAW
WF
H B LH HF WF OAW RE**
QC12-JSDJ2CR07-CHP 12 12 19.5 12 6 18 0.2 DC**0702... 1.2
QC12-JSDJ2CR11-CHP 12 12 19.5 12 6 21 0.2 DC**11T3... 1.2
QC12-JSDJ2CR-CHP
93° 50°
OAW
WF
LH
H B
HF
93° 50°
H B
LH
HF
OAW
WF
H B LH HF WF OAW RE**
QC12-JSVJ2BR11 12 12 22 12 6 15 0.2 VB**1103... 1.2
H B LH HF WF OAW RE**
QC12-JSVJ2BR11-CHP 12 12 21 12 6 15 0.2 VB**1103... 1.2
QC12-JSVJ2BR
QC12-JSVJ2BR-CHP
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for positive 55° rhombic inserts, with high pressure
coolant capability
Designation Torque*Insert
Right hand (R) shown.
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Without offset
Cutting edge style J2
Cutting edge style J2
Screw-on modular head with 93° approach angle, for positive 35° rhombic inserts
Screw-on modular head with 93° approach angle, for positive 35° rhombic inserts, with high pressure
coolant capability
Designation
Designation
Torque*
Torque*
Insert
Insert
Right hand (R) shown.
Right hand (R) shown.
Through-coolant head
*Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
*Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
69Tungaloy
APMX
APMX = 3 mm
OAW
B
WF
HF
H
LH
H B LH HF WF OAW
QC12-JSEGR10 12 12 19.5 12 3.5 15 J10ER... 1.2
QC12-JSEGR
95°
95°
OAW
WF
BH
HF
LH
H B LH HF WF OAW RE**
QC12-JSWL2XR04 12 12 19.5 12 6 15 0.2 WXGU0403**L... 0.9
QC12-JSWL2XR
95°
95°
HB
HF
OAW
WF
LH
H B LH HF WF OAW RE**
QC12-JSWL2XR04-CHP 12 12 19.5 12 6 16.5 0.2 WXGU0403**L... 0.9
QC12-JSWL2XR-CHP
Turning
*Torque: Recommended clamping torque (N∙m)
Screw-on modular head for back turning
Designation Torque*Insert
Right hand (R) shown.
Without offset
Use right-hand toolholders (R) with left-hand inserts (L).
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Cutting edge style L2
Screw-on modular head with 95° approach angle, for WXGU inserts
Designation Torque*Insert
Right hand (R) shown.
Without offset
Cutting edge style L2
Screw-on modular head with 95° approach angle, for WXGU inserts, with high pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Use right-hand toolholders (R) with left-hand inserts (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius

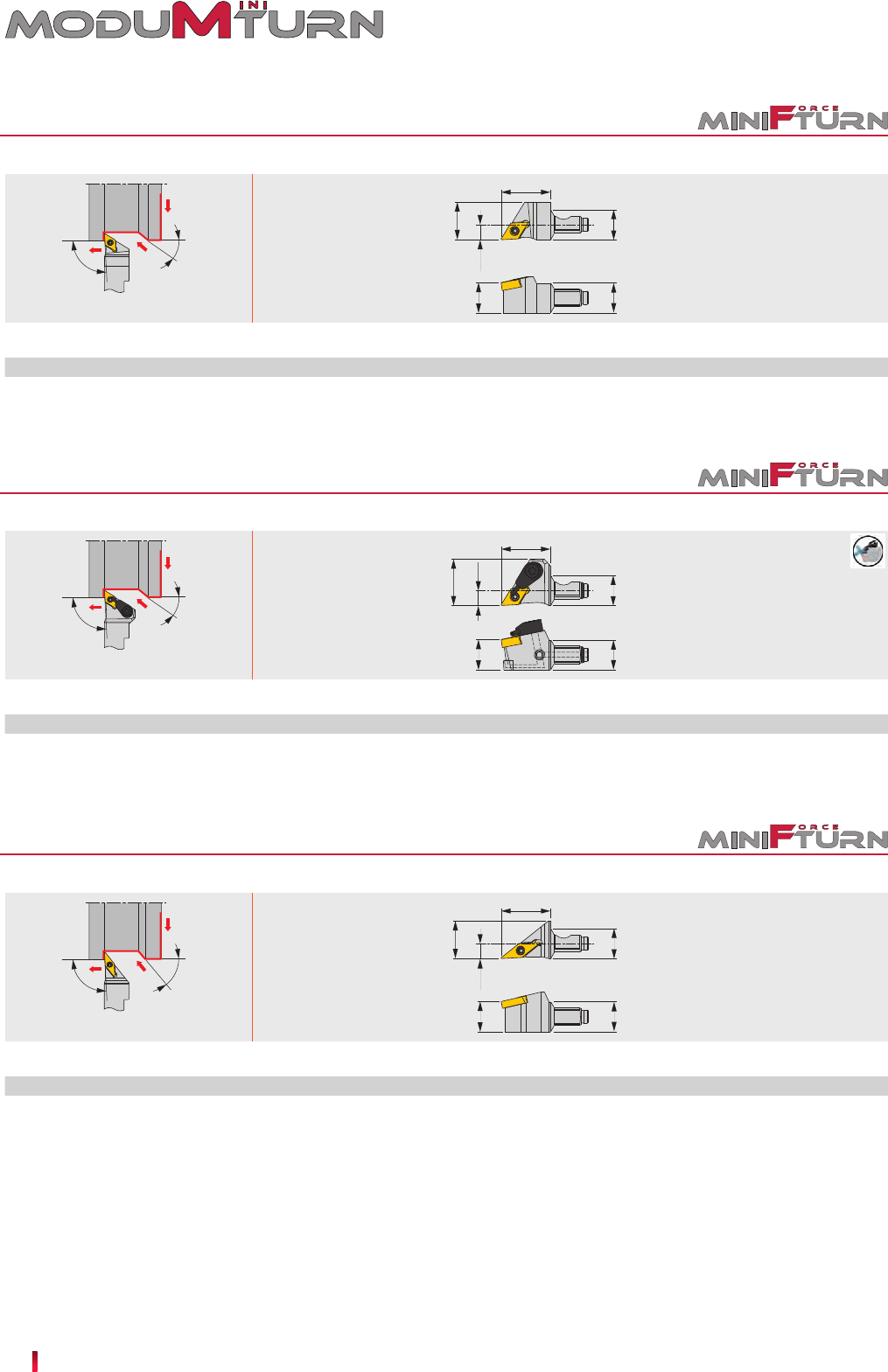

70 NEW PRODUCTS
93°
30°
OAW
WF
BH
HF
LH
H B LH HF WF OAW RE**
QC12-JSDJ2XR07 12 12 19.5 12 6 15 0.2 DXGU0703**L... 0.9
QC12-JSDJ2XR
93°
30°
HB
HF
OAW
WF
LH
H B LH HF WF OAW RE**
QC12-JSDJ2XR07-CHP 12 12 19.5 12 6 18.4 0.2 DXGU0703**L... 0.9
QC12-JSDJ2XR-CHP
93° 50°
OAW
WF
B
LH
H
HF
H B LH HF WF OAW RE**
QC12-JSVJ2XR09 12 12 19.5 12 6 15 0.2 VXGU09T2**L... 0.9
QC12-JSVJ2XR
Use right-hand toolholders (R) with left-hand inserts (L).
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for DXGU inserts
Designation Torque*Insert
Right hand (R) shown.
Use right-hand toolholders (R) with left-hand inserts (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for DXGU inserts, with high pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for VXGU inserts
Designation Torque*Insert
Right hand (R) shown.
Use right-hand toolholders (R) with left-hand inserts (L).
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
71Tungaloy

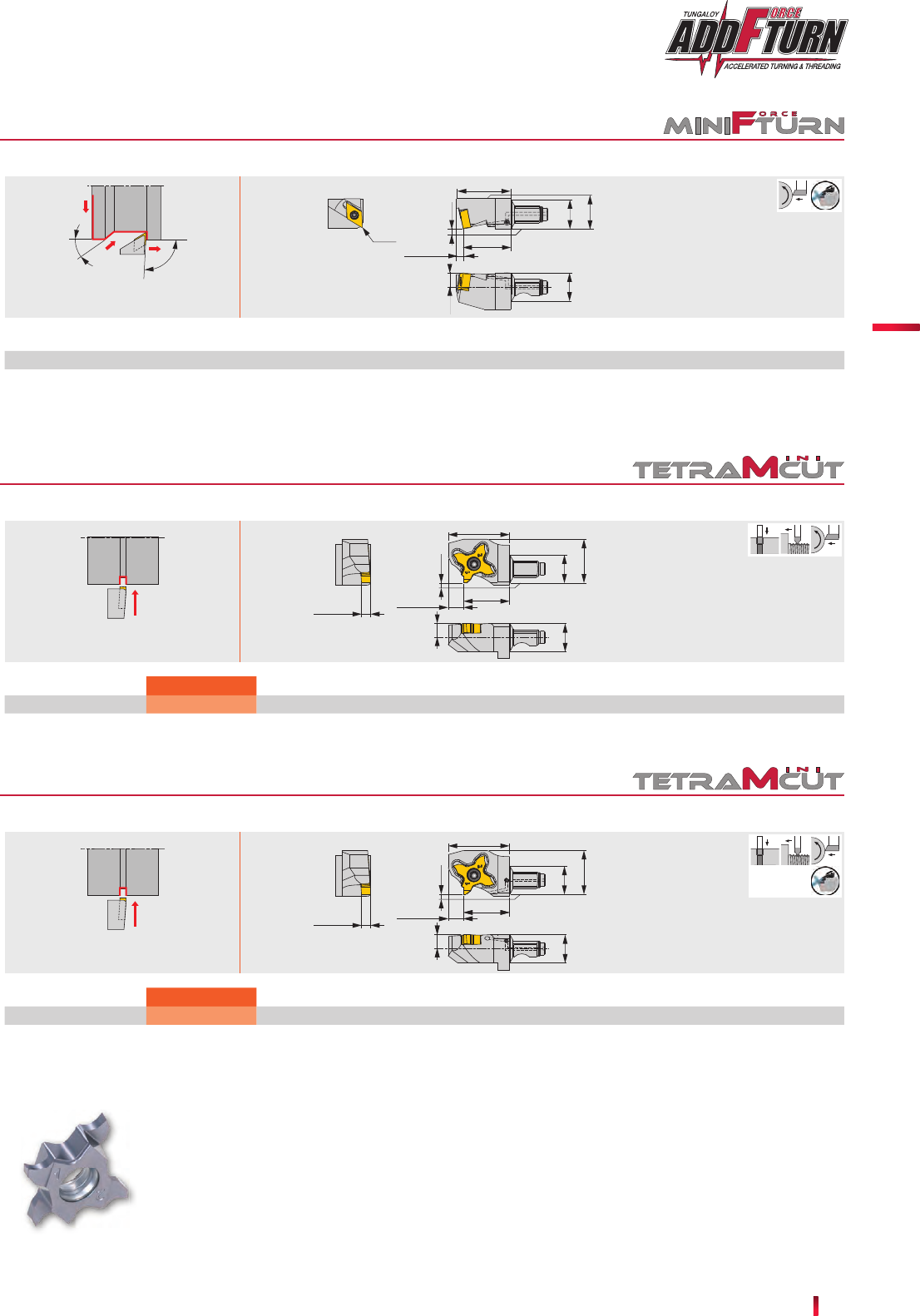

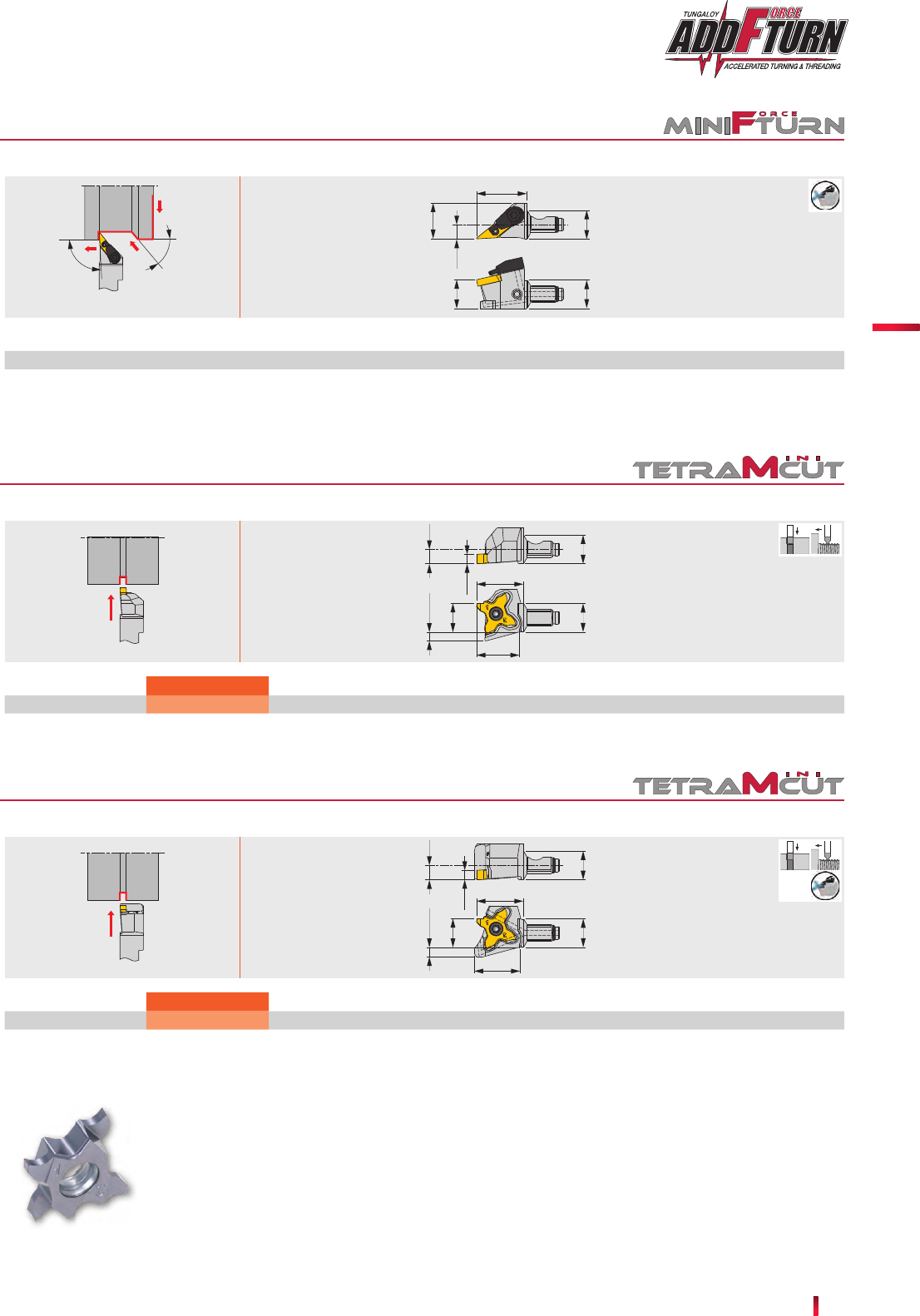

93° 50°
LH
HF
HB
OAW
WF
H B LH HF WF OAW RE**
QC12-JSVJ2XR09-CHP 12 12 21 12 6 15 0.2 VXGU09T2**L... 0.9
QC12-JSVJ2XR-CHP
B
WF
HBH
HF
LH
HBL
H
CWN-
CWX
LH
HBL
B
H
HF
HBH WF
CWN-
CWX
CWN CWX H B LH HF HBH HBL WF
QC12-STCR18 0.33 3 12 12 19.5 12 3.9 17.9 6 TC*18R... 1.2
CWN CWX H B LH HF HBH HBL WF
QC12-STCR18-CHP 0.33 3 12 12 19.5 12 4.2 19.3 6 TC*18R... 1.2
QC12-STCR
QC12-STCR-CHP
TC*18R...
Turning
Without offset
Cutting edge style J2
Screw-on modular head with 93° approach angle, for VXGU inserts, with high pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Use right-hand toolholders (R) with left-hand inserts (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
The right hand insert (R) is used for the right hand toolholder (R).
*Torque: Recommended clamping torque (N∙m)
The right hand insert (R) is used for the right hand toolholder (R).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
Modular head for external grooving and threading
Modular head for external grooving and threading, with high pressure coolant capability
Designation
Designation
Torque*
Torque*
Insert
Insert
Right hand (R) shown.
Right hand (R) shown.
Right-hand insert
72 NEW PRODUCTS
TC*18L...
WF
B
H
HBL
HF
HBH
LH
CWN-
CWX
H
WF
B
HBL
LH
HBH
HF
CWN-
CWX
CWN CWX H B LH HF HBH HBL WF
QC12-STCL18 0.33 3 12 12 21 12 3.9 18.3 9 TC*18L... 1.2
CWN CWX H B LH HF HBH HBL WF
QC12-STCL18-CHP 0.33 3 12 12 21 12 4.2 19.3 9 TC*18L... 1.2
QC12-STCL
QC12-STCL-CHP
95°
95°
B
HF
WF
LB
RE DISTX LH
H
H2
H B LH HF WF LB H2 DISTX RE**
QC12-JSCL2CR09-Y 12 12 19.5 0 6 19.8 18.6 0.3 0.2 CC**09T3... 1.2
QC12-JSCL2CR-Y
Modular head for external grooving and threading
Modular head for external grooving and threading, with high pressure coolant capability
Designation
Designation
Torque*
Torque*
Insert
Insert
Left hand (L) shown.
Left hand (L) shown.
Left-hand insert
The left hand insert (L) is used for the left hand toolholder (L).
*Torque: Recommended clamping torque (N∙m)
The left hand insert (L) is used for the left hand toolholder (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Cutting edge style L2
Screw-on Y-axis turning modular head with 95° approach angle, for positive 80° rhombic inserts
Designation Torque*Insert
Right hand (R) shown.
Without offset

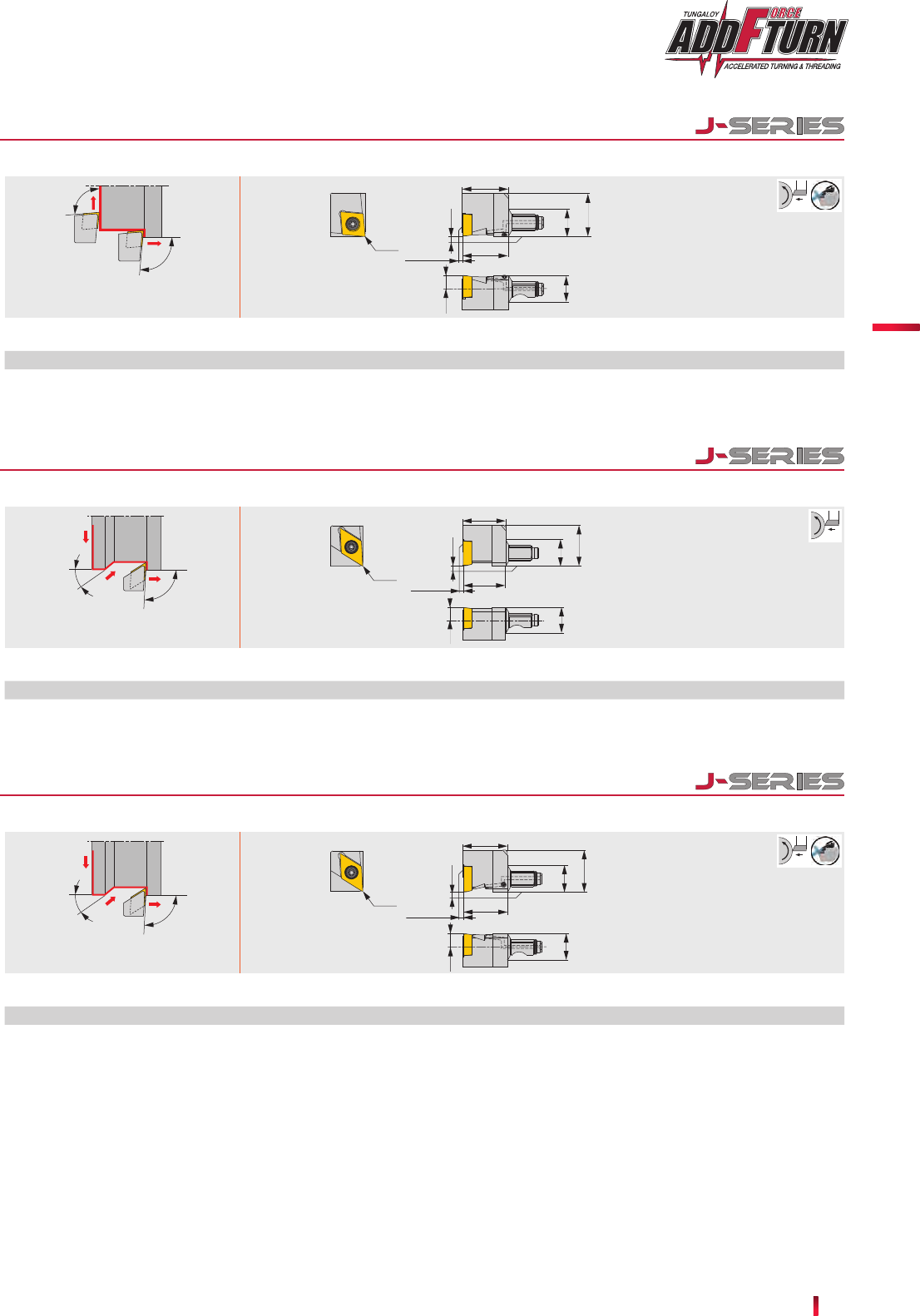

73Tungaloy
95°
95°
H2
B
WF
LB
HF
DISTX LH
H
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSCL2CR09-Y-CHP 12 12 19.5 0 6 19.8 18.6 0.3 0.2 CC**09T3... 1.2
QC12-JSCL2CR-Y-CHP
93°
30°
B
HF
WF
LB
DISTX LH
H
H2
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSDJ2CR11-Y 12 12 19.5 0 6 19.8 18.7 0.3 0.2 DC**11T3... 1.2
QC12-JSDJ2CR-Y
93°
30°
B
WF
H
H2
LB
HF
DISTX LH
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSDJ2CR11-Y-CHP 12 12 19.5 0 6 19.8 18.7 0.3 0.2 DC**11T3... 1.2
QC12-JSDJ2CR-Y-CHP
Turning
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Cutting edge style L2
Screw-on Y-axis turning modular head with 95° approach angle, for positive 80° rhombic inserts, with high
pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Without offset
Cutting edge style J2
Screw-on Y-axis turning modular head with 93° approach angle, for positive 55° rhombic inserts
Designation Torque*Insert
Right hand (R) shown.
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Without offset
Cutting edge style J2
Screw-on Y-axis turning modular head with 93° approach angle, for positive 55° rhombic inserts, with high
pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
74 NEW PRODUCTS

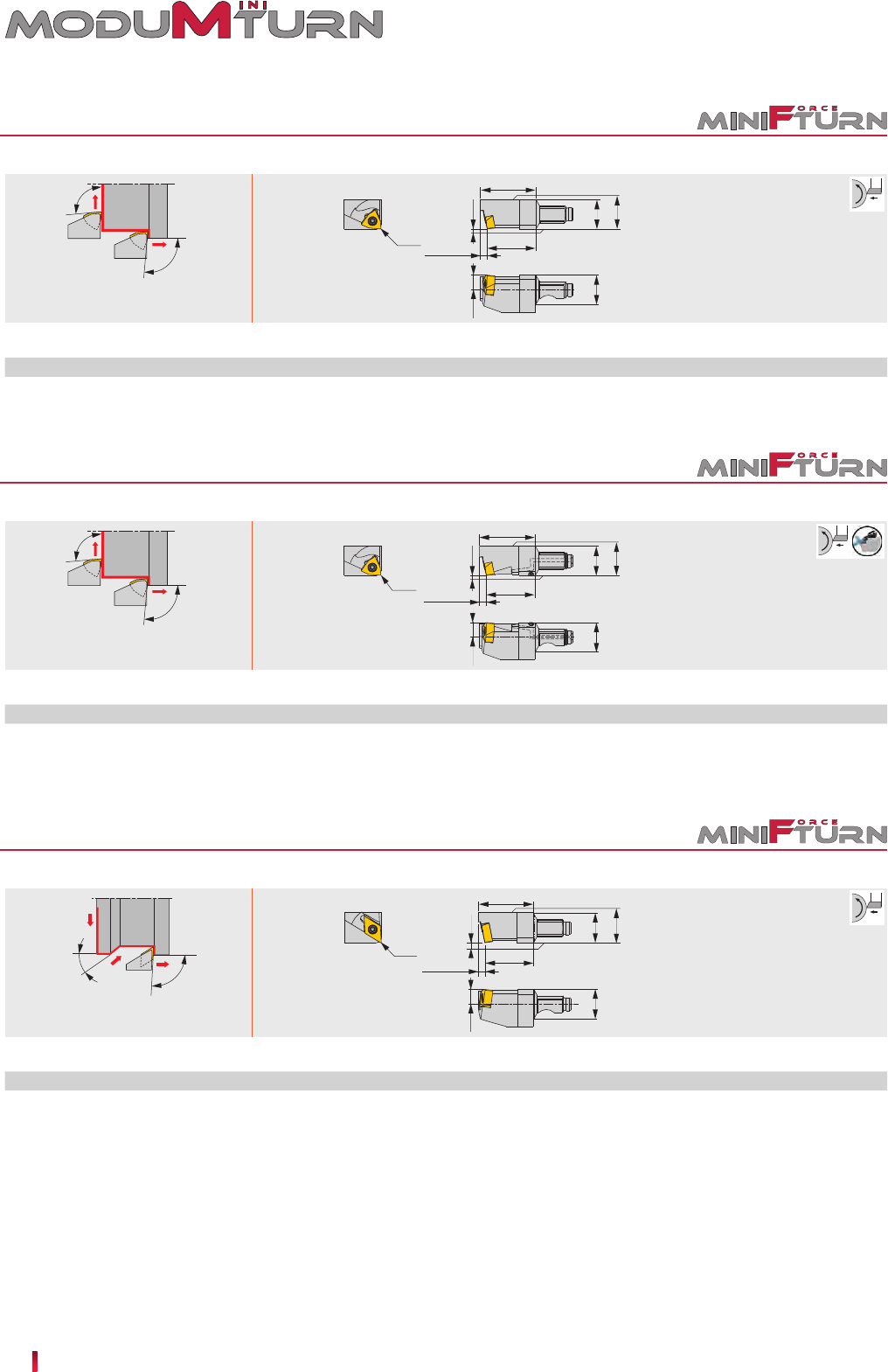

95°
95°
B
HF
WF
LB
DISTX LH
H
H2
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSWL2XR04-Y 12 12 19.5 0 6 22.3 12 2.8 0.2 WXGU0403**L... 0.9
QC12-JSWL2XR-Y
95°
95°
B
LB
WF
H2
H
HF
DISTX LH
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSWL2XR04-Y-CHP 12 12 19.5 0 6 22.3 12 2.8 0.2 WXGU0403**L... 0.9
QC12-JSWL2XR-Y-CHP
93°
30°
HF
WF
DISTX LH
H2
LB
B H
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSDJ2XR07-Y 12 12 19.5 0 6 22.3 12.5 2.8 0.2 DX*U0703**L... 0.9
QC12-JSDJ2XR-Y
Without offset
Use right-hand toolholders (R) with left-hand inserts (L).
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Cutting edge style L2
Screw-on Y-axis turning modular head with 95° approach angle, for WXGU inserts
Designation Torque*Insert
Right hand (R) shown.
Without offset
Cutting edge style L2
Screw-on Y-axis turning modular head with 95° approach angle, for WXGU inserts, with high pressure
coolant capability
Designation Torque*Insert
Right hand (R) shown.
Use right-hand toolholders (R) with left-hand inserts (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Use right-hand toolholders (R) with left-hand inserts (L).
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Cutting edge style J2
Screw-on Y-axis turning modular head with 93° approach angle, for DX*U inserts
Designation Torque*Insert
Right hand (R) shown.
75Tungaloy
93°
30°
B
H2
H
WF
LB
HF
DISTX LH
RE
H B LH HF WF LB H2 DISTX RE**
QC12-JSDJ2XR07-Y-CHP 12 12 19.5 0 6 22.3 12.5 2.8 0.2 DX*U0703**L... 0.9
QC12-JSDJ2XR-Y-CHP
CWN-
CWX DISTX LH
LB
H2
H
WF
B
HF
CWN CWX H B LH HF WF LB H2 DISTX
QC12-STCR18-Y 0.33 3 12 12 19.5 0 6 26 18.6 6.5 TC*18R... 1.2
QC12-STCR-Y
CWN-
CWX
LB
H2
H
DISTX LH
WFWF
B
DISTX LH
HF
CWN CWX H B LH HF WF LB H2 DISTX
QC12-STCR18-Y-CHP 0.33 3 12 12 19.5 0 6 26 18.6 6.5 TC*18R... 1.2
QC12-STCR-Y-CHP
TC*18R...
Turning
Use right-hand toolholders (R) with left-hand inserts (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
**RE: Standard corner radius
Without offset
Cutting edge style J2
Screw-on Y-axis turning modular head with 93° approach angle, for DX*U inserts, with high pressure
coolant capability
Designation Torque*Insert
Right hand (R) shown.
The right hand insert (R) is used for the right hand toolholder (R).
*Torque: Recommended clamping torque (N∙m)
Y-axis turning modular head for external grooving and threading
Designation Torque*Insert
Right hand (R) shown.
The right hand insert (R) is used for the right hand toolholder (R).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
Y-axis turning modular head for external grooving and threading, with high pressure coolant capability
Designation Torque*Insert
Right hand (R) shown.
Right-hand insert
76 NEW PRODUCTS

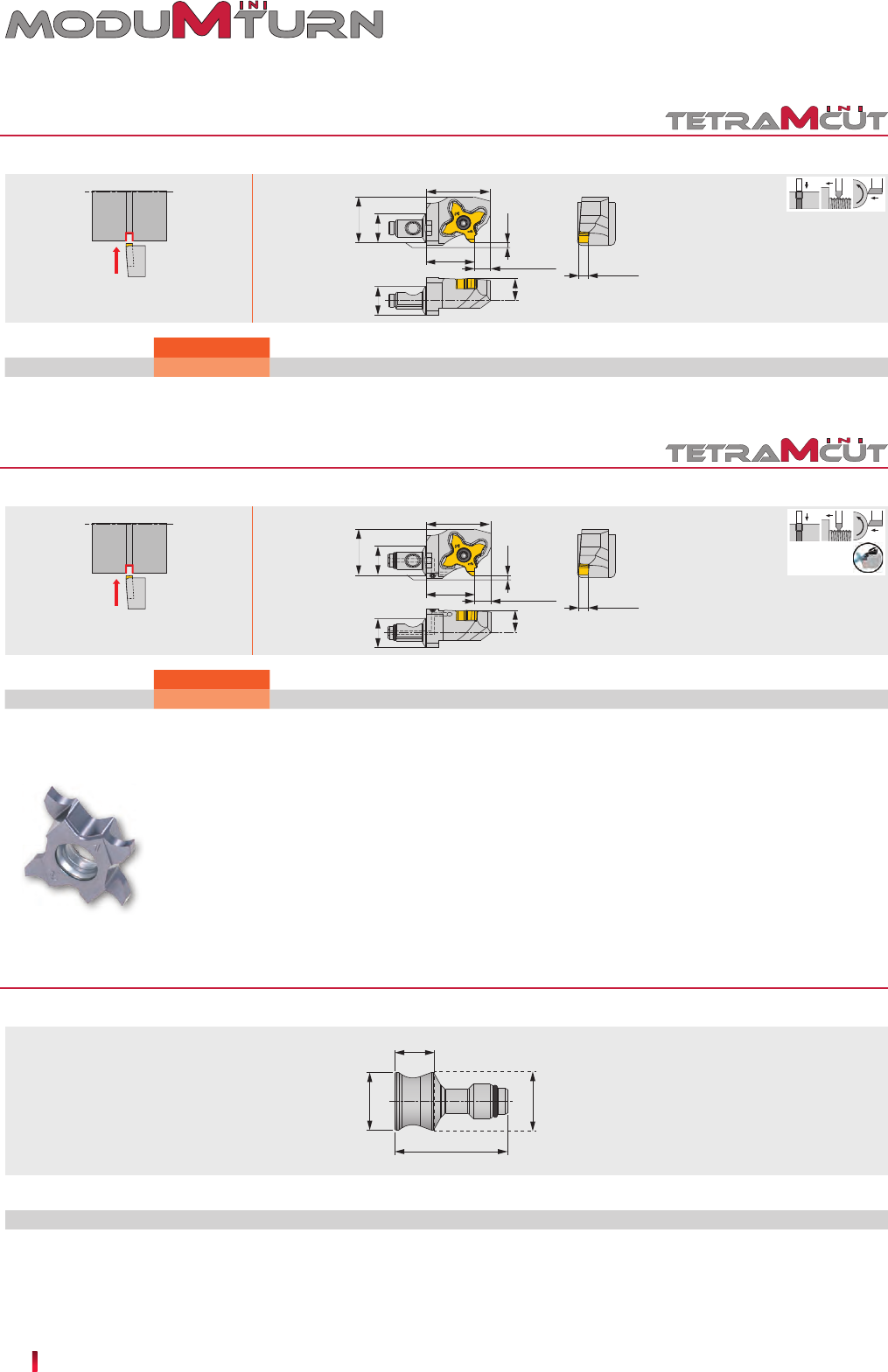

TC*18L...
WF
B H
HF
H2
LB
DISTX
LH CWN-
CWX
DISTX
LH
H
H2
B
WF
LB
HF
CWN-
CWX
CWN CWX H B LH HF WF LB H2 DISTX
QC12-STCL18-Y 0.33 3 12 12 19.5 0 9 26 18.6 6.5 TC*18L... 1.2
CWN CWX H B LH HF WF LB H2 DISTX
QC12-STCL18-Y-CHP 0.33 3 12 12 19.5 0 9 26 18.6 6.5 TC*18L... 1.2
QC12-STCL-Y
QC12-STCL-Y-CHP
12
11.6
8
22.7
QC12-STOPPER
QC12-STOPPER
Y-axis turning modular head for external grooving and threading
Y-axis turning modular head for external grooving and threading, with high pressure coolant capability
Designation
Designation
Torque*
Torque*
Insert
Insert
Left hand (L) shown.
Left hand (L) shown.
Left-hand insert
The left hand insert (L) is used for the left hand toolholder (L).
*Torque: Recommended clamping torque (N∙m)
The left hand insert (L) is used for the left hand toolholder (L).
Through-coolant head
*Torque: Recommended clamping torque (N∙m)
Protective plug for shank
Designation
77Tungaloy
OAW
BH
LF
LF
5/16"-24UNF 5/16"-24UNF
OAW
OAW
B
B
H
H
LF
H B LF OAW
QC-1212F 12 12 65 15 3
QC-1212X 12 12 100 15 3
H B LF OAW
QC-1212F-CHP 12 12 65 15 3 1
QC-1212X-CHP (1) 12 12 100 15 3 2
QC-1212
QC-1212-CHP
Turning
The cutting head located in the feed direction of the Y-axis
tool can be removed to make room for machining larger-
sized barstock. If this is the case, attach the plug to the
shank to protect the coupling surface from chips, as well
as prevent coolant leakage during machining.
*Torque: Recommended clamping torque (N∙m)
(1) Compatible to the direct internal coolant supply system without the use of external coolant hose.
Through-coolant shank
*Torque: Recommended clamping torque (N∙m)
Shank for modular heads
Shank for modular heads, with high pressure coolant capability
Designation
Designation
Torque*
Fig.Torque*
Fig.1 Fig.2
SHANKS
80 AddDoFeed
86 DoFeed
94 DoFeedTri
100 Tung-Tri
104 TungForce-Rec
112 DoMultiRec
116 TungMeister
Milling
80 NEW PRODUCTS
ADD more feed and speed in small milling
operations for higher productivity
MAXIMUM SPEED AND EFFICIENCY
AT MINIMUM SIZE
High-feed milling

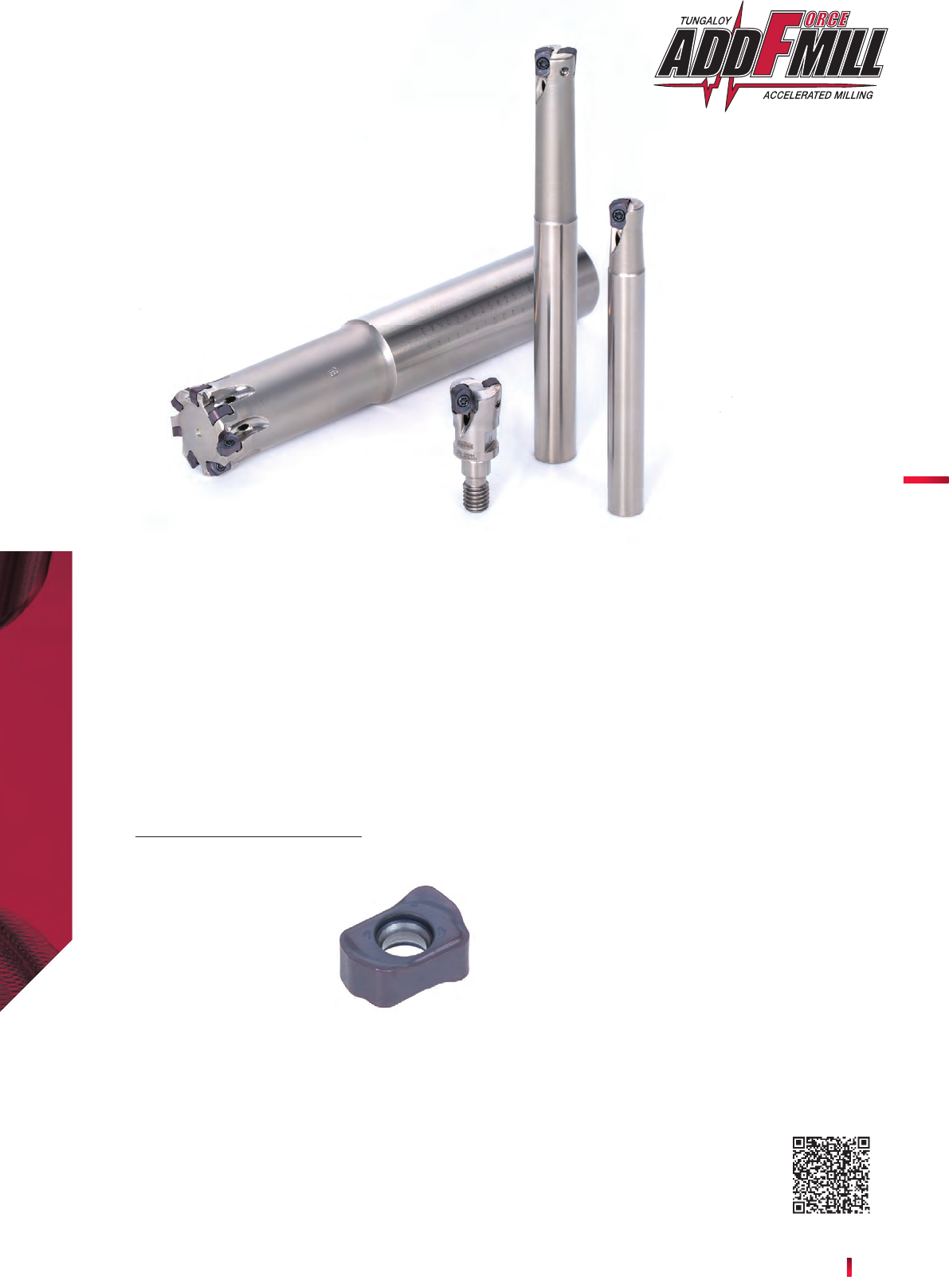

81Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- Small diameter high-feed milling cutter
for expanded application coverage,
featuring cutter bodies as small as
ø8 mm.
- Close pitch cutter design enables high
efficiency machining.
- Insert clamping screws are optimized
to provide correct clamping force,
sustaining high feed rates up to 1.2 mm
per tooth.
Cutter bodies
Shank type:
- EXN02R... (Short type)
DCX = ø8 - ø25 mm
- EXN02R**L (Long type)
DCX = ø8 - ø25 mm
Modular type:
- HXN02R...
DCX = ø8 - ø25 mm
Insert
- Unique insert design with cutting edge
inclination provides gradual workpiece
engagement for light cutting action,
while guiding chips away from the
cutting area.
- Ideal for slot milling and pocketing
applications.
- LNMU02-MM
Double-sided
4-edged insert
APMX = 0.5 mm
Chipbreaker
- MM type: Versatile geometry for low cutting
forces
Grades
- AH3225: Wear and fracture resistant, suited for
steel and stainless steel
- AH130: Fracture-resistant grade suited for
stainless steel and Ti alloys
- AH8015: Wear-resistant grade ideal for
hardened steel and cast iron
82 NEW PRODUCTS

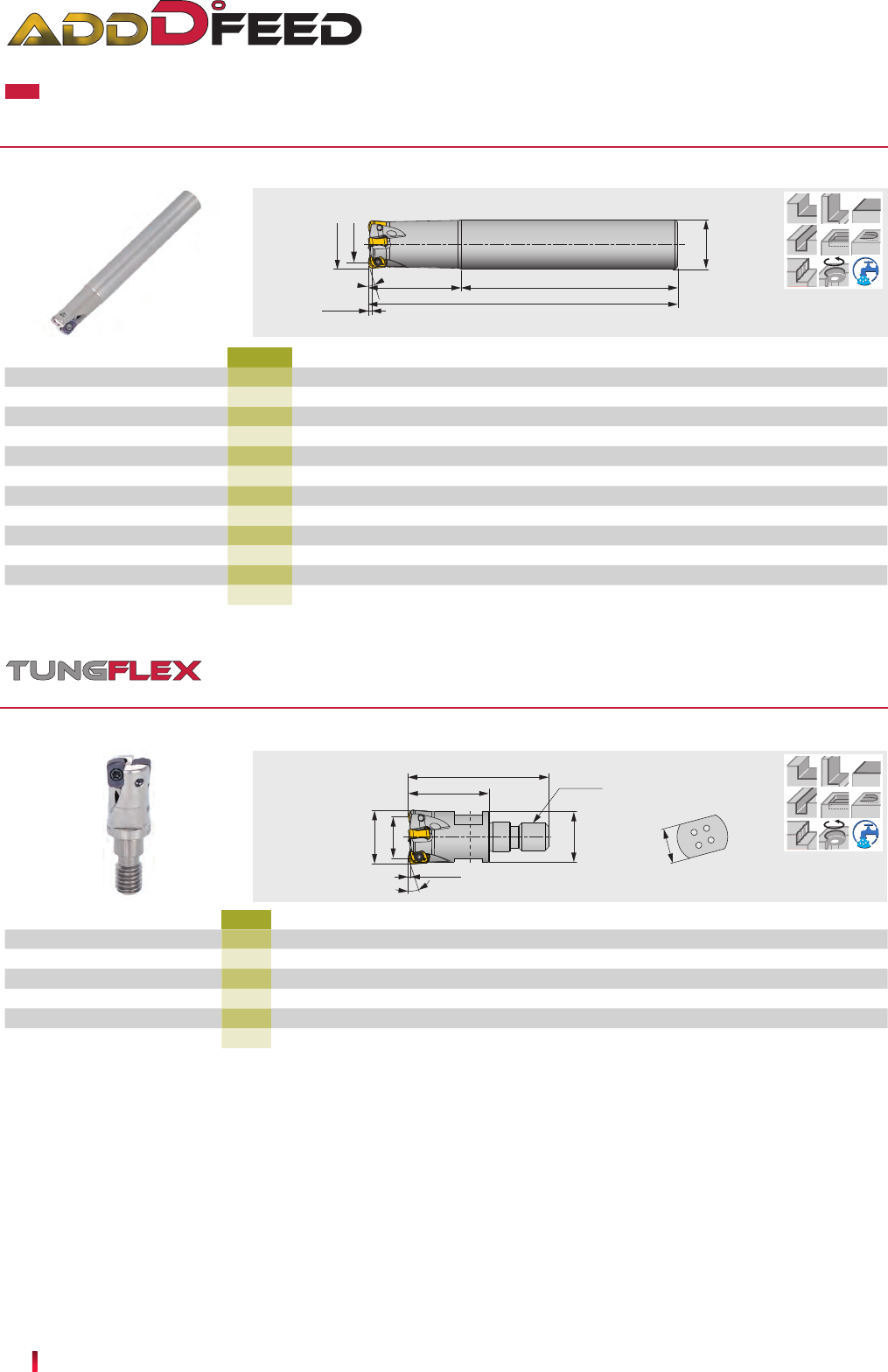

EXN02
HXN02
DCONMS
LS
LH
LF
DCX
DC
KAPR
APMX
GAMP = +6°, GAMF = +5° ~ +11°
APMX DCX CICT DC
DCONMS
LF LH LS KAPR
WT (kg)
EXN02R008M08.0-01 0.5 8 1 3.95 8 75 16 59 17º 0.02 LNMU02…
EXN02R008M08.0-01L 0.5 8 1 3.95 8 90 31 59 17º 0.03 LNMU02…
EXN02R010M10.0-02 0.5 10 2 5.85 10 80 20 60 17º 0.04 LNMU02…
EXN02R010M10.0-02L 0.5 10 2 5.85 10 100 40 60 17º 0.05 LNMU02…
EXN02R012M12.0-02 0.5 12 2 7.8 12 80 20 60 17º 0.06 LNMU02…
EXN02R012M12.0-02L 0.5 12 2 7.8 12 110 50 60 17º 0.08 LNMU02…
EXN02R016M16.0-04 0.5 16 4 11.8 16 100 30 70 17º 0.14 LNMU02…
EXN02R016M16.0-03L 0.5 16 3 11.8 16 120 50 70 17º 0.17 LNMU02…
EXN02R020M20.0-04L 0.5 20 4 15.8 20 160 80 80 17º 0.32 LNMU02…
EXN02R020M20.0-05 0.5 20 5 15.8 20 130 50 80 17º 0.27 LNMU02…
EXN02R025M25.0-07 0.5 25 7 20.8 25 140 60 80 17º 0.46 LNMU02…
EXN02R025M25.0-06L 0.5 25 6 20.8 25 180 100 80 17º 0.57 LNMU02…
OAL
LF
DCSFMS
A
A
CRKS
DCX
DC
H
APMX
KAPR
GAMP = +6°, GAMF = +5° ~ +11°
APMX DCX CICT DC DCSFMS OAL LF H KAPR CRKS
WT (kg)
HXN02R008MM06-01 0.5 8 1 3.95 9.5 33.5 19 7 17º M6 0.01 LNMU02…
HXN02R010MM06-02 0.5 10 2 5.85 9.5 31.5 17 7 17º M6 0.01 LNMU02…
HXN02R012MM06-02 0.5 12 2 7.8 10 31.5 17 7 17º M6 0.01 LNMU02…
HXN02R016MM08-04 0.5 16 4 11.8 14.5 40 23 10 17º M8 0.03 LNMU02…
HXN02R020MM10-05 0.5 20 5 15.8 17.8 49 30 15 17º M10 0.06 LNMU02…
HXN02R025MM12-07 0.5 25 7 20.8 23 52 30 17 17º M12 0.1 LNMU02...
CUTTER
With
With
With
With
With
With
With
With
With
With
With
With
High feed endmill, shank type, for 4-corner double sided inserts
Designation Air hole Insert
With
With
With
With
With
With
High feed endmill, modular type (TungFlex)
Designation Air hole Insert
A-A cross section
83Tungaloy
S
APMX
IC
RE
LE
P
M
K
N
S
H
RE
APMX
LE IC S
AH130
AH3225
AH8015
LNMU0202ZER-MM 0.9 0.5 1.79 4 3.1
Milling

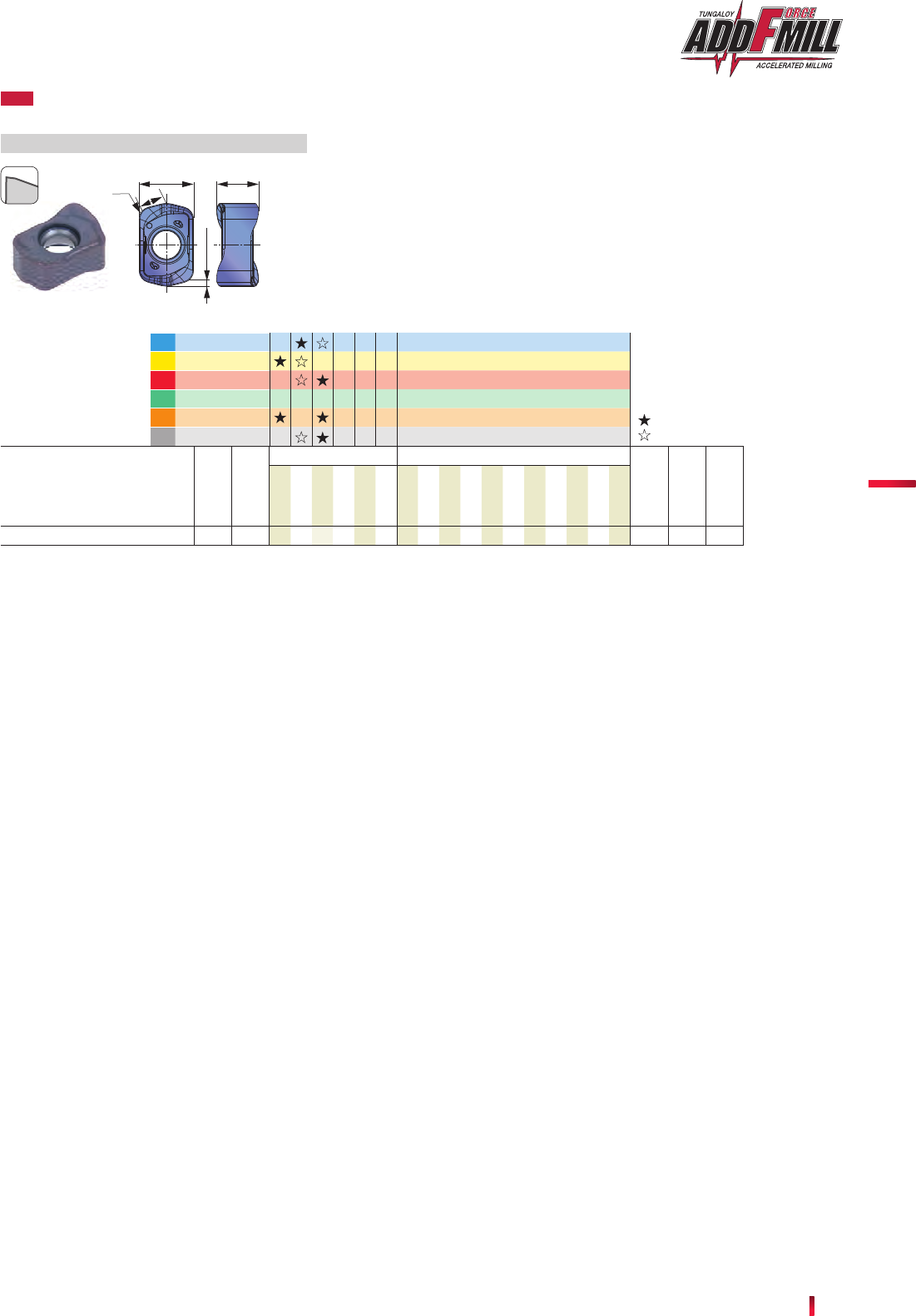

LNMU02-MM (for general purpose)
: First choice
: Second choice
Designation
Coated
: New
Steel
Stainless
Cast iron
Non-ferrous
Superalloy
Hard materials
INSERT

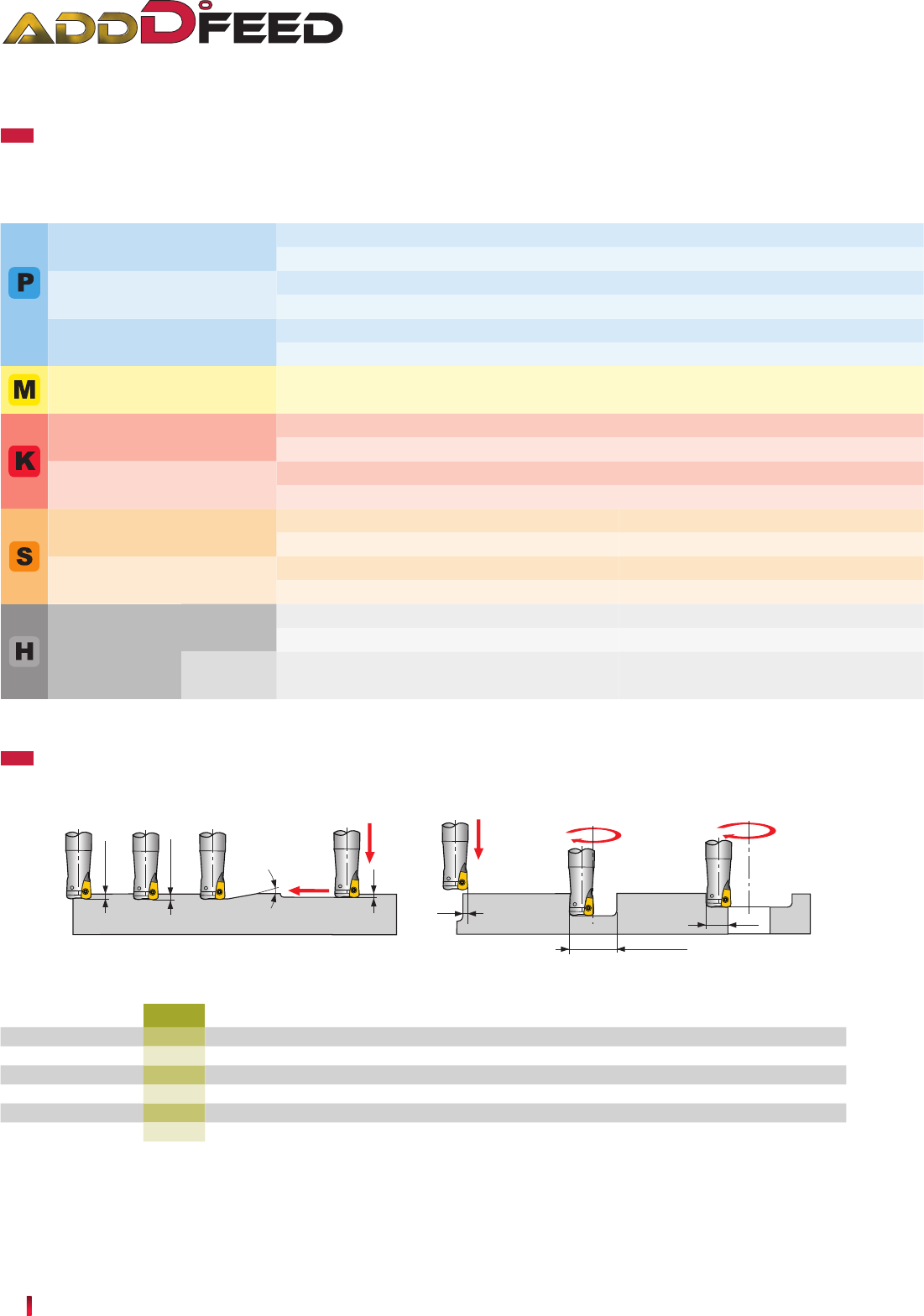

84 NEW PRODUCTS
DCX APMX RMPX A W øD1øD2ae
E/HXN02R008... 8 0.5 1.07 0.15 2 10 13.2 5.87
E/HXN02R010... 10 0.5 2.8 0.15 2 13.8 17 7.82
E/HXN02R012... 12 0.5 1.9 0.15 2 17.8 21 9.81
E/HXN02R016... 16 0.5 1.2 0.15 2 25.8 29 13.8
E/HXN02R020... 20 0.5 0.88 0.15 2 33.8 37 17.8
E/HXN02M025... 25 0.5 0.66 0.15 2 43.8 47 22.8
øD1, øD2
Wae
ISO
- 300HB AH3225 100 - 300 0.2 - 1.2
- 300HB AH8015 100 - 300 0.2 - 1.2
- 300HB AH3225 100 - 300 0.2 - 1.2
- 300HB AH8015 100 - 300 0.2 - 1.2
30 - 40HRC AH8015 100 - 200 0.2 - 0.8
30 - 40HRC AH3225 100 - 200 0.2 - 0.8
- 200HB AH130 100 - 150 0.2 - 0.8
150 - 250HB AH8015 100 - 300 0.2 - 1.2
150 - 250HB AH3225 100 - 300 0.2 - 1.2
150 - 250HB AH8015 80 - 200 0.2 - 1.2
150 - 250HB AH3225 80 - 200 0.2 - 1.2
- 40HRC AH130 30 - 60 0.2 - 0.7
- 40HRC AH8015 30 - 60 0.2 - 0.7
- 40HRC AH8015 20 - 50 0.1 - 0.3
- 40HRC AH3225 20 - 50 0.1 - 0.3
40 - 50HRC AH8015 80 - 150 0.1 - 0.5
40 - 50HRC AH3225 80 - 150 0.1 - 0.5
50~60HRC AH8015 50 - 70 0.1 - 0.3
APMX
A
RMPX
APMX
Max.
machining
Max.
ramping
angle
Max. depth of
cut
Designation
Min.
machining
Max. cutting
width
in plunging
Shoulder
milling Slotting
Traversing
Small depth
plunging
Ramping Drilling
(Helical feed) Enlarged hole
Max. cutting
width in
enlarged hole
Max.
plunging
depth
Carbon steels
S45C, S55C, etc.
C45, C55, etc.
Alloy steels
SCM440, etc.
42CrMo4, etc.
Prehardened steels
NAK80, PX5, etc.
Stainless steels
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-3, etc.
Gray cast irons
FC250, FC300, etc.
250, 300, etc.
Ductile cast irons
FCD600, etc.
600-3, etc.
Titanium alloy
Ti-6Al-4V, etc.
Heat resistant alloy
Inconel, Hastelloy, etc.
Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Workpiece materials GradesHardness Priority
First choice
For wear resistance
First choice
For wear resistance
First choice
For impact resistance
First choice
First choice
For impact resistance
First choice
For impact resistance
First choice
For wear resistance
First choice
For impact resistance
First choice
For impact resistance
First choice
Hardened steel
SKD61, etc.
X40CrMoV5-1,
etc.
SKD11, etc.
X153CrMoV12,
etc.
STANDARD CUTTING CONDITIONS
APPLICATION RANGE
Plunging
85Tungaloy

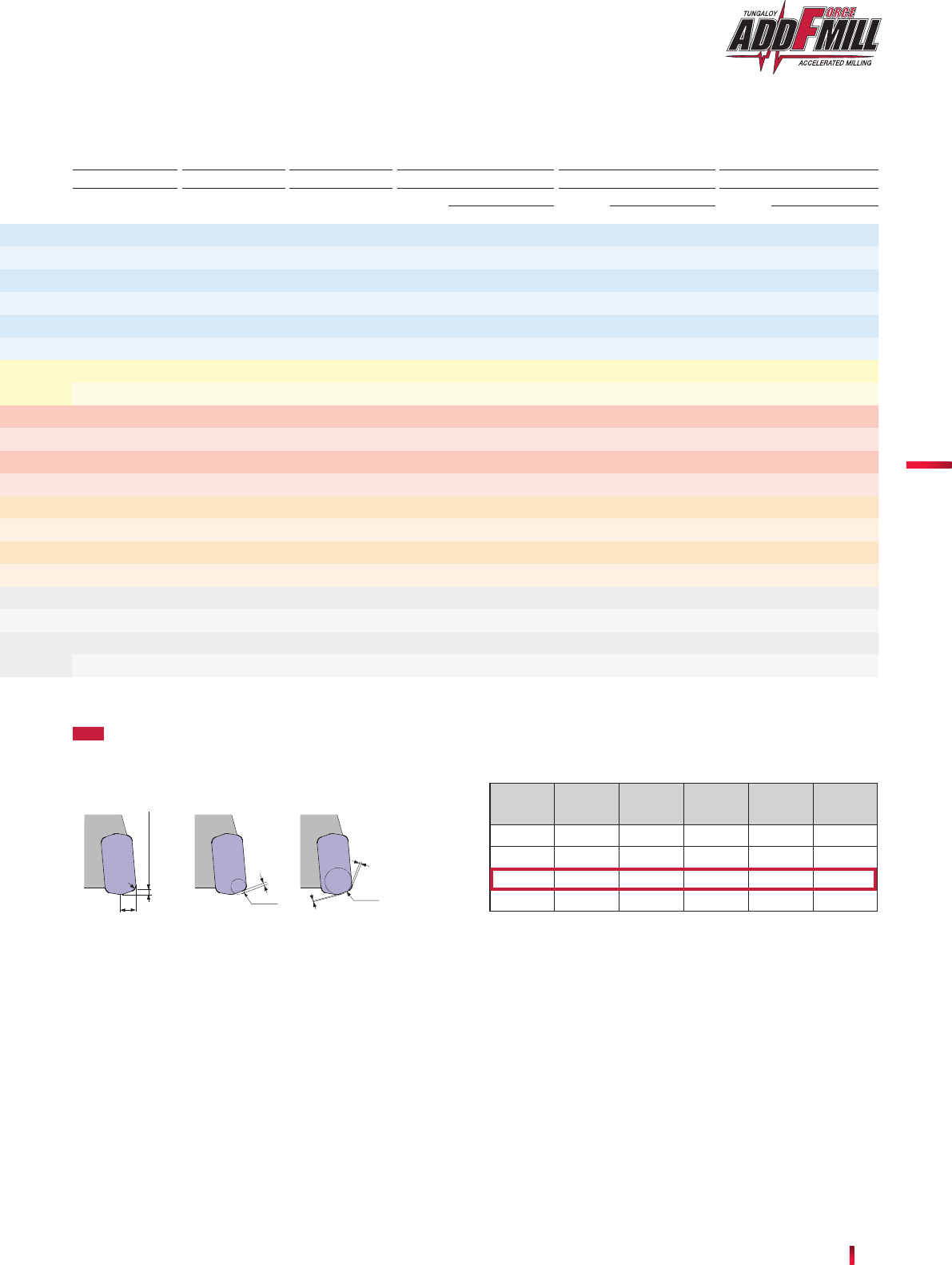

LE
RE
APMX
RPG RPG
t1
t2
t1
APMX (mm)
RE (mm) LE (mm) RPG t1 (mm) t2 (mm)
0.5 0.9 2 0.5 0.38 0
0.5 0.9 2 0.8 0.31 0
0.5 0.9 2 1 0.26 0
0.5 0.9 2 1.5 0.14 0.08
ø8, CICT = 1 ø10, CICT = 2 ø12, CICT = 2 ø16 ø20 ø25
nVfnVfnVfnVfnVfnVf
CICT = 3 CICT = 4 CICT = 4 CICT = 5 CICT = 6 CICT = 7
7,960 6,370 6,370 10,200 5,310 8,500 3,980 9,560 12,740 3,180 10,180 12,720 2,550 12,240 14,280
Vc = 200 m/min, fz = 0.8 mm/t
7,960 6,370 6,370 10,200 5,310 8,500 3,980 9,560 12,740 3,180 10,180 12,720 2,550 12,240 14,280
Vc = 200 m/min, fz = 0.8 mm/t
5,970 2,990 4,780 4,780 3,980 3,980 2,990 4,490 5,980 2,390 4,780 5,980 1,910 5,730 6,690
Vc = 150 m/min, fz = 0.5 mm/t
4,780 2,390 3,820 3,820 3,190 3,190 2,390 3,590 4,780 1,910 3,820 4,780 1,530 4,590 5,360
Vc = 120 m/min, fz = 0.5 mm/t
7,960 6,370 6,370 10.200 5,310 8,500 3,980 9,560 12,740 3,180 10,180 12,720 2,550 12,240 14,280
Vc = 200 m/min, fz = 0.8 mm/t
5,970 4,780 4,780 7,650 3,980 6,370 2,990 7,180 9,570 2,390 7,650 9,560 1,530 7,350 8,570
Vc = 150 m/min, fz = 0.8 mm/t
1,590 800 1,270 1,270 1,060 1,060 800 1,200 1,600 640 1,280 1,600 510 1,530 1,790
Vc = 40 m/min, fz = 0.5 mm/t
1,190 240 1,000 400 800 320 600 360 480 480 390 480 380 460 540
Vc = 30 m/min, fz = 0.2 mm/t
4,780 1,440 3,820 2,300 3,190 1,920 2,390 2,160 2,870 1,910 2,300 2,870 1,530 2,760 3,220
Vc = 120 m/min, fz = 0.3 mm/t
2,390 480 1,910 770 1,590 640 1,190 720 960 950 760 950 760 920 1,070
Vc = 60 m/min, fz = 0.2 mm/t
Milling
Max. depth
of cut Corner
radius Amount left
uncut Amount
overcut
Corner R when
programming
*Recommended
Amount
overcut
Max. depth
of cut
Corner R when
programming
Amount left
uncut
Tool dia.: øDc (mm), Number of revolutions: n (min-1), Feed speed: Vf (mm/min), Max. depth of cut: ap = 0.5 mm, Number of teeth: CICT
TOOL GEOMETRY ON PROGRAMMING
86 NEW PRODUCTS
ADD low approach angles for longer tool life in difficult-to-cut
materials
VERSATILE HIGH-FEED MILLING CUTTER
SERIES NOW OFFERS SIZE-03 UER INSERTS
FOR LOWER APPROACH ANGLE
High-feed milling

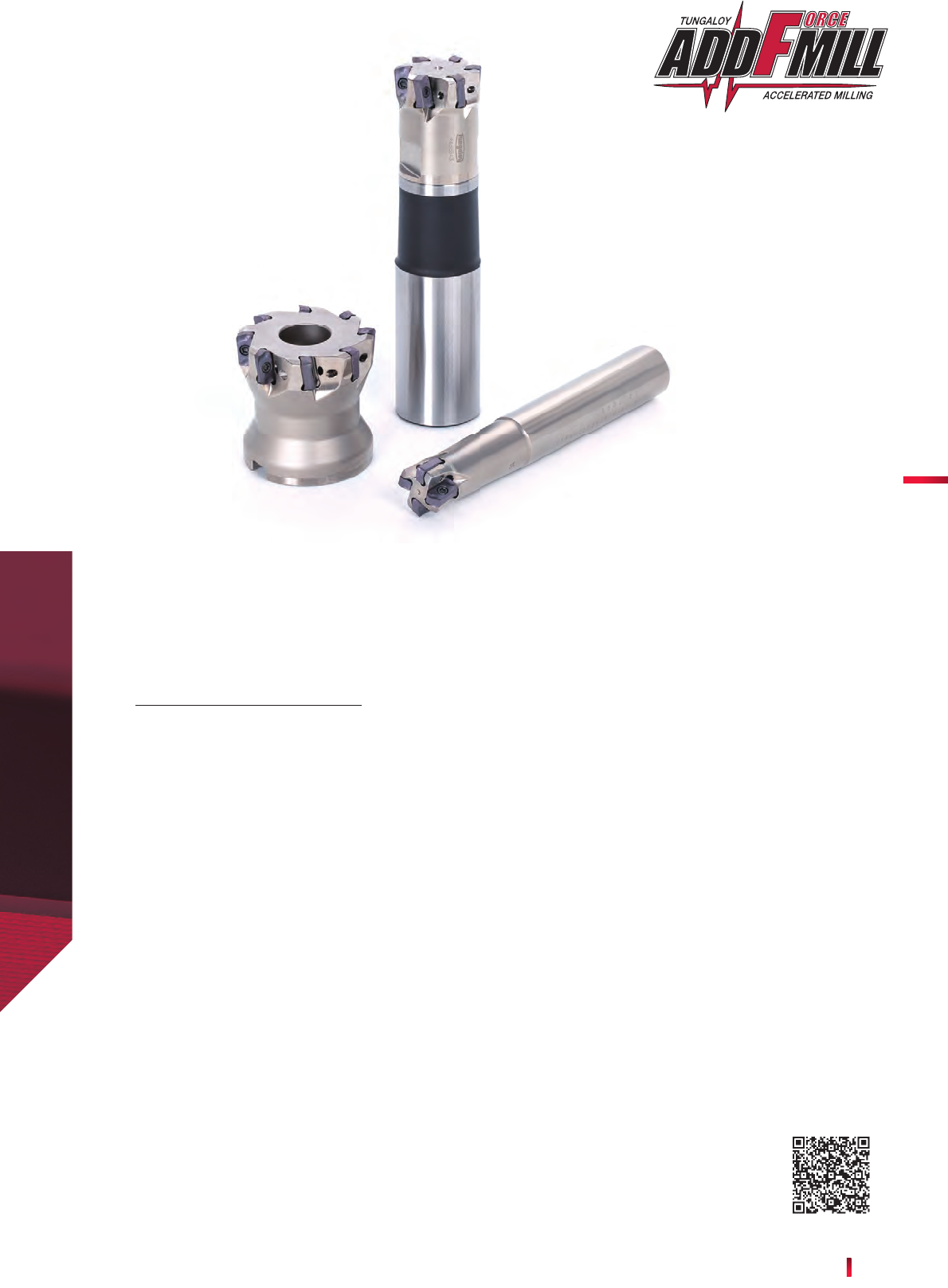

87Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- Two insert styles: UER and ZER are
interchangeable on the same cutter body.
- Thanks to small approach angle, UER
inserts generate thin chips, reducing
cutting load on the edge for prolonged
tool life.
- Economical double-sided insert with four
total cutting edges.
- UER inserts provide stability in long
overhang milling.
- A wide range of insert and cutter body
lineup for extensive application ranges.
- EXN03**-C
(Short type, with coolant directly to the tool tips)
DCX = ø16 - ø40 mm
- EXN03**-L-C
(Long type, with coolant directly to the tool tips)
DCX = ø16 - ø40 mm
- EXN03**-N
(Short type, without coolant hole)
DCX = ø16 - ø32 mm
Bore type:
- TXN03...
DCX = ø40 - ø50 mm
Modular type:
- HXN03... (with center through coolant hole)
DCX = ø16 - ø32 mm
- HXN03**-C (with coolant directly to the tool tips)
DCX = ø16 - ø40 mm
Inserts
- LNMU0303UER-MJ / ML
APMX = 0.9 mm
Chipbreakers
- MJ type: Versatile geometry for good chip
evacuation
- ML type: For low cutting forces
Grades
- AH3225: Wear and fracture resistant, suited for
steel and stainless steel
- AH130: Fracture-resistant grade suited for
stainless steel and Ti alloys
- AH8015: Wear-resistant grade ideal for
hardened steel and cast iron
Cutter bodies
Shank type:
- EXN03...
(Short type, with center through coolant hole)
DCX = ø16 - ø35 mm
- EXN03**-L
(Long type, with center through coolant hole)
DCX = ø16 - ø35 mm
88 NEW PRODUCTS

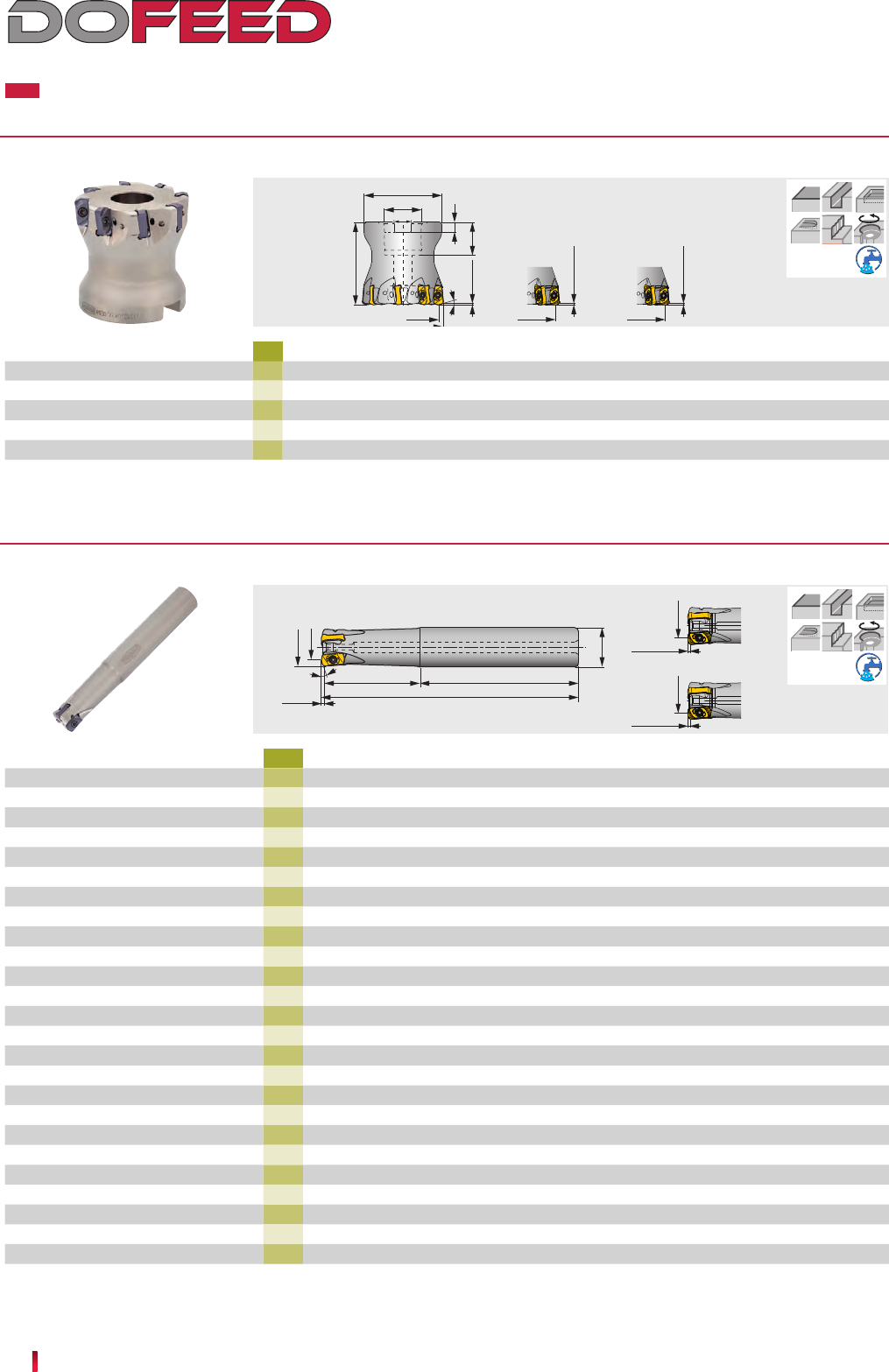

LF
LSLH
DCX
DC
DCONMS
APMX
APMX2
DC2DC3
KAPR
APMX3
APMX APMX2 APMX3
DCX CICT DC DC2 DC3
DCONMS
LF LH LS
KAPR KAPR2* KAPR3*
WT(kg)
EXN03R016M16.0-02 1 0.9 1 16 2 9.6 8.8 9.8 16 100 30 70 15° 10° 15° 0.2 LN*U03...
EXN03R016M16.0-02L 1 0.9 1 16 2 9.6 8.8 9.8 16 150 50 100 15° 10° 15° 0.2 LN*U03...
EXN03R018M16.0-02 1 0.9 1 18 2 11.5 10.7 11.7 16 100 30 70 17° 12° 17° 0.2 LN*U03...
EXN03R018M16.0-02L 1 0.9 1 18 2 11.5 10.7 11.7 16 150 25 125 17° 12° 17° 0.2 LN*U03...
EXN03R020M20.0-03 1 0.9 1 20 3 13.5 12.7 13.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R020M20.0-03L 1 0.9 1 20 3 13.5 12.7 13.6 20 160 80 80 17° 12° 17° 0.3 LN*U03...
EXN03R020M20.0-04 1 0.9 1 20 4 13.5 12.7 13.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R022M20.0-03 1 0.9 1 22 3 15.5 14.7 15.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R022M20.0-03L 1 0.9 1 22 3 15.5 14.7 15.6 20 160 30 130 17° 12° 17° 0.4 LN*U03...
EXN03R022M20.0-04 1 0.9 1 22 4 15.5 14.7 15.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R025M25.0-04 1 0.9 1 25 4 18.5 17.7 18.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R025M25.0-04L 1 0.9 1 25 4 18.5 17.7 18.6 25 180 100 80 17° 12° 17° 0.6 LN*U03...
EXN03R025M25.0-05 1 0.9 1 25 5 18.5 17.7 18.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R028M25.0-04 1 0.9 1 28 4 21.5 20.7 21.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R028M25.0-04L 1 0.9 1 28 4 21.5 20.7 21.6 25 180 35 145 17° 12° 17° 0.7 LN*U03...
EXN03R028M25.0-05 1 0.9 1 28 5 21.5 20.7 21.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R030M32.0-04 1 0.9 1 30 4 23.5 22.7 23.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03R030M32.0-04L 1 0.9 1 30 4 23.5 22.7 23.6 32 200 120 80 17° 12° 17° 0.9 LN*U03...
EXN03R030M32.0-05 1 0.9 1 30 5 23.5 22.7 23.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03R032M32.0-05 1 0.9 1 32 5 25.5 24.7 25.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03R032M32.0-05L 1 0.9 1 32 5 25.5 24.7 25.6 32 200 120 80 17° 12° 17° 1.1 LN*U03...
EXN03R032M32.0-06 1 0.9 1 32 6 25.5 24.7 25.6 32 150 70 80 17° 12° 17° 0.9 LN*U03...
EXN03R035M32.0-05 1 0.9 1 35 5 28.5 27.7 28.6 32 150 35 115 17° 12° 17° 0.9 LN*U03...
EXN03R035M32.0-05L 1 0.9 1 35 5 28.5 27.7 28.6 32 200 35 165 17° 12° 17° 1.2 LN*U03...
EXN03R035M32.0-06 1 0.9 1 35 6 28.5 27.7 28.6 32 150 35 115 17° 12° 17° 0.9 LN*U03...
GAMP = +6°, GAMF = +5° ~ +11°
DCX DC
b
LF
DCSFMS
DCONMS
KWW
APMX
APMX2
DC2
APMX3
DC3
CBDP
KAPR
GAMP = +6°,GAMF = +12° ~ 13°
APMX APMX2 APMX3
DCX CICT DC DC2 DC3
DCSFMS
DCONMS
CBDP
LF b
KWW
KAPR KAPR2* KAPR3*
WT(kg)
TXN03R040M16.0E05 1 0.9 1 40 5 33.6 32.8 33.7 35 16 18 40 5.6 8.4 17° 12° 17° 0.2 LN*U03...
TXN03R040M16.0E06 1 0.9 1 40 6 33.6 32.8 33.7 35 16 18 40 5.6 8.4 17° 12° 17° 0.2 LN*U03...
TXN03R050M22.0E05 1 0.9 1 50 5 43.6 42.8 43.7 47 22 20 50 6.3 10.4 17° 12° 17° 0.5 LN*U03...
TXN03R050M22.0E08 1 0.9 1 50 8 43.6 42.8 43.7 47 22 20 50 6.3 10.4 17° 12° 17° 0.5 LN*U03...
TXN03R050M22.2-08 1 0.9 1 50 8 43.6 42.8 43.7 47 22.225 20 50 5 8 17° 12° 17° 0.5 LN*U03...
TXN03
EXN03
with LNMU0303UER
with LNGU0303ZER
with LNMU0303ZER
Air hole
Insert
Designation
High feed endmill, shank type, with center through coolant hole, for 4-corner double sided inserts
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
With
High feed mill, for 4-corner double sided inserts
Designation
With
With
With
With
With
Air hole
Insert
with LNMU0303UER with LNGU0303ZER
with
LNMU0303ZER
CUTTER
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER
89Tungaloy

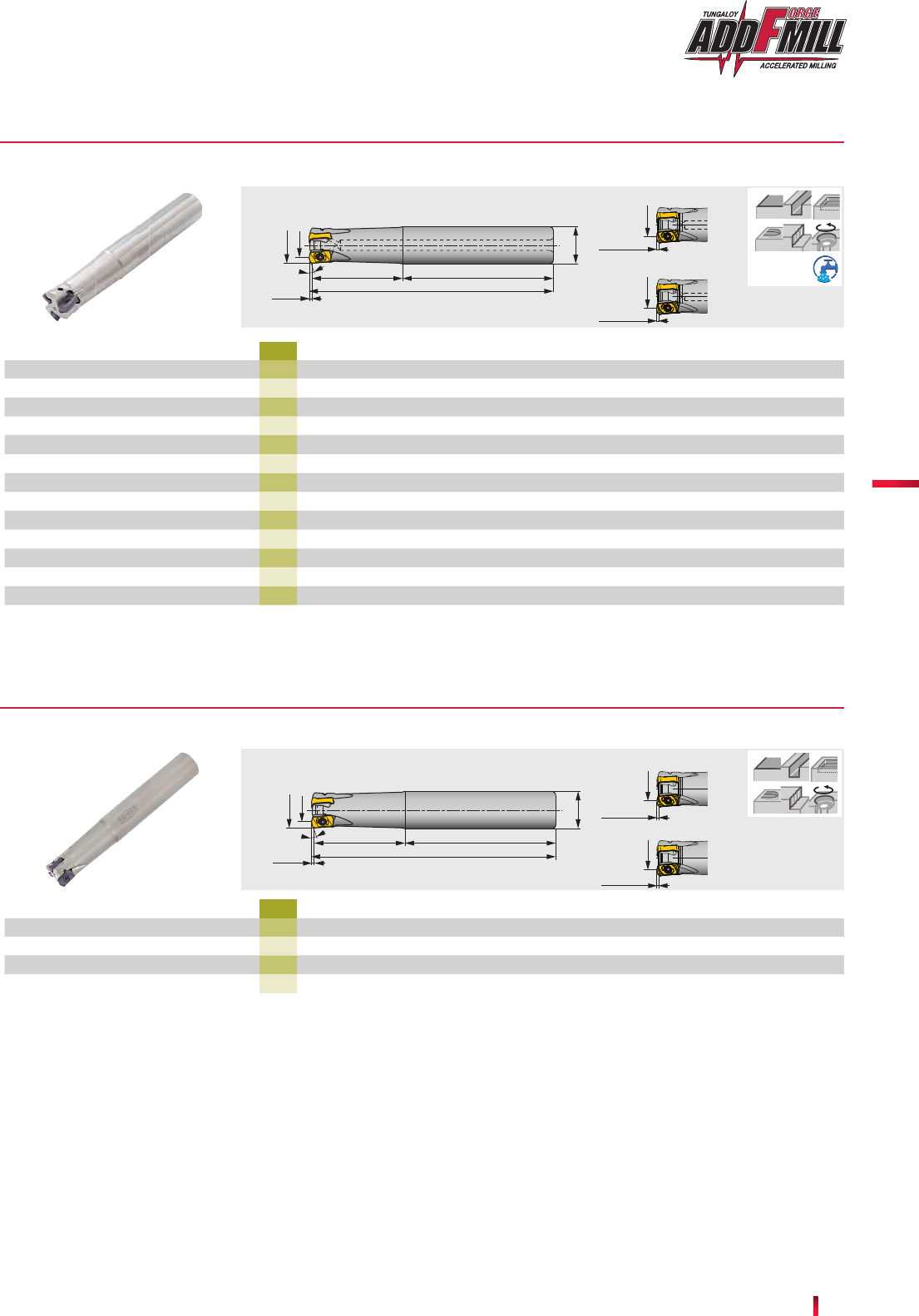

LF
LH
DCX
DC
DCONMS
KAPR
APMX
LS
DC2DC3
APMX2
APMX3
GAMP = +6°,GAMF = +5° ~ +11°
APMX APMX2 APMX3
DCX
CICT DC DC2 DC3
DCONMS
LF LH LS
KAPR KAPR2* KAPR3*
WT(kg)
EXN03R016M16.0-02-C 1 0.9 1 16 2 9.6 8.8 9.8 16 100 30 70 15° 10° 15° 0.2 LN*U03...
EXN03R016M16.0-02L-C 1 0.9 1 16 2 9.6 8.8 9.8 16 150 50 100 15° 10° 15° 0.2 LN*U03...
EXN03R020M20.0-03-C 1 0.9 1 20 3 13.5 12.7 13.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R020M20.0-03L-C 1 0.9 1 20 3 13.5 12.7 13.6 20 160 80 80 17° 12° 17° 0.3 LN*U03...
EXN03R020M20.0-04-C 1 0.9 1 20 4 13.5 12.7 13.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R025M25.0-04-C 1 0.9 1 25 4 18.5 17.7 18.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R025M25.0-04L-C 1 0.9 1 25 4 18.5 17.7 18.6 25 180 100 80 17° 12° 17° 0.6 LN*U03...
EXN03R025M25.0-05-C 1 0.9 1 25 5 18.5 17.7 18.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R032M32.0-05-C 1 0.9 1 32 5 25.5 24.7 25.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03R032M32.0-05L-C 1 0.9 1 32 5 25.5 24.7 25.6 32 200 120 80 17° 12° 17° 1.1 LN*U03...
EXN03R032M32.0-06-C 1 0.9 1 32 6 25.5 24.7 25.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03R040M32.0-06-C 1 0.9 1 40 6 33.6 32.8 33.7 32 150 45 105 17° 12° 17° 1 LN*U03...
EXN03R040M32.0-06L-C 1 0.9 1 40 6 33.6 32.8 33.7 32 220 45 175 17° 12° 17° 1.4 LN*U03...
LF
LH
DCX
DC
DCONMS
KAPR
APMX
LS
DC3 DC2
APMX2
APMX3
GAMP = +6°, GAMF = +5° ~ +11°
APMX APMX2 APMX3
DCX
CICT DC DC2 DC3
DCONMS
LF LH LS
KAPR KAPR2* KAPR3*
WT(kg)
EXN03R016M16.0-02N 1 0.9 1 16 2 9.6 8.8 9.8 16 100 30 70 15° 10° 15° 0.2 LN*U03...
EXN03R020M20.0-03N 1 0.9 1 20 3 13.5 12.7 13.6 20 130 50 80 17° 12° 17° 0.3 LN*U03...
EXN03R025M25.0-04N 1 0.9 1 25 4 18.5 17.7 18.6 25 140 60 80 17° 12° 17° 0.5 LN*U03...
EXN03R032M32.0-05N 1 0.9 1 32 5 25.5 24.7 25.6 32 150 70 80 17° 12° 17° 0.8 LN*U03...
EXN03-C
EXN03-N
Milling
with LNMU0303UER
with LNGU0303ZER
Air hole
Insert
Designation
High feed endmill, shank type, with coolant directly to the tool tips, for 4-corner double sided inserts
with LNMU0303ZER
With
With
With
With
With
With
With
With
With
With
With
With
With
Without
Without
Without
Without
with LNMU0303ZER
Air hole
Insert
Designation
with LNMU0303UER
with LNGU0303ZER
High feed endmill, shank type, without coolant hole, for 4-corner double sided inserts
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER

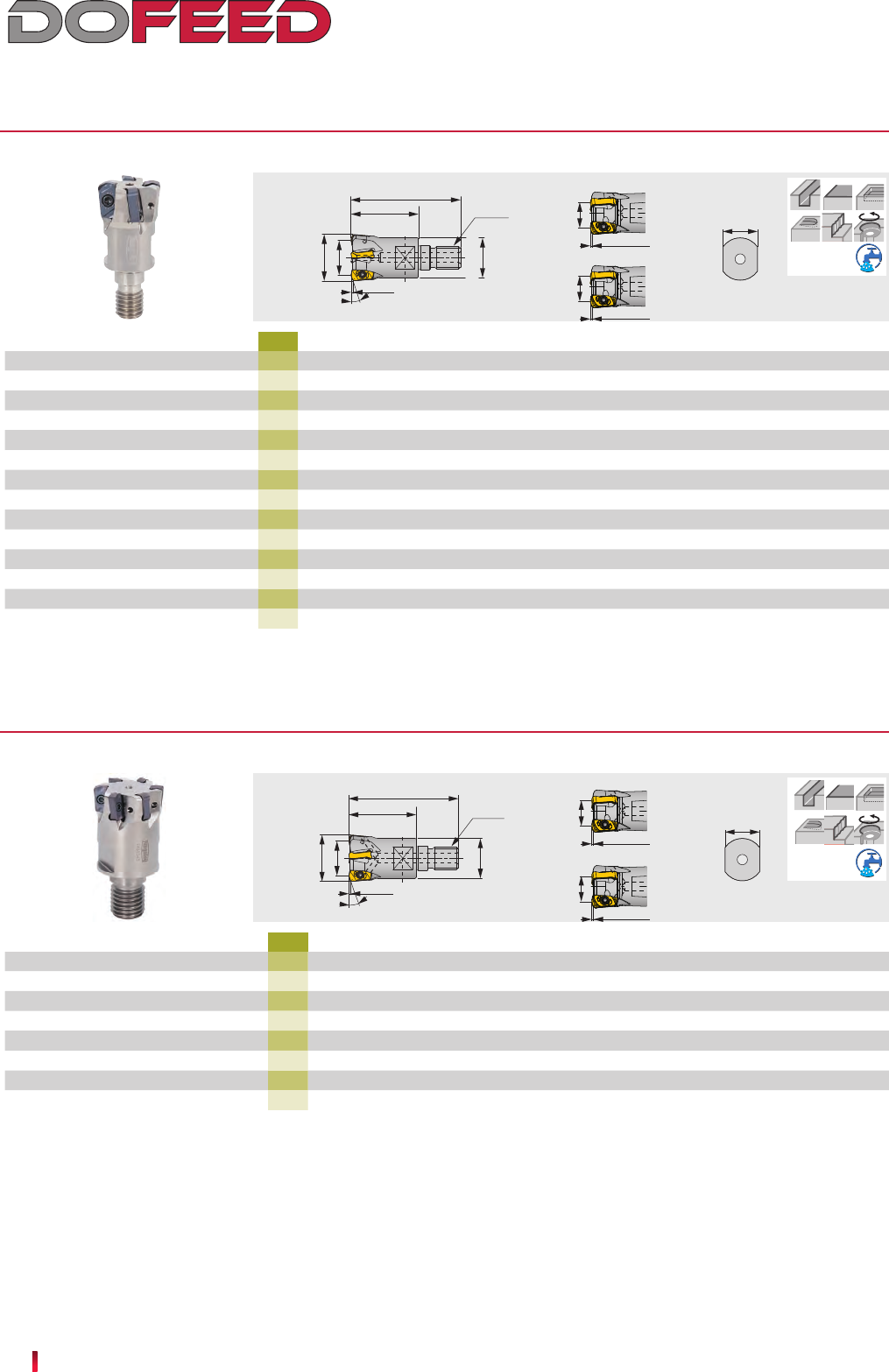

90 NEW PRODUCTS
APMX APMX2 APMX3
DCX
CICT DC DC2 DC3
OAL LF H
DCSFMS
KAPR KAPR2* KAPR3* CRKS
WT(kg)
HXN03R016MM08-02 1 0.9 1 16 2 9.6 8.8 9.8 42 25 10 12.8 15° 10° 15° M8 0.03 LN*U03...
HXN03R018MM08-02 1 0.9 1 18 2 11.5 10.7 11.7 42 25 10 14.5 17° 12° 17° M8 0.04 LN*U03...
HXN03R020MM10-03 1 0.9 1 20 3 13.5 12.7 13.6 49 30 15 17.8 17° 12° 17° M10 0.06 LN*U03...
HXN03R020MM10-04 1 0.9 1 20 4 13.5 12.7 13.6 49 30 15 17.8 17° 12° 17° M10 0.06 LN*U03...
HXN03R022MM10-03 1 0.9 1 22 3 15.5 14.7 15.6 49 30 15 17.8 17° 12° 17° M10 0.06 LN*U03...
HXN03R022MM10-04 1 0.9 1 22 4 15.5 14.7 15.6 49 30 15 17.8 17° 12° 17° M10 0.07 LN*U03...
HXN03R025MM12-04 1 0.9 1 25 4 18.5 17.7 18.6 57 35 17 20.8 17° 12° 17° M12 0.1 LN*U03...
HXN03R025MM12-05 1 0.9 1 25 5 18.5 17.7 18.6 57 35 17 20.8 17° 12° 17° M12 0.11 LN*U03...
HXN03R028MM12-04 1 0.9 1 28 4 21.5 20.7 21.6 57 35 17 23 17° 12° 17° M12 0.12 LN*U03...
HXN03R028MM12-05 1 0.9 1 28 5 21.5 20.7 21.6 57 35 17 23 17° 12° 17° M12 0.12 LN*U03...
HXN03R030MM16-04 1 0.9 1 30 4 23.5 22.7 23.6 63 40 22 28.8 17° 12° 17° M16 0.19 LN*U03...
HXN03R030MM16-05 1 0.9 1 30 5 23.5 22.7 23.6 63 40 22 28.8 17° 12° 17° M16 0.2 LN*U03...
HXN03R032MM16-05 1 0.9 1 32 5 25.5 24.7 25.6 63 40 22 28.8 17° 12° 17° M16 0.2 LN*U03...
HXN03R032MM16-06 1 0.9 1 32 6 25.5 24.7 25.6 63 40 22 28.8 17° 12° 17° M16 0.21 LN*U03...
DCSFMS
OAL
LF
DCX
DC
APMX
APMX2
APMX3
H
CRKS
A
A
DC2
KAPR
DC3
GAMP= +6°,GAMF= +5° ~ +11°
HXN03
APMX APMX2 APMX3
DCX
CICT DC DC2 DC3
OAL LF H
DCSFMS
KAPR KAPR2* KAPR3* CRKS
WT(kg)
HXN03R016MM08-02-C 1 0.9 1 16 2 9.6 8.8 9.8 42 25 10 12.8 15° 10° 15° M8 0.03 LN*U03...
HXN03R020MM10-03-C 1 0.9 1 20 3 13.5 12.7 13.6 49 30 15 17.8 17° 12° 17° M10 0.06 LN*U03...
HXN03R020MM10-04-C 1 0.9 1 20 4 13.5 12.7 13.6 49 30 15 17.8 17° 12° 17° M10 0.06 LN*U03...
HXN03R025MM12-04-C 1 0.9 1 25 4 18.5 17.7 18.6 57 35 17 20.8 17° 12° 17° M12 0.1 LN*U03...
HXN03R025MM12-05-C 1 0.9 1 25 5 18.5 17.7 18.6 57 35 17 20.8 17° 12° 17° M12 0.1 LN*U03...
HXN03R032MM16-05-C 1 0.9 1 32 5 25.5 24.7 25.6 63 40 22 28.8 17° 12° 17° M16 0.2 LN*U03...
HXN03R032MM16-06-C 1 0.9 1 32 6 25.5 24.7 25.6 63 40 22 28.8 17° 12° 17° M16 0.2 LN*U03...
HXN03R040MM16-06-C 1 0.9 1 40 6 33.6 32.8 33.7 63 40 22 28.8 17° 12° 17° M16 0.27 LN*U03...
DCSFMS
OAL
LF
DCX
DC
APMX
H
CRKS
A
A
DC2
KAPR
DC3
APMX2
APMX3
GAMP= +6°,GAMF= +5° ~ +11°
HXN03-C
A-A cross section
with LNMU0303UER
with LNGU0303ZER
with
LNMU0303ZER
Air hole
Insert
Designation
With
With
With
With
With
With
With
With
With
With
With
With
With
With
High feed endmill, modular type, with center through coolant hole (TungFlex)
A-A cross section
with
LNMU0303ZER
Air hole
Insert
Designation
With
With
With
With
With
With
With
With
with LNMU0303UER
with LNGU0303ZER
High feed endmill, modular type, with coolant directly to the tool tips (TungFlex)
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER
*KAPR2 : with LNMU0303UER
*KAPR3 : with LNGU0303ZER
91Tungaloy

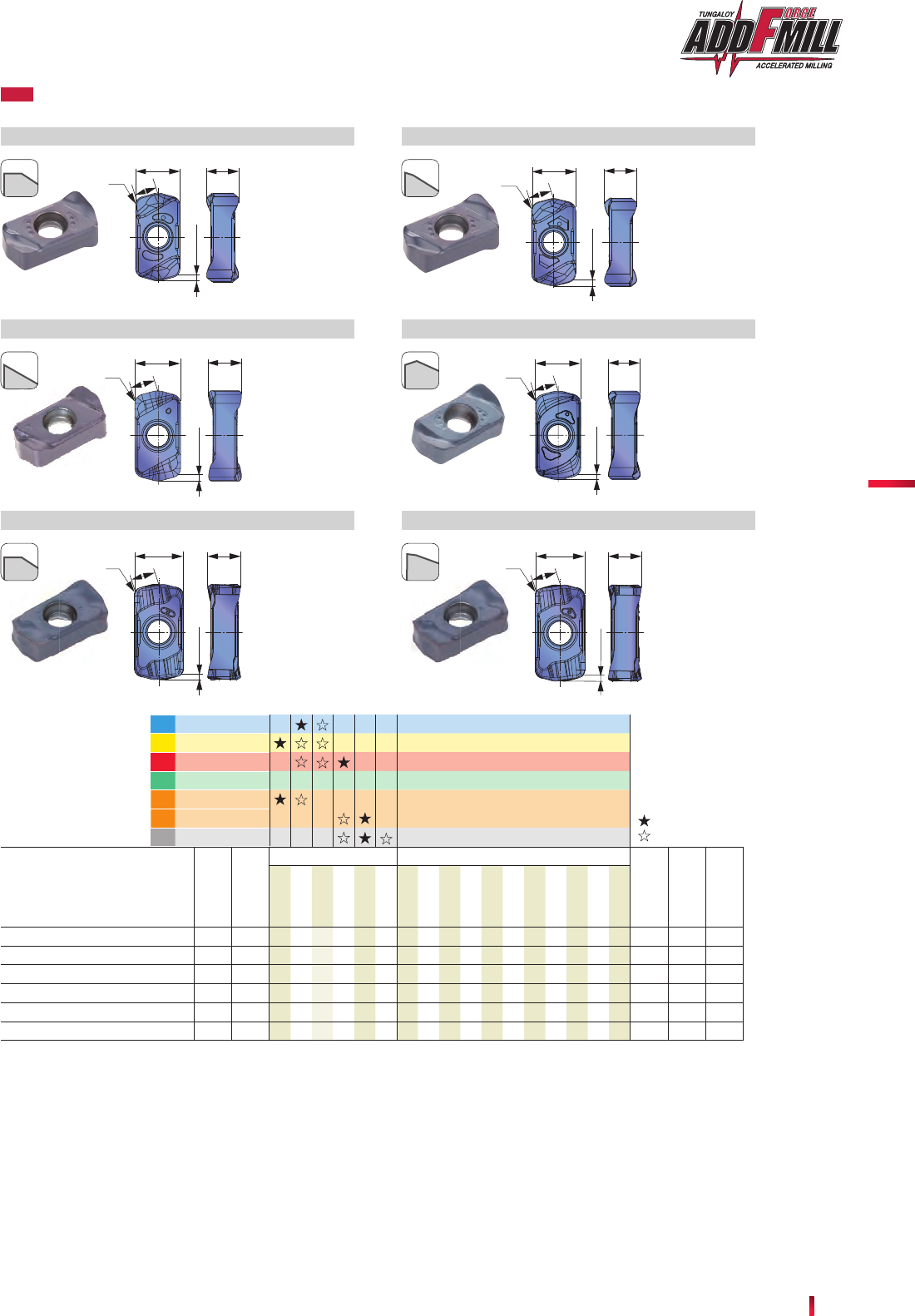

P
M
K
N
S
S
H
RE
APMX
LE W1 S
AH130
AH3225
AH3035
AH725
AH8015
AH8005
LNMU0303ZER-MJ 1.2 1 3.2 6 4.3
LNMU0303ZER-ML 1.2 1 3.2 6 4.3
LNMU0303ZER-MS 1.2 1 3.2 6 4.3
LNGU0303ZER-MH 1.2 1 3.2 6 4.3
LNMU0303UER-MJ 10.9
3.1 6 4.1
LNMU0303UER-ML 10.9
3.1 6 4.1
W1
LE
S
RE
APMX
W1
LE
S
RE
APMX
W1
LE
S
RE
APMX
S
W1
LE
RE
APMX
W1
LE
S
RE
APMX
S
W1
LE
RE
APMX
Milling
LNMU03ZER-MJ (for general purpose)
LNMU03ZER-MS (for stainless steel)
LNMU03UER-MJ
(for general purpose, low approach angle)
LNMU03ZER-ML (for low cutting force)
LNGU03ZER-MH (Robust cutting edges)
LNMU03UER-ML
(for low cutting force, low approach angle)
: First choice
: Second choice
Designation
Coated
Steel
Stainless
Cast iron
Non-ferrous
Titanium
Inconel
Hard materials
INSERT
: New product
: Line-up
92 NEW PRODUCTS
ISO
ø16, CICT = 2 ø18, CICT = 2 ø20
Vc
(m/min) ø16 ~ ø22ø25 ~ ø50 nVfnVfnVf
CICT = 3 CICT = 4
- 300HB AH3225 MJ 100 - 300 0.5 - 1.2 0.5 - 1.5 0.1 3,980 7,960 3,540 7,080 3,180 9,540 12,720
ML Vc = 200 m/min, fz = 1 mm/t
- 300HB AH3225 MJ 100 - 300 0.5 - 1.2 0.5 - 1.5 0.1 3,980 7,960 3,540 7,080 3,180 9,540 12,720
ML Vc = 200 m/min, fz = 1 mm/t
30 - 40HRC AH8015 MJ 100 - 200 0.5 - 1 0.5 - 1 0.1 2,980 4,770 2,650 4,240 2,390 5,740 7,650
AH3225 MJ Vc = 150 m/min, fz = 0.8 mm/t
- 200HB AH130 ML 80 - 150 0.3 - 1 0.3 - 1 0.1 2,390 2,870 2,120 2,550 1,910 3,440 4,590
MJ Vc = 120 m/min, fz = 0.6 mm/t
28HRC - AH130 ML 80 - 150 0.3 - 0.8 0.3 - 0.8 0.1 2,390 2,390 2,120 2,120 1,910 2,870 3,820
MJ Vc = 120 m/min, fz = 0.5 mm/t
40HRC - AH130 ML 80 - 120 0.3 - 0.5 0.3 - 0.5 0.1 1,990 1,600 1,770 1,420 1,590 1,910 2,550
MJ Vc = 100 m/min, fz = 0.4 mm/t
150 - 250HB AH8015 MJ 100 - 300 0.5 - 1.2 0.5 - 1.5 0.1 3,980 7,960 3,540 7,080 3,180 9,540 12,720
AH3225 MJ Vc = 200 m/min, fz = 1 mm/t
150 - 250HB AH8015 MJ 80 - 200 0.5 - 1.2 0.5 - 1.5 0.1 2,980 5,960 2,650 5,300 2,390 7,170 9,560
AH3225 MJ Vc = 150 m/min, fz = 1 mm/t
- 40HRC AH130 MJ 30 - 60 0.3 - 0.8 0.3 - 0.8 0.08 800 960 710 860 640 1,160 1,540
AH8015 MJ Vc = 40 m/min, fz = 0.6 mm/t
- 40HRC AH8015 ML 20 - 50 0.2 - 0.5 0.2 - 0.5 0.05 600 360 530 320 480 440 580
MJ Vc = 30 m/min, fz = 0.3 mm/t
40~50HRC AH8015 MJ 80 - 150 0.1 - 0.5 0.1 - 0.5 0.05 2,390 1,440 2,120 1,280 1,910 1,720 2,300
AH3225 MJ Vc = 120 m/min, fz = 0.3 mm/t
40~50HRC AH8015 MJ 50 - 100 0.1 - 0.5 0.1 - 0.5 0.05 1,590 960 1,410 850 1,270 1,150 1,530
AH3225 MJ Vc = 80 m/min, fz = 0.3 mm/t
50~60HRC AH8005 MJ 50 - 70 0.1 - 0.3 0.1 - 0.3 0.03 1,190 480 1,060 430 950 570 760
Vc = 60 m/min, fz = 0.2 mm/t
LE
RE
RPG RPG
t1
t2
t1
APMX
LE (mm)
APMX (mm) RE (mm) RPG t1 (mm) t2 (mm)
0.9 1 3.5 1 0.48 -
0.9 1 3.5 1.5 0.39 -
0.9 1 3.5 2 0.3 0.12
0.9 1 3.5 2.5 0.21 0.31
STANDARD CUTTING CONDITIONS UER TYPE
TOOL GEOMETRY ON PROGRAMMING
- When chips stay in the cutting zone during slotting or pocketing, use air blast to
remove chips from the work area
- Tool overhang length must be as short as possible to avoid chatter. When the tool
overhang length is long, decrease the number of revolutions and feed
Plunging
Chip-
breaker
Cutting
speed
Feed per tooth: fz (mm/t)
Tool dia.: DCX (mm)
Workpiece material Hardness Priority Grade
Carbon steels
S45C C45, S55C, C55, etc.
Alloy steels
SCM440, 42CrMo4, etc.
Prehardened steels
NAK80, PX5, etc.
Austenitic stainless steels
SUS304, X5CrNi18-9, etc.
Precipitation hardening
stainless steels
SUS630,
X5CrNiCuNb16-4 etc.
Gray cast irons
FC250, GG25, 250, etc.
Ductile cast irons
FCD400, etc.
Titanium alloy
Ti-6Al-4V, etc.
Heat-resistant alloy
Inconel, Hasteroy, etc.
Hot mold steel
KD61, X40CrMoV5-1, etc.
Hot mold steel of D.T.C materials
DAC**, DH**, DIEVER, etc.
Cold mold steels
SKD11, X153CrMoV12, etc.
First choice
Low resistance
First choice
Low resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for wear resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
for impact resistance
First choice
When programming for CAM, the tool should be considered as a radius cutter.
Usually, the corner radius should be set as R = 1.5 mm. If a larger radius is
used, overcutting will occur. The following table shows the amount left uncut (t1)
and overcut (t2).
Amount left
uncut
Max. depth
of cut
Amount left
overcut
Corner R when
programming
LNMU0303UER...
Max. depth
of cut
Corner radius
Corner R when
programming
Amount left
uncut
Amount left
overcut
Each value in table is calculated theoretically at the maximum condition.
*Recommended
93Tungaloy
DCX APMX RMPX A WøD1 øD2 ae
E/HXN03R016M... ø16 0.9 3.8 12.2
E/HXN03R018M... ø18 0.9 1.7° 0.27 3.8 26 34 14.2
E/HXN03R020M... ø20 0.9 1.4° 0.27 3.8 30 38 16.2
E/HXN03R022M... ø22 0.9 1.2° 0.27 3.8 34 42 18.2
E/HXN03R025M... ø25 0.9 1° 0.27 3.8 40 48 21.2
E/HXN03R028M... ø28 0.9 0.8° 0.27 3.8 46 54 24.2
E/HXN03R030M... ø30 0.9 0.7° 0.27 3.8 50 58 26.2
E/HXN03R032M... ø32 0.9 0.7° 0.27 3.8 54 62 28.2
EXN03R035M... ø35 0.9 0.6° 0.27 3.8 60 68 31.2
E/H/TXN03R040M… ø40 0.9 0.5° 0.27 3.8 70 78 36.2
TXN03R050M... ø50 0.9 0.4° 0.27 3.8 90 98 46.2
ø22 ø25 ø28 ø30 ø32 ø35 ø40 ø50
nVfnVfnVfnVfnVfnVfnVfnVf
CICT = 3 CICT = 4 CICT = 4 CICT = 5 CICT = 4 CICT = 5 CICT = 4 CICT = 5 CICT = 5 CICT = 6 CICT = 5 CICT = 6 CICT = 5 CICT = 6 CICT = 5 CICT = 8
2,890 8,670 11,560 2,550 10,200 12,750 2,270 9,080 11,350 2,120 8,480 10,600 1,990 9,950 11,940 1,820 9,100 10,920 1,590 7,950 9,540 1,270 6,350 10,160
Vc = 200 m/min, fz = 1 mm/t
2,890 8,670 11,560 2,550 10,200 12,750 2,270 9,080 11,350 2,120 8,480 10,600 1,990 9,950 11,940 1,820 9,100 10,920 1,590 7,950 9,540 1,270 6,350 10,160
Vc = 200 m/min, fz = 1 mm/t
2,170 5,210 6,950 1,910 6,120 7,640 1,710 5,480 6,840 1,590 5,090 6,360 1,490 5,960 7,160 1,360 5,440 6,530 1,190 4,760 5,720 950 3,800 6,080
Vc = 150 m/min, fz = 0.8 mm/t
1,740 3,140 4,180 1,530 3,680 4,590 1,360 3,270 4,080 1,270 3,050 3,810 1,190 3,570 4,290 1,090 3,270 3,930 950 2,850 3,420 760 2,280 3,650
Vc = 120 m/min, fz = 0.6 mm/t
1,740 2,610 3,480 1,530 3,060 3,830 1,360 2,720 3,400 1,270 2,540 3,180 1,190 2,980 3,570 1,090 2,730 3,270 950 2,380 2,850 760 1,900 3,040
Vc = 120 m/min, fz = 0.5 mm/t
1,450 1,740 2,320 1,270 2,040 2,540 1,140 1,830 2,280 1,060 1,700 2,120 990 1,980 2,380 910 1,820 2,190 800 1,600 1,920 640 1,280 2,050
Vc = 100 m/min, fz = 0.4 mm/t
2,890 8,670 11,560 2,550 10,200 12,750 2,270 9,080 11,350 2,120 8,480 10,600 1,990 9,950 11,940 1,820 9,100 10,920 1,590 7,950 9,540 1,270 6,350 10,160
Vc = 200 m/min, fz = 1 mm/t
2,170 6,510 8,680 1,910 7,640 9,550 1,710 6,840 8,550 1,590 6,360 7,950 1,490 7,450 8,940 1,360 6,800 8,160 1,190 5,950 7,140 950 4,750 7,600
Vc = 150 m/min, fz = 1 mm/t
580 1,050 1,400 510 1,230 1,530 450 1,080 1,350 420 1,010 1,260 400 1,200 1,440 360 1,080 1,300 320 960 1,160 250 750 1,200
Vc = 40 m/min, fz = 0.6 mm/t
430 390 520 380 460 570 340 410 510 320 390 480 300 450 540 270 410 490 240 360 440 190 290 460
Vc = 30 m/min, fz = 0.3 mm/t
1,740 1,570 2,090 1,530 1,840 2,300 1,360 1,640 2,040 1,270 1,530 1,910 1,190 1,790 2,150 1,090 1,640 1,970 950 1,430 1,710 760 1,140 1,830
Vc = 120 m/min, fz = 0.3 mm/t
1,160 1,050 1,400 1,020 1,230 1,530 910 1,100 1,370 850 1,020 1,280 800 1,200 1,440 730 1,100 1,320 640 960 1,160 510 770 1,230
Vc = 80 m/min, fz = 0.3 mm/t
870 530 700 760 610 760 680 550 680 640 520 640 600 600 720 550 550 660 480 480 580 380 380 610
Vc = 60 m/min, fz = 0.2 mm/t
øD1, øD2
APMX
A
Wae
RMPX
APMX
Milling
APPLICATION RANGE
- The above table shows the conditions for standard shank type cutters. When using
long shank type cutters, the number of teeth may be different. In this case, the cutting
conditions should be changed by referring to: “The usage of standard and long shanks”
shown in previous page
- Cutting conditions are generally limited by the rigidity and power of the machine and the
rigidity of the workpiece. When setting the conditions, start from half of the values of the
standard cutting conditions and then increase the value gradually while making sure the
machine is running normally
Tool dia.: DCX (mm), Number of revolutions: n (min-1), Feed speed: Vf (mm/min), Max. depth of cut: ap = 0.5 mm
Shoulder
milling Slotting
Traversing
Small depth
plunging
Ramping
Plunging Drilling
(Helical feed) Enlarged hole
For øDc above ø33 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut
Not possible Not possibleNot possible Not possible
Designation Tool dia. Max. depth
of cut
Max. ramping
angle
Max. plunging
depth
Max. cutting width in
plunging
Min.machinable
hole dia.
Max.machinable
hole dia.
Max. cutting width in
enlarged hole
94 NEW PRODUCTS
ADD more cutting edges per insert to your
machining operations
HIGH PERFORMANCE AND PROFITABILITY
IN HIGH-FEED MILLING OPERATIONS
High-feed milling

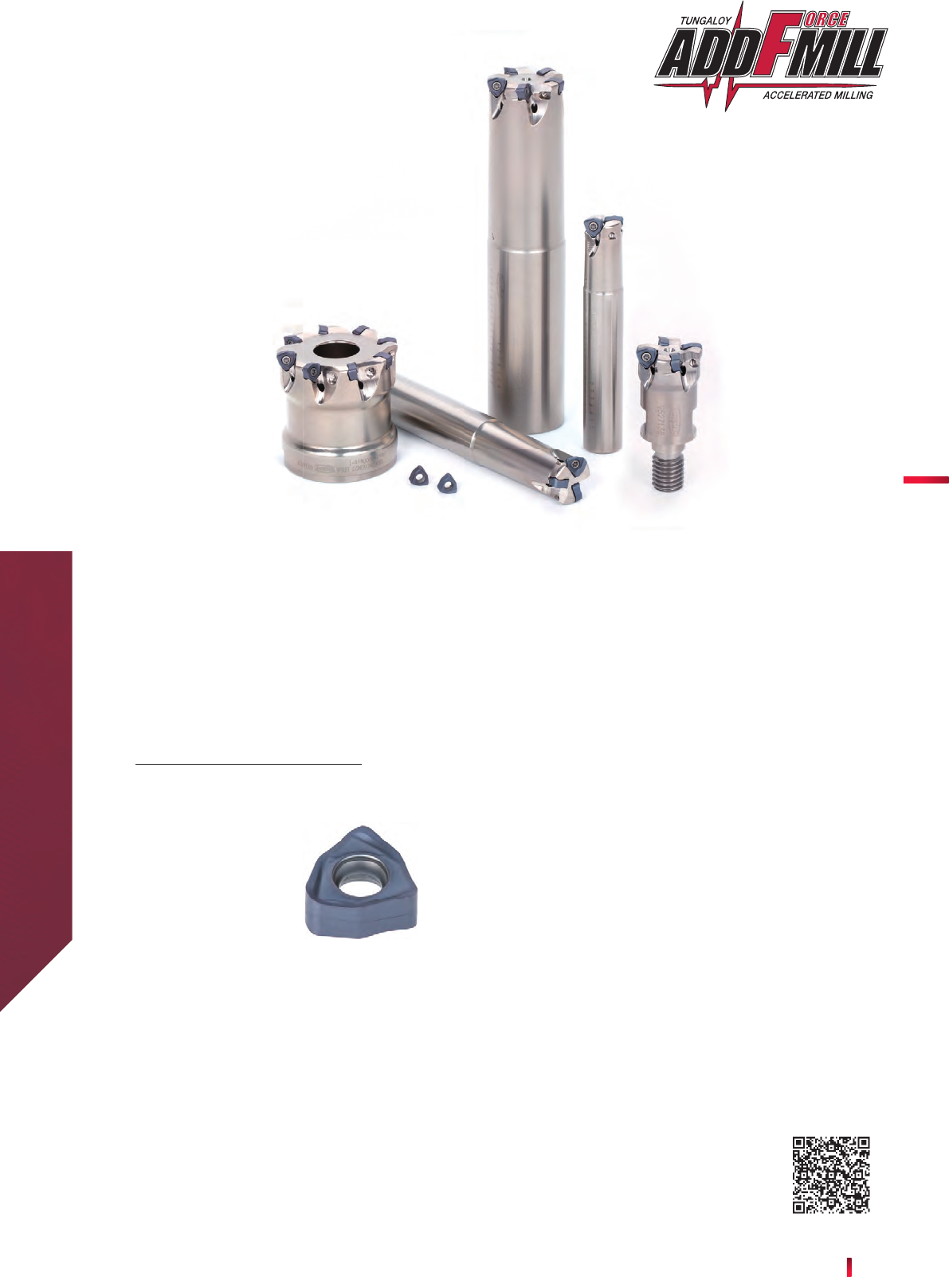

95Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- The cutter features a small approach
angle, providing smooth access into
the material, making it an ideal tool for
long overhang setups.
- Steep ramping capability makes the
cutter ideal for pocketing and cavity
milling applications.
- Large effective cutter diameter leaves
less uncut material.
Cutter bodies
Bore type:
- TXWX03...
DCX = ø40 - ø50 mm
Shank type:
- EXWX03... (Short type)
DCX = ø16 - ø32 mm
- EXWX03**L (Long type)
DCX = ø16 - ø32 mm
Modular type:
- HXWX03...
DCX = ø16 - ø32 mm
Insert
- WXMU03-MM
Double-sided
6-edged insert
APMX = 1 mm
Grades
- AH3225: Provides superior resistance to wear
and fracture, ideal for steel and stainless steel
- AH8015: Wear resistant grade, suited for
hardened steel and cast iron
Chipbreaker
- MM type: Versatile geometry for low cutting
forces
96 NEW PRODUCTS

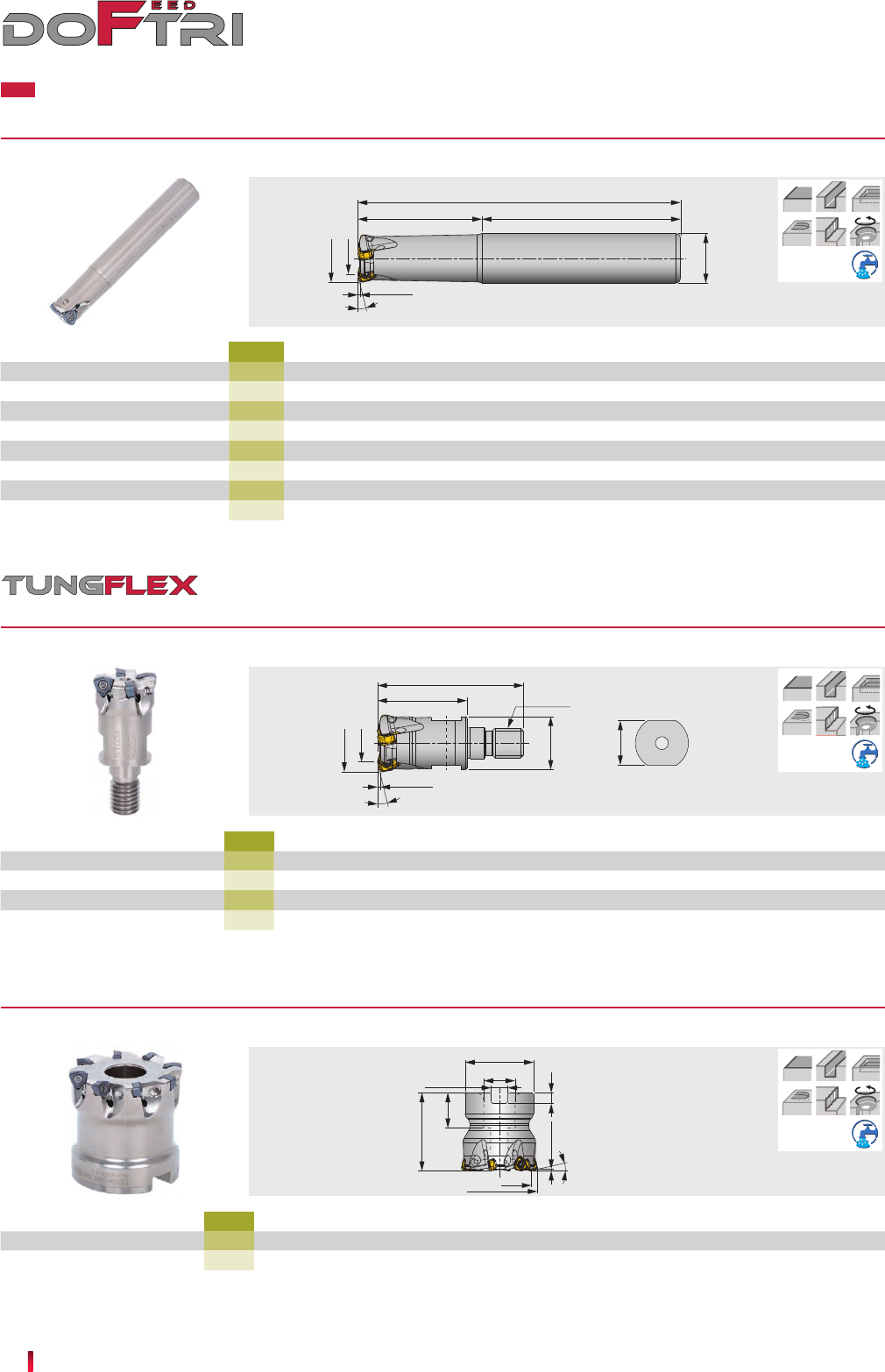

EXWX03
HXWX03-M
DCONMS
LH LS
LF
DCX
DC
KAPR
APMX
DCSFMS
H
LF
OAL
DCX
DC
APMX
KAPR
A
A
CRKS
GAMP = +23°, GAMF = -7.9° ~ -6.2°
GAMP = +23°, GAMF = -7.9° ~ -6.2°
APMX DCX CICT DC
DCONMS
LS LH LF KAPR WT(kg)
EXWX03M016C16.0R02 1 16 2 8.9 16 70 30 100 12° 0.14 WXMU03...
EXWX03M016C16.0R02L 1 16 2 8.9 16 100 50 150 12° 0.21 WXMU03...
EXWX03M020C20.0R03 1 20 3 12.8 20 80 50 130 12° 0.26 WXMU03...
EXWX03M020C20.0R03L 1 20 3 12.8 20 80 80 160 12° 0.31 WXMU03...
EXWX03M025C25.0R04 1 25 4 17.8 25 80 60 140 12° 0.46 WXMU03...
EXWX03M025C25.0R04L 1 25 4 17.8 25 80 100 180 12° 0.58 WXMU03...
EXWX03M032C32.0R05 1 32 5 24.7 32 80 70 150 12° 0.84 WXMU03...
EXWX03M032C32.0R05L 1 32 5 24.7 32 80 120 200 12° 1.11 WXMU03...
APMX DCX CICT DC OAL LF H
DCSFMS
KAPR CRKS WT(kg)
HXWX03M016M08R02 1 16 2 8.9 42 25 10 12.8 12° M8 0.03 WXMU03...
HXWX03M020M10R03 1 20 3 12.8 49 30 15 17.8 12° M10 0.06 WXMU03...
HXWX03M025M12R04 1 25 4 17.8 57 35 17 20.8 12° M12 0.1 WXMU03...
HXWX03M032M16R05 1 32 5 24.7 63 40 22 28.8 12° M16 0.21 WXMU03...
TXWX03
KAPR
APMX
LF
CBDP
b
DC
DCX
DCONMS
DCSFMS
KWW
APMX DCX CICT DC
DCSFMS
DCONMS
CBDP LF b KWW KAPR
WT(kg)
TXWX03M040B16.0R06 1 40 6 32.7 35 16 18 40 5.6 8.4 12° 0.22 WXMU03...
TXWX03M050B22.0R08 1 50 8 42.7 47 22 20 50 6.3 10.4 12° 0.46 WXMU03...
GAMP = +23°, GAMF = -6.2° ~ -6.1°
With
With
With
With
With
With
With
With
With
With
With
With
High feed endmill, shank type, with screw clamp system, for 6-corner double sided inserts
High feed endmill, modular type (TungFlex)
Designation
Designation
Air hole
Air hole
Insert
Insert
A-A cross section
With
With
High feed mill, with screw clamp system, for 6-corner double sided inserts
Designation Air hole Insert
CUTTER

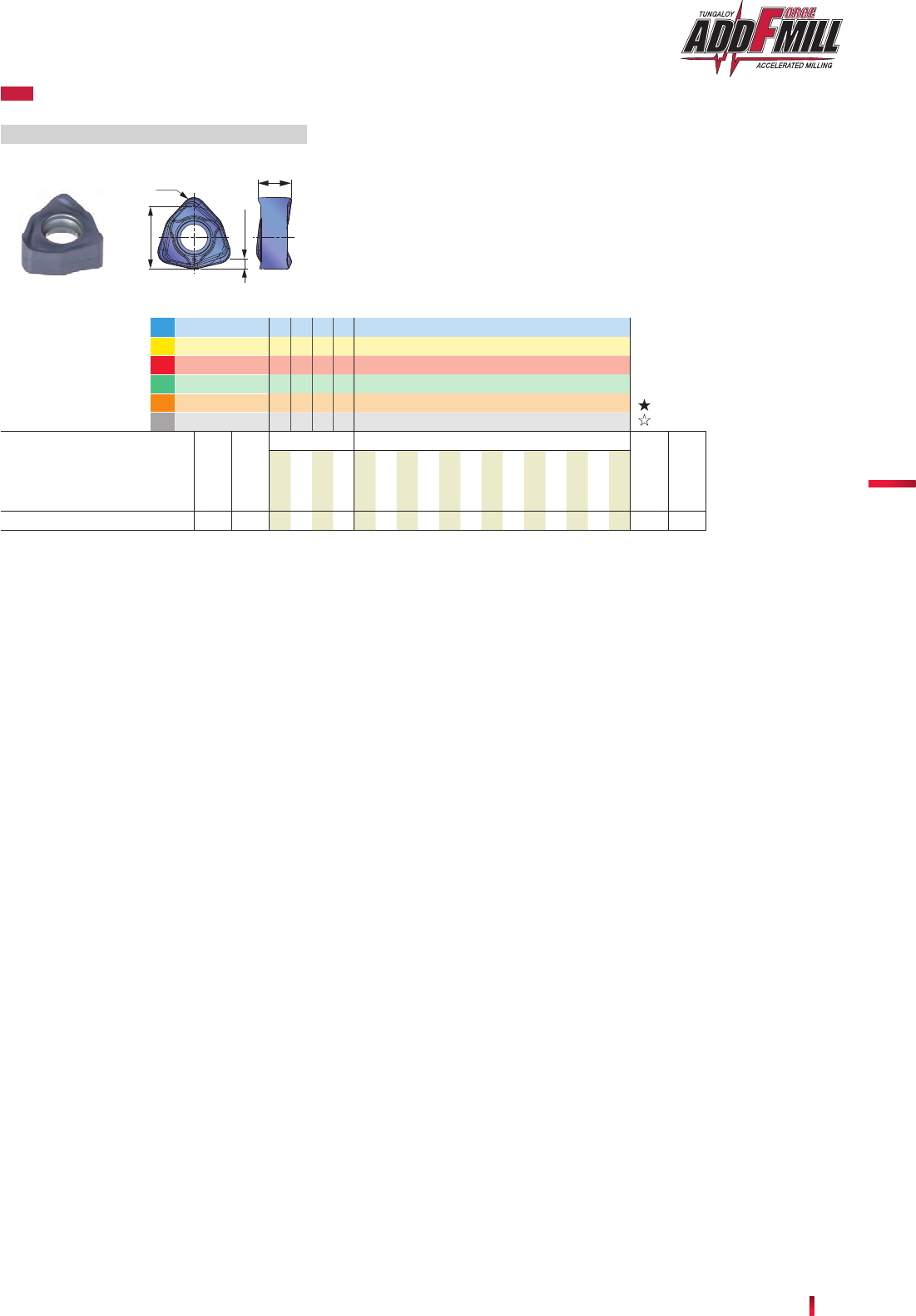

97Tungaloy
IC
APMX
S
RE
P
M
K
N
S
H
RE
APMX
IC S
AH3225
AH8015
WXMU0303ZER-MM 1.2 1 6.35 3.63
WXMU0303-MM
Milling
INSERT
: First choice
: Second choice
Designation
Coated
: New
Steel
Stainless
Cast iron
Non-ferrous
Superalloy
Hard materials
98 NEW PRODUCTS

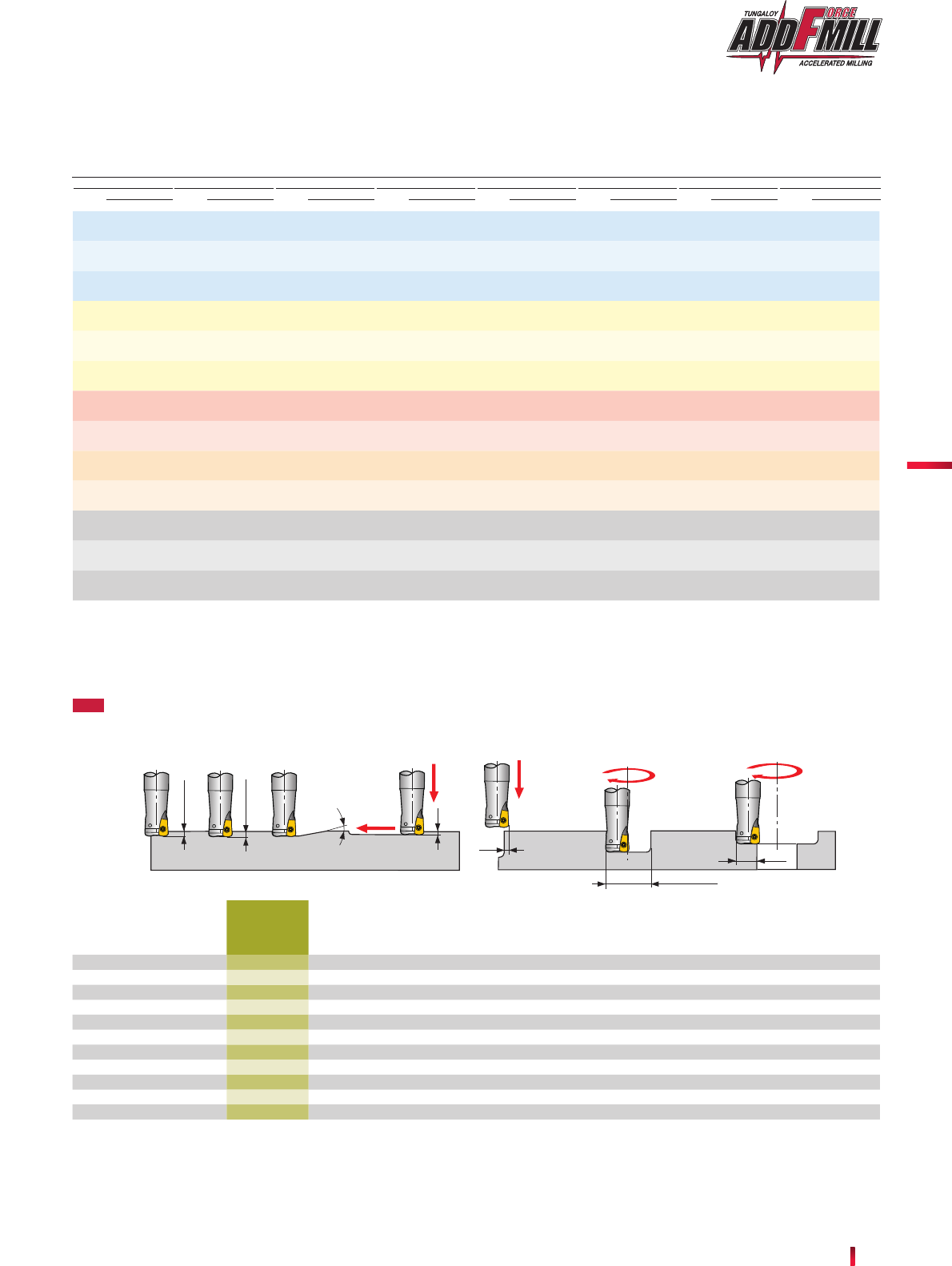

øD1, øD2
APMX
A
Wae
APMX
RMPX
DCX APMX RMPX A W øD1 øD2 ae
E/HXWX03M016... 16 1 3 0.3 4 25 30 12
E/HXWX03M020... 20 1 2 0.3 4 31 38 16
E/HXWX03M025... 25 1 1.4 0.3 4 41 48 21
E/HXWX03M032... 32 1 1 0.3 4 54 62 28
TXWX03M040... 40 1 0.7 0.3 4 71 78 36
TXWX03M050... 50 1 0.6 0.3 4 87 98 46
ISO
- 300HB
AH3225
MM 100 - 300 0.5 - 1.5
AH8015
- 300HB
AH3225
MM 100 - 250 0.5 - 1.5
AH8015
30 - 40HRC
AH3225
MM 100 - 200 0.5 - 1.2
AH8015
- 200HB AH3225 MM 80 - 150 0.5 - 1
- 200HB AH3225 MM 50 - 120 0.3 - 1
150 - 250HB
AH8015
MM 100 - 300 0.5 - 1.5
AH3225
150 - 250HB
AH8015
MM 80 - 200 0.5 - 1.5
AH3225
- 40HRC AH3225 MM 30 - 60 0.3 - 0.7
- 40HRC AH8015 MM 20 - 50 0.1 - 0.3
40 - 50HRC
AH8015
MM 80 - 150 0.1 - 0.5
AH3225
50 - 60HRC AH8015 MM 50 - 70 0.03 - 0.1
Low carbon steel
S15C, SS400, etc.
C15, C20, etc.
Carbon steel, Alloy steel
S55C, SCM440, etc.
C55, 42CrMoS4, etc.
Prehardened steel
NAK80, PX5, etc.
Austenitic Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc. 250, 300, etc.
Ductile cast iron
FCD400, etc. 400-15, 600-3, etc.
Titanium alloy
Ti-6AI-4V, etc.
Superalloys
Inconel718, etc.
Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Workpiece materials GradesHardness Priority
Hardened steel
SKD61, etc.
X40CrMoV5-1, etc.
SKD11, etc.
X153CrMoV12, etc.
STANDARD CUTTING CONDITIONS
APPLICATION RANGE
Shoulder
milling Slotting
Traversing
Small depth
plunging
Ramping Plunging Drilling
(Helical feed) Enlarged hole
Designation
Max. cutting
width in
enlarged hole
Max.
machinable
hole dia.
Max.
ramping
angle
Max.
plunging
depth
Max. depth
of cut
Min.
machinable
hole dia.
Max. cutting
width
in plunging
Martensitic Stainless steel
SUS410, SUS420J1, etc.
X12Cr13, X20Cr13, etc.
Chipbreaker
First choice
For wear resistance
First choice
For wear resistance
First choice
For wear resistance
First choice
First choice
First choice
For impact resistance
First choice
For impact resistance
First choice
First choice
First choice
For impact resistance
First choice

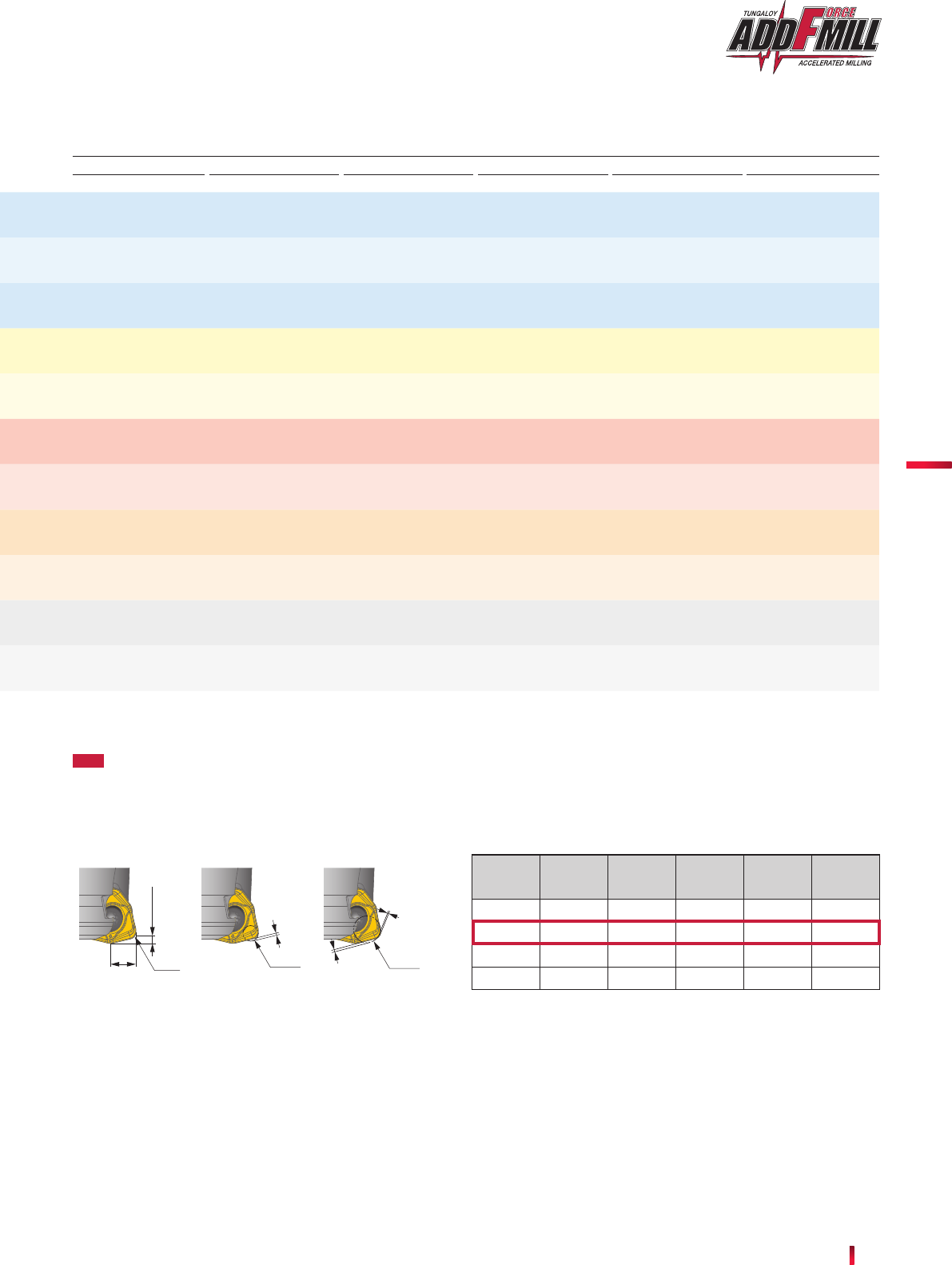

99Tungaloy
ø16, CICT = 2 ø20, CICT = 3 ø25, CICT = 4 ø32, CICT = 5 ø40, CICT = 6 ø50, CICT = 8
nVfnVfnVfnVfnVfnVf
3,981 7,962 3,185 9,554 2,548 10,191 1,990 9,952 1,592 9,554 1,274 10,191
Vc = 200 m/min, fz = 1 mm/t
3,981 7,962 3,185 9,554 2,548 10,191 1,990 9,952 1,592 9,554 1,274 10,191
Vc = 200 m/min, fz = 1 mm/t
2,986 5,971 2,389 7,166 1,911 7,643 1,493 7,464 1,194 7,166 955 7,643
Vc = 150 m/min, fz = 0.7 mm/t
2,389 4,777 1,911 5,732 1,529 6,115 1,194 5,971 955 5,732 764 6,115
Vc = 120 m/min, fz = 0.5 mm/t
1,990 3,981 1,592 4,777 1,274 5,096 995 4,976 796 4,777 637 5,096
Vc = 100 m/min, fz = 0.3 mm/t
3,981 7,962 3,185 9,554 2,548 10,191 1,990 9,952 1,592 9,554 1,274 10,191
Vc = 200 m/min, fz = 1 mm/t
2,986 5,971 2,389 7,166 1,911 7,643 1,493 7,464 1,194 7,166 955 7,643
Vc = 150 m/min, fz = 1 mm/t
796 1,592 637 1,911 510 2,038 398 1,990 318 1,911 255 2,038
Vc = 40 m/min, fz = 0.4 mm/t
597 1,194 478 1,433 382 1,529 299 1,493 239 1,433 191 1,529
Vc = 30 m/min, fz = 0.2 mm/t
2,389 4,777 1,911 5,732 1,529 6,115 1,194 5,971 955 5,732 764 6,115
Vc = 120 m/min, fz = 0.3 mm/t
1,194 2,389 955 2,866 764 3,057 597 2,986 478 2,866 382 3,057
Vc = 60 m/min, fz = 0.1 mm/t
APMX (mm)
RE (mm) LE (mm) RPG t1 (mm) t2 (mm)
1 1.2 3.5 1 0.56 -
1 1.2 3.5 1.5 0.46 -
1 1.2 3.5 2 0.35 0.16
1 1.2 3.5 2.5 0.2 0.5
t1
APMX
LE RE RPG RPG
t2
t1
Milling
TOOL GEOMETRY ON PROGRAMMING
Max. depth
of cut
Corner
radius
Amount left
uncut
Amount
overcut
Corner R when
programming
Amount
overcut
Max. depth
of cut
Corner R when
programming
Amount left
uncut
When programming for CAM, the tool should be considered as a radius cutter. Usually, the corner radius should be set as R = 1.5 mm.
If a larger radius is used, overcutting will occur. The following table shows the amount left uncut (t1) and overcut (t2).
Tool dia: DCX (mm), Number of revolution: n (min-1), Feed speed: Vf (mm/min), Max. depth of cut: APMX = 1 mm, Number of teeth: CICT
*Recommended
100 NEW PRODUCTS
ADD Productivity and surface quality with
optimized wiper insert design

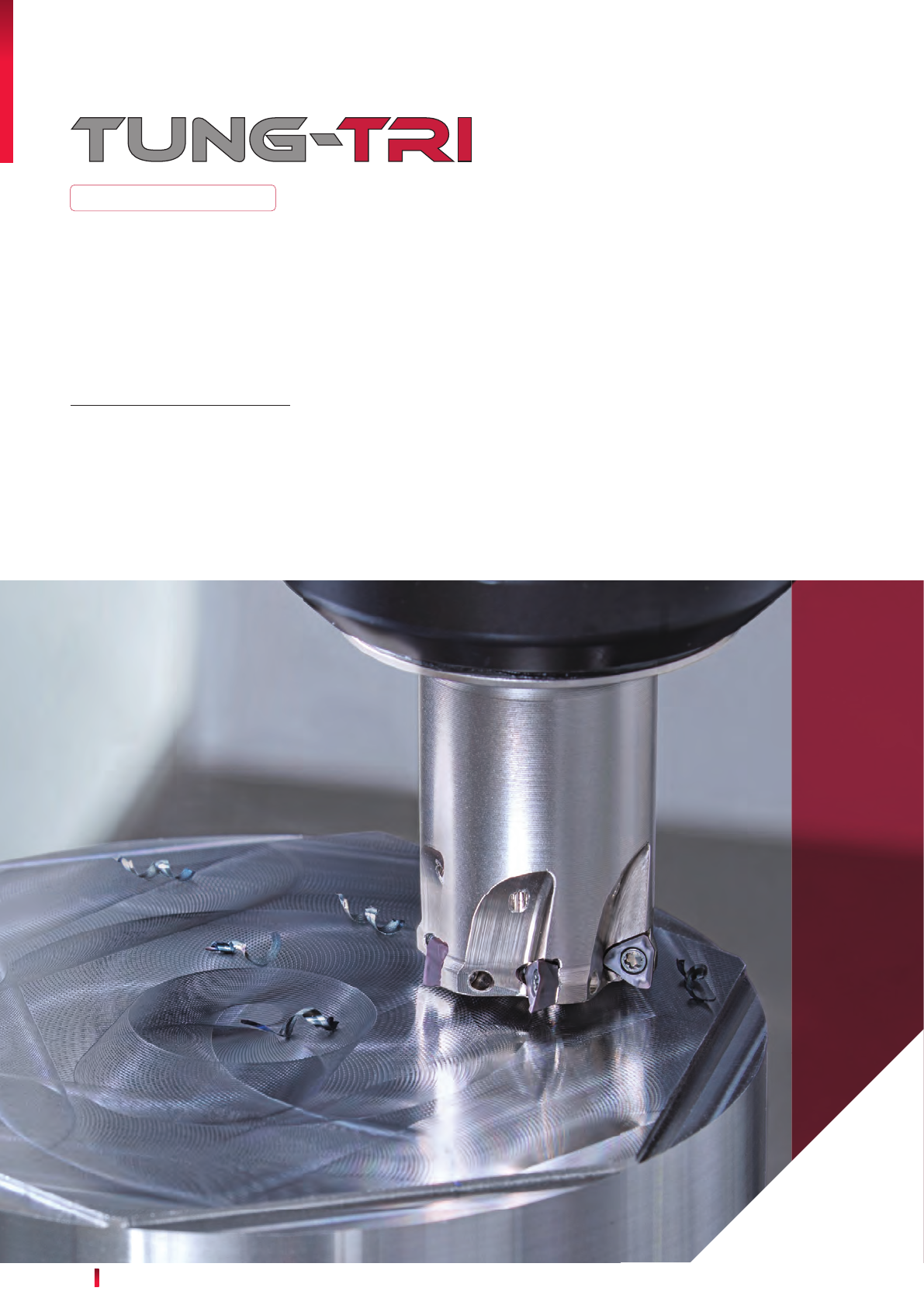

RIGIDITY AND RELIABILITY
FOR SMALL SHOULDER MILLING
OPERATIONS
Square-shoulder milling

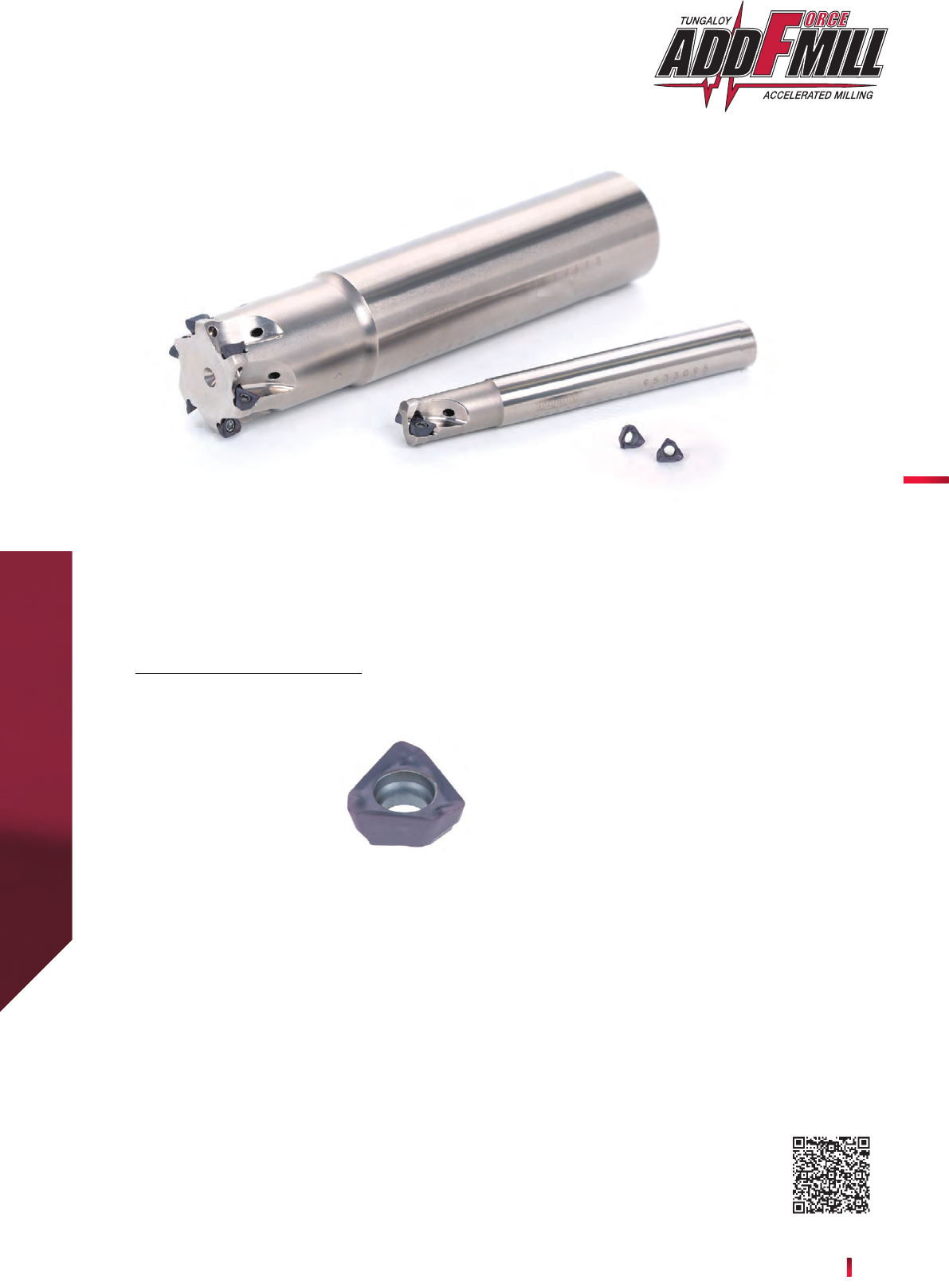

101Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- Small 90° shoulder milling cutter down
to ø8 mm for maximum performance.
- Close-pitch cutter for high efficiency
machining.
Insert
- TOMT04-MM
Single-sided
3 edged insert
APMX = 3.5 mm
RE = 0.4, 0.8 mm
Cutter bodies
- The thick core cutter diameter provides
increased rigidity.
Shank type:
- EPA04R... (Short type)
DC = ø8 - ø25 mm
- EPA04R**L (Long type)
DC = ø10 - ø25 mm
Grades
- AH3225: Provides superior resistance to wear and fracture, ideal for
steel and stainless steel
- AH8015: Wear resistant grade, suited for hardened steel and cast iron
- AH120: Provides a good balance of wear and chipping resistance,
ideal grade for cast iron machining
Chipbreaker
- MM type: Versatile geometry for low cutting forces
102 NEW PRODUCTS

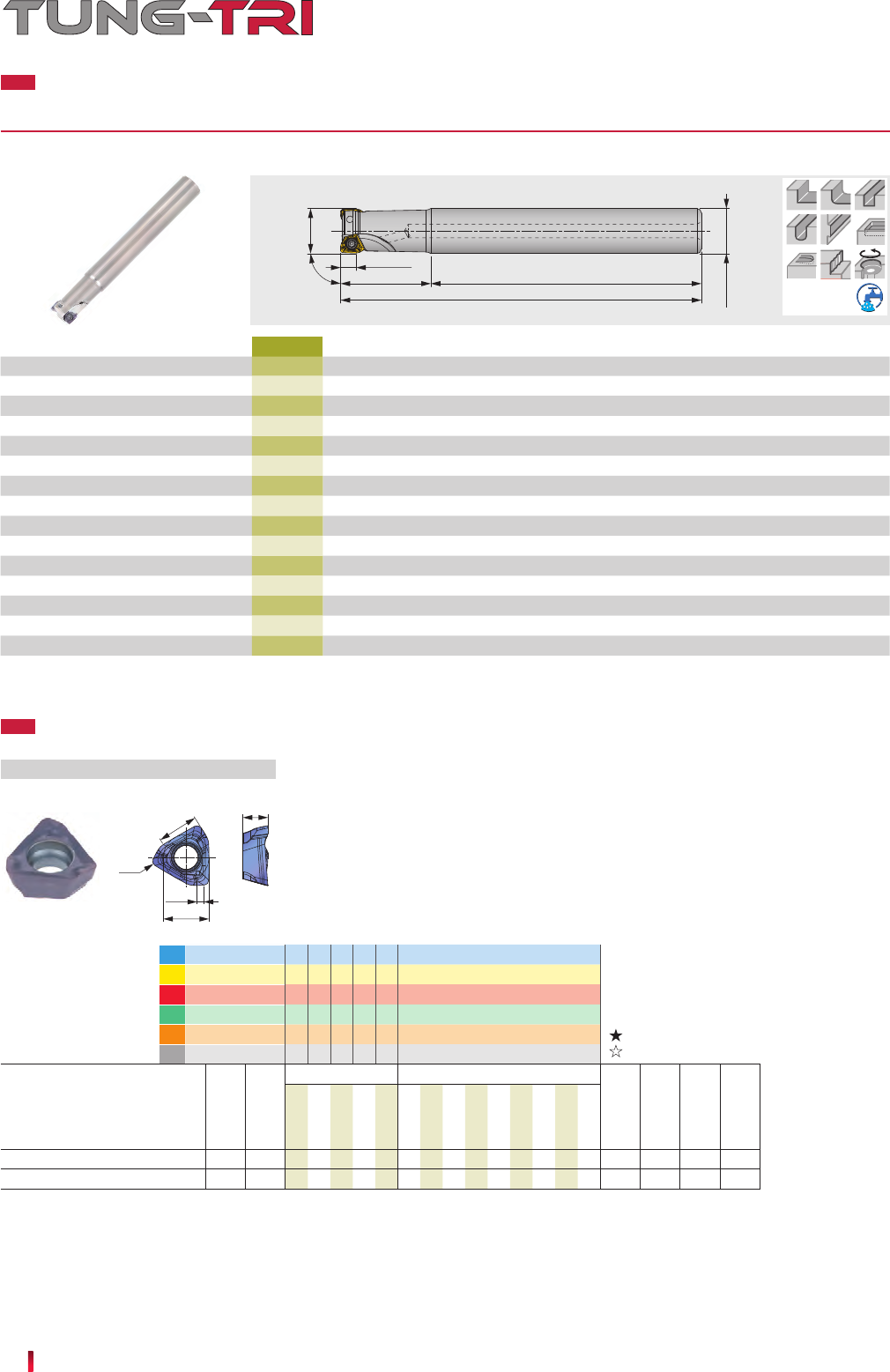

EPA04
LF
LSLH
DCONMS
DC
90°
(KAPR)
APMX
R
RR
GAMP = +12.1°~ +12.2°, GAMF = -14.2°~ -18.3°
APMX DC CICT DCONMS LS LH LF WT(kg)
EPA04R008M08.0-01 3.5 8 1 8 48 12 60 0.02 TOMT04...
EPA04R010M10.0-02 3.5 10 2 10 60 20 80 0.04 TOMT04...
EPA04R010M10.0-02L 3.5 10 2 10 65 35 100 0.05 TOMT04...
EPA04R012M12.0-02 3.5 12 2 12 60 20 80 0.06 TOMT04...
EPA04R012M12.0-03 3.5 12 3 12 60 20 80 0.06 TOMT04...
EPA04R012M12.0-02L 3.5 12 2 12 85 35 120 0.09 TOMT04...
EPA04R016M16.0-03 3.5 16 3 16 70 20 90 0.12 TOMT04...
EPA04R016M16.0-04 3.5 16 4 16 70 20 90 0.12 TOMT04...
EPA04R016M16.0-03L 3.5 16 3 16 105 35 140 0.19 TOMT04...
EPA04R020M20.0-04 3.5 20 4 20 70 30 100 0.21 TOMT04...
EPA04R020M20.0-05 3.5 20 5 20 70 30 100 0.21 TOMT04...
EPA04R020M20.0-04L 3.5 20 4 20 165 35 200 0.44 TOMT04...
EPA04R025M25.0-05 3.5 25 5 25 80 35 115 0.39 TOMT04...
EPA04R025M25.0-06 3.5 25 6 25 80 35 115 0.39 TOMT04...
EPA04R025M25.0-04L 3.5 25 4 25 160 40 200 0.7 TOMT04...
P
M
K
N
S
H
RE
APMX
LE IC S BS
AH3225
AH120
AH8015
TOMT040204PXER-MM 0.4 3.5 3.6 4 2.2 0.6
TOMT040208PXER-MM 0.8 3.5 3.6 4 2.2 0.2
LE
S
IC
BS
RE
TOMT-MM
Designation Air hole Insert
with
with
with
with
with
with
with
with
with
with
with
with
with
with
with
High precision square shoulder endmill, shank type, with screw clamp system, for triangular inserts
: First choice
: Second choice
Designation
Coated
: New
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
INSERTS
CUTTER
103Tungaloy
EPA04
ISO
- 200 HB AH3225 100 - 250 0.05 - 0.12
- 300 HB AH3225 100 - 230 0.05 - 0.12
30 - 40 HRC AH3225 100 - 180 0.05 - 0.1
- AH3225 90 - 200 0.05 - 0.1
150 - 250 HB AH120 100 - 300 0.05 - 0.12
150 - 250 HB AH120 100 - 200 0.05 - 0.12
- AH3225 20 - 60 0.04 - 0.07
- AH8015 20 - 40 0.04 - 0.07
40 - 50 HRC AH8015 50 - 150 0.04 - 0.07
50 - 60 HRC AH8015 40 - 70 0.04 - 0.07
Milling
Workpiece materials Hardness
STANDARD CUTTING CONDITIONS
Grades Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Low carbon steel
SS400, S15C , etc.
E275A, C15E4, etc.
Prehardend steel
NAK80, PX5, etc.
Carbon steel and alloy steel
S55C, SCM440, etc.
C55, 42CrMo4, etc.
SKD11, etc.
X153CrMoV12, etc.
Stainless steel
SUS304, etc.
X5CrNi18-9, etc.
Grey cast iron
FC250, etc.
250, etc., GG25, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG45, etc.
Titanium alloys
Ti-6AI-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Hardened steel
SKD61, etc.
X40CrMoV5-1, etc.
· Remove excessive chip accumulation with an air blast.
· For the operation with depth of cut which varies (ex.casting skin) and
machining of workpiece materials with interrupted surface, the feed per tooth (fz)
should be set to the lower recommended value shown in the above table.
· Cutting conditions may be limited depending on machine power, workpiece
rigidity, and spindle output. When the cutting width, depth, or overhang
length is large, set Vc and fz to the lower recommended values and check
the machine power and vibration.
104 NEW PRODUCTS
ADD a broadened range of unique V-bottom shape inserts for higher
productivity
NEW SIZE-04 AND -12 INSERTS FOR
ENHANCED SHOULDER MILLING
CAPABILITY
Square-shoulder milling

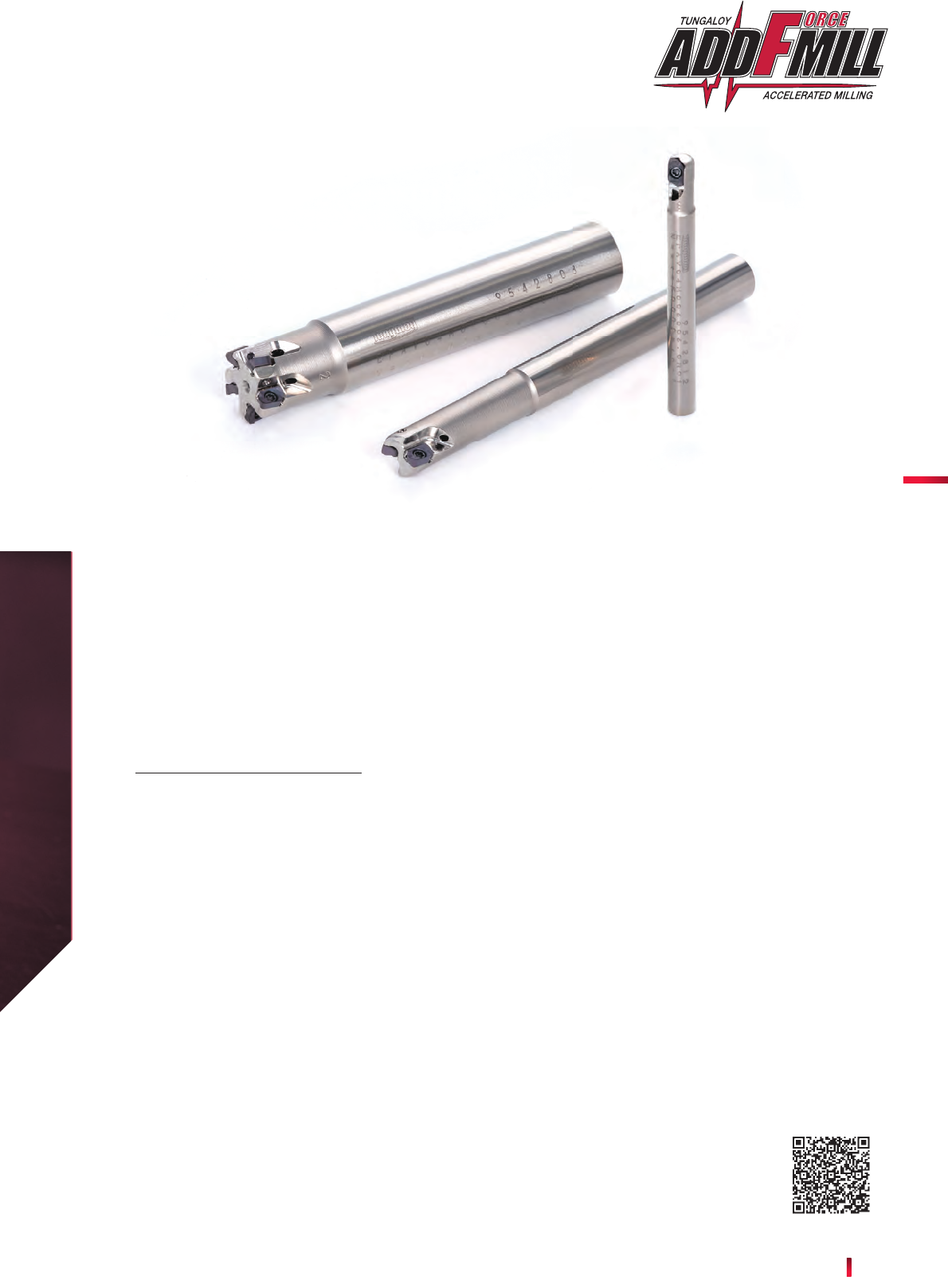

105Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- The use of unique V-bottom shape inserts
enables the cutter body to have a thicker
core size and insert backing for higher tool
rigidity.
- Close pitch cutter design for high efficiency
milling.
- Light cutting action with high edge-line
security thanks to large rake angle and
strong cutting edge design.
- Size-04 inserts can be used for minimum
cutter diameters from 6 mm.
- Large chip pockets for excellent chip
evacuation.
- Size-12 inserts offer a variety of nose radii
ranging from 0.4 to 3 mm and geometries
including AM geometry for aluminum,
covering a broader application range.
Cutter bodies
Shank type:
- EPAV04... (Short type)
DC = ø6 - ø16 mm
- EPAV04**L (Long type)
DC = ø8 - ø16 mm
- EPAV12... (Short type)
DC = ø12 - ø32 mm
- EPAV12**L (Long type)
DC = ø16 - ø32 mm
Bore type:
- TPAV12...
DC = ø50 - ø63 mm
Modular type:
- HPAV12...
DC = ø16 - ø40 mm
Inserts
- AVMT04-MM : APMX = 4 mm, RE = 0.4, 0.8 mm
- AVMT12-MM : APMX = 11.5 mm, RE = 0.4 - 1.6 mm
APMX = 10.5 mm, RE = 2, 3 mm
- AVGT12-AM : APMX = 11.5 mm, RE = 0.4, 0.8 mm
Chipbreakers
- MM type: Versatile geometry for low cutting forces
- AM type: For non-ferrous applications
Grades
- AH3225: Superior resistance to wear and fracture,
ideal for steel and stainless steel
- AH120: Excellent edge chipping resistance, suited
for cast iron
- T1215: Wear-resistant grade suitable for cast iron
- T3225: Wear-resistant grade suitable for steel and
stainless steel
- KS05F: Provides excellent edge-line security and
wear resistance, perfect for non-ferrous applications
106 NEW PRODUCTS

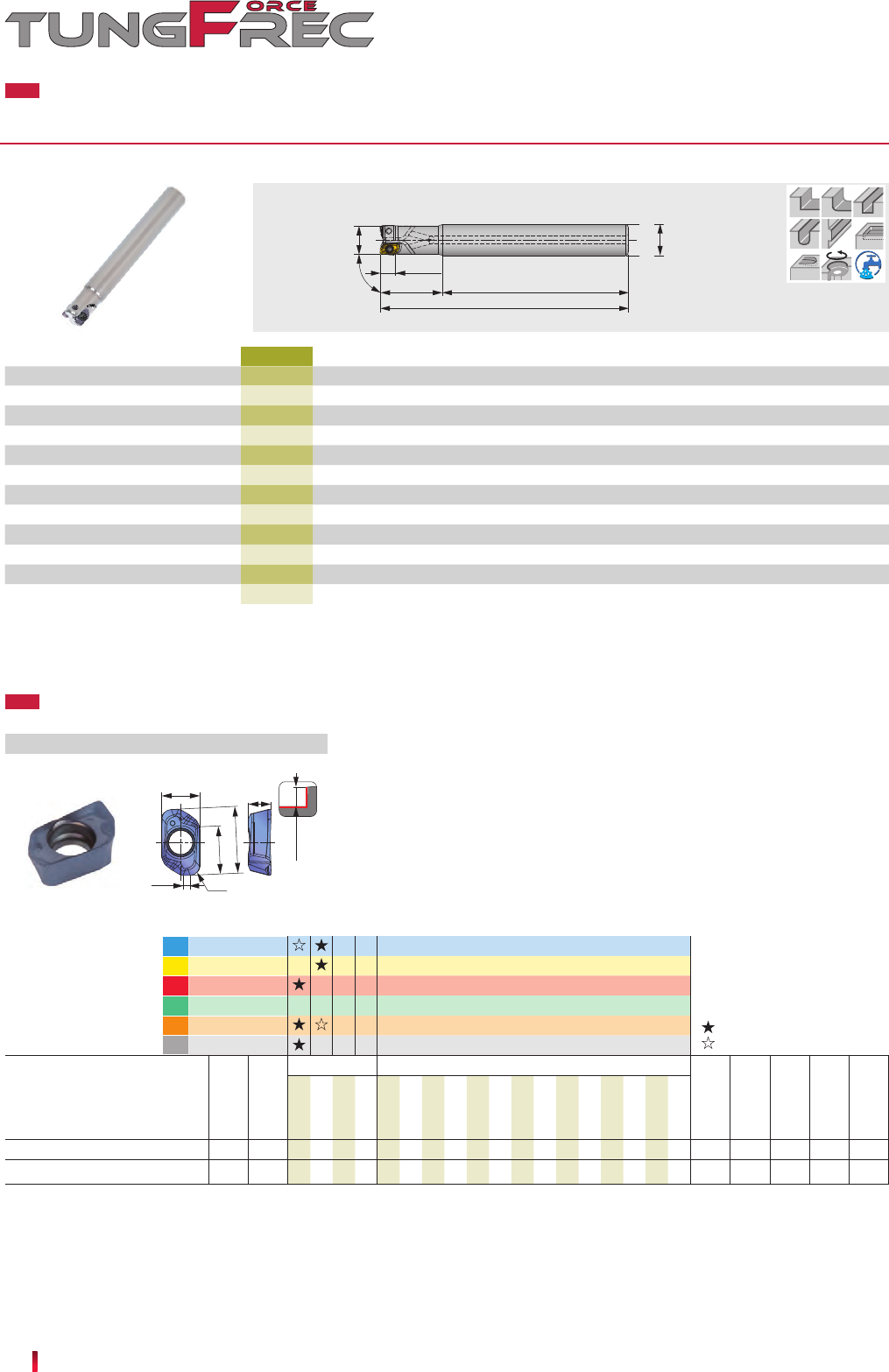

EPAV04
DC
LF
APMX
LH LS
DCONMS
(KAPR)
90°
R
RR
APMX DC CICT DCONMS LS LH LF WT(kg)
EPAV04M006C06.0R01 4 6 1 6 48 12 60 0.01 AVMT04...
EPAV04M008C08.0R02 4 8 2 8 48 12 60 0.02 AVMT04...
EPAV04M008C08.0R02L 4 8 2 8 60 20 80 0.03 AVMT04...
EPAV04M010C10.0R02 4 10 2 10 60 20 80 0.04 AVMT04...
EPAV04M010C10.0R03 4 10 3 10 60 20 80 0.04 AVMT04...
EPAV04M010C10.0R02L 4 10 2 10 65 35 100 0.05 AVMT04...
EPAV04M012C12.0R03 4 12 3 12 60 20 80 0.06 AVMT04...
EPAV04M012C12.0R04 4 12 4 12 60 20 80 0.06 AVMT04...
EPAV04M012C12.0R03L 4 12 3 12 85 35 120 0.09 AVMT04...
EPAV04M016C16.0R04 4 16 4 16 70 20 90 0.12 AVMT04...
EPAV04M016C16.0R05 4 16 5 16 70 20 90 0.12 AVMT04...
EPAV04M016C16.0R04L 4 16 4 16 105 35 140 0.19 AVMT04...
GAMP = +6.0°~ +7.6°, GAMF = -37.1°~ -32.4°
P
M
K
N
S
H
APMX
S
BS RE
W1
LE
INSL
RE
APMX
W1 INSL S BS LE
AH120
AH3225
AVMT040204PPER-MM 0.4 4 3.5 6.05 2.1 1 4.4
AVMT040208PPER-MM 0.8 4 3.5 6.05 2.1 0.6 4.4
AVMT04-MM
High-end square shoulder endmill, with screw clamp system
Insert
Designation Air hole
With
With
With
With
With
With
With
With
With
With
With
With
Designation
Coated
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
INSERT
: First choice
: Second choice
: New
CUTTER
107Tungaloy
ISO
- 200 HB AH3225 100 - 300 0.05 - 0.12
- 300 HB AH3225 100 - 250 0.05 - 0.12
30 - 40 HRC AH3225 100 - 200 0.05 - 0.1
- AH3225 80 - 180 0.05 - 0.1
150 - 250 HB AH120 100 - 300 0.05 - 0.12
150 - 250 HB AH120 100 - 250 0.05 - 0.12
- AH3225 20 - 60 0.04 - 0.07
- AH120 20 - 40 0.04 - 0.07
40 - 50 HRC AH120 50 - 150 0.04 - 0.07
50 - 60 HRC AH120 40 - 70 0.04 - 0.07
Milling
STANDARD CUTTING CONDITIONS
Low carbon steel
S15C, C15E, C15E4, etc.
SS400, E275A, etc.
Carbon steel and alloy steel
S55C, C55, etc.
SCM440, 42CrMo4, etc.
Prehardend steel
NAK80, PX5, etc.
Stainless steel
SUS304, X5CrNi18-9, etc.
Grey cast iron
FC250, GG25, 250, etc.
Ductile cast iron
FCD400, etc.
FCD600, GGG60, 600-3, etc.
Titanium alloys
Ti-6AI-4V, etc.
Superalloys
Inconel718, etc.
Hardened steel
SKD61,
X40CrMoV5-1, etc.
SKD11,
X153CrMoV12, etc.
Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Workpiece materials GradesHardness Priority
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
108 NEW PRODUCTS

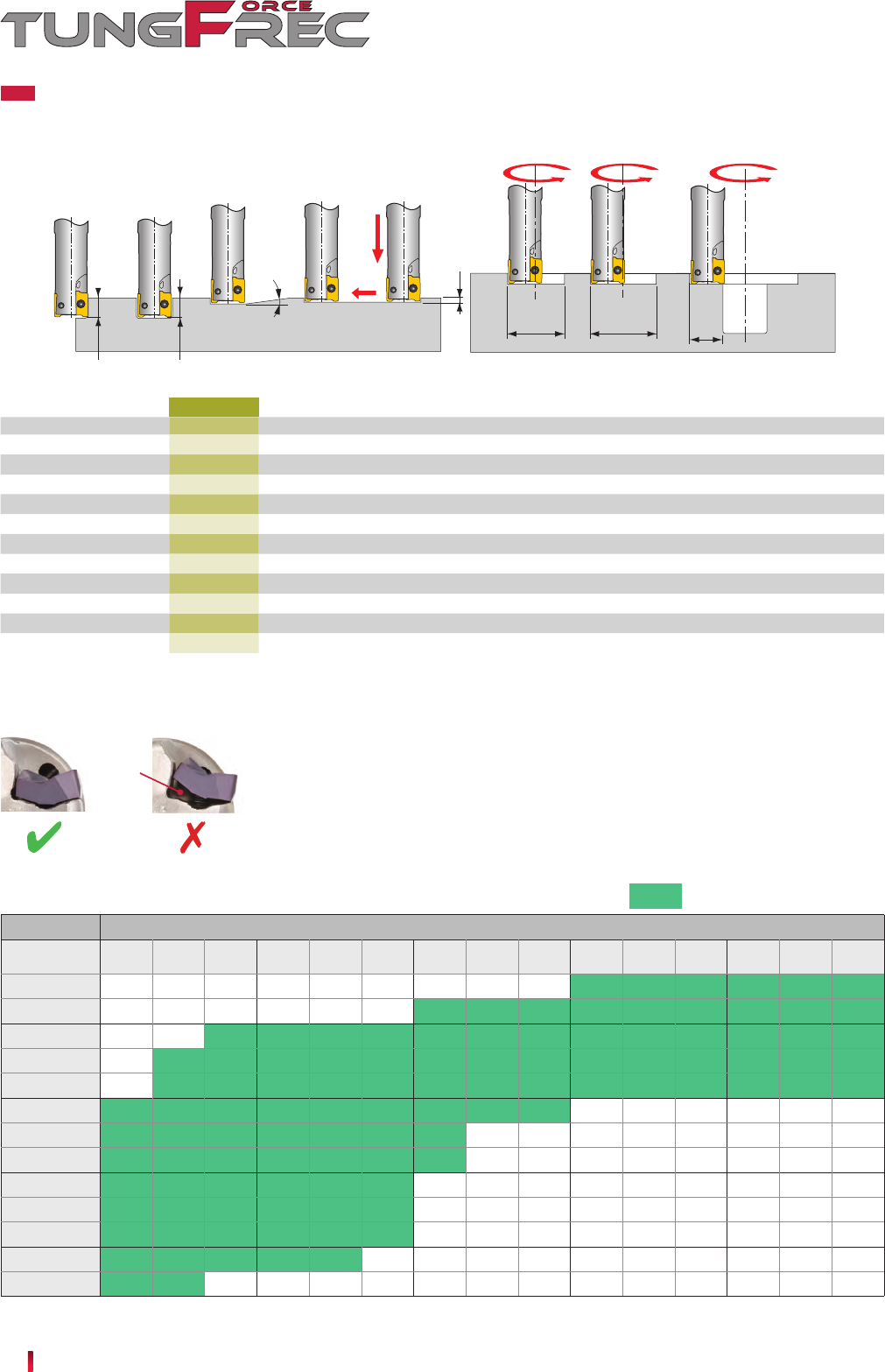

A
A
PMX
A
PMX
ae
øD1, 2
RMPX
øD3
1% 2% 2.5% 3% 4% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% -
0.03 0.006 0.008 0.009 0.01 0.012 0.013 0.018 0.021 0.024 0.026 0.027 0.029 0.029 0.03 0.03
0.05 0.01 0.014 0.016 0.017 0.02 0.022 0.03 0.036 0.04 0.043 0.046 0.048 0.049 0.05 0.05
0.08 0.016 0.022 0.025 0.027 0.031 0.035 0.048 0.057 0.064 0.069 0.073 0.076 0.078 0.08 0.08
0.1 0.02 0.028 0.031 0.034 0.039 0.044 0.06 0.071 0.08 0.087 0.092 0.095 0.098 0.099 0.1
0.12 0.024 0.034 0.037 0.041 0.047 0.052 0.072 0.086 0.096 0.104 0.11 0.114 0.118 0.119 0.12
0.15 0.03 0.042 0.047 0.051 0.059 0.065 0.09 0.107 0.12 0.13 0.137 0.143 0.147 0.149 0.15
0.18 0.036 0.05 0.056 0.061 0.071 0.078 0.108 0.129 0.144 0.156 0.165 0.172 0.176 0.179 0.18
0.2 0.04 0.056 0.062 0.068 0.078 0.087 0.12 0.143 0.16 0.173 0.183 0.191 0.196 0.199 0.2
0.22 0.044 0.062 0.069 0.075 0.086 0.096 0.132 0.157 0.176 0.191 0.202 0.21 0.216 0.219 0.22
0.25 0.05 0.07 0.078 0.085 0.098 0.109 0.15 0.179 0.2 0.217 0.229 0.238 0.245 0.249 0.25
0.28 0.056 0.078 0.087 0.096 0.11 0.122 0.168 0.2 0.224 0.242 0.257 0.267 0.274 0.279 0.28
0.3 0.06 0.084 0.094 0.102 0.118 0.131 0.18 0.214 0.24 0.26 0.275 0.286 0.294 0.298 0.3
0.4 0.08 0.112 0.125 0.136 0.157 0.174 0.24 0.286 0.32 0.346 0.367 0.382 0.392 0.398 0.4
DC APMX RMPX A øD1 øD2 øD3* ae
EPAV04M006C06.0R01 6 4 0.4 0.03 9.3 11.6 9.9 5.5
EPAV04M008C08.0R02 8 4 0.5 0.04 12.7 15.6 13.6 7.5
EPAV04M008C08.0R02L 8 4 0.5 0.04 12.7 15.6 13.6 7.5
EPAV04M010C10.0R02 10 4 4.1 0.4 15.3 19.6 17.5 9.5
EPAV04M010C10.0R03 10 4 1.7 0.2 16.1 19.6 17.5 9.5
EPAV04M010C10.0R02L 10 4 4.1 0.4 16.1 19.6 17.5 9.5
EPAV04M012C12.0R03 12 4 2.7 0.4 19.3 23.6 21.5 11.5
EPAV04M012C12.0R04 12 4 1.3 0.2 20.1 23.6 21.5 11.5
EPAV04M012C12.0R03L 12 4 2.7 0.4 19.3 23.6 21.5 11.5
EPAV04M016C16.0R04 16 4 2 0.4 27.2 31.6 29.5 15.5
EPAV04M016C16.0R05 16 4 2 0.4 27.2 31.6 29.5 15.5
EPAV04M016C16.0R04L 16 4 2 0.4 27.2 31.6 29.5 15.5
*Flat bottom hole
Gap
When clamping the insert, please confirm that there is no gap between the cutter body and the
insert as shown in the picture.
Max. cutting
width in
enlarging
Max. machining
Max.
ramping
angle
Max.
plunging
Max. depth of
cut
Designation
Min.
machining
MACHINING APPLICATIONS
Shoulder
milling Slotting
Plunging and
traversing
Ramping
Feed
Helical
interpolation Hole enlarging
Feed per tooth
fz (mm/t)
Cutting width (%): ae (mm) / Tool dia.: DC (mm)
Estimation of chip thickness - calculated from feed per tooth (fz) and
width of cut (ae) Recommended chip thickness

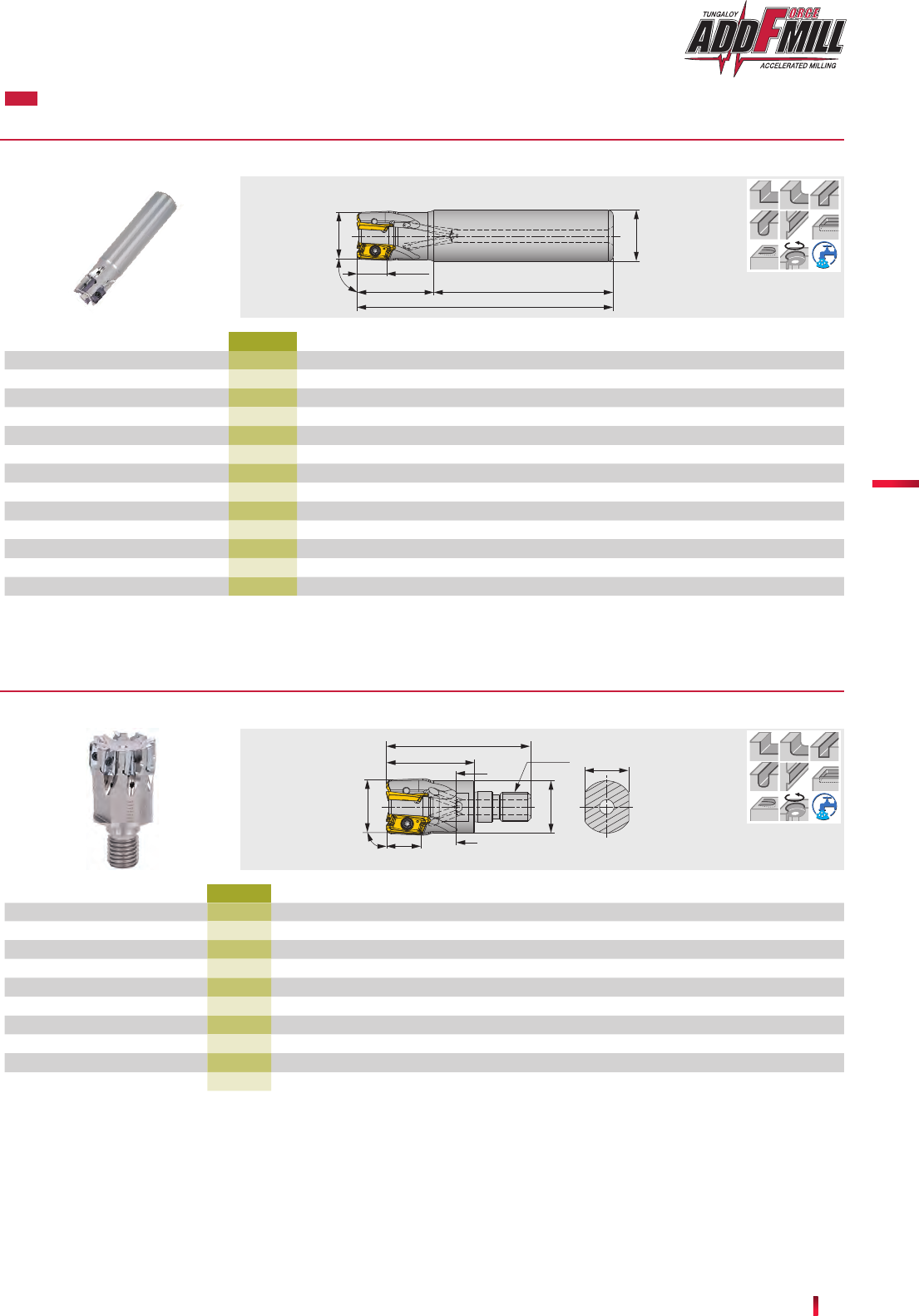

109Tungaloy
EPAV12
DCONMS
DC
APMX
LH
LF
LS
(KAPR)
90°
R
RR
APMX DC CICT DCONMS LS LH LF WT(kg)
EPAV12M012C12.0R01 11.5 12 1 12 60 25 85 0.06 AVM/GT12...
EPAV12M016C16.0R02 11.5 16 2 16 60 25 85 0.12 AVM/GT12...
EPAV12M016C16.0R03 11.5 16 3 16 60 25 85 0.12 AVM/GT12...
EPAV12M016C16.0R02L 11.5 16 2 16 105 40 145 0.20 AVM/GT12...
EPAV12M020C20.0R03 11.5 20 3 20 70 30 100 0.22 AVM/GT12...
EPAV12M020C20.0R04 11.5 20 4 20 70 30 100 0.21 AVM/GT12...
EPAV12M020C20.0R02L 11.5 20 2 20 135 50 185 0.41 AVM/GT12...
EPAV12M025C25.0R04 11.5 25 4 25 80 35 115 0.38 AVM/GT12...
EPAV12M025C25.0R06 11.5 25 6 25 80 35 115 0.39 AVM/GT12...
EPAV12M025C25.0R03L 11.5 25 3 25 150 70 220 0.74 AVM/GT12...
EPAV12M032C32.0R06 11.5 32 6 32 80 40 120 0.68 AVM/GT12...
EPAV12M032C32.0R08 11.5 32 8 32 80 40 120 0.68 AVM/GT12...
EPAV12M032C32.0R03L 11.5 32 3 32 175 80 255 1.47 AVM/GT12...
GAMP = +6.0°~ +7.6°, GAMF = -37.1°~ -32.4°
HPAV12-M
90°
APMX
(KAPR)
DCSFMS
CRKS H
A
A
LF
OAL
DC
R
RR
GAMP = +6.0°~ +7.6°, GAMF = -37.1°~ -32.4°
APMX DC CICT OAL LF H DCSFMS CRKS WT(kg)
HPAV12M016M08R02 11.5 16 2 42 25 10 14.5 M8 0.03 AVM/GT12...
HPAV12M016M08R03 11.5 16 3 42 25 10 14.5 M8 0.03 AVM/GT12...
HPAV12M020M10R03 11.5 20 3 49 30 15 17.8 M10 0.06 AVM/GT12...
HPAV12M020M10R04 11.5 20 4 49 30 15 17.8 M10 0.05 AVM/GT12...
HPAV12M025M12R04 11.5 25 4 57 35 17 23 M12 0.1 AVM/GT12...
HPAV12M025M12R06 11.5 25 6 57 35 17 23 M12 0.1 AVM/GT12...
HPAV12M032M16R06 11.5 32 6 63 40 22 28.8 M16 0.21 AVM/GT12...
HPAV12M032M16R08 11.5 32 8 63 40 22 28.8 M16 0.21 AVM/GT12...
HPAV12M040M16R06 11.5 40 6 63 40 22 28.8 M16 0.25 AVM/GT12...
HPAV12M040M16R08 11.5 40 8 63 40 22 28.8 M16 0.24 AVM/GT12...
Milling
High-end square shoulder endmill, with screw clamp system
Insert
Designation Air hole
With
With
With
With
With
With
With
With
With
With
With
With
With
CUTTER
High-end square shoulder mill, modular type (TungFlex)
Insert
Designation
A-A cross section
Air hole
With
With
With
With
With
With
With
With
With
With
110 NEW PRODUCTS
P
M
K
N
S
H
TPAV12
DC
KWW
DCONMS
DCSFMS
APMX
LF CBDP
b
R
RR
APMX DC CICT
DCSFMS DCONMS
CBDP LF KWW b WT(kg)
TPAV12M050B22.0R08 11.5 50 8 47 22 20 40 10.4 6.3 0.37 AVM/GT12...
TPAV12M050B22.0R12 11.5 50 12 47 22 20 40 10.4 6.3 0.37 AVM/GT12...
TPAV12M063B22.0R08 11.5 63 8 47 22 20 40 10.4 6.3 0.52 AVM/GT12...
TPAV12M063B22.0R14 11.5 63 14 47 22 20 40 10.4 6.3 0.54 AVM/GT12...
GAMP = +6.0°~ +7.6°, GAMF = -37.1°~ -32.4°
RE
APMX
W1 INSL S BS LE
AH120
AH3225
T1215
T3225
KS05F
AVMT120404PDER-MM 0.4 11.5 6.6 14.2 3.6 1.5 11.8 1
AVMT120408PDER-MM 0.8 11.5 6.6 14.2 3.6 1.1 11.8 1
AVMT120412PDER-MM 1.2 11.5 6.6 14.2 3.6 0.7 11.8 1
AVMT120416PDER-MM 1.6 11.5 6.6 14.2 3.6 0.3 11.8 1
AVMT120420PDER-MM 2 10.5 6.6 12.7 3.4 1.2 11.1 2
AVMT120430PDER-MM 3 10.5 6.6 12.7 3.4 0.2 11.1 2
AVGT120404PDFR-AM 0.4 11.5 6.6 14.2 3.6 1.5 11.8 3
AVGT120408PDFR-AM 0.8 11.5 6.6 14.2 3.6 1.1 11.8 3
AVGT-AMAVMT-MM
W1
LE
INSL
S
APMX
BS RE
W1 S
APMX
BS RE
LE
INSL
W1
LE
INSL
S
APMX
BS RE
High-end square shoulder mill, with screw clamp system
Insert
Designation Air hole
With
With
With
With
Designation
Coated
Carbide
: First choice
: Second choice
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
INSERT
CUTTER
: New
Fig. 1 Fig. 2 Fig. 3Fig. 2 Fig. 3
Fig.
111Tungaloy
ISO
- 200 HB AH3225 100 - 300 0.06 - 0.22
- 200 HB T3225 200 - 400 0.06 - 0.18
- 300 HB AH3225 100 - 250 0.06 - 0.22
- 300 HB T3225 200 - 400 0.06 - 0.18
30 - 40 HRC AH3225 100 - 200 0.06 - 0.22
30 - 40 HRC T3225 200 - 400 0.06 - 0.15
- AH3225 80 - 180 0.07 - 0.2
150 - 250 HB AH120 100 - 300 0.05 - 0.12
150 - 250 HB T1215 200 - 400 0.05 - 0.18
150 - 250 HB AH120 100 - 250 0.05 - 0.12
150 - 250 HB T1215 150 - 300 0.05 - 0.18
- KS05F 300 - 1500 0.05 - 0.32
- KS05F 100 - 200 0.05 - 0.32
- 40 HRC AH3225 20 - 60 0.04 - 0.15
- 40 HRC AH120 20 - 40 0.04 - 0.15
40 - 50 HRC AH120 50 - 150 0.04 - 0.07
50 - 60 HRC AH120 40 - 70 0.04 - 0.07
R
0.4 - 1.6
2 - 3 2
Milling
Low carbon steel
S15C, SS400, etc.
C15E, E275A, etc.
Carbon steel and alloy steel
S55C, SCM440, etc.
C55, 42CrMo4, etc.
Prehardened steel
NAK80, PX5, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-3, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc.
Ductile cast iron
FCD400, FCD600, etc.
400-15S, 600-3, etc.
Titanium alloys
Ti-6AI-4V, etc.
Aluminum alloys
Si < 13%
Superalloys
Inconel718, etc.
Aluminum alloys
Si ≥ 13%
Hardened steel
SKD61, etc.
X40CrMoV5-1, etc.
SKD11, etc.
X153CrMoV12, etc.
Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Workpiece materials GradesHardness Priority
STANDARD CUTTING CONDITIONS
First choice
Wear resistance
First choice
Wear resistance
First choice
Wear resistance
First choice
First choice
Wear resistance
First choice
Wear resistance
First choice
First choice
First choice
First choice
First choice
First choice
When using inserts with corner radius
RE ≥ 2 mm, standard cutter bodies have to be
modifi ed “R”. (EPAV12, TPAV12, HPAV12) Unnecessary
Corner radius RE (mm)
CAUTIONARY POINT IN MODIFYING CUTTER BODIES
The dimension of modifying (mm)
112 NEW PRODUCTS
ADD multifunctional milling capability from drilling to square shoulder
milling and counterboring
ULTIMATE
ALL-ROUND CUTTER
Milling, Drilling (Multi-function)

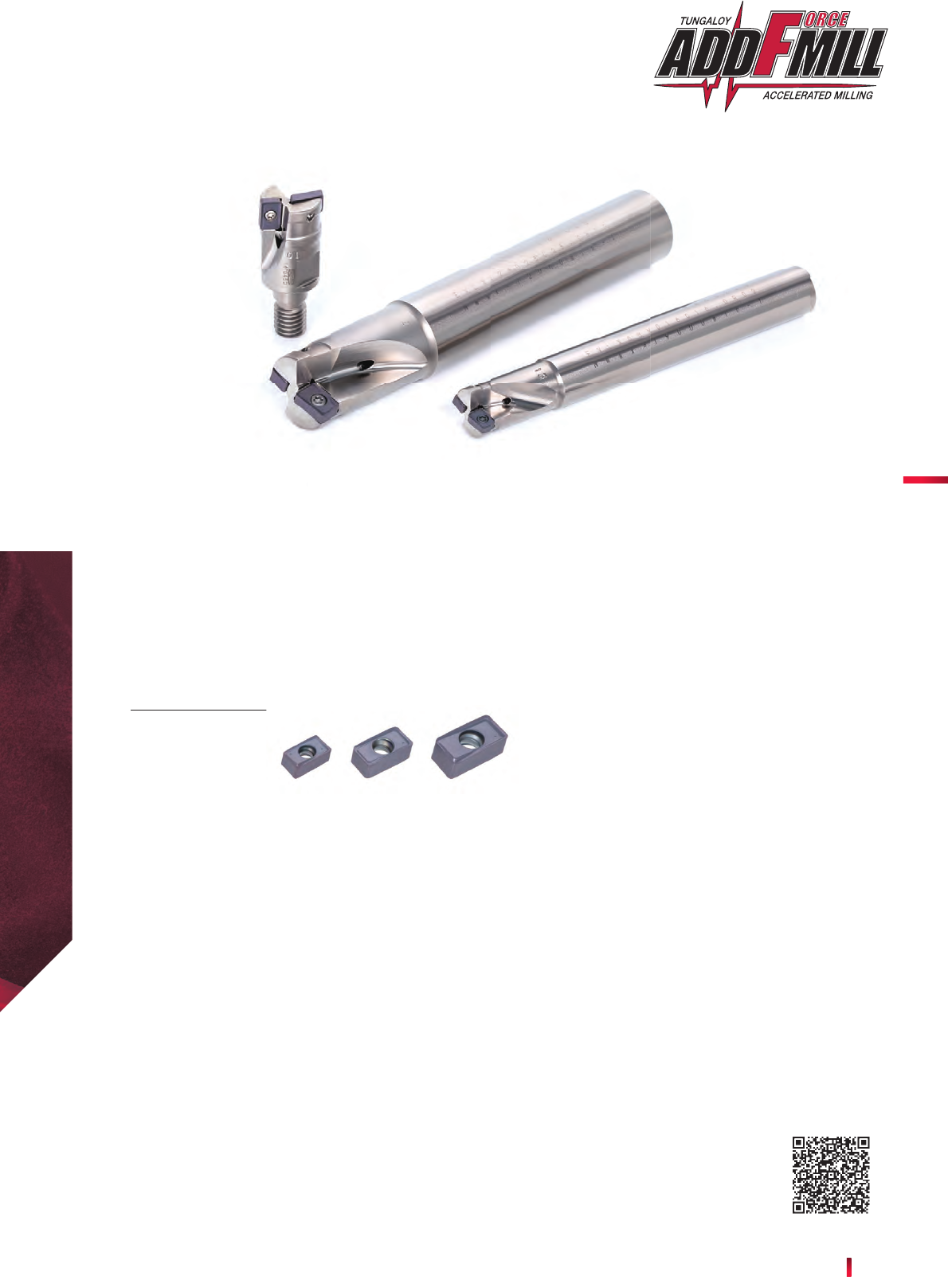

113Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- A single insert has cutting edges for
both bottom and peripheral surfaces.
Four total cutting edges for better cost
per insert.
- Negative insert with robust design.
Inserts
- LXMU08-MM
APMX = 7 mm (ZEFP = 1), 4 mm (ZEFP = 2)
RE = 0.4 mm
- LXMU10-MM
APMX = 9 mm (ZEFP = 1), 4 mm (ZEFP = 2)
RE = 0.8 mm
- LXMU12-MM
APMX = 11 mm (ZEFP = 1), 6 mm (ZEFP = 2)
RE = 0.8 mm
Chipbreaker
- MM type: Versatile geometry for low cutting
forces
- Through using helical interpolation
method, flat-bottom holes of any
diameter (≥ the cutter diameter +2 mm)
can be made.
- Perfect for counterboring.
Cutter bodies
Shank type:
- EVLX08... (Short type)
DC = ø16 mm
- EVLX08**L (Long type)
DC = ø16, ø17 mm
- EVLX10... (Short type)
DC = ø20 mm
- EVLX10**L (Long type)
DC = ø20, ø21 mm
- EVLX12... (Short type)
DC = ø25 mm
- EVLX12**L (Long type)
DC = ø25, ø26 mm
Modular type:
- HVLX08...
DC = ø16 mm
- HVLX10...
DC = ø20 mm
- HVLX12...
DC = ø25 mm
Grades
- AH3225: Superior resistance to wear and
fracture, ideal for steel and stainless steel
- AH8015: Wear-resistant grade ideal for
hardened steel and cast iron
- AH120: Excellent edge chipping resistance,
suited for cast iron
114 NEW PRODUCTS
P
M
K
N
S
H
LXMU-MM
RE
APMX
LE W1 S BS
AH3225
AH120
AH8015
LXMU080304PER-MM 0.4 7 7.7 5 2.8 0.8
LXMU10T308PER-MM 0.8 9 10 6 3.214 0.8
LXMU120408PER-MM 0.8 11 12.2 7.08 4.176 0.8
EVLX08/10/12
DCONMS
(KAPR)
LS
DC
90°
APMX 2
LF
APMX
LH
HVLX08/10/12-M
DCSFMS
A
A
OAL
LF
90°
APMX 2
(KAPR)
DC
H
APMX
S
BS
W1
LE
RE
RE
APMX APMX 2 DC CICT DCONMS LS LH LF WT(kg)
EVLX08M016C16.0R02 7 4 16 2 16 100 30 130 0.18 LXMU08...
EVLX08M016C16.0R02L 7 4 16 2 16 130 50 180 0.25 LXMU08...
EVLX08M017C16.0R02L 7 4 17 2 16 155 25 180 0.26 LXMU08...
EVLX10M020C20.0R02 9 4 20 2 20 110 35 145 0.31 LXMU10...
EVLX10M020C20.0R02L 9 4 20 2 20 130 60 190 0.41 LXMU10...
EVLX10M021C20.0R02L 9 4 21 2 20 160 30 190 0.42 LXMU10...
EVLX12M025C25.0R02 11 6 25 2 25 105 45 150 0.51 LXMU12...
EVLX12M025C25.0R02L 11 6 25 2 25 150 75 225 0.77 LXMU12...
EVLX12M026C25.0R02L 11 6 26 2 25 190 35 225 0.8 LXMU12...
APMX APMX 2 DC CICT OAL LF H DCSFMS CRKS WT(kg)
HVLX08M016M08R02 7 4 16 2 42 25 10 14.5 M8 0.03 LXMU08...
HVLX10M020M10R02 9 4 20 2 49 30 15 17.8 M10 0.05 LXMU10...
HVLX12M025M12R02 11 6 25 2 57 35 17 23 M12 0.1 LXMU12...
R
RR
R
RR
Designation
Coated
: First choice
: Second choice
: New
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
INSERT
CUTTER
Multi-function endmill, shank type, with center cutting edge
Multi-function endmill, modular type (TungFlex),
with center cutting edge
A-A cross section
GAMP Center insert -2.6˚ ~ -4.4˚, Peripheral insert +6.1˚ ~ +7.1˚
GAMF Center insert +0.2˚ ~ +1.3˚, Peripheral insert 15.7˚ ~ -15˚
GAMP Center insert -2.6˚ ~ -4.4˚, Peripheral insert +6.1˚ ~ +7.1˚
GAMF Center insert +0.2˚ ~ +1.3˚, Peripheral insert 15.7˚ ~ -15˚
Insert
Designation Air hole
With
With
With
With
With
With
With
With
With
Insert
Designation Air hole
With
With
With
115Tungaloy

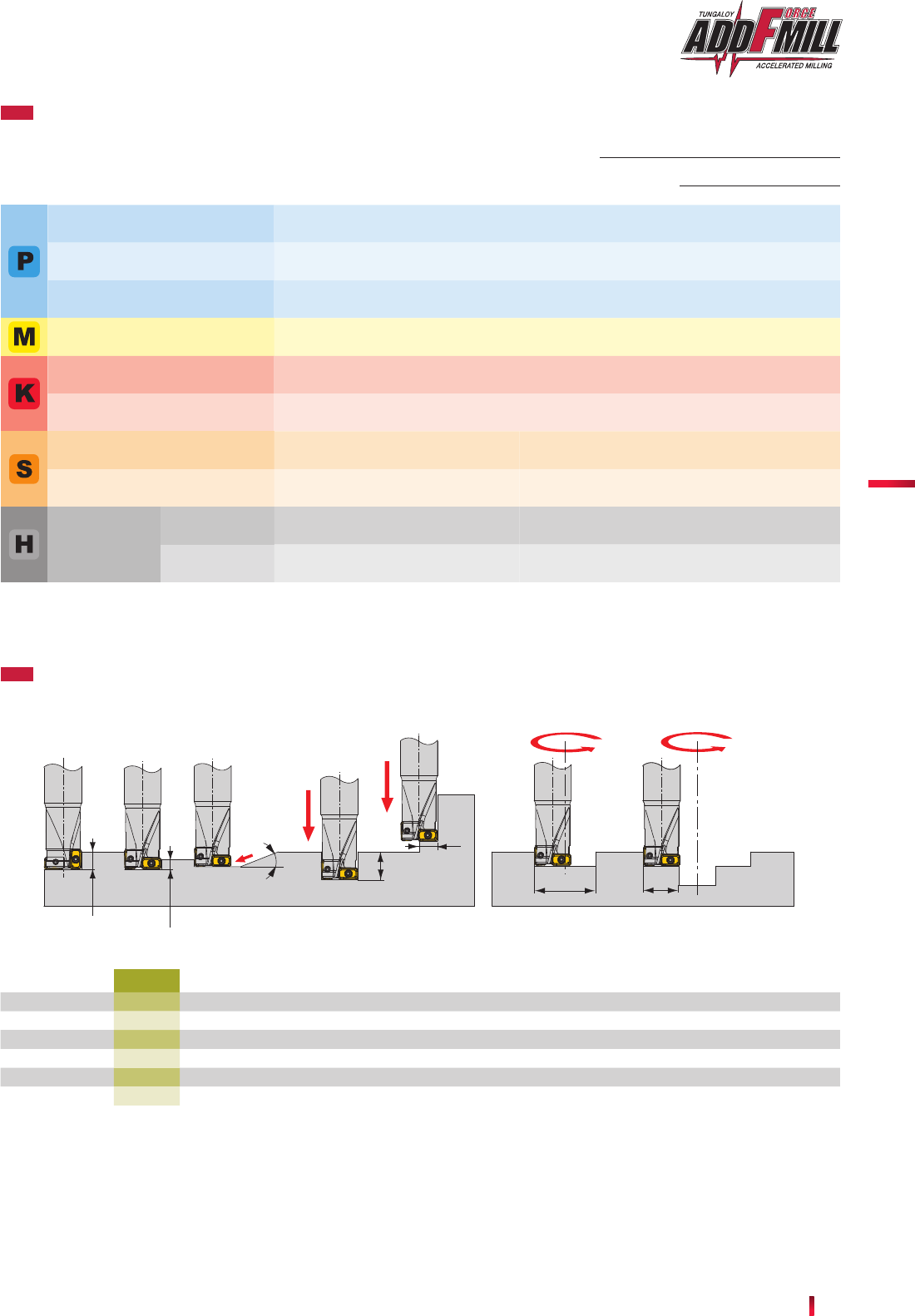

APMX 2
ae
APMX
RMPX
A
øD
C
ISO
08 10 / 12
- 200 HB AH3225 100 - 300 0.03 - 0.08 0.05 - 0.25 0.05 - 0.3
- 300 HB AH3225 100 - 250 0.03 - 0.08 0.05 - 0.25 0.05 - 0.3
30 - 40 HRC AH3225 100 - 200 0.03 - 0.06 0.05 - 0.2 0.05 - 0.25
- AH3225 80 - 180 0.03 - 0.08 0.05 - 0.2 0.05 - 0.22
150 - 250 HB AH120 100 - 300 0.03 - 0.1 0.05 - 0.25 0.05 - 0.3
150 - 250 HB AH120 100 - 250 0.03 - 0.08 0.05 - 0.2 0.05 - 0.25
- AH3225 20 - 60 0.03 - 0.06 0.04 - 0.15 0.04 - 0.15
- AH8015 20 - 40 0.03 - 0.06 0.04 - 0.15 0.04 - 0.15
40 - 50 HRC AH8015 50 - 150 0.03 - 0.05 0.04 - 0.15 0.04 - 0.15
50 - 60 HRC AH8015 40 - 70 0.03 - 0.05 0.04 - 0.15 0.04 - 0.15
DC APMX APMX 2 A C RMPX øDmin øDmax øDmin øDmax ae
E/HVLX08M016… 16 7 4 12 8 90° 17 30.75 16 31.75 14
EVLX08M017… 17 7 4 12 8.5 90° 19 32.75 17 33.75 15
E/HVLX10M020... 20 9 4 15 10 90° 22 37.95 20 39.15 18
EVLX10M021… 21 9 4 15 10.5 90° 23.35 39.95 21 40.95 19
E/HVLX12M025... 25 11 6 18.5 12.5 90° 26.65 47.85 25 48.95 23
EVLX12M026… 26 11 6 18.5 13 90° 28.65 49.85 26 50.95 24
Milling
STANDARD CUTTING CONDITIONS
APPLICATION RANGE
Shoulder
milling Slotting
Plunging
Ramping
Helical
interpolation Hole enlarging
Drilling
Low carbon steel
S15C, SS400, etc.
C15E4, E275A, etc.
Carbon steel and alloy steel
S55C, SCM440, etc.
C55, 42CrMo4, etc.
Prehardened steel
NAK80, PX5, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-3, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc.
Ductile cast iron
FCD400, FCD600, etc.
400-15S, 600-3, etc.
Titanium alloys
Ti-6AI-4V, etc.
Superalloys
Inconel718, etc.
Hardened steel
SKD61, etc.
X40CrMoV5-1, etc.
SKD11, etc.
X153CrMoV12, etc.
Cutting speed
Vc (m/min) Drilling
Workpiece materials GradesHardness Priority
Feed per tooth: fz (mm/t)
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
First choice
Shouldering /
Helical interpolation
*When using depth of cut ≥ "APMX 2", feed rate has to set by 1 tooth.
Max. cutting
width
engagement
Max.
drilling
depth
Max.
cutting width
in plunging
Max. depth of cut
Designation
Max.
ramping
angle
Hole diameters
machinable
Hole diameters
(w/ flat bottom)
machinable
*Use pecking or dwelling method when drilling holes deeper than 5 mm.
116 NEW PRODUCTS

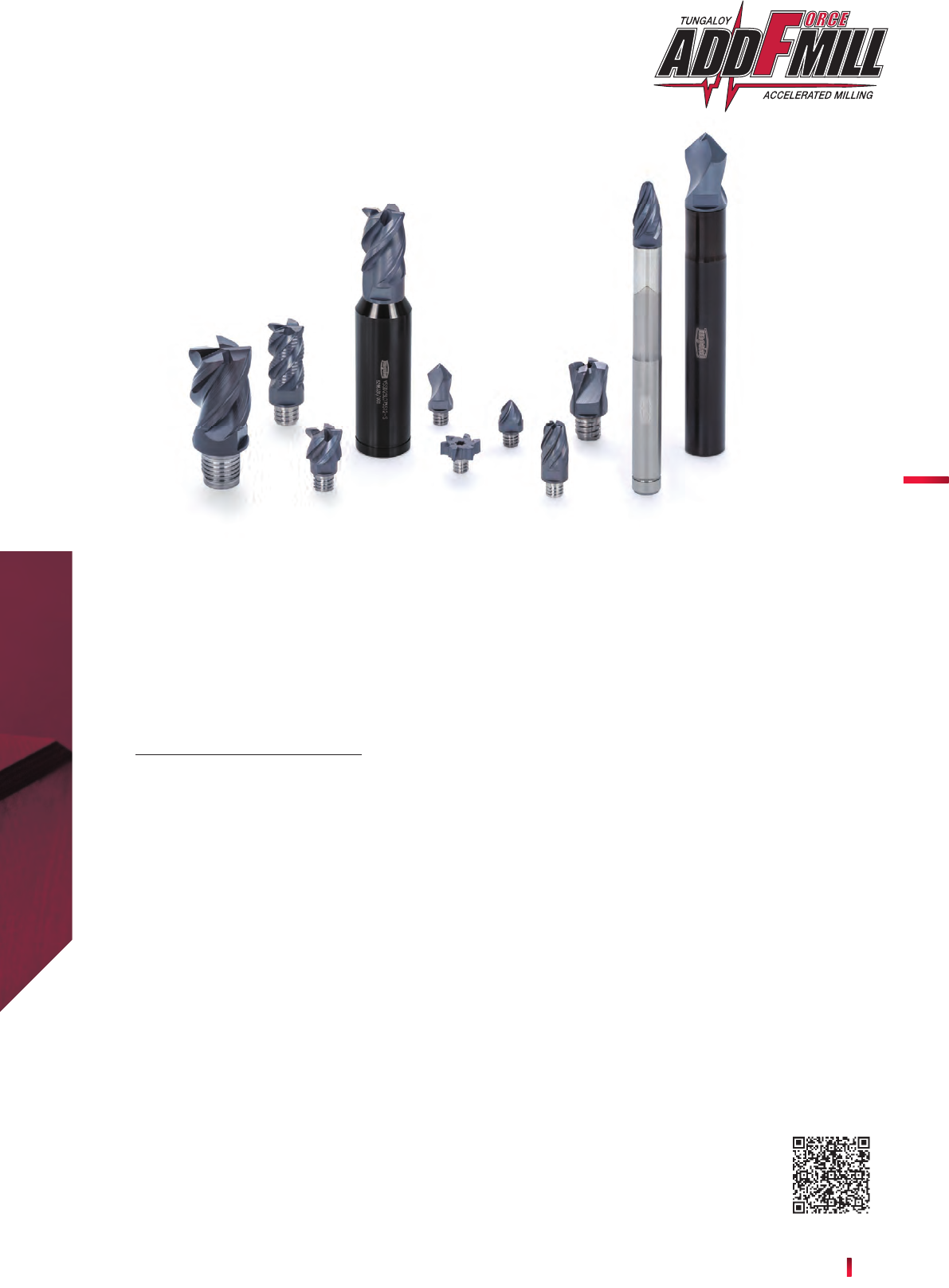

ADD an extensive array of exchangeable
milling heads for higher productivity
MORE THAN 13,000
POSSIBLE COMBINATIONS
End milling
117Tungaloy
Milling
Scan this QR code
to nd out more
about this tool!
Lineup
- Easy and accurate head-shank
coupling provides reduced tool change
time and high accuracy of cutting point
repeatability.
- Offers solutions for square shoulder
milling, high feed milling, profile milling,
chamfering, hole making, and slotting.
Shanks
- Cylindrical shank, straight neck
DCONMS = ø8 - ø32 mm
- Weldon shank, straight neck
DCONMS = ø12 - ø25 mm
- Cylindrical shank, taper neck
DCONMS = ø8 - ø40 mm
- High rigidity shank (cylindrical)
DCONMS = ø6 - ø40 mm
- Straight shank for slotting (cylindrical)
DCONMS = ø6 - ø16 mm
- Adaptor for TungFlex
CRKSMS = M8 - M12
- Adaptor for ER collet
SS = ER11 - ER16
- A flexible mix of heads and shanks
allows an optimum tool assembly in all
end milling applications.
Heads
- Square: DC = ø5 - ø32 mm
- Face mill: DC = ø12 - ø25 mm
- High feed: DCX = ø12 - ø16 mm
- Ball: DC = ø5 - ø25 mm
- Barrel: DC = ø8 - ø16 mm
- Bull nose: DC = ø10 - ø16 mm
- Lens: DC = ø8 - ø16 mm
- Chamfering: DC = ø10 - ø20 mm
- Chamfering spot drill: DC = ø8 - ø16 mm
- Center hole: DC = ø1.07 - ø6.41 mm
Grades
- AH715: Wear-resistant grade suited for steel
and hard materials
- AH725: Versatile grade with a good balance
of wear and fracture resistance, ideal for all
material groups
- AH750: Fracture resistant, improves machining
efficiency in ISO H materials
- KS15F: Designed for non-ferrous applications
118 NEW PRODUCTS

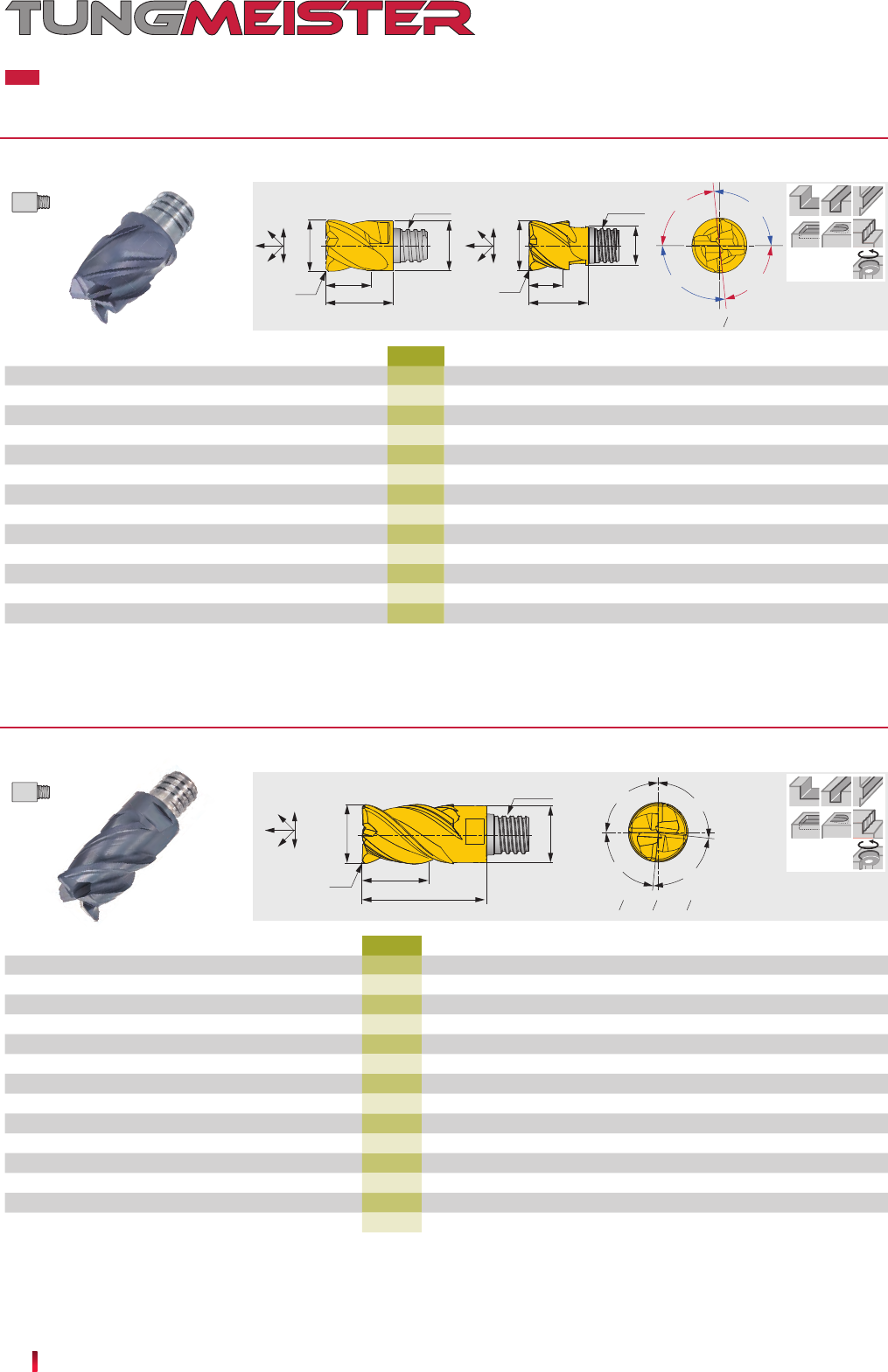

CRKS
ƴ1= ƴ2
DCSFMS
DCSFMS
DCE8
LF
APMX
ƴ1ƴ2
ƴ2ƴ1
RE RE
DCE8
CRKS
LF
APMX
VEH...
AH715 AH725 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VEH080L05.0R05I04S05 4 41° - 45° 8 7.7 5 0.5 S05 10 KEYV-S05 7 1
VEH080L05.0R10I04S05 4 41° - 45° 8 7.7 5 1 S05 10 KEYV-S05 7 1
VEH100L07.0R10I04S05 4 41° - 45° 10 7.7 7 1 S05 12.8 KEYV-S05 7 2
VEH100L07.0R05I04S06 4 41° - 45° 10 9.7 7 0.5 S06 13 KEYV-S06 10 1
VEH100L07.0R10I04S06 4 41° - 45° 10 9.7 7 1 S06 13 KEYV-S06 10 1
VEH120L09.0R10I04S06 4 41° - 45° 12 9.3 9 1 S06 14.3 KEYV-S06 10 2
VEH120L09.0R05I04S08 4 41° - 45° 12 11.7 9 0.5 S08 16.5 KEYV-S08 15 1
VEH120L09.0R10I04S08 4 41° - 45° 12 11.7 9 1 S08 16.5 KEYV-S08 15 1
VEH160L12.0R10I04S08 4 41° - 45° 16 11.7 12 1 S08 20 KEYV-S08 15 2
VEH160L12.0R05I04S10 4 41° - 45° 16 15.3 12 0.5 S10 20.5 KEYV-S10 28 1
VEH160L12.0R10I04S10 4 41° - 45° 16 15.3 12 1 S10 20.5 KEYV-S10 28 1
VEH200L15.0R05I04S12 4 41° - 45° 20 18.3 15 0.5 S12 25.5 KEYV-S12 28 1
VEH200L15.0R10I04S12 4 41° - 45° 20 18.3 15 1 S12 25.5 KEYV-S12 28 1
ƴ1 = ƴ2 = ƴ3 = ƴ4
DCSFMS
DCe8
ƴ1°ƴ2°
ƴ3°
ƴ4°
RE LF
APMX
CRKS
VEH...
AH715 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VEH080L12.0R05I04S05 4 41° - 45° 8 7.7 12 0.5 S05 18 KEYV-S05 7
VEH080L12.0R10I04S05 4 41° - 45° 8 7.7 12 1 S05 18 KEYV-S05 7
VEH100L15.0R05I04S06 4 41° - 45° 10 9.7 15 0.5 S06 22 KEYV-S06 10
VEH100L15.0R10I04S06 4 41° - 45° 10 9.7 15 1 S06 22 KEYV-S06 10
VEH120L18.0R05I04S08 4 41° - 45° 12 11.7 18 0.5 S08 27 KEYV-S08 15
VEH120L18.0R10I04S08 4 41° - 45° 12 11.7 18 1 S08 27 KEYV-S08 15
VEH160L24.0R05I04S10 4 41° - 45° 16 15.3 24 0.5 S10 33.5 KEYV-S10 28
VEH160L24.0R10I04S10 4 41° - 45° 16 15.3 24 1 S10 33.5 KEYV-S10 28
VEH200L30.0R05I04S12 4 41° - 45° 20 18.45 30 0.5 S12 41 KEYV-S12 28
VEH200L30.0R10I04S12 4 41° - 45° 20 18.45 30 1 S12 41 KEYV-S12 28
VEH250L37.0R05I04S15 4 41° - 45° 25 23.9 37 0.5 S15 52.5 KEYV-W20 40
VEH250L37.0R10I04S15 4 41° - 45° 25 23.9 37 1 S15 52.5 KEYV-W20 40
VEH320L38.0R00I04S21 4 41° - 45° 32 30 38 - S21 55 KS-24 110
VEH320L38.0R10I04S21 4 41° - 45° 32 30 38 1 S21 55 KS-24 110
HEADS
APMX = Max. depth
of cut
CRKS = Connection
screw size
Wrench Torque*
Designation
4 flute, roughing - finishing, variable helix and pitch
: New
: Line-up
* Recommended clamping torque (N·m)
2 pieces per package
Fig. 1 Fig. 2
Fig.
Square
Designation
* Recommended clamping torque (N·m)
VEH080 ~ VEH160: 2 pieces per package
VEH200 ~ VEH320: 1 piece per package
4 flute, roughing - finishing, variable helix and pitch
Wrench Torque*
APMX = Max. depth of cut
CRKS = Connection screw size
: New
: Line-up
Square

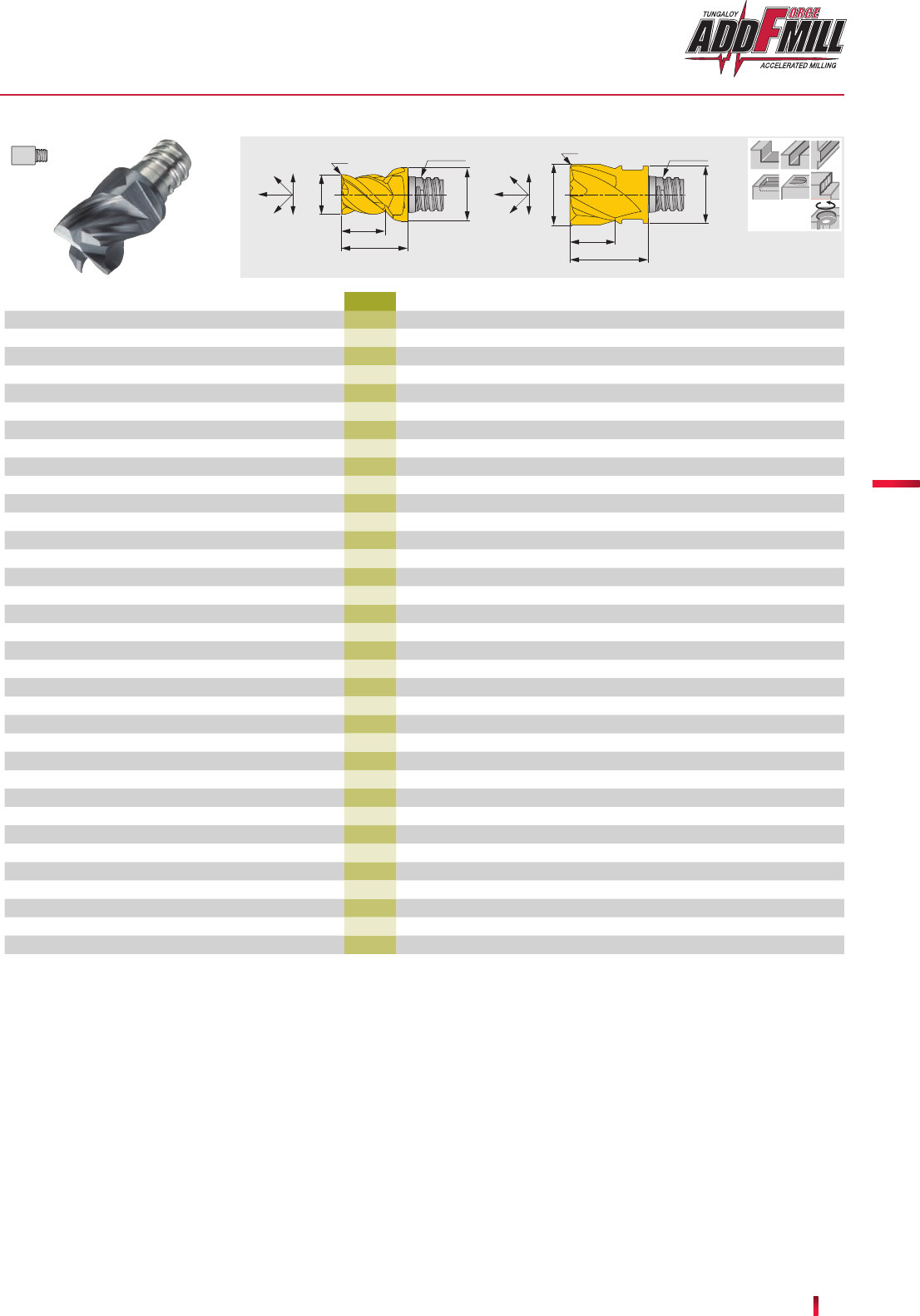

119Tungaloy
CRKS
DCe8
APMX
LF
RE
DCSFMS
DCe8
RE
APMX
LF
CRKS
DCSFMS
AH715 AH725 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VEE050L04.0R05-04S04 4 45° 5 6 4 0.5 S04 8.5 KEYV-S05 4 1
VEE060L04.0R05-04S04 4 45° 6 5.8 4 0.5 S04 8.5 KEYV-S05 4 2
VEE060L05.0R00-04S05 445 6 8 5 - S05 10 KEYV-S05 7 1
VEE080L05.0R00-04S05 445 8 7.7 5 - S05 10 KEYV-S05 7 2
VED080L05.0R05-04S05 430 8 7.7 5 0.5 S05 10 KEYV-S05 7 2
VED080L05.0R10-04S05 430 8 7.7 5 1 S05 10 KEYV-S05 7 2
VED080L05.0R15-04S05 430 8 7.7 5 1.5 S05 10 KEYV-S05 7 2
VEE100L07.0R00-04S06 445 10 9.7 7 - S06 13 KEYV-S06 10 2
VED100L07.0R05-04S06 430 10 9.7 7 0.5 S06 13 KEYV-S06 10 2
VEE100L07.0R05-04S06 445 10 9.7 7 0.5 S06 13 KEYV-S06 10 2
VED100L07.0R10-04S06 430 10 9.7 7 1 S06 13 KEYV-S06 10 2
VEE100L07.0R10-04S06 445 10 9.7 7 1 S06 13 KEYV-S06 10 2
VEE120L09.0R00-04S08 445 12 11.7 9 - S08 16.5 KEYV-S08 15 2
VED120L09.0R05-04S08 430 12 11.7 9 0.5 S08 16.5 KEYV-S08 15 2
VEE120L09.0R05-04S08 445 12 11.7 9 0.5 S08 16.5 KEYV-S08 15 2
VED120L09.0R10-04S08 430 12 11.7 9 1 S08 16.5 KEYV-S08 15 2
VEE120L09.0R10-04S08 445 12 11.7 9 1 S08 16.5 KEYV-S08 15 2
VEE160L12.0R00-04S10 445 16 15.3 12 - S10 20.5 KEYV-S10 28 2
VED160L12.0R05-04S10 430 16 15.3 12 0.5 S10 20.5 KEYV-S10 28 2
VEE160L12.0R05-04S10 445 16 15.3 12 0.5 S10 20.5 KEYV-S10 28 2
VED160L12.0R10-04S10 430 16 15.3 12 1 S10 20.5 KEYV-S10 28 2
VEE160L12.0R10-04S10 445 16 15.3 12 1 S10 20.5 KEYV-S10 28 2
VED160L12.0R15-04S10 430 16 15.3 12 1.5 S10 20.5 KEYV-S10 28 2
VEE160L12.0R15-04S10 445 16 15.3 12 1.5 S10 20.5 KEYV-S10 28 2
VED160L12.0R20-04S10 430 16 15.3 12 2 S10 20.5 KEYV-S10 28 2
VEE160L12.0R20-04S10 445 16 15.3 12 2 S10 20.5 KEYV-S10 28 2
VED160L12.0R30-04S10 430 16 15.3 12 3 S10 20.5 KEYV-S10 28 2
VEE160L12.0R30-04S10 445 16 15.3 12 3 S10 20.5 KEYV-S10 28 2
VED160L12.0R40-04S10 430 16 15.3 12 4 S10 20.5 KEYV-S10 28 2
VEE160L12.0R40-04S10 445 16 15.3 12 4 S10 20.5 KEYV-S10 28 2
VEE200L15.0R00-04S12 445 20 18.3 15 - S12 25.5 KEYV-S12 28 2
VED200L15.0R05-04S12 430 20 18.3 15 0.5 S12 25.5 KEYV-S12 28 2
VED200L15.0R10-04S12 430 20 18.3 15 1 S12 25.5 KEYV-S12 28 2
VED200L15.0R20-04S12 430 20 18.3 15 2 S12 25.5 KEYV-S12 28 2
VED200L15.0R30-04S12 430 20 18.3 15 3 S12 25.5 KEYV-S12 28 2
VEE**-04..., VED**-04...
Milling
* Recommended clamping torque (N·m)
**Fig. 1: Avoid interference with workpiece when using this cutting head. The shank diameter is larger than the cutter diameter when assembled.
2 pieces per package
: New
: Line-up
4 flute, roughing - finishing, general
APMX = Max. depth of cut
CRKS = Connection screw size
Designation Wrench Torque* Fig.
Fig. 1** Fig. 2
Square
120 NEW PRODUCTS
VEE**-I...
CRKS
ƴ1 = ƴ2
DCSFMS
DCe8
LF
APMX
ƴ1ƴ2
ƴ2ƴ1
RE, CHW
AH715 AH725 NOF FHA DC
DCSFMS
APMX RE CHW CRKS LF
VEE080L05.0C30I04S05 438 8 7.7 5 - 0.3 S05 10 KEYV-S05 7
VEE100L07.0C40I04S06 438 10 9.7 7 - 0.4 S06 13 KEYV-S06 10
VEE120L09.0C50I04S08 438 12 11.7 9 - 0.5 S08 16.5 KEYV-S08 15
VEE160L12.0C60I04S10 438 16 15.3 12 - 0.6 S10 20.5 KEYV-S10 28
VEE200L15.0C60I04S12 438 20 18.3 15 - 0.6 S12 25.5 KEYV-S12 28
VEE250L22.0C60I04S15 438 25 23.9 22 - 0.6 S15 37 KEYV-W20 40
VEE250L22.0R00I04S15 438 25 23.9 22 - - S15 37 KEYV-W20 40
VEE250L22.0R05I04S15 438 25 23.9 22 0.5 - S15 37 KEYV-W20 40
VEE250L22.0R10I04S15 438 25 23.9 22 1 - S15 37 KEYV-W20 40
VEE250L22.0R20I04S15 438 25 23.9 22 2 - S15 37 KEYV-W20 40
VEE250L22.0R30I04S15 438 25 23.9 22 3 - S15 37 KEYV-W20 40
AH715 AH725 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VEE077L04.0R02-03S05 3387.7 7.7 4 0.2 S05 10 KEYV-S05 7
VEE080L05.0R00-03S05 345 8 7.7 5 - S05 10 KEYV-S05 7
VEE097L05.0R03-03S06 3389.7 9.7 5 0.3 S06 13 KEYV-S06 10
VEE100L07.0R00-03S06 345 10 9.7 7 - S06 13 KEYV-S06 10
VEE117L07.0R03-03S08 33811.7 11.7 7 0.3 S08 16.5 KEYV-S08 15
VEE120L09.0R00-03S08 345 12 11.7 9 - S08 16.5 KEYV-S08 15
VEE157L08.0R03-03S10 33815.7 15.3 8 0.3 S10 20.5 KEYV-S10 28
VEE197L12.0R04-03S12 33819.7 18.3 12 0.4 S12 25.5 KEYV-S12 28
VEE**-03...
LF
RE CRKS
APMX
DCSFMS
DCh6
4 flute, roughing - finishing, variable pitch
Designation
APMX = Max. depth of cut
CRKS = Connection screw size
: New
: Line-up
* Recommended clamping torque (N·m)
VEE080 ~ VEE200: 2 pieces per package
VEE250: 1 piece per package
Wrench Torque*
3 flute, roughing - finishing, general, for key way
APMX = Max. depth of cut
CRKS = Connection screw size
Designation Wrench Torque*
: New
: Line-up
* Recommended clamping torque (N·m)
2 pieces per package
Square
Square
121Tungaloy

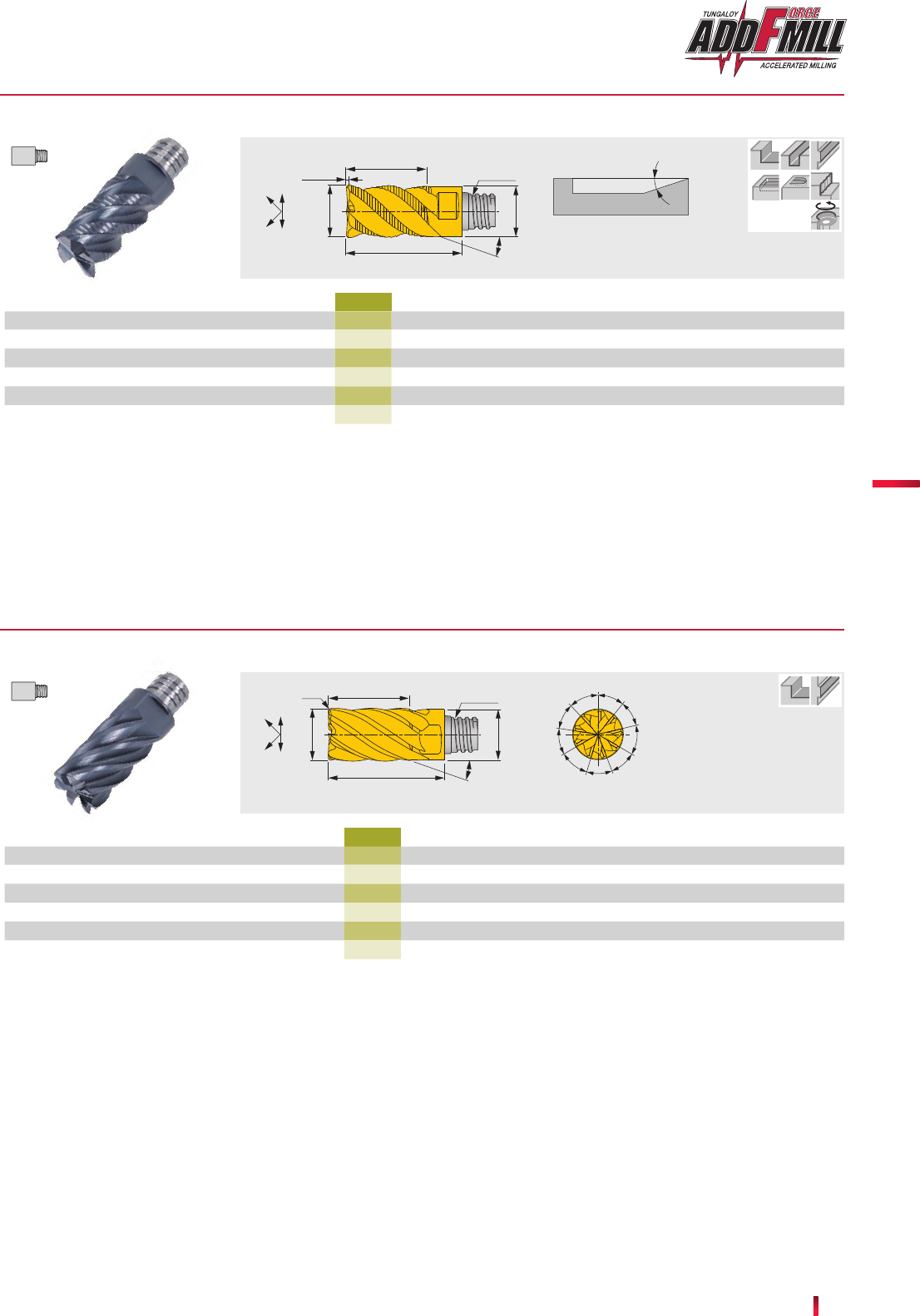

CHW
DCe9
LF FHA
DCSFMS
CRKS
APMX
VED**R...
AH725 NOF FHA DC
DCSFMS
APMX CHW CRKS LF RMPX
VED080L12.0C25R04S05 4 47° 8 7.7 12 0.25 S05 18 5 KEYV-S05 7
VED100L15.0C30R04S06 4 47° 10 9.6 15 0.3 S06 22 5 KEYV-S06 10
VED120L18.0C35R04S08 4 47° 12 11.7 18 0.35 S08 27 5 KEYV-S08 15
VED160L24.0C40R05S10 5 47° 16 15.3 24 0.4 S10 33.5 5 KEYV-S10 28
VED200L30.0C40R06S12 6 47° 20 18.45 30 0.4 S12 41 3 KEYV-S12 28
VED250L37.0C50I06S15 6 47° 25 23.9 37 0.5 S15 52.5 3 KEYV-W20 40
LF
RE
FHA
CRKS
APMX
DCSFMS
DCe8
ƴ1≠ƴ2≠ƴ3≠ƴ4≠ƴ5≠ƴ6≠ƴ7≠ƴ8≠ƴ9
ƴ1
ƴ2
ƴ3
ƴ4
ƴ5
ƴ6
ƴ7
ƴ8
ƴ9
VED**-07/09...
AH725 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VED080L12.0R05I07S05 7 34° - 40° 8 7.7 12 0.5 S05 18 KEYV-S05 7
VED100L15.0R05I07S06 7 34° - 40° 10 9.6 15 0.5 S06 22 KEYV-S06 10
VED120L18.0R05I07S08 7 34° - 40° 12 11.7 18 0.5 S08 27 KEYV-S08 15
VED160L24.0R08I09S10 9 34° - 40° 16 15.3 24 0.8 S10 33.5 KEYV-S10 28
VED200L30.0R10I09S12 9 34° - 40° 20 18.45 30 1 S12 41 KEYV-S12 28
VED250L37.0R10I09S15 9 34° - 40° 25 23.9 37 1 S15 52.5 KEYV-W20 40
Milling
Designation
4, 5, 6 flute, roughing, long cutting edge, serrated cutting edge
Wrench Torque*
: New
APMX = Max. depth of cut
CRKS = Connection screw size
* Recommended clamping torque (N·m)
VED080 ~ VED160: 2 pieces per package
VED200, VED250: 1 piece per package
Square
Designation
7, 9 flute, roughing - finishing, long edge, variable helix and pitch, small width of cut
Wrench Torque*
: New* Recommended clamping torque (N·m)
VED080 ~ VED160: 2 pieces per package
VED200, VED250: 1 piece per package
Square
APMX = Max. depth
of cut
CRKS = Connection
screw size
侑RMPX
122 NEW PRODUCTS
ƴ1 = ƴ2 = ƴ3 = ƴ4 = ƴ5 = ƴ6
DC
BS
DCSFMS
APMX ƴ1°ƴ2°
ƴ3°
ƴ4°
ƴ5°
ƴ6°
RE
LF
CRKS
VFM...
AH715 NOF FHA DC
DCSFMS
APMX RE BS CRKS LF
VFM120L03.6R02I06S05 6 10° 12 7.7 3.6 0.2 1.2 S05 4.4 KEYV-T20 7
VFM160L04.8R04I06S06 6 10° 16 9.7 4.8 0.4 2 S06 5.6 KEYV-T25 10
VFM200L06.0R04I06S08 6 10° 20 11.7 6 0.4 2 S08 7 KEYV-T40L 15
VFM250L07.5R04I06S10 6 10° 25 15.3 7.5 0.4 2 S10 8.55 KEYV-T50L 28
VFX**-04/06...
CRKS
RMPX
DCSFMS
DCX
RE APMX LF
KAPR CRKS
DCSFMS
RE APMX LF
KAPR
DC
DCX
DC
RR
AH715 AH725 AH750
NOF FHA
DCX DC
DCSFMS
APMX
RE
KAPR CRKS
LF
RMPX
VFX120L0.60R18E04S08 4 20° 12 4.8 11.5 0.6 1.8 97° S08 16.5 5° KEYV-S08 15 2
VFX120L0.60R18H04S08 4 20º 12 4.8 11.5 0.6 1.8 97º S08 16.5 5° KEYV-S08 15 1
VFX120L0.65R12E06S08 6 20° 12 6.38 11.5 0.65 1.2 97° S08 16.5 3° KEYV-S08 15 2
VFX160L0.80R22E04S10 4 20° 16 5.6 15.4 0.8 2.2 97° S10 20.5 5° KEYV-S10 28 2
VFX160L0.80R22H04S10 4 20º 16 5.6 15.4 0.8 2.2 97º S10 20.5 5° KEYV-S10 28 1
VFX160L1.05R20E06S10 6 20° 16 7 15.4 1.05 2 97° S10 20.5 3° KEYV-S10 28 2
AH715 AH725 NOF FHA DC
DCSFMS
APMX RE CRKS LF
VBE050L04.0-BG-04S04 438 5 6 4 2.487(1) S04 8.5 KEYV-S05 4 1
VBE060L04.0-BG-04S04 438 6 5.8 4 2.987(1) S04 8.5 KEYV-S05 4 2
VBE060L05.5-BG-04S05 438 6 8 5.5 2.987(1) S05 10 KEYV-S05 7 1
VBD080L05.0-BG-04S05 430 8 7.7 5 3.982(1) S05 10 KEYV-S05 7 2
VBD100L07.0-BG-04S06 430 10 9.7 7 4.982(1) S06 13 KEYV-S06 10 2
VBD120L09.0-BG-04S08 430 12 11.7 9 5.978(2) S08 16.5 KEYV-S08 15 2
VBD160L12.0-BG-04S10 430 16 15.3 12 7.978(2) S10 20.5 KEYV-S10 28 2
VBD200L15.0-BG-04S12 430 20 18.3 15 9.972(2) S12 25.5 KEYV-S12 28 2
VBD250L22.0-BG-04S15 430 25 23.9 22 12.470(3) S15 37 KEYV-W20 40 2
DCe8
LF
CRKS
RE 11.7 °
APMX
DCSFMS
CRKS
DCSFMS
RE
LF
APMX
DCe8
VBD**-BG-04..., VBE**-BG-04...
Designation
* Recommended clamping torque (N·m)
2 pieces per package
6 flute, roughing - finishing, for face milling
Wrench Torque*
APMX = Max. depth of cut
CRKS = Connection screw size
: New
: Line-up
Face mill
4, 6 flute, roughing, with coolant hole (2 items do not have coolant hole)
We don’t recommend slot milling. Also max. ae < 0.4D.
* Recommended clamping torque (N·m)
2 pieces per package
Designation
: New
: Line-up
APMX = Max. depth of cut
CRKS = Connection screw size
Wrench Torque* Fig.
High feed
Fig. 1 Fig. 2
The tolerance of R: (1) ± 0.01 (2) ± 0.012 (3) ± 0.02
* Recommended clamping torque (N·m)
VBE060/VBD080 ~ VBD200: 2 pieces per package, VBD250: 1 piece per package
4 flute, roughing - finishing, helix cutting edge
APMX = Max. depth of cut
CRKS = Connection screw size
Designation Wrench Torque*
: New
: Line-up
Fig.
Fig. 1 Fig. 2
Ball
123Tungaloy

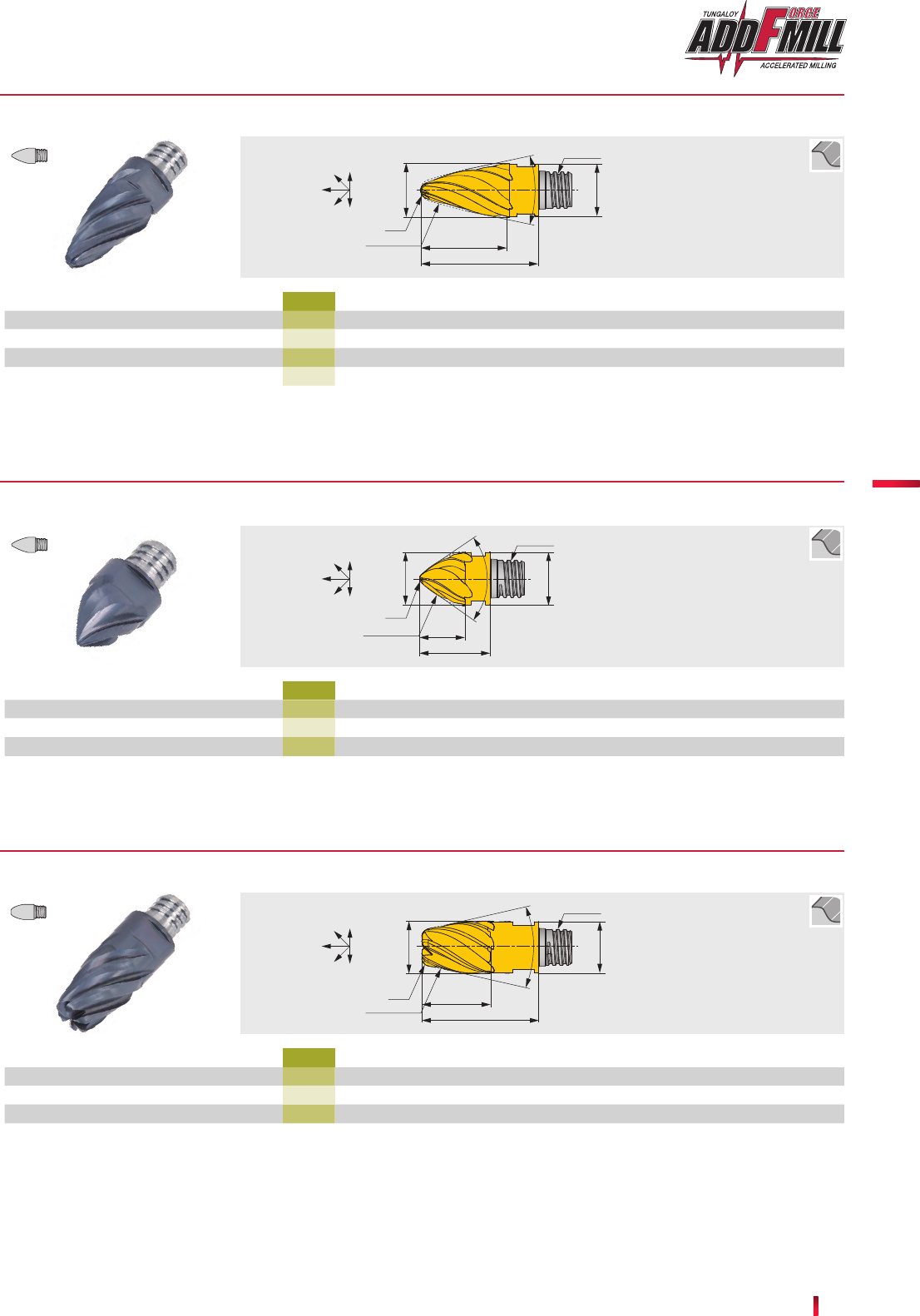

DC
LF
APMX
CRKS
DCSFMS
RE
PRFRAD
PRFA
AH715 NOF FHA DC
DCSFMS
APMX RE PRFRAD PRFA CRKS LF
VBO080L12.0R900-4S05 4 30° 8 7.7 12 1 90 33.6° S05 18 KEYV-S05 7
VBO100L15.0R850-5S06 5 30° 10 9.7 15 2 85 27.3° S06 22 KEYV-S06 10
VBO120L19.0R800-5S08 5 30° 12 11.7 19 2 80 29.3° S08 27 KEYV-S08 15
VBO160L25.0R750-5S10 5 30° 16 15.3 25 3 75 26.7° S10 33.5 KEYV-S10 28
DC
RE
PRFRAD
LF
APMX
PRFA
CRKS
DCSFMS
AH715 NOF FHA DC
DCSFMS
APMX RE PRFRAD PRFA CRKS LF
VBO100L08.0R250-4S06 4 30° 10 9.7 8 0.8 25 70.8° S06 13 KEYV-S06 10
VBO120L09.0R300-4S08 4 30° 12 11.7 9 1.2 30 71.6° S08 16.5 KEYV-S08 15
VBO160L13.0R400-4S10 4 30° 16 15.3 13 1.6 40 70.3° S10 20.5 KEYV-S10 28
VBO...
VBO...
DC
CRKS
DCSFMS
LF
APMX
PRFA
RE
PRFRAD
VBN...
AH715 NOF FHA DC
DCSFMS
APMX RE PRFRAD PRFA CRKS LF
VBN100L13.0R450-6S06 6 35° 10 9.7 13 1.5 45 15.1° S06 22 KEYV-S06 10
VBN120L15.0R500-6S08 6 35° 12 11.7 15 2 50 15.1° S08 27 KEYV-S08 15
VBN160L18.0R600-6S10 6 35° 16 15.3 18 2 60 15.1° S10 33.5 KEYV-S10 28
Milling
Designation
4, 5 flute, semi finishing - finishing, long edge, high productive profiling
Wrench Torque*
* Recommended clamping torque (N·m)
2 pieces per package
: Line-up
: New
: Line-up
Designation
4 flute, semi finishing - finishing, short edge, high productive profiling
Wrench Torque*
* Recommended clamping torque (N·m)
2 pieces per package
APMX = Max. depth of cut
CRKS = Connection screw size
APMX = Max. depth of cut
CRKS = Connection screw size
Designation
6 flute, semi finishing - finishing, high productive profiling
Wrench Torque*
* Recommended clamping torque (N·m)
2 pieces per package
: Line-up
APMX = Max. depth of cut
CRKS = Connection screw size
Barrel
Barrel
Bull nose
124 NEW PRODUCTS

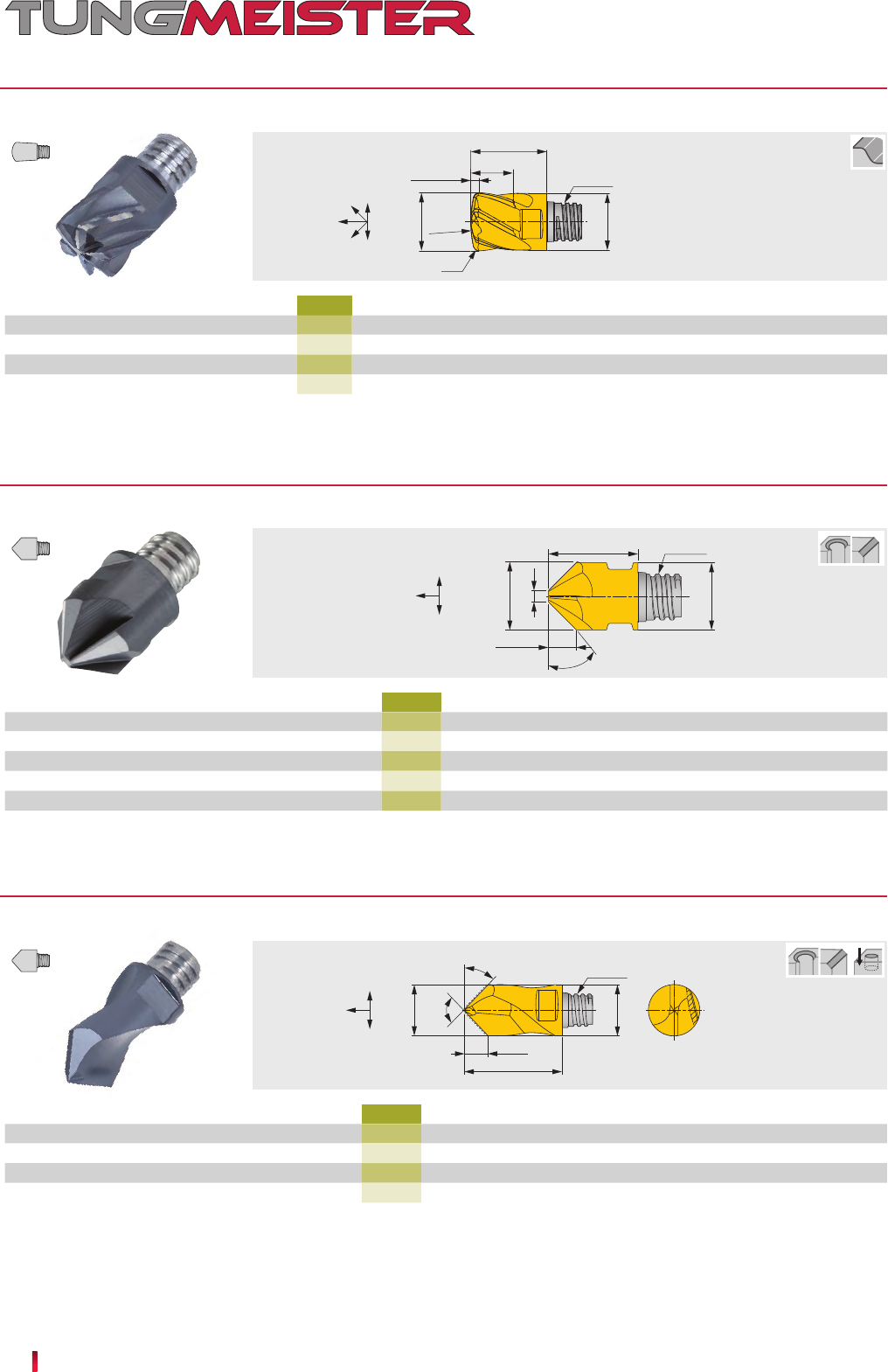

DCSFMS
RE
APMX2 APMX
LF
BSR
DC
CRKS
VBL...
AH715 NOF FHA DC
DCSFMS
APMX APMX2 RE BSR CRKS LF
VBL080L0.90R160-6S05 6 30° 8 7.7 5.5 0.9 0.5 16 S05 10 KEYV-S05 7
VBL100L1.40R200-6S06 6 30° 10 9.7 7.5 1.42 1 20 S06 13 KEYV-S06 10
VBL120L1.50R240-6S08 6 30° 12 11.7 9 1.55 1 24 S08 16.5 KEYV-S08 15
VBL160L1.80R320-6S10 6 30° 16 15.3 12 1.8 1 32 S10 20.5 KEYV-S10 28
VCA**-04/06...
CRKS
LF
DCX
DC
45°
DCSFMS
APMX
AH715 AH725 NOF FHA DCX
DCSFMS
APMX DC CRKS LF
VCA100L04.0A45-04S06 40 10 10 4 1.95 S06 13 KEYV-S06 10
VCA120L05.0A45-04S08 40 12 12 5 1.95 S08 16.5 KEYV-S08 15
VCA127L05.3A45-04S08 4012.7 12.7 5.3 1.98 S08 16.5 KEYV-S08 15
VCA160L06.5A45-06S10 60 16 16 6.5 3 S10 20.3 KEYV-S10 28
VCA200L07.5A45-06S12 60 20 18.3 7.5 5 S12 25.5 KEYV-S12 28
DC
90°
LF
CRKS
DCSFMS
CDX
KAPR
VDS...
AH725 NOF FHA DC
DCSFMS
CDX KAPR CRKS LF
VDS080A45-02S05 2 10° 8 7.7 3.7 45° S05 15 KEYV-S05 7
VDS100A45-02S06 2 10° 10 9.7 4.4 45° S06 19 KEYV-S06 10
VDS120A45-02S08 2 10° 12 11.7 5.4 45° S08 23 KEYV-S08 15
VDS160A45-02S10 2 10° 16 15.3 7.1 45° S10 28 KEYV-S10 28
APMX = Max. depth of cut
CRKS = Connection screw size
Designation
6 flute, semi finishing - finishing, high productive profiling
Wrench Torque*
* Recommended clamping torque (N·m)
2 pieces per package
: New
Lens
4, 6 flute, chamfering angle: 45°
APMX = Max. depth of cut
CRKS = Connection screw size
Designation Wrench Torque*
* Recommended clamping torque (N·m)
2 pieces per package
: New
: Line-up
Chamfering
Chamfering
Spot drill
CDX = Max. hole depth
CRKS = Connection screw size
Designation
* Recommended clamping torque (N·m)
2 pieces per package
2 flute, chamfering angle: 45°, helix cutting edge
Wrench Torque*
: New
125Tungaloy
120°
60°
CRKS CRKS
LF
LU
LF
LU
DC±0.02
DC±0.02
DCSFMS
120º
60º
DCSFMS
DC2

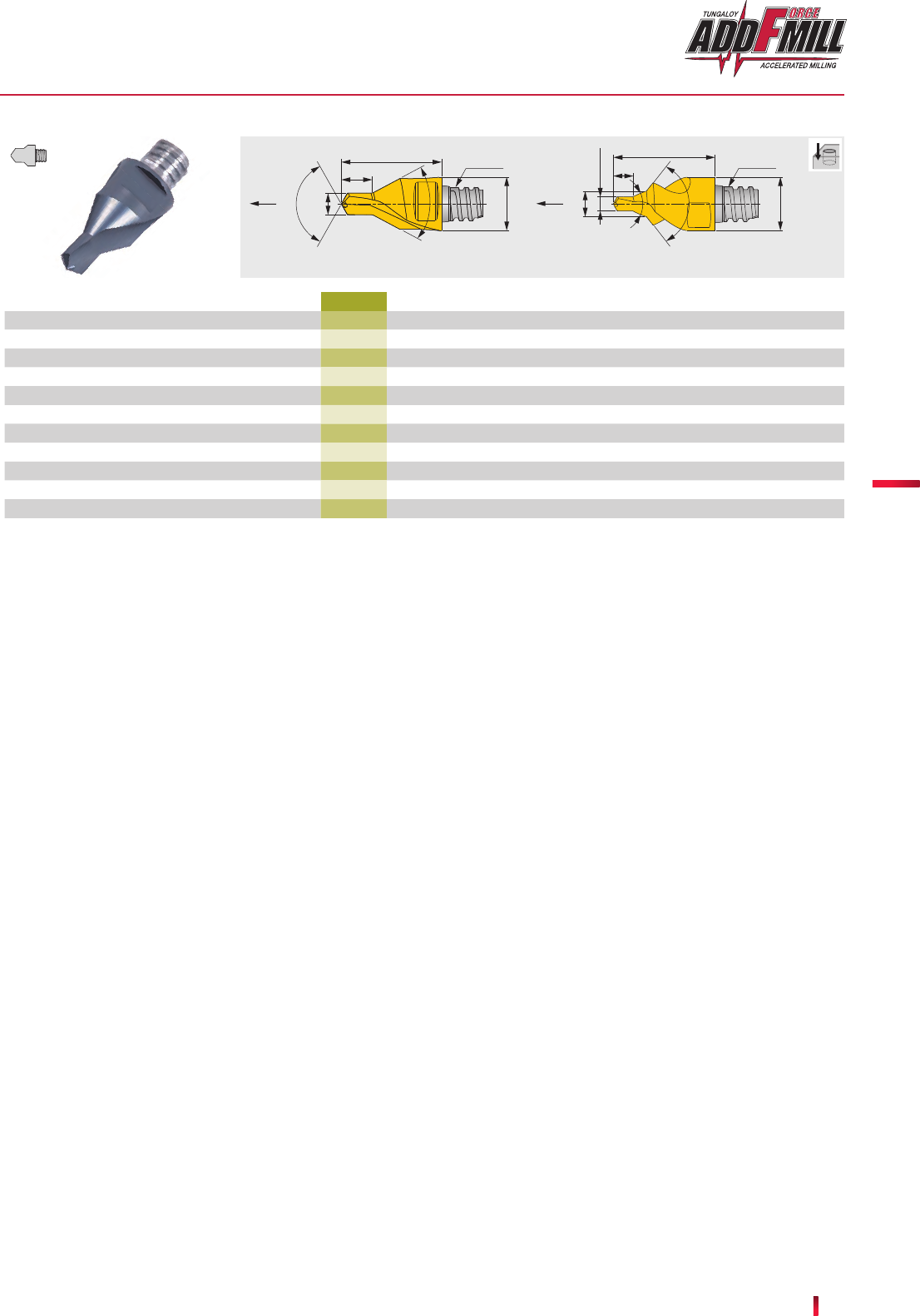

VDP**-02...
AH725 NOF FHA DC±0.02 DC2 DCSFMS LU CRKS LF
VDP107L1.60A30-02S04 2 0° 1.07 - 6 1.6 S04 10 KEYV-S05 4 1
VDP165L2.40A30-02S04 2 0° 1.65 - 6 2.4 S04 10 KEYV-S05 4 1
VDP207L2.90A30-02S04 2 0° 2.07 - 6 2.9 S04 10 KEYV-S05 4 1
VDP328L04.6A30-02S05 2 0° 3.28 - 8 4.6 S05 15 KEYV-S05 7 1
VDP412L05.9A30-02S06 2 0° 4.12 - 10 5.9 S06 19 KEYV-S06 10 1
VDP513L07.2A30-02S08 2 0° 5.13 - 12 7.2 S08 23 KEYV-S08 15 1
VDP646L08.9A30-02S10 2 0° 6.46 - 16 8.9 S10 28 KEYV-S10 28 1
VDP324L4.38B30-02S08 2 0° 3.24 6.77 12 4.4 S08 23 KEYV-S08 15 2
VDP409L5.60B30-02S08 2 0° 4.09 8.56 12.7 5.6 S08 23 KEYV-S08 15 2
VDP509L6.89B30-02S12 2 0° 5.09 10.69 18.45 6.9 S12 25.5 KEYV-S12 28 2
VDP641L8.63B30-02S12 2 0° 6.41 13.29 20 8.6 S12 25.5 KEYV-S12 28 2
Milling
2 flute, A/B type center
CRKS = Connection screw size
* Recommended clamping torque (N·m)
2 pieces per package
Designation
: New
: Line-up
Fig. 1 Type A Fig. 2 Type B
Wrench Torque* Fig.
Center hole
126 NEW PRODUCTS
BD
DCONMS
CRKS LF
LBX
LB
DCONMS BD
LF
CRKS
VSSD06L050S04-S 6 5.8 50 S04
VSSD06L060S04-C 6 5.8 60 S04
VSSD08L050S04-S 8 5.8 50 S04
VSSD08L060S04-C 8 5.8 60 S04
VSSD10L055S05-S 10 7.6 55 S05
VSSD12L065S06-S 12 9.6 65 S06
VSSD16L065S08-S 16 11.6 65 S08
VSSD20L070S10-S 20 15.3 70 S10
VSSD25L075S12-S 25 18.3 75 S12
VSSD32L100S15-S 32 23.9 100 S15
VSSD40L100S21-S 40 30 100 S21
VSSD**-W-A...
VSSD...
DCONMS BD LF LBX LB CRKS
VSSD10L070S06-W-A 10 9.6 70 20 19 S06
VSSD10L090S06-W-A 10 9.6 90 40 39 S06
VSSD10L110S06-W-A 10 9.6 110 60 59 S06
VSSD12L070S08-W-A 12 11.5 70 20 19 S08
VSSD12L090S08-W-A 12 11.5 90 40 39 S08
VSSD12L110S08-W-A 12 11.5 110 60 59 S08
VSSD12L130S08-W-A 12 11.5 130 80 79 S08
VSSD16L070S10-W-A 16 15.2 70 20 18.5 S10
VSSD16L090S10-W-A 16 15.2 90 40 36.5 S10
VSSD16L110S10-W-A 16 15.2 110 60 58.5 S10
VSSD16L130S10-W-A 16 15.2 130 80 78.5 S10
VSSD20L090S12-W-A 20 18.3 90 40 37 S12
VSSD20L130S12-W-A 20 18.3 130 80 77 S12
BD
DCONMS
CRKS
LF
New
New
New
New
New
New
Cylindrical Steel
Cylindrical Carbide
Cylindrical Steel
Cylindrical Carbide
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Straight shank and neck with coolant hole
High rigidity shank
CRKS = Connection screw size
CRKS = Connection screw size
Designation
Designation
Shank material
Shank material
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
Tungsten
SHANKS
Shank shape

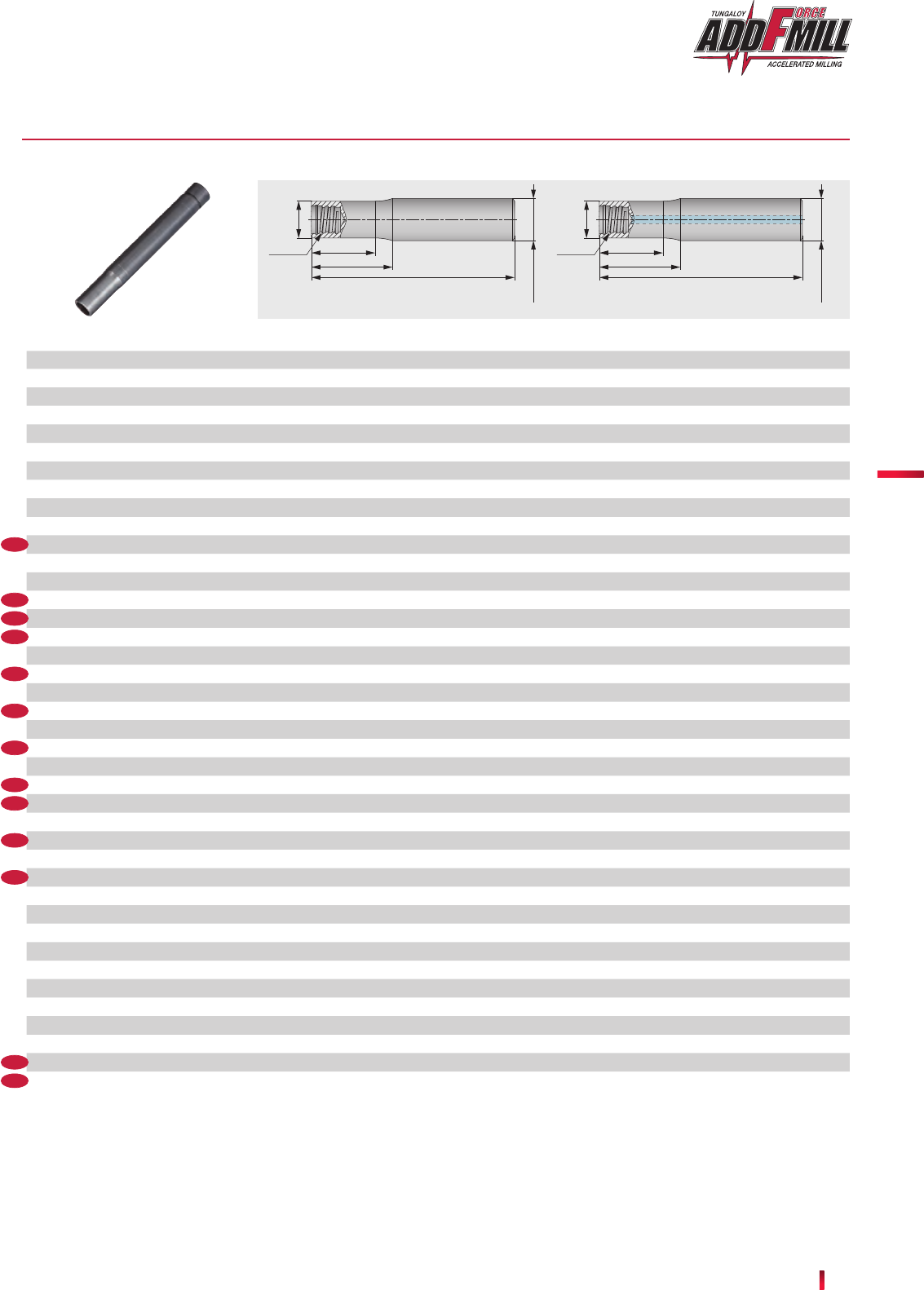

127Tungaloy
CRKS CRKS
LF
LBX
LB
BD
DCONMS
DCONMS
LF
LBX
LB
BD
VSSD...
DCONMS BD LF LBX LB CRKS
VSSD08L060S05-S 8 7.6 60 15 12.8 S05 1
VSSD08L070S05-C 8 7.6 70 20 19 S05 1
VSSD08L090S05-C 8 7.6 90 40 39 S05 1
VSSD08L110S05-C 8 7.6 110 60 59 S05 1
VSSD10L070S06-C 10 9.6 70 20 18.5 S06 1
VSSD10L075S06-S 10 9.6 75 20 19.4 S06 1
VSSD10L090S06-C 10 9.6 90 40 38.5 S06 1
VSSD10L110S06-C 10 9.6 110 60 58.5 S06 1
VSSD10L150S06-C 10 9.6 150 100 98.5 S06 1
VSSD12L070S08-C 12 11.5 70 20 17 S08 1
VSSD12L070S08-C-A 12 11.5 70 20 17 S08 2
VSSD12L090S08-C 12 11.5 90 40 37 S08 1
VSSD12L090S08-S 12 11.5 90 16 13.6 S08 1
VSSD12L090S08-S-A 12 11.5 90 16 13.6 S08 2
VSSD12L090LS08-C-A 12 11.5 90 40 37 S08 2
VSSD12L090LS08-S-A 12 11.5 90 40 37 S08 2
VSSD12L110S08-C 12 11.5 110 60 58 S08 1
VSSD12L110S08-C-A 12 11.5 110 60 57 S08 2
VSSD12L130S08-C 12 11.5 130 80 78 S08 1
VSSD12L130S08-C-A 12 11.5 130 80 77 S08 2
VSSD16L090S10-C 16 15.2 90 40 38 S10 1
VSSD16L090S10-C-A 16 15.2 90 40 38 S10 2
VSSD16L100S10-S 16 15.2 100 20 18 S10 1
VSSD16L100S10-S-A 16 15.2 100 20 18 S10 2
VSSD16L100LS10-S-A 16 15.2 100 40 38 S10 2
VSSD16L110S10-C 16 15.2 110 60 58 S10 1
VSSD16L110S10-C-A 16 15.2 110 60 58 S10 2
VSSD16L130S10-C 16 15.2 130 80 78 S10 1
VSSD16L130S10-C-A 16 15.2 130 80 78 S10 2
VSSD16L150S10-C 16 15.2 150 100 98 S10 1
VSSD20L090S12-C 20 18.3 90 40 37 S12 1
VSSD20L120S12-S 20 18.3 120 25 20.5 S12 1
VSSD20L130S12-C 20 18.3 130 80 77 S12 1
VSSD20L200S12-C 20 18.3 200 120 117 S12 1
VSSD25L120S15-C 25 23.9 120 60 58 S15 1
VSSD25L135S15-S 25 23.9 135 35 33 S15 1
VSSD25L170S15-C 25 23.9 170 100 98 S15 1
VSSD25L250S15-C 25 23.9 250 150 148 S15 1
VSSD32L100S21-S 32 30 100 35 32 S21 1
VSSD32L150S21-S 32 30 150 54 50 S21 1
New
New
New
New
New
New
New
New
New
New
New
New
New
Milling
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Steel
Cylindrical Carbide
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Steel
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Carbide
Cylindrical Carbide
Cylindrical Steel
Cylindrical Steel
Straight neck and cylindrical shank
CRKS = Connection screw size
Designation
Shank material
Fig.
Shank shape
Fig. 1 Fig. 2
128 NEW PRODUCTS
CRKS
DCONMS
BD
BHTA
LF
LBX
LB
CRKS
LF
LBX
LB
BD
DCONMS
DCONMS BD LF LBX LB CRKS
VSSD12L055W05-S 12 7.6 55 3.8 - S05
VSSD16L065W06-S 16 9.6 65 6 - S06
VSSD16L065W08-S 16 11.5 65 4 - S08
VSSD20L070W10-S 20 15.2 70 4 - S10
VSSD25L075W12-S 25 18.3 75 6 - S12
VSSD**-W...
VTSD...
BHTA DCONMS BD LF LBX LB CRKS
VTSD08L080S04-S 87.4° 8 5.8 80 24 - S04
VTSD12L080S05-S 85 12 7.6 80 25 - S05
VTSD12L100S05-S 89 12 7.6 100 35 29 S05
VTSD12L110S05-C 89 12 7.6 110 60 56 S05
VTSD12L130S05-C 89 12 7.6 130 80 77 S05
VTSD16L125S06-S 85 16 9.6 125 34 31 S06
VTSD16L130S08-C 89 16 11.5 130 80 76.5 S08
VTSD16L140S08-S 85 16 11.5 140 22 19 S08
VTSD16L150S05-C 89 16 7.6 150 100 91 S05
VTSD16L150S06-C 89 16 9.6 150 100 94.5 S06
VTSD16L150S08-C 89 16 11.5 150 100 98 S08
VTSD16L160S06-S 89 16 9.6 160 55 46.5 S06
VTSD16L170S06-C 89 16 9.6 170 120 116.5 S06
VTSD20L140S10-S 85 20 15.2 140 27.5 - S10
VTSD20L170S08-C 89 20 11.5 170 120 112 S08
VTSD20L170S08-S 89 20 11.5 170 80 69.5 S08
VTSD20L170S10-C 89 20 15.2 170 120 119 S10
VTSD20L190S10-C 89 20 15.2 190 140 - S10
VTSD20L190S10-S 89 20 15.2 190 80 73 S10
VTSD20L210S10-C 89 20 15.2 210 160 - S10
VTSD25L160S12-S 85 25 18.3 160 40 - S12
VTSD25L170S10-S 85 25 15.2 170 56 - S10
VTSD25L180S12-C 89 25 18.3 180 120 115 S12
VTSD25L210S12-S 89 25 18.3 210 100 94.5 S12
VTSD25L250S12-C 89 25 18.3 250 140 136.5 S12
VTSD32L155S15-S 85 32 23.9 155 45 - S15
VTSD32L190S12-S 85 32 18.3 190 80 - S12
VTSD32L220S15-S 88° 32 23.9 220 100 - S15
VTSD32L250S15-C 89 32 23.9 250 150 145 S15
VTSD32L300S15-C 89 32 23.9 300 200 198 S15
VTSD40L150S21-S 85° 40 15.2 150 57 - S21
New
New
Weldon
Weldon
Weldon
Weldon
Weldon
Steel
Steel
Steel
Steel
Steel
Straight neck and weldon shank
Straight shank and taper neck
CRKS = Connection screw size
CRKS = Connection screw size
Designation
Designation
Shank material
Shank material
Shank shape
Steel
Steel
Steel
Carbide
Carbide
Steel
Carbide
Steel
Carbide
Carbide
Carbide
Steel
Carbide
Steel
Carbide
Steel
Carbide
Carbide
Steel
Carbide
Steel
Steel
Carbide
Steel
Carbide
Steel
Steel
Steel
Carbide
Carbide
Steel
129Tungaloy
BD
CRKS
LF
DCONMS
BD
DCONMS
DCONMS
LF
CRKS
BD
LF
CRKS
CRKS
LF
LBX
LB
BD
DCONMS
BHTA
VTSD**-W-A...
VSC...
VSTD...
BHTA DCONMS BD LF LBX LB CRKS
VTSD12L110S06-W-A 89 12 9.6 110 60 59 S06
VTSD16L170S06-W-A 89 16 9.6 170 120 116 S06
DCONMS BD LF CRKS
VSC100L100S06-C 10 10 100 S06
VSC120L100S08-C-A 12 12 100 S08
DCONMS BD LF CRKS
VSTD06L070S04-S 6 6 70 S04
VSTD08L070S05-S 8 8 70 S05
VSTD10L080S06-S 10 10 80 S06
VSTD12L090S08-S 12 12 90 S08
VSTD16L100S10-S 16 16 100 S10
New
Milling
VSC type VSC-A type
Tungsten
Tungsten
Carbide
Carbide
Steel
Steel
Steel
Steel
Steel
Straight shank and taper neck with coolant hole
Straight shank for VST type slotting heads
Straight shank for VTB type T-slotting heads
CRKS = Connection screw size
CRKS = Connection screw size
CRKS = Connection screw size
Designation
Designation
Designation
Shank material
Shank material
Shank material
For VSC-C type shank, just VST slotting head is recommended.
If other heads are used on the VSC-C shank, the depth of cut must be smaller than the max. ap in each head.
The VSC-C type shank does not have external clearance, so the shank may interfere with the work piece.
For VSTD type shank, just VTB T-slotting head is recommended.
If other heads are used on the VSTD shank, the depth of cut must be smaller than the max. ap in each head.
The VSTD type shank does not have external clearance, so the shank may interfere with the work piece.
Air hole
without
with
130 NEW PRODUCTS

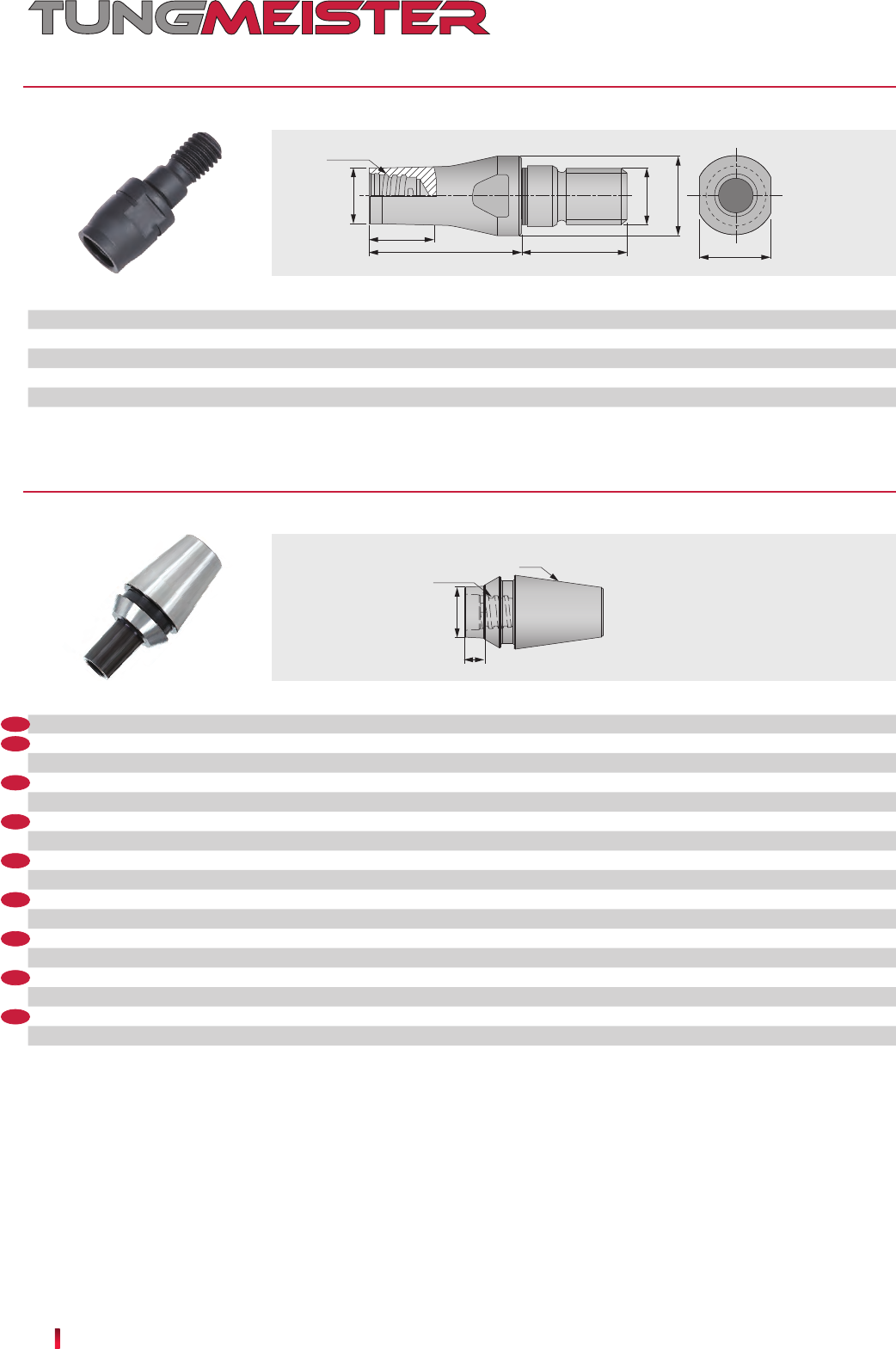

H
CRKSMS
LF
DCSFMS
BD
CRKS
LB LS
VAD**-M...
VER...
BD DCSFMS LF LS LB CRKS CRKSMS H
VAD130L016S08-S-M8 11.7 13 16 17.5 6 S08 M8 11
VAD130L025S08-S-M8 11.7 13 25 17.5 20 S08 M8 11
VAD180L020S08-S-M10 11.7 18 20 20 12 S08 M10 13
VAD180L025S08-S-M10 11.7 18 25 20 15 S08 M10 11
VAD210L020S08-S-M12 11.7 21 20 20 10 S08 M12 12.75
VAD210L025S08-S-M12 11.7 21 25 20 13 S08 M12 12.75
SS BD LF CRKS
VER11AL006S04-S ER11 5.8 6 S04
VER11AL006S05-S ER11 7.9 6 S05
VER11CL006S05-S (1) ER11 7.92 6 S05
VER11AL020S05-S ER11 7.9 20 S05
VER11CL020S05-S (1) ER11 7.92 20 S05
VER16AL012S05-S ER16 7.9 12 S05
VER16CL012S05-S (1) ER16 7.92 12 S05
VER16AL020S05-S ER16 7.9 20 S05
VER16CL020S05-S (1) ER16 7.92 20 S05
VER16AL010S06-S ER16 9.9 10 S06
VER16CL010S06-S (1) ER16 9.92 10 S06
VER16AL020S06-S ER16 9.9 20 S06
VER16CL020S06-S (1) ER16 9.92 20 S06
VER16AL006S08-S ER16 11.6 6 S08
VER16CL006S08-S (1) ER16 11.6 6 S08
VER16AL020S08-S ER16 11.6 20 S08
VER16CL020S08-S (1) ER16 11.6 20 S08
New
New
New
New
New
New
New
New
New
LF
BD
SS
CRKS
TungFlex conversion adaptor
Straight neck with ER11/16 collet
CRKS = Connection screw size
CRKS = Connection screw size
Designation
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Designation Shank material
(1) To be discontinued in 2021
Shank material
131Tungaloy
ISO
568101216202532
- 300 HB 80 - 180 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 300 HB 60 - 140 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
30 - 40
HRC 60 - 120 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 200 HB 40 - 100 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
150 - 250
HB 80 - 200 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
150 - 250
HB 80 - 200 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 200 - 700 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 100 - 300 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 40 - 80 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
- 20 - 40 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
40 - 50
HRC 40 - 80 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
50 - 60
HRC 20 - 60 0.03 -
0.07
0.03 -
0.07
0.05 -
0.09
0.07 -
0.12
0.08 -
0.13
0.09 -
0.15
0.1 -
0.17
0.1 -
0.17
0.1 -
0.18
0.6 x
DC
0.25 x
DC
ISO
8 1012162025
- 60 - 120 0.05 - 0.09 0.07 - 0.12 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 0.6 x
DC
0.02 x
DC
- 30 - 60 0.05 - 0.09 0.07 - 0.12 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 0.6 x
DC
0.02 x
DC
40 - 50
HRC 80 - 160 0.05 - 0.09 0.07 - 0.12 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 0.6 x
DC
0.02 x
DC
50 - 60
HRC 40 - 90 0.05 - 0.09 0.07 - 0.12 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 0.6 x
DC
0.02 x
DC
Milling
STANDARD CUTTING CONDITIONS
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Aluminium alloys
Si < 13%
Aluminium alloys
Si ≥ 13%
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
VEH, VEE: 3 flutes, VED / VEE: 4 flutes, VEE-I,
VED-R
Shoulder milling
Workpiece material
Hardness
Cutting
speed
Vc
(m/min)
Depth
of cut
ap
(mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
Width
of cut
ae
(mm)
Width
of cut
ae
(mm)
VED: 7, 9 flutes
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material
Hardness
Cutting
speed
Vc
(m/min)
Depth
of cut
ap
(mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
132 NEW PRODUCTS
ISO
5 6 8 10 12 16 20 25 32
- 300 HB 50 - 70 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 300 HB 40 - 80 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
30 - 40
HRC 40 - 70 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 200 HB 30 - 60 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
150 - 250
HB 50 - 120 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
150 - 250
HB 50 - 120 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 130 - 400 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 70 - 200 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 20 - 40 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
- 10 - 20 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
40 - 50
HRC 25 - 60 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
50 - 60
HRC 10 - 30 0.03 -
0.04
0.03 -
0.04
0.03 -
0.04
0.04 -
0.05
0.05 -
0.06
0.06 -
0.08
0.07 -
0.1
0.07 -
0.1
0.07 -
0.1 0.5 x DC
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Aluminium alloys
Si < 13%
Aluminium alloys
Si ≥ 13%
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material
Hardness
Cutting
speed
Vc
(m/min)
Depth of cut
ap
(mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
VEH, VEE: 3 flutes, VED/VEE: 4 flutes, VEE-I,
Slotting
133Tungaloy
ISO
12 16 20 25
- 300 HB 80 - 180 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 300 HB 60 - 140 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
30 - 40 HRC 60 - 120 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 200 HB 40 - 100 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
150 - 250 HB 80 - 200 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
150 - 250 HB 80 - 200 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 200 - 700 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 100 - 300 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 40 - 80 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
- 20 - 40 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
40 - 50 HRC 40 - 80 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
50 - 60 HRC 20 - 60 0.08 - 0.13 0.09 - 0.15 0.1 - 0.17 0.1 - 0.17 1 0.7 x DC
ISO
ø10 ø12 ø16 ø20
fz (mm/t) ap (mm) fz (mm/t) ap (mm) fz (mm/t) ap (mm) fz (mm/t) ap (mm)
- 300 HB 100 - 200 0.3 - 0.7 0.5 0.4 - 0.8 0.5 0.5 - 0.9 0.75 0.6 - 1 1 0.6 x
DC
- 300 HB 80 - 180 0.2 - 0.6 0.5 0.3 - 0.7 0.5 0.4 - 0.8 0.75 0.5 - 0.9 1 0.6 x
DC
30 - 40
HRC 80 - 160 0.2 - 0.5 0.4 0.2 - 0.5 0.4 0.3 - 0.6 0.5 0.3 - 0.6 0.75 0.6 x
DC
- 200 HB 60 - 100 0.2 - 0.6 0.4 0.2 - 0.6 0.4 0.3 - 0.7 0.5 0.3 - 0.7 0.75 0.6 x
DC
150 - 250
HB 100 - 220 0.3 - 0.7 0.5 0.4 - 0.8 0.75 0.5 - 0.9 0.75 0.6 - 1 1 0.6 x
DC
150 - 250
HB 100 - 220 0.2 - 0.6 0.5 0.3 - 0.7 0.75 0.4 - 0.8 0.75 0.5 - 0.9 1 0.6 x
DC
- 40 - 80 0.2 - 0.5 0.4 0.2 - 0.5 0.4 0.2 - 0.6 0.5 0.2 - 0.6 0.5 0.25 x
DC
- 20 - 40 0.1 - 0.3 0.3 0.1 - 0.3 0.3 0.1 - 0.3 0.4 0.1 - 0.3 0.4 0.25 x
DC
40 - 50
HRC 40 - 80 0.2 - 0.4 0.3 0.2 - 0.4 0.3 0.3 - 0.5 0.4 0.3 - 0.5 0.4 0.45 x
DC
50 - 60
HRC 20 - 60 0.1 - 0.2 0.2 0.1 - 0.2 0.2 0.1 - 0.3 0.3 0.1 - 0.3 0.3 0.25 x
DC
ae
(mm)
Vc
(m/min)
Milling
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Aluminium alloys
Si < 13%
Aluminium alloys
Si ≥ 13%
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
VFM
Face milling
Workpiece material Hardness
Cutting
speed
Vc
(m/min)
Depth of
cut
ap (mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
Width of
cut
ae (mm)
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material
Hardness
Cutting
speed
Width
of cut
Feed per
tooth
Feed per
tooth
Feed per
tooth
Feed per
tooth
Depth of
cut
Depth of
cut
Depth of
cut
Depth of
cut
Please note that the feed per tooth should not exceed the maximum feed per tooth for each product.
VFX: 4, 6 flutes
High feed milling
134 NEW PRODUCTS
ISO
5681012162025
- 300 HB 100 - 200 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
- 300 HB 80 - 180 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
30 - 40
HRC 80 - 160 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
- 200 HB 60 - 100 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
150 - 250
HB 100 - 220 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
150 - 250
HB 100 - 220 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
- 200 - 700 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
- 100 - 300 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.4 x
DC
- 40 - 80 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.2 x
DC
- 20 - 40 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.2 x
DC
40 - 50
HRC 40 - 80 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.2 x
DC
50 - 60
HRC 20 - 60 0.03 -
0.07
0.03 -
0.07
0.04 -
0.08
0.05 -
0.1
0.06 -
0.11
0.07 -
0.13
0.08 -
0.15
0.08 -
0.15
0.3 x
DC
0.2 x
DC
ISO
5681012162025
- 300 HB 120 - 250 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
- 300 HB 100 - 220 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
30 - 40
HRC 100 - 200 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
- 200 HB 80 - 120 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
150 - 250
HB 120 - 280 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
150 - 250
HB 120 - 280 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
- 300 - 1000 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
- 150 - 400 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.1 x
DC
0.15 x
DC
- 50 - 100 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.08 x
DC
0.1 x
DC
- 30 - 50 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.08 x
DC
0.1 x
DC
40 - 50
HRC 50 - 100 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.08 x
DC
0.1 x
DC
50 - 60
HRC 30 - 80 0.04 -
0.09
0.04 -
0.09
0.06 -
0.11
0.07 -
0.12
0.08 -
0.13
0.09 -
0.16
0.1 -
0.18
0.1 -
0.18
0.08 x
DC
0.1 x
DC
VBD-BG, VBE-BGA
Profiling for roughing
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Aluminium alloys
Si < 13%
Aluminium alloys
Si ≥ 13%
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material
Hardness
Cutting
speed
Vc
(m/min)
Depth
of cut
ap
(mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
Pick
feed
Pf
(mm)
VBD-BG, VBE-BGA
Profiling for semi-finishing and finishing
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Aluminium alloys
Si < 13%
Aluminium alloys
Si ≥ 13%
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material
Hardness
Cutting
speed
Vc
(m/min)
Depth
of cut
ap
(mm)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm)
Pick
feed
Pf
(mm)
135Tungaloy
ISO
10 12 16
- 300 HB 100 - 200 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 300 HB 80 - 180 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
30 - 40 HRC 80 - 160 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 200 HB 60 - 100 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
150 - 250 HB 100 - 220 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
150 - 250 HB 100 - 220 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 200 - 700 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 100 - 300 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 40 - 80 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
- 20 - 40 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
40 - 50 HRC 40 - 80 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
50 - 60 HRC 20 - 60 0.05 - 0.1 0.06 - 0.11 0.07 - 0.13 0.1
Milling
Workpiece material Hardness
Cutting speed
Vc (m/min)
Feed per tooth: fz (mm/t)
Tool diameter: DC (mm) Cusp height
(mm)
Low carbon steel
S45C, S55C, etc.
C45, C55, etc.
High carbon steel
SCM440, SCr415, etc.
42CrMo4, 15Cr3, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc.
Ductile cast iron
FCD400, etc.
400-15S, etc.
Aluminium alloys
Si 13%
Aluminium alloys
Si *
13%
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel718, etc.
Hardened steel
SKD61, SKT4, etc.
X40CrMoV5-1, 55NiCrMoV6, etc.
Hardened steel
SKD11, SKH, etc.
X153CrMoV12, HS18-0-1, etc.
VBO, VBN, VBL
Profiling
136 NEW PRODUCTS
ISO
- 300 HB 60 - 100 0.03 - 0.06
- 300 HB 50 - 80 0.03 - 0.06
30 - 40 HRC 40 - 70 0.03 - 0.06
- 200 HB 30 - 50 0.03 - 0.06
150 - 250 HB 80 - 120 0.03 - 0.06
150 - 250 HB 80 - 120 0.03 - 0.06
- 100 - 200 0.04 - 0.08
- 30 - 50 0.025 - 0.05
- 20 - 40 0.02 - 0.04
40 - 50 HRC 30 - 50 0.025 - 0.05
50 - 60 HRC 20 - 40 0.02 - 0.04
ISO
- 300 HB 60 - 100 0.06 - 0.12
- 300 HB 50 - 80 0.06 - 0.12
30 - 40 HRC 40 - 70 0.06 - 0.12
- 200 HB 30 - 50 0.06 - 0.12
150 - 250 HB 80 - 120 0.06 - 0.12
150 - 250 HB 80 - 120 0.06 - 0.12
- 100 - 200 0.08 - 0.16
- 30 - 50 0.05 - 0.1
- 20 - 40 0.04 - 0.08
40 - 50 HRC 30 - 50 0.05 - 0.1
50 - 60 HRC 20 - 40 0.04 - 0.08
VCA
Chamfering and countersinking (Milling, Z-feed chamfering)
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material Hardness Cutting speed
Vc (m/min)
Feed per tooth
fz (mm/t)
Aluminium alloys
VDS
Spot drill
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material Hardness Cutting speed
Vc (m/min)
Feed
f (mm/rev)
Aluminium alloys
137Tungaloy
ISO VDP107 VDP165 VDP207 VDP324 /
VDP328
VDP409 /
VDP412
VDP509 /
VDP513 VDP641
- 300 HB 40 - 80 0.02 -
0.04
0.025 -
0.05
0.025 -
0.05
0.04 -
0.08 0.05 - 0.1 0.05 - 0.1 0.06 -
0.12
- 300 HB 30 - 50 0.02 -
0.04
0.025 -
0.05
0.025 -
0.05
0.04 -
0.08 0.05 - 0.1 0.05 - 0.1 0.06 -
0.12
30 - 40 HRC 20 - 30 0.02 -
0.04
0.025 -
0.05
0.025 -
0.05
0.04 -
0.08 0.05 - 0.1 0.05 - 0.1 0.06 -
0.12
- 200 HB 15 - 25 0.015 -
0.03
0.02 -
0.04
0.02 -
0.04
0.04 -
0.08 0.05 - 0.1 0.05 - 0.1 0.06 -
0.12
150 - 250 HB 60 - 100 0.02 -
0.04
0.025 -
0.05
0.025 -
0.05 0.05 -0.09 0.07 -
0.012
0.07 -
0.12 0.12 - 0.18
150 - 250 HB 60 - 100 0.02 -
0.04
0.025 -
0.05
0.025 -
0.05
0.04 -
0.08 0.05 - 0.1 0.05 - 0.1 0.1 - 0.15
- 15 - 25 0.01 -
0.02
0.01 -
0.02
0.015 -
0.03
0.04 -
0.07
0.04 -
0.07
0.04 -
0.07
0.04 -
0.07
- 10 - 20 0.01 -
0.02
0.01 -
0.02
0.015 -
0.03
0.03 -
0.06
0.03 -
0.06
0.03 -
0.06
0.03 -
0.06
40 - 50 HRC 15 - 25 - - - 0.04 -
0.07
0.04 -
0.07
0.04 -
0.07
0.04 -
0.07
50 - 60 HRC 10 - 20 - - - 0.03 -
0.06
0.03 -
0.06
0.03 -
0.06
0.03 -
0.06
Milling
VDP
Center drill
Carbon steel
S45C, S55C, etc.
C45, C55, etc.
Alloy steel
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Prehardened steel
PX5, NAK80, etc.
Stainless steel
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.
Grey cast iron
FC250, FC300, etc.
250, 300, etc., GG250, GG300, etc.
Ductile cast iron
FCD450, etc.
450-10S, etc., GGG450, etc.
Hardened steel
SKD6, SKT4, etc.
55NiCrMoV7, etc.
Hardened steel
SKD11, SKH51, etc.
HS6-5-2, etc.
Titanium alloys
Ti-6Al-4V, etc.
Heat-resistant alloys
Inconel 718, etc.
Workpiece material Hardness
Feed : f (mm/rev)
Cutting speed
Vc (m/min)
140 AddMeisterDrill
146 DrillMeister
166 Solid4FlutesDrill
170 ReamMeister
Hole
making
140 NEW PRODUCTS
ADD superb performance in small drilling operations
WORLD'S SMALLEST
EXCHANGEABLE DRILL HEADS SERIES
Drilling
DMP
DMC
141Tungaloy
Holemaking
Scan this QR code
to nd out more
about this tool!
Lineup
- Through-coolant capability allows
superior chip evacuation and long and
predictable tool life.
- Provides even better hole tolerances
than solid drills.
Drill bodies
- TID-R: Cylindrical shank type
Available in 3×D and 5×D
- Two types of drill heads are available.
The tiny drill head is supplied
in a dedicated user-friendly
key, enabling easy and secure
mounting with no setup time.
Heads
- DMP
General purpose drilling head ideal for
various drilling applications
DC = ø4 - ø5.9 mm
- DMC
High precision drilling head with quick centering
cutting edge style
DC = ø4 - ø5.9 mm
Grades
- AH725: Versatile grade with a good balance of wear and fracture
resistance
- AH9130: Wear-resistant grade that enables long tool life

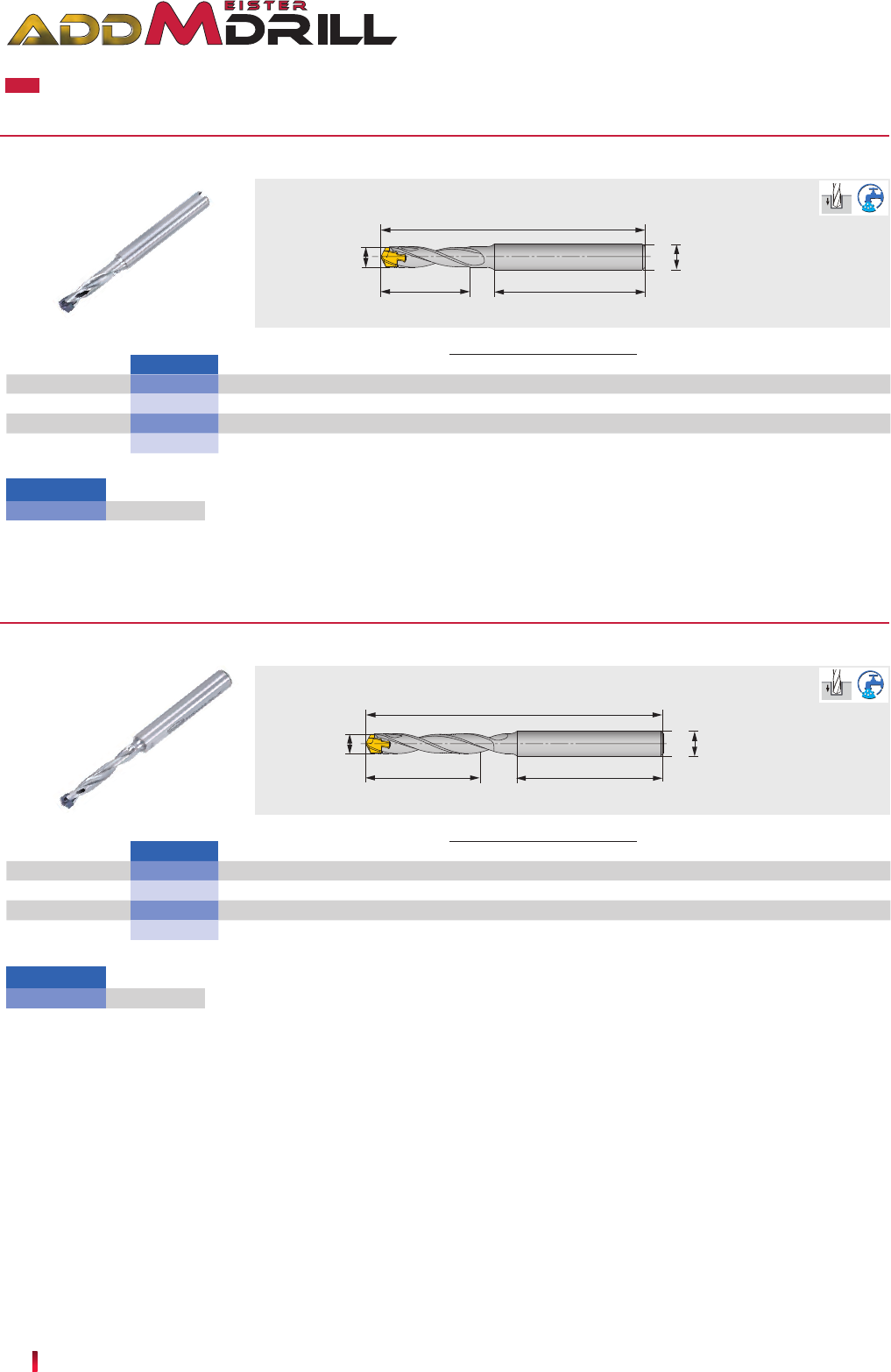

142 NEW PRODUCTS
LS
DC
DCONMS
OAL
LU
ø4 - ø5.9 +0.04 / 0
OAL
LS
LU
DCONMS
DC
ø4 - ø5.9 +0.05 / 0
OAL
DC DCONMS LU LS DMP DMC
TID040R06-3** 4 - 4.4 6 12.62 35 57.7 58.11 4 DM*040 - DM*044
TID045R06-3 4.5 - 4.9 6 14.16 35 59.65 59.91 4.5 DM*045 - DM*049
TID050R06-3 5 - 5.4 6 15.73 35 61.35 61.79 5 DM*050 - DM*054
TID055R06-3 5.5 - 5.9 6 17.31 35 64 64.32 5.5 DM*055 - DM*059
OAL
DC DCONMS LU LS DMP DMC
TID040R06-5** 4 - 4.4 6 20.62 35 65.7 66.11 4 DM*040 - DM*044
TID045R06-5 4.5 - 4.9 6 23.16 35 68.65 68.91 4.5 DM*045 - DM*049
TID050R06-5 5 - 5.4 6 25.73 35 71.3 71.64 5 DM*050 - DM*054
TID055R06-5 5.5 - 5.9 6 28.31 35 74.15 74.47 5.5 DM*055 - DM*059
TID-R L/D=3
TID-R L/D=5
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
* Cylindrical shank
* Cylindrical shank
**Will be released in December 2021
**Will be released in December 2021
DRILL SHANK
143Tungaloy
LPR
PL
140°
DC
ø4 - ø5.9 +0.018 / 0
P
M
K
N
S
H
DC LPR PL
AH725
DMP040* 4 3.1 0.62 TID*040...
DMP041* 4.1 3.1 0.64 TID*040...
DMP042* 4.2 3.1 0.66 TID*040...
DMP043* 4.3 3.1 0.67 TID*040...
DMP044* 4.4 3.1 0.69 TID*040...
DMP045 4.5 3.55 0.66 TID*045...
DMP046 4.6 3.55 0.68 TID*045...
DMP047 4.7 3.55 0.70 TID*045...
DMP048 4.8 3.55 0.71 TID*045...
DMP049 4.9 3.55 0.73 TID*045...
DMP050 5 3.7 0.73 TID*050...
DMP051 5.1 3.7 0.75 TID*050...
DMP052 5.2 3.7 0.77 TID*050...
DMP053 5.3 3.7 0.78 TID*050...
DMP054 5.4 3.7 0.8 TID*050...
DMP055 5.5 3.85 0.81 TID*055...
DMP056 5.6 3.85 0.83 TID*055...
DMP057 5.7 3.85 0.85 TID*055...
DMP058 5.8 3.85 0.86 TID*055...
DMP059 5.9 3.85 0.88 TID*055...
ø4 - ø5.9 +0.018 / 0
P
M
K
N
S
H
DC LPR PL
AH9130
DMC040* 4 3.51 0.86 TID*040...
DMC041* 4.1 3.51 0.88 TID*040...
DMC042* 4.2 3.51 0.9 TID*040...
DMC043* 4.3 3.51 0.92 TID*040...
DMC044* 4.4 3.51 0.94 TID*040...
DMC045* 4.5 3.81 0.97 TID*045...
DMC046* 4.6 3.81 0.99 TID*045...
DMC047* 4.7 3.81 1.01 TID*045...
DMC048* 4.8 3.81 1.03 TID*045...
DMC049* 4.9 3.81 1.05 TID*045...
DMC050 5 4.14 1.09 TID*050...
DMC051 5.1 4.14 1.11 TID*050...
DMC052 5.2 4.14 1.13 TID*050...
DMC053 5.3 4.14 1.15 TID*050...
DMC054 5.4 4.14 1.17 TID*050...
DMC055 5.5 4.17 1.22 TID*055...
DMC056 5.6 4.17 1.24 TID*055...
DMC057 5.7 4.17 1.26 TID*055...
DMC058 5.8 4.17 1.28 TID*055...
DMC059 5.9 4.17 1.3 TID*055...
136°
DC
LPR
PL
Holemaking
DRILL HEAD
ø4 - ø5.9 = 2 pieces per package
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
Body
DMP General purpose
*Will be released in December 2021
DMC High precision drilling
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
Body
: New
ø4 - ø5.9 = 2 pieces per package
*Will be released in December 2021
: New
: First choice: First choice
144 NEW PRODUCTS
ISO DC (mm)
Vc (m/min)
ø4 - 4.4 ø4.5 - 4.9 ø5 - 5.9
80 - 140
0.04 - 0.07 0.04 - 0.08 0.07 - 0.13
70 - 120
0.04 - 0.07 0.04 - 0.08 0.07 - 0.13
70 - 120
0.04 - 0.06 0.05 - 0.08 0.07 - 0.13
40 - 90
0.04 -0.07 0.05 - 0.08 0.07 - 0.13
30 - 70
- - 0.04 - 0.08
80 - 180
0.04 - 0.08 0.04 - 0.08 0.1 - 0.15
80 - 140
0.04 - 0.08 0.04 - 0.08 0.1 - 0.15
80 - 220
---
20 - 50
---
20 - 50
---
20 - 50
---
- Cutting conditions in the above table show standard cutting conditions
- Cutting conditions may change due to the rigidity and power of the machine and
the workpiece material
Cutting speed
Feed: f (mm/rev)
- Machined hole diameter may change depending upon the rigidity of the machine
tool or cutting conditions
Workpiece material
STANDARD CUTTING CONDITIONS
Low carbon steels (C < 0.3)
SS400, SM490, S25C, etc.
C15E4, E275A, E355D, etc.
High carbon steels (C > 0.3)
S45C, S55C, etc.
C45, C55, etc.
Low alloy steels
SCM415, etc.
18CrMo4, etc.
Alloy steels
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Stainless steels
SUS304, SUS316, etc.
X5CrNi18-9,
X5CrNiMo17-12-2, etc.
Grey cast irons
FC250, etc.
GG25, etc.
Ductile cast irons
FCD700, etc.
GGG70, etc.
Aluminium alloys
ADC12, etc.
AlSi11Cu3, etc.
Titanium alloys
Ti-6Al-4V, etc.
Nickel-based alloys
Hardened steel
145Tungaloy
1
2
3
4
Max 0.02 mm
Max 0.02 mm
ow
rate
Minimum Coolant Pressure
Coolant Flow Rate
liter/min bar
4.9
44.5 Dia.
4 4.5
10
5
4.9 Dia.
Drill Diameter D (mm)
5 X D
3 X
D
liter/min
4
5
5
7
12
10
10
44.5 4.5
4.9 4.9
bar
Holemaking
TECHNICAL GUIDELINES
Drilling head mounting procedure
Coolant recommendations
Drilling limitations
Minimum coolant pressure
Max 0.02 mm
Max 0.02 mm
&RRODQWñRZUDWH
Drill Diameter (mm)
Dry machining
slant entry plunging
slant exit
cross hole
Up to 2XD
Drill Diameter (mm)
146 NEW PRODUCTS
ADD higher productivity in your drilling operations
EXCHANGEABLE HEAD DRILL SYSTEM
FOR SUPERIOR DRILLING PERFORMANCE
AND LONG TOOL LIFE
Drilling
147Tungaloy
DMP DMC
DMF DMH DMN
Holemaking
Scan this QR code
to nd out more
about this tool!
Lineup
- Quick drill head change for reduced
machine downtime.
- Tool inventory and management costs
are significantly reduced as there is no
need for regrinding.
Drill bodies
- TID-F: Flange type, Available in 1.5×D, 3×D,
5×D, and 8×D
- TID-R: Cylindrical shank type, Available in
3.5×D, 6×D, 8×D, and 12×D
- TIDC: Available in 3×D and 5×D suitable for
use with TIDCF chamfering holders.
- TIDCF chamfering holder: Available with 3
types of inserts in chamfering angles of 30°,
45°, and 60°
Grades
- AH725: Versatile grade with a good balance of wear and fracture
resistance, ideal for all material groups
- AH9130: Wear-resistant grade that enables long tool life
- KS15F: Designed for non-ferrous applications
- Drill bodies are offered in a wide
range of sizes and styles, allowing
optimal tool assembly for secure and
productive drilling.
Heads
- DMP
General purpose drilling head ideal for various
drilling applications
DC = ø6 - ø25.9 mm
- DMC
High precision drilling head with double-margined
drill periphery and quick centering cutting edge
style
DC = ø6 - ø25.9 mm
- DMF
180° flat edges for counterboring and flat bottoms
DC = ø6 - ø25.9 mm
- DMH
General purpose head with enhanced cutting edge
DC = ø10 - ø19.5 mm
- DMN
Drill head with sharp edges for non-ferrous
materials
DC = ø10 - ø19.5 mm

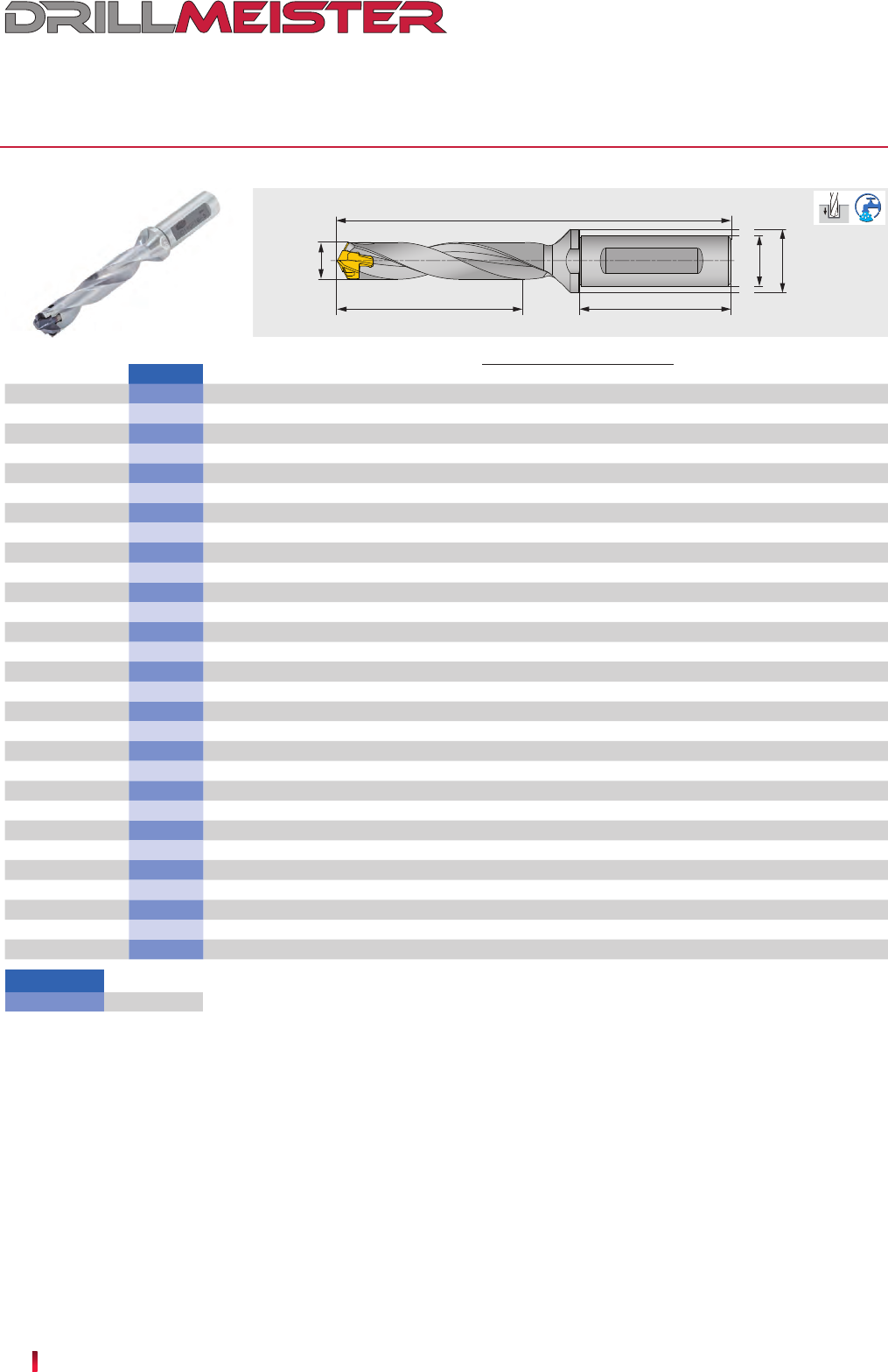

148 NEW PRODUCTS
OAL
LU LS
DC
DCSFMS
DCONMSh6
DCONMSh6
OAL
DC DCONMS DCSFMS LU LS DMP/H/N DMC DMF
TID060F12-1.5 6 - 6.4 12 16 10 45 67.85 68 67.01 6 DM*060 - DM*064
TID065F12-1.5 6.5 - 6.9 12 16 11 45 68.9 69.05 68.03 6.5 DM*065 - DM*069
TID070F12-1.5 7 - 7.4 12 16 12 45 69.95 70.4 69.08 7 DM*070 - DM*074
TID075F12-1.5 7.5 - 7.9 12 16 13 45 70.7 71.15 69.83 7 DM*075 - DM*079
TID080F12-1.5 8 - 8.9 12 16 14 45 72.25 72.4 71.39 8 DM*080 - DM*089
TID090F12-1.5 9 - 9.9 12 16 16 45 74.15 74.3 73.11 9 DM*090 - DM*099
TID100F16-1.5 10 - 10.9 16 20 17 48 79.05 79.67 77.72 10 DM*100 - DM*109
TID110F16-1.5 11 - 11.9 16 20 19 48 80.95 81.6 79.4 11 DM*110 - DM*119
TID120F16-1.5 12 - 12.9 16 20 20 48 82.8 83.43 81.21 12 DM*120 - DM*129
TID130F16-1.5 13 - 13.9 16 20 22 48 84.9 85.65 83.03 13 DM*130 - DM*139
TID140F16-1.5 14 - 14.9 16 20 24 48 88.95 89.76 86.96 14 DM*140 - DM*149
TID150F20-1.5 15 - 15.9 20 25 26 50 96.03 96.94 93.93 15 DM*150 - DM*159
TID160F20-1.5 16 - 16.9 20 25 27 50 99.1 100.07 96.84 16 DM*160 - DM*169
TID170F20-1.5 17 - 17.9 20 25 29 50 102.2 103.18 99.65 17 DM*170 - DM*179
TID180F25-1.5 18 - 18.9 25 32 30 56 111.3 112.35 108.45 18 DM*180 - DM*189
TID190F25-1.5 19 - 19.9 25 32 33 56 114.3 115.41 111.29 19 DM*190 - DM*199
TID200F25-1.5 20 - 20.9 25 32 34 56 117.4 118.62 115.12 20 DM*200 - DM*209
TID210F25-1.5 21 - 21.9 25 32 36 56 120.48 121.7 118.04 21 DM*210 - DM*219
TID220F25-1.5 22 - 22.9 25 32 37 56 123.56 124.84 120.86 22 DM*220 - DM*229
TID230F32-1.5 23 - 23.9 32 42 39 60 130.63 132.01 127.78 23 DM*230 - DM*239
TID240F32-1.5 24 - 24.9 32 42 40 60 133.7 135.11 130.71 24 DM*240 - DM*249
TID250F32-1.5 25 - 25.9 32 42 43 60 136.8 138.28 133.65 25 DM*250 - DM*259
TID-F L/D=1.5
ø6 - ø17.9 +0.03 / 0
ø18 - ø25.9 +0.035 / 0
DRILL BODIES
Hole diameter
tolerance*
Tool diameter
*Just for reference
Designation HeadPocket size
Head changeable drill
- An overall length (OAL) differs based on each head geometry.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
149Tungaloy
OAL
LU LS
DC
DCSFMS
DCONMSh6
OAL
DC DCONMS DCSFMS LU LS DMP/H/N DMC DMF
TID060F12-3 6 - 6.4 12 16 19 45 76.85 77 76.01 6 DM*060 - DM*064
TID065F12-3 6.5 - 6.9 12 16 21 45 78.65 78.8 77.78 6.5 DM*065 - DM*069
TID070F12-3 7 - 7.4 12 16 22 45 80.45 80.9 79.58 7 DM*070 - DM*074
TID075F12-3 7.5 - 7.9 12 16 24 45 81.95 82.4 81.08 7 DM*075 - DM*079
TID080F12-3 8 - 8.4 12 16 26 45 84.25 84.4 83.39 8 DM*080 - DM*084
TID085F12-3 8.5 - 8.9 12 16 28 45 85.75 85.9 84.89 8 DM*085 - DM*089
TID090F12-3 9 - 9.4 12 16 29 45 87.65 87.8 86.61 9 DM*090 - DM*094
TID095F12-3 9.5 - 9.9 12 16 31 45 89.15 89.3 88.11 9 DM*095 - DM*099
TID100F16-3 10 - 10.4 16 20 32 48 94.05 94.67 92.72 10 DM*100 - DM*104
TID105F16-3 10.5 - 10.9 16 20 34 48 95.55 96.17 94.22 10 DM*105 - DM*109
TID110F16-3 11 - 11.4 16 20 35 48 97.45 98.1 95.9 11 DM*110 - DM*114
TID115F16-3 11.5 - 11.9 16 20 37 48 98.95 99.6 97.4 11 DM*115 - DM*119
TID120F16-3 12 - 12.4 16 20 38 48 100.8 101.43 99.21 12 DM*120 - DM*124
TID125F16-3 12.5 - 12.9 16 20 39 48 102.3 102.93 100.71 12 DM*125 - DM*129
TID130F16-3 13 - 13.4 16 20 41 48 104.4 105.15 102.53 13 DM*130 - DM*134
TID135F16-3 13.5 - 13.9 16 20 44 48 105.9 106.65 104.03 13 DM*135 - DM*139
TID140F16-3 14 - 14.4 16 20 45 48 109.95 110.76 107.96 14 DM*140 - DM*144
TID145F16-3 14.5 - 14.9 16 20 47 48 111.45 112.26 109.46 14 DM*145 - DM*149
TID150F20-3 15 - 15.9 20 25 48 50 118.53 119.44 116.43 15 DM*150 - DM*159
TID160F20-3 16 - 16.9 20 25 51 50 123.1 124.07 120.84 16 DM*160 - DM*169
TID170F20-3 17 - 17.9 20 25 54 50 127.7 128.68 125.15 17 DM*170 - DM*179
TID180F25-3 18 - 18.9 25 32 57 56 138.3 139.35 135.45 18 DM*180 - DM*189
TID190F25-3 19 - 19.9 25 32 61 56 142.8 143.91 139.79 19 DM*190 - DM*199
TID200F25-3 20 - 20.9 25 32 64 56 147.4 148.62 145.12 20 DM*200 - DM*209
TID210F25-3 21 - 21.9 25 32 67 56 151.98 153.2 149.54 21 DM*210 - DM*219
TID220F25-3 22 - 22.9 25 32 70 56 156.56 157.84 153.86 22 DM*220 - DM*229
TID230F32-3 23 - 23.9 32 42 73 60 165.13 166.51 162.28 23 DM*230 - DM*239
TID240F32-3 24 - 24.9 32 42 76 60 169.7 171.11 166.71 24 DM*240 - DM*249
TID250F32-3 25 - 25.9 32 42 80 60 174.3 175.78 171.15 25 DM*250 - DM*259
TID-F L/D=3
ø6 - ø17.9 +0.04 / 0
ø18 - ø25.9 +0.045 / 0
Holemaking
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
150 NEW PRODUCTS
OAL
LU LS
DC
DCSFMS
DCONMSh6
OAL
DC DCONMS DCSFMS LU LS DMP/H/N DMC DMF
TID060F12-5 6 - 6.4 12 16 31 45 88.85 89 88.01 6 DM*060 - DM*064
TID065F12-5 6.5 - 6.9 12 16 34 45 91.65 91.8 90.78 6.5 DM*065 - DM*069
TID070F12-5 7 - 7.4 12 16 36 45 94.45 94.9 93.58 7 DM*070 - DM*074
TID075F12-5 7.5 - 7.9 12 16 39 45 96.95 97.4 96.08 7 DM*075 - DM*079
TID080F12-5 8 - 8.4 12 16 42 45 100.25 100.4 99.39 8 DM*080 - DM*084
TID085F12-5 8.5 - 8.9 12 16 45 45 102.75 102.9 101.89 8 DM*085 - DM*089
TID090F12-5 9 - 9.4 12 16 47 45 105.65 105.8 104.61 9 DM*090 - DM*094
TID095F12-5 9.5 - 9.9 12 16 50 45 108.15 108.3 107.11 9 DM*095 - DM*099
TID100F16-5 10 - 10.4 16 20 52 48 114.05 114.67 112.72 10 DM*100 - DM*104
TID105F16-5 10.5 - 10.9 16 20 55 48 116.55 117.17 115.22 10 DM*105 - DM*109
TID110F16-5 11 - 11.4 16 20 57 48 119.45 120.1 117.9 11 DM*110 - DM*114
TID115F16-5 11.5 - 11.9 16 20 60 48 121.95 122.6 120.4 11 DM*115 - DM*119
TID120F16-5 12 - 12.4 16 20 62 48 124.8 125.43 123.21 12 DM*120 - DM*124
TID125F16-5 12.5 - 12.9 16 20 64 48 127.3 127.93 125.71 12 DM*125 - DM*129
TID130F16-5 13 - 13.4 16 20 67 48 130.4 131.15 128.53 13 DM*130 - DM*134
TID135F16-5 13.5 - 13.9 16 20 71 48 132.9 133.65 131.03 13 DM*135 - DM*139
TID140F16-5 14 - 14.4 16 20 73 48 137.95 138.76 135.96 14 DM*140 - DM*144
TID145F16-5 14.5 - 14.9 16 20 76 48 140.45 141.26 138.46 14 DM*145 - DM*149
TID150F20-5 15 - 15.9 20 25 78 50 148.53 149.44 146.43 15 DM*150 - DM*159
TID160F20-5 16 - 16.9 20 25 83 50 155.1 156.07 152.84 16 DM*160 - DM*169
TID170F20-5 17 - 17.9 20 25 88 50 161.7 162.68 159.15 17 DM*170 - DM*179
TID180F25-5 18 - 18.9 25 32 93 56 174.3 175.35 171.45 18 DM*180 - DM*189
TID190F25-5 19 - 19.9 25 32 99 56 180.8 181.91 177.79 19 DM*190 - DM*199
TID200F25-5 20 - 20.9 25 32 104 56 187.6 188.82 185.32 20 DM*200 - DM*209
TID210F25-5 21 - 21.9 25 32 109 56 194.2 195.42 191.76 21 DM*210 - DM*219
TID220F25-5 22 - 22.9 25 32 114 56 200.8 202.08 198.1 22 DM*220 - DM*229
TID230F32-5 23 - 23.9 32 42 119 60 211.3 212.68 208.45 23 DM*230 - DM*239
TID240F32-5 24 - 24.9 32 42 124 60 217.9 219.31 214.91 24 DM*240 - DM*249
TID250F32-5 25 - 25.9 32 42 130 60 224.5 225.98 221.35 25 DM*250 - DM*259
TID-F L/D=5
ø6 - ø25.9 +0.05 / 0
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
151Tungaloy
OAL
LU LS
DC
DCSFMS
DCONMSh6
OAL
DC DCONMS DCSFMS LU LS DMP/H/N DMC DMF
TID070F12-8 7 - 7.4 12 16 57 45 115.45 115.90 114.58 7 DM*070 - DM*074
TID075F12-8 7.5 - 7.9 12 16 61 45 119.45 119.90 118.58 7 DM*075 - DM*079
TID080F12-8 8 - 8.4 12 16 66 45 124.25 124.40 123.39 8 DM*080 - DM*084
TID085F12-8 8.5 - 8.9 12 16 70 45 128.25 128.40 127.39 8 DM*085 - DM*089
TID090F12-8 9 - 9.4 12 16 74 45 132.65 132.80 131.61 9 DM*090 - DM*094
TID095F12-8 9.5 - 9.9 12 16 78 45 136.65 136.80 135.61 9 DM*095 - DM*099
TID100F16-8 10 - 10.4 16 20 82 48 144.05 144.67 142.72 10 DM*100 - DM*104
TID105F16-8 10.5 - 10.9 16 20 86 48 148.05 148.67 146.72 10 DM*105 - DM*109
TID110F16-8 11 - 11.4 16 20 90 48 152.45 153.10 150.90 11 DM*110 - DM*114
TID115F16-8 11.5 - 11.9 16 20 94 48 156.45 157.10 154.90 11 DM*115 - DM*119
TID120F16-8 12 - 12.4 16 20 98 48 160.80 161.43 159.21 12 DM*120 - DM*124
TID125F16-8 12.5 - 12.9 16 20 102 48 164.80 165.43 163.21 12 DM*125 - DM*129
TID130F16-8 13 - 13.4 16 20 106 48 169.40 170.15 167.53 13 DM*130 - DM*134
TID135F16-8 13.5 - 13.9 16 20 111 48 173.40 174.15 171.53 13 DM*135 - DM*139
TID140F16-8 14 - 14.4 16 20 115 48 179.95 180.76 177.96 14 DM*140 - DM*144
TID145F16-8 14.5 - 14.9 16 20 119 48 183.95 184.76 181.96 14 DM*145 - DM*149
TID150F20-8 15 - 15.9 20 25 123 50 193.53 194.44 191.43 15 DM*150 - DM*159
TID160F20-8 16 - 16.9 20 25 131 50 203.10 204.07 200.84 16 DM*160 - DM*169
TID170F20-8 17 - 17.9 20 25 139 50 212.70 213.68 210.15 17 DM*170 - DM*179
TID180F25-8 18 - 18.9 25 32 147 56 228.30 229.35 225.45 18 DM*180 - DM*189
TID190F25-8 19 - 19.9 25 32 156 56 237.80 238.91 234.79 19 DM*190 - DM*199
TID200F25-8 20 - 20.9 25 32 164 56 247.40 248.62 245.12 20 DM*200 - DM*209
TID210F25-8 21 - 21.9 25 32 172 56 256.98 258.20 254.54 21 DM*210 - DM*219
TID220F25-8 22 - 22.9 25 32 180 56 266.56 267.84 263.86 22 DM*220 - DM*229
TID230F32-8 23 - 23.9 32 42 188 60 280.13 281.51 277.28 23 DM*230 - DM*239
TID240F32-8 24 - 24.9 32 42 196 60 289.70 291.11 286.71 24 DM*240 - DM*249
TID250F32-8 25 - 25.9 32 42 205 60 299.30 300.78 296.15 25 DM*250 - DM*259
TID-F L/D=8
ø7 - ø17.9 +0.05 / 0
ø18 - ø25.9 +0.055 / 0
Holemaking
Hole diameter
tolerance*
Tool diameter
*Just for reference
Head changeable drill
Designation HeadPocket size
- An overall length (OAL) differs based on each head geometry.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
152 NEW PRODUCTS
OAL
DCONMSh6
LU LS
DC
ø6 - ø16.9 +0.04 / 0
OAL
DC DCONMS LU LS DMP DMC DMF
TID060R8-2E 6 - 6.4 8 12.4 45 66.1 66.2 65.2 6 DM*060 - DM*064
TID065R8-2E 6.5 - 6.9 8 12.8 45 67.2 67.3 66.3 6.5 DM*065 - DM*069
TID070R8-2E 7 - 7.4 8 13.3 45 68 68.4 67.1 7 DM*070 - DM*074
TID075R8-2E 7.5 - 7.9 8 14.4 45 69 69.4 68.1 7 DM*075 - DM*079
TID080R10-2E 8 - 8.9 10 14.7 50 75.2 75.3 74.3 8 DM*080 - DM*089
TID090R10-2E 9 - 9.9 10 16.5 50 77.4 77.5 76.3 9 DM*090 - DM*099
TID100R12-2E 10 - 10.9 12 22.2 60 94.3 94.9 92.9 10 DM*100 - DM*109
TID110R12-2E 11 - 11.9 12 24 60 96.5 97.1 94.9 11 DM*110 - DM*119
TID120R14-2E 12 - 12.9 14 25.8 65 103.6 104.2 102.0 12 DM*120 - DM*129
TID130R14-2E 13 - 13.9 14 27.4 65 108.8 109.6 106.9 13 DM*130 - DM*139
TID140R16-2E 14 - 14.9 16 29 70 115 115.8 113.0 14 DM*140 - DM*149
TID150R16-2E 15 - 15.9 16 31.5 70 118 118.9 115.9 15 DM*150 - DM*159
TID160R18-2E 16 - 16.9 18 33.1 70 122.2 123.2 119.9 16 DM*160 - DM*169
New
TID-R-2E L/D=2
Head changeable drill (For external coolant supply)
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
* Cylindrical shank
153Tungaloy
OAL
LS
LU
DC
DCONMSh6
OAL
DC DCONMS LU LS DMP/H/N DMC DMF
TID060R8-3.5 6 - 6.4 8 21 45 75.64 75.79 74.8 6 DM*060 - DM*064
TID065R8-3.5 6.5 - 6.9 8 22.75 45 77.48 77.63 76.61 6.5 DM*065 - DM*069
TID070R8-3.5 7 - 7.4 8 24.5 45 79.08 79.53 78.21 7 DM*070 - DM*074
TID075R8-3.5 7.5 - 7.9 8 26.25 45 80.83 81.28 79.96 7 DM*075 - DM*079
TID080R10-3.5 8 - 8.4 10 28 50 87.75 87.9 86.89 8 DM*080 - DM*084
TID085R10-3.5 8.5 - 8.9 10 29.75 50 89.5 89.65 88.64 8 DM*085 - DM*089
TID090R10-3.5 9 - 9.4 10 31.5 50 91.42 91.57 90.38 9 DM*090 - DM*094
TID095R10-3.5 9.5 - 9.9 10 33.25 50 93.17 93.32 92.13 9 DM*095 - DM*099
TID100R12-3.5 10 - 10.4 12 42 60 114.03 114.65 112.7 10 DM*100 - DM*104
TID105R12-3.5 10.5 - 10.9 12 44 60 115.69 116.31 114.36 10 DM*105 - DM*109
TID110R12-3.5 11 - 11.4 12 46 65 123.13 123.78 121.58 11 DM*110 - DM*114
TID115R12-3.5 11.5 - 11.9 12 48 65 124.79 125.44 123.24 11 DM*115 - DM*119
TID120R14-3.5 12 - 12.4 14 50 65 127.18 127.81 125.59 12 DM*120 - DM*124
TID125R14-3.5 12.5 - 12.9 14 52 65 128.84 129.47 127.25 12 DM*125 - DM*129
TID130R14-3.5 13 - 13.4 14 54 65 132.74 133.49 130.87 13 DM*130 - DM*134
TID135R14-3.5 13.5 - 13.9 14 56 65 134.4 135.15 132.53 13 DM*135 - DM*139
TID140R16-3.5 14 - 14.4 16 58 70 142.18 142.99 140.19 14 DM*140 - DM*144
TID145R16-3.5 14.5 - 14.9 16 60 70 143.84 144.65 141.85 14 DM*145 - DM*149
TID150R16-3.5 15 - 15.9 16 64 70 148.44 149.35 146.34 15 DM*150 - DM*159
TID160R18-3.5 16 - 16.9 18 68 70 153.93 154.9 151.67 16 DM*160 - DM*169
TID170R18-3.5 17 - 17.9 18 72 70 158.46 159.44 155.91 17 DM*170 - DM*179
TID180R20-3.5 18 - 18.9 20 76 70 164.02 165.07 161.17 18 DM*180 - DM*189
TID190R20-3.5 19 - 19.9 20 80 70 168.37 169.48 165.36 19 DM*190 - DM*199
TID-R L/D=3.5
ø6 - ø19.9 +0.04 / 0
Holemaking
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
* Cylindrical shank
154 NEW PRODUCTS
DC
LS
LU
OAL
DCONMSh6
OAL
DC DCONMS LU LS DMP/H/N DMC DMF
TID060R8-6 6 - 6.4 8 36 45 91.64 91.79 90.8 6 DM*060 - DM*064
TID065R8-6 6.5 - 6.9 8 39 45 94.73 94.88 93.86 6.5 DM*065 - DM*069
TID070R8-6 7 - 7.4 8 42 45 97.58 98.03 96.71 7 DM*070 - DM*074
TID075R8-6 7.5 - 7.9 8 45 45 100.58 101.03 99.71 7 DM*075 - DM*079
TID080R10-6 8 - 8.4 10 48 50 108.75 108.9 107.89 8 DM*080 - DM*084
TID085R10-6 8.5 - 8.9 10 51 50 111.75 111.9 110.89 8 DM*085 - DM*089
TID090R10-6 9 - 9.4 10 54 50 114.92 115.07 113.88 9 DM*090 - DM*094
TID095R10-6 9.5 - 9.9 10 57 50 117.92 118.07 116.88 9 DM*095 - DM*099
TID100R12-6 10 - 10.4 12 68 60 140.03 140.65 138.7 10 DM*100 - DM*104
TID105R12-6 10.5 - 10.9 12 71 60 142.94 143.56 141.61 10 DM*105 - DM*109
TID110R12-6 11 - 11.4 12 75 65 151.63 152.28 150.08 11 DM*110 - DM*114
TID115R12-6 11.5 - 11.9 12 78 65 154.54 155.19 152.99 11 DM*115 - DM*119
TID120R14-6 12 - 12.4 14 81 65 158.18 158.81 156.59 12 DM*120 - DM*124
TID125R14-6 12.5 - 12.9 14 84 65 161.09 161.72 159.5 12 DM*125 - DM*129
TID130R14-6 13 - 13.4 14 88 65 166.24 166.99 164.37 13 DM*130 - DM*134
TID135R14-6 13.5 - 13.9 14 91 65 169.15 169.9 167.28 13 DM*135 - DM*139
TID140R16-6 14 - 14.4 16 94 70 178.18 178.99 176.19 14 DM*140 - DM*144
TID145R16-6 14.5 - 14.9 16 97 70 181.09 181.9 179.1 14 DM*145 - DM*149
TID150R16-6 15 - 15.9 16 104 70 188.19 189.1 186.09 15 DM*150 - DM*159
TID160R18-6 16 - 16.9 18 110 70 196.18 197.15 193.92 16 DM*160 - DM*169
TID170R18-6 17 - 17.9 18 117 70 203.21 204.19 200.66 17 DM*170 - DM*179
TID180R20-6 18 - 18.9 20 124 70 211.27 212.32 208.42 18 DM*180 - DM*189
TID190R20-6 19 - 19.9 20 130 70 218.12 219.23 215.11 19 DM*190 - DM*199
TID-R L/D=6
ø6 - ø17.9 +0.05 / 0
ø18 - ø19.9 +0.055 / 0
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
* Cylindrical shank
155Tungaloy
LU LS
OAL
DCONMSh6
DC
ø6 - ø17.9 +0.05 / 0
ø18 - ø19.9 +0.055 / 0
OAL
DC DCONMS LU LS DMP/H/N DMC DMF
TID060R8-8 6 - 6.4 8 48 45 104.44 104.59 103.6 6 DM*060 - DM*064
TID065R8-8 6.5 - 6.9 8 52 45 108.53 108.68 107.66 6.5 DM*065 - DM*069
TID070R8-8 7 - 7.4 8 56 45 112.38 112.83 111.51 7 DM*070 - DM*074
TID075R8-8 7.5 - 7.9 8 60 45 116.38 116.83 115.51 7 DM*075 - DM*079
TID080R10-8 8 - 8.4 10 64 50 125.55 125.7 124.69 8 DM*080 - DM*084
TID085R10-8 8.5 - 8.9 10 68 50 129.55 129.7 128.69 8 DM*085 - DM*089
TID090R10-8 9 - 9.4 10 72 50 133.72 133.87 132.68 9 DM*090 - DM*094
TID095R10-8 9.5 - 9.9 10 76 50 137.72 137.87 136.68 9 DM*095 - DM*099
TID100R12-8 10 - 10.4 12 89 60 160.83 161.45 159.5 10 DM*100 - DM*104
TID105R12-8 10.5 - 10.9 12 93 60 164.74 165.36 163.41 10 DM*105 - DM*109
TID110R12-8 11 - 11.4 12 98 65 174.43 175.08 172.88 11 DM*110 - DM*114
TID115R12-8 11.5 - 11.9 12 102 65 178.34 178.99 176.79 11 DM*115 - DM*119
TID120R14-8 12 - 12.4 14 106 65 182.98 183.61 181.39 12 DM*120 - DM*124
TID125R14-8 12.5 - 12.9 14 110 65 186.89 187.52 185.3 12 DM*125 - DM*129
TID130R14-8 13 - 13.4 14 115 65 193.04 193.79 191.17 13 DM*130 - DM*134
TID135R14-8 13.5 - 13.9 14 119 65 196.9 197.65 195.03 13 DM*135 - DM*139
TID140R16-8 14 - 14.4 16 123 70 206.98 207.79 204.99 14 DM*140 - DM*144
TID145R16-8 14.5 - 14.9 16 127 70 210.89 211.7 208.9 14 DM*145 - DM*149
TID150R16-8 15 - 15.9 16 136 70 219.99 220.9 217.89 15 DM*150 - DM*159
TID160R18-8 16 - 16.9 18 144 70 229.98 230.95 227.72 16 DM*160 - DM*169
TID170R18-8 17 - 17.9 18 153 70 239.01 239.99 236.46 17 DM*170 - DM*179
TID180R20-8 18 - 18.9 20 162 70 249.07 250.12 246.22 18 DM*180 - DM*189
TID190R20-8 19 - 19.9 20 170 70 257.92 259.03 254.91 19 DM*190 - DM*199
TID-R L/D=8
Holemaking
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside
the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
* Cylindrical shank
156 NEW PRODUCTS
OAL
LU LS
DC
DCONMSh6
ø8 - ø17.9 +0.05 / 0
ø18 - ø25.9 +0.055 / 0
OAL
DC DCONMS LU LS DMP/H/N DMC DMF
TID080R12-12 8 - 8.4 12 98 45 156.25 156.4 155.39 8 DM*080 - DM*084
TID085R12-12 8.5 - 8.9 12 104 45 162.25 162.4 161.39 8 DM*085 - DM*089
TID090R12-12 9 - 9.4 12 110 45 168.65 168.8 167.61 9 DM*090 - DM*094
TID095R12-12 9.5 - 9.9 12 116 45 174.65 174.8 173.61 9 DM*095 - DM*099
TID100R16-12 10 - 10.4 16 122 48 184.05 184.67 182.72 10 DM*100 - DM*104
TID105R16-12 10.5 - 10.9 16 128 48 190.05 190.67 188.72 10 DM*105 - DM*109
TID110R16-12 11 - 11.4 16 134 48 196.45 197.1 194.9 11 DM*110 - DM*114
TID115R16-12 11.5 - 11.9 16 140 48 202.45 203.1 200.9 11 DM*115 - DM*119
TID120R16-12 12 - 12.4 16 146 48 208.8 209.43 207.21 12 DM*120 - DM*124
TID125R16-12 12.5 - 12.9 16 152 48 214.8 215.43 213.21 12 DM*125 - DM*129
TID130R16-12 13 - 13.4 16 158 48 221.4 222.15 219.53 13 DM*130 - DM*134
TID135R16-12 13.5 - 13.9 16 165 48 227.4 228.15 225.53 13 DM*135 - DM*139
TID140R16-12 14 - 14.4 16 171 48 235.95 236.76 233.96 14 DM*140 - DM*144
TID145R16-12 14.5 - 14.9 16 177 48 241.95 242.76 239.96 14 DM*145 - DM*149
TID150R20-12 15 - 15.9 20 183 50 253.53 254.44 251.43 15 DM*150 - DM*159
TID160R20-12 16 - 16.9 20 195 50 267.1 268.07 264.84 16 DM*160 - DM*169
TID170R20-12 17 - 17.9 20 207 50 280.7 281.68 278.15 17 DM*170 - DM*179
TID180R25-12 18 - 18.9 25 219 56 300.3 301.35 297.45 18 DM*180 - DM*189
TID190R25-12 19 - 19.9 25 232 56 313.8 314.91 310.79 19 DM*190 - DM*199
TID200R25-12 20 - 20.9 25 244 56 327.4 328.62 325.12 20 DM*200 - DM*209
TID210R25-12 21 - 21.9 25 256 56 340.98 342.2 338.54 21 DM*210 - DM*219
TID220R25-12 22 - 22.9 25 267 56 354.56 355.84 351.86 22 DM*220 - DM*229
TID230R32-12 23 - 23.9 32 276 60 372.13 373.51 369.28 23 DM*230 - DM*239
TID240R32-12 24 - 24.9 32 288 60 385.7 387.11 382.71 24 DM*240 - DM*249
TID250R32-12 25 - 25.9 32 300 60 399.3 400.78 396.15 25 DM*250 - DM*259
TID-R L/D=12
Head changeable drill
Designation HeadPocket size
Hole diameter
tolerance*
Tool diameter
*Just for reference
- An overall length (OAL) differs based on each head geometry.
- When using the drill at a higher feed rate, make sure to provide an axial support by placing the overhang adjusting screw at the drill
shank end in the tool holder. This will prevent high thrust force from pushing the drill back into the holder during drilling.
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm
shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in
other diameters than the above.
* Cylindrical shank
Scan this QR
code to nd out
other drill body
information.
157Tungaloy
LPR
PL
140°
DC
ø6 - ø17.9 +0.018 / 0
ø18 - ø25.9 +0.021 / 0
P
M
K
N
S
H
P
M
K
N
S
H
DC LPR PL
AH725
AH9130
DMP060 6 3.85 1.09 TID*060...
DMP061 6.1 3.85 1.11 TID*060...
DMP062 6.2 3.85 1.13 TID*060...
DMP063 6.3 3.85 1.14 TID*060...
DMP064 6.4 3.85 1.16 TID*060...
DMP065 6.5 4.15 1.27 TID*065...
DMP066 6.6 4.15 1.29 TID*065...
DMP067 6.7 4.15 1.31 TID*065...
DMP068 6.8 4.15 1.33 TID*065...
DMP069 6.9 4.15 1.34 TID*065...
DMP070 7 4.45 1.03 TID*070...
DMP071 7.1 4.45 1.05 TID*070...
DMP072 7.2 4.45 1.07 TID*070...
DMP073 7.3 4.45 1.08 TID*070...
DMP074 7.4 4.45 1.1 TID*070...
DMP075 7.5 4.45 1.12 TID*075...
DMP076 7.6 4.45 1.14 TID*075...
DMP077 7.7 4.45 1.16 TID*075...
DMP078 7.8 4.45 1.18 TID*075...
DMP079 7.9 4.45 1.19 TID*075...
DMP080 8 5.25 1.2 TID*080...
DMP081 8.1 5.25 1.22 TID*080...
DMP082 8.2 5.25 1.24 TID*080...
DMP083 8.3 5.25 1.25 TID*080...
DMP084 8.4 5.25 1.27 TID*080...
DMP085 8.5 5.25 1.29 TID*085...
DMP086 8.6 5.25 1.31 TID*085...
DMP087 8.7 5.25 1.33 TID*085...
DMP088 8.8 5.25 1.35 TID*085...
DMP089 8.9 5.25 1.36 TID*085...
DMP090 9 5.65 1.37 TID*090...
DMP091 9.1 5.65 1.39 TID*090...
DMP092 9.2 5.65 1.41 TID*090...
DMP093 9.3 5.65 1.42 TID*090...
DMP094 9.4 5.65 1.44 TID*090...
DMP095 9.5 5.65 1.46 TID*095...
DMP096 9.6 5.65 1.48 TID*095...
DMP097 9.7 5.65 1.5 TID*095...
DMP098 9.8 5.65 1.52 TID*095...
DC LPR PL
AH725
AH9130
DMP099 9.9 5.65 1.53 TID*095...
DMP100 10 6.05 1.47 TID*100...
DMP101 10.1 6.05 1.49 TID*100...
DMP102 10.2 6.05 1.51 TID*100...
DMP103 10.3 6.05 1.52 TID*100...
DMP104 10.4 6.05 1.54 TID*100...
DMP105 10.5 6.05 1.56 TID*105...
DMP106 10.6 6.05 1.58 TID*105...
DMP107 10.7 6.05 1.6 TID*105...
DMP108 10.8 6.05 1.62 TID*105...
DMP109 10.9 6.05 1.63 TID*105...
DMP110 11 6.45 1.67 TID*110...
DMP111 11.1 6.45 1.69 TID*110...
DMP112 11.2 6.45 1.71 TID*110...
DMP113 11.3 6.45 1.72 TID*110...
DMP114 11.4 6.45 1.74 TID*110...
DMP115 11.5 6.45 1.76 TID*115...
DMP116 11.6 6.45 1.78 TID*115...
DMP117 11.7 6.45 1.8 TID*115...
DMP118 11.8 6.45 1.82 TID*115...
DMP119 11.9 6.45 1.83 TID*115...
DMP120 12 6.8 1.82 TID*120...
DMP121 12.1 6.8 1.84 TID*120...
DMP122 12.2 6.8 1.86 TID*120...
DMP123 12.3 6.8 1.87 TID*120...
DMP124 12.4 6.8 1.89 TID*120...
DMP125 12.5 6.8 1.91 TID*125...
DMP126 12.6 6.8 1.93 TID*125...
DMP127 12.7 6.8 1.95 TID*125...
DMP128 12.8 6.8 1.97 TID*125...
DMP129 12.9 6.8 1.98 TID*125...
DMP130 13 7.4 1.96 TID*130...
DMP131 13.1 7.4 1.98 TID*130...
DMP132 13.2 7.4 2 TID*130...
DMP133 13.3 7.4 2.01 TID*130...
DMP134 13.4 7.4 2.03 TID*130...
DMP135 13.5 7.4 2.05 TID*135...
DMP136 13.6 7.4 2.07 TID*135...
DMP137 13.7 7.4 2.09 TID*135...
Holemaking
DRILL HEAD
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation Designation
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Coated Coated
Body Body
DMP General purpose
: Line-up*Will be released in December 2021
158 NEW PRODUCTS
P
M
K
N
S
H
P
M
K
N
S
H
DC LPR PL
AH725
AH9130
DMP138 13.8 7.4 2.11 TID*135...
DMP139 13.9 7.4 2.12 TID*135...
DMP140 14 7.95 2.12 TID*140...
DMP141 14.1 7.95 2.14 TID*140...
DMP142 14.2 7.95 2.16 TID*140...
DMP143 14.3 7.95 2.17 TID*140...
DMP144 14.4 7.95 2.19 TID*140...
DMP145 14.5 7.95 2.21 TID*145...
DMP146 14.6 7.95 2.23 TID*145...
DMP147 14.7 7.95 2.25 TID*145...
DMP148 14.8 7.95 2.27 TID*145...
DMP149 14.9 7.95 2.28 TID*145...
DMP150 15 8.53 2.27 TID*150...
DMP151 15.1 8.53 2.29 TID*150...
DMP152 15.2 8.53 2.31 TID*150...
DMP153 15.3 8.53 2.32 TID*150...
DMP154 15.4 8.53 2.34 TID*150...
DMP155 15.5 8.53 2.36 TID*150...
DMP156 15.6 8.53 2.38 TID*150...
DMP157 15.7 8.53 2.4 TID*150...
DMP158 15.8 8.53 2.42 TID*150...
DMP159 15.9 8.53 2.43 TID*150...
DMP160 16 9.1 2.42 TID*160...
DMP161 16.1 9.1 2.44 TID*160...
DMP162 16.2 9.1 2.46 TID*160...
DMP163 16.3 9.1 2.47 TID*160...
DMP164 16.4 9.1 2.49 TID*160...
DMP165 16.5 9.1 2.51 TID*160...
DMP166 16.6 9.1 2.53 TID*160...
DMP167 16.7 9.1 2.55 TID*160...
DMP168 16.8 9.1 2.57 TID*160...
DMP169 16.9 9.1 2.58 TID*160...
DMP170 17 9.7 2.59 TID*170...
DMP171 17.1 9.7 2.61 TID*170...
DMP172 17.2 9.7 2.63 TID*170...
DMP173 17.3 9.7 2.64 TID*170...
DMP174 17.4 9.7 2.66 TID*170...
DMP175 17.5 9.7 2.68 TID*170...
DMP176 17.6 9.7 2.7 TID*170...
DMP177 17.7 9.7 2.72 TID*170...
DMP178 17.8 9.7 2.74 TID*170...
DMP179 17.9 9.7 2.75 TID*170...
DC LPR PL
AH725
AH9130
DMP180 18 10.3 2.73 TID*180...
DMP181 18.1 10.3 2.75 TID*180...
DMP182 18.2 10.3 2.77 TID*180...
DMP183 18.3 10.3 2.78 TID*180...
DMP184 18.4 10.3 2.8 TID*180...
DMP185 18.5 10.3 2.82 TID*180...
DMP186 18.6 10.3 2.84 TID*180...
DMP187 18.7 10.3 2.86 TID*180...
DMP188 18.8 10.3 2.88 TID*180...
DMP189 18.9 10.3 2.89 TID*180...
DMP190 19 10.8 2.88 TID*190...
DMP1905 19.05 10.8 2.89 TID*190...
DMP191 19.1 10.8 2.9 TID*190...
DMP192 19.2 10.8 2.92 TID*190...
DMP1927 19.27 10.8 2.93 TID*190...
DMP193 19.3 10.8 2.93 TID*190...
DMP194 19.4 10.8 2.95 TID*190...
DMP195 19.5 10.8 2.97 TID*190...
DMP196 19.6 10.8 2.99 TID*190...
DMP197 19.7 10.8 3.01 TID*190...
DMP198 19.8 10.8 3.03 TID*190...
DMP199 19.9 10.8 3.04 TID*190...
DMP200 20 11.4 3.02 TID*200...
DMP201 20.1 11.4 3.04 TID*200...
DMP202 20.2 11.4 3.06 TID*200...
DMP203 20.3 11.4 3.07 TID*200...
DMP204 20.4 11.4 3.09 TID*200...
DMP205 20.5 11.4 3.11 TID*200...
DMP206 20.6 11.4 3.13 TID*200...
DMP207 20.7 11.4 3.15 TID*200...
DMP208 20.8 11.4 3.17 TID*200...
DMP209 20.9 11.4 3.18 TID*200...
DMP210 21 11.98 3.18 TID*210...
DMP211 21.1 11.98 3.2 TID*210...
DMP212 21.2 11.98 3.22 TID*210...
DMP213 21.3 11.98 3.23 TID*210...
DMP214 21.4 11.98 3.25 TID*210...
DMP215 21.5 11.98 3.27 TID*210...
DMP216 21.6 11.98 3.29 TID*210...
DMP217 21.7 11.98 3.31 TID*210...
DMP218 21.8 11.98 3.33 TID*210...
DMP219 21.9 11.98 3.34 TID*210...
LPR
PL
140°
DC
ø6 - ø17.9 +0.018 / 0
ø18 - ø25.9 +0.021 / 0
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
:Line-up
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation Designation
Coated Coated
Body Body
DMP General purpose
Tool diameter Head diameter
tolerance
159Tungaloy
P
M
K
N
S
H
DC LPR PL
AH725
AH9130
DMP220 22 12.56 3.32 TID*220...
DMP221 22.1 12.56 3.34 TID*220...
DMP222 22.2 12.56 3.36 TID*220...
DMP223 22.3 12.56 3.37 TID*220...
DMP224 22.4 12.56 3.39 TID*220...
DMP225 22.5 12.56 3.41 TID*220...
DMP226 22.6 12.56 3.43 TID*220...
DMP227 22.7 12.56 3.45 TID*220...
DMP228 22.8 12.56 3.47 TID*220...
DMP229 22.9 12.56 3.48 TID*220...
DMP230 23 13.13 3.46 TID*230...
DMP231 23.1 13.13 3.48 TID*230...
DMP232 23.2 13.13 3.5 TID*230...
DMP233 23.3 13.13 3.51 TID*230...
DMP234 23.4 13.13 3.53 TID*230...
DMP235 23.5 13.13 3.55 TID*230...
DMP236 23.6 13.13 3.57 TID*230...
DMP237 23.7 13.13 3.59 TID*230...
DMP238 23.8 13.13 3.61 TID*230...
DMP239 23.9 13.13 3.62 TID*230...
DMP240 24 13.7 3.62 TID*240...
DMP241 24.1 13.7 3.64 TID*240...
DMP242 24.2 13.7 3.66 TID*240...
DMP243 24.3 13.7 3.67 TID*240...
DMP244 24.4 13.7 3.69 TID*240...
DMP245 24.5 13.7 3.71 TID*240...
DMP246 24.6 13.7 3.73 TID*240...
DMP247 24.7 13.7 3.75 TID*240...
DMP248 24.8 13.7 3.77 TID*240...
DMP249 24.9 13.7 3.78 TID*240...
DMP250 25 14.3 3.8 TID*250...
DMP251 25.1 14.3 3.82 TID*250...
DMP252 25.2 14.3 3.84 TID*250...
DMP253 25.3 14.3 3.85 TID*250...
DMP254 25.4 14.3 3.87 TID*250...
DMP255 25.5 14.3 3.89 TID*250...
DMP256 25.6 14.3 3.91 TID*250...
DMP2567 25.67 14.3 3.92 TID*250...
DMP257 25.7 14.3 3.93 TID*250...
DMP258 25.8 14.3 3.95 TID*250...
DMP259 25.9 14.3 3.96 TID*250...
Holemaking
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Designation
Coated
Body
: First choice
: Second choice
:Line-up
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
160 NEW PRODUCTS
ø6 - ø17.9 +0.018 / 0
ø18 - ø25.9 +0.021 / 0
P
M
K
N
S
H
P
M
K
N
S
H
DC LPR PL
AH9130
DMC102 10.2 6.67 2.13 TID*100...
DMC103 10.3 6.67 2.15 TID*100...
DMC104 10.4 6.67 2.17 TID*100...
DMC105 10.5 6.67 2.19 TID*105...
DMC106 10.6 6.67 2.21 TID*105...
DMC107 10.7 6.67 2.23 TID*105...
DMC108 10.8 6.67 2.25 TID*105...
DMC109 10.9 6.67 2.27 TID*105...
DMC110 11 7.1 2.32 TID*110...
DMC111 11.1 7.1 2.34 TID*110...
DMC112 11.2 7.1 2.36 TID*110...
DMC113 11.3 7.1 2.38 TID*110...
DMC114 11.4 7.1 2.4 TID*110...
DMC115 11.5 7.1 2.42 TID*115...
DMC116 11.6 7.1 2.44 TID*115...
DMC117 11.7 7.1 2.46 TID*115...
DMC118 11.8 7.1 2.48 TID*115...
DMC119 11.9 7.1 2.5 TID*115...
DMC120 12 7.43 2.45 TID*120...
DMC121 12.1 7.43 2.47 TID*120...
DMC122 12.2 7.43 2.49 TID*120...
DMC123 12.3 7.43 2.51 TID*120...
DMC124 12.4 7.43 2.53 TID*120...
DMC125 12.5 7.43 2.55 TID*125...
DMC126 12.6 7.43 2.57 TID*125...
DMC127 12.7 7.43 2.59 TID*125...
DMC128 12.8 7.43 2.61 TID*125...
DMC129 12.9 7.43 2.63 TID*125...
DMC130 13 8.15 2.71 TID*130...
DMC131 13.1 8.15 2.73 TID*130...
DMC132 13.2 8.15 2.75 TID*130...
DMC133 13.3 8.15 2.77 TID*130...
DMC134 13.4 8.15 2.79 TID*130...
DMC135 13.5 8.15 2.81 TID*135...
DMC136 13.6 8.15 2.83 TID*135...
DMC137 13.7 8.15 2.85 TID*135...
DMC138 13.8 8.15 2.87 TID*135...
DMC139 13.9 8.15 2.89 TID*135...
DMC140 14 8.76 2.93 TID*140...
DMC141 14.1 8.76 2.95 TID*140...
DMC142 14.2 8.76 2.97 TID*140...
DMC143 14.3 8.76 2.99 TID*140...
DC LPR PL
AH9130
DMC060 64
1.24 TID*060...
DMC061 6.1 4 1.26 TID*060...
DMC062 6.2 4 1.28 TID*060...
DMC063 6.3 4 1.3 TID*060...
DMC064 6.4 4 1.32 TID*060...
DMC065 6.5 4.3 1.33 TID*065...
DMC066 6.6 4.3 1.35 TID*065...
DMC067 6.7 4.3 1.37 TID*065...
DMC068 6.8 4.3 1.39 TID*065...
DMC069 6.9 4.3 1.41 TID*065...
DMC070 74.9
1.48 TID*070...
DMC071 7.1 4.9 1.5 TID*070...
DMC072 7.2 4.9 1.52 TID*070...
DMC073 7.3 4.9 1.54 TID*070...
DMC074 7.4 4 .9 1.56 TID*070...
DMC075 7. 5 4.9 1.58 TID*075...
DMC076 7. 6 4.9 1.6 TID*075...
DMC077 7.7 4.9 1.62 TID*075...
DMC078 7.8 4.9 1.64 TID*075...
DMC079 7.9 4.9 1.66 TID*075...
DMC080 85.4
1.62 TID*080...
DMC081 8.1 5.4 1.64 TID*080...
DMC082 8.2 5.4 1.66 TID*080...
DMC083 8.3 5.4 1.68 TID*080...
DMC084 8.4 5.4 1.7 TID*080...
DMC085 8.5 5.4 1.72 TID*085...
DMC086 8.6 5.4 1.74 TID*085...
DMC087 8.7 5.4 1.76 TID*085...
DMC088 8.8 5.4 1.78 TID*085...
DMC089 8.9 5.4 1.8 TID*085...
DMC090 95.8
1.91 TID*090...
DMC091 9.1 5.8 1.93 TID*090...
DMC092 9.2 5.8 1.95 TID*090...
DMC093 9.3 5.8 1.97 TID*090...
DMC094 9.4 5.8 1.99 TID*090...
DMC095 9.5 5.8 2.01 TID*095...
DMC096 9.6 5.8 2.03 TID*095...
DMC097 9.7 5.8 2.05 TID*095...
DMC098 9.8 5.8 2.07 TID*095...
DMC099 9.9 5.8 2.09 TID*095...
DMC100 10 6.67 2.09 TID*100...
DMC101 10.1 6.67 2.11 TID*100...
136°
DC
LPR
PL
DMC High precision drilling
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation Designation
Coated Coated
Body Body
: Line-up
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
161Tungaloy
P
M
K
N
S
H
P
M
K
N
S
H
DC LPR PL
AH9130
DMC144 14.4 8.76 3.01 TID*140...
DMC145 14.5 8.76 3.03 TID*145...
DMC146 14.6 8.76 3.05 TID*145...
DMC147 14.7 8.76 3.07 TID*145...
DMC148 14.8 8.76 3.09 TID*145...
DMC149 14.9 8.76 3.11 TID*145...
DMC150 15 9.44 3.18 TID*150...
DMC151 15.1 9.44 3.2 TID*150...
DMC152 15.2 9.44 3.22 TID*150...
DMC153 15.3 9.44 3.24 TID*150...
DMC154 15.4 9.44 3.26 TID*150...
DMC155 15.5 9.44 3.28 TID*150...
DMC156 15.6 9.44 3.3 TID*150...
DMC157 15.7 9.44 3.32 TID*150...
DMC158 15.8 9.44 3.34 TID*150...
DMC159 15.9 9.44 3.36 TID*150...
DMC160 16 10.07 3.39 TID*160...
DMC161 16.1 10.07 3.41 TID*160...
DMC162 16.2 10.07 3.43 TID*160...
DMC163 16.3 10.07 3.45 TID*160...
DMC164 16.4 10.07 3.47 TID*160...
DMC165 16.5 10.07 3.49 TID*160...
DMC166 16.6 10.07 3.51 TID*160...
DMC167 16.7 10.07 3.53 TID*160...
DMC168 16.8 10.07 3.55 TID*160...
DMC169 16.9 10.07 3.57 TID*160...
DMC170 17 10.68 3.57 TID*170...
DMC171 17.1 10.68 3.59 TID*170...
DMC172 17.2 10.68 3.61 TID*170...
DMC173 17.3 10.68 3.63 TID*170...
DMC174 17.4 10.68 3.65 TID*170...
DMC175 17.5 10.68 3.67 TID*170...
DMC176 17.6 10.68 3.69 TID*170...
DMC177 17.7 10.68 3.71 TID*170...
DMC178 17.8 10.68 3.73 TID*170...
DMC179 17.9 10.68 3.75 TID*170...
DMC180 18 11.35 3.78 TID*180...
DMC181 18.1 11.35 3.8 TID*180...
DMC182 18.2 11.35 3.82 TID*180...
DC LPR PL
AH9130
DMC183 18.3 11.35 3.84 TID*180...
DMC184 18.4 11.35 3.86 TID*180...
DMC185 18.5 11.35 3.88 TID*180...
DMC186 18.6 11.35 3.9 TID*180...
DMC187 18.7 11.35 3.92 TID*180...
DMC188 18.8 11.35 3.94 TID*180...
DMC189 18.9 11.35 3.96 TID*180...
DMC190 19 11.91 3.99 TID*190...
DMC191 19.1 11.91 4.01 TID*190...
DMC192 19.2 11.91 4.03 TID*190...
DMC1927 19.27 11.91 4.04 TID*190...
DMC193 19.3 11.91 4.05 TID*190...
DMC194 19.4 11.91 4.07 TID*190...
DMC195 19.5 11.91 4.09 TID*190...
DMC196 19.6 11.91 4.11 TID*190...
DMC197 19.7 11.91 4.13 TID*190...
DMC198 19.8 11.91 4.15 TID*190...
DMC199 19.9 11.91 4.17 TID*190...
DMC200 20 12.62 4.24 TID*200...
DMC201 20.1 12.62 4.26 TID*200...
DMC205 20.5 12.62 4.34 TID*200...
DMC206 20.6 12.62 4.36 TID*200...
DMC210 21 13.2 4.4 TID*210...
DMC211 21.1 13.2 4.42 TID*210...
DMC215 21.5 13.2 4.5 TID*210...
DMC217 21.7 13.2 4.54 TID*210...
DMC218 21.8 13.2 4.56 TID*210...
DMC220 22 13.84 4.6 TID*220...
DMC221 22.1 13.84 4.62 TID*220...
DMC222 22.2 13.84 4.64 TID*220...
DMC223 22.3 13.84 4.66 TID*220...
DMC225 22.5 13.84 4.7 TID*220...
DMC230 23 14.51 4.84 TID*230...
DMC235 23.5 14.51 4.94 TID*230...
DMC240 24 15.11 5.03 TID*240...
DMC245 24.5 15.11 5.13 TID*240...
DMC250 25 15.78 5.28 TID*250...
DMC253 25.3 15.78 5.34 TID*250...
DMC255 25.5 15.78 5.38 TID*250...
DMC2567 25.67 15.78 5.42 TID*250...
DMC259 25.9 15.78 5.46 TID*250...
Holemaking
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation Designation
Coated Coated
Body Body
:Line-up
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
162 NEW PRODUCTS
LPR
PL
A
DC
PDD
140°
ø6 - ø17.9 +0.018 / 0
ø18 - ø19.9 +0.021 / 0
P
M
K
N
S
H
P
M
K
N
S
H
DC LPR CHW PL PDD
AH9130
DMF060 6 3.01 0.4 0.61 1.15 TID*060...
DMF065 6.5 3.28 0.4 0.68 1.54 TID*065...
DMF068 6.8 3.28 0.4 0.68 1.54 TID*065...
DMF070 7 3.58 0.4 0.68 1.54 TID*070...
DMF075 7.5 3.58 0.4 0.68 1.54 TID*075...
DMF080 8 4.39 0.7 1.09 2.44 TID*080...
DMF081 8.1 4.39 0.7 1.09 2.44 TID*080...
DMF085 8.5 4.39 0.7 1.09 2.44 TID*085...
DMF086 8.6 4.39 0.7 1.09 2.44 TID*085...
DMF087 8.7 4.39 0.7 1.09 2.44 TID*085...
DMF088 8.8 4.39 0.7 1.09 2.44 TID*085...
DMF090 9 4.61 0.7 1.11 2.55 TID*090...
DMF095 9.5 4.61 0.7 1.11 2.55 TID*095...
DMF100 10 4.72 0.7 1.17 2.89 TID*100...
DMF101 10.1 4.72 0.7 1.17 2.89 TID*100...
DMF103 10.3 4.72 0.7 1.17 2.89 TID*100...
DMF104 10.4 4.72 0.7 1.17 2.89 TID*100...
DMF105 10.5 4.72 0.7 1.17 2.89 TID*105...
DMF106 10.6 4.72 0.7 1.17 2.89 TID*105...
DMF107 10.7 4.72 0.7 1.17 2.89 TID*105...
DMF108 10.8 4.72 0.7 1.17 2.89 TID*105...
DMF110 11 4.9 0.7 1.25 2.98 TID*110...
DMF115 11.5 4.9 0.7 1.25 2.98 TID*115...
DMF117 11.7 4.9 0.7 1.25 2.98 TID*115...
DMF120 12 5.21 0.7 1.26 3.13 TID*120...
DMF121 12.1 5.21 0.7 1.26 3.13 TID*120...
DMF122 12.2 5.21 0.7 1.26 3.13 TID*120...
DMF123 12.3 5.21 0.7 1.26 3.13 TID*120...
DMF124 12.4 5.21 0.7 1.26 3.13 TID*120...
DMF125 12.5 5.21 0.7 1.26 3.13 TID*125...
DMF126 12.6 5.21 0.7 1.26 3.13 TID*125...
DMF127 12.7 5.21 0.7 1.26 3.13 TID*125...
DMF130 13 5.53 0.7 1.28 3.52 TID*130...
DMF131 13.1 5.53 0.7 1.28 3.52 TID*130...
DMF133 13.3 5.53 0.7 1.28 3.52 TID*130...
DMF135 13.5 5.53 0.7 1.28 3.52 TID*135...
DMF137 13.7 5.53 0.7 1.28 3.52 TID*135...
DMF138 13.8 5.53 0.7 1.28 3.52 TID*135...
DMF139 13.9 5.53 0.7 1.28 3.52 TID*135...
DC LPR CHW PL PDD
AH9130
DMF140 14 5.96 0.7 1.31 3.81 TID*140...
DMF141 14.1 5.96 0.7 1.31 3.81 TID*140...
DMF142 14.2 5.96 0.7 1.31 3.81 TID*140...
DMF143 14.3 5.96 0.7 1.31 3.81 TID*140...
DMF144 14.4 5.96 0.7 1.31 3.81 TID*140...
DMF145 14.5 5.96 0.7 1.31 3.81 TID*145...
DMF150 15 6.43 0.7 1.35 4.24 TID*150...
DMF152 15.2 6.43 0.7 1.35 4.24 TID*150...
DMF155 15.5 6.43 0.7 1.35 4.24 TID*150...
DMF157 15.7 6.43 0.7 1.35 4.24 TID*150...
DMF158 15.8 6.43 0.7 1.35 4.24 TID*150...
DMF160 16 6.84 0.7 1.39 4.06 TID*160...
DMF161 16.1 6.84 0.7 1.39 4.06 TID*160...
DMF165 16.5 6.84 0.7 1.39 4.06 TID*160...
DMF167 16.7 6.84 0.7 1.39 4.06 TID*160...
DMF170 17 7.15 0.7 1.4 4.14 TID*170...
DMF175 17.5 7.15 0.7 1.4 4.14 TID*170...
DMF179 17.9 7.15 0.7 1.4 4.14 TID*170...
DMF180 18 7.45 0.7 1.42 4.16 TID*180...
DMF185 18.5 7.45 0.7 1.42 4.16 TID*180...
DMF190 19 7.79 0.7 1.44 4.25 TID*190...
DMF195 19.5 7.79 0.7 1.44 4.25 TID*190...
DMF198 19.8 7.79 0.7 1.44 4.25 TID*190...
DMF200 20 9.12 0.7 1.77 6.56 TID*200...
DMF205 20.5 9.12 0.7 1.77 6.56 TID*200...
DMF210 21 9.54 0.7 1.79 6.92 TID*210...
DMF215 21.5 9.54 0.7 1.79 6.92 TID*210...
DMF218 21.8 9.54 0.7 1.79 6.92 TID*210...
DMF220 22 9.86 0.7 1.81 7.13 TID*220...
DMF225 22.5 9.86 0.7 1.81 7.13 TID*220...
DMF230 23 10.28 0.7 1.83 7.42 TID*230...
DMF235 23.5 10.28 0.7 1.83 7.42 TID*230...
DMF240 24 10.71 0.7 1.86 7.45 TID*240...
DMF245 24.5 10.71 0.7 1.86 7.45 TID*240...
DMF250 25 11.15 0.7 1.9 7.54 TID*250...
DMF254 25.4 11.15 0.7 1.9 7.54 TID*250...
DMF255 25.5 11.15 0.7 1.9 7.54 TID*250...
DMF259 25.9 11.15 0.7 1.9 7.54 TID*250...
CHW
30°
DMF Flat geometry head
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation Designation
Coated Coated
Body Body
Detail in A
ø6 - ø19.9 = 2 pieces per package
ø20 - ø25.9 = 1 piece per package
: Will be released in January 2022
: Line-up
163Tungaloy
ø10 - ø19.5 ±0.01
P
M
K
N
S
H
DC LPR PL
AH9130
DMH100 10 6.05 1.47 TID*100...
DMH103 10.3 6.05 1.52 TID*100...
DMH105 10.5 6.05 1.56 TID*105...
DMH108 10.8 6.05 1.62 TID*105...
DMH110 11 6.4 5 1.67 TID*110...
DMH115 11.5 6.45 1.76 TID*115...
DMH120 12 6.8 1.82 TID*120...
DMH125 12.5 6.8 1.91 TID*125...
DMH126 12.6 6.8 1.93 TID*125...
DMH130 13 7.4 1.96 TID*130...
DMH133 13.3 7.4 2.01 TID*130...
DMH135 13.5 7.4 2.05 TID*135...
DMH137 13.7 7.4 2.09 TID*135...
DMH138 13.8 7.4 2.11 TID*135...
DMH139 13.9 7.4 2.12 TID*135...
DMH140 14 7.95 2.12 TID*140...
DMH142 14.2 7.95 2.16 TID*140...
DMH145 14.5 7.95 2.21 TID*145...
DMH150 15 8.53 2.27 TID*150...
DMH152 15.2 8.53 2.31 TID*150...
DMH155 15.5 8.53 2.36 TID*150...
DMH160 16 9.1 2.42 TID*160...
DMH165 16.5 9.1 2.51 TID*160...
DMH170 17 9.7 2.59 TID*170...
DMH175 17.5 9.7 2.68 TID*170...
DMH180 18 10.3 2.73 TID*180...
DMH185 18.5 10.3 2.82 TID*180...
DMH190 19 10.8 2.88 TID*190...
DMH194 19.4 10.8 2.95 TID*190...
DMH195 19.5 10.8 2.97 TID*190...
LPR
PL
DC
140°
P
M
K
N
S
H
LPR
PL
140°
DC
ø10 - ø17.5 +0.01 / 0
ø18 - ø19.9 +0.012 / 0
DC LPR PL
KS15F
DMN100 10 6.05 1.47 TID*100...
DMN102 10.2 6.05 1.51 TID*100...
DMN105 10.5 6.05 1.56 TID*105...
DMN108 10.8 6.05 1.62 TID*105...
DMN110 11 6.45 1.67 TID*110...
DMN115 11.5 6.45 1.76 TID*115...
DMN120 12 6.8 1.82 TID*120...
DMN123 12.3 6.8 1.87 TID*120...
DMN125 12.5 6.8 1.91 TID*125...
DMN126 12.6 6.8 1.93 TID*125...
DMN127 12.7 6.8 1.95 TID*125...
DMN130 13 7.4 1.96 TID*130...
DMN135 13.5 7.4 2.05 TID*135...
DMN138 13.8 7.4 2.11 TID*135...
DMN140 14 7.95 2.12 TID*140...
DMN142 14.2 7.95 2.16 TID*140...
DMN145 14.5 7.95 2.21 TID*145...
DMN150 15 8.53 2.27 TID*150...
DMN152 15.2 8.53 2.31 TID*150...
DMN155 15.5 8.53 2.36 TID*150...
DMN158 15.8 8.53 2.42 TID*150...
DMN159 15.9 8.53 2.43 TID*150...
DMN160 16 9.1 2.42 TID*160...
DMN163 16.3 9.1 2.47 TID*160...
DMN165 16.5 9.1 2.51 TID*160...
DMN170 17 9.7 2.59 TID*170...
DMN175 17.5 9.7 2.68 TID*170...
DMN180 18 10.3 2.73 TID*180...
DMN185 18.5 10.3 2.82 TID*180...
DMN190 19 10.8 2.88 TID*190...
DMN195 19.5 10.8 2.97 TID*190...
Holemaking
Tool diameter Head diameter
tolerance
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
: First choice
: Second choice
Designation
Coated
Body
:Line-up
DMH High strength cutting edge
ø10 - ø19.5 = 2 pieces per package
Steel
Stainless
Cast iron
Non-ferrous
Superalloys
Hard materials
Tool diameter Head diameter
tolerance
DMN Non-ferrous metals drilling
: First choice
: Second choice
Designation
Coated
Body
:Line-up
ø10 - ø19.5 = 2 pieces per package
164 NEW PRODUCTS
DMP DMC DMF
DMP
DMC
DMF
Not good
Not good
Not good
Not good
APPLICATION RANGE AND RECOMMENDED TOOL LENGTHS FOR DMF HEAD
HEAD COMBINATIONS OF PRE-HOLE TO MAIN HOLE
Recommended L/D
Pre-hole
Recommended L/D
Plane surface
Slant surface
Cross hole
Hole expansion
Complex exit
Round surface
Rough / cast surface
Plunging
Application
Hole
Application
Please use the shortest possible tool
- Maximum slant angle 12 degrees
- Feed rate should be decreased when drilling uneven surfaces
- Overlap should be under 30% of head dia. at hole expansion
- Plunging width should be 70% of head dia.
≤ 8
≤ 3 ≤ 1.5
Good
Good Good Good
Good
165Tungaloy
ISO DC (mm)
Vc (m/min)
ø6 - 7.9 ø8 - 9.9 ø10 - ø11.9 ø12 - ø13.9 ø14 - ø15.9 ø16 - ø19.9 ø20 - ø25.9
80 - 140
0.09 - 0.13 0.12 - 0.25 0.15 - 0.28 0.18 - 0.3 0.20 - 0.35 0.25 - 0.45 0.25 - 0.45
70 - 120
0.09 - 0.13 0.12 - 0.25 0.15 - 0.28 0.18 - 0.3 0.2 - 0.35 0.25 - 0.45 0.25 - 0.45
70 - 120
0.08 - 0.13 0.11 - 0.25 0.14 - 0.28 0.16 - 0.32 0.18 - 0.35 0.23 - 0.4 0.25 - 0.45
40 - 90
0.08 - 0.13 0.11 - 0.25 0.14 - 0.28 0.16 - 0.32 0.18 - 0.35 0.23 - 0.4 0.25 - 0.45
30 - 70
0.08 - 0.1 0.1 - 0.15 0.12 - 0.18 0.14 - 0.2 0.16 - 0.24 0.16 - 0.26 0.18 - 0.3
80 - 180
0.12 - 0.18 0.15 - 0.3 0.20 - 0.35 0.25 - 0.4 0.3 - 0.45 0.35 - 0.55 0.35 - 0.6
80 - 140
0.12 - 0.18 0.15 - 0.3 0.20 - 0.35 0.25 - 0.4 0.3 - 0.45 0.35 - 0.55 0.35 - 0.6
80 - 220
0.1 - 0.2 0.2 - 0.35 0.25 - 0.4 0.3 - 0.45 0.35 - 0.5 0.4 - 0.6 0.5 - 0.75
20 - 50
0.05 - 0.07 0.06 - 0.12 0.08 - 0.15 0.1 - 0.28 0.12 - 0.2 0.14 - 0.22 0.18 - 0.27
20 - 50
0.05 - 0.07 0.06 - 0.11 0.08 - 0.13 0.1 - 0.15 0.12 - 0.18 0.12 - 0.22 0.14 - 0.22
20 - 50
0.05 - 0.07 0.06 - 0.12 0.08 - 0.15 0.1 - 0.18 0.12 - 0.2 0.14 - 0.22 0.16 - 0.25
Holemaking
- Cutting conditions in the above table show standard cutting conditions
- Cutting conditions may change due to the rigidity and power of the machine and
the workpiece material
Cutting
speed
Feed: f (mm/rev)
- Machined hole diameter may change depending upon the rigidity of the machine
tool or cutting conditions
- In case of L/D = 8,12 drill, the recommended range of cutting speeds and feeds
is between the minimum and median values listed above
Workpiece material
STANDARD CUTTING CONDITIONS
Low carbon steels (C < 0.3)
SS400, SM490, S25C, etc.
C15E4, E275A, E355D, etc.
High carbon steels (C > 0.3)
S45C, S55C, etc.
C45, C55, etc.
Low alloy steels
SCM415, etc.
18CrMo4, etc.
Alloy steels
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.
Stainless steels
SUS304, SUS316, etc.
X5CrNi18-9,
X5CrNiMo17-12-2, etc.
Grey cast irons
FC250, etc.
GG25, etc.
Ductile cast irons
FCD700, etc.
GGG70, etc.
Aluminium alloys
ADC12, etc.
AlSi11Cu3, etc.
Titanium alloys
Ti-6Al-4V, etc.
Nickel-based alloys
Hardened steel
166 NEW PRODUCTS
ADD 4 cutting edges for highly productive drilling
and longer tool life
4-FLUTE SOLID DRILLS FOR
EXCEPTIONAL PERFORMANCE
Drilling
167Tungaloy
Holemaking
Scan this QR code
to nd out more
about this tool!
Lineup
- Optimal cutting edge and flute profiles
promotes smooth chip evacuation.
- Self-centering cutting edge style
provides secure drill engagement.
Drill
- DSQ...
4 flutes drill
DC = ø6 - ø16 mm
Available in 3xD and 5xD
- 4 margins on the drill periphery
provides close tolerance holes.
Grade
- AH9130: Wear-resistant grade that enables long tool life
168 NEW PRODUCTS
DCh8
OAL
LCF
DCONMSh6
120°
DC
AH9130
DCONMS
LU LCF OAL
DSQ060-018-06E3 6 䖃6 243080
DSQ068-021-07E3 6.8 䖃7 273484
DSQ085-026-09E3 8.5 䖃9 344393
DSQ090-027-09E3 9䖃9 364595
DSQ100-030-10E3 10 䖃10 40 50 100
DSQ105-032-11E3 10.5 䖃11 42 53 123
DC
AH9130
DCONMS
LU LCF OAL
DSQ108-033-11E3 10.8 䖃11 43 54 124
DSQ120-036-12E3 12 䖃12 48 60 130
DSQ130-039-13E3 13 䖃13 52 65 135
DSQ140-042-14E3 14 䖃14 56 70 140
DSQ160-048-16E3 16 䖃16 64 80 150
DCh8
OAL
LCF
120°
DCONMSh6
DC
AH9130
DCONMS
LU LCF OAL
DSQ060-030-06E5 6 䖃6364292
DSQ068-034-07E5 6.8 䖃7 414898
DSQ085-043-09E5 8.5 䖃9 51 60 110
DC
AH9130
DCONMS
LU LCF OAL
DSQ105-053-11E5 10.5 䖃11 63 74 144
DSQ120-060-12E5 12 䖃12 72 84 154
DSQ160-080-16E5 16 䖃16 96 112 182
DSQ-E3
DSQ-E5
Designation Designation
䖃: New
LU (eective flute length)
LU (eective flute length)
䖃: New
Designation Designation
Solid drill, without coolant hole, DIN shank, L/D = 5, ø6 - ø16 mm
Solid drill, without coolant hole, DIN shank, L/D = 3, ø6 - ø16 mm
SOLID DRILL
169Tungaloy
ISO ø6 ~ ø9.9 ø10 ~ ø16
~ 200 60 - 120 0.2 - 0.8 0.3 - 1
~ 300 60 - 120 0.2 - 0.8 0.3 - 1
Holemaking
Grey cast irons
FC300, etc.
250, etc.
Ductile cast irons
FCD450, etc.
450-10S, etc.
Workpiece material Brinell hardness
(HB)
Cutting speed
Vc (m/min)
Feed: f (mm/rev)
STANDARD CUTTING CONDITIONS
- The cutting parameters shown in the table are a starting guideline.
Values should be varied depending on the power or rigidity of the machine.
Optimum conditions should be selected depending on the actual chip control or damage on edges.
- When using the smaller diameter tools in each range, set the feed “f” to the lower values.
- When drilling with a depth deeper than L/D = 3, a pecking cycle or dwell operation should be
considered depending on the actual chip control.
170 NEW PRODUCTS
ADD exchangeable head solutions for precision reaming operations
EXCHANGEABLE HEAD REAMERS FOR
MAXIMUM PRODUCTIVITY AND HIGH
PRECISION
Reaming
171Tungaloy
Holemaking
Scan this QR code
to nd out more
about this tool!
Lineup
- High precision coupling of the head
and shank enables exceptional runout
accuracy and repeatability.
- Precision-ground reaming heads
enable high precision tolerance of H7.
- Two types of reaming heads are
available for blind or through holes.
- Optimized cutting edge geometries for
long tool life and wear predictability.
- Available in versatile AH725 grade,
allowing high speed and efficiency
machining.
Heads
- HRM...
AS type: for blind holes
BL type: for through holes
DC = ø11.501 - ø32 mm
Reamer body
- TRM: Straight shank
Available in 1.5D, 3D, 5D, and 8D
Grade
- AH725: Versatile grade for all material groups
172 NEW PRODUCTS
TRM
DCN DCX SSC L/D DCONMS L5 LF LH
TRM-T5-R16-1.5 11.5 13.5 T5 1.5 16 9.3 77.8 29.8
TRM-T6-R16-1.5 13.501 16 T6 1.5 16 9.4 81.5 33.5
TRM-T7-R20-1.5 16.001 20 T7 1.5 20 10.6 90.7 40.7
TRM-T8-R20-1.5 20.001 25.999 T8 1.5 20 12.8 101 51
TRM-T9-R32-1.5 26 32 T9 1.5 32 12.8 120.9 60.9
TRM-T5-R16-3 11.5 13.5 T5 3 16 9.3 97.8 49.8
TRM-T6-R16-3 13.501 16 T6 3 16 9.4 105.4 57.4
TRM-T7-R20-3 16.001 20 T7 3 20 10.6 120.6 70.6
TRM-T8-R20-3 20.001 25.999 T8 3 20 12.8 137.8 87.8
TRM-T9-R32-3 26 32 T9 3 32 12.8 167.1 107.1
TRM-T5-R16-5 11.5 13.5 T5 5 16 9.3 125 77
TRM-T6-R16-5 13.501 16 T6 5 16 9.4 137.4 89.4
TRM-T7-R20-5 16.001 20 T7 5 20 10.6 160.6 110.6
TRM-T8-R20-5 20.001 25.999 T8 5 20 12.8 187.8 137.8
TRM-T9-R32-5 26 32 T9 5 32 12.8 231.1 171.1
TRM-T5-R16-8 11.5 13.5 T5 8 16 9.3 165.5 117.5
TRM-T6-R16-8 13.501 16 T6 8 16 9.4 185.4 137.4
TRM-T7-R20-8 16.001 20 T7 8 20 10.6 220.6 170.6
TRM-T8-R20-8 20.001 25.999 T8 8 20 12.8 262.8 212.8
TRM-T9-R32-8 26 32 T9 8 32 12.8 327.1 267.1
TRMU-T5-R0.625-1.5 11.5 13.5 T5 1.5 15.875 9.3 77.7 29.7
TRMU-T6-R0.625-1.5 13.501 16 T6 1.5 15.875 9.4 81.5 33.5
TRMU-T7-R0.75-1.5 16.001 20 T7 1.5 19.05 10.6 90.7 40.6
TRMU-T8-R0.75-1.5 20.001 25.999 T8 1.5 19.05 12.8 101.1 51.1
TRMU-T9-R1.25-1.5 26 32 T9 1.5 31.75 12.8 120.9 61.0
TRMU-T5-R0.625-3 11.5 13.5 T5 3 15.875 9.3 97.8 49.8
TRMU-T6-R0.625-3 13.501 16 T6 3 15.875 9.4 105.4 57.4
TRMU-T7-R0.75-3 16.001 20 T7 3 19.05 10.6 120.4 70.6
TRMU-T8-R0.75-3 20.001 25.999 T8 3 19.05 12.8 137.7 87.6
TRMU-T9-R1.25-3 26 32 T9 3 31.75 12.8 167.1 106.9
TRMU-T5-R0.625-5 11.5 13.5 T5 5 15.875 9.3 125.0 77.0
TRMU-T6-R0.625-5 13.501 16 T6 5 15.875 9.4 137.4 89.4
TRMU-T7-R0.75-5 16.001 20 T7 5 19.05 10.6 160.5 110.5
TRMU-T8-R0.75-5 20.001 25.999 T8 5 19.05 12.8 187.7 137.7
TRMU-T9-R1.25-5 26 32 T9 5 31.75 12.8 231.1 171.2
TRMU-T5-R0.625-8 11.5 13.5 T5 8 15.875 9.3 165.4 117.3
TRMU-T6-R0.625-8 13.501 16 T6 8 15.875 9.4 185.4 137.4
TRMU-T7-R0.75-8 16.001 20 T7 8 19.05 10.6 220.5 170.7
TRMU-T8-R0.75-8 20.001 25.999 T8 8 19.05 12.8 262.9 212.9
TRMU-T9-R1.25-8 26 32 T9 8 31.75 12.8 327.2 267.0
LF
LH
L5
SSC
DCN-
DCX
DCONMS
Reamer tool
Designation
•Key and screw are included.
•Maximum effective reaming depth = Head diameter(mm) x L/D ratio.
Ex. For a reamer with ø12 mm: 12 mm x 3D = 36 mm
REAMER TOOL
173Tungaloy
45
0.5
LPR
DC
V
SSC
DC AH725 SSC LPR CICT
HRM-11.501-AS-T5 11.501 䖃T5 9.3 6
HRM-12.000-AS-T5 12 䖃T5 9.3 6
HRM-12.700-AS-T5 12.7 䖃T5 9.3 6
HRM-13.000-AS-T5 13 䖃T5 9.3 6
HRM-13.500-AS-T5 13.5 䖃T5 9.3 6
HRM-14.000-AS-T6 14 䖃T6 9.4 6
HRM-15.000-AS-T6 15 䖃T6 9.4 6
HRM-15.875-AS-T6 15.875 䖃T6 9.4 6
HRM-16.000-AS-T6 16 䖃T6 9.4 6
HRM-16.001-AS-T7 16.001 䖃T7 10.6 6
HRM-17.000-AS-T7 17 䖃T7 10.6 6
HRM-18.000-AS-T7 18 䖃T7 10.6 6
HRM-19.000-AS-T7 19 䖃T7 10.6 6
HRM-19.050-AS-T7 19.05 䖃T7 10.6 6
HRM-20.000-AS-T7 20 䖃T7 10.6 6
HRM-20.001-AS-T8 20.001 䖃T8 12.8 8
HRM-21.000-AS-T8 21 䖃T8 12.8 8
HRM-22.000-AS-T8 22 䖃T8 12.8 8
HRM-23.000-AS-T8 23 䖃T8 12.8 8
HRM-24.000-AS-T8 24 䖃T8 12.8 8
HRM-25.000-AS-T8 25 䖃T8 12.8 8
HRM-25.400-AS-T8 25.4 䖃T8 12.8 8
HRM-26.000-AS-T9 26 䖃T9 12.8 8
HRM-27.000-AS-T9 27 䖃T9 12.8 8
HRM-28.000-AS-T9 28 䖃T9 12.8 8
HRM-29.000-AS-T9 29 䖃T9 12.8 8
HRM-30.000-AS-T9 30 䖃T9 12.8 8
HRM-31.000-AS-T9 31 䖃T9 12.8 8
HRM-31.750-AS-T9 31.75 䖃T9 12.8 8
HRM-32.000-AS-T9 32 䖃T9 12.8 8
ø11.500 - ø18.000 +0.015 / +0.011 +0.018 / 0
ø18.001 - ø30.000 +0.017 / +0.013 +0.021 / 0
ø30.001 - ø32.000 +0.021 / +0.016 +0.025 / 0
SSC
V
DC
LPR
25
1.07
DC AH725 SSC LPR CICT
HRM-11.501-BL-T5 11.501 䖃T5 9.3 6
HRM-12.000-BL-T5 12 䖃T5 9.3 6
HRM-12.700-BL-T5 12.7 䖃T5 9.3 6
HRM-13.000-BL-T5 13 䖃T5 9.3 6
HRM-13.500-BL-T5 13.5 䖃T5 9.3 6
HRM-13.501-BL-T6 13.501 䖃T6 9.4 6
HRM-14.000-BL-T6 14 䖃T6 9.4 6
HRM-15.000-BL-T6 15 䖃T6 9.4 6
HRM-15.875-BL-T6 15.875 䖃T6 9.4 6
HRM-16.000-BL-T6 16 䖃T6 9.4 6
HRM-16.001-BL-T7 16.001 䖃T7 10.6 6
HRM-17.000-BL-T7 17 䖃T7 10.6 6
HRM-18.000-BL-T7 18 䖃T7 10.6 6
HRM-19.000-BL-T7 19 䖃T7 10.6 6
HRM-19.050-BL-T7 19.05 䖃T7 10.6 6
HRM-20.000-BL-T7 20 䖃T7 10.6 6
HRM-20.001-BL-T8 20.001 䖃T8 12.8 8
HRM-21.000-BL-T8 21 䖃T8 12.8 8
HRM-22.000-BL-T8 22 䖃T8 12.8 8
HRM-23.000-BL-T8 23 䖃T8 12.8 8
HRM-24.000-BL-T8 24 䖃T8 12.8 8
HRM-25.000-BL-T8 25 䖃T8 12.8 8
HRM-25.400-BL-T8 25.4 䖃T8 12.8 8
HRM-26.000-BL-T9 26 䖃T9 12.8 8
HRM-27.000-BL-T9 27 䖃T9 12.8 8
HRM-28.000-BL-T9 28 䖃T9 12.8 8
HRM-29.000-BL-T9 29 䖃T9 12.8 8
HRM-30.000-BL-T9 30 䖃T9 12.8 8
HRM-31.000-BL-T9 31 䖃T9 12.8 8
HRM-32.000-BL-T9 32 䖃T9 12.8 8
ø11.500 - ø18.000 +0.015 / +0.011 +0.018 / 0
ø18.001 - ø30.000 +0.017 / +0.013 +0.021 / 0
ø30.001 - ø32.000 +0.021 / +0.016 +0.025 / 0
Holemaking
䊉 : Line-up
Package quantity = 1 pcs.
Tolerance range
of the head
Head diameter range
Designation
Hole diameter
tolerance (H7)
• All standard heads are designed to achieve H7 hole tolerance.
• Head diameters are produced so that the hole diameter achieved is
close to the max tolerance limit.
䊉 : Line-up
Package quantity = 1 pcs.
Tolerance range
of the head
Head diameter range
Designation
Hole diameter
tolerance (H7)
• All standard heads are designed to achieve H7 hole tolerance.
• Head diameters are produced so that the hole diameter achieved is
close to the max tolerance limit.
REAMER HEAD
HRM-AS (for blind holes) HRM-BL (for through holes)
174 NEW PRODUCTS
ISO
ø11.5 - ø16 ø16 - ø32 ø11.5 - ø16 ø16 - ø32
80 - 200 0.05 - 0.18 0.05 - 0.20 0.05 - 0.2 0.05 - 0.27
80 - 150 0.05 - 0.15 0.05 - 0.18 0.05 - 0.18 0.05 - 0.25
80 - 200 0.05 - 0.18 0.05 - 0.20 0.05 - 0.2 0.05 - 0.27
50 - 150 0.03 - 0.10 0.05 - 0.13 0.05 - 0.13 0.05 - 0.17
20 - 40 0.03 - 0.10 0.03 - 0.13 0.05 - 0.13 0.05 - 0.17
20 - 40 0.03 - 0.10 0.03 - 0.13 0.05 - 0.13 0.05 - 0.17
20 - 40 0.03 - 0.10 0.03 - 0.13 0.05 - 0.13 0.05 - 0.17
100 - 250 0.05 - 0.18 0.05 - 0.20 0.05 - 0.2 0.05 - 0.27
80 - 200 0.05 - 0.15 0.05 - 0.18 0.05 - 0.18 0.05 - 0.25
100 - 300 0.05 - 0.18 0.05 - 0.20 0.05 - 0.2 0.05 - 0.27
15 - 50 0.03 - 0.06 0.03 - 0.08 0.05 - 0.1 0.05 - 0.13
30 - 60 0.03 - 0.10 0.03 - 0.13 0.05 - 0.13 0.05 - 0.17
50 - 100 0.03-0.08 0.03 - 0.1 0.05-0.12 0.05 - 0.15
ISO
ø11.5 - ø16
ø16.001 - ø20 ø20.001 - ø32
ø11.5 - ø16
ø16.001 - ø20 ø20.001 - ø32
80 - 200 0.3 - 1.08 0.3 - 1.2 0.4 - 1.6 0.3 - 1.2 0.3 - 1.62 0.4 - 2.16
80 - 150 0.3 - 0.9 0.3 - 1.08 0.4 - 1.44 0.3 - 1.08 0.3 - 1.5 0.4 - 2
80 - 200 0.3 - 1.08 0.3 - 1.2 0.4 - 1.6 0.3 - 1.2 0.3 - 1.2 0.4 - 2.16
50 - 150 0.18 - 0.6 0.3 - 0.78 0.4 - 1.04 0.3 - 0.78 0.3 - 1.02 0.4 - 1.36
20 - 40 0.18 - 0.6 0.18 - 0.78 0.24 - 1.04 0.3 - 0.78 0.3 - 1.02 0.4 - 1.36
20 - 40 0.18 - 0.6 0.18 - 0.78 0.24 - 1.04 0.3 - 0.78 0.3 - 1.02 0.4 - 1.36
20 - 40 0.18 - 0.6 0.18 - 0.78 0.24 - 1.04 0.3 - 0.78 0.3 - 1.02 0.4 - 1.36
100 - 250 0.3 - 1.08 0.3 - 1.2 0.4 - 1.6 0.3 - 1.2 0.3 - 1.62 0.4 - 2.16
80 - 200 0.3 - 0.9 0.3 - 1.08 0.4 - 1.44 0.3 - 1.8 0.3 - 1.62 0.4 - 2
100 - 300 0.3 - 1.08 0.3 - 1.2 0.4 - 1.6 0.3 - 1.2 0.3 - 1.62 0.4 - 2.16
15 - 50 0.18 - 0.36 0.18 - 0.48 0.24 - 0.64 0.3 - 0.6 0.3 - 0.78 0.4 - 1.04
30 - 60 0.18 - 0.6 0.18 - 0.78 0.24- 1.04 0.3 - 0.78 0.3 - 1.02 0.4 - 1.36
50 - 100 0.18 - 0.48 0.18 - 0.6 0.24 - 0.8 0.3 - 0.72 0.3 - 0.9 0.4 - 1.2
Low carbon steel (C 0.3)
SS400, SM490, S25C, E275A, etc.
Carbon steel (C 0.3)
S45C, S55C, C45, C55, etc.
Low alloy steel (C<0.3)
SCM415, etc.
Alloy steel (C 0.3)
SCM440, SCr420, 42CrMo4, 20Cr4, etc.
Stainless steel Austenitic
SUS304, SUS316, X5CrNi18-9,
X5CrNiMo17-12-3, etc.
Stainless steelMartensitic and ferritic
SUS430, SUS416, X6Cr17, etc.
Stainless steelPrecipitation hardening
SUS630, X5CrNiCuNb16-4, etc.
Gray cast iron
FC250, GG25, 250, etc.
Ductile cast iron
FCD700, etc.
Aluminum alloy
High temp. alloy
Inconel718, etc.
Titanium alloy
Ti-6Al-4V, etc.
Hardened steel
Over 40HRC, etc.
Cutting speed
Vc (m/min)
Feed: fz(mm/t)
AS: Straight fl ute
for blind holes
BL: Left hand fl ute
for through holes
Workpiece materials
Conversion table for feed per tooth
STANDARD CUTTING CONDITIONS
Low carbon steel (C 0.3)
SS400, SM490, S25C, E275A, etc.
Carbon steel (C 0.3)
S45C, S55C, C45, C55, etc.
Low alloy steel (C<0.3)
SCM415, etc.
Alloy steel (C 0.3)
SCM440, SCr420, 42CrMo4, 20Cr4, etc.
Stainless steel Austenitic
SUS304, SUS316, X5CrNi18-9,
X5CrNiMo17-12-3, etc.
Stainless steelMartensitic and ferritic
SUS430, SUS416, X6Cr17, etc.
Stainless steelPrecipitation hardening
SUS630, X5CrNiCuNb16-4, etc.
Gray cast iron
FC250, GG25, 250, etc.
Ductile cast iron
FCD700, etc.
Aluminum alloy
High temp. alloy
Inconel718, etc.
Titanium alloy
Ti-6Al-4V, etc.
Hardened steel
Over 40HRC, etc.
Cutting speed
Vc (m/min)
Workpiece materials
Feed: f (mm/rev)
AS: Straight fl ute
for blind holes
BL: Left hand fl ute
for through holes
6 fl utes 6 fl utes 6 fl utes 6 fl utes8 fl utes 8 fl utes
Conversion table for feed per revolution
