ROUGHING GASHER BP IV (DIN 3972)
General Description
Roughing of annulus module 16
Module Swhkw p KwKw1 Rwhw
69,43 8,59 0,37 3,17 -1,2 14,7
812,57 11,20 0,41 4,41 -1,8 19,6
10 15,71 13,79 0,44 5,67 -1,8 24,5
12 18,82 16,37 0,47 6,93 -2,8 29,4
14 21,99 18,95 0,50 8,20 -2,8 34,3
16 25,13 21,51 0,52 9,47 -2,8 39,2
18 28,27 24,07 0,54 10,75 -4,0 44,1
20 31,42 26,63 0,56 12,03 -4,0 49,0
22 34,56 29,18 0,58 13,32 12,3 4,0 53,9
24 37,70 31,73 0,59 14,60 -4,0 58,8
26 40,84 34,28 0,61 15,89 -4,0 63,7
28 43,98 36,82 0,62 17,18 -4,0 68,6
30 47,12 39,36 0,64 18,47 15,9 4,0 73,5
32 50,27 41,91 0,65 19,76 17,2 4,0 78,4
34 53,41 44,44 0,67 21,05 -5,0 83,3
36 56,55 46,98 0,68 22,35 19,3 5,0 88,2
The newly developed tool series for the pre-machining of outer and inner
gear production, is the result of the optimization of negative and double-
positive tangential cutting edge geometry. At the root of the tooth, the
negative insert provides the stability necessary to implement high feed
rates thus realizing a high chip removal rate. The negative insert has an
inclined bore. With the inclined position of the insert screw a higher depth
of thread is achieved, which stabilzes the insert pocket and thus the whole
tool. The double-positive tangential insert allows for a smooth cutting
process at the flank of the tooth, which reduces the axial force enormously.
The exact positioning of inserts for each individual cutting process
provides a vibration-free performance of the cutter. It is certainly possible
to produce alternative profiles according to customers' specifications.
When premachining pinions with a low amount of teeth, it may be more
economical to use a tool which complies to the involute shape with
protuberance inserts. Tools such as these can be supplied in special design.
20°
hkw
Kw
Rw
Sw
p
hw
Module 6
20°
h
kw
K
w
R
w
S
w
p
h
w
K
w1
Module 28 - Module 36
20°
hkw
Kw
Rw
Sw
p
hw
Module 8 - Module 26
7
ROUGHING GASHER BP IV (DIN 3972)
Application Examples
Roughing Gasher
Pinion gear module 16; material: 18CrNiMo6
D = 360 mm n = 95 rpm
fz = 0,4 mm vf = 304 mm/min
ae = 36,5 mm
Roughing Gasher
with profile ground inserts to obtain an equal stock.
Design including protuberance.
Pinion gear module 10; material: 18CrNiMo6
D = 250 mm n = 180 rpm
fz = 0,4 mm vf = 430 mm/min
ae = 22,5 mm
Duplex-Roughing Gasher
with profile ground inserts to obtain an equal stock.
Design including protuberance.
Annulus module 16; material: 42CrMo4
D = 420 mm n = 100 rpm
fz = 0,38 mm vf = 380 mm/min
ae = 36,7 mm
8
Custom-made
Roughing gasher for pinion gear
with unequal stock at the flank and finish milled protuberance.
• Protuberance insert with four respectively two cutting edges.
• Flank insert with four cutting edges.
Roughing gasher for annuluses
with an equal stock at the flank and finish milled protuberance.
• Protuberance insert with four cutting edges.
• Involute insert with two cutting edges.
Roughing gasher for pinion gear
with equal stock at the flank and finish milled protuberance.
• Protuberance insert with four cutting edges.
• Involute insert with two cutting edges.
Roughing gasher for annuluses
with an unequal stock.
• Insert with four cutting edges.
CUSTOM-MADE SPECIAL DESIGNED ROUGHING GASHER
9
NEW GENERATION OF GEAR GASHER WITH COOLANT CHANNEL
Roughing gasher with coolant channel
In addition to the positive cooling effect the chips are either blown or
flushed away from the operation area which has an enormous influence on
the tool life of the inserts. Another advantage is the lower degree of
warming of the workpiece during the machining operation which has
a positive effect on the quality of your product.
Innovative technology thanks to Tungaloy!
For a long period of time Tungaloy Corporation has produced milling and
boring tools with internal coolant supply. These positive experiences were
reason enough to develop a coolant supply (air or emulsion) for the various
gear gasher types as well. The coolant channels are positioned in the tool in
such a way that the respective medium cools the insert directly.
Finishing gasher with coolant channels
10
ROUGHING GASHER BP IV (DIN 3972)
LT
Ød1
Ød
ØD
Cutter with radial keyway
Module Designation D d LT ZZeff. d1 Fitting insert
6
37W8F210006GE-00 210 50 50 16 8 120 16x
A
37W8F270006GF-00 270 60 50 20 10 140 20x
A
37W8F350006GA-00 350 80 70 24 12 170 24x
A
8
3SW8F210008GE-00 210 50 50 24 8/4 120 16x
B
8x
C
,
H
3SW8F270008GF-00 270 60 50 30 10/5 140 20x
B
10x
C
,
H
3SW8F350008GA-00 350 80 70 36 12/6 170 24x
B
12x
C
,
H
10
3SW8F210010GE-00 210 50 60 24 8/4 120 16x
B
8x
C
,
H
3SW8F270010GF-00 270 60 60 30 10/5 140 20x
B
10x
C
,
H
3SW8F350010GA-00 350 80 70 36 12/6 170 24x
B
12x
C
,
H
12
3SW8K210012GE-00 210 50 70 24 6/3 120 12x
D
12x
C
,
H
3SW8K270012GF-00 270 60 70 24 6/3 140 12x
D
12x
C
,
H
3SW8K350012GA-00 350 80 90 32 8/4 170 16x
D
16x
C
,
H
14
3SW8K210014GE-00 210 50 70 24 6/3 120 12x
D
12x
C
,
H
3SW8K270014GF-00 270 60 70 24 6/3 140 12x
D
12x
C
,
H
3SW8K350014GA-00 350 80 90 32 8/4 170 16x
D
16x
C
,
H
16
3SW8K270016GF-00 270 60 90 30 6/3 140 12x
D
18x
C
,
H
3SW8K350016GA-00 350 80 90 40 8/4 170 16x
D
24x
C
,
H
3SW8K450016GC-00 450 100 90 50 10/5 190 20x
D
30x
C
,
H
18
3SW8M270018GF-00 270 60 90 30 6/3 140 12x
E
18x
C
,
H
3SW8M350018GA-00 350 80 90 40 8/4 170 16x
E
24x
C
,
H
3SW8M450018GC-00 450 100 90 50 10/5 190 20x
E
30x
C
,
H
20
3SW8M270020GF-00 270 60 90 36 6/3 130 12x
E
24x
C
,
H
3SW8M350020GA-00 350 80 90 48 8/4 170 16x
E
32x
C
,
H
3SW8M450020GC-00 450 100 90 60 10/5 190 20x
E
40x
C
,
H
22
3SW8M270022GF-00 270 60 90 36 6/3 130 12x
E
24x
C
,
H
3SW8M350022GA-00 350 80 90 48 8/4 170 16x
E
32x
C
,
H
3SW8M450022GC-00 450 100 90 60 10/5 190 20x
E
40x
C
,
H
24
3SW8N270024GF-00 270 60 100 36 6/3 130 12x
F
24x
C
,
H
3SW8N350024GA-00 350 80 100 48 8/4 170 16x
F
32x
C
,
H
3SW8N450024GC-00 450 100 100 60 10/5 190 20x
F
40x
C
,
H
26 3SW8N350026GA-00 350 80 120 56 8/4 170 16x
F
40x
C
,
H
3SW8N450026GC-00 450 100 120 70 10/5 190 20x
F
50x
C
,
H
28 3SW8M350028GA-00 350 80 120 56 8/4 170 16x
E
40x
C
,
H
3SW8M450028GC-00 450 100 120 70 10/5 190 20x
E
50x
C
,
H
30 3SW8M350030GA-00 350 80 120 64 8/4 160 16x
E
48x
C
,
H
3SW8M450030GC-00 450 100 120 80 10/5 190 20x
E
60x
C
,
H
32 3SW8M400032GA-00 400 80 120 64 8/4 170 16x
E
48x
C
,
H
3SW8M500032GC-00 500 100 120 80 10/5 190 20x
E
60x
C
,
H
34 3SW8N400034GA-00 400 80 120 64 8/4 170 16x
G
48x
C
,
H
3SW8N500034GC-00 500 100 120 80 10/5 190 20x
G
60x
C
,
H
36 3SW8N400036GA-00 400 80 140 72 8/4 170 16x
G
56x
C
,
H
3SW8N500036GC-00 500 100 140 90 10/5 190 20x
G
70x
C
,
H
(DIN 3972)
11
ROUGHING GASHER BP IV (DIN 3972)
INSERTS
A
Insert screw
SM40-110-00
for inserts:
B
Insert screw
SM40-090-00
for inserts:
C
D
Insert screw
SM50-120-10
for inserts:
C
D
Insert screw
SM50-140-10
for inserts:
C
D
E
F
G
Insert screw
SM50-160-10
for inserts:
SPARE PARTS
A
LNV333-500T05-A
Root
19,05
4,76
R1,2
Ø4,41
11,5
B
LNV333-501T05-A
Root
19,05
4,76
R1,8
Ø4,41
11,5
C
DPM424-001
Flank
15
7,6
R0,
8
Ø5,4
16,4
D
LNV434-500T05-A
Root
19,05
6,35
R2,8
Ø5,4
14,29
E
LNV425-500T05-A
Root
15,88
7,94
R4
Ø5,4
14,29
F
LNV436-500T05-A
Root
19,05
9,52
R4
Ø5,4
14,29
G
LNV436-501T05-A
Root
19,05
9,52
R5
Ø5,4
14,29
Designation Description
Grade
AH330 APH730 APH130
LNV_ negative geometry
DPM_ positive geometry R 0,8
DPX_ positive geometry R 0,8
= P = M = K = N = S = H
H
DPX424-001
Flank
15
7,6
R0,
8
Ø5,4
16,4
H
H
H
12
CUTTING DATA RECOMMENDATION ROUGHING GASHER BP IV (CUT 1)
Module Designation D
[mm] Zeff. ae1 [mm]
cut1
fz1 [mm]
cut1
Vc1 [m/min]
Rm<1000 N/mm2
Vc1 [m/min]
Rm>1000 N/mm2
6
37W8F210006GE-00 210 8 13,5 0,40-0,50 160-180 140-160
37W8F270006GF-00 270 10 13,5 0,50-0,60 160-180 140-160
37W8F350006GA-00 350 12 13,5 0,55-0,65 160-180 140-160
8
3SW8F210008GE-00 210 8/4 18,0 0,35-0,45 160-180 140-160
3SW8F270008GF-00 270 10/5 18,0 0,40-0,50 160-180 140-160
3SW8F350008GA-00 350 12/6 18,0 0,45-0,55 160-180 140-160
10
3SW8F210010GE-00 210 8/4 22,5 0,35-0,45 150-170 130-150
3SW8F270010GF-00 270 10/5 22,5 0,40-0,50 150-170 130-150
3SW8F350010GA-00 350 12/6 22,5 0,45-0,55 150-170 130-150
12
3SW8K210012GE-00 210 6/3 27,0 0,30-0,40 150-170 130-150
3SW8K270012GF-00 270 6/3 27,0 0,35-0,45 150-170 130-150
3SW8K350012GA-00 350 8/4 27,0 0,40-0,50 150-170 130-150
14
3SW8K210014GE-00 210 6/3 31,5 0,30-0,40 140-160 120-140
3SW8K270014GF-00 270 6/3 31,5 0,35-0,45 140-160 120-140
3SW8K350014GA-00 350 8/4 31,5 0,40-0,50 140-160 120-140
16
3SW8K270016GF-00 270 6/3 36,0 0,30-0,40 140-160 120-140
3SW8K350016GA-00 350 8/4 36,0 0,35-0,45 140-160 120-140
3SW8K450016GC-00 450 10/5 36,0 0,40-0,50 140-160 120-140
18
3SW8M270018GF-00 270 6/3 40,5 0,28-0,38 140-160 120-140
3SW8M350018GA-00 350 8/4 40,5 0,32-0,40 140-160 120-140
3SW8M450018GC-00 450 10/5 40,5 0,35-0,45 140-160 120-140
20
3SW8M270020GF-00 270 6/3 45,0 0,28-0,34 140-160 120-140
3SW8M350020GA-00 350 8/4 45,0 0,31-0,38 140-160 120-140
3SW8M450020GC-00 450 10/5 45,0 0,34-0,43 140-160 120-140
22
3SW8M270022GF-00 270 6/3 39,5 0,29-0,36 120-140 100-120
3SW8M350022GA-00 350 8/4 39,5 0,32-0,40 120-140 100-120
3SW8M450022GC-00 450 10/5 39,5 0,35-0,45 120-140 100-120
24
3SW8N270024GF-00 270 6/3 43,0 0,28-0,35 120-140 100-120
3SW8N350024GA-00 350 8/4 43,0 0,30-0,38 120-140 100-120
3SW8N450024GC-00 450 10/5 43,0 0,34-0,44 120-140 100-120
26 3SW8N350026GA-00 350 8/4 46,5 0,30-0,38 120-140 100-120
3SW8N450026GC-00 450 10/5 46,5 0,33-0,43 120-140 100-120
28 3SW8M350028GA-00 350 8/4 50,5 0,29-0,37 120-140 100-120
3SW8M450028GC-00 450 10/5 50,5 0,32-0,42 120-140 100-120
30 3SW8M350030GA-00 350 8/4 54,0 0,28-0,35 120-140 100-120
3SW8M450030GC-00 450 10/5 54,0 0,30-0,40 120-140 100-120
32 3SW8M400032GA-00 400 8/4 57,5 0,30-0,40 120-140 100-120
3SW8M500032GC-00 500 10/5 57,5 0,32-0,42 120-140 100-120
34 3SW8N400034GA-00 400 8/4 61,0 0,28-0,38 120-140 100-120
3SW8N500034GC-00 500 10/5 61,0 0,30-0,40 120-140 100-120
36 3SW8N400036GA-00 400 8/4 64,5 0,28-0,38 120-140 100-120
3SW8N500036GC-00 500 10/5 64,5 0,30-0,40 120-140 100-120
The indicated cutting data can only be a recommendation and must be adapted on location and, if necessary, optimized.
13
CUTTING DATA RECOMMENDATION ROUGHING GASHER BP IV (CUT 2)
Module Designation D
[mm] Zeff. ae2 [mm]
cut2
fz2 [mm]
cut2
Vc2 [m/min]
Rm<1000 N/mm2
Vec2 [m/min]
Rm>1000 N/mm2
6
37W8F210006GE-00 210 8 – – – –
Machining in one cut
37W8F270006GF-00 270 10 – – – –
37W8F350006GA-00 350 12 – – – –
8
3SW8F210008GE-00 210 8/4 – – – –
3SW8F270008GF-00 270 10/5 – – – –
3SW8F350008GA-00 350 12/6 – – – –
10
3SW8F210010GE-00 210 8/4 – – – –
3SW8F270010GF-00 270 10/5 – – – –
3SW8F350010GA-00 350 12/6 – – – –
12
3SW8K210012GE-00 210 6/3 – – – –
3SW8K270012GF-00 270 6/3 – – – –
3SW8K350012GA-00 350 8/4 – – – –
14
3SW8K210014GE-00 210 6/3 – – – –
3SW8K270014GF-00 270 6/3 – – – –
3SW8K350014GA-00 350 8/4 – – – –
16
3SW8K270016GF-00 270 6/3 – – – –
3SW8K350016GA-00 350 8/4 – – – –
3SW8K450016GC-00 450 10/5 – – – –
18
3SW8M270018GF-00 270 6/3 – – – –
3SW8M350018GA-00 350 8/4 – – – –
3SW8M450018GC-00 450 10/5 – – – –
20
3SW8M270020GF-00 270 6/3 – – – –
3SW8M350020GA-00 350 8/4 – – – –
3SW8M450020GC-00 450 10/5 – – – –
22
3SW8M270022GF-00 270 6/3 10 0,55-0,67 140-160 120-140
Machining in two cuts
3SW8M350022GA-00 350 8/4 10 0,62-0,75 140-160 120-140
3SW8M450022GC-00 450 10/5 10 0,70-0,85 140-160 120-140
24
3SW8N270024GF-00 270 6/3 11 0,50-0,65 140-160 120-140
3SW8N350024GA-00 350 8/4 11 0,60-0,73 140-160 120-140
3SW8N450024GC-00 450 10/5 11 0,65-0,80 140-160 120-140
26 3SW8N350026GA-00 350 8/4 12 0,55-0,67 140-160 120-140
3SW8N450026GC-00 450 10/5 12 0,65-0,77 140-160 120-140
28 3SW8M350028GA-00 350 8/4 12,5 0,55-0,67 140-160 120-140
3SW8M450028GC-00 450 10/5 12,5 0,65-0,77 140-160 120-140
30 3SW8M350030GA-00 350 8/4 13,5 0,53-0,65 140-160 120-140
3SW8M450030GC-00 450 10/5 13,5 0,63-0,75 140-160 120-140
32 3SW8M400032GA-00 400 8/4 14,5 0,58-0,68 140-160 120-140
3SW8M500032GC-00 500 10/5 14,5 0,65-0,75 140-160 120-140
34 3SW8N400034GA-00 400 8/4 15,5 0,55-0,65 140-160 120-140
3SW8N500034GC-00 500 10/5 15,5 0,60-0,70 140-160 120-140
36 3SW8N400036GA-00 400 8/4 16,5 0,55-0,65 140-160 120-140
3SW8N500036GC-00 500 10/5 16,5 0,60-0,70 140-160 120-140
The indicated cutting data can only be a recommendation and must be adapted on location and, if necessary, optimized.
14
FINISHING GASHER SOLUTIONS (INTERNAL & EXTERNAL)
General Description
The finishing of gears has been practiced successfully with Tungaloy tools
for many years now. For the finishing operation all over the world tools with
a convex (internal gear production) or concave (external gear production)
form are applied. The tools, as well as the inserts are within very narrow
tolerances to achieve the required accuracy of the tooth gap. During the
machining of the tooth gap, a lot of material is removed from the tooth
base, whereas in the involute area rather a finishing operation and
polishing of the surface are carried out.
This complex machining operation was reason enough to develop a tool
concept suitable for the various cutting requirements. The result is a tool
with different radial angles as well as overlapping insert geometries.
These new tools obtain fully effective teeth at the root of the tooth and
half effective teeth at the tooth flank thus optimizing the chip thickness.
The advantages of this Tungaloy design are reflected in a longer tool life,
improved surface finish, lower heat development on the component, as
well as in a reduction of the cutting material costs.
15
FINISHING GASHER SOLUTIONS (INTERNAL & EXTERNAL)
Finishing gasher with profile ground inserts
Outer ring module 20; material: 42CrMo4 finishing (2nd cut)
D = 290 mm n = 132 rpm
fz = 0,4 mm vf = 520 mm/min
ae = 2 mm
Finishing gasher with profile ground inserts
Inner ring module 10; material: 42CrMo4 finishing
D = 380 mm n = 140 rpm
fz = 0,45 mm vf = 785 mm/min
ae = 22,5 mm
16
GEAR FINISHING GASHER WITH 2-EDGED PROFILE
GROUND INSERT (INTERNAL)
LT
Ød1
Ød
ØD
A
B
D
C
H
E
G
I
J
K
L
M
N
O
P
F
Q
R
Cutter with radial keyway
Module Designation D d LT ZZeff. d1 Fitting insert
6
37W8Z300006GA-I 300 80 90 24 12/6 160
A
B
37W8Z360006GA-I 360 80 90 28 14/7 170
A
B
37W8Z420006GA-I 420 80 90 32 16/8 180
A
B
8
37W8Z300008GA-I 300 80 90 24 12/6 160
C
D
37W8Z360008GA-I 360 80 90 28 14/7 170
C
D
37W8Z420008GA-I 420 80 90 32 16/8 180
C
D
10
37W8Z300010GA-I 300 80 90 24 12/6 160
E
F
37W8Z360010GA-I 360 80 90 28 14/7 170
E
F
37W8Z420010GA-I 420 80 90 32 16/8 180
E
F
12
37W8Z300012GA-I 300 80 90 24 12/6 160
G
H
37W8Z360012GA-I 360 80 90 28 14/7 170
G
H
37W8Z420012GA-I 420 80 90 32 16/8 180
G
H
14
37W8Z300014GA-I 300 80 90 24 12/6 160
I
J
37W8Z360014GA-I 360 80 90 28 14/7 170
I
J
37W8Z420014GA-I 420 80 90 32 16/8 180
I
J
16
37W8Z300016GA-I 300 80 90 24 12/6 160
K
L
37W8Z360016GA-I 360 80 90 28 14/7 170
K
L
37W8Z420016GA-I 420 80 90 32 16/8 180
K
L
18
37W8Z300018GA-I 300 80 90 24 12/6 160
M
N
37W8Z360018GA-I 360 80 90 28 14/7 170
M
N
37W8Z420018GA-I 420 80 90 32 16/8 180
M
N
20
37W8Z300020GA-I 300 80 90 24 12/6 150
O
P
37W8Z360020GA-I 360 80 90 28 14/7 170
O
P
37W8Z420020GA-I 420 80 90 32 16/8 180
O
P
22
37W8Z300022GA-I 300 80 90 24 12/6 150
Q
R
37W8Z360022GA-I 360 80 90 28 14/7 170
Q
R
37W8Z420022GA-I 420 80 90 32 16/8 180
Q
R
Insert screw
SM40-090-00
for inserts:
Insert screw
SM50-100-00
for inserts:
Insert screw
SM50-140-10
for inserts:
Insert screw
SM50-160-10
for inserts:
SPARE PARTS
17
GEAR FINISHING GASHER WITH 2-EDGED PROFILE
GROUND INSERT (INTERNAL)
A
FNC332-I-MOD6
Flank
19,05
4
R2,28
Ø4,4
11,5
B
LNA332-MOD6
Root
19,05
3,81
R2,2
8
Ø4,4
11,5
C
FNC443-I-MOD8
Flank
25,4
4,76
R3,0
4
Ø5,4
14,29
D
LNA332-MOD8
Root
19,05
4
R3,04
Ø4,4
11,5
E
FNC444-I-MOD10
Flank
28,5
6,35
R3,8
Ø5,4
14,29
F
LNA333-MOD10
Root
28,5
6,35
R3,8
Ø5,4
14,29
G
FNC464-I-MOD12
Flank
28,5
6,35
R3,8
Ø5,4
14,29
H
LNA434-MOD12
Root
19,05
6,35
R4,56
Ø5,4
14,29
I
FNC465-I-MOD14
Flank
38,1
7,94
R5,3
2
Ø5,4
14,29
J
LNA444-MOD14
Root
25,4
6,35
R5,32
Ø5,4
14,29
K
FNC475-I-MOD16
Flank
44,45
8,73
R6,08
Ø5,4
14,29
L
LNA454-MOD16
Root
31,8
7,14
R6,0
8
Ø5,4
14,29
M
FNC485-I-MOD18
Flank
50,8
9,53
R6,84
Ø5,4
14,29
N
LNA454-MOD18
Root
31,8
7,14
R6,84
Ø5,4
14,29
O
FNC496-I-MOD20
Flank
57,1
9,53
R7,6
Ø5,4
14,29
P
LNA446-MOD20
Root
28,58
9,53
R7,6
Ø5,4
14,29
Q
FNC4106-I-MOD22
Flank
66,7
9,53
R8,36
Ø5,4
14,29
R
LNA446-MOD22
Root
28,58
9,53
R8,3
6
Ø5,4
14,29
INSERTS
Designation Description
Grade
AH330 APH730 APH130
FNC_ negative geometry
LNA_ negative geometry
= P = M = K = N = S = H
18
LT
Ød1
Ød
ØD
Cutter with radial keyway
GEAR FINISHING GASHER WITH 2-EDGED PROFILE
GROUND INSERT (EXTERNAL)
Module Designation D d LT ZZeff. d1 Fitting insert
6
37W8Z300006GA-A 300 80 90 24 12/6 160
A
B
37W8Z360006GA-A 360 80 90 28 14/7 170
A
B
37W8Z420006GA-A 420 80 90 32 16/8 180
A
B
8
37W8Z300008GA-A 300 80 90 24 12/6 160
C
D
37W8Z360008GA-A 360 80 90 28 14/7 170
C
D
37W8Z420008GA-A 420 80 90 32 16/8 180
C
D
10
37W8Z300010GA-A 300 80 90 24 12/6 160
E
F
37W8Z360010GA-A 360 80 90 28 14/7 170
E
F
37W8Z420010GA-A 420 80 90 32 16/8 180
E
F
12
37W8Z300012GA-A 300 80 90 24 12/6 160
G
H
37W8Z360012GA-A 360 80 90 28 14/7 170
G
H
37W8Z420012GA-A 420 80 90 32 16/8 180
G
H
14
37W8Z300014GA-A 300 80 90 24 12/6 160
I
J
37W8Z360014GA-A 360 80 90 28 14/7 170
I
J
37W8Z420014GA-A 420 80 90 32 16/8 180
I
J
16
37W8Z300016GA-A 300 80 90 24 12/6 160
K
L
37W8Z360016GA-A 360 80 90 28 14/7 170
K
L
37W8Z420016GA-A 420 80 90 32 16/8 180
K
L
18
37W8Z300018GA-A 300 80 90 24 12/6 160
M
N
37W8Z360018GA-A 360 80 90 28 14/7 170
M
N
37W8Z420018GA-A 420 80 90 32 16/8 180
M
N
20
37W8Z300020GA-A 300 80 90 24 12/6 160
O
P
37W8Z360020GA-A 360 80 90 28 14/7 170
O
P
37W8Z420020GA-A 420 80 90 32 16/8 180
O
P
22
37W8Z300022GA-A 300 80 90 24 12/6 160
Q
R
37W8Z360022GA-A 360 80 90 28 14/7 170
Q
R
37W8Z420022GA-A 420 80 90 32 16/8 180
Q
R
A
B
D
C
H
E
G
I
J
K
L
M
N
O
P
F
Q
R
Insert screw
SM40-090-00
for inserts:
Insert screw
SM50-100-00
for inserts:
Insert screw
SM50-140-10
for inserts:
Insert screw
SM50-160-10
for inserts:
SPARE PARTS
19
GEAR FINISHING GASHER WITH 2-EDGED PROFILE
GROUND INSERT (EXTERNAL)
A
FNC332-A-MOD6
Root
19,05
4
R2,28
Ø4,4
11,5
B
LNA332-MOD6
Root
19,05
3,81
R2,2
8
Ø4,4
11,5
C
FNC443-A-MOD8
Flank
25,4
4,76
R3,0
4
Ø5,4
14,29
D
LNA332-MOD8
Root
19,05
4
R3,04
Ø4,4
11,5
E
FNC444-A-MOD10
Flank
28,5
6,35
R3,8
Ø5,4
14,29
F
LNA333-MOD10
Root
19,05
6,35
R3,
8
Ø4,4
11,5
G
FNC464-A-MOD12
Flank
38,1
6,35
R4,56
Ø5,4
14,29
H
LNA434-MOD12
Root
19,05
6,35
R4,56
Ø5,4
14,29
I
FNC465-A-MOD14
Flank
38,1
7,94
R5,3
2
Ø5,4
14,29
J
LNA444-MOD14
Root
25,4
6,35
R5,32
Ø5,4
14,29
K
FNC475-A-MOD16
Flank
44,45
8,73
R6,08
Ø5,4
14,29
L
LNA454-MOD16
Root
31,8
7,14
R6,0
8
Ø5,4
14,29
M
FNC485-A-MOD18
Flank
50,8
9,53
R6,84
Ø5,4
14,29
N
LNA454-MOD18
Root
31,8
7,14
R6,84
Ø5,4
14,29
O
FNC496-A-MOD20
Flank
57,1
9,53
R7,6
Ø5,4
14,29
P
LNA446-MOD20
Root
28,58
9,53
R7,6
Ø5,4
14,29
Q
FNC4106-A-MOD22
Flank
66,7
9,53
R8,36
Ø5,4
14,29
R
LNA446-MOD22
Root
28,58
9,53
R8,3
6
Ø5,4
14,29
INSERTS
Designation Description
Grade
AH330 APH730 APH130
FNC_ negative geometry
LNA_ negative geometry
= P = M = K = N = S = H
20
LT
Ød1
Ød
ØD
Cutter with radial keyway
GEAR FINISHING GASHER WITH 4-EDGED PROFILE
GROUND INSERT (INTERNAL)
Module Designation D d LT zZeff. d1 Fitting insert
6
37W8Z300406GA-I 300 80 90 24 12/6 160
A
B
37W8Z360406GA-I 360 80 90 28 14/7 170
A
B
37W8Z420406GA-I 420 80 90 32 16/8 180
A
B
8
37W8Z300408GA-I 300 80 90 24 12/6 160
C
D
37W8Z360408GA-I 360 80 90 28 14/7 170
C
D
37W8Z420408GA-I 420 80 90 32 16/8 180
C
D
10
37W8Z300410GA-I 300 80 90 24 12/6 160
E
F
37W8Z360410GA-I 360 80 90 28 14/7 170
E
F
37W8Z420410GA-I 420 80 90 32 16/8 180
E
F
12
37W8Z300412GA-I 300 80 90 24 12/6 160
G
H
37W8Z360412GA-I 360 80 90 28 14/7 170
G
H
37W8Z420412GA-I 420 80 90 32 16/8 180
G
H
14
37W8Z300414GA-I 300 80 90 24 12/6 160
I
J
37W8Z360414GA-I 360 80 90 28 14/7 170
I
J
37W8Z420414GA-I 420 80 90 32 16/8 180
I
J
16
37W8Z300416GA-I 300 80 90 24 12/6 160
K
L
37W8Z360416GA-I 360 80 90 28 14/7 170
K
L
37W8Z420416GA-I 420 80 90 32 16/8 180
K
L
18
37W8Z300418GA-I 300 80 90 24 12/6 160
M
N
37W8Z360418GA-I 360 80 90 28 14/7 170
M
N
37W8Z420418GA-I 420 80 90 32 16/8 180
M
N
C
E
G
I
J
K
L
M
N
A
B
D
F
Insert screw
SM40-110-00
for inserts:
Insert screw
SM50-140-10
for inserts:
Insert screw
SM50-160-10
for inserts:
Insert screw
SM40-090-00
for inserts:
SPARE PARTS
H
21
GEAR FINISHING GASHER WITH 4-EDGED PROFILE
GROUND INSERT (INTERNAL)
Designation Description
Grade
AH330 APH130
LNA_ negative geometry
QNC_ negative geometry
= P = M = K = N = S = H
INSERTS
A
QNC344-I-MOD6
Flank
28,57
7,35
R2,2
8
11,5
Ø4,4
B
LNA332-MOD6
Root
19,05
3,81
R2,28
Ø4,4
11,5
C
QNC344-I-MOD8
Flank
28,57
7,3
R3,0
4
11,5
Ø4,4
D
LNA332-MOD8
Root
19,05
4
R3,04
Ø4,4
11,5
E
QNC454-I-MOD10
Flank
31,8
7,35
R3,8
14,29
Ø5,4
F
LNA333-MOD10
Root
19,1
4,76
R3,
8
Ø4,4
11,5
G
QNC464-I-MOD12
Flank
38,1
7,94
R5,32
14,29
Ø5,4
H
LNA434-MOD12
Root
19,05
6,35
R4,56
Ø5,4
14,29
I
QNC464-I-MOD14
Flank
38,1
7,94
R5,32
14,29
Ø5,4
J
LNA444-MOD14
Root
25,4
6,35
R5,32
Ø5,4
14,29
K
QNC475-I-MOD16
Flank
44,45
7,94
R6,0
8
14,29
Ø5,4
L
LNA454-MOD16
Root
31,8
7,14
R6,08
Ø5,4
14,29
M
QNC486-I-MOD18
Flank
50,8
9,53
14,29
Ø5,4
R6,8
4
N
LNA454-MOD18
Root
31,8
7,14
R6,84
Ø5,4
14,29
22
GEAR FINISHING GASHER WITH 4-EDGED PROFILE
GROUND INSERT (EXTERNAL)
LT
Ød1
Ød
ØD
Module Designation D d LT zZeff. d1 Fitting insert
6
37W8Z300406GA-A 300 80 90 24 12/6 160
A
B
37W8Z360406GA-A 360 80 90 28 14/7 170
A
B
37W8Z420406GA-A 420 80 90 32 16/8 180
A
B
8
37W8Z300408GA-A 300 80 90 24 12/6 160
C
D
37W8Z360408GA-A 360 80 90 28 14/7 170
C
D
37W8Z420408GA-A 420 80 90 32 16/8 180
C
D
10
37W8Z300410GA-A 300 80 90 24 12/6 160
E
F
37W8Z360410GA-A 360 80 90 28 14/7 170
E
F
37W8Z420410GA-A 420 80 90 32 16/8 180
E
F
12
37W8Z300412GA-A 300 80 90 24 12/6 160
G
H
37W8Z360412GA-A 360 80 90 28 14/7 170
G
H
37W8Z420412GA-A 420 80 90 32 16/8 180
G
H
14
37W8Z300414GA-A 300 80 90 24 12/6 160
I
J
37W8Z360414GA-A 360 80 90 28 14/7 170
I
J
37W8Z420414GA-A 420 80 90 32 16/8 180
I
J
16
37W8Z300416GA-A 300 80 90 24 12/6 160
K
L
37W8Z360416GA-A 360 80 90 28 14/7 170
K
L
37W8Z420416GA-A 420 80 90 32 16/8 180
K
L
18
37W8Z300418GA-A 300 80 90 24 12/6 160
M
N
37W8Z360418GA-A 360 80 90 28 14/7 170
M
N
37W8Z420418GA-A 420 80 90 32 16/8 180
M
N
Cutter with radial keyway
C
E
G
I
J
K
L
M
N
A
B
D
F
Insert screw
SM40-110-00
for inserts:
Insert screw
SM50-140-10
for inserts:
Insert screw
SM50-160-10
for inserts:
Insert screw
SM40-090-00
for inserts:
SPARE PARTS
H
23
GEAR FINISHING GASHER WITH 4-EDGED PROFILE
GROUND INSERT (EXTERNAL)
QNC insert usable for external gears with no. of teeth > 50.
Designation Description
Grade
AH330 APH130
LNA_ negative geometry
QNC_ negative geometry
= P = M = K = N = S = H
INSERTS
A
QNC344-A-MOD6
Flank
28,57
7,35
R2,2
8
11,5
Ø4,4
B
LNA332-MOD6
Root
19,05
3,81
R2,28
Ø4,4
11,5
C
QNC344-A-MOD8
Flank
28,57
7,35
R2,2
8
11,5
Ø4,4
D
LNA332-MOD8
Root
19,05
4
R3,04
Ø4,4
11,5
E
QNC454-A-MOD10
Flank
31,8
7,35
R3,75
14,29
Ø5,4
F
LNA333-MOD10
Root
19,1
4,76
R3,
8
Ø4,4
11,5
G
QNC464-A-MOD12
Flank
38,1
7,94
R4,56
14,29
Ø5,4
H
LNA434-MOD12
Root
19,05
6,35
R4,56
Ø5,4
14,29
I
QNC464-A-MOD14
Flank
38,1
7,93
R5,32
14,29
Ø5,4
J
LNA444-MOD14
Root
25,4
6,35
R5,32
Ø5,4
14,29
K
QNC475-A-MOD16
Flank
44,45
7,94
14,29
Ø5,4
R6,08
L
LNA454-MOD16
Root
31,8
7,14
R6,08
Ø5,4
14,29
M
QNC486-A-MOD18
Flank
50,8
9,53
14,29
Ø5,4
R6,84
N
LNA454-MOD18
Root
31,8
7,14
R6,84
Ø5,4
14,29
24
CUTTING DATA RECOMMENDATION FINISHING
GASHER (INTERNAL/EXTERNAL)
Module Designation D
[mm] Zeff. ae1 [mm]
cut1
fz1 [mm]
cut1
Vc1 [m/min]
Rm<1000 N/mm2
Vc1 [m/min]
Rm>1000 N/mm2
6
37W8Z300006GA-I/A 300 12/6 13,5 0,50-0,60 160-180 140-160
37W8Z360006GA-I/A 360 14/7 13,5 0,55-0,65 160-180 140-160
37W8Z420006GA-I/A 420 16/8 13,5 0,58-0,72 160-180 140-160
8
37W8Z300008GA-I/A 300 12/6 18,0 0,42-0,52 160-180 140-160
37W8Z360008GA-I/A 360 14/7 18,0 0,48-0,58 160-180 140-160
37W8Z420008GA-I/A 420 16/8 18,0 0,52-0,62 160-180 140-160
10
37W8Z300010GA-I/A 300 12/6 22,5 0,38-0,48 150-170 130-150
37W8Z360010GA-I/A 360 14/7 22,5 0,42-0,52 150-170 130-150
37W8Z420010GA-I/A 420 16/8 22,5 0,45-0,55 150-170 130-150
12
37W8Z300012GA-I/A 300 12/6 27,0 0,35-0,45 150-170 130-150
37W8Z360012GA-I/A 360 14/7 27,0 0,38-0,48 150-170 130-150
37W8Z420012GA-I/A 420 16/8 27,0 0,42-0,52 150-170 130-150
14
37W8Z300014GA-I/A 300 12/6 31,5 0,32-0,42 150-170 130-150
37W8Z360014GA-I/A 360 14/7 31,5 0,35-0,45 150-170 130-150
37W8Z420014GA-I/A 420 16/8 31,5 0,38-0,48 150-170 130-150
16
37W8Z300016GA-I/A 300 12/6 36,0 0,30-0,40 140-160 120-140
37W8Z360016GA-I/A 360 14/7 36,0 0,32-0,42 140-160 120-140
37W8Z420016GA-I/A 420 16/8 36,0 0,36-0,46 140-160 120-140
18
37W8Z300018GA-I/A 300 12/6 37,5 0,30-0,38 140-160 120-140
37W8Z360018GA-I/A 360 14/7 37,5 0,32-0,42 140-160 120-140
37W8Z420018GA-I/A 420 16/8 37,5 0,35-0,45 140-160 120-140
20
37W8Z300020GA-I/A 300 12/6 41,0 0,29-0,37 140-160 120-140
37W8Z360020GA-I/A 360 14/7 41,0 0,32-0,40 140-160 120-140
37W8Z420020GA-I/A 420 16/8 41,0 0,34-0,42 140-160 120-140
22
37W8Z300022GA-I/A 300 12/6 44,5 0,29-0,35 120-140 100-120
37W8Z360022GA-I/A 360 14/7 44,5 0,30-0,38 120-140 100-120
37W8Z420022GA-I/A 420 16/8 44,5 0,32-0,42 120-140 100-120
The indicated cutting data can only be a recommendation and must be adapted on location and, if necessary, optimized.
Module Designation D
[mm] Zeff. ae2 [mm]
cut2
fz2 [mm]
cut2
Vc2 [m/min]
Rm<1000 N/mm2
Vc2 [m/min]
Rm>1000 N/mm2
6
37W8Z300006GA-I/A 300 12/6 – – – –
Machining in one cut
37W8Z360006GA-I/A 360 14/7 – – – –
37W8Z420006GA-I/A 420 16/8 – – – –
8
37W8Z300008GA-I/A 300 12/6 – – – –
37W8Z360008GA-I/A 360 14/7 – – – –
37W8Z420008GA-I/A 420 16/8 – – – –
10
37W8Z300010GA-I/A 300 12/6 – – – –
37W8Z360010GA-I/A 360 14/7 – – – –
37W8Z420010GA-I/A 420 16/8 – – – –
12
37W8Z300012GA-I/A 300 12/6 – – – –
37W8Z360012GA-I/A 360 14/7 – – – –
37W8Z420012GA-I/A 420 16/8 – – – –
14
37W8Z300014GA-I/A 300 12/6 – – – –
37W8Z360014GA-I/A 360 14/7 – – – –
37W8Z420014GA-I/A 420 16/8 – – – –
16
37W8Z300016GA-I/A 300 12/6 – – – –
37W8Z360016GA-I/A 360 14/7 – – – –
37W8Z420016GA-I/A 420 16/8 – – – –
18
37W8Z300018GA-I/A 300 12/6 3,0 0,8-1,0 160-180 140-160
Machining in two cuts
37W8Z360018GA-I/A 360 14/7 3,0 0,9-1,1 160-180 140-160
37W8Z420018GA-I/A 420 16/8 3,0 1,0-1,2 160-180 140-160
20
37W8Z300020GA-I/A 300 12/6 4,0 0,8-1,0 160-180 140-160
37W8Z360020GA-I/A 360 14/7 4,0 0,9-1,1 160-180 140-160
37W8Z420020GA-I/A 420 16/8 4,0 1,0-1,2 160-180 140-160
22
37W8Z300022GA-I/A 300 12/6 5,0 0,8-1,0 140-160 120-140
37W8Z360022GA-I/A 360 14/7 5,0 0,9-1,1 140-160 120-140
37W8Z420022GA-I/A 420 16/8 5,0 1,0-1,2 140-160 120-140
25
9,53
15,88 4,76
12,7
19,05 6,35
14,29
28,58 9,53
LZA323-MOD1
A
LZA434-MOD2
B
LZA446-MOD3
C
SPARE PARTS
Insert
1 2
LZA323-MOD1 SM40-090-00 DS-T15S
LZA434-MOD2 SM50-160-00 DS-T15S
LZA446-MOD3 SM50-160-00 DS-T15S
1 = insert screw 2 = screw driver
Design of profile inserts depends on gear data.
Designation Description
Grade
AH330
LZA323-MOD1 Modulbereich < 1 mm / module range < 1 mm
LZA434-MOD2 Modulbereich 1 - 2 mm / module range 1 to 2 mm
LZA446-MOD3 Modulbereich 2 - 3 mm / module range 2 to 3 mm
= P = M = K = N = S = H
ØD
M
Ød1
L1
L
LT
ØD
MOD
Ød
L1
L
LT
Designation D d1 LT L L1 M Z WSP
IK
Related Insert
17Y1B041055X8R00 40,7 29 58,381 32 34,3 M16 4 LZA323-MOD1 30,20
A
17Y1E051064X8R00 50,7 29 69,175 42 45,1 M16 4 LZA434-MOD2 30,31
B
Designation D d LT L L1 MOD Z WSP
IK
Related Insert
17Y1E060064Z4R00 59,7 50 73,175 35 38,1 40 5 LZA434-MOD2 31,10
17Y1E080064Z4R00 79,7 69 73,175 35 38,1 40 8 LZA434-MOD2 30,62
17Y1E096064Z5R00 95,7 85 85,175 35 38,1 50 9 LZA434-MOD2 31,80
17Y1E112064Z5R00 111,7 101 95,175 45 48,1 50 11 LZA434-MOD2 33,10
17Y1L112010Z5R00 111,1 95,5 96,763 45 49,7 50 11 LZA446-MOD3 32,70
GEAR MILL17Y1…X
GEAR MILL17Y1…Z
26
NOTES
Grades information for Gasher
= P = M = K = N = S = H
AH330 Excellent wear resistance
APH730 Good balance between wear and fracture resistance
APH130 High chipping and fracture resistance
Designed for machining austenitic stainless steel under general cutting conditions
27
28
HOB SOLUTIONS
The Tungaloy hobs are the result of continuous further development by our
engineers. The experience and individual requirements of our customers
were carefully included in the development and conception.
These tools allow an economical machining of gears from module 6 and
upwards. With the application of carbide inserts a high chip removal can
be achieved at high cutting speeds.
Tungaloy hobs consist of individual segments which are positioned by
means of high-precision cross slots. Large fitting surfaces allow us form-
fit support of each segment in the spiral. These segments are connected
with clamping screws via two end caps. Because a 360° spiral forms a
segment, the production tolerances within one rotation are minimized,
which has a positive effect on the quality class of the hobs. The Tungaloy
segment design makes an extension of the tool - an enlargement of the
cutting length – comparatively simple. Only longer pull bars are required.
Moreover, easy assembly and disassembly is guaranteed.
With the further development of the insert with an inclined bore the problem
of exchanging an insert has also been solved. It is now possible to exchange
the insert with a standard screwdriver while the hob is assembled. A further
advantage is that the position of the insert can be exactly defined because
of the inclined bore. The insert can no longer be inadvertently assembled
incorrectly. Furthermore, a larger thread percentage contact area can be
achieved thanks to this inclined position of the insert screw which stabilizes
the insert pocket as well as the tool itself.
Hobbing of a helical gear
General Description
29

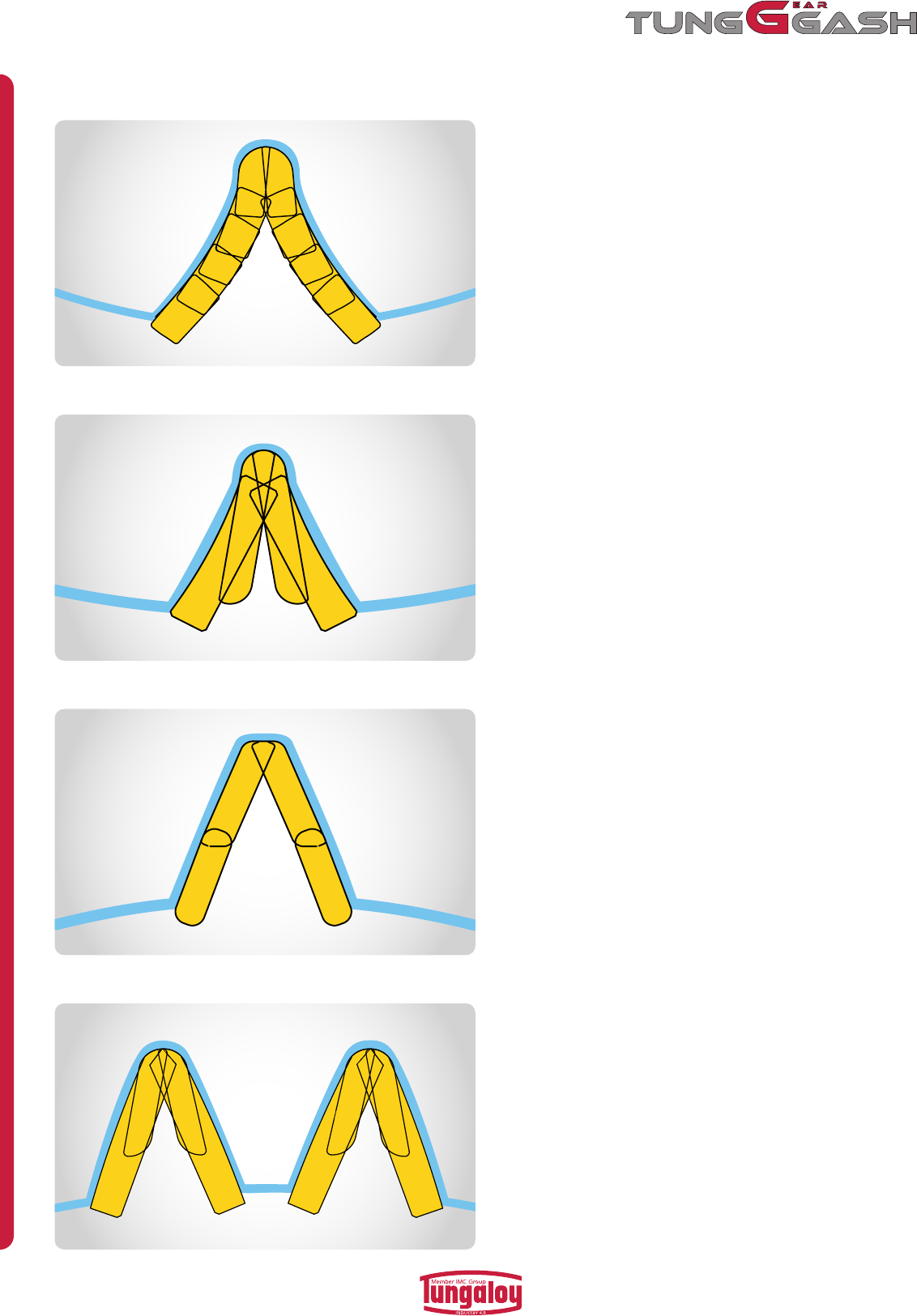

BASIC RACK PROFILES OF GEAR GENERATING TOOLS
Definition of basic rack profiles acc. to DIN 3972
Roughing with hob
Spur gear module 12, z = 45
material: 18CrMo6
D = 270 mm
n = 140 min-1 [rpm]
fa = 3 mm/WU [mm/rev.]
ae =28 mm
haP0 = addendum
hP = tooth depth = cutting depth
hP0 = tooth depth of the basic rack profile
SP0 = tooth thickness
raP0 = tip radius
rfP0 = root radius
Description of symbols
Basic Rack Profile I / For finishing
haP0 = 1,167 x m
hP = 2,167 x m
hP0 = 2,367 x m
raP0 ~ 0,2 x m
rfP0 ~ 0,2 x m
SP0 = P x m
2
Basic Rack Profile II / For finishing
haP0 = 1,250 x m
hP = 2,250 x m
hP0 = 2,450 x m
raP0 ~ 0,2 x m
rfP0 ~ 0,2 x m
SP0 = P x m
2
Basic Rack Profile III / Preshaping for grinding or shaving
haP0 = 1,25 x m + 0,25 m
hP = 2,250 x m
hP0 = 2,450 x m
raP0 ~ 0,2 x m
rfP0 ~ 0,2 x m
SP0 = P x m
q = 0,25 m x SIN20°
2
3
3
Finishing with hob
Outer ring module 10, z = 94
material: 42CrMo4
D = 300 mm
n = 148 min-1 [rpm]
fa = 4 mm/WU [mm/rev.]
ae = 22,5 mm
Basic Rack Profile IV / Preshaping for finishing
haP0 = 1,25 x m + 0,60 m
hP
= 2,250 x m
hP0 = 2,450 x m
raP0 ~ 0,2 x m
rfP0 ~ 0,2 x m
SP0 = P x m
q = 0,6 m x SIN20°
23
3
30
HOBS BP II (DIN 3972)
ØD
Ød
Ød1
L1
LT
γ°
Hobs are generally produced in a single thread right-hand design in class B according to DIN 3968. Hobs in left-hand design, multiple thread and in class A on request.
Module Designation D d Anz./no.
Segm. L1 LT Zsegm. Zges./total d1 gFitting insert
6
77X8Z180006BDA02 180 40 6 113 173 15 90 125 2,084 90x
A
77X8Z210006BEA02 210 50 6 113 173 17 102 125 1,763 102x
A
77X8Z240006BFA02 240 60 6 113 173 19 114 160 1,528 114x
A
7
77X8Z180007BDA02 180 40 6 132 192 15 90 125 2,469 90x
B
77X8Z210007BEA02 210 50 6 132 192 17 102 125 2,084 102x
B
77X8Z240007BFA02 240 60 6 132 192 19 114 160 1,803 114x
B
8
77X8Z210008BEA02 210 50 6 151 211 17 102 125 2,413 102x
C
77X8Z240008BFA02 240 60 6 151 211 19 114 160 2,084 114x
C
77X8Z270008BHA02 270 80 6 151 211 21 126 180 1,834 126x
C
9
77X8Z210009BEA02 210 50 6 169 229 17 102 125 2,751 102x
D
77X8Z240009BFA02 240 60 6 169 229 19 114 160 2,372 114x
D
77X8Z270009BHA02 270 80 6 169 229 21 126 180 2,084 126x
D
10
77X8Z210010BEA02 210 50 6 189 249 17 102 125 3,099 102x
E
77X8Z240010BFA02 240 60 6 189 249 19 114 160 2,666 114x
E
77X8Z270010BHA02 270 80 6 189 249 21 126 180 2,339 126x
E
12
77X8Z240012BFA02 240 60 6 226 298 18 108 140 3,276 54x
F
54x
G
77X8Z270012BHA02 270 80 6 226 298 22 132 180 2,866 66x
F
66x
G
77X8Z350012BHA02 350 80 6 226 298 26 156 240 2,194 78x
F
78x
G
14 77X8Z270014BHA02 270 80 6 264 336 22 132 180 3,415 66x
H
66x
I
77X8Z350014BHA02 350 80 6 264 336 26 156 240 2,547 78x
H
78x
I
16 77X8Z270016BHA02 270 80 6 302 375 22 132 160 3,989 66x
J
66x
K
77X8Z350016BHA02 350 80 6 302 375 26 156 220 2,959 78x
J
78x
K
18 77X8Z270018BHA02 270 80 5 283 355 22 110 145 4,589 55x
L
55x
M
77X8Z350018BHA02 350 80 5 283 355 26 130 220 3,383 65x
L
65x
M
20 77X8Z350020BHA02 350 80 5 314 386 26 130 220 3,823 65x
N
65x
O
77X8Z450020BJA02 450 100 5 314 386 34 170 270 2,866 85x
N
85x
O
A
E
B
C
D
F
Insert screw
SM40-090-00
for inserts:
Insert screw
SM50-120-10
for inserts:
Insert screw Insert screw
SM50-140-10
for inserts:
SM50-160-10
for inserts:
SPARE PARTS
31
HOBS BP II (DIN 3972)
INSERTS
A
FNC333-131-A
19,05
4,76
R1,2
Ø4,5
11,5
B
FNC343-117-A
28,58
5,2
R1,4
Ø4,5
11,5
C
FNC343-108-A
28,58
5,2
R1,6
Ø4,5
11,5
D
FNC343-118-A
28,58
5,2
R1,8
Ø4,5
11,5
E
FNC454-135-A
31,8
6,35
R2
Ø5,4
14,29
F
FNC464-137-A
38,1
6,35
R2,4
Ø5,4
14,29
G
FNC434-116T05-A
19,05
6,35
R2,4
Ø5,4
14,28
H
FNC474-133-A
44,45
7,14
R2,8
Ø5,4
14,29
I
FNC434-117T05-A
19,05
6,35
R2,
8
Ø5,4
14,29
J
FNC485-124-A
50,8
7,94
R3,
2
Ø5,4
14,29
K
FNC434-118T05-A
19,05
6,35
R3,
2
Ø5,4
14,29
L
FNC496-137-A
57,15
7,94
R3,
6
Ø5,4
14,29
M
FNC454-143T05-A
31,75
7,64
R3,6
Ø5,4
14,29
N
FNC496-138
57,15
9,17
R4
Ø5,4
14,29
O
FNC446-102T05
28,58
9,53
R1,6
Ø5,4
14,29
Designation Description
Grade
AH330 APH730 APH130
FNC_ negative geometry
= P = M = K = N = S = H
32
CUTTING DATA RECOMMENDATION HOBS BP II (DIN 3972)
Module Designation D
[mm]
ae1 [mm]
Schnitt1/cut1
ae2 [mm]
Schnitt2/cut2
Vc1 [m/min]
Rm>1000 N/mm2
Vc2 [m/min]
Rm<1000 N/mm2
fa [mm/WU]
Z <=50
fa [mm/WU]
Z =50-100
fa [mm/WU]
Z >=100
6
77X8Z180006BDA02 180 13,5 - 160-180 180-200 1,5-2,5 2,5-4,5 4,5-6,0
77X8Z240006BFA02 210 13,5 - 160-180 180-200 2,0-3,0 3,0-5,0 5,0-6,0
77X8Z240006BFA02 240 13,5 - 160-180 180-200 2,5-3,5 3,5-5,0 5,0-6,0
7
77X8Z180007BDA02 180 15,75 - 160-180 180-200 1,2-2,0 2,0-3,5 3,5-5,0
77X8Z210007BEA02 210 15,75 - 160-180 180-200 1,5-2,5 2,5-4,5 4,5-6,0
77X8Z240007BFA02 240 15,75 - 160-180 180-200 2,0-3,0 3,0-5,0 5,0-6,0
8
77X8Z210008BEA02 210 18,00 - 140-160 160-180 1,3-2,2 2,2-4,0 4,0-6,0
77X8Z240008BFA02 240 18,00 - 140-160 160-180 1,8-2,5 2,5-4,5 4,5-6,0
77X8Z270008BHA02 270 18,00 - 140-160 160-180 2,0-3,5 3,5-5,0 5,0-6,0
9
77X8Z210009BEA02 210 20,25 - 140-160 160-180 1,2-1,8 1,8-3,5 3,5-5,0
77X8Z240009BFA02 240 20,25 - 140-160 160-180 1,5-2,3 2,3-4,5 4,5-6,0
77X8Z270009BHA02 270 20,25 - 140-160 160-180 1,8-2,8 2,8-5,0 5,0-6,0
10
77X8Z210010BEA02 210 22,50 - 140-160 160-180 1,0-1,6 1,6-3,2 3,2-5,0
77X8Z240010BFA02 240 22,50 - 140-160 160-180 1,3-2,0 2,0-4,0 4,0-5,5
77X8Z270010BHA02 270 22,50 - 140-160 160-180 1,6-2,5 2,5-4,5 4,5-6,0
12
77X8Z240012BFA02 240 27,00 - 120-140 140-160 0,8-1,3 1,3-2,5 2,5-4,0
77X8Z270012BHA02 270 27,00 - 120-140 140-160 1,2-2,0 2,0-4,0 4,0-5,5
77X8Z350012BHA02 350 27,00 - 120-140 140-160 1,8-2,8 2,8-4,5 4,5-6,0
14 77X8Z270014BHA02 270 31,50 - 120-140 140-160 1,0-1,5 1,5-3,2 3,2-4,5
77X8Z350014BHA02 350 31,50 - 120-140 140-160 1,5-2,3 2,3-4,0 4,0-5,5
16 77X8Z270016BHA02 270 34,00 2* 120-140 140-160 0,9-1,4 1,5-2,8 2,8-4,2
77X8Z350016BHA02 350 34,00 2* 120-140 140-160 1,4-2,2 2,2-3,8 3,8-5,2
18 77X8Z270018BHA02 270 38,00 2,5* 100-120 120-140 1,2-1,8 1,2-2,5 2,5-4,0
77X8Z350018BHA02 350 38,00 2,5* 100-120 120-140 1,2-1,8 1,2-2,5 2,5-4,0
20 77X8Z350020BHA02 350 42,00 3* 100-120 120-140 0,7-1,1 1,1-2,2 2,2-3,6
77X8Z450020BJA02 450 42,00 3* 100-120 120-140 1,0-1,6 1,6-3,4 3,4-4,5
*For the 2nd cut the axial feed rates fa can be used as for Z>=100.
The indicated cutting data can only be a recommendation and must be adapted on location and, if necessary, optimized.
Remark: fa [mm/WU] = fa [mm/rev]
33
HOBS BP II (DIN 3972)
Profile Design of Hobs BP II
Design of module 6 to 10 Optional with inserts for semi-topping.Design of module 12 to 20
haP0 = 1,250 x m
raP0 = 0,2 x m
SP0 = P x m
2
Formulas
20°
SP0
hP0
haP0
aP0
Symbols
Module SP0 raP0 haP0 hP0
69,43 1,2 7,50 14,7
711,00 1,4 8,75 17,15
812,57 1,6 10,00 19,6
914,14 1,8 11,25 22,05
10 15,70 2,0 12,50 24,5
12 18,85 2,4 15,00 29,4
14 22,00 2,8 17,50 34,3
16 25,13 3,2 20,00 39,2
18 28,27 3,6 22,50 44,1
20 31,42 4,0 25,00 49
34
ROUGHING HOBS WITH PROTUBERANCE
ØD
Ød
Ød1
L1
LT
γ°
A
G
K
B
C
D
I
L
N
E
F
H
J
M
O
P
Q
R
Module Designation D d Anz./no.
Segm. L1 LT Zsegm. Zges./total d1 gFitting insert
6
77X8Z180006BDA00 180 40 6 113 173 15 90 125 2,107 90x
A
77X8Z210006BEA00 210 50 6 113 173 17 102 125 1,780 102x
A
77X8Z240006BFA00 240 60 6 113 173 19 114 160 1,540 114x
A
7
77X8Z180007BDA00 180 40 6 132 192 15 90 125 2,501 90x
B
77X8Z210007BEA00 210 50 6 132 192 17 102 125 2,107 102x
B
77X8Z240007BFA00 240 60 6 132 192 19 114 160 1,820 114x
B
8
77X8Z210008BEA00 210 50 6 151 211 18 108 125 2,444 54x
C
54x
D
77X8Z240008BFA00 240 60 6 151 211 18 108 160 2,107 54x
C
54x
D
77X8Z270008BHA00 270 80 6 151 211 22 132 180 1,852 66x
C
66x
D
9
77X8Z210009BEA00 210 50 6 169 229 18 108 125 2,791 54x
E
54x
F
77X8Z240009BFA00 240 60 6 169 229 18 108 160 2,401 54x
E
54x
F
77X8Z270009BHA00 270 80 6 169 229 22 132 180 2,107 66x
E
66x
F
10
77X8Z210010BEA00 210 50 6 189 249 18 108 125 3,150 54x
G
54x
H
77X8Z240010BFA00 240 60 6 189 249 18 108 160 2,704 54x
G
54x
H
77X8Z270010BHA00 270 80 6 189 249 22 132 180 2,368 66x
G
66x
H
12
77X8Z240012BFA00 240 60 6 226 298 18 108 140 3,339 54x
I
54x
J
77X8Z270012BHA00 270 80 6 226 298 22 132 180 2,910 66x
I
66x
J
77X8Z350012BHA00 350 80 6 226 298 26 156 240 2,174 78x
I
78x
J
14 77X8Z270014BHA00 270 80 6 264 336 22 132 180 3,478 66x
K
66x
L
77X8Z350014BHA00 350 80 6 264 336 26 156 240 2,582 78x
K
78x
L
16 77X8Z270016BHA00 270 80 6 302 375 22 132 160 4,074 66x
M
66x
N
77X8Z350016BHA00 350 80 6 302 375 26 156 220 3,005 78x
M
78x
N
18 77X8Z270018BHA00 270 80 5 283 355 22 110 145 4,702 55x
O
55x
P
77X8Z350018BHA00 350 80 5 283 355 26 130 220 3,444 65x
O
65x
P
20 77X8Z350020BHA00 350 80 5 314 386 26 130 220 3,901 65x
Q
65x
R
77X8Z450020BJA00 450 100 5 314 386 34 170 270 2,910 85x
Q
85x
R
Insert screw
SM40-090-00
for inserts:
Insert screw
SM50-120-10
for inserts:
Insert screw
SM50-160-10
for inserts:
SPARE PARTS
Hobs are generally produced in a single thread right-hand design in class B according to DIN 3968. Hobs in left-hand design on request.
35
ROUGHING HOBS WITH PROTUBERANCE
INSERTS
A
FNC343-115-A
22
5,8
R2,4
Ø4,4
11,5
B
FNC343-116-A
24,5
5,84
R2,8
Ø4,4
11,5
C
FNC343-102-A
28,58
5,92
R3,2
Ø4,4
11,5
D
FNC333-124T05-A
19,05
4,76
R3,2
Ø4,4
11,5
E
FNC343-104-A
28,58
5,2
R3,6
Ø4,4
11,5
F
FNC333-125T05-A
19,05
4,76
R3,6
Ø4,4
11,5
G
FNC454-136-A
31,8
7,19
R4
Ø5,4
14,29
H
FNC333-130T05-A
19,05
4,76
R4
Ø4,4
11,5
I
FNC464-119-A
31,8
6,35
R4,8
Ø5,4
14,29
J
FNC333-142T05-A
19,05
5,2
R4,8
Ø4,4
11,5
K
FNC474-118-A
44,45
7,14
R5,6
Ø5,4
14,29
L
FNC434-114T05-A
19,05
6,35
R5,6
Ø5,4
14,29
M
FNC485-108-A
50,8
7,94
R6,4
Ø5,4
14,29
N
FNC434-115T05-A
19,05
6,35
R6,4
Ø5,4
14,29
O
FNC496-131-A
57,15
9,52
R7,2
Ø5,4
14,29
P
FNC454-142T05-A
31,75
7,6
R7,2
Ø5,4
14,29
Q
FNC4106-110
66,68
9,53
R8
Ø5,4
14,29
R
LNA446-145T05
28,58
9,53
R8
Ø5,4
14,29
Designation Description
Grade
AH330 APH730 APH130
FNC_ negative geometry
= P = M = K = N = S = H
36
CUTTING DATA RECOMMENDATION ROUGHING HOBS WITH PROTUBERANCE
Module Designation D
[mm]
ae1 [mm]
Schnitt1/cut1
ae2 [mm]
Schnitt2/cut2
Vc1 [m/min]
Rm>1000 N/mm2
Vc2 [m/min]
Rm<1000 N/mm2
fa [mm/WU]
Z <=50
fa [mm/WU]
Z =50-100
fa [mm/WU]
Z >=100
6
77X8Z180006BDA00 180 14,7 – 140-160 160-180 1,2-2,3 2,3-4,0 4,0-5,5
77X8Z210006BEA00 210 14,7 – 140-160 160-180 1,8-2,7 2,7-4,6 4,6-6,0
77X8Z240006BFA00 240 14,7 – 140-160 160-180 2,2-3,2 3,2-4,8 4,8-6,0
7
77X8Z180007BDA00 180 17,2 – 140-160 160-180 1,0-1,8 1,8-3,2 3,2-5,0
77X8Z210007BEA00 210 17,2 – 140-160 160-180 1,3-2,2 2,2-4,2 4,2-6,0
77X8Z240007BFA00 240 17,2 – 140-160 160-180 1,8-2,8 2,8-4,4 4,4-6,0
8
77X8Z210008BEA00 210 19,6 – 120-140 140-160 1,2-2,0 2,0-3,8 3,8-5,0
77X8Z240008BFA00 240 19,6 – 120-140 140-160 1,5-2,3 2,3-4,2 4,2-5,5
77X8Z270008BHA00 270 19,6 – 120-140 140-160 1,8-3,2 3,2-4,6 4,6-6,0
9
77X8Z210009DEA00 210 22,0 – 120-140 140-160 1,0-1,6 1,6-3,2 3,2-5,0
77X8Z240009BFA00 240 22,0 – 120-140 140-160 1,3-2,0 2,0-4,0 4,0-5,5
77X8Z270009BHA00 270 22,0 – 120-140 140-160 1,6-2,5 2,5-4,5 4,5-6,0
10
77X8Z210010BEA00 210 24,5 – 120-140 140-160 0,9-1,5 1,5-3,0 3,0-5,0
77X8Z240010BFA00 240 24,5 – 120-140 140-160 1,2-1,8 1,8-3,8 3,8-5,5
77X8Z270010BHA00 270 24,5 – 120-140 140-160 1,5-2,4 2,4-4,3 4,3-6,0
12
77X8Z240012BFA00 240 29,4 – 100-120 120-140 0,6-1,1 1,1-2,0 2,0-3,5
77X8Z270012BHA00 270 29,4 – 100-120 120-140 1,0-1,6 1,6-3,5 3,5-4,5
77X8Z350012BHA00 350 29,4 – 100-120 120-140 1,4-2,4 2,4-4,0 4,0-5,5
14 77X8Z270014BHA00 270 34,3 – 100-120 120-140 0,8-1,3 1,3-3,0 3,0-4,5
77X8Z350014BHA00 350 34,3 – 100-120 120-140 1,2-2,0 2,0-3,8 3,8-5,5
16 77X8Z270016BHA00 270 37,2 2* 100-120 120-140 0,8-1,2 1,2-2,5 2,5-4,0
77X8Z350016BHA00 350 37,2 2* 100-120 120-140 1,2-1,8 1,8-3,5 3,5-5,0
18 77X8Z270018BHA00 270 41,6 2,5* 80-100 100-120 0,7-1,1 1,1-2,2 2,2-3,5
77X8Z350018BHA00 350 41,6 2,5* 80-100 100-120 1,0-1,6 1,6-3,4 3,4-5,0
20 77X8Z350020BHA00 350 46,0 3* 80-100 100-120 0,6-1,0 1,0-2,0 2,0-3,5
77X8Z450020BJA00 450 46,0 3* 80-100 100-120 0,9-1,5 1,5-3,2 3,2-5,0
*For the 2nd cut the axial feed rates fa can be used as for Z>=100.
The indicated cutting data can only be a recommendation and must be adapted on location and, if necessary, optimized.
Remark: fa [mm/WU] = fa [mm/rev]
37
GENERAL DESCRIPTION
SP0 = P · m
haP0 = 1,4 · m + q
raP0 = 0,4 · m
q = stock for grinding
2
sin20°
*On request
Module SP0 PrPO*raP0 haP0 hP0
69,43 –2,4 8,85 16
711,00 –2,8 10,30 19
812,57 –3,2 11,73 21
914,14 –3,6 13,17 24
10 15,70 –4,0 14,61 26
12 18,85 –4,8 17,52 32
14 22,00 –5,6 20,45 37
16 25,13 –6,4 23,37 42
18 28,27 –7,2 26,30 47
20 31,42 –8,0 29,23 52
Profile Design of Hob with Protuberance
Design of module 6 to 7 Design of module 12 and overDesign of module 8 to 10
Formulas
SP0
PrP0
20°
10°
aP0
haP0
hP0
Symbols
38
FINISH HOBS BP II (DIN 3972)
A
B
C
D
E
SPARE PARTS
Insert screw
SM30-082-20
for inserts:
Insert screw
SM50-140-10
for inserts:
Module Designation D d No. of windings L1 LT Zeff. Zges./Ztotal d1 gFitting insert
4
75X8Z090004BCA02 90 32 9 113 136 10 92 60 2,866
A
75X8Z120004BDA02 120 40 9 113 136 13 119 90 2,084
A
75X8Z150004BEA02 150 50 9 113 136 16 146 120 1,637
A
5
75X8Z090005BCA02 90 32 9 141 167 10 92 55 3,699
B
75X8Z120005BDA02 120 40 9 141 167 13 119 85 2,666
B
75X8Z150005BEA02 150 50 9 141 167 16 146 115 2,084
B
6
75X8Z120006BDA02 120 40 6 113 140 10 61 72 3,276
C
75X8Z150006BEA02 150 50 6 113 140 13 79 102 2,547
C
75X8Z180006BFA02 180 60 6 113 140 16 97 132 2,084
C
7
75X8Z150007BEA02 150 50 6 132 155 8 50 98 3,028
D
75X8Z180007BFA02 180 60 6 132 155 10 62 128 2,469
D
75X8Z210007BFA02 210 60 6 132 155 12 74 158 2,084
D
8
75X8Z180008BFA02 180 60 6 151 175 10 62 124 2,866
E
75X8Z210008BFA02 210 60 6 151 175 12 74 154 2,413
E
75X8Z240008BHA02 240 80 6 151 175 14 86 184 2,084
E
Ød
ØD
Ød1
L1
LT
γ°
Hobs are generally produced in a single thread right-hand design in class B according to DIN 3968. Hobs in left-hand design, multiple thread and in class A on request.
39
FINISH HOBS BP II (DIN 3972)
FULL PROFILE INSERTS
E
ZPDW080816
A
ZPDW040508
B
ZPDW050610
C
ZPDW060612
D
ZPDW070814
ZPDW040508
ZPDW050610
10
15
R0,8
9,88
12,7
16,5
R1
12,53
18,4
R1,2
14,67
17,15
24
R1,4
17,42
19,6
27
R1,6
19,5
Designation Description
Grade
APH730 AH630
ZPDW_ positive geometry
= P = M = K = N = S = H
40
ROUGHING HOBS WITH PROTUBERANCE
Module Designation D d No. of windings L1 LT Zeff. Zges./Ztotal d1 gFitting insert
4
75X8Z090004BCA00 90 32 9 113 136 10 92 60 2,866
A
75X8Z120004BDA00 120 40 9 113 136 13 119 90 2,084
A
75X8Z150004BEA00 150 50 9 113 136 16 146 120 1,637
A
5
75X8Z090005BCA00 90 32 9 141 167 10 92 55 3,699
B
75X8Z120005BDA00 120 40 9 141 167 13 119 85 2,666
B
75X8Z150005BEA00 150 50 9 141 167 16 146 115 2,084
B
6
75X8Z120006BDA00 120 40 6 113 140 10 61 72 3,276
C
75X8Z150006BEA00 150 50 6 113 140 13 79 102 2,547
C
75X8Z180006BFA00 180 60 6 113 140 16 97 132 2,084
C
7
75X8Z150007BEA00 150 50 6 132 155 8 50 98 3,028
D
75X8Z180007BFA00 180 60 6 132 155 10 62 128 2,469
D
75X8Z210007BFA00 210 60 6 132 155 12 74 158 2,084
D
8
75X8Z180008BFA00 180 60 6 151 175 10 62 124 2,866
E
75X8Z210008BFA00 210 60 6 151 175 12 74 154 2,413
E
75X8Z240008BHA00 240 80 6 151 175 14 86 184 2,084
E
Ød
ØD
Ød1
L1
LT
γ°
Hobs are generally produced in a single thread right-hand design in class B according to DIN 3968. Hobs in left-hand design, multiple thread and in class A on request.
A
B
C
D
E
SPARE PARTS
Insert screw
SM30-082-20
for inserts:
Insert screw
SM50-140-10
for inserts:
41
ROUGHING HOBS WITH PROTUBERANCE
FULL PROFILE INSERTS
A
ZPDW040516
10
15
R1,6
9,47
R1,6
B
ZPDW050620
12,5
18
R2
11,84
C
ZPDW060624
15
18
R2,4
14,2
D
ZPDW070828
17,15
26
R2,8
16,32
E
ZPDW080832
19,6
27
R3,2
18,65
Finishing with hob
Gear wheel M7, z = 41, material: 16MnCr5
D = 210 mm
n1 = 334 min-1 [rpm] fa1 = 2,5 mm/WU [mm/WR] ae1 = 45,5 mm
n2 = 425 min-1 [rpm] fa2 = 6 mm/WU [mm/WR] ae2 = 0,75 mm
Designation Description
Grade
APH730 AH630
ZPDW_ positive geometry
= P = M = K = N = S = H
42
FINISH HOBS DIN 5480
SPARE PARTS
Insert screw
SM30-082-20
for inserts:
Insert screw
SM50-140-10
for inserts:
Module Designation D d No. of windings L1 LT Zeff. Ztotal d1 gFitting insert
4
75X8Z090004BCA54 90 32 9 113 136 11 100 63 2,690
A
75X8Z120004BDA54 120 40 9 113 136 14 127 93 1,990
A
75X8Z150004BEA54 150 50 9 113 136 17 154 123 1,578
A
5
75X8Z090005BCA54 90 32 9 141 168 10 92 57 3,412
B
75X8Z120005BDA54 120 40 9 141 168 13 119 87 2,514
B
75X8Z150005BEA54 150 50 9 141 168 16 146 117 1,990
B
6
75X8Z120006BDA54 120 40 6 113 140 12 74 89 3,049
C
75X8Z150006BEA54 150 50 6 113 140 15 92 119 2,408
C
75X8Z180006BFA54 180 60 6 113 140 18 110 149 1,990
C
7
75X8Z150007BEA54 150 50 6 132 155 11 68 112 2,834
D
75X8Z180007BFA54 180 60 6 132 155 13 80 142 2,338
D
75X8Z210007BFA54 210 60 6 132 155 15 92 172 1,990
D
8
75X8Z180008BFA54 180 60 6 151 175 13 80 138 2,691
E
75X8Z210008BFA54 210 60 6 151 175 15 92 168 2,288
E
75X8Z240008BHA54 240 80 6 151 175 17 104 198 1,990
E
Ød
ØD
Ød1
L1
LT
γ°
Hobs are generally produced in a single thread right-hand design in class B according to DIN 3968. Hobs in left-hand design, multiple thread and in class A on request.
A
B
C
D
E
43
FINISH HOBS DIN 5480
FULL PROFILE INSERTS
A
ZPDW040506
B
ZPDW050608
C
ZPDW060609
D
ZPDW070811
E
ZPDW080813
ZPDW040506
5
13
R0,64
9,26
ZPDW050608
6,3
16
R0,8
11,63
7,5
14,5
R0,96
13,89
8,4
20
R1,1
2
15,85
9,6
21
R1,28
18,03
Designation Description
Grade
APH730 AH630
ZPDW_ positive geometry
= P = M = K = N = S = H
44
QUALITY CLASS
Comparison Tool Class / Total Profile Deviation of Gear
3456 78 91011
25 - 40
16 - 25
10 - 16
6 - 10
3,55 - 6
2 - 3,55
1 - 2
34 6810 20 40 60 80 100 200 µm
34 6810 20 40 60 80 100 200 µm
25 - 40
16 - 25
10 - 16
6,3 - 10
4 - 6,3
2,5 - 4
1,6 - 2,5
1 - 1,6
Güteklasse
DIN 3962
Profilgesamtabweichung Ff
Total Profile Error Ff
Rädermodulbereich mn
Gear Module Range mn
Fräsermodulbereich mn
Eingriffsteilungsabweichung Fe
Güteklasse
DIN 3968
AA ABC
Gear Module Range mn
Total deviation along line of action Fe
Quality Class
DIN 3962
Quality Class
DIN 3968
45
TOLERANCES / DIN 3968
No. Measured dimension short
descript.
quality
class
Tolerance in µm (1 µm = 0,001 mm) at module
>0,63-1
>1-1,6
>1,6-2,5
>2,5-4
>4-6,3
>6,3-10
>10-16
>16-25
>25-40
4
Radial runout of hub diameter
frp
AA 555555668
A5556810 12 16 20
B666810 12 16 20 25
C10 10 10 12 16 20 25 32 40
5
Axial runout of hub face
fpa
AA 333334556
A333558810 10
B4446610 10 12 12
C 6 6 6 10 10 16 16 20 20
D10 10 10 16 16 25 25 32 32
6
Radial runout of tips of theeth
frk
AA 10 10 12 16 20 25 32 40 50
A12 16 20 25 32 40 50 63 80
B25 32 40 50 63 80 100 125 160
C50 63 80 100 125 160 200 250 315
D100 125 160 200 250 315 400 500 630
8
Adjacent spacing of the cutting face of gashes
ftN
AA ± 10 ± 10 ± 12 ± 16 ± 20 ± 25 ± 32 ± 40 ± 50
A± 12 ± 16 ± 20 ± 25 ± 32 ± 40 ± 50 ± 63 ± 80
B± 25 ± 32 ± 40 ± 50 ± 63 ± 80 ±100 ±125 ±160
C± 50 ± 63 ± 80 ±100 ±125 ±160 ±200 ±250 ±315
D±100 ±125 ±160 ±200 ±250 ±315 ±400 ±500 ±630
4
4
3
3
2
2
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
f
uN
f
uN
Prüfdiagramm
Null
4
4
3
3
2
2
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
f
uN
f
uN
Prüfdiagramm
Null
Inspection chart
zero
Accuracy Requirements for Single Thread Hobs
46
TOLERANCES / DIN 3968 (CONTIN.)
No. Measured dimension short
descript.
quality
class
Tolerance in µm (1 µm = 0,001 mm) at module
>0,63-1
>1-1,6
>1,6-2,5
>2,5-4
>4-6,3
>6,3-10
>10-16
>16-25
>25-40
9
Pitch error of the cutting face of gashes
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
Prüfdiagramm
Null
fuN
fuN
AA 10 10 12 16 20 25 32 40 50
A12 16 20 25 32 40 50 63 80
B25 32 40 50 63 80 100 125 160
C50 63 80 100 125 160 200 250 345
D100 125 160 200 250 315 400 500 630
12
Tooth profile deviation
F
fS
FfS
AA 666810 12 14 18 22
A10 11 12 14 16 20 25 32 40
B20 22 25 28 32 40 50 63 80
C40 45 50 56 63 80 100 125 160
13
Tooth thickness
SS
fS
AA – 16 – 16 – 16 – 20 – 25 – 32 – 40 – 50 – 63
A– 25 – 28 – 32 – 36 – 40 – 50 – 63 – 80 – 100
B– 50 – 56 – 63 – 71 – 80 – 100 – 125 – 160 – 200
C– 100 – 112 – 125 – 140 – 160 – 200 – 250 – 320 – 400
D– 100 – 112 – 125 – 140 – 160 – 200 – 250 – 320 – 400
14
Lead deviation on adjacent teeth
fHF
AA ± 4 ± 4 ± 4 ± 5 ± 6 ± 8 ± 10 ± 12 ± 16
A± 6 ± 7 ± 8 ± 9 ± 10 ± 12 ± 16 ± 20 ± 25
B± 12 ± 14 ± 16 ± 18 ± 20 ± 25 ± 32 ± 40 ± 50
C± 25 ± 28 ± 32 ± 36 ± 40 ± 50 ± 63 ± 80 ±100
D± 50 ± 56 ± 63 ± 71 ± 80 ±100 ±125 ±160 ±200
H
N
• H
i(HN ±H)
HN • H
i(HN ±H)
/Inspection chart
Accuracy Requirements for Single Thread Hobs
zero
47
TOLERANCES / DIN 3968 (CONTIN.)
No. Measured dimension short
descript.
quality
class
Tolerance in µm (1 µm = 0,001 mm) at module
>0,63-1
>1-1,6
>1,6-2,5
>2,5-4
>4-6,3
>6,3-10
>10-16
>16-25
>25-40
15
Lead deviation in one axial pitch
N • H
N
• H
i(HN ±H)
FHF
AA 666810 12 14 18 22
A10 11 12 14 16 20 25 32 40
B20 22 25 28 32 40 50 63 80
C40 45 50 56 63 80 100 125 160
D80 90 100 112 125 160 200 250 320
16
Adjacent deviation along line of action
t
e
i
fe
AA ± 4 ± 4 ± 4 ± 5 ± 6 ± 8 ± 10 ± 12 ± 16
A± 6 ± 7 ± 8 ± 9 ± 10 ± 12 ± 16 ± 20 ± 25
B± 12 ± 14 ± 16 ± 18 ± 20 ± 25 ± 32 ± 40 ± 50
C± 25 ± 28 ± 32 ± 36 ± 40 ± 50 ± 63 ± 80 ±100
17
Total deviation along line of action
Fe
AA 88810 12 16 20 25 32
A12 14 16 18 20 25 32 40 50
B25 28 32 36 40 50 63 80 100
Eingriffsbereich
Eingriffsbereich
Fe
Prüfdiagramm
C50 56 63 71 80 100 125 160 200
Eingriffsbereich
Eingriffsbereich
Fe
Prüfdiagramm
active length
active length
Inspection chart
Accuracy Requirements for Single Thread Hobs
48
NOTES
Grades information for Hob
= P = M = K = N = S = H
AH330 Excellent wear resistance
APH730 Good balance between wear and fracture resistance
APH130 High chipping and fracture resistance
Designed for machining austenitic stainless steel under general cutting conditions
AH630 Good resistance to wear and fracture in machining stainless steel at low to medium
cutting speed
A35HP High fracture resistance
Suitable for machining steel and stainless steel under general cutting conditions
49
50
INDEXABLE INSERT GEAR SHAPER 74X8D
General Description
Gear shaping has been an established machining process for generating
gears since the mid-twenties of the last century. Gear shaping is one of the
most widely used machining methods for producing gearwheels. It is
indispensable for the production of gearing on certain workpiece geome-
tries and on shoulders, but also for special applications,
such as non-round contours.
Despite the limited productivity compared to other gearing methods such
as hobbing, new developments have been made in the process enginee-
ring, machinery, tools and technology areas, which considerably improve
the economic efficiency and quality of the process.
To date, however, very little, if anything, has changed on the used gear-sha-
ping tools, except for the accuracy and the materials. Gear shapers made of
HSS, and to a lesser degree, solid carbide gear shapers are still used.
Disk-type shapers (DIN 1825), bell-type shapers (DIN 1826) and shank-type
shapers (DIN 1828) are used, whereby the disk-type shapers are used most
often. New to the tool concept is the use and presently unique application
of indexable inserts for this machining process.
These tools were primarily designed for roughing, i.e. gashing ready for
finish-shaping or finish-grinding. Gearwheels with low quality
requirements can be finish-shaped, within limits.
The gear shaping method is generally used whenever index milling or
hobbing is not possible. Straight- and helical-toothed, internal and
external spur gears can be produced using the gear-shaping method.
From an economic point of view, gear-shaping comes in third, after
hobbing and index milling.
Indexable Insert Gear Shaper 74X8D
51
INDEXABLE INSERT GEAR SHAPER 74X8D
Internal gearing with shoulder
Herringbone gearingExternal gearing with shoulder
From an economical point of view, however, it is the most universal of all
methods, as in addition to 'normal' external and internal gearing, it can
also be used to generate other gears, which, due to their geometry, cannot
be produced with the aforementioned methods, such as:
• External and internal gearing with shoulders
• External and internal herringbone gearing
• Gearing with thrust surfaces
• Component-related interference contours
• General gearing that does not permit an overrun of a side and face
mill or a hob, so called collision gearing.
When all is said and done, the gear shaping method can be used to
generate every type of gear that can be generated using the hobbing or
index milling method, but conversely, this is only possible to a limited
degree.
The new gear shapers are generally designed for roughing, i.e. gashing in
preparation for finish-shaping or finish-grinding. Lower gear qualities of
up to max Q8 have been achieved, but cannot be generally guaranteed,
as workpiece qualities do not allow any conclusions to be drawn about
tool qualities. At present, the tools approximately correspond to class B
according to DIN 1829.
Profiles are standardly produced to reference profile II and reference profile
III standards, as defined in DIN 3972.
52
SHAPER BP II (DIN 3972)
LT
tØd
ØD
Ød1
b
Shaper
Module Designation D D0dLT Z d1 b t Fitting insert
3
74X8D116003AG-02 115,5 108 31,75 40 36 88 12 4
A
74X8D134003AJ-02 133,5 125 44,45 40 42 106 12 4
A
74X8D152003AJ-02 151,5 144 44,45 40 48 124 12 4
A
4
74X8D090004AG-02 90 80 31,75 40 20 68 12 4
B
74X8D114004AG-02 114 104 31,75 40 26 92 12 4
B
74X8D130004AJ-02 130 120 44,45 40 30 108 12 4
B
5
74X8D113005AG-02 112,5 100 31,75 40 20 82 12 4
C
74X8D143005AJ-02 142,5 130 44,45 40 26 112 12 4
C
74X8D163005AJ-02 162,5 150 44,45 40 30 132 12 4
C
6
74X8D135006AG-02 135 120 31,75 40 20 91 12 4
D
74X8D171006AJ-02 171 156 44,45 40 26 127 12 4
D
74X8D195006AJ-02 195 180 44,45 40 30 151 12 4
D
7
74X8D158007AJ-02 157,5 140 44,45 40 20 108 12 4
E
74X8D200007AJ-02 199,5 182 44,45 40 26 150 12 4
E
74X8D228007BG-02 227,5 210 70 50 30 178 12 4
E
8
74X8D180008AJ-02 180 160 44,45 40 20 122 12 4
F
74X8D228008BG-02 228 208 70 40 26 170 12 4
F
74X8D260008BG-02 260 240 70 50 30 202 12 4
F
9
74X8D203009AJ-02 202,5 180 44,45 40 20 139 12 4
G
74X8D257009BG-02 256,5 234 70 50 26 193 12 4
G
74X8D293009BG-02 292,5 270 70 50 30 229 12 4
G
10
74X8D225010AJ-02 205 180 44,45 40 18 150 12 4
H
74X8D225010BG-02 225 200 70 50 20 170 12 4
H
74X8D455010BG-02 245 220 70 50 22 190 12 4
H
11
74X8D223011AJ-02 225,5 198 44,45 40 18 166 12 4
I
74X8D248011BG-02 247,5 220 70 50 20 188 12 4
I
74X8D270011BG-02 269,5 242 70 50 22 210 12 4
I
12
74X8D222012AJ-02 222 192 44,45 40 16 145 12 4
J
74X8D246012BG-02 246 216 70 50 18 170 12 4
J
74X8D270012BG-02 270 240 70 50 20 195 12 4
J
13
74X8D241013BG-02 240,5 208 70 50 16 150 12 4
K
74X8D267013BG-02 266,5 234 70 50 18 175 12 4
K
74X8D293013BJ-02 292,5 260 100 50 20 205 12 4
K
14 74X8D259014BG-02 259 224 70 50 16 170 12 4
L
74X8D287014BJ-02 287 252 100 50 18 200 12 4
L
15 74X8D263015BJ-02 262,5 225 100 50 15 180 12 4
M
74X8D293015BJ-02 292,5 255 100 50 17 200 12 4
M
16 74X8D280016BJ-02 280 240 100 50 15 190 12 4
N
74X8D296016BJ-02 296 256 100 50 16 200 12 4
N
17 74X8D300017BJ-02 297,5 255 100 50 15 200 12 4
O
18 74X8D315018BJ-02 315 226 100 50 15 200 12 4
P
A
B
C
D
K
E
L
F
M
Insert screw
SM30-082-20
for inserts:
SM40-110-00
for inserts:
Insert screw
SM40-130-00
for inserts:
Insert screw Insert screw
SM50-140-10
for inserts:
SPARE PARTS
G
N
H
O
I
P
J
(DIN 3972)
53
SHAPER BP II (DIN 3972)
INSERTS
A
VCDV0303
3,81
15,9
B
VCDV0404
4,76
21
C
VCDV0506
6,35
25,4
K
VCDV1307
7,14
59,9
D
VCDV0607
7,14
31,8
L
VCDV1407
7,94
64,9
F
VCDV0807
7,14
38,8
M
VCDV1507
7,94
68,9
G
VCDV0907
N
VCDV1607
70,0
7,94
E
VCDV0707
7,14
35 7,14
42
Shapers are generally produced for spur gears in class B according DIN 1829. Shapers für helical gears on request.
H
VCDV1007
O
VCDV1707
70,0
7,94
P
VCDV1807
70,0
7,94
I
VCDV1107
J
VCDV1207
7,14
59,9
7,14
50,8
7,14
44,45
Shaping of an internal wheel
module 6, z = -77, b = 170 mm, material: 42CrMo4
Shaper with z = 36:
n = 141 DS/min Sw = 1,885 mm/DS
Sr = 0,0024 - 0,0013 mm/DS ae = 12,2 mm
Designation Description
Grade
A35HP APH130
VCDV_ positive geometry
= P = M = K = N = S = H
54
SHAPER (DIN 5480)
LT
tØd
ØD
Ød1
b
Shaper (DIN 5480)
Module Designation D D0dLT Z d1 b t Fitting insert
3
74X8D112003AG-54 111,9 108 31,75 40 36 85 12 4
A
74X8D130003AJ-54 129,9 125 44,45 40 42 100 12 4
A
74X8D148003AJ-54 147,9 144 44,45 40 48 120 12 4
A
4
74X8D085004AG-54 85,2 80 31,75 40 20 73 12 4
B
74X8D109004AG-54 109,2 104 31,50 40 26 97 12 4
B
74X8D125004AJ-54 125,2 120 44,45 40 30 113 12 4
B
5
74X8D107005AG-54 106,5 100 31,50 40 20 88 12 4
C
74X8D137005AJ-54 136,5 130 44,45 40 26 118 12 4
C
74X8D157005AJ-54 156,5 150 44,45 40 30 138 12 4
C
6
74X8D128006AG-54 127,8 120 31,75 40 20 102 12 4
D
74X8D164006AJ-54 163,8 156 44,45 40 26 138 12 4
D
74X8D188006AJ-54 187,8 180 44,45 40 30 162 12 4
D
7
74X8D149007AJ-54 149,1 140 44,45 40 20 115 12 4
E
74X8D191007AJ-54 191,1 182 44,45 40 26 157 12 4
E
74X8D219007BG-54 219,1 210 70 50 30 185 12 4
E
8
74X8D170008AJ-54 170,4 160 44,45 40 20 130 12 4
F
74X8D218008BG-54 218,4 208 70 50 26 178 12 4
F
74X8D250008BG-54 250,4 240 70 50 30 210 12 4
F
9
74X8D192009AJ-54 191,7 180 44,45 40 20 143 12 4
G
74X8D246009BG-54 245,7 234 70 50 26 197 12 4
G
74X8D282009BG-54 281,7 270 70 50 30 233 12 4
G
10
74X8D293010AJ-54 193 180 44,45 40 18 150 12 4
H
74X8D213010BG-54 213 200 70 50 20 155 12 4
H
74X8D233010BG-54 233 220 70 50 22 160 12 4
H
11
74X8D223011AJ-54 225,5 198 44,45 40 18 166 12 4
I
74X8D248011BG-54 247,5 220 70 50 20 188 12 4
I
74X8D270011BG-54 269,5 242 70 50 22 210 12 4
I
12
74X8D222012AJ-54 222 192 44,45 40 16 145 12 4
J
74X8D246012BG-54 246 216 70 50 18 170 12 4
J
74X8D270012BG-54 270 240 70 50 20 195 12 4
J
13
74X8D241013BG-54 240,5 208 70 50 16 150 12 4
K
74X8D267013BG-54 266,5 234 70 50 18 175 12 4
K
74X8D293013BJ-54 292,5 260 100 50 20 205 12 4
K
14 74X8D259014BG-54 259 224 70 50 16 170 12 4
L
74X8D287014BJ-54 287 252 100 50 18 200 12 4
L
15 74X8D263015BJ-54 262,5 225 100 50 15 180 12 4
M
74X8D293015BJ-54 292,5 255 100 50 17 200 12 4
M
16 74X8D280016BJ-54 280 240 100 50 15 190 12 4
N
74X8D296016BJ-54 296 256 100 50 16 200 12 4
N
17 74X8D300017BJ-54 297,5 255 100 50 15 200 12 4
O
18 74X8D315018BJ-54 315 226 100 50 15 200 12 4
P
A
B
C
D
K
E
L
F
M
Insert screw
SM30-082-20
for inserts:
SM40-110-00
for inserts:
Insert screw
SM40-130-00
for inserts:
Insert screw Insert screw
SM50-140-10
for inserts:
SPARE PARTS
G
N
H
O
I
P
J
55
SHAPER (DIN 5480)
SOLID CARBIDE INSERTS
A
VCDV0303-DIN5480
3,81
11,5
B
VCDV0404-DIN5480
C
VCDV0506-DIN5480
K
VCDV1307-DIN5480
7,14
50,8
D
VCDV0607-DIN5480
L
VCDV1408-DIN5480
7,94
55,2
F
VCDV0807-DIN5480
M
VCDV1508-DIN5480
7,94
58,7
G
VCDV0907-DIN5480
N
VCDV1608-DIN5480
7,94
64,9
6,35
19,1
7,14
22,5
E
VCDV0707-DIN5480
7,14
26,5
7,14
34
H
VCDV1007-DIN5480
O
VCDV1708-DIN5480
7,94
64,9
P
VCDV1808-DIN5480
7,94
61,9
I
VCDV1107-DIN5480
J
VCDV1207-DIN5480
7,14
48
7,14
47,9
7,14
37
7,14
30
4,76
15,8
Shapers are generally produced for spur gears in class B according DIN 1829. Shapers für helical gears on request.
Designation Description
Grade
A35HP APH130
VCDV_ positive geometry
= P = M = K = N = S = H
56
NOTES
Grades information for Shaper
= P = M = K = N = S = H
APH130 High chipping and fracture resistance
Designed for machining austenitic stainless steel under general cutting conditions
A35HP High fracture resistance
Suitable for machining steel and stainless steel under general cutting conditions
57
58
General Description
Development of gear skiving has been started at the beginning of the
twentieth century. The new machining process for production of gears was
then applied for a patent by Wilhelm von Pittler in 1910. Although gear
skiving promised great potential in terms of productivity and flexibility, it
was not successful in practice and was forgotten. The technical possibilities
of that time were not yet available in the areas of machine control and
tool performance for this high-performance machining process. Thanks to
enormous progress in both machine tools and tools, thanks to modern cut-
ting materials and coatings, gear skiving is now suitable for serial production
and promises to be an interesting alternative to the established machining
processes such as hobbing and gear shaping
Gear skiving is a continuous cutting process for the production of so-called
rotationally symmetrical periodic structures, primarily gears. The skiving
tool and the work gear rotate with crossed axes according to a helical gear
pair. With the helical gear pairing, the movement is divided into a rolling
and a screwing part, which becomes a sliding cutting movement when
skiving. The larger you choose the cross-axis angle, the more the rolling
component decreases and the screwing component increases, which leads to
an increase of cutting speed. Cutting speed can only be varied by changing
axis arrangement and speed of tool and work gear. Skiving tool and work
gear receive rotary movements that are related to each other in the ratio of
the number of teeth z2/z0. The cross-axis angle ∑ is equal to the difference
in the case of opposing flank directions; in the case of flank directions in the
same direction, it is equal to the sum of the helical angles of skiving tool 0
and work gear 2.
59
∑ : cross-axis angle
β0 : helical angle of tool
β2 : helical angle of gear
v2 : cutting speed work gear
v0 : cutting speed tool
vs : resulting cutting speed
In simple terms, gear skiving can be viewed as a combination of
hobbing and gear shaping, combining some of the advantages of both
machining processes. Primarily, these are the productivity of hobbing and
the flexibility of gear shaping. Especially when machining internal gears
compared to gear shaping, the gear skiving process scores with significantly
higher productivity. Machining times for gear skiving are around 30% to 50%
compared to the gear shaping process. In contrast to gear shaping, however,
due to the inclined position of the tool in relation to the workpiece (cross-
axis angle), gear skiving requires a machining path that is slightly larger
than the width of the gearing to be produced. These additional paths are
called approach and overrun distance. They increase as the cross-axis angle
increases. Due to these necessary approach and overrun distances, gear ski-
ving has few restrictions compared to gear shaping with very narrow internal
gears and interfering contours. For the majority of applications that were pre-
viously reserved for gear shaping, gear skiving is a much more productive and
economical machining method.
60
SKIVING CUTTER BP II (DIN 3972)
Skiving cutter
Module Designation D D0dLT z d1 a b Fitting insert
3
74X8Z094003AG-02 94 86,5 31,75 40 27 76 20 20
A
74X8Z106003AG-02 106 98,5 31,75 40 31 88 20 20
A
74X8Z152003AJ-02 132 124,5 44,45 40 39 114 20 20
A
4
74X8Z091004AG-02 91 81 31,75 40 19 67 20 20
B
74X8Z108004AG-02 108 98 31,75 40 23 84 20 20
B
74X8Z133004AJ-02 133 123 44,45 40 29 109 20 20
B
5
74X8Z114005AG-02 114 101,5 31,75 40 19 84 20 20
C
74X8Z135005AJ-02 135 122,5 44,45 40 23 105 20 20
C
74X8Z167005AJ-02 167 154,5 44,45 40 29 137 20 20
C
6
74X8Z136006AG-02 136 121 31,75 40 19 100 20 20
D
74X8Z171006AJ-02 162 147 44,45 40 23 126 20 20
D
74X8Z200006AJ-02 200 185 44,45 40 29 164 20 20
D
7
74X8Z159007AJ-02 159 141,5 44,45 40 19 117 20 20
E
74X8Z216007AJ-02 189 171,5 44,45 40 23 147 20 20
E
74X8Z267007BG-02 234 216,5 70 50 29 192 20 20
E
8
74X8Z164008AJ-02 164 144 44,45 40 17 116 20 20
F
74X8Z182008BG-02 182 162 70 50 19 134 20 20
F
74X8Z216008BG-02 216 196 70 50 23 168 20 20
F
9
74X8Z204009AJ-02 185 162,5 44,45 40 17 131 20 20
G
74X8Z205009BG-02 205 182,5 70 50 19 151 20 20
G
74X8Z243009BG-02 243 220,5 70 50 23 189 20 20
G
10
74X8Z185010AJ-02 185 160 44,45 40 15 125 20 20
H
74X8Z206010BG-02 206 181 70 50 17 146 20 20
H
74X8Z249010BG-02 249 224 70 50 21 189 20 20
H
11
74X8Z203011AJ-02 203 175,5 44,45 40 15 137 20 20
I
74X8Z227011BG-02 227 199,5 70 50 17 161 20 20
I
74X8Z250011BG-02 250 222,5 70 50 19 184 20 20
I
12
74X8Z222012AJ-02 222 192 44,45 40 15 150 20 20
J
74X8Z247012BG-02 247 217 70 50 17 175 20 20
J
74X8Z272012BG-02 272 242 70 50 19 200 20 20
J
A
B
C
D
E
F
Insert screw
SM30-082-20
for inserts:
SM40-110-00
for inserts:
Insert screw
SM40-130-00
for inserts:
Insert screw Insert screw
SM50-140-10
for inserts:
SPARE PARTS
G
H
I
J
LT
Ød
ØD
Ød1
(DIN 3972)
61
SKIVING CUTTER BP II (DIN 3972)
SOLID CARBIDE INSERTS
A
VCDW0303
3,81
15,9
B
VCDW0404
4,76
21
C
VCDW0506
6,35
25,4
D
VCDW0607
7,14
31,8
F
VCDW0807
7,14
38,8
G
VCDW0907
7,14
42
E
VCDW0707
7,14
35
H
VCDW1007
7,14
44,45
I
VCDW1107
7,14
50,8
J
VCDW1207
7,14
59,9
Skiving Cutter are generally produced for spur gears in class B according DIN 1829. Skiving Cutter for helical gears on request..
Designation Description
Grade
A35HP APH130
VCDW_ positive geometry
= P = M = K = N = S = H
62
SKIVING CUTTER (DIN 5480)
LT
Ød
ØD
Ød1
Skiving cutter
Module Designation D D0dLT z d1 a b Fitting insert
3
74X8Z086003AG-54 86 78,7 31,75 40 27 74 30 20
A
74X8Z099003AG-54 99 91,5 31,75 40 31 87 30 20
A
74X8Z125003AJ-54 125 117 44,45 40 39 113 30 20
A
4
74X8Z081004AG-54 81 70,9 31,75 40 19 65 30 20
B
74X8Z098004AG-54 98 87,9 31,75 40 23 82 30 20
B
74X8Z123004AJ-54 123 113 44,45 40 29 107 30 20
B
5
74X8Z101005AG-54 101 88,6 31,75 40 19 81 30 20
C
74X8Z122005AJ-54 122 110 44,45 40 23 102 30 20
C
74X8Z154005AJ-54 154 142 44,45 40 29 134 30 20
C
6
74X8Z121006AG-54 121 106 31,75 40 19 97 30 20
D
74X8Z147006AJ-54 147 132 44,45 40 23 123 30 20
D
74X8Z185006AJ-54 185 170 44,45 40 29 161 30 20
D
7
74X8Z142007AJ-54 142 124 44,45 40 19 114 30 20
E
74X8Z171007AJ-54 171 154 44,45 40 23 143 30 20
E
74X8Z216007BG-54 216 199 70 50 29 188 30 20
E
8
74X8Z145008AJ-54 145 125 44,45 40 17 113 30 20
F
74X8Z162008BG-54 162 142 70 50 19 130 30 20
F
74X8Z196008BG-54 196 176 70 50 23 164 30 20
F
9
74X8Z163009AJ-54 163 140 44,45 40 17 127 30 20
G
74X8Z182009BG-54 182 159 70 50 19 146 30 20
G
74X8Z220009BG-54 220 198 70 50 23 184 30 20
G
10
74X8Z160010AJ-54 160 135 44,45 40 15 120 30 20
H
74X8Z181010BG-54 181 156 70 50 17 141 30 20
H
74X8Z223010BG-54 223 198 70 50 21 183 30 20
H
11
74X8Z176011AJ-54 176 148 44,45 40 15 132 30 20
I
74X8Z199011BG-54 199 171 70 50 17 155 30 20
I
74X8Z222011BG-54 222 195 70 50 19 178 30 20
I
12
74X8Z192012AJ-54 192 162 44,45 40 15 144 30 20
J
74X8Z217012BG-54 217 187 70 50 17 169 30 20
J
74X8Z243012BG-54 243 213 70 50 19 195 30 20
J
A
B
C
D
E
F
Insert screw
SM30-082-20
for inserts:
SM40-110-00
for inserts:
Insert screw
SM40-130-00
for inserts:
Insert screw Insert screw
SM50-140-10
for inserts:
SPARE PARTS
G
H
I
J
(DIN 5480)
63
SKIVING CUTTER (DIN 5480)
SOLID CARBIDE INSERTS
A
VCDW0303-DIN5480
3,81
11,5
B
VCDW0404-DIN5480
4,76
15,8
C
VCDW0506-DIN5480
6,35
19,1
D
VCDW0607-DIN5480
7,14
22,5
F
VCDW0807-DIN5480
7,14
30
G
VCDW0907-DIN5480
7,14
34
E
VCDW0707-DIN5480
7,14
26,5
H
VCDW1007-DIN5480
7,14
37
I
VCDW1107-DIN5480
7,14
47,9
J
VCDW1207-DIN5480
7,14
48
Skiving Cutter are generally produced for spur gears in class B according DIN 1829. Skiving Cutter for helical gears on request.
Designation Description
Grade
A35HP APH130
VCDW_ positive geometry
= P = M = K = N = S = H
64
65
SOLID CARBIDE SOLUTIONS FOR SMALL MODULES
Application range
DIN 3960 / 3972
20° pressure angle
Tooth height 2,25 x m
Spur & helical teeth
DIN 5480
30° pressure angle
Tooth height 1,10 x m
Normally only spur teeth
DIN 3960 / 3972
20° pressure angle
Tooth height 2,25 x m
Spur & helical teeth
DIN 5480
30° pressure angle
Tooth height 1,10 x m
Normally only spur teeth
Involute gear (external)
Spline gear (external)
Involute gear (internal)
Spline gear (internal)
Grades information for TungMeister gear heads
= P = M = K = N = S = H
A35HP High fracture resistance
Suitable for machining steel and stainless steel under general cutting conditions
66
GEAR SOLUTIONS FOR SMALL MODULE
Special Solutions with TungMeister
Diameter: 17,0 mm to 35,0 mm
Cutting width: 1,9 mm to 16 mm
Cutting depth: to 6 mm
Module sizes: module 0,8 - 3,5
Blank:
TungMeister 18Z25002TRRA061 A35HP Gear finish mill module 2; No. of gear teeth = 23
Cutting depth: to 6 mm
Cutting width: 10 mm to 25 mm
Diameter: 8 mm to 25 mm
Module sizes: module 2.5 to 12
Gear finish end mill module 12;
No. of gear teeth = 128 TungMeister 47Z04037TURA10 AH730
Blank
Example:
Example:
67
GEAR FINISHING GASHER BP II (DIN 3972)
Gear Finishing Gasher
Designation Description
Grade
A35HP
18Z_ positive geometry
= P = M = K = N = S = H
a
CRKS
ØD
(DIN 3972)
Module Designation D d1 a max. CRKS z zmin zmax a
0,8
18Z17008T6RA120 17 9,5 4,5 S06 6 11 13 20
18Z17008T6RA150 17 9,5 4,5 S06 6 14 16 20
18Z17008T6RA180 17 9,5 4,5 S06 6 17 19 20
18Z17008T6RA210 17 9,5 4,5 S06 6 20 22 20
18Z17008T6RA240 17 9,5 4,5 S06 6 23 25 20
18Z17008T6RA270 17 9,5 4,5 S06 6 26 28 20
18Z17008T6RA300 17 9,5 4,5 S06 6 29 31 20
18Z17008T6RA330 17 9,5 4,5 S06 6 32 34 20
18Z17008T6RA360 17 9,5 4,5 S06 6 35 37 20
18Z17008T6RA390 17 9,5 4,5 S06 6 38 40 20
1
18Z17010T6RA120 17 9,5 4,5 S06 6 11 13 20
18Z17010T6RA150 17 9,5 4,5 S06 6 14 16 20
18Z17010T6RA180 17 9,5 4,5 S06 6 17 19 20
18Z17010T6RA210 17 9,5 4,5 S06 6 20 22 20
18Z17010T6RA240 17 9,5 4,5 S06 6 23 25 20
18Z17010T6RA270 17 9,5 4,5 S06 6 26 28 20
18Z17010T6RA300 17 9,5 4,5 S06 6 29 31 20
18Z17010T6RA330 17 9,5 4,5 S06 6 32 34 20
18Z17010T6RA360 17 9,5 4,5 S06 6 35 37 20
18Z17010T6RA390 17 9,5 4,5 S06 6 38 40 20
1,25
18Z23013T8RA120 23 11,5 9,9 S08 6 11 13 20
18Z23013T8RA150 23 11,5 9,9 S08 6 14 16 20
18Z23013T8RA180 23 11,5 9,9 S08 6 17 19 20
18Z23013T8RA210 23 11,5 9,9 S08 6 20 22 20
18Z23013T8RA240 23 11,5 9,9 S08 6 23 25 20
18Z23013T8RA270 23 11,5 9,9 S08 6 26 28 20
18Z23013T8RA300 23 11,5 9,9 S08 6 29 31 20
18Z23013T8RA330 23 11,5 9,9 S08 6 32 34 20
18Z23013T8RA360 23 11,5 9,9 S08 6 35 37 20
18Z23013T8RA390 23 11,5 9,9 S08 6 38 40 20
1,5
18Z28015TRRA120 28 15,2 10,3 S10 6 11 13 20
18Z28015TRRA150 28 15,2 10,3 S10 6 14 16 20
18Z28015TRRA180 28 15,2 10,3 S10 6 17 19 20
18Z28015TRRA210 28 15,2 10,3 S10 6 20 22 20
18Z28015TRRA240 28 15,2 10,3 S10 6 23 25 20
18Z28015TRRA270 28 15,2 10,3 S10 6 26 28 20
18Z28015TRRA300 28 15,2 10,3 S10 6 29 31 20
18Z28015TRRA330 28 15,2 10,3 S10 6 32 34 20
18Z28015TRRA360 28 15,2 10,3 S10 6 35 37 20
18Z28015TRRA390 28 15,2 10,3 S10 6 38 40 20
2
18Z28020TRRA120 28 15,2 10,3 S10 6 11 13 20
18Z28020TRRA150 28 15,2 10,3 S10 6 14 16 20
18Z28020TRRA180 28 15,2 10,3 S10 6 17 19 20
18Z28020TRRA210 28 15,2 10,3 S10 6 20 22 20
18Z28020TRRA240 28 15,2 10,3 S10 6 23 25 20
18Z28020TRRA270 28 15,2 10,3 S10 6 26 28 20
18Z28020TRRA300 28 15,2 10,3 S10 6 29 31 20
18Z28020TRRA330 28 15,2 10,3 S10 6 32 34 20
18Z28020TRRA360 28 15,2 10,3 S10 6 35 37 20
18Z28020TRRA390 28 15,2 10,3 S10 6 38 40 20
2,5
18Z35025TSRA120 35 18,3 16 S12 8 12 – 20
18Z35025TSRA160 35 18,3 16 S12 8 16 – 20
18Z35025TSRA200 35 18,3 16 S12 8 20 – 20
18Z35025TSRA240 35 18,3 16 S12 8 24 – 20
18Z35025TSRA280 35 18,3 16 S12 8 28 – 20
18Z35025TSRA320 35 18,3 16 S12 8 32 – 20
18Z35025TSRA360 35 18,3 16 S12 8 36 – 20
18Z35025TSRA400 35 18,3 16 S12 8 40 – 20
18Z35025TSRA440 35 18,3 16 S12 8 44 – 20
18Z35025TSRA480 35 18,3 16 S12 8 48 – 20
3
18Z35030TSRA120 35 18,3 16 S12 8 12 – 20
18Z35030TSRA160 35 18,3 16 S12 8 16 – 20
18Z35030TSRA200 35 18,3 16 S12 8 20 – 20
18Z35030TSRA240 35 18,3 16 S12 8 24 – 20
18Z35030TSRA280 35 18,3 16 S12 8 28 – 20
18Z35030TSRA320 35 18,3 16 S12 8 32 – 20
18Z35030TSRA360 35 18,3 16 S12 8 36 – 20
18Z35030TSRA400 35 18,3 16 S12 8 40 – 20
18Z35030TSRA440 35 18,3 16 S12 8 44 – 20
18Z35030TSRA480 35 18,3 16 S12 8 48 – 20
Gear milling cutter for finishing of spur gears with basic rack profile II according to DIN3972 and addendum modification factor x=0. The gear quality IT8 can be achieved in the specified number of teeth range.
68
a
CRKS
ØD
GEAR FINISHING GASHER (DIN 5480)
Gear Finishing Gasher (DIN 5840)
Designation Description
Grade
A35HP
18Z_ positive geometry
= P = M = K = N = S = H
Module Designation D d1 a max. CRKS z zmin zmax a
0,8
18Z17008T6RB120 17 9,5 4,5 S06 6 11 13 30
18Z17008T6RB150 17 9,5 4,5 S06 6 14 16 30
18Z17008T6RB180 17 9,5 4,5 S06 6 17 19 30
18Z17008T6RB210 17 9,5 4,5 S06 6 20 22 30
18Z17008T6RB240 17 9,5 4,5 S06 6 23 25 30
18Z17008T6RB270 17 9,5 4,5 S06 6 26 28 30
18Z17008T6RB300 17 9,5 4,5 S06 6 29 31 30
18Z17008T6RB330 17 9,5 4,5 S06 6 32 34 30
18Z17008T6RB360 17 9,5 4,5 S06 6 35 37 30
18Z17008T6RB390 17 9,5 4,5 S06 6 38 40 30
1
18Z17010T6RB120 17 9,5 4,5 S06 6 11 13 30
18Z17010T6RB150 17 9,5 4,5 S06 6 14 16 30
18Z17010T6RB180 17 9,5 4,5 S06 6 17 19 30
18Z17010T6RB210 17 9,5 4,5 S06 6 20 22 30
18Z17010T6RB240 17 9,5 4,5 S06 6 23 25 30
18Z17010T6RB270 17 9,5 4,5 S06 6 26 28 30
18Z17010T6RB300 17 9,5 4,5 S06 6 29 31 30
18Z17010T6RB330 17 9,5 4,5 S06 6 32 34 30
18Z17010T6RB360 17 9,5 4,5 S06 6 35 37 30
18Z17010T6RB390 17 9,5 4,5 S06 6 38 40 30
1,25
18Z23013T8RB120 23 11,5 9,9 S08 6 11 13 30
18Z23013T8RB150 23 11,5 9,9 S08 6 14 16 30
18Z23013T8RB180 23 11,5 9,9 S08 6 17 19 30
18Z23013T8RB210 23 11,5 9,9 S08 6 20 22 30
18Z23013T8RB240 23 11,5 9,9 S08 6 23 25 30
18Z23013T8RB270 23 11,5 9,9 S08 6 26 28 30
18Z23013T8RB300 23 11,5 9,9 S08 6 29 31 30
18Z23013T8RB330 23 11,5 9,9 S08 6 32 34 30
18Z23013T8RB360 23 11,5 9,9 S08 6 35 37 30
18Z23013T8RB390 23 11,5 9,9 S08 6 38 40 30
1,5
18Z28015TRRB120 28 15,2 10,3 S10 6 11 13 30
18Z28015TRRB150 28 15,2 10,3 S10 6 14 16 30
18Z28015TRRB180 28 15,2 10,3 S10 6 17 19 30
18Z28015TRRB210 28 15,2 10,3 S10 6 20 22 30
18Z28015TRRB240 28 15,2 10,3 S10 6 23 25 30
18Z28015TRRB270 28 15,2 10,3 S10 6 26 28 30
18Z28015TRRB300 28 15,2 10,3 S10 6 29 31 30
18Z28015TRRB330 28 15,2 10,3 S10 6 32 34 30
18Z28015TRRB360 28 15,2 10,3 S10 6 35 37 30
18Z28015TRRB390 28 15,2 10,3 S10 6 38 40 30
2
18Z28020TRRB120 28 15,2 10,3 S10 6 11 13 30
18Z28020TRRB150 28 15,2 10,3 S10 6 14 16 30
18Z28020TRRB180 28 15,2 10,3 S10 6 17 19 30
18Z28020TRRB210 28 15,2 10,3 S10 6 20 22 30
18Z28020TRRB240 28 15,2 10,3 S10 6 23 25 30
18Z28020TRRB270 28 15,2 10,3 S10 6 26 28 30
18Z28020TRRB300 28 15,2 10,3 S10 6 29 31 30
18Z28020TRRB330 28 15,2 10,3 S10 6 32 34 30
18Z28020TRRB360 28 15,2 10,3 S10 6 35 37 30
18Z28020TRRB390 28 15,2 10,3 S10 6 38 40 30
2,5
18Z35025TSRB120 35 18,3 16 S12 8 12 – 30
18Z35025TSRB160 35 18,3 16 S12 8 16 – 30
18Z35025TSRB200 35 18,3 16 S12 8 20 – 30
18Z35025TSRB240 35 18,3 16 S12 8 24 – 30
18Z35025TSRB280 35 18,3 16 S12 8 28 – 30
18Z35025TSRB320 35 18,3 16 S12 8 32 – 30
18Z35025TSRB360 35 18,3 16 S12 8 36 – 30
18Z35025TSRB400 35 18,3 16 S12 8 40 – 30
18Z35025TSRB440 35 18,3 16 S12 8 44 – 30
18Z35025TSRB480 35 18,3 16 S12 8 48 – 30
3
18Z35030TSRB120 35 18,3 16 S12 8 12 – 30
18Z35030TSRB160 35 18,3 16 S12 8 16 – 30
18Z35030TSRB200 35 18,3 16 S12 8 20 – 30
18Z35030TSRB240 35 18,3 16 S12 8 24 – 30
18Z35030TSRB280 35 18,3 16 S12 8 28 – 30
18Z35030TSRB320 35 18,3 16 S12 8 32 – 30
18Z35030TSRB360 35 18,3 16 S12 8 36 – 30
18Z35030TSRB400 35 18,3 16 S12 8 40 – 30
18Z35030TSRB440 35 18,3 16 S12 8 44 – 30
18Z35030TSRB480 35 18,3 16 S12 8 48 – 30
Gear milling cutter for finishing of spline gears with basic rack profile according to DIN5480. The gear quality IT8 can be achieved in the specified number of teeth range.
69
Kopffreiwinkel
Relief ranke angle
Durchmesser geschliffen
Ground diameter
Durchmesser neu
New diameter
Nachschärflänge z
Resharpening surface z
New tool Completely reground tool
Special Solutions with TungMeister
Regrinding of tools
Module (spur gear) 0,4 – 1,0 0,4 – 1,3 0,4 – 1,6 0,4 – 2,0 0,4 – 6,0
Module (splines) 0,4 – 2,0 0,4 – 2,5 0,4 – 3,0 0,4 – 3,0 0,4 – 6,0
Diameter range Ø 15 – 17 Ø 17 – 23 Ø 23 – 28 Ø 28 – 35 Ø 60 – 125
Blanks
example of tools
74D16511T6R01 74Z23012T8RA101 74Z28020TRRA101 74Z35007TSRA101 74Z56025BAAA191
• When using reground tools, center distance and tool length must be
necessarily adapted
• Regrinding takes place exclusively on the rake face
• Tool diameter changes with each regrinding
SHAPER & SKIVING SOLUTIONS FOR SMALL MODULE
TungMeister-Adaption you will fi nd in the catalog and webshop
rake
70
SHAPER BP II (DIN 3972)
ØD
a
Ød1
CRKS
Shaper
Designation Description
Grade
A35HP
74D_ positive geometry
= P = M = K = N = S = H
(DIN 3960 / 3972)
Module Designation D d1 a CRKS z a
0,4
74D16504T6RA390 16,5 9,5 4,5 S06 39 20
74D23004T8RA550 23 11,5 7 S08 55 20
74D28004TRRA680 28 15,2 7,5 S10 68 20
74D35004TSRA850 35 18,3 8,5 S12 85 20
0,5
74D16505T6RA310 16,5 9,5 4,5 S06 31 20
74D23005T8RA440 23 11,5 7 S08 44 20
74D28005TRRA540 28 15,2 7,5 S10 54 20
74D35005TSRA680 35 18,3 8,5 S12 68 20
0,6
74D16506T6RA250 16,5 9,5 4,5 S06 25 20
74D23006T8RA360 23 11,5 7 S08 36 20
74D28006TRRA440 28 15,2 7,5 S10 44 20
74D35006TSRA560 35 18,3 8,5 S12 56 20
0,7
74D16507T6RA200 16,5 9,5 4,5 S06 21 20
74D23007T8RA290 23 11,5 7 S08 30 20
74D28007TRRA380 28 15,2 7,5 S10 38 20
74D35007TSRA480 35 18,3 8,5 S12 48 20
0,8
74D16508T6RA180 16,5 9,5 4,5 S06 18 20
74D23008T8RA260 23 11,5 7 S08 26 20
74D28008TRRA330 28 15,2 7,5 S10 33 20
74D35008TSRA410 35 18,3 8,5 S12 41 20
0,9
74D23009T8RA230 23 11,5 7 S08 23 20
74D28009TRRA290 28 15,2 7,5 S10 29 20
74D35009TSRA360 35 18,3 8,5 S12 36 20
1
74D23010T8RA210 23 11,5 7 S08 21 20
74D28010TRRA260 28 15,2 7,5 S10 26 20
74D35010TSRA330 35 18,3 8,5 S12 33 20
1,1
74D23011T8RA190 23 11,5 7 S08 19 20
74D28011TRRA230 28 15,2 7,5 S10 23 20
74D35011TSRA290 35 18,3 8,5 S12 29 20
1,2 74D28012TRRA210 28 15,2 7,5 S10 21 20
74D35012TSRA270 35 18,3 8,5 S12 27 20
1,3 74D28013TRRA190 28 15,2 7,5 S10 19 20
74D35013TSRA250 35 18,3 8,5 S12 25 20
1,4 74D35014TSRA230 35 18,3 8,5 S12 23 20
1,5 74D35015TSRA210 35 18,3 8,5 S12 21 20
1,6 74D35016TSRA200 35 18,3 8,5 S12 20 20
1,7 74D35017TSRA180 35 18,3 8,5 S12 18 20
1,8 74D35018TSRA170 35 18,3 8,5 S12 17 20
1,9 74D35019TSRA160 35 18,3 8,5 S12 16 20
274D35020TSRA150 35 18,3 8,5 S12 15 20
2,1 74D35021TSRA140 35 18,3 8,5 S12 14 20
71
SHAPER (DIN 5480)
ØD
a
Ød1
CRKS
Designation Description
Grade
A35HP
74D_ positive geometry
= P = M = K = N = S = H
Shaper (DIN 5480)
Module Designation D d1 a CRKS z a
0,4
74D16504T6RB400 16,5 9,5 4,5 S06 40 30
74D23004T8RB570 23 11,5 7 S08 57 30
74D28004TRRB650 28 15,2 7,5 S10 69 30
74D35004TSRB870 35 18,3 8,5 S12 87 30
0,5
74D16505T6RB320 16,5 9,5 4,5 S06 32 30
74D23005T8RB450 23 11,5 7 S08 45 30
74D28005TRRB550 28 15,2 7,5 S10 55 30
74D35005TSRB690 35 18,3 8,5 S12 69 30
0,6
74D16506T6RB260 16,5 9,5 4,5 S06 26 30
74D23006T8RB370 23 11,5 7 S08 37 30
74D28006TRRB460 28 15,2 7,5 S10 46 30
74D35006TSRB570 35 18,3 8,5 S12 57 30
0,7
74D16507T6RR220 16,5 9,5 4,5 S06 22 30
74D23007T8RB320 23 11,5 7 S08 32 30
74D28007TRRB390 28 15,2 7,5 S10 39 30
74D35007TSRB490 35 18,3 8,5 S12 49 30
0,8
74D16508T6RB190 16,5 9,5 4,5 S06 19 30
74D23008T8RB280 23 11,5 7 S08 28 30
74D28008TRRB340 28 15,2 7,5 S10 34 30
74D35008TSRB430 35 18,3 8,5 S12 43 30
0,9
74D16509T6RB170 16,5 9,5 4,5 S06 17 30
74D23009T8RB240 23 11,5 7 S08 24 30
74D28009TRRB300 28 15,2 7,5 S10 30 30
74D35009TSRB380 35 18,3 8,5 S12 38 30
1
74D16510T6RB150 16,5 9,5 4,5 S06 15 30
74D23010T8RB220 23 11,5 7 S08 22 30
74D28010TRRB270 28 15,2 7,5 S10 27 30
74D35010TSRB340 35 18,3 8,5 S12 34 30
1,1
74D23011T8RB200 23 11,5 7 S08 20 30
74D28011TRRB240 28 15,2 7,5 S10 24 30
74D35011TSRB310 35 18,3 8,5 S12 31 30
1,2
74D23012T8RB180 23 11,5 7 S08 18 30
74D28012TRRB220 28 15,2 7,5 S10 22 30
74D35012TSRB280 35 18,3 8,5 S12 28 30
1,3
74D23013T8RB170 23 11,5 7 S08 17 30
74D28013TRRB200 28 15,2 7,5 S10 20 30
74D35013TSRB260 35 18,3 8,5 S12 26 30
1,4
74D23014T8RB150 23 11,5 7 S08 15 30
74D28014TRRB190 28 15,2 7,5 S10 19 30
74D35014TSRB240 35 18,3 8,5 S12 24 30
1,5 74D28015TRRB170 28 15,2 7,5 S10 17 30
74D35015TRRB220 35 18,3 8,5 S12 22 30
1,6 74D28016TRRB160 28 15,2 7,5 S10 16 30
74D35016TSRB210 35 18,3 8,5 S12 21 30
1,7 74D28017TRRB150 28 15,2 7,5 S10 15 30
74D35017TSRB190 35 18,3 8,5 S12 19 30
1,8 74D35018TSRB180 35 18,3 8,5 S12 18 30
1,9 74D35019TSRB170 35 18,3 8,5 S12 17 30
274D35020TSRB160 35 18,3 8,5 S12 16 30
2,1 74D35020TSRA150 35 18,3 8,5 S12 15 30
72
SKIVING CUTTER BP II (DIN 3972)
Skiving cutter (DIN 3972)
Designation Description
Grade
A35HP
74Z_ positive geometry
= P = M = K = N = S = H
ØD
a
Ød1
CRKS
Module Designation D d1 a CRKS z a b
0,4
74Z16504T6RA360 16,5 9,5 4,5 S06 36 20 20
74Z23004T8RA510 23 11,5 7 S08 51 20 20
74Z28004TRRA630 28 15,2 7,5 S10 63 20 20
74Z35004TSRA800 35 18,3 8,5 S12 80 20 20
0,5
74Z16505T6RA290 16,5 9,5 4,5 S06 29 20 20
74Z23005T8RA410 23 11,5 7 S08 41 20 20
74Z28005TRRA500 28 15,2 7,5 S10 50 20 20
74Z35005TSRA640 35 18,3 8,5 S12 64 20 20
0,6
74Z16506T6RA240 16,5 9,5 4,5 S06 24 20 20
74Z23006T8RA340 23 11,5 7 S08 34 20 20
74Z28006TRRA420 28 15,2 7,5 S10 42 20 20
74Z35006TSRA530 35 18,3 8,5 S12 53 20 20
0,7
74Z16507T6RA200 16,5 9,5 4,5 S06 20 20 20
74Z23007T8RA290 23 11,5 7 S08 29 20 20
74Z28007TRRA360 28 15,2 7,5 S10 36 20 20
74Z35007TSRA450 35 18,3 8,5 S12 45 20 20
0,8
74Z16508T6RA170 16,5 9,5 4,5 S06 17 20 20
74Z23008T8RA250 23 11,5 7 S08 25 20 20
74Z28008TRRA310 28 15,2 7,5 S10 31 20 20
74Z35008TSRA390 35 18,3 8,5 S12 39 20 20
0,9
74Z23009T8RA220 23 11,5 7 S08 22 20 20
74Z28009TRRA270 28 15,2 7,5 S10 27 20 20
74Z35009TSRA340 35 18,3 8,5 S12 34 20 20
1,0
74Z23010T8RA190 23 11,5 7 S08 19 20 20
74Z28010TRRA240 28 15,2 7,5 S10 24 20 20
74Z35010TSRA310 35 18,3 8,5 S12 31 20 20
1,1
74Z23011T8RA170 23 11,5 7 S08 17 20 20
74Z28011TRRA220 28 15,2 7,5 S10 22 20 20
74Z35011TSRA280 35 18,3 8,5 S12 28 20 20
1,2 74Z28012TRRA200 28 15,2 7,5 S10 20 20 20
74Z35012TSRA250 35 18,3 8,5 S12 25 20 20
1,3 74Z28013TRRA180 28 15,2 7,5 S10 18 20 20
74Z35013TSRA230 35 18,3 8,5 S12 23 20 20
1,4 74Z35014TSRA210 35 18,3 8,5 S12 21 20 20
1,5 74Z35015TSRA200 35 18,3 8,5 S12 20 20 20
1,6 74Z35016TSRA180 35 18,3 8,5 S12 18 20 20
1,7 74Z35017TSRA170 35 18,3 8,5 S12 17 20 20
1,8 74Z35018TSRA160 35 18,3 8,5 S12 16 20 20
1,9 74Z35019TSRA150 35 18,3 8,5 S12 15 20 20
274Z35020TSRA140 35 18,3 8,5 S12 14 20 20
2,1 74Z35021TSRA130 35 18,3 8,5 S12 13 20 20
73
SKIVING CUTTER (DIN 5480)
Designation Description
Grade
A35HP
74Z_ positive geometry
= P = M = K = N = S = H
Skiving cutter (DIN 5480)
ØD
a
Ød1
CRKS
Module Designation D d1 a CRKS z a b
0,4
74Z16504T6RB380 16,5 9,5 4,5 S06 38 30 20
74Z23004T8RB530 23 11,5 7 S08 53 30 20
74Z28004TRRB660 28 15,2 7,5 S10 66 30 20
74Z35004TSRB810 35 18,3 8,5 S12 81 30 20
0,5
74Z16505T6RB300 16,5 9,5 4,5 S06 30 30 20
74Z23005T8RB420 23 11,5 7 S08 42 30 20
74Z28005TRRB520 28 15,2 7,5 S10 52 30 20
74Z35005TSRB650 35 18,3 8,5 S12 65 30 20
0,6
74Z16506T6RB250 16,5 9,5 4,5 S06 25 30 20
74Z23006T8RB350 23 11,5 7 S08 35 30 20
74Z28006TRRB430 28 15,2 7,5 S10 43 30 20
74Z35006TSRB540 35 18,3 8,5 S12 54 30 20
0,7
74Z16507T6RB210 16,5 9,5 4,5 S06 21 30 20
74Z23007T8RB300 23 11,5 7 S08 30 30 20
74Z28007TRRB370 28 15,2 7,5 S10 37 30 20
74Z35007TSRB460 35 18,3 8,5 S12 46 30 20
0,8
74Z16508T6RB180 16,5 9,5 4,5 S06 18 30 20
74Z23008T8RB260 23 11,5 7 S08 26 30 20
74Z28008TRRB320 28 15,2 7,5 S10 32 30 20
74Z35008TSRB400 35 18,3 8,5 S12 40 30 20
0,9
74Z16509T6RB160 16,5 9,5 4,5 S06 16 30 20
74Z23009T8RB230 23 11,5 7 S08 23 30 20
74Z28009TRRB280 28 15,2 7,5 S10 28 30 20
74Z35009TSRB360 35 18,3 8,5 S12 36 30 20
1,0
74Z16510T6RB140 16,5 9,5 4,5 S06 14 30 20
74Z23010T8RB200 23 11,5 7 S08 20 30 20
74Z28010TRRB250 28 15,2 7,5 S10 25 30 20
74Z35010TSRB320 35 18,3 8,5 S12 32 30 20
1,1
74Z23011T8RB190 23 11,5 7 S08 19 30 20
74Z28011TRRB230 28 15,2 7,5 S10 23 30 20
74Z35011TSRB290 35 18,3 8,5 S12 29 30 20
1,2
74Z23012T8RB170 23 11,5 7 S08 17 30 20
74Z28012TRRB210 28 15,2 7,5 S10 21 30 20
74Z35012TSRB260 35 18,3 8,5 S12 26 30 20
1,3
74Z23013T8RB150 23 11,5 7 S08 15 30 20
74Z28013TRRB190 28 15,2 7,5 S10 19 30 20
74Z35013TSRB240 35 18,3 8,5 S12 24 30 20
1,4
74Z23014T8RB140 23 11,5 7 S08 14 30 20
74Z28014TRRB180 28 15,2 7,5 S10 18 30 20
74Z35014TSRB220 35 18,3 8,5 S12 22 30 20
1,5 74Z28015TRRB160 28 15,2 7,5 S10 16 30 20
74Z35015TSRB210 35 18,3 8,5 S12 21 30 20
1,6 74Z28016TRRB150 28 15,2 7,5 S10 15 30 20
74Z35016TSRB190 35 18,3 8,5 S12 19 30 20
1,7 74Z28017TRRB140 28 15,2 7,5 S10 14 30 20
74Z35017TSRB180 35 18,3 8,5 S12 18 30 20
1,8 74Z35018TSRB170 35 18,3 8,5 S12 17 30 20
1,9 74Z35019TSRB160 35 18,3 8,5 S12 16 30 20
2,0 74Z35020TSRB150 35 18,3 8,5 S12 15 30 20
2,1 74Z35021TSRB140 35 18,3 8,5 S12 14 30 20
74
Outside diameter D [mm]:
Mounting diameter Ts / d / MOD [mm]:
Hub diameter d1 [mm]:
Cutter width a / LT [mm]:
Radial keyway (DIN 138) b3 [mm]:
Radial keyway (DIN 138) t3 [mm]:
Axial keyway (DIN 138) b1 [mm]:
Axial keyway (DIN 138) t1 [mm]:
Coolant channel :
Tool
Module m [mm]:
No. of teeth z:
Pressure angle a [°]:
Helix angle b [°]:
Addendum modification coefficient x:
Tip diameter da [mm]:
Root diameter df [mm]:
Root radius rfP [mm]:
Dimension over balls Md [mm]
Max. dimension over balls Mdmax [mm]:
Min. dimension over balls Mdmin [mm]:
Ball diameter DM [mm]:
Base tangent length over k meas. teeth Wk [mm]:
Max. base tangent length Wkmax [mm]:
Min. base tangent length Wkmin [mm]:
No. of measuring teeth k:
Roughing/Finishing :
Stock for finishing [mm]:
Gear quality [DIN 3962]:
Basic rack profile :
Workpiece Data
Yes No
Order-/Quotation-No.:
Order/Quotation already in TungSales
Tungaloy Contact
Customer
Contact Customer
Customer No.
Contact
Date:
Remark
ttt
Module 0,8 - 3,5
a
CRKS
ØD
Module <1 - 3
ØD
MOD
Ød
L1
L
LT
Module 6 - 36 t / Module 6 - 22 tt
LT
t3
b3
b1
t1
Ød1
Ød
ØD
LT
t3
b3
b1
t1
Ød1
Ød
ØD
Tool Specification for Technical Quotation (Gasher)
75
Tool length LT [mm]:
Usable length L [mm]:
Keyway (axial/radial) a / r:
Keyway width b1 / b3 [mm]:
Keyway deptht t1 / t3 [mm]:
Module m [mm]:
Outside diameter D [mm]:
Bore diameter d [mm]:
Hub diameter d1 [mm]:
Quality class acc. to [DIN 3968]:
Spiral direction LH/RH:
No. of starts :
P0
S
P0
h
P0
h
aP0
aP0
Profile of Finishing Hob
Profile of Roughing Hob with Protuberance
P0
aP0
S
P0
prP0
prP0
h
P0
h
aP0
Tool
Addendum haPO [mm]:
Tooth thickness SPO [mm]:
Tooth depth hPO [mm]:
Pressure angle aPO [°]:
Tip radius raPO [mm]:
Protuberance amount prPO [mm]:
Protuberance angle aprPO [°]:
Tool Profile Data
LT
L
t3
b3
b1
t1
Ød1
Ød
ØD
Yes No
Order-/Quotation-No.:
Order/Quotation already in TungSales
Date:
Tungaloy Contact
Customer
Contact Customer
Customer No.
Contact
Remark
Tool Specification for Technical Quotation (Hob Cutter)
76
Outside diameter D [mm]:
Adaption diameter CRKS / d [mm]:
Hub diameter d1 [mm]:
Cutter width a / LT [mm]:
Keyway width b [mm]:
Keyway depth t [mm]:
Module m [mm]:
No. of teeth zO:
Pitch diameter d0 [mm]:
Addendum haPO [mm]:
Dedendum hfPO [mm]:
Addendum modification xO • m [mm]:
Pressure angle a0 [°]:
Helix angle bO [°]:
Flank direction L / R:
Tip radius raPO [mm]:
Base tangent length WkO [mm]:
No. of measuring teeth kO:
Tool
Module m [mm]:
No. of teeth (+EXT / -INT) z:
Pressure angle apo [°]:
Helix angle b [°]:
Flank direction L / R:
Addendum modification coefficient x:
Tip diameter da [mm]:
Root diameter df [mm]:
Dimension over balls Md [mm]:
Max. dimension over balls Mdmax [mm]:
Min. dimension over balls Mdmin [mm]:
Ball diameter DM [mm]:
Base tangent length over k meas. teeth Wk [mm]:
Max. base tangent length Wkmax [mm]:
Min. base tangent length Wkmin [mm]:
No. of measuring teeth k:
Stock for finishing [mm]:
Gear quality :
Basic rack profile :
Workpiece Data
Yes No
Order-/Quotation-No.:
Order/Quotation already in TungSales
Date:
Tungaloy Contact
Customer
Contact Customer
Customer No.
Contact
Tool Specification for Technical Quotation (Gasher)
Remark
Module 0,4-2,1 Module 3-18
Solid Carbide Indexable inserts type
ØD
a
Ød1
Ts
ØD
a
Ød1
CRKS
LT
t
Ød
ØD
Ød1
b
LT
t
Ød
ØD
Ød1
b
LT
t
Ød
ØD
Ød1
b
77
Remark
Revolution speed (rpm) Spindle Table
Internal coolant
HSK-T ISO 12164-3 100 80 63 50
Polygon ISO 26623-1 C8X C8 C6 C5
Workpiece collision dimensions
Module m [mm]:
Gear quality :
No. of teeth (+EXG / -ING) z:
Pressure angle a[°]:
Helix angle b [°]:
Flank direction L / R:
Addendum modification coefficient x:
Tip diameter da[mm]:
Root diameter df[mm]:
Root radius rfP [mm]:
Root form diameter dFf [mm]:
Dimension over balls Md[mm]:
Max. dimension over balls Mdmax [mm]:
Min. dimension over balls Mdmin [mm]:
Ball diameter DM [mm]:
Base tangent length over k meas. teeth Wk [mm]:
Max. base tangent length Wkmax [mm]:
Min. base tangent length Wkmin [mm]:
No. of measuring teeth k:
Stock for finishing [mm]:
Basic rack profile :
Workpiece Data
Module 0,4-2,5 Module 2,5-12
D1 mm
D2 mm
L1 mm
L2 mm
bmm
D2
b
L2 L1
D1
Internal gear
D1
D2
L1
b
L2
External gear
Protuberance No Yes
Gear tooth modifi cation
Tip relief No Yes
Yes No
Order-/Quotation-No.:
Order/Quotation already in TungSales
Datum / Date:
Tungaloy Contact
Customer
Contact Customer
Customer No.
Contact
Special adaption
Workpiece material
Machine tool builder / Type Power (kW)
Tool Specifi cation for Technical Quotation (Skiving Tool)
78
Diametral Pitch
Module
COMPARISON: PITCH - MODULE - DIAMETRAL PITCH - CIRCULAR PITCH
Pitch Module DP CP
0,31416 0,10 – –
0,34558 0,11 – –
0,37699 0,12 – –
0,39898 – 200 –
0,43982 0,14 – –
0,44331 – 180 –
0,45598 – 175 –
0,49873 – 160 –
0,50265 0,16 – –
0,53198 – 150 –
0,56549 0,18 – –
0,62831 0,20 – –
0,62832 – 127 –
0,66497 – 120 –
0,69115 0,22 – –
0,75997 – 105 –
0,78540 0,25 – –
0,79796 – 100 –
0,83121 – 96 –
0,87965 0,28 – –
0,90678 – 88 –
0,94248 0,30 – –
0,99746 – 80 –
1,09557 0,35 – –
1,10828 – 72 –
1,24682 – 64 –
1,25664 0,40 – –
1,32994 – 60 –
1,41372 0,45 – –
1,57080 0,50 – –
1,58750 – –
1/16
1,59593 – 50 –
1,66243 – 48 –
1,72788 0,55 – –
1,73471 – 46 –
1,81356 – 44 –
1,88496 0,60 – –
1,89992 – 42 –
1,99491 – 40 –
2,04204 0,65 – –
2,09991 – 38 –
2,19911 0,70 – –
2,21657 – 36 –
2,34695 – 34 –
2,35619 0,75 – –
2,49364 – 32 –
2,51327 0,80 – –
2,65988 – 30 –
2,67035 0,85 – –
2,82743 0,90 – –
Pitch Module DP CP
2,84987 – 28 –
2,98451 0,95 – –
3,06909 – 26 –
3,14159 1 – –
3,17500 – –
1/8
3,32485 – 24 –
3,62711 – 22 –
3,92699 1,25 – –
3,98982 – 20 –
4,43314 – 18 –
4,71239 1,5 – –
4,76250 – –
3/16
4,98728 – 16 –
5,49779 1,75 – –
5,69975 – 14 –
6,28319 2 – –
6,35000 – –
1/4
6,64970 – 12 –
7,06858 2,25 – –
7,85398 2,5 – –
7,93750 – –
5/16
7,97965 – 10 –
8,63938 2,75 – –
8,86627 – 9 –
9,42478 3 – –
9,52500 – –
3/8
9,97456 – 8 –
10,21018 3,25 – –
10,99557 3,5 – –
11,11250 – –
7/16
11,39949 – 7 –
11,78097 3,75 – –
12,56637 4 – –
12,70000 – –
1/2
13,29941 – 6 –
14,13717 4,5 – –
14,28750 – –
9/16
14,50845 – – 5
1/2
15,70796 5 – –
15,87500 – –
5/8
15,95930 – 5 –
17,27876 5,5 – –
17,46250 – –
11/16
17,73255 – 4
1/2
–
18,84956 6 – –
19,05000 – –
3/4
19,94911 – 4 –
20,42035 6,5 – –
20,63750 – –
13/16
21,99115 7 – –
Pitch Module DP CP
22,22500 – –
7/8
22,79899 –
31/2
–
23,81250 – –
15/16
25,13274 8 – –
25,40000 – –
1
26,59892 – 3 –
26,98750 – –
11/16
28,27433 9 – –
28,57500 – –
11/8
29,01689 –
23/4
–
30,16250 – –
13/16
31,41593 10 – –
31,75000 – –
11/4
31,91858 –
21/2
–
33,33750 – –
15/16
34,55752 11 – –
34,92500 – –
13/8
35,46509 –
21/4
–
36,51250 – –
17/16
37,69911 12 – –
38,10000 – –
11/2
39,89823 – 2 –
41,27500 – –
15/8
43,98230 14 – –
44,45000 – –
13/4
45,59797 –
13/4
–
47,62500 – –
17/8
50,26548 16 – –
50,80000 – –
2
53,19764 –
11/2
–
56,54867 18 – –
62,83185 20 – –
63,83716 –
11/4
–
69,11504 22 – –
75,39822 24 – –
78,53982 25 – –
79,79645
– 1 –
81,68141 26 – –
87,96459 28 – –
91,19595 –
7/8
–
94,24778 30 – –
100,53096 32 – –
106,39527 –
3/4
–
109,95574 35 – –
113,09734 36 – –
125,66371 40 – –
127,67432 –
5/8
–
141,37167 45 – –
157,07963 50 – –
159,59290 –
1/2
–
m = 8,08507111 x CP
m = 25,4
DP
DP = 3,14159265
CP
DP = 25,4
m
Circular Pitch
CP = 3,14159265
DP
CP = m
8,08507111
Teilung
pitch
79
INSPECTION & TOOL MAINTENANCE SERVICE
With the purchase of the gear milling tool, you have already made your
decision for the quality and service of our products. This decision should also
be extended to the maintenance of your gear milling tool.
Despite careful application of the tool, every now and then the tool can be
damaged for various reasons. Tungaloy offers the service of cost-efficient and
careful repair and maintenance. The tool will be carefully inspected within
a short period of time to determine the extent of damage. Subsequently,
you will be informed as to whether the repair of the tool would be profitable.
The professional repair of the tools will be carried out within five days,
depending on the amount of labour involved.
We guarantee that the repair will be carried out on time, with the usual
Tungaloy quality. The quality of a tool has greatly influence on the efficiency
of its production. Make no compromises where quality of maintenance
is concerned; only then can you be sure of the superior efficiency of your
production.
You can rely on TUNGALOY.
