VERSATILITY. VALUE. WIDIA.
Europe | Asia-Pacific
METRIC
METALCUTTING SAFETY
Green Box, M100, M200, M370, NOVO, Top Cut 4, TOP DRILL, TOP DRILL M1, TOP DRILL S, TOP DRILL S+, VariDrill, VariMill I, VariMill II, VariMill III, VariTap, Victory, Victory Shoulder Mill 11, Victory Shoulder Mill 17, VSM11, VSM17,
VSM490-10, VSM490-15, WIDIA, WIDIA-Hanita, WK15PD, WMT, WP20PD, WS10PT, WS15PE, WS25PT, WU20PD, and WU25PD are trademarks of Kennametal, Inc. and are used as such herein. The absence of a product, service name,
or logo from this list does not constitute a waiver of the Kennametal trademark or other intellectual property rights concerning that name or logo.
SAFE-lOCK® is a registered trademark and Safe-Lock® is a trademark of Haimer GmbH.
Weldon® is a registered trademark of Weldon Tool Company.
©Copyright 2018 by Kennametal Inc., Latrobe, PA 15650. All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS: Read before using the tools in this catalogue
Projectile and Fragmentation Hazards Breathing and Skin Contact Hazards
Modern metalcutting operations involve high spindle and cutter
speeds and high temperatures and cutting forces. Hot metal
chips may fly off the workpiece during metalcutting. Although
cutting tools are designed and manufactured to withstand high
cutting forces and temperatures, they can sometimes fragment,
particularly if they are subjected to over-stress, severe impact,
or other abuse.
To avoid injury:
• Always wear appropriate personal protective equipment,
including safety goggles, when operating metalcutting
machines or working nearby.
• Always make sure all machine guards are in place.
Grinding carbide or other advanced cutting tool materials produces
dust or mist containing metallic particles. Breathing this dust or
mist — especially over an extended period — can cause temporary
or permanent lung disease or make existing medical conditions
worse. Contact with this dust or mist can irritate eyes, skin, and
mucous membranes and may make existing skin conditions worse.
To avoid injury:
• Always wear breathing protection and safety goggles when grinding.
• Provide ventilation control and collect and properly dispose of dust,
mist, or sludge from grinding.
• Avoid skin contact with dust or mist.
For more information, read the applicable Material Safety Data Sheet provided by WIDIA and consult General Industry Safety and Health
Regulations, Part 1910, Title 29 of the Code of Federal Regulations.
These safety instructions are general guidelines. Many variables affect machining operations. It is impossible to cover every specific situation.
The technical information included in this catalogue and recommendations on machining practices may not apply to your particular operation.
For more information, consult the WIDIA Metalcutting Safety booklet, available free from WIDIA at +1 724 539 5747 or fax +1 724 539 5439.
For specific product safety and environmental questions, contact our Corporate Environmental Health and Safety Office at +1 724 539 5066
or fax +1 724 539 5372.
All-Star Guaranteed Availability:
We guarantee 99% stock availability of All-Star products.
If a customer order for All-Star products confirmed by WIDIA™ cannot be shipped on the
confirmed shipment date, the customer can elect to receive a suitable replacement
at a 30% discount, in an amount necessary to prevent disruption of the customer’s
operation. The WIDIA general terms and conditions apply — available on simple request
from your WIDIA customer service representative.
2019
Our All-Star Programme reinforces what WIDIA is known for — providing versatility and
value, and the benefit of best-in-class availability.
VERSATILITY: Our All-Star tooling covers an extensive range of applications and materials.
VALUE: The most current tools and best technologies.
AVAILABILITY: All-Star tools are guaranteed to be in stock. Orders ship same day when placed
before 4 pm CET, and delivered within two business days anywhere in EU countries.
For more than 90 years, WIDIA
™
has defined excellence
in innovation, technology, and customer service —
extending that excellence with our All-Star Programme:
• A wide range of metalcutting tooling that covers the
majority of common materials and applications.
• The range is defined by a selection of the most relevant
and versatile tool platforms.
• All-Star products perform significantly better than
General Purpose tooling.
1
widia.com
Language Version: 001_WID_All-Star19_WID_All-Star_TOC September 24, 2018 8:37 AM
Table of Contents
Turning .....................................................................................................................................................................2–33
ISO Turning .........................................................................................................................................................2–22
Victory ISO Turning Inserts ............................................................................................................................2–9

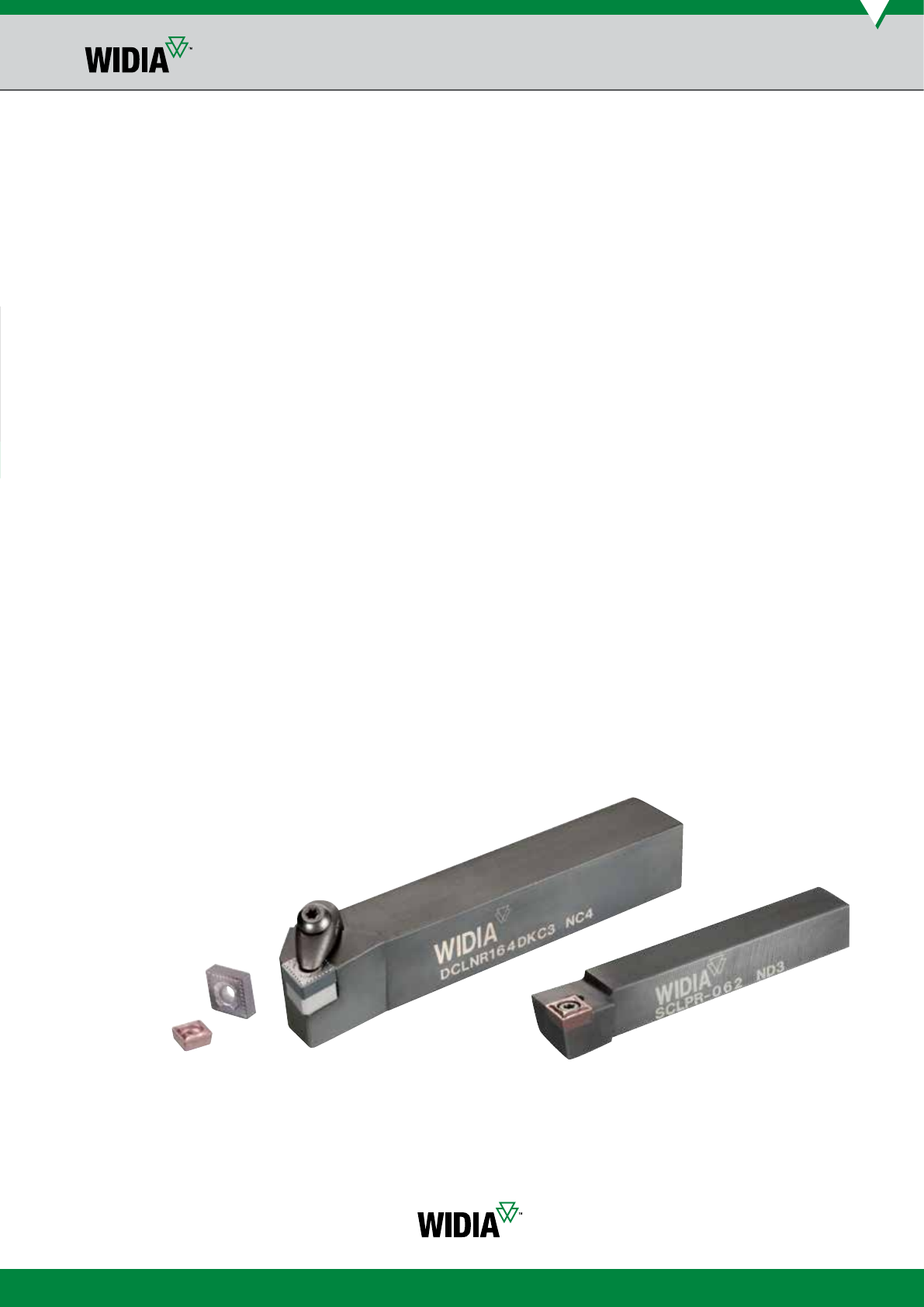

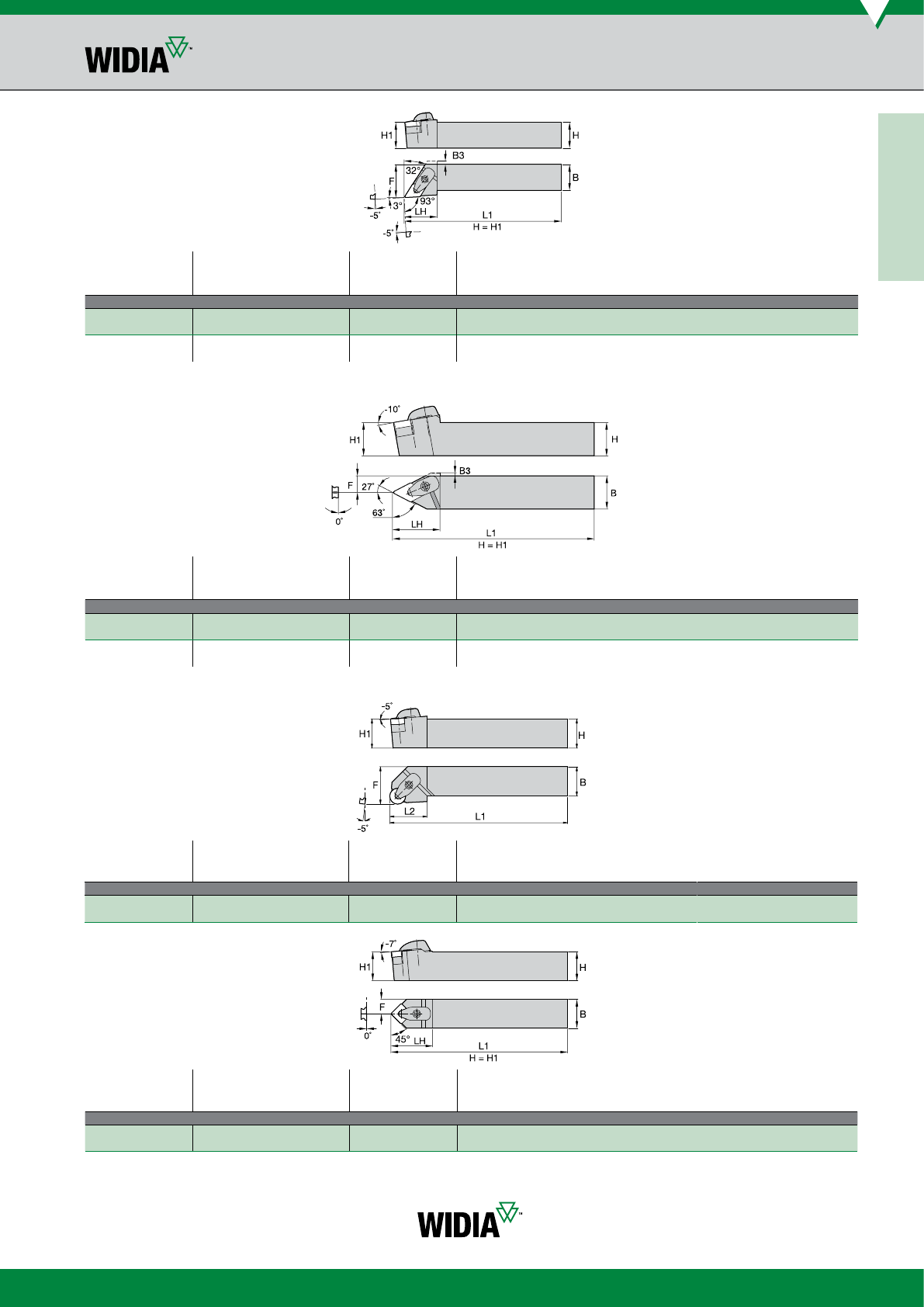

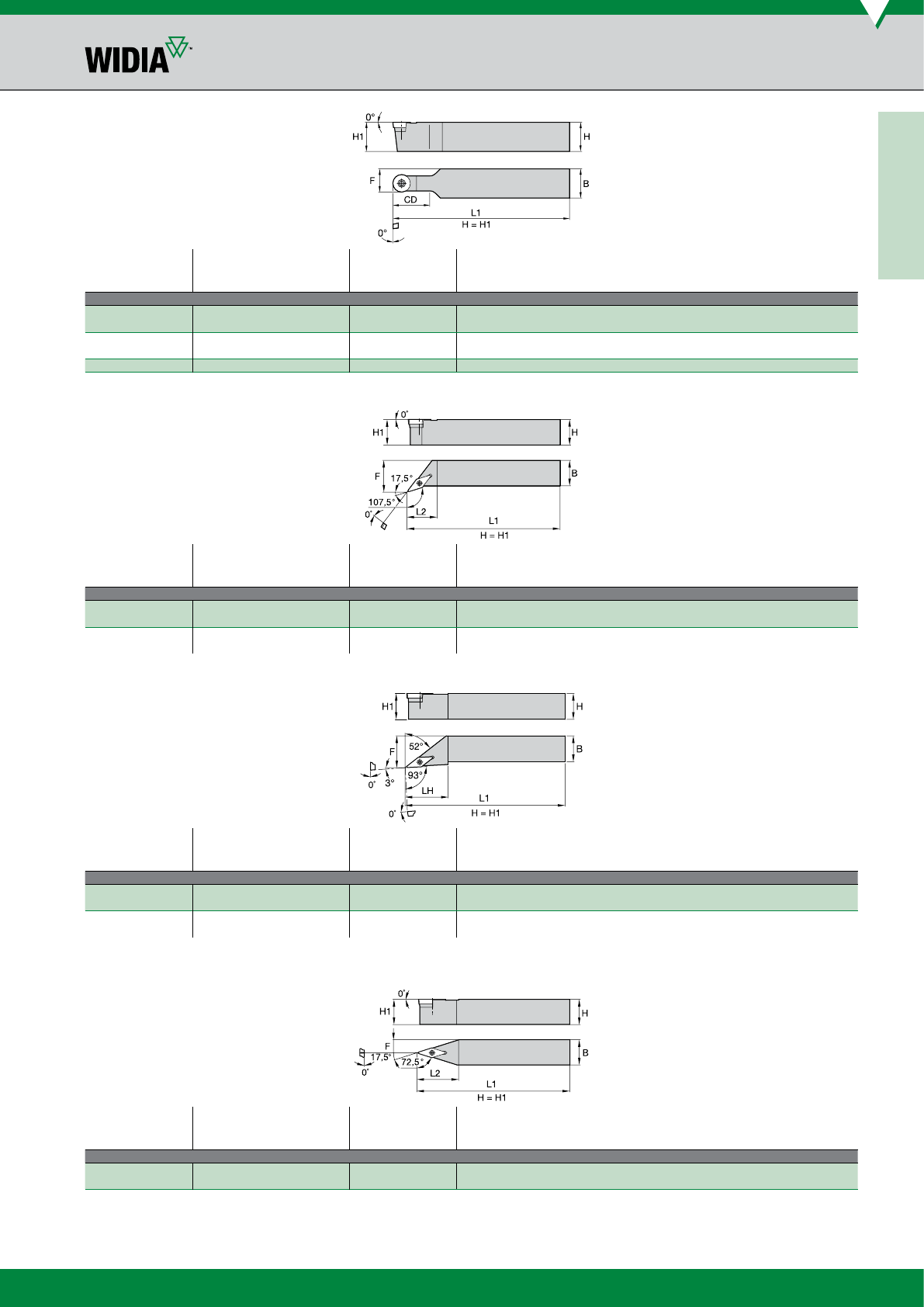

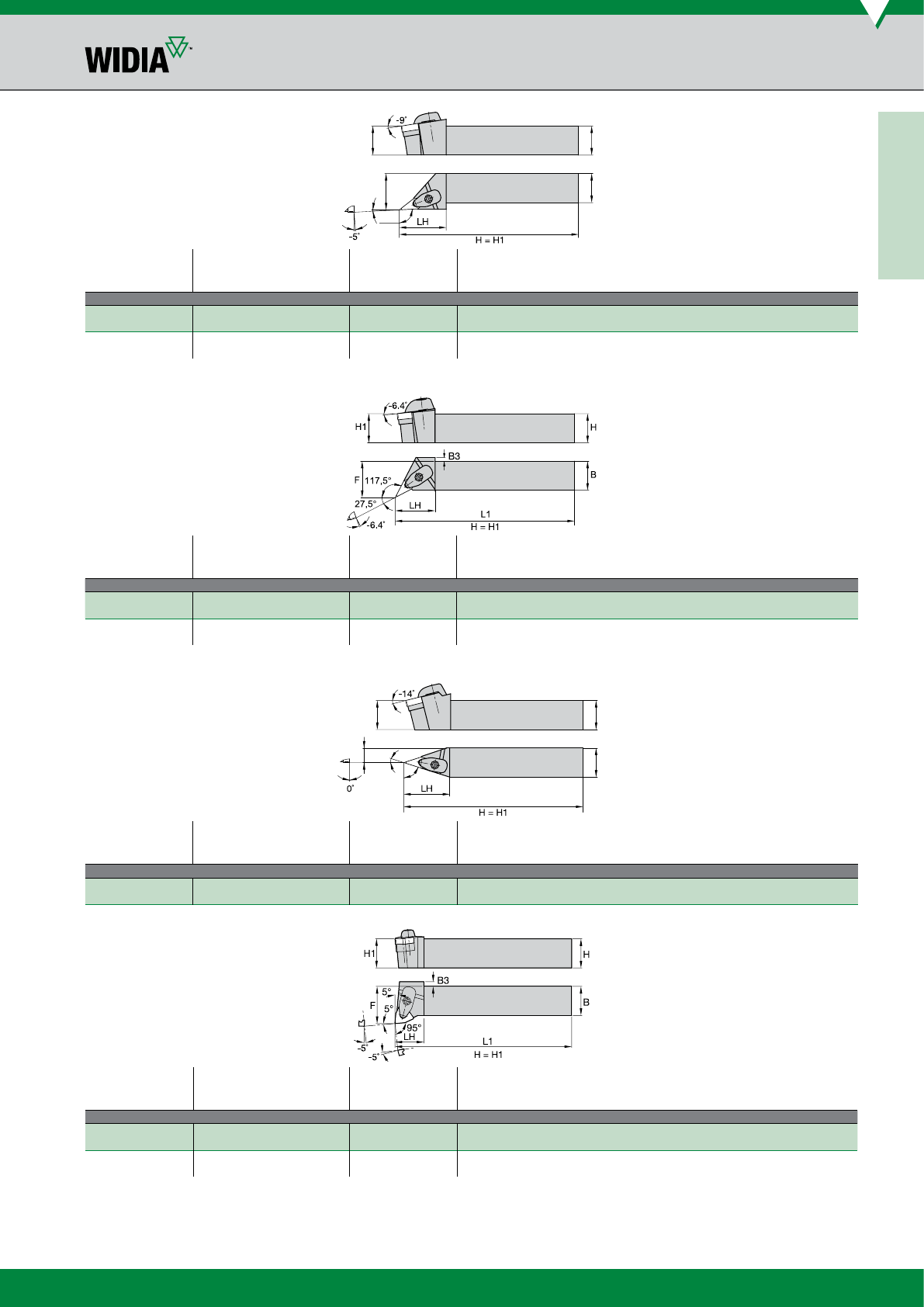

Toolholders ................................................................................................................................................10–17

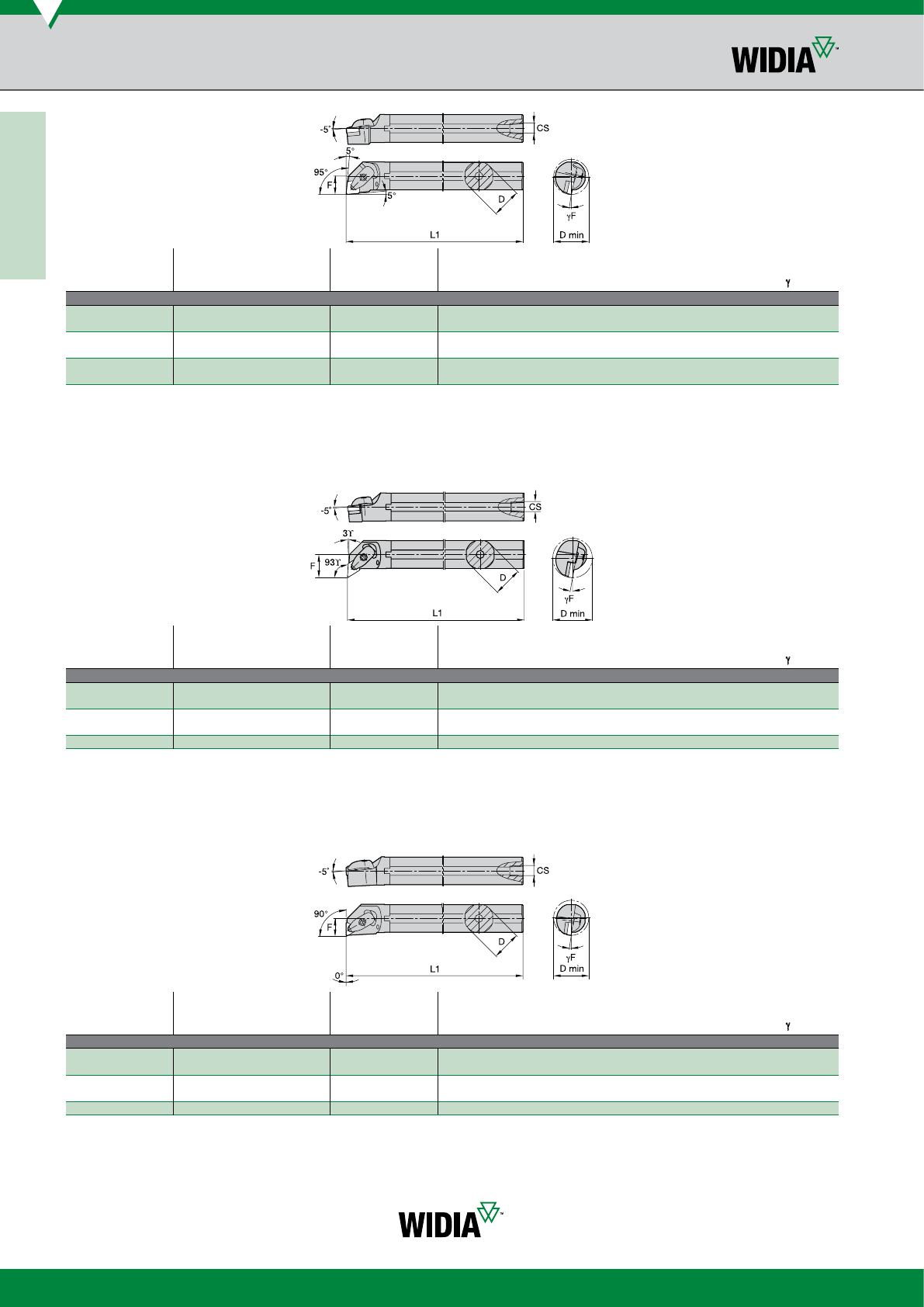

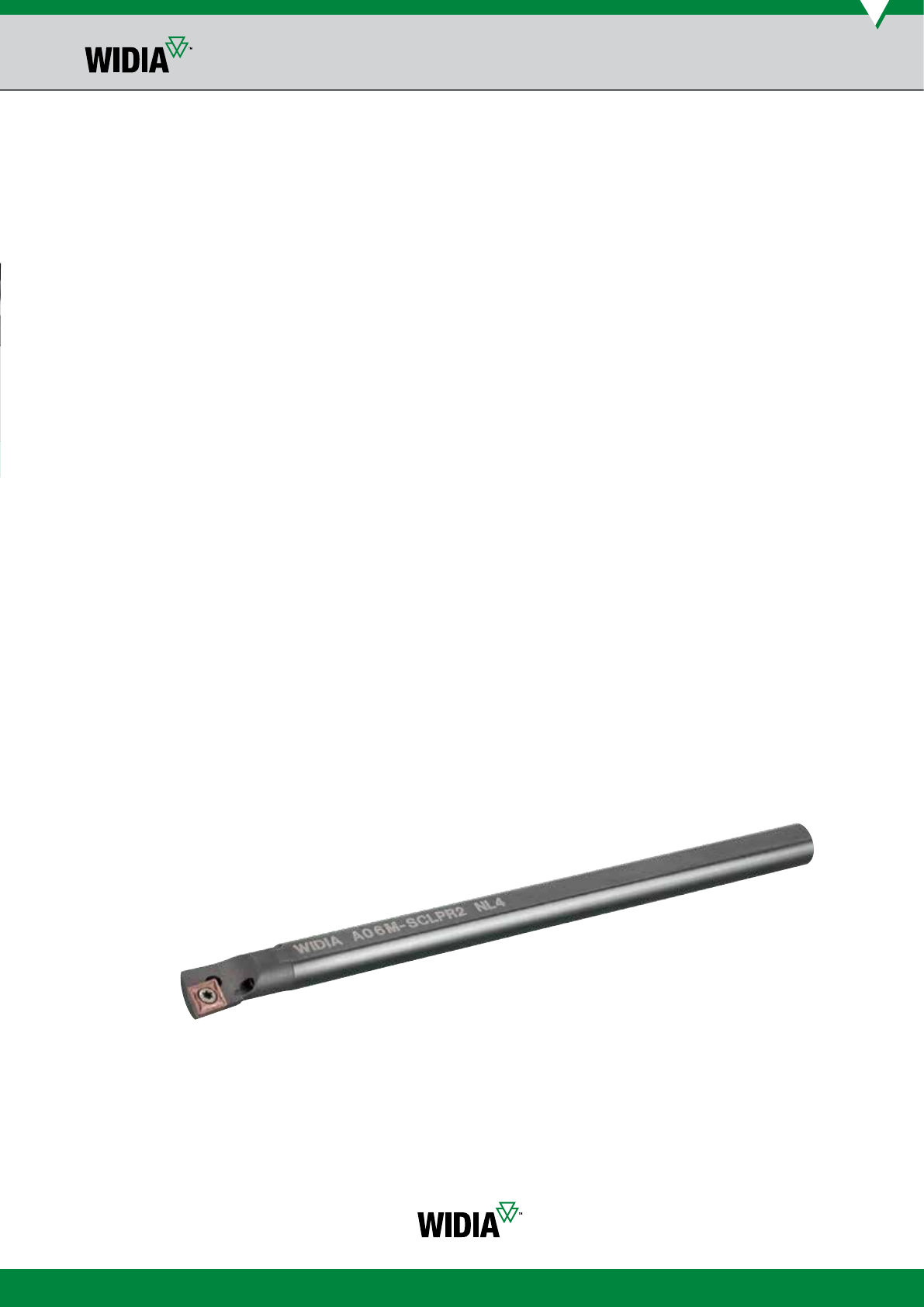

Boring Bars ................................................................................................................................................18–22

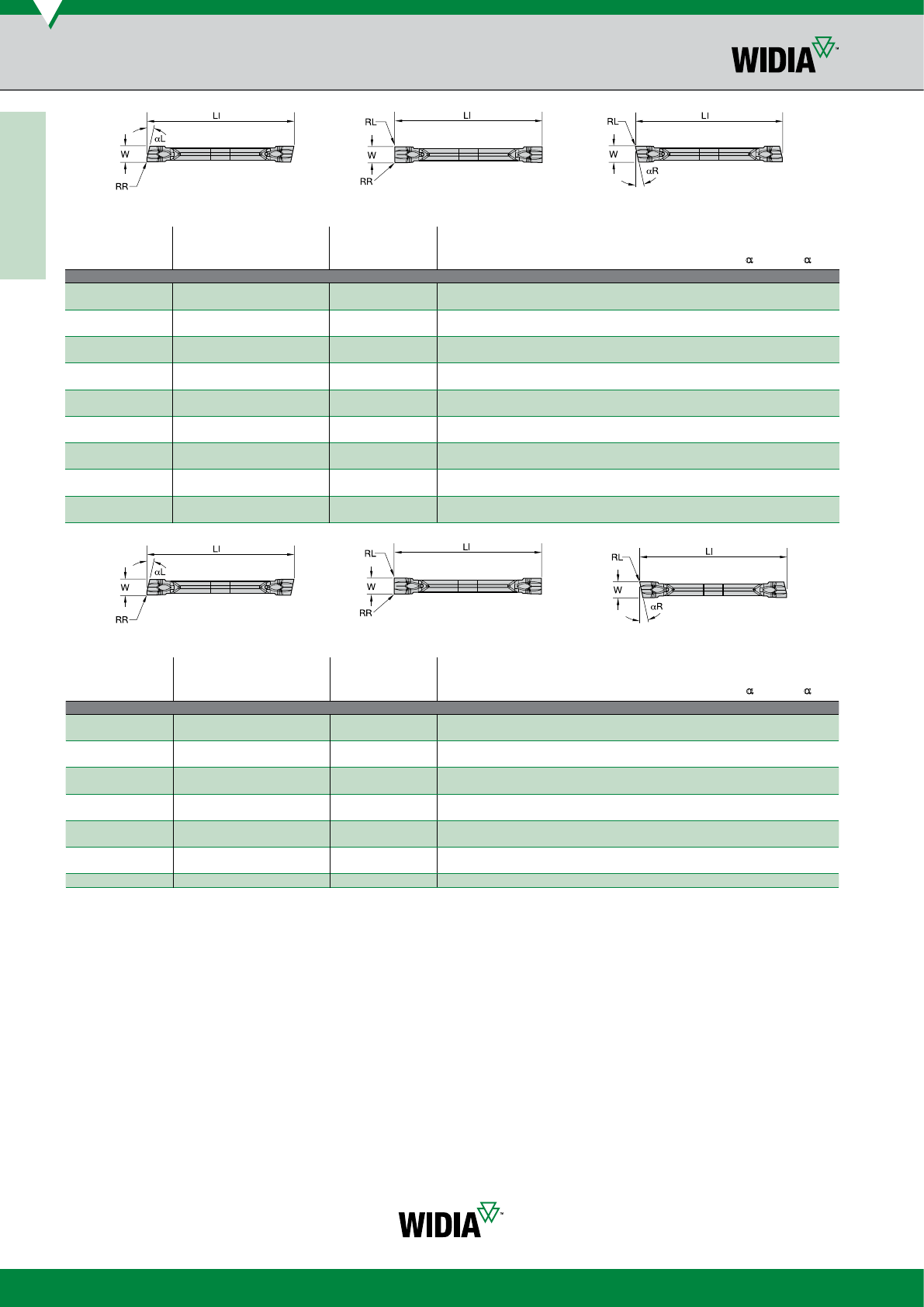

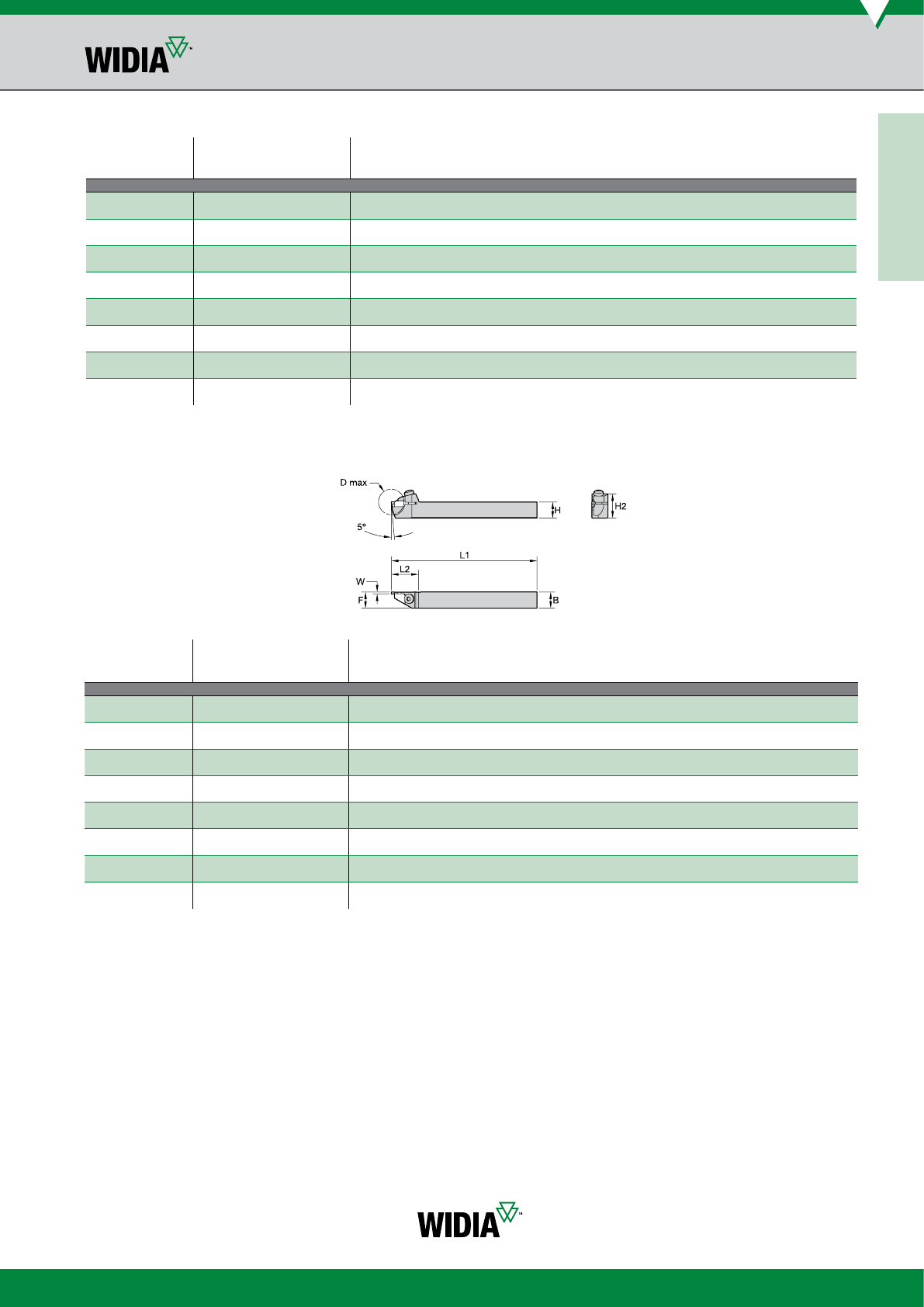

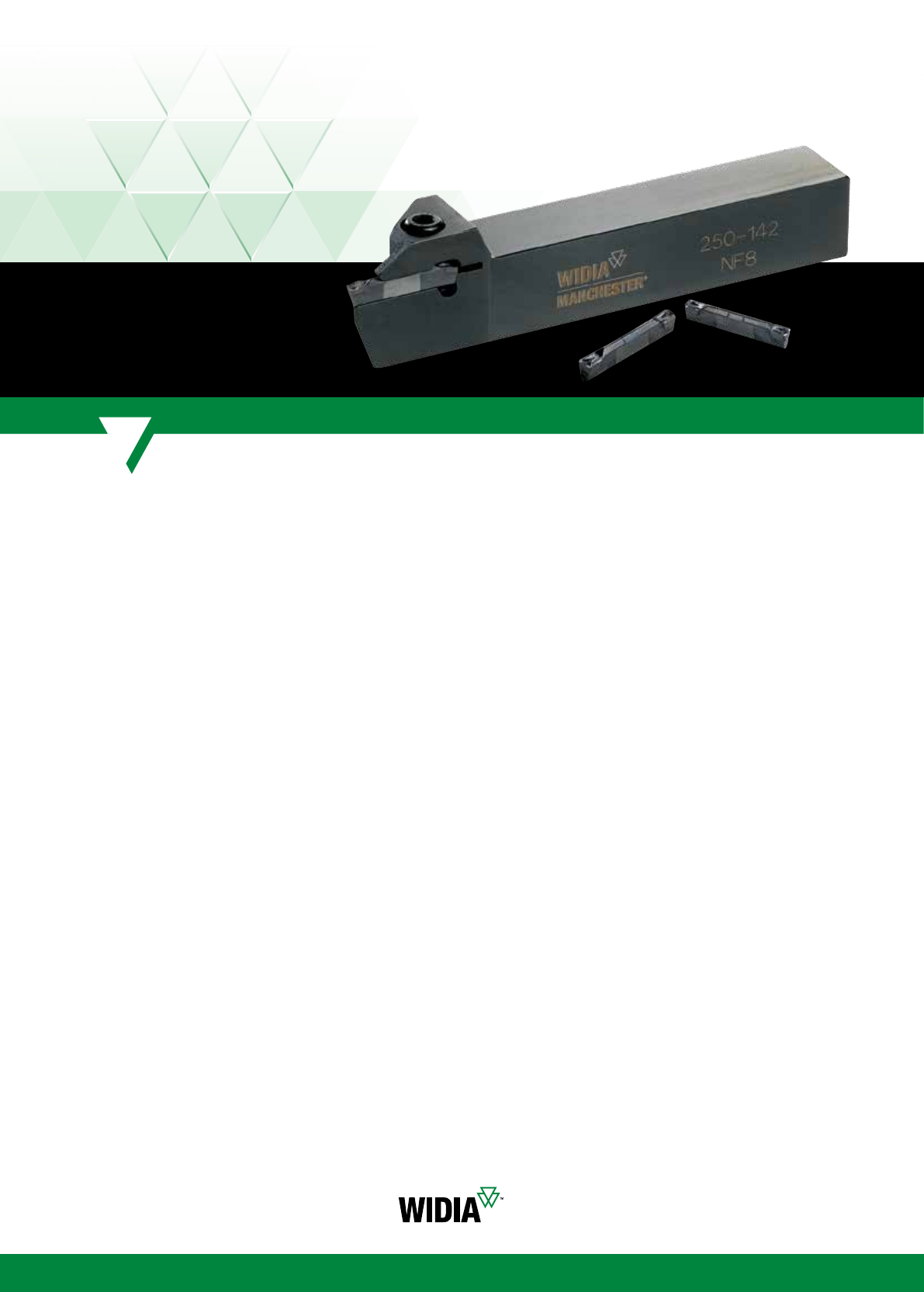

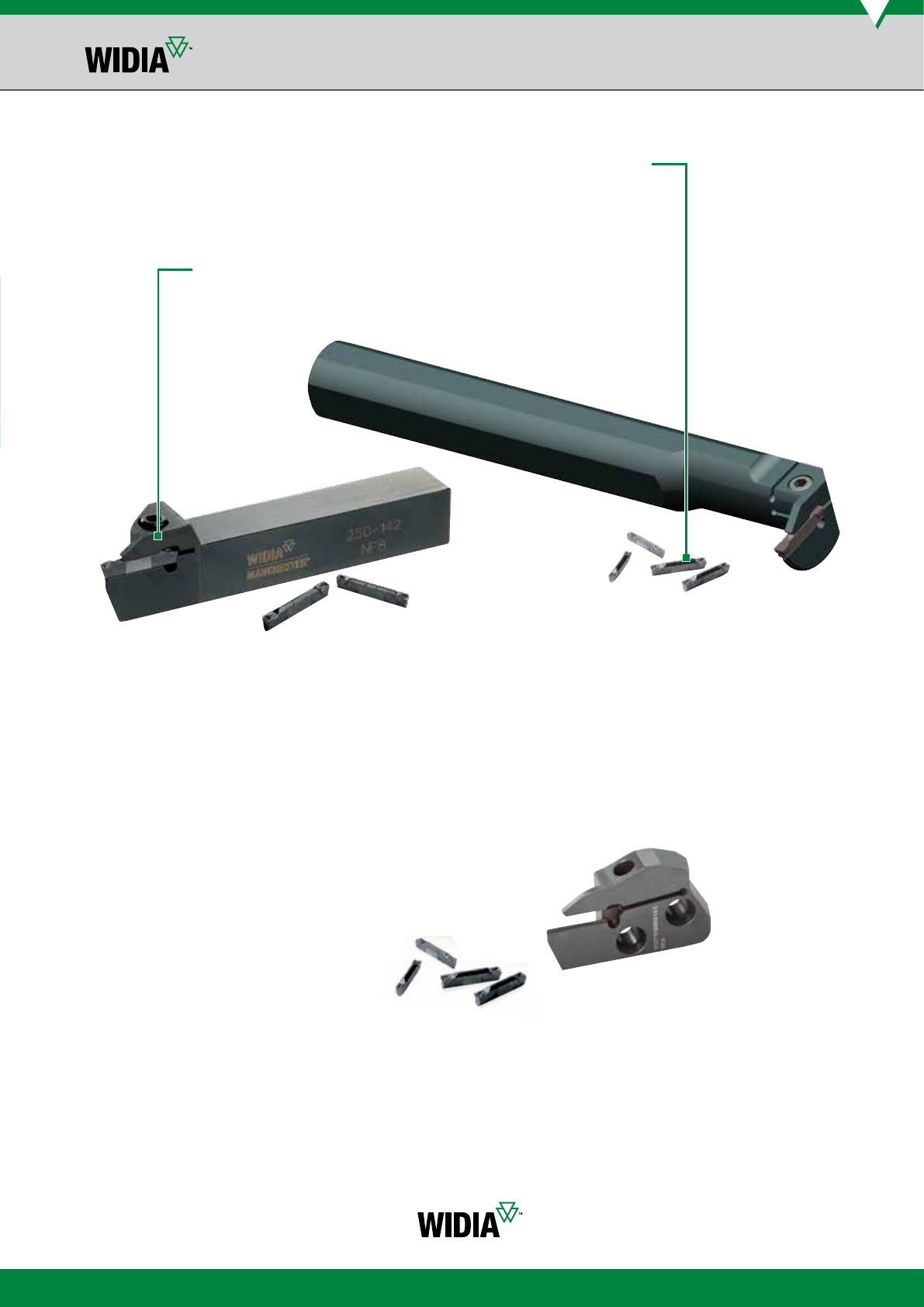

Grooving and Cut-Off .......................................................................................................................................24–33

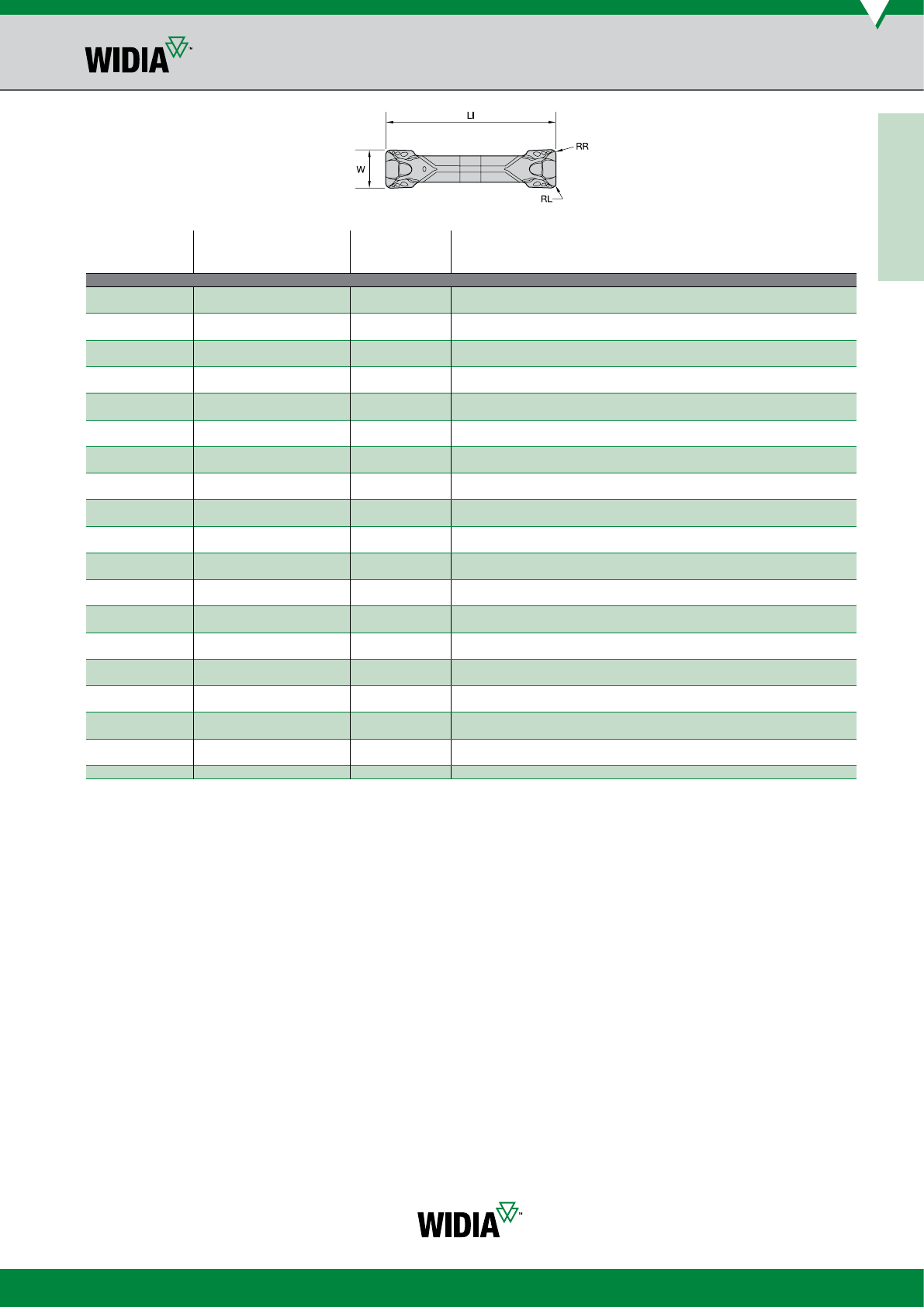

WMT Groove and Turn ...............................................................................................................................24–33

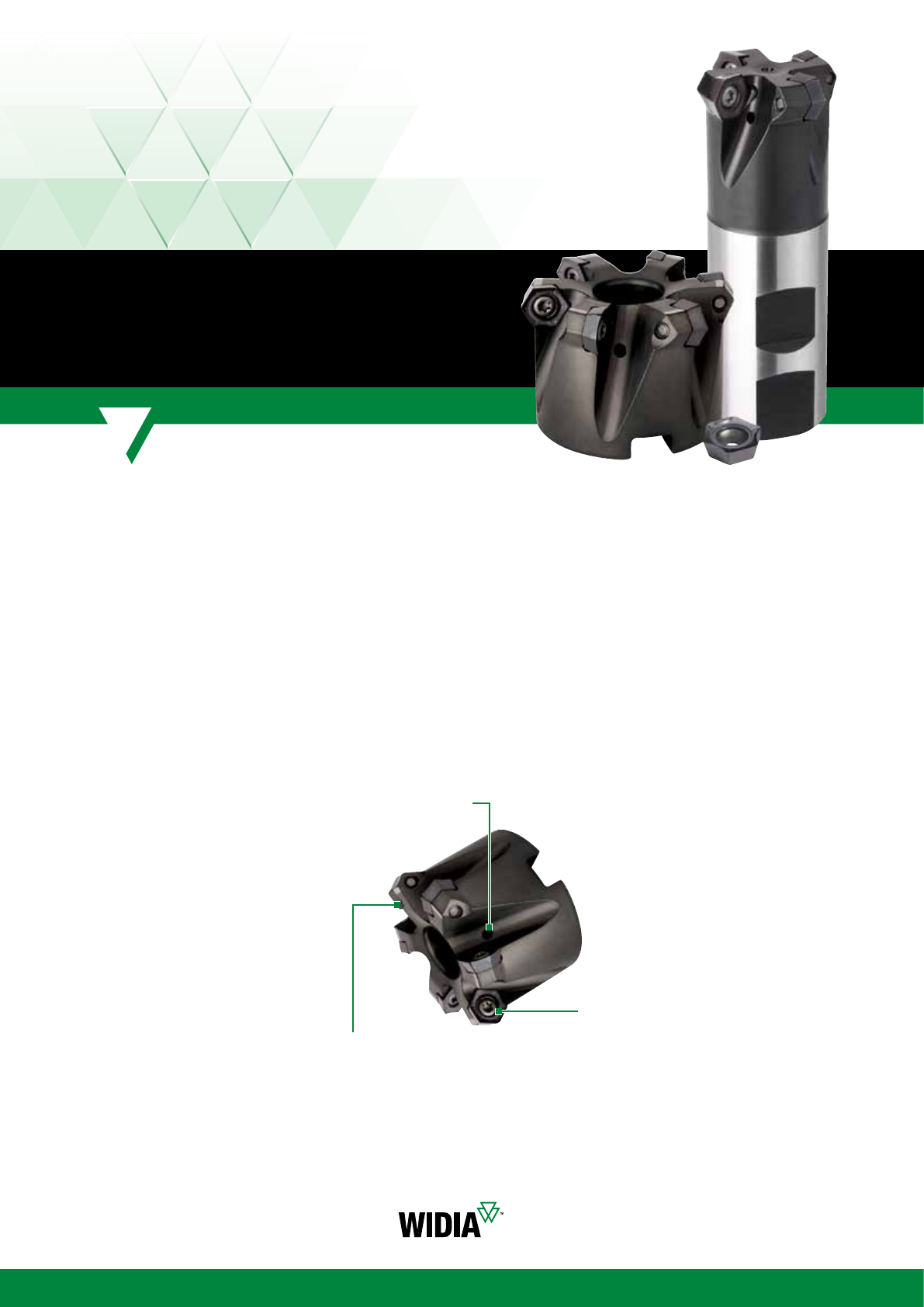

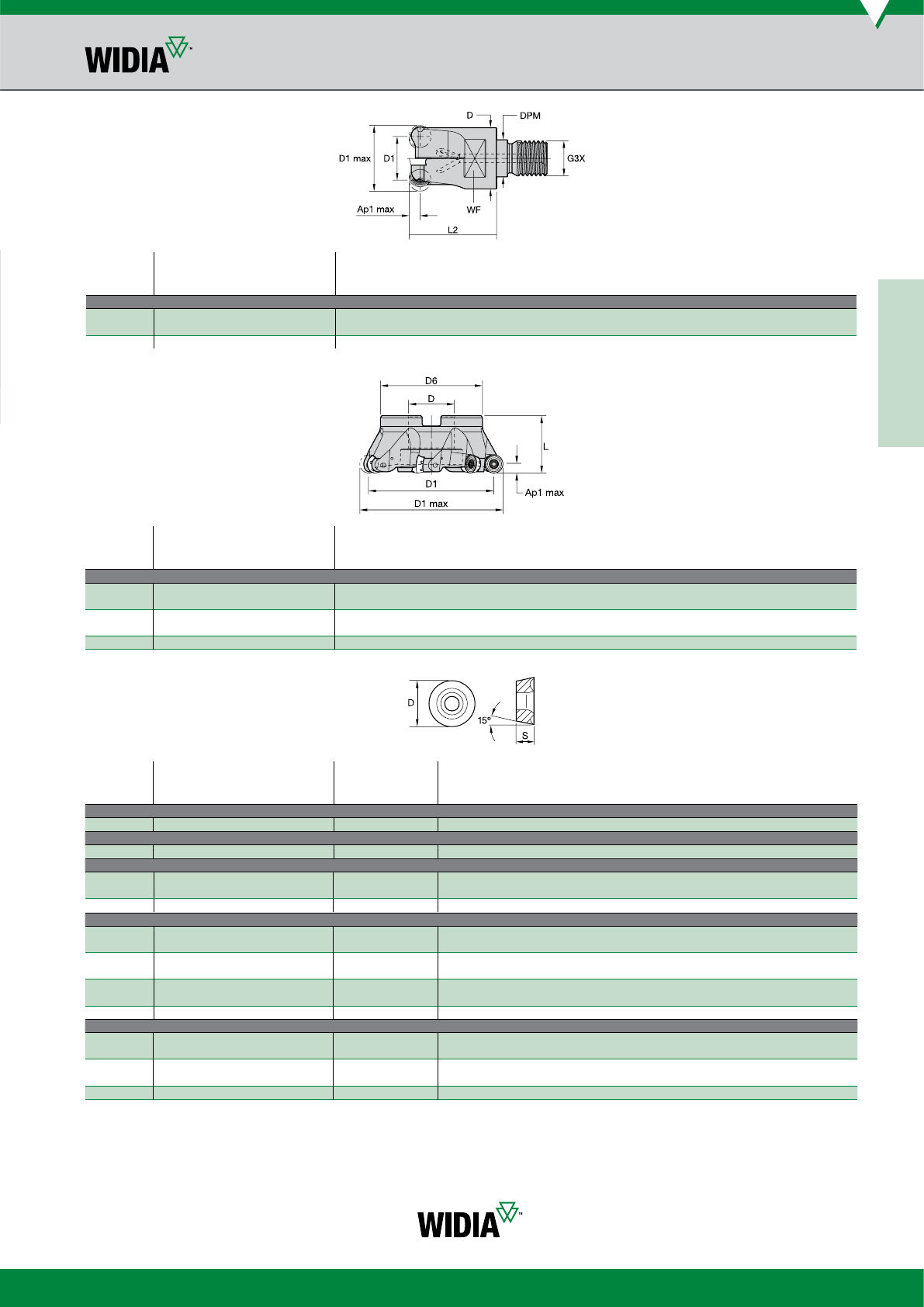

Indexable Milling ....................................................................................................................................................34–72

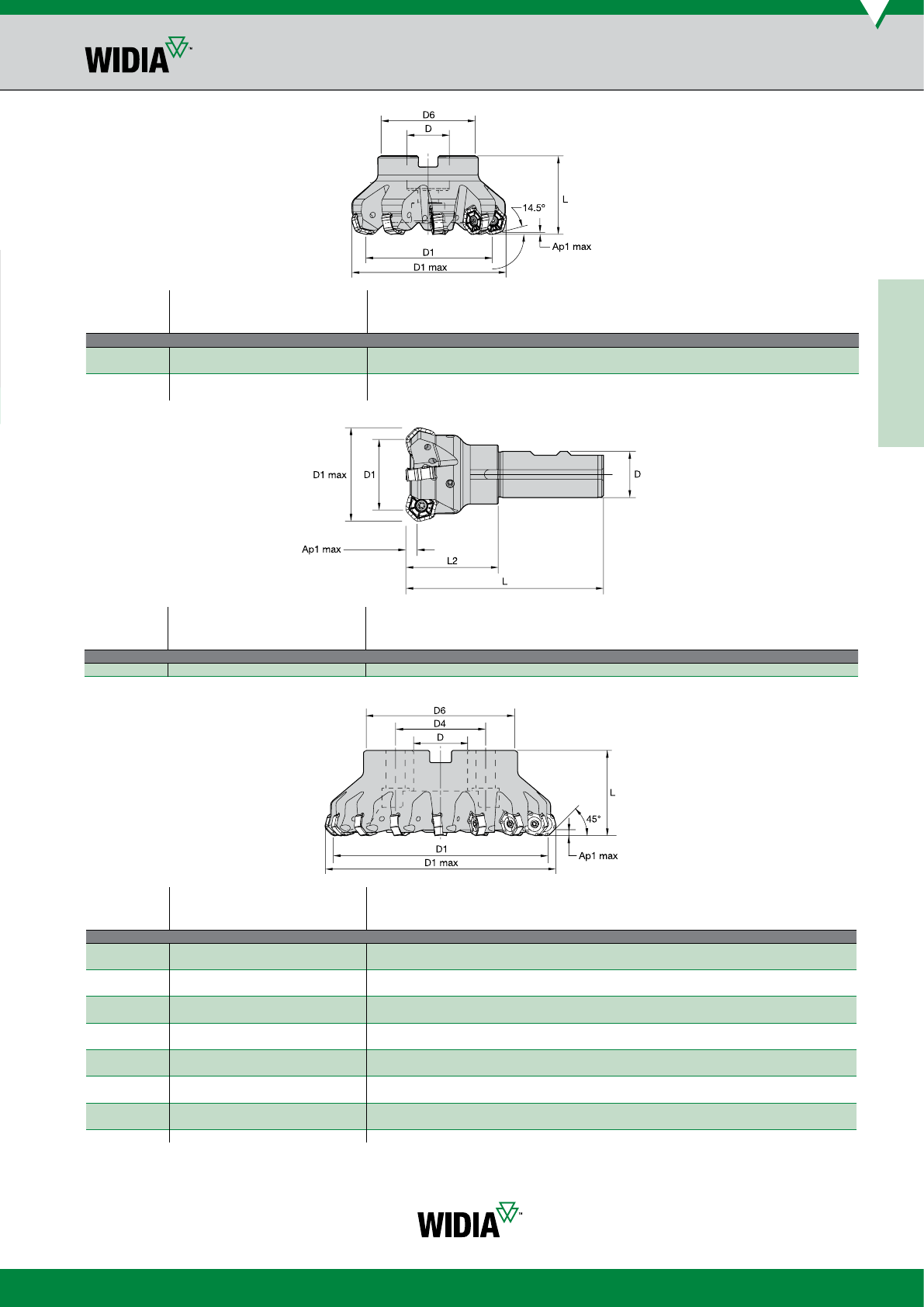

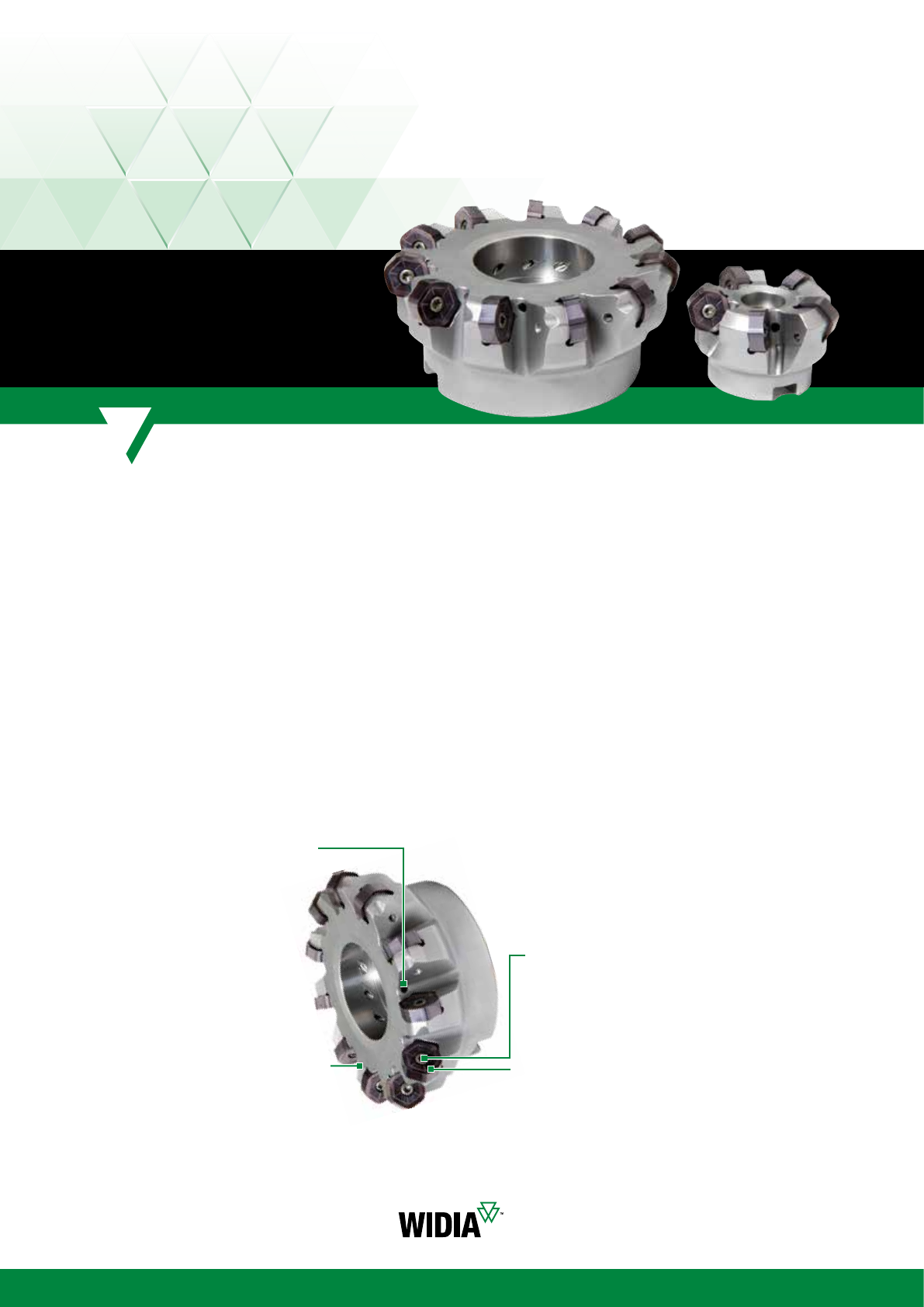

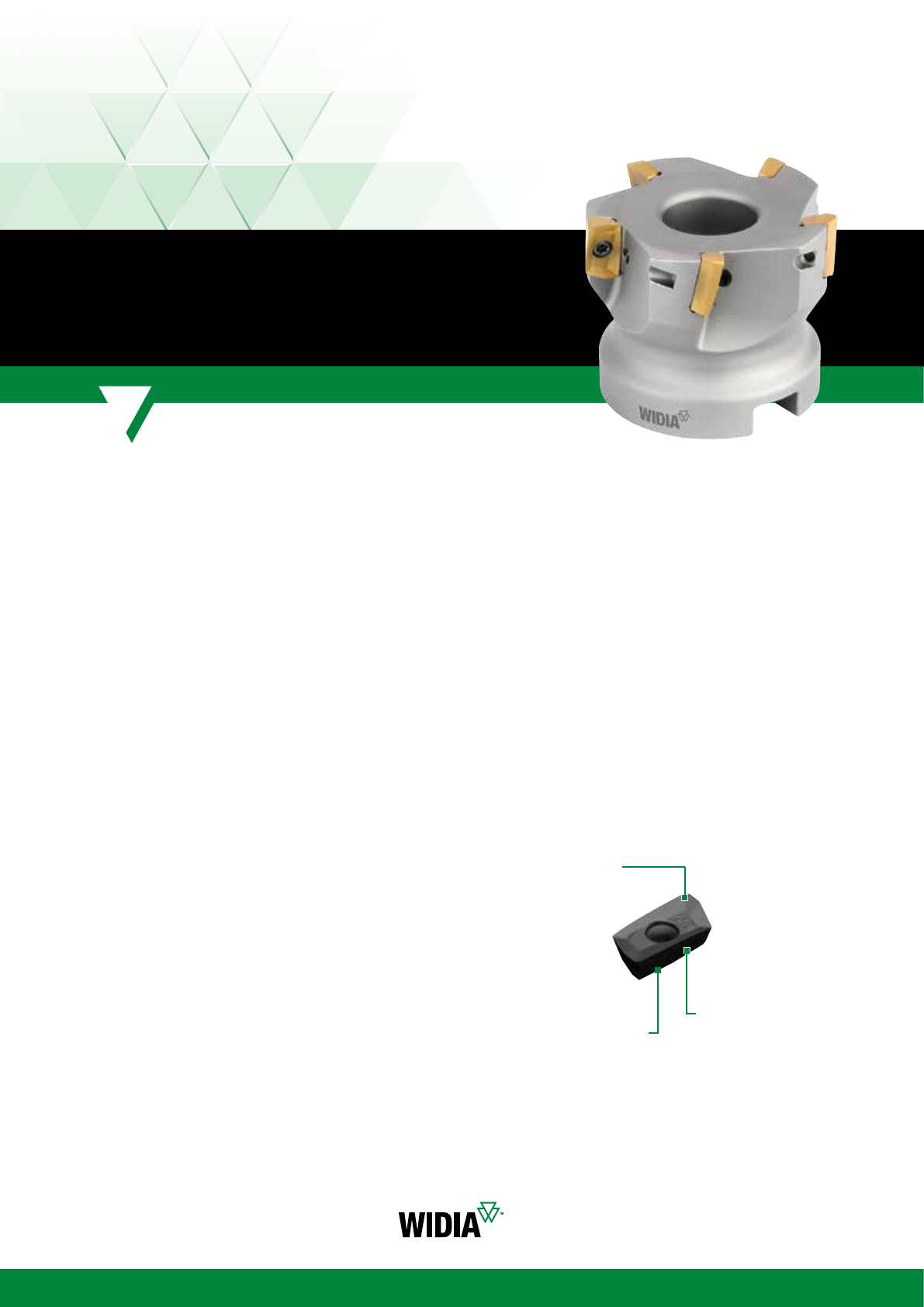

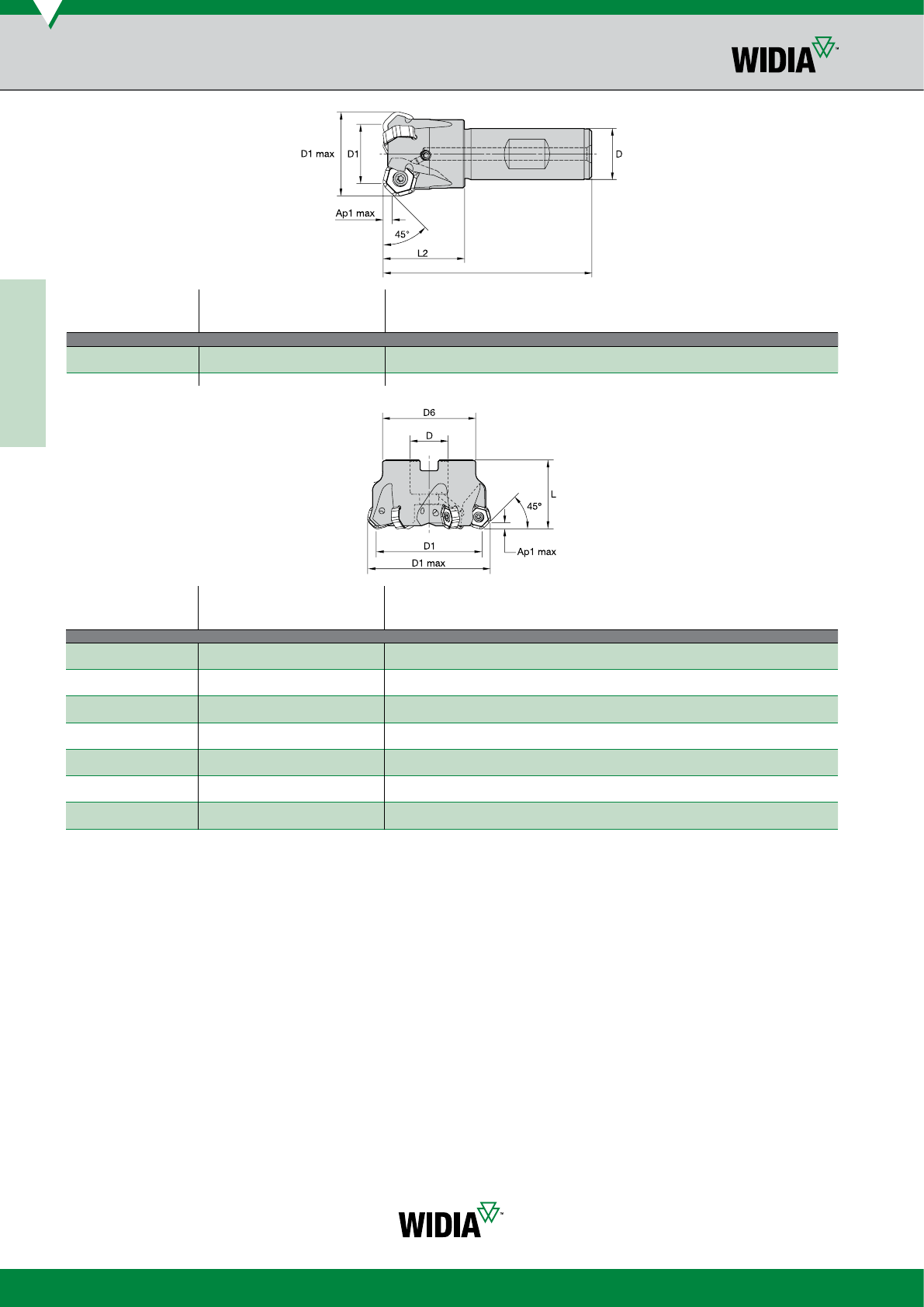

Face Milling ......................................................................................................................................................34–43
M1200 Mini Series .....................................................................................................................................34–37
M1200 Series .............................................................................................................................................38–40
M640 Series ...............................................................................................................................................42–43

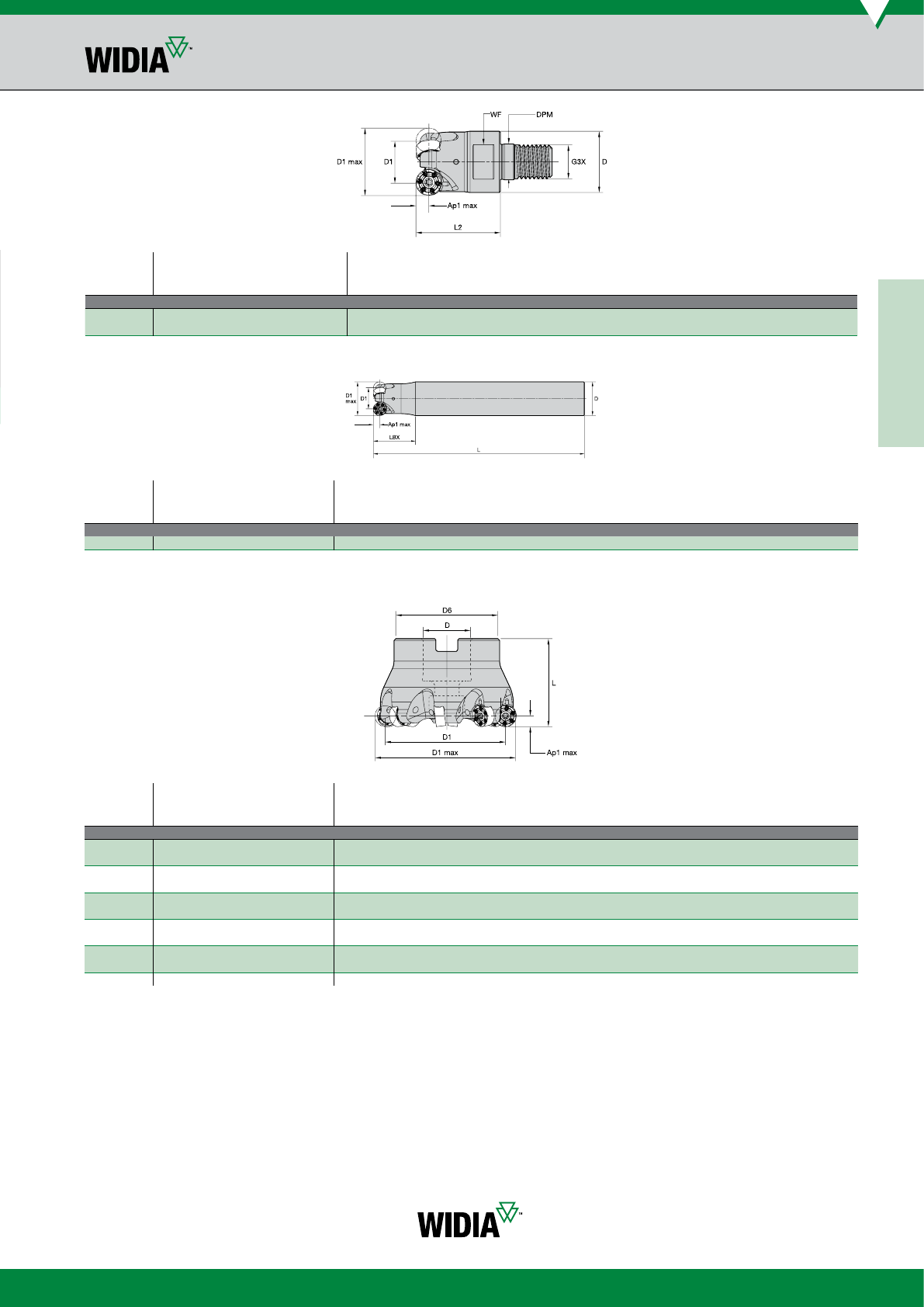

Shoulder Milling ...............................................................................................................................................44–63
VSM11 ........................................................................................................................................................44–47
VSM17 ........................................................................................................................................................48–51
VSM490-10 ................................................................................................................................................52–55
VSM490-15 ................................................................................................................................................56–59
VHSC ..........................................................................................................................................................61–63

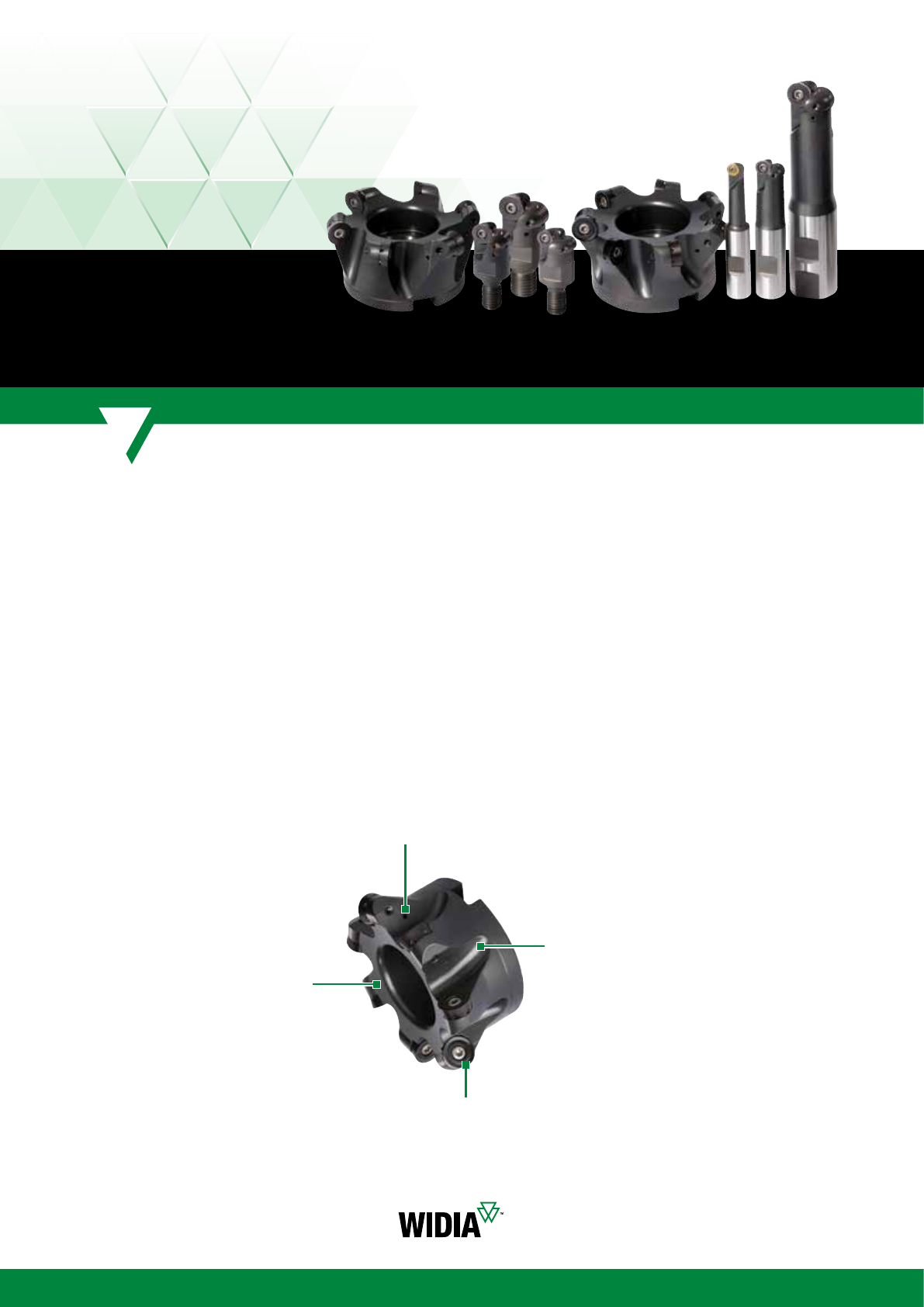

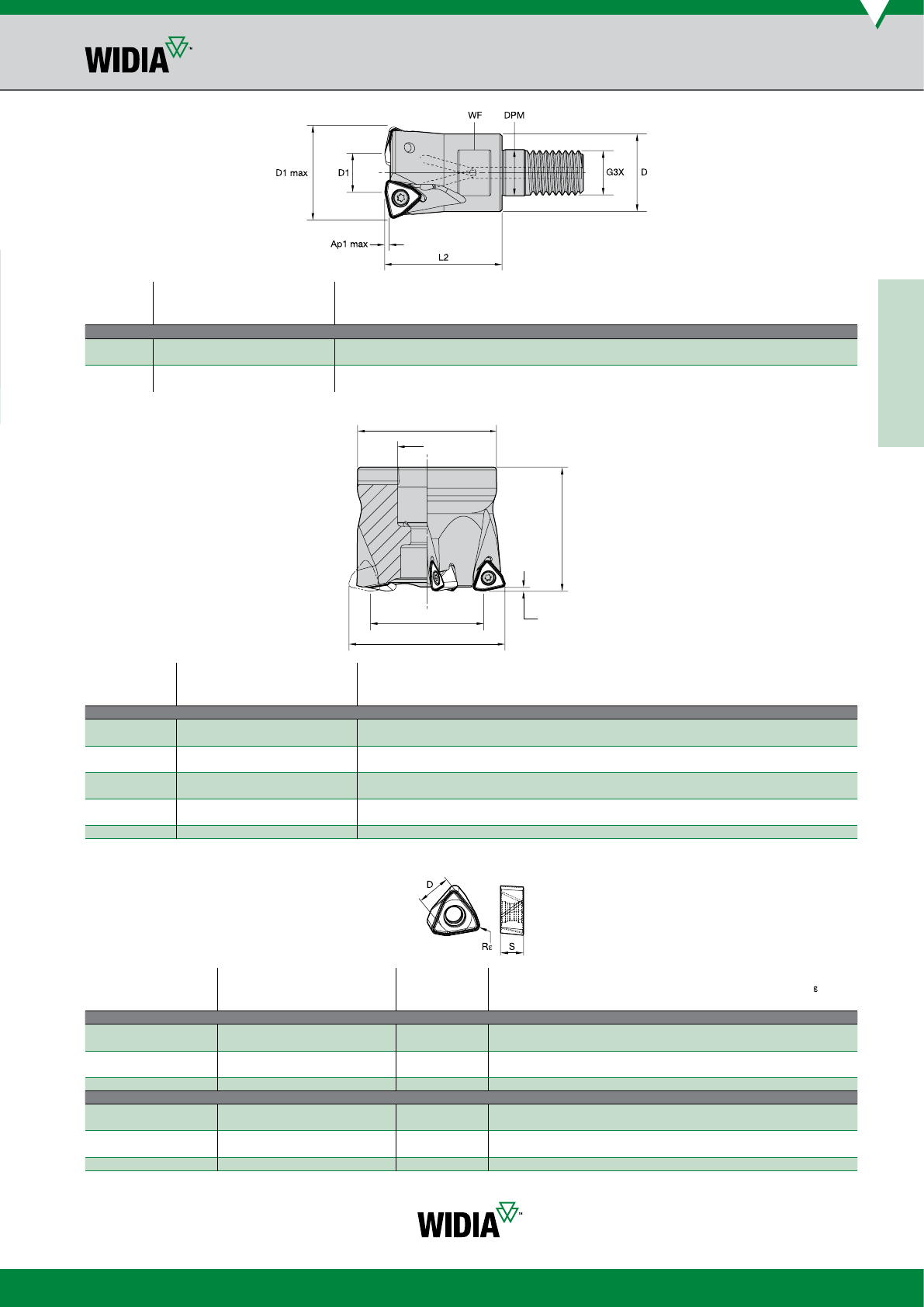

Copy Milling ......................................................................................................................................................64–72

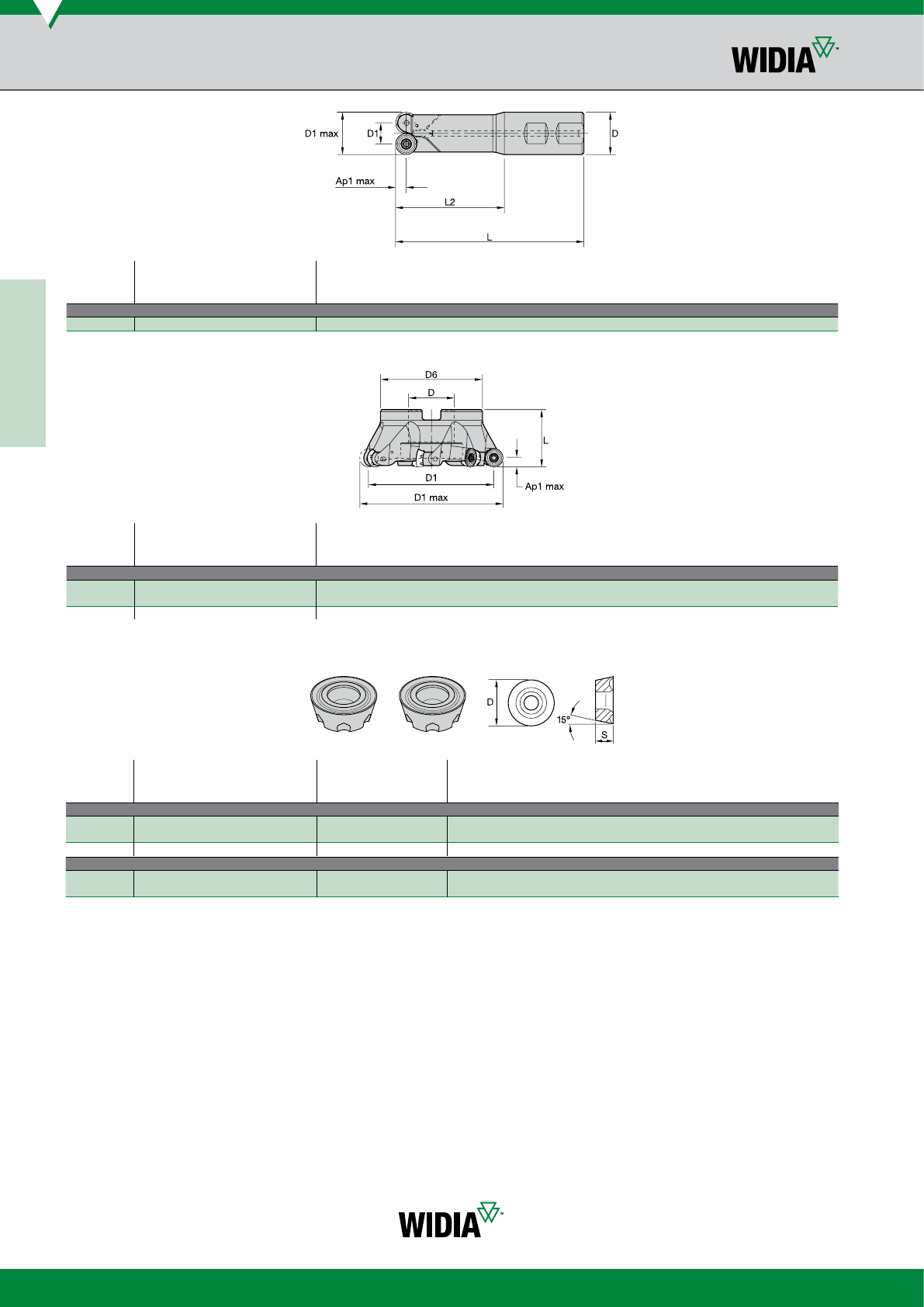

M370 Series ...............................................................................................................................................64–65
M100 Series ...............................................................................................................................................66–69
M200 Series ...............................................................................................................................................70–72

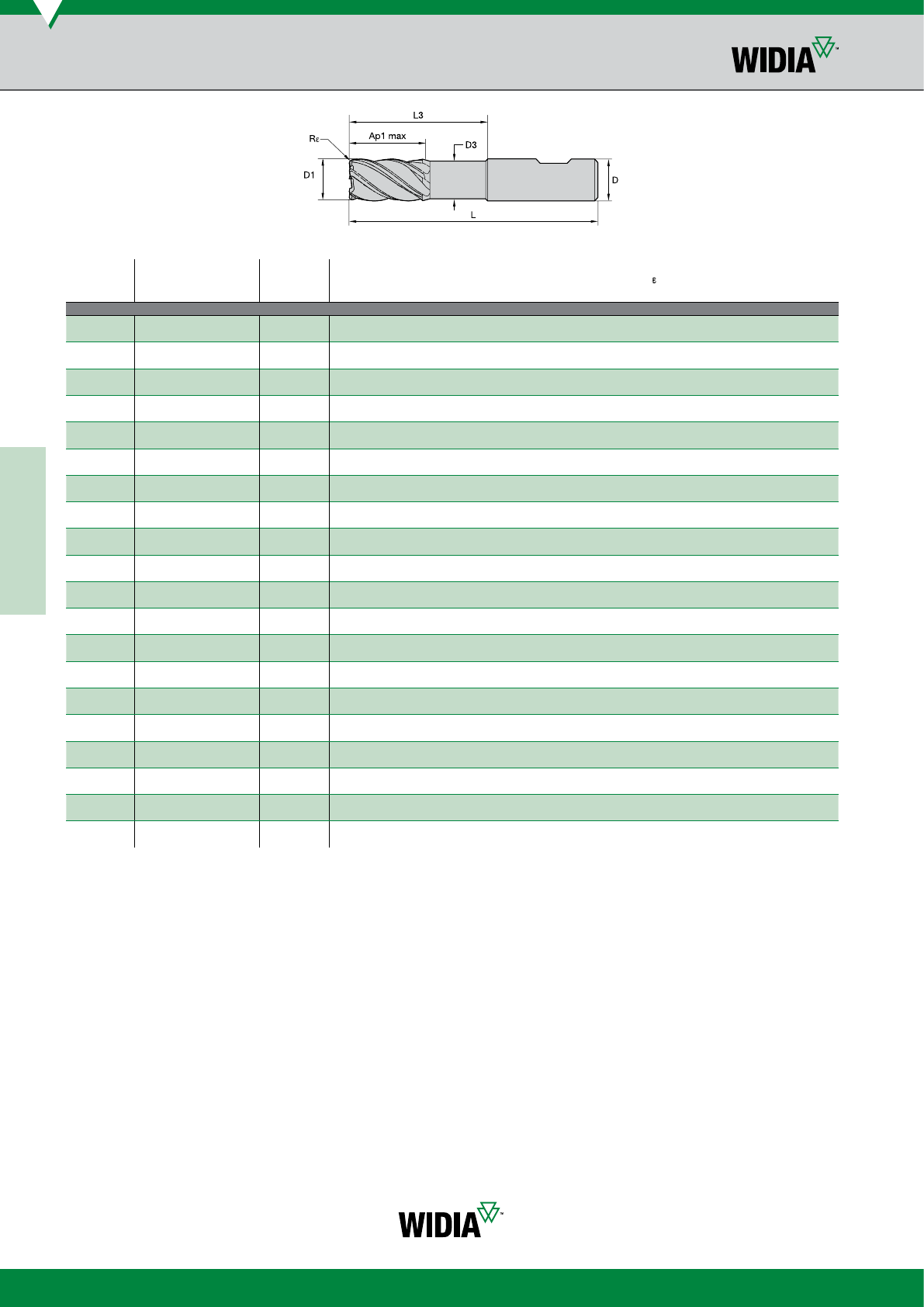

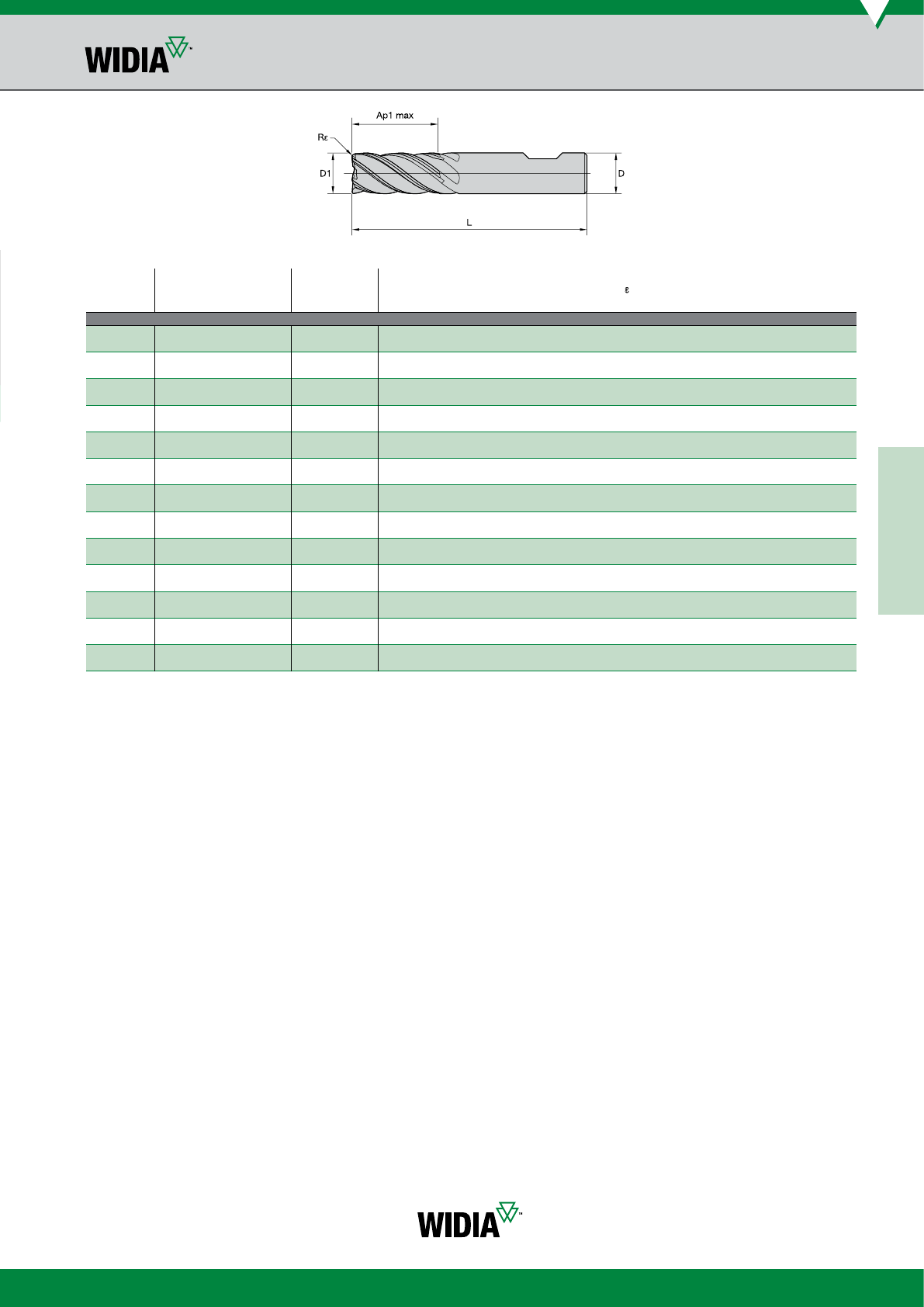

Solid End Milling ....................................................................................................................................................74–97
VariMill I ......................................................................................................................................................74–76
VariMill II .....................................................................................................................................................78–80
VariMill II ER ...............................................................................................................................................82–83
VariMill II Long ............................................................................................................................................84–85
VariMill III ER ..............................................................................................................................................86–87

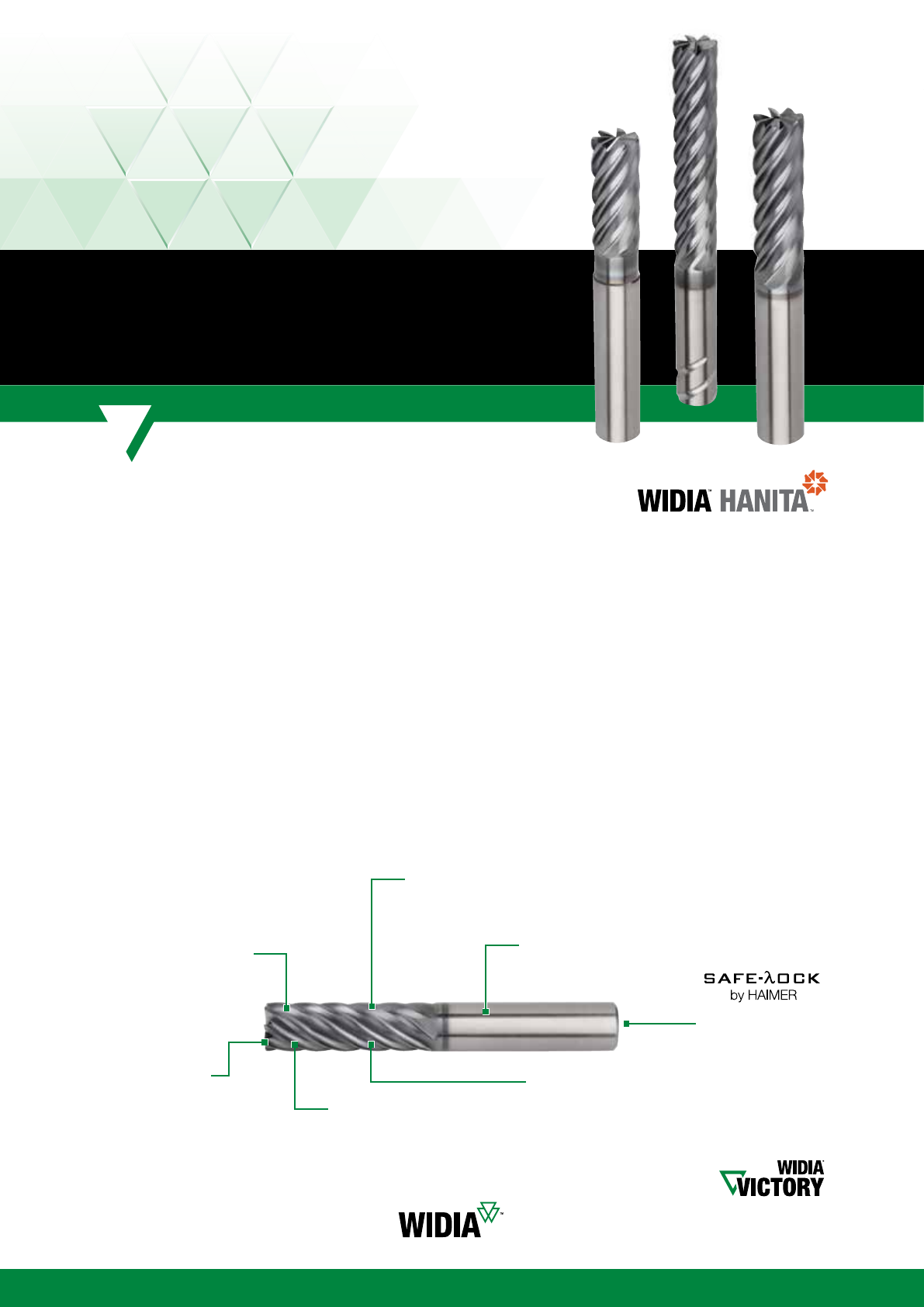

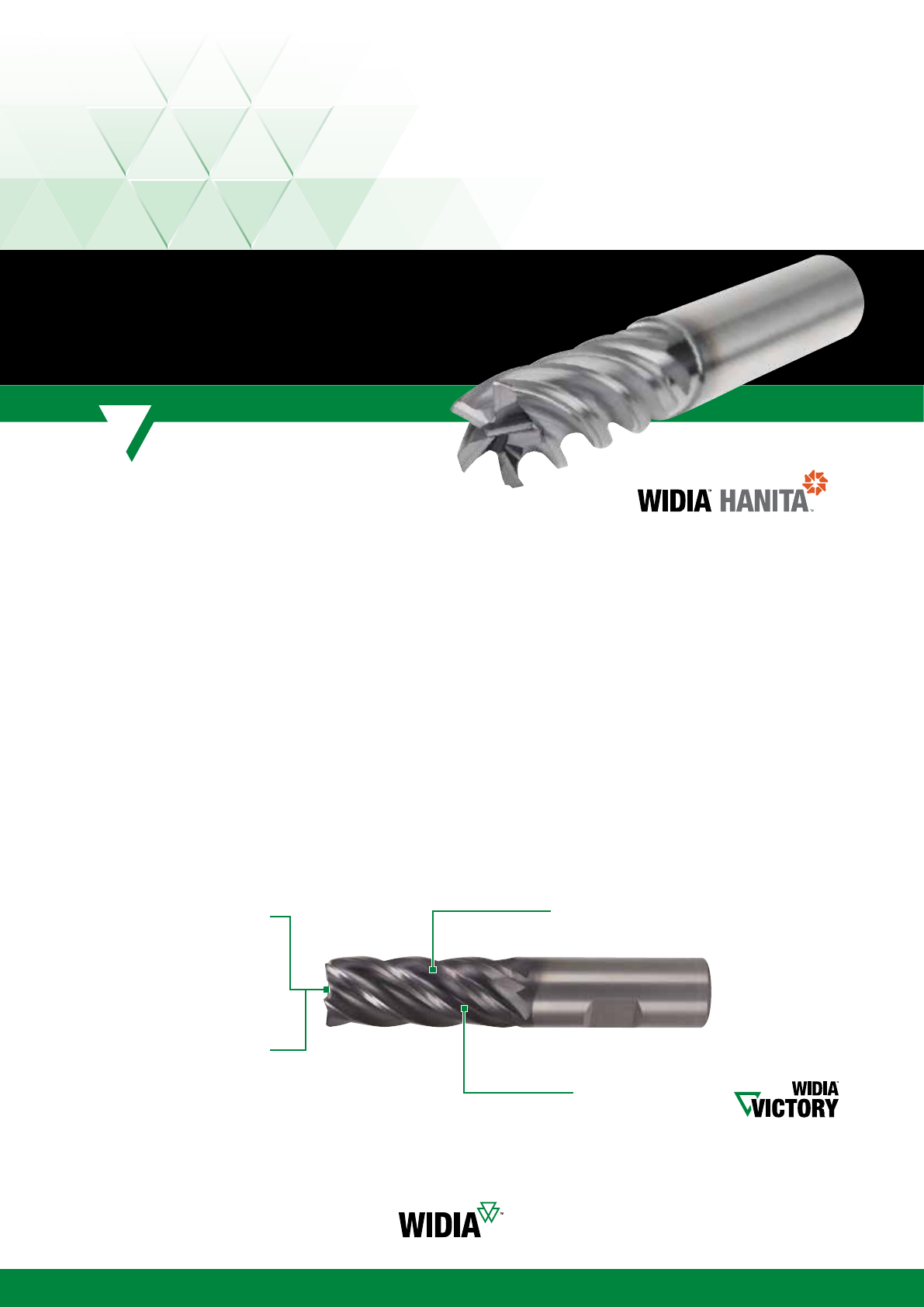

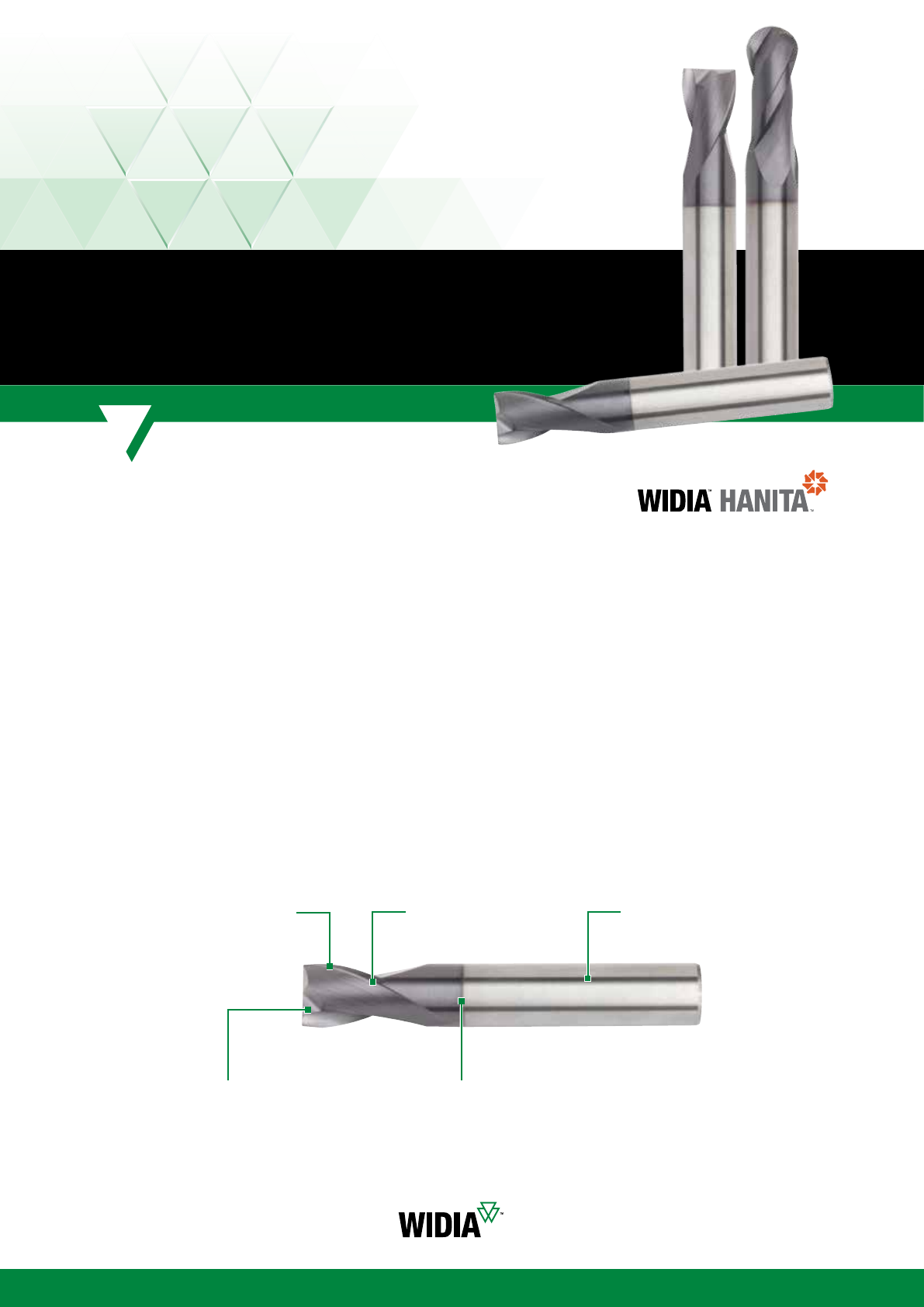

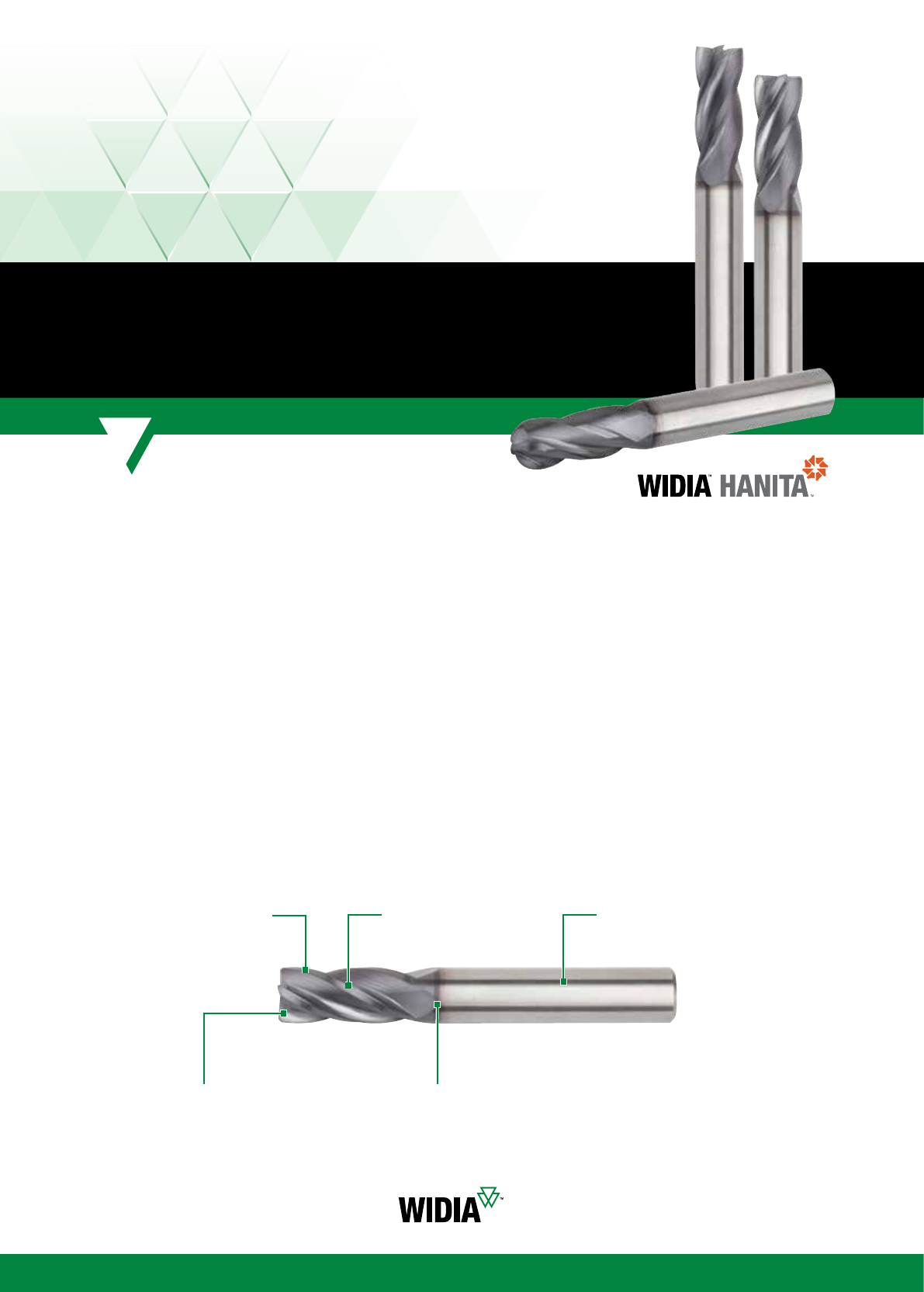

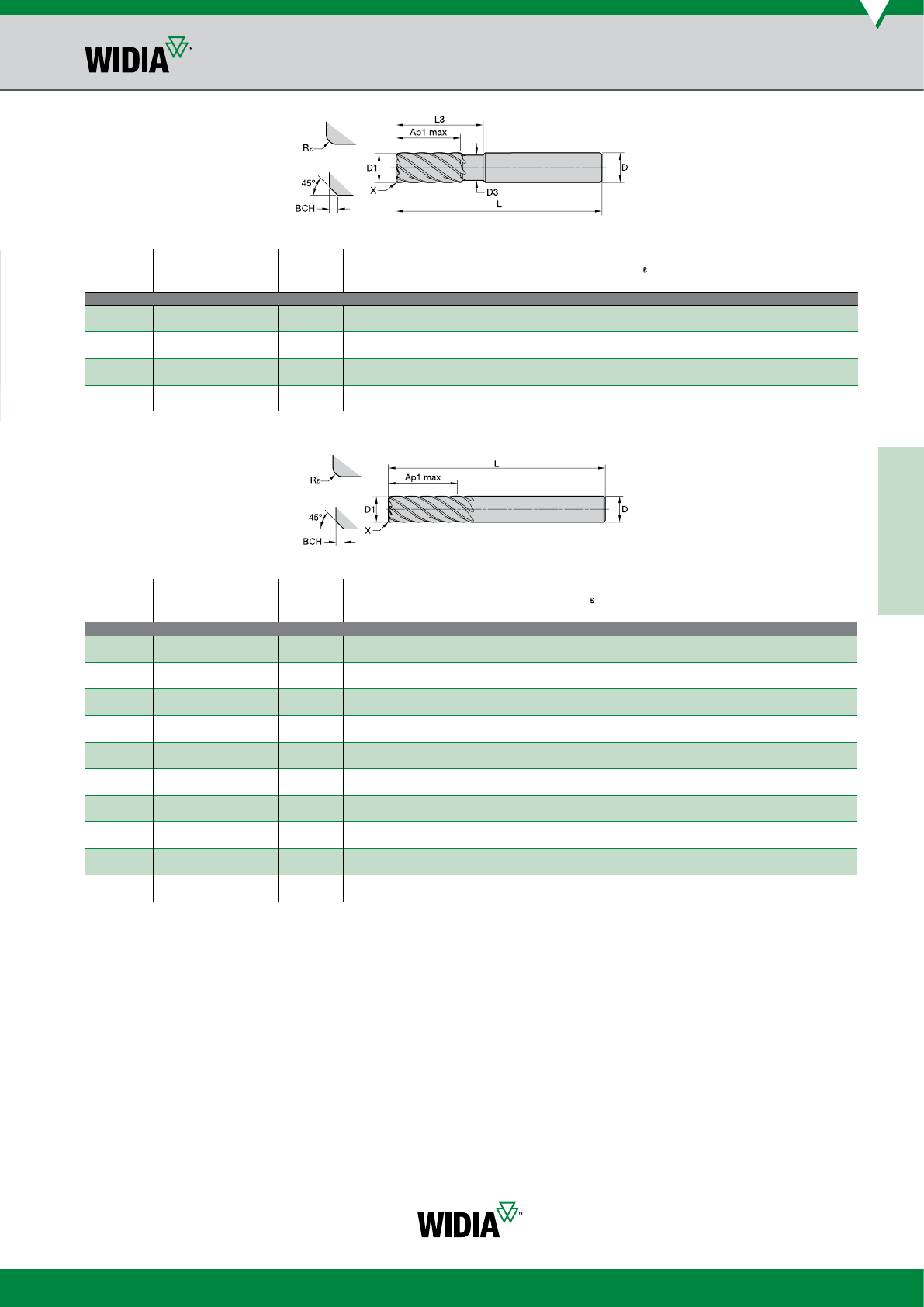

High-Performance Solid Carbide End Mills • Roughers ............................................................................88–89

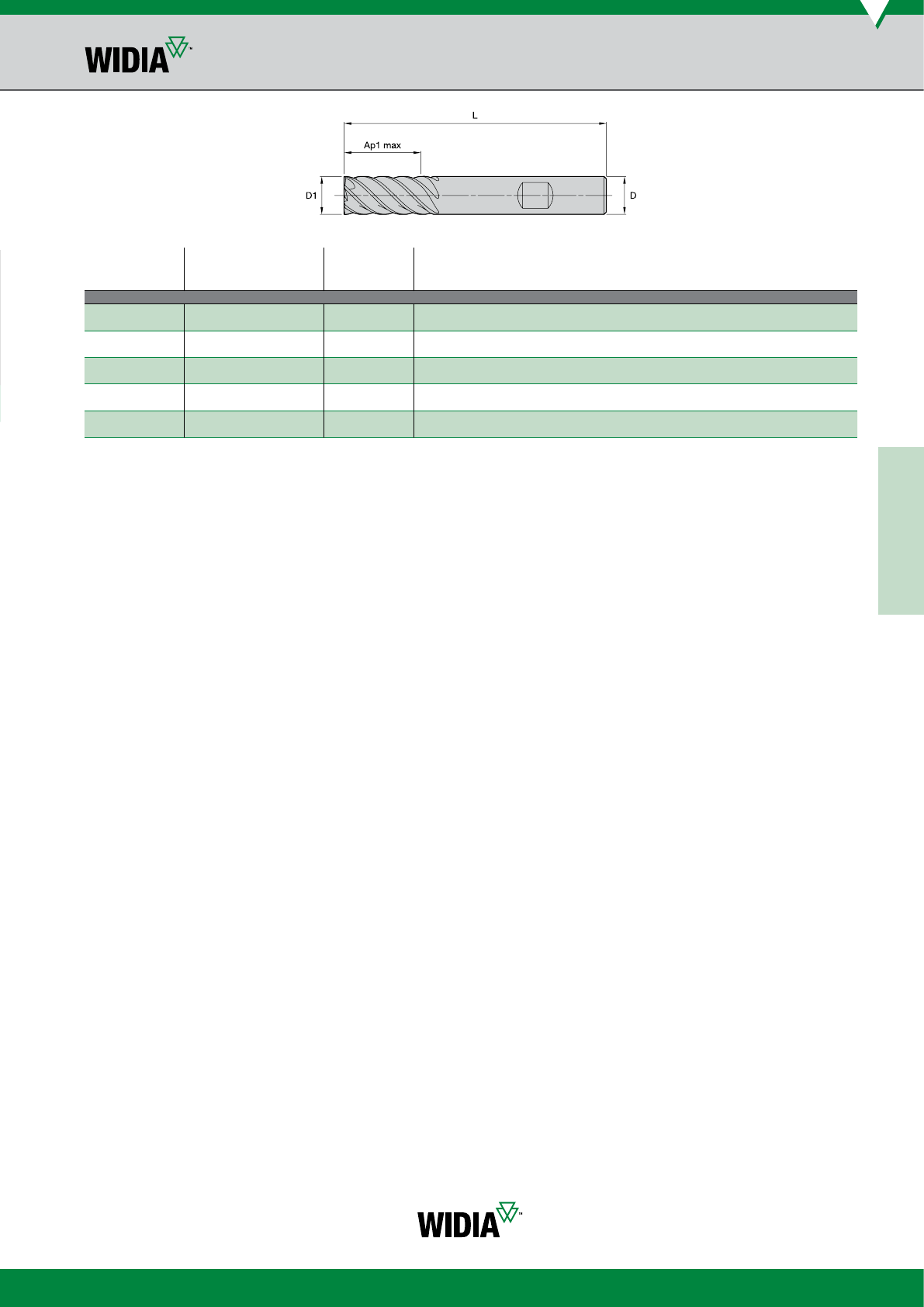

High-Performance Solid Carbide End Mills • Finishers .............................................................................90–91

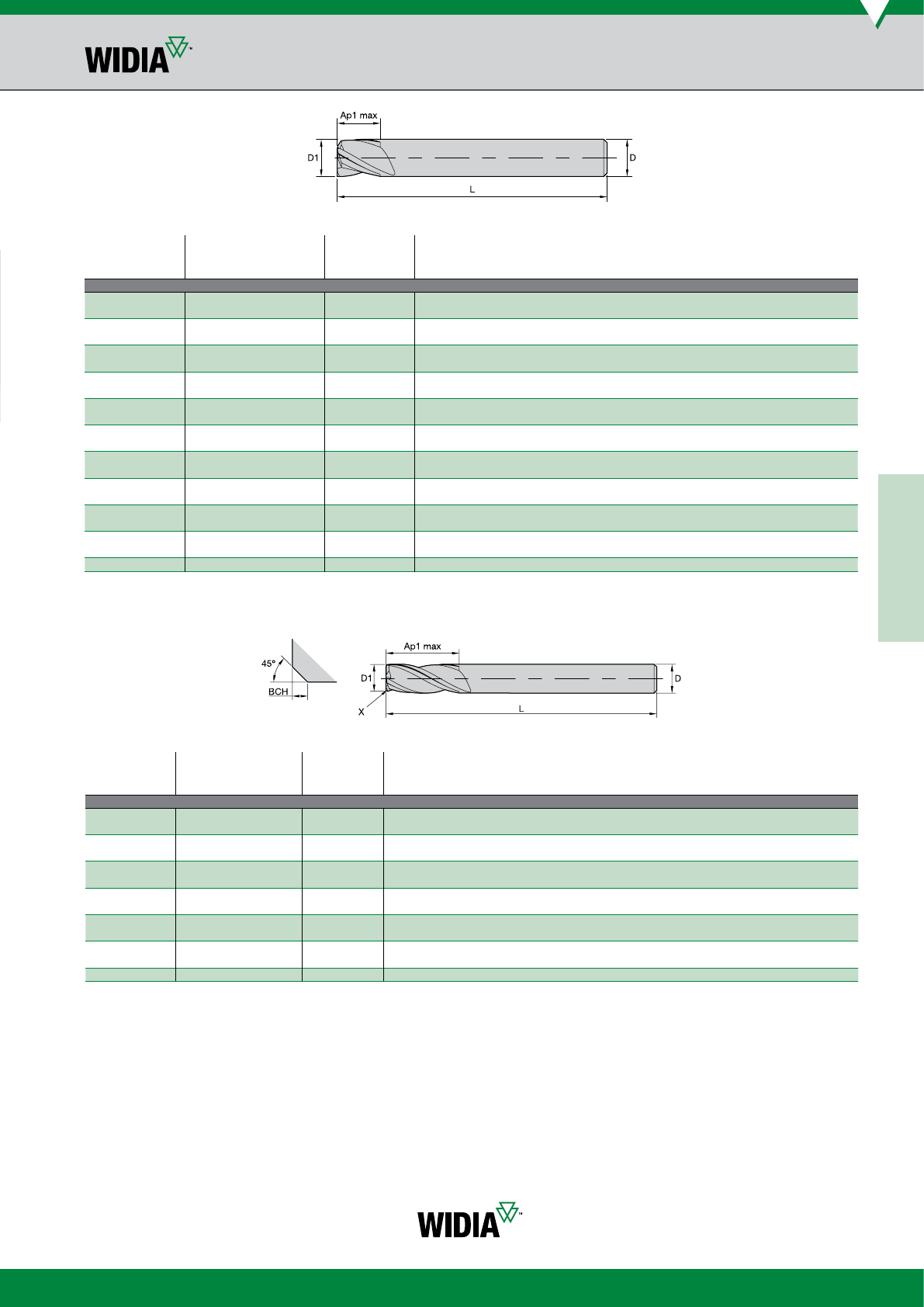

General Purpose • 2 Flutes ........................................................................................................................92–93
General Purpose • 3 Flutes ........................................................................................................................94–95
General Purpose • 4 Flutes ........................................................................................................................96–97
Holemaking ..........................................................................................................................................................98–143

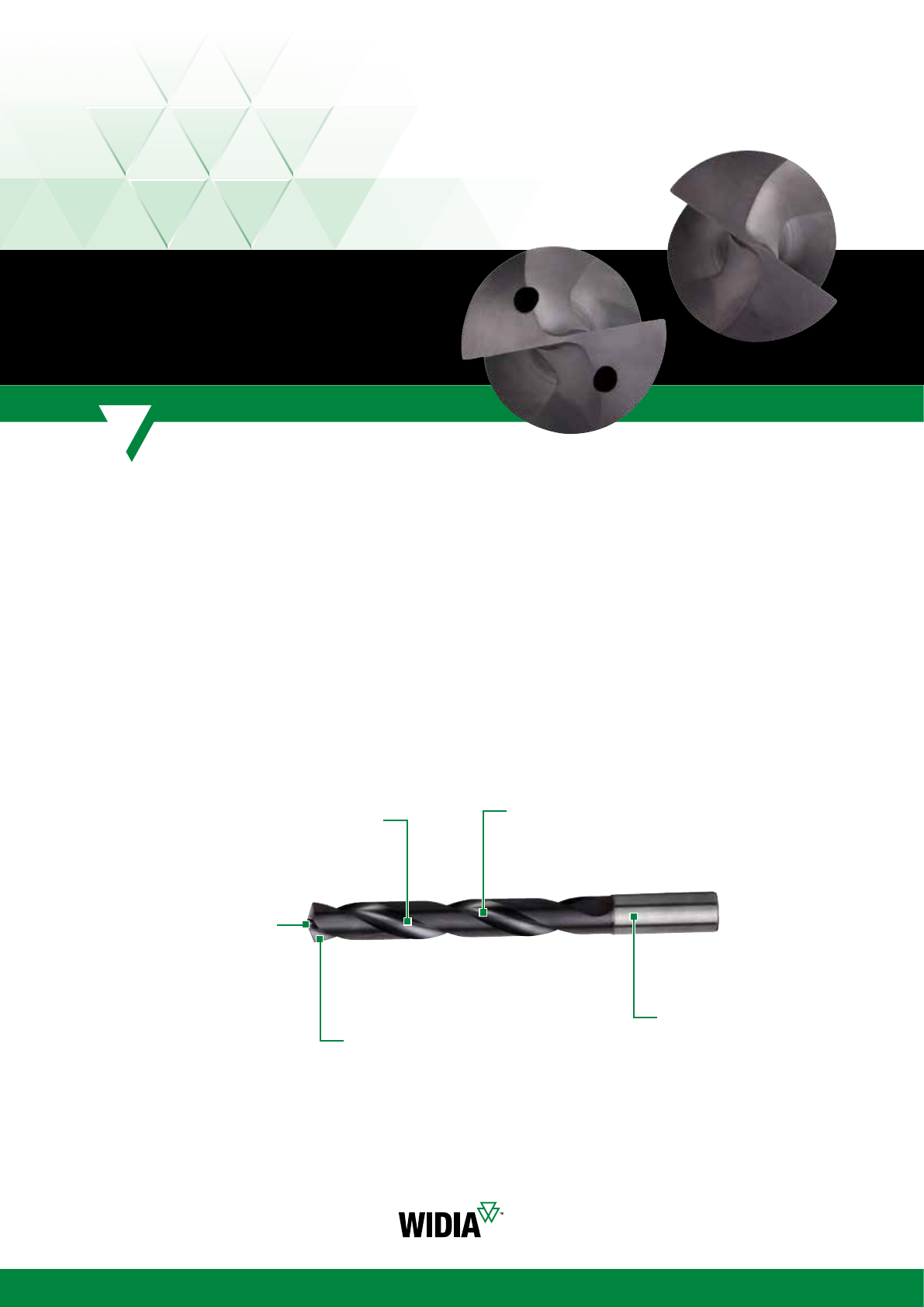

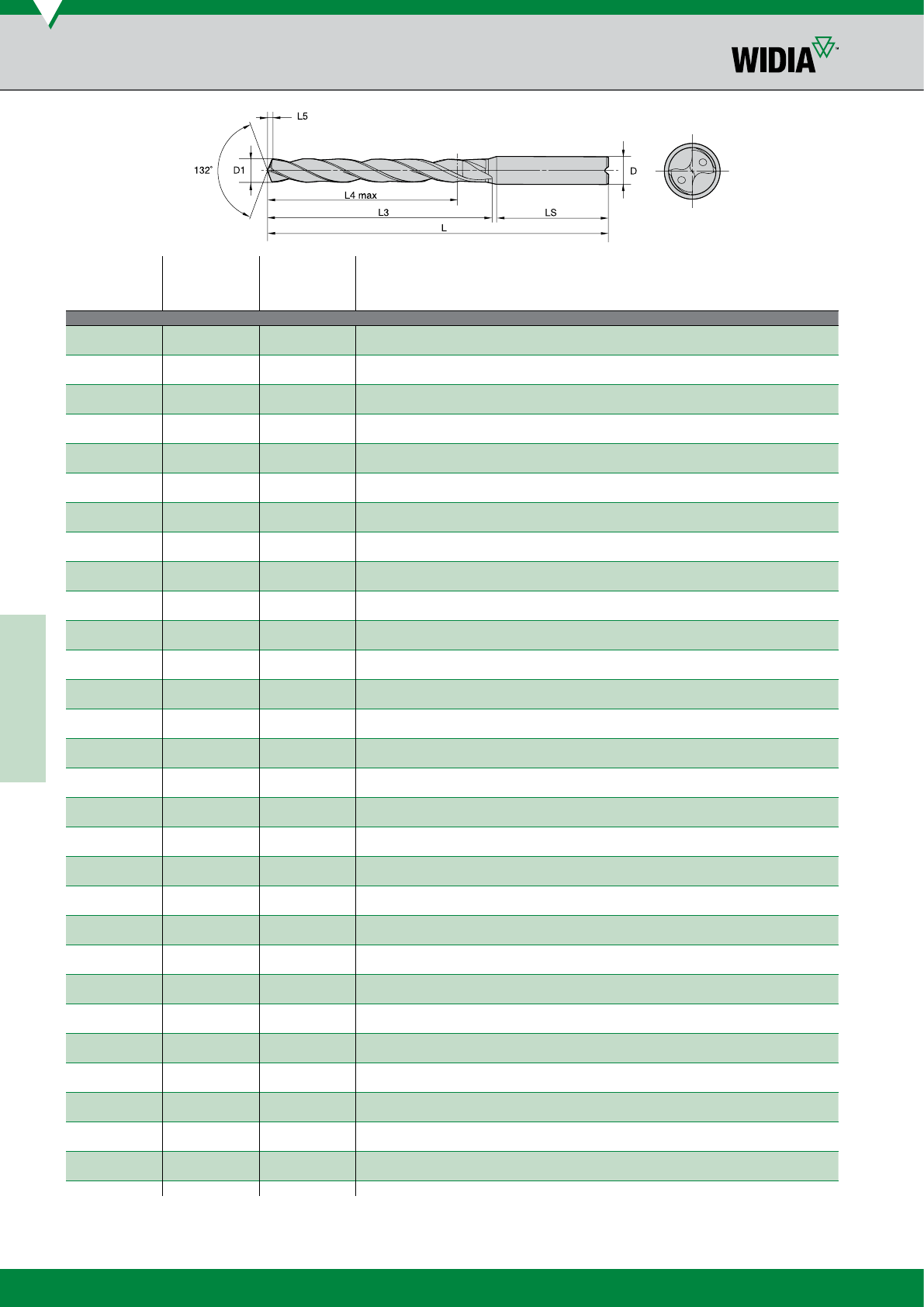

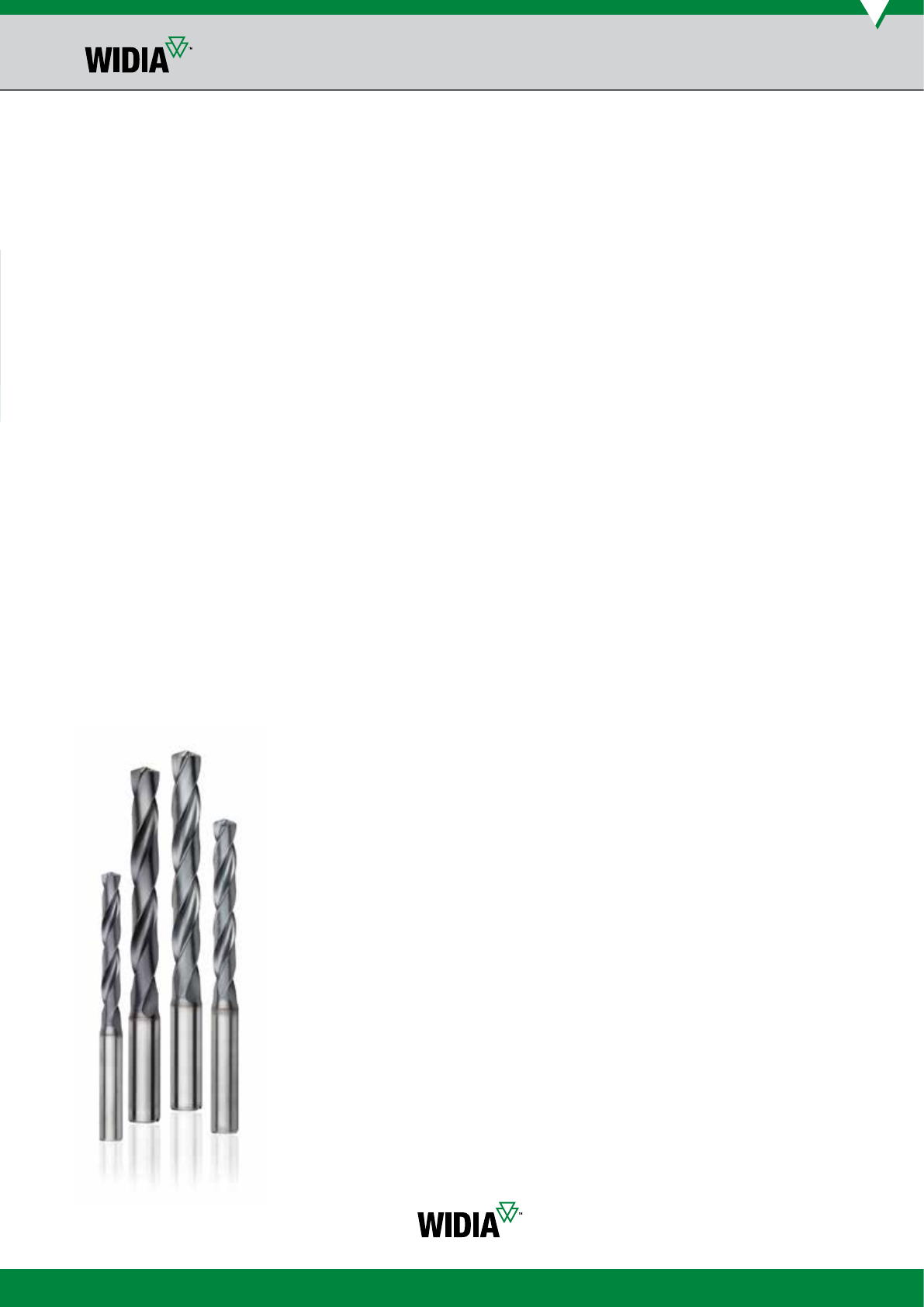

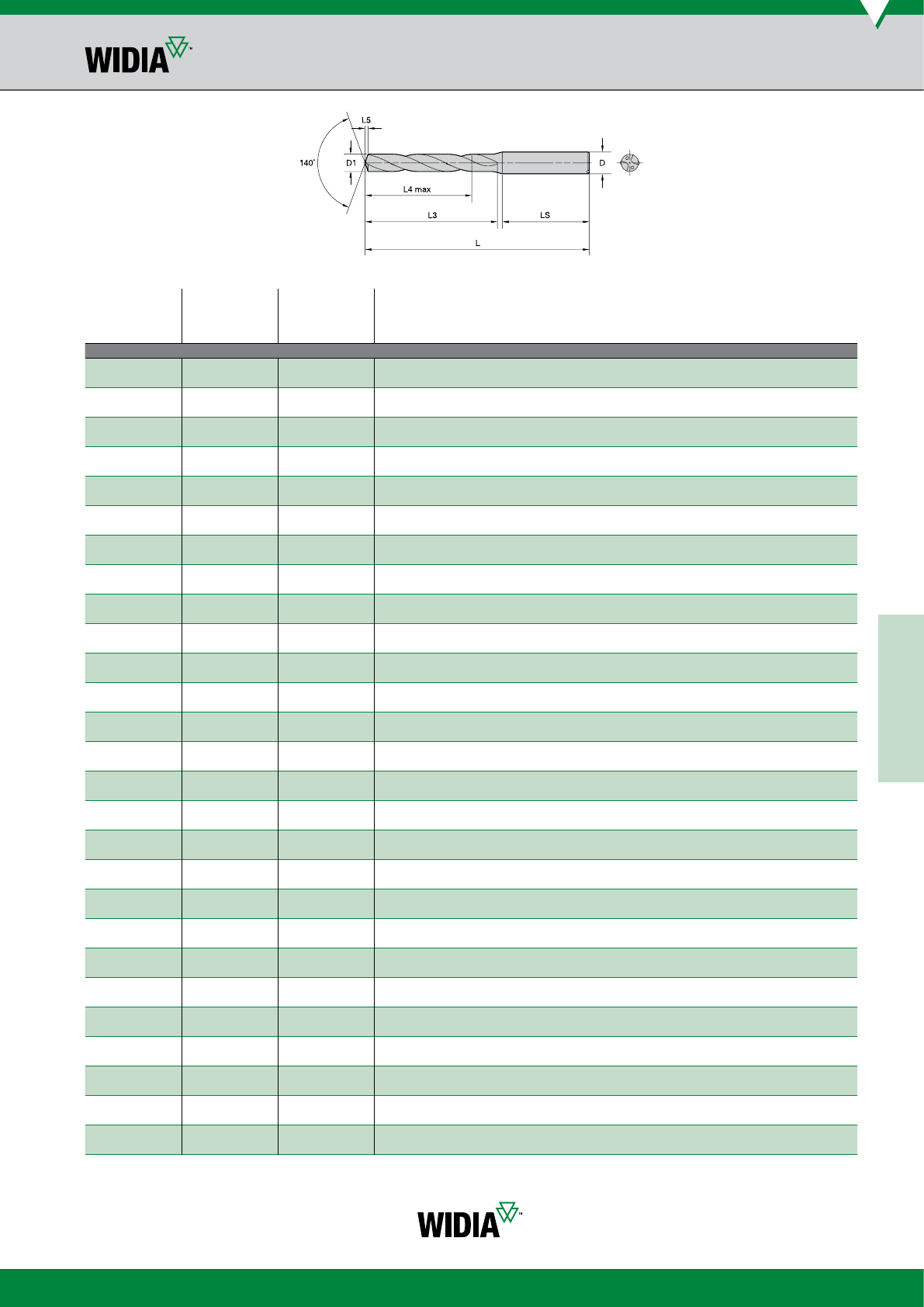

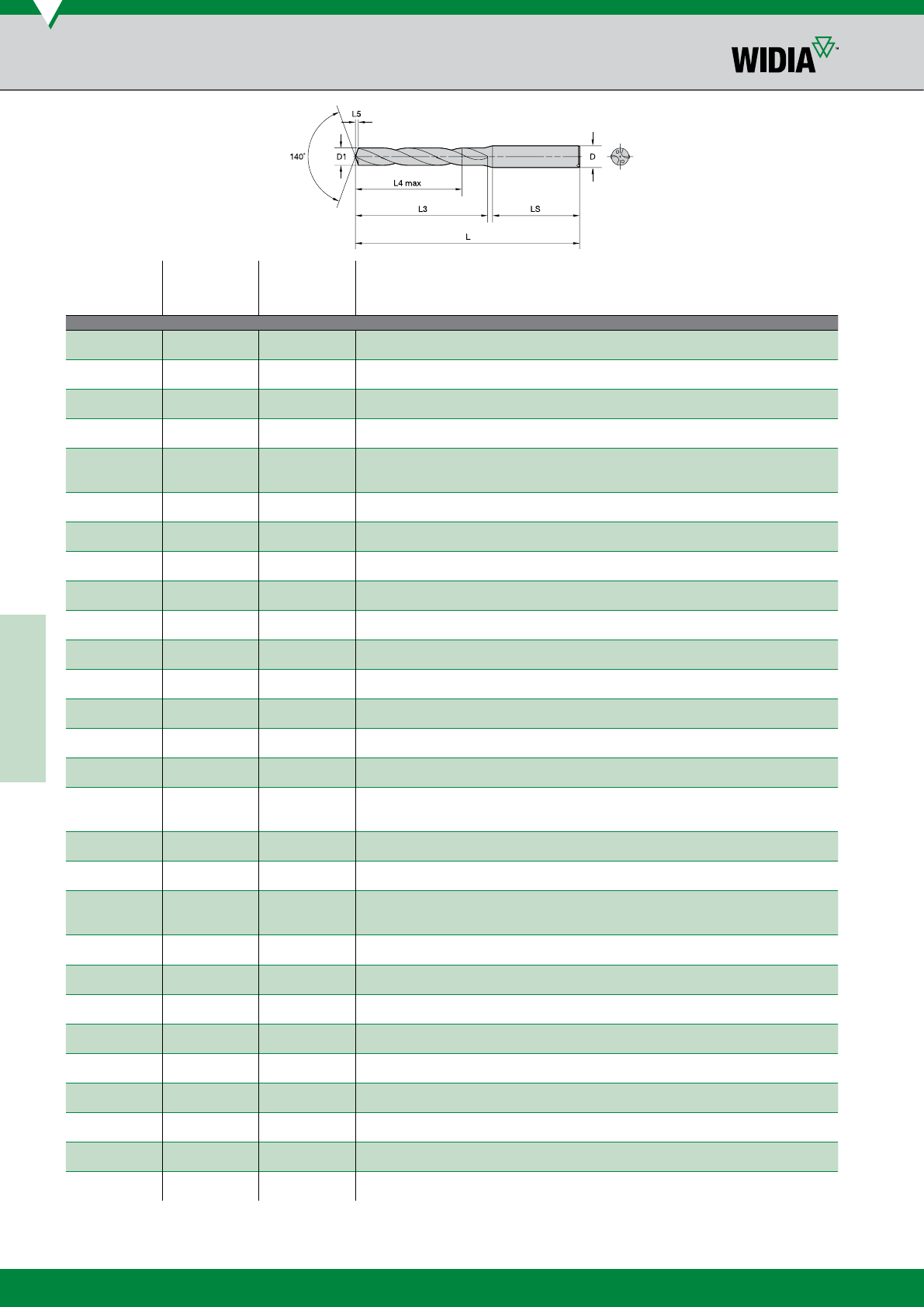

Solid Carbide Drills ......................................................................................................................................100–131
VariDrill ...................................................................................................................................................100–113
TOP DRILL S ..........................................................................................................................................114–123
TOP DRILL S+ 12 x D ............................................................................................................................124–126

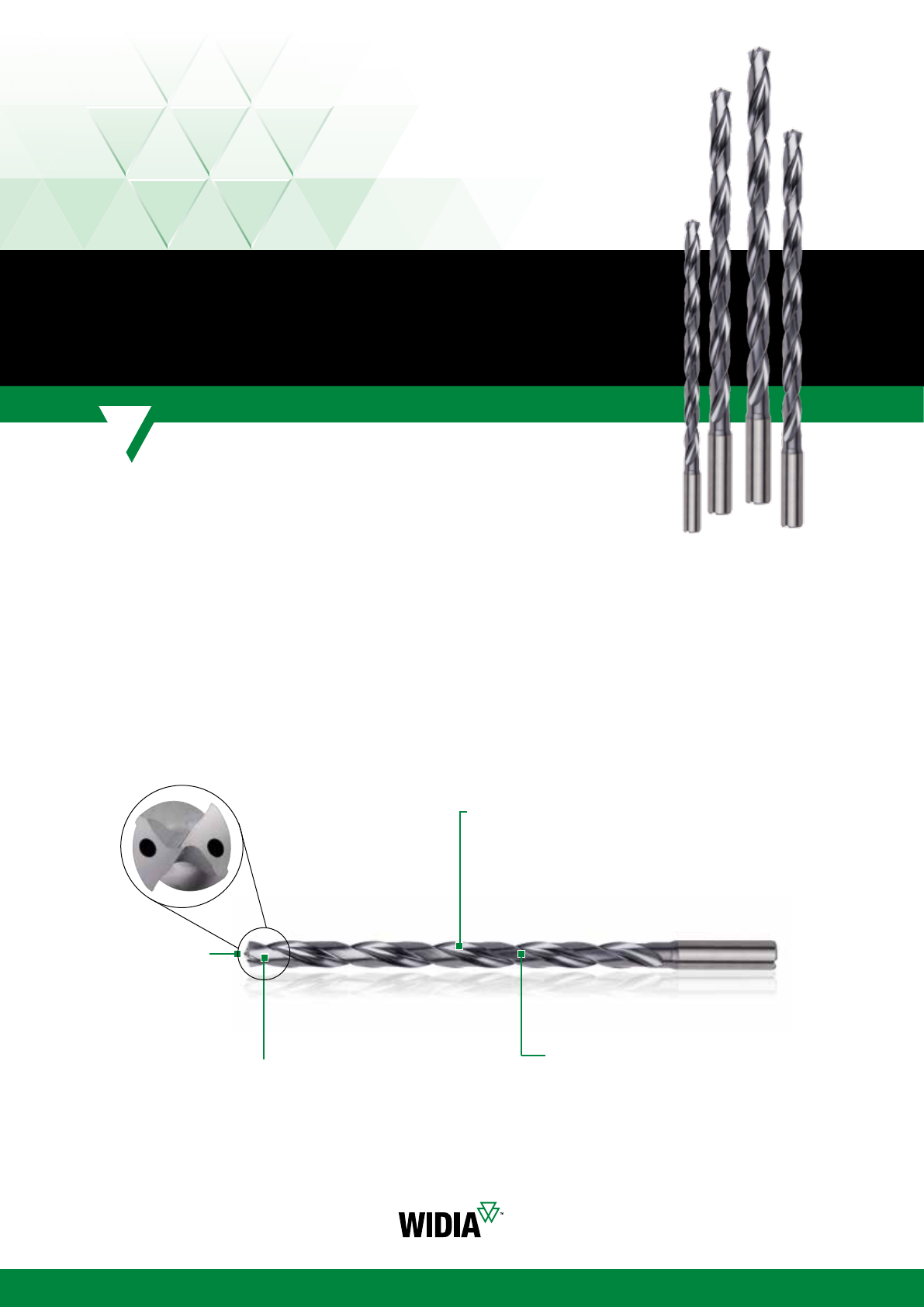

TOP DRILL Deep-Hole Drills ..................................................................................................................128–131
Modular Drills ...............................................................................................................................................132–137
TOP DRILL M1 .......................................................................................................................................132–137

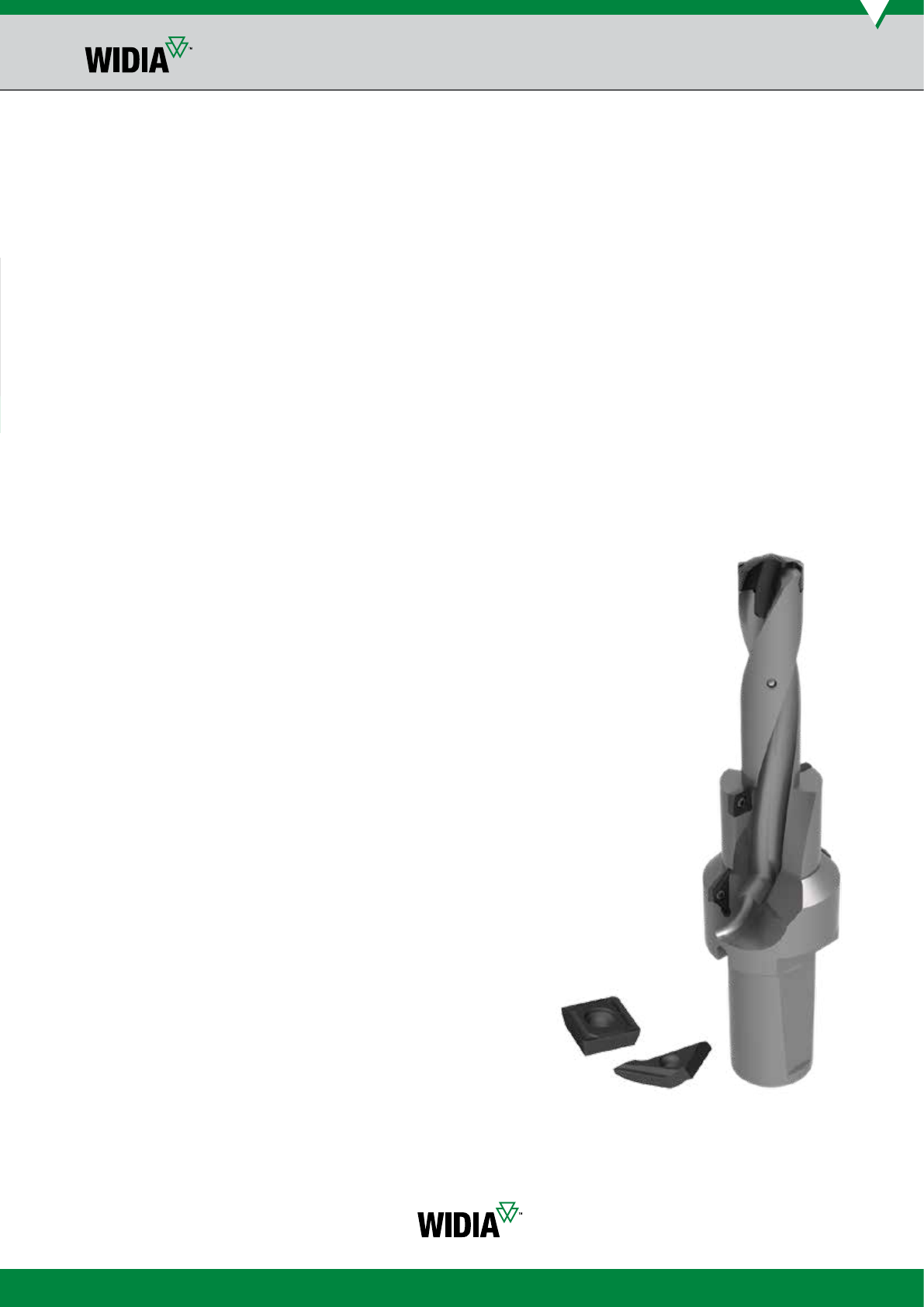

Indexable Drills .............................................................................................................................................138–143
Top Cut 4 ...............................................................................................................................................138–143

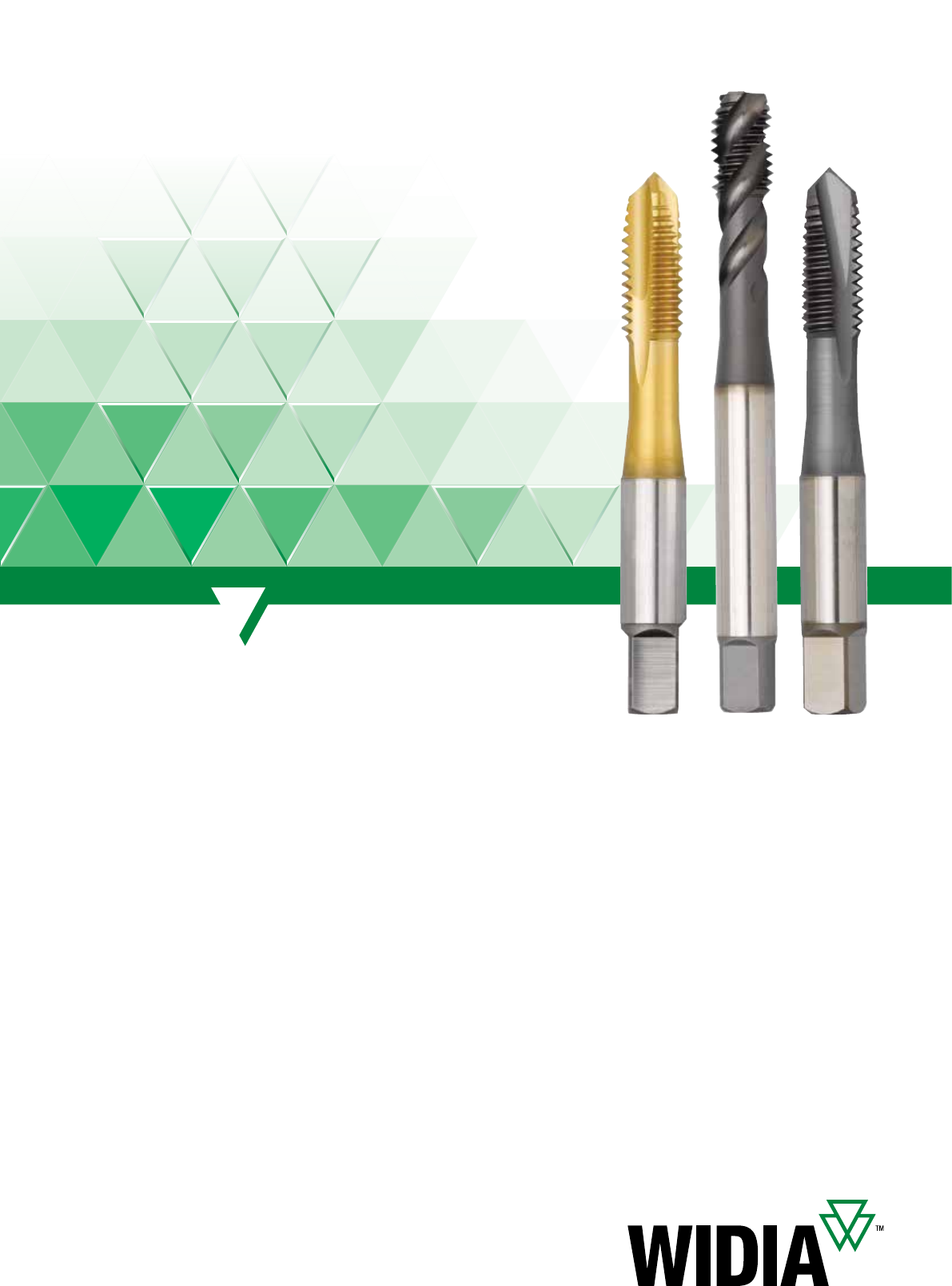

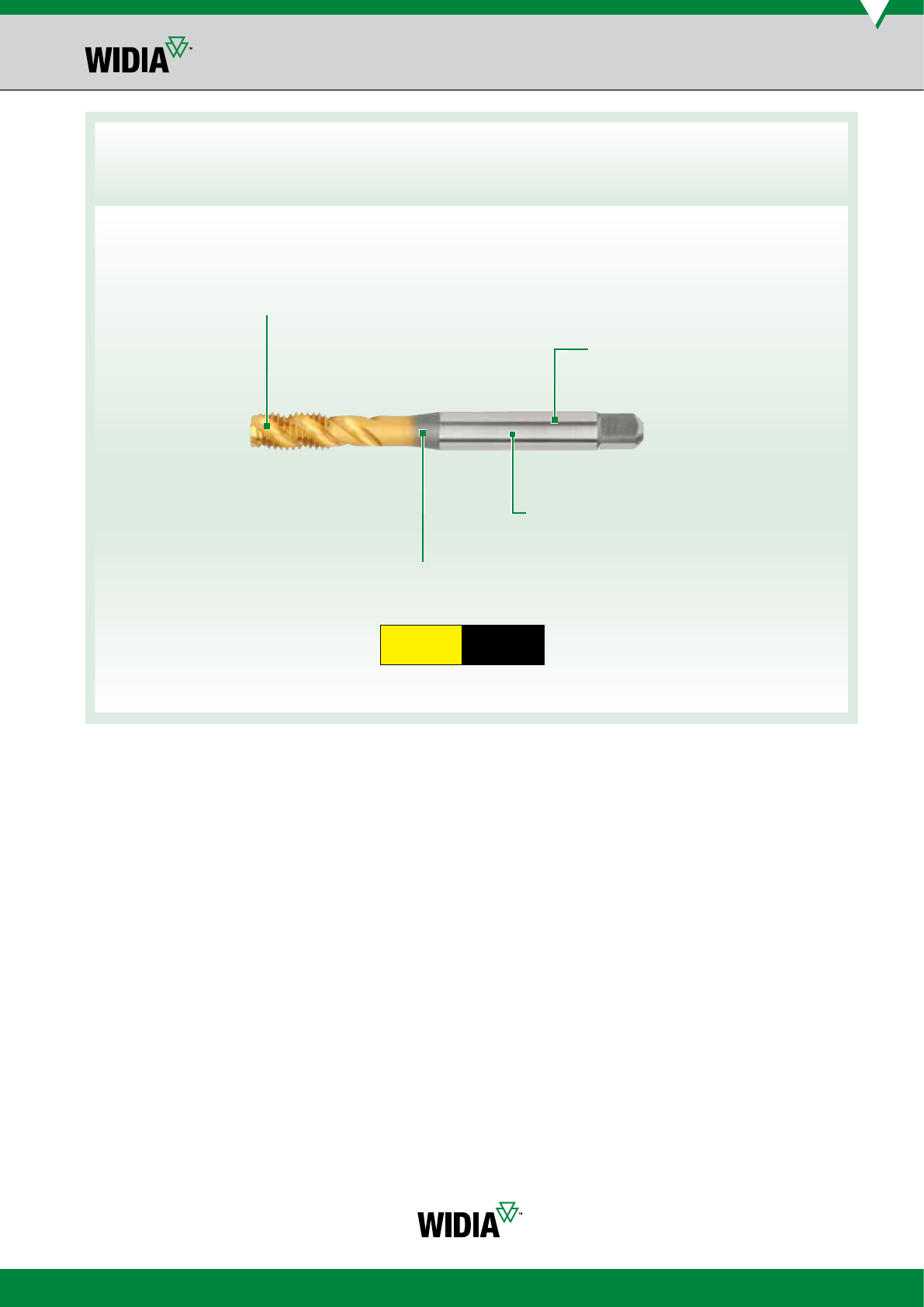

Tapping ...............................................................................................................................................................144–154

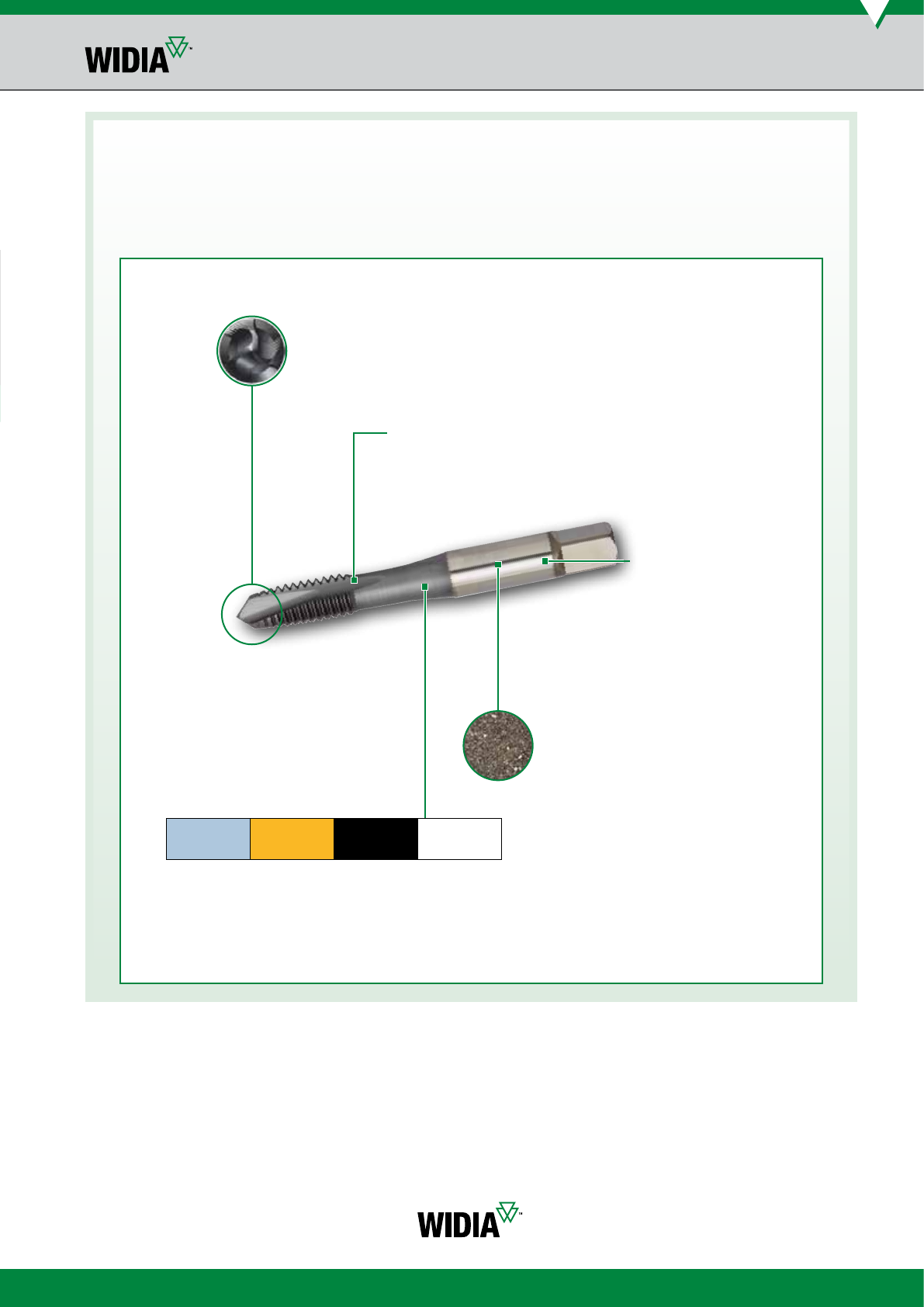

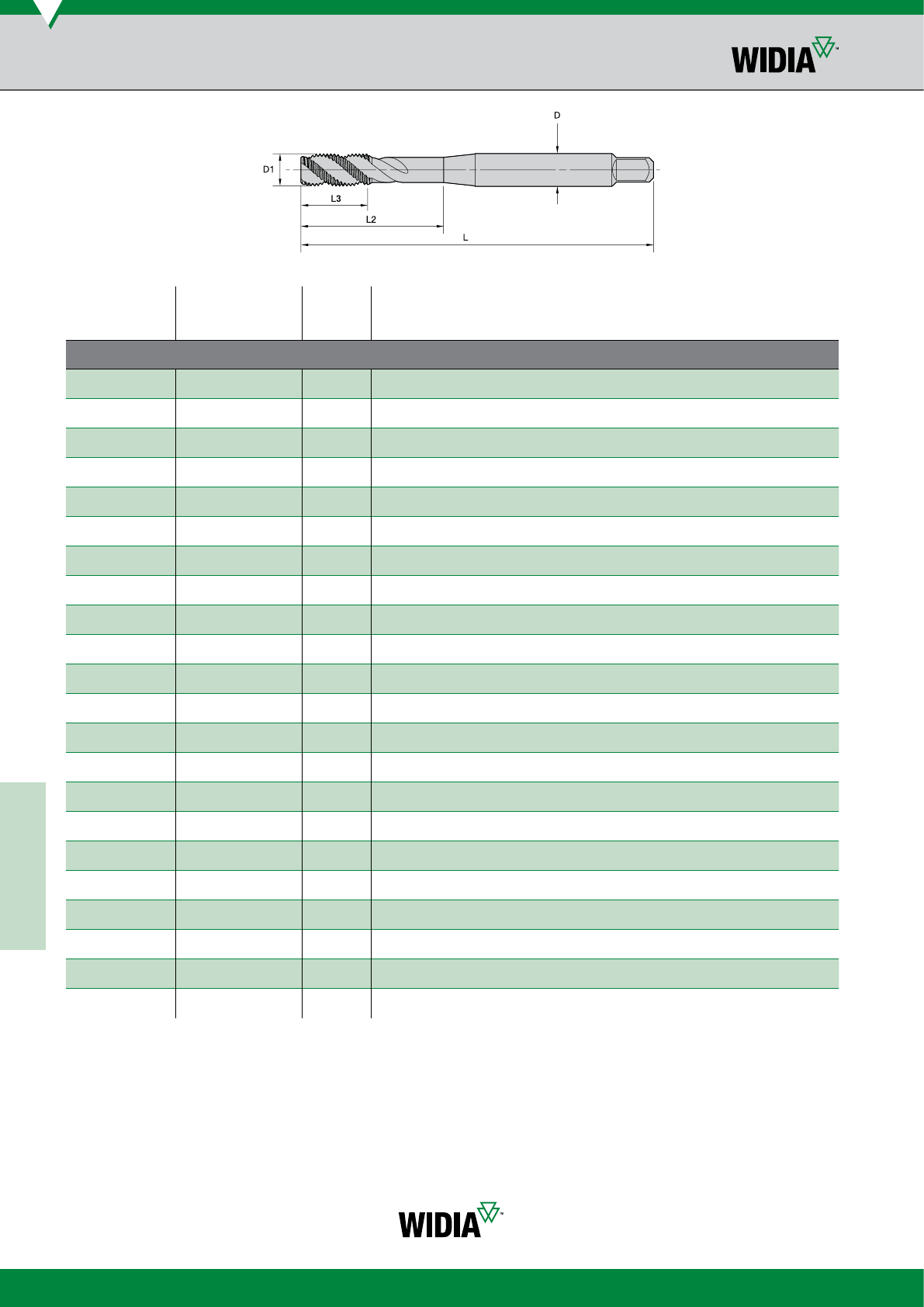

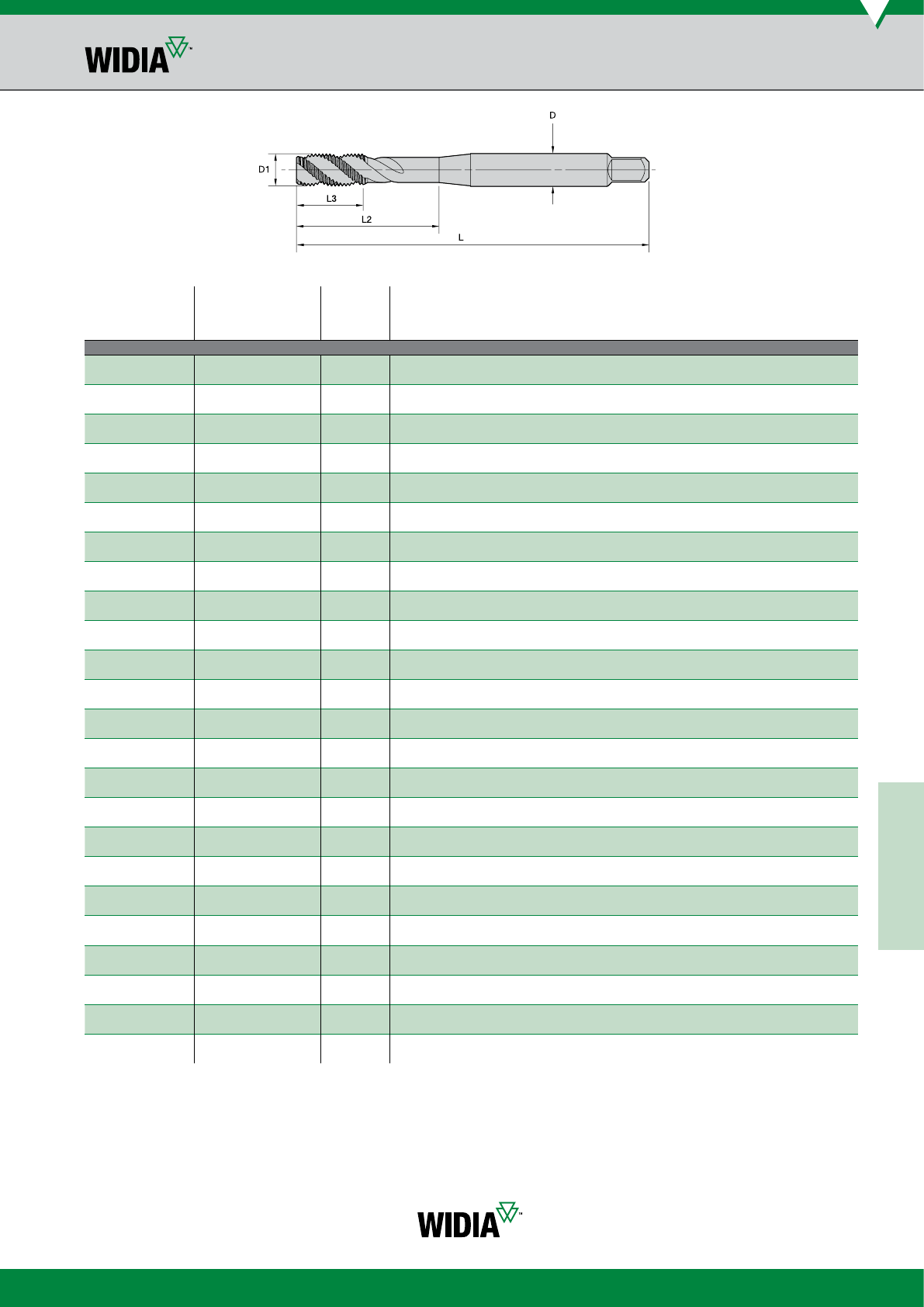

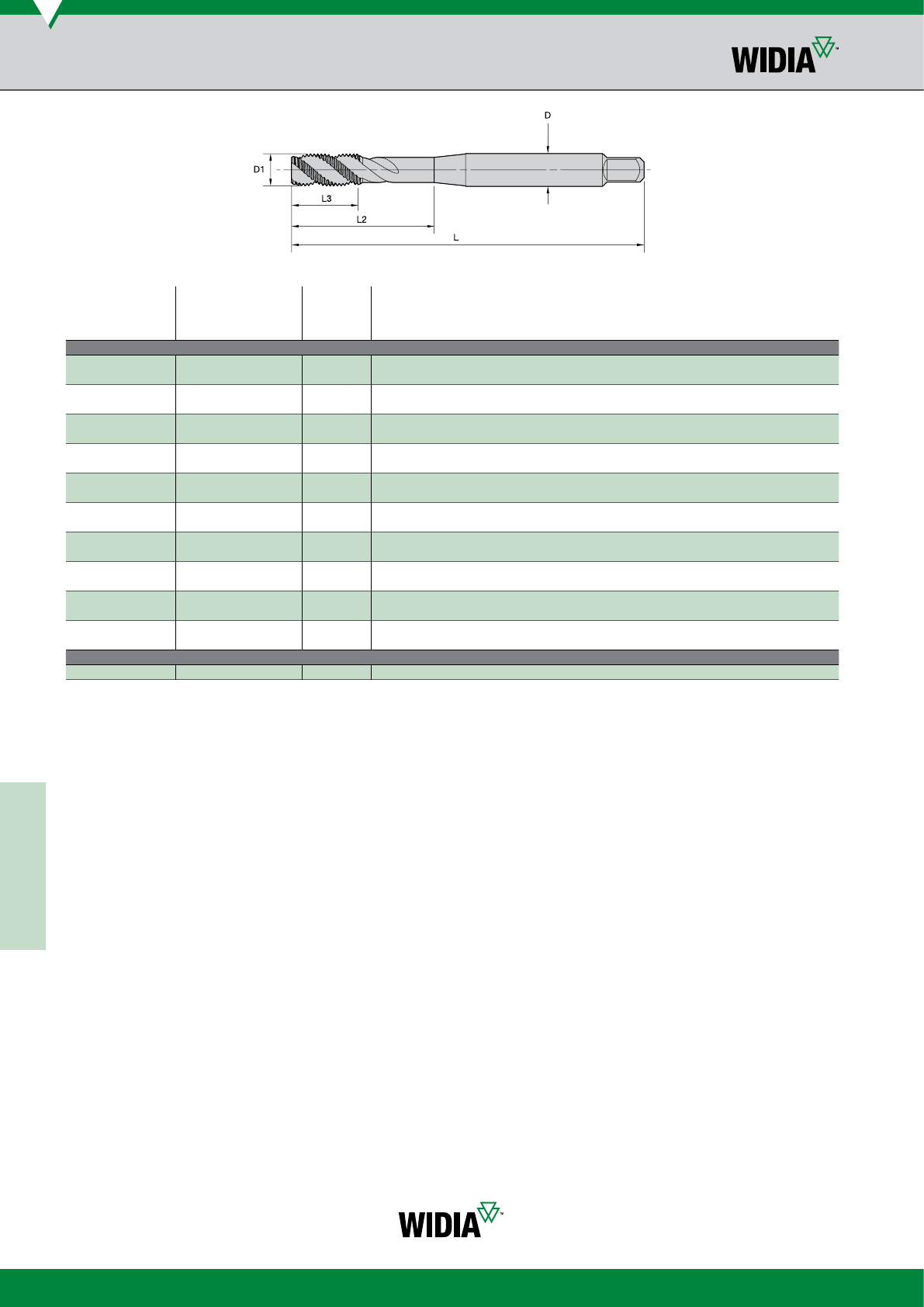

VariTap ...................................................................................................................................................144–154
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
2 widia.com

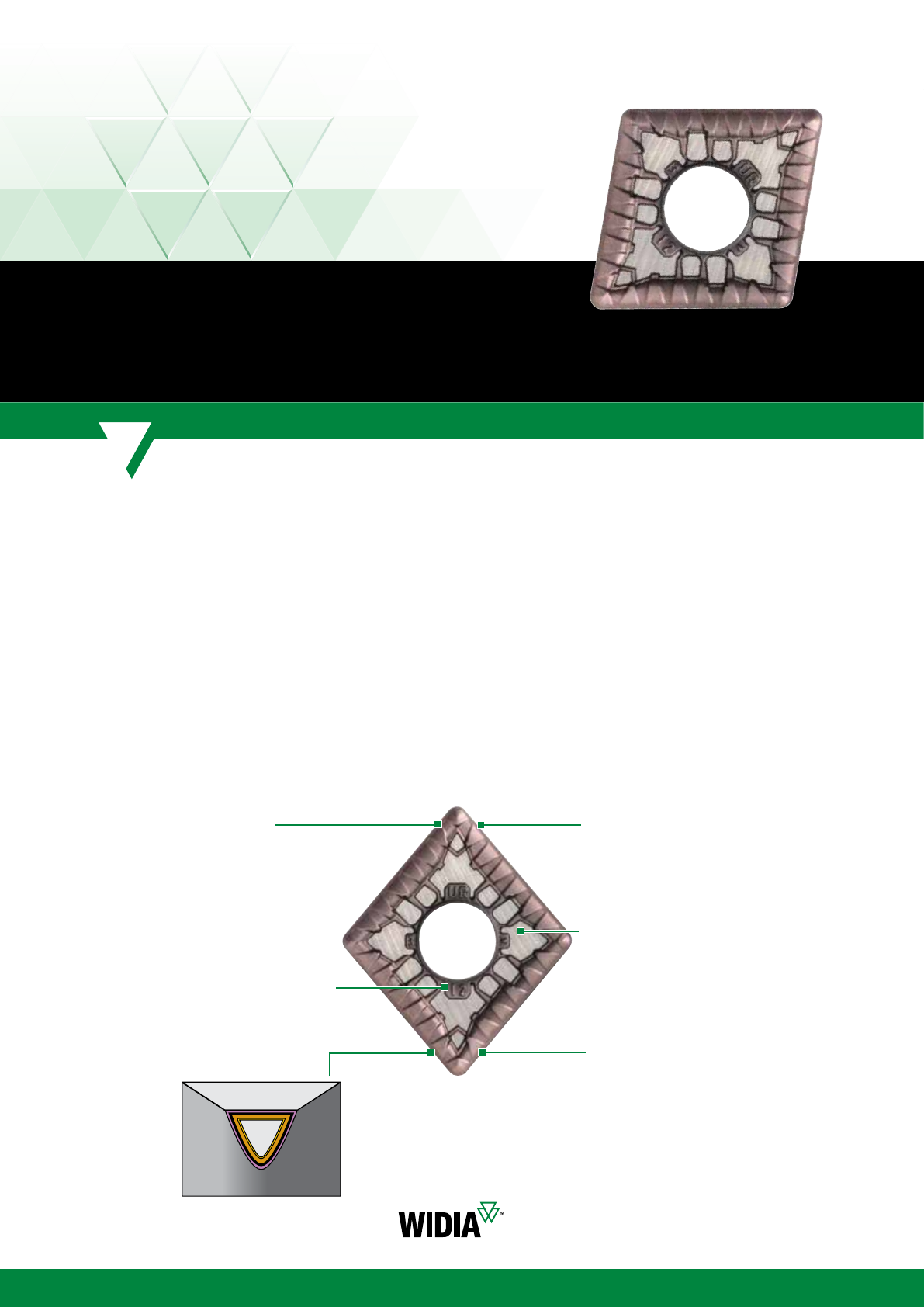

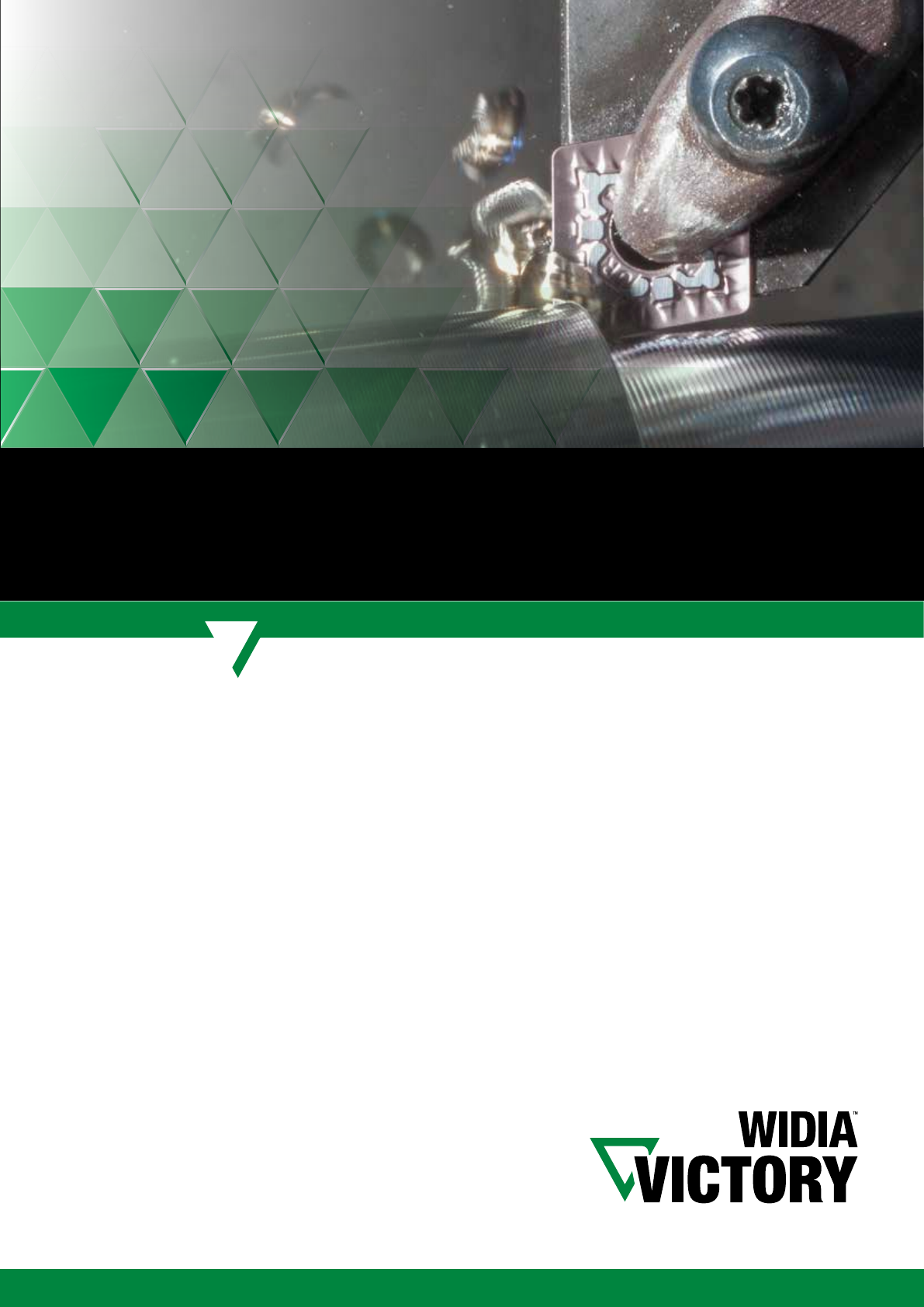

Steel and Stainless Steel Grades
• Reduced cycle times — high speed and feed capability.
• Long tool life — new multilayer coating provides better wear resistance.
• Proven seating — smooth and secure seating surface.
• Outer layer is bronze-colored for easier wear detection.
Post-coat treatment
• Improves edge toughness.
• Long, predictable tool life.
• Reduces depth-of-cut notching.
• Wide range of applications.
Improved edge toughness
• Provides smooth outer surface to reduce
forces, friction, and workpiece sticking.
Post-coat grinding
• Provides secure seating surface.
Alpha alumina layer
• Provides coating integrity at
elevated speeds.
• Higher productivity and dependability
at high cutting temperatures.
New geometry
identification system.
MT-CVD/CVD–TiN-TiCN-
AI2O3-ZrCN
Victory
A Complete High-Performance Turning Portfolio •
WIDIA™ Victory™
• Market-leading technology.
• Longer tool life.
• Higher productivity through increased speed capability.
Specifically engineered multilayer coating provides high-speed
capability for finishing to roughing operations. New geometries
enhance chip control for better tool life and superior surface finshes.
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
3
widia.com
Turning
Turning
Victory™ ISO Turning Inserts
(continued)
order
number
catalogue
number grade
CCMT-FP • Finishing Positive
4168778 CCMT060202FP WM25CT
4169857 CCMT060202FP WP15CT
4170140 CCMT060202FP WP25CT
4170032 CCMT060204FP WK20CT
4168779 CCMT060204FP WM25CT
4169858 CCMT060204FP WP15CT
4170141 CCMT060204FP WP25CT
5684337 CCMT060204FP WS10PT
5684340 CCMT060204FP WS25PT
4170084 CCMT09T304FP WK20CT
4168782 CCMT09T304FP WM25CT
4169860 CCMT09T304FP WP15CT
4170294 CCMT09T304FP WP25CT
5684341 CCMT09T304FP WS10PT
5684343 CCMT09T304FP WS25PT
4170085 CCMT09T308FP WK20CT
4168741 CCMT09T308FP WM15CT
4169861 CCMT09T308FP WP15CT
4170295 CCMT09T308FP WP25CT
5684338 CCMT09T308FP WS25PT
4170296 CCMT120404FP WP25CT
4170297 CCMT120408FP WP25CT
CCMT-MP • Medium Positive
4170237 CCMT060204MP WK20CT
4168906 CCMT060204MP WM25CT
4170197 CCMT060204MP WP15CT
4170217 CCMT060204MP WP25CT
4170218 CCMT09T304MP WP25CT
4170239 CCMT09T308MP WK20CT
4168908 CCMT09T308MP WM25CT
4170199 CCMT09T308MP WP15CT
4170219 CCMT09T308MP WP25CT
4168909 CCMT09T312MP WM25CT
4170240 CCMT120408MP WK20CT
4170221 CCMT120408MP WP25CT
4170241 CCMT120412MP WK20CT
4170222 CCMT120412MP WP25CT
CCMT-MU • Medium Universal
5623421 CCMT090304MU WM25CT
5623420 CCMT090304MU WP25CT
5623423 CCMT090308MU WM25CT
5623425 CCMT090308MU WP15CT
5623424 CCMT090308MU WP25CT
5623432 CCMT09T304MU WK20CT
5623427 CCMT09T304MU WM25CT
5623431 CCMT09T304MU WP15CT
5623430 CCMT09T304MU WP25CT
5623428 CCMT09T304MU WS10PT
5623426 CCMT09T304MU WS25PT
5623433 CCMT09T308MU WK20CT
5623435 CCMT09T308MU WM25CT
5623434 CCMT09T308MU WP15CT
5623436 CCMT09T308MU WP25CT
5623439 CCMT09T308MU WP35CT
5623438 CCMT09T308MU WS10PT
5623437 CCMT09T308MU WS25PT
5623441 CCMT120408MU WK20CT
5623442 CCMT120408MU WM25CT
5623443 CCMT120408MU WP25CT
CCMW • Medium Wiper
4170369 CCMW090304 WK20CT
4170370 CCMW090308 WK20CT
4170371 CCMW09T304 WK20CT
order
number
catalogue
number grade
CNGG-FS • Finishing Sharp
5548576 CNGG120401FS WS10PT
5548575 CNGG120402FS WS10PT
5548577 CNGG120404FS WS10PT
5538204 CNGG120404FS WS25PT
5548578 CNGG120408FS WS10PT
CNGP • Medium Machining
5549137 CNGP120401 WS10PT
5549207 CNGP120404 WU10HT
5549139 CNGP120404 WS10PT
5549208 CNGP120408 WU10HT
5549190 CNGP120408 WS10PT
CNMA • Roughing
4171596 CNMA120408 WK05CT
4171864 CNMA120408 WK20CT
4171865 CNMA120412 WK20CT
4171866 CNMA120416 WK20CT
4171868 CNMA160612 WK20CT
4171869 CNMA160616 WK20CT
4171871 CNMA190612 WK20CT
4171872 CNMA190616 WK20CT
CNMG-ML • Medium Light
4171390 CNMG120404ML WK20CT
4171059 CNMG120404ML WP15CT
4170458 CNMG120404ML WP25CT
4171658 CNMG120408ML WK05CT
4171391 CNMG120408ML WK20CT
4171060 CNMG120408ML WP15CT
4170459 CNMG120408ML WP25CT
4171392 CNMG120412ML WK20CT
4170460 CNMG120412ML WP25CT
CNMG-MR • Medium Roughing
4170546 CNMG120404MR WP25CT
4170043 CNMG120404MR WP35CT
4172955 CNMG120408MR WM25CT
4171131 CNMG120408MR WP15CT
4170547 CNMG120408MR WP25CT
4170044 CNMG120408MR WP35CT
4171132 CNMG120412MR WP15CT
4170548 CNMG120412MR WP25CT
4170045 CNMG120412MR WP35CT
4170549 CNMG160608MR WP25CT
4171135 CNMG160612MR WP15CT
4170550 CNMG160612MR WP25CT
4171136 CNMG160616MR WP15CT
4172961 CNMG190612MR WM25CT
4170552 CNMG190612MR WP25CT
4172962 CNMG190616MR WM25CT
4170563 CNMG190616MR WP25CT
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
4 widia.com
order
number
catalogue
number grade
CNMG-MS • Medium Sharp
5908742 CNMG120404MS WS10PT
5908743 CNMG120404MS WS25PT
5908745 CNMG120408MS WS10PT
5908746 CNMG120408MS WS25PT
5908748 CNMG120412MS WS10PT
5908749 CNMG120412MS WS25PT
5908754 CNMG160608MS WS10PT
5908755 CNMG160608MS WS25PT
5908759 CNMG160612MS WU10HT
5908757 CNMG160612MS WS10PT
5908758 CNMG160612MS WS25PT
5908762 CNMG190608MS WU10HT
5908761 CNMG190608MS WS25PT
5908764 CNMG190612MS WS25PT
CNMG-RH • Roughing Heavy
4171903 CNMG120408RH WK20CT
4173035 CNMG120408RH WM25CT
4170979 CNMG120408RH WP15CT
4171504 CNMG120408RH WP25CT
5684356 CNMG120408RH WP35CT
4171904 CNMG120412RH WK20CT
4173036 CNMG120412RH WM25CT
4170980 CNMG120412RH WP15CT
4171505 CNMG120412RH WP25CT
4171698 CNMG120412RH WP35CT
4171905 CNMG120416RH WK20CT
4170981 CNMG120416RH WP15CT
4171699 CNMG120416RH WP35CT
4171906 CNMG160608RH WK20CT
4173038 CNMG160608RH WM25CT
4170982 CNMG160608RH WP15CT
4171507 CNMG160608RH WP25CT
4171700 CNMG160608RH WP35CT
4171907 CNMG160612RH WK20CT
4170983 CNMG160612RH WP15CT
4171508 CNMG160612RH WP25CT
4171701 CNMG160612RH WP35CT
4171908 CNMG160616RH WK20CT
4170984 CNMG160616RH WP15CT
4171509 CNMG160616RH WP25CT
4171702 CNMG160616RH WP35CT
4171510 CNMG190608RH WP25CT
4171703 CNMG190608RH WP35CT
4171910 CNMG190612RH WK20CT
4173042 CNMG190612RH WM25CT
4170986 CNMG190612RH WP15CT
4171511 CNMG190612RH WP25CT
4171704 CNMG190612RH WP35CT
4171911 CNMG190616RH WK20CT
4173043 CNMG190616RH WM25CT
4171512 CNMG190616RH WP25CT
4171705 CNMG190616RH WP35CT
4171523 CNMG190624RH WP25CT
CNMG-UF • Universal Finishing
4169353 CNMG120404UF WM15CT
5645600 CNMG120404UF WS10PT
4169354 CNMG120408UF WM15CT
5645588 CNMG120408UF WS10PT
CNMG-UM • Universal Medium
4172380 CNMG120404UM WM25CT
4172335 CNMG120408UM WM15CT
4172381 CNMG120408UM WM25CT
4172411 CNMG120408UM WM35CT
5645219 CNMG120408UM WP25CT
4172382 CNMG120412UM WM25CT
order
number
catalogue
number grade
CNMG-UR • Universal Roughing
4169444 CNMG120404UR WM25CT
4170500 CNMG120404UR WP25CT
5680085 CNMG120408UR WK20CT
4169407 CNMG120408UR WM15CT
4169445 CNMG120408UR WM25CT
4169480 CNMG120408UR WM35CT
4171093 CNMG120408UR WP15CT
4170501 CNMG120408UR WP25CT
4169960 CNMG120408UR WP35CT
5301400 CNMG120408UR WS10PT
5301402 CNMG120408UR WS25PT
4171419 CNMG120412UR WK20CT
4169446 CNMG120412UR WM25CT
4169481 CNMG120412UR WM35CT
4171094 CNMG120412UR WP15CT
4170502 CNMG120412UR WP25CT
4169961 CNMG120412UR WP35CT
5301413 CNMG120412UR WS10PT
5301416 CNMG120412UR WS25PT
4169447 CNMG120416UR WM25CT
5680170 CNMG120416UR WS25PT
4169448 CNMG160608UR WM25CT
4170504 CNMG160608UR WP25CT
4171422 CNMG160612UR WK20CT
4169449 CNMG160612UR WM25CT
4170505 CNMG160612UR WP25CT
4171423 CNMG160616UR WK20CT
4169450 CNMG160616UR WM25CT
4169485 CNMG160616UR WM35CT
4171098 CNMG160616UR WP15CT
4170506 CNMG160616UR WP25CT
5578901 CNMG160616UR WS25PT
4169451 CNMG190612UR WM25CT
4170507 CNMG190612UR WP25CT
4169964 CNMG190612UR WP35CT
5512536 CNMG190612UR WS25PT
4169487 CNMG190616UR WM35CT
5579234 CNMG190616UR WS25PT
CNMM-65 • Single Sided • Roughing
5698347 CNMM12040865 WM25CT
5698348 CNMM12040865 WP15CT
5698349 CNMM12040865 WP25CT
5698360 CNMM12040865 WP35CT
5698362 CNMM12041265 WP15CT
5698368 CNMM16061265 WM25CT
5698370 CNMM16061265 WP25CT
5698374 CNMM19061265 WM25CT
5491016 CNMM19061265 WP25CT
5698376 CNMM19061265 WP35CT
5698377 CNMM19061665 WM25CT
5698378 CNMM19061665 WP15CT
5698410 CNMM19062465 WP15CT
5698411 CNMM19062465 WP25CT
CNMM-8 • Single Sided • Heavy Roughing
5418451 CNMM1906168 WP25CT
(Victory ISO Turning Inserts — continued)
Turning
Victory™ ISO Turning Inserts
Turning
(continued)
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
5
widia.com
order
number
catalogue
number grade
CNMM-SR • Single Sided • Super Roughing
5696642 CNMM190616SR WM25CT
5696643 CNMM190616SR WP15CT
5696644 CNMM190624SR WP35CT
5696645 CNMM250924SR WP15CT
5696646 CNMM250924SR WP25CT
5696647 CNMM250924SR WP35CT
CNMP • Sharp Machining
4173552 CNMP120404 WM25CT
4172439 CNMP120404 WS10PT
4173653 CNMP120408 WM25CT
4172440 CNMP120408 WS10PT
4172614 CNMP120408 WS25PT
DCMT-FP • Finishing Positive
4170300 DCMT070204FP WP25CT
4168790 DCMT11T302FP WM25CT
4170302 DCMT11T302FP WP25CT
4168765 DCMT11T304FP WM15CT
4168791 DCMT11T304FP WM25CT
4169997 DCMT11T304FP WP15CT
4170303 DCMT11T304FP WP25CT
4168792 DCMT11T308FP WM25CT
4169998 DCMT11T308FP WP15CT
4170304 DCMT11T308FP WP25CT
4170306 DCMT150404FP WP25CT
4170001 DCMT150408FP WP15CT
4170307 DCMT150408FP WP25CT
DCMT-MP • Medium Positive
4170242 DCMT11T304MP WK20CT
4170201 DCMT11T304MP WP15CT
4170223 DCMT11T304MP WP25CT
4170243 DCMT11T308MP WK20CT
4168912 DCMT11T308MP WM25CT
4170202 DCMT11T308MP WP15CT
4170224 DCMT11T308MP WP25CT
4170213 DCMT11T312MP WP15CT
DCMT-MU • Medium Universal
5623587 DCMT11T304MU WK20CT
5623581 DCMT11T304MU WM25CT
5623585 DCMT11T304MU WP15CT
5623583 DCMT11T304MU WP25CT
5623582 DCMT11T304MU WS10PT
5623584 DCMT11T304MU WS25PT
5623589 DCMT11T308MU WK20CT
5623588 DCMT11T308MU WM25CT
5623600 DCMT11T308MU WP15CT
6128278 DCMT11T308MU WP25CT
5623601 DCMT11T308MU WS10PT
5623603 DCMT11T308MU WS25PT
5623604 DCMT150408MU WM25CT
5623608 DCMT150408MU WP25CT
5623610 DCMT150408MU WS25PT
6128283 DCMT150412MU WP25CT
DNGG-FS • Finishing Sharp
5548678 DNGG150604FS WS10PT
5548679 DNGG150608FS WS10PT
DNMA • Roughing
4171873 DNMA110408 WK20CT
4171874 DNMA110412 WK20CT
4171637 DNMA150608 WK05CT
4171878 DNMA150608 WK20CT
4171879 DNMA150612 WK20CT
4171880 DNMA150616 WK20CT
order
number
catalogue
number grade
DNMG-ML • Medium Light
4171394 DNMG110404ML WK20CT
4171062 DNMG110404ML WP15CT
4170461 DNMG110404ML WP25CT
4171068 DNMG150604ML WP15CT
4170485 DNMG150604ML WP25CT
4171400 DNMG150608ML WK20CT
4171069 DNMG150608ML WP15CT
4170486 DNMG150608ML WP25CT
4171070 DNMG150612ML WP15CT
4170487 DNMG150612ML WP25CT
DNMG-MR • Medium Roughing
4170568 DNMG150604MR WP25CT
4173023 DNMG150608MR WM25CT
4171144 DNMG150608MR WP15CT
4170569 DNMG150608MR WP25CT
4171145 DNMG150612MR WP15CT
DNMG-MS • Medium Sharp
5908792 DNMG150604MS WS10PT
5908793 DNMG150604MS WS25PT
5908795 DNMG150608MS WS10PT
5908796 DNMG150608MS WS25PT
5908799 DNMG150612MS WS25PT
DNMG-RH • Roughing Heavy
4171524 DNMG150408RH WP25CT
4171914 DNMG150608RH WK20CT
4170991 DNMG150608RH WP15CT
4171526 DNMG150608RH WP25CT
4171709 DNMG150608RH WP35CT
4171915 DNMG150612RH WK20CT
4170992 DNMG150612RH WP15CT
4171527 DNMG150612RH WP25CT
4171710 DNMG150612RH WP35CT
DNMG-UF • Universal Finishing
4169361 DNMG150604UF WM15CT
4169387 DNMG150604UF WM25CT
4169362 DNMG150608UF WM15CT
DNMG-UM • Universal Medium
4172383 DNMG110404UM WM25CT
4172389 DNMG150604UM WM25CT
4172390 DNMG150608UM WM25CT
4172391 DNMG150612UM WM25CT
DNMG-UR • Universal Roughing
4169488 DNMG110408UR WM35CT
4170509 DNMG110408UR WP25CT
4171431 DNMG150608UR WK20CT
4169427 DNMG150608UR WM15CT
4169456 DNMG150608UR WM25CT
4169492 DNMG150608UR WM35CT
4171105 DNMG150608UR WP15CT
4170513 DNMG150608UR WP25CT
4169969 DNMG150608UR WP35CT
5579276 DNMG150608UR WS25PT
5680172 DNMG150612UR WK05CT
4171432 DNMG150612UR WK20CT
4169428 DNMG150612UR WM15CT
4171106 DNMG150612UR WP15CT
4170514 DNMG150612UR WP25CT
4169494 DNMG150616UR WM35CT
4171107 DNMG150616UR WP15CT
(Victory ISO Turning Inserts — continued)
Turning
Victory™ ISO Turning Inserts
Turning
(continued)
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
6 widia.com
order
number
catalogue
number grade
DNMM-65 • Single Sided • Roughing
5698413 DNMM15060865 WP15CT
5698414 DNMM15060865 WP25CT
5698415 DNMM15060865 WP35CT
5494773 DNMM15061265 WP25CT
RCMT
4170478 RCMT0602M0 WK20CT
4169975 RCMT0602M0 WP15CT
4170536 RCMT0602M0 WP25CT
4170479 RCMT0803M0 WK20CT
4169976 RCMT0803M0 WP15CT
4170537 RCMT0803M0 WP25CT
4170480 RCMT10T3M0 WK20CT
4169977 RCMT10T3M0 WP15CT
4170538 RCMT10T3M0 WP25CT
4170752 RCMT10T3M0 WP35CT
4170481 RCMT1204M0 WK20CT
4169978 RCMT1204M0 WP15CT
4170539 RCMT1204M0 WP25CT
4170803 RCMT1204M0 WP35CT
4170482 RCMT1606M0 WK20CT
4169979 RCMT1606M0 WP15CT
4170804 RCMT1606M0 WP35CT
RCMX
4170543 RCMX2006M0T WK20CT
4169980 RCMX2006M0T WP15CT
4170541 RCMX2006M0T WP25CT
4170805 RCMX2006M0T WP35CT
RNMA • Roughing
4171881 RNMA120400 WK20CT
RNMG-RH • Roughing Heavy
4170996 RNMG120400RH WP15CT
SCMT-FP • Finishing Positive
4170309 SCMT09T308FP WP25CT
4170311 SCMT120408FP WP25CT
SCMT-MP • Medium Positive
4170245 SCMT09T308MP WK20CT
4170227 SCMT09T308MP WP25CT
4170247 SCMT120408MP WK20CT
4170215 SCMT120408MP WP15CT
4170229 SCMT120408MP WP25CT
4168917 SCMT120412MP WM25CT
4170230 SCMT120412MP WP25CT
SCMT-MU • Medium Universal
5623447 SCMT09T304MU WM25CT
5623449 SCMT09T308MU WK20CT
5623448 SCMT09T308MU WM25CT
5623464 SCMT09T308MU WP25CT
5623462 SCMT09T308MU WP35CT
5623460 SCMT09T308MU WS10PT
SCMW • Medium Wiper
4170380 SCMW120408 WK20CT
SNGG-FS • Finishing Sharp
5549997 SNGG120408FS WU10HT
SNMA • Roughing
4171882 SNMA120408 WK20CT
4171883 SNMA120412 WK20CT
4171885 SNMA150608 WK20CT
4171889 SNMA190616 WK20CT
SNMG-ML • Medium Light
4171403 SNMG120404ML WK20CT
4171404 SNMG120408ML WK20CT
4170489 SNMG120408ML WP25CT
4171074 SNMG120412ML WP15CT
4170490 SNMG120412ML WP25CT
order
number
catalogue
number grade
SNMG-MR • Medium Roughing
4171146 SNMG120408MR WP15CT
4170571 SNMG120408MR WP25CT
4170057 SNMG120408MR WP35CT
5684355 SNMG120412MR WP25CT
4173029 SNMG150612MR WM25CT
4171147 SNMG150612MR WP15CT
4170572 SNMG190612MR WP25CT
SNMG-MS • Medium Sharp
5908847 SNMG120408MS WS10PT
5908848 SNMG120408MS WS25PT
5908922 SNMG120412MS WU10HT
5908850 SNMG120412MS WS10PT
SNMG-RH • Roughing Heavy
4171918 SNMG120408RH WK20CT
4170998 SNMG120408RH WP15CT
4171533 SNMG120408RH WP25CT
4171715 SNMG120408RH WP35CT
4171919 SNMG120412RH WK20CT
4170999 SNMG120412RH WP15CT
4171534 SNMG120412RH WP25CT
4171716 SNMG120412RH WP35CT
4171535 SNMG120416RH WP25CT
4171921 SNMG150608RH WK20CT
4171001 SNMG150608RH WP15CT
4171536 SNMG150608RH WP25CT
4171922 SNMG150612RH WK20CT
4171002 SNMG150612RH WP15CT
4171537 SNMG150612RH WP25CT
4171923 SNMG150616RH WK20CT
4171003 SNMG150616RH WP15CT
4171538 SNMG150616RH WP25CT
4171720 SNMG150616RH WP35CT
4171925 SNMG190612RH WK20CT
4173056 SNMG190612RH WM25CT
4171005 SNMG190612RH WP15CT
4171540 SNMG190612RH WP25CT
4171722 SNMG190612RH WP35CT
4171926 SNMG190616RH WK20CT
SNMG-UF • Universal Finishing
5645610 SNMG120404UF WS10PT
SNMG-UM • Universal Medium
4172393 SNMG120404UM WM25CT
4172394 SNMG120408UM WM25CT
4172424 SNMG120408UM WM35CT
4172395 SNMG120412UM WM25CT
4172425 SNMG120412UM WM35CT
(Victory ISO Turning Inserts — continued)
Turning
Victory™ ISO Turning Inserts
Turning
(continued)
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
7
widia.com
order
number
catalogue
number grade
SNMG-UR • Universal Roughing
4171434 SNMG120408UR WK20CT
4169458 SNMG120408UR WM25CT
4171108 SNMG120408UR WP15CT
4170516 SNMG120408UR WP25CT
4169989 SNMG120408UR WP35CT
4169459 SNMG120412UR WM25CT
4171109 SNMG120412UR WP15CT
4170517 SNMG120412UR WP25CT
4169990 SNMG120412UR WP35CT
4169460 SNMG120416UR WM25CT
5680173 SNMG120416UR WS25PT
4171437 SNMG150612UR WK20CT
4169461 SNMG150612UR WM25CT
4170518 SNMG150612UR WP25CT
4169991 SNMG150612UR WP35CT
4171112 SNMG150616UR WP15CT
4170519 SNMG150616UR WP25CT
4171439 SNMG190612UR WK20CT
4169500 SNMG190612UR WM35CT
4170520 SNMG190612UR WP25CT
4169464 SNMG190616UR WM25CT
SNMM-65 • Single Sided • Roughing
5696553 SNMM12040865 WM25CT
5696554 SNMM12040865 WP25CT
5696555 SNMM12040865 WP35CT
5696557 SNMM12041265 WP25CT
5696615 SNMM19061665 WP15CT
SNMM-8 • Single Sided • Heavy Roughing
6128309 SNMM1906168 WP25CT
5429112 SNMM2507248 WP15CT
5429111 SNMM2507248 WP25CT
5370813 SNMM2507248 WP35CT
SNMM-SR • Single Sided • Super Roughing
5696648 SNMM190616SR WM25CT
5478876 SNMM190616SR WP15CT
5478877 SNMM190616SR WP25CT
5429119 SNMM250724SR WP25CT
5946214 SNMM250724SR WP35CT
5402173 SNMM250924SR WM25CT
5382277 SNMM250924SR WP15CT
5382390 SNMM250924SR WP25CT
5373074 SNMM250924SR WP35CT
TCMT-FP • Finishing Positive
4168800 TCMT110202FP WM25CT
4168801 TCMT110204FP WM25CT
4170006 TCMT110204FP WP15CT
4170313 TCMT110204FP WP25CT
4170008 TCMT16T304FP WP15CT
4170315 TCMT16T304FP WP25CT
4170100 TCMT16T308FP WK20CT
4170316 TCMT16T308FP WP25CT
TCMT-MP • Medium Positive
4170232 TCMT16T304MP WP25CT
4170251 TCMT16T308MP WK20CT
4168919 TCMT16T308MP WM25CT
4170216 TCMT16T308MP WP15CT
4170233 TCMT16T308MP WP25CT
4170252 TCMT16T312MP WK20CT
TCMT-MU • Medium Universal
5623616 TCMT16T304MU WK20CT
5623613 TCMT16T304MU WM25CT
5623614 TCMT16T304MU WP15CT
5623615 TCMT16T304MU WP25CT
5623617 TCMT16T304MU WS25PT
5623618 TCMT16T308MU WK20CT
5623619 TCMT16T308MU WM25CT
5623621 TCMT16T308MU WP15CT
5623620 TCMT16T308MU WP25CT
5623622 TCMT16T308MU WS10PT
order
number
catalogue
number grade
TNGG-FS • Finishing Sharp
5538231 TNGG160404FS WS25PT
TNMA • Roughing
4171890 TNMA160408 WK20CT
4171894 TNMA220412 WK20CT
4171895 TNMA220416 WK20CT
TNMG-ML • Medium Light
4171075 TNMG160404ML WP15CT
4170491 TNMG160404ML WP25CT
4171410 TNMG160408ML WK20CT
4171076 TNMG160408ML WP15CT
4170492 TNMG160408ML WP25CT
4171077 TNMG160412ML WP15CT
TNMG-MR • Medium Roughing
4171150 TNMG160404MR WP15CT
4170573 TNMG160404MR WP25CT
4171151 TNMG160408MR WP15CT
4170574 TNMG160408MR WP25CT
4171152 TNMG160412MR WP15CT
TNMG-MS • Medium Sharp
5908928 TNMG160404MS WS25PT
5908930 TNMG160408MS WS10PT
5908931 TNMG160408MS WS25PT
TNMG-RH • Roughing Heavy
4171927 TNMG160408RH WK20CT
4171007 TNMG160408RH WP15CT
4171542 TNMG160408RH WP25CT
4171725 TNMG160412RH WP35CT
TNMG-UF • Universal Finishing
5432605 TNMG160404UF WS10PT
TNMG-UM • Universal Medium
5550226 TNMG160404UM WS10PT
4172397 TNMG160408UM WM25CT
TNMG-UR • Universal Roughing
4171441 TNMG160408UR WK20CT
4169465 TNMG160408UR WM25CT
4171115 TNMG160408UR WP15CT
4170522 TNMG160408UR WP25CT
5579395 TNMG160408UR WS25PT
4169466 TNMG160412UR WM25CT
4169502 TNMG160412UR WM35CT
4170523 TNMG160412UR WP25CT
5680175 TNMG160412UR WS25PT
4171443 TNMG160416UR WK20CT
4171117 TNMG160416UR WP15CT
TNMM-65 • Single Sided • Roughing
5696619 TNMM16040865 WP35CT
5696621 TNMM22040865 WP15CT
5696622 TNMM22040865 WP25CT
5696623 TNMM22040865 WP35CT
VBMT-FP • Finishing Positive
4168809 VBMT160402FP WM25CT
4170321 VBMT160402FP WP25CT
4170103 VBMT160404FP WK20CT
4168776 VBMT160404FP WM15CT
4168810 VBMT160404FP WM25CT
4170013 VBMT160404FP WP15CT
4170322 VBMT160404FP WP25CT
4168811 VBMT160408FP WM25CT
4170014 VBMT160408FP WP15CT
4170323 VBMT160408FP WP25CT
(Victory ISO Turning Inserts — continued)
Turning
Victory™ ISO Turning Inserts
Turning
(continued)
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
8 widia.com
order
number
catalogue
number grade
VBMT • Medium
4169983 VBMT160404 WP15CT
4170553 VBMT160404 WP25CT
4170807 VBMT160404 WP35CT
4169984 VBMT160408 WP15CT
4170554 VBMT160408 WP25CT
4170808 VBMT160408 WP35CT
VBMT-MP • Medium Positive
4168921 VBMT160404MP WM25CT
4170235 VBMT160404MP WP25CT
4170254 VBMT160408MP WK20CT
4168922 VBMT160408MP WM25CT
4170236 VBMT160408MP WP25CT
VNGG-FS • Finishing Sharp
5548684 VNGG160401FS WS10PT
5548683 VNGG160402FS WS10PT
VNMA • Roughing
4171897 VNMA160408 WK20CT
VNMG-ML • Medium Light
4171079 VNMG160404ML WP15CT
4170495 VNMG160404ML WP25CT
4171414 VNMG160408ML WK20CT
4170496 VNMG160408ML WP25CT
VNMG-MR • Medium Roughing
4171157 VNMG160408MR WP15CT
4170580 VNMG160408MR WP25CT
VNMG-MS • Medium Sharp
5908944 VNMG160404MS WS10PT
5908945 VNMG160404MS WS25PT
5908947 VNMG160408MS WS10PT
5908948 VNMG160408MS WS25PT
VNMG-UF • Universal Finishing
4169372 VNMG160404UF WM15CT
5645616 VNMG160404UF WS10PT
VNMG-UR • Universal Roughing
4171449 VNMG160408UR WK20CT
4169473 VNMG160408UR WM25CT
4170529 VNMG160408UR WP25CT
4171450 VNMG160412UR WK20CT
4169474 VNMG160412UR WM25CT
4170530 VNMG160412UR WP25CT
5680176 VNMG160412UR WS10PT
WNGG-FS • Finishing Sharp
5538234 WNGG080404FS WS25PT
5550004 WNGG080408FS WU10HT
5548688 WNGG080408FS WS10PT
5538235 WNGG080408FS WS25PT
WNMA • Roughing
4171654 WNMA080408 WK05CT
4171900 WNMA080408 WK20CT
4171655 WNMA080412 WK05CT
4171901 WNMA080412 WK20CT
WNMG-ML • Medium Light
4171678 WNMG080404ML WK05CT
4171417 WNMG080404ML WK20CT
4171083 WNMG080404ML WP15CT
4170498 WNMG080404ML WP25CT
4171679 WNMG080408ML WK05CT
4171418 WNMG080408ML WK20CT
4171084 WNMG080408ML WP15CT
4170499 WNMG080408ML WP25CT
WNMG-MR • Medium Roughing
4173033 WNMG080408MR WM25CT
4171158 WNMG080408MR WP15CT
4170581 WNMG080408MR WP25CT
4170067 WNMG080408MR WP35CT
4170582 WNMG080412MR WP25CT
4170068 WNMG080412MR WP35CT
order
number
catalogue
number grade
WNMG-MS • Medium Sharp
5908967 WNMG060408MS WS25PT
5908969 WNMG080404MS WS10PT
5908970 WNMG080404MS WS25PT
5908974 WNMG080408MS WU10HT
5908972 WNMG080408MS WS10PT
5908973 WNMG080408MS WS25PT
WNMG-RH • Roughing Heavy
4171932 WNMG080408RH WK20CT
4173064 WNMG080408RH WM25CT
4171019 WNMG080408RH WP15CT
4171554 WNMG080408RH WP25CT
4171736 WNMG080408RH WP35CT
4171933 WNMG080412RH WK20CT
4173065 WNMG080412RH WM25CT
4171020 WNMG080412RH WP15CT
4171555 WNMG080412RH WP25CT
4171737 WNMG080412RH WP35CT
4171556 WNMG080416RH WP25CT
WNMG-UF • Universal Finishing
5645619 WNMG080404UF WS10PT
5645623 WNMG080408UF WS10PT
4169378 WNMG080412UF WM15CT
WNMG-UM • Universal Medium
4172403 WNMG060404UM WM25CT
4172377 WNMG080404UM WM15CT
4172406 WNMG080404UM WM25CT
4172435 WNMG080404UM WM35CT
4172378 WNMG080408UM WM15CT
4172407 WNMG080408UM WM25CT
4172436 WNMG080408UM WM35CT
4172408 WNMG080412UM WM25CT
5645269 WNMG080412UM WS10PT
WNMG-UR • Universal Roughing
4169475 WNMG060408UR WM25CT
4171453 WNMG080408UR WK20CT
4169442 WNMG080408UR WM15CT
4169476 WNMG080408UR WM25CT
4169509 WNMG080408UR WM35CT
4171127 WNMG080408UR WP15CT
4170533 WNMG080408UR WP25CT
4170040 WNMG080408UR WP35CT
4171454 WNMG080412UR WK20CT
4169443 WNMG080412UR WM15CT
4169477 WNMG080412UR WM25CT
4169510 WNMG080412UR WM35CT
4171128 WNMG080412UR WP15CT
4170534 WNMG080412UR WP25CT
4170041 WNMG080412UR WP35CT
5579420 WNMG080412UR WS10PT
(Victory ISO Turning Inserts — continued)
Turning
Victory™ ISO Turning Inserts
Turning
(continued)
Language Version: 002_009_WID_All-Star19_Turning_Inserts October 1, 2018 11:35 AM
facebook.com/WIDIAProductGrp twitter.com/WIDIAProductGrp
youtube.com/WIDIASolutions
WIDIA™ Digital Solutions
PARTNER RESOURCES
PRODUCT DATA ELECTRONIC CATALOGUE
DOWNLOAD THE WIDIA MOBILE APPS TODAY!
Tools and Resources at Your Fingertips
WIDIA
Machining
Central
WIDIA
NOVO™
WIDIA
Partner
Central
WIDIA.COM
• Tooling Dimensional Data
• Feeds and Speeds
• Inventory Availability
• ...and More!
• Complete cutting tool assortment,
cutting data, and 2D/3D models.
• Build cutting tool assemblies for
easy import into CAD/CAM software,
pre-setters, and tool management
systems.
• News and updates about our products
and services.
• Partner Resources — training, product
sheets, marketing templates, campaign
collateral, emails, branding elements,
merchandise, upcoming webinars, etc.
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
10 widia.com
Whatever your operation requirements — from light finishing cuts at
very high cutting speeds to heavy roughing applications — there is a
WIDIA solution to meet your needs. The complete programme includes
toolholders for pin-, screw-, or clamp-type holding.

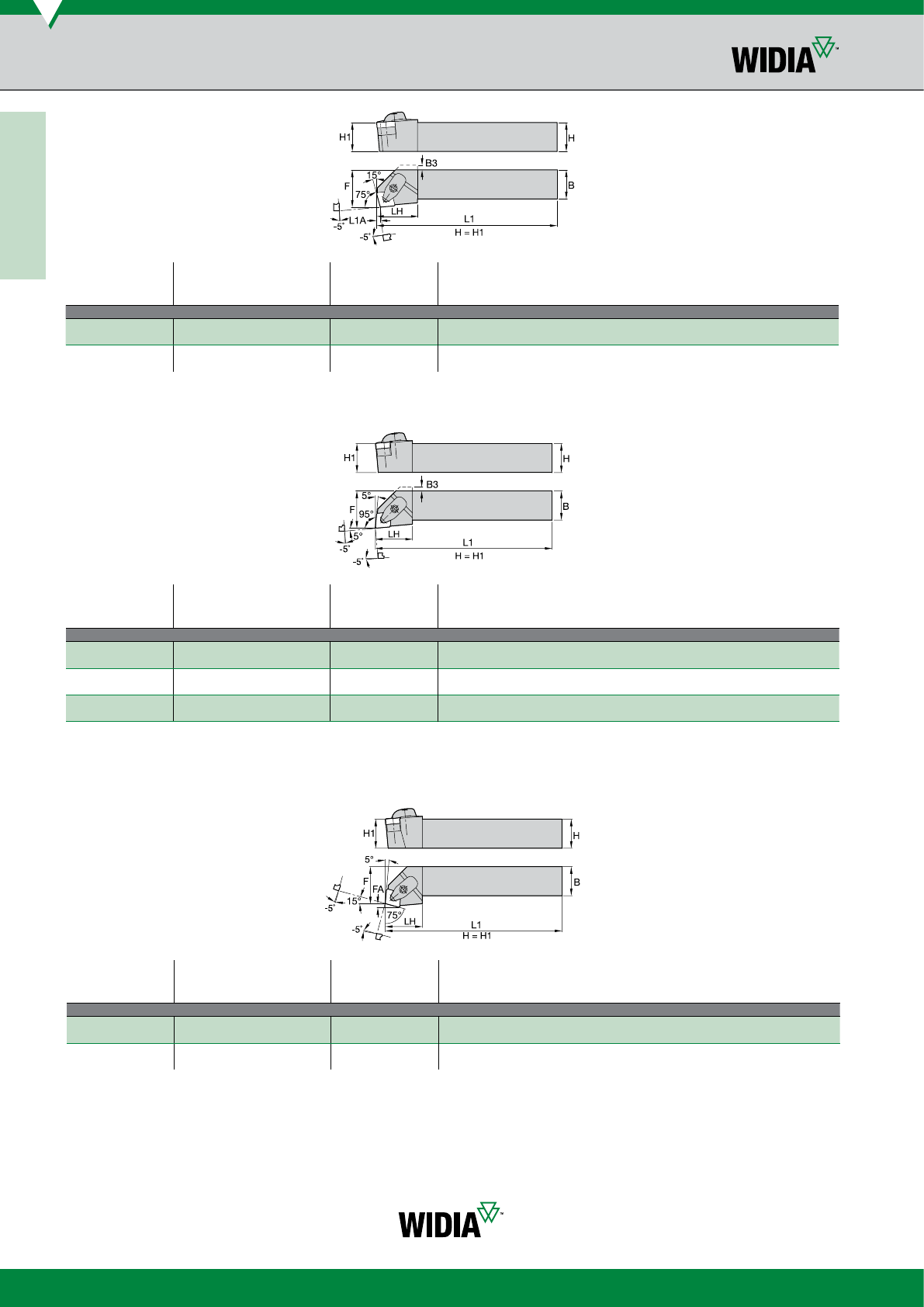

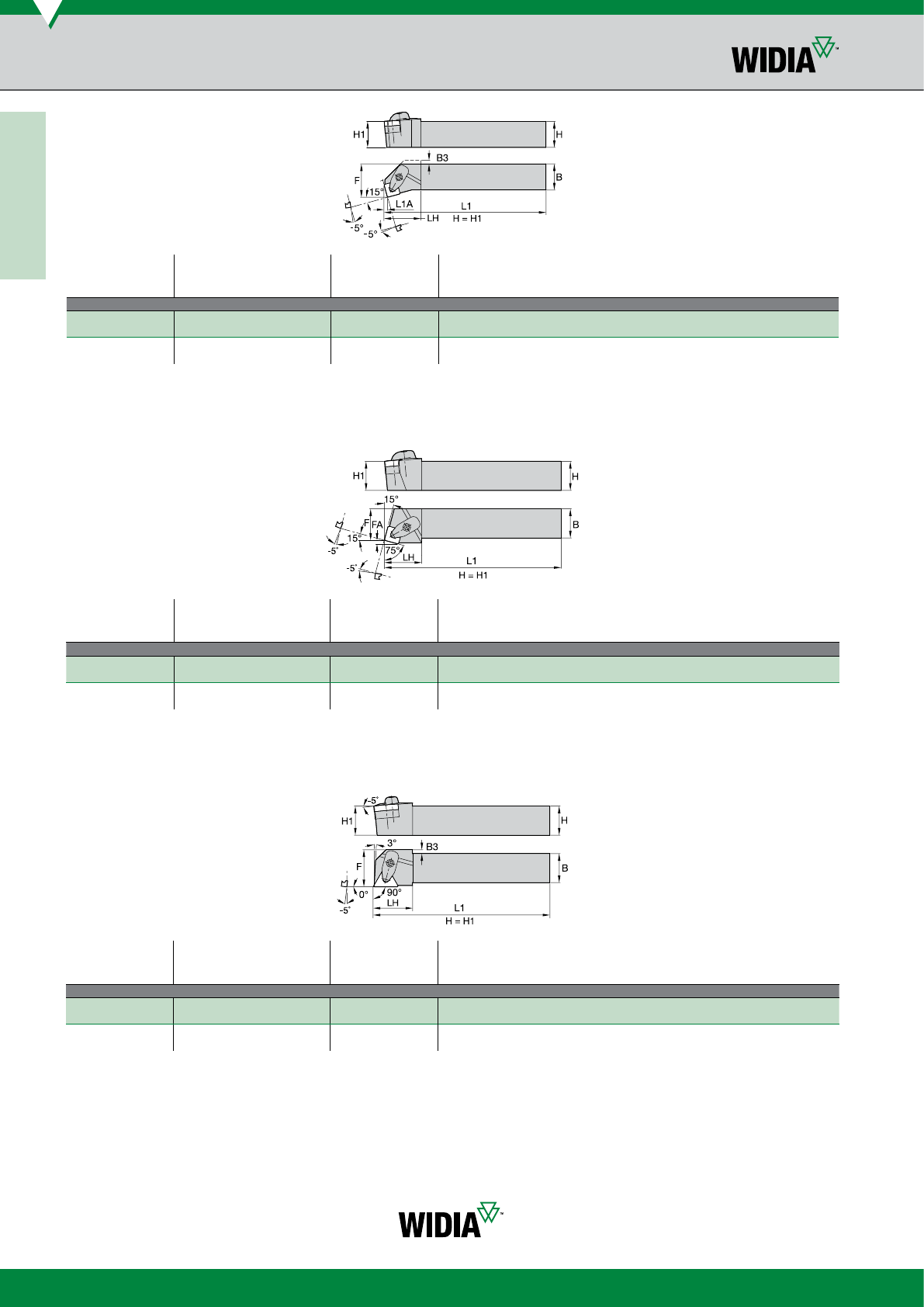

Tools for External Turning
Modern machining operations performed on CNC machine tools and
flexible production facilities require high-performance tools that provide
straightforward design and application versatility. WIDIA™ offers an extensive
range of toolholders for external turning to meet even the most exacting
production demands across a broad spectrum of workpiece shapes and sizes.
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
11
widia.com
D-Style Clamping
S-Style Clamping
• Used for negative style inserts.
• Clamp assembly contains clamp, screw,
and retaining ring.
• Quick insert indexing.
• Ensures insert repeatability and seating.
• Reduced chatter and extended tool life.
• Screw clamping system for positive
indexable inserts.
• Compact design for high reliability
and cost efficiency.
• Carbide shim for additional
tool protection.
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
12 widia.com
Turning
Toolholders
Turning
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DCKN 75°
right hand
5697857 DCKNR2525M12KC04 CN..120408 25 25 32,0 150 32,0 –
left hand
5697854 DCKNL2525M12KC04 CN..120408 25 25 32,0 150 32,0 –
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DCLN 95°
right hand
5697893 DCLNR2525M12KC04 CN..120408 25 25 32,0 150 32,0 –
5697894 DCLNR2525M16KC06 CN..160612 25 25 32,0 150 33,0 –
left hand
5697884 DCLNL2525M12KC04 CN..120408 25 25 32,0 150 32,0 –
5697885 DCLNL2525M16KC06 CN..160612 25 25 32,0 150 33,0 –
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DCRN 75°
right hand
5697904 DCRNR2525M12KC04 CN..120408 25 25 32,0 150 32,0 3,34
left hand
5697900 DCRNL2525M12KC04 CN..120408 25 25 32,0 150 32,0 3,34
FA
(mm)
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
13
widia.com
Turning
Toolholders
Turning
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DDJN 93°
right hand
5697930 DDJNR2525M15KC06 DN..150608 25 25 32,0 150 32,0 –
left hand
5697920 DDJNL2525M15KC06 DN..150608 25 25 32,0 150 32,0 –
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DDNN 63°
right hand
5697942 DDNNR2525M15KC06 DN..150608 25 25 13,0 150 40,0 –
left hand
5697936 DDNNL2525M15KC06 DN..150608 25 25 13,0 150 40,0 –
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
DRGN
right hand
5697948 DRGNR2525M12KC04 RN..120400 25 25 32,0 150 32,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
DSDN 45º
neutral
5697955 DSDNN2525M12KC04 SN..120408 25 25 12,0 150 36,0
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
14 widia.com
Turning
Toolholders
Turning
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DSRN 75°
right hand
5696704 DSRNR2525M12KC04 SN..120408 25 25 27,0 150 32,0 3,3
left hand
5696700 DSRNL2525M12KC04 SN..120408 25 25 27,0 150 32,0 3,3
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
L1A
(mm)
B3
(mm)
DSKN 75°
right hand
5696686 DSKNR2525M12KC04 SN..120408 25 25 32,0 150 32,0 3,05 4,0
left hand
5696682 DSKNL2525M12KC04 SN..120408 25 25 32,0 150 32,0 3,05 4,0
FA
(mm)
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DTGN 90°
right hand
5696730 DTGNR2525M16KC04 TN..160408 25 25 32,0 150 25,0 –
left hand
5696728 DTGNL2525M16KC04 TN..160408 25 25 32,0 150 25,0 –
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
15
widia.com
Turning
Toolholders
Turning
L1
H
3°
93°
B
F
H1
order
number
catalogue
number
gage
number
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
DVJN 93°
right hand
5696738 DVJNR2525M16KC04 VN..160408 25 25 32,0 150 46,0
left hand
5696733 DVJNL2525M16KC04 VN..160408 25 25 32,0 150 46,0
order
number
catalogue
number
gage
number
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DVON 117,5°
right hand
5696746 DVONR2525M16KC04 VN..160408 25 25 32,0 150 38,0 -
left hand
5696743 DVONL2525M16KC04 VN..160408 25 25 32,0 150 38,0 -
L1
H
72,5°
B
F
H1
17,5°
order
number
catalogue
number
gage
number
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
DVVN 72,5°
neutral
5696749 DVVNN2525M16KC04 VN..160408 25 25 12,0 150 48,0
order
number
catalogue
number
gage
number
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
B3
(mm)
DWLN 95º
right hand
5696760 DWLNR2525M08KC04 WN..080408 25 25 32,0 150 25,0 4,0
left hand
5696754 DWLNL2525M08KC04 WN..080408 25 25 32,0 150 25,0 4,0
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
16 widia.com
Turning
Toolholders
Turning
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)

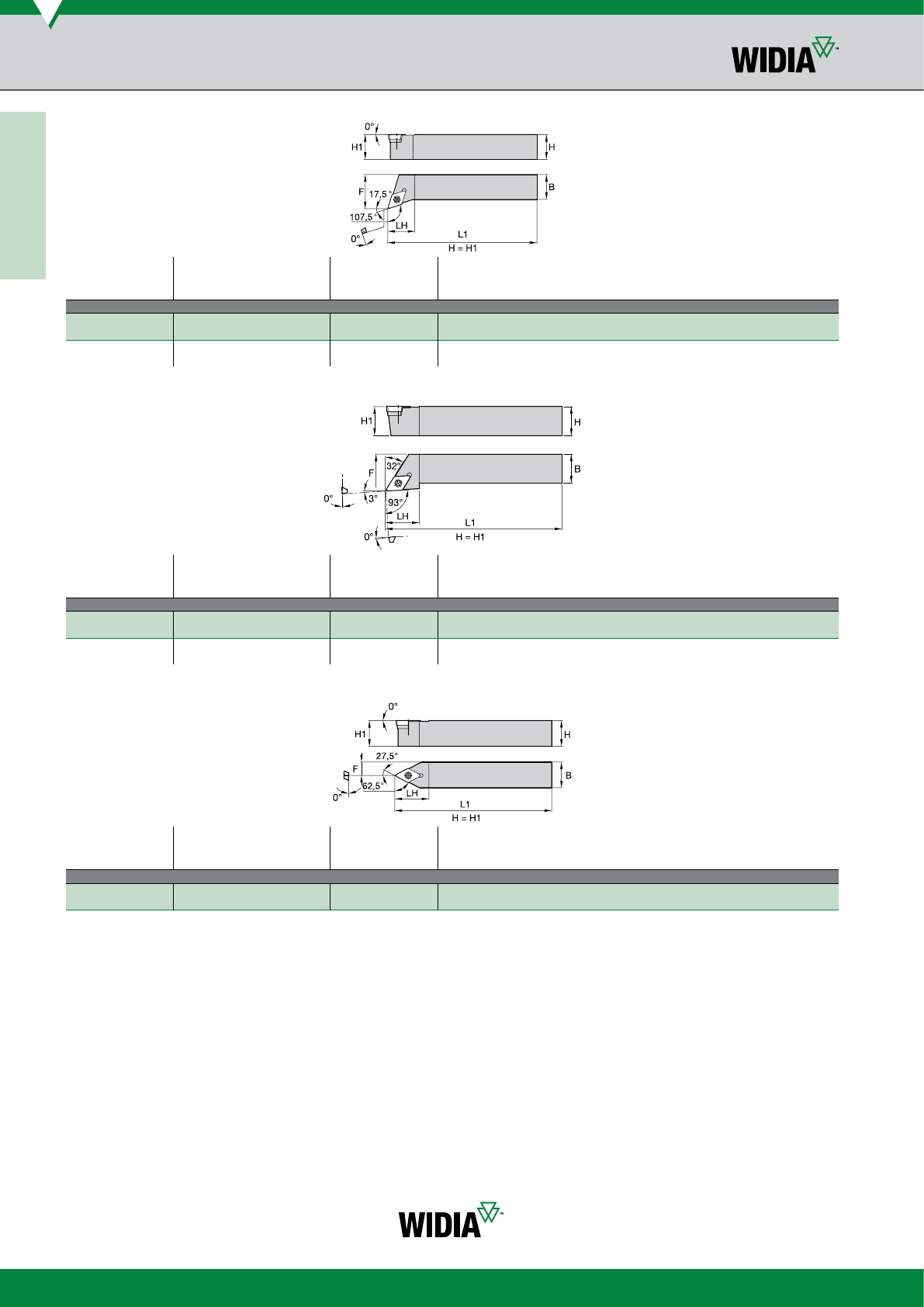

SDHC 107,5°
right hand
3879440 SDHCR2525M11 DC..11T308 25 25 32,0 150 20,0
left hand
3879438 SDHCL2525M11 DC..11T308 25 25 32,0 150 20,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
SDNC 62,5°
neutral
3879849 SDNCN2525M11 DC..11T308 25 25 12,5 150 25,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
SDJC 93°
right hand
3879461 SDJCR2525M11 DC..11T308 25 25 32,0 150 22,0
left hand
3879453 SDJCL2525M11 DC..11T308 25 25 32,0 150 22,0
Language Version: 010_017_WID_All-Star19_Turning_ToolHolders September 27, 2018 8:58 AM
17
widia.com
Turning
Toolholders
Turning
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
LH
(mm)
SVJB 93°
right hand
3879775 SVJBR2525M16 VB..160408 25 25 32,0 150 35,0
left hand
3879774 SVJBL2525M16 VB..160408 25 25 32,0 150 35,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
L2
(mm)
SVVB 72,5°
neutral
3879778 SVVBN2525M16 VB..160408 25 25 12,5 150 33,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
CD
(mm)
SRDC
neutral
3900183 SRDCN2525M06 RC..0602M0 25 25 15,0 150 19,7
3879737 SRDCN2525M08 RC..0803M0 25 25 16,5 150 25,0
3879734 SRDCN2525M10 RC..10T3M0 25 25 17,5 150 25,0
3879738 SRDCN2525M12 RC..1204M0 25 25 18,5 150 25,0
order
number
catalogue
number
gage
insert
H
(mm)
B
(mm)
F
(mm)
L1
(mm)
L2
(mm)
SVHB 107,5°
right hand
3879765 SVHBR2525M16 VB..160408 25 25 32,0 150 28,0
left hand
3879766 SVHBL2525M16 VB..160408 25 25 32,0 150 28,0
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
18 widia.com

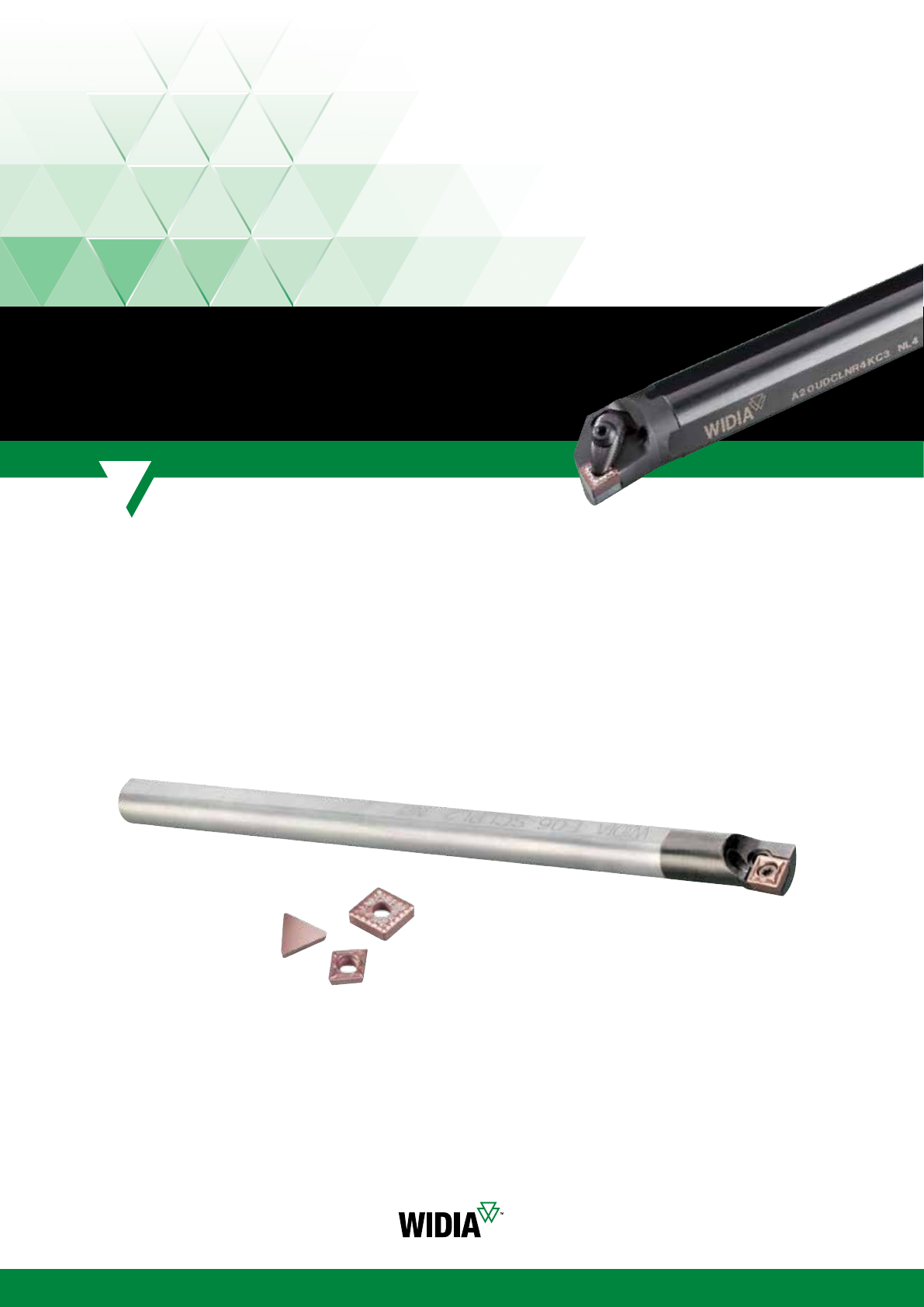

Tools for Internal Boring
Today’s modern boring operations require the most reliable, high-
performance tools. WIDIA™ offers an extensive range of toolholders
for internal boring to meet even the most precise production demands
across a broad spectrum of workpiece shapes and sizes.
WIDIA boring bars, available with both a conventional steel shank
or a vibration-resistant carbide shank and coolant hole, guarantee
consistent results and enhanced production reliability.
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
19
widia.com
D-Style Clamping
• Used for negative style inserts.
• Clamp assembly contains clamp, screw,
and retaining ring.
• Quick insert indexing.
• Ensures insert repeatability and seating.
• Reduced chatter and extended tool life.
S-Style Clamping
• Screw clamping system for positive
indexable inserts.
• Compact design for high reliability
and cost efficiency.
• Carbide shim for additional tool protection.
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
20 widia.com
Turning
Boring Bars
Turning
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)

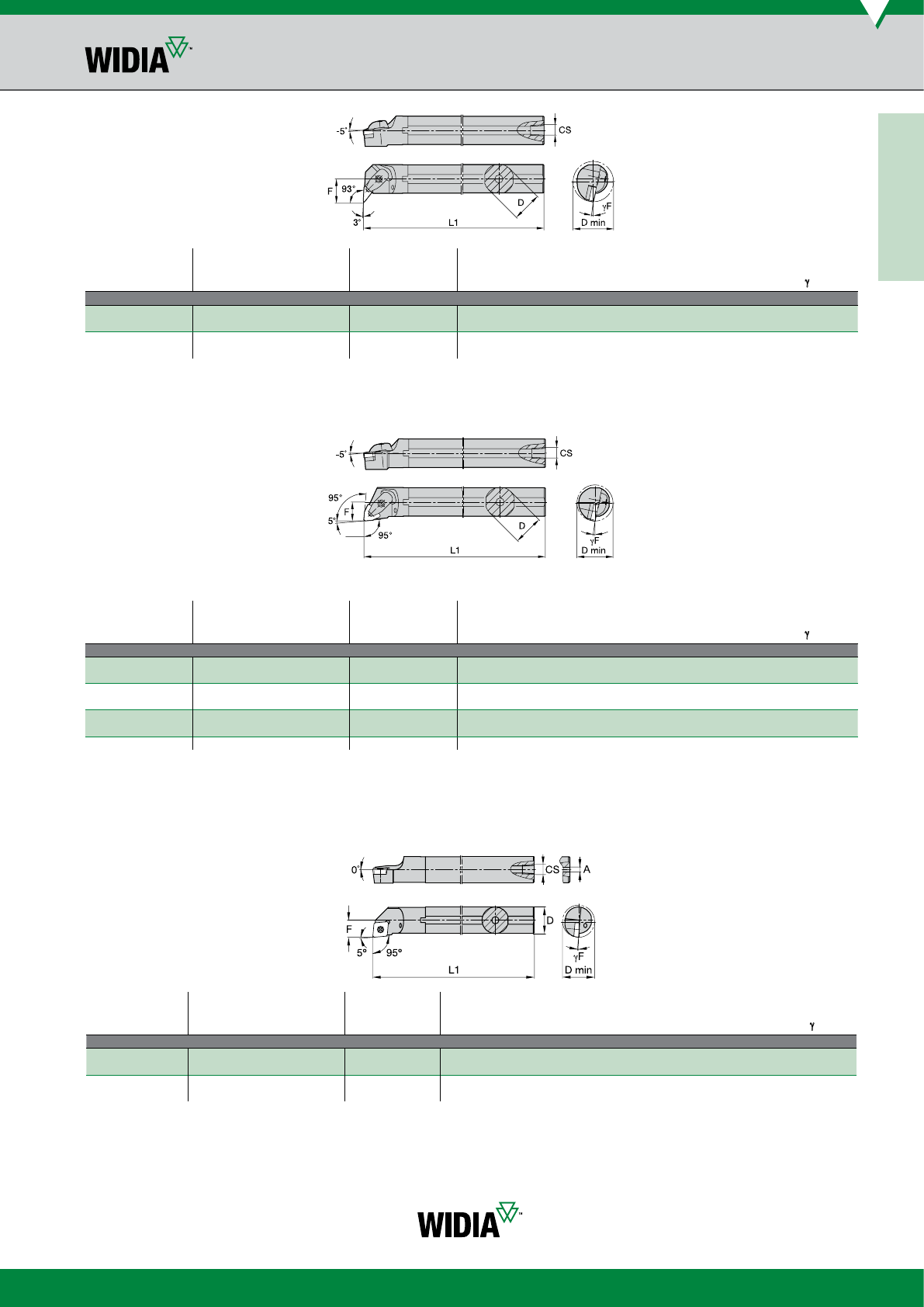

A-DCLN 95°
right hand
5696071 A25RDCLNR12KC04 CN.120408 25 32,0 17,0 200 1/4-18 NPT -12.0
5696073 A32SDCLNR12KC04 CN.120408 32 40,0 22,0 250 1/4-18 NPT -12.0
left hand
5696072 A25RDCLNL12KC04 CN.120408 25 32,0 17,0 200 1/4-18 NPT -12.0
5696074 A32SDCLNL12KC04 CN.120408 32 40,0 22,0 250 1/4-18 NPT -12.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-DDUN 93°
right hand
5696211 A32SDDUNR11KC04 DN..110408 32 40,0 22,0 250 1/4-18 NPT -12.0
5696213 A32SDDUNR15KC06 DN..150608 32 40,0 22,0 250 1/4-18 NPT -12.0
left hand
5696214 A32SDDUNL15KC06 DN..150608 32 40,0 22,0 250 1/4-18 NPT -12.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-DTFN 90°
right hand
5696219 A25RDTFNR16KC04 TN..160408 25 32,0 17,0 200 1/4-18 NPT -14.0
5696261 A32SDTFNR16KC04 TN..160408 32 40,0 22,0 250 1/4-18 NPT -12.0
left hand
5696260 A25RDTFNL16KC04 TN..160408 25 32,0 17,0 200 1/4-18 NPT -14.0
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
21
widia.com
Turning
Boring Bars
Turning
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm)
A
(mm) CS γF (deg)
A-SCLC 95°
right hand
3883269 A20SSCLCR09 CC..09T308 20 25,0 13,0 250 41/8-27 NPT -5.0
left hand
3883270 A20SSCLCL09 CC..09T308 20 25,0 13,0 250 —1/8-27 NPT -5.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-DVUN 93°
right hand
5696263 A32SDVUNR16KC04 VN..160408 32 40,0 22,0 250 1/4-18 NPT -9.0
left hand
5696264 A32SDVUNL16KC04 VN..160408 32 40,0 22,0 250 1/4-18 NPT -9.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-DWLN 95°
right hand
5696269 A25RDWLNR08KC04 WN..080408 25 32,0 17,0 200 1/4-18 NPT -12.0
5696281 A32SDWLNR08KC04 WN..080408 32 40,0 22,0 250 1/4-18 NPT -14.0
left hand
5696268 A25RDWLNL06KC04 WN..060408 25 32,0 17,0 200 1/4-18 NPT -14.0
5696280 A25RDWLNL08KC04 WN..080408 25 32,0 17,0 200 1/4-18 NPT -12.0
5696282 A32SDWLNL08KC04 WN..080408 32 40,0 22,0 250 1/4-18 NPT -14.0
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
22 widia.com
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-SDUC 93°
right hand
3883291 A20SSDUCR11 DC..11T308 20 25,0 13,0 250 1/8-27 NPT -5.0
3883288 A25TSDUCR11 DC..11T308 25 32,0 17,0 300 1/8-27 NPT -4.0
left hand
3883292 A20SSDUCL11 DC..11T308 20 25,0 13,0 250 1/8-27 NPT -5.0
3883290 A25TSDUCL11 DC..11T308 25 32,0 17,0 300 1/8-27 NPT -4.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-SVQB 107,5°
right hand
3883434 A25TSVQBR16 VB..160408 25 32,0 17,0 300 1/4-18 NPT -6.0
left hand
3883435 A25TSVQBL16 VB..160408 25 32,0 17,0 300 1/4-18 NPT -6.0
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS
A-SVUB 93°
right hand
3883438 A25TSVUBR16 VB..160408 25 32,0 17,0 300 1/4-18 NPT
left hand
3883439 A25TSVUBL16 VB..160408 25 32,0 17,0 300 1/4-18 NPT
Turning
Boring Bars
Turning
order
number
catalogue
number
gage
insert
D
(mm)
D min
(mm)
F
(mm)
L1
(mm) CS γF (deg)
A-SDQC 107,5°
right hand
3883474 A20SSDQCR11 DC..11T308 20 25,0 13,0 250 1/8-27 NPT -5.0
3883462 A25TSDQCR11 DC..11T308 25 32,0 17,0 300 1/4-18 NPT -4.0
left hand
3883475 A20SSDQCL11 DC..11T308 20 25,0 13,0 250 1/8-27 NPT -5.0
3883473 A25TSDQCL11 DC..11T308 25 32,0 17,0 300 1/4-18 NPT -4.0
Language Version: 018_023_WID_All-Star19_Turning_BoringBars September 27, 2018 12:28 PM
23
Turning
Boring Bars
Turning
Available in WS10PT™ and WS25PT™, the -UR geometry provides smooth chip forming
and improved coolant flow for increased tool life. This positive geometry, with its unique
chipbreaker without inflection points, reduces cutting forces and improves depth-of-cut
(DOC) notching resistance, while still providing superior edge stability.
-UR geometry offers a roughing solution for high-temp materials.
Victory™ -UR Geometry
To learn more, contact your local Authorised Distributor or visit widia.com.
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
24 widia.com
Versatile and Well-Constructed
• Specifically designed to increase speeds and feeds.
• Excellent geometry for even your most demanding deep grooving applications.
• The WMT system enables heavy stock removal in turning applications.
• Ensures finer surface finishes and a long, reliable tool life.
WMT
The WMT platform is the economical and reliable option for all your grooving,
cut-off, turning, and profiling applications. Trust the WMT system to ensure
precise insert positioning and provide only the most accurate machining with
exceptionally fast cycle times and superior performance.
WMT™ System •
One Platform for Grooving, Face Grooving,
Cut-Off, and Profiling
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
25
widia.com
WMT™ Toolholders
• Outstanding system rigidity and clamping capabilities.
• Guarantees fast cycle times and limited turret indexes.
• Precise insert positioning for accurate machining.
• Double-V shape means operator-friendly insert indexing
and optimum insert positioning.
Extra-long clamping area for
unsurpassed grooving
and turning stability.
Interchangeable grooving and
cut-off inserts designed for
excellent chip control.
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
26
Turning
WMT™ Groove and Turn
Turning
order
number
catalogue
number grade
seat
size
W
(mm)
RL
(mm)
RR
(mm)
LI
(mm)
α
R
α
L
WMT-CM • Cut-Off Medium
right hand
4169672 WMTC015R12CM08 WU25PT 11,50 0,08 –19,28 12 –
4169670 WMTC015R05CM08 WU25PT 11,50 0,08 –19,31 5 –
4169675 WMTC020R05CM08 WU25PT 22,00 0,08 –19,26 5 –
4169678 WMTC020R12CM08 WU25PT 22,00 0,08 –19,26 12 –
4169684 WMTC030R05CM17 WU25PT 33,00 0,17 –25,40 5 –
4169688 WMTC030R12CM17 WU25PT 33,00 0,17 –25,40 12 –
neutral
4169668 WMTC015N00CM08 WU25PT 11,50 0,08 0,08 19,30 – –
4169673 WMTC020N00CM08 WU25PT 22,00 0,08 0,08 19,21 – –
4169682 WMTC030N00CM17 WU25PT 33,00 0,17 0,17 25,40 – –
4169692 WMTC040N00CM17 WU25PT 44,00 0,17 0,17 25,40 – –
left hand
4169671 WMTC015L05CM08 WU25PT 11,50 –0,08 19,31 – 5
4169677 WMTC020L05CM08 WU25PT 21,99 –0,08 19,21 – 5
4169680 WMTC020L12CM08 WU25PT 22,00 –0,08 19,25 –12
4169686 WMTC030L05CM17 WU25PT 33,00 –0,17 25,40 – 5
4169690 WMTC030L12CM17 WU25PT 33,00 –0,17 25,40 –12
order
number
catalogue
number grade
seat
size
W
(mm)
RL
(mm)
RR
(mm)
LI
(mm)
α
R
α
L
WMT-CM • Cut-Off Medium with Wiper
right hand
4169676 WMTC020R05CMW08 WU25PT 22,00 0,08 –19,20 5 –
4169679 WMTC020R12CMW08 WU25PT 22,00 0,08 –19,27 12 –
4169685 WMTC030R05CMW17 WU25PT 33,00 0,17 –25,40 5 –
4169689 WMTC030R12CMW17 WU25PT 33,00 0,17 –25,40 12 –
neutral
4169669 WMTC015N00CMW08 WU25PT 11,50 0,08 0,08 19,30 – –
4169674 WMTC020N00CMW08 WU25PT 22,00 0,08 0,08 19,21 – –
4169683 WMTC030N00CMW17 WU25PT 33,00 0,17 0,17 25,40 – –
left hand
4169681 WMTC020L12CMW08 WU25PT 22,00 –0,08 19,27 –12
4169687 WMTC030L05CMW17 WU25PT 33,00 –0,17 25,40 – 5
4169691 WMTC030L12CMW17 WU25PT 33,00 –0,17 25,40 –12
Right Hand
Right HandLeft Hand
Left Hand
Neutral
RR = RL on neutral inserts
Neutral
RR = RL on neutral inserts
widia.com
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
27
widia.com
Turning
WMT™ Groove and Turn
Turning
order
number
catalogue
number grade
seat
size
W
(mm)
RR
(mm)
LI
(mm)
WMT-U-PT • Moulded • Plunge, Groove, and Turn Inserts
neutral
4169554 WMTS205M2U02PT WP10CT 22,05 0,15 19,23
4169555 WMTS205M2U02PT WP25CT 22,05 0,15 19,23
4116131 WMTS205M2U02PT WU10PT 22,05 0,15 19,23
4116132 WMTS205M2U02PT WU25PT 22,05 0,15 19,23
4169556 WMTS305M3U03PT WP10CT 33,05 0,31 25,81
4169557 WMTS305M3U03PT WP25CT 33,05 0,31 25,81
4113568 WMTS305M3U03PT WU10PT 33,05 0,31 25,81
4113569 WMTS305M3U03PT WU25PT 33,05 0,31 25,81
4169558 WMTS305M3U06PT WP10CT 33,05 0,61 25,78
4169559 WMTS305M3U06PT WP25CT 33,05 0,61 25,78
4113570 WMTS305M3U06PT WU10PT 33,05 0,61 25,78
4113571 WMTS305M3U06PT WU25PT 33,05 0,61 25,78
4169560 WMTS405M4U03PT WP10CT 44,05 0,31 25,53
4169561 WMTS405M4U03PT WP25CT 44,05 0,31 25,53
4113577 WMTS405M4U03PT WU10PT 44,05 0,31 25,53
4113578 WMTS405M4U03PT WU25PT 44,05 0,31 25,53
4169562 WMTS405M4U06PT WP10CT 44,05 0,61 25,53
4169563 WMTS405M4U06PT WP25CT 44,05 0,61 25,53
4113579 WMTS405M4U06PT WU10PT 44,05 0,61 25,53
4113580 WMTS405M4U06PT WU25PT 44,05 0,61 25,53
4169564 WMTS505M5U03PT WP10CT 55,05 0,30 28,76
4169565 WMTS505M5U03PT WP25CT 55,05 0,30 28,76
4116148 WMTS505M5U03PT WU10PT 55,05 0,30 28,76
4116149 WMTS505M5U03PT WU25PT 55,05 0,30 28,76
4169566 WMTS505M5U06PT WP10CT 55,05 0,61 28,76
4169567 WMTS505M5U06PT WP25CT 55,05 0,61 28,76
4116150 WMTS505M5U06PT WU10PT 55,05 0,61 28,76
4116151 WMTS505M5U06PT WU25PT 55,05 0,61 28,76
4169568 WMTS605M6U03PT WP10CT 66,05 0,30 28,76
4169569 WMTS605M6U03PT WP25CT 66,05 0,30 28,76
4117253 WMTS605M6U03PT WU10PT 66,05 0,30 28,76
4117254 WMTS605M6U03PT WU25PT 66,05 0,30 28,76
4169570 WMTS605M6U06PT WP10CT 66,05 0,59 28,76
4169571 WMTS605M6U06PT WP25CT 66,05 0,59 28,76
4117255 WMTS605M6U06PT WU10PT 66,05 0,59 28,76
4117256 WMTS605M6U06PT WU25PT 66,05 0,59 28,76
RR = RL
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
28 widia.com
Turning
WMT™ Groove and Turn
Turning
order
number
catalogue
number grade
seat
size
W
(mm)
RR
(mm)
LI
(mm)

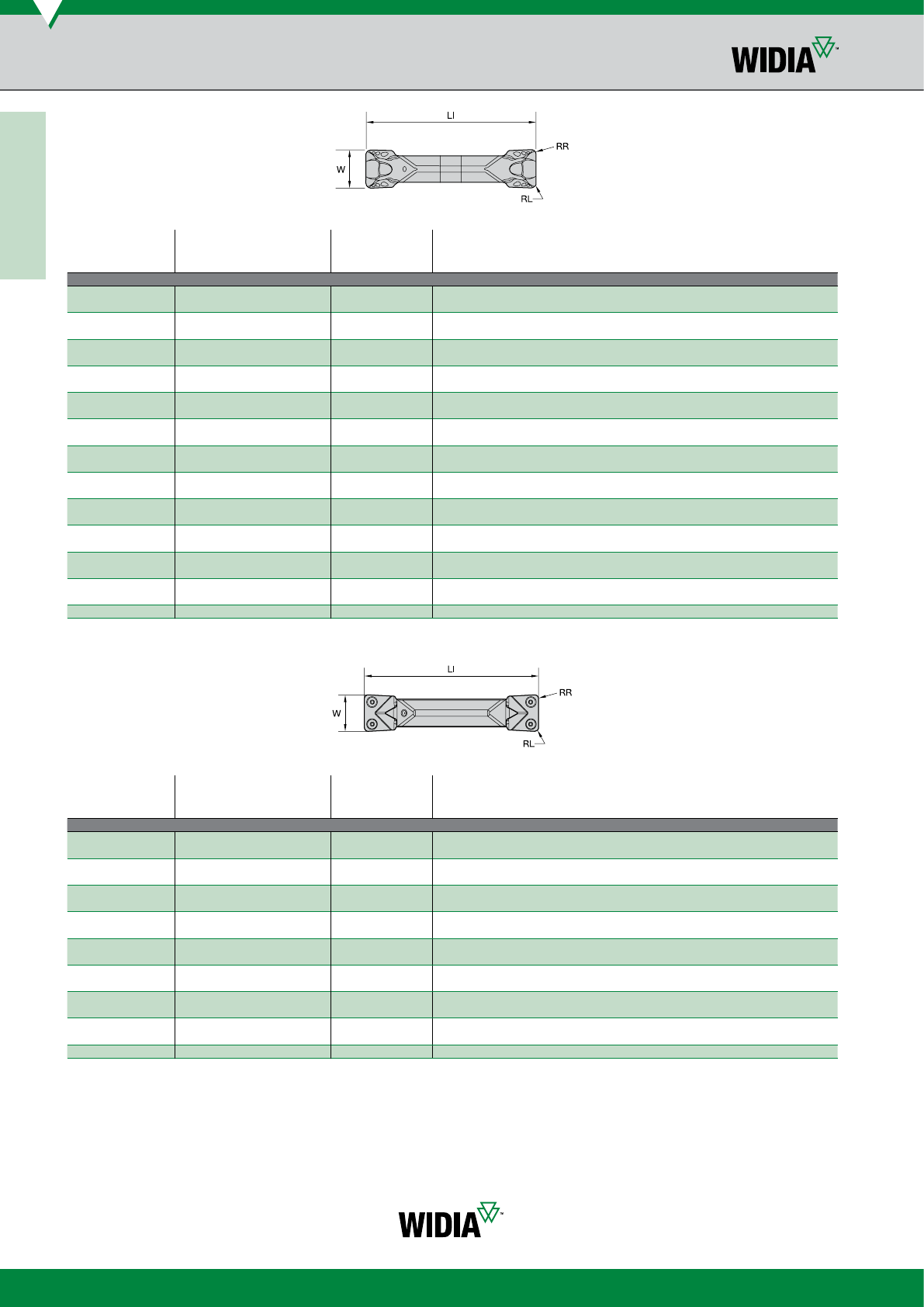

WMT-U-PH • Moulded • Plunge, Groove, and Turn Inserts
neutral
5346392 WMTS305M3U03PH WU10PT 33,05 0,30 25,81
5346394 WMTS305M3U06PH WU10PT 33,05 0,60 25,81
5346393 WMTS305M3U03PH WU25PT 33,05 0,30 25,81
5346395 WMTS305M3U06PH WU25PT 33,05 0,60 25,81
5346396 WMTS405M4U03PH WU10PT 44,05 0,30 25,53
5346398 WMTS405M4U06PH WU10PT 44,05 0,60 25,53
5346397 WMTS405M4U03PH WU25PT 44,05 0,30 25,53
5346399 WMTS405M4U06PH WU25PT 44,05 0,60 25,53
5346400 WMTS505M5U03PH WU10PT 55,05 0,30 28,76
5346402 WMTS505M5U06PH WU10PT 55,05 0,60 28,76
5346401 WMTS505M5U03PH WU25PT 55,05 0,30 28,76
5346403 WMTS505M5U06PH WU25PT 55,05 0,60 28,76
5346404 WMTS605M6U03PH WU10PT 66,05 0,30 28,76
5346406 WMTS605M6U06PH WU10PT 66,05 0,60 28,76
5346405 WMTS605M6U03PH WU25PT 66,05 0,30 28,76
5346407 WMTS605M6U06PH WU25PT 66,05 0,60 28,76
RR = RL
order
number
catalogue
number grade
seat
size
W
(mm)
RR
(mm)
LI
(mm)
WMT-P-PT • Precision • Plunge, Groove, and Turn Inserts
neutral
4116129 WMTS200M2P02PT WU10PT 22,00 0,15 19,10
4116130 WMTS200M2P02PT WU25PT 22,00 0,15 19,10
4113566 WMTS300M3P03PT WU10HT 33,00 0,31 25,65
4113563 WMTS300M3P03PT WU10PT 33,00 0,31 25,65
4113565 WMTS300M3P06PT WU10PT 33,00 0,61 25,65
4113564 WMTS300M3P03PT WU25PT 33,00 0,31 25,65
4113567 WMTS300M3P06PT WU25PT 33,00 0,61 25,65
4113573 WMTS400M4P03PT WU10HT 44,00 0,31 25,40
4113572 WMTS400M4P03PT WU10PT 44,00 0,31 25,40
4113575 WMTS400M4P06PT WU10PT 44,00 0,60 25,40
4113574 WMTS400M4P03PT WU25PT 44,00 0,31 25,40
4113576 WMTS400M4P06PT WU25PT 44,00 0,60 25,40
4116145 WMTS500M5P03PT WU10HT 55,00 0,30 28,63
4116143 WMTS500M5P03PT WU10PT 55,00 0,30 28,63
4116146 WMTS500M5P06PT WU10PT 55,00 0,61 28,63
4116144 WMTS500M5P03PT WU25PT 55,00 0,30 28,63
4116147 WMTS500M5P06PT WU25PT 55,00 0,61 28,63
4117239 WMTS600M6P03PT WU10PT 66,00 0,30 28,63
4117241 WMTS600M6P06PT WU10PT 66,00 0,58 28,63
4117240 WMTS600M6P03PT WU25PT 66,00 0,30 28,63
4117242 WMTS600M6P06PT WU25PT 66,00 0,58 28,63
4117259 WMTS800M8P15PT WU10PT 88,00 1,50 28,57
4117258 WMTS800M8P06PT WU25PT 88,00 0,61 28,57
4117260 WMTS800M8P15PT WU25PT 88,00 1,50 28,57
RR = RL
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
29
widia.com
Turning
WMT™ Groove and Turn
Turning
order
number
catalogue
number grade
seat
size
W
(mm)
RC
(mm)
LI
(mm)

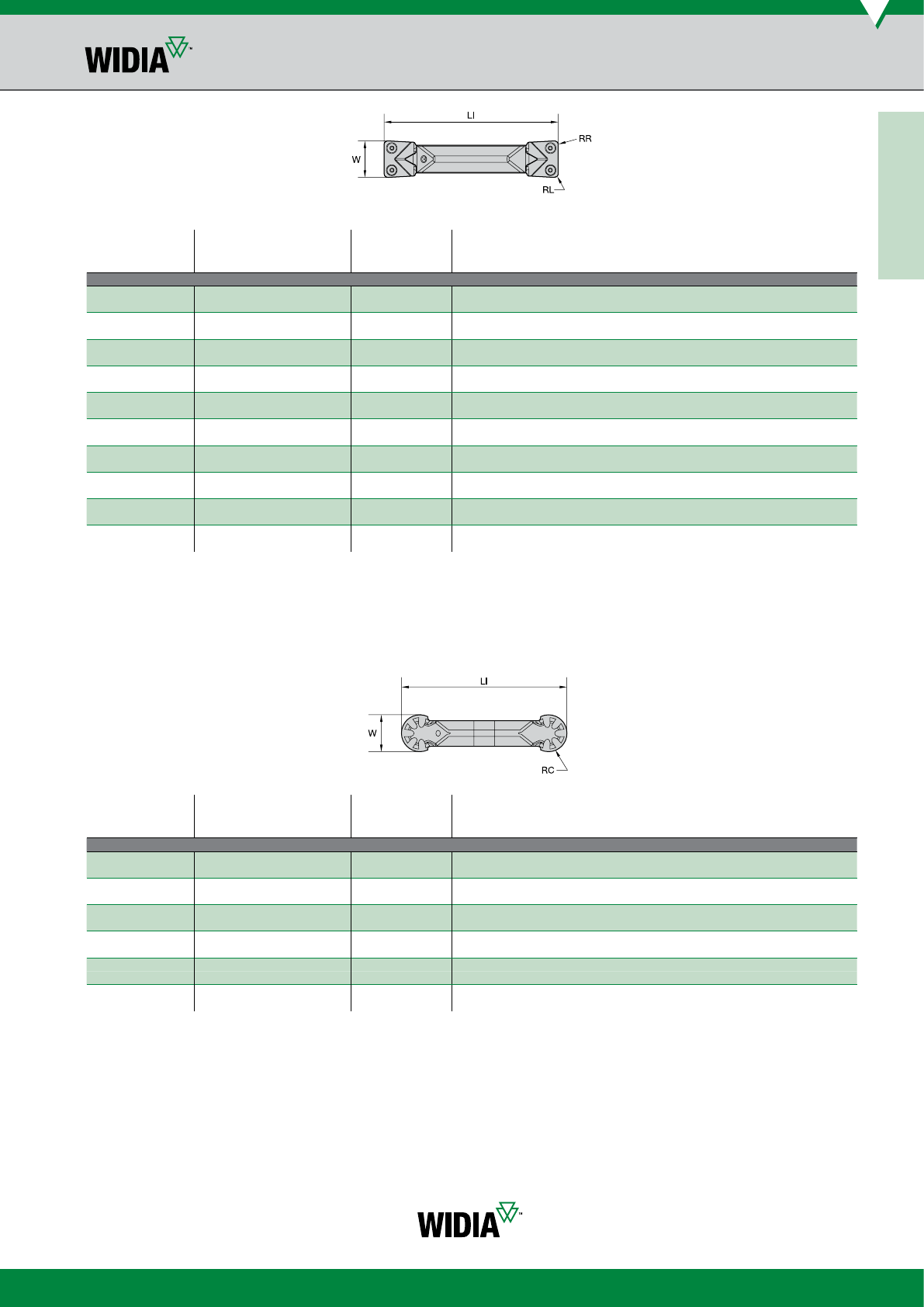

WMT-U-PC • Moulded • Grooving and Profiling Inserts
neutral
4170172 WMTR305M3UPC WU10PT 33,05 1,53 25,53
4170173 WMTR305M3UPC WU25PT 33,05 1,53 25,53
4170177 WMTR405M4UPC WU10PT 44,05 2,03 25,58
4170178 WMTR405M4UPC WU25PT 44,05 2,03 25,58
4170182 WMTR505M5UPC WU10PT 55,05 2,53 29,01
4170183 WMTR505M5UPC WU25PT 55,05 2,53 29,01
4170187 WMTR605M6UPC WU10PT 66,05 3,03 28,77
4170188 WMTR605M6UPC WU25PT 66,05 3,03 28,77
4170189 WMTR605M6UPC WP10CT 66,05 3,03 28,77
4170192 WMTR805M8UPC WU10PT 88,05 4,03 29,22
4170193 WMTR805M8UPC WU25PT 88,05 4,03 29,22
order
number
catalogue
number grade
seat
size
W
(mm)
RR
(mm)
LI
(mm)
WMT-P-PH • Precision • Plunge, Groove, and Turn Inserts
neutral
5346414 WMTS300M3P03PH WU10HT 33,00 0,30 25,65
5346412 WMTS300M3P03PH WU10PT 33,00 0,30 25,65
5346415 WMTS300M3P06PH WU10PT 33,00 0,60 25,65
5346413 WMTS300M3P03PH WU25PT 33,00 0,30 25,65
5346416 WMTS300M3P06PH WU25PT 33,00 0,60 25,65
5346420 WMTS400M4P03PH WU10HT 44,00 0,30 25,40
5346418 WMTS400M4P03PH WU10PT 44,00 0,30 25,40
5346421 WMTS400M4P06PH WU10PT 44,00 0,60 25,40
5346419 WMTS400M4P03PH WU25PT 44,00 0,30 25,40
5346422 WMTS400M4P06PH WU25PT 44,00 0,60 25,40
5346426 WMTS500M5P03PH WU10HT 55,00 0,30 28,63
5346424 WMTS500M5P03PH WU10PT 55,00 0,30 28,63
5346427 WMTS500M5P06PH WU10PT 55,00 0,60 28,63
5346425 WMTS500M5P03PH WU25PT 55,00 0,30 28,63
5346428 WMTS500M5P06PH WU25PT 55,00 0,60 28,63
5346430 WMTS600M6P03PH WU10PT 66,00 0,30 28,63
5346432 WMTS600M6P06PH WU10PT 66,00 0,60 28,63
5346431 WMTS600M6P03PH WU25PT 66,00 0,30 28,63
5346433 WMTS600M6P06PH WU25PT 66,00 0,60 28,63
RR = RL
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
30 widia.com

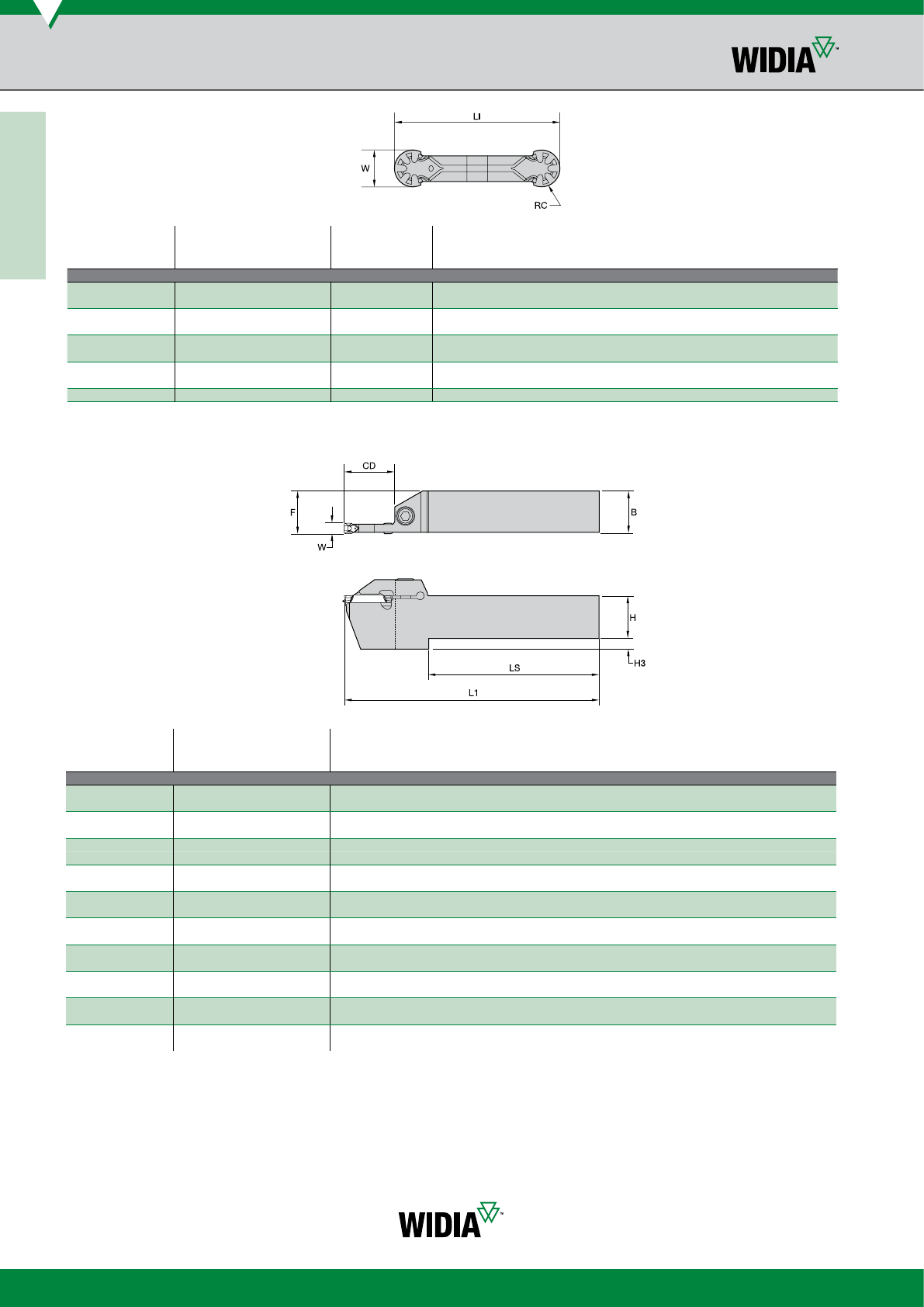

order
number
catalogue
number grade
seat
size
W
(mm)
RC
(mm)
LI
(mm)
WMT-P-PC • Precision • Grooving and Profiling Inserts
neutral
4170170 WMTR300M3PPC WU10PT 33,00 1,50 25,40
4170171 WMTR300M3PPC WU25PT 33,00 1,50 25,40
4170176 WMTR400M4PPC WU25PT 44,00 2,00 25,45
4170180 WMTR500M5PPC WU10PT 55,00 2,50 28,88
4170181 WMTR500M5PPC WU25PT 55,00 2,50 28,88
4170185 WMTR600M6PPC WU10PT 66,00 3,00 28,65
4170186 WMTR600M6PPC WU25PT 66,00 3,00 28,65
4170190 WMTR800M8PPC WU10PT 88,00 4,00 29,08
order
number
catalogue
number
seat
size
W
(mm)
H
(mm)
B
(mm)
CD
(mm)
F
(mm)
H3
(mm)
L1
(mm)
LS
(mm)
Integral Toolholders • O.D. Grooving and Cut-Off
right hand
3650516 WMTSR2525M116 11,50 25,00 25,00 17,00 25,00 -150 116
3650456 WMTSR1616K216 22,00 16,00 16,00 16,50 16,00 6,22 125 101
3650458 WMTSR2020K216 22,00 20,00 20,00 16,50 20,00 –125 92
3650506 WMTSR2525M216 22,00 25,00 25,00 16,50 25,00 –150 116
3650460 WMTSR1616K311 33,00 16,00 16,00 11,00 16,00 -125 93
3650462 WMTSR1616K322 33,00 16,00 16,00 22,00 16,00 5,00 125 85
3650468 WMTSR2020K311 33,00 20,00 20,00 11,00 20,00 –125 93
3650470 WMTSR2020K322 33,00 20,00 20,00 22,00 20,00 5,00 125 85
3650479 WMTSR2525M311 33,00 25,00 25,00 11,00 25,00 –150 118
3650481 WMTSR2525M322 33,00 25,00 25,00 22,00 25,00 –150 110
3653751 WMTSR2020K20 44,00 20,00 20,00 22,00 20,00 5,00 125 83
3650504 WMTSR2020K411 44,00 20,00 20,00 11,00 20,00 –125 92
3650483 WMTSR2525M422 44,00 25,00 25,00 22,00 25,00 –150 109
3650473 WMTSR2020K514 55,00 20,00 20,00 14,00 20,00 –125 88
3650475 WMTSR2020L525 55,00 20,00 20,00 15,00 20,00 5,00 140 93
3650485 WMTSR2525M514 55,00 25,00 25,00 14,00 25,00 –150 115
3650487 WMTSR2525M525 55,00 25,00 25,00 25,00 25,00 –150 104
3650489 WMTSR2525M614 66,00 25,00 25,00 14,00 25,00 –150 114
3650491 WMTSR2525M625 66,00 25,00 25,00 25,00 25,00 –150 104
Right Hand Tool
Turning
WMT™ Groove and Turn
Turning
(continued)
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
31
widia.com
Left Hand Tool
order
number
catalogue
number
seat
size
W
(mm)
H
(mm)
B
(mm)
F
(mm)
D max
(mm)
H2
(mm)
L1
(mm)
L2
(mm)
Integral Toolholders for Swiss-Style Machines • Swiss Grooving and Cut-Off
right hand
3650508 WMTCR1010H110 11,50 10,00 10,00 10,00 20 16 100 21
3650510 WMTCR1212H110 11,50 12,00 12,00 12,00 20 18 100 21
3650512 WMTCR1616K113 11,50 16,00 15,86 16,00 26 24 125 24
3653413 WMTCR1010H210 22,00 10,00 10,00 10,00 20 16 100 21
3653415 WMTCR1212H210 22,00 12,00 12,00 12,00 20 18 100 21
3653417 WMTCR1616K213 22,00 16,00 15,84 16,00 26 24 125 24
3539162 WMTCR1212H213 22,00 12,00 11,84 12,00 26 23,83 100 27,7
left hand
3650509 WMTCL1010H110 11,50 10,00 10,00 10,00 20 16 100 21
3650513 WMTCL1616K113 11,50 16,00 15,86 16,00 26 24 125 24
3650511 WMTCL1212H110 11,50 12,00 12,00 12,00 20 18 100 21
3653414 WMTCL1010H210 22,00 10,00 10,00 10,00 20 16 100 21
3653416 WMTCL1212H210 22,00 12,00 12,00 12,00 20 18 100 21
3539163 WMTCL1212H213 22,00 12,00 11,84 12,00 26 23,83 100 27,7
3653418 WMTCL1616K213 22,00 16,00 15,84 16,00 26 24 125 24
order
number
catalogue
number
seat
size
W
(mm)
H
(mm)
B
(mm)
CD
(mm)
F
(mm)
H3
(mm)
L1
(mm)
LS
(mm)
Integral Toolholders • O.D. Grooving and Cut-Off (continued)
left hand
3650457 WMTSL1616K216 22,00 16,00 16,00 16,50 16,00 6,22 125 101
3650459 WMTSL2020K216 22,00 20,00 20,00 16,50 20,00 –125 92
3650507 WMTSL2525M216 22,00 25,00 25,00 16,50 25,00 –150 116
3650463 WMTSL1616K322 33,00 16,00 16,00 22,00 16,00 5,00 125 85
3650469 WMTSL2020K311 33,00 20,00 20,00 11,00 20,00 –125 93
3650471 WMTSL2020K322 33,00 20,00 20,00 22,00 20,00 5,00 125 85
3650480 WMTSL2525M311 33,00 25,00 25,00 11,00 25,00 –150 118
3650482 WMTSL2525M322 33,00 25,00 25,00 22,00 25,00 –150 110
3653763 WMTSL2525M11 44,00 25,00 25,00 11,00 25,00 -150 117
3650484 WMTSL2525M422 44,00 25,00 25,00 22,00 25,00 –150 109
3650474 WMTSL2020K514 55,00 20,00 20,00 14,00 20,00 –125 88
3650486 WMTSL2525M514 55,00 25,00 25,00 14,00 25,00 –150 113
3650488 WMTSL2525M525 55,00 25,00 25,00 25,00 25,00 –150 104
3650490 WMTSL2525M614 66,00 25,00 25,00 14,00 25,00 –150 114
3650493 WMTSL2525M625 66,00 25,00 25,00 25,00 25,00 –150 104
(Integral Toolholders • O.D. Grooving and Cut-Off — continued)
Turning
WMT™ Groove and Turn
Turning
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
32 widia.com
order
number
catalogue
number
seat
size
W
(mm)
H
(mm)
B
(mm)
FS
(mm)
CD
(mm)
D max
(mm)
D min
(mm)
H2
(mm)
L1
(mm)
L2
(mm)

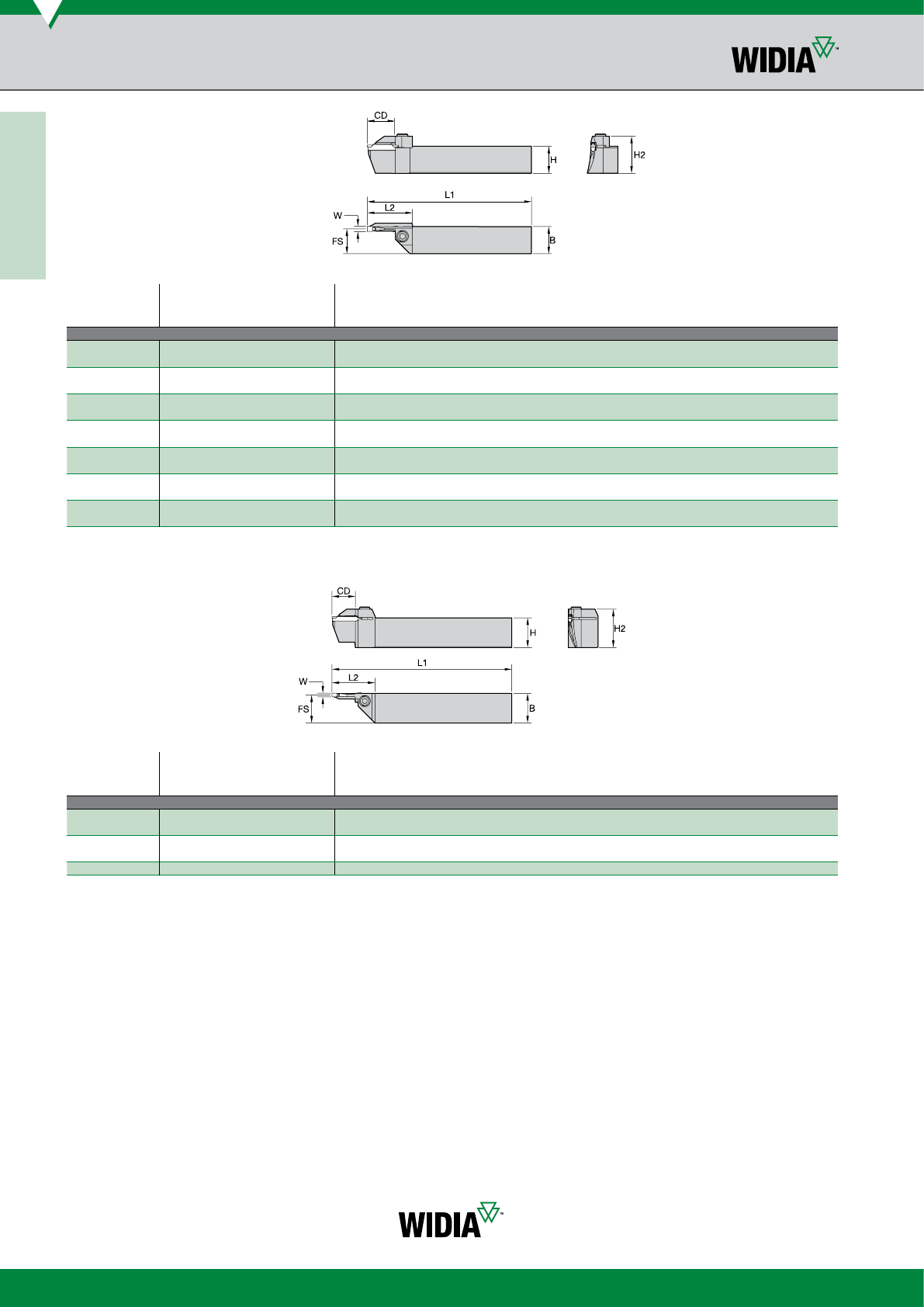

Integral Toolholders for Face Grooving • Curve Out
right hand
3653421 WMTBR2525M313-038-052 33,00 24,84 24,84 23,50 13,00 52 38 32 150 34
3653423 WMTBR2525M316-052-070 33,00 24,84 24,84 23,50 16,00 70 52 32 150 34
3653425 WMTBR2525M316-070-100 33,00 24,84 24,84 23,50 16,00 100 70 32 150 34
3653427 WMTBR2525M319-100-205 33,00 25,00 24,84 23,50 19,00 205 100 32 150 37
3653764 WMTBR2525M412-032-052 44,00 24,84 24,84 23,00 12,50 52 32 32 150 34
3653766 WMTBR2525M415-052-070 44,00 24,84 24,84 23,00 15,50 70 52 32 150 34
left hand
3653422 WMTBL2525M313-038-052 33,00 24,84 24,84 23,50 13,00 52 38 32 150 34
3653424 WMTBL2525M316-052-070 33,00 24,84 24,84 23,50 16,00 70 52 32 150 34
3653426 WMTBL2525M316-070-100 33,00 24,84 24,84 23,50 16,00 100 70 32 150 34
3653428 WMTBL2525M319-100-205 33,00 24,84 24,84 23,50 19,00 205 100 32 150 37
3653765 WMTBL2525M412-032-052 44,00 24,84 24,84 23,00 12,50 52 32 32 150 34
3653771 WMTBL2525M418-100-205 44,00 24,84 24,84 23,00 18,50 205 100 32 150 37
Left Hand Tool
Left Hand Tool
order
number
catalogue
number
seat
size
W
(mm)
H
(mm)
B
(mm)
FS
(mm)
CD
(mm)
D max
(mm)
D min
(mm)
H2
(mm)
L1
(mm)
L2
(mm)
Integral Toolholders for Face Grooving • Curve In
right hand
3634282 WMTAR2525M316-070-100 33,00 24,84 24,84 23,50 15,88 100 70 32 150 34
3634284 WMTAR2525M319-100-205 33,00 24,84 24,84 23,50 19,05 205 100 32 150 37
left hand
3634285 WMTAL2525M319-100-205 33,00 24,84 24,84 23,50 19,05 205 100 32 150 37
Turning
WMT™ Groove and Turn
Turning
Language Version: 024_033_WID_All-Star19_Turning_WMT September 27, 2018 12:31 PM
33
widia.com
Right Hand Tool
order
number
catalogue
number
seat
size
W
(mm)
F
(mm)
CD
(mm)
D
(mm)
D min
(mm)
L1
(mm)
A
(mm) CS

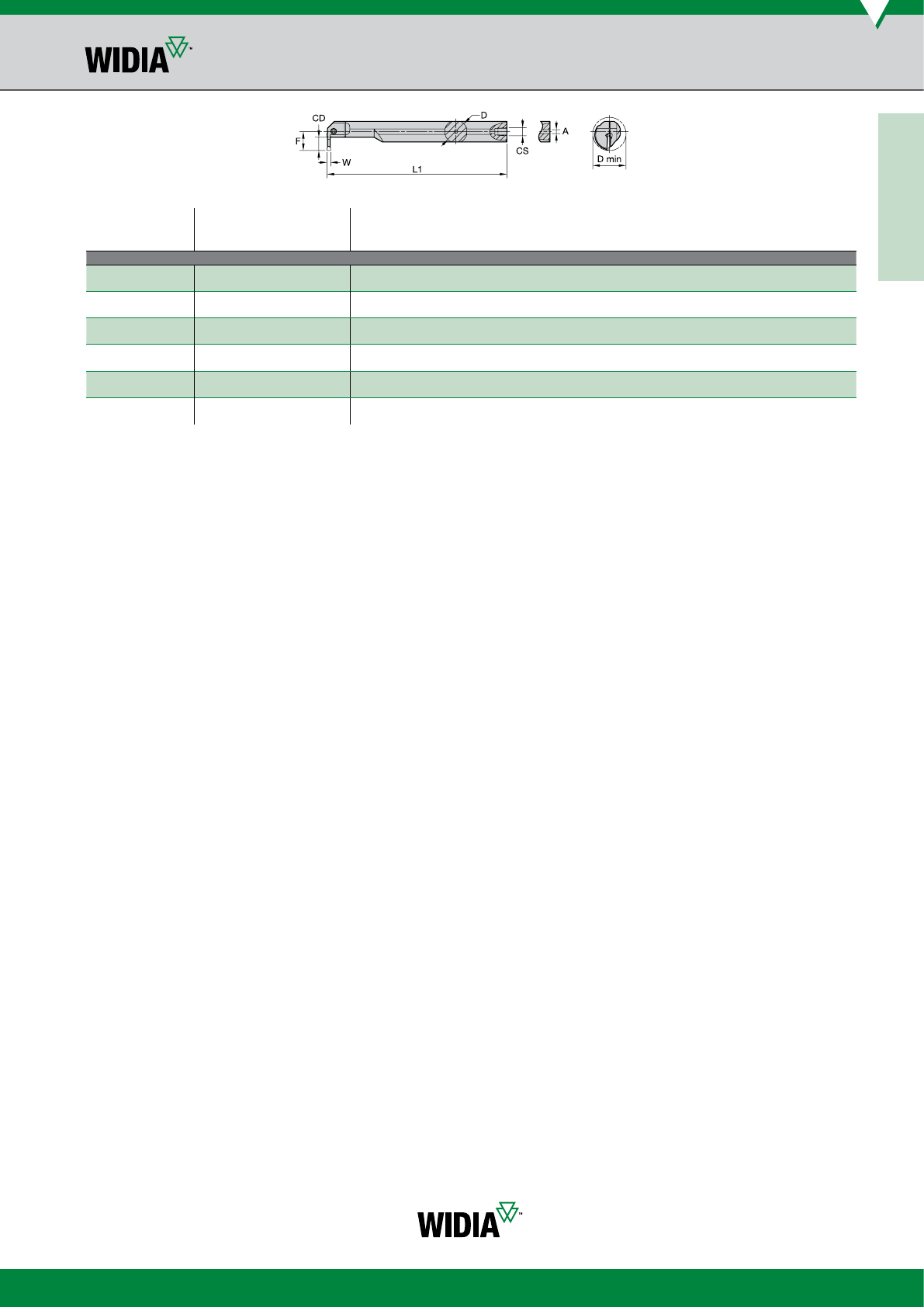

Integral I.D. Grooving Boring Bars
right hand
5423874 A25RWMTER0316M 33,00 26,00 16,00 25,00 41 200 6,40 1/4-18 NPT
5423875 A32SWMTER0319M 33,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
5423876 A25RWMTER0416M 44,00 26,00 16,00 25,00 41 200 6,40 1/4-18 NPT
5423877 A32SWMTER0419M 44,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
5423878 A32SWMTER0519M 55,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
left hand
5423882 A25RWMTEL0316M 33,00 26,00 16,00 25,00 41 200 6,40 1/4-18 NPT
5423883 A32SWMTEL0319M 33,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
5423884 A25RWMTEL0416M 44,00 26,00 16,00 25,00 41 200 6,40 1/4-18 NPT
5423885 A32SWMTEL0419M 44,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
5423886 A32SWMTEL0519M 55,00 29,00 19,00 32,00 47 250 6,40 1/4-18 NPT
Turning
WMT™ Groove and Turn
Turning
Language Version: 34_37_WID_All-Star19_INDM_M1200MiniSeries September 20, 2018 2:22 PM
34 widia.com
34
-FNLDJ
N
Machining
Aluminium
-SNHD
PMK S
Heavy
Machining
-ENLD
PMK S
Light
Machining
-SNGD
PMK S
General
Purpose
• Low cost per edge and high productivity.
• Reduced cutting forces due to soft cutting action.
• Significantly increased Metal Removal Rates (MRR).
• Victory™ M1200 Mini available in 15°, 45°, and 59° lead.
• WIDIA premium milling grades.
• Excellent tool life in light to heavy machining.
• Shorter machining cycle times.
Best-in-class face milling platform to boost productivity
on taper 40 spindle milling machines and driven tools.
Comprehensive standard offering for coarse,
medium, and fine pitch cutter bodies to match
all shop floor needs.
12 True
Cutting
Edges.
Latest soft cutting edge insert design for
all material groups
Through tool
coolant.
Easy-to-use —
one screw
enables fast,
accurateindexing.
M1200 Mini
One Series Meets Every Face Milling Need •
WIDIA™ Victory™ M1200 Mini Series
For consistent performance, look no further than the
WIDIA Victory™ M1200 Mini. This easy-to-use product
ensures great tool life, reduced machining time, and
maximum productivity.
Language Version: 34_37_WID_All-Star19_INDM_M1200MiniSeries September 20, 2018 2:22 PM
35
widia.com
Indexable Milling
Indexable Milling

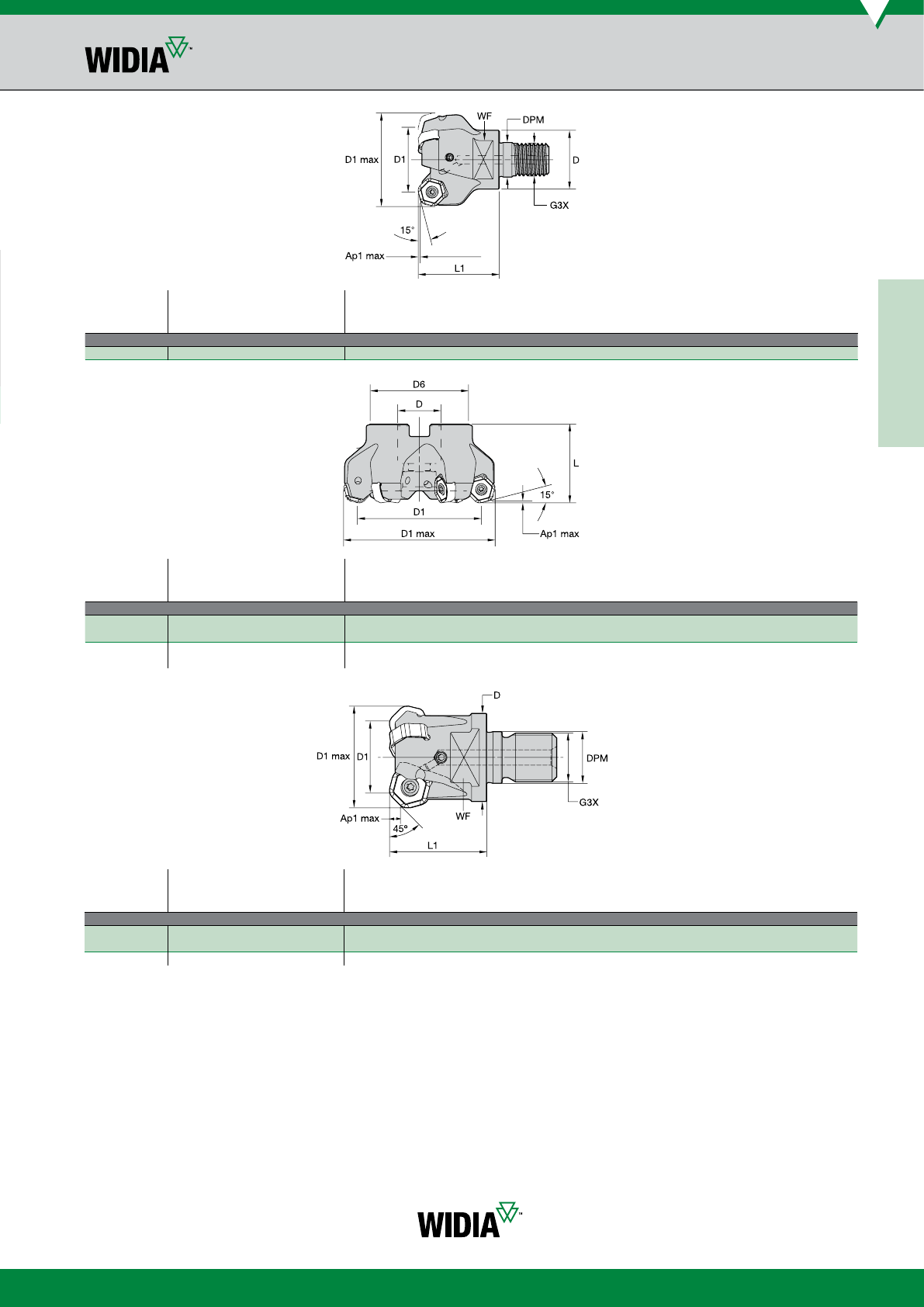

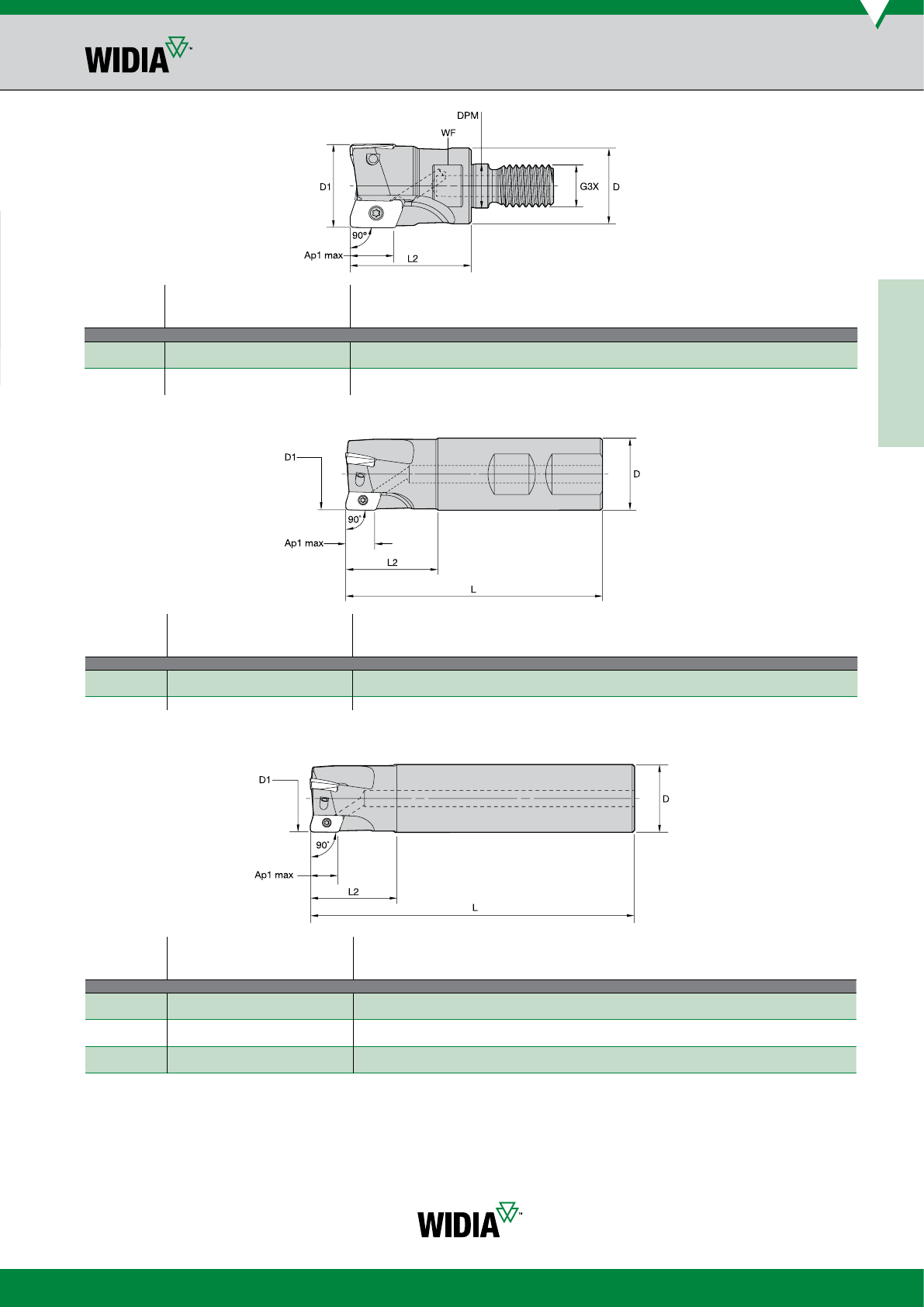

M1200 Mini Series
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
DPM
(mm) G3X
L1
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory
™
M1200 Mini HF • Screw-On End Mills
4136875 M1200HF025Z03M16HN07 25 39,1 29 17 M16 32 22 1,7 320000 Yes
order
number
catalogue
number
D1
(mm)
D1 max
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory M1200 Mini HF • Shell Mills
4136884 M1200HF040Z05HN07 40 54,1 22 38 40 1,7 515800 Yes
4136885 M1200HF050Z05HN07 50 64,1 22 38 40 1,7 512700 Yes
4136886 M1200HF063Z06HN07 63 77,1 22 50 40 1,7 610100 Yes
4136887 M1200HF080Z08HN07 80 94,1 27 60 50 1,7 87900 Yes
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
DPM
(mm) G3X
L1
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory M1200 Mini • Screw-On End Mills
3957840 M1200D025Z03M16HN07 25 33,7 29 17 M16 32 22 3,5 320000 Yes
3957841 M1200D032Z03M16HN07 32 40,7 29 17 M16 40 22 3,5 317600 Yes
3957842 M1200D032Z04M16HN07 32 40,7 29 17 M16 40 22 3,5 417600 Yes
35
Language Version: 34_37_WID_All-Star19_INDM_M1200MiniSeries September 20, 2018 2:22 PM

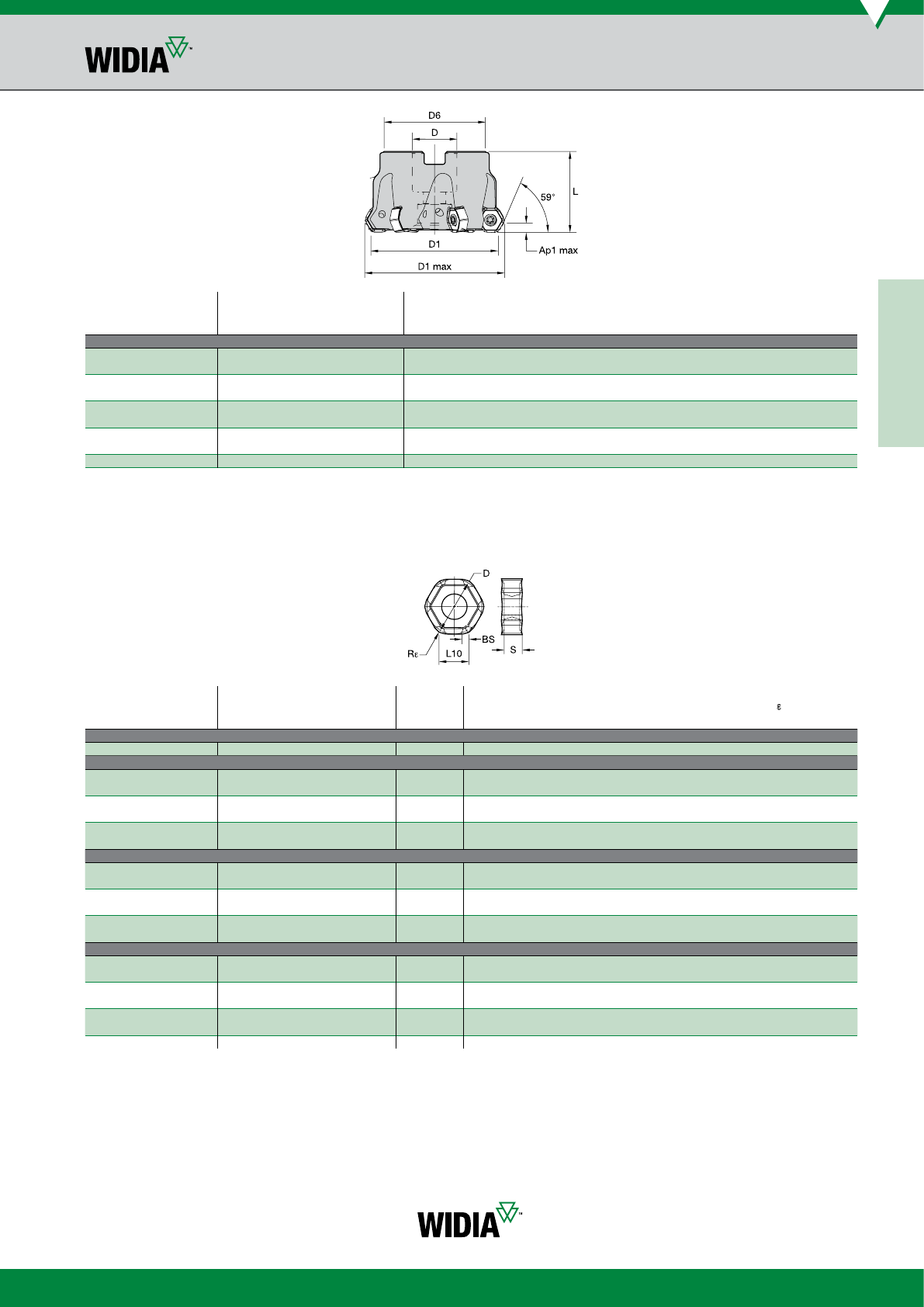

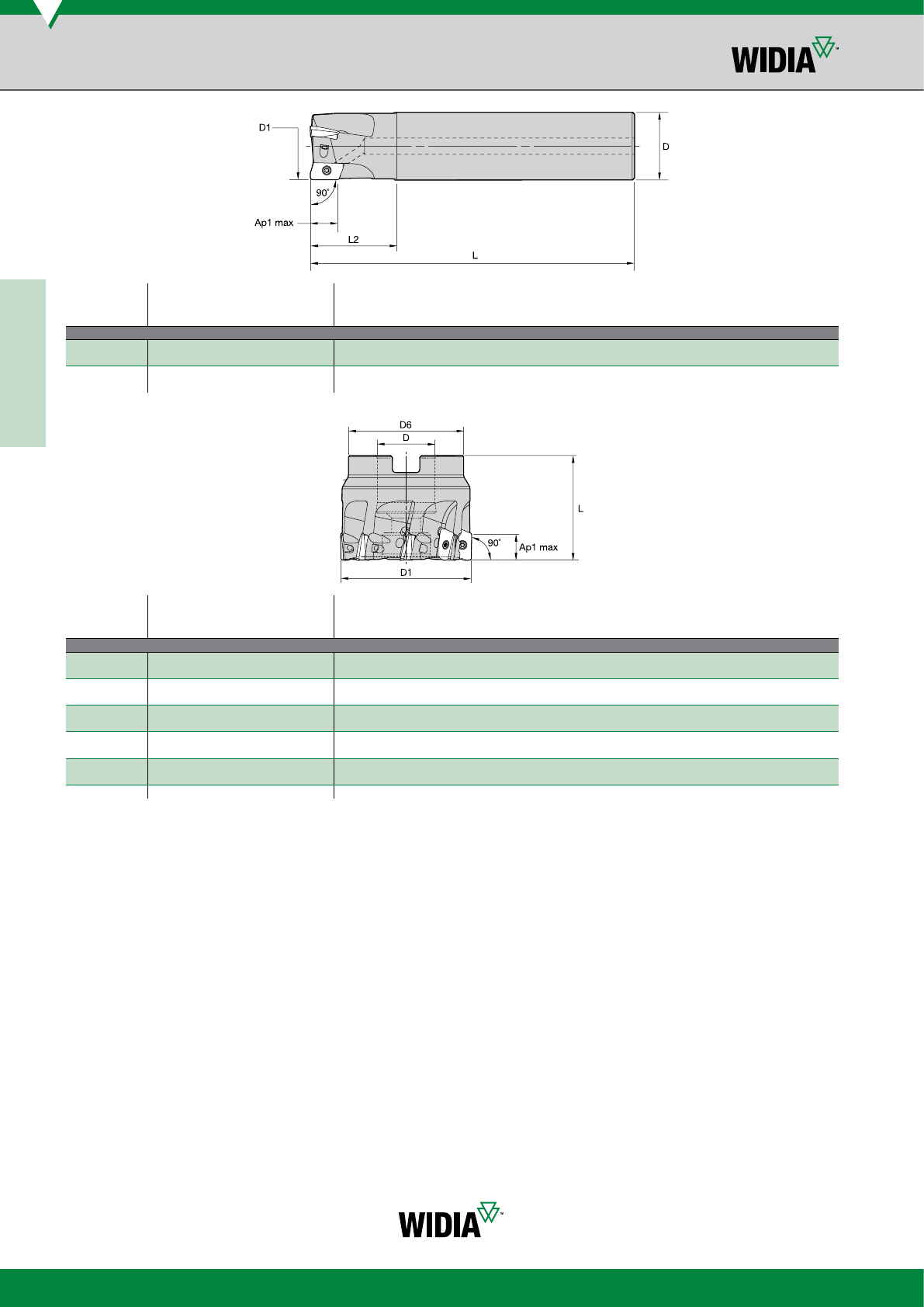

36 widia.com
Indexable Milling
M1200 Mini Series
Indexable Milling
L
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory
™
M1200 Mini • Weldon® Shanks
3958012 M1200D025Z03B20HN07 25 33,7 20 82 32 3,5 320000 Yes
3958023 M1200D032Z03B25HN07 32 40,7 25 97 40 3,5 317600 Yes
3958024 M1200D032Z04B25HN07 32 40,7 25 97 40 3,5 417600 Yes
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory M1200 Mini • Shell Mills
3957995 M1200D040Z04HN07 40 48,7 22 38 40 3,5 415800 Yes
3957996 M1200D040Z05HN07 40 48,7 22 38 40 3,5 515800 Yes
3957997 M1200D050Z04HN07 50 58,7 22 38 40 3,5 412700 Yes
3957998 M1200D050Z05HN07 50 58,7 22 38 40 3,5 512700 Yes
3957999 M1200D050Z06HN07 50 58,7 22 38 40 3,5 612700 Yes
3958000 M1200D063Z04HN07 63 71,7 22 50 40 3,5 410100 Yes
3958001 M1200D063Z06HN07 63 71,7 22 50 40 3,5 610100 Yes
3958002 M1200D063Z08HN07 63 71,7 22 50 40 3,5 810100 Yes
3958003 M1200D080Z05HN07 80 88,7 27 60 50 3,5 57900 Yes
3958004 M1200D080Z08HN07 80 88,7 27 60 50 3,5 87900 Yes
3958005 M1200D080Z10HN07 80 88,7 27 60 50 3,5 10 7900 Yes
3958006 M1200D100Z06HN07 100 108,7 32 80 50 3,5 66300 Yes
3958007 M1200D100Z09HN07 100 108,7 32 80 50 3,5 96300 Yes
3958008 M1200D100Z12HN07 100 108,7 32 80 50 3,5 12 6300 Yes
Language Version: 34_37_WID_All-Star19_INDM_M1200MiniSeries September 20, 2018 2:22 PM
37
widia.com
Indexable Milling
M1200 Mini Series
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory
™
M1200 Mini HD • Shell Mills
4136863 M1200HD040Z05HN07 40 46,8 22 38 40 4,7 515800 Yes
4136865 M1200HD050Z05HN07 50 56,8 22 38 40 4,7 512700 Yes
4136867 M1200HD063Z06HN07 63 69,8 22 50 40 4,7 610100 Yes
4136868 M1200HD080Z05HN07 80 86,8 27 60 50 4,7 57900 Yes
4136869 M1200HD080Z08HN07 80 86,8 27 60 50 4,7 87900 Yes
4136870 M1200HD100Z06HN07 100 106,7 32 80 50 4,7 66300 Yes
4136871 M1200HD100Z09HN07 100 106,7 32 80 50 4,7 96300 Yes
4136872 M1200HD125Z08HN07 125 131,7 40 90 63 4,7 85050 Yes
4136873 M1200HD125Z12HN07 125 131,7 40 90 63 4,7 12 5050 Yes
HNGJ-LD
5895291 HNGJ0704ANENLD WP25PM 12 12,7 6,80 4,48 1,60 1,20 0,08
5528975 HNGJ0704ANENLD WS30PM 12 12,7 6,80 4,48 1,60 1,20 0,08
5895292 HNGJ0704ANENLD WP35CM 12 12,7 6,80 4,48 1,60 1,20 0,08
5550905 HNGJ0704ANENLD WP40PM 12 12,7 6,80 4,48 1,60 1,20 0,08
6180295 HNGJ0704ANENLD WS40PM 12 12,7 6,80 4,48 1,60 1,20 0,08
6180300 HNGJ070432ANENLD WS40PM 12 12,7 6,80 4,48 –3,21 0,08
HNPJ-GD
5427374 HNPJ0704ANSNGD WK15CM 12 12,7 6,80 4,45 1,27 1,20 0,10
5895293 HNPJ0704ANSNGD WP25PM 12 12,7 6,80 4,45 1,27 1,20 0,10
5528976 HNPJ0704ANSNGD WS30PM 12 12,7 6,80 4,45 1,27 1,20 0,10
5895294 HNPJ0704ANSNGD WP35CM 12 12,7 6,80 4,45 1,27 1,20 0,10
5550906 HNPJ0704ANSNGD WP40PM 12 12,7 6,80 4,45 1,27 1,20 0,10
6180297 HNPJ0704ANSNGD WS40PM 12 12,7 6,80 4,45 1,27 1,20 0,10
HNPJ-HD
5427375 HNPJ0704ANSNHD WK15CM 12 12,7 6,80 4,41 1,25 1,20 0,14
5895295 HNPJ0704ANSNHD WP25PM 12 12,7 6,80 4,41 1,25 1,20 0,14
5895296 HNPJ0704ANSNHD WP35CM 12 12,7 6,80 4,41 1,25 1,20 0,14
5550907 HNPJ0704ANSNHD WP40PM 12 12,7 6,80 4,41 1,25 1,20 0,14
6180299 HNPJ0704ANSNHD WS40PM 12 12,7 6,80 4,41 1,25 1,20 0,14
5895297 HNPJ070432ANSNHD WP40PM 12 12,7 6,80 4,42 –3,20 0,14
6180311 HNPJ070432ANSNHD WS40PM 12 12,7 6,80 4,42 –3,20 0,14
Indexable Milling
HNGJ-LDJ
3954332 HNGJ0704ANFNLDJ THM-U 12 12,7 6,80 4,48 1,60 1,20 0,08
order
number
catalogue
number grade
cutting
edges
D
(mm)
L10
(mm)
S
(mm)
BS
(mm)
Rε
(mm)
hm
(mm)
Language Version: 38_41_WID_All-Star19_INDM_M1200Series September 20, 2018 2:24 PM
38 widia.com
38
Through tool coolant.
Easy-to-use — one screw enables fast,
accurateindexing.
The latest technology with twelve true cutting edges
and high-precision pressed and ground inserts.
Best-in-class face milling platform to boost productivity
on taper 50 spindle milling machines.
Comprehensive standard offering for
coarse, medium, and fine pitch cutter
bodies to match all shop floor needs.
M1200
• Low cost per edge; high productivity.
• 14.5–59° lead angles.
• One series meets every face milling need.
• Available in WIDIA premium milling grades.
• Better tool life in light to heavy machining.
One Series Meets Every Face Milling Need •
WIDIA™ Victory™ M1200 Series
Language Version: 38_41_WID_All-Star19_INDM_M1200Series September 20, 2018 2:24 PM
39
widia.com
Indexable Milling
M1200 Series
order
number
catalogue
number
D1
(mm)
D1 max
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory
™
M1200 HF • Shell Mills
3750370
M1200HF050Z04HN09 50 67,9 22 38 40 2,2 411400 Yes
3750372
M1200HF063Z05HN09 63 80,9 22 50 40 2,2 58950 Yes
3750434
M1200HF080Z06HN09 80 97,9 27 60 50 2,2 67300 Yes
3750435
M1200HF100Z08HN09 100 117,9 32 80 50 2,2 85900 Yes
order
number
catalogue
number
D1
(mm)
D1 max
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory M1200 • Weldon
®
Shank
3325311
M1200D040Z04B25HN09 40 51,0 25 107 50 4,5 415800 Yes
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
D4
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory M1200 • Shell Mills
3957970
M1200D040Z03HN09 40 51,0 22 –39 40 4,4 315800 Yes
3957971
M1200D040Z04HN09 40 51,0 22 –39 40 4,4 415800 Yes
3325312
M1200D050Z04HN09 50 61,0 22 –38 40 4,5 412700 Yes
3325693
M1200D050Z05HN09 50 61,0 22 –38 40 4,5 512700 Yes
3650535
M1200D063Z04HN09 63 74,0 22 –50 40 4,5 410100 Yes
3093594
M1200D063Z06HN09 63 74,0 22 –50 40 4,5 610100 Yes
3025376
M1200D063Z07HN09 63 74,0 22 –50 40 4,5 710100 Yes
3650536
M1200D080Z05HN09 80 91,0 27 –60 50 4,5 57900 Yes
3081507
M1200D080Z06HN09 80 91,0 27 –60 50 4,5 67900 Yes
3025377
M1200D080Z09HN09 80 91,0 27 –60 50 4,5 97900 Yes
3650537
M1200D100Z06HN09 100 111,0 32 –80 50 4,5 66300 Yes
3325694
M1200D100Z08HN09 100 111,0 32 –80 50 4,5 86300 Yes
3025378
M1200D100Z11HN09 100 111,0 32 –80 50 4,5 11 6300 Yes
3081508
M1200D125Z10HN09 125 135,9 40 –90 63 4,5 10 5050 Yes
3066119
M1200D160Z16HN09 160 171,0 40 66,7 110 63 4,5 16 3900 Yes
39
Indexable Milling
Language Version: 38_41_WID_All-Star19_INDM_M1200Series September 20, 2018 2:24 PM
40 widia.com
Indexable Milling
M1200 Series

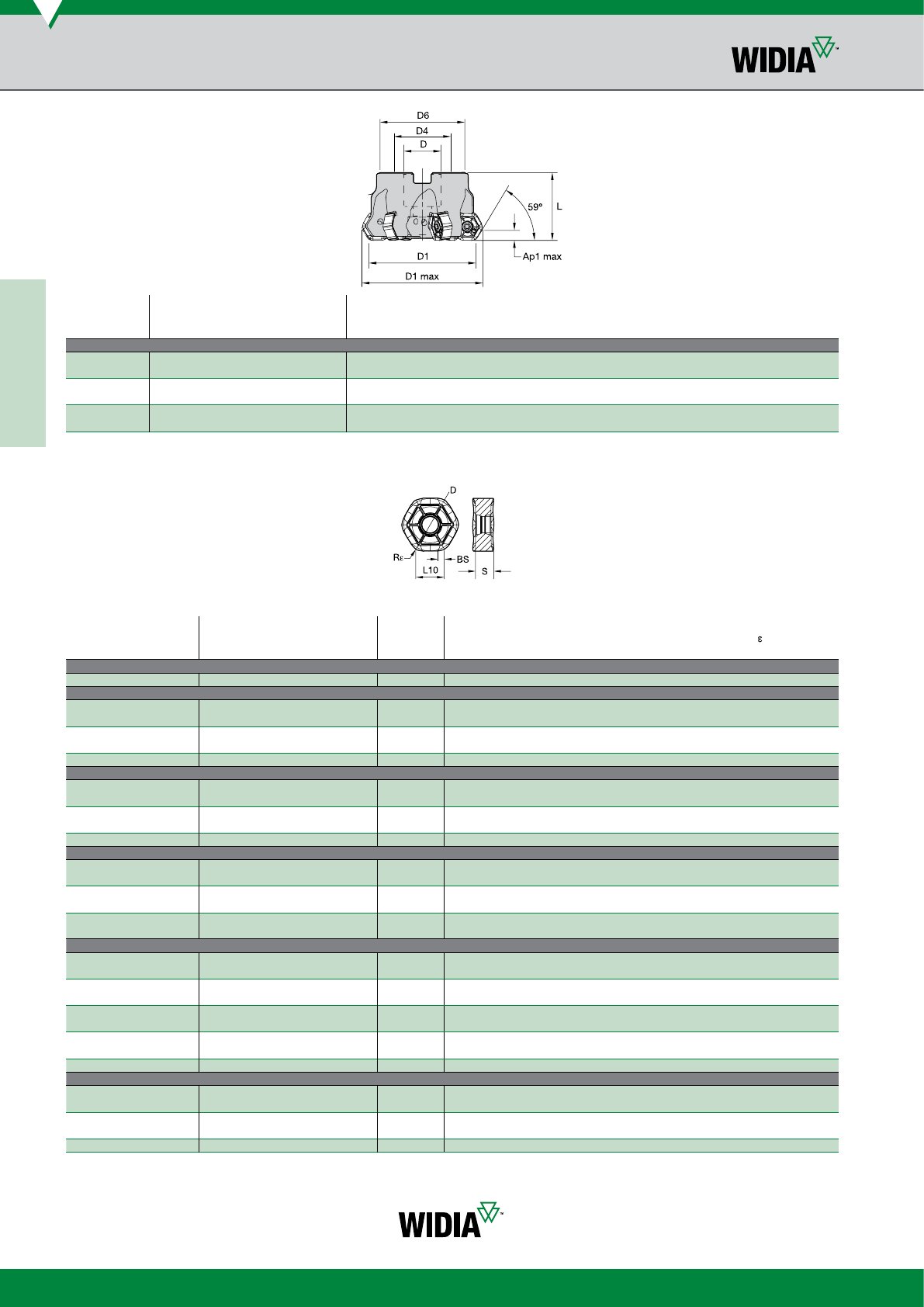

HNGJ-LD (not for M1200 HF Shell Mills)
5895346
HNGJ0905ANENLD WP25PM 12 16 8,58 5,56 1,80 1,20 0,05
5895347
HNGJ0905ANENLD WP35CM 12 16 8,58 5,56 1,80 1,20 0,05
5895348
HNGJ0905ANENLD WP40PM 12 16 8,58 5,56 1,80 1,20 0,05
5528973
HNGJ0905ANENLD WS30PM 12 16 8,58 5,56 1,80 1,20 0,05
6180276
HNGJ0905ANENLD WS40PM 12 16 8,58 5,56 1,80 1,20 0,05
HNPJ-GD
5427372
HNPJ0905ANSNGD WK15CM 12 16 8,58 5,56 1,80 1,20 0,10
5895374
HNPJ0905ANSNGD WP25PM 12 16 8,58 5,56 1,80 1,20 0,10
5895375
HNPJ0905ANSNGD WP35CM 12 16 8,58 5,56 1,80 1,20 0,10
5550908
HNPJ0905ANSNGD WP40PM 12 16 8,58 5,56 1,80 1,20 0,10
6180278
HNPJ0905ANSNGD WS40PM 12 16 8,58 5,56 1,80 1,20 0,10
HNGJ-GD
5427370
HNGJ0905ANSNGD WK15CM 12 16 8,58 5,56 1,80 1,20 0,10
5400965
HNGJ0905ANSNGD WP25PM 12 16 8,58 5,56 1,80 1,20 0,10
5895349
HNGJ0905ANSNGD WP35CM 12 16 8,58 5,56 1,80 1,20 0,10
5895350
HNGJ0905ANSNGD WP40PM 12 16 8,58 5,56 1,80 1,20 0,10
5528974
HNGJ0905ANSNGD WS30PM 12 16 8,58 5,56 1,80 1,20 0,10
6180280
HNGJ0905ANSNGD WS40PM 12 16 8,58 5,56 1,80 1,20 0,10
HNPJ-HD
5895378
HNPJ090543ANSNHD WP25PM 12 16 8,50 5,44 –4,34 0,13
5895379
HNPJ090543ANSNHD WP35CM 12 16 8,50 5,44 –4,34 0,13
5895380
HNPJ090543ANSNHD WP40PM 12 16 8,50 5,44 –4,34 0,13
6180294
HNPJ090543ANSNHD WS40PM 12 16 8,50 5,44 –4,34 0,13
5427371
HNPJ0905ANSNHD WK15CM 12 16 8,59 5,46 1,66 1,20 0,18
5895376
HNPJ0905ANSNHD WP25PM 12 16 8,59 5,46 1,66 1,20 0,18
5895377
HNPJ0905ANSNHD WP35CM 12 16 8,59 5,46 1,66 1,20 0,18
5550909
HNPJ0905ANSNHD WP40PM 12 16 8,59 5,46 1,66 1,20 0,18
6180279
HNPJ0905ANSNHD WS40PM 12 16 8,59 5,46 1,66 1,20 0,18
HNGJ-HD
5895371
HNGJ0905ANSNHD WP25PM 12 16 8,59 5,46 1,66 1,20 0,17
5895372
HNGJ0905ANSNHD WP35CM 12 16 8,59 5,46 1,66 1,20 0,17
5895373
HNGJ0905ANSNHD WP40PM 12 16 8,59 5,46 1,66 1,20 0,17
6180291
HNGJ0905ANSNHD WS40PM 12 16 8,59 5,46 1,66 1,20 0,17
6180292
HNGJ090543ANSNHD WS40PM 12 16 8,49 5,44 –4,35 0,20
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
D4
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
Victory
™
M1200 HD • Shell Mills
4152116
M1200HD063Z06HN09 63 71,5 22 –50 40 6,0 610100 Yes
4152117
M1200HD080Z05HN09 80 88,5 27 –60 50 6,0 57900 Yes
4152118
M1200HD080Z08HN09 80 88,5 27 –60 50 6,0 87900 Yes
4152119
M1200HD100Z06HN09 100 108,5 32 –80 50 6,0 66300 Yes
4152120
M1200HD100Z08HN09 100 108,5 32 –80 50 6,0 86300 Yes
4152123
M1200HD160Z09HN09 160 168,5 40 66,7 110 63 6,0 93900 Yes
Indexable Milling
HNGJ-LDJ
3606383
HNGJ0905ANFNLDJ THM-U 12 16 8,58 5,56 1,80 1,20 0,02
order
number
catalogue
number grade
cutting
edges
D
(mm)
L10
(mm)
S
(mm)
BS
(mm)
Rε
(mm)
hm
(mm)
41
Language Version: 38_41_WID_All-Star19_INDM_M1200Series September 20, 2018 2:24 PM
ADVISE
SELECT
A method of selecting cutting tools from a tree structure via a hierarchy
or parametric search:
• If you know which product you are looking for, a quick search can
be performed by just the catalogue number or product description.
• Smart filters significantly reduce the amount of potential tooling
solutions.
• After the tool is selected, NOVO also provides cutting and adaptive
item options that fit with your solution.
NOVO applications can ensure you have the right tools on your machines,
in the right sequence. Resulting in flawless execution that accelerates
every job, and maximises every shift. widia.com/novo
NOVO KNOWS SEARCH
Searching for a tool has been enhanced by Advise
and Select functions from NOVO™ applications —
saving you time and money.
Uses a rules-based approach to provide cutting tool recommendations:
• Define Machining Feature (face milling, slotting, blind hole, etc.)
• Apply Constraint Requirements (geometric, material, tolerance, etc.)
• Set Machining Sequence (single or multi-step operations, rough
then finish, etc.)
• Receive Ranked Results
Language Version: 42_43_WID_All-Star19_INDM_M640 September 27, 2018 9:28 AM
42 widia.com

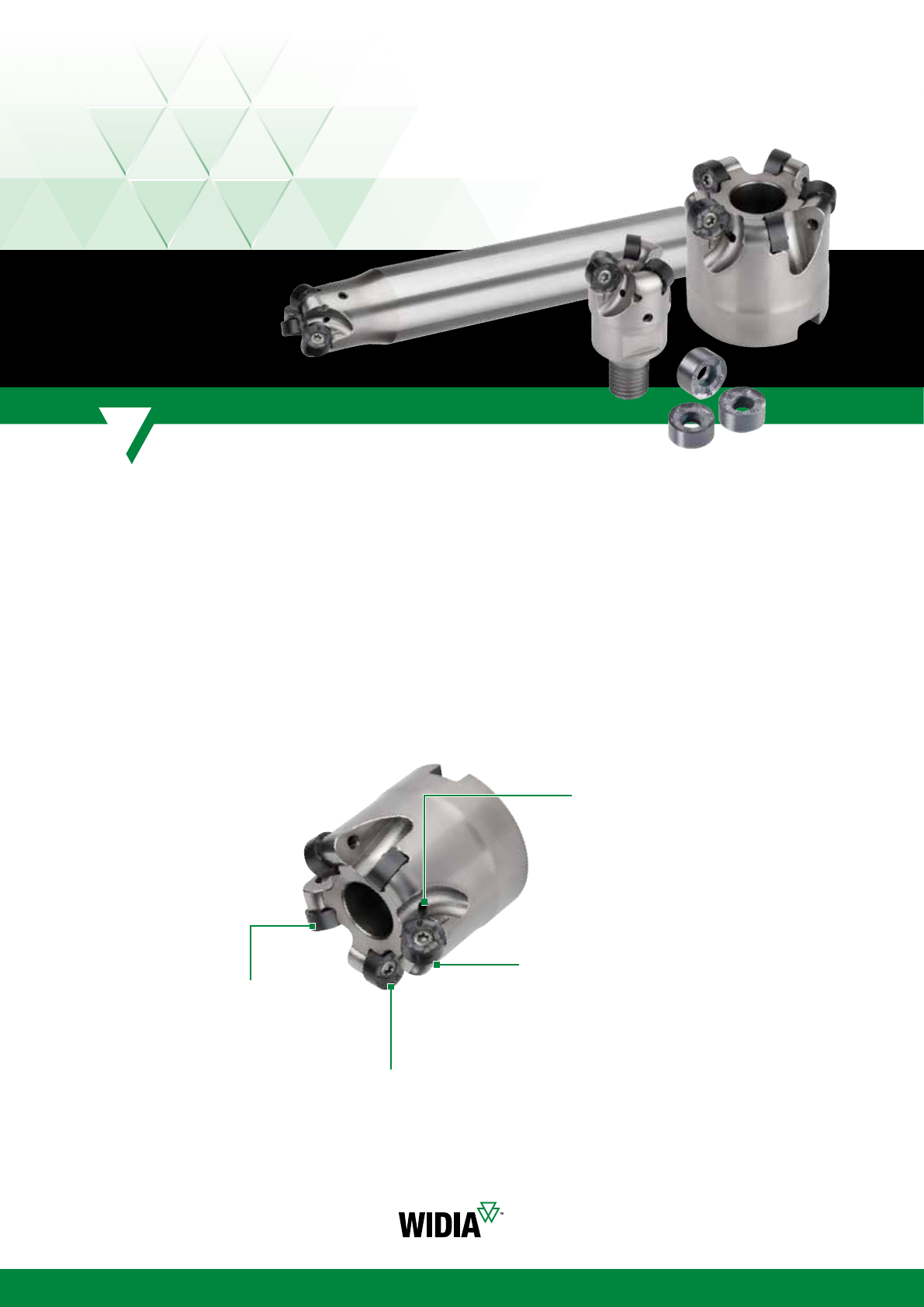

All pockets are machined into preheated material for excellent
runout and pocket strength.
Through tool coolant
up to 80mm diameter.
One screw enables fast,
accurate indexing.
Optimum tool body design
using latest technology.
M640
• Highly positive rake angle means extremely low cutting forces.
• Available in geometries and grades for all applications.
• Easy-to-use for fast, accurate indexing.
When Low Cutting Forces Are Required •
M640 Series
The M640 platform is the first choice when high productivity, superior finish operations,
and soft cutting performance are a priority. With six effective cutting edges and a
streamlined body design, this easy-to-use tool is ideal, even for low-power machines.
Language Version: 42_43_WID_All-Star19_INDM_M640 September 27, 2018 9:28 AM

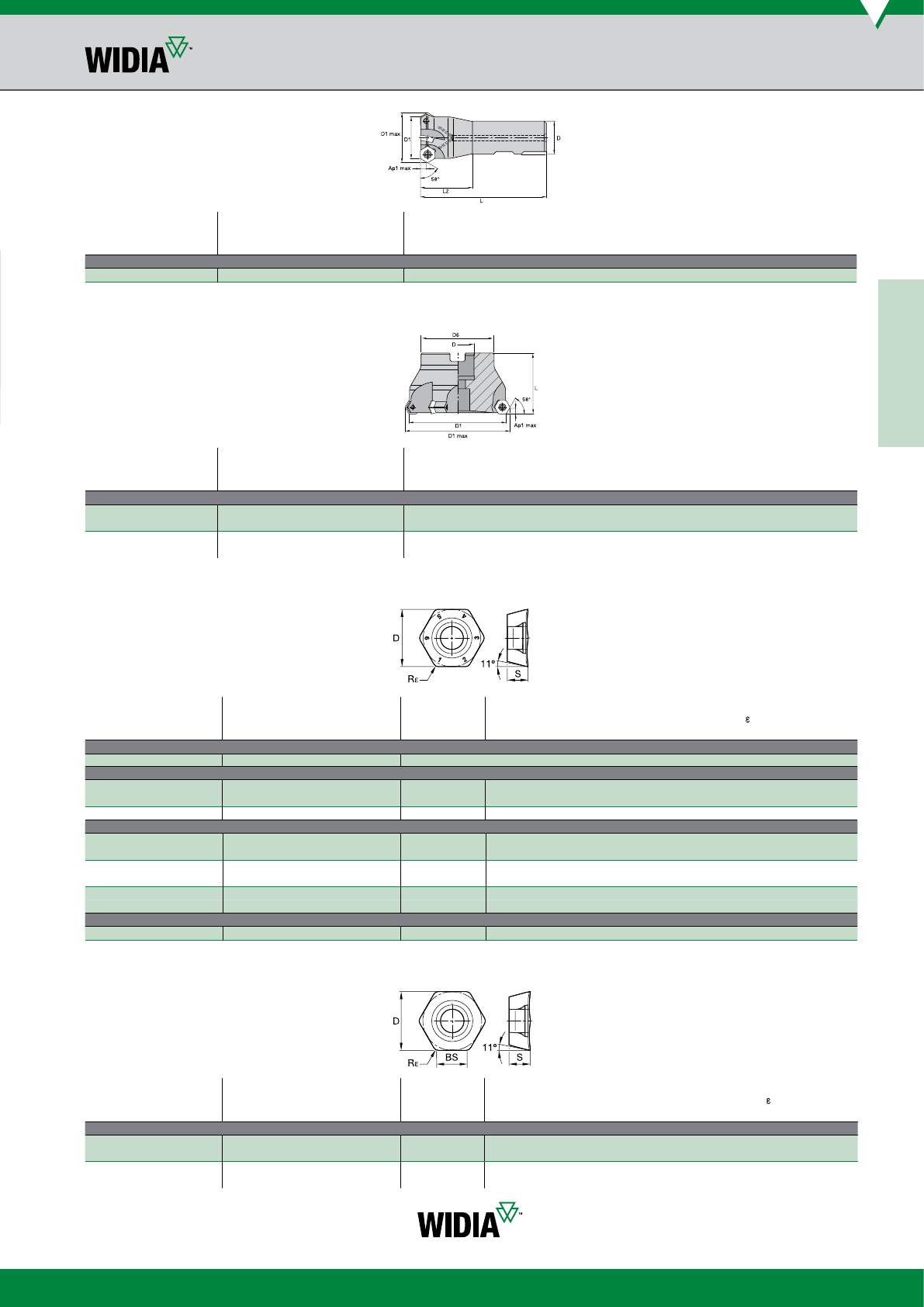

43
widia.com
Indexable Milling
M640 Series
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
M640 • Weldon® Shank
2263165 12395405200
32 38,4 32 100 40 4,8 429500 Yes
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
M640 • Shell Mills
2263132 12395410200
50 56,4 22 47 40 4,8 419000 Yes
2263154 12395410400
63 69,4 22 50 40 4,8 515000 Yes
2263156 12395410600
80 86,4 27 60 50 4,8 611500 Yes
2263158 12395410800
100 106,4 32 78 50 4,8 79500 No
order
number
catalogue
number grade
cutting
edges
D
(mm)
S
(mm)
BS
(mm)
Rε
(mm)
hm
(mm)
HPGT-GD Wiper
5427388
HPGT06T3DZERGD3W WK15CM 311 4,00 2,88 0,98 0,10
5895787
HPGT06T3DZERGD3W WP40PM 311 4,00 2,88 0,98 0,10
5895786
HPGT06T3DZERGD3W WP25PM 311 4,00 2,88 0,98 0,10
6180316
HPGT06T3DZERGD3W WS40PM 311 4,00 2,88 0,98 0,10
Indexable Milling
HPGT-LDAL
2288106
HPGT06T3DZFRLDAL THM 611 4,00 0,90 0,08
HPGT-LD
5895784
HPGT06T3DZERLD WP25PM 611 3,99 0,98 0,08
5895785
HPGT06T3DZERLD WP40PM 611 3,99 0,98 0,08
6180312
HPGT06T3DZERLD WS40PM 611 3,99 0,98 0,08
HPGT-GD
2288066
HPGT06T3DZENGD TN7535 611 3,97 0,98 0,10
5427387
HPGT06T3DZENGD WK15CM 611 3,97 0,98 0,10
5528978
HPGT06T3DZENGD WS30PM 611 3,97 0,98 0,10
5895783
HPGT06T3DZENGD WP40PM 611 3,97 0,98 0,10
5895782
HPGT06T3DZENGD WP25PM 611 3,97 0,98 0,10
6180313
HPGT06T3DZENGD WS40PM 611 3,97 0,98 0,10
HPPT-GD
6180315
HPPT06T3DZENGD WS40PM 611 3,97 0,98 0,10
order
number
catalogue
number grade
cutting
edges
D
(mm)
S
(mm)
Rε
(mm)
hm
(mm)
Language Version: 44_47_WID_All-Star19_INDM_VSM11 September 27, 2018 9:45 AM
44 widia.com
Features
• Insert geometries and grades
for all workpiece materials.
• Insert corner radius from 0,4–3,1mm
(.016 –.122").
Benefits
• Achieve 90° wall finish.
• Longer tool life.
• Latest WIDIA Victory milling grades
for all workpiece materials.
• Soft cutting action, reduced cycle times,
and low horsepower consumption.
• Stability and reliability.
Multiple corner
nose radii available.
Optimised cutting edge
and positive rake face
for reduced cutting
forces and softer
cutting action.
Innovative cutting
geometry provides
superior wall and
surface finish.

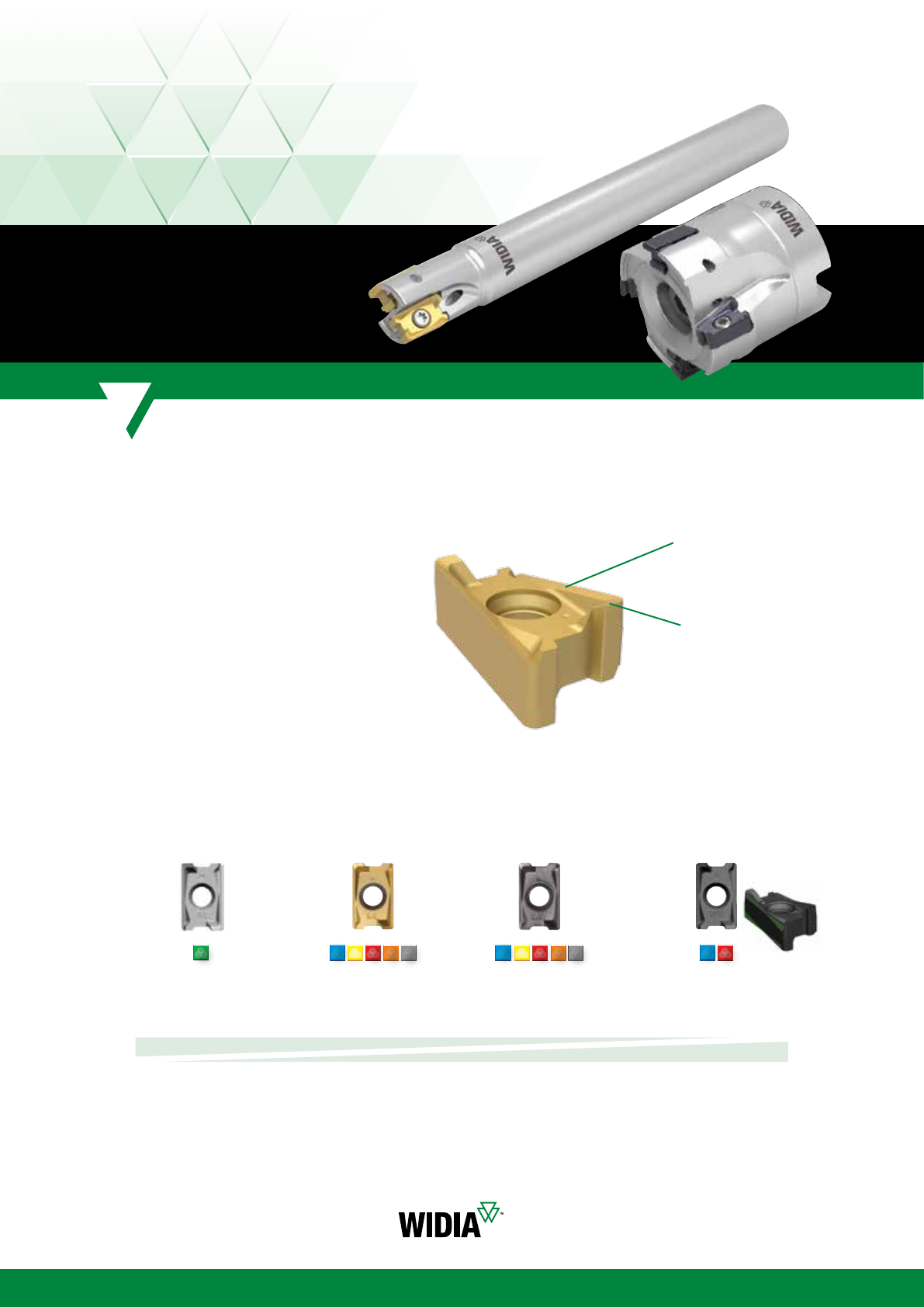

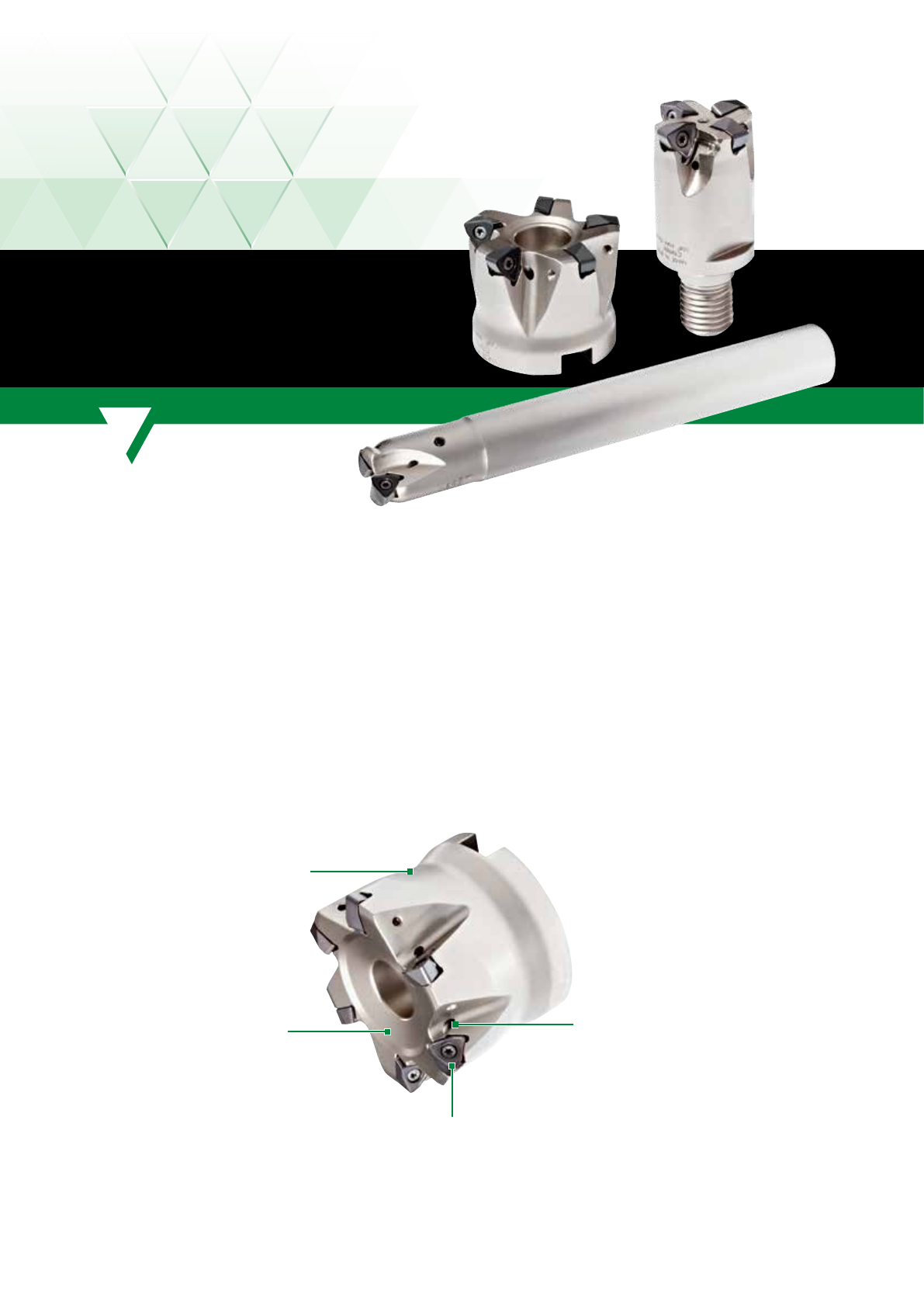

WIDIA™ Victory™ Shoulder Mill 11™ •
VSM11™
VSM11
Victory Shoulder Mill 11 is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM11 is designed
for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for profiling, face milling, slotting,
ramping, helical interpolation, circular interpolation, and other milling applications. Inserts are specially designed with
innovative geometries and features like variable rake angles, negative T-land, small hone, and the latest Victory grades,
enhancing tool performance and versatility.
Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of
the available 6 Victory grades, 5 geometries, and broad range of cutter body product portfolio. This platform works with
multiple material types and applications.
• State-of-the-art step down capability.
• Screw-on, end mill, and shell mill cutters with effective
internal coolant supply.
Language Version: 44_47_WID_All-Star19_INDM_VSM11 September 27, 2018 9:45 AM

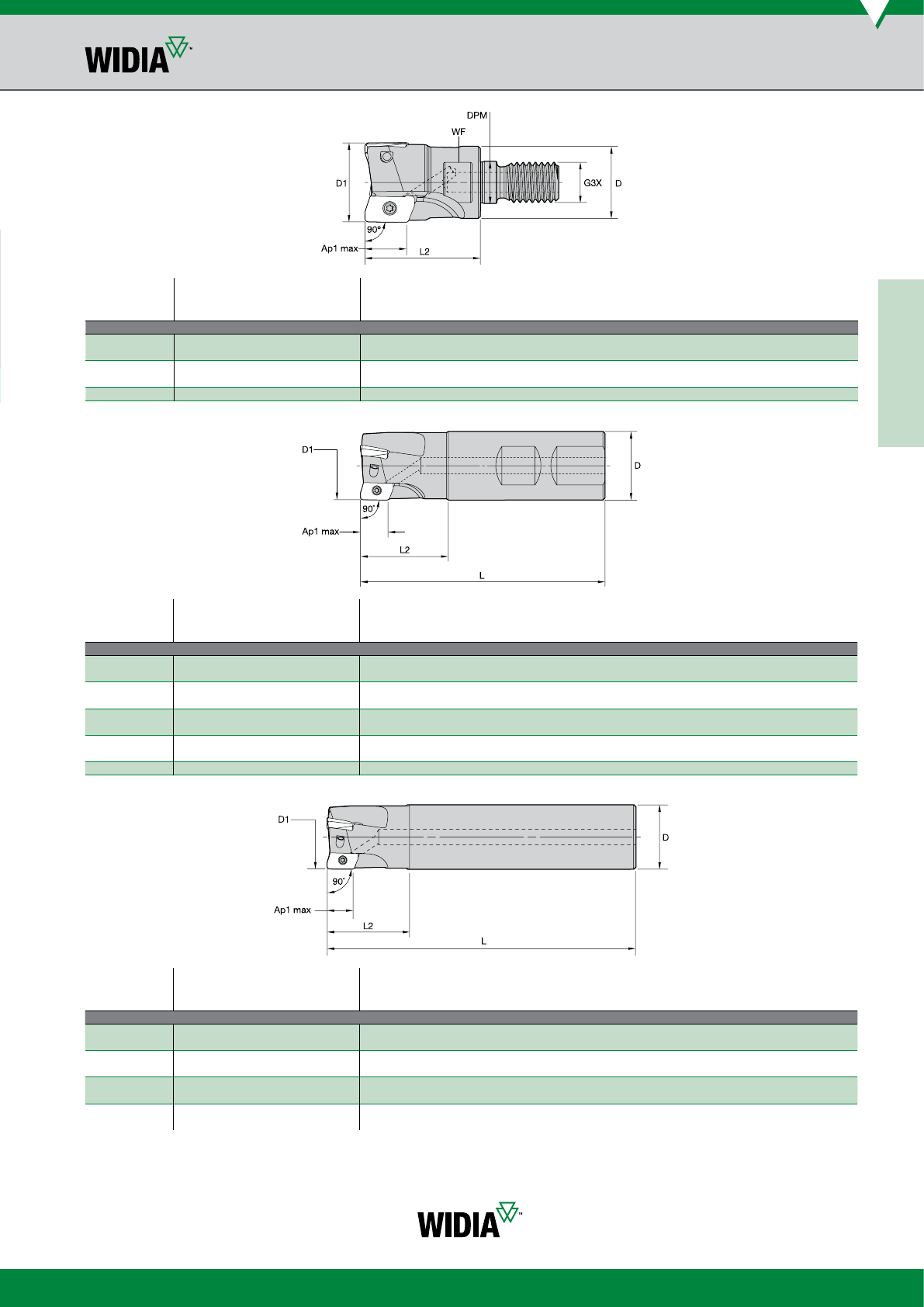

45
widia.com
Indexable Milling
VSM11™
Indexable Milling
order
number
catalogue
number
D1
(mm)
D
(mm)
DMP
(mm)
G3X
(mm)
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM11 • Screw-On End Mills
5417011 VSM11D016Z02M08XD11 16 13 8.5 M8 25 10 11,5 210.0° 41400 Yes
5417013 VSM11D020Z03M10XD11 20 18 10.5 M10 28 15 11,6 37.8° 35100 Yes
5417015 VSM11D025Z04M12XD11 25 21 12.5 M12 32 17 11,5 45.3° 30200 Yes
5417017 VSM11D032Z04M16XD11 32 29 17.0 M16 40 24 11,4 43.6° 25800 Yes
5417019 VSM11D040Z06M16XD11 40 29 17.0 M16 40 24 11,4 62.6° 22600 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM11 • Weldon® End Mills
5416454 VSM11D012Z01B16XD11 12 16 70 21 11,7 13.7° 53100 Yes
5416455 VSM11D016Z02B16XD11 16 16 70 21 11,5 210.0° 41400 Yes
5416457 VSM11D020Z02B20XD11 20 20 81 30 11,6 27.8° 35100 Yes
5416458 VSM11D020Z03B20XD11 20 20 81 30 11,6 37.8° 35100 Yes
5416459 VSM11D025Z03B25XD11 25 25 88 31 11,5 35.3° 30200 Yes
5416480 VSM11D025Z04B25XD11 25 25 88 31 11,5 45.3° 30200 Yes
5416481 VSM11D030Z04B25XD11 30 25 88 31 11,5 43.2° 26900 Yes
5416482 VSM11D032Z04B32XD11 32 32 100 39 11,4 43.6° 25800 Yes
5416483 VSM11D032Z05B32XD11 32 32 100 39 11,4 53.6° 25800 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM11 • Cylindrical End Mills
5416632 VSM11D012Z01A16XD11L100 12 16 100 25 11,7 13.7° 53100 Yes
5416633 VSM11D016Z02A16XD11L100 16 16 100 31 11,5 210.0° 41400 Yes
5416634 VSM11D020Z02A20XD11L110 20 20 110 31 11,6 27.8° 35100 Yes
5416635 VSM11D020Z03A20XD11L110 20 20 110 31 11,6 37.8° 35100 Yes
5416636 VSM11D025Z03A25XD11L120 25 25 120 33 11,5 35.3° 30200 Yes
5416637 VSM11D025Z04A25XD11L120 25 25 120 33 11,5 45.3° 30200 Yes
5416638 VSM11D032Z03A32XD11L130 32 32 130 41 11,4 33.6° 25800 Yes
5416639 VSM11D032Z05A32XD11L130 32 32 130 41 11,4 53.6° 25800 Yes
Language Version: 44_47_WID_All-Star19_INDM_VSM11 September 27, 2018 9:45 AM
46 widia.com
Indexable Milling
VSM11™
Indexable Milling
order
number
catalogue
number
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM11 • Shell Mills
5416316 VSM11D040Z04S016XD11 40 16 37 40 11,4 42.6° 22600 Yes
5416317 VSM11D040Z06S016XD11 40 16 37 40 11,4 62.6° 22600 Yes
5416318 VSM11D050Z05S022XD11 50 22 44 40 11,3 51.9° 19900 Yes
5416319 VSM11D050Z08S022XD11 50 22 44 40 11,3 81.9° 19900 Yes
5416340 VSM11D063Z06S022XD11 63 22 44 40 11,3 61.5° 17500 Yes
5416341 VSM11D063Z09S022XD11 63 22 44 40 11,3 91.5° 17500 Yes
5416342 VSM11D080Z08S027XD11 80 27 60 50 11,3 81.1° 15300 Yes
5416345 VSM11D100Z09S032XD11 100 32 80 50 11,3 90.9° 13600 Yes
5416347 VSM11D125Z011S040XD11 125 40 80 63 11,3 11 0.7° 12100 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM11 • Cylindrical End Mills • Long Shanks
5416700 VSM11D016Z02A16XD11L170 16 16 170 25 11,5 210.0° 41400 Yes
5416701 VSM11D018Z02A16XD11L170 18 16 170 25 11,6 29.7° 37900 Yes
5416702 VSM11D020Z02A20XD11L170 20 20 170 41 11,6 27.8° 35100 Yes
5416703 VSM11D020Z03A20XD11L170 20 20 170 41 11,6 37.8° 35100 Yes
5416704 VSM11D022Z03A20XD11L170 22 20 170 30 11,5 36.6° 32900 Yes
5416705 VSM11D025Z03A25XD11L210 25 25 210 50 11,5 35.3° 30200 Yes
5416706 VSM11D025Z04A25XD11L210 25 25 210 50 11,5 45.3° 30200 Yes
5416707 VSM11D032Z03A32XD11L250 32 32 250 65 11,4 33.6° 25800 Yes
Language Version: 44_47_WID_All-Star19_INDM_VSM11 September 27, 2018 9:45 AM

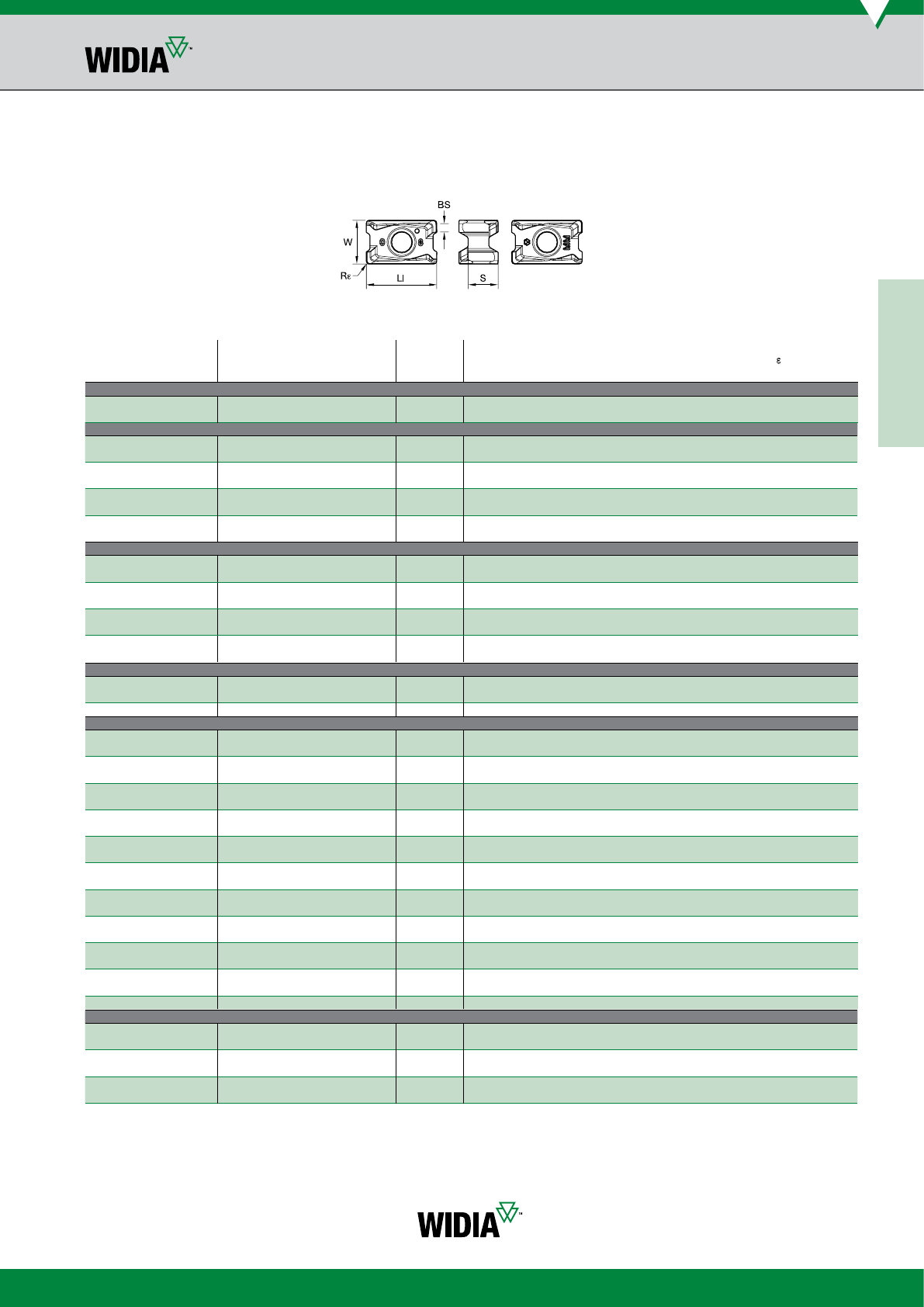

order
number
catalogue
number grade
cutting
edges
LI
(mm)
BS
(mm)
S
(mm)
W
(mm)
Rε
(mm)
hm
(mm)
XDCT-ML
5536671 XDCT110404PDERML WP25PM 213,43 2,09 4,00 6,90 0,40 0,04
5536670 XDCT110404PDERML WP35CM 213,43 2,09 4,00 6,90 0,40 0,04
5642230 XDCT110404PDERML WP40PM 213,43 2,09 4,00 6,90 0,40 0,04
6180174 XDCT110404PDERML WS40PM 213,43 2,09 4,00 6,90 0,40 0,04
5415549 XDCT110408PDERML WK15CM 213,44 1,69 4,00 6,90 0,80 0,04
5415548 XDCT110408PDERML WP25PM 213,44 1,69 4,00 6,90 0,80 0,04
5415547 XDCT110408PDERML WP35CM 213,44 1,69 4,00 6,90 0,80 0,04
5545065 XDCT110408PDERML WP40PM 213,44 1,69 4,00 6,90 0,80 0,04
5517826 XDCT110408PDERML WS30PM 213,44 1,69 4,00 6,90 0,80 0,04
5415546 XDCT110408PDERML WU35PM 213,44 1,69 4,00 6,90 0,80 0,04
6180173 XDCT110408PDERML WS40PM 213,44 1,69 4,00 6,90 0,80 0,04
6408002 XDCT110412PDERML WS40PM 213,44 1,29 4,00 6,90 1,20 –
5964861 XDCT110416PDERML WP25PM 213,44 0,88 4,00 6,89 1,60 0,04
5964810 XDCT110416PDERML WP40PM 213,44 0,88 4,00 6,89 1,60 0,04
6408004 XDCT110416PDERML WS40PM 213,44 0,88 4,00 6,89 1,60 0,04
6408006 XDCT110424PDERML WS40PM 213,44 0,16 4,00 6,88 2,40 –
6408007 XDCT110432PDERML WS40PM 212,86 –4,00 6,89 3,20 –
XDPT-MM
5415428 XDPT110404PDSRMM WK15CM 213,43 2,06 4,00 6,90 0,40 0,06
5642237 XDPT110404PDSRMM WP25PM 213,43 2,06 4,00 6,90 0,40 0,06
5415450 XDPT110404PDSRMM WP35CM 213,43 2,06 4,00 6,90 0,40 0,06
5642231 XDPT110404PDSRMM WP40PM 213,43 2,06 4,00 6,90 0,40 0,06
6180149 XDPT110404PDSRMM WS40PM 213,43 2,06 4,00 6,90 0,40 0,06
5415315 XDPT110408PDSRMM WK15CM 213,44 1,68 4,00 6,90 0,79 0,06
5415319 XDPT110408PDSRMM WP25PM 213,44 1,68 4,00 6,90 0,79 0,06
5415318 XDPT110408PDSRMM WP35CM 213,44 1,68 4,00 6,90 0,79 0,06
5545063 XDPT110408PDSRMM WP40PM 213,44 1,68 4,00 6,90 0,79 0,06
5519921 XDPT110408PDSRMM WS30PM 213,44 1,68 4,00 6,90 0,79 0,06
5415317 XDPT110408PDSRMM WU35PM 213,44 1,68 4,00 6,90 0,79 0,06
6180148 XDPT110408PDSRMM WS40PM 213,44 1,68 4,00 6,90 0,79 0,06
5415310 XDPT110412PDSRMM WK15CM 213,44 1,29 4,00 6,90 1,20 0,06
5415314 XDPT110412PDSRMM WP25PM 213,44 1,29 4,00 6,90 1,20 0,06
5415313 XDPT110412PDSRMM WP35CM 213,44 1,29 4,00 6,90 1,20 0,06
5642232 XDPT110412PDSRMM WP40PM 213,44 1,29 4,00 6,90 1,20 0,06
5415312 XDPT110412PDSRMM WU35PM 213,44 1,29 4,00 6,90 1,20 0,06
6180150 XDPT110412PDSRMM WS40PM 213,44 1,29 4,00 6,90 1,20 0,06
5415250 XDPT110416PDSRMM WK15CM 213,51 0,85 4,13 6,95 1,60 0,06
5415254 XDPT110416PDSRMM WP25PM 213,51 0,85 4,13 6,95 1,60 0,06
5415253 XDPT110416PDSRMM WP35CM 213,51 0,85 4,13 6,95 1,60 0,06
5642233 XDPT110416PDSRMM WP40PM 213,51 0,85 4,13 6,95 1,60 0,06
6180172 XDPT110416PDSRMM WS40PM 213,51 0,85 4,13 6,95 1,60 0,06
5980399 XDPT110420PDSRMM WP25PM 213,51 0,45 4,13 6,95 2,00 0,06
5980400 XDPT110420PDSRMM WP35CM 213,51 0,45 4,13 6,95 2,00 0,06
5980398 XDPT110420PDSRMM WP40PM 213,51 0,45 4,13 6,95 2,00 0,06
6408095 XDPT110420PDSRMM WS40PM 213,51 0,45 4,13 6,95 2,00 0,06
5901355 XDPT110424PDSRMM WP25PM 213,37 –4,01 6,94 2,40 0,06
5901354 XDPT110424PDSRMM WP40PM 213,37 –4,01 6,94 2,40 0,06
6408096 XDPT110424PDSRMM WS40PM 213,37 –4,01 6,94 2,40 0,06
5415422 XDPT110431PDSRMM WK15CM 212,91 –4,00 6,89 3,10 0,06
5415426 XDPT110431PDSRMM WP25PM 212,91 –4,00 6,89 3,10 0,06
5415425 XDPT110431PDSRMM WP35CM 212,91 –4,00 6,89 3,10 0,06
5642234 XDPT110431PDSRMM WP40PM 212,91 –4,00 6,89 3,10 0,06
5517827 XDPT110431PDSRMM WS30PM 212,91 –4,00 6,89 3,10 0,06
6279204 XDPT110431PDSRMM WS40PM 212,91 –4,00 6,89 3,10 0,06
Indexable Milling
VSM11™
Indexable Milling

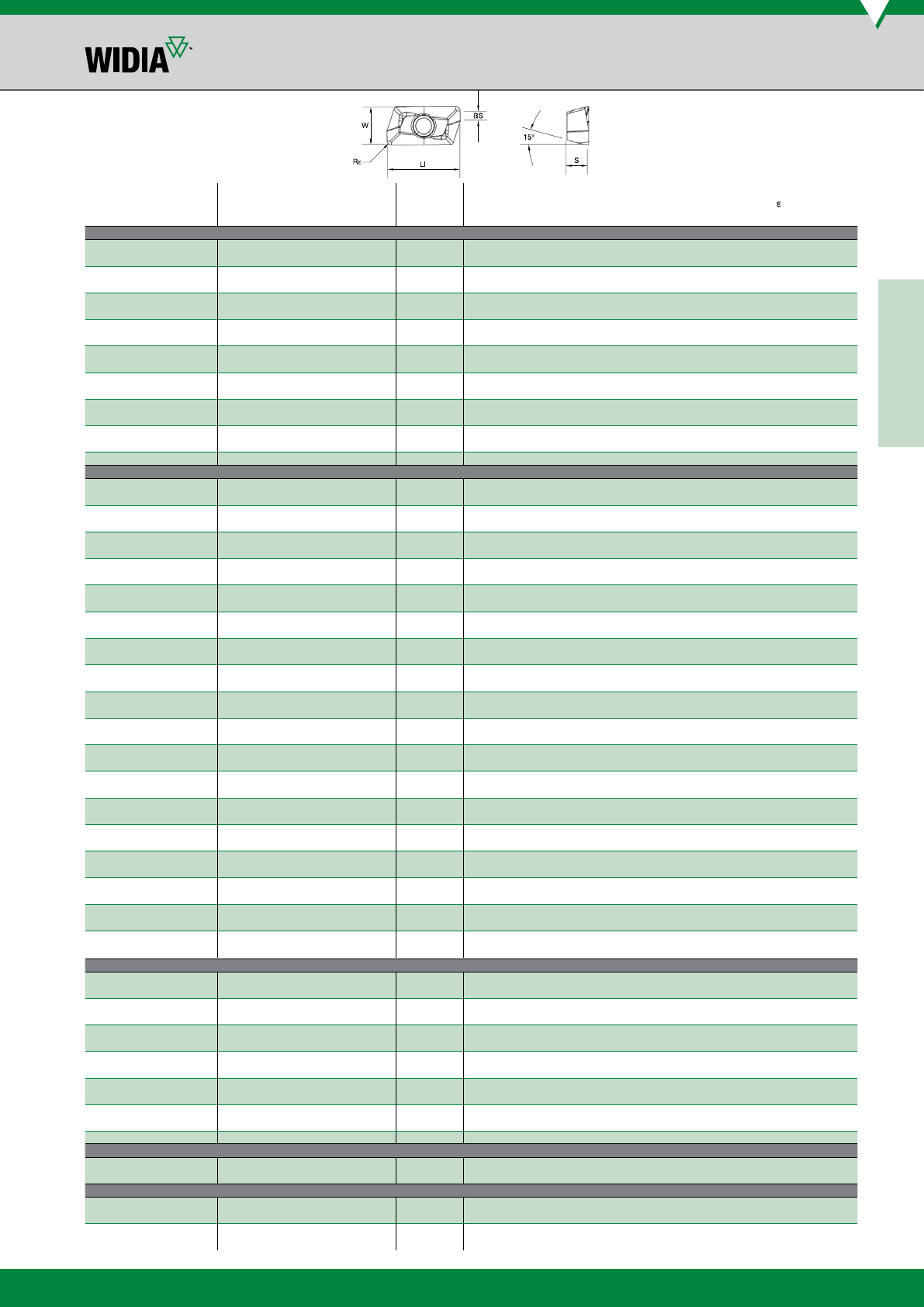

XDPT-MH
5415255 XDPT110408PDSRMH WK15CM 213,44 1,68 4,00 6,90 0,79 0,13
5415257 XDPT110408PDSRMH WP35CM 213,44 1,68 4,00 6,90 0,79 0,13
5545064 XDPT110408PDSRMH WP40PM 213,44 1,68 4,00 6,90 0,79 0,13
5415256 XDPT110408PDSRMH WU35PM 213,44 1,68 4,00 6,90 0,79 0,13
6408098 XDPT110408PDSRMH WS40PM 213,44 1,68 4,00 6,90 0,79 0,13
5415360 XDPT110412PDSRMH WK15CM 213,44 1,29 4,00 6,90 1,20 0,13
5415362 XDPT110412PDSRMH WP35CM 213,44 1,29 4,00 6,90 1,20 0,13
5642235 XDPT110412PDSRMH WP40PM 213,44 1,29 4,00 6,90 1,20 0,13
6408099 XDPT110412PDSRMH WS40PM 213,44 1,29 4,00 6,90 1,20 0,13
5415364 XDPT110416PDSRMH WK15CM 213,44 0,90 4,00 6,90 1,59 0,13
5415366 XDPT110416PDSRMH WP35CM 213,44 0,90 4,00 6,90 1,59 0,13
5642236 XDPT110416PDSRMH WP40PM 213,44 0,90 4,00 6,90 1,59 0,13
6408100 XDPT110416PDSRMH WS40PM 213,44 0,90 4,00 6,90 1,59 0,13
XDCW-PCD
5415420 XDCW110404PDFRPCD WDN10U 113,43 2,10 4,00 6,90 0,40 0,02
5415421 XDCW110408PDFRPCD WDN10U 113,44 1,70 4,00 6,90 0,80 0,02
XDCT-ALP
5933940 XDCT110404PDFRALP WN10HM 213,43 2,09 4,00 6,90 0,40 0,02
5417054 XDCT110404PDFRALP WN25PM 213,43 2,09 4,00 6,90 0,40 0,02
5936171 XDCT110408PDFRALP WN10HM 213,44 1,69 4,00 6,90 0,80 0,02
5417053 XDCT110408PDFRALP WN25PM 213,44 1,69 4,00 6,90 0,80 0,02
Language Version: 48_51_WID_All-Star19_INDM_VSM17 September 19, 2018 8:33 AM

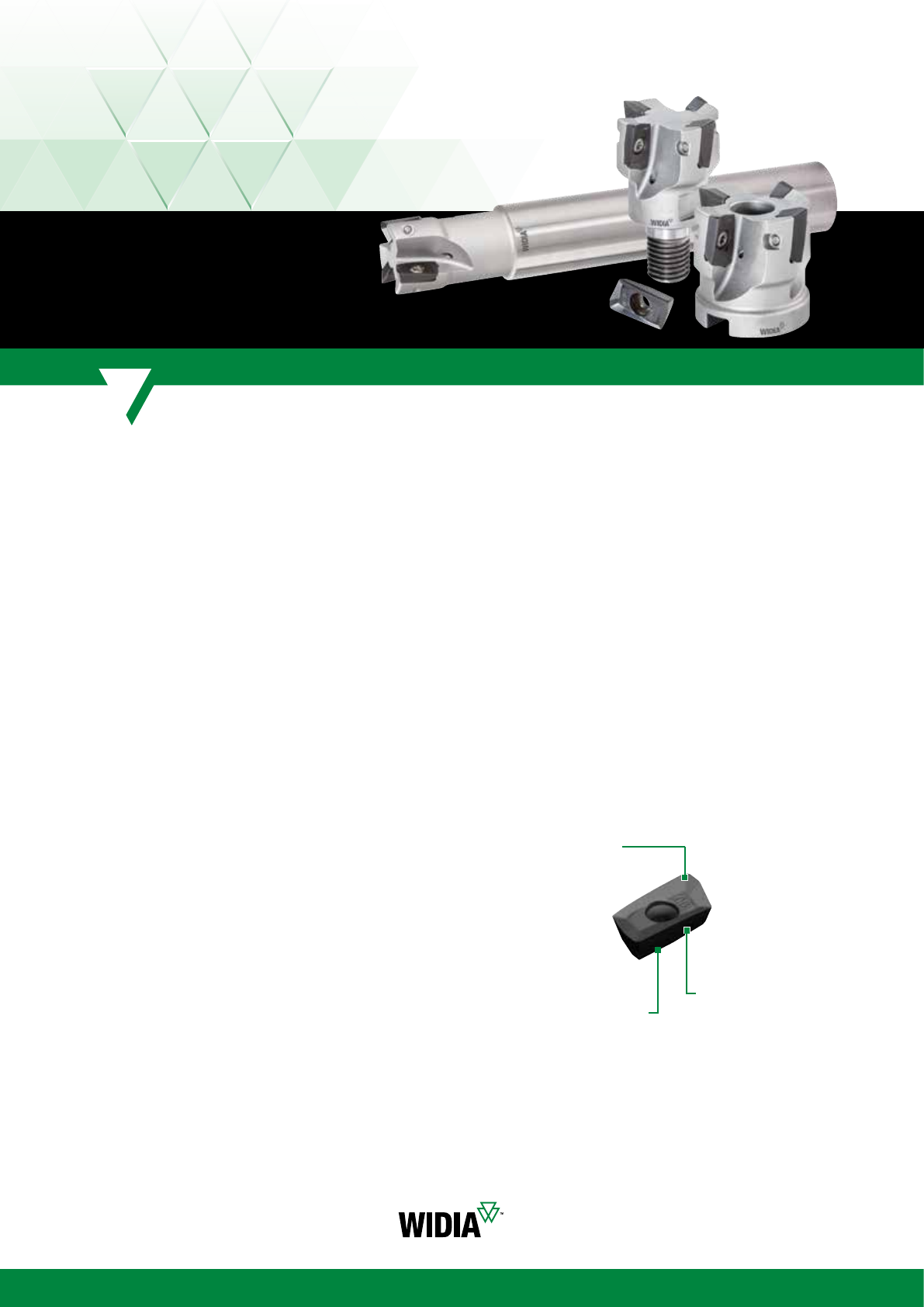

48 widia.com

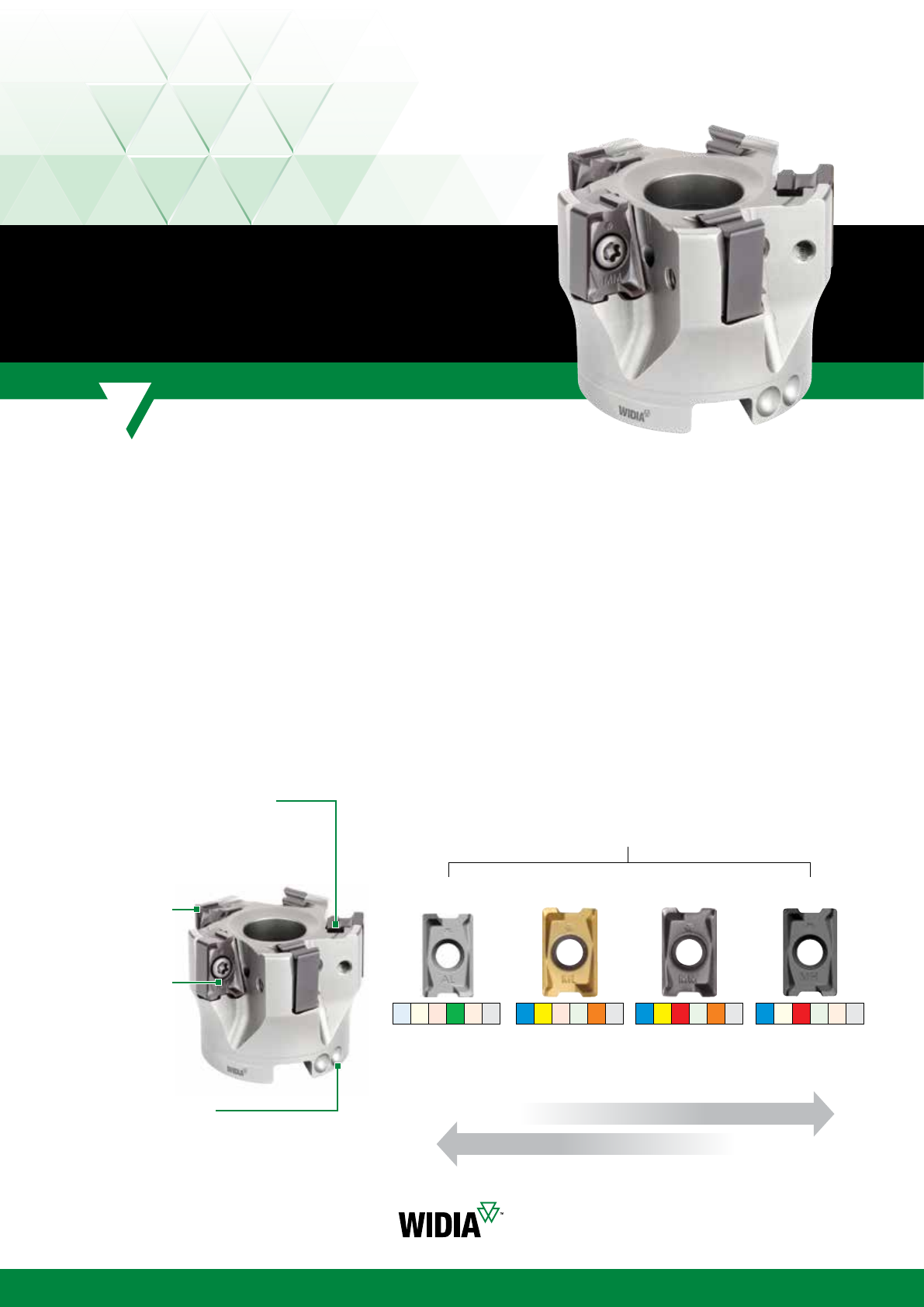

WIDIA Victory Shoulder Mill 17 is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM17 is
designed for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for shoulder milling,
profiling, face milling, slotting, ramping, helical interpolation, and circular interpolation milling applications. Inserts are
specially designed with innovative geometries and features like variable rake angles, negative T-land, small hone, and the
latest Victory grades, enhancing tool performance and versatility.
Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of
the available 7 Victory grades, 4 geometries, and a broad-range cutter body product portfolio. This platform works with
multiple material types and applications.
Features
• Insert geometries and grades for all workpiece materials.
• Insert corner radius from 0,4–4mm (.015–.157").
• Max axial depth of cut 16,3mm (0.65").
Benefits
• Achieve true 90° wall finish.
• High performance and longer tool life.
• Latest WIDIA Victory milling grades for
all workpiece materials.
• High positive geometry, soft cutting action,
reduced cycle times, and low horsepower
consumption.
• Stability and reliability.
Multiple corner
nose radii available.
Optimised cutting edge
and positive rake face
for reduced cutting
forces and softer
cutting action.
Innovative cutting
geometry provides
superior wall and
surface finish.
VSM17
• Up to 16,33mm (.65") depth-of-cut capabilities.
• State-of-the-art step down capability.
• Screw-on, end mill, and shell mill cutters with effective
internal coolant supply.
WIDIA™ Victory™ Shoulder Mill 17™ •
VSM17™
Language Version: 48_51_WID_All-Star19_INDM_VSM17 September 19, 2018 8:33 AM

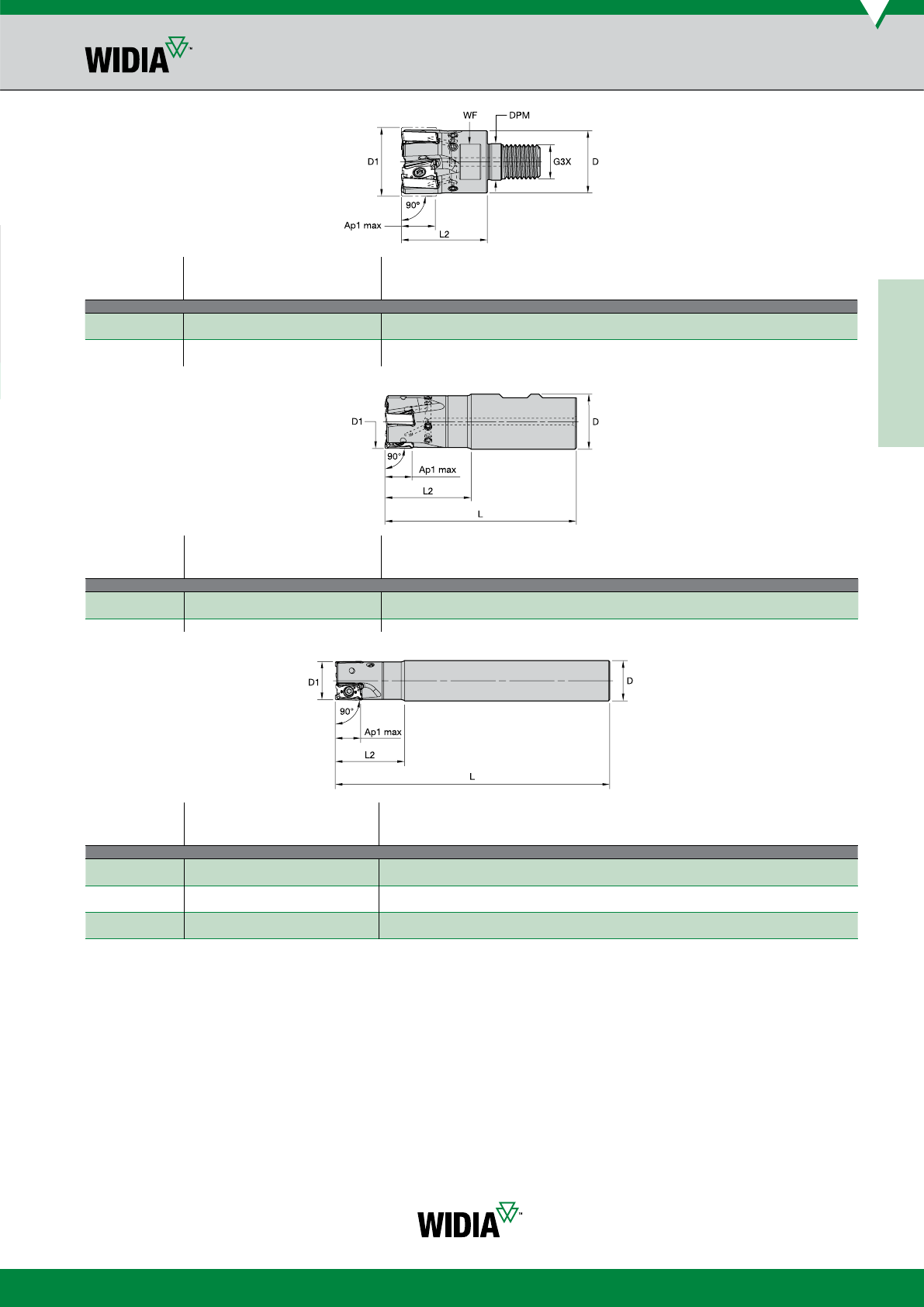

49
widia.com
Indexable Milling
VSM17™
order
number
catalogue
number
D1
(mm)
D
(mm)
DPM
(mm)
G3X
(mm)
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply

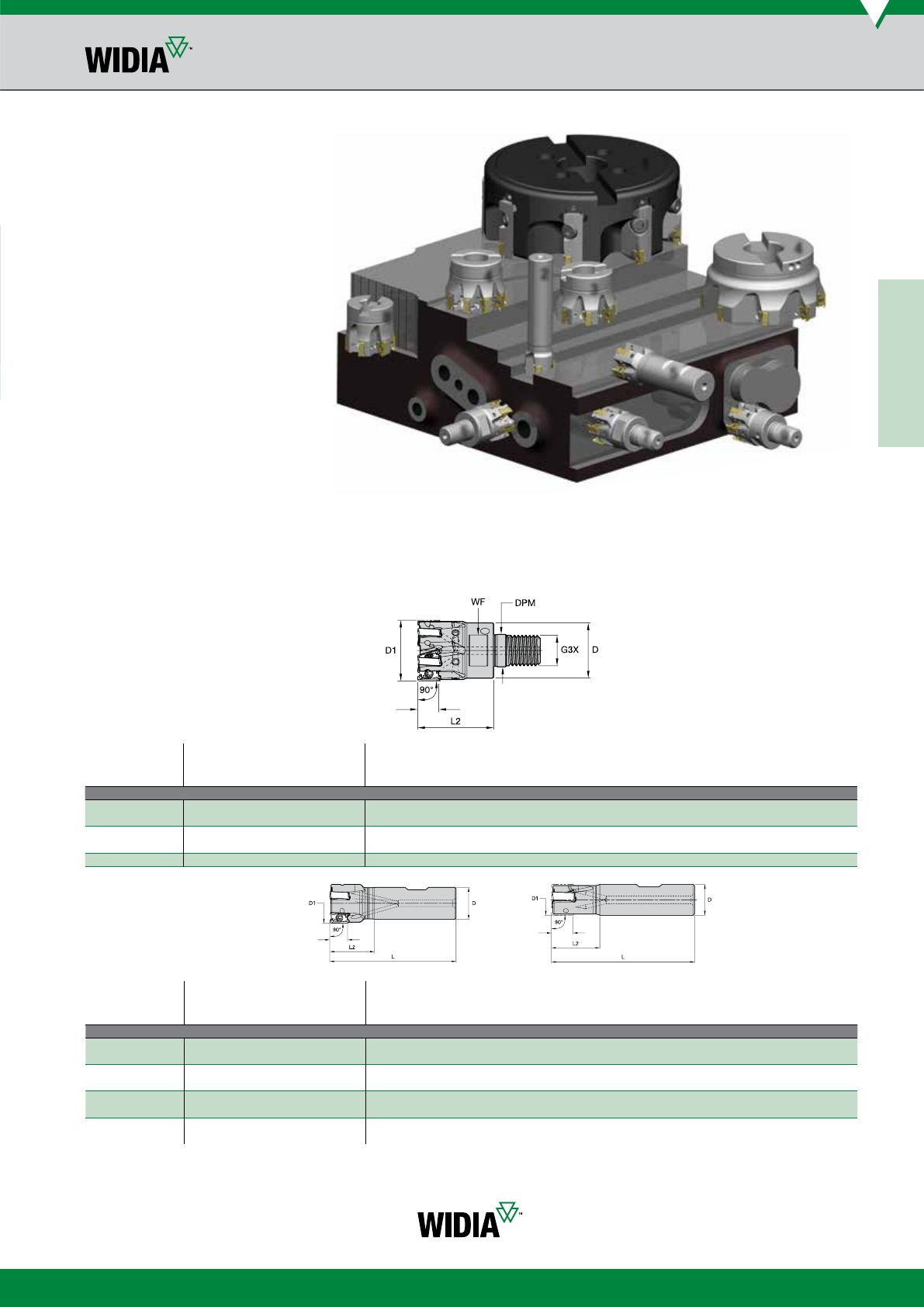

VSM17 • Screw-On End Mills
5988091 VSM17D025Z02M12XD17 25 21 12,5 M12 35 17 16,4 28.8 41800 Yes
5988092 VSM17D032Z03M16XD17 32 29 17,0 M16 40 24 16,3 35.7 34700 Yes
5988131 VSM17D40Z03M016XD17 40 29 17,0 M16 40 24 16,2 34.0 29800 Yes
5988093 VSM17D040Z04M16XD17 40 29 17,0 M16 40 24 16,2 44.0 29800 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM17 • Weldon® End Mills
5988102 VSM17D025Z02B25XD17 25 25 90 33 16,4 28.8 41800 Yes
5988103 VSM17D032Z03B32XD17 32 32 100 39 16,3 35.7 34700 Yes
5988104 VSM17D040Z04B40XD17 40 40 110 39 16,2 44.0 29800 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM17 • Cylindrical End Mills
5988055 VSM17D025Z02A25XD17L110 25 25 110 44 16,4 28.8 41800 Yes
5988056 VSM17D025Z02A25XD17L170 25 25 170 44 16,4 28.8 41800 Yes
5988107 VSM17D032Z02A32XD17L120 32 32 120 50 16,3 25.7 34700 Yes
5988057 VSM17D032Z03A32XD17L120 32 32 120 50 16,3 35.7 34700 Yes
5988109 VSM17D040Z03A32XD17L130 40 32 130 50 16,2 34.0 29800 Yes
5988059 VSM17D040Z04A32XD17L130 40 32 130 50 16,2 44.0 29800 Yes
Indexable Milling
Language Version: 48_51_WID_All-Star19_INDM_VSM17 September 19, 2018 8:33 AM

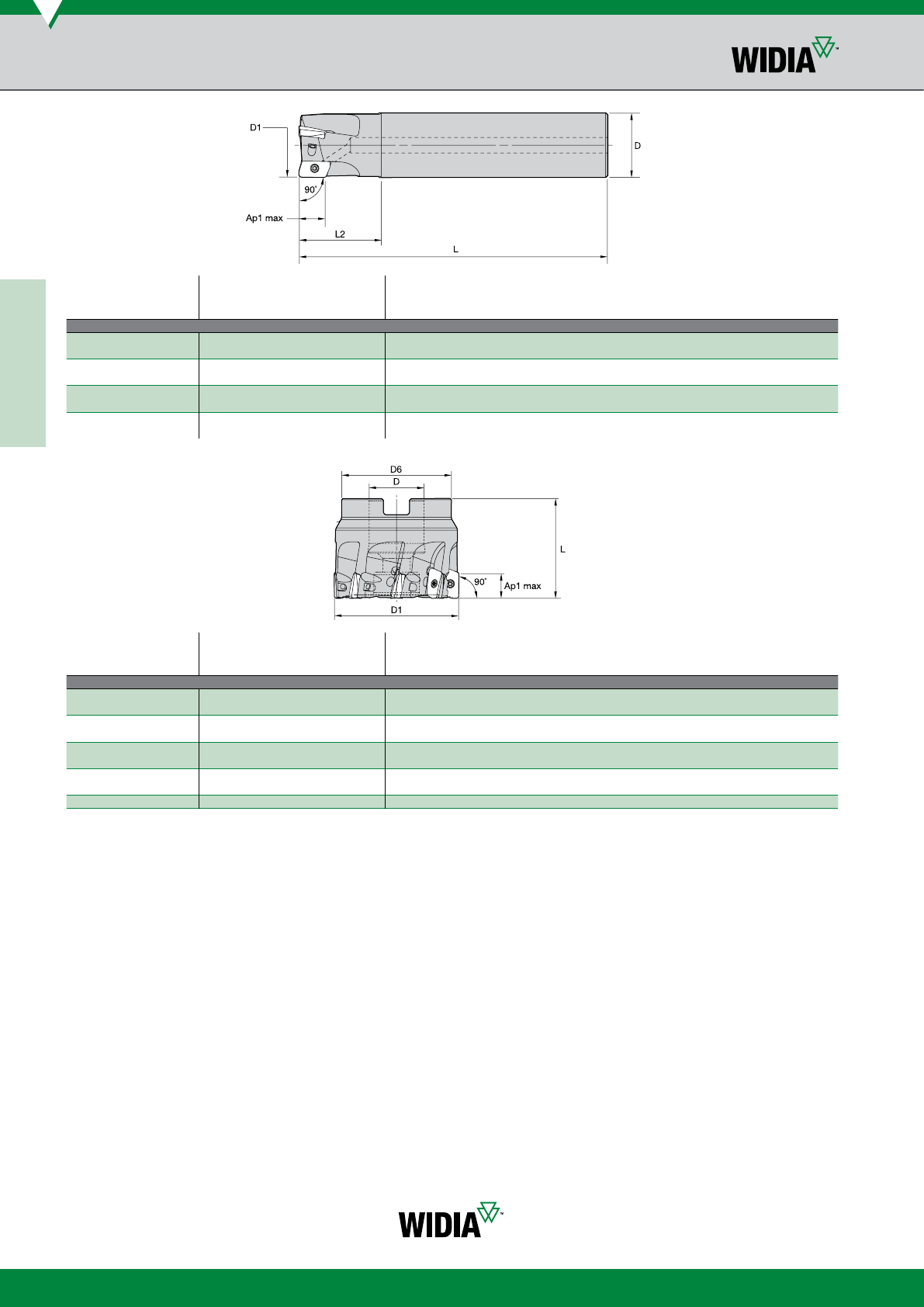

50 widia.com
Indexable Milling
VSM17™
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM17 • Cylindrical End Mills • Long Shank
5988108 VSM17D032Z02A32XD17L210 32 32 210 50 16,3 25.7 34700 Yes
5988058 VSM17D032Z03A32XD17L210 32 32 210 50 16,3 35.7 34700 Yes
5988110 VSM17D040Z03A32XD17L250 40 32 250 50 16,2 34.0 29800 Yes
5988060 VSM17D040Z04A32XD17L250 40 32 250 50 16,2 44.0 29800 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
VSM17 • Shell Mills
5988094 VSM17D040Z04S16XD17 40 16 37 40 16,2 44.0 29800 Yes
5988095 VSM17D050Z04S22XD17 50 22 45 40 16,1 43.0 25800 Yes
5988096 VSM17D050Z05S22XD17 50 22 45 40 16,1 53.0 25800 Yes
5988134 VSM17D050Z06S22XD17 50 22 45 40 16,1 63.0 25800 Yes
5988097 VSM17D063Z05S22XD17 63 22 50 40 16,0 52.1 22400 Yes
5988135 VSM17D063Z06S22XD17 63 22 50 40 16,0 62.1 22400 Yes
5988098 VSM17D080Z06S27XD17 80 27 60 50 15,9 61.6 19500 Yes
5988133 VSM17D080Z07S27XD17 80 27 60 50 15,9 71.6 19500 Yes
5988099 VSM17D100Z08S32XD17 100 32 80 50 15,8 81.2 17200 Yes
5988100 VSM17D125Z09S40XD17 125 40 90 63 15,7 90.9 15200 Yes
5988101 VSM17D160Z12S40XD17 160 40 100 63 15,8 12 0.7 13300 Yes
Indexable Milling
Language Version: 48_51_WID_All-Star19_INDM_VSM17 September 19, 2018 8:33 AM

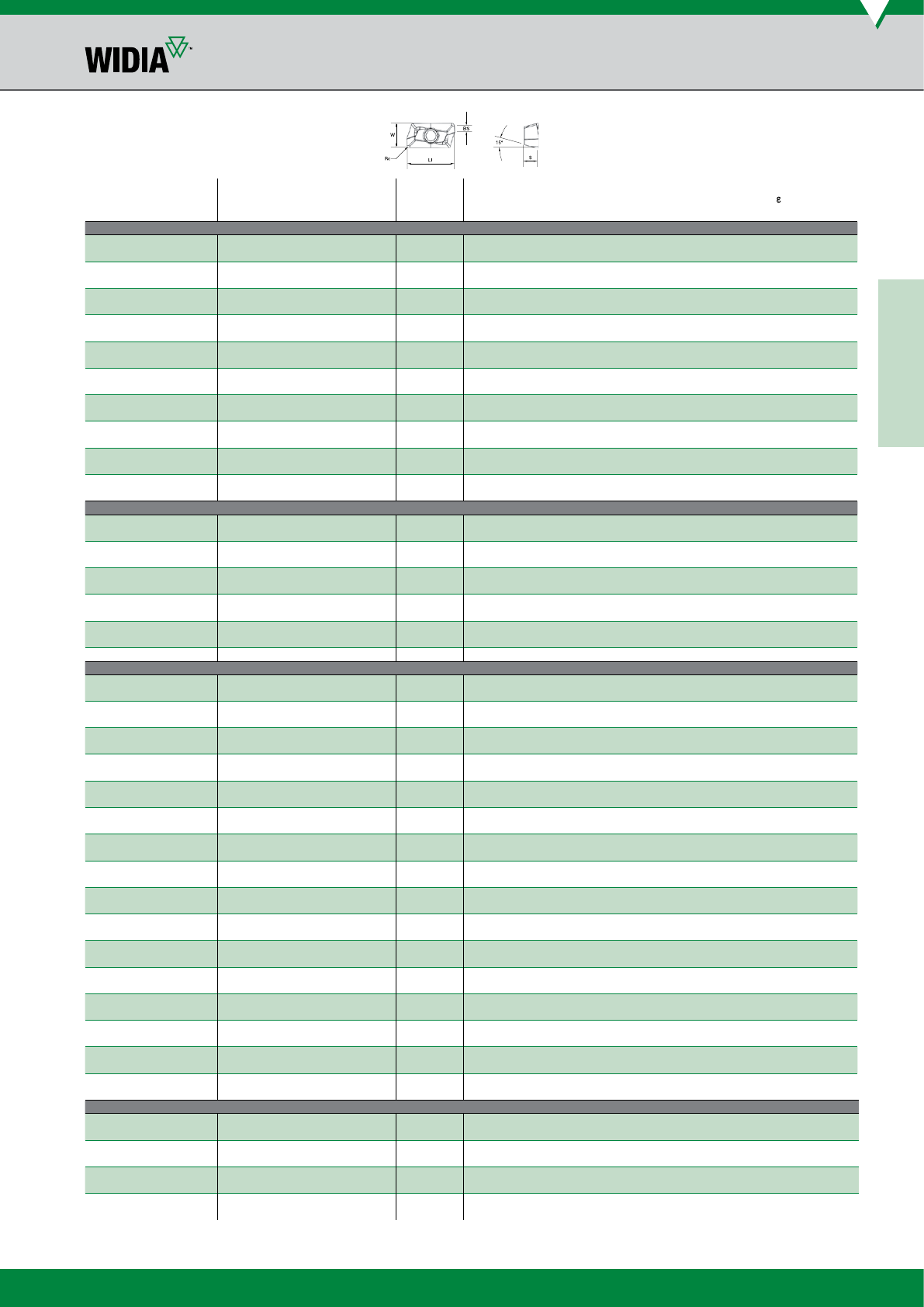

51
widia.com
order
number
catalogue
number grade
cutting
edges
Ll
(mm)
BS
(mm)
S
(mm)
W
(mm)
Rε
(mm)
hm
(mm)
XDCT-ML
5989010 XDCT170404PEERML WP25PM 219,15 2,62 4,90 9,60 0,40 0,04
5988983 XDCT170408PEERML WP25PM 219,15 2,22 4,90 9,60 0,80 0,04
5988982 XDCT170408PEERML WP35CM 219,15 2,22 4,90 9,60 0,80 0,04
5988981 XDCT170408PEERML WP40PM 219,15 2,22 4,90 9,60 0,80 0,04
6180180 XDCT170408PEERML WS40PM 219,15 2,22 4,90 9,60 0,80 0,04
5988988 XDCT170412PEERML WP25PM 219,16 1,82 4,90 9,60 1,20 0,04
5988987 XDCT170412PEERML WP35CM 219,16 1,82 4,90 9,60 1,20 0,04
5988986 XDCT170412PEERML WP40PM 219,16 1,82 4,90 9,60 1,20 0,04
6180211 XDCT170412PEERML WS40PM 219,16 1,82 4,90 9,60 1,20 0,04
6001257 XDCT170416PEERML WP25PM 219,17 1,42 4,90 9,60 1,60 0,04
6425261 XDCT170416PEERML WS40PM 219,17 1,42 4,90 9,60 1,60 0,04
6001255 XDCT170420PEERML WP25PM 219,17 1,01 4,90 9,60 2,00 0,04
6425263 XDCT170420PEERML WS40PM 219,17 1,01 4,90 9,60 2,00 0,04
6001253 XDCT170424PEERML WP25PM 219,17 0,63 4,90 9,60 2,40 0,04
6425264 XDCT170424PEERML WS40PM 219,17 0,63 4,90 9,60 2,40 0,04
6001251 XDCT170432PEERML WP25PM 218,85 –4,88 9,59 3,20 0,04
6425265 XDCT170432PEERML WS40PM 218,85 –4,88 9,59 3,20 0,04
6001239 XDCT170440PEERML WP25PM 218,33 –4,87 9,59 4,00 0,04
6425266 XDCT170440PEERML WS40PM 218,33 –4,87 9,59 4,00 0,04
6232053 XDCT170460PEERML WS40PM 217,02 –4,80 9,56 6,00 0,04
XDCT-ALP
6007341 XDCT170404PEFRALP WN10HM 219,15 2,62 4,90 9,60 0,40 0,02
6007220 XDCT170404PEFRALP WN25PM 219,15 2,62 4,90 9,60 0,40 0,02
6007345 XDCT170408PEFRALP WN10HM 219,15 2,22 4,90 9,60 0,80 0,02
6007344 XDCT170408PEFRALP WN25PM 219,15 2,22 4,90 9,60 0,80 0,02
6007342 XDCT170412PEFRALP WN10HM 219,16 1,82 4,90 9,60 1,20 0,02
6001537 XDCT170412PEFRALP WN25PM 219,16 1,82 4,90 9,60 1,20 0,02
6001256 XDCT170416PEFRALP WN25PM 219,17 1,42 4,90 9,60 1,60 0,02
6001254 XDCT170420PEFRALP WN25PM 219,17 1,01 4,90 9,60 2,00 0,02
6001252 XDCT170424PEFRALP WN25PM 219,17 0,63 4,90 9,60 2,40 0,02
6001240 XDCT170432PEFRALP WN25PM 218,85 –4,88 9,59 3,20 0,02
6001238 XDCT170440PEFRALP WN25PM 218,33 –4,87 9,59 4,00 0,02
XDPT-MM
5987689 XDPT170404PESRMM WP40PM 219,15 2,52 4,90 9,60 0,40 0,10
5987690 XDPT170404PESRMM WU35PM 219,15 2,52 4,90 9,60 0,40 0,10
5987948 XDPT170408PESRMM WK15CM 219,15 2,15 4,90 9,60 0,80 0,10
5987949 XDPT170408PESRMM WP25PM 219,15 2,15 4,90 9,60 0,80 0,10
5987947 XDPT170408PESRMM WP35CM 219,15 2,15 4,90 9,60 0,80 0,10
5987946 XDPT170408PESRMM WP40PM 219,15 2,15 4,90 9,60 0,80 0,10
5987950 XDPT170408PESRMM WU35PM 219,15 2,15 4,90 9,60 0,80 0,10
6180212 XDPT170408PESRMM WS40PM 219,15 2,15 4,90 9,60 0,80 0,10
5988138 XDPT170412PESRMM WK15CM 219,16 1,77 4,90 9,60 1,20 0,10
5988151 XDPT170412PESRMM WP25PM 219,16 1,77 4,90 9,60 1,20 0,10
5988140 XDPT170412PESRMM WP35CM 219,16 1,77 4,90 9,60 1,20 0,10
5988139 XDPT170412PESRMM WP40PM 219,16 1,77 4,90 9,60 1,20 0,10
5988152 XDPT170412PESRMM WU35PM 219,16 1,77 4,90 9,60 1,20 0,10
6180213 XDPT170412PESRMM WS40PM 219,16 1,77 4,90 9,60 1,20 0,10
5988153 XDPT170416PESRMM WK15CM 219,17 1,38 4,90 9,60 1,60 0,10
5988155 XDPT170416PESRMM WP25PM 219,17 1,38 4,90 9,60 1,60 0,10
5988156 XDPT170416PESRMM WP35CM 219,17 1,38 4,90 9,60 1,60 0,10
5988154 XDPT170416PESRMM WP40PM 219,17 1,38 4,90 9,60 1,60 0,10
6180214 XDPT170416PESRMM WS40PM 219,17 1,38 4,90 9,60 1,60 0,10
5988158 XDPT170420PESRMM WP25PM 219,17 0,99 4,90 9,60 2,00 0,10
5988160 XDPT170420PESRMM WP35CM 219,17 0,99 4,90 9,60 2,00 0,10
5988159 XDPT170420PESRMM WP40PM 219,17 0,99 4,90 9,60 2,00 0,10
6425145 XDPT170420PESRMM WS40PM 219,17 0,99 4,90 9,60 2,00 0,10
5988203 XDPT170424PESRMM WP25PM 219,17 0,62 4,90 9,60 2,40 0,10
5988202 XDPT170424PESRMM WP40PM 219,17 0,62 4,90 9,60 2,40 0,10
6425146 XDPT170424PESRMM WS40PM 219,17 0,62 4,90 9,60 2,40 0,10
5988206 XDPT170432PESRMM WP25PM 218,85 –4,89 9,59 3,20 0,10
5988204 XDPT170432PESRMM WP35CM 218,85 –4,89 9,59 3,20 0,10
5988205 XDPT170432PESRMM WP40PM 218,85 –4,89 9,59 3,20 0,10
5988970 XDPT170440PESRMM WP25PM 218,33 –4,87 9,59 4,00 0,10
5988969 XDPT170440PESRMM WP40PM 218,33 –4,87 9,59 4,00 0,10
6425147 XDPT170440PESRMM WS40PM 218,33 –4,87 9,59 4,00 0,10
XDPT-MH
5989053 XDPT170408PESRMH WK15CM 219,15 2,10 4,91 9,60 0,80 0,13
5989054 XDPT170408PESRMH WP35CM 219,15 2,10 4,91 9,60 0,80 0,13
5989052 XDPT170408PESRMH WP40PM 219,15 2,10 4,91 9,60 0,80 0,13
6425148 XDPT170408PESRMH WS40PM 219,15 2,10 4,91 9,60 0,80 0,13
5991817 XDPT170412PESRMH WK15CM 219,16 1,73 4,91 9,60 1,20 0,13
5991816 XDPT170412PESRMH WP35CM 219,16 1,73 4,91 9,60 1,20 0,13
5991815 XDPT170412PESRMH WP40PM 219,16 1,73 4,91 9,60 1,20 0,13
6425149 XDPT170412PESRMH WS40PM 219,16 1,73 4,91 9,60 1,20 0,13
Indexable Milling
VSM17™
Indexable Milling
Language Version: 52_55_WID_All-Star19_INDM_VSM490-10 October 9, 2017 12:02 PM
52 widia.com
52
VSM490-10
4-Edged, Double-Sided 90° Victory Shoulder Mill •
VSM490™-10
• True 90° roughing tool with embedded
finishing capabilities all in one tool.
• Up to Ap1 max = 10mm.
• Best-in-class wall finish in axial
stepping-down jobs.
• Lower cutting forces and real
soft cutting action.
• Perfect fit for taper 40 spindles
and driven units.
Super-positive rake design
for low machine power
consumption.
Integrated wiper facet
for great surface floor finish.
PMKSH
NPMKSHK
P
Geometry Strengthening
For non-ferrous materials.
-ML
First choice for stainless steel, light
machining, and finishing jobs.
First choice for general purpose
in all material groups.
-MH
First choice for HPC roughing
cast iron. Strongest edge
protection with additional margins.
Finishing Capabilities/Lower Cutting Forces
Four insert geometries for all material groups in shoulder milling applications.
-ALP -MM
Language Version: 52_55_WID_All-Star19_INDM_VSM490-10 October 9, 2017 12:02 PM
53
widia.com 53
Indexable Milling
1. Face milling with modular M4000
cartridge milling system. (M4000 is
not included in the All-Star).
2. Full slotting with 100% radial
engagement.
3. Shoulder milling with step-down
capabilities and great wall nish.
4. Shoulder milling with low axial
and high radial engagement.
5. Shoulder milling with low radial
and high axial engagement.
6. HPC face milling. Excellent choice
to clean up castings.
7. Trochoidal slot milling.
8. Z-axis plunge milling.
9. Contour milling.
1
4
4
5
9
67
8
2
3
Applications
Indexable Milling
VSM490™-10
order
number
catalogue
number
D1
(mm)
D
(mm)
DPM
(mm) G3X
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Screw-On End Mills
6425553 VSM490D016Z02M08XN10 16 13 8,5 M8 25 10 10,0 248000 Yes
6425554 VSM490D020Z03M10XN10 20 18 10,5 M10 28 15 10,0 340200 Yes
6425555 VSM490D025Z04M12XN10 25 21 12,5 M12 32 17 10,0 434300 Yes
6425556 VSM490D032Z05M16XN10 32 29 17,0 M16 40 24 10,0 529200 Yes
6425557 VSM490D032Z06M16XN10 32 29 17,0 M16 40 24 10,0 629200 Yes
NOTE: Weldon type not recommended for finishing operations.
Ap1 max
Regular Shank
Reduced Shank
Ap1 max
Ap1 max
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Weldon
®
End Mills
6425558 VSM490D016Z02B16XN10 16 16 74 25 10,0 248000 Yes
6425559 VSM490D020Z02B20XN10 20 20 79 28 10,0 240200 Yes
6425560 VSM490D020Z03B20XN10 20 20 79 28 10,0 340200 Yes
6425571 VSM490D025Z03B20XN10 25 20 79 28 10,0 334300 Yes
6425572 VSM490D025Z03B25XN10 25 25 89 32 10,0 334300 Yes
6425573 VSM490D025Z04B25XN10 25 25 89 32 10,0 434300 Yes
6425574 VSM490D032Z04B25XN10 32 25 89 32 10,0 429200 Yes
6425575 VSM490D032Z05B25XN10 32 25 89 32 10,0 529200 Yes
Language Version: 52_55_WID_All-Star19_INDM_VSM490-10 October 9, 2017 12:02 PM

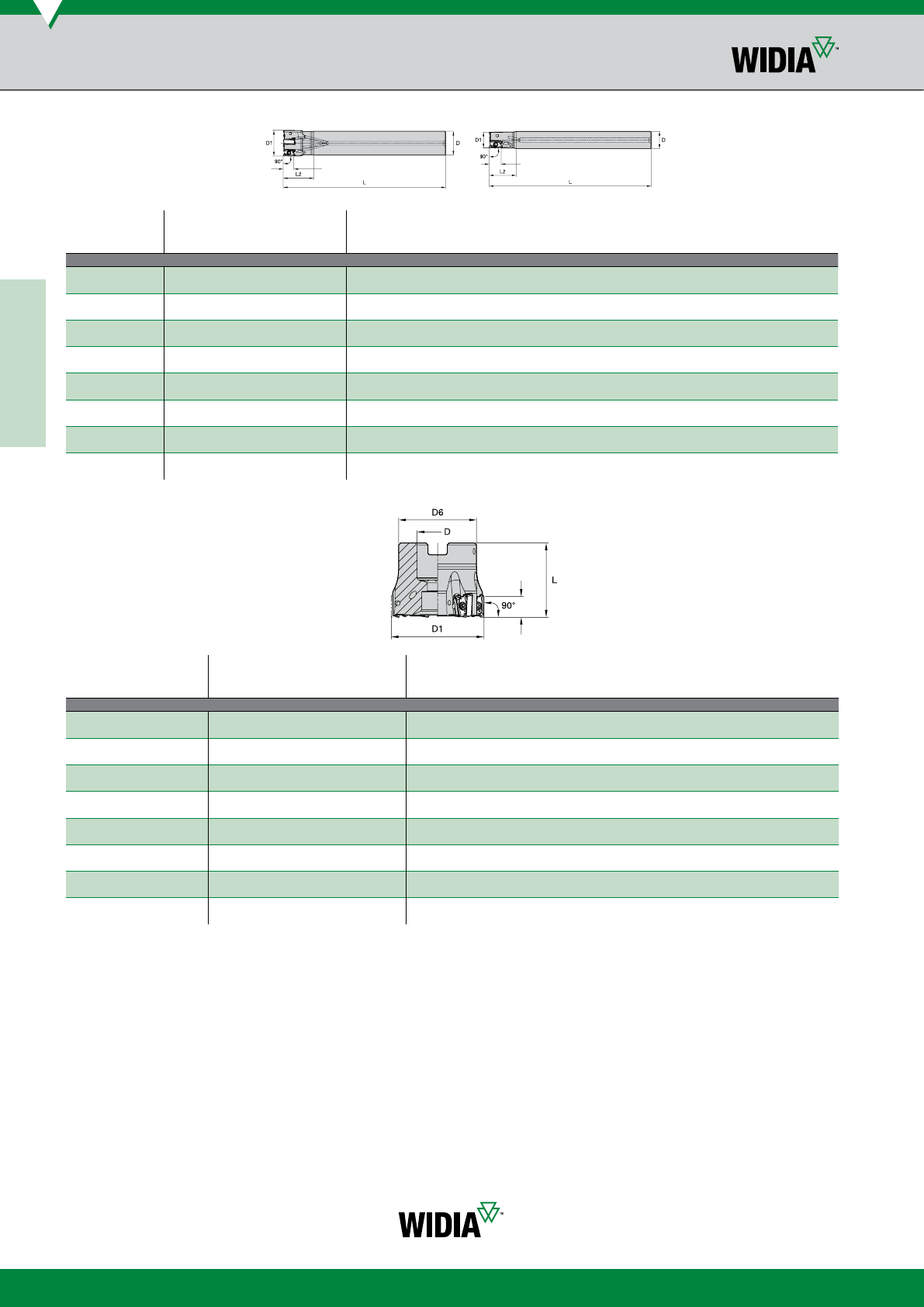

54 widia.com

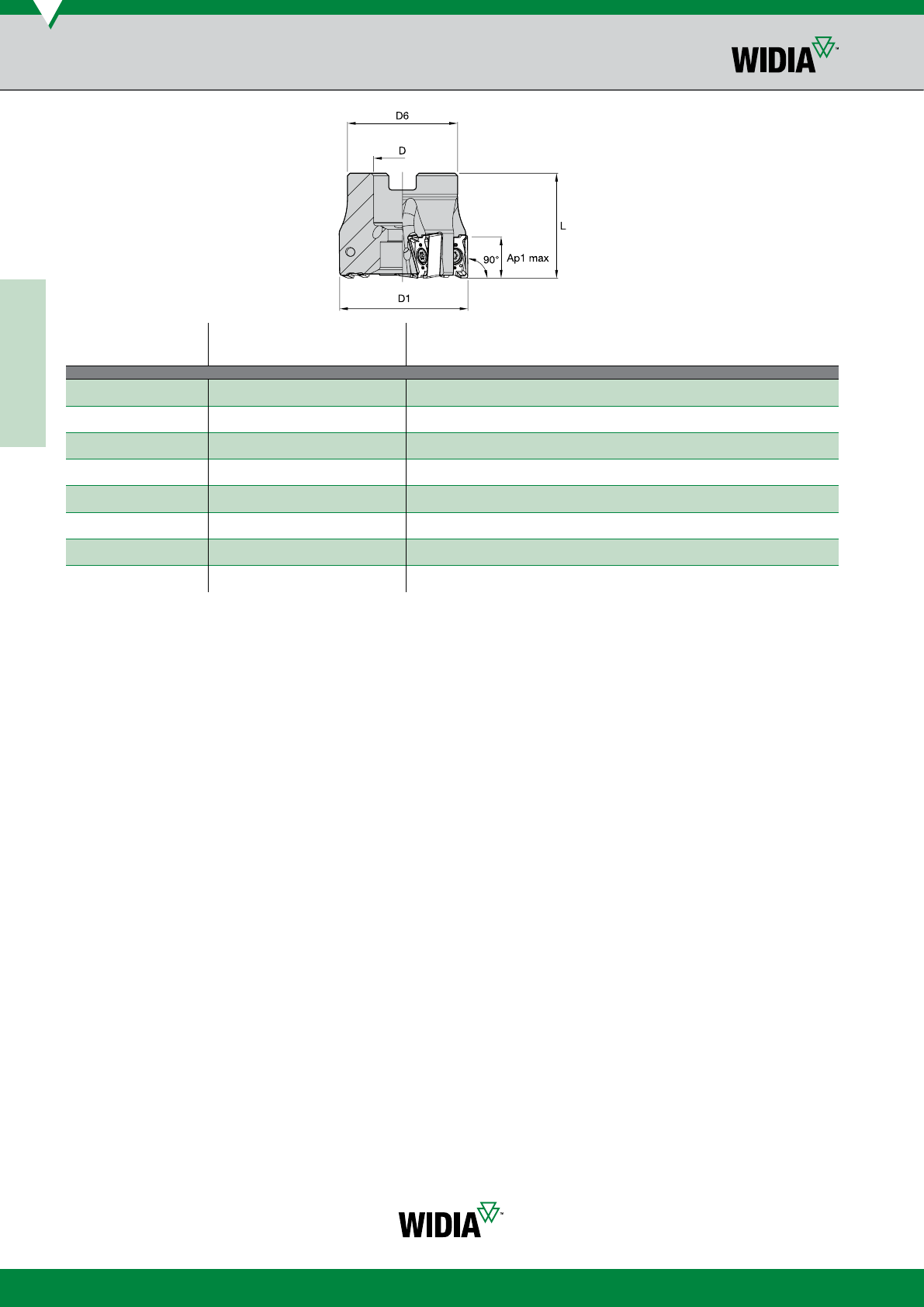

order
number
catalogue
number
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Shell Mills
6425434 VSM490D040Z04S16XN10 40 16 37 40 10,0 425400 Yes
6425435 VSM490D040Z06S16XN10 40 16 37 40 10,0 625400 Yes
6425436 VSM490D040Z07S16XN10 40 16 37 40 10,0 725400 Yes
6425437 VSM490D050Z05S22XN10 50 22 42 40 10,0 522300 Yes
6425438 VSM490D050Z07S22XN10 50 22 42 40 10,0 722300 Yes
6425439 VSM490D050Z09S22XN10 50 22 42 40 10,0 922300 Yes
6425440 VSM490D063Z05S22XN10 63 22 49 40 10,0 519500 Yes
6425481 VSM490D063Z07S22XN10 63 22 49 40 10,0 719500 Yes
6425482 VSM490D063Z09S22XN10 63 22 49 40 10,0 919500 Yes
6425483 VSM490D080Z06S27XN10 80 27 60 50 10,0 617100 Yes
6425484 VSM490D080Z08S27XN10 80 27 60 50 10,0 817100 Yes
6425485 VSM490D080Z10S27XN10 80 27 60 50 10,0 10 17100 Yes
6425486 VSM490D100Z08S32XN10 100 32 80 50 10,0 815200 Yes
6425487 VSM490D100Z12S32XN10 100 32 80 50 10,0 12 15200 Yes
6425488 VSM490D125Z10S40XN10 125 40 90 63 10,0 10 13500 Yes
6425489 VSM490D125Z14S40XN10 125 40 90 63 10,0 14 13500 Yes
Indexable Milling
Ap1 max
Indexable Milling
VSM490™-10
Ap1 max
Ap1 max
Reduced Shank Regular Shank
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Cylindrical End Mills (Regular and Long Version)
6425502 VSM490D016Z02A16XN10L090 16 16 90 25 10,0 248000 Yes
6425503 VSM490D016Z02A16XN10L150 16 16 150 25 10,0 248000 Yes
6425504 VSM490D018Z02A16XN10L150 18 16 150 25 10,0 243500 Yes
6425506 VSM490D020Z02A20XN10L150 20 20 150 28 10,0 240200 Yes
6425505 VSM490D020Z03A20XN10L090 20 20 90 28 10,0 340200 Yes
6425507 VSM490D020Z03A20XN10L150 20 20 150 28 10,0 340200 Yes
6425508 VSM490D022Z03A20XN10L150 22 20 150 28 10,0 337500 Yes
6425509 VSM490D025Z03A20XN10L100 25 20 100 28 10,0 334300 Yes
6425511 VSM490D025Z03A25XN10L170 25 25 170 43 10,0 334300 Yes
6425510 VSM490D025Z04A25XN10L100 25 25 100 43 10,0 434300 Yes
6425512 VSM490D025Z04A25XN10L170 25 25 170 43 10,0 434300 Yes
6425513 VSM490D028Z04A25XN10L170 28 25 170 32 10,0 431800 Yes
6425514 VSM490D032Z04A25XN10L110 32 25 110 32 10,0 429200 Yes
6425516 VSM490D032Z04A25XN10L200 32 25 200 32 10,0 429200 Yes
6425515 VSM490D032Z05A25XN10L110 32 25 110 32 10,0 529200 Yes
6425517 VSM490D032Z05A25XN10L200 32 25 200 32 10,0 529200 Yes
Language Version: 52_55_WID_All-Star19_INDM_VSM490-10 October 9, 2017 12:02 PM
55
widia.com

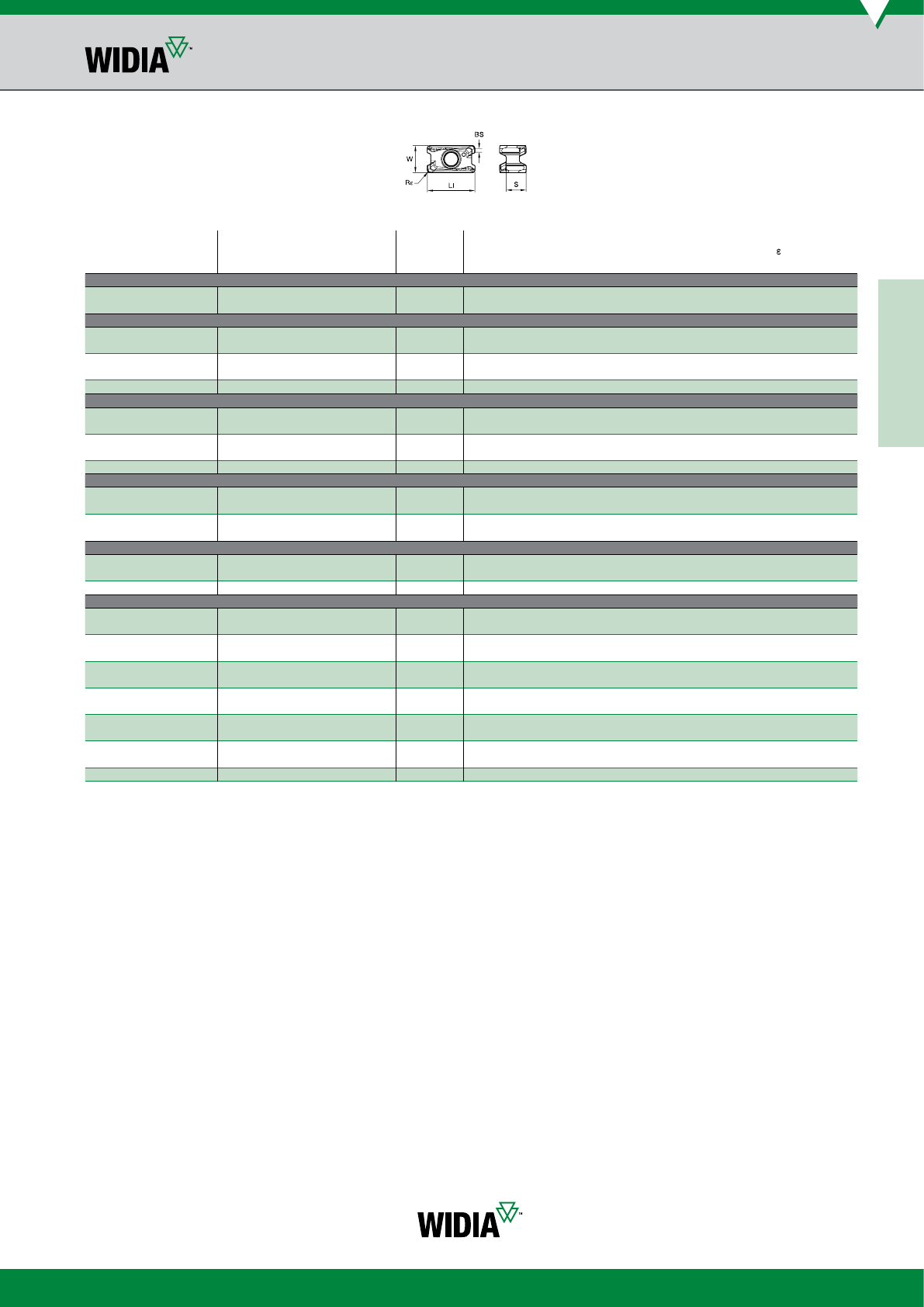

order
number
catalogue
number grade
cutting
edges
LI
(mm)
S
(mm)
W
(mm)
BS
(mm)
Rε
(mm)
hm
(mm)
XNGU-ALP
6425382 XNGU100404ERALP WN25PM 411,66 4,83 6,60 1,37 0,40 0,02
6425411 XNGU100408ERALP WN25PM 411,66 4,83 6,60 1,00 0,80 0,02
XNGU-ML
6425414 XNGU100404ERML WP25PM 411,66 4,83 6,60 1,37 0,40 0,02
6425415 XNGU100404ERML WS40PM 411,66 4,83 6,60 1,37 0,40 0,02
6425369 XNGU100408ERML WP25PM 411,66 4,83 6,60 1,00 0,80 0,02
6425370 XNGU100408ERML WS40PM 411,66 4,83 6,60 1,00 0,80 0,02
6425421 XNGU100408ERML WU10PM 411,66 4,83 6,60 1,00 0,80 0,02
XNGU-MM
6425416 XNGU100404SRMM WP25PM 411,66 4,83 6,60 1,37 0,40 0,08
6425417 XNGU100404SRMM WS40PM 411,66 4,83 6,60 1,37 0,40 0,08
6425422 XNGU100408SRMM WP25PM 411,66 4,83 6,60 1,00 0,80 0,08
6425423 XNGU100408SRMM WS40PM 411,66 4,83 6,60 1,00 0,80 0,08
6425424 XNGU100408SRMM WU10PM 411,66 4,83 6,60 1,00 0,80 0,08
XNPU-MM
6425364 XNPU100408SRMM WK15CM 411,60 4,83 6,60 0,90 0,80 0,08
6425270 XNPU100408SRMM WK15PM 411,60 4,83 6,60 0,90 0,80 0,08
6425361 XNPU100408SRMM WP25PM 411,60 4,83 6,60 0,90 0,80 0,08
6425365 XNPU100408SRMM WP35CM 411,60 4,83 6,60 0,90 0,80 0,08
6425363 XNPU100408SRMM WP40PM 411,60 4,83 6,60 0,90 0,80 0,08
6425362 XNPU100408SRMM WS40PM 411,60 4,83 6,60 0,90 0,80 0,08
6425355 XNPU100412SRMM WK15CM 411,61 4,83 6,60 0,50 1,20 0,08
6425352 XNPU100412SRMM WP25PM 411,61 4,83 6,60 0,50 1,20 0,08
6425354 XNPU100412SRMM WP40PM 411,61 4,83 6,60 0,50 1,20 0,08
6425353 XNPU100412SRMM WS40PM 411,61 4,83 6,60 0,50 1,20 0,08
6425267 XNPU100416SRMM WP25PM 411,61 4,83 6,60 0,10 1,60 0,08
6425269 XNPU100416SRMM WP40PM 411,61 4,83 6,60 0,10 1,60 0,08
6425268 XNPU100416SRMM WS40PM 411,61 4,83 6,60 0,10 1,60 0,08
XNGU-MH
6425359 XNGU100408SRMH WK15CM 411,66 4,83 6,60 0,90 0,80 0,08
6425356 XNGU100408SRMH WP25PM 411,66 4,83 6,60 0,90 0,80 0,08
6425360 XNGU100408SRMH WP35CM 411,66 4,83 6,60 0,90 0,80 0,08
6425357 XNGU100408SRMH WP40PM 411,66 4,83 6,60 0,90 0,80 0,08
XNPU-ML
6425366 XNPU100408ERML WK15PM 411,60 4,83 6,60 0,90 0,80 0,02
6425367 XNPU100408ERML WP25PM 411,60 4,83 6,60 0,90 0,80 0,02
6425368 XNPU100408ERML WS40PM 411,60 4,83 6,60 0,90 0,80 0,02
Indexable Milling
VSM490™-10
Indexable Milling
Language Version: 56_59_WID_All-Star19_INDM_VSM490-15 September 27, 2018 1:37 PM
56 widia.com
56
-ML
PMS
First choice for
stainless steel.
Lower cutting forces.
Geometry Strengthening
Finishing Capabilities/Reduced Cutting Force
-MM
PMK S
First choice
especially when
machining steels.
Three geometries
for all material groups
in shoulder milling applications.
-MH
P K
First choice for cast
iron, also recommended
for heavy applications.
VSM490-15
WIDIA™ Victory™ Shoulder Milling Series (VSM series) is specially engineered to achieve excellent surface quality as well
as higher material removal rates in shoulder milling applications. The VSM490 series, with its unique design, enables the
tool to be applied in multiple passes (stepping down) with outstanding results. VSM490-15 is applicable in a wide range of
workpiece materials: steel, cast iron, stainless steel, and titanium, from roughing to finishing applications.
Double-Sided Shoulder Mill •
VSM490™-15
• Double-sided strong insert with 4 cutting edges.
• High positive geometry for lower cutting forces.
• Superior wall and surface finish capabilities.
State-of-the-art stepping down
capabilities due to its ultimate
design concept.
Cutter bodies with effective
internal coolant supply.
Multiple corner
nose radii available.
Up to 15mm (0.59")
depth-of-cut
capabilities.
-ALP
N
For non-ferrous
materials.
Language Version: 56_59_WID_All-Star19_INDM_VSM490-15 September 27, 2018 1:37 PM
57
widia.com
Indexable Milling
VSM490™-15
order
number
catalogue
number
D1
(mm)
D
(mm)
DPM
(mm) G3X
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Screw-On End Mills
5873211 VSM490D025Z02M12XN15 25 21 13 M12 32 17 15,0 226700 Yes
5873212 VSM490D032Z03M16XN15 32 29 17 M16 40 24 15,0 322000 Yes
5873213 VSM490D032Z04M16XN15 32 29 17 M16 40 24 15,0 422000 Yes
5873214 VSM490D035Z04M16XN15 35 29 17 M16 40 24 15,0 420600 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Weldon
®
End Mills
5710285 VSM490D025Z02B25XN15 25 25 89 32 15,0 226700 Yes
5710286 VSM490D032Z03B32XN15 32 32 111 50 15,0 322000 Yes
5873215 VSM490D040Z03B32XN15 40 32 111 50 15,0 318800 Yes
order
number
catalogue
number
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Cylindrical End Mills
5873216 VSM490D025Z02A25XN15L100 25 25 100 43 15,0 226700 Yes
5710287 VSM490D025Z02A25XN15L170 25 25 170 43 15,0 226700 Yes
5873217 VSM490D032Z03A32XN15L110 32 32 110 49 15,0 322000 Yes
5873218 VSM490D032Z04A32XN15L110 32 32 110 49 15,0 422000 Yes
5710288 VSM490D032Z03A32XN15L200 32 32 200 50 15,0 322000 Yes
5873219 VSM490D032Z04A32XN15L200 32 32 200 50 15,0 422000 Yes
57
Indexable Milling
Language Version: 56_59_WID_All-Star19_INDM_VSM490-15 September 27, 2018 1:37 PM
58 widia.com
Indexable Milling
VSM490™-15
order
number
catalogue
number
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
RPM
coolant
supply
VSM490 • Shell Mill
5710289 VSM490D040Z04S16XN15 40 16 37 40 15,0 418800 Yes
5710520 VSM490D040Z05S16XN15 40 16 37 40 15,0 518800 Yes
5873221 VSM490D050Z04S22XN15 50 22 42 40 15,0 416300 Yes
5710521 VSM490D050Z05S22XN15 50 22 42 40 15,0 516300 Yes
5710522 VSM490D050Z06S22XN15 50 22 42 40 15,0 616300 Yes
5873222 VSM490D063Z05S22XN15 63 22 50 40 15,0 514200 Yes
5710523 VSM490D063Z06S22XN15 63 22 50 40 15,0 614200 Yes
5710524 VSM490D063Z07S22XN15 63 22 50 40 15,0 714200 Yes
5873223 VSM490D080Z05S27XN15 80 27 60 50 15,0 512300 Yes
5873224 VSM490D080Z09S27XN15 80 27 60 50 15,0 912300 Yes
5710525 VSM490D080Z07S27XN15 80 27 60 50 15,0 712300 Yes
5710526 VSM490D100Z08S32XN15 100 32 80 50 15,0 810900 Yes
5873225 VSM490D100Z11S32XN15 100 32 80 50 15,0 11 10900 Yes
5873226 VSM490D125Z09S40XN15 125 40 90 63 15,0 99600 Yes
5873227 VSM490D125Z12S40XN15 125 40 90 63 15,0 12 9600 Yes
5873228 VSM490D160Z12S40XN15 160 40 110 63 15,0 12 8400 Yes
Indexable Milling
Language Version: 56_59_WID_All-Star19_INDM_VSM490-15 September 27, 2018 1:37 PM
59
widia.com
XNPU-ML • Precision Finishing
5890821 XNGU15T604ERML WP25PM 416,20 6,88 10,00 2,20 0,40 0,08
5890822 XNGU15T604ERML WP40PM 416,20 6,88 10,00 2,20 0,40 0,08
5890823 XNGU15T604ERML WU35PM 416,20 6,88 10,00 2,20 0,40 0,08
6180323 XNGU15T604ERML WS40PM 416,20 6,88 10,00 2,20 0,40 0,08
5873481 XNGU15T608ERML WP25PM 416,20 6,88 10,00 1,80 0,80 0,08
5873482 XNGU15T608ERML WP40PM 416,20 6,88 10,00 1,80 0,80 0,08
5873483 XNGU15T608ERML WU35PM 416,20 6,88 10,00 1,80 0,80 0,08
6180324 XNGU15T608ERML WS40PM 416,20 6,88 10,00 1,80 0,80 0,08
order
number
catalogue
number grade
cutting
edges
LI
(mm)
S
(mm)
W
(mm)
BS
(mm)
Rε
(mm)
hm
(mm)
XNGU-MM • Precision Finishing
6242521 XNGU15T604SRMM WK15PM 416,20 6,88 10,00 2,20 0,40 0,10
5949204 XNGU15T604SRMM WP25PM 416,20 6,88 10,00 2,20 0,40 0,10
5949205 XNGU15T604SRMM WP40PM 416,20 6,88 10,00 2,20 0,40 0,10
5949206 XNGU15T604SRMM WU35PM 416,20 6,88 10,00 2,20 0,40 0,10
6242522 XNGU15T608SRMM WK15PM 416,20 6,88 10,00 1,90 0,80 0,10
5710527 XNGU15T608SRMM WP25PM 416,20 6,88 10,00 1,90 0,80 0,10
5710528 XNGU15T608SRMM WP40PM 416,20 6,88 10,00 1,90 0,80 0,10
5710529 XNGU15T608SRMM WU35PM 416,20 6,88 10,00 1,90 0,80 0,10
XNPU-MM • Utility Roughing
5873420 XNPU15T608SRMM WK15CM 416,10 6,88 10,00 1,90 0,80 0,10
5873419 XNPU15T608SRMM WK15PM 416,10 6,88 10,00 1,90 0,80 0,10
5873415 XNPU15T608SRMM WP25PM 416,10 6,88 10,00 1,90 0,80 0,10
5873418 XNPU15T608SRMM WP35CM 416,10 6,88 10,00 1,90 0,80 0,10
5873416 XNPU15T608SRMM WP40PM 416,10 6,88 10,00 1,90 0,80 0,10
5873417 XNPU15T608SRMM WU35PM 416,10 6,88 10,00 1,90 0,80 0,10
6180320 XNPU15T608SRMM WS40PM 416,10 6,88 10,00 1,90 0,80 0,10
5890763 XNPU15T612SRMM WK15CM 416,10 6,88 10,00 1,50 1,20 0,10
5890762 XNPU15T612SRMM WK15PM 416,10 6,88 10,00 1,50 1,20 0,10
5890728 XNPU15T612SRMM WP25PM 416,10 6,88 10,00 1,50 1,20 0,10
5890761 XNPU15T612SRMM WP35CM 416,10 6,88 10,00 1,50 1,20 0,10
5890729 XNPU15T612SRMM WP40PM 416,10 6,88 10,00 1,50 1,20 0,10
5890730 XNPU15T612SRMM WU35PM 416,10 6,88 10,00 1,50 1,20 0,10
6180321 XNPU15T612SRMM WS40PM 416,10 6,88 10,00 1,50 1,20 0,10
5883522 XNPU15T616SRMM WK15CM 416,10 6,88 10,00 1,10 1,60 0,10
5883521 XNPU15T616SRMM WK15PM 416,10 6,88 10,00 1,10 1,60 0,10
5883447 XNPU15T616SRMM WP25PM 416,10 6,88 10,00 1,10 1,60 0,10
5883450 XNPU15T616SRMM WP35CM 416,10 6,88 10,00 1,10 1,60 0,10
5883448 XNPU15T616SRMM WP40PM 416,10 6,88 10,00 1,10 1,60 0,10
5883449 XNPU15T616SRMM WU35PM 416,10 6,88 10,00 1,10 1,60 0,10
6180322 XNPU15T616SRMM WS40PM 416,10 6,88 10,00 1,10 1,60 0,10
XNGU-MH • Utility Roughing
6003725 XNGU15T608SRMH WK15CM 416,20 6,88 10,00 1,80 0,80 0,10
6003724 XNGU15T608SRMH WK15PM 416,20 6,88 10,00 1,80 0,80 0,10
6003570 XNGU15T608SRMH WP25PM 416,20 6,88 10,00 1,80 0,80 0,10
6003723 XNGU15T608SRMH WP35CM 416,20 6,88 10,00 1,80 0,80 0,10
6003721 XNGU15T608SRMH WP40PM 416,20 6,88 10,00 1,80 0,80 0,10
6003722 XNGU15T608SRMH WU35PM 416,20 6,88 10,00 1,80 0,80 0,10
XNPU-ML • Utility Roughing
5883097 XNPU15T608ERML WP25PM 416,10 6,88 10,00 1,90 0,80 0,08
5883098 XNPU15T608ERML WP40PM 416,10 6,88 10,00 1,90 0,80 0,08
5883099 XNPU15T608ERML WU35PM 416,10 6,88 10,00 1,90 0,80 0,08
XNGU-ALP • Aluminium Machining
6082644 XNGU15T604ERALP WN25PM 416,20 6,88 10,00 2,20 0,40 0,03
6082645 XNGU15T608ERALP WN25PM 416,20 6,88 10,00 1,80 0,80 0,03
Indexable Milling
VSM490™-15
Back View
Indexable Milling
Language Version: 60_63_WID_All-Star19_INDM_VHSC September 24, 2018 9:26 AM
60 widia.com
60

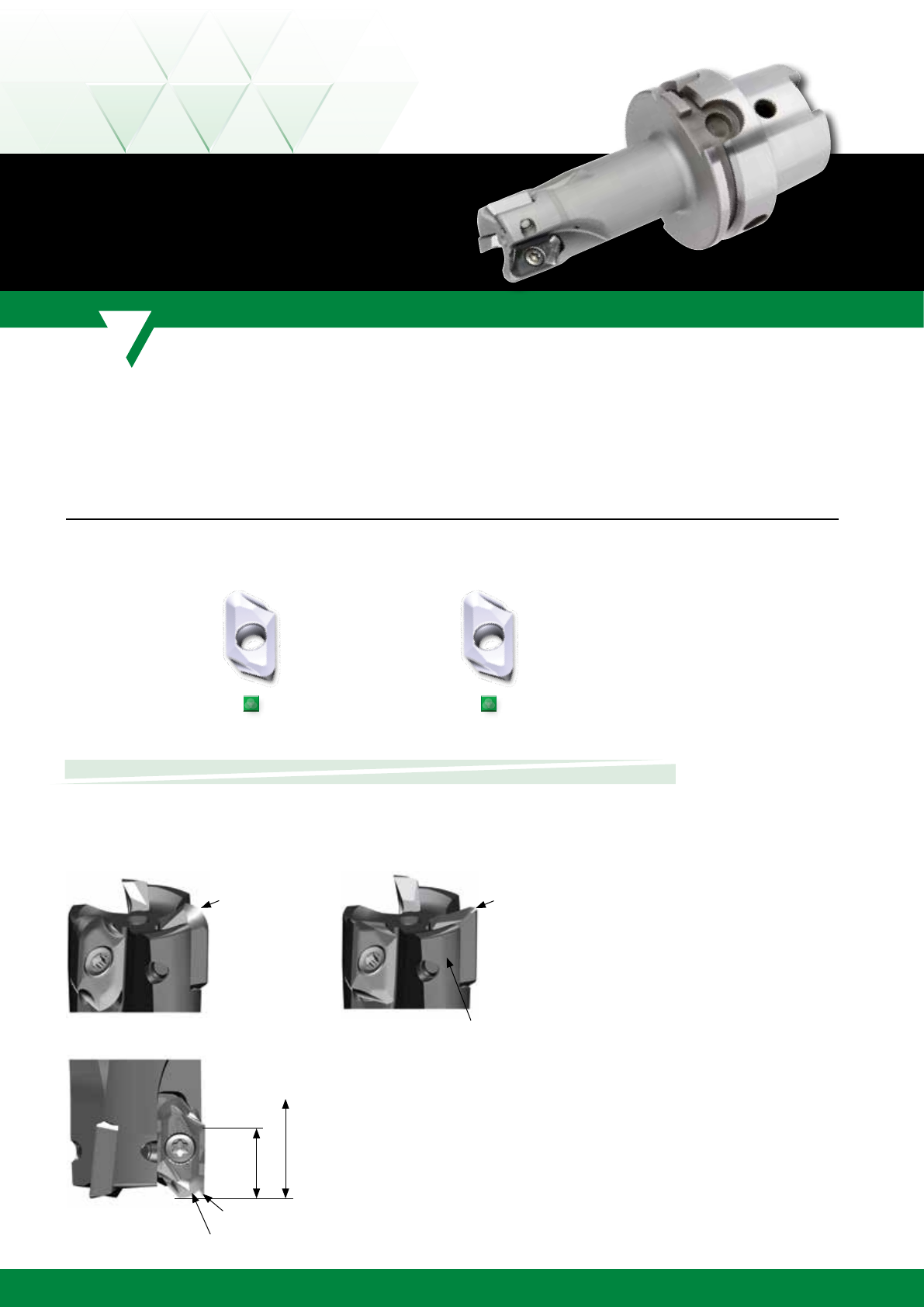

VHSC
VHSC Victory™ High-Speed Cutting •
VHSC
N N
FR-ALP
Sharp cutting edge “F” preparation
for roughing and finishing jobs.
Finishing Capabilities/Lower Cutting Forces Geometry Strengthening
High-Speed Cutting Inserts XDET-ALP
User-friendly Setup Makes a Big Difference
Large Corner Radius Small Corner Radius
Insert Nose
Radius 5mm Insert Nose
Radius 0.8mm
VHSC Cutter Body
Ap1 max 16mm
0.8mm
Insert Overlay
Axial Gage Length
5mm
ER-ALP
Honed cutting edge “E” preparation for heavy
roughing jobs and demanding castings.
• First choice for non-ferrous materials.
• Super-positive ALP geometry with polished
rake to reduce built-up edge.
• Wear-resistant micro-grain carbide grade.
• Precision periphery ground.
• Developed specifically to achieve true HSC cutting of aluminium components up to 3000 m/min.
• Latest cutter body technology allows for heavy feeding and ramping.
• Flutes and internal coolant channels engineered to support improved chip evacuation.
• Best-in-class solution for thin-walled machining.
• Productivity booster up to 8600 cm3/min MRR.
• Unique feature has a great impact on
significant cost savings.
• Only one cutter body needed to load inserts
with corner nose radii from R0.4 to R6.0 max.
• All other suppliers require modification and
rebalance of the cutter body.
• Axial gage length on the cutter body will always be the
same, no matter which insert nose radius is applied.
• Preferred by CNC programmers and operators.
• Ap1 max will always remain 16mm, no matter which
insert nose radius is applied.
Language Version: 60_63_WID_All-Star19_INDM_VHSC September 24, 2018 9:26 AM

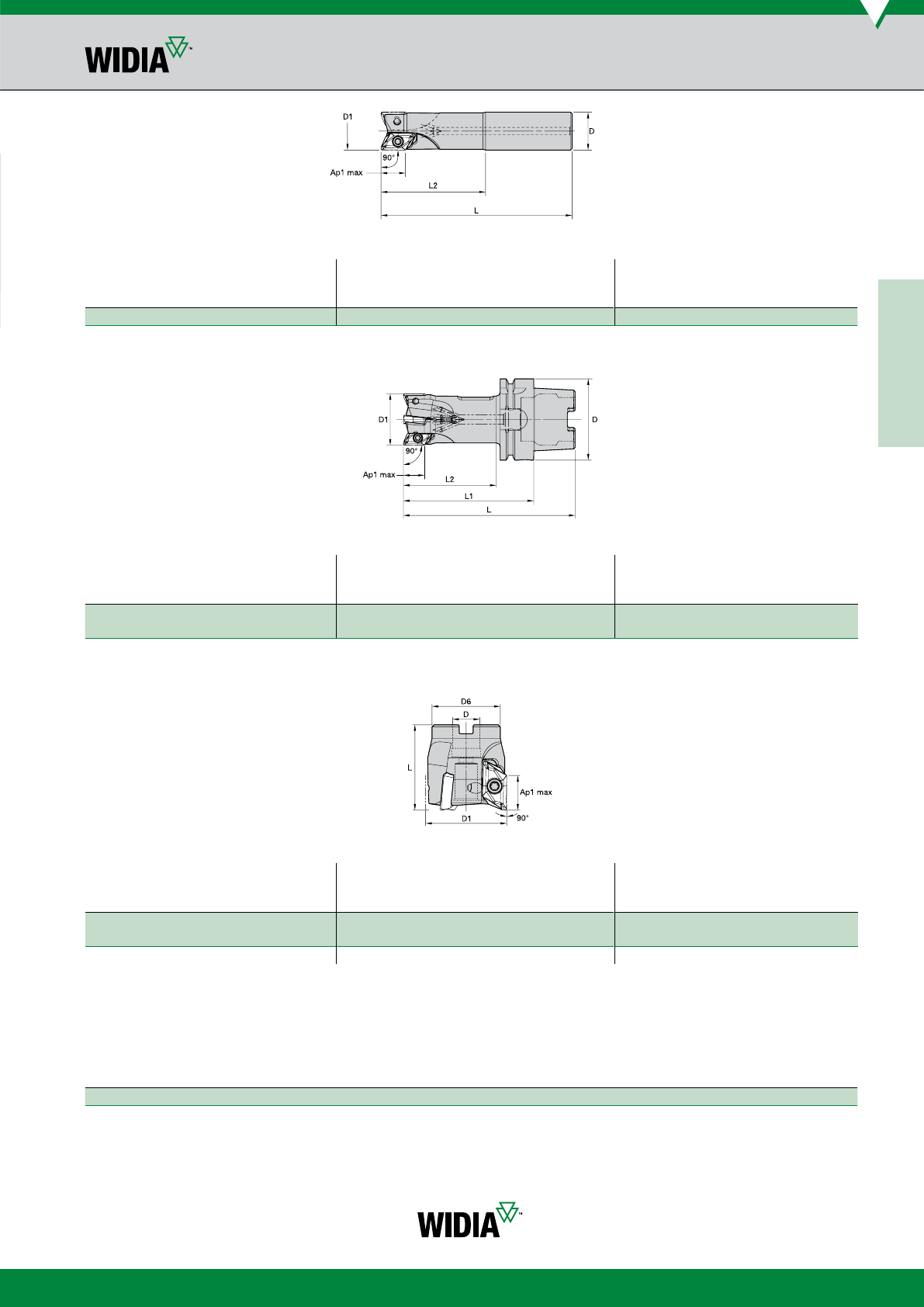

61
widia.com
Indexable Milling
VHSC
61
Indexable Milling
High-Speed Cutting Shell Mills
order
number
catalogue
number D1 D D6 L Ap1 max Z
max
ramp
angle
max
RPM
coolant
supply kg
6425291 VHSC040Z03S16XD16 40 16 32 45 16 37.6° 35000 Yes 0,20
6425292 VHSC050Z04S22XD16 50 22 45 45 16 47.8° 30000 Yes 0,31
6425293 VHSC063Z04S22XD16 63 22 50 45 16 45.9° 26000 Yes 0,55
High-Speed Cutting Cylindrical End Mills
order
number
catalogue
number D1 D L L2 Ap1 max Z
max
ramp
angle
max
RPM
coolant
supply kg
6425258 VHSC025Z02A25XD16 25 25 131 75 16 214.7° 50000 Yes 0,39
High-Speed Cutting Monoblocks • HSK63A
order
number
catalogue
number D1 D L L1 L2 Ap1 max Z
max
ramp
angle
max
RPM
coolant
supply kg
6425451 VHSC040Z04HSK63XD16 40 63 133 101 75 16 47.8° 35000 Yes 1,09
6425453 VHSC050Z04HSK63XD16 50 63 133 101 75 15 47.8° 30000 Yes 1,41
Spare Parts
D1
insert
screw Nm
Torx
driver
25 - 80 DP5009A 6,1 DT20IP
NOTE: It is important to change the screw each time the insert is changed to ensure the highest security.
A dynamometric key and the correct insert screw torque value are key for HSC applications.
Adjustable torque wrench (order number 6197561) and Torx Plus 20 bit (order number 6205891)
may be purchased seperately.
NOTE: Pre-balanced to G6.3/30000 RPM.
NOTE: Pre-Balanced G6.3/30000 RPM.
Language Version: 60_63_WID_All-Star19_INDM_VHSC September 24, 2018 9:26 AM

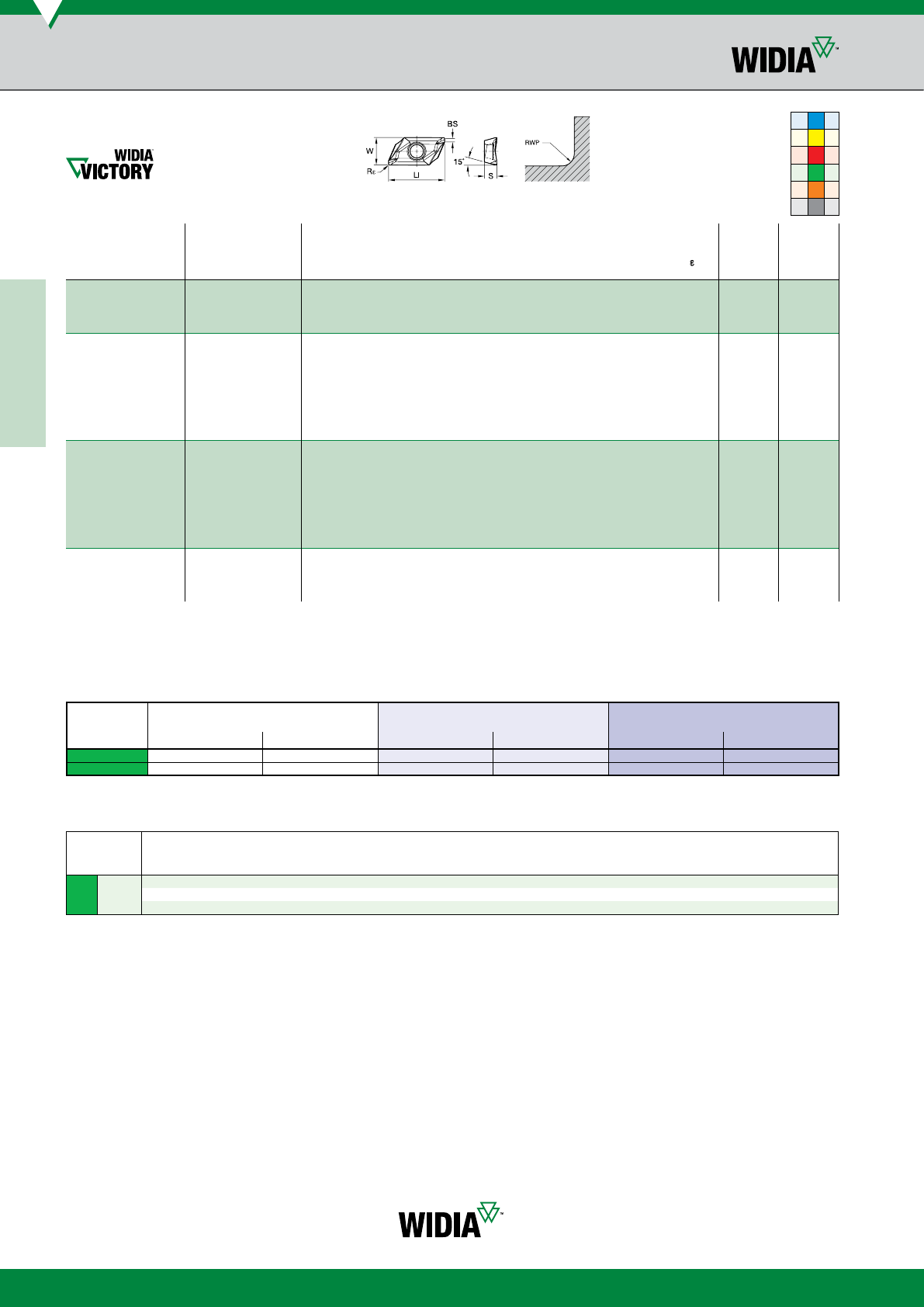

62 widia.com
Indexable Milling
VHSC
Indexable Milling
High-Speed Cutting Inserts XDET-ALP
Order
number
catalogue
number grade cutting
edges LI
(mm) S
(mm) W
(mm) BS
(mm) Rε
(mm)
RWP*
(mm)
hm
(mm)
6425772 XDET16M5PDFRALP WN10HM 222,92 5,00 11,25 1,42 0,30 0,30 0,02
6425773 XDET16M504FRALP WN10HM 223,02 5,00 11,25 1,27 0,40 0,40 0,02
6425774 XDET16M508FRALP WN10HM 223,02 5,00 11,25 0,87 0,80 0,80 0,02
6425775 XDET16M520FRALP WN10HM 223,02 5,00 11,25 0,58 2,10 2,00 0,02
6425776 XDET16M530ERALP WN10HM 223,02 5,00 11,25 0,48 3,10 3,00 0,03
6425777 XDET16M530FRALP WN10HM 223,02 5,00 11,25 0,48 3,10 3,00 0,02
v rst choice
j alternate choice
P
M
K
Nv
S
H
Insert Selection Guide
Material
Group
Light
Machining
General
Purpose
Heavy
Machining
Geometry Grade Geometry Grade Geometry Grade
N1–N2 .F..ALP WN10HM .F..ALP WN10HM .E..ALP WN10HM
N3 .F..ALP WN10HM .F..ALP WN10HM .E..ALP WN10HM
Recommended Starting Speeds For Wet Machining [m/min]
Material
Group WN10HM
N
1
2950
1800
875
2
2950
1800
875
3
1600
850
480
NOTE: RWP* = Resultant workpiece radius.
NOTE: FIRST choice starting speeds are in bold type.
As the average chip thickness increases, the speed should be decreased.
Language Version: 60_63_WID_All-Star19_INDM_VHSC September 24, 2018 9:26 AM
63
widia.com
Indexable Milling
VHSC

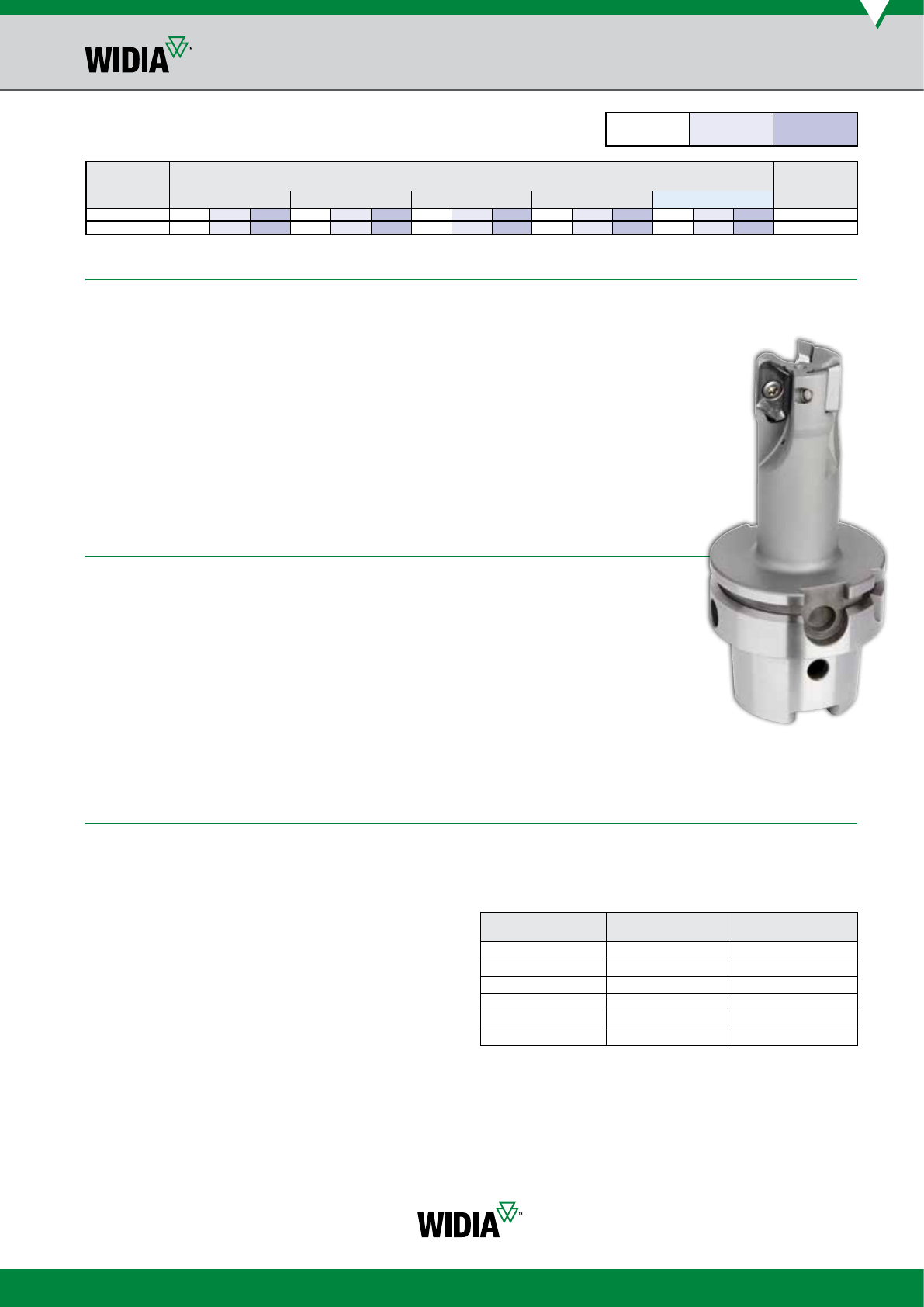

Recommended Starting Feeds [mm]
Light
Machining
General
Purpose
Heavy
Machining
Insert
Geometry
Programmed Feed per Tooth (fz)
as a % of Radial Depth of Cut (ae) Insert
Geometry5% 10% 20% 30% 40–100%
.F..ALP 0,12 0,45 0,81 0,08 0,33 0,58 0,06 0,25 0,43 0,06 0,21 0,38 0,05 0,20 0,35 .F..ALP
.E..ALP 0,15 0,50 0,92 0,11 0,36 0,66 0,08 0,27 0,50 0,07 0,24 0,43 0,07 0,22 0,40 .E..ALP
NOTE: Use “Light Machining” values as starting feed rate.
Balancing:
Tighten the bolt between the shell mill and toolholder;
with lubricant, apply the torque value of:
• Check spindle condition:
- Runout
- Clamping of the attachment in traction
- Marking and cleanliness
• Check that the tool is suitable for the required use.
• Inserts must be locked positively in the pocket and secured using the
torx screw provided. The screw must be torqued to the correct value as
indicated in the charts on the product pages.
• Because of heavy force to the screw, it is important to change the
screw when changing the insert.
• Check the balancing of the assembled tool: cutter body,
inserts, and attachment.
WIDIA
™
cannot accept responsibility for misuse of this product due to:
• Non-observance of the above instructions
• Machine without casing
• Incorrect clamping of workpieces
• No safety device on the machine
• Any misuse or incorrect clamping
Recommendations for High Speed Machining at 8000 RPM or above
The optimum rotation must be determined by condition of the spindle. The spindle must be rigid to run at these higher RPMs.
Under no circumstances must any attempt be made to repair this tool. The only permitted maintenance is the indexing
or replacement of the inserts.
When assembling the cutter to a Shrink Fit holder, the maximum protrusion cannot exceed 10% of the reach of tool.
• Cylindrical shank and HSK63A integral shanks are designed and balanced to G6.3
at 30000 RPM for diameters up to 50mm.
• Cylindrical shank tools mounted in a Shrink Fit holder or any other chuck mill holder
+ inserts + screws must be re-inspected for balance as an assembly by the end-user
when at or exceeding 8000 RPM. End-user must balance the assembly at a G6.3 at
30000 RPM maximum.
• Shell mills are not balanced. These tools must be re-inspected for balance as an
assembly, cutter + inserts + screws by the end-user for high speed machining at
8000 RPM or above. End-user must balance the assembly at a G6.3 value minimum.
• Balancing requires removing some material by drilling or milling operations.
• For each new shell mill installed on the same toolholder, re-balance the assembly.
Thread sizes
(mm)
Cutter Bore Size
(mm)
Torque Values
Nm
M6 13 10
M8 16 30
M10 22 50
M12 27 80
M16 32 110
M20 40 120
• Before start up, note the maximum RPM engraved on the tool.
The maximum RPM is linked to a precise balancing value.
• Ensure that the eld of application of the tool shown in
our technical documents and technological parameters is
observed:
Ae (mm) Width of cut, lateral engagement
(radial)
ap (mm) Axial depth of cut
fz (mm/tooth) mm per tooth
n (RPM) Revolutions per minute
Language Version: 64_65_WID_All-Star19_INDM_M370 September 20, 2018 2:32 PM
64 widia.com
64
Profiled tool for
maximum chip
evacuation.
Through tool
coolant.
Six cutting edges
per insert.
High-strength tool
body design.
• Double-sided design offers six cutting edges per insert.
• Extremely high metal removal rates.
• First choice for high-feed roughing applications.
M370
Designed for high feed rate productivity, M370 Series provides
the latest insert technology with outstanding performance and
reliability. Its double-sided concept and six cutting edges provide
security and optimal metal removal with an efficient cost per edge.
High-Feed Applications •
M370™ Series
Language Version: 64_65_WID_All-Star19_INDM_M370 September 20, 2018 2:32 PM
65
widia.com
Indexable Milling
M370™ Series
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
DPM
(mm) G3X
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M370 • IC08 • Screw-On End Mills
4056186 M370D025Z02M12WO08 25 11 21 12,5 M12 35 17 1,3 22.1 46000 Yes
4170918 M370D025Z03M12WO08 25 11 21 12,5 M12 35 17 1,3 32.1 46000 Yes
4056187 M370D032Z04M16WO08 32 18 29 17,0 M16 43 24 1,3 41.4 38700 Yes
4056188 M370D042Z05M16WO08 42 28 29 17,0 M16 43 24 1,3 51.0 32500 Yes
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M370 • IC08 • Shell Mills
4056193 M370D040Z04WO08 40 26 16 37 40 1,3 41.1 33500 Yes
4170922 M370D040Z05WO08 40 26 16 37 40 1,3 51.1 33500 Yes
4008276 M370D050Z05WO08 50 36 22 44 40 1,3 50.8 29200 Yes
4171223 M370D050Z06WO08 50 36 22 44 40 1,3 60.8 29200 Yes
4056194 M370D052Z05WO08 52 38 22 44 50 1,3 50.5 28600 Yes
4171224 M370D052Z06WO08 52 38 22 44 50 1,3 60.8 28600 Yes
4056195 M370D063Z06WO08 63 49 22 60 50 1,3 60.7 25500 Yes
4008277 M370D066Z06WO08 66 52 27 60 50 1,3 60.6 24900 Yes
4171225 M370D080Z07WO08 80 66 27 60 50 1,3 70.5 24900 Yes
D6
D
L
Ap1 max
D1 max
D1
order
number
catalogue
number grade
cutting
edges
D
(mm)
S
(mm)
Rε
(mm)
WOEJ-MM
4113916 WOEJ080412SRMM TN7535 67,79 4,70 1,22
5520248 WOEJ080412SRMM WS30PM 67,79 4,70 1,22
5544753 WOEJ080412SRMM WP40PM 67,79 4,70 1,22
5564597 WOEJ080412SRMM WP25PM 67,79 4,70 1,22
6333665 WOEJ080412SRMM WS40PM 67,79 4,70 1,22
WOEJ-MH
4068517 WOEJ080412SRMH TN7535 67,79 4,75 1,22
5427443 WOEJ080412SRMH WK15CM 67,79 4,75 1,22
5544752 WOEJ080412SRMH WP40PM 67,79 4,75 1,22
5564596 WOEJ080412SRMH WP25PM 67,79 4,75 1,22
6333664 WOEJ080412SRMH WS40PM 67,79 4,75 1,22
Indexable Milling
Language Version: 66_69_WID_All-Star19_INDM_M100 September 27, 2018 12:32 PM
66 widia.com
66
Through tool coolant.
Large area for
chip evacuation.
Thick inserts for reliability and higher MRR
capabilities with anti-rotation system in the
larger IC inserts.
Strong and rigid tool
body design for the most
demanding operations.
• Thick inserts ensure reliability and consistent results.
• Anti-rotation systems in larger IC inserts provide higher MRR capabilities.
• Increased chip evacuation and through tool coolant for enhanced performance.
M100
A trusted multipurpose solution for profiling and copy applications, the M100
Series ensures a reliable platform for all of your copy milling, face milling, helical
interpolation, and roughing needs. The strong and rigid body design ensures
superior results in even the most demanding operations.
Versatile Platform for All Materials and Applications •
M100™ Series Copy Mills
Language Version: 66_69_WID_All-Star19_INDM_M100 September 27, 2018 12:32 PM
67
widia.com
Indexable Milling
M100™ Series IC12
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
DPM
(mm) G3X
L
(mm)
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M100 Series • IC12 • Screw-On End Mills
2021374 12391050200 24 12 22 12,5 M12 52 30 19 6,0 210.0 23000 Yes
2021378 12391051000 35 23 28 17,0 M16 63 40 22 6,0 310.8 19000 Yes
2021379 12391051200 40 28 28 17,0 M16 63 40 22 6,0 48.3 17000 Yes
order
number
catalogue
number
D1 max
(mm)
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M100 Series • IC12 • Shell Mills
2021342 12391020000 50 38 22 40 40 6,0 46.8 15000 Yes
2021361 12391024000 52 40 22 40 40 6,0 46.5 15000 Yes
2021343 12391020200 63 51 27 48 40 6,0 54.5 14000 Yes
2021344 12391020400 80 68 27 60 50 6,0 63.5 12000 Yes
2021345 12391020600 100 88 32 78 50 6,0 62.5 11000 No
order
number
catalogue
number grade
number of
indexes
D
(mm)
S
(mm)
hm
(mm)
RDHT-TX
2020775 RDHT1204M0TX TN7525 612,00 4,76 0,12
RDHW-MH
2012484 RDHW1204M0MH TN2510 612,00 4,76 0,14
RDPT-MMX
5176975 RDPT1204M0SMMX TN7535 612,00 4,76 0,18
5176974 RDPT1204M0SMMX TN6540 612,00 4,76 0,18
6412898 RDPT1204M0SMMX4 WS40PM 412,00 4,76 –
RDMT-TX
2109552 RDMT1204M0TX TN2510 612,00 4,76 0,15
2012544 RDMT1204M0TX THM 612,00 4,76 0,15
2020763 RDMT1204M0TX TN7525 612,00 4,76 0,15
2957430 RDMT1204M0TX TN6525 612,00 4,76 0,15
2957432 RDMT1204M0TX TN6540 612,00 4,76 0,15
2109542 RDMT1204M0TX TN7535 612,00 4,76 0,15
5520247 RDMT1204M0TX WS30PM 612,00 4,76 0,15
RDMW-TX
2109440 RDMW1204M0TX TN7525 612,00 4,76 0,15
2012594 RDMW1204M0TX TN2510 612,00 4,76 0,15
2020741 RDMW1204M0TX TN7535 612,00 4,76 0,15
3353281 RDMW1204M0TX TN6540 612,00 4,76 0,15
5427441 RDMW1204M0TX WK15CM 612,00 4,76 0,15
Indexable Milling
Language Version: 66_69_WID_All-Star19_INDM_M100 September 27, 2018 12:32 PM
68 widia.com
Indexable Milling
M100™ Series RD1605
order
number
catalogue
number
D1 max
(mm)
D1
(mm)
D
(mm)
L
(mm)
L2
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M100 Series • Weldon® Shank RD1605..
2021341 12391013800 32 16 32 142 82 8,0 27.8 19000 Yes
order
number
catalogue
number
D1 max
(mm)
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M100 Series • Shell Mills RD1605..
2021347 12391021000 50 34 22 40 40 8,0 410.3 13000 Yes
2021348 12391021200 63 47 27 48 40 8,0 47.0 12000 Yes
2021349 12391021400 80 64 27 60 50 8,0 54.8 10000 Yes
order
number
catalogue
number grade
D
(mm)
S
(mm)
hm
(mm)
RDMT-TX
2020767 RDMT1605M0TX TN7525 16,00 5,56 0,18
2957533 RDMT1605M0TX TN6540 16,00 5,56 0,18
2207645 RDMT1605M0TX TN7535 16,00 5,56 0,18
RDMW-TX
2020749 RDMW1605M0TX TN7535 16,00 5,56 0,15
3523083 RDMW1605M0TX TN6540 16,00 5,56 0,15
RDMT-TX RDHT-TX
Indexable Milling
Language Version: 66_69_WID_All-Star19_INDM_M100 September 27, 2018 12:32 PM
69
widia.com

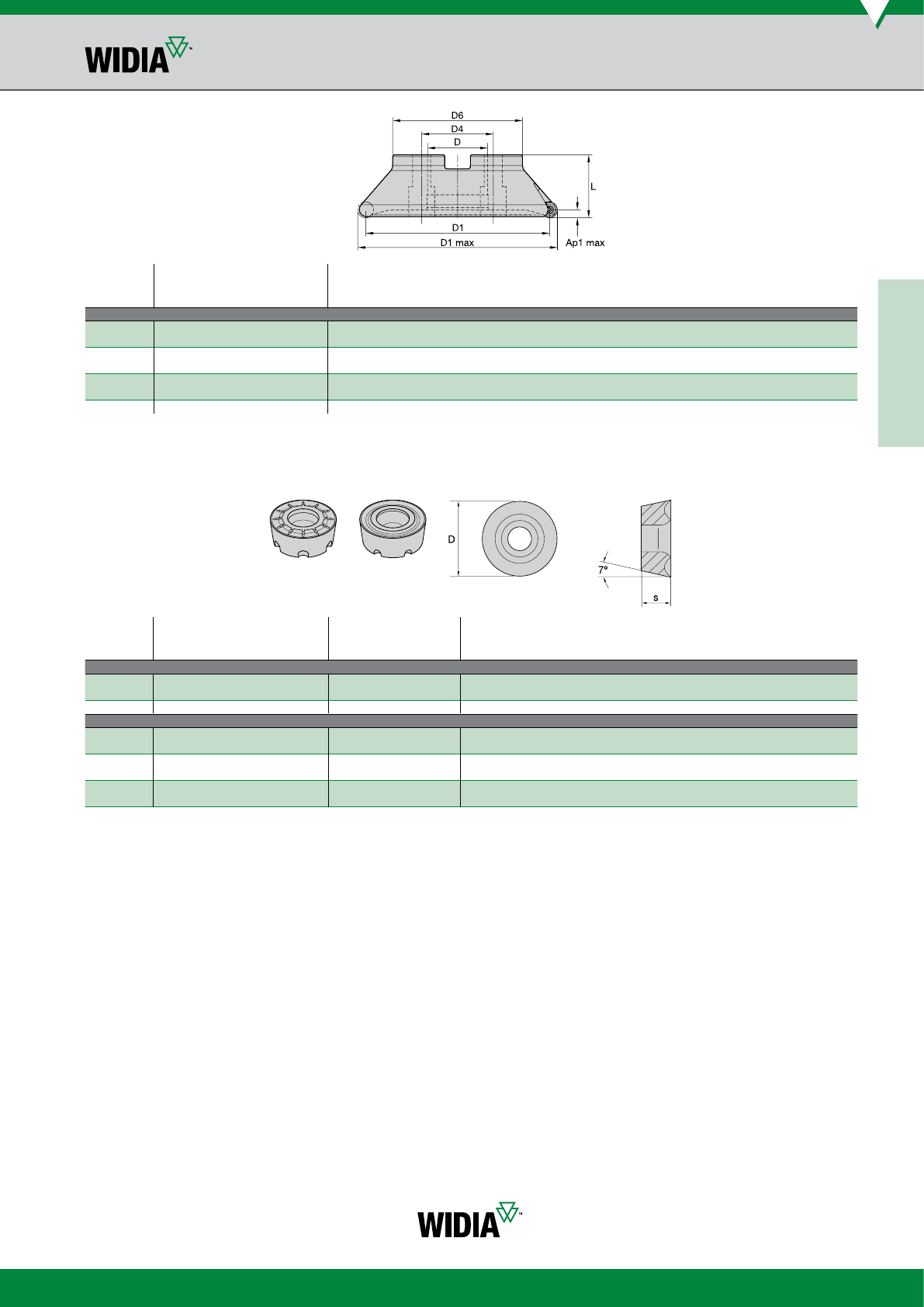

order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
D4
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M100 Series • Shell Mills RC1606..
2021358 12391023400 50 34 22 –40 40 8.0 46.0 13000 Yes
2021359 12391023600 52 36 22 –40 40 8.0 45.8 13000 Yes
2021357 12391023200 63 47 27 –48 40 8.0 54.0 12000 Yes
2021352 12391022000 80 64 27 –60 50 8.0 62.8 10000 Yes
2021353 12391022200 100 84 32 –78 50 8.0 72.3 9000 No
2021354 12391022400 125 109 40 –89 50 8.0 81.8 8000 No
2021355 12391022600 160 144 40 67 90 63 8.0 91.3 7000 No
RCMT-43 RCMT-TX
order
number
catalogue
number grade
D
(mm)
S
(mm)
hm
(mm)
RCMT-43
2067140 RCMT1606M043M TN7535 16,00 6,35 0,20
2020771 RCMT1606M043M TN7525 16,00 6,35 0,20
2957537 RCMT1606M043M TN6540 16,00 6,35 0,20
RCMT-TX
2012416 RCMT1606M0TX TN2510 16,00 6,35 0,24
2012418 RCMT1606M0TX TN7525 16,00 6,35 0,24
2020781 RCMT1606M0TX TN7535 16,00 6,35 0,24
2957427 RCMT1606M0TX TN6540 16,00 6,35 0,24
2957535 RCMT1606M0TX TN6525 16,00 6,35 0,24
5427442 RCMT1606M0TX WK15CM 16,00 6,35 0,24
Indexable Milling
Indexable Milling
M100™ Series RD1606
70
Higher clearance in bodies to
permit pocketing, profiling,
and 5-axis machining.
Screw-on, end mill, and
shell mill cutters with
internal coolant.
Easy-to-use and unique
anti-rotation feature for
excellent stability for
higher feed rates and
cutting forces.
Three different insert sizes and three insert topography
styles with the new WIDIA Victory milling grades cover
any type of component and application.
• Up to 12 cutting edges per insert.
• Effective anti-rotation feature.
• Able to apply in all type of materials and milling applications.
• Latest WIDIA™ Victory™ grades offered.
M200
Revolutionary double-sided round insert, capable of running in multiple
types of milling operations and workpiece materials, increases
customers’ productivity with the most efficient cost per edge.
Double-Sided Round Insert •
M200™ Series
Language Version: 70_73_WID_All-Star19_INDM_M200 September 20, 2018 2:39 PM
widia.com
Language Version: 70_73_WID_All-Star19_INDM_M200 September 20, 2018 2:39 PM
71
widia.com
Indexable Milling
M200™ Series IC12
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
DPM
(mm) G3X
L2
(mm)
WF
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M200 Series • IC12 • Screw-On End Mills
4147560 M200D32Z03M16RN12 32 20 29 17,0 M16 40 24 3,0 30.5 39160 Yes
4147561 M200D35Z03M16RN12 35 23 29 17,0 M16 40 24 3,0 30.4 37440 Yes
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
L
(mm) LBX
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M200 Series • Cylindrical End Mills
4147566 M200D32Z03A32RN12L200 32 20 32 200 40 3,0 30.5 39160 Yes
order
number
catalogue
number
D1
max
(mm)
D1
(mm)
D
(mm)
D6
(mm)
L
(mm)
Ap1
max
(mm) Z
max
ramp
angle
max
RPM
coolant
supply
M200 Series • Shell Mills
4147568 M200D40Z04RN12 40 28 16 38 40 3,0 40.4 35020 Yes
4147569 M200D50Z04RN12 50 38 22 42 40 3,0 40.5 31330 Yes
4147570 M200D50Z05RN12 50 38 22 42 40 3,0 50.3 31330 Yes
4147571 M200D52Z05RN12 52 40 22 49 50 3,0 50.5 30720 Yes
4147572 M200D63Z05RN12 63 51 22 49 50 3,0 50.5 27910 Yes
4147573 M200D63Z07RN12 63 51 22 49 50 3,0 70.3 27910 Yes
4147574 M200D66Z07RN12 66 54 27 60 50 3,0 70.3 27260 Yes
4147575 M200D80Z06RN12 80 68 27 60 50 3,0 60.5 24760 Yes
4147576 M200D80Z08RN12 80 68 27 60 50 3,0 80.2 24760 Yes
4147577 M200D100Z07RN12 100 88 32 78 50 3,0 70.2 22150 Yes
4147578 M200D100Z09RN12 100 88 32 78 50 3,0 90.2 22150 Yes
Indexable Milling

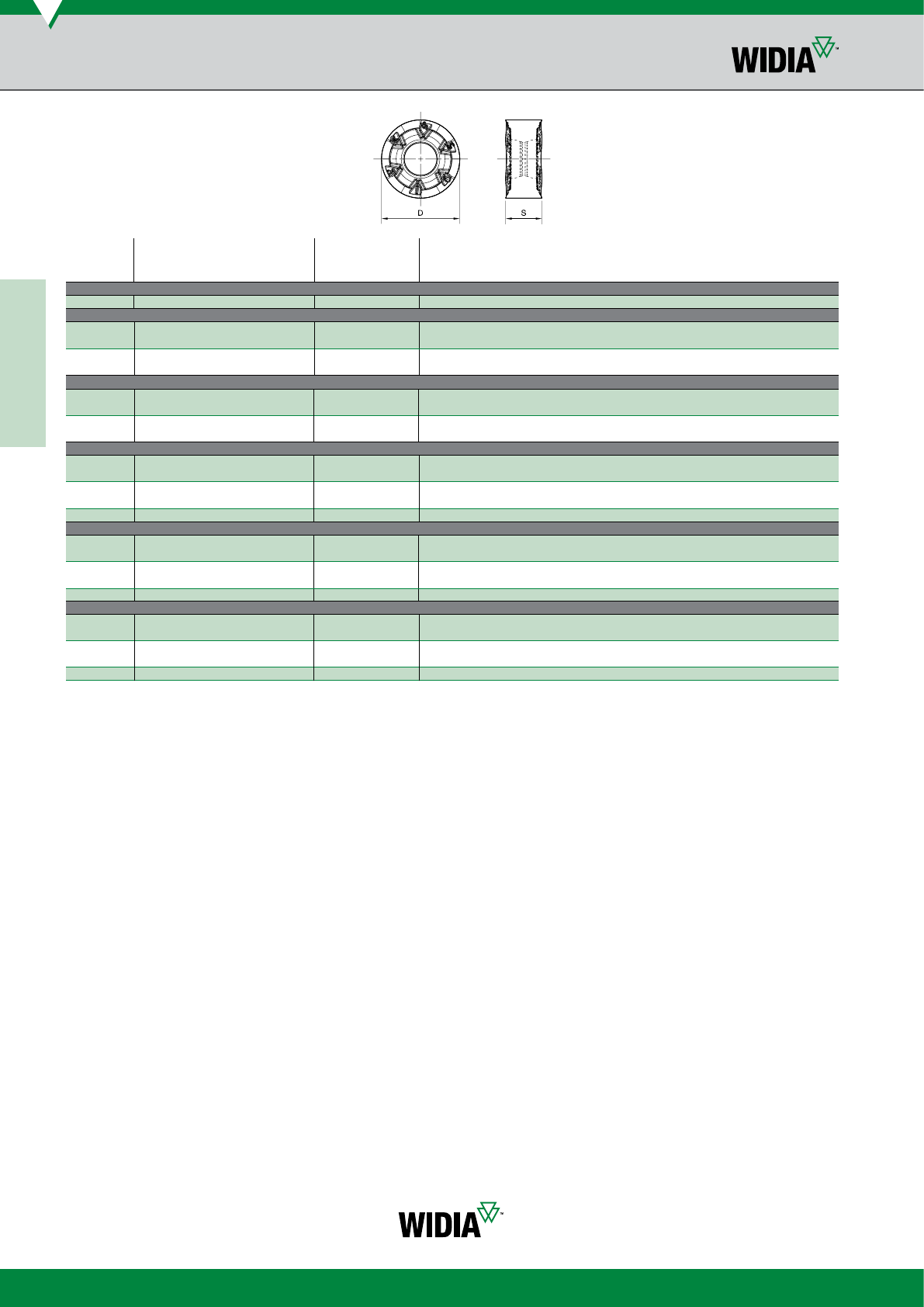

Language Version: 70_73_WID_All-Star19_INDM_M200 September 20, 2018 2:39 PM
72 widia.com
Indexable Milling
order
number
catalogue
number grade
number of
indexes
D
(mm)
S
(mm)
hm
(mm)
RNGJ-ALP
6065661 RNGJ1204M0FALP WN25PM 12 12,00 4,75 0,02
RNGJ-ML
5123863 RNGJ1204M0EML WP25PM 12 12,00 4,75 0,04
5520350 RNGJ1204M0EML WS30PM 12 12,00 4,75 0,04
6408153 RNGJ1204M0EML WS40PM 12 12,00 4,75 0,04
5123864 RNGJ1204M0EML WU35PM 12 12,00 4,75 0,04
RNGJ-MM
5123867 RNGJ1204M0SMM WP25PM 12 12,00 4,75 0,09
5123869 RNGJ1204M0SMM WP35CM 12 12,00 4,75 0,09
5520351 RNGJ1204M0SMM WS30PM 12 12,00 4,75 0,09
5123868 RNGJ1204M0SMM WU35PM 12 12,00 4,75 0,09
RNGJ-MH
5123900 RNGJ1204M0SMH WK15PM 12 12,00 4,75 0,19
5123901 RNGJ1204M0SMH WP25PM 12 12,00 4,75 0,19
5123903 RNGJ1204M0SMH WP35CM 12 12,00 4,75 0,19
6408154 RNGJ1204M0SMH WS40PM 12 12,00 4,75 0,19
5123902 RNGJ1204M0SMH WU35PM 12 12,00 4,75 0,19
Indexable Milling
M200™ Series IC12
RNPJ-MM
5276361 RNPJ1204M0SMM WP25PM 12 12,00 4,75 0,09
5276360 RNPJ1204M0SMM WP35CM 12 12,00 4,75 0,09
5542329 RNPJ1204M0SMM WP40PM 12 12,00 4,75 0,09
5476634 RNPJ1204M0SMM WU35PM 12 12,00 4,75 0,09
6344113 RNPJ1204M0SMM WS40PM 12 12,00 4,75 0,09
RNPJ-MH
5276366 RNPJ1204M0SMH WK15CM 12 12,00 4,75 0,18
5276364 RNPJ1204M0SMH WP25PM 12 12,00 4,75 0,18
5276363 RNPJ1204M0SMH WP35CM 12 12,00 4,75 0,18
5542340 RNPJ1204M0SMH WP40PM 12 12,00 4,75 0,18
5476635 RNPJ1204M0SMH WU35PM 12 12,00 4,75 0,18
Multilayer PVD AlTiN-TiN Coating
• Improved chemical and abrasive wear resistance.
• Consistent tool life performance.
• Primarily for wet machining. Also great results
in dry machining.
New Medium-Grained Substrate
• Minimises tendency for thermal cracking.
• Excellent fatigue resistance and edge strength.
• Rich in cobalt content for improved toughness.
WIDIA™ Victory™
WS40PM
Breakthrough in the latest substrate and
coating technology to boost productivity in
stainless steels and high-temp alloys
Advanced Milling Grade for Titanium
widia.com
NEW!

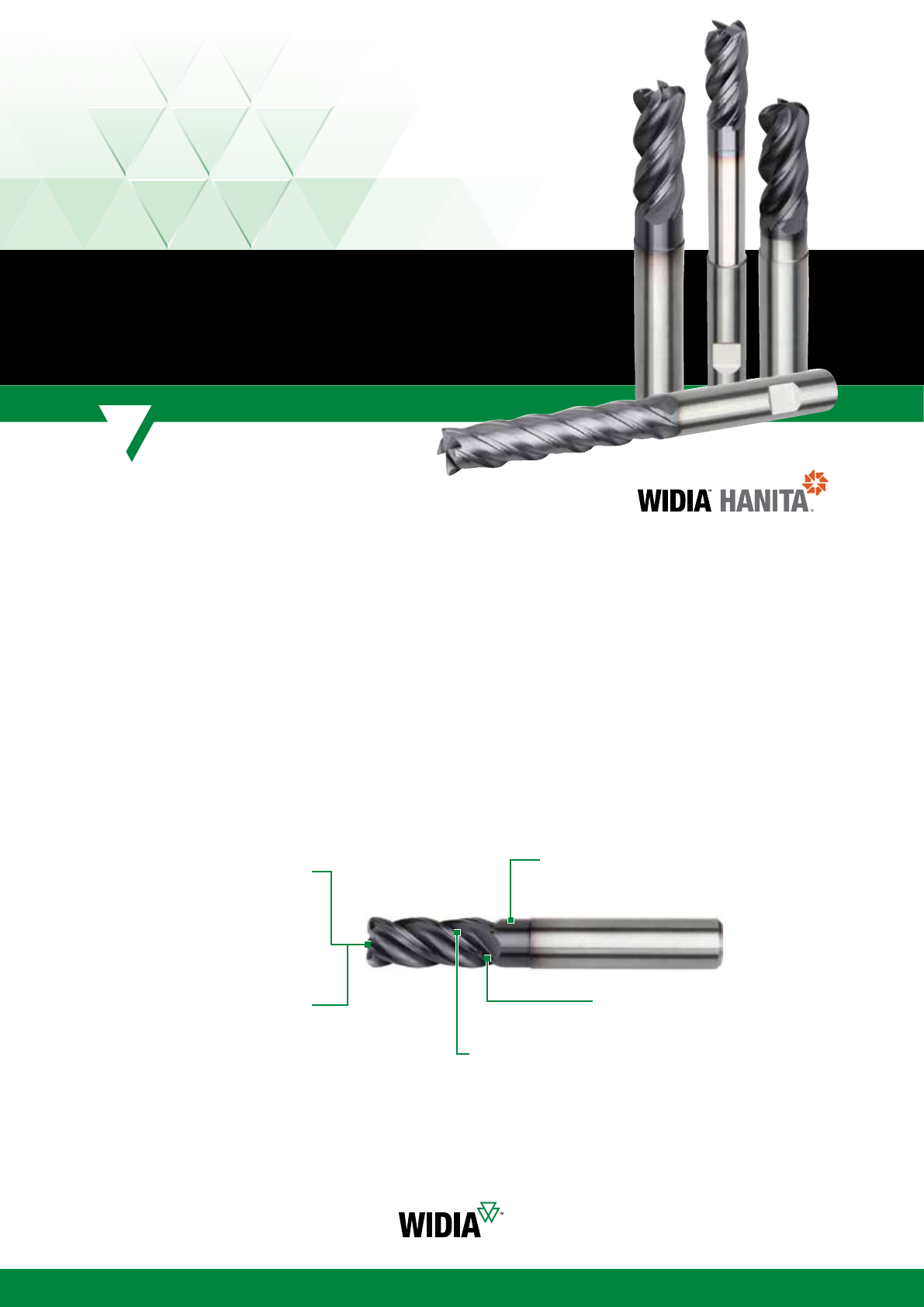

Language Version: 74_77_WID_All-Star19_SEM_VARIMILL_I September 28, 2018 2:17 PM
74 widia.com
74
Centre cutting for
plunging and ramping.
38° helix for roughing and
finishing operations.
TiAlN and AlTiN coatings for highest
cutting parameters and tool life.
Unequal flute spacing
reduces vibrations.
Innovative core design.
VariMill I offers plunging, slotting, and profiling at the highest
possible feed rates for a wide range of materials. They are
designed to provide maximum Metal Removal Rates (MRR) and
to achieve superior surface conditions. A wide range of diameters
and corner configurations, such as chamfer, radii, and sharp
edges, are available from stock.
• High-performance universal tools for almost all workpiece materials.
• Roughing and finishing with one tool.
• Various length-of-cut, long reach and necked versions, ball nose,
corner chamfer, and corner radius available.
VariMill I
High-Performance Solid Carbide End Mills •
VariMill I™
Language Version: 74_77_WID_All-Star19_SEM_VARIMILL_I September 28, 2018 2:17 PM
75
widia.com
Solid End Milling

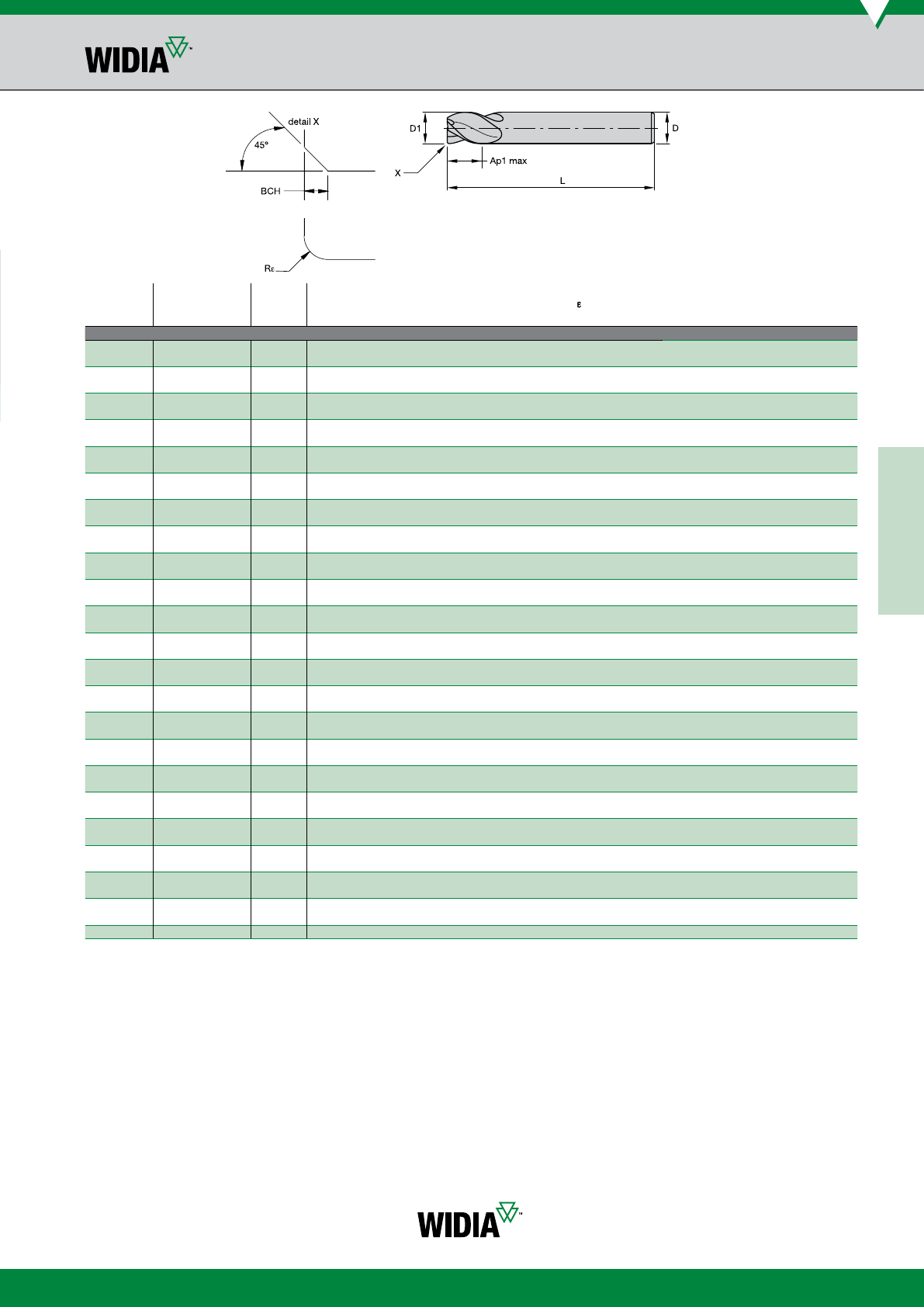

VariMill I™
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
Re
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4777 • VariMill I • Victory
™
Grades
5576753 477704001T WP15PE 4,0 612,00 55 0,20 — 4 Straight-Cylindrical
5576751 477704002T WP15PE 4,0 612,00 55 —0,40 4Straight-Cylindrical
5576752 477704002W WP15PE 4,0 612,00 55 —0,40 4Weldon
®
5576754 4777040Z2T WP15PE 4,0 612,00 55 — — 4 Straight-Cylindrical
5576755 477705002T WP15PE 5,0 613,00 57 —0,40 4Straight-Cylindrical
5576756 477705002W WP15PE 5,0 613,00 57 —0,40 4Weldon
5576757 477705012T WP15PE 5,0 613,00 57 0,20 — 4 Straight-Cylindrical
5576758 4777050Z2T WP15PE 5,0 613,00 57 — — 4 Straight-Cylindrical
5576759 477706002T WP15PE 6,0 613,00 57 —0,40 4Straight-Cylindrical
5576760 477706002W WP15PE 6,0 613,00 57 —0,40 4Weldon
5576761 477706012T WP15PE 6,0 613,00 57 0,20 — 4 Straight-Cylindrical
5576762 4777060Z2T WP15PE 6,0 613,00 57 — — 4 Straight-Cylindrical
5576763 477707003T WP15PE 7,0 816,00 63 —0,40 4Straight-Cylindrical
5576764 477707003W WP15PE 7,0 816,00 63 —0,40 4Weldon
5576765 477707013T WP15PE 7,0 816,00 63 0,20 — 4 Straight-Cylindrical
5576766 4777070Z3T WP15PE 7,0 816,00 63 — — 4 Straight-Cylindrical
5576767 477708003T WP15PE 8,0 816,00 63 —0,40 4Straight-Cylindrical
5576768 477708003W WP15PE 8,0 816,00 63 —0,40 4Weldon
5576769 477708013T WP15PE 8,0 816,00 63 0,20 — 4 Straight-Cylindrical
5576770 4777080Z3T WP15PE 8,0 816,00 63 — — 4 Straight-Cylindrical
5576771 477709004T WP15PE 9,0 10 19,00 72 —0,50 4Straight-Cylindrical
5576773 477709014T WP15PE 9,0 10 19,00 72 0,20 — 4 Straight-Cylindrical
5576774 4777090Z4T WP15PE 9,0 10 19,00 72 — — 4 Straight-Cylindrical
5576775 477710004T WP15PE 10,0 10 22,00 72 —0,50 4Straight-Cylindrical
5576776 477710004W WP15PE 10,0 10 22,00 72 —0,50 4Weldon
5576777 477710024T WP15PE 10,0 10 22,00 72 0,30 — 4 Straight-Cylindrical
5576778 4777100Z4T WP15PE 10,0 10 22,00 72 — — 4 Straight-Cylindrical
5576779 4777110Z5T WP15PE 11,0 12 26,00 83 — — 4 Straight-Cylindrical
5576790 477712005T WP15PE 12,0 12 26,00 83 —0,50 4Straight-Cylindrical
5576791 477712005W WP15PE 12,0 12 26,00 83 —0,50 4Weldon
5576792 477712025T WP15PE 12,0 12 26,00 83 0,30 — 4 Straight-Cylindrical
5576793 4777120Z5T WP15PE 12,0 12 26,00 83 — — 4 Straight-Cylindrical
5576794 477714015T WP15PE 14,0 14 26,00 83 —0,50 4Straight-Cylindrical
5576795 477714014W WP15PE 14,0 14 26,00 83 —0,50 4Weldon
5576796 477716006T WP15PE 16,0 16 32,00 92 —0,50 4Straight-Cylindrical
5576797 477716006W WP15PE 16,0 16 32,00 92 —0,50 4Weldon
5576798 477716026T WP15PE 16,0 16 32,00 92 0,30 — 4 Straight-Cylindrical
5576799 4777160Z6T WP15PE 16,0 16 32,00 92 — — 4 Straight-Cylindrical
5576810 477718018T WP15PE 18,0 18 32,00 92 —0,50 4Straight-Cylindrical
5576812 477720007T WP15PE 20,0 20 38,00 104 —0,50 4Straight-Cylindrical
5576813 477720007W WP15PE 20,0 20 38,00 104 —0,50 4Weldon
5576814 47772002T WP15PE 20,0 20 38,00 104 0,30 — 4 Straight-Cylindrical
5576815 4777200Z7T WP15PE 20,0 20 38,00 104 — — 4 Straight-Cylindrical
5576816 477725008T WP15PE 25,0 25 45,00 121 —0,50 4Straight-Cylindrical
5576817 477725008W WP15PE 25,0 25 45,00 121 —0,50 4Weldon
Solid End Milling
Language Version: 74_77_WID_All-Star19_SEM_VARIMILL_I September 28, 2018 2:17 PM
76 widia.com

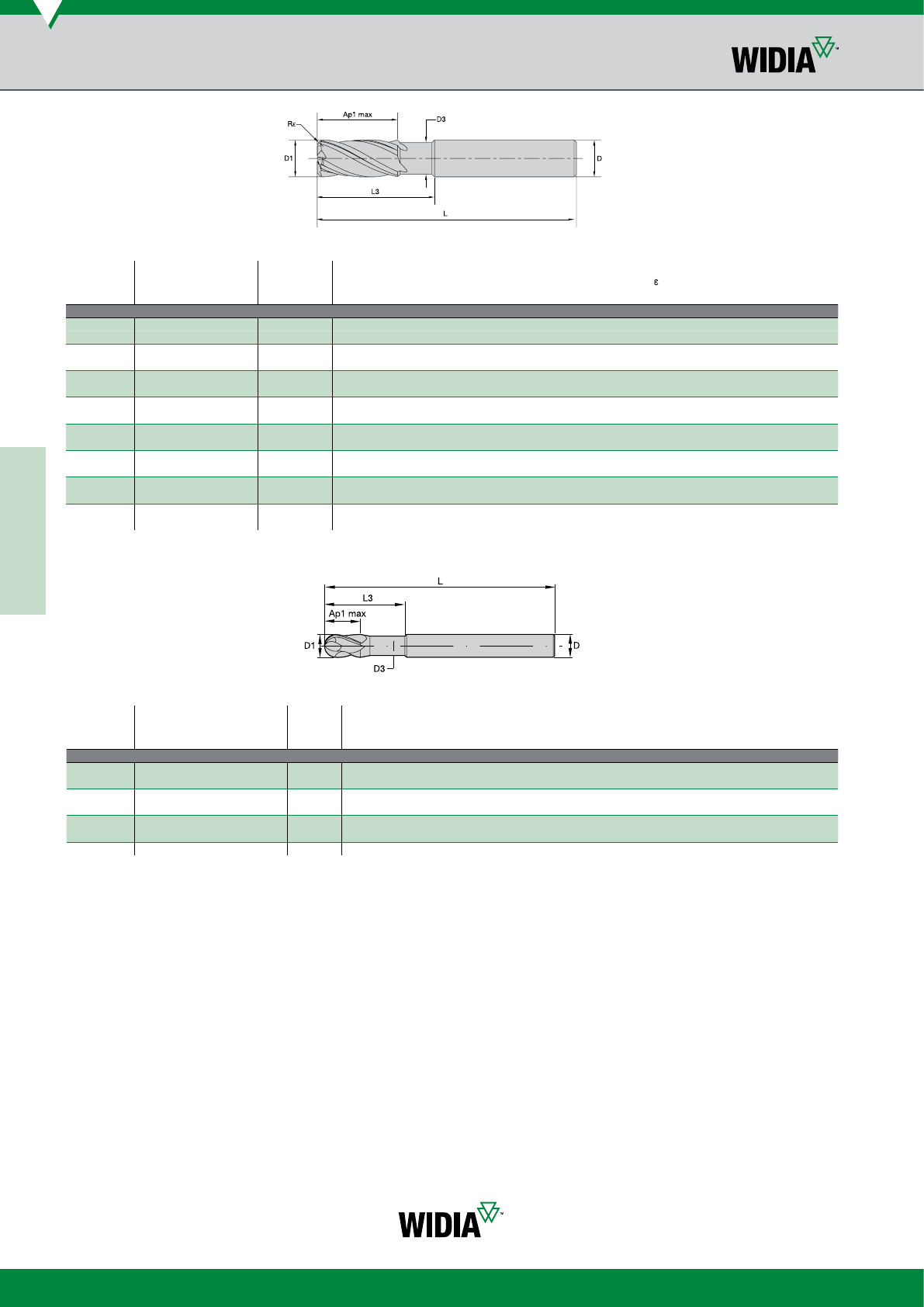

order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 47N0 • VariMill I • Ball Nose • Victory
™
Grades
5576818 47N005002T WP15PE 5,0 64,70 9,00 15,00 57 4Straight-Cylindrical
5576819 47N006002T WP15PE 6,0 65,64 10,00 15,00 57 4Straight-Cylindrical
5576820 47N008003T WP15PE 8,0 87,52 12,00 20,00 63 4Straight-Cylindrical
5576821 47N010004T WP15PE 10,0 10 9,4 14,00 25,00 72 4Straight-Cylindrical
5576822 47N012005T WP15PE 12,0 12 11,28 16,00 30,00 83 4Straight-Cylindrical
5576823 47N016006T WP15PE 16,0 16 15,04 22,00 38,00 92 4Straight-Cylindrical
5576824 47N020007T WP15PE 20,0 20 18,80 26,00 50,00 104 4Straight-Cylindrical
Solid End Milling
Solid End Milling
VariMill I™
order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
Re
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 47N7 • VariMill I • With Neck
3462457 47N706002LT TiALN-LT 6,0 65,5 13,00 21,00 57 0,50 4Straight-Cylindrical
3462459 47N706012LT TiALN-LT 6,0 65,5 13,00 21,00 57 1,00 4Straight-Cylindrical
3462462 47N708003LT TiALN-LT 8,0 87,5 16,00 27,00 63 0,50 4Straight-Cylindrical
3462464 47N708013LT TiALN-LT 8,0 87,5 16,00 27,00 63 1,00 4Straight-Cylindrical
3462468 47N710004LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 0,50 4Straight-Cylindrical
3462470 47N710014LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 1,00 4Straight-Cylindrical
3462473 47N710034LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 2,00 4Straight-Cylindrical
3462475 47N712005LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 0,50 4Straight-Cylindrical
3462477 47N712015LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 1,00 4Straight-Cylindrical
3462480 47N712035LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 2,00 4Straight-Cylindrical
3462482 47N712045LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 4,00 4Straight-Cylindrical
3462484 47N716006LT TiALN-LT 16,0 16 15 32,00 44,00 92 1,00 4Straight-Cylindrical
3462486 47N716016LT TiALN-LT 16,0 16 15 32,00 44,00 92 2,00 4Straight-Cylindrical
3462488 47N716026LT TiALN-LT 16,0 16 15 32,00 44,00 92 4,00 4Straight-Cylindrical
3462491 47N720007MT ALTIN-MT 20,0 20 19 38,00 55,00 104 1,00 4Straight-Cylindrical
3462492 47N720017LT TiALN-LT 20,0 20 19 38,00 55,00 104 2,00 4Straight-Cylindrical
Language Version: 74_77_WID_All-Star19_SEM_VARIMILL_I September 28, 2018 2:17 PM
We pay cash for used carbide tooling, including coated or non-coated carbide inserts, drills,
end mills, reamers, and taps, regardless of brand.
It’s good for the environment and a responsible way to dispose of scrap carbide.
Our carbide recycling programme features:
• Easy-to-use web portal that shows what your scrap carbide is worth before sending it to us.
• Online forms that make it easy to ship scrap carbide to WIDIA.
• Green Box™ containers for safe, convenient shipping of scrap carbide to WIDIA.
• Cash payment for used carbide tooling.
Carbide Recycling
Good for You, Better for the Environment!
The WIDIA™ Carbide Recycling Programme can turn accumulated
scrap carbide tooling in your shop into cash.
For more information, contact your local WIDIA
Authorised Distributor or visit widia.com/services.
Language Version: 78_81_WID_All-Star19_SEM_VARIMILL_II September 28, 2018 2:18 PM
78 widia.com
Proprietary core design. 38° helix for roughing
and finishing operations.
Victory™ coating for
highest cutting data
and tool life.
Five unequally spaced flutes
for highest feed rates
and reduced vibrations.
VariMill II end mills are the proven leader in the field of
high-performance, chatter-free machining. They are designed
to provide maximum metal removal rates and to achieve supreme
surface conditions. Utilising an innovative and proprietary design
with unequal flute spacing, VariMill II carbide end mills provide
users with the most versatile technology available, capable
of outperforming other high-performance tools.
• 1 x D slotting in titanium and stainless steels with five unequally spaced flutes.
• Roughing and finishing with one tool.
• Various lengths-of-cut; necked and corner radius versions available.
VariMill II
High-Performance Solid Carbide End Mills •
VariMill II™
Language Version: 78_81_WID_All-Star19_SEM_VARIMILL_II September 28, 2018 2:18 PM
79
widia.com
Solid End Milling
VariMill II™
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
Rε
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 577C • VariMill II •With Centre Cut • Victory
™
Grades
5578866 577C04002T WP15PE 4,0 611,00 55 0,25 5Straight-Cylindrical
5578867 577C04002W WP15PE 4,0 611,00 55 0,25 5Weldon
®
5578868 577C04012T WP15PE 4,0 611,00 55 — 5 Straight-Cylindrical
5578990 577C05002T WP15PE 5,0 613,00 57 0,25 5Straight-Cylindrical
5578991 577C05002W WP15PE 5,0 613,00 57 0,25 5Weldon
5578992 577C06002T WP15PE 6,0 613,00 57 0,40 5Straight-Cylindrical
5578993 577C06002W WP15PE 6,0 613,00 57 0,40 5Weldon
5578994 577C06012T WP15PE 6,0 613,00 57 — 5 Straight-Cylindrical
5578997 577C08003T WP15PE 8,0 819,00 63 0,50 5Straight-Cylindrical
5578998 577C08003W WP15PE 8,0 819,00 63 0,50 5Weldon
5578999 577C08013T WP15PE 8,0 819,00 63 — 5 Straight-Cylindrical
5579023 577C10004T WP15PE 10,0 10 22,00 72 0,50 5Straight-Cylindrical
5579024 577C10004W WP15PE 10,0 10 22,00 72 0,50 5Weldon
5579025 577C10014T WP15PE 10,0 10 22,00 72 — 5 Straight-Cylindrical
5579026 577C12005T WP15PE 12,0 12 26,00 83 0,75 5Straight-Cylindrical
5579027 577C12005W WP15PE 12,0 12 26,00 83 0,75 5Weldon
5579028 577C12015T WP15PE 12,0 12 26,00 83 — 5 Straight-Cylindrical
5579029 577C14004T WP15PE 14,0 14 26,00 83 0,75 5Straight-Cylindrical
5579040 577C14004W WP15PE 14,0 14 26,00 83 0,75 5Weldon
5579041 577C14014T WP15PE 14,0 14 26,00 83 — 5 Straight-Cylindrical
5579042 577C16006T WP15PE 16,0 16 32,00 92 0,75 5Straight-Cylindrical
5579043 577C16006W WP15PE 16,0 16 32,00 92 0,75 5Weldon
5579044 577C16016T WP15PE 16,0 16 32,00 92 — 5 Straight-Cylindrical
5579047 577C20007T WP15PE 20,0 20 38,00 104 0,75 5Straight-Cylindrical
5579048 577C20007W WP15PE 20,0 20 38,00 104 0,75 5Weldon
5579049 577C20017T WP15PE 20,0 20 38,00 104 — 5 Straight-Cylindrical
Solid End Milling
Language Version: 78_81_WID_All-Star19_SEM_VARIMILL_II September 28, 2018 2:18 PM
80 widia.com
order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
Rε
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 57NC • VariMill II • With Neck • With Centre Cut • Victory
™
Grades
5598906 57NC06002T WS15PE 6,0 65,64 13,00 18,00 63 — 5 Straight-Cylindrical
5598907 57NC06022T WS15PE 6,0 65,64 13,00 18,00 63 0,50 5Straight-Cylindrical
5598909 57NC06032T WS15PE 6,0 65,64 13,00 18,00 63 1,00 5Straight-Cylindrical
5599071 57NC06042W WS15PE 6,0 65,64 13,00 18,00 63 1,50 5Weldon
5599072 57NC08003T WS15PE 8,0 87,52 19,00 24,00 76 — 5 Straight-Cylindrical
5599073 57NC08023T WS15PE 8,0 87,52 19,00 24,00 76 0,50 5Straight-Cylindrical
5599074 57NC08023W WS15PE 8,0 87,52 19,00 24,00 76 0,50 5Weldon
5599075 57NC08033T WS15PE 8,0 87,52 19,00 24,00 76 1,00 5Straight-Cylindrical
5599076 57NC08033W WS15PE 8,0 87,52 19,00 24,00 76 1,00 5Weldon
5599077 57NC08053W WS15PE 8,0 87,52 19,00 24,00 76 2,00 5Weldon
5599078 57NC10004T WS15PE 10,0 10 9,4 22,00 30,00 76 — 5 Straight-Cylindrical
5599079 57NC10024T WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5Straight-Cylindrical
5599080 57NC10024W WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5Weldon
5599081 57NC10034T WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5Straight-Cylindrical
5599082 57NC10034W WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5Weldon
5599083 57NC10054T WS15PE 10,0 10 9,4 22,00 30,00 76 2,00 5Straight-Cylindrical
5599085 57NC12005T WS15PE 12,0 12 11,28 26,00 36,00 83 — 5 Straight-Cylindrical
5599086 57NC12025T WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5Straight-Cylindrical
5599087 57NC12025W WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5Weldon
5599088 57NC12035T WS15PE 12,0 12 11,28 26,00 36,00 83 1,00 5Straight-Cylindrical
5599090 57NC12055T WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5Straight-Cylindrical
5599091 57NC12055W WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5Weldon
5599092 57NC16006T WS15PE 16,0 16 15,04 32,00 48,00 100 — 5 Straight-Cylindrical
5599093 57NC16026T WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5Straight-Cylindrical
5598905 57NC16026W WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5Weldon
5599094 57NC16036T WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5Straight-Cylindrical
5599095 57NC16036W WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5Weldon
5599096 57NC16056T WS15PE 16,0 16 15,04 32,00 48,00 100 2,00 5Straight-Cylindrical
5599098 57NC16076T WS15PE 16,0 16 15,04 32,00 48,00 100 3,00 5Straight-Cylindrical
5599099 57NC16076W WS15PE 16,0 16 15,04 32,00 48,00 100 3,00 5Weldon
5599100 57NC20007T WS15PE 20,0 20 18,8 38,00 60,00 115 — 5 Straight-Cylindrical
5599101 57NC20027T WS15PE 20,0 20 18,8 38,00 60,00 115 0,50 5Straight-Cylindrical
5599102 57NC20027W WS15PE 20,0 20 18,8 38,00 60,00 115 0,50 5Weldon
5599103 57NC20037T WS15PE 20,0 20 18,8 38,00 60,00 115 1,00 5Straight-Cylindrical
5599104 57NC20037W WS15PE 20,0 20 18,8 38,00 60,00 115 1,00 5Weldon
5599105 57NC20057T WS15PE 20,0 20 18,8 38,00 60,00 115 2,00 5Straight-Cylindrical
5599107 57NC20077T WS15PE 20,0 20 18,8 38,00 60,00 115 3,00 5Straight-Cylindrical
5599108 57NC20077W WS15PE 20,0 20 18,8 38,00 60,00 115 3,00 5Weldon
5599112 57NC25028T WS15PE 25,0 20 23,50 45,00 75,00 135 0,50 5Straight-Cylindrical
5599116 57NC25058T WS15PE 25,0 20 23,50 45,00 75,00 135 2,00 5Straight-Cylindrical
Solid End Milling
VariMill II™
Solid End Milling
Language Version: 78_81_WID_All-Star19_SEM_VARIMILL_II September 28, 2018 2:18 PM
81
widia.com 81
Language Version: 78_81_WID_All-Star19_SEM_VARIMILL_II September 28, 2018 2:18 PM
ADVISE
SELECT
A method of selecting cutting tools from a tree structure via a hierarchy
or parametric search:
• If you know which product you are looking for, a quick search can
be performed by just the catalogue number or product description.
• Smart filters significantly reduce the amount of potential tooling
solutions.
• After the tool is selected, NOVO also provides cutting and adaptive
item options that fit with your solution.
NOVO applications can ensure you have the right tools on your machines,
in the right sequence. Resulting in flawless execution that accelerates
every job, and maximises every shift. widia.com/novo
NOVO KNOWS SEARCH
Searching for a tool has been enhanced by Advise
and Select functions from NOVO™ applications —
saving you time and money.
Uses a rules-based approach to provide cutting tool recommendations:
• Define Machining Feature (face milling, slotting, blind hole, etc.)
• Apply Constraint Requirements (geometric, material, tolerance, etc.)
• Set Machining Sequence (single or multi-step operations, rough
then finish, etc.)
• Receive Ranked Results
Language Version: 82_83_WID_All-Star19_SEM_VARIMILL_II_ER September 28, 2018 2:19 PM
82 widia.com

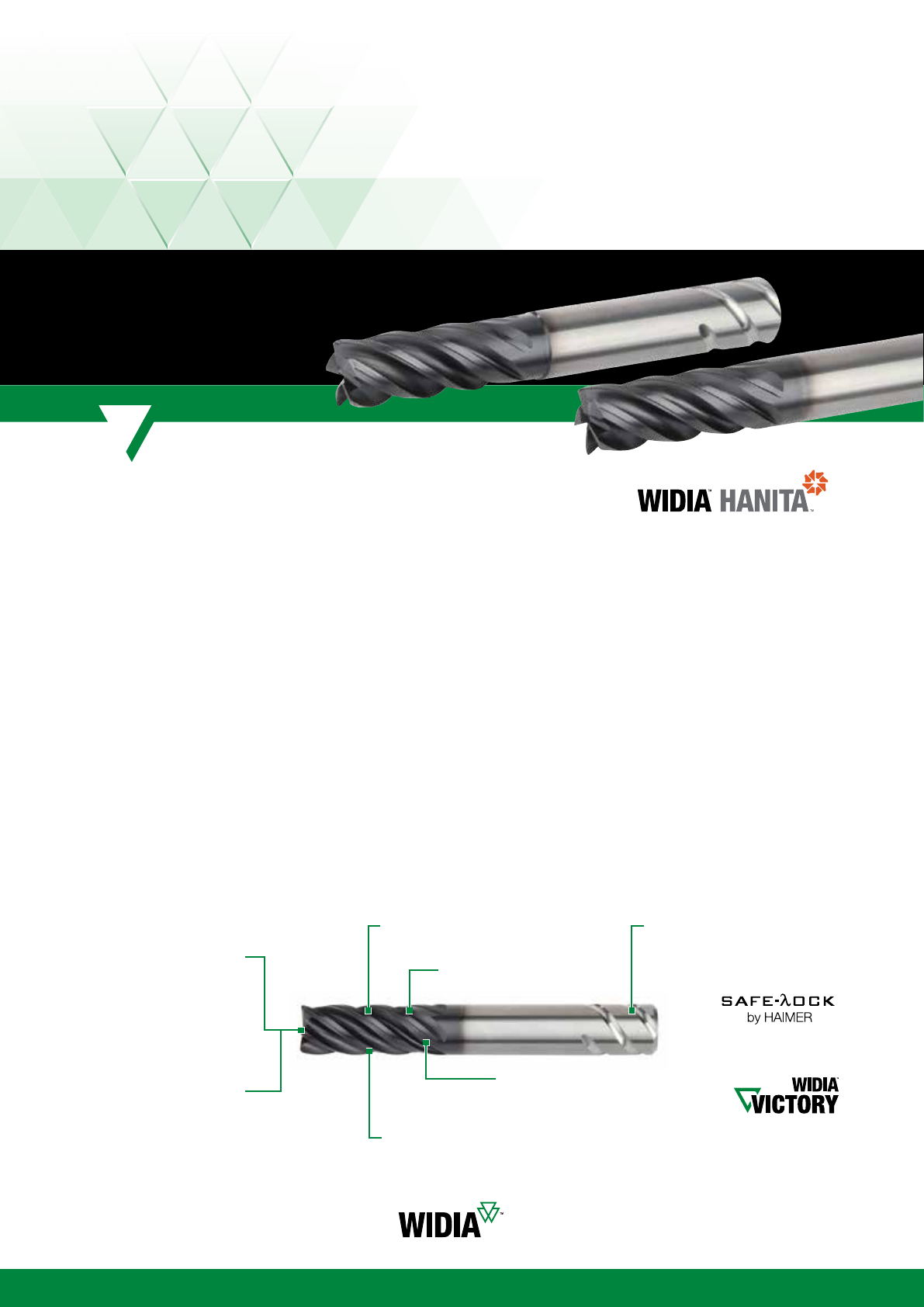

Engineered with Eccentric Relief (ER) grind at the cutting edges for
greater edge strength, enabling higher metal removal rates and increased
productivity. The new VariMill II ER is the first WIDIA™ off-the-shelf end
mill available with Safe-Lock™ by HAIMER, providing excellent stability,
eliminating end mill pullout, and increasing concentric tool clamping. Though
primarily designed for roughing and finishing applications in the aerospace
industry, VariMill II ER can be used as a solution for any titanium or stainless
steel application and is capable of slotting, ramping, and plunging.
• High-performance tools for titanium and stainless steel workpiece materials.
• Roughing and finishing with one tool, lowering tool costs.
• Various radius and necked versions available.
• Standard offering with Safe-Lock™ by HAIMER.
®
Centre cutting for
plunging and ramping.
Multi-stage core design.
38° helix for roughing
and finishing operations.
Safe-Lock™ shank prevents
end mill pullout and enables
higher feed rates.
Victory™ coating for highest
cutting conditions and tool life.
Eccentric relief grind improves edge
stability and enables higher feed rates.
Unequal flute spacing
reduces vibrations.
VariMill II ER
High-Performance Solid Carbide End Mills •
VariMill II™ ER

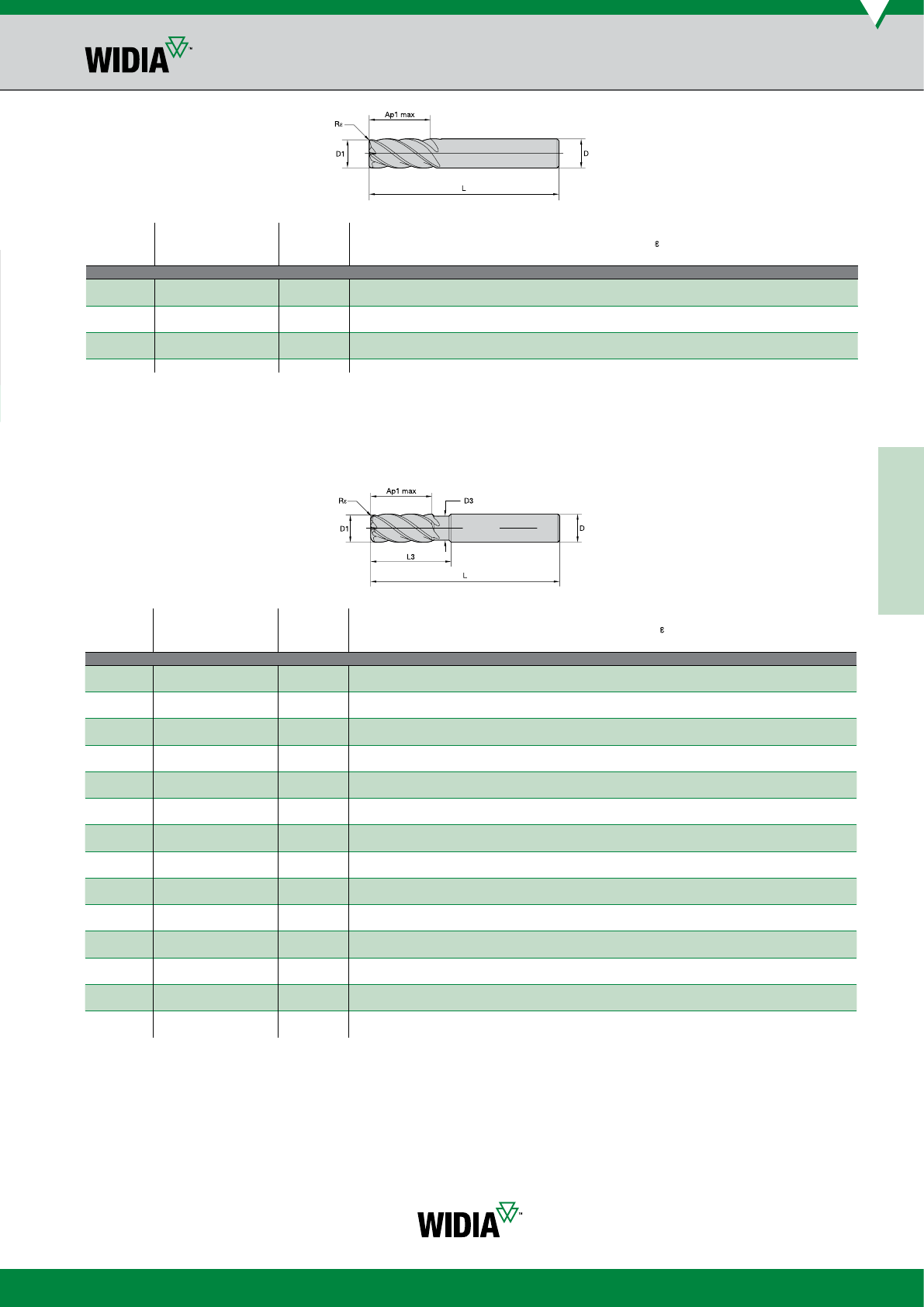

Language Version: 82_83_WID_All-Star19_SEM_VARIMILL_II_ER September 28, 2018 2:19 PM
83
widia.com
Solid End Milling
VariMill II™ ER
Solid End Milling
order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
Rε
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 57NE • VariMill II ER • With Neck • Victory Grades
5599122 57NE10004T WS15PE 10,0 10 9,4 22,00 30,00 76 — 5 Straight-Cylindrical
5599123 57NE10024T WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5Straight-Cylindrical
5599124 57NE10024W WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5Weldon
5599125 57NE10034T WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5Straight-Cylindrical
5599126 57NE10034W WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5Weldon
5599127 57NE10054T WS15PE 10,0 10 9,4 22,00 30,00 76 2,00 5Straight-Cylindrical
5599128 57NE10054W WS15PE 10,0 10 9,4 22,00 30,00 76 2,00 5Weldon
5599129 57NE12005V WS15PE 12,0 12 11,28 26,00 36,00 83 — 5 Safe-Lock
5599130 57NE12025V WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5Safe-Lock
5599131 57NE12025W WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5Weldon
5599132 57NE12035V WS15PE 12,0 12 11,28 26,00 36,00 83 1,00 5Safe-Lock
5599133 57NE12035W WS15PE 12,0 12 11,28 26,00 36,00 83 1,00 5Weldon
5599134 57NE12055V WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5Safe-Lock
5599135 57NE12055W WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5Weldon
5599136 57NE16006V WS15PE 16,0 16 15,04 32,00 48,00 100 — 5 Safe-Lock
5599137 57NE16026V WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5Safe-Lock
5599138 57NE16026W WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5Weldon
5599139 57NE16036V WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5Safe-Lock
5599140 57NE16036W WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5Weldon
5599141 57NE16056V WS15PE 16,0 16 15,04 32,00 48,00 100 2,00 5Safe-Lock
5599142 57NE16056W WS15PE 16,0 16 15,04 32,00 48,00 100 2,00 5Weldon
5599143 57NE20007V WS15PE 20,0 20 18,8 38,00 60,00 115 — 5 Safe-Lock
5599145 57NE20027W WS15PE 20,0 20 18,8 38,00 60,00 115 0,50 5Weldon
5599146 57NE20037V WS15PE 20,0 20 18,8 38,00 60,00 115 1,00 5Safe-Lock
5599148 57NE20057V WS15PE 20,0 20 18,8 38,00 60,00 115 2,00 5Safe-Lock
5599160 57NE20087V WS15PE 20,0 20 18,8 38,00 60,00 115 4,00 5Safe-Lock
5599161 57NE20087W WS15PE 20,0 20 18,8 38,00 60,00 115 4,00 5Weldon
5599165 57NE25038V WS15PE 25,0 25 23,50 45,00 75,00 135 1,00 5Safe-Lock
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
Rε
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 577E • VariMill II
™
ER • Victory
™
Grades
5599176 577E12015W WS15PE 12,0 12 26,00 83 0,75 5Weldon
5599177 577E16006V WS15PE 16,0 16 32,00 92 — 5 Safe-Lock
5599178 577E16016V WS15PE 16,0 16 32,00 92 0,75 5Safe-Lock
5599179 577E16016W WS15PE 16,0 16 32,00 92 0,75 5Weldon
5599180 577E20007V WS15PE 20,0 20 38,00 104 — 5 Safe-Lock
5599181 577E20017V WS15PE 20,0 20 38,00 104 0,75 5Safe-Lock
5599182 577E20017W WS15PE 20,0 20 38,00 104 0,75 5Weldon
Language Version: 84_85_WID_All-Star19_SEM_VARIMILL_II_LONG September 28, 2018 2:19 PM
84 widia.com
Innovative core design
enables highest feed rates.
43° helix improves finishing results.
AlTiN coating for highest
cutting data and tool life.
Optimised for wall straightness.
Five unequally spaced flutes
for highest feed rates
and reduced vibrations.
High-Performance Solid Carbide End Mills •
VariMill II™ Long
VariMill II Long
Designed to achieve highest surface quality and tool life in titanium,
stainless steels, and steels. Innovative core and tool geometry design
enable chatter-free corner machining in one pass. VariMill II Long
covers 4 x D lengths-of-cut for semi-finishing and fine finishing
operations with radii and sharp corner versions from stock.
• Tailored 43° helix improves surface finish.
• Less passes in side milling with 4 x D length-of-cut capability.
• One tool for semi-finishing and fine finishing operations.
• No need for feed rate reduction when machining corners.
Language Version: 84_85_WID_All-Star19_SEM_VARIMILL_II_LONG September 28, 2018 2:19 PM
85
widia.com
Solid End Milling
VariMill II™ Long
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
Rε
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 5718 • VariMill II Long • 4 x D Length of Cut
5096567 571806012MT ALTIN-MT 6,0 624,00 76 0,50 5Straight-Cylindrical
5096568 571806022MT ALTIN-MT 6,0 624,00 76 1,00 5Straight-Cylindrical
5096660 571808013MT ALTIN-MT 8,0 832,00 76 0,50 5Straight-Cylindrical
5096661 571808023MT ALTIN-MT 8,0 832,00 76 1,00 5Straight-Cylindrical
4124297 571810004MT ALTIN-MT 10,0 10 40,00 100 — 5 Straight-Cylindrical
5096662 571810014MT ALTIN-MT 10,0 10 40,00 100 0,50 5Straight-Cylindrical
5096666 571812015MT ALTIN-MT 12,0 12 48,00 125 0,50 5Straight-Cylindrical
4124298 571812005MT ALTIN-MT 12,0 12 48,00 125 — 5 Straight-Cylindrical
5096667 571812025MT ALTIN-MT 12,0 12 48,00 125 1,00 5Straight-Cylindrical
5096755 571814054MT ALTIN-MT 14,0 14 56,00 120 4,00 5Straight-Cylindrical
4124300 571816006MT ALTIN-MT 16,0 16 64,00 141 — 5 Straight-Cylindrical
5096756 571816016MT ALTIN-MT 16,0 16 64,00 141 0,50 5Straight-Cylindrical
5096757 571816026MT ALTIN-MT 16,0 16 64,00 141 1,00 5Straight-Cylindrical
5096758 571816036MT ALTIN-MT 16,0 16 64,00 141 2,00 5Straight-Cylindrical
5096759 571816046MT ALTIN-MT 16,0 16 64,00 141 3,00 5Straight-Cylindrical
5096800 571816056MT ALTIN-MT 16,0 16 64,00 141 4,00 5Straight-Cylindrical
4124302 571820007MT ALTIN-MT 20,0 20 80,00 150 — 5 Straight-Cylindrical
5096805 571820017MT ALTIN-MT 20,0 20 80,00 150 0,50 5Straight-Cylindrical
5096806 571820027MT ALTIN-MT 20,0 20 80,00 150 1,00 5Straight-Cylindrical
5096807 571820037MT ALTIN-MT 20,0 20 80,00 150 2,00 5Straight-Cylindrical
5096808 571820047MT ALTIN-MT 20,0 20 80,00 150 3,00 5Straight-Cylindrical
5096809 571820057MT ALTIN-MT 20,0 20 80,00 150 4,00 5Straight-Cylindrical
4124323 571825008MT ALTIN-MT 25,0 25 100,00 170 — 5 Straight-Cylindrical
5096860 571825018MT ALTIN-MT 25,0 25 100,00 170 0,50 5Straight-Cylindrical
5096861 571825028MT ALTIN-MT 25,0 25 100,00 170 1,00 5Straight-Cylindrical
5096862 571825038MT ALTIN-MT 25,0 25 100,00 170 2,00 5Straight-Cylindrical
5096863 571825048MT ALTIN-MT 25,0 25 100,00 170 3,00 5Straight-Cylindrical
Solid End Milling
Language Version: 86_87_WID_All-Star19_SEM_VARIMILL_III_ER September 28, 2018 2:20 PM
86 widia.com

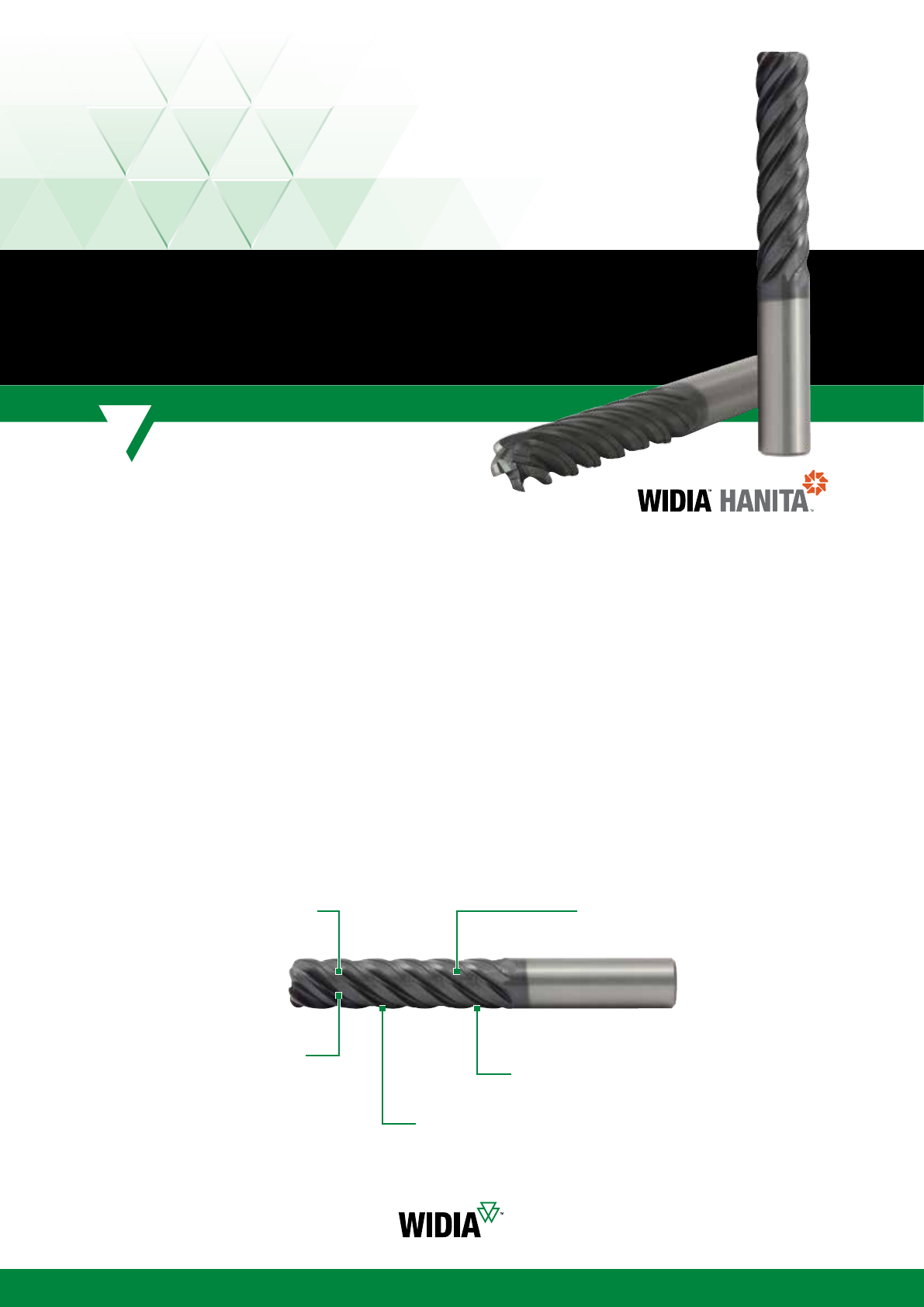

The trend towards more efficiency and increased productivity using
high-speed machining techniques such as trochoidal and peel milling will
continue to be a focus for aerospace components. The new VariMill III ER is
designed to provide the highest Metal Removal Rates (MRR) and extended
tool life in the most demanding materials in the aerospace industry.
VariMill III ER is designed to be applied in titanium and stainless steel
workpiece materials for both semi-finishing and finishing applications.
• 7-flute eccentric relief design provides edge strength along with high productivity.
• Superior surface finishes and wall straightness capability from specialised core.
• Finishing and semi-finishing at up to 30% of the diameter with one tool.
• First choice for high-speed machining in difficult-to-cut workpiece materials.
Available with radii or
chamfered corner.
7-Flute Design
Superior finishes
especially suited for
high-speed machining.
Innovative core design
Superior wall straightness.
2 x D (necked), 3 x D,
and 5 x D standard.
Available with
Safe-Lock™ shanks
Victory™ grade WS15PE™
Market-leading surface technology
using pre- and post-coat treatments.
Eccentric relief grind
Consistent edge quality.
®
High-Performance Solid Carbide End Mills •
VariMill III™ ER
VariMill III ER
Language Version: 86_87_WID_All-Star19_SEM_VARIMILL_III_ER September 28, 2018 2:20 PM
87
widia.com
Solid End Milling
VariMill III™ ER
order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
Rε
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 77NE • VariMill III ER • With Neck • Victory
™
Grades
5978039 77NE10004T WS15PE 10,0 10 9,40 22,00 30,00 76 —0,50 7Straight-Cylindrical
5978040 77NE10024T WS15PE 10,0 10 9,40 22,00 30,00 76 0,50 — 7 Straight-Cylindrical
5978096 77NE12005T WS15PE 12,0 12 11,28 26,00 36,00 83 —0,50 7Straight-Cylindrical
5978097 77NE12025T WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 — 7 Straight-Cylindrical
5978104 77NE16006T WS15PE 16,0 16 15,04 32,00 48,00 100 —0,50 7Straight-Cylindrical
5978105 77NE16026T WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 — 7 Straight-Cylindrical
5978112 77NE20007T WS15PE 20,0 20 18,80 38,00 60,00 115 —0,50 7Straight-Cylindrical
5978113 77NE20027T WS15PE 20,0 20 18,80 38,00 60,00 115 0,50 — 7 Straight-Cylindrical
Solid End Milling
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
Rε
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 771E 772E • VariMill III ER • Victory Grades
5978092 771E10004T WS15PE 10,0 10 30,00 76 —0,50 7Straight-Cylindrical
5978093 771E10024T WS15PE 10,0 10 30,00 76 0,50 — 7 Straight-Cylindrical
5978094 772E10004T WS15PE 10,0 10 50,00 100 —0,50 7Straight-Cylindrical
5978095 772E10024T WS15PE 10,0 10 50,00 100 0,50 — 7 Straight-Cylindrical
5978098 771E12005T WS15PE 12,0 12 36,00 100 —0,50 7Straight-Cylindrical
5978099 771E12025T WS15PE 12,0 12 36,00 100 0,50 — 7 Straight-Cylindrical
5978100 772E12005T WS15PE 12,0 12 60,00 125 —0,50 7Straight-Cylindrical
5978102 772E12005V WS15PE 12,0 12 60,00 125 —0,50 7Safe-Lock
™
5978101 772E12025T WS15PE 12,0 12 60,00 125 0,50 — 7 Straight-Cylindrical
5978103 772E12025V WS15PE 12,0 12 60,00 125 0,50 — 7 Safe-Lock
5978106 771E16006T WS15PE 16,0 16 48,00 110 —0,50 7Straight-Cylindrical
5978107 771E16026T WS15PE 16,0 16 48,00 110 0,50 — 7 Straight-Cylindrical
5978108 772E16006T WS15PE 16,0 16 80,00 141 —0,50 7Straight-Cylindrical
5978110 772E16006V WS15PE 16,0 16 80,00 141 —0,50 7Safe-Lock
5978109 772E16026T WS15PE 16,0 16 80,00 141 0,50 — 7 Straight-Cylindrical
5978111 772E16026V WS15PE 16,0 16 80,00 141 0,50 — 7 Safe-Lock
5978114 771E20007T WS15PE 20,0 20 60,00 125 —0,50 7Straight-Cylindrical
5978115 771E20027T WS15PE 20,0 20 60,00 125 0,50 — 7 Straight-Cylindrical
5978116 772E20007T WS15PE 20,0 20 100,00 166 —0,50 7Straight-Cylindrical
5978117 772E20027T WS15PE 20,0 20 100,00 166 0,50 — 7 Straight-Cylindrical
Detail X
Detail X
Language Version: 88_89_WID_All-Star19_SEM_HP_SCEM_Roughing September 28, 2018 2:21 PM
88 widia.com

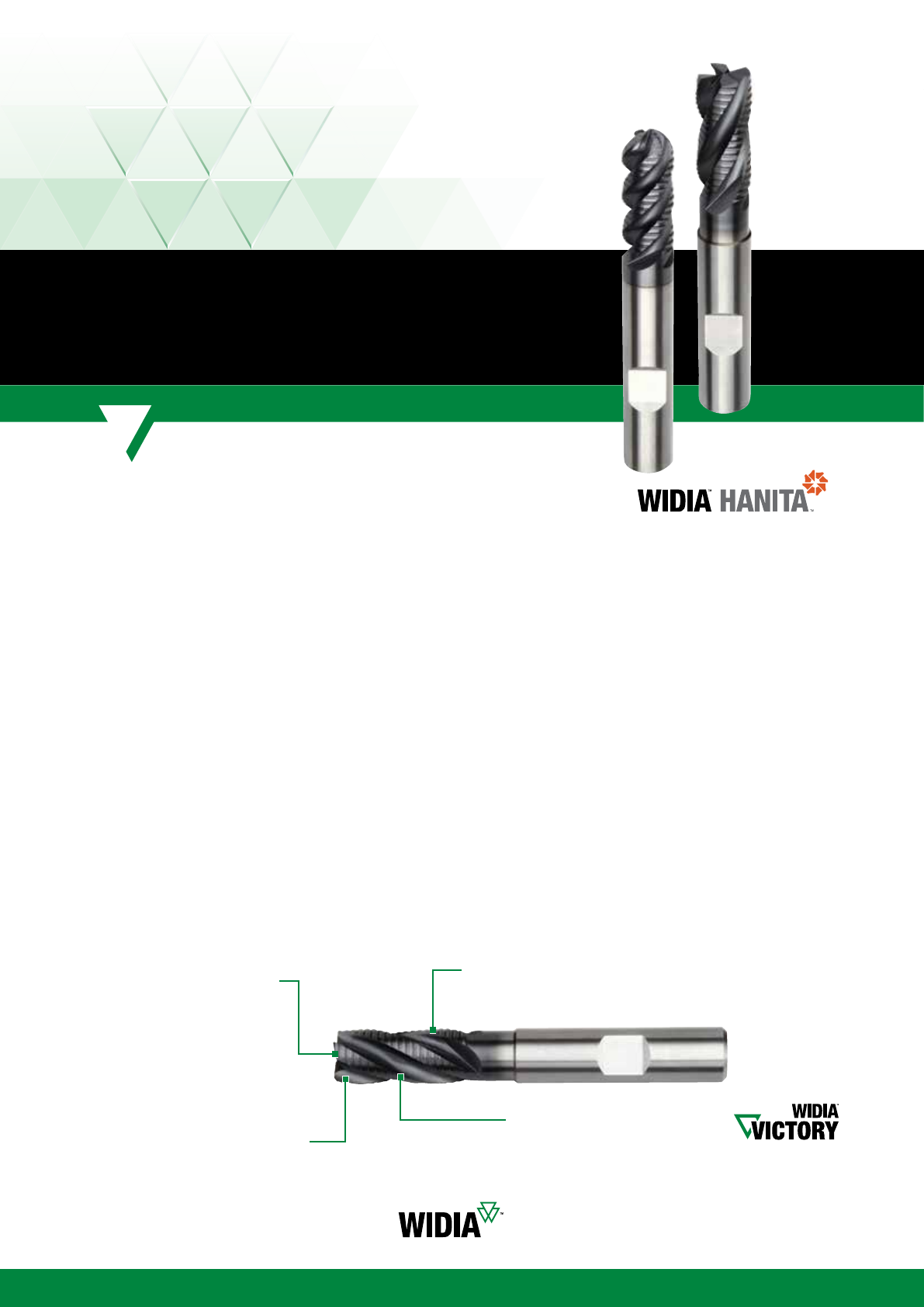

Designed Profiles
Maximum Metal Removal
Rates (MRR) with low power
consumption.
Unique Geometries
Heavier and deeper cuts.
Available with Victory™
grade technology.
Centre Cutting
Ramping and plunging
capabilities.
Special proprietary carbide substrates and state-of-the-art surface
technology, combined with unique geometries, provides end users
with the capability to significantly reduce machining time with heavier
and deeper cuts, fewer passes, and faster surface speed. WIDIA™
geometries are uniquely formed and fine-tuned to optimise chip
form, size, and evacuation generated by a given workpiece material.
• For all ferrous workpiece materials.
• Low power consumption at high speeds with long tool life.
• Provides maximum metal removal rates in both slotting and profiling operations.
• Alternative solution for productivity gains on light machines.
HP ROUGHER
High-Performance Solid Carbide •
Roughers
Language Version: 88_89_WID_All-Star19_SEM_HP_SCEM_Roughing September 28, 2018 2:21 PM
89
widia.com
Solid End Milling
High-Performance Solid Carbide • Roughers
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4976 • Victory
™
Grades
5560708 497604002T WP15PE 4,0 68,00 57 0,30 3Straight-Cylindrical
5560709 497605002T WP15PE 5,0 613,00 57 0,30 3Straight-Cylindrical
5560710 497606002T WP15PE 6,0 613,00 57 0,30 3Straight-Cylindrical
5560711 497608003T WP15PE 8,0 816,00 63 0,30 3Straight-Cylindrical
5560712 497610004T WP15PE 10,0 10 22,00 72 0,50 4Straight-Cylindrical
5560713 497612005T WP15PE 12,0 12 26,00 83 0,50 4Straight-Cylindrical
5560714 497614014T WP15PE 14,0 14 26,00 83 0,50 4Straight-Cylindrical
5560715 497616006T WP15PE 16,0 16 32,00 92 0,50 4Straight-Cylindrical
5560717 497620007T WP15PE 20,0 20 38,00 104 0,50 4Straight-Cylindrical

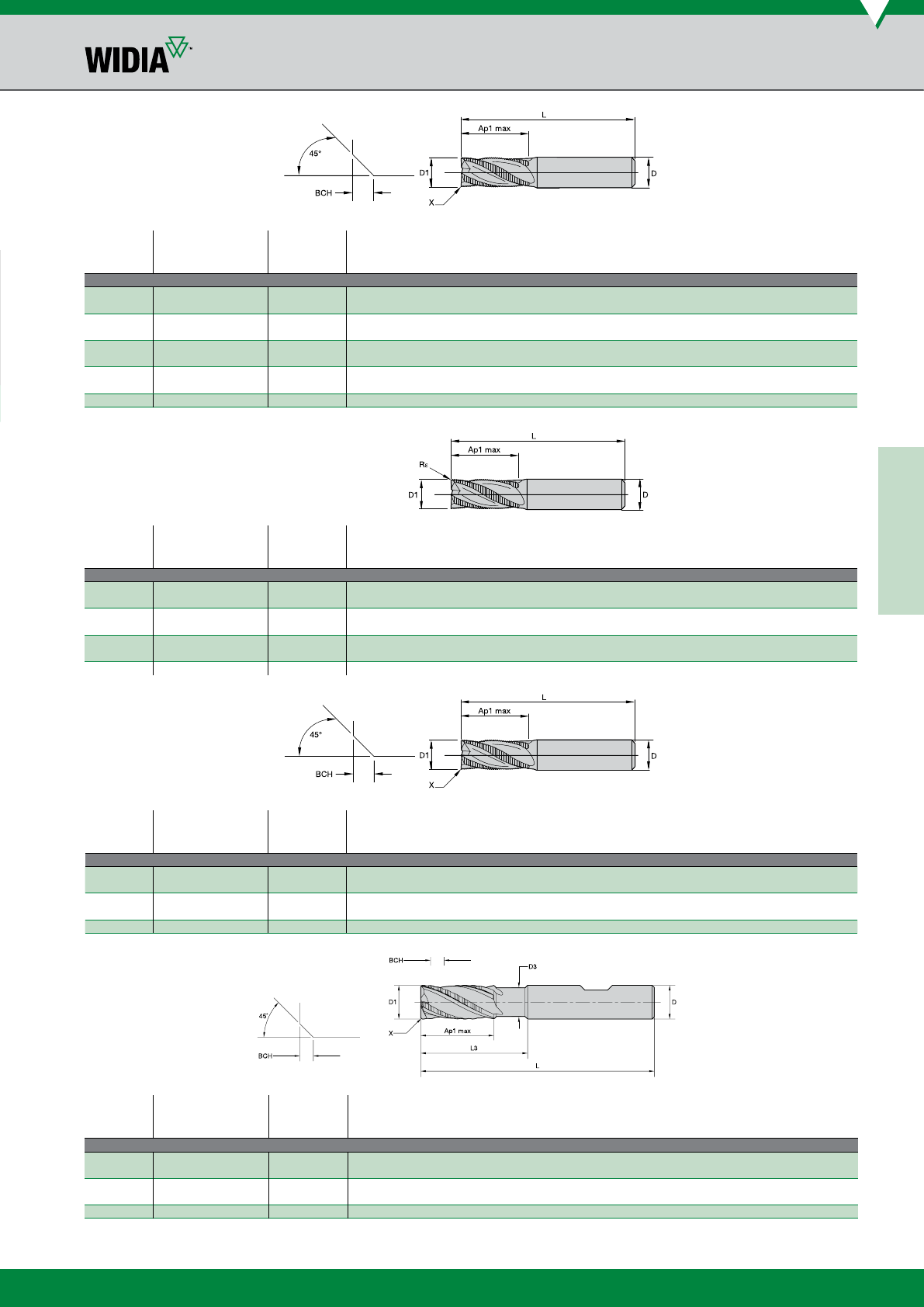

order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4U80 • Victory™ Grades
6431246 4U80M060R2TC ALTIN-MT 6,0 613,00 57 0,30 4Straight-Cylindrical
6431247 4U80M080R3TC ALTIN-MT 8,0 816,00 63 0,30 4Straight-Cylindrical
6431248 4U80M100R4TE ALTIN-MT 10,0 10 22,00 72 0,50 4Straight-Cylindrical
6431249 4U80M120R5TE ALTIN-MT 12,0 12 26,00 83 0,50 4Straight-Cylindrical
6431250 4U80M160R6TE ALTIN-MT 16,0 16 32,00 92 0,50 6Straight-Cylindrical
6431401 4U80M200R7TG ALTIN-MT 20,0 20 38,00 104 1,00 6Straight-Cylindrical
6431402 4U80M250R8TG ALTIN-MT 25,0 25 45,00 121 1,00 6Straight-Cylindrical
order
number
catalogue
number grade
D1
(mm)
D
(mm)
D3
(mm)
length of cut
Ap1 max
(mm)
L3
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 49N6 • With Neck
3474585 49N606002MW ALTIN-MW 6,0 65,5 13,00 21,00 57 0,30 3Weldon
3474587 49N608003MW ALTIN-MW 8,0 87,5 16,00 27,00 63 0,30 3Weldon
3474589 49N610004MW ALTIN-MW 10,0 10 9,5 22,00 32,00 72 0,50 4Weldon
3474591 49N612005MW ALTIN-MW 12,0 12 11 26,00 38,00 83 0,50 4Weldon
3474594 49N616006MW ALTIN-MW 16,0 16 15 32,00 44,00 92 0,50 4Weldon
Solid End Milling
Detail X
Detail X
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4U70 • Victory Grades
5583437 4U7008003W WP15PE 8,0 816,00 63 1,00 4Weldon
®
5583439 4U7012005W WP15PE 12,0 12 26,00 83 0,60 4Weldon
5583440 4U7016006W WP15PE 16,0 16 32,00 92 1,00 6Weldon
5583431 4U7016046T WP15PE 16,0 16 32,00 92 1,12 4Straight-Cylindrical
5583433 4U7020047T WP15PE 20,0 20 38,00 104 0,40 4Straight-Cylindrical
Detail X
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
90 widia.com

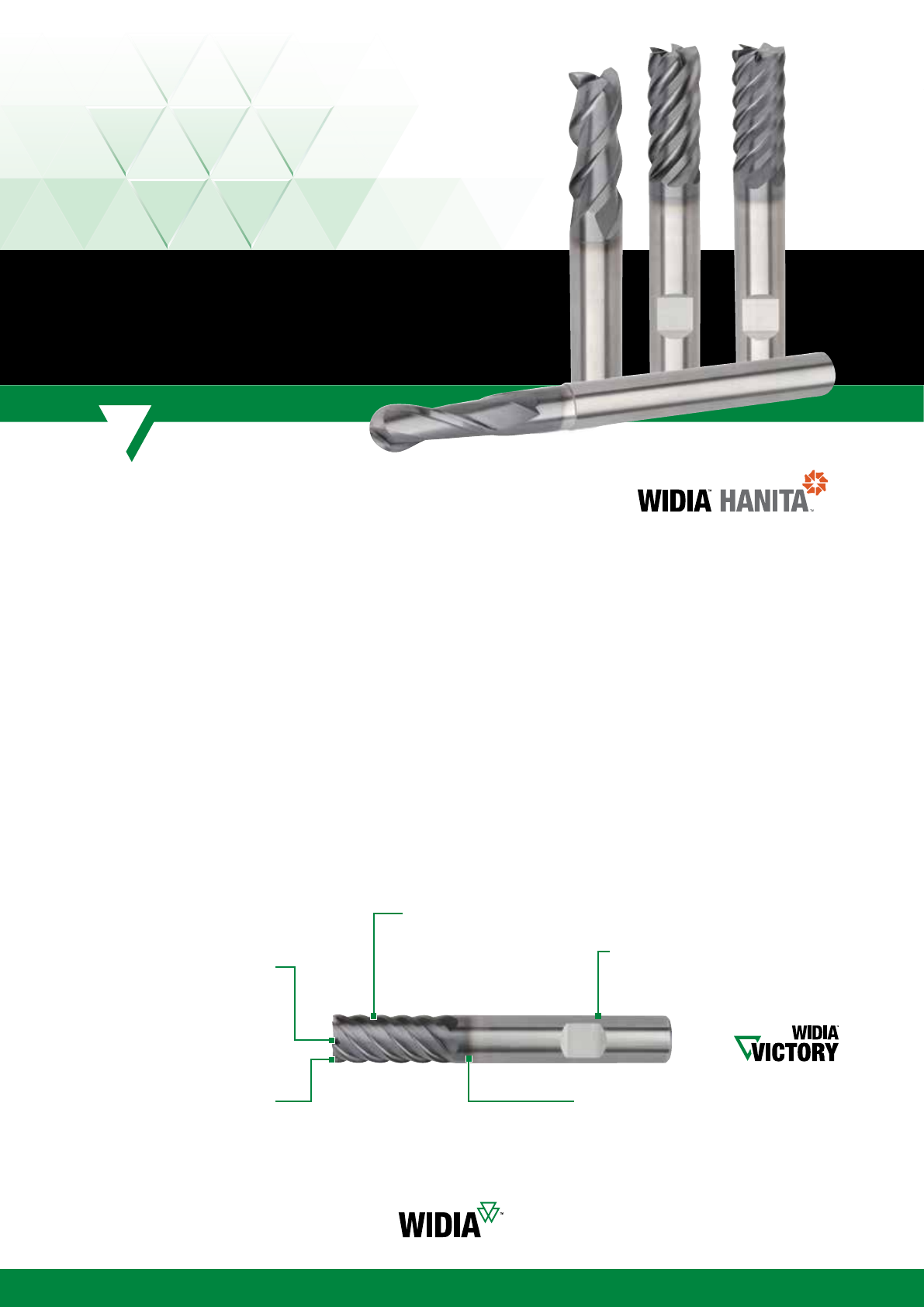

Only the finest carbide substrates with market-leading geometries and
state-of-the-art surface technology are used to ensure the very best
quality finishing end mills are produced. These tools are fully compliant
with NAS, DIN, and JIS specifications. Whether you require higher
metal removal rates, improved surface finishes, fewer passes, or longer
tool life, WIDIA-Hanita™ high-performance finishing end mills deliver
the reliability and consistency you can depend on during your critical
finishing operations.
• Specific geometries targeted for steels, stainless steels,
high-temperature alloys, and titanium.
• Stub, regular, long, and extra long lengths for all applications.
• Special designs with higher number of flutes and increased
helix angles for super finishing applications.
• Latest coating technology, including Victory™ grades.
Centre Cutting
Improved floor finishing.
Unique Geometries
Designed to be
material-specific. Both Cylindrical and Weldon® shanks
Options for all applications.
Designed Profiles
Multiple flutes and higher helix for
super finishing applications.
Latest coating technology
Available with Victory™ grade technology.
HP Finishers
High-Performance Finishing
Solid Carbide End Mills
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
91
widia.com
Solid End Milling
High-Performance Solid Carbide • Finishers
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
number
of flutes
Adaptor Style
Machine Side
Series D507 D517 • Victory
™
Grades
5559100 D50706002W WP15PE 6,0 610,00 54 6Weldon
®
5559108 D51706002W WP15PE 6,0 613,00 57 6Weldon
5559101 D50708003W WP15PE 8,0 812,00 58 6Weldon
5559109 D51708003W WP15PE 8,0 819,00 63 6Weldon
5559102 D50710004W WP15PE 10,0 10 14,00 66 6Weldon
5559110 D51710004W WP15PE 10,0 10 22,00 72 6Weldon
5559103 D50712005W WP15PE 12,0 12 16,00 73 6Weldon
5559111 D51712005W WP15PE 12,0 12 26,00 83 6Weldon
5559105 D50716006W WP15PE 16,0 16 22,00 82 6Weldon
5559113 D51716006W WP15PE 16,0 16 32,00 92 6Weldon
Solid End Milling
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
92 widia.com
General Purpose • 2-Flute
• General purpose tools for a wide range of workpiece materials.
• Roughing and finishing with one tool.
• Various lengths-of-cut and overall lengths with different front end designs available.
• Two flutes for high flexibility in unstable conditions.
General purpose offers plunging, slotting, and profiling for a wide range
of materials and applications. Designed to provide high metal removal
rates and excellent surface conditions at a value price. A wide range of
diameters, lengths, and corner styles (such as chamfered, sharp edge,
and ball nose) are available from stock.
Eccentric Relief
Edge strength and stability.
30° Helix Angle
For roughing and
finishing.
High-Quality Substrate
Improved tool life and MRR.
Centre Cutting
For plunging and ramping.
TiAlN PVD Coating
High Metal Removal Rates (MRR)
and tool life.
2-Flute End Mills •
General Purpose
General Purpose
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM

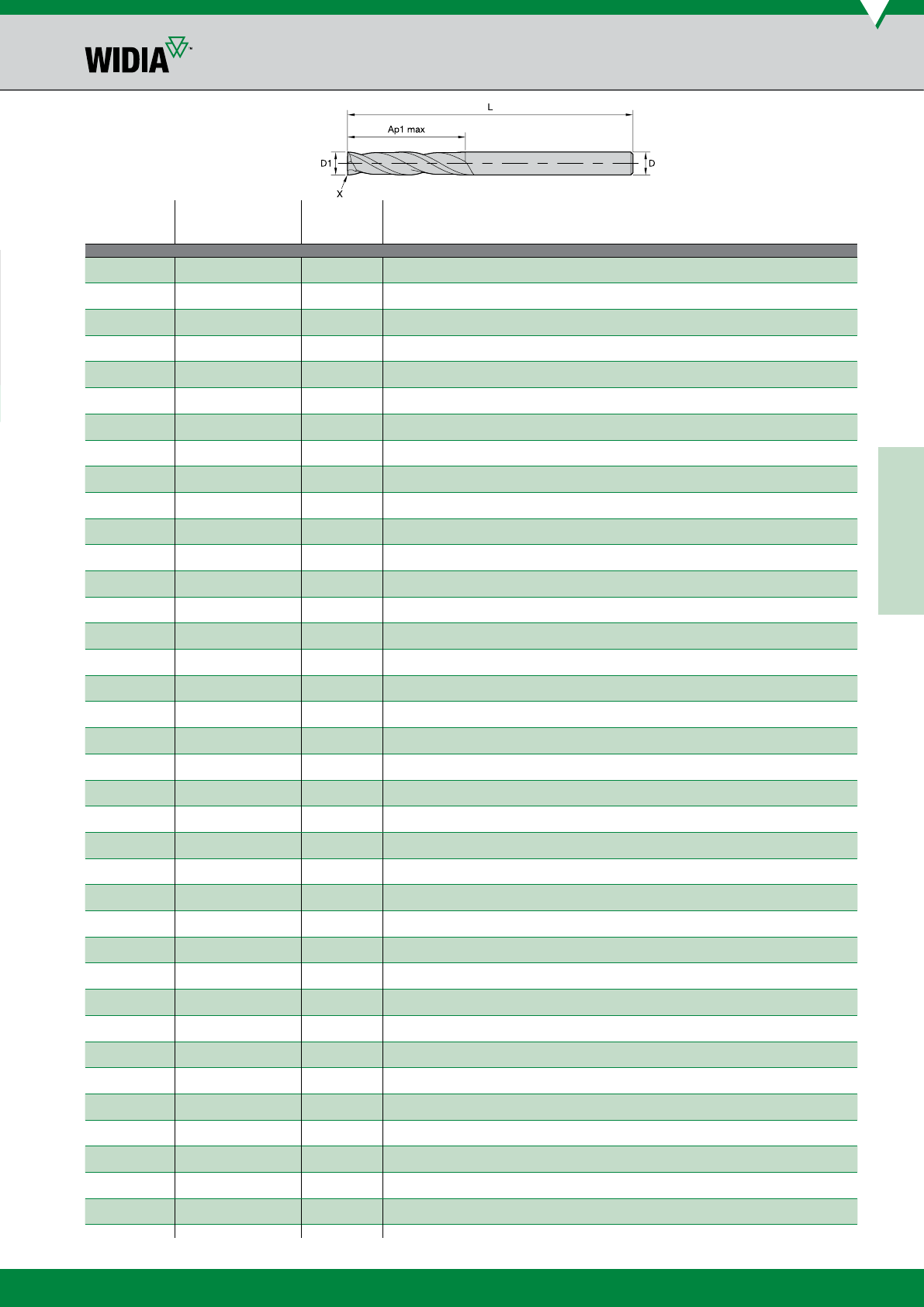

order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4002 4012 • General Purpose • 2 Flutes
5873484 40020100T004 TIALN 1,0 34,00 38 — 2 Straight-Cylindrical
5873485 40020150T004 TIALN 1,5 34,00 38 — 2 Straight-Cylindrical
5873486 40020180T004 TIALN 1,8 34,00 38 — 2 Straight-Cylindrical
5873487 40020200T006 TIALN 2,0 36,30 38 — 2 Straight-Cylindrical
5873488 40020250T006 TIALN 2,5 36,30 38 — 2 Straight-Cylindrical
5873489 40020300T009 TIALN 3,0 39,50 38 — 2 Straight-Cylindrical
5873490 40020300T019 TIALN 3,0 319,00 63 — 2 Straight-Cylindrical
5873491 40120300T025 TIALN 3,0 325,00 75 — 2 Straight-Cylindrical
5873492 40020350T012 TIALN 3,5 412,00 50 — 2 Straight-Cylindrical
5873493 40020400T012 TIALN 4,0 412,00 50 0,10 2Straight-Cylindrical
6092621 40020400T012S TIALN 4,0 412,00 50 — 2 Straight-Cylindrical
5873494 40020400T019 TIALN 4,0 419,00 63 0,10 2Straight-Cylindrical
6092622 40020400T019S TIALN 4,0 419,00 63 — 2 Straight-Cylindrical
5873495 40120400T031 TIALN 4,0 431,00 75 0,10 2Straight-Cylindrical
6092623 40120400T031S TIALN 4,0 431,00 75 — 2 Straight-Cylindrical
6092624 40020450T014S TIALN 4,5 614,00 50 — 2 Straight-Cylindrical
5873498 40020500T014 TIALN 5,0 514,00 50 0,10 2Straight-Cylindrical
6092627 40020500T014S TIALN 5,0 514,00 50 — 2 Straight-Cylindrical
5873499 40020500T020 TIALN 5,0 520,00 63 0,10 2Straight-Cylindrical
6092628 40020500T020S TIALN 5,0 520,00 63 — 2 Straight-Cylindrical
5873500 40120500T031 TIALN 5,0 531,00 100 0,10 2Straight-Cylindrical
6092631 40120500T031S TIALN 5,0 531,00 100 — 2 Straight-Cylindrical
5873501 40020550T014 TIALN 5,5 614,00 50 0,10 2Straight-Cylindrical
6092632 40020550T014S TIALN 5,5 614,00 50 — 2 Straight-Cylindrical
5873502 40020600T016 TIALN 6,0 616,00 50 0,10 2Straight-Cylindrical
6092633 40020600T016S TIALN 6,0 616,00 50 — 2 Straight-Cylindrical
5873503 40020600T028 TIALN 6,0 628,00 76 0,10 2Straight-Cylindrical
6092634 40020600T028S TIALN 6,0 628,00 76 — 2 Straight-Cylindrical
5873504 40120600T038 TIALN 6,0 638,00 100 0,10 2Straight-Cylindrical
6092636 40120600T038S TIALN 6,0 638,00 100 — 2 Straight-Cylindrical
5873505 40020700T020 TIALN 7,0 720,00 63 0,10 2Straight-Cylindrical
6092637 40020700T020S TIALN 7,0 720,00 63 — 2 Straight-Cylindrical
5873506 40020800T020 TIALN 8,0 820,00 63 0,20 2Straight-Cylindrical
6092638 40020800T020S TIALN 8,0 820,00 63 — 2 Straight-Cylindrical
5873507 40020800T028 TIALN 8,0 828,00 76 0,20 2Straight-Cylindrical
6092639 40020800T028S TIALN 8,0 828,00 76 — 2 Straight-Cylindrical
5873508 40120800T041 TIALN 8,0 841,00 100 0,20 2Straight-Cylindrical
6092640 40120800T041S TIALN 8,0 841,00 100 — 2 Straight-Cylindrical
5873509 40020900T020 TIALN 9,0 920,00 63 0,20 2Straight-Cylindrical
6092641 40020900T020S TIALN 9,0 920,00 63 — 2 Straight-Cylindrical
5873510 40021000T022 TIALN 10,0 10 22,00 72 0,20 2Straight-Cylindrical
6092643 40021000T022S TIALN 10,0 10 22,00 72 — 2 Straight-Cylindrical
5873511 40021000T032 TIALN 10,0 10 32,00 89 0,20 2Straight-Cylindrical
6092644 40021000T032S TIALN 10,0 10 32,00 89 — 2 Straight-Cylindrical
5873512 40121000T045 TIALN 10,0 10 45,00 100 0,20 2Straight-Cylindrical
6092645 40121000T045S TIALN 10,0 10 45,00 100 — 2 Straight-Cylindrical
5873513 40021100T025 TIALN 11,0 11 25,00 76 0,30 2Straight-Cylindrical
6092646 40021100T025S TIALN 11,0 11 25,00 76 — 2 Straight-Cylindrical
5873514 40021200T025 TIALN 12,0 12 25,00 76 0,30 2Straight-Cylindrical
6092647 40021200T025S TIALN 12,0 12 25,00 76 — 2 Straight-Cylindrical
5873515 40021200T045 TIALN 12,0 12 45,00 100 0,30 2Straight-Cylindrical
6092648 40021200T045S TIALN 12,0 12 45,00 100 — 2 Straight-Cylindrical
5873516 40121200T075 TIALN 12,0 12 75,00 150 0,30 2Straight-Cylindrical
6092650 40121200T075S TIALN 12,0 12 75,00 150 — 2 Straight-Cylindrical
5873517 40021400T032 TIALN 14,0 14 32,00 83 0,30 2Straight-Cylindrical
6092651 40021400T032S TIALN 14,0 14 32,00 83 — 2 Straight-Cylindrical
5873518 40021400T050 TIALN 14,0 14 50,00 100 0,30 2Straight-Cylindrical
6092653 40021400T050S TIALN 14,0 14 50,00 100 — 2 Straight-Cylindrical
5873519 40121400T075 TIALN 14,0 14 75,00 150 0,30 2Straight-Cylindrical
6092654 40121400T075S TIALN 14,0 14 75,00 150 — 2 Straight-Cylindrical
5873520 40021600T032 TIALN 16,0 16 32,00 89 0,30 2Straight-Cylindrical
6092657 40021600T032S TIALN 16,0 16 32,00 89 — 2 Straight-Cylindrical
5873531 40021600T056 TIALN 16,0 16 56,00 110 0,30 2Straight-Cylindrical
6092658 40021600T056S TIALN 16,0 16 56,00 110 — 2 Straight-Cylindrical
5873532 40121600T075 TIALN 16,0 16 75,00 150 0,30 2Straight-Cylindrical
6092659 40121600T075S TIALN 16,0 16 75,00 150 — 2 Straight-Cylindrical
5873533 40021800T038 TIALN 18,0 18 38,00 100 0,30 2Straight-Cylindrical
6092660 40021800T038S TIALN 18,0 18 38,00 100 — 2 Straight-Cylindrical
5873534 40021800T060 TIALN 18,0 18 60,00 125 0,30 2Straight-Cylindrical
6092681 40021800T060S TIALN 18,0 18 60,00 125 — 2 Straight-Cylindrical
5873536 40022000T038 TIALN 20,0 20 38,00 104 0,30 2Straight-Cylindrical
6092683 40022000T038S TIALN 20,0 20 38,00 104 — 2 Straight-Cylindrical
6092684 40022000T056S TIALN 20,0 20 56,00 125 — 2 Straight-Cylindrical
5873538 40122000T075 TIALN 20,0 20 75,00 150 0,30 2Straight-Cylindrical
6092685 40122000T075S TIALN 20,0 20 75,00 150 — 2 Straight-Cylindrical
Solid End Milling
Solid End Milling
General Purpose • 2 Flutes
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
94 widia.com
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
widia.com

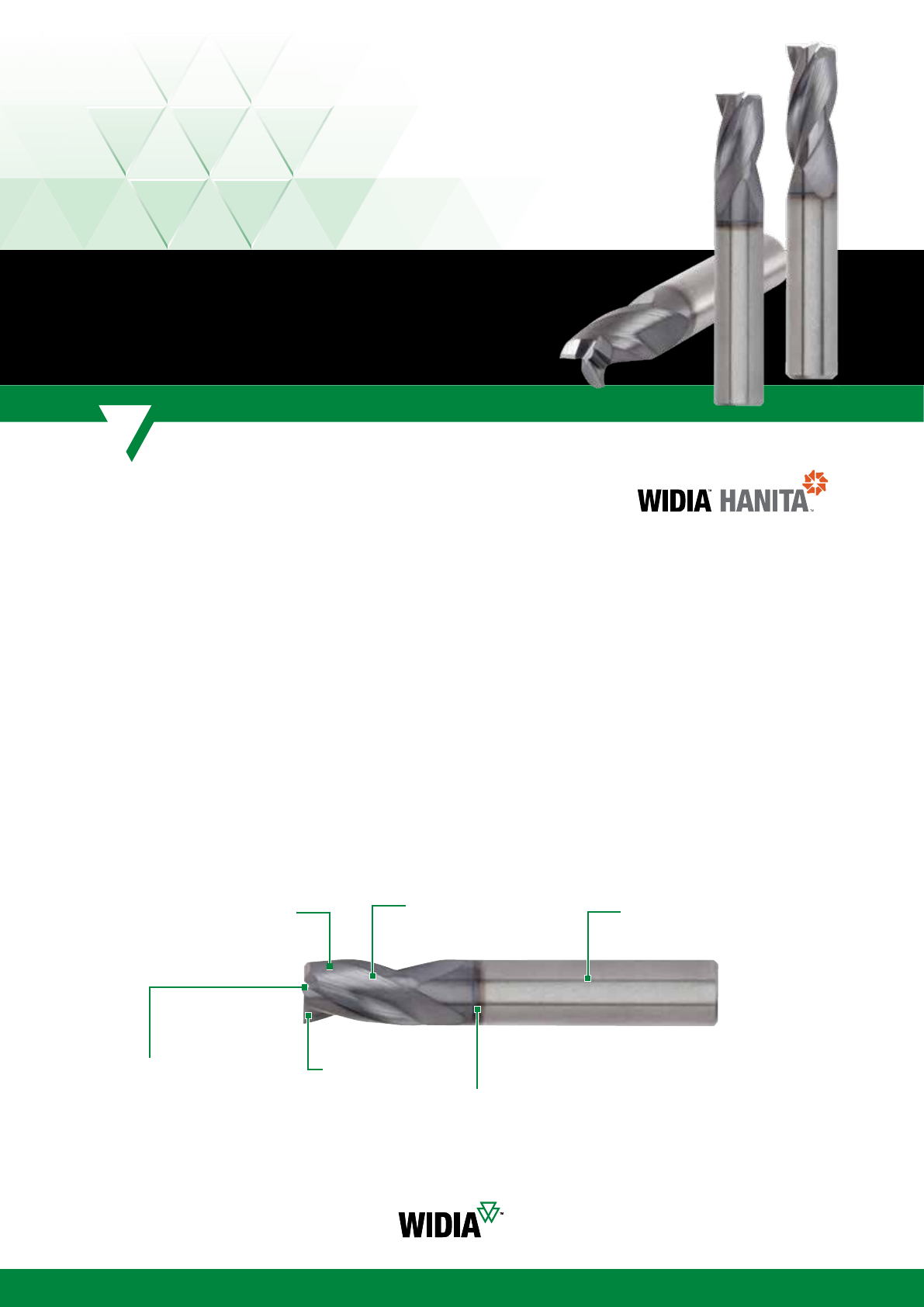

Eccentric Relief
Edge strength
and stability.
30º Helix Angle
For roughing and finishing. High-Quality Substrate
Improved tool life and MRR.
Centre Cutting
For plunging
and ramping. TiAlN PVD Coating
High tool life.
Dubbing
For extended
tool life.
General Purpose • 3-Flute
• General purpose tools for a wide range of workpiece materials.
• Roughing and finishing with one tool.
• Various lengths-of-cut and overall lengths with different front end
designs available.
• Three flutes for slotting in unstable conditions.
General purpose offers plunging, slotting, and profiling for a wide range
of materials and applications. Designed to provide high metal removal
rates and excellent surface conditions at a value price. A wide range
of diameters, lengths, and corner styles (such as chamfered and sharp
edge) are available from stock.
3-Flute End Mills •
General Purpose
General Purpose
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
95
widia.com
Solid End Milling
General Purpose • 3 Flutes
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4003..S 4013..S • General Purpose • 3 Flutes
6144056 40030100T004S TIALN 1,0 34,00 38 3Straight-Cylindrical
6144057 40030150T004S TIALN 1,5 34,00 38 3Straight-Cylindrical
6144058 40030200T006S TIALN 2,0 36,30 38 3Straight-Cylindrical
6144059 40030250T006S TIALN 2,5 36,30 38 3Straight-Cylindrical
6144060 40030300T009S TIALN 3,0 39,50 38 3Straight-Cylindrical
6145199 40130300T019S TIALN 3,0 619,00 63 3Straight-Cylindrical
6144551 40030400T012S TIALN 4,0 412,00 50 3Straight-Cylindrical
6145200 40130400T019S TIALN 4,0 419,00 63 3Straight-Cylindrical
6144552 40030500T014S TIALN 5,0 614,00 50 3Straight-Cylindrical
6145231 40130500T020S TIALN 5,0 620,00 63 3Straight-Cylindrical
6144553 40030600T016S TIALN 6,0 616,00 50 3Straight-Cylindrical
6145232 40130600T028S TIALN 6,0 628,00 75 3Straight-Cylindrical
6144554 40030800T019S TIALN 8,0 819,00 63 3Straight-Cylindrical
6145233 40130800T028S TIALN 8,0 828,00 75 3Straight-Cylindrical
6144555 40031000T022S TIALN 10,0 10 22,00 76 3Straight-Cylindrical
6145234 40131000T032S TIALN 10,0 10 32,00 89 3Straight-Cylindrical
6144556 40031200T025S TIALN 12,0 12 25,00 75 3Straight-Cylindrical
6145235 40131200T045S TIALN 12,0 12 45,00 100 3Straight-Cylindrical
6144557 40031600T032S TIALN 16,0 16 32,00 89 3Straight-Cylindrical
6145238 40131600T056S TIALN 16,0 16 56,00 110 3Straight-Cylindrical
6145241 40132000T064S TIALN 20,0 20 64,00 125 3Straight-Cylindrical
order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4003 4013 • General Purpose • 3 Flutes
6145107 40030400T012 TIALN 4,0 412,00 50 0,10 3Straight-Cylindrical
6145181 40130400T019 TIALN 4,0 419,00 63 0,10 3Straight-Cylindrical
6145182 40130500T020 TIALN 5,0 620,00 63 0,10 3Straight-Cylindrical
6145109 40030600T016 TIALN 6,0 616,00 50 0,10 3Straight-Cylindrical
6145183 40130600T028 TIALN 6,0 628,00 75 0,10 3Straight-Cylindrical
6145110 40030800T019 TIALN 8,0 819,00 63 0,20 3Straight-Cylindrical
6145184 40130800T028 TIALN 8,0 828,00 75 0,20 3Straight-Cylindrical
6145171 40031000T022 TIALN 10,0 10 22,00 76 0,20 3Straight-Cylindrical
6145185 40131000T032 TIALN 10,0 10 32,00 89 0,20 3Straight-Cylindrical
6145172 40031200T025 TIALN 12,0 12 25,00 75 0,30 3Straight-Cylindrical
6145186 40131200T045 TIALN 12,0 12 45,00 100 0,30 3Straight-Cylindrical
6145173 40031600T032 TIALN 16,0 16 32,00 89 0,30 3Straight-Cylindrical
6145187 40131600T056 TIALN 16,0 16 56,00 110 0,30 3Straight-Cylindrical
Solid End Milling
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
96 widia.com
General Purpose • 4-Flute
• General purpose tools for a wide range of workpiece materials.
• Roughing and finishing with one tool.
• Various lengths-of-cut and overall lengths with different front-end
designs available.
• Four flutes for high Metal Removal Rates (MRR) and tool life.
General purpose offers plunging, slotting, and profiling for a wide range
of materials and applications. Designed to provide high metal removal
rates and excellent surface conditions at a value price. A wide range of
diameters, lengths, and corner styles (such as chamfered, sharp edge,
and ball nose) are available from stock.
Eccentric Relief
Edge strength
and stability.
30° Helix Angle
For roughing
and finishing.
High Quality Substrate
Improved tool life and MRR.
Centre Cutting
For plunging and ramping.
TiAlN PVD Coating
High Metal Removal Rates (MRR)
and tool life.
General Purpose
4-Flute End Mills •
General Purpose
Language Version: 90_97_WID_All-Star19_SEM_HP_SCEM_Finishing September 28, 2018 2:22 PM
97
widia.com
Solid End Milling

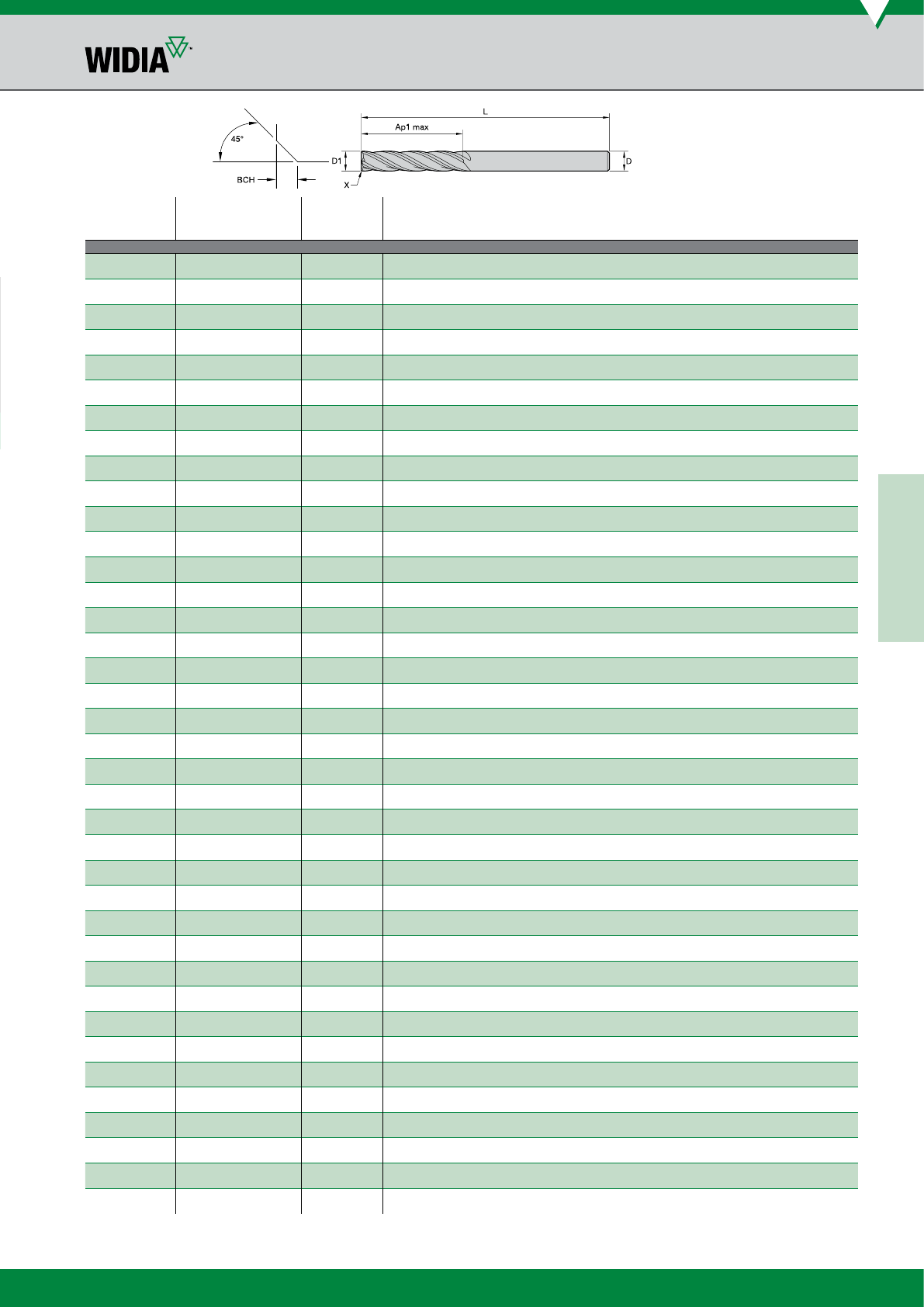

order
number
catalogue
number grade
D1
(mm)
D
(mm)
length of cut
Ap1 max
(mm)
L
(mm)
BCH
(mm)
number
of flutes
Adaptor Style
Machine Side
Series 4004 4014 4024 • General Purpose • 4 Flutes
5826016 40040100T004 TIALN 1,0 34,00 38 — 4 Straight-Cylindrical
5826017 40040150T004 TIALN 1,5 34,00 38 — 4 Straight-Cylindrical
5826018 40040200T006 TIALN 2,0 36,30 38 — 4 Straight-Cylindrical
5826019 40040250T006 TIALN 2,5 36,30 38 — 4 Straight-Cylindrical
5826020 40040300T009 TIALN 3,0 39,50 38 — 4 Straight-Cylindrical
5826021 40140300T019 TIALN 3,0 319,00 63 — 4 Straight-Cylindrical
5826022 40240300T025 TIALN 3,0 325,00 75 — 4 Straight-Cylindrical
5826023 40040350T012 TIALN 3,5 412,00 50 — 4 Straight-Cylindrical
5826024 40040400T011 TIALN 4,0 411,00 50 0,10 4Straight-Cylindrical
6085576 40040400T011S TIALN 4,0 411,00 50 — 4 Straight-Cylindrical
5826025 40140400T019 TIALN 4,0 419,00 63 0,10 4Straight-Cylindrical
6085577 40140400T019S TIALN 4,0 419,00 63 — 4 Straight-Cylindrical
5826026 40240400T031 TIALN 4,0 431,00 75 0,10 4Straight-Cylindrical
6085578 40240400T031S TIALN 4,0 431,00 75 — 4 Straight-Cylindrical
5826027 40040450T014 TIALN 4,5 514,00 50 0,10 4Straight-Cylindrical
6085579 40040450T014S TIALN 4,5 514,00 50 — 4 Straight-Cylindrical
5826028 40040500T013 TIALN 5,0 513,00 50 0,10 4Straight-Cylindrical
6085580 40040500T013S TIALN 5,0 513,00 50 — 4 Straight-Cylindrical
5826029 40040500T020 TIALN 5,0 520,00 63 0,10 4Straight-Cylindrical
6085581 40040500T020S TIALN 5,0 520,00 63 — 4 Straight-Cylindrical
5826030 40140500T030 TIALN 5,0 530,00 75 0,10 4Straight-Cylindrical
6085582 40140500T030S TIALN 5,0 530,00 75 — 4 Straight-Cylindrical
5826031 40240500T031 TIALN 5,0 531,00 100 0,10 4Straight-Cylindrical
6085583 40240500T031S TIALN 5,0 531,00 100 — 4 Straight-Cylindrical
5826032 40040600T016 TIALN 6,0 616,00 50 0,10 4Straight-Cylindrical
6085584 40040600T016S TIALN 6,0 616,00 50 — 4 Straight-Cylindrical
5826033 40140600T028 TIALN 6,0 628,00 75 0,10 4Straight-Cylindrical
6085585 40140600T028S TIALN 6,0 628,00 75 — 4 Straight-Cylindrical
5826034 40240600T038 TIALN 6,0 638,00 100 0,10 4Straight-Cylindrical
6085586 40240600T038S TIALN 6,0 638,00 100 — 4 Straight-Cylindrical
5826035 40040700T020 TIALN 7,0 820,00 63 0,10 4Straight-Cylindrical
6085587 40040700T020S TIALN 7,0 820,00 63 — 4 Straight-Cylindrical
5826036 40040800T020 TIALN 8,0 820,00 50 0,20 4Straight-Cylindrical
6085588 40040800T020S TIALN 8,0 820,00 50 — 4 Straight-Cylindrical
5826037 40140800T028 TIALN 8,0 828,00 75 0,20 4Straight-Cylindrical
6085589 40140800T028S TIALN 8,0 828,00 75 — 4 Straight-Cylindrical
5826038 40240800T041 TIALN 8,0 841,00 100 0,20 4Straight-Cylindrical
6085590 40240800T041S TIALN 8,0 841,00 100 — 4 Straight-Cylindrical
5826039 40040900T020 TIALN 9,0 920,00 63 0,20 4Straight-Cylindrical
6085591 40040900T020S TIALN 9,0 920,00 63 — 4 Straight-Cylindrical
5826040 40041000T022 TIALN 10,0 10 22,00 72 0,20 4Straight-Cylindrical
6085592 40041000T022S TIALN 10,0 10 22,00 72 — 4 Straight-Cylindrical
5826041 40141000T032 TIALN 10,0 10 32,00 89 0,20 4Straight-Cylindrical
6085593 40141000T032S TIALN 10,0 10 32,00 89 — 4 Straight-Cylindrical
5826042 40241000T045 TIALN 10,0 10 45,00 100 0,20 4Straight-Cylindrical
6085594 40241000T045S TIALN 10,0 10 45,00 100 — 4 Straight-Cylindrical
5826043 40041200T025 TIALN 12,0 12 25,00 89 0,30 4Straight-Cylindrical
6085595 40041200T025S TIALN 12,0 12 25,00 89 — 4 Straight-Cylindrical
5826044 40141200T045 TIALN 12,0 12 45,00 100 0,30 4Straight-Cylindrical
6085596 40141200T045S TIALN 12,0 12 45,00 100 — 4 Straight-Cylindrical
5826045 40241200T075 TIALN 12,0 12 75,00 150 0,30 4Straight-Cylindrical
6085597 40241200T075S TIALN 12,0 12 75,00 150 — 4 Straight-Cylindrical
5826046 40041400T032 TIALN 14,0 14 32,00 83 0,30 4Straight-Cylindrical
6085598 40041400T032S TIALN 14,0 14 32,00 83 — 4 Straight-Cylindrical
5826047 40141400T050 TIALN 14,0 14 50,00 100 0,30 4Straight-Cylindrical
6085599 40141400T050S TIALN 14,0 14 50,00 100 — 4 Straight-Cylindrical
5826049 40241400T075 TIALN 14,0 14 75,00 150 0,30 4Straight-Cylindrical
6085600 40241400T075S TIALN 14,0 14 75,00 150 — 4 Straight-Cylindrical
5826061 40041600T032 TIALN 16,0 16 32,00 92 0,30 4Straight-Cylindrical
6085601 40041600T032S TIALN 16,0 16 32,00 92 — 4 Straight-Cylindrical
5826062 40141600T056 TIALN 16,0 16 56,00 110 0,30 4Straight-Cylindrical
6085602 40141600T056S TIALN 16,0 16 56,00 110 — 4 Straight-Cylindrical
5826063 40241600T075 TIALN 16,0 16 75,00 150 0,30 4Straight-Cylindrical
6085603 40241600T075S TIALN 16,0 16 75,00 150 — 4 Straight-Cylindrical
5826064 40041800T038 TIALN 18,0 18 38,00 100 0,30 4Straight-Cylindrical
6085604 40041800T038S TIALN 18,0 18 38,00 100 — 4 Straight-Cylindrical
5826065 40141800T060 TIALN 18,0 18 60,00 125 0,30 4Straight-Cylindrical
6085605 40141800T060S TIALN 18,0 18 60,00 125 — 4 Straight-Cylindrical
5826066 40241800T075 TIALN 18,0 18 75,00 150 0,30 4Straight-Cylindrical
6085606 40241800T075S TIALN 18,0 18 75,00 150 — 4 Straight-Cylindrical
5826067 40042000T038 TIALN 20,0 20 38,00 104 0,30 4Straight-Cylindrical
6085607 40042000T038S TIALN 20,0 20 38,00 104 — 4 Straight-Cylindrical
5826068 40142000T056 TIALN 20,0 20 56,00 125 0,30 4Straight-Cylindrical
6085608 40142000T056S TIALN 20,0 20 56,00 125 — 4 Straight-Cylindrical
5826069 40242000T075 TIALN 20,0 20 75,00 150 0,30 4Straight-Cylindrical
6085609 40242000T075S TIALN 20,0 20 75,00 150 — 4 Straight-Cylindrical
Solid End Milling
General Purpose • 4 Flutes
Detail X
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
98 widia.com
WIDIA WU25PD™ drilling grade
Extremely high wear resistance
and longer tool life.
VariDrill core design
Free chip flow and chip evacuation.
Precision shank
Low runout.
Marginless design
Distributes cutting forces evenly for
less chipping on the cutting edge.
VariDrill point design
Long tool life in all materials;
less chipping on cutting edge.
• Reduced chipping on cutting edge means longer tool life.
• Geometry design offers strength and versatility.
• Delivers proper surface finish across multiple materials:
steel, stainless steel, cast iron, aluminium, and high-temp alloys.
Multiple-Material Drilling •
WIDIA™ VariDrill™
VariDrill
The VariDrill advanced-point geometry design offers the ultimate solution for
multipurpose drilling operations. It offers dependable tool life in all materials
due to less chipping on the cutting edge.
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
99
widia.com
Innovative Technology
VariDrill™ is a technologically advanced holemaking solution. These high-
performance solid carbide drills were designed in Germany to provide the
transportation, aerospace, general engineering, and energy industries
with a tool that performs on multiple materials.
Elegance, Strength, and Versatility
The engineers at WIDIA™ developed an innovative new design to deliver
drilling performance. These solid carbide drills have a distinctive geometry and
marginless design. The VariDrill point is versatile enough to work through steel,
stainless steel, cast iron, aluminium, and a range of high-temp alloys.
Optimum Hole Quality
The unique marginless design reduces chipping on the tool’s edge and
stabilises cutting forces. This unique tool geometry enables chips to roll
smoothly and evacuate easily, resulting in noticeably less friction, heat,
jamming, and scratching. By minimising these drilling issues, VariDrill
delivers an optimum surface finish with every hole — no matter the material.
More Options and Longer Tool Life
Aside from its uniquely engineered design, VariDrill also offers a broad portfolio
of drilling options. With more than 2,200 items, VariDrill offers more choices
than any other drill for general engineering operations. And because most drills
can be reconditioned, your tools will gain extended life.
VariDrill — Innovatively designed and technologically advanced.
Make VariDrill your go-to drill for hole after hole...after hole.
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
100

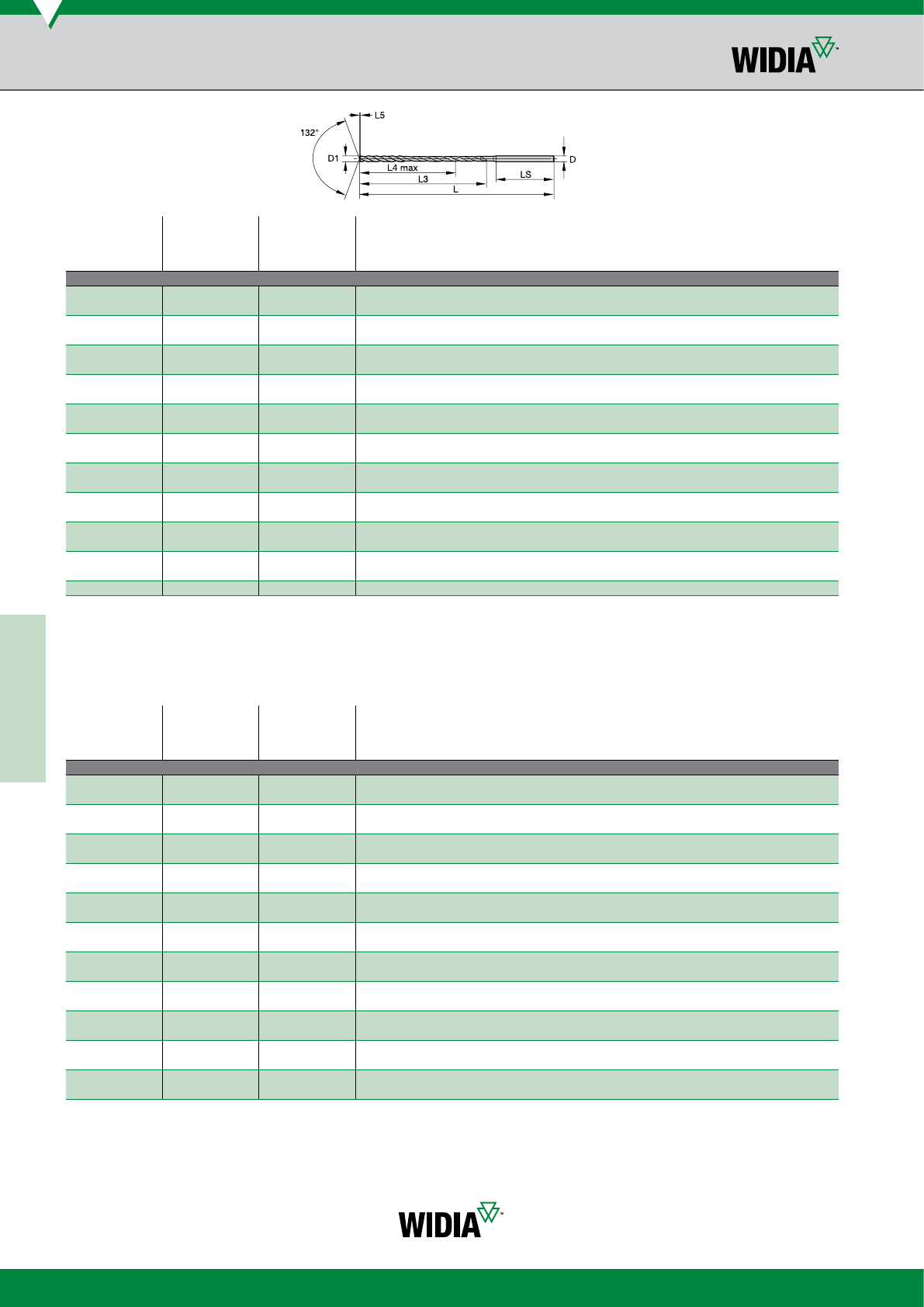

Holemaking
Holemaking
VariDrill™
(continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)

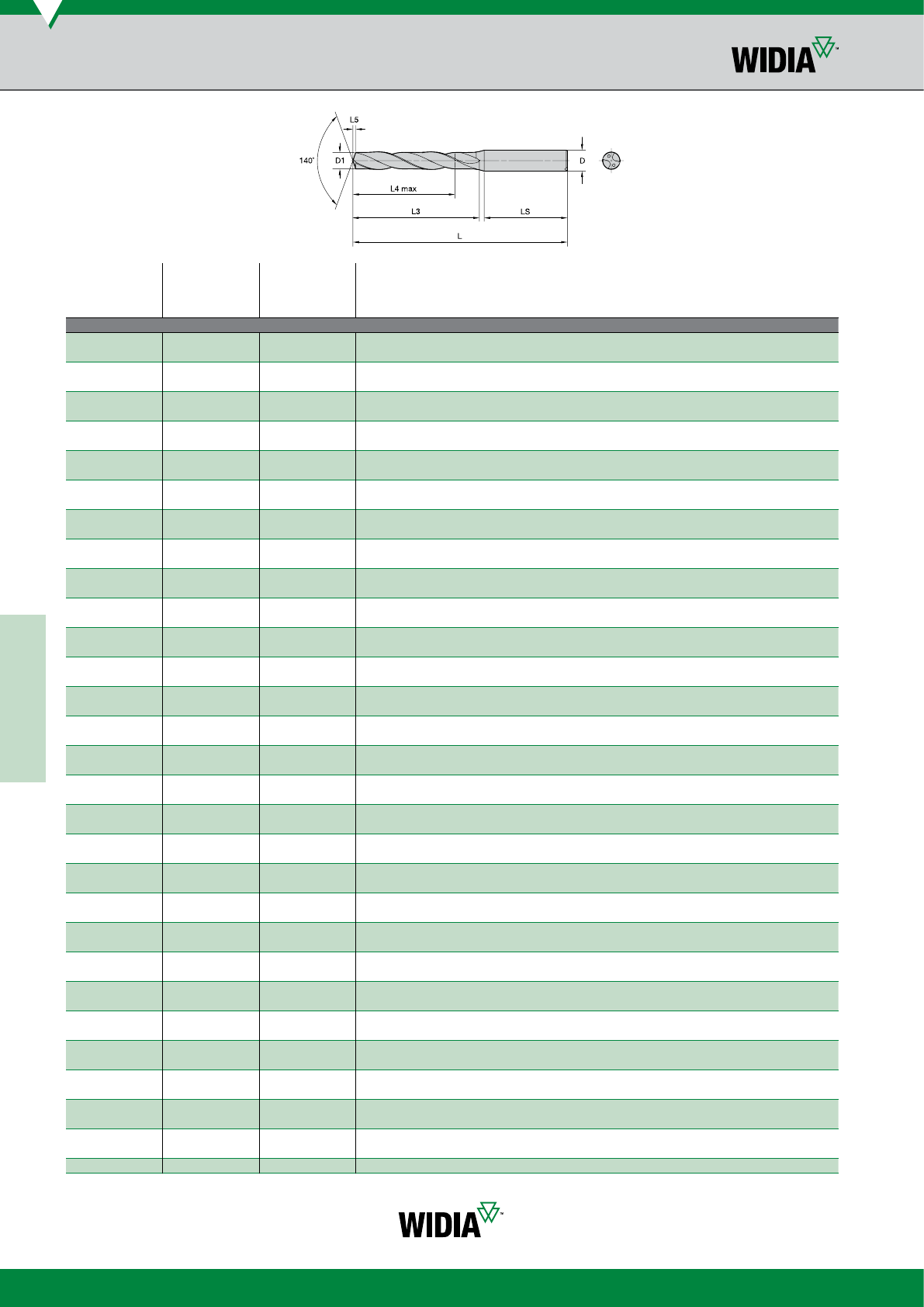

VDS201A • 3 x D • Non-Coolant
4144195 VDS201A01000 WU25PD 1,000 0.0394 5 7 0,1 58 28 4
4144200 VDS201A01100 WU25PD 1,100 0.0433 5 7 0,2 58 28 4
4144523 VDS201A01200 WU25PD 1,200 0.0472 5 7 0,2 58 28 4
4144524 VDS201A01300 WU25PD 1,300 0.0512 5 7 0,2 58 28 4
4144527 VDS201A01400 WU25PD 1,400 0.0551 5 7 0,2 58 28 4
4144528 VDS201A01500 WU25PD 1,500 0.0591 6 9 0,2 58 28 4
4144529 VDS201A01600 WU25PD 1,600 0.0630 6 9 0,2 58 28 4
4144530 VDS201A01700 WU25PD 1,700 0.0669 6 9 0,3 58 28 4
4144531 VDS201A01800 WU25PD 1,800 0.0709 6 9 0,3 58 28 4
4144532 VDS201A01900 WU25PD 1,900 0.0748 6 9 0,3 58 28 4
4144533 VDS201A01984 WU25PD 1,984 0.0781 10 13 0,3 58 28 4
4144534 VDS201A02000 WU25PD 2,000 0.0787 10 13 0,3 58 28 4
4144535 VDS201A02100 WU25PD 2,100 0.0827 10 13 0,3 58 28 4
4144536 VDS201A02200 WU25PD 2,200 0.0866 10 13 0,3 58 28 4
4144537 VDS201A02300 WU25PD 2,300 0.0906 10 13 0,4 58 28 4
4144539 VDS201A02400 WU25PD 2,400 0.0945 12 17 0,4 58 28 4
4144542 VDS201A02500 WU25PD 2,500 0.0984 12 17 0,4 58 28 4
4144544 VDS201A02600 WU25PD 2,600 0.1024 12 17 0,4 58 28 4
4144546 VDS201A02700 WU25PD 2,700 0.1063 12 17 0,4 58 28 4
4144549 VDS201A02800 WU25PD 2,800 0.1102 12 17 0,5 58 28 4
4144552 VDS201A02900 WU25PD 2,900 0.1142 12 17 0,5 58 28 4
4143907 VDS201A03000 WU25PD 3,000 0.1181 14 20 0,5 62 36 6
4143909 VDS201A03100 WU25PD 3,100 0.1220 14 20 0,5 62 36 6
4143911 VDS201A03200 WU25PD 3,200 0.1260 14 20 0,5 62 36 6
4143913 VDS201A03300 WU25PD 3,300 0.1299 14 20 0,5 62 36 6
4143914 VDS201A03400 WU25PD 3,400 0.1339 14 20 0,6 62 36 6
4143916 VDS201A03500 WU25PD 3,500 0.1378 14 20 0,6 62 36 6
4143918 VDS201A03600 WU25PD 3,600 0.1417 14 20 0,6 62 36 6
4143920 VDS201A03700 WU25PD 3,700 0.1457 14 20 0,6 62 36 6
4143922 VDS201A03800 WU25PD 3,800 0.1496 17 24 0,6 66 36 6
4143923 VDS201A03900 WU25PD 3,900 0.1535 17 24 0,6 66 36 6
4143925 VDS201A04000 WU25PD 4,000 0.1575 17 24 0,7 66 36 6
4143926 VDS201A04039 WU25PD 4,039 0.1590 17 24 0,7 66 36 6
4143928 VDS201A04100 WU25PD 4,100 0.1614 17 24 0,7 66 36 6
4143929 VDS201A04200 WU25PD 4,200 0.1654 17 24 0,7 66 36 6
4143931 VDS201A04300 WU25PD 4,300 0.1693 17 24 0,7 66 36 6
4143933 VDS201A04400 WU25PD 4,400 0.1732 17 24 0,7 66 36 6
4143934 VDS201A04500 WU25PD 4,500 0.1772 17 24 0,7 66 36 6
4143935 VDS201A04600 WU25PD 4,600 0.1811 17 24 0,8 66 36 6
4143937 VDS201A04700 WU25PD 4,700 0.1850 17 24 0,8 66 36 6
4143938 VDS201A04763 WU25PD 4,763 0.1875 20 28 0,8 66 36 6
4143939 VDS201A04800 WU25PD 4,800 0.1890 20 28 0,8 66 36 6
4143941 VDS201A04900 WU25PD 4,900 0.1929 20 28 0,8 66 36 6
4143942 VDS201A05000 WU25PD 5,000 0.1969 20 28 0,8 66 36 6
4143943 VDS201A05100 WU25PD 5,100 0.2008 20 28 0,8 66 36 6
4143946 VDS201A05200 WU25PD 5,200 0.2047 20 28 0,9 66 36 6
4143947 VDS201A05300 WU25PD 5,300 0.2087 20 28 0,9 66 36 6
4143948 VDS201A05400 WU25PD 5,400 0.2126 20 28 0,9 66 36 6
4143950 VDS201A05500 WU25PD 5,500 0.2165 20 28 0,9 66 36 6
4143952 VDS201A05600 WU25PD 5,600 0.2205 20 28 0,9 66 36 6
4143954 VDS201A05700 WU25PD 5,700 0.2244 20 28 1,0 66 36 6
4143955 VDS201A05800 WU25PD 5,800 0.2283 20 28 1,0 66 36 6
4143956 VDS201A05900 WU25PD 5,900 0.2323 20 28 1,0 66 36 6
4143958 VDS201A06000 WU25PD 6,000 0.2362 20 28 1,0 66 36 6
4143959 VDS201A06100 WU25PD 6,100 0.2402 24 34 1,0 79 36 8
4143960 VDS201A06200 WU25PD 6,200 0.2441 24 34 1,0 79 36 8
4143961 VDS201A06300 WU25PD 6,300 0.2480 24 34 1,1 79 36 8
4143963 VDS201A06400 WU25PD 6,400 0.2520 24 34 1,1 79 36 8
4143964 VDS201A06500 WU25PD 6,500 0.2559 24 34 1,1 79 36 8
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
101
widia.com
Holemaking
Holemaking
VariDrill™
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS201A • 3 x D • Non-Coolant (continued)
4143966 VDS201A06600 WU25PD 6,600 0.2598 24 34 1,1 79 36 8
4143968 VDS201A06700 WU25PD 6,700 0.2638 24 34 1,1 79 36 8
4143970 VDS201A06800 WU25PD 6,800 0.2677 24 34 1,1 79 36 8
4143971 VDS201A06900 WU25PD 6,900 0.2717 24 34 1,2 79 36 8
4143972 VDS201A07000 WU25PD 7,000 0.2756 24 34 1,2 79 36 8
4143973 VDS201A07100 WU25PD 7,100 0.2795 29 41 1,2 79 36 8
4143975 VDS201A07200 WU25PD 7,200 0.2835 29 41 1,2 79 36 8
4143976 VDS201A07300 WU25PD 7,300 0.2874 29 41 1,2 79 36 8
4143977 VDS201A07400 WU25PD 7,400 0.2913 29 41 1,3 79 36 8
4143978 VDS201A07500 WU25PD 7,500 0.2953 29 41 1,3 79 36 8
4143980 VDS201A07600 WU25PD 7,600 0.2992 29 41 1,3 79 36 8
4143981 VDS201A07700 WU25PD 7,700 0.3031 29 41 1,3 79 36 8
4143982 VDS201A07800 WU25PD 7,800 0.3071 29 41 1,3 79 36 8
4143983 VDS201A07900 WU25PD 7,900 0.3110 29 41 1,3 79 36 8
4143985 VDS201A08000 WU25PD 8,000 0.3150 29 41 1,4 79 36 8
4143986 VDS201A08100 WU25PD 8,100 0.3189 35 47 1,4 89 40 10
4143987 VDS201A08200 WU25PD 8,200 0.3228 35 47 1,4 89 40 10
4143988 VDS201A08300 WU25PD 8,300 0.3268 35 47 1,4 89 40 10
4143990 VDS201A08400 WU25PD 8,400 0.3307 35 47 1,4 89 40 10
4143992 VDS201A08500 WU25PD 8,500 0.3346 35 47 1,4 89 40 10
4143993 VDS201A08600 WU25PD 8,600 0.3386 35 47 1,5 89 40 10
4143994 VDS201A08700 WU25PD 8,700 0.3425 35 47 1,5 89 40 10
4143996 VDS201A08800 WU25PD 8,800 0.3465 35 47 1,5 89 40 10
4143997 VDS201A08900 WU25PD 8,900 0.3504 35 47 1,5 89 40 10
4143998 VDS201A09000 WU25PD 9,000 0.3543 35 47 1,5 89 40 10
4143999 VDS201A09100 WU25PD 9,100 0.3583 35 47 1,5 89 40 10
4144001 VDS201A09200 WU25PD 9,200 0.3622 35 47 1,6 89 40 10
4144002 VDS201A09300 WU25PD 9,300 0.3661 35 47 1,6 89 40 10
4144004 VDS201A09400 WU25PD 9,400 0.3701 35 47 1,6 89 40 10
4144005 VDS201A09500 WU25PD 9,500 0.3740 35 47 1,6 89 40 10
4144007 VDS201A09600 WU25PD 9,600 0.3780 35 47 1,6 89 40 10
4144008 VDS201A09700 WU25PD 9,700 0.3819 35 47 1,7 89 40 10
4144009 VDS201A09800 WU25PD 9,800 0.3858 35 47 1,7 89 40 10
4144010 VDS201A09900 WU25PD 9,900 0.3898 35 47 1,7 89 40 10
4144172 VDS201A10000 WU25PD 10,000 0.3937 35 47 1,7 89 40 10
4144423 VDS201A10100 WU25PD 10,100 0.3976 40 55 1,7 102 45 12
4144424 VDS201A10200 WU25PD 10,200 0.4016 40 55 1,7 102 45 12
4144425 VDS201A10300 WU25PD 10,300 0.4055 40 55 1,8 102 45 12
4144427 VDS201A10400 WU25PD 10,400 0.4094 40 55 1,8 102 45 12
4144428 VDS201A10500 WU25PD 10,500 0.4134 40 55 1,8 102 45 12
4144429 VDS201A10600 WU25PD 10,600 0.4173 40 55 1,8 102 45 12
4144430 VDS201A10700 WU25PD 10,700 0.4213 40 55 1,8 102 45 12
4144432 VDS201A10800 WU25PD 10,800 0.4252 40 55 1,8 102 45 12
4144433 VDS201A10900 WU25PD 10,900 0.4291 40 55 1,9 102 45 12
4144434 VDS201A11000 WU25PD 11,000 0.4331 40 55 1,9 102 45 12
4144435 VDS201A11100 WU25PD 11,100 0.4370 40 55 1,9 102 45 12
4144437 VDS201A11200 WU25PD 11,200 0.4409 40 55 1,9 102 45 12
4144438 VDS201A11300 WU25PD 11,300 0.4449 40 55 1,9 102 45 12
4144440 VDS201A11500 WU25PD 11,500 0.4528 40 55 2,0 102 45 12
4144442 VDS201A11600 WU25PD 11,600 0.4567 40 55 2,0 102 45 12
4144443 VDS201A11700 WU25PD 11,700 0.4606 40 55 2,0 102 45 12
4144444 VDS201A11800 WU25PD 11,800 0.4646 40 55 2,0 102 45 12
4144445 VDS201A11900 WU25PD 11,900 0.4685 40 55 2,0 102 45 12
4144447 VDS201A12000 WU25PD 12,000 0.4724 40 55 2,1 102 45 12
4144448 VDS201A12100 WU25PD 12,100 0.4764 43 60 2,1 107 45 14
4144449 VDS201A12200 WU25PD 12,200 0.4803 43 60 2,1 107 45 14
4144450 VDS201A12300 WU25PD 12,300 0.4843 43 60 2,1 107 45 14
4144453 VDS201A12500 WU25PD 12,500 0.4921 43 60 2,1 107 45 14
4144454 VDS201A12600 WU25PD 12,600 0.4961 43 60 2,2 107 45 14
4144455 VDS201A12700 WU25PD 12,700 0.5000 43 60 2,2 107 45 14
4144456 VDS201A12800 WU25PD 12,800 0.5039 43 60 2,2 107 45 14
4144458 VDS201A13000 WU25PD 13,000 0.5118 43 60 2,2 107 45 14
4144460 VDS201A13100 WU25PD 13,100 0.5157 43 60 2,3 107 45 14
4144461 VDS201A13200 WU25PD 13,200 0.5197 43 60 2,3 107 45 14
4144464 VDS201A13500 WU25PD 13,500 0.5315 43 60 2,3 107 45 14
4144465 VDS201A13600 WU25PD 13,600 0.5354 43 60 2,3 107 45 14
(continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
102
Holemaking
VariDrill™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS201A • 3 x D • Non-Coolant (continued)
4144466 VDS201A13700 WU25PD 13,700 0.5394 43 60 2,4 107 45 14
4144467 VDS201A13800 WU25PD 13,800 0.5433 43 60 2,4 107 45 14
4144470 VDS201A14000 WU25PD 14,000 0.5512 43 60 2,4 107 45 14
4144471 VDS201A14100 WU25PD 14,100 0.5551 45 65 2,4 115 48 16
4144472 VDS201A14200 WU25PD 14,200 0.5591 45 65 2,5 115 48 16
4144474 VDS201A14300 WU25PD 14,300 0.5630 45 65 2,5 115 48 16
4144476 VDS201A14500 WU25PD 14,500 0.5709 45 65 2,5 115 48 16
4144480 VDS201A14800 WU25PD 14,800 0.5827 45 65 2,6 115 48 16
4144482 VDS201A15000 WU25PD 15,000 0.5906 45 65 2,6 115 48 16
4144484 VDS201A15100 WU25PD 15,100 0.5945 45 65 2,6 115 48 16
4144486 VDS201A15300 WU25PD 15,300 0.6024 45 65 2,6 115 48 16
4144489 VDS201A15500 WU25PD 15,500 0.6102 45 65 2,7 115 48 16
4144491 VDS201A15700 WU25PD 15,700 0.6181 45 65 2,7 115 48 16
4144492 VDS201A15800 WU25PD 15,800 0.6220 45 65 2,7 115 48 16
4144495 VDS201A16000 WU25PD 16,000 0.6299 45 65 2,8 115 48 16
4144496 VDS201A16100 WU25PD 16,100 0.6339 51 73 2,8 123 48 18
4144497 VDS201A16200 WU25PD 16,200 0.6378 51 73 2,8 123 48 18
4144499 VDS201A16300 WU25PD 16,300 0.6417 51 73 2,8 123 48 18
4144500 VDS201A16400 WU25PD 16,400 0.6457 51 73 2,8 123 48 18
4144501 VDS201A16500 WU25PD 16,500 0.6496 51 73 2,9 123 48 18
4144505 VDS201A16700 WU25PD 16,700 0.6575 51 73 2,9 123 48 18
4144508 VDS201A17000 WU25PD 17,000 0.6693 51 73 2,9 123 48 18
4144510 VDS201A17200 WU25PD 17,200 0.6772 51 73 3,0 123 48 18
4144514 VDS201A17500 WU25PD 17,500 0.6890 51 73 3,0 123 48 18
4144517 VDS201A17800 WU25PD 17,800 0.7008 51 73 3,1 123 48 18
4144590 VDS201A18000 WU25PD 18,000 0.7087 51 73 3,1 123 48 18
4144591 VDS201A18100 WU25PD 18,100 0.7126 55 79 3,1 131 50 20
4144592 VDS201A18200 WU25PD 18,200 0.7165 55 79 3,2 131 50 20
4144596 VDS201A18500 WU25PD 18,500 0.7283 55 79 3,2 131 50 20
4144597 VDS201A18600 WU25PD 18,600 0.7323 55 79 3,2 131 50 20
4144602 VDS201A19000 WU25PD 19,000 0.7480 55 79 3,3 131 50 20
4144604 VDS201A19100 WU25PD 19,100 0.7520 55 79 3,3 131 50 20
4144613 VDS201A20000 WU25PD 20,000 0.7874 55 79 3,5 131 50 20
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS401A • 3 x D • Through Coolant
4140270 VDS401A01500 WU25PD 1,500 0.0591 6 9 0,2 58 28 4
4140271 VDS401A01600 WU25PD 1,600 0.0630 6 9 0,2 58 28 4
4140272 VDS401A01700 WU25PD 1,700 0.0669 6 9 0,3 58 28 4
4140423 VDS401A01800 WU25PD 1,800 0.0709 6 9 0,3 58 28 4
4140424 VDS401A01900 WU25PD 1,900 0.0748 6 9 0,3 58 28 4
4140426 VDS401A02000 WU25PD 2,000 0.0787 10 13 0,3 58 28 4
4140427 VDS401A02100 WU25PD 2,100 0.0827 10 13 0,3 58 28 4
4140428 VDS401A02200 WU25PD 2,200 0.0866 10 13 0,3 58 28 4
4140429 VDS401A02300 WU25PD 2,300 0.0906 10 13 0,4 58 28 4
4140431 VDS401A02400 WU25PD 2,400 0.0945 12 17 0,4 58 28 4
4140434 VDS401A02500 WU25PD 2,500 0.0984 12 17 0,4 58 28 4
4140436 VDS401A02600 WU25PD 2,600 0.1024 12 17 0,4 58 28 4
4140438 VDS401A02700 WU25PD 2,700 0.1063 12 17 0,4 58 28 4
4140441 VDS401A02800 WU25PD 2,800 0.1102 12 17 0,5 58 28 4
4140444 VDS401A02900 WU25PD 2,900 0.1142 12 17 0,5 58 28 4
4140299 VDS401A03000 WU25PD 3,000 0.1181 14 20 0,5 62 36 6
4140300 VDS401A03048 WU25PD 3,048 0.1200 14 20 0,5 62 36 6
4140301 VDS401A03100 WU25PD 3,100 0.1220 14 20 0,5 62 36 6
4140303 VDS401A03200 WU25PD 3,200 0.1260 14 20 0,5 62 36 6
Holemaking
(continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
103
widia.com
Holemaking
VariDrill™
(continued)
Holemaking
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS401A • 3 x D • Through Coolant (continued)
4140305 VDS401A03300 WU25PD 3,300 0.1299 14 20 0,5 62 36 6
4140306 VDS401A03400 WU25PD 3,400 0.1339 14 20 0,6 62 36 6
4140308 VDS401A03500 WU25PD 3,500 0.1378 14 20 0,6 62 36 6
4140310 VDS401A03600 WU25PD 3,600 0.1417 14 20 0,6 62 36 6
4140312 VDS401A03700 WU25PD 3,700 0.1457 14 20 0,6 62 36 6
4140314 VDS401A03800 WU25PD 3,800 0.1496 17 24 0,6 66 36 6
4140315 VDS401A03900 WU25PD 3,900 0.1535 17 24 0,6 66 36 6
4140317 VDS401A04000 WU25PD 4,000 0.1575 17 24 0,7 66 36 6
4140320 VDS401A04100 WU25PD 4,100 0.1614 17 24 0,7 66 36 6
4140321 VDS401A04200 WU25PD 4,200 0.1654 17 24 0,7 66 36 6
4140323 VDS401A04300 WU25PD 4,300 0.1693 17 24 0,7 66 36 6
4140325 VDS401A04400 WU25PD 4,400 0.1732 17 24 0,7 66 36 6
4140326 VDS401A04500 WU25PD 4,500 0.1772 17 24 0,7 66 36 6
4140328 VDS401A04600 WU25PD 4,600 0.1811 17 24 0,8 66 36 6
4140330 VDS401A04700 WU25PD 4,700 0.1850 17 24 0,8 66 36 6
4140332 VDS401A04800 WU25PD 4,800 0.1890 20 28 0,8 66 36 6
4140334 VDS401A04900 WU25PD 4,900 0.1929 20 28 0,8 66 36 6
4140335 VDS401A05000 WU25PD 5,000 0.1969 20 28 0,8 66 36 6
4140336 VDS401A05100 WU25PD 5,100 0.2008 20 28 0,8 66 36 6
4140339 VDS401A05200 WU25PD 5,200 0.2047 20 28 0,9 66 36 6
4140340 VDS401A05300 WU25PD 5,300 0.2087 20 28 0,9 66 36 6
4140341 VDS401A05400 WU25PD 5,400 0.2126 20 28 0,9 66 36 6
4140343 VDS401A05500 WU25PD 5,500 0.2165 20 28 0,9 66 36 6
4140345 VDS401A05600 WU25PD 5,600 0.2205 20 28 0,9 66 36 6
4140347 VDS401A05700 WU25PD 5,700 0.2244 20 28 1,0 66 36 6
4140348 VDS401A05800 WU25PD 5,800 0.2283 20 28 1,0 66 36 6
4140349 VDS401A05900 WU25PD 5,900 0.2323 20 28 1,0 66 36 6
4140351 VDS401A06000 WU25PD 6,000 0.2362 20 28 1,0 66 36 6
4140352 VDS401A06100 WU25PD 6,100 0.2402 24 34 1,0 79 36 8
4140353 VDS401A06200 WU25PD 6,200 0.2441 24 34 1,0 79 36 8
4140354 VDS401A06300 WU25PD 6,300 0.2480 24 34 1,1 79 36 8
4140356 VDS401A06400 WU25PD 6,400 0.2520 24 34 1,1 79 36 8
4140357 VDS401A06500 WU25PD 6,500 0.2559 24 34 1,1 79 36 8
4140359 VDS401A06600 WU25PD 6,600 0.2598 24 34 1,1 79 36 8
4140361 VDS401A06700 WU25PD 6,700 0.2638 24 34 1,1 79 36 8
4140363 VDS401A06800 WU25PD 6,800 0.2677 24 34 1,1 79 36 8
4140364 VDS401A06900 WU25PD 6,900 0.2717 24 34 1,2 79 36 8
4140365 VDS401A07000 WU25PD 7,000 0.2756 24 34 1,2 79 36 8
4140366 VDS401A07100 WU25PD 7,100 0.2795 29 41 1,2 79 36 8
4140368 VDS401A07200 WU25PD 7,200 0.2835 29 41 1,2 79 36 8
4140369 VDS401A07300 WU25PD 7,300 0.2874 29 41 1,2 79 36 8
4140370 VDS401A07400 WU25PD 7,400 0.2913 29 41 1,3 79 36 8
4140371 VDS401A07500 WU25PD 7,500 0.2953 29 41 1,3 79 36 8
4140373 VDS401A07600 WU25PD 7,600 0.2992 29 41 1,3 79 36 8
4140374 VDS401A07700 WU25PD 7,700 0.3031 29 41 1,3 79 36 8
4140375 VDS401A07800 WU25PD 7,800 0.3071 29 41 1,3 79 36 8
4140376 VDS401A07900 WU25PD 7,900 0.3110 29 41 1,3 79 36 8
4140378 VDS401A08000 WU25PD 8,000 0.3150 29 41 1,4 79 36 8
4140379 VDS401A08100 WU25PD 8,100 0.3189 35 47 1,4 89 40 10
4140380 VDS401A08200 WU25PD 8,200 0.3228 35 47 1,4 89 40 10
4140381 VDS401A08300 WU25PD 8,300 0.3268 35 47 1,4 89 40 10
4140383 VDS401A08400 WU25PD 8,400 0.3307 35 47 1,4 89 40 10
4140385 VDS401A08500 WU25PD 8,500 0.3346 35 47 1,4 89 40 10
4140386 VDS401A08600 WU25PD 8,600 0.3386 35 47 1,5 89 40 10
4140387 VDS401A08700 WU25PD 8,700 0.3425 35 47 1,5 89 40 10
4140389 VDS401A08800 WU25PD 8,800 0.3465 35 47 1,5 89 40 10
4140390 VDS401A08900 WU25PD 8,900 0.3504 35 47 1,5 89 40 10
4140391 VDS401A09000 WU25PD 9,000 0.3543 35 47 1,5 89 40 10
4140392 VDS401A09100 WU25PD 9,100 0.3583 35 47 1,5 89 40 10
4140394 VDS401A09200 WU25PD 9,200 0.3622 35 47 1,6 89 40 10
4140395 VDS401A09300 WU25PD 9,300 0.3661 35 47 1,6 89 40 10
4140397 VDS401A09400 WU25PD 9,400 0.3701 35 47 1,6 89 40 10
4140398 VDS401A09500 WU25PD 9,500 0.3740 35 47 1,6 89 40 10
4140400 VDS401A09600 WU25PD 9,600 0.3780 35 47 1,6 89 40 10
4140401 VDS401A09700 WU25PD 9,700 0.3819 35 47 1,7 89 40 10
4140402 VDS401A09800 WU25PD 9,800 0.3858 35 47 1,7 89 40 10
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
104 widia.com
Holemaking
(continued)
Holemaking
VariDrill™
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS401A • 3 x D • Through Coolant (continued)
4140403 VDS401A09900 WU25PD 9,900 0.3898 35 47 1,7 89 40 10
4140001 VDS401A10000 WU25PD 10,000 0.3937 35 47 1,7 89 40 10
4140002 VDS401A10100 WU25PD 10,100 0.3976 40 55 1,7 102 45 12
4140163 VDS401A10200 WU25PD 10,200 0.4016 40 55 1,7 102 45 12
4140164 VDS401A10300 WU25PD 10,300 0.4055 40 55 1,8 102 45 12
4140166 VDS401A10400 WU25PD 10,400 0.4094 40 55 1,8 102 45 12
4140167 VDS401A10500 WU25PD 10,500 0.4134 40 55 1,8 102 45 12
4140168 VDS401A10600 WU25PD 10,600 0.4173 40 55 1,8 102 45 12
4140169 VDS401A10700 WU25PD 10,700 0.4213 40 55 1,8 102 45 12
4140171 VDS401A10800 WU25PD 10,800 0.4252 40 55 1,8 102 45 12
4140172 VDS401A10900 WU25PD 10,900 0.4291 40 55 1,9 102 45 12
4140173 VDS401A11000 WU25PD 11,000 0.4331 40 55 1,9 102 45 12
4140174 VDS401A11100 WU25PD 11,100 0.4370 40 55 1,9 102 45 12
4140176 VDS401A11200 WU25PD 11,200 0.4409 40 55 1,9 102 45 12
4140177 VDS401A11300 WU25PD 11,300 0.4449 40 55 1,9 102 45 12
4140178 VDS401A11400 WU25PD 11,400 0.4488 40 55 2,0 102 45 12
4140179 VDS401A11500 WU25PD 11,500 0.4528 40 55 2,0 102 45 12
4140181 VDS401A11600 WU25PD 11,600 0.4567 40 55 2,0 102 45 12
4140182 VDS401A11700 WU25PD 11,700 0.4606 40 55 2,0 102 45 12
4140183 VDS401A11800 WU25PD 11,800 0.4646 40 55 2,0 102 45 12
4140184 VDS401A11900 WU25PD 11,900 0.4685 40 55 2,0 102 45 12
4140186 VDS401A12000 WU25PD 12,000 0.4724 40 55 2,1 102 45 12
4140187 VDS401A12100 WU25PD 12,100 0.4764 43 60 2,1 107 45 14
4140188 VDS401A12200 WU25PD 12,200 0.4803 43 60 2,1 107 45 14
4140189 VDS401A12300 WU25PD 12,300 0.4843 43 60 2,1 107 45 14
4140191 VDS401A12400 WU25PD 12,400 0.4882 43 60 2,1 107 45 14
4140192 VDS401A12500 WU25PD 12,500 0.4921 43 60 2,1 107 45 14
4140194 VDS401A12600 WU25PD 12,600 0.4961 43 60 2,2 107 45 14
4140195 VDS401A12700 WU25PD 12,700 0.5000 43 60 2,2 107 45 14
4140196 VDS401A12800 WU25PD 12,800 0.5039 43 60 2,2 107 45 14
4140197 VDS401A12900 WU25PD 12,900 0.5079 43 60 2,2 107 45 14
4140198 VDS401A13000 WU25PD 13,000 0.5118 43 60 2,2 107 45 14
4140200 VDS401A13100 WU25PD 13,100 0.5157 43 60 2,3 107 45 14
4140201 VDS401A13200 WU25PD 13,200 0.5197 43 60 2,3 107 45 14
4140202 VDS401A13300 WU25PD 13,300 0.5236 43 60 2,3 107 45 14
4140203 VDS401A13400 WU25PD 13,400 0.5276 43 60 2,3 107 45 14
4140204 VDS401A13500 WU25PD 13,500 0.5315 43 60 2,3 107 45 14
4140205 VDS401A13600 WU25PD 13,600 0.5354 43 60 2,3 107 45 14
4140206 VDS401A13700 WU25PD 13,700 0.5394 43 60 2,4 107 45 14
4140207 VDS401A13800 WU25PD 13,800 0.5433 43 60 2,4 107 45 14
4140209 VDS401A13900 WU25PD 13,900 0.5472 43 60 2,4 107 45 14
4140210 VDS401A14000 WU25PD 14,000 0.5512 43 60 2,4 107 45 14
4140211 VDS401A14100 WU25PD 14,100 0.5551 45 65 2,4 115 48 16
4140212 VDS401A14200 WU25PD 14,200 0.5591 45 65 2,5 115 48 16
4140214 VDS401A14300 WU25PD 14,300 0.5630 45 65 2,5 115 48 16
4140215 VDS401A14400 WU25PD 14,400 0.5669 45 65 2,5 115 48 16
4140216 VDS401A14500 WU25PD 14,500 0.5709 45 65 2,5 115 48 16
4140217 VDS401A14600 WU25PD 14,600 0.5748 45 65 2,5 115 48 16
4140219 VDS401A14700 WU25PD 14,700 0.5787 45 65 2,5 115 48 16
4140220 VDS401A14800 WU25PD 14,800 0.5827 45 65 2,6 115 48 16
4140221 VDS401A14900 WU25PD 14,900 0.5866 45 65 2,6 115 48 16
4140222 VDS401A15000 WU25PD 15,000 0.5906 45 65 2,6 115 48 16
4140224 VDS401A15100 WU25PD 15,100 0.5945 45 65 2,6 115 48 16
4140225 VDS401A15200 WU25PD 15,200 0.5984 45 65 2,6 115 48 16
4140226 VDS401A15300 WU25PD 15,300 0.6024 45 65 2,6 115 48 16
4140227 VDS401A15400 WU25PD 15,400 0.6063 45 65 2,7 115 48 16
4140229 VDS401A15500 WU25PD 15,500 0.6102 45 65 2,7 115 48 16
4140230 VDS401A15600 WU25PD 15,600 0.6142 45 65 2,7 115 48 16
4140231 VDS401A15700 WU25PD 15,700 0.6181 45 65 2,7 115 48 16
4140232 VDS401A15800 WU25PD 15,800 0.6220 45 65 2,7 115 48 16
4140234 VDS401A15900 WU25PD 15,900 0.6260 45 65 2,8 115 48 16
4140235 VDS401A16000 WU25PD 16,000 0.6299 45 65 2,8 115 48 16
4140236 VDS401A16100 WU25PD 16,100 0.6339 51 73 2,8 123 48 18
4140237 VDS401A16200 WU25PD 16,200 0.6378 51 73 2,8 123 48 18
4140239 VDS401A16300 WU25PD 16,300 0.6417 51 73 2,8 123 48 18
4140241 VDS401A16400 WU25PD 16,400 0.6457 51 73 2,8 123 48 18
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
105
widia.com
Holemaking
(VariDrill — continued)
Holemaking
VariDrill™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS401A • 3 x D • Through Coolant (continued)
4140242 VDS401A16500 WU25PD 16,500 0.6496 51 73 2,9 123 48 18
4140243 VDS401A16600 WU25PD 16,600 0.6535 51 73 2,9 123 48 18
4140245 VDS401A16700 WU25PD 16,700 0.6575 51 73 2,9 123 48 18
4140246 VDS401A16800 WU25PD 16,800 0.6614 51 73 2,9 123 48 18
4140247 VDS401A16900 WU25PD 16,900 0.6654 51 73 2,9 123 48 18
4140248 VDS401A17000 WU25PD 17,000 0.6693 51 73 2,9 123 48 18
4140249 VDS401A17100 WU25PD 17,100 0.6732 51 73 3,0 123 48 18
4140250 VDS401A17200 WU25PD 17,200 0.6772 51 73 3,0 123 48 18
4140251 VDS401A17300 WU25PD 17,300 0.6811 51 73 3,0 123 48 18
4140252 VDS401A17400 WU25PD 17,400 0.6850 51 73 3,0 123 48 18
4140254 VDS401A17500 WU25PD 17,500 0.6890 51 73 3,0 123 48 18
4140255 VDS401A17600 WU25PD 17,600 0.6929 51 73 3,1 123 48 18
4140256 VDS401A17700 WU25PD 17,700 0.6969 51 73 3,1 123 48 18
4140257 VDS401A17800 WU25PD 17,800 0.7008 51 73 3,1 123 48 18
4140449 VDS401A18000 WU25PD 18,000 0.7087 51 73 3,1 123 48 18
4140450 VDS401A18100 WU25PD 18,100 0.7126 55 79 3,1 131 50 20
4140451 VDS401A18200 WU25PD 18,200 0.7165 55 79 3,2 131 50 20
4140463 VDS401A18300 WU25PD 18,300 0.7205 55 79 3,2 131 50 20
4140464 VDS401A18400 WU25PD 18,400 0.7244 55 79 3,2 131 50 20
4140465 VDS401A18500 WU25PD 18,500 0.7283 55 79 3,2 131 50 20
4140466 VDS401A18600 WU25PD 18,600 0.7323 55 79 3,2 131 50 20
4140468 VDS401A18700 WU25PD 18,700 0.7362 55 79 3,2 131 50 20
4140469 VDS401A18800 WU25PD 18,800 0.7402 55 79 3,3 131 50 20
4140470 VDS401A18900 WU25PD 18,900 0.7441 55 79 3,3 131 50 20
4140471 VDS401A19000 WU25PD 19,000 0.7480 55 79 3,3 131 50 20
4140473 VDS401A19100 WU25PD 19,100 0.7520 55 79 3,3 131 50 20
4140474 VDS401A19200 WU25PD 19,200 0.7559 55 79 3,3 131 50 20
4140475 VDS401A19300 WU25PD 19,300 0.7598 55 79 3,4 131 50 20
4140476 VDS401A19400 WU25PD 19,400 0.7638 55 79 3,4 131 50 20
4140477 VDS401A19500 WU25PD 19,500 0.7677 55 79 3,4 131 50 20
4140478 VDS401A19600 WU25PD 19,600 0.7717 55 79 3,4 131 50 20
4140479 VDS401A19700 WU25PD 19,700 0.7756 55 79 3,4 131 50 20
4140480 VDS401A19800 WU25PD 19,800 0.7795 55 79 3,4 131 50 20
4140481 VDS401A19900 WU25PD 19,900 0.7835 55 79 3,5 131 50 20
4140482 VDS401A20000 WU25PD 20,000 0.7874 55 79 3,5 131 50 20
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS202A • 5 x D • Non-Coolant
4148000 VDS202A01000 WU25PD 1,000 0.0394 6 9 0,1 58 28 4
4148005 VDS202A01100 WU25PD 1,100 0.0433 6 9 0,2 58 28 4
4148008 VDS202A01200 WU25PD 1,200 0.0472 6 9 0,2 58 28 4
4148009 VDS202A01300 WU25PD 1,300 0.0512 6 9 0,2 58 28 4
4148012 VDS202A01400 WU25PD 1,400 0.0551 6 9 0,2 58 28 4
4148013 VDS202A01500 WU25PD 1,500 0.0591 912 0,2 58 40 4
4148014 VDS202A01600 WU25PD 1,600 0.0630 912 0,2 58 28 4
4148015 VDS202A01700 WU25PD 1,700 0.0669 912 0,3 58 28 4
4148016 VDS202A01800 WU25PD 1,800 0.0709 912 0,3 58 28 4
4148017 VDS202A01900 WU25PD 1,900 0.0748 912 0,3 58 28 4
4148019 VDS202A02000 WU25PD 2,000 0.0787 14 18 0,3 58 28 4
4148020 VDS202A02100 WU25PD 2,100 0.0827 14 18 0,3 58 28 4
(continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
106 widia.com
Holemaking
Holemaking
VariDrill™
(continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS202A • 5 x D • Non-Coolant (continued)
4148021 VDS202A02200 WU25PD 2,200 0.0866 14 18 0,3 58 28 4
4148022 VDS202A02300 WU25PD 2,300 0.0906 14 18 0,4 58 28 4
4148024 VDS202A02400 WU25PD 2,400 0.0945 17 22 0,4 58 28 4
4148027 VDS202A02500 WU25PD 2,500 0.0984 17 22 0,4 58 28 4
4148029 VDS202A02600 WU25PD 2,600 0.1024 17 22 0,4 58 28 4
4148031 VDS202A02700 WU25PD 2,700 0.1063 17 22 0,4 58 28 4
4148034 VDS202A02800 WU25PD 2,800 0.1102 17 22 0,5 58 28 4
4148037 VDS202A02900 WU25PD 2,900 0.1142 17 22 0,5 58 28 4
4148142 VDS202A03000 WU25PD 3,000 0.1181 23 28 0,5 66 36 6
4148144 VDS202A03100 WU25PD 3,100 0.1220 23 28 0,5 66 36 6
4148146 VDS202A03200 WU25PD 3,200 0.1260 23 28 0,5 66 36 6
4148148 VDS202A03300 WU25PD 3,300 0.1299 23 28 0,5 66 36 6
4148149 VDS202A03400 WU25PD 3,400 0.1339 23 28 0,6 66 36 6
4148151 VDS202A03500 WU25PD 3,500 0.1378 23 28 0,6 66 36 6
4148153 VDS202A03600 WU25PD 3,600 0.1417 23 28 0,6 66 36 6
4148155 VDS202A03700 WU25PD 3,700 0.1457 23 28 0,6 66 36 6
4148157 VDS202A03800 WU25PD 3,800 0.1496 29 36 0,6 74 36 6
4148158 VDS202A03900 WU25PD 3,900 0.1535 29 36 0,6 74 36 6
4148160 VDS202A04000 WU25PD 4,000 0.1575 29 36 0,7 74 36 6
4148163 VDS202A04100 WU25PD 4,100 0.1614 29 36 0,7 74 36 6
4148164 VDS202A04200 WU25PD 4,200 0.1654 29 36 0,7 74 36 6
4148166 VDS202A04300 WU25PD 4,300 0.1693 29 36 0,7 74 36 6
4148168 VDS202A04400 WU25PD 4,400 0.1732 29 36 0,7 74 36 6
4148169 VDS202A04500 WU25PD 4,500 0.1772 29 36 0,7 74 36 6
4148170 VDS202A04600 WU25PD 4,600 0.1811 29 36 0,8 74 36 6
4148172 VDS202A04700 WU25PD 4,700 0.1850 29 36 0,8 74 36 6
4148174 VDS202A04800 WU25PD 4,800 0.1890 35 44 0,8 82 36 6
4148176 VDS202A04900 WU25PD 4,900 0.1929 35 44 0,8 82 36 6
4148177 VDS202A05000 WU25PD 5,000 0.1969 35 44 0,8 82 36 6
4148178 VDS202A05100 WU25PD 5,100 0.2008 35 44 0,8 82 36 6
4148181 VDS202A05200 WU25PD 5,200 0.2047 35 44 0,9 82 36 6
4148182 VDS202A05300 WU25PD 5,300 0.2087 35 44 0,9 82 36 6
4148183 VDS202A05400 WU25PD 5,400 0.2126 35 44 0,9 82 36 6
4148185 VDS202A05500 WU25PD 5,500 0.2165 35 44 0,9 82 36 6
4148187 VDS202A05600 WU25PD 5,600 0.2205 35 44 0,9 82 36 6
4148189 VDS202A05700 WU25PD 5,700 0.2244 35 44 1,0 82 36 6
4148190 VDS202A05800 WU25PD 5,800 0.2283 35 44 1,0 82 36 6
4148191 VDS202A05900 WU25PD 5,900 0.2323 35 44 1,0 82 36 6
4148193 VDS202A06000 WU25PD 6,000 0.2362 35 44 1,0 82 36 6
4148194 VDS202A06100 WU25PD 6,100 0.2402 43 53 1,0 91 36 8
4148195 VDS202A06200 WU25PD 6,200 0.2441 43 53 1,0 91 36 8
4148196 VDS202A06300 WU25PD 6,300 0.2480 43 53 1,1 91 36 8
4148198 VDS202A06400 WU25PD 6,400 0.2520 43 53 1,1 91 36 8
4148199 VDS202A06500 WU25PD 6,500 0.2559 43 53 1,1 91 36 8
4148201 VDS202A06600 WU25PD 6,600 0.2598 43 53 1,1 91 36 8
4148203 VDS202A06700 WU25PD 6,700 0.2638 43 53 1,1 91 36 8
4148205 VDS202A06800 WU25PD 6,800 0.2677 43 53 1,1 91 36 8
4148206 VDS202A06900 WU25PD 6,900 0.2717 43 53 1,2 91 36 8
4148207 VDS202A07000 WU25PD 7,000 0.2756 43 53 1,2 91 36 8
4148208 VDS202A07100 WU25PD 7,100 0.2795 43 53 1,2 91 36 8
4148210 VDS202A07200 WU25PD 7,200 0.2835 43 53 1,2 91 36 8
4148211 VDS202A07300 WU25PD 7,300 0.2874 43 53 1,2 91 36 8
4148212 VDS202A07400 WU25PD 7,400 0.2913 43 53 1,3 91 36 8
4148213 VDS202A07500 WU25PD 7,500 0.2953 43 53 1,3 91 36 8
4148215 VDS202A07600 WU25PD 7,600 0.2992 43 53 1,3 91 36 8
4148216 VDS202A07700 WU25PD 7,700 0.3031 43 53 1,3 91 36 8
4148217 VDS202A07800 WU25PD 7,800 0.3071 43 53 1,3 91 36 8
4148218 VDS202A07900 WU25PD 7,900 0.3110 43 53 1,3 91 36 8
4148220 VDS202A08000 WU25PD 8,000 0.3150 43 53 1,4 91 36 8
4148221 VDS202A08100 WU25PD 8,100 0.3189 49 61 1,4 103 40 10
4148222 VDS202A08200 WU25PD 8,200 0.3228 49 61 1,4 103 40 10
4148223 VDS202A08300 WU25PD 8,300 0.3268 49 61 1,4 103 40 10
4148225 VDS202A08400 WU25PD 8,400 0.3307 49 61 1,4 103 40 10
4148227 VDS202A08500 WU25PD 8,500 0.3346 49 61 1,4 103 40 10
4148228 VDS202A08600 WU25PD 8,600 0.3386 49 61 1,5 103 40 10
4148229 VDS202A08700 WU25PD 8,700 0.3425 49 61 1,5 103 40 10
(VariDrill — continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
107
widia.com
Holemaking
Holemaking
VariDrill™
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS202A • 5 x D • Non-Coolant (continued)
4148231 VDS202A08800 WU25PD 8,800 0.3465 49 61 1,5 103 40 10
4148232 VDS202A08900 WU25PD 8,900 0.3504 49 61 1,5 103 40 10
4148233 VDS202A09000 WU25PD 9,000 0.3543 49 61 1,5 103 40 10
4148234 VDS202A09100 WU25PD 9,100 0.3583 49 61 1,6 103 40 10
4148236 VDS202A09200 WU25PD 9,200 0.3622 49 61 1,6 103 40 10
4148237 VDS202A09300 WU25PD 9,300 0.3661 49 61 1,6 103 40 10
4148239 VDS202A09400 WU25PD 9,400 0.3701 49 61 1,6 103 40 10
4148240 VDS202A09500 WU25PD 9,500 0.3740 49 61 1,6 103 40 10
4148243 VDS202A09700 WU25PD 9,700 0.3819 49 61 1,7 103 40 10
4148244 VDS202A09800 WU25PD 9,800 0.3858 49 61 1,7 103 40 10
4148245 VDS202A09900 WU25PD 9,900 0.3898 49 61 1,7 103 40 10
4148258 VDS202A10000 WU25PD 10,000 0.3937 49 61 1,7 103 40 10
4148259 VDS202A10100 WU25PD 10,100 0.3976 56 71 1,7 118 45 12
4148260 VDS202A10200 WU25PD 10,200 0.4016 56 71 1,7 118 45 12
4148261 VDS202A10300 WU25PD 10,300 0.4055 56 71 1,8 118 45 12
4148284 VDS202A10500 WU25PD 10,500 0.4134 56 71 1,8 118 45 12
4148285 VDS202A10600 WU25PD 10,600 0.4173 56 71 1,8 118 45 12
4148286 VDS202A10700 WU25PD 10,700 0.4213 56 71 1,8 118 45 12
4148288 VDS202A10800 WU25PD 10,800 0.4252 56 71 1,8 118 45 12
4148289 VDS202A10900 WU25PD 10,900 0.4291 56 71 1,9 118 45 12
4148290 VDS202A11000 WU25PD 11,000 0.4331 56 71 1,9 118 45 12
4148291 VDS202A11100 WU25PD 11,100 0.4370 56 71 1,9 118 45 12
4148293 VDS202A11200 WU25PD 11,200 0.4409 56 71 1,9 118 45 12
4148294 VDS202A11300 WU25PD 11,300 0.4449 56 71 1,9 118 45 12
4148296 VDS202A11500 WU25PD 11,500 0.4528 56 71 2,0 118 45 12
4148298 VDS202A11600 WU25PD 11,600 0.4567 56 71 2,0 118 45 12
4148299 VDS202A11700 WU25PD 11,700 0.4606 56 71 2,0 118 45 12
4148300 VDS202A11800 WU25PD 11,800 0.4646 56 71 2,0 118 45 12
4148301 VDS202A11900 WU25PD 11,900 0.4685 56 71 2,0 118 45 12
4148313 VDS202A12000 WU25PD 12,000 0.4724 56 71 2,1 118 45 12
4148314 VDS202A12100 WU25PD 12,100 0.4764 60 77 2,1 124 45 14
4148315 VDS202A12200 WU25PD 12,200 0.4803 60 77 2,1 124 45 14
4148319 VDS202A12500 WU25PD 12,500 0.4921 60 77 2,1 124 45 14
4148320 VDS202A12600 WU25PD 12,600 0.4961 60 77 2,2 124 45 14
4148321 VDS202A12700 WU25PD 12,700 0.5000 60 77 2,2 124 45 14
4148322 VDS202A12800 WU25PD 12,800 0.5039 60 77 2,2 124 45 14
4148343 VDS202A12900 WU25PD 12,900 0.5079 60 77 2,2 124 45 14
4148344 VDS202A13000 WU25PD 13,000 0.5118 60 77 2,2 124 45 14
4148346 VDS202A13100 WU25PD 13,100 0.5157 60 77 2,3 124 45 14
4148347 VDS202A13200 WU25PD 13,200 0.5197 60 77 2,3 124 45 14
4148350 VDS202A13500 WU25PD 13,500 0.5315 60 77 2,3 124 45 14
4148353 VDS202A13800 WU25PD 13,800 0.5433 60 77 2,4 124 45 14
4148356 VDS202A14000 WU25PD 14,000 0.5512 60 77 2,4 124 45 14
4148357 VDS202A14100 WU25PD 14,100 0.5551 63 83 2,4 133 48 16
4148358 VDS202A14200 WU25PD 14,200 0.5591 63 83 2,5 133 48 16
4148360 VDS202A14300 WU25PD 14,300 0.5630 63 83 2,5 133 48 16
4148362 VDS202A14500 WU25PD 14,500 0.5709 63 83 2,5 133 48 16
4148366 VDS202A14800 WU25PD 14,800 0.5827 63 83 2,6 133 48 16
4148367 VDS202A14900 WU25PD 14,900 0.5866 63 83 2,6 133 48 16
4148368 VDS202A15000 WU25PD 15,000 0.5906 63 83 2,6 133 48 16
4148370 VDS202A15100 WU25PD 15,100 0.5945 63 83 2,6 133 48 16
4148371 VDS202A15200 WU25PD 15,200 0.5984 63 83 2,6 133 48 16
4148375 VDS202A15500 WU25PD 15,500 0.6102 63 83 2,7 133 48 16
4148378 VDS202A15800 WU25PD 15,800 0.6220 63 83 2,7 133 48 16
4148381 VDS202A16000 WU25PD 16,000 0.6299 63 83 2,8 133 48 16
4148382 VDS202A16100 WU25PD 16,100 0.6339 71 93 2,8 143 48 18
4148387 VDS202A16500 WU25PD 16,500 0.6496 71 93 2,9 143 48 18
4148393 VDS202A17000 WU25PD 17,000 0.6693 71 93 2,9 143 48 18
4148394 VDS202A17100 WU25PD 17,100 0.6732 71 93 3,0 143 48 18
4148399 VDS202A17500 WU25PD 17,500 0.6890 71 93 3,0 143 48 18
4147921 VDS202A18000 WU25PD 18,000 0.7087 71 93 3,1 143 48 18
4148307 VDS202A18500 WU25PD 18,500 0.7283 77 101 3,2 153 50 20
4148329 VDS202A19500 WU25PD 19,500 0.7677 77 101 3,4 153 50 20
4148333 VDS202A19900 WU25PD 19,900 0.7835 77 101 3,5 153 50 20
4148334 VDS202A20000 WU25PD 20,000 0.7874 77 101 3,5 153 50 20
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
108
Holemaking
VariDrill™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS402A • 5 x D • Through Coolant
4142871 VDS402A01500 WU25PD 1,500 0.0591 912 0,2 58 40 4
4142884 VDS402A01600 WU25PD 1,600 0.0630 912 0,2 58 28 4
4142887 VDS402A01700 WU25PD 1,700 0.0669 912 0,3 58 28 4
4142890 VDS402A01800 WU25PD 1,800 0.0709 912 0,3 58 28 4
4142893 VDS402A01900 WU25PD 1,900 0.0748 912 0,3 58 28 4
4142899 VDS402A02000 WU25PD 2,000 0.0787 14 18 0,3 58 28 4
4142902 VDS402A02100 WU25PD 2,100 0.0827 14 18 0,3 58 28 4
4142905 VDS402A02200 WU25PD 2,200 0.0866 14 18 0,3 58 28 4
4142908 VDS402A02300 WU25PD 2,300 0.0906 14 18 0,4 58 28 4
4142924 VDS402A02400 WU25PD 2,400 0.0945 17 22 0,4 58 28 4
4142933 VDS402A02500 WU25PD 2,500 0.0984 17 22 0,4 58 28 4
4142939 VDS402A02600 WU25PD 2,600 0.1024 17 22 0,4 58 28 4
4142945 VDS402A02700 WU25PD 2,700 0.1063 17 22 0,4 58 28 4
4142964 VDS402A02800 WU25PD 2,800 0.1102 17 22 0,5 58 28 4
4142973 VDS402A02900 WU25PD 2,900 0.1142 17 22 0,5 58 28 4
4142844 VDS402A03000 WU25PD 3,000 0.1181 23 28 0,5 66 36 6
4142846 VDS402A03048 WU25PD 3,048 0.1200 23 28 0,5 66 36 6
4142847 VDS402A03100 WU25PD 3,100 0.1220 23 28 0,5 66 36 6
4142851 VDS402A03200 WU25PD 3,200 0.1260 23 28 0,5 66 36 6
4142865 VDS402A03300 WU25PD 3,300 0.1299 23 28 0,5 66 36 6
4142867 VDS402A03400 WU25PD 3,400 0.1339 23 28 0,6 66 36 6
4142872 VDS402A03500 WU25PD 3,500 0.1378 23 28 0,6 66 36 6
4142888 VDS402A03600 WU25PD 3,600 0.1417 23 28 0,6 66 36 6
4142894 VDS402A03700 WU25PD 3,700 0.1457 23 28 0,6 66 36 6
4142900 VDS402A03800 WU25PD 3,800 0.1496 29 36 0,6 74 36 6
4142903 VDS402A03900 WU25PD 3,900 0.1535 29 36 0,6 74 36 6
4142909 VDS402A04000 WU25PD 4,000 0.1575 29 36 0,7 74 36 6
4142928 VDS402A04100 WU25PD 4,100 0.1614 29 36 0,7 74 36 6
4142931 VDS402A04200 WU25PD 4,200 0.1654 29 36 0,7 74 36 6
4142937 VDS402A04300 WU25PD 4,300 0.1693 29 36 0,7 74 36 6
4142943 VDS402A04400 WU25PD 4,400 0.1732 29 36 0,7 74 36 6
4142946 VDS402A04500 WU25PD 4,500 0.1772 29 36 0,7 74 36 6
4142949 VDS402A04600 WU25PD 4,600 0.1811 29 36 0,8 74 36 6
4142952 VDS402A04623 WU25PD 4,623 0.1820 29 36 0,8 74 36 6
4142965 VDS402A04700 WU25PD 4,700 0.1850 29 36 0,8 74 36 6
4142971 VDS402A04800 WU25PD 4,800 0.1890 35 44 0,8 82 36 6
4142977 VDS402A04900 WU25PD 4,900 0.1929 35 44 0,8 82 36 6
4142979 VDS402A05000 WU25PD 5,000 0.1969 35 44 0,8 82 36 6
4142981 VDS402A05100 WU25PD 5,100 0.2008 35 44 0,8 82 36 6
4142997 VDS402A05200 WU25PD 5,200 0.2047 35 44 0,9 82 36 6
4142999 VDS402A05300 WU25PD 5,300 0.2087 35 44 0,9 82 36 6
4143000 VDS402A05400 WU25PD 5,400 0.2126 35 44 0,9 82 36 6
4143002 VDS402A05500 WU25PD 5,500 0.2165 35 44 0,9 82 36 6
4143003 VDS402A05558 WU25PD 5,558 0.2188 35 44 0,9 82 36 6
4143004 VDS402A05600 WU25PD 5,600 0.2205 35 44 0,9 82 36 6
4143006 VDS402A05700 WU25PD 5,700 0.2244 35 44 1,0 82 36 6
4143007 VDS402A05800 WU25PD 5,800 0.2283 35 44 1,0 82 36 6
4143008 VDS402A05900 WU25PD 5,900 0.2323 35 44 1,0 82 36 6
4143010 VDS402A06000 WU25PD 6,000 0.2362 35 44 1,0 82 36 6
4143011 VDS402A06100 WU25PD 6,100 0.2402 43 53 1,0 91 36 8
4143012 VDS402A06200 WU25PD 6,200 0.2441 43 53 1,0 91 36 8
4143023 VDS402A06300 WU25PD 6,300 0.2480 43 53 1,1 91 36 8
4143025 VDS402A06400 WU25PD 6,400 0.2520 43 53 1,1 91 36 8
4143026 VDS402A06500 WU25PD 6,500 0.2559 43 53 1,1 91 36 8
4143028 VDS402A06600 WU25PD 6,600 0.2598 43 53 1,1 91 36 8
4143030 VDS402A06700 WU25PD 6,700 0.2638 43 53 1,1 91 36 8
4143032 VDS402A06800 WU25PD 6,800 0.2677 43 53 1,1 91 36 8
Holemaking
(continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
109
widia.com
Holemaking
VariDrill™
(continued)
Holemaking
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS402A • 5 x D • Through Coolant (continued)
4143043 VDS402A06900 WU25PD 6,900 0.2717 43 53 1,2 91 36 8
4143044 VDS402A07000 WU25PD 7,000 0.2756 43 53 1,2 91 36 8
4143045 VDS402A07100 WU25PD 7,100 0.2795 43 53 1,2 91 36 8
4143047 VDS402A07200 WU25PD 7,200 0.2835 43 53 1,2 91 36 8
4143048 VDS402A07300 WU25PD 7,300 0.2874 43 53 1,2 91 36 8
4143049 VDS402A07400 WU25PD 7,400 0.2913 43 53 1,3 91 36 8
4143050 VDS402A07500 WU25PD 7,500 0.2953 43 53 1,3 91 36 8
4143052 VDS402A07600 WU25PD 7,600 0.2992 43 53 1,3 91 36 8
4143063 VDS402A07700 WU25PD 7,700 0.3031 43 53 1,3 91 36 8
4143064 VDS402A07800 WU25PD 7,800 0.3071 43 53 1,3 91 36 8
4143065 VDS402A07900 WU25PD 7,900 0.3110 43 53 1,3 91 36 8
4143067 VDS402A08000 WU25PD 8,000 0.3150 43 53 1,4 91 36 8
4143068 VDS402A08100 WU25PD 8,100 0.3189 49 61 1,4 103 40 10
4143069 VDS402A08200 WU25PD 8,200 0.3228 49 61 1,4 103 40 10
4143070 VDS402A08300 WU25PD 8,300 0.3268 49 61 1,4 103 40 10
4143072 VDS402A08400 WU25PD 8,400 0.3307 49 61 1,4 103 40 10
4143084 VDS402A08500 WU25PD 8,500 0.3346 49 61 1,4 103 40 10
4143085 VDS402A08600 WU25PD 8,600 0.3386 49 61 1,5 103 40 10
4143086 VDS402A08700 WU25PD 8,700 0.3425 49 61 1,5 103 40 10
4143088 VDS402A08800 WU25PD 8,800 0.3465 49 61 1,5 103 40 10
4143089 VDS402A08900 WU25PD 8,900 0.3504 49 61 1,5 103 40 10
4143090 VDS402A09000 WU25PD 9,000 0.3543 49 61 1,5 103 40 10
4143091 VDS402A09100 WU25PD 9,100 0.3583 49 61 1,5 103 40 10
4143103 VDS402A09200 WU25PD 9,200 0.3622 49 61 1,6 103 40 10
4143104 VDS402A09300 WU25PD 9,300 0.3661 49 61 1,6 103 40 10
4143106 VDS402A09400 WU25PD 9,400 0.3701 49 61 1,6 103 40 10
4143107 VDS402A09500 WU25PD 9,500 0.3740 49 61 1,6 103 40 10
4143109 VDS402A09600 WU25PD 9,600 0.3780 49 61 1,6 103 40 10
4143110 VDS402A09700 WU25PD 9,700 0.3819 49 61 1,7 103 40 10
4143111 VDS402A09800 WU25PD 9,800 0.3858 49 61 1,7 103 40 10
4143112 VDS402A09900 WU25PD 9,900 0.3898 49 61 1,7 103 40 10
4142823 VDS402A10000 WU25PD 10,000 0.3937 49 61 1,7 103 40 10
4142825 VDS402A10100 WU25PD 10,100 0.3976 56 71 1,7 118 45 12
4142827 VDS402A10200 WU25PD 10,200 0.4016 56 71 1,7 118 45 12
4142829 VDS402A10300 WU25PD 10,300 0.4055 56 71 1,8 118 45 12
4142832 VDS402A10400 WU25PD 10,400 0.4094 56 71 1,8 118 45 12
4142834 VDS402A10500 WU25PD 10,500 0.4134 56 71 1,8 118 45 12
4142836 VDS402A10600 WU25PD 10,600 0.4173 56 71 1,8 118 45 12
4142838 VDS402A10700 WU25PD 10,700 0.4213 56 71 1,8 118 45 12
4142842 VDS402A10800 WU25PD 10,800 0.4252 56 71 1,8 118 45 12
4142855 VDS402A10900 WU25PD 10,900 0.4291 56 71 1,9 118 45 12
4142857 VDS402A11000 WU25PD 11,000 0.4331 56 71 1,9 118 45 12
4142858 VDS402A11100 WU25PD 11,100 0.4370 56 71 1,9 118 45 12
4142862 VDS402A11200 WU25PD 11,200 0.4409 56 71 1,9 118 45 12
4142873 VDS402A11300 WU25PD 11,300 0.4449 56 71 1,9 118 45 12
4142874 VDS402A11400 WU25PD 11,400 0.4488 56 71 2,0 118 45 12
4142875 VDS402A11500 WU25PD 11,500 0.4528 56 71 2,0 118 45 12
4142877 VDS402A11600 WU25PD 11,600 0.4567 56 71 2,0 118 45 12
4142878 VDS402A11700 WU25PD 11,700 0.4606 56 71 2,0 118 45 12
4142879 VDS402A11800 WU25PD 11,800 0.4646 56 71 2,0 118 45 12
4142880 VDS402A11900 WU25PD 11,900 0.4685 56 71 2,0 118 45 12
4142882 VDS402A12000 WU25PD 12,000 0.4724 56 71 2,1 118 45 12
4142913 VDS402A12100 WU25PD 12,100 0.4764 60 77 2,1 124 45 14
4142914 VDS402A12200 WU25PD 12,200 0.4803 60 77 2,1 124 45 14
4142915 VDS402A12300 WU25PD 12,300 0.4843 60 77 2,1 124 45 14
4142917 VDS402A12400 WU25PD 12,400 0.4882 60 77 2,1 124 45 14
4142918 VDS402A12500 WU25PD 12,500 0.4921 60 77 2,1 124 45 14
4142919 VDS402A12600 WU25PD 12,600 0.4961 60 77 2,2 124 45 14
4142920 VDS402A12700 WU25PD 12,700 0.5000 60 77 2,2 124 45 14
4142921 VDS402A12800 WU25PD 12,800 0.5039 60 77 2,2 124 45 14
4142922 VDS402A12900 WU25PD 12,900 0.5079 60 77 2,2 124 45 14
4142953 VDS402A13000 WU25PD 13,000 0.5118 60 77 2,2 124 45 14
4142955 VDS402A13100 WU25PD 13,100 0.5157 60 77 2,3 124 45 14
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
110 widia.com
Holemaking
Holemaking
VariDrill™
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
4142956 VDS402A13200 WU25PD 13,200 0.5197 60 77 2,3 124 45 14
VDS402A • 5 x D • Through Coolant (continued)
4142957 VDS402A13300 WU25PD 13,300 0.5236 60 77 2,3 124 45 14
4142958 VDS402A13400 WU25PD 13,400 0.5276 60 77 2,3 124 45 14
4142959 VDS402A13500 WU25PD 13,500 0.5315 60 77 2,3 124 45 14
4142960 VDS402A13600 WU25PD 13,600 0.5354 60 77 2,3 124 45 14
4142961 VDS402A13700 WU25PD 13,700 0.5394 60 77 2,4 124 45 14
4142962 VDS402A13800 WU25PD 13,800 0.5433 60 77 2,4 124 45 14
4142984 VDS402A13900 WU25PD 13,900 0.5472 60 77 2,4 124 45 14
4142985 VDS402A14000 WU25PD 14,000 0.5512 60 77 2,4 124 45 14
4142986 VDS402A14100 WU25PD 14,100 0.5551 63 83 2,4 133 48 16
4142987 VDS402A14200 WU25PD 14,200 0.5591 63 83 2,5 133 48 16
4142989 VDS402A14300 WU25PD 14,300 0.5630 63 83 2,5 133 48 16
4142990 VDS402A14400 WU25PD 14,400 0.5669 63 83 2,5 133 48 16
4142991 VDS402A14500 WU25PD 14,500 0.5709 63 83 2,5 133 48 16
4142992 VDS402A14600 WU25PD 14,600 0.5748 63 83 2,5 133 48 16
4143014 VDS402A14700 WU25PD 14,700 0.5787 63 83 2,5 133 48 16
4143015 VDS402A14800 WU25PD 14,800 0.5827 63 83 2,6 133 48 16
4143016 VDS402A14900 WU25PD 14,900 0.5866 63 83 2,6 133 48 16
4143017 VDS402A15000 WU25PD 15,000 0.5906 63 83 2,6 133 48 16
4143019 VDS402A15100 WU25PD 15,100 0.5945 63 83 2,6 133 48 16
4143020 VDS402A15200 WU25PD 15,200 0.5984 63 83 2,6 133 48 16
4143021 VDS402A15300 WU25PD 15,300 0.6024 63 83 2,6 133 48 16
4143022 VDS402A15400 WU25PD 15,400 0.6063 63 83 2,7 133 48 16
4143034 VDS402A15500 WU25PD 15,500 0.6102 63 83 2,7 133 48 16
4143035 VDS402A15600 WU25PD 15,600 0.6142 63 83 2,7 133 48 16
4143036 VDS402A15700 WU25PD 15,700 0.6181 63 83 2,7 133 48 16
4143037 VDS402A15800 WU25PD 15,800 0.6220 63 83 2,7 133 48 16
4143039 VDS402A15900 WU25PD 15,900 0.6260 63 83 2,8 133 48 16
4143040 VDS402A16000 WU25PD 16,000 0.6299 63 83 2,8 133 48 16
4143041 VDS402A16100 WU25PD 16,100 0.6339 71 93 2,8 143 48 18
4143042 VDS402A16200 WU25PD 16,200 0.6378 71 93 2,8 143 48 18
4143054 VDS402A16300 WU25PD 16,300 0.6417 71 93 2,8 143 48 18
4143055 VDS402A16400 WU25PD 16,400 0.6457 71 93 2,8 143 48 18
4143056 VDS402A16500 WU25PD 16,500 0.6496 71 93 2,9 143 48 18
4143057 VDS402A16600 WU25PD 16,600 0.6535 71 93 2,9 143 48 18
4143059 VDS402A16700 WU25PD 16,700 0.6575 71 93 2,9 143 48 18
4143060 VDS402A16800 WU25PD 16,800 0.6614 71 93 2,9 143 48 18
4143061 VDS402A16900 WU25PD 16,900 0.6654 71 93 2,9 143 48 18
4143062 VDS402A17000 WU25PD 17,000 0.6693 71 93 2,9 143 48 18
4143073 VDS402A17100 WU25PD 17,100 0.6732 71 93 3,0 143 48 18
4143074 VDS402A17200 WU25PD 17,200 0.6772 71 93 3,0 143 48 18
4143075 VDS402A17300 WU25PD 17,300 0.6811 71 93 3,0 143 48 18
4143076 VDS402A17400 WU25PD 17,400 0.6850 71 93 3,0 143 48 18
4143078 VDS402A17500 WU25PD 17,500 0.6890 71 93 3,0 143 48 18
4143079 VDS402A17600 WU25PD 17,600 0.6929 71 93 3,1 143 48 18
4143080 VDS402A17700 WU25PD 17,700 0.6969 71 93 3,1 143 48 18
4143081 VDS402A17800 WU25PD 17,800 0.7008 71 93 3,1 143 48 18
4143093 VDS402A17900 WU25PD 17,900 0.7047 71 93 3,1 143 48 18
4142803 VDS402A18000 WU25PD 18,000 0.7087 71 93 3,1 143 48 18
4142804 VDS402A18100 WU25PD 18,100 0.7126 77 101 3,1 153 50 20
4142805 VDS402A18200 WU25PD 18,200 0.7165 77 101 3,2 153 50 20
4142807 VDS402A18300 WU25PD 18,300 0.7205 77 101 3,2 153 50 20
4142808 VDS402A18400 WU25PD 18,400 0.7244 77 101 3,2 153 50 20
4142809 VDS402A18500 WU25PD 18,500 0.7283 77 101 3,2 153 50 20
4142810 VDS402A18600 WU25PD 18,600 0.7323 77 101 3,2 153 50 20
4142812 VDS402A18700 WU25PD 18,700 0.7362 77 101 3,3 153 50 20
4142824 VDS402A18800 WU25PD 18,800 0.7402 77 101 3,3 153 50 20
4142826 VDS402A18900 WU25PD 18,900 0.7441 77 101 3,3 153 50 20
4142828 VDS402A19000 WU25PD 19,000 0.7480 77 101 3,3 153 50 20
4142833 VDS402A19100 WU25PD 19,100 0.7520 77 101 3,3 153 50 20
4142835 VDS402A19200 WU25PD 19,200 0.7559 77 101 3,3 153 50 20
4142837 VDS402A19300 WU25PD 19,300 0.7598 77 101 3,4 153 50 20
4142839 VDS402A19400 WU25PD 19,400 0.7638 77 101 3,4 153 50 20
4142841 VDS402A19500 WU25PD 19,500 0.7677 77 101 3,4 153 50 20
4142853 VDS402A19600 WU25PD 19,600 0.7717 77 101 3,4 153 50 20
4142854 VDS402A19700 WU25PD 19,700 0.7756 77 101 3,4 153 50 20
4142856 VDS402A19800 WU25PD 19,800 0.7795 77 101 3,4 153 50 20
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
111
widia.com
Holemaking
Holemaking
VariDrill™
(continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS403A • 8 x D • Through Coolant
4143700 VDS403A01500 WU25PD 1,500 0.0591 15 18 0,2 58 28 4
4143701 VDS403A01600 WU25PD 1,600 0.0630 15 18 0,2 58 28 4
4143702 VDS403A01700 WU25PD 1,700 0.0669 15 18 0,3 58 28 4
4143723 VDS403A01800 WU25PD 1,800 0.0709 15 18 0,3 58 28 4
4143724 VDS403A01900 WU25PD 1,900 0.0748 15 18 0,3 58 28 4
4143726 VDS403A02000 WU25PD 2,000 0.0787 22 26 0,3 66 28 4
4143727 VDS403A02100 WU25PD 2,100 0.0827 22 26 0,3 66 28 4
4143728 VDS403A02200 WU25PD 2,200 0.0866 22 26 0,3 66 28 4
4143729 VDS403A02300 WU25PD 2,300 0.0906 22 26 0,4 66 28 4
4143731 VDS403A02400 WU25PD 2,400 0.0945 25 30 0,4 66 28 4
4143734 VDS403A02500 WU25PD 2,500 0.0984 25 30 0,4 66 28 4
4143736 VDS403A02600 WU25PD 2,600 0.1024 25 30 0,4 66 28 4
4143738 VDS403A02700 WU25PD 2,700 0.1063 25 30 0,4 66 28 4
4143741 VDS403A02800 WU25PD 2,800 0.1102 25 30 0,5 66 28 4
4143744 VDS403A02900 WU25PD 2,900 0.1142 25 30 0,5 66 28 4
4143746 VDS403A03000 WU25PD 3,000 0.1181 33 40 0,5 78 36 6
4143748 VDS403A03100 WU25PD 3,100 0.1220 33 40 0,5 78 36 6
4143750 VDS403A03200 WU25PD 3,200 0.1260 33 40 0,5 78 36 6
4143752 VDS403A03300 WU25PD 3,300 0.1299 33 40 0,5 78 36 6
4143753 VDS403A03400 WU25PD 3,400 0.1339 33 40 0,6 78 36 6
4143755 VDS403A03500 WU25PD 3,500 0.1378 33 49 0,6 78 36 6
4143757 VDS403A03600 WU25PD 3,600 0.1417 33 40 0,6 78 36 6
4143759 VDS403A03700 WU25PD 3,700 0.1457 33 40 0,6 78 36 6
4143761 VDS403A03800 WU25PD 3,800 0.1496 41 49 0,6 87 36 6
4143762 VDS403A03900 WU25PD 3,900 0.1535 41 40 0,6 87 36 6
4143764 VDS403A04000 WU25PD 4,000 0.1575 41 40 0,7 87 36 6
4143767 VDS403A04100 WU25PD 4,100 0.1614 41 49 0,7 87 36 6
4143768 VDS403A04200 WU25PD 4,200 0.1654 41 49 0,7 87 36 6
4143770 VDS403A04300 WU25PD 4,300 0.1693 41 49 0,7 87 36 6
4143772 VDS403A04400 WU25PD 4,400 0.1732 41 49 0,7 87 36 6
4143773 VDS403A04500 WU25PD 4,500 0.1772 41 49 0,7 87 36 6
4143774 VDS403A04600 WU25PD 4,600 0.1811 41 49 0,8 87 36 6
4143776 VDS403A04700 WU25PD 4,700 0.1850 41 49 0,8 87 36 6
4143778 VDS403A04800 WU25PD 4,800 0.1890 48 56 0,8 94 36 6
4143780 VDS403A04900 WU25PD 4,900 0.1929 48 56 0,8 94 36 6
4143781 VDS403A05000 WU25PD 5,000 0.1969 48 56 0,8 94 36 6
4143782 VDS403A05100 WU25PD 5,100 0.2008 48 56 0,8 94 36 6
4143785 VDS403A05200 WU25PD 5,200 0.2047 48 56 0,9 94 36 6
4143786 VDS403A05300 WU25PD 5,300 0.2087 48 56 0,9 94 36 6
4143787 VDS403A05400 WU25PD 5,400 0.2126 48 56 0,9 94 36 6
4143789 VDS403A05500 WU25PD 5,500 0.2165 48 56 0,9 94 36 6
4143791 VDS403A05600 WU25PD 5,600 0.2205 48 56 0,9 94 36 6
4143793 VDS403A05700 WU25PD 5,700 0.2244 48 56 1,0 94 36 6
4143794 VDS403A05800 WU25PD 5,800 0.2283 48 67 1,0 94 36 6
4143795 VDS403A05900 WU25PD 5,900 0.2323 48 56 1,0 94 36 6
4143797 VDS403A06000 WU25PD 6,000 0.2362 48 67 1,0 94 36 6
4143798 VDS403A06100 WU25PD 6,100 0.2402 57 67 1,0 105 36 8
4143799 VDS403A06200 WU25PD 6,200 0.2441 57 67 1,0 105 36 8
4143800 VDS403A06300 WU25PD 6,300 0.2480 57 67 1,1 105 36 8
4143802 VDS403A06400 WU25PD 6,400 0.2520 57 67 1,1 105 36 8
4143803 VDS403A06500 WU25PD 6,500 0.2559 57 67 1,1 105 36 8
4143805 VDS403A06600 WU25PD 6,600 0.2598 57 67 1,1 105 36 8
4143807 VDS403A06700 WU25PD 6,700 0.2638 57 67 1,1 105 36 8
4143809 VDS403A06800 WU25PD 6,800 0.2677 57 67 1,1 105 36 8
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
112 widia.com
Holemaking
Holemaking
VariDrill™
(VariDrill — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS403A • 8 x D • Through Coolant (continued)
4143810 VDS403A06900 WU25PD 6,900 0.2717 57 67 1,2 105 36 8
4143811 VDS403A07000 WU25PD 7,000 0.2756 57 72 1,2 105 36 8
4143812 VDS403A07100 WU25PD 7,100 0.2795 61 72 1,2 110 36 8
4143814 VDS403A07200 WU25PD 7,200 0.2835 61 72 1,2 110 36 8
4143815 VDS403A07300 WU25PD 7,300 0.2874 61 72 1,2 110 36 8
4143816 VDS403A07400 WU25PD 7,400 0.2913 61 72 1,3 110 36 8
4143817 VDS403A07500 WU25PD 7,500 0.2953 61 72 1,3 110 36 8
4143819 VDS403A07600 WU25PD 7,600 0.2992 61 72 1,3 110 36 8
4143820 VDS403A07700 WU25PD 7,700 0.3031 61 72 1,3 110 36 8
4143821 VDS403A07800 WU25PD 7,800 0.3071 61 80 1,3 110 36 8
4143822 VDS403A07900 WU25PD 7,900 0.3110 61 72 1,3 110 36 8
4143824 VDS403A08000 WU25PD 8,000 0.3150 61 80 1,4 110 36 8
4143825 VDS403A08100 WU25PD 8,100 0.3189 68 80 1,4 122 40 10
4143826 VDS403A08200 WU25PD 8,200 0.3228 68 80 1,4 122 40 10
4143827 VDS403A08300 WU25PD 8,300 0.3268 68 80 1,4 122 40 10
4143829 VDS403A08400 WU25PD 8,400 0.3307 68 80 1,4 122 40 10
4143831 VDS403A08500 WU25PD 8,500 0.3346 68 80 1,4 122 40 10
4143832 VDS403A08600 WU25PD 8,600 0.3386 68 80 1,5 122 40 10
4143833 VDS403A08700 WU25PD 8,700 0.3425 68 72 1,5 122 40 10
4143835 VDS403A08800 WU25PD 8,800 0.3465 68 72 1,5 122 40 10
4143836 VDS403A08900 WU25PD 8,900 0.3504 68 80 1,5 122 40 10
4143837 VDS403A09000 WU25PD 9,000 0.3543 68 72 1,5 122 40 10
4143838 VDS403A09100 WU25PD 9,100 0.3583 68 80 1,6 122 40 10
4143840 VDS403A09200 WU25PD 9,200 0.3622 68 80 1,6 122 40 10
4143841 VDS403A09300 WU25PD 9,300 0.3661 68 80 1,6 122 40 10
4143843 VDS403A09400 WU25PD 9,400 0.3701 68 80 1,6 122 40 10
4143844 VDS403A09500 WU25PD 9,500 0.3740 68 80 1,6 122 40 10
4143846 VDS403A09600 WU25PD 9,600 0.3780 68 80 1,6 122 40 10
4143847 VDS403A09700 WU25PD 9,700 0.3819 68 80 1,7 122 40 10
4143848 VDS403A09800 WU25PD 9,800 0.3858 68 80 1,7 122 40 10
4143849 VDS403A09900 WU25PD 9,900 0.3898 68 80 1,7 122 40 10
4143421 VDS403A10000 WU25PD 10,000 0.3937 68 80 1,7 122 40 10
4143422 VDS403A10100 WU25PD 10,100 0.3976 79 94 1,7 141 45 12
4143473 VDS403A10200 WU25PD 10,200 0.4016 79 94 1,7 141 45 12
4143474 VDS403A10300 WU25PD 10,300 0.4055 79 94 1,8 141 45 12
4143476 VDS403A10400 WU25PD 10,400 0.4094 79 94 1,8 141 45 12
4143477 VDS403A10500 WU25PD 10,500 0.4134 79 94 1,8 141 45 12
4143478 VDS403A10600 WU25PD 10,600 0.4173 79 94 1,8 141 45 12
4143479 VDS403A10700 WU25PD 10,700 0.4213 79 94 1,8 141 45 12
4143481 VDS403A10800 WU25PD 10,800 0.4252 79 94 1,9 141 45 12
4143482 VDS403A10900 WU25PD 10,900 0.4291 79 94 1,9 141 45 12
4143483 VDS403A11000 WU25PD 11,000 0.4331 79 94 1,9 141 45 12
4143484 VDS403A11100 WU25PD 11,100 0.4370 79 94 1,9 141 45 12
4143486 VDS403A11200 WU25PD 11,200 0.4409 79 94 1,9 141 45 12
4143487 VDS403A11300 WU25PD 11,300 0.4449 79 94 1,9 141 45 12
4143488 VDS403A11400 WU25PD 11,400 0.4488 79 94 2,0 141 45 12
4143489 VDS403A11500 WU25PD 11,500 0.4528 79 94 2,0 141 45 12
4143491 VDS403A11600 WU25PD 11,600 0.4567 79 94 2,0 141 45 12
4143492 VDS403A11700 WU25PD 11,700 0.4606 79 94 2,0 141 45 12
4143493 VDS403A11800 WU25PD 11,800 0.4646 79 94 2,0 141 45 12
4143494 VDS403A11900 WU25PD 11,900 0.4685 79 94 2,0 141 45 12
4143496 VDS403A12000 WU25PD 12,000 0.4724 79 94 2,1 141 45 12
4143497 VDS403A12100 WU25PD 12,100 0.4764 91 108 2,1 155 45 14
4143498 VDS403A12200 WU25PD 12,200 0.4803 91 108 2,1 155 45 14
4143499 VDS403A12300 WU25PD 12,300 0.4843 91 108 2,1 155 45 14
4143501 VDS403A12400 WU25PD 12,400 0.4882 91 108 2,1 155 45 14
4143502 VDS403A12500 WU25PD 12,500 0.4921 91 108 2,1 155 45 14
4143503 VDS403A12600 WU25PD 12,600 0.4961 91 108 2,2 155 45 14
4143504 VDS403A12700 WU25PD 12,700 0.5000 91 108 2,2 155 45 14
4143505 VDS403A12800 WU25PD 12,800 0.5039 91 108 2,2 155 45 14
4143506 VDS403A12900 WU25PD 12,900 0.5079 91 108 2,2 155 45 14
4143507 VDS403A13000 WU25PD 13,000 0.5118 91 108 2,2 155 45 14
4143509 VDS403A13100 WU25PD 13,100 0.5157 91 108 2,3 155 45 14
4143510 VDS403A13200 WU25PD 13,200 0.5197 91 108 2,3 155 45 14
(continued)
Language Version: 98_113_WID_All-Star19_Holemaking_VARIDRILL September 27, 2018 12:37 PM
113
widia.com
Holemaking
Holemaking
VariDrill™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L4 max
(mm)
L3
(mm)
L5
(mm)
L
(mm)
LS
(mm)
D
(mm)
VDS403A • 8 x D • Through Coolant (continued)
4143511 VDS403A13300 WU25PD 13,300 0.5236 91 108 2,3 155 45 14
4143512 VDS403A13400 WU25PD 13,400 0.5276 91 108 2,3 155 45 14
4143513 VDS403A13500 WU25PD 13,500 0.5315 91 108 2,3 155 45 14
4143514 VDS403A13600 WU25PD 13,600 0.5354 91 108 2,3 155 45 14
4143515 VDS403A13700 WU25PD 13,700 0.5394 91 108 2,4 155 45 14
4143516 VDS403A13800 WU25PD 13,800 0.5433 91 108 2,4 155 45 14
4143518 VDS403A13900 WU25PD 13,900 0.5472 91 108 2,4 155 45 14
4143519 VDS403A14000 WU25PD 14,000 0.5512 91 108 2,4 155 45 14
4143520 VDS403A14100 WU25PD 14,100 0.5551 101 121 2,4 171 48 16
4143521 VDS403A14200 WU25PD 14,200 0.5591 101 121 2,5 171 48 16
4143523 VDS403A14300 WU25PD 14,300 0.5630 101 121 2,5 171 48 16
4143524 VDS403A14400 WU25PD 14,400 0.5669 101 121 2,5 171 48 16
4143525 VDS403A14500 WU25PD 14,500 0.5709 101 121 2,5 171 48 16
4143526 VDS403A14600 WU25PD 14,600 0.5748 101 121 2,5 171 48 16
4143528 VDS403A14700 WU25PD 14,700 0.5787 101 121 2,5 171 48 16
4143529 VDS403A14800 WU25PD 14,800 0.5827 101 121 2,6 171 48 16
4143530 VDS403A14900 WU25PD 14,900 0.5866 101 121 2,6 171 48 16
4143531 VDS403A15000 WU25PD 15,000 0.5906 101 121 2,6 171 48 16
4143533 VDS403A15100 WU25PD 15,100 0.5945 101 121 2,6 171 48 16
4143534 VDS403A15200 WU25PD 15,200 0.5984 101 121 2,6 171 48 16
4143535 VDS403A15300 WU25PD 15,300 0.6024 101 121 2,6 171 48 16
4143536 VDS403A15400 WU25PD 15,400 0.6063 101 121 2,7 171 48 16
4143538 VDS403A15500 WU25PD 15,500 0.6102 101 121 2,7 171 48 16
4143539 VDS403A15600 WU25PD 15,600 0.6142 101 121 2,7 171 48 16
4143540 VDS403A15700 WU25PD 15,700 0.6181 101 121 2,7 171 48 16
4143541 VDS403A15800 WU25PD 15,800 0.6220 101 121 2,7 171 48 16
4143543 VDS403A15900 WU25PD 15,900 0.6260 101 121 2,8 171 48 16
4143544 VDS403A16000 WU25PD 16,000 0.6299 101 121 2,8 171 48 16
4143546 VDS403A16200 WU25PD 16,200 0.6378 113 135 2,8 185 48 18
4143550 VDS403A16500 WU25PD 16,500 0.6496 113 135 2,9 185 48 18
4143553 VDS403A16700 WU25PD 16,700 0.6575 113 135 2,9 185 48 18
4143554 VDS403A16800 WU25PD 16,800 0.6614 113 135 2,9 185 48 18
4143556 VDS403A17000 WU25PD 17,000 0.6693 113 135 2,9 185 48 18
4143562 VDS403A17500 WU25PD 17,500 0.6890 113 135 3,0 185 48 18
4143563 VDS403A17600 WU25PD 17,600 0.6929 113 135 3,1 185 48 18
4143565 VDS403A17800 WU25PD 17,800 0.7008 113 135 3,1 185 48 18
4144209 VDS403A18000 WU25PD 18,000 0.7087 113 135 3,1 185 48 18
4144211 VDS403A18100 WU25PD 18,100 0.7126 124 148 3,1 200 50 20
4144212 VDS403A18200 WU25PD 18,200 0.7165 124 148 3,2 200 50 20
4144250 VDS403A18500 WU25PD 18,500 0.7283 124 148 3,2 200 50 20
4144258 VDS403A18800 WU25PD 18,800 0.7402 124 148 3,3 200 50 20
4144262 VDS403A19000 WU25PD 19,000 0.7480 124 148 3,3 200 50 20
4144285 VDS403A19500 WU25PD 19,500 0.7677 124 148 3,4 200 50 20
4144291 VDS403A19800 WU25PD 19,800 0.7795 124 148 3,4 200 50 20
4144305 VDS403A20000 WU25PD 20,000 0.7874 124 148 3,5 200 50 20
(VariDrill — continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
114 widia.com
• Designed for maximum productivity and longer tool life for steel and cast iron.
• Easy to choose and apply.
• One of the broadest ranges on the market for diameter selection,
length series, and coolant options.
• Highest metal removal rates possible without sacrificing tool life.
• Latest Victory™ grades from WIDIA.
Easy chip evacuation
Free chip flow and chip evacuation.
Minimised chip jamming
Special gash and flute form
for effective chip formation.
Excellent centring capability
Application-Specific Drilling •
WIDIA™ TOP DRILL S™ for Steel and Cast Iron
TOP DRILL S
TOP DRILL S is the WIDIA line of solid carbide drills engineered to provide maximum
performance and superior finish for application-specific tasks. Available in two material
applications, TDS for steel and cast iron are each specially designed and coated to maximise
output and increase tool life — offering less cost-per-hole and greater productivity.
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
115
widia.com
TOP DRILL S™ for Steel
TOP DRILL S for steel is a high-performance solid carbide drill with an
application-specific design. Although the point geometry is strong enough to drill
stainless steel and cast iron, it is engineered to maximise performance when
drilling steel. The WP20PD™ grade, designed to resist high heat and wear, is the
latest in WIDIA™ technology. The two-margin design facilitates excellent hole
quality and less friction when drilling steel at high speeds.
TOP DRILL S for Cast Iron
TOP DRILL S for cast iron is designed with application-specific point geometry
for maximum performance in cast iron materials. The point features corner
chamfers that minimise breakout on exit holes. A four-margin design improves
hole straightness, increasing tool life and extending cross-hole and inclined
exit capabilities when drilling tough cast iron. The technologically advanced
WK15PD™ grade is specially engineered to withstand high wear.
WIDIA Advantage
• Application-specific geometry with the latest WIDIA grade technology.
• Lower cost-per-hole due to high MRR and long tool life.
• Consistent performance from internally controlled supply chain:
Powder > Rod > Grinding > Coating
• Part of the complete WIDIA holemaking solution.
• Broad range of standard lengths, diameters, and coolant options in one line,
including extensive intermediate metric, inch, fraction, and wire sizes.
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
116 widia.com
Holemaking
Holemaking
TOP DRILL S™
(continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS401A • 3 x D • Through Coolant
4163315 TDS401A03000 WP20PD 3,000 0.1181 62 20 14 0,5 36 6
4163338 TDS401A03100 WP20PD 3,100 0.1220 62 20 14 0,5 36 6
4163340 TDS401A03200 WP20PD 3,200 0.1260 62 20 14 0,5 36 6
4163342 TDS401A03300 WP20PD 3,300 0.1299 62 20 14 0,5 36 6
4163463 TDS401A03400 WP20PD 3,400 0.1339 62 20 14 0,6 36 6
4163465 TDS401A03500 WP20PD 3,500 0.1378 62 20 14 0,6 36 6
4163467 TDS401A03600 WP20PD 3,600 0.1417 62 20 14 0,6 36 6
4163469 TDS401A03700 WP20PD 3,700 0.1457 62 20 14 0,6 36 6
4163471 TDS401A03800 WP20PD 3,800 0.1496 66 24 17 0,6 36 6
4163472 TDS401A03900 WP20PD 3,900 0.1535 66 24 17 0,6 36 6
4163474 TDS401A04000 WP20PD 4,000 0.1575 66 24 17 0,7 36 6
4163477 TDS401A04100 WP20PD 4,100 0.1614 66 24 17 0,7 36 6
4163478 TDS401A04200 WP20PD 4,200 0.1654 66 24 17 0,7 36 6
4163480 TDS401A04300 WP20PD 4,300 0.1693 66 24 17 0,7 36 6
4163482 TDS401A04400 WP20PD 4,400 0.1732 66 24 17 0,7 36 6
4163483 TDS401A04500 WP20PD 4,500 0.1772 66 24 17 0,7 36 6
4163484 TDS401A04600 WP20PD 4,600 0.1811 66 24 17 0,8 36 6
4163486 TDS401A04700 WP20PD 4,700 0.1850 66 24 17 0,8 36 6
4163488 TDS401A04800 WP20PD 4,800 0.1890 66 28 20 0,8 36 6
4163490 TDS401A04900 WP20PD 4,900 0.1929 66 28 20 0,8 36 6
4163491 TDS401A05000 WP20PD 5,000 0.1969 66 28 20 0,8 36 6
4163492 TDS401A05100 WP20PD 5,100 0.2008 66 28 20 0,8 36 6
4163495 TDS401A05200 WP20PD 5,200 0.2047 66 28 20 0,9 36 6
4163496 TDS401A05300 WP20PD 5,300 0.2087 66 28 20 0,9 36 6
4163497 TDS401A05400 WP20PD 5,400 0.2126 66 28 20 0,9 36 6
4163499 TDS401A05500 WP20PD 5,500 0.2165 66 28 20 0,9 36 6
4163501 TDS401A05600 WP20PD 5,600 0.2205 66 28 20 0,9 36 6
4163503 TDS401A05700 WP20PD 5,700 0.2244 66 28 20 1,0 36 6
4163504 TDS401A05800 WP20PD 5,800 0.2283 66 28 20 1,0 36 6
4163505 TDS401A05900 WP20PD 5,900 0.2323 66 28 20 1,0 36 6
4163507 TDS401A06000 WP20PD 6,000 0.2362 66 28 20 1,0 36 6
4163508 TDS401A06100 WP20PD 6,100 0.2402 79 34 24 1,0 36 8
4163509 TDS401A06200 WP20PD 6,200 0.2441 79 34 24 1,0 36 8
4163510 TDS401A06300 WP20PD 6,300 0.2480 79 34 24 1,1 36 8
4163512 TDS401A06400 WP20PD 6,400 0.2520 79 34 24 1,1 36 8
4163513 TDS401A06500 WP20PD 6,500 0.2559 79 34 24 1,1 36 8
4163515 TDS401A06600 WP20PD 6,600 0.2598 79 34 24 1,1 36 8
4163517 TDS401A06700 WP20PD 6,700 0.2638 79 34 24 1,1 36 8
4163519 TDS401A06800 WP20PD 6,800 0.2677 79 34 24 1,1 36 8
4163520 TDS401A06900 WP20PD 6,900 0.2717 79 34 24 1,2 36 8
4163521 TDS401A07000 WP20PD 7,000 0.2756 79 34 24 1,2 36 8
4163522 TDS401A07100 WP20PD 7,100 0.2795 79 41 29 1,2 36 8
4163524 TDS401A07200 WP20PD 7,200 0.2835 79 41 29 1,2 36 8
4163525 TDS401A07300 WP20PD 7,300 0.2874 79 41 29 1,2 36 8
4163526 TDS401A07400 WP20PD 7,400 0.2913 79 41 29 1,3 36 8
4163527 TDS401A07500 WP20PD 7,500 0.2953 79 41 29 1,3 36 8
4163529 TDS401A07600 WP20PD 7,600 0.2992 79 41 29 1,3 36 8
4163530 TDS401A07700 WP20PD 7,700 0.3031 79 41 29 1,3 36 8
4163531 TDS401A07800 WP20PD 7,800 0.3071 79 41 29 1,3 36 8
4163532 TDS401A07900 WP20PD 7,900 0.3110 79 41 29 1,3 36 8
4163534 TDS401A08000 WP20PD 8,000 0.3150 79 41 29 1,4 36 8
4163535 TDS401A08100 WP20PD 8,100 0.3189 89 47 35 1,4 40 10
4163536 TDS401A08200 WP20PD 8,200 0.3228 89 47 35 1,4 40 10
4163537 TDS401A08300 WP20PD 8,300 0.3268 89 47 35 1,4 40 10
4163539 TDS401A08400 WP20PD 8,400 0.3307 89 47 35 1,4 40 10
4163541 TDS401A08500 WP20PD 8,500 0.3346 89 47 35 1,4 40 10
4163542 TDS401A08600 WP20PD 8,600 0.3386 89 47 35 1,5 40 10
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
117
widia.com
Holemaking
Holemaking
TOP DRILL S™
(TOP DRILL S — continued)
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS401A • 3 x D • Through Coolant (continued)
4163543 TDS401A08700 WP20PD 8,700 0.3425 89 47 35 1,5 40 10
4163545 TDS401A08800 WP20PD 8,800 0.3465 89 47 35 1,5 40 10
4163546 TDS401A08900 WP20PD 8,900 0.3504 89 47 35 1,5 40 10
4163547 TDS401A09000 WP20PD 9,000 0.3543 89 47 35 1,5 40 10
4163548 TDS401A09100 WP20PD 9,100 0.3583 89 47 35 1,5 40 10
4163550 TDS401A09200 WP20PD 9,200 0.3622 89 47 35 1,6 40 10
4163551 TDS401A09300 WP20PD 9,300 0.3661 89 47 35 1,6 40 10
4163553 TDS401A09400 WP20PD 9,400 0.3701 89 47 35 1,6 40 10
4163554 TDS401A09500 WP20PD 9,500 0.3740 89 47 35 1,6 40 10
4163556 TDS401A09600 WP20PD 9,600 0.3780 89 47 35 1,6 40 10
4163557 TDS401A09700 WP20PD 9,700 0.3819 89 47 35 1,7 40 10
4163558 TDS401A09800 WP20PD 9,800 0.3858 89 47 35 1,7 40 10
4163559 TDS401A09900 WP20PD 9,900 0.3898 89 47 35 1,7 40 10
4162950 TDS401A10000 WP20PD 10,000 0.3937 89 47 35 1,7 40 10
4162951 TDS401A10100 WP20PD 10,100 0.3976 102 55 40 1,7 45 12
4162952 TDS401A10200 WP20PD 10,200 0.4016 102 55 40 1,7 45 12
4163343 TDS401A10300 WP20PD 10,300 0.4055 102 55 40 1,8 45 12
4163345 TDS401A10400 WP20PD 10,400 0.4094 102 55 40 1,8 45 12
4163346 TDS401A10500 WP20PD 10,500 0.4134 102 55 40 1,8 45 12
4163347 TDS401A10600 WP20PD 10,600 0.4173 102 55 40 1,8 45 12
4163348 TDS401A10700 WP20PD 10,700 0.4213 102 55 40 1,8 45 12
4163350 TDS401A10800 WP20PD 10,800 0.4252 102 55 40 1,8 45 12
4163351 TDS401A10900 WP20PD 10,900 0.4291 102 55 40 1,9 45 12
4163352 TDS401A11000 WP20PD 11,000 0.4331 102 55 40 1,9 45 12
4163353 TDS401A11100 WP20PD 11,100 0.4370 102 55 40 1,9 45 12
4163355 TDS401A11200 WP20PD 11,200 0.4409 102 55 40 1,9 45 12
4163356 TDS401A11300 WP20PD 11,300 0.4449 102 55 40 1,9 45 12
4163357 TDS401A11400 WP20PD 11,400 0.4488 102 55 40 2,0 45 12
4163358 TDS401A11500 WP20PD 11,500 0.4528 102 55 40 2,0 45 12
4163360 TDS401A11600 WP20PD 11,600 0.4567 102 55 40 2,0 45 12
4163361 TDS401A11700 WP20PD 11,700 0.4606 102 55 40 2,0 45 12
4163362 TDS401A11800 WP20PD 11,800 0.4646 102 55 40 2,0 45 12
4163365 TDS401A12000 WP20PD 12,000 0.4724 102 55 40 2,1 45 12
4163366 TDS401A12100 WP20PD 12,100 0.4764 107 60 43 2,1 45 14
4163367 TDS401A12200 WP20PD 12,200 0.4803 107 60 43 2,1 45 14
4163368 TDS401A12300 WP20PD 12,300 0.4843 107 60 43 2,1 45 14
4163370 TDS401A12400 WP20PD 12,400 0.4882 107 60 43 2,1 45 14
4163371 TDS401A12500 WP20PD 12,500 0.4921 107 60 43 2,1 45 14
4163372 TDS401A12600 WP20PD 12,600 0.4961 107 60 43 2,2 45 14
4163373 TDS401A12700 WP20PD 12,700 0.5000 107 60 43 2,2 45 14
4163374 TDS401A12800 WP20PD 12,800 0.5039 107 60 43 2,2 45 14
4163375 TDS401A12900 WP20PD 12,900 0.5079 107 60 43 2,2 45 14
4163376 TDS401A13000 WP20PD 13,000 0.5118 107 60 43 2,2 45 14
4163378 TDS401A13100 WP20PD 13,100 0.5157 107 60 43 2,3 45 14
4163379 TDS401A13200 WP20PD 13,200 0.5197 107 60 43 2,3 45 14
4163380 TDS401A13300 WP20PD 13,300 0.5236 107 60 43 2,3 45 14
4163381 TDS401A13400 WP20PD 13,400 0.5276 107 60 43 2,3 45 14
4163382 TDS401A13500 WP20PD 13,500 0.5315 107 60 43 2,3 45 14
4163383 TDS401A13600 WP20PD 13,600 0.5354 107 60 43 2,3 45 14
4163384 TDS401A13700 WP20PD 13,700 0.5394 107 60 43 2,4 45 14
4163385 TDS401A13800 WP20PD 13,800 0.5433 107 60 43 2,4 45 14
4163387 TDS401A13900 WP20PD 13,900 0.5472 107 60 43 2,4 45 14
4163388 TDS401A14000 WP20PD 14,000 0.5512 107 60 43 2,4 45 14
4163390 TDS401A14200 WP20PD 14,200 0.5591 115 65 45 2,5 48 16
4163392 TDS401A14300 WP20PD 14,300 0.5630 115 65 45 2,5 48 16
4163394 TDS401A14500 WP20PD 14,500 0.5709 115 65 45 2,5 48 16
4163397 TDS401A14700 WP20PD 14,700 0.5787 115 65 45 2,5 48 16
4163400 TDS401A15000 WP20PD 15,000 0.5906 115 65 45 2,6 48 16
4163413 TDS401A16000 WP20PD 16,000 0.6299 115 65 45 2,8 48 16
4163419 TDS401A16500 WP20PD 16,500 0.6496 123 73 51 2,9 48 18
4163425 TDS401A17000 WP20PD 17,000 0.6693 123 73 51 2,9 48 18
4163431 TDS401A17500 WP20PD 17,500 0.6890 123 73 51 3,0 48 18
4163271 TDS401A18000 WP20PD 18,000 0.7087 123 73 51 3,1 48 18
4163293 TDS401A19000 WP20PD 19,000 0.7480 131 79 55 3,3 50 20
4163304 TDS401A20000 WP20PD 20,000 0.7874 131 79 55 3,5 50 20
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
118 widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS411A • 3 x D • Through Coolant
4157799 TDS411A03000 WK15PD 3,000 0.1181 62 20 14 0,5 36 6
4157801 TDS411A03100 WK15PD 3,100 0.1220 62 20 14 0,5 36 6
4157803 TDS411A03200 WK15PD 3,200 0.1260 62 20 14 0,5 36 6
4157805 TDS411A03300 WK15PD 3,300 0.1299 62 20 14 0,5 36 6
4157806 TDS411A03400 WK15PD 3,400 0.1339 62 20 14 0,6 36 6
4157808 TDS411A03500 WK15PD 3,500 0.1378 62 20 14 0,6 36 6
4157810 TDS411A03600 WK15PD 3,600 0.1417 62 20 14 0,6 36 6
4157812 TDS411A03700 WK15PD 3,700 0.1457 62 20 14 0,6 36 6
4157814 TDS411A03800 WK15PD 3,800 0.1496 66 24 17 0,6 36 6
4157815 TDS411A03900 WK15PD 3,900 0.1535 66 24 17 0,6 36 6
4157817 TDS411A04000 WK15PD 4,000 0.1575 66 24 17 0,7 36 6
4157820 TDS411A04100 WK15PD 4,100 0.1614 66 24 17 0,7 36 6
4157821 TDS411A04200 WK15PD 4,200 0.1654 66 24 17 0,7 36 6
4157823 TDS411A04300 WK15PD 4,300 0.1693 66 24 17 0,7 36 6
4157825 TDS411A04400 WK15PD 4,400 0.1732 66 24 17 0,7 36 6
4157826 TDS411A04500 WK15PD 4,500 0.1772 66 24 17 0,7 36 6
4157827 TDS411A04600 WK15PD 4,600 0.1811 66 24 17 0,8 36 6
4157829 TDS411A04700 WK15PD 4,700 0.1850 66 24 17 0,8 36 6
4157831 TDS411A04800 WK15PD 4,800 0.1890 66 28 20 0,8 36 6
4157833 TDS411A04900 WK15PD 4,900 0.1929 66 28 20 0,8 36 6
4157834 TDS411A05000 WK15PD 5,000 0.1969 66 28 20 0,8 36 6
4157835 TDS411A05100 WK15PD 5,100 0.2008 66 28 20 0,8 36 6
4157838 TDS411A05200 WK15PD 5,200 0.2047 66 28 20 0,9 36 6
4157839 TDS411A05300 WK15PD 5,300 0.2087 66 28 20 0,9 36 6
4157840 TDS411A05400 WK15PD 5,400 0.2126 66 28 20 0,9 36 6
4157842 TDS411A05500 WK15PD 5,500 0.2165 66 28 20 0,9 36 6
4157844 TDS411A05600 WK15PD 5,600 0.2205 66 28 20 0,9 36 6
4157846 TDS411A05700 WK15PD 5,700 0.2244 66 28 20 1,0 36 6
4157847 TDS411A05800 WK15PD 5,800 0.2283 66 28 20 1,0 36 6
4157848 TDS411A05900 WK15PD 5,900 0.2323 66 28 20 1,0 36 6
4157850 TDS411A06000 WK15PD 6,000 0.2362 66 28 20 1,0 36 6
4157851 TDS411A06100 WK15PD 6,100 0.2402 79 34 24 1,0 36 8
4157852 TDS411A06200 WK15PD 6,200 0.2441 79 34 24 1,0 36 8
4157853 TDS411A06300 WK15PD 6,300 0.2480 79 34 24 1,1 36 8
4157855 TDS411A06400 WK15PD 6,400 0.2520 79 34 24 1,1 36 8
4157856 TDS411A06500 WK15PD 6,500 0.2559 79 34 24 1,1 36 8
4157858 TDS411A06600 WK15PD 6,600 0.2598 79 34 24 1,1 36 8
4157860 TDS411A06700 WK15PD 6,700 0.2638 79 34 24 1,1 36 8
4157862 TDS411A06800 WK15PD 6,800 0.2677 79 34 24 1,1 36 8
4157863 TDS411A06900 WK15PD 6,900 0.2717 79 34 24 1,2 36 8
4157864 TDS411A07000 WK15PD 7,000 0.2756 79 34 24 1,2 36 8
4157865 TDS411A07100 WK15PD 7,100 0.2795 79 41 29 1,2 36 8
4157867 TDS411A07200 WK15PD 7,200 0.2835 79 41 29 1,2 36 8
4157868 TDS411A07300 WK15PD 7,300 0.2874 79 41 29 1,2 36 8
4157869 TDS411A07400 WK15PD 7,400 0.2913 79 41 29 1,3 36 8
4157870 TDS411A07500 WK15PD 7,500 0.2953 79 41 29 1,3 36 8
4157872 TDS411A07600 WK15PD 7,600 0.2992 79 41 29 1,3 36 8
4157873 TDS411A07700 WK15PD 7,700 0.3031 79 41 29 1,3 36 8
4157874 TDS411A07800 WK15PD 7,800 0.3071 79 41 29 1,3 36 8
4157875 TDS411A07900 WK15PD 7,900 0.3110 79 41 29 1,3 36 8
4157877 TDS411A08000 WK15PD 8,000 0.3150 79 41 29 1,4 36 8
4157878 TDS411A08100 WK15PD 8,100 0.3189 89 47 35 1,4 40 10
4157879 TDS411A08200 WK15PD 8,200 0.3228 89 47 35 1,4 40 10
4157880 TDS411A08300 WK15PD 8,300 0.3268 89 47 35 1,4 40 10
4157882 TDS411A08400 WK15PD 8,400 0.3307 89 47 35 1,4 40 10
4157884 TDS411A08500 WK15PD 8,500 0.3346 89 47 35 1,4 40 10
4157885 TDS411A08600 WK15PD 8,600 0.3386 89 47 35 1,5 40 10
(continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
119
widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS411A • 3 x D • Through Coolant (continued)
4157886 TDS411A08700 WK15PD 8,700 0.3425 89 47 35 1,5 40 10
4157888 TDS411A08800 WK15PD 8,800 0.3465 89 47 35 1,5 40 10
4157889 TDS411A08900 WK15PD 8,900 0.3504 89 47 35 1,5 40 10
4157890 TDS411A09000 WK15PD 9,000 0.3543 89 47 35 1,5 40 10
4157891 TDS411A09100 WK15PD 9,100 0.3583 89 47 35 1,5 40 10
4157893 TDS411A09200 WK15PD 9,200 0.3622 89 47 35 1,6 40 10
4157894 TDS411A09300 WK15PD 9,300 0.3661 89 47 35 1,6 40 10
4157896 TDS411A09400 WK15PD 9,400 0.3701 89 47 35 1,6 40 10
4157897 TDS411A09500 WK15PD 9,500 0.3740 89 47 35 1,6 40 10
4157899 TDS411A09600 WK15PD 9,600 0.3780 89 47 35 1,6 40 10
4157900 TDS411A09700 WK15PD 9,700 0.3819 89 47 35 1,7 40 10
4157901 TDS411A09800 WK15PD 9,800 0.3858 89 47 35 1,7 40 10
4157902 TDS411A09900 WK15PD 9,900 0.3898 89 47 35 1,7 40 10
4156562 TDS411A10000 WK15PD 10,000 0.3937 89 47 35 1,7 40 10
4156603 TDS411A10100 WK15PD 10,100 0.3976 102 55 40 1,7 45 12
4156604 TDS411A10200 WK15PD 10,200 0.4016 102 55 40 1,7 45 12
4156605 TDS411A10300 WK15PD 10,300 0.4055 102 55 40 1,8 45 12
4156607 TDS411A10400 WK15PD 10,400 0.4094 102 55 40 1,8 45 12
4156608 TDS411A10500 WK15PD 10,500 0.4134 102 55 40 1,8 45 12
4156609 TDS411A10600 WK15PD 10,600 0.4173 102 55 40 1,8 45 12
4156610 TDS411A10700 WK15PD 10,700 0.4213 102 55 40 1,8 45 12
4156612 TDS411A10800 WK15PD 10,800 0.4252 102 55 40 1,8 45 12
4156613 TDS411A10900 WK15PD 10,900 0.4291 102 55 40 1,9 45 12
4156614 TDS411A11000 WK15PD 11,000 0.4331 102 55 40 1,9 45 12
4156615 TDS411A11100 WK15PD 11,100 0.4370 102 55 40 1,9 45 12
4156617 TDS411A11200 WK15PD 11,200 0.4409 102 55 40 1,9 45 12
4156618 TDS411A11300 WK15PD 11,300 0.4449 102 55 40 1,9 45 12
4156619 TDS411A11400 WK15PD 11,400 0.4488 102 55 40 2,0 45 12
4156620 TDS411A11500 WK15PD 11,500 0.4528 102 55 40 2,0 45 12
4156622 TDS411A11600 WK15PD 11,600 0.4567 102 55 40 2,0 45 12
4156623 TDS411A11700 WK15PD 11,700 0.4606 102 55 40 2,0 45 12
4156624 TDS411A11800 WK15PD 11,800 0.4646 102 55 40 2,0 45 12
4156625 TDS411A11900 WK15PD 11,900 0.4685 102 55 40 2,0 45 12
4156627 TDS411A12000 WK15PD 12,000 0.4724 102 55 40 2,1 45 12
4156628 TDS411A12100 WK15PD 12,100 0.4764 107 60 43 2,1 45 14
4156629 TDS411A12200 WK15PD 12,200 0.4803 107 60 43 2,1 45 14
4156630 TDS411A12300 WK15PD 12,300 0.4843 107 60 43 2,1 45 14
4156632 TDS411A12400 WK15PD 12,400 0.4882 107 60 43 2,1 45 14
4156633 TDS411A12500 WK15PD 12,500 0.4921 107 60 43 2,1 45 14
4156634 TDS411A12600 WK15PD 12,600 0.4961 107 60 43 2,2 45 14
4156635 TDS411A12700 WK15PD 12,700 0.5000 107 60 43 2,2 45 14
4156636 TDS411A12800 WK15PD 12,800 0.5039 107 60 43 2,2 45 14
4156637 TDS411A12900 WK15PD 12,900 0.5079 107 60 43 2,2 45 14
4156638 TDS411A13000 WK15PD 13,000 0.5118 107 60 43 2,2 45 14
4156640 TDS411A13100 WK15PD 13,100 0.5157 107 60 43 2,3 45 14
4156641 TDS411A13200 WK15PD 13,200 0.5197 107 60 43 2,3 45 14
4156642 TDS411A13300 WK15PD 13,300 0.5236 107 60 43 2,3 45 14
4156643 TDS411A13400 WK15PD 13,400 0.5276 107 60 43 2,3 45 14
4156644 TDS411A13500 WK15PD 13,500 0.5315 107 60 43 2,3 45 14
4156645 TDS411A13600 WK15PD 13,600 0.5354 107 60 43 2,3 45 14
4156646 TDS411A13700 WK15PD 13,700 0.5394 107 60 43 2,4 45 14
4156647 TDS411A13800 WK15PD 13,800 0.5433 107 60 43 2,4 45 14
4156649 TDS411A13900 WK15PD 13,900 0.5472 107 60 43 2,4 45 14
4156650 TDS411A14000 WK15PD 14,000 0.5512 107 60 43 2,4 45 14
4156652 TDS411A14200 WK15PD 14,200 0.5591 115 65 45 2,5 48 16
4156654 TDS411A14300 WK15PD 14,300 0.5630 115 65 45 2,5 48 16
4156656 TDS411A14500 WK15PD 14,500 0.5709 115 65 45 2,5 48 16
4156659 TDS411A14700 WK15PD 14,700 0.5787 115 65 45 2,5 48 16
4156662 TDS411A15000 WK15PD 15,000 0.5906 115 65 45 2,6 48 16
4156675 TDS411A16000 WK15PD 16,000 0.6299 115 65 45 2,8 48 16
4156681 TDS411A16500 WK15PD 16,500 0.6496 123 73 51 2,9 48 18
4156687 TDS411A17000 WK15PD 17,000 0.6693 123 73 51 2,9 48 18
4156693 TDS411A17500 WK15PD 17,500 0.6890 123 73 51 3,0 48 18
4156699 TDS411A18000 WK15PD 18,000 0.7087 123 73 51 3,1 48 18
4156721 TDS411A19000 WK15PD 19,000 0.7480 131 79 55 3,3 50 20
4156732 TDS411A20000 WK15PD 20,000 0.7874 131 79 55 3,5 50 20
(TOP DRILL S — continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
120 widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS402A • 5 x D • Through Coolant
4162967 TDS402A03000 WP20PD 3,000 0.1181 66 28 23 0,5 36 6
4162969 TDS402A03100 WP20PD 3,100 0.1220 66 28 23 0,5 36 6
4162972 TDS402A03200 WP20PD 3,200 0.1260 66 28 23 0,5 36 6
4162984 TDS402A03300 WP20PD 3,300 0.1299 66 28 23 0,5 36 6
4162985 TDS402A03400 WP20PD 3,400 0.1339 66 28 23 0,6 36 6
4162987 TDS402A03500 WP20PD 3,500 0.1378 66 28 23 0,6 36 6
4162989 TDS402A03600 WP20PD 3,600 0.1417 66 28 23 0,6 36 6
4162991 TDS402A03700 WP20PD 3,700 0.1457 66 28 23 0,6 36 6
4162993 TDS402A03800 WP20PD 3,800 0.1496 74 36 29 0,6 36 6
4162994 TDS402A03900 WP20PD 3,900 0.1535 74 36 29 0,6 36 6
4162996 TDS402A04000 WP20PD 4,000 0.1575 74 36 29 0,7 36 6
4162999 TDS402A04100 WP20PD 4,100 0.1614 74 36 29 0,7 36 6
4163000 TDS402A04200 WP20PD 4,200 0.1654 74 36 29 0,7 36 6
4163002 TDS402A04300 WP20PD 4,300 0.1693 74 36 29 0,7 36 6
4163014 TDS402A04400 WP20PD 4,400 0.1732 74 36 29 0,7 36 6
4163015 TDS402A04500 WP20PD 4,500 0.1772 74 36 29 0,7 36 6
4163016 TDS402A04600 WP20PD 4,600 0.1811 74 36 29 0,8 36 6
4163018 TDS402A04700 WP20PD 4,700 0.1850 74 36 29 0,8 36 6
4163020 TDS402A04800 WP20PD 4,800 0.1890 82 44 35 0,8 36 6
4163022 TDS402A04900 WP20PD 4,900 0.1929 82 44 35 0,8 36 6
4163023 TDS402A05000 WP20PD 5,000 0.1969 82 44 35 0,8 36 6
4163024 TDS402A05100 WP20PD 5,100 0.2008 82 44 35 0,8 36 6
4163027 TDS402A05200 WP20PD 5,200 0.2047 82 44 35 0,9 36 6
4163028 TDS402A05300 WP20PD 5,300 0.2087 82 44 35 0,9 36 6
4163029 TDS402A05400 WP20PD 5,400 0.2126 82 44 35 0,9 36 6
4163031 TDS402A05500 WP20PD 5,500 0.2165 82 44 35 0,9 36 6
4163034 TDS402A05600 WP20PD 5,600 0.2205 82 44 35 0,9 36 6
4163036 TDS402A05700 WP20PD 5,700 0.2244 82 44 35 1,0 36 6
4163037 TDS402A05800 WP20PD 5,800 0.2283 82 44 35 1,0 36 6
4163038 TDS402A05900 WP20PD 5,900 0.2323 82 44 35 1,0 36 6
4163040 TDS402A06000 WP20PD 6,000 0.2362 82 44 35 1,0 36 6
4163041 TDS402A06100 WP20PD 6,100 0.2402 91 53 43 1,0 36 8
4163042 TDS402A06200 WP20PD 6,200 0.2441 91 53 43 1,0 36 8
4163043 TDS402A06300 WP20PD 6,300 0.2480 91 53 43 1,1 36 8
4163045 TDS402A06400 WP20PD 6,400 0.2520 91 53 43 1,1 36 8
4163046 TDS402A06500 WP20PD 6,500 0.2559 91 53 43 1,1 36 8
4163048 TDS402A06600 WP20PD 6,600 0.2598 91 53 43 1,1 36 8
4163050 TDS402A06700 WP20PD 6,700 0.2638 91 53 43 1,1 36 8
4163052 TDS402A06800 WP20PD 6,800 0.2677 91 53 43 1,1 36 8
4163053 TDS402A06900 WP20PD 6,900 0.2717 91 53 43 1,2 36 8
4163054 TDS402A07000 WP20PD 7,000 0.2756 91 53 43 1,2 36 8
4163055 TDS402A07100 WP20PD 7,100 0.2795 91 53 43 1,2 36 8
4163057 TDS402A07200 WP20PD 7,200 0.2835 91 53 43 1,2 36 8
4163058 TDS402A07300 WP20PD 7,300 0.2874 91 53 43 1,2 36 8
4163059 TDS402A07400 WP20PD 7,400 0.2913 91 53 43 1,3 36 8
4163060 TDS402A07500 WP20PD 7,500 0.2953 91 53 43 1,3 36 8
4163062 TDS402A07600 WP20PD 7,600 0.2992 91 53 43 1,3 36 8
4163063 TDS402A07700 WP20PD 7,700 0.3031 91 53 43 1,3 36 8
4163064 TDS402A07800 WP20PD 7,800 0.3071 91 53 43 1,3 36 8
4163065 TDS402A07900 WP20PD 7,900 0.3110 91 53 43 1,3 36 8
4163067 TDS402A08000 WP20PD 8,000 0.3150 91 53 43 1,4 36 8
4163068 TDS402A08100 WP20PD 8,100 0.3189 103 61 49 1,4 40 10
4163069 TDS402A08200 WP20PD 8,200 0.3228 103 61 49 1,4 40 10
4163070 TDS402A08300 WP20PD 8,300 0.3268 103 61 49 1,4 40 10
4163072 TDS402A08400 WP20PD 8,400 0.3307 103 61 49 1,4 40 10
4163074 TDS402A08500 WP20PD 8,500 0.3346 103 61 49 1,4 40 10
4163075 TDS402A08600 WP20PD 8,600 0.3386 103 61 49 1,5 40 10
(continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
121
widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS402A • 5 x D • Through Coolant (continued)
4163077 TDS402A08700 WP20PD 8,700 0.3425 103 61 49 1,5 40 10
4163079 TDS402A08800 WP20PD 8,800 0.3465 103 61 49 1,5 40 10
4163080 TDS402A08900 WP20PD 8,900 0.3504 103 61 49 1,5 40 10
4163081 TDS402A09000 WP20PD 9,000 0.3543 103 61 49 1,5 40 10
4163082 TDS402A09100 WP20PD 9,100 0.3583 103 61 49 1,5 40 10
4163084 TDS402A09200 WP20PD 9,200 0.3622 103 61 49 1,6 40 10
4163085 TDS402A09300 WP20PD 9,300 0.3661 103 61 49 1,6 40 10
4163087 TDS402A09400 WP20PD 9,400 0.3701 103 61 49 1,6 40 10
4163088 TDS402A09500 WP20PD 9,500 0.3740 103 61 49 1,6 40 10
4163090 TDS402A09600 WP20PD 9,600 0.3780 103 61 49 1,6 40 10
4163091 TDS402A09700 WP20PD 9,700 0.3819 103 61 49 1,7 40 10
4163092 TDS402A09800 WP20PD 9,800 0.3858 103 61 49 1,7 40 10
4163093 TDS402A09900 WP20PD 9,900 0.3898 103 61 49 1,7 40 10
4162803 TDS402A10000 WP20PD 10,000 0.3937 103 61 49 1,7 40 10
4162804 TDS402A10100 WP20PD 10,100 0.3976 118 71 56 1,7 45 12
4162805 TDS402A10200 WP20PD 10,200 0.4016 118 71 56 1,7 45 12
4162806 TDS402A10300 WP20PD 10,300 0.4055 118 71 56 1,8 45 12
4162808 TDS402A10400 WP20PD 10,400 0.4094 118 71 56 1,8 45 12
4162809 TDS402A10500 WP20PD 10,500 0.4134 118 71 56 1,8 45 12
4162810 TDS402A10600 WP20PD 10,600 0.4173 118 71 56 1,8 45 12
4162811 TDS402A10700 WP20PD 10,700 0.4213 118 71 56 1,8 45 12
4162813 TDS402A10800 WP20PD 10,800 0.4252 118 71 56 1,8 45 12
4162814 TDS402A10900 WP20PD 10,900 0.4291 118 71 56 1,9 45 12
4162815 TDS402A11000 WP20PD 11,000 0.4331 118 71 56 1,9 45 12
4162818 TDS402A11200 WP20PD 11,200 0.4409 118 71 56 1,9 45 12
4162819 TDS402A11300 WP20PD 11,300 0.4449 118 71 56 1,9 45 12
4162820 TDS402A11400 WP20PD 11,400 0.4488 118 71 56 2,0 45 12
4162821 TDS402A11500 WP20PD 11,500 0.4528 118 71 56 2,0 45 12
4162823 TDS402A11600 WP20PD 11,600 0.4567 118 71 56 2,0 45 12
4162824 TDS402A11700 WP20PD 11,700 0.4606 118 71 56 2,0 45 12
4162825 TDS402A11800 WP20PD 11,800 0.4646 118 71 56 2,0 45 12
4162828 TDS402A12000 WP20PD 12,000 0.4724 118 71 56 2,1 45 12
4162829 TDS402A12100 WP20PD 12,100 0.4764 124 77 60 2,1 45 14
4162830 TDS402A12200 WP20PD 12,200 0.4803 124 77 60 2,1 45 14
4162831 TDS402A12300 WP20PD 12,300 0.4843 124 77 60 2,1 45 14
4162833 TDS402A12400 WP20PD 12,400 0.4882 124 77 60 2,1 45 14
4162834 TDS402A12500 WP20PD 12,500 0.4921 124 77 60 2,1 45 14
4162835 TDS402A12600 WP20PD 12,600 0.4961 124 77 60 2,2 45 14
4162836 TDS402A12700 WP20PD 12,700 0.5000 124 77 60 2,2 45 14
4162837 TDS402A12800 WP20PD 12,800 0.5039 124 77 60 2,2 45 14
4162838 TDS402A12900 WP20PD 12,900 0.5079 124 77 60 2,2 45 14
4162839 TDS402A13000 WP20PD 13,000 0.5118 124 77 60 2,2 45 14
4162841 TDS402A13100 WP20PD 13,100 0.5157 124 77 60 2,3 45 14
4162842 TDS402A13200 WP20PD 13,200 0.5197 124 77 60 2,3 45 14
4162843 TDS402A13300 WP20PD 13,300 0.5236 124 77 60 2,3 45 14
4162844 TDS402A13400 WP20PD 13,400 0.5276 124 77 60 2,3 45 14
4162845 TDS402A13500 WP20PD 13,500 0.5315 124 77 60 2,3 45 14
4162846 TDS402A13600 WP20PD 13,600 0.5354 124 77 60 2,3 45 14
4162847 TDS402A13700 WP20PD 13,700 0.5394 124 77 60 2,4 45 14
4162848 TDS402A13800 WP20PD 13,800 0.5433 124 77 60 2,4 45 14
4162850 TDS402A13900 WP20PD 13,900 0.5472 124 77 60 2,4 45 14
4162851 TDS402A14000 WP20PD 14,000 0.5512 124 77 60 2,4 45 14
4162853 TDS402A14200 WP20PD 14,200 0.5591 133 83 63 2,5 48 16
4162855 TDS402A14300 WP20PD 14,300 0.5630 133 83 63 2,5 48 16
4162857 TDS402A14500 WP20PD 14,500 0.5709 133 83 63 2,5 48 16
4162860 TDS402A14700 WP20PD 14,700 0.5787 133 83 63 2,5 48 16
4162863 TDS402A15000 WP20PD 15,000 0.5906 133 83 63 2,6 48 16
4162876 TDS402A16000 WP20PD 16,000 0.6299 133 83 63 2,8 48 16
4162882 TDS402A16500 WP20PD 16,500 0.6496 143 93 71 2,9 48 18
4162888 TDS402A17000 WP20PD 17,000 0.6693 143 93 71 2,9 48 18
4162894 TDS402A17500 WP20PD 17,500 0.6890 143 93 71 3,0 48 18
4162274 TDS402A18000 WP20PD 18,000 0.7087 143 93 71 3,1 48 18
4162396 TDS402A19000 WP20PD 19,000 0.7480 153 101 77 3,3 50 20
4162407 TDS402A20000 WP20PD 20,000 0.7874 153 101 77 3,5 50 20
(TOP DRILL S — continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
122 widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS412A • 5 x D • Through Coolant
4158757 TDS412A03000 WK15PD 3,000 0.1181 66 28 23 0,5 36 6
4158759 TDS412A03100 WK15PD 3,100 0.1220 66 28 23 0,5 36 6
4158761 TDS412A03200 WK15PD 3,200 0.1260 66 28 23 0,5 36 6
4158793 TDS412A03300 WK15PD 3,300 0.1299 66 28 23 0,5 36 6
4158794 TDS412A03400 WK15PD 3,400 0.1339 66 28 23 0,6 36 6
4158796 TDS412A03500 WK15PD 3,500 0.1378 66 28 23 0,6 36 6
4158798 TDS412A03600 WK15PD 3,600 0.1417 66 28 23 0,6 36 6
4158800 TDS412A03700 WK15PD 3,700 0.1457 66 28 23 0,6 36 6
4158802 TDS412A03800 WK15PD 3,800 0.1496 74 36 29 0,6 36 6
4158803 TDS412A03900 WK15PD 3,900 0.1535 74 36 29 0,6 36 6
4158805 TDS412A04000 WK15PD 4,000 0.1575 74 36 29 0,7 36 6
4158808 TDS412A04100 WK15PD 4,100 0.1614 74 36 29 0,7 36 6
4158809 TDS412A04200 WK15PD 4,200 0.1654 74 36 29 0,7 36 6
4158811 TDS412A04300 WK15PD 4,300 0.1693 74 36 29 0,7 36 6
4158813 TDS412A04400 WK15PD 4,400 0.1732 74 36 29 0,7 36 6
4158814 TDS412A04500 WK15PD 4,500 0.1772 74 36 29 0,7 36 6
4158815 TDS412A04600 WK15PD 4,600 0.1811 74 36 29 0,8 36 6
4158817 TDS412A04700 WK15PD 4,700 0.1850 74 36 29 0,8 36 6
4158819 TDS412A04800 WK15PD 4,800 0.1890 82 44 35 0,8 36 6
4158821 TDS412A04900 WK15PD 4,900 0.1929 82 44 35 0,8 36 6
4158822 TDS412A05000 WK15PD 5,000 0.1969 82 44 35 0,8 36 6
4158823 TDS412A05100 WK15PD 5,100 0.2008 82 44 35 0,8 36 6
4158826 TDS412A05200 WK15PD 5,200 0.2047 82 44 35 0,9 36 6
4158827 TDS412A05300 WK15PD 5,300 0.2087 82 44 35 0,9 36 6
4158828 TDS412A05400 WK15PD 5,400 0.2126 82 44 35 0,9 36 6
4158830 TDS412A05500 WK15PD 5,500 0.2165 82 44 35 0,9 36 6
4158832 TDS412A05600 WK15PD 5,600 0.2205 82 44 35 0,9 36 6
4158834 TDS412A05700 WK15PD 5,700 0.2244 82 44 35 1,0 36 6
4158835 TDS412A05800 WK15PD 5,800 0.2283 82 44 35 1,0 36 6
4158836 TDS412A05900 WK15PD 5,900 0.2323 82 44 35 1,0 36 6
4158838 TDS412A06000 WK15PD 6,000 0.2362 82 44 35 1,0 36 6
4158839 TDS412A06100 WK15PD 6,100 0.2402 91 53 43 1,0 36 8
4158840 TDS412A06200 WK15PD 6,200 0.2441 91 53 43 1,0 36 8
4158841 TDS412A06300 WK15PD 6,300 0.2480 91 53 43 1,1 36 8
4158843 TDS412A06400 WK15PD 6,400 0.2520 91 53 43 1,1 36 8
4158844 TDS412A06500 WK15PD 6,500 0.2559 91 53 43 1,1 36 8
4158846 TDS412A06600 WK15PD 6,600 0.2598 91 53 43 1,1 36 8
4158848 TDS412A06700 WK15PD 6,700 0.2638 91 53 43 1,1 36 8
4158850 TDS412A06800 WK15PD 6,800 0.2677 91 53 43 1,1 36 8
4158851 TDS412A06900 WK15PD 6,900 0.2717 91 53 43 1,2 36 8
4158852 TDS412A07000 WK15PD 7,000 0.2756 91 53 43 1,2 36 8
4158853 TDS412A07100 WK15PD 7,100 0.2795 91 53 43 1,2 36 8
4158855 TDS412A07200 WK15PD 7,200 0.2835 91 53 43 1,2 36 8
4158856 TDS412A07300 WK15PD 7,300 0.2874 91 53 43 1,2 36 8
4158857 TDS412A07400 WK15PD 7,400 0.2913 91 53 43 1,3 36 8
4158858 TDS412A07500 WK15PD 7,500 0.2953 91 53 43 1,3 36 8
4158860 TDS412A07600 WK15PD 7,600 0.2992 91 53 43 1,3 36 8
4158861 TDS412A07700 WK15PD 7,700 0.3031 91 53 43 1,3 36 8
4158862 TDS412A07800 WK15PD 7,800 0.3071 91 53 43 1,3 36 8
4158863 TDS412A07900 WK15PD 7,900 0.3110 91 53 43 1,3 36 8
4158865 TDS412A08000 WK15PD 8,000 0.3150 91 53 43 1,4 36 8
4158866 TDS412A08100 WK15PD 8,100 0.3189 103 61 49 1,4 40 10
4158867 TDS412A08200 WK15PD 8,200 0.3228 103 61 49 1,4 40 10
4158868 TDS412A08300 WK15PD 8,300 0.3268 103 61 49 1,4 40 10
4158870 TDS412A08400 WK15PD 8,400 0.3307 103 61 49 1,4 40 10
4158872 TDS412A08500 WK15PD 8,500 0.3346 103 61 49 1,4 40 10
4158873 TDS412A08600 WK15PD 8,600 0.3386 103 61 49 1,5 40 10
(continued)
Language Version: 114_123_WID_All-Star19_Holemaking_TopDrillS September 20, 2018 3:43 PM
123
widia.com
Holemaking
Holemaking
TOP DRILL S™
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
L
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
D
(mm)
TDS412A • 5 x D • Through Coolant (continued)
4158874 TDS412A08700 WK15PD 8,700 0.3425 103 61 49 1,5 40 10
4158876 TDS412A08800 WK15PD 8,800 0.3465 103 61 49 1,5 40 10
4158877 TDS412A08900 WK15PD 8,900 0.3504 103 61 49 1,5 40 10
4158878 TDS412A09000 WK15PD 9,000 0.3543 103 61 49 1,5 40 10
4158879 TDS412A09100 WK15PD 9,100 0.3583 103 61 49 1,5 40 10
4158881 TDS412A09200 WK15PD 9,200 0.3622 103 61 49 1,6 40 10
4158882 TDS412A09300 WK15PD 9,300 0.3661 103 61 49 1,6 40 10
4158884 TDS412A09400 WK15PD 9,400 0.3701 103 61 49 1,6 40 10
4158885 TDS412A09500 WK15PD 9,500 0.3740 103 61 49 1,6 40 10
4158887 TDS412A09600 WK15PD 9,600 0.3780 103 61 49 1,6 40 10
4158888 TDS412A09700 WK15PD 9,700 0.3819 103 61 49 1,7 40 10
4158889 TDS412A09800 WK15PD 9,800 0.3858 103 61 49 1,7 40 10
4158890 TDS412A09900 WK15PD 9,900 0.3898 103 61 49 1,7 40 10
4156602 TDS412A10000 WK15PD 10,000 0.3937 103 61 49 1,7 40 10
4156733 TDS412A10100 WK15PD 10,100 0.3976 118 71 56 1,7 45 12
4156734 TDS412A10200 WK15PD 10,200 0.4016 118 71 56 1,7 45 12
4156735 TDS412A10300 WK15PD 10,300 0.4055 118 71 56 1,8 45 12
4156737 TDS412A10400 WK15PD 10,400 0.4094 118 71 56 1,8 45 12
4156738 TDS412A10500 WK15PD 10,500 0.4134 118 71 56 1,8 45 12
4156739 TDS412A10600 WK15PD 10,600 0.4173 118 71 56 1,8 45 12
4156740 TDS412A10700 WK15PD 10,700 0.4213 118 71 56 1,8 45 12
4156742 TDS412A10800 WK15PD 10,800 0.4252 118 71 56 1,8 45 12
4156743 TDS412A10900 WK15PD 10,900 0.4291 118 71 56 1,9 45 12
4156744 TDS412A11000 WK15PD 11,000 0.4331 118 71 56 1,9 45 12
4156745 TDS412A11100 WK15PD 11,100 0.4370 118 71 56 1,9 45 12
4156747 TDS412A11200 WK15PD 11,200 0.4409 118 71 56 1,9 45 12
4156748 TDS412A11300 WK15PD 11,300 0.4449 118 71 56 1,9 45 12
4156749 TDS412A11400 WK15PD 11,400 0.4488 118 71 56 2,0 45 12
4156750 TDS412A11500 WK15PD 11,500 0.4528 118 71 56 2,0 45 12
4156752 TDS412A11600 WK15PD 11,600 0.4567 118 71 56 2,0 45 12
4156753 TDS412A11700 WK15PD 11,700 0.4606 118 71 56 2,0 45 12
4156754 TDS412A11800 WK15PD 11,800 0.4646 118 71 56 2,0 45 12
4156755 TDS412A11900 WK15PD 11,900 0.4685 118 71 56 2,0 45 12
4156757 TDS412A12000 WK15PD 12,000 0.4724 118 71 56 2,1 45 12
4156758 TDS412A12100 WK15PD 12,100 0.4764 124 77 60 2,1 45 14
4156759 TDS412A12200 WK15PD 12,200 0.4803 124 77 60 2,1 45 14
4156760 TDS412A12300 WK15PD 12,300 0.4843 124 77 60 2,1 45 14
4156762 TDS412A12400 WK15PD 12,400 0.4882 124 77 60 2,1 45 14
4156763 TDS412A12500 WK15PD 12,500 0.4921 124 77 60 2,1 45 14
4156764 TDS412A12600 WK15PD 12,600 0.4961 124 77 60 2,2 45 14
4156765 TDS412A12700 WK15PD 12,700 0.5000 124 77 60 2,2 45 14
4156766 TDS412A12800 WK15PD 12,800 0.5039 124 77 60 2,2 45 14
4156767 TDS412A12900 WK15PD 12,900 0.5079 124 77 60 2,2 45 14
4156768 TDS412A13000 WK15PD 13,000 0.5118 124 77 60 2,2 45 14
4156770 TDS412A13100 WK15PD 13,100 0.5157 124 77 60 2,3 45 14
4156771 TDS412A13200 WK15PD 13,200 0.5197 124 77 60 2,3 45 14
4156772 TDS412A13300 WK15PD 13,300 0.5236 124 77 60 2,3 45 14
4156773 TDS412A13400 WK15PD 13,400 0.5276 124 77 60 2,3 45 14
4156774 TDS412A13500 WK15PD 13,500 0.5315 124 77 60 2,3 45 14
4156775 TDS412A13600 WK15PD 13,600 0.5354 124 77 60 2,3 45 14
4156776 TDS412A13700 WK15PD 13,700 0.5394 124 77 60 2,4 45 14
4156777 TDS412A13800 WK15PD 13,800 0.5433 124 77 60 2,4 45 14
4156779 TDS412A13900 WK15PD 13,900 0.5472 124 77 60 2,4 45 14
4156780 TDS412A14000 WK15PD 14,000 0.5512 124 77 60 2,4 45 14
4156782 TDS412A14200 WK15PD 14,200 0.5591 133 83 63 2,5 48 16
4156784 TDS412A14300 WK15PD 14,300 0.5630 133 83 63 2,5 48 16
4156786 TDS412A14500 WK15PD 14,500 0.5709 133 83 63 2,5 48 16
4156789 TDS412A14700 WK15PD 14,700 0.5787 133 83 63 2,5 48 16
4156792 TDS412A15000 WK15PD 15,000 0.5906 133 83 63 2,6 48 16
4156805 TDS412A16000 WK15PD 16,000 0.6299 133 83 63 2,8 48 16
4156811 TDS412A16500 WK15PD 16,500 0.6496 143 93 71 2,9 48 18
4156817 TDS412A17000 WK15PD 17,000 0.6693 143 93 71 2,9 48 18
4156823 TDS412A17500 WK15PD 17,500 0.6890 143 93 71 3,0 48 18
4156853 TDS412A18000 WK15PD 18,000 0.7087 143 93 71 3,1 48 18
4156865 TDS412A19000 WK15PD 19,000 0.7480 153 101 77 3,3 50 20
4156876 TDS412A20000 WK15PD 20,000 0.7874 153 101 77 3,5 50 20
(TOP DRILL S — continued)
Language Version: 124_127_WID_All-Star19_Holemaking_TopDrillS+12xD September 27, 2018 10:40 AM
124 widia.com
124
TDS+ 12 x D is capable of drilling an array of materials. The 4-margin land configuration
offers stability, minimises chipping and jamming, and promotes chip evacuation.
Because TDS+ 12 x D does not require a pilot drill, it increases efficiency by reducing
the number of steps required for basic applications.
• 12 x D fits the gap between 8 x D and 15 x D.
• One drill that covers all materials.
• Can be used without a pilot.
Extra stability
The TDS+ 4-margin land design from head to end of
flute provides stability in cross holes and inclined exits.
Easy chip evacuation
The TDS+ utilises the same technology developed
for WIDIA deep-hole drills. The polished surface
enables effective chip evacuation from deep holes.
Minimised chip jamming
Special gash and flute form for effective
chip formation across a variety of materials.
Excellent centring
capability
TOP DRILL S+ 12 x D
The versatile TOP DRILL S+ provides reliable performance across a broad
scope of applications, including alloyed and unalloyed steel, cast iron, and
some stainless steels and high-temperature alloys. TDS+ is now available
in 12 x D, adding to its already wide range of options from 3–8 x D.
Deep-Hole Drilling without Piloting •
WIDIA™ TOP DRILL S+™ 12 x D
Language Version: 124_127_WID_All-Star19_Holemaking_TopDrillS+12xD September 27, 2018 10:40 AM
125
widia.com 125
• Excellent centring capability — the new TDS+ 12 x D point
is engineered to provide excellent centring capability.
• No pilot drill required — save time and money by reducing
the number of steps required for your 12 x D application.
• Minimised runout — cylindrical body design provides guidance,
and precision h6 shank is standard for better runout and less breakage.
• New WU20PD™ grade — designed specifically for long tool life.
• Factory regrind service — available through your WIDIA™
reconditioning service.
• Lower cost-per-hole due to high MRR and long tool life.
• Consistent performance from internally controlled supply chain:
Powder > Rod > Grinding > Coating
• Part of the complete WIDIA holemaking solution.
• Get more predictable results from local regrind services using
OEM standards to recondition, ensuring value throughout
the entire life of the drill.
• Broad range of standard lengths, diameters, and coolant options
in one line. Includes extensive intermediate metric, inch, fraction,
and wire size, including tap drill sizes.
Improved Productivity
Increased Tool Life
WIDIA Advantage
Language Version: 124_127_WID_All-Star19_Holemaking_TopDrillS+12xD September 27, 2018 10:40 AM
126 widia.com
Holemaking
Holemaking
TOP DRILL S+™ 12 x D
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
D
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
L
(mm)
TDS504A • 12 x D • Through Coolant
4173459 TDS504A03000 WU20PD 3,000 0.1181 652,0 44 0,6 36 93
4173462 TDS504A03500 WU20PD 3,500 0.1378 653,0 44 0,7 36 93
4173464 TDS504A04000 WU20PD 4,000 0.1575 666,0 56 0,8 36 107
4173465 TDS504A04500 WU20PD 4,500 0.1772 667,0 56 0,9 36 107
4173466 TDS504A04600 WU20PD 4,600 0.1811 668,0 57 1,0 36 107
4173468 TDS504A04800 WU20PD 4,800 0.1890 682,0 69 1,0 36 125
4173469 TDS504A05000 WU20PD 5,000 0.1969 683,0 70 1,1 36 125
4173470 TDS504A05100 WU20PD 5,100 0.2008 683,0 70 1,1 36 125
4173471 TDS504A05200 WU20PD 5,200 0.2047 683,0 70 1,1 36 125
4173472 TDS504A05300 WU20PD 5,300 0.2087 684,0 71 1,1 36 125
4173474 TDS504A05500 WU20PD 5,500 0.2165 684,0 71 1,2 36 125
4173476 TDS504A05600 WU20PD 5,600 0.2205 685,0 72 1,2 36 125
4173477 TDS504A05700 WU20PD 5,700 0.2244 685,0 72 1,2 36 125
4173478 TDS504A05800 WU20PD 5,800 0.2283 685,0 71 1,2 36 125
4173479 TDS504A06000 WU20PD 6,000 0.2362 686,0 72 1,3 36 125
4173480 TDS504A06200 WU20PD 6,200 0.2441 897,0 82 1,3 36 139
4173482 TDS504A06500 WU20PD 6,500 0.2559 898,0 83 1,4 36 139
4173484 TDS504A06600 WU20PD 6,600 0.2598 899,0 84 1,4 36 139
4173486 TDS504A06800 WU20PD 6,800 0.2677 899,0 83 1,4 36 139
4173488 TDS504A07000 WU20PD 7,000 0.2756 8100,0 84 1,5 36 139
4173490 TDS504A07500 WU20PD 7,500 0.2953 8112,0 95 1,6 36 153
4173492 TDS504A07700 WU20PD 7,700 0.3031 8113,0 96 1,6 36 153
4173493 TDS504A07800 WU20PD 7,800 0.3071 8113,0 95 1,7 36 153
4173495 TDS504A08000 WU20PD 8,000 0.3150 8114,0 96 1,7 36 153
4173496 TDS504A08100 WU20PD 8,100 0.3189 10 136,0 116 1,7 40 185
4173499 TDS504A08500 WU20PD 8,500 0.3346 10 137,0 117 1,8 40 185
4173500 TDS504A08700 WU20PD 8,700 0.3425 10 138,0 118 1,9 40 185
4173502 TDS504A09000 WU20PD 9,000 0.3543 10 139,0 118 1,9 40 185
4173503 TDS504A09100 WU20PD 9,100 0.3583 10 139,0 118 1,9 40 185
4173505 TDS504A09500 WU20PD 9,500 0.3740 10 140,0 119 2,0 40 185
4173508 TDS504A10000 WU20PD 10,000 0.3937 10 142,0 120 2,1 40 185
4173509 TDS504A10200 WU20PD 10,200 0.4016 12 164,0 140 2,2 45 218
4173510 TDS504A10300 WU20PD 10,300 0.4055 12 165,0 141 2,2 45 218
4173512 TDS504A10500 WU20PD 10,500 0.4134 12 165,0 141 2,2 45 218
4173514 TDS504A10800 WU20PD 10,800 0.4252 12 166,0 141 2,3 45 218
4173515 TDS504A11000 WU20PD 11,000 0.4331 12 167,0 142 2,4 45 218
4173517 TDS504A11500 WU20PD 11,500 0.4528 12 168,0 143 2,5 45 218
4173518 TDS504A11800 WU20PD 11,800 0.4646 12 169,0 143 2,5 45 218
4173519 TDS504A12000 WU20PD 12,000 0.4724 12 170,0 144 2,6 45 218
4173520 TDS504A12100 WU20PD 12,100 0.4764 14 192,0 164 2,6 45 246
4148906 TDS504A12500 WU20PD 12,500 0.4921 14 193,0 165 2,7 45 246
4173522 TDS504A12700 WU20PD 12,700 0.5000 14 194,0 166 2,7 45 246
4173523 TDS504A13000 WU20PD 13,000 0.5118 14 195,0 166 2,8 45 246
4173524 TDS504A13100 WU20PD 13,100 0.5157 14 195,0 166 2,8 45 246
4173525 TDS504A13500 WU20PD 13,500 0.5315 14 196,0 167 2,9 45 246
4173526 TDS504A14000 WU20PD 14,000 0.5512 14 198,0 168 3,0 45 246
4173527 TDS504A14100 WU20PD 14,100 0.5551 16 220,0 188 3,0 48 277
4173529 TDS504A14500 WU20PD 14,500 0.5709 16 221,0 189 3,1 48 277
4173531 TDS504A15000 WU20PD 15,000 0.5906 16 223,0 190 3,2 48 277
4173532 TDS504A15500 WU20PD 15,500 0.6102 16 224,0 191 3,3 48 277
4173534 TDS504A16000 WU20PD 16,000 0.6299 16 226,0 192 3,4 48 277
4173535 TDS504A16500 WU20PD 16,500 0.6496 18 249,0 213 3,6 48 305
4173536 TDS504A17000 WU20PD 17,000 0.6693 18 250,0 214 3,7 48 305
4173538 TDS504A17500 WU20PD 17,500 0.6890 18 252,0 215 3,8 48 305
4173539 TDS504A18000 WU20PD 18,000 0.7087 18 253,0 216 3,9 48 305
4173540 TDS504A18500 WU20PD 18,500 0.7283 20 277,0 237 4,0 50 334
4173541 TDS504A19000 WU20PD 19,000 0.7480 20 278,0 238 4,1 50 334
4173543 TDS504A19500 WU20PD 19,500 0.7677 20 280,0 239 4,2 50 334
4173544 TDS504A20000 WU20PD 20,000 0.7874 20 281,0 240 4,3 50 334
Language Version: 124_127_WID_All-Star19_Holemaking_TopDrillS+12xD September 27, 2018 10:40 AM
Solid End Milling
VariMill™ GP • 4 Flutes
WIDIA™ VariTap™
Tap into the
power of the
original.
A heritage of hard work, innovation, and excellence. That’s what
makes an original.
Built on a 140-year legacy of providing the industry with the highest quality
performance in taps, dies, and gages. Our history propels us to keep delivering
the most advanced solutions.
The WIDIA VariTap is the next application of our commitment to innovation.
• Extensive range of sizes, fits, styles, and coatings, equipped with optimised
geometry, offering the largest portfolio solution of multipurpose taps available.
• Capable of working with a wide variety of materials.
• Long and consistent tool life leading to lower inventory costs.
• Unique spiral-point geometry provides low tapping torque, while pushing chips
ahead of the tap in through holes.
• Superior thread finish.
To learn more about the unmatched benefits of WIDIA VariTap, call 800.979.4342,
contact your local Authorised Distributor, or visit widia.com/varitap.
VariTap can be found on pages 144–154.
Language Version: 128_131_WID_All-Star19_Holemaking_TopDrill_Deep September 27, 2018 12:33 PM
128 widia.com
132° TDS Point Geometry
• Low thrust.
• Excellent centring capabilities.
• Easy to regrind.
Four-Margin Lands
• Improves hole straightness.
• Improves hole alignment when drilling
through cross holes and inclined exits.
30° Helix with Optimised Flute Profile
• Reduces risk of chip jamming and
catastrophic failure.
Solid carbide deep-hole drills outperform gun drills and HSS deep-hole drills in deep-hole
applications up to 30 x D by increasing metal removal rates by 3–4 times. Increased MRR
equals bottom-line savings to customers in throughput, machine time, and personnel hours.
The TDD1*Z* Series in the WU20PD™ grade offers secure and consistent performance, excellent
hole quality, and reduced cycle times. The standard lines are available from 3 to 13mm and lengths
of 15, 20, 25, and 30 x D. It eliminates the traditional HSS or gun drilling without pecking, at up to
100% increased penetration rates.
TOP DRILL Deep-Hole Drills
Superior Deep-Hole Drilling •
WIDIA™ TOP DRILL™ Deep-Hole Drills for Steel and Cast Iron
Language Version: 128_131_WID_All-Star19_Holemaking_TopDrill_Deep September 27, 2018 12:33 PM
129
widia.com
WU20PD™ Grade
• Advanced TiAlN multilayer PVD coating for steel and cast iron.
• Ultra fine-grain carbide ensures process reliability at high feed rates.
Customisation
• Intermediate sizes, even up to 16mm diameter, available as semi-standards.
• Length variations, including longer versions up to 550mm,
available as custom solutions.
• For drilling non-ferrous and uncoated materials, sharp versions
are recommended and available as custom solutions.
• Excellent surface finish and concentricity.
Highly Polished Surfaces
• Reduction of friction in the chip flute and on the lands,
resulting in superior chip evacuation.
• Shorter drilling time through omission of reversing cycles.
Language Version: 128_131_WID_All-Star19_Holemaking_TopDrill_Deep September 27, 2018 12:33 PM
130 widia.com
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
D
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
L
(mm)
Deep-Hole Drills • 2 Flute • WU20PD
™
• 15 x D • Z Shank
3899626 TDD105Z03000 WU20PD 3,000 0.1181 352 45 0,6 30 86
3899628 TDD105Z03500 WU20PD 3,500 0.1378 468 59 0,7 32 105
3899632 TDD105Z04000 WU20PD 4,000 0.1575 470 60 0,8 32 105
3899685 TDD105Z04500 WU20PD 4,500 0.1772 585 74 0,9 34 124
3899688 TDD105Z05000 WU20PD 5,000 0.1969 587 75 1,0 34 124
3899691 TDD105Z05500 WU20PD 5,500 0.2165 6102 89 1,1 36 143
3899694 TDD105Z06000 WU20PD 6,000 0.2362 6104 90 1,2 36 143
3899697 TDD105Z06500 WU20PD 6,500 0.2559 7119 104 1,4 38 162
3899700 TDD105Z06800 WU20PD 6,800 0.2677 7120 104 1,4 38 162
3899702 TDD105Z07000 WU20PD 7,000 0.2756 7121 105 1,5 38 162
3900633 TDD105Z07500 WU20PD 7,500 0.2953 8136 119 1,6 40 181
3900636 TDD105Z08000 WU20PD 8,000 0.3150 8138 120 1,7 40 181
3900639 TDD105Z08500 WU20PD 8,500 0.3346 9153 134 1,8 42 200
3900641 TDD105Z09000 WU20PD 9,000 0.3543 9155 135 1,9 42 200
3900643 TDD105Z09500 WU20PD 9,500 0.3740 10 170 149 2,0 44 219
3900647 TDD105Z10000 WU20PD 10,000 0.3937 10 172 150 2,1 44 219
3900650 TDD105Z10500 WU20PD 10,500 0.4134 11 187 164 2,2 46 238
3900652 TDD105Z11000 WU20PD 11,000 0.4331 11 189 165 2,3 46 238
3900654 TDD105Z11500 WU20PD 11,500 0.4528 12 204 179 2,4 48 257
3900656 TDD105Z12000 WU20PD 12,000 0.4724 12 206 180 2,5 48 257
3900660 TDD105Z13000 WU20PD 13,000 0.5118 13 223 195 2,8 50 276
Holemaking
TOP DRILL™ Deep-Hole Drills
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
D
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
L
(mm)
Deep-Hole Drills • 2 Flute • WU20PD • 20 x D • Z Shank
3899782 TDD106Z03000 WU20PD 3,000 0.1181 367 60 0,6 30 101
3899804 TDD106Z03500 WU20PD 3,500 0.1378 486 77 0,7 32 125
3899808 TDD106Z04000 WU20PD 4,000 0.1575 490 80 0,8 32 125
3899811 TDD106Z04500 WU20PD 4,500 0.1772 5108 97 0,9 34 149
3899814 TDD106Z05000 WU20PD 5,000 0.1969 5112 100 1,0 34 149
3899818 TDD106Z05500 WU20PD 5,500 0.2165 6130 117 1,1 36 173
3899821 TDD106Z06000 WU20PD 6,000 0.2362 6134 120 1,2 36 173
3899824 TDD106Z06500 WU20PD 6,500 0.2559 7152 137 1,4 38 197
3899827 TDD106Z06800 WU20PD 6,800 0.2677 7154 138 1,4 38 197
3899829 TDD106Z07000 WU20PD 7,000 0.2756 7156 140 1,5 38 197
3899764 TDD106Z07500 WU20PD 7,500 0.2953 8174 157 1,6 40 221
3899767 TDD106Z08000 WU20PD 8,000 0.3150 8178 160 1,7 40 221
3899770 TDD106Z08500 WU20PD 8,500 0.3346 9196 177 1,8 42 245
3899772 TDD106Z09000 WU20PD 9,000 0.3543 9200 180 1,9 42 245
3899784 TDD106Z09500 WU20PD 9,500 0.3740 10 218 197 2,0 44 269
3899788 TDD106Z10000 WU20PD 10,000 0.3937 10 222 200 2,1 44 269
3899791 TDD106Z10500 WU20PD 10,500 0.4134 11 240 217 2,2 46 293
3899793 TDD106Z11000 WU20PD 11,000 0.4331 11 244 220 2,3 46 293
3899795 TDD106Z11500 WU20PD 11,500 0.4528 12 262 237 2,4 48 317
3899797 TDD106Z12000 WU20PD 12,000 0.4724 12 266 240 2,5 48 317
3899799 TDD106Z12500 WU20PD 12,500 0.4921 13 284 257 2,7 50 341
3899801 TDD106Z13000 WU20PD 13,000 0.5118 13 288 260 2,8 50 341
Holemaking
Language Version: 128_131_WID_All-Star19_Holemaking_TopDrill_Deep September 27, 2018 12:33 PM
131
widia.com
Holemaking
TOP DRILL™ Deep-Hole Drills
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
D
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
L
(mm)
Deep-Hole Drills • 2 Flute • WU20PD
™
• 25 x D • Z Shank
3899708 TDD107Z03000 WU20PD 3,000 0.1181 382 75 0,6 30 116
3899710 TDD107Z03500 WU20PD 3,500 0.1378 4103 94 0,7 32 145
3899734 TDD107Z04000 WU20PD 4,000 0.1575 4110 100 0,8 32 145
3899737 TDD107Z04500 WU20PD 4,500 0.1772 5130 119 0,9 34 174
3899740 TDD107Z05000 WU20PD 5,000 0.1969 5137 125 1,0 34 174
3899743 TDD107Z05500 WU20PD 5,500 0.2165 6157 144 1,1 36 203
3899746 TDD107Z06000 WU20PD 6,000 0.2362 6164 150 1,2 36 203
3899749 TDD107Z06500 WU20PD 6,500 0.2559 7184 169 1,4 38 232
3899754 TDD107Z07000 WU20PD 7,000 0.2756 7191 175 1,5 38 232
3899569 TDD107Z08000 WU20PD 8,000 0.3150 8218 200 1,7 40 261
3899572 TDD107Z08500 WU20PD 8,500 0.3346 9238 219 1,8 42 290
3899604 TDD107Z09000 WU20PD 9,000 0.3543 9245 225 1,9 42 290
3899606 TDD107Z09500 WU20PD 9,500 0.3740 10 265 244 2,0 44 319
3899610 TDD107Z10000 WU20PD 10,000 0.3937 10 272 250 2,1 44 319
3899611 TDD107Z10300 WU20PD 10,300 0.4055 11 290 267 2,2 46 348
3899613 TDD107Z10500 WU20PD 10,500 0.4134 11 292 269 2,2 46 348
3899615 TDD107Z11000 WU20PD 11,000 0.4331 11 299 275 2,3 46 348
3899617 TDD107Z11500 WU20PD 11,500 0.4528 12 319 294 2,4 48 377
3899619 TDD107Z12000 WU20PD 12,000 0.4724 12 326 300 2,5 48 377
3899621 TDD107Z12500 WU20PD 12,500 0.4921 13 346 319 2,7 50 406
3899623 TDD107Z13000 WU20PD 13,000 0.5118 13 353 325 2,8 50 406
order
number
catalogue
number grade
D1
diameter
(mm)
D1
diameter
(inch)
D
(mm)
L3
(mm)
L4 max
(mm)
L5
(mm)
LS
(mm)
L
(mm)
Deep-Hole Drills • 2 Flute • WU20PD • 30 x D • Z Shank
3899539 TDD108Z03000 WU20PD 3,000 0.1181 397 90 0,6 30 131
3899541 TDD108Z03500 WU20PD 3,500 0.1378 4121 112 0,7 32 165
3899575 TDD108Z04000 WU20PD 4,000 0.1575 4130 120 0,8 32 165
3899578 TDD108Z04500 WU20PD 4,500 0.1772 5153 142 0,9 34 199
3899581 TDD108Z05000 WU20PD 5,000 0.1969 5162 150 1,0 34 199
3899584 TDD108Z05500 WU20PD 5,500 0.2165 6185 172 1,1 36 233
3899587 TDD108Z06000 WU20PD 6,000 0.2362 6194 180 1,2 36 233
3899590 TDD108Z06500 WU20PD 6,500 0.2559 7217 202 1,4 38 267
3899593 TDD108Z06800 WU20PD 6,800 0.2677 7222 206 1,4 38 267
3899595 TDD108Z07000 WU20PD 7,000 0.2756 7226 210 1,5 38 267
3899601 TDD108Z07500 WU20PD 7,500 0.2953 8249 232 1,6 40 301
3899654 TDD108Z08000 WU20PD 8,000 0.3150 8258 240 1,7 40 301
3899657 TDD108Z08500 WU20PD 8,500 0.3346 9281 262 1,8 42 335
3899659 TDD108Z09000 WU20PD 9,000 0.3543 9290 270 1,9 42 335
3899661 TDD108Z09500 WU20PD 9,500 0.3740 10 313 292 2,0 44 369
3899665 TDD108Z10000 WU20PD 10,000 0.3937 10 322 300 2,1 44 369
3899668 TDD108Z10500 WU20PD 10,500 0.4134 11 345 322 2,2 46 403
3899670 TDD108Z11000 WU20PD 11,000 0.4331 11 354 330 2,3 46 403
3899672 TDD108Z11500 WU20PD 11,500 0.4528 12 377 352 2,4 48 437
3899674 TDD108Z12000 WU20PD 12,000 0.4724 12 386 360 2,5 48 437
3899676 TDD108Z12500 WU20PD 12,500 0.4921 13 409 382 2,7 50 471
3899678 TDD108Z13000 WU20PD 13,000 0.5118 13 418 390 2,8 50 471
Holemaking
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
132 widia.com
With its high level of performance, wide application range, and proven point
geometry, TDM1 combines all of the economic benefits of a modular drilling
system with the machining performance and hole quality to tackle even your
most challenging operations.
The TDM1 platform offers UP(M) drill-point design in WU25PD™ grade — a wide
application range geometry, specially developed for cost-efficient drilling of steel,
cast iron, and stainless steel. It covers diameter ranges from 8–25,99mm within
the standard offering in L/D ratios of 3, 5, and 8 x D.
TOP DRILL M1
TOP DRILL M1™ Modular Drill System
With performance levels and metal removal rates comparable to that of solid
carbide drills, WIDIA™ TOP DRILL M1 offers all the quality and performance you
need in one versatile, economical package. The unique front clamping system
enables inserts to be changed quickly, even inside the machine tool, saving setup
time and manufacturing costs.
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
133
widia.com
UP Point Design — Versatility and Productivity
• One insert style for all your work in steel, cast iron, and even
stainless steels.
• Low cutting forces and excellent centring capabilities.
• Universal point style for consistent performance and excellent
hole quality.
Easy Insert Change
• No screws or clamps required.
• Insert blades can be changed with a simple wrench that comes
with each holder.
Disposable
• No reconditioning costs.
• Consistent performance from tip to tip.
• Eliminates number of tools waiting for reconditioning,
thus avoiding hidden costs.
Customisation
• All intermediate diameters are quickly available as semi-standards.
• Multiple step drills available as customised solutions.
• New TopSTEP range of inserts offer extended chamfering and
counterboring to your one-shot drilling solution.
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
134 widia.com
Holemaking
Holemaking
TOP DRILL M1™
(continued)
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
L
(mm)
L1
(mm)
L3
(mm)
L4
(mm)
L5
(mm)
LS
(mm)
insert blade
seat size
TOP DRILL M1 • 3 x D • Flanged • Metric
3850904 TDM080R3SCF12M 7,94 8,49 12 86 41 35 26 1,5 45 W10
3850906 TDM085R3SCF12M 8,50 8,99 12 88 43 37 27 1,6 45 W11
3850908 TDM090R3SCF12M 9,00 9,49 12 90 45 39 29 1,7 45 W12
3850910 TDM095R3SCF12M 9,50 9,99 12 92 47 41 30 1,8 45 W13
3850912 TDM100R3SCF16M 10,00 10,49 16 97 49 43 32 1,9 48 W14
3850924 TDM105R3SCF16M 10,50 10,99 16 99 51 45 33 2,0 48 W15
3850926 TDM110R3SCF16M 11,00 11,49 16 101 53 47 35 2,1 48 W16
3850928 TDM115R3SCF16M 11,50 11,99 16 103 55 49 36 2,2 48 W17
3850930 TDM120R3SCF16M 12,00 12,49 16 106 58 52 38 2,3 48 W18
3850932 TDM125R3SCF16M 12,50 12,99 16 108 60 54 39 2,4 48 W19
3850934 TDM130R3SCF16M 13,00 13,49 16 110 62 56 41 2,5 48 W20
3850936 TDM135R3SCF16M 13,50 13,99 16 112 64 58 42 2,6 48 W21
3850938 TDM140R3SCF16M 14,00 14,49 16 114 66 60 44 2,7 48 W22
3850940 TDM145R3SCF16M 14,50 14,99 16 116 68 62 45 2,8 48 W23
3850942 TDM150R3SCF20M 15,00 15,99 20 122 72 66 48 2,8 50 W24
3850944 TDM160R3SCF20M 16,00 16,99 20 126 76 70 51 3,0 50 W25
3850946 TDM170R3SCF20M 17,00 17,99 20 131 81 75 54 3,2 50 W26
3850948 TDM180R3SCF25M 18,00 18,99 25 141 85 79 57 3,4 56 W27
3850950 TDM190R3SCF25M 19,00 19,99 25 144 89 83 60 3,6 56 W28
3850952 TDM200R3SCF25M 20,00 20,99 25 149 93 87 63 3,8 56 W29
3992070 TDM210R3SCF25M 21,00 21,99 25 153 97 91 66 3,7 56 W30
3992071 TDM220R3SCF25M 22,00 22,99 25 158 102 96 69 3,9 56 W31
3992072 TDM230R3SCF25M 23,00 23,99 25 162 106 100 72 4,1 56 W32
3992483 TDM240R3SCF25M 24,00 24,99 25 166 110 104 75 4,2 56 W33
3992484 TDM250R3SCF25M 25,00 25,99 25 170 114 108 78 4,4 56 W34
TOP DRILL M1 • 5 x D • Flanged • Metric
3850905 TDM080R5SCF12M 7,94 8,49 12 104 59 53 43 1,5 45 W10
3850907 TDM085R5SCF12M 8,50 8,99 12 107 62 56 45 1,6 45 W11
3850909 TDM090R5SCF12M 9,00 9,49 12 110 65 59 48 1,7 45 W12
3850911 TDM095R5SCF12M 9,50 9,99 12 114 69 63 50 1,8 45 W13
3850923 TDM100R5SCF16M 10,00 10,49 16 120 72 66 53 1,9 48 W14
3850925 TDM105R5SCF16M 10,50 10,99 16 123 75 69 55 2,0 48 W15
3850927 TDM110R5SCF16M 11,00 11,49 16 126 78 72 58 2,1 48 W16
3850929 TDM115R5SCF16M 11,50 11,99 16 129 81 75 60 2,2 48 W17
3850931 TDM120R5SCF16M 12,00 12,49 16 132 84 78 63 2,3 48 W18
3850933 TDM125R5SCF16M 12,50 12,99 16 135 87 81 65 2,4 48 W19
3850935 TDM130R5SCF16M 13,00 13,49 16 138 90 84 68 2,5 48 W20
3850937 TDM135R5SCF16M 13,50 13,99 16 142 94 88 70 2,6 48 W21
3850939 TDM140R5SCF16M 14,00 14,49 16 145 97 91 73 2,7 48 W22
3850941 TDM145R5SCF16M 14,50 14,99 16 148 100 94 75 2,8 48 W23
3850943 TDM150R5SCF20M 15,00 15,99 20 156 106 100 80 2,8 50 W24
3850945 TDM160R5SCF20M 16,00 16,99 20 162 112 106 85 3,0 50 W25
3850947 TDM170R5SCF20M 17,00 17,99 20 169 119 113 90 3,2 50 W26
3850949 TDM180R5SCF25M 18,00 18,99 25 181 125 119 95 3,4 56 W27
3850951 TDM190R5SCF25M 19,00 19,99 25 187 131 125 100 3,6 56 W28
3850953 TDM200R5SCF25M 20,00 20,99 25 193 137 131 105 3,8 56 W29
3992485 TDM210R5SCF25M 21,00 21,99 25 200 144 138 110 3,7 56 W30
3992486 TDM220R5SCF25M 22,00 22,99 25 206 150 144 115 3,9 56 W31
3992487 TDM230R5SCF25M 23,00 23,99 25 212 156 150 120 4,1 56 W32
3992488 TDM240R5SCF25M 24,00 24,99 25 218 162 156 125 4,2 56 W33
3992489 TDM250R5SCF25M 25,00 25,99 25 225 169 163 130 4,4 56 W34
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
135
widia.com
Holemaking
Holemaking
TOP DRILL M1™
order
number
catalogue
number
D1
(mm)
D1
max
(mm)
D
(mm)
L
(mm)
L1
(mm)
L3
(mm)
L4
(mm)
L5
(mm)
LS
(mm)
insert blade
seat size
TOP DRILL M1 • 8 x D • Flanged • Metric
3992141 TDM080R8SCF12M 7,94 8,49 12 129 84 79 68 1,4 45 W10
3992142 TDM085R8SCF12M 8,50 8,99 12 134 89 83 72 1,5 45 W11
3992213 TDM090R8SCF12M 9,00 9,49 12 138 93 88 76 1,6 45 W12
3992214 TDM095R8SCF12M 9,50 9,99 12 144 99 93 80 1,7 45 W13
3992215 TDM100R8SCF16M 10,00 10,49 16 151 103 98 84 1,8 48 W14
3992216 TDM105R8SCF16M 10,50 10,99 16 156 108 102 88 1,9 48 W15
3992217 TDM110R8SCF16M 11,00 11,49 16 160 112 107 92 2,0 48 W16
3992218 TDM115R8SCF16M 11,50 11,99 16 165 117 111 96 2,1 48 W17
3992219 TDM120R8SCF16M 12,00 12,49 16 169 121 116 100 2,1 48 W18
3992220 TDM125R8SCF16M 12,50 12,99 16 174 126 120 104 2,2 48 W19
3992221 TDM130R8SCF16M 13,00 13,49 16 178 130 125 108 2,3 48 W20
3992222 TDM135R8SCF16M 13,50 13,99 16 184 136 130 112 2,4 48 W21
3992223 TDM140R8SCF16M 14,00 14,49 16 188 140 135 116 2,5 48 W22
3992224 TDM145R8SCF16M 14,50 14,99 16 193 145 139 120 2,6 48 W23
3992225 TDM150R8SCF20M 15,00 15,99 20 204 154 148 128 2,7 50 W24
3992226 TDM160R8SCF20M 16,00 16,99 20 213 163 157 136 2,8 50 W25
3992227 TDM170R8SCF20M 17,00 17,99 20 223 173 167 144 3,0 50 W26
3992228 TDM180R8SCF25M 18,00 18,99 25 238 182 176 152 3,2 56 W27
3992229 TDM190R8SCF25M 19,00 19,99 25 247 191 185 160 3,4 56 W28
3992230 TDM200R8SCF25M 20,00 20,99 25 256 200 194 168 3,6 56 W29
3992231 TDM210R8SCF25M 21,00 21,99 25 266 210 204 176 3,7 56 W30
3992232 TDM220R8SCF25M 22,00 22,99 25 275 219 213 184 3,9 56 W31
3992233 TDM230R8SCF25M 23,00 23,99 25 284 228 222 192 4,1 56 W32
3992234 TDM240R8SCF25M 24,00 24,99 25 293 237 231 200 4,2 56 W33
3992235 TDM250R8SCF25M 25,00 25,99 25 303 247 241 208 4,4 56 W34
(TOP DRILL M1 — continued)
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
136 widia.com
Holemaking
Holemaking
TOP DRILL M1™
order
number
catalogue
number grade
D1
diameter
(mm)
seat size/
series
TOP DRILL M1 • UP(M)
3848984 TDM0800UPM WU25PD 8,00 W10
3848988 TDM0850UPM WU25PD 8,50 W11
3849043 TDM0900UPM WU25PD 9,00 W12
3849048 TDM0950UPM WU25PD 9,50 W13
3849049 TDM0960UPM WU25PD 9,60 W13
3849051 TDM1000UPM WU25PD 10,00 W14
3849052 TDM1010UPM WU25PD 10,10 W14
3849053 TDM1020UPM WU25PD 10,20 W14
3849054 TDM1030UPM WU25PD 10,30 W14
3849055 TDM1040UPM WU25PD 10,40 W14
3849056 TDM1050UPM WU25PD 10,50 W15
3849057 TDM1060UPM WU25PD 10,60 W15
3849059 TDM1080UPM WU25PD 10,80 W15
3849061 TDM1100UPM WU25PD 11,00 W16
3849063 TDM1120UPM WU25PD 11,20 W16
3849064 TDM1130UPM WU25PD 11,30 W16
3849065 TDM1140UPM WU25PD 11,40 W16
3849066 TDM1150UPM WU25PD 11,50 W17
3849068 TDM1170UPM WU25PD 11,70 W17
3849071 TDM1200UPM WU25PD 12,00 W18
3849072 TDM1210UPM WU25PD 12,10 W18
3849073 TDM1220UPM WU25PD 12,20 W18
3850986 TDM1230UPM WU25PD 12,30 W18
3849075 TDM1250UPM WU25PD 12,50 W19
3849076 TDM1260UPM WU25PD 12,60 W19
3850988 TDM1270UPM WU25PD 12,70 W19
3849077 TDM1280UPM WU25PD 12,80 W19
3849078 TDM1300UPM WU25PD 13,00 W20
3850990 TDM1310UPM WU25PD 13,10 W20
3849080 TDM1330UPM WU25PD 13,30 W20
3849082 TDM1350UPM WU25PD 13,50 W21
3849085 TDM1380UPM WU25PD 13,80 W21
3849086 TDM1400UPM WU25PD 14,00 W22
3849087 TDM1410UPM WU25PD 14,10 W22
3849088 TDM1420UPM WU25PD 14,20 W22
3849089 TDM1430UPM WU25PD 14,30 W22
3849090 TDM1440UPM WU25PD 14,40 W22
3849091 TDM1450UPM WU25PD 14,50 W23
3849092 TDM1460UPM WU25PD 14,60 W23
3849094 TDM1480UPM WU25PD 14,80 W23
3849096 TDM1500UPM WU25PD 15,00 W24
3849097 TDM1510UPM WU25PD 15,10 W24
3849099 TDM1530UPM WU25PD 15,30 W24
3849100 TDM1540UPM WU25PD 15,40 W24
3849101 TDM1550UPM WU25PD 15,50 W24
3849103 TDM1570UPM WU25PD 15,70 W24
3849104 TDM1580UPM WU25PD 15,80 W24
3849105 TDM1600UPM WU25PD 16,00 W25
3849110 TDM1650UPM WU25PD 16,50 W25
3849111 TDM1660UPM WU25PD 16,60 W25
3849112 TDM1670UPM WU25PD 16,70 W25
3849119 TDM1700UPM WU25PD 17,00 W26
(continued)
Language Version: 132_137_WID_All-Star19_Holemaking_TopDrillM1 September 20, 2018 4:01 PM
137
widia.com
order
number
catalogue
number grade
D1
diameter
(mm)
seat size/
series
TOP DRILL M1 • UP(M) (continued)
3849121 TDM1720UPM WU25PD 17,20 W26
3849193 TDM1740UPM WU25PD 17,40 W26
3849194 TDM1750UPM WU25PD 17,50 W26
3849196 TDM1770UPM WU25PD 17,70 W26
3849199 TDM1800UPM WU25PD 18,00 W27
3849204 TDM1850UPM WU25PD 18,50 W27
3849208 TDM1890UPM WU25PD 18,90 W27
3849209 TDM1900UPM WU25PD 19,00 W28
3849211 TDM1920UPM WU25PD 19,20 W28
3849214 TDM1950UPM WU25PD 19,50 W28
3849217 TDM1980UPM WU25PD 19,80 W28
3849219 TDM2000UPM WU25PD 20,00 W29
3849220 TDM2010UPM WU25PD 20,10 W29
3849221 TDM2020UPM WU25PD 20,20 W29
3851017 TDM2024UPM WU25PD 20,24 W29
3849222 TDM2030UPM WU25PD 20,30 W29
3849223 TDM2040UPM WU25PD 20,40 W29
3849224 TDM2050UPM WU25PD 20,50 W29
3849226 TDM2070UPM WU25PD 20,70 W29
3849227 TDM2080UPM WU25PD 20,80 W29
3849228 TDM2090UPM WU25PD 20,90 W29
3849229 TDM2099UPM WU25PD 20,99 W29
4003225 TDM2100UPM WU25PD 21,00 W30
4003203 TDM2144UPM WU25PD 21,44 W30
3969291 TDM2150UPM WU25PD 21,50 W30
4003226 TDM2200UPM WU25PD 22,00 W31
4003204 TDM2223UPM WU25PD 22,23 W31
4003205 TDM2245UPM WU25PD 22,45 W31
4003227 TDM2250UPM WU25PD 22,50 W31
4003228 TDM2300UPM WU25PD 23,00 W32
4003229 TDM2350UPM WU25PD 23,50 W32
4003206 TDM2381UPM WU25PD 23,81 W32
4003230 TDM2400UPM WU25PD 24,00 W33
4003231 TDM2450UPM WU25PD 24,50 W33
4003207 TDM2461UPM WU25PD 24,61 W33
4003232 TDM2500UPM WU25PD 25,00 W34
4003208 TDM2540UPM WU25PD 25,40 W34
4002444 TDM2550UPM WU25PD 25,50 W34
4003209 TDM2568UPM WU25PD 25,68 W34
4003210 TDM2581UPM WU25PD 25,81 W34
3992013 TDM2599UPM WU25PD 25,99 W34
Holemaking
Holemaking
TOP DRILL M1™
(TOP DRILL M1 — continued)
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
138 widia.com
WIDIA™ Top Cut 4™ •
New Generation Indexable Drilling
System
The new WIDIA Top Cut 4 (TC4) portfolio is a broad offering for customers looking
for a versatile indexable drilling platform.
The newly developed TC4 features improved centring capabilities and inserts with
four cutting edges for both pocket seats (central and periphery). This, in combination
with the renowned WIDIA grade technology, leads to outstanding flexibility and efficiency.
The TC4 platform offers three easy-to-select grades and two geometries applicable for steel,
cast iron, and stainless steel materials. It covers the diameter range from 12–68mm
within the standard offering in L/D ratios of 2–5 x D.
Top Cut 4
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
139
widia.com
One Comprehensive Platform
• Standard diameter range covering 12–68mm in 2 x D, 3 x D,
4 x D, and 5 x D.
• Four real cutting edges each for entire platform.
• Eight insert sizes to cover complete diameter range.
Easy to Apply
• No risk of mixing up inner and outer insert due to clear visual differences.
• Easy-to-change inserts, laser marked with geometries and grades.
• Easy-to-use nomenclature guide enabling the tool body and the related
insert selection to avoid order failures.
Highly Versatile
• Breadth of application capabilities include through and cross holes, inclined
entry and exit opportunity, 45º corner, half cylindrical, concave, or chain drilling.
• Various geometries and grades available.
Highest Performance
• 2x four true cutting edges.
• Cutting edge profile of central and periphery insert work together, leading to high
stabilisation of the drill, preventing drifting of the tool even on irregular surfaces.
• X-offset design to adjust diameter size on turning machines and optimise tolerances
on machining centres.
• Apply where speed and economy are prime considerations.
• Three grades to achieve higher tool life at accelerated speeds:
– WU25CH grade for highest metal removal rate in general applications.
– WU40PH grade for high toughness demands.
– WPK10CH grade for high-speed applications.
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
140 widia.com
order
number
catalogue
number
D1
(mm)
D1 max
(mm)
D
(mm)
L1
(mm)
L4 max
(mm)
L5
(mm)
insert
size
periphery
insert
centre
insert
Top Cut 4 Drill • Metric • 2 x D • Side Lock Shank
5537778 TCF120R2SLR20MA 12,00 12,50 20 43,4 24,0 0,43 ATCF040204AP TCF040203AC
5537861 TCF130R2SLR20MA 13,00 13,50 20 46,5 26,5 0,56 ATCF040204AP TCF040203AC
5577828 TCF140R2SLR25MB 14,00 14,50 25 48,5 28,5 0,42 BTCF050204BP TCF060203BC
5577920 TCF150R2SLR25MB 15,00 15,50 25 51,5 30,5 0,49 BTCF050204BP TCF060203BC
5577922 TCF160R2SLR25MB 16,00 16,50 25 54,6 32,6 0,60 BTCF050204BP TCF060203BC
5577923 TCF165R2SLR25MB 16,50 17,00 25 56,6 33,6 0,68 BTCF050204BP TCF060203BC
5577924 TCF170R2SLR25MB 17,00 17,50 25 57,6 34,6 0,74 BTCF050204BP TCF060203BC
5577925 TCF175R2SLR25MB 17,50 18,00 25 59,6 35,6 0,79 BTCF050204BP TCF060203BC
5577926 TCF180R2SLR25MB 18,00 18,50 25 60,6 36,6 0,86 BTCF050204BP TCF060203BC
5577927 TCF185R2SLR25MB 18,50 19,00 25 62,7 37,7 0,83 BTCF050204BP TCF060203BC
5578820 TCF190R2SLR25MC 19,00 19,50 25 63,7 38,7 0,60 CTCF070306CP TCF070304CC
5578821 TCF195R2SLR25MC 19,50 20,00 25 65,7 39,7 0,70 CTCF070306CP TCF070304CC
5578822 TCF200R2SLR25MC 20,00 20,50 25 66,7 40,7 0,70 CTCF070306CP TCF070304CC
5578825 TCF220R2SLR25MC 22,00 22,50 25 73,8 44,8 1,00 CTCF070306CP TCF070304CC
5537167 TCF240R2SLR25MD 24,00 25,00 25 76,9 48,9 0,78 DTCF080308DP TCF090305DC
5537168 TCF250R2SLR32MD 25,00 26,00 32 80,9 50,9 0,86 DTCF080308DP TCF090305DC
5537169 TCF260R2SLR32MD 26,00 27,00 32 83,9 52,9 0,97 DTCF080308DP TCF090305DC
5537821 TCF270R2SLR32MD 27,00 28,00 32 87,0 55,0 1,15 DTCF080308DP TCF090305DC
5537822 TCF280R2SLR32MD 28,00 29,00 32 90,0 57,0 1,30 DTCF080308DP TCF090305DC
5537823 TCF290R2SLR32MD 29,00 30,00 32 93,0 59,0 1,45 DTCF080308DP TCF090305DC
5537937 TCF300R2SLR32ME 30,00 31,00 32 93,1 61,1 0,63 ETCF100408EP TCF120405EC
5537938 TCF310R2SLR32ME 31,00 32,00 32 96,1 63,1 0,72 ETCF100408EP TCF120405EC
5537939 TCF320R2SLR32ME 32,00 33,00 32 99,2 65,2 0,82 ETCF100408EP TCF120405EC
5537940 TCF330R2SLR40ME 33,00 34,00 40 103,2 67,2 0,95 ETCF100408EP TCF120405EC
5537941 TCF340R2SLR40ME 34,00 35,00 40 106,2 69,2 1,14 ETCF100408EP TCF120405EC
5537942 TCF350R2SLR40ME 35,00 36,00 40 109,2 71,2 1,30 ETCF100408EP TCF120405EC
5537943 TCF360R2SLR40ME 36,00 37,00 40 112,3 73,3 1,45 ETCF100408EP TCF120405EC
5578602 TCF390R2SLR40MF 39,00 40,00 40 121,4 79,4 1,36 FTCF120412FP TCF150406FC
5578603 TCF400R2SLR40MF 40,00 41,00 40 123,4 81,4 1,47 FTCF120412FP TCF150406FC
5578607 TCF440R2SLR40MF 44,00 45,00 40 135,6 89,6 2,10 FTCF120412FP TCF150406FC
5578608 TCF450R2SLR40MF 45,00 46,00 40 138,6 91,6 2,21 FTCF120412FP TCF150406FC
5578698 TCF500R2SLR40MG 50,00 51,00 40 147,8 101,8 1,87 GTCF150512GP TCF180508GC
5578714 TCF550R2SLR40MG 55,00 56,00 40 161,9 111,9 1,92 GTCF150512GP TCF180508GC
Top Cut 4 Drill • Metric • 3 x D • Side Lock Shank
5537863 TCF120R3SLR20MA 12,00 12,50 20 55,4 36,4 0,41 ATCF040204AP TCF040203AC
5537867 TCF130R3SLR20MA 13,00 13,50 20 59,5 39,5 0,56 ATCF040204AP TCF040203AC
5577928 TCF140R3SLR25MB 14,00 14,50 25 62,5 42,5 0,42 BTCF050204BP TCF060203BC
5577930 TCF150R3SLR25MB 15,00 15,50 25 66,5 45,5 0,49 BTCF050204BP TCF060203BC
5577932 TCF160R3SLR25MB 16,00 16,50 25 70,6 48,6 0,60 BTCF050204BP TCF060203BC
5577933 TCF165R3SLR25MB 16,50 17,00 25 73,1 50,1 0,68 BTCF050204BP TCF060203BC
5577934 TCF170R3SLR25MB 17,00 17,50 25 74,6 51,6 0,74 BTCF050204BP TCF060203BC
Holemaking
Holemaking
Top Cut 4™
For information on LS, visit widia.com/novo.
(continued)
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
141
widia.com
(Top Cut 4 — continued)
order
number
catalogue
number
D1
(mm)
D1 max
(mm)
D
(mm)
L1
(mm)
L4 max
(mm)
L5
(mm)
insert
size
periphery
insert
centre
insert
Top Cut 4 Drill • Metric • 3 x D • Side Lock Shank (continued)
5577935 TCF175R3SLR25MB 17,50 18,00 25 77,1 53,1 0,79 BTCF050204BP TCF060203BC
5577936 TCF180R3SLR25MB 18,00 18,50 25 78,6 54,6 0,86 BTCF050204BP TCF060203BC
5577937 TCF185R3SLR25MB 18,50 19,00 25 81,2 56,2 0,83 BTCF050204BP TCF060203BC
5578828 TCF190R3SLR25MC 19,00 19,50 25 82,7 57,7 0,60 CTCF070306CP TCF070304CC
5578829 TCF195R3SLR25MC 19,50 20,00 25 85,2 59,2 0,70 CTCF070306CP TCF070304CC
5578830 TCF200R3SLR25MC 20,00 20,50 25 86,7 60,7 0,70 CTCF070306CP TCF070304CC
5578832 TCF210R3SLR25MC 21,00 21,50 25 91,8 63,8 0,80 CTCF070306CP TCF070304CC
5578833 TCF220R3SLR25MC 22,00 22,50 25 95,8 66,8 1,00 CTCF070306CP TCF070304CC
5537824 TCF240R3SLR25MD 24,00 25,00 25 100,9 72,9 0,78 DTCF080308DP TCF090305DC
5537825 TCF250R3SLR32MD 25,00 26,00 32 105,9 75,9 0,91 DTCF080308DP TCF090305DC
5537826 TCF260R3SLR32MD 26,00 27,00 32 109,9 78,9 0,97 DTCF080308DP TCF090305DC
5537828 TCF270R3SLR32MD 27,00 28,00 32 114,0 82,0 1,15 DTCF080308DP TCF090305DC
5537829 TCF280R3SLR32MD 28,00 29,00 32 118,0 85,0 1,30 DTCF080308DP TCF090305DC
5537830 TCF290R3SLR32MD 29,00 30,00 32 122,0 88,0 1,45 DTCF080308DP TCF090305DC
5537944 TCF300R3SLR32ME 30,00 31,00 32 123,1 91,1 0,63 ETCF100408EP TCF120405EC
5537945 TCF310R3SLR32ME 31,00 32,00 32 127,1 94,1 0,72 ETCF100408EP TCF120405EC
5537946 TCF320R3SLR32ME 32,00 33,00 32 131,2 97,2 0,82 ETCF100408EP TCF120405EC
5537947 TCF330R3SLR40ME 33,00 34,00 40 136,2 100,2 0,95 ETCF100408EP TCF120405EC
5537948 TCF340R3SLR40ME 34,00 35,00 40 140,2 103,2 1,14 ETCF100408EP TCF120405EC
5537949 TCF350R3SLR40ME 35,00 36,00 40 144,2 106,2 1,30 ETCF100408EP TCF120405EC
5537950 TCF360R3SLR40ME 36,00 37,00 40 148,3 109,3 1,45 ETCF100408EP TCF120405EC
5578612 TCF390R3SLR40MF 39,00 40,00 40 160,4 118,4 1,36 FTCF120412FP TCF150406FC
5578613 TCF400R3SLR40MF 40,00 41,00 40 163,4 121,4 1,47 FTCF120412FP TCF150406FC
5578617 TCF440R3SLR40MF 44,00 45,00 40 179,6 133,6 2,10 FTCF120412FP TCF150406FC
5578618 TCF450R3SLR40MF 45,00 46,00 40 183,6 136,6 2,21 FTCF120412FP TCF150406FC
5578720 TCF500R3SLR40MG 50,00 51,00 40 197,8 151,8 1,87 GTCF150512GP TCF180508GC
5578727 TCF550R3SLR40MG 55,00 56,00 40 216,9 166,9 2,73 GTCF150512GP TCF180508GC
Top Cut 4 Drill • Metric • 4 x D • Side Lock Shank
5537869 TCF120R4SLR20MA 12,00 12,50 20 67,4 48,4 0,41 ATCF040204AP TCF040203AC
5537872 TCF130R4SLR20MA 13,00 13,50 20 72,5 52,5 0,56 ATCF040204AP TCF040203AC
5577938 TCF140R4SLR25MB 14,00 14,50 25 76,5 56,5 0,42 BTCF050204BP TCF060203BC
5577940 TCF150R4SLR25MB 15,00 15,50 25 81,5 60,5 0,49 BTCF050204BP TCF060203BC
5577942 TCF160R4SLR25MB 16,00 16,50 25 86,6 64,6 0,60 BTCF050204BP TCF060203BC
5577943 TCF165R4SLR25MB 16,50 17,00 25 89,6 66,6 0,68 BTCF050204BP TCF060203BC
5577944 TCF170R4SLR25MB 17,00 17,50 25 91,6 68,6 0,74 BTCF050204BP TCF060203BC
5577945 TCF175R4SLR25MB 17,50 18,00 25 94,6 70,6 0,79 BTCF050204BP TCF060203BC
5577946 TCF180R4SLR25MB 18,00 18,50 25 96,6 72,6 0,86 BTCF050204BP TCF060203BC
5577947 TCF185R4SLR25MB 18,50 19,00 25 99,7 74,7 0,83 BTCF050204BP TCF060203BC
5578836 TCF190R4SLR25MC 19,00 19,50 25 101,7 76,7 0,60 CTCF070306CP TCF070304CC
5578837 TCF195R4SLR25MC 19,50 20,00 25 104,7 78,7 0,70 CTCF070306CP TCF070304CC
5578838 TCF200R4SLR25MC 20,00 20,50 25 106,7 80,7 0,70 CTCF070306CP TCF070304CC
5578840 TCF210R4SLR25MC 21,00 21,50 25 112,8 84,8 0,80 CTCF070306CP TCF070304CC
5578841 TCF220R4SLR25MC 22,00 22,50 25 117,8 88,8 1,00 CTCF070306CP TCF070304CC
5537831 TCF240R4SLR25MD 24,00 25,00 25 124,9 96,9 0,78 DTCF080308DP TCF090305DC
5537832 TCF250R4SLR32MD 25,00 26,00 32 130,9 100,9 0,86 DTCF080308DP TCF090305DC
5537833 TCF260R4SLR32MD 26,00 27,00 32 135,9 104,9 0,97 DTCF080308DP TCF090305DC
5537835 TCF270R4SLR32MD 27,00 28,00 32 141,0 109,0 1,15 DTCF080308DP TCF090305DC
5537836 TCF280R4SLR32MD 28,00 29,00 32 146,0 113,0 1,30 DTCF080308DP TCF090305DC
5537837 TCF290R4SLR32MD 29,00 30,00 32 151,0 117,0 1,45 DTCF080308DP TCF090305DC
5537951 TCF300R4SLR32ME 30,00 31,00 32 153,1 121,1 0,63 ETCF100408EP TCF120405EC
5537952 TCF310R4SLR32ME 31,00 32,00 32 158,1 125,1 0,72 ETCF100408EP TCF120405EC
5537953 TCF320R4SLR32ME 32,00 33,00 32 163,2 129,2 0,82 ETCF100408EP TCF120405EC
5537954 TCF330R4SLR40ME 33,00 34,00 40 165,2 133,2 0,95 ETCF100408EP TCF120405EC
5537955 TCF340R4SLR40ME 34,00 35,00 40 174,2 137,2 1,14 ETCF100408EP TCF120405EC
5537956 TCF350R4SLR40ME 35,00 36,00 40 179,2 141,2 1,30 ETCF100408EP TCF120405EC
5537957 TCF360R4SLR40ME 36,00 37,00 40 184,3 145,3 1,45 ETCF100408EP TCF120405EC
5578622 TCF390R4SLR40MF 39,00 40,00 40 200,8 156,0 1,36 FTCF120412FP TCF150406FC
5578623 TCF400R4SLR40MF 40,00 41,00 40 205,1 160,0 1,47 FTCF120412FP TCF150406FC
5578627 TCF440R4SLR40MF 44,00 45,00 40 222,4 176,0 2,10 FTCF120412FP TCF150406FC
5578628 TCF450R4SLR40MF 45,00 46,00 40 228,6 181,6 1,59 FTCF120412FP TCF150406FC
5578733 TCF500R4SLR40MG 50,00 51,00 40 247,8 201,8 1,87 GTCF150512GP TCF180508GC
5578739 TCF550R4SLR40MG 55,00 56,00 40 271,9 221,9 1,92 GTCF150512GP TCF180508GC
Holemaking
Holemaking
Top Cut 4™
(continued)
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
142 widia.com
Holemaking
Holemaking
Top Cut 4™
order
number
catalogue
number grade
D
(mm)
D1
(mm)
W
(mm)
S
(mm)
RR
(mm)
insert
size
Top Cut 4 Drill • Centre Inserts • V34
5541817 TCF040203ACV34 WU25CH 4,47 2,10 3,65 2,00 0,300 A
5541818 TCF040203ACV34 WU40PH 4,47 2,10 3,65 2,00 0,300 A
5542602 TCF060203BCV34 WU25CH 6,00 2,40 4,90 2,40 0,300 B
5542604 TCF060203BCV34 WU40PH 6,00 2,40 4,90 2,40 0,300 B
5542642 TCF070304CCV34 WU25CH 7,59 2,60 6,20 2,80 0,400 C
5542643 TCF070304CCV34 WU40PH 7,59 2,60 6,20 2,80 0,400 C
5538554 TCF090305DCV34 WU25CH 9,55 2,80 7,80 3,00 0,500 D
5538555 TCF090305DCV34 WU40PH 9,55 2,80 7,80 3,00 0,500 D
5538603 TCF120405ECV34 WU25CH 12,00 3,40 9,80 3,60 0,500 E
5538604 TCF120405ECV34 WU40PH 12,00 3,40 9,80 3,60 0,500 E
5542623 TCF150406FCV34 WU25CH 14,94 4,80 12,20 4,20 0,600 F
5542624 TCF150406FCV34 WU40PH 14,94 4,80 12,20 4,20 0,600 F
5542475 TCF180508GCV34 WU25CH 17,88 6,00 14,60 5,40 0,800 G
5542476 TCF180508GCV34 WU40PH 17,88 6,00 14,60 5,40 0,800 G
5542002 TCF210608HCV34 WU25CH 21,68 7,50 17,70 6,50 0,800 H
5542003 TCF210608HCV34 WU40PH 21,68 7,50 17,70 6,50 0,800 H
Top Cut 4 Drill • Centre Inserts • V36
5541819 TCF040203ACV36 WU25CH 4,47 2,10 3,65 2,00 0,300 A
5541840 TCF040203ACV36 WU40PH 4,47 2,10 3,65 2,00 0,300 A
5542606 TCF060203BCV36 WU25CH 6,00 2,40 4,90 2,40 0,300 B
5542607 TCF060203BCV36 WU40PH 6,00 2,40 4,90 2,40 0,300 B
5542644 TCF070304CCV36 WU25CH 7,59 2,60 6,20 2,80 0,400 C
5542645 TCF070304CCV36 WU40PH 7,59 2,60 6,20 2,80 0,400 C
5538556 TCF090305DCV36 WU25CH 9,55 2,80 7,80 3,00 0,500 D
5538557 TCF090305DCV36 WU40PH 9,55 2,80 7,80 3,00 0,500 D
5538606 TCF120405ECV36 WU25CH 12,00 3,40 9,80 3,60 0,500 E
5538607 TCF120405ECV36 WU40PH 12,00 3,40 9,80 3,60 0,500 E
5542625 TCF150406FCV36 WU25CH 14,94 4,80 12,20 4,20 0,600 F
5542626 TCF150406FCV36 WU40PH 14,94 4,80 12,20 4,20 0,600 F
5542477 TCF180508GCV36 WU25CH 17,88 6,00 14,60 5,40 0,800 G
5542478 TCF180508GCV36 WU40PH 17,88 6,00 14,60 5,40 0,800 G
5542004 TCF210608HCV36 WU25CH 21,68 7,50 17,70 6,50 0,800 H
5542005 TCF210608HCV36 WU40PH 21,68 7,50 17,70 6,50 0,800 H
Top Cut 4 Drill • Metric • 5 x D • Side Lock Shank
5578846 TCF200R5SLR25MC 20,00 20,00 25 126,7 100,7 0,70 CTCF070306CP TCF070304CC
5578848 TCF210R5SLR25MC 21,00 21,00 25 133,8 105,8 0,80 CTCF070306CP TCF070304CC
5578849 TCF220R5SLR25MC 22,00 22,00 25 139,8 110,8 1,00 CTCF070306CP TCF070304CC
5537838 TCF240R5SLR25MD 24,00 24,00 25 148,9 120,9 0,78 DTCF080308DP TCF090305DC
5537839 TCF250R5SLR32MD 25,00 25,00 32 155,9 125,9 0,86 DTCF080308DP TCF090305DC
5537840 TCF260R5SLR32MD 26,00 26,00 32 161,9 130,9 0,94 DTCF080308DP TCF090305DC
5537961 TCF330R5SLR40ME 33,00 33,00 40 202,2 166,2 0,95 ETCF100408EP TCF120405EC
5578643 TCF400R5SLR40MF 40,00 — 40 245,1 200,0 1,47 FTCF120412FP TCF150406FC
(Top Cut 4 — continued)
Language Version: 138_143_WID_All-Star19_Holemaking_TopCut4 October 1, 2018 2:58 PM
143
widia.com
Holemaking
Top Cut 4™
order
number
catalogue
number grade
D
(mm)
D1
(mm)
W
(mm)
S
(mm)
RR
(mm)
insert
size
Top Cut 4 Drill • Periphery Inserts • V34
5541843 TCF040204APV34 WPK10CH 4,14 2,10 4,40 2,00 0,400 A
5541841 TCF040204APV34 WU25CH 4,14 2,10 4,40 2,00 0,400 A
5541842 TCF040204APV34 WU40PH 4,14 2,10 4,40 2,00 0,400 A
5542620 TCF050204BPV34 WPK10CH 5,07 2,40 5,40 2,40 0,400 B
5542608 TCF050204BPV34 WU25CH 5,07 2,40 5,40 2,40 0,400 B
5542609 TCF050204BPV34 WU40PH 5,07 2,40 5,40 2,40 0,400 B
5542648 TCF070306CPV34 WPK10CH 6,67 2,60 7,10 2,80 0,600 C
5542646 TCF070306CPV34 WU25CH 6,67 2,60 7,10 2,80 0,600 C
5542647 TCF070306CPV34 WU40PH 6,67 2,60 7,10 2,80 0,600 C
5538600 TCF080308DPV34 WPK10CH 8,08 2,80 8,60 3,00 0,800 D
5538558 TCF080308DPV34 WU25CH 8,08 2,80 8,60 3,00 0,800 D
5538559 TCF080308DPV34 WU40PH 8,08 2,80 8,60 3,00 0,800 D
5538610 TCF100408EPV34 WPK10CH 9,96 3,40 10,60 3,60 0,800 E
5538608 TCF100408EPV34 WU25CH 9,96 3,40 10,60 3,60 0,800 E
5538609 TCF100408EPV34 WU40PH 9,96 3,40 10,60 3,60 0,800 E
5542629 TCF120412FPV34 WPK10CH 12,59 4,80 13,40 4,20 1,200 F
5542627 TCF120412FPV34 WU25CH 12,59 4,80 13,40 4,20 1,200 F
5542628 TCF120412FPV34 WU40PH 12,59 4,80 13,40 4,20 1,200 F
5542601 TCF150512GPV34 WPK10CH 15,13 6,00 16,10 5,40 1,200 G
5542479 TCF150512GPV34 WU25CH 15,13 6,00 16,10 5,40 1,200 G
5542600 TCF150512GPV34 WU40PH 15,13 6,00 16,10 5,40 1,200 G
5542008 TCF180614HPV34 WPK10CH 18,04 7,50 19,20 6,50 1,400 H
5542006 TCF180614HPV34 WU25CH 18,04 7,50 19,20 6,50 1,400 H
5542007 TCF180614HPV34 WU40PH 18,04 7,50 19,20 6,50 1,400 H
Top Cut 4 Drill • Periphery Inserts • V36
5541844 TCF040204APV36 WU25CH 4,14 2,10 4,40 2,00 0,400 A
5541845 TCF040204APV36 WU40PH 4,14 2,10 4,40 2,00 0,400 A
5542621 TCF050204BPV36 WU25CH 5,07 2,40 5,40 2,40 0,400 B
5542622 TCF050204BPV36 WU40PH 5,07 2,40 5,40 2,40 0,400 B
5542649 TCF070306CPV36 WU25CH 6,67 2,60 7,10 2,80 0,600 C
5542650 TCF070306CPV36 WU40PH 6,67 2,60 7,10 2,80 0,600 C
5538601 TCF080308DPV36 WU25CH 8,08 2,80 8,60 3,00 0,800 D
5538602 TCF080308DPV36 WU40PH 8,08 2,80 8,60 3,00 0,800 D
5538611 TCF100408EPV36 WU25CH 9,96 3,40 10,60 3,60 0,800 E
5538612 TCF100408EPV36 WU40PH 9,96 3,40 10,60 3,60 0,800 E
5542640 TCF120412FPV36 WU25CH 12,59 4,80 13,40 4,20 1,200 F
5542641 TCF120412FPV36 WU40PH 12,59 4,80 13,40 4,20 1,200 F
5542603 TCF150512GPV36 WU25CH 15,13 6,00 16,10 5,40 1,200 G
5542605 TCF150512GPV36 WU40PH 15,13 6,00 16,10 5,40 1,200 G
5542009 TCF180614HPV36 WU25CH 18,04 7,50 19,20 6,50 1,400 H
5542020 TCF180614HPV36 WU40PH 18,04 7,50 19,20 6,50 1,400 H
Holemaking
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
144 widia.com
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
VariTap is the high-performance multipurpose tapping solution from WIDIA™. VariTap has an
optimised geometry capable of working in a wide variety of ductile materials — including
carbon and alloy steels, stainless steels, ductile iron, and cast aluminium. VariTap reduces
inventory costs without losing the benefit of high-quality threads and consistent tool life.
With a wide range of inch and metric standard sizes, pitch diameter limits,
classes of fit, chamfer styles, and coatings, VariTap offers the most expansive
portfolio of multipurpose taps available on the market. VariTap now includes
ISO pipe taps for through and blind hole applications.
VariTap
High-Performance Solution for Multipurpose Tapping •
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
145
widia.com
Multipurpose Taps
VariTap™ Technical Information
WP42EG WU41EG WP49EG WU40EG
TiCN TiN Oxide Bright
Unique spiral-point design
Cutting edge angles and positive rake face straight-flutes
are optimised for tapping multiple materials.
Multiple tap dimension options
ANSI, DIN, JIS, and DIN/ANSI.
Precision ground shanks
Low runout.
High-vanadium HSS-E
Improved wear characteristics
and longer tool life.
PVD coatings and surface treatments
For use with various workpiece materials:
Multipurpose Taps for Steel, Stainless Steel,
Cast Aluminium, and Ductile Iron
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
146 widia.com
Advanced spiral-flute design
Smooth ejection of chips to reduce
and eliminate bird-nesting.
Multiple tap dimension options
ANSI, DIN, JIS, and DIN/ANSI.
Precision ground shanks
Low runout.
High-vanadium HSS-E
Improved wear resistance
and longer life.
PVD coatings and surface treatments
For use with various workpiece materials:
Multipurpose Taps for Steel, Stainless Steel,
Cast Aluminium, and Ductile Iron
Multipurpose Taps
VariTap™ Technical Information
WP42EG WU41EG WP49EG WU40EG
TiCN TiN Oxide Bright
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
147
widia.com
Advanced spiral-flute design
Smooth ejection of chips to reduce
and eliminate bird-nesting.
High vanadium HSS-E
Improved wear characteristics
and longer tool life.
Precision ground shanks
Low runout.
PVD coatings and surface treatment
For use in various workpiece materials:
Multipurpose HSS-E Spiral-Flute Taps
For Use in Tension/Compression Tap Holders
WU41EG
TiN
WP49EG
Oxide
Multipurpose Taps
VariTap™ Technical Information
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
148 widia.com
order
number
catalogue
number grade D1 size
L
(mm)
L3
(mm)
L2
(mm)
D
(mm)
number
of flutes
dimension
standard class of fit
VT-SPO • Form B Plug Chamfer • Metric DIN 371, 374, and 376 • Through Holes
5366666 VTSPO6510 WU41EG M3 X 0,5 56 818 3,5 2DIN 371 6H
5366668 VTSPO6510 WP49EG M3 X 0,5 56 818 3,5 2DIN 371 6H
5366676 VTSPO6513 WP42EG M4 X 0,7 63 11 21 4,5 2DIN 371 6H
5366675 VTSPO6513 WU41EG M4 X 0,7 63 11 21 4,5 2DIN 371 6H
5366677 VTSPO6513 WP49EG M4 X 0,7 63 11 21 4,5 2DIN 371 6H
5366681 VTSPO6515 WP42EG M5 X 0,8 70 12 25 6,0 2DIN 371 6H
5366680 VTSPO6515 WU41EG M5 X 0,8 70 12 25 6,0 2DIN 371 6H
5366682 VTSPO6515 WP49EG M5 X 0,8 70 12 25 6,0 2DIN 371 6H
5366687 VTSPO6517 WP42EG M6 X 1 80 12 30 6,0 3DIN 371 6H
5366686 VTSPO6517 WU41EG M6 X 1 80 12 30 6,0 3DIN 371 6H
5366688 VTSPO6517 WP49EG M6 X 1 80 12 30 6,0 3DIN 371 6H
5366700 VTSPO6521 WP42EG M8 X 1,25 90 15 35 8,0 3DIN 371 6H
5366698 VTSPO6521 WU41EG M8 X 1,25 90 15 35 8,0 3DIN 371 6H
5366701 VTSPO6521 WP49EG M8 X 1,25 90 15 35 8,0 3DIN 371 6H
5366706 VTSPO6523 WP42EG M10 X 1,5 100 18 39 10,0 3DIN 371 6H
5366705 VTSPO6523 WU41EG M10 X 1,5 100 18 39 10,0 3DIN 371 6H
5366707 VTSPO6523 WP49EG M10 X 1,5 100 18 39 10,0 3DIN 371 6H
5368553 VTSPO6531 WP42EG M12 X 1,75 110 21 44 9,0 3DIN 376 6H
5368552 VTSPO6531 WU41EG M12 X 1,75 110 21 44 9,0 3DIN 376 6H
5368554 VTSPO6531 WP49EG M12 X 1,75 110 21 44 9,0 3DIN 376 6H
5368557 VTSPO6533 WU41EG M14 X 2 110 24 52 11,0 3DIN 376 6H
5368559 VTSPO6533 WP49EG M14 X 2 110 24 52 11,0 3DIN 376 6H
5368562 VTSPO6535 WU41EG M16 X 2 110 24 51 12,0 3DIN 376 6H
5368565 VTSPO6535 WP49EG M16 X 2 110 24 51 12,0 3DIN 376 6H
5368568 VTSPO6537 WU41EG M18 X 2,5 125 30 58 14,0 3DIN 376 6H
5368570 VTSPO6537 WP49EG M18 X 2,5 125 30 58 14,0 3DIN 376 6H
5368572 VTSPO6538 WU41EG M20 X 2,5 140 30 64 16,0 3DIN 376 6H
5368574 VTSPO6538 WP49EG M20 X 2,5 140 30 64 16,0 3DIN 376 6H
5368622 VTSPO6555 WP49EG M10 X 1,25 100 18 39 7,0 3DIN 374 6H
5368628 VTSPO6558 WP49EG M12 X 1,25 100 21 39 9,0 3DIN 374 6H
5368630 VTSPO6559 WP49EG M12 X 1,5 100 21 39 9,0 3DIN 374 6H
5368634 VTSPO6561 WP49EG M14 X 1,25 100 21 47 11,0 3DIN 374 6H
5368636 VTSPO6562 WP49EG M14 X 1,5 100 21 47 11,0 3DIN 374 6H
5368640 VTSPO6564 WP49EG M16 X 1,5 100 21 46 12,0 3DIN 374 6H
5368683 VTSPO6566 WP49EG M18 X 1,5 110 21 50 14,0 3DIN 374 6H
Tapping
Tapping
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
149
widia.com
Tapping
Tapping
VariTap™
order
number
catalogue
number grade D1 size
L
(mm)
L3
(mm)
L2
(mm)
D
(mm)
number
of flutes
dimension
standard class of fit
VT-SPO • Form B Plug Chamfer • Machine Screw and Fractional • DIN 371 and 376 • Through Holes
5387708 VTSPO6008 WP49EG 6 - 32 56 920 4,0 2DIN 371 2B
5472636 VTSPO6008 WU41EG 6 - 32 56 920 4,0 2DIN 371 2B
5387760 VTSPO6010 WP49EG 6 - 40 56 920 4,0 2DIN 371 2B
5472638 VTSPO6010 WU41EG 6 - 40 56 920 4,0 2DIN 371 2B
5387761 VTSPO6011 WP49EG 8 - 32 63 11 21 4,5 2DIN 371 2B
5472639 VTSPO6011 WU41EG 8 - 32 63 11 21 4,5 2DIN 371 2B
5387763 VTSPO6013 WP49EG 10 - 24 70 12 25 6,0 2DIN 371 2B
5472641 VTSPO6013 WU41EG 10 - 24 70 12 25 6,0 2DIN 371 2B
5387764 VTSPO6014 WP49EG 10 - 32 70 12 25 6,0 2DIN 371 2B
5472644 VTSPO6014 WU41EG 10 - 32 70 12 25 6,0 2DIN 371 2B
5387766 VTSPO6016 WP49EG 1/4 - 20 80 15 30 7,0 3DIN 371 2B
5472646 VTSPO6016 WU41EG 1/4 - 20 80 15 30 7,0 3DIN 371 2B
5387767 VTSPO6017 WP49EG 1/4 - 28 80 15 30 7,0 3DIN 371 2B
5472647 VTSPO6017 WU41EG 1/4 - 28 80 15 30 7,0 3DIN 371 2B
5387769 VTSPO6019 WP49EG 5/16 - 18 90 15 35 8,0 3DIN 371 2B
5472649 VTSPO6019 WU41EG 5/16 - 18 90 15 35 8,0 3DIN 371 2B
5387770 VTSPO6020 WP49EG 5/16 - 24 90 15 35 8,0 3DIN 371 2B
5472650 VTSPO6020 WU41EG 5/16 - 24 90 15 35 8,0 3DIN 371 2B
5387772 VTSPO6022 WP49EG 3/8 - 16 100 19 39 10,0 3DIN 371 2B
5472652 VTSPO6022 WU41EG 3/8 - 16 100 19 39 10,0 3DIN 371 2B
5387773 VTSPO6023 WP49EG 3/8 - 24 100 19 39 10,0 3DIN 371 2B
5472653 VTSPO6023 WU41EG 3/8 - 24 100 19 39 10,0 3DIN 371 2B
5387776 VTSPO6025 WP49EG 7/16 - 14 100 18 41 8,0 3DIN 376 2B
5472655 VTSPO6025 WU41EG 7/16 - 14 100 18 41 8,0 3DIN 376 2B
5387777 VTSPO6026 WP49EG 7/16 - 20 100 18 41 8,0 3DIN 376 2B
5472656 VTSPO6026 WU41EG 7/16 - 20 100 18 41 8,0 3DIN 376 2B
5387779 VTSPO6028 WP49EG 1/2 - 13 110 23 47 9,0 3DIN 376 2B
5472658 VTSPO6028 WU41EG 1/2 - 13 110 23 47 9,0 3DIN 376 2B
5387780 VTSPO6029 WP49EG 1/2 - 20 110 23 47 9,0 3DIN 376 2B
5472659 VTSPO6029 WU41EG 1/2 - 20 110 23 47 9,0 3DIN 376 2B
5387782 VTSPO6031 WP49EG 9/16 - 12 110 25 53 11,0 3DIN 376 2B
5472661 VTSPO6031 WU41EG 9/16 - 12 110 25 53 11,0 3DIN 376 2B
5387783 VTSPO6032 WP49EG 9/16 - 18 110 25 53 11,0 3DIN 376 2B
5472662 VTSPO6032 WU41EG 9/16 - 18 110 25 53 11,0 3DIN 376 2B
5387784 VTSPO6033 WP49EG 5/8 - 11 110 24 51 12,0 3DIN 376 2B
5472663 VTSPO6033 WU41EG 5/8 - 11 110 24 51 12,0 3DIN 376 2B
5387785 VTSPO6034 WP49EG 5/8 - 18 110 24 51 12,0 3DIN 376 2B
5472664 VTSPO6034 WU41EG 5/8 - 18 110 24 51 12,0 3DIN 376 2B
5387786 VTSPO6035 WP49EG 3/4 - 10 140 30 64 16,0 3DIN 376 2B
5472665 VTSPO6035 WU41EG 3/4 - 10 140 30 64 16,0 3DIN 376 2B
5387787 VTSPO6036 WP49EG 3/4 - 16 140 30 64 16,0 3DIN 376 2B
5472666 VTSPO6036 WU41EG 3/4 - 16 140 30 64 16,0 3DIN 376 2B
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
150 widia.com
Tapping
order
number
catalogue
number grade D1 size
L
(mm)
L3
(mm)
L2
(mm)
D
(mm)
number
of flutes
dimension
standard class of fit
VT-SFT • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 • Rigid and Synchronous Holders • Blind Holes
5368724 VTSFT6511 WP49EG M3 X 0,5 56 818 3,5 2DIN 371 6H
5368732 VTSFT6514 WP49EG M4 X 0,7 63 11 21 4,5 3DIN 371 6H
5368737 VTSFT6516 WP49EG M5 X 0,8 70 12 25 6,0 3DIN 371 6H
5368742 VTSFT6518 WP49EG M6 X 1 80 12 30 6,0 3DIN 371 6H
5368748 VTSFT6521 WU41EG M8 X 1,25 90 15 35 8,0 3DIN 371 6H
5368750 VTSFT6521 WP49EG M8 X 1,25 90 15 35 8,0 3DIN 371 6H
5368753 VTSFT6523 WU41EG M10 X 1,5 100 18 39 10,0 3DIN 371 6H
5368755 VTSFT6523 WP49EG M10 X 1,5 100 18 39 10,0 3DIN 371 6H
5402199 VTSFT6556 WP49EG M12 X 1,25 100 21 39 9,0 3DIN 374 6H
5402202 VTSFT6557 WP49EG M12 X 1,5 100 21 39 9,0 3DIN 374 6H
5402207 VTSFT6560 WP49EG M14 X 1,5 100 21 47 11,0 3DIN 374 6H
5402210 VTSFT6562 WP49EG M16 X 1,5 100 21 46 12,0 3DIN 374 6H
5402214 VTSFT6564 WP49EG M18 X 1,5 110 21 50 14,0 4DIN 374 6H
5402259 VTSFT6531 WU41EG M12 X 1,75 110 21 44 9,0 3DIN 376 6H
5402261 VTSFT6531 WP49EG M12 X 1,75 110 21 44 9,0 3DIN 376 6H
5402264 VTSFT6533 WU41EG M14 X 2 110 24 52 11,0 3DIN 376 6H
5402266 VTSFT6533 WP49EG M14 X 2 110 24 52 11,0 3DIN 376 6H
5402269 VTSFT6535 WU41EG M16 X 2 110 24 51 12,0 3DIN 376 6H
5402270 VTSFT6535 WP49EG M16 X 2 110 24 51 12,0 3DIN 376 6H
5402277 VTSFT6538 WP49EG M20 X 2,5 140 30 64 16,0 4DIN 376 6H
VT-SFT • Form E Bottoming Chamfer • Metric DIN 371, 374, and 376 • Blind Holes
5387478 VTSFT6586 WP49EG M10 X 1,25 100 18 39 7,0 3DIN 374 6H
NOTE: Suggested for use in rigid and synchronous holders.
Tapping
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
151
widia.com
Tapping
order
number
catalogue
number grade D1 size
L
(mm)
L3
(mm)
L2
(mm)
D
(mm)
number
of flutes
dimension
standard class of fit
VT-SFT TC • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 • Tension/Compression Holders • Blind Holes
6172436 VTSFT-TC6508 WP49EG M3 X 0,5 56 519 3,5 3DIN 371 6H
6172438 VTSFT-TC6508 WU41EG M3 X 0,5 56 519 3,5 3DIN 371 6H
6172440 VTSFT-TC6510 WP49EG M4 X 0,7 63 721 4,5 3DIN 371 6H
6172442 VTSFT-TC6510 WU41EG M4 X 0,7 63 721 4,5 3DIN 371 6H
6172444 VTSFT-TC6511 WP49EG M5 X 0,8 70 826 6,0 3DIN 371 6H
6172446 VTSFT-TC6511 WU41EG M5 X 0,8 70 826 6,0 3DIN 371 6H
6172448 VTSFT-TC6512 WP49EG M5 X 0,8 70 827 3,5 3DIN 376 6H
6172450 VTSFT-TC6512 WU41EG M5 X 0,8 70 827 3,5 3DIN 376 6H
6172466 VTSFT-TC6514 WP49EG M6 X 1 80 10 30 6,0 3DIN 371 6H
6172468 VTSFT-TC6514 WU41EG M6 X 1 80 10 30 6,0 3DIN 371 6H
6172469 VTSFT-TC6515 WP49EG M6 X 1 80 10 34 4,5 3DIN 376 6H
6172470 VTSFT-TC6515 WU41EG M6 X 1 80 10 34 4,5 3DIN 376 6H
6172482 VTSFT-TC6516 WU41EG M8 X 0,75 90 13 37 6,0 3DIN 374 6H
6172487 VTSFT-TC6519 WP49EG M8 X 1,25 90 13 37 6,0 3DIN 376 6H
6172488 VTSFT-TC6519 WU41EG M8 X 1,25 90 13 37 6,0 3DIN 376 6H
6172485 VTSFT-TC6518 WP49EG M8 X 1,25 90 13 37 8,0 3DIN 371 6H
6172486 VTSFT-TC6518 WU41EG M8 X 1,25 90 13 37 8,0 3DIN 371 6H
6172493 VTSFT-TC6522 WP49EG M10 X 1,25 100 15 44 7,0 3DIN 374 6H
6172494 VTSFT-TC6522 WU41EG M10 X 1,25 100 15 44 7,0 3DIN 374 6H
6172495 VTSFT-TC6550 WP49EG M10 X 1,5 100 15 41 10,0 3DIN 371 6H
6172496 VTSFT-TC6550 WU41EG M10 X 1,5 100 15 41 10,0 3DIN 371 6H
6172497 VTSFT-TC6524 WP49EG M10 X 1,5 100 15 44 7,0 3DIN 376 6H
6172498 VTSFT-TC6524 WU41EG M10 X 1,5 100 15 44 7,0 3DIN 376 6H
6172501 VTSFT-TC6526 WP49EG M12 X 1,25 100 13 50 9,0 3DIN 374 6H
6172502 VTSFT-TC6526 WU41EG M12 X 1,25 100 13 50 9,0 3DIN 374 6H
6172503 VTSFT-TC6527 WP49EG M12 X 1,5 100 13 50 9,0 3DIN 374 6H
6172504 VTSFT-TC6527 WU41EG M12 X 1,5 100 13 50 9,0 3DIN 374 6H
6172505 VTSFT-TC6528 WP49EG M12 X 1,75 110 18 55 9,0 3DIN 376 6H
6172506 VTSFT-TC6528 WU41EG M12 X 1,75 110 18 55 9,0 3DIN 376 6H
6172509 VTSFT-TC6530 WP49EG M14 X 1,25 100 15 41 11,0 4DIN 374 6H
6172510 VTSFT-TC6530 WU41EG M14 X 1,25 100 15 41 11,0 4DIN 374 6H
6172511 VTSFT-TC6536 WP49EG M14 X 1,5 100 15 41 11,0 4DIN 374 6H
6172512 VTSFT-TC6536 WU41EG M14 X 1,5 100 15 41 11,0 4DIN 374 6H
6172671 VTSFT-TC6532 WP49EG M14 X 2 110 20 50 11,0 3DIN 376 6H
6172672 VTSFT-TC6532 WU41EG M14 X 2 110 20 50 11,0 3DIN 376 6H
6172673 VTSFT-TC6534 WP49EG M16 X 1,5 100 15 45 12,0 4DIN 374 6H
6172674 VTSFT-TC6534 WU41EG M16 X 1,5 100 15 45 12,0 4DIN 374 6H
6172675 VTSFT-TC6564 WP49EG M16 X 2 110 20 55 12,0 4DIN 376 6H
6172676 VTSFT-TC6564 WU41EG M16 X 2 110 20 55 12,0 4DIN 376 6H
6172677 VTSFT-TC6537 WP49EG M18 X 1,5 110 17 55 14,0 4DIN 374 6H
6172678 VTSFT-TC6537 WU41EG M18 X 1,5 110 17 55 14,0 4DIN 374 6H
6172680 VTSFT-TC6538 WU41EG M18 X 2 125 25 61 14,0 4DIN 374 6H
6172691 VTSFT-TC6539 WP49EG M18 X 2,5 125 25 61 14,0 4DIN 376 6H
6172692 VTSFT-TC6539 WU41EG M18 X 2,5 125 25 61 14,0 4DIN 376 6H
6172693 VTSFT-TC6541 WP49EG M20 X 1,5 125 17 56 16,0 4DIN 374 6H
6172694 VTSFT-TC6541 WU41EG M20 X 1,5 125 17 56 16,0 4DIN 374 6H
6172697 VTSFT-TC6543 WP49EG M20 X 2,5 140 25 65 16,0 4DIN 376 6H
6172698 VTSFT-TC6543 WU41EG M20 X 2,5 140 25 65 16,0 4DIN 376 6H
NOTE: Suitable for tension/compression holders.
Tapping
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
152 widia.com
NOTE: Suitable for tension/compression holders.
order
number
catalogue
number grade D1 size
L
(mm)
L3
(mm)
L2
(mm)
D
(mm)
number
of flutes
dimension
standard class of fit
VT-SFT TC • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional
• DIN 371, 374, and 376 • Tension/Compression Holders • Blind Holes
6172747 VTSFT-TC6008 WP49EG 6 - 32 56 721 4,0 3DIN 371 2B
6172748 VTSFT-TC6008 WU41EG 6 - 32 56 721 4,0 3DIN 371 2B
6172749 VTSFT-TC6009 WP49EG 6 - 40 56 721 4,0 3DIN 371 2B
6172750 VTSFT-TC6009 WU41EG 6 - 40 56 721 4,0 3DIN 371 2B
6172781 VTSFT-TC6010 WP49EG 8 - 32 63 721 4,5 3DIN 371 2B
6172782 VTSFT-TC6010 WU41EG 8 - 32 63 721 4,5 3DIN 371 2B
6172783 VTSFT-TC6011 WP49EG 8 - 36 63 721 4,5 3DIN 371 2B
6172784 VTSFT-TC6011 WU41EG 8 - 36 63 721 4,5 3DIN 371 2B
6172785 VTSFT-TC6012 WP49EG 10 - 24 70 825 6,0 3DIN 371 2B
6172786 VTSFT-TC6012 WU41EG 10 - 24 70 825 6,0 3DIN 371 2B
6172787 VTSFT-TC6013 WP49EG 10 - 32 70 825 6,0 3DIN 371 2B
6172788 VTSFT-TC6013 WU41EG 10 - 32 70 825 6,0 3DIN 371 2B
6172793 VTSFT-TC6016 WP49EG 1/4 - 20 80 10 29 7,0 3DIN 371 2B
6172794 VTSFT-TC6016 WU41EG 1/4 - 20 80 10 29 7,0 3DIN 371 2B
6172797 VTSFT-TC6018 WP49EG 1/4 - 28 80 10 29 7,0 3DIN 371 2B
6172798 VTSFT-TC6018 WU41EG 1/4 - 28 80 10 29 7,0 3DIN 371 2B
6172801 VTSFT-TC6052 WP49EG 5/16 - 18 90 13 37 8,0 3DIN 371 2B
6172802 VTSFT-TC6052 WU41EG 5/16 - 18 90 13 37 8,0 3DIN 371 2B
6172805 VTSFT-TC6054 WP49EG 5/16 - 24 90 13 37 6,0 3DIN 374 2B
6172806 VTSFT-TC6054 WU41EG 5/16 - 24 90 13 37 6,0 3DIN 374 2B
6172807 VTSFT-TC6056 WP49EG 3/8 - 16 100 15 42 10,0 3DIN 371 2B
6172808 VTSFT-TC6056 WU41EG 3/8 - 16 100 15 42 10,0 3DIN 371 2B
6172811 VTSFT-TC6058 WP49EG 3/8 - 24 90 15 40 7,0 3DIN 374 2B
6172812 VTSFT-TC6058 WU41EG 3/8 - 24 90 15 40 7,0 3DIN 374 2B
6172813 VTSFT-TC6060 WP49EG 7/16 - 14 100 15 47 8,0 3DIN 376 2B
6172814 VTSFT-TC6060 WU41EG 7/16 - 14 100 15 47 8,0 3DIN 376 2B
6172815 VTSFT-TC6027 WP49EG 7/16 - 20 100 15 47 8,0 3DIN 374 2B
6172816 VTSFT-TC6027 WU41EG 7/16 - 20 100 15 47 8,0 3DIN 374 2B
6172817 VTSFT-TC6062 WP49EG 1/2 - 13 110 18 50 9,0 3DIN 376 2B
6172818 VTSFT-TC6062 WU41EG 1/2 - 13 110 18 50 9,0 3DIN 376 2B
6172819 VTSFT-TC6029 WP49EG 1/2 - 20 100 13 44 9,0 3DIN 374 2B
6172820 VTSFT-TC6029 WU41EG 1/2 - 20 100 13 44 9,0 3DIN 374 2B
6172836 VTSFT-TC6030 WP49EG 9/16 - 12 110 20 55 11,0 4DIN 376 2B
6172837 VTSFT-TC6030 WU41EG 9/16 - 12 110 20 55 11,0 4DIN 376 2B
6172838 VTSFT-TC6031 WP49EG 9/16 - 18 100 15 44 11,0 4DIN 374 2B
6172839 VTSFT-TC6031 WU41EG 9/16 - 18 100 15 44 11,0 4DIN 374 2B
6172840 VTSFT-TC6032 WP49EG 5/8 - 11 110 20 55 12,0 4DIN 376 2B
6172911 VTSFT-TC6032 WU41EG 5/8 - 11 110 20 55 12,0 4DIN 376 2B
6172912 VTSFT-TC6033 WP49EG 5/8 - 18 100 15 45 12,0 4DIN 374 2B
6172913 VTSFT-TC6033 WU41EG 5/8 - 18 100 15 45 12,0 4DIN 374 2B
6172914 VTSFT-TC6034 WP49EG 3/4 - 10 125 25 65 14,0 4DIN 376 2B
6172915 VTSFT-TC6034 WU41EG 3/4 - 10 125 25 65 14,0 4DIN 376 2B
6172916 VTSFT-TC6035 WP49EG 3/4 - 16 110 17 55 14,0 4DIN 374 2B
6172917 VTSFT-TC6035 WU41EG 3/4 - 16 110 17 55 14,0 4DIN 374 2B
Tapping
Tapping
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
153
widia.com
Tapping
order
number
catalogue
number grade D1 TPI
L
(mm)
L2
(mm)
L3
(mm)
D
(mm)
number
of flutes
type
of thread
VTSPO • (G) Whitworth Pipe Thread • DIN EN ISO 228 • Form B
• Tension/Compression Holders • Through Holes
6058784 VTSPO8605 WP49EG 1/8 - 28 90 35 15 7 3 G
6058785 VTSPO8605 WU41EG 1/8 - 28 90 35 15 7 3 G
6058786 VTSPO8606 WP49EG 1/4 - 19 100 44 22 11 3 G
6058787 VTSPO8606 WU41EG 1/4 - 19 100 44 22 11 3 G
6058788 VTSPO8607 WP49EG 3/8 - 19 100 47 22 12 4 G
6058790 VTSPO8607 WU41EG 3/8 - 19 100 47 22 12 4 G
6058791 VTSPO8608 WP49EG 1/2 - 14 125 55 25 16 4 G
6058792 VTSPO8608 WU41EG 1/2 - 14 125 55 25 16 4 G
6058793 VTSPO8609 WP49EG 5/8 - 14 125 61 25 18 4 G
6058794 VTSPO8609 WU41EG 5/8 - 14 125 61 25 18 4 G
6058796 VTSPO8610 WP49EG 3/4 - 14 140 60 25 20 4 G
6058797 VTSPO8610 WU41EG 3/4 - 14 140 60 25 20 4 G
6058798 VTSPO8611 WP49EG 7/8 - 14 150 68 28 22 4 G
6058799 VTSPO8611 WU41EG 7/8 - 14 150 68 28 22 4 G
6058800 VTSPO8612 WP49EG 1 - 11 160 68 30 25 5 G
6058811 VTSPO8612 WU41EG 1 - 11 160 68 30 25 5 G
NOTE: Suitable for tension/compression holders.
order
number
catalogue
number grade D1 TPI
L
(mm)
L2
(mm)
L3
(mm)
D
(mm)
number
of flutes
type
of thread
VTSFT • (G) Whitworth Pipe Thread • DIN EN ISO 228 • Form C • Blind Holes
6058814 VTSFT8605 WP49EG 1/8 - 28 90 35 15 7 3 G
6058815 VTSFT8605 WU41EG 1/8 - 28 90 35 15 7 3 G
6058816 VTSFT8606 WP49EG 1/4 - 19 100 44 15 11 3 G
6058817 VTSFT8606 WU41EG 1/4 - 19 100 44 15 11 3 G
6058818 VTSFT8607 WP49EG 3/8 - 19 100 47 15 12 4 G
6058819 VTSFT8607 WU41EG 3/8 - 19 100 47 15 12 4 G
6058820 VTSFT8608 WP49EG 1/2 - 14 125 55 18 16 4 G
6058871 VTSFT8608 WU41EG 1/2 - 14 125 55 18 16 4 G
6058874 VTSFT8610 WP49EG 3/4 - 14 140 65 20 20 4 G
6058875 VTSFT8610 WU41EG 3/4 - 14 140 65 20 20 4 G
6058879 VTSFT8612 WU41EG 1 - 11 160 74 24 25 5 G
NOTE: Suitable for tension/compression holders.
Tapping
VariTap™
Language Version: 144_154_WID_All-Star19_Tapping_VariTap September 27, 2018 11:25 AM
154 widia.com
order
number
catalogue
number grade D1 TPI
L
(mm)
L2
(mm)
L3
(mm)
D
(mm)
number
of flutes
type
of thread
VTSTR • NPT and NPTF • Standard Projection • Form C
6058953 VTSTR8301 WU40EG 1/16 - 27 90 35 13 6 3 NPT
6058960 VTSTR8801 WU40EG 1/16 - 27 90 35 13 6 3 NPTF
6058954 VTSTR8302 WU40EG 1/8 - 27 90 36 13 7 4 NPT
6059011 VTSTR8802 WU40EG 1/8 - 27 90 36 13 7 4 NPTF
6058955 VTSTR8303 WU40EG 1/4 - 18 100 39 20 11 4NPT
6059012 VTSTR8803 WU40EG 1/4 - 18 100 39 20 11 4NPTF
6058956 VTSTR8304 WU40EG 3/8 - 18 110 39 20 12 4NPT
6059013 VTSTR8804 WU40EG 3/8 - 18 110 39 20 12 4NPTF
6058957 VTSTR8305 WU40EG 1/2 - 14 125 56 26 16 4NPT
6059014 VTSTR8805 WU40EG 1/2 - 14 125 56 26 16 4NPTF
6058958 VTSTR8306 WU40EG 3/4 - 14 140 55 26 20 4NPT
6059015 VTSTR8806 WU40EG 3/4 - 14 140 55 26 20 4NPTF
6058959 VTSTR8307 WU40EG 1 - 11.5 160 71 32 25 5NPT
6059016 VTSTR8807 WU40EG 1 - 11.5 160 71 32 25 5NPTF
NOTE: Suitable for tension/compression holders.
Tapping
Tapping
VariTap™
