2017~2018 Catalogue
Vol.18A
Solid Carbide Endmills
Winstar Cutting Technologies Corp. Is a Taiwanese company that started operations in the year 2008
by Tim Chen following a dream and personal interest in developing solid tools. We are a professional
manufacturer of Cutting Tools and Inserts. Since WINSTAR started it has specialized in the Design and
Manufacture of High-Quality Cutting Tools. Having more than 4,400 different kinds of items and huge
stocks. We are able to meet customer's needs. 90% of our products provide our own brand tools and
10% to do OEM project for world-class cutting group. WINSTAR has become one of the most successful
companies in Taiwan. We base our company’s success on our long-standing commitment to satisfy our
customers’ needs. By Utilizing the Finest Raw Materials and introducing Innovative Cutting Tools.
Why Winstar?
Your order will receive personal attention from our sales staff.
We offer full technical support for our products and are always
just a phone call away. Your satisfaction is very important to us.
We stock our shelves to support our full product line. This
means we probably have what you need ready to ship today.
Taiwanese made Quality
Your satisfaction is 100% guaranteed! Our complete line
of end mills, drills, holders, and insert will stand-up-to or
out-perform any premium cutting tool brand on the market.
Privacy and Security
We aggressively protect your privacy rights. All transactions are
conducted via our secure, encrypted online system. Your customer
information will never be sold, reproduced, or distributed.
Optimized Carbide Grades
Maximum cutting performance is only achieved when the carbide
grade characteristics ideally fit the specific application needs.
Superior Grinding Quality
Research on better surface quality remains an area of continuous
technological advancement. Since the cutting edge quality
determines the tool life and cutting action, a superior grinding
quality is critical. WINSTAR provides the latest Swiss and
German grinding Technology to get a superior surface finish.
Highly Innovative Tool Geometries
Highest cutting action cannot be accomplished by using only the
standard geometries of universal tools. Efficient chip forming
and evacuation is critical for optimal cutting performance. Such
geometries are designed to manage a broad range of cutting
forces and provide the highest cutting action for aerospace
applications. As a recognized provider for “special” tools,
WINSTAR possesses the engineering know-how to design
highly innovative tool geometries for maximum cutting.
Advanced Tool Coating Technology
We are committed to provide our Customers with
Crafted precision and Excellence. Longest tool life
and maximum application performance require the
utilization of advanced coating technology. As this
highly innovative field continues to rapidly change.
Winstar Friends and Family
In WINSTAR CUTTING TECHNOLOGIES Corp. We believe
in partnership and understands that the best way to grow is
together. That is the reason Winstar works as a team, to provide
the customer with a better efficient service. We also have
partnerships around the globe. With this special friends we work
just the same way we work together in WINSTAR. To make bigger
and better alliances so we can grow together as a big family.
Welcome to WINSTAR Family

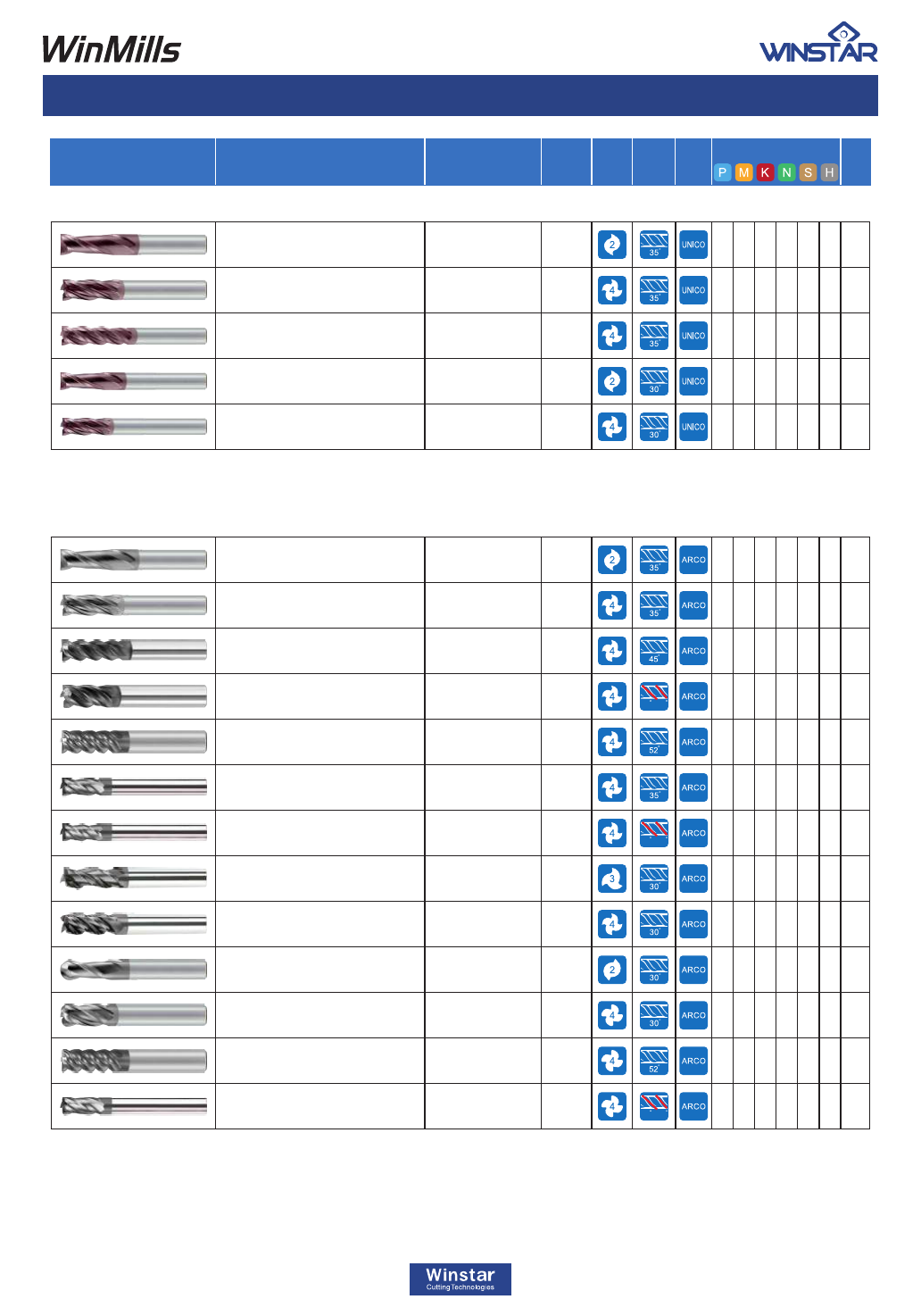

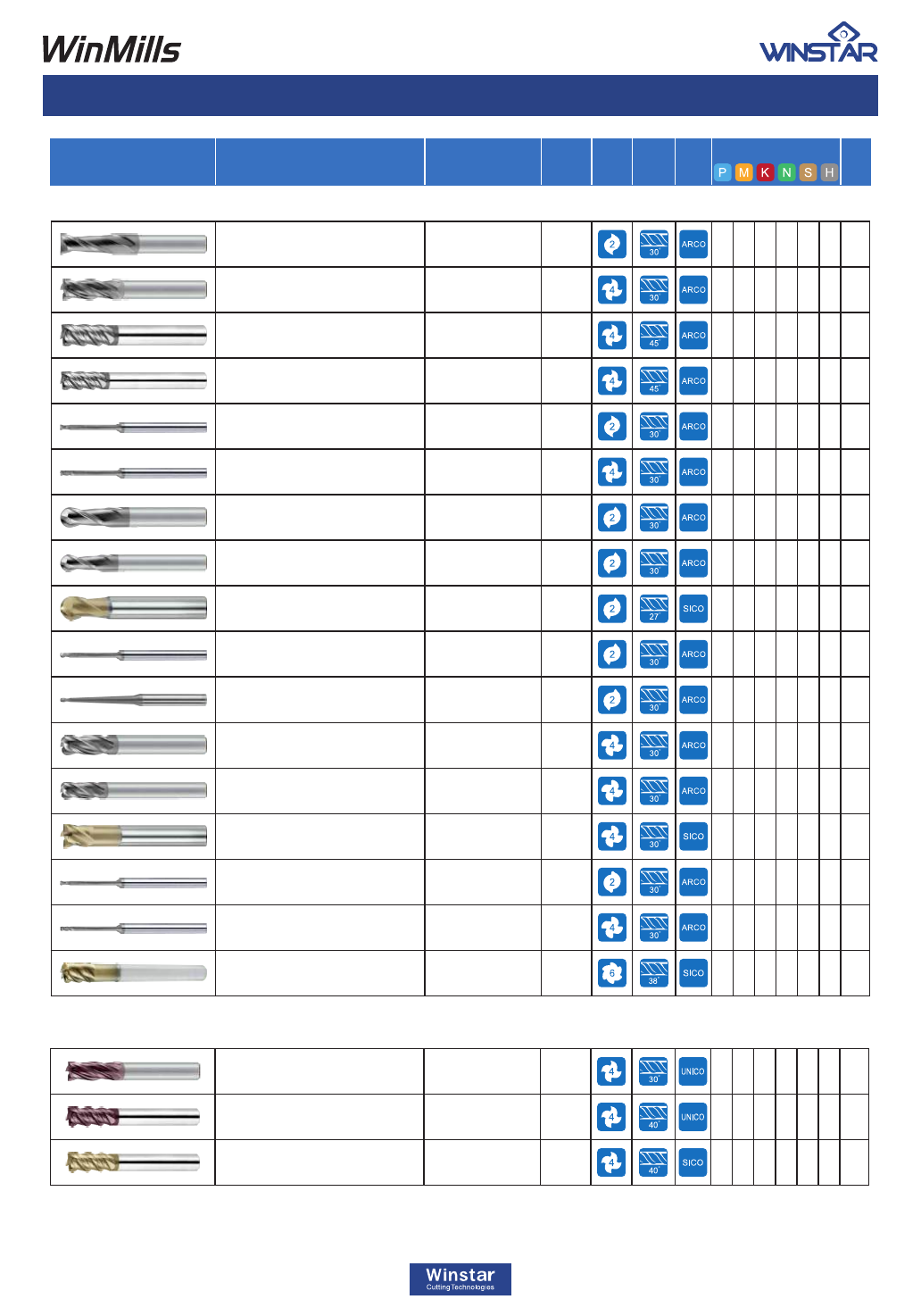

Index ( 銑刀規格總覽 )....................................................................
For High Hardened Steel( 高硬材質加工用 )
H700 Series (up to HRC 70).................................................
H680 Series (up to HRC 65, High Precision Cutting)............
H650 Series (up to HRC 60).................................................
For High Feed Milling( 高效能加工 )
EUROS Series (up to HRC 60).............................................
For Alloy Steel( 合金鋼材質加工用 )
G550 Series (up to HRC 55).................................................
G450 Series (up to HRC 48).................................................
For
Stainless, Titanium, Inconel & Mold Steel( 不鏽鋼、難切削材質用 )
M500 Series (up to HRC 50).................................................
For Non-Ferrous Metals( 非鐵金屬材質加工用 )
A200 Series (for Graphite
(
石墨
)
).............................................
A100 Series (for Aluminum Alloy
(
鋁合金
)
)................................
For Replaceable Endmills( 鎖牙式銑刀 )
WinMaster Series (up to HRC 60).........................................

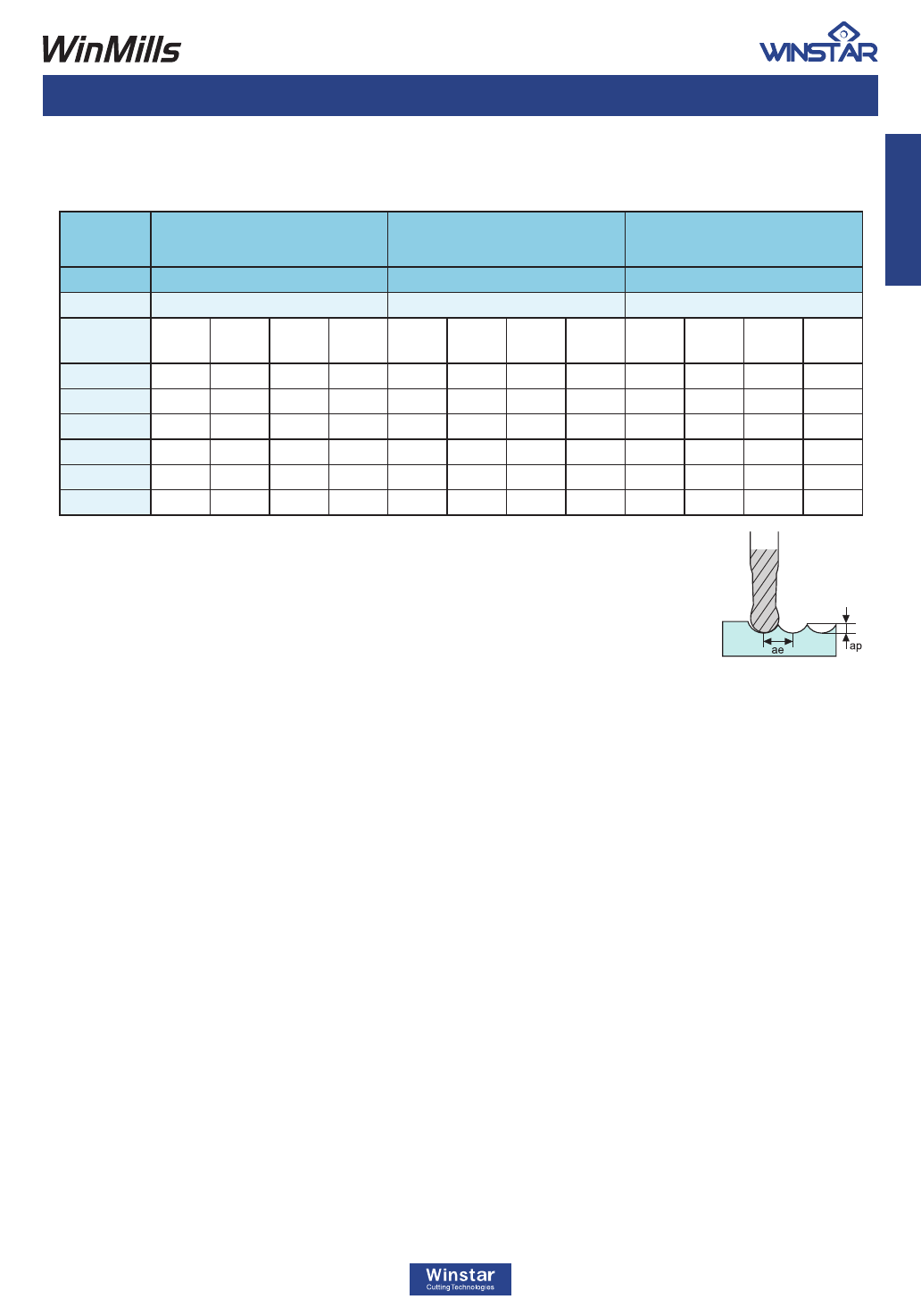

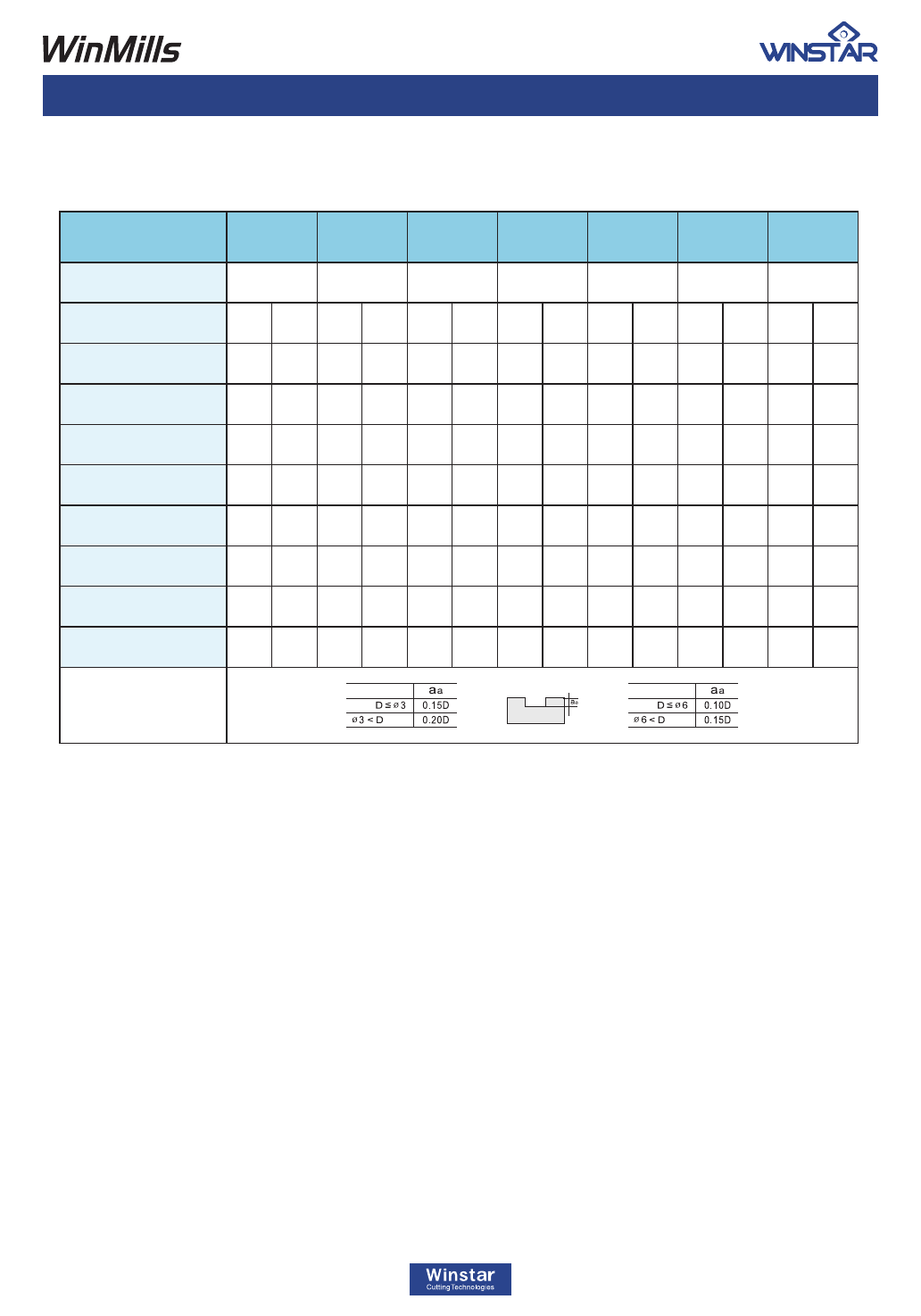

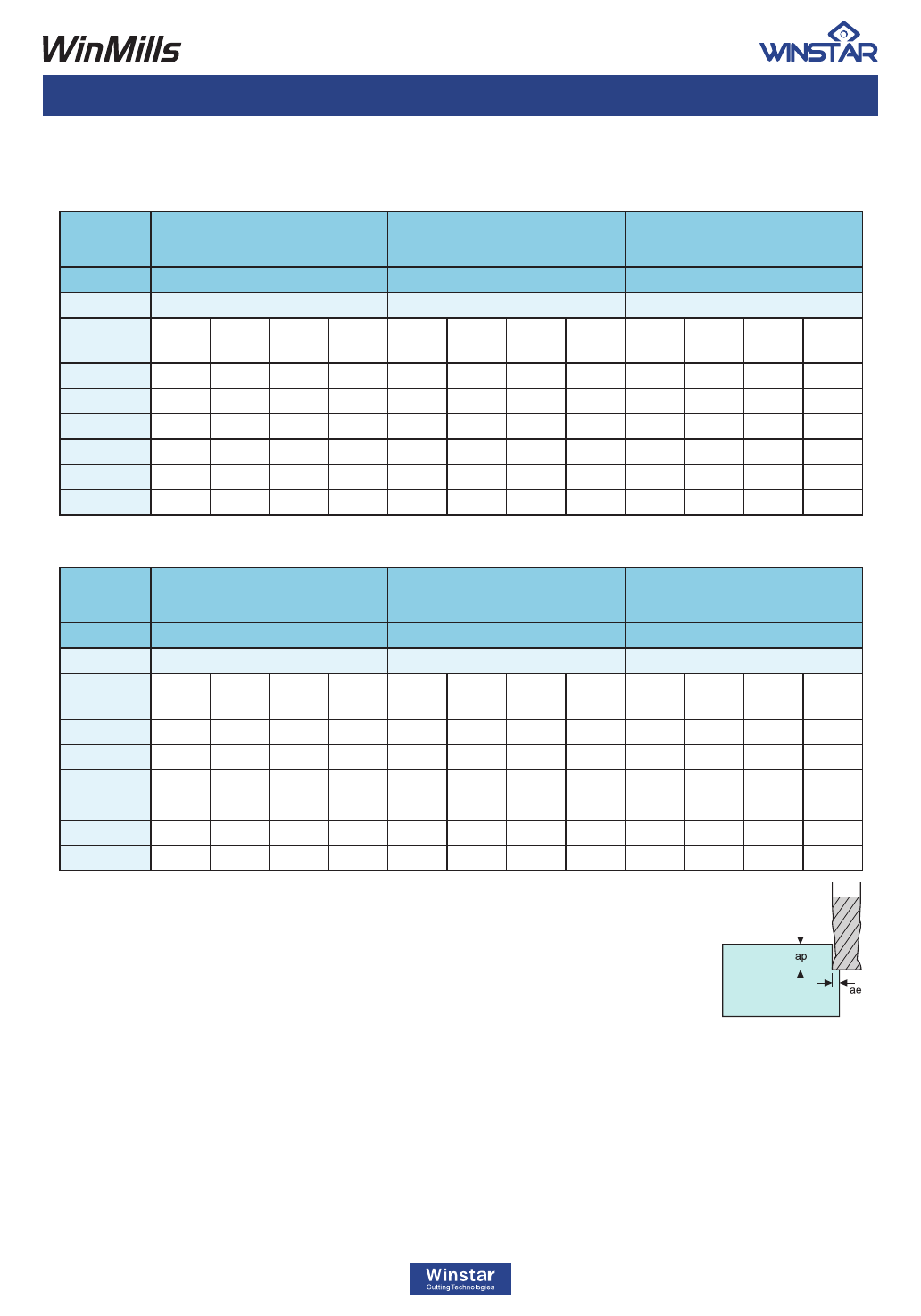

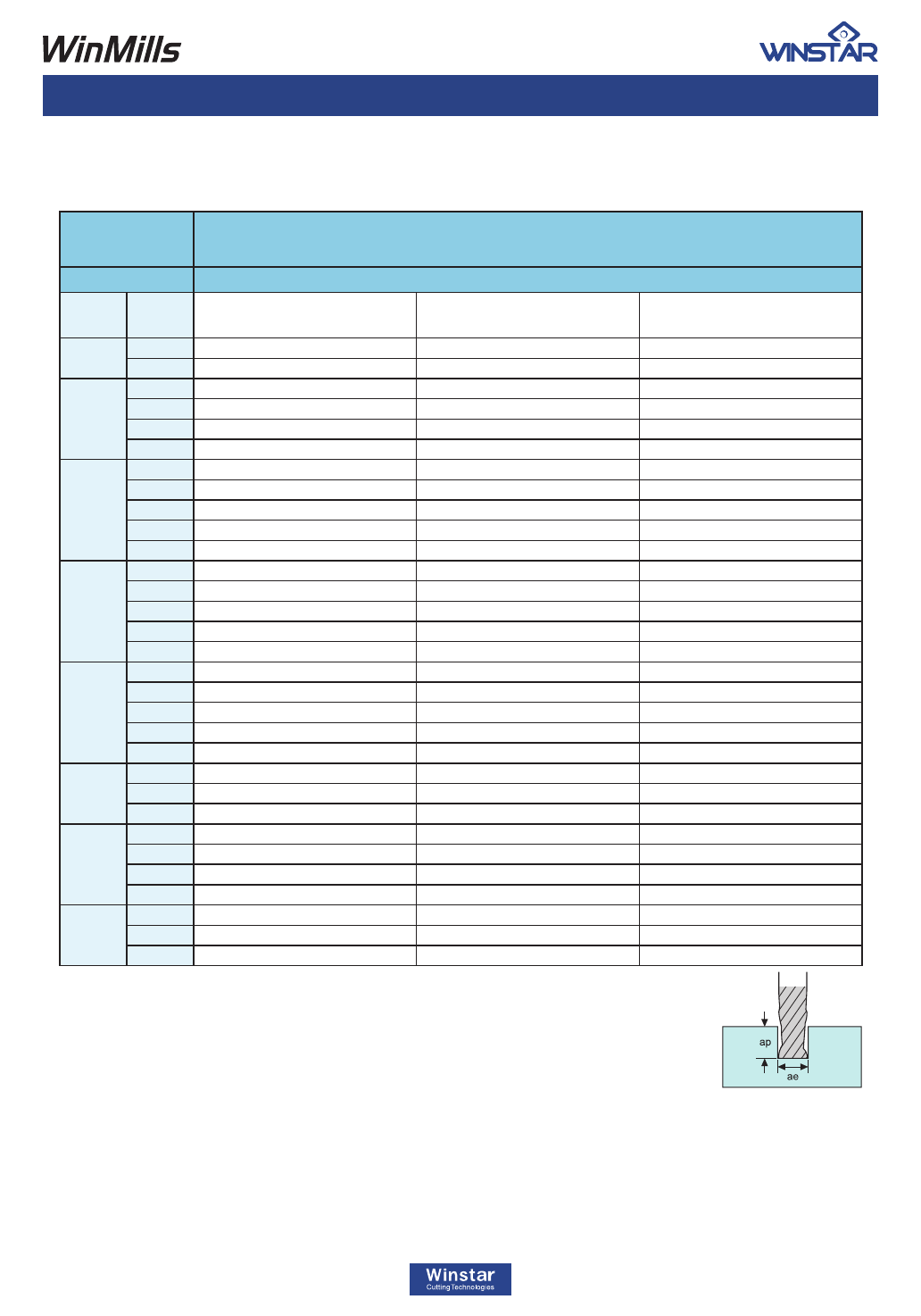

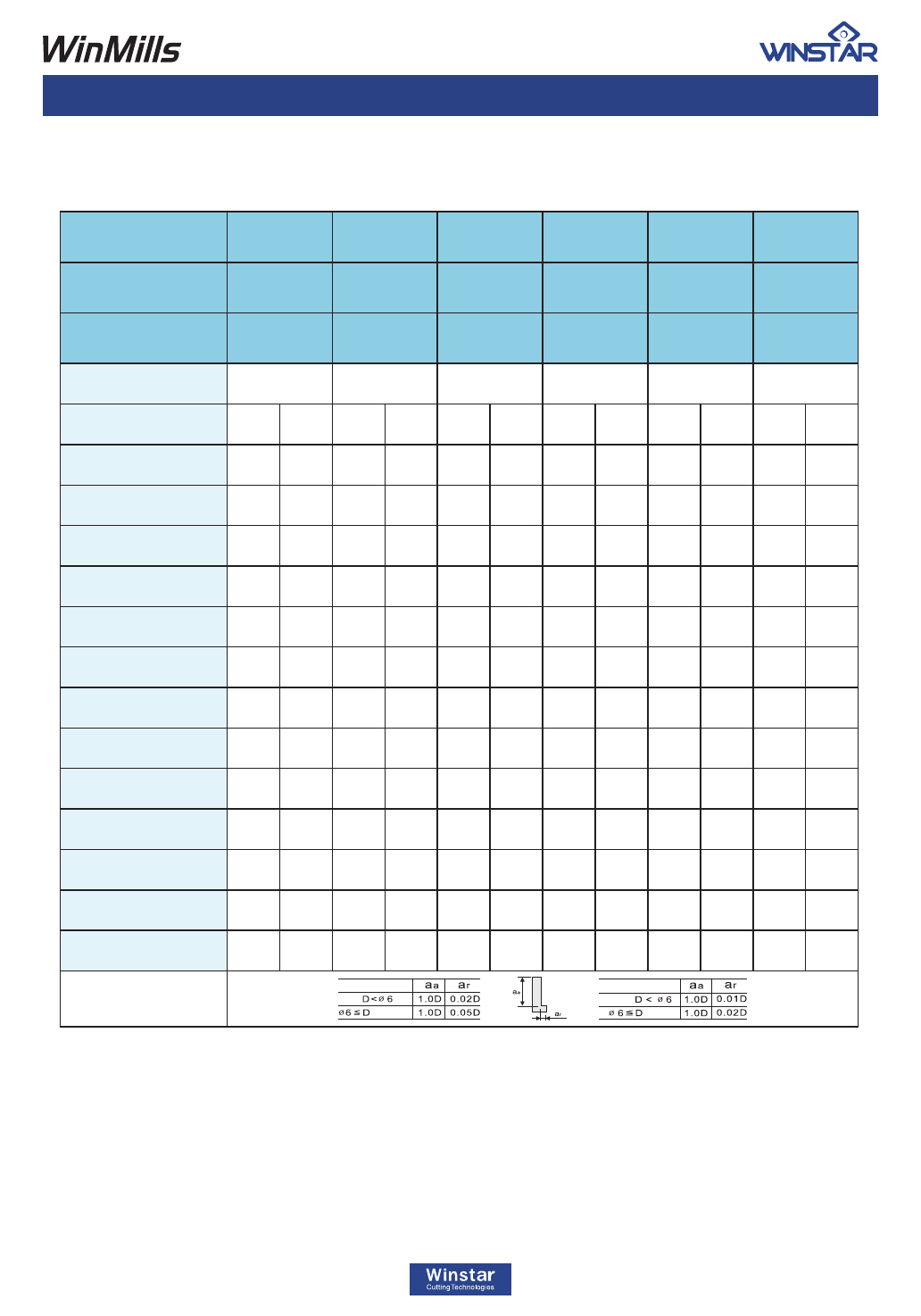

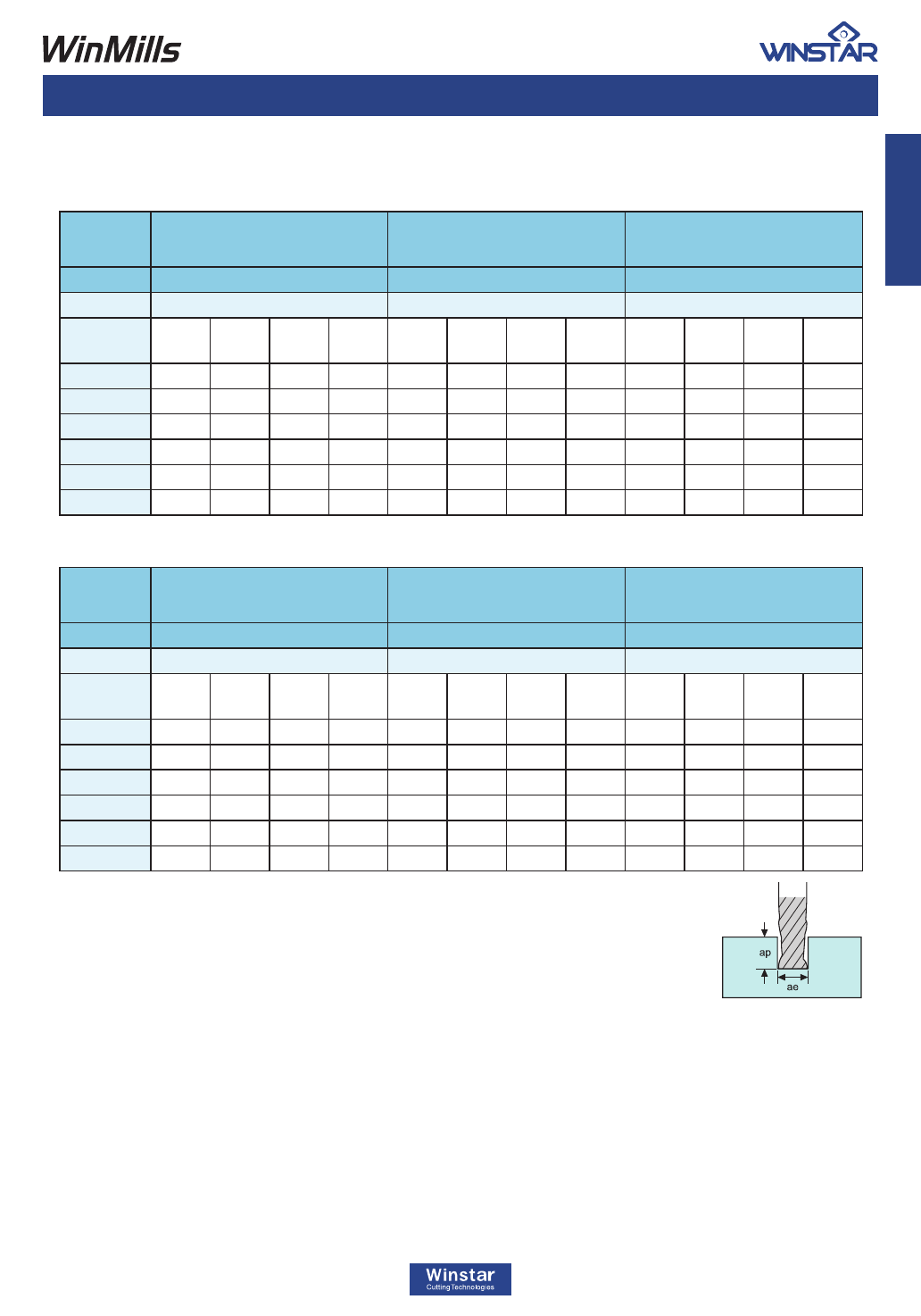

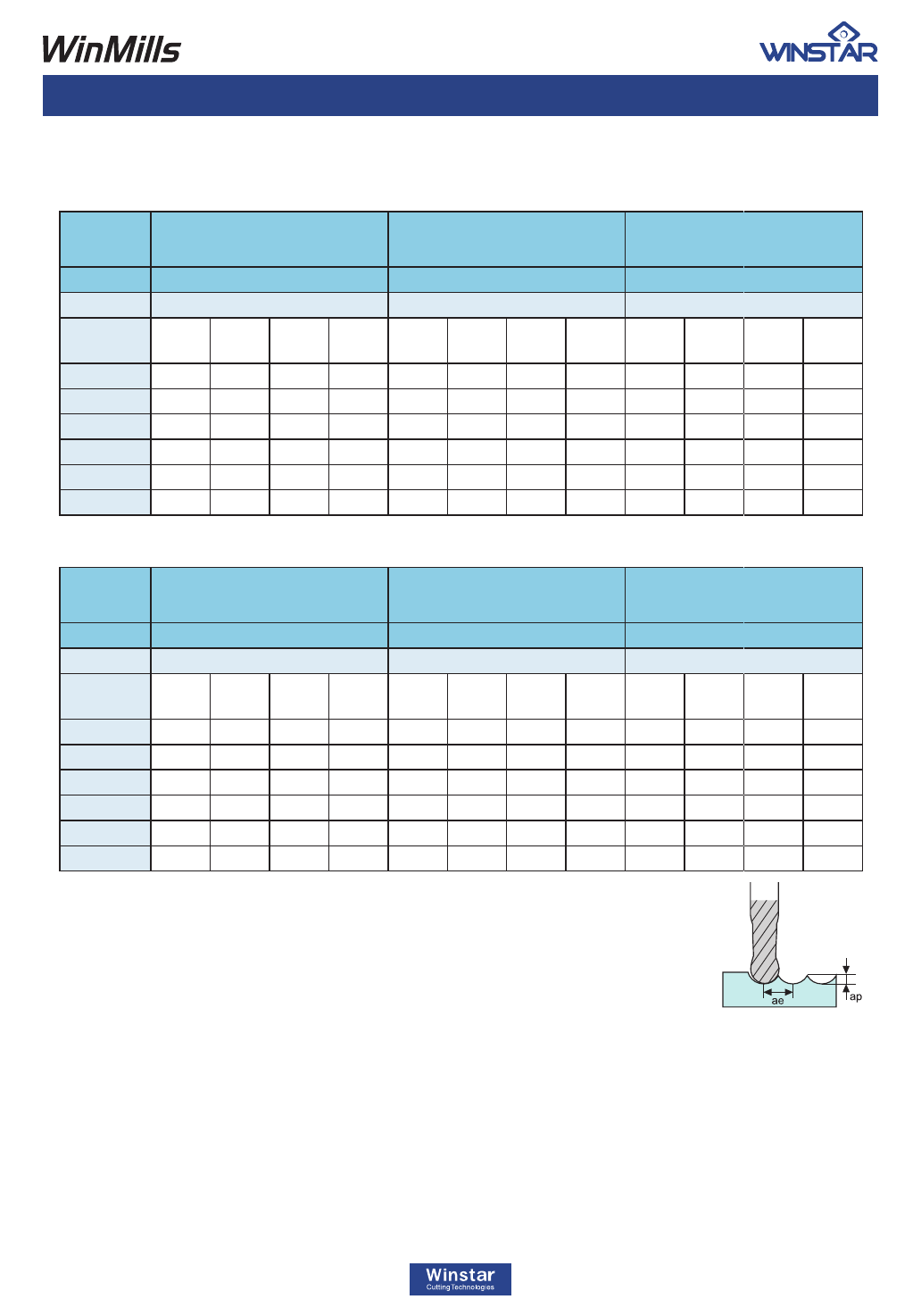

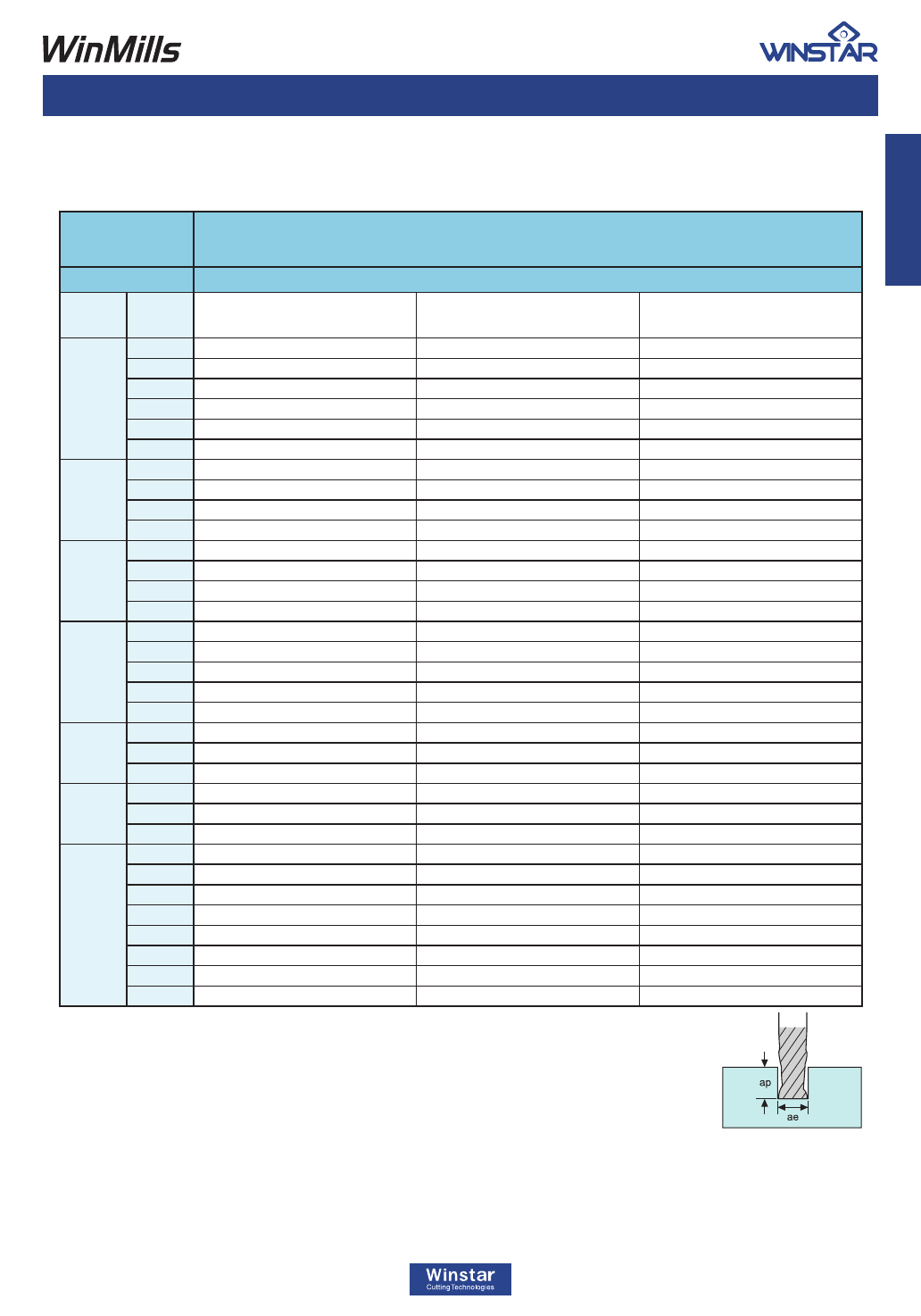

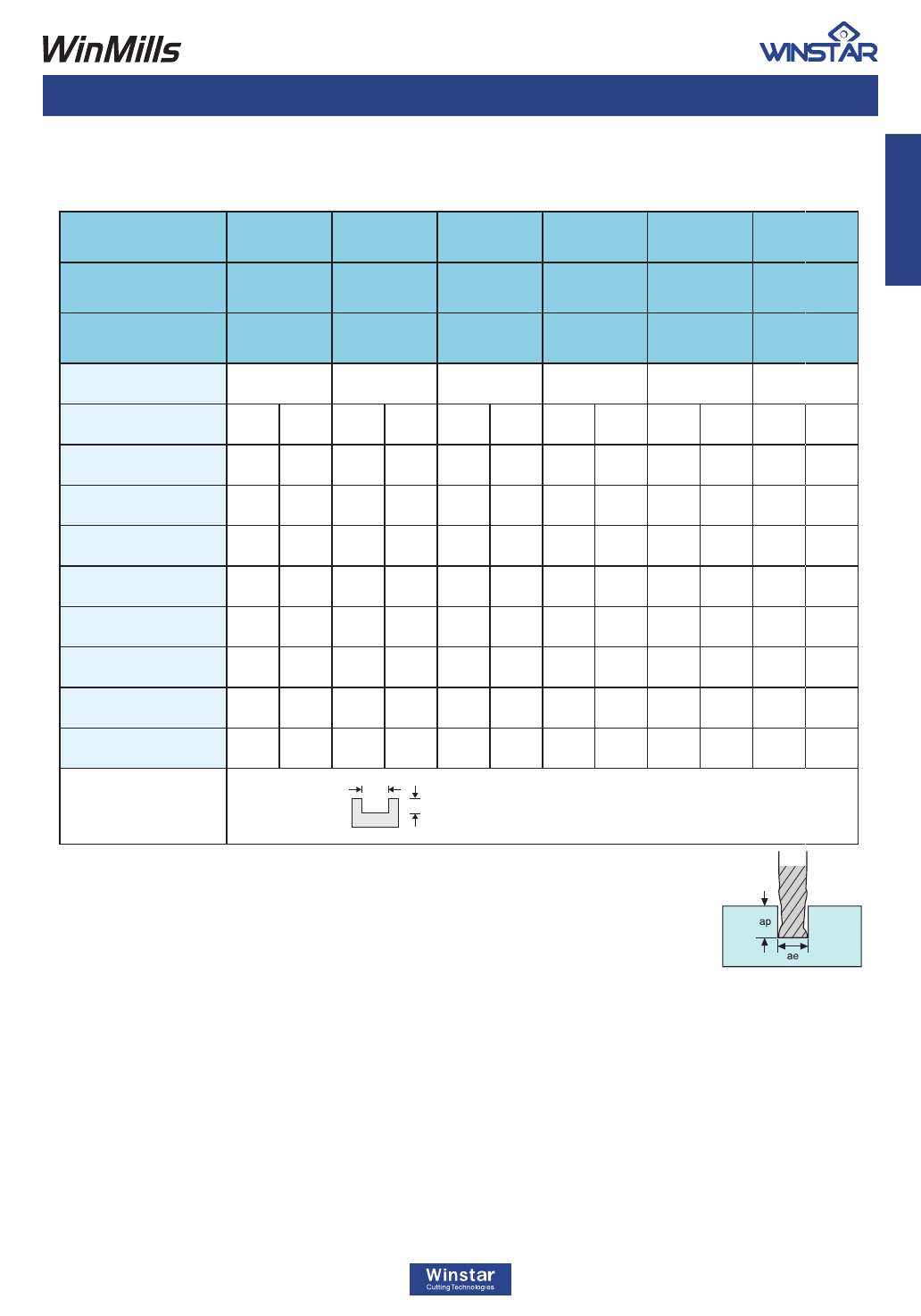

Recommended Cutting Conditions( 推薦切削參數 )...................
Cutting Tool Evaluation Report( 刀具切削報告 )..........................
A001
A007
A013
A021
A061
A065
A119
A125
A139
A151
A159
A167
A232
Solid Carbide Endmills
Solid Carbide Endmills
Solid Carbide Endmills
EUROS
Series for High Feed Milling
H680 Series for Hardened steel, up to HRC 65
H650 Series for Hardened steel, up to HRC 60
G550 Series for
Mold & Alloy steel, up to HRC 55
H700 Series for Hardened steel, up to HRC 70
● For hardened steel, HRC ~70.
● Ultra grain carbide.
● High speed cutting.
● SICO, NACO coating.
●
For hardened steel, HRC 50~65.
● Ultra grain carbide.
●
High precision and high performance.
● SICO-TH coating.
●
For hardened steel, HRC 40~60.
● Ultra grain carbide.
● SICO, ARCO coating.
● For mold steel, alloy steel &
　
cast iron, HRC 30~55.
● Micro grain carbide.
● UNICO coating.
● High feed & multiple application
,
　for hardened & pre-hardened steel,
　
Stainless, up to HRC 60.
●
Tip with small chamfer or small
　
radius design.
● UNICO, SICO coating.
● 高硬材質加工專用， ~HRC70。
● 進口極細鎢鋼棒料。
● 適用於高速加工。
● 提供 SICO 及NACO 塗層。
●
高硬高精加工專用，
HRC50 ~65。
● 進口極細鎢鋼棒料。
● 適用於高精度及高效率加工。
● 提供 SICO-TH 塗層。
●
高硬材質加工專用，
HRC40 ~60。
● 進口極細鎢鋼棒料。
● 提供 SICO, ARCO 塗層。
●
模具鋼及合金鋼加工專用，適用於預硬鋼、
　合金鋼、鑄鐵…，HRC30~55。
● 進口鎢鋼棒料。
● 提供 UNICO 塗層。
●
多用途高進給加工專用，適用於高硬材質、
預硬鋼、不鏽鋼加工用，HRC ~ 60。
●
刀尖小倒角或小圓角設計。
● 提供 UNICO, SICO 塗層。
Solid Carbide Endmills
●
石墨專用。
● 進口鎢鋼棒料。
● 提供 DIA 鑽石塗層。
●
泛用材質加工專用，一般碳鋼、
　合金鋼、鑄鐵…，HRC40~60。
● 進口鎢鋼棒料。
● 提供 SICO 塗層。
● 鎖牙式銑刀。
●
不鏽鋼、難切削材專用，
　HRC20~50。
● 模具鋼精修用。
● 提供 ARCO 塗層。
●
非鐵金屬、鋁合金、銅專用，
　HRC<18。
● 進口鎢鋼棒料。
● 高螺旋設計提供優異穩定的
　
成品表面。
M500 Series for
Stainless, Titanium & Inconel
A200 Series for Graphite
A100 Series for Aluminum Alloy

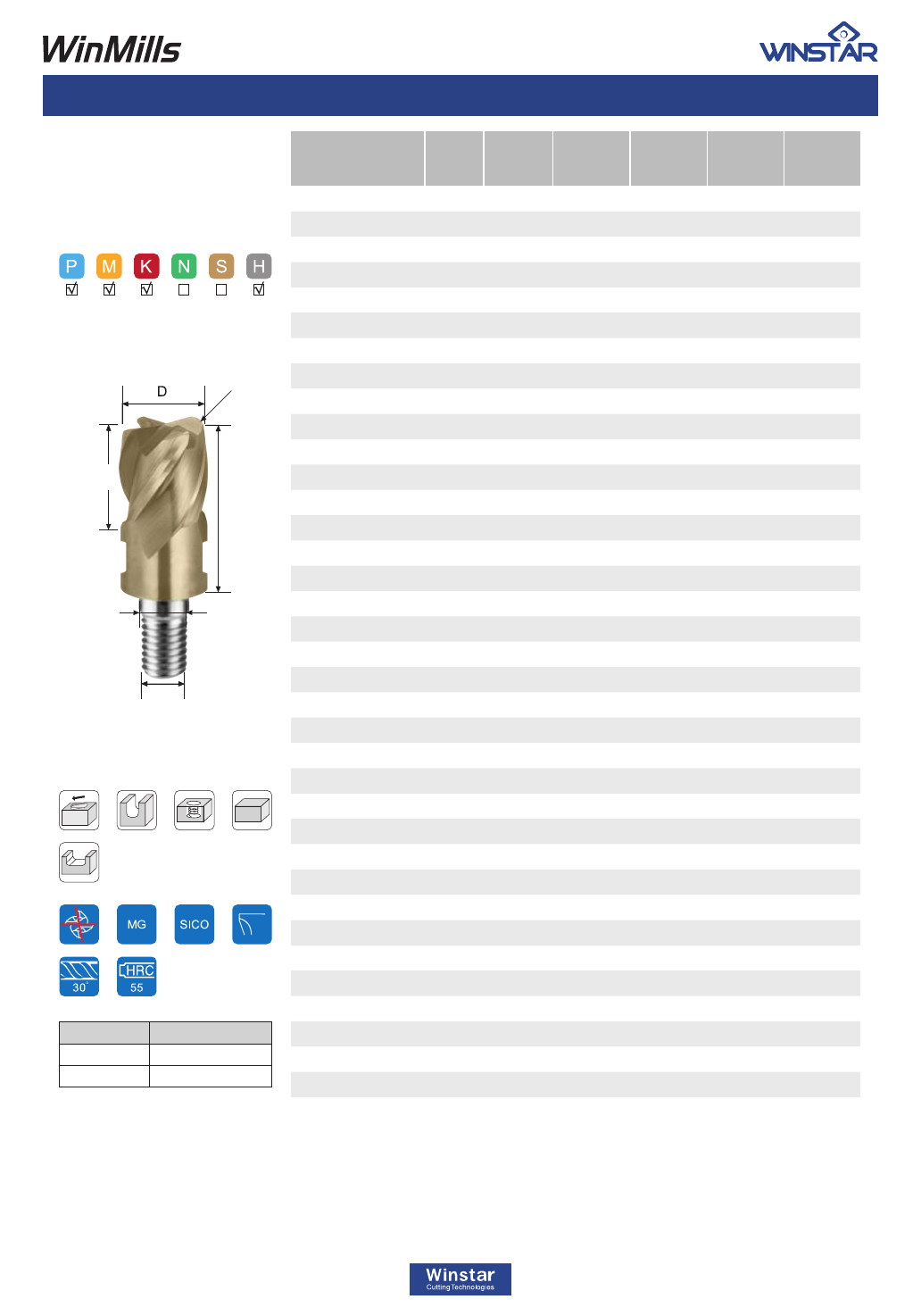

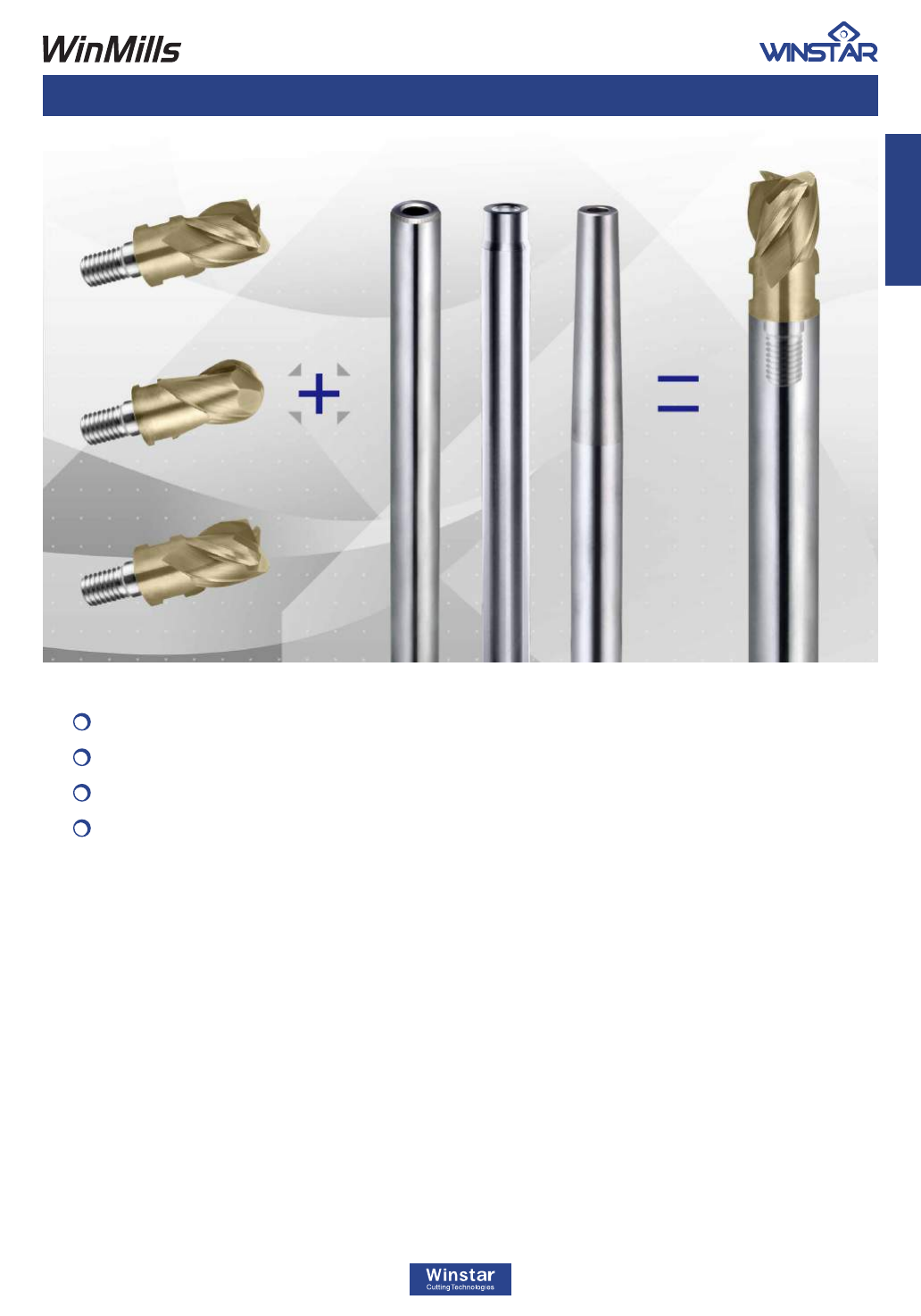

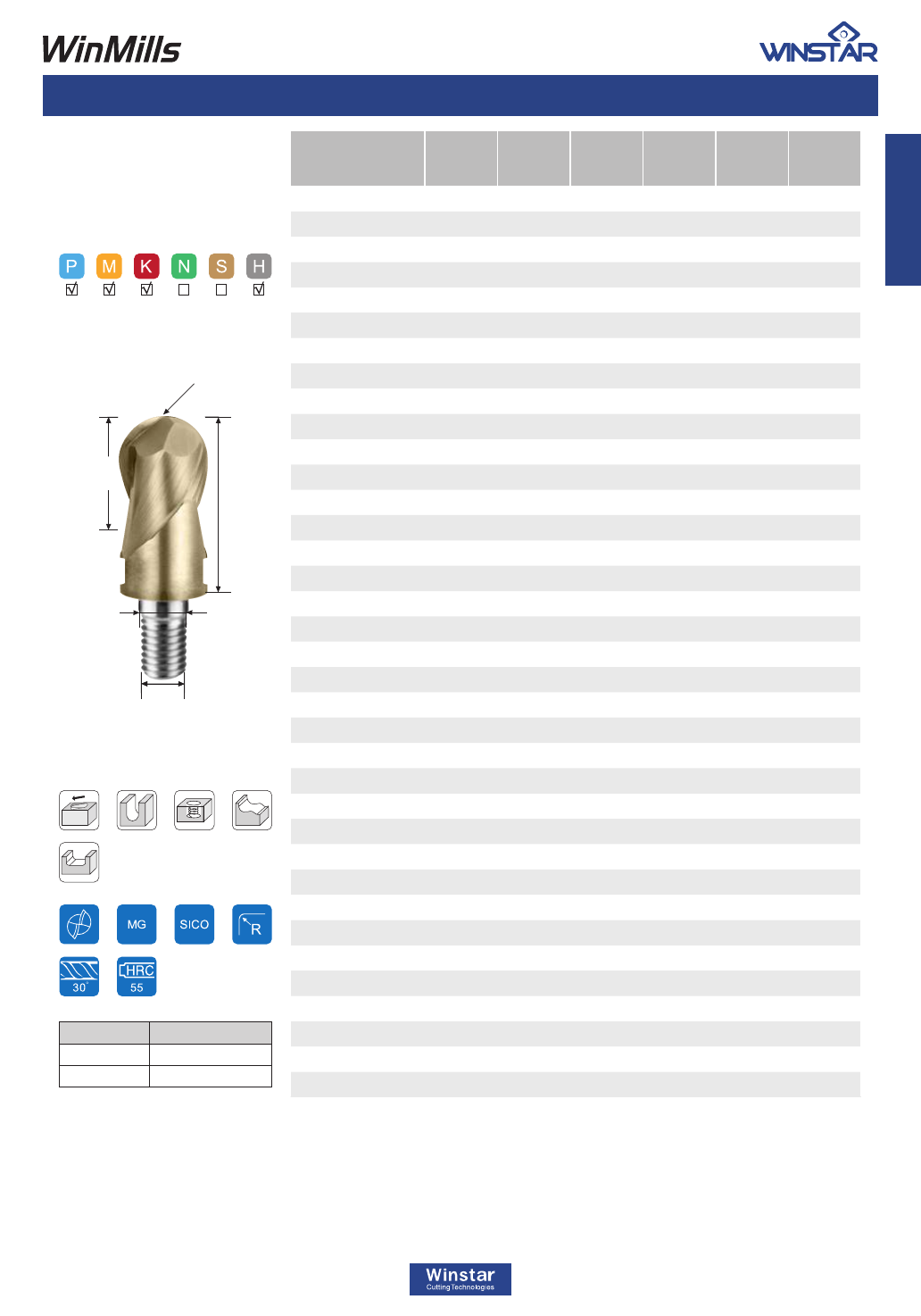

WinMaster Series Replaceable Endmills
● For Graphite.
● Micro grain carbide.
● DIA diamond coating.
●
For ordinary steel, alloy steel,
　cast iron, HRC 40~60.
● Micro grain carbide.
● SICO coating.
● Replaceable Endmills.
●
For stainless steel,
　difficult-to-cut material, HRC 20~50.
● Mold steel nishing.
● ARCO coating.
●
For non-ferrous, aluminum,
　aluminum alloy, copper, HRC<18.
● Micro grain carbide.
● High Helix offers excellent and
　stable finished surfaces.
G450 Series for Steel, up to HRC 48
●
For steel, alloy steel, cast iron,
　
aluminum alloy (Si>15%), HRC 15~48.
● Micro grain carbide.
● UNICO coating.
●
泛用材質加工專用，一般碳鋼、合金鋼、
　鑄鐵、鋁合金…，HRC15~48。
● 進口鎢鋼棒料。
● 提供 UNICO 塗層。
Solid Carbide Endmills
Solid Carbide Endmills
ICONS Guide
Micro Grain
Square Type 2F
ARCO Coated
Ultra Micro Grain
Square Type 3F
SICO Coated
Ultra Micro Grain 0.4µm
SICO-TH Coated
Helix Angle
DIA Coated
Material Hardness
Unequal
Sharp Corner Type
Variable Helix
Flatland Type
UNICO Coated
Chamfer Type
Corner Radius
Square Type 4F
Square Type 6F
Square Type 8F
Ball Nose 2F
Ball Nose 4F
Corner Radius 2F
Corner Radius 4F
標記說明
A001
Index
Code No .
Ø
Range
Page
Coating
Appearance Series Working Materials
Num. of Teeth
Helix Angle

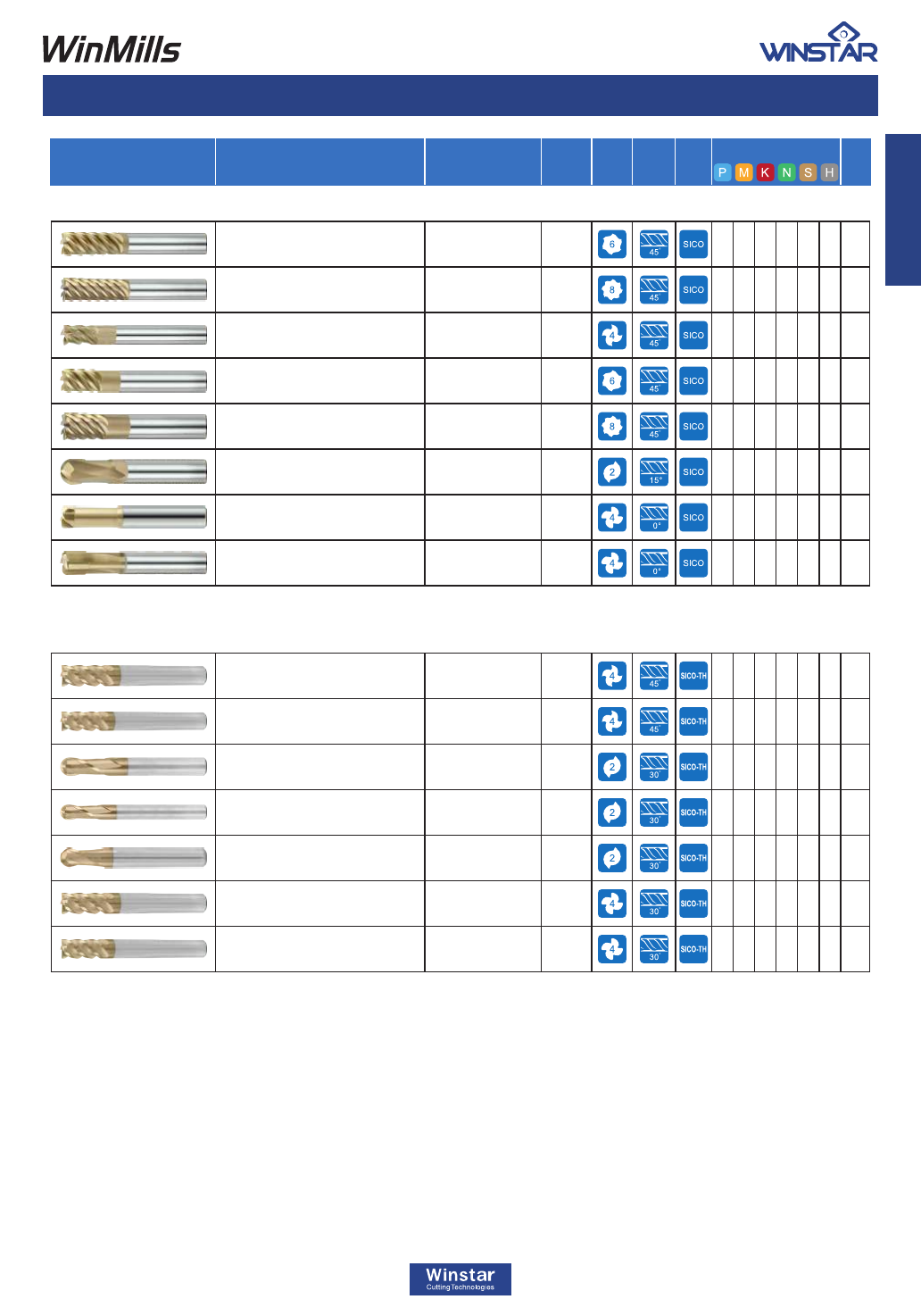

H700 Series　for Hardened steel, up to HRC 70
High Helix Square Type - 6F
鎢鋼平銑刀 - 高導型 - 6刃EHSSS6 Ø6~Ø14 ✓ ✓ ✓ ✓
A008
High Helix Square Type - 8F
鎢鋼平銑刀 - 高導型 - 8刃EHSSS8
Ø16~Ø20
✓ ✓ ✓ ✓
A008
High Helix & Short Flute Square Type - 4F
鎢鋼平銑刀 - 高導短刃型 - 4刃EHSPS4, EHSUS4 Ø1~Ø5 ✓ ✓ ✓ ✓
A009
High Helix & Short Flute Square Type - 6F
鎢鋼平銑刀 - 高導短刃型 - 6刃EHSUS6 Ø6~Ø12 ✓ ✓ ✓ ✓
A009
High Helix & Short Flute Square Type - 8F
鎢鋼平銑刀 - 高導短刃型 - 8刃EHSUS8
Ø16~Ø20
✓ ✓ ✓ ✓
A009
Low Helix & Short Flute Ball Nose Type - 2F
鎢鋼球型銑刀 - 低導短刃型 - 2刃EHBPS2, EHBUS2 0.5R~8R ✓ ✓ ✓ ✓
A010
High Speed & High Feed Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 高進給直刃型 -4 刃 EHCUK4 0.5R~2R ✓ ✓ ✓
A011
Straight Short Flute Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 直短刃型 - 4刃EHCPS4, EHCUS4 Ø1~Ø12 ✓ ✓ ✓ ✓
A012
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃EHSFF4, EHSSF4 Ø1~Ø12 ✓ ✓ ✓ ✓
A014
Long Shank Square Type - 4F
鎢鋼平銑刀 - 長柄型 - 4刃
EHSLF4, EHSMF4
EHSNF4 Ø4~Ø12 ✓ ✓ ✓ ✓
A015
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃EHBFF2, EHBSF2 0.5R~6R ✓ ✓ ✓ ✓
A016
Long Shank Ball Nose Type - 2F
鎢鋼球型銑刀 - 長柄型 - 2刃
EHBLF2, EHBNF2
EHBMF2 2R~6R ✓ ✓ ✓ ✓
A017
Short Flute Ball Nose Type - 2F
鎢鋼球型銑刀 - 短刃型 - 2刃EHBPF2, EHBUF2 0.5R~6R ✓ ✓ ✓ ✓
A018
Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 標準型 - 4刃EHCSF4 Ø3~Ø12 ✓ ✓ ✓ ✓
A019
Long Shank Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 長柄型 - 4刃EHCLF4, EHCMF4
EHCNF4 Ø4~Ø12 ✓ ✓ ✓ ✓
A020
H680 Series　for Hardened steel, up to HRC 65 (High Precision Cutting)
銑刀規格總覽
Solid Carbide Endmills
Solid Carbide Endmills
Solid Carbide Endmills
A002
Square Type - 2F
鎢鋼平銑刀 - 標準型 - 2刃EHSFA2, EHSSA2 Ø1~Ø20 ✓ ✓ ✓ ✓
A022
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃EHSFA4, EHSSA4 Ø1~Ø20 ✓ ✓ ✓ ✓
A023
High Helix Square Type - 4F
鎢鋼平銑刀 - 高導型 - 4刃EHSFH4, EHSSH4 Ø1~Ø20 ✓ ✓ ✓ ✓
A024
High Helix & Long Shank Square Type - 4F
鎢鋼平銑刀 - 高導長柄型 - 4刃
EHSLH4, EHSMH4
EHSNH4 Ø3~Ø20 ✓ ✓ ✓ ✓
A025
Long Neck Square Type - 2F
鎢鋼平銑刀 - 長頸型 - 2刃EHSBC2, EHSRC2
Ø0.2~Ø12
✓ ✓ ✓ ✓
A026
~
A031
Long Neck Square Type - 4F
鎢鋼平銑刀 - 長頸型 - 4刃EHSBC4, EHSRC4 Ø1~Ø12 ✓ ✓ ✓ ✓
A032
~
A034
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃EHBFH2, EHBSH2 0.5R~8R ✓ ✓ ✓ ✓
A035
Long Shank Ball Nose Type - 2F
鎢鋼球型銑刀 - 長柄型 - 2刃
EHBLH2, EHBMH2
EHBNH2 1R~10R ✓ ✓ ✓ ✓
A036
Short Flute Ball Nose Type - 2F
鎢鋼球型銑刀 - 短刃型 - 2刃EHBUH2 1R~8R ✓ ✓ ✓ ✓
A037
Long Neck Ball Nose Type - 2F
鎢鋼球型銑刀 - 長頸型 - 2刃EHBBC2, EHBRC2
0.15R~6R
✓ ✓ ✓ ✓
A038
~
A042
Taper Neck Ball Nose Type - 2F
鎢鋼球型銑刀 - 斜頸型 - 2刃EHBRT2 1R~6R ✓ ✓ ✓ ✓
A043
Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 標準型 - 4刃EHCFH4, EHCSH4 Ø4~Ø12 ✓ ✓ ✓ ✓
A044
Long Shank Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 長柄型 - 4刃
EHCLH4, EHCMH4
EHCNH4 Ø4~Ø12 ✓ ✓ ✓ ✓
A045
Short Flute Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 短刃型 - 4刃EHCUH4 Ø3~Ø12 ✓ ✓ ✓ ✓
A046
Long Neck
Corner Radius
Type
- 2F
鎢鋼圓鼻銑刀 - 長頸型 - 2刃EHCBC2, EHCRC2 Ø1~Ø12 ✓ ✓ ✓ ✓
A047
~
A053
Long Neck
Corner Radius
Type
- 4F
鎢鋼圓鼻銑刀 - 長頸型 - 4刃EHCBC4, EHCRC4 Ø2~Ø12 ✓ ✓ ✓ ✓
A054
~
A058
Double Corner High Feed EndMill - 4 / 6F
鎢鋼圓鼻銑刀 - 高進給型 - 4 / 6 刃EHWSA4, EHWSA6 Ø6~Ø12 ✓ ✓ ✓ ✓
A059
H650 Series　for Hardened steel, up to HRC 60
Index 銑刀規格總覽
Code No .
Ø
Range
Page
Coating
Appearance Series Working Materials
Num. of Teeth
Helix Angle
High Feed Square Type - 4F
鎢鋼平銑刀 - 高進給倒角型 - 4 刃 EUSFA4, EUSSA4 Ø3~Ø16 ✓ ✓ ✓ ✓
A062
EUROS - Toric Square Type - 4F
鎢鋼平銑刀 - 高進給圓角型 - 4 刃 EUSFR4, EUSSR4 Ø3~Ø16 ✓✓✓ ✓✓
A063
EUROS - Toric Square Type - 4F
鎢鋼平銑刀 - 高進給圓角型 - 4 刃 EUSFH4, EUSSH4 Ø3~Ø16 ✓✓✓ ✓✓
A064
EUROS Series　for High Feed Milling, up to HRC 60
Solid Carbide Endmills
A003
Square Type - 2F
鎢鋼平銑刀 - 標準型 - 2刃EPSFC2, EPSSC2
Ø0.2~Ø25
✓ ✓ ✓ ✓
A066
Square Type - 3F
鎢鋼平銑刀 - 標準型 - 3刃EPSFC3, EPSSC3 Ø1~Ø25 ✓ ✓ ✓ ✓
A067
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃EPSFC4, EPSSC4 Ø1~Ø25 ✓ ✓ ✓ ✓
A068
Anti-Vibration Square Type - 4F
鎢鋼平銑刀 - 抗震不等型 - 4刃EPSSD4 Ø5~Ø16 ✓ ✓ ✓ ✓
A069
High Helix Square Type - 4F
鎢鋼平銑刀 - 高導型 - 4刃EPSFH4, EPSSH4 Ø3~Ø16 ✓ ✓ ✓ ✓
A070
Long Flute Square Type - 4F
鎢鋼平銑刀 - 長刃型 - 4刃EPSCC4 Ø3~Ø25 ✓ ✓ ✓ ✓
A071
High Helix Square Type - 6F
鎢鋼平銑刀 - 高導型 - 6刃EPSSH6, EPSCH6 Ø6~Ø16 ✓ ✓ ✓ ✓
A072
Long Shank Square Type - 2F
鎢鋼平銑刀 - 長柄型 - 2刃
EPSLC2, EPSMC2
EPSNC2 Ø4~Ø20 ✓ ✓ ✓ ✓
A073
Long Shank Square Type - 4F
鎢鋼平銑刀 - 長柄型 - 4刃
EPSLC4, EPSMC4
EPSNC4 Ø3~Ø20 ✓ ✓ ✓ ✓
A074
Roughing Square Type - 4F
鎢鋼平銑刀 - 粗銑型 - 4刃EPSRR4 Ø6~Ø20 ✓ ✓ ✓ ✓
A075
Long Neck Square Type - 2F
鎢鋼平銑刀 - 長頸型 - 2刃EPSBC2, EPSRC2
Ø0.2~Ø12
✓ ✓ ✓ ✓
A076
~
A081
Long Neck Square Type - 4F
鎢鋼平銑刀 - 長頸型 - 4刃EPSBC4, EPSRC4 Ø1~Ø12 ✓ ✓ ✓ ✓
A082
~
A084
Taper Square Type - 2F
鎢鋼平銑刀 - 斜度型 - 2刃EPSFT2, EPSST2 Ø1~Ø10 ✓ ✓ ✓ ✓
A085
~
A087
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃EPBFC2, EPBSC2
0.1R~10R
✓ ✓ ✓ ✓
A088
Ball Nose Type - 4F
鎢鋼球型銑刀 - 標準型 - 4刃EPBFC4, EPBSC4 1R~10R ✓ ✓ ✓ ✓
A089
Long Shank Ball Nose Type - 2F
鎢鋼球型銑刀 - 長柄型 - 2刃
EPBLC2, EPBMC2
EPBNC2
1.5R~10R
✓ ✓ ✓ ✓
A090
Long Shank Ball Nose Type - 4F
鎢鋼球型銑刀 - 長柄型 - 4刃
EPBLC4, EPBMC4
EPBNC4 2R~8R ✓ ✓ ✓ ✓
A091
Long Neck Ball Nose Type - 2F
鎢鋼球型銑刀 - 長頸型 - 2刃EPBBC2, EPBRC2
0.15R~6R
✓ ✓ ✓ ✓
A092
~
A096
Taper Ball Nose Type - 2F
鎢鋼球型銑刀 - 斜度型 - 2刃EPBFT2, EPBST2 1R~3R ✓ ✓ ✓ ✓
A097
Taper Neck Ball Nose Type - 2F
鎢鋼球型銑刀 - 斜頸型 - 2刃EPBRT2 0.5R~2R ✓ ✓ ✓ ✓
A098
Corner Radius Type - 2F
鎢鋼圓鼻銑刀 - 標準型 - 2刃EPCSC2 Ø4~Ø12 ✓ ✓ ✓ ✓
A099
Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 標準型 - 4刃EPCSC4 Ø1~Ø12 ✓ ✓ ✓ ✓
A100
High Helix Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 高導型 - 4刃EPCSH4 Ø3~Ø12 ✓ ✓ ✓ ✓
A101
Long Shank Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 長柄型 - 4刃EPCLC4 Ø4~Ø16 ✓ ✓ ✓ ✓
A102
Long Neck Corner Radius Type - 2F
鎢鋼圓鼻銑刀 - 長頸型 - 2刃EPCBC2, EPCRC2 Ø1~Ø12 ✓ ✓ ✓ ✓
A103
~
A109
Long Neck Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 長頸型 - 4刃EPCBC4, EPCRC4 Ø2~Ø12 ✓ ✓ ✓ ✓
A110
~
A114
Taper Neck Corner Radius Type - 2F
鎢鋼圓鼻銑刀 - 斜頸型 - 2刃EPCRT2 Ø1~Ø6 ✓ ✓ ✓ ✓
A115
~
A116
Inner Radius Type - 2F / 4F
鎢鋼內 R角銑刀 - 2 / 4 刃
EPIFA2, EPISA2
EPIFA4, EPISA4 0.5R~6R ✓✓✓
A117
G550 Series　for Mold & Alloy steel, up to HRC 55
Index
Code No .
Ø
Range
Page
Coating
Appearance Series Working Materials
Num. of Teeth
Helix Angle
銑刀規格總覽
Solid Carbide Endmills
Solid Carbide Endmills
A004
Square Type - 2F
鎢鋼平銑刀 - 標準型 - 2刃EPSFA2, EPSSA2 Ø1~Ø25 ✓✓✓
A120
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃EPSFA4, EPSSA4 Ø1~Ø25 ✓✓✓
A121
Long Flute Square Type - 4F
鎢鋼平銑刀 - 長刃型 - 4刃EPSCA4 Ø3~Ø25 ✓✓✓
A122
Long Shank SquareType - 2F
鎢鋼平銑刀 - 長柄型 - 2刃
EPSLA2, EPSMA2
EPSNA2 Ø4~Ø16 ✓✓✓
A123
Long Shank Square Type - 4F
鎢鋼平銑刀 - 長柄型 - 4刃
EPSLA4, EPSMA4
EPSNA4 Ø4~Ø20 ✓✓✓
A124
G450 Series　for Alloy Steel, up to HRC 48
Index
Code No .
Ø
Range
Page
Coating
Appearance Series Working Materials
Num. of Teeth
Helix Angle
Square Type - 2F
鎢鋼平銑刀 - 標準型 - 2刃ESSFA2, ESSSA2 Ø3~Ø16 ✓ ✓ ✓ ✓
A126
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃ESSFA4, ESSSA4 Ø3~Ø16 ✓ ✓ ✓ ✓
A127
High Helix Square U Type - 4F
鎢鋼平銑刀 - 高導高效能 U 型 - 4刃ESSFB4, ESSSB4 Ø4~Ø16 ✓ ✓ ✓ ✓
A128
Varix & Anti-Vibration Square U Type - 4F
鎢鋼平銑刀 - 抗震變導高效能 U 型 - 4刃ESSFU4, ESSSU4 Ø4~Ø16 35
&
38 ✓ ✓ ✓ ✓
A129
High Helix & Anti-Vibration Square U Type - 4F
鎢鋼平銑刀 - 高導抗震高效能 U 型 - 4刃ESSSM4 Ø8~Ø16 ✓ ✓ ✓ ✓
A130
Anti-Vibration Square Type - 4F
鎢鋼平銑刀 - 抗震不等 SD 型-4刃ESSSD4 Ø5~Ø16 ✓ ✓ ✓ ✓
A131
Varix & Anti-Vibration Square Type - 4F
鎢鋼平銑刀 - 抗震變導 SV 型-4刃ESSSV4 Ø4~Ø16 35
&
38 ✓ ✓ ✓ ✓
A132
Wave Edge Square Type - 3F
鎢鋼平銑刀 - 波浪型 - 3刃ESSSW3 Ø6~Ø20 ✓ ✓ ✓ ✓
A133
Wave Edge Square Type - 4F
鎢鋼平銑刀 - 波浪型 - 4刃ESSSW4 Ø6~Ø20 ✓ ✓ ✓ ✓
A134
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃ESBFA2, ESBSA2 1R~8R ✓ ✓ ✓ ✓
A135
Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 標準型 - 4刃ESCSA4 Ø3~Ø12 ✓ ✓ ✓ ✓
A136
High Helix & Anti-Vibration Corner Radius U Type - 4F
鎢鋼圓鼻銑刀 - 高導抗震高效能 U 型 - 4刃ESCSM4 Ø8~Ø16 ✓ ✓ ✓ ✓
A137
Varix & Anti-Vibration Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 抗震變導 SV 型-4刃ESCSV4 Ø4~Ø16 35
&
38 ✓ ✓ ✓ ✓
A138
M500 Series　for Stainless, Titanium & Inconel
銑刀規格總覽
Solid Carbide Endmills
A005
Square Type - 4F
鎢鋼平銑刀 - 標準型 - 4刃EGSFC4 Ø3~Ø12 ✓ ✓ ✓ ✓
A140
Long Flute Square Type - 4F
鎢鋼平銑刀 - 長刃型 - 4刃EGSCC4 Ø3~Ø12 ✓ ✓ ✓ ✓
A141
Long Shank Square Type - 4F
鎢鋼平銑刀 - 長柄型 - 4刃EGSEC4, EGSLC4 Ø4~Ø12 ✓ ✓ ✓ ✓
A142
Long Neck Square Type - 2F
鎢鋼平銑刀 - 長頸型 - 4刃EGSBC2, EGSRC2 Ø0.5~Ø6 ✓ ✓ ✓ ✓
A143
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃EGBFC2, EGBSC2
0.1R~6R
✓ ✓ ✓ ✓
A144
Long Shank Ball Nose Type - 2F
鎢鋼球型銑刀 - 長柄型 - 2刃EGBEC2, EGBLC2 2R~6R ✓ ✓ ✓ ✓
A145
Long Neck Ball Nose Type - 2F
鎢鋼球型銑刀 - 長頸型 - 2刃EGBBC2, EGBRC2
0.25R~3R
✓ ✓ ✓ ✓
A146
Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 標準型 - 4刃EGCFC4, EGCSC4 Ø3~Ø12 ✓ ✓ ✓ ✓
A147
Long Shank Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 長柄型 - 4刃EGCEC4, EGCLC4 Ø4~Ø12 ✓ ✓ ✓ ✓
A148
Long Neck Corner Radius Type - 2F
鎢鋼圓鼻銑刀 - 長頸型 - 2刃EGCBC2, EGCRC2 Ø1~Ø6 ✓ ✓ ✓ ✓
A149
A200 Series　for Graphite
Index
Square Type - 2F
鎢鋼平銑刀 - 標準型 - 2刃ENSFS2, ENSSS2 Ø1~Ø20 ✓
A152
Square Type - 3F
鎢鋼平銑刀 - 標準型 - 3刃ENSFS3, ENSSS3 Ø2~Ø20 ✓
A153
Square & Long Flute Type - 3F
鎢鋼平銑刀 - 長刃型 - 3刃ENSCS3 Ø3~Ø20 ✓
A154
Square & High Helix Type - 3F
鎢鋼平銑刀 - 高導型 - 3刃ENSSH3 Ø4~Ø16 ✓
A155
High Performance Square Type - 3F (for side milling)
鎢鋼平銑刀 - 高效能型 - 3刃ENSSB3 Ø4~Ø20 ✓
A156
Fine-Finishing Square Type - 3F
鎢鋼平銑刀 - 高光鏡面型 - 3 刃 ENSSP3 Ø6~Ø16 ✓
A157
Ball Nose Type - 2F
鎢鋼球型銑刀 - 標準型 - 2刃ENBFA2, ENBSA2 0.5R~8R ✓
A158
A100 Series　for Aluminium Alloy
Anti-Vibration Square Type - 4F
鎢鋼平銑刀 - 鎖牙式抗震 PD 型-4刃EPSWH4
Ø10~Ø20
✓✓✓✓ ✓
A160
Ball Nose Type - 2F
鎢鋼球型銑刀 - 鎖牙式標準型 - 2刃EPBWH2
5R~10R
✓✓✓✓ ✓
A161
Anti-Vibration Corner Radius Type - 4F
鎢鋼圓鼻銑刀 - 鎖牙式抗震 PD 型-4刃EPCWH4
Ø10~Ø20
✓✓✓✓ ✓
A162
Carbide Extension Adapter (Anti-Vibration)
鎢鋼鎖牙式抗震延長桿 SWSEA
M5~M12
A163
Carbide Extension Adapter (Anti-Vibration)
鎢鋼鎖牙式抗震延長桿 SWSEB
M6~M12
A164
Carbide Extension Adapter (Anti-Vibration)
鎢鋼鎖牙式抗震延長桿 SWTEA
M5~M12
A165
WinMaster Series　Replaceable Endmills, up to HRC 60
Code No .
Ø
Range
Page
Coating
Appearance Series Working Materials
Num. of Teeth
Helix Angle
銑刀規格總覽
Solid Carbide Endmills
A006
Endmills．Inserts．Drills
Solid Carbide Endmills
Solid Carbide Endmills
H700 Series for Hardened steel, up to HRC 70
A007
Ultra grain carbide rods with better abrasion resistance.
SICO coating with anti-high temperature & anti-oxidation.
Large core diameter promotes its rigidity of the tool.
Negative rake angle design is suitable for machining hardened material.
Tough cutting edge and more ute bring extreme high milling speed and excellent nishing surface.
We also provide NACO coating.
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSSS606000S 6 15 50 6 6
EHSSS608000S 8 20 60 8 6
EHSSS610000S 10 25 75 10 6
EHSSS612000S 12 30 75 12 6
EHSSS614000S 14 30 75 14 6
EHSSS816000S 16 40 100 16 8
EHSSS818000S 18 40 100 18 8
EHSSS820000S 20 45 100 20 8
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSSS6
EHSSS8
D
d
L1
L
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Horsepower consumption will be decreased with greater shearing action.
High Helix and 6 Flutes design gives a good nishing surface.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
．
H700 - High Helix Square Type - 6F / 8F
A008
65
Cutting conditions( 建議切削參數表 ) : Table 001
鎢鋼平銑刀 - 高導型 - 6/8 刃
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSPS401000S 1 1.5 2.5 50 4 4
EHSPS402000S 2 3.0 5.0 50 4 4
EHSUS403000S 3 4.5 7.5 50 6 4
EHSUS404000S 4 6.0 10.0 50 6 4
EHSUS405000S 5 7.5 12.5 50 6 4
EHSUS606000S 6 9.0 15.0 50 6 6
EHSUS608000S 8 12.0 20.0 60 8 6
EHSUS610000S 10 15.0 25.0 75 10 6
EHSUS612000S 12 18.0 30.0 75 12 6
EHSUS816000S 16 24.0 40.0 100 16 8
EHSUS820000S 20 30.0 50.0 100 20 8
65
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSPS4
EHSUS4
EHSUS6
EHSUS8
D
d
L2
L
L1
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Greater shearing action results in increased speeds and feeds and faster stock removal.
Prevents clogging of the utes.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
．
H700 -
High Helix & Short Flute Square Type - 4F / 6F / 8F
A009
鎢鋼平銑刀 - 高導短刃型 - 4/6/8 刃
Cutting conditions( 建議切削參數表 ) : Table 002
Solid Carbide Endmills

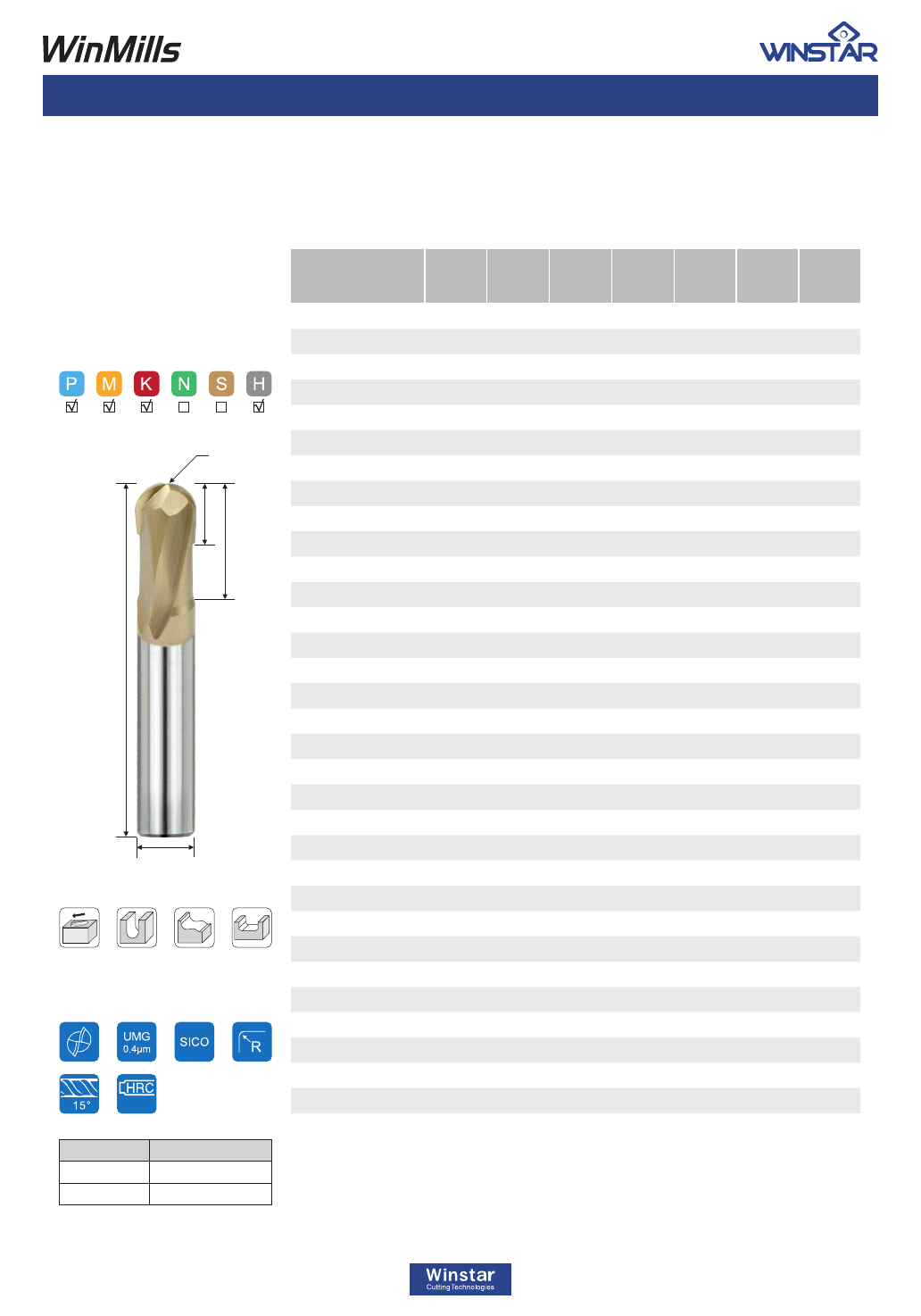

Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBPS201000S 0.50R 1.0 1.0 2 50 4 2
EHBPS201500S 0.75R 1.5 1.5 3 50 4 2
EHBUS202000S 1.00R 2.0 2.0 4 50 6 2
EHBUS203000S 1.50R 3.0 3.0 6 50 6 2
EHBUS204000S 2.00R 4.0 4.0 8 50 6 2
EHBUS205000S 2.50R 5.0 5.0 10 50 6 2
EHBUS206000S 3.00R 6.0 6.0 12 50 6 2
EHBUS208000S 4.00R 8.0 8.0 16 60 8 2
EHBUS210000S 5.00R 10.0 10.0 20 75 10 2
EHBUS212000S 6.00R 12.0 12.0 24 75 12 2
EHBUS216000S 8.00R 16.0 16.0 32 100 16 2
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
EHBPS2
EHBUS2
D
L1
L2
R
L
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Due to short cutting length it provides an excellent surface roughness of the work pieces.
Low helix design is suitable for hardened steel cutting.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
．
H700 - Low Helix & Short Flute Ball Nose Type - 2F
A010
65
鎢鋼球型銑刀 - 低導短刃型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 003
Solid Carbide Endmills
Solid Carbide Endmills

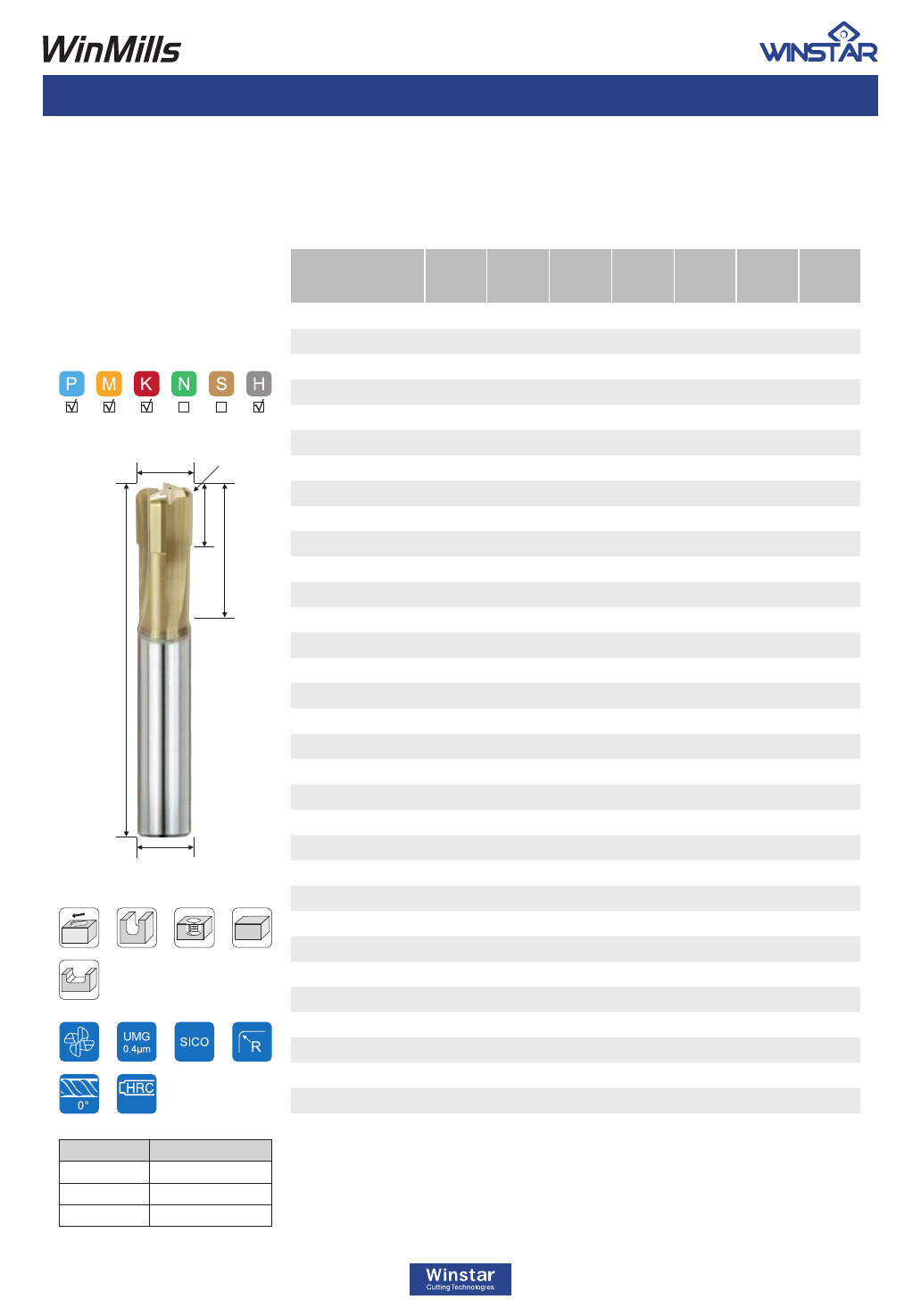

H700 - High Speed & High Feed Corner Radius Type - 4F
Order No. Dia.
(d)
RADIUS
(R)
Flute
Length
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCUK40200506S 2 0.5R 1 6 50 6 4
EHCUK40300508S 3 0.5R 1.5 8 50 6 4
EHCUK40400512S 4 0.5R 2 12 60 6 4
EHCUK40400516S 4 0.5R 2 16 60 6 4
EHCUK40401012S 4 1R 2 12 60 6 4
EHCUK40401016S 4 1R 2 16 60 6 4
EHCUK40600512S 6 0.5R 3 12 60 6 4
EHCUK40600515S 6 0.5R 3 15 60 6 4
EHCUK40601015S 6 1R 3 15 60 6 4
EHCUK40601515S 6 1.5R 3 15 60 6 4
EHCUK40800520S 8 0.5R 4 20 60 8 4
EHCUK40801020S 8 1R 4 20 60 8 4
EHCUK41000525S 10 0.5R 5 25 75 10 4
EHCUK41001025S 10 1R 5 25 75 10 4
EHCUK41201030S 12 1R 6.0 30 75 12 4
EHCUK41202030S 12 2R 6.0 30 75 12 4
EHCUK4
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Non-Helix Design.
Cutting edges are very strong and wear resistant.
For High speed and high feed cutting.
．
．
．
．
．
A011
D
d
L1
L
L2
R
鎢鋼圓鼻銑刀 - 高進給直刃型 - 4刃
dR Tolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
R ± 0.015
65
Cutting conditions( 建議切削參數表 ) : Table 004
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCPS401002S 1 0.20R 1 2.5 50 4 4
EHCPS402002S 2 0.25R 2 6.5 50 4 4
EHCUS403005S 3 0.50R 3 7.5 50 6 4
EHCUS404005S 4 0.50R 4 10.0 50 6 4
EHCUS404010S 4 1.00R 4 10.0 50 6 4
EHCUS405010S 5 1.00R 5 12.5 50 6 4
EHCUS406010S 6 1.00R 6 15.0 50 6 4
EHCUS406015S 6 1.50R 6 15.0 50 6 4
EHCUS408010S 8 1.00R 8 20.0 60 8 4
EHCUS408015S 8 1.50R 8 20.0 60 8 4
EHCUS408020S 8 2.00R 8 20.0 60 8 4
EHCUS410010S 10 1.00R 10 25.0 75 10 4
EHCUS410020S 10 2.00R 10 25.0 75 10 4
EHCUS412010S 12 1.00R 12 30.0 75 12 4
EHCUS412020S 12 2.00R 12 30.0 75 12 4
EHCUS412030S 12 3.00R 12 30.0 75 12 4
dR Tolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
R ± 0.015
EHCPS4
EHCUS4
D
L
dR
L1
L2
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Non-Helix Design.
Cutting edges are very strong and wear resistant.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
．
H700 - Straight Short Flute Corner Radius Type - 4F
A012
65
鎢鋼圓鼻銑刀 - 直短刃型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 005
Solid Carbide Endmills
Solid Carbide Endmills
H680 Series for Hardened steel, up to HRC 65 (High Precision Cutting)
A013
High Precision
High Speed High Hardened
Ultra grain carbide rods with better abrasion resistance.
Use SICO-TH coating with anti-high temperature & anti-oxidation.
Special geometry design, suitable for high hardened working materials.
Comparable to Europe, America, Japan’s tolerance with high precision and high performance on
Finishing working situation.
Long Tool life tools reduce tool costs and working cost eectively.
Solid Carbide Endmills
H680 - High Precision Square Type - 4F
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSFF401000S 1.0 3 50 4 4
EHSFF401500S 1.5 4 50 4 4
EHSFF402000S 2.0 5 50 4 4
EHSFF402500S 2.5 6 50 4 4
EHSSF403000S 3.0 8 50 6 4
EHSSF404000S 4.0 10 50 6 4
EHSSF405000S 5.0 13 50 6 4
EHSSF406000S 6.0 15 50 6 4
EHSSF408000S 8.0 20 60 8 4
EHSSF410000S 10.0 25 75 10 4
EHSSF412000S 12.0 30 75 12 4
dTolerance
Ø≦6+0 ~ -0.01
Ø ≧ 8+0 ~ -0.02
EHSFF4
EHSSF4
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
A014
65
D
d
L1
L
鎢鋼平銑刀 - 標準型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 006
Solid Carbide Endmills
Solid Carbide Endmills
H680 - High Precision Long Shank Square Type - 4F
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSLF404000S 4.0 10 75 6 4
EHSLF406000S 6.0 15 75 6 4
EHSNF406000S 6.0 15 100 6 4
EHSMF408000S 8.0 20 75 8 4
EHSLF408000S 8.0 20 100 8 4
EHSLF410000S 10.0 25 100 10 4
EHSLF412000S 12.0 30 100 12 4
dTolerance
Ø≦6+0 ~ -0.02
Ø ≧ 8+0 ~ -0.03
EHSLF4
EHSNF4
EHSMF4
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
A015
D
d
L1
L
65
鎢鋼平銑刀 - 長柄型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 006
Solid Carbide Endmills
D
R
L
L1
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBFF201000S 0.5R 1.0 2 50 4 2
EHBFF202000S 1.0R 2.0 4 50 4 2
EHBFF204000S 2.0R 4.0 8 50 4 2
EHBSF203000S 1.5R 3.0 6 50 6 2
EHBSF204000S 2.0R 4.0 8 50 6 2
EHBSF206000S 3.0R 6.0 12 50 6 2
EHBSF208000S 4.0R 8.0 16 60 8 2
EHBSF210000S 5.0R 10.0 20 75 10 2
EHBSF212000S 6.0R 12.0 24 75 12 2
RTolerance
≦R3 ± 0.005
≧R4 ± 0.007
EHBFF2
EHBSF2
A016

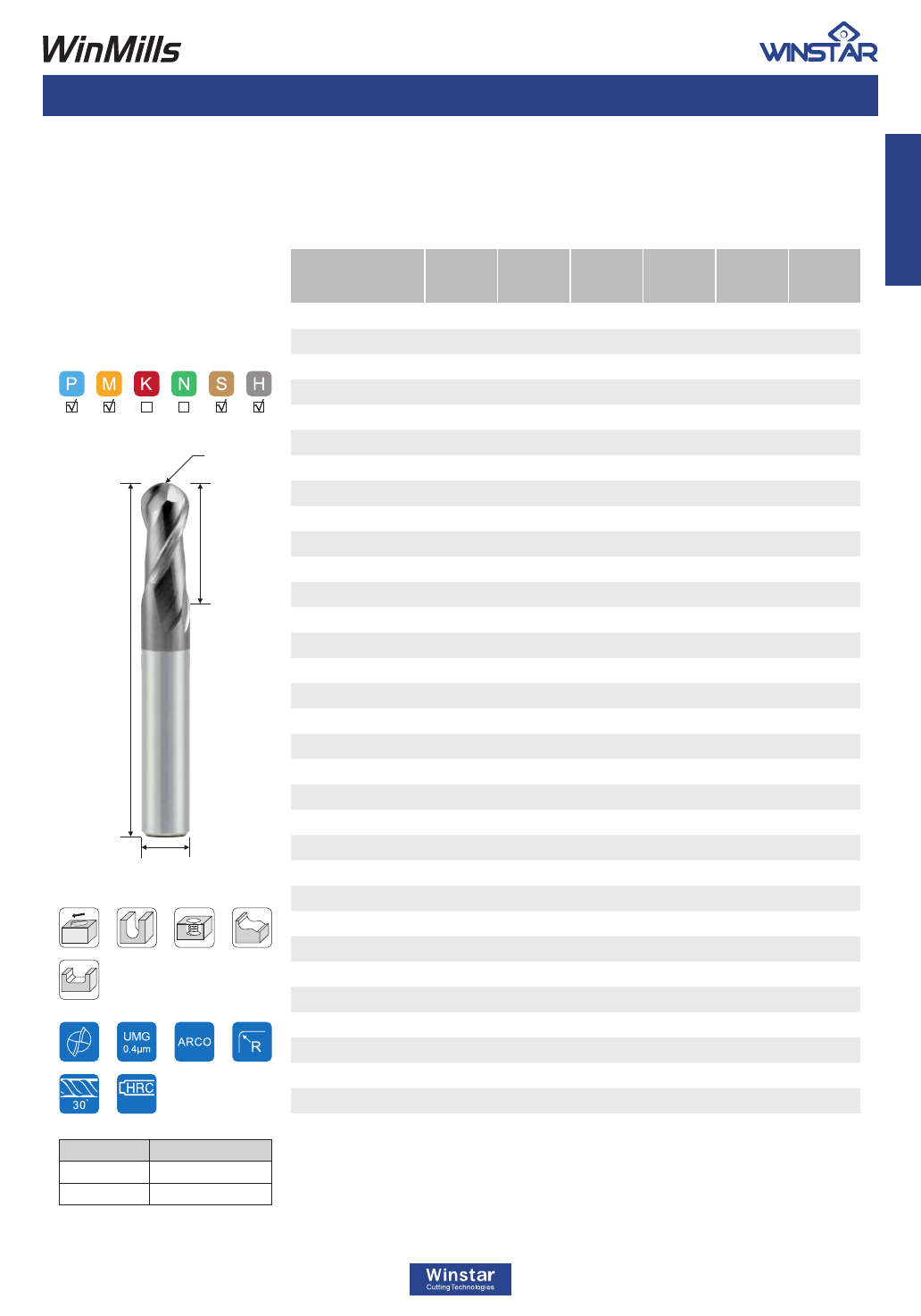

H680 - High Precision Ball Nose Type - 2F
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
R tolerance ±5µm with high precision and high performance on Finishing working situation.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
．
65
鎢鋼球型銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 007
Solid Carbide Endmills
Solid Carbide Endmills
D
R
L
L1
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBLF204000S 2R 4.0 8 75 6 2
EHBLF206000S 3R 6.0 12 75 6 2
EHBNF206000S 3R 6.0 12 100 6 2
EHBMF208000S 4R 8.0 16 75 8 2
EHBLF208000S 4R 8.0 16 100 8 2
EHBLF210000S 5R 10.0 20 100 10 2
EHBLF212000S 6R 12.0 24 100 12 2
RTolerance
≦R3 ± 0.007
≧R4 ± 0.007
EHBLF2
EHBNF2
EHBMF2
A017
H680 - High Precision Long Shank Ball Nose Type - 2F
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
R tolerance ±5µm with high precision and high performance on Finishing working situation.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
．
65
鎢鋼球型銑刀 - 長柄型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 007
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBPF201000S 0.5R 1.0 1 2 50 4 2
EHBPF202000S 1.0R 2.0 2 4 50 4 2
EHBPF204000S 2.0R 4.0 4 8 50 6 2
EHBUF203000S 1.5R 3.0 3 6 50 6 2
EHBUF204000S 2.0R 4.0 4 8 50 6 2
EHBUF206000S 3.0R 6.0 6 12 50 6 2
EHBUF208000S 4.0R 8.0 8 16 60 8 2
EHBUF210000S 5.0R 10.0 10 20 75 10 2
EHBUF212000S 6.0R 12.0 12 24 75 12 2
EHBPF2
EHBUF2
A018
H680 - High Precision Short Flute Ball Nose Type - 2F
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
R tolerance ±5µm with high precision and high performance on Finishing working situation.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
．
RTolerance
≦R3 ± 0.005
≧R4 ± 0.007
D
L1
L2
R
L
65
鎢鋼球型銑刀 - 短刃型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 007
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCSF403005S 3.0 0.5R 6 50 6 4
EHCSF404005S 4.0 0.5R 8 50 6 4
EHCSF404005S 4.0 0.5R 8 50 6 4
EHCSF406005S 6.0 0.5R 12 50 6 4
EHCSF406010S 6.0 1R 12 50 6 4
EHCSF408005S 8.0 0.5R 16 60 8 4
EHCSF408010S 8.0 1R 16 60 8 4
EHCSF410005S 10.0 0.5R 20 75 10 4
EHCSF410010S 10.0 1R 20 75 10 4
EHCSF412005S 12.0 0.5R 24 75 12 4
EHCSF412010S 12.0 1R 24 75 12 4
Solid Carbide Endmills
dR Tolerance
Ø≦6+0 ~ -0.01
Ø ≧ 8+0 ~ -0.02
R ± 0.01
EHCSF4
A019
H680 - High Precision Corner Radius Type - 4F
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
D
d
L1
L
R
65
鎢鋼圓鼻銑刀 - 標準型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 006
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCLF404005S 4 0.5R 8 75 6 4
EHCLF406005S 6 0.5R 12 75 6 4
EHCNF406005S 6 0.5R 12 100 6 4
EHCMF408005S 8 0.5R 16 75 8 4
EHCLF408005S 8 0.5R 16 100 8 4
EHCLF410005S 10 0.5R 20 100 10 4
EHCLF412005S 12 0.5R 24 100 12 4
dR Tolerance
Ø≦6+0 ~ -0.02
Ø ≧ 8+0 ~ -0.03
R ± 0.015
EHCLF4
EHCNF4
EHCMF4
A020
H680 -
High Precision Long Shank Corner Radius Type - 4F
SICO-TH Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Ultra grain carbide rods with better abrasion resistance.
Special geometry design, suitable for high hardened working materials.
．
．
．
．
D
d
L1
L
R
65
鎢鋼圓鼻銑刀 - 長柄型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 006
Solid Carbide Endmills
Solid Carbide Endmills
H650 Series for Hardened steel, up to HRC 60
A021
Ultra grain carbide rods with better abrasion resistance.
SICO coating with anti-high temperature & anti-oxidation.
ARCO coating shows good performance in coolant machining.
Large core diameter promote its rigidity of the tool.
Negative rake angle design is suitable for machining hardened material.
Long tool-life and good performance in hardened steel material.
Solid Carbide Endmills
．
．
．
．
．
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSFA201000A 1 3 50 4 2
EHSFA202000A 2 5 50 4 2
EHSFA203000A 3 8 50 4 2
EHSFA204000A 4 10 50 4 2
EHSSA203000A 3 8 50 6 2
EHSSA204000A 4 10 50 6 2
EHSSA205000A 5 13 50 6 2
EHSSA206000A 6 15 50 6 2
EHSSA208000A 8 20 60 8 2
EHSSA210000A 10 25 75 10 2
EHSSA212000A 12 30 75 12 2
EHSSA216000A 16 35 100 16 2
EHSSA220000A 20 45 100 20 2
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSFA2
EHSSA2
H650 - Square Type - 2F
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
UMG Carbide with Incredible toughness and wear resistance at hi speeds.
Negative angle design with stronger cutting edge.
The coating can change to SICO, the prices will dier.
A022
鎢鋼平銑刀 - 標準型 - 2刃
D
d
L1
L
65
Cutting conditions( 建議切削參數表 ) : Table 008
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Square Type - 4F
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSFA401000A 1 3 50 4 4
EHSFA402000A 2 5 50 4 4
EHSFA403000A 3 8 50 4 4
EHSFA404000A 4 10 50 4 4
EHSSA403000A 3 8 50 6 4
EHSSA404000A 4 10 50 6 4
EHSSA405000A 5 13 50 6 4
EHSSA406000A 6 15 50 6 4
EHSSA408000A 8 20 60 8 4
EHSSA410000A 10 25 75 10 4
EHSSA412000A 12 30 75 12 4
EHSSA416000A 16 35 100 16 4
EHSSA420000A 20 45 100 20 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSFA4
EHSSA4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
High helix angle on side milling with good surface and long tool life.
UMG Carbide with Incredible toughness and wear resistance at hi speeds.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
A023
鎢鋼平銑刀 - 標準型 - 4刃
D
d
L1
L
65
Cutting conditions( 建議切削參數表 ) : Table 009
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSFH401000A 1.0 3 50 4 4
EHSFH401500A 1.5 4 50 4 4
EHSFH402000A 2.0 5 50 4 4
EHSFH402500A 2.5 6 50 4 4
EHSFH403000A 3.0 8 50 4 4
EHSFH404000A 4.0 10 50 4 4
EHSSH404000A 4.0 10 50 6 4
EHSSH405000A 5.0 13 50 6 4
EHSSH406000A 6.0 15 50 6 4
EHSSH408000A 8.0 20 60 8 4
EHSSH410000A 10.0 25 75 10 4
EHSSH412000A 12.0 30 75 12 4
EHSSH416000A 16.0 35 100 16 4
EHSSH420000A 20.0 45 100 20 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSFH4
EHSSH4
D
d
L1
L
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
UMG Carbide with Incredible toughness and wear resistance at hi speeds.
Good surface and long tool life.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - High Helix Square Type - 4F
A024
鎢鋼平銑刀 - 高導型 - 4刃
65
Cutting conditions( 建議切削參數表 ) : Table 010
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSEH403000A 3.0 8 75 4 4
EHSKH403000A 3.0 8 100 4 4
EHSJH404000A 4.0 10 60 4 4
EHSEH404000A 4.0 10 75 4 4
EHSKH404000A 4.0 10 100 4 4
EHSMH406000A 6.0 15 60 6 4
EHSLH406000A 6.0 15 75 6 4
EHSNH406000A 6.0 15 100 6 4
EHSMH408000A 8.0 20 75 8 4
EHSLH408000A 8.0 20 100 8 4
EHSNH408000A 8.0 20 150 8 4
EHSLH410000A 10.0 25 100 10 4
EHSNH410000A 10.0 25 150 10 4
EHSLH412000A 12.0 30 100 12 4
EHSNH412000A 12.0 30 150 12 4
EHSLH416000A 16.0 35 150 16 4
EHSLH420000A 20.0 45 150 20 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EHSLH4
EHSMH4
EHSNH4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
UMG Carbide with Incredible toughness and wear resistance at hi speeds.
Good surface and long tool life.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - High Helix & Long Shank Square Type - 4F
A025
65
D
d
L1
L
鎢鋼平銑刀 - 高導長柄型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 011
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC200201A 0.2 0.3 1 50 4 2
EHSBC200202A 0.2 0.3 2 50 4 2
EHSBC200301A 0.3 0.4 1 50 4 2
EHSBC200302A 0.3 0.4 2 50 4 2
EHSBC200303A 0.3 0.4 3 50 4 2
EHSBC200304A 0.3 0.4 4 50 4 2
EHSBC200305A 0.3 0.4 5 50 4 2
EHSBC200401A 0.4 0.5 1 50 4 2
EHSBC200402A 0.4 0.5 2 50 4 2
EHSBC200403A 0.4 0.5 3 50 4 2
EHSBC200404A 0.4 0.5 4 50 4 2
EHSBC200405A 0.4 0.5 5 50 4 2
EHSBC200406A 0.4 0.5 6 50 4 2
EHSBC200408A 0.4 0.5 8 50 4 2
EHSBC200410A 0.4 0.5 10 50 4 2
EHSBC200502A 0.5 0.6 2 50 4 2
EHSBC200503A 0.5 0.6 3 50 4 2
EHSBC200504A 0.5 0.6 4 50 4 2
EHSBC200505A 0.5 0.6 5 50 4 2
EHSBC200506A 0.5 0.6 6 50 4 2
EHSBC200508A 0.5 0.6 8 50 4 2
EHSBC200510A 0.5 0.6 10 50 4 2
EHSBC200512A 0.5 0.6 12 50 4 2
EHSBC200514A 0.5 0.6 14 50 4 2
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．

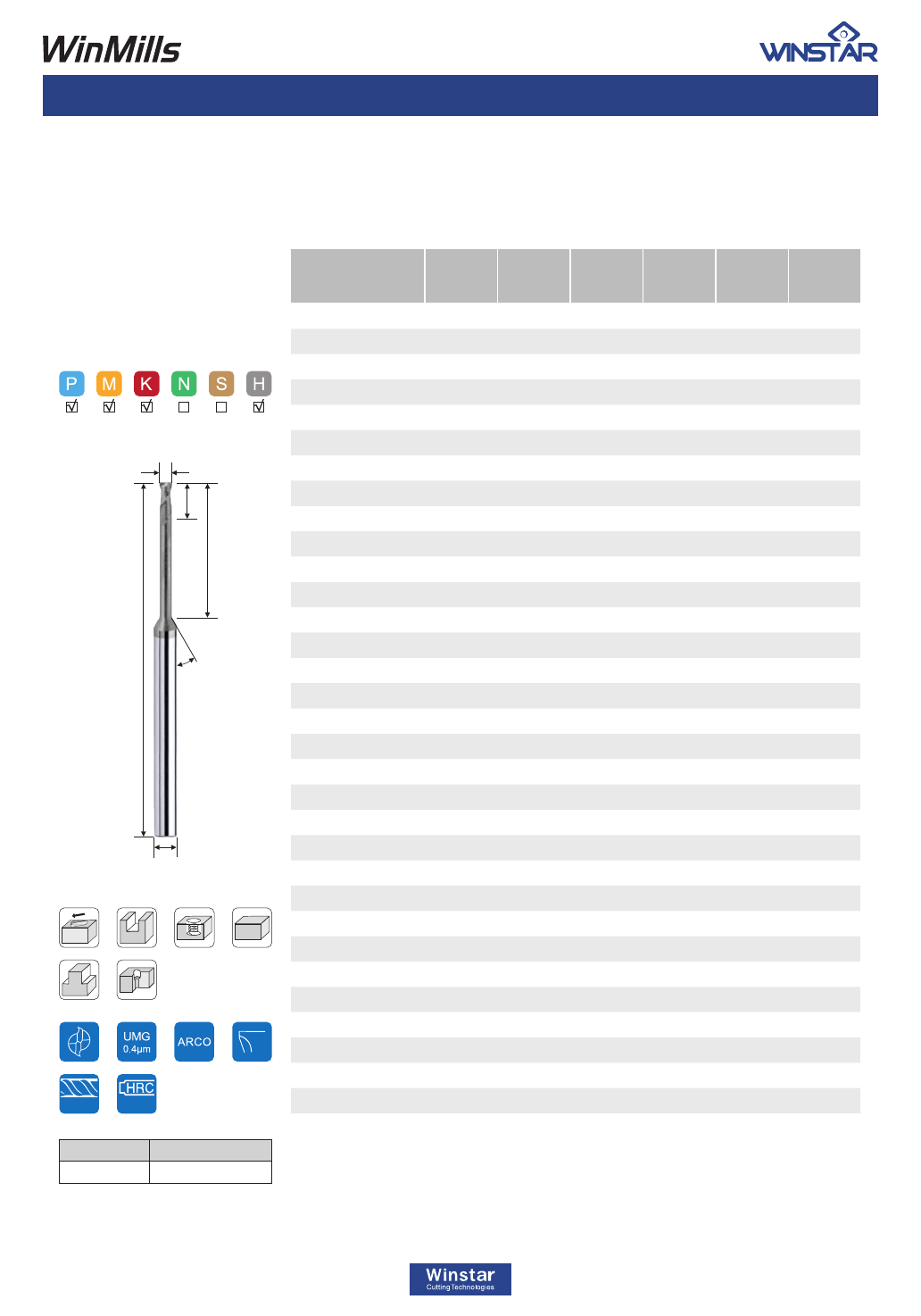

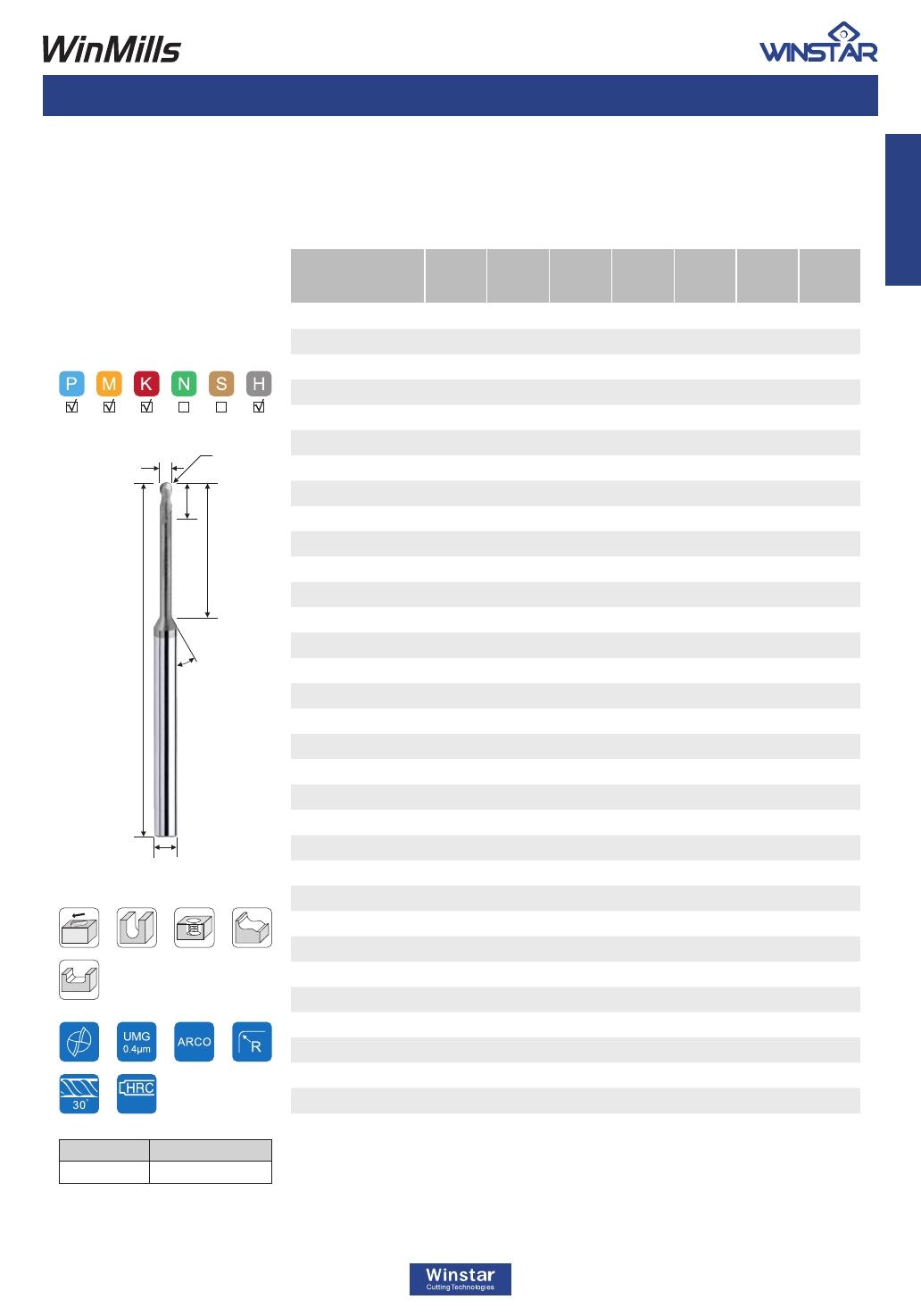

H650 - Long Neck Square Type - 2F
A026
鎢鋼平銑刀 - 長頸型 - 2刃
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC200602A 0.6 0.7 2 50 4 2
EHSBC200603A 0.6 0.7 3 50 4 2
EHSBC200604A 0.6 0.7 4 50 4 2
EHSBC200605A 0.6 0.7 5 50 4 2
EHSBC200606A 0.6 0.7 6 50 4 2
EHSBC200608A 0.6 0.7 8 50 4 2
EHSBC200610A 0.6 0.7 10 50 4 2
EHSBC200612A 0.6 0.7 12 50 4 2
EHSBC200614A 0.6 0.7 14 50 4 2
EHSBC200616A 0.6 0.7 16 50 4 2
EHSBC200702A 0.7 0.8 2 50 4 2
EHSBC200704A 0.7 0.8 4 50 4 2
EHSBC200706A 0.7 0.8 6 50 4 2
EHSBC200708A 0.7 0.8 8 50 4 2
EHSBC200710A 0.7 0.8 10 50 4 2
EHSBC200712A 0.7 0.8 12 50 4 2
EHSBC200802A 0.8 1.0 2 50 4 2
EHSBC200804A 0.8 1.0 4 50 4 2
EHSBC200806A 0.8 1.0 6 50 4 2
EHSBC200808A 0.8 1.0 8 50 4 2
EHSBC200810A 0.8 1.0 10 50 4 2
EHSBC200812A 0.8 1.0 12 50 4 2
EHSBC200814A 0.8 1.0 14 50 4 2
EHSBC200906A 0.9 1.1 6 50 4 2
EHSBC200908A 0.9 1.1 8 50 4 2
EHSBC200910A 0.9 1.1 10 50 4 2
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A027
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC201002A 1.0 1.2 2 50 4 2
EHSBC201003A 1.0 1.2 3 50 4 2
EHSBC201004A 1.0 1.2 4 50 4 2
EHSBC201005A 1.0 1.2 5 50 4 2
EHSBC201006A 1.0 1.2 6 50 4 2
EHSBC201008A 1.0 1.2 8 50 4 2
EHSBC201010A 1.0 1.2 10 50 4 2
EHSBC201012A 1.0 1.2 12 50 4 2
EHSBC201014A 1.0 1.2 14 50 4 2
EHSBC201016A 1.0 1.2 16 50 4 2
EHSBC201018A 1.0 1.2 18 50 4 2
EHSBC201020A 1.0 1.2 20 50 4 2
EHSBC201204A 1.2 1.5 4 50 4 2
EHSBC201206A 1.2 1.5 6 50 4 2
EHSBC201208A 1.2 1.5 8 50 4 2
EHSBC201210A 1.2 1.5 10 50 4 2
EHSBC201212A 1.2 1.5 12 50 4 2
EHSBC201216A 1.2 1.5 16 50 4 2
EHSBC201220A 1.2 1.5 20 50 4 2
EHSBC201406A 1.4 1.8 6 50 4 2
EHSBC201408A 1.4 1.8 8 50 4 2
EHSBC201410A 1.4 1.8 10 50 4 2
EHSBC201414A 1.4 1.8 14 50 4 2
EHSBC201416A 1.4 1.8 16 50 4 2
EHSBC201420A 1.4 1.8 20 50 4 2
Solid Carbide Endmills
H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A028
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC201504A 1.5 1.8 4 50 4 2
EHSBC201506A 1.5 1.8 6 50 4 2
EHSBC201508A 1.5 1.8 8 50 4 2
EHSBC201510A 1.5 1.8 10 50 4 2
EHSBC201512A 1.5 1.8 12 50 4 2
EHSBC201514A 1.5 1.8 14 50 4 2
EHSBC201516A 1.5 1.8 16 50 4 2
EHSBC201518A 1.5 1.8 18 50 4 2
EHSBC201520A 1.5 1.8 20 50 4 2
EHSBC201610A 1.6 1.9 10 50 4 2
EHSBC201614A 1.6 1.9 14 50 4 2
EHSBC201618A 1.6 1.9 18 50 4 2
EHSBC201810A 1.8 2.0 10 50 4 2
EHSBC201814A 1.8 2.0 14 50 4 2
EHSBC201818A 1.8 2.0 18 50 4 2
EHSBC202004A 2.0 2.5 4 50 4 2
EHSBC202006A 2.0 2.5 6 50 4 2
EHSBC202008A 2.0 2.5 8 50 4 2
EHSBC202010A 2.0 2.5 10 50 4 2
EHSBC202012A 2.0 2.5 12 50 4 2
EHSBC202014A 2.0 2.5 14 50 4 2
EHSBC202016A 2.0 2.5 16 50 4 2
EHSBC202018A 2.0 2.5 18 50 4 2
EHSBC202020A 2.0 2.5 20 50 4 2
EHSBC202022A 2.0 2.5 22 60 4 2
EHSBC202025A 2.0 2.5 25 60 4 2
EHSBC202030A 2.0 2.5 30 60 4 2
EHSBC202035A 2.0 2.5 35 60 4 2
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A029
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC202508A 2.5 3.0 8 50 4 2
EHSBC202510A 2.5 3.0 10 50 4 2
EHSBC202512A 2.5 3.0 12 50 4 2
EHSBC202516A 2.5 3.0 16 50 4 2
EHSBC202520A 2.5 3.0 20 50 4 2
EHSBC202525A 2.5 3.0 25 60 4 2
EHSBC202530A 2.5 3.0 30 60 4 2
EHSBC202535A 2.5 3.0 35 60 4 2
EHSRC203006A 3.0 3.5 6 50 6 2
EHSRC203010A 3.0 3.5 10 50 6 2
EHSRC203012A 3.0 3.5 12 50 6 2
EHSRC203016A 3.0 3.5 16 50 6 2
EHSRC203020A 3.0 3.5 20 60 6 2
EHSRC203025A 3.0 3.5 25 60 6 2
EHSRC203030A 3.0 3.5 30 60 6 2
EHSRC203035A 3.0 3.5 35 75 6 2
EHSRC204008A 4.0 4.5 8 50 6 2
EHSRC204010A 4.0 4.5 10 50 6 2
EHSRC204012A 4.0 4.5 12 50 6 2
EHSRC204016A 4.0 4.5 16 50 6 2
EHSRC204020A 4.0 4.5 20 60 6 2
EHSRC204025A 4.0 4.5 25 60 6 2
EHSRC204030A 4.0 4.5 30 60 6 2
EHSRC204035A 4.0 4.5 35 75 6 2
EHSRC205016A 5.0 7.0 16 50 6 2
EHSRC205020A 5.0 7.0 20 60 6 2
EHSRC205025A 5.0 7.0 25 60 6 2
EHSRC205030A 5.0 7.0 30 60 6 2
EHSRC205035A 5.0 7.0 35 75 6 2
Solid Carbide Endmills
H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A030
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSRC206020A 6.0 10.0 20 60 6 2
EHSRC206030A 6.0 10.0 30 75 6 2
EHSRC208020A 8.0 15.0 20 60 8 2
EHSRC208030A 8.0 15.0 30 75 8 2
EHSRC208040A 8.0 15.0 40 100 8 2
EHSRC210025A 10.0 20.0 25 75 10 2
EHSRC210035A 10.0 20.0 35 75 10 2
EHSRC210045A 10.0 20.0 45 100 10 2
EHSRC212030A 12.0 25.0 30 75 12 2
EHSRC212040A 12.0 25.0 40 100 12 2
EHSRC212050A 12.0 25.0 50 100 12 2
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
dTolerance
Ø0 ~ -0.02
EHSBC2
EHSRC2
D
d
L1
L
L2
15°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A031
30° 65
Cutting conditions( 建議切削參數表 ) : Table 012 ~ 014
Solid Carbide Endmills

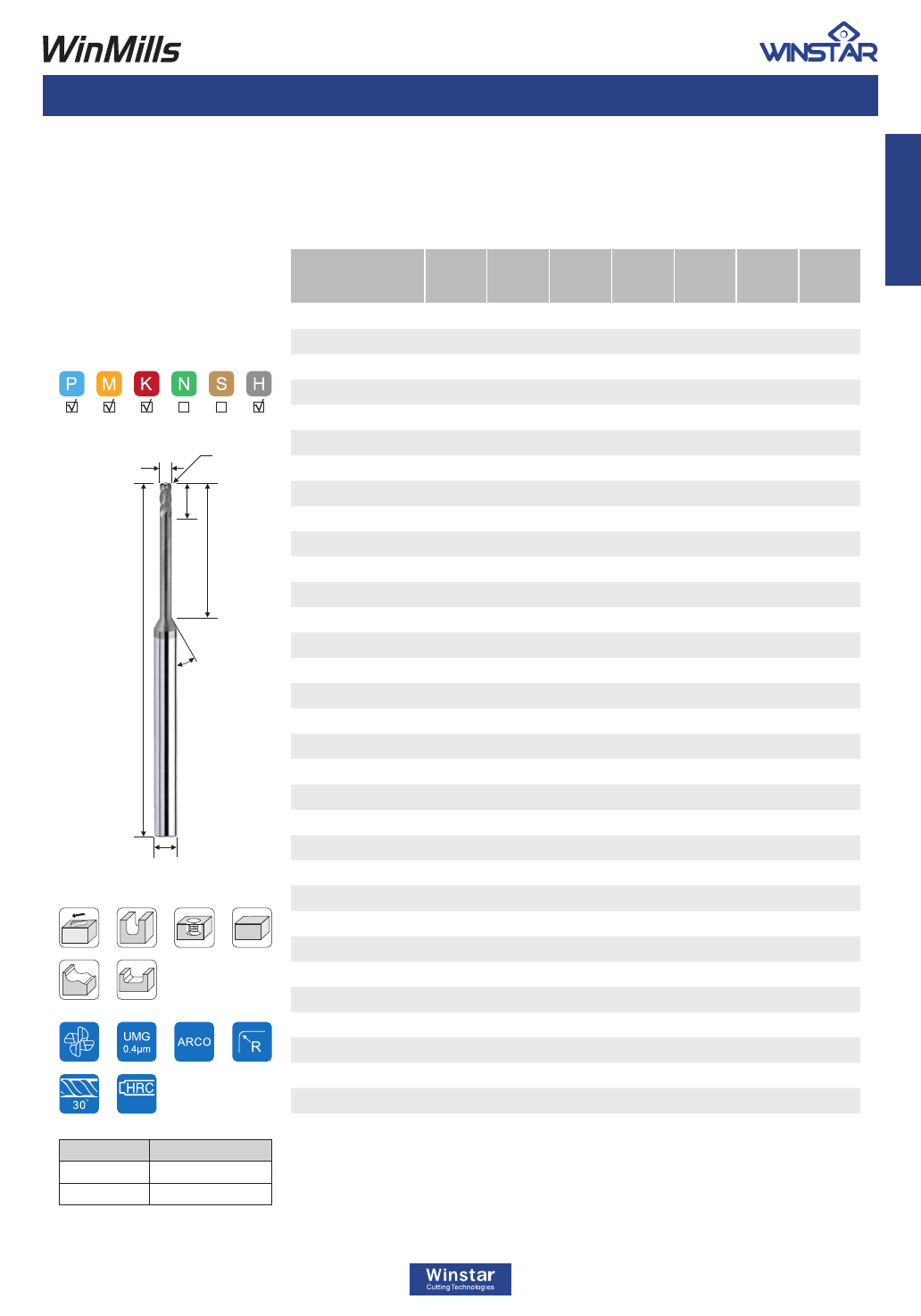

H650 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
dTolerance
Ø0 ~ -0.02
EHSBC4
EHSRC4
D
d
L1
L
L2
15°
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC401003A 1.0 1.0 3 50 4 4
EHSBC401004A 1.0 1.0 4 50 4 4
EHSBC401006A 1.0 1.0 6 50 4 4
EHSBC401008A 1.0 1.0 8 50 4 4
EHSBC401010A 1.0 1.0 10 50 4 4
EHSBC401012A 1.0 1.0 12 50 4 4
EHSBC401016A 1.0 1.0 16 50 4 4
EHSBC401020A 1.0 1.0 20 50 4 4
EHSBC401025A 1.0 1.0 25 60 4 4
EHSRC401004A 1.0 1.0 4 50 6 4
EHSRC401006A 1.0 1.0 6 50 6 4
EHSRC401008A 1.0 1.0 8 50 6 4
EHSRC401010A 1.0 1.0 10 50 6 4
EHSRC401012A 1.0 1.0 12 50 6 4
EHSBC401506A 1.5 1.5 6 50 4 4
EHSBC401508A 1.5 1.5 8 50 4 4
EHSBC401510A 1.5 1.5 10 50 4 4
EHSBC401512A 1.5 1.5 12 50 4 4
EHSBC401516A 1.5 1.5 16 50 4 4
EHSBC401520A 1.5 1.5 20 50 4 4
EHSBC401525A 1.5 1.5 25 60 4 4
EHSRC401506A 1.5 1.5 6 50 6 4
EHSRC401508A 1.5 1.5 8 50 6 4
EHSRC401510A 1.5 1.5 10 50 6 4
EHSRC401512A 1.5 1.5 12 50 6 4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
A032
30° 65
Cutting conditions( 建議切削參數表 ) : Table 015
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
dTolerance
Ø0 ~ -0.02
EHSBC4
EHSRC4
D
d
L1
L
L2
15°
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSBC402006A 2.0 2.0 6 50 4 4
EHSBC402008A 2.0 2.0 8 50 4 4
EHSBC402010A 2.0 2.0 10 50 4 4
EHSBC402012A 2.0 2.0 12 50 4 4
EHSBC402016A 2.0 2.0 16 50 4 4
EHSBC402020A 2.0 2.0 20 50 4 4
EHSBC402025A 2.0 2.0 25 60 4 4
EHSBC402030A 2.0 2.0 30 60 4 4
EHSRC402006A 2.0 2.0 6 50 6 4
EHSRC402008A 2.0 2.0 8 50 6 4
EHSRC402010A 2.0 2.0 10 50 6 4
EHSRC402016A 2.0 2.0 16 50 6 4
EHSBC402510A 2.5 2.5 10 50 4 4
EHSBC402512A 2.5 2.5 12 50 4 4
EHSBC402516A 2.5 2.5 16 50 4 4
EHSBC402520A 2.5 2.5 20 50 4 4
EHSBC402525A 2.5 2.5 25 60 4 4
EHSBC402530A 2.5 2.5 30 60 4 4
EHSRC402506A 2.5 2.5 6 50 6 4
EHSRC402510A 2.5 2.5 10 50 6 4
EHSRC403010A 3.0 3.0 10 50 6 4
EHSRC403012A 3.0 3.0 12 50 6 4
EHSRC403016A 3.0 3.0 16 50 6 4
EHSRC403020A 3.0 3.0 20 60 6 4
EHSRC403025A 3.0 3.0 25 60 6 4
EHSRC403030A 3.0 3.0 30 60 6 4
EHSRC403035A 3.0 3.0 35 75 6 4
A033
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
30° 65
Cutting conditions( 建議切削參數表 ) : Table 015
Solid Carbide Endmills
H650 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
dTolerance
Ø0 ~ -0.02
EHSBC4
EHSRC4
D
d
L1
L
L2
15°
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHSRC404010A 4.0 4.0 10 50 6 4
EHSRC404012A 4.0 4.0 12 50 6 4
EHSRC404016A 4.0 4.0 16 50 6 4
EHSRC404020A 4.0 4.0 20 60 6 4
EHSRC404025A 4.0 4.0 25 60 6 4
EHSRC404030A 4.0 4.0 30 60 6 4
EHSRC405016A 5.0 5.0 16 50 6 4
EHSRC405020A 5.0 5.0 20 60 6 4
EHSRC405025A 5.0 5.0 25 60 6 4
EHSRC405030A 5.0 5.0 30 60 6 4
EHSRC406020A 6.0 6.0 20 60 6 4
EHSRC406030A 6.0 6.0 30 75 6 4
EHSRC408020A 8.0 15.0 20 60 8 4
EHSRC408030A 8.0 15.0 30 75 8 4
EHSRC408040A 8.0 15.0 40 100 8 4
EHSRC410025A 10.0 20.0 25 75 10 4
EHSRC410035A 10.0 20.0 35 100 10 4
EHSRC410045A 10.0 20.0 45 100 10 4
EHSRC412030A 12.0 25.0 30 75 12 4
EHSRC412040A 12.0 25.0 40 100 12 4
EHSRC412050A 12.0 25.0 50 100 12 4
A034
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long neck design is suitable for Rib cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
30° 65
Cutting conditions( 建議切削參數表 ) : Table 015
Solid Carbide Endmills

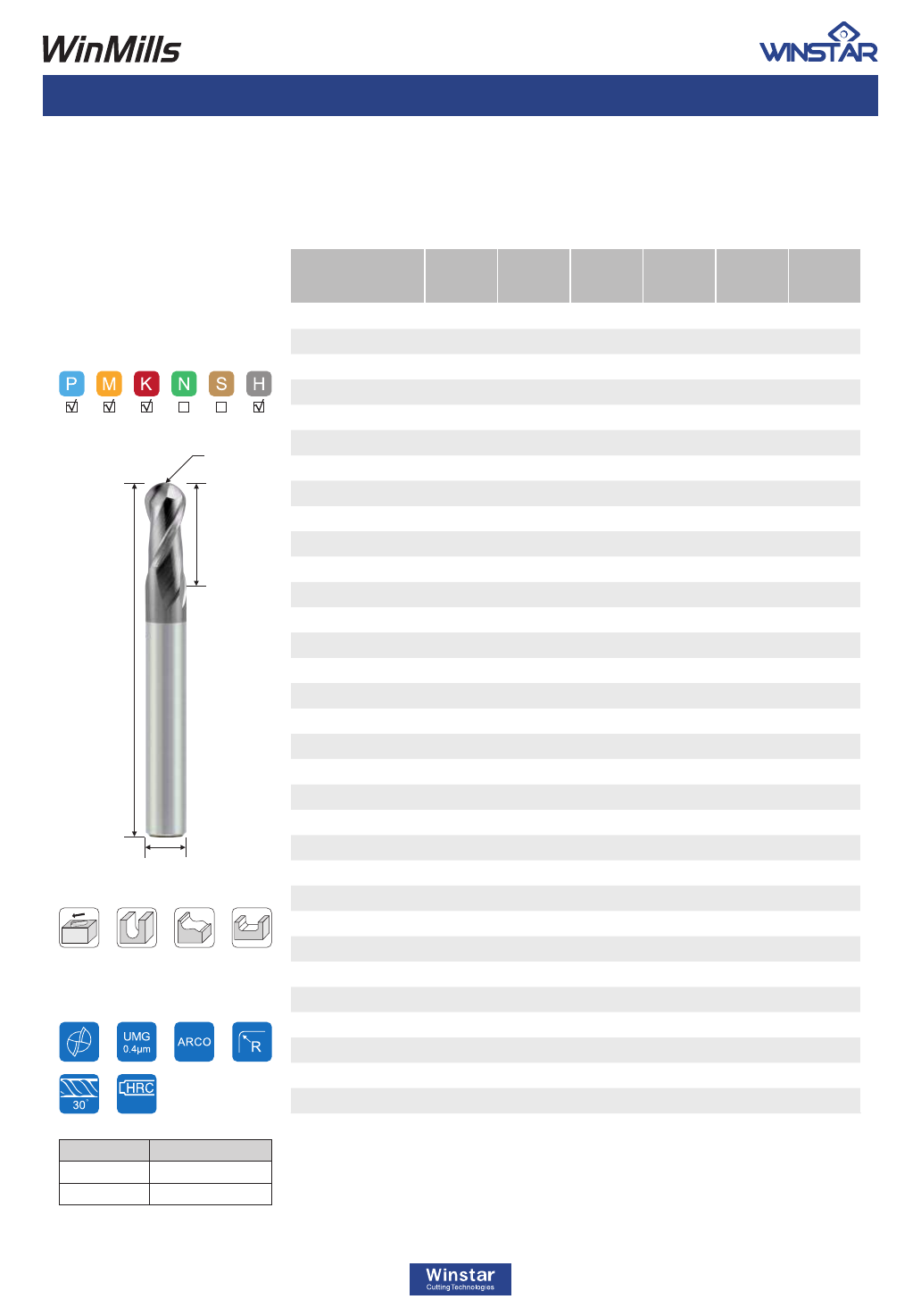

Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBFH201000A 0.50R 1.0 2 50 4 2
EHBFH201500A 0.75R 1.5 3 50 4 2
EHBFH202000A 1.00R 2.0 4 50 4 2
EHBFH203000A 1.50R 3.0 6 50 4 2
EHBFH204000A 2.00R 4.0 8 50 4 2
EHBSH205000A 2.50R 5.0 10 50 6 2
EHBSH206000A 3.00R 6.0 12 50 6 2
EHBSH208000A 4.00R 8.0 16 60 8 2
EHBSH210000A 5.00R 10.0 20 75 10 2
EHBSH212000A 6.00R 12.0 24 75 12 2
EHBSH216000A 8.00R 16.0 32 100 16 2
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
EHBFH2
EHBSH2
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Due to short cutting length provides an excellent face milling surface roughness of the work pieces.
New tool geometry increases wear resistance and cutting force is decreased.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - Ball Nose Type - 2F
A035
鎢鋼球型銑刀 - 標準型 - 2刃
D
R
L1
L
65
Cutting conditions( 建議切削參數表 ) : Table 016
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBEH202000A 1R 2.0 4 75 4 2
EHBEH203000A 1.5R 3.0 6 75 4 2
EHBKH203000A 1.5R 4.0 6 100 4 2
EHBJH204000A 2R 4.0 8 60 4 2
EHBEH204000A 2R 4.0 8 75 4 2
EHBKH204000A 2R 4.0 8 100 4 2
EHBMH206000A 3R 6.0 12 60 6 2
EHBLH206000A 3R 6.0 12 75 6 2
EHBNH206000A 3R 6.0 12 100 6 2
EHBMH208000A 4R 8.0 16 75 8 2
EHBLH208000A 4R 8.0 16 100 8 2
EHBNH208000A 4R 8.0 16 150 8 2
EHBLH210000A 5R 10.0 20 100 10 2
EHBNH210000A 5R 10.0 20 150 10 2
EHBLH212000A 6R 12.0 24 100 12 2
EHBNH212000A 6R 12.0 24 150 12 2
EHBLH216000A 8R 16.0 32 150 16 2
EHBLH220000A 10R 20.0 40 150 20 2
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
EHBLH2
EHBMH2
EHBNH2
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Due to short cutting length provides an excellent face milling surface roughness of the work pieces.
New tool geometry increases wear resistance and cutting force is decreased.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - Long Shank Ball Nose Type - 2F
A036
鎢鋼球型銑刀 - 長柄型 - 2刃
D
R
L
L1
65
Cutting conditions( 建議切削參數表 ) : Table 017

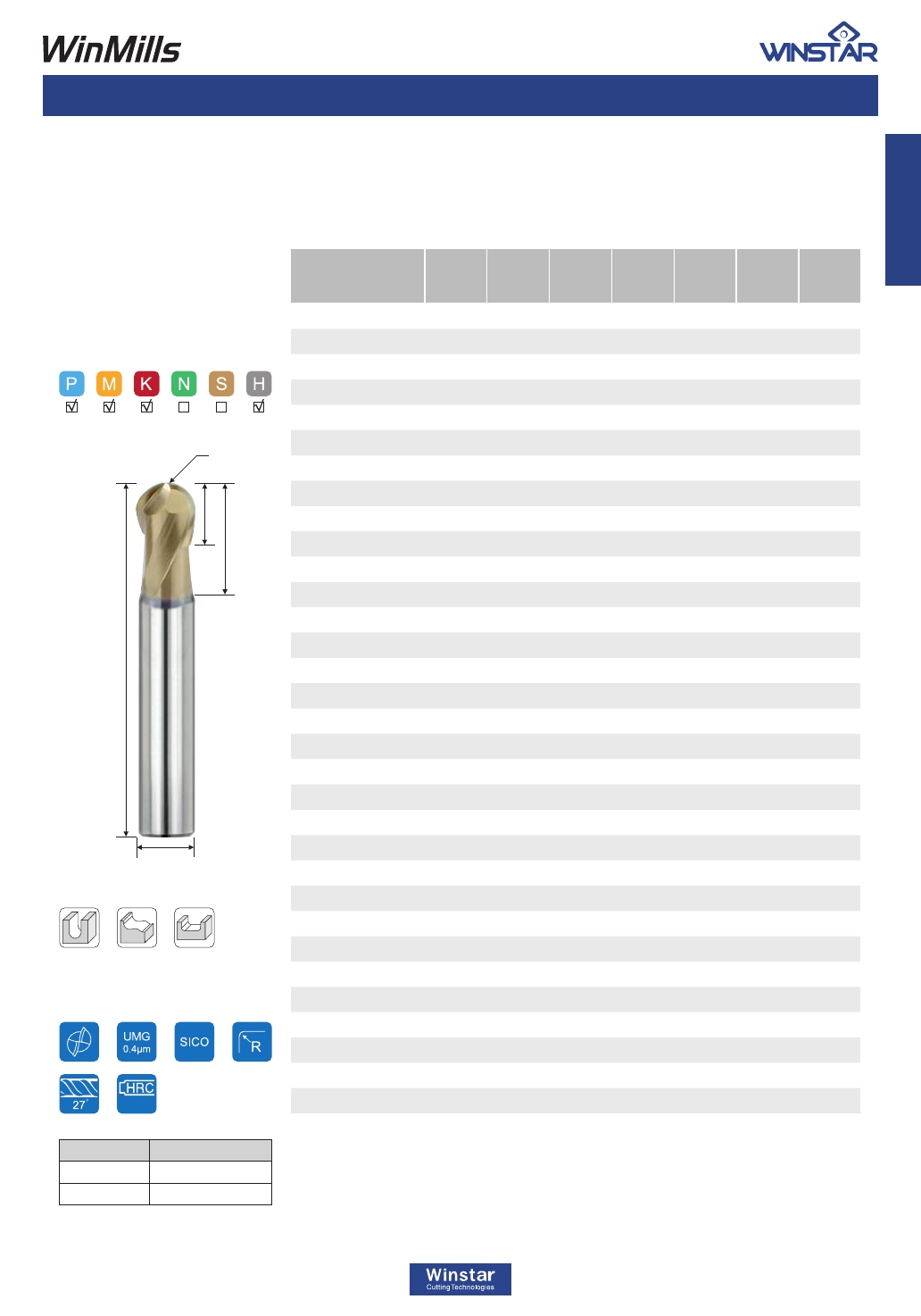

Solid Carbide Endmills
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBUH202000S 1.0R 2 2 4 50 6 2
EHBUH203000S 1.5R 3 3 6 50 6 2
EHBUH204000S 2.0R 4 4 8 50 6 2
EHBUH205000S 2.5R 5 5 10 50 6 2
EHBUH206000S 3.0R 6 6 12 50 6 2
EHBUH208000S 4.0R 8 8 16 60 8 2
EHBUH210000S 5.0R 10 10 20 75 10 2
EHBUH212000S 6.0R 12 12 24 75 12 2
EHBUH216000S 8.0R 16 16 32 100 16 2
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
EHBUH2
D
L1
L2
R
L
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Due to short cutting length provides an excellent face milling surface roughness of the work pieces.
Short cutting length provides hi resistance for hi speed cutting.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
．
H650 - Short Flute Ball Nose Type - 2F
A037
65
鎢鋼球型銑刀 - 短刃型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 018
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBBC200301A 0.15R 0.3 0.3 1 50 4 2
EHBBC200302A 0.15R 0.3 0.3 2 50 4 2
EHBBC200303A 0.15R 0.3 0.3 3 50 4 2
EHBBC200401A 0.20R 0.4 0.4 1 50 4 2
EHBBC200402A 0.20R 0.4 0.4 2 50 4 2
EHBBC200403A 0.20R 0.4 0.4 3 50 4 2
EHBBC200404A 0.20R 0.4 0.4 4 50 4 2
EHBBC200405A 0.20R 0.4 0.4 5 50 4 2
EHBBC200406A 0.20R 0.4 0.4 6 50 4 2
EHBBC200408A 0.20R 0.4 0.4 8 50 4 2
EHBBC200501A 0.25R 0.5 0.5 1 50 4 2
EHBBC200502A 0.25R 0.5 0.5 2 50 4 2
EHBBC200503A 0.25R 0.5 0.5 3 50 4 2
EHBBC200504A 0.25R 0.5 0.5 4 50 4 2
EHBBC200505A 0.25R 0.5 0.5 5 50 4 2
EHBBC200506A 0.25R 0.5 0.5 6 50 4 2
EHBBC200508A 0.25R 0.5 0.5 8 50 4 2
EHBBC200510A 0.25R 0.5 0.5 10 50 4 2
EHBBC200601A 0.30R 0.6 0.6 1 50 4 2
EHBBC200602A 0.30R 0.6 0.6 2 50 4 2
EHBBC200603A 0.30R 0.6 0.6 3 50 4 2
EHBBC200604A 0.30R 0.6 0.6 4 50 4 2
EHBBC200605A 0.30R 0.6 0.6 5 50 4 2
EHBBC200606A 0.30R 0.6 0.6 6 50 4 2
EHBBC200608A 0.30R 0.6 0.6 8 50 4 2
EHBBC200610A 0.30R 0.6 0.6 10 50 4 2
EHBBC200612A 0.30R 0.6 0.6 12 50 4 2
dR Tolerance
Ø ± 0.02
EHBBC2
EHBRC2
D
d
L1
L
L2
15°
R
ARCO coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Suitable for deep cutting due to the long neck design.
Polish cutting edge provides stronger tip.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - Long Neck Ball Nose Type - 2F
A038
鎢鋼球型銑刀 - 長頸型 - 2刃
65
Cutting conditions( 建議切削參數表 ) : Table 019
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBBC200702A 0.35R 0.7 0.7 2 50 4 2
EHBBC200704A 0.35R 0.7 0.7 4 50 4 2
EHBBC200708A 0.35R 0.7 0.7 8 50 4 2
EHBBC200710A 0.35R 0.7 0.7 10 50 4 2
EHBBC200712A 0.35R 0.7 0.7 12 50 4 2
EHBBC200802A 0.40R 0.8 0.8 2 50 4 2
EHBBC200804A 0.40R 0.8 0.8 4 50 4 2
EHBBC200806A 0.40R 0.8 0.8 6 50 4 2
EHBBC200808A 0.40R 0.8 0.8 8 50 4 2
EHBBC200810A 0.40R 0.8 0.8 10 50 4 2
EHBBC200812A 0.40R 0.8 0.8 12 50 4 2
EHBBC200904A 0.45R 0.9 0.9 4 50 4 2
EHBBC201002A 0.50R 1.0 1.0 2 50 4 2
EHBBC201003A 0.50R 1.0 1.0 3 50 4 2
EHBBC201004A 0.50R 1.0 1.0 4 50 4 2
EHBBC201005A 0.50R 1.0 1.0 5 50 4 2
EHBBC201006A 0.50R 1.0 1.0 6 50 4 2
EHBBC201008A 0.50R 1.0 1.0 8 50 4 2
EHBBC201010A 0.50R 1.0 1.0 10 50 4 2
EHBBC201012A 0.50R 1.0 1.0 12 50 4 2
EHBBC201014A 0.50R 1.0 1.0 14 50 4 2
EHBBC201016A 0.50R 1.0 1.0 16 50 4 2
EHBBC201018A 0.50R 1.0 1.0 18 50 4 2
EHBBC201020A 0.50R 1.0 1.0 20 50 4 2
EHBBC201022A 0.50R 1.0 1.0 22 60 4 2
EHBRC201004A 0.50R 1.0 1.0 4 50 6 2
EHBRC201006A 0.50R 1.0 1.0 6 50 6 2
EHBRC201008A 0.50R 1.0 1.0 8 50 6 2
EHBRC201010A 0.50R 1.0 1.0 10 50 6 2
EHBRC201012A 0.50R 1.0 1.0 12 50 6 2
dR Tolerance
Ø ± 0.02
EHBBC2
EHBRC2
D
d
L1
L
L2
15°
R
A039
ARCO coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Suitable for deep cutting due to the long neck design.
Polish cutting edge provides stronger tip.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 019
Solid Carbide Endmills
H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBBC201204A 0.60R 1.2 1.2 4 50 4 2
EHBBC201206A 0.60R 1.2 1.2 6 50 4 2
EHBBC201208A 0.60R 1.2 1.2 8 50 4 2
EHBBC201210A 0.60R 1.2 1.2 10 50 4 2
EHBBC201212A 0.60R 1.2 1.2 12 50 4 2
EHBBC201216A 0.60R 1.2 1.2 16 50 4 2
EHBBC201220A 0.60R 1.2 1.2 20 50 4 2
EHBBC201224A 0.60R 1.2 1.2 24 60 4 2
EHBBC201406A 0.70R 1.4 1.4 6 50 4 2
EHBBC201408A 0.70R 1.4 1.4 8 50 4 2
EHBBC201412A 0.70R 1.4 1.4 12 50 4 2
EHBBC201416A 0.70R 1.4 1.4 16 50 4 2
EHBBC201503A 0.75R 1.5 1.5 3 50 4 2
EHBBC201504A 0.75R 1.5 1.5 4 50 4 2
EHBBC201506A 0.75R 1.5 1.5 6 50 4 2
EHBBC201508A 0.75R 1.5 1.5 8 50 4 2
EHBBC201510A 0.75R 1.5 1.5 10 50 4 2
EHBBC201512A 0.75R 1.5 1.5 12 50 4 2
EHBBC201514A 0.75R 1.5 1.5 14 50 4 2
EHBBC201516A 0.75R 1.5 1.5 16 50 4 2
EHBBC201518A 0.75R 1.5 1.5 18 50 4 2
EHBBC201520A 0.75R 1.5 1.5 20 50 4 2
EHBBC201522A 0.75R 1.5 1.5 22 60 4 2
EHBBC201525A 0.75R 1.5 1.5 25 60 4 2
EHBBC201530A 0.75R 1.5 1.5 30 60 4 2
EHBRC201506A 0.75R 1.5 1.5 6 50 6 2
EHBRC201508A 0.75R 1.5 1.5 8 50 6 2
EHBRC201510A 0.75R 1.5 1.5 10 50 6 2
EHBRC201512A 0.75R 1.5 1.5 12 50 6 2
dR Tolerance
Ø ± 0.02
EHBBC2
EHBRC2
D
d
L1
L
L2
15°
R
A040
ARCO coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Suitable for deep cutting due to the long neck design.
Polish cutting edge provides stronger tip.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 019
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBBC201606A 0.80R 1.6 1.6 6 50 4 2
EHBBC201608A 0.80R 1.6 1.6 8 50 4 2
EHBBC201612A 0.80R 1.6 1.6 12 50 4 2
EHBBC201616A 0.80R 1.6 1.6 16 50 4 2
EHBBC201620A 0.80R 1.6 1.6 20 50 4 2
EHBBC201806A 0.90R 1.8 1.8 6 50 4 2
EHBBC201808A 0.90R 1.8 1.8 8 50 4 2
EHBBC201812A 0.90R 1.8 1.8 12 50 4 2
EHBBC201816A 0.90R 1.8 1.8 16 50 4 2
EHBBC201820A 0.90R 1.8 1.8 20 50 4 2
EHBBC202004A 1.00R 2.0 2.0 4 50 4 2
EHBBC202006A 1.00R 2.0 2.0 6 50 4 2
EHBBC202008A 1.00R 2.0 2.0 8 50 4 2
EHBBC202010A 1.00R 2.0 2.0 10 50 4 2
EHBBC202012A 1.00R 2.0 2.0 12 50 4 2
EHBBC202014A 1.00R 2.0 2.0 14 50 4 2
EHBBC202016A 1.00R 2.0 2.0 16 50 4 2
EHBBC202018A 1.00R 2.0 2.0 18 50 4 2
EHBBC202020A 1.00R 2.0 2.0 20 50 4 2
EHBBC202022A 1.00R 2.0 2.0 22 60 4 2
EHBBC202025A 1.00R 2.0 2.0 25 60 4 2
EHBRC202006A 1.00R 2.0 2.0 6 50 6 2
EHBRC202008A 1.00R 2.0 2.0 8 50 6 2
EHBRC202010A 1.00R 2.0 2.0 10 50 6 2
EHBRC202016A 1.00R 2.0 2.0 16 50 6 2
dR Tolerance
Ø ± 0.02
EHBBC2
EHBRC2
D
d
L1
L
L2
15°
R
A041
ARCO coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Suitable for deep cutting due to the long neck design.
Polish cutting edge provides stronger tip.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 019
Solid Carbide Endmills
H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBBC202508A 1.25R 2.5 2.5 8 50 4 2
EHBBC202510A 1.25R 2.5 2.5 10 50 4 2
EHBBC202516A 1.25R 2.5 2.5 16 50 4 2
EHBBC202520A 1.25R 2.5 2.5 20 60 4 2
EHBBC202525A 1.25R 2.5 2.5 25 60 4 2
EHBBC202530A 1.25R 2.5 2.5 30 60 4 2
EHBRC202506A 1.25R 2.5 2.5 6 50 6 2
EHBRC202510A 1.25R 2.5 2.5 10 50 6 2
EHBRC203006A 1.50R 3.0 3.0 6 50 6 2
EHBRC203008A 1.50R 3.0 3.0 8 50 6 2
EHBRC203010A 1.50R 3.0 3.0 10 50 6 2
EHBRC203012A 1.50R 3.0 3.0 12 50 6 2
EHBRC203016A 1.50R 3.0 3.0 16 60 6 2
EHBRC203020A 1.50R 3.0 3.0 20 60 6 2
EHBRC203025A 1.50R 3.0 3.0 25 60 6 2
EHBRC203030A 1.50R 3.0 3.0 30 60 6 2
EHBRC203035A 1.50R 3.0 3.0 35 75 6 2
EHBRC204008A 2.00R 4.0 4.0 8 50 6 2
EHBRC204010A 2.00R 4.0 4.0 10 50 6 2
EHBRC204012A 2.00R 4.0 4.0 12 50 6 2
EHBRC204016A 2.00R 4.0 4.0 16 60 6 2
EHBRC204020A 2.00R 4.0 4.0 20 60 6 2
EHBRC204025A 2.00R 4.0 4.0 25 60 6 2
EHBRC204030A 2.00R 4.0 4.0 30 60 6 2
EHBRC204035A 2.00R 4.0 4.0 35 75 6 2
EHBRC205015A 2.50R 5.0 5.0 15 60 6 2
EHBRC205020A 2.50R 5.0 5.0 20 60 6 2
EHBRC205025A 2.50R 5.0 5.0 25 60 6 2
EHBRC205030A 2.50R 5.0 5.0 30 75 6 2
EHBRC206015A 3.00R 6.0 10.0 15 50 6 2
EHBRC208025A 4.00R 8.0 12.0 25 60 8 2
EHBRC210030A 5.00R 10.0 16.0 30 75 10 2
EHBRC212030A 6.00R 12.0 18.0 30 75 12 2
dR Tolerance
Ø ± 0.02
EHBBC2
EHBRC2
D
d
L1
L
L2
15°
R
A042
ARCO coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Suitable for deep cutting due to the long neck design.
Polish cutting edge provides stronger tip.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 019
Solid Carbide Endmills
Solid Carbide Endmills
dR Tolerance
Ø ± 0.02
EHBRT2
Order No.
Radius
(R)
Dia.
(d)
θ˚ CL
(L1)
EFF-L
(L2)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHBRT201023AA
0.5R 1 1.5° 2 23 2.20 60 6 2
EHBRT202023AA
1.0R 2 1.5° 4 23 3.00 60 6 2
EHBRT2020423A
1.0R 2 3.0° 4 42 5.98 100 8 2
EHBRT203052AA
1.5R 3 1.5° 6 52 5.40 100 6 2
EHBRT2030473A
1.5R 3 3.0° 6 47 7.29 100 8 2
EHBRT204046AA
2.0R 4 1.5° 8 46 6.00 100 6 2
EHBRT2040383A
2.0R 4 3.0° 8 38 7.14 100 8 2
EHBRT2050283A
2.5R 5 3.0° 10 28 6.88 100 8 2
EHBRT2060383A
3.0R 6 3.0° 12 38 8.72 100 10 2
EHBRT2080383A
4.0R 8 3.0° 16 38 10.30 100 12 2
EHBRT2100573A
5.0R 10 3.0° 20 57 13.88 100 16 2
EHBRT2120383A
6.0R 12 3.0° 24 38 13.47 100 16 2
D
Ld2
L1
L2
R
θ
°
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
High strength of taper neck, can cut deep grooves without breaking.
Suitable for cutting groves at hi speed.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - Taper Neck Ball Nose Type - 2F
A043
鎢鋼球型銑刀 - 斜頸型 - 2刃
65
Cutting conditions( 建議切削參數表 ) : Table 020
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCFH404003A 4 0.3R 8 50 4 4
EHCFH404005A 4 0.5R 8 50 4 4
EHCFH404010A 4 1.0R 8 50 4 4
EHCSH404003A 4 0.3R 8 50 6 4
EHCSH404005A 4 0.5R 8 50 6 4
EHCSH404010A 4 1.0R 8 50 6 4
EHCSH405005A 5 0.5R 10 50 6 4
EHCSH405010A 5 1.0R 10 50 6 4
EHCSH406003A 6 0.3R 12 50 6 4
EHCSH406005A 6 0.5R 12 50 6 4
EHCSH406010A 6 1.0R 12 50 6 4
EHCSH408005A 8 0.5R 16 60 8 4
EHCSH408010A 8 1.0R 16 60 8 4
EHCSH408015A 8 1.5R 16 60 8 4
EHCSH410005A 10 0.5R 20 75 10 4
EHCSH410010A 10 1.0R 20 75 10 4
EHCSH410015A 10 1.5R 20 75 10 4
EHCSH410020A 10 2.0R 20 75 10 4
EHCSH412005A 12 0.5R 24 75 12 4
EHCSH412010A 12 1.0R 24 75 12 4
EHCSH412015A 12 1.5R 24 75 12 4
EHCSH412020A 12 2.0R 24 75 12 4
dR Tolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
R ± 0.015
EHCFH4
EHCSH4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long tool life and wear resistant due to its negative angle with corner radius design.
The coating can change to SICO, the prices will dier.
．
．
．
．
H650 - Corner Radius Type - 4F
A044
鎢鋼圓鼻銑刀 - 標準型 - 4刃
D
L1
L
dR
65
Cutting conditions( 建議切削參數表 ) : Table 021
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCEH404005A 4 0.5R 8 75 4 4
EHCEH4040410A 4 1.0R 8 75 4 4
EHCKH404005A 4 0.5R 8 100 4 4
EHCKH404010A 4 1.0R 8 100 4 4
EHCLH406005A 6 0.5R 12 75 6 4
EHCLH406010A 6 1.0R 12 75 6 4
EHCNH406005A 6 0.5R 12 100 6 4
EHCNH406010A 6 1.0R 12 100 6 4
EHCMH408005A 8 0.5R 16 75 8 4
EHCMH408010A 8 1.0R 16 75 8 4
EHCLH408005A 8 0.5R 16 100 8 4
EHCLH408010A 8 1.0R 16 100 8 4
EHCLH410005A 10 0.5R 20 100 10 4
EHCLH410010A 10 1.0R 20 100 10 4
EHCNH410005A 10 0.5R 20 150 10 4
EHCNH410010A 10 1.0R 20 150 10 4
EHCLH412005A 12 0.5R 24 100 12 4
EHCLH412010A 12 0.5R 24 100 12 4
EHCNH412005A 12 0.5R 24 150 12 4
EHCNH412010A 12 1.0R 24 150 12 4
dR Tolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
R ± 0.015
EHCLH4
EHCMH4
EHCNH4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Long tool life and wear resistant due to its negative angle with corner radius design.
The coating can change to SICO, the prices will dier.
．
．
．
．
H650 - Long Shank Corner Radius Type - 4F
A045
D
L
dR
L1
鎢鋼圓鼻銑刀 - 長柄型 - 4刃
65
Cutting conditions( 建議切削參數表 ) : Table 022
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCUH403001S 3 0.1R 3 7.5 50 6 4
EHCUH403005S 3 0.5R 3 7.5 50 6 4
EHCUH404002S 4 0.2R 4 10.0 50 6 4
EHCUH404005S 4 0.5R 4 10.0 50 6 4
EHCUH405002S 5 0.2R 5 12.5 50 6 4
EHCUH405005S 5 0.5R 5 12.5 50 6 4
EHCUH406002S 6 0.2R 6 15.0 50 6 4
EHCUH406005S 6 0.5R 6 15.0 50 6 4
EHCUH406010S 6 1.0R 6 15.0 50 6 4
EHCUH408003S 8 0.3R 8 20.0 60 8 4
EHCUH408005S 8 0.5R 8 20.0 60 8 4
EHCUH408010S 8 1.0R 8 20.0 60 8 4
EHCUH408015S 8 1.5R 8 20.0 60 8 4
EHCUH410003S 10 0.3R 10 25.0 75 10 4
EHCUH410005S 10 0.5R 10 25.0 75 10 4
EHCUH410010S 10 1.0R 10 25.0 75 10 4
EHCUH410015S 10 1.5R 10 25.0 75 10 4
EHCUH410020S 10 2.0R 10 25.0 75 10 4
EHCUH412003S 12 0.3R 12 30.0 75 12 4
EHCUH412005S 12 0.5R 12 30.0 75 12 4
EHCUH412010S 12 1.0R 12 30.0 75 12 4
EHCUH412015S 12 1.5R 12 30.0 75 12 4
EHCUH412020S 12 2.0R 12 30.0 75 12 4
dR Tolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
R ± 0.015
EHCUH4
D
L
dR
L1
L2
SICO Nano coating provides a superior wear and heat resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Short cutting length with high rigidity is suitable for high speed cutting.
The coating can change to TOP ARCO, the prices will dier.
．
．
．
．
H650 - Short Flute Corner Radius Type - 4F
A046
65
鎢鋼圓鼻銑刀 - 短刃型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 023
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC20100104A 1.0 0.1R 1.0 4 50 4 2
EHCBC20100106A 1.0 0.1R 1.0 6 50 4 2
EHCBC20100108A 1.0 0.1R 1.0 8 50 4 2
EHCBC20100110A 1.0 0.1R 1.0 10 50 4 2
EHCBC20100112A 1.0 0.1R 1.0 12 50 4 2
EHCBC20100204A 1.0 0.2R 1.0 4 50 4 2
EHCBC20100206A 1.0 0.2R 1.0 6 50 4 2
EHCBC20100208A 1.0 0.2R 1.0 8 50 4 2
EHCBC20100210A 1.0 0.2R 1.0 10 50 4 2
EHCBC20100212A 1.0 0.2R 1.0 12 50 4 2
EHCBC20100304A 1.0 0.3R 1.0 4 50 4 2
EHCBC20100306A 1.0 0.3R 1.0 6 50 4 2
EHCBC20100308A 1.0 0.3R 1.0 8 50 4 2
EHCBC20100310A 1.0 0.3R 1.0 10 50 4 2
EHCBC20100312A 1.0 0.3R 1.0 12 50 4 2
EHCBC20120104A 1.2 0.1R 1.2 4 50 4 2
EHCBC20120106A 1.2 0.1R 1.2 6 50 4 2
EHCBC20120108A 1.2 0.1R 1.2 8 50 4 2
EHCBC20120110A 1.2 0.1R 1.2 10 50 4 2
EHCBC20120112A 1.2 0.1R 1.2 12 50 4 2
EHCBC20120204A 1.2 0.2R 1.2 4 50 4 2
EHCBC20120206A 1.2 0.2R 1.2 6 50 4 2
EHCBC20120208A 1.2 0.2R 1.2 8 50 4 2
EHCBC20120210A 1.2 0.2R 1.2 10 50 4 2
EHCBC20120212A 1.2 0.2R 1.2 12 50 4 2
EHCBC20120304A 1.2 0.3R 1.2 4 50 4 2
EHCBC20120306A 1.2 0.3R 1.2 6 50 4 2
EHCBC20120308A 1.2 0.3R 1.2 8 50 4 2
EHCBC20120310A 1.2 0.3R 1.2 10 50 4 2
EHCBC20120312A 1.2 0.3R 1.2 12 50 4 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
H650 - Long Neck Corner Radius Type - 2F
A047
鎢鋼圓鼻銑刀 - 長頸型 - 2刃
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC20150106A 1.5 0.1R 1.5 6 50 4 2
EHCBC20150108A 1.5 0.1R 1.5 8 50 4 2
EHCBC20150110A 1.5 0.1R 1.5 10 50 4 2
EHCBC20150112A 1.5 0.1R 1.5 12 50 4 2
EHCBC20150116A 1.5 0.1R 1.5 16 50 4 2
EHCBC20150206A 1.5 0.2R 1.5 6 50 4 2
EHCBC20150208A 1.5 0.2R 1.5 8 50 4 2
EHCBC20150210A 1.5 0.2R 1.5 10 50 4 2
EHCBC20150212A 1.5 0.2R 1.5 12 50 4 2
EHCBC20150216A 1.5 0.2R 1.5 16 50 4 2
EHCBC20150306A 1.5 0.3R 1.5 6 50 4 2
EHCBC20150308A 1.5 0.3R 1.5 8 50 4 2
EHCBC20150310A 1.5 0.3R 1.5 10 50 4 2
EHCBC20150312A 1.5 0.3R 1.5 12 50 4 2
EHCBC20150316A 1.5 0.3R 1.5 16 50 4 2
EHCBC20150506A 1.5 0.5R 1.5 6 50 4 2
EHCBC20150508A 1.5 0.5R 1.5 8 50 4 2
EHCBC20150510A 1.5 0.5R 1.5 10 50 4 2
EHCBC20150512A 1.5 0.5R 1.5 12 50 4 2
EHCBC20150516A 1.5 0.5R 1.5 16 50 4 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A048
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC20200106A 2.0 0.1R 2.0 6 50 4 2
EHCBC20200108A 2.0 0.1R 2.0 8 50 4 2
EHCBC20200110A 2.0 0.1R 2.0 10 50 4 2
EHCBC20200112A 2.0 0.1R 2.0 12 50 4 2
EHCBC20200116A 2.0 0.1R 2.0 16 50 4 2
EHCBC20200120A 2.0 0.1R 2.0 20 50 4 2
EHCBC20200125A 2.0 0.1R 2.0 25 60 4 2
EHCBC20200206A 2.0 0.2R 2.0 6 50 4 2
EHCBC20200208A 2.0 0.2R 2.0 8 50 4 2
EHCBC20200210A 2.0 0.2R 2.0 10 50 4 2
EHCBC20200212A 2.0 0.2R 2.0 12 50 4 2
EHCBC20200216A 2.0 0.2R 2.0 16 50 4 2
EHCBC20200220A 2.0 0.2R 2.0 20 50 4 2
EHCBC20200225A 2.0 0.2R 2.0 25 60 4 2
EHCBC20200306A 2.0 0.3R 2.0 6 50 4 2
EHCBC20200308A 2.0 0.3R 2.0 8 50 4 2
EHCBC20200310A 2.0 0.3R 2.0 10 50 4 2
EHCBC20200312A 2.0 0.3R 2.0 12 50 4 2
EHCBC20200316A 2.0 0.3R 2.0 16 50 4 2
EHCBC20200320A 2.0 0.3R 2.0 20 50 4 2
EHCBC20200325A 2.0 0.3R 2.0 25 60 4 2
EHCBC20200506A 2.0 0.5R 2.0 6 50 4 2
EHCBC20200508A 2.0 0.5R 2.0 8 50 4 2
EHCBC20200510A 2.0 0.5R 2.0 10 50 4 2
EHCBC20200512A 2.0 0.5R 2.0 12 50 4 2
EHCBC20200516A 2.0 0.5R 2.0 16 50 4 2
EHCBC20200520A 2.0 0.5R 2.0 20 50 4 2
EHCBC20200525A 2.0 0.5R 2.0 25 60 4 2
EHCRC20200510A 2.0 0.5R 2.0 10 50 6 2
EHCRC20200515A 2.0 0.5R 2.0 15 50 6 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A049
Solid Carbide Endmills
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC20250110A 2.5 0.1R 2.5 10 50 4 2
EHCBC20250116A 2.5 0.1R 2.5 16 50 4 2
EHCBC20250120A 2.5 0.1R 2.5 20 50 4 2
EHCBC20250125A 2.5 0.1R 2.5 25 60 4 2
EHCBC20250210A 2.5 0.2R 2.5 10 50 4 2
EHCBC20250216A 2.5 0.2R 2.5 16 50 4 2
EHCBC20250220A 2.5 0.2R 2.5 20 50 4 2
EHCBC20250225A 2.5 0.2R 2.5 25 60 4 2
EHCBC20250310A 2.5 0.3R 2.5 10 50 4 2
EHCBC20250316A 2.5 0.3R 2.5 16 50 4 2
EHCBC20250320A 2.5 0.3R 2.5 20 50 4 2
EHCBC20250325A 2.5 0.3R 2.5 25 60 4 2
EHCBC20250510A 2.5 0.5R 2.5 10 50 4 2
EHCBC20250516A 2.5 0.5R 2.5 16 50 4 2
EHCBC20250520A 2.5 0.5R 2.5 20 50 4 2
EHCBC20250525A 2.5 0.5R 2.5 25 60 4 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A050
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC20300110A 3.0 0.1R 3.0 10 50 6 2
EHCRC20300116A 3.0 0.1R 3.0 16 60 6 2
EHCRC20300120A 3.0 0.1R 3.0 20 60 6 2
EHCRC20300125A 3.0 0.1R 3.0 25 60 6 2
EHCRC20300130A 3.0 0.1R 3.0 30 75 6 2
EHCRC20300135A 3.0 0.1R 3.0 35 75 6 2
EHCRC20300210A 3.0 0.2R 3.0 10 50 6 2
EHCRC20300216A 3.0 0.2R 3.0 16 60 6 2
EHCRC20300220A 3.0 0.2R 3.0 20 60 6 2
EHCRC20300225A 3.0 0.2R 3.0 25 60 6 2
EHCRC20300230A 3.0 0.2R 3.0 30 75 6 2
EHCRC20300235A 3.0 0.2R 3.0 35 75 6 2
EHCRC20300310A 3.0 0.3R 3.0 10 50 6 2
EHCRC20300316A 3.0 0.3R 3.0 16 60 6 2
EHCRC20300320A 3.0 0.3R 3.0 20 60 6 2
EHCRC20300325A 3.0 0.3R 3.0 25 60 6 2
EHCRC20300330A 3.0 0.3R 3.0 30 75 6 2
EHCRC20300335A 3.0 0.3R 3.0 35 75 6 2
EHCRC20300510A 3.0 0.5R 3.0 10 50 6 2
EHCRC20300516A 3.0 0.5R 3.0 16 60 6 2
EHCRC20300520A 3.0 0.5R 3.0 20 60 6 2
EHCRC20300525A 3.0 0.5R 3.0 25 60 6 2
EHCRC20300530A 3.0 0.5R 3.0 30 75 6 2
EHCRC20300535A 3.0 0.5R 3.0 35 75 6 2
EHCRC20301010A 3.0 1.0R 3.0 10 50 6 2
EHCRC20301016A 3.0 1.0R 3.0 16 60 6 2
EHCRC20301020A 3.0 1.0R 3.0 20 60 6 2
EHCRC20301025A 3.0 1.0R 3.0 25 60 6 2
EHCRC20301030A 3.0 1.0R 3.0 30 75 6 2
EHCRC20301035A 3.0 1.0R 3.0 35 75 6 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A051
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC20400113A 4.0 0.1R 4.0 13 50 6 2
EHCRC20400116A 4.0 0.1R 4.0 16 60 6 2
EHCRC20400120A 4.0 0.1R 4.0 20 60 6 2
EHCRC20400125A 4.0 0.1R 4.0 25 60 6 2
EHCRC20400130A 4.0 0.1R 4.0 30 75 6 2
EHCRC20400135A 4.0 0.1R 4.0 35 75 6 2
EHCRC20400213A 4.0 0.2R 4.0 13 50 6 2
EHCRC20400216A 4.0 0.2R 4.0 16 60 6 2
EHCRC20400220A 4.0 0.2R 4.0 20 60 6 2
EHCRC20400225A 4.0 0.2R 4.0 25 60 6 2
EHCRC20400230A 4.0 0.2R 4.0 30 75 6 2
EHCRC20400235A 4.0 0.2R 4.0 35 75 6 2
EHCRC20400313A 4.0 0.3R 4.0 13 50 6 2
EHCRC20400316A 4.0 0.3R 4.0 16 60 6 2
EHCRC20400320A 4.0 0.3R 4.0 20 60 6 2
EHCRC20400325A 4.0 0.3R 4.0 25 60 6 2
EHCRC20400330A 4.0 0.3R 4.0 30 75 6 2
EHCRC20400335A 4.0 0.3R 4.0 35 75 6 2
EHCRC20400513A 4.0 0.5R 4.0 13 50 6 2
EHCRC20400516A 4.0 0.5R 4.0 16 60 6 2
EHCRC20400520A 4.0 0.5R 4.0 20 60 6 2
EHCRC20400525A 4.0 0.5R 4.0 25 60 6 2
EHCRC20400530A 4.0 0.5R 4.0 30 75 6 2
EHCRC20400535A 4.0 0.5R 4.0 35 75 6 2
EHCRC20401013A 4.0 1.0R 4.0 13 50 6 2
EHCRC20401016A 4.0 1.0R 4.0 16 60 6 2
EHCRC20401020A 4.0 1.0R 4.0 20 60 6 2
EHCRC20401025A 4.0 1.0R 4.0 25 60 6 2
EHCRC20401030A 4.0 1.0R 4.0 30 75 6 2
EHCRC20401035A 4.0 1.0R 4.0 35 75 6 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A052
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC20500116A 5.0 0.1R 5.0 16 60 6 2
EHCRC20500130A 5.0 0.1R 5.0 30 60 6 2
EHCRC20500216A 5.0 0.2R 5.0 16 60 6 2
EHCRC20500230A 5.0 0.2R 5.0 30 60 6 2
EHCRC20500316A 5.0 0.3R 5.0 16 60 6 2
EHCRC20500330A 5.0 0.3R 5.0 30 60 6 2
EHCRC20500516A 5.0 0.5R 5.0 16 60 6 2
EHCRC20500530A 5.0 0.5R 5.0 30 60 6 2
EHCRC20501016A 5.0 1.0R 5.0 16 60 6 2
EHCRC20501030A 5.0 1.0R 5.0 30 60 6 2
EHCRC20600120A 6.0 0.1R 7.0 20 60 6 2
EHCRC20600130A 6.0 0.1R 7.0 30 60 6 2
EHCRC20600220A 6.0 0.2R 7.0 20 60 6 2
EHCRC20600230A 6.0 0.2R 7.0 30 60 6 2
EHCRC20600320A 6.0 0.3R 7.0 20 60 6 2
EHCRC20600330A 6.0 0.3R 7.0 30 60 6 2
EHCRC20600520A 6.0 0.5R 7.0 20 60 6 2
EHCRC20600530A 6.0 0.5R 7.0 30 60 6 2
EHCRC20601020A 6.0 1.0R 7.0 20 60 6 2
EHCRC20601030A 6.0 1.0R 7.0 30 60 6 2
EHCRC20601520A 6.0 1.5R 7.0 20 60 6 2
EHCRC20601530A 6.0 1.5R 7.0 30 60 6 2
EHCRC20800522A 8.0 0.5R 9.0 22 60 8 2
EHCRC20801022A 8.0 1.0R 9.0 22 60 8 2
EHCRC20801522A 8.0 1.5R 9.0 22 60 8 2
EHCRC20802022A 8.0 2.0R 9.0 22 60 8 2
EHCRC21000524A 10.0 0.5R 11.0 24 75 10 2
EHCRC21001024A 10.0 1.0R 11.0 24 75 10 2
EHCRC21001524A 10.0 1.5R 11.0 24 75 10 2
EHCRC21002024A 10.0 2.0R 11.0 24 75 10 2
EHCRC21200526A 12.0 0.5R 13.0 26 75 12 2
EHCRC21201026A 12.0 1.0R 13.0 26 75 12 2
EHCRC21201526A 12.0 1.5R 13.0 26 75 12 2
EHCRC21202026A 12.0 2.0R 13.0 26 75 12 2
dTolerance
Ø0 ~ 0.02
R ± 0.02
EHCBC2
EHCRC2
D
d
L1
L
L2
15°
R
A053
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 024
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
EHCBC4
EHCRC4
D
d
L1
L
L2
15°
R
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A054
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC40200106A 2.0 0.1R 2.0 6 50 4 4
EHCBC40200108A 2.0 0.1R 2.0 8 50 4 4
EHCBC40200110A 2.0 0.1R 2.0 10 50 4 4
EHCBC40200112A 2.0 0.1R 2.0 12 50 4 4
EHCBC40200116A 2.0 0.1R 2.0 16 50 4 4
EHCBC40200120A 2.0 0.1R 2.0 20 50 4 4
EHCBC40200125A 2.0 0.1R 2.0 25 60 4 4
EHCBC40200206A 2.0 0.2R 2.0 6 50 4 4
EHCBC40200208A 2.0 0.2R 2.0 8 50 4 4
EHCBC40200210A 2.0 0.2R 2.0 10 50 4 4
EHCBC40200212A 2.0 0.2R 2.0 12 50 4 4
EHCBC40200216A 2.0 0.2R 2.0 16 50 4 4
EHCBC40200220A 2.0 0.2R 2.0 20 50 4 4
EHCBC40200225A 2.0 0.2R 2.0 25 60 4 4
EHCBC40200306A 2.0 0.3R 2.0 6 50 4 4
EHCBC40200308A 2.0 0.3R 2.0 8 50 4 4
EHCBC40200310A 2.0 0.3R 2.0 10 50 4 4
EHCBC40200312A 2.0 0.3R 2.0 12 50 4 4
EHCBC40200316A 2.0 0.3R 2.0 16 50 4 4
EHCBC40200320A 2.0 0.3R 2.0 20 50 4 4
EHCBC40200325A 2.0 0.3R 2.0 25 60 4 4
EHCBC40200506A 2.0 0.5R 2.0 6 50 4 4
EHCBC40200508A 2.0 0.5R 2.0 8 50 4 4
EHCBC40200510A 2.0 0.5R 2.0 10 50 4 4
EHCBC40200512A 2.0 0.5R 2.0 12 50 4 4
EHCBC40200516A 2.0 0.5R 2.0 16 50 4 4
EHCBC40200520A 2.0 0.5R 2.0 20 50 4 4
EHCBC40200525A 2.0 0.5R 2.0 25 60 4 4
EHCRC40200510A 2.0 0.5R 2.0 10 50 6 4
EHCRC40200515A 2.0 0.5R 2.0 15 50 6 4
65
Cutting conditions( 建議切削參數表 ) : Table 025
Solid Carbide Endmills
Solid Carbide EndmillsSolid Carbide Endmills
H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
EHCBC4
EHCRC4
D
d
L1
L
L2
15°
R
dTolerance
Ø0 ~ 0.02
R ± 0.02
A055
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCBC40250110A 2.5 0.1R 2.5 10 50 4 4
EHCBC40250116A 2.5 0.1R 2.5 16 50 4 4
EHCBC40250120A 2.5 0.1R 2.5 20 50 4 4
EHCBC40250125A 2.5 0.1R 2.5 25 60 4 4
EHCBC40250210A 2.5 0.2R 2.5 10 50 4 4
EHCBC40250216A 2.5 0.2R 2.5 16 50 4 4
EHCBC40250220A 2.5 0.2R 2.5 20 50 4 4
EHCBC40250225A 2.5 0.2R 2.5 25 60 4 4
EHCBC40250310A 2.5 0.3R 2.5 10 50 4 4
EHCBC40250316A 2.5 0.3R 2.5 16 50 4 4
EHCBC40250320A 2.5 0.3R 2.5 20 50 4 4
EHCBC40250325A 2.5 0.3R 2.5 25 60 4 4
EHCBC40250510A 2.5 0.5R 2.5 10 50 4 4
EHCBC40250516A 2.5 0.5R 2.5 16 50 4 4
EHCBC40250520A 2.5 0.5R 2.5 20 50 4 4
EHCBC40250525A 2.5 0.5R 2.5 25 60 4 4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 025
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
EHCBC4
EHCRC4
D
d
L1
L
L2
15°
R
dTolerance
Ø0 ~ 0.02
R ± 0.02
A056
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC40300110A 3.0 0.1R 3.0 10 50 6 4
EHCRC40300116A 3.0 0.1R 3.0 16 60 6 4
EHCRC40300120A 3.0 0.1R 3.0 20 60 6 4
EHCRC40300125A 3.0 0.1R 3.0 25 60 6 4
EHCRC40300130A 3.0 0.1R 3.0 30 75 6 4
EHCRC40300135A 3.0 0.1R 3.0 35 75 6 4
EHCRC40300210A 3.0 0.2R 3.0 10 50 6 4
EHCRC40300216A 3.0 0.2R 3.0 16 60 6 4
EHCRC40300220A 3.0 0.2R 3.0 20 60 6 4
EHCRC40300225A 3.0 0.2R 3.0 25 60 6 4
EHCRC40300230A 3.0 0.2R 3.0 30 75 6 4
EHCRC40300235A 3.0 0.2R 3.0 35 75 6 4
EHCRC40300310A 3.0 0.3R 3.0 10 50 6 4
EHCRC40300316A 3.0 0.3R 3.0 16 60 6 4
EHCRC40300320A 3.0 0.3R 3.0 20 60 6 4
EHCRC40300325A 3.0 0.3R 3.0 25 60 6 4
EHCRC40300330A 3.0 0.3R 3.0 30 75 6 4
EHCRC40300335A 3.0 0.3R 3.0 35 75 6 4
EHCRC40300510A 3.0 0.5R 3.0 10 50 6 4
EHCRC40300516A 3.0 0.5R 3.0 16 60 6 4
EHCRC40300520A 3.0 0.5R 3.0 20 60 6 4
EHCRC40300525A 3.0 0.5R 3.0 25 60 6 4
EHCRC40300530A 3.0 0.5R 3.0 30 75 6 4
EHCRC40300535A 3.0 0.5R 3.0 35 75 6 4
EHCRC40301010A 3.0 1.0R 3.0 10 50 6 4
EHCRC40301016A 3.0 1.0R 3.0 16 60 6 4
EHCRC40301020A 3.0 1.0R 3.0 20 60 6 4
EHCRC40301025A 3.0 1.0R 3.0 25 60 6 4
EHCRC40301030A 3.0 1.0R 3.0 30 75 6 4
EHCRC40301035A 3.0 1.0R 3.0 35 75 6 4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 025
Solid Carbide Endmills
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
EHCBC4
EHCRC4
D
d
L1
L
L2
15°
R
dTolerance
Ø0 ~ 0.02
R ± 0.02
A057
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC40400113A 4.0 0.1R 4.0 13 50 6 4
EHCRC40400116A 4.0 0.1R 4.0 16 60 6 4
EHCRC40400120A 4.0 0.1R 4.0 20 60 6 4
EHCRC40400125A 4.0 0.1R 4.0 25 60 6 4
EHCRC40400130A 4.0 0.1R 4.0 30 75 6 4
EHCRC40400135A 4.0 0.1R 4.0 35 75 6 4
EHCRC40400213A 4.0 0.2R 4.0 13 50 6 4
EHCRC40400216A 4.0 0.2R 4.0 16 60 6 4
EHCRC40400220A 4.0 0.2R 4.0 20 60 6 4
EHCRC40400225A 4.0 0.2R 4.0 25 60 6 4
EHCRC40400230A 4.0 0.2R 4.0 30 75 6 4
EHCRC40400235A 4.0 0.2R 4.0 35 75 6 4
EHCRC40400313A 4.0 0.3R 4.0 13 50 6 4
EHCRC40400316A 4.0 0.3R 4.0 16 60 6 4
EHCRC40400320A 4.0 0.3R 4.0 20 60 6 4
EHCRC40400325A 4.0 0.3R 4.0 25 60 6 4
EHCRC40400330A 4.0 0.3R 4.0 30 75 6 4
EHCRC40400335A 4.0 0.3R 4.0 35 75 6 4
EHCRC40400513A 4.0 0.5R 4.0 13 50 6 4
EHCRC40400516A 4.0 0.5R 4.0 16 60 6 4
EHCRC40400520A 4.0 0.5R 4.0 20 60 6 4
EHCRC40400525A 4.0 0.5R 4.0 25 60 6 4
EHCRC40400530A 4.0 0.5R 4.0 30 75 6 4
EHCRC40400535A 4.0 0.5R 4.0 35 75 6 4
EHCRC40401013A 4.0 1.0R 4.0 13 50 6 4
EHCRC40401016A 4.0 1.0R 4.0 16 60 6 4
EHCRC40401020A 4.0 1.0R 4.0 20 60 6 4
EHCRC40401025A 4.0 1.0R 4.0 25 60 6 4
EHCRC40401030A 4.0 1.0R 4.0 30 75 6 4
EHCRC40401035A 4.0 1.0R 4.0 35 75 6 4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 025
Solid Carbide Endmills
H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
EHCBC4
EHCRC4
D
d
L1
L
L2
15°
R
dTolerance
Ø0 ~ 0.02
R ± 0.02
A058
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHCRC40500116A 5.0 0.1R 5.0 16 60 6 4
EHCRC40500130A 5.0 0.1R 5.0 30 60 6 4
EHCRC40500216A 5.0 0.2R 5.0 16 60 6 4
EHCRC40500230A 5.0 0.2R 5.0 30 60 6 4
EHCRC40500316A 5.0 0.3R 5.0 16 60 6 4
EHCRC40500330A 5.0 0.3R 5.0 30 60 6 4
EHCRC40500516A 5.0 0.5R 5.0 16 60 6 4
EHCRC40500530A 5.0 0.5R 5.0 30 60 6 4
EHCRC40501016A 5.0 1.0R 5.0 16 60 6 4
EHCRC40501030A 5.0 1.0R 5.0 30 60 6 4
EHCRC40600120A 6.0 0.1R 7.0 20 60 6 4
EHCRC40600130A 6.0 0.1R 7.0 30 60 6 4
EHCRC40600220A 6.0 0.2R 7.0 20 60 6 4
EHCRC40600230A 6.0 0.2R 7.0 30 60 6 4
EHCRC40600320A 6.0 0.3R 7.0 20 60 6 4
EHCRC40600330A 6.0 0.3R 7.0 30 60 6 4
EHCRC40600520A 6.0 0.5R 7.0 20 60 6 4
EHCRC40600530A 6.0 0.5R 7.0 30 60 6 4
EHCRC40601020A 6.0 1.0R 7.0 20 60 6 4
EHCRC40601030A 6.0 1.0R 7.0 30 60 6 4
EHCRC40601520A 6.0 1.5R 7.0 20 60 6 4
EHCRC40601530A 6.0 1.5R 7.0 30 60 6 4
EHCRC40800522A 8.0 0.5R 9.0 22 60 8 4
EHCRC40801022A 8.0 1.0R 9.0 22 60 8 4
EHCRC40801522A 8.0 1.5R 9.0 22 60 8 4
EHCRC40802022A 8.0 2.0R 9.0 22 60 8 4
EHCRC41000524A 10.0 0.5R 11.0 24 75 10 4
EHCRC41001024A 10.0 1.0R 11.0 24 75 10 4
EHCRC41001524A 10.0 1.5R 11.0 24 75 10 4
EHCRC41002024A 10.0 2.0R 11.0 24 75 10 4
EHCRC41200526A 12.0 0.5R 13.0 26 75 12 4
EHCRC41201026A 12.0 1.0R 13.0 26 75 12 4
EHCRC41201526A 12.0 1.5R 13.0 26 75 12 4
EHCRC41202026A 12.0 2.0R 13.0 26 75 12 4
ARCO coating provides a superior wear resistance.
Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.
Available in various eective cutting lengths.
It is suitable for deep cutting.
The coating can change to SICO, the prices will dier.
．
．
．
．
．
65
Cutting conditions( 建議切削參數表 ) : Table 025
Solid Carbide Endmills
Solid Carbide Endmills
d2
R2
R1
d
ap
Order No. Dia.
(d)
ND
(d1) (d2) (ap) (R1) (R2)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EHWSA406000S 6 5.6 1.5 0.35 0.6 5.0 9 18 60 6 4
EHWSA608000S 8 7.6 3.2 0.40 0.8 4.5 12 24 75 8 6
EHWSA610000S 10 9.4 4.0 0.55 1.0 5.5 15 30 75 10 6
EHWSA612000S 12 11.4 4.8 0.70 1.2 6.5 18 36 75 12 6
EHWSA4
EHWSA6
D
d
L
L1
L2
SICO Nano coating provides a superior wear and heat resistance.
Duotec design and multi-ute geometry design.
High feed and high metal removal rate in surface milling.
UMG Carbide substrate possess high TRS and good wear resistance.
．
．
．
．
d1
dTolerance
Ø0 ~ 0.02
R ± 0.02
H650 - Double Corner High Feed EndMill - 4F / 6F
A059
鎢鋼圓鼻銑刀 - 高進給型 - 4/6 刃
A060
Endmills．Inserts．Drills
Solid Carbide Endmills
Solid Carbide Endmills

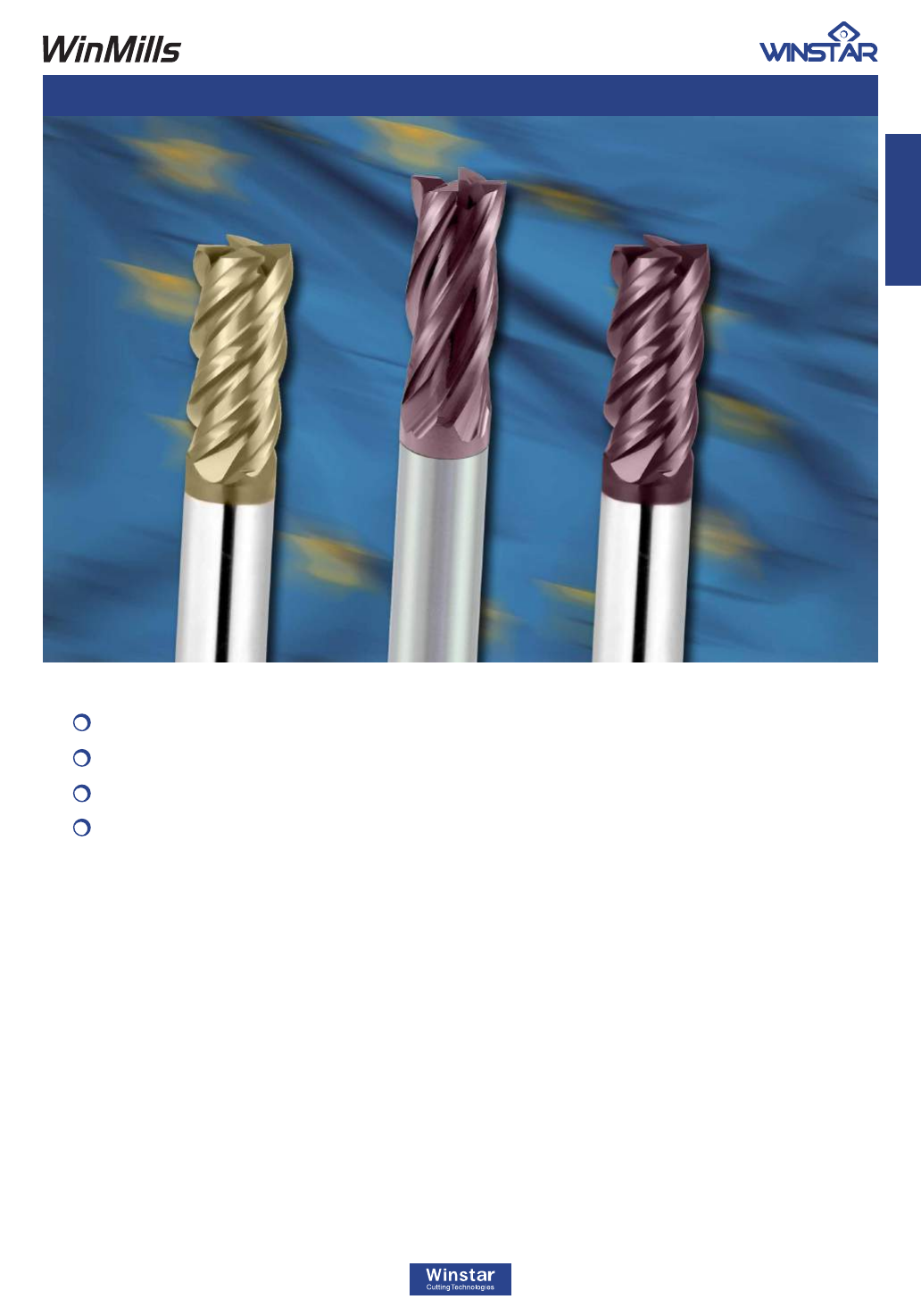

UNICO, SICO Nano coating provides a superior wear and heat resistance.
Tip with small chamfer or small radius design.
High feed & multiple application, Suitable for hardened & pre-hardened steel, Stainless, up to HRC 60.
Achieve long tool life, perfect surfaces and considerable reduction of machining time.
EUROS Series for High Feed Milling, up to HRC 60
A061
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D) 45° Flutes
(F)
EUSSA403000U 3.0 8 50 6 0.10 4
EUSSA404000U 4.0 10 50 6 0.10 4
EUSSA405000U 5.0 13 50 6 0.15 4
EUSSA406000U 6.0 15 50 6 0.15 4
EUSSA408000U 8.0 20 60 8 0.15 4
EUSSA410000U 10.0 25 75 10 0.20 4
EUSSA412000U 12.0 30 75 12 0.20 4
EUSSA416000U 16.0 35 100 16 0.20 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EUSFA4
EUSSA4
Unico coating provides a superior wear and heat resistance.
Honing & chamfering at the cutting edge geometries for high feed milling.
Outstanding results for HRC 30 to HRC 55 steel, such as Alloy steel,cast Iron ...etc.
Achieve long tool life, perfect surfaces and considerable reduction of machining time.
．
．
．
．
A062
EUROS - High Feed Square Type - 4F
D
d
L1
L
鎢鋼平銑刀 - 高進給倒角型 - 4 刃
Feed recommend table
Dia
(mm)
Fz
(mm)
40.006 ~ 0.1
60.009 ~ 0.15
10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D) RFlutes
(F)
EUSSR403000U 3.0 8 50 6 0.10 4
EUSSR404000U 4.0 10 50 6 0.10 4
EUSSR405000U 5.0 13 50 6 0.15 4
EUSSR406000U 6.0 15 50 6 0.15 4
EUSSR408000U 8.0 20 60 8 0.15 4
EUSSR410000U 10.0 25 75 10 0.20 4
EUSSR412000U 12.0 30 75 12 0.20 4
EUSSR416000U 16.0 35 100 16 0.20 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EUSFR4
EUSSR4
Unico coating provides a superior wear and heat resistance.
With "Small positive" rake angle and small corner radius geometries for high feed cutting.
Outstanding results and tool life for 2-D and 3-D machining of HRC 30 to HRC 55 steel, such as Alloy steel,cast Iron...etc.
Achieve long tool life, perfect surfaces and considerable reduction of machining time.
．
．
．
．
A063
EUROS - Toric Square Type - 4F 鎢鋼平銑刀 - 高進給圓角型 - 4 刃
D
d
L1
L
R
Feed recommend table
Dia
(mm)
Fz
(mm)
40.006 ~ 0.1
60.009 ~ 0.15
10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D) RFlutes
(F)
EUSSH403000S 3.0 8 50 6 0.10 4
EUSSH404000S 4.0 10 50 6 0.10 4
EUSSH405000S 5.0 13 50 6 0.15 4
EUSSH406000S 6.0 15 50 6 0.15 4
EUSSH408000S 8.0 20 60 8 0.15 4
EUSSH410000S 10.0 25 75 10 0.20 4
EUSSH412000S 12.0 30 75 12 0.20 4
EUSSH416000S 16.0 35 100 16 0.20 4
EUSFH4
EUSSH4
SICO Nano coating provides a superior wear and heat resistance.
With "Negative" rake angle and small corner radius geometries for high feed cutting.
Outstanding results and tool life for 2-D and 3-D machining of HRC 50 to HRC 65 hardened and tempered steel.
Achieve long tool life, perfect surfaces and considerable reduction of machining time.
．
．
．
．
A064
EUROS - Toric Square Type - 4F 鎢鋼平銑刀 - 高進給圓角型 - 4 刃
D
d
L1
L
R
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
65 Feed recommend table
Dia
(mm)
Fz
(mm)
40.006 ~ 0.1
60.009 ~ 0.15
10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D
Solid Carbide Endmills
Solid Carbide Endmills
Micro grain carbide rod is suitable for general machining.
UNICO coating provides superior wear resistance and reduces the coecient of friction.
Stabilization of the cutting edge by edge atland design and prevent chipping at corners.
Universal geometry design is suitable for most materials.
G550 Serie for Mold & Alloy steel, up to HRC 55
A065
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFC200200U 0.2 0.4 50 4 2
EPSFC200300U 0.3 0.6 50 4 2
EPSFC200400U 0.4 0.8 50 4 2
EPSFC200500U 0.5 1.0 50 4 2
EPSFC200600U 0.6 1.5 50 4 2
EPSFC200700U 0.7 2.0 50 4 2
EPSFC200800U 0.8 2.0 50 4 2
EPSFC200900U 0.9 2.0 50 4 2
EPSFC201000U 1.0 3.0 50 4 2
EPSFC201500U 1.5 4.0 50 4 2
EPSFC202000U 2.0 5.0 50 4 2
EPSFC202500U 2.5 6.0 50 4 2
EPSFC203000U 3.0 8.0 50 4 2
EPSFC203500U 3.5 9.0 50 4 2
EPSFC204000U 4.0 10.0 50 4 2
EPSSC201000U 1.0 3.0 50 6 2
EPSSC202000U 2.0 5.0 50 6 2
EPSSC203000U 3.0 8.0 50 6 2
EPSSC203500U 3.5 9.0 50 6 2
EPSSC204000U 4.0 10.0 50 6 2
EPSSC204500U 4.5 11.0 50 6 2
EPSSC205000U 5.0 13.0 50 6 2
EPSSC205500U 5.5 14.0 50 6 2
EPSSC206000U 6.0 15.0 50 6 2
EPSSC206500U 6.5 16.0 60 8 2
EPSSC207000U 7.0 18.0 60 8 2
EPSSC208000U 8.0 20.0 60 8 2
EPSSC209000U 9.0 22.0 75 10 2
EPSSC210000U 10.0 25.0 75 10 2
EPSSC211000U 11.0 25.0 75 12 2
EPSSC212000U 12.0 30.0 75 12 2
EPSSC214000U 14.0 30.0 75 14 2
EPSSC216000U 16.0 35.0 100 16 2
EPSSC218000U 18.0 40.0 100 20 2
EPSSC220000U 20.0 45.0 100 20 2
EPSSC225000U 25.0 45.0 100 25 2
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSFC2
EPSSC2
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc.
Strong geometry design has excellent cutting ability of cutting edges.
High precision cutting for side milling.
．
．
．
．
A066
G550 - Square Type - 2F 鎢鋼平銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 026
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSTC301000U 1.0 3 50 3 3
EPSTC301500U 1.5 4 50 3 3
EPSTC302000U 2.0 5 50 3 3
EPSTC303000U 3.0 8 50 3 3
EPSFC301000U 1.0 3 50 4 3
EPSFC301500U 1.5 4 50 4 3
EPSFC302000U 2.0 5 50 4 3
EPSFC302500U 2.5 6 50 4 3
EPSFC303000U 3.0 8 50 4 3
EPSFC303500U 3.5 9 50 4 3
EPSFC304000U 4.0 10 50 4 3
EPSSC303000U 3.0 8 50 6 3
EPSSC303500U 3.5 9 50 6 3
EPSSC304000U 4.0 10 50 6 3
EPSSC304500U 4.5 11 50 6 3
EPSSC305000U 5.0 13 50 6 3
EPSSC305500U 5.5 14 50 6 3
EPSSC306000U 6.0 15 50 6 3
EPSSC306500U 6.5 16 60 8 3
EPSSC307000U 7.0 18 60 8 3
EPSSC308000U 8.0 20 60 8 3
EPSSC309000U 9.0 22 75 10 3
EPSSC310000U 10.0 25 75 10 3
EPSSC311000U 11.0 25 75 12 3
EPSSC312000U 12.0 30 75 12 3
EPSSC314000U 14.0 30 75 14 3
EPSSC316000U 16.0 35 100 16 3
EPSSC318000U 18.0 40 100 20 3
EPSSC320000U 20.0 45 100 20 3
EPSSC325000U 25.0 45 100 25 3
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSFC3
EPSSC3
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc.
Strong geometry design has excellent cutting ability of cutting edges.
High precision cutting for side milling.
．
．
．
．
A067
G550 - Square Type - 3F
D
d
L1
L
鎢鋼平銑刀 - 標準型 - 3刃
Cutting conditions( 建議切削參數表 ) : Table 027
Solid Carbide Endmills

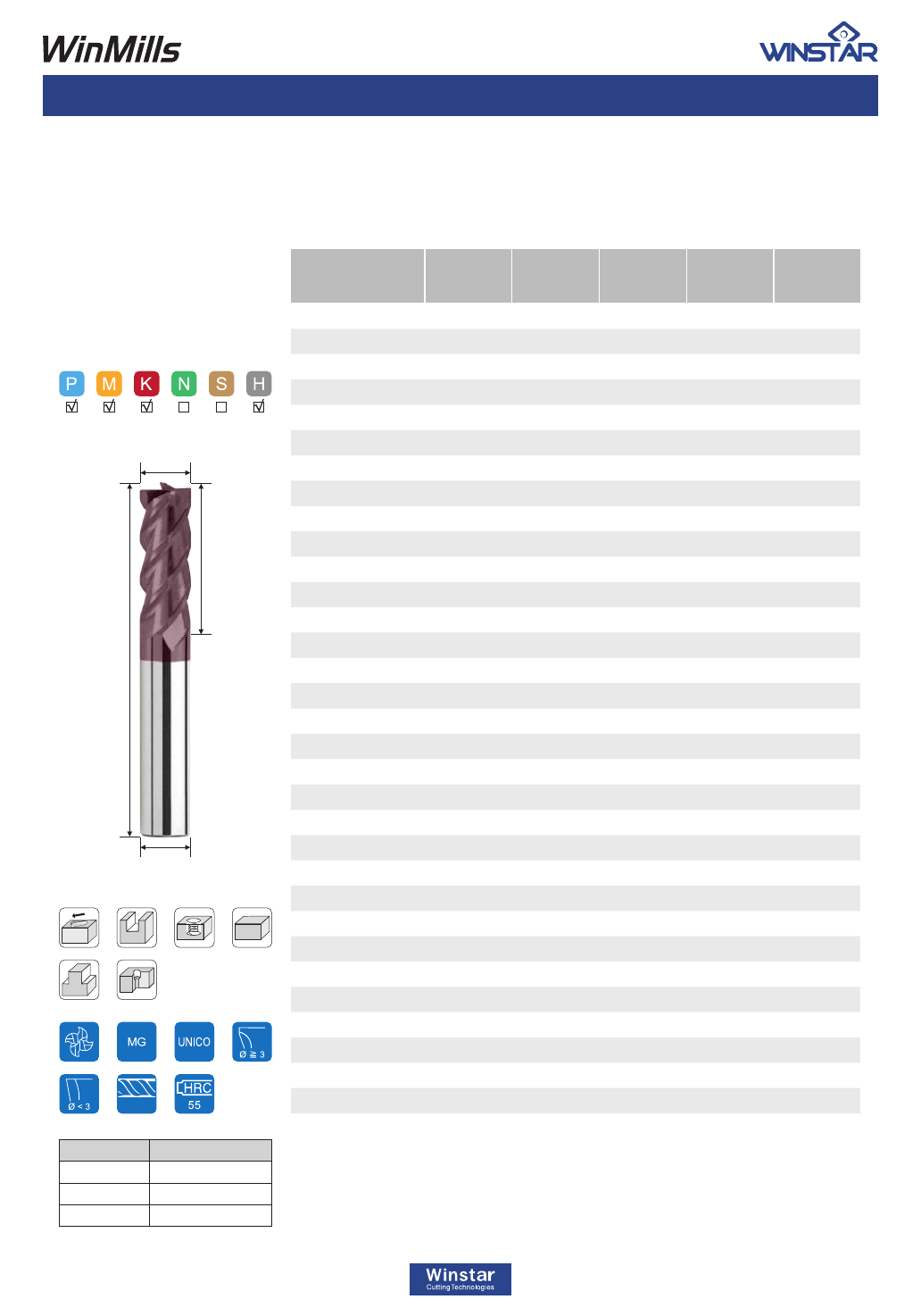

Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSTC401000U 1.0 3 50 3 4
EPSTC401500U 1.5 4 50 3 4
EPSTC402000U 2.0 5 50 3 4
EPSTC403000U 3.0 8 50 3 4
EPSFC401000U 1.0 3 50 4 4
EPSFC401500U 1.5 4 50 4 4
EPSFC402000U 2.0 5 50 4 4
EPSFC402500U 2.5 6 50 4 4
EPSFC403000U 3.0 8 50 4 4
EPSFC403500U 3.5 9 50 4 4
EPSFC404000U 4.0 10 50 4 4
EPSSC403000U 3.0 8 50 6 4
EPSSC403500U 3.5 9 50 6 4
EPSSC404000U 4.0 10 50 6 4
EPSSC404500U 4.5 11 50 6 4
EPSSC405000U 5.0 13 50 6 4
EPSSC405500U 5.5 14 50 6 4
EPSSC406000U 6.0 15 50 6 4
EPSSC406500U 6.5 16 60 8 4
EPSSC407000U 7.0 18 60 8 4
EPSSC408000U 8.0 20 60 8 4
EPSSC409000U 9.0 22 75 10 4
EPSSC410000U 10.0 25 75 10 4
EPSSC411000U 11.0 25 75 12 4
EPSSC412000U 12.0 30 75 12 4
EPSSC414000U 14.0 30 75 14 4
EPSSC416000U 16.0 35 100 16 4
EPSSC418000U 18.0 40 100 20 4
EPSSC420000U 20.0 45 100 20 4
EPSSC425000U 25.0 45 100 25 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSFC4
EPSSC4
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Strong geometry design has excellent cutting ability of cutting edges.
High precision cutting for side milling.
．
．
．
．
A068
G550 - Square Type - 4F 鎢鋼平銑刀 - 標準型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 027
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSSD405000U 5 13 50 6 4
EPSSD406000U 6 13 50 6 4
EPSSD408000U 8 16 60 8 4
EPSSD410000U 10 20 75 10 4
EPSSD412000U 12 24 75 12 4
EPSSD416000U 16 30 100 16 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EPSSD4
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities.
．
．
．
A069
G550
- Anti-Vibration Square Type - 4F
鎢鋼平銑刀 - 抗震不等型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 028
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFH403000U 3.0 8 50 4 4
EPSFH404000U 4.0 10 50 4 4
EPSSH405000U 5.0 13 50 6 4
EPSSH406000U 6.0 15 50 6 4
EPSSH407000U 7.0 18 60 8 4
EPSSH408000U 8.0 20 60 8 4
EPSSH409000U 9.0 22 75 10 4
EPSSH410000U 10.0 25 75 10 4
EPSSH411000U 11.0 25 75 12 4
EPSSH412000U 12.0 30 75 12 4
EPSSH414000U 14.0 30 75 14 4
EPSSH416000U 16.0 35 100 16 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
45°
EPSFH4
EPSSH4
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, FRP, etc.
Greater shearing action results in increased speeds and feeds and faster stock removal.
Strong helix design provides hi speed milling capabilities.
．
．
．
．
A070
G550 - High Helix Square Type - 4F 鎢鋼平銑刀 - 高導型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 029
Solid Carbide Endmills
Solid Carbide Endmills
D
d
L1
L
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSCC403000U 3.0 15 60 6 4
EPSCC404000U 4.0 20 60 6 4
EPSCC405000U 5.0 25 75 6 4
EPSCC406000U 6.0 30 75 6 4
EPSCC408000U 8.0 35 100 8 4
EPSCC410000U 10.0 45 100 10 4
EPSCC412000U 12.0 45 100 12 4
EPSCC414000U 14.0 70 150 14 4
EPSCC416000U 16.0 70 150 16 4
EPSCC420000U 20.0 75 150 20 4
EPSCC425000U 25.0 75 150 25 4
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSCC4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various length of cut and overall length end mills.
Long cutting length is suitable for deep side milling.
．
．
．
．
A071
G550 - Long Flute Square Type - 4F 鎢鋼平銑刀 - 長刃型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 030

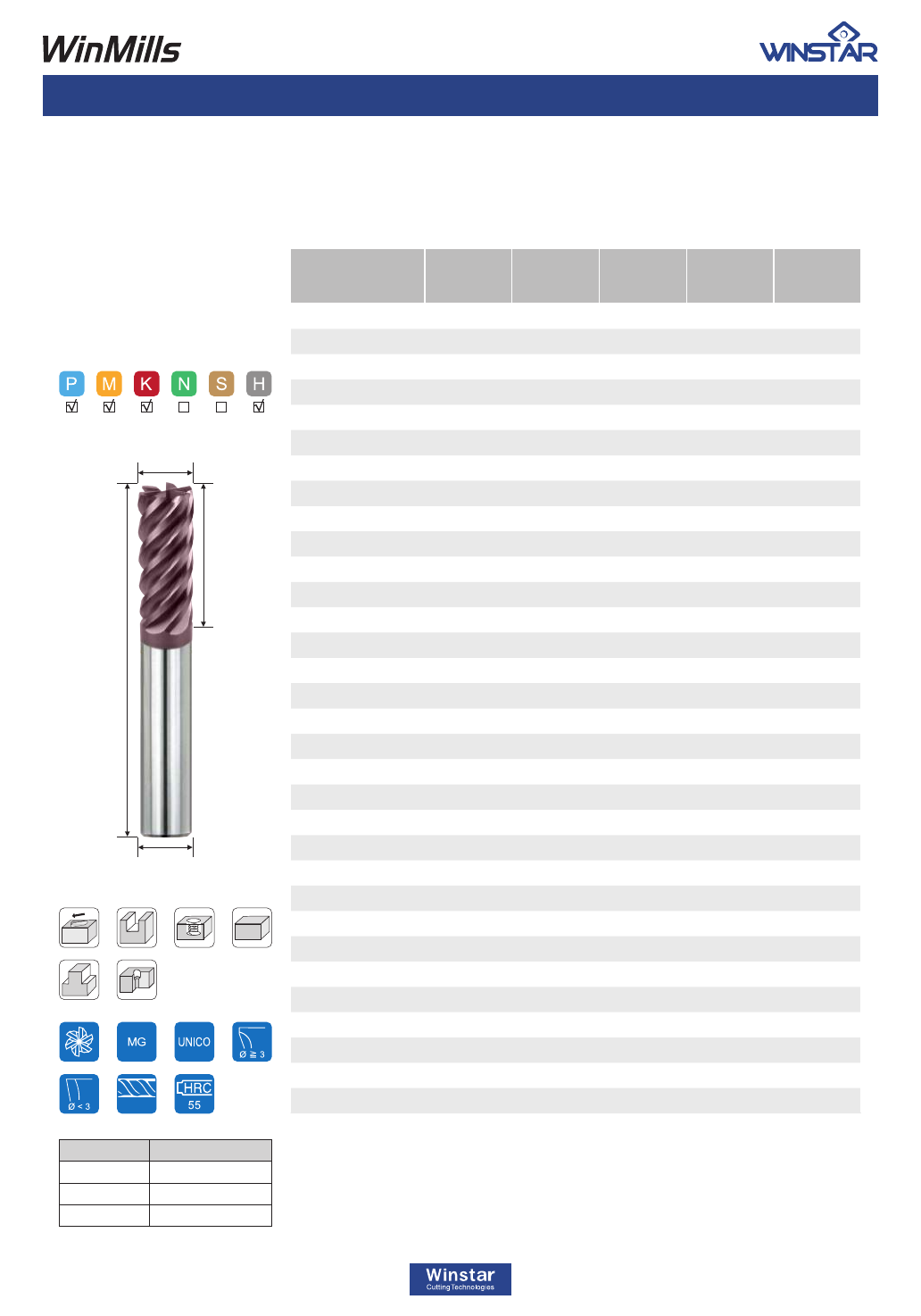

Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSSH606000U 6 15 50 6 6
EPSSH608000U 8 20 60 8 6
EPSSH610000U 10 25 75 10 6
EPSSH612000U 12 30 75 12 6
EPSCH606000U 6 30 75 6 6
EPSCH608000U 8 35 100 8 6
EPSCH608000U45C
8 45 100 8 6
EPSCH610000U 10 45 100 10 6
EPSCH610000U55C
10 55 100 10 6
EPSCH612000U 12 45 100 12 6
EPSCH612000U55C
12 55 100 12 6
EPSCH616000U 16 70 150 16 6
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSSH6
EPSCH6
UNICO Coating provides superior wear resistance and reduces the coecient of friction
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, FRP, etc.
Greater shearing action results in increased speeds and feeds and faster stock removal.
Strong helix design provides hi speed milling capabilities.
Six ute for good surface milling.
．
．
．
．
．
A072
G550 - High Helix Square Type - 6F 鎢鋼平銑刀 - 高導型 - 6刃
45°
D
d
L1
L
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSJC204000U 4.0 10 60 4 2
EPSEC204000U 4.0 10 75 4 2
EPSKC204000U 4.0 10 100 4 2
EPSMC204000U 4.0 10 60 6 2
EPSLC204000U 4.0 10 75 6 2
EPSNC204000U 4.0 10 100 6 2
EPSMC206000U 6.0 15 60 6 2
EPSLC206000U 6.0 15 75 6 2
EPSNC206000U 6.0 15 100 6 2
EPSMC208000U 8.0 20 75 8 2
EPSLC208000U 8.0 20 100 8 2
EPSNC208000U 8.0 20 150 8 2
EPSLC210000U 10.0 25 100 10 2
EPSNC210000U 10.0 25 150 10 2
EPSLC212000U 12.0 30 100 12 2
EPSNC212000U 12.0 30 150 12 2
EPSLC216000U 16.0 40 150 16 2
EPSLC220000U 20.0 40 150 20 2
30°
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSEC2
EPSKC2
EPSLC2
EPSNC2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various length of cut and overall length end mills.
Flat design to avoid chipping of the cutting tip.
．
．
．
．
A073
G550 - Long Shank Square Type - 2F 鎢鋼平銑刀 - 長柄型 - 2刃
D
d
L1
L
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 031

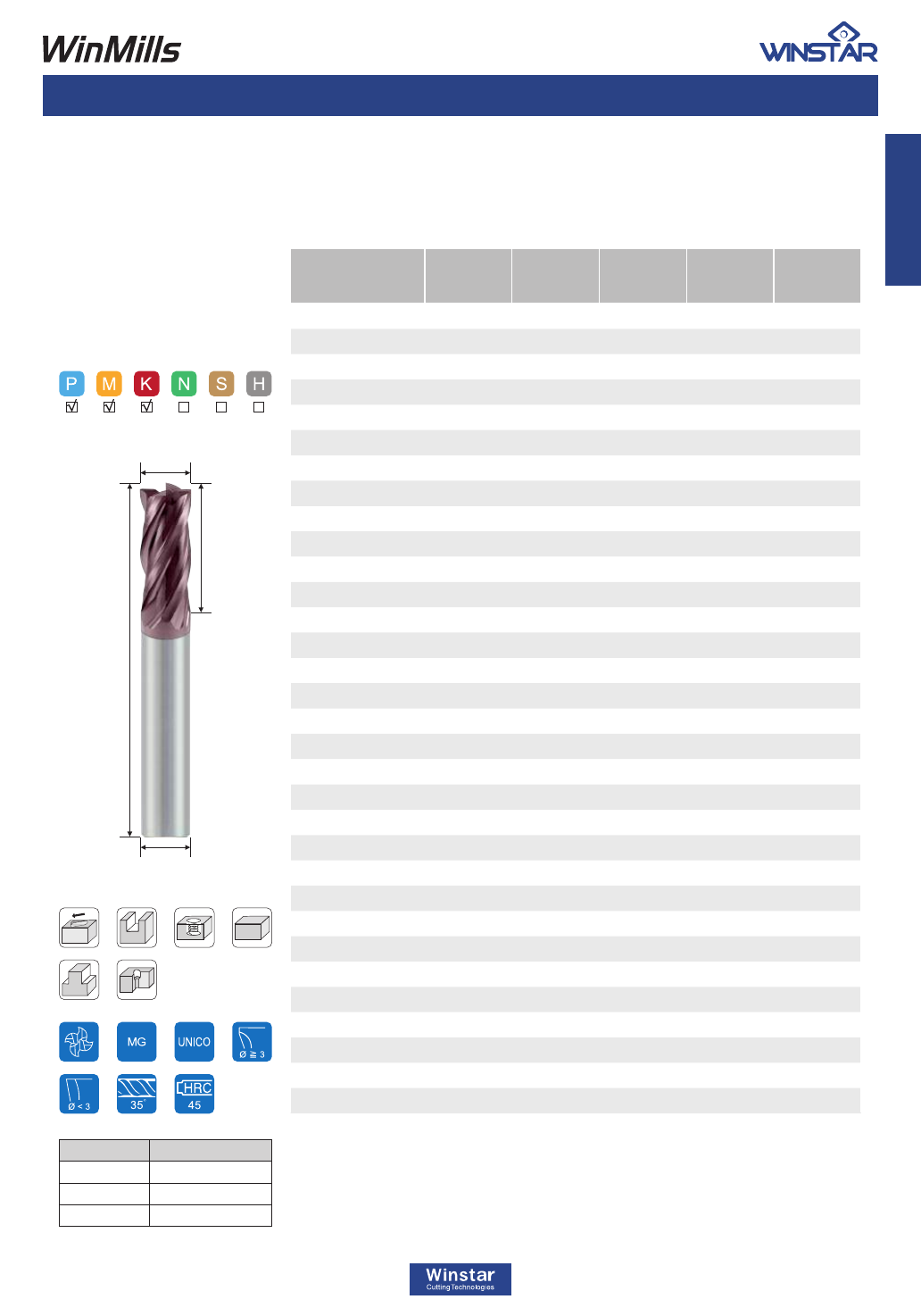

Solid Carbide Endmills
D
d
L1
L
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSEC403000U 3.0 8 75 4 4
EPSKC403000U 3.0 8 100 4 4
EPSJC404000U 4.0 10 60 4 4
EPSEC404000U 4.0 10 75 4 4
EPSKC404000U 4.0 10 100 4 4
EPSMC404000U 4.0 10 60 6 4
EPSLC404000U 4.0 10 75 6 4
EPSNC404000U 4.0 10 100 6 4
EPSMC406000U 6.0 15 60 6 4
EPSLC406000U 6.0 15 75 6 4
EPSNC406000U 6.0 15 100 6 4
EPSMC408000U 8.0 20 75 8 4
EPSLC408000U 8.0 20 100 8 4
EPSNC408000U 8.0 20 150 8 4
EPSLC410000U 10.0 25 100 10 4
EPSNC410000U 10.0 25 150 10 4
EPSLC412000U 12.0 30 100 12 4
EPSNC412000U 12.0 30 150 12 4
EPSLC416000U 16.0 40 150 16 4
EPSLC420000U 20.0 40 150 20 4
30°
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSEC4
EPSKC4
EPSLC4
EPSNC4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various length of cut and overall length end mills.
Flat design to avoid chipping of the cutting tip.
．
．
．
．
A074
G550 - Long Shank Square Type - 4F 鎢鋼平銑刀 - 長柄型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 032
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSRR406000U 6 15 50 6 4
EPSRR408000U 8 20 60 8 4
EPSRR410000U 10 25 75 10 4
EPSRR412000U 12 30 75 12 4
EPSRR416000U 16 40 100 16 4
EPSRR420000U 20 45 100 20 4
30°
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSRR4
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Suitable for rough and high remove rate cutting environment.
Chamfering design provides a stronger cutting edge.
Middle coarse pitch provides hi performance and avoids tip fracture.
．
．
．
．
．
A075
G550 - Roughing Square Type - 4F 鎢鋼平銑刀 - 粗銑型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 033

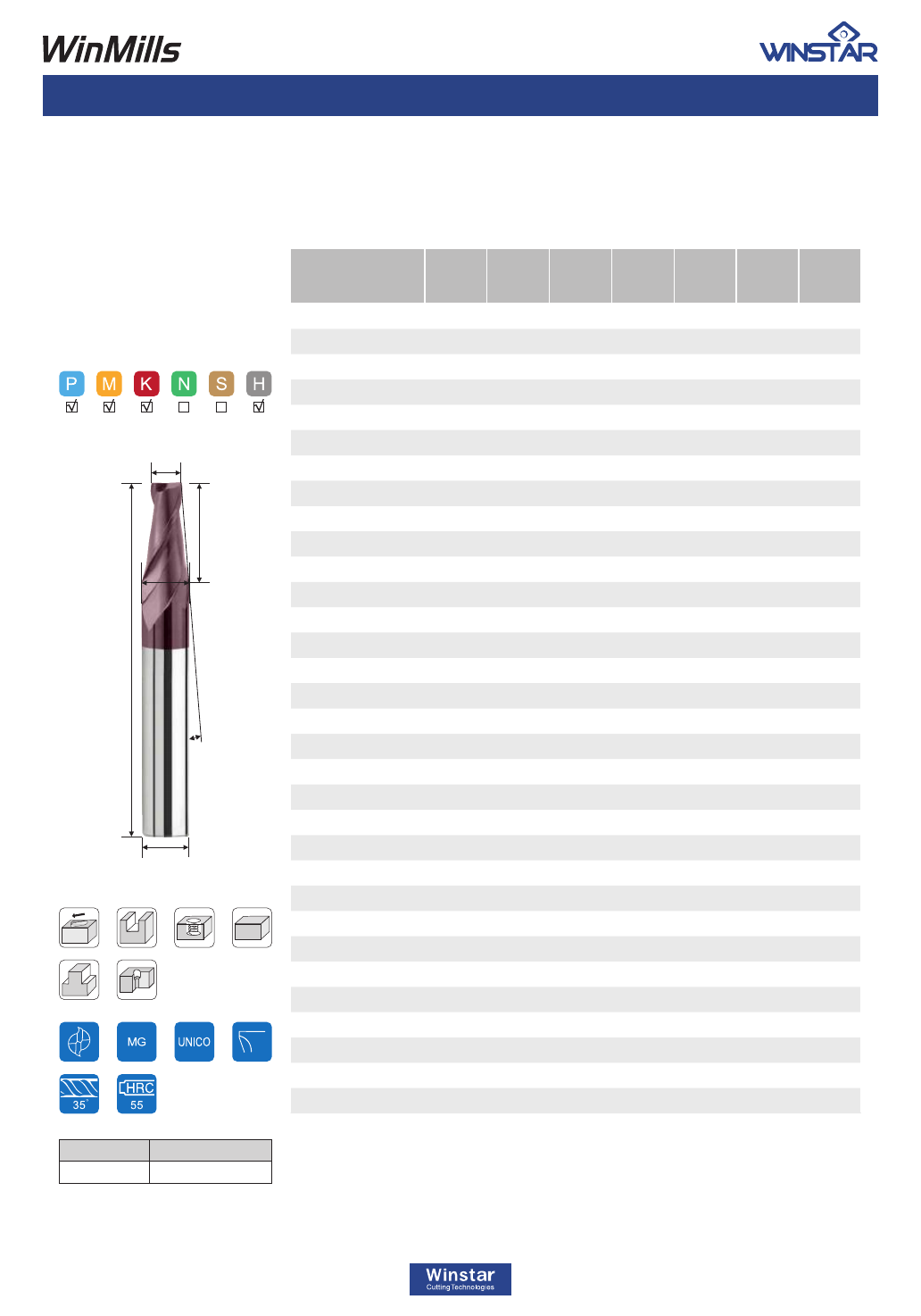

Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC200201U 0.2 0.3 1 50 4 2
EPSBC200202U 0.2 0.3 2 50 4 2
EPSBC200301U 0.3 0.4 1 50 4 2
EPSBC200302U 0.3 0.4 2 50 4 2
EPSBC200303U 0.3 0.4 3 50 4 2
EPSBC200304U 0.3 0.4 4 50 4 2
EPSBC200305U 0.3 0.4 5 50 4 2
EPSBC200401U 0.4 0.5 1 50 4 2
EPSBC200402U 0.4 0.5 2 50 4 2
EPSBC200403U 0.4 0.5 3 50 4 2
EPSBC200404U 0.4 0.5 4 50 4 2
EPSBC200405U 0.4 0.5 5 50 4 2
EPSBC200406U 0.4 0.5 6 50 4 2
EPSBC200408U 0.4 0.5 8 50 4 2
EPSBC200410U 0.4 0.5 10 50 4 2
EPSBC200502U 0.5 0.6 2 50 4 2
EPSBC200503U 0.5 0.6 3 50 4 2
EPSBC200504U 0.5 0.6 4 50 4 2
EPSBC200505U 0.5 0.6 5 50 4 2
EPSBC200506U 0.5 0.6 6 50 4 2
EPSBC200508U 0.5 0.6 8 50 4 2
EPSBC200510U 0.5 0.6 10 50 4 2
EPSBC200512U 0.5 0.6 12 50 4 2
EPSBC200514U 0.5 0.6 14 50 4 2
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A076
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC200602U 0.6 0.7 2 50 4 2
EPSBC200603U 0.6 0.7 3 50 4 2
EPSBC200604U 0.6 0.7 4 50 4 2
EPSBC200605U 0.6 0.7 5 50 4 2
EPSBC200606U 0.6 0.7 6 50 4 2
EPSBC200608U 0.6 0.7 8 50 4 2
EPSBC200610U 0.6 0.7 10 50 4 2
EPSBC200612U 0.6 0.7 12 50 4 2
EPSBC200614U 0.6 0.7 14 50 4 2
EPSBC200616U 0.6 0.7 16 50 4 2
EPSBC200702U 0.7 0.8 2 50 4 2
EPSBC200704U 0.7 0.8 4 50 4 2
EPSBC200706U 0.7 0.8 6 50 4 2
EPSBC200708U 0.7 0.8 8 50 4 2
EPSBC200710U 0.7 0.8 10 50 4 2
EPSBC200712U 0.7 0.8 12 50 4 2
EPSBC200802U 0.8 1.0 2 50 4 2
EPSBC200804U 0.8 1.0 4 50 4 2
EPSBC200806U 0.8 1.0 6 50 4 2
EPSBC200808U 0.8 1.0 8 50 4 2
EPSBC200810U 0.8 1.0 10 50 4 2
EPSBC200812U 0.8 1.0 12 50 4 2
EPSBC200814U 0.8 1.0 14 50 4 2
EPSBC200906U 0.9 1.1 6 50 4 2
EPSBC200908U 0.9 1.1 8 50 4 2
EPSBC200910U 0.9 1.1 10 50 4 2
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A077
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC201002U 1.0 1.2 2 50 4 2
EPSBC201003U 1.0 1.2 3 50 4 2
EPSBC201004U 1.0 1.2 4 50 4 2
EPSBC201005U 1.0 1.2 5 50 4 2
EPSBC201006U 1.0 1.2 6 50 4 2
EPSBC201008U 1.0 1.2 8 50 4 2
EPSBC201010U 1.0 1.2 10 50 4 2
EPSBC201012U 1.0 1.2 12 50 4 2
EPSBC201014U 1.0 1.2 14 50 4 2
EPSBC201016U 1.0 1.2 16 50 4 2
EPSBC201018U 1.0 1.2 18 50 4 2
EPSBC201020U 1.0 1.2 20 50 4 2
EPSBC201204U 1.2 1.5 4 50 4 2
EPSBC201206U 1.2 1.5 6 50 4 2
EPSBC201208U 1.2 1.5 8 50 4 2
EPSBC201210U 1.2 1.5 10 50 4 2
EPSBC201212U 1.2 1.5 12 50 4 2
EPSBC201216U 1.2 1.5 16 50 4 2
EPSBC201220U 1.2 1.5 20 50 4 2
EPSBC201406U 1.4 1.8 6 50 4 2
EPSBC201408U 1.4 1.8 8 50 4 2
EPSBC201410U 1.4 1.8 10 50 4 2
EPSBC201414U 1.4 1.8 14 50 4 2
EPSBC201416U 1.4 1.8 16 50 4 2
EPSBC201420U 1.4 1.8 20 50 4 2
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A078
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC201504U 1.5 1.8 4 50 4 2
EPSBC201506U 1.5 1.8 6 50 4 2
EPSBC201508U 1.5 1.8 8 50 4 2
EPSBC201510U 1.5 1.8 10 50 4 2
EPSBC201512U 1.5 1.8 12 50 4 2
EPSBC201514U 1.5 1.8 14 50 4 2
EPSBC201516U 1.5 1.8 16 50 4 2
EPSBC201518U 1.5 1.8 18 50 4 2
EPSBC201520U 1.5 1.8 20 50 4 2
EPSBC201610U 1.6 1.9 10 50 4 2
EPSBC201614U 1.6 1.9 14 50 4 2
EPSBC201618U 1.6 1.9 18 50 4 2
EPSBC201810U 1.8 2.0 10 50 4 2
EPSBC201814U 1.8 2.0 14 50 4 2
EPSBC201818U 1.8 2.0 18 50 4 2
EPSBC202004U 2.0 2.5 4 50 4 2
EPSBC202006U 2.0 2.5 6 50 4 2
EPSBC202008U 2.0 2.5 8 50 4 2
EPSBC202010U 2.0 2.5 10 50 4 2
EPSBC202012U 2.0 2.5 12 50 4 2
EPSBC202014U 2.0 2.5 14 50 4 2
EPSBC202016U 2.0 2.5 16 50 4 2
EPSBC202018U 2.0 2.5 18 50 4 2
EPSBC202020U 2.0 2.5 20 50 4 2
EPSBC202022U 2.0 2.5 22 60 4 2
EPSBC202025U 2.0 2.5 25 60 4 2
EPSBC202030U 2.0 2.5 30 60 4 2
EPSBC202035U 2.0 2.5 35 60 4 2
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A079
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC202508U 2.5 3.0 8 50 4 2
EPSBC202510U 2.5 3.0 10 50 4 2
EPSBC202512U 2.5 3.0 12 50 4 2
EPSBC202516U 2.5 3.0 16 50 4 2
EPSBC202520U 2.5 3.0 20 50 4 2
EPSBC202525U 2.5 3.0 25 60 4 2
EPSBC202530U 2.5 3.0 30 60 4 2
EPSBC202535U 2.5 3.0 35 60 4 2
EPSRC203006U 3.0 3.5 6 50 6 2
EPSRC203010U 3.0 3.5 10 50 6 2
EPSRC203012U 3.0 3.5 12 50 6 2
EPSRC203016U 3.0 3.5 16 50 6 2
EPSRC203020U 3.0 3.5 20 60 6 2
EPSRC203025U 3.0 3.5 25 60 6 2
EPSRC203030U 3.0 3.5 30 60 6 2
EPSRC203035U 3.0 3.5 35 75 6 2
EPSRC204008U 4.0 4.5 8 50 6 2
EPSRC204010U 4.0 4.5 10 50 6 2
EPSRC204012U 4.0 4.5 12 50 6 2
EPSRC204016U 4.0 4.5 16 50 6 2
EPSRC204020U 4.0 4.5 20 60 6 2
EPSRC204025U 4.0 4.5 25 60 6 2
EPSRC204030U 4.0 4.5 30 60 6 2
EPSRC204035U 4.0 4.5 35 75 6 2
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A080
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSRC205016U 5.0 7.0 16 50 6 2
EPSRC205020U 5.0 7.0 20 60 6 2
EPSRC205025U 5.0 7.0 25 60 6 2
EPSRC205030U 5.0 7.0 30 60 6 2
EPSRC205035U 5.0 7.0 35 75 6 2
EPSRC206020U 6.0 10.0 20 60 6 2
EPSRC206030U 6.0 10.0 30 75 6 2
EPSRC208020U 8.0 15.0 20 60 8 2
EPSRC208030U 8.0 15.0 30 75 8 2
EPSRC208040U 8.0 15.0 40 100 8 2
EPSRC210025U 10.0 20.0 25 75 10 2
EPSRC210035U 10.0 20.0 35 75 10 2
EPSRC210045U 10.0 20.0 45 100 10 2
EPSRC212030U 12.0 25.0 30 75 12 2
EPSRC212040U 12.0 25.0 40 100 12 2
EPSRC212050U 12.0 25.0 50 100 12 2
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC2
EPSRC2
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A081
G550 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 034 ~ 036
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC401003U 1.0 1.0 3 50 4 4
EPSBC401004U 1.0 1.0 4 50 4 4
EPSBC401006U 1.0 1.0 6 50 4 4
EPSBC401008U 1.0 1.0 8 50 4 4
EPSBC401010U 1.0 1.0 10 50 4 4
EPSBC401012U 1.0 1.0 12 50 4 4
EPSBC401016U 1.0 1.0 16 50 4 4
EPSBC401020U 1.0 1.0 20 50 4 4
EPSBC401025U 1.0 1.0 25 60 4 4
EPSRC401004U 1.0 1.0 4 50 6 4
EPSRC401006U 1.0 1.0 6 50 6 4
EPSRC401008U 1.0 1.0 8 50 6 4
EPSRC401010U 1.0 1.0 10 50 6 4
EPSRC401012U 1.0 1.0 12 50 6 4
EPSBC401506U 1.5 1.5 6 50 4 4
EPSBC401508U 1.5 1.5 8 50 4 4
EPSBC401510U 1.5 1.5 10 50 4 4
EPSBC401512U 1.5 1.5 12 50 4 4
EPSBC401516U 1.5 1.5 16 50 4 4
EPSBC401520U 1.5 1.5 20 50 4 4
EPSBC401525U 1.5 1.5 25 60 4 4
EPSRC401506U 1.5 1.5 6 50 6 4
EPSRC401508U 1.5 1.5 8 50 6 4
EPSRC401510U 1.5 1.5 10 50 6 4
EPSRC401512U 1.5 1.5 12 50 6 4
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC4
EPSRC4
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A082
G550 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 037 ~ 038
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSBC402006U 2.0 2.0 6 50 4 4
EPSBC402008U 2.0 2.0 8 50 4 4
EPSBC402010U 2.0 2.0 10 50 4 4
EPSBC402012U 2.0 2.0 12 50 4 4
EPSBC402016U 2.0 2.0 16 50 4 4
EPSBC402020U 2.0 2.0 20 50 4 4
EPSBC402025U 2.0 2.0 25 60 4 4
EPSBC402030U 2.0 2.0 30 60 4 4
EPSRC402006U 2.0 2.0 6 50 6 4
EPSRC402008U 2.0 2.0 8 50 6 4
EPSRC402010U 2.0 2.0 10 50 6 4
EPSRC402016U 2.0 2.0 16 50 6 4
EPSBC402510U 2.5 2.5 10 50 4 4
EPSBC402512U 2.5 2.5 12 50 4 4
EPSBC402516U 2.5 2.5 16 50 4 4
EPSBC402520U 2.5 2.5 20 50 4 4
EPSBC402525U 2.5 2.5 25 60 4 4
EPSBC402530U 2.5 2.5 30 60 4 4
EPSRC402506U 2.5 2.5 6 50 6 4
EPSRC402510U 2.5 2.5 10 50 6 4
EPSRC403010U 3.0 3.0 10 50 6 4
EPSRC403012U 3.0 3.0 12 50 6 4
EPSRC403016U 3.0 3.0 16 50 6 4
EPSRC403020U 3.0 3.0 20 60 6 4
EPSRC403025U 3.0 3.0 25 60 6 4
EPSRC403030U 3.0 3.0 30 60 6 4
EPSRC403035U 3.0 3.0 35 75 6 4
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC4
EPSRC4
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A083
G550 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 037 ~ 038
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSRC404010U 4.0 4.0 10 50 6 4
EPSRC404012U 4.0 4.0 12 50 6 4
EPSRC404016U 4.0 4.0 16 50 6 4
EPSRC404020U 4.0 4.0 20 60 6 4
EPSRC404025U 4.0 4.0 25 60 6 4
EPSRC404030U 4.0 4.0 30 60 6 4
EPSRC405016U 5.0 5.0 16 50 6 4
EPSRC405020U 5.0 5.0 20 60 6 4
EPSRC405025U 5.0 5.0 25 60 6 4
EPSRC405030U 5.0 5.0 30 60 6 4
EPSRC406020U 6.0 6.0 20 60 6 4
EPSRC406030U 6.0 6.0 30 75 6 4
EPSRC408020U 8.0 15.0 20 60 8 4
EPSRC408030U 8.0 15.0 30 75 8 4
EPSRC408040U 8.0 15.0 40 100 8 4
EPSRC410025U 10.0 20.0 25 75 10 4
EPSRC410035U 10.0 20.0 35 100 10 4
EPSRC410045U 10.0 20.0 45 100 10 4
EPSRC412030U 12.0 25.0 30 75 12 4
EPSRC412040U 12.0 25.0 40 100 12 4
EPSRC412050U 12.0 25.0 50 100 12 4
Solid Carbide Endmills
30°
dTolerance
Ø0 ~ -0.02
EPSBC4
EPSRC4
D
d
L1
L
L2
15°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Toughness and reduction of vibration.
Available in various cut lengths.
Suitable for deep cutting application.
．
．
．
．
．
A084
G550 - Long Neck Square Type - 4F 鎢鋼平銑刀 - 長頸型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 037 ~ 038
Solid Carbide Endmills
Order No. Dia.
(d1)
α˚CL
(L1)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFT201005U 1.0 0.5° 4.0 1.07 50 4 2
EPSFT201010U 1.0 1.0° 4.0 1.14 50 4 2
EPSFT201015U 1.0 1.5° 4.0 1.21 50 4 2
EPSFT201020U 1.0 2.0° 4.0 1.28 50 4 2
EPSFT201025U 1.0 2.5° 4.0 1.35 50 4 2
EPSFT201030U 1.0 3.0° 4.0 1.42 50 4 2
EPSFT201050U 1.0 5.0° 4.0 1.70 50 4 2
EPSFT201070U 1.0 7.0° 4.0 1.98 50 4 2
EPSFT2010A0U 1.0 10.0° 4.0 2.41 50 4 2
EPSFT2010A5U 1.0 15.0° 4.0 3.14 50 4 2
EPSFT201505U 1.5 0.5° 5.0 1.59 50 4 2
EPSFT201510U 1.5 1.0° 5.0 1.68 50 4 2
EPSFT201515U 1.5 1.5° 5.0 1.76 50 4 2
EPSFT201520U 1.5 2.0° 5.0 1.85 50 4 2
EPSFT201525U 1.5 2.5° 5.0 1.93 50 4 2
EPSFT201530U 1.5 3.0° 5.0 2.02 50 4 2
EPSFT201535U 1.5 5.0° 5.0 2.37 50 4 2
EPSFT202005U 2.0 0.5° 6.0 2.10 50 4 2
EPSFT202010U 2.0 1.0° 6.0 2.21 50 4 2
EPSFT202015U 2.0 1.5° 6.0 2.31 50 4 2
EPSFT202020U 2.0 2.0° 6.0 2.41 50 4 2
EPSFT202025U 2.0 2.5° 6.0 2.52 50 4 2
EPSFT202030U 2.0 3.0° 6.0 2.62 50 4 2
EPSFT202050U 2.0 5.0° 6.0 3.05 50 4 2
EPSFT202070U 2.0 7.0° 6.0 3.47 50 4 2
EPSST2020A0U 2.0 10.0° 6.0 4.11 50 6 2
EPSST2020A5U 2.0 15.0° 6.0 5.22 50 6 2
dTolerance
Ø0 ~ 0.05
EPSFT2
EPSST2
D
d
L1
L
d2
α°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
High strength of taper cutting length, can cut deep grooves without breaking.
Convenient for Tap cutting in 3 axis machine.
．
．
．
．
A085
G550 - Taper Square Type - 2F 鎢鋼平銑刀 - 斜度型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 039
Solid Carbide Endmills
Order No. Dia.
(d1)
α˚CL
(L1)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFT202505U 2.5 0.5° 8.0 2.64 50 4 2
EPSFT202510U 2.5 1.0° 8.0 2.78 50 4 2
EPSFT202515U 2.5 1.5° 8.0 2.91 50 4 2
EPSFT202520U 2.5 2.0° 8.0 3.05 50 4 2
EPSFT202525U 2.5 2.5° 8.0 3.20 50 4 2
EPSFT202530U 2.5 3.0° 8.0 3.33 50 4 2
EPSFT202550U 2.5 5.0° 8.0 3.90 50 4 2
EPSST203005U 3.0 0.5° 10.0 3.17 50 6 2
EPSST203010U 3.0 1.0° 10.0 3.35 50 6 2
EPSST203015U 3.0 1.5° 10.0 3.52 50 6 2
EPSST203020U 3.0 2.0° 10.0 3.69 50 6 2
EPSST203025U 3.0 2.5° 10.0 3.87 50 6 2
EPSST203030U 3.0 3.0° 10.0 4.05 50 6 2
EPSST203050U 3.0 5.0° 10.0 4.75 50 6 2
EPSST203070U 3.0 7.0° 12.0 6.00 50 6 2
EPSST2030A0U 3.0 10.0° 12.0 7.22 60 8 2
EPSST2030A5U 3.0 15.0° 12.0 9.40 75 10 2
EPSST204005U 4.0 0.5° 15.0 4.26 50 6 2
EPSST204010U 4.0 1.0° 15.0 4.52 50 6 2
EPSST204015U 4.0 1.5° 15.0 4.79 50 6 2
EPSST204020U 4.0 2.0° 15.0 5.04 50 6 2
EPSST204025U 4.0 2.5° 15.0 5.31 50 6 2
EPSST204030U 4.0 3.0° 15.0 5.57 50 6 2
EPSST204050U 4.0 5.0° 15.0 6.62 60 8 2
EPSST204070U 4.0 7.0° 16.0 8.00 60 8 2
EPSST2040A0U 4.0 10.0° 17.0 10.00 75 10 2
EPSST2040A5U 4.0 15.0° 14.9 12.00 75 12 2
dTolerance
Ø0 ~ 0.05
EPSFT2
EPSST2
D
d
L1
L
d2
α°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
High strength of taper cutting length, can cut deep grooves without breaking.
Convenient for Tap cutting in 3 axis machine.
．
．
．
．
A086
G550 - Taper Square Type - 2F 鎢鋼平銑刀 - 斜度型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 039
Solid Carbide Endmills
Order No. Dia.
(d1)
α˚CL
(L1)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSST205005U 5.0 0.5° 20.0 5.34 60 6 2
EPSST205010U 5.0 1.0° 20.0 5.70 60 6 2
EPSST205015U 5.0 1.5° 19.6 6.00 60 6 2
EPSST205020U 5.0 2.0° 20.0 6.39 60 8 2
EPSST205025U 5.0 2.5° 20.0 6.74 60 8 2
EPSST205030U 5.0 3.0° 20.0 7.10 60 8 2
EPSST205050U 5.0 5.0° 20.0 8.50 75 10 2
EPSST205070U 5.0 7.0° 20.0 10.00 75 10 2
EPSST2050A0U 5.0 10.0° 20.0 12.00 75 12 2
EPSST206005U 6.0 0.5° 20.0 6.35 60 8 2
EPSST206010U 6.0 1.0° 20.0 6.70 60 8 2
EPSST206015U 6.0 1.5° 20.0 7.05 60 8 2
EPSST206020U 6.0 2.0° 20.0 7.40 60 8 2
EPSST206025U 6.0 2.5° 20.0 7.75 60 8 2
EPSST206030U 6.0 3.0° 20.0 8.10 75 10 2
EPSST206050U 6.0 5.0° 20.0 9.50 75 10 2
EPSST206070U 6.0 7.0° 24.0 12.00 75 12 2
EPSST2060A0U 6.0 10.0° 22.0 14.00 75 14 2
EPSST208005U 8.0 0.5° 25.0 8.44 75 10 2
EPSST208010U 8.0 1.0° 25.0 8.87 75 10 2
EPSST208015U 8.0 1.5° 25.0 9.31 75 10 2
EPSST208020U 8.0 2.0° 25.0 9.75 75 10 2
EPSST208030U 8.0 3.0° 25.0 10.62 75 12 2
EPSST208050U 8.0 5.0° 25.0 12.37 75 14 2
EPSST208070U 8.0 7.0° 32.0 16.00 100 16 2
EPSST2080A0U 8.0 10.0° 28.0 18.00 100 18 2
EPSST210005U 10.0 0.5° 35.0 10.61 75 12 2
EPSST210010U 10.0 1.0° 35.0 11.22 75 12 2
EPSST210015U 10.0 1.5° 35.0 11.83 75 12 2
EPSST210020U 10.0 2.0° 35.0 12.44 75 14 2
EPSST210030U 10.0 3.0° 35.0 13.67 75 14 2
EPSST210050U 10.0 5.0° 34.2 16.00 100 16 2
dTolerance
Ø0 ~ 0.05
EPSFT2
EPSST2
D
d
L1
L
d2
α°
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
High strength of taper cutting length, can cut deep grooves without breaking.
Convenient for Tap cutting in 3 axis machine.
．
．
．
．
A087
G550 - Taper Square Type - 2F 鎢鋼平銑刀 - 斜度型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 039

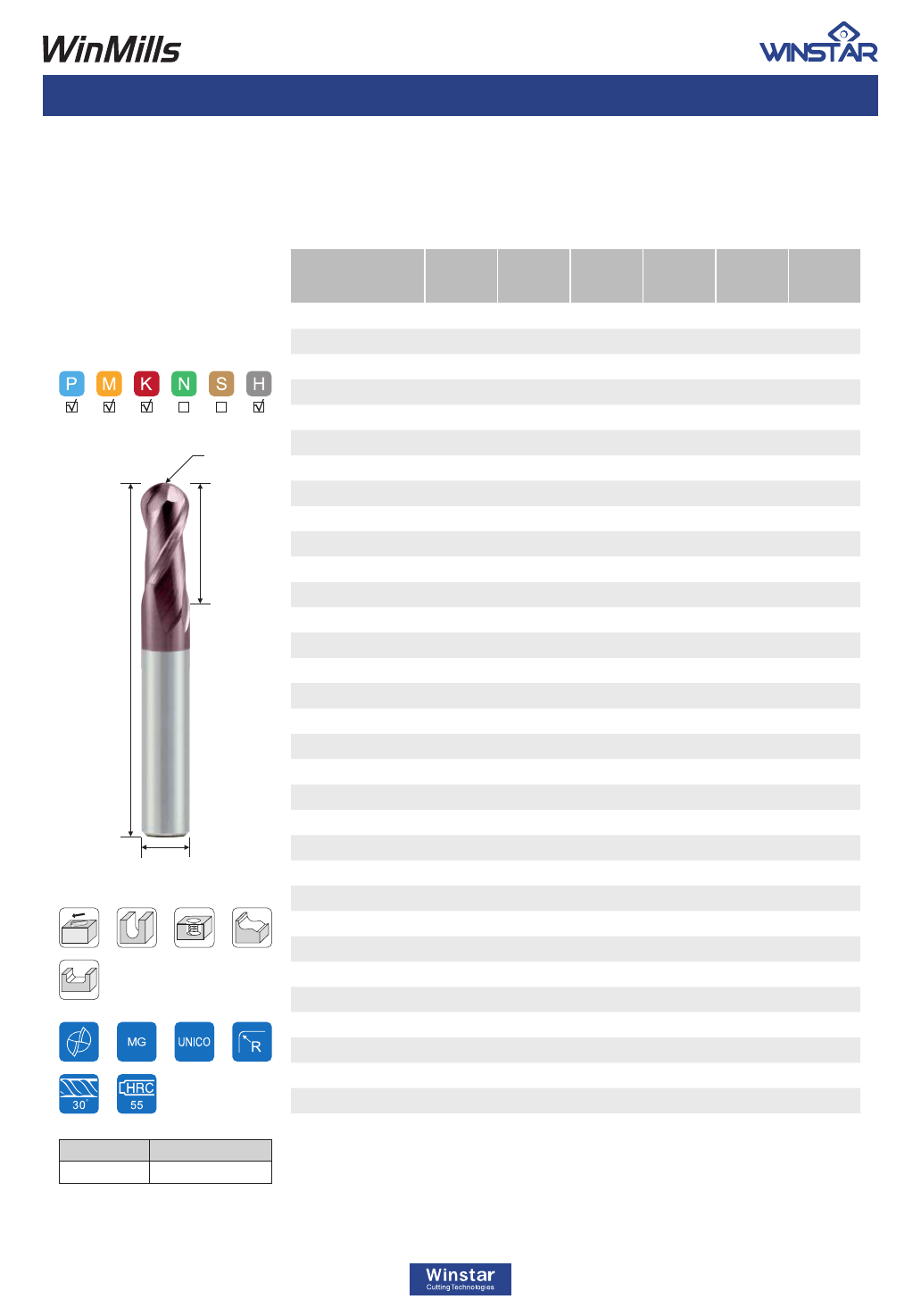

Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBFC200200U 0.10R 0.2 0.4 50 4 2
EPBFC200300U 0.15R 0.3 0.6 50 4 2
EPBFC200400U 0.20R 0.4 0.8 50 4 2
EPBFC200500U 0.25R 0.5 1.0 50 4 2
EPBFC200600U 0.30R 0.6 1.2 50 4 2
EPBFC200700U 0.35R 0.7 1.4 50 4 2
EPBFC200800U 0.40R 0.8 1.6 50 4 2
EPBFC200900U 0.45R 0.9 1.8 50 4 2
EPBFC201000U 0.50R 1.0 2.0 50 4 2
EPBFC201500U 0.75R 1.5 3.0 50 4 2
EPBFC202000U 1.00R 2.0 4.0 50 4 2
EPBFC203000U 1.50R 3.0 6.0 50 4 2
EPBFC204000U 2.00R 4.0 8.0 50 4 2
EPBSC203000U 1.50R 3.0 6.0 50 6 2
EPBSC204000U 2.00R 4.0 8.0 50 6 2
EPBSC205000U 2.50R 5.0 10.0 50 6 2
EPBSC206000U 3.00R 6.0 12.0 50 6 2
EPBSC207000U 3.50R 7.0 14.0 60 8 2
EPBSC208000U 4.00R 8.0 16.0 60 8 2
EPBSC210000U 5.00R 10.0 20.0 75 10 2
EPBSC212000U 6.00R 12.0 24.0 75 12 2
EPBSC216000U 8.00R 16.0 32.0 100 16 2
EPBSC220000U 10.00R 20.0 40.0 100 20 2
dR Tolerance
Ø ± 0.02
EPBFC2
EPBSC2
D
R
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Suitable for high speed prole surface milling.
．
．
．
．
．
A088
G550 - Ball Nose Type - 2F 鎢鋼球型銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 040
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBFC402000U 1.0R 2.0 4 50 4 4
EPBFC403000U 1.5R 3.0 6 50 4 4
EPBFC404000U 2.0R 4.0 8 50 4 4
EPBSC404000U 2.0R 4.0 8 50 6 4
EPBSC405000U 2.5R 5.0 10 50 6 4
EPBSC406000U 3.0R 6.0 12 50 6 4
EPBSC408000U 4.0R 8.0 16 60 8 4
EPBSC410000U 5.0R 10.0 20 75 10 4
EPBSC412000U 6.0R 12.0 24 75 12 4
EPBSC416000U 8.0R 16.0 32 100 16 4
EPBSC420000U 10.0R 20.0 40 100 20 4
dR Tolerance
Ø ± 0.02
EPBFC4
EPBSC4
D
R
L
L1
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Multiple utes design improves the cutting surface.
．
．
．
．
．
A089
G550 - Ball Nose Type - 4F 鎢鋼球型銑刀 - 標準型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 041
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBEC203000U 1.5R 3.0 6 75 4 2
EPBKC203000U 1.5R 3.0 6 100 4 2
EPBJC204000U 2R 4.0 8 60 4 2
EPBEC204000U 2R 4.0 8 75 4 2
EPBKC204000U 2R 4.0 8 100 4 2
EPBMC204000U 2R 4.0 8 60 6 2
EPBLC204000U 2R 4.0 8 75 6 2
EPBNC204000U 2R 4.0 8 100 6 2
EPBMC206000U 3R 6.0 12 60 6 2
EPBLC206000U 3R 6.0 12 75 6 2
EPBNC206000U 3R 6.0 12 100 6 2
EPBMC208000U 4R 8.0 16 75 8 2
EPBLC208000U 4R 8.0 16 100 8 2
EPBNC208000U 4R 8.0 16 150 8 2
EPBLC210000U 5R 10.0 20 100 10 2
EPBNC210000U 5R 10.0 20 150 10 2
EPBLC212000U 6R 12.0 24 100 12 2
EPBNC212000U 6R 12.0 24 150 12 2
EPBLC216000U 8R 16.0 32 150 16 2
EPBLC220000U 10R 20.0 40 150 20 2
dR Tolerance
Ø ± 0.02
EPBEC2
EPBKC2
EPBLC2
EPBNC2
D
R
L
L1
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Suitable for high speed prole surface milling.
．
．
．
．
．
A090
G550 - Long Shank Ball Nose Type - 2F 鎢鋼球型銑刀 - 長柄型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 042
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBEC404000U 2R 4.0 8 75 4 4
EPBKC404000U 2R 4.0 8 100 4 4
EPBLC404000U 2R 4.0 8 75 6 4
EPBNC404000U 2R 4.0 8 100 6 4
EPBLC406000U 3R 6.0 12 75 6 4
EPBNC406000U 3R 6.0 12 100 6 4
EPBMC408000U 4R 8.0 16 75 8 4
EPBLC408000U 4R 8.0 16 100 8 4
EPBNC408000U 4R 8.0 16 150 8 4
EPBLC410000U 5R 10.0 20 100 10 4
EPBNC410000U 5R 10.0 20 150 10 4
EPBLC412000U 6R 12.0 24 100 12 4
EPBNC412000U 6R 12.0 24 150 12 4
EPBLC416000U 8R 16.0 32 150 16 4
dR Tolerance
Ø ± 0.02
EPBEC4
EPBKC4
EPBLC4
EPBNC4
D
R
L
L1
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Multiple utes design and long shank design makes possible deep surface cutting.
．
．
．
．
．
A091
G550 - Long Shank Ball Nose Type - 4F 鎢鋼球型銑刀 - 長柄型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 043

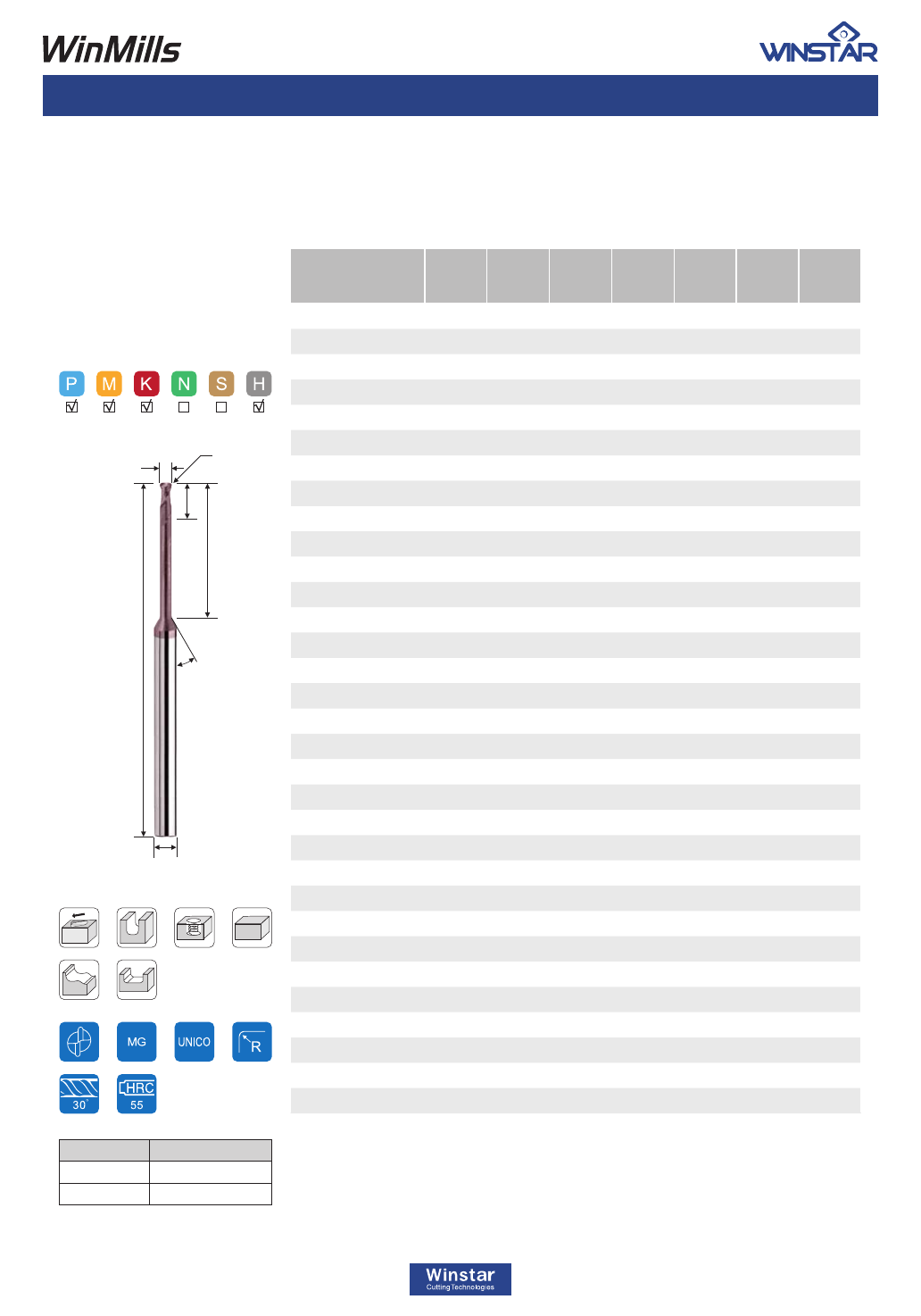

Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBBC200301U 0.15R 0.3 0.3 1 50 4 2
EPBBC200302U 0.15R 0.3 0.3 2 50 4 2
EPBBC200303U 0.15R 0.3 0.3 3 50 4 2
EPBBC200401U 0.20R 0.4 0.4 1 50 4 2
EPBBC200402U 0.20R 0.4 0.4 2 50 4 2
EPBBC200403U 0.20R 0.4 0.4 3 50 4 2
EPBBC200404U 0.20R 0.4 0.4 4 50 4 2
EPBBC200405U 0.20R 0.4 0.4 5 50 4 2
EPBBC200406U 0.20R 0.4 0.4 6 50 4 2
EPBBC200408U 0.20R 0.4 0.4 8 50 4 2
EPBBC200501U 0.25R 0.5 0.5 1 50 4 2
EPBBC200502U 0.25R 0.5 0.5 2 50 4 2
EPBBC200503U 0.25R 0.5 0.5 3 50 4 2
EPBBC200504U 0.25R 0.5 0.5 4 50 4 2
EPBBC200505U 0.25R 0.5 0.5 5 50 4 2
EPBBC200506U 0.25R 0.5 0.5 6 50 4 2
EPBBC200508U 0.25R 0.5 0.5 8 50 4 2
EPBBC200510U 0.25R 0.5 0.5 10 50 4 2
EPBBC200601U 0.30R 0.6 0.6 1 50 4 2
EPBBC200602U 0.30R 0.6 0.6 2 50 4 2
EPBBC200603U 0.30R 0.6 0.6 3 50 4 2
EPBBC200604U 0.30R 0.6 0.6 4 50 4 2
EPBBC200605U 0.30R 0.6 0.6 5 50 4 2
EPBBC200606U 0.30R 0.6 0.6 6 50 4 2
EPBBC200608U 0.30R 0.6 0.6 8 50 4 2
EPBBC200610U 0.30R 0.6 0.6 10 50 4 2
EPBBC200612U 0.30R 0.6 0.6 12 50 4 2
dR Tolerance
Ø ± 0.02
EPBBC2
EPBRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
A092
G550 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 044 ~ 046
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBBC200702U 0.35R 0.7 0.7 2 50 4 2
EPBBC200704U 0.35R 0.7 0.7 4 50 4 2
EPBBC200708U 0.35R 0.7 0.7 8 50 4 2
EPBBC200710U 0.35R 0.7 0.7 10 50 4 2
EPBBC200712U 0.35R 0.7 0.7 12 50 4 2
EPBBC200802U 0.40R 0.8 0.8 2 50 4 2
EPBBC200804U 0.40R 0.8 0.8 4 50 4 2
EPBBC200806U 0.40R 0.8 0.8 6 50 4 2
EPBBC200808U 0.40R 0.8 0.8 8 50 4 2
EPBBC200810U 0.40R 0.8 0.8 10 50 4 2
EPBBC200812U 0.40R 0.8 0.8 12 50 4 2
EPBBC200904U 0.45R 0.9 0.9 4 50 4 2
EPBBC201002U 0.50R 1.0 1.0 2 50 4 2
EPBBC201003U 0.50R 1.0 1.0 3 50 4 2
EPBBC201004U 0.50R 1.0 1.0 4 50 4 2
EPBBC201005U 0.50R 1.0 1.0 5 50 4 2
EPBBC201006U 0.50R 1.0 1.0 6 50 4 2
EPBBC201008U 0.50R 1.0 1.0 8 50 4 2
EPBBC201010U 0.50R 1.0 1.0 10 50 4 2
EPBBC201012U 0.50R 1.0 1.0 12 50 4 2
EPBBC201014U 0.50R 1.0 1.0 14 50 4 2
EPBBC201016U 0.50R 1.0 1.0 16 50 4 2
EPBBC201018U 0.50R 1.0 1.0 18 50 4 2
EPBBC201020U 0.50R 1.0 1.0 20 50 4 2
EPBBC201022U 0.50R 1.0 1.0 22 60 4 2
EPBRC201004U 0.50R 1.0 1.0 4 50 6 2
EPBRC201006U 0.50R 1.0 1.0 6 50 6 2
EPBRC201008U 0.50R 1.0 1.0 8 50 6 2
EPBRC201010U 0.50R 1.0 1.0 10 50 6 2
EPBRC201012U 0.50R 1.0 1.0 12 50 6 2
Solid Carbide Endmills
dR Tolerance
Ø ± 0.02
EPBBC2
EPBRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
A093
G550 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 044 ~ 046
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBBC201204U 0.60R 1.2 1.2 4 50 4 2
EPBBC201206U 0.60R 1.2 1.2 6 50 4 2
EPBBC201208U 0.60R 1.2 1.2 8 50 4 2
EPBBC201210U 0.60R 1.2 1.2 10 50 4 2
EPBBC201212U 0.60R 1.2 1.2 12 50 4 2
EPBBC201216U 0.60R 1.2 1.2 16 50 4 2
EPBBC201220U 0.60R 1.2 1.2 20 50 4 2
EPBBC201224U 0.60R 1.2 1.2 24 60 4 2
EPBBC201406U 0.70R 1.4 1.4 6 50 4 2
EPBBC201408U 0.70R 1.4 1.4 8 50 4 2
EPBBC201412U 0.70R 1.4 1.4 12 50 4 2
EPBBC201416U 0.70R 1.4 1.4 16 50 4 2
EPBBC201503U 0.75R 1.5 1.5 3 50 4 2
EPBBC201504U 0.75R 1.5 1.5 4 50 4 2
EPBBC201506U 0.75R 1.5 1.5 6 50 4 2
EPBBC201508U 0.75R 1.5 1.5 8 50 4 2
EPBBC201510U 0.75R 1.5 1.5 10 50 4 2
EPBBC201512U 0.75R 1.5 1.5 12 50 4 2
EPBBC201514U 0.75R 1.5 1.5 14 50 4 2
EPBBC201516U 0.75R 1.5 1.5 16 50 4 2
EPBBC201518U 0.75R 1.5 1.5 18 50 4 2
EPBBC201520U 0.75R 1.5 1.5 20 50 4 2
EPBBC201522U 0.75R 1.5 1.5 22 60 4 2
EPBBC201525U 0.75R 1.5 1.5 25 60 4 2
EPBBC201530U 0.75R 1.5 1.5 30 60 4 2
EPBRC201506U 0.75R 1.5 1.5 6 50 6 2
EPBRC201508U 0.75R 1.5 1.5 8 50 6 2
EPBRC201510U 0.75R 1.5 1.5 10 50 6 2
EPBRC201512U 0.75R 1.5 1.5 12 50 6 2
Solid Carbide Endmills
dR Tolerance
Ø ± 0.02
EPBBC2
EPBRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
A094
G550 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 044 ~ 046
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBBC201606U 0.80R 1.6 1.6 6 50 4 2
EPBBC201608U 0.80R 1.6 1.6 8 50 4 2
EPBBC201612U 0.80R 1.6 1.6 12 50 4 2
EPBBC201616U 0.80R 1.6 1.6 16 50 4 2
EPBBC201620U 0.80R 1.6 1.6 20 50 4 2
EPBBC201806U 0.90R 1.8 1.8 6 50 4 2
EPBBC201808U 0.90R 1.8 1.8 8 50 4 2
EPBBC201812U 0.90R 1.8 1.8 12 50 4 2
EPBBC201816U 0.90R 1.8 1.8 16 50 4 2
EPBBC201820U 0.90R 1.8 1.8 20 50 4 2
EPBBC202004U 1.00R 2.0 2.0 4 50 4 2
EPBBC202006U 1.00R 2.0 2.0 6 50 4 2
EPBBC202008U 1.00R 2.0 2.0 8 50 4 2
EPBBC202010U 1.00R 2.0 2.0 10 50 4 2
EPBBC202012U 1.00R 2.0 2.0 12 50 4 2
EPBBC202014U 1.00R 2.0 2.0 14 50 4 2
EPBBC202016U 1.00R 2.0 2.0 16 50 4 2
EPBBC202018U 1.00R 2.0 2.0 18 50 4 2
EPBBC202020U 1.00R 2.0 2.0 20 50 4 2
EPBBC202022U 1.00R 2.0 2.0 22 60 4 2
EPBBC202025U 1.00R 2.0 2.0 25 60 4 2
EPBRC202006U 1.00R 2.0 2.0 6 50 6 2
EPBRC202008U 1.00R 2.0 2.0 8 50 6 2
EPBRC202010U 1.00R 2.0 2.0 10 50 6 2
EPBRC202016U 1.00R 2.0 2.0 16 50 6 2
Solid Carbide Endmills
dR Tolerance
Ø ± 0.02
EPBBC2
EPBRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
A095
G550 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 044 ~ 046
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBBC202508U 1.25R 2.5 2.5 8 50 4 2
EPBBC202510U 1.25R 2.5 2.5 10 50 4 2
EPBBC202516U 1.25R 2.5 2.5 16 50 4 2
EPBBC202520U 1.25R 2.5 2.5 20 60 4 2
EPBBC202525U 1.25R 2.5 2.5 25 60 4 2
EPBBC202530U 1.25R 2.5 2.5 30 60 4 2
EPBRC202506U 1.25R 2.5 2.5 6 50 6 2
EPBRC202510U 1.25R 2.5 2.5 10 50 6 2
EPBRC203006U 1.50R 3.0 3.0 6 50 6 2
EPBRC203008U 1.50R 3.0 3.0 8 50 6 2
EPBRC203012U 1.50R 3.0 3.0 12 50 6 2
EPBRC203016U 1.50R 3.0 3.0 16 60 6 2
EPBRC203020U 1.50R 3.0 3.0 20 60 6 2
EPBRC203025U 1.50R 3.0 3.0 25 60 6 2
EPBRC203030U 1.50R 3.0 3.0 30 60 6 2
EPBRC203035U 1.50R 3.0 3.0 35 75 6 2
EPBRC204008U 2.00R 4.0 4.0 8 50 6 2
EPBRC204010U 2.00R 4.0 4.0 10 50 6 2
EPBRC204012U 2.00R 4.0 4.0 12 50 6 2
EPBRC204016U 2.00R 4.0 4.0 16 60 6 2
EPBRC204020U 2.00R 4.0 4.0 20 60 6 2
EPBRC204025U 2.00R 4.0 4.0 25 60 6 2
EPBRC204030U 2.00R 4.0 4.0 30 60 6 2
EPBRC204035U 2.00R 4.0 4.0 35 75 6 2
EPBRC205015U 2.50R 5.0 5.0 15 60 6 2
EPBRC205020U 2.50R 5.0 5.0 20 60 6 2
EPBRC205025U 2.50R 5.0 5.0 25 60 6 2
EPBRC205030U 2.50R 5.0 5.0 30 75 6 2
EPBRC206015U 3.00R 6.0 10.0 15 50 6 2
EPBRC208025U 4.00R 8.0 12.0 25 60 8 2
EPBRC210030U 5.00R 10.0 16.0 30 75 10 2
EPBRC212030U 6.00R 12.0 18.0 30 75 12 2
Solid Carbide Endmills
dR Tolerance
Ø ± 0.02
EPBBC2
EPBRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
A096
G550 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 044 ~ 046
Solid Carbide Endmills
Order No. Radius
(R)
α°CL
(L1)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBFT202010U 1.00R 1° 8 2.24 50 4 2
EPBFT202030U 1.00R 3° 8 2.74 50 4 2
EPBFT202050U 1.00R 5° 8 3.23 50 4 2
EPBFT202510U 1.25R 1° 10 2.81 50 4 2
EPBFT202530U 1.25R 3° 10 3.42 50 4 2
EPBST202550U 1.25R 5° 10 4.04 50 6 2
EPBFT203010U 1.50R 1° 12 3.37 50 4 2
EPBST203030U 1.50R 3° 12 4.10 50 6 2
EPBST203050U 1.50R 5° 12 4.85 50 6 2
EPBST204010U 2.00R 1° 16 4.49 60 6 2
EPBST204030U 2.00R 3° 16 5.47 60 6 2
EPBST204050U 2.00R 5° 16 6.46 60 8 2
EPBST206010U 3.00R 1° 24 6.73 75 8 2
EPBST206030U 3.00R 3° 24 8.20 75 10 2
EPBST206050U 3.00R 5° 24 9.67 75 10 2
dR Tolerance
Ø ± 0.02
EPBFT2
EPBST2
D
L1
L
d2
α°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Tape cutting length is convenient for high performance 3D milling.
Stronger geometry design gives good wear resistance.
．
．
．
．
A097

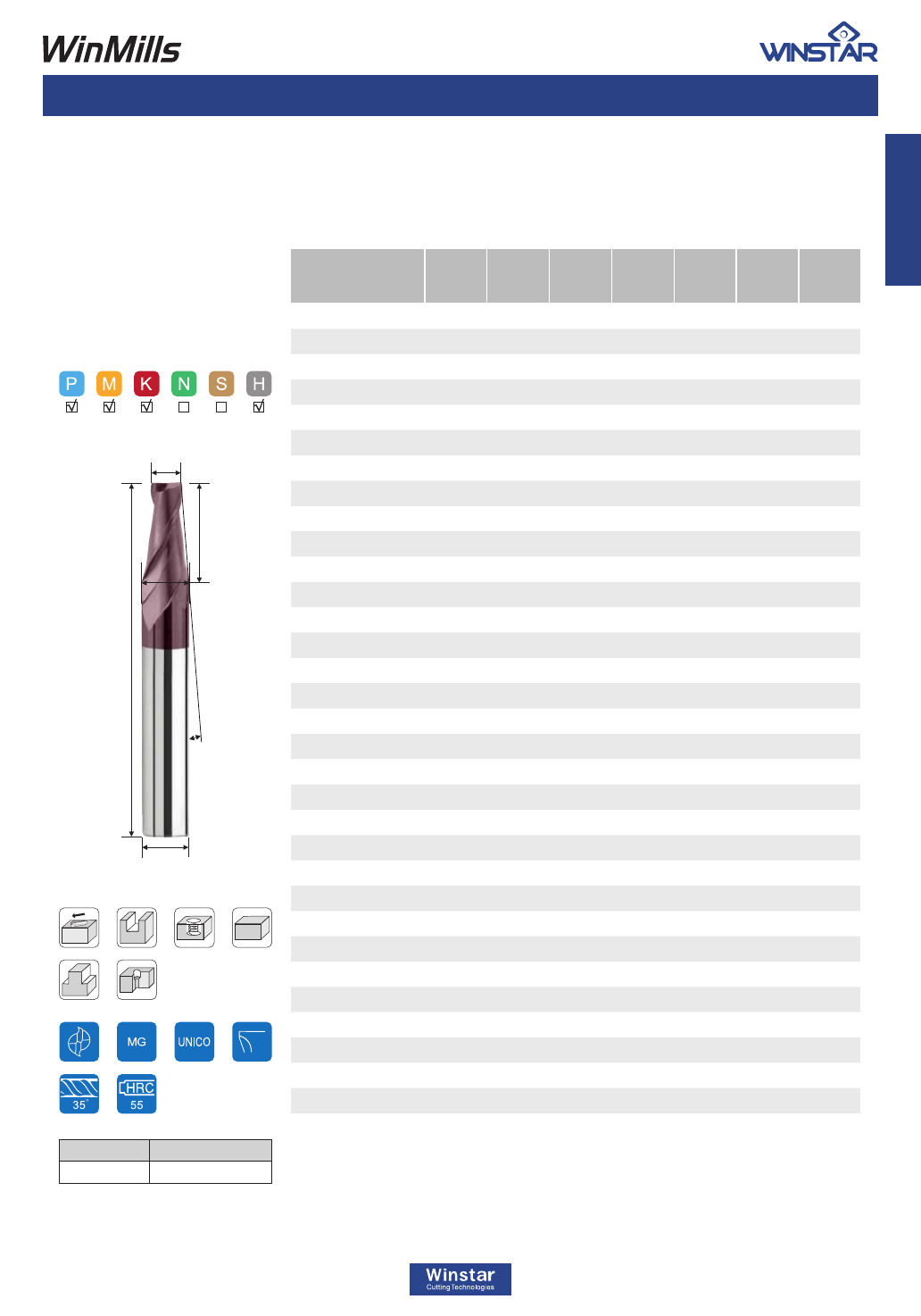

G550 - Taper Ball Nose Type - 2F 鎢鋼球型銑刀 - 斜度型 - 2刃
Solid Carbide Endmills

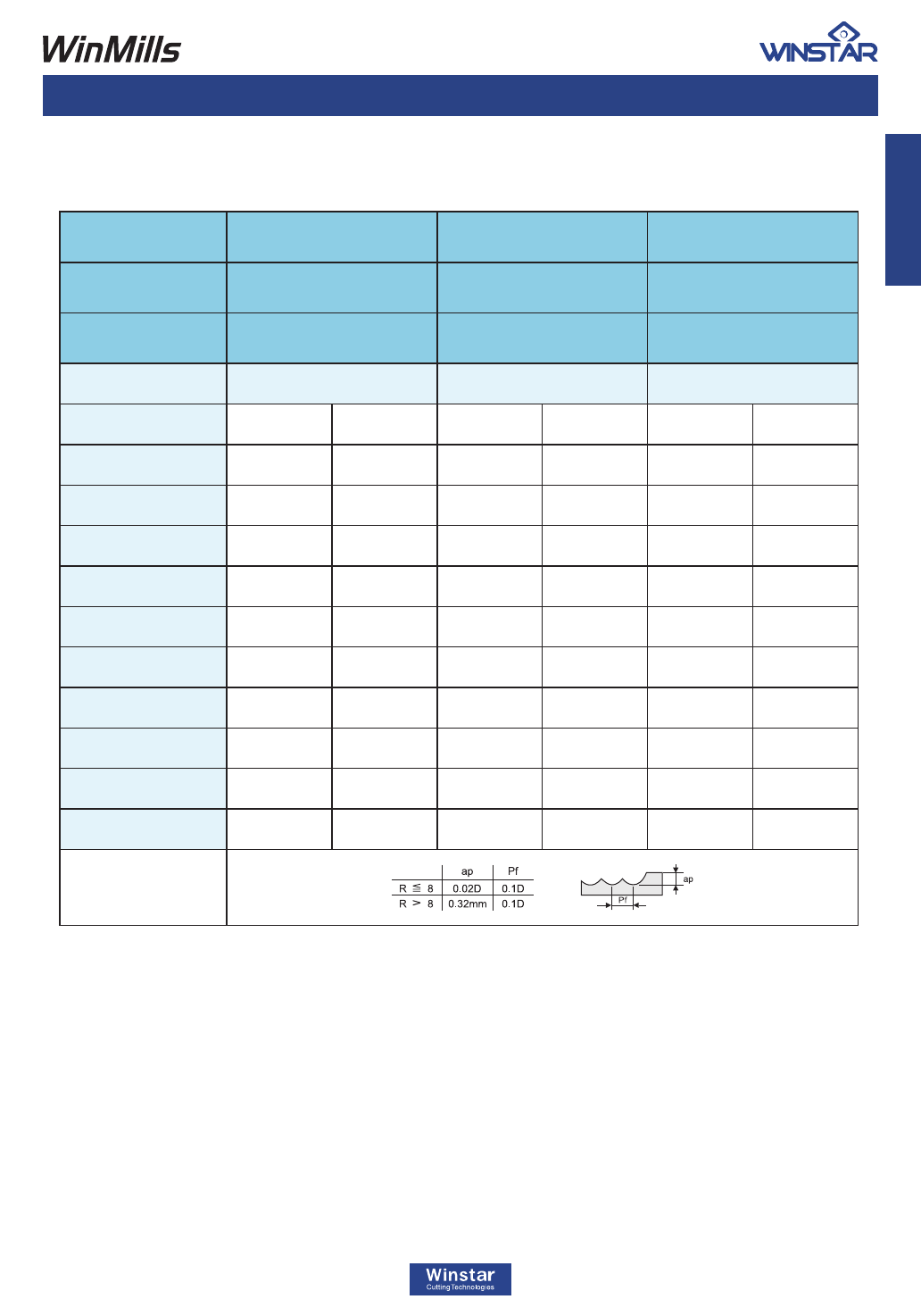

Cutting conditions( 建議切削參數表 ) : Table 047
Solid Carbide Endmills
Order No.
Radius
(R)
Dia.
(d)
θ˚ CL
(L1)
EFF-L
(L2)
NL
(d2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPBRT201023AU
0.5R 1 1.5° 2 23 2.10 60 6 2
EPBRT2010235U
0.5R 1 5.0° 2 23 4.67 60 6 2
EPBRT2010423U
0.5R 1 3.0° 2 42 5.19 75 6 2
EPBRT202035HU
1.0R 2 0.5° 4 35 2.54 75 6 2
EPBRT2020351U
1.0R 2 1.0° 4 35 3.08 75 6 2
EPBRT202023AU
1.0R 2 1.5° 4 23 3.00 60 6 2
EPBRT202035AU
1.0R 2 1.5° 4 35 3.62 75 6 2
EPBRT2020235U
1.0R 2 5.0° 4 23 5.32 60 6 2
EPBRT2020413U
1.0R 2 3.0° 4 41 5.88 75 6 2
EPBRT203052AU
1.5R 3 1.5° 6 52 5.40 100 6 2
EPBRT2030323U
1.5R 3 3.0° 6 32 5.73 75 6 2
EPBRT204046AU
2.0R 4 1.5° 8 46 6.00 100 6 2
EPBRT2040273U
2.0R 4 3.0° 8 27 6.00 75 6 2
dR Tolerance
Ø ± 0.02
EPBRT2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Suitable for high performance prole milling.
High strength of taper neck, can cut deep grooves without breaking.
．
．
．
．
D
Ld2
L1
L2
R
θ
°
A098
G550 - Taper Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 斜頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 047
Solid Carbide Endmills
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
1Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCFC201001U 1.0 0.1R 2 50 4 2
EPCFC201002U 1.0 0.2R 2 50 4 2
EPCFC201003U 1.0 0.3R 2 50 4 2
EPCFC201502U 1.5 0.2R 3 50 4 2
EPCFC201503U 1.5 0.3R 3 50 4 2
EPCFC201505U 1.5 0.5R 3 50 4 2
EPCFC202002U 2.0 0.2R 4 50 4 2
EPCFC202003U 2.0 0.3R 4 50 4 2
EPCFC202005U 2.0 0.5R 4 50 4 2
EPCFC203002U 3.0 0.2R 6 50 4 2
EPCFC203003U 3.0 0.3R 6 50 4 2
EPCFC203005U 3.0 0.5R 6 50 4 2
EPCFC204002U 4.0 0.2R 8 50 4 2
EPCFC204003U 4.0 0.3R 8 50 4 2
EPCFC204005U 4.0 0.5R 8 50 4 2
EPCFC204010U 4.0 1R 8 50 4 2
EPCSC204003U 4.0 0.3R 8 50 6 2
EPCSC204005U 4.0 0.5R 8 50 6 2
EPCSC204010U 4.0 1R 8 50 6 2
EPCSC205005U 5.0 0.5R 10 50 6 2
EPCSC205010U 5.0 1R 10 50 6 2
EPCSC206003U 6.0 0.3R 12 50 6 2
EPCSC206005U 6.0 0.5R 12 50 6 2
EPCSC206010U 6.0 1R 12 50 6 2
EPCSC208005U 8.0 0.5R 16 60 8 2
EPCSC208010U 8.0 1R 16 60 8 2
EPCSC208015U 8.0 1.5R 16 60 8 2
EPCSC210005U 10.0 0.5R 20 75 10 2
EPCSC210010U 10.0 1R 20 75 10 2
EPCSC210015U 10.0 1.5R 20 75 10 2
EPCSC212020U 10.0 2R 20 75 10 2
EPCSC212005U 12.0 0.5R 20 75 12 2
EPCSC212010U 12.0 1R 20 75 12 2
EPCSC212015U 12.0 1.5R 20 75 12 2
EPCSC212020U 12.0 2R 20 75 12 2
EPCSC2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Corner radius design is suitable for high speed surface milling and proling.
．
．
．
A099
G550 - Corner Radius Type - 2F 鎢鋼圓筆銑刀 - 標準型 - 2刃
D
d
L1
L
R
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 048
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCFC401002U 1 0.2R 2 50 4 4
EPCFC401003U 1 0.3R 2 50 4 4
EPCFC401502U 1.5 0.2R 3 50 4 4
EPCFC401503U 1.5 0.3R 3 50 4 4
EPCFC401505U 1.5 0.5R 3 50 4 4
EPCFC402002U 2.0 0.2R 4 50 4 4
EPCFC402003U 2.0 0.3R 4 50 4 4
EPCFC402005U 2.0 0.5R 4 50 4 4
EPCFC403002U 3 0.2R 6 50 4 4
EPCFC403003U 3 0.3R 6 50 4 4
EPCFC403005U 3 0.5R 6 50 4 4
EPCFC403010U 3 1R 6 50 4 4
EPCFC404001U 4 0.1R 8 50 4 4
EPCFC404002U 4 0.2R 8 50 4 4
EPCFC404003U 4 0.3R 8 50 4 4
EPCFC404005U 4 0.5R 8 50 4 4
EPCFC404010U 4 1R 8 50 4 4
EPCSC403003U 3 0.3R 6 50 6 4
EPCSC403005U 3 0.5R 6 50 6 4
EPCSC403010U 3 1R 6 50 6 4
EPCSC404003U 4 0.3R 8 50 6 4
EPCSC404005U 4 0.5R 8 50 6 4
EPCSC404010U 4 1R 8 50 6 4
EPCSC405005U 5 0.5R 10 50 6 4
EPCSC405010U 5 1R 10 50 6 4
EPCSC406003U 6 0.3R 12 50 6 4
EPCSC406005U 6 0.5R 12 50 6 4
EPCSC406010U 6 1R 12 50 6 4
EPCSC408005U 8 0.5R 16 60 8 4
EPCSC408010U 8 1R 16 60 8 4
EPCSC408015U 8 1.5R 16 60 8 4
EPCSC410005U 10 0.5R 20 75 10 4
EPCSC410010U 10 1R 20 75 10 4
EPCSC410015U 10 1.5R 20 75 10 4
EPCSC410020U 10 2R 20 75 10 4
EPCSC412005U 12 0.5R 24 75 12 4
EPCSC412010U 12 1R 24 75 12 4
EPCSC412015U 12 1.5R 24 75 12 4
EPCSC412020U 12 2R 24 75 12 4
EPCSC412030U 12 3R 24 75 12 4
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
EPCSC4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Corner radius with multiple design increases the nish milling surface.
．
．
．
A100

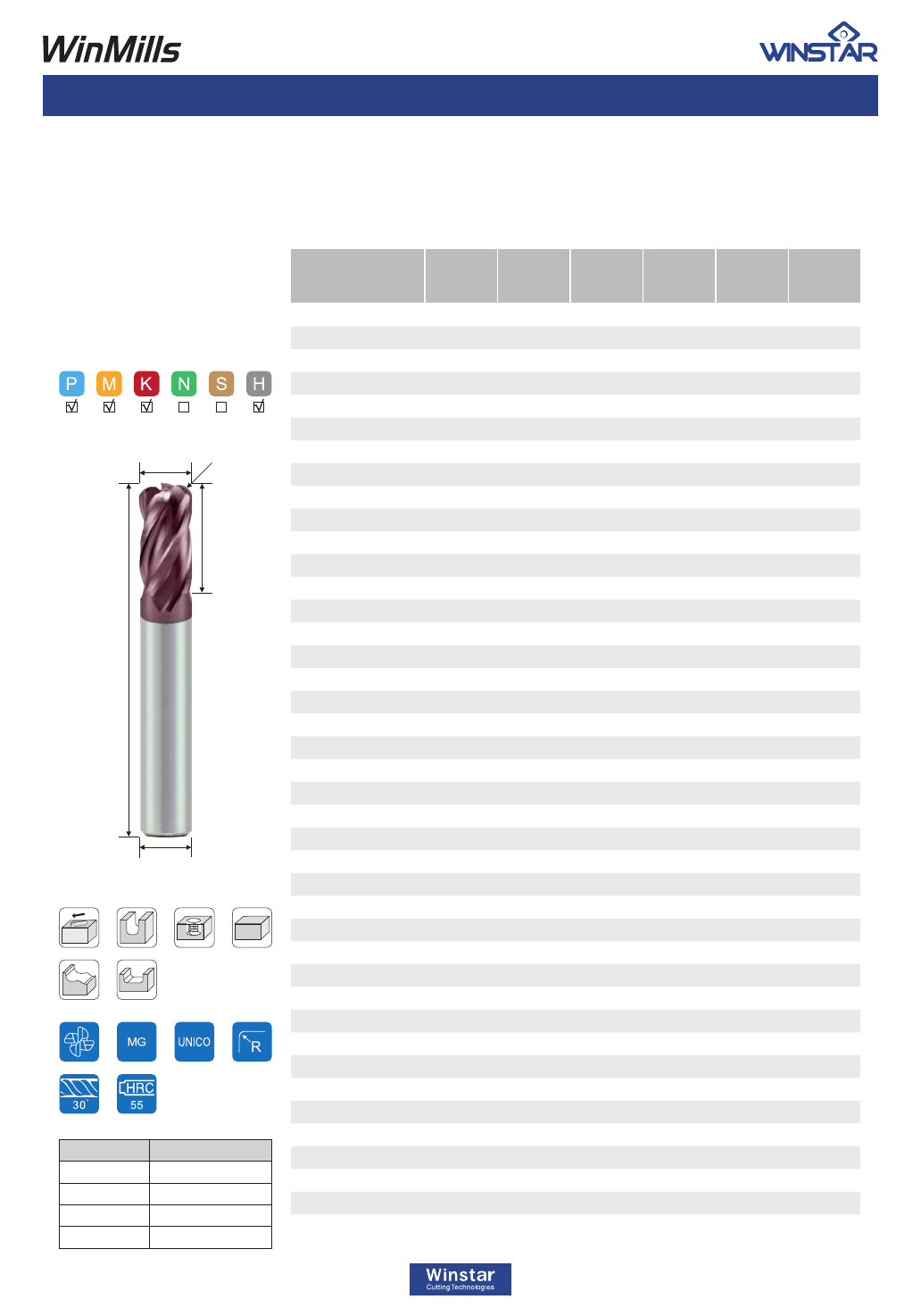

G550 - Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 標準型 - 4刃
D
L1
L
dR
Cutting conditions( 建議切削參數表 ) : Table 049
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCFH403005U 3.0 0.5R 6 50 4 4
EPCFH404005U 4.0 0.5R 8 50 4 4
EPCSH405005U 5.0 0.5R 10 50 6 4
EPCSH405010U 5.0 1.0R 10 50 6 4
EPCSH406005U 6.0 0.5R 12 50 6 4
EPCSH406010U 6.0 1.0R 12 50 6 4
EPCSH408005U 8.0 0.5R 16 60 8 4
EPCSH408010U 8.0 1.0R 16 60 8 4
EPCSH410005U 10.0 0.5R 20 75 10 4
EPCSH410010U 10.0 1.0R 20 75 10 4
EPCSH410015U 10.0 1.5R 20 75 10 4
EPCSH410020U 10.0 2.0R 20 75 10 4
EPCSH412010U 12.0 1.0R 24 75 12 4
EPCSH412020U 12.0 2.0R 24 75 12 4
EPCSH412030U 12.0 3.0R 24 75 12 4
45°
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
EPCSH4
D
d
L1
L
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Corner radius with high helix angle improves the side milling quality.
．
．
．
A101
G550 - High Helix Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 高導型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 050
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCEC404005U 4 0.5R 8 75 4 4
EPCKC404005U 4 0.5R 8 100 4 4
EPCLC403005U 3 0.5R 6 75 6 4
EPCLC403010U 3 1R 6 75 6 4
EPCLC404005U 4 0.5R 8 75 6 4
EPCLC404010U 4 1R 8 75 6 4
EPCLC405005U 5 0.5R 10 75 6 4
EPCLC405010U 5 1R 10 75 6 4
EPCLC406005U 6 0.5R 12 75 6 4
EPCLC406010U 6 1R 12 75 6 4
EPCNC406005U 6 0.5R 12 100 6 4
EPCMC408005U 8 0.5R 16 75 8 4
EPCLC408005U 8 0.5R 16 100 8 4
EPCLC408010U 8 1R 16 100 8 4
EPCLC408015U 8 1.5R 16 100 8 4
EPCLC410005U 10 0.5R 20 100 10 4
EPCLC410010U 10 1R 20 100 10 4
EPCLC410015U 10 1.5R 20 100 10 4
EPCLC410020U 10 2R 20 100 10 4
EPCNC410005U 10 0.5R 20 150 10 4
EPCLC412005U 12 0.5R 24 100 12 4
EPCLC412010U 12 1R 24 100 12 4
EPCLC412015U 12 1.5R 24 100 12 4
EPCLC412020U 12 2R 24 100 12 4
EPCNC412005U 12 0.5R 24 150 12 4
EPCLC416010U 16 1R 32 150 16 4
EPCLC416020U 16 2R 32 150 16 4
EPCLC416030U 16 3R 32 150 16 4
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
EPCLC4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Corner radius with multiple utes is suitable for general cutting and 3D milling.
．
．
．
A102
G550 - Long Shank Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長柄型 - 4刃
D
L
dR
L1
Cutting conditions( 建議切削參數表 ) : Table 051
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC20100104U 1.0 0.1R 1.0 4 50 4 2
EPCBC20100106U 1.0 0.1R 1.0 6 50 4 2
EPCBC20100108U 1.0 0.1R 1.0 8 50 4 2
EPCBC20100110U 1.0 0.1R 1.0 10 50 4 2
EPCBC20100112U 1.0 0.1R 1.0 12 50 4 2
EPCBC20100204U 1.0 0.2R 1.0 4 50 4 2
EPCBC20100206U 1.0 0.2R 1.0 6 50 4 2
EPCBC20100208U 1.0 0.2R 1.0 8 50 4 2
EPCBC20100210U 1.0 0.2R 1.0 10 50 4 2
EPCBC20100212U 1.0 0.2R 1.0 12 50 4 2
EPCBC20100304U 1.0 0.3R 1.0 4 50 4 2
EPCBC20100306U 1.0 0.3R 1.0 6 50 4 2
EPCBC20100308U 1.0 0.3R 1.0 8 50 4 2
EPCBC20100310U 1.0 0.3R 1.0 10 50 4 2
EPCBC20100312U 1.0 0.3R 1.0 12 50 4 2
EPCBC20120104U 1.2 0.1R 1.2 4 50 4 2
EPCBC20120106U 1.2 0.1R 1.2 6 50 4 2
EPCBC20120108U 1.2 0.1R 1.2 8 50 4 2
EPCBC20120110U 1.2 0.1R 1.2 10 50 4 2
EPCBC20120112U 1.2 0.1R 1.2 12 50 4 2
EPCBC20120204U 1.2 0.2R 1.2 4 50 4 2
EPCBC20120206U 1.2 0.2R 1.2 6 50 4 2
EPCBC20120208U 1.2 0.2R 1.2 8 50 4 2
EPCBC20120210U 1.2 0.2R 1.2 10 50 4 2
EPCBC20120212U 1.2 0.2R 1.2 12 50 4 2
EPCBC20120304U 1.2 0.3R 1.2 4 50 4 2
EPCBC20120306U 1.2 0.3R 1.2 6 50 4 2
EPCBC20120308U 1.2 0.3R 1.2 8 50 4 2
EPCBC20120310U 1.2 0.3R 1.2 10 50 4 2
EPCBC20120312U 1.2 0.3R 1.2 12 50 4 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A103
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC20150106U 1.5 0.1R 1.5 6 50 4 2
EPCBC20150108U 1.5 0.1R 1.5 8 50 4 2
EPCBC20150110U 1.5 0.1R 1.5 10 50 4 2
EPCBC20150112U 1.5 0.1R 1.5 12 50 4 2
EPCBC20150116U 1.5 0.1R 1.5 16 50 4 2
EPCBC20150206U 1.5 0.2R 1.5 6 50 4 2
EPCBC20150208U 1.5 0.2R 1.5 8 50 4 2
EPCBC20150210U 1.5 0.2R 1.5 10 50 4 2
EPCBC20150212U 1.5 0.2R 1.5 12 50 4 2
EPCBC20150216U 1.5 0.2R 1.5 16 50 4 2
EPCBC20150306U 1.5 0.3R 1.5 6 50 4 2
EPCBC20150308U 1.5 0.3R 1.5 8 50 4 2
EPCBC20150310U 1.5 0.3R 1.5 10 50 4 2
EPCBC20150312U 1.5 0.3R 1.5 12 50 4 2
EPCBC20150316U 1.5 0.3R 1.5 16 50 4 2
EPCBC20150506U 1.5 0.5R 1.5 6 50 4 2
EPCBC20150508U 1.5 0.5R 1.5 8 50 4 2
EPCBC20150510U 1.5 0.5R 1.5 10 50 4 2
EPCBC20150512U 1.5 0.5R 1.5 12 50 4 2
EPCBC20150516U 1.5 0.5R 1.5 16 50 4 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A104
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC20200106U 2.0 0.1R 2.0 6 50 4 2
EPCBC20200108U 2.0 0.1R 2.0 8 50 4 2
EPCBC20200110U 2.0 0.1R 2.0 10 50 4 2
EPCBC20200112U 2.0 0.1R 2.0 12 50 4 2
EPCBC20200116U 2.0 0.1R 2.0 16 50 4 2
EPCBC20200120U 2.0 0.1R 2.0 20 50 4 2
EPCBC20200125U 2.0 0.1R 2.0 25 60 4 2
EPCBC20200206U 2.0 0.2R 2.0 6 50 4 2
EPCBC20200208U 2.0 0.2R 2.0 8 50 4 2
EPCBC20200210U 2.0 0.2R 2.0 10 50 4 2
EPCBC20200212U 2.0 0.2R 2.0 12 50 4 2
EPCBC20200216U 2.0 0.2R 2.0 16 50 4 2
EPCBC20200220U 2.0 0.2R 2.0 20 50 4 2
EPCBC20200225U 2.0 0.2R 2.0 25 60 4 2
EPCBC20200306U 2.0 0.3R 2.0 6 50 4 2
EPCBC20200308U 2.0 0.3R 2.0 8 50 4 2
EPCBC20200310U 2.0 0.3R 2.0 10 50 4 2
EPCBC20200312U 2.0 0.3R 2.0 12 50 4 2
EPCBC20200316U 2.0 0.3R 2.0 16 50 4 2
EPCBC20200320U 2.0 0.3R 2.0 20 50 4 2
EPCBC20200325U 2.0 0.3R 2.0 25 60 4 2
EPCBC20200506U 2.0 0.5R 2.0 6 50 4 2
EPCBC20200508U 2.0 0.5R 2.0 8 50 4 2
EPCBC20200510U 2.0 0.5R 2.0 10 50 4 2
EPCBC20200512U 2.0 0.5R 2.0 12 50 4 2
EPCBC20200516U 2.0 0.5R 2.0 16 50 4 2
EPCBC20200520U 2.0 0.5R 2.0 20 50 4 2
EPCBC20200525U 2.0 0.5R 2.0 25 60 4 2
EPCRC20200510U 2.0 0.5R 2.0 10 50 6 2
EPCRC20200515U 2.0 0.5R 2.0 15 50 6 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A105
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC20250110U 2.5 0.1R 2.5 10 50 4 2
EPCBC20250116U 2.5 0.1R 2.5 16 50 4 2
EPCBC20250120U 2.5 0.1R 2.5 20 50 4 2
EPCBC20250125U 2.5 0.1R 2.5 25 60 4 2
EPCBC20250210U 2.5 0.2R 2.5 10 50 4 2
EPCBC20250216U 2.5 0.2R 2.5 16 50 4 2
EPCBC20250220U 2.5 0.2R 2.5 20 50 4 2
EPCBC20250225U 2.5 0.2R 2.5 25 60 4 2
EPCBC20250310U 2.5 0.3R 2.5 10 50 4 2
EPCBC20250316U 2.5 0.3R 2.5 16 50 4 2
EPCBC20250320U 2.5 0.3R 2.5 20 50 4 2
EPCBC20250325U 2.5 0.3R 2.5 25 60 4 2
EPCBC20250510U 2.5 0.5R 2.5 10 50 4 2
EPCBC20250516U 2.5 0.5R 2.5 16 50 4 2
EPCBC20250520U 2.5 0.5R 2.5 20 50 4 2
EPCBC20250525U 2.5 0.5R 2.5 25 60 4 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A106
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC20300110U 3.0 0.1R 3.0 10 50 6 2
EPCRC20300116U 3.0 0.1R 3.0 16 60 6 2
EPCRC20300120U 3.0 0.1R 3.0 20 60 6 2
EPCRC20300125U 3.0 0.1R 3.0 25 60 6 2
EPCRC20300130U 3.0 0.1R 3.0 30 75 6 2
EPCRC20300135U 3.0 0.1R 3.0 35 75 6 2
EPCRC20300210U 3.0 0.2R 3.0 10 50 6 2
EPCRC20300216U 3.0 0.2R 3.0 16 60 6 2
EPCRC20300220U 3.0 0.2R 3.0 20 60 6 2
EPCRC20300225U 3.0 0.2R 3.0 25 60 6 2
EPCRC20300230U 3.0 0.2R 3.0 30 75 6 2
EPCRC20300235U 3.0 0.2R 3.0 35 75 6 2
EPCRC20300310U 3.0 0.3R 3.0 10 50 6 2
EPCRC20300316U 3.0 0.3R 3.0 16 60 6 2
EPCRC20300320U 3.0 0.3R 3.0 20 60 6 2
EPCRC20300325U 3.0 0.3R 3.0 25 60 6 2
EPCRC20300330U 3.0 0.3R 3.0 30 75 6 2
EPCRC20300335U 3.0 0.3R 3.0 35 75 6 2
EPCRC20300510U 3.0 0.5R 3.0 10 50 6 2
EPCRC20300516U 3.0 0.5R 3.0 16 60 6 2
EPCRC20300520U 3.0 0.5R 3.0 20 60 6 2
EPCRC20300525U 3.0 0.5R 3.0 25 60 6 2
EPCRC20300530U 3.0 0.5R 3.0 30 75 6 2
EPCRC20300535U 3.0 0.5R 3.0 35 75 6 2
EPCRC20301010U 3.0 1.0R 3.0 10 50 6 2
EPCRC20301016U 3.0 1.0R 3.0 16 60 6 2
EPCRC20301020U 3.0 1.0R 3.0 20 60 6 2
EPCRC20301025U 3.0 1.0R 3.0 25 60 6 2
EPCRC20301030U 3.0 1.0R 3.0 30 75 6 2
EPCRC20301035U 3.0 1.0R 3.0 35 75 6 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A107
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 052
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC20400113U 4.0 0.1R 4.0 13 50 6 2
EPCRC20400116U 4.0 0.1R 4.0 16 60 6 2
EPCRC20400120U 4.0 0.1R 4.0 20 60 6 2
EPCRC20400125U 4.0 0.1R 4.0 25 60 6 2
EPCRC20400130U 4.0 0.1R 4.0 30 75 6 2
EPCRC20400135U 4.0 0.1R 4.0 35 75 6 2
EPCRC20400213U 4.0 0.2R 4.0 13 50 6 2
EPCRC20400216U 4.0 0.2R 4.0 16 60 6 2
EPCRC20400220U 4.0 0.2R 4.0 20 60 6 2
EPCRC20400225U 4.0 0.2R 4.0 25 60 6 2
EPCRC20400230U 4.0 0.2R 4.0 30 75 6 2
EPCRC20400235U 4.0 0.2R 4.0 35 75 6 2
EPCRC20400313U 4.0 0.3R 4.0 13 50 6 2
EPCRC20400316U 4.0 0.3R 4.0 16 60 6 2
EPCRC20400320U 4.0 0.3R 4.0 20 60 6 2
EPCRC20400325U 4.0 0.3R 4.0 25 60 6 2
EPCRC20400330U 4.0 0.3R 4.0 30 75 6 2
EPCRC20400335U 4.0 0.3R 4.0 35 75 6 2
EPCRC20400513U 4.0 0.5R 4.0 13 50 6 2
EPCRC20400516U 4.0 0.5R 4.0 16 60 6 2
EPCRC20400520U 4.0 0.5R 4.0 20 60 6 2
EPCRC20400525U 4.0 0.5R 4.0 25 60 6 2
EPCRC20400530U 4.0 0.5R 4.0 30 75 6 2
EPCRC20400535U 4.0 0.5R 4.0 35 75 6 2
EPCRC20401013U 4.0 1.0R 4.0 13 50 6 2
EPCRC20401016U 4.0 1.0R 4.0 16 60 6 2
EPCRC20401020U 4.0 1.0R 4.0 20 60 6 2
EPCRC20401025U 4.0 1.0R 4.0 25 60 6 2
EPCRC20401030U 4.0 1.0R 4.0 30 75 6 2
EPCRC20401035U 4.0 1.0R 4.0 35 75 6 2
Solid Carbide Endmills
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A108
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC20500116U 5.0 0.1R 5.0 16 60 6 2
EPCRC20500130U 5.0 0.1R 5.0 30 60 6 2
EPCRC20500216U 5.0 0.2R 5.0 16 60 6 2
EPCRC20500230U 5.0 0.2R 5.0 30 60 6 2
EPCRC20500316U 5.0 0.3R 5.0 16 60 6 2
EPCRC20500330U 5.0 0.3R 5.0 30 60 6 2
EPCRC20500516U 5.0 0.5R 5.0 16 60 6 2
EPCRC20500530U 5.0 0.5R 5.0 30 60 6 2
EPCRC20501016U 5.0 1.0R 5.0 16 60 6 2
EPCRC20501030U 5.0 1.0R 5.0 30 60 6 2
EPCRC20600120U 6.0 0.1R 7.0 20 60 6 2
EPCRC20600130U 6.0 0.1R 7.0 30 60 6 2
EPCRC20600220U 6.0 0.2R 7.0 20 60 6 2
EPCRC20600230U 6.0 0.2R 7.0 30 60 6 2
EPCRC20600320U 6.0 0.3R 7.0 20 60 6 2
EPCRC20600330U 6.0 0.3R 7.0 30 60 6 2
EPCRC20600520U 6.0 0.5R 7.0 20 60 6 2
EPCRC20600530U 6.0 0.5R 7.0 30 60 6 2
EPCRC20601020U 6.0 1.0R 7.0 20 60 6 2
EPCRC20601030U 6.0 1.0R 7.0 30 60 6 2
EPCRC20601520U 6.0 1.5R 7.0 20 60 6 2
EPCRC20601530U 6.0 1.5R 7.0 30 60 6 2
EPCRC20800522U 8.0 0.5R 9.0 22 60 8 2
EPCRC20801022U 8.0 1.0R 9.0 22 60 8 2
EPCRC20801522U 8.0 1.5R 9.0 22 60 8 2
EPCRC20802022U 8.0 2.0R 9.0 22 60 8 2
EPCRC21000524U 10.0 0.5R 11.0 24 75 10 2
EPCRC21001024U 10.0 1.0R 11.0 24 75 10 2
EPCRC21001524U 10.0 1.5R 11.0 24 75 10 2
EPCRC21002024U 10.0 2.0R 11.0 24 75 10 2
EPCRC21200526U 12.0 0.5R 13.0 26 75 12 2
EPCRC21201026U 12.0 1.0R 13.0 26 75 12 2
EPCRC21201526U 12.0 1.5R 13.0 26 75 12 2
EPCRC21202026U 12.0 2.0R 13.0 26 75 12 2
EPCBC2
EPCRC2
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
A109
G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 052
Solid Carbide Endmills
EPCBC4
EPCRC4
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Multiple utes and ling neck design provides better surface in deep cutting.
Available in various cut lengths.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC40200106U 2.0 0.1R 2.0 6 50 4 4
EPCBC40200108U 2.0 0.1R 2.0 8 50 4 4
EPCBC40200110U 2.0 0.1R 2.0 10 50 4 4
EPCBC40200112U 2.0 0.1R 2.0 12 50 4 4
EPCBC40200116U 2.0 0.1R 2.0 16 50 4 4
EPCBC40200120U 2.0 0.1R 2.0 20 50 4 4
EPCBC40200125U 2.0 0.1R 2.0 25 60 4 4
EPCBC40200206U 2.0 0.2R 2.0 6 50 4 4
EPCBC40200208U 2.0 0.2R 2.0 8 50 4 4
EPCBC40200210U 2.0 0.2R 2.0 10 50 4 4
EPCBC40200212U 2.0 0.2R 2.0 12 50 4 4
EPCBC40200216U 2.0 0.2R 2.0 16 50 4 4
EPCBC40200220U 2.0 0.2R 2.0 20 50 4 4
EPCBC40200225U 2.0 0.2R 2.0 25 60 4 4
EPCBC40200306U 2.0 0.3R 2.0 6 50 4 4
EPCBC40200308U 2.0 0.3R 2.0 8 50 4 4
EPCBC40200310U 2.0 0.3R 2.0 10 50 4 4
EPCBC40200312U 2.0 0.3R 2.0 12 50 4 4
EPCBC40200316U 2.0 0.3R 2.0 16 50 4 4
EPCBC40200320U 2.0 0.3R 2.0 20 50 4 4
EPCBC40200325U 2.0 0.3R 2.0 25 60 4 4
EPCBC40200506U 2.0 0.5R 2.0 6 50 4 4
EPCBC40200508U 2.0 0.5R 2.0 8 50 4 4
EPCBC40200510U 2.0 0.5R 2.0 10 50 4 4
EPCBC40200512U 2.0 0.5R 2.0 12 50 4 4
EPCBC40200516U 2.0 0.5R 2.0 16 50 4 4
EPCBC40200520U 2.0 0.5R 2.0 20 50 4 4
EPCBC40200525U 2.0 0.5R 2.0 25 60 4 4
EPCRC40200510U 2.0 0.5R 2.0 10 50 6 4
EPCRC40200515U 2.0 0.5R 2.0 15 50 6 4
A110
G550 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 053
Solid Carbide Endmills
EPCBC4
EPCRC4
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Multiple utes and ling neck design provides better surface in deep cutting.
Available in various cut lengths.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCBC40250110U 2.5 0.1R 2.5 10 50 4 4
EPCBC40250116U 2.5 0.1R 2.5 16 50 4 4
EPCBC40250120U 2.5 0.1R 2.5 20 50 4 4
EPCBC40250125U 2.5 0.1R 2.5 25 60 4 4
EPCBC40250210U 2.5 0.2R 2.5 10 50 4 4
EPCBC40250216U 2.5 0.2R 2.5 16 50 4 4
EPCBC40250220U 2.5 0.2R 2.5 20 50 4 4
EPCBC40250225U 2.5 0.2R 2.5 25 60 4 4
EPCBC40250310U 2.5 0.3R 2.5 10 50 4 4
EPCBC40250316U 2.5 0.3R 2.5 16 50 4 4
EPCBC40250320U 2.5 0.3R 2.5 20 50 4 4
EPCBC40250325U 2.5 0.3R 2.5 25 60 4 4
EPCBC40250510U 2.5 0.5R 2.5 10 50 4 4
EPCBC40250516U 2.5 0.5R 2.5 16 50 4 4
EPCBC40250520U 2.5 0.5R 2.5 20 50 4 4
EPCBC40250525U 2.5 0.5R 2.5 25 60 4 4
A111
G550 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 053
Solid Carbide Endmills
EPCBC4
EPCRC4
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Multiple utes and ling neck design provides better surface in deep cutting.
Available in various cut lengths.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC40300110U 3.0 0.1R 3.0 10 50 6 4
EPCRC40300116U 3.0 0.1R 3.0 16 60 6 4
EPCRC40300120U 3.0 0.1R 3.0 20 60 6 4
EPCRC40300125U 3.0 0.1R 3.0 25 60 6 4
EPCRC40300130U 3.0 0.1R 3.0 30 75 6 4
EPCRC40300135U 3.0 0.1R 3.0 35 75 6 4
EPCRC40300210U 3.0 0.2R 3.0 10 50 6 4
EPCRC40300216U 3.0 0.2R 3.0 16 60 6 4
EPCRC40300220U 3.0 0.2R 3.0 20 60 6 4
EPCRC40300225U 3.0 0.2R 3.0 25 60 6 4
EPCRC40300230U 3.0 0.2R 3.0 30 75 6 4
EPCRC40300235U 3.0 0.2R 3.0 35 75 6 4
EPCRC40300310U 3.0 0.3R 3.0 10 50 6 4
EPCRC40300316U 3.0 0.3R 3.0 16 60 6 4
EPCRC40300320U 3.0 0.3R 3.0 20 60 6 4
EPCRC40300325U 3.0 0.3R 3.0 25 60 6 4
EPCRC40300330U 3.0 0.3R 3.0 30 75 6 4
EPCRC40300335U 3.0 0.3R 3.0 35 75 6 4
EPCRC40300510U 3.0 0.5R 3.0 10 50 6 4
EPCRC40300516U 3.0 0.5R 3.0 16 60 6 4
EPCRC40300520U 3.0 0.5R 3.0 20 60 6 4
EPCRC40300525U 3.0 0.5R 3.0 25 60 6 4
EPCRC40300530U 3.0 0.5R 3.0 30 75 6 4
EPCRC40300535U 3.0 0.5R 3.0 35 75 6 4
EPCRC40301010U 3.0 1.0R 3.0 10 50 6 4
EPCRC40301016U 3.0 1.0R 3.0 16 60 6 4
EPCRC40301020U 3.0 1.0R 3.0 20 60 6 4
EPCRC40301025U 3.0 1.0R 3.0 25 60 6 4
EPCRC40301030U 3.0 1.0R 3.0 30 75 6 4
EPCRC40301035U 3.0 1.0R 3.0 35 75 6 4
A112
G550 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 053
Solid Carbide Endmills
EPCBC4
EPCRC4
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Multiple utes and ling neck design provides better surface in deep cutting.
Available in various cut lengths.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC40400113U 4.0 0.1R 4.0 13 50 6 4
EPCRC40400116U 4.0 0.1R 4.0 16 60 6 4
EPCRC40400120U 4.0 0.1R 4.0 20 60 6 4
EPCRC40400125U 4.0 0.1R 4.0 25 60 6 4
EPCRC40400130U 4.0 0.1R 4.0 30 75 6 4
EPCRC40400135U 4.0 0.1R 4.0 35 75 6 4
EPCRC40400213U 4.0 0.2R 4.0 13 50 6 4
EPCRC40400216U 4.0 0.2R 4.0 16 60 6 4
EPCRC40400220U 4.0 0.2R 4.0 20 60 6 4
EPCRC40400225U 4.0 0.2R 4.0 25 60 6 4
EPCRC40400230U 4.0 0.2R 4.0 30 75 6 4
EPCRC40400235U 4.0 0.2R 4.0 35 75 6 4
EPCRC40400313U 4.0 0.3R 4.0 13 50 6 4
EPCRC40400316U 4.0 0.3R 4.0 16 60 6 4
EPCRC40400320U 4.0 0.3R 4.0 20 60 6 4
EPCRC40400325U 4.0 0.3R 4.0 25 60 6 4
EPCRC40400330U 4.0 0.3R 4.0 30 75 6 4
EPCRC40400335U 4.0 0.3R 4.0 35 75 6 4
EPCRC40400513U 4.0 0.5R 4.0 13 50 6 4
EPCRC40400516U 4.0 0.5R 4.0 16 60 6 4
EPCRC40400520U 4.0 0.5R 4.0 20 60 6 4
EPCRC40400525U 4.0 0.5R 4.0 25 60 6 4
EPCRC40400530U 4.0 0.5R 4.0 30 75 6 4
EPCRC40400535U 4.0 0.5R 4.0 35 75 6 4
EPCRC40401013U 4.0 1.0R 4.0 13 50 6 4
EPCRC40401016U 4.0 1.0R 4.0 16 60 6 4
EPCRC40401020U 4.0 1.0R 4.0 20 60 6 4
EPCRC40401025U 4.0 1.0R 4.0 25 60 6 4
EPCRC40401030U 4.0 1.0R 4.0 30 75 6 4
EPCRC40401035U 4.0 1.0R 4.0 35 75 6 4
A113
G550 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 053
Solid Carbide Endmills
EPCBC4
EPCRC4
D
d
L1
L
L2
15°
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Multiple utes and ling neck design provides better surface in deep cutting.
Available in various cut lengths.
．
．
．
．
dTolerance
Ø0 ~ 0.02
R ± 0.02
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRC40500116U 5.0 0.1R 5.0 16 60 6 4
EPCRC40500130U 5.0 0.1R 5.0 30 60 6 4
EPCRC40500216U 5.0 0.2R 5.0 16 60 6 4
EPCRC40500230U 5.0 0.2R 5.0 30 60 6 4
EPCRC40500316U 5.0 0.3R 5.0 16 60 6 4
EPCRC40500330U 5.0 0.3R 5.0 30 60 6 4
EPCRC40500516U 5.0 0.5R 5.0 16 60 6 4
EPCRC40500530U 5.0 0.5R 5.0 30 60 6 4
EPCRC40501016U 5.0 1.0R 5.0 16 60 6 4
EPCRC40501030U 5.0 1.0R 5.0 30 60 6 4
EPCRC40600120U 6.0 0.1R 7.0 20 60 6 4
EPCRC40600130U 6.0 0.1R 7.0 30 60 6 4
EPCRC40600220U 6.0 0.2R 7.0 20 60 6 4
EPCRC40600230U 6.0 0.2R 7.0 30 60 6 4
EPCRC40600320U 6.0 0.3R 7.0 20 60 6 4
EPCRC40600330U 6.0 0.3R 7.0 30 60 6 4
EPCRC40600520U 6.0 0.5R 7.0 20 60 6 4
EPCRC40600530U 6.0 0.5R 7.0 30 60 6 4
EPCRC40601020U 6.0 1.0R 7.0 20 60 6 4
EPCRC40601030U 6.0 1.0R 7.0 30 60 6 4
EPCRC40601520U 6.0 1.5R 7.0 20 60 6 4
EPCRC40601530U 6.0 1.5R 7.0 30 60 6 4
EPCRC40800522U 8.0 0.5R 9.0 22 60 8 4
EPCRC40801022U 8.0 1.0R 9.0 22 60 8 4
EPCRC40801522U 8.0 1.5R 9.0 22 60 8 4
EPCRC40802022U 8.0 2.0R 9.0 22 60 8 4
EPCRC41000524U 10.0 0.5R 11.0 24 75 10 4
EPCRC41001024U 10.0 1.0R 11.0 24 75 10 4
EPCRC41001524U 10.0 1.5R 11.0 24 75 10 4
EPCRC41002024U 10.0 2.0R 11.0 24 75 10 4
EPCRC41200526U 12.0 0.5R 13.0 26 75 12 4
EPCRC41201026U 12.0 1.0R 13.0 26 75 12 4
EPCRC41201526U 12.0 1.5R 13.0 26 75 12 4
EPCRC41202026U 12.0 2.0R 13.0 26 75 12 4
A114
G550 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 053
Solid Carbide Endmills
Order No.
Dia.
(d)
Corner
Radius
(R)
θ˚ CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRT20100120HU 1.0 0.10R 0.5° 2.0 20 60 6 2
EPCRT201001201U 1.0 0.10R 1.0° 2.0 20 60 6 2
EPCRT20100120AU 1.0 0.10R 1.5° 2.0 20 60 6 2
EPCRT201201230HU2C 1.2 0.12R 0.5° 2.0 30 75 6 2
EPCRT2012012301U2C 1.2 0.12R 1.0° 2.0 30 75 6 2
EPCRT201201230AU2C 1.2 0.12R 1.5° 2.0 30 75 6 2
EPCRT201501530HU2C 1.5 0.15R 0.5° 2.0 30 75 6 2
EPCRT2015015301U2C 1.5 0.15R 1.0° 2.0 30 75 6 2
EPCRT201501530AU2C 1.5 0.15R 1.5° 2.0 30 75 6 2
EPCRT201801830HU2C 1.8 0.18R 0.5° 2.0 30 75 6 2
EPCRT2018018301U2C 1.8 0.18R 1.0° 2.0 30 75 6 2
EPCRT201801830AU2C 1.8 0.18R 1.5° 2.0 30 75 6 2
EPCRT20200225AU 2.0 0.20R 1.5° 3.0 25 75 6 2
EPCRT20200239AU 2.0 0.20R 1.5° 3.0 39 75 6 2
EPCRT20200525AU 2.0 0.50R 1.5° 3.0 25 75 6 2
EPCRT20200539AU 2.0 0.50R 1.5° 3.0 39 75 6 2
EPCRT20200550AU 2.0 0.50R 1.5° 3.0 50 100 6 2
EPCRT20200535HU4C 2.0 0.50R 0.5° 4.0 35 75 6 2
EPCRT202005351U4C 2.0 0.50R 1.0° 4.0 35 75 6 2
EPCRT20200535AU4C 2.0 0.50R 1.5° 4.0 35 75 6 2
EPCRT20250535HU5C 2.5 0.50R 0.5° 5.0 35 75 6 2
EPCRT202505351U5C 2.5 0.50R 1.0° 5.0 35 75 6 2
EPCRT20250535AU5C 2.5 0.50R 1.5° 5.0 35 75 6 2
EPCRT20251035HU5C 2.5 1.00R 0.5° 5.0 35 75 6 2
EPCRT202510351U5C 2.5 1.00R 1.0° 5.0 35 75 6 2
EPCRT20251035AU5C 2.5 1.00R 1.5° 5.0 35 75 6 2
EPCRT2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Various tape angle makes it suitable for dierent applications.
Small corner radius applied protect chipping of cutting edges.
High strength of taper neck, can cut deep grooves without breaking.
．
．
．
．
D
Ld2
L1
L2
R
θ
°
dTolerance
Ø0 ~ 0.02
R ± 0.02
A115
G550 - Taper Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 斜頸型 - 2刃
Solid Carbide Endmills
Solid Carbide Endmills
EPCRT2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Various tape angle makes it suitable for dierent applications.
Small corner radius applied protect chipping of cutting edges.
High strength of taper neck, can cut deep grooves without breaking.
．
．
．
．
D
Ld2
L1
L2
R
θ
°
dTolerance
Ø0 ~ 0.02
R ± 0.02
A116
G550 - Taper Neck Corner Radius Type - 2F
Order No.
Dia.
(d)
Corner
Radius
(R)
θ˚ CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EPCRT20300525AU 3.0 0.50R 1.5° 4.5 25 75 6 2
EPCRT20301025AU 3.0 1.00R 1.5° 4.5 25 75 6 2
EPCRT20301039AU 3.0 1.00R 1.5° 4.5 39 75 6 2
EPCRT20301050AU 3.0 1.00R 1.5° 4.5 50 100 6 2
EPCRT20300535HU5C 3.0 0.50R 0.5° 5.0 35 75 6 2
EPCRT203005351U5C 3.0 0.50R 1.0° 5.0 35 75 6 2
EPCRT20300535AU5C 3.0 0.50R 1.5° 5.0 35 75 6 2
EPCRT20301035HU5C 3.0 1.00R 0.5° 5.0 35 75 6 2
EPCRT203010351U5C 3.0 1.00R 1.0° 5.0 35 75 6 2
EPCRT20301035AU5C 3.0 1.00R 1.5° 5.0 35 75 6 2
EPCRT20350535HU 3.5 0.50R 0.5° 5.0 35 75 6 2
EPCRT203505351U 3.5 0.50R 1.0° 5.0 35 75 6 2
EPCRT20350535AU 3.5 0.50R 1.5° 5.0 35 75 6 2
EPCRT20351035HU 3.5 1.00R 0.5° 5.0 35 75 6 2
EPCRT203510351U 3.5 1.00R 1.0° 5.0 35 75 6 2
EPCRT20351035AU 3.5 1.00R 1.5° 5.0 35 75 6 2
EPCRT20400545HU 4.0 0.50R 0.5° 6.0 45 100 6 2
EPCRT204005451U 4.0 0.50R 1.0° 6.0 45 100 6 2
EPCRT20400525AU 4.0 0.50R 1.5° 6.0 25 75 6 2
EPCRT20400545AU 4.0 0.50R 1.5° 6.0 45 100 6 2
EPCRT20401045HU 4.0 1.00R 0.5° 6.0 45 100 6 2
EPCRT204010451U 4.0 1.00R 1.0° 6.0 45 100 6 2
EPCRT20401025AU 4.0 1.00R 1.5° 6.0 25 75 6 2
EPCRT20401045AU 4.0 1.00R 1.5° 6.0 45 100 6 2
EPCRT20501025AU 5.0 1.00R 1.5° 7.5 25 75 6 2
EPCRT20501050AU 5.0 1.00R 1.5° 7.5 50 100 8 2
EPCRT20601035AU 6.0 1.00R 1.5° 9.0 35 75 8 2
EPCRT20601050AU 6.0 1.00R 1.5° 9.0 50 100 10 2
鎢鋼圓鼻銑刀 - 斜頸型 - 2刃
Solid Carbide Endmills
Order No.
Corner
Radius
(R)
Dia.
(d1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPIFA202905U 0.5R 2.9 50 4 2
EPISA204905U 0.5R 4.9 50 6 2
EPIFA201910U 1.0R 1.9 50 4 2
EPISA203910U 1.0R 3.9 50 6 2
EPISA205910U 1.0R 5.9 60 8 2
EPISA204915U 1.5R 4.9 60 8 2
EPISA205920U 2.0R 5.9 75 10 2
EPISA204925U 2.5R 4.9 75 10 2
EPISA205930U 3.0R 5.9 75 12 2
EPISA203940U 4.0R 3.9 75 12 2
EPISA205950U 5.0R 5.9 75 16 2
EPISA203960U 6.0R 3.9 75 16 2
EPIFA402905U 0.5R 2.9 50 4 4
EPISA404905U 0.5R 4.9 50 6 4
EPIFA401910U 1.0R 1.9 50 4 4
EPISA403910U 1.0R 3.9 50 6 4
EPISA405910U 1.0R 5.9 60 8 4
EPISA404915U 1.5R 4.9 60 8 4
EPISA405920U 2.0R 5.9 75 10 4
EPISA404925U 2.5R 4.9 75 10 4
EPISA405930U 3.0R 5.9 75 12 4
EPISA403940U 4.0R 3.9 75 12 4
EPISA405950U 5.0R 5.9 75 16 4
EPISA403960U 6.0R 3.9 75 16 4
EPIFA2
EPISA2
EPIFA4
EPISA4
D
d
L
R
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.
Inner radius tools are suitable for chamfering with round corner application.
．
．
．
D
3°
3°
0.05
0.05
d
A117
G550 - Inner Radius Type - 2F / 4F 鎢鋼內 R角銑刀 - 2 / 4 刃
Solid Carbide Endmills
Cutting conditions( 建議切削參數表 ) : Table 054
A118
Endmills．Inserts．Drills
Solid Carbide Endmills
Solid Carbide Endmills
Micro grain carbide rod is suitable for general machining.
UNICO coating provides superior wear resistance and reduces the coecient of friction.
Positive geometry is suitable for better shearing.
Excellent cutting ability of cutting edges.
G450 Series for Alloy Steel, up to HRC 48
A119
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFA201000U 1.0 3 50 4 2
EPSFA201500U 1.5 4 50 4 2
EPSFA202000U 2.0 5 50 4 2
EPSFA202500U 2.5 6 50 4 2
EPSFA203000U 3.0 8 50 4 2
EPSSA203000U 3.0 8 50 6 2
EPSSA203500U 3.5 9 50 6 2
EPSFA204000U 4.0 10 50 4 2
EPSSA204000U 4.0 10 50 6 2
EPSSA204500U 4.5 11 50 6 2
EPSSA205000U 5.0 13 50 6 2
EPSSA205500U 5.5 14 50 6 2
EPSSA206000U 6.0 15 50 6 2
EPSSA206500U 6.5 16 60 8 2
EPSSA207000U 7.0 18 60 8 2
EPSSA208000U 8.0 20 60 8 2
EPSSA209000U 9.0 22 75 10 2
EPSSA210000U 10.0 25 75 10 2
EPSSA212000U 12.0 30 75 12 2
EPSSA214000U 14.0 30 75 14 2
EPSSA216000U 16.0 35 100 16 2
EPSSA218000U 18.0 40 100 20 2
EPSSA220000U 20.0 45 100 20 2
EPSSA225000U 25.0 45 100 25 2
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSFA2
EPSSA2
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%).
Excellent cutting ability of cutting edges.
High precision cutting.
Positive Geometry design is suitable for better shearing.
．
．
．
．
．
G450 - Square Type - 2F
A120
鎢鋼平銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 026
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSFA401000U 1.0 3 50 4 4
EPSFA401500U 1.5 4 50 4 4
EPSFA402000U 2.0 5 50 4 4
EPSFA402500U 2.5 6 50 4 4
EPSFA403000U 3.0 8 50 4 4
EPSSA403000U 3.0 8 50 6 4
EPSFA404000U 4.0 10 50 4 4
EPSSA404000U 4.0 10 50 6 4
EPSSA405000U 5.0 13 50 6 4
EPSSA406000U 6.0 15 50 6 4
EPSSA408000U 8.0 20 60 8 4
EPSSA410000U 10.0 25 75 10 4
EPSSA412000U 12.0 30 75 12 4
EPSSA414000U 14.0 30 75 14 4
EPSSA416000U 16.0 35 100 16 4
EPSSA420000U 20.0 45 100 20 4
EPSSA425000U 25.0 45 100 25 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EPSFA4
EPSSA4
D
d
L1
L
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%).
Excellent cutting ability of cutting edges.
High precision cutting.
Positive Geometry design is suitable for better shearing.
．
．
．
．
．
G450 - Square Type - 4F
A121
鎢鋼平銑刀 - 標準型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 027
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSCA403000U 3.0 15 60 6 4
EPSCA404000U 4.0 20 60 6 4
EPSCA405000U 5.0 25 75 6 4
EPSCA406000U 6.0 30 75 6 4
EPSCA408000U 8.0 35 100 8 4
EPSCA410000U 10.0 45 100 10 4
EPSCA412000U 12.0 45 100 12 4
EPSCA414000U 14.0 70 150 14 4
EPSCA416000U 16.0 70 150 16 4
EPSCA420000U 20.0 75 150 20 4
EPSCA425000U 25.0 75 150 25 4
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSCA4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%).
Excellent cutting ability of cutting edges.
Long utes is available in various length of cut and overall length end mills.
．
．
．
．
G450 - Long Flute Square Type - 4F
A122
鎢鋼平銑刀 - 長刃型 - 4刃
D
d
L1
L
Cutting conditions( 建議切削參數表 ) : Table 030
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSEA204000U 4.0 10 75 4 2
EPSKA204000U 4.0 10 100 4 2
EPSLA204000U 4.0 10 75 6 2
EPSNA204000U 4.0 10 100 6 2
EPSLA205000U 5.0 13 75 6 2
EPSNA205000U 5.0 13 100 6 2
EPSLA206000U 6.0 15 75 6 2
EPSNA206000U 6.0 15 100 6 2
EPSMA208000U 8.0 20 75 8 2
EPSLA208000U 8.0 20 100 8 2
EPSNA208000U 8.0 20 150 8 2
EPSLA210000U 10.0 25 100 10 2
EPSNA210000U 10.0 25 150 10 2
EPSLA212000U 12.0 30 100 12 2
EPSNA212000U 12.0 30 150 12 2
EPSLA216000U 16.0 40 150 16 2
30°
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSEA2
EPSKA2
EPSLA2
EPSNA2
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%).
Excellent cutting ability of cutting edges.
Long Shank is available in various length of cut and overall length end mills.
．
．
．
．
G450 - Long Shank Square Type - 2F
A123
鎢鋼平銑刀 - 長柄型 - 2刃
D
d
L1
L
Cutting conditions( 建議切削參數表 ) : Table 031
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EPSEA404000U 4.0 10 75 4 4
EPSKA404000U 4.0 10 100 4 4
EPSLA404000U 4.0 10 75 6 4
EPSNA404000U 4.0 10 100 6 4
EPSLA405000U 5.0 13 75 6 4
EPSNA405000U 5.0 13 100 6 4
EPSLA406000U 6.0 15 75 6 4
EPSNA406000U 6.0 15 100 6 4
EPSMA408000U 8.0 20 75 8 4
EPSLA408000U 8.0 20 100 8 4
EPSNA408000U 8.0 20 150 8 4
EPSLA410000U 10.0 25 100 10 4
EPSNA410000U 10.0 25 150 10 4
EPSLA412000U 12.0 30 100 12 4
EPSNA412000U 12.0 30 150 12 4
EPSLA416000U 16.0 40 150 16 4
EPSLA420000U 20.0 40 150 20 4
30°
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EPSEA4
EPSKA4
EPSLA4
EPSNA4
UNICO Coating provides superior wear resistance and reduces the coecient of friction.
Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%).
Excellent cutting ability of cutting edges.
Long Shank is available in various length of cut and overall length end mills.
．
．
．
．
G450 - Long Shank Square Type - 4F
A124
鎢鋼平銑刀 - 長柄型 - 4刃
D
d
L1
L
Cutting conditions( 建議切削參數表 ) : Table 032
Solid Carbide Endmills
Solid Carbide Endmills
Ultra grain carbide rods with better abrasion resistance.
ARCO coating shows good performance in coolant machining.
Anti-vibrations capabilities at high speeds and high remove rate.
Varix Technology with dierent helix angles(35°and 38°) improves cutting performance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
M500 Series for Stainless, Titanium, Inconel & Mold Steel
A125
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSFA203000A 3 8 50 4 2
ESSFA204000A 4 10 50 4 2
ESSSA204000A 4 10 50 6 2
ESSSA205000A 5 13 50 6 2
ESSSA206000A 6 15 50 6 2
ESSSA208000A 8 20 60 8 2
ESSSA210000A 10 25 75 10 2
ESSSA212000A 12 30 75 12 2
ESSSA214000A 14 30 75 14 2
ESSSA216000A 16 35 100 16 2
35 50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSFA2
ESSSA2
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
UMG carbide grade is suitable for cutting dicult materials.
．
．
．
．
M500 - Square Type - 2F
A126
鎢鋼平銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 055
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSFA403000A 3 8 50 4 4
ESSFA404000A 4 10 50 4 4
ESSSA404000A 4 10 50 6 4
ESSSA405000A 5 13 50 6 4
ESSSA406000A 6 15 50 6 4
ESSSA408000A 8 20 60 8 4
ESSSA410000A 10 25 75 10 4
ESSSA412000A 12 30 75 12 4
ESSSA414000A 14 30 75 14 4
ESSSA416000A 16 35 100 16 4
35 50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSFA4
ESSSA4
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
High precise tolerance EndMills.
UMG carbide grade is suitable for cutting dicult materials.
．
．
．
．
．
M500 - Square Type - 4F
A127
鎢鋼平銑刀 - 標準型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 056
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSFB404000A4 10 50 4 4
ESSSB404000A4 10 50 6 4
ESSSB405000A5 13 50 6 4
ESSSB406000A6 15 50 6 4
ESSSB408000A8 20 60 8 4
ESSSB410000A10 25 75 10 4
ESSSB412000A12 30 75 12 4
ESSSB414000A14 30 75 14 4
ESSSB416000A16 35 100 16 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSFB4
ESSSB4
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
U-ute design with high chips volume space and easy to remove chips.
UMG carbide grade is suitable for cutting dicult materials.
．
．
．
．
M500 - High Helix Square U Type - 4F
A128
D
d
L1
L
鎢鋼平銑刀 - 高導高效能 U 型 - 4刃
50
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSFU404000A4 10 50 4 4
ESSSU404000A4 10 50 6 4
ESSSU405000A5 13 50 6 4
ESSSU406000A6 15 50 6 4
ESSSU408000A8 20 60 8 4
ESSSU410000A10 25 75 10 4
ESSSU412000A12 30 75 12 4
ESSSU414000A14 30 75 14 4
ESSSU416000A16 35 100 16 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSFU4
ESSSU4
．
．
．
．
M500 - Varix & Anti-Vibration Square U Type - 4F
A129
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds.
Varix Technology with dierent helix angles (35 ° and 38 °) improves cutting performance.
Provides the highest cutting action for aerospace applications.
D
d
L1
L
鎢鋼平銑刀 - 抗震變導高效能 U 型 - 4刃
50
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSSM408000A8 20 60 8 4
ESSSM410000A10 30 75 10 4
ESSSM412000A12 30 75 12 4
ESSSM416000A16 32 100 16 4
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSSM4
．
．
．
．
M500 -
High Helix Anti-Vibration Square U Type - 4F
A130
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
U-ute design with high chips volume space and easy to remove chips.
UMG carbide grade is suitable for cutting dicult materials.
D
d
L1
L
鎢鋼平銑刀 - 高導抗震高效能 U 型 - 4刃
50
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSSD405000A 5 13 50 6 4
ESSSD406000A 6 13 50 6 4
ESSSD408000A 8 16 60 8 4
ESSSD410000A 10 20 75 10 4
ESSSD412000A 12 24 75 12 4
ESSSD416000A 16 30 100 16 4
35 50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSSD4
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds.
UMG carbide grade is suitable for cutting dicult materials.
．
．
．
．
M500 - Anti-Vibration Square Type - 4F
A131
鎢鋼平銑刀 - 抗震不等 SD 型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 057
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSSV404000A 4 10 50 6 4
ESSSV405000A 5 13 50 6 4
ESSSV406000A 6 13 50 6 4
ESSSV408000A 8 16 60 8 4
ESSSV410000A 10 20 75 10 4
ESSSV412000A 12 24 75 12 4
ESSSV416000A 16 32 100 16 4
50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSSV4
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds.
Varix Technology with dierent helix angles (35 ° and 38 °) improves cutting performance.
Provides the highest cutting action for aerospace applications.
．
．
．
．
．
M500 - Varix & Anti-Vibration Square Type - 4F
A132
鎢鋼平銑刀 - 抗震變導 SV 型 - 4刃
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSSW306000A 6 15 50 6 3
ESSSW308000A 8 20 60 8 3
ESSSW310000A 10 25 75 10 3
ESSSW312000A 12 30 75 12 3
ESSSW316000A 16 40 100 16 3
ESSSW320000A 20 45 100 20 3
50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSSW3
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
UMG carbide grade is suitable for cutting dicult materials.
Wave type increases the performance.
．
．
．
．
．
M500 - Wave Edge Square Type - 3F
A133
鎢鋼平銑刀 - 波浪型 - 3刃
Cutting conditions( 建議切削參數表 ) : Table 058
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESSSW406000A 6 15 50 6 4
ESSSW408000A 8 20 60 8 4
ESSSW410000A 10 25 75 10 4
ESSSW412000A 12 30 75 12 4
ESSSW416000A 16 40 100 16 4
ESSSW420000A 20 45 100 20 4
50
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
ESSSW4
D
d
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
UMG carbide grade is suitable for cutting dicult materials.
Wave type increases the performance.
．
．
．
．
．
M500 - Wave Edge Square Type - 4F
A134
鎢鋼平銑刀 - 波浪型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 058
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESBFA202000A 1.0R 2 4 50 4 2
ESBFA203000A 1.5R 3 6 50 4 2
ESBFA204000A 2.0R 4 8 50 4 2
ESBSA204000A 2.0R 4 8 50 6 2
ESBSA205000A 2.5R 5 10 50 6 2
ESBSA206000A 3.0R 6 12 50 6 2
ESBSA208000A 4.0R 8 16 60 8 2
ESBSA210000A 5.0R 10 20 75 10 2
ESBSA212000A 6.0R 12 24 75 12 2
ESBSA214000A 7.0R 14 28 75 14 2
ESBSA216000A 8.0R 16 32 100 16 2
50
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
ESBFA2
ESBSA2
D
R
L1
L
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at hi speeds, suitable for high performance prole milling.
New tool geometry increases wear resistance and cutting force is decreased
UMG carbide grade is suitable for cutting dicult materials.
．
．
．
．
．
M500 - Ball Nose Type - 2F
A135
鎢鋼球型銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 059
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESCSA403003A 3 0.3R 6 50 6 4
ESCSA403005A 3 0.5R 6 50 6 4
ESCSA403010A 3 1.0R 6 50 6 4
ESCSA404003A 4 0.3R 8 50 6 4
ESCSA404005A 4 0.5R 8 50 6 4
ESCSA404010A 4 1.0R 8 50 6 4
ESCSA405003A 5 0.3R 10 50 6 4
ESCSA405005A 5 0.5R 10 50 6 4
ESCSA406003A 6 0.3R 12 50 6 4
ESCSA406005A 6 0.5R 12 50 6 4
ESCSA406010A 6 1.0R 12 50 6 4
ESCSA408005A 8 0.5R 16 60 8 4
ESCSA408010A 8 1.0R 16 60 8 4
ESCSA408015A 8 1.5R 16 60 8 4
ESCSA410005A 10 0.5R 20 75 10 4
ESCSA410010A 10 1.0R 20 75 10 4
ESCSA410015A 10 1.5R 20 75 10 4
ESCSA410020A 10 2.0R 20 75 10 4
ESCSA412005A 12 0.5R 24 75 12 4
ESCSA412010A 12 1.0R 24 75 12 4
ESCSA412015A 12 1.5R 24 75 12 4
ESCSA412020A 12 2.0R 24 75 12 4
ESCSA412030A 12 3.0R 24 75 12 4
50
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.015
ESCSA4
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
Corner geometry and stronger design makes it suitable for cutting dicult material.
．
．
．
．
M500 - Corner Radius Type - 4F
A136
鎢鋼圓鼻銑刀 - 標準型 - 4刃
D
L1
L
dR
Cutting conditions( 建議切削參數表 ) : Table 060
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESCSM408005A8 0.5R 16 60 8 4
ESCSM410010A10 1.0R 20 75 10 4
ESCSM412010A12 1.0R 24 75 12 4
ESCSM416015A16 1.5R 32 100 16 4
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.015
ESCSM4
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Incredible toughness and vibration reduction at high speeds.
Corner geometry and stronger design makes it suitable for cutting dicult material.
U-ute design with high chips volume space and easy to remove chips.
．
．
．
．
．
M500 -
High Helix Anti-Vibration Corner Radius U Type - 4F
A137
R
D
d
L1
L
鎢鋼圓鼻銑刀 - 高導抗震高效能 U 型 - 4刃
50
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ESCSV404003A 4 0.3R 8 50 4 4
ESCSV405003A 5 0.3R 10 50 6 4
ESCSV406005A 6 0.5R 12 50 6 4
ESCSV408005A 8 0.5R 16 60 8 4
ESCSV410005A 10 0.5R 20 75 10 4
ESCSV412005A 12 0.5R 24 75 12 4
ESCSV412010A 12 1.0R 24 75 12 4
ESCSV416010A 16 1.0R 32 100 16 4
50
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.015
ESCSV4
D
d
L1
L
R
ARCO coating provides a superior wear resistance.
For dicult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc.
Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds.
Varix Technology to improve cutting performance.
．
．
．
．
M500
- Varix & Anti-Vibration Corner Radius Type - 4F
A138
鎢鋼圓鼻銑刀 - 抗震變導 SV 型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 061
Solid Carbide Endmills
Solid Carbide Endmills
A200 Series for Graphite
A139
Suitable carbide rod for Diamond coating which brings good tightness of Diamond coating.
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Available in various eective length.
Suitable carbide rod brings good tightness of Diamond coating.
Solid Carbide Endmills
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Strong geometry design has excellent cutting ability of cutting edges.
High precision cutting for side milling.
．
．
．
．
A140
A200 - Square Type - 4F 鎢鋼平銑刀 - 標準型 - 4刃
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGSFC403000D 3.0 8 50 4 4
EGSFC404000D 4.0 10 50 4 4
EGSSC404000D 4.0 10 50 6 4
EGSSC405000D 5.0 13 50 6 4
EGSSC406000D 6.0 15 50 6 4
EGSSC408000D 8.0 20 60 8 4
EGSSC410000D 10.0 25 75 10 4
EGSSC412000D 12.0 30 75 12 4
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
EGSFC4
D
d
L1
L
Solid Carbide Endmills
Solid Carbide Endmills
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Available in various eective length.
Long cutting length is suitable for deep side milling.
．
．
．
．
A141
A200 - Long Flute Square Type - 4F 鎢鋼平銑刀 - 長刃型 - 4刃
D
d
L1
L
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGSCC403000D 3 15 60 6 4
EGSCC404000D 4 20 60 6 4
EGSCC405000D 5 25 75 6 4
EGSCC406000D 6 30 75 6 4
EGSCC408000D 8 35 100 8 4
EGSCC410000D 10 45 100 10 4
EGSCC412000D 12 45 100 12 4
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EGSCC4
Solid Carbide Endmills
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Available in various length of cut and overall length end mills.
Flat design to avoid chipping of the cutting tip.
．
．
．
．
A142
A200 - Long Shank Square Type - 4F 鎢鋼平銑刀 - 長柄型 - 4刃
D
d
L1
L
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGSEC404000D 4.0 10 75 4 4
EGSKC404000D 4.0 10 100 4 4
EGSLC404000D 4.0 10 75 6 4
EGSNC404000D 4.0 10 100 6 4
EGSLC406000D 6.0 15 75 6 4
EGSNC406000D 6.0 15 100 6 4
EGSMC408000D 8.0 20 75 8 4
EGSLC408000D 8.0 20 100 8 4
EGSNC408000D 8.0 20 150 8 4
EGSLC410000D 10.0 25 100 10 4
EGSNC410000D 10.0 25 150 10 4
EGSLC412000D 12.0 30 100 12 4
EGSNC412000D 12.0 30 150 12 4
30°
dTolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
EGSEC4
EGSLC4
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EGSBC200504D 0.5 0.6 4 50 4 2
EGSBC200506D 0.5 0.6 6 50 4 2
EGSBC200508D 0.5 0.6 8 50 4 2
EGSBC201006D 1 1.2 6 50 4 2
EGSBC201008D 1 1.2 8 50 4 2
EGSBC201012D 1 1.2 12 50 4 2
EGSBC201016D 1 1.2 16 50 4 2
EGSBC201020D 1 1.2 20 50 4 2
EGSBC201508D 1.5 1.8 8 50 4 2
EGSBC201512D 1.5 1.8 12 50 4 2
EGSBC201516D 1.5 1.8 16 50 4 2
EGSBC201520D 1.5 1.8 20 50 4 2
EGSBC202010D 2 2.5 10 50 4 2
EGSBC202016D 2 2.5 16 50 4 2
EGSBC202020D 2 2.5 20 50 4 2
EGSBC202025D 2 2.5 25 60 4 2
EGSRC203012D 3 3.5 12 50 6 2
EGSRC203020D 3 3.5 20 60 6 2
EGSRC203025D 3 3.5 25 60 6 2
EGSRC203030D 3 3.5 30 60 6 2
EGSRC204016D 4 4.5 16 50 6 2
EGSRC204020D 4 4.5 20 60 6 2
EGSRC204025D 4 4.5 25 60 6 2
EGSRC204030D 4 4.5 30 60 6 2
EGSRC204035D 4 4.5 35 75 6 2
EGSRC205020D 5 7 20 60 6 2
EGSRC205025D 5 7 25 60 6 2
EGSRC205030D 5 7 30 60 6 2
EGSRC205035D 5 7 35 75 6 2
EGSRC206020D 6 10 20 60 6 2
EGSRC206030D 6 10 30 75 6 2
dTolerance
Ø0 ~ -0.02
EGSBC2
EGSRC2
D
d
L1
L
L2
15°
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Available in various eective length.
Suitable for deep cutting application.
．
．
．
．
A143
A200 - Long Neck Square Type - 2F
30°
鎢鋼平銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
A144
A200 - Ball Nose Type - 2F
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Suitable for high speed prole surface milling.
．
．
．
．
．
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGBFC200200D 0.1R 0.2 0.4 50 4 2
EGBFC200300D 0.15R 0.3 0.6 50 4 2
EGBFC200400D 0.2R 0.4 0.8 50 4 2
EGBFC200500D 0.25R 0.5 1.0 50 4 2
EGBFC200600D 0.3R 0.6 1.2 50 4 2
EGBFC200700D 0.35R 0.7 1.4 50 4 2
EGBFC200800D 0.4R 0.8 1.6 50 4 2
EGBFC200900D 0.45R 0.9 1.8 50 4 2
EGBFC201000D 0.5R 1.0 2 50 4 2
EGBFC201500D 0.75R 1.5 3 50 4 2
EGBFC202000D 1R 2.0 4 50 4 2
EGBFC203000D 1.5R 3.0 6 50 4 2
EGBFC204000D 2R 4.0 8 50 4 2
EGBSC204000D 2R 4.0 8 50 6 2
EGBSC205000D 2.5R 5.0 10 50 6 2
EGBSC206000D 3R 6.0 12 50 6 2
EGBSC208000D 4R 8.0 16 60 8 2
EGBSC210000D 5R 10.0 20 75 10 2
EGBSC212000D 6R 12.0 24 75 12 2
dR Tolerance
Ø ± 0.02
EGBFC2
EGBSC2
D
R
L1
L
鎢鋼球型銑刀 - 標準型 - 2刃
Solid Carbide Endmills
Solid Carbide Endmills
A145
A200 - Long Shank Ball Nose Type - 2F 鎢鋼球型銑刀 - 長柄型 - 2刃
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
It provides an excellent surface due to better surface grindings.
New tool geometry increases wear resistance and cutting force is decreased.
Suitable for high speed prole surface milling.
．
．
．
．
．
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGBEC204000D 2R 4.0 8 75 4 2
EGBKC204000D 2R 4.0 8 100 4 2
EGBLC204000D 2R 4.0 8 75 6 2
EGBNC204000D 2R 4.0 8 100 6 2
EGBLC206000D 3R 6.0 12 75 6 2
EGBNC206000D 3R 6.0 12 100 6 2
EGBMC208000D 4R 8.0 16 75 8 2
EGBLC208000D 4R 8.0 16 100 8 2
EGBNC208000D 4R 8.0 16 150 8 2
EGBLC210000D 5R 10.0 20 100 10 2
EGBNC210000D 5R 10.0 20 150 10 2
EGBLC212000D 6R 12.0 24 100 12 2
EGBNC212000D 6R 12.0 24 150 12 2
dR Tolerance
Ø ± 0.02
EGBEC2
EGBLC2
D
R
L
L1
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EGBBC200504D 0.25R 0.5 0.5 4 50 4 2
EGBBC200506D 0.25R 0.5 0.5 6 50 4 2
EGBBC200508D 0.25R 0.5 0.5 8 50 4 2
EGBBC201006D 0.5R 1 1 6 50 4 2
EGBBC201008D 0.5R 1 1 8 50 4 2
EGBBC201012D 0.5R 1 1 12 50 4 2
EGBBC201016D 0.5R 1 1 16 50 4 2
EGBBC201020D 0.5R 1 1 20 50 4 2
EGBBC201508D 0.75R 1.5 1.5 8 50 4 2
EGBBC201512D 0.75R 1.5 1.5 12 50 4 2
EGBBC201516D 0.75R 1.5 1.5 16 50 4 2
EGBBC201520D 0.75R 1.5 1.5 20 50 4 2
EGBBC202010D 1R 2 2 10 50 4 2
EGBBC202016D 1R 2 2 16 50 4 2
EGBBC202020D 1R 2 2 20 50 4 2
EGBBC202025D 1R 2 2 25 60 4 2
EGBRC203012D 1.5R 3 3 12 50 6 2
EGBRC203016D 1.5R 3 3 16 60 6 2
EGBRC203020D 1.5R 3 3 20 60 6 2
EGBRC203025D 1.5R 3 3 25 60 6 2
EGBRC203030D 1.5R 3 3 30 60 6 2
EGBRC204016D 2R 4 4 16 60 6 2
EGBRC204020D 2R 4 4 20 60 6 2
EGBRC204025D 2R 4 4 25 60 6 2
EGBRC204030D 2R 4 4 30 60 6 2
EGBRC205020D 2.5R 5 5 20 60 6 2
EGBRC205025D 2.5R 5 5 25 60 6 2
EGBRC205030D 2.5R 5 5 30 75 6 2
EGBRC206020D 3R 6 10 20 60 6 2
EGBRC206030D 3R 6 10 30 75 6 2
dR Tolerance
Ø ± 0.02
EGBBC2
EGBRC2
D
d
L1
L
L2
15°
R
A146
A200 - Long Neck Ball Nose Type - 2F
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Reduce vibration and more toughness.
It provides an excellent surface due to better surface grindings.
Long neck design is suitable for rid cutting.
．
．
．
．
．
鎢鋼圓鼻銑刀 - 長頸型 - 2刃
Solid Carbide Endmills
Solid Carbide Endmills
A147
A200 - Corner Radius Type - 4F
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Corner radius with multiple design increases the nish milling surface.
．
．
．
鎢鋼圓鼻銑刀 - 標準型 - 4刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGCFC403003D3 0.3R 6 50 4 4
EGCFC403005D3 0.5R 6 50 4 4
EGCFC403010D3 1R 6 50 4 4
EGCFC404003D4 0.3R 8 50 4 4
EGCFC404005D4 0.5R 8 50 4 4
EGCFC404010D4 1R 8 50 4 4
EGCSC403003D3 0.3R 6 50 6 4
EGCSC403005D3 0.5R 6 50 6 4
EGCSC403010D3 1R 6 50 6 4
EGCSC404003D4 0.3R 8 50 6 4
EGCSC404005D4 0.5R 8 50 6 4
EGCSC404010D4 1R 8 50 6 4
EGCSC405005D5 0.5R 10 50 6 4
EGCSC405010D5 1R 10 50 6 4
EGCSC406003D6 0.3R 12 50 6 4
EGCSC406005D6 0.5R 12 50 6 4
EGCSC406010D6 1R 12 50 6 4
EGCSC408005D8 0.5R 16 60 8 4
EGCSC408010D8 1R 16 60 8 4
EGCSC408015D8 1.5R 16 60 8 4
EGCSC410005D10 0.5R 20 75 10 4
EGCSC410010D10 1R 20 75 10 4
EGCSC410015D10 1.5R 20 75 10 4
EGCSC410020D10 2R 20 75 10 4
EGCSC412005D12 0.5R 24 75 12 4
EGCSC412010D12 1R 24 75 12 4
EGCSC412015D12 1.5R 24 75 12 4
EGCSC412020D12 2R 24 75 12 4
EGCSC412030D12 3R 24 75 12 4
EGCSC408010D8 1R 16 60 8 4
EGCSC408015D8 1.5R 16 60 8 4
EGCSC410005D10 0.5R 20 75 10 4
EGCSC410010D10 1R 20 75 10 4
EGCSC410015D10 1.5R 20 75 10 4
EGCSC410020D10 2R 20 75 10 4
EGCSC412005D12 0.5R 24 75 12 4
EGCSC412010D12 1R 24 75 12 4
EGCSC412015D12 1.5R 24 75 12 4
EGCSC412020D12 2R 24 75 12 4
EGCSC412030D12 3R 24 75 12 4
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
EGCFC4
EGCSC4
D
L1
L
dR
Solid Carbide Endmills
A148
A200 - Long Shank Corner Radius Type - 4F
．
．
．
鎢鋼圓鼻銑刀 - 長柄型 - 4刃
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
EGCEC404005D 4 0.5R 8 75 4 4
EGCKC404005D 4 0.5R 8 100 4 4
EGCLC403005D 3 0.5R 6 75 6 4
EGCLC403010D 3 1R 6 75 6 4
EGCLC404005D 4 0.5R 8 75 6 4
EGCLC404010D 4 1R 8 75 6 4
EGCLC405005D 5 0.5R 10 75 6 4
EGCLC405010D 5 1R 10 75 6 4
EGCLC406005D 6 0.5R 12 75 6 4
EGCNC406005D 6 0.5R 12 100 6 4
EGCLC406010D 6 1R 12 75 6 4
EGCMC408005D 8 0.5R 16 75 8 4
EGCLC408005D 8 0.5R 16 100 8 4
EGCLC408010D 8 1R 16 100 8 4
EGCLC408015D 8 1.5R 16 100 8 4
EGCLC410005D 10 0.5R 20 100 10 4
EGCNC410005D 10 0.5R 20 150 10 4
EGCLC410010D 10 1R 20 100 10 4
EGCLC410015D 10 1.5R 20 100 10 4
EGCLC410020D 10 2R 20 100 10 4
EGCLC412005D 12 0.5R 24 100 12 4
EGCNC412005D 12 0.5R 24 150 12 4
EGCLC412010D 12 1R 24 100 12 4
EGCLC412015D 12 1.5R 24 100 12 4
EGCLC412020D 12 2R 24 100 12 4
dR Tolerance
Ø < 3 0 ~ -0.03
3≦Ø≦10 0 ~ -0.04
Ø > 10 0 ~ -0.05
R ± 0.02
EGCEC4
EGCLC4
D
L
dR
L1
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Corner radius with multiple design increases the nish milling surface.
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
Corner
Radius
(R)
CL
(L1)
EFF-L
(L2)
OAL
(L)
Shank
(D)
Flutes
(F)
EGCBC20100106D 1 0.1R 1 6 50 4 2
EGCBC20100108D 1 0.1R 1 8 50 4 2
EGCBC20100110D 1 0.1R 1 10 50 4 2
EGCBC20100112D 1 0.1R 1 12 50 4 2
EGCBC20200210D 2 0.2R 2 10 50 4 2
EGCBC20200216D 2 0.2R 2 16 50 4 2
EGCBC20200220D 2 0.2R 2 20 50 4 2
EGCBC20200225D 2 0.2R 2 25 60 4 2
EGCBC20200510D 2 0.5R 2 10 50 4 2
EGCBC20200516D 2 0.5R 2 16 50 4 2
EGCBC20200520D 2 0.5R 2 20 50 4 2
EGCBC20200525D 2 0.5R 2 25 60 4 2
EGCRC20300210D 3 0.2R 3 10 50 6 2
EGCRC20300220D 3 0.2R 3 20 60 6 2
EGCRC20300230D 3 0.2R 3 30 75 6 2
EGCRC20300510D 3 0.5R 3 10 50 6 2
EGCRC20300520D 3 0.5R 3 20 60 6 2
EGCRC20300530D 3 0.5R 3 30 75 6 2
EGCRC20400516D 4 0.5R 4 16 60 6 2
EGCRC20400525D 4 0.5R 4 25 60 6 2
EGCRC20400535D 4 0.5R 4 35 75 6 2
EGCRC20401016D 4 1R 4 16 60 6 2
EGCRC20401025D 4 1R 4 25 60 6 2
EGCRC20401035D 4 1R 4 35 75 6 2
EGCRC20500520D 5 0.5R 5 20 60 6 2
EGCRC20500530D 5 0.5R 5 30 60 6 2
EGCRC20600520D 6 0.5R 7 20 60 6 2
EGCRC20600530D 6 0.5R 7 30 60 6 2
EGCRC20601020D 6 1R 7 20 60 6 2
EGCRC20601030D 6 1R 7 30 60 6 2
EGCBC2
EGCRC2
D
d
L1
L
L2
15°
R
dTolerance
Ø0 ~ 0.02
R ± 0.02
A149
A200 - Long Neck Corner Radius Type - 2F
The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating.
Suitable for Graphite.
Available in various cut lengths.
Corner radius with long neck are suitable for deep general cutting and 3D milling.
．
．
．
．
鎢鋼圓鼻銑刀 - 長頸型 - 2刃
A150
Endmills．Inserts．Drills
Solid Carbide Endmills
Solid Carbide Endmills
Micro grain carbide rod is suitable for general machining.
High ecient processing can be achieved by great chip evacuation.
High helix angle oers stable and excellent nished surface in high speed.
Radial ute design is good for chip evacuation and easy of machining.
A100 Series for Aluminium Alloy
A151
Solid Carbide Endmills
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSFS201000 1 3 50 4 2
ENSFS202000 2 6 50 4 2
ENSFS203000 3 9 50 4 2
ENSFS204000 4 12 50 4 2
ENSSS204000 4 12 50 6 2
ENSSS205000 5 15 50 6 2
ENSSS206000 6 15 50 6 2
ENSSS208000 8 20 60 8 2
ENSSS210000 10 30 75 10 2
ENSSS212000 12 30 75 12 2
ENSSS216000 16 40 100 16 2
ENSSS220000 20 45 100 20 2
ENSFS2
ENSSS2
D
d
L1
L
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20).
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
High Helix oers excellent and stable nished surfaces in high speed.
Great chip evacuation and ute polishing increase cutting surface and feed rate.
．
．
．
．
A100 - Square Type - 2F
A152
鎢鋼平銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 062
Solid Carbide Endmills
Solid Carbide Endmills
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
ENSFS3
ENSSS3
D
d
L1
L
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20)
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
High Helix oers excellent and stable nished surfaces in high speed.
Great chip evacuation and ute polishing get good cutting surface and high feed rate.
．
．
．
．
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSFS302000 2 6 50 4 3
ENSFS303000 3 9 50 4 3
ENSFS304000 4 12 50 4 3
ENSSS304000 4 12 50 6 3
ENSSS305000 5 15 50 6 3
ENSSS306000 6 15 50 6 3
ENSSS308000 8 20 60 8 3
ENSSS310000 10 30 75 10 3
ENSSS312000 12 30 75 12 3
ENSSS316000 16 40 100 16 3
ENSSS320000 20 45 100 20 3
A100 - Square Type - 3F
A153
鎢鋼平銑刀 - 標準型 - 3刃
Cutting conditions( 建議切削參數表 ) : Table 062
Solid Carbide Endmills
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
ENSCS3
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20)
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
High Helix oers excellent and stable nished surfaces in high speed.
Great chip evacuation and ute polishing get good cutting surface and high feed rate.
．
．
．
．
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSCS303000 3 15 60 6 3
ENSCS304000 4 20 60 6 3
ENSCS305000 5 25 60 6 3
ENSCS306000 6 30 75 6 3
ENSCS308000 8 45 100 8 3
ENSCS310000 10 55 100 10 3
ENSCS312000 12 55 100 12 3
ENSCS316000 16 75 150 16 3
ENSCS320000 20 90 150 20 3
D
d
L1
L
A100 - Long Flute Square Type - 3F
A154
鎢鋼平銑刀 - 長刃型 - 3刃
Cutting conditions( 建議切削參數表 ) : Table 062
Solid Carbide Endmills
Solid Carbide Endmills
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSSH304000 4 12 50 6 3
ENSSH305000 5 15 50 6 3
ENSSH306000 6 15 50 6 3
ENSSH308000 8 20 60 8 3
ENSSH310000 10 30 75 10 3
ENSSH312000 12 30 75 12 3
ENSSH316000 16 40 100 16 3
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
ENSSH3
D
d
L1
L
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20).
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
55° degree Helix oers excellent and stable nished surfaces in high speed side milling.
Flute polishing gives a very good cutting surface and high feed rate.
．
．
．
．
A100 - High Helix Square Type - 3F
A155
鎢鋼平銑刀 - 高導型 - 3刃
Cutting conditions( 建議切削參數表 ) : Table 062
Solid Carbide Endmills
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
ENSSB3
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20).
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
U-ute design with high chips volume space and easy to remove chips.
Excellent for high feed rough milling.
Also suitable for surface nish in high speed milling.
．
．
．
．
．
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSSB304000 4 12 50 6 3
ENSSB305000 5 15 50 6 3
ENSSB306000 6 15 50 6 3
ENSSB308000 8 20 60 8 3
ENSSB310000 10 30 75 10 3
ENSSB312000 12 30 75 12 3
ENSSB316000 16 40 100 16 3
ENSSB320000 20 45 100 20 3
D
d
L1
L
A100 -
High Performance Square Type - 3F (for side milling)
A156
鎢鋼平銑刀 - 高效能型 - 3刃
D
d
L1
L
Solid Carbide Endmills
Solid Carbide Endmills
dTolerance
Ø < 3 0 ~ -0.02
3≦Ø≦10 0 ~ -0.03
Ø > 10 0 ~ -0.04
ENSSP3
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy , Copper (HRC<20)
45° High Helix oers excellent stable and nished surfaces.
Great chip evacuation and ute polish increase cutting surface and feed rate.
Order No. Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENSSP306000 6 15 50 6 3
ENSSP308000 8 20 60 8 3
ENSSP310000 10 30 75 10 3
ENSSP312000 12 30 75 12 3
ENSSP316000 16 40 100 16 3
．
．
．
A100 - Fine-Finishing Square Type - 3F
A157
鎢鋼平銑刀 - 高光鏡面型 - 3刃
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(d)
CL
(L1)
OAL
(L)
Shank
(D)
Flutes
(F)
ENBFA201000 0.5R 1 2 50 4 2
ENBFA202000 1.0R 2 4 50 4 2
ENBFA203000 1.5R 3 6 50 4 2
ENBFA204000 2.0R 4 8 50 4 2
ENBSA204000 2.0R 4 8 50 6 2
ENBSA205000 2.5R 5 10 50 6 2
ENBSA206000 3.0R 6 12 50 6 2
ENBSA208000 4.0R 8 16 60 8 2
ENBSA210000 5.0R 10 20 75 10 2
ENBSA212000 6.0R 12 24 75 12 2
ENBSA216000 8.0R 16 32 100 16 2
dR Tolerance
Ø ± 0.02
ENBFA2
ENBSA2
D
R
L1
L
Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20).
CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy.
Great chip evacuation.
Due to polish surface grinding of cutting it provides an excellent surface.
New tool geometry increases wear resistance and cutting force is decreased.
．
．
．
．
．
A100 - Ball Nose Type - 2F
A158
鎢鋼球型銑刀 - 標準型 - 2刃
Cutting conditions( 建議切削參數表 ) : Table 063
Carbide Replaceable Endmills
Solid Carbide Endmills
WinMaster Series Replaceable Endmills, up to HRC 60
A159
High eciency machining.
Excellent compatibility.
SICO coating.
Flexible adapter.
Carbide Replaceable Endmills
Order No. Dia.
(D)
CL
(L1)
ND
(d)
M
(M)
Flutes
(F)
EPSWH410000S 10 10 5.5 M5 4
EPSWH412000S 12 12 6.5 M6 4
EPSWH416000S 16 16 8.5 M8 4
EPSWH420000S 20 20 10.5 M10 4
WinMaster Series -
Anti-Vibration Square Type - 4F
A160
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EPSWH4
d
M
L1
L
鎢鋼平銑刀 -
鎖牙式抗震 PD 型
- 4刃
Cutting conditions( 建議切削參數表 ) : Table 064
Carbide Replaceable Endmills
Solid Carbide Endmills
Order No. Radius
(R)
Dia.
(D)
CL
(L1)
ND
(d)
M
(M)
Flutes
(F)
EPBWH210000S 5R 10 10 5.5 M5 2
EPBWH212000S 6R 12 12 6.5 M6 2
EPBWH216000S 8R 16 16 8.5 M8 2
EPBWH220000S 10R 20 20 10.5 M10 2
WinMaster Series - Ball Nose Type - 2F
A161
dR Tolerance
Ø≦12 ± 0.01
Ø > 12 ± 0.015
EPBWH2
鎢鋼球型銑刀 - 鎖牙式標準型 - 2刃
d
M
L1
L
R
Cutting conditions( 建議切削參數表 ) : Table 065
Carbide Replaceable Endmills
Order No. Dia.
(D)
Corner
Radius
(R)
CL
(L1)
ND
(d)
M
(M)
Flutes
(F)
EPCWH410005S 10 0.5R 10 5.5 M5 4
EPCWH410010S 10 1.0R 10 5.5 M5 4
EPCWH410020S 10 2.0R 10 5.5 M5 4
EPCWH412005S 12 0.5R 12 6.5 M6 4
EPCWH412010S 12 1.0R 12 6.5 M6 4
EPCWH412020S 12 2.0R 12 6.5 M6 4
EPCWH412030S 12 3.0R 12 6.5 M6 4
EPCWH416010S 16 1.0R 16 8.5 M8 4
EPCWH416020S 16 2.0R 16 8.5 M8 4
EPCWH416030S 16 3.0R 16 8.5 M8 4
EPCWH420010S 20 1.0R 20 10.5 M10 4
EPCWH420020S 20 2.0R 20 10.5 M10 4
EPCWH420030S 20 3.0R 20 10.5 M10 4
WinMaster Series
-
Anti-Vibration Corner Radius Type - 4F
A162
R
d
M
L1
L
dTolerance
Ø≦12 0 ~ -0.02
Ø > 12 0 ~ -0.03
EPCWH4
鎢鋼圓鼻銑刀 - 鎖牙式抗震 PD 型 - 4刃
Cutting conditions( 建議切削參數表 ) : Table 064
Carbide Replaceable Endmills
Solid Carbide Endmills
WinMaster Series
-
CARBIDE EXTENSION ADAPTER (Anti-Vibration)
A163
Order No.
Dimensions, mm
d L D M
ISWSEA050750 5.5 75 10 M5
ISWSEA051000 5.5 100 10 M5
ISWSEA051500 5.5 150 10 M5
ISWSEA061001 5.5 100 10 M6
ISWSEA061501 5.5 150 10 M6
ISWSEA060750 6.5 75 12 M6
ISWSEA061000 6.5 100 12 M6
ISWSEA061500 6.5 150 12 M6
ISWSEA062000 6.5 200 12 M6
ISWSEA081000 8.5 100 16 M8
ISWSEA081500 8.5 150 16 M8
ISWSEA082000 8.5 200 16 M8
ISWSEA082500 8.5 250 16 M8
ISWSEA101000 10.5 100 20 M10
ISWSEA101500 10.5 150 20 M10
ISWSEA102000 10.5 200 20 M10
ISWSEA102500 10.5 250 20 M10
ISWSEA103000 10.5 300 20 M10
ISWSEA121000 12.5 100 25 M12
ISWSEA121500 12.5 150 25 M12
ISWSEA122000 12.5 200 25 M12
ISWSEA122500 12.5 250 25 M12
ISWSEA123000 12.5 300 25 M12
鎢鋼鎖牙式抗震延長桿
SWSEA
Carbide Replaceable Endmills
WinMaster Series
-
CARBIDE EXTENSION ADAPTER (Anti-Vibration)
A164
Order No.
Dimensions, mm
d d2 L1 L D M
ISWSEB0610024 6.5 11.8 24 100 12 M6
ISWSEB0615024 6.5 11.5 24 150 12 M6
ISWSEB0815030 8.5 15 30 150 16 M8
ISWSEB0820040 8.5 15 40 200 16 M8
ISWSEB1015040 10.5 19 40 150 20 M10
ISWSEB1020040 10.5 19 40 200 20 M10
ISWSEB1215048 12.5 24 48 150 25 M12
ISWSEB1220048 12.5 24 48 200 25 M12
鎢鋼鎖牙式抗震延長桿
SWSEB
Carbide Replaceable Endmills
Solid Carbide Endmills
WinMaster Series
-
CARBIDE EXTENSION ADAPTER (Anti-Vibration)
A165
Order No.
Dimensions, mm
d d2 L1 L D M
ISWTEA051500 5.5 9.8 60 150 12 M5
ISWTEA061500 6.5 11.8 70 150 16 M6
ISWTEA082000 8.5 15.5 90 200 20 M8
ISWTEA102000 10.5 19.8 90 200 25 M10
ISWTEA122000 12.5 24.5 90 200 32 M12
鎢鋼鎖牙式抗震延長桿
SWTEA
A166
Endmills．Inserts．Drills
Technical Data
Recommended Cutting Conditions
A167
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
CODE SKT, SKD SKT, SKD SKT, SKD
HARDNESS HRC 45~55 HRC 55~60 HRC 60~70
Vc 129 M/min 98 M/min 65 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
6MM 6,890 1,900 5,200 1,000 3,445 505
8MM 5,200 1,900 3,900 1,000 2,600 505
10MM 4,160 1,900 3,120 1,000 2,080 505
12MM 3,445 1,900 2,600 1,000 1,755 505
14MM 2,925 1,800 2,210 1,000 1,430 505
16MM 2,535 1,700 2,015 930 1,294 505
18MM 2,275 1,600 1,885 895 1,151 505
20MM 2,015 1,500 1,495 845 1,040 505
25MM 1,625 1,500 1,242 915 826 505
Milling Amount
(mm)
EHSSS6, EHSSS8
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
推薦切削參數
Table 001
Technical Data
Technical Data
A168
EHSPS4, EHSUS4, EHSUS6, EHSUS8
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
CODE SKT, SKD SKT, SKD SKT, SKD
HARDNESS HRC 45~55 HRC 55~60 HRC 60~70
Vc 208 M/min 195 M/min 129 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
6MM 11,050 2,450 10,335 2,000 6,890 1,210
8MM 8,255 2,440 7,735 1,995 5,200 1,215
10MM 6,630 2,450 6,110 1,970 4,160 1,215
12MM 5,525 2,450 5,135 1,985 3,445 1,210
14MM 4,680 2,420 4,420 1,995 2,925 1,200
16MM 4,095 2,420 3,900 2,000 2,535 1,285
18MM 3,640 2,420 3,445 2,000 2,275 1,200
20MM 3,250 2,400 3,055 1,970 2,015 1,180
25MM 2,600 2,400 2,470 1,990 1,625 1,190
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 002
Technical Data
A169
EHBPS2, EHBUS2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
CODE SKT, SKD SKT, SKD SKT, SKD
HARDNESS HRC 45~55 HRC 55~60 HRC 60~70
Vc 129 M/min 116 M/min 63 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
0.5R 41,600 960 39,000 850 33,150 500
1.0R 40,950 1,900 37,050 1,880 20,150 600
1.5R 27,300 2,080 24,700 1,880 13,650 625
2.0R 20,150 2,050 18,200 1,850 10,335 630
2.5R 16,250 2,060 14,300 1,815 8,255 630
3.0R 13,650 2,080 12,350 1,880 6,890 630
4.0R 10,335 1,550 9,295 1,400 5,135 470
5.0R 8,255 1,250 7,410 1,100 4,095 375
6.0R 6,890 1,050 6,175 950 3,445 315
8.0R 5,135 790 4,745 710 2,535 230
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 003
Technical Data
Technical Data
EHCUK4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
HARDNESS HRC 40~50 HRC 50~55 HRC 55~60
Vc 130 M/min 78 M/min 52 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
2mm 20,700 5,750 12,420 3,450 8,280 2,310
3mm 13,800 6,050 8,280 3,640 5,520 2,420
4mm 10,350 7,030 6,210 4,220 4,140 2,810
6mm 6,900 6,900 4,140 4,140 2,760 2,760
8mm 5,200 6,850 3,105 4,090 2,070 2,730
10mm 4,150 6,600 2,500 3,970 1,650 2,640
12mm 3,450 6,900 2,070 4,140 1,380 2,760
Milling Amount
(mm)
A170
Recommended Cutting Conditions 推薦切削參數
Table 004
aaap
R≦10.1 x R 0.25D
R > 1 0.2mm 0.25D
aaap
R≦1
0.05 x R
0.25D
R > 1 0.1mm 0.25D
aaap
R≦1
0.05 x R
0.25D
R > 1 0.1mm 0.25D
Technical Data
Technical Data
EHCPS4, EHCUS4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
CODE SKT, SKD SKT, SKD SKT, SKD
HARDNESS HRC 45~55 HRC 55~60 HRC 60~70
Vc 65 M/min 39 M/min 26 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
1MM 20,670 2,150 12,350 980 8,281 500
2MM 10,335 2,145 6,175 980 4,134 500
3MM 6,890 2,150 4,160 990 2,756 500
4MM 5,200 2,160 3,120 990 2,067 500
6MM 3,445 2,150 2,080 990 1,378 500
8MM 2,600 2,160 1,560 990 1,034 500
10MM 2,080 2,160 1,242 980 826 500
12MM 1,755 2,190 1,034 980 689 500
Milling Amount
(mm)
A171
Recommended Cutting Conditions 推薦切削參數
Table 005
Technical Data
A172
Side Milling
Work Material Condition Range Cutting Depth
Cutting Condition
Diameter (d)
Ø1 Ø2 Ø3 Ø4 Ø6 Ø8 Ø10 Ø12
Pre-Harden Steels
(HRC 35~45) NAK80、CENA1
High Speed
ap=1.5D RPM 35000 17500 12000 8700 5830 4380 3500 2900
ae=0.05D Feed(mm/min) 630 830 1000 1000 1100 1100 1100 1100
General
ap=1.5D RPM 25500 12700 8500 6350 4200 3200 2500 2150
ae=0.07D Feed(mm/min) 460 510 550 600 750 800 750 700
Hardened Steels
(HRC 45~60)SKD61、SKD11、
SKH51
High Speed
ap=1.5D RPM 32000 16000 11000 8000 5300 4000 3200 2750
ae=0.02D Feed(mm/min) 600 750 800 850 900 1000 900 850
General
ap=1.5D RPM 22000 11200 7400 5600 3750 2800 2200 2000
ae=0.05D Feed(mm/min) 360 440 460 500 560 600 580 550
Slotting Milling
Work Material Condition Range Cutting Depth
Cutting Condition
Diameter (d)
Ø3 Ø4 Ø5 Ø6 Ø8 Ø10 Ø12
Pre-Harden
Steels
(HRC 35~45) NAK80、CENA1
General
ap=0.5D RPM 7690 5800 4640 3770 2900 2320 1890
ae=1D Feed(mm/min) 460 580 670 610 580 550 520
Hardened Steels
(HRC 45~60)SKD61、SKD11、
SKH51
General
ap=0.2D RPM 3990 3000 2430 1950 1500 1200 1020
ae=1D Feed(mm/min) 200 240 300 330 300 270 240
EHSFF4, EHSSF4, EHSLF4, EHNF4, EHMF4, EHCSF4, EHCLF4, EHCNF4, EHCMF4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 006
Technical Data
Technical Data
A173
EHBFF2, EHBSF2, EHBLF2, EHBNF2, EHBMF2, EPBPF2, EHBUF2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Work Material Condition Range Cutting Depth
Cutting Condition
Diameter (d)
0.5R 1R 2R 3R 4R 5R 6R
Pre-Harden Steels
(HRC 35~45) NAK80、CENA1
High Speed
ap=0.05~0.1 RPM 50000 32000 22000 16000 12000 10000 8000
ae=0.02D Feed(mm/min) 4000 3000 2850 2800 2400 2000 1600
General
ap=0.05~0.1 RPM 36000 20000 13000 8500 6400 5000 4200
ae=0.02D Feed(mm/min) 1600 1500 1500 1400 1200 1060 920
Hardened Steels
(HRC 45~55)SKD61、SKT4
High Speed
ap=0.05~0.1 RPM 50000 32000 20000 13000 10000 8000 6600
ae=0.02D Feed(mm/min) 3200 2560 2500 2200 1840 1600 1400
General
ap=0.05~0.1 RPM 36000 20000 10000 6800 5200 4000 3500
ae=0.02D Feed(mm/min) 1280 1280 1280 1160 960 820 730
Hardened Steels
(HRC 55~60)SKD11、SKH51
High Speed
ap=0.05~0.1 RPM 50000 32000 16000 11000 8000 6400 5300
ae=0.15D Feed(mm/min) 2000 2000 1920 1760 1400 1200 1060
General
ap=0.05~0.1 RPM 25000 15000 9500 6500 4800 3800 3200
ae=0.15D Feed(mm/min) 1000 1000 960 960 840 720 640
Recommended Cutting Conditions 推薦切削參數
Table 007
Technical Data
A174
EHSFA2, EHSSA2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145(m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 15390 705 0.15 3 13270 610 0.15 3 11150 510 0.15 3
4mm 11550 690 0.2 4 9950 595 0.2 4 8360 500 0.2 4
6mm 7700 615 0.3 6 6630 530 0.3 6 5570 445 0.3 6
8mm 5770 460 0.4 8 4980 395 0.4 8 4180 335 0.4 8
10mm 4620 462 0.5 10 3980 395 0.5 10 3345 335 0.5 10
12mm 3850 385 0.6 12 3320 330 0.6 12 2790 280 0.6 12
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 008
Technical Data
Technical Data
A175
EHSFA4, EHSSA4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145(m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 15390 1415 3 0.15 13270 1220 3 0.15 11150 1025 3 0.15
4mm 11550 1386 4 0.2 9950 1194 4 0.2 8360 1003 4 0.2
6mm 7700 1232 6 0.3 6630 1060 6 0.3 5570 891 6 0.3
8mm 5770 923 8 0.4 4980 796 8 0.4 4180 668 8 0.4
10mm 4620 924 10 0.5 3980 796 10 0.5 3345 669 10 0.5
12mm 3850 770 12 0.6 3320 664 12 0.6 2790 558 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 009
Technical Data
A176
EHSFH4, EHSSH4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145(m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 15390 1415 3 0.15 13270 1220 3 0.15 11150 1025 3 0.15
4mm 11550 1386 4 0.2 9950 1194 4 0.2 8360 1003 4 0.2
6mm 7700 1232 6 0.3 6630 1060 6 0.3 5570 891 6 0.3
8mm 5770 923 8 0.4 4980 796 8 0.4 4180 668 8 0.4
10mm 4620 924 10 0.5 3980 796 10 0.5 3345 669 10 0.5
12mm 3850 770 12 0.6 3320 664 12 0.6 2790 558 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 010
Technical Data
Technical Data
A177
EHSLH4, EHSMH4, EHSNH4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 123 (m/min) 106 (m/min) 89 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 13080 1200 3 0.15 11280 1038 3 0.15 9480 871 3 0.15
4mm 9820 1178 4 0.2 8460 1015 4 0.2 7100 852 4 0.2
6mm 6545 1050 6 0.3 5635 900 6 0.3 4740 757 6 0.3
8mm 4905 785 8 0.4 4235 676 8 0.4 3555 568 8 0.4
10mm 3927 785 10 0.5 3385 676 10 0.5 2845 568 10 0.5
12mm 3270 655 12 0.6 2820 564 12 0.6 2370 474 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 011
Technical Data
A178
EHSBC2, EHSRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
0.2mm
0.5 56000 270 0.003 44800 180 0.002 15000 10 0.001 0.160
1 50900 230 0.004 40800 160 0.003 ---
1.5 48200 200 0.002 38500 140 0.002 ---
0.3mm
1.5 50800 360 0.005 42700 260 0.004 14600 13 0.003 0.057
3 31900 190 0.001 25500 130 0.001 14600 10 0.001 0.004
5 20400 80 0.001 16300 60 0.001 ----
0.4mm
1 48100 470 0.008 38500 320 0.005 14300 17 0.003 0.054
5 30100 240 0.002 24100 160 0.001 14300 14 0.001 0.003
10 24600 150 0.001 19700 100 0.001 14300 11 0.001 0.001
0.5mm
3 32200 370 0.008 25700 260 0.006 14000 19 0.004 0.016
5 27200 290 0.006 21700 200 0.004 14000 17 0.003 0.008
8 21600 190 0.001 17400 130 0.001 14000 14 0.001 0.002
10 19600 150 0.001 15600 100 0.001 14000 12 0.001 0.001
14 16300 70 0.001 13000 50 0.001 ----
0.6mm
3 33500 500 0.013 26800 340 0.009 12000 22 0.005 0.114
6 23000 290 0.005 18400 200 0.003 12000 19 0.002 0.008
8 20000 230 0.003 16000 160 0.002 12000 17 0.001 0.003
10 17900 180 0.002 14300 130 0.001 12000 15 0.001 0.002
12 16400 150 0.001 13100 100 0.001 12000 13 0.001 0.001
16 13500 70 0.001 10800 50 0.001 ----
0.7mm
4 25800 440 0.012 20600 290 0.009 10000 22 0.006 0.047
6 21200 330 0.007 16900 230 0.005 10000 20 0.003 0.014
8 18400 260 0.004 14700 190 0.003 10000 18 0.002 0.006
10 16500 220 0.003 13200 160 0.002 10000 16 0.001 0.003
0.8mm
4 24100 480 0.019 19300 330 0.013 8000 20 0.010 0.080
8 17200 300 0.006 13800 200 0.004 8000 16 0.003 0.010
12 14100 200 0.003 11300 140 0.002 8000 12 0.001 0.003
14 12300 150 0.001 9800 100 0.001 ---
0.9mm
6 18500 420 0.013 14800 290 0.010 7200 18 0.007 0.038
8 16100 330 0.008 12900 230 0.006 7200 16 0.004 0.016
10 14500 270 0.005 11600 190 0.004 7200 14 0.002 0.008
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 012
Technical Data
Technical Data
A179
EHSBC2, EHSRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1.0mm
5 19600 510 0.022 15700 360 0.016 6500 15 0.009 0.013
10 13800 300 0.007 11000 210 0.005 6500 12 0.003 0.013
12 12600 250 0.005 10100 170 0.003 6500 11 0.002 0.007
14 11700 210 0.003 9400 150 0.002 650 10 0.001 0.005
16 11000 180 0.003 8800 130 0.002 ----
20 9800 130 0.002 7900 90 0.001 ----
1.2mm
6 16100 490 0.026 12800 340 0.019 9600 22 0.011 0.120
12 11400 290 0.008 9100 200 0.005 ----
16 9800 220 0.004 7900 150 0.003 ----
20 8800 170 0.003 7000 120 0.002 ----
1.4mm
8 12900 440 0.025 10300 310 0.018 9600 18 0.010 0.094
10 11500 380 0.017 9200 260 0.012 ---0.048
16 9100 250 0.007 7300 180 0.005 ---0.012
20 7800 180 0.004 6200 120 0.003 ---0.005
1.5mm
8 12500 460 0.029 10000 320 0.020 9600 25 0.012 0.124
12 10200 340 0.016 8200 240 0.011 ----
14 9500 300 0.012 7600 210 0.008 ----
16 8900 270 0.009 7100 190 0.007 ----
20 7900 220 0.006 6300 150 0.004 ----
1.6mm
10 10800 410 0.025 8600 280 0.018 9600 15 0.010 0.082
14 9100 320 0.014 7300 220 0.010 ----
18 8000 260 0.009 6400 180 0.006 ----
2.0mm
6 12500 650 0.045 10000 450 0.032 9600 211 0.019 0.926
10 9700 470 0.031 7800 330 0.022 9600 45 0.013 0.200
12 8900 420 0.026 7100 290 0.019 9600 56 0.011 0.116
14 8200 370 0.022 6600 260 0.016 9600 16 0.009 0.073
20 6900 280 0.013 5500 190 0.009 ----
25 6200 230 0.008 4900 160 0.006 ----
30 5600 180 0.005 4500 130 0.004 ----
2.5mm
8 9600 670 0.054 7700 460 0.039 9600 227 0.023 0.954
12 7900 520 0.042 6300 360 0.030 9600 67 0.018 0.283
16 6800 430 0.031 5500 290 0.022 9600 28 0.013 0.119
20 6100 360 0.023 4900 250 0.017 9600 14 0.010 0.061
25 5500 300 0.015 4400 210 0.011 ----
30 5000 250 0.010 4000 170 0.007 ----
35 4800 190 0.007 3800 140 0.005 ----
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 013
Technical Data
A180
EHSBC2, EHSRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3.0mm
6 8000 700 0.072 6400 480 0.052 8000 435 0.031 1.978
10 7200 620 0.064 5800 430 0.046 8000 222 0.027 1.013
16 5900 470 0.045 4700 320 0.032 8000 54 0.019 0.247
20 5300 400 0.035 4300 280 0.025 8000 27 0.015 0.127
25 4800 340 0.025 3900 230 0.018 8000 14 0.010 0.065
30 4500 290 0.018 3600 200 0.013 8000 10 0.007 0.038
35 4200 250 0.013 3300 170 0.009 ----
4.0mm
8 6800 770 0.093 5300 500 0.070 6000 450 0.050 1.990
12 5100 600 0.078 4100 410 0.056 6000 388 0.033 1.852
16 4400 510 0.065 3600 350 0.046 6000 164 0.027 0.781
20 4000 440 0.054 3200 300 0.038 6000 84 0.022 0.400
25 3600 380 0.042 2900 260 0.030 6000 43 0.018 0.205
30 3300 330 0.033 2600 230 0.024 6000 24 0.014 0.119
35 3100 290 0.026 2500 200 0.019 6000 15 0.011 0.075
5.0mm
16 3500 520 0.089 2800 360 0.064 4800 457 0.038 1.907
20 3100 440 0.085 2500 310 0.061 4800 234 0.036 0.977
25 2800 390 0.077 2200 270 0.055 4800 120 0.033 0.500
30 2500 340 0.066 2000 230 0.047 4800 69 0.028 0.289
35 2300 300 0.054 1900 210 0.038 4800 43 0.022 0.182
6.0mm 20 2600 470 0.088 2100 330 0.063 4000 607 0.037 2.025
30 2000 340 0.077 1600 240 0.055 4000 180 0.033 0.600
8.0mm 20 2300 450 0.130 1700 330 0.090 3400 580 0.050 1.600
40 1500 250 0.800 1100 160 0.060 3400 84 0.035 0.200
10.0mm 25 2100 430 0.130 1500 310 0.080 3200 540 0.050 1.760
45 1300 220 0.700 900 150 0.050 3200 76 0.030 0.240
12.0mm 30 2000 400 0.140 1400 280 0.080 3000 540 0.050 1.840
50 1500 200 0.800 800 140 0.050 3000 72 0.030 0.280
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 014
Technical Data
Technical Data
A181
EHSBC4, EHSRC4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
1mm 38000 1050 25500 710 20500 430
2mm 26000 1250 17500 840 14500 520
3mm 17300 1250 11500 840 9500 520
4mm 13200 1300 8800 880 7200 540
5mm 12500 1500 8300 1000 6400 580
6mm 10350 1400 6900 950 5300 560
8mm 7800 1350 5200 900 4000 520
10mm 6450 1260 4100 840 3200 480
12mm 5250 1260 3500 840 2650 480
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 015
Technical Data
A182
EHBFH2, EHBSH2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145 (m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 45270 1130 0.14 0.2 39030 975 0.14 0.2 32780 820 0.14 0.2
2R 22636 1358 0.28 0.4 19500 1170 0.28 0.4 16400 984 0.28 0.4
3R 15090 1130 0.42 0.6 13000 975 0.42 0.6 10930 820 0.42 0.6
4R 11320 905 0.56 0.8 9750 780 0.56 0.8 8195 655 0.56 0.8
5R 9055 770 0.7 1 7800 663 0.7 1 6555 557 0.7 1
6R 7545 680 0.84 1.2 6500 585 0.84 1.2 5460 491 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 016
Technical Data
Technical Data
A183
EHBLH2, EHBMH2, EHBNH2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145 (m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 36200 904 0.14 0.2 31200 780 0.14 0.2 26200 656 0.14 0.2
2R 18100 1086 0.28 0.4 15600 930 0.28 0.4 13120 787 0.28 0.4
3R 12050 904 0.42 0.6 10400 780 0.42 0.6 8750 656 0.42 0.6
4R 9050 724 0.56 0.8 7800 624 0.56 0.8 6550 524 0.56 0.8
5R 7250 616 0.7 1 6250 530 0.7 1 5250 446 0.7 1
6R 6036 544 0.84 1.2 5200 468 0.84 1.2 4370 393 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 017
Technical Data
A184
EHBUH2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145 (m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 45270 1130 0.14 0.2 39030 975 0.14 0.2 32780 820 0.14 0.2
2R 22636 1358 0.28 0.4 19500 1170 0.28 0.4 16400 984 0.28 0.4
3R 15090 1130 0.42 0.6 13000 975 0.42 0.6 10930 820 0.42 0.6
4R 11320 905 0.56 0.8 9750 780 0.56 0.8 8195 655 0.56 0.8
5R 9055 770 0.7 1 7800 663 0.7 1 6555 557 0.7 1
6R 7545 680 0.84 1.2 6500 585 0.84 1.2 5460 491 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 018
Technical Data
Technical Data
A185
EHBBC2, EHBRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Radius
半徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
R0.15 1 45000 552 0.010 0.010 38000 420 0.090 0.010 38000 348 0.007 0.009
3 40800 360 0.006 0.007 33600 264 0.005 0.005 33600 216 0.004 0.005
R0.2
1 54000 768 0.016 0.022 39600 516 0.013 0.022 39600 432 0.011 0.021
3 44400 480 0.010 0.010 32400 312 0.009 0.010 32400 264 0.008 0.010
5 30000 372 0.008 0.010 26400 288 0.006 0.010 26400 228 0.004 0.005
R0.25 5 34800 552 0.008 0.008 31200 444 0.007 0.010 31200 216 0.006 0.009
10 28800 456 0.007 0.010 28800 372 0.005 0.010 27600 216 0.005 0.009
R0.3
1 39600 960 0.022 0.091 27600 600 0.019 0.091 26400 516 0.014 0.091
5 28800 504 0.012 0.043 26400 396 0.008 0.042 26400 336 0.007 0.040
10 24000 360 0.005 0.020 22800 312 0.004 0.020 22800 240 0.003 0.018
R0.4
2 34800 816 0.045 0.100 27600 552 0.038 0.100 26400 456 0.030 0.010
6 28800 636 0.028 0.068 21600 420 0.020 0.068 21600 348 0.015 0.065
10 2040 468 0.020 0.050 19200 408 0.015 0.050 16800 336 0.010 0.050
R0.5
5 33600 900 0.052 0.220 21600 540 0.040 0.220 18000 540 0.008 0.014
10 16320 600 0.020 0.056 15000 456 0.014 0.056 13680 312 0.008 0.050
16 13680 480 0.016 0.056 12360 384 0.012 0.056 11520 252 0.005 0.030
R0.75
10 14760 782 0.080 0.170 9720 480 0.062 0.170 9720 456 0.050 0.160
18 12120 504 0.022 0.110 9600 432 0.020 0.110 9600 408 0.012 0.110
30 9840 456 0.012 0.050 9480 420 0.010 0.050 9480 396 0.010 0.050
R1.0
4 21000 1392 0.180 0.350 14640 1080 0.140 0.350 14640 900 0.120 0.350
10 21000 1224 0.140 0.230 14640 972 0.110 0.230 14640 792 0.090 0.230
20 15960 600 0.060 0.110 12720 600 0.055 0.110 12720 492 0.035 0.110
R1.5
6 14400 1824 0.200 0.340 9840 1320 0.160 0.320 6480 732 0.160 0.320
10 14400 1824 0.200 0.340 9840 1320 0.160 0.320 6480 732 0.160 0.300
20 12360 1476 0.145 0.320 8520 1128 0.120 0.310 5760 660 0.080 0.300
30 9360 816 0.100 0.150 8520 816 0.080 0.150 5760 384 0.070 0.300
R2.0
8 10440 1752 0.290 0.550 7200 1332 0.220 0.500 7200 1056 0.150 0.500
20 10440 1752 0.290 0.550 7200 1332 0.220 0.500 7200 1056 0.150 0.500
30 8880 1380 0.200 0.320 6600 1056 0.150 0.300 6600 816 0.130 0.300
35 7200 1056 0.132 0.320 6600 1056 0.100 0.300 6600 816 0.090 0.300
R2.5 15 8400 1500 0.300 0.700 6000 1140 0.220 0.700 6000 900 0.200 0.650
25 8400 1380 0.300 0.550 6000 1080 0.220 0.550 6000 816 0.200 0.500
R3.0 15 8160 1764 0.420 0.800 5760 1320 0.300 0.800 4440 864 0.300 0.800
R4.0 25 7200 1176 0.350 0.750 4920 912 0.180 0.600 4560 732 0.200 0.630
R5.0 30 5880 1128 0.370 0.900 4800 852 0.200 0.670 4200 708 0.200 0.650
R6.0 30 4800 984 0.420 0.900 4320 828 0.250 0.600 3600 600 0.250 0.600
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 019
Technical Data
A186
EHBRT2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL
CODE SKT, SKD SKT, SKD SKT, SKD
HARDNESS HRC 35~45 HRC 45~55 HRC 55~60
Vc 260 M/min 195 M/min 130 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
1.0R 41,600 1,920 31,200 1,440 20,800 960
2.0R 20,800 1,920 15,600 1,440 10,335 955
3.0R 13,650 1,890 10,335 1,430 6,890 955
4.0R 10,335 1,910 7,735 1,430 5,200 960
5.0R 8,255 1,905 6,240 1,440 4,160 960
6.0R 6,890 1,910 5,200 1,440 3,445 955
8.0R 5,200 1,920 3,900 1,440 2,600 960
10.0R 4,160 1,920 3,120 1,440 2,080 960
Milling Amount
(mm)
Ad = 0.05D
Pf = 0.1D
Recommended Cutting Conditions 推薦切削參數
Table 020
Technical Data
Technical Data
A187
EHCSH4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 145 (m/min) 125 (m/min) 105 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 15390 1415 3 0.15 13270 1220 3 0.15 11150 1025 3 0.15
4mm 11550 1386 4 0.2 9950 1194 4 0.2 8360 1003 4 0.2
6mm 7700 1232 6 0.3 6630 1060 6 0.3 5570 891 6 0.3
8mm 5770 923 8 0.4 4980 796 8 0.4 4180 668 8 0.4
10mm 4620 924 10 0.5 3980 796 10 0.5 3345 669 10 0.5
12mm 3850 770 12 0.6 3320 664 12 0.6 2790 558 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 021
Technical Data
A188
EHCLH4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 123 (m/min) 106 (m/min) 89 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 13080 1200 3 0.15 11280 1038 3 0.15 9480 871 3 0.15
4mm 9820 1178 4 0.2 8460 1015 4 0.2 7100 852 4 0.2
6mm 6545 1050 6 0.3 5635 900 6 0.3 4740 757 6 0.3
8mm 4905 785 8 0.4 4235 676 8 0.4 3555 568 8 0.4
10mm 3927 785 10 0.5 3385 676 10 0.5 2845 568 10 0.5
12mm 3270 655 12 0.6 2820 564 12 0.6 2370 474 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 022
Technical Data
Technical Data
A189
EHCUH4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
VC 線速度 123 (m/min) 106 (m/min) 89 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 15390 1415 3 0.15 13270 1220 3 0.15 11150 1025 3 0.15
4mm 11550 1386 4 0.2 9950 1194 4 0.2 8360 1003 4 0.2
6mm 7700 1232 6 0.3 6630 1060 6 0.3 5570 891 6 0.3
8mm 5770 923 8 0.4 4980 796 8 0.4 4180 668 8 0.4
10mm 4620 924 10 0.5 3980 796 10 0.5 3345 669 10 0.5
12mm 3850 770 12 0.6 3320 664 12 0.6 2790 558 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 023
Technical Data
A190
EHCBC2, EHCRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 40~55 HRC 55~65
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1.0mm 4 13800 805 0.029 0.264 11730 655 0.034 0.264 8280 78 0.017 0.264
10 8625 311 0.011 0.123 7475 264 0.013 0.123 5290 31 0.006 0.123
1.2mm 6 9200 575 0.018 0.088 8165 483 0.215 0.088 6095 59 0.011 0.088
12 6670 368 0.007 0.070 5980 299 0.008 0.070 4370 37 0.004 0.070
1.5mm
4 12880 1070 0.044 0.440 11730 920 0.059 0.440 8970 121 0.032 0.440
10 8280 736 0.031 0.282 7590 633 0.041 0.282 5865 83 0.022 0.282
16 5865 403 0.005 0.106 5405 345 0.006 0.106 4141 45 0.003 0.106
2.0mm
6 12535 1001 0.042 0.792 11730 909 0.095 0.792 9430 130 0.035 0.792
12 9200 805 0.030 0.440 8280 725 0.043 0.440 6785 105 0.025 0.440
20 6900 633 0.017 0.194 6440 564 0.023 0.194 5175 82 0.014 0.194
25 5865 541 0.005 0.132 5405 495 0.005 0.132 4255 68 0.002 0.132
2.5mm 10 10350 1001 0.051 0.528 9775 943 0.073 0.528 8165 151 0.047 0.528
25 6210 437 0.011 0.176 5865 414 0.016 0.176 4830 65 0.010 0.176
3.0mm
10 10350 1127 0.103 0.616 9775 874 0.103 0.655 8740 196 0.073 0.655
20 8165 863 0.071 0.567 7705 667 0.071 0.567 6900 147 0.043 0.567
30 6900 702 0.049 0.371 6325 541 0.049 0.371 5865 115 0.028 0.362
4.0mm
13 8740 1058 0.081 1.124 7360 920 0.117 1.124 6210 210 0.083 1.124
20 6785 978 0.053 0.880 5750 840 0.078 0.880 4830 194 0.057 0.880
30 5750 748 0.028 0.671 4715 656 0.041 0.671 4025 149 0.030 0.708
5.0mm 16 7705 1702 0.106 1.346 5520 1139 0.150 1.346 4600 342 0.110 1.346
30 5290 817 0.053 1.035 3795 541 0.075 1.035 3220 164 0.055 1.035
6.0mm 20 5980 1219 0.476 1.356 3565 1035 0.186 1.356 3105 393 0.145 1.356
30 4600 909 0.410 1.304 2645 759 0.164 1.304 2300 304 0.123 1.304
8.0mm 22 5520 1081 0.419 1.518 3220 909 0.164 1.518 2760 346 0.128 1.518
10.0mm 24 4485 920 0.356 1.645 2760 771 0.139 1.645 2300 294 0.108 1.645
12.0mm 26 3795 771 0.299 2.024 2300 644 0.117 2.024 1955 247 0.091 2.024
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 024
Technical Data
Technical Data
A191
EHCBC4, EHCRC4
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
Hardened Steel
淬火鋼
SKD11,SKH51
Hardness 硬度 HRC 35~45 HRC 55~65
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
2.0mm
6 12650 1265 0.063 0.633 11730 1173 0.059 0.713
12 8970 1012 0.045 0.396 8280 943 0.043 0.396
2.5mm
10 10580 1380 0.065 0.528 9775 1150 0.065 0.528
20 7590 1150 0.047 0.640 7360 655 0.030 0.220
3.0mm
10 11040 2070 0.094 0.684 10235 2070 0.059 0.684
20 8165 1495 0.057 0.567 7705 1495 0.035 0.567
4.0mm
13 9085 1576 0.105 1.150 7590 1530 0.082 1.150
20 7130 1380 0.069 0.920 59801 1288 0.054 0.920
30 6325 1104 0.043 0.745 5290 1058 0.033 0.745
6.0mm
20 5635 1691 0.176 2.305 3335 978 0.176 1.281
30 2875 782 0.098 1.320 1610 460 0.098 0.733
8.0mm 22 4600 1840 0.212 2.921 2760 782 0.212 1.518
10.0mm 24 3680 2013 0.242 3.140 2185 621 0.253 1.645
12.0mm 26 2875 2070 0.265 3.105 1725 495 0.276 1.714
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 025
Technical Data
A192
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48(m/min) 79(m/min) 120(m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 152 0.15 3 8386 251 0.15 3 12700 380 1.5 3
4mm 3820 152 0.2 4 6290 251 0.2 4 9550 382 2 4
6mm 2548 178 0.3 6 4200 294 0.3 6 6370 445 3 6
8mm 1910 133 0.4 8 3140 220 0.4 8 4770 333 4 8
10mm 1528 92 0.5 10 2515 150 0.5 10 3820 230 5 10
12mm 1274 76 0.6 12 2100 126 0.6 12 3180 190 6 12
EPSFC2, EPSSC2, EPSFA2, EPSSA2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120(m/min) 95(m/min) 79(m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 380 1.5 3 10000 300 0.9 3 8386 251 0.15 3
4mm 9550 382 2 4 7560 302 1.2 4 6290 251 0.2 4
6mm 6370 445 3 6 5040 352 1.8 6 4200 294 0.3 6
8mm 4770 333 4 8 3780 264 2.4 8 3140 220 0.4 8
10mm 3820 230 5 10 3020 181 3 10 2515 150 0.5 10
12mm 3180 190 6 12 2520 151 3.6 12 2100 126 0.6 12
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 026
Technical Data
Technical Data
A193
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 305 3 0.15 8386 503 3 0.15 12700 503 3 0.15
4mm 3820 305 4 0.2 6290 503 4 0.2 9550 503 4 0.2
6mm 2548 356 6 0.3 4200 588 6 0.3 6370 588 6 0.3
8mm 1910 267 8 0.4 3140 440 8 0.4 4770 440 8 0.4
10mm 1528 183 10 0.5 2515 301 10 0.5 3820 301 10 0.5
12mm 1274 152 12 0.6 2100 252 12 0.6 3180 252 12 0.6
EPSFC3, EPSSC3, EPSFC4, EPSSC4, EPSFA4, EPSSA4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 762 3 0.15 10000 600 3 0.15 8386 503 3 0.15
4mm 9550 764 4 0.2 7560 604 4 0.2 6290 503 4 0.2
6mm 6370 890 6 0.3 5040 705 6 0.3 4200 588 6 0.3
8mm 4770 668 8 0.4 3780 529 8 0.4 3140 440 8 0.4
10mm 3820 458 10 0.5 3020 362 10 0.5 2515 301 10 0.5
12mm 3180 380 12 0.6 2520 302 12 0.6 2100 252 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 027
Technical Data
A194
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 30 (m/min) 70 (m/min) 108 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 3184 127 3 0.6 7430 743 3 1.5 11460 1146 3 1.5
4mm 2388 95 4 0.8 5570 577 4 2 8600 860 4 2
6mm 1590 95 6 1.2 3720 595 6 3 5730 916 6 3
8mm 1194 120 8 1.6 2780 556 8 4 4300 860 8 4
10mm 955 95 10 2 2230 535 10 5 3440 825 10 5
12mm 796 95 12 2.4 1860 484 12 6 2866 750 12 6
EPSSD4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 80 (m/min) 60 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 1270 3 1.5 8492 850 3 1.5 6370 254 3 1.5
4mm 9550 955 4 2 6370 637 4 2 4778 190 4 2
6mm 6370 1020 6 3 4246 680 6 3 3184 190 6 3
8mm 4770 954 8 4 3184 636 8 4 2388 238 8 4
10mm 3820 916 10 5 2548 610 10 5 1910 190 10 5
12mm 3180 826 12 6 2120 550 12 6 1592 190 12 6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 028
Technical Data
Technical Data
A195
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 305 4.5 0.15 7430 743 4.5 0.15 12700 503 4.5 0.15
4mm 3820 305 6 0.2 5570 577 6 0.2 9550 503 6 0.2
6mm 2548 356 9 0.3 3720 595 9 0.3 6370 588 9 0.3
8mm 1910 267 12 0.4 2780 556 12 0.4 4770 440 12 0.4
10mm 1528 183 15 0.5 2230 535 15 0.5 3820 301 15 0.5
12mm 1274 152 18 0.6 1860 484 18 0.6 3180 252 18 0.6
EPSFH4, EPSSH4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 762 4.5 0.15 10000 600 4.5 0.15 8386 503 4.5 0.15
4mm 9550 764 6 0.2 7560 604 6 0.2 6290 503 6 0.2
6mm 6370 890 9 0.3 5040 705 9 0.3 4200 588 9 0.3
8mm 4770 668 12 0.4 3780 529 12 0.4 3140 440 12 0.4
10mm 3820 458 15 0.5 3020 362 15 0.5 2515 301 15 0.5
12mm 3180 380 18 0.6 2520 302 18 0.6 2100 252 18 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions
Table 029
推薦切削參數
Technical Data
A196
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 38 (m/min) 63 (m/min) 96 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 4076 244 3 0.15 6708 402 3 0.15 10160 610 3 0.15
4mm 3056 244 4 0.2 5032 402 4 0.2 7640 610 4 0.2
6mm 2038 285 6 0.3 3360 470 6 0.3 5096 712 6 0.3
8mm 1528 214 8 0.4 2512 352 8 0.4 3816 534 8 0.4
10mm 1222 146 10 0.5 2012 240 10 0.5 3056 366 10 0.5
12mm 1016 122 12 0.6 1680 202 12 0.6 2544 304 12 0.6
EPSCC4, EPSCA4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 96 (m/min) 76 (m/min) 63 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 10160 610 3 0.15 8000 480 3 0.15 6708 402 3 0.15
4mm 7640 610 4 0.2 6048 483 4 0.2 5032 402 4 0.2
6mm 5096 712 6 0.3 4032 564 6 0.3 3360 470 6 0.3
8mm 3816 534 8 0.4 3024 423 8 0.4 2512 352 8 0.4
10mm 3056 366 10 0.5 2416 290 10 0.5 2012 240 10 0.5
12mm 2544 304 12 0.6 2016 242 12 0.6 1680 202 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 030
Technical Data
Technical Data
A197
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 40 (m/min) 67 (m/min) 102 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 4330 130 0.15 3 7128 213 0.15 3 10800 323 1.5 3
4mm 3247 130 0.2 4 5346 213 0.2 4 8118 324 2 4
6mm 2165 151 0.3 6 3570 250 0.3 6 5414 378 3 6
8mm 1624 113 0.4 8 2670 187 0.4 8 4054 283 4 8
10mm 1298 78 0.5 10 2138 127 0.5 10 3248 195 5 10
12mm 1082 65 0.6 12 1785 107 0.6 12 2700 160 6 12
EPSLC2, EPSMC2, EPSNC2, EPSLA2, EPSMA2, EPSNA2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 102 (m/min) 80 (m/min) 67 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 10800 323 1.5 3 8500 255 0.9 3 7128 213 0.15 3
4mm 8118 324 2 4 4626 256 1.2 4 5346 213 0.2 4
6mm 5414 378 3 6 4284 300 1.8 6 3570 250 0.3 6
8mm 4054 283 4 8 3210 224 2.4 8 2670 187 0.4 8
10mm 3248 195 5 10 2568 154 3 10 2138 127 0.5 10
12mm 2700 160 6 12 2142 128 3.6 12 1785 107 0.6 12
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 031
Technical Data
A198
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 40 (m/min) 67 (m/min) 102 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 4330 260 3 0.15 7128 427 3 0.15 10800 647 3 0.15
4mm 3247 260 4 0.2 5346 427 4 0.2 8118 649 4 0.2
6mm 2165 302 6 0.3 3570 500 6 0.3 5414 756 6 0.3
8mm 1624 226 8 0.4 2670 340 8 0.4 4054 568 8 0.4
10mm 1298 155 10 0.5 2138 255 10 0.5 3248 389 10 0.5
12mm 1082 129 12 0.6 1785 214 12 0.6 2700 323 12 0.6
EPSLC4, EPSMC4, EPSNC4, EPSLA4, EPSMA4, EPSNA4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 102 (m/min) 80 (m/min) 67 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 10800 647 3 0.15 8500 510 3 0.15 7128 427 3 0.15
4mm 8118 649 4 0.2 4626 513 4 0.2 5346 427 4 0.2
6mm 5414 756 6 0.3 4284 600 6 0.3 3570 500 6 0.3
8mm 4054 568 8 0.4 3210 450 8 0.4 2670 340 8 0.4
10mm 3248 389 10 0.5 2568 307 10 0.5 2138 255 10 0.5
12mm 2700 323 12 0.6 2142 256 12 0.6 1785 214 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 032
Technical Data
Technical Data
A199
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55
VC 線速度 27 (m/min) 54 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
6mm 1440 85 6 0.3 2880 295 6 0.6 4320 520 6 0.6
8mm 1080 85 8 0.4 2160 295 8 0.8 3240 520 8 0.8
10mm 860 85 10 0.5 1710 295 10 1 2520 520 10 1
12mm 720 85 12 0.6 1440 295 12 1.2 2160 520 12 1.2
EPSRR4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB 180~250 HRC 25~35 HRC 35~45
VC 線速度 68 (m/min) 54 (m/min) 45 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
6mm 3600 430 6 0.6 2880 295 6 0.6 2340 200 6 0.6
8mm 2700 430 8 0.8 2160 295 8 0.8 1800 200 8 0.8
10mm 2160 430 10 1 1710 295 10 1 1440 200 10 1
12mm 1800 430 12 1.2 1440 295 12 1.2 1200 200 12 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 033
Technical Data
A200
EPSBC2, EPSRC2
Material
工件材料
Carbon Steels/Cast iron/Alloy Steels
S50C/FC250/SCM/NAK
Hardness 硬度 HRC 35~45
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
0.2mm 1 40000 400 0.001
2 40000 200 0.005
0.3mm
1 40000 650 0.007
2 40000 550 0.004
3 40000 500 0.002
4 30000 200 0.001
0.4mm
2 40000 800 0.007
4 40000 800 0.003
6 28000 350 0.001
8 20000 200 0.001
10 17000 150 0.001
0.5mm
4 40000 850 0.003
6 40000 700 0.003
8 30000 500 0.002
12 20000 300 0.001
14 14000 150 0.001
0.6mm
4 40000 950 0.010
8 35000 500 0.004
10 25000 450 0.003
12 20000 300 0.002
16 12000 150 0.001
0.7mm
4 40000 950 0.015
8 30000 700 0.005
12 9000 200 0.002
0.8mm
4 40000 1100 0.015
8 40000 1000 0.010
12 25000 400 0.030
14 20000 300 0.020
0.9mm
6 40000 1300 0.020
8 38000 1200 0.010
10 35000 1000 0.010
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 034
Technical Data
Technical Data
A201
EPSBC2, EPSRC2
Material
工件材料
Carbon Steels/Cast iron/Alloy Steels
S50C/FC250/SCM/NAK
Hardness 硬度 HRC 35~45
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
1.0mm
6 40000 1600 0.040
8 40000 1600 0.030
10 38000 1300 0.025
12 30000 1000 0.02
16 23000 600 0.010
20 15000 400 0.005
1.2mm
6 40000 1900 0.060
10 35000 1500 0.040
16 15000 500 0.020
20 6500 150 0.01
1.4mm
6 40000 1900 0.060
10 35000 1500 0.040
16 15000 500 0.02
20 6500 150 0.01
1.5mm
6 40000 2400 0.1
10 30000 1800 0.05
12 28000 1300 0.04
16 20000 800 0.02
20 15000 600 0.02
1.6mm
10 30000 1800 0.07
14 25000 1500 0.05
18 20000 1000 0.04
1.8mm
10 30000 1800 0.07
14 25000 1500 0.05
18 20000 1000 0.04
2.0mm
6 40000 2400 0.18
10 30000 1800 0.1
12 25000 1500 0.08
16 20000 1000 0.06
20 12000 800 0.05
25 9000 600 0.04
30 8000 500 0.04
35 6500 300 0.02
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 035
Technical Data
A202
EPSBC2, EPSRC2
Material
工件材料
Carbon Steels/Cast iron/Alloy Steels
S50C/FC250/SCM/NAK
Hardness 硬度 HRC 35~45
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
2.5mm
8 25000 2500 0.2
12 20000 2000 0.15
16 18000 1700 0.1
20 12000 1000 0.08
25 10000 700 0.07
30 9000 600 0.06
35 8500 500 0.05
3.0mm
8 20000 2000 0.3
12 20000 1500 0.18
16 15000 1400 0.15
20 10000 800 0.1
25 8000 600 0.08
30 7000 450 0.06
35 6000 300 0.05
4.0mm
10 20000 3200 0.3
16 13000 2500 0.25
20 11000 2200 0.22
25 8000 1500 0.15
30 6400 1200 0.12
35 5000 700 0.08
5.0mm
16 12000 2500 0.35
20 10000 1200 0.3
25 8000 1000 0.25
30 6000 900 0.2
35 5100 750 0.15
6.0mm 20 10000 2000 0.4
30 6000 1200 0.3
8.0mm
20 3200 910 0.18
30 3000 800 0.15
40 2600 600 0.12
10.0mm
25 2900 890 0.20
35 2500 700 0.16
45 2200 580 0.14
12.0mm
30 2500 710 0.22
40 2300 500 0.18
50 1900 420 0.16
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions
Table 036
推薦切削參數
Technical Data
Technical Data
A203
EPSBC4, EPSRC4
Material
工件材料
Carbon Steels/Cast iron/Alloy Steels
S50C/FC250/SCM/NAK
Hardness 硬度 HRC 35~45
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
1.0mm
4 40000 3000 0.040
8 36000 2400 0.030
10 30000 1500 0.025
12 20000 1000 0.020
16 10000 500 0.005
1.5mm
6 40000 3200 0.060
10 35000 2500 0.050
12 32000 2400 0.050
16 16000 1100 0.030
20 10000 600 0.010
25 9000 500 0.009
2.0mm
6 40000 4000 0.100
10 35000 3500 0.080
12 32000 3200 0.070
16 24000 2400 0.050
20 12000 1200 0.030
25 10000 800 0.020
30 5000 500 0.010
2.5mm
10 32000 4000 0.200
12 28000 2500 0.120
16 23000 1800 0.100
20 20000 1500 0.060
25 9000 1100 0.040
30 2500 300 0.005
3.0mm
10 25000 3600 0.400
12 23000 3000 0.300
16 18000 2500 0.200
20 15000 2000 0.150
25 12000 1700 0.100
30 7000 800 0.050
35 5000 300 0.030
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 037
Technical Data
A204
EPSBC4, EPSRC4
Material
工件材料
Carbon Steels/Cast iron/Alloy Steels
S50C/FC250/SCM/NAK
Hardness 硬度 HRC 35~45
Dia
刃徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
4mm
10 20000 3200 1.200
12 18000 3000 1.000
16 15000 2500 1.000
20 12000 2000 0.500
25 10000 1800 0.400
30 8000 1300 0.200
5mm
20 12000 2300 1.000
25 9500 1800 0.500
30 6400 1200 0.200
6mm 20 11000 2200 1.200
30 8000 1600 0.600
8mm
20 8000 1600 1.000
30 4000 800 0.500
40 4000 800 0.500
10mm
25 6400 1300 1.000
35 3200 640 0.600
45 3200 640 0.600
12mm
30 6000 1200 2.000
40 3200 640 0.600
50 3200 640 0.600
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 038
Technical Data
Technical Data
A205
EPSFT2, EPSST2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
STAINLESS
STEEL CAST IRON
CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD
HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 ‒ ‒
Vc 88 M/min 71 M/min 59 M/min 35 M/min 71 M/min 103 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
1MM 26,000 190 22,230 140 18,720 100 10,400 40 22,230 165 32,760 240
2MM 14,040 235 11,232 160 9,360 110 5,616 45 11,232 185 16,380 270
3MM 9,828 270 7,488 175 6,084 120 3,900 55 7,488 205 11,232 310
4MM 7,020 260 5,616 175 4,680 120 2,808 50 5,616 205 8,424 310
5MM 5,850 270 4,446 175 3,744 120 2,340 55 4,446 205 6,552 300
6MM 4,680 260 3,744 175 3,042 120 1,872 50 3,744 205 5,616 310
8MM 3,510 260 2,808 175 2,340 120 1,404 50 2,808 205 4,212 310
10MM 2,808 260 2,223 175 1,872 120 1,131 50 2,223 205 3,276 300
Milling Amount
(mm)
D
Ad
Ad = 0.1D
(D < 3,
Ad ≦0.05D)
Ad = 0.5D
(D < 3, Ad ≦0.25D)
Recommended Cutting Conditions 推薦切削參數
Table 039
Technical Data
A206
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 14990 374 0.14 0.2 24660 616 0.14 0.2 37470 936 0.14 0.2
2R 7490 450 0.28 0.4 12330 740 0.28 0.4 18730 1120 0.28 0.4
3R 4995 374 0.42 0.6 8220 616 0.42 0.6 12490 936 0.42 0.6
4R 3750 300 0.56 0.8 6170 494 0.56 0.8 9366 750 0.56 0.8
5R 3000 255 0.7 1 4930 420 0.7 1 7490 636 0.7 1
6R 2500 225 0.84 1.2 4110 370 0.84 1.2 6244 560 0.84 1.2
EPBFC2, EPBSC2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 37470 936 0.14 0.2 29660 740 0.14 0.2 24660 616 0.14 0.2
2R 18730 1120 0.28 0.4 14830 890 0.28 0.4 12330 740 0.28 0.4
3R 12490 936 0.42 0.6 9890 740 0.42 0.6 8220 616 0.42 0.6
4R 9366 750 0.56 0.8 7415 593 0.56 0.8 6170 494 0.56 0.8
5R 7490 636 0.7 1 5930 504 0.7 1 4930 420 0.7 1
6R 6244 560 0.84 1.2 4940 444 0.84 1.2 4110 370 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 040
Technical Data
Technical Data
A207
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 14990 374 0.14 0.2 24660 616 0.14 0.2 37470 936 0.14 0.2
2R 7490 450 0.28 0.4 12330 740 0.28 0.4 18730 1120 0.28 0.4
3R 4995 374 0.42 0.6 8220 616 0.42 0.6 12490 936 0.42 0.6
4R 3750 300 0.56 0.8 6170 494 0.56 0.8 9366 750 0.56 0.8
5R 3000 255 0.7 1 4930 420 0.7 1 7490 636 0.7 1
6R 2500 225 0.84 1.2 4110 370 0.84 1.2 6244 560 0.84 1.2
EPBFC4, EPBSC4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 37470 936 0.14 0.2 29660 740 0.14 0.2 24660 616 0.14 0.2
2R 18730 1120 0.28 0.4 14830 890 0.28 0.4 12330 740 0.28 0.4
3R 12490 936 0.42 0.6 9890 740 0.42 0.6 8220 616 0.42 0.6
4R 9366 750 0.56 0.8 7415 593 0.56 0.8 6170 494 0.56 0.8
5R 7490 636 0.7 1 5930 504 0.7 1 4930 420 0.7 1
6R 6244 560 0.84 1.2 4940 444 0.84 1.2 4110 370 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions
Table 041
推薦切削參數
Technical Data
A208
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55) HRC25~35 HRC35~45
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 12740 318 0.14 0.2 20960 524 0.14 0.2 31850 796 0.14 0.2
2R 6370 383 0.28 0.4 10480 629 0.28 0.4 15920 952 0.28 0.4
3R 4245.8 318 0.42 0.6 6990 524 0.42 0.6 10620 796 0.42 0.6
4R 3187.5 255 0.56 0.8 5244.5 420 0.56 0.8 7960 638 0.56 0.8
5R 2550 217 0.7 1 4190 357 0.7 1 6370 540 0.7 1
6R 2125 191 0.84 1.2 3495 315 0.84 1.2 5308 476 0.84 1.2
EPBLC2, EPBMC2, EPBNC2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 31850 796 0.14 0.2 25210 629 0.14 0.2 20960 524 0.14 0.2
2R 15920 952 0.28 0.4 12606 757 0.28 0.4 10480 629 0.28 0.4
3R 10620 796 0.42 0.6 8400 629 0.42 0.6 6990 524 0.42 0.6
4R 7960 638 0.56 0.8 6300 504 0.56 0.8 5244.5 420 0.56 0.8
5R 6370 540 0.7 1 5040 428 0.7 1 4190 357 0.7 1
6R 5308 476 0.84 1.2 4200 377 0.84 1.2 3495 315 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 042
Technical Data
Technical Data
A209
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55) HRC25~35 HRC35~45
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 12740 318 0.14 0.2 20960 524 0.14 0.2 31850 796 0.14 0.2
2R 6370 383 0.28 0.4 10480 629 0.28 0.4 15920 952 0.28 0.4
3R 4246 318 0.42 0.6 6990 524 0.42 0.6 10620 796 0.42 0.6
4R 3188 255 0.56 0.8 5245 420 0.56 0.8 7960 638 0.56 0.8
5R 2550 217 0.7 1 4190 357 0.7 1 6370 540 0.7 1
6R 2125 191 0.84 1.2 3495 315 0.84 1.2 5308 476 0.84 1.2
EPBLC4, EPBMC4, EPBNC4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
1R 31850 796 0.14 0.2 25210 629 0.14 0.2 20960 524 0.14 0.2
2R 15920 952 0.28 0.4 12606 757 0.28 0.4 10480 629 0.28 0.4
3R 10620 796 0.42 0.6 8400 629 0.42 0.6 6990 524 0.42 0.6
4R 7960 638 0.56 0.8 6300 504 0.56 0.8 5245 420 0.56 0.8
5R 6370 540 0.7 1 5040 428 0.7 1 4190 357 0.7 1
6R 5308 476 0.84 1.2 4200 377 0.84 1.2 3495 315 0.84 1.2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 043
Technical Data
A210
EPBBC2, EPBRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Copper
銅
Hardness 硬度 HRC 35~45 HRC 40~55
Radius
半徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
R0.15
1.5 48000 480 0.010 0.010 41000 370 0.009 0.010 54000 640 0.014 0.015
2 43000 370 0.008 0.008 37000 270 0.008 0.008 49000 530 0.011 0.011
3 38000 320 0.007 0.006 32000 240 0.006 0.006 43000 460 0.009 0.010
4 28000 200 0.003 0.004 24000 160 0.003 0.004 37000 300 0.004 0.006
5 26000 125 0.001 0.003 18000 110 0.002 0.003 31000 200 0.002 0.004
R0.2
2 48000 590 0.018 0.024 37000 400 0.015 0.020 54000 790 0.022 0.036
4 38000 400 0.009 0.012 30000 270 0.009 0.012 50000 640 0.012 0.018
6 29000 260 0.005 0.006 26000 200 0.004 0.006 37000 360 0.006 0.010
8 27000 170 0.003 0.003 23000 150 0.002 0.003 27000 200 0.003 0.006
R0.25
2 42000 750 0.022 0.036 32000 500 0.018 0.036 57000 1250 0.028 0.054
4 38000 580 0.017 0.024 31000 400 0.014 0.024 55000 1010 0.021 0.036
6 28000 400 0.008 0.012 27000 330 0.005 0.012 36000 610 0.009 0.018
10 28000 400 0.008 0.012 27000 330 0.005 0.012 36000 460 0.009 0.018
R0.3
2 37000 770 0.027 0.144 37000 770 0.027 0.096 57000 1540 0.034 0.144
4 35000 600 0.020 0.108 35000 600 0.020 0.072 54000 1130 0.026 0.108
6 28000 460 0.016 0.072 28000 460 0.016 0.048 46000 960 0.019 0.072
8 24000 400 0.009 0.054 24000 400 0.009 0.036 30000 570 0.010 0.054
10 24000 330 0.006 0.036 24000 330 0.006 0.024 30000 490 0.007 0.036
12 24000 330 0.006 0.036 24000 330 0.006 0.024 30000 490 0.007 0.036
R0.35
4 33000 600 0.035 0.042 26500 410 0.029 0.096 54500 1500 0.045 0.063
8 12215 420 0.020 0.048 22500 355 0.012 0.048 32000 800 0.019 0.072
10 22500 380 0.014 0.042 21500 330 0.011 0.042 26500 540 0.017 0.063
12 21500 380 0.012 0.032 21500 320 0.010 0.042 23000 420 0.017 0.063
R0.4
4 31000 600 0.050 0.012 27000 440 0.041 0.120 55000 1860 0.063 0.018
8 21000 430 0.021 0.060 22000 390 0.018 0.060 34000 1040 0.027 0.090
12 19000 430 0.018 0.040 20000 350 0.016 0.060 16000 350 0.027 0.090
16 16000 430 0.013 0.018 20000 310 0.014 0.060 7600 115 0.027 0.090
R0.45 4 32000 685 0.054 0.130 24500 460 0.043 0.180 50500 1900 0.067 0.190
R0.5
4 32000 770 0.057 0.240 22000 480 0.045 0.240 46000 2000 0.071 0.360
6 26000 760 0.055 0.120 17600 480 0.009 0.120 39000 1500 0.071 0.180
8 26000 760 0.034 0.120 17600 480 0.027 0.120 39000 1500 0.043 0.180
12 17600 530 0.024 0.060 16500 420 0.018 0.060 18700 660 0.027 0.090
16 15400 440 0.018 0.060 14300 360 0.014 0.060 18700 640 0.022 0.090
22 14300 360 0.013 0.036 13200 300 0.009 0.036 18700 540 0.017 0.054
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 044
Technical Data
Technical Data
A211
EPBBC2, EPBRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Copper
銅
Hardness 硬度 HRC 35~45 HRC 40~55
Radius
半徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
R0.6
6 26000 770 0.068 0.240 18200 480 0.054 0.240 38000 2000 0.085 0.360
10 16400 530 0.027 0.120 15100 420 0.022 0.120 24000 1080 0.036 0.180
12 15300 530 0.027 0.120 14100 420 0.022 0.120 24000 1080 0.036 0.180
16 13100 460 0.019 0.096 11900 380 0.016 0.096 15400 580 0.024 0.144
20 12100 380 0.013 0.060 11000 320 0.009 0.096 15400 580 0.017 0.090
24 11100 320 0.009 0.040 9800 290 0.070 0.040 15400 580 0.010 0.060
R0.7
6 17600 680 0.076 0.180 13600 440 0.063 0.180 28000 1470 0.099 0.270
8 17600 680 0.079 0.180 13600 440 0.063 0.180 28000 1470 0.099 0.270
12 13800 530 0.033 0.180 13600 420 0.027 0.180 19800 1080 0.042 0.270
16 13100 480 0.027 0.120 11900 390 0.021 0.120 13200 620 0.033 0.180
R0.75
4 21000 1060 0.137 0.216 14800 660 0.110 0.216 30000 2200 0.171 0.324
8 16300 700 0.084 0.180 12100 450 0.069 0.180 26000 1500 0.106 0.270
12 16300 700 0.084 0.180 12100 450 0.069 0.180 26000 1500 0.106 0.270
16 12400 480 0.027 0.120 11600 390 0.022 0.120 12100 620 0.036 0.180
20 12400 480 0.016 0.060 11600 390 0.012 0.060 12100 620 0.019 0.090
25 12400 440 0.016 0.060 11000 390 0.012 0.060 11000 500 0.019 0.090
30 10900 400 0.016 0.060 11000 390 0.012 0.060 10700 450 0.019 0.090
R0.8
8 18900 940 0.126 0.216 13800 580 0.102 0.216 26000 1970 0.157 0.324
12 15100 700 0.09 0.120 11500 440 0.072 0.120 25000 1490 0.112 0.180
16 12300 530 0.036 0.096 11400 440 0.030 0.096 17600 110 0.046 0.144
20 11500 480 0.030 0.060 10900 400 0.024 0.060 11000 630 0.036 0.090
R0.9
6 18400 1200 0.185 0.320 18400 738 0.150 0.320 32000 2600 0.230 0.021
12 13800 700 0.094 0.180 10300 440 0.077 0.180 21000 1480 0.120 0.270
16 10800 530 0.039 0.120 9900 420 0.031 0.120 15400 1080 0.048 0.180
20 10200 480 0.031 0.060 9700 400 0.025 0.060 10500 630 0.039 0.090
R1.0
6 18500 1260 0.185 0.360 13200 960 0.150 0.360 22000 2140 0.232 0.540
10 18500 1120 0.147 0.240 13200 870 0.120 0.240 22000 1920 0.185 0.360
12 16000 990 0.133 0.240 11700 780 0.107 0.240 18700 1470 0.166 0.360
16 16000 990 0.118 0.240 11700 780 0.090 0.240 18700 1470 0.148 0.360
18 14700 580 0.074 0.120 11600 580 0.061 0.120 14300 1070 0.093 0.180
20 14700 580 0.074 0.120 11600 580 0.061 0.120 14300 1070 0.093 0.180
25 10600 450 0.058 0.120 10200 450 0.045 0.120 9500 630 0.074 0.180
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 045
Technical Data
A212
EPBBC2, EPBRC2
Material
工件材料
PREHARDENED STEELS
調質鋼
NAK80 CENA1
HARDENED STEELS
淬火鋼
SKD61,SKD11
Copper
銅
Hardness 硬度 HRC 35~45 HRC 40~55
Radius
半徑
EFF-L
有效長
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
R1.25
8 14500 1400 0.185 0.240 9700 1080 0.150 0.240 18400 2400 0.232 0.360
10 14500 1400 0.185 0.240 9700 1080 0.150 0.240 18400 2400 0.232 0.360
16 13500 1230 0.166 0.240 8400 980 0.135 0.240 16100 1810 0.208 0.360
20 10200 950 0.093 0.120 8400 980 0.074 0.120 11500 1330 0.116 0.180
25 8400 540 0.074 0.120 8400 560 0.061 0.120 6900 770 0.093 0.180
30 8400 540 0.033 0.060 8400 560 0.026 0.060 6900 770 0.040 0.090
R1.5
8 12900 1680 0.222 0.360 9200 1300 0.180 0.360 15000 2890 0.278 0.540
12 12900 1510 0.222 0.360 9200 1170 0.180 0.360 15000 2600 0.278 0.540
16 11300 1330 0.166 0.360 8100 1040 0.135 0.360 12700 1970 0.029 0.504
20 11300 1330 0.166 0.360 8100 1040 0.135 0.360 12700 1970 0.029 0.504
25 8800 1040 0.111 0.180 8100 1040 0.090 0.180 10100 1450 0.139 0.270
30 8800 780 0.111 0.180 8100 780 0.090 0.180 10100 1450 0.139 0.270
35 7900 62 0.055 0.180 7500 650 0.045 0.180 6600 840 0.073 0.270
R2.0
8 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.370 0.900
12 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900
16 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900
20 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900
25 8400 1250 0.223 0.360 6000 980 0.180 0.36 10300 1850 0.279 0.540
30 8400 1250 0.223 0.360 6000 980 0.180 0.361 10300 1850 0.279 0.540
35 6600 950 0.148 0.360 6000 700 0.120 0.360 7500 1360 0.185 0.540
R2.5
15 7800 1350 0.324 0.800 5600 1050 0.252 0.800 9600 2590 0.406 0.900
20 7800 1240 0.324 0.600 5600 950 0.252 0.600 9600 2100 0.406 0.900
25 7800 1240 0.324 0.600 5600 950 0.252 0.600 9600 2100 0.406 0.900
30 7800 760 0.243 0.600 4800 600 0.197 0.600 8200 1320 0.305 0.900
R3.0 15 7400 1670 0.443 1.200 5200 1300 0.360 1.200 8000 2530 0.555 1.800
R4.0 25 7200 1200 0.5 1.000 5200 920 0.350 1.000 9000 2400 0.600 1.500
R5.0 30 6800 720 0.23 0.600 4600 570 0.190 0.570 7800 1300 0.300 0.900
R6.0 30 6350 684 0.210 0.570 4370 541.5 0.181 0.550 7410 1235 0.285 0.855
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 046
Technical Data
Technical Data
A213
EPBFT2, EPBST2, EPBRT2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
STAINLESS
STEEL CAST IRON
CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD
HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 ‒ ‒
Vc 94 M/min 71 M/min 34 M/min 38 M/min 71 M/min 94 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
1.0R 26,676 700 21,060 470 15,210 280 10,660 140 21,060 555 29,718 780
2.0R 14,976 875 11,232 560 8,190 335 5,980 175 11,232 655 14,976 875
3.0R 9,828 860 7,488 560 4,914 300 3,926 170 7,488 655 9,828 860
Milling Amount
(mm)
Ad = 0.05D
Pf = 0.1D
Recommended Cutting Conditions 推薦切削參數
Table 047
Technical Data
A214
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 152 0.15 3 8386 251 0.15 3 12700 380 1.5 3
4mm 3820 152 0.2 4 6290 251 0.2 4 9550 382 2 4
6mm 2548 178 0.3 6 4200 294 0.3 6 6370 445 3 6
8mm 1910 133 0.4 8 3140 220 0.4 8 4770 333 4 8
10mm 1528 92 0.5 10 2515 150 0.5 10 3820 230 5 10
12mm 1274 76 0.6 12 2100 126 0.6 12 3180 190 6 12
EPCSC2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 380 1.5 3 10000 300 0.9 3 8386 251 0.15 3
4mm 9550 382 2 4 7560 302 1.2 4 6290 251 0.2 4
6mm 6370 445 3 6 5040 352 1.8 6 4200 294 0.3 6
8mm 4770 333 4 8 3780 264 2.4 8 3140 220 0.4 8
10mm 3820 230 5 10 3020 181 3 10 2515 150 0.5 10
12mm 3180 190 6 12 2520 151 3.6 12 2100 126 0.6 12
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 048
Technical Data
Technical Data
A215
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 305 3 0.15 8386 503 3 0.15 12700 503 3 0.15
4mm 3820 305 4 0.2 6290 503 4 0.2 9550 503 4 0.2
6mm 2548 356 6 0.3 4200 588 6 0.3 6370 588 6 0.3
8mm 1910 267 8 0.4 3140 440 8 0.4 4770 440 8 0.4
10mm 1528 183 10 0.5 2515 301 10 0.5 3820 301 10 0.5
12mm 1274 152 12 0.6 2100 252 12 0.6 3180 252 12 0.6
EPCSC4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 762 3 0.15 10000 600 3 0.15 8386 503 3 0.15
4mm 9550 764 4 0.2 7560 604 4 0.2 6290 503 4 0.2
6mm 6370 890 6 0.3 5040 705 6 0.3 4200 588 6 0.3
8mm 4770 668 8 0.4 3780 529 8 0.4 3140 440 8 0.4
10mm 3820 458 10 0.5 3020 362 10 0.5 2515 301 10 0.5
12mm 3180 380 12 0.6 2520 302 12 0.6 2100 252 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 049
Technical Data
A216
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 48 (m/min) 79 (m/min) 120 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 5095 305 3 0.15 8386 503 3 0.15 12700 503 3 0.15
4mm 3820 305 4 0.2 6290 503 4 0.2 9550 503 4 0.2
6mm 2548 356 6 0.3 4200 588 6 0.3 6370 588 6 0.3
8mm 1910 267 8 0.4 3140 440 8 0.4 4770 440 8 0.4
10mm 1528 183 10 0.5 2515 301 10 0.5 3820 301 10 0.5
12mm 1274 152 12 0.6 2100 252 12 0.6 3180 252 12 0.6
EPCSH4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 120 (m/min) 95 (m/min) 79 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 12700 762 3 0.15 10000 600 3 0.15 8386 503 3 0.15
4mm 9550 764 4 0.2 7560 604 4 0.2 6290 503 4 0.2
6mm 6370 890 6 0.3 5040 705 6 0.3 4200 588 6 0.3
8mm 4770 668 8 0.4 3780 529 8 0.4 3140 440 8 0.4
10mm 3820 458 10 0.5 3020 362 10 0.5 2515 301 10 0.5
12mm 3180 380 12 0.6 2520 302 12 0.6 2100 252 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 050
Technical Data
Technical Data
A217
Material
工件材料
HARDENED STEEL
淬火鋼
SKD61, SKD11
STAINLESS STEEL
不鏽鋼
SUS304 316
CAST IRON
鑄鐵
FC / FCD
Hardness 硬度 HRC 40~55)
VC 線速度 40 (m/min) 67 (m/min) 102 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 4330 260 3 0.15 7128 427 3 0.15 10800 647 3 0.15
4mm 3247 260 4 0.2 5346 427 4 0.2 8118 649 4 0.2
6mm 2165 302 6 0.3 3570 500 6 0.3 5414 756 6 0.3
8mm 1624 226 8 0.4 2670 340 8 0.4 4054 568 8 0.4
10mm 1298 155 10 0.5 2138 255 10 0.5 3248 389 10 0.5
12mm 1082 129 12 0.6 1785 214 12 0.6 2700 323 12 0.6
EPCLC4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 HB180~250 HRC25~35 HRC35~45
VC 線速度 102 (m/min) 80 (m/min) 67 (m/min)
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
RPM
轉速
Feed
(mm/min)
進給
ap
(mm)
ae
(mm)
3mm 10800 647 3 0.15 8500 510 3 0.15 7128 427 3 0.15
4mm 8118 649 4 0.2 4626 513 4 0.2 5346 427 4 0.2
6mm 5414 756 6 0.3 4284 600 6 0.3 3570 500 6 0.3
8mm 4054 568 8 0.4 3210 450 8 0.4 2670 340 8 0.4
10mm 3248 389 10 0.5 2568 307 10 0.5 2138 255 10 0.5
12mm 2700 323 12 0.6 2142 256 12 0.6 1785 214 12 0.6
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 051
Technical Data
A218
EPCBC2, EPCRC2
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
SCM, SNCM, S45
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 ~HRC35 HRC35~45 HRC45~55
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
1.0mm 33100 280 21600 120 13200 70
1.2mm 30000 300 18000 125 12000 70
1.5mm 26400 300 16200 130 10200 70
2.0mm 21600 310 13800 140 8640 80
2.5mm 18000 320 11400 150 7320 80
3.0mm 15900 330 10300 160 6300 80
4.0mm 12800 400 8200 200 5150 95
5.0mm 11000 500 7000 240 4560 120
6.0mm 9500 600 6000 300 3930 140
8.0mm 7200 640 4550 300 3020 140
10.0mm 6000 640 4000 300 2420 140
12.0mm 5000 500 3340 270 2000 120
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 052
Technical Data
Technical Data
A219
EPCBC4, EPCRC4
Material
工件材料
CARBON STEEL / ALLOY STEEL
碳素鋼 / 合金鋼
SCM, SNCM, S45
ALLOY STEEL / TOOL STEEL
合金鋼 / 工具鋼
SCM, SKT, SKD
PREHARDENED STEEL
調質鋼
NAK80 CENA1
Hardness 硬度 ~HRC35 HRC35~45 HRC45~55
Dia (刃徑) RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
RPM
轉速
Feed
(mm/min)
進給
2mm 21600 380 13800 280 8640 150
2.5mm 18000 390 11400 300 7320 150
3mm 15900 400 10300 310 6300 150
4mm 12800 500 8200 360 5150 160
5mm 11000 510 7000 430 4560 200
6mm 9500 510 6000 430 3930 200
8mm 7200 550 4550 430 3020 200
10mm 6000 550 4000 430 2420 200
12mm 5000 430 3340 380 2000 160
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
Recommended Cutting Conditions 推薦切削參數
Table 053
Technical Data
A220
EPIFA2, EPISA2, EPIFA4, EPISA4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL CARBON STEEL ALLOY STEEL / TOOL STEEL HARDENED STEEL
CODE S50C SCM, SKD SKT, SKD
HARDNESS HRC < 20 HRC 30 ~ 40 HRC 40~50
Vc 30~40 M/min 20~30 M/min 15~25 M/min
DIAMETER R.P.M
ROUGHING
FEED
(mm/min)
FINISHING
FEED
(mm/min)
R.P.M
ROUGHING
FEED
(mm/min)
FINISHING
FEED
(mm/min)
R.P.M
ROUGHING
FEED
(mm/min)
FINISHING
FEED
(mm/min)
0.50R 8,800 50 80 6,400 40 55 5,100 30 50
0.75R 7,200 50 80 5,100 40 55 4,100 30 50
1.00R 5,000 50 80 3,500 40 55 3,400 30 50
1.25R 4,300 50 80 3,100 40 55 2,900 30 50
1.50R 3,000 50 80 2,200 40 55 2,600 30 50
2.00R 2,600 50 80 1,900 40 55 2,200 30 50
2.50R 2,200 50 80 1,800 40 55 2,000 30 50
3.00R 2,000 50 80 1,600 40 55 1,700 30 50
4.00R 1,500 50 80 1,200 40 55 1,300 30 50
5.00R 1,300 50 80 960 40 55 1,000 30 50
6.00R 1,200 50 80 880 40 55 900 30 50
Milling Amount
(mm)
· Divide the cutting depth into
several time paths.
· Use cutting uid.
Recommended Cutting Conditions 推薦切削參數
Table 054
Technical Data
Technical Data
A221
ESSFA2, ESSSA2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
STAINLESS
304
Moderately
Dicults SUS
STAINLESS
316 L
TITANIUM
(ALLOYS)
SOFT
STEEL
SG
CAST IRON
High Temperature
ALLOYS
Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min
120~160 M/min
96~120 M/min
20~25 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
4MM 7,452 458 4,459 286 3,822 183 3,185 122 9,554 764 7,643 611 1,592 56
5MM 4,586 440 3,567 286 3,057 245 2,548 122 7,643 734 6,115 587 1,274 45
6MM 3,822 489 2,972 333 2,548 245 2,123 136 6,369 815 5,096 652 1,062 58
8MM 2,866 458 2,229 321 1,911 245 1,592 153 4,777 917 3,822 734 796 69
10MM 2,293 440 1,783 286 1,529 220 1,274 124 3,822 734 3,057 587 637 55
12MM 1,911 398 1,486 262 1,274 204 1,062 136 3,185 714 2,548 570 531 65
14MM 1,638 351 1,274 232 1,092 185 910 126 2,730 637 2,184 510 455 65
16MM 1,433 321 1,115 214 955 168 796 114 2,389 574 1,911 458 398 62
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 055
Technical Data
A222
ESSFA4, ESSSA4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
STAINLESS
304
Moderately
Dicults SUS
STAINLESS
316 L
TITANIUM
(ALLOYS)
SOFT
STEEL
SG
CAST IRON
High Temperature
ALLOYS
Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min
120~160 M/min
96~120 M/min
20~25 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
4MM 5,732 458 4,459 286 3,822 183 3,185 122 9,554 764 7,643 611 1,592 56
5MM 4,586 440 3,567 286 3,057 245 2,548 122 7,643 734 6,115 587 1,274 45
6MM 3,822 489 2,972 333 2,548 245 2,123 136 6,369 815 5,096 652 1,062 58
8MM 2,866 458 2,229 321 1,911 245 1,592 153 4,777 917 3,822 734 796 69
10MM 2,293 440 1,783 286 1,529 220 1,274 124 3,822 734 3,057 587 637 55
12MM 1,911 398 1,486 262 1,274 204 1,062 136 3,185 714 2,548 570 531 65
14MM 1,638 351 1,274 232 1,092 185 910 126 2,730 637 2,184 510 455 65
16MM 1,433 321 1,115 214 955 168 796 114 2,389 574 1,911 458 398 62
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 056
Technical Data
Technical Data
A223
ESSSD4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
STAINLESS
304
Moderately
Dicults SUS
STAINLESS
316 L
TITANIUM
(ALLOYS)
SOFT
STEEL
SG
CAST IRON
High Temperature
ALLOYS
Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min
120~160 M/min
96~120 M/min
20~25 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
4MM 5,732 573 4,459 357 3,822 229 3,185 153 9,554 955 7,643 764 1,592 70
5MM 4,586 550 3,567 357 3,057 306 2,548 153 7,643 917 6,115 734 1,274 56
6MM 3,822 611 2,972 416 2,548 306 2,123 170 6,369 1,019 5,096 815 1,062 72
8MM 2,866 573 2,229 401 1,911 306 1,592 191 4,777 1,146 3,822 917 796 86
10MM 2,293 550 1,783 357 1,529 275 1,274 155 3,822 917 3,057 734 637 69
12MM 1,911 497 1,486 327 1,274 255 1,062 170 3,185 892 2,548 713 531 81
14MM 1,638 439 1,274 290 1,092 231 910 157 2,730 797 2,184 638 455 82
16MM 1,433 401 1,115 268 955 210 796 143 2,389 717 1,911 573 398 78
Milling Amount
(mm)
aa = 1.0D
ar = 0.5D
aa = 1.0D
ar = 0.2D
ad = 1.0D ad = 0.3D
Recommended Cutting Conditions 推薦切削參數
Table 057
Technical Data
A224
ESSSW3, ESSSW4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
STAINLESS
STEEL CAST IRON
CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD
HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 ‒ ‒
Vc 88 M/min 71 M/min 59 M/min 35 M/min
71 M/min
103 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
1MM 26,000 190 22,230 140 18,720 100 10,400 40 22,230 165 32,760 240
2MM 14,040 235 11,232 160 9,360 110 5,616 45 11,232 185 16,380 270
3MM 9,828 270 7,488 175 6,084 120 3,900 55 7,488 205 11,232 310
4MM 7,020 260 5,616 175 4,680 120 2,808 50 5,616 205 8,424 310
5MM 5,850 270 4,446 175 3,744 120 2,340 55 4,446 205 6,552 300
6MM 4,680 260 3,744 175 3,042 120 1,872 50 3,744 205 5,616 310
8MM 3,510 260 2,808 175 2,340 120 1,404 50 2,808 205 4,212 310
10MM 2,808 260 2,223 175 1,872 120 1,131 50 2,223 205 3,276 300
12MM 2,340 260 1,872 175 1,560 120 936 50 1,872 205 2,808 310
14MM 2,340 300 1,768 195 1,482 135 936 60 1,768 230 2,600 335
16MM 2,028 300 2,730 345 1,300 135 819 60 2,730 400 2,340 345
18MM 2,028 305 1,378 175 1,144 120 819 60 1,378 205 2,080 310
20MM 1,560 260 1,248 175 1,040 120 624 50 1,248 205 1,820 300
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 058
Technical Data
Technical Data
A225
ESBFA2, ESBSA2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
STAINLESS
STEEL CAST IRON
CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD
HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~55 ‒ ‒
Vc 94 M/min 71 M/min 44 M/min 38 M/min 71 M/min 94 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
0.5R 46,800 545 42,120 420 28,080 230 18,720 110 42,120 490 58,500 685
1.0R 26,676 700 21,060 470 15,210 280 10,660 140 21,060 555 29,718 780
2.0R 14,976 875 11,232 560 8,190 335 5,980 175 11,232 655 14,976 875
3.0R 9,828 860 7,488 560 4,914 300 3,926 170 7,488 655 9,828 860
4.0R 7,488 875 5,616 560 3,744 305 2,990 175 5,616 655 7,488 875
5.0R 5,967 870 4,446 550 2,808 285 2,379 175 4,446 650 5,967 870
6.0R 4,914 860 3,744 560 2,340 285 1,976 175 3,744 655 4,914 860
8.0R 4,160 970 3,120 620 2,028 330 1,664 195 3,120 730 4,160 970
10.0R 3,380 890 2,496 560 1,690 310 1,352 175 2,496 655 3,380 890
When β is less than 15° milling speed and feed speed in the table can be increased 1.0-1.2 times.
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 059
Technical Data
A226
ESCSA4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
STAINLESS
STEEL CAST IRON
CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD
HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 ‒ ‒
Vc 88 M/min 71 M/min 59 M/min 35 M/min 71 M/min 103 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
3MM 9,828 455 7,098 295 6,084 195 3,900 90 7,488 345 11,232 520
4MM 7,020 430 5,616 295 4,680 200 2,808 85 5,616 345 8,424 520
5MM 5,850 450 4,446 290 3,744 200 2,340 90 4,446 345 6,552 505
6MM 4,680 430 3,744 295 3,042 195 1,872 85 3,744 345 5,616 520
8MM 3,510 430 2,808 295 2,340 200 1,404 85 2,808 345 4,212 520
10MM 2,808 430 2,223 290 1,872 200 1,131 85 2,223 340 3,276 505
12MM 2,340 430 1,872 295 1,560 200 936 85 1,872 345 2,808 520
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 060
Technical Data
Technical Data
A227
Recommended Cutting Conditions
ESCSV4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL
STAINLESS
304
Moderately
Dicults SUS
STAINLESS
316 L
TITANIUM
(ALLOYS)
SOFT
STEEL
SG
CAST IRON
High Temperature
ALLOYS
Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min
120~160 M/min
96~120 M/min
20~25 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
4MM 5,732 573 4,459 357 3,822 229 3,185 153 9,554 955 7,643 764 1,592 70
5MM 4,586 550 3,567 357 3,057 306 2,548 153 7,643 917 6,115 734 1,274 56
6MM 3,822 611 2,972 416 2,548 306 2,123 170 6,369 1,019 5,096 815 1,062 72
8MM 2,866 573 2,229 401 1,911 306 1,592 191 4,777 1,146 3,822 917 796 86
10MM 2,293 550 1,783 357 1,529 275 1,274 155 3,822 917 3,057 734 637 69
12MM 1,911 497 1,486 327 1,274 255 1,062 170 3,185 892 2,548 713 531 81
14MM 1,638 439 1,274 290 1,092 231 910 157 2,730 797 2,184 638 455 82
16MM 1,433 401 1,115 268 955 210 796 143 2,389 717 1,911 573 398 78
Milling Amount
(mm)
aa = 1.0D
ar = 0.5D
aa = 1.0D
ar = 0.2D
ad = 1.0D ad = 0.3D
推薦切削參數
Table 061
Technical Data
A228
ENSFS2, ENSSS2, ENSFS3, ENSSS3, ENSCS3, ENSSH3
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL ALLUMINUM ALLOY
CODE A5052
Slotting Side Milling
Vc 196 M/min 325 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
3MM 20,800 1,200 34,580 1,350
4MM 15,600 1,000 26,000 1,350
5MM 12,480 900 20,670 1,350
6MM 10,400 820 17,290 1,350
8MM 7,800 750 13,000 1,350
10MM 6,240 680 10,270 1,350
12MM 5,200 620 8,580 1,350
Milling Amount
(mm) Ad = 0.1D
D
Ad
Recommended Cutting Conditions 推薦切削參數
Table 062
Technical Data
Technical Data
A229
ENBFA2, ENBSA2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL ALLUMINUM ALLOY
CODE A5052
Vc 327 M/min
DIAMETER R.P.M FEED
(mm/min)
2MM 50,700 2,000
3MM 33,800 2,000
4MM 26,000 2,000
5MM 20,800 2,000
6MM 16,900 2,000
8MM 13,000 2,000
10MM 10,400 2,000
12MM 7,800 2,000
16MM 6,500 2,000
Milling Amount
(mm) Ad = 0.1D Ad
Pf
Recommended Cutting Conditions 推薦切削參數
Table 063
Technical Data
A230
EPSWH4, EPCWH4
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL CAST IRON ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
HARDENED
STEEL
HARDENED
STEEL
CODE FC / FCD SCM,SKT,SKD SKT,SKD SKT, SKD SKT,SKD
HARDNESS ~ HRC 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~55 HRC 55~60
Vc 163 M/min 143 M/min 143 M/min 122 M/min 103 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
10MM 5,200 1,150 4,550 990 4,550 830 3,900 610 3,315 400
12MM 4,420 1,150 3,770 990 3,770 830 3,250 610 2,730 400
16MM 3,250 1,150 2,730 950 2,730 830 2,340 610 1,950 390
18MM 2,860 1,150 2,470 960 2,470 830 2,080 610 1,690 390
20MM 2,600 1,150 2,210 960 2,210 830 1,950 610 1,560 390
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 064
Technical Data
Technical Data
A231
EPBWH2
1.Use as highly rigid and accurate machine as possible.
2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio.
3.Use long shank type please reduce the rpm and feed rate.
4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.
1. 盡可能用高剛性、高精機床。
2. 機床轉速不足時，請將進給、轉速同比例下調。
3. 長柄型或偏擺過大時請視情況下調轉速、進給。
4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
WORKING
MATERIAL CAST IRON ALLOY STEEL
/ TOOL STEEL
HARDENED
STEEL
HARDENED
STEEL
HARDENED
STEEL
CODE FC / FCD SCM,SKT,SKD SKT,SKD SKT, SKD SKT,SKD
HARDNESS ~ HRC 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~55 HRC 55~60
Vc 163 M/min 143 M/min 143 M/min 122 M/min 103 M/min
DIAMETER R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
R.P.M FEED
(mm/min)
10MM 5,200 1,150 4,550 990 4,550 830 3,900 610 3,315 400
12MM 4,420 1,150 3,770 990 3,770 830 3,250 610 2,730 400
16MM 3,250 1,150 2,730 950 2,730 830 2,340 610 1,950 390
18MM 2,860 1,150 2,470 960 2,470 830 2,080 610 1,690 390
20MM 2,600 1,150 2,210 960 2,210 830 1,950 610 1,560 390
Milling Amount
(mm)
Recommended Cutting Conditions 推薦切削參數
Table 065
