Vol.18B
2017~2018 Catalogue
Indexable Milling & Turning
Winstar Cutting Technologies Corp. Is a Taiwanese company that started operations in the year 2008
by Tim Chen following a dream and personal interest in developing solid tools. We are a professional
manufacturer of Cutting Tools and Inserts. Since WINSTAR started it has specialized in the Design and
Manufacture of High-Quality Cutting Tools. Having more than 4,400 different kinds of items and huge
stocks. We are able to meet customer's needs. 90% of our products provide our own brand tools and
10% to do OEM project for world-class cutting group. WINSTAR has become one of the most successful
companies in Taiwan. We base our company’s success on our long-standing commitment to satisfy our
customers’ needs. By Utilizing the Finest Raw Materials and introducing Innovative Cutting Tools.
Why Winstar?
Your order will receive personal attention from our sales staff.
We offer full technical support for our products and are always
just a phone call away. Your satisfaction is very important to us.
We stock our shelves to support our full product line. This
means we probably have what you need ready to ship today.
Taiwanese made Quality
Your satisfaction is 100% guaranteed! Our complete line
of end mills, drills, holders, and insert will stand-up-to or
out-perform any premium cutting tool brand on the market.
Privacy and Security
We aggressively protect your privacy rights. All transactions are
conducted via our secure, encrypted online system. Your customer
information will never be sold, reproduced, or distributed.
Optimized Carbide Grades
Maximum cutting performance is only achieved when the carbide
grade characteristics ideally fit the specific application needs.
Superior Grinding Quality
Research on better surface quality remains an area of continuous
technological advancement. Since the cutting edge quality
determines the tool life and cutting action, a superior grinding
quality is critical. WINSTAR provides the latest Swiss and
German grinding Technology to get a superior surface finish.
Highly Innovative Tool Geometries
Highest cutting action cannot be accomplished by using only the
standard geometries of universal tools. Efficient chip forming
and evacuation is critical for optimal cutting performance. Such
geometries are designed to manage a broad range of cutting
forces and provide the highest cutting action for aerospace
applications. As a recognized provider for “special” tools,
WINSTAR possesses the engineering know-how to design
highly innovative tool geometries for maximum cutting.
Advanced Tool Coating Technology
We are committed to provide our Customers with
Crafted precision and Excellence. Longest tool life
and maximum application performance require the
utilization of advanced coating technology. As this
highly innovative field continues to rapidly change.
Winstar Friends and Family
In WINSTAR CUTTING TECHNOLOGIES Corp. We believe
in partnership and understands that the best way to grow is
together. That is the reason Winstar works as a team, to provide
the customer with a better efficient service. We also have
partnerships around the globe. With this special friends we work
just the same way we work together in WINSTAR. To make bigger
and better alliances so we can grow together as a big family.
Welcome to WINSTAR Family
Indexable Milling & Turning
Milling Inserts 銑刀片
Designations For Milling Inserts( 銑刀片型號編碼 )....................................
Milling Insert Grade( 銑刀片材質等級 ).......................................................
Milling Insert Geometries( 銑刀片刀口幾何 )..............................................
Milling Inserts( 銑刀片規格總覽 )................................................................
Milling Cutters 銑刀桿
Cutter Types( 刀桿種類 )..........................................................................
Shoulder Milling Cutters( 方肩銑削 ).........................................................
Face Milling Cutters( 平面銑削 )...............................................................
Copy Milling Cutters( 仿形銑削 )...............................................................
High Feed Face Milling Cutters( 高進給平面銑削 ).....................................
Helical Milling Cutters( 玉米銑削 )............................................................
Disc Milling Cutters( 三面刃銑削 ).............................................................
Chamfer Milling Cutters( 倒角銑削 ).........................................................
Tooling System & Accessories 配件
Carbide Adapter( 鎢鋼鎖牙式延長桿 ).........................................................
BT Tool Holder(BT 刀把 )..........................................................................
Milling Accessories( 銑削相關配件 )..........................................................
Additional information 相關資訊
Milling Inserts Grade Comparison Chart( 銑刀片材質等級比較表 )...............
B000
B001
B002
B003
B014
B017
B062
B072
B085
B097
B098
B102
B105
B107
B109
B110
Turning & Parting Inserts 車刀片 & 切斷刀片
Designations For Turning Inserts( 車刀片型號編碼 )..................................
Turning Insert Grade( 車刀片材質等級 ).....................................................
Positive Turning Inserts( 正角車刀片規格總覽 )...........................................
Negaitive Turning Inserts( 負角車刀片規格總覽 ).........................................
Parting Inserts( 切斷刀片規格總覽 )...........................................................
Turning & Parting Tools 車刀桿 & 切斷刀桿
Designations For Turning Tools( 車刀桿型號編碼 ).....................................
Internal Turning Tools( 內徑車刀桿 )..........................................................
External Turning Tools( 外徑車刀桿 )........................................................
Toolholders( 切斷刀桿 )............................................................................
Additional information 相關資訊
Turning Inserts Grade Comparison Chart( 車刀片材質等級比較表 ).............
Recommended Cutting Conditions( 推薦切削參數 )...................................
B112
B113
B115
B123
B130
B132
B134
B135
B181
B185
B186
Milling
Turning
銑削
車削
Indexable Milling & Turning
Indexable Milling

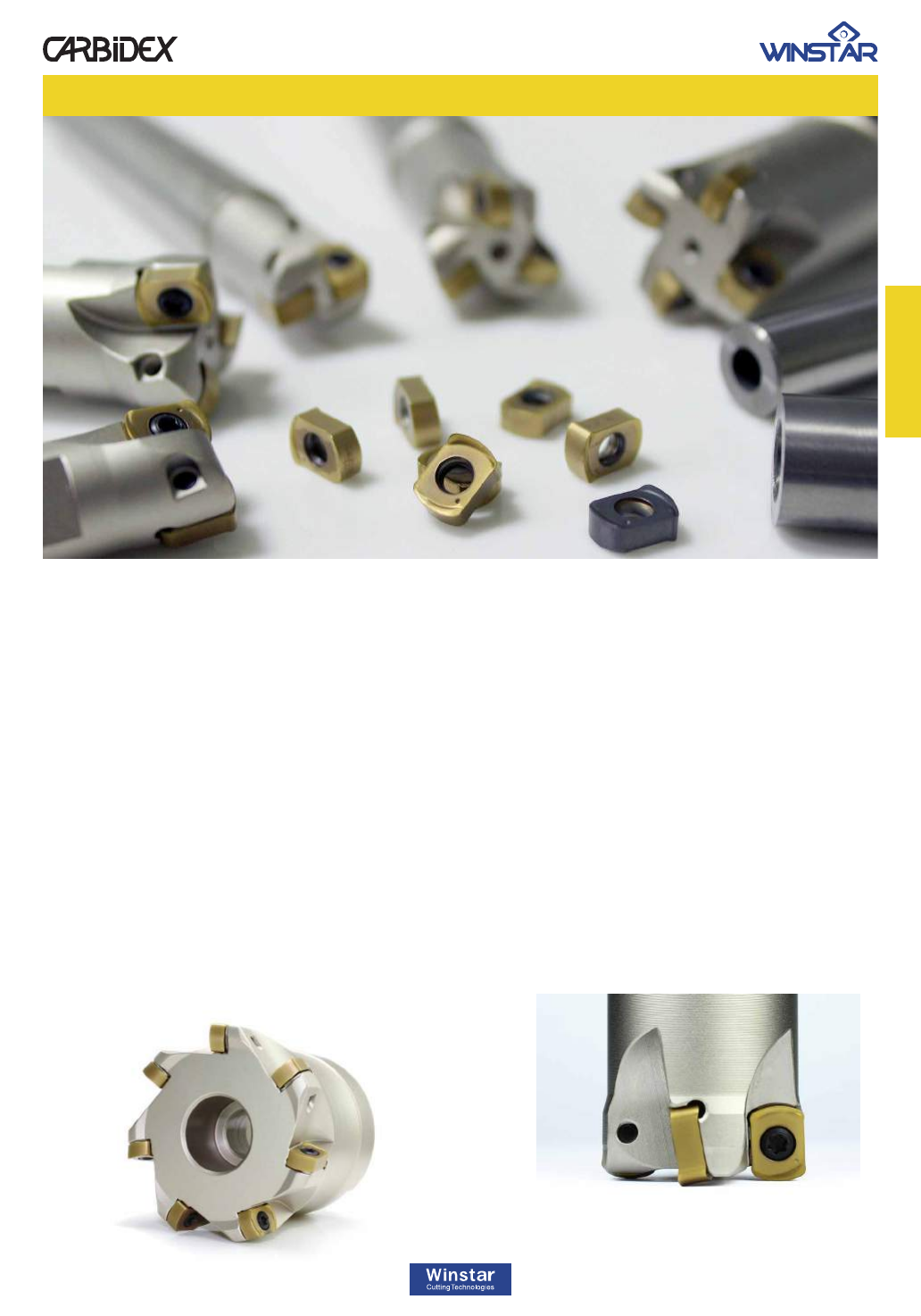

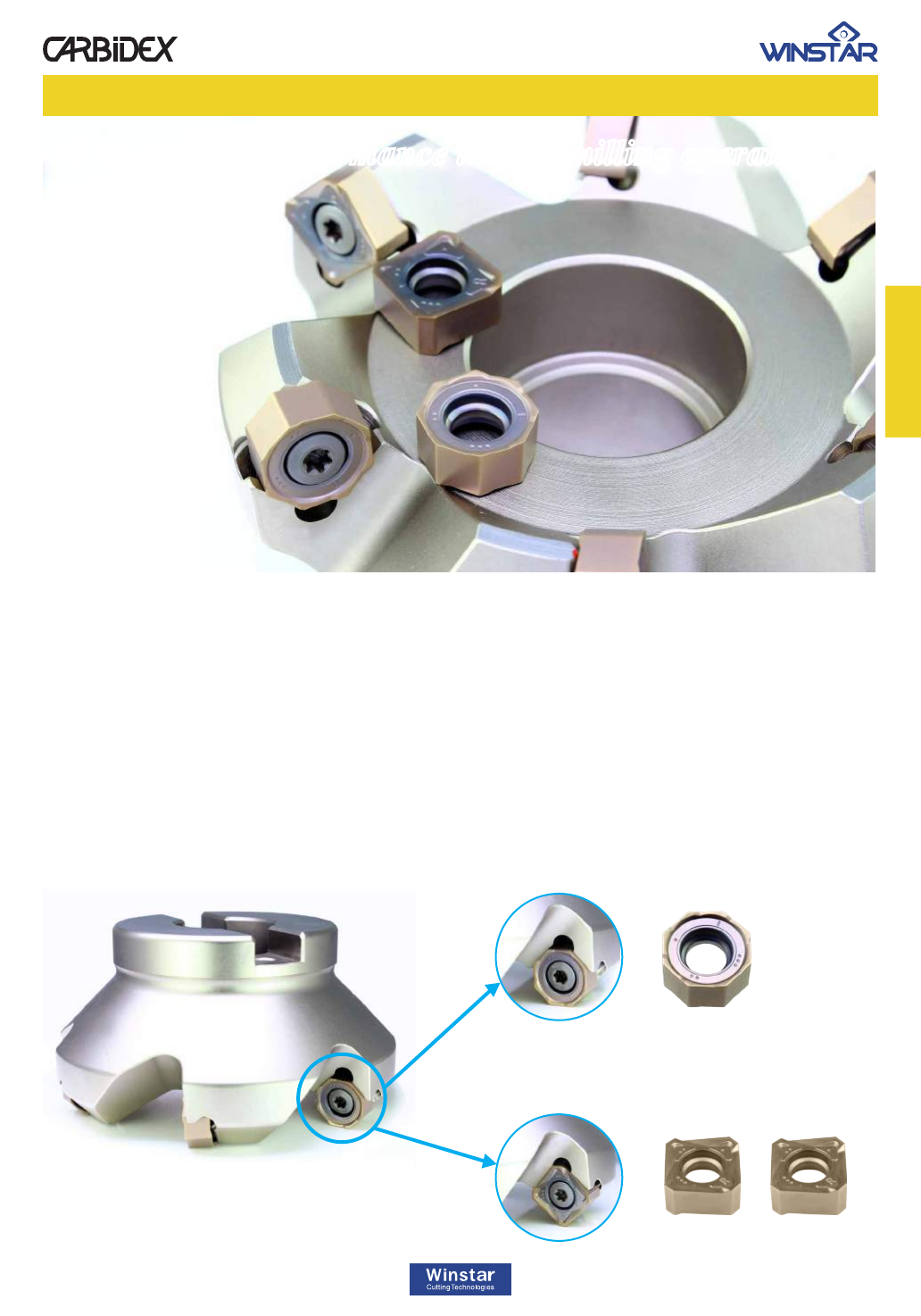

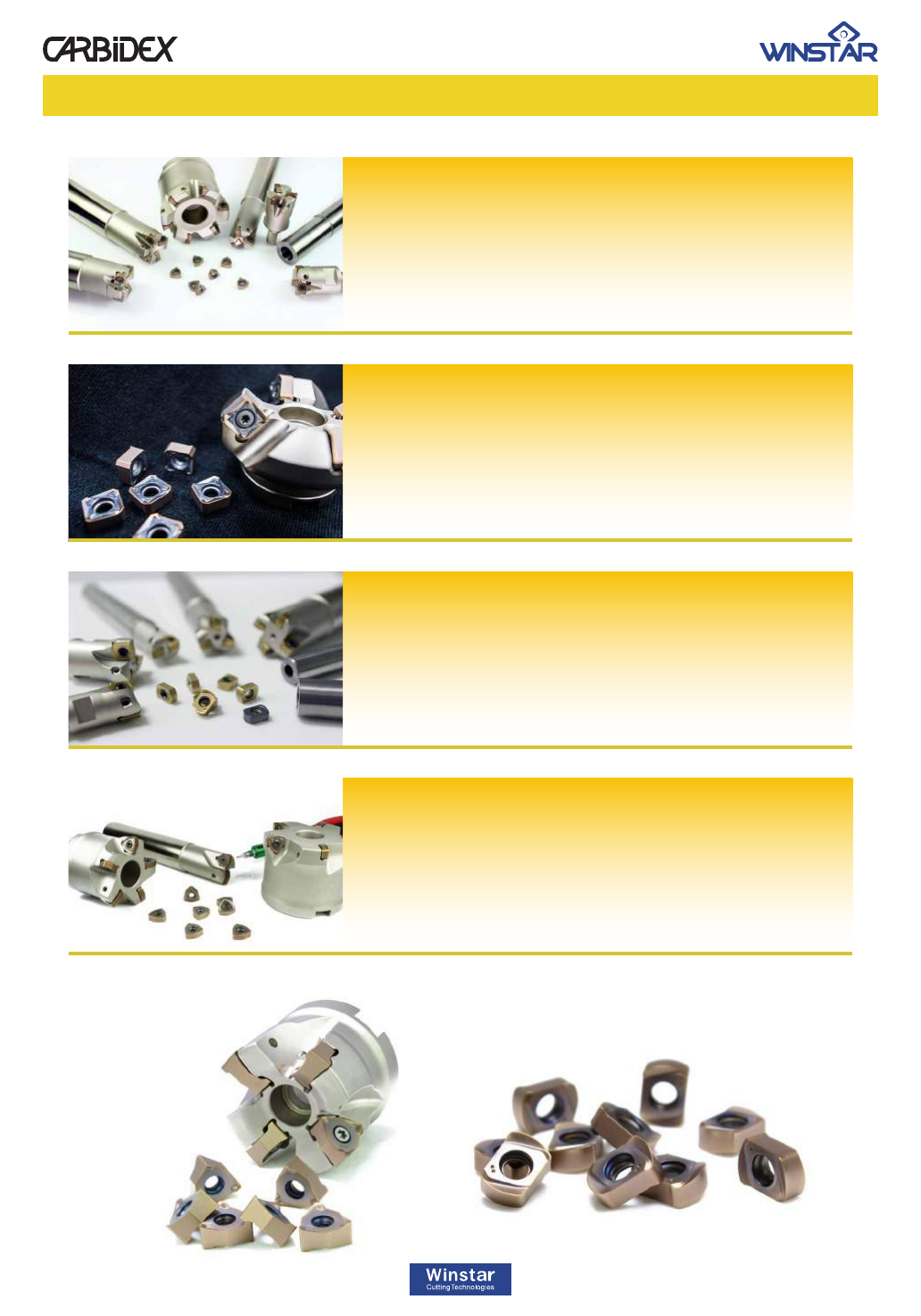

CXBN High Feed Face Milling CXBN 高進給面銑系列
High Feed Milling Oers Increased Productivity!!!
● BNMX with economical 4 cutting edges.
●
Lowest cutting force to insure maximum productivity!
● Optimal insert geometries, wide range
cutting applications.
CX
W
N High Feed Face Milling
New Economical Solution for High Feed Milling Applications!!!
● WNMX with economical 6 cutting edges.
● Double sided & negative geometry has been
designed for rigidity of cutting edge.
●
Designed for multifunctional machining ability.
CX
W
N高進給面銑系列

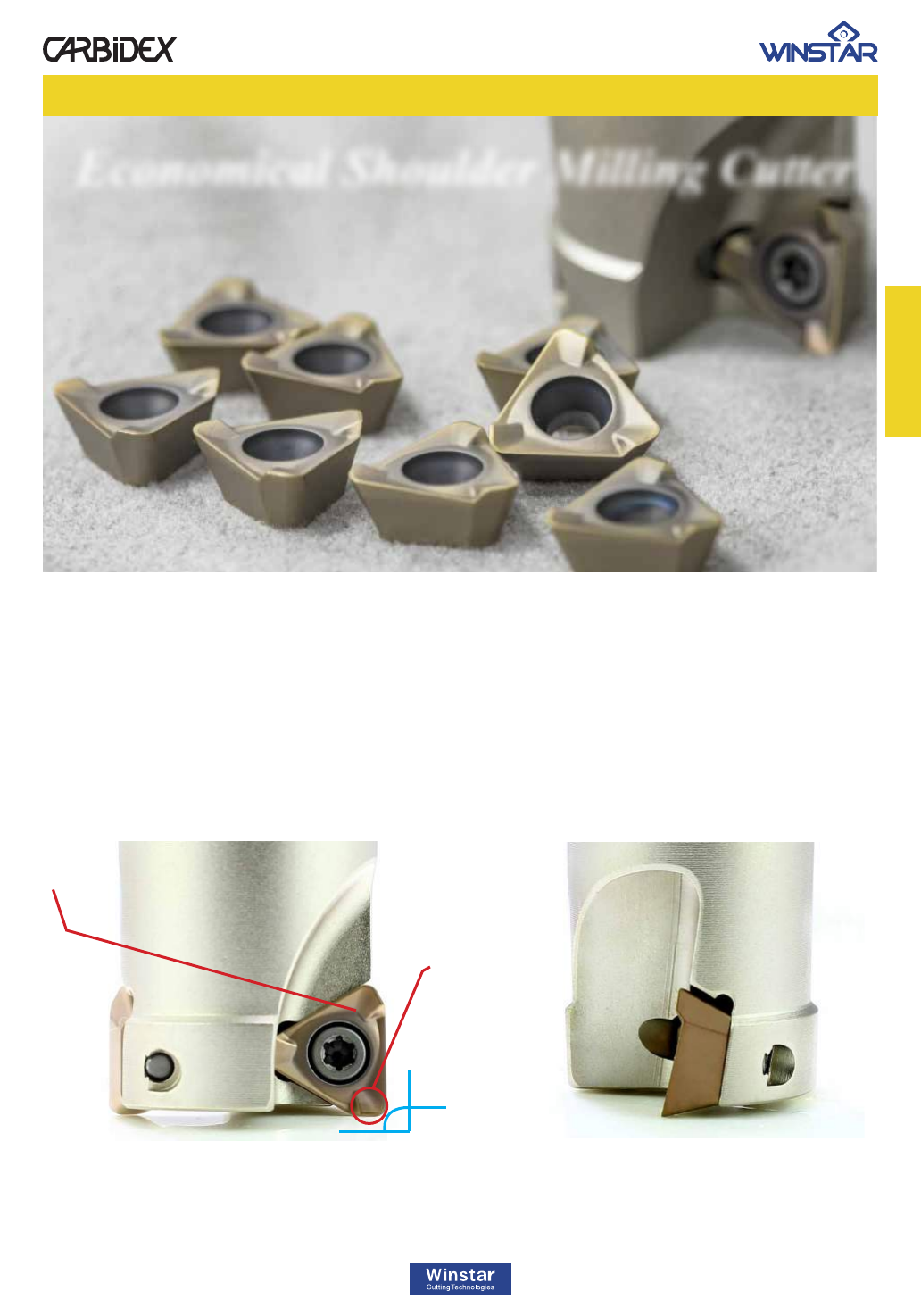

CXXN Shoulder Milling
Optimize end-milling solution in various applications!!!
● XNMX with eonomy of 6 cutting edges.
● Low cutting resistance .
● True 90 degree square shoulder range.
CXXN 方肩銑系列
CXSN Face Milling
Unique "Type Z" geometry minimizes chatter and vibration!!!
● 4 個切削角
● 確保生產率的最大化
● 多種幾何，適用於廣泛的
切削應用
● 6 個切削角
● 雙面負角的設計，增加
刀口剛性
● 多功能加工專用
● 經濟型的 6 個切削角
● 低切削阻力
● 正 90 度端銑
● 8 個切削角更顯經濟
● 保證刀具的低抗阻和壽命
● 泛用於各種材料的高性能
加工
● SNMX with economical 8 cutting edges.
●
Guarantees lowest cutting loads and longest tool life.
● High performance machining on various
working material.
CXSN 面銑系列

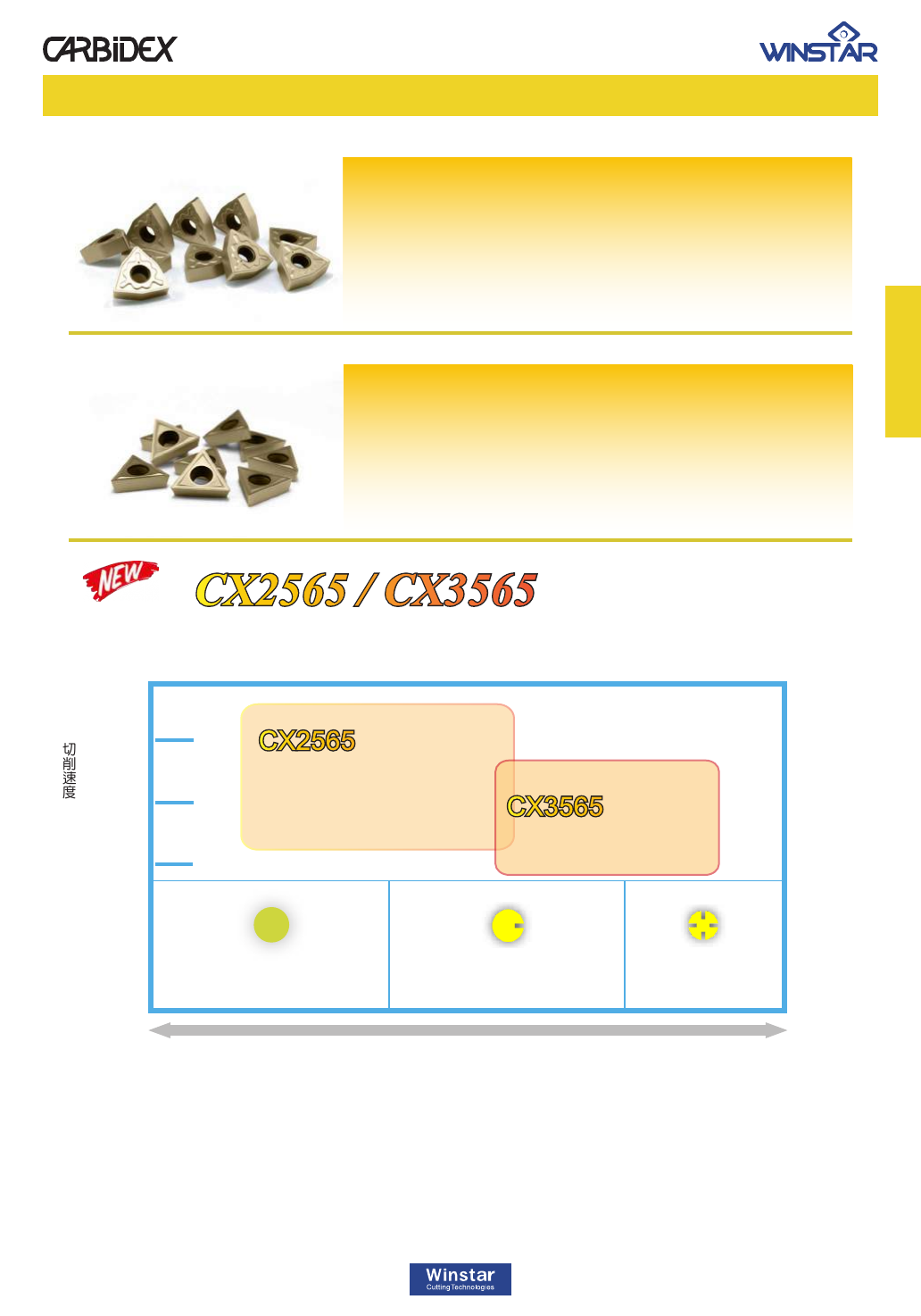

Features:
● Excellent heat resistance and wear resistance.
● Improve the adhesion resistance ability.
● Corner visibility with a unique color.
● Extend tool life and thereby reduces tools costs in a wide
range of machining applications.
特性 :
● 優異的耐磨耗及耐溫性。
● 高抗粘附能力。
● 輕易辨識已使用角。
● 延長刀具壽命，從而在廣泛的加工應用中降低成本。

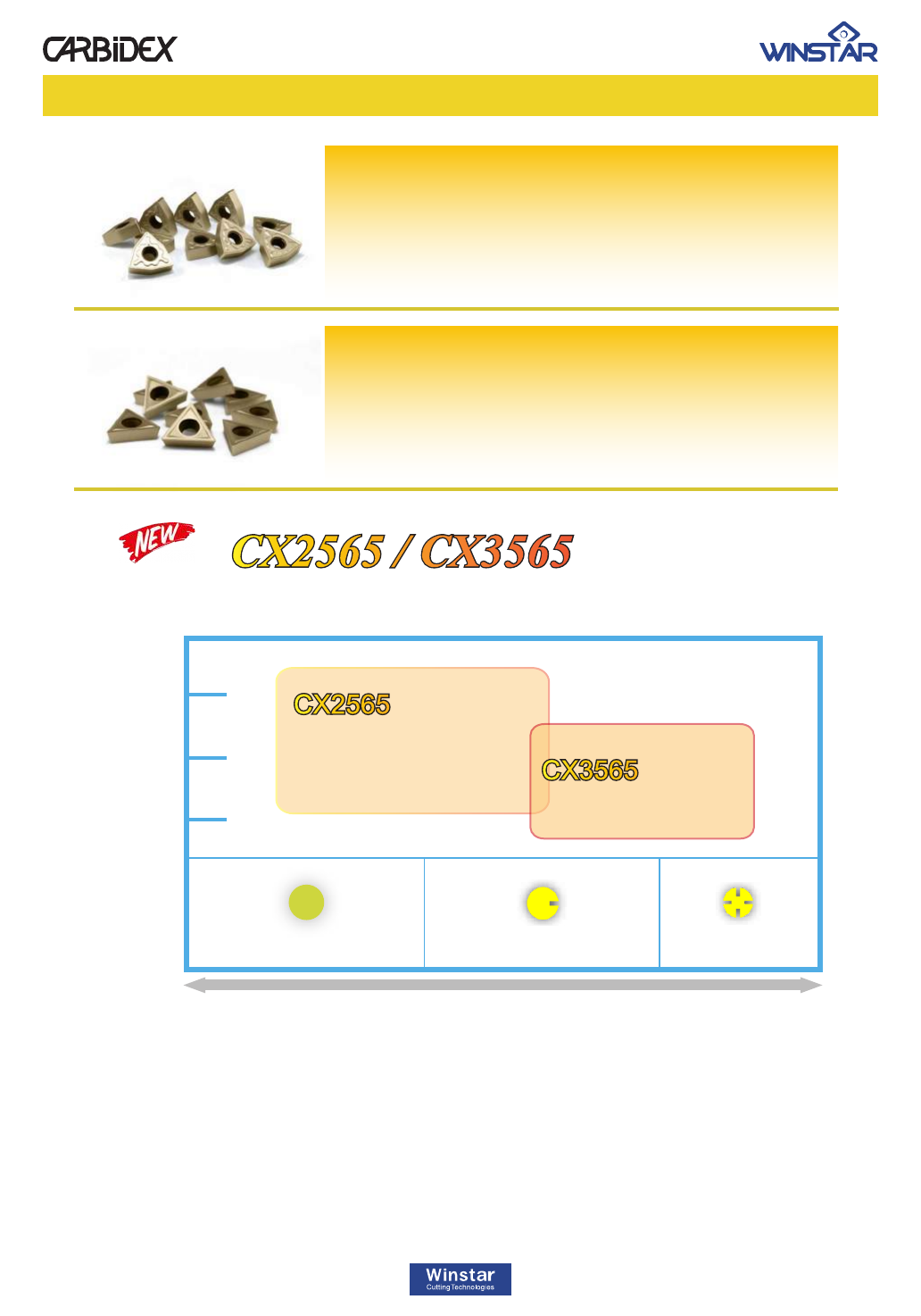

CX2565 / CX3565
2017 New Turning Grades for General Purpose
2017 年全新泛用車刀片新材料
(m/min)
Cutting Speed
Light to Continuous
連續性輕加工
Continuous to Light Intearrupted
連續性或輕微斷續加工
Intearrupted to Heavy
Intearrupted
斷續至強烈斷續加工
150
100
60
CX2565
General Purpose Cutting
泛用車削環境 CX3565
Heavy Interrupted Cutting
強烈斷續車削環境
Finishing
精加工
roughing
粗加工
Application Range

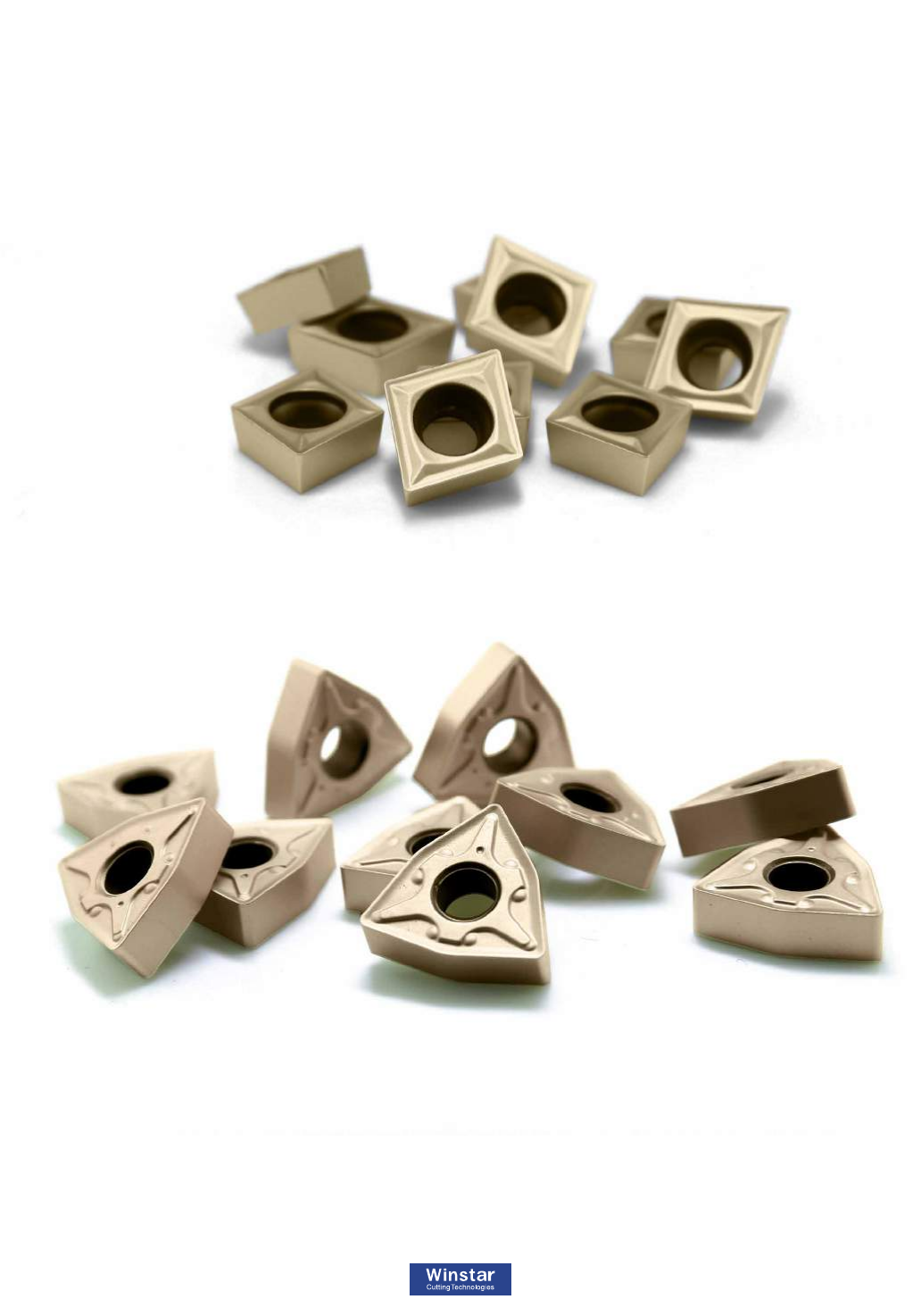

Positive Types
● 25+ types to choose from.
● Thick or normal coating layer structure for
dierent applications.
●
Internal turning, proling and boring machining.
●
Usable range cover from semi-nishing to roughing.
●
超過 25 種幾何可供選擇
●
針對不同加工應用面提供不同
塗層對應
●
適合內孔，輪廓及鏜孔加工應用
●
加工範圍包含半精加工至粗加工
正角車刀片
Negative Types
● 50+ types to choose from.
● > 10μ thick coating layer structure for
various applications.
● Longitudinal, prole and face turning machining.
● Usable range cover from medium to roughing.
●
超過 50 種幾何可供選擇
●
針對多樣化加工提供厚塗層對應
●
適合端面，輪廓及外徑加工應用
●
加工範圍包含蓋中加工至粗加工
負角車刀片
Indexable Turning
Indexable Milling & Turning

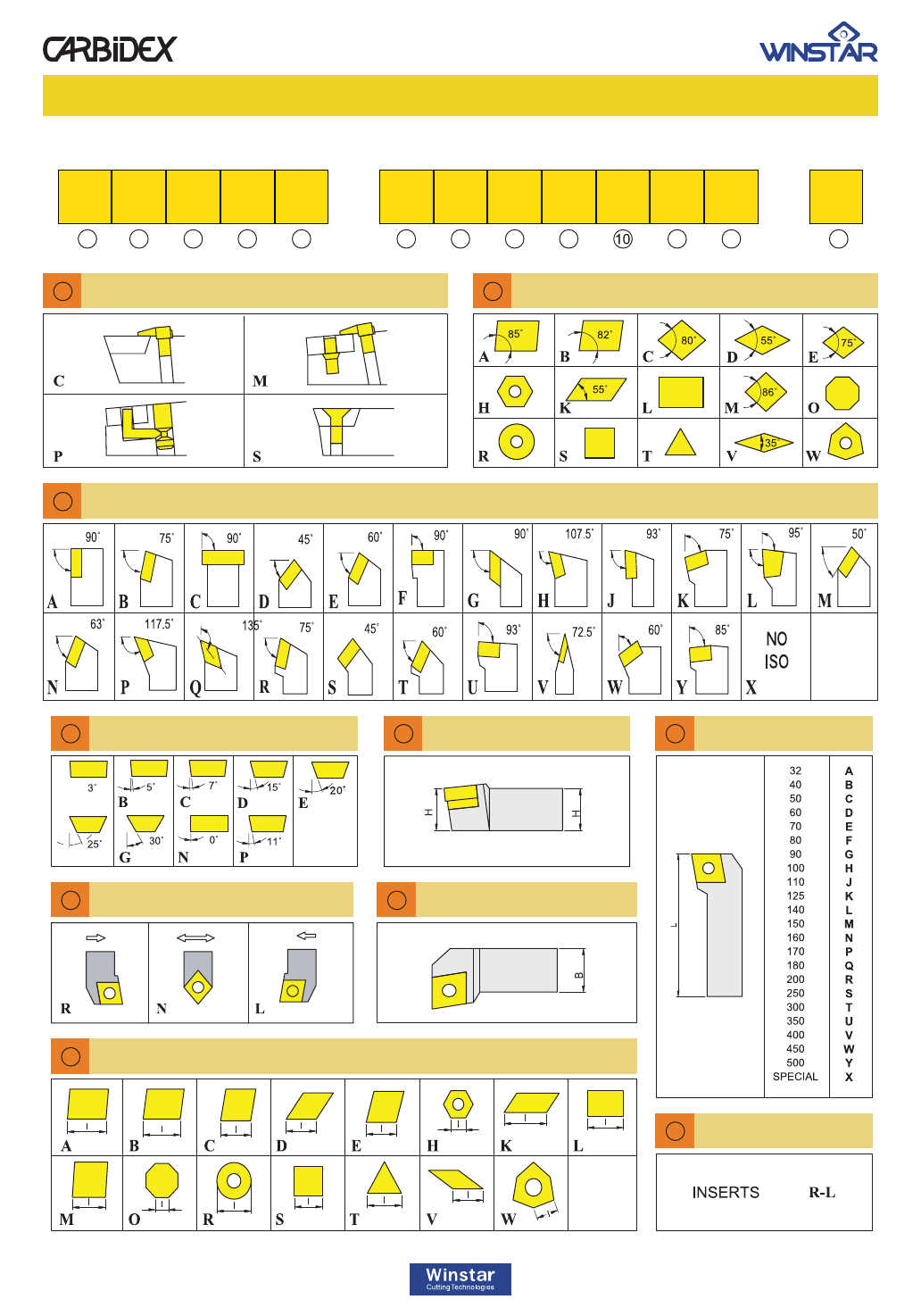

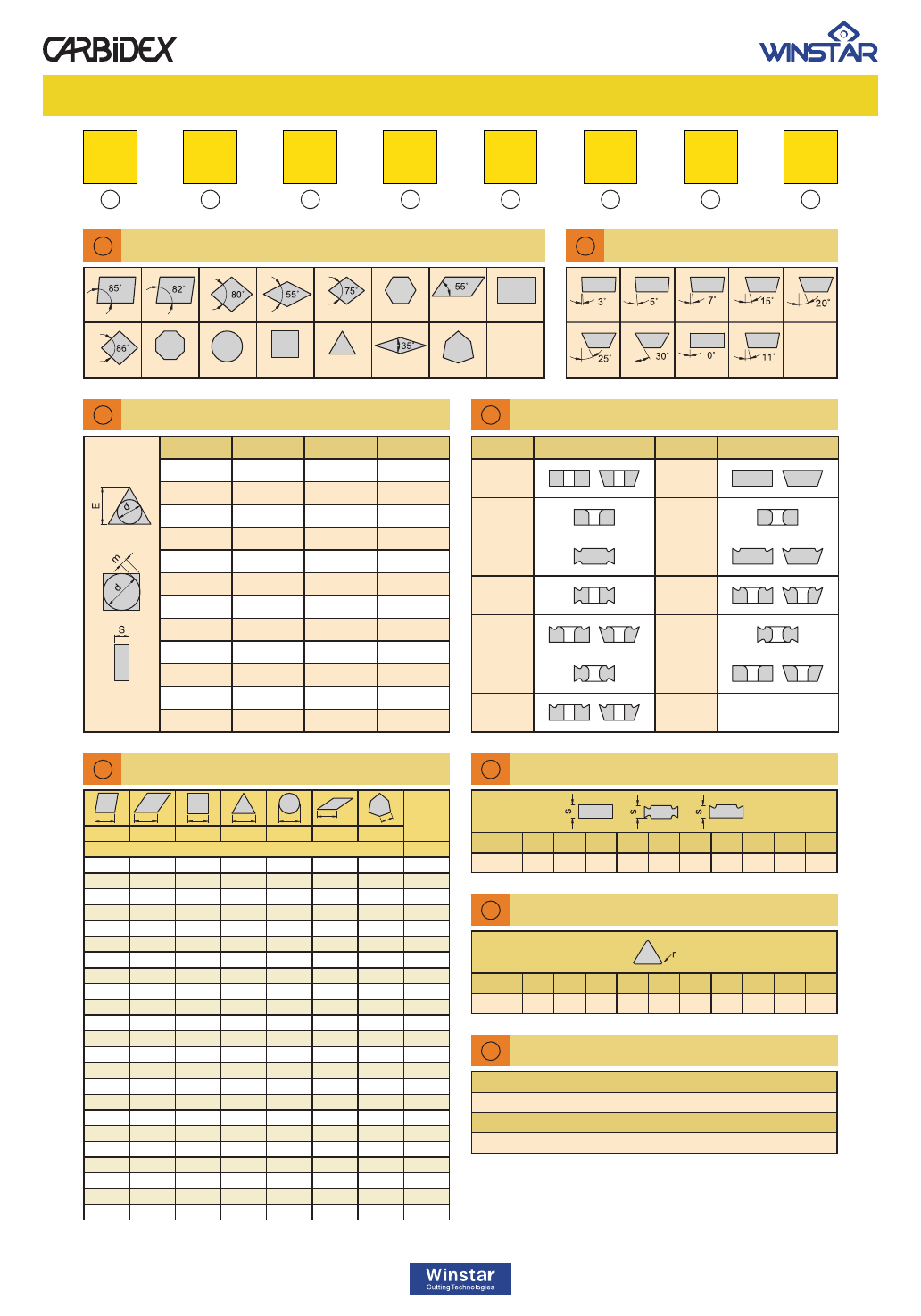

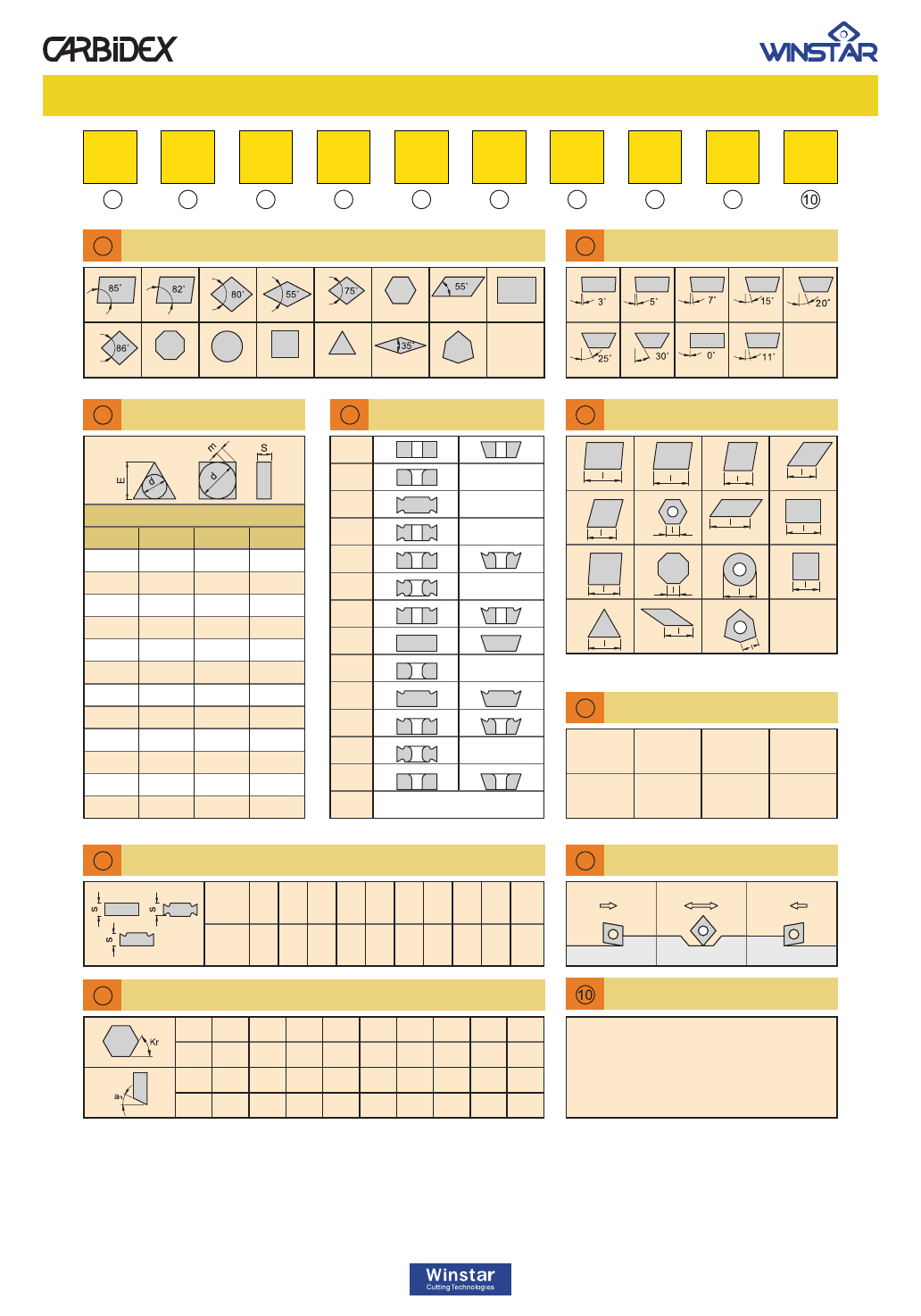

Designations For Milling Insert
Milling Insert
-
41 23 56789
A P M T 16 04 PD MGER 08
Chip breaker design
A D E F P Z
45° 60° 75° 85° 90° other
A B C D E F G N P Z
3° 5° 7° 15° 20° 25° 30° 0° 11° other
RNL
1Insert Shape
A B C D E H K L
MOR S T V W
A B C D E
F G N P
2Relief Angle
Tolerance Range of tolerance
d±m±s±
A0.025 0.005 0.025
C0.025 0.013 0.025
E0.025 0.025 0.025
F0.013 0.005 0.025
G0.025 0.025 0.05~0.13
H0.013 0.013 0.025
J0.05~0.15 0.005 0.025
K0.05~0.15 0.013 0.025
L0.05~0.15 0.025 0.025
M0.05~0.15 0.08~0.2 0.05~0.13
N0.05~0.15 0.08~0.2 0.025
U0.08~0.25 0.13~0.38 0.13
3Tolerance
A
C
F
G
H
J
M
N
Q
R
T
U
W
XSpecial shape
4Insert Features
A B C D
E H K L
MOR S
T V W
5Edge Length
E F T S
Rounded Sharp Chamferd Chamferd
and rounded
8Cutting Edge
Index 01 T1 02 03 T3 04 05 06 07 09
S(mm) 1.59 1.98 2.38 3.18 3.97 4.76 5.56 6.35 7.94 9.52
6Thickness 9Cutting Direction
7Corner Radius
Manufacture's Type Designation
SG, MG, RG, HG
刀片型號編碼
B000

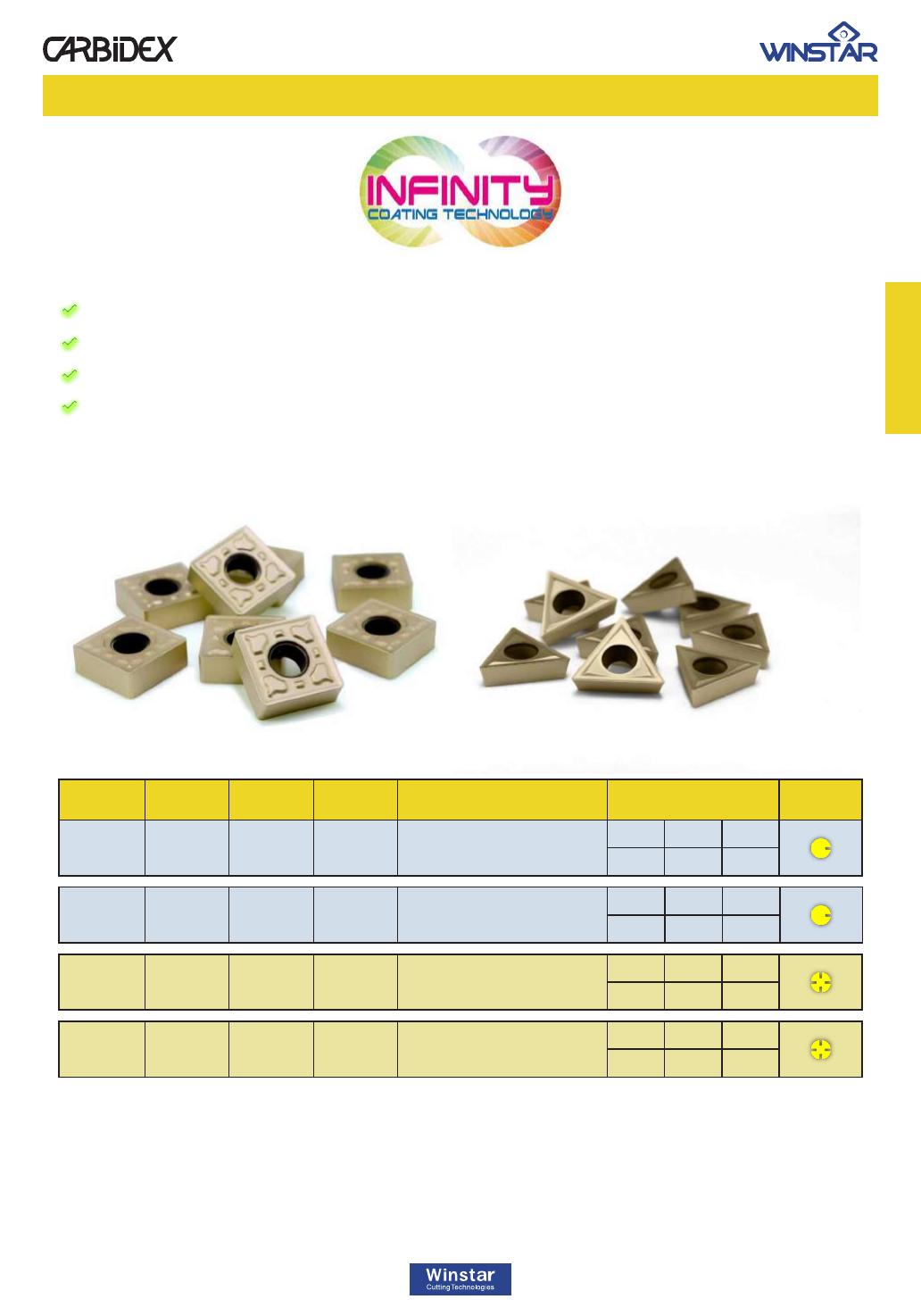

Milling Insert Grades
“∞“ Infinity Nano Coating:
High adhesion strength to the substrate improves stable cutting performance and achieves longer tool life.
Provide excellent heat resistance and oxidation resistance.
Maintain highest performance in wet cutting,dry cutting,even harden materia cutting.
Grade Type Substrate
( HRA ) Coating Type Thickness Coolant Suitable Condition
Dry Wet
CX21NS 92 Al.Ti.Si.X.N 3~4 ★ ★
★ ★
★ ★
★
★ ★
．First choice for mold steel, hardened steel and Ni-base superalloys.
．High-performance premium grade with a high level of shock and heat resistance.
．Specially designed to operates at medium to high cutting speeds and is capable of retaining a
secure cutting edge at high metal removal condition.
Milling Inserts & Tools
CX41NS 90.2 Ti.Si.X.N 3~4
★ ★
★ ★
★ ★
★
★ ★
CX41NA 90.3 Al.Ti.X.N 3~4
★ ★
★
★ ★
★ ★
★ ★
．Stainless material machining is recommended.
．Priority grade for roughing purpose & interrupted machining, for P, M, K.
．Excellent shock resistance ability.
CX31NS 91.8 Ti.Si.X.N 3~4
★ ★
★ ★
★ ★
★
★ ★
CX31NA 91.7 Al.Ti.X.N 3~4
★ ★
★
★ ★
★ ★
★ ★
．General machining application. (P, K )
．Both wear resistance and impact resistance are well-balanced.
．Priority grade for medium cutting.
Smooth surface prevents chip adhesion.
Multi-layered structure prevents crack expansion which causes chipping and fracture.
Newly development substrate with better resistance and strength
* Milling Grade Comparison Chart............Page B110
銑刀片材質等級
B001
Milling Insert
Milling Insert Geometries
Milling Insert
B002
Examples of dierent insert geometries for a specic insert type chart.
銑刀片刀口幾何

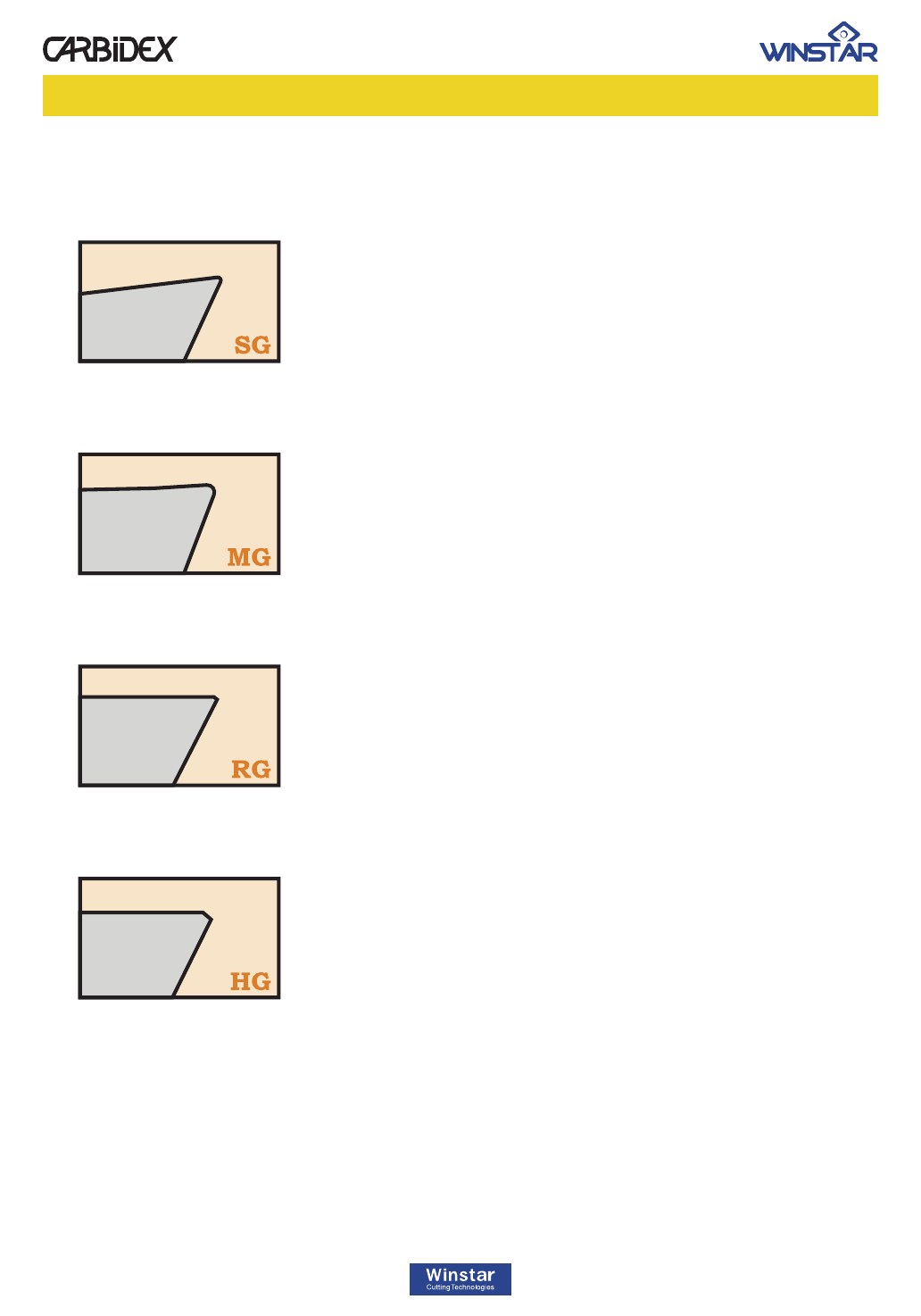

SG - Positive and small rounded cutting edge.
Excellent surface for nishing purpose.
精加工及優良的表面光潔度
MG - Positive and rounded cutting edge.
Low cutting force and chattering reduction for light
cutting when low forces / power are required.
中加工刀口設計，適合低阻力及低功率的機台使用
RG - Negative and chamfering cutting edge.
First recommendation for general machining in
mixed production.
一般中粗加工及泛用材料的首選
HG - Negative and big chamfering cutting edge.
Strong edge strength for rough operations, forging,
cast skin and vibrations.
粗加工及鑄件專用的強力刀口
Index
Milling Inserts

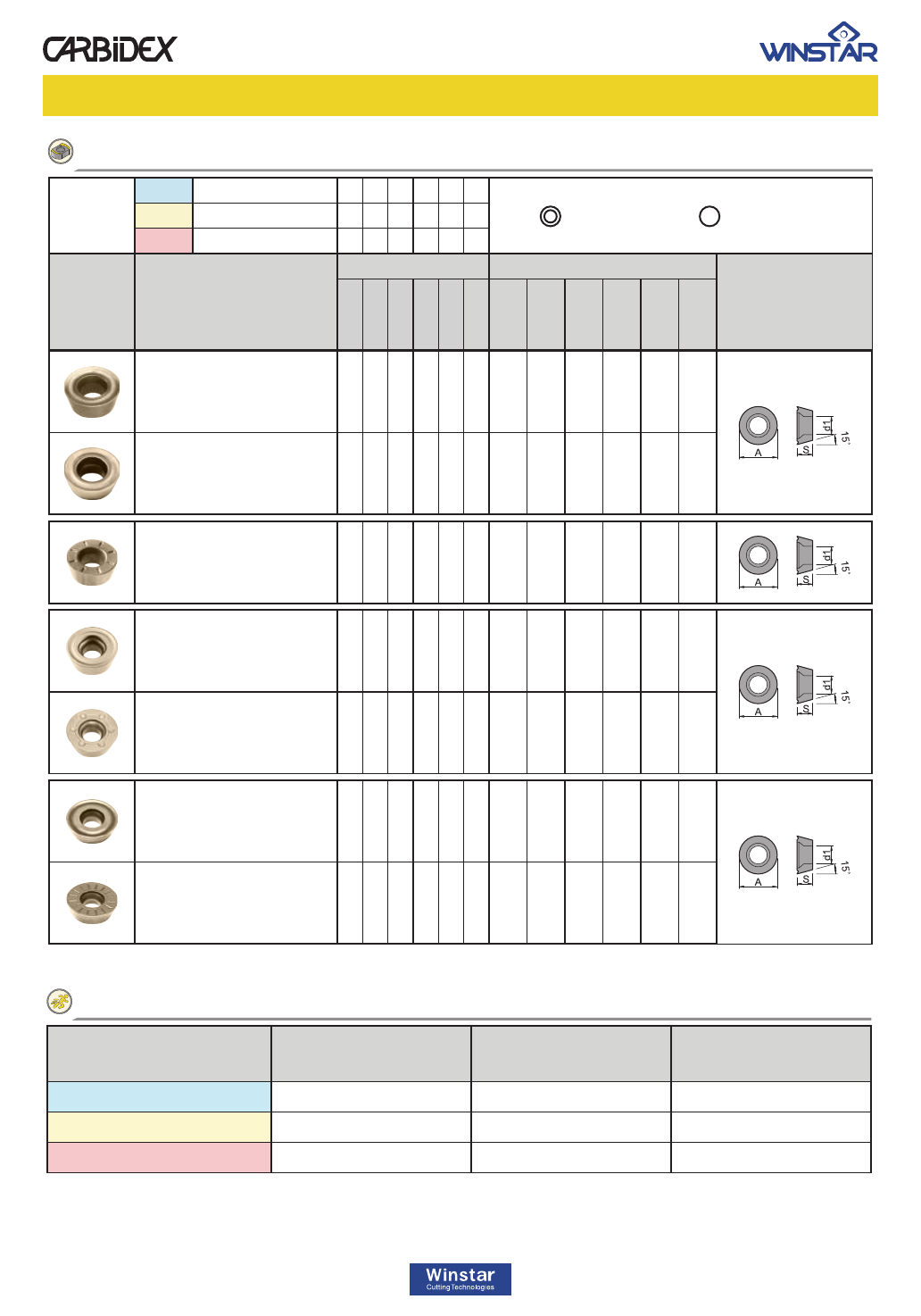

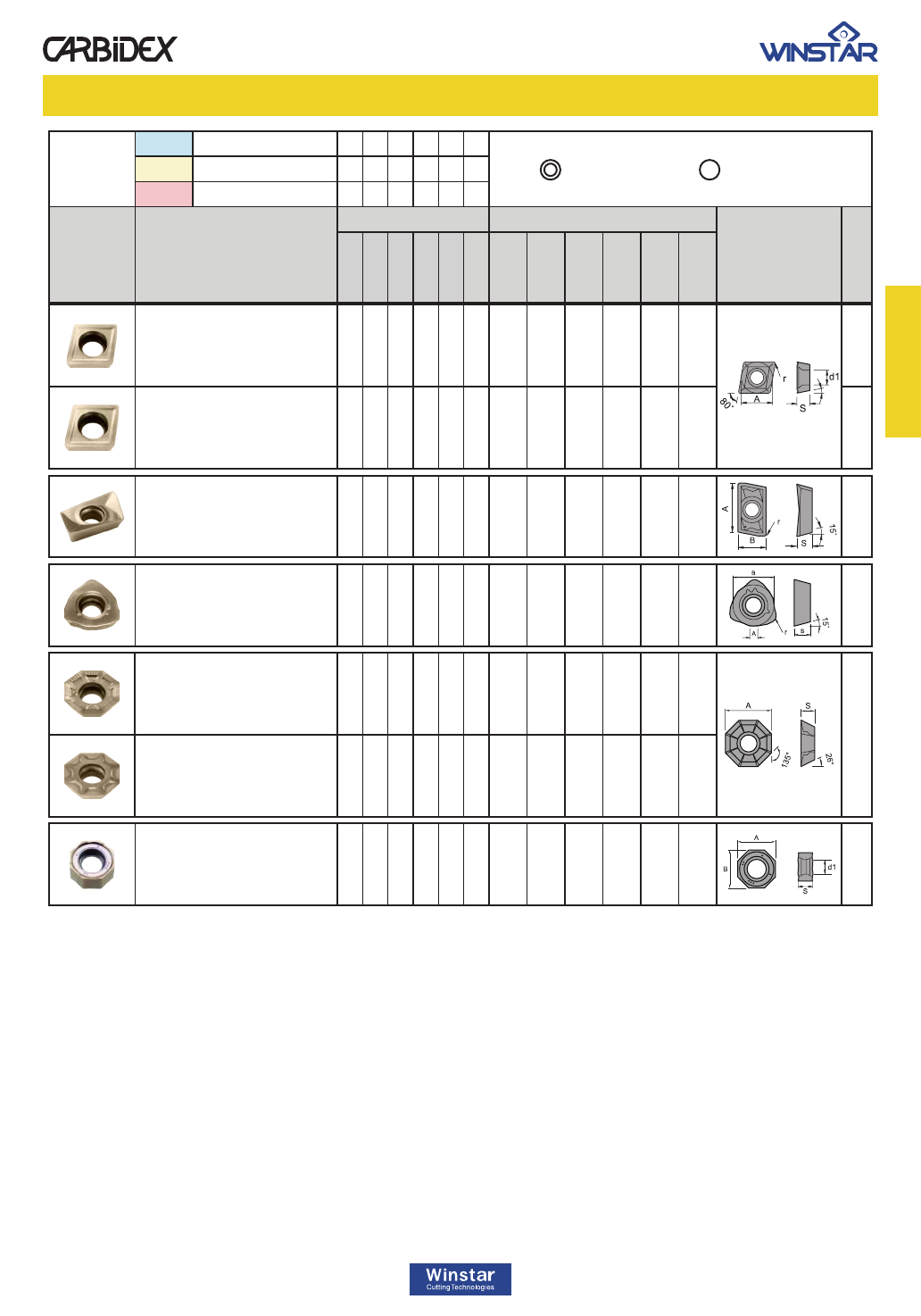

P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○

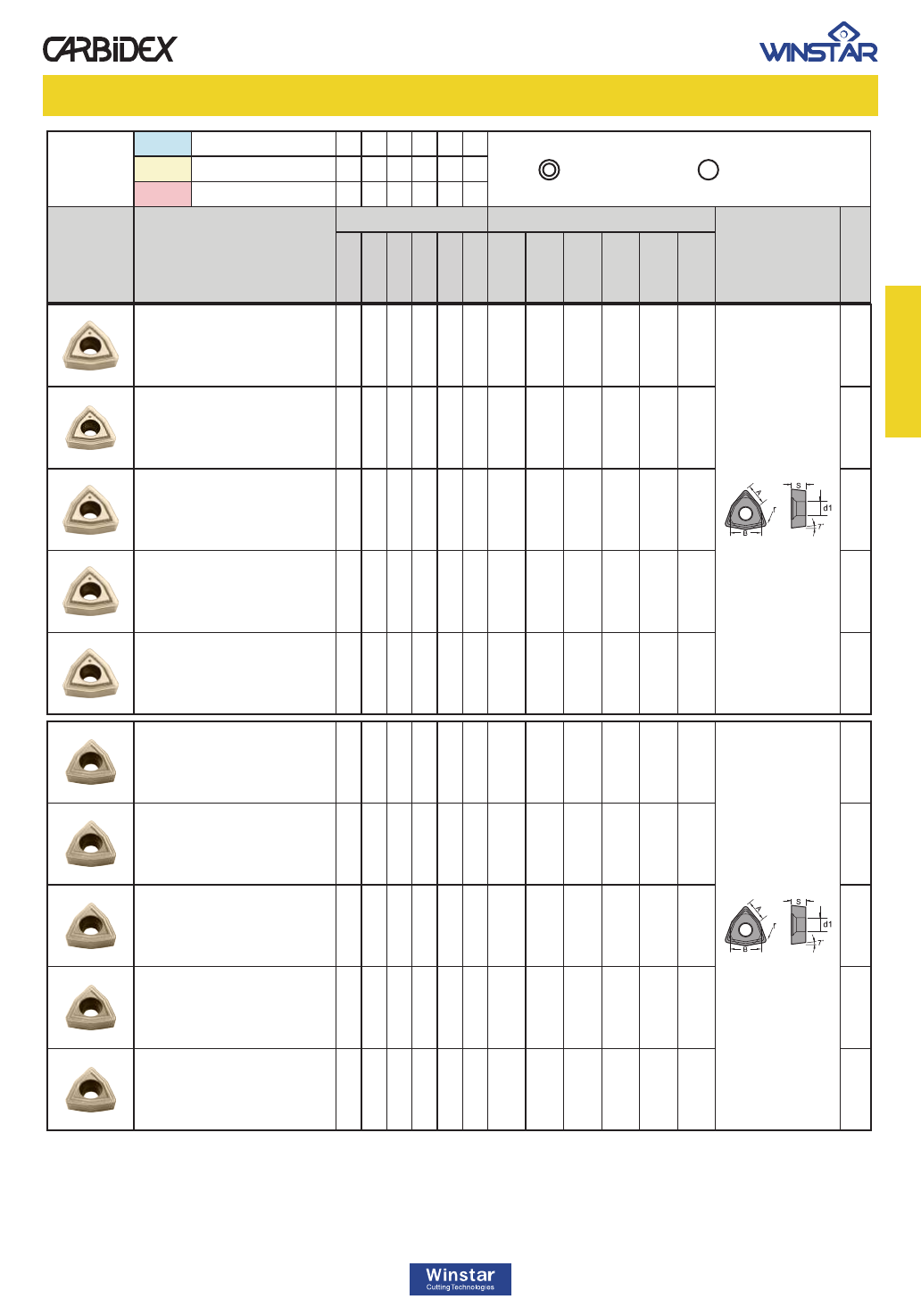

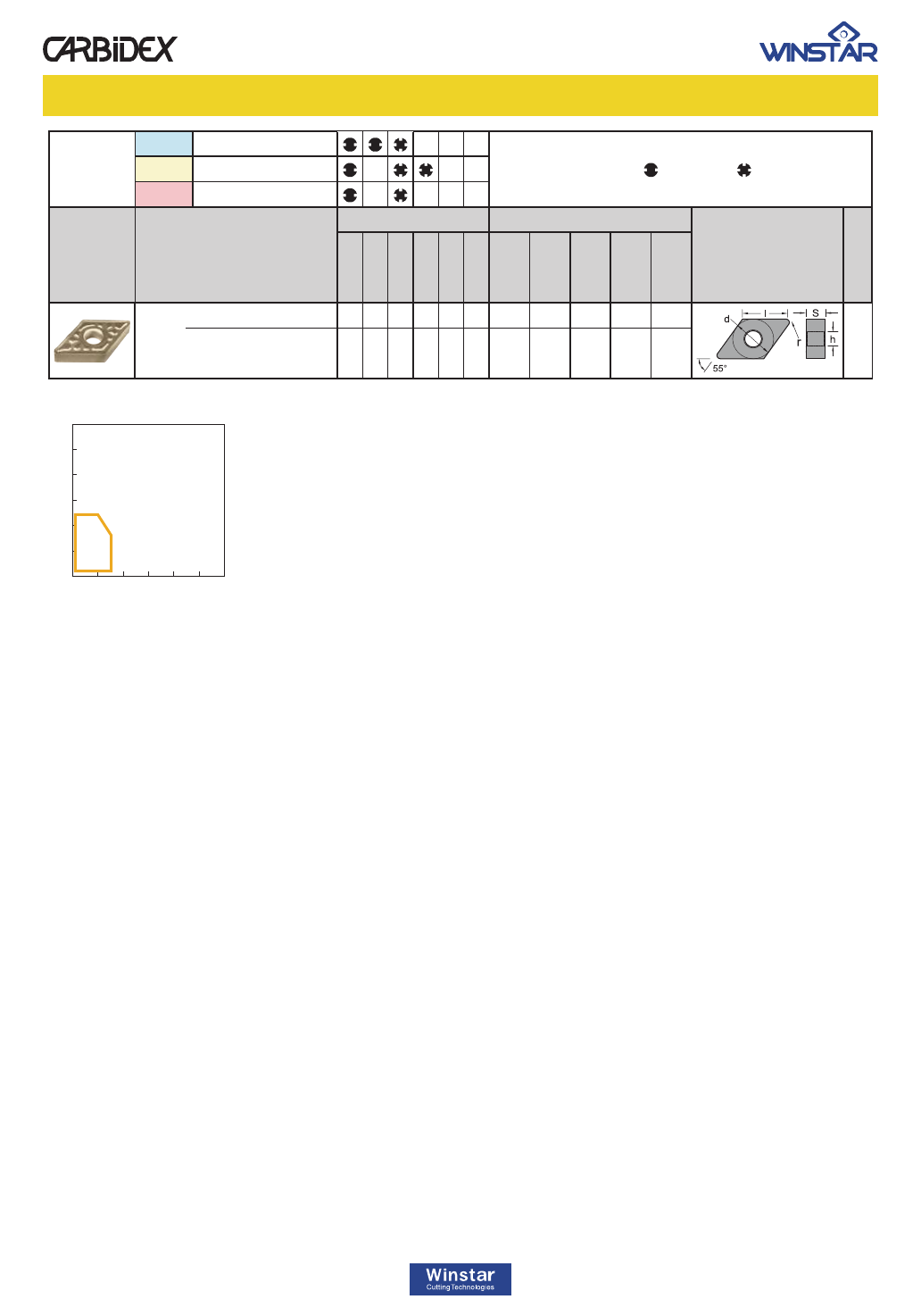

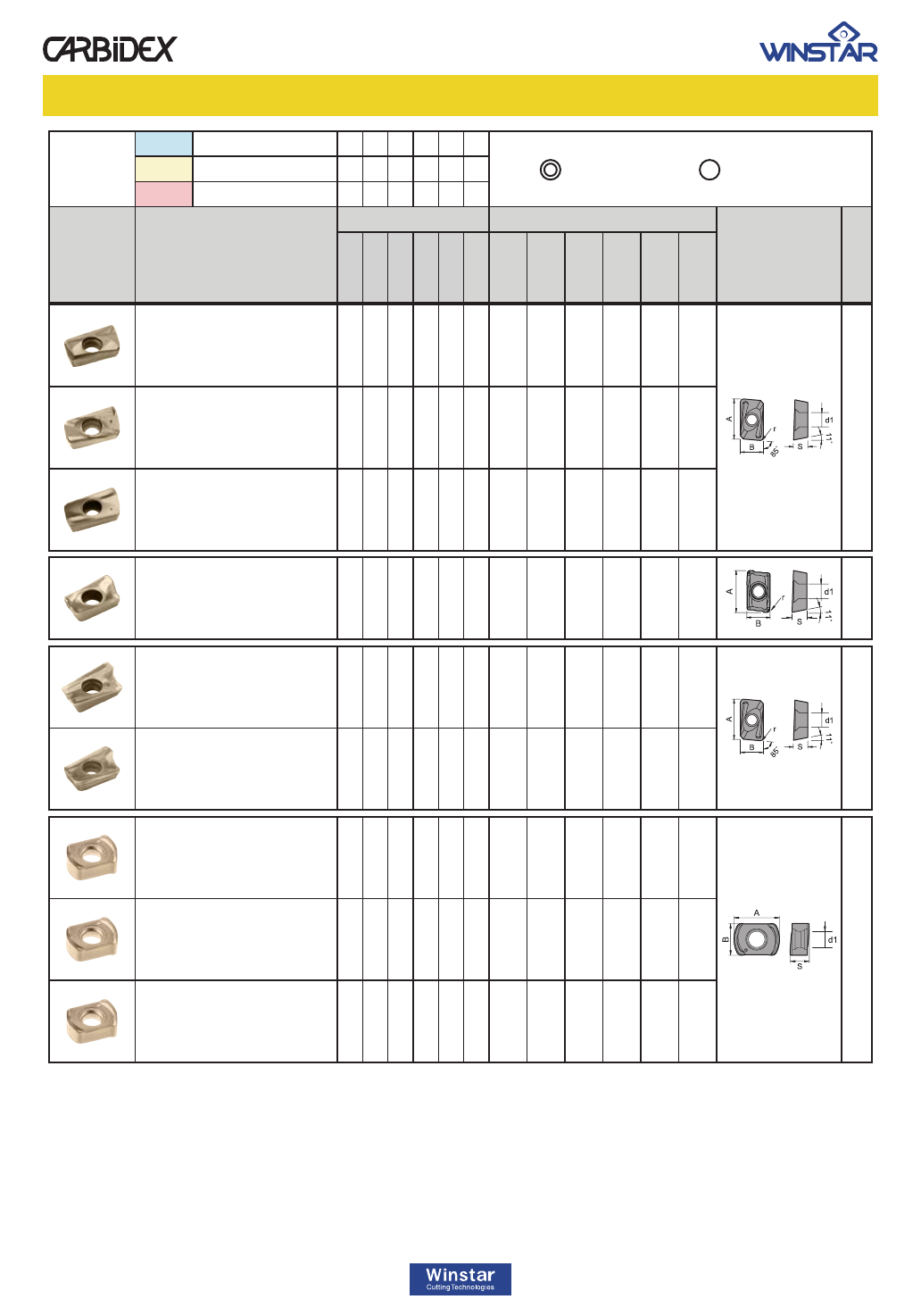

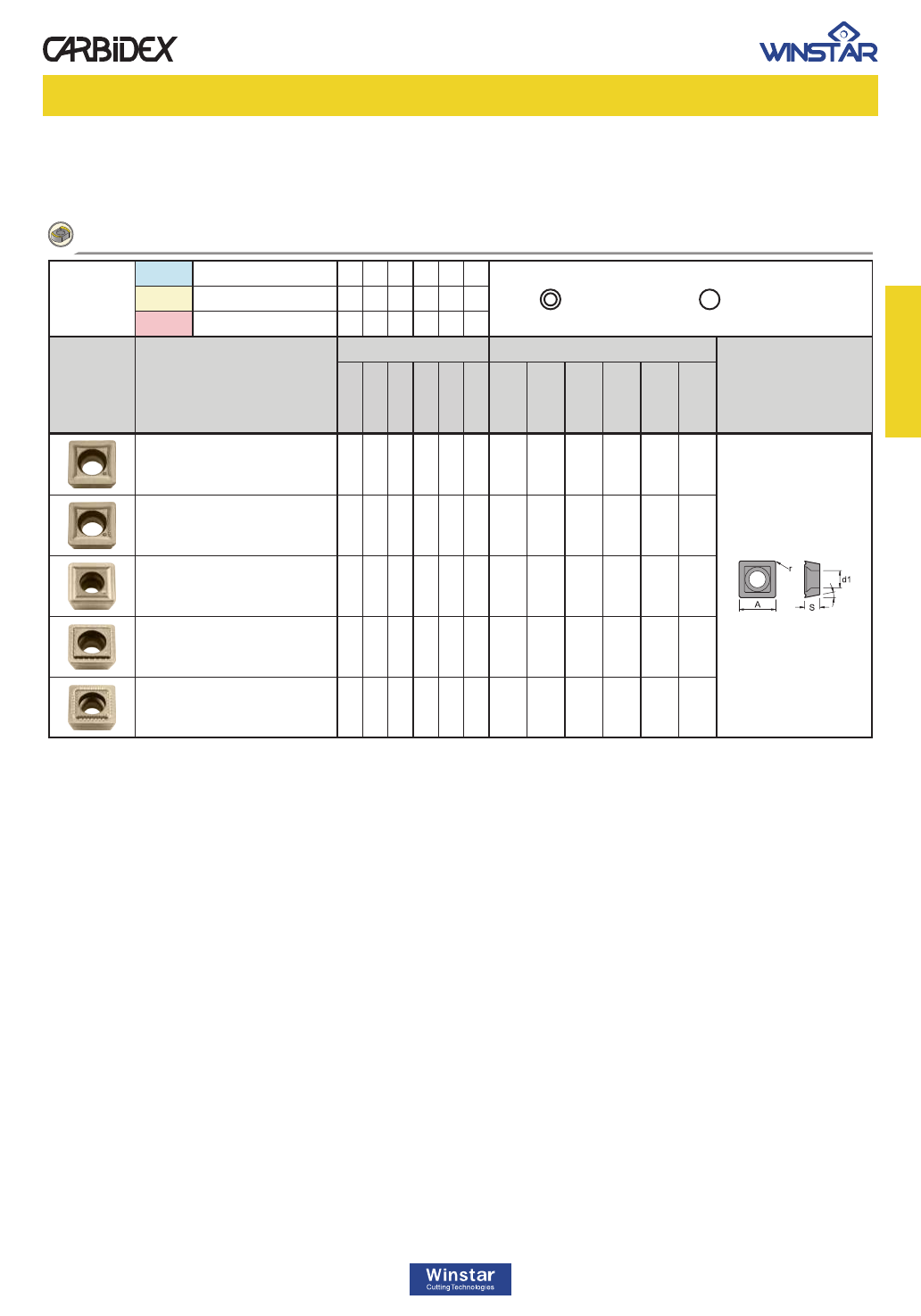

Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
3PMX 100408-MG ✓ ✓ ✓ 6.9 -4 0.8 3 -
B023
~
B026
APKT
100304PDER-MG
✓✓✓ 10.5 6.7 3.5 0.4 2.8 -
B039
~
B040
APKT
100308PDER-MG
✓✓✓ 10.5 6.7 3.5 0.8 2.8 -
APKT
100304PDER-RG
✓✓✓ 10.5 6.7 3.5 0.4 2.8 -
APKT
160408PDER-MG
✓✓✓✓ 16.3
9.525
5.25 0.8 4.5 -
B041
~
B044
APKT
160408PDER-RG
✓✓✓✓ 16.3
9.525
5.25 0.8 4.5 -
APMT
103508PDER-RG
✓✓✓✓
10.64
6.5 3.5 0.8 3 -
B030
~
B031
APMT
113508PDER-MG
✓✓✓✓✓ 11.0 6.35 3.5 0.8 2.8 -
B032
~
B034
APMT
113508PDER-RG
✓✓✓✓✓ 11.0 6.35 3.5 0.8 2.8 -
APMT
113508PDER-HG
✓✓✓✓ 11.0 6.35 3.5 0.8 2.8 -
B003
銑刀片規格總覽
T
I
I
I
I
I
S
M
M
D
*Customize geometries and grades available
Milling Inserts & Tools
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
APMT
160408PDER-MG
✓✓✓✓✓ 16.5
9.525
4.76 0.8 4.4 -
B035
~
B038
APMT
160408PDER-RG
✓✓✓✓✓ 16.5
9.525
4.76 0.8 4.4 -
APMT
160408PDER-HG
✓✓✓✓ 16.5
9.525
4.76 0.8 4.4 -
AXMT
123508PEER-RG
✓✓✓
12.18
6.93 3.58 0.8 3.4 -
B045
~
B046
BNMX 0603-SG ✓ ✓ ✓ 9.0 6.3 3.75 -3.2 -
B085
~
B088
BNMX 0603-MG ✓ ✓ ✓ 9.0 6.3 3.75 -3.2 -
BNMX 0603-RG ✓ ✓ ✓ 9.0 6.3 3.75 -3.2 -
AXMT
170508PEER-RG
✓✓✓✓
17.50
10.2 5.56 0.8 4.6 -
B047
~
B049
AXMT
170516PEER-RG
✓✓✓✓
17.50
10.2 5.56 1.6 4.6 -
Double Sided
Double Sided
Double Sided
B004
Index
Milling Inserts
銑刀片規格總覽
M
D
M
S
S
S
T
T
T
*Customize geometries and grades available
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
CPMT 090308-MG ✓ ✓
9.525
-3.18 0.8 4.4 -
11°
-
CPMT 120408-MG ✓ ✓ 12.7 -4.76 0.8 5.5 - -
JDMT 150508R-MG ✓ ✓ 15.1 9.12 5.0 0.8 4.5 -
B050
~
B051
JDMW
120420ZDSR-RG
✓✓✓✓ 2.5 12.0 4.76 2.0 4.75 -
B095
~
B096
OFMT 05T3TN-MG ✓ ✓ 12.7 -3.8 0.6 4.6 -
B068
~
B069
OFMT 05T3TN-RG ✓ ✓ 12.7 -3.8 0.6 4.6 -
B005
Index
Milling Inserts
銑刀片規格總覽
H
H
H
M
T
T
*Customize geometries and grades available
ONMX 0505-RG ✓ ✓ ✓
12.7 12.7 6.4 -6-
B064
~
B065
S
Milling Inserts & Tools
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B006

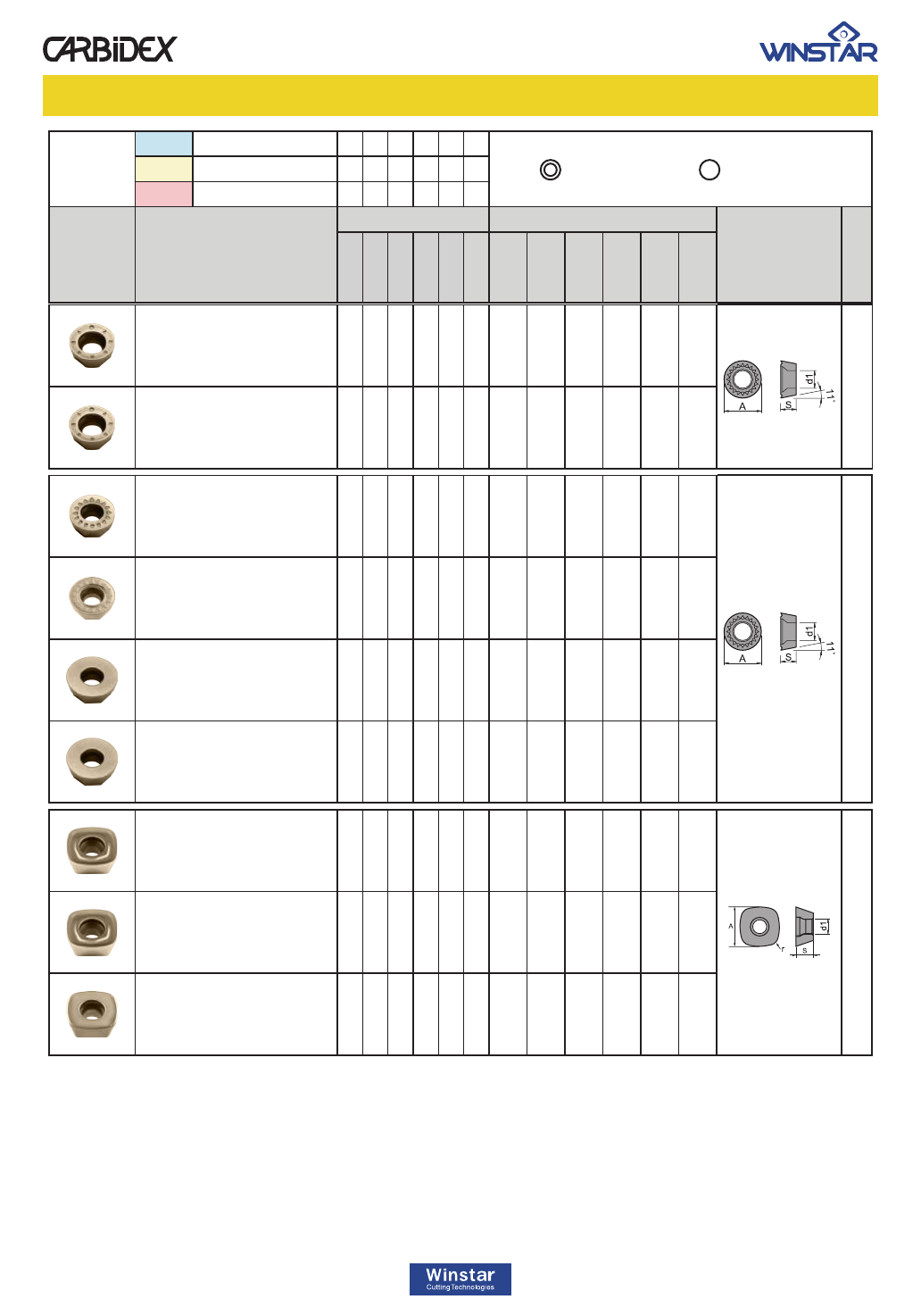

Index
Milling Inserts
銑刀片規格總覽

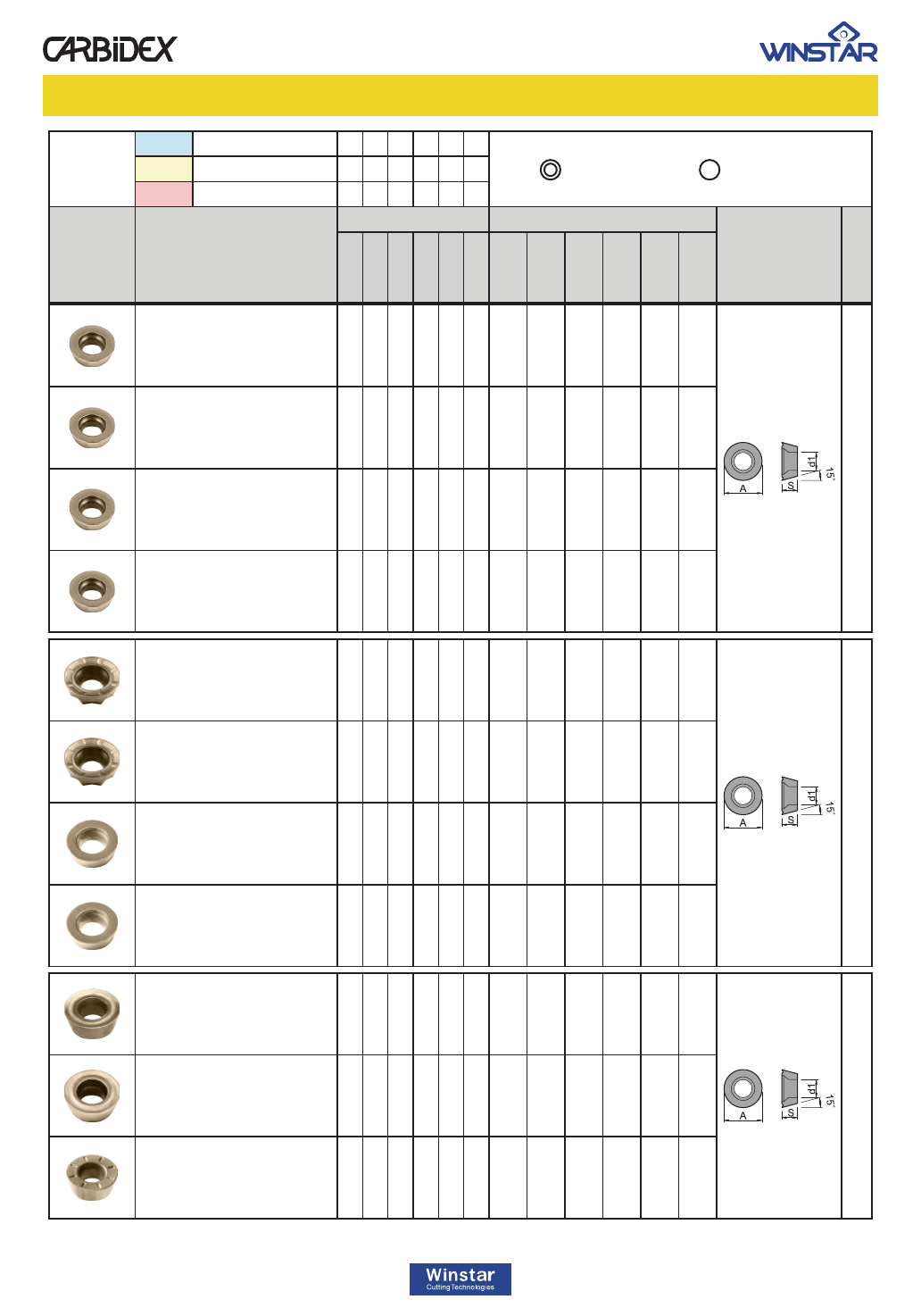

RDMT 1003MOE ✓ ✓ 10 -3.18 -3.9 -
B072
~
B078
RDMT 1003MOT ✓✓✓ 10 -3.18 -3.9 -
RDMX 1003MOE ✓✓✓✓ 10 -3.18 -4.15 -
RDMX 1003MOT ✓✓✓✓ 10 -3.18 -4.15 -
T
T
RDMT 10T3MOE ✓ ✓ 10 -3.97 -4.5 -
B072
~
B078
RDMT 10T3MOT ✓✓✓✓ 10 -3.97 -4.5 -
RDMW 10T3MOE ✓ ✓ 10 -3.97 -4.5 -
H
H
H
K
K
RDKW 0501MOE ✓ ✓ 5-1.59 - 2.2 -
B072
~
B078
RDKW 0702MO ✓ ✓ 7-2.38 -2.8 -
RDKW 0702MOE ✓✓✓✓✓ 7-2.38 -2.8 -
RDKW 0702MOT ✓✓✓✓✓ 7-2.38 -2.8 -
S
S
S
S
*Customize geometries and grades available
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B007
Index
Milling Inserts
銑刀片規格總覽

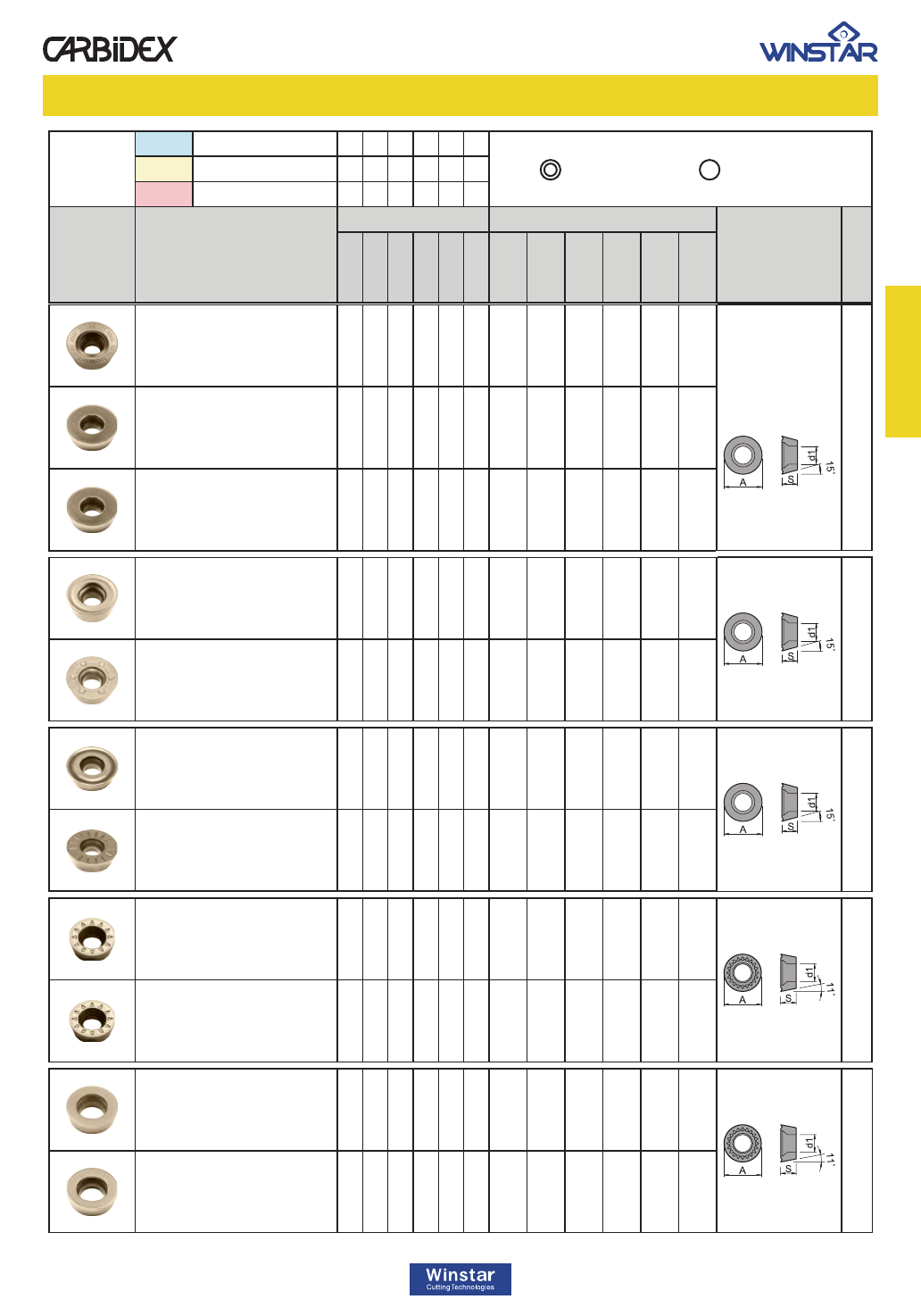

RPMW 1003MOE ✓ ✓ 10 -3.18 -4.6 -
B079
~
B082
RPMW 1003MOT ✓✓✓ 10 -3.18 -4.6 -
RDMT 1204MOT ✓✓✓✓ 12 -4.76 -4.4 -
B072
~
B078
RDMW 1204MOT ✓✓✓✓ 12 -4.76 -4.4 -
RPMT 08T2MOE ✓ ✓ 8-2.78 -3.2 -
B079
~
B082
RPMT 08T2MOT ✓ ✓ 8-2.78 -3.2 -
M
M
M
M
H
W
RDMT 1604MOT ✓✓✓✓ 16 -4.76 -5.5 -
B072
~
B078
RDMW 1604MOT ✓✓✓✓ 16 -4.76 -5.5 -
H
H
RDMX 12T3MOS ✓✓✓✓ 12 -3.97 -4.1 -
-
RDMX 12T3MOE ✓✓✓✓ 12 -3.97 -4.1 -
RDMX 12T3MOT ✓✓✓✓✓ 12 -3.97 -4.1 -
T
L
L
*Customize geometries and grades available
Milling Inserts & Tools
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B008
Index
Milling Inserts
銑刀片規格總覽
RPMT 1204MOE ✓✓✓✓ 12 -4.76 -4.3 -
B079
~
B082
RPMT 1204MOT ✓✓✓✓ 12 -4.76 -4.3 -
RPMW 1204MOE ✓✓✓✓ 12 -4.76 -4.3 -
RPMW 1204MOT ✓✓✓✓ 12 -4.76 -4.3 -
SDMT 1205ZDTN-MG ✓ ✓ 12.7 -5.56 15 4.6 -
B093
~
B094
SDMT 1205ZDTN-RG ✓ ✓ 12.7 -5.56 15 4.6 -
SDNW 1205ZDTN-RG ✓✓✓✓ 12.7 -5.56 15 4.6 -
M
M
M
M
H
H
H
RPMT 10T3MOE ✓✓✓✓ 10 -3.97 -4.5 -
B079
~
B082
RPMT 10T3MOT ✓ ✓ 10 -3.97 -4.3 -
M
M
*Customize geometries and grades available
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX03
A B S r d1 t1
B009
Index
Milling Inserts
銑刀片規格總覽
SEMT 13T3AGEN ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
B066
~
B067
SEMT 13T3AGSN-MG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
SEMT 13T3AGSN-RG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
SEMT 13T3AGSN-HG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
M
M
M
S
SNMX 1205-RG ✓ ✓ ✓ 12.7 1.5 6.4 -6-
B064
~
B065
SNMX 1205-MG ✓ ✓ ✓ 12.7 1.5 6.4 -6-
Double Sided
Double Sided
W
W
*Customize geometries and grades available
SEKT 1204AFTN-RG ✓✓✓✓ 12 -4.76 0.8 5.5 -
B070
~
B071
SEKW 1204AFEN ✓✓✓✓ 12 -4.76 0.8 5.5 -
L
K
SEMR 1203AFSN-RG ✓ ✓ 12.7 1.6 3.18 1 2 - -
T
SEET 13T3AGFN-AL ✓13.4 1.9 3.97 1.5 4.2 -
B066
~
B067
M
Milling Inserts & Tools
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B010
Index
Milling Inserts
銑刀片規格總覽
SPMN 120308 ✓ ✓ 12.7 -3.18 0.8 2 - -
TPKR 1603PPR-RG ✓✓✓✓ 16.5
9.525
3.1 - 2.2
1.423
t1
-
W390 11T308-MG ✓✓✓ 11 6.9 3.59 0.8 2.8 -
B052
~
B055
I
S
*Customize geometries and grades available
SPMG 050204-MG ✓ ✓ 5.00 -2.38 0.4 2.30 -
11°
B059
~
B061
B097
~
B104
SPMG 060204-MG ✓ ✓ 6.00 -2.38 0.4 2.65 -
SPMG 07T308-MG ✓✓✓✓ 7.94 -3.97 0.8 2.85 -
SPMG 090408-MG ✓✓✓✓ 9.80 -4.3 0.8 4.05 -
SPMG 110408-MG ✓✓✓✓
11.50
-4.8 0.8 4.45 -
T
T
T
T
T
B011
Index
Milling Inserts
銑刀片規格總覽
WCMT 030208-MG ✓ ✓ 3.8 5.56 2.38 0.8 2.8 --
WCMT 040208-MG ✓ ✓ 4.3 6.35 2.38 0.8 3.0 - -
WCMT 050308-MG ✓ ✓ 5.4 7.94 3.18 0.8 3.4 - -
WCMT 06T308-MG ✓ ✓ 6.5 9.53 3.97 0.8 4.0 - -
WCMT 080412-MG ✓ ✓ 8.7 12.7 4.76 1.2 4.3 - -
S
S
S
S
S
WCMT 030208-MM ✓ ✓ 3.8 5.56 2.38 0.8 2.8 --
WCMT 040208-MM ✓ ✓ 4.3 6.35 2.38 0.8 3.0 - -
WCMT 050308-MM ✓ ✓ 5.4 7.94 3.18 0.8 3.4 - -
WCMT 06T308-MM ✓✓✓✓ 6.5 9.53 3.97 0.8 4.0 - -
WCMT 080412-MM ✓✓✓✓ 8.7 12.7 4.76 1.2 4.3 - -
C
C
C
C
C
*Customize geometries and grades available
Milling Inserts & Tools
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1

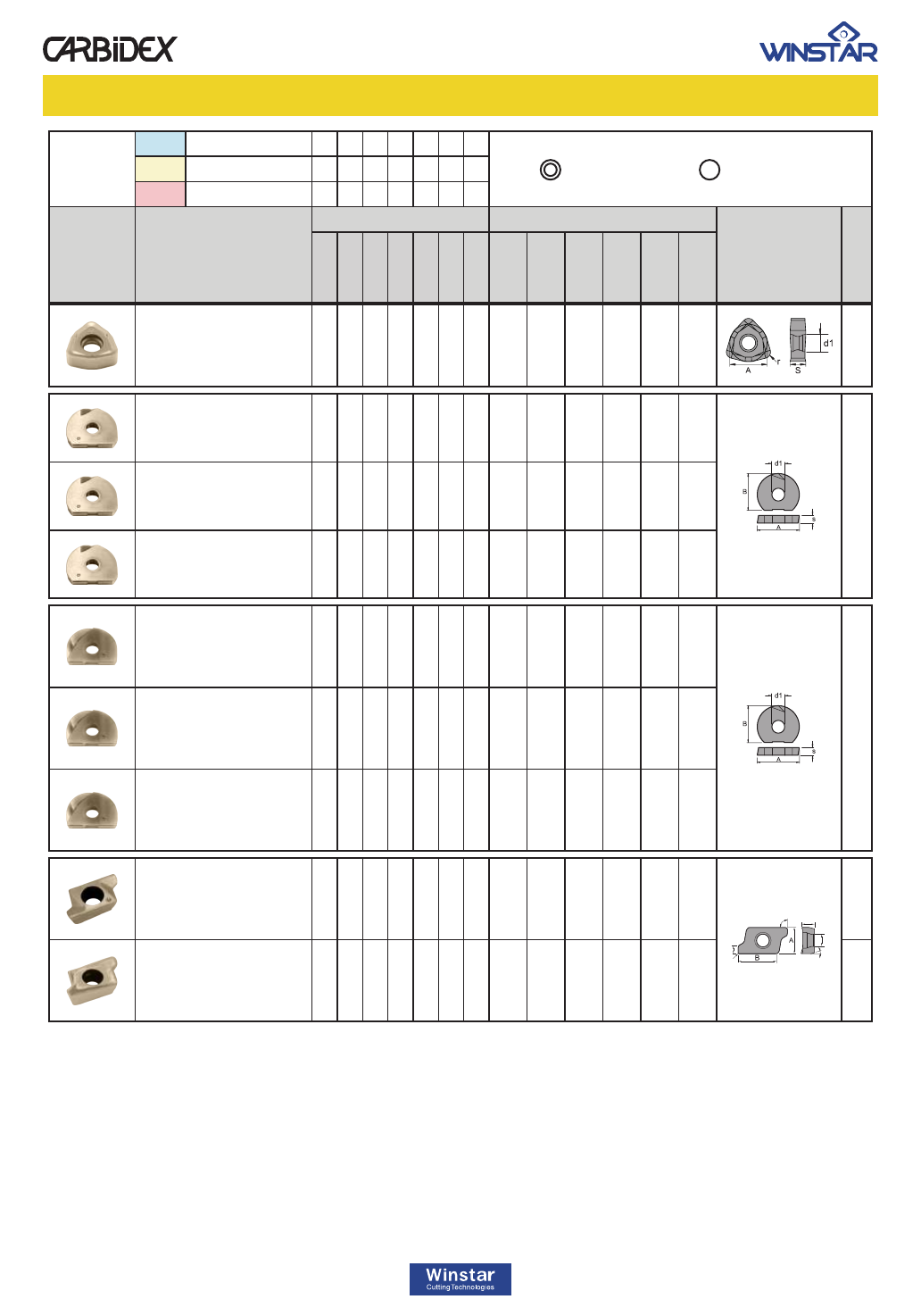

P Steel ◎◎◎○○◎
1st choice 2st choice
M Stainless steel ○○○◎◎◎
K Cast iron ◎○○○○◎
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX11NS
A B S r d1 t1
B012
Index
Milling Inserts
銑刀片規格總覽
WP32 16-SG ✓16 14.0 3
-
5-
B083
~
B084
WP32 20-SG ✓20 16.0 3
-
5-
WP32 25-SG ✓25 21.5 4
-
6-
W
W
W
WRT 070204-RG ✓✓✓ 4.30 6.4 2.38 0.4 2.2 1.3
s
d1
15°
r
t1
90°
B056
WRT 100308-RG ✓✓✓ 6.35 9.3 3.4 0.8 2.9 1.8
B057
~
B058
S
S
WNMX 09T316-RG ✓ ✓ ✓
9.525
-3.97 1.6 3.6 -
B090
~
B092
WP32 16-RG ✓16 14.0 3
-
5-
B083
~
B084
WP32 20-RG ✓20 16.0 3
-
5-
WP32 25-RG ✓25 21.5 4
-
6-
Double Sided
K
W
W
W
*Customize geometries and grades available
B013

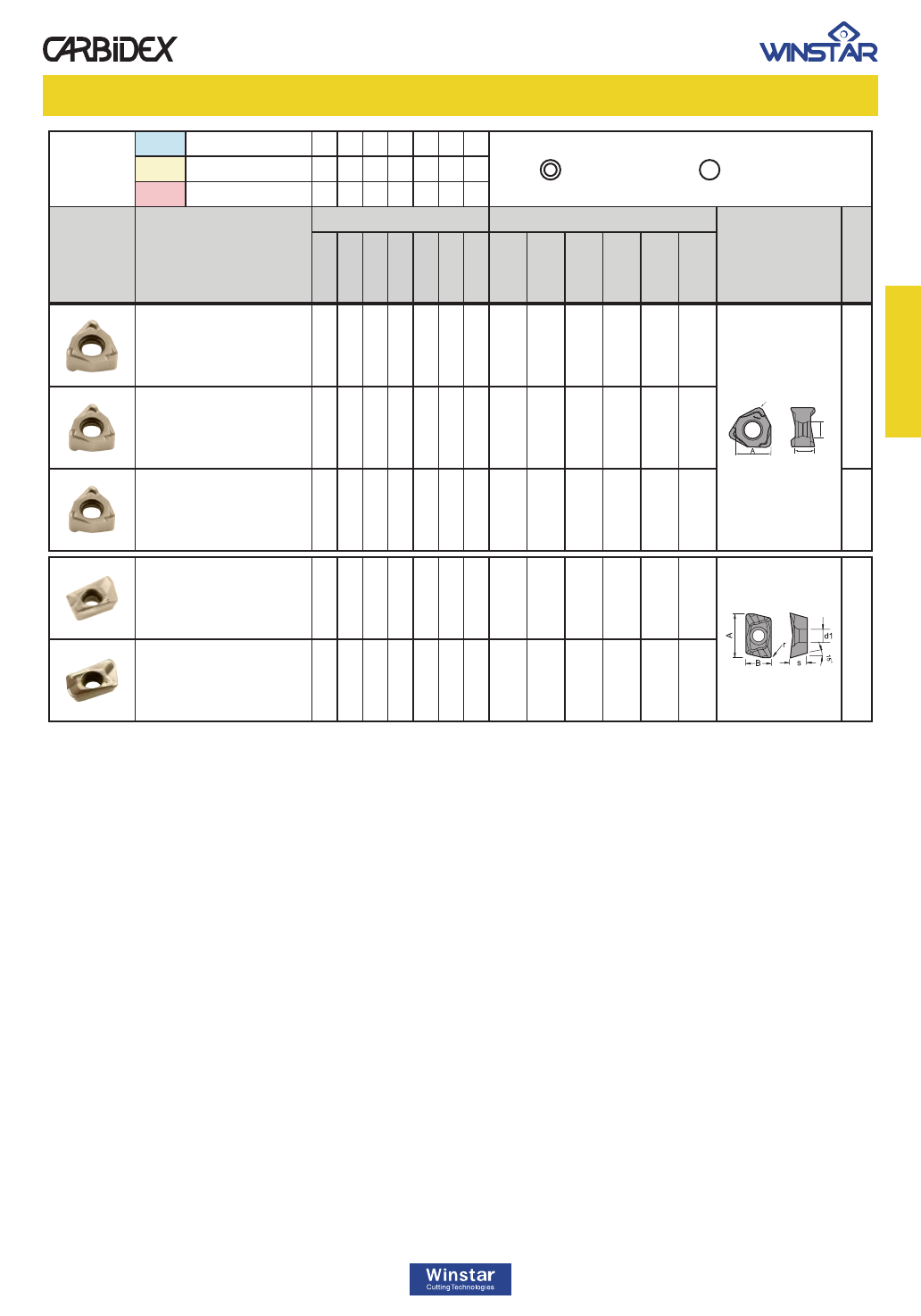

XOMT 060204-MG ✓✓✓ 7 4.09 2.45 0.4 2 -
B028
~
B029
XOMT 060208-MG ✓✓✓ 7 4.09 2.45 0.8 2 -
XNMX 040308-MG ✓ ✓ 6.7 -
3.285
0.8 3.15 -
s
r
d1
B018
~
B021
XNMX 040308-RG ✓ ✓ 6.7 -
3.285
0.8 3.15 -
XNMX 080608-MG ✓ ✓ ✓
12.53 -
6.5 0.8 4.5 -
B020
~
B021
Double Sided
Double Sided
Double Sided
S
S
S
S
S
*Customize geometries and grades available
Index
Milling Inserts
銑刀片規格總覽
P Steel ◎◎◎○○◎
1st choice 2st choice
M Stainless steel ○○○◎◎◎
K Cast iron ◎○○○○◎
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX11NS
A B S r d1 t1
Milling Inserts & Tools

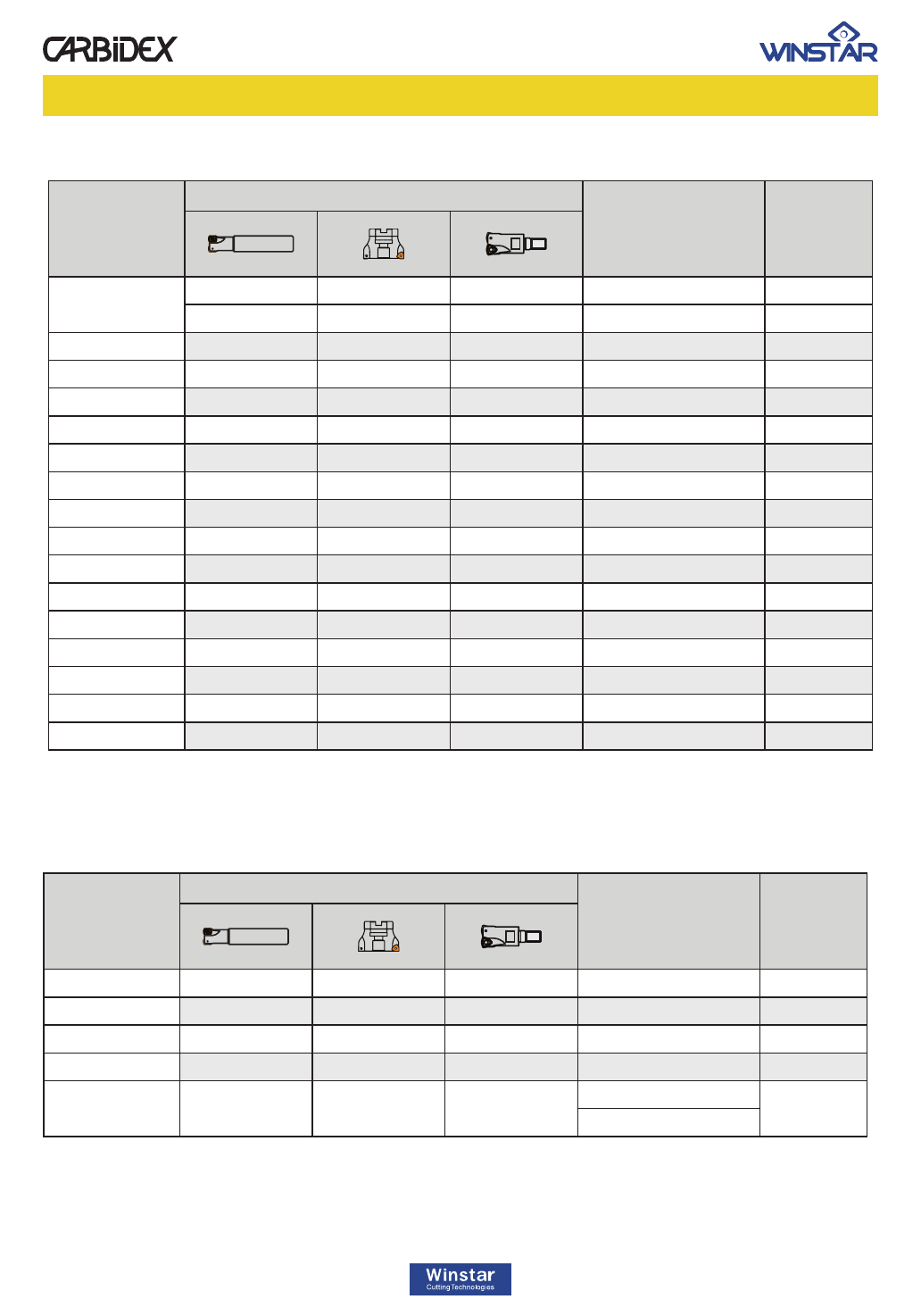

Cutter Types
Milling Cutters
CXXN Ø20 ~ Ø32 Ø50 ~ Ø63 Ø20 ~ Ø26 XNMX0403 (DoubleSide) B018~019
- Ø50 ~ Ø160 - XNMX0806 (DoubleSide) B020
3P10 Ø20 ~ Ø26 Ø50 ~ Ø63 Ø21 ~ Ø33 3PMX1004 B024~025
XO06 Ø10 ~ Ø17 - - XOMT0602 B028
AP10 Ø16 ~ Ø40 Ø50 ~ Ø63 -APMT1035 B030
BAP3 Ø16 ~ Ø50 Ø40 ~ Ø100 Ø16 ~ Ø33 APMT1135 B032~034
BAP4 Ø25 ~ Ø40 Ø40 ~ Ø160 Ø25 ~ Ø35 APMT1604 B035-037
APK3 Ø16 ~ Ø21 Ø50 ~ Ø80 Ø16 ~ Ø40 APKT1003 B039~040
APK4 Ø25 ~ Ø40 Ø100 ~ Ø160 Ø25 ~ Ø40 APKT1604 B041~043
WEX2 Ø16 ~ Ø35 Ø50 ~ Ø100 -AXMT1235 B045~046
WEX7 Ø25 ~ Ø40 Ø50 ~ Ø160 -AXMT1705 B047~48
JD15 Ø25 ~ Ø32 - - JDMT1505 B050
R390 Ø16 ~ Ø40 Ø50 ~ Ø100 Ø16 ~ Ø40 W39011T3 B052~54
RT07 Ø11 ~ Ø13 -Ø10 ~ Ø13 WRT0702 B056
RT10 Ø17 ~ Ø35 -Ø17 ~ Ø35 WRT1003 B057
SPE Ø12 ~ Ø40 - - SPMG... B059
SPF -Ø40 ~ Ø100 - SPMG... B060
Cutter Series
Cutter Range
Inserts Page
Shoulder Milling 方肩銑削
CXSN -Ø50 ~ Ø200 -SNMX1205 (DoubleSide) B064
CXON -
Ø52.9 ~ Ø102.9
-ONMX0505 (DoubleSide) B064
ASX3 -Ø50 ~ Ø315 -SEMT13T3 B066
OF05 -Ø50 ~ Ø125 -OFMT05T3 B068
SE45 Ø32 ~ Ø63 Ø50 ~ Ø250 -SEKT1204 B070
SEKW1204
Cutter Series
Cutter Range
Inserts Page
Face Milling 平面銑削
B014
刀桿種類
Cutter Types
ARD
Ø10 ~ Ø16 -Ø12 ~ Ø16 RDKW0501 B072~074
Ø16 ~ Ø25 -Ø16 ~ Ø25 RDKW0702 B072~074
Ø25 ~ Ø32 Ø50 ~ Ø63 Ø25 ~ Ø42 RDMT10T3 B072~074
Ø25 ~ Ø32 Ø50 ~ Ø63 Ø25 ~ Ø42 RDMW10T3 B072~074
Ø32 ~ Ø40 Ø50 ~ Ø100 -RDMT1204 B072~073
Ø32 ~ Ø40 Ø50 ~ Ø100 -RDMW1204 B072~073
-Ø63 ~ Ø125 -RDMT1604 B073
-Ø63 ~ Ø125 -RDMW1604 B073
FRD Ø20 ~ Ø35 Ø50 ~ Ø60 Ø20 ~ Ø35 RDMT1003 B075~076
Ø20 ~ Ø35 Ø50 ~ Ø60 Ø20 ~ Ø35 RDMX1003 B075~076
BRP
Ø12 ~ Ø20 Ø40 ~ Ø50 -RPMT08T2 B079~080
Ø25 ~ Ø35 Ø40 ~ Ø50 -RPMT10T3 B079~080
Ø32 ~ Ø50 Ø50 ~ Ø80 -RPMT1204 B079~080
Ø32 ~ Ø50 Ø50 ~ Ø80 -RPMW1204 B079~080
WF21
Ø16 - Ø16 WP3216 B083
Ø20 - Ø20 WP3220 B083
Ø25 - Ø25 WP3225 B083
Cutter Series
Cutter Range
Inserts Page
Copy Milling 仿形銑削
CXBN Ø15 ~ Ø32 Ø40 ~ Ø63 Ø16 ~ Ø35 BNMX0603(DoubleSide) B086~087
CXWN Ø25 ~ Ø40 Ø50 ~ Ø80 Ø25 WNMX09T3(DoubleSide) B090~091
ASRF - Ø50 ~ Ø80 - SDNW1205 B093
SDMT1205
AJX12 Ø30 ~ Ø50 Ø50 ~ Ø80 -JDMW1204 B095
Cutter Series
Cutter Range
Inserts Page
High Feed Face Milling 高進給平面銑削
B015
刀桿種類
Milling Inserts & Tools
Milling Cutters
Cutter Types
B016
刀桿種類
SPH Ø16 ~ Ø40 - - SPMG... B097
Cutter Series
Cutter Range
Inserts Page
Helical Milling 玉米銑削
SPT Ø19 ~ Ø95 - - SPMG... B98
SPDM -Ø80 ~ Ø200 - SPMG... B99
SPDI -Ø80 ~ Ø160 - SPMG... B100
SPD -Ø80 ~ Ø200 - SPMG... B101
Cutter Series
Cutter Range
Inserts Page
Disc Milling 三面刃銑削
SPC Ø11 ~ Ø50 - - SPMG... B102
Cutter Series
Cutter Range
Inserts Page
Chamfer Milling 倒角銑削
Milling Cutters

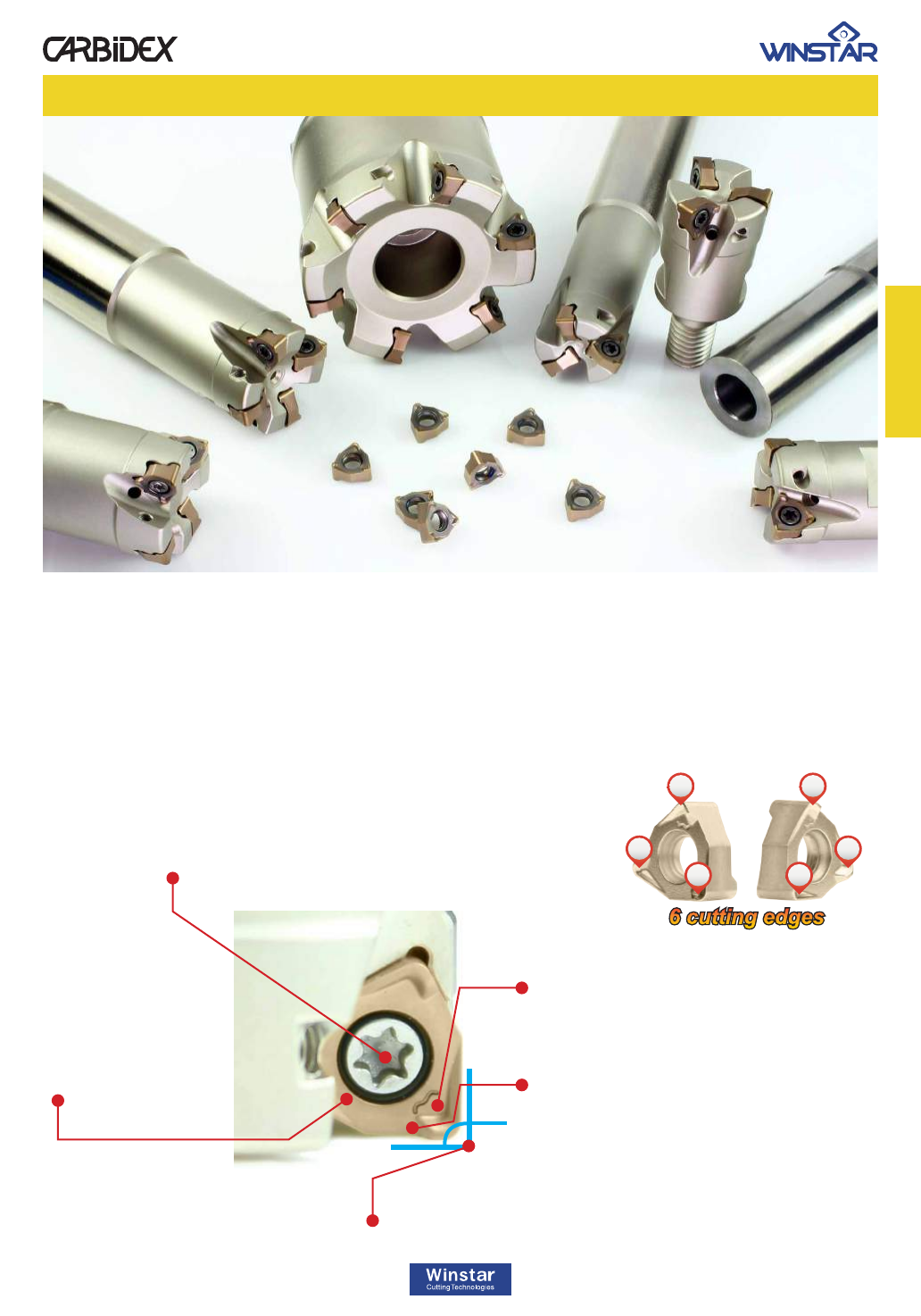

CXXN / XNMX0403 ,XNMX0806
Shoulder Milling
．Single center lock screw for easy and strong
clamping force.
．Chip evacuation improvement design.
．Reduction of cutting load during machining.
．Special at design for surface roughness
improvement.
．Decreasing cutting force during high feed
machining.
．True 90° square shoulder angle, one milling operation
without mismatch on machining walls.
．Suitable for different
materials by optimized
geometries.
1
2
3
4
5
6
6 cutting edges
90°
Economical solution in various end-milling applications!!!
經濟多元的端銑解決方案
．
CXXN is the best solution with the economy of six cutting edges while providing the highest performance.
．Available in multiple mounting configurations: Endmill, shank and face mill type.
．Especially suited for small and medium sized milling machines.
B017
方肩銑削
Milling Inserts & Tools
CXXN / XNMX0403
♦
♦
♦
♦
♦

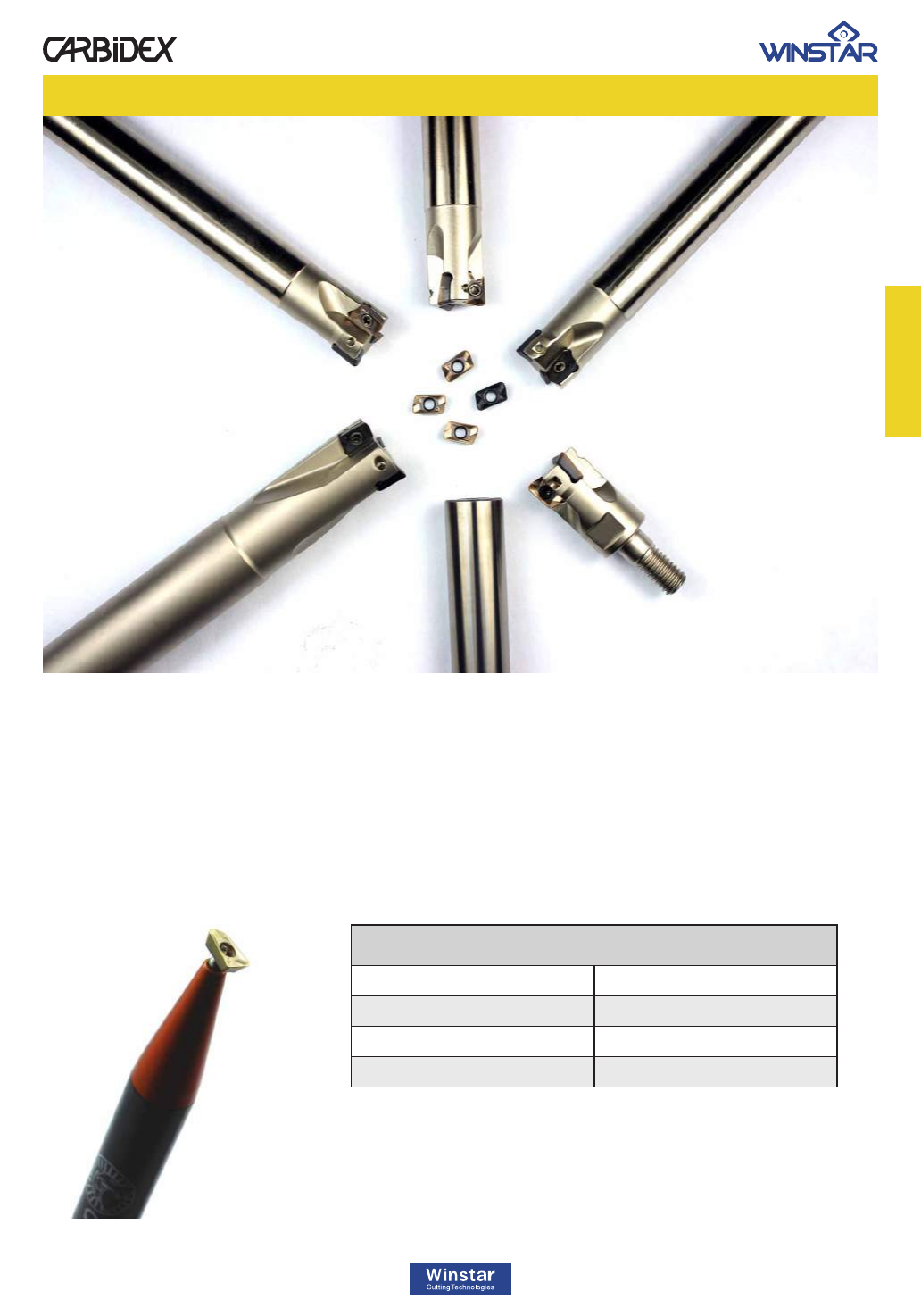

Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.

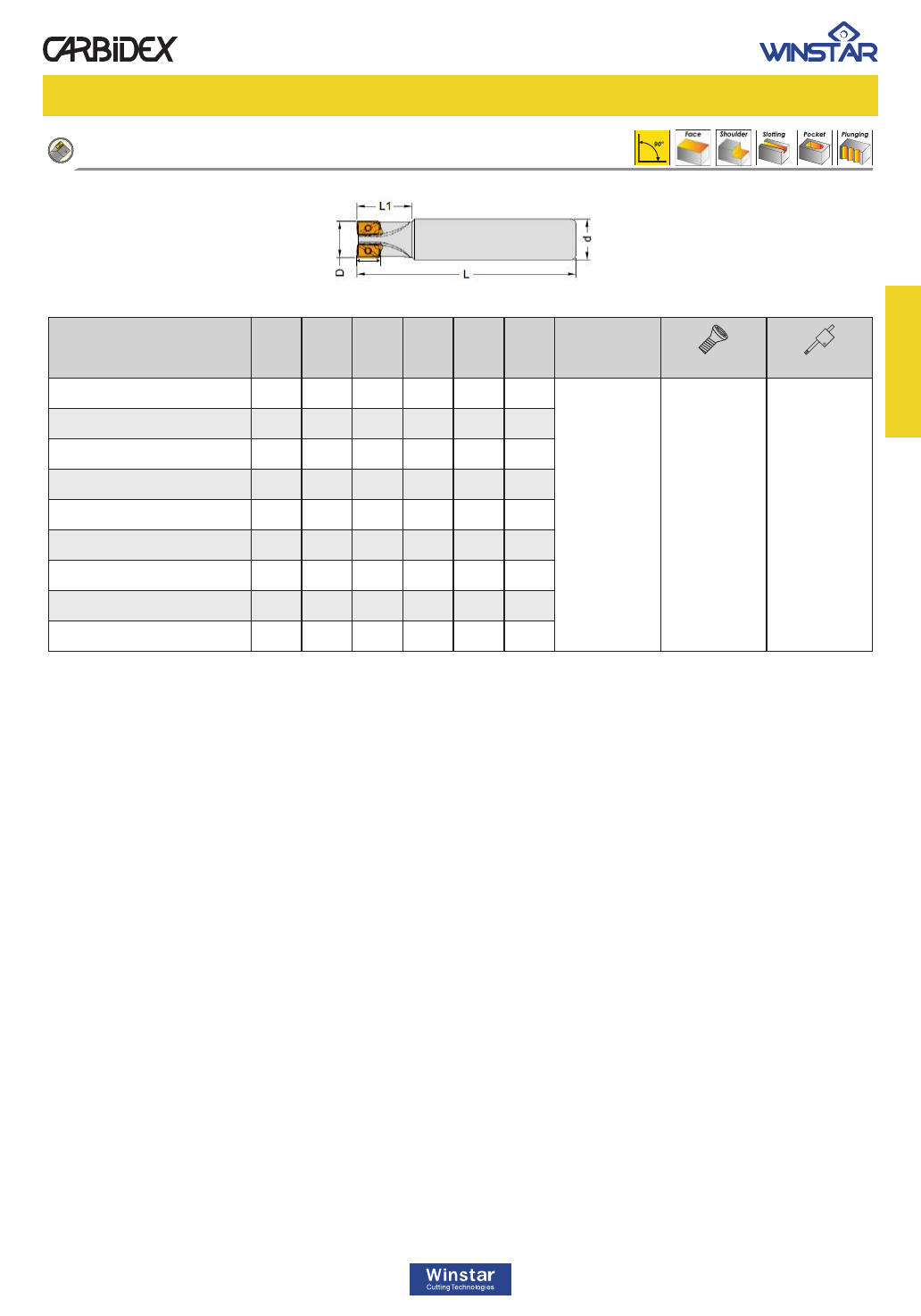

CXXNE
Order No. D L1 L d T ap Inserts Screw Wrench
ICXXNE03-0200150 20 40 150 20 3 4
XNMX0403 TS2512 TK08ICXXNE04-0250150 25 40 150 25 4 4
ICXXNE05-0320200 32 45 200 32 5 4
ap
Customize available.
CXXNE (with Coolant Hole)
B018
ap
方肩銑削
Shoulder Milling
Order No. D L1 L d T ap Inserts Screw Wrench
ICXXNE03W0200110 20 28 110 20 3 4
XNMX0403 MS2506E TK08
ICXXNE03W0200150 20 28 150 20 3 4
ICXXNE04W0250120 25 28 120 25 4 4
ICXXNE04W0250170 25 28 170 25 4 4
ICXXNE05W0320130 32 30 130 30 5 4
ICXXNE05W0320195 32 30 195 30 5 4
CXXN / XNMX0403
Order No. D L d T ap Inserts Screw Wrench
ICXXNF06-0500220 50 50 22 6 4
XNMX0403 TS2512 TK08ICXXNF07-0630220 63 50 22 7 4
ICXXNF07-0630254 63 50 25.4 7 4
CXXNF
ap
Customize available.
Order No. D L1 d M T ap Inserts Screw Wrench
ICXXNM03W0200100 20 28 10.5 M10 3 4
XNMX0403 TS2512 TK08
ICXXNM03W0210100 21 44 10.5 M10 3 4
ICXXNM04W0250120 25 30 12.5 M12 4 4
ICXXNM04W0260120 26 49 12.5 M12 4 4
CXXNM (with Coolant Hole)
B019
Order No. D L d M T ap Inserts Screw Wrench
ICXXNF07W0400160 40 40 16 8.5 7 4 XNMX0403 TS2515 TK08
ICXXNF09W0500220 50 40 22 11 9 4
CXNNF (with Coolant Hole)
ap
D
d
L1 M
ap
方肩銑削
Milling Inserts & Tools
Shoulder Milling
CXXN / XNMX0806
CXXNF (with Coolant Hole)
Order No. D L d M T ap Inserts Screw Wrench
ICXX8F04W0500220 50 40 22 11 4 7
XNMX0806 MS4011A TK15
ICXX8F05W0500220 50 40 22 11 5 7
ICXX8F06W0630220 63 40 22 11 6 7
ICXX8F07W0630220 63 40 22 11 7 7
ICXX8F07W0800270 80 50 27 13 7 7
ICXX8F09W0800270 80 50 27 13 9 7
ICXX8F08W1000320 100 50 32 45 8 7
ICXX8F11W1000320 100 50 32 45 11 7
ICXX8F11W1250400 125 63 40 53 11 7
ICXX8F12W1600400 160 63 40 55 12 7
Customize available.
ap
方肩銑削
B020
Shoulder Milling

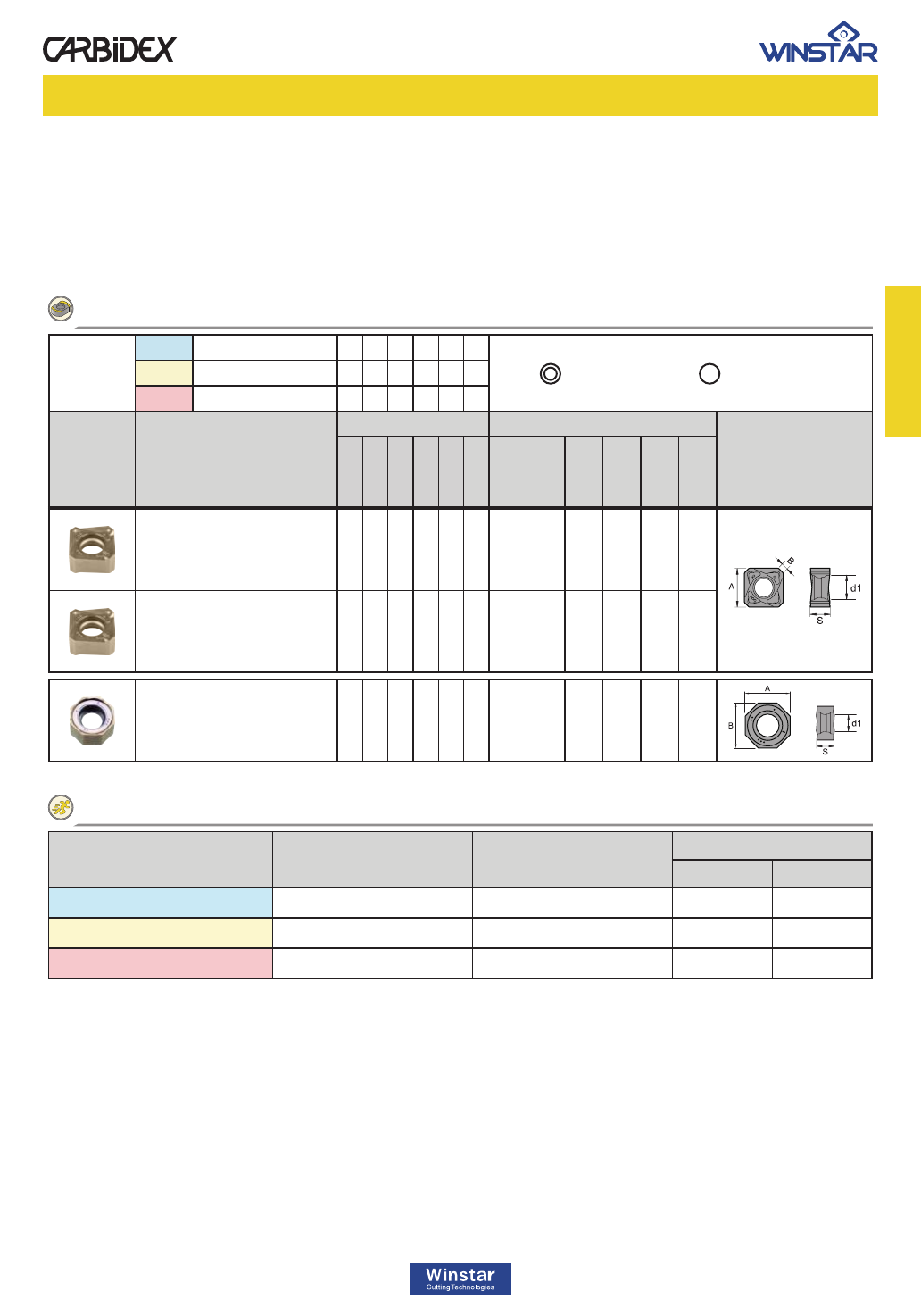

XNMX0403 / XNMX0806
♦
♦
♦
Double sided design, total 6 cutting corners.
Suitable for dierent materials by optimized geometries.
True 90° square shoulder angle, one milling operation without mismatch on machining walls.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
Specication
XNMX 040308-MG ✓ ✓
6.7 -3.285 0.8 3.15 -
s
r
d1
XNMX 040308-RG ✓ ✓
6.7 -3.285 0.8 3.15 -
XNMX 080608-MG ✓ ✓ ✓
12.53 -6.5 0.8 4.5 -
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 220 0.13 ~ 0.25 ~ 7.0
Stainless 300 Series 50 ~ 130 0.10 ~ 0.20 ~ 4.5
Cast Iron (HB140-220) 80 ~ 200 0.13 ~ 0.25 ~ 7.0
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 220 0.10 ~ 0.16 ~ 3.0
Stainless 300 Series 50 ~ 130 0.08 ~ 0.12 ~ 1.6
Cast Iron (HB140-220) 80 ~ 200 0.10 ~ 0.16 ~ 3.0
Recommended Cutting Conditions
for XNMX0403
for XNMX0806
B021
方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling
B022
Endmills．Inserts．Drills
3P10 / 3PMX1004
Economical Shoulder Milling Cutter

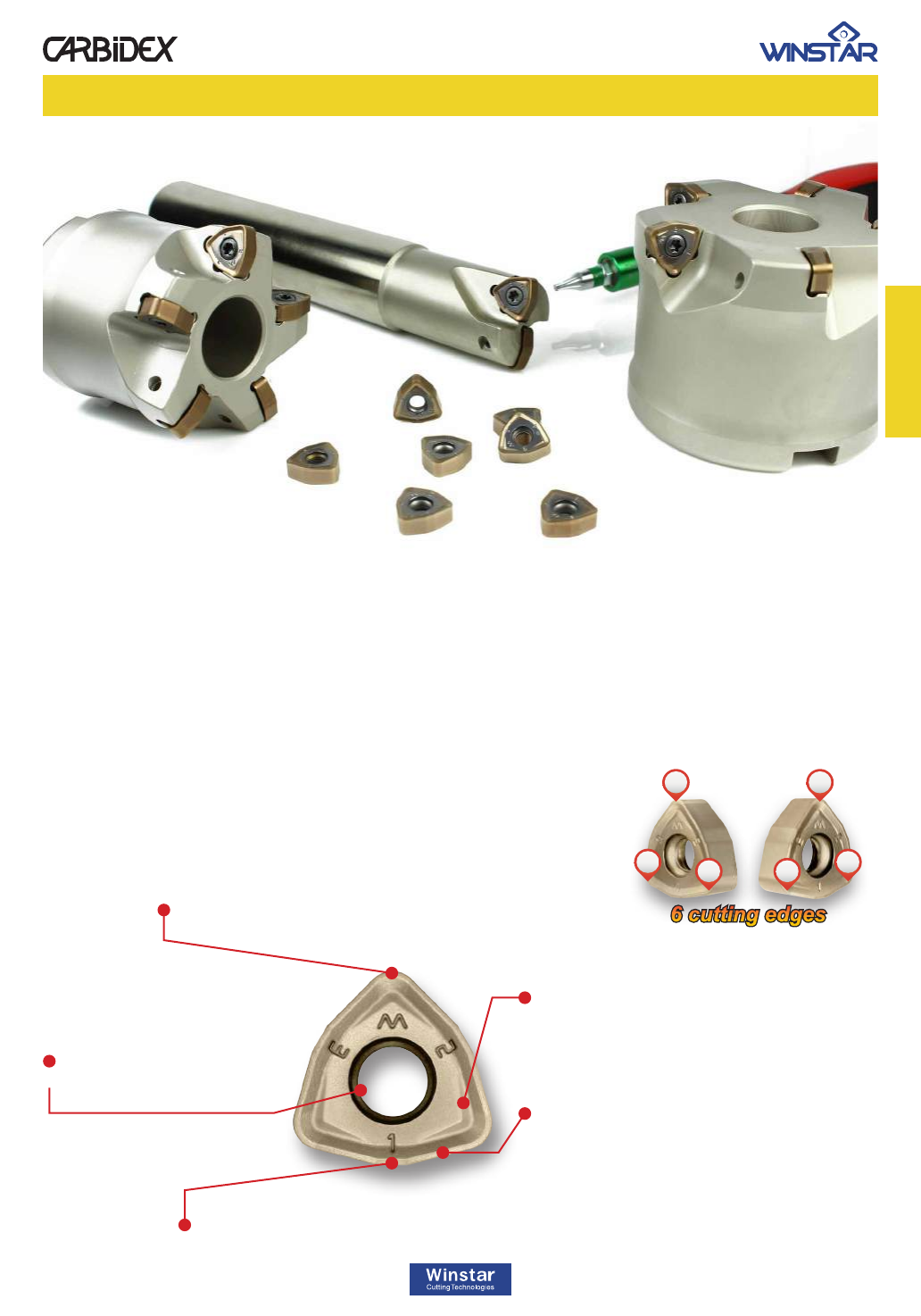

Innovative shoulder milling series with 3 helical cutting edges!!
創新的三個加工角設計帶來更大的經濟效益
．
Ensures productive milling of true 90○ shoulders.
．
Provide an improved low cost per cutting edge for various milling applications.
．
Low cutting force and excellent chip evacuation.
．Excellent chip formation and evacuation.
．Low cutting force due to large rake angle.
90°
．True 90° square shoulder angle.
．Unique geometry design for superb surface nish.
B023
方肩銑削
Milling Inserts & Tools
Shoulder Milling
3P10 / 3PMX1004
♦
♦
♦
♦
♦
♦
Economical 3 cutting edges insert.
Low cutting force due to large rake angle.
Unique geometry design for superb surface finish.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
I3P10E02-0200130 20 50 130 20 27
3PMX1004... TS2517 TK09
I3P10E02-0210130 21 30 130 20 27
I3P10E02-0250250 25 30 250 25 27
I3P10E03-0250150 25 55 150 25 3 7
I3P10E03-0260150 26 35 150 25 3 7
3P10E
Customize available.
B024
ap
Order No. D L d T ap Inserts Screw Wrench
I3P10F07-0500220 50 50 22 7 7 3PMX1004... TS2517 TK09
I3P10F09-0630220 63 50 22 9 7
Customize available.
3P10F
ap
方肩銑削
Shoulder Milling
3P10 / 3PMX1004
Order No. D L1 d M Tap Inserts Screw Wrench
I3P10M02-0210100 21 35 18 M10 27
3PMX1004... TS3004 TK09I3P10M03-0260120 26 35 21 M12 3 7
I3P10M05-0330160 33 43 29 M16 5 7
Customize available.
3P10M
B025
ap
方肩銑削
Milling Inserts & Tools
Shoulder Milling
♦
♦
♦

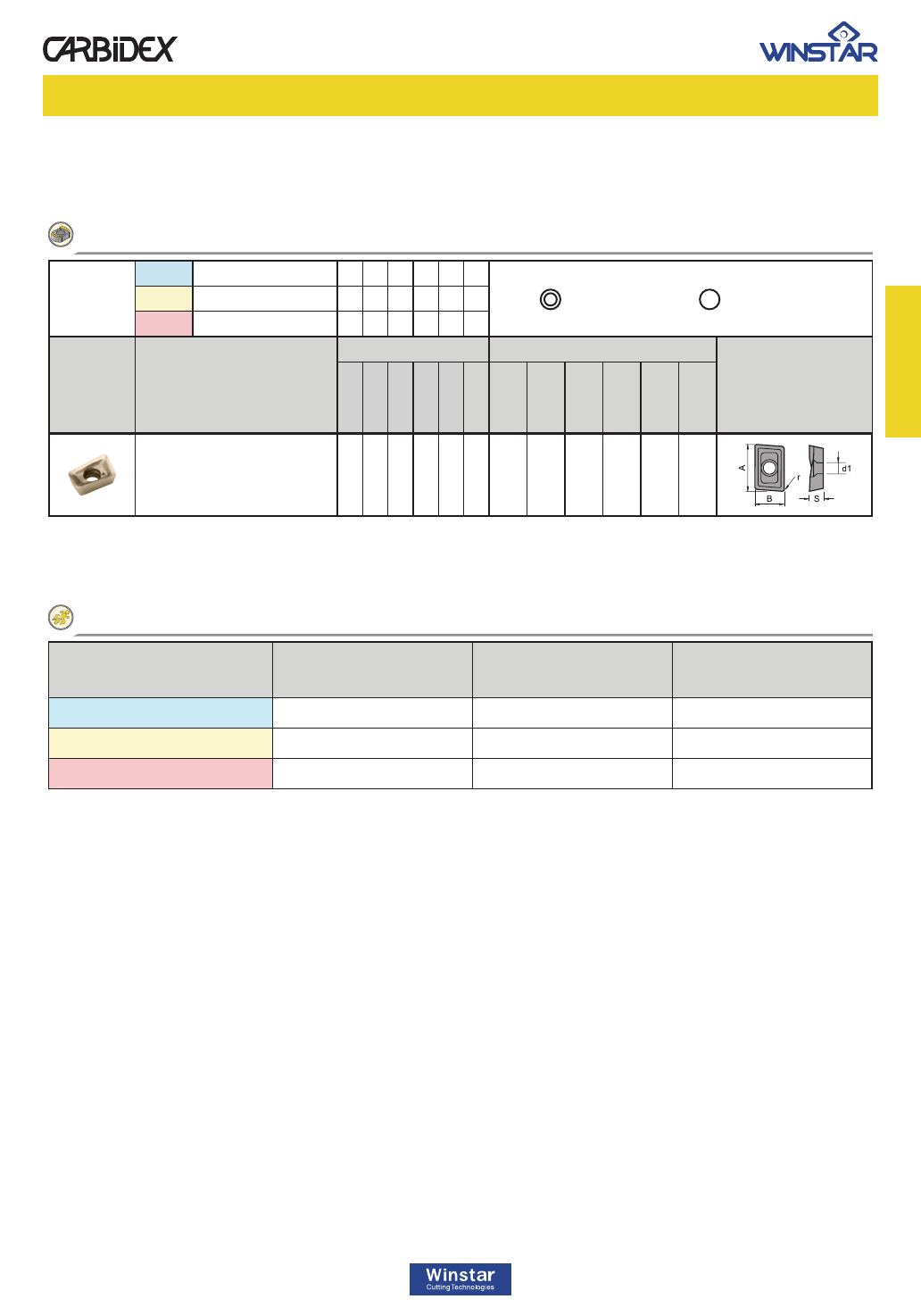

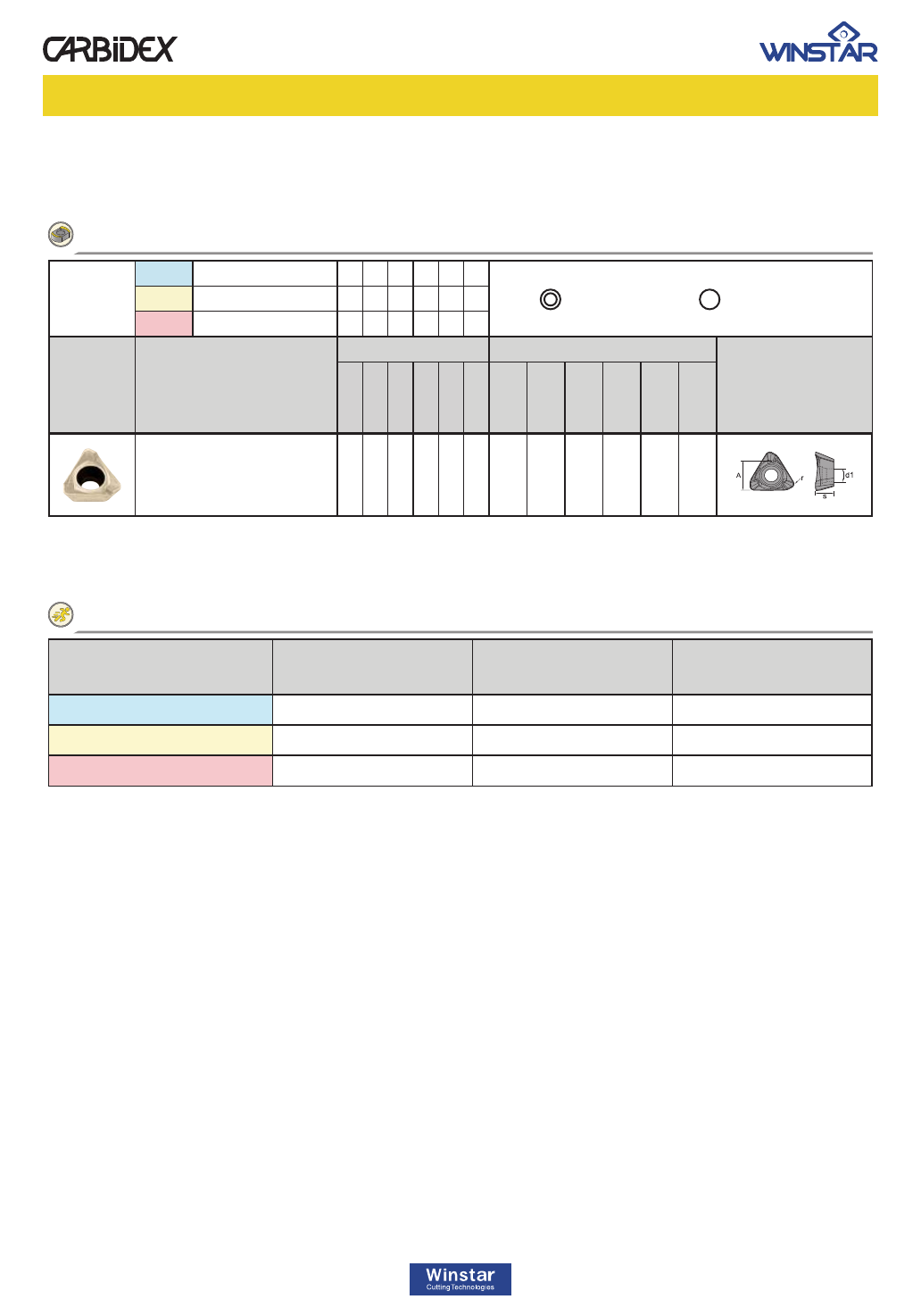

Economical 3 cutting edges insert.
Suitable for most materials by one optimized geometry.
True 90° square shoulder angle.
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 5.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 3.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 5.0
Recommended Cutting Conditions
3PMX1004
3PMX 100408-MG ✓ ✓ ✓
6.9 -4 0.8 3 -
Specication
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B026
方肩銑削刀片
Shoulder Milling
XO06 / XOMT0602
Mini Size Cutter In Widely Flexible Applications
!!
廣泛靈活的小徑多刃加工
．Offering excellent tool life and precision on small to medium work piece.
．Optimizes milling properties to reduce heat generation and cutting forces.
．Flexibility insures increasing your productivity.
Advantages:
．Low cutting Force.
．Low vibrationorces.
．High performance.
Teeth No.
Ø10 2
Ø12 3
Ø16 4
Ø20 5
B027
方肩銑削

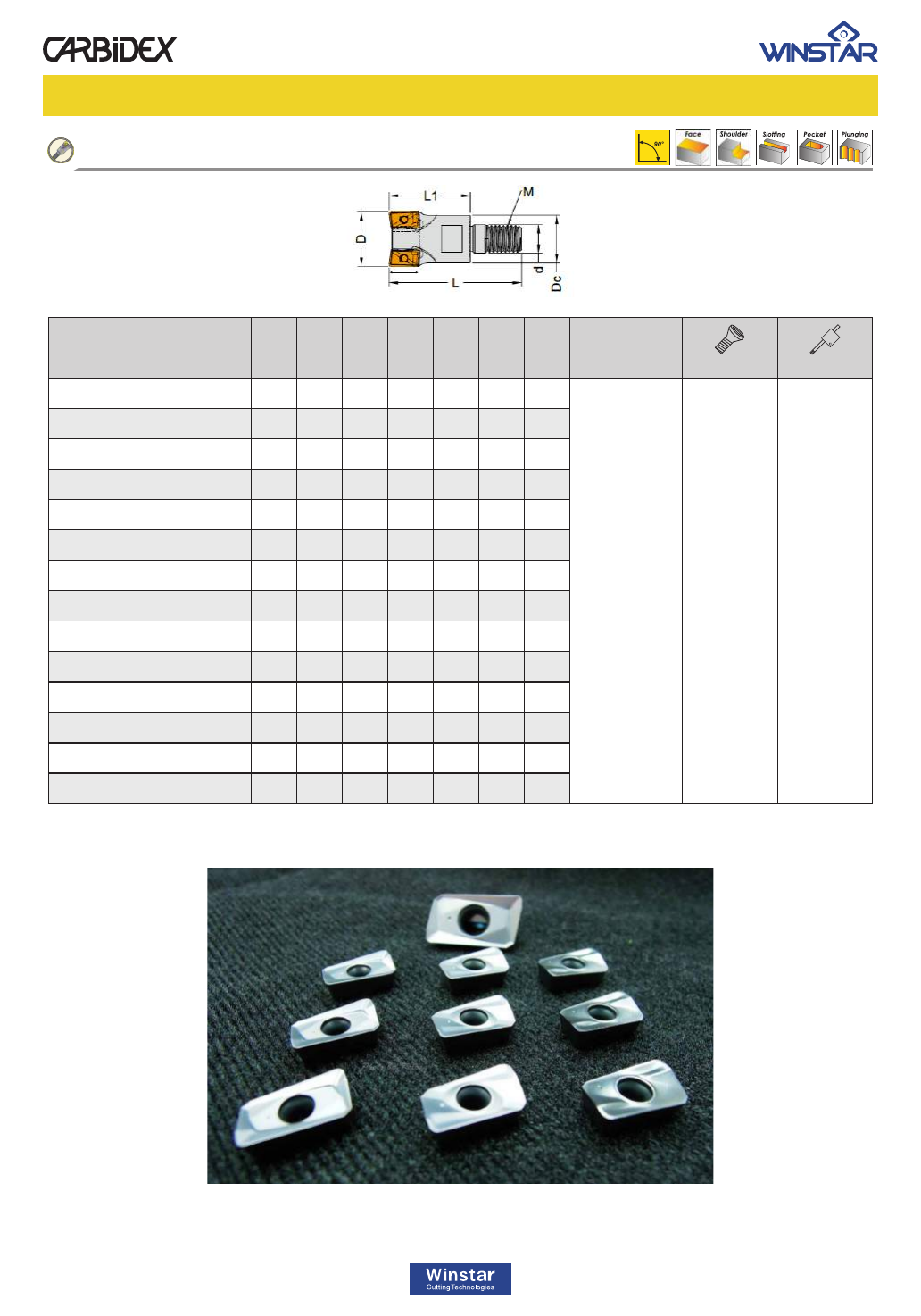

Size Does Matter
Milling Inserts & Tools
Shoulder Milling
♦
♦
♦
♦
Low Cutting Force – even possible to use by low power and compact machines such as BT30.
High Performance – multi blades design achieve higher feed without creating more vibration.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IXO06E02-0100100 10 20 100 10 25
XOMT0602.. TS1801 TK06
IXO06E02-0110100 11 20 100 10 25
IXO06E02-0120100 12 20 100 12 25
IXO06E03-0120100 12 20 100 12 3 5
IXO06E02-0130100 13 20 100 12 25
IXO06E03-0130100 13 20 100 12 3 5
IXO06E03-0160100 16 20 100 16 3 5
IXO06E04-0170120 17 30 120 16 4 5
XO06E
ap
Customize available.
B028
XO06 / XOMT0602 方肩銑削
Shoulder Milling
XOMT 060204-MG ✓✓✓
7 4.09 2.45 0.4 2 -
XOMT 060208-MG ✓✓✓ 7
4.09
2.45 0.8 2
-
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.05 ~ 0.13 ~ 3.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.10 ~ 2.5
Cast Iron (HB140-220) 80 ~ 180 0.05 ~ 0.13 ~ 3.0
Recommended Cutting Conditions
♦
♦
♦
♦
Multiple blades specication, Ø10/2t, Ø12/3t, Ø16/4t.
Low cutting force.
Excellent way to replace endmill in roughing situation.
Achieve higher feed and performance without creating more vibration.
P Steel ◎◎◎○○◎
1st choice 2st choice
M Stainless steel ○○○◎◎◎
K Cast iron ◎○○○○◎
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX11NS
A B S r d1 t1
B029
XOMT0602 方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling

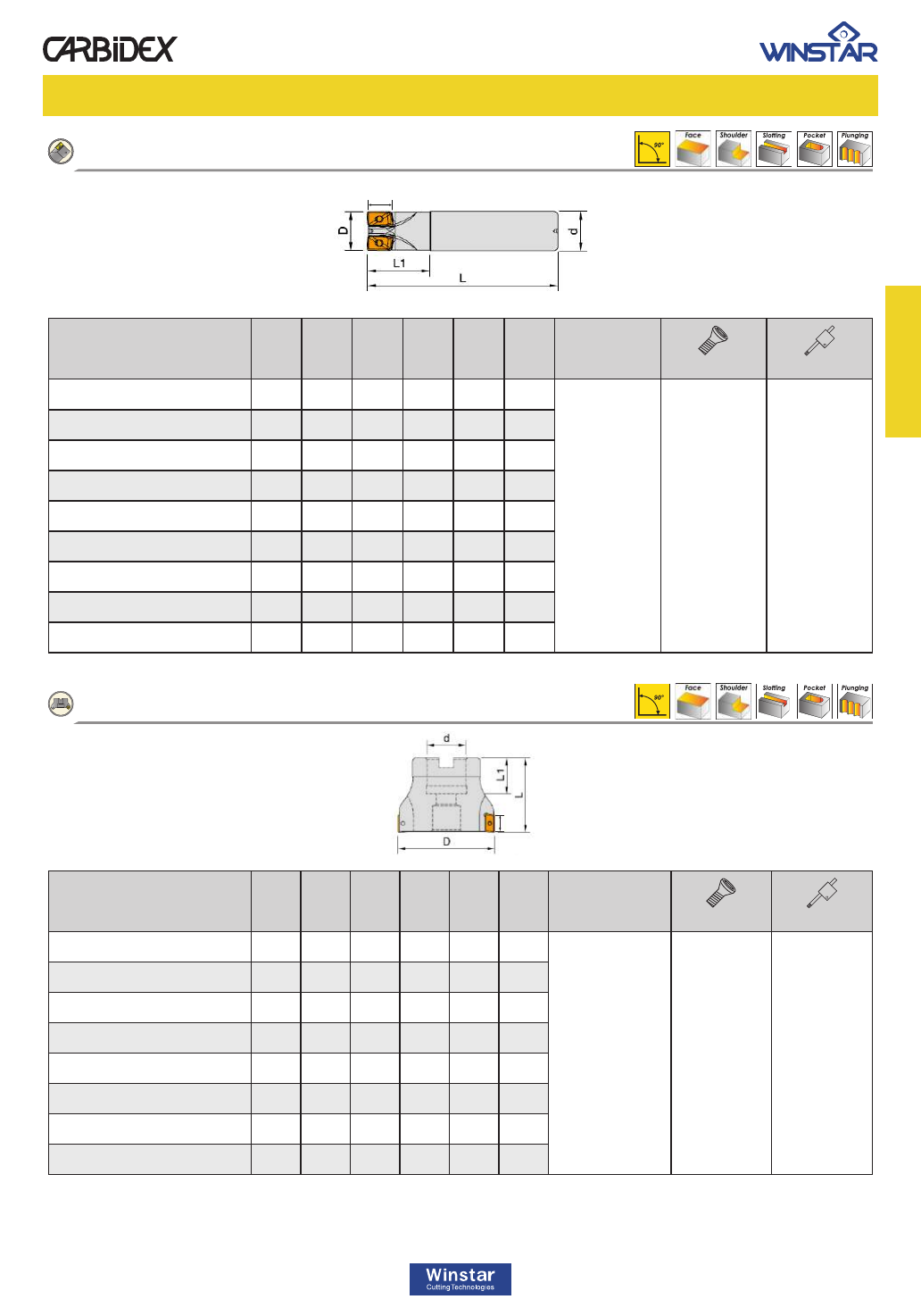

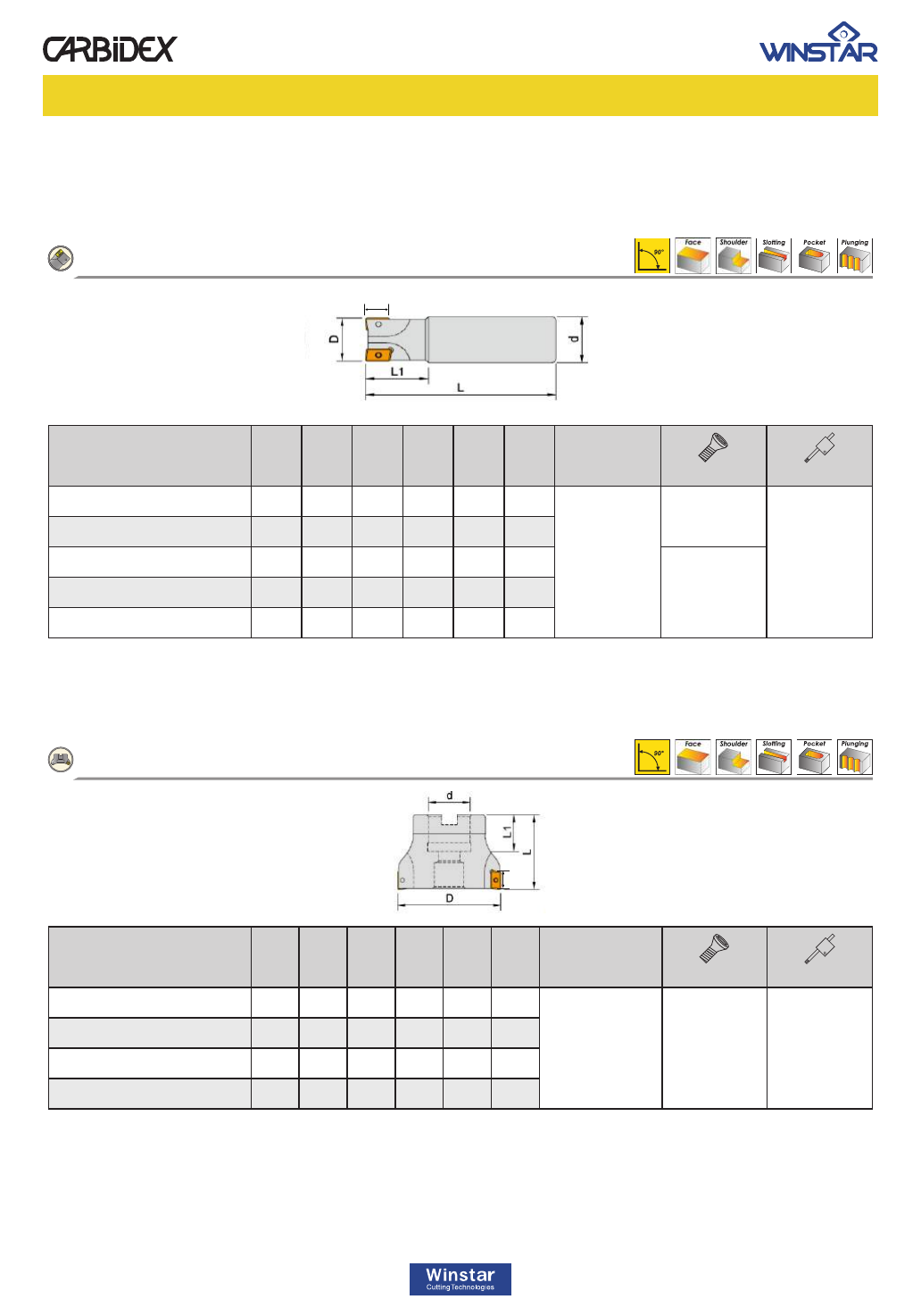

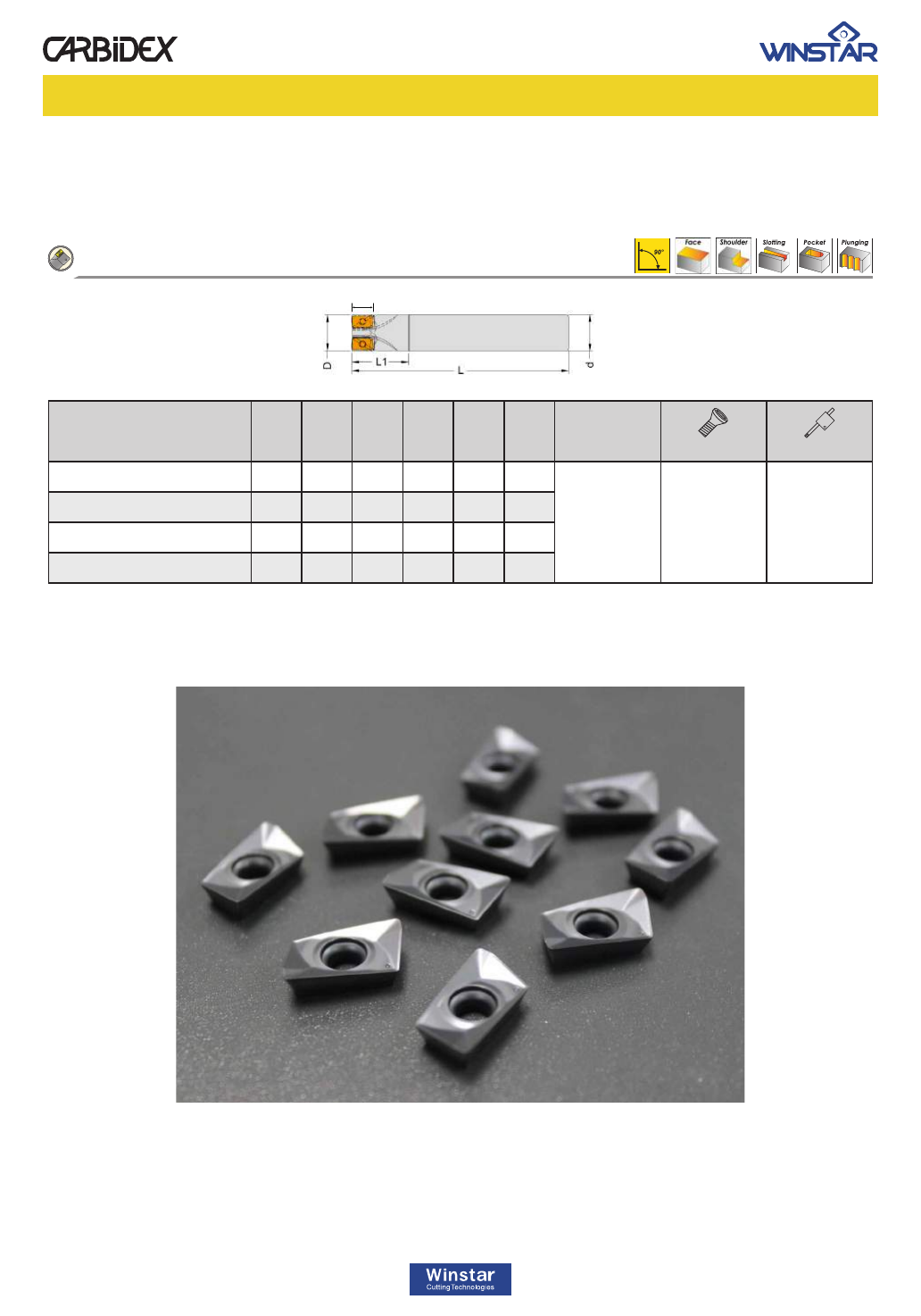

AP10 / APMT1035
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IAP10E02-0160120 16 25 120 16 210
APMT1035
TS2502
TK08
IAP10E03-0200120 20 30 120 20 3 10
IAP10E04-0250150 25 35 150 25 4 10
TS2507IAP10E05-0320150 32 45 150 32 5 10
IAP10E06-0400135 40 45 135 32 6 10
AP10E
Customize available.
ap
Customize available.
ap
Order No. D L L1 d T ap Inserts Screw Wrench
IAP10F06-0500220 50 45 20 22 6 10
APMT1035 TS2507 TK08
IAP10F06-0500254 50 45 20 25.4 6 10
IAP10F06-0630220 63 45 20 22 6 10
IAP10F06-0630254 63 45 20 25.4 6 10
AP10F
B030
方肩銑削
Shoulder Milling
APMT
103508PDER-RG
✓✓✓✓
10.64 6.5 3.5 0.8 3 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 7.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 4.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 7.0
Recommended Cutting Conditions
♦
♦
♦
Strong high rake inserts provide smooth cutting action.
Lower cutting force.
Good chip evacuation.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B031
APMP1035 方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling

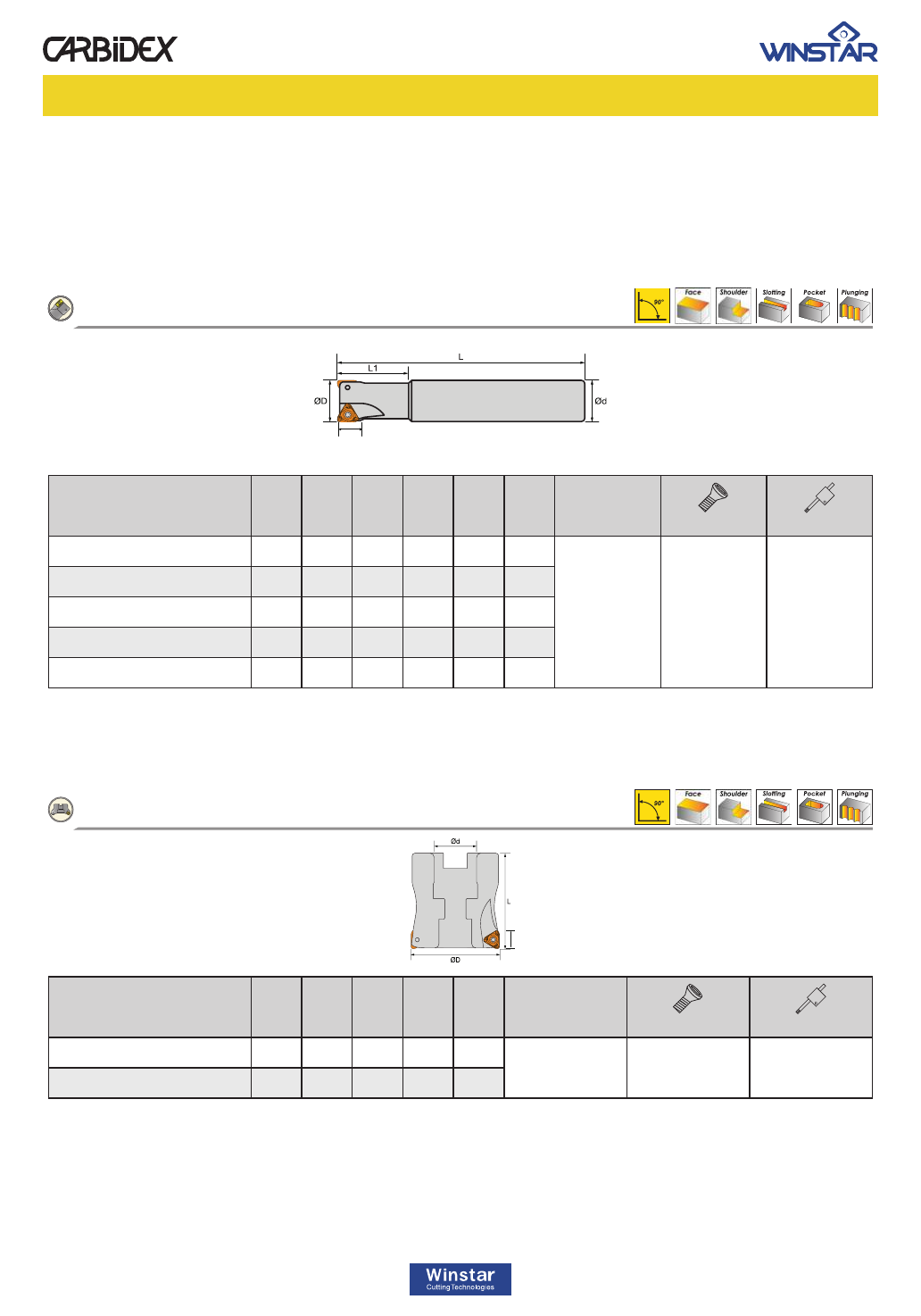

BAP3 / APMT1135
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IBAP3E02-0160100 16 25 100 16 211
AP…1135 TS2507 TK08
IBAP3E02-0170100 17 30 100 16 211
IBAP3E02-0190100 19 30 100 16 211
IBAP3E03-0200100 20 30 100 20 3 11
IBAP3E03-0210100 21 30 100 20 3 11
IBAP3E03-0220100 22 35 100 20 3 11
IBAP3E03-0230100 23 35 100 20 3 11
IBAP3E03-0240100 24 35 100 20 3 11
IBAP3E04-0250100 25 35 100 25 4 11
IBAP3E04-0260120 26 35 120 25 4 11
IBAP3E04-0270120 27 40 120 25 4 11
IBAP3E04-0280120 28 40 120 25 4 11
IBAP3E04-0290120 29 40 120 25 4 11
IBAP3E04-0300120 30 40 120 25 4 11
IBAP3E04-0310120 31 40 120 25 4 11
IBAP3E05-0320120 32 40 120 32 5 11
IBAP3E05-0330120 33 40 120 32 5 11
IBAP3E05-0340120 34 40 120 32 5 11
IBAP3E05-0350120 35 40 120 32 5 11

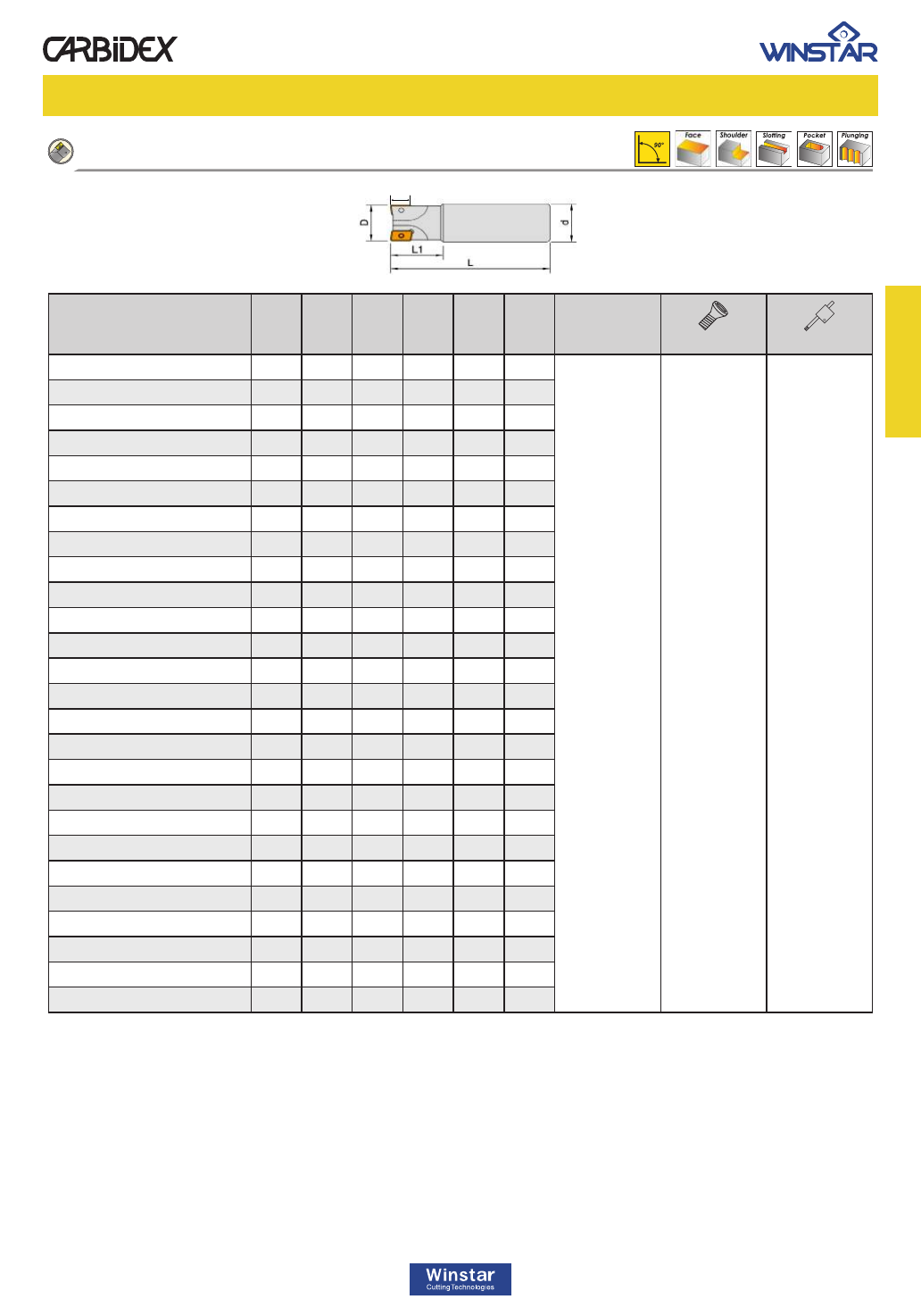

BAP3E
B032
方肩銑削
Shoulder Milling
BAP3 / APMT1135
BAP3E
Order No. D L1 L d T ap Inserts Screw Wrench
IBAP3E02-0160120 16 35 120 16 211
AP…1135 TS2507 TK08
IBAP3E02-0170120 17 35 120 16 211
IBAP3E02-0200150 20 35 150 20 211
IBAP3E03-0200150 20 35 150 20 3 11
IBAP3E03-0210150 21 35 150 20 3 11
IBAP3E02-0160160 16 45 160 16 211
IBAP3E02-0170160 17 45 160 16 211
IBAP3E02-0200200 20 50 200 20 211
IBAP3E02-0210200 21 50 200 20 211
ap

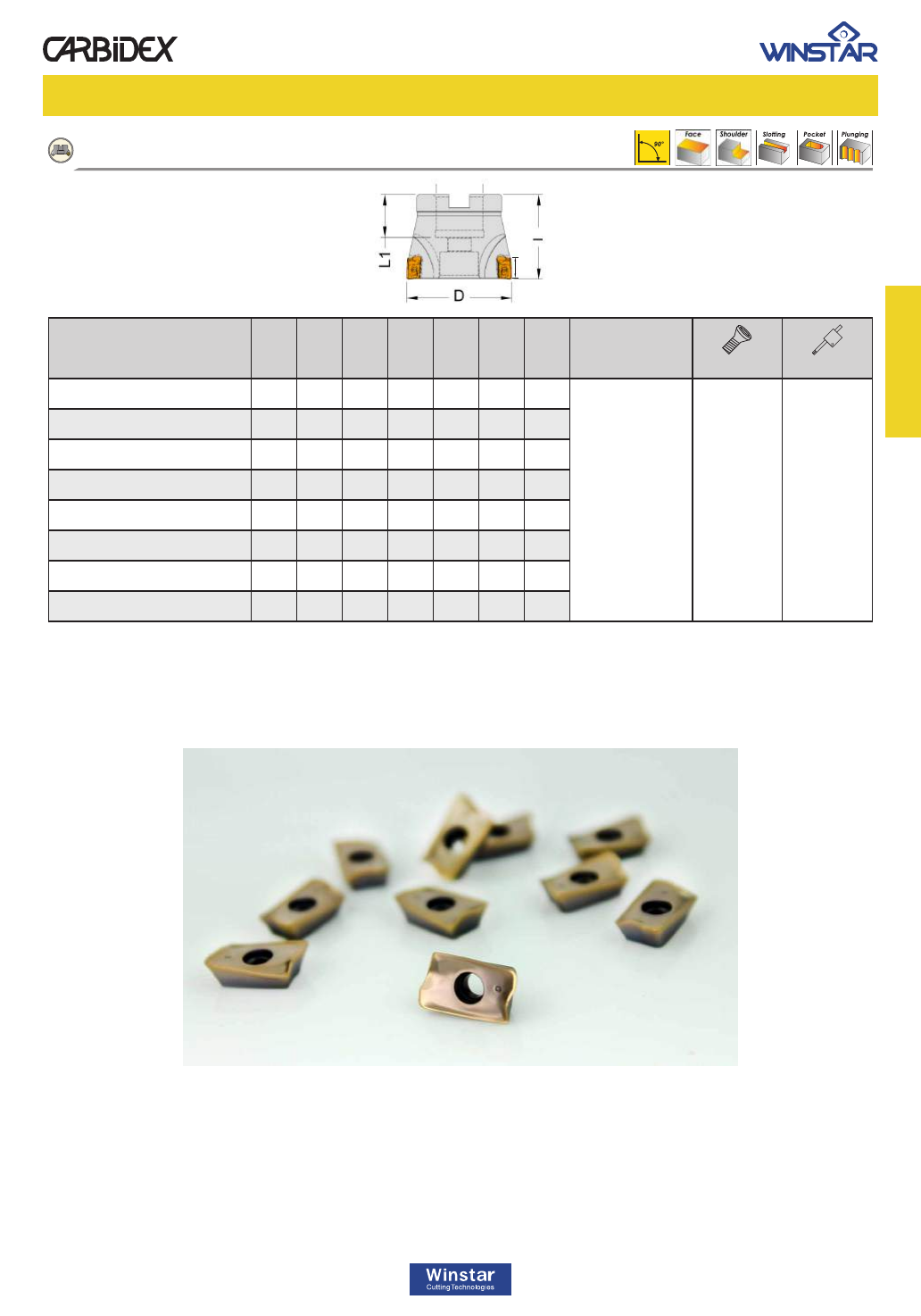

Order No. D L L1 d T ap Inserts Screw Wrench
IBAP3F05-0400160 40 40 18 16 5 11
AP...1135 TS2507 TK08
IBAP3F06-0500254 50 45 18 25.4 6 11
IBAP3F07-0630220 63 45 22 22 711
IBAP3F07-0630254 63 45 22 25.4 7 11
IBAP3F08-0800270 80 50 26 27 8 11
IBAP3F08-0800254 80 50 26 25.4 8 11
IBAP3F10-1000320 100 50 32 32 10 11
IBAP3F10-1000317 100 50 31.75 31.75 10 11
ap
BAP3F
B033
方肩銑削
Milling Inserts & Tools
Shoulder Milling
BAP3 / APMT1135

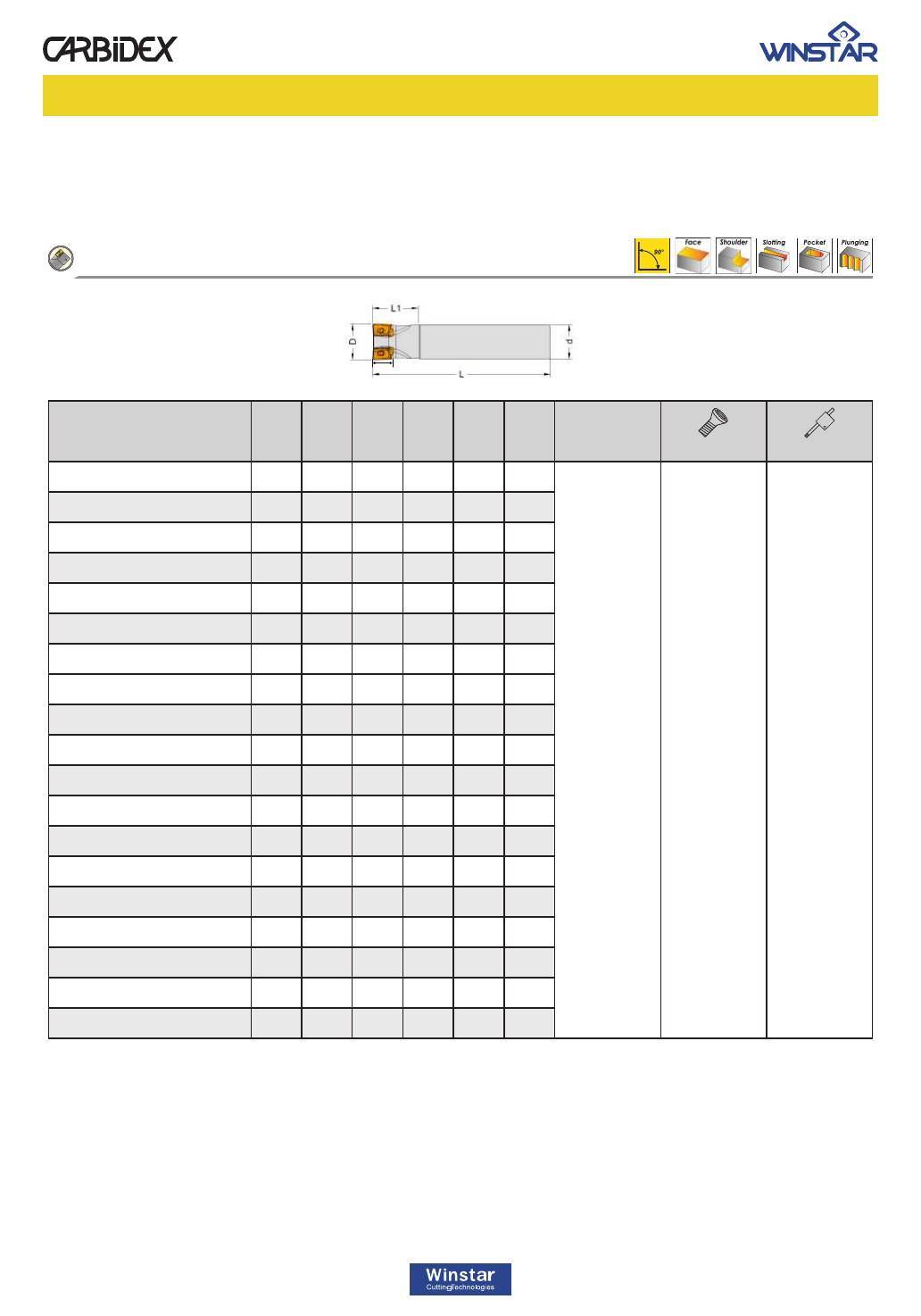

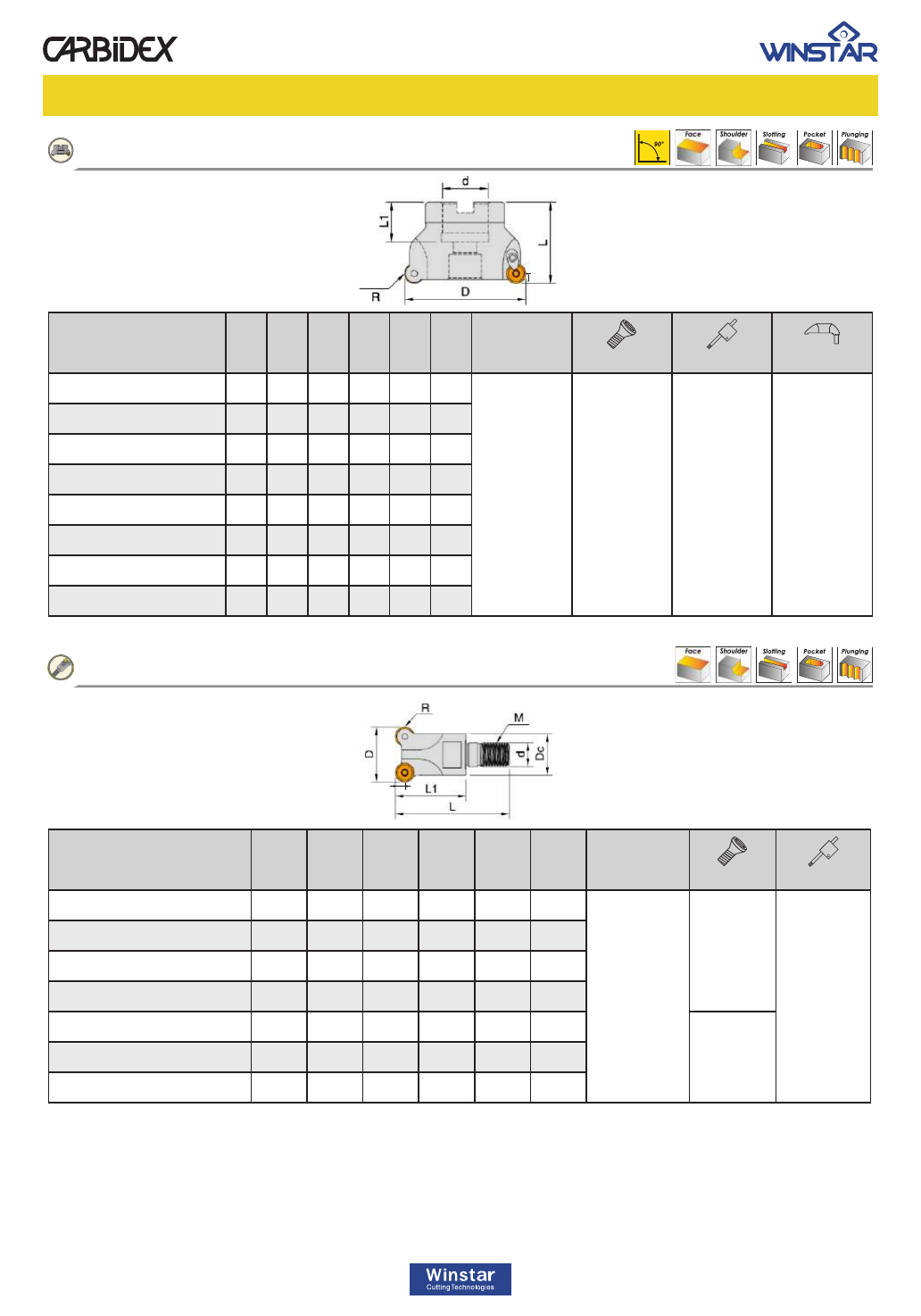

Order No. D Dc L L1 M T ap Inserts Screw Wrench
IBAP3M02-0160080 16 15 43 26 M8 211
AP…1135 TS2507 TK08
IBAP3M02-0170080 17 15 43 26 M8 211
IBAP3M02-0200100 20 18 49 30 M10 211
IBAP3M03-0200100 20 18 49 30 M10 3 11
IBAP3M02-0210100 21 18 49 30 M10 211
IBAP3M03-0210100 21 18 49 30 M10 3 11
IBAP3M02-0250120 25 23 57 35 M12 211
IBAP3M04-0250120 25 23 57 35 M12 4 11
IBAP3M02-0260120 26 23 57 35 M12 211
IBAP3M04-0260120 26 23 57 35 M12 4 11
IBAP3M03-0320160 32 30 63 40 M16 3 11
IBAP3M05-0320160 32 30 63 40 M16 5 11
IBAP3M03-0330160 33 30 63 40 M16 3 11
IBAP3M05-0330160 33 30 63 40 M16 5 11
ap
BAP3M
B034
方肩銑削
Shoulder Milling
BAP4 / APMT1604
BAP4E

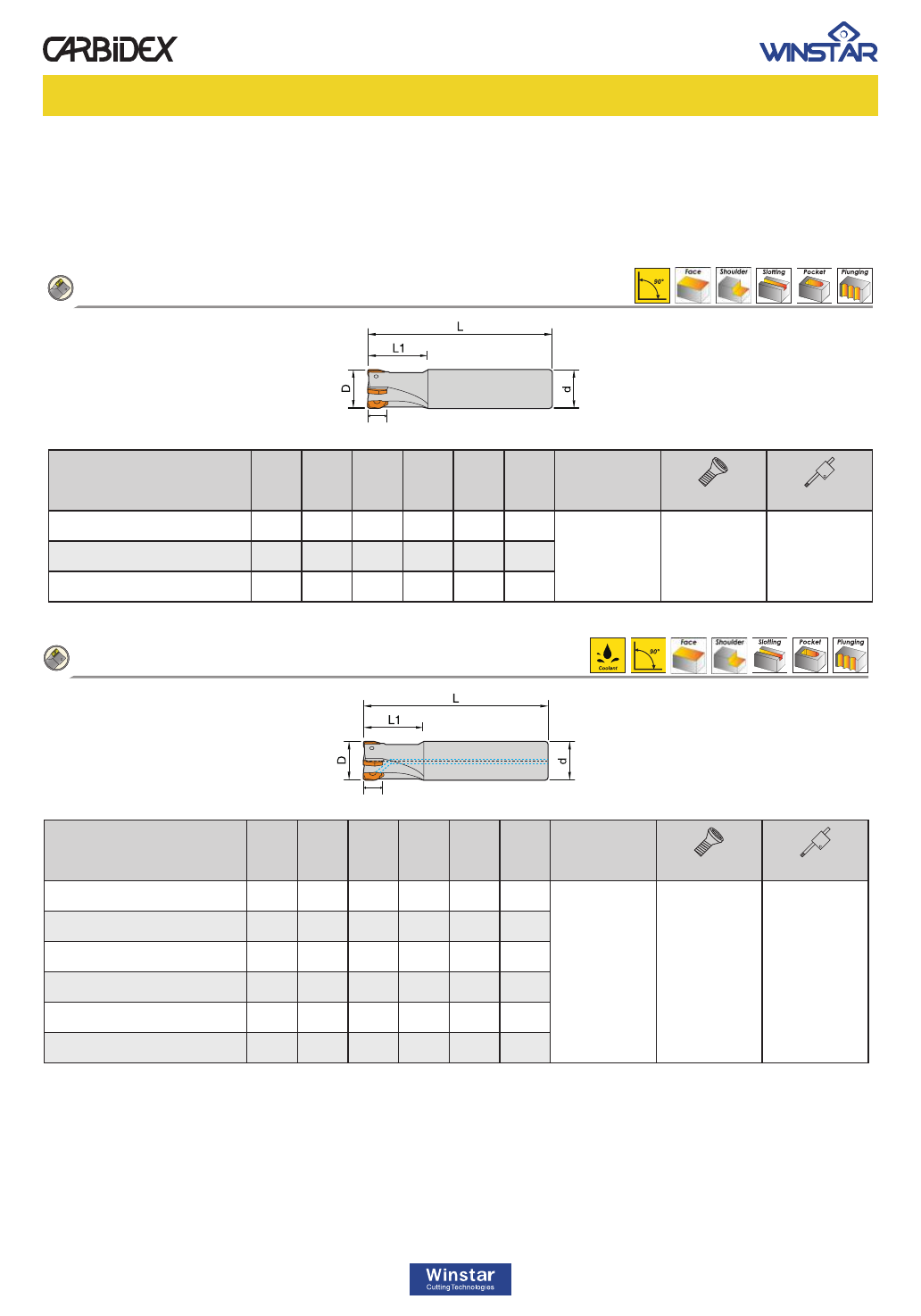

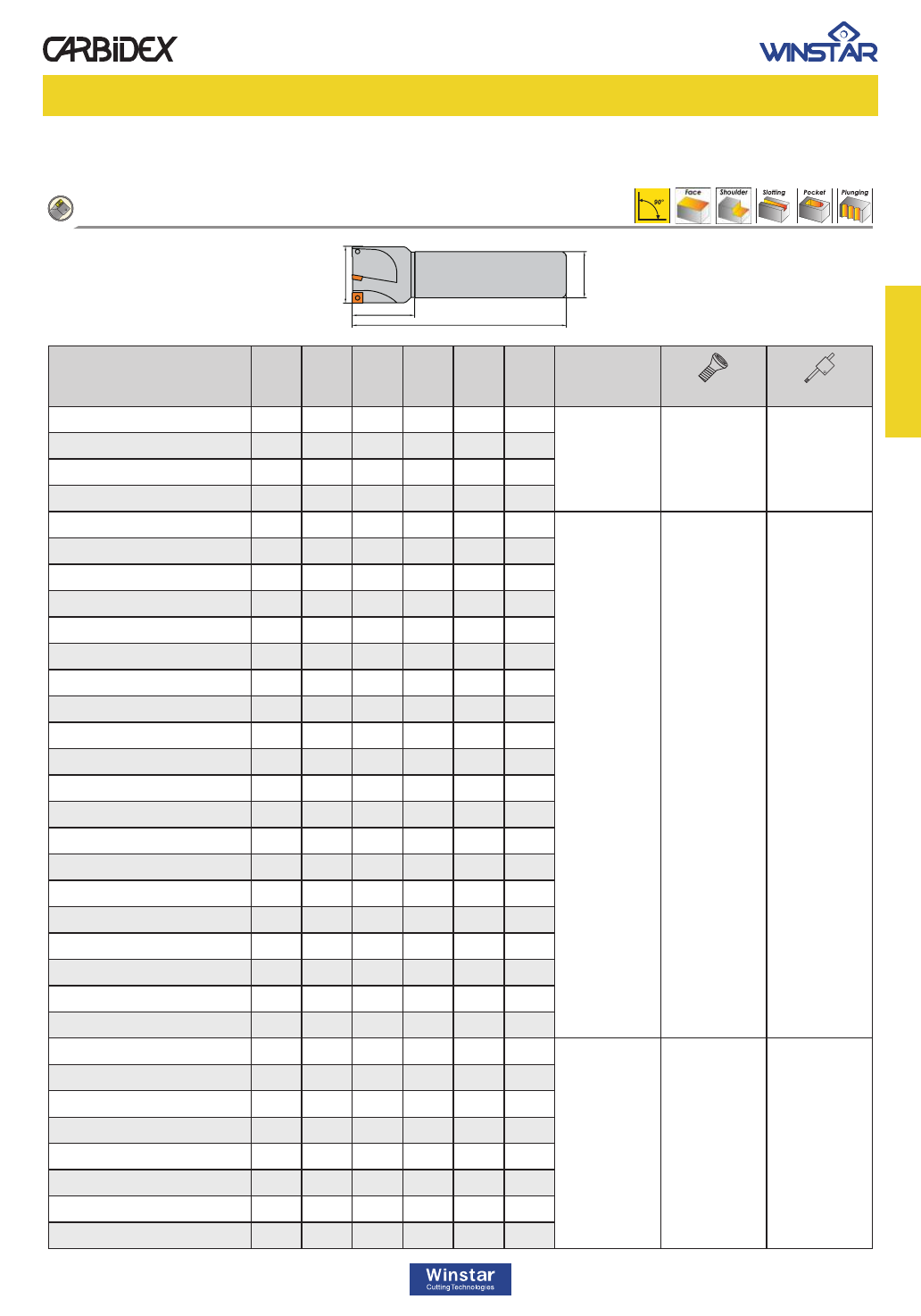

Order No. D L1 L d T ap Inserts Screw Wrench
IBAP4E02-0250150 25 40 150 25 216
AP…1604 TS4023 TK15
IBAP4E02-0260150 26 40 150 25 216
IBAP4E02-0300150 30 40 150 25 216
IBAP4E03-0320150 32 45 150 32 3 16
IBAP4E03-0350150 35 45 150 32 3 16
IBAP4E04-0400170 40 45 170 32 4 16
IBAP4E02-0250200 25 70 200 25 216
IBAP4E02-0250250 25 70 250 25 216
IBAP4E02-0260200 26 50 200 25 216
IBAP4E02-0300200 30 50 200 25 216
IBAP4E03-0320200 32 80 200 32 3 16
IBAP4E03-0320250 32 80 250 32 3 16
IBAP4E03-0320300 32 80 300 32 3 16
IBAP4E03-0350200 35 50 200 32 3 16
IBAP4E03-0350250 35 50 250 32 3 16
IBAP4E03-0350300 35 50 300 32 3 16
IBAP4E04-0400200 40 50 200 32 4 16
IBAP4E04-0400300 40 50 300 32 4 16
ap
B035
方肩銑削
Milling Inserts & Tools
Shoulder Milling
BAP4 / APMT1604
Order No. D L L1 d T ap Inserts Screw Wrench
IBAP4F04-0400160 40 40 18 16 4 16
AP…1604 TS4004 TK15
IBAP4F05-0500220 50 45 22 22 5 16
IBAP4F05-0500254 50 45 18 25.4 5 16
IBAP4F06-0630220 63 45 22 22 6 16
IBAP4F06-0630254 63 45 22 25.4 6 16
IBAP4F07-0800270 80 50 26 27 7 16
IBAP4F07-0800254 80 50 26 25.4 7 16
IBAP4F08-1000320 100 50 32 32 8 16
IBAP4F08-1000317 100 50 32 31.75 8 16
IBAP4F09-1250400 125 55 36 40 9 16
IBAP4F09-1250381 125 55 36 38.1 9 16
IBAP4F10-1600400 160 63 36 40 10 16
IBAP4F10-1600508 160 63 36 50.8 10 16
BAP4F
ap
B036
方肩銑削
Shoulder Milling
B037

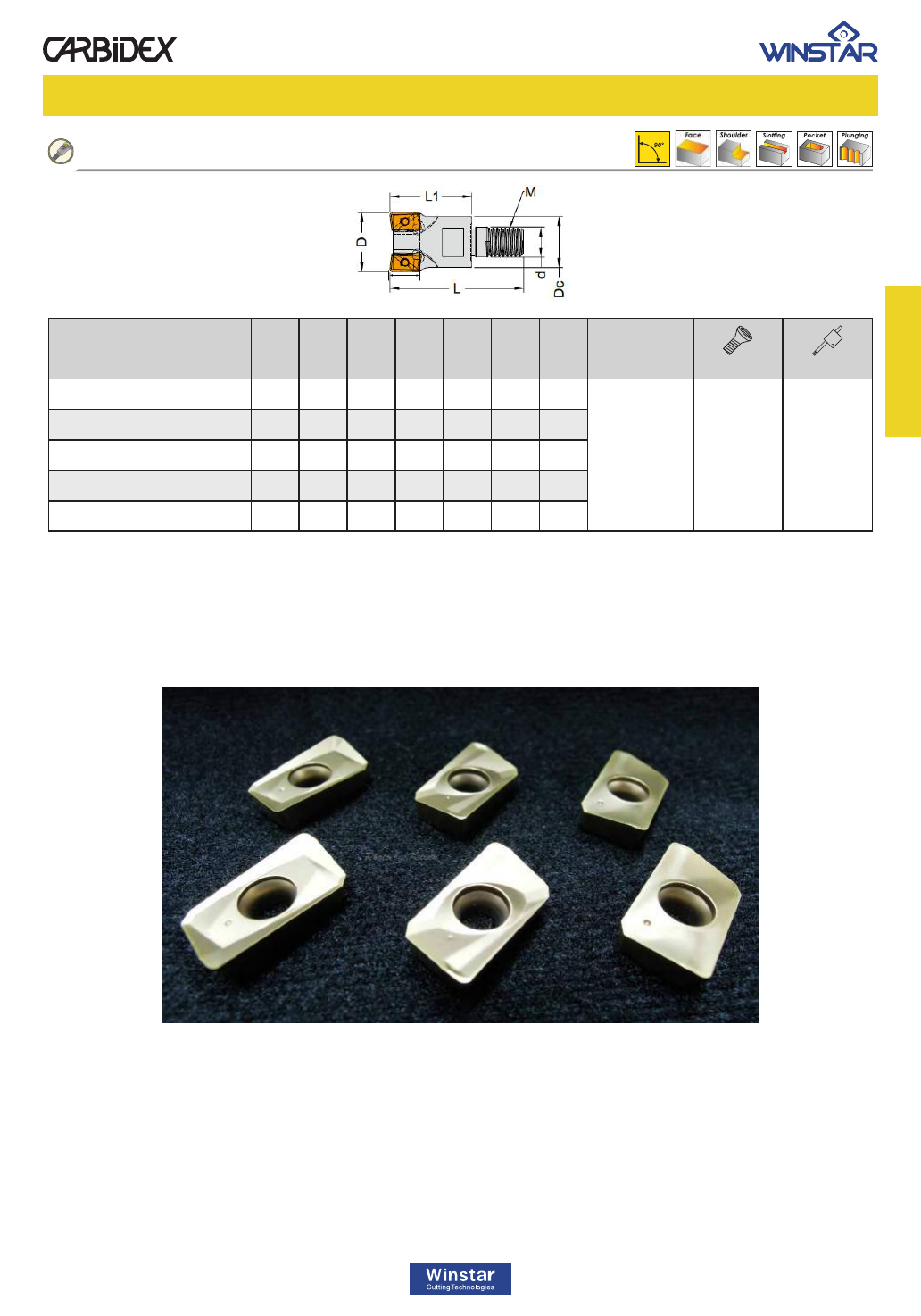

BAP4M
Order No. D Dc L1 L M T ap Inserts Screw Wrench
IBAP4M02-0250120 25 23 35 57 M12 216
AP…1604 TS4004 TK08
IBAP4M02-0260120 26 23 35 57 M12 216
IBAP4M03-0320160 32 30 40 63 M16 3 16
IBAP4M03-0330160 33 30 40 63 M16 3 16
IBAP4M03-0350160 35 30 40 63 M16 3 16
ap
BAP4 / APMT1604 方肩銑削
Milling Inserts & Tools
Shoulder Milling

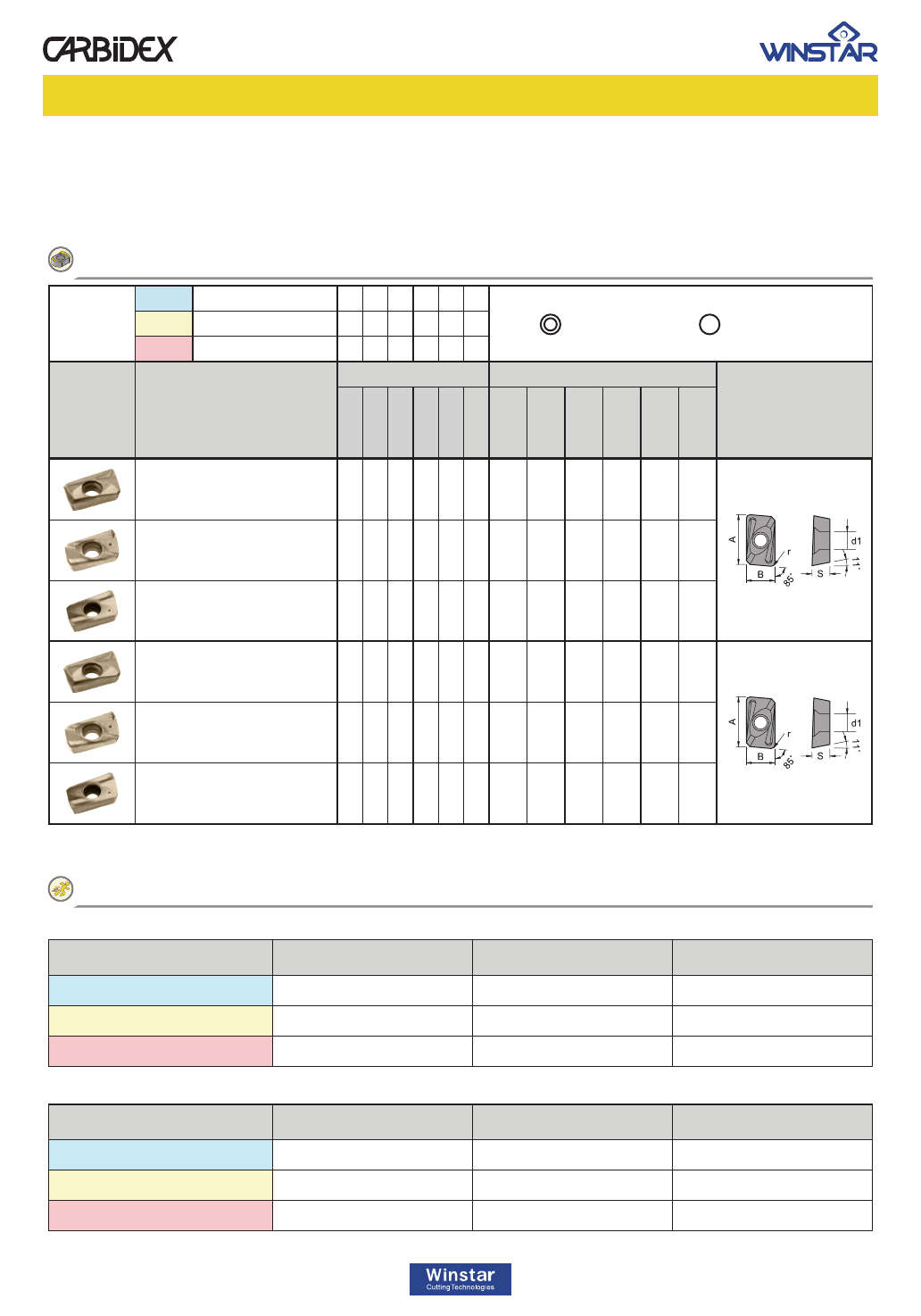

APMT1135 / APMT1604
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
Specication
APMT
160408PDER-MG
✓✓✓✓✓
16.5 9.525 4.76 0.8 4.4 -
APMT
160408PDER-RG
✓✓✓✓✓ 16.5
9.525
4.76 0.8 4.4 -
APMT
160408PDER-HG
✓✓✓✓ 16.5
9.525
4.76 0.8 4.4 -
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.12 ~ 0.28 ~ 11.0
Stainless 300 Series 50 ~ 110 0.10 ~ 0.22 ~ 7.0
Cast Iron (HB140-220) 80 ~ 180 0.12 ~ 0.28 ~ 10.0
Recommended Cutting Conditions
♦
♦
♦
♦
Various shapes and cutting edge designs for dierent working purpose.
Strong high rake inserts provide smooth cutting action.
Lower cutting force.
Good chip evacuation.
APMT
113508PDER-MG
✓✓✓✓✓
11.0 6.35 3.5 0.8 2.8 -
APMT
113508PDER-RG
✓✓✓✓✓ 11.0 6.35 3.5 0.8 2.8 -
APMT
113508PDER-HG
✓✓✓✓ 11.0 6.35 3.5 0.8 2.8 -
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 8.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 5.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 7.0
for APMT1135
for APMT1604
B038
方肩銑削刀片
Shoulder Milling

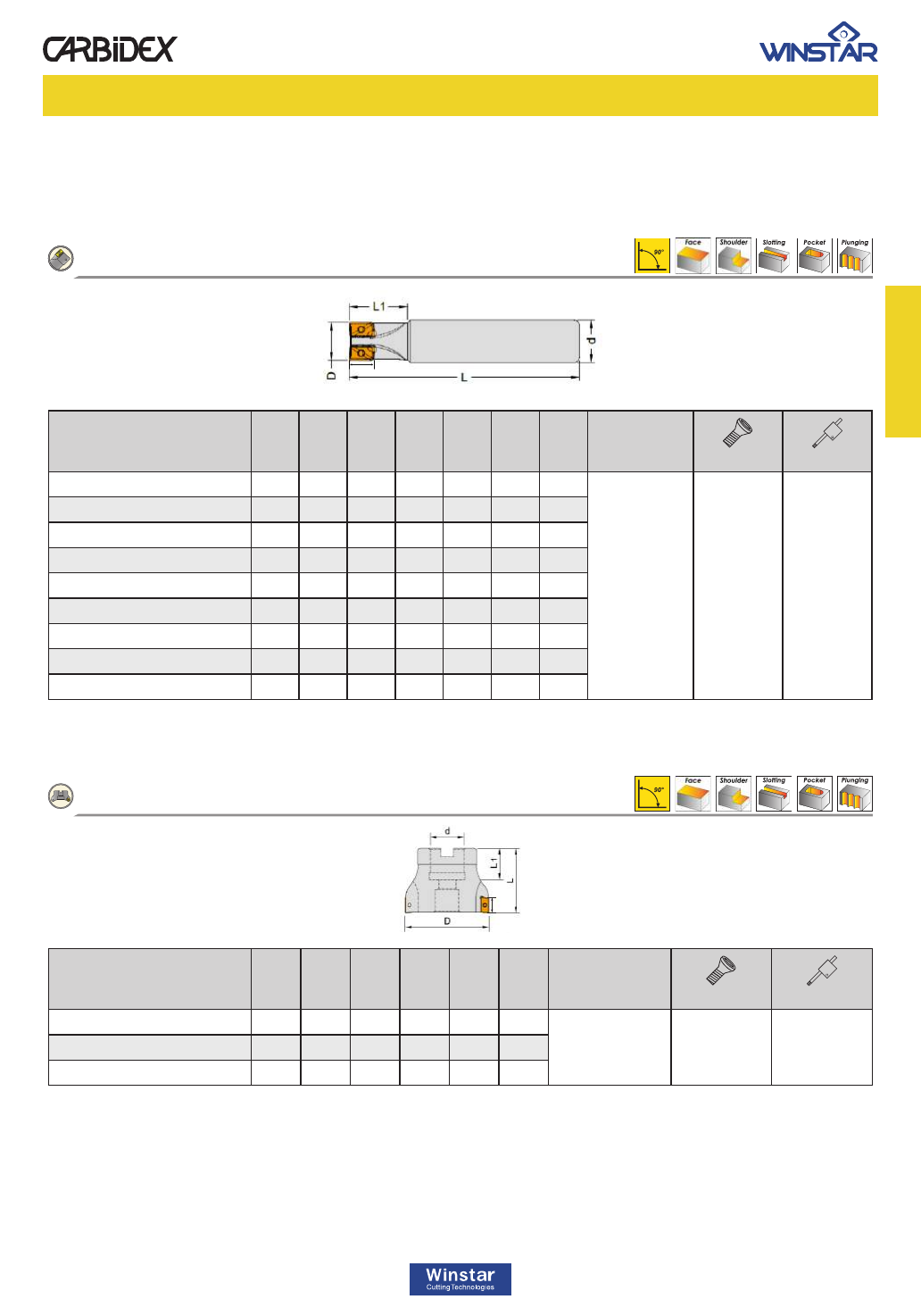

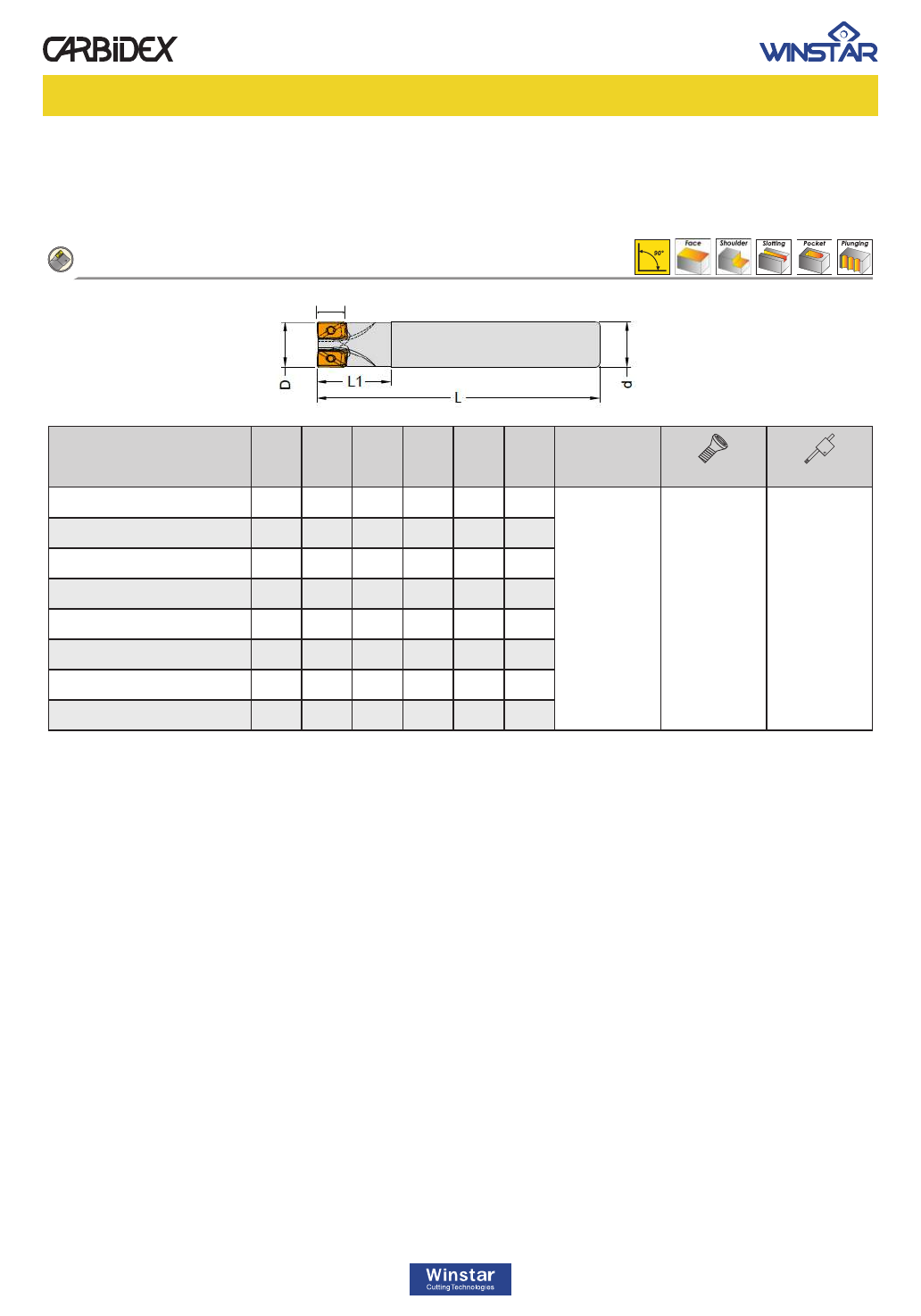

APK3 / APKT1003
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L L1 L d T ap Inserts Screw Wrench
IAPK3E02-0160120 16 25 25 120 16 210
APKT1003 TS2507 TK08
IAPK3E02-0160160 16 25 25 160 16 210
IAPK3E02-0170120 17 25 25 120 16 210
IAPK3E02-0170160 17 25 25 160 16 210
IAPK3E02-0200120 20 30 30 120 20 210
IAPK3E02-0200150 20 30 30 150 20 210
IAPK3E02-0200200 20 30 30 200 20 210
IAPK3E02-0210150 21 30 30 150 20 210
IAPK3E02-0210200 21 30 30 200 20 210
APK3E
ap
Order No. D L L1 d T ap Inserts Screw Wrench
IAPK3F06-0500220 50 40 20 22 6 10
APKT1003 TS2507 TK08IAPK3F06-0630220 63 45 21 22 6 10
IAPK3F07-0800270 80 50 23 27 7 10
ap
APK3F
B039
方肩銑削
Milling Inserts & Tools
Shoulder Milling
APK3 / APKT1003

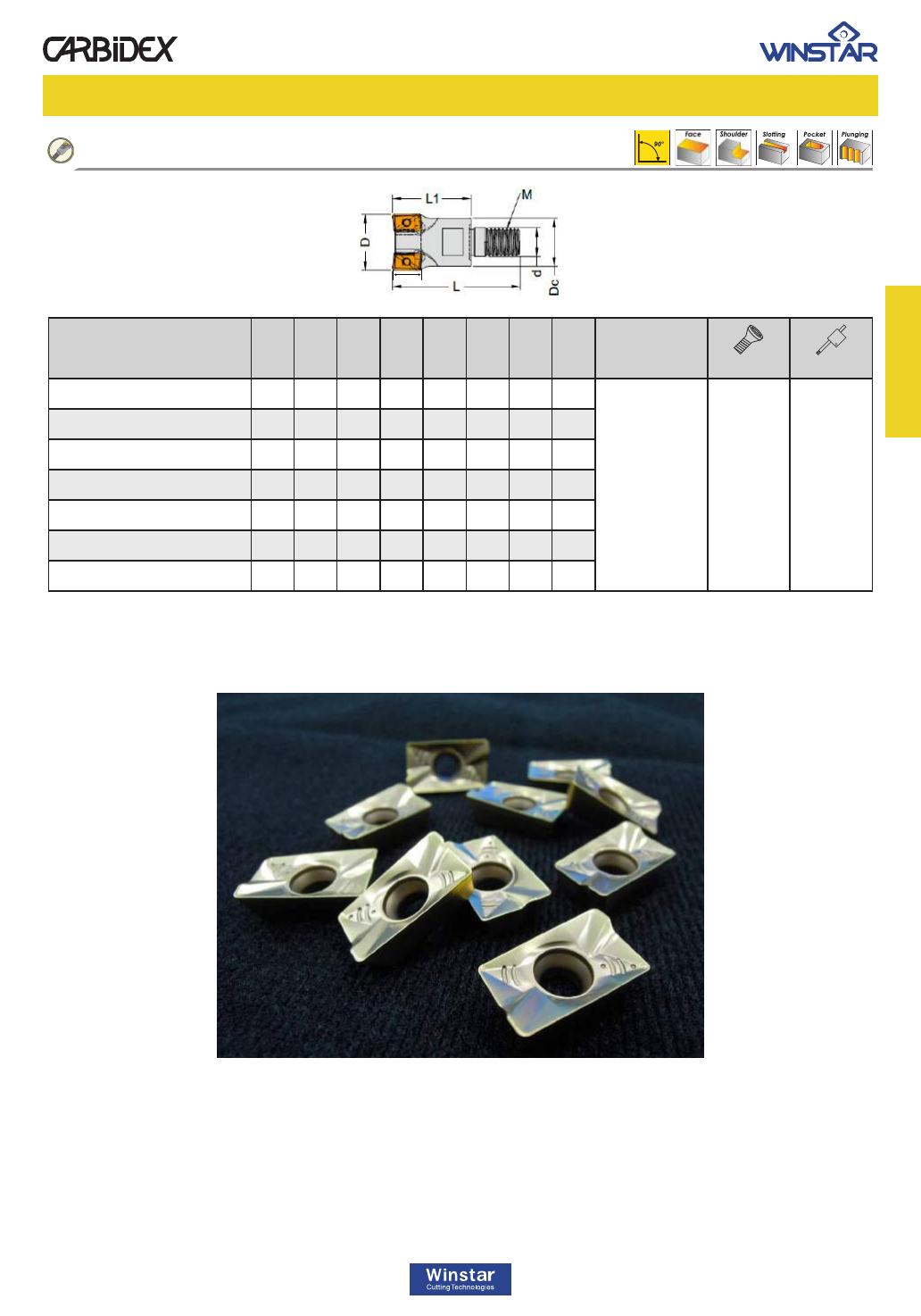

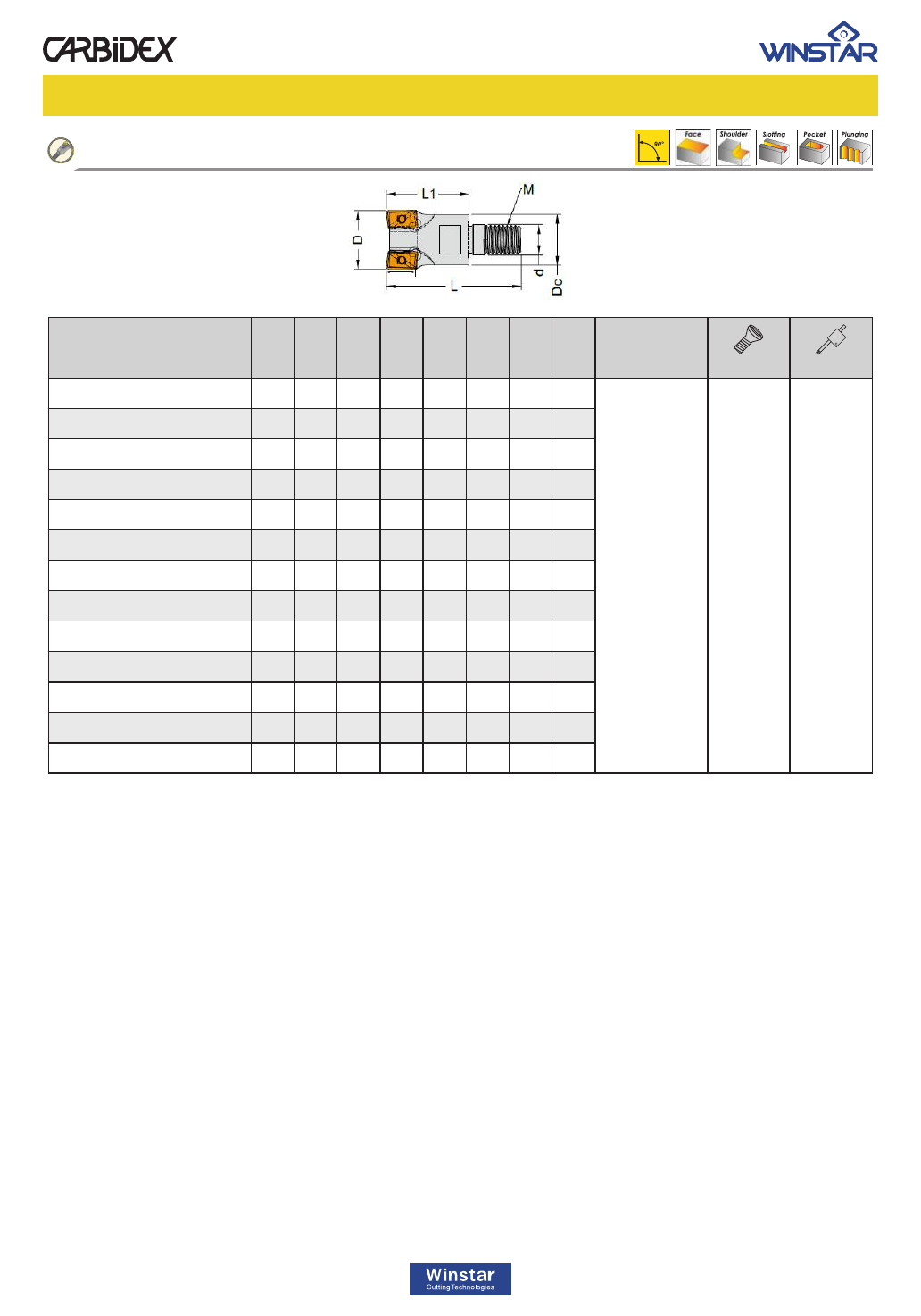

Order No. D Dc L L1 M d T ap Inserts Screw Wrench
IAPK3M02-0160080 16 15 43 26 M8 8.5 210
APKT1003 TS2504 TK08
IAPK3M02-0170080 17 15 43 26 M8 8.5 210
IAPK3M02-0200100 20 18 50 32 M10 10.5 210
IAPK3M03-0200100 20 18 50 32 M10 10.5 3 10
IAPK3M02-0210100 21 18 50 32 M10 10.5 210
IAPK3M03-0210100 21 18 50 32 M10 10.5 3 10
IAPK3M02-0250120 25 23 50 38 M12 12.5 210
IAPK3M04-0250120 25 23 60 38 M12 12.5 4 10
IAPK3M02-0260120 26 23 60 38 M12 12.5 210
IAPK3M04-0260120 26 23 60 38 M12 12.5 4 10
IAPK3M05-0320120 32 30 63 41 M12 17 5 10
IAPK3M05-0330160 33 30 63 41 M16 17 5 10
IAPK3M06-0400160 40 32 65 43 M16 17 6 10
ap
APK3M
B040
方肩銑削
Shoulder Milling
APK4 / APKT1604
Order No. D L L1 d T ap Inserts Screw Wrench
IAPK4E02-0250150 25 150 40 25 216
APKT1604 TS4005 TK15
IAPK4E02-0250220 25 220 40 25 216
IAPK4E02-0260150 26 150 40 25 216
IAPK4E02-0260220 26 220 40 25 216
IAPK4E02-0320150 32 150 45 32 216
IAPK4E02-0320250 32 250 45 32 216
IAPK4E02-0330150 33 150 45 32 216
IAPK4E03-0350150 35 150 45 32 3 16
IAPK4E04-0400150 40 150 45 32 4 16
APK4E
ap
B041
方肩銑削
Milling Inserts & Tools
Shoulder Milling
APK4 / APKT1604
APK4F
Order No. D L L1 d T ap Inserts Screw Wrench
IAPK4F09-1000320 100 55 26 32 9 16
APKT1604 TS4005 TK15
IAPK4F07-0500220 50 50 23 22 4 16
IAPK4F05-0630220 63 50 23 22 5 16
IAPK4F05-0630254 63 50 23 25.4 5 16
IAPK4F06-0800270 80 55 32 27 6 16
IAPK4F06-0800254 80 55 32 25.4 6 16
IAPK4F08-1000320 100 55 32 32 8 16
IAPK4F08-1000317 100 55 32 31.75 8 16
IAPK4F08-1250400 125 63 38 40 8 16
IAPK4F08-1250381 125 63 38 38.1 8 16
IAPK4F10-1600400 160 63 38 40 10 16
IAPK4F10-1600508 160 63 38 50.8 10 16
ap
B042
方肩銑削
Shoulder Milling
APK4 / APKT1604
Order No. D Dc L L1 M d T ap Inserts Screw Wrench
IAPK4M02-0250120 25 23 60 38 M12 12.5 216
APKT1604 TS4004 TK15
IAPK4M02-0260160 26 23 60 38 M16 17 216
IAPK4M02-0320160 32 30 63 41 M16 17 216
IAPK4M03-0320160 32 30 63 41 M16 17 3 16
IAPK4M02-0330160 33 30 63 41 M16 17 216
IAPK4M03-0330160 33 30 63 41 M16 17 3 16
IAPK4M04-0400160 40 32 65 43 M16 17 4 16
APK4M
ap
B043
方肩銑削
Milling Inserts & Tools
Shoulder Milling

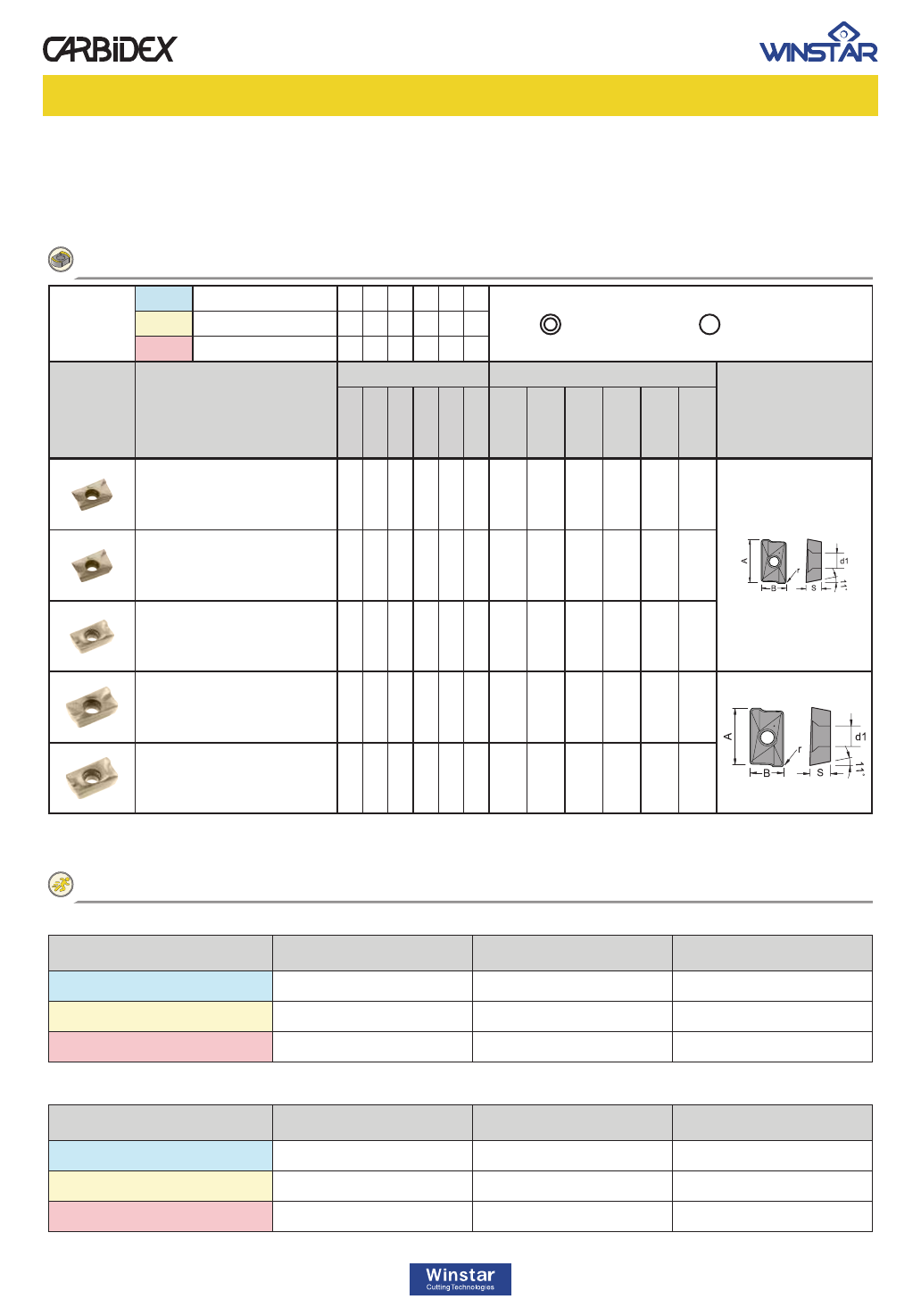

APKT1003 / APKT1604
APKT
160408PDER-MG
✓✓✓✓
16.3 9.525 5.25 0.8 4.5 -
APKT
160408PDER-RG
✓✓✓✓ 16.3
9.525
5.25 0.8 4.5 -
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.12 ~ 0.28 ~ 11.0
Stainless 300 Series 50 ~ 110 0.10 ~ 0.22 ~ 7.0
Cast Iron (HB140-220) 80 ~ 180 0.12 ~ 0.28 ~ 10.0
♦
♦
♦
♦
Innovative strong cutting edge and chip-breaker design.
Excellent chip evacuation.
Large depth of cutting operations.
Lower cutting resistance.
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 7.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 4.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 6.0
Recommended Cutting Conditions
APKT
100304PDER-MG
✓✓✓
10.5 6.7 3.5 0.4 2.8 -
APKT
100308PDER-MG
✓✓✓
10.5 6.7 3.5 0.8 2.8 -
APKT
100304PDER-RG
✓✓✓
10.5 6.7 3.5 0.4 2.8 -
for APKT1003
for APKT1604
B044
方肩銑削刀片
Shoulder Milling

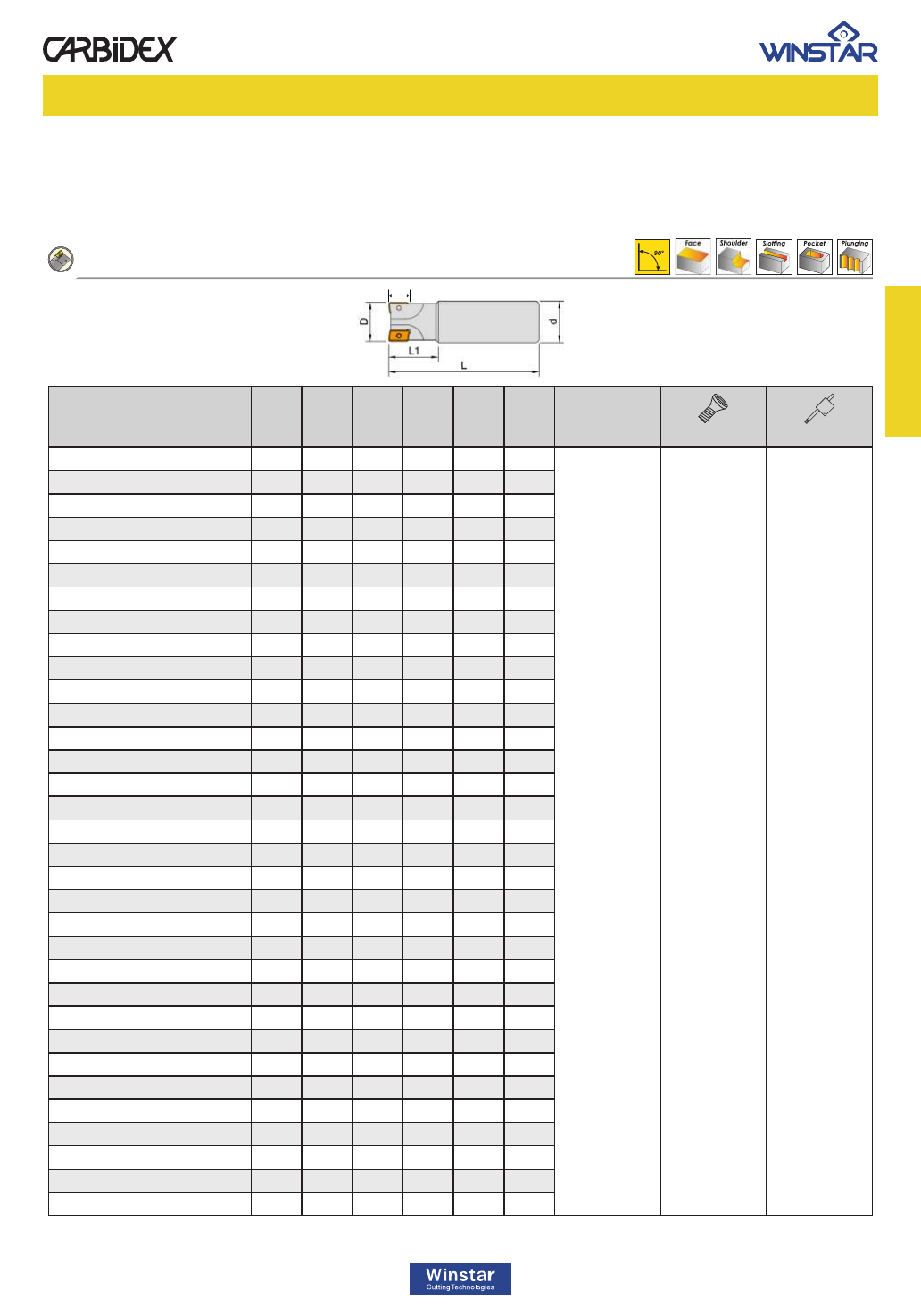

WEX2 / AXMT1235
♦
♦
♦
♦
With strong cutting edges, 90 shoulder endmill for high feed rate capabilities
High efficiency machining can be achieved due to optimize cutting edge geometry and highly rigid body.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IWEX2E02-0160120 16 35 120 16 212
AXMT1235 TS3002 TK09
IWEX2E02-0170120 17 35 120 16 212
IWEX2E02-0180120 18 35 120 16 212
IWEX2E02-0190120 19 35 120 16 212
IWEX2E03-0200120 20 40 120 20 3 12
IWEX2E03-0210120 21 40 120 20 3 12
IWEX2E03-0220120 22 40 120 20 3 12
IWEX2E03-0230150 23 40 150 25 3 12
IWEX2E03-0240150 24 40 150 25 3 12
IWEX2E03-0250150 25 40 150 25 3 12
IWEX2E03-0260150 26 40 150 25 3 12
IWEX2E04-0250150 25 45 150 25 4 12
IWEX2E04-0260150 26 45 150 25 4 12
IWEX2E04-0270150 27 45 150 25 4 12
IWEX2E04-0280150 28 45 150 25 4 12
IWEX2E04-0290150 29 45 150 25 4 12
IWEX2E04-0300150 30 45 150 25 4 12
IWEX2E04-0310150 31 45 150 32 4 12
IWEX2E04-0320150 32 45 150 32 4 12
IWEX2E04-0330150 33 45 150 32 4 12
IWEX2E04-0340150 34 45 150 32 4 12
IWEX2E04-0350150 35 45 150 32 4 12
IWEX2E02-0160175 16 50 175 16 212
IWEX2E02-0170175 17 35 175 16 212
IWEX2E02-0200185 20 60 185 20 212
IWEX2E02-0210185 21 40 185 20 212
IWEX2E03-0250200 25 70 200 25 3 12
IWEX2E03-0260200 26 45 200 25 3 12
IWEX2E04-0250200 25 70 200 25 4 12
IWEX2E04-0260200 26 50 200 25 4 12
IWEX2E04-0320250 32 80 250 32 4 12
IWEX2E04-0330250 33 50 250 32 4 12
IWEX2E04-0350250 35 50 250 32 4 12
WEX2E
ap
B045
方肩銑削
Milling Inserts & Tools
Shoulder Milling
WEX2 / AXMT1235

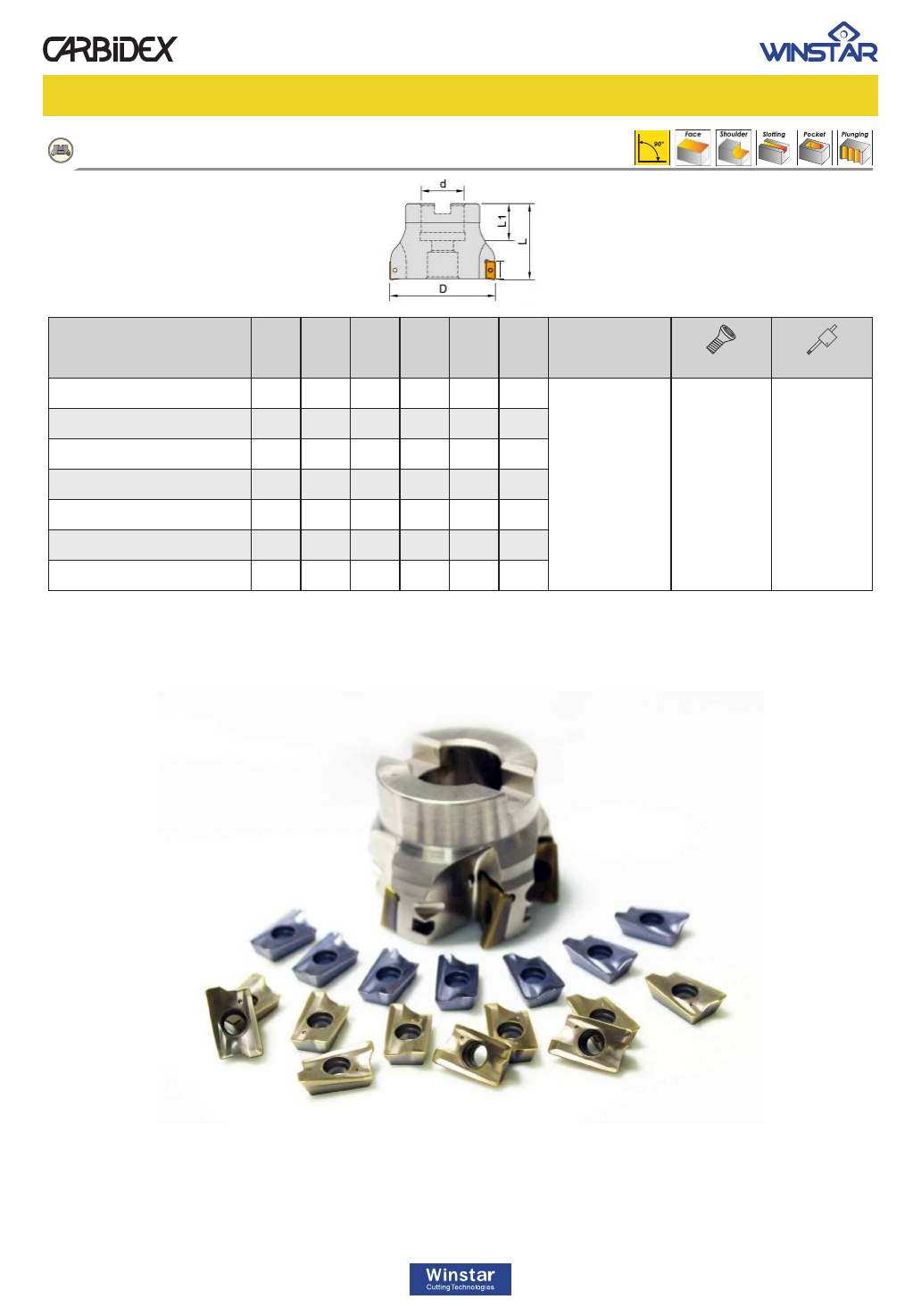

WEX2F
Order No. D L L1 d T ap Inserts Screw Wrench
IWEX2F06-0500220 50 45 20 22 6 12
AXMT1235 TS3002 TK09
IWEX2F07-0630220 63 45 20 22 7 12
IWEX2F07-0630254 63 45 20 25.4 7 12
IWEX2F08-0800270 80 50 26 27 8 12
IWEX2F08-0800254 80 50 26 25.4 8 12
IWEX2F10-1000320 100 50 26 32 10 12
IWEX2F10-1000317 100 50 26 31.75 10 12
ap
B046
方肩銑削
Shoulder Milling
WEX7 / AXMT1705
WEX7E
Order No. D L L1 d T ap Inserts Screw Wrench
IWEX7E02-0250150 25 150 40 25 217
AXMT1705 TS4004 TK15
IWEX7E02-0260150 26 150 40 25 217
IWEX7E02-0270150 27 150 40 25 217
IWEX7E02-0280150 28 150 40 25 217
IWEX7E02-0290150 29 150 40 25 217
IWEX7E02-0300150 30 150 40 25 217
IWEX7E02-0310150 31 150 40 25 217
IWEX7E03-0320150 32 150 45 32 3 17
IWEX7E03-0330150 33 150 45 32 3 17
IWEX7E03-0340150 34 150 45 32 3 17
IWEX7E03-0350150 35 150 45 32 3 17
IWEX7E03-0360150 36 150 45 32 3 17
IWEX7E03-0400150 40 150 45 32 3 17
IWEX7E02-0250200 25 200 70 25 217
IWEX7E02-0260200 26 200 45 25 217
IWEX7E02-0270200 27 200 45 25 217
IWEX7E02-0280200 28 200 45 25 217
IWEX7E02-0290200 29 200 45 25 217
IWEX7E02-0300200 30 200 45 25 217
IWEX7E02-0310250 31 250 70 32 217
IWEX7E02-0320250 32 250 70 32 217
IWEX7E02-0330250 33 250 50 32 217
IWEX7E02-0340250 34 250 50 32 217
IWEX7E02-0350250 35 250 50 32 217
IWEX7E02-0360250 36 250 50 32 217
IWEX7E04-0400250 40 250 50 32 4 17
ap
B047
方肩銑削
Milling Inserts & Tools
Shoulder Milling
WEX7 / AXMT1705
WEX7F
Order No. D L L1 d T ap Inserts Screw Wrench
IWEX7F04-0500220 50 45 20 22 4 17
AXMT1705 TS4004 TK15
IWEX7F05-0630220 63 45 20 22 5 17
IWEX7F05-0630254 63 45 20 25.4 5 17
IWEX7F06-0800270 80 50 26 27 6 17
IWEX7F06-0800254 80 50 26 25.4 6 17
IWEX7F07-1000320 100 50 26 32 7 17
IWEX7F07-1000317 100 50 26 31.75 7 17
IWEX7F08-1250400 125 63 38 40 8 17
IWEX7F08-1250381 125 63 38 38.1 8 17
IWEX7F10-1600400 160 63 38 40 10 17
IWEX7F10-1600508 160 63 38 50.8 10 17
ap
B048
方肩銑削
Shoulder Milling
AXMT1235 / AXMT1705
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.12 ~ 0.30 ~ 12.0
Stainless 300 Series 50 ~ 110 0.10 ~ 0.25 ~ 8.0
Cast Iron (HB140-220) 80 ~ 180 0.12 ~ 0.30 ~ 11.0
♦
♦
♦
90° shoulder milling with high feed rate.
Unique shape and strength cutting edge design.
Generates high quality surface nishes.
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 9.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 5.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 8.0
Recommended Cutting Conditions
AXMT
170508PEER-RG
✓✓✓✓
17.50 10.2 5.56 0.8 4.6 -
AXMT
170516PEER-RG
✓✓✓✓
17.50
10.2 5.56 1.6 4.6 -
Specication
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
AXMT
123508PEER-RG
✓✓✓
12.18 6.93 3.58 0.8 3.4 -
for AXMT1235
for AXMT1705
B049
方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling
JD15 / JDMT1505
♦
♦
♦
♦
Shoulder milling with great cutting performance and low cutting force.
Multifunction application with strong cutting edge and great chip evacuation.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IJD15E02-0250125 25 40 125 40 214
JDMT1505 TS4005 TK15
IJD15E02-0250180 25 75 180 75 214
IJD15E03-0320140 32 45 140 45 3 14
IJD15E03-0320200 32 90 200 90 3 14
ap
JD15E
B050
方肩銑削
Shoulder Milling
JD15 / JDMT1505
JDMT 150508R-MG ✓ ✓
15.1 9.12 5.0 0.8 4.5 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.12 ~ 0.30 ~ 12.0
Stainless 300 Series 50 ~ 110 0.10 ~ 0.25 ~ 7.0
Cast Iron (HB140-220) 80 ~ 180 0.12 ~ 0.30 ~ 11.0
Recommended Cutting Conditions
♦
♦
♦
Good cutting performance and cutting edge strength.
Lower cutting force.
Good chip evacuation.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B051
方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling
R390 / W39011T3
♦
♦
♦
♦
Finishing and roughing capability in one optimized tool, specially designed for high speed machining.
High removal rates cab be achieved even at smaller low powered machines.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IR390E02 - 0160150 16 30 150 16 211
W390 11T3 TS2507 TK08
IR390E02 - 0170150 17 30 150 16 211
IR390E02 - 0180150 18 30 150 16 211
IR390E02W0200150 20 30 150 20 211
IR390E03 - 0200150 20 30 150 20 3 11
IR390E02 - 0210150 21 30 150 20 211
IR390E03 - 0220150 22 30 150 20 3 11
IR390E02 - 0250150 25 30 150 25 211
IR390E03 - 0250150 25 30 150 25 3 11
IR390E03 - 0300150 30 30 150 25 3 11
IR390E03 - 0320150 32 35 150 32 3 11
IR390E05 - 0320150 32 35 150 32 5 11
IR390E03 - 0330150 33 35 150 32 3 11
IR390E05 - 0330150 33 35 150 32 5 11
IR390E03 - 0350150 35 35 150 32 3 11
IR390E05 - 0350150 35 35 150 32 5 11
IR390E04 - 0400150 40 35 150 32 4 11
IR390E05 - 0400150 40 35 150 32 5 11
IR390E06 - 0400150 40 35 150 32 6 11
ap
R390E
B052
方肩銑削
Shoulder Milling
★with Coolant Hole
★
R390 / W39011T3
Order No. D L L1 d Dc T ap Inserts Screw Wrench
IR390F04-0500220 50 40 21 22 42 4 11
W390 11T3 TS2503-8 TK08
IR390F05-0500220 50 40 21 22 42 5 11
IR390F05-0630220 63 40 21 22 50 5 11
IR390F06-0630220 63 40 21 22 50 6 11
IR390F06-0800270 80 50 23 27 60 6 11
IR390F08-0800270 80 50 23 27 60 8 11
IR390F07-0100320 100 50 23 32 70 7 11
IR390F10-0100320 100 50 23 32 70 10 11
R390F
ap
B053
方肩銑削
Milling Inserts & Tools
Shoulder Milling
R390 / W39011T3

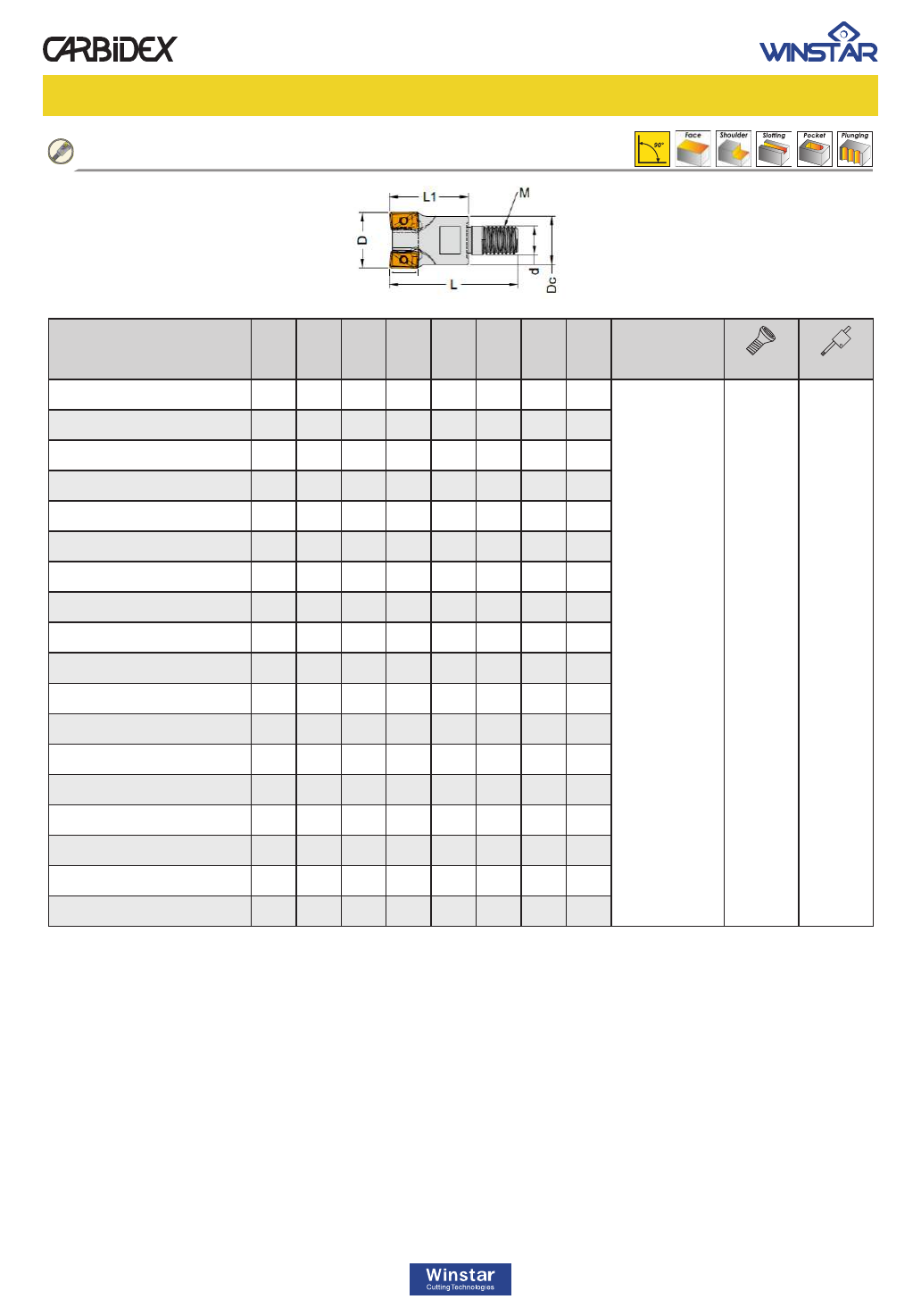

R390M
Order No. D Dc L L1 M d T ap Inserts Screw Wrench
IR390M02-0160080 16 15 43 26 M8 6.5 211
W390 11T3
TS2503-8
TK08
IR390M02-0170080 17 15 43 26 M8 8.5 211
IR390M02-0180080 18 15 43 32 M8 8.5 211
IR390M02-0200010 20 18 50 32 M10 10.5 211
IR390M03-0200010 20 18 50 32 M10 10.5 3 11
IR390M02-0210010 21 18 50 32 M10 10.5 211
IR390M03-0220010 22 18 50 32 M10 10.5 3 11
IR390M02-0250012 25 23 60 38 M12 12.5 211
IR390M03-0250012 25 23 60 38 M12 12.5 3 11
IR390M03-0300012 30 23 60 41 M12 12.5 3 11
IR390M03-0320016 32 29 63 41 M16 17 3 11
IR390M05-0320016 32 29 63 41 M16 17 5 11
IR390M03-0330016 33 29 63 41 M16 17 3 11
IR390M05-0330016 33 29 63 41 M16 17 5 11
IR390M03-0350016 35 32 63 41 M16 17 3 11
IR390M05-0350016 35 32 63 41 M16 17 5 11
IR390M04-0400016 40 32 65 43 M16 17 4 11
IR390M06-0400016 40 32 65 43 M16 17 6 11
ap
B054
方肩銑削
Shoulder Milling
W39011T3
W390 11T308-MG ✓✓✓
11 6.9 3.59 0.8 2.8 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 8.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 4.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 7.0
Recommended Cutting Conditions
♦
♦
♦
Large depths of cut and wide feed range.
Designed for high speed machining.
Finishing and roughing capability.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B055
方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling
RT07 / WRT0702
♦
♦
♦
♦
Strong Pocket design with excellent chip evacuation.
Extreme well ramping and slotting capabilities.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.

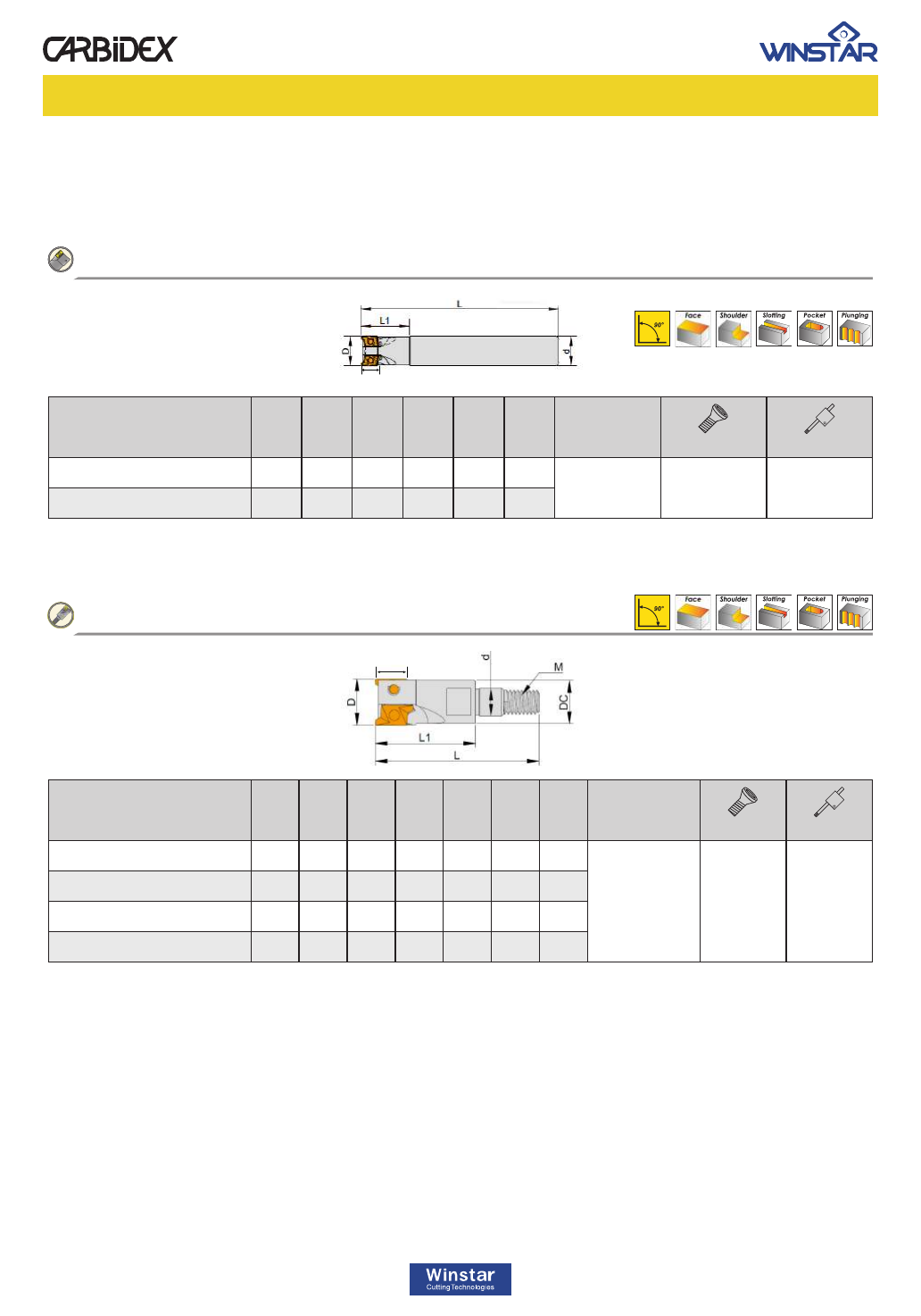

RT07E
Order No. D L1 L d T ap Inserts Screw Wrench
IRT07E02-0110100 11 18 100 10 26WRT0702 TS2003 TK06
IRT07E02-0130100 13 20 100 12 26
ap
ap
RT07M
Order No. D L L1 M d T ap Inserts Screw Wrench
IRT07M02-0100050 10 31 18 M5 5.5 26
WRT0702 TS2003 TK06
IRT07M02-0110050 11 31 18 M5 5.5 26
IRT07M02-0120060 12 34 20 M5 6.5 26
IRT07M02-0130060 13 34 20 M5 6.5 26
B056
方肩銑削
Shoulder Milling

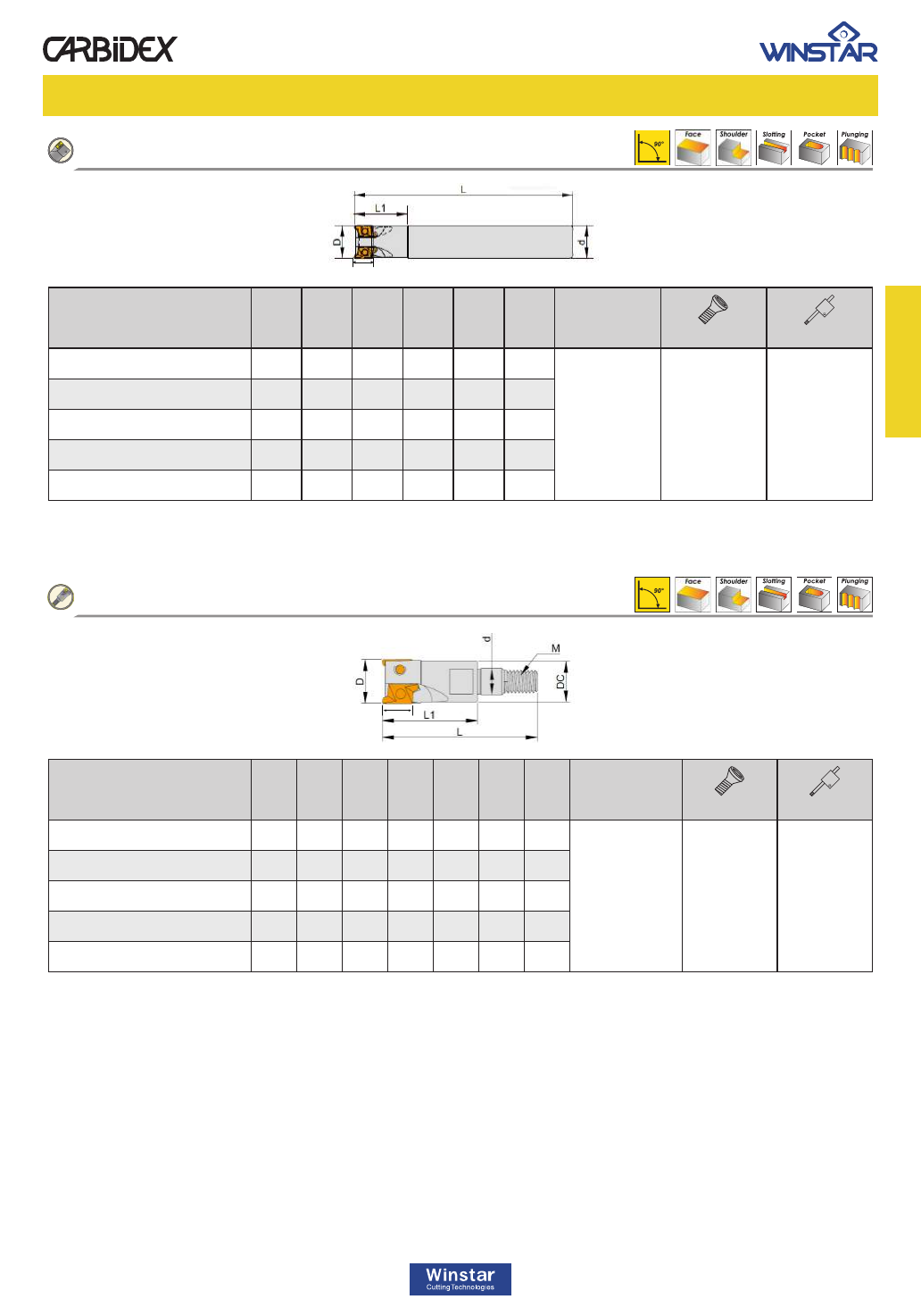

RT10 / WRT1003
Order No. D L1 L d T ap Inserts Screw Wrench
IRT10E02-0170150 17 30 150 16 29
WRT1003 TS2515 TK08
IRT10E03-0210150 21 30 150 20 3 9
IRT10E03-0260150 26 40 150 25 3 9
IRT10E04-0330150 33 40 150 32 4 9
IRT10E04-0350150 35 40 150 32 4 9
ap
RT10E
Order No. D L L1 M d T ap Inserts Screw Wrench
IRT10M02-0170080 17 47 30 M8 25 29
WRT1003 TS2515 TK08
IRT10M03-0210100 21 49 32 M10 32 3 9
IRT10M03-0260120 26 110 40 M12 20 3 9
IRT10M04-0330160 33 110 40 M16 25 4 9
IRT10M04-0350160 35 115 40 M16 32 4 9
RT10M
B057
ap
方肩銑削
Milling Inserts & Tools
Shoulder Milling

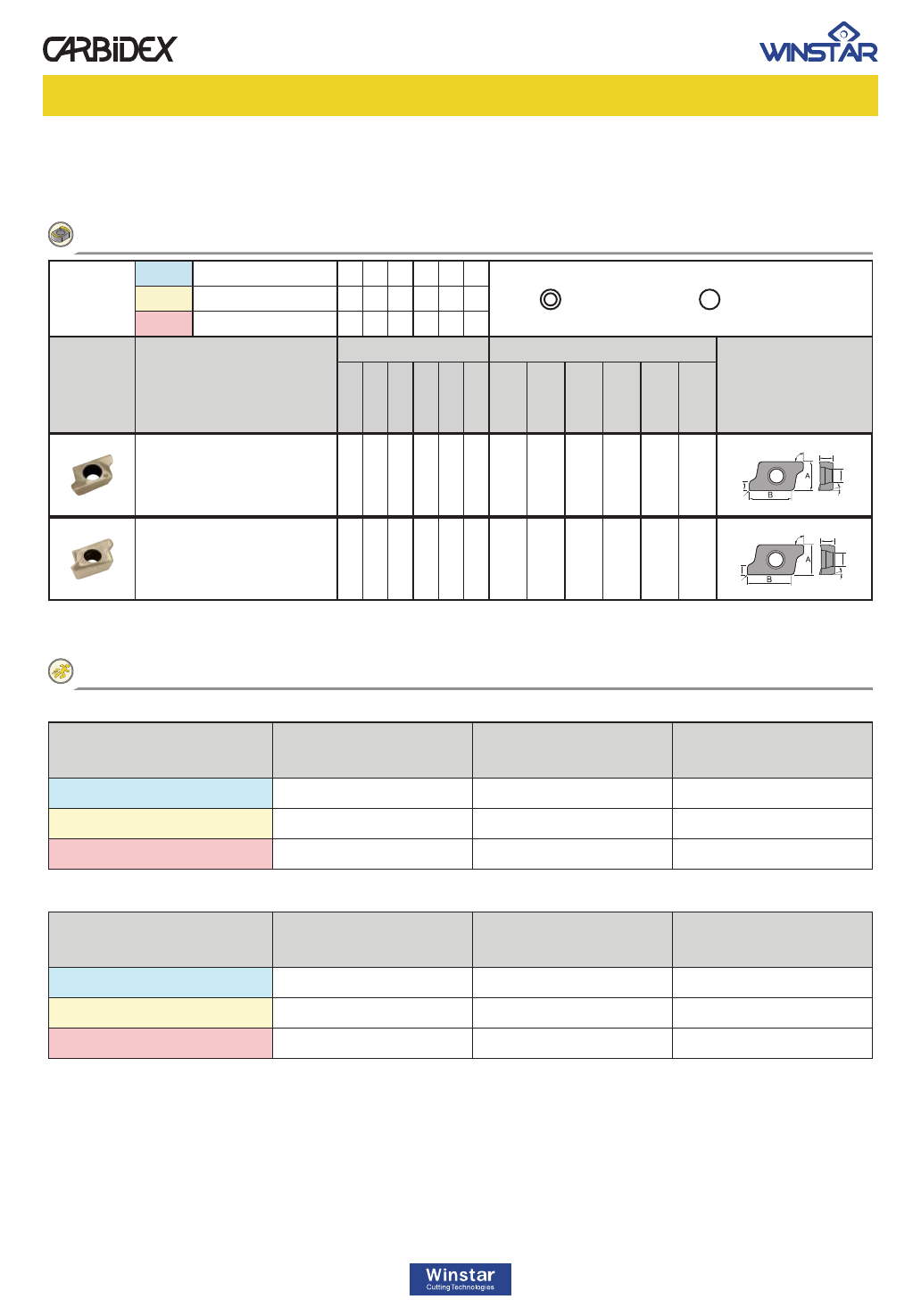

WRT0702 / WRT1003
WRT 070204-RG ✓✓✓
4.30 6.4 2.38 0.4 2.2 1.3
s
d1
15°
r
t1
90°
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 5.0
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 3.0
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 4.0
Recommended Cutting Conditions
♦
♦
♦
Suitable for mold and 3D machining industry.
Achieve higher performance in high speed condition.
Unique cutting edge designed for low cutting force.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
WRT 100308-RG ✓✓✓
6.35 9.3 3.4 0.8 2.9 1.8
s
d1
15°
r
t1
90°
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.22 ~ 7.0
Stainless 300 Series 50 ~ 110 0.08 ~ 0.18 ~ 4.0
Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.22 ~ 6.0
for WRT0702
for WRT1003
B058
方肩銑削刀片
Shoulder Milling
SPE / SPMG.. Inserts
B059
SPE05E/06E/07E
Order No. D L1 L d T ap Inserts Screw Wrench
ISP05E02-0120100 12 20 100 12 25
SPMG0502 TS2003 TK06
ISP05E02-0130100 13 20 100 12 25
ISP05E02-0140100 14 20 100 12 25
ISP05E02-0150100 15 20 100 12 25
ISP06E02-0160120 16 25 120 16 26
SPMG0602 TS2205 TK06
ISP06E02-0170120 17 25 120 16 26
ISP06E02-0180120 18 25 120 16 26
ISP06E02-0190120 19 25 120 16 26
ISP06E02-0200120 20 30 120 20 26
ISP06E02-0210120 21 30 120 20 26
ISP06E03-0220120 22 30 120 20 3 6
ISP06E03-0230120 23 30 120 20 3 6
ISP06E03-0240120 24 30 120 20 3 6
ISP06E03-0250120 25 30 120 25 3 6
ISP06E03-0260120 26 30 120 25 3 6
ISP06E04-0270120 27 30 120 25 4 6
ISP06E04-0280120 28 30 120 25 4 6
ISP06E04-0290120 29 30 120 25 4 6
ISP06E04-0300120 30 30 120 25 4 6
ISP06E04-0310120 31 30 120 25 4 6
ISP06E05-0320120 32 30 120 25 5 6
ISP06E05-0330120 33 30 120 25 5 6
ISP06E05-0340120 34 30 120 25 5 6
ISP06E05-0350120 35 30 120 25 5 6
ISP07E03-0250150 25 35 150 25 3 7
SPMG07 TS3504 TK15
ISP07E03-0260150 26 35 150 25 3 7
ISP07E03-0300150 30 35 150 25 3 7
ISP07E04-0300150 30 40 150 32 4 7
ISP09E04-0320150 32 40 150 32 4 7
ISP07E04-0330150 33 40 150 32 4 7
ISP07E04-0350150 35 40 150 32 4 7
ISP07E04-0400150 40 40 150 32 4 7
♦
♦
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
D
L1 L
d
方肩銑削
Milling Inserts & Tools
Shoulder Milling

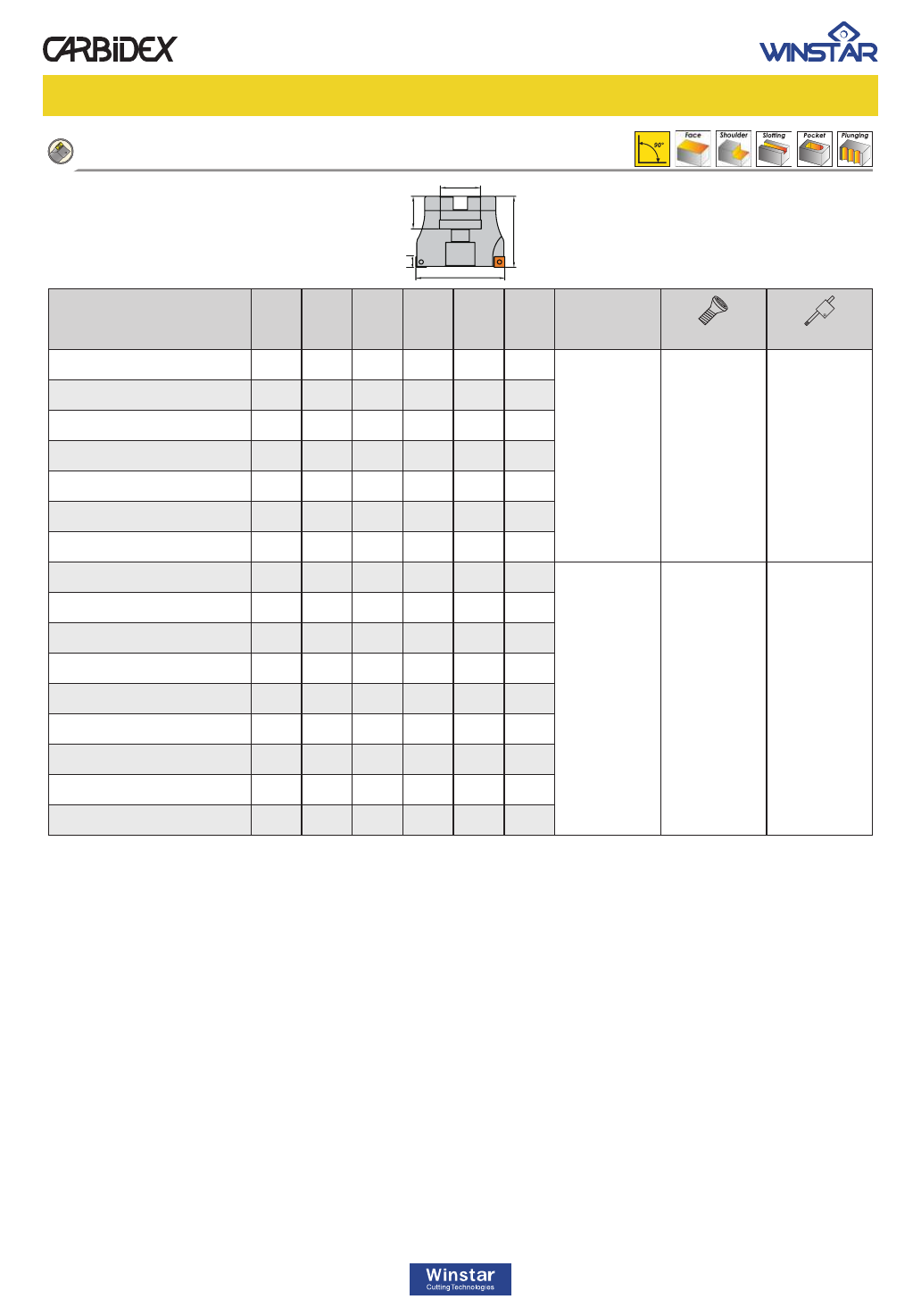

SPF / SPMG.. Inserts
B060
SPF06F/09F
Order No. D L1 L d T ap Inserts Screw Wrench
ISP06F06-0400160 40 18 40 16 6 6
SPMG0602 TS2205 TK06
ISP06F07-0500220 50 20 45 22 7 6
ISP06F07-0500254 50 20 45 25.4 7 6
ISP06F09-0630220 63 20 45 22 9 6
ISP06F09-0630254 63 20 45 25.4 9 6
ISP06F11-0800270 80 23 50 27 11 6
ISP06F11-0800254 80 23 50 25.4 11 6
ISP09F04-0400160 40 18 40 16 4 9
SPMG0904 TS3504 TK15
ISP09F05-0500220 50 20 45 22 5 9
ISP09F05-0500254 50 20 45 25.4 5 9
ISP09F06-0630220 63 20 45 22 6 9
ISP09F06-0630254 63 20 45 25.4 6 9
ISP09F07-0800270 80 23 50 27 7 9
ISP09F07-0800254 80 23 50 25.4 7 9
ISP09F09-1000320 100 23 50 32 9 9
ISP09F09-1000317 100 23 50 31.75 9 9
ap
D
L1
d
L

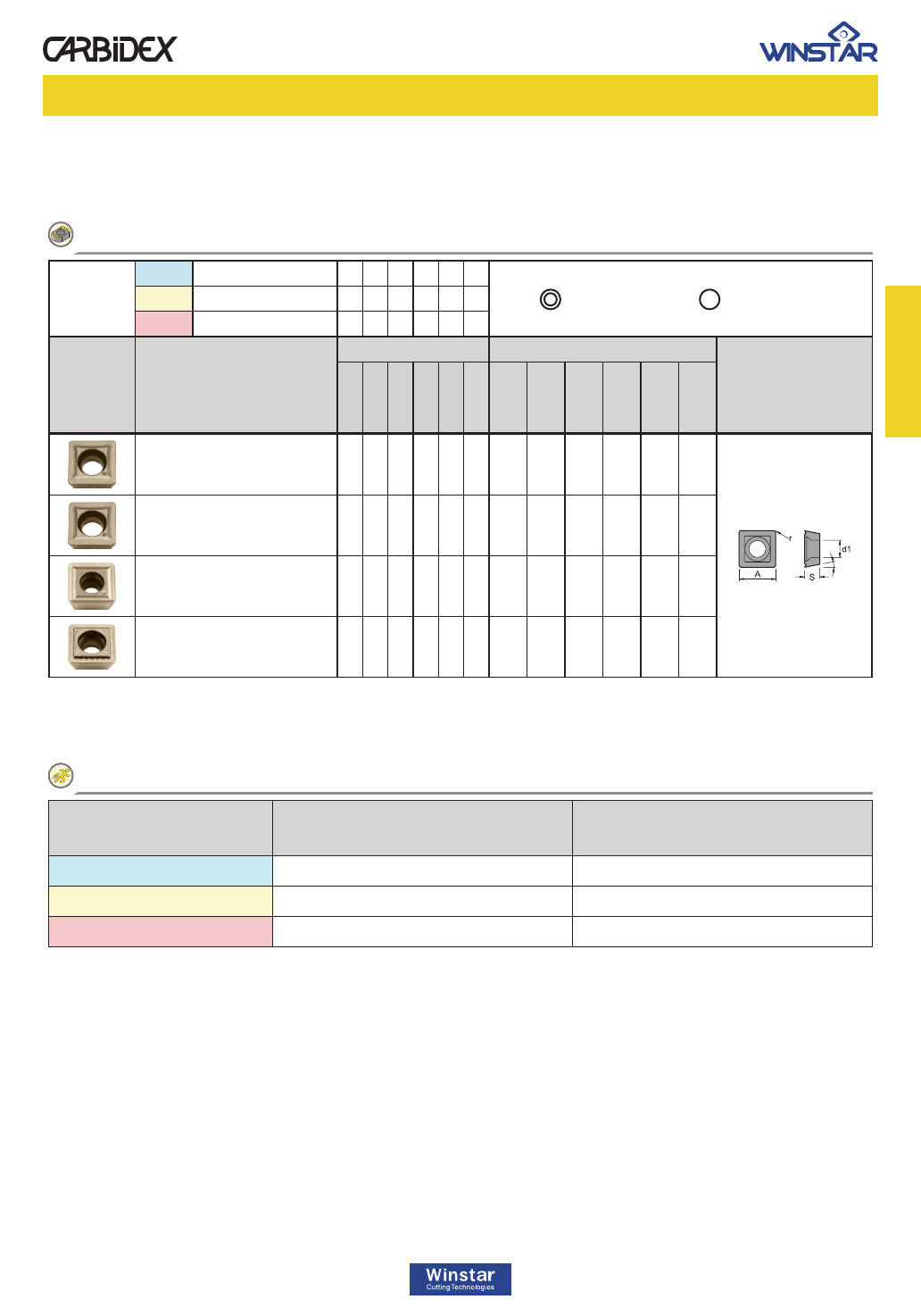

方肩銑削
Shoulder Milling
♦
♦
♦
Economical 4 cutting edges insert.
Suitable for most materials by one optimized geometry.
True 90° square shoulder angle.
Working Material Vc fz
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20
Stainless 300 Series 50 ~ 110 0.05 ~ 0.15
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20
Recommended Cutting Conditions
SPMG Inserts
B061
Specication
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
SPMG 050204-MG ✓ ✓
5.00 -2.38 0.4 2.30 -
11°
SPMG 060204-MG ✓ ✓
6.00 -2.38 0.4 2.65 -
SPMG 07T308-MG ✓✓✓✓
7.94 -3.97 0.8 2.85 -
SPMG 090408-MG ✓✓✓✓
9.80 -4.3 0.8 4.05 -
方肩銑削刀片
Milling Inserts & Tools
Shoulder Milling
B062
Unique "Type Z" geometry minimizes chatter and vibration!!!
獨特的刀口幾何設計將平面銑削的震動頻率最小化
．CXSN Face Mill Series is one of innovations that provides more available cutting edges by double
sided insert and longer tool life for our customers.
．Unique “Type Z” design and special cutting edge guarantees lowest cutting loads and longest tool life.
．
Negative inserts makes it even stronger and higher performance while machining various working material.
Type Z features
．Sharper cutting edge.
．Low cutting resistance.
．Positive land and rake angle.
．Excellent chip evacuation.
SNMX1205 Inserts features
．Double sided.
．Total 8 cutting edges.
．Less interference and contact
with the unused corner.
Z
45°
CXSN / SNMX1205 平面銑削
Face Milling
B063
Milling Inserts & Tools
CXON / ONMX0505 ,SNMX1205
Brings a top performance in face milling operation
Economical machining achieved with Octagonal or Square shaped insert!!
以八角與四角型刀片達成最經濟的面銑加工效益 !!
．2 types of double sided inserts fit in the same pocket. (Octagonal & Square shaped)
．Single center lock screw for easy and rigid clamping ability.
．High cutting edges strength and high efficiency machining for general purpose application.
RG
平面銑削
Face Milling
MG RG
．
Octagonal insert
ONMX050
5 (
Total 16 cutting edges )
．
Square insert
SNMX1205
(
Total 8 cutting edges )
CXSN ,CXON / SNMX1205 ,ONMX0505
♦
♦
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Customize available.
CXSNF
Order No. D L d T ap Inserts Screw Wrench
ICXSNF04-050220 50 40 22 4 6
SNMX1205 TS4015 TK15
ICXSNF05-063220 63 40 22 5 6
ICXSNF05-063254 63 40 25.4 5 6
ICXSNF06-080270 80 50 27 6 6
ICXSNF06-080254 80 50 25.4 6 6
ICXSNF07-100320 100 50 32 8 6
ICXSNF07-100317 100 50 31.75 8 6
ICXSNF08-125400 125 63 40 10 6
ICXSNF08-125381 125 63 38.1 10 6
ICXSNF10-160400 160 63 40 12 6
ICXSNF10-160508 160 63 50.8 12 6
ICXSNF14-200476 200 63
47.625
14 6
ICXSNF14-200600 200 63
60
14 6
B064
ap
平面銑削
Face Milling
CXONF
Order No. DL d T ap Inserts Screw Wrench
ON05 SN12
ICXONF04-050220 52.9 50 40 22 4 3
ONMX0505
SNMX1205 TS4015 TK15
ICXONF05-063220 65.9 63 40 22 5 3
ICXONF06-080270 82.9 80 50 27 6 3
ICXONF07-100320 102.9 100 50 32 7 3
ICXONF07-100317 102.9 100 50 31.75 7 3
Customize available.
*ONMX0505and SNMX1205 insert can be used interchangeably on the CXON body.
Cutter will have dierent diameter, height and ap.
SNMX1205 ,ONMX0505
Working Material Vc fz ap
SNMX1205 ONMX0505
Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.30 ~ 6.0 ~ 2.0
Stainless 300 Series 50 ~ 110 0.08 ~ 0.25 ~ 3.6 ~ 1.5
Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.30 ~ 6.0 ~ 2.0
Recommended Cutting Conditions
♦
♦
♦
♦
♦
Total 8 cutting edges per insert. (SNMX 1205)
Total 16 cutting edges per insert. (ONMX 0505)
Low cost eective and high eciency for general purpose face milling.
Low cutting force action due to the extremely positive geometry.
Wide wiper at for better surface nish.

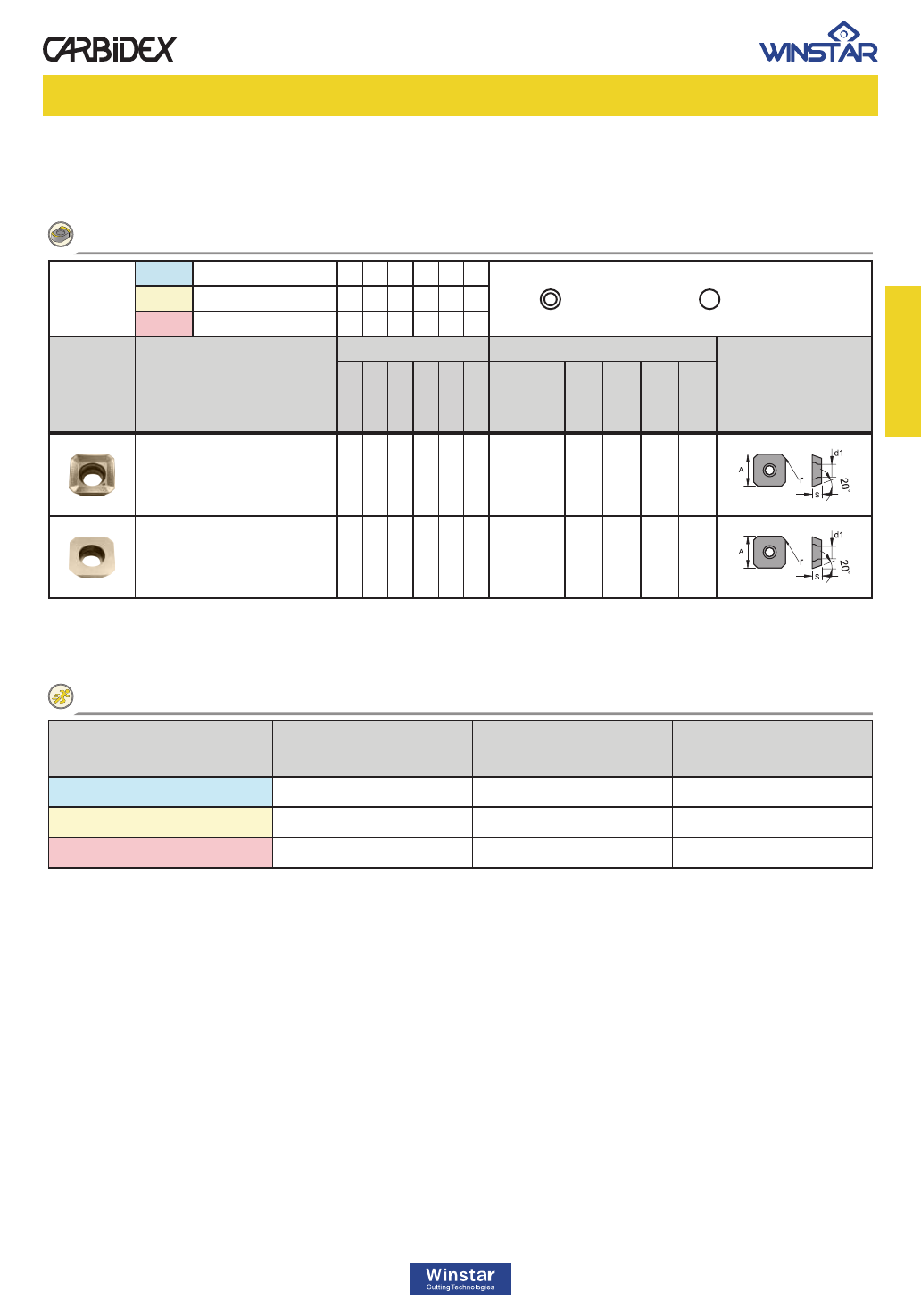

B065
平面銑削刀片
Milling Inserts & Tools
Face Milling
SNMX 1205-MG ✓ ✓ ✓
12.7 1.5 6.4 -6-
SNMX 1205-RG ✓ ✓ ✓
12.7 1.5 6.4 -6-
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
Specication
ONMX 0505-RG ✓ ✓ ✓
12.7 12.7 6.4 -6-

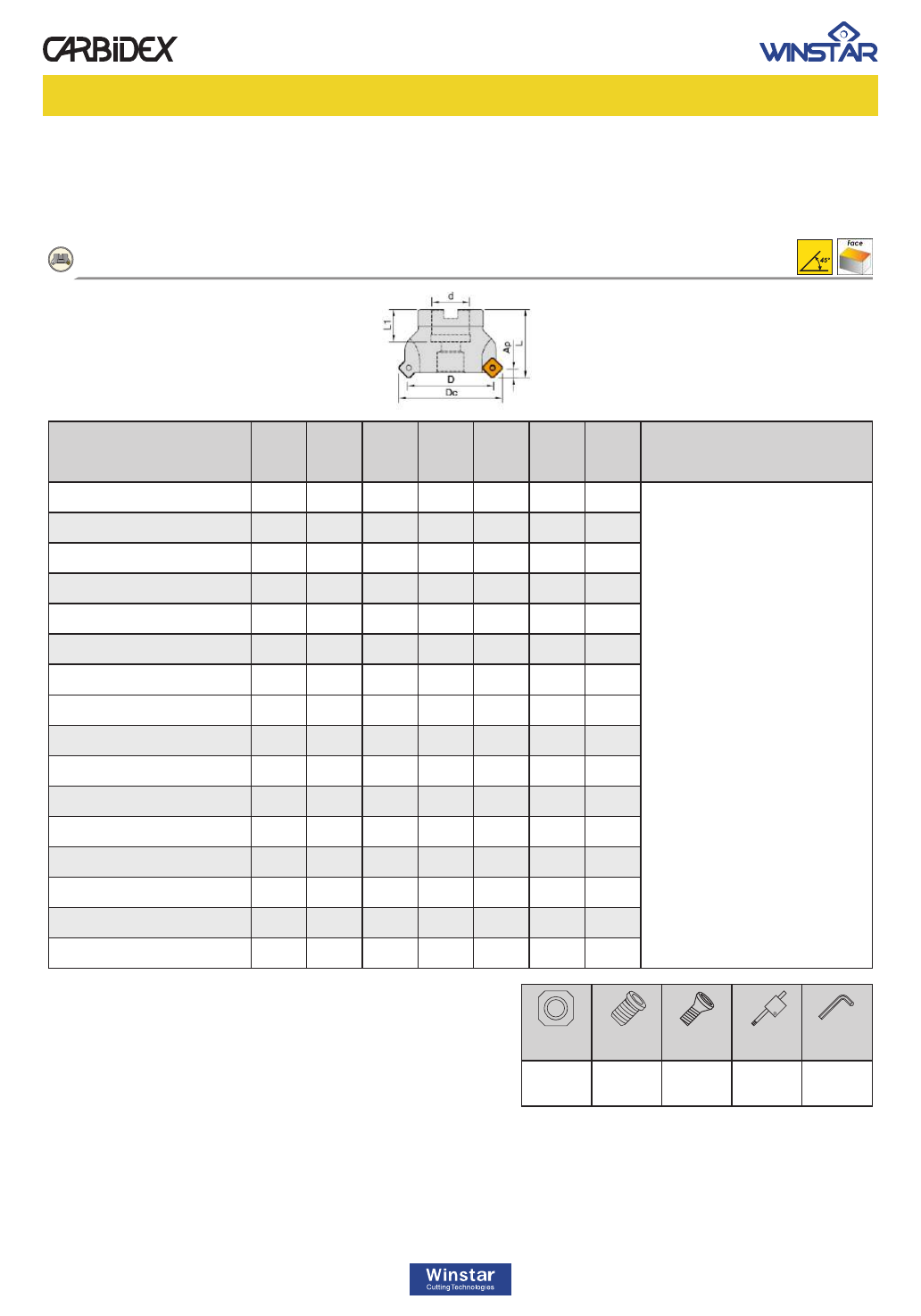

ASX3 / SEMT13T3
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 45 degree cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Shim Screw Screw
Wrench Wrench
AS445N PS35T TS3505 TK15 TY3.5
ASX3F
Order No. D L L1 d Dc T ap Inserts
IASX3F04-0500220 50 40 20 22 63 4 5.5
SEMT13T3AGSN
IASX3F05-0630220 63 40 20 22 75.9 5 5.5
IASX3F05-0630254 63 40 20 25.4 75.9 5 5.5
IASX3F06-0800270 80 50 26 27 93.2 6 5.5
IASX3F06-0800254 80 50 26 25.4 93.2 6 5.5
IASX3F07-1000320 100 50 32 32
113.2
7 5.5
IASX3F07-1000317 100 50 32 31.75
113.2
7 5.5
IASX3F08-1250410 125 63 38 41 138 8 5.5
IASX3F08-1250381 125 63 38 38.1 138 8 5.5
IASX3F10-1600400 160 63 38 40 173 10 5.5
IASX3F10-1600508 160 63 38 50.8 173 10 5.5
IASX3F12-2000600 200 63 38 60
212.9
12 5.5
IASX3F12-2000476 200 63 38 47.625
212.9
12 5.5
IASX3F14-2500600 250 63 38 60
262.9
14 5.5
IASX3F14-2500476 250 63 38 47.625
262.9
14 5.5
IASX3F14-3150476 315 63 40 47.625
327.9
14 5.5
B066
平面銑削
Face Milling

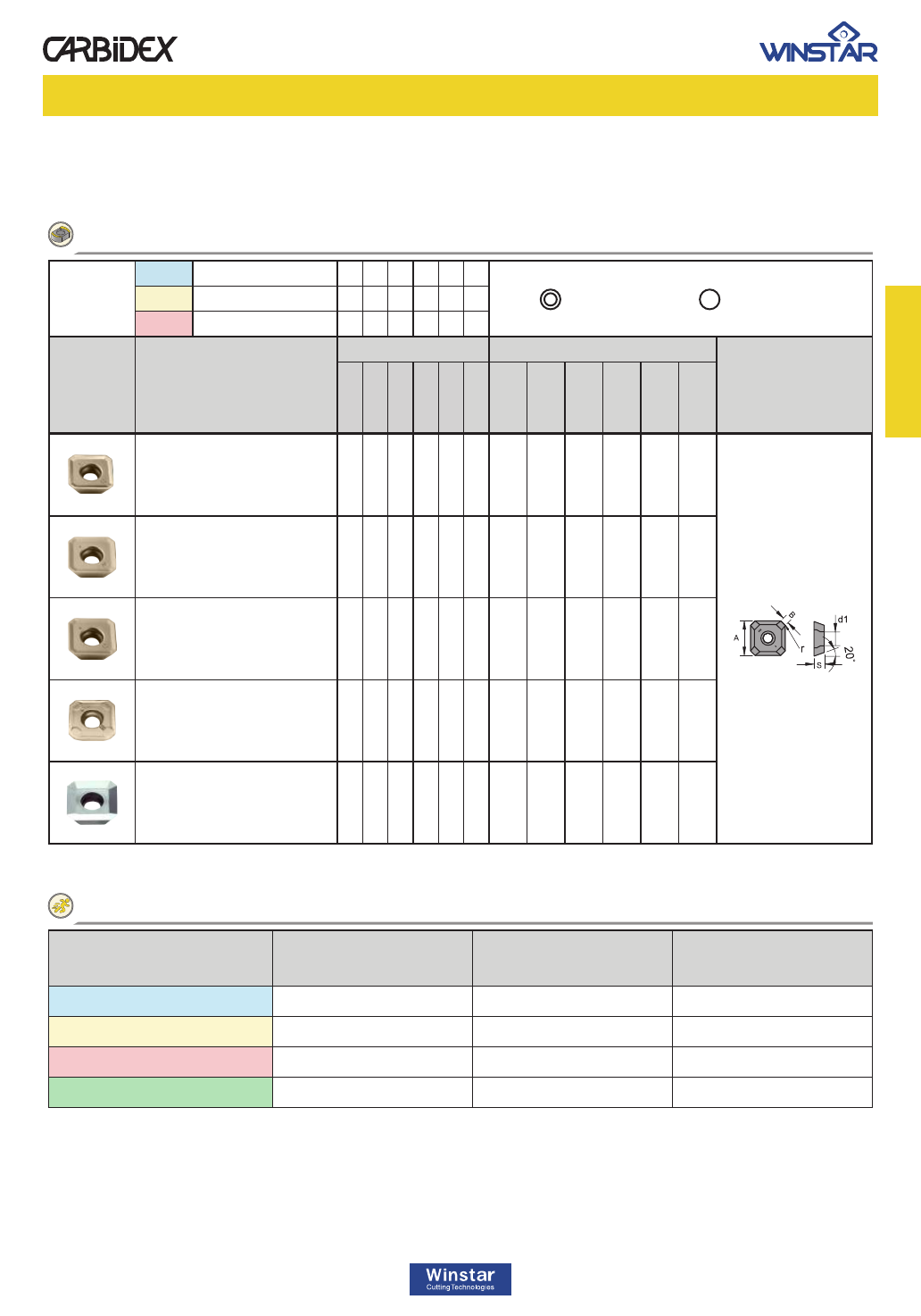

SEMT13T3
SEMT 13T3AGEN ✓✓✓✓
13.4 1.9 3.97 1.5 4.2 -
SEMT 13T3AGSN-MG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
SEMT 13T3AGSN-RG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
SEMT 13T3AGSN-HG ✓✓✓✓ 13.4 1.9 3.97 1.5 4.2 -
SEET 13T3AGFN-AL ✓13.4 1.9 3.97 1.5 4.2 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.30 ~ 5.5
Stainless 300 Series 50 ~ 110 0.08 ~ 0.25 ~ 3.0
Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.30 ~ 5.0
Aluminium Alloy 300 ~ 1000 0.10 ~ 0.40 ~ 5.5
Recommended Cutting Conditions
♦
♦
♦
Suitable for high speed machining.
Various shapes and cutting edge designs for dierent working purpose.
Improves metal removal rates, atness, dimensional accuracy, and surface nish.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX03
A B S r d1 t1
B067
平面銑削刀片
Milling Inserts & Tools
Face Milling
♦
♦
♦

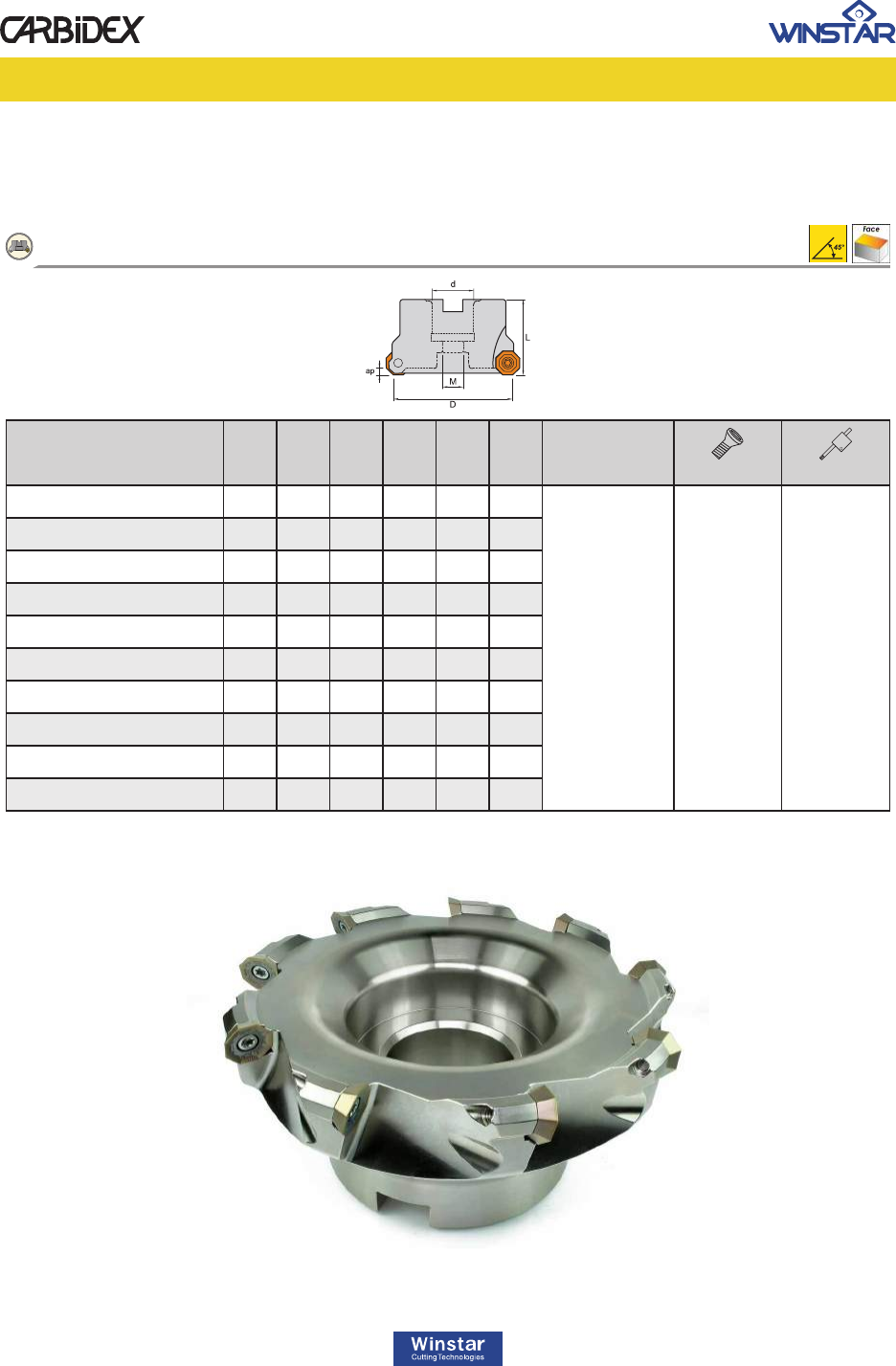

Great perfomance ensured at small to medium depth of cutting operations due to strong cutting edge
and low cutting resistance.
Innovative curve cutting edge design ensure ideal 45 degree cutting.
Great surface finishing availability.

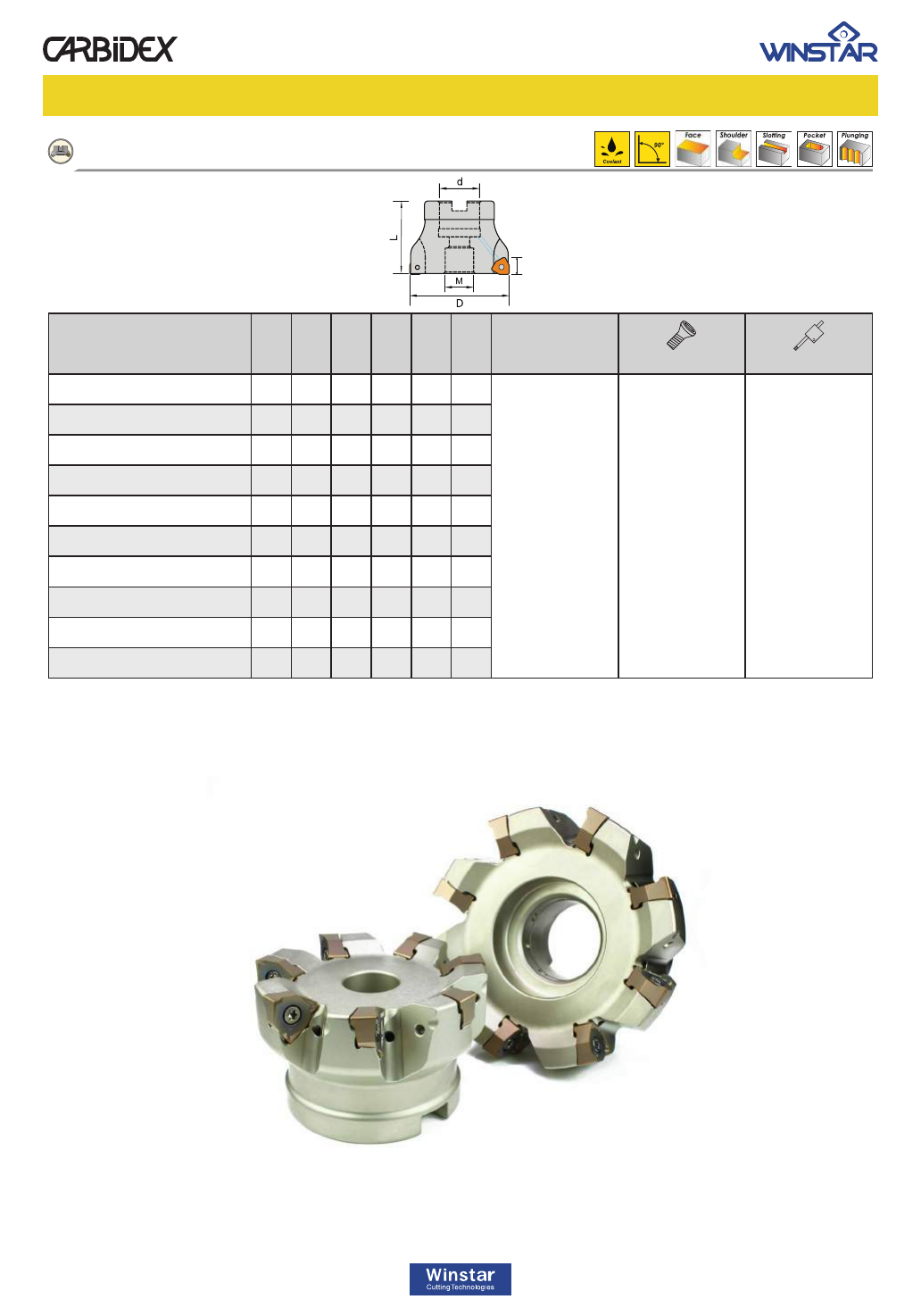

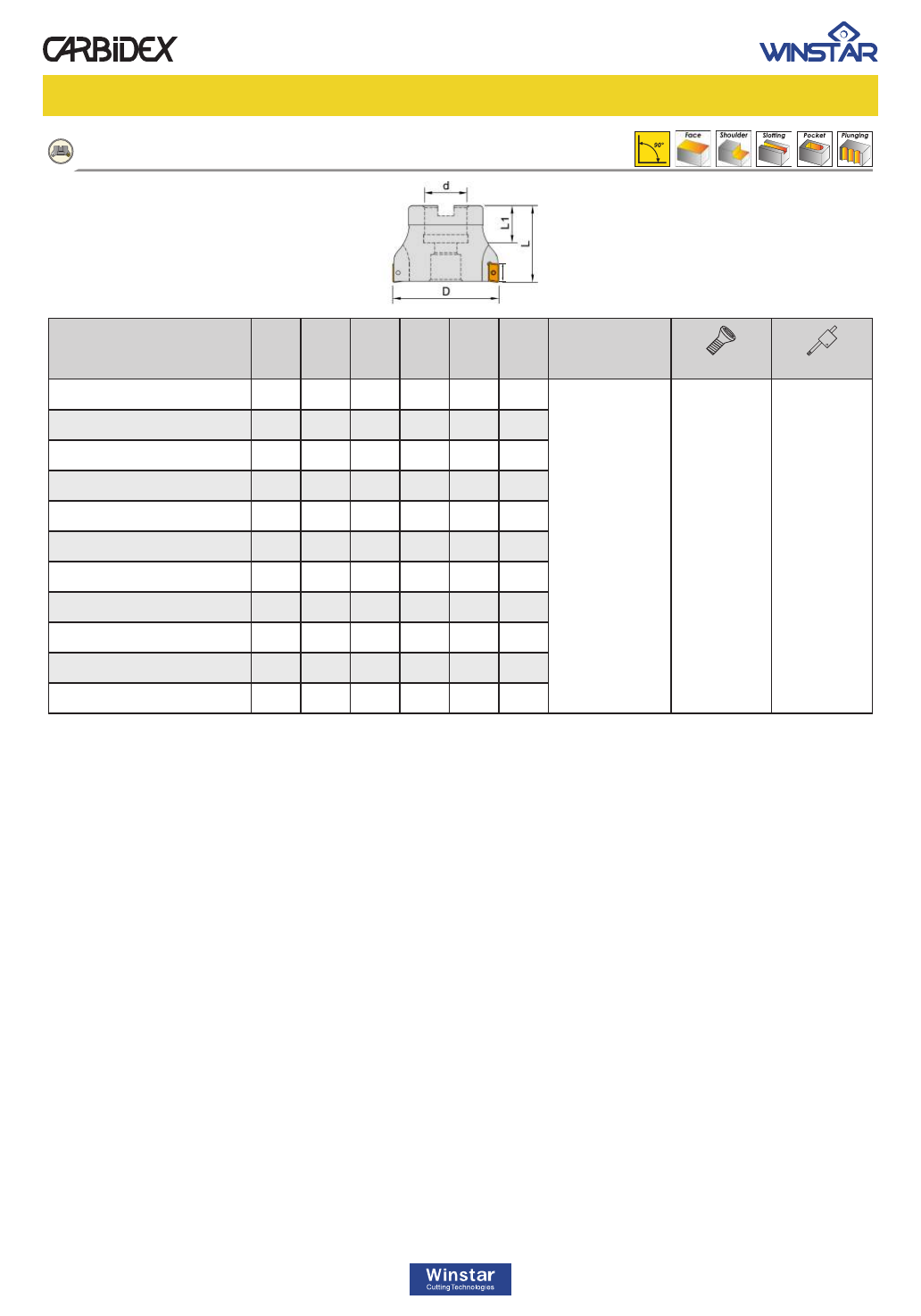

OF05F
Order No. D d L M T ap Inserts Screw Wrench
IOF05F05-0500220 50 22 40 11 5 3
OFMT05T3... TS4006 TK15
IOF05F06-0630220 63 22 40 11 6 3
IOF05F06-0630254 63 25.4 50 13 6 3
IOF05F07-0800254 80 25.4 50 13 7 3
IOF05F07-0800270 80 27 50 38 7 3
IOF05F08-1000317 100 31.75 50 46 8 3
IOF05F08-1000320 100 32 50 46 8 3
IOF05F09-1250381 125 38.1 63 60 9 3
IOF05F09-1250400 125 40 63 60 9 3
IOF05F11-1600508 160 50.8 63 80 11 3
OF05 / OFMT05T3

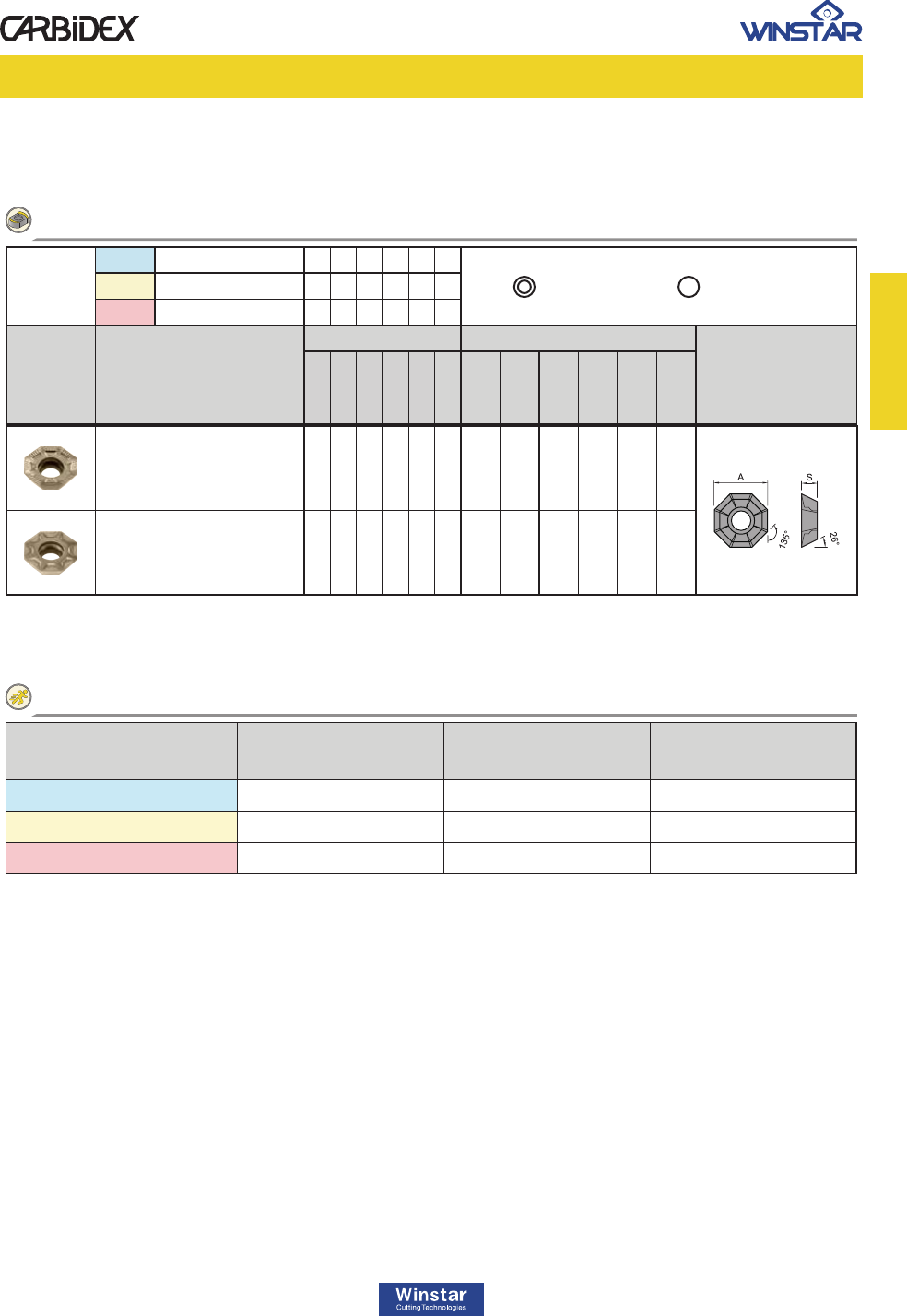

B068
平面銑削
Face Milling
OFMT 05T3TN-MG ✓ ✓
12.7 -3.8 0.6 4.6 -
OFMT 05T3TN-RG ✓ ✓ 12.7
-3.8 0.6 4.6 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.20 ~ 2.8
Stainless 300 Series 50 ~ 110 0.07 ~ 0.13 ~ 1.7
Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.20 ~ 2.8
Recommended Cutting Conditions
OFMT05T3
♦
♦
♦
OF05 series oer economical and ecient cutting of all 8 cutting edges.
Two types of geometry cover general operating conditions.
High positive insert ensures less vibration and less power consumption.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B069
平面銑削刀片
Milling Inserts & Tools
Face Milling

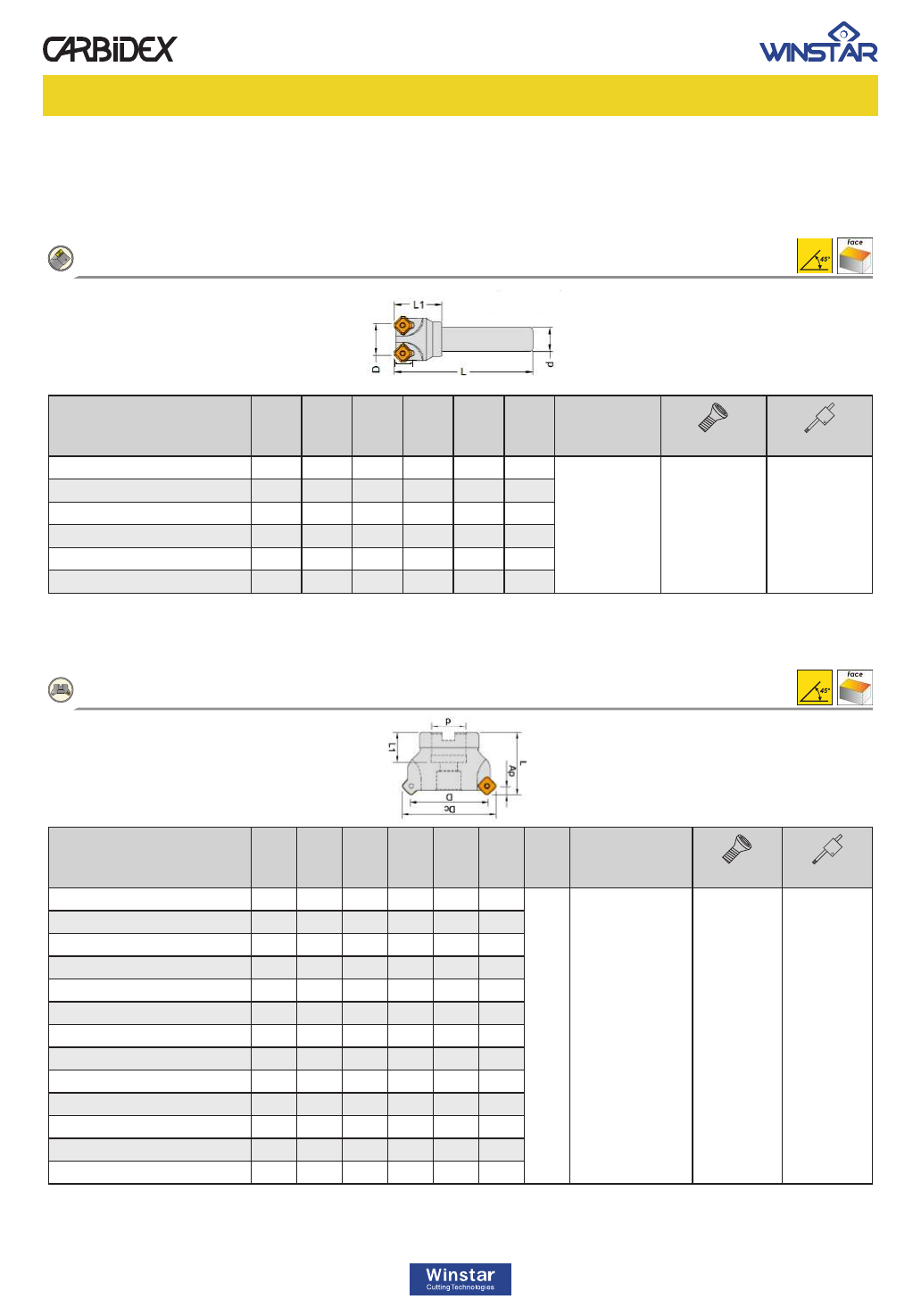

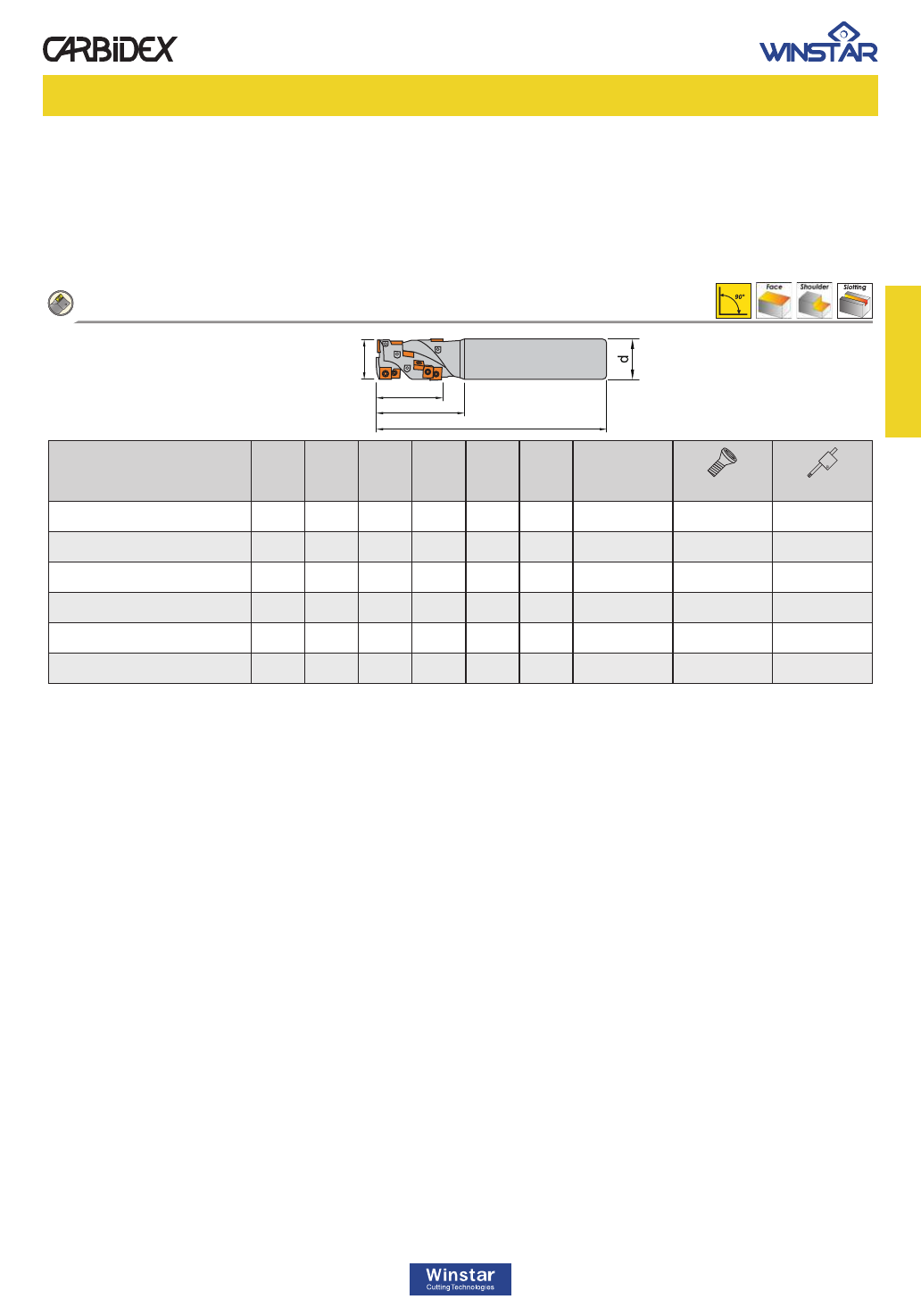

SE45 / SEKT1204 , SEKW1204
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 45 degree cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
ISE45E02-0320110 32 45 110 20 26
SEKT1204
SEKW1204
TS5006 TK20
ISE45E03-0400110 40 45 110 20 3 6
ISE45E04-0500120 50 45 120 20 4 6
ISE45E04-0500120 50 45 120 25 4 6
ISE45E05-0630120 63 45 120 25 5 6
ISE45E05-0630120 63 45 120 32 5 6
ap
SE45E
SE45F
Order No. D L L1 d Dc T ap Inserts Screw Wrench
ISE45F04-0500220 50 40 20 22 64 4

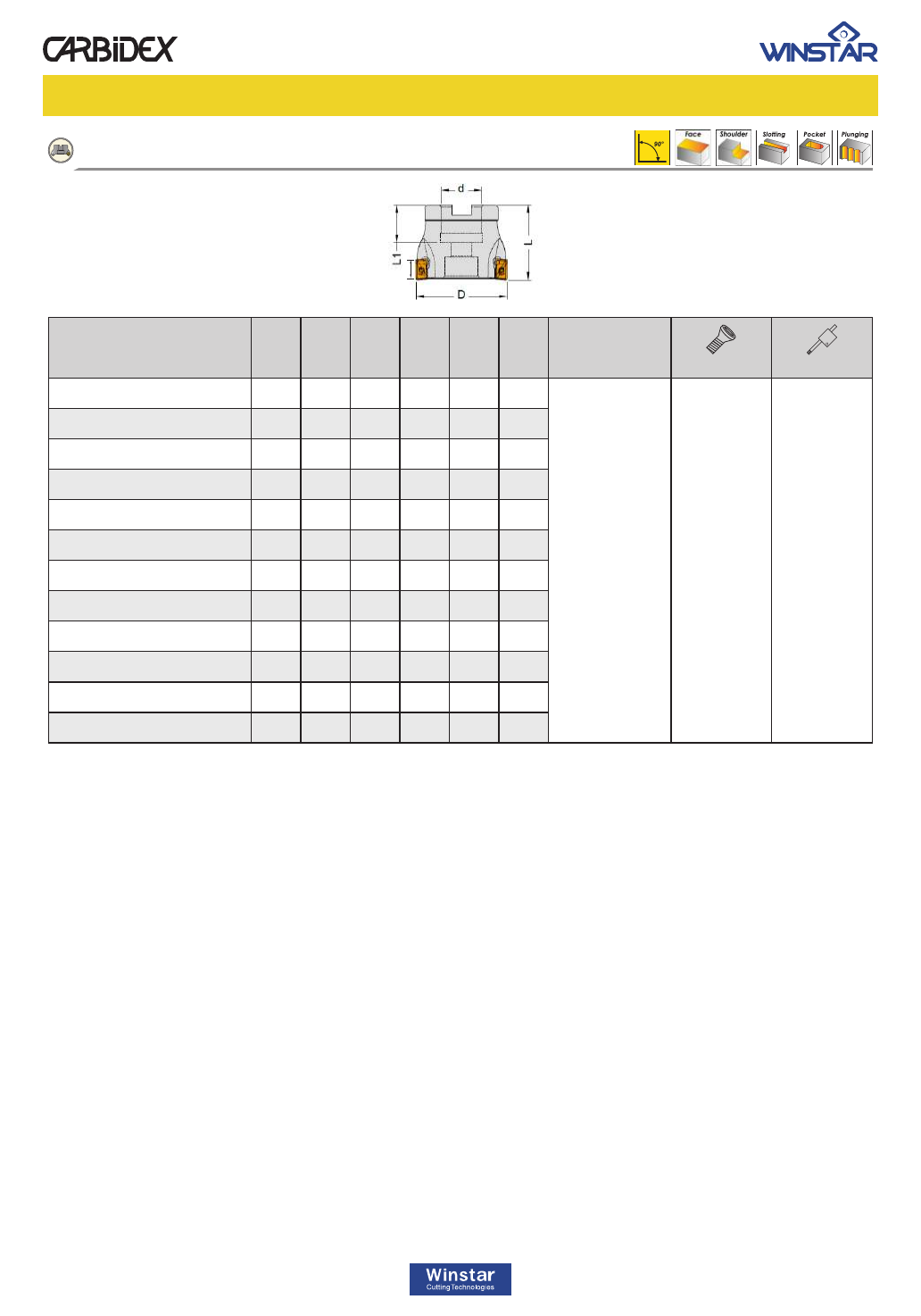

6
SEKT1204
SEKW1204
TS5006 TK20
ISE45F05-0630220 63 45 21 22 77 5
ISE45F05-0630254 63 45 21 25.4 77 5
ISE45F06-0800270 80 50 26 27 94 6
ISE45F06-0800317 80 50 26 31.75 94 6
ISE45F06-1000320 100 32 32 32 114 6
ISE45F06-1000317 100 32 32 31.75 114 6
ISE45F08-1250400 125 63 38 40 139 8
ISE45F08-1250381 125 63 38 38.1 139 8
ISE45F10-1600400 160 63 38 40 174 10
ISE45F10-1600508 160 63 38 50.8 174 10
ISE45F12-2000476 200 63 38 47.625 214 12
ISE45F14-2500476 250 63 38 47.625 264 14
B070
平面銑削
Face Milling
SEKT1204 , SEKW1204
SEKT 1204AFTN-RG ✓✓✓✓
12 -4.76 0.8 5.5 -
SEKW 1204AFEN ✓✓✓✓ 12 -4.76 0.8 5.5 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.30 ~ 6.0
Stainless 300 Series 50 ~ 110 0.08 ~ 0.25 ~ 3.0
Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.30 ~ 5.0
Recommended Cutting Conditions
♦
♦
♦
Face milling insert with 90° lead angle.
Multi Purpose 45° milling insert, designed for high depths of cut.
Suitable for roughing to nishing-face milling operations.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B071
平面銑削刀片
Milling Inserts & Tools
Face Milling

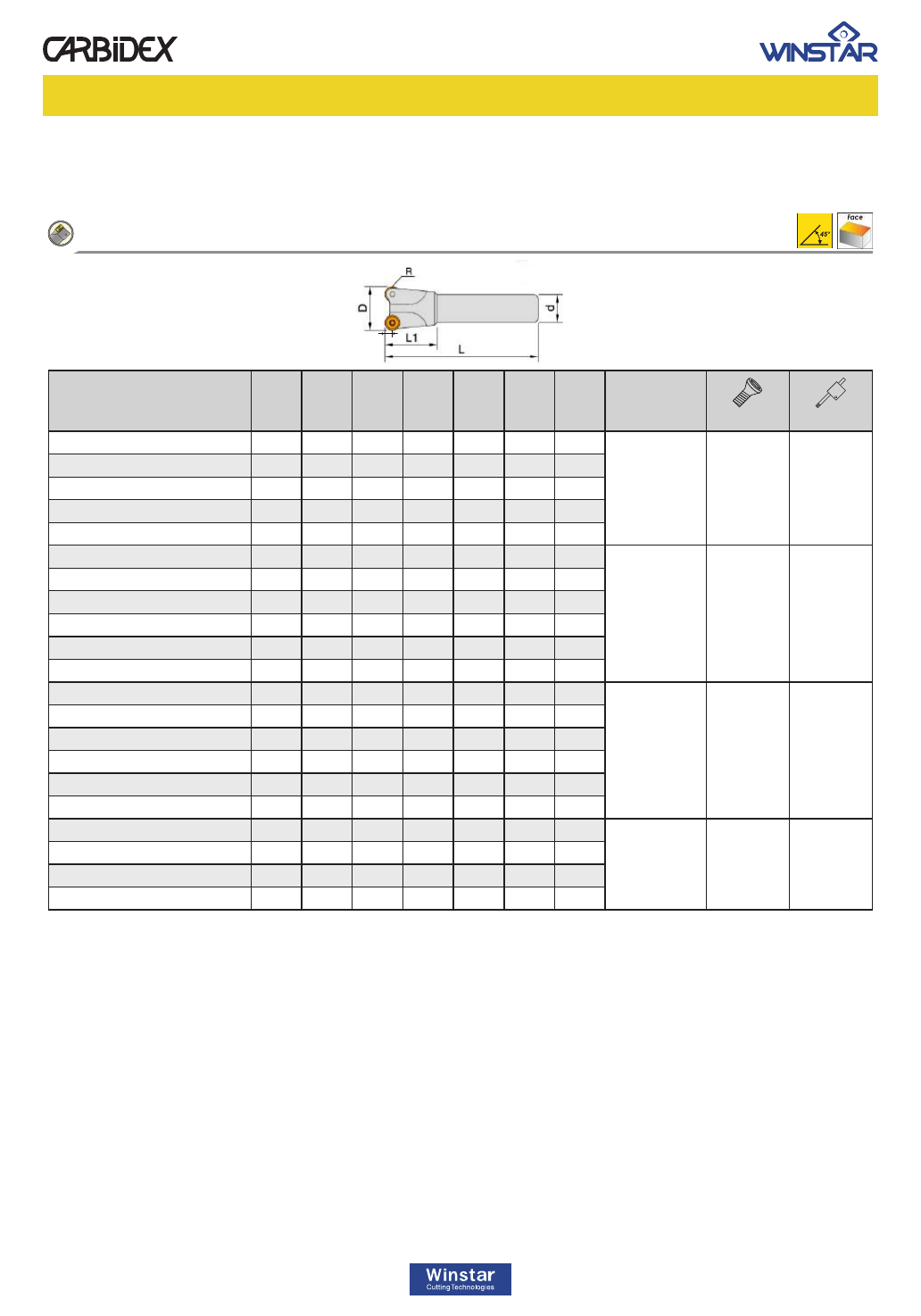

ARD / RD.. Inserts
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d R T ap Inserts Screw Wrench
IARD05E02-010010 10 25 100 10 2.5 22.5
RDKW0501 TS2003 TK06
IARD05E02-012010 12 25 100 12 2.5 22.5
IARD05E03-012013 12 25 130 12 2.5 3 2.5
IARD05E03-016013 16 35 130 16 2.5 3 2.5
IARD05E03-016018 16 35 180 16 2.5 3 2.5
IARD07E03-016013 16 40 130 16 3.5 3 3.5
RDKW0702 TS2015 TK08
IARD07E03-016018 16 35 180 16 3.5 3 3.5
IARD07E04-020015 20 40 150 20 3.5 4 3.5
IARD07E04-020020 20 40 200 20 3.5 4 3.5
IARD07E04-025015 25 40 150 25 3.5 4 3.5
IARD07E04-025020 25 60 200 25 3.5 4 3.5
IARD10E02-025015 25 45 150 25 5.0 25
RDMT10T3
RDMW10T3 TS3504 TK15
IARD10E02-025025 25 70 200 25 5.0 25
IARD10E02-030015 30 45 150 25 5.0 25
IARD10E02-030025 30 40 200 25 5.0 25
IARD10E03-032015 32 45 150 32 5.0 3 5
IARD10E03-032025 32 70 200 32 5.0 3 5
IARD12E02-032015 32 50 150 32 6.0 26
RDMT1204
RDMW1204 TS4008 TK15
IARD12E02-032025 32 70 250 32 6.0 26
IARD12E03-040017 40 45 170 32 6.0 3 6
IARD12E03-040022 40 45 220 32 6.0 3 6
ARD05E/07E/10E/12E
ap
B072
仿形銑削
Copy Milling
ARD / RD.. Inserts
Order No. D L L1 d R T ap Inserts Screw Wrench Clamp
Clamp
Screw
IARD10F04-050022 50 45 22 22 545RDMT10T3
RDMW10T3 TS3504 TK15 RD-45 TS4009
IARD10F06-063022 63 45 22 22 565
IARD12F04-050022 50 45 22 22 646
RDMT1204
RDMW1204 TS4008 TK15 RD-6R TS5004
IARD12F05-050022 50 45 22 22 656
IARD12F05-063022 63 45 22 22 656
IARD12F06-063022 63 45 22 22 666
IARD12F07-080027 80 50 26 27 6 7 6
IARD12F08-100032 100 50 32 32 6 8 6
IARD16F04-063022 63 45 22 22 848
RDMT1604
RDMW1604 TS5007 TK20 RD-68 TS5009
IARD16F05-063022 63 45 22 22 858
IARD16F06-080027 80 50 26 27 8 6 8
IARD16F07-100032 100 50 32 32 8 7 8
IARD16F08-125040 125 55 36 40 8 8 8
ARD10F/12F/16F
ap
B073
仿形銑削
Milling Inserts & Tools
Copy Milling
ARD / RD.. Inserts
Order No. D Dc L L1 M d T ap Inserts Screw Wrench
IARD05M02-012006 12 11 36 21 M06 6.5 22.5
RDKW0501 TS2003 TK06
IARD05M03-012006 12 11 36 21 M06 6.5 3 2.5
IARD05M03-016008 16 15 43 26 M08 8.5 3 2.5
IARD05M04-016008 16 15 43 26 M08 8.5 4 2.5
IARD07M02-016008 16 15 43 26 M08 8.5 23.5
RDKW0702 TS2515 TK08
IARD07M03-016008 16 15 43 26 M08 8.5 3 3.5
IARD07M03-020010 20 18 50 32 M10 10.5 3 3.5
IARD07M04-020010 20 18 50 32 M10 10.5 4 3.5
IARD07M04-025012 25 23 60 38 M12 12.5 4 3.5
IARD07M05-025012 25 23 60 38 M12 12.5 5 3.5
IARD10M02-025012 25 23 60 38 M12 12.5 25
RDMT10T3
RDMW10T3 TS3504 TK10
IARD10M03-025012 25 23 60 38 M12 12.5 3 5
IARD10M03-030012 30 23 60 38 M12 12.5 3 5
IARD10M04-030012 30 23 60 38 M12 12.5 4 5
IARD10M04-035012 35 23 60 38 M12 12.5 4 5
IARD10M05-035012 35 23 60 38 M12 12.5 5 5
IARD10M05-042016 42 29 66 43 M16 17 5 5
IARD10M06-042016 42 29 66 43 M16 17 6 5
ARD05M/07M/10M
ap
B074
仿形銑削

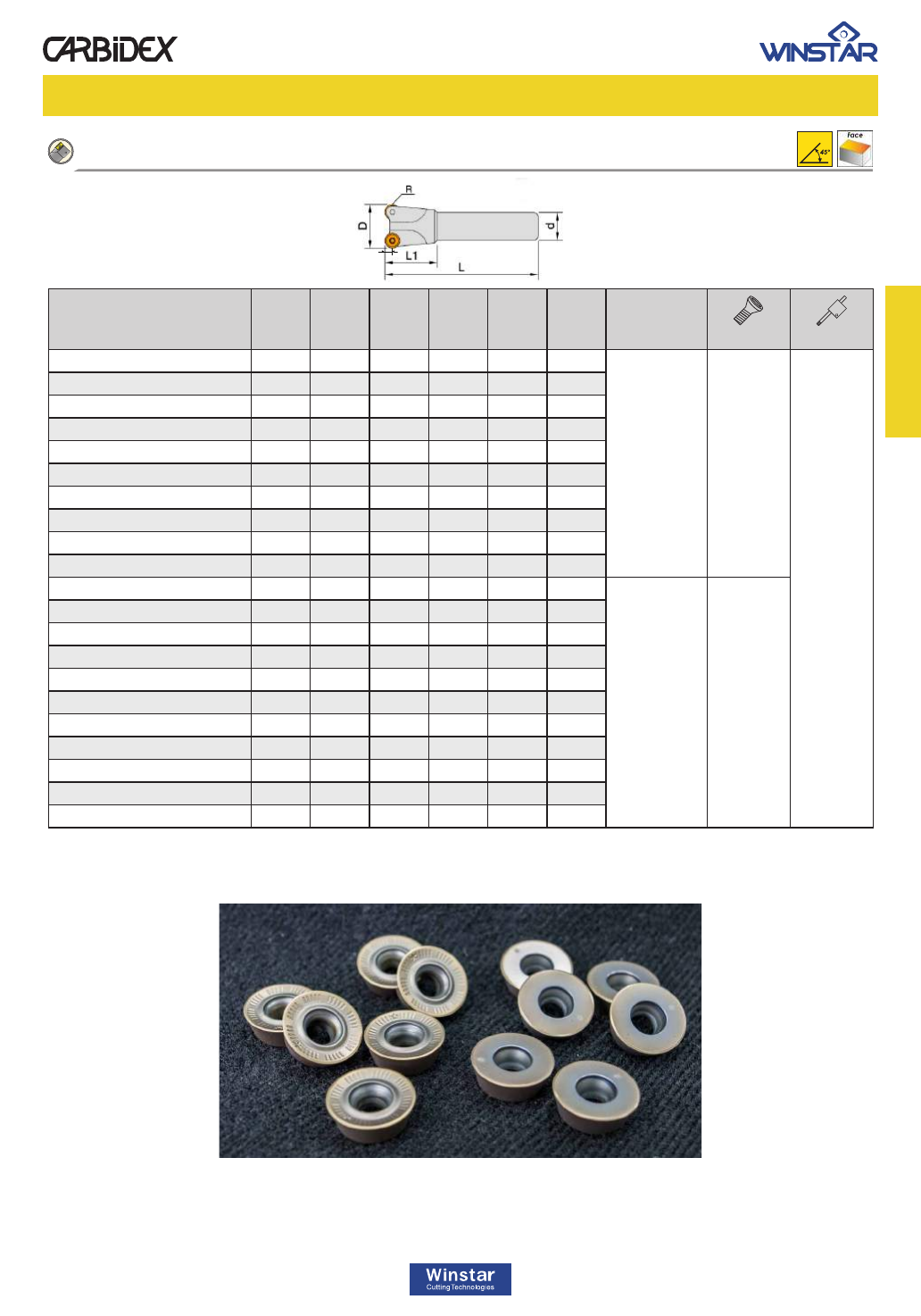

Copy Milling
FRD / RD.. Inserts
Order No. D L1 L d T ap Inserts Screw Wrench
IFRDE02-0200150 20 40 150 20 25
RDMT1003
RDMX1003 MS3507A
TF15
IFRDE02-0200200 20 40 200 20 25
IFRDE02-0210150 21 25 150 20 25
IFRDE02-0210200 21 25 200 20 25
IFRDE03-0250150 25 40 150 25 3 5
IFRDE03-0250200 25 40 200 25 3 5
IFRDE03-0250250 25 40 250 25 3 5
IFRDE03-0260150 26 25 150 25 3 5
IFRDE03-0260200 26 25 200 25 3 5
IFRDE03-0260250 26 25 250 25 3 5
IFRDE03-0300150 30 25 150 25 3 5
RDMT1003
RDMX1003 MS3509A
IFRDE03-0300200 30 25 200 25 3 5
IFRDE03-0300250 30 25 250 25 3 5
IFRDE03-0350150 35 40 150 32 3 5
IFRDE03-0350200 35 40 200 32 3 5
IFRDE03-0350250 35 40 250 32 3 5
IFRDE03-0350300 35 40 300 32 3 5
IFRDE04-0350150 35 40 150 32 4 5
IFRDE04-0350200 35 40 200 32 4 5
IFRDE04-0350250 35 40 250 32 4 5
IFRDE04-0350300 35 40 300 32 4 5
FRDE
ap
B075
仿形銑削
Milling Inserts & Tools
Copy Milling
FRD / RD.. Inserts
Order No. D d L M T ap Inserts Screw Wrench
Screw
IFRDF04-0500220 50 22 40 11 4 5
RDMT1003
RDMX1003 MS3509A TF15 MS3509A
IFRDF05-0500220 50 22 40 11 5 5
IFRDF04-0500254 50 25.4 40 11 4 5
IFRDF05-0500254 50 25.4 40 11 5 5
IFRDF05-0630254 63 25.4 50 13 5 5
IFRDF06-0630254 63 25.4 50 13 6 5
IFRDF06-0660254 66 25.4 50 13 6 5
IFRDF06-0660270 66 27.0 50 13 6 5
FRDF
ap
Order No. D L M d T ap Inserts Screw Wrench
IFRDM02-0200180 20 30 M10 10.5 25
RDMT1003
RDMX1003
MS3507A
TF15
IFRDM03-0250230 21 30 M10 10.5 25
IFRDM03-0350290 25 35 M12 12.5 3 5
IFRDM02-0210180 26 35 M12 12.5 3 5
IFRDM03-0260230 30 35 M12 12.5 3 5
MS3509A
IFRDM04-0350290 35 43 M16 17 3 5
IFRDM03-0300230 35 43 M16 17 4 5
FRDM
ap
B076
仿形銑削
Copy Milling

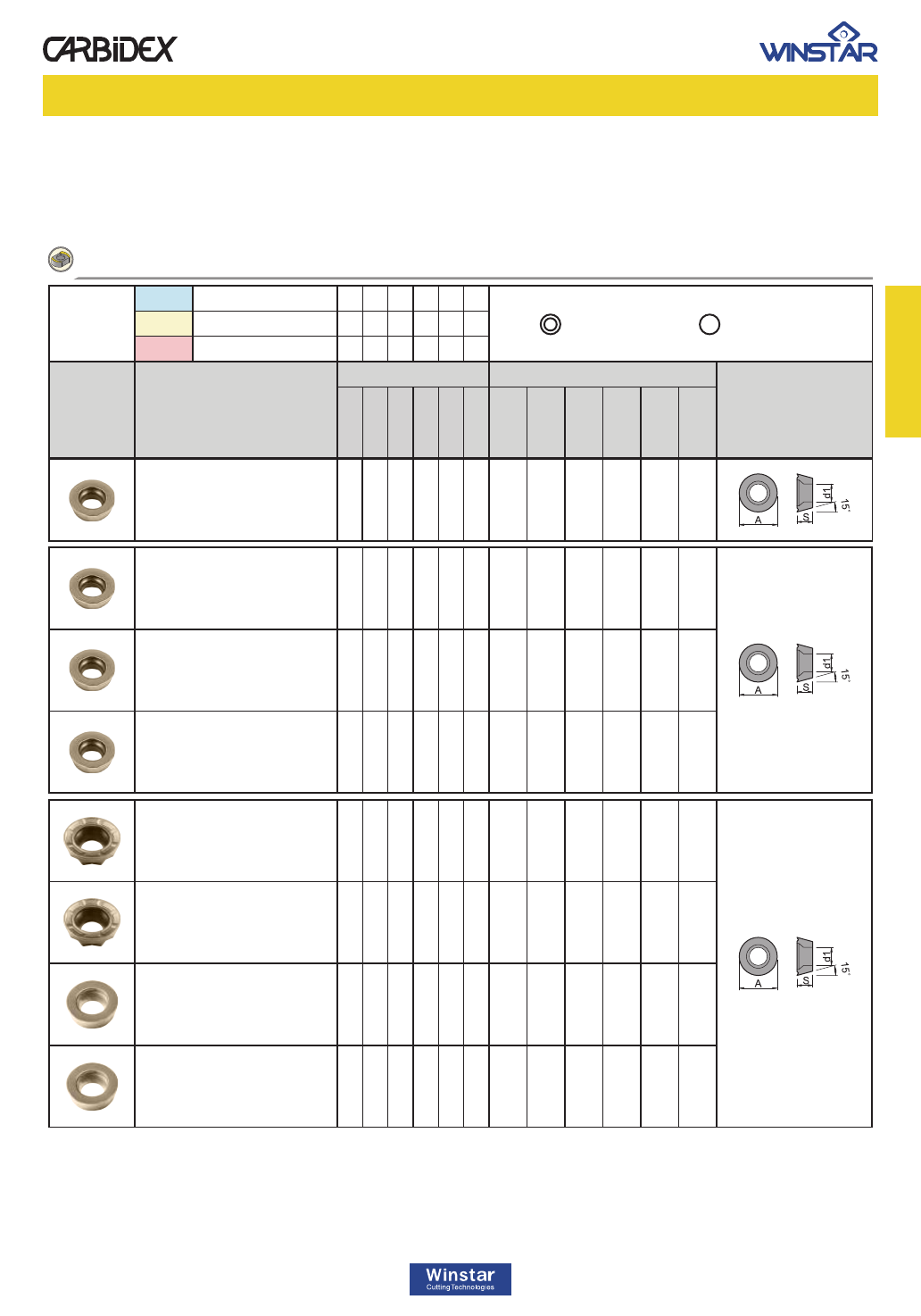

RD.. Inserts
Specication
♦
♦
♦
♦
Uses 15° positive round inserts with chip breakers.
Can perform direct pocket cutting.
Wide coverage for medium to roughing.
4-8 cutting edges available per insert.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B077
仿形銑削刀片
Milling Inserts & Tools
RDKW 0702MO ✓ ✓ 7-2.38 -2.8 -
RDKW 0702MOE ✓✓✓✓✓ 7-2.38 -2.8 -
RDKW 0702MOT ✓✓✓✓✓ 7-2.38 -2.8 -
RDMT 1003MOE ✓ ✓ 10 -3.18 -4.15 -
RDMT 1003MOT ✓✓✓ 10 -3.18 -4.15 -
RDMX 1003MOE ✓✓✓✓ 10 -3.18 -4.15 -
RDMX 1003MOT ✓✓✓✓ 10 -3.18 -4.15 -
RDKW 0501MOE ✓ ✓ 5-1.59 - 2.2 -
Copy Milling
RD.. Inserts
Specication
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
Recommended Cutting Conditions
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.40 ≤ 0.4 x Dim_A
Stainless 300 Series 50 ~ 110 0.05 ~ 0.35 ≤ 0.3 x Dim_A
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.40 ≤ 0.4 x Dim_A
B078
仿形銑削刀片
RDMT 10T3MOE ✓ ✓ 10 -3.97 -4.5 -
RDMT 10T3MOT ✓✓✓✓ 10 -3.97 -4.5 -
RDMT 1204MOT ✓✓✓✓ 12 -4.76 -4.4 -
RDMW 1204MOT ✓✓✓✓ 12 -4.76 -4.4 -
RDMT 1604MOT ✓✓✓✓ 16 -4.76 -5.5 -
RDMW 1604MOT ✓✓✓✓ 16 -4.76 -5.5 -
RDMW 10T3MOE ✓ ✓ 10 -3.97 -4.5 -
Copy Milling

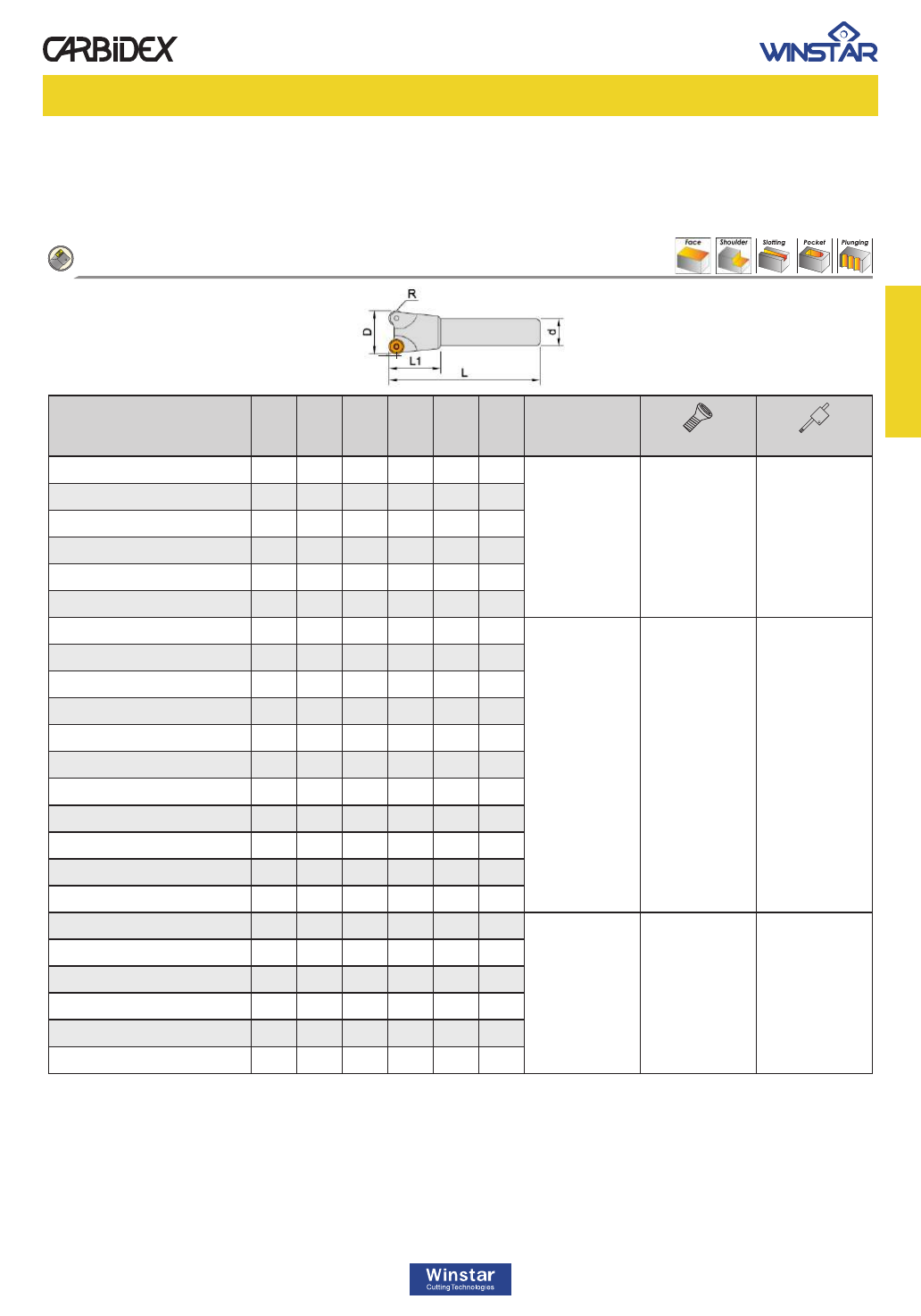

BRP / RP.. Inserts
♦
♦
♦
♦
Finishing and roughing capability in one optimized tool, specially designed for high speed machining.
High removal rates cab be achieved even at smaller low powered machines.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d T ap Inserts Screw Wrench
IBRP08E01-012010 12 30 100 12 1 4
RPMT08T2 TS3004 TK09
IBRP08E02-016015 16 50 150 16 24
IBRP08E02-020015 20 50 150 20 24
IBRP08E03-025015 25 40 150 25 3 4
IBRP08E02-020020 20 50 200 20 24
IBRP08E02-020025 20 50 250 20 24
IBRP10E02-025015 25 40 150 25 25
RPMT10T3 TS3503 TK15
IBRP10E03-030015 30 40 150 25 3 5
IBRP10E03-032015 32 40 150 32 3 5
IBRP10E03-035015 35 40 150 32 3 5
IBRP10E03-025020 25 50 200 25 3 5
IBRP10E02-025020 25 50 200 25 25
IBRP10E02-025025 25 50 250 25 25
IBRP10E03-030020 30 70 200 25 3 5
IBRP10E03-032020 32 70 200 32 3 5
IBRP10E03-032025 32 50 250 32 3 5
IBRP10E03-035020 35 50 200 32 3 5
IBRP12E02-032017 32 45 170 32 26
RPMT1204
RPMW1204 TS4006 TK15
IBRP12E03-040017 40 45 170 32 3 6
IBRP12E04-050017 50 45 170 42 4 6
IBRP12E02-032025 32 80 250 32 26
IBRP12E03-040023 40 50 230 32 3 6
IBRP12E04-050023 50 50 230 42 4 6
BRP08E/10E/12E
ap
B079
仿形銑削
Milling Inserts & Tools
Copy Milling
BRP / RP.. Inserts
Order No. D L L1 d R T ap Inserts Screw Wrench
IBRP08F05-040016 40 40 18 16 4 5 4 RPMT08T2 TS3004 TK09
IBRP08F06-050022 50 45 22 22 464
IBRP10F04-040016 40 40 18 16 5 4 5
RPMT10T3 TS3503 TK15
IBRP10F05-050022 50 45 22 22 555
IBRP10F05-050025 50 45 22 25.4 5 5 5
IBRP10F06-063022 63 45 22 22 565
IBRP10F06-063025 63 45 22 25.4 5 6 5
IBRP12F04-050022 50 45 22 22 645
IBRP12F04-050025 50 45 22 25.4 6 4 6
RPMT1204
RPMW1204 TS4006 TK15
IBRP12F05-063022 63 45 22 22 656
IBRP12F05-063025 63 45 22 25.4 6 5 6
IBRP12F06-080025 80 50 26 25.4 6 6 6
IBRP12F06-080027 80 50 26 27 6 6 6
BRP08F/10F/12F
ap
B080
仿形銑削
Copy Milling

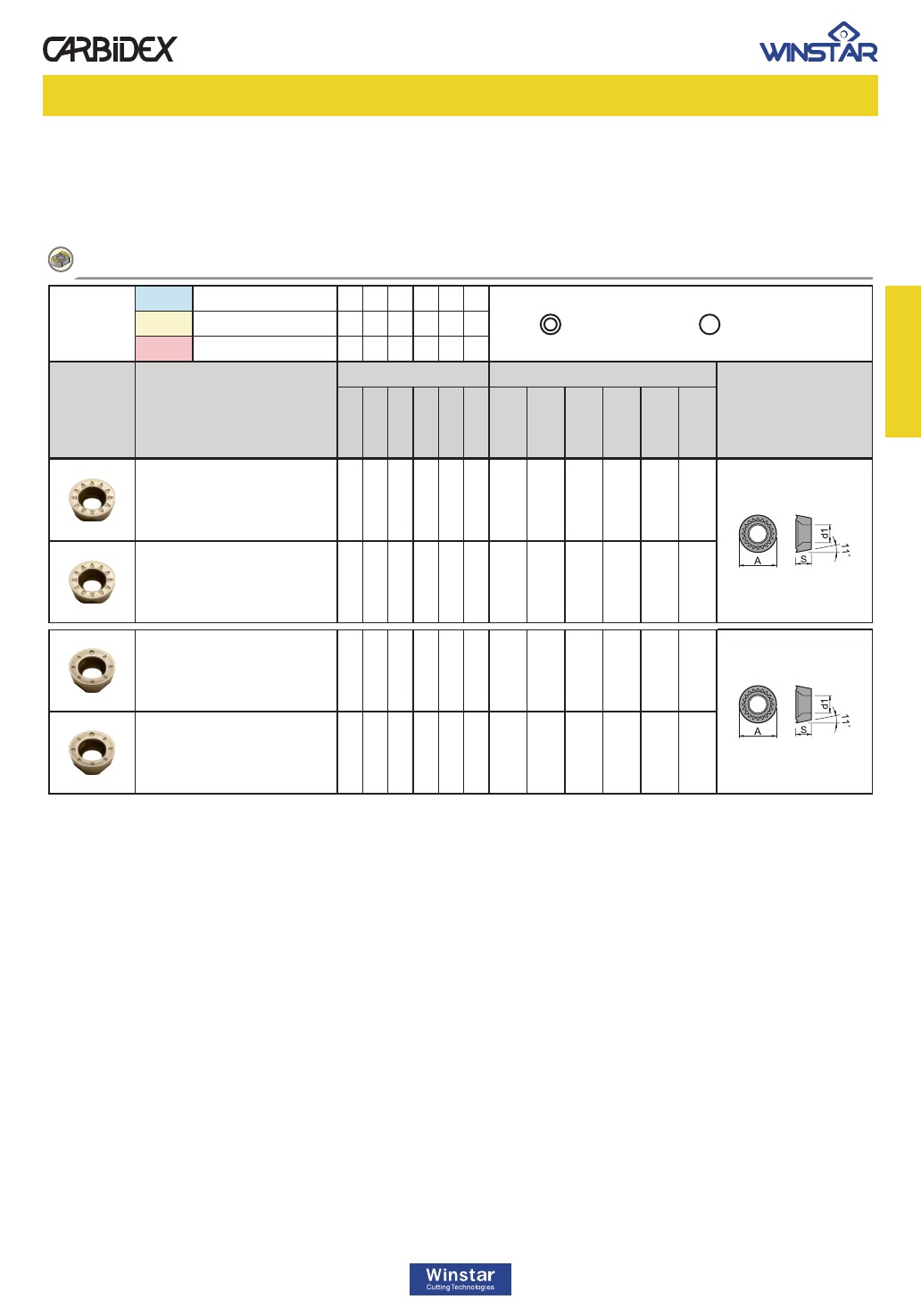

RP.. Inserts
Specication
♦
♦
♦
♦
Uses 11° positive round inserts with chip breakers.
Can perform direct pocket cutting.
Wide coverage for medium to roughing.
4-8 cutting edges available per insert.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B081
仿形銑削刀片
Milling Inserts & Tools
RPMT 10T3MOE ✓✓✓✓ 10 -3.97 -4.5 -
RPMT 10T3MOT ✓ ✓ 10 -3.97 -4.3 -
RPMT 08T2MOE ✓ ✓ 8-2.78 -3.2 -
RPMT 08T2MOT ✓ ✓ 8-2.78 -3.2 -

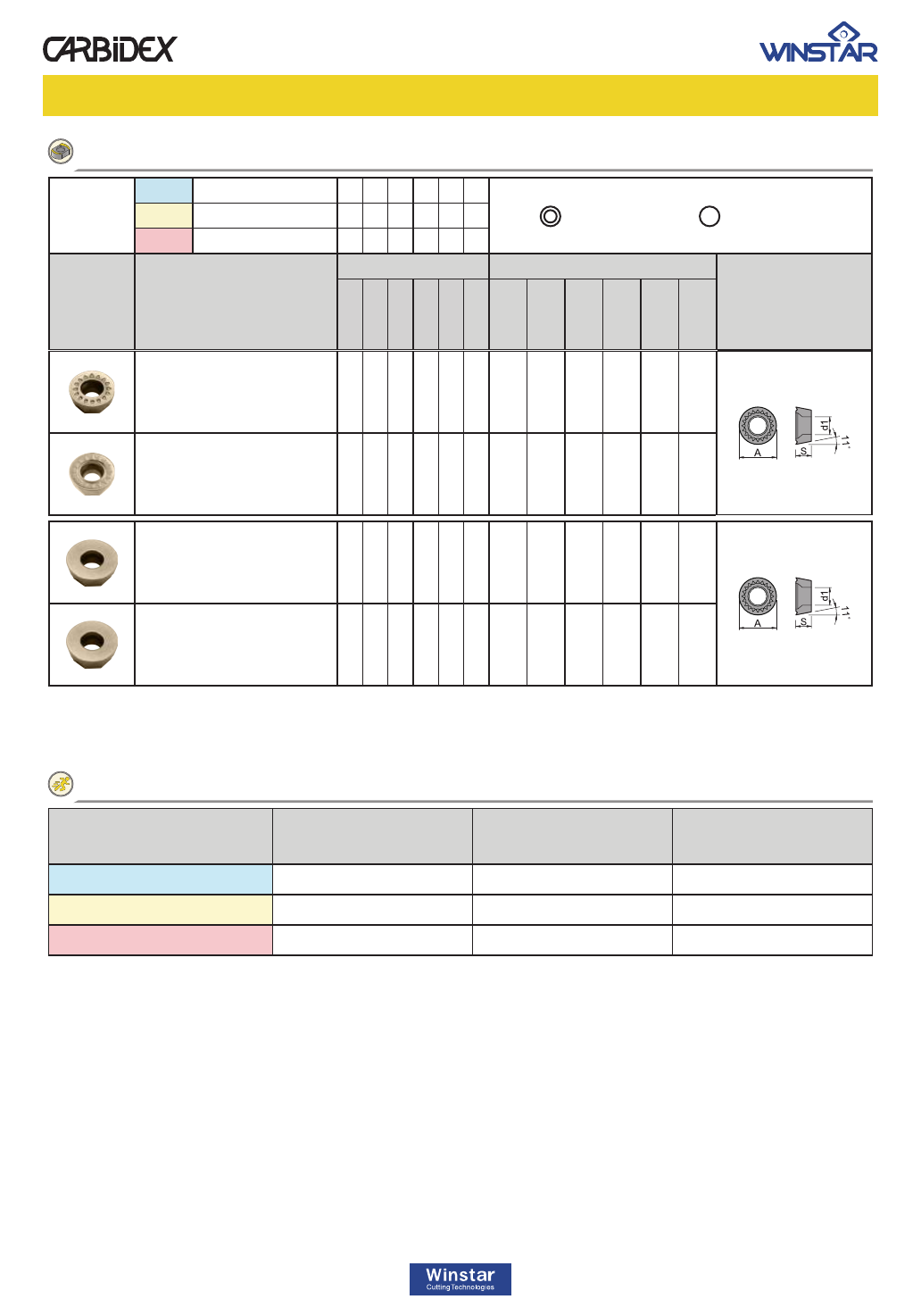

Copy Milling
RP.. Inserts
Specication
Recommended Cutting Conditions
Working Material Vc fz ap
Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.40 ≤ 0.4 x Dim_A
Stainless 300 Series 50 ~ 110 0.05 ~ 0.35 ≤ 0.3 x Dim_A
Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.40 ≤ 0.4 x Dim_A
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B082
仿形銑削刀片
RPMT 1204MOE ✓✓✓✓ 12 -4.76 -4.3 -
RPMT 1204MOT ✓✓✓✓ 12 -4.76 -4.3 -
RPMW 1204MOE ✓✓✓✓ 12 -4.76 -4.3 -
RPMW 1204MOT ✓✓✓✓ 12 -4.76 -4.3 -

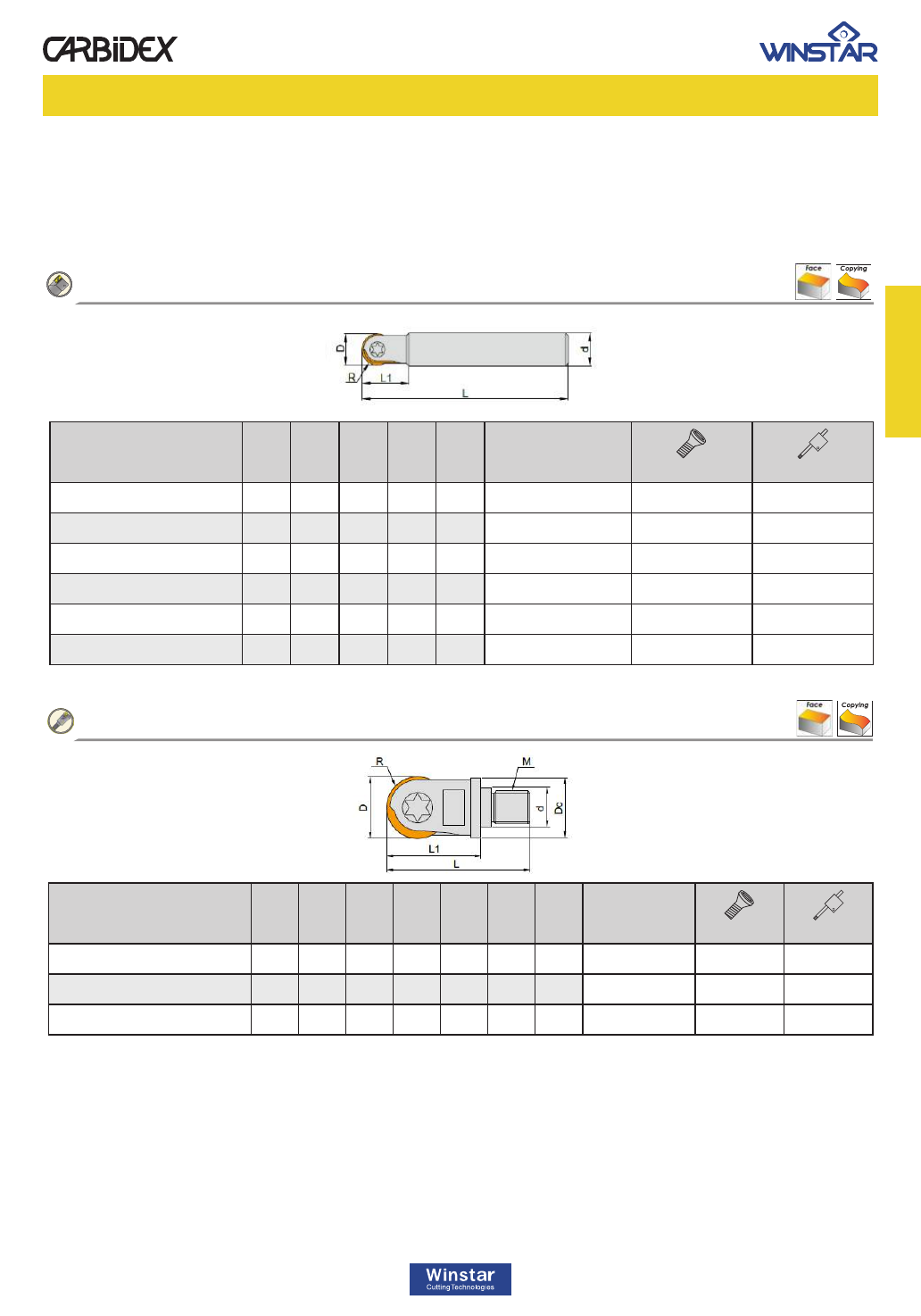

Copy Milling
WF21 / WP32.. Inserts
♦
♦
♦
♦
♦
Indexable ball type for molds in finishing applications.
Long tool life can be achieved due to the excellent edge design and special grade.
With consistent machining and high accurate finishing at high speed cutting.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L1 L d R Inserts Screw Wrench
IWF21E00-0160150 16 36 150 16 8 WP3216 B08R TK20
IWF21E00-0200160 20 45 160 20 10 WP3220 B10R TK20
IWF21E00-0250180 25 45 180 25 12.5 WP3225 B12R TK30
IWF21E00-0160200 16 30 200 20 8 WP3216 B08R TK20
IWF21E00-0200250 20 30 250 25 10 WP3220 B10R TK20
IWF21E00-0250250 25 35 250 32 12.5 WP3225 B12R TK30
ap
WF21E
Order No. D d Dc L1 L M R Inserts Screw Wrench
IWF21M00-0160080 16 8.5 15 26 45 M8 8 WP3216 B08R TK20
IWF21M00-0200100 20 10.5 18 35 53 M10 10 WP3220 B10R TK20
IWF21M00-0250120 25 12.5 23 41 63 M12 12.5 WP3225 B12R TK30
ap
WF21M
B083
仿形銑削
Milling Inserts & Tools
Copy Milling

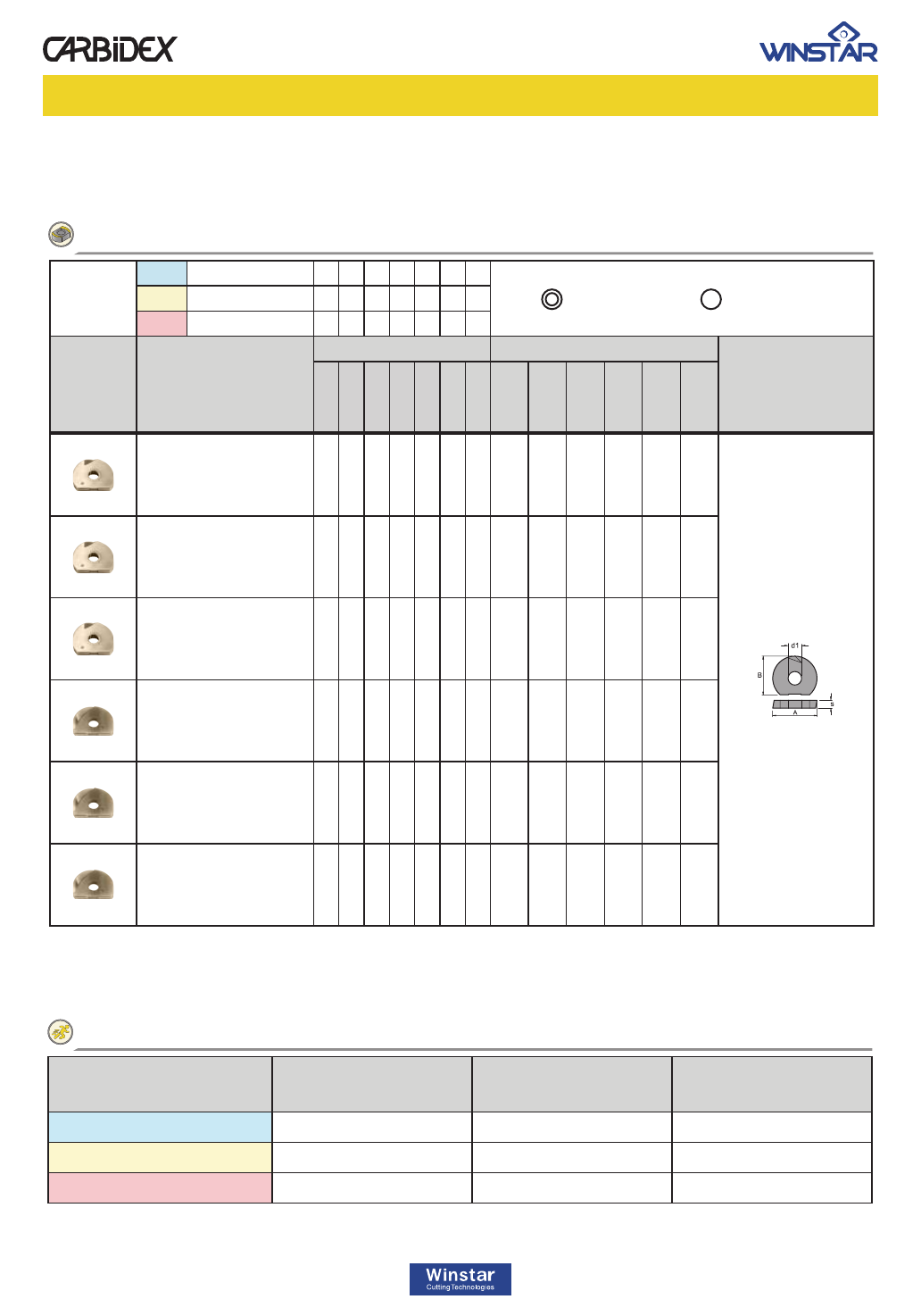

WP32.. Inserts
Specication
※CX11NS, CX11NA special grade available.
WP32 16-RG ✓
16 14.0 3 -5-
WP32 20-RG ✓20 16.0 3 -5-
WP32 25-RG ✓25 21.5 4 -6-
WP32 16-SG ✓16 14.0 3 -5-
WP32 20-SG ✓20 16.0 3 -5-
WP32 25-SG ✓25 21.5 4 -6-
Recommended Cutting Conditions
Working Material Vc fz ap
Carbon Steel (HB85-225)
100 ~ 250
0.10 ~ 0.30 ≤ 0.07 x Dim_A
Stainless 300 Series
80 ~ 150 0.08 ~ 0.25
≤ 0.04 x Dim_A
Cast Iron (HB140-220)
100 ~ 250 0.10 ~ 0.30
≤ 0.07 x Dim_A
♦
♦
♦
High precision nishing purpose.
High accurate ball nose radius tolerance.
High performance and rigidity.
P Steel ◎◎◎○○◎
1st choice 2st choice
M Stainless steel ○○○◎◎◎
K Cast iron ◎○○○○◎
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX11NS
A B S r d1 t1
B084
仿形銑削刀片
Copy Milling
CXBN / BNMX0603
High Feed Milling Offers Increased Productivity!!!
高進給銑削提升加工效率及生產率
．The CXBN Mini milling cutters offer exceptional milling performance.
．The smaller 6mm BNMX0603 high feed insert allows lowest cutting force to insure maximum productivity!
．Optimal insert geometries, wide range cutting applications, strong insert clamping and solid high feed
design ensure higher efficient performance!
．Let the CXBN stream line your milling process!
These double-sided inserts provide four cutting
edges for cost-effective machining, especially
efficient in the machining of most common
workpiece materials.
FEATURES AND BENEFITS
．Double sided deigned with total 4 indexes provide for cost-effective machining.
．Available in end mill, modular head and face mill type.
．Up to 1 mm DOC capability.
．Strong positive insert rake face angles for lower cutting force and efficient milling.
．Single screw design for high rigid & tensile clamping.
B085
高進給平面銑削
Milling Inserts & Tools
High Feed Face Milling

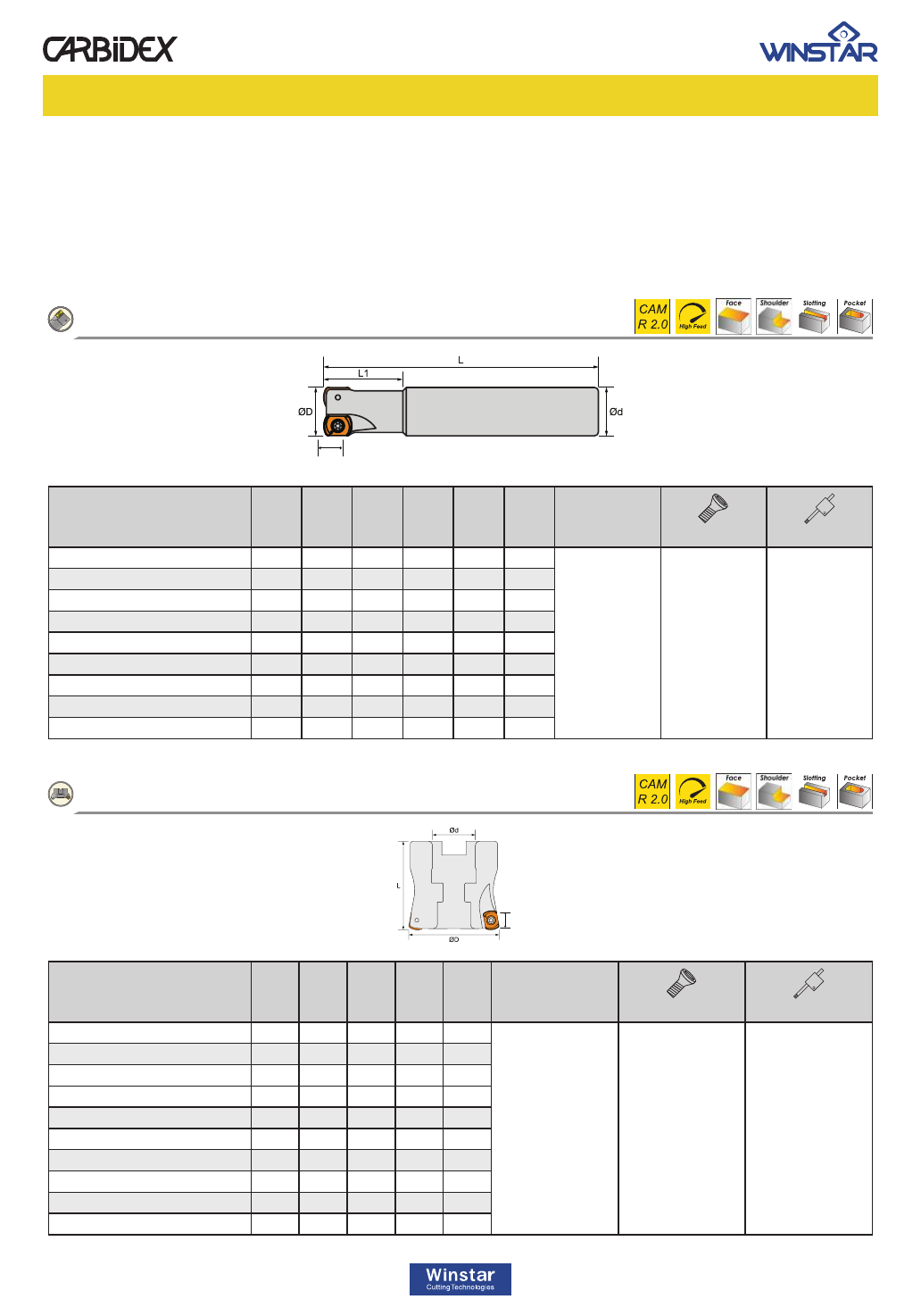

CXBN / BNMX0603
♦
♦
♦
♦
♦
Suitable for high-velocity, high-speed cutter of steel materials, especially when performed on smaller
machines equipped with high-speed and low torque spindles.
Povides low cutting resistance for cost-eective and high-performance machining of common work
piece materials when using cutter body diameters from 15mm to 63mm.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
ap
CXBNE
Order No. D L1 L d T ap Inserts Screw Wrench
ICXBNE02-0150130 15 26 130 16 21
BNMX0603 TS3004 TK08
ICXBNE02-0160130 16 26 130 16 21
ICXBNE02-0170130 17 26 130 16 21
ICXBNE02-0180150 18 25 150 20 21
ICXBNE03-0200150 20 40 150 20 3 1
ICXBNE03-0210150 21 40 150 20 3 1
ICXBNE04-0250150 25 40 150 25 4 1
ICXBNE04-0260150 26 30 150 25 4 1
ICXBNE04-0320200 32 45 200 32 4 1
Customize available.
B086
高進給平面銑削
CXBNF
Customize available.
Order No. D L d T ap Inserts Screw Wrench
ICXBNF06 - 0400220 40 50 22 6 1
BNMX0603 TS3004 TK08
ICXBNF06 - 0500220 50 50 22 6 1
ICXBNF07 - 0500220 50 50 22 7 1
ICXBNF07
W
0500220 50 50 22 7 1
ICXBNF08 - 0500220 50 50 22 8 1
ICXBNF08 - 0520220 52 50 22 8 1
ICXBNF07 - 0630220 63 50 22 7 1
ICXBNF08 - 0630220 63 50 22 8 1
ICXBNF08 - 0630254 63 50 25.4 8 1
ICXBNF09 - 0630220 63 50 22 9 1
ap
High Feed Face Milling
★with Coolant Hole
★
CXBN / BNMX0603
B087
Customize available.

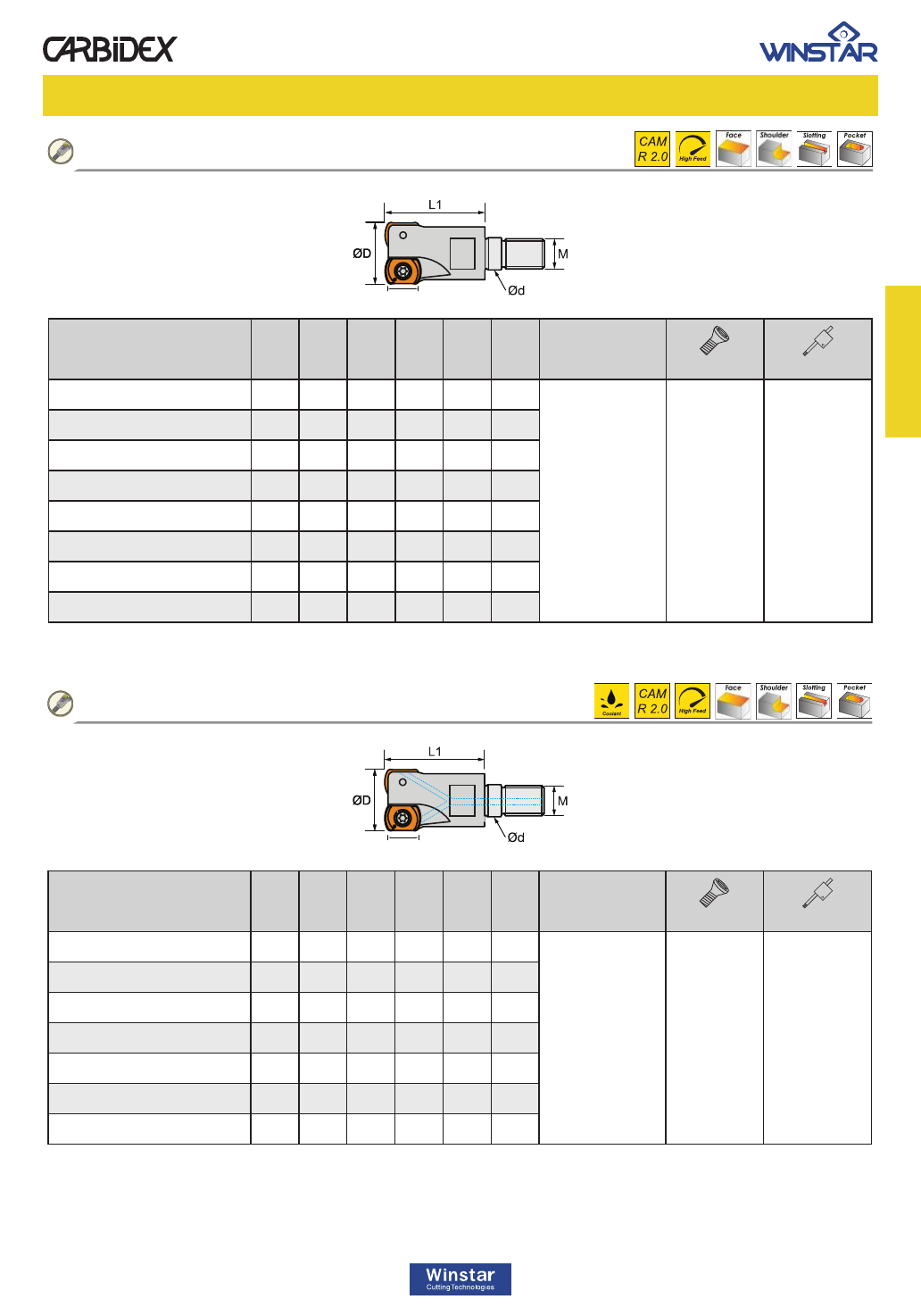

CXBNM
Order No. D L1 d M T ap Inserts Screw Wrench
ICXBNM02-0160080 16 26 8.5 M8 21
BNMX0603 TS3004 TK08
ICXBNM03-0210100 21 30 10.8 M10 3 1
ICXBNM02-0200100 20 30 10.8 M10 21
ICXBNM03-0200100 20 30 10.8 M10 3 1
ICXBNM03-0250120 25 35 12.5 M12 3 1
ICXBNM04-0250120 25 35 12.5 M12 4 1
ICXBNM03-0260120 26 35 12.5 M12 3 1
ICXBNM05-0320160 32 40 17 M16 5 1
ap
高進給平面銑削
Milling Inserts & Tools
Customize available.
Order No. D L d M T ap Inserts Screw Wrench
ICXBNM02W0160080 16 25 8.5 M8 21
BNMX0603 TS3004 TK08
ICXBNM02W0170080 17 30 8.5 M8 21
ICXBNM03W0200100 20 30 10.8 M10 3 1
ICXBNM03W0210100 21 30 10.8 M10 3 1
ICXBNM04W0250120 25 35 12.5 M12 4 1
ICXBNM04W0260120 26 35 12.5 M12 4 1
ICXBNM05W0350160 35 43 17 M16 5 1
CXBNM (with Coolant Hole)
ap
High Feed Face Milling

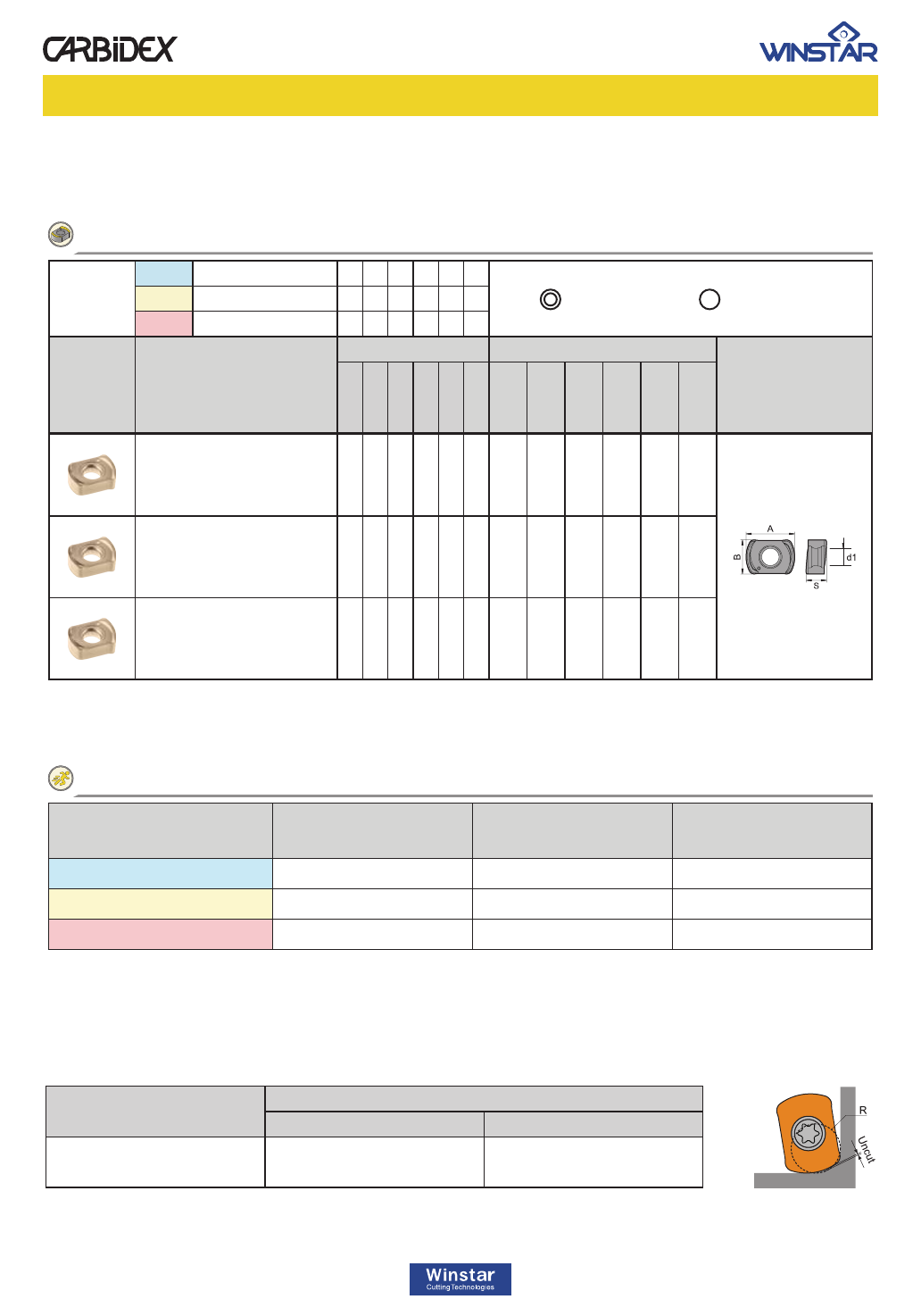

BNMX0603
BNMX 0603-SG ✓ ✓ ✓ 9.0 6.3 3.75 -3.2 -
BNMX 0603-MG ✓ ✓ ✓ 9.0 6.3 3.75 -3.2 -
BNMX 0603-RG ✓ ✓ ✓9.0 6.3 3.75 -3.2 -
Specication
Working Material Vc fz ap
Carbon Steel (HB85-225) 120 ~ 220 0.5 ~ 1.6 ~ 0.9
Stainless 300 Series 70 ~ 150 0.3 ~ 1.2 ~ 0.7
Cast Iron (HB140-220) 120 ~ 220 0.5 ~ 1.6 ~ 0.9
Recommended Cutting Conditions
♦
♦
♦
High feed machining, low cutting force.
Double sided design, total 4 cutting corners.
High metal remove rate & low vibration.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B088
高進給平面銑削刀片
High Feed Face Milling
■ Corner R Programming
Designation Approx. R (mm)
Input. R Uncut
BNMX0603 2.0 0.42
CXWN / WNMX09T3
New Economical Solution for High Feed Milling Applications!!!
專為高進給銑削應用而生的經濟型銑刀片
．CXWN High Feed Mill Series is more economical due to the use of 6 cutting edges compared to
conventional tool with a 3/4 edges positive insert.
．Double sided & negative geometry has been designed for rigidity of cutting edge.
．Unique insert design for multifunctional machining ability. 1
23
4
56
．Round edge geometry design secure edge rigidity,
suitable for high feed rates.
．Chip evacuation improvement design.
．Reduction of cutting load during machining.
．High rake angle cutting edge achieve
superior cutting performance.
．Low cutting resistance design.
．Special at design for surface roughness improvement.
．Decreasing force during high feed machining.
．Single screw for easy and
strong clamping force.
6 cutting edges
B089
高進給平面銑削
Milling Inserts & Tools
High Feed Face Milling

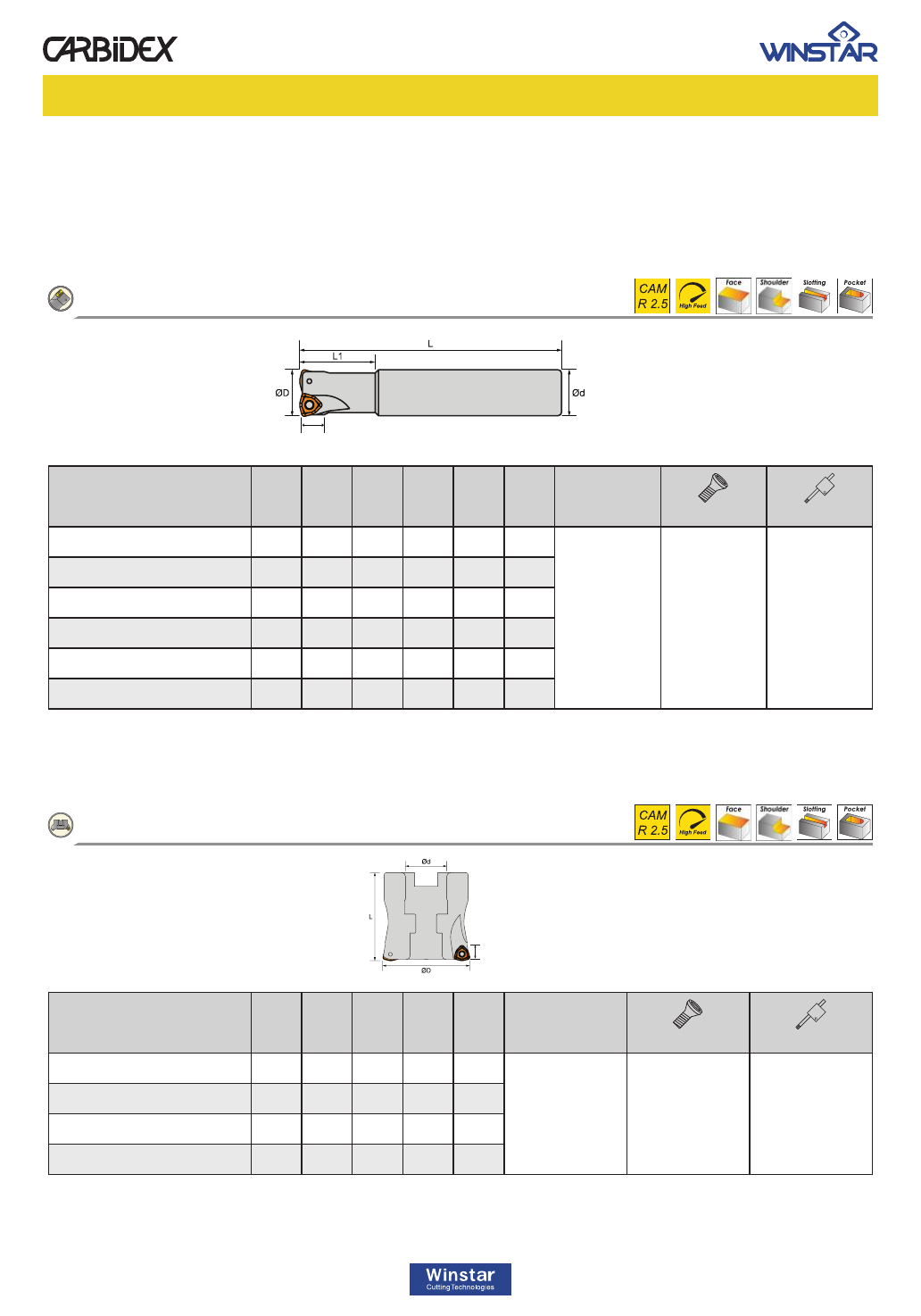

CXWN / WNMX09T3
♦
♦
♦
♦
♦
Particularly suitable for high feed milling purpose.
Provides low cutting resistance for cost-eective and high-performance machining of common work piece materials.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L d T ap Inserts Screw Wrench
ICXWNF05-0500220 50 50 22 5 1.5
WNMX09T3 TS3006 TK10
ICXWNF05-0630220 63 50 22 5 1.5
ICXWNF06-0630254 63 50 25.4 6 1.5
ICXWNF06-0800270 80 55 27 6 1.5
Customize available.
ap
CXWNF
CXWNE
ap
Order No. D L1 L d T ap Inserts Screw Wrench
ICXWNE02-0250150 25 40 150 25 21.5
WNMX09T3 TS3006 TK10
ICXWNE02-0260150 26 40 150 25 21.5
ICXWNE03-0300150 30 40 150 32 3 1.5
ICXWNE03-0320150 32 40 200 32 3 1.5
ICXWNE04-0350120 35 45 200 32 4 1.5
ICXWNE04-0400120 40 45 200 32 4 1.5
Customize available.
B090
高進給平面銑削
High Feed Face Milling

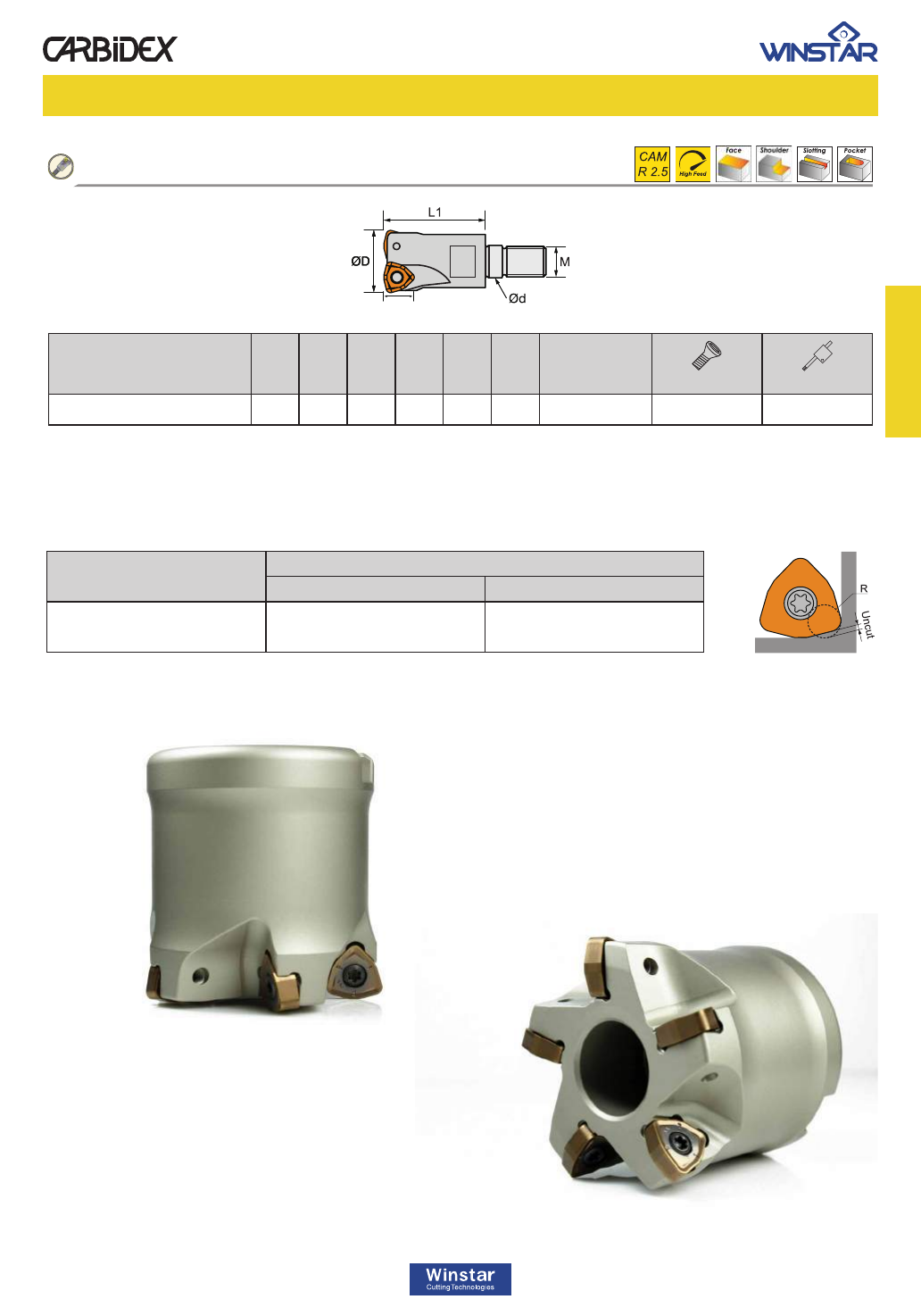

CXWN / WNMX09T3
Customize available.
Order No. D L1 d M T ap Inserts Screw Wrench
ICXWNM02-0250120 25 12.5 43 M12 21.5 WNMX09T3 TS3006 TK10
CXWNM
ap
B091
高進給平面銑削
■ Corner R Programming
Designation Approx. R (mm)
Input. R Uncut
WNMX09T3 2.5 0.6
Milling Inserts & Tools
High Feed Face Milling
♦
♦
♦
♦
Double sided with 6 cutting edges.
Round edge suitable for high feed purpose.
Better chip evacuation in various cutting applications.
High rake angle design for low cutting force.
WNMX09T3
Working Material Vc fz ap
Carbon Steel (HB85-225) 120 ~ 220 0.8 ~ 1.5 ~ 1.35
Stainless 300 Series 70 ~ 150 0.5 ~ 1.2 ~ 1.0
Cast Iron (HB140-220) 120 ~ 220 0.8 ~ 1.5 ~ 1.35
Recommended Cutting Conditions
WNMX 09T316-RG ✓ ✓ ✓
9.525 -3.97 1.6 3.6 -
Specication
P Steel ◎◎◎○○◎
1st choice 2st choice
M Stainless steel ○○○◎◎◎
K Cast iron ◎○○○○◎
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
CX11NS
A B S r d1 t1
B092
高進給平面銑削刀片
High Feed Face Milling
ASRF / SDMT1205 / SDNW1205
♦
♦
♦
♦
Economical 4 cutting edges, has a unique R shape to enable maximum cutting depth of 2mm.
Special deign for high feed machining, offers 3 to 5 times the deep cutting of conventional products, reducing cutting
time and processing costs.
Black oxide processing applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
Order No. D L d T ap Inserts Screw Wrench Clamp
Clamp
Screw
IASRFF03-0500220 50 22 50 3 2
SDMT1205
SDNW1205
MS4011A TF15 YR-06
MS4008ES
IASRFF03-0500222 50
22.225
50 3 2
IASRFF04-0500220 50 22 50 4 2
IASRFF04-0500222 50
22.225
50 4 2
IASRFF03-0630220 63 22 50 3 2
IASRFF03-0630222 63
22.225
50 3 2
IASRFF04-0630220 63 22 50 4 2
IASRFF04-0630222 63
22.225
50 4 2
IASRFF04-0800317 80
31.75
55 4 2
IASRFF04-0800320 80 32 55 4 2
IASRFF05-0800317 80
31.75
55 5 2
IASRFF05-0800320 80 32 55 5 2
ASRFF
ap
B093
高進給平面銑削
■ Corner R Programming
Designation Approx. R (mm)
Input. R Uncut
SDNW1205 / SDMT1205 4.5 0.83
Milling Inserts & Tools
High Feed Face Milling

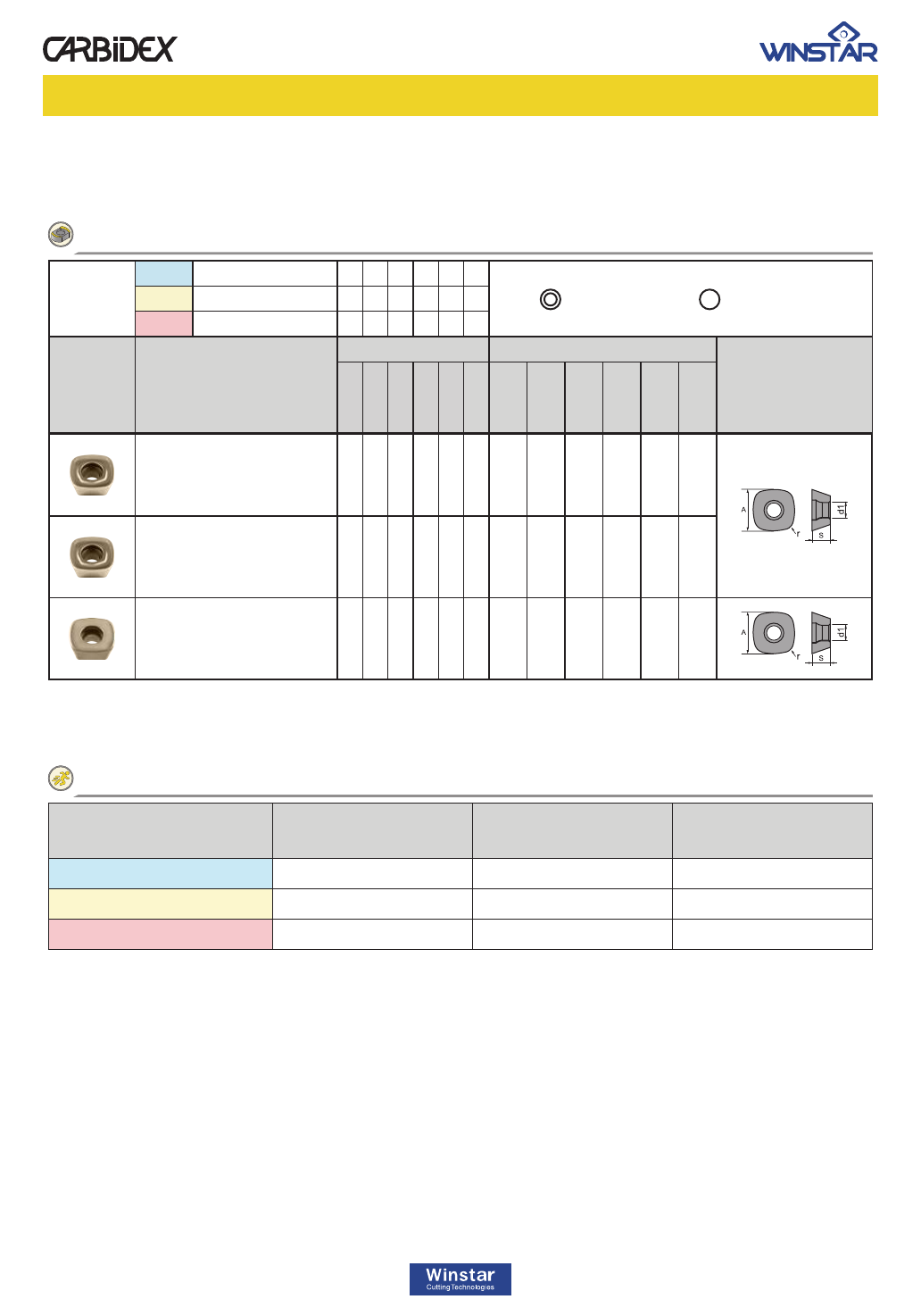

SDMT1205 / SDNW1205
Specication
SDMT 1205ZDTN-MG ✓ ✓
12.7 -5.56 15 4.6 -
SDMT 1205ZDTN-RG ✓ ✓ 12.7 -5.56 15 4.6 -
SDNW 1205ZDTN-RG ✓✓✓✓ 12.7 -5.56 15 4.6 -
Recommended Cutting Conditions
Working Material Vc fz ap
Carbon Steel (HB85-225) 100 ~ 220 0.8 ~ 1.8 ~ 1.5
Stainless 300 Series 70 ~ 150 0.6 ~ 1.2 ~ 1.2
Cast Iron (HB140-220) 100 ~ 220 0.8 ~ 1.8 ~ 1.5
♦
♦
♦
Economical 4-corner type, especially design for high feed cutting.
Reducing cutting time and processing costs.
Unique R shape to achieve maximum cutting depth of 2mm.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
MG: Low cutting force and chattering reduction. HG: Strong edge strength for roughing.
B094
高進給平面銑削刀片
High Feed Face Milling

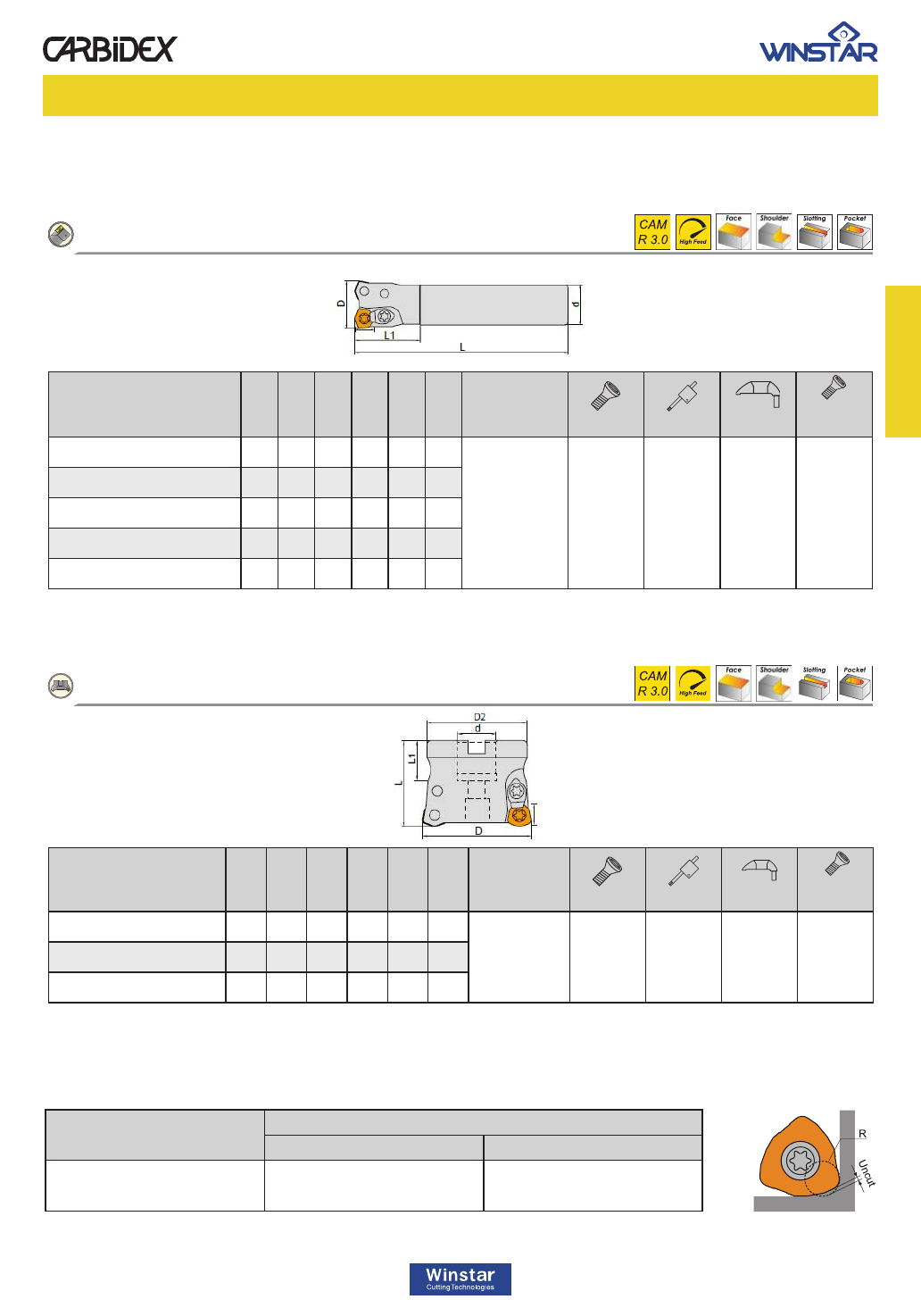

AJX12 / JDMW1204
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
AJX12E
ap
Order No. D L1 L d T ap Inserts Screw Wrench Clamp
Clamp
Screw
IAJX12E02-030015 30 35 150 25 2 2
JDMW1204 TS4004 TK15 AS04 AJ4012
IAJX12E02-032015 32 35 150 32 2 2
IAJX12E02-035015 35 35 150 32 2 2
IAJX12E03-040017 40 35 170 32 3 2
IAJX12E04-050017 50 47 170 32 4 2
Order No. D L1 L d T ap Inserts Screw Wrench Clamp
Clamp
Screw
IAJX12F04-050022 50 23 50 22 42
JDMW1204 TS4008 TK15 AS04 AJ4012IAJX12F05-063022 63 23
50
22 52
IAJX12F06-080027 80 26 55 27 6 2
ap
AJX12F
B095
高進給平面銑削
■ Corner R Programming
Designation Approx. R (mm)
Input. R Uncut
JDMW1204 3.0 0.47
Milling Inserts & Tools
High Feed Face Milling

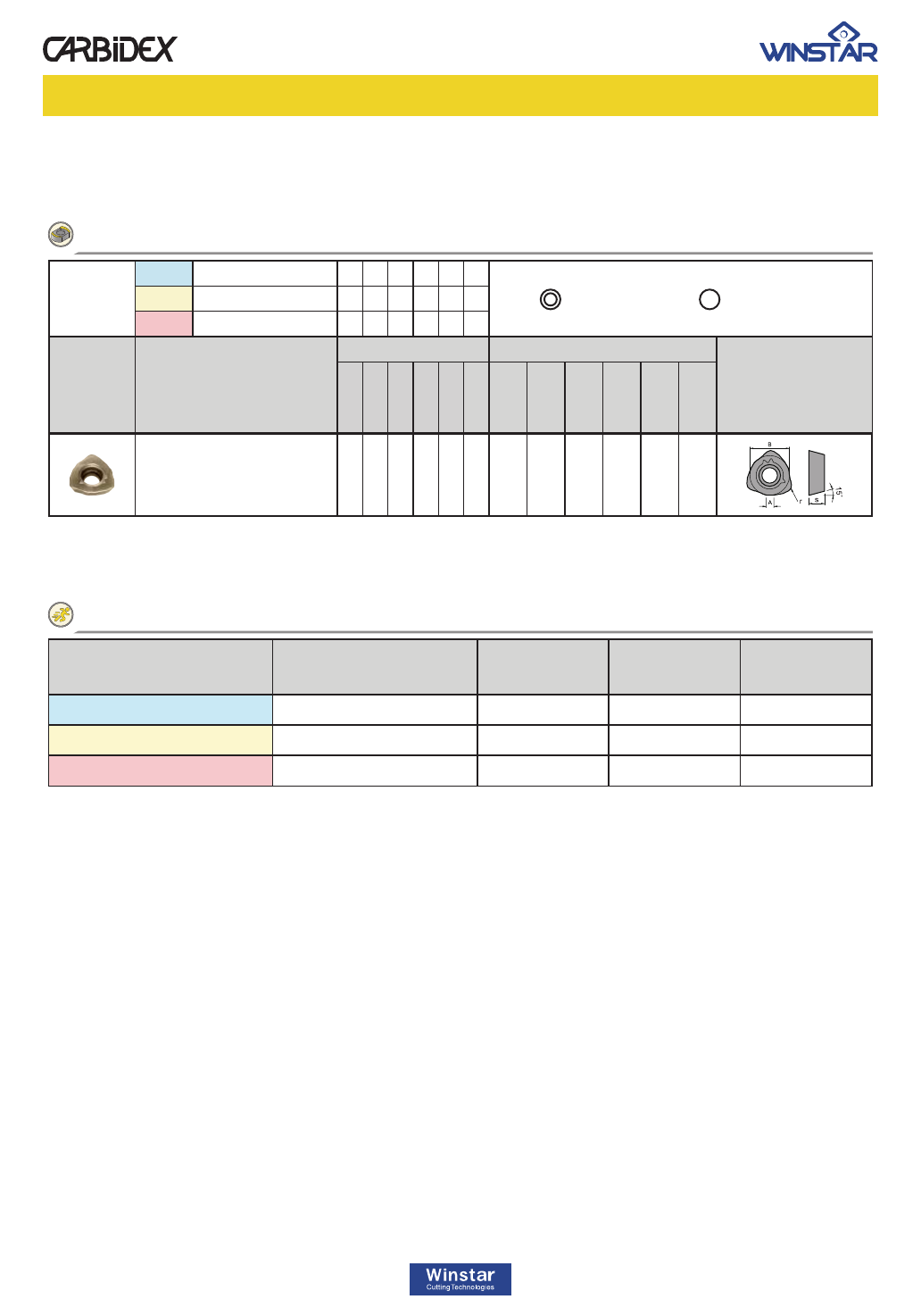

JDMW1204
JDMW
120420ZDSR-RG
✓✓✓✓
2.5 12.0 4.76 2.0 4.75 -
Specication
Recommended Cutting Conditions
Working Material Vc ap fz30-50(dia) fz50-80(dia
Carbon Steel (HB85-225) 100 ~ 220 0.8 ~ 1.3 0.9 ~ 1.5 ~ 1.5
Stainless 300 Series 70 ~ 150 0.6 ~ 1.0 0.7 ~ 1.2 ~ 1.2
Cast Iron (HB140-220) 100 ~ 220 0.8 ~ 1.3 0.9 ~ 1.5 ~ 1.5
♦
♦
♦
Special inserts design with 3 cutting edges.
Suitable for high feed machining.
High metal remove rate & low vibration.
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
B096
高進給平面銑削刀片
High Feed Face Milling
SPH / SPMG.. Inserts
B097
SP05H/06H/07H/09H
Order No. D sb L1 L d T Inserts Screw Wrench
ISP05H02-0160100 16 20 30 100 16 2SPMG0502 TS2003 TK06
ISP06H02-0200110 20 30 40 110 20 2SPMG0602 TS2205 TK06
ISP07H02-0250130 25 40 55 130 25 2SPMG07T3 TS2511 TK08
ISP09H02-0320150 32 50 65 150 32 2SPMG0904 TS3504 TK15
ISP09H03-0400180 40 70 90 180 32 3 SPMG0904 TS3504 TK15
ISP09H03-0400200 40 90 110 200 42 3 SPMG0904 TS3504 TK15
♦
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
D
L
sb
L1
玉米銑削
Milling Inserts & Tools
Helical Milling

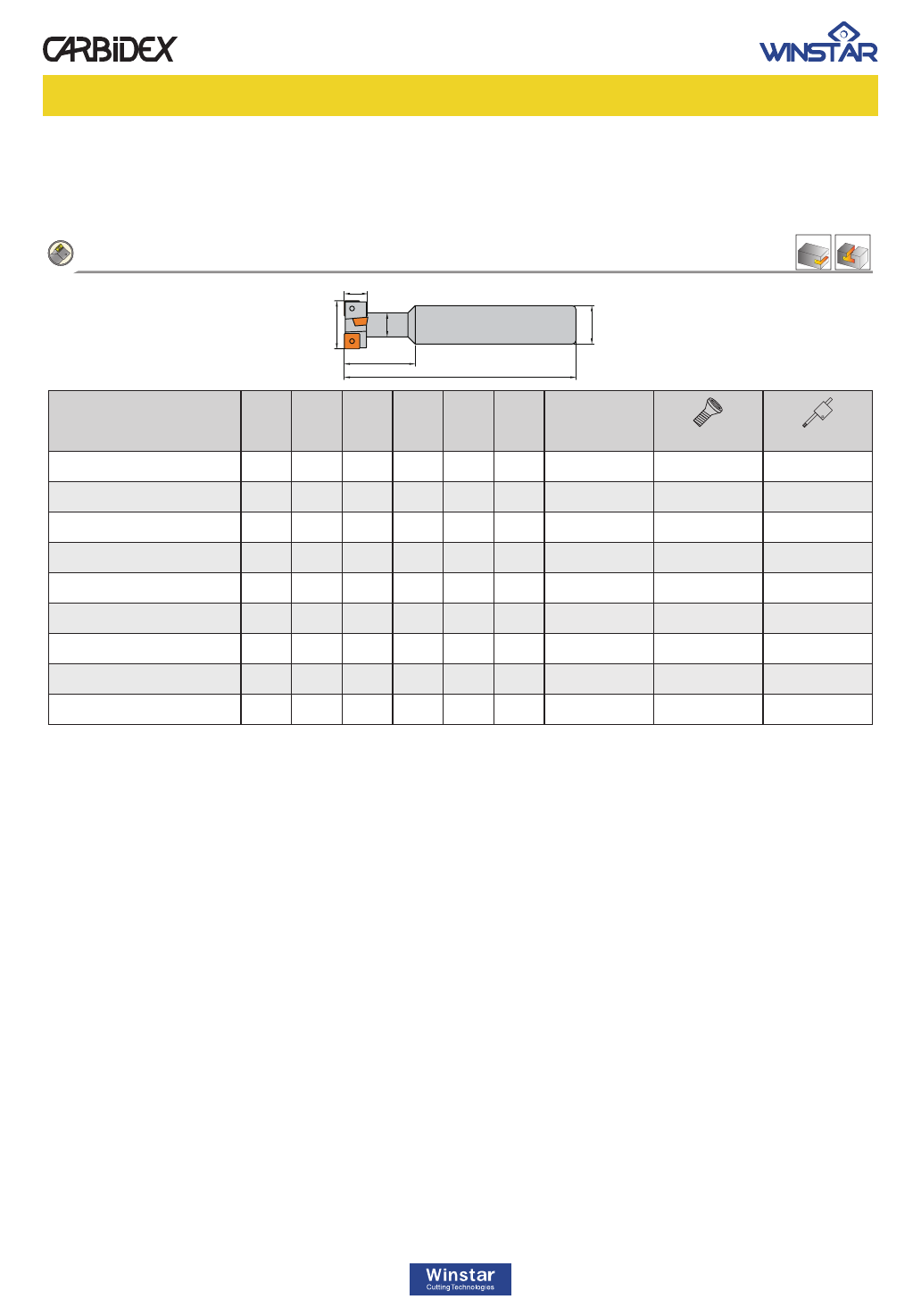

SPT / SPMG.. Inserts
B098
♦
♦
♦
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
SP05T/06T/07T/09T/11T
Order No. D sb d2 L2 L d Inserts Screw Wrench
ISP05T04-0190095 19 8 9.5 25 90 16 SPMG0502 TS2203 TK06
ISP06T04-0210100 21 9 11 27 100 16 SPMG0602 TS2205 TK06
ISP05T04-0220090 22 6.3 15 15 90 20 SPMG0502 TS2203 TK06
ISP07T04-0250110 25 11 12 31 110 20 SPMG07T3 TS2511 TK08
ISP09T04-0320110 32 14 17 39 110 25 SPMG0904 TS3504 TK15
ISP07T04-0326100 32.6 10.5 23 30 100 25 SPMG07T3 TS2511 TK08
ISP11T04-0400125 40 18 21 49 125 25 SPMG1104 TS4006 TK15
ISP09T04-0600160 60 15 25 40 160 25 SPMG0904 TS3504 TK15
ISP06T10-0950160 95 10 25 40 160 25 SPMG0602 TS2205 TK06
D
L2
L
d
d2
sb
三面刃銑削
Slotting T-Slotting
Disc Milling

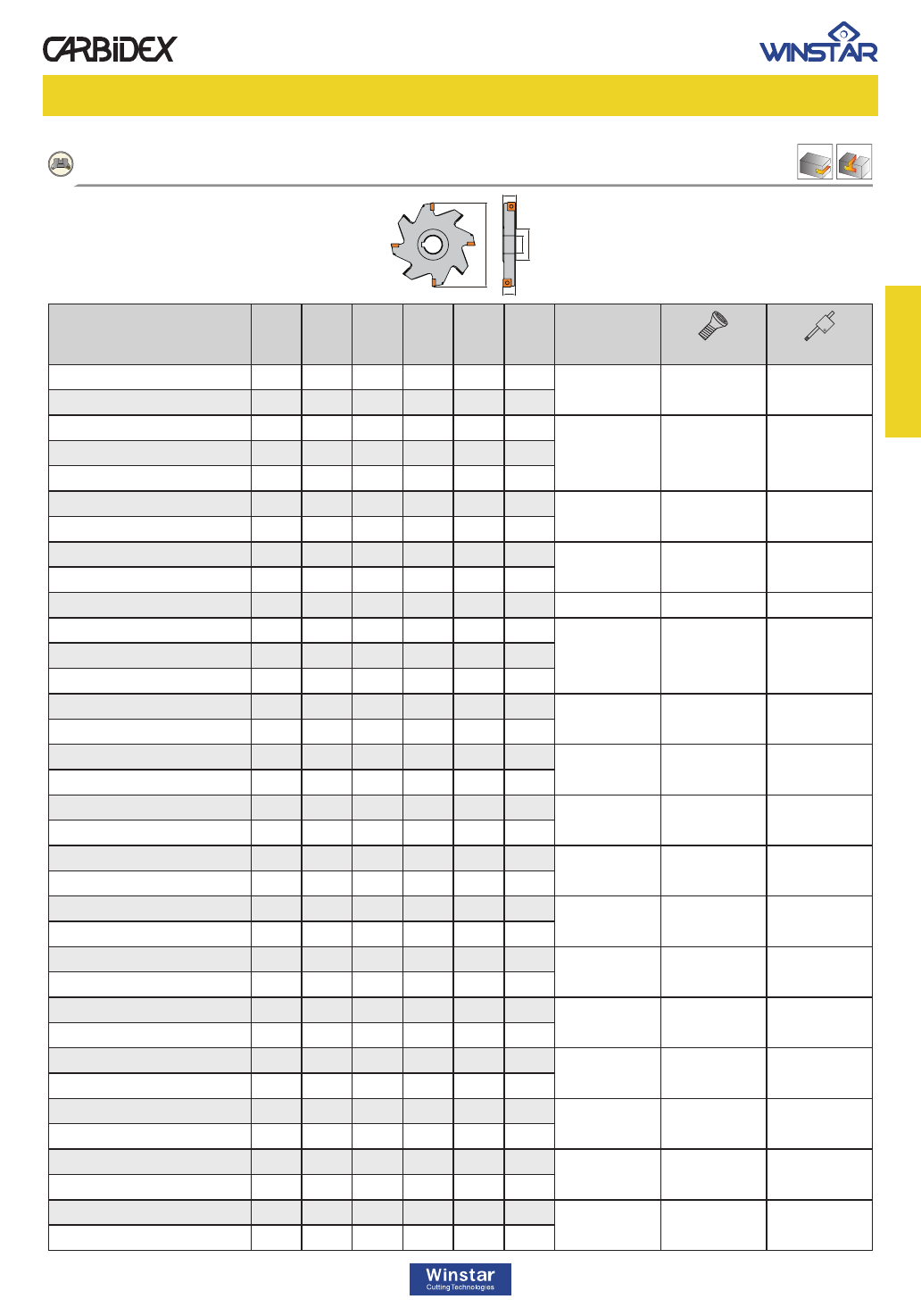

SPDM / SPMG.. Inserts
B099
Order No. D L1 Sb d T D1 Inserts Screw Wrench
ISP05D06-0800220 80 12 6 22 2 x 4 44 SPMG0502 TS2203 TK06
ISP05D07-0800220 80 12 7 22 2 x 4 44
ISP06D08-0800220 80 12 8 22 2 x 4 44
SPMG0602 TS2205 TK06ISP06D09-0800220 80 12 9 22 2 x 4 44
ISP06D10-0800220 80 12 10 22 2 x 4 44
ISP07D11-0800220 80 12 11 22 2 x 4 44 SPMG0703 TS2511 TK08
ISP07D12-0800220 80 12 12 22 2 x 4 44
ISP05D06-1000270 100 12 6 27 2 x 5 50 SPMG0502 TS2203 TK06
ISP05D07-1000270 100 12 7 27 2 x 5 50
ISP06D09-1000270 100 12 9 27 2 x 5 50 SPMG0602 TS2205 TK06
ISP07D10-1000270 100 12 10 27 2 x 5 50
SPMG0703 TS2511 TK08ISP07D11-1000270 100 12 11 27 2 x 5 50
ISP07D12-1000270 100 12 12 27 2 x 5 50
ISP09D14-1000270 100 16 14 27 2 x 5 50 SPMG0904 TS3504 TK15
ISP09D16-1000270 100 16 16 27 2 x 5 50
ISP05D06-1250320 125 12 6 32 2 x 6 65 SPMG0502 TS2203 TK06
ISP05D07-1250320 125 12 7 32 2 x 6 65
ISP06D08-1250320 125 12 8 32 2 x 6 65 SPMG0602 TS2205 TK06
ISP06D10-1250320 125 12 10 32 2 x 6 65
ISP07D11-1250320 125 12 11 32 2 x 6 65 SPMG0703 TS2511 TK08
ISP07D12-1250320 125 12 12 32 2 x 6 65
ISP09D14-1250320 125 16 14 32 2 x 6 65 SPMG0904 TS3504 TK15
ISP09D16-1250320 125 16 16 32 2 x 6 65
ISP11D18-1250320 125 20 18 32 2 x 5 65 SPMG1104 TS4006 TK15
ISP11D20-1250320 125 20 20 32 2 x 5 65
ISP07D11-1600400 160 12 11 40 2 x 8 75 SPMG0703 TS2511 TK08
ISP07D12-1600400 160 12 12 40 2 x 8 75
ISP09D14-1600400 160 16 14 40 2 x 8 75 SPMG0904 TS3504 TK15
ISP09D16-1600400 160 16 16 40 2 x 8 75
ISP11D18-1600400 160 20 18 40 2 x 6 75 SPMG1104 TS4006 TK15
ISP11D20-1600400 160 20 20 40 2 x 6 75
ISP09D14-2000400 200 16 14 40 2 x 9 80 SPMG0904 TS3504 TK15
ISP09D16-2000400 200 16 16 40 2 x 9 80
ISP11D18-2000400 200 20 18 40 2 x 9 80 SPMG1104 TS4006 TK15
ISP11D20-2000400 200 20 20 40 2 x 7 80
D
D1
d
SB
L1
SP05D/06D/07D/09D/11D
三面刃銑削
Milling Inserts & Tools
Slotting T-Slotting
Disc Milling

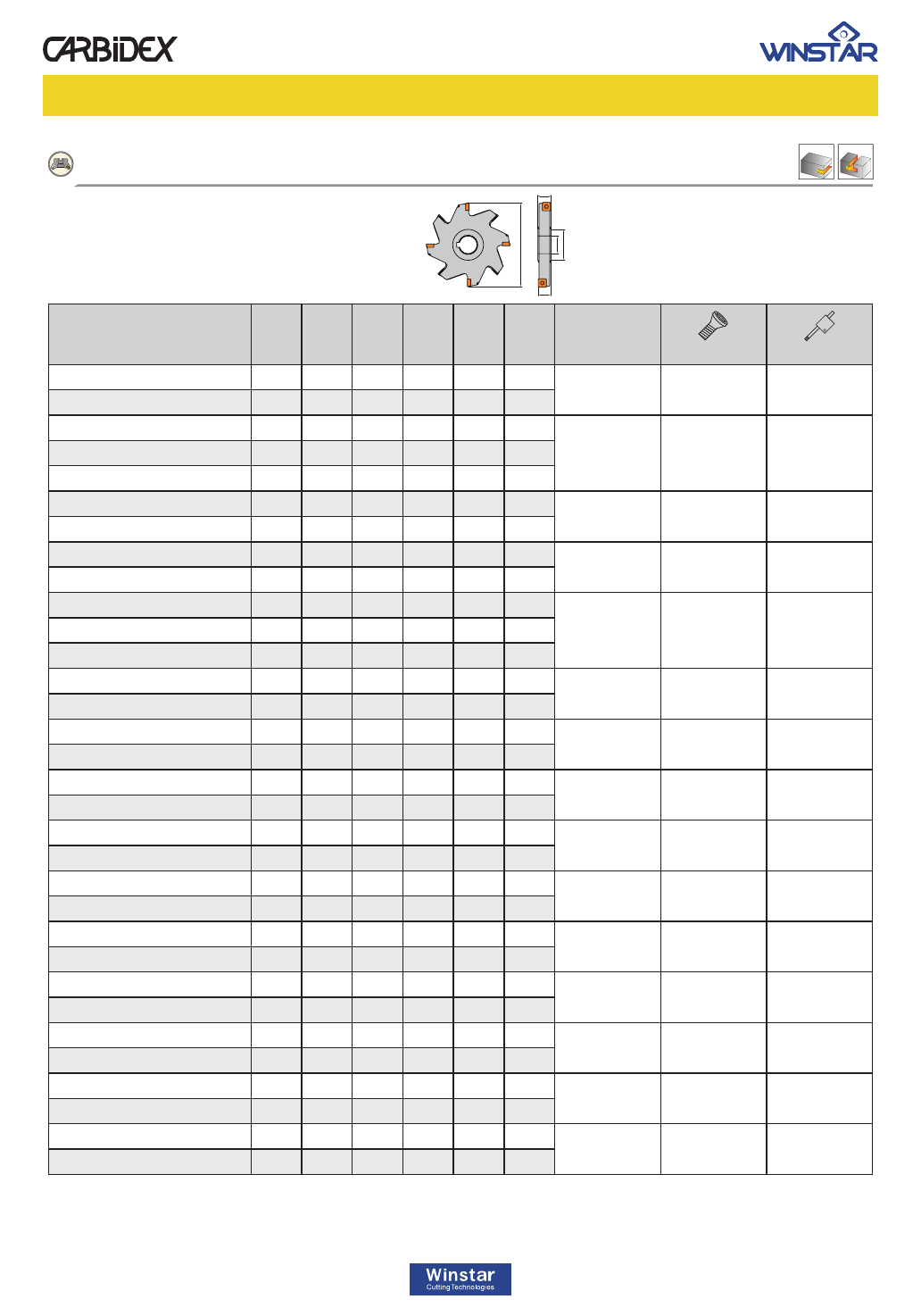

SPDI / SPMG.. Inserts
B100
Order No. D Sb d L1 D1 T Inserts Screw Wrench
ISP05D06-0800254 80 6 25.4 12 44 2 x 4 SPMG0502 TS2003 TK06
ISP05D07-0800254 80 7 25.4 12 44 2 x 4
ISP06D08-0800254 80 8 25.4 12 44 2 x 4
SPMG0602 TS2205 TK06ISP06D09-0800254 80 9 25.4 12 44 2 x 4
ISP06D10-0800254 80 10 25.4 12 44 2 x 4
ISP07D11-0800254 80 11 25.4 12 44 2 x 4 SPMG07T3 TS2511 TK08
ISP07D12-0800254 80 12 25.4 12 44 2 x 4
ISP05D06-1000254 100 6 25.4 12 50 2 x 5 SPMG0502 TS2003 TK06
ISP05D07-1000254 100 7 25.4 12 50 2 x 5
ISP06D08-1000254 100 8 25.4 12 50 2 x 5
SPMG0602 TS2205 TK06ISP06D09-1000254 100 9 25.4 12 50 2 x 5
ISP06D10-1000254 100 10 25.4 12 50 2 x 5
ISP07D11-1000254 100 11 25.4 12 50 2 x 5 SPMG07T3 TS2511 TK08
ISP07D12-1000254 100 12 25.4 12 50 2 x 5
ISP09D14-1000254 100 14 25.4 16 50 2 x 5 SPMG0904 TS3504 TK15
ISP09D16-1000254 100 16 25.4 16 50 2 x 5
ISP05D06-1250317 125 6 31.75 12 65 2 x 6 SPMG0502 TS2003 TK06
ISP05D07-1250317 125 7 31.75 12 65 2 x 6
ISP06D08-1250317 125 8 31.75 12 65 2 x 6 SPMG0602 TS2205 TK06
ISP06D10-1250317 125 10 31.75 12 65 2 x 6
ISP07D11-1250317 125 11 31.75 12 65 2 x 6 SPMG07T3 TS2511 TK08
ISP07D12-1250317 125 12 31.75 12 65 2 x 6
ISP09D14-1250317 125 14 31.75 16 65 2 x 6 SPMG0904 TS3504 TK15
ISP09D16-1250317 125 16 31.75 16 65 2 x 6
ISP11D18-1250317 125 18 31.75 20 65 2 x 5 SPMG1104 TS4006 TK15
ISP11D20-1250317 125 20 31.75 20 65 2 x 5
ISP07D11-1600317 160 11 31.75 12 75 2 x 8 SPMG07T3 TS2511 TK08
ISP07D12-1600317 160 12 31.75 12 75 2 x 8
ISP09D14-1600317 160 14 31.75 16 75 2 x 8 SPMG0904 TS3504 TK15
ISP09D16-1600317 160 16 31.75 16 75 2 x 8
ISP11D18-1600317 160 18 31.75 20 75 2 x 6 SPMG1104 TS4006 TK15
ISP11D20-1600317 160 20 31.75 20 75 2 x 6
D
D1
d
SB
L1
SP05D/06D/07D/09D/11D
三面刃銑削
Slotting T-Slotting
Disc Milling

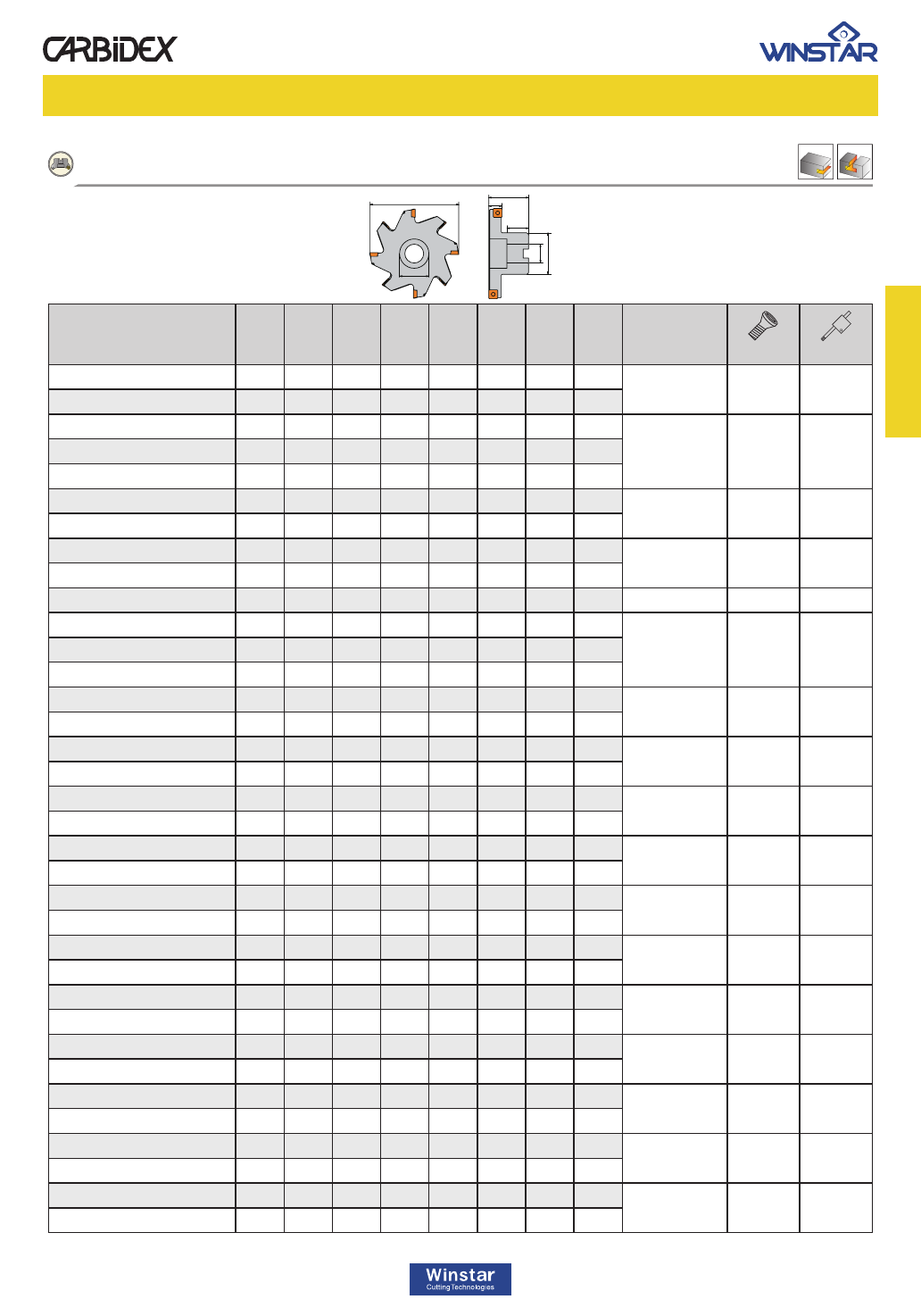

SPD / SPMG.. Inserts
B101
Order No. D SB L L1 D1 d1 d T Inserts Screw Wrench
ISP05D06S0800220 80 6 40 22 42 32 22 2 x 4 SPMG0502 TS2203 TK06
ISP05D07S0800220 80 7 40 22 42 32 22 2 x 4
ISP06D08S0800220 80 8 40 22 42 32 22 2 x 4
SPMG0602 TS2205 TK06ISP06D09S0800220 80 9 40 22 42 32 22 2 x 4
ISP06D10S0800220 80 10 40 22 42 32 22 2 x 4
ISP07D11S0800220 80 11 40 22 42 32 22 2 x 4 SPMG0703 TS2511 TK08
ISP07D12S0800220 80 12 40 22 42 32 22 2 x 4
ISP05D06S1000270 100 6 40 22 50 32 27 2 x 5 SPMG0502 TS2203 TK06
ISP05D07S1000270 100 7 40 22 50 32 27 2 x 5
ISP06D09S1000270 100 9 40 22 50 32 27 2 x 5 SPMG0602 TS2205 TK06
ISP07D10S1000270 100 10 40 22 50 32 27 2 x 5
SPMG0703 TS2511 TK08ISP07D11S1000270 100 11 40 22 50 32 27 2 x 5
ISP07D12S1000270 100 12 40 22 50 32 27 2 x 5
ISP09D14S1000270 100 14 40 22 50 32 27 2 x 5 SPMG0904 TS3504 TK15
ISP09D16S1000270 100 16 40 22 50 32 27 2 x 5
ISP05D06S1250320 125 6 45 25 70 46 32 2 x 6 SPMG0502 TS2203 TK06
ISP05D07S1250320 125 7 45 25 70 46 32 2 x 6
ISP06D08S1250320 125 8 45 25 70 46 32 2 x 6 SPMG0602 TS2205 TK06
ISP06D10S1250320 125 10 45 25 70 46 32 2 x 6
ISP07D11S1250320 125 11 45 25 70 46 32 2 x 6 SPMG0703 TS2511 TK08
ISP07D12S1250320 125 12 45 25 70 46 32 2 x 6
ISP09D14S1250320 125 14 45 25 70 46 32 2 x 6 SPMG0904 TS3504 TK15
ISP09D16S1250320 125 16 45 25 70 46 32 2 x 6
ISP11D18S1250320 125 18 45 25 70 46 32 2 x 5 SPMG1104 TS4006 TK15
ISP11D20S1250320 125 20 45 25 70 46 32 2 x 5
ISP07D11S1600400 160 11 50 28 80 52 40 2 x 8 SPMG0703 TS2511 TK08
ISP07D12S1600400 160 12 50 28 80 52 40 2 x 8
ISP09D14S1600400 160 14 50 28 80 52 40 2 x 8 SPMG0904 TS3504 TK15
ISP09D16S1600400 160 16 50 28 80 52 40 2 x 8
ISP11D18S1600400 160 18 50 28 80 52 40 2 x 6 SPMG1104 TS4006 TK15
ISP11D20S1600400 160 20 50 28 80 52 40 2 x 6
ISP09D14S2000400 200 14 50 28 90 52 40 2 x 9 SPMG0904 TS3504 TK15
ISP09D16S2000400 200 16 50 28 90 52 40 2 x 9
ISP11D18S2000400 200 18 50 28 90 52 40 2 x 9 SPMG1104 TS4006 TK15
ISP11D20S2000400 200 20 50 28 90 52 40 2 x 7
SP05D/06D/07D/09D/11D
D
d
D1
L1
SB
L
d1
三面刃銑削
Milling Inserts & Tools
Slotting T-Slotting
Disc Milling

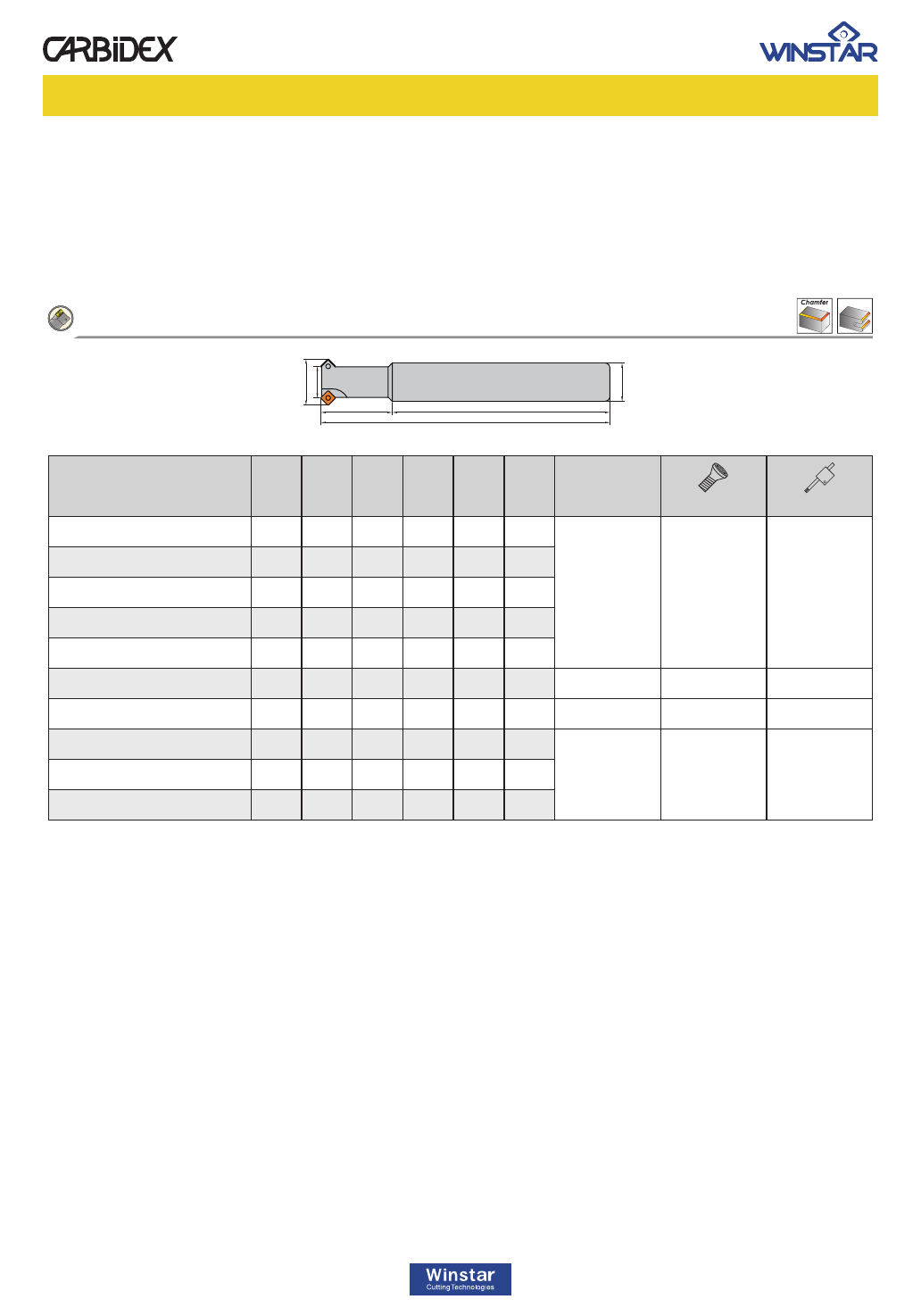

SPC / SPMG.. Inserts
B102
SP05C/06C/09C
Order No. D D1 d L1 L2 L Inserts Screw Wrench
ISP05C01-0110100 11 17 100 10 83 100
SPMG0502 TS2003 TK06
ISP05C02-0150120 15 20 120 12 100 120
ISP05C03-0170150 17 25 150 16 125 150
ISP05C03-0190150 19 30 150 16 120 150
ISP05C04-0250150 24 35 150 20 115 150
ISP06C03-0220120 22 30 120 16 80 120 SPMG0602 TS2205 TK06
ISP09C03-0270120 27 30 120 20 80 120 SPMG07T3 TS2511 TK08
ISP09C02-0300150 30 40 150 20 110 150
SPMG0904 TS3504 TK15ISP09C03-0400150 40 40 150 25 110 150
ISP09C04-0500150 50 40 150 25 110 150
♦
♦
♦
♦
♦
Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
Innovative curve cutting edge design ensure ideal 90 degree cutting.
SKD11 tool steel is used for best rigidity and performance.
Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
To avoid the strain in second processing, finishing will be done after pre-harden.
D
D1
L1
L
L2
d
倒角銑削
Chamfer
Chamfer Milling
♦
♦
♦
Economical 4 cutting edges insert.
Suitable for most materials by one optimized geometry.
True 90° square shoulder angle.
SPMG Inserts
B103
Specication
P Steel ◎◎◎○ ○
1st choice 2st choice
M Stainless steel ○○○◎ ◎
K Cast iron ◎○○○○
Inserts Designation
Grade Dimensions (mm)
Drawing
CX21NS
CX31NA
CX31NS
CX41NS
CX41NA
A B S r d1 t1
SPMG 050204-MG ✓ ✓
5.00 -2.38 0.4 2.30 -
11°
SPMG 060204-MG ✓ ✓
6.00 -2.38 0.4 2.65 -
SPMG 07T308-MG ✓✓✓✓
7.94 -3.97 0.8 2.85 -
SPMG 090408-MG ✓✓✓✓
9.80 -4.3 0.8 4.05 -
SPMG 110408-MG ✓✓✓✓
11.50 -4.8 0.8 4.45 -
多功能銑削刀片
Milling Inserts & Tools
SPMG Inserts
SPMG Inserts
B104
Working Material Vc fz
Carbon Steel (HB85-225) 110 ~ 140 0.08 ~ 0.13
Stainless 300 Series 130 ~170 0.06 ~ 0.15
Cast Iron (HB140-220) 90 ~ 180 0.10 ~ 0.15
Recommended Cutting Conditions
for SPH
Working Material Vc fz
Carbon Steel (HB85-225) 180 ~ 220 0.08 ~ 0.12
Stainless 300 Series 100 ~120 0.07 ~ 0.10
Cast Iron (HB140-220) 140 ~ 280 0.07 ~ 0.10
for SPT
Working Material Vc fz
Carbon Steel (HB85-225) 100 ~ 220 0.10 ~ 0.35
Stainless 300 Series 130 ~ 200 0.12 ~ 0.30
Cast Iron (HB140-220) 100 ~ 210 0.10 ~ 0.20
for SPDM / SPDI / SPD
Working Material Vc fz
Ø13~15 Ø16~22 Ø23~33 Ø34~41 Ø42~50
Carbon Steel (HB85-225) 160 ~ 250 0.06 ~ 0.12 0.06 ~ 0.10 0.06 ~ 0.12 0.12 ~ 0.24 0.12 ~ 0.25
Stainless 300 Series 120 ~ 180 0.05 ~ 0.10 0.06 ~ 0.12 0.08 ~ 0.15 0.10 ~ 0.17 0.12 ~0.20
Cast Iron (HB140-220) 160 ~ 220 0.06 ~ 0.12 0.08 ~ 0.16 0.12 ~ 0.20 0.16 ~ 0.25 0.18 ~ 0.26
for SPC
多功能銑削刀片
SPMG Cutting Conditions

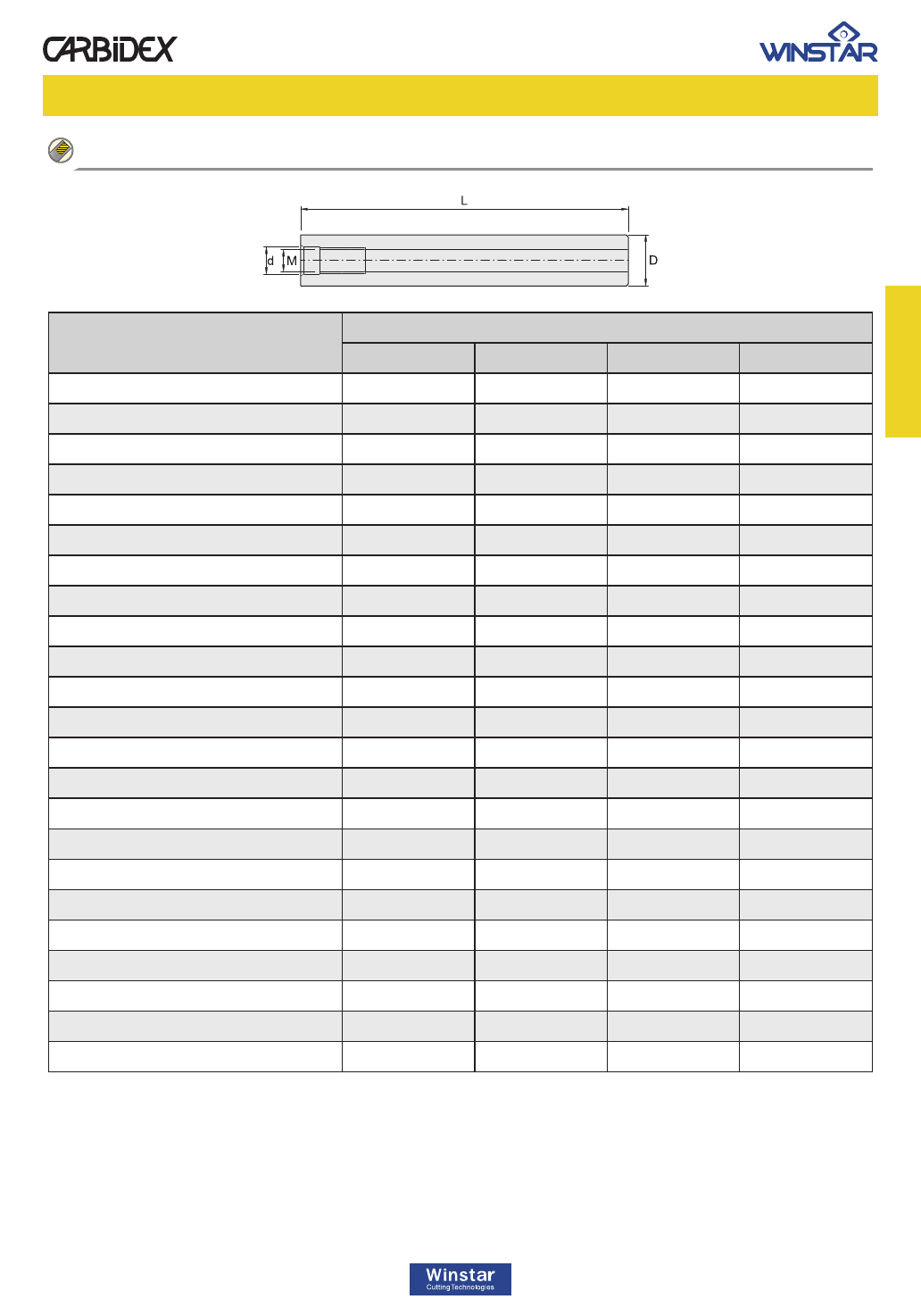

Carbide Adapter - WSEA
Order No. Dimensions (mm)
d L D M
IWSEA050750 5.5 75 10 M5
IWSEA051000 5.5 100 10 M5
IWSEA051500 5.5 150 10 M5
IWSEA061001 5.5 100 10 M6
IWSEA061501 5.5 150 10 M6
IWSEA060750 6.5 75 12 M6
IWSEA061000 6.5 100 12 M6
IWSEA061500 6.5 150 12 M6
IWSEA062000 6.5 200 12 M6
IWSEA081000 8.5 100 16 M8
IWSEA081500 8.5 150 16 M8
IWSEA082000 8.5 200 16 M8
IWSEA082500 8.5 250 16 M8
IWSEA101000 10.5 100 20 M10
IWSEA101500 10.5 150 20 M10
IWSEA102000 10.5 200 20 M10
IWSEA102500 10.5 250 20 M10
IWSEA103000 10.5 300 20 M10
IWSEA121000 12.5 100 25 M12
IWSEA121500 12.5 150 25 M12
IWSEA122000 12.5 200 25 M12
IWSEA122500 12.5 250 25 M12
IWSEA123000 12.5 300 25 M12
WSEA Carbide Extension Adapter (Anti-Vibration) - Straight Shank
B105
鎢鋼鎖牙式延長桿
Milling Inserts & Tools
Tooling System & Accessories

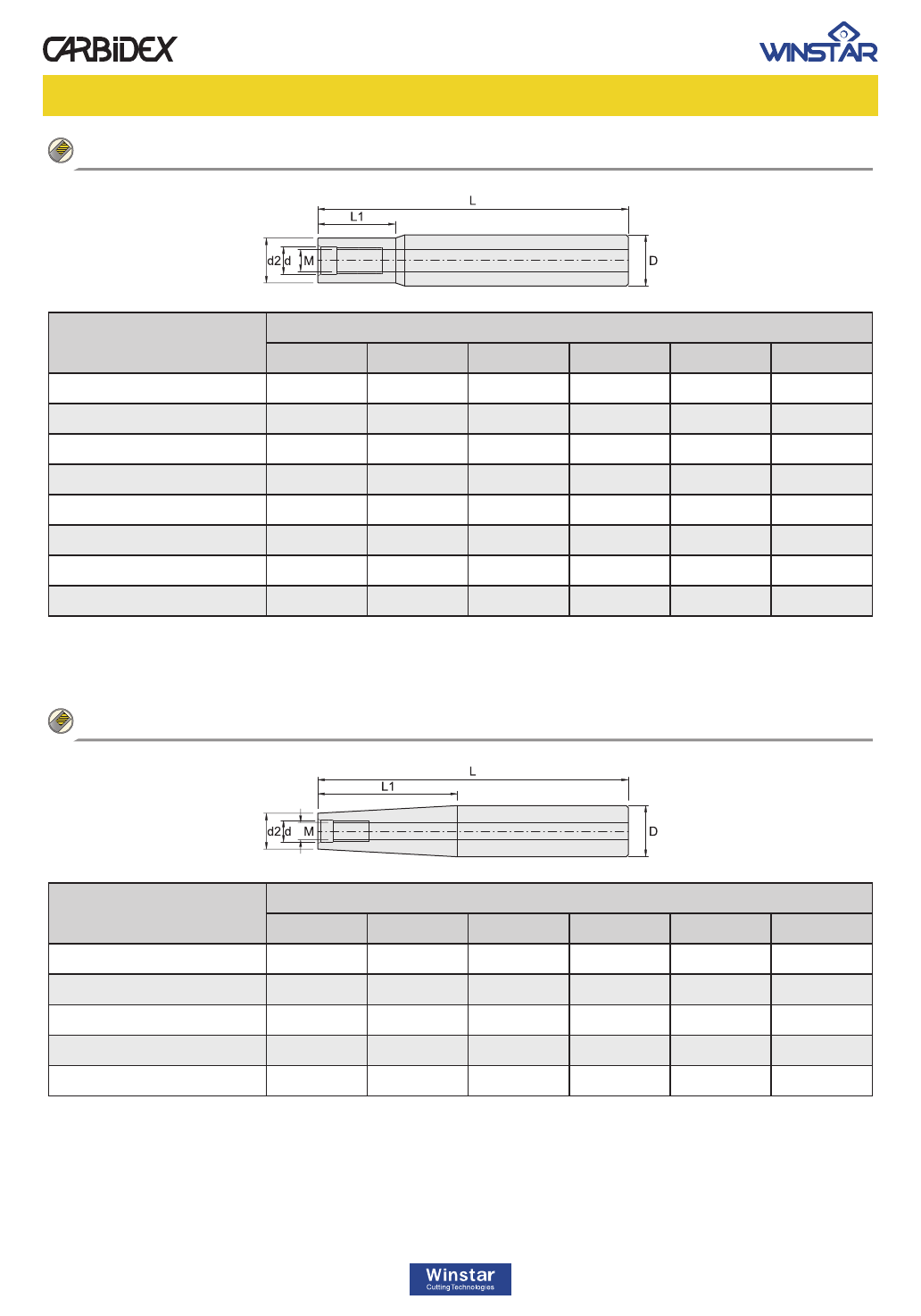

WSEB Carbide Extension Adapter (Anti-Vibration)
Order No. Dimensions (mm)
d d2 L1 L D M
IWSEB0610024 6.5 11.8 24 100 12 M6
IWSEB0615024 6.5 11.5 24 150 12 M6
IWSEB0815030 8.5 15 30 150 16 M8
IWSEB0820040 8.5 15 40 200 16 M8
IWSEB1015040 10.5 19 40 150 20 M10
IWSEB1020040 10.5 19 40 200 20 M10
IWSEB1215048 12.5 24 48 150 25 M12
IWSEB1220048 12.5 24 48 200 25 M12
WTEA Carbide Extension Adapter (Anti-Vibration) - Taper Shank
Order No. Dimensions (mm)
d d2 L1 L D M
IWTEA051500 5.5 9.8 60 150 12 M5
IWTEA061500 6.5 11.8 70 150 16 M6
IWTEA082000 8.5 15.5 90 200 20 M8
IWTEA102000 10.5 19.8 90 200 25 M10
IWTEA122000 12.5 24.5 90 200 32 M12
B106
鎢鋼鎖牙式延長桿
Carbide Adapter - WSEB, WTEA
Tooling System & Accessories

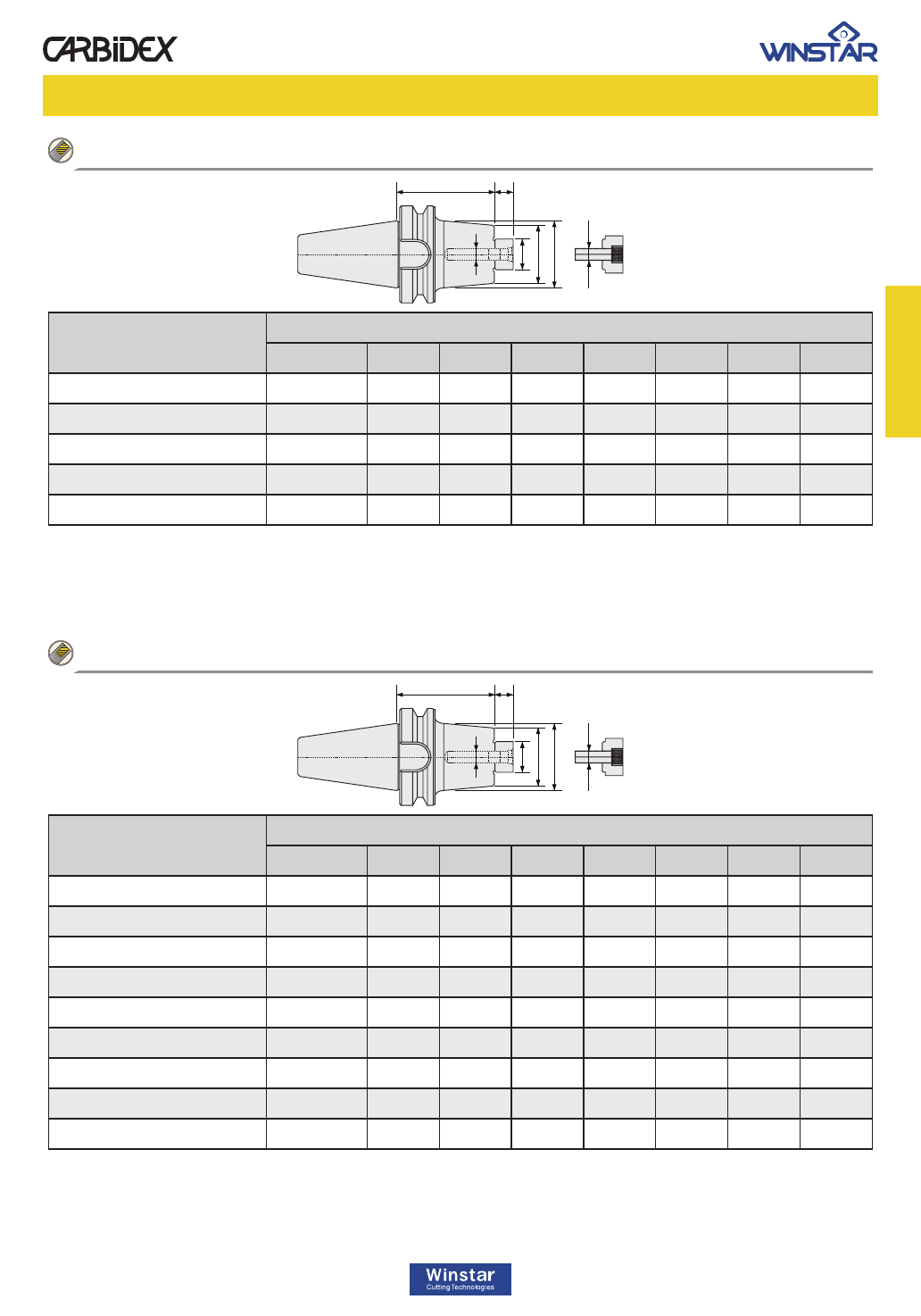

BT40FMA Face Mill Holder
Order No. Dimensions (mm)
Cutter dia. d L C1 C2 H W G
IBT40FMA25045 76 25.4 45 50 -20 9.5 M12
IBT40FMA25090 76 25.4 90 50 60 20 9.5 M12
IBT40FMA31045 100 31.75 45 60 - 22 12.5 M12
IBT40FMA31075 100 31.75 75 60 70 22 12.5 M12
IBT40FMA31105 100 31.75 105 60 70 22 12.5 M12
L H
W
dC1 C2
G
BT40FMB Face Mill Holder
Order No. Dimensions (mm)
Cutter dia. d L C1 C2 H W G
IBT40FMB22045 60 22 45 50 -18 10 M10
IBT40FMB22060 60 22 60 50 60 81 10 M10
IBT40FMB22090 60 22 90 50 60 18 10 M10
IBT40FMB27045 80 27 45 60 -20 12 M12
IBT40FMB27060 80 27 60 60 -20 12 M12
IBT40FMB27090 80 27 90 60 -20 12 M12
IBT40FMB27105 80 27 105 60 -20 12 M12
IBT40FMB32045 100 32 45 78 -20 14 M16
IBT40FMB40060 125 40 60 85 - 22 16 M16
L H
W
dC1 C2
G
B107
BT 刀把
BT Tool Holder
Milling Inserts & Tools
Tooling System & Accessories
BT40DM Replaceable Integrated Shank
Order No. Dimensions (mm)
d L L1 D C1 M
IBT40DM08050 8.5 50 23 13 15 M8
IBT40DM10057 10.5 57 30 18 21 M10
IBT40DM12080 12.5 80 53 21 25 M12
P40T Pull Studs
Order No. Dimensions (mm) For Shank
L1 L2 L3 D E° M
IP40T01 35 25 28 15 45 M16 BT40
IP40T02 35 25 28 15 60 M16 BT40
L
L1
DdM
C1
L1 L2
L3
D
M
E°
B108
BT 刀把
BT Tool Holder
Tooling System & Accessories
B109
Parts No.
Contents
N.W.
Adapter Bit
Nm Kgfcm ln-lb Size 25mm + 50mm
ITX06 0.6 6.1 5.3 TX6 1pcs + 1pcs 124g
ITX08 1.2 12 10.6 TX8 1pcs + 1pcs
FEATURES
．When the Torque is Reached, you will hear “CLICK”.
．Perfect positioning and quick release in the bits.Easy to pull the bit out to change new one
．You don’t have to guess -a precision torque tool for a Secure hol.d
．Because of proper testing equipment and system, we will make sure that
you don’t have to question our products accuracy and quality.
．Convenient for CNC cutting tool of milling and turning machining.
Contents
．Case x 1
．Torque Screwdriver x 1
．25mm Bits x 1
．50mm Bits x 1
銑削相關配件 - 扭力板手
Milling Accessories - Torque Screwdriver
Milling Inserts & Tools
Tooling System & Accessories
Milling Inserts Grade Comparison Chart
ISO Code CARBIDEX Mitsubishi Sumiotmo TaugeTec SECO
P
Steel
P10 ACP100 TT2510
P20 CX21NS
CX31NX
MP6120
VP15TF ACP200 TT7080
TT7030
F25M
MP3000
P30 CX31NX
CX31NS
VP15TF
MP6120
MP6130
VP30RT
ACP300 TT9080
TT9030
F30M
F40M
MP3000
P40 CX41NX
CX41NS VP30RT TT8080
TT8020
F40M
T60M
M
Stainless Steel
M10 ACM100
ACK300
M20 CX31NX
CX31NS
VP15TF
MP7130
MP7140
VP20RT
ACM200 TT9080
TT9030
F25M
F30M
MP30000
M30
CX31NX
CX41NX
CX41NS
VP15TF
MP7130
MP7140
VP30RT
ACM300 TT8080
TT8020
F30M
F40M
MP3000
M40 CX41NX
CX41NS
MP7140
VP30RT F40M
K
Cast Iron
K01 MP8010
K10 CX21NS MP8010 TT7515 MK1500
K20 CX31NX
CX31NS
VP15TF
VP20RT ACK200 TT7515
TT6080
MK1500
MK2000
T150M
K30 ACK300 TT6080 MK2000
MK2050
The above table is selected from a publication for reference only, which is not obtained approval from each brand.
B110
銑刀片材質等級比較表
Tooling System & Accessories
B111
Turning
車削
B112
Designations For Turning Inserts
-
4
GC
1
N
2
M
3
12
5
04
6
08
7
MG
8
1Insert Shape
A B C D E H K L
MOR S T V W
A B C D E
F G N P
2Relief Angle
Class d (±mm) m (±mm) s (±mm)
A0.025 0.005 0.025
F0.013 0.005 0.025
C0.025 0.013 0.025
H0.013 0.013 0.025
E0.025 0.025 0.025
G0.025 0.025 0.05~0.13
J0.05~0.15 0.005 0.025
K0.05~0.15 0.013 0.025
L0.05~0.15 0.025 0.025
M0.05~0.15 0.08~0.2 0.05~0.13
N0.05~0.15 0.08~0.2 0.025
U0.08~0.25 0.13~0.38 0.13
3Tolerance
Class Insert Class Insert
A N
C Q
F R
G T
H U
JW
M XSpecial shape
4Cross Section Type
I.C.
C D S T R V W
Metric mm
03 04 03 06 03 -02 3.97
04 05 04 08 04 08 S3 4.76
05 06 05 09 05 09 03 5.56
----06 - - 6.00
06 07 06 11 06 11 04 6.35
08 09 07 13 07 13 05 7.94
----08 - - 8.00
09 11 09 16 09 16 06 9.525
----10 - - 10.00
11 13 11 19 11 19 07 11.11
----12 - - 12.00
12 15 12 22 12 22 08 12.70
14 17 14 24 14 24 09 14.29
16 19 15 27 15 27 10 15.875
----16 - - 16.00
17 21 17 30 17 30 11 17.46
19 23 19 33 19 33 13 19.05
----20 - - 20.00
22 27 22 38 22 38 15 22.225
----25 - - 25.00
25 31 25 44 25 44 17 25.40
32 38 31 54 31 54 21 31.75
----32 - - 32.00
5Edge Length
Symbol 01 T1 02 03 T3 04 05 06 07 09
S(mm) 1.59 1.98 2.38 3.18 3.97 4.76 5.56 6.35 7.94 9.52
6Thickness
7Radius
Symbol 01 02 04 08 12 16 20 24 28 32
r(mm) 0.1 0.2 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2
8Chip Breaker
Positive Type
MP, MG
Negative Type
SM, SP, MM, MS, ME, MP, MK, MG, RP, RG
車刀片型號編碼
Turning Inserts
B113
Coated Carbide Grade
“∞“ Infinity Nano Coating:
Adopting new Infinty Coating Technology with high hardness and oxidation resistance.
High toughness substrate and adopting special coating technology.
Excellent turning machining of steel, stainless steel and cast iron.
Machining with high temperature stability and improved wear resistance.
Grade Type Substrate
(HRA)
Coating
Type Thickness Application Material Suitable
Condition
CX2565 91.7 Al.Ti.N >10 Medium to Simi-Finishing
P K M
★★ ★★ ★
CX2555 91.6 Al.Ti.Si.N >3 Medium to Simi-Finishing
P K M
★★ ★ ★★
CX3565 90 Al.Ti.N >10 Medium to Roughing
M P K
★★ ★★ ★★
CX3555 89.8 Al.Ti.Si.N >3 Medium to Roughing
M P K
★★ ★ ★
* Turning Grade Comparison Chart............Page B185
車刀片材質等級
Turning Inserts & Tools
Turning Inserts
B114
Coated Carbide Grade 車刀片材質等級
Turning Inserts
Positive Types
●
25+ types to choose from.
●
Thick or normal coating layer structure for
dierent applications.
●
Internal turning, proling and boring machining.
●
Usable range cover from semi-nishing to roughing.
Negative Types
● 50+ types to choose from.
● > 10μ thick coating layer structure for
various applications.
● Longitudinal, prole and face turning machining.
● Usable range cover from medium to roughing.
Features:
● Excellent heat resistance and wear resistance.
● Improve the adhesion resistance ability.
● Corner visibility with a unique color.
● Extend tool life and thereby reduces tools costs in a wide
range of machining applications.
CX2565 / CX3565
2017 New Turning Grades for General Purpose
(m/min)
Cutting Speed
Light to Continuous
Continuous to Light Intearrupted
Intearrupted to Heavy
Intearrupted
150
100
60
CX2565
General Purpose Cutting
CX3565
Heavy Interrupted Cutting
Finishing roughing
Application Range
B115

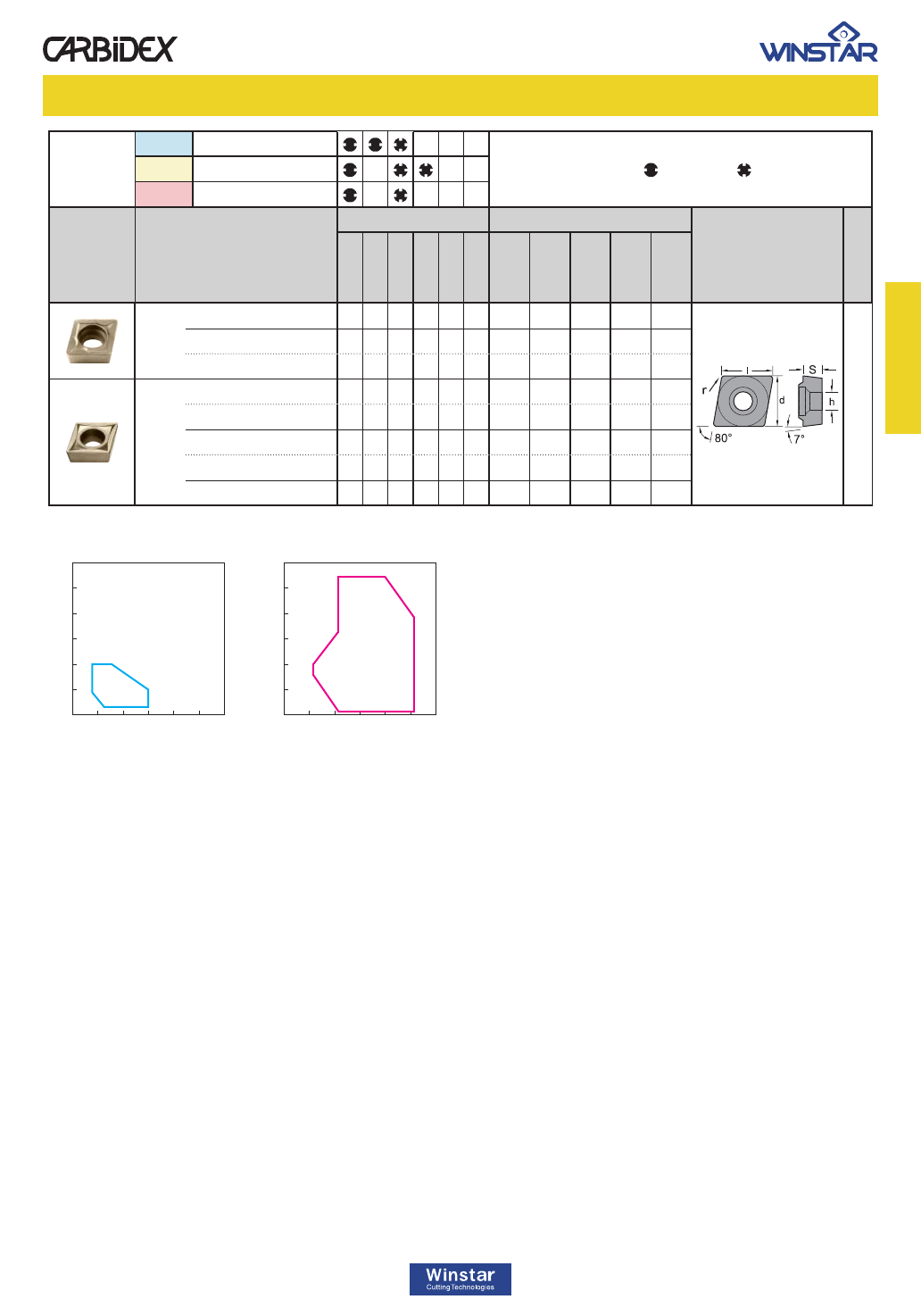

PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
CCMT 060204-MP ✓ ✓ 6.35 6.4 2.38 0.4 2.8
B143
~
B146
B168
~
B170
09T304-MP ✓ ✓ 9.53 9.7 3.97 0.4 4.4
09T308-MP ✓ ✓ 9.53 9.7 3.97 0.8 4.4
CCMT 060202-MG ✓ ✓ 6.35 6.4 2.38 0.4 2.8
060204-MG ✓ ✓ 6.35 6.4 2.38 0.4 2.8
09T304-MG ✓ ✓ 9.53 9.7 3.97 0.4 4.4
09T308-MG ✓ ✓ 9.53 9.7 3.97 0.8 4.4
120408-MG ✓ ✓ 12.7 12.9 4.76 0.8 5.5
CCMT - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
Turning Inserts & Tools
正角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MG
Turning Inserts
B116
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX1555
CX2565
CX2555
CX3565
CX3555
d l S r h
DCGT 11T301R-XF ✓9.53 11.6 3.97 0.1 4.4
B147
~
B151
B170
~
B172
11T302R-XF ✓9.53 11.6 3.97 0.2 4.4
11T304R-XF ✓9.53 11.6 3.97 0.4 4.4
DCGT 11T301L-XF ✓9.53 11.6 3.97 0.1 4.4
11T302L-XF ✓9.53 11.6 3.97 0.2 4.4
11T304L-XF ✓9.53 11.6 3.97 0.4 4.4

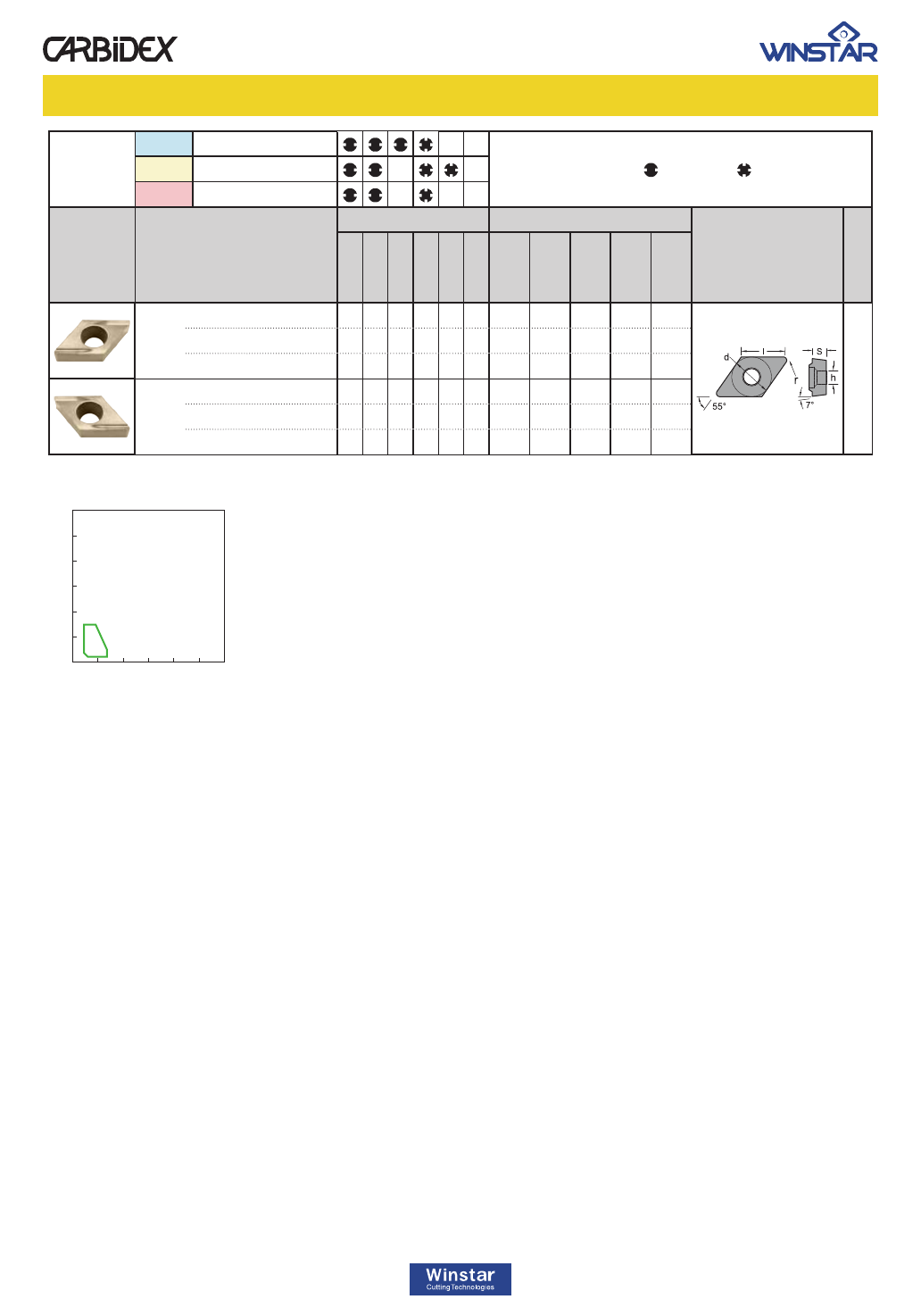

DCGT - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
XF
正角車刀片
*Customize radius and geometries available
Turning Inserts
B117
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX1555
CX2565
CX2555
CX3565
CX3555
d l S r h
DCMT 11T304-MP ✓ ✓ 9.53 11.6 3.97 0.4 4.4
B147
~
B151
B170
~
B172
11T308-MP ✓ ✓ 9.53 11.6 3.97 0.8 4.4
DCMT 070202-MG ✓ ✓ 6.35 7.75 2.38 0.2 2.8
070204-MG ✓ ✓ 6.35 7.75 2.38 0.4 2.8
11T304-MG ✓ ✓ 9.53 11.6 3.97 0.4 4.4
11T308-MG ✓ ✓ 9.53 11.6 3.97 0.8 4.4
DCMT - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
Turning Inserts & Tools
正角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MG
Turning Inserts
B118

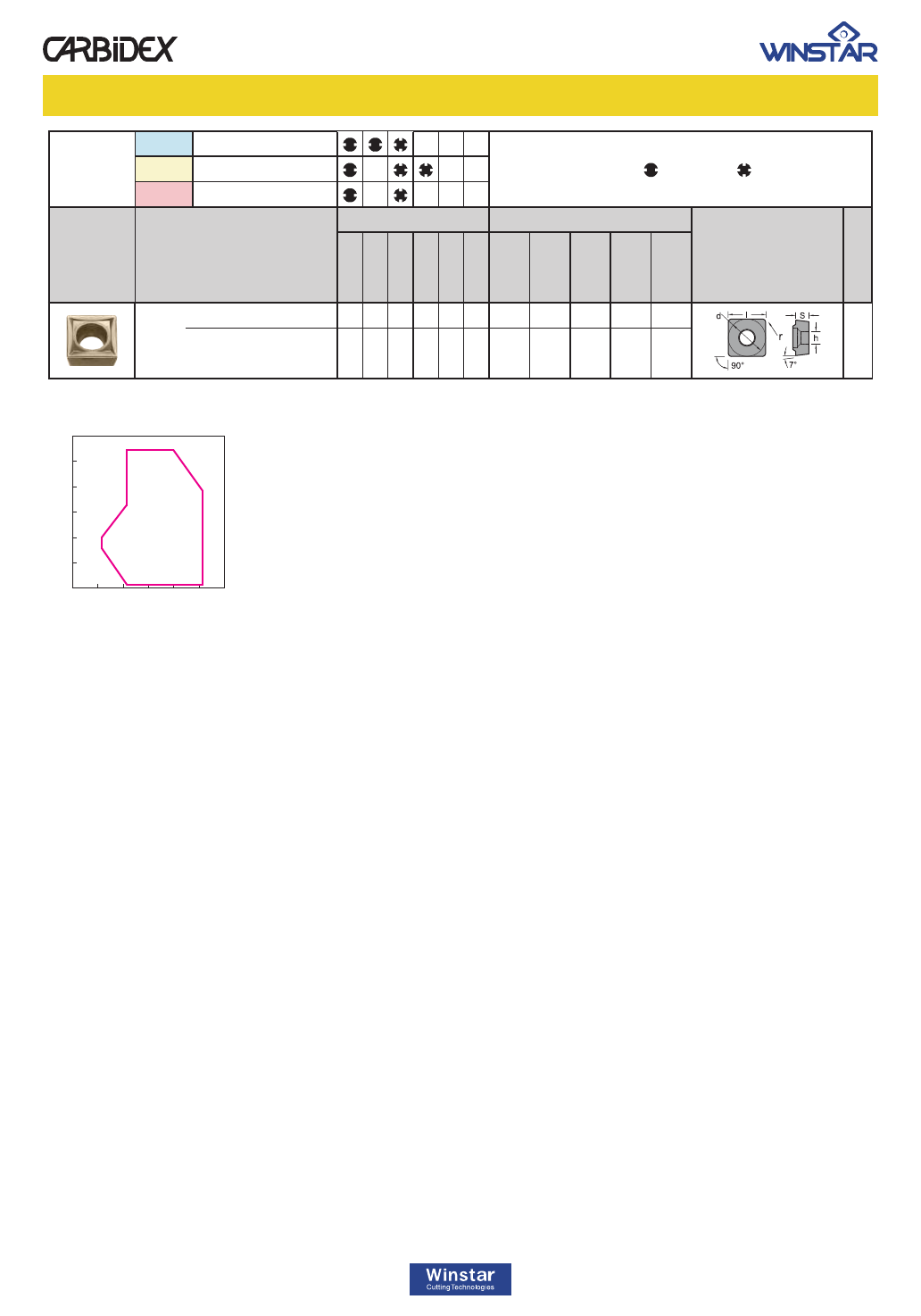

PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
SCMT 09T304-MG ✓ ✓ 9.53 9.53 3.97 0.4 4.4
B173
~
B175
09T308-MG ✓ ✓ 9.53 9.53 3.97 0.8 4.4
SCMT - Positive Turning Insert 正角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MG
Turning Inserts
B119
Turning Inserts & Tools
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
TCMT 110204-MP ✓ ✓ 6.35 11.0 2.38 0.4 2.8
B152
~
B154
B176
~
B177
TCMT 110204-MG ✓ ✓ 6.35 11.0 2.38 0.4 2.8
16T304-MG ✓ ✓ 9.53 16.5 3.97 0.4 4.4
16T308-MG ✓ ✓ 9.53 16.5 3.97 0.8 4.4
TCMT - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
正角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MG
Turning Inserts
B120
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
TPMH 160304-MP ✓ ✓ 9.53 16.5 3.18 0.4 4.4
-
TPMH - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
正角車刀片
Turning Inserts
B121
Turning Inserts & Tools
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
VBMT 160404-MG ✓ ✓ 9.53 16.6 4.76 0.4 4.4
B155
~
B158
B178
~
B179
160408-MG ✓ ✓ 9.53 16.6 4.76 0.8 4.4

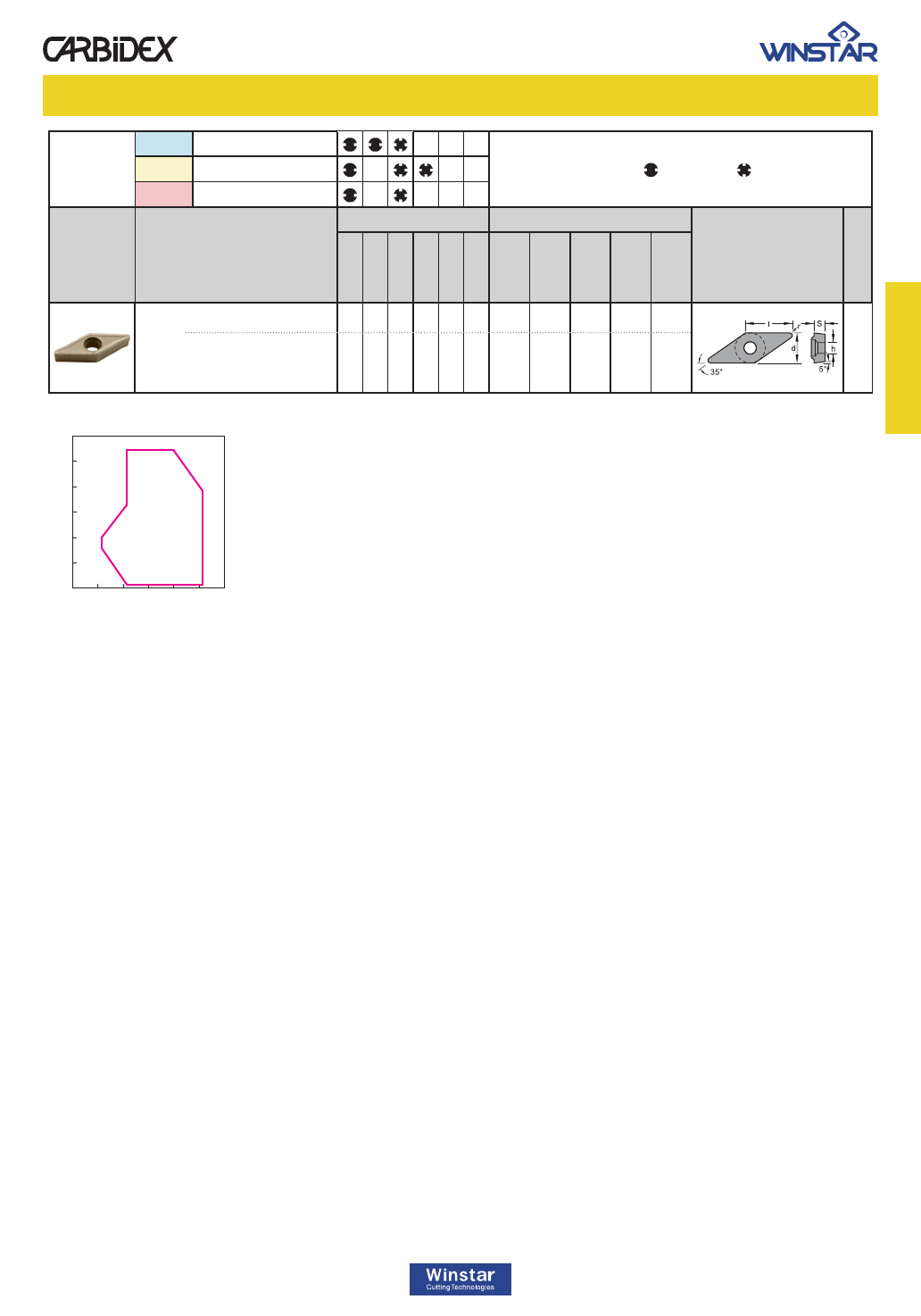

VBMT - Positive Turning Insert 正角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MG
Turning Inserts
B122
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
CX1555
d l S r h
VCGT 110301R-XF ✓11.1 6.35 3.18 0.1 2.8
B156
~
B158
B178
~
B179
110302R-XF ✓11.1 6.35 3.18 0.2 2.8
110304R-XF ✓11.1 6.35 3.18 0.4 2.8
VCGT 110301L-XF ✓11.1 6.35 3.18 0.1 2.8
110302L-XF ✓11.1 6.35 3.18 0.2 2.8
110304L-XF ✓11.1 6.35 3.18 0.4 2.8
VCGT 110304-FG ✓11.1 6.35 3.18 0.4 2.8

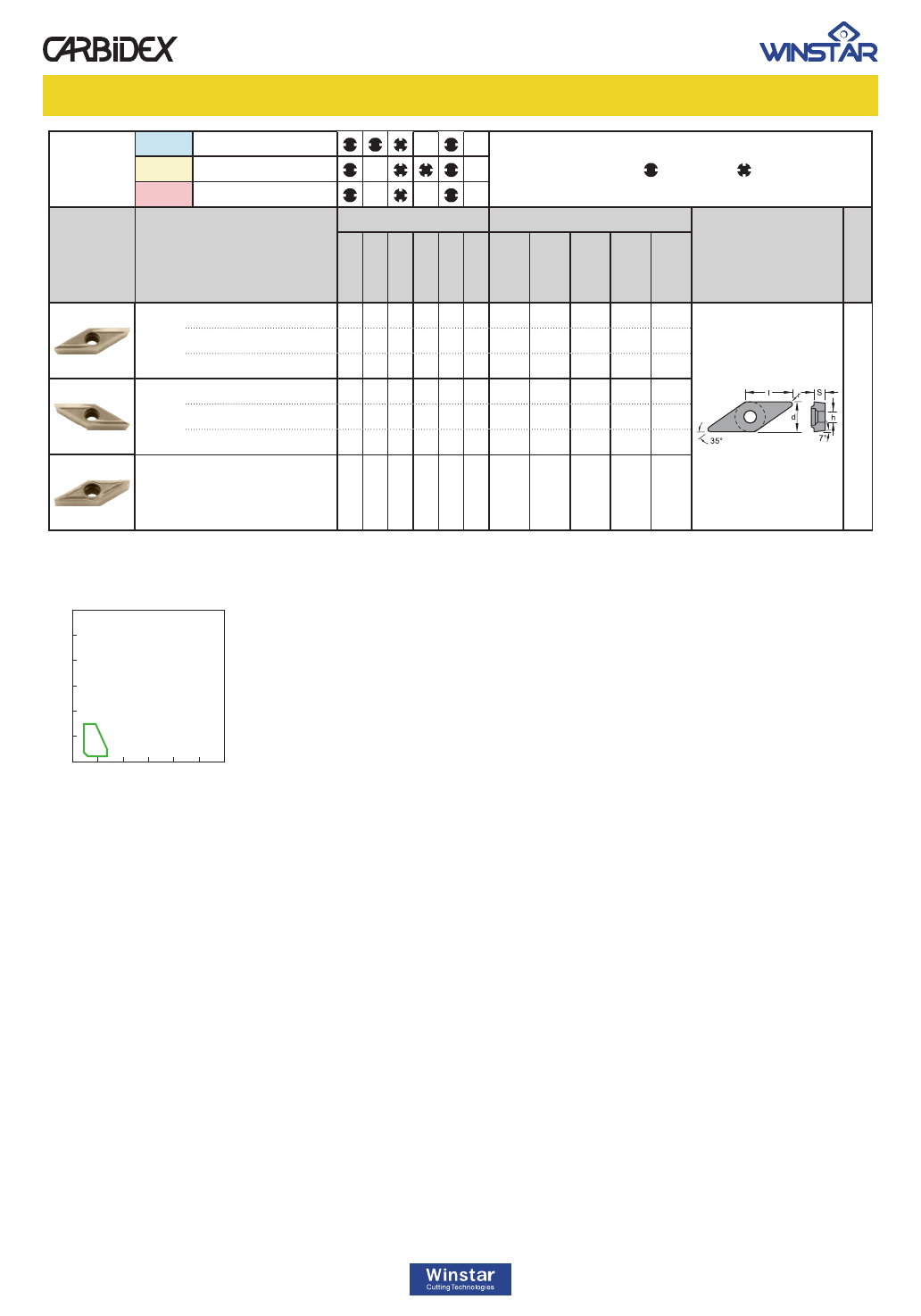

VCGT - Positive Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
XF
正角車刀片
*Customize radius and geometries available
Turning Inserts
B123
Turning Inserts & Tools
CNMG - Negative Turning Insert
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
CNMG 120404-SM ✓12.7 12.9 4.76 0.4 5.16
B136
~
B139
B159
~
B160
120408-SM ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120404-SP ✓✓✓ 12.7 12.9 4.76 0.4 5.16
120408-SP ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120404-MM ✓ ✓ 12.7 12.9 4.76 0.4 5.16
120408-MM ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120408-MS ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120404-MP ✓✓✓✓ 12.7 12.9 4.76 0.4 5.16
120408-MP ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
120412-MP ✓ ✓ 12.7 12.9 4.76 1.2 5.16
CNMG 120408-MK ✓ ✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120408-MG ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120408-RG ✓✓✓✓ 12.7 12.9 4.76 0.8 5.16
CNMG 120408-RP ✓✓✓✓ 12.7 12.9 4.76 0.4 5.16
120412-RP ✓ ✓ 12.7 12.9 4.76 0.8 5.16
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
RG/RP
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
SM
SP
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
MM
MS
負角車刀片
Turning Inserts
B124
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
DNMG 110408-MG ✓ ✓ 9.53 11.6 4.76 0.8 3.81
B138
B161
150408-MG ✓ ✓ 12.7 15.5 4.76 0.8 5.16
DNMG - Negative Turning Insert 負角車刀片
Turning Inserts
0.05 0.1 0.15 0.2 0.25 0.3
1
2
3
4
5
6
f (mm/rev)
ap (mm)
FG
B125
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h

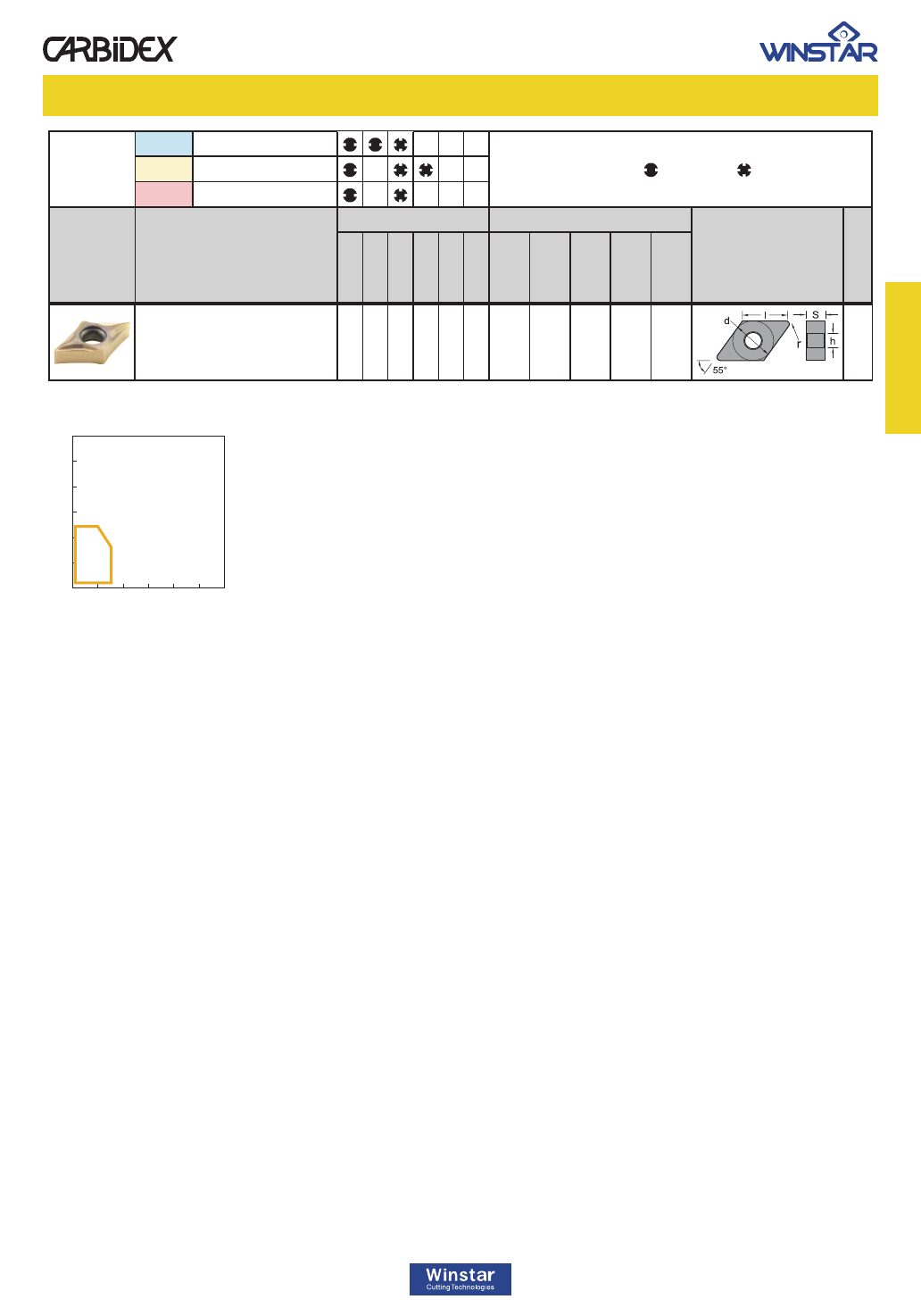

DNGX - Negative Turning Insert
Turning Inserts & Tools
負角車刀片
DNGX 110401-FG ✓9.525 11.6 4.76 0.1 4.5
-
0.05 0.1 0.15 0.2 0.25 0.3
1
2
3
4
5
6
f (mm/rev)
ap (mm)
FG
*Customize radius available
Turning Inserts
B126
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
SNMG 120404-SM ✓ ✓ 12.7 12.7 4.76 0.4 5.16
B162
SNMG 120408-MG ✓ ✓ 12.7 12.7 4.76 0.8 5.16
SNMG 120408-RP ✓ ✓ 12.7 12.7 4.76 0.8 5.16
120412-RP ✓ ✓ 12.7 12.7 4.76 1.2 5.16

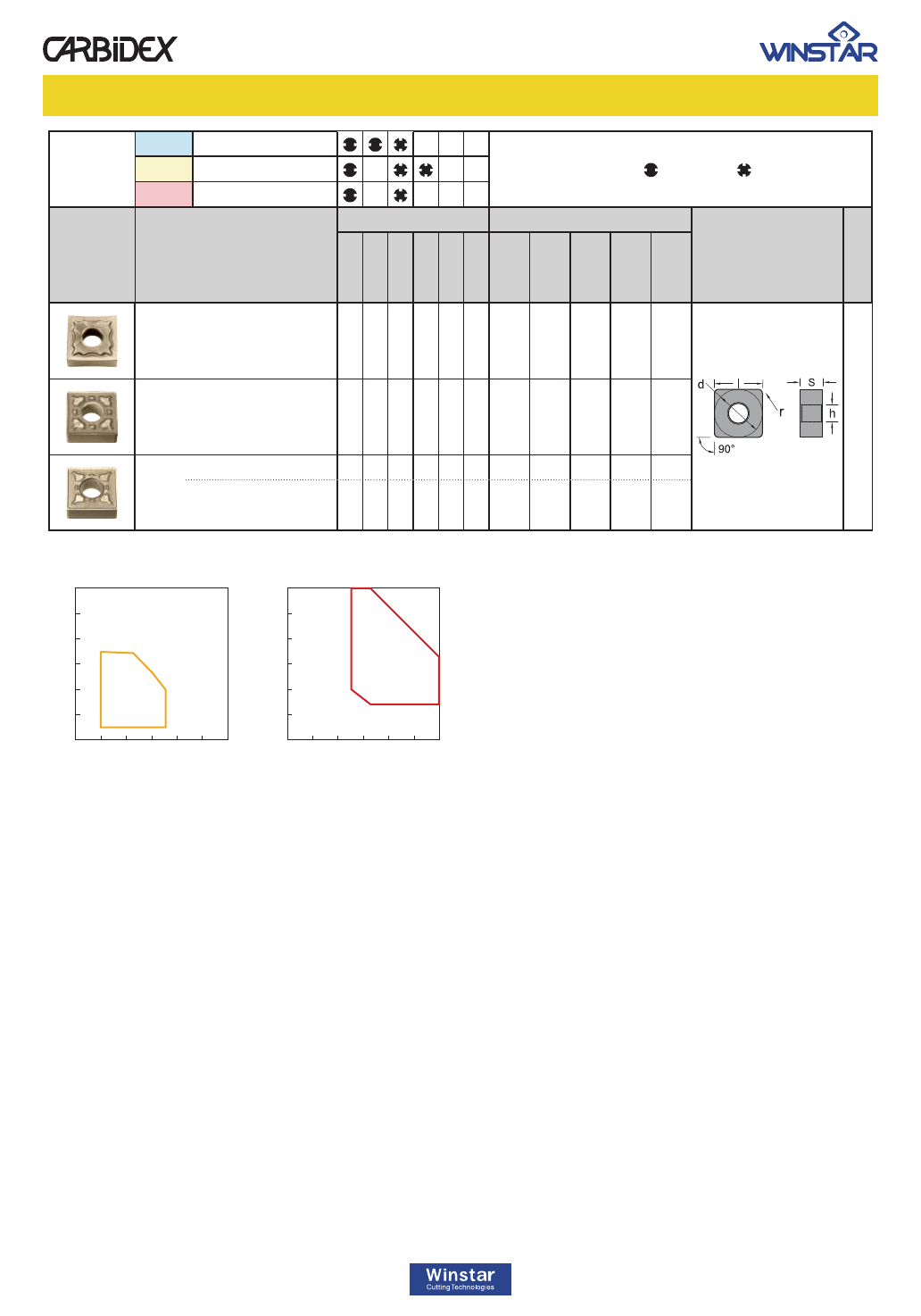

SNMG - Negative Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
SM
負角車刀片
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
RP
Turning Inserts
B127
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
TNMG 160408-SM ✓ ✓ 9.53 16.5 4.76 0.8 3.81
B139
~
B141
B161
B163
~
B164
TNMG 160404-SP ✓ ✓ 9.53 16.5 4.76 0.4 3.81
160408-SP ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
TNMG 160408-MM ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
TNMG 160404R-ME ✓✓✓✓ 9.53 16.5 4.76 0.4 3.81
160408R-ME ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
TNMG 160404L-ME ✓✓✓✓ 9.53 16.5 4.76 0.4 3.81
160408L-ME ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
TNMG 160404-MP ✓ ✓ 9.53 16.5 4.76 0.4 3.81
160408-MP ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
160412-MP ✓✓✓✓ 9.53 16.5 4.76 1.2 3.81
TNMG 220408-MP ✓✓✓✓ 12.7 22 4.76 0.8 5.16
TNMG 160404-MG ✓9.53 16.5 4.76 0.4 3.81
TNMG 160408-RG ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
TNMG 160408-RP ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
160412-RP ✓ ✓ 9.53 16.5 4.76 1.2 3.81

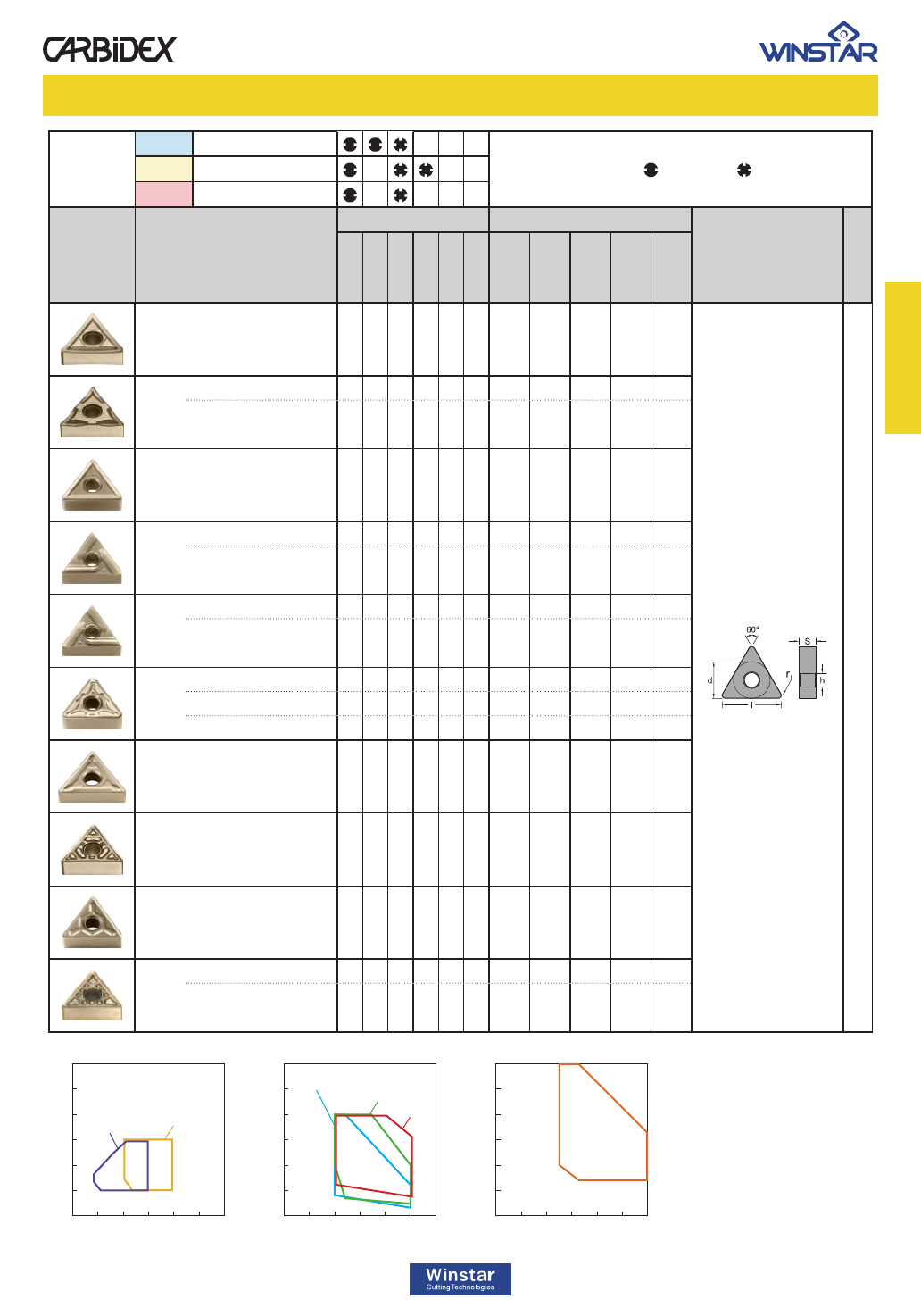

TNMG - Negative Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
RG/RP
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
ME
MM
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
SM
SP
Turning Inserts & Tools
負角車刀片
Turning Inserts
B128
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
VNMG 160404-MP ✓ ✓ 9.53 16.5 4.76 0.8 3.81
B141
B165
~
B166
VNMG 160408-MG ✓✓✓✓ 9.53 16.5 4.76 0.8 3.81
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
VNMG - Negative Turning Insert 負角車刀片
Turning Inserts
B129
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Tool Page
CX2565
CX2555
CX3565
CX3555
d l S r h
WNMG 080404-SP ✓✓✓✓ 12.7 8.7 4.76 0.4 5.16
B142
B166
~
B167
080408-SP ✓✓✓✓ 12.7 8.7 4.76 0.8 5.16
WNMG 080408-MM ✓✓✓✓ 12.7 8.7 4.76 0.8 5.16
WNMG 080404-MP ✓ ✓ 12.7 8.7 4.76 0.4 5.16
080408-MP ✓✓✓✓ 12.7 8.7 4.76 0.8 5.16
080412-MP ✓ ✓ 12.7 8.7 4.76 1.2 5.16
WNMG 080408-RG ✓✓✓✓ 12.7 8.7 4.76 0.4 5.16
WNMG 080408-RP ✓✓✓✓ 12.7 8.7 4.76 0.8 5.16
080412-RP ✓ ✓ 12.7 8.7 4.76 1.2 5.16

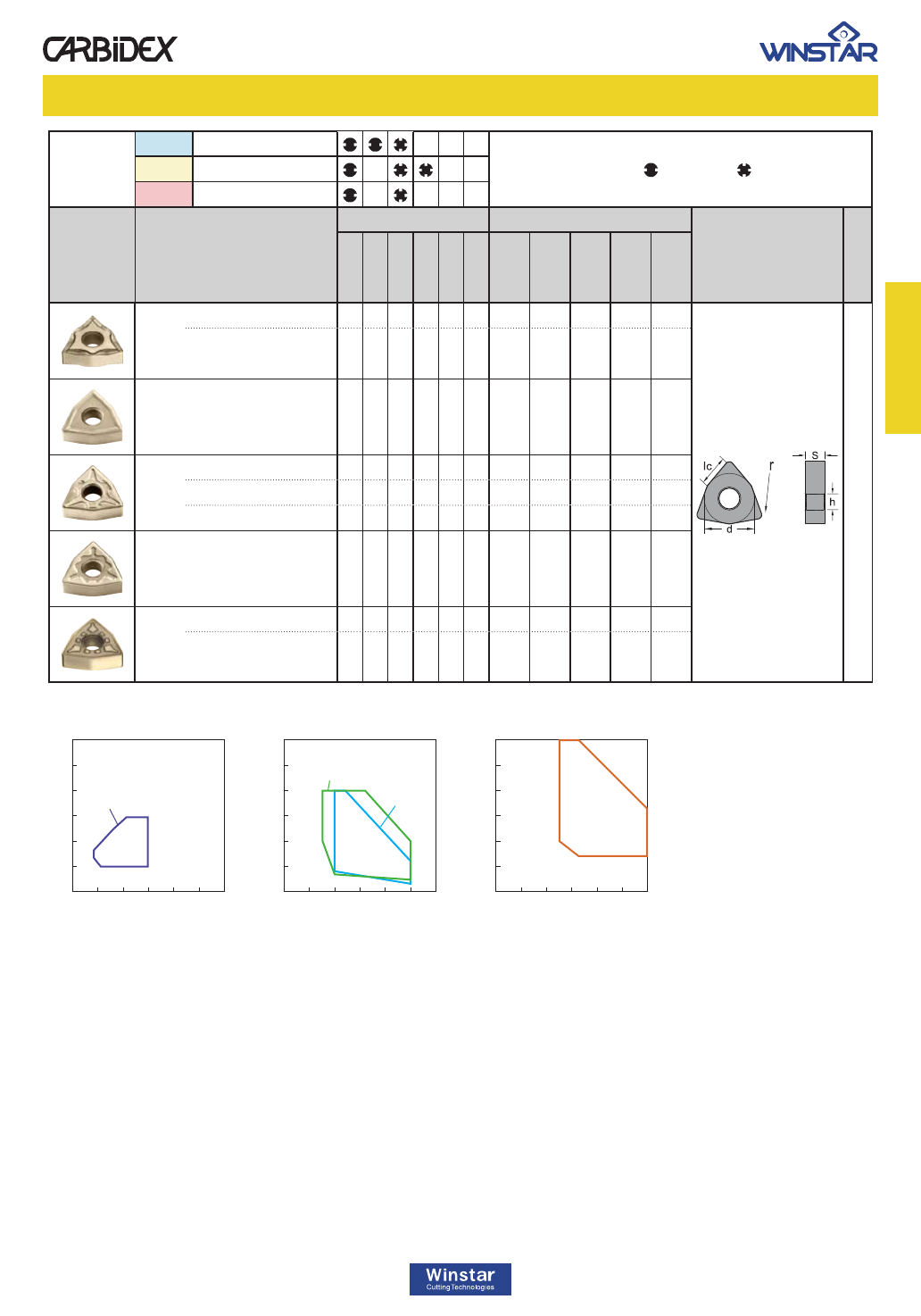

WNMG - Negative Turning Insert
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
MP
MM
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
RG/RP
0.1 0.2 0.3 0.4 0.5 0.6
1
2
3
4
5
6
f (mm/rev)
ap (mm)
SP
Turning Inserts & Tools
負角車刀片
Turning Inserts

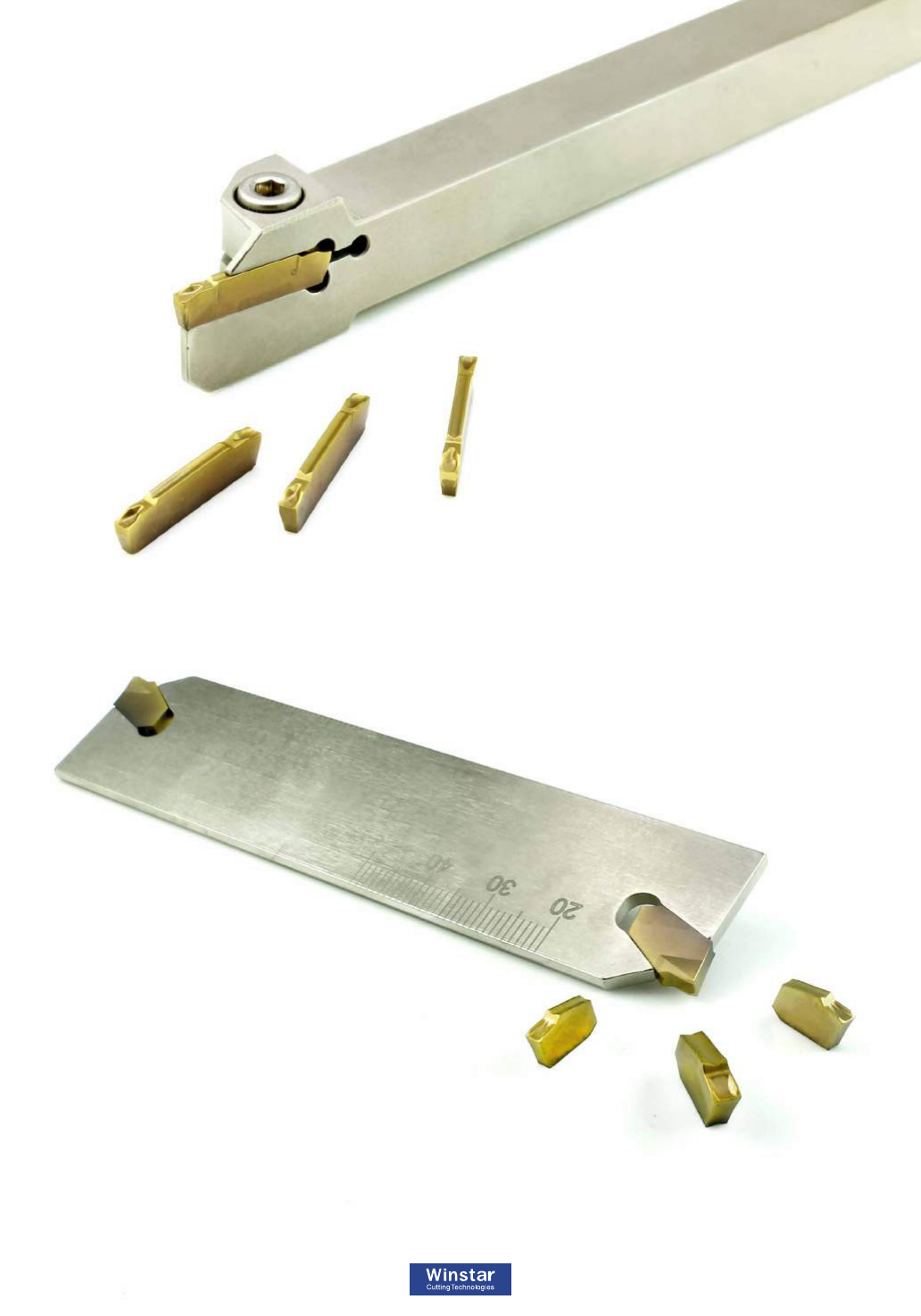

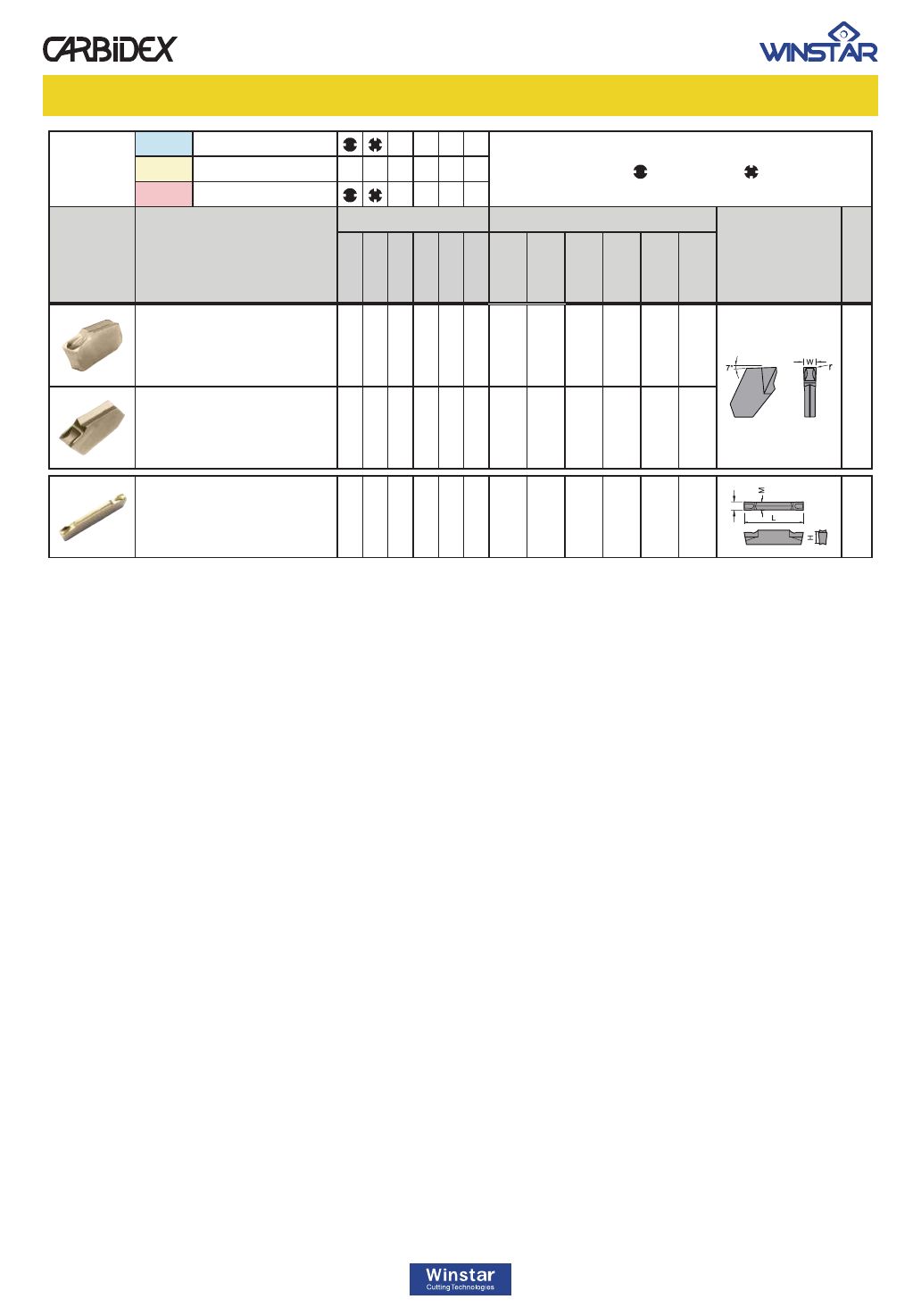

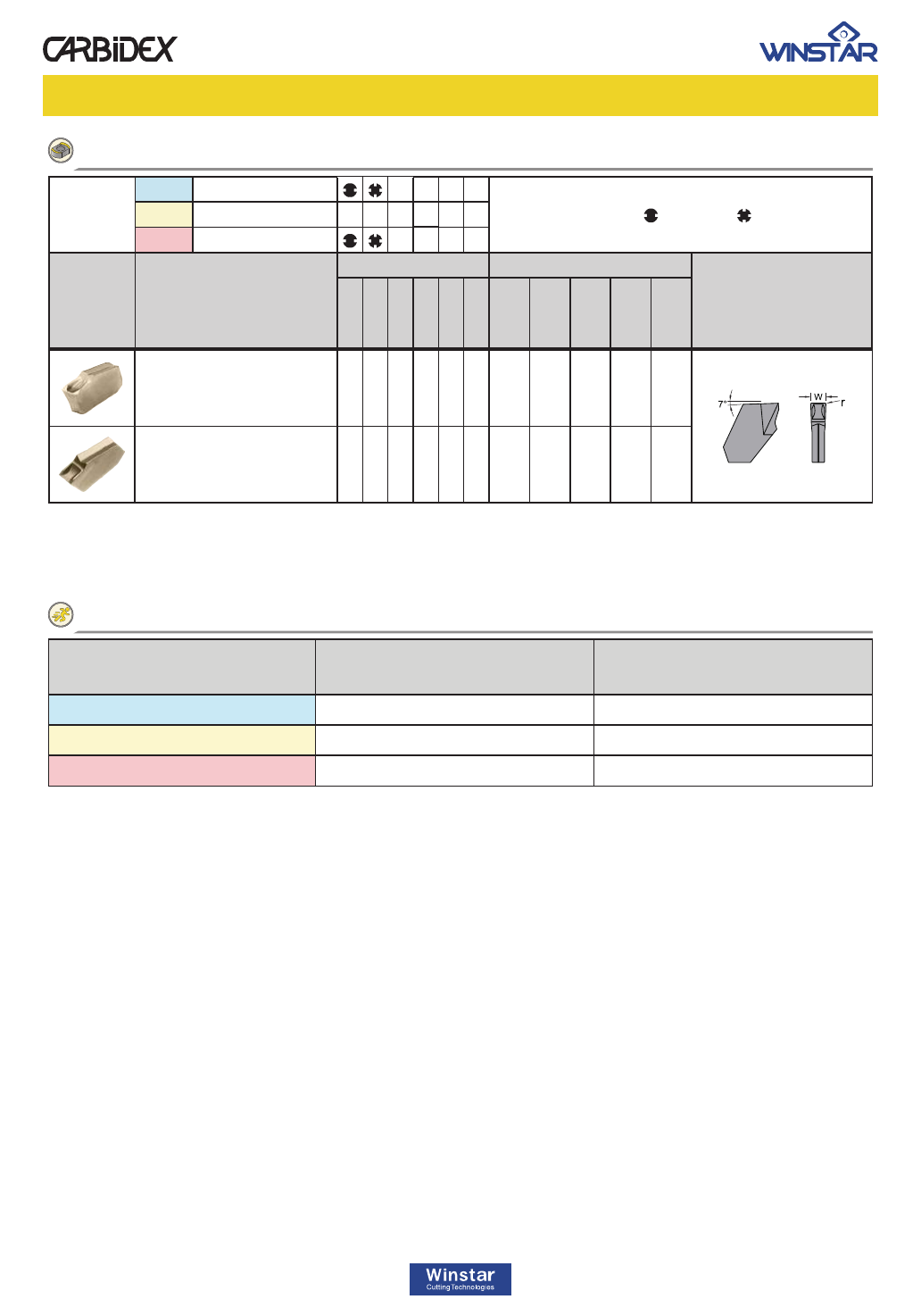

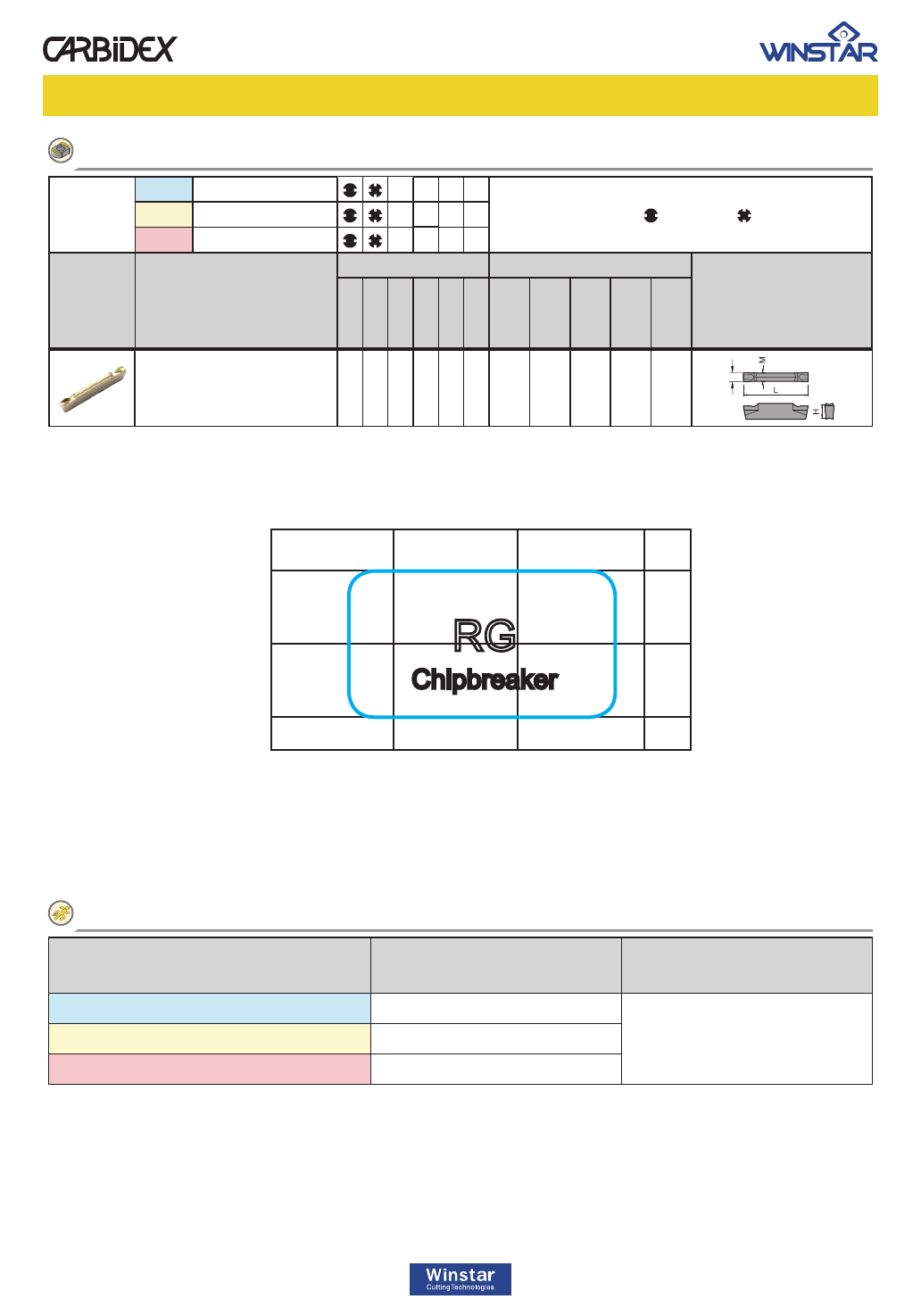

TGTN, GMM - Parting Insert
P Steel
Cutting Type : General Interrupted
M Stainless steel
K Cast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
Cutter Page
CX30NS
CX40NS
wr h m
TGTN 0220 ✓ ✓ 2.2 0.2
B181
TGTN
0310
✓ ✓ 3.1 0.15
GMM
2020-RG
✓ ✓
2.2 2.0 4.3 1.5
B183
B130
切斷刀片
Parting Inserts
B131
B132
Tools Designation for External Turning
1
M
2
C
3
L
4
N
5
R
13
*
6
2
7
5 M
8
2
9
5
12
21
11
1TYPE OF LOCJING 2INSERT SHAPE
3INSERT SHAPE
4RAKE
6/7
SHANK HEIGHT
10
SHANK LENGTH
5HAND OF TOOL
8/9
SHANK WIDTH
5HAND OF TOOL
8/9
SHANK WIDTH
車刀桿型號編碼
Turning Tools
B133

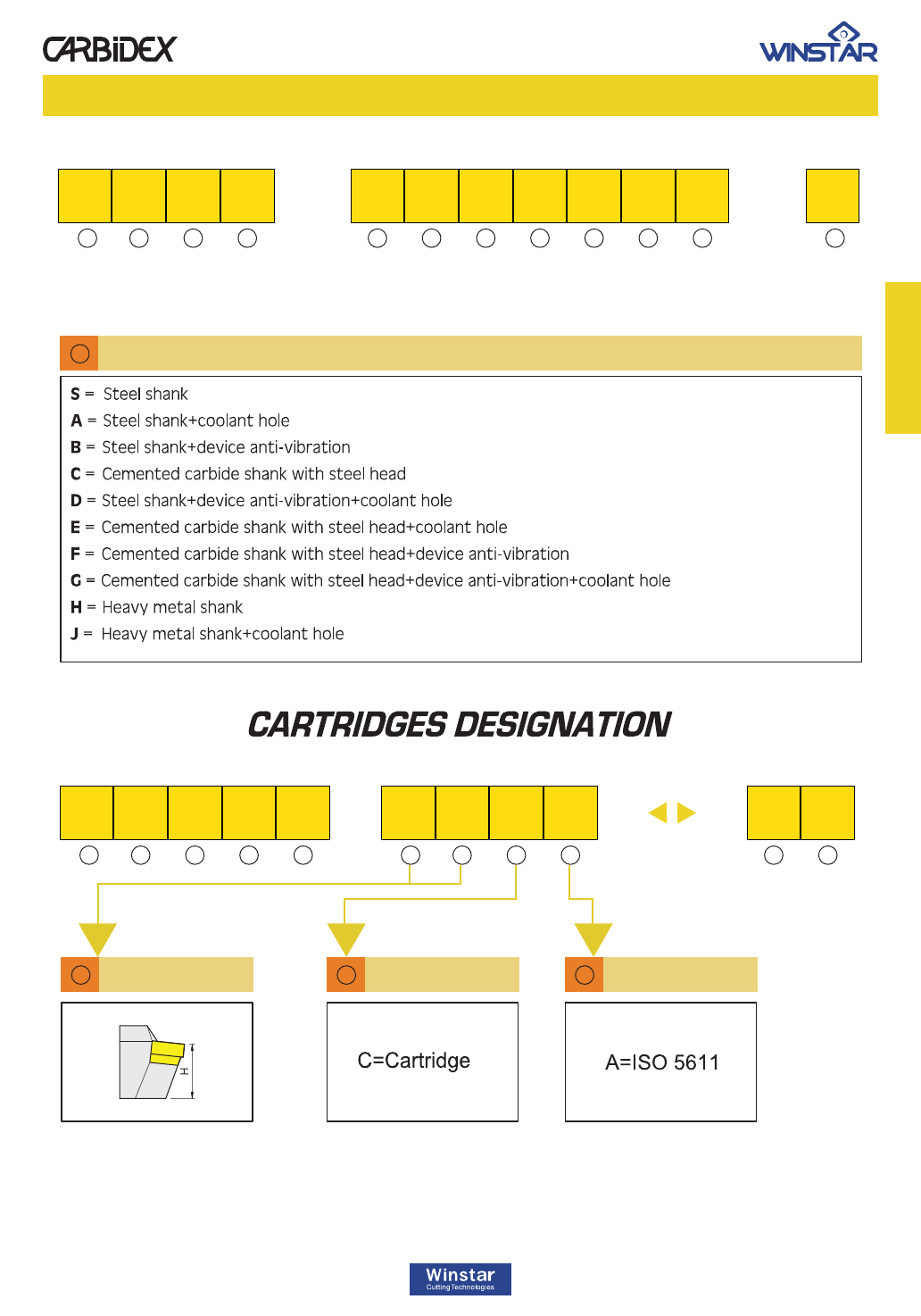

Tools Designation for Internal Turning
Turning Inserts & Tools
6
S
8
2
9
0
10
R
13
*
1
S
2
C R
3
L
4
C
12
90
115
6SHANK
1
S
2
T
3
F
4
C
5
R
6
1
7
0
8
C
9
A
11
1
12
1
6/7
SHANK HEIGHT 8TYPE OF TOOL 9EXECUTION
車刀桿型號編碼
Turning Tools
B134

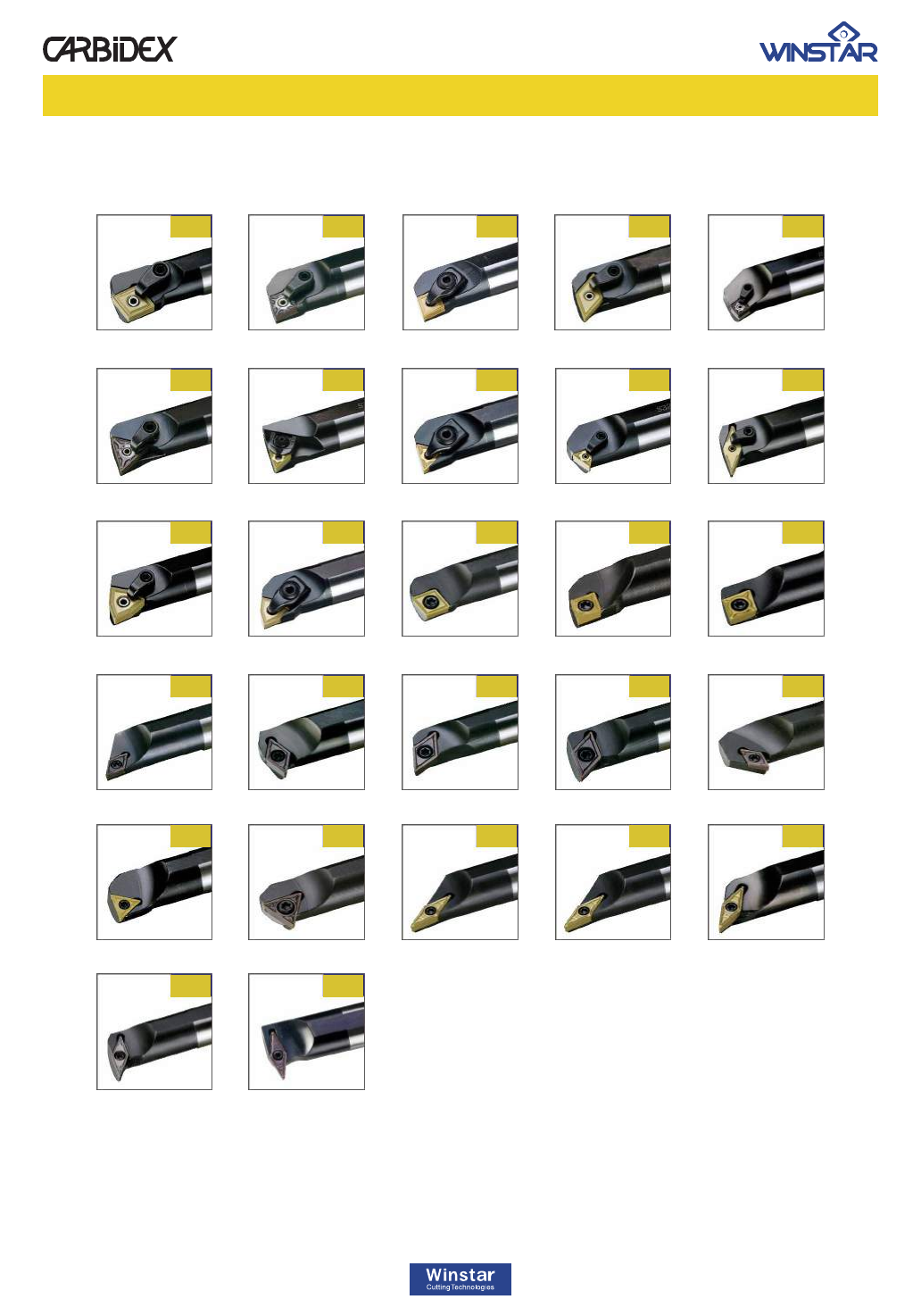

Internal Turning Tools Illustrated Index
MCKN MCLN DCLN MDUN MSKN
MTUN WTUN DTUN MTWN MVUN
MWLN DWLN SCKC SCLC SCLC
SDJC SDNC SDQC SDUC SDZC
STUC STWC SVJB
B136 B137 B138 B138 B139
B139 B140 B140 B141 B141
B142 B142 B143 B144 B144
B147 B148 B149 B148 B151
B152 B154 B155
SVQB
B157
SVUB
B158
SVVB
B158
SVJC
B156
內徑車刀桿
Turning Tools
B135
External Turning Tools Illustrated Index
MCBN
B159
MCKN
B159
MCLN
B160
MCNN
B160
MDJN
B161
MTQN
B161
MSDN
B162
MSSN
B162
MTJN
B163
MTEN
B163
DTFN
B164
MTFN
B164
MVJN
B165
MVQN
B165
MVVN
B166
WWLN
B166
MWLN
B167
MWLN-N
B167
SCBC
B168
SCKC
B168
SCLC
B169
SCL2C
B169
SCNC
B170
SDJC
B170
SDJ2C
B171
SDNC
B171
SDQC
B172
SDFC
B172
SSAC
B173
SSBC
B173
SSDC
B174
SSEC
B174
SSXC
B175
SSYC
B175
STAC
B176
STFC
B176
STGC
B177
CTYC
B177
SVJB
B178
SVJ2B
B178
SVQB
B179
SVVB
B179
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B136

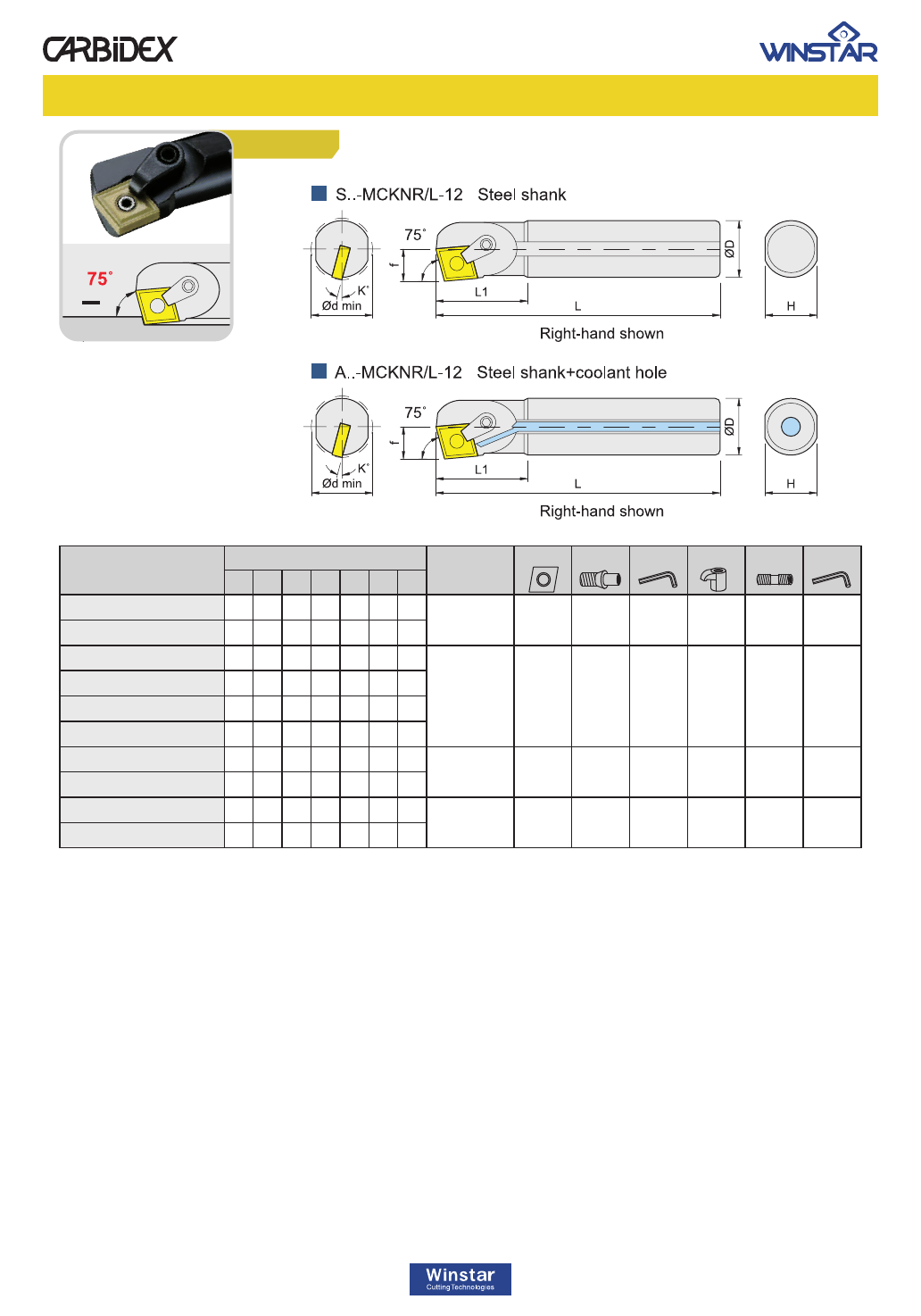

Internal Turning Tools
MCKN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS20R-MCKNR/L-12 20 200 36 13 18 15 25 CN..1204.. -- MLP44 PL25 MC620 MS620 PL30
IS25R-MCKNR/L-12 25 200 40 15 23 13 30
IS32S-MCKNR/L-12 32 250 48 20 30 13 40
CN..1204.. CMS432 MLP46 PL25 MC620 MS625 PL30
IS40T-MCKNR/L-12 40 300 55 25 37 12 50
IS50U-MCKNR/L-12 50 350 60 30 47 10 60
IS60V-MCKNR/L-12 60 400 60 35 57 9 70
IA20R-MCKNR/L-12 20 200 36 13 18 15 25 CN..1204.. -- MLP44 PL25 MC620 MS620 PL30
IA25R-MCKNR/L-12 25 200 40 15 23 13 30
IA32S-MCKNR/L-12 32 250 48 20 30 13 40 CN..1204.. CMS432 MLP46 PL25 MC620 MS625 PL30
IA40T-MCKNR/L-12 40 300 55 25 37 12 50
內徑車刀桿
Turning Tools
B137

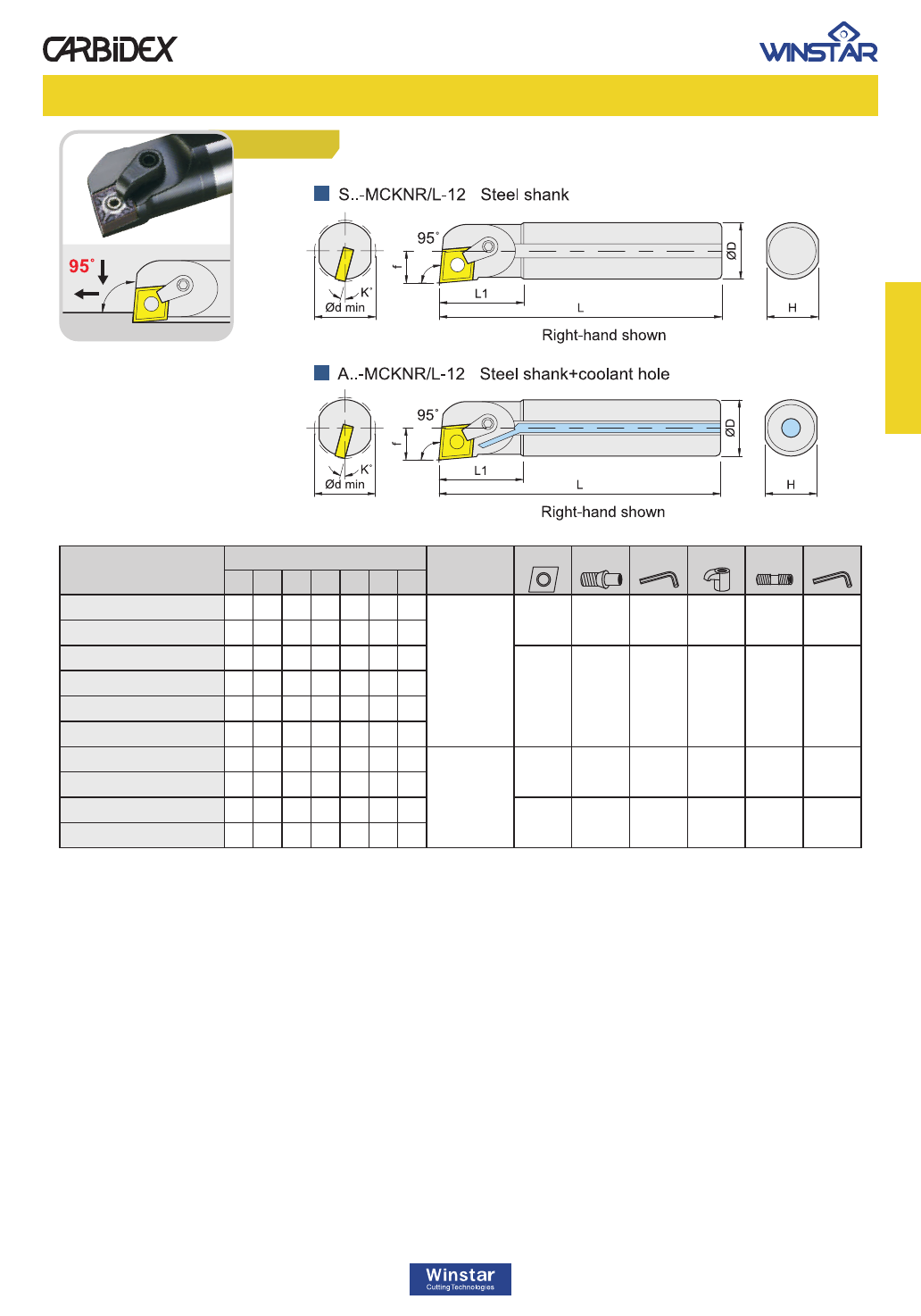

Internal Turning Tools
MCLN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS20R-MCLNR/L-12 20 200 36 13 18 15 25
CN..1204..
-- MLP44 PL25 MC620 MS620 PL30
IS25R-MCLNR/L-12 25 200 40 15 23 13 30
IS32S-MCLNR/L-12 32 250 48 20 30 13 40
CMS432 MLP46 PL25 MC620 MS625 PL30
IS40T-MCLNR/L-12 40 300 55 25 37 12 50
IS50U-MCLNR/L-12 50 350 60 30 47 10 60
IS60V-MCLNR/L-12 60 400 60 35 57 9 70
IA20R-MCLNR/L-12 20 200 36 13 18 15 25
CN..1204..
-- MLP44 PL25 MC620 MS620 PL30
IA25R-MCLNR/L-12 25 200 40 15 23 13 30
IA32S-MCLNR/L-12 32 250 48 20 30 13 40 CMS432 MLP46 PL25 MC620 MS625 PL30
IA40T-MCLNR/L-12 40 300 55 25 37 12 50
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B138

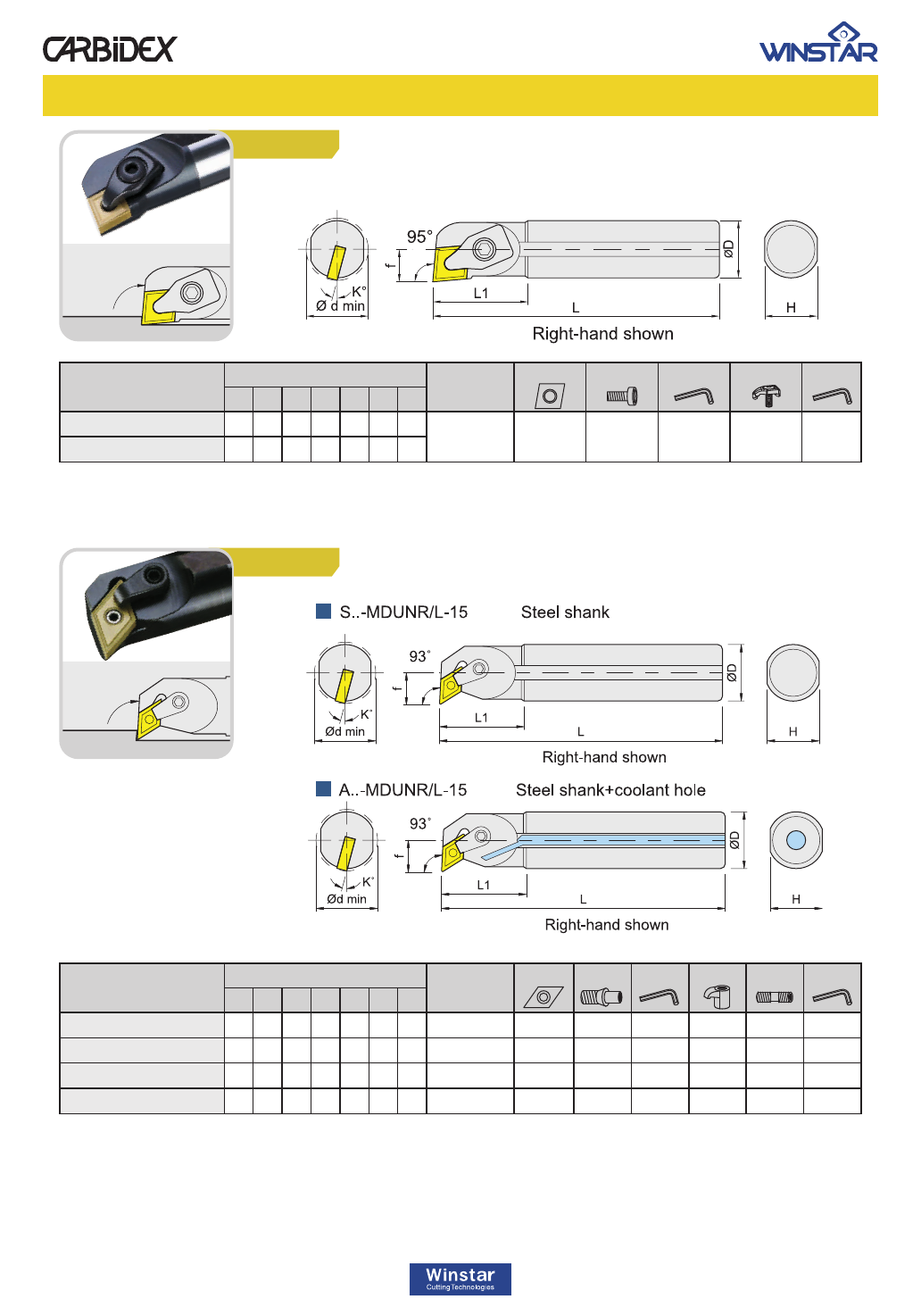

Internal Turning Tools
DCLN
Item Code Dimensions, mm Insert Shim Screw
Wrench
Clamp
Wrench
D L L1 f H K dmin
IS20R-DCLNR/L-12 20 200 36 14 18 15 28 CN..1204.. -- -- -- MCD425 PL40
IS25R-DCLNR/L-12 25 200 40 15 23 15 30
內徑車刀桿
Turning Tools
MDUN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS25R-MDUNR/L-15 25 200 40 17 23 13 32 DN..1504.. -- MLP44 PL25 MC620 MS620 PL30
IS32S-MDUNR/L-15 32 250 50 21 30 13 40 DN..1504.. DMS432 MLP46 PL25 MC620 MS625 PL30
IA25R-MDUNR/L-15 25 200 40 17 23 13 32 DN..1504.. -- MLP44 PL25 MC620 MS620 PL30
IA32S-MDUNR/L-15 32 250 50 21 30 13 40 DN..1504.. DMS432 MLP46 PL25 MC620 MS625 PL30
B139
Internal Turning Tools
MSKN
MTUN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS40T-MSKNR/L-12 40 300 55 25 37 12 50
CN..1204.. SMS432 MLP46 PL25 MC620 MS625 PL30IS50U-MSKNR/L-12 50 350 60 30 47 10 60
IS60V-MSKNR/L-12 60 400 60 36 57 9 70
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS20R-MTUNR/L-16 20 200 36 13 18 15 25 TN..1604.. --
MLP33L
PL20 MC515 MS520 PL25
IS25R-MTUNR/L-16 25 200 40 15 23 13 30
IS32S-MTUNR/L-16 32 250 48 20 30 13 40
TN..1604.. TMS322
MLP34L
PL20 MC620 MS625 PL30
IS40T-MTUNR/L-16 40 300 55 26 37 10 50
IS50U-MTUNR/L-16 50 350 60 31 47 9 60
IS60V-MTUNR/L-16 60 400 60 36 57 8 70
IA20R-MTUNR/L-16 20 200 36 13 18 15 25 TN..1604.. --
MLP33L
PL20 MC515 MS520 PL25
IA25R-MTUNR/L-16 25 200 40 15 23 13 30
IA32S-MTUNR/L-16 32 250 48 20 30 13 40 TN..1604.. TMS322
MLP34L
PL20 MC620 MS625 PL30
IA40T-MTUNR/L-16 40 300 55 26 37 10 50
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B140
Internal Turning Tools
WTUN
Item Code Dimensions, mm Insert Shim Pin Clamp
Wrench
D L L1 f H K dmin
IS32S-WTUNR/L-16 32 250 48 20 30 13 40 TN..1604.. TMS322 SCP315 MCW3-P25 PL25
IS40T-WTUNR/L-16 40 300 55 26 37 10 50
TN..1604.. TMS322 SCP318 MCW3-P25 PL25
IS40U-WTUNR/L-16 40 350 55 26 37 10 50
IS50U-WTUNR/L-16 50 350 60 31 47 9 60
IS50V-WTUNR/L-16 50 400 60 31 47 9 60
IS60V-WTUNR/L-16 60 400 60 36 57 8 70
IA32S-WTUNR/L-16 32 250 48 20 30 13 40 TN..1604.. TMS322 SCP315 MCW3-P25 PL25
IA40T-WTUNR/L-16 40 300 55 26 37 10 50 TN..1604.. TMS322 SCP318 MCW3-P25 PL25
IA40U-WTUNR/L-16 40 350 55 26 37 10 50
DTUN
Item Code Dimensions, mm Insert Shim Screw
Wrench
Clamp
Wrench
D L L1 f H K dmin
IS20R-DTUNR/L-16 20 200 36 14 18 15 28 TN..1604.. -- -- -- MCD324 PL40
IS25R-DTUNR/L-16 25 200 40 15 23 13 30
IS32S-DTUNR-16 32 250 48 20 30 13 40 TN..1604.. TWS322 MS4008ES PL25 MCD324B PL40
內徑車刀桿
Turning Tools
B141
Internal Turning Tools

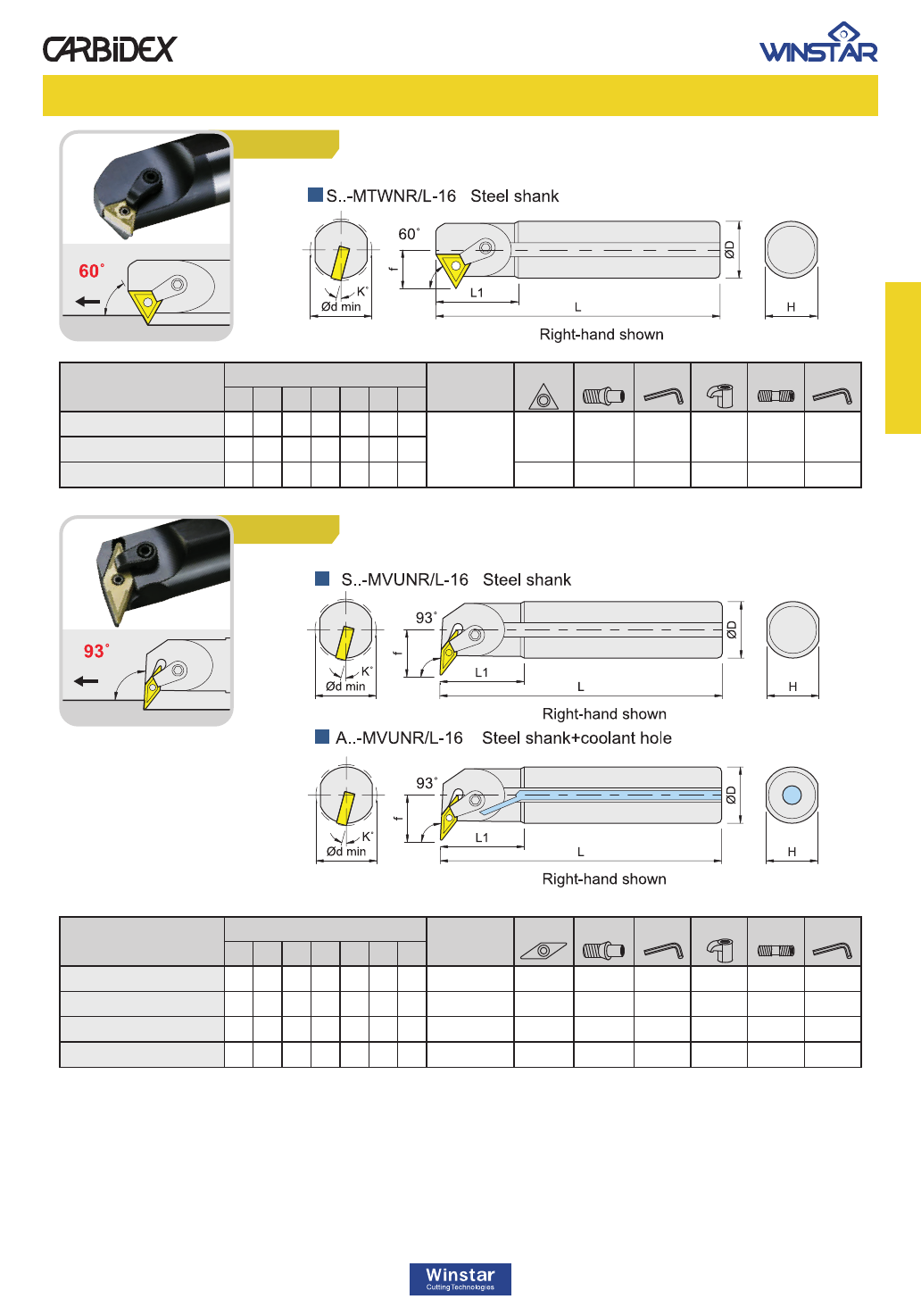

MTWN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS20R-MTWNR/L-16 20 200 36
13.5
18 15 27
TN..1604.. -- MLP33L PL20 MC515 MS520 PL25
IS25R-MTWNR/L-16 25 200 40 16 23 13 32
IS32S-MTWNR/L-16 32 250 48 20 30 13 40 TWS322 MLP34L PL20 MC620 MS625 PL30
MVUN
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS25R-MVUNR/L-16 25 200 40 18 23 13 32 VN..1604.. -- MLP33L PL20 MC515 MS520 PL25
IS32S-MVUNR/L-16 32 250 50 22 30 15 40 VN..1604.. VMS322 MLP34L PL20 MC620 MS625 PL30
IA25R-MVUNR/L-16 25 200 40 18 23 13 32 VN..1604.. -- MLP33L PL20 MC515 MS520 PL25
IA32S-MVUNR/L-16 32 250 50 22 30 15 40 VN..1604.. VMS322 MLP34L PL20 MC620 MS625 PL30
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B142

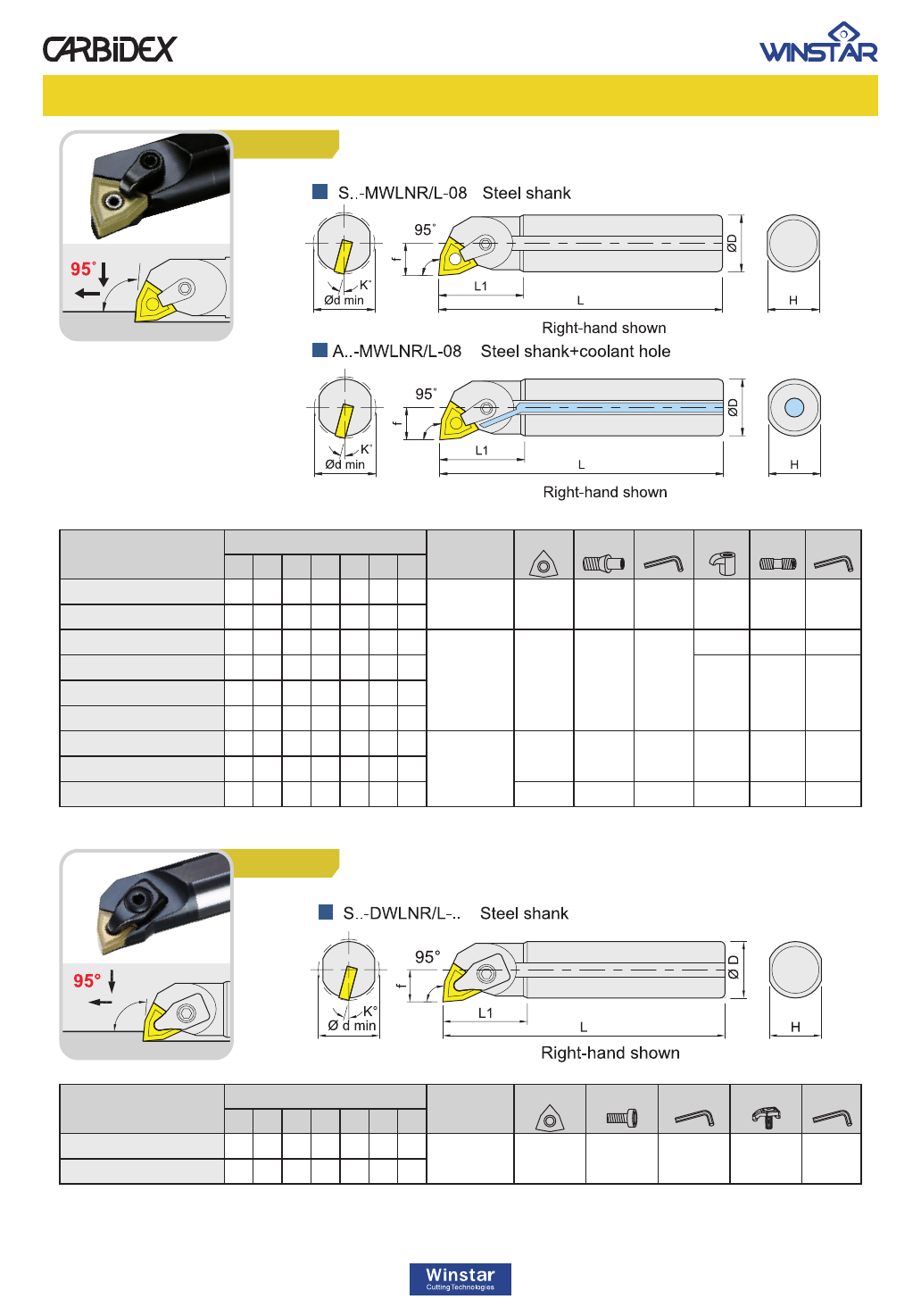

Internal Turning Tools
MWLN
DWLN
Item Code Dimensions, mm Insert Shim Screw
Wrench
Clamp
Wrench
D L L1 f H K dmin
IS20R-DWLNR/L-08 20 200 36 14 18 15 28 WN..0804.. -- -- -- MCD425 PL40
IS25R-DWLNR/L-08 25 200 40 15 23 13 30
Item Code Dimensions, mm Insert Shim Pin
Wrench
Clamp Screw
Wrench
D L L1 f H K dmin
IS20R-MWLNR/L-08 20 200 36
13
18 15 25 WN..0804.. -- MLP44 PL25 MC515 MS520 PL25
IS25R-MWLNR/L-08 25 200 40 15 23 13 30
IS32S-MWLNR/L-08 32 250 48 20 30 13 40
WN..0804.. WMS432 MLP4 PL25
MC515 MS520 PL25
IS40T-MWLNR/L-08 40 300 55 26 37 10 50
MC620 MS625 PL30IS50U-MWLNR/L-08 50 350 60 31 47 9 60
IS60V-MWLNR/L-08 60 400 60 36 57 8 70
IA20R-MWLNR/L-08 20 200 36 13 18 15 25
WN..0804.. -- MLP44 PL25 MC515 MS520 PL25
IA25R-MWLNR/L-08 25 200 40 15 23 13 30
IA32S-MWLNR/L-08 32 250 48 20 30 13 40 WMS432 MLP46 PL25 MC515 MS520 PL25
內徑車刀桿
Turning Tools
B143
Internal Turning Tools
SCKC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS08K-SCKCR/L-06 8 125 18
5
7 15 10
CC..0602.. MS2506A TF9
IS10K-SCKCR/L-06 10 125 22
6
9 13 12
IS12M-SCKCR/L-06 12 150 26
8
11 10 16
IS16Q-SCKCR/L-06 16 180 32
10
15 7 20
IS12M-SCKCR/L-09 12 150 26
8
11 11 16
CC..09T3.. MS4009A TF15IS16Q-SCKCR/L-09 16 180 32
10
15 7 20
IS20R-SCKCR/L-09 20 200 36
13
18 5 25
IA08K-SCKCR/L-06 8 125 18
5
7 15 10
CC..0602.. MS2506A TF9
IA10K-SCKCR/L-06 10 125 22
6
9 13 12
IA12M-SCKCR/L-06 12 150 26
8
11 10 16
IA16Q-SCKCR/L-06 16 180 32
10
15 7 20
IA12M-SCKCR/L-09 12 150 26
8
11 11 16
CC..09T3.. MS4009A TF15IA16Q-SCKCR/L-09 16 180 32
10
15 7 20
IA20R-SCKCR/L-09 20 200 36
13
18 5 25
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B144
Internal Turning Tools
SCLC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS08K-SCLCR/L-06 8 125 18
5
7 15 10
CC..0602.. MS2506A TF9
IS08K-SCLCR/L-06-D09 8 125 18 4.5 7 15 9
IS10K-SCLCR/L-06 10 125 22 6 9 13 12
IS10K-SCLCR/L-06-D11 10 125 22 5.5 9 13 11
IS12M-SCLCR/L-06 12 150 26 8 11 10 16
IS12M-SCLCR/L-06-D13 12 150 26 6.5 11 10 13
IS14Q-SCLCR/L-06 14 180 26 8 13 10 16
IS16Q-SCLCR/L-06 16 180 32 10 15 7 20
IS12M-SCLCR/L-09 12 150 26 8 11 10 16
CC..09T3.. MS4009A TF15
IS14Q-SCLCR/L-09 14 180 26 8 13 10 16
IS15Q-SCLCR/L-09 15 180 32 8.5 14 10 17
IS16Q-SCLCR/L-09 16 180 32 10 15 7 20
IS16Q-SCLCR/L-09-D18 16 180 32 9 15 7 18
IS18Q-SCLCR-09 18 180 32 10 17 7 20
IS20R-SCLCR/L-09 20 200 36 13 18 5 25
IS22R-SCLCR/L-09 22 200 40
12.5
20 5 25
IS25R-SCLCR/L-09 25 200 40 15 23 5 30 CC..09T3.. MS4011A TF15
內徑車刀桿
Turning Tools
B145

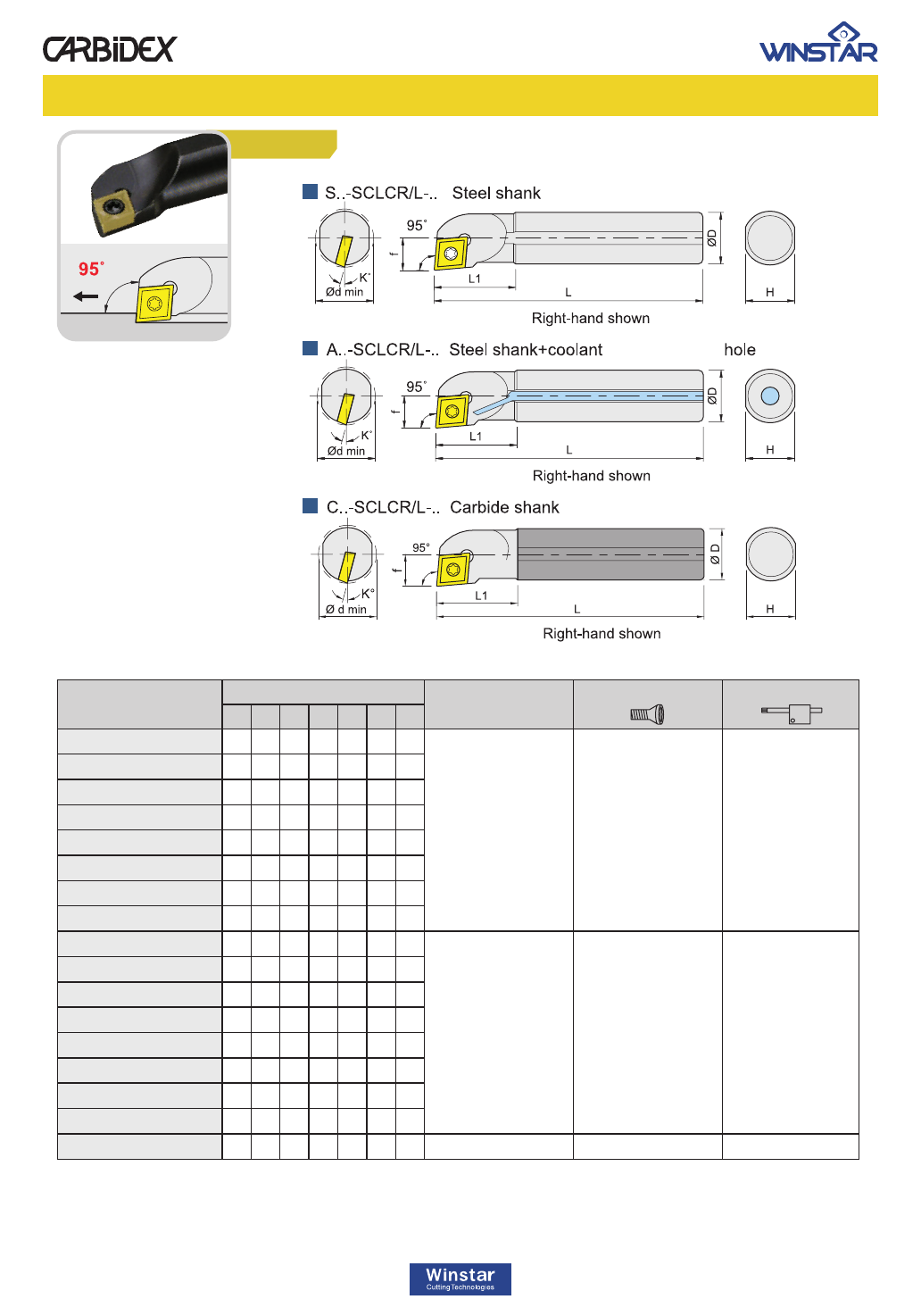

Internal Turning Tools
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS32S-SCLCR/L-12 32 250 48 20 30 5 38
CC..1204.. MS5011A TF20IS40T-SCLCR/L-12 40 300 55 26 37 3 50
IS40V-SCLCR/L-12 40 400 55 26 37 3 50
IA08K-SCLCR/L-06 8 125 18 5 7 15 10
CC..0602.. MS2506A TF9
IA08K-SCLCR/L-06-D09 8 125 18 4.5 7 15 9
IA10K-SCLCR/L-06 10 125 22 6 9 13 12
IA10K-SCLCR/L-06-D11 10 125 22 5.5 9 13 11
IA12M-SCLCR/L-06 12 150 26 8 11 10 16
IA12M-SCLCR/L-06-D13
12 150 26 6.5 11 10 13
IA14Q-SCLCR/L-06 14 180 26 8 13 10 16
IA16Q-SCLCR/L-06 16 180 32 10 15 7 20
IA12M-SCLCR/L-09 12 150 26 8 11 10 16
CC..09T3.. MS4009A TF15
IA16Q-SCLCR/L-09 16 180 32 10 15 7 20
IA16Q-SCLCR/L-09-D18 16 180 32 9 15 7 18
IA20R-SCLCR/L-09 20 200 36 13 18 5 25
IA25R-SCLCR/L-09 25 200 40 15 23 5 30 CC..09T3.. MS4011A TF15
IA32S-SCLCR/L-12 32 250 48 20 30 5 38 CC..1204.. MS5011A TF20
IC06J-SCLCR/L-04 6 110 15 3.5 5.7 15 7 CC..0401.. MS2004A TF6
IC07J-SCLCR/L-06 7 110 18 4 6.7 15 10 CC..0602.. MS2506A TF9
IC08K-SCLCR/L-06 8 125 18 5 7.2 15 10
CC..0602.. MS2506A TF9
IC08K-SCLCR-06-D09 8 125 18 4.5 7.2 15 9
IC10K-SCLCR/L-06 10 125 22 6 9.2 13 12
IC10K-SCLCR-06-D11 10 125 22 5.5 9.2 13 11
IC12M-SCLCR/L-06 12 150 26 8
11.2
10 16
IC12M-SCLCR-06-D13 12 150 26 6.5
11.2
10 13
IC12M-SCLCR/L-09 12 150 26 8
11.2
10 16
CC..09T3.. MS4009A TF15IC16Q-SCLCR/L-09 16 180 32 10
15.2
7 20
IC16Q-SCLCR/L-09-D18 16 180 32 9
15.2
7 18
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B146

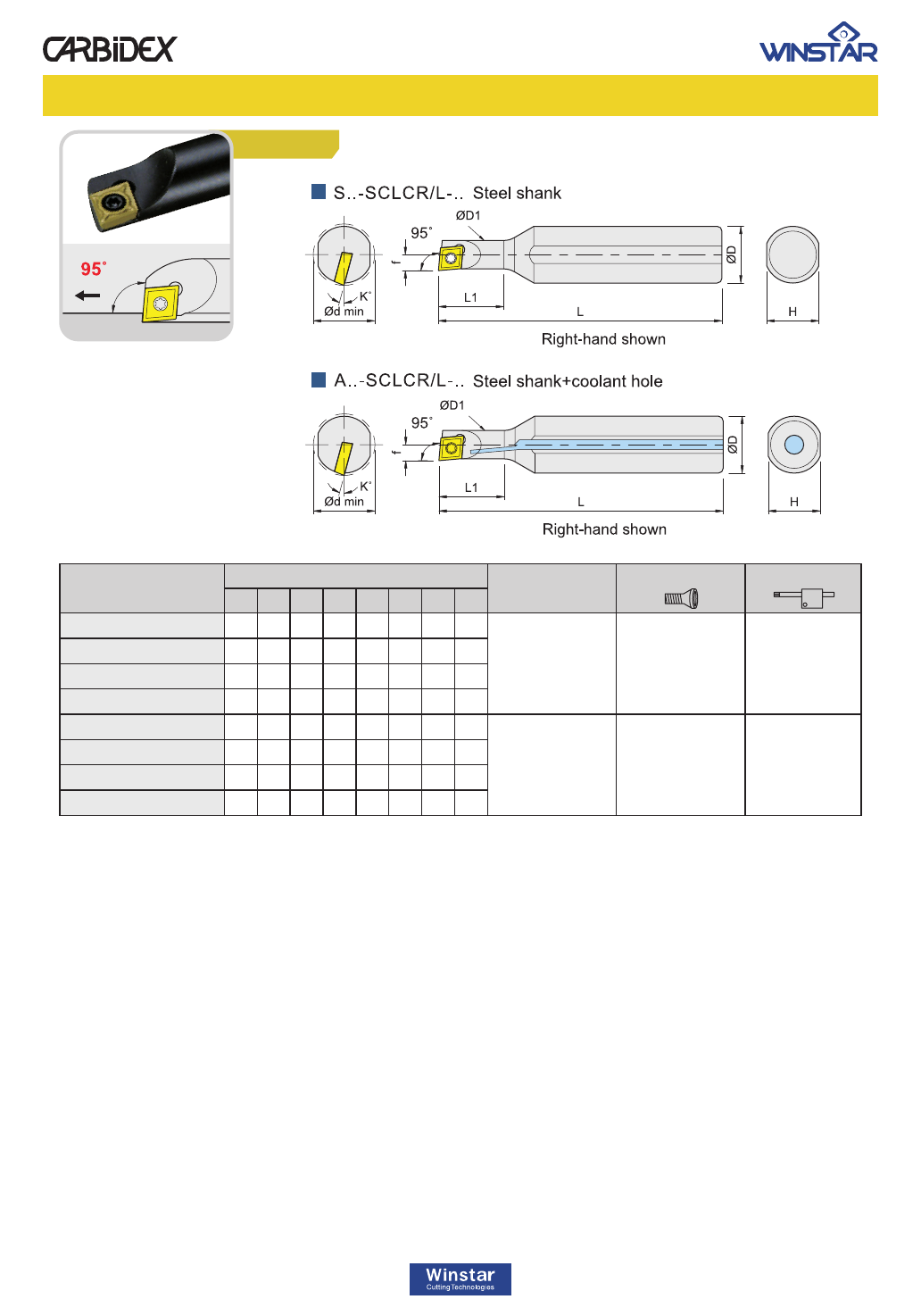

Internal Turning Tools
SCLC
Item Code Dimensions, mm Insert Screw
Wrench
DD1 LL1 f H K dmin
IS1607K-SCLCR/L-06 16 7 125 20
4
15 13 8
CC..0602.. MS2506A TF9
IS1608K-SCLCR/L-06A 16 8 125 20 4.5 15 11 9
IS1608K-SCLCR/L-06 16 8 125 25 4.5 15 11 9
IS1609K-SCLCR/L-06 16 9 125 25 5 15 11 10
IA1607K-SCLCR/L-06 16 7 125 20 4 15 13 8
CC..0602.. MS2506A TF9
IA1608K-SCLCR/L-06A 16 8 125 20 4.5 15 11 9
IA1608K-SCLCR-06 16 8 125 25 4.5 15 11 9
IA1609K-SCLCR/L-06 16 9 125 25 5 15 11 10
內徑車刀桿
Turning Tools
B147

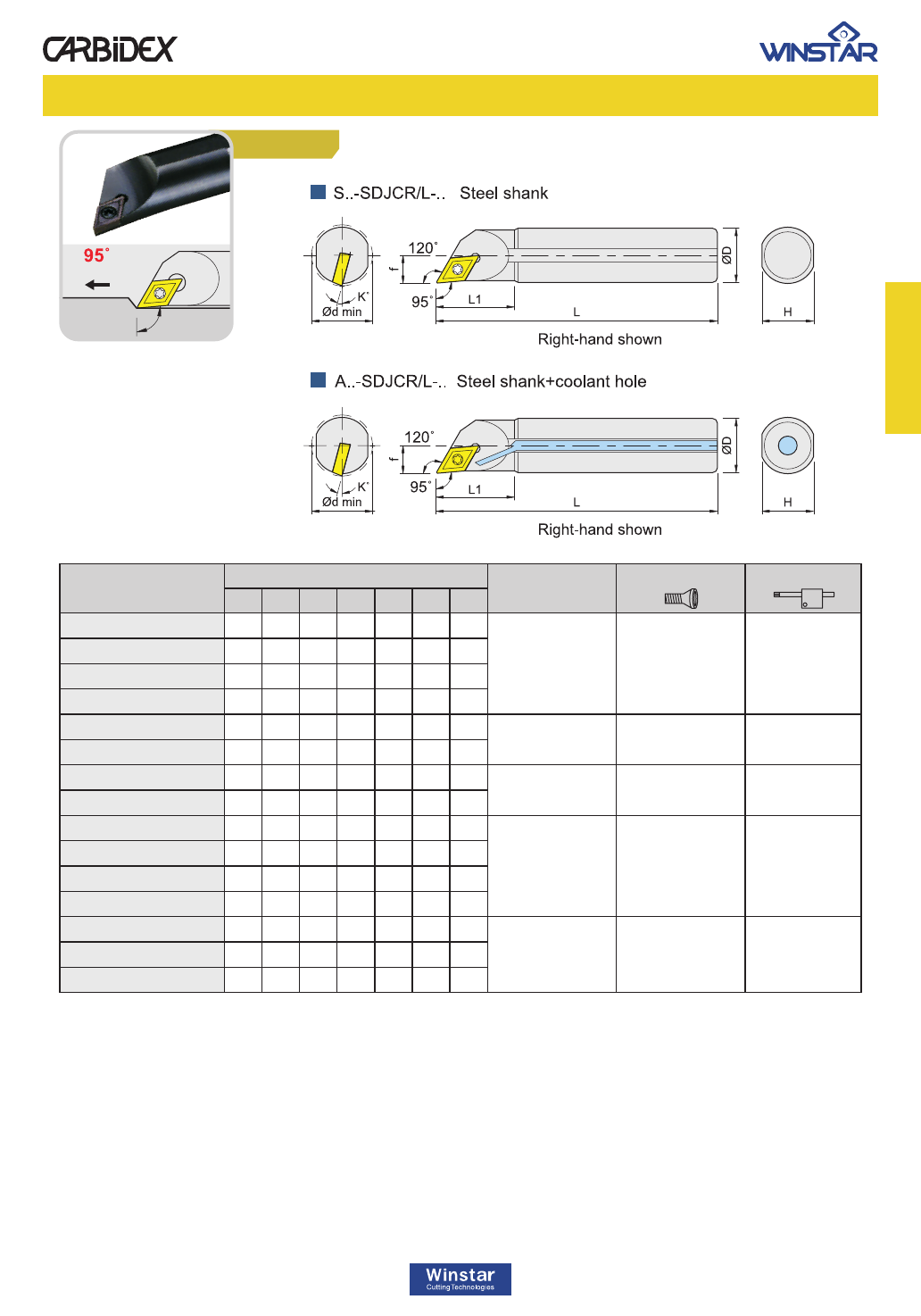

Internal Turning Tools
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS08K-SDJCR/L-07 8 125 22
5
7 15 10
DC..0702.. MS2506A TF9
IS10K-SDJCR/L-07 10 125 25 6 9 13 12
IS12M-SDJCR/L-07 12 150 30 7 11 10 14
IS16Q-SDJCR/L-07 16 180 38 9.5 15 7 19
IS16Q-SDJCR/L-11 16 180 38 9.5 15 7 19 DC..11T3.. MS4009A TF15
IS20R-SDJCR/L-11 20 200 42 11.5 18 7 23
IS25R-SDJCR/L-11 25 200 45 14 23 5 28 DC..11T3.. MS4009A TF15
IS32S-SDJCR/L-11 32 250 48 17.5 30 5 35
IA08K-SDJCR/L-07 8 125 22 5 7 15 10
DC..0702.. MS2506A TF9
IA10K-SDJCR/L-07 10 125 25 6 9 13 12
IA12M-SDJCR/L-07 12 150 30 7 11 10 14
IA16Q-SDJCR/L-07 16 180 38 9.5 15 7 19
IA16Q-SDJCR/L-11 16 180 38 9.5 15 7 19
DC..11T3.. MS4009A TF15IA20R-SDJCR/L-11 20 200 42 11.5 18 7 23
IA25R-SDJCR/L-11 25 200 45 14 23 5 28
SDJC
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B148
Internal Turning Tools

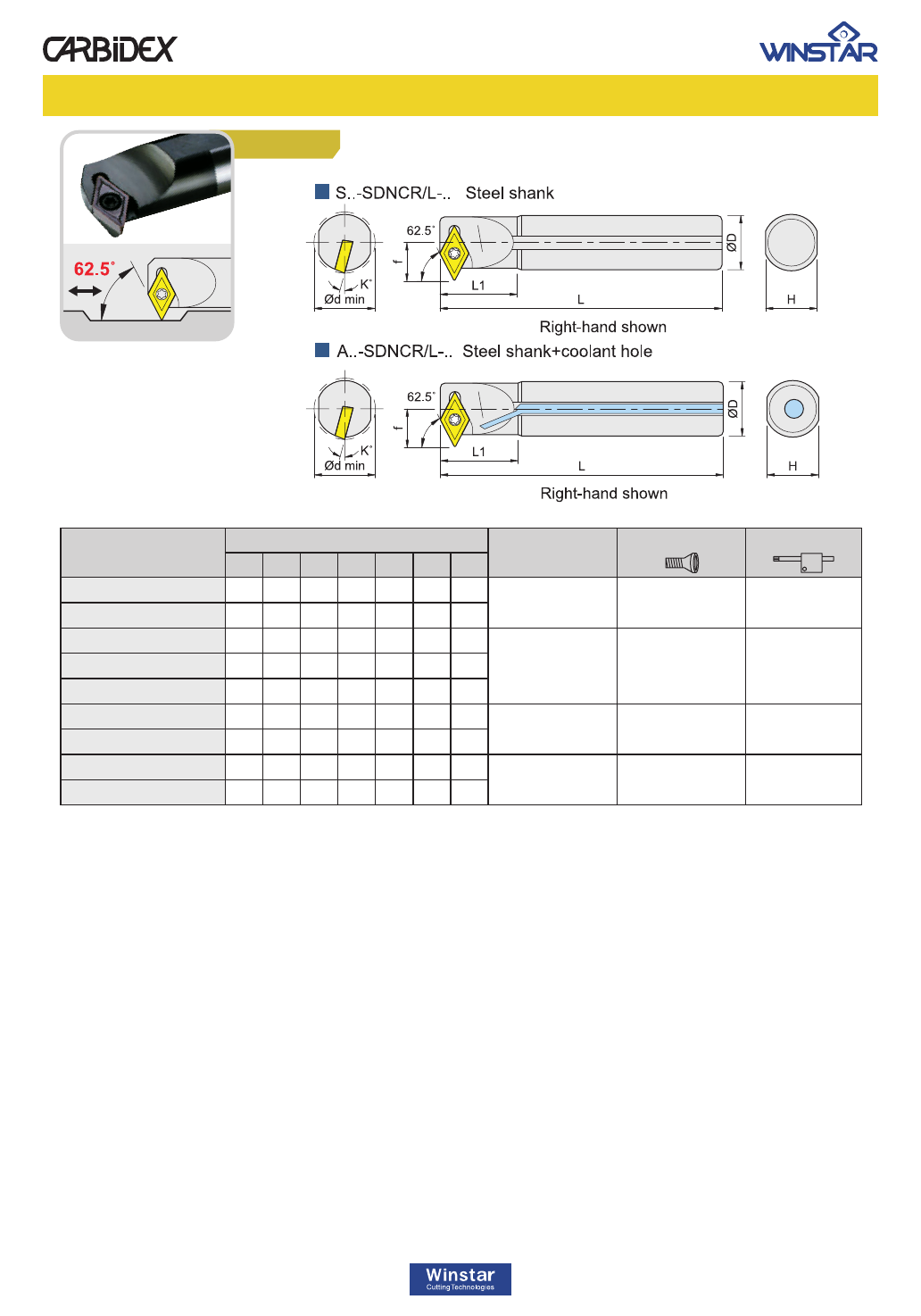

SDNC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS12M-SDNCR/L-07 12 150 25 9 11 7 16 DC..0702.. MS2506A TF9
IS16Q-SDNCR/L-07 16 180 30 11 15 7 20
IS20R-SDNCR/L-11 20 200 35 15 18 7 25
DC..11T3.. MS4009A TF15IS25R-SDNCR/L-11 25 200 35 17 23 5 32
IS32S-SDNCR/L-11 32 250 40 20.5 30 5 40
IA12M-SDNCR/L-07 12 150 25 9 11 7 16 DC..0702.. MS2506A TF9
IA16Q-SDNCR/L-07 16 180 30 11 15 7 20
IA20R-SDNCR/L-11 20 200 35 15 18 7 25 DC..11T3.. MS4009A TF15
IA25R-SDNCR/L-11 25 200 35 17 23 5 32
內徑車刀桿
Turning Tools
B149

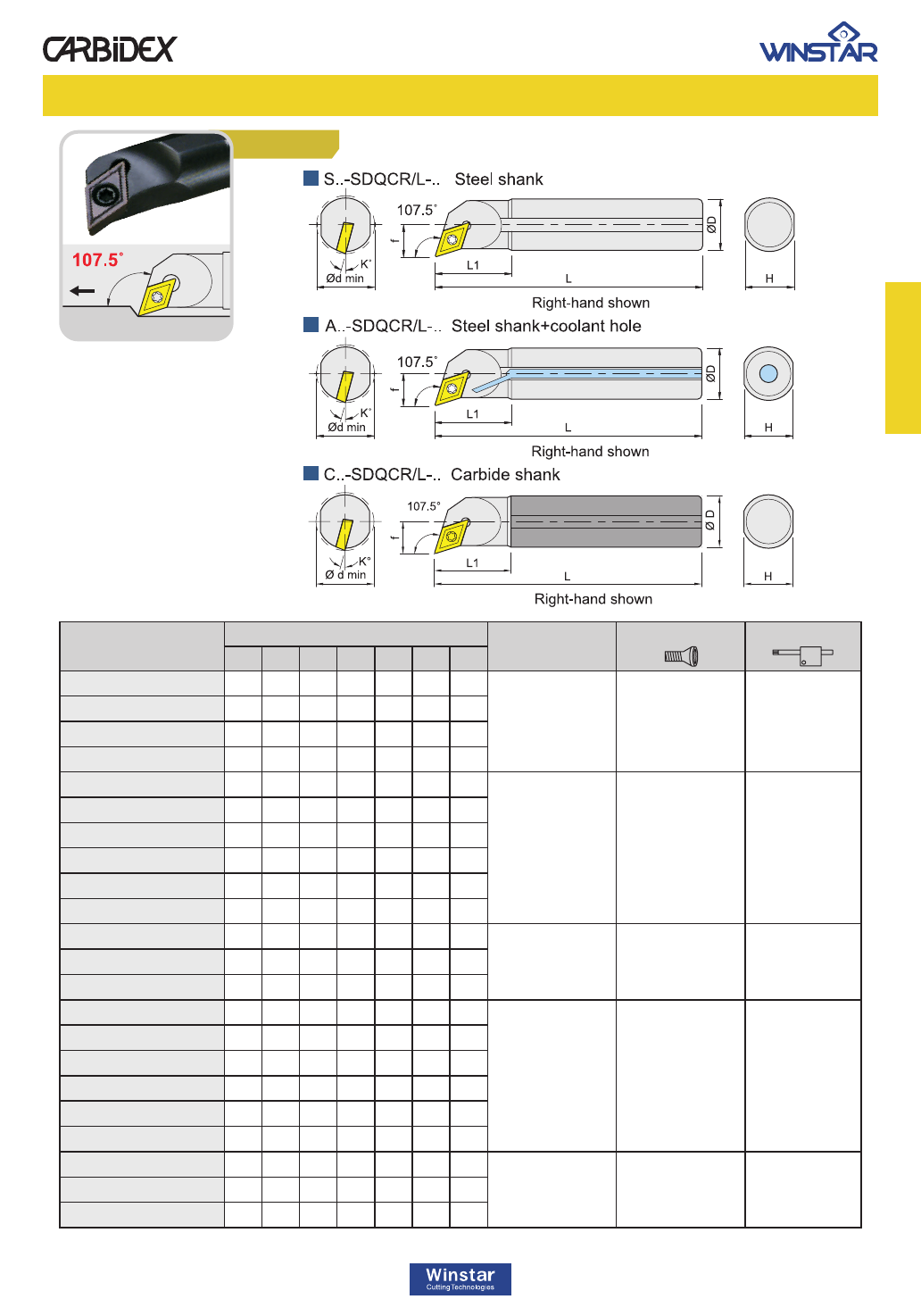

Internal Turning Tools
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS10K-SDQCR/L-07 10 125 22 6 9 13 13
DC..0702.. MS2506A TF9
IS12M-SDQCR/L-07 12 150 30 8 11 10 16
IS16Q-SDQCR/L-07 16 180 35 10 15 7 20
IS20R-SDQCR/L-07 20 200 40 13 18 7 25
IS16Q-SDQCR/L-11 16 180 35 10 15 7 20
DC..11T3.. MS4009A TF15
IS20R-SDQCR/L-11 20 200 40 13 18 7 25
IS25R-SDQCR/L-11 25 200 45 15 23 5 32
IS32S-SDQCR/L-11 32 250 48 20 30 5 40
IS40T-SDQCR/L-11 40 300 55 25 37 3 50
IS50U-SDQCR/L-11 50 350 60 30 47 260
IA10K-SDQCR/L-07 10 125 22 6 9 13 13
DC..0702.. MS2506A TF9IA12M-SDQCR/L-07 12 150 30 8 11 10 16
IA16Q-SDQCR/L-07 16 180 35 10 15 7 20
IA16Q-SDQCR/L-11 16 180 35 10 15 7 20
DC..11T3.. MS4009A TF15
IA20R-SDQCR/L-11 20 200 40 13 18 7 25
IA25R-SDQCR/L-11 25 200 45 15 23 5 32
IA32S-SDQCR/L-11 32 250 48 20 30 5 40
IA40T-SDQCR/L-11 40 300 55 25 37 3 50
IA50U-SDQCR/L-11 50 350 60 30 47 260
IC10M-SDQCR-07 10 150 22 6 9 13 13
DC..0702.. MS2506A TF9IC12Q-SDQCR-07 12 180 30 8 11 10 16
IC16Q-SDQCR-07 16 180 35 10 15 7 20
SDQC
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B150
Internal Turning Tools

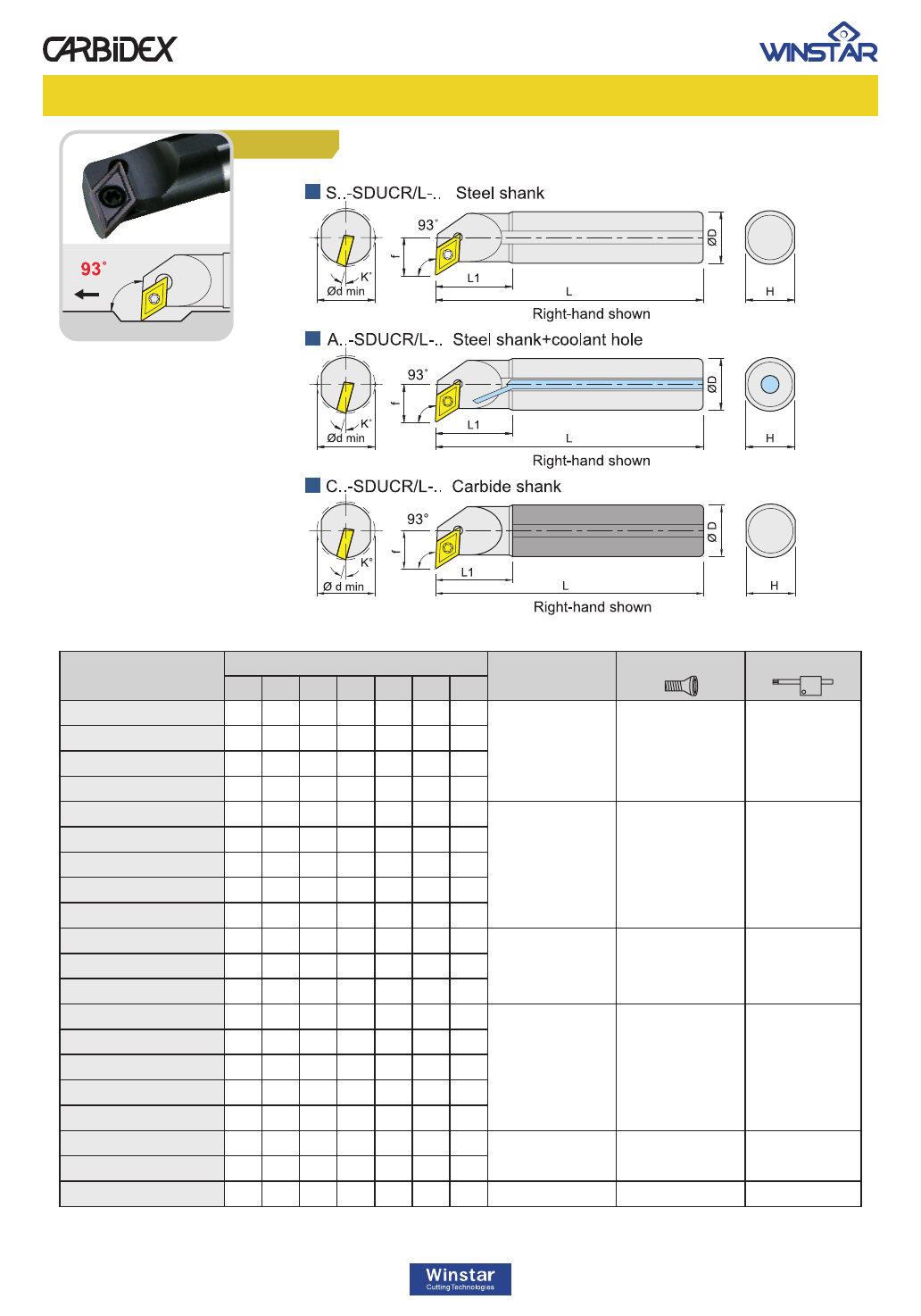

SDUC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS10K-SDUCR/L-07 10 125 25 7 9 13 13
DC..0702.. MS2506A TF9
IS12M-SDUCR/L-07 12 150 30 9 11 10 16
IS16Q-SDUCR/L-07 16 180 30 11 15 7 20
IS20R-SDUCR/L-07 20 200 40 13 18 7 25
IS16Q-SDUCR/L-11 16 180 30 11 15 7 20
DC..11T3.. MS4009A TF15
IS20R-SDUCR/L-11 20 200 40 13 18 7 25
IS25R-SDUCR/L-11 25 200 45 17 23 5 32
IS32S-SDUCR/L-11 32 250 48 20 30 5 40
IS40T-SDUCR/L-11 40 300 55 25 37 3 50
IA10K-SDUCR/L-07 10 125 25 7 9 13 13
DC..0702.. MS2506A TF9IA12M-SDUCR/L-07 12 150 30 9 11 10 16
IA16Q-SDUCR/L-07 16 180 30 11 15 7 20
IA16Q-SDUCR/L-11 16 180 30 11 15 7 20
DC..11T3.. MS4009A TF15
IA20R-SDUCR/L-11 20 200 40 13 18 7 25
IA25R-SDUCR/L-11 25 200 45 17 23 5 32
IA32S-SDUCR/L-11 32 250 48 20 30 5 40
IA40T-SDUCR/L-11 40 300 55 25 37 3 50
IC10M-SDUCR-07 10 150 25 7 9 13 13 DC..0702.. MS2506A TF9
IC12Q-SDUCR-07 12 180 30 9 11 10 16
IC16R-SDUCR-11 16 200 30 11 15 7 20 DC..11T3.. MS4009A TF15
內徑車刀桿
Turning Tools
B151

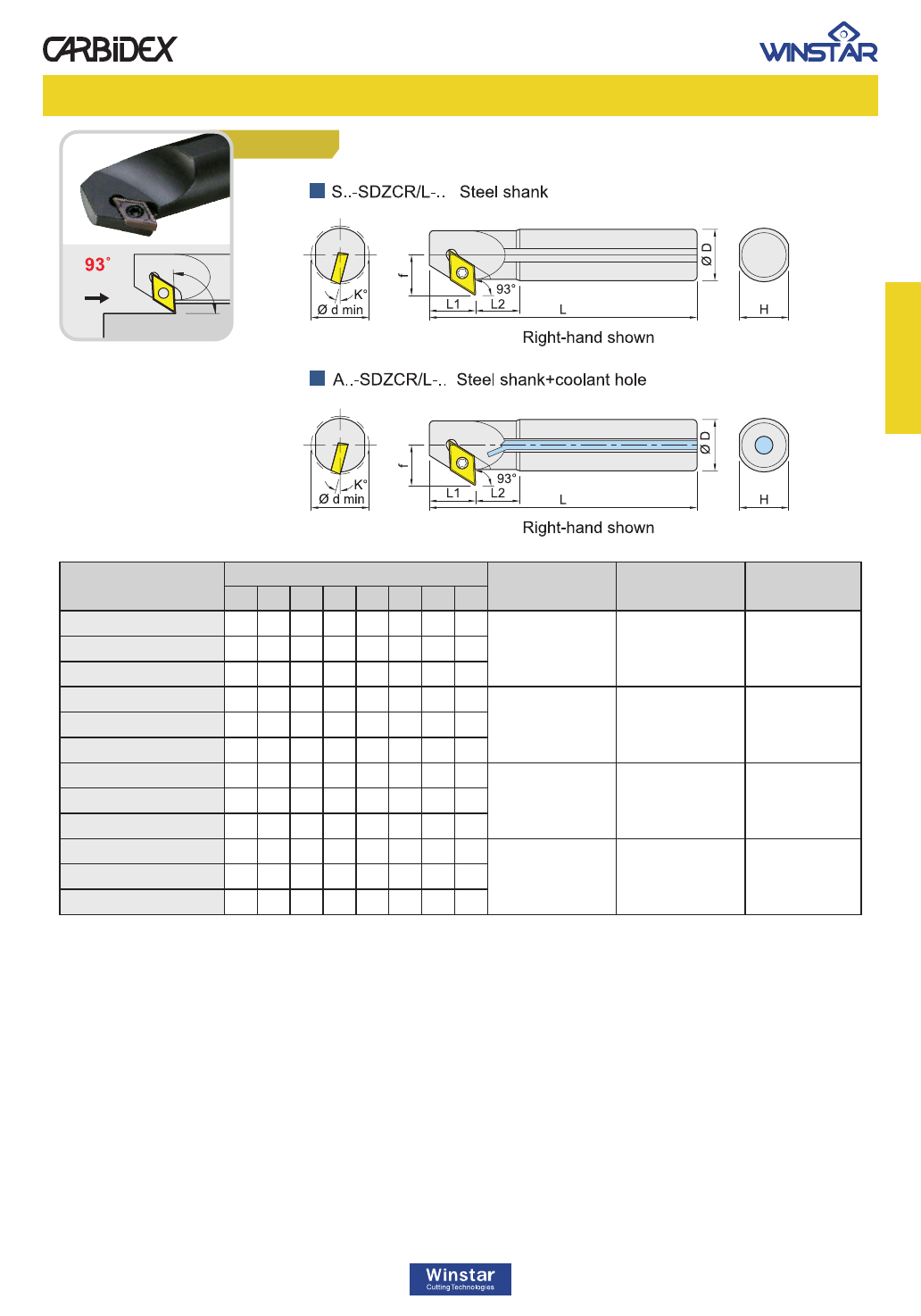

Internal Turning Tools
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 L2 f H K dmin
IS10M-SDZCR/L-07 10 150 12 13 8.5 9 13 14
DC..0702.. MS2506A TF9IS12M-SDZCR/L-07 12 150 12 16 10.5 11 10 17
IS16Q-SDZCR/L-07 16 180 12 18 12.5 15 7 21
IS20R-SDZCR/L-11 20 200 18 17 15.5 18 7 26
DC..11T3.. MS4009A TF15IS25R-SDZCR/L-11 25 200 18 22 18 23 5 33
IS32S-SDZCR/L-11 32 250 18 42 21.5 30 5 40
IA10M-SDZCR/L-07 10 150 12 13 8.5 9 13 14
DC..0702.. MS2506A TF9IA12M-SDZCR/L-07 12 150 12 16 10.5 11 10 17
IA16Q-SDZCR/L-07 16 180 12 18 12.5 15 7 21
IA20R-SDZCR/L-11 20 200 18 17 15.5 18 7 26
DC..11T3.. MS4009A TF15IA25R-SDZCR/L-11 25 200 18 22 18 23 5 33
IA32S-SDZCR/L-11 32 250 18 42 21.5 30 5 40
SDZC
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B152
Internal Turning Tools
STUC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS08K-STUCR/L-09 8 125 18 5.5 7 15 10
TC..0902..
MS2205A
TF7
IS10K-STUCR/L-09 10 125 22 6 9 13 12
MS2206A
IS10K-STUCR/L-09-D11 10 125 22 5.5 9 13 12
IS12M-STUCR-09 12 150 26 8 11 10 16
IS14M-STUCR-09 14 150 26 8 13 10 16
IS10K-STUCR/L-11 10 125 22 6 9 13 12
TC..1102.. MS2506A TF9
IS12M-STUCR/L-11 12 150 26 8 11 10 16
IS12M-STUCR/L-11-D13 12 150 26 6.5 11 10 13
IS16Q-STUCR/L-11 16 180 32 10 15 7 20
IS16Q-STUCR/L-11-D18 16 180 32 9 15 7 18
IS20R-STUCR/L-16 20 200 36 13 18 7 25
TC..16T3.. MS4011A TF15
IS25R-STUCR/L-16 25 200 40 15 23 5 30
IS32S-STUCR/L-16 32 250 48 20 30 5 38
IS32T-STUCR/L-16 32 300 48 20 30 5 38
內徑車刀桿
Turning Tools
B153
Internal Turning Tools
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IA08K-STUCR/L-09 8 125 18 5.5 7 15 10 TC..0902.. MS2205A TF7
IA10K-STUCR/L-09 10 125 22 6 9 13 12 MS2206A
IA10K-STUCR/L-11 10 125 22 6 9 13 12
TC..1102.. MS2506A TF9IA12M-STUCR/L-11 12 150 26 8 11 10 16
IA16Q-STUCR/L-11 16 180 32 10 15 7 20
IA20R-STUCR/L-16 20 200 36 13 18 7 25
TC..16T3.. MS4011A TF15
IA25R-STUCR/L-16 25 200 40 15 23 5 30
IA32S-STUCR/L-16 32 250 48 20 30 5 38
IA32T-STUCR/L-16 32 300 48 20 30 5 38
IC08K-STUCR/L-09 8 125 18 5.5 7.2 15 10 TC..0902.. MS2205A TF7
IC10K-STUCR/L-09 10 125 22 6 9.2 13 12 MS2206A
IC10K-STUCR/L-11 10 125 22 6 9.2 13 12
TC..1102.. MS2506A TF9
IC12M-STUCR/L-11 12 150 26 8 11.2 10 16
IC16R-STUCR/L-11 16 200 32 10 15.2 7 20
IC16R-STUCR/L-11-D18 16 200 32 9 15.2 7 18
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B154
Internal Turning Tools
STWC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS08K-STWCR/L-09 8 125 23 27 15 11 TC..0902.. MS2205A TF7
IS10K-STWCR/L-11 10 125 23 2.5 9 15 13
TC..1102.. MS2506A TF9
IS12M-STWCR/L-11 12 150 30 2.5 11 13 16
IS16Q-STWCR/L-11 16 180 30 2.5 15 10 20
IS20R-STWCR/L-11 20 200 40 2.5 18 7 25
IS20R-STWCR/L-16 20 200 40 4.5 18 8 26
TC..16T3.. MS4011A TF15IS25R-STWCR/L-16 25 200 45 4.5 23 6 30
IS32S-STWCR/L-16 32 250 45 4.5 30 4 40
IA10K-STWCR/L-11 10 125 23 2.5 9 15 13
TC..1102.. MS2506A TF9
IA12M-STWCR/L-11 12 150 30 2.5 11 13 16
IA16Q-STWCR/L-11 16 180 30 2.5 15 10 20
IA20R-STWCR/L-11 20 200 40 2.5 18 7 25
IA20R-STWCR/L-16 20 200 40 4.5 18 8 26
TC..16T3.. MS4011A TF15IA25R-STWCR/L-16 25 200 45 4.5 23 6 30
IA32S-STWCR/L-16 32 250 45 4.5 30 4 40
內徑車刀桿
Turning Tools
B155

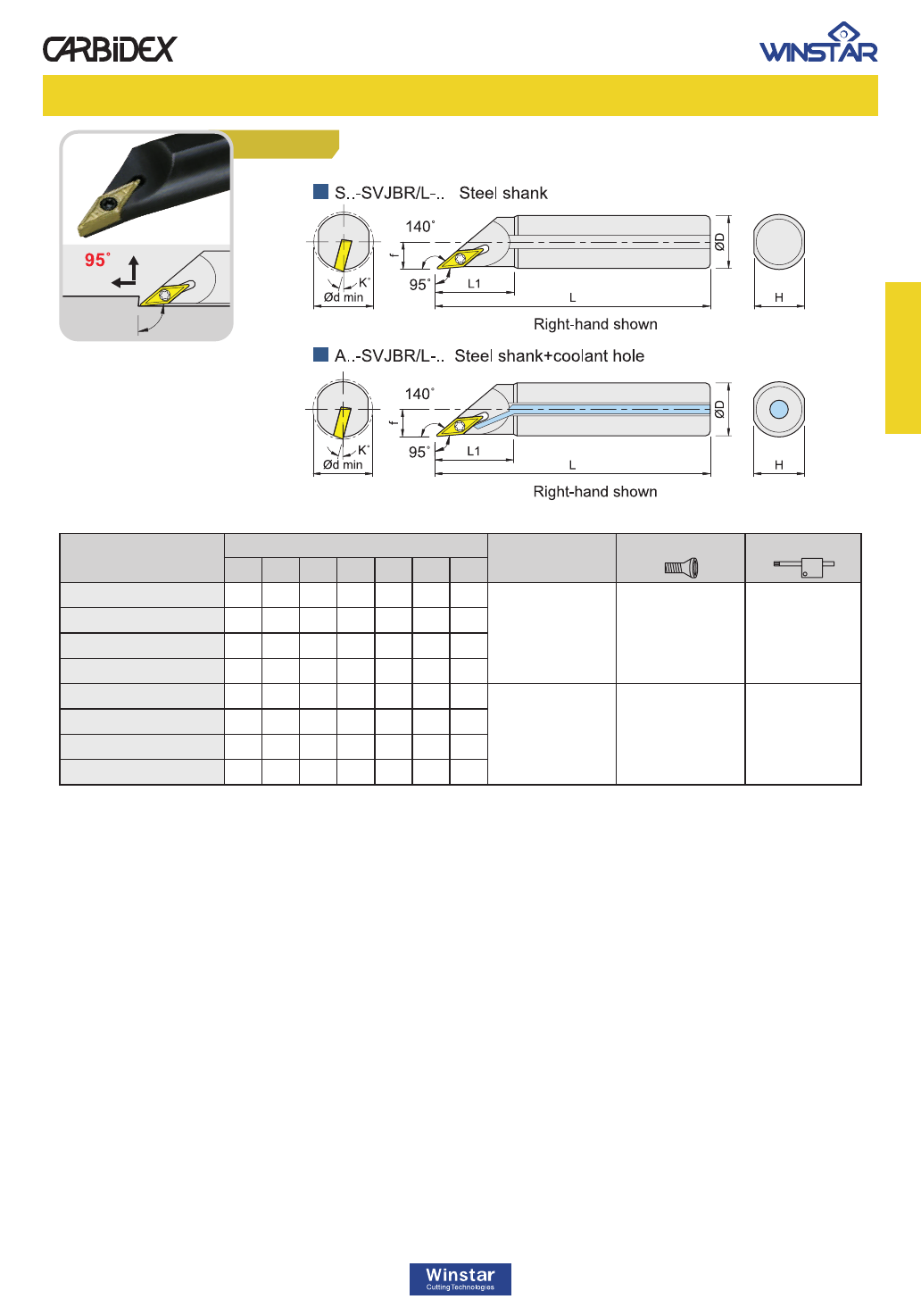

Internal Turning Tools
SVJB
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS16Q-SVJBR/L-16 16 180 38 9.5 15 7 19
VB..1604.. MS3509B TF15
IS20R-SVJBR/L-16 20 200 42 11.5 18 7 23
IS25R-SVJBR/L-16 25 200 45 14 23 5 28
IS32S-SVJBR/L-16 32 250 50 17.5 30 4 35
IA16Q-SVJBR/L-16 16 180 38 9.5 15 7 19
VB..1604.. MS3509B TF15
IA20R-SVJBR/L-16 20 200 42 11.5 18 7 23
IA25R-SVJBR/L-16 25 200 45 14 23 5 28
IA32S-SVJBR/L-16 32 250 50 17.5 30 4 35
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B156
Internal Turning Tools

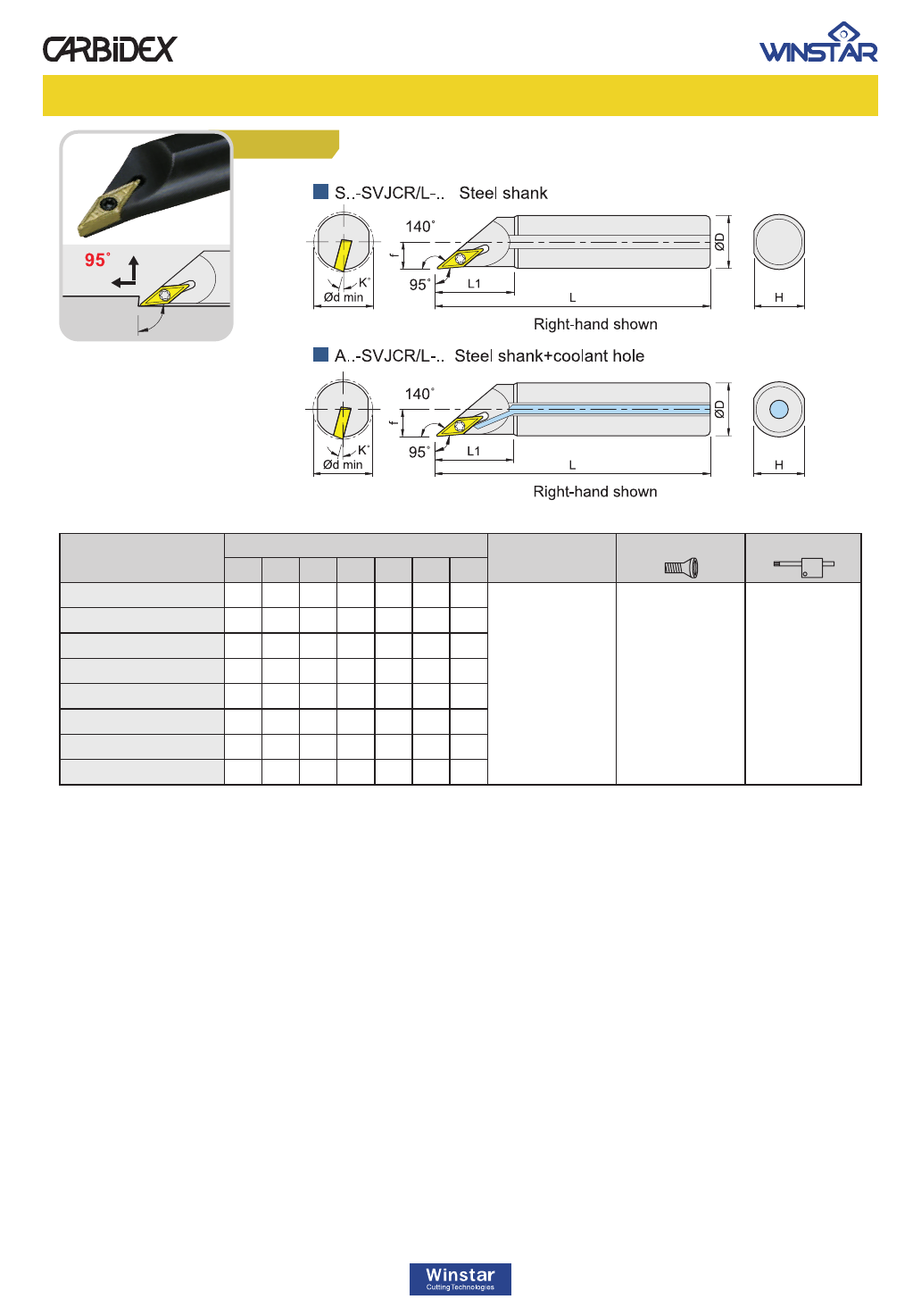

SVJC
Item Code Dimensions, mm Insert Screw
Wrench
D L L1 f H K dmin
IS10K-SVJCR/L-11 10 125 25 6 9 13 12
VC..1103.. MS2506A TF9
IS12M-SVJCR/L-11 12 150 30 7 11 10 14
IS16Q-SVJCR/L-11 16 180 38 9.5 15 7 19
IS20R-SVJCR/L-11 20 200 42 11.5 18 7 23
IA10K-SVJCR/L-11 10 125 25 6 9 13 12
IA12M-SVJCR/L-11 12 150 30 7 11 10 14
IA16Q-SVJCR/L-11 16 180 38 9.5 15 7 19
IA20R-SVJCR/L-11 20 200 42 11.5 18 7 23
內徑車刀桿
Turning Tools
B157
Internal Turning Tools
SVQB
Item Code Dimensions, mm Insert Shim Screw
Wrench
Screw
Wrench
D L L1 f H K dmin
IS25R-SVQBR/L-16 25 200 45 17 23 5 32
VB..1604..
-- -- -- MS3509B
TF15
IS32S-SVQBR/L-16 32 250 48 20 30 5 40 VSS322 MDS5035 PL35 MS3512B
IS40T-SVQBR/L-16 40 300 60
25.5
37 5 50
IA25R-SVQBR/L-16 25 200 45 17 23 5 32 -- -- -- MS3509B
IA32S-SVQBR/L-16 32 250 48 20 30 5 40 VSS322 MDS5035 PL35 MS3512B
IS12M-SVQCR/L-11 12 150 28 9 11 10 16
VC..1103.. -- -- -- MS2506A TF9
IS16Q-SVQCR/L-11 16 180 35 11 15 7 20
IS20R-SVQCR/L-11 20 200 40 13 18 7 25
IA16Q-SVQCR/L-11 16 180 35 11 15 7 20
IA25R-SVQCR/L-16 20 200 40 13 18 7 25
ØD
L1
f
L
ØD
L1
f
L
Turning Inserts & Tools
內徑車刀桿
Turning Tools
B158
Internal Turning Tools
SVUB
Item Code Dimensions, mm Insert Shim Screw
Wrench
Screw
Wrench
D L L1 f H K dmin
IS25R-SVUBR/L-16 25 200 45 18 23 5 32
VB..1604..
-- -- -- MS3509B
TF15
IS32S-SVUBR/L-16 32 250 50 22 30 5 40 VSS322 MDS5035 PL35 MS3512B
IS40T-SVUBR/L-16 40 300 55 27 37 5 50
IA25R-SVUBR/L-16 25 200 45 18 23 5 32 -- -- -- MS3509B
IS16Q-SVUCR/L-11 16 180 30 13 15 7 22
VC..1103.. -- -- -- MS2506A TF9
IS20R-SVUCR/L-11 20 200 40 15 18 7 27
IA16Q-SVUCR/L-11 16 180 30 13 15 7 22
IA20R-SVUCR/L-11 20 200 40 15 18 7 27
SVVB
Item Code Dimensions, mm Insert Shim Screw
Wrench
Screw
Wrench
D L L1 f H K dmin
IS25R-SVVBR/L-16 25 200 45
20.5
23 5 34 VB..1604.. -- -- -- MS3509B TF15
IS25S-SVVBR/L-16 25 250 45
20.5
23 5 34
IS32S-SVVBR/L-16 32 250 50 25 30 5 42 VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15
內徑車刀桿
Turning Tools
B159
External Turning Tools
MCBN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMCBNR/L-2020K-12 20 20 125 20 17
CN..1204.. MLP46 CMS432 PL25
MS625
MC620 PL30IMCBNR/L-2525M-12 25 25 150 25 22 MS630
IMCBNR/L-3232P-12 32 32 170 32 29
MCKN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMCKNR/L-1616K-12 16 16 125 16 20
CN..1204.. MLP46 CMS432 PL25
MS625
MC620 PL30
IMCKNR/L-2020K-12 20 20 125 20 25
IMCKNR/L-2525M-12 25 25 150 25 32 MS630
IMCKNR/L-3232P-12 32 32 170 32 40
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B160
External Turning Tools

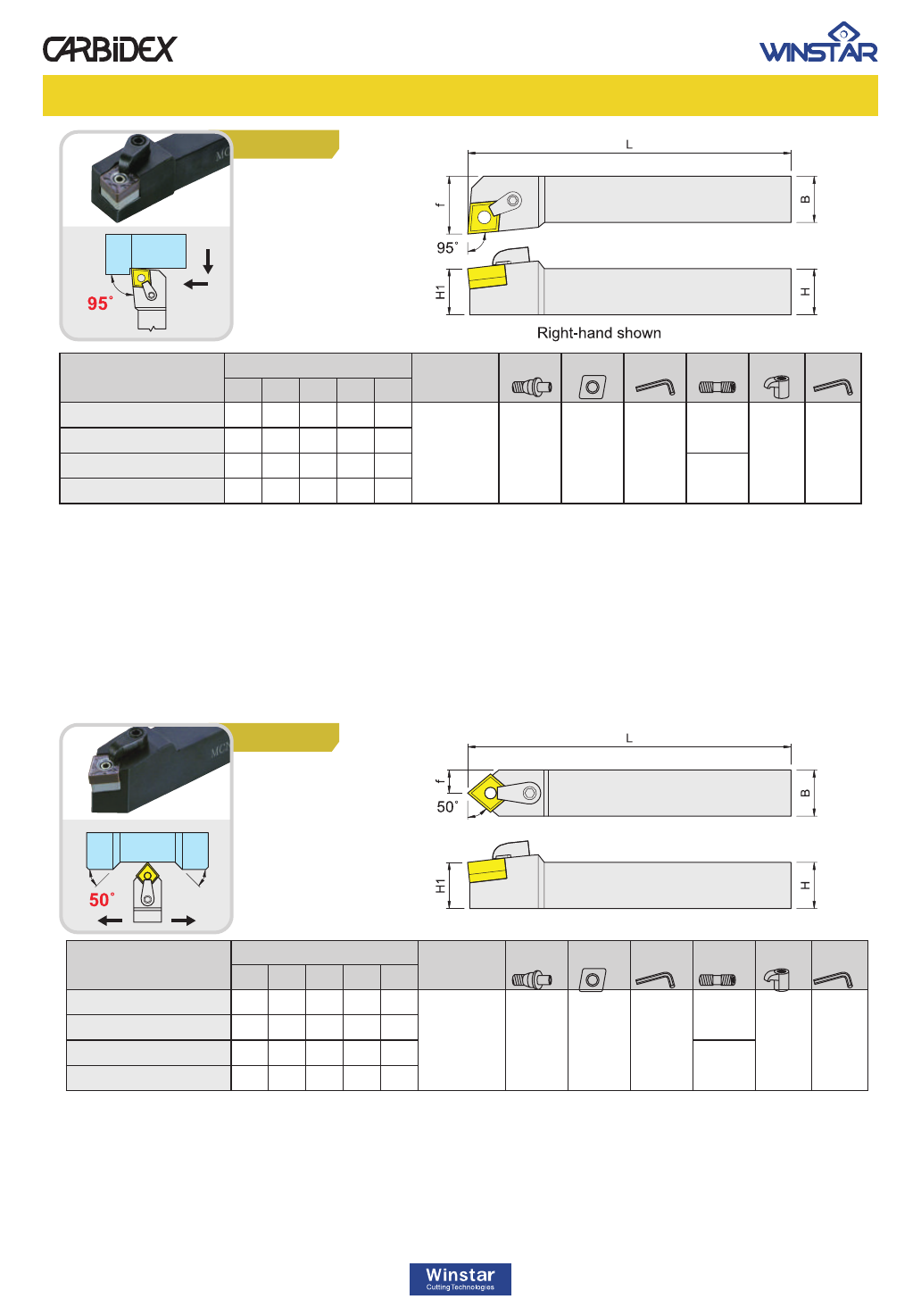

MCLN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMCLNR/L-1616K-12 16 16 125 16 20
CN..1204.. MLP46 CMS432 PL25
MS625
MC620 PL30
IMCLNR/L-2020K-12 20 20 125 20 25
IMCLNR/L-2525M-12 25 25 150 25 32 MS630
IMCLNR/L-3232P-12 32 32 170 32 40
MCNN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMCNNN-1616K-12 16 16 125 16 8
CN..1204.. MLP46 CMS432 PL25
MS625
MC620 PL30
IMCNNN-2020K-12 20 20 125 20 10
IMCNNN-2525M-12 25 25 150 25 12.5 MS630
IMCNNN-3232P-12 32 32 170 32 16
外徑車刀桿
Turning Tools
B161
External Turning Tools

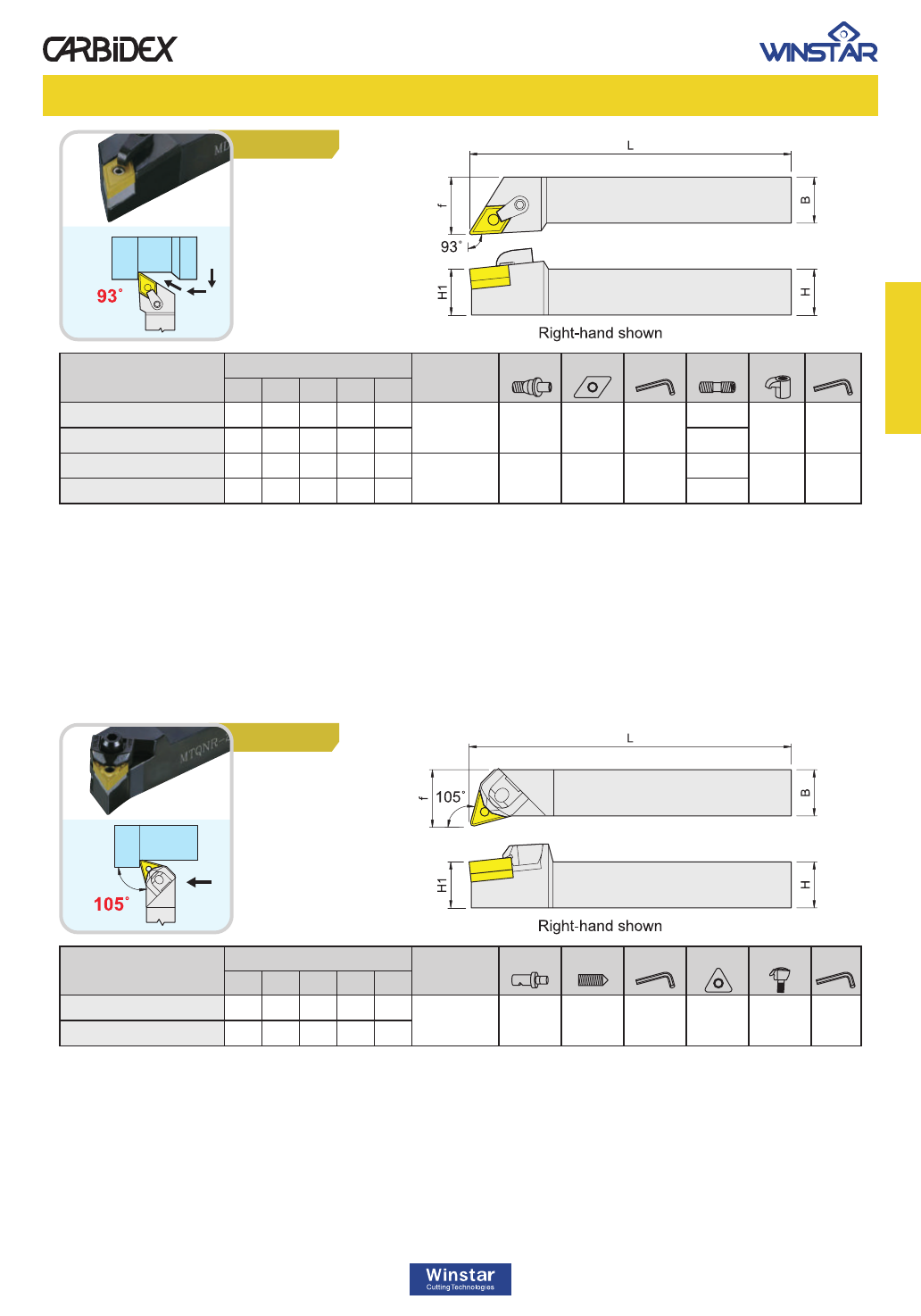

MDJN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMDJNR/L-2020K-15 20 20 125 20 25 DN..1504.. MLP46L DMS442 PL25 MS625 MC622 PL30
IMDJNR/L-2525M-15 25 25 150 25 32 MS630
IMDJNR/L-2020K-1506 20 20 125 20 25 DN..1506.. MLP46L DMS432 PL25 MS625 MC622 PL30
IMDJNR/L-2525M-1506 25 25 150 25 32 MS630
MTQN
Item Code Dimensions, mm Insert Pin Screw
Wrench
Shim Clamp
Wrench
H B L L1 f
IMTQNR/L-2020K-16 20 20 125 20 25 TN..1604.. MCP3 MCS3S-11 PL30 TWS322
MCW3-P40
PL40
IMTQNR/L-2525K-16 25 25 150 25 32
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B162
External Turning Tools

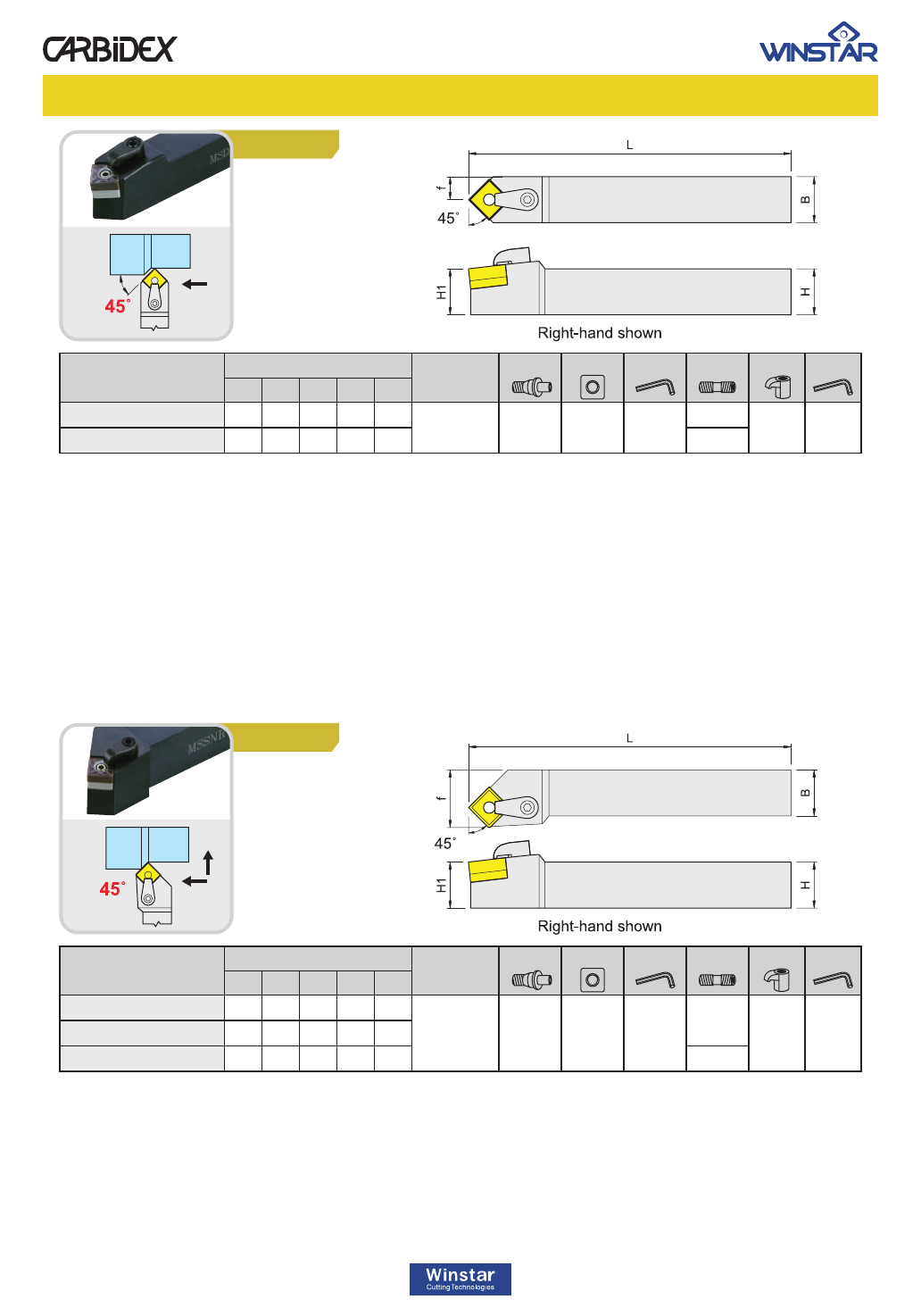

MSDN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMSDNN-2020K-12 20 20 125 20 10 SN..1204.. MLP46 SMS432 PL25 MS625 MC620 PL30
IMSDNN-2525M-12 25 25 150 25 12.5 MS630
MSSN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMSSNR-1616K-12 16 16 125 16 20
SN..1204.. MLP46 SMS432 PL25 MS625 MC620 PL30IMSSNR/L-2020K-12 20 20 125 20 25
IMSSNR/L-2525M-12 25 25 150 25 32 MS630
外徑車刀桿
Turning Tools
B163
External Turning Tools

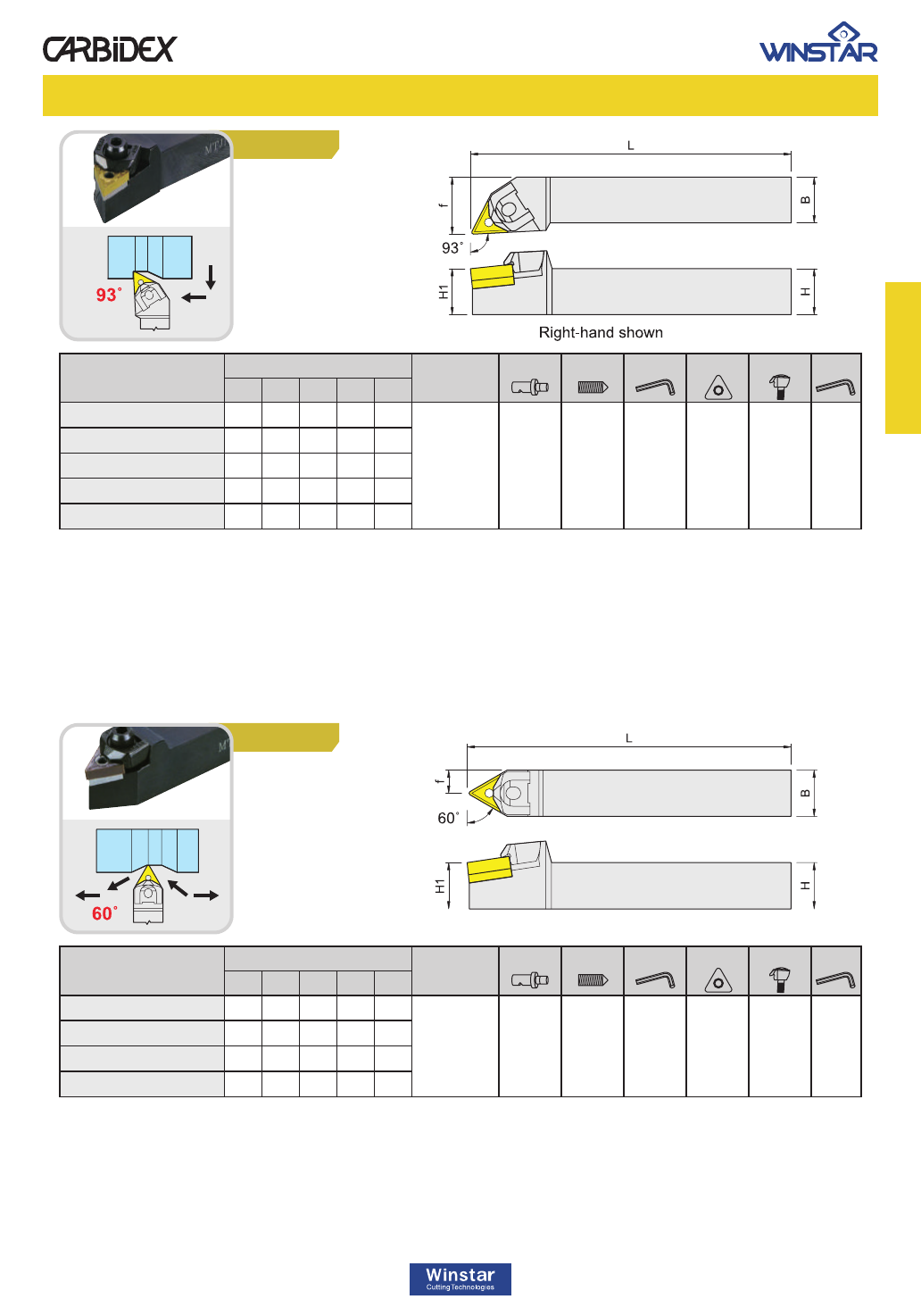

MTJN
MTEN
Item Code Dimensions, mm Insert Pin Screw
Wrench
Shim Clamp
Wrench
H B L L1 f
IMTENN-1216K-16 12 16 125 16 8
TN..1604.. MCP3 MCS3S-08 PL30 TWS322
MCW3-P40
PL40
IMTENN-1616K-16 16 16 125 16 8
IMTENN-2020K-16 20 20 125 20 10
IMTENN-2525M-16 25 25 150 25 12.5
Item Code Dimensions, mm Insert Pin Screw
Wrench
Shim Clamp
Wrench
H B L L1 f
IMTJNR/L-1216K-16 12 16 125 16 21
TN..1604.. MCP3 MCS3S-11 PL30 TWS322
MCW3-P40
PL40
IMTJNR/L-1616K-16 16 16 125 16 21
IMTJNR/L-2020K-16 20 20 125 20 25
IMTJNR/L-2525M-16 25 25 150 25 32
IMTJNR/L-3232P-16 32 32 170 32 40
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B164
External Turning Tools

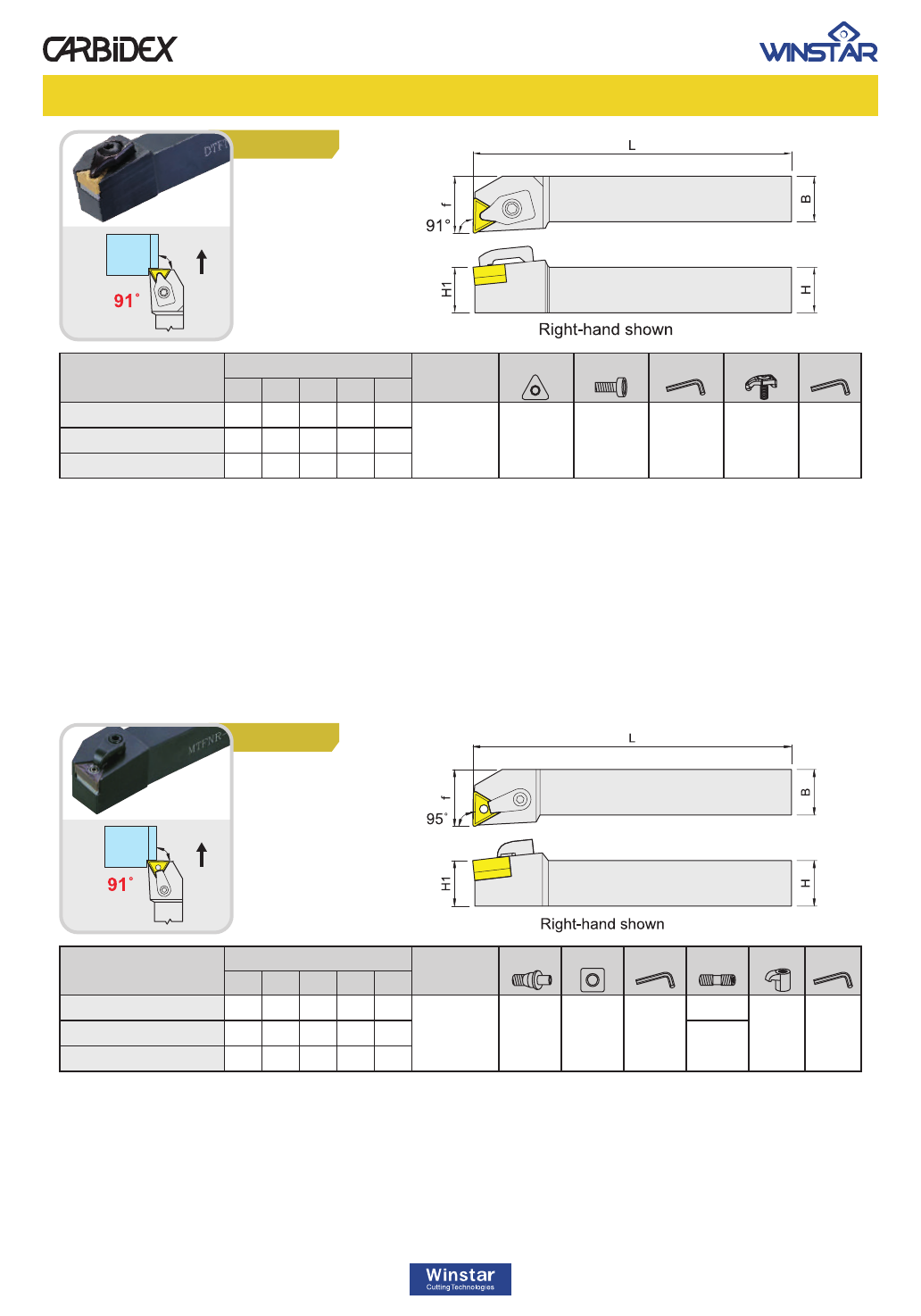

DTFN
Item Code Dimensions, mm Insert Shim
Screw Wrench
Clamp
Wrench
H B L L1 f
IDTFNR/L-1616K-16 16 16 125 16 20
TN..1604.. TWS322 MS4008ES PL25 MCD324 PL40IDTFNR/L-2020K-16 20 20 125 20 25
IDTFNR/L-2525M-16 25 25 150 25 32
MTFN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMTFNR-1616K-16 16 16 125 16 20
TN..1604.. MLP34L TMS322 PL20
MS625
MC620 PL30IMTFNR-2020K-16 20 20 125 20 25 MS630
IMTFNR-2525M-16 25 25 150 25 32
外徑車刀桿
Turning Tools
B165
External Turning Tools

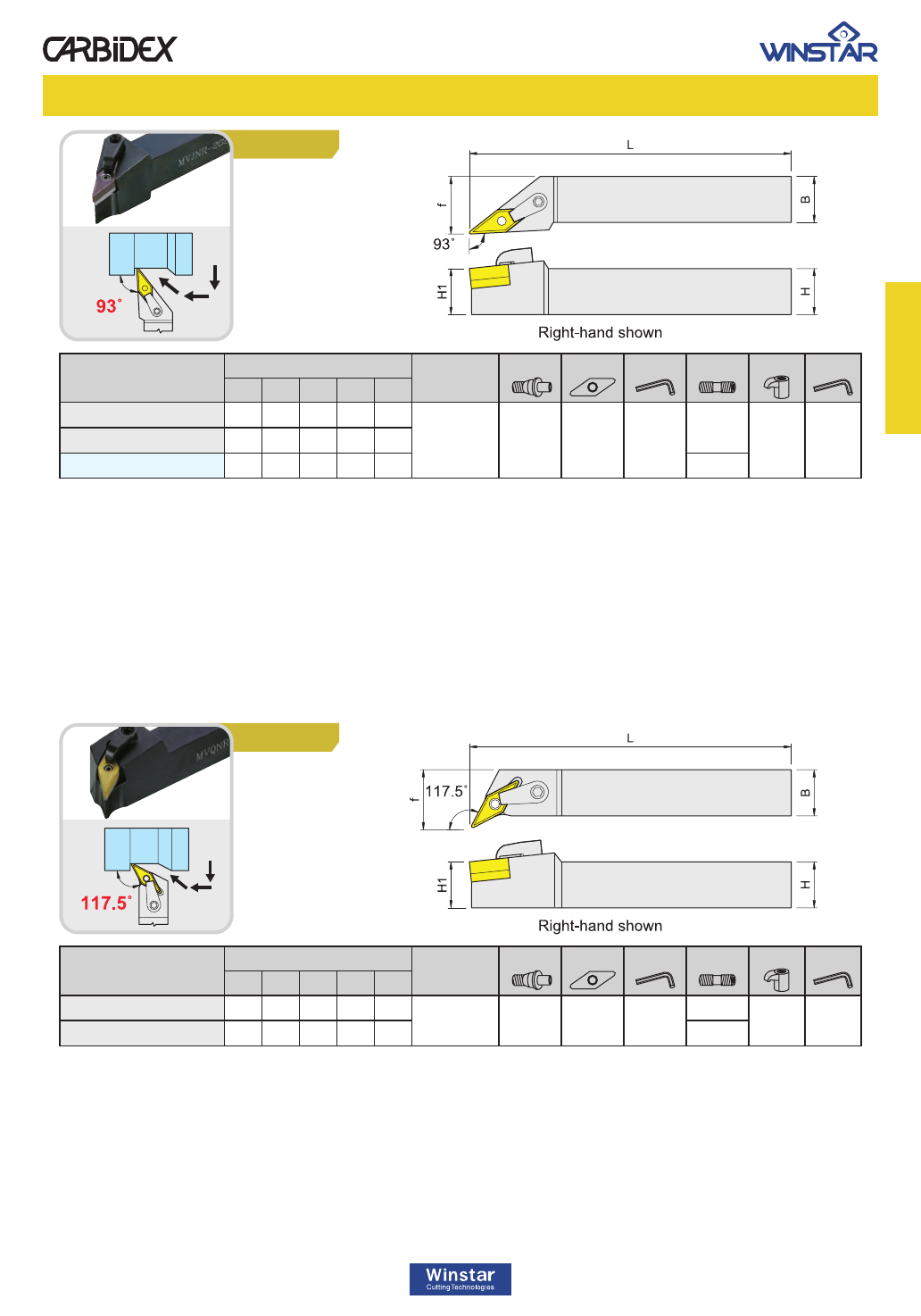

MVJN
MVQN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMVJNR/L-1616K-16 16 16 125 16 21
VN..1604.. MLP34L VMS322 PL20 MS625 MC622 PL30IMVJNR/L-2020K-16 20 20 125 20 25
IMVJNR/L-2525M-16 25 25 150 25 32 MS630
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMVQNR/L-2020K-16 20 20 125 20 25 VN..1604.. MLP34L VMS322 PL20 MS625 MC622 PL30
IMVQNR/L-2525M-16 25 25 150 25 32 MS630
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B166
External Turning Tools

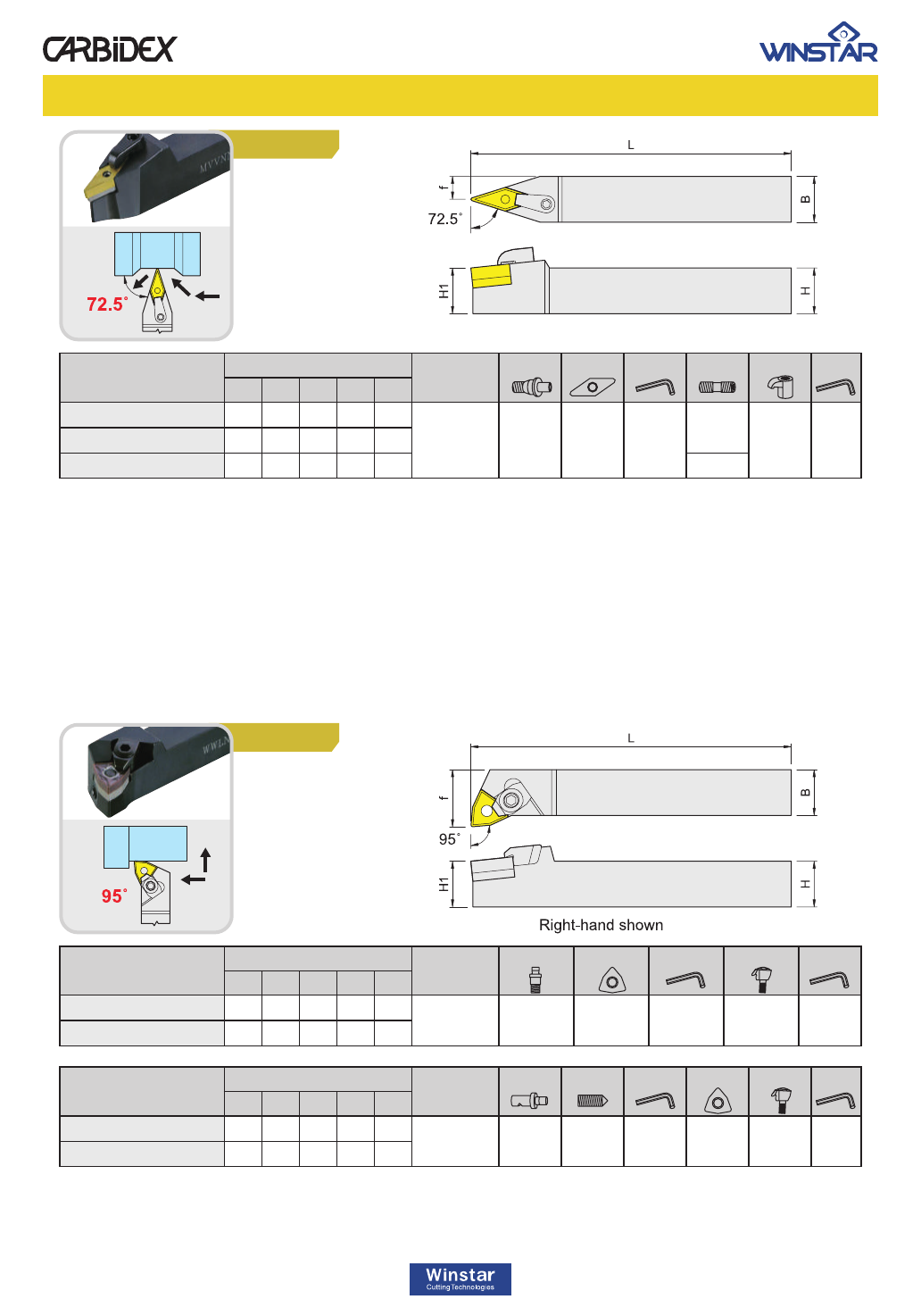

MVVN
WWLN
Item Code Dimensions, mm Insert Pin Shim
Wrench
Clamp
Wrench
H B L L1 f
IWWLNL-2020K-08 20 20 125 20 25 WN..0804.. SCO418 WMS432 PL30 WCW6-P4 PL40
IWWLNL-2525M-08 25 25 150 25 32
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMVVNN-1616K-16 16 16 125 16 8
VN..1604.. MLP34L VMS322 PL20 MS625 MC622 PL30IMVVNN-2020K-16 20 20 125 20 10
IMVVNN-2525M-16 25 25 150 25 12.5 MS630
Item Code Dimensions, mm Insert Pin Screw
Wrench
Shim Clamp
Wrench
H B L L1 f
IWWLNR-2020K-08 20 20 125 20 25 WN..0804.. MCP4 MCS3S-08 PL30 WMS432 WCW6-P4 PL40
IWWLNR-2525M-08 25 25 150 25 32
外徑車刀桿
Turning Tools
B167
External Turning Tools
MWLN
MWLN-N
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMWLNR/L-2020K-08 20 20 125 20 25 WN..0804.. MLP46 WMS432 PL25 MS625 MC620 PL30
IMWLNR/L-2525M-08 25 25 150 25 32 MS630
Item Code Dimensions, mm Insert Pin Shim
Wrench
Screw Clamp
Wrench
H B L L1 f
IMWLNR/L-2020K-08N 20 20 125 20 25 WN..0804.. MLP46 WMS432 PL25 MS625 MC620 PL30
IMWLNR/L-2525M-08N 25 25 150 25 32 MS630
Turning Inserts & Tools
外徑車刀桿
Turning Tools

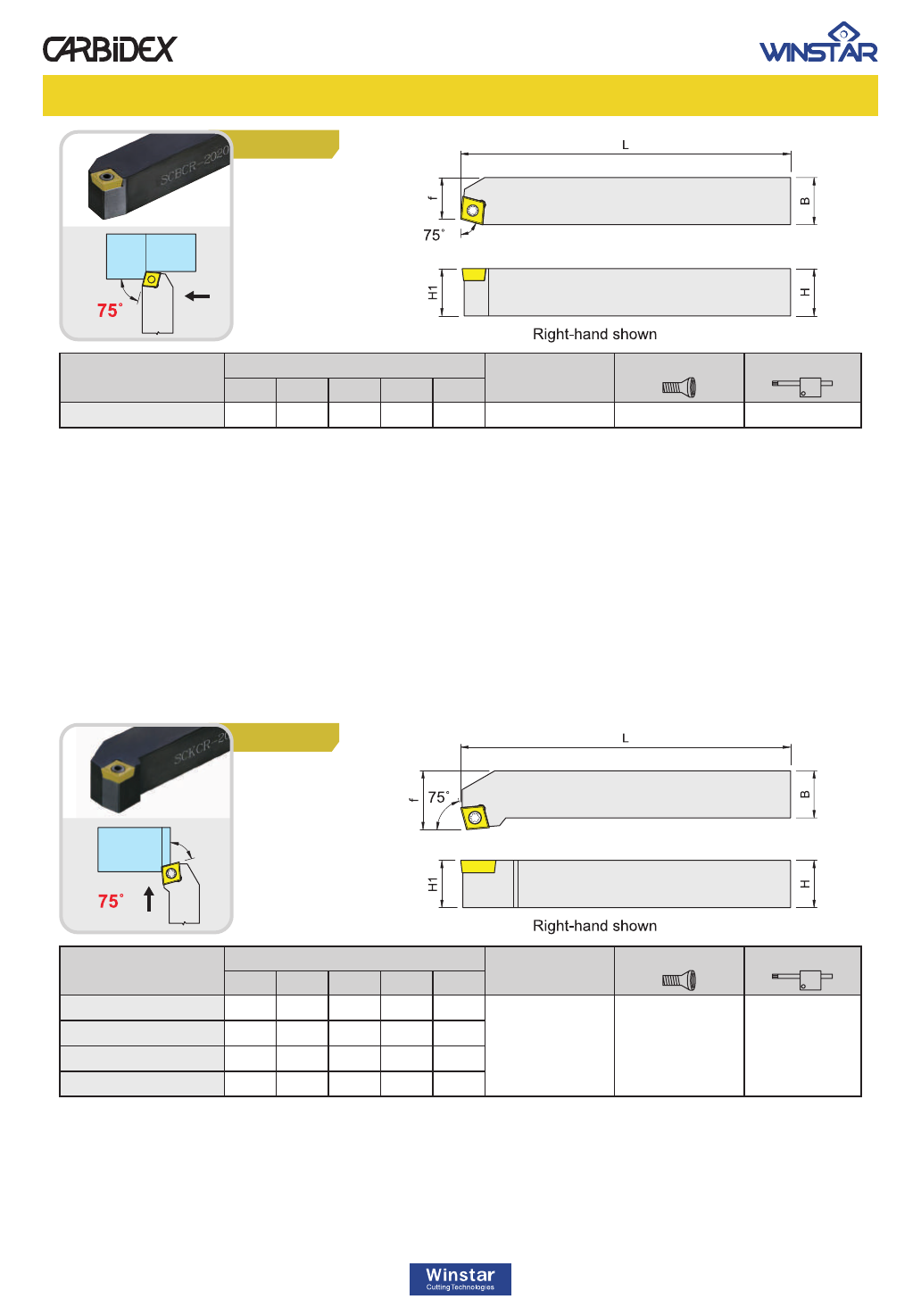

SCKC
B168
External Turning Tools
SCBC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISCBCR/L-2020K-09 20 20 125 20 17.5 CC..09T3.. MS4011A TF15
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISCKCR/L-1212K-09 12 12 125 12 16
CC..09T3.. MS4011A TF15
ISCKCR/L-1616K-09 16 16 125 16 20
ISCKCR/L-2020K-09 20 20 125 20 25
ISCKCR/L-2525M-09 25 25 150 25 32
外徑車刀桿
Turning Tools
B169
External Turning Tools
SCLC
SCL2C
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISCLCR/L-1010H-06 10 10 100 10 12 CC..0602.. MS2506A TF9
ISCLCR/L-1010K-06 10 10 125 10 12
ISCLCR/L-1212H-09 12 12 100 12 16
CC..09T3.. MS4011A TF15
ISCLCR/L-1212K-09 12 12 125 12 16
ISCLCR/L-1616K-09 16 16 125 16 20
ISCLCR/L-2020K-09 20 20 125 20 25
ISCLCR/L-2525M-09 25 25 150 25 32
ISCLCR/L-2020K-12 20 20 125 20 25 CC..1204.. MS5011A TF20
ISCLCR/L-2525K-12 25 25 150 25 32
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISCL2CR/L-1010H-06 10 10 100 10 10 CC..0602.. MS2506A TF9
ISCL2CR/L-1212H-09 12 12 100 12 12
CC..09T3.. MS4011A TF15ISCL2CR/L-1616K-09 16 16 125 16 16
ISCL2CR/L-2020K-09 20 20 125 20 25
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B170
External Turning Tools

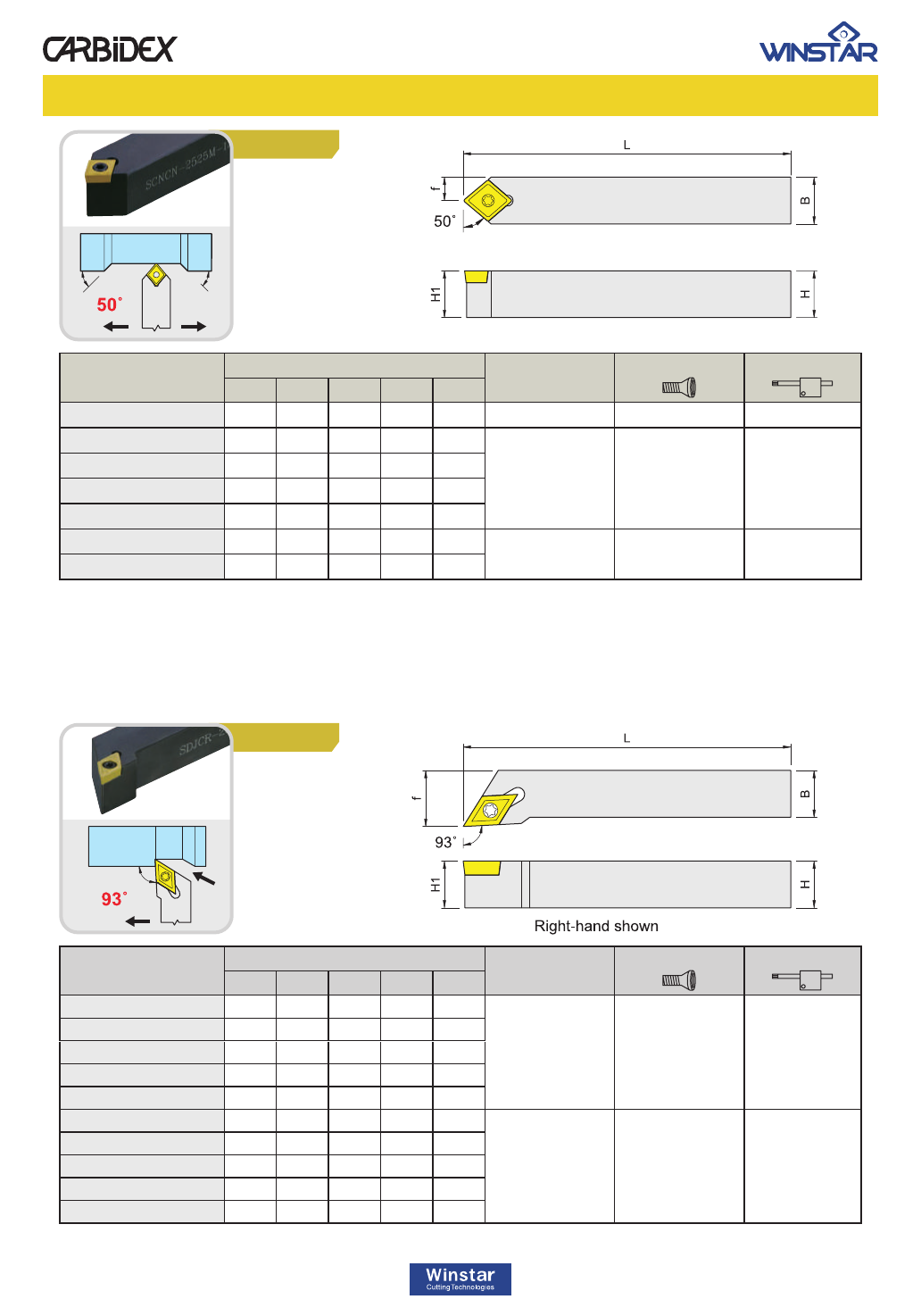

SCNC
SDJC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISCNCN-1616K-06 16 16 125 16 8 CC..0602.. MS2506A TF9
ISCNCN-1212K-09 12 12 125 12 6
CC..09T3.. MS4011A TF15
ISCNCN-1616K-09 16 16 125 16 8
ISCNCN-2020K-09 20 20 125 20 10
ISCNCN-2525M-09 25 25 150 25 12.5
ISCNCN-2020K-12 20 20 125 20 10 CC..1204.. MS5011A TF20
ISCNCN-2525M-12 25 25 150 25 12.5
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISDJCR/L-1010H-07 10 10 100 10 12
DC..0702.. MS2506A TF9
ISDJCR/L-1212H-07 12 12 100 12 16
ISDJCR/L-1212K-07 12 12 125 12 16
ISDJCR/L-1616K-07 16 16 125 16 20
ISDJCR/L-2020K-07 20 20 125 20 25
ISDJCR/L-1212H-11 12 12 100 12 16
DC..11T3.. MS4009A TF15
ISDJCR/L-1212K-11 12 12 125 12 16
ISDJCR/L-1616K-11 16 16 125 16 20
ISDJCR/L-2020K-11 20 20 125 20 25
ISDJCR/L-2525M-11 25 25 150 25 32
外徑車刀桿
Turning Tools
B171
External Turning Tools

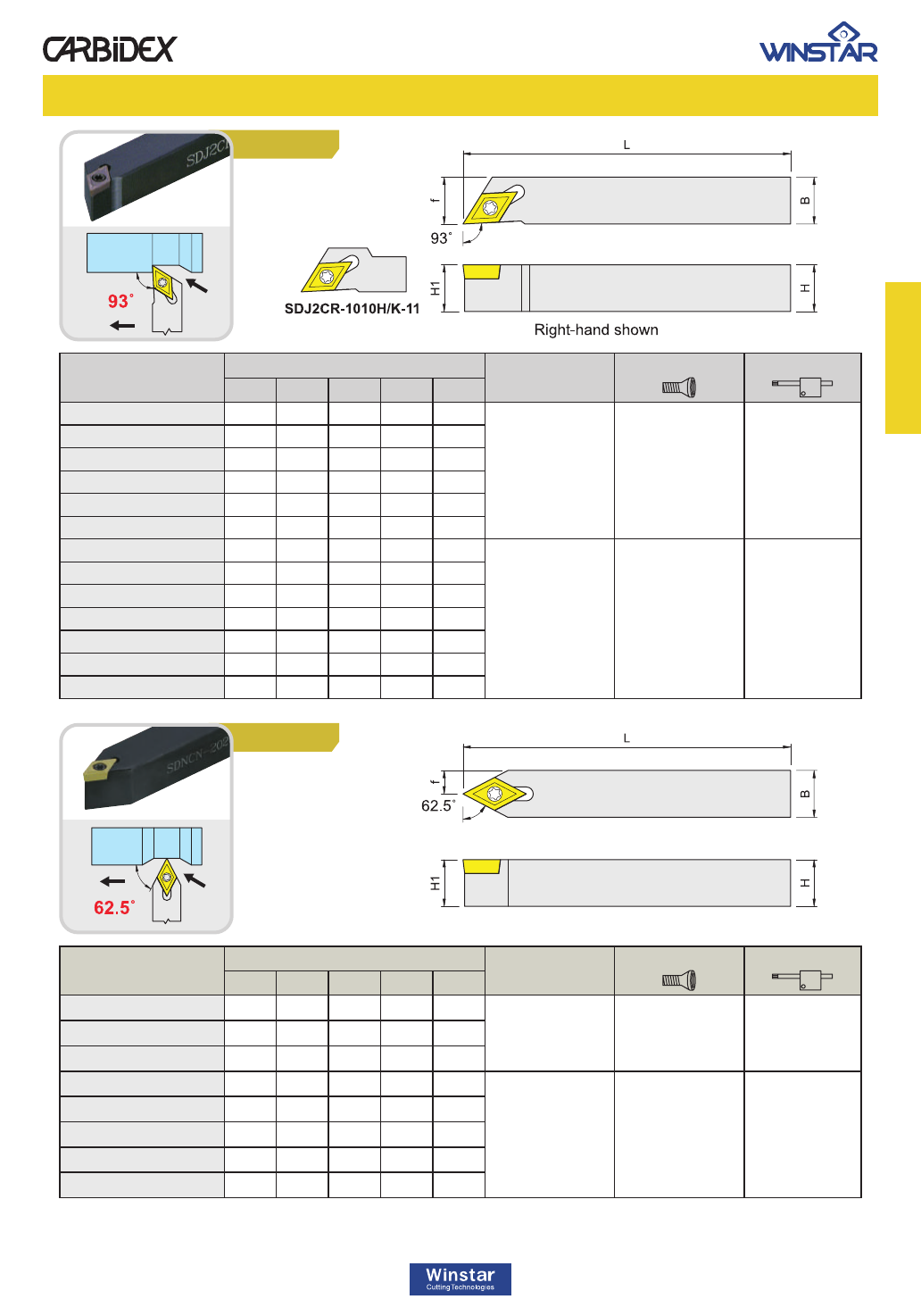

SDJ2C
SDNC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISDJ2CR/L-1010H-07 10 10 100 10 10
DC..0702.. MS2506A TF9
ISDJ2CR/L-1212H-07 12 12 100 12 12
ISDJ2CR/L-1212K-07 12 12 125 12 12
ISDJ2CR/L-1616K-07 16 16 125 16 16
ISDJ2CR/L-2020K-07 20 20 125 20 20
ISDJ2CR/L-2525M-07 25 25 150 25 25
ISDJ2CR-1010H-11 10 10 100 10 10
DC..11T3.. MS4009A TF15
ISDJ2CR-1010K-11 10 10 125 10 10
ISDJ2CR/L-1212H-11 12 12 100 12 12
ISDJ2CR/L-1616K-11 16 16 125 16 16
ISDJ2CR/L-2020K-11 20 20 125 20 20
ISDJ2CR/L-2525M-11 25 25 150 25 25
ISDJ2CR/L-3232P-11 32 32 170 32 32
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISDNCN-1010H-07 10 10 100 10 5
DC..0702.. MS2506A TF9ISDNCN-1212H-07 12 12 100 12 6
ISDNCN-1616K-07 16 16 125 16 8
ISDNCN-1212H-11 12 12 100 12 6
DC..11T3.. MS4009A TF15
ISDNCN-1212K-11 12 12 125 12 6
ISDNCN-1616K-11 16 16 125 16 8
ISDNCN-2020K-11 20 20 125 20 10
ISDNCN-2525M-11 25 25 150 25 12.5
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B172
External Turning Tools
SDQC
SDFC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISDQCR/L-1212H-11 12 12 100 12 16
DC..11T3.. MS4009A TF15
ISDQCR/L-1616K-11 16 16 125 16 20
ISDQCR/L-2020K-11 20 20 125 20 25
ISDQCR/L-2525M-11 25 25 150 25 32
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISDFCR/L-1212K-07 12 12 125 12 16 DC..0702.. MS2506A TF9
ISDFCR/L-1212K-11 12 12 125 12 19 DC..11T3.. MS4009A TF15
ISDFCR/L-1616K-11 16 16 125 16 20
外徑車刀桿
Turning Tools
B173
External Turning Tools

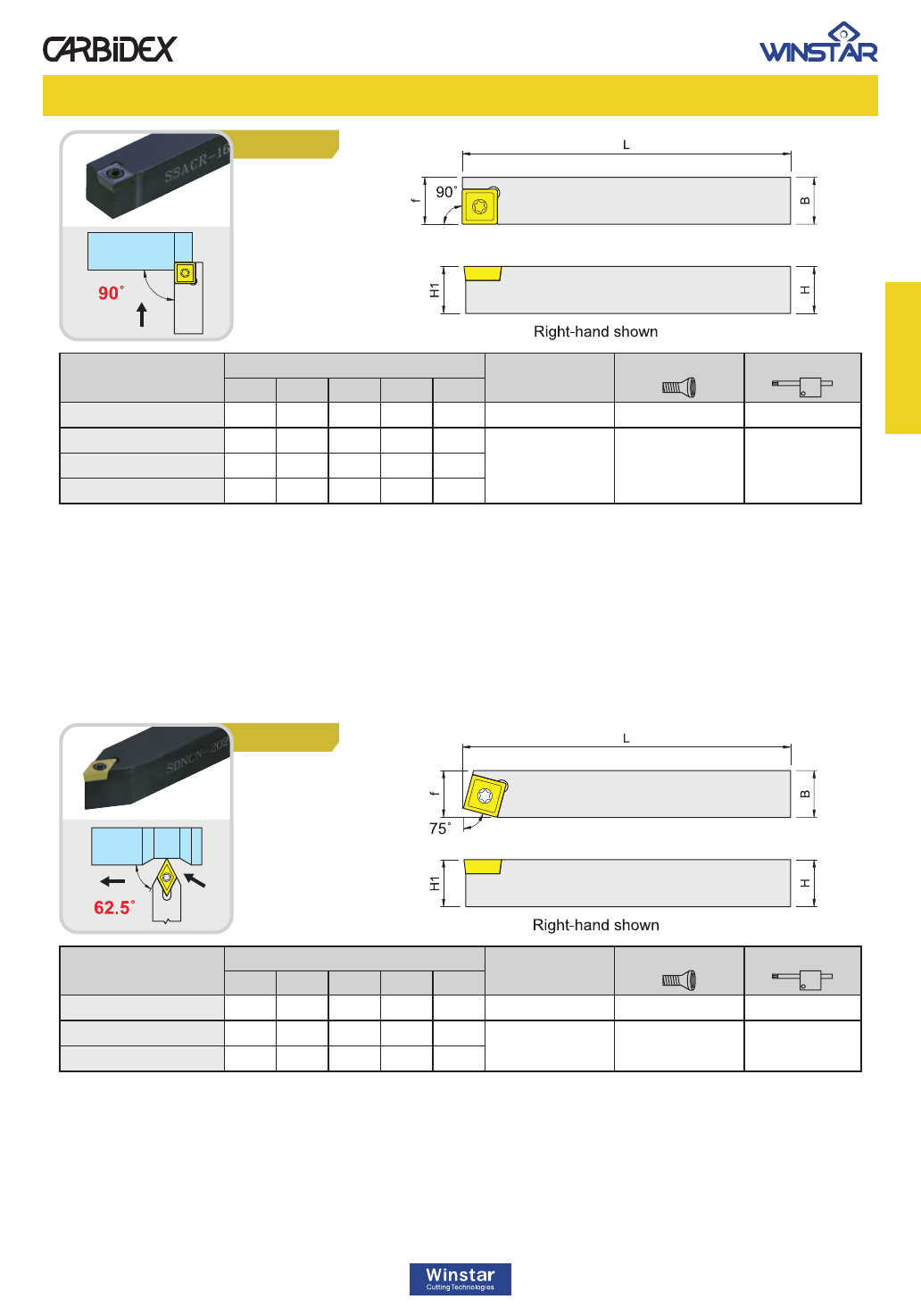

SSAC
SSBC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSACR/L-3.4H-09 9.5 12.7 100 9.5 12.7 SC..09T3.. MS4009A TF15
ISSACR/L-4.4H-09 12.7 12.7 100 12.7 12.7
SC..09T3.. MS4011A TF15ISSACR-1212H-09 12 12 100 12 12
ISSACR/L-1616K-09 16 16 125 16 16
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSBCR/L-3.4H-09 9.5 12.7 100 9.5 12.7 SC..09T3.. MS4009A TF15
ISSBCR/L-4.4H-09 12.7 12.7 100 12.7 12.7 SC..09T3.. MS4011A TF15
ISSBCR/L-1212H-09 12 12 100 12 12
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B174
External Turning Tools

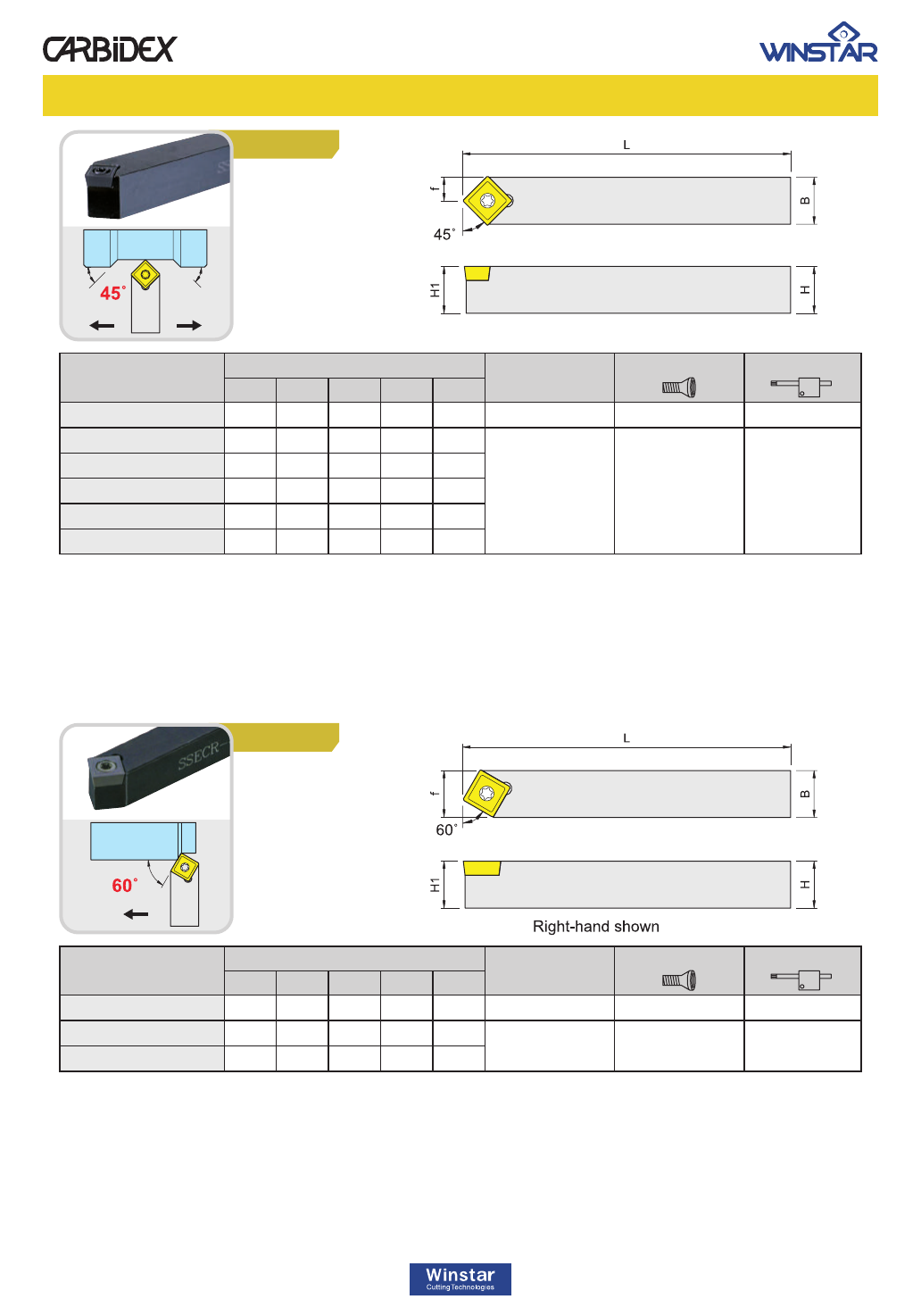

SSDC
SSEC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSDCN-3.4H-09 9.5 12.7 100 9.5 6.35 SC..09T3.. MS4009A TF15
ISSDCN-4.4H-09 12.7 12.7 100 12.7 6.35
SC..09T3.. MS4011A TF15
ISSDCN-1212H-09 12 12 100 12 6
ISSDCN-1616K-09 16 16 125 16 8
ISSDCN-2020K-09 20 20 125 20 10
ISSDCN-2525M-09 25 25 150 25 12.5
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSECR/L-3.4H-09 9.5 12.7 100 9.5 12.7 SC..09T3.. MS4009A TF15
ISSECR/L-4.4H-09 12.7 12.7 100 12.7 12.7 SC..09T3.. MS4011A TF15
ISSECR/L-1212H-09 12 12 100 12 12
外徑車刀桿
Turning Tools
B175
External Turning Tools

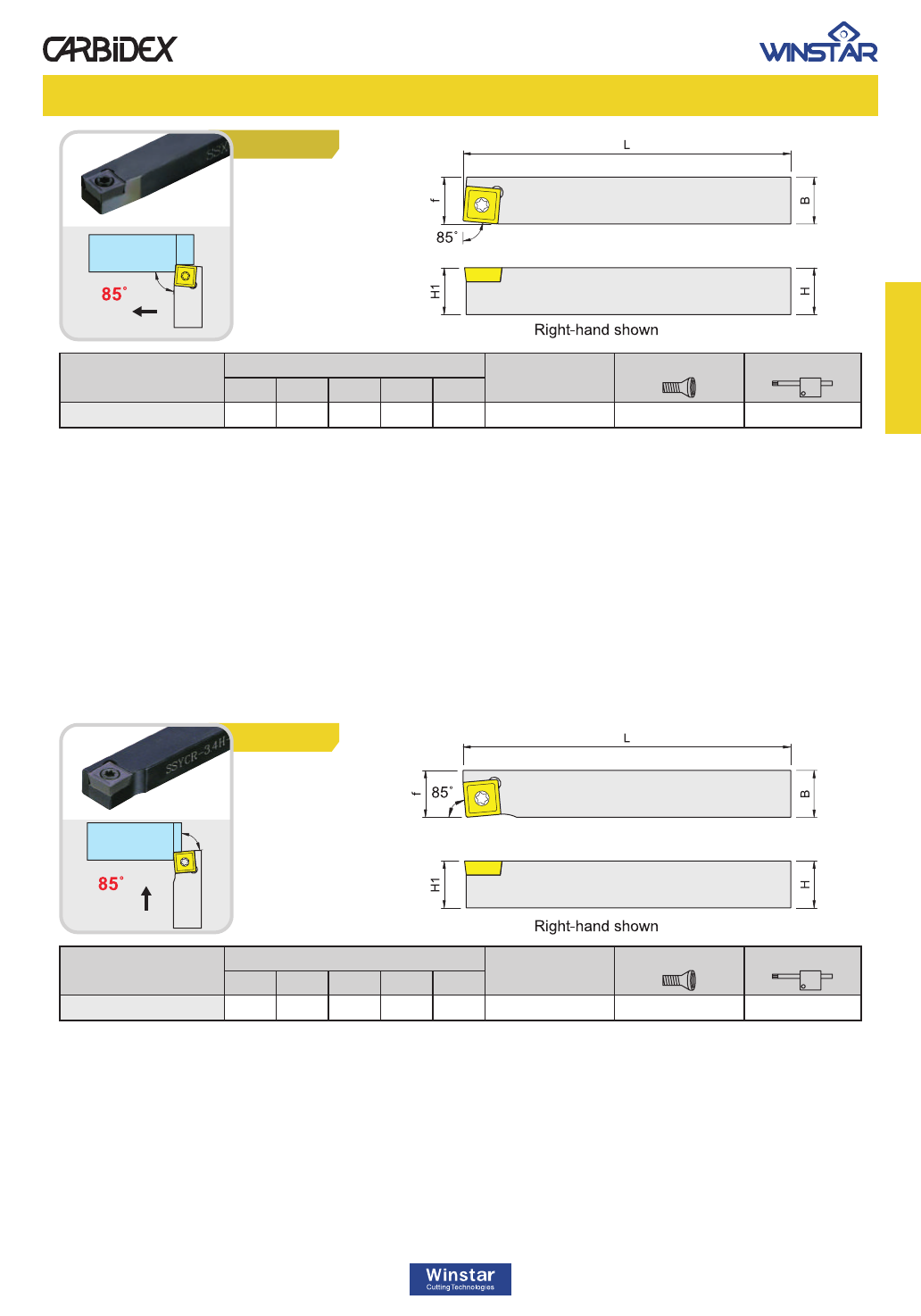

SSXC
SSYC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSXCR-3.4H-09 9.5 12.7 100 9.5 12.7 SC..09T3.. MS4009A TF15
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISSYCR/L-3.4H-09 9.5 12.7 100 9.5 12.7 SC..09T3.. MS4009A TF15
Turning Inserts & Tools
外徑車刀桿
Turning Tools
B176

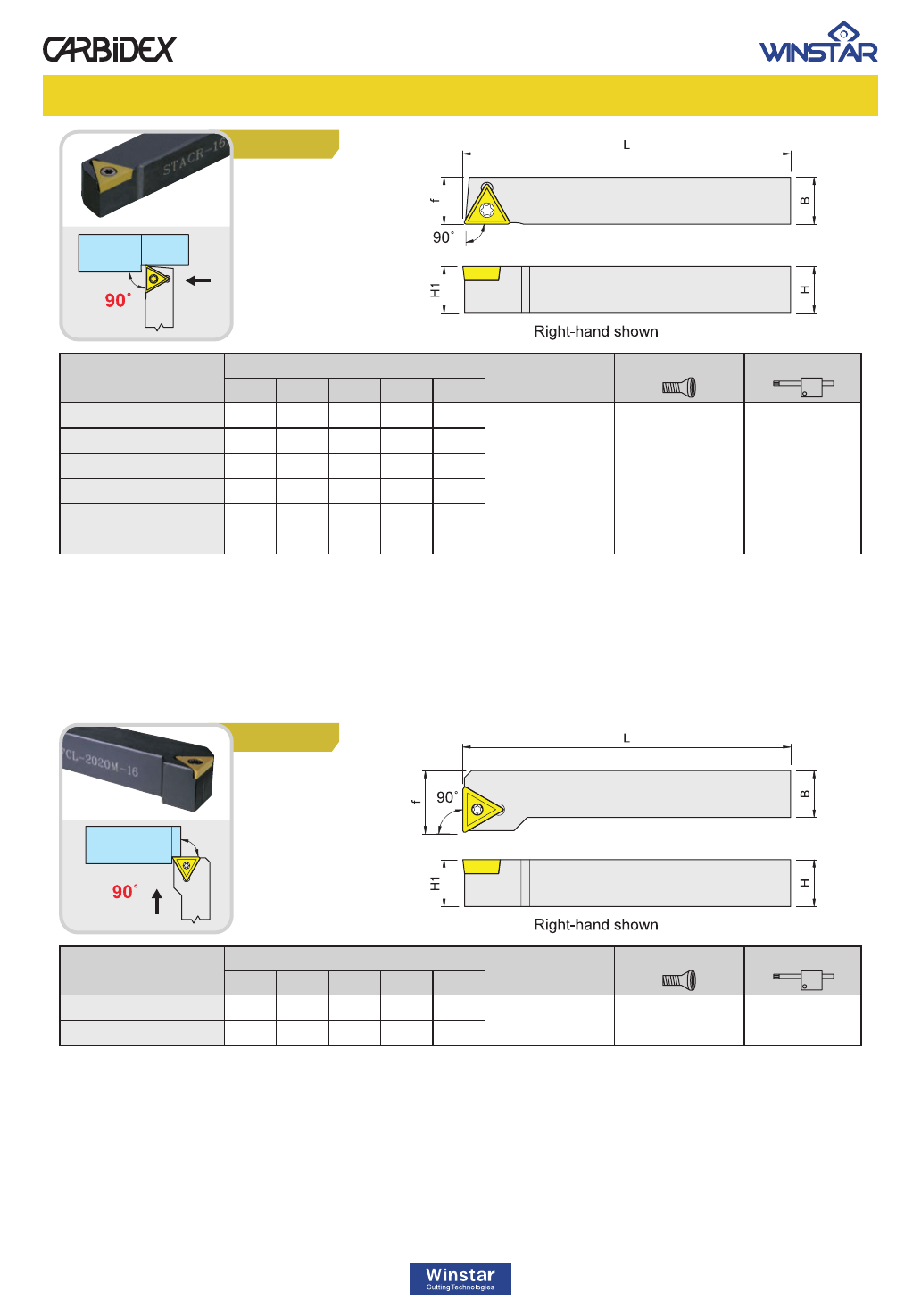

External Turning Tools
STAC
STFC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISTACR-1010H-11 10 10 100 10 10
TC..1102.. MS2506A TF9
ISTACR-1212H-11 12 12 100 12 12
ISTACR-1616K-11 16 16 125 16 16
ISTACR-3.4H-11 9.5 12.7 100 9.5 12.7
ISTACR-4.4H-11 12.7 12.7 100 12.7 12.7
ISTACR-1616K-16 16 16 125 16 16 TC..16T3.. MS4011A TF15
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISTFCR/L-2020K-16 20 20 125 20 25 TC..16T3.. MS4011A TF15
ISTFCR/L-2525M-16 25 25 150 25 32
外徑車刀桿
Turning Tools
B177
Item Code Dimensions, mm Insert Screw
Wrench
Screw Clamp
Wrench
H B L L1 f
ICTYCR/L-2020K-16 20 20 125 20 25 TC..16T3.. MS4011A TF15 MS625 MC620 PL30

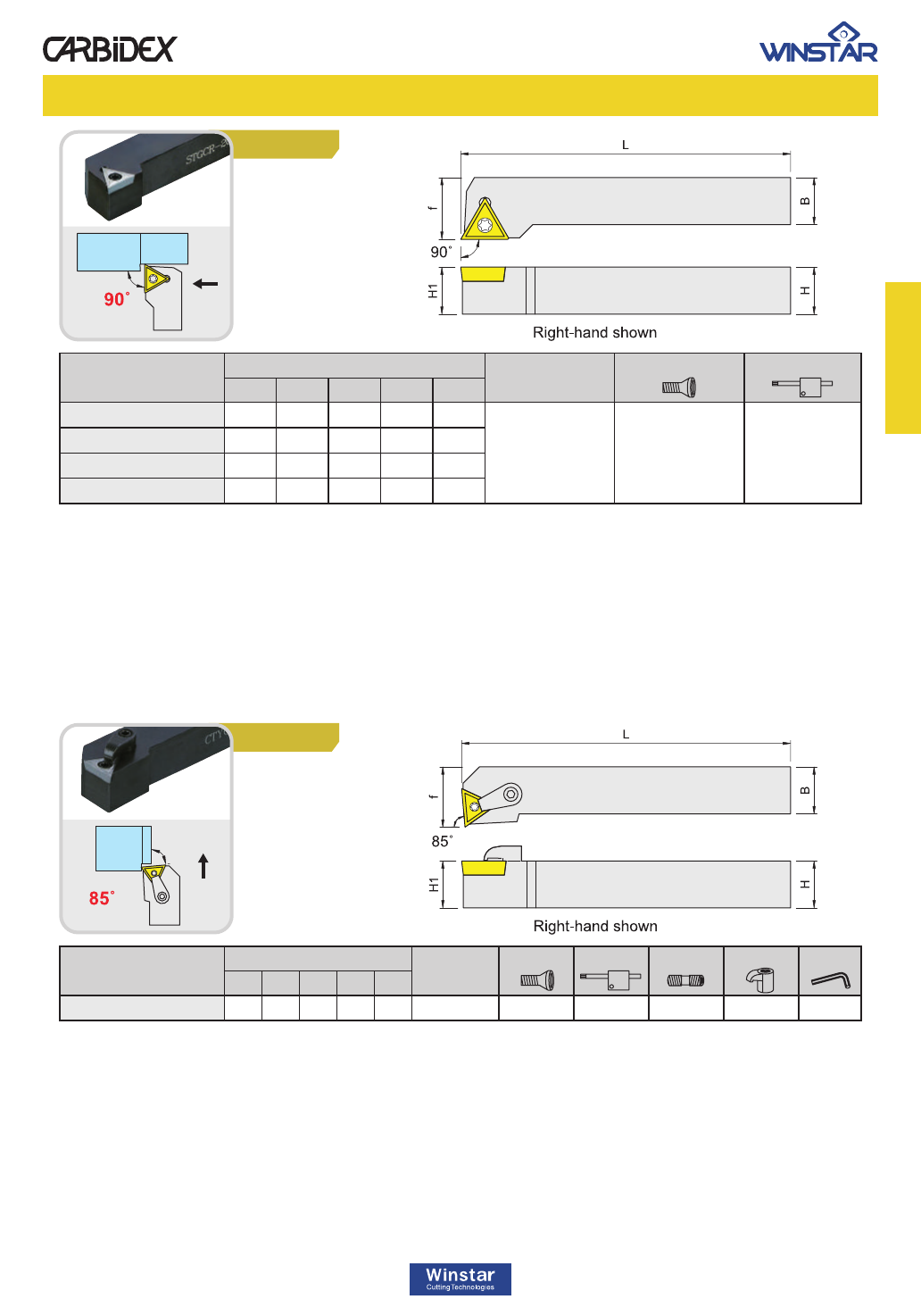

STGC
CTYC
Item Code Dimensions, mm Insert Clamp
Wrench
H B L L1 f
ISTGCR-1212H-16 12 12 100 12 16
TC..16T3.. MS4011A TF15
ISTGCR-1616K-16 16 16 125 16 20
ISTGCR-2020K-16 20 20 125 20 25
ISTGCR-2525M-16 20 25 150 25 32
Turning Inserts & Tools
External Turning Tools 外徑車刀桿
Turning Tools
B178

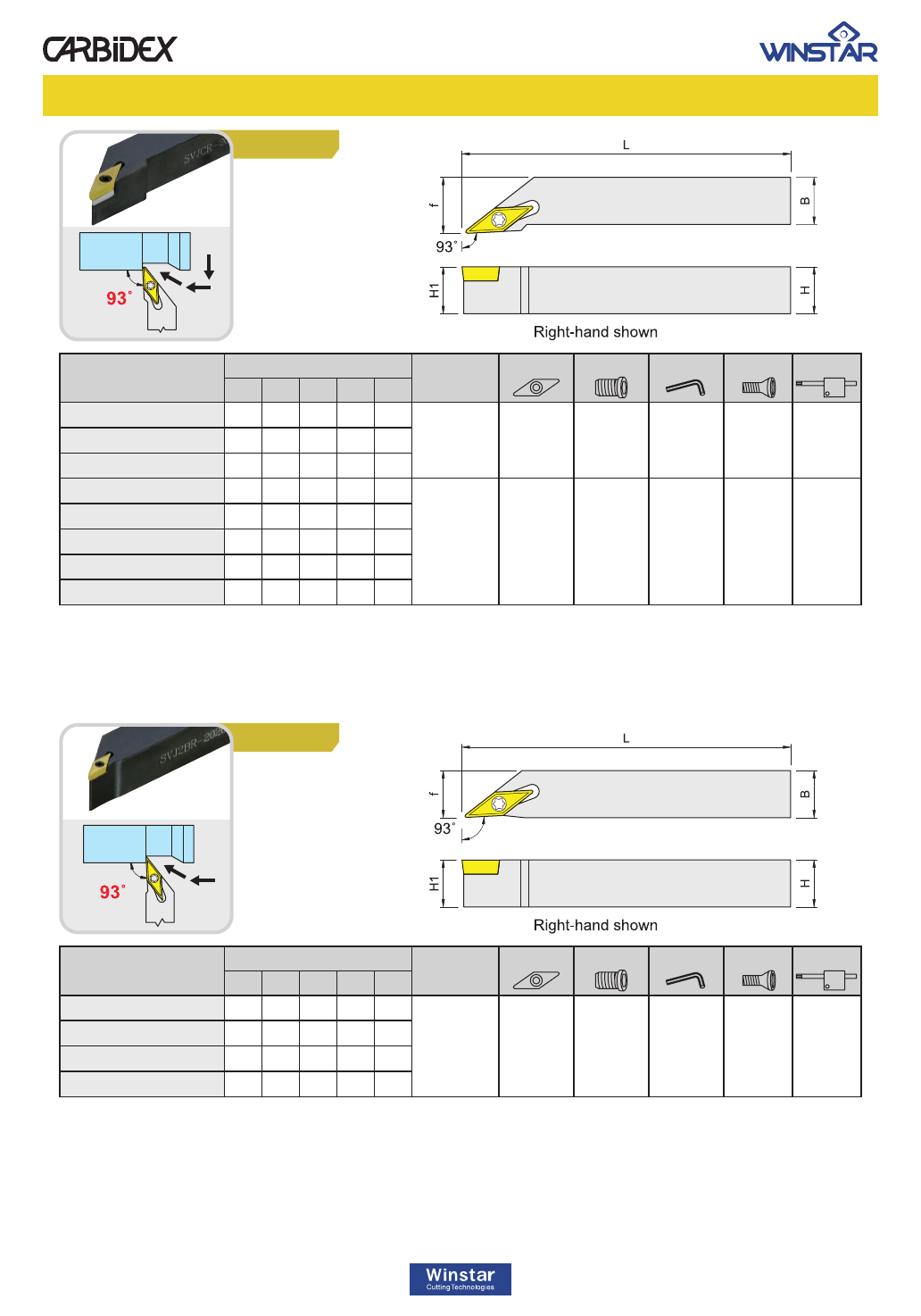

SVJB
SVJ2B
Item Code Dimensions, mm Insert Screw
Wrench
Screw Clamp
Wrench
H B L L1 f
ISVJ2CR/L-1010H-11 10 10 100 10 10
VC..1103.. -- -- -- MS2506A TF9
ISVJ2CR/L-1212H-11 12 12 100 12 12
ISVJ2CR/L-1616K-11 16 16 125 16 16
ISVJ2CR/L-2020K-11 20 20 125 20 20
Item Code Dimensions, mm Insert Shim Screw
Wrench
Screw
Wrench
H B L L1 f
ISVJBR/L-1616K-16 16 16 125 16 20
VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15ISVJBR/L-2020K-16 20 20 125 20 25
ISVJBR/L-2525M-16 25 25 150 25 32
ISVJCR/L-1010H-11 10 10 100 10 12
VC..1103.. -- -- -- MS2506A TF9
ISVJCR/L-1212K-11 12 12 125 12 16
ISVJCR/L-1616K-11 16 16 125 16 20
ISVJCR/L-2020K-11 20 20 125 20 25
ISVJCR/L-2525M-11 25 25 150 25 32
External Turning Tools 外徑車刀桿
Turning Tools
B179

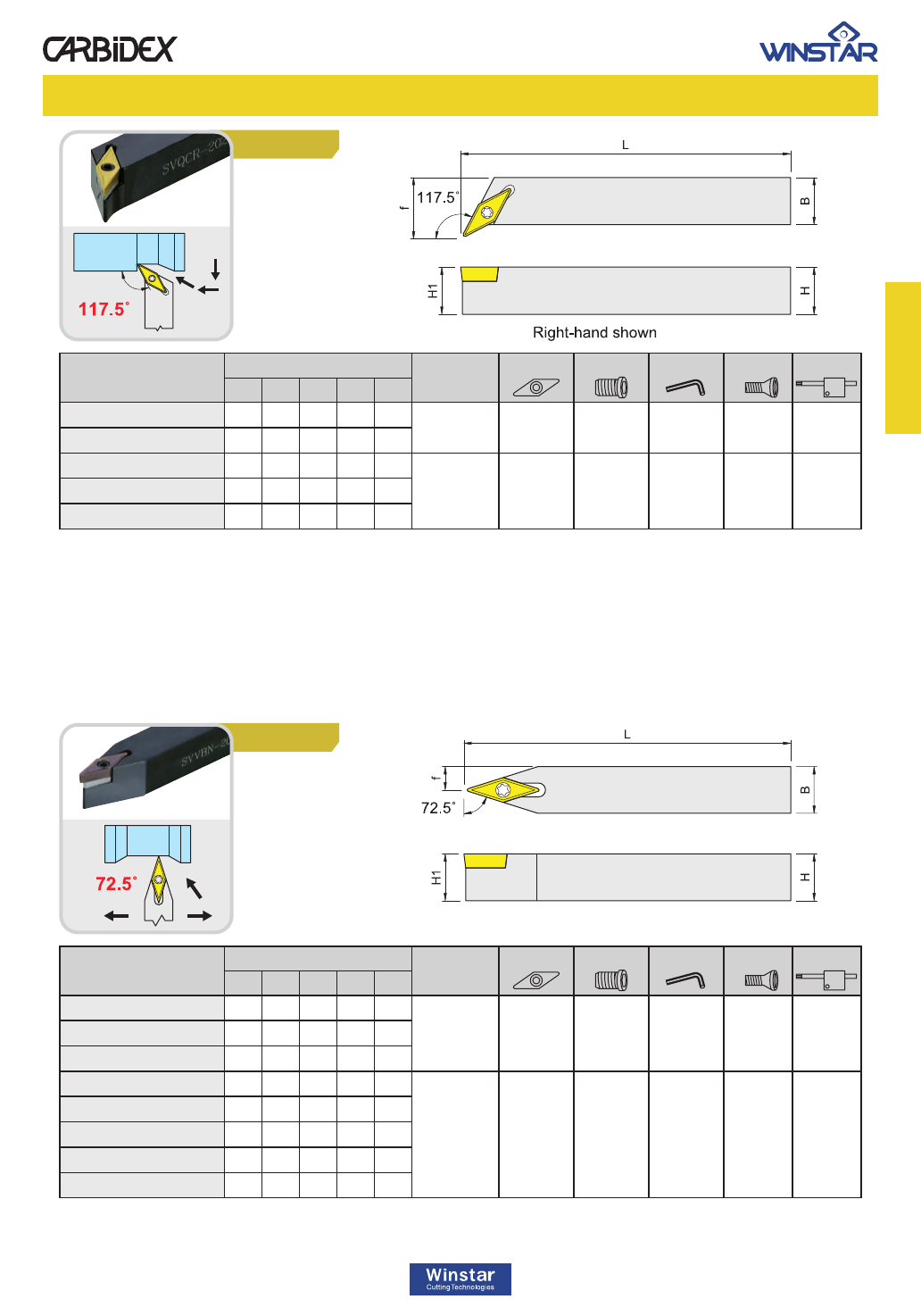

SVQB
SVVB
Item Code Dimensions, mm Insert Screw
Wrench
Screw Clamp
Wrench
H B L L1 f
ISVVBN-1616K-16 16 16 125 16 8
VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15ISVVBN-2020K-16 20 20 125 20 10
ISVVBN-2525M-16 25 25 150 25 12.5
ISVVBN-1010H-11 10 10 100 10 5
VC..1103.. -- -- -- MS2506A TF9
ISVVCN-1212K-11 12 12 125 12 6
ISVVCN-1616K-11 16 16 125 16 8
ISVVCN-2020K-11 20 20 125 20 10
ISVVCN-2525M-11 25 25 150 25 12.5
Item Code Dimensions, mm Insert Shim Screw
Wrench
Screw
Wrench
H B L L1 f
ISVQBR/L-2020K-16 20 20 125 20 25 VB..1604.. VSS322 MDS5035 PL35 MS3512B TF15
ISVQBR/L-2525M-16 25 25 150 25 32
ISVQCR/L-1212H-11 12 12 100 12 16
VC..1103.. -- -- -- MS2506A TF9ISVQCR/L-1616K-11 16 16 125 16 20
ISVQCR/L-2020K-11 20 20 125 20 25
Turning Inserts & Tools
External Turning Tools 外徑車刀桿
Turning Tools
B180
Parting
切斷
B181

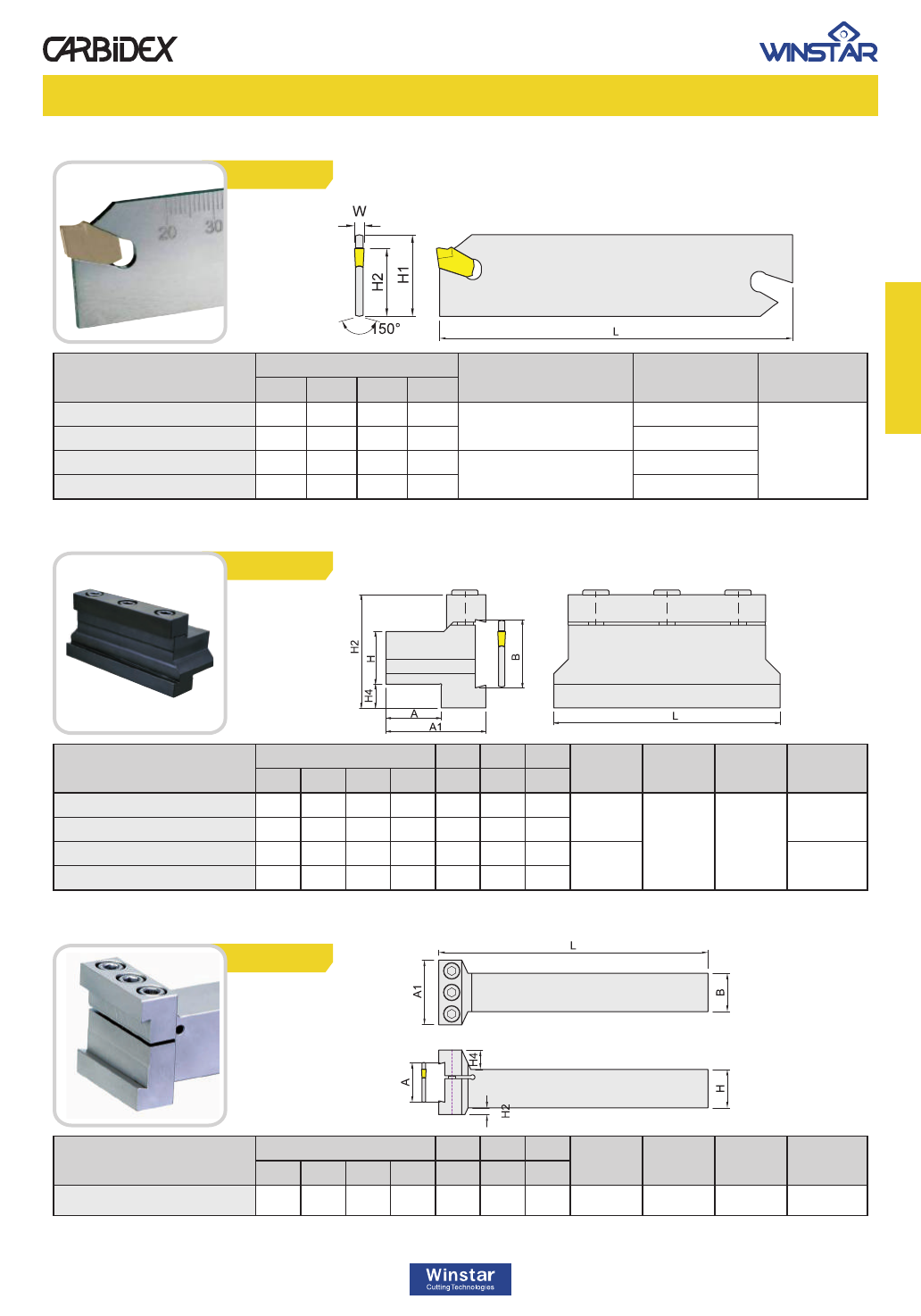

SGIH / TGTN0220, TGTN0310
Item Code Dimensions, mm Insert Tool Block Wrench
H1 H2 L W
ISGIH26-2 26 21.4 110 2.2 TGTN0220 SGTBU..-26
ESG-1
ISGIH32-2 32 25 150 2.2 SGTBU..-32
ISGIH26-3 26 21.4 110 3.1 TGTN0310 SGTBU..-26
ISGIH32-3 32 25 150 3.1 SGTBU..-32
ISGIH
Item Code Dimensions, mm Clamp Screw Wrench BLADE
H B A A1 L H2 H4
ISGTBU20-26 20 26 21 38 86 43 9 BKU-86
HTM630 PL50
ISGIH26-3
ISGTBU25-26 25 26 23 40 86 43 4
ISGTBU20-32 20 32 21 40 110 50 13 BKU-100 ISGFH32-3
ISGTBU25-32 25 32 23 42 110 50 8
ISGTBU
Item Code Dimensions, mm Clamp Screw Wrench BLADE
H B A A1 L H2 H4
ISGTBV25-26 25 25 26 42 125 4.4 12.6 BKU-86 HTM630 PL50 ISGIH26...
ISGTBV
切斷刀桿
Parting Inserts & Tools
Parting Tools
B182
Working Material Vc fz
Carbon Steel (HB85-225) 90 ~ 250 0.08 (0.06 ~ 0.12)
Stainless 300 Series 55 ~ 110 0.06 (0.06 ~ 0.12)
Cast Iron (HB140-220) 110 ~ 275 0.15 (0.06 ~ 0.12)
Recommended Cutting Conditions
TGTN0220 / TGTN0310
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
CX30NS
CX40NS
wr
TGTN 0220 ✓ ✓ 2.2 0.2
TGTN 0310 ✓ ✓ 3.1 0.15
Specication
切斷刀片
Parting Tools
B183

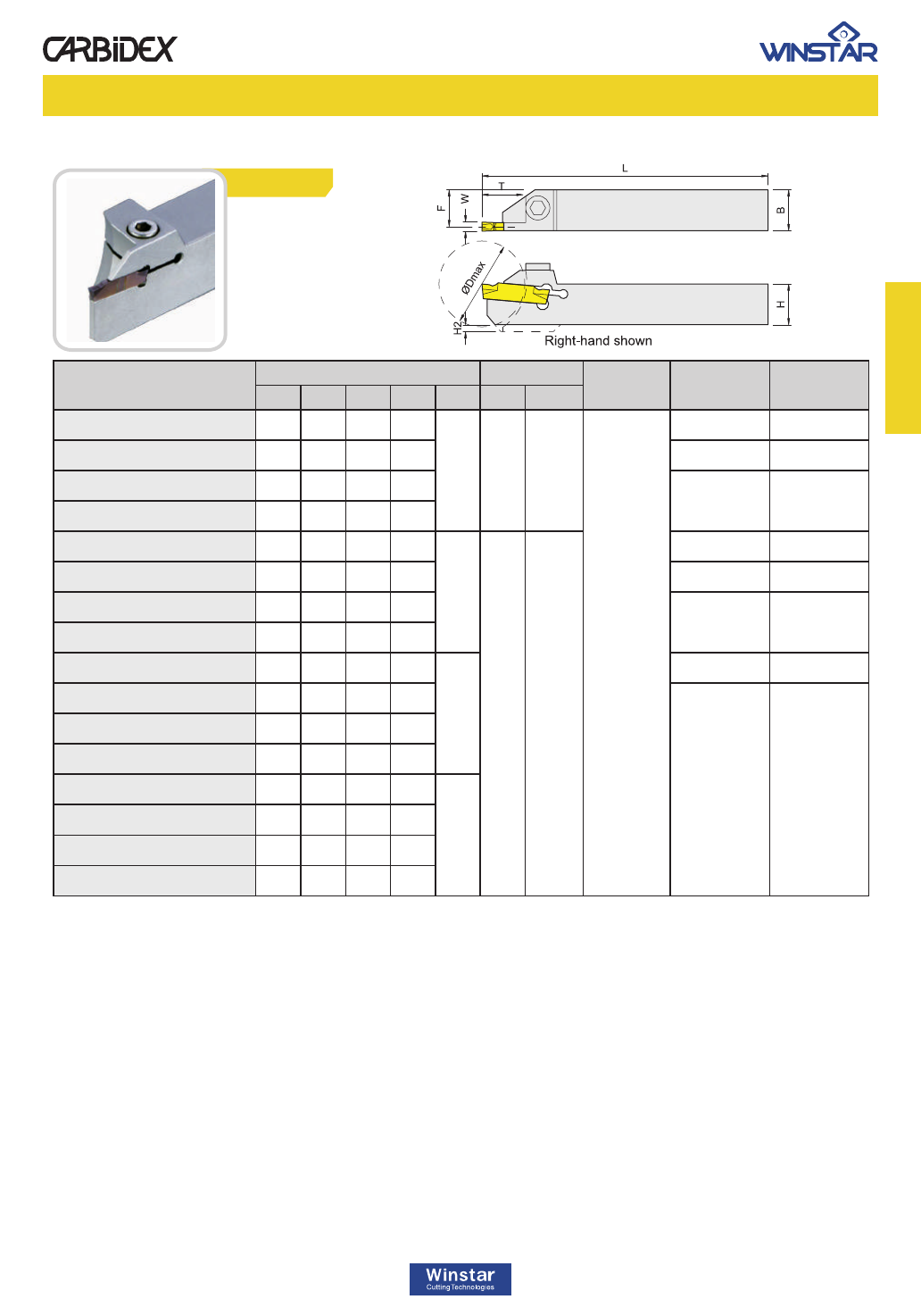

KGM / GMM2020
Item Code Dimensions, mm Windth W(mm) Insert Screw Wrench
H B L F T min max
IKGMR/L-1212K-1.5-L10 12 12 125 11.4
10 1.5 2.0
GMM2020...
HTM416 PL30
IKGMR/L-1616K-1.5-L10 16 16 125 15.4 HTM520 PL40
IKGMR/L-2020K-1.5-L10 20 20 125 19.4
HTM525 PL40
IKGMR/L-2525M-1.5-L10 25 25 150 24.4
IKGMR/L-1212K-2T-L10 12 12 125 11.1
10
2.0 3.0
HTM416 PL30
IKGMR/L-1616K-2T-L10 16 16 125 15.1 HTM520 PL40
IKGMR/L-2020K-2T-L10 20 20 125 19.1
HTM525 PL40
IKGMR/L-2525M-2T-L10 25 25 150 24.1
IKGMR/L-1212K-2T-L13 12 12 125 11.1
13
HTM520 PL40
IKGMR/L-1616K-2T-L13 16 16 125 15.1
HTM525 PL40
IKGMR/L-2020K-2T-L13 20 20 125 19.1
IKGMR/L-2525K-2T-L13 25 25 150 24.1
IKGMR/L-1212K-2T-L17 12 12 125 11.1
17
IKGMR/L-1616K-2T-L17 16 16 125 15.1
IKGMR/L-2020K-2T-L17 20 20 125 19.1
IKGMR/L-2525M-2T-L17 25 25 150 24.1
IKGM
切斷刀桿
Parting Inserts & Tools
Parting Tools
B184
GMM2020
PSteel
Cutting Type : General Interrupted
MStainless steel
KCast iron
Inserts Designation
Grade Dimensions (mm)
Drawing
CX30NS
CX40NS
wr h m
GMM 2020-RG ✓ ✓ 2.2 2.0 4.3 1.5
Specication
RG
Chipbreaker
200
100
50
0.10 0.15 0.20
Feed Rate f (mm/rev)
Application
Vc (m/min)
切斷刀片
Working Material Vc fz
Carbon Steel (HB85-225) 60 ~ 200
0.08 ~ 0.18Stainless 300 Series 60 ~ 150
Cast Iron (HB140-220) 50 ~ 140
Recommended Cutting Conditions
Parting Tools
B185
Turning Inserts Grade Comparison Chart
ISO Code CARBIDEX Mitsubishi Sumiotmo TaugeTec SECO
P
Steel
P10 UE6110 AC810P TT8105 TP1500
P20 CX2565
CX2565
MC6025
VP15TF
VP20RT
AC820P
AC520U TT8115 TP2500
CP250
P30 CX2565
CX2555
UE6035
VP15TF
VP20RT
AC830P
AC530U
TT8125
TT5100
TP3500
CP500
P40 CX3565
CX3555
UE6035
UH6400
AP830P
AC530U
TT8135
TT7100
TP3500
CP500
M
Stainless Steel
M10 VP10MF
MC7015 AC610M TP1500
TS2000
M20 CX3565
CX3555
VP15TF
VP20MF
US7020
MC7025
AC610M
AC520U TT9215
TM2000
TP2500
TS2500
M30 CX3565
CX3555
VP15TF
MP7035
MC7025
US735
AC6030M
AC630M
AC530U
TT9225
TM4000
TP3500
CP500
M40 MP7035
US735
AC6040M
AC530U
TT9235
TT8020 TM4000
K
Cast Iron
K01 MC5005 AC405K TT7005
K10 CX2565 UC5015 AC415K TT7015
TT7310
TK1000
TS2000
K20 CX2565
CX2555
VP15TF
UC5115 AC420K TK2000
CP500
K30 VP15TF
UE6110
The above table is selected from a publication for reference only, which is not obtained approval from each brand.
車刀片材質等級比較表
Additional information
Turning Inserts & Tools
