Общий каталог Winstar 2015

2015~2016

Cutting Tools Catalogue

Vol.

16B

Winstar Cutting Technologies Corp. Is a Taiwanese company that started operations in the year 2008

by Tim Chen following a dream and personal interest in developing solid tools. We are a professional

manufacturer of Cutting Tools and Inserts. Since WINSTAR started it has specialized in the Design and

Manufacture of High-Quality Cutting Tools. Having more than 4,400 different kinds of items and huge

stocks. We are able to meet customer's needs. 90% of our products provide our own brand tools and

10% to do OEM project for world-class cutting group. WINSTAR has become one of the most successful

companies in Taiwan. We base our company’s success on our long-standing commitment to satisfy our

customers’ needs. By Utilizing the Finest Raw Materials and introducing Innovative Cutting Tools.

Why Winstar?

Your order will receive personal attention from our sales staff.

We offer full technical support for our products and are always

just a phone call away. Your satisfaction is very important to us.

We stock our shelves to support our full product line. This

means we probably have what you need ready to ship today.

Taiwanese made Quality

Your satisfaction is 100% guaranteed! Our complete line

of end mills, drills, holders, and insert will stand-up-to or

out-perform any premium cutting tool brand on the market.

Privacy and Security

We aggressively protect your privacy rights. All transactions are

conducted via our secure, encrypted online system. Your customer

information will never be sold, reproduced, or distributed.

Optimized Carbide Grades

Maximum cutting performance is only achieved when the carbide

grade characteristics ideally fit the specific application needs.

Superior Grinding Quality

Research on better surface quality remains an area of continuous

technological advancement. Since the cutting edge quality

determines the tool life and cutting action, a superior grinding

quality is critical. WINSTAR provides the latest Swiss and

German grinding Technology to get a superior surface finish.

Highly Innovative Tool Geometries

Highest cutting action cannot be accomplished by using only the

standard geometries of universal tools. Efficient chip forming

and evacuation is critical for optimal cutting performance. Such

geometries are designed to manage a broad range of cutting

forces and provide the highest cutting action for aerospace

applications. As a recognized provider for “special” tools,

WINSTAR possesses the engineering know-how to design

highly innovative tool geometries for maximum cutting.

Advanced Tool Coating Technology

We are committed to provide our Customers with

Crafted precision and Excellence. Longest tool life

and maximum application performance require the

utilization of advanced coating technology. As this

highly innovative field continues to rapidly change.

Winstar Friends and Family

In WINSTAR CUTTING TECHNOLOGIES Corp. We believe

in partnership and understands that the best way to grow is

together. That is the reason Winstar works as a team, to provide

the customer with a better efficient service. We also have

partnerships around the globe. With this special friends we work

just the same way we work together in WINSTAR. To make bigger

and better alliances so we can grow together as a big family.

Welcome to WINSTAR Family

Main Index

Milling

Solid Carbide EndMill

Drilling

Milling Insert & Cutter

Solid Carbide Drill

Drilling Insert & Holder

A01~A94

B01~B61

C01~C31

D01~D07

Technical Data

Cutting Technical Data

E01~E03

Double corner radius and multi-ﬂ ute geometry design.

High feed and high metal removal rate in surface milling.

Use SICO Nano coating.

UMG Carbide substrate possess high TRS and good

wear resistance.

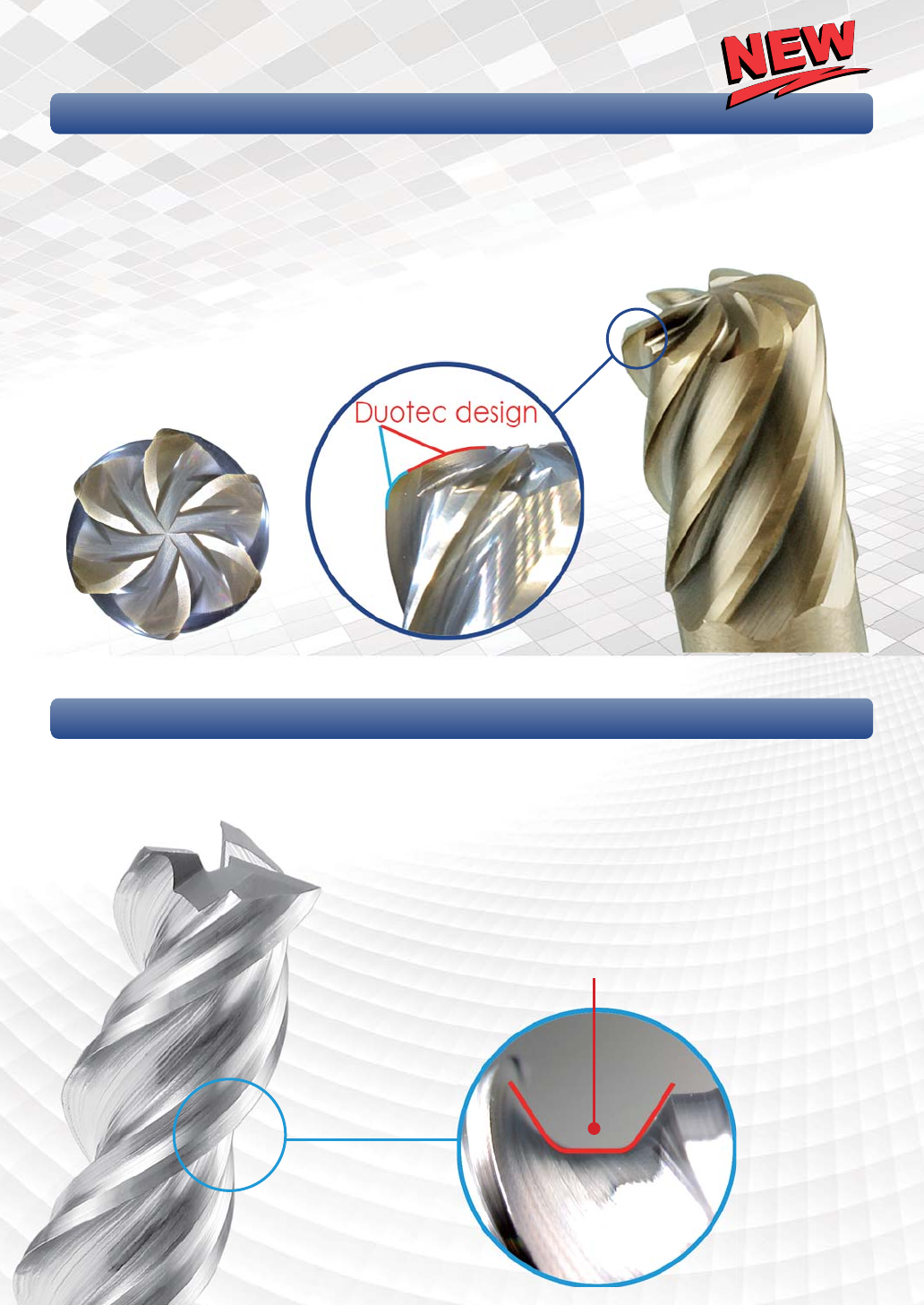

Duotec Design

refer to page A30

U-Flute design with high chips volume space and

easy to remove chips.

Excellent for high feed rough milling.

Also suitable for surface ﬁ nish in high speed milling.

U-Flute design

refer to page A92

EHWSA High Feed Endmill

ENSSB High Performance Endmill for Aluminum

EPTSS Slot T Type

EPTST Angular L Type

EPTSV Angular V Type

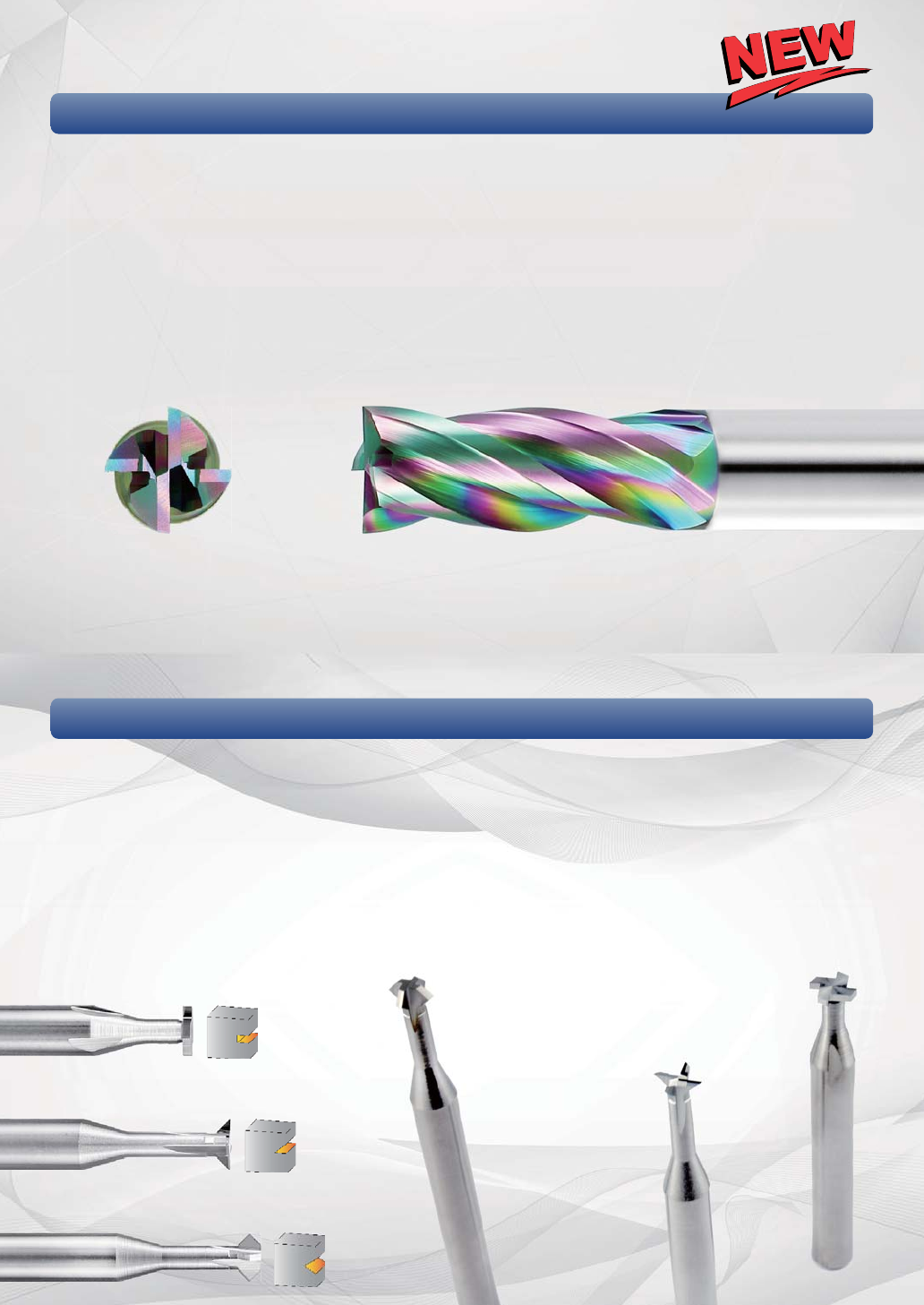

DICO Coating surface hardness exceeds 50GPa.

Suitable for Non-ferrous cutting, e.g., copper, aluminum, graphite, plastic processing

special.

Multiple processing efﬁ ciency, coefﬁ cient of friction <0.1m.

Large positive rake angle and deep ﬂ ute design, improves cutting efﬁ ciency.

refer to page A93

Customize for special speciﬁ cation.

Low cutting resistance, high-speed cutting.

Polish edge with even force, low vibration and high ﬁ nishing surface.

High feed, high cutting efﬁ ciency.

Blade design for Aluminum and Stainless steel.

ENSSC EndMill for Non-ferrous

EPT Series Special Tool for Non-ferrous

H650 Series up to HRC 60

For hardened steel, HRC 40~60.

Ultra grain carbide.

SICO, TOP ARCO coating.

G550 Series up to HRC 55

For ordinary steel, alloy steel, cast iron, HRC 30~55.

Micro grain carbide.

UNICO coating.

G450 Series up to HRC 48

For steel, alloy steel, cast iron, aluminum alloy (Si > 15%), HRC 20~48.

Micro grain carbide.

UNICO coating.

A100 Series up to HRC 18

For non-ferrous, aluminum, aluminum alloy, copper, HRC < 18.

Micro grain carbide.

Uncoating.

M500 Series up to HRC 50

For stainless steel, difﬁ cult-to-cut material, HRC 20~50.

Ultra grain carbide.

ARCO coating.

ASolid Carbide EndMill

A01~A30

A31~A70

A71~A80

A81~A86

A87~A94

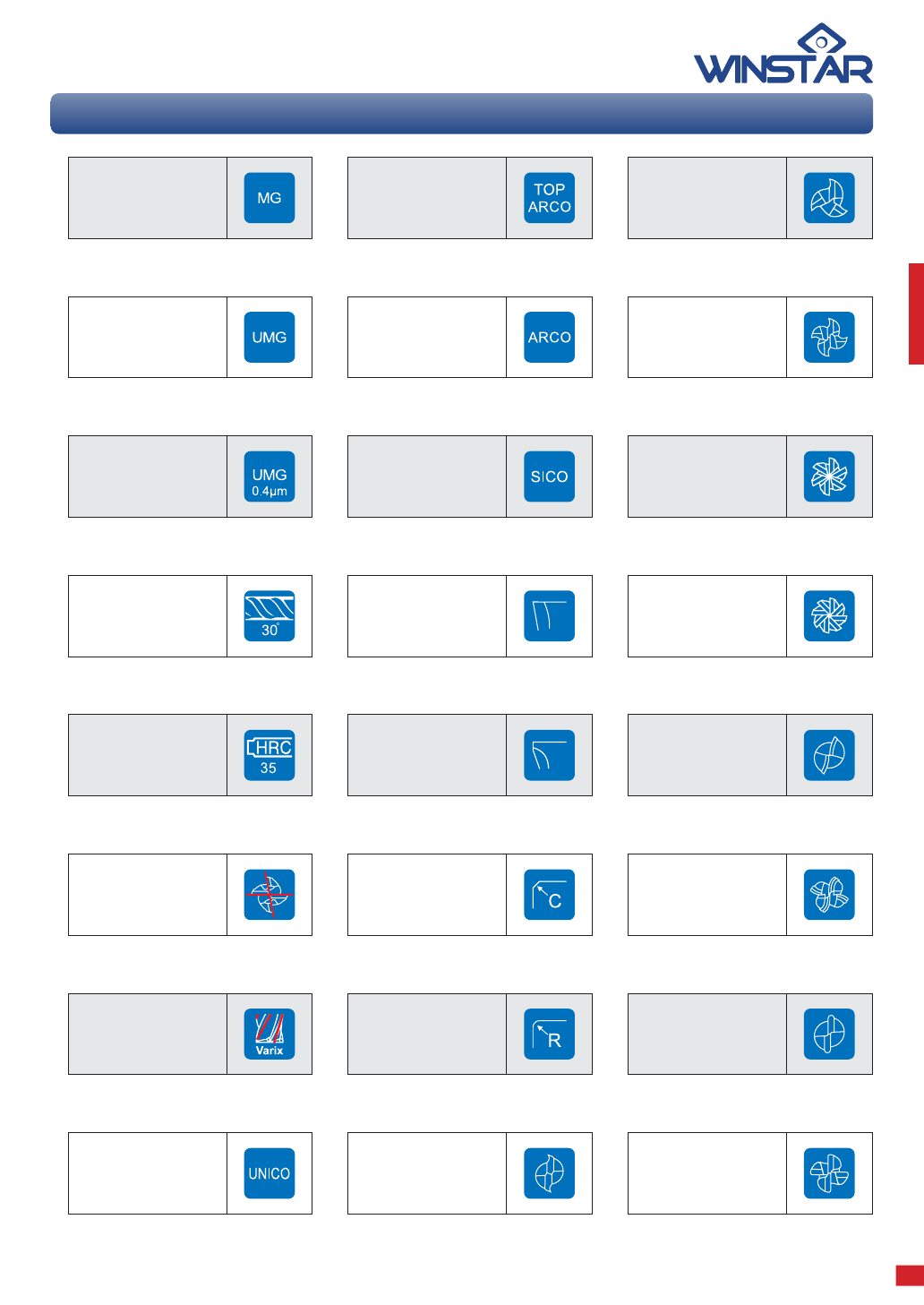

ICONS GUIDE

Micro Grain Square Type 3FTOP ARCO Coated

Ultra Micro Grain Square Type 4FARCO Coated

Ultra Micro Grain 0.4mSquare Type 6FSICO Coated

Helix Angle Square Type 8FSharp Corner Type

Material Hardness Ball Nose 2FFlatland Type

Unequal Ball Nose 4FChamfer Type

Variable Helix Corner Radius 2FCorner Radius

UNICO Coated Square Type 2F Corner Radius 4F

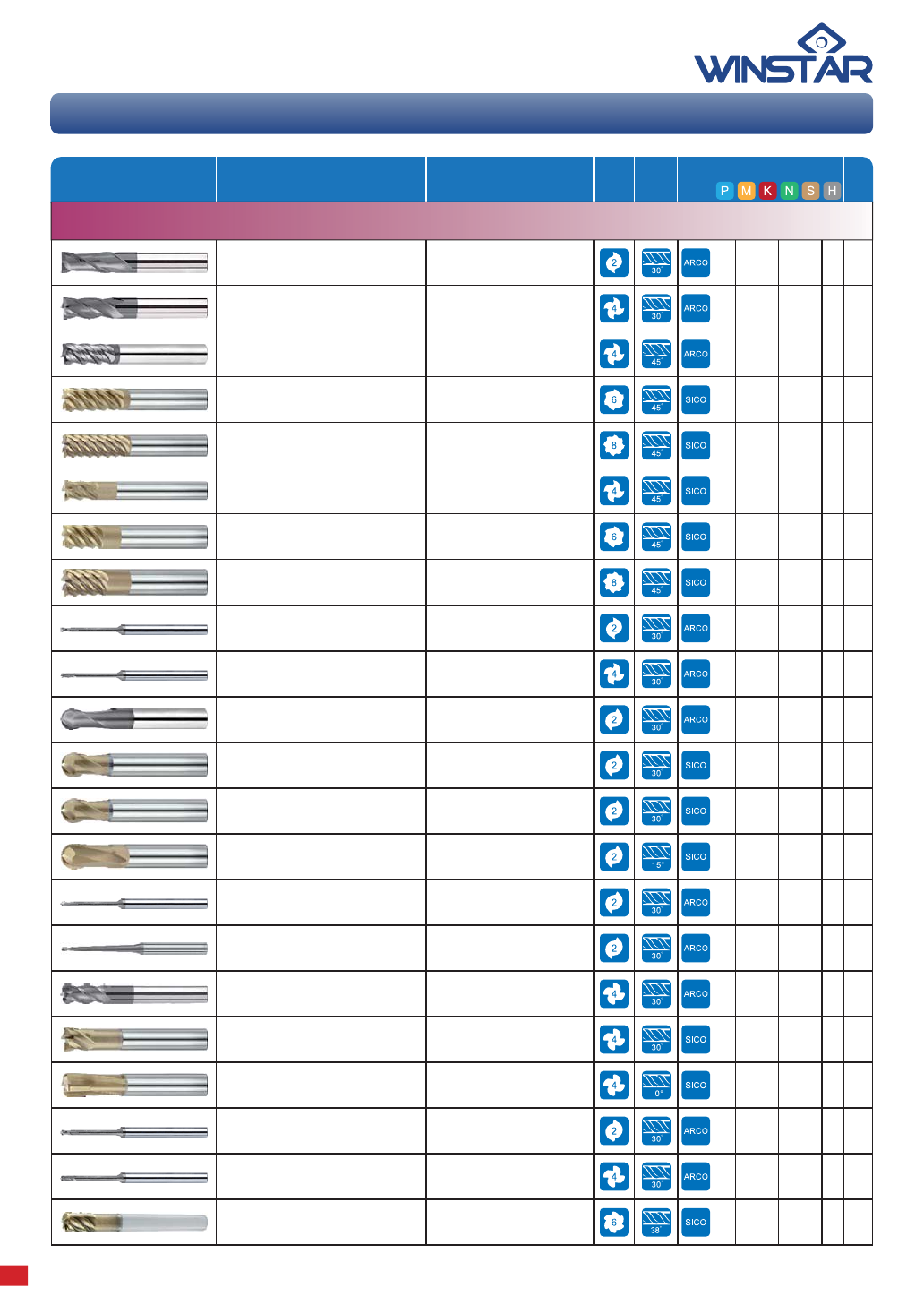

Code No .

Range

Page

Coating

Appearance Series Working Materials

Num. of

eeth

Helix Angl

Index A

Square Type - 2F EHSFA2, EHSSA2 Ø1~Ø20  

A02

Square Type - 4F EHSFA4, EHSSA4 Ø1~Ø20  

A03

High Helix Square Type - 4F EHSFH4, EHSSH4 Ø3~Ø16  

A04

High Helix Square Type - 6F EHSSS6 Ø6~Ø14  

A05

High Helix Square Type - 8F EHSSS8

Ø16~Ø20

 

A05

High Helix & Short Flute Square Type - 4F

EHSPS4, EHSUS4 Ø1~Ø5  

A06

High Helix & Short Flute Square Type - 6F

EHSUS6 Ø6~Ø12  

A06

High Helix & Short Flute Square Type - 8F

EHSUS8

Ø16~Ø20

 

A06

Long Neck Square Type - 2F EHSBC2, EHSRC2

Ø0.2~Ø12

 

A07

A09

Long Neck Square Type - 4F EHSBC4, EHSRC5 Ø1~Ø12  

A10

A11

Ball Nose Type - 2F EHBFH2, EHBSH2 1R~8R  

A12

Short Flute Ball Nose Type - 2F EHBUH2 1R~8R  

A13

High Precision & Short Flute Ball Nose Type - 2F

EHBUP2

0.75R~6R

 

A14

Low Helix & Short Flute Ball Nose Type - 2F

EHBPS2, EHBUS2 0.5R~8R  

A15

Long Neck Ball Nose Type - 2F EHBBC2, EHBRC2

0.15R~6R

 

A16

A18

Taper Neck Ball Nose Type - 2F EHBRT2 1R~6R  

A19

Corner Radius Type - 4F EHCFH4, EHCSH4 Ø4~Ø12  

A20

Short Flute Corner Radius Type - 4F EHCUH4 Ø3~Ø12  

A21

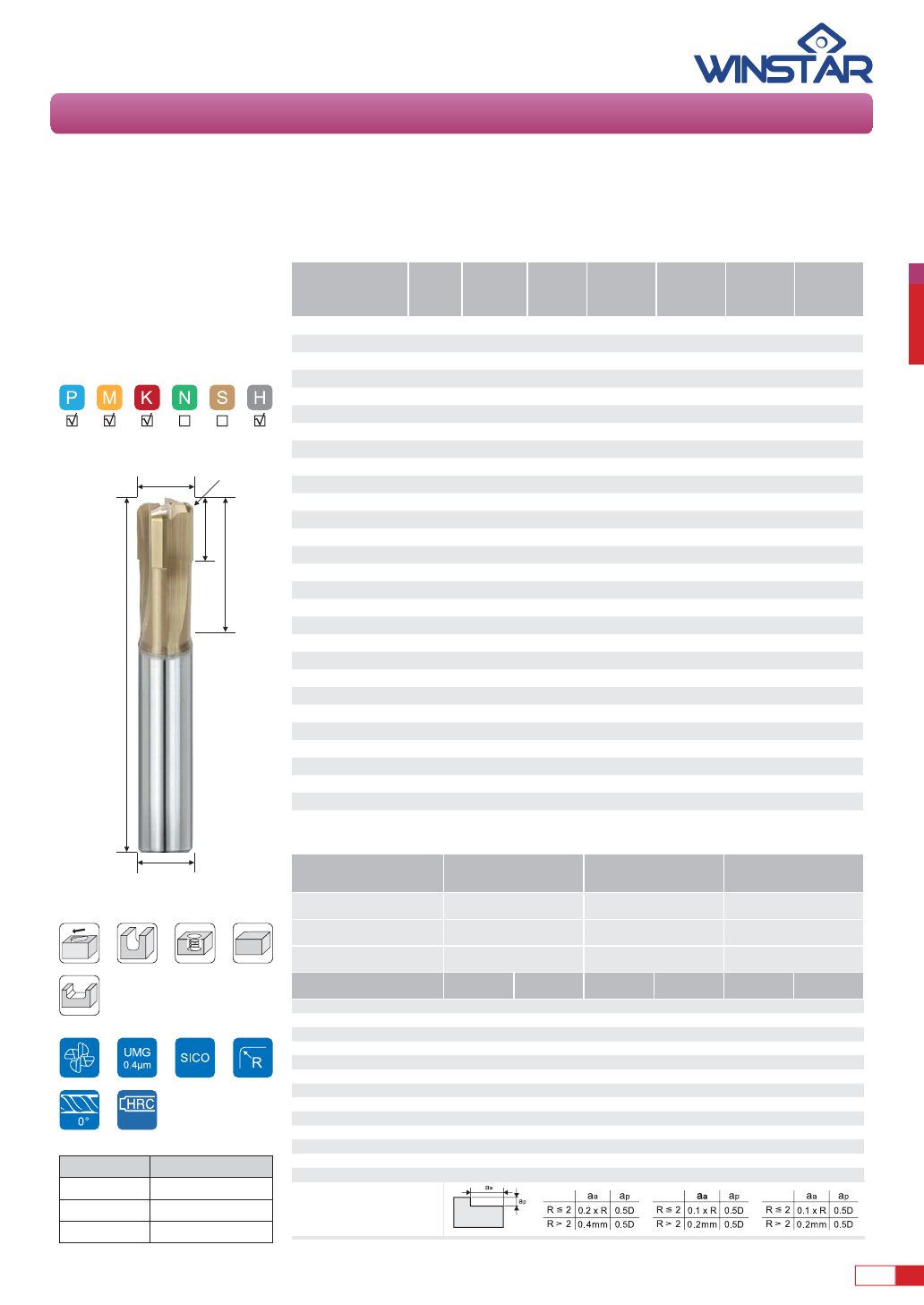

Straight Short Flute Corner Radius Type - 4F

EHCPS4, EHCUS4 Ø1~Ø12  

A22

Long Neck

Corner Radius

Type

- 2F EHCBC2, EHCRC2 Ø1~Ø12  

A23

A26

Long Neck

Corner Radius

Type

- 4F EHCBC4, EHCRC4 Ø2~Ø12  

A27

A29

Double Corner High Feed EndMill - 6F EHWSA4, EHWSA6 Ø6~Ø12  

A30

Solid Carbide EndMill

H650 Series up to HRC 60

Index A

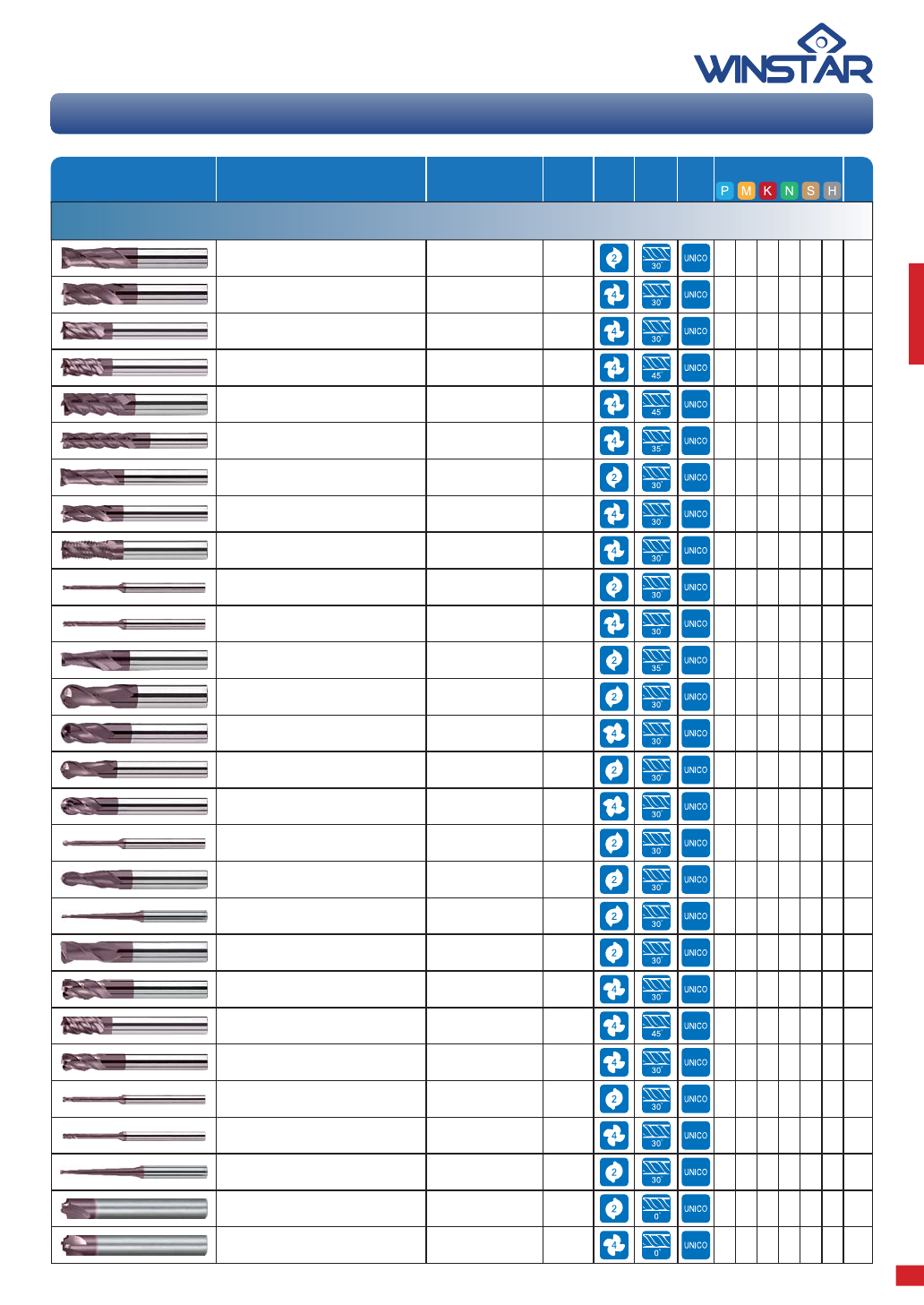

Square Type - 2F EPSFC2, EPSSC2

Ø0.2~Ø25

 

A32

Square Type - 4F EPSFC4, EPSSC4 Ø1~Ø25  

A33

Anti-Vibration Square Type - 4F EPSSD4 Ø5~Ø16  

A34

High Helix & Anti-Vibration SquareType - 4F

EPSSF4 Ø5~Ø16  

A35

High Helix Square Type - 4F EPSFC4, EPSSC4 Ø3~Ø16  

A36

Long Flute Square Type - 4F EPSCA4 Ø3~Ø25  

A37

Long Shank Square Type - 2F EPSEC2, EPSKC2

EPSLC2, EPSNC2 Ø4~Ø16  

A38

Long Shank Square Type - 4F EPSEC4, EPSKC4

EPSLC4, EPSNC4 Ø4~Ø20  

A39

Roughing Square Type - 4F EPSRR4 Ø6~Ø20  

A40

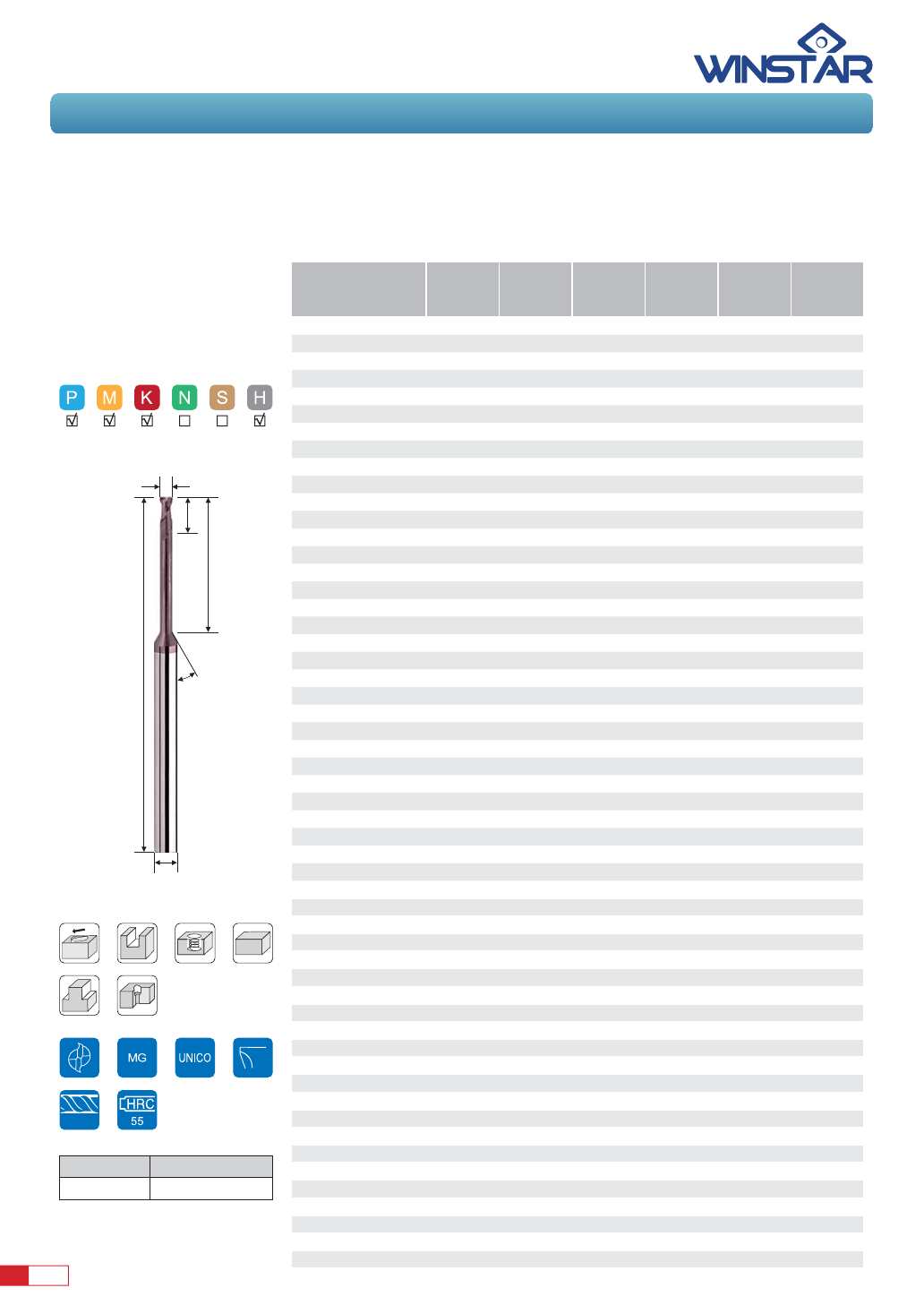

Long Neck Square Type - 2F EPSBC2, EPSRC2

Ø0.2~Ø12

 

A41

A43

Long Neck Square Type - 4F EPSBC4, EPSRC4 Ø1~Ø12  

A44

A45

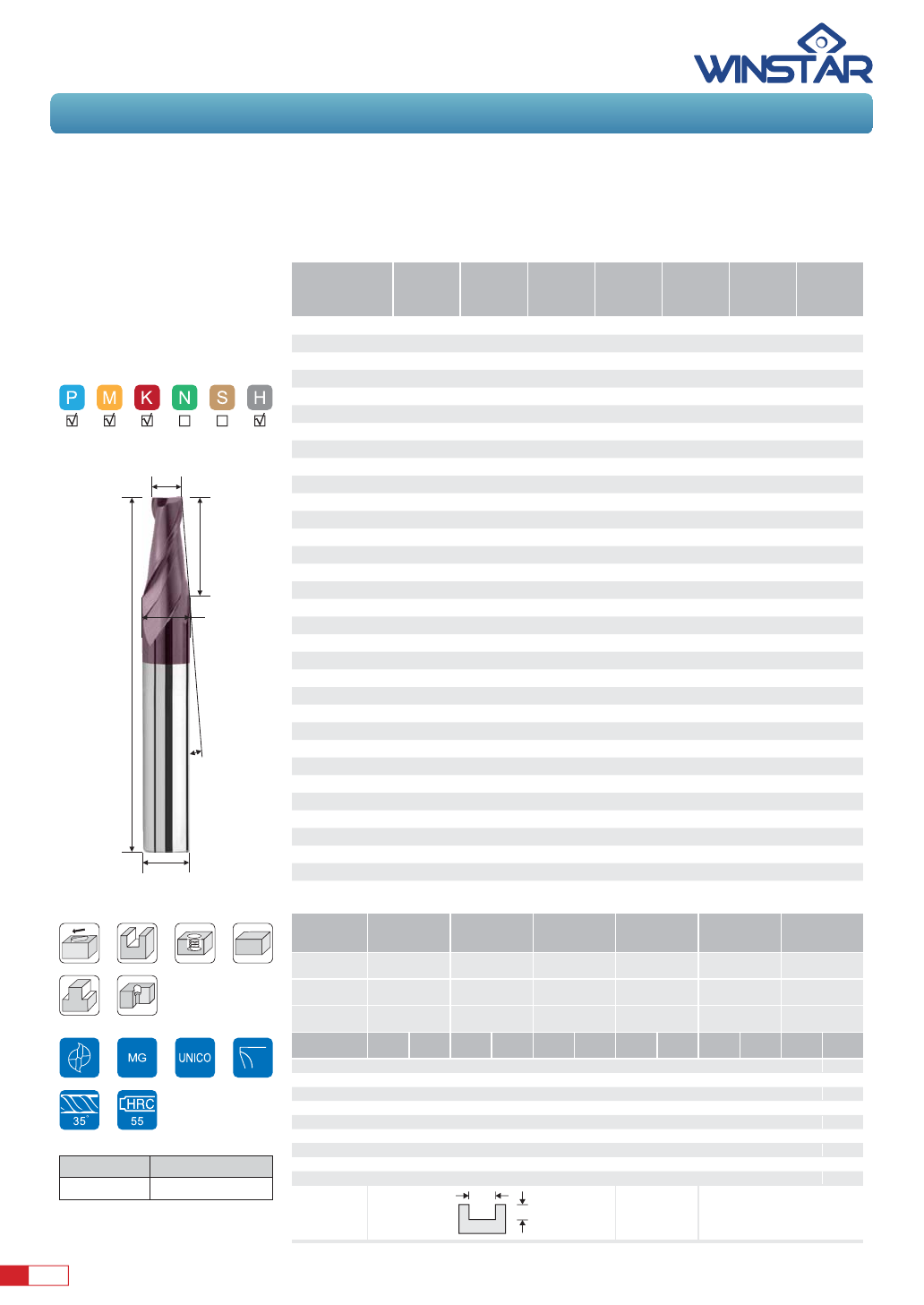

Taper Square Type - 2F EPSFT2, EPSST2 Ø1~Ø4  

A46

A47

Ball Nose Type - 2F EPBFC2, EPBSC2

0.1R~10R

 

A48

Ball Nose Type - 4F EPBFC4, EPBSC4 1R~10R  

A49

Long Shank Ball Nose Type - 2F EPBEC2, EPBKC2

EPBLC2, EPBNC2 2R~8R  

A50

Long Shank Ball Nose Type - 4F EPBEC4, EPBKC4

EPBLC4, EPBNC4 2R~8R  

A51

Long Neck Ball Nose Type - 2F EPBBC2, EPBRC2

0.15R~6R

 

A52

A54

Taper Ball Nose Type - 2F EPBFT2, EPBST2 1R~3R  

A55

Taper Neck Ball Nose Type - 2F EPBRT2 0.5R~2R  

A56

Corner Radius Type - 2F EPCSC2 Ø4~Ø16  

A57

Corner Radius Type - 4F EPCSC2 Ø3~Ø16  

A58

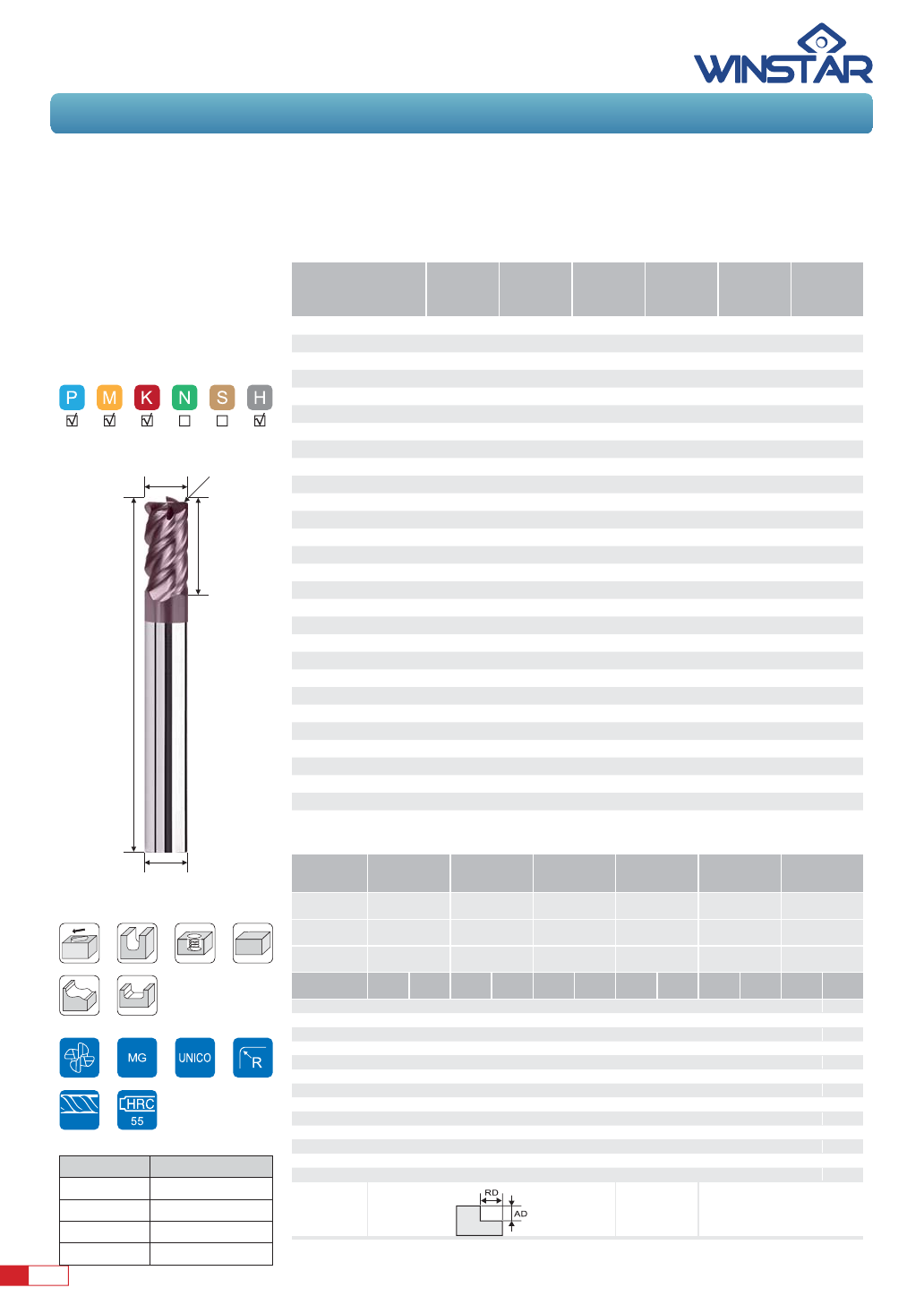

High Helix Corner Radius Type - 4F EPCSH4 Ø3~Ø12  

A59

Long Shank Corner Radius Type - 4F EPCLC4 Ø3~Ø16  

A60

Long Neck Corner Radius Type - 2F EPCBC2, EPCRC2 Ø1~Ø12  

A61

A64

Long Neck Corner Radius Type - 4F EPCBC2, EPCRC2 Ø2~Ø12  

A65

A67

Taper Neck Corner Radius Type - 2F EPCRT2 Ø2~Ø10  

A68

Inner Radius Type - 2F EPIFA2, EPISA2 0.5R~6R  A69

Inner Radius Type - 4F EPIFA4, EPISA4 0.5R~6R  A70

Code No .

Range

Page

Coating

Appearance Series Working Materials

Num. of

eeth

Helix Angl

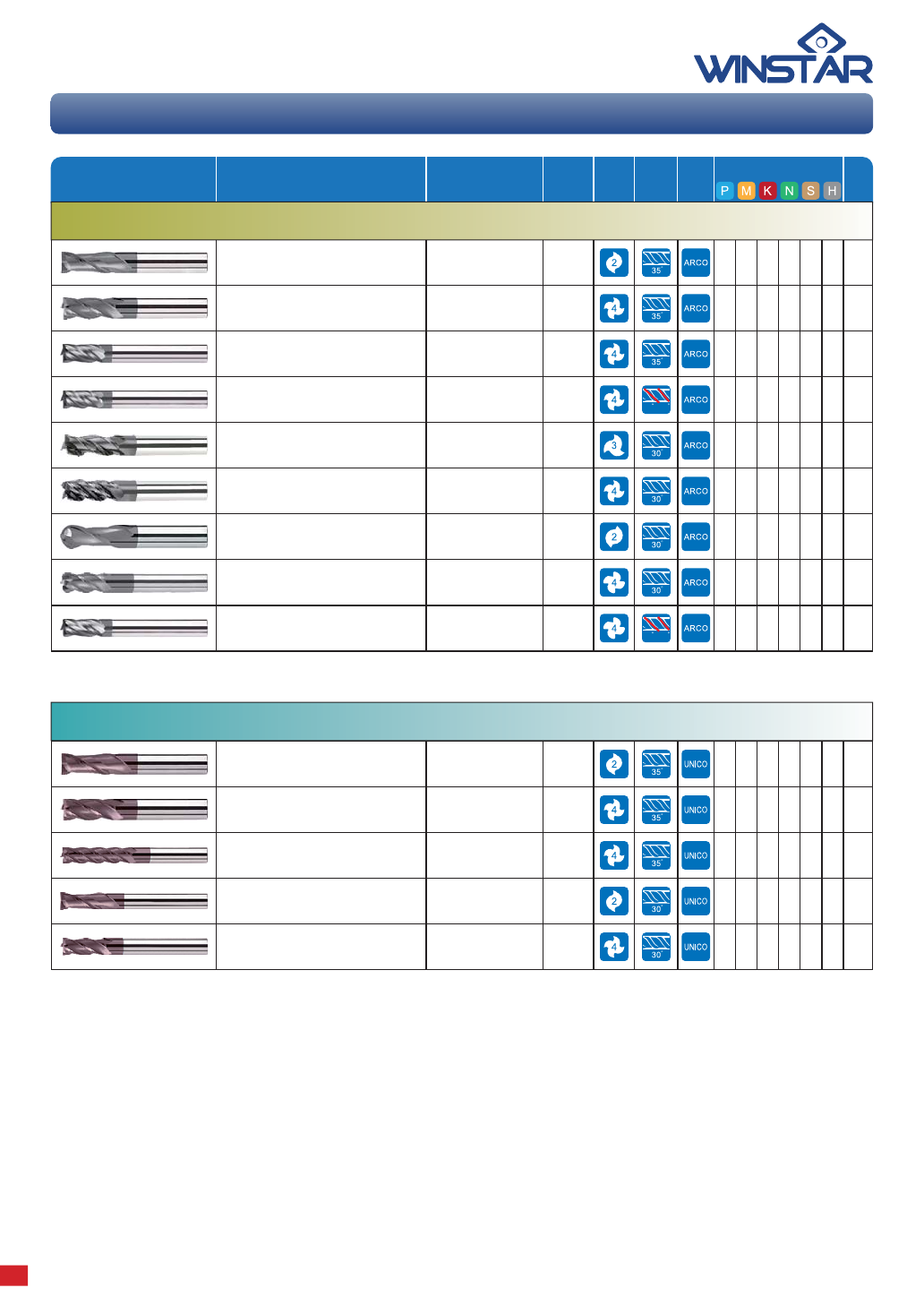

Solid Carbide EndMill

G550 Series up to HRC 55

Index A

Square Type - 2F ESSFA2, ESSSA2 Ø3~Ø16   A72

Square Type - 4F ESSFA4, ESSSA4 Ø3~Ø16   A73

Anti-Vibration Square Type - 4F ESSSD4 Ø5~Ø16   A74

Varix & Anti-Vibration Square Type - 4F ESSSV4 Ø4~Ø16 35

38   A75

Wave Edge Square Type - 3F ESSSW3 Ø6~Ø20   A76

Wave Edge Square Type - 4F ESSSW4 Ø6~Ø20   A77

Ball Nose Type - 2F ESBFA2, ESBSA2 1R~8R   A78

Corner Radius Type - 4F ESBFA2, ESBSA2 Ø3~Ø12   A79

Varix & Anti-Vibration Corner Radius Type - 4F

ESCSV4 Ø4~Ø16 35

38   A80

Code No .

Range

Page

Coating

Appearance Series Working Materials

Num. of

eeth

Helix Angl

Square Type - 2F EPSFA2, EPSSA2 Ø1~Ø25  A82

Square Type - 4F EPSFA4, EPSSA4 Ø1~Ø25  A83

Long Flute Square Type - 4F EPSCA4 Ø3~Ø25  A84

Long Shank SquareType - 2F EPSEA2, EPSKA2

EPSLA2, EPSNA2 Ø4~Ø16  A85

Long Shank Square Type - 4F EPSEA4, EPSKA4

EPSLA4, EPSNA4 Ø4~Ø20  A86

Solid Carbide EndMill

M500 Series up to HRC 50

G450 Series up to HRC 48

Index A

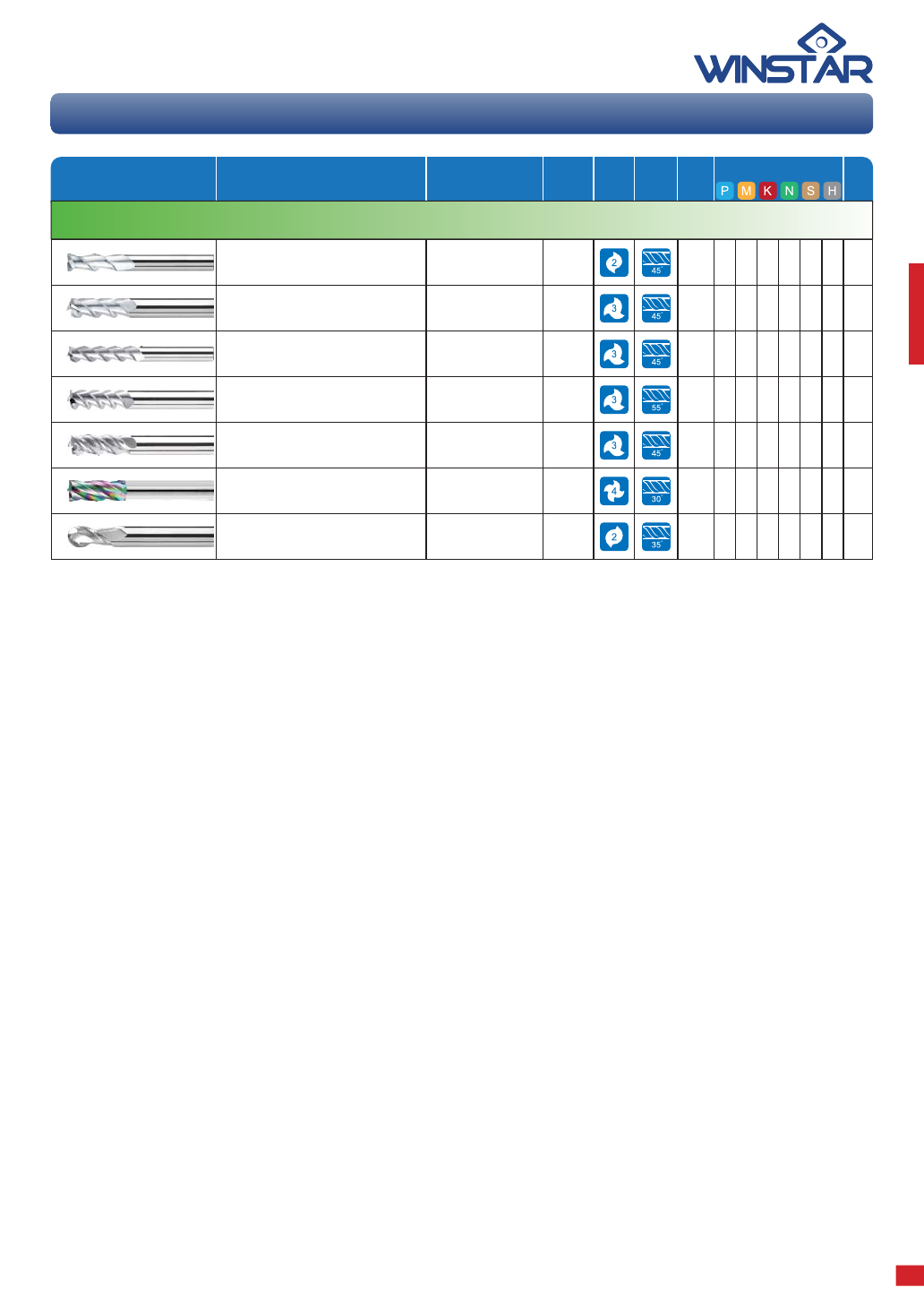

Square Type - 2F ENSFS2, ENSSS2 Ø1~Ø20 A88

Square Type - 3F ENSFS3, ENSSS3 Ø2~Ø20 A89

Square & Long Flute Type - 3F ENSCS3 Ø3~Ø20 A90

Square & High Helix Type - 3F ENSSH3 Ø4~Ø16 A91

High Performance Square Type - 3F

for side milling ENSSB3 Ø2~Ø20 A92

High Performance Square Type - 4F

for slot milling ENSSC4 Ø5~Ø12 A93

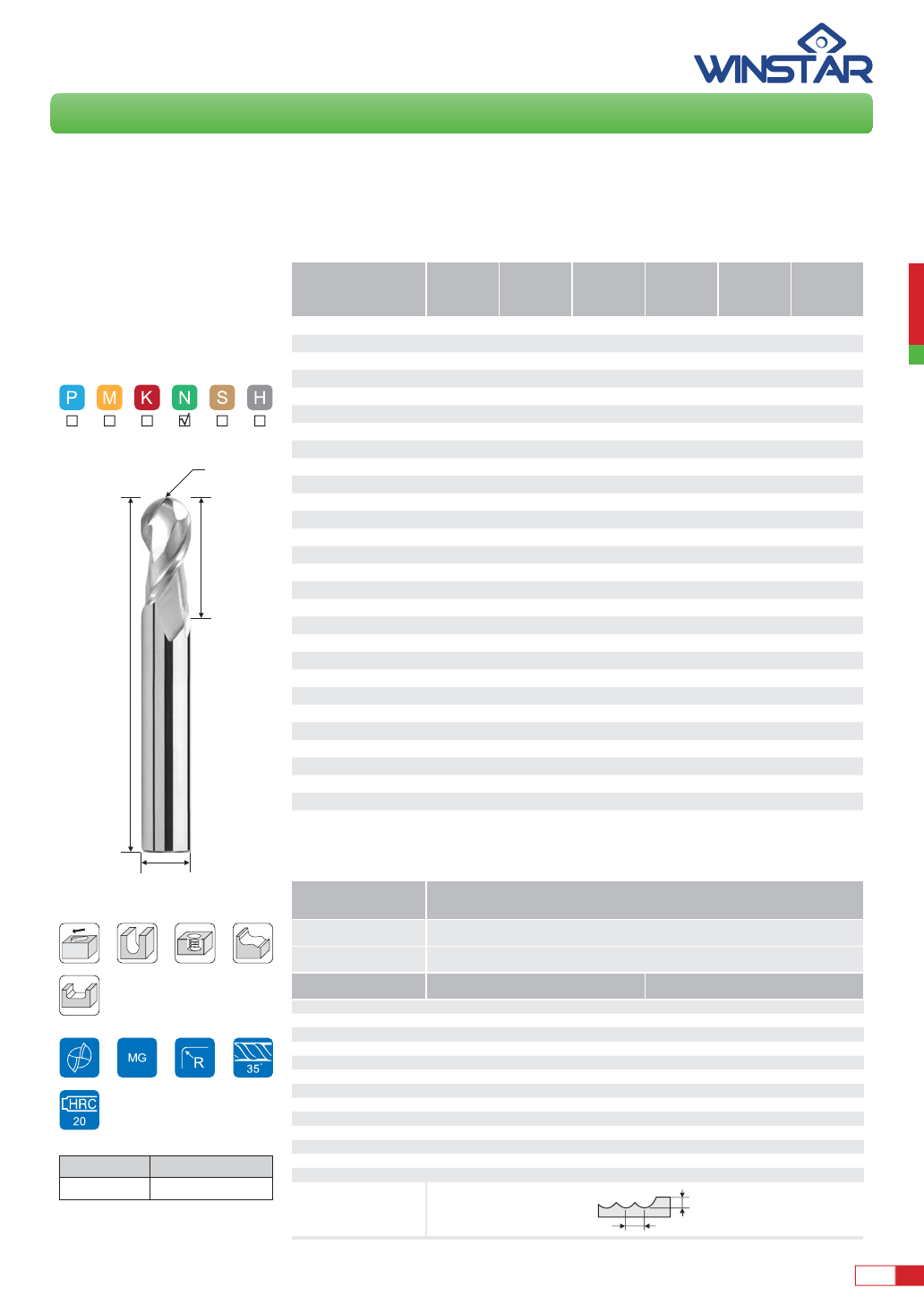

Ball Nose Type - 2F ENBFA2, ENBSA2 0.5R~8R A94

Code No .

Range

Page

Coating

Appearance Series Working Materials

Num. of

eeth

Helix Angl

Solid Carbide EndMill

A100 Series up to HRC 20 (for Aluminium alloy)

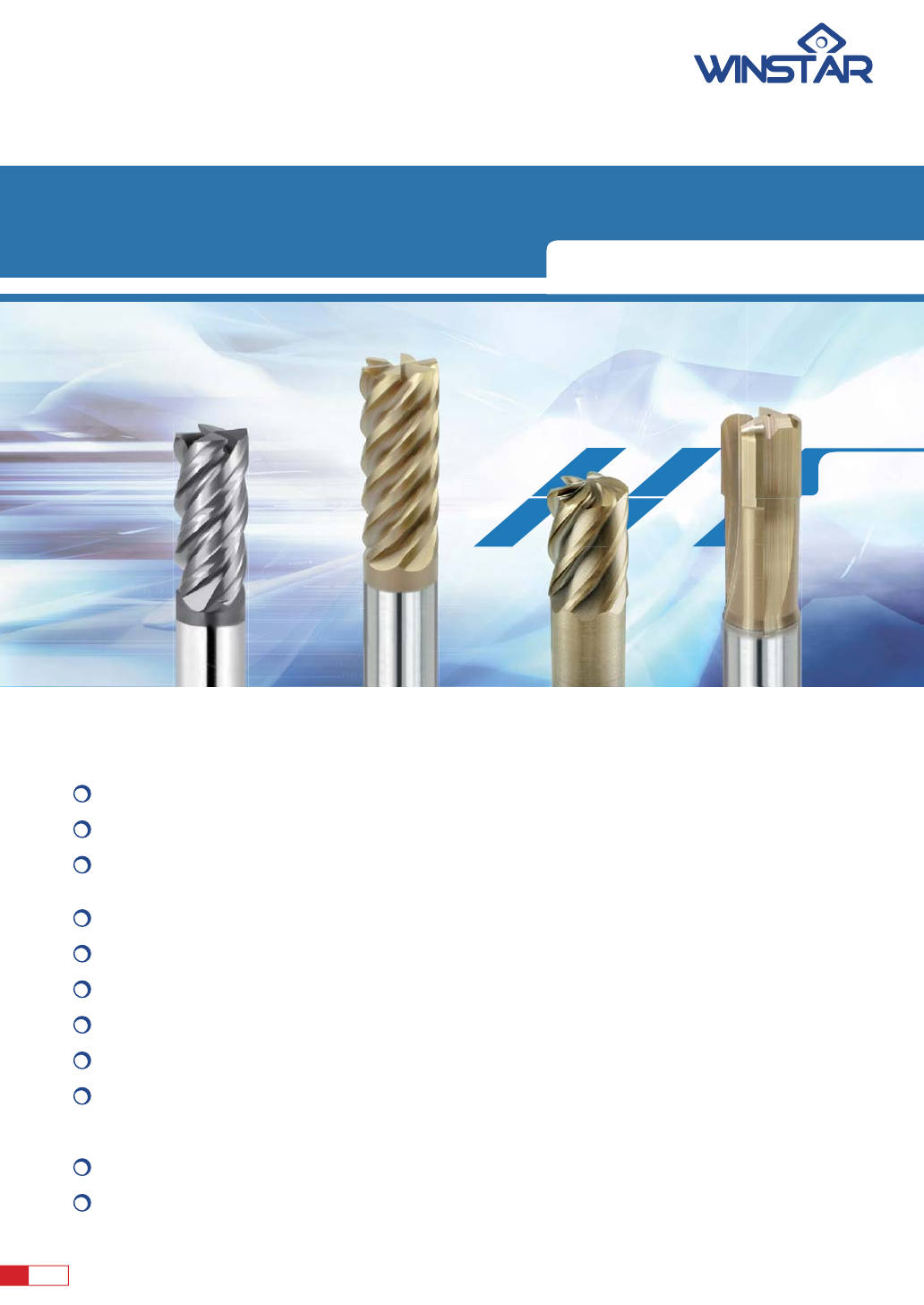

H650 series

up to HRC 60

A01

Beneﬁ ts of High-Helix

Suitable for HRC50 and over HRC50 Hardened Steel, also for preheated steels, HRC35 and over HRC35.

Thick coating is wear resistance and it provides very high tool life.

Tool Deflection is reduced because the transferred stresses are vertically thru the spindle rather than

horizontal.

Speeds chip removal because chip evacuation is vertical.

You have more cutting-edge in side cutting.

High-Helix end mills increases tool life in side milling

Greater shearing action results in increased speeds and feeds and faster stock removal.

Horsepower consumption will be decreased with greater shearing action.

Inherent to the production of Hi-Helix End Mills is a much thicker core resulting in a much stronger tool.

Less Aggressive, and high rigidity which mean better performance in 3D surface milling.

Stronger cutting edge Tools for Hardened Materials.

Beneﬁ ts of Low-Helix

．

H650 Series

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 143 M/min 124 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 15,340 1,150 13,000 830 10,920 500

4MM 11,440 1,070 9,880 780 8,190 460

5MM 9,100 990 7,800 730 6,500 420

6MM 7,670 910 6,500 660 5,460 400

8MM 5,720 830 4,940 610 4,160 400

10MM 4,550 830 3,900 610 3,315 400

12MM 3,770 830 3,250 610 2,730 400

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSFA201000A 1 3 50 4 2

EHSFA202000A 2 5 50 4 2

EHSFA203000A 3 8 50 4 2

EHSFA204000A 4 10 50 4 2

EHSSA203000A 3 8 50 6 2

EHSSA204000A 4 10 50 6 2

EHSSA205000A 5 13 50 6 2

EHSSA206000A 6 15 50 6 2

EHSSA208000A 8 20 60 8 2

EHSSA210000A 10 25 75 10 2

EHSSA212000A 12 30 75 12 2

EHSSA216000A 16 35 100 16 2

EHSSA220000A 20 45 100 20 2

A02

d Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

EHSFA2

EHSSA2

CARBIDE ENDMILLS - Square Type - 2F

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

UMG Carbide with Incredible toughness and wear resistance at hi speeds.

Negative angle design with stronger cutting edge.

The coating can change to SICO, the prices will differ.

H650 Series

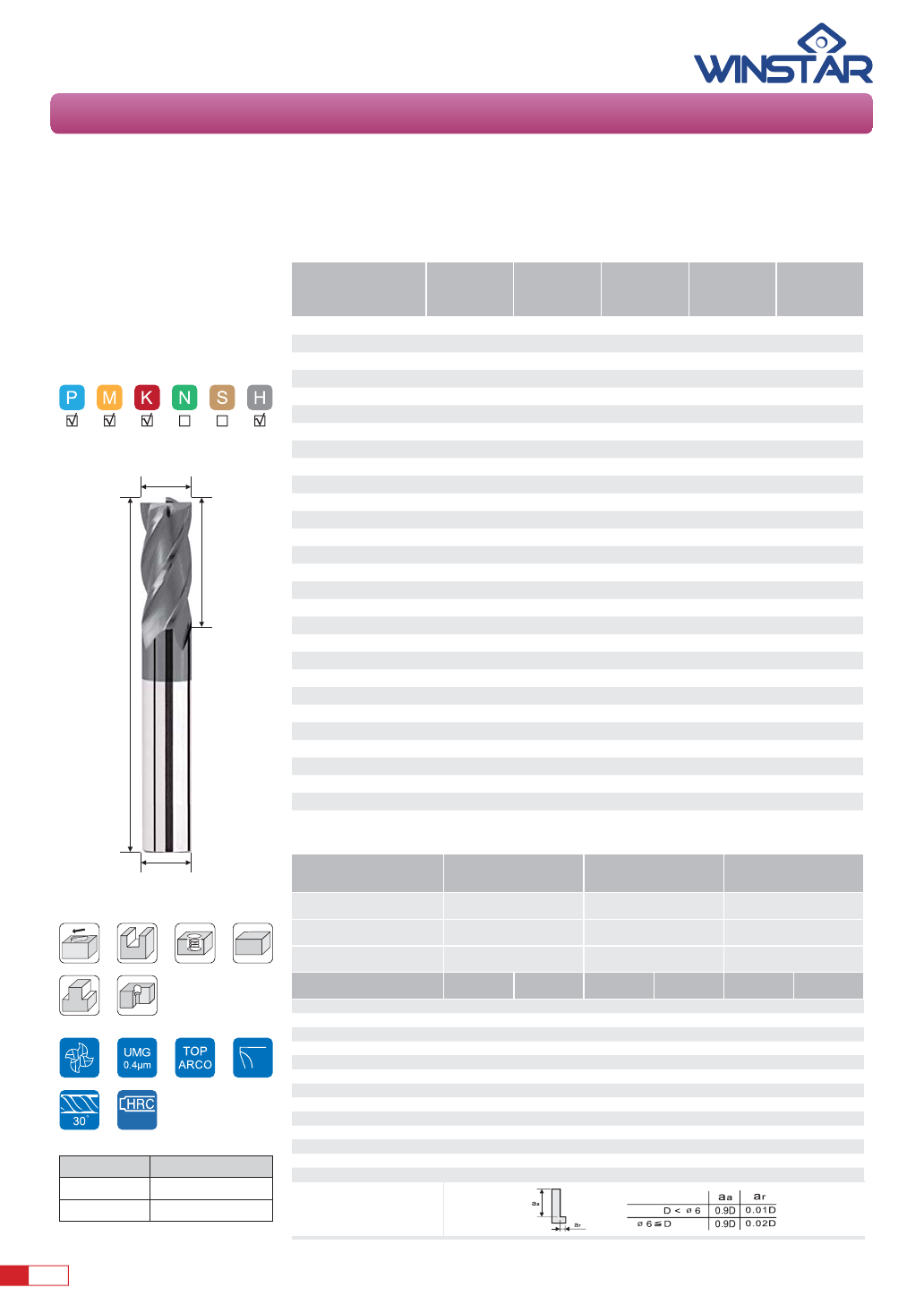

CARBIDE ENDMILLS - Square Type - 4F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 143 M/min 124 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 15,340 1,150 13,000 830 10,920 500

4MM 11,440 1,070 9,880 780 8,190 460

5MM 9,100 990 7,800 730 6,500 420

6MM 7,670 910 6,500 660 5,460 400

8MM 5,720 830 4,940 610 4,160 400

10MM 4,550 830 3,900 610 3,315 400

12MM 3,770 830 3,250 610 2,730 400

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSFA401000A 1 3 50 4 4

EHSFA402000A 2 5 50 4 4

EHSFA403000A 3 8 50 4 4

EHSFA404000A 4 10 50 4 4

EHSSA403000A 3 8 50 6 4

EHSSA404000A 4 10 50 6 4

EHSSA405000A 5 13 50 6 4

EHSSA406000A 6 15 50 6 4

EHSSA408000A 8 20 60 8 4

EHSSA410000A 10 25 75 10 4

EHSSA412000A 12 30 75 12 4

EHSSA416000A 16 35 100 16 4

EHSSA420000A 20 45 100 20 4

A03

d Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

EHSFA4

EHSSA4

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

High helix angle on side milling with good surface and long tool life.

UMG Carbide with Incredible toughness and wear resistance at hi speeds.

The coating can change to SICO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - High Helix Square Type - 4F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 143 M/min 124 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 15,340 1,150 13,000 830 10,920 500

4MM 11,440 1,070 9,880 780 8,190 460

5MM 9,100 990 7,800 730 6,500 420

6MM 7,670 910 6,500 660 5,460 400

8MM 5,720 830 4,940 610 4,160 400

10MM 4,550 830 3,900 610 3,315 400

12MM 3,770 830 3,250 610 2,730 400

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSFH401000A 1.0 3 50 4 4

EHSFH401500A 1.5 4 50 4 4

EHSFH402000A 2.0 5 50 4 4

EHSFH402500A 2.5 6 50 4 4

EHSFH403000A 3.0 8 50 4 4

EHSFH404000A 4.0 10 50 4 4

EHSSH404000A 4.0 10 50 6 4

EHSSH405000A 5.0 13 50 6 4

EHSSH406000A 6.0 15 50 6 4

EHSSH408000A 8.0 20 60 8 4

EHSSH410000A 10.0 25 75 10 4

EHSSH412000A 12.0 30 75 12 4

EHSSH416000A 16.0 35 100 16 4

EHSSH420000A 20.0 45 100 20 4

A04

d Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

EHSFH4

EHSSH4

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

UMG Carbide with Incredible toughness and wear resistance at hi speeds.

Good surface and long tool life.

The coating can change to SICO, the prices will differ.

．

H650 Series

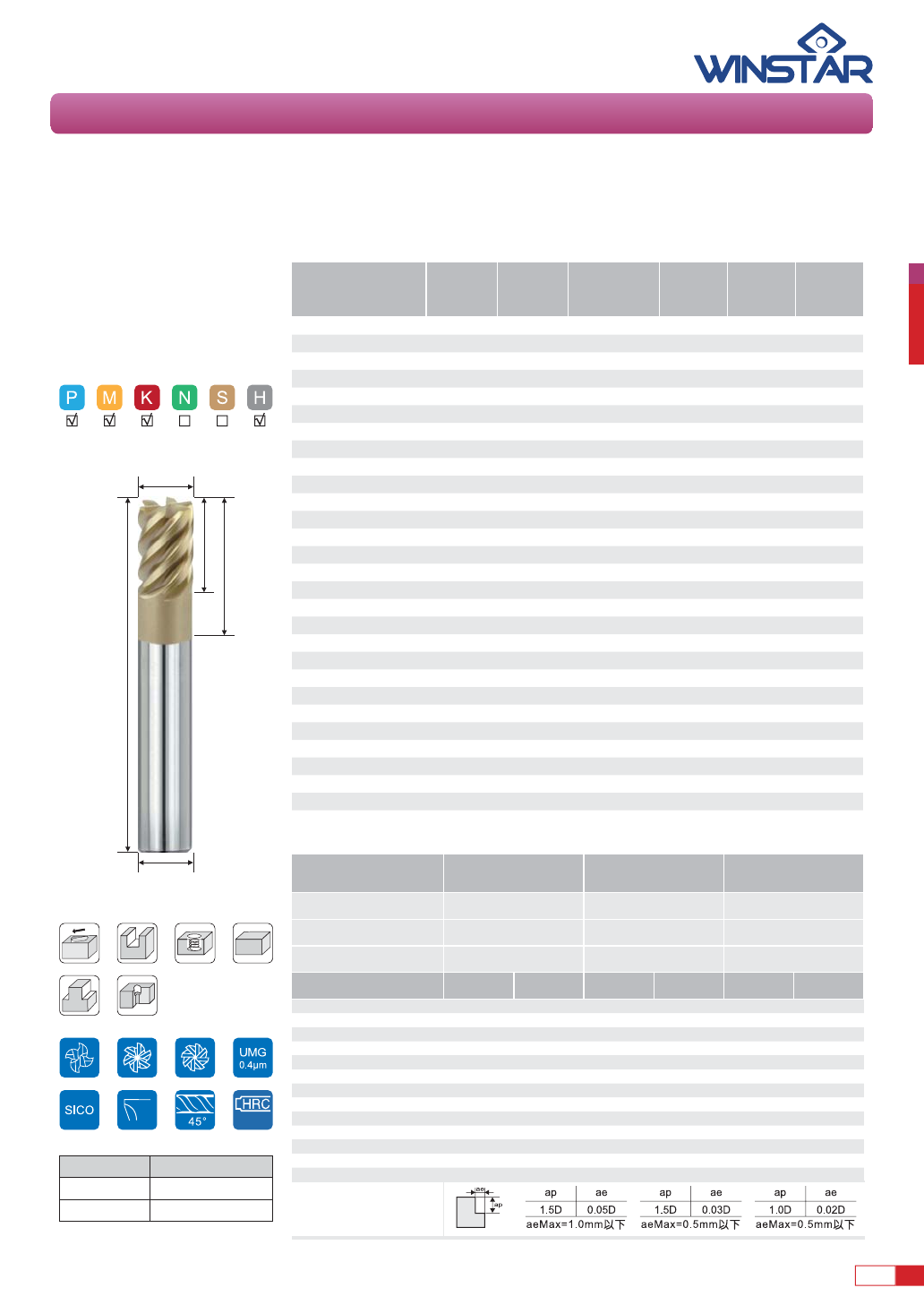

CARBIDE ENDMILLS - High Helix Square Type - 6F / 8F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 45~55 HRC 55~60 HRC 60~70

Vc 129 M/min 98 M/min 65 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

6MM 6,890 1,900 5,200 1,000 3,445 505

8MM 5,200 1,900 3,900 1,000 2,600 505

10MM 4,160 1,900 3,120 1,000 2,080 505

12MM 3,445 1,900 2,600 1,000 1,755 505

14MM 2,925 1,800 2,210 1,000 1,430 505

16MM 2,535 1,700 2,015 930 1,294 505

18MM 2,275 1,600 1,885 895 1,151 505

20MM 2,015 1,500 1,495 845 1,040 505

25MM 1,625 1,500 1,242 915 826 505

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSSS606000S 6 15 50 6 6

EHSSS608000S 8 20 60 8 6

EHSSS610000S 10 25 75 10 6

EHSSS612000S 12 30 75 12 6

EHSSS614000S 14 30 75 14 6

EHSSS816000S 16 40 100 16 8

EHSSS818000S 18 40 100 18 8

EHSSS820000S 20 45 100 20 8

A05

d Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

EHSSS6

EHSSS8

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Horsepower consumption will be decreased with greater shearing action.

High Helix and 6 Flutes design gives a good ﬁ nishing surface.

The coating can change to TOP ARCO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - High Helix & Short Flute Square Type - 4F / 6F / 8F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 45~55 HRC 55~60 HRC 60~70

Vc 208 M/min 195 M/min 129 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

6MM 11,050 2,450 10,335 2,000 6,890 1,210

8MM 8,255 2,440 7,735 1,995 5,200 1,215

10MM 6,630 2,450 6,110 1,970 4,160 1,215

12MM 5,525 2,450 5,135 1,985 3,445 1,210

14MM 4,680 2,420 4,420 1,995 2,925 1,200

16MM 4,095 2,420 3,900 2,000 2,535 1,285

18MM 3,640 2,420 3,445 2,000 2,275 1,200

20MM 3,250 2,400 3,055 1,970 2,015 1,180

25MM 2,600 2,400 2,470 1,990 1,625 1,190

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSPS401000S 1 1.5 2.5 50 4 4

EHSPS402000S 2 3.0 5.0 50 4 4

EHSUS403000S 3 4.5 7.5 50 6 4

EHSUS404000S 4 6.0 10.0 50 6 4

EHSUS405000S 5 7.5 12.5 50 6 4

EHSUS606000S 6 9.0 15.0 50 6 6

EHSUS608000S 8 12.0 20.0 60 8 6

EHSUS610000S 10 15.0 25.0 75 10 6

EHSUS612000S 12 18.0 30.0 75 12 6

EHSUS816000S 16 24.0 40.0 100 16 8

EHSUS820000S 20 30.0 50.0 100 20 8

A06

d Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

EHSPS4

EHSUS4

EHSUS6

EHSUS8

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Greater shearing action results in increased speeds and feeds and faster stock removal.

Prevents clogging of the ﬂ utes.

The coating can change to TOP ARCO, the prices will differ.

．

H650 Series

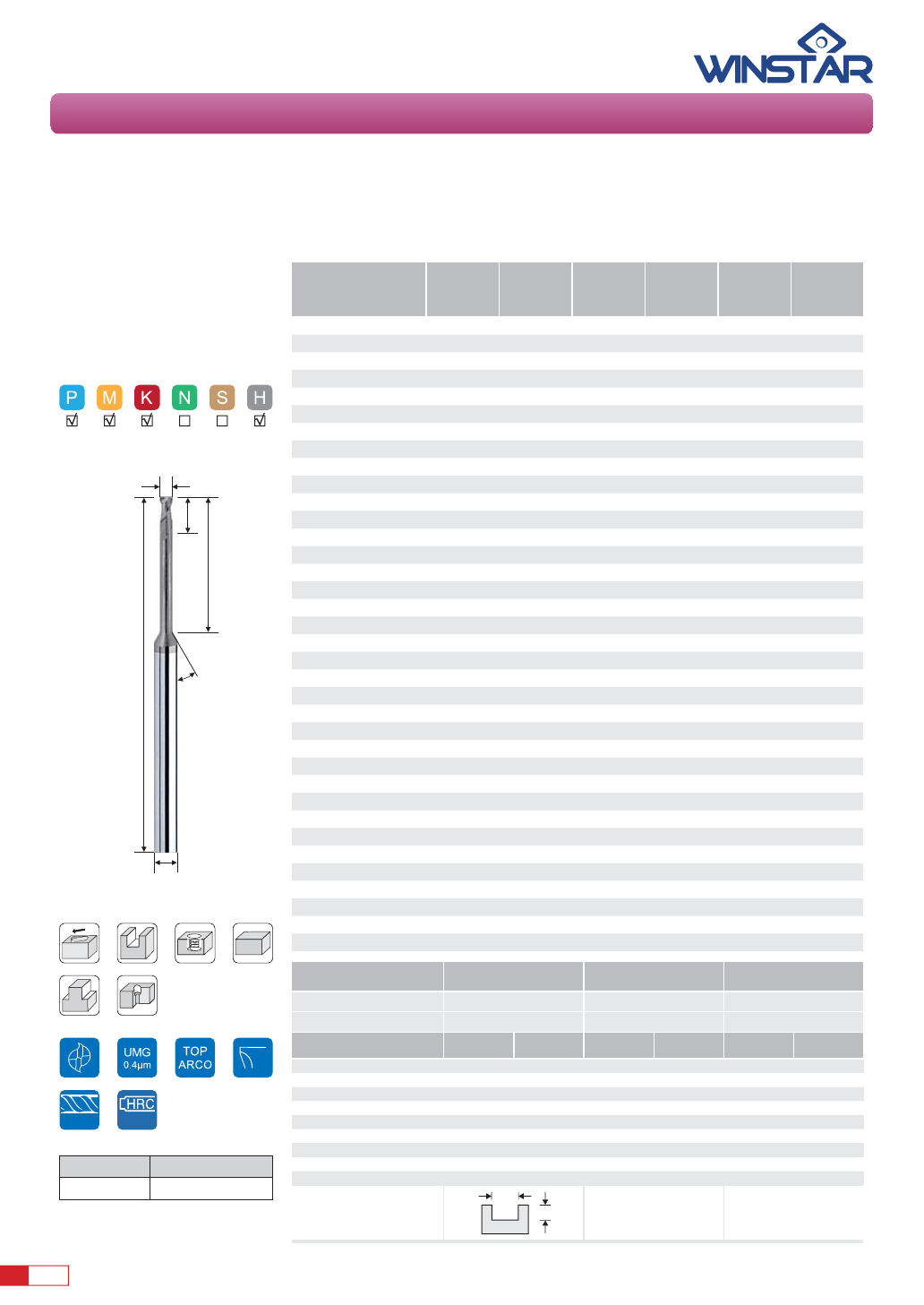

CARBIDE ENDMILLS - Long Neck Square Type - 2F

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSBC200201A 0.2 0.3 1 50 4 2

EHSBC200202A 0.2 0.3 2 50 4 2

EHSBC200301A 0.3 0.4 1 50 4 2

EHSBC200302A 0.3 0.4 2 50 4 2

EHSBC200303A 0.3 0.4 3 50 4 2

EHSBC200304A 0.3 0.4 4 50 4 2

EHSBC200305A 0.3 0.4 5 50 4 2

EHSBC200401A 0.4 0.5 1 50 4 2

EHSBC200402A 0.4 0.5 2 50 4 2

EHSBC200403A 0.4 0.5 3 50 4 2

EHSBC200404A 0.4 0.5 4 50 4 2

EHSBC200405A 0.4 0.5 5 50 4 2

EHSBC200406A 0.4 0.5 6 50 4 2

EHSBC200408A 0.4 0.5 8 50 4 2

EHSBC200410A 0.4 0.5 10 50 4 2

EHSBC200502A 0.5 0.6 2 50 4 2

EHSBC200503A 0.5 0.6 3 50 4 2

EHSBC200504A 0.5 0.6 4 50 4 2

EHSBC200505A 0.5 0.6 5 50 4 2

EHSBC200506A 0.5 0.6 6 50 4 2

EHSBC200508A 0.5 0.6 8 50 4 2

EHSBC200510A 0.5 0.6 10 50 4 2

EHSBC200512A 0.5 0.6 12 50 4 2

EHSBC200514A 0.5 0.6 14 50 4 2

EHSBC200602A 0.6 0.7 2 50 4 2

EHSBC200603A 0.6 0.7 3 50 4 2

EHSBC200604A 0.6 0.7 4 50 4 2

EHSBC200605A 0.6 0.7 5 50 4 2

EHSBC200606A 0.6 0.7 6 50 4 2

EHSBC200608A 0.6 0.7 8 50 4 2

EHSBC200610A 0.6 0.7 10 50 4 2

EHSBC200612A 0.6 0.7 12 50 4 2

EHSBC200614A 0.6 0.7 14 50 4 2

EHSBC200616A 0.6 0.7 16 50 4 2

EHSBC200702A 0.7 0.8 2 50 4 2

EHSBC200704A 0.7 0.8 4 50 4 2

EHSBC200706A 0.7 0.8 6 50 4 2

EHSBC200708A 0.7 0.8 8 50 4 2

EHSBC200710A 0.7 0.8 10 50 4 2

EHSBC200712A 0.7 0.8 12 50 4 2

EHSBC200802A 0.8 1.0 2 50 4 2

EHSBC200804A 0.8 1.0 4 50 4 2

EHSBC200806A 0.8 1.0 6 50 4 2

EHSBC200808A 0.8 1.0 8 50 4 2

EHSBC200810A 0.8 1.0 10 50 4 2

EHSBC200812A 0.8 1.0 12 50 4 2

EHSBC200814A 0.8 1.0 14 50 4 2

EHSBC200906A 0.9 1.1 6 50 4 2

EHSBC200908A 0.9 1.1 8 50 4 2

EHSBC200910A 0.9 1.1 10 50 4 2

EHSBC201002A 1.0 1.2 2 50 4 2

EHSBC201003A 1.0 1.2 3 50 4 2

EHSBC201004A 1.0 1.2 4 50 4 2

EHSBC201005A 1.0 1.2 5 50 4 2

30° 65

A07

d Tolerance

Ø 0 ~ -0.02

EHSBC2

EHSRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Long neck design is suitable for Rib cutting.

The coating can change to SICO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - Long Neck Square Type - 2F

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSBC201006A 1.0 1.2 6 50 4 2

EHSBC201008A 1.0 1.2 8 50 4 2

EHSBC201010A 1.0 1.2 10 50 4 2

EHSBC201012A 1.0 1.2 12 50 4 2

EHSBC201014A 1.0 1.2 14 50 4 2

EHSBC201016A 1.0 1.2 16 50 4 2

EHSBC201018A 1.0 1.2 18 50 4 2

EHSBC201020A 1.0 1.2 20 50 4 2

EHSBC201204A 1.2 1.5 4 50 4 2

EHSBC201206A 1.2 1.5 6 50 4 2

EHSBC201208A 1.2 1.5 8 50 4 2

EHSBC201210A 1.2 1.5 10 50 4 2

EHSBC201212A 1.2 1.5 12 50 4 2

EHSBC201216A 1.2 1.5 16 50 4 2

EHSBC201220A 1.2 1.5 20 50 4 2

EHSBC201406A 1.4 1.8 6 50 4 2

EHSBC201408A 1.4 1.8 8 50 4 2

EHSBC201410A 1.4 1.8 10 50 4 2

EHSBC201414A 1.4 1.8 14 50 4 2

EHSBC201416A 1.4 1.8 16 50 4 2

EHSBC201420A 1.4 1.8 20 50 4 2

EHSBC201504A 1.5 1.8 4 50 4 2

EHSBC201506A 1.5 1.8 6 50 4 2

EHSBC201508A 1.5 1.8 8 50 4 2

EHSBC201510A 1.5 1.8 10 50 4 2

EHSBC201512A 1.5 1.8 12 50 4 2

EHSBC201514A 1.5 1.8 14 50 4 2

EHSBC201516A 1.5 1.8 16 50 4 2

EHSBC201518A 1.5 1.8 18 50 4 2

EHSBC201520A 1.5 1.8 20 50 4 2

EHSBC201610A 1.6 1.9 10 50 4 2

EHSBC201614A 1.6 1.9 14 50 4 2

EHSBC201618A 1.6 1.9 18 50 4 2

EHSBC201810A 1.8 2.0 10 50 4 2

EHSBC201814A 1.8 2.0 14 50 4 2

EHSBC201818A 1.8 2.0 18 50 4 2

EHSBC202004A 2.0 2.5 4 50 4 2

EHSBC202006A 2.0 2.5 6 50 4 2

EHSBC202008A 2.0 2.5 8 50 4 2

EHSBC202010A 2.0 2.5 10 50 4 2

EHSBC202012A 2.0 2.5 12 50 4 2

EHSBC202014A 2.0 2.5 14 50 4 2

EHSBC202016A 2.0 2.5 16 50 4 2

EHSBC202018A 2.0 2.5 18 50 4 2

EHSBC202020A 2.0 2.5 20 50 4 2

EHSBC202022A 2.0 2.5 22 60 4 2

EHSBC202025A 2.0 2.5 25 60 4 2

EHSBC202030A 2.0 2.5 30 60 4 2

EHSBC202035A 2.0 2.5 35 60 4 2

EHSBC202508A 2.5 3.0 8 50 4 2

EHSBC202510A 2.5 3.0 10 50 4 2

EHSBC202512A 2.5 3.0 12 50 4 2

EHSBC202516A 2.5 3.0 16 50 4 2

A08

30° 65

d Tolerance

Ø 0 ~ -0.02

EHSBC2

EHSRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Long neck design is suitable for Rib cutting.

The coating can change to SICO, the prices will differ.

．

H650 Series

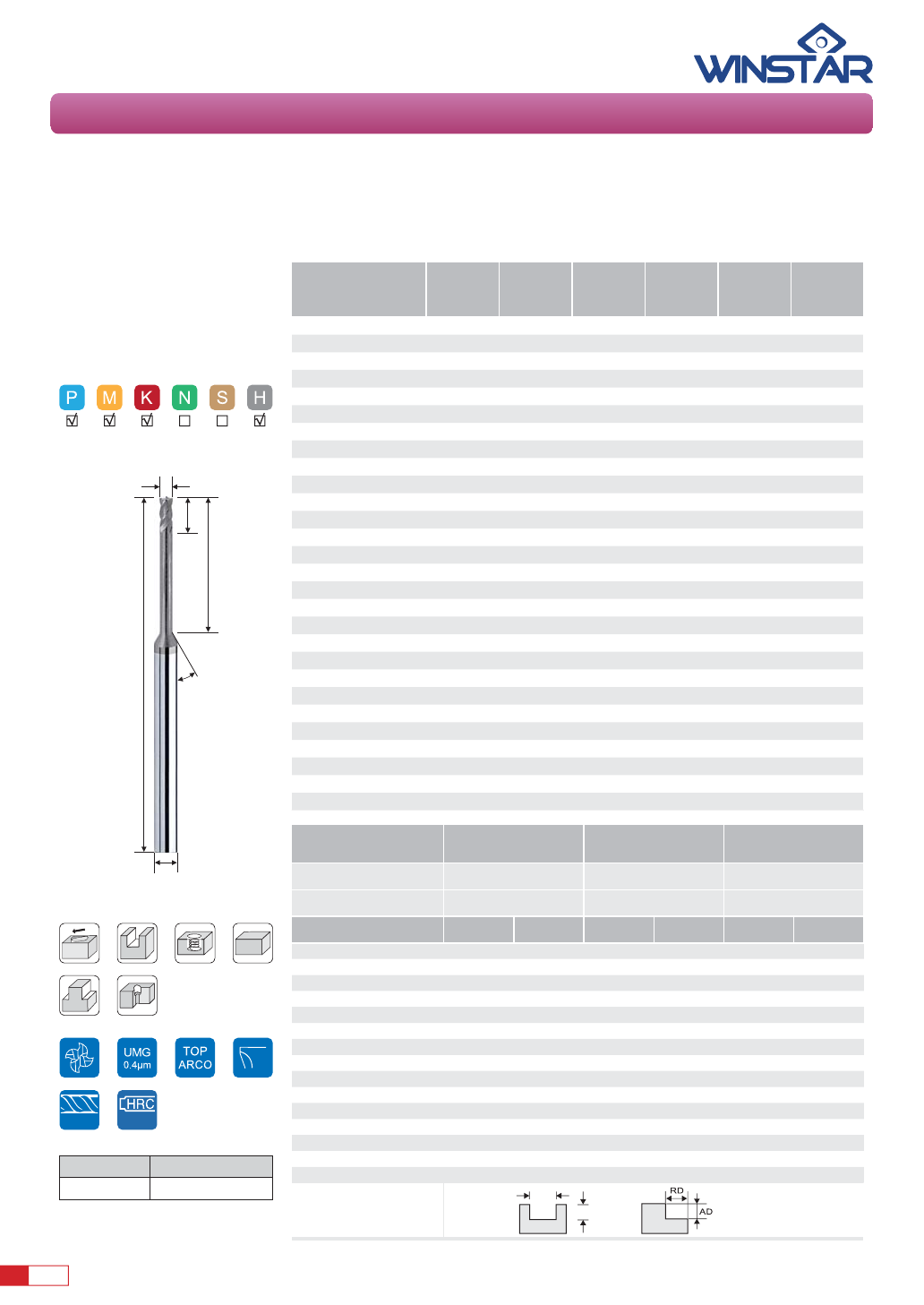

CARBIDE ENDMILLS - Long Neck Square Type - 2F

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSBC202520A 2.5 3.0 20 50 4 2

EHSBC202525A 2.5 3.0 25 60 4 2

EHSBC202530A 2.5 3.0 30 60 4 2

EHSBC202535A 2.5 3.0 35 60 4 2

EHSRC203006A 3.0 3.5 6 50 6 2

EHSRC203010A 3.0 3.5 10 50 6 2

EHSRC203012A 3.0 3.5 12 50 6 2

EHSRC203016A 3.0 3.5 16 50 6 2

EHSRC203020A 3.0 3.5 20 60 6 2

EHSRC203025A 3.0 3.5 25 60 6 2

EHSRC203030A 3.0 3.5 30 60 6 2

EHSRC203035A 3.0 3.5 35 75 6 2

EHSRC204008A 4.0 4.5 8 50 6 2

EHSRC204010A 4.0 4.5 10 50 6 2

EHSRC204012A 4.0 4.5 12 50 6 2

EHSRC204016A 4.0 4.5 16 50 6 2

EHSRC204020A 4.0 4.5 20 60 6 2

EHSRC204025A 4.0 4.5 25 60 6 2

EHSRC204030A 4.0 4.5 30 60 6 2

EHSRC204035A 4.0 4.5 35 75 6 2

EHSRC205016A 5.0 7.0 16 50 6 2

EHSRC205020A 5.0 7.0 20 60 6 2

EHSRC205025A 5.0 7.0 25 60 6 2

EHSRC205030A 5.0 7.0 30 60 6 2

EHSRC205035A 5.0 7.0 35 75 6 2

EHSRC206020A 6.0 10.0 20 60 6 2

EHSRC206030A 6.0 10.0 30 75 6 2

EHSRC208020A 8.0 15.0 20 60 8 2

EHSRC208030A 8.0 15.0 30 75 8 2

EHSRC208040A 8.0 15.0 40 100 8 2

EHSRC210025A 10.0 20.0 25 75 10 2

EHSRC210035A 10.0 20.0 35 75 10 2

EHSRC210045A 10.0 20.0 45 100 10 2

EHSRC212030A 12.0 25.0 30 75 12 2

EHSRC212040A 12.0 25.0 40 100 12 2

EHSRC212050A 12.0 25.0 50 100 12 2

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE NAK, SKD SKT, SKT SKT, SKT

HARDNESS HRC 35~45 HRC 45~55 HRC > 55

DIAMETER R.P.M FEED

(mm/min) R.P.M FEED

(mm/min)

0.2MM 52,000 250 40,800 160 13,000 8

0.4MM 44,600 420 35,700 280 11,600 17

0.8MM 21,100 450 17,300 300 7,000 17

1.0MM 19,500 480 15,200 370 5,700 13

2.0MM 11,500 550 9,000 400 8,900 200

3.0MM 6,200 560 5,000 400 7,300 200

4.0MM 5,100 600 4,100 410 6,000 380

5.0MM 3,300 460 2,600 330 4,600 430

6.0MM 2,400 440 1,900 310 3,800 580

Milling Amount

(mm)

Ad = 0.1D

(D < 3, Ad ≦0.05D)

Ad = 0.5D

(D < 3, Ad ≦0.25D)

Please refer to 3xD table, reduce R.P.M. & Feed while efﬁ cient length is increasing.

A09

30° 65

d Tolerance

Ø 0 ~ -0.02

EHSBC2

EHSRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Long neck design is suitable for Rib cutting.

The coating can change to SICO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - Long Neck Square Type - 4F

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSBC401003A 1.0 1.0 3 50 4 4

EHSBC401004A 1.0 1.0 4 50 4 4

EHSBC401006A 1.0 1.0 6 50 4 4

EHSBC401008A 1.0 1.0 8 50 4 4

EHSBC401010A 1.0 1.0 10 50 4 4

EHSBC401012A 1.0 1.0 12 50 4 4

EHSBC401016A 1.0 1.0 16 50 4 4

EHSBC401020A 1.0 1.0 20 50 4 4

EHSBC401025A 1.0 1.0 25 60 4 4

EHSRC401004A 1.0 1.0 4 50 6 4

EHSRC401006A 1.0 1.0 6 50 6 4

EHSRC401008A 1.0 1.0 8 50 6 4

EHSRC401010A 1.0 1.0 10 50 6 4

EHSRC401010A 1.0 1.0 12 50 6 4

EHSBC401506A 1.5 1.5 6 50 4 4

EHSBC401508A 1.5 1.5 8 50 4 4

EHSBC401510A 1.5 1.5 10 50 4 4

EHSBC401512A 1.5 1.5 12 50 4 4

EHSBC401516A 1.5 1.5 16 50 4 4

EHSBC401520A 1.5 1.5 20 50 4 4

EHSBC401525A 1.5 1.5 25 60 4 4

EHSRC401506A 1.5 1.5 6 50 6 4

EHSRC401508A 1.5 1.5 8 50 6 4

EHSRC401510A 1.5 1.5 10 50 6 4

EHSRC401512A 1.5 1.5 12 50 6 4

EHSBC402006A 2.0 2.0 6 50 4 4

EHSBC402008A 2.0 2.0 8 50 4 4

EHSBC402010A 2.0 2.0 10 50 4 4

EHSBC402012A 2.0 2.0 12 50 4 4

EHSBC402016A 2.0 2.0 16 50 4 4

EHSBC402020A 2.0 2.0 20 50 4 4

EHSBC402025A 2.0 2.0 25 60 4 4

EHSBC402030A 2.0 2.0 30 60 4 4

EHSRC402006A 2.0 2.0 6 50 6 4

EHSRC402008A 2.0 2.0 8 50 6 4

EHSRC402010A 2.0 2.0 10 50 6 4

EHSRC402016A 2.0 2.0 16 50 6 4

EHSBC402510A 2.5 2.5 10 50 4 4

EHSBC402512A 2.5 2.5 12 50 4 4

EHSBC402516A 2.5 2.5 16 50 4 4

EHSBC402520A 2.5 2.5 20 50 4 4

EHSBC402525A 2.5 2.5 25 60 4 4

EHSBC402530A 2.5 2.5 30 60 4 4

EHSRC402506A 2.5 2.5 6 50 6 4

EHSRC402510A 2.5 2.5 10 50 6 4

30° 65

A10

d Tolerance

Ø 0 ~ -0.02

EHSBC4

EHSRC4

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Polish cutting edge provides stronger tip.

The long neck is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - Long Neck Square Type - 4F

Order No. Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHSRC403010A 3.0 3.0 10 50 6 4

EHSRC403012A 3.0 3.0 12 50 6 4

EHSRC403016A 3.0 3.0 16 50 6 4

EHSRC403020A 3.0 3.0 20 60 6 4

EHSRC403025A 3.0 3.0 25 60 6 4

EHSRC403030A 3.0 3.0 30 60 6 4

EHSRC403035A 3.0 3.0 35 75 6 4

EHSRC404010A 4.0 4.0 10 50 6 4

EHSRC404012A 4.0 4.0 12 50 6 4

EHSRC404016A 4.0 4.0 16 50 6 4

EHSRC404020A 4.0 4.0 20 60 6 4

EHSRC404025A 4.0 4.0 25 60 6 4

EHSRC404030A 4.0 4.0 30 60 6 4

EHSRC405016A 5.0 5.0 16 50 6 4

EHSRC405020A 5.0 5.0 20 60 6 4

EHSRC405025A 5.0 5.0 25 60 6 4

EHSRC405030A 5.0 5.0 30 60 6 4

EHSRC406020A 6.0 6.0 20 60 6 4

EHSRC406030A 6.0 6.0 30 75 6 4

EHSRC408020A 8.0 15.0 20 60 8 4

EHSRC408030A 8.0 15.0 30 75 8 4

EHSRC408040A 8.0 15.0 40 100 8 4

EHSRC410025A 10.0 20.0 25 75 10 4

EHSRC410035A 10.0 20.0 35 100 10 4

EHSRC410045A 10.0 20.0 45 100 10 4

EHSRC412030A 12.0 25.0 30 75 12 4

EHSRC412040A 12.0 25.0 40 100 12 4

EHSRC412050A 12.0 25.0 50 100 12 4

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE NAK, SKD SKT, SKT SKT, SKT

HARDNESS HRC 35~45 HRC 45~55 HRC > 55

DIAMETER R.P.M FEED

(mm/min) R.P.M FEED

(mm/min)

0.8MM 21,500 640 17,200 450 9,800 220

1.0MM 20,500 620 16,200 440 9,100 210

1.5MM 13,300 740 10,400 570 7,600 290

2.0MM 11,900 1000 9,500 760 7,000 380

2.5MM 7,600 680 6,000 480 5,300 310

3.0MM 6,800 710 5,200 500 4,800 380

4.0MM 4,700 720 3,900 500 3,900 440

5.0MM 3,900 650 3,100 460 3,100 460

6.0MM 3,100 680 2,400 480 3,100 570

8.0MM 2,900 690 2,400 490 2,900 580

10.0MM 2,500 700 2,100 490 2,500 580

12.0MM 2,100 730 1,700 490 2,100 590

Milling Amount

(mm)

Please refer to 3xD table, reduce R.P.M. & Feed while efﬁ cient length is increasing.

A11

30° 65

d Tolerance

Ø 0 ~ -0.02

EHSBC4

EHSRC4

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Polish cutting edge provides stronger tip.

The long neck is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

H650 Series

CARBIDE ENDMILLS - Ball Nose Type - 2F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 260 M/min 195 M/min 131 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

1.0R 41,600 1,920 31,200 1,440 20,800 960

2.0R 20,800 1,920 15,600 1,440 10,335 955

3.0R 13,650 1,890 10,335 1,430 6,890 955

4.0R 10,335 1,910 7,735 1,430 5,200 960

5.0R 8,255 1,905 6,240 1,440 4,160 960

6.0R 6,890 1,910 5,200 1,440 3,445 955

8.0R 5,200 1,920 3,900 1,440 2,600 960

10.0R 4,160 1,920 3,120 1,440 2,080 960

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Radius

(R)

Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBFH201000A 0.50R 1.0 2 50 4 2

EHBFH201500A 0.75R 1.5 3 50 4 2

EHBFH202000A 1.00R 2.0 4 50 4 2

EHBFH203000A 1.50R 3.0 6 50 4 2

EHBFH204000A 2.00R 4.0 8 50 4 2

EHBSH205000A 2.50R 5.0 10 50 6 2

EHBSH206000A 3.00R 6.0 12 50 6 2

EHBSH208000A 4.00R 8.0 16 60 8 2

EHBSH210000A 5.00R 10.0 20 75 10 2

EHBSH212000A 6.00R 12.0 24 75 12 2

EHBSH216000A 8.00R 16.0 32 100 16 2

A12

d R Tolerance

Ø≦12 ± 0.01

Ø> 12 ± 0.015

EHBFH2

EHBSH2

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Due to short cutting length provides an excellent face milling surface roughness of the work pieces.

New tool geometry increases wear resistance and cutting force is decreased.

The coating can change to SICO, the prices will differ.

．

H650 Series

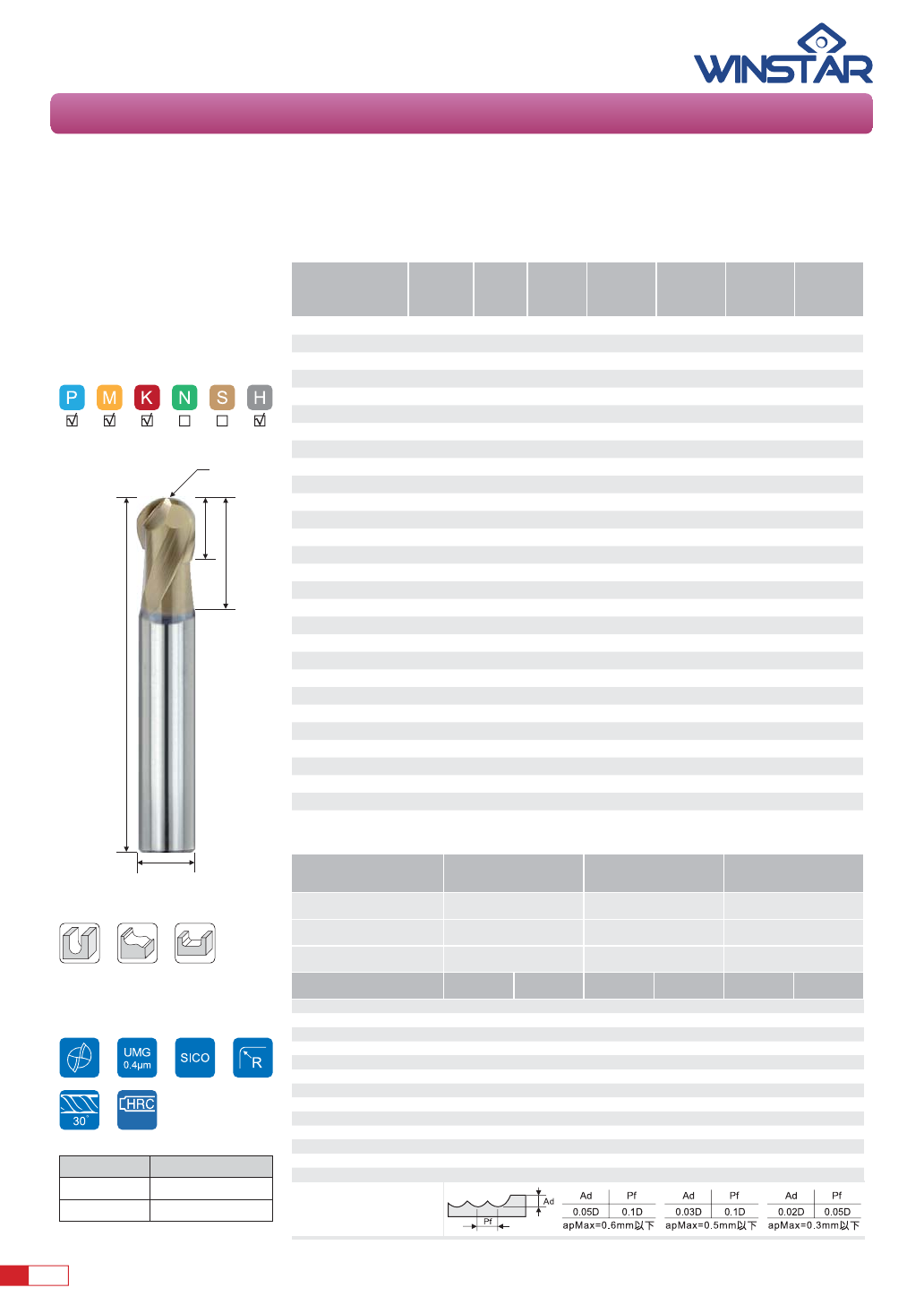

CARBIDE ENDMILLS - Short Flute Ball Nose Type - 2F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 260 M/min 195 M/min 131 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

1.0R 41,600 1,920 31,200 1,440 20,800 960

2.0R 20,800 1,920 15,600 1,440 10,335 955

3.0R 13,650 1,890 10,335 1,430 6,890 955

4.0R 10,335 1,910 7,735 1,430 5,200 960

5.0R 8,255 1,905 6,240 1,440 4,160 960

6.0R 6,890 1,910 5,200 1,440 3,445 955

8.0R 5,200 1,920 3,900 1,440 2,600 960

10.0R 4,160 1,920 3,120 1,440 2,080 960

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBUH202000S 1.0R 2 2 4 50 6 2

EHBUH203000S 1.5R 3 3 6 50 6 2

EHBUH204000S 2.0R 4 4 8 50 6 2

EHBUH205000S 2.5R 5 5 10 50 6 2

EHBUH206000S 3.0R 6 6 12 50 6 2

EHBUH208000S 4.0R 8 8 16 60 8 2

EHBUH210000S 5.0R 10 10 20 75 10 2

EHBUH212000S 6.0R 12 12 24 75 12 2

EHBUH216000S 8.0R 16 16 32 100 16 2

A13

d R Tolerance

Ø≦12 ± 0.01

Ø> 12 ± 0.015

EHBUH2

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Due to short cutting length provides an excellent face milling surface roughness of the work pieces.

Short cutting length provides hi resistance for hi speed cutting.

The coating can change to TOP ARCO, the prices will differ.

．

H650 Series

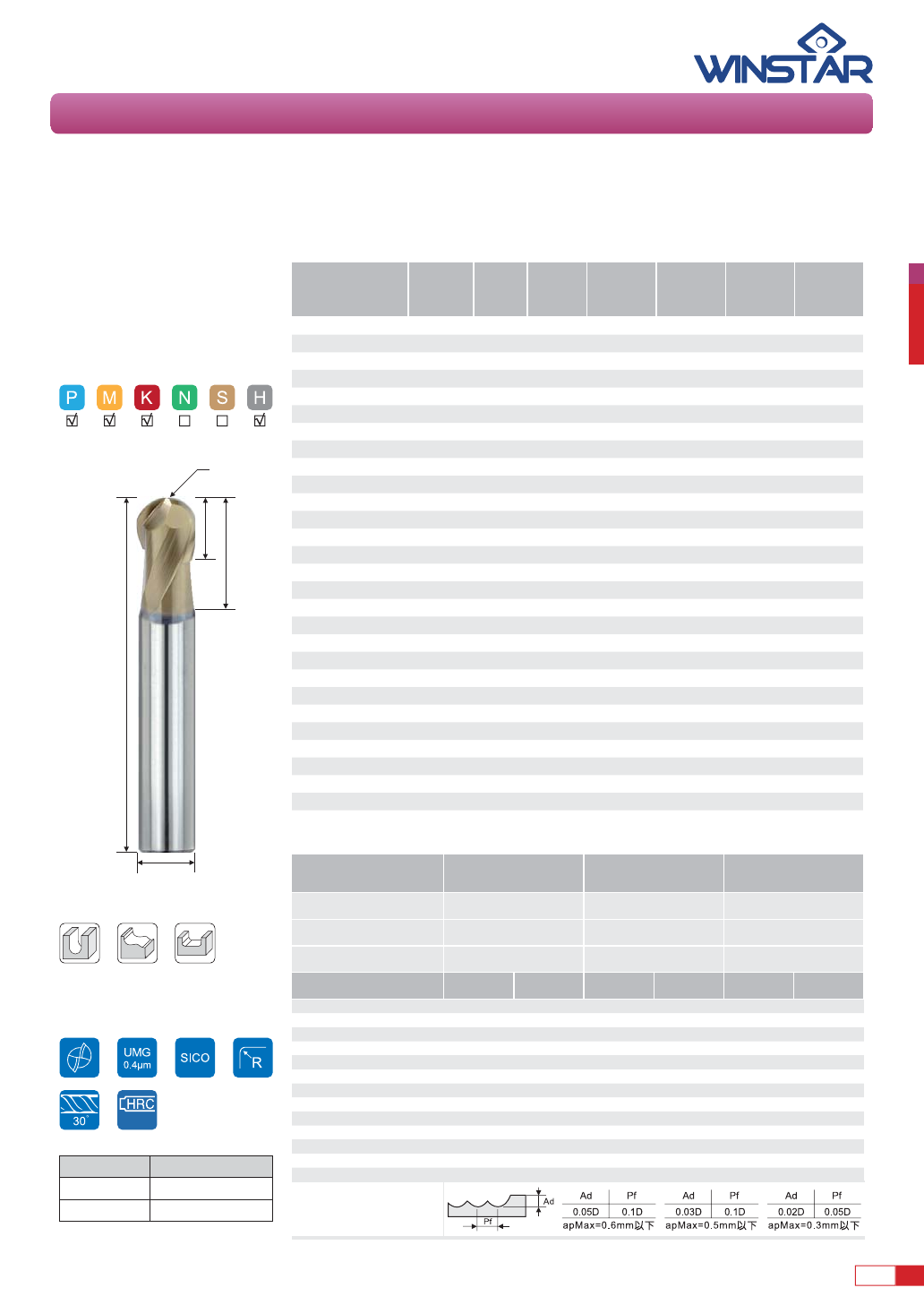

CARBIDE ENDMILLS - High Precision & Short Flute Ball Nose Type - 2F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 260 M/min 195 M/min 131 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

1.0R 41,600 1,920 31,200 1,440 20,800 960

2.0R 20,800 1,920 15,600 1,440 10,335 955

3.0R 13,650 1,890 10,335 1,430 6,890 955

4.0R 10,335 1,910 7,735 1,430 5,200 960

5.0R 8,255 1,905 6,240 1,440 4,160 960

6.0R 6,890 1,910 5,200 1,440 3,445 955

8.0R 5,200 1,920 3,900 1,440 2,600 960

10.0R 4,160 1,920 3,120 1,440 2,080 960

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBUP201500S 0.75R 1.5 1.5 3 50 6 2

EHBUP202000S 1.00R 2.0 2.0 4 50 6 2

EHBUP202500S 1.25R 2.5 2.5 5 50 6 2

EHBUP203000S 1.50R 3.0 3.0 6 50 6 2

EHBUP204000S 2.00R 4.0 4.0 8 50 6 2

EHBUP205000S 2.50R 5.0 5.0 10 50 6 2

EHBUP206000S 3.00R 6.0 6.0 12 50 6 2

EHBUP208000S 4.00R 8.0 8.0 16 60 8 2

EHBUP210000S 5.00R 10.0 10.0 20 75 10 2

EHBUP212000S 6.00R 12.0 12.0 24 75 12 2

d R Tolerance

Ø≦3 ± 0.005

Ø> 3 ± 0.007

EHBUP2

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Specialized for high precision ﬁ nishing cutting.

Due to short cutting length provides an excellent face milling surface roughness of the work pieces.

Short cutting length provides hi resistance for hi speed cutting.

The coating can change to TOP ARCO, the prices will differ.

．

A14

H650 Series

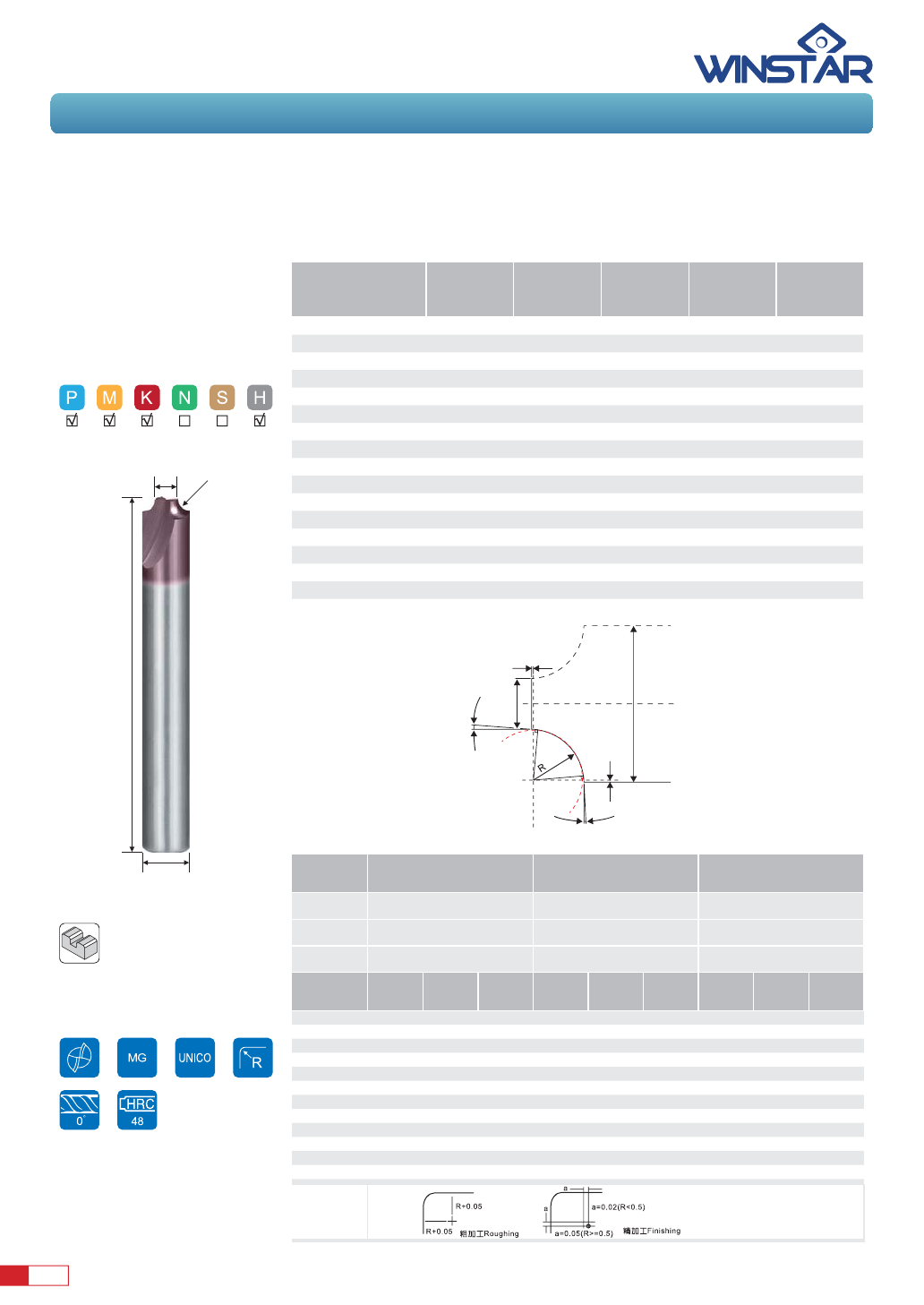

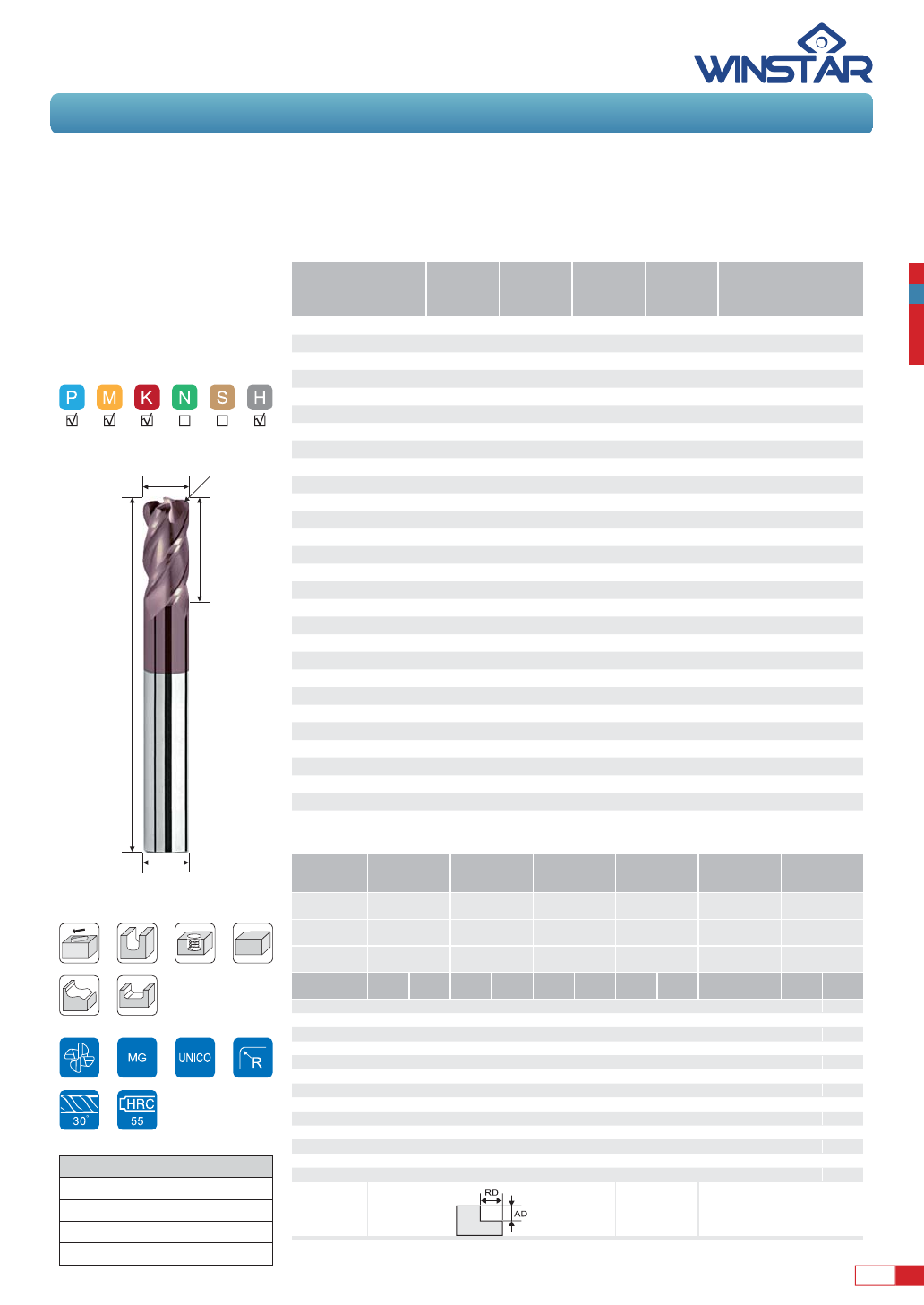

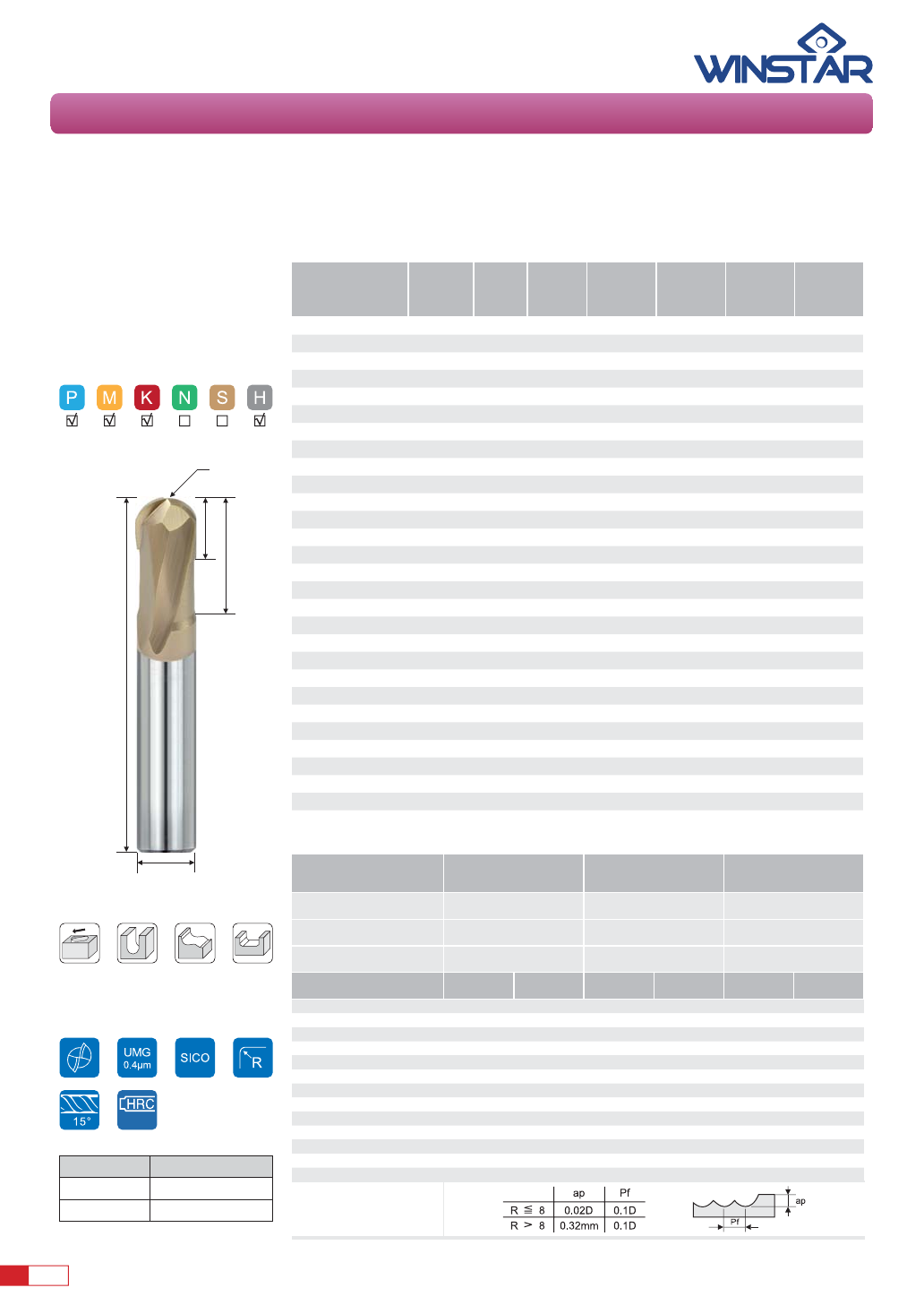

CARBIDE ENDMILLS - Low Helix & Short Flute Ball Nose Type - 2F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 45~55 HRC 55~60 HRC 60~70

Vc 129 M/min 116 M/min 63 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

0.5R 41,600 960 39,000 850 33,150 500

1.0R 40,950 1,900 37,050 1,880 20,150 600

1.5R 27,300 2,080 24,700 1,880 13,650 625

2.0R 20,150 2,050 18,200 1,850 10,335 630

2.5R 16,250 2,060 14,300 1,815 8,255 630

3.0R 13,650 2,080 12,350 1,880 6,890 630

4.0R 10,335 1,550 9,295 1,400 5,135 470

5.0R 8,255 1,250 7,410 1,100 4,095 375

6.0R 6,890 1,050 6,175 950 3,445 315

8.0R 5,135 790 4,745 710 2,535 230

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBPS201000S 0.50R 1.0 1.0 2 50 4 2

EHBPS201500S 0.75R 1.5 1.5 3 50 4 2

EHBUS202000S 1.00R 2.0 2.0 4 50 6 2

EHBUS203000S 1.50R 3.0 3.0 6 50 6 2

EHBUS204000S 2.00R 4.0 4.0 8 50 6 2

EHBUS205000S 2.50R 5.0 5.0 10 50 6 2

EHBUS206000S 3.00R 6.0 6.0 12 50 6 2

EHBUS208000S 4.00R 8.0 8.0 16 60 8 2

EHBUS210000S 5.00R 10.0 10.0 20 75 10 2

EHBUS212000S 6.00R 12.0 12.0 24 75 12 2

EHBUS216000S 8.00R 16.0 16.0 32 100 16 2

d R Tolerance

Ø≦12 ± 0.01

Ø> 12 ± 0.015

EHBPS2

EHBUS2

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Due to short cutting length it provides an excellent surface roughness of the work pieces.

Low helix design is suitable for hardened steel cutting.

The coating can change to TOP ARCO, the prices will differ.

．

A15

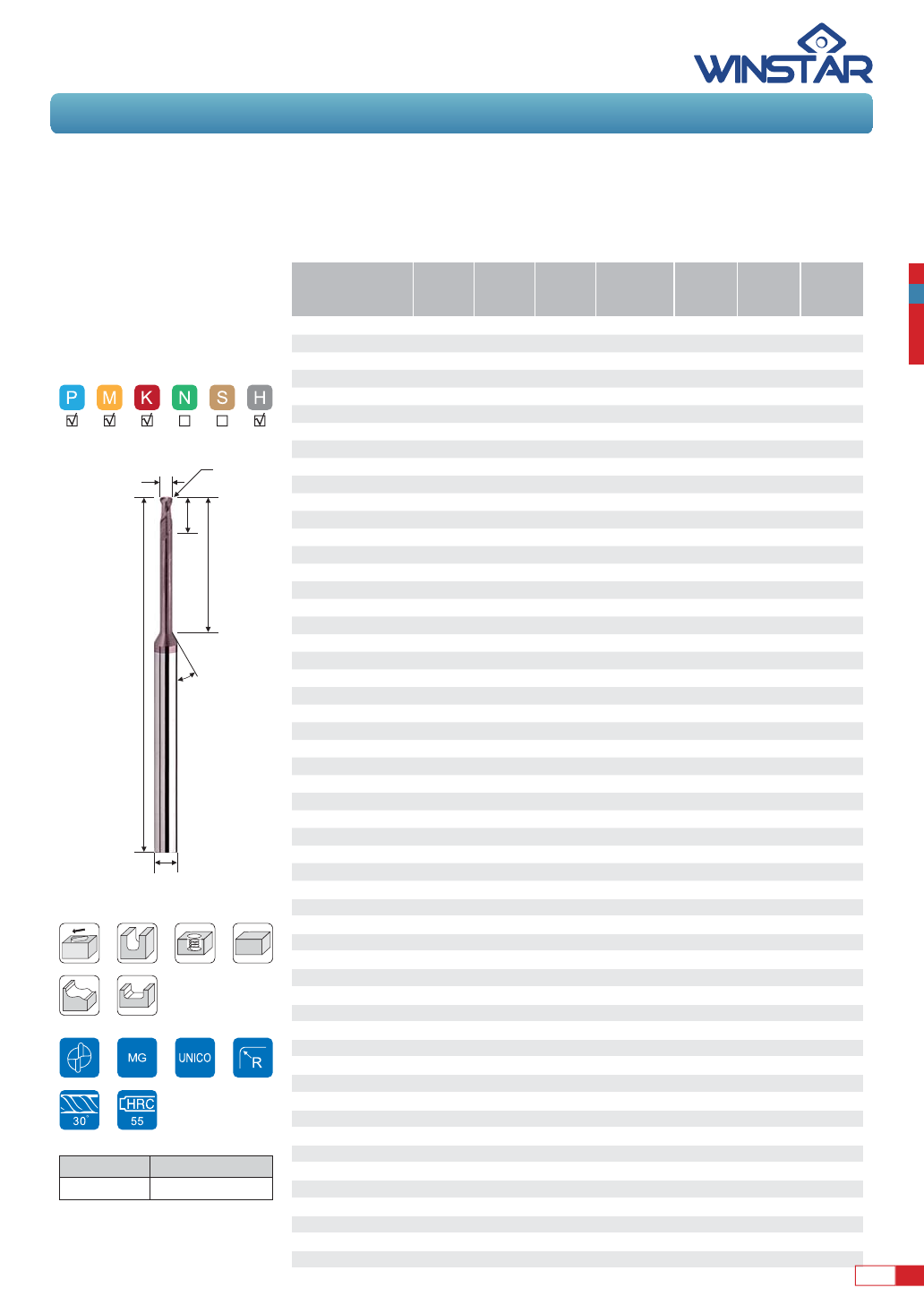

H650 Series

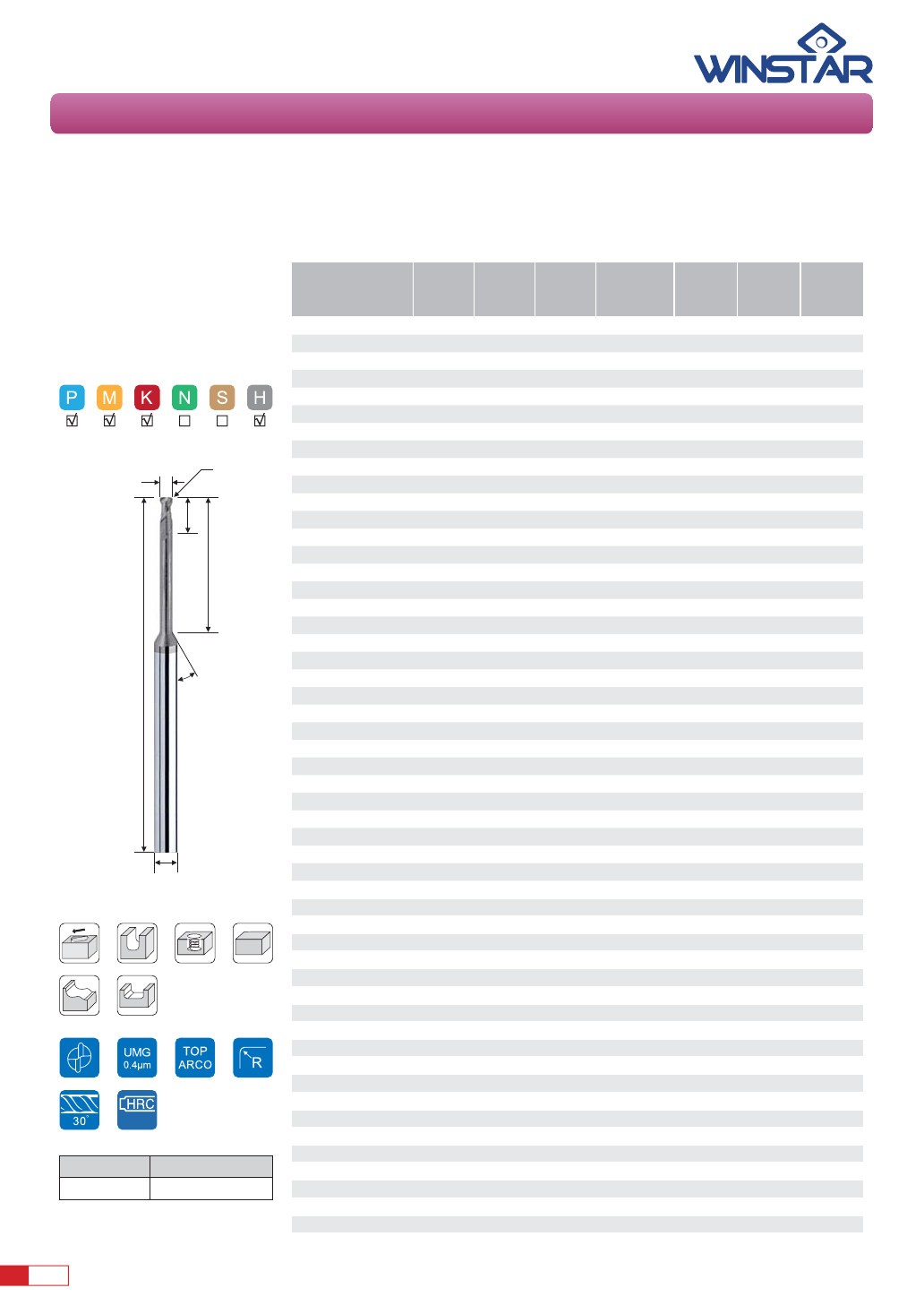

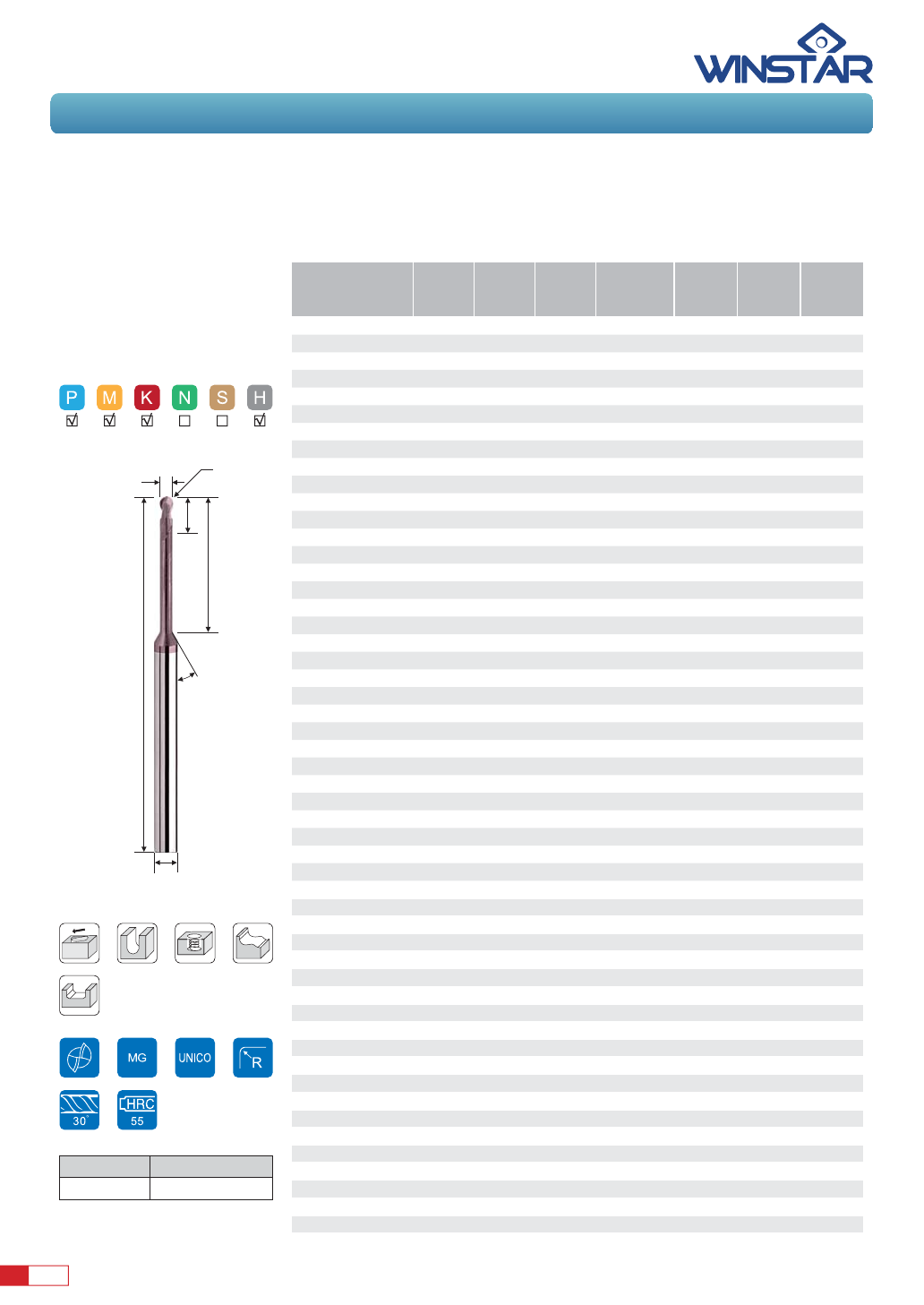

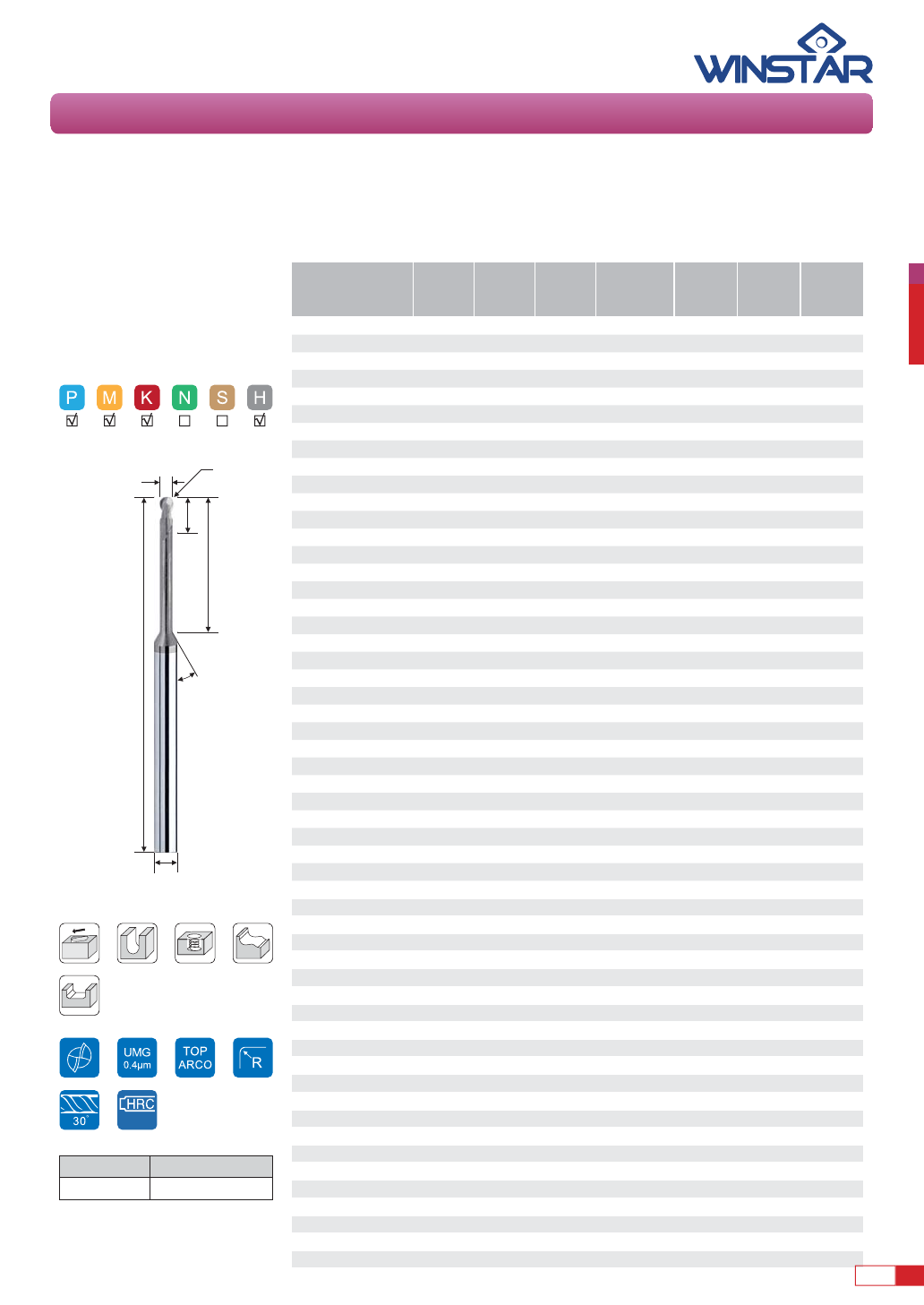

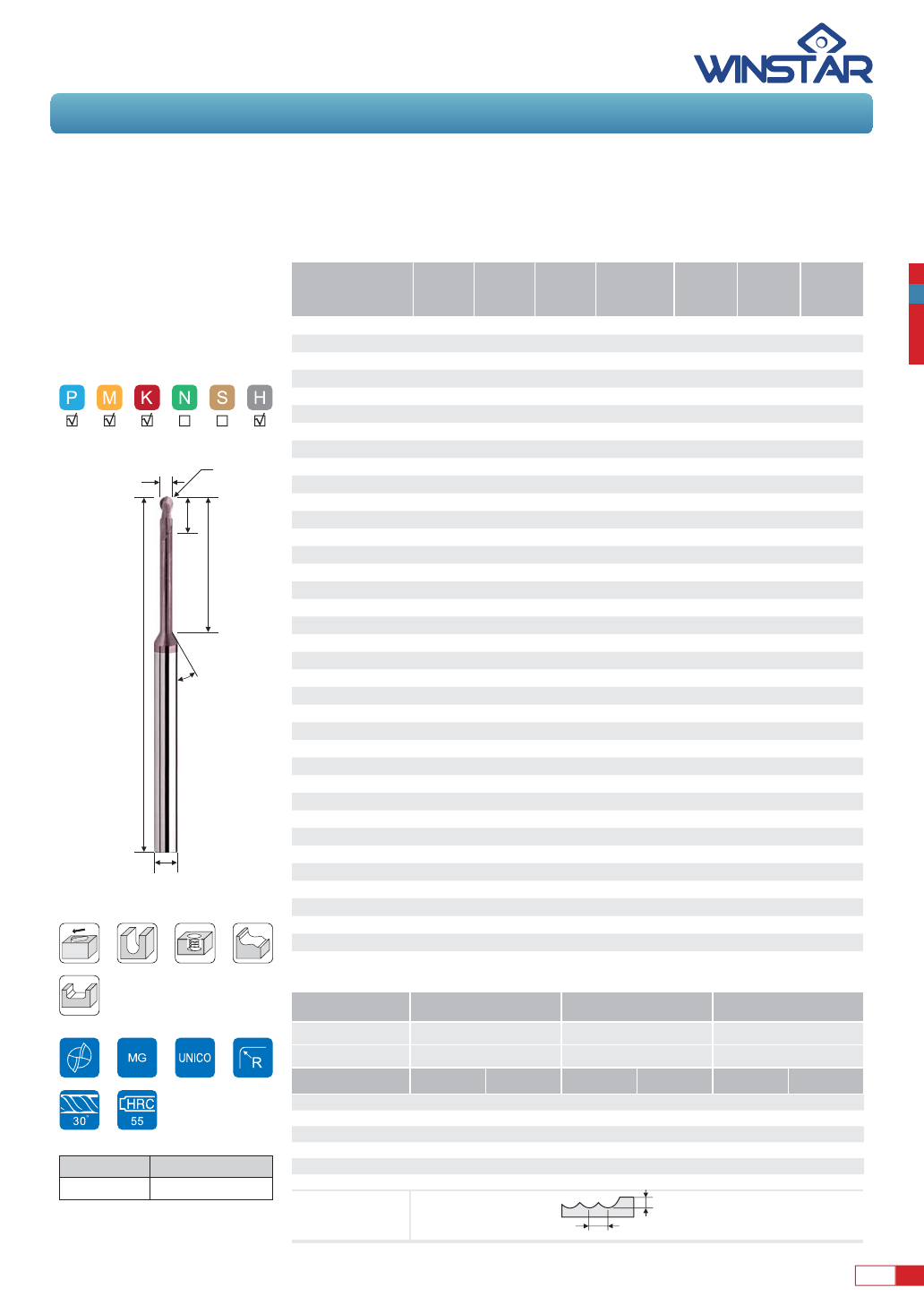

CARBIDE ENDMILLS - Long Neck Ball Nose Type - 2F

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBBC200301A 0.15R 0.3 0.3 1 50 4 2

EHBBC200302A 0.15R 0.3 0.3 2 50 4 2

EHBBC200303A 0.15R 0.3 0.3 3 50 4 2

EHBBC200401A 0.20R 0.4 0.4 1 50 4 2

EHBBC200402A 0.20R 0.4 0.4 2 50 4 2

EHBBC200403A 0.20R 0.4 0.4 3 50 4 2

EHBBC200404A 0.20R 0.4 0.4 4 50 4 2

EHBBC200405A 0.20R 0.4 0.4 5 50 4 2

EHBBC200406A 0.20R 0.4 0.4 6 50 4 2

EHBBC200408A 0.20R 0.4 0.4 8 50 4 2

EHBBC200501A 1.00R 0.5 0.5 1 50 4 2

EHBBC200502A 0.25R 0.5 0.5 2 50 4 2

EHBBC200503A 0.25R 0.5 0.5 3 50 4 2

EHBBC200504A 0.25R 0.5 0.5 4 50 4 2

EHBBC200505A 0.25R 0.5 0.5 5 50 4 2

EHBBC200506A 0.25R 0.5 0.5 6 50 4 2

EHBBC200508A 0.25R 0.5 0.5 8 50 4 2

EHBBC200510A 0.25R 0.5 0.5 10 50 4 2

EHBBC200601A 0.30R 0.6 0.6 1 50 4 2

EHBBC200602A 0.30R 0.6 0.6 2 50 4 2

EHBBC200603A 0.30R 0.6 0.6 3 50 4 2

EHBBC200604A 0.30R 0.6 0.6 4 50 4 2

EHBBC200605A 0.30R 0.6 0.6 5 50 4 2

EHBBC200606A 0.30R 0.6 0.6 6 50 4 2

EHBBC200608A 0.30R 0.6 0.6 8 50 4 2

EHBBC200610A 0.30R 0.6 0.6 10 50 4 2

EHBBC200612A 0.30R 0.6 0.6 12 50 4 2

EHBBC200702A 0.35R 0.7 0.7 2 50 4 2

EHBBC200704A 0.35R 0.7 0.7 4 50 4 2

EHBBC200708A 0.35R 0.7 0.7 8 50 4 2

EHBBC200710A 0.35R 0.7 0.7 10 50 4 2

EHBBC200712A 0.35R 0.7 0.7 12 50 4 2

EHBBC200802A 0.40R 0.8 0.8 2 50 4 2

EHBBC200804A 0.40R 0.8 0.8 4 50 4 2

EHBBC200806A 0.40R 0.8 0.8 6 50 4 2

EHBBC200808A 0.40R 0.8 0.8 8 50 4 2

EHBBC200810A 0.40R 0.8 0.8 10 50 4 2

EHBBC200812A 0.40R 0.8 0.8 12 50 4 2

EHBBC200904A 0.45R 0.9 0.9 4 50 4 2

EHBBC201002A 0.50R 1.0 1.0 2 50 4 2

EHBBC201003A 0.50R 1.0 1.0 3 50 4 2

EHBBC201004A 0.50R 1.0 1.0 4 50 4 2

EHBBC201005A 0.50R 1.0 1.0 5 50 4 2

EHBBC201006A 0.50R 1.0 1.0 6 50 4 2

EHBBC201008A 0.50R 1.0 1.0 8 50 4 2

EHBBC201010A 0.50R 1.0 1.0 10 50 4 2

EHBBC201012A 0.50R 1.0 1.0 12 50 4 2

EHBBC201014A 0.50R 1.0 1.0 14 50 4 2

EHBBC201016A 0.50R 1.0 1.0 16 50 4 2

EHBBC201018A 0.50R 1.0 1.0 18 50 4 2

EHBBC201020A 0.50R 1.0 1.0 20 50 4 2

EHBBC201022A 0.50R 1.0 1.0 22 60 4 2

EHBRC201004A 0.50R 1.0 1.0 4 50 6 2

EHBRC201006A 0.50R 1.0 1.0 6 50 6 2

d R Tolerance

Ø ± 0.02

EHBBC2

EHBRC2

15°

TOP ARCO coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Suitable for deep cutting due to the long neck design.

Polish cutting edge provides stronger tip.

The coating can change to SICO, the prices will differ.

．

A16

H650 Series

CARBIDE ENDMILLS - Long Neck Ball Nose Type - 2F

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBRC201008A 0.50R 1.0 1.0 8 50 6 2

EHBRC201010A 0.50R 1.0 1.0 10 50 6 2

EHBRC201210A 0.50R 1.0 1.0 12 50 6 2

EHBBC201204A 0.60R 1.2 1.2 4 50 4 2

EHBBC201206A 0.60R 1.2 1.2 6 50 4 2

EHBBC201208A 0.60R 1.2 1.2 8 50 4 2

EHBBC201210A 0.60R 1.2 1.2 10 50 4 2

EHBBC201212A 0.60R 1.2 1.2 12 50 4 2

EHBBC201216A 0.60R 1.2 1.2 16 50 4 2

EHBBC201220A 0.60R 1.2 1.2 20 50 4 2

EHBBC201224A 0.60R 1.2 1.2 24 60 4 2

EHBBC201406A 0.70R 1.4 1.4 6 50 4 2

EHBBC201408A 0.70R 1.4 1.4 8 50 4 2

EHBBC201412A 0.70R 1.4 1.4 12 50 4 2

EHBBC201416A 0.70R 1.4 1.4 16 50 4 2

EHBBC201503A 0.75R 1.5 1.5 3 50 4 2

EHBBC201504A 0.75R 1.5 1.5 4 50 4 2

EHBBC201506A 0.75R 1.5 1.5 6 50 4 2

EHBBC201508A 0.75R 1.5 1.5 8 50 4 2

EHBBC201510A 0.75R 1.5 1.5 10 50 4 2

EHBBC201512A 0.75R 1.5 1.5 12 50 4 2

EHBBC201514A 0.75R 1.5 1.5 14 50 4 2

EHBBC201516A 0.75R 1.5 1.5 16 50 4 2

EHBBC201518A 0.75R 1.5 1.5 18 50 4 2

EHBBC201520A 0.75R 1.5 1.5 20 50 4 2

EHBBC201522A 0.75R 1.5 1.5 22 60 4 2

EHBBC201525A 0.75R 1.5 1.5 25 60 4 2

EHBBC201530A 0.75R 1.5 1.5 30 60 4 2

EHBRC201506A 0.75R 1.5 1.5 6 50 6 2

EHBRC201508A 0.75R 1.5 1.5 8 50 6 2

EHBRC201510A 0.75R 1.5 1.5 10 50 6 2

EHBRC201512A 0.75R 1.5 1.5 12 50 6 2

EHBBC201606A 0.80R 1.6 1.6 6 50 4 2

EHBBC201608A 0.80R 1.6 1.6 8 50 4 2

EHBBC201612A 0.80R 1.6 1.6 12 50 4 2

EHBBC201616A 0.80R 1.6 1.6 16 50 4 2

EHBBC201620A 0.80R 1.6 1.6 20 50 4 2

EHBBC201806A 0.90R 1.8 1.8 6 50 4 2

EHBBC201808A 0.90R 1.8 1.8 8 50 4 2

EHBBC201812A 0.90R 1.8 1.8 12 50 4 2

EHBBC201816A 0.90R 1.8 1.8 16 50 4 2

EHBBC201820A 0.90R 1.8 1.8 20 50 4 2

EHBBC202004A 1.00R 2.0 2.0 4 50 4 2

EHBBC202006A 1.00R 2.0 2.0 6 50 4 2

EHBBC202008A 1.00R 2.0 2.0 8 50 4 2

EHBBC202010A 1.00R 2.0 2.0 10 50 4 2

EHBBC202012A 1.00R 2.0 2.0 12 50 4 2

EHBBC202014A 1.00R 2.0 2.0 14 50 4 2

EHBBC202016A 1.00R 2.0 2.0 16 50 4 2

EHBBC202018A 1.00R 2.0 2.0 18 50 4 2

EHBBC202020A 1.00R 2.0 2.0 20 50 4 2

EHBBC202022A 1.00R 2.0 2.0 22 60 4 2

EHBBC202025A 1.00R 2.0 2.0 25 60 4 2

d R Tolerance

Ø ± 0.02

EHBBC2

EHBRC2

15°

TOP ARCO coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Suitable for deep cutting due to the long neck design.

Polish cutting edge provides stronger tip.

The coating can change to SICO, the prices will differ.

．

A17

H650 Series

CARBIDE ENDMILLS - Long Neck Ball Nose Type - 2F

Order No. Radius

(R)

Dia.

(d)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBRC202006A 1.00R 2.0 2.0 6 50 6 2

EHBRC202008A 1.00R 2.0 2.0 8 50 6 2

EHBRC202010A 1.00R 2.0 2.0 10 50 6 2

EHBRC202016A 1.00R 2.0 2.0 16 50 6 2

EHBBC202508A 1.25R 2.5 2.5 8 50 4 2

EHBBC202510A 1.25R 2.5 2.5 10 50 4 2

EHBBC202516A 1.25R 2.5 2.5 16 50 4 2

EHBBC202520A 1.25R 2.5 2.5 20 60 4 2

EHBBC202525A 1.25R 2.5 2.5 25 60 4 2

EHBBC202530A 1.25R 2.5 2.5 30 60 4 2

EHBRC202506A 1.25R 2.5 2.5 6 50 6 2

EHBRC202510A 1.25R 2.5 2.5 10 50 6 2

EHBRC203010A 1.25R 3.0 3.0 10 50 6 2

EHBRC203006A 1.50R 3.0 3.0 6 50 6 2

EHBRC203008A 1.50R 3.0 3.0 8 50 6 2

EHBRC203010A 1.50R 3.0 3.0 10 50 6 2

EHBRC203012A 1.50R 3.0 3.0 12 50 6 2

EHBRC203016A 1.50R 3.0 3.0 16 60 6 2

EHBRC203020A 1.50R 3.0 3.0 20 60 6 2

EHBRC203025A 1.50R 3.0 3.0 25 60 6 2

EHBRC203030A 1.50R 3.0 3.0 30 60 6 2

EHBRC203035A 1.50R 3.0 3.0 35 75 6 2

EHBRC204008A 2.00R 4.0 4.0 8 50 6 2

EHBRC204010A 2.00R 4.0 4.0 10 50 6 2

EHBRC204012A 2.00R 4.0 4.0 12 50 6 2

EHBRC204016A 2.00R 4.0 4.0 16 60 6 2

EHBRC204020A 2.00R 4.0 4.0 20 60 6 2

EHBRC204025A 2.00R 4.0 4.0 25 60 6 2

EHBRC204030A 2.00R 4.0 4.0 30 60 6 2

EHBRC204035A 2.00R 4.0 4.0 35 75 6 2

EHBRC205015A 2.50R 5.0 5.0 15 60 6 2

EHBRC205020A 2.50R 5.0 5.0 20 60 6 2

EHBRC205025A 2.50R 5.0 5.0 25 60 6 2

EHBRC205030A 2.50R 5.0 5.0 30 75 6 2

EHBRC206015A 3.00R 6.0 10.0 15 50 6 2

EHBRC208025A 4.00R 8.0 12.0 25 60 8 2

EHBRC210030A 5.00R 10.0 16.0 30 75 10 2

EHBRC212030A 6.00R 12.0 18.0 30 75 12 2

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE NAK, STAVAX SKD HAP10

HARDNESS HRC < 55 HRC 55 ~ 62 HRC 62 ~ 66

DIAMETER R.P.M FEED

(mm/min) R.P.M FEED

(mm/min)

0.20R 50,000 480 37,500 400 35,000 220

0.30R 40,000 1,300 30,000 1,400 26,500 950

0.40R 35,000 1,500 27,000 1,500 23,500 950

0.50R 30,000 1,600 24,000 1,800 21,000 1,600

1.00R 28,000 2,700 14,000 2,000 12,250 1,800

1.50R 21,000 2,800 10,500 2,000 9,200 1,700

Milling Amount

(mm)

Ad = 0.05D

Pf = 0.1D

Please refer to 3xD table, reduce R.P.M. & Feed while efﬁ cient length is increasing.

d R Tolerance

Ø ± 0.02

EHBBC2

EHBRC2

15°

TOP ARCO coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Suitable for deep cutting due to the long neck design.

Polish cutting edge provides stronger tip.

The coating can change to SICO, the prices will differ.

．

A18

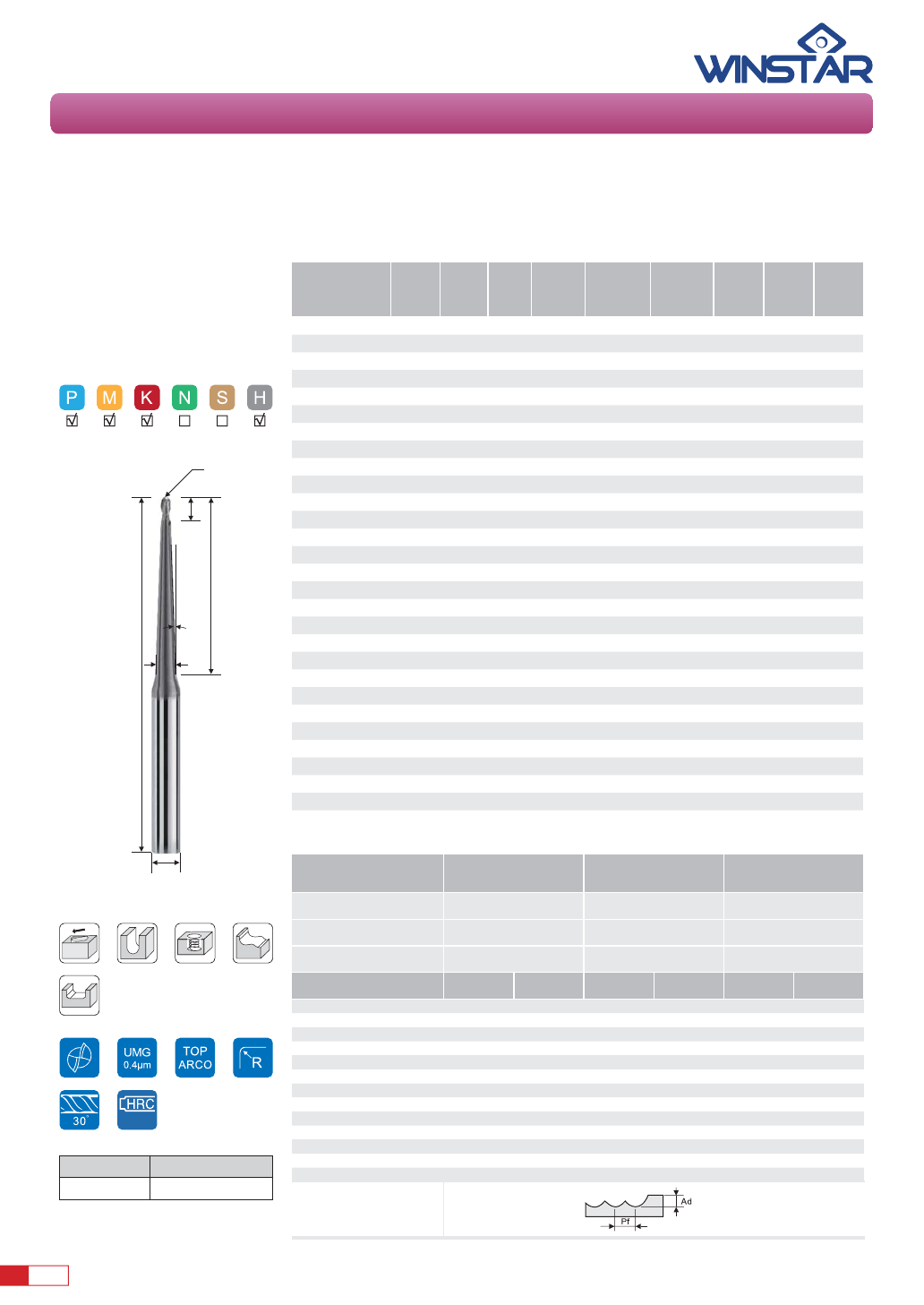

H650 Series

CARBIDE ENDMILLS - Taper Neck Ball Nose Type - 2F

d R Tolerance

Ø ± 0.02

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 260 M/min 195 M/min 130 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

1.0R 41,600 1,920 31,200 1,440 20,800 960

2.0R 20,800 1,920 15,600 1,440 10,335 955

3.0R 13,650 1,890 10,335 1,430 6,890 955

4.0R 10,335 1,910 7,735 1,430 5,200 960

5.0R 8,255 1,905 6,240 1,440 4,160 960

6.0R 6,890 1,910 5,200 1,440 3,445 955

8.0R 5,200 1,920 3,900 1,440 2,600 960

10.0R 4,160 1,920 3,120 1,440 2,080 960

Milling Amount

(mm)

Ad = 0.05D

Pf = 0.1D

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

EHBRT2

Order No.

Radius

(R)

Dia.

(d)

θ˚CL

(L1)

EFF-L

(L2)

(d2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHBRT201023AA

0.5R 1 1.5° 2 23 2.20 60 6 2

EHBRT202023AA

1.0R 2 1.5° 4 23 3.00 60 6 2

EHBRT2020423A

1.0R 2 3.0° 4 42 5.98 100 8 2

EHBRT203052AA

1.5R 3 1.5° 6 52 5.40 100 6 2

EHBRT2030473A

1.5R 3 3.0° 6 47 7.29 100 8 2

EHBRT204046AA

2.0R 4 1.5° 8 46 6.00 100 6 2

EHBRT2040383A

2.0R 4 3.0° 8 38 7.14 100 8 2

EHBRT2050283A

2.5R 5 3.0° 10 28 6.88 100 8 2

EHBRT2060383A

3.0R 6 3.0° 12 38 8.72 100 10 2

EHBRT2080383A

4.0R 8 3.0° 16 38 10.30 100 12 2

EHBRT2100573A

5.0R 10 3.0° 20 57 13.88 100 16 2

EHBRT2120383A

6.0R 12 3.0° 24 38 13.47 100 16 2

Ld2

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

High strength of taper neck, can cut deep grooves without breaking.

Suitable for cutting groves at hi speed.

The coating can change to SICO, the prices will differ.

．

A19

H650 Series

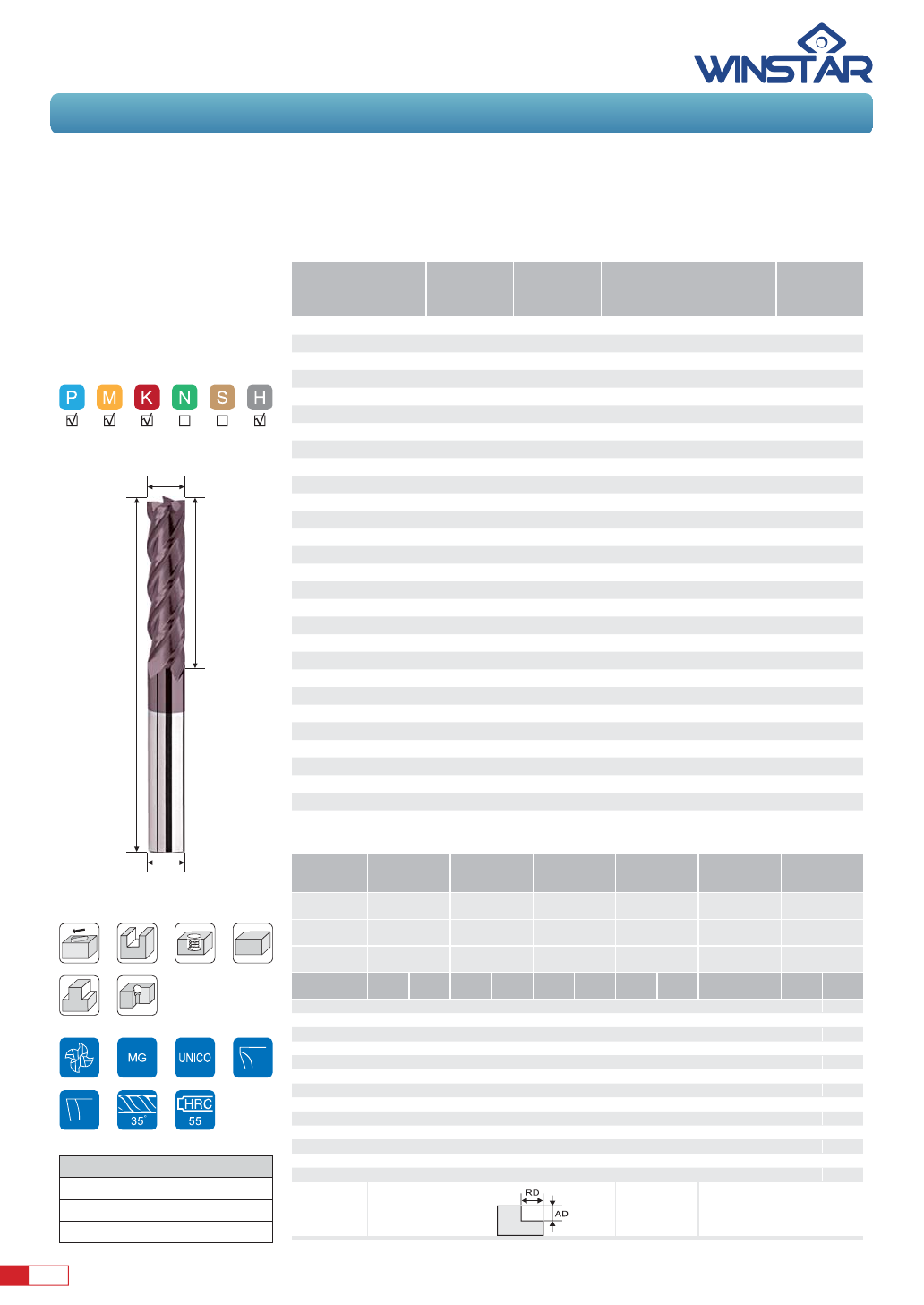

CARBIDE ENDMILLS - Corner Radius Type - 4F

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCFH404003A 4 0.3R 8 50 4 4

EHCFH404005A 4 0.5R 8 50 4 4

EHCFH404010A 4 1.0R 8 50 4 4

EHCSH404003A 4 0.3R 8 50 6 4

EHCSH404005A 4 0.5R 8 50 6 4

EHCSH404010A 4 1.0R 8 50 6 4

EHCSH405005A 5 0.5R 10 50 6 4

EHCSH405010A 5 1.0R 10 50 6 4

EHCSH406003A 6 0.3R 12 50 6 4

EHCSH406005A 6 0.5R 12 50 6 4

EHCSH406010A 6 1.0R 12 50 6 4

EHCSH408005A 8 0.5R 16 60 8 4

EHCSH408010A 8 1.0R 16 60 8 4

EHCSH408015A 8 1.5R 16 60 8 4

EHCSH410005A 10 0.5R 20 75 10 4

EHCSH410010A 10 1.0R 20 75 10 4

EHCSH410015A 10 1.5R 20 75 10 4

EHCSH410020A 10 2.0R 20 75 10 4

EHCSH412005A 12 0.5R 20 75 12 4

EHCSH412010A 12 1.0R 20 75 12 4

EHCSH412015A 12 1.5R 20 75 12 4

EHCSH412020A 12 2.0R 20 75 12 4

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 143 M/min 124 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 15,340 1,150 13,000 830 10,920 500

4MM 11,440 1,070 9,880 780 8,190 460

5MM 9,100 990 7,800 730 6,500 420

6MM 7,670 910 6,500 660 5,460 400

8MM 5,720 830 4,940 610 4,160 400

10MM 4,550 830 3,900 610 3,315 400

12MM 3,770 830 3,250 610 2,730 400

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

d R Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

R ± 0.015

EHCFH4

EHCSH4

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Long tool life and wear resistant due to its negative angle with corner radius design.

The coating can change to SICO, the prices will differ.

．

A20

H650 Series

CARBIDE ENDMILLS - Short Flute Corner Radius Type - 4F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 35~45 HRC 45~55 HRC 55~60

Vc 143 M/min 124 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 15,340 1,150 13,000 830 10,920 500

4MM 11,440 1,070 9,880 780 8,190 460

5MM 9,100 990 7,800 730 6,500 420

6MM 7,670 910 6,500 660 5,460 400

8MM 5,720 830 4,940 610 4,160 400

10MM 4,550 830 3,900 610 3,315 400

12MM 3,770 830 3,250 610 2,730 400

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCUH403001S 3 0.1R 3 7.5 50 6 4

EHCUH403005S 3 0.5R 3 7.5 50 6 4

EHCUH404002S 4 0.2R 4 10.0 50 6 4

EHCUH404005S 4 0.5R 4 10.0 50 6 4

EHCUH405002S 5 0.2R 5 12.5 50 6 4

EHCUH405005S 5 0.5R 5 12.5 50 6 4

EHCUH406002S 6 0.2R 6 15.0 50 6 4

EHCUH406005S 6 0.5R 6 15.0 50 6 4

EHCUH406010S 6 1.0R 6 15.0 50 6 4

EHCUH408003S 8 0.3R 8 20.0 60 8 4

EHCUH408005S 8 0.5R 8 20.0 60 8 4

EHCUH408010S 8 1.0R 8 20.0 60 8 4

EHCUH408015S 8 1.5R 8 20.0 60 8 4

EHCUH410003S 10 0.3R 10 25.0 75 10 4

EHCUH410005S 10 0.5R 10 25.0 75 10 4

EHCUH410010S 10 1.0R 10 25.0 75 10 4

EHCUH410015S 10 1.5R 10 25.0 75 10 4

EHCUH410020S 10 2.0R 10 25.0 75 10 4

EHCUH412003S 12 0.3R 12 30.0 75 12 4

EHCUH412005S 12 0.5R 12 30.0 75 12 4

EHCUH412010S 12 1.0R 12 30.0 75 12 4

EHCUH412015S 12 1.5R 12 30.0 75 12 4

EHCUH412020S 12 2.0R 12 30.0 75 12 4

d R Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

R ± 0.015

EHCUH4

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Short cutting length with high rigidity is suitable for high speed cutting.

The coating can change to TOP ARCO, the prices will differ.

．

A21

H650 Series

CARBIDE ENDMILLS - Straight Short Flute Corner Radius Type - 4F

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE SKT, SKD SKT, SKD SKT, SKD

HARDNESS HRC 45~55 HRC 55~60 HRC 60~70

Vc 65 M/min 39 M/min 26 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

1MM 20,670 2,150 12,350 980 8,281 500

2MM 10,335 2,145 6,175 980 4,134 500

3MM 6,890 2,150 4,160 990 2,756 500

4MM 5,200 2,160 3,120 990 2,067 500

6MM 3,445 2,150 2,080 990 1,378 500

8MM 2,600 2,160 1,560 990 1,034 500

10MM 2,080 2,160 1,242 980 826 500

12MM 1,755 2,190 1,034 980 689 500

Milling Amount

(mm)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCPS401002S 1 0.20R 1 2.5 50 4 4

EHCPS402002S 2 0.25R 2 6.5 50 4 4

EHCUS403005S 3 0.50R 3 7.5 50 6 4

EHCUS404005S 4 0.50R 4 10.0 50 6 4

EHCUS404010S 4 1.00R 4 10.0 50 6 4

EHCUS405010S 5 1.00R 5 12.5 50 6 4

EHCUS406010S 6 1.00R 6 15.0 50 6 4

EHCUS406015S 6 1.50R 6 15.0 50 6 4

EHCUS408010S 8 1.00R 8 20.0 60 8 4

EHCUS408015S 8 1.50R 8 20.0 60 8 4

EHCUS408020S 8 2.00R 8 20.0 60 8 4

EHCUS410010S 10 1.00R 10 25.0 75 10 4

EHCUS410020S 10 2.00R 10 25.0 75 10 4

EHCUS412010S 12 1.00R 12 30.0 75 12 4

EHCUS412020S 12 2.00R 12 30.0 75 12 4

EHCUS412030S 12 3.00R 12 30.0 75 12 4

d R Tolerance

Ø≦12 0 ~ -0.02

Ø> 12 0 ~ -0.03

R ± 0.015

EHCPS4

EHCUS4

SICO Nano coating provides a superior wear and heat resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Low helix design with short cutting length design.

Cutting edges are very strong and wear resistant.

The coating can change to TOP ARCO, the prices will differ.

．

A22

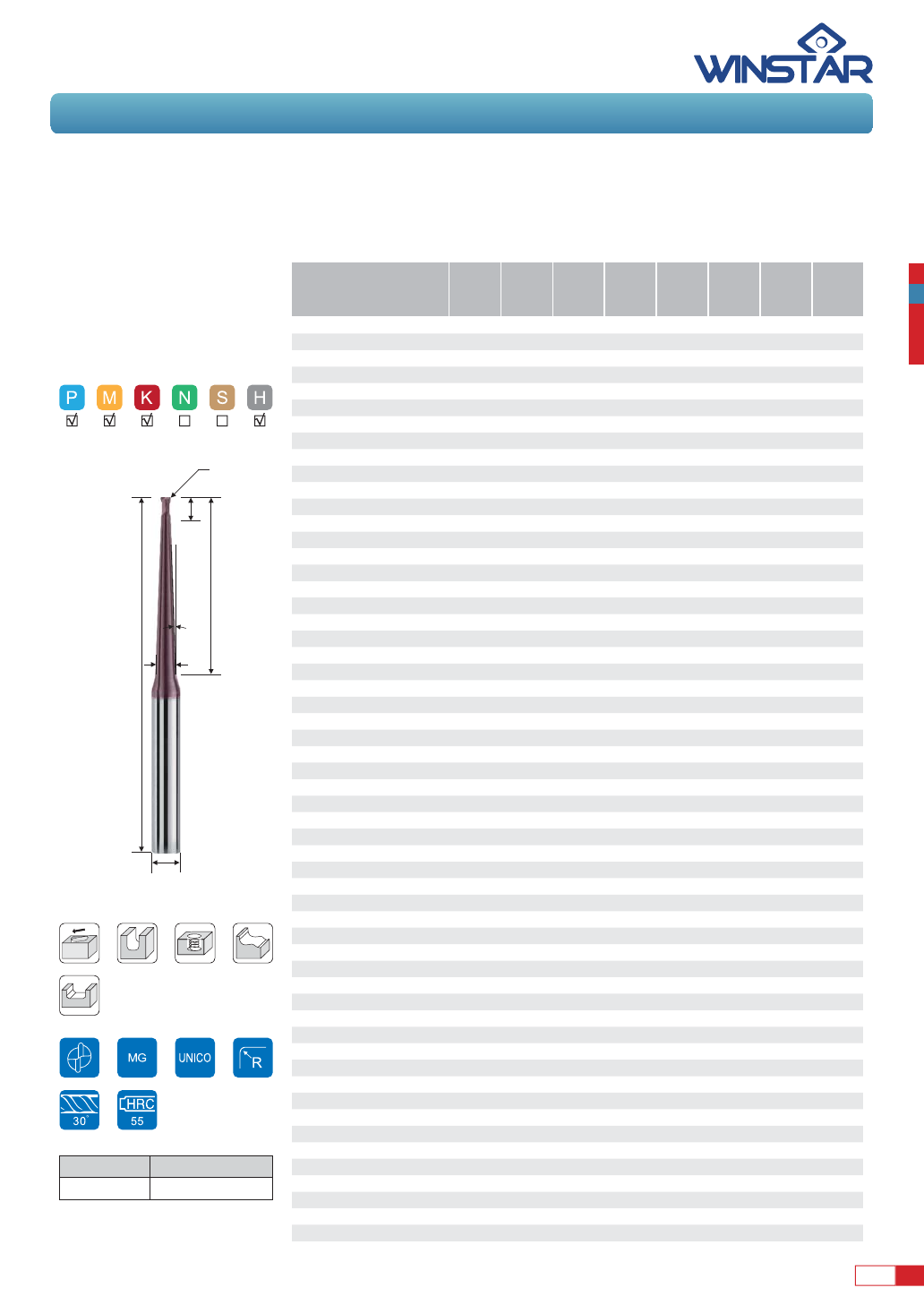

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F

H650 Series

Order No.

訂單編號

Dia.

刃徑 (d)

Corner

Radius

R角(R)

刃長 (L1)

EFF-L

有效長 (L2)

OAL

全長 (L)

Shank

ߠश (D)

Flutes

刃數 (F)

EHCBC20100104A 1.0 0.1R 1.0 4 50 4 2

EHCBC20100106A 1.0 0.1R 1.0 6 50 4 2

EHCBC20100108A 1.0 0.1R 1.0 8 50 4 2

EHCBC20100110A 1.0 0.1R 1.0 10 50 4 2

EHCBC20100112A 1.0 0.1R 1.0 12 50 4 2

EHCBC20100204A 1.0 0.2R 1.0 4 50 4 2

EHCBC20100206A 1.0 0.2R 1.0 6 50 4 2

EHCBC20100208A 1.0 0.2R 1.0 8 50 4 2

EHCBC20100210A 1.0 0.2R 1.0 10 50 4 2

EHCBC20100212A 1.0 0.2R 1.0 12 50 4 2

EHCBC20100304A 1.0 0.3R 1.0 4 50 4 2

EHCBC20100306A 1.0 0.3R 1.0 6 50 4 2

EHCBC20100308A 1.0 0.3R 1.0 8 50 4 2

EHCBC20100310A 1.0 0.3R 1.0 10 50 4 2

EHCBC20100312A 1.0 0.3R 1.0 12 50 4 2

EHCBC20120104A 1.2 0.1R 1.2 4 50 4 2

EHCBC20120106A 1.2 0.1R 1.2 6 50 4 2

EHCBC20120108A 1.2 0.1R 1.2 8 50 4 2

EHCBC20120110A 1.2 0.1R 1.2 10 50 4 2

EHCBC20120112A 1.2 0.1R 1.2 12 50 4 2

EHCBC20120204A 1.2 0.2R 1.2 4 50 4 2

EHCBC20120206A 1.2 0.2R 1.2 6 50 4 2

EHCBC20120208A 1.2 0.2R 1.2 8 50 4 2

EHCBC20120210A 1.2 0.2R 1.2 10 50 4 2

EHCBC20120212A 1.2 0.2R 1.2 12 50 4 2

EHCBC20120304A 1.2 0.3R 1.2 4 50 4 2

EHCBC20120306A 1.2 0.3R 1.2 6 50 4 2

EHCBC20120308A 1.2 0.3R 1.2 8 50 4 2

EHCBC20120310A 1.2 0.3R 1.2 10 50 4 2

EHCBC20120312A 1.2 0.3R 1.2 12 50 4 2

EHCBC20150106A 1.5 0.1R 1.5 6 50 4 2

EHCBC20150108A 1.5 0.1R 1.5 8 50 4 2

EHCBC20150110A 1.5 0.1R 1.5 10 50 4 2

EHCBC20150112A 1.5 0.1R 1.5 12 50 4 2

EHCBC20150116A 1.5 0.1R 1.5 16 50 4 2

EHCBC20150206A 1.5 0.2R 1.5 6 50 4 2

EHCBC20150208A 1.5 0.2R 1.5 8 50 4 2

EHCBC20150210A 1.5 0.2R 1.5 10 50 4 2

EHCBC20150212A 1.5 0.2R 1.5 12 50 4 2

EHCBC20150216A 1.5 0.2R 1.5 16 50 4 2

EHCBC20150306A 1.5 0.3R 1.5 6 50 4 2

EHCBC20150308A 1.5 0.3R 1.5 8 50 4 2

EHCBC20150310A 1.5 0.3R 1.5 10 50 4 2

EHCBC20150312A 1.5 0.3R 1.5 12 50 4 2

EHCBC20150316A 1.5 0.3R 1.5 16 50 4 2

EHCBC20150506A 1.5 0.5R 1.5 6 50 4 2

EHCBC20150508A 1.5 0.5R 1.5 8 50 4 2

EHCBC20150510A 1.5 0.5R 1.5 10 50 4 2

EHCBC20150512A 1.5 0.5R 1.5 12 50 4 2

EHCBC20150516A 1.5 0.5R 1.5 16 50 4 2

EHCBC20200106A 2.0 0.1R 2.0 6 50 4 2

EHCBC20200108A 2.0 0.1R 2.0 8 50 4 2

EHCBC20200110A 2.0 0.1R 2.0 10 50 4 2

d Tolerance

Ø 0 ~ 0.02

EHCBC2

EHCRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A23

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCBC20200112A 2.0 0.1R 2.0 12 50 4 2

EHCBC20200116A 2.0 0.1R 2.0 16 50 4 2

EHCBC20200120A 2.0 0.1R 2.0 20 50 4 2

EHCBC20200125A 2.0 0.1R 2.0 25 60 4 2

EHCBC20200206A 2.0 0.2R 2.0 6 50 4 2

EHCBC20200208A 2.0 0.2R 2.0 8 50 4 2

EHCBC20200210A 2.0 0.2R 2.0 10 50 4 2

EHCBC20200212A 2.0 0.2R 2.0 12 50 4 2

EHCBC20200216A 2.0 0.2R 2.0 16 50 4 2

EHCBC20200220A 2.0 0.2R 2.0 20 50 4 2

EHCBC20200225A 2.0 0.2R 2.0 25 60 4 2

EHCBC20200306A 2.0 0.3R 2.0 6 50 4 2

EHCBC20200308A 2.0 0.3R 2.0 8 50 4 2

EHCBC20200310A 2.0 0.3R 2.0 10 50 4 2

EHCBC20200312A 2.0 0.3R 2.0 12 50 4 2

EHCBC20200316A 2.0 0.3R 2.0 16 50 4 2

EHCBC20200320A 2.0 0.3R 2.0 20 50 4 2

EHCBC20200325A 2.0 0.3R 2.0 25 60 4 2

EHCBC20200506A 2.0 0.5R 2.0 6 50 4 2

EHCBC20200508A 2.0 0.5R 2.0 8 50 4 2

EHCBC20200510A 2.0 0.5R 2.0 10 50 4 2

EHCBC20200512A 2.0 0.5R 2.0 12 50 4 2

EHCBC20200516A 2.0 0.5R 2.0 16 50 4 2

EHCBC20200520A 2.0 0.5R 2.0 20 50 4 2

EHCBC20200525A 2.0 0.5R 2.0 25 60 4 2

EHCRC20200510A 2.0 0.5R 2.0 10 50 6 2

EHCRC20200515A 2.0 0.5R 2.0 15 50 6 2

EHCBC20250110A 2.5 0.1R 2.5 10 50 4 2

EHCBC20250116A 2.5 0.1R 2.5 16 50 4 2

EHCBC20250120A 2.5 0.1R 2.5 20 50 4 2

EHCBC20250125A 2.5 0.1R 2.5 25 60 4 2

EHCBC20250210A 2.5 0.2R 2.5 10 50 4 2

EHCBC20250216A 2.5 0.2R 2.5 16 50 4 2

EHCBC20250220A 2.5 0.2R 2.5 20 50 4 2

EHCBC20250225A 2.5 0.2R 2.5 25 60 4 2

EHCBC20250310A 2.5 0.3R 2.5 10 50 4 2

EHCBC20250316A 2.5 0.3R 2.5 16 50 4 2

EHCBC20250320A 2.5 0.3R 2.5 20 50 4 2

EHCBC20250325A 2.5 0.3R 2.5 25 60 4 2

EHCBC20250510A 2.5 0.5R 2.5 10 50 4 2

EHCBC20250516A 2.5 0.5R 2.5 16 50 4 2

EHCBC20250520A 2.5 0.5R 2.5 20 50 4 2

EHCBC20250525A 2.5 0.5R 2.5 25 60 4 2

EHCRC20300110A 3.0 0.1R 3.0 10 50 6 2

EHCRC20300116A 3.0 0.1R 3.0 16 60 6 2

EHCRC20300120A 3.0 0.1R 3.0 20 60 6 2

EHCRC20300125A 3.0 0.1R 3.0 25 60 6 2

EHCRC20300130A 3.0 0.1R 3.0 30 75 6 2

EHCRC20300135A 3.0 0.1R 3.0 35 75 6 2

EHCRC20300210A 3.0 0.2R 3.0 10 50 6 2

EHCRC20300216A 3.0 0.2R 3.0 16 60 6 2

EHCRC20300220A 3.0 0.2R 3.0 20 60 6 2

EHCRC20300225A 3.0 0.2R 3.0 25 60 6 2

EHCRC20300230A 3.0 0.2R 3.0 30 75 6 2

d Tolerance

Ø 0 ~ 0.02

EHCBC2

EHCRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A24

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCRC20300235A 3.0 0.2R 3.0 35 75 6 2

EHCRC20300310A 3.0 0.3R 3.0 10 50 6 2

EHCRC20300316A 3.0 0.3R 3.0 16 60 6 2

EHCRC20300320A 3.0 0.3R 3.0 20 60 6 2

EHCRC20300325A 3.0 0.3R 3.0 25 60 6 2

EHCRC20300330A 3.0 0.3R 3.0 30 75 6 2

EHCRC20300335A 3.0 0.3R 3.0 35 75 6 2

EHCRC20300510A 3.0 0.5R 3.0 10 50 6 2

EHCRC20300516A 3.0 0.5R 3.0 16 60 6 2

EHCRC20300520A 3.0 0.5R 3.0 20 60 6 2

EHCRC20300525A 3.0 0.5R 3.0 25 60 6 2

EHCRC20300530A 3.0 0.5R 3.0 30 75 6 2

EHCRC20300535A 3.0 0.5R 3.0 35 75 6 2

EHCRC20301010A 3.0 1.0R 3.0 10 50 6 2

EHCRC20301016A 3.0 1.0R 3.0 16 60 6 2

EHCRC20301020A 3.0 1.0R 3.0 20 60 6 2

EHCRC20301025A 3.0 1.0R 3.0 25 60 6 2

EHCRC20301030A 3.0 1.0R 3.0 30 75 6 2

EHCRC20301035A 3.0 1.0R 3.0 35 75 6 2

EHCRC20400113A 4.0 0.1R 4.0 13 50 6 2

EHCRC20400116A 4.0 0.1R 4.0 16 60 6 2

EHCRC20400120A 4.0 0.1R 4.0 20 60 6 2

EHCRC20400125A 4.0 0.1R 4.0 25 60 6 2

EHCRC20400130A 4.0 0.1R 4.0 30 75 6 2

EHCRC20400135A 4.0 0.1R 4.0 35 75 6 2

EHCRC20400213A 4.0 0.2R 4.0 13 50 6 2

EHCRC20400216A 4.0 0.2R 4.0 16 60 6 2

EHCRC20400220A 4.0 0.2R 4.0 20 60 6 2

EHCRC20400225A 4.0 0.2R 4.0 25 60 6 2

EHCRC20400230A 4.0 0.2R 4.0 30 75 6 2

EHCRC20400235A 4.0 0.2R 4.0 35 75 6 2

EHCRC20400313A 4.0 0.3R 4.0 13 50 6 2

EHCRC20400316A 4.0 0.3R 4.0 16 60 6 2

EHCRC20400320A 4.0 0.3R 4.0 20 60 6 2

EHCRC20400325A 4.0 0.3R 4.0 25 60 6 2

EHCRC20400330A 4.0 0.3R 4.0 30 75 6 2

EHCRC20400335A 4.0 0.3R 4.0 35 75 6 2

EHCRC20400513A 4.0 0.5R 4.0 13 50 6 2

EHCRC20400516A 4.0 0.5R 4.0 16 60 6 2

EHCRC20400520A 4.0 0.5R 4.0 20 60 6 2

EHCRC20400525A 4.0 0.5R 4.0 25 60 6 2

EHCRC20400530A 4.0 0.5R 4.0 30 75 6 2

EHCRC20400535A 4.0 0.5R 4.0 35 75 6 2

EHCRC20401013A 4.0 1.0R 4.0 13 50 6 2

EHCRC20401016A 4.0 1.0R 4.0 16 60 6 2

EHCRC20401020A 4.0 1.0R 4.0 20 60 6 2

EHCRC20401025A 4.0 1.0R 4.0 25 60 6 2

EHCRC20401030A 4.0 1.0R 4.0 30 75 6 2

EHCRC20401035A 4.0 1.0R 4.0 35 75 6 2

EHCRC20500116A 5.0 0.1R 5.0 16 60 6 2

EHCRC20500130A 5.0 0.1R 5.0 30 60 6 2

EHCRC20500216A 5.0 0.2R 5.0 16 60 6 2

EHCRC20500230A 5.0 0.2R 5.0 30 60 6 2

d Tolerance

Ø 0 ~ 0.02

EHCBC2

EHCRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A25

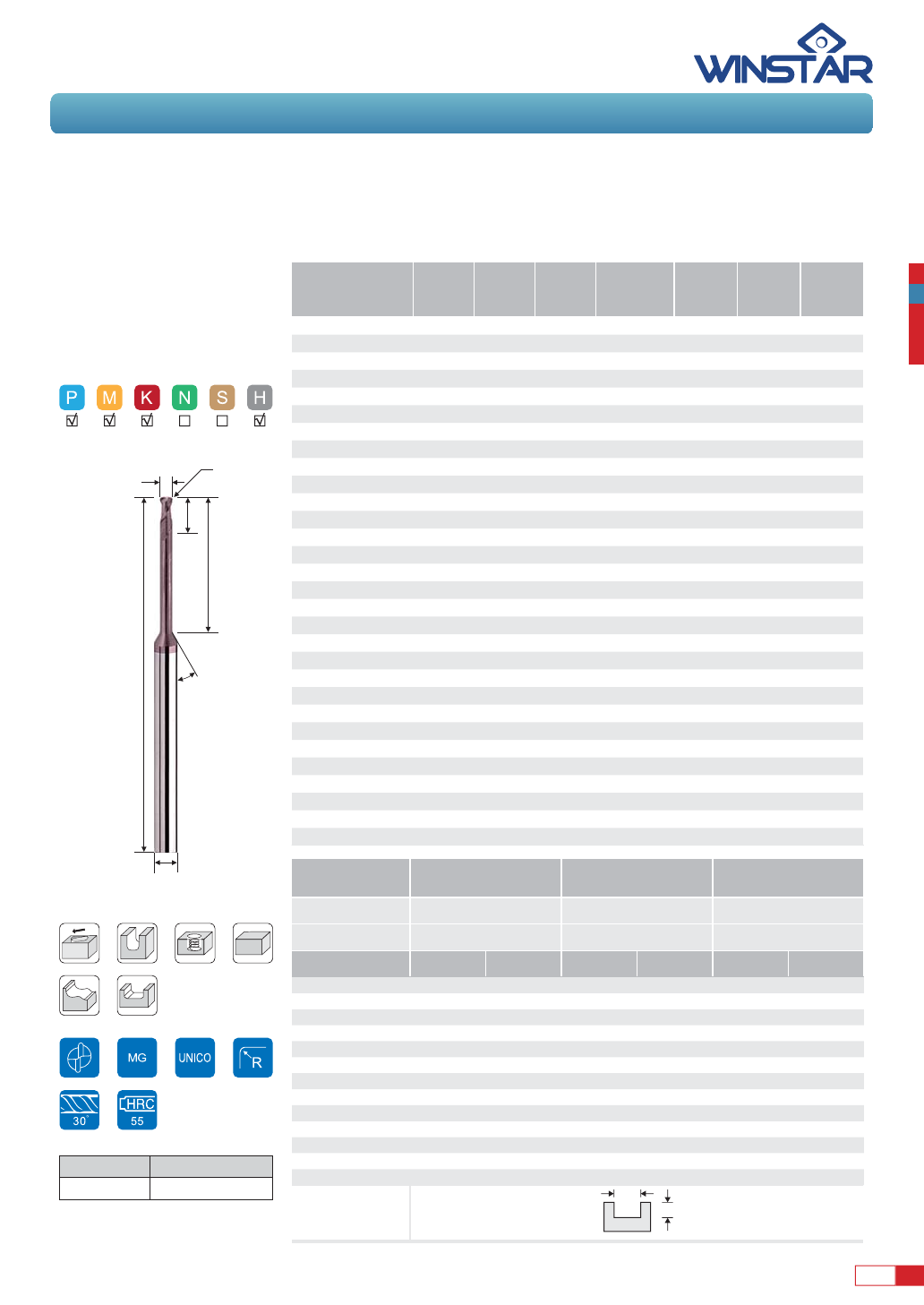

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCRC20500316A 5.0 0.3R 5.0 16 60 6 2

EHCRC20500330A 5.0 0.3R 5.0 30 60 6 2

EHCRC20500516A 5.0 0.5R 5.0 16 60 6 2

EHCRC20500530A 5.0 0.5R 5.0 30 60 6 2

EHCRC20501016A 5.0 1.0R 5.0 16 60 6 2

EHCRC20501030A 5.0 1.0R 5.0 30 60 6 2

EHCRC20600120A 6.0 0.1R 7.0 20 60 6 2

EHCRC20600130A 6.0 0.1R 7.0 30 60 6 2

EHCRC20600220A 6.0 0.2R 7.0 20 60 6 2

EHCRC20600230A 6.0 0.2R 7.0 30 60 6 2

EHCRC20600320A 6.0 0.3R 7.0 20 60 6 2

EHCRC20600330A 6.0 0.3R 7.0 30 60 6 2

EHCRC20600520A 6.0 0.5R 7.0 20 60 6 2

EHCRC20600530A 6.0 0.5R 7.0 30 60 6 2

EHCRC20601020A 6.0 1.0R 7.0 20 60 6 2

EHCRC20601030A 6.0 1.0R 7.0 30 60 6 2

EHCRC20601520A 6.0 1.5R 7.0 20 60 6 2

EHCRC20601530A 6.0 1.5R 7.0 30 60 6 2

EHCRC20800522A 8.0 0.5R 9.0 22 60 8 2

EHCRC20801022A 8.0 1.0R 9.0 22 60 8 2

EHCRC20801522A 8.0 1.5R 9.0 22 60 8 2

EHCRC20802022A 8.0 2.0R 9.0 22 60 8 2

EHCRC21000524A 10.0 0.5R 11.0 24 75 10 2

EHCRC21001024A 10.0 1.0R 11.0 24 75 10 2

EHCRC21001524A 10.0 1.5R 11.0 24 75 10 2

EHCRC21002024A 10.0 2.0R 11.0 24 75 10 2

EHCRC21200526A 12.0 0.5R 13.0 26 75 12 2

EHCRC21201026A 12.0 1.0R 13.0 26 75 12 2

EHCRC21201526A 12.0 1.5R 13.0 26 75 12 2

EHCRC21202026A 12.0 2.0R 13.0 26 75 12 2

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE NAK, SKD SKT, SKD SKT, SKD

HARDNESS HRC 30~45 HRC 45~55 HRC 55~65

DIAMETER R.P.M FEED

(mm/min) R.P.M FEED

(mm/min)

2.0MM 13,200 1,100 12,200 1,020 9,800 590

2.5MM 11,000 1,200 10,200 1,000 8,500 430

3.0MM 11,500 1,800 10,700 1,800 9,100 620

4.0MM 9,500 1,370 7,900 1,330 6,700 740

6.0MM 6,000 1,470 3,500 850 3,000 650

8.0MM 4,800 1,600 2,900 680 2,400 650

10.0MM 3,840 1,750 2,300 540 1,900 460

12.0MM 3,000 1,800 1,800 430 1,600 450

Milling Amount

(mm)

Ad = 0.1D

(D < 3, Ad ≦0.05D)

Ad = 0.5D

(D < 3, Ad ≦0.25D)

Please refer to 3xD table, reduce R.P.M. & Feed while efﬁ cient length is increasing.

d Tolerance

Ø 0 ~ 0.02

EHCBC2

EHCRC2

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A26

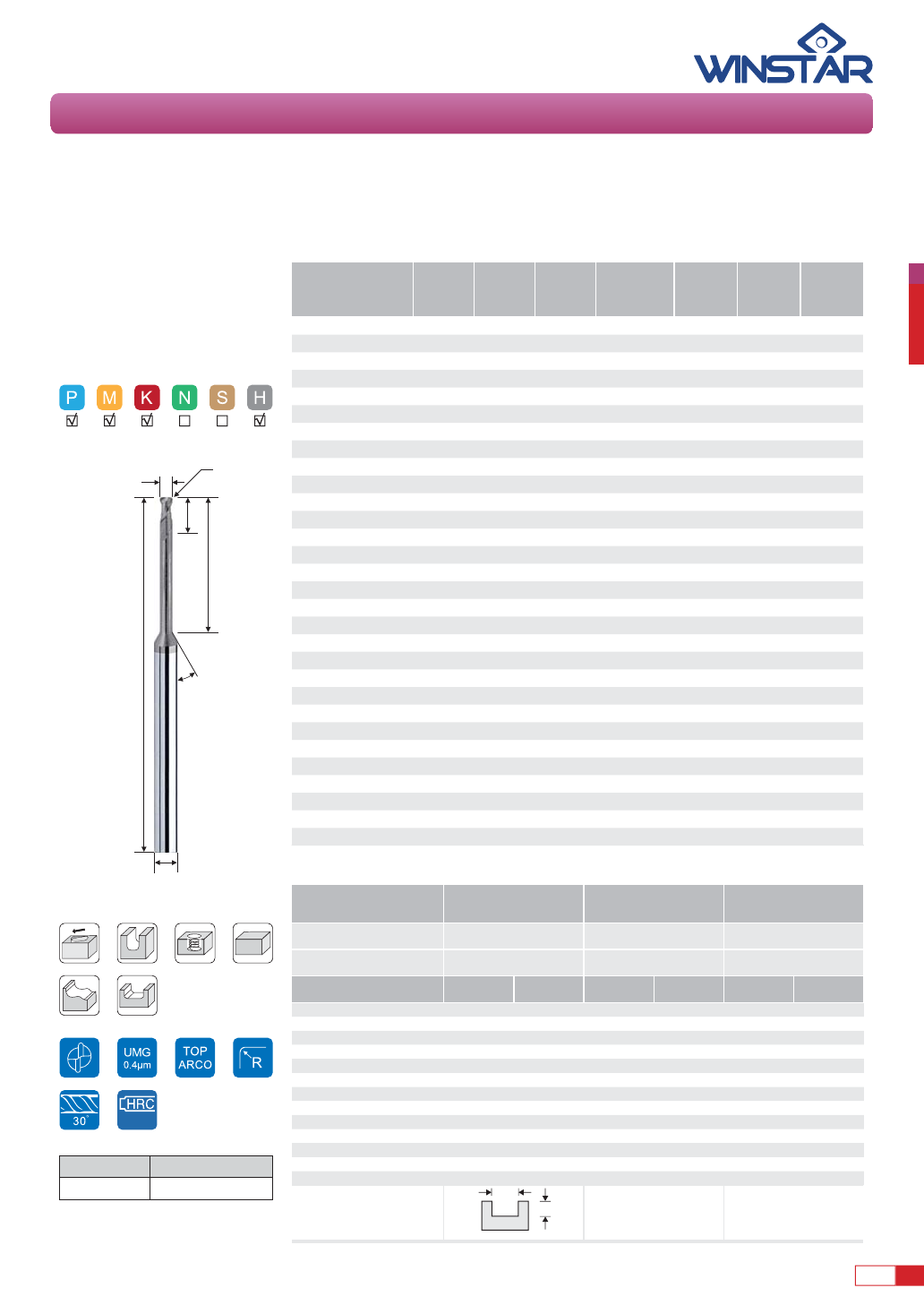

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 4F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCBC40200106A 2.0 0.1R 2.0 6 50 4 4

EHCBC40200108A 2.0 0.1R 2.0 8 50 4 4

EHCBC40200110A 2.0 0.1R 2.0 10 50 4 4

EHCBC40200112A 2.0 0.1R 2.0 12 50 4 4

EHCBC40200116A 2.0 0.1R 2.0 16 50 4 4

EHCBC40200120A 2.0 0.1R 2.0 20 50 4 4

EHCBC40200125A 2.0 0.1R 2.0 25 60 4 4

EHCBC40200206A 2.0 0.2R 2.0 6 50 4 4

EHCBC40200208A 2.0 0.2R 2.0 8 50 4 4

EHCBC40200210A 2.0 0.2R 2.0 10 50 4 4

EHCBC40200212A 2.0 0.2R 2.0 12 50 4 4

EHCBC40200216A 2.0 0.2R 2.0 16 50 4 4

EHCBC40200220A 2.0 0.2R 2.0 20 50 4 4

EHCBC40200225A 2.0 0.2R 2.0 25 60 4 4

EHCBC40200306A 2.0 0.3R 2.0 6 50 4 4

EHCBC40200308A 2.0 0.3R 2.0 8 50 4 4

EHCBC40200310A 2.0 0.3R 2.0 10 50 4 4

EHCBC40200312A 2.0 0.3R 2.0 12 50 4 4

EHCBC40200316A 2.0 0.3R 2.0 16 50 4 4

EHCBC40200320A 2.0 0.3R 2.0 20 50 4 4

EHCBC40200325A 2.0 0.3R 2.0 25 60 4 4

EHCBC40200506A 2.0 0.5R 2.0 6 50 4 4

EHCBC40200508A 2.0 0.5R 2.0 8 50 4 4

EHCBC40200510A 2.0 0.5R 2.0 10 50 4 4

EHCBC40200512A 2.0 0.5R 2.0 12 50 4 4

EHCBC40200516A 2.0 0.5R 2.0 16 50 4 4

EHCBC40200520A 2.0 0.5R 2.0 20 50 4 4

EHCBC40200525A 2.0 0.5R 2.0 25 60 4 4

EHCRC40200510A 2.0 0.5R 2.0 10 50 6 4

EHCRC40200515A 2.0 0.5R 2.0 15 50 6 4

EHCBC40250110A 2.5 0.1R 2.5 10 50 4 4

EHCBC40250116A 2.5 0.1R 2.5 16 50 4 4

EHCBC40250120A 2.5 0.1R 2.5 20 50 4 4

EHCBC40250125A 2.5 0.1R 2.5 25 60 4 4

EHCBC40250210A 2.5 0.2R 2.5 10 50 4 4

EHCBC40250216A 2.5 0.2R 2.5 16 50 4 4

EHCBC40250220A 2.5 0.2R 2.5 20 50 4 4

EHCBC40250225A 2.5 0.2R 2.5 25 60 4 4

EHCBC40250310A 2.5 0.3R 2.5 10 50 4 4

EHCBC40250316A 2.5 0.3R 2.5 16 50 4 4

EHCBC40250320A 2.5 0.3R 2.5 20 50 4 4

EHCBC40250325A 2.5 0.3R 2.5 25 60 4 4

EHCBC40250510A 2.5 0.5R 2.5 10 50 4 4

EHCBC40250516A 2.5 0.5R 2.5 16 50 4 4

EHCBC40250520A 2.5 0.5R 2.5 20 50 4 4

EHCBC40250525A 2.5 0.5R 2.5 25 60 4 4

EHCRC40300110A 3.0 0.1R 3.0 10 50 6 4

EHCRC40300116A 3.0 0.1R 3.0 16 60 6 4

EHCRC40300120A 3.0 0.1R 3.0 20 60 6 4

EHCRC40300125A 3.0 0.1R 3.0 25 60 6 4

EHCRC40300130A 3.0 0.1R 3.0 30 75 6 4

EHCRC40300135A 3.0 0.1R 3.0 35 75 6 4

EHCRC40300210A 3.0 0.2R 3.0 10 50 6 4

d Tolerance

Ø 0 ~ 0.02

EHCBC4

EHCRC4

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A27

CARBIDE ENDMILLS - Long Neck Corner Radius Type - 4F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCRC40300216A 3.0 0.2R 3.0 16 60 6 4

EHCRC40300220A 3.0 0.2R 3.0 20 60 6 4

EHCRC40300225A 3.0 0.2R 3.0 25 60 6 4

EHCRC40300230A 3.0 0.2R 3.0 30 75 6 4

EHCRC40300235A 3.0 0.2R 3.0 35 75 6 4

EHCRC40300310A 3.0 0.3R 3.0 10 50 6 4

EHCRC40300316A 3.0 0.3R 3.0 16 60 6 4

EHCRC40300320A 3.0 0.3R 3.0 20 60 6 4

EHCRC40300325A 3.0 0.3R 3.0 25 60 6 4

EHCRC40300330A 3.0 0.3R 3.0 30 75 6 4

EHCRC40300335A 3.0 0.3R 3.0 35 75 6 4

EHCRC40300510A 3.0 0.5R 3.0 10 50 6 4

EHCRC40300516A 3.0 0.5R 3.0 16 60 6 4

EHCRC40300520A 3.0 0.5R 3.0 20 60 6 4

EHCRC40300525A 3.0 0.5R 3.0 25 60 6 4

EHCRC40300530A 3.0 0.5R 3.0 30 75 6 4

EHCRC40300535A 3.0 0.5R 3.0 35 75 6 4

EHCRC40301010A 3.0 1.0R 3.0 10 50 6 4

EHCRC40301016A 3.0 1.0R 3.0 16 60 6 4

EHCRC40301020A 3.0 1.0R 3.0 20 60 6 4

EHCRC40301025A 3.0 1.0R 3.0 25 60 6 4

EHCRC40301030A 3.0 1.0R 3.0 30 75 6 4

EHCRC40301035A 3.0 1.0R 3.0 35 75 6 4

EHCRC40400113A 4.0 0.1R 4.0 13 50 6 4

EHCRC40400116A 4.0 0.1R 4.0 16 60 6 4

EHCRC40400120A 4.0 0.1R 4.0 20 60 6 4

EHCRC40400125A 4.0 0.1R 4.0 25 60 6 4

EHCRC40400130A 4.0 0.1R 4.0 30 75 6 4

EHCRC40400135A 4.0 0.1R 4.0 35 75 6 4

EHCRC40400213A 4.0 0.2R 4.0 13 50 6 4

EHCRC40400216A 4.0 0.2R 4.0 16 60 6 4

EHCRC40400220A 4.0 0.2R 4.0 20 60 6 4

EHCRC40400225A 4.0 0.2R 4.0 25 60 6 4

EHCRC40400230A 4.0 0.2R 4.0 30 75 6 4

EHCRC40400235A 4.0 0.2R 4.0 35 75 6 4

EHCRC40400313A 4.0 0.3R 4.0 13 50 6 4

EHCRC40400316A 4.0 0.3R 4.0 16 60 6 4

EHCRC40400320A 4.0 0.3R 4.0 20 60 6 4

EHCRC40400325A 4.0 0.3R 4.0 25 60 6 4

EHCRC40400330A 4.0 0.3R 4.0 30 75 6 4

EHCRC40400335A 4.0 0.3R 4.0 35 75 6 4

EHCRC40400513A 4.0 0.5R 4.0 13 50 6 4

EHCRC40400516A 4.0 0.5R 4.0 16 60 6 4

EHCRC40400520A 4.0 0.5R 4.0 20 60 6 4

EHCRC40400525A 4.0 0.5R 4.0 25 60 6 4

EHCRC40400530A 4.0 0.5R 4.0 30 75 6 4

EHCRC40400535A 4.0 0.5R 4.0 35 75 6 4

EHCRC40401013A 4.0 1.0R 4.0 13 50 6 4

EHCRC40401016A 4.0 1.0R 4.0 16 60 6 4

EHCRC40401020A 4.0 1.0R 4.0 20 60 6 4

EHCRC40401025A 4.0 1.0R 4.0 25 60 6 4

EHCRC40401030A 4.0 1.0R 4.0 30 75 6 4

EHCRC40401035A 4.0 1.0R 4.0 35 75 6 4

EHCRC40500116A 5.0 0.1R 5.0 16 60 6 4

d Tolerance

Ø 0 ~ 0.02

EHCBC4

EHCRC4

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A28

CARBIDE ENDMILLS - Corner Radius & Long Neck Type - 4F

H650 Series

Order No. Dia.

(d)

Corner

Radius

(R)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHCRC40500130A 5.0 0.1R 5.0 30 60 6 4

EHCRC40500216A 5.0 0.2R 5.0 16 60 6 4

EHCRC40500230A 5.0 0.2R 5.0 30 60 6 4

EHCRC40500316A 5.0 0.3R 5.0 16 60 6 4

EHCRC40500330A 5.0 0.3R 5.0 30 60 6 4

EHCRC40500516A 5.0 0.5R 5.0 16 60 6 4

EHCRC40500530A 5.0 0.5R 5.0 30 60 6 4

EHCRC40501016A 5.0 1.0R 5.0 16 60 6 4

EHCRC40501030A 5.0 1.0R 5.0 30 60 6 4

EHCRC40600120A 6.0 0.1R 7.0 20 60 6 4

EHCRC40600130A 6.0 0.1R 7.0 30 60 6 4

EHCRC40600220A 6.0 0.2R 7.0 20 60 6 4

EHCRC40600230A 6.0 0.2R 7.0 30 60 6 4

EHCRC40600320A 6.0 0.3R 7.0 20 60 6 4

EHCRC40600330A 6.0 0.3R 7.0 30 60 6 4

EHCRC40600520A 6.0 0.5R 7.0 20 60 6 4

EHCRC40600530A 6.0 0.5R 7.0 30 60 6 4

EHCRC40601020A 6.0 1.0R 7.0 20 60 6 4

EHCRC40601030A 6.0 1.0R 7.0 30 60 6 4

EHCRC40601520A 6.0 1.5R 7.0 20 60 6 4

EHCRC40601530A 6.0 1.5R 7.0 30 60 6 4

EHCRC40800522A 8.0 0.5R 9.0 22 60 8 4

EHCRC40801022A 8.0 1.0R 9.0 22 60 8 4

EHCRC40801522A 8.0 1.5R 9.0 22 60 8 4

EHCRC40802022A 8.0 2.0R 9.0 22 60 8 4

EHCRC41000524A 10.0 0.5R 11.0 24 75 10 4

EHCRC41001024A 10.0 1.0R 11.0 24 75 10 4

EHCRC41001524A 10.0 1.5R 11.0 24 75 10 4

EHCRC41002024A 10.0 2.0R 11.0 24 75 10 4

EHCRC41200526A 12.0 0.5R 13.0 26 75 12 4

EHCRC41201026A 12.0 1.0R 13.0 26 75 12 4

EHCRC41201526A 12.0 1.5R 13.0 26 75 12 4

EHCRC41202026A 12.0 2.0R 13.0 26 75 12 4

WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL

CODE NAK, SKD SKT, SKD SKT, SKD

HARDNESS HRC 30~45 HRC 45~55 HRC 55~65

DIAMETER R.P.M FEED

(mm/min) R.P.M FEED

(mm/min)

2.0MM 13,200 1,100 12,200 1,020 9,800 590

2.5MM 11,000 1,200 10,200 1,000 8,500 430

3.0MM 11,500 1,800 10,700 1,800 9,100 620

4.0MM 9,500 1,370 7,900 1,330 6,700 740

6.0MM 6,000 1,470 3,500 850 3,000 650

8.0MM 4,800 1,600 2,900 680 2,400 650

10.0MM 3,840 1,750 2,300 540 1,900 460

12.0MM 3,000 1,800 1,800 430 1,600 450

Milling Amount

(mm)

Please refer to 3xD table, reduce R.P.M. & Feed while efﬁ cient length is increasing.

d Tolerance

Ø 0 ~ 0.02

EHCBC4

EHCRC4

15°

TOP ARCO coating provides a superior wear resistance.

Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65.

Available in various effective cutting lengths.

It is suitable for deep cutting.

The coating can change to SICO, the prices will differ.

．

A29

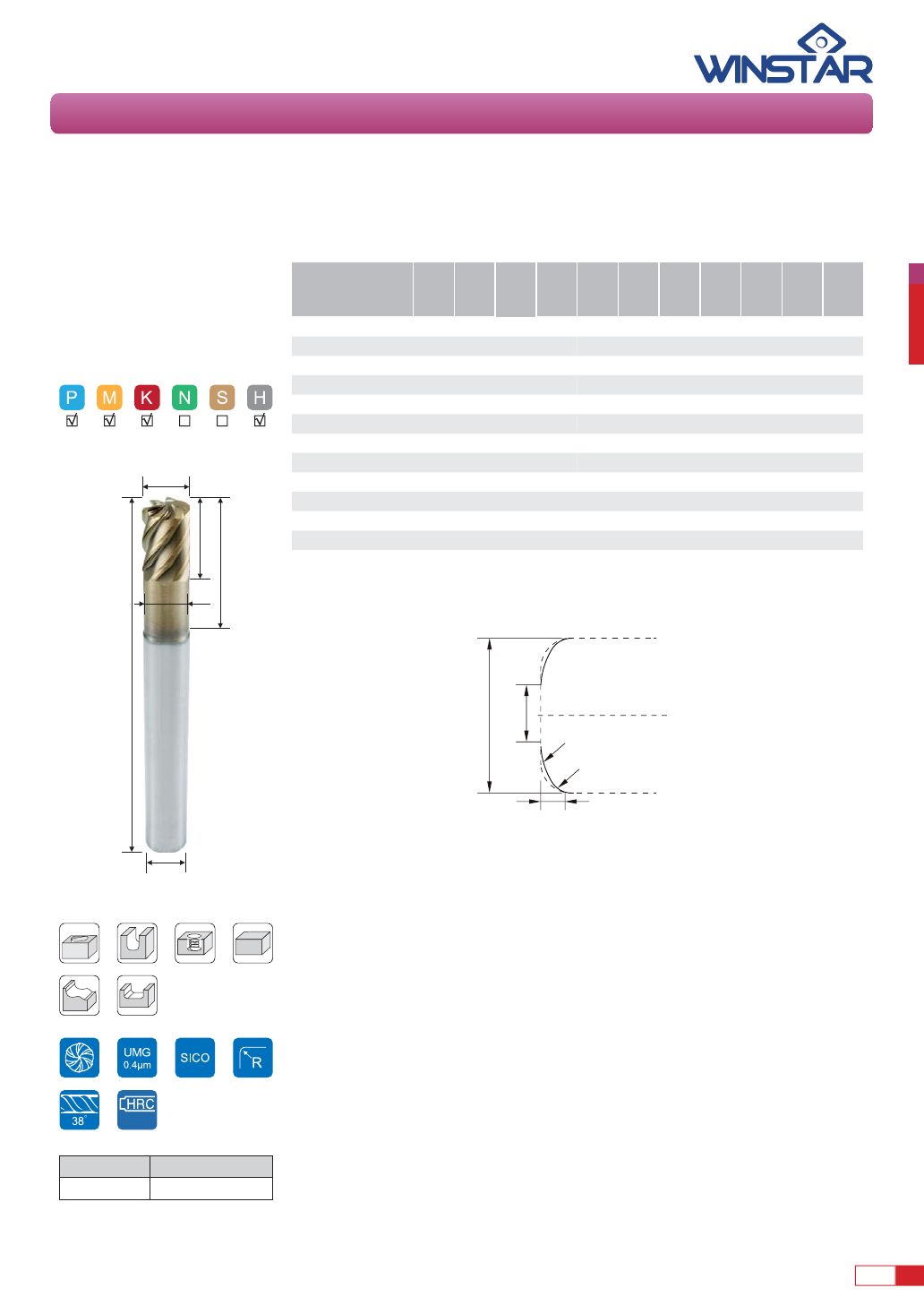

CARBIDE ENDMILLS - Double Corner High Feed EndMill - 6F

H650 Series

Order No. Dia.

(d)

(d1) (d2) (ap) (R1) (R2)

(L1)

EFF-L

(L2)

OAL

(L)

Shank

(D)

Flutes

(F)

EHWSA406000S 6 5.6 1.5 0.35 0.6 5.0 9 18 60 6 4

EHWSA608000S 8 7.6 3.2 0.40 0.8 4.5 12 24 75 8 6

EHWSA601000S 10 9.4 4.0 0.55 1.0 5.5 15 30 75 10 6

EHWSA601200S 12 11.4 4.8 0.70 1.2 6.5 18 36 75 12 6

A30

d Tolerance

Ø 0 ~ 0.02

EHWSA4

EHWSA6

SICO Nano coating provides a superior wear and heat resistance.

Duotec design and multi-ﬂ ute geometry design.

High feed and high metal removal rate in surface milling.

UMG Carbide substrate possess high TRS and good wear resistance.

．

G550 series

up to HRC 55

Our UNICO Coating provides superior wear resistance and reduces the coefﬁ cient of friction.

Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.

Small negative angle provides excellent cutting ability of cutting edges.

Hi rigidity, geometry suitable for hi speed cutting and hi precision cutting.

A31

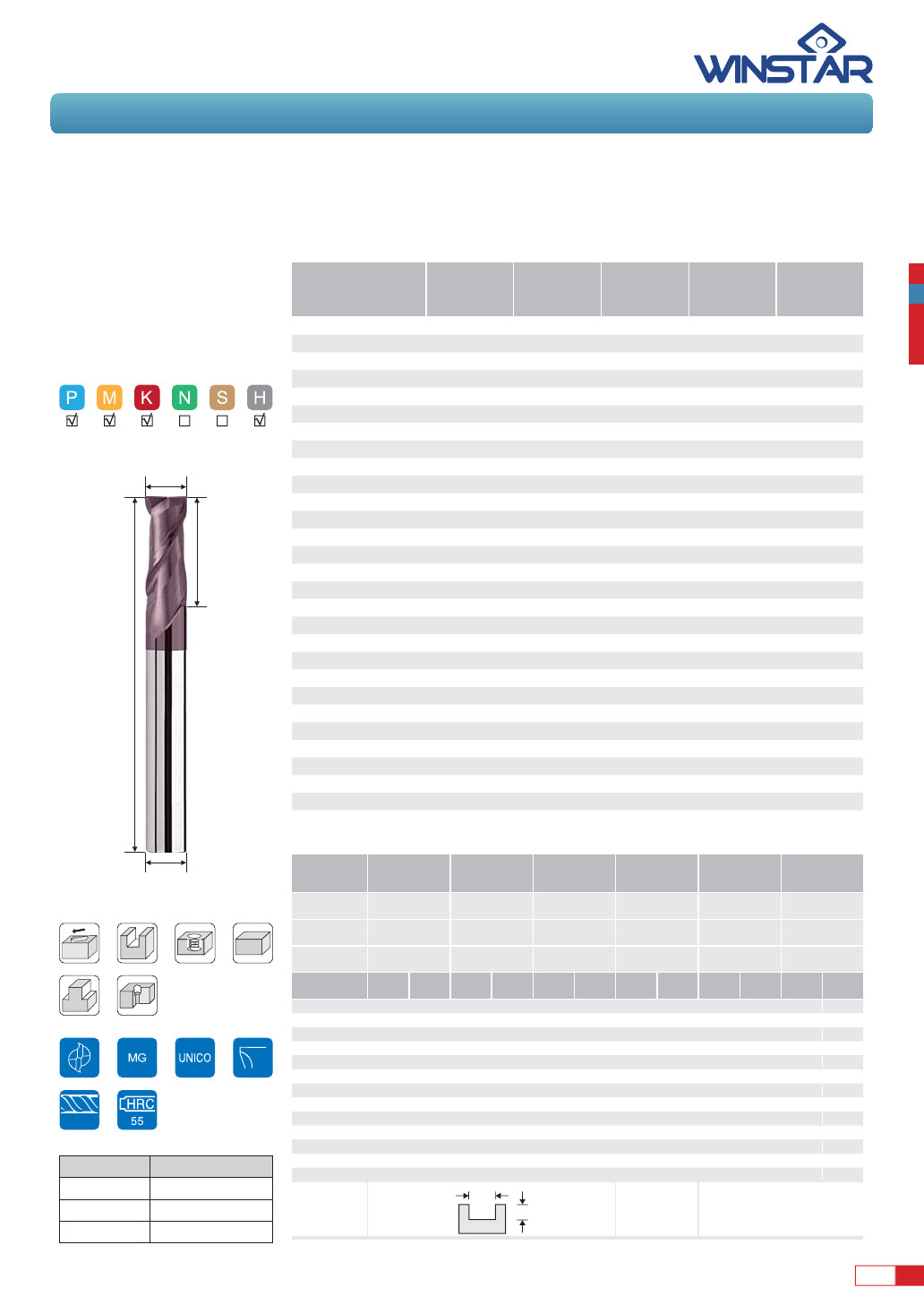

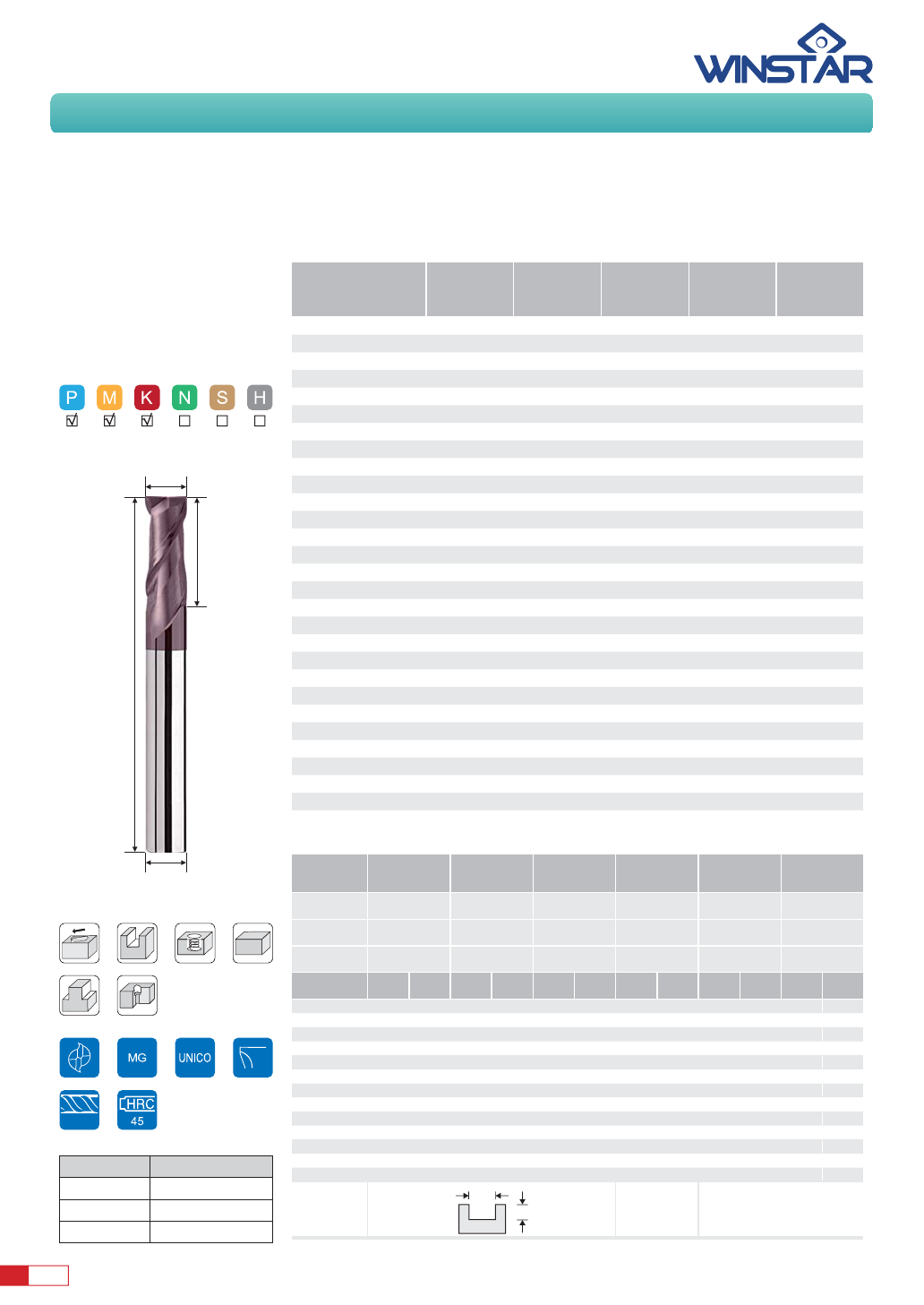

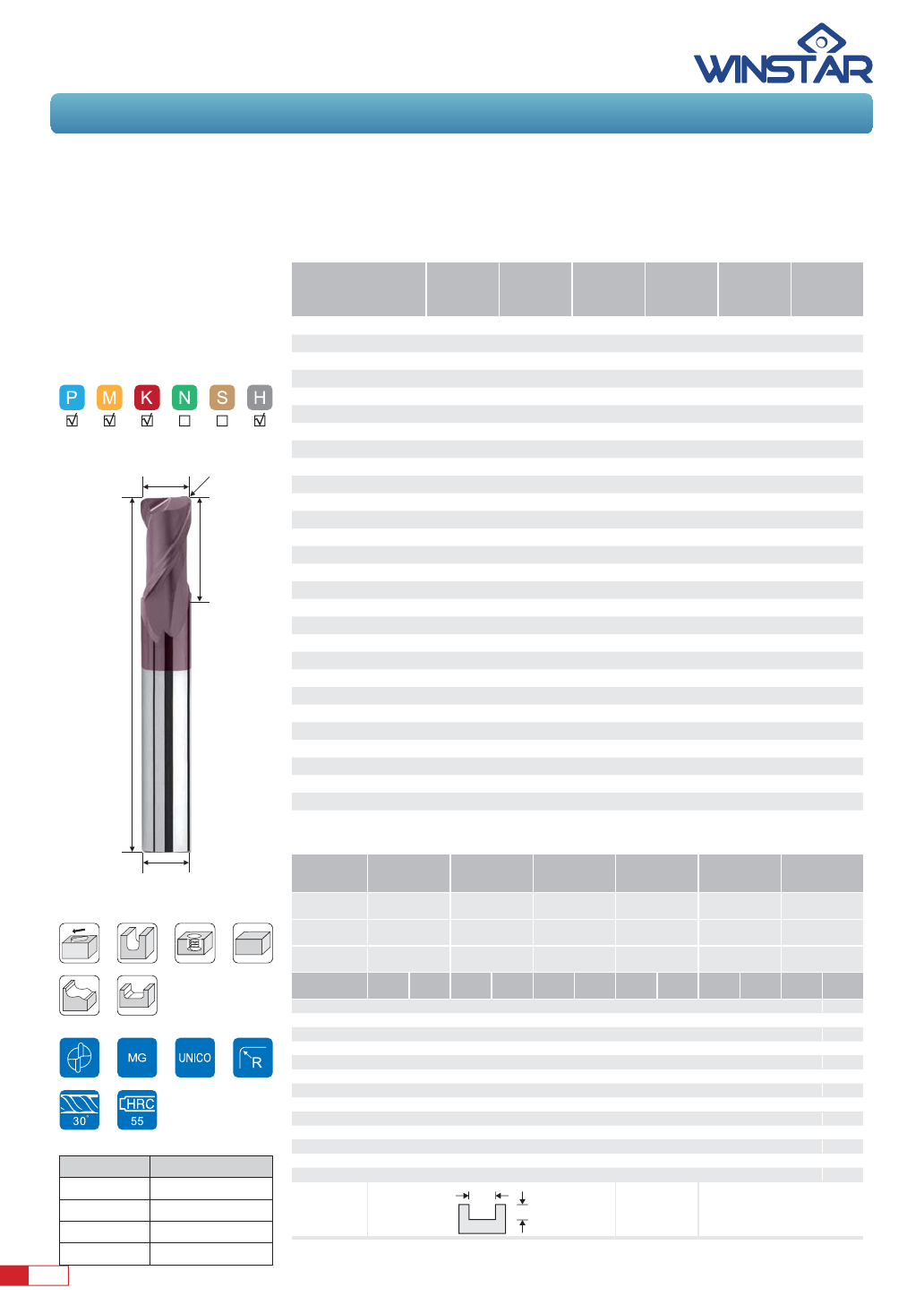

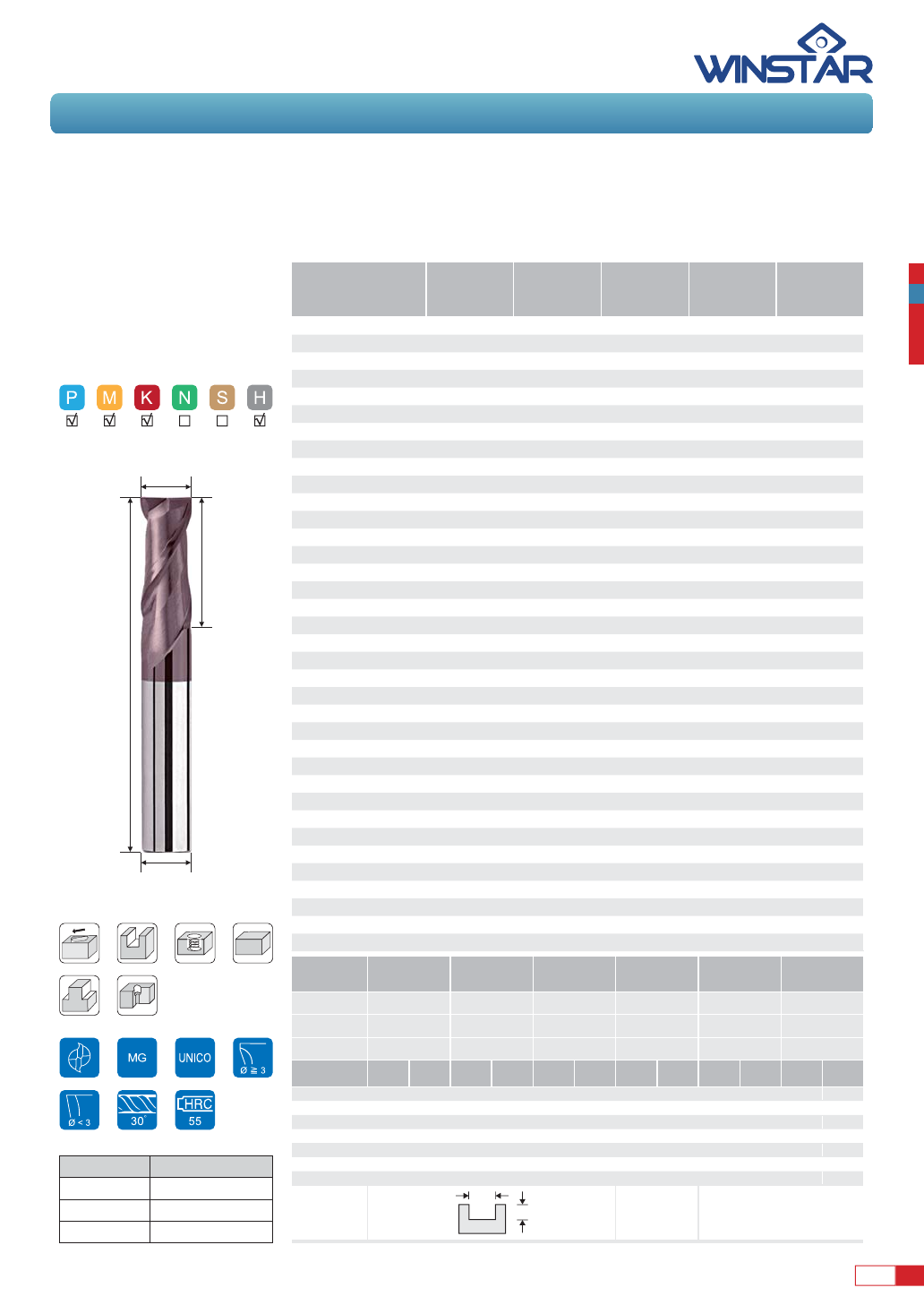

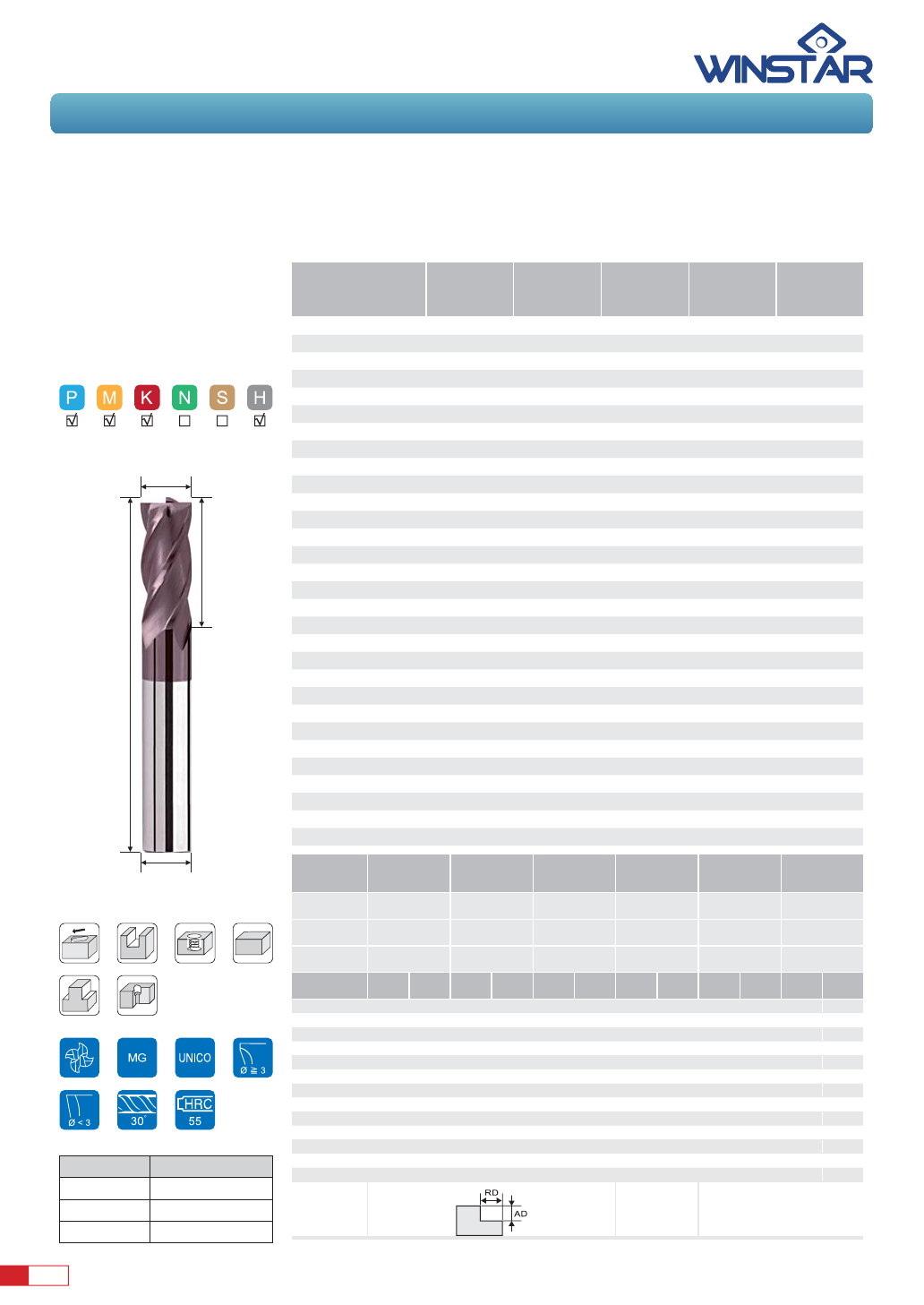

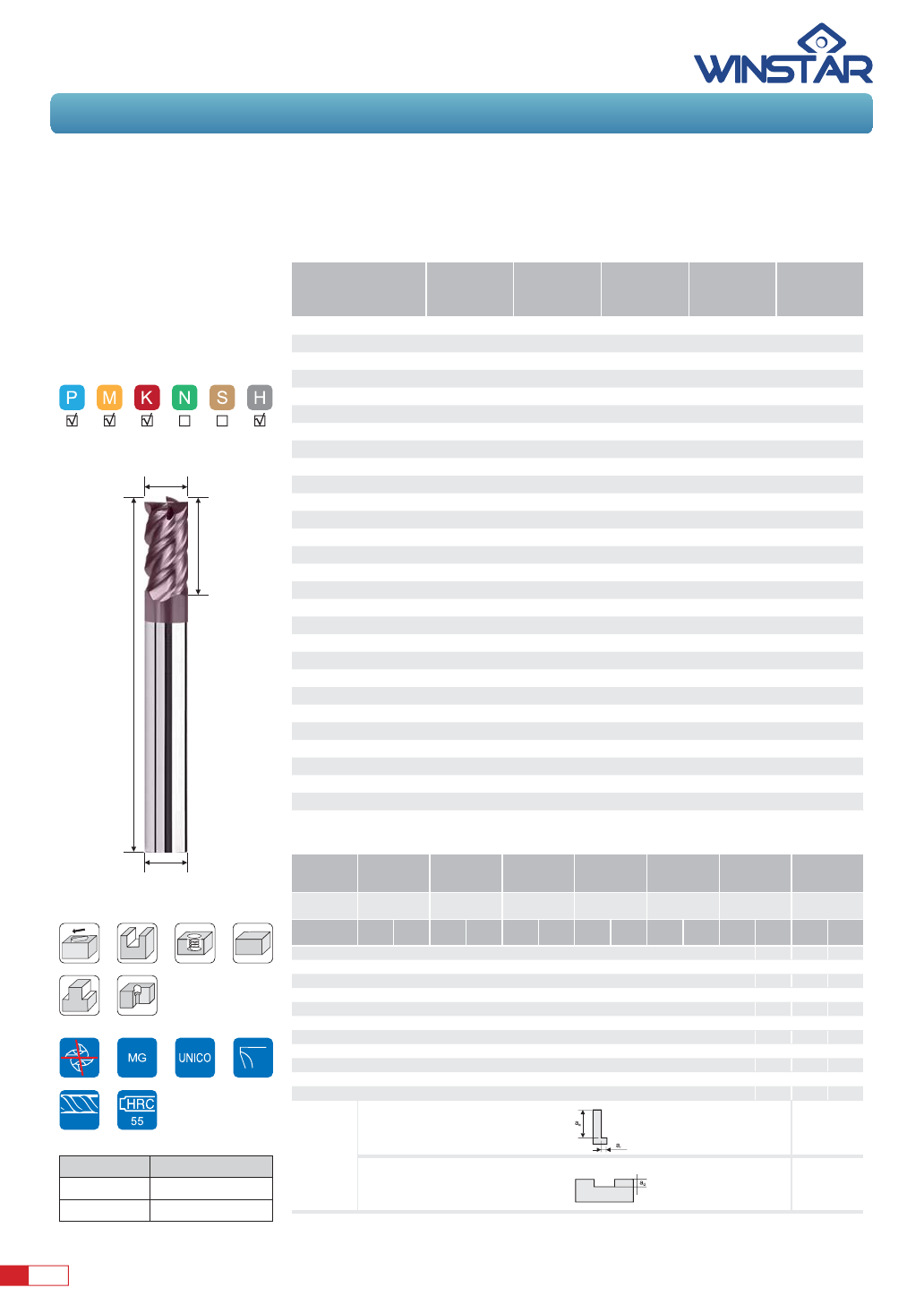

G550 Series

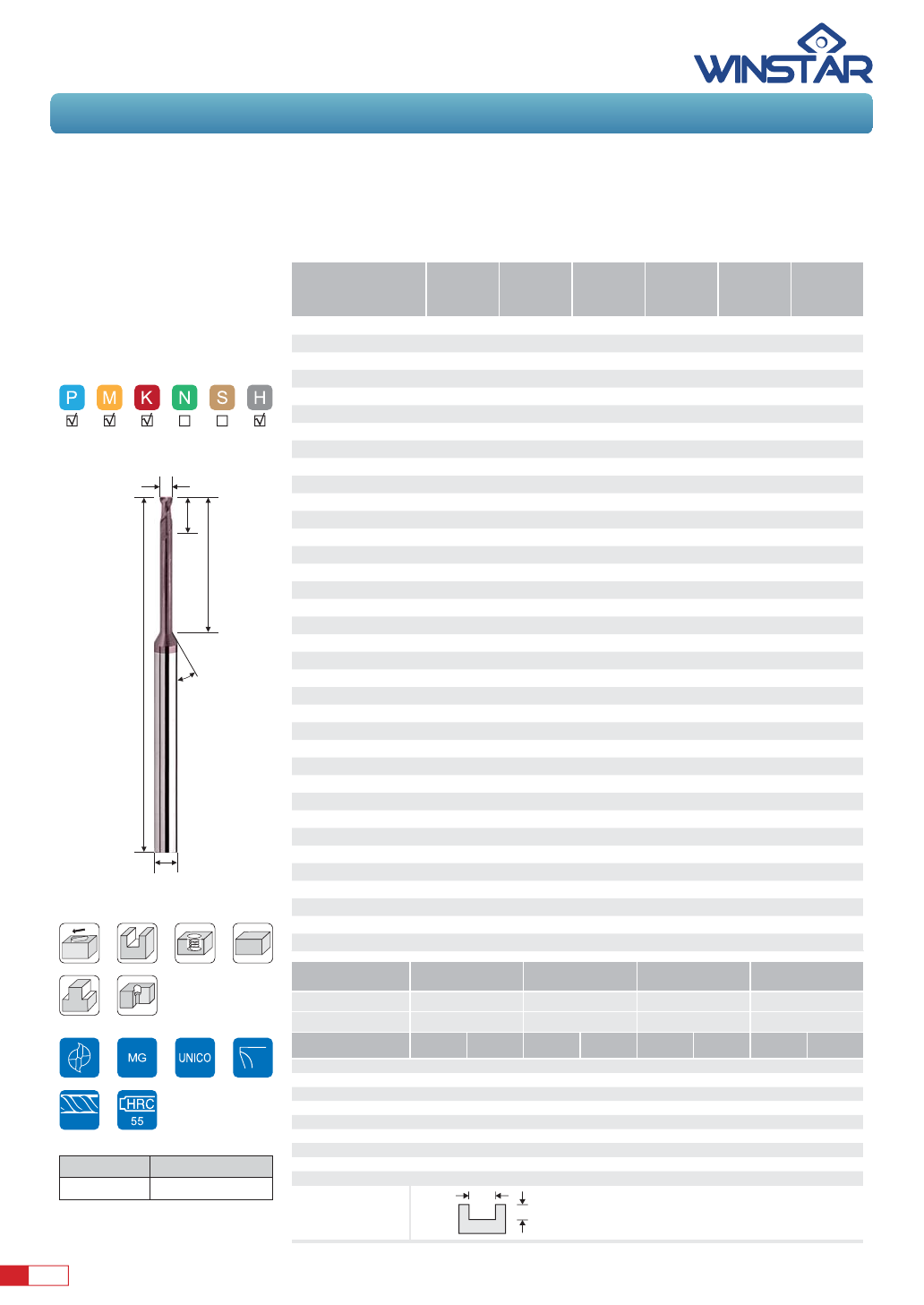

CARBIDE ENDMILLS - Square Type - 2F

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EPSFC200200U 0.2 0.4 50 4 2

EPSFC200300U 0.3 0.6 50 4 2

EPSFC200400U 0.4 0.8 50 4 2

EPSFC200500U 0.5 1.0 50 4 2

EPSFC200600U 0.6 1.5 50 4 2

EPSFC200700U 0.7 2.0 50 4 2

EPSFC200800U 0.8 2.0 50 4 2

EPSFC200900U 0.9 2.0 50 4 2

EPSFC201000U 1.0 3.0 50 4 2

EPSFC201500U 1.5 4.0 50 4 2

EPSFC202000U 2.0 5.0 50 4 2

EPSFC202500U 2.5 6.0 50 4 2

EPSFC203000U 3.0 8.0 50 4 2

EPSFC203500U 3.5 9.0 50 4 2

EPSFC204000U 4.0 10.0 50 4 2

EPSSC201000U 1.0 3.0 50 6 2

EPSSC202000U 2.0 5.0 50 6 2

EPSSC203000U 3.0 8.0 50 6 2

EPSSC203500U 3.5 9.0 50 6 2

EPSSC204000U 4.0 10.0 50 6 2

EPSSC204500U 4.5 11.0 50 6 2

EPSSC205000U 5.0 13.0 50 6 2

EPSSC205500U 5.5 14.0 50 6 2

EPSSC206000U 6.0 15.0 50 6 2

EPSSC206500U 6.5 16.0 60 8 2

EPSSC207000U 7.0 18.0 60 8 2

EPSSC208000U 8.0 20.0 60 8 2

EPSSC209000U 9.0 22.0 75 10 2

EPSSC210000U 10.0 25.0 75 10 2

EPSSC211000U 11.0 25.0 75 12 2

EPSSC212000U 12.0 30.0 75 12 2

EPSSC214000U 14.0 30.0 75 14 2

EPSSC216000U 16.0 35.0 100 16 2

EPSSC218000U 18.0 40.0 100 20 2

EPSSC220000U 20.0 45.0 100 20 2

EPSSC225000U 25.0 45.0 100 25 2

WORKING

MATERIAL

ALLOY STEEL

/ TOOL STEEL

ALLOY STEEL

/ TOOL STEEL

ALLOY STEEL

/ TOOL STEEL

HARDENED

STEEL

STAINLESS

STEEL CAST IRON

CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD

HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 

Vc 88 M/min 71 M/min 59 M/min 35 M/min 71 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

2MM 14,040 235 11,232 160 9,360 110 5,616 45 11,232 185 16,380 270

4MM 7,020 260 5,616 175 4,680 120 2,808 50 5,616 205 8,424 310

6MM 4,680 260 3,744 175 3,042 120 1,872 50 3,744 205 5,616 310

8MM 3,510 260 2,808 175 2,340 120 1,404 50 2,808 205 4,212 310

10MM 2,808 260 2,223 175 1,872 120 1,131 50 2,223 205 3,276 300

12MM 2,340 260 1,872 175 1,560 120 936 50 1,872 205 2,808 310

Milling Amount

(mm)

Ad = 0.1D

(D < 3, Ad ≦0.05D)

Ad = 0.5D

(D < 3, Ad ≦0.25D)

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

A32

d Tolerance

Ø < 3 0 ~ -0.02

3≦Ø≦10 0 ~ -0.03

Ø > 10 0 ~ -0.04

EPSFC2

EPSSC2

UNICO Coating provides superior wear resistance and reduces the coefﬁ cient of friction.

Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc.

Strong geometry design has excellent cutting ability of cutting edges.

High precision cutting for side milling.

．

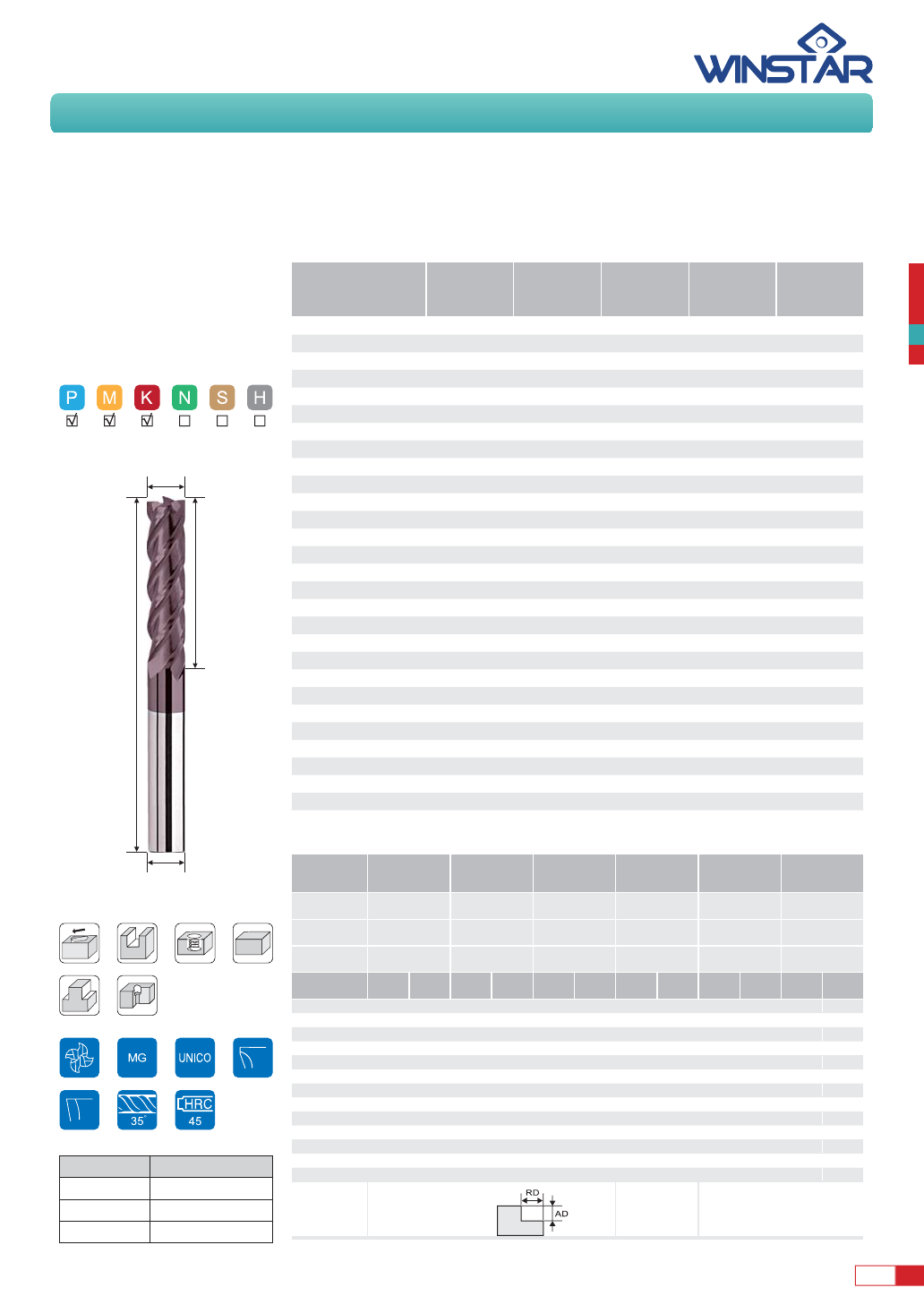

G550 Series

CARBIDE ENDMILLS - Square Type - 4F

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EPSTC401000U 1.0 3 50 3 4

EPSTC401500U 1.5 4 50 3 4

EPSTC402000U 2.0 5 50 3 4

EPSTC403000U 3.0 8 50 3 4

EPSFC401000U 1.0 3 50 4 4

EPSFC401500U 1.5 4 50 4 4

EPSFC402000U 2.0 5 50 4 4

EPSFC402500U 2.5 6 50 4 4

EPSFC403000U 3.0 8 50 4 4

EPSFC403500U 3.5 9 50 4 4

EPSFC404000U 4.0 10 50 4 4

EPSSC403000U 3.0 8 50 6 4

EPSSC403500U 3.5 9 50 6 4

EPSSC404000U 4.0 10 50 6 4

EPSSC404500U 4.5 11 50 6 4

EPSSC405000U 5.0 13 50 6 4

EPSSC405500U 5.5 14 50 6 4

EPSSC406000U 6.0 15 50 6 4

EPSSC406500U 6.5 16 60 8 4

EPSSC407000U 7.0 18 60 8 4

EPSSC408000U 8.0 20 60 8 4

EPSSC409000U 9.0 22 75 10 4

EPSSC410000U 10.0 25 75 10 4

EPSSC411000U 11.0 25 75 12 4

EPSSC412000U 12.0 30 75 12 4

EPSSC414000U 14.0 30 75 14 4

EPSSC416000U 16.0 35 100 16 4

EPSSC418000U 18.0 40 100 20 4

EPSSC420000U 20.0 45 100 20 4

EPSSC425000U 25.0 45 100 25 4

WORKING

MATERIAL

ALLOY STEEL

/ TOOL STEEL

ALLOY STEEL

/ TOOL STEEL

ALLOY STEEL

/ TOOL STEEL

HARDENED

STEEL

STAINLESS

STEEL CAST IRON

CODE 45C,S50C,SCM SCM,SKT,SKD SCM,SKT,SKD SKT, SKD SUS 304 FC / FCD

HARDNESS HRC < 20 HRC 20 ~ 30 HRC 30 ~ 40 HRC 45~45 

Vc 88 M/min 71 M/min 59 M/min 35 M/min 71 M/min 103 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

3MM 9,828 455 7,488 295 6,084 195 3,900 90 7,488 345 11,232 520

4MM 7,020 430 5,616 295 4,680 200 2,808 85 5,616 345 8,424 520

5MM 5,850 450 4,446 290 3,744 200 2,340 90 4,446 345 6,552 505

6MM 4,680 430 3,744 295 3,042 195 1,872 85 3,744 345 5,616 520

8MM 3,510 430 2,808 295 2,340 200 1,404 85 2,808 345 4,212 520

10MM 2,808 430 2,223 290 1,872 200 1,118 85 2,223 340 3,276 505

12MM 2,340 430 1,872 295 1,560 200 936 85 1,872 345 2,808 520

14MM 2,340 500 1,768 325 1,482 225 936 100 1,768 380 2,600 560

16MM 2,028 500 1,560 325 1,300 225 806 100 1,560 385 2,340 575

18MM 1,820 455 1,378 290 1,144 200 728 90 1,378 345 2,080 520

20MM 1,560 430 1,248 295 1,040 200 624 65 1,248 345 1,820 505

Milling Amount

(mm)

Ad = 1.5D

RD ≦0.05D

Ad = 1.5D

RD ≦0.1D

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

A33

d Tolerance

Ø < 3 0 ~ -0.02

3≦Ø≦10 0 ~ -0.03

Ø > 10 0 ~ -0.04

EPSFC4

EPSSC4

UNICO Coating provides superior wear resistance and reduces the coefﬁ cient of friction.

Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc.

Strong geometry design has excellent cutting ability of cutting edges.

High precision cutting for side milling.

．

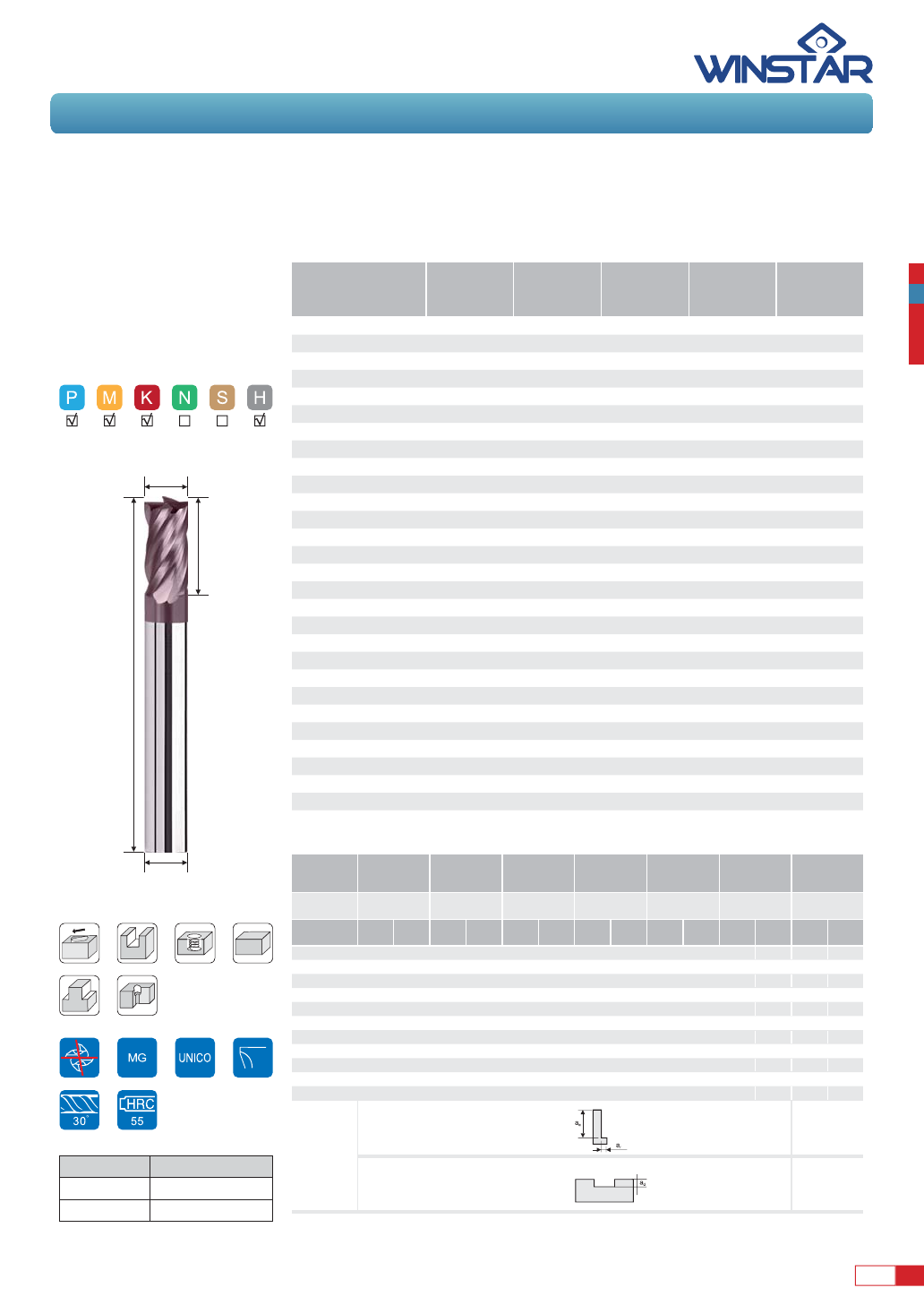

G550 Series

CARBIDE ENDMILLS - Anti-Vibration Square Type - 4F

WORKING

MATERIAL

STAINLESS

304

Moderately

difﬁ cults SUS

STAINLESS

316 L

TITANIUM

(ALLOYS)

SOFT

STEEL

CAST IRON

High Temperature

ALLOYS

Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min

120~160 M/min 96~120 M/min

20~25 M/min

DIAMETER R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

R.P.M FEED

(mm/min)

4MM 5,732 573 4,459 357 3,822 229 3,185 153 9,554 955 7,643 764 1,592 70

5MM 4,586 550 3,567 357 3,057 306 2,548 153 7,643 917 6,115 734 1,274 56

6MM 3,822 611 2,972 416 2,548 306 2,123 170 6,369 1,019 5,096 815 1,062 72

8MM 2,866 573 2,229 401 1,911 306 1,592 191 4,777 1,146 3,822 917 796 86

10MM 2,293 550 1,783 357 1,529 275 1,274 155 3,822 917 3,057 734 637 69

12MM 1,911 497 1,486 327 1,274 255 1,062 170 3,185 892 2,548 713 531 81

14MM 1,638 439 1,274 290 1,092 231 910 157 2,730 797 2,184 638 455 82

16MM 1,433 401 1,115 268 955 210 796 143 2,389 717 1,911 573 398 78

Milling

Amount

(mm)

aa = 1.0D

ar = 0.5D

aa = 1.0D

ar = 0.2D

ad = 1.0D ad = 0.3D

The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems.

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EPSSD405000U 5 13 50 6 4

EPSSD406000U 6 13 50 6 4

EPSSD408000U 8 16 60 8 4

EPSSD410000U 10 20 75 10 4

EPSSD412000U 12 24 75 12 4

EPSSD416000U 16 30 100 16 4

A34

d Tolerance

Ø≦12 0 ~ -0.02

Ø > 12 0 ~ -0.03

EPSSD4

UNICO Coating provides superior wear resistance and reduces the coefﬁ cient of friction.

Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc.

Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities.

．

G550 Series

CARBIDE ENDMILLS - High Helix & Anti-Vibration Square Type - 4F

Order No. Dia.

(d)

(L1)

OAL

(L)

Shank

(D)

Flutes

(F)

EPSSF405000U 5 13 50 6 4

EPSSF406000U 6 13 50 6 4

EPSSF408000U 8 16 60 8 4

EPSSF410000U 10 20 75 10 4

EPSSF412000U 12 24 75 12 4

EPSSF416000U 16 30 100 16 4
