Intelligent
Process
Optimization
„Innovation is our future.“
Sascha Tschiggfrei, CEO
The Future
has begun
As a global market leader, we manufacture technologically
advanced high precision tool holders for turning centers and
swiss type lathes that are known for high performance and
long life-time.
Using our new “smart” technology, our customers will be able to
intelligently optimize and monitor their processes in the future.
State-of-the-art technology for maximum
productivity. With this claim, WTO develops
and produces superior precision tool holders
in terms of technology and quality.
Used intelligently, processes are optimized and
production becomes more productive.
WTO Driven Precision Tool Holders equipped
with innovative „smart“ technology enable
intelligent online process monitoring.
“Consistent development -
always one step ahead.
Karlheinz Jansen, CTO
Intelligent
Process
Optimization
High Tech
Made in Germany
From the technical design to the finished product
we make no compromises when it comes to
manufacturing our high precision tool holders.
Permanent investment in state-of-the-art
production technologies, high quality standards
and a large manufacturing depth.
Our products are in use worldwide, wherever
precision parts are manufactured on turning
centers with high productivity.
„Our employees don‘t work for WTO.
They work for the success of our customers.“
Patrick Diener, Vice President WTO USA
Motivated employees are the basis for 100 % consistent
customer focus.
WTO offers its employees a state-of-the-art working environ-
ment to work independently and ensures highly motivated
employees in a family-owned technology company.
To a large extent, WTO relies on its own highly qualified
employees in order to achieve high quality standards.
Your Success
is our Business

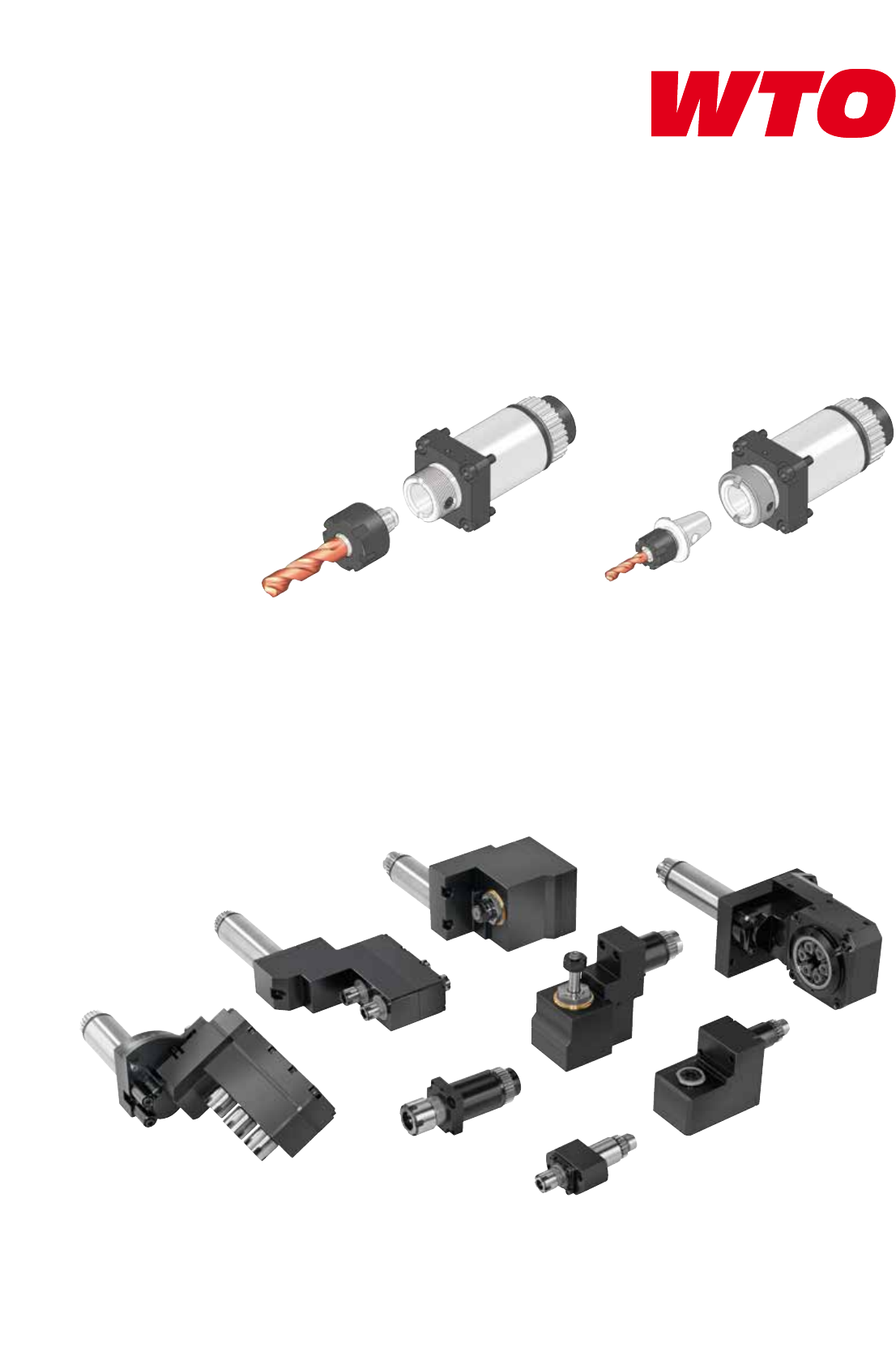

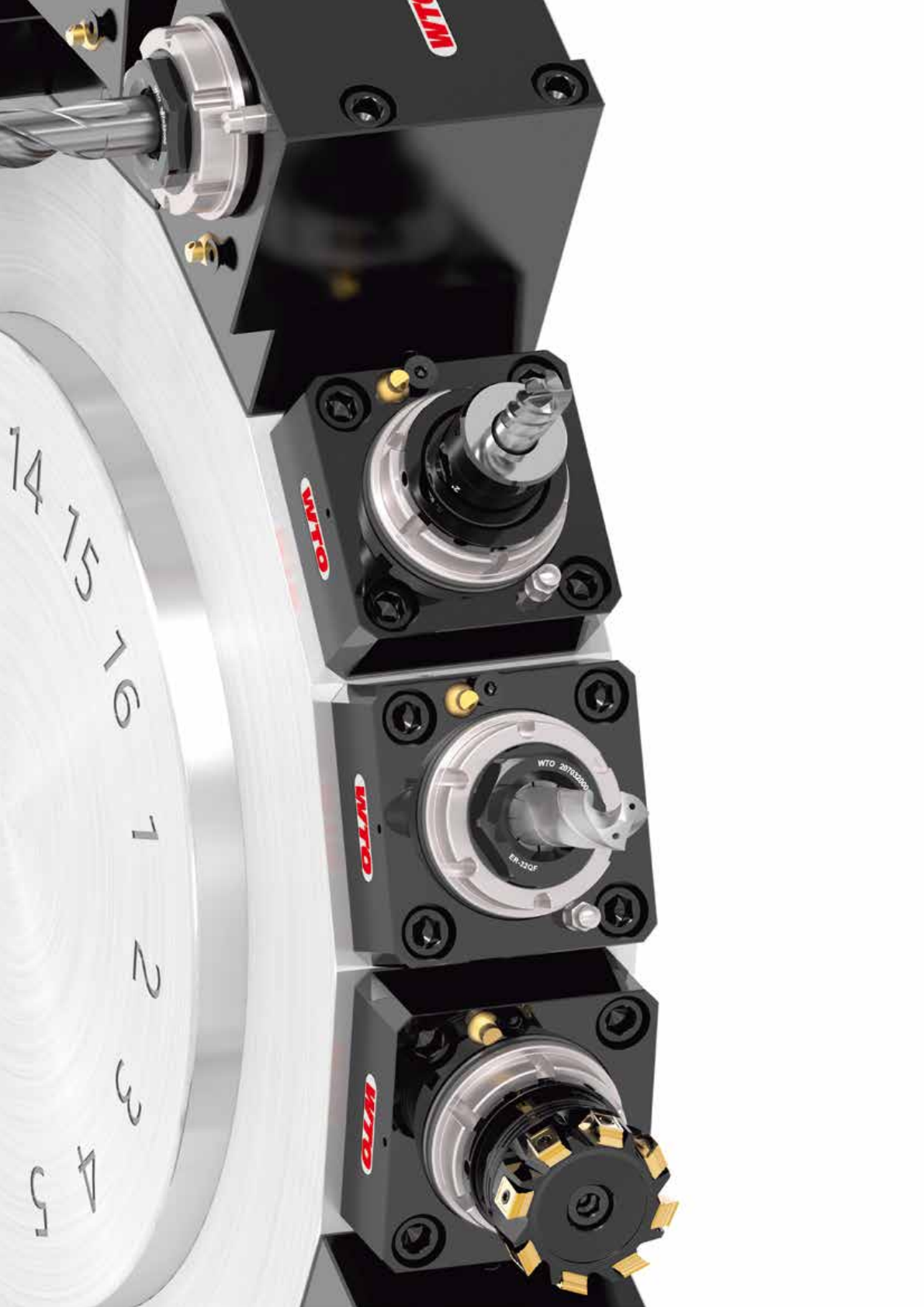

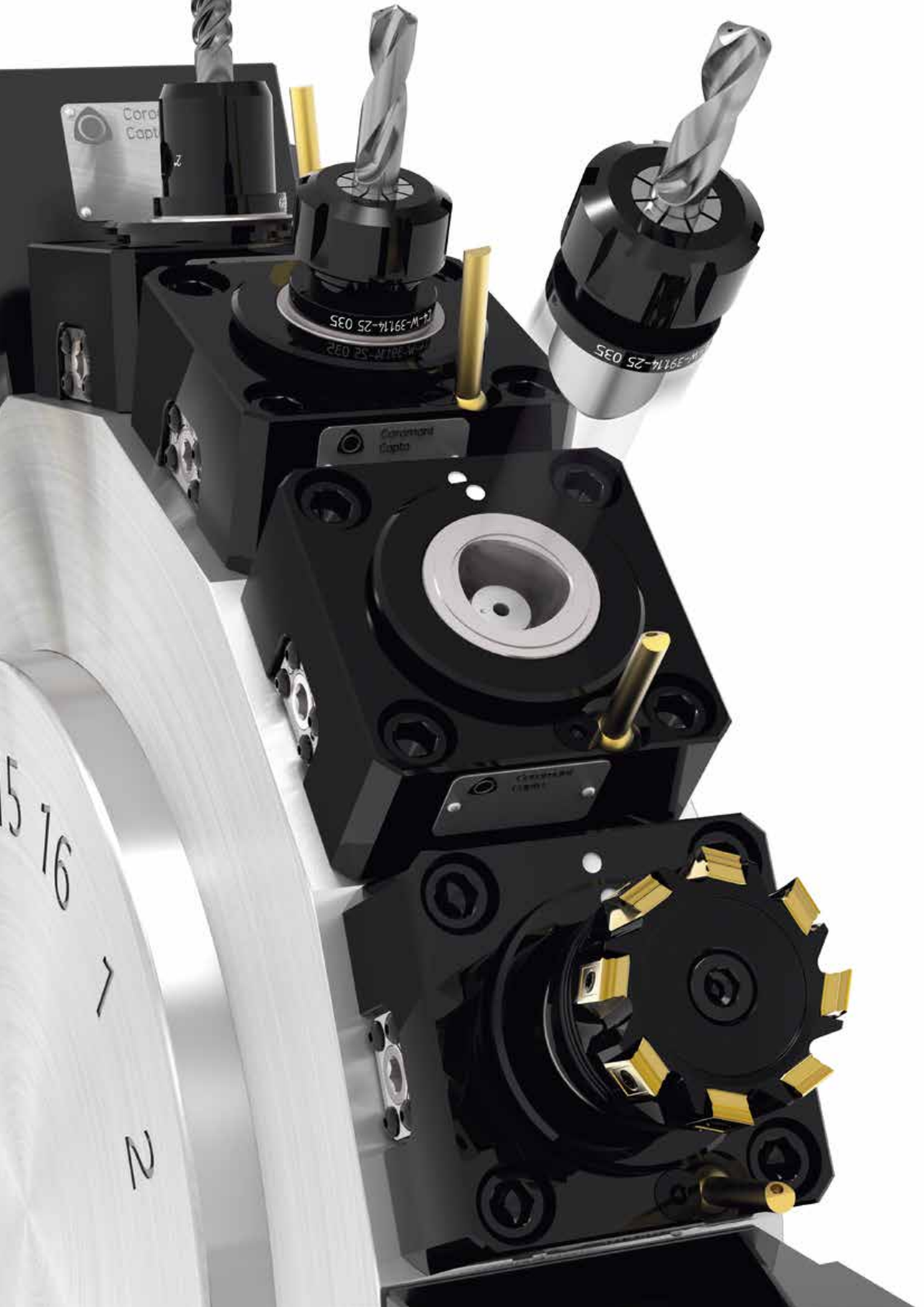

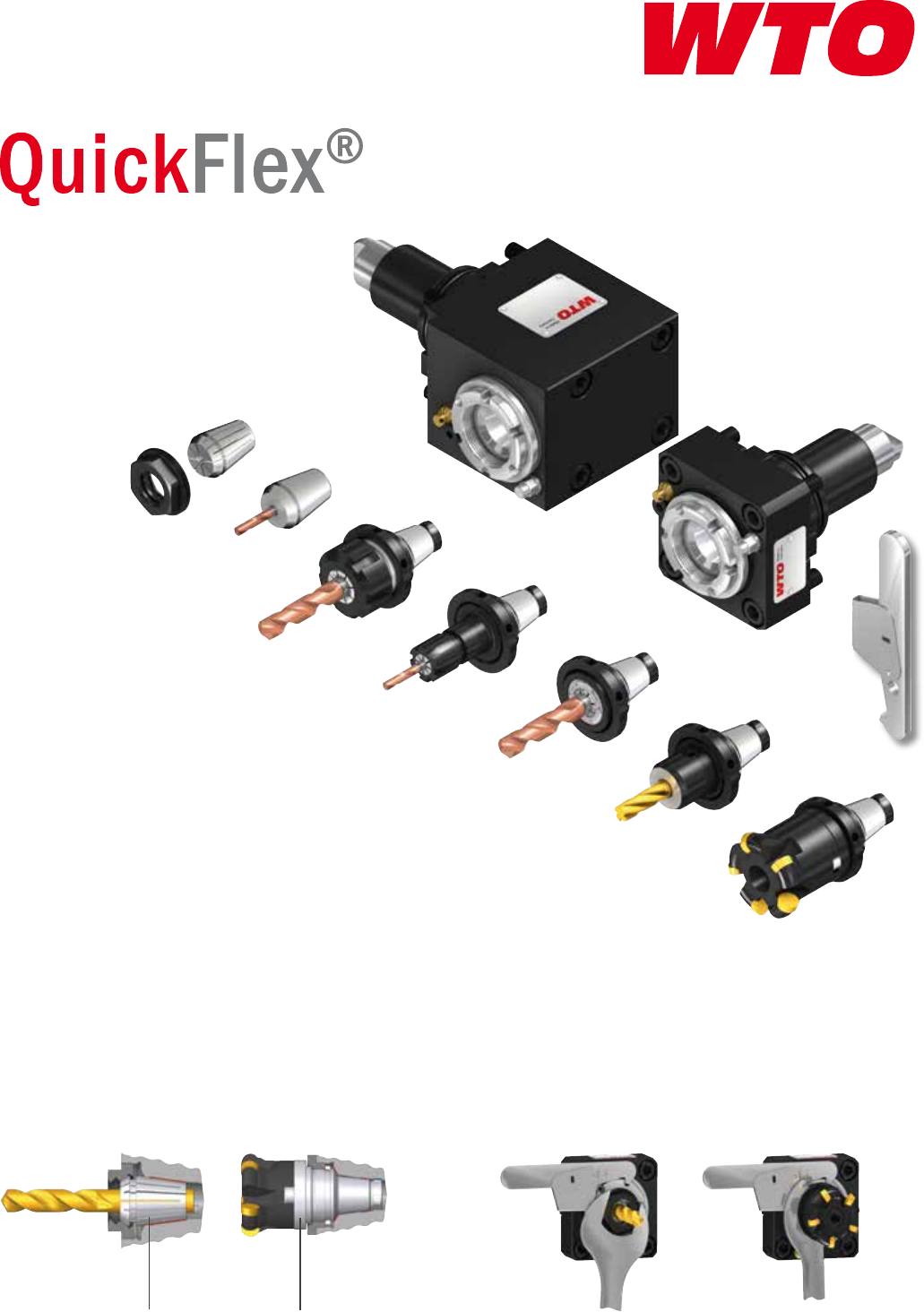

The perfect combination: ER collet chuck and
quick change system in one driven tool holder
made by WTO.
High run-out accuracy and stability are guaranteed by
two independent taper connections.
Quick and safe tool change with the
patented one-hand wrench.
With ER collet With QuickFlex®
mill arbor adapter

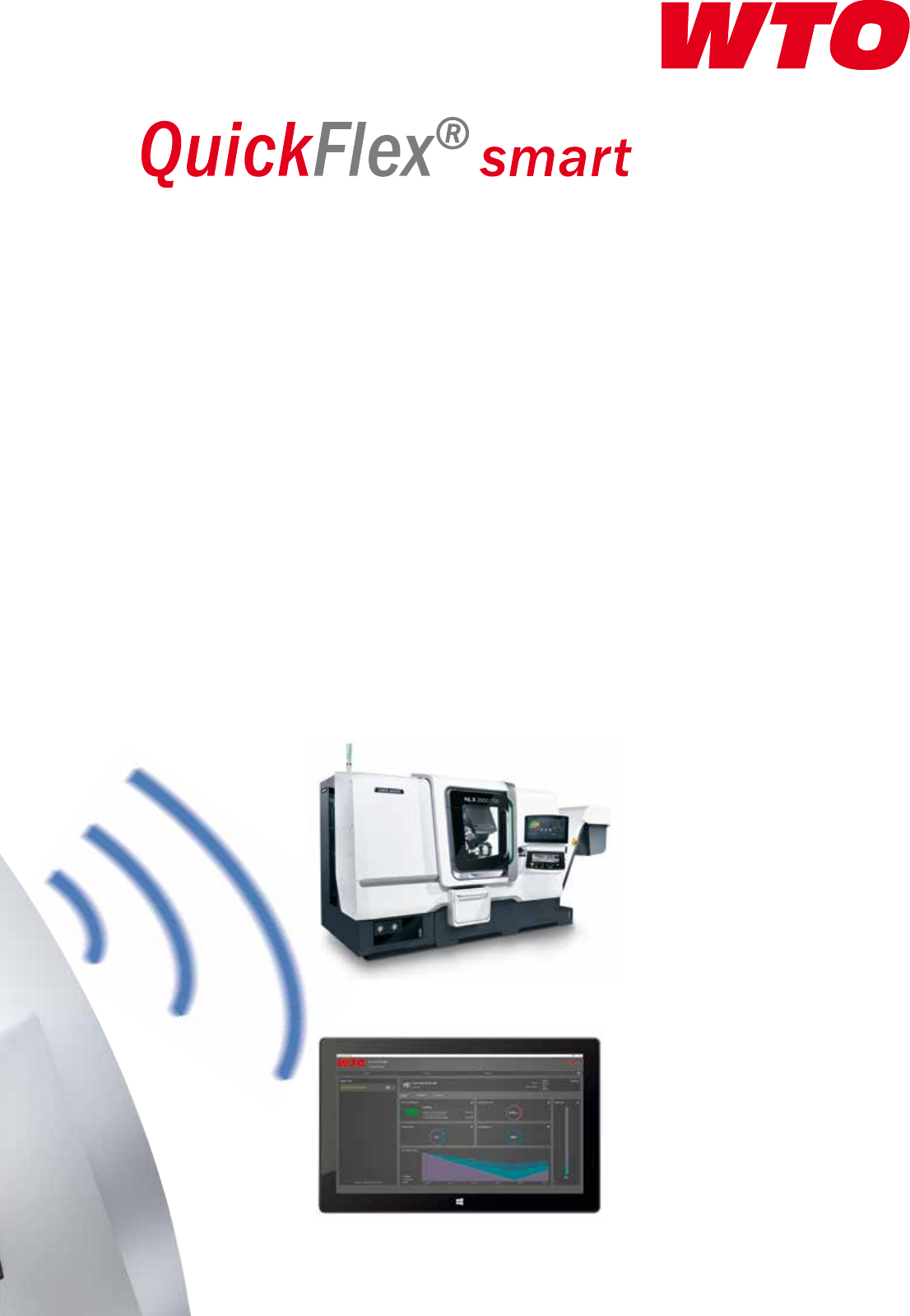

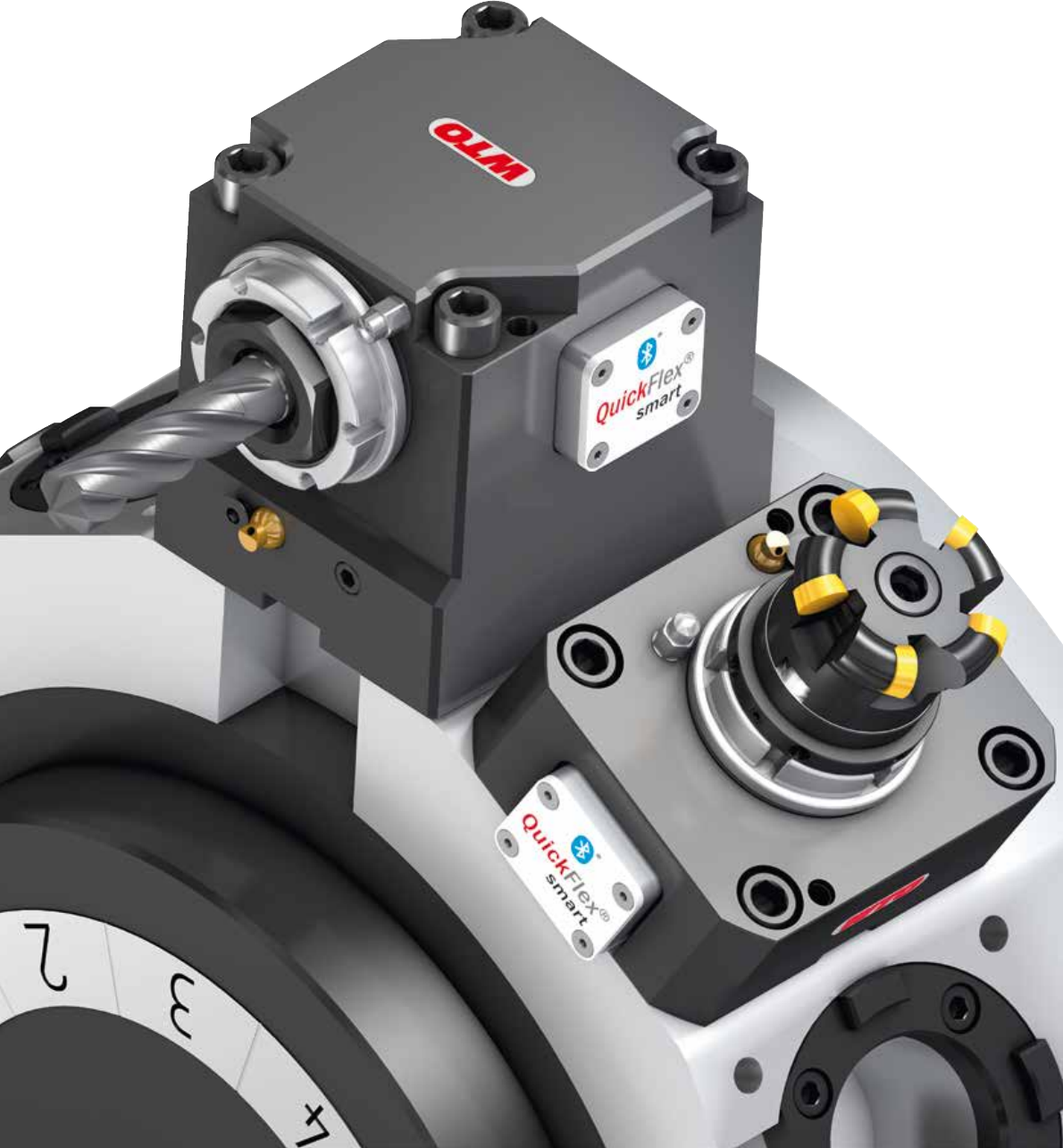

The New Generation of Smart Driven Tool Holders
with intelligent Condition Monitoring
Integrated wireless electronic sensor/transmitter unit
Secure data transfer with Bluetooth standard BLE 4.2
Monitoring of speed, temperature, vibrations, runtime
Clear status presentation of all assigned driven tool holders
Condition monitoring of the assigned machines
Complete data history of each driven toolholder
True online process monitoring
All relevant data is transmitted live during operation
Permanent monitoring of production parameters
Display of the operating time and remaining time until the service interval
Integrated in the
machine control
Currently available as option in the
latest CELOS version of DMG MORI.
Software for
condition monitoring
Installation requirements
Hardware: PC, Tablet with Bluetooth 4.2
Operating system: Windows 10

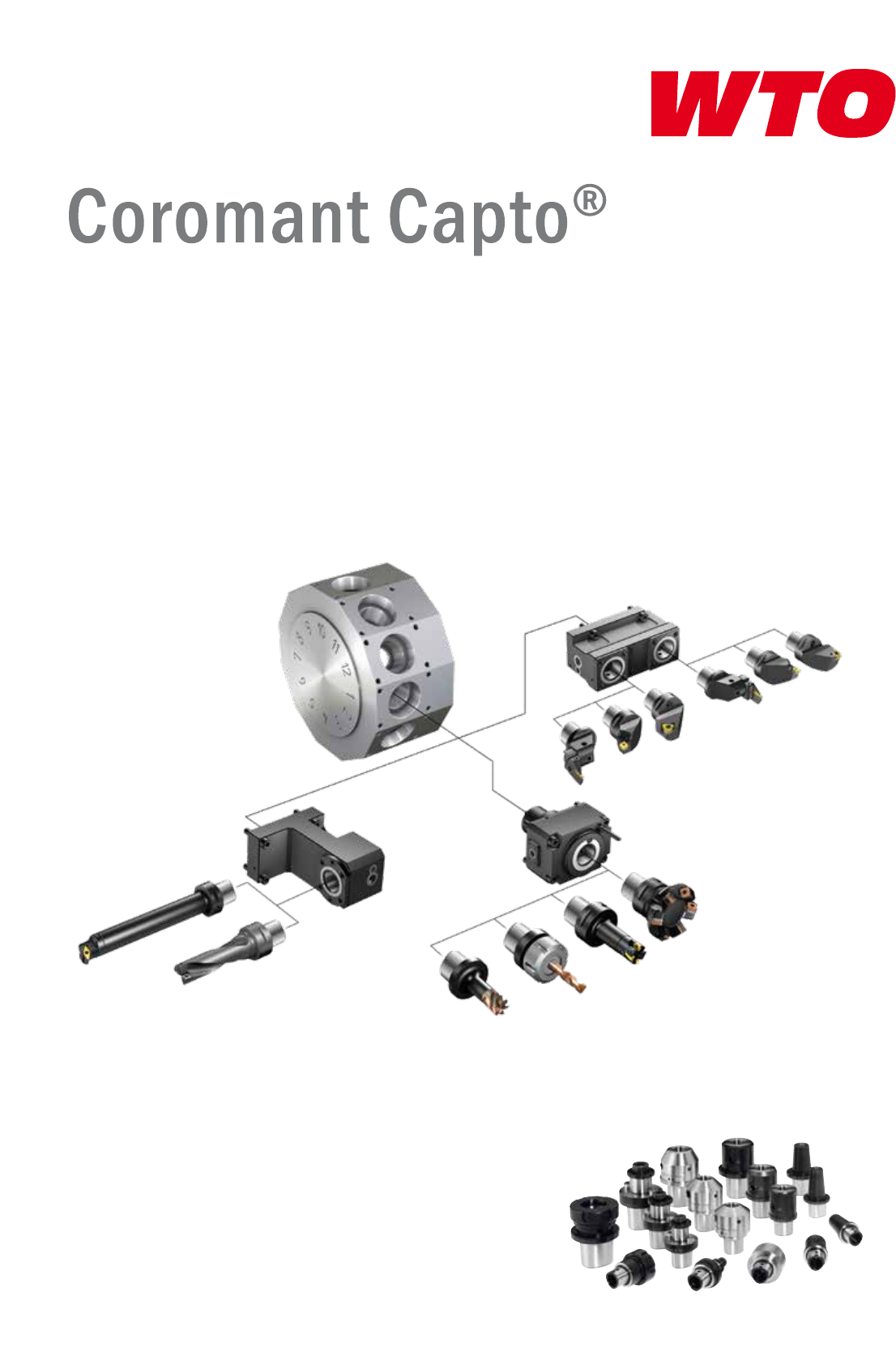

The quick change system from Sandvik Coro-
mant for fastest tool setup time. Faster return
on investment.
Coromant Capto® is a modular quick change
system certified according to ISO 26623.
It combines high rigidity with high flexibility
in one system.
Short adapters
available from WTO
For precision driven tool holders with Coromant Capto
®
the use of short adapters with no gripper groove
lead to significant advantages: More available cut-
ting tool length, higher accuracy and higher stability.
The globally available quick change system
for turning centers is universally applicable
for turning, drilling and milling.
High investment security through ISO standard.
Sales worldwide via Sandvik Coromant.

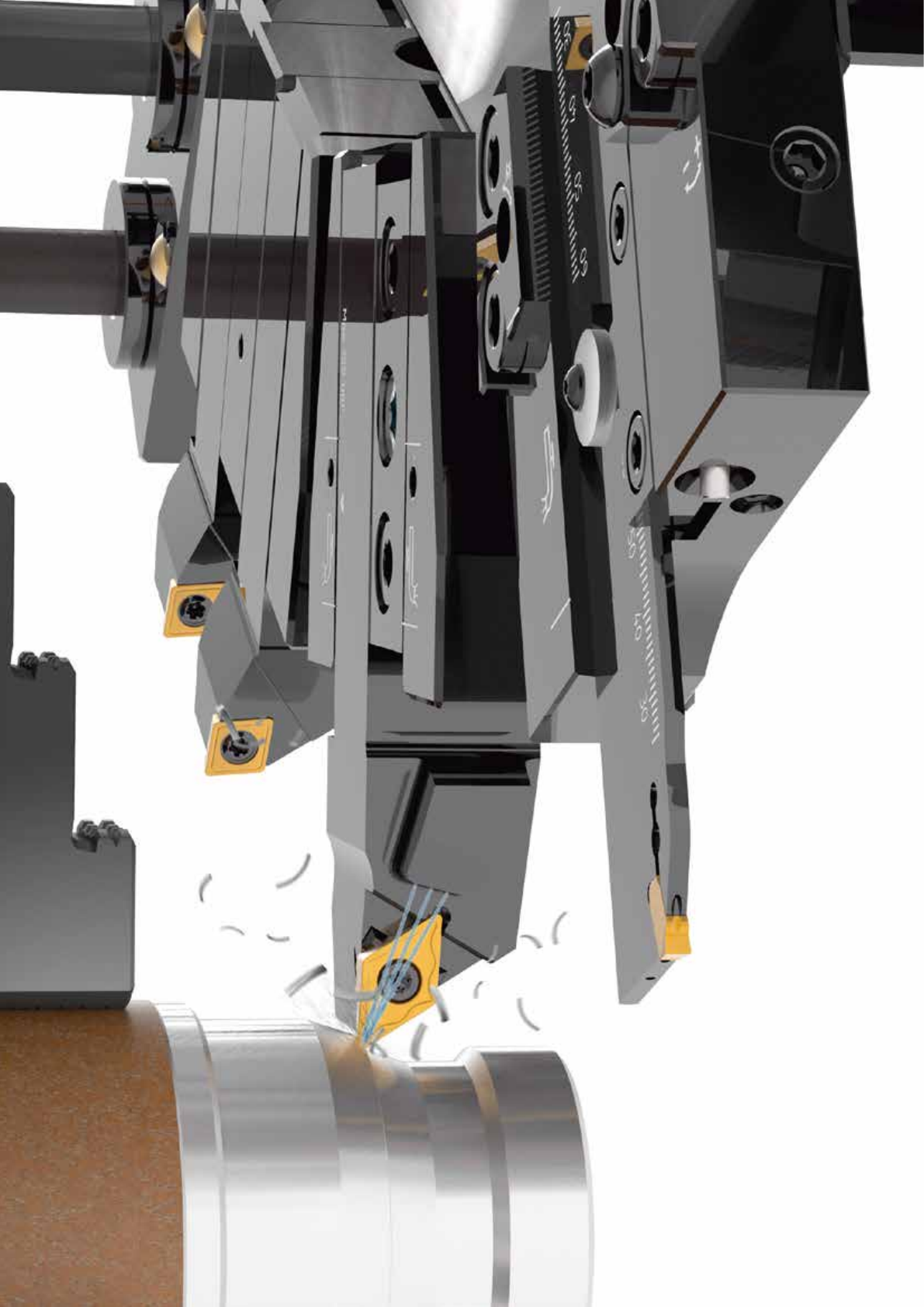

The new generation of shank and blade tool holders with internal
coolant supply through the tool shank: for increasing cutting tool
life and cutting feed rate with fast tool set-up time.
Precision Static
Tool Holders
Precision Static Tool Holders from WTO are individually
designed for each turning center and manufactured
with the highest precision so that you are able to use
the full capacity of your machine.
Internal coolant supply
for highest productivity

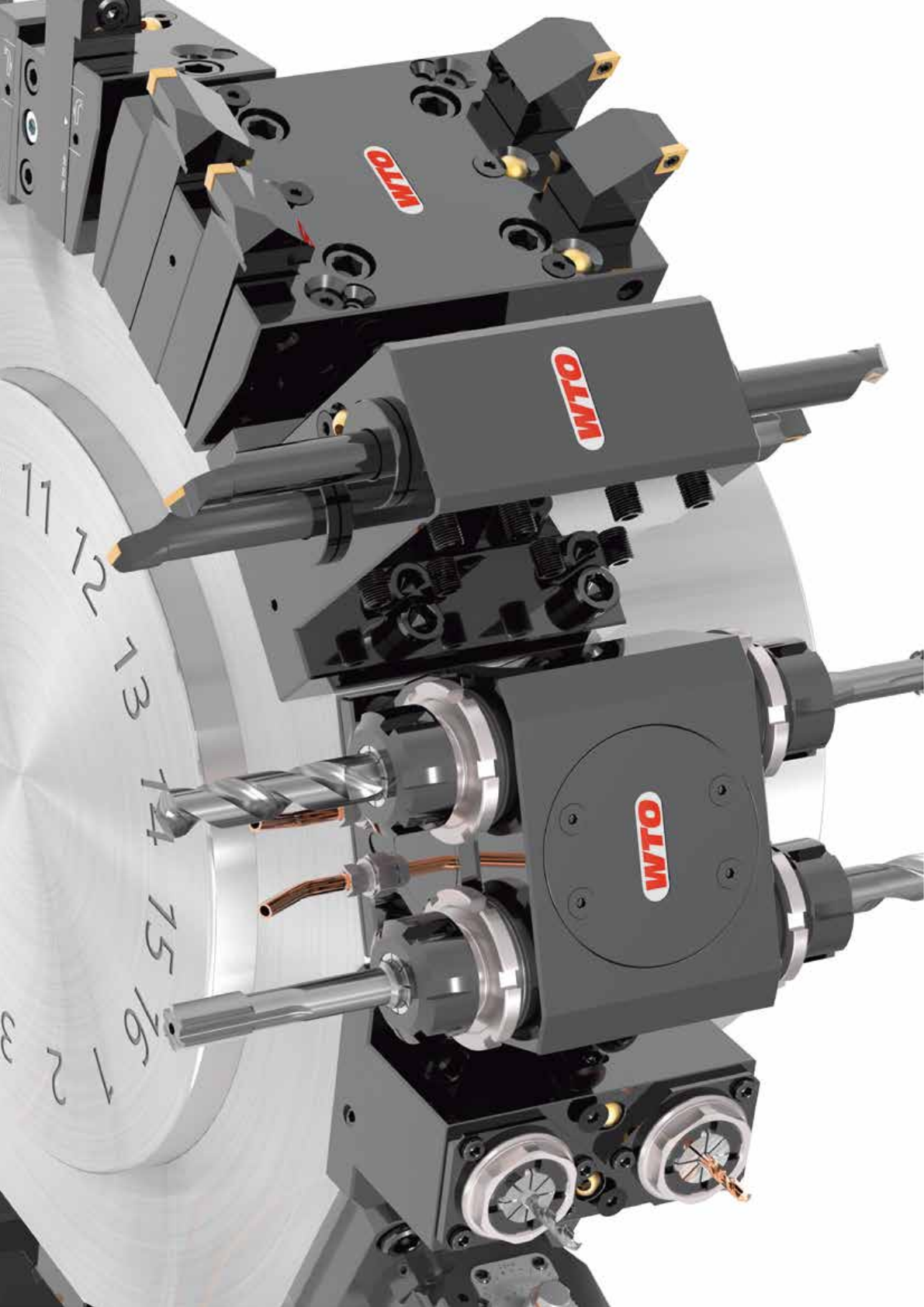

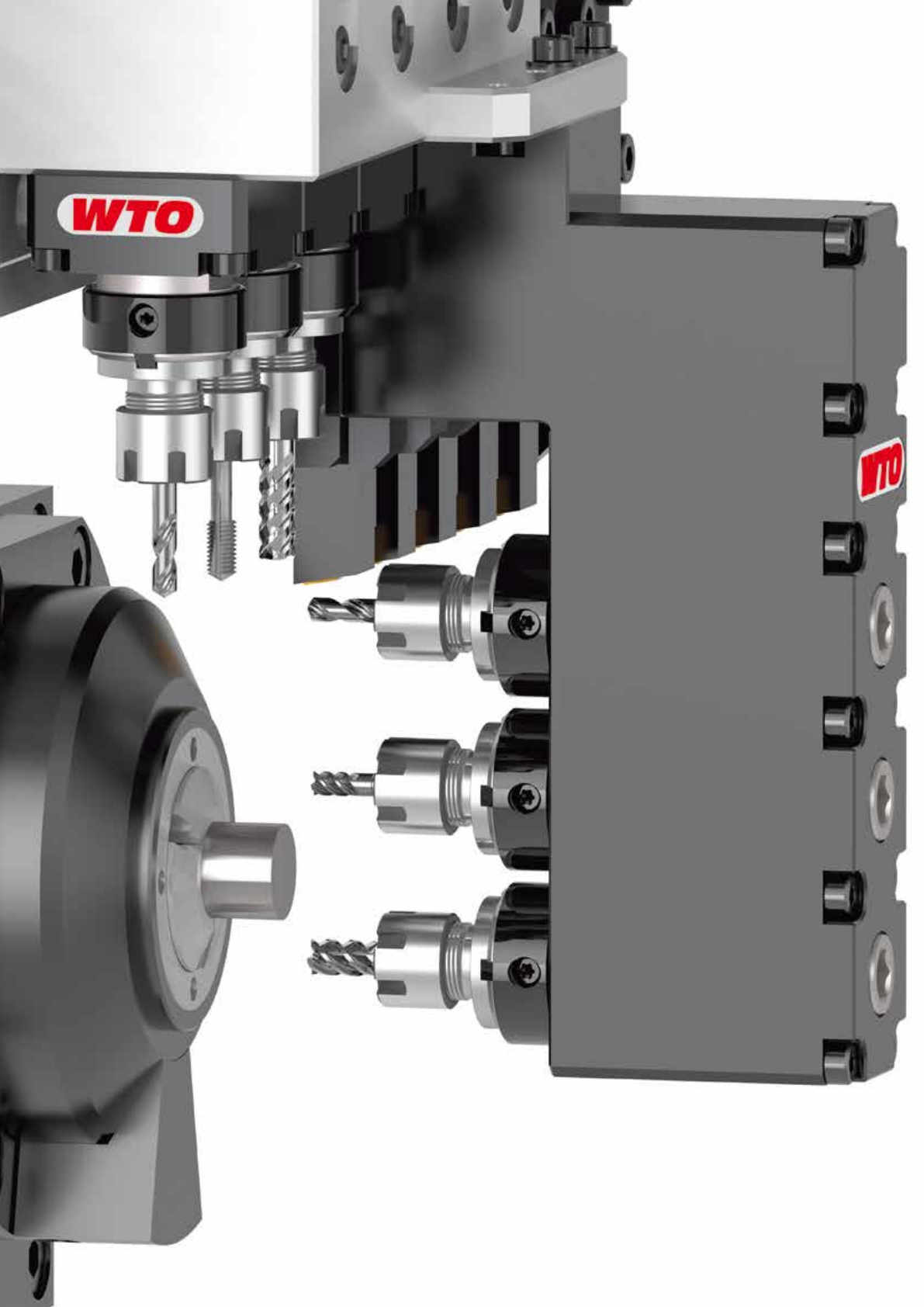

Multiple Tool Holders from WTO to multiply the
available tools on turning centers with Y axis.
The enhancement of available cutting tools
allows the production of a more complex and
more comprehensive range of work pieces
without changing the machine set-up.
Multiple Tool Holders
Spindle with infinitely variable
adjustable angle range from 0-195°
Fine adjustment for accurate
angular adjustment of ±0.1°
Scaling and vernier for
precise angle adjustment
Clamping of
angular position
Internal coolant supply through the
spindle with max. 80 bar/1160 PSI
Through various gear ratios and internal high pressure coolant
supply up to 80 bar/1160 PSI, drilling and milling cycles can be
optimized for higher productivity of your machine.
Adjustable
Angle Units

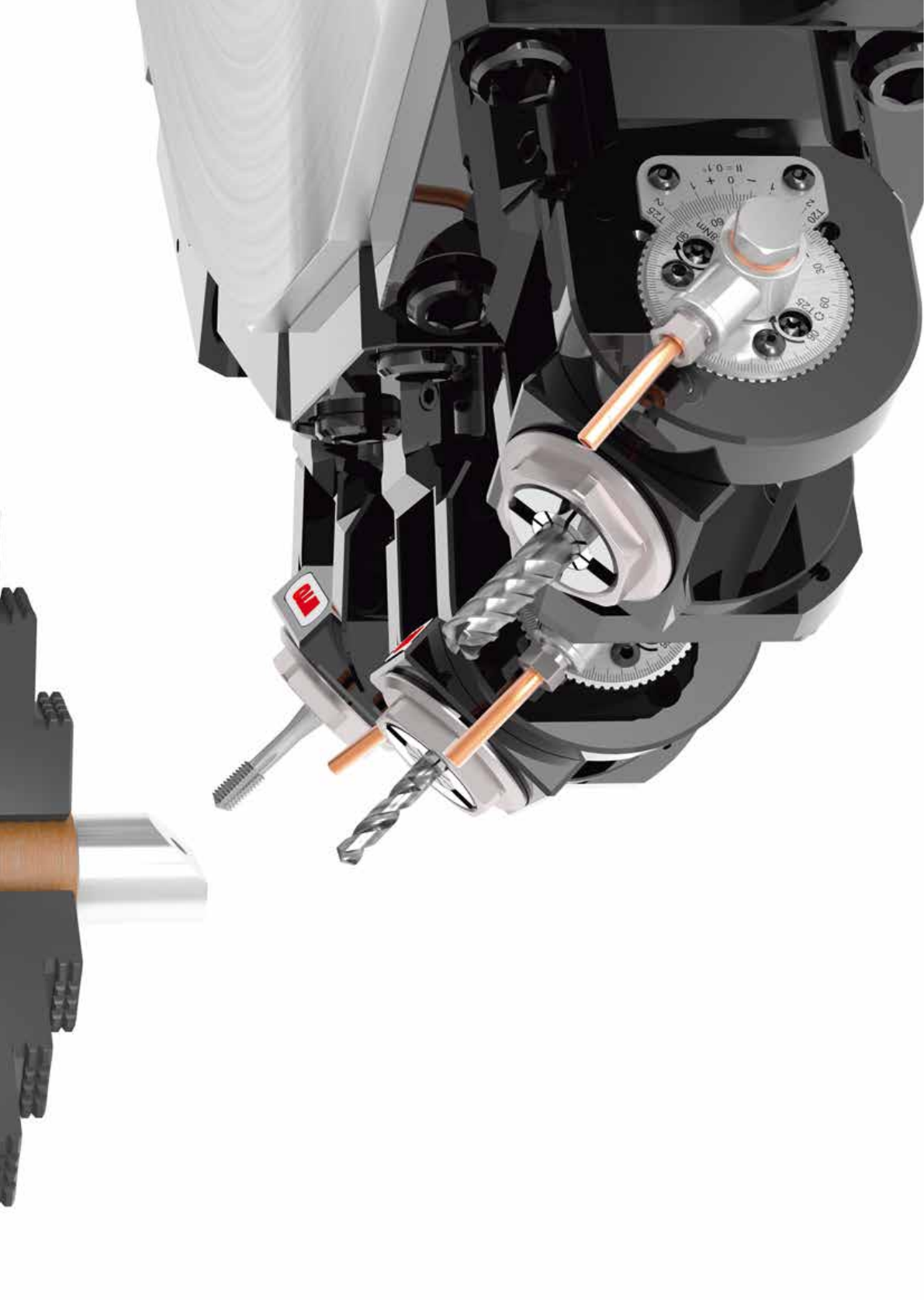

The WTO high precision Adjustable Angle Drill-Milling Units enable
the complete machining at any angle on CNC Turning Centers.
Same insert holder for ID and OD broaching
by rotating 180 degrees.
1
Position insert on Z
2
Cutter drives
into workpiece
4
Lift-off function
prevents wear/
breakage when
cutter retracts
3
Cutter lifts
from workpiece
Broaching Unit
The automatic Broaching Unit from WTO for economic
manufacturing of oriented keyways and splines with
up to 1,000 strokes per minutes and max. 10 mm
groove width.
min. 1.5 max. 32
min. 1.5 max. 32
Interchangeable milling arbor
available in different sizes
Easy cutting tool change through
removable counter support and withdrawal
of the complete milling arbor
Maximum scale swing of ±30°
with scale and vernier

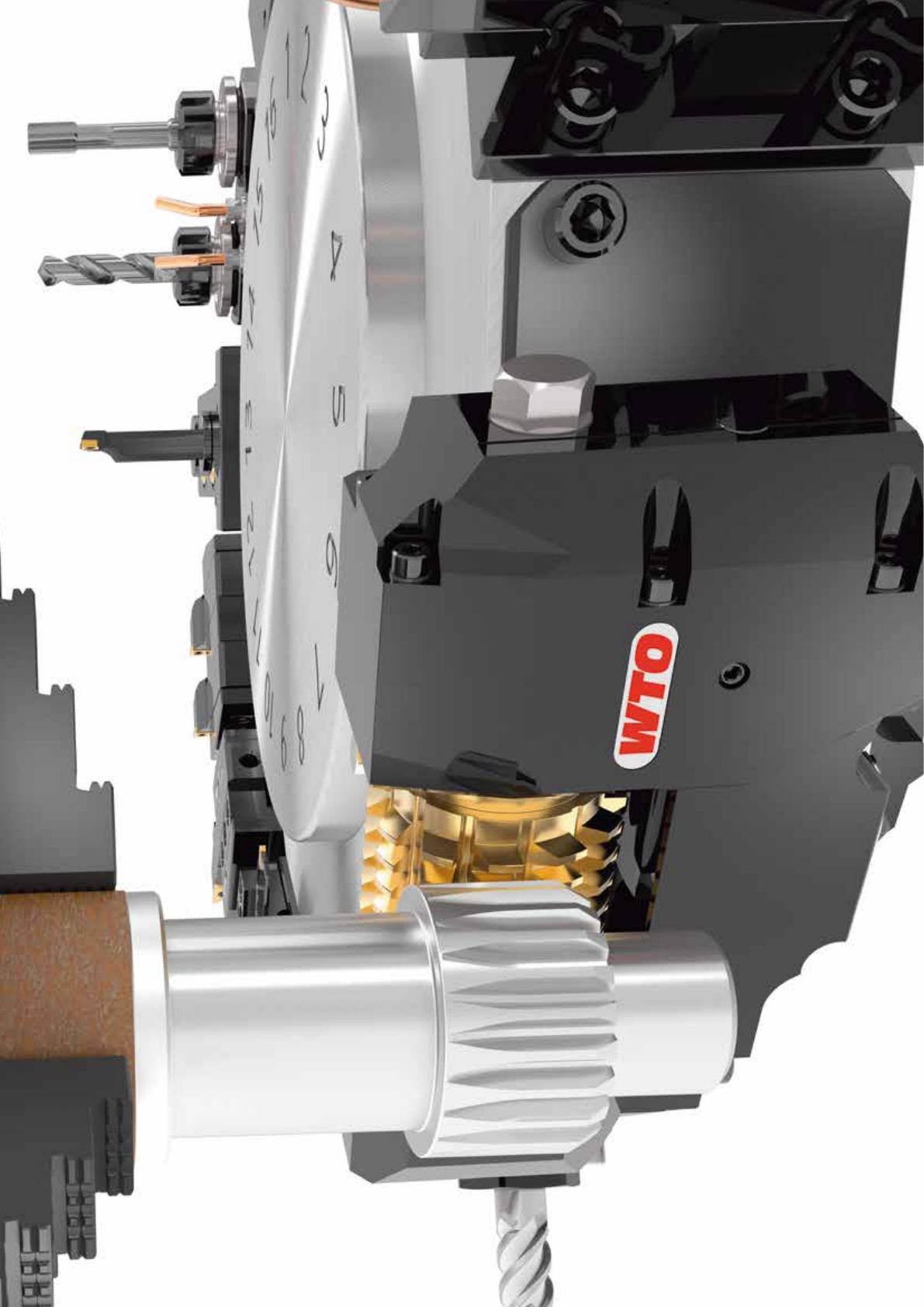

Gear Hobbing Unit
Highly productive manufacturing of
gears with CNC Turning Centers.
The Gear Hobbing Unit from WTO offers
high stiffness and runout accuracy.
High versatility due to interchangeable
milling arbors for different cutting tools.
Usable for machining gear quality
according to standard 8 ISO 1328,
AGMA 8

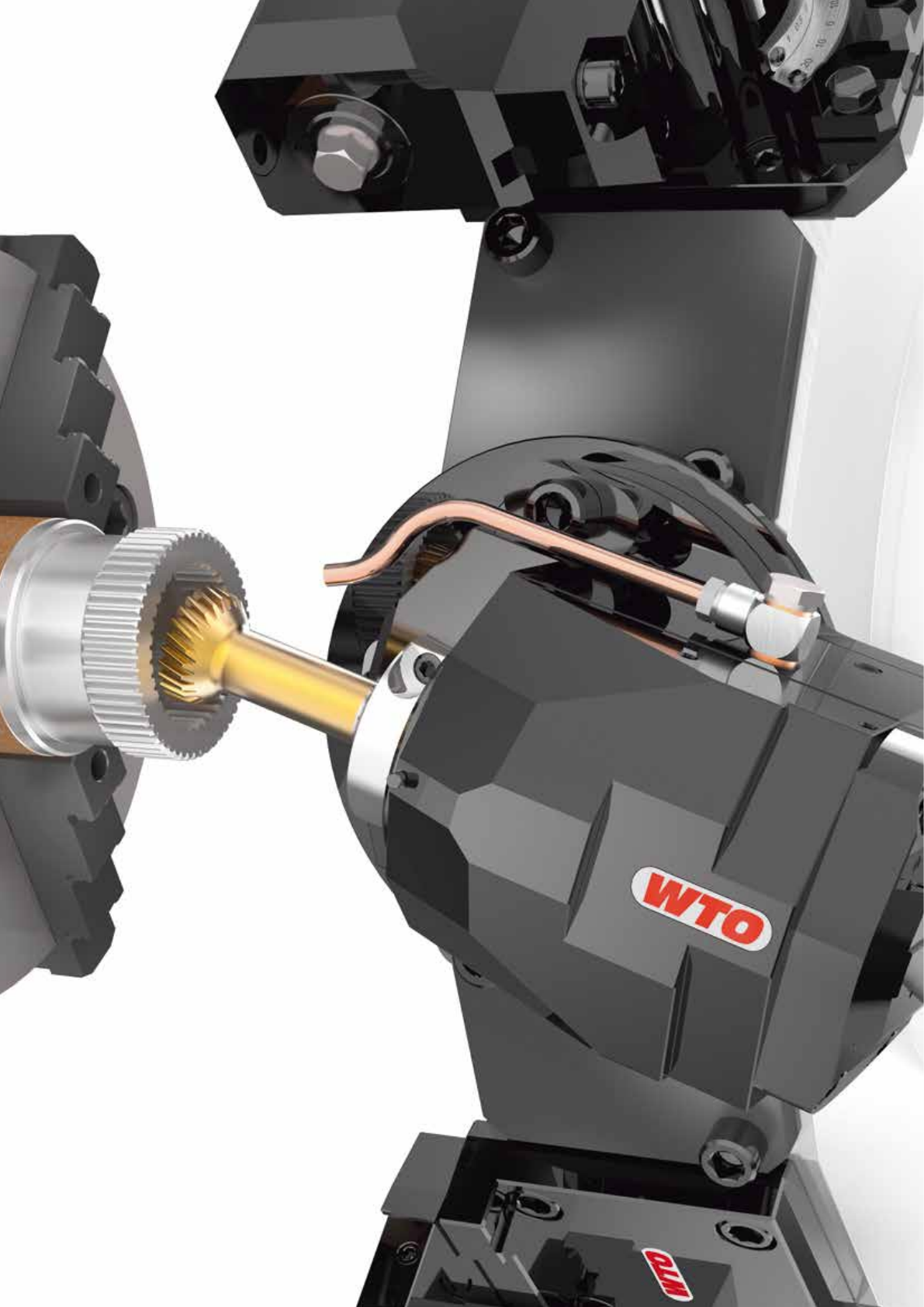

Highly productive gear machining: Skiving of
ID and OD splines on CNC Turning Centers.
The WTO Power Skiving Unit offers high stiffness and
runout accuracy. The hydro chuck spindle enables an
accurate and quick cutting tool change.
Power Skiving Unit
Tool clamping dia. Ø16 (Ø20)
Internal coolant supply (option)
Hydro chuck for
minimal runout
External
coolant supply
Clamping of angular position
Maximum angular
adjustment ±45°
with vernier scale
Cylindrical shaft
DIN1835A
Sine bar for high
accuracy angular
adjustment
nanoFlex®
The perfect combination: ER collet chuck and
modular quick change system in one tool holder.
Regular tool clamping
using ER collet.
Quick change using
nanoFlex® adapter.
Large product range for
Swiss Type Turning Centers
Besides the standard versions we are offering
application specific driven tool holders to increase
the productivity of your Swiss Type turning center:
Thread whirling units, gear hobbing units, adjustable angle drill/milling units, high speed drill/milling units,
deep hole drilling units up to 200 bar/2900 PSI coolant pressure and slitting saw units.
mini
Affordable evolutionary high rotation speeds up to
75,000 RPM. Applications: Milling, Drilling, Grinding,
Chamfering and Engraving.
Max. RPM 75,000
Supports tool shanks Ø 3 mm, 4 mm, 6 mm
Driven by Coolant, oil, air
Coolant pressure 10-60 bar (145-870 PSI)

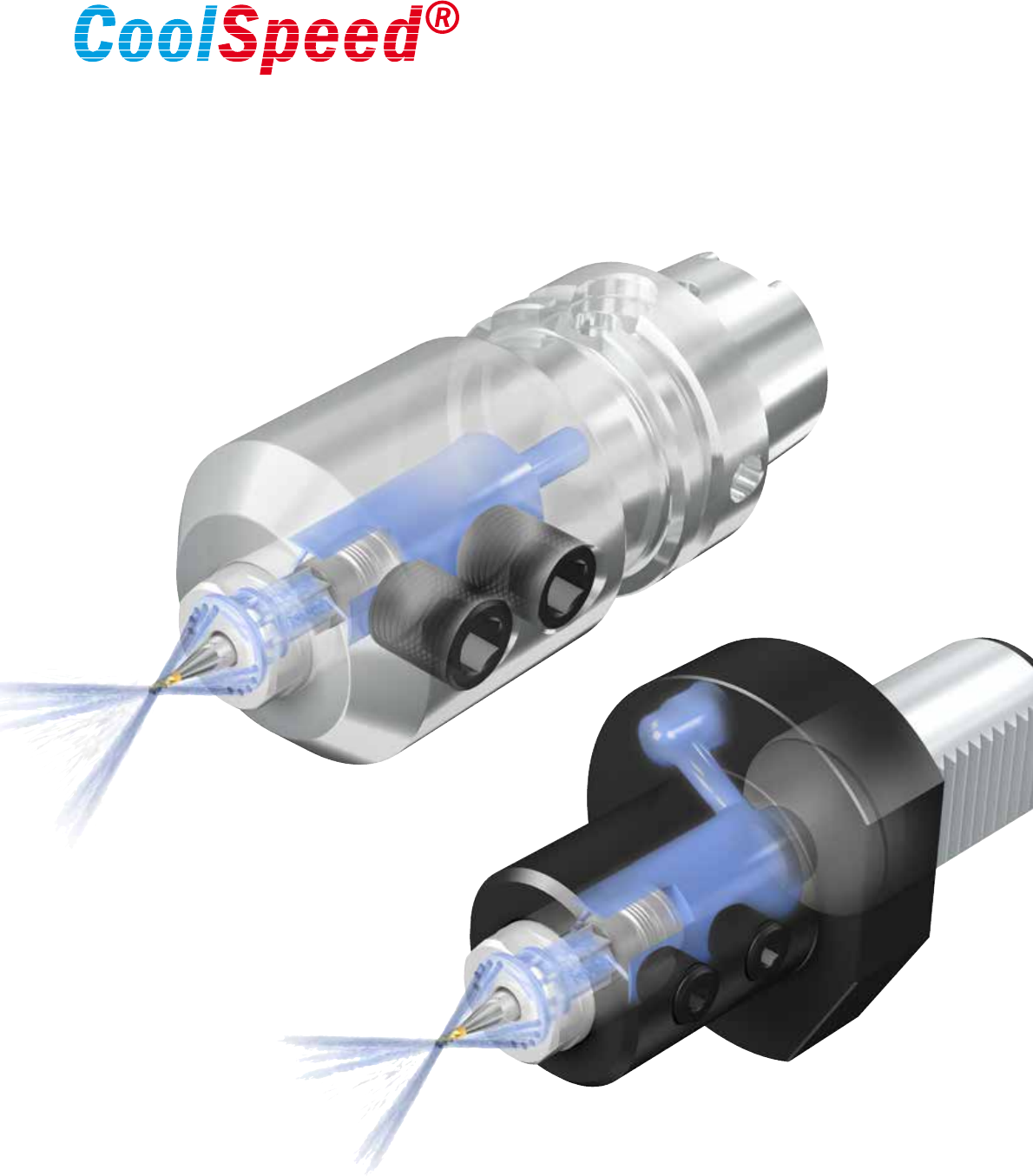

for CoolSpeed® mini (EX)
Air pressure 3-7 bar (44-101 PSI)
for CoolSpeed® mini Air
Rotation Speed
[krpm]
mini (EX) mini Air
Rotation Speed/Air Pressure
Air Pressure [bar]
Rotation Speed
[krpm]
Rotation Speed/Coolant Pressure
Coolant Pressure [bar]
Working Area
CoolSpeed® mini CoolSpeed® mini Air
CoolSpeed® mini (EX)
CoolSpeed® mini 90 CoolSpeed® mini Air 90
Set
(2 bearings, 1 turbine)
Assembly Device
