Coromant Capto®
Short Adapter
The quick change system for reduced
setup and production time.
Faster return on investment.
2

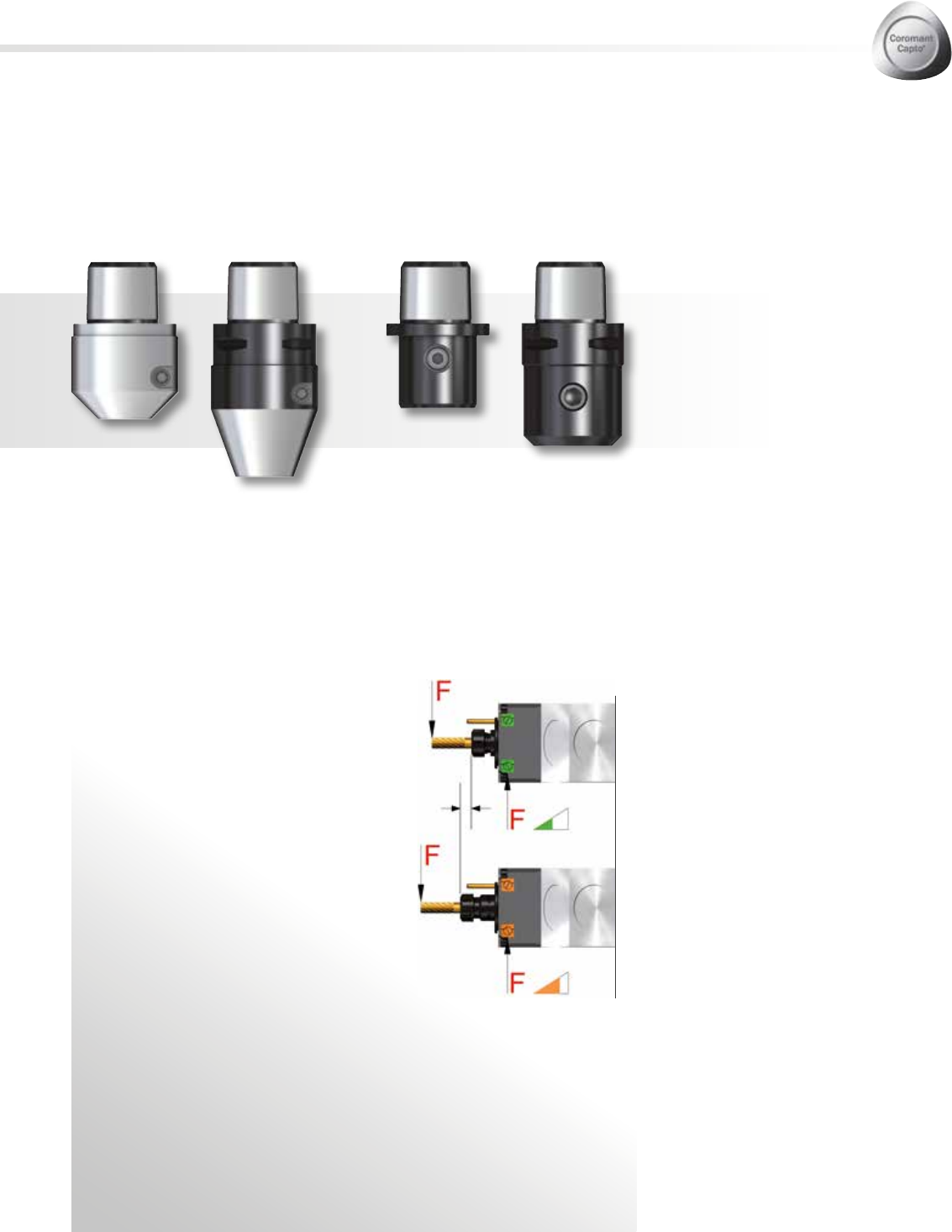

Short Adapter
Short Adapter
More available cutting tool length
Short toolholder projection with no gripper groove
Higher accuracy
Smaller run-out error through reduced
projection length
3
© WTO GmbH I Subject to change without notice
Higher stability
Lower vibrations through reduced tool projection length
Longer lifetime
Lower load on the bearings through shorter torsion
Interface ISO 26623.
The short Coromant Capto® adapters are designed
for driven precision toolholders providing significant
advantages.
Short adapter for segment clamping only.
Cannot be used in basic holders, extensions,
or reductions.
Not for automatic tool change (ATC).
4© WTO GmbH I Subject to change without notice
Short Adapter

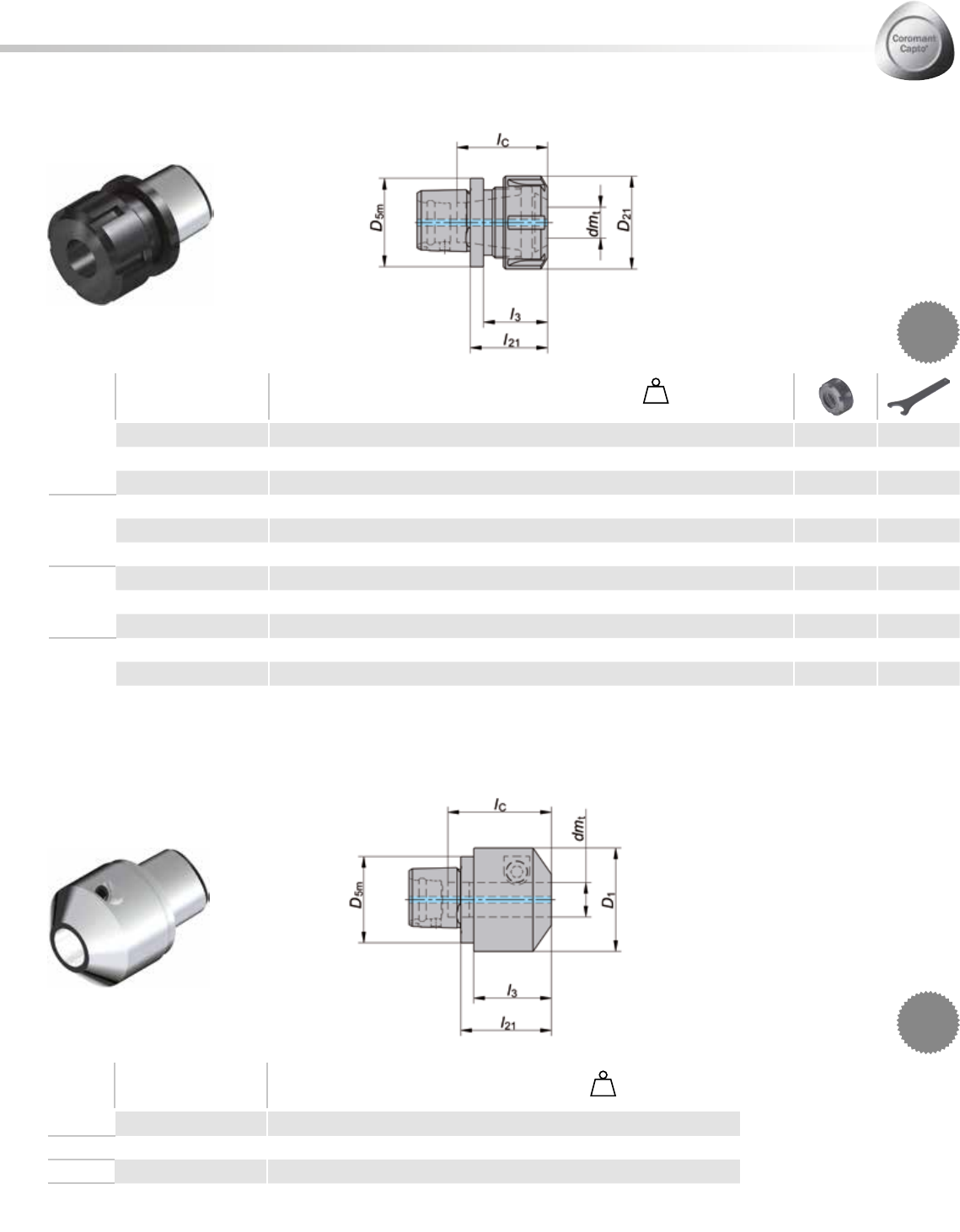

Short collet chuck adapter – without gripper groove
DIN 6499, ISO 15488
Coupling
Size
Item No. D5m dmt
min
dmt
max
D21 ICI3I21 Nm1Collet
Size
C3 C3-W-391.14-16 030 1.260 0.020 0.394 1.102 1.280 0.945 1.181 0.12 56 ER 16 200016000 107516000
C3-W-391.14-20 035 1.260 0.039 0.512 1.339 1.496 1.142 1.378 0.15 80 ER 20 200020000 107520000
C3-W-391.14-25 044 1.260 0.039 0.630 1.654 1.614 1.732 0.25 104 ER 25 200025000 107525000
C4 C4-W-391.14-20 032 1.575 0.039 0.512 1.339 1.496 1.024 1.260 0.20 80 ER 20 200020000 107520000
C4-W-391.14-25 035 1.575 0.039 0.630 1.654 1.614 1.142 1.378 0.25 104 ER 25 200025000 107525000
C4-W-391.14-32 052 1.575 0.079 0.787 1.969 1.850 2.047 0.43 136 ER 32 200032000 107532000
C5 C5-W-391.14-25 034 1.969 0.039 0.630 1.654 1.614 1.102 1.339 0.35 104 ER 25 200025000 107525000
C5-W-391.14-32 041 1.969 0.079 0.787 1.969 1.850 1.378 1.614 0.42 136 ER 32 200032000 107532000
C5-W-391.14-40 058 1.969 0.079 1.024 2.480 2.087 2.283 0.76 176 ER 40 200040000 107540000
C6 C6-W-391.14-32 042 2.480 0.079 0.787 1.969 1.850 1.339 1.654 0.64 136 ER 32 200032000 107532000
C6-W-391.14-40 048 2.480 0.079 1.024 2.480 2.087 1.575 1.890 0.79 176 ER 40 200040000 107540000
kg
inch
dimensions
mm
dimensions
1 Max. allowed tightening torque, Nm
Dimensions, inch
Note:
Without adjustment
screw.

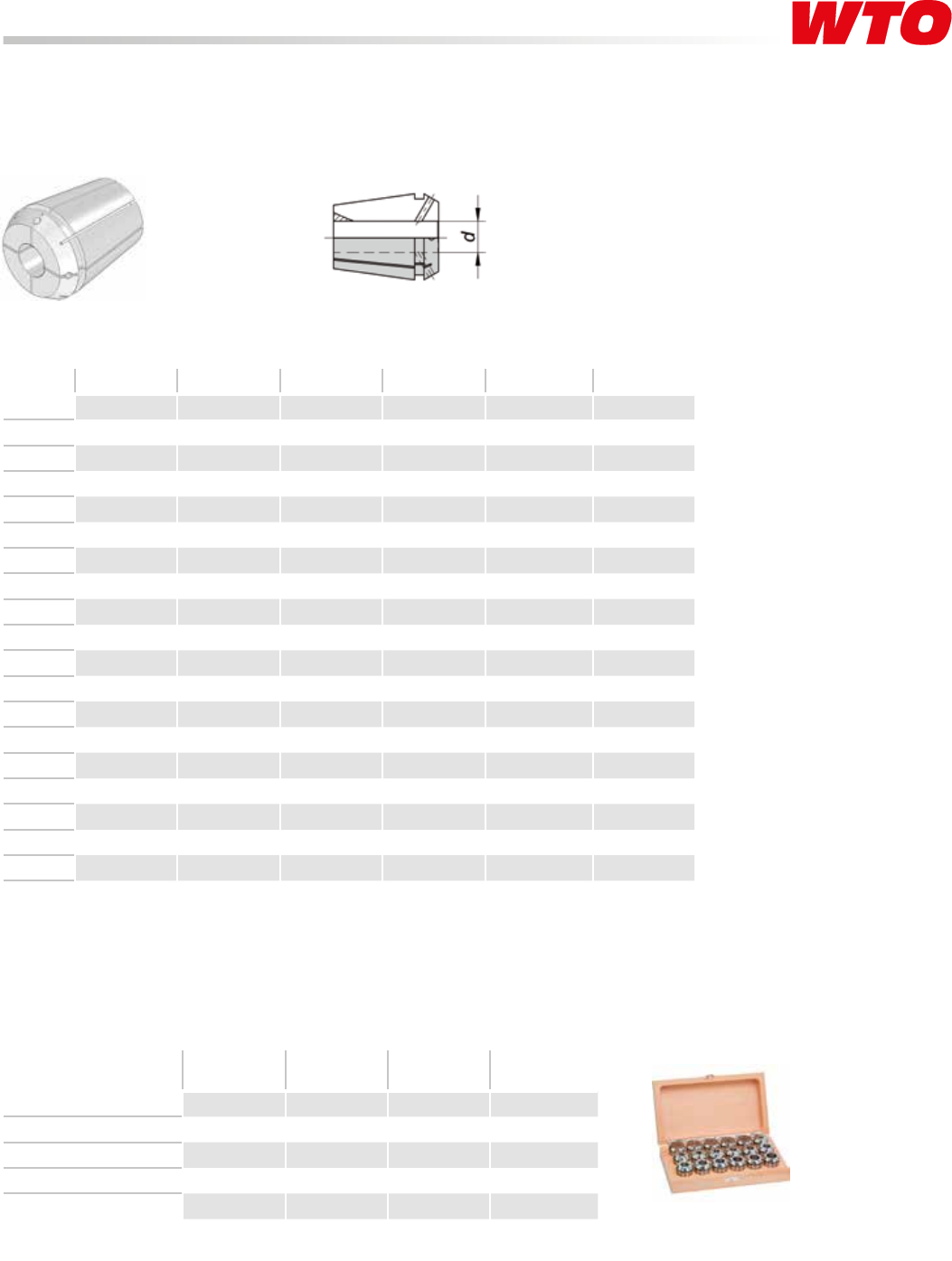

Available collets in
accessories section.
Short hydro high precision chuck adapter – without gripper groove
Coupling
Size
Item No. D5m dmt D1ICI3I21 kg
Nm1Collet
Size
C3 C3-W-391.CGC-12 042 32 12 43.5 45 36 42 0.4 56 12
C4 C4-W-391.CGC-16 042 40 16 48 48 36 42 0.5 80 16
C5 C4-W-391.CGC-16 042 50 20 52 53 40 46 0.7 104 20
C6 C6-W-391.CGC-25 050 63 25 59 58 44 50 1.1 136 25
Dimensions, mm
5
kg
kg
© WTO GmbH I Subject to change without notice
Short Adapter

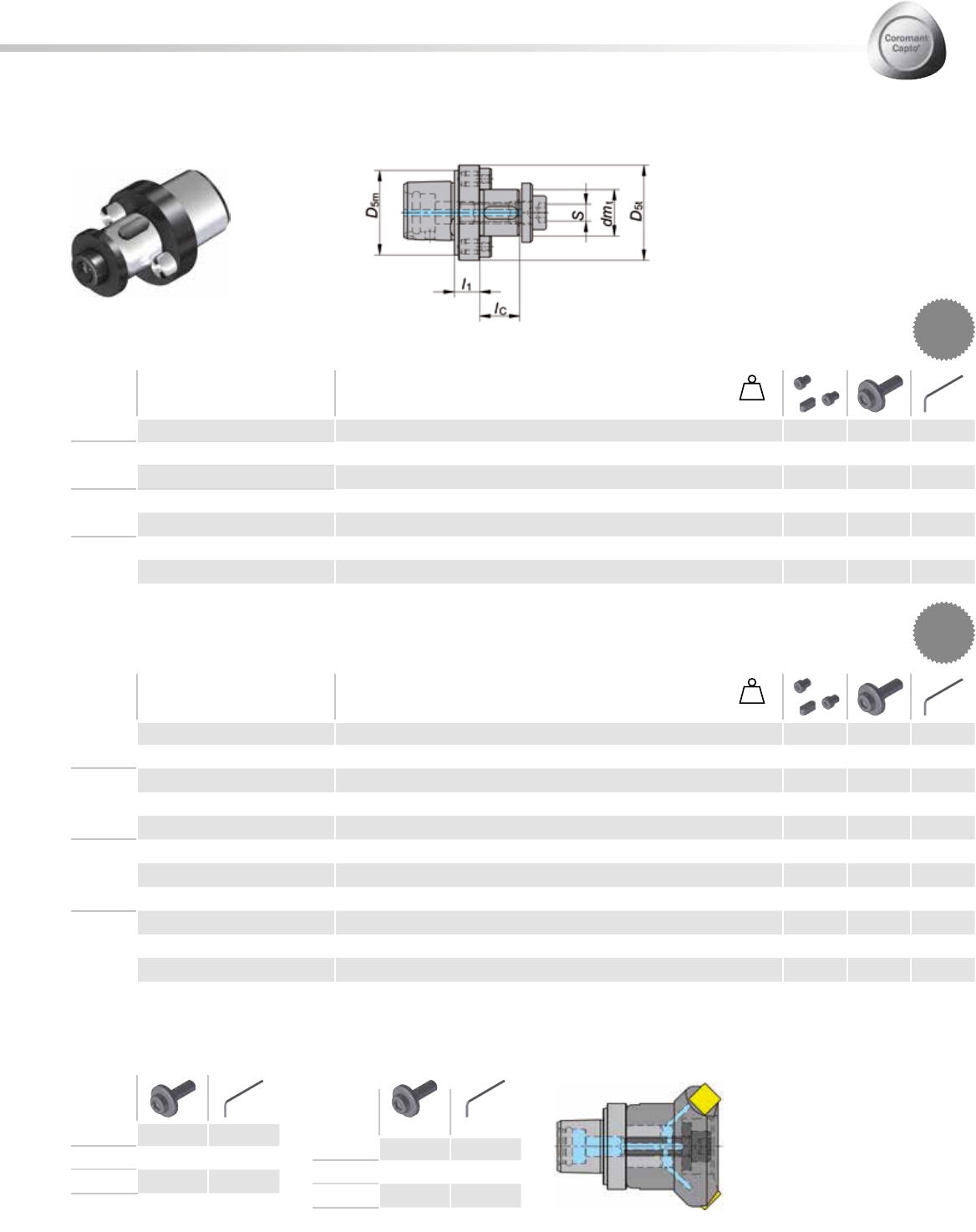

Short combination mill adapter – without gripper groove
For side mills, face mills, or disk cutters
Coupling
Size
Item No. D5m dmt D5t ICI1S
C3 C3-W-A391.05-19 016 1.260 0.75 1.575 0.709 0.630 0.25 0.22 84809 84813 84847
C4 C4-W-A391.05-19 010 1.575 0.75 1.575 0.709 0.394 0.25 0.24 84809 84813 84847
C4-W-A391.05-25 014 1.575 11.969 0.709 0.551 0.313 0.40 84810 84814 26076
C5 C5-W-A391.05-25 012 1.969 11.969 0.709 0.472 0.313 0.46 84810 84814 26076
C5-W-A391.05-31 015 1.969 1.25 2.480 0.709 0.591 0.313 0.71 84811 84815 26076
C6 C6-W-A391.05-25 011 2.480 12.480 0.709 0.433 0.313 0.66 84810 84814 26076
C6-W-A391.05-31 013 2.480 1.25 2.480 0.709 0.512 0.313 0.82 84811 84815 26076
Coupling
Size
Item No. D5m dmt D5t ICI1S
C3 C3-W-391.05-16 015 32 16 36 17 15 60.18 84130 84903 26075
C3-W-391.05-22 019 32 22 45 19 19 80.31 84131 84904 26076
C4 C4-W-391.05-16 010 40 16 40 17 10 60.21 84130 84903 26075
C4-W-391.05-22 012 40 22 45 19 12 80.31 84131 84904 26076
C4-W-391.05-27 014 40 27 50 21 14 10 0.42 84132 84905 26077
C5 C5-W-391.05-22 012 50 22 50 19 12 80.42 84131 84904 26076
C5-W-391.05-27 012 50 27 50 21 12 10 0.49 84132 84905 26077
C5-W-391.05-32 018 50 32 63 24 18 14 0.79 84133 84906 26078
C6 C6-W-391.05-22 010 63 22 63 19 10 80.60 84131 84904 26076
C6-W-391.05-27 011 63 27 63 21 11 10 0.70 84132 84905 26077
C6-W-391.05-32 016 63 32 63 24 16 14 0.90 84133 84906 26078
Arbor
Size
0.75 84849 26076
184850 84848
1.25 84851 85128
Arbor
Size
16 84841 26075
22 84842 26076
27 84843 26077
32 84844 26078
Note:
Universal design: key and
drivers can be removed.
Delivery with the arbor clamping bolt without hole for coolant supply.
Arbor clamping bolt with coolant hole for internal coolant supply
inch
dimensions
mm
dimensions
Dimensions, inch
Dimensions, inch
Dimensions, mm
Dimensions, mm
6
kg
© WTO GmbH I Subject to change without notice
Short Adapter
Short Weldon/Whistle Notch shank adapter – without gripper groove
For tool shanks according to DIN 6535-HB and -HE
Coupling
Size
Item No. D5m dmt D1I1ICI3I21
C3 C3-W-A391.22-06 033 1.260 0.25 0.748 0.591 1.417 1.063 1.299 0.12 84754 85127
C3-W-A391.22-07 033 1.260 0.312 0.827 0.591 1.417 1.063 1.299 0.13 84754 85127
C3-W-A391.22-09 037 1.260 0.375 1.102 0.669 1.575 1.220 1.457 0.19 84755 84845
C3-W-A391.22-12 042 1.260 0.5 1.339 0.768 1.772 1.457 1.654 0.28 84756 84846
C3-W-A391.22-15 051 1.260 0.625 1.614 1.063 1.890 1.654 2.008 0.47 84757 84847
C4 C4-W-A391.22-06 030 1.575 0.25 0.748 0.472 1.417 0.945 1.181 0.18 84754 85127
C4-W-A391.22-07 030 1.575 0.312 0.827 0.472 1.417 0.945 1.181 0.18 84754 85127
C4-W-A391.22-09 034 1.575 0.375 1.102 0.551 1.575 1.102 1.339 0.24 84755 84845
C4-W-A391.22-12 039 1.575 0.5 1.339 0.650 1.772 1.299 1.535 0.32 84756 84846
C4-W-A391.22-15 043 1.575 0.625 1.614 0.748 1.890 1.457 1.693 0.44 84757 84847
C4-W-A391.22-19 045 1.575 0.75 1.772 0.787 2.008 1.575 1.772 0.50 84758 26076
C5 C5-W-A391.22-06 029 1.969 0.25 0.748 0.433 1.417 0.906 1.142 0.28 84754 85127
C5-W-A391.22-07 029 1.969 0.312 0.827 0.433 1.417 0.906 1.142 0.28 84754 85127
C5-W-A391.22-09 033 1.969 0.375 1.102 0.512 1.575 1.063 1.299 0.35 84755 84845
C5-W-A391.22-12 038 1.969 0.5 1.339 0.610 1.772 1.260 1.496 0.42 84756 84846
C5-W-A391.22-15 041 1.969 0.625 1.614 0.669 1.890 1.378 1.614 0.53 84757 84847
C5-W-A391.22-19 044 1.969 0.75 1.772 0.748 2.008 1.496 1.732 0.59 84758 26076
C5-W-A391.22-22 044 1.969 0.875 0.748 1.969 1.732 0.66 84758 26076
C5-W-A391.22-25 050 1.969 12.362 1.024 2.244 1.732 1.969 0.97 84759 84848
C6 C6-W-A391.22-06 030 2.480 0.25 0.748 0.472 1.417 0.866 1.181 0.51 84754 85127
C6-W-A391.22-07 031 2.480 0.312 0.827 0.512 1.417 0.906 1.220 0.52 84754 85127
C6-W-A391.22-09 034 2.480 0.375 1.102 0.551 1.575 1.024 1.339 0.57 84755 84845
C6-W-A391.22-12 037 2.480 0.5 1.339 0.571 1.772 1.142 1.457 0.63 84756 84846
C6-W-A391.22-15 041 2.480 0.625 1.614 0.669 1.890 1.299 1.614 0.74 84757 84847
C6-W-A391.22-19 043 2.480 0.75 1.772 0.709 2.008 1.378 1.693 0.79 84758 26076
C6-W-A391.22-22 043 2.480 0.875 1.969 0.709 1.969 1.378 1.693 0.85 84758 26076
C6-W-A391.22-25 050 2.480 12.362 1.024 2.244 1.654 1.969 1.18 84759 84848
C6-W-A391.22-31 054 2.480 1.25 2.638 1.181 2.402 1.811 2.126 1.34 84759 84848
Note: Without adjustment screw.
inch
dimensions
Dimensions, inch
7
kg
© WTO GmbH I Subject to change without notice
Short Adapter
Short Weldon/Whistle Notch shank adapter – without gripper groove
For tool shanks according to DIN 6535-HB and -HE
Coupling
Size
Item No. D5m dmt D1I1ICI3I21
C3 C3-W-391.22-06 033 32 619 15 36 27 33 0.12 12882 26071
C3-W-391.22-08 033 32 821 15 36 27 33 0.12 12927 26072
C3-W-391.22-10 037 32 10 28 17 40 31 37 0.19 12992 26073
C3-W-391.22-12 042 32 12 34 19.5 45 37 42 0.28 13061 26074
C3-W-391.22-14 043 32 14 36 20.5 45 36 43 0.31 13061 26074
C3-W-391.22-16 051 32 16 38 27 49 44 51 0.39 30944 26075
C4 C4-W-391.22-06 030 40 619 12 36 24 30 0.17 12882 26071
C4-W-391.22-08 030 40 821 12 36 24 30 0.18 12927 26072
C4-W-391.22-10 034 40 10 28 14 40 28 34 0.24 12992 26073
C4-W-391.22-12 039 40 12 34 16.5 45 33 39 0.32 13061 26074
C4-W-391.22-14 039 40 14 36 16.5 45 33 39 0.34 13061 26074
C4-W-391.22-16 043 40 16 38 19 49 37 43 0.38 30944 26075
C4-W-391.22-18 043 40 18 40 19 49 -43 0.40 30944 26075
C4-W-391.22-20 045 40 20 45 20 51 36 45 0.49 106290 26076
C5 C5-W-391.22-06 029 50 619 11 36 23 29 0.28 12882 26071
C5-W-391.22-08 029 50 821 11 36 23 29 0.29 12927 26072
C5-W-391.22-10 033 50 10 28 13 40 27 33 0.34 12992 26073
C5-W-391.22-12 038 50 12 34 15.5 45 32 38 0.42 13061 26074
C5-W-391.22-14 038 50 14 36 15.5 45 32 38 0.44 13061 26074
C5-W-391.22-16 041 50 16 38 17 48 35 41 0.47 30944 26075
C5-W-391.22-18 042 50 18 40 18 49 36 42 0.50 30944 26075
C5-W-391.22-20 044 50 20 45 19 51 38 44 0.58 106290 26076
C5-W-391.22-25 050 50 25 51 26 57 44 50 0.72 13128 26076
C6 C6-W-391.22-06 030 63 619 12 36 22 30 0.51 12882 26071
C6-W-391.22-08 031 63 821 13 36 23 31 0.52 12927 26072
C6-W-391.22-10 034 63 10 28 14 40 26 34 0.57 12992 26073
C6-W-391.22-12 037 63 12 34 14.5 45 29 37 0.63 13061 26074
C6-W-391.22-14 037 63 14 36 14.5 45 29 37 0.64 13061 26074
C6-W-391.22-16 041 63 16 38 17 49 33 41 0.69 30944 26075
C6-W-391.22-18 041 63 18 40 17 49 33 41 0.70 30944 26075
C6-W-391.22-20 043 63 20 45 18 51 35 43 0.77 106290 26076
C6-W-391.22-25 050 63 25 51 26 57 42 50 0.92 13128 26076
C6-W-391.22-32 054 63 32 72 30 61 46 54 1.33 71255 26077
mm
dimensions
Dimensions, mm Note: Without adjustment screw.
8
kg
inch
dimensions
© WTO GmbH I Subject to change without notice
Short Adapter
Coupling
Size
Item No. D5m dmt D21 D22 ICI1I3
C3 C3-W-A391.19-06 048 1.260 0.25 0.965 0.787 1.417 1.890 1.732 0.20
C3-W-A391.19-07 048 1.260 0.312 0.965 0.787 1.417 1.890 1.732 0.19
C3-W-A391.19-09 048 1.260 0.375 1.063 0.886 1.614 1.890 1.732 0.22
C3-W-A391.19-12 048 1.260 0.5 1.063 0.886 1.811 1.890 1.732 0.19
C3-W-A391.19-15 056 1.260 0.625 1.063 1.929 2.205 0.27
C4 C4-W-A391.19-06 049 1.575 0.25 0.965 0.787 1.417 1.929 1.732 0.26
C4-W-A391.19-07 049 1.575 0.312 0.965 0.787 1.417 1.929 1.732 0.26
C4-W-A391.19-09 049 1.575 0.375 1.122 0.945 1.614 1.929 1.732 0.30
C4-W-A391.19-12 049 1.575 0.5 1.122 0.945 1.811 1.929 1.732 0.28
C4-W-A391.19-15 054 1.575 0.625 1.272 1.063 1.929 2.126 1.929 0.33
C5 C5-W-A391.19-06 050 1.969 0.25 0.965 0.787 1.417 1.969 1.732 0.38
C5-W-A391.19-07 050 1.969 0.312 0.965 0.787 1.417 1.969 1.732 0.37
C5-W-A391.19-09 050 1.969 0.375 1.122 0.945 1.614 1.969 1.732 0.42
C5-W-A391.19-12 050 1.969 0.5 1.122 0.945 1.811 1.969 1.732 0.40
C5-W-A391.19-15 055 1.969 0.625 1.272 1.063 1.929 2.165 1.929 0.45
C6 C6-W-A391.19-06 052 2.480 0.25 0.965 0.787 1.417 2.047 1.732 0.61
C6-W-A391.19-07 052 2.480 0.312 0.965 0.787 1.417 2.047 1.732 0.60
C6-W-A391.19-09 052 2.480 0.375 1.122 0.945 1.614 2.047 1.732 0.65
C6-W-A391.19-12 052 2.480 0.5 1.122 0.945 1.811 2.047 1.732 0.63
C6-W-A391.19-15 057 2.480 0.625 1.272 1.063 1.929 2.244 1.929 0.68

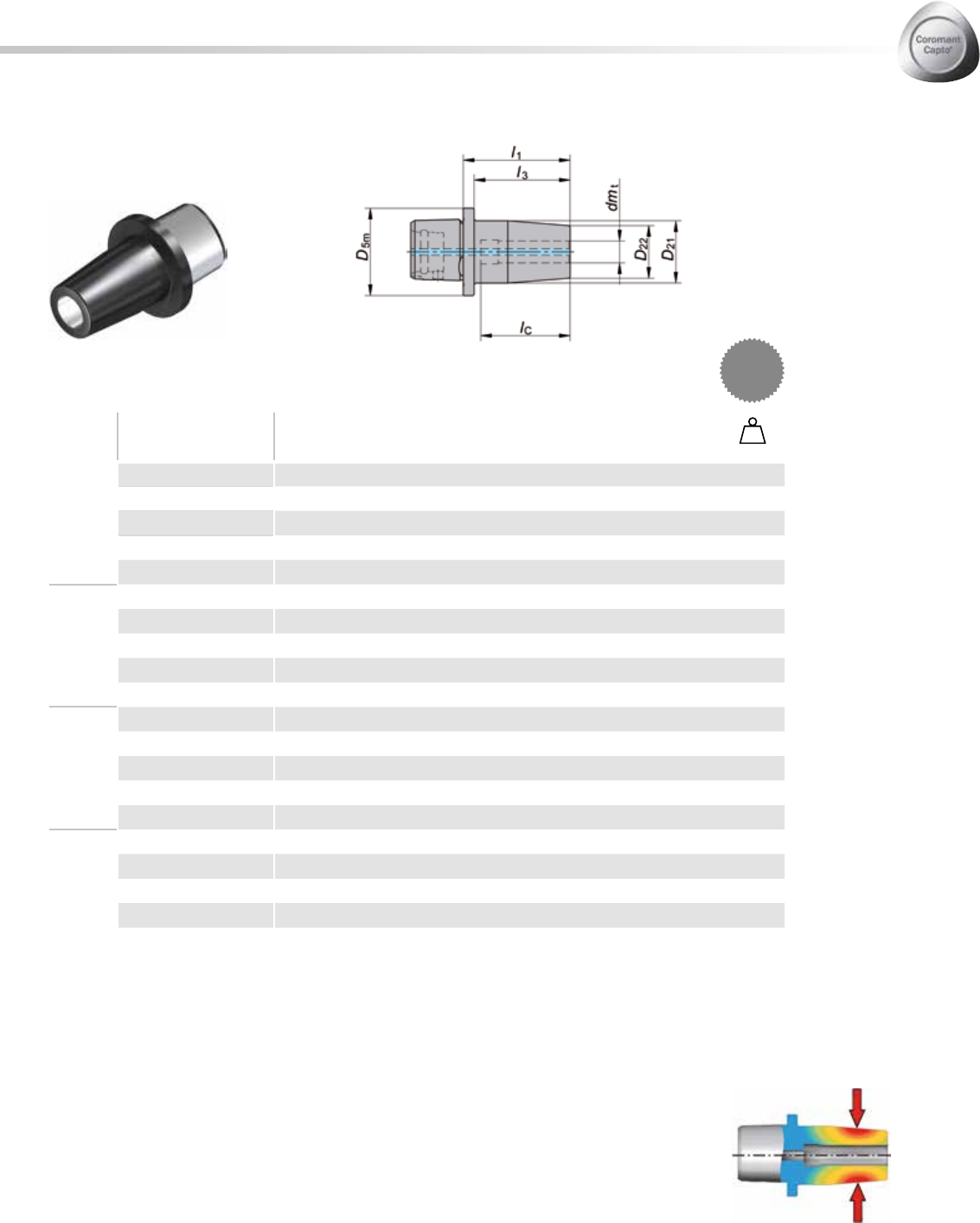

Short shrink fit adapter – without gripper groove
For cylindrical tool shanks
Note:
The tolerance of the cutting tool shank diameter must be h6 or better. The cylindrical tool
shank should be cleaned and deburred before mounting into the adapter.
Shrink fit heating equipment
The shrink fit adapters depend upon applying heat to expand the adapter. When cooled,
the adapter contracts to grip around the tool shank. Please check if your induction heating
equipment can accept the special dimensions of the above short shrink fit adapters.
For guaranteed function, optimal tool performance, and for safe and easy handling of the
clamping process, it is recommended that Bilz Power Clamp induction heating equipment
for short adapters is used. It is required to follow the instruction from the induction hea-
ting equipment producer. Further information is available at www.bilz.com.
Note:
Without adjustment screw.
Dimensions, inch
9
mm
dimensions
© WTO GmbH I Subject to change without notice
Short Adapter
Coupling
Size
Item No. D5m dmt D21 D22 ICI1I3
C3 C3-W-391.19-06 048 32 624.5 20 36 48 42 0.20
C3-W-391.19-08 048 32 824.5 20 36 48 42 0.19
C3-W-391.19-10 048 32 10 27 22.5 41 48 42 0.21
C3-W-391.19-12 048 32 12 27 22.5 46 48 42 0.20
C4 C4-W-391.19-06 049 40 624.5 20 36 49 43 0.26
C4-W-391.19-08 049 40 824.5 20 36 49 43 0.26
C4-W-391.19-10 049 40 10 28.5 24 41 49 43 0.30
C4-W-391.19-12 049 40 12 28.5 24 46 49 43 0.28
C4-W-391.19-14 049 40 14 31.5 27 46 49 43 0.33
C4-W-391.19-16 054 40 16 32.3 27 49 54 48 0.33
C5 C5-W-391.19-06 050 50 624.5 20 36 50 44 0.38
C5-W-391.19-08 050 50 824.5 20 36 50 44 0.37
C5-W-391.19-10 050 50 10 28.5 24 41 50 44 0.42
C5-W-391.19-12 050 50 12 28.5 24 46 50 44 0.40
C5-W-391.19-14 050 50 14 31.5 27 46 50 44 0.43
C5-W-391.19-16 055 50 16 32.3 27 49 55 49 0.45
C6 C6-W-391.19-06 052 63 624.5 20 36 52 44 0.61
C6-W-391.19-08 052 63 824.5 20 36 52 44 0.60
C6-W-391.19-10 052 63 10 28.5 24 41 52 44 0.65
C6-W-391.19-12 052 63 12 28.5 24 46 52 44 0.63
C6-W-391.19-14 052 63 14 31.5 27 46 52 44 0.66
C6-W-391.19-16 057 63 16 32.3 27 49 57 49 0.68
Short shrink fit adapter – without gripper groove
For cylindrical tool shanks
Note:
Without adjustment screw.
kg
Dimensions, mm
1010

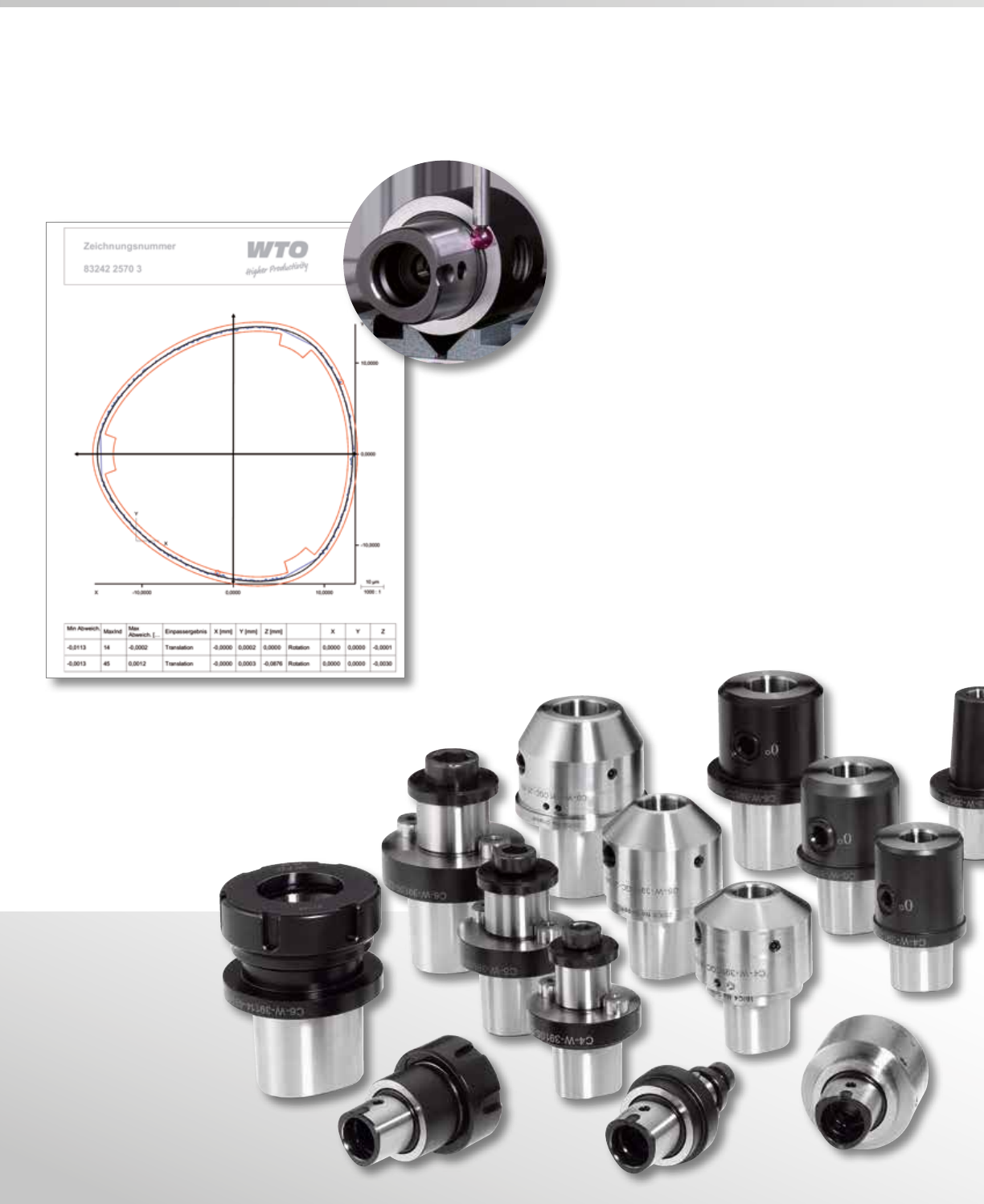

Short Adapter

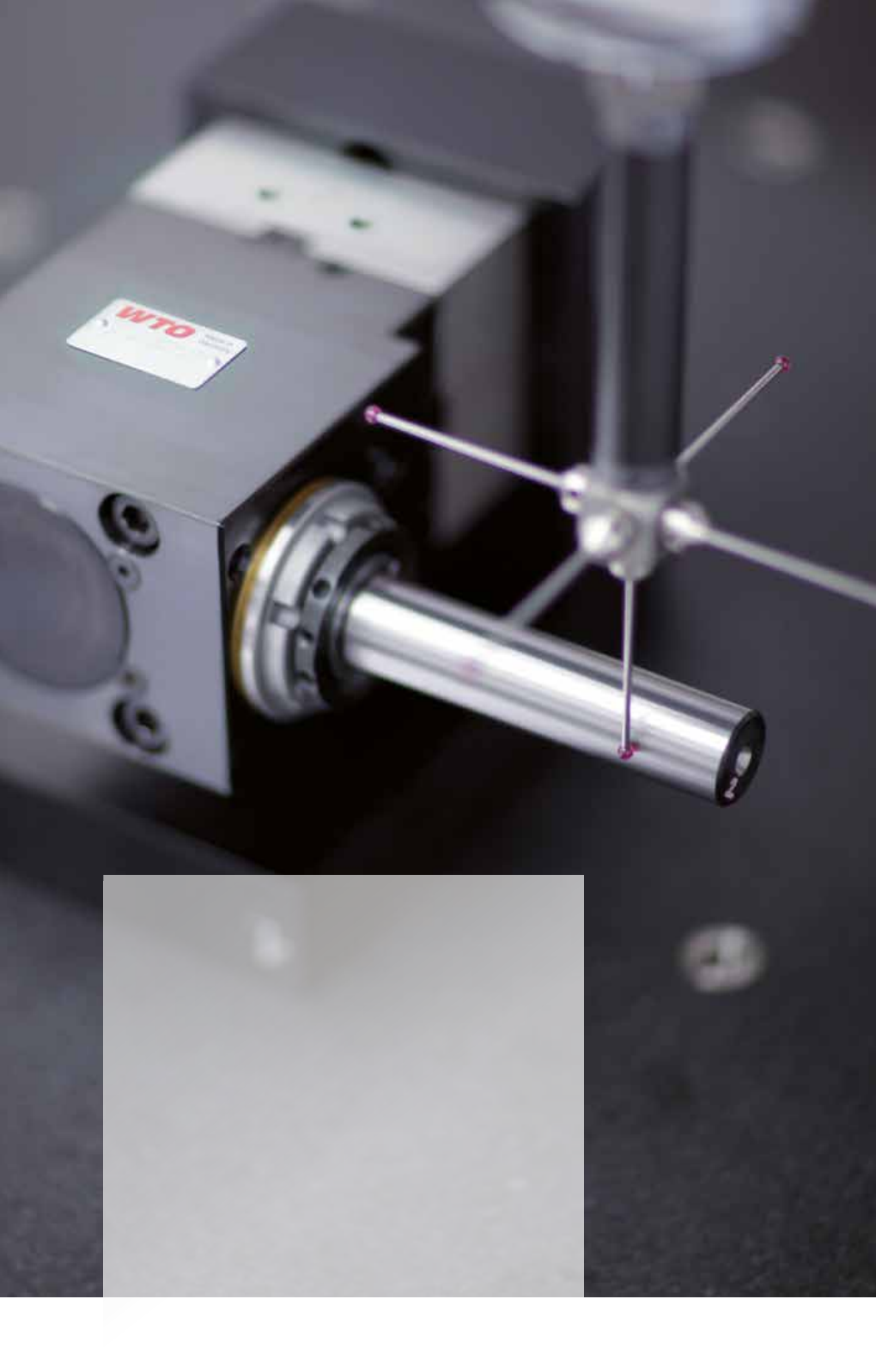

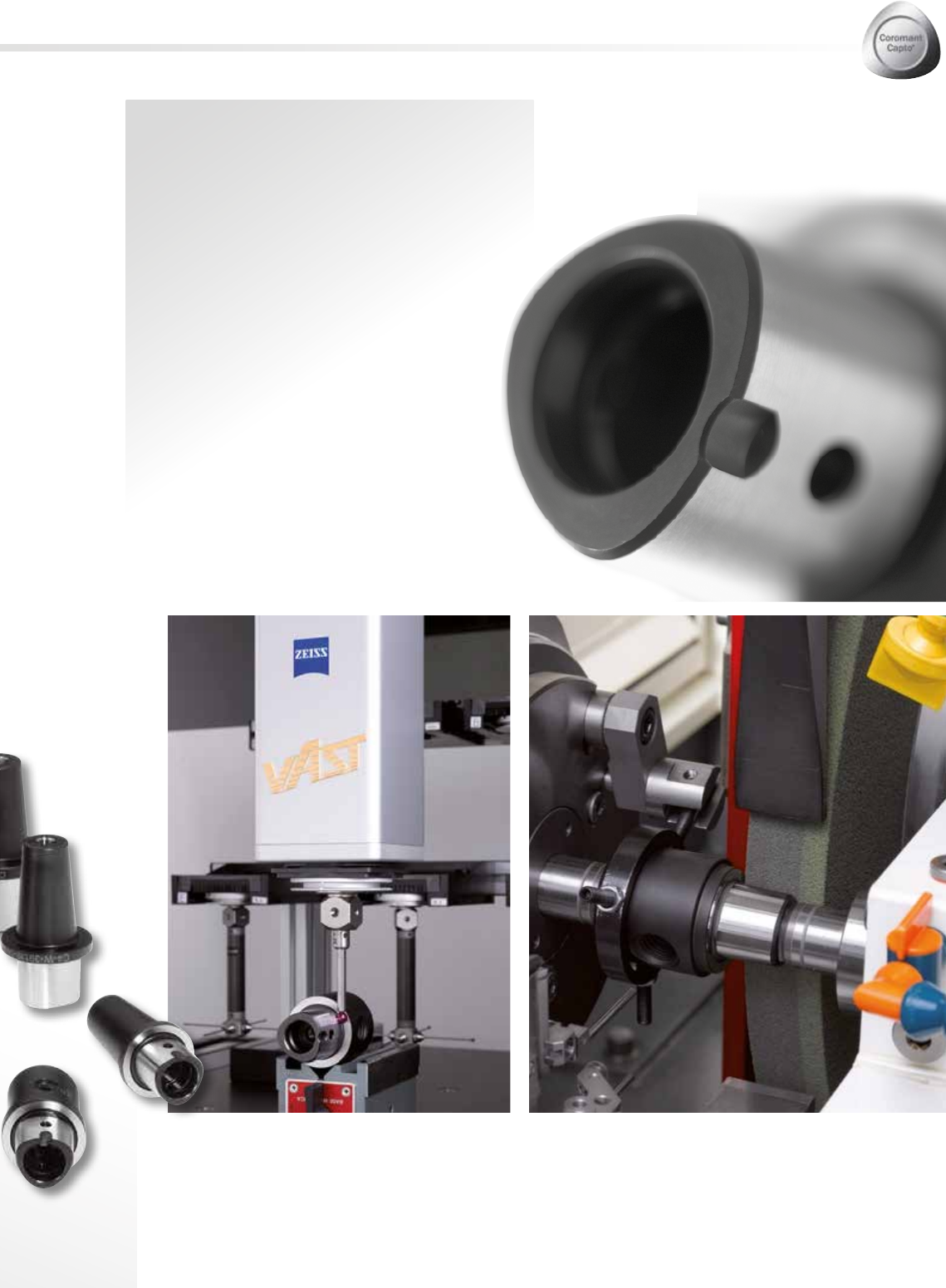

Highest precision
To guarantee the high precision of the interface WTO
manufactures Coromant Capto® exactly with the same
tolerances required by Sandvik Coromant.
11
© WTO GmbH I Subject to change without notice
WTO is worldwide the first licensee for
toolholders with Coromant Capto®
(since 1991).
The close cooperation with Sandvik Coromant
since 1990 ensures WTO’s know-how to
manufacture Coromant Capto®.
WTO manufactures Coromant Capto® exactly
according to the same strict manufacturing
and inspection procedures as the original
product of Sandvik Coromant.
Therefore a 100% compatibility of the
interface can be guaranteed.

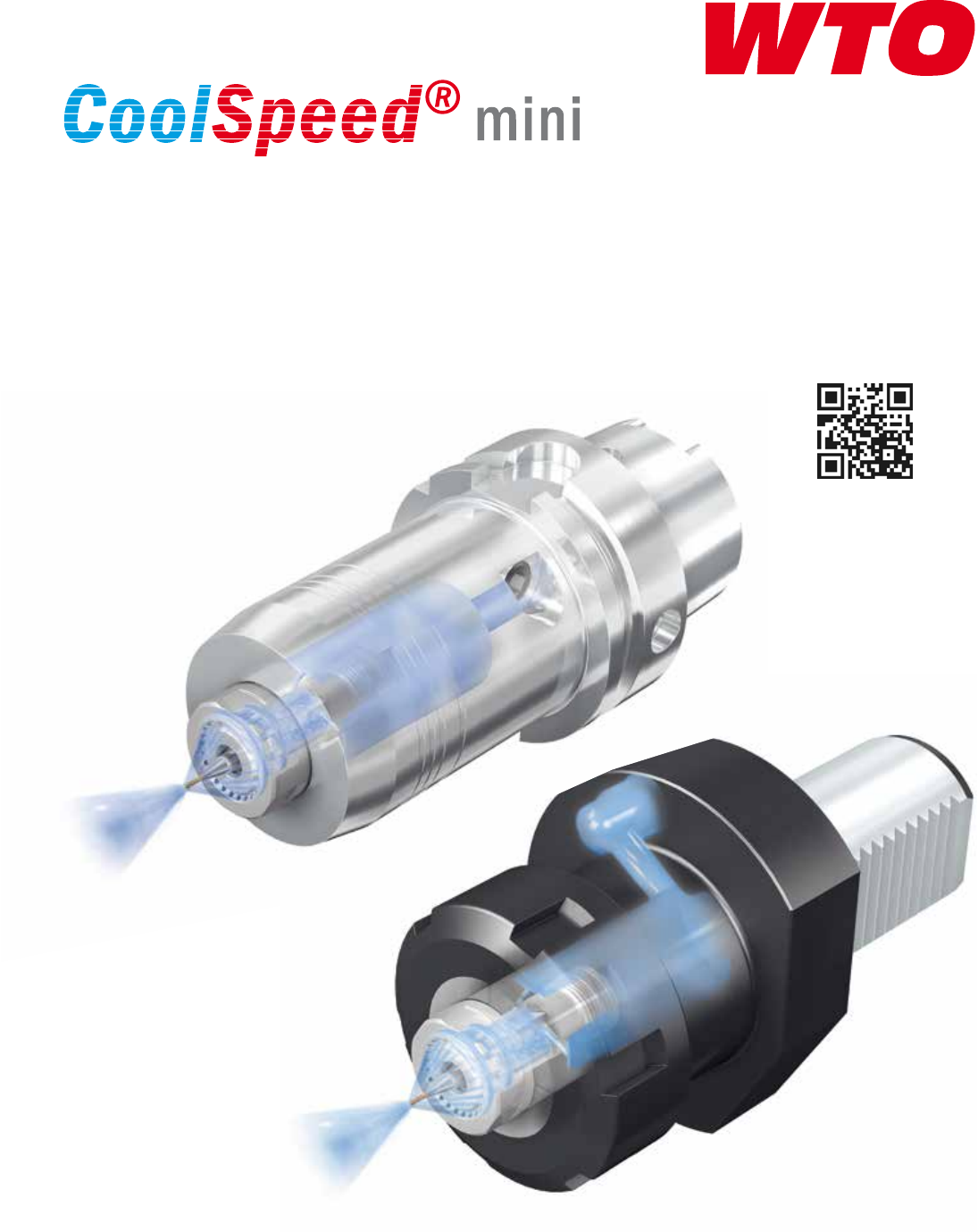

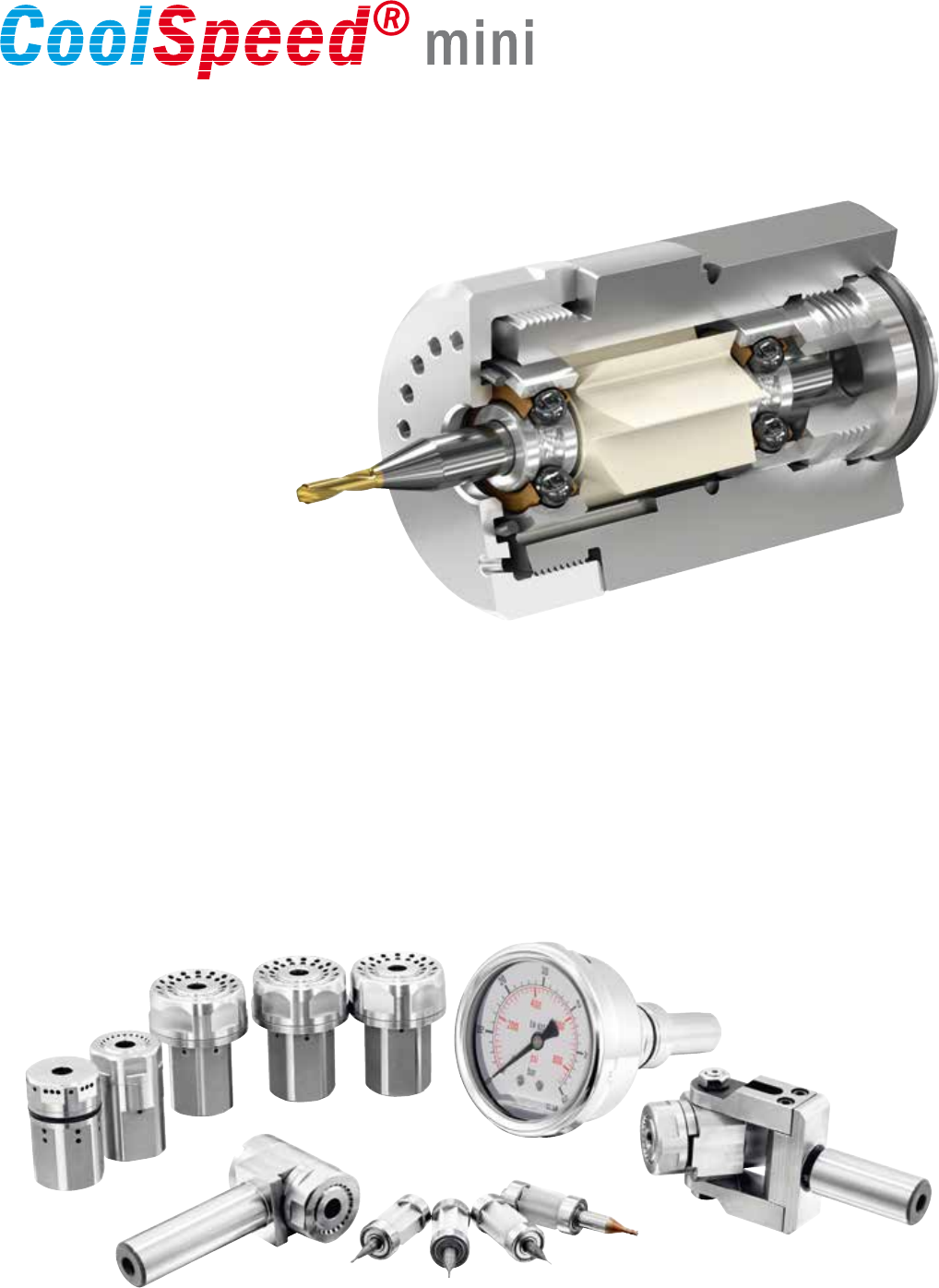

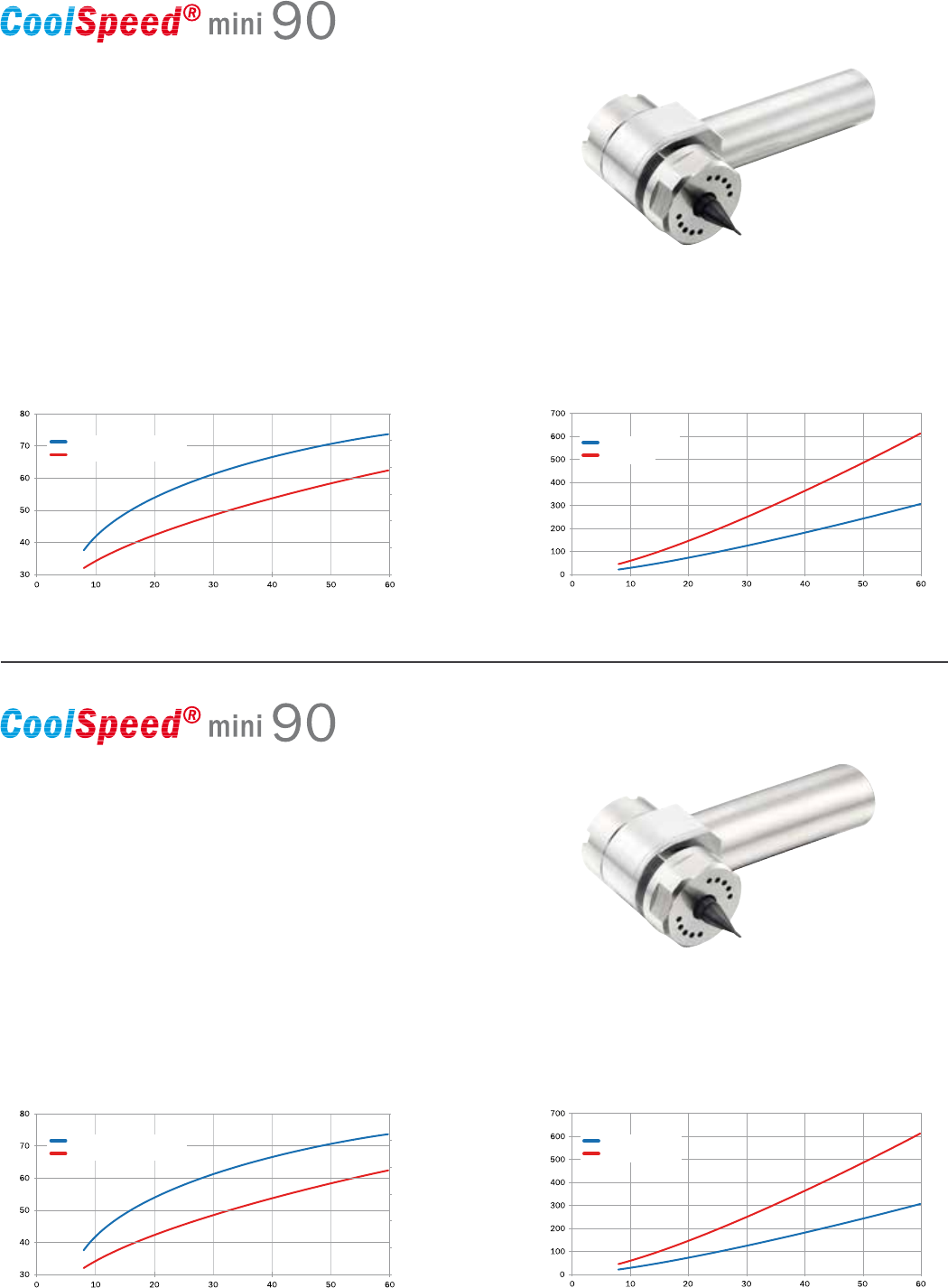

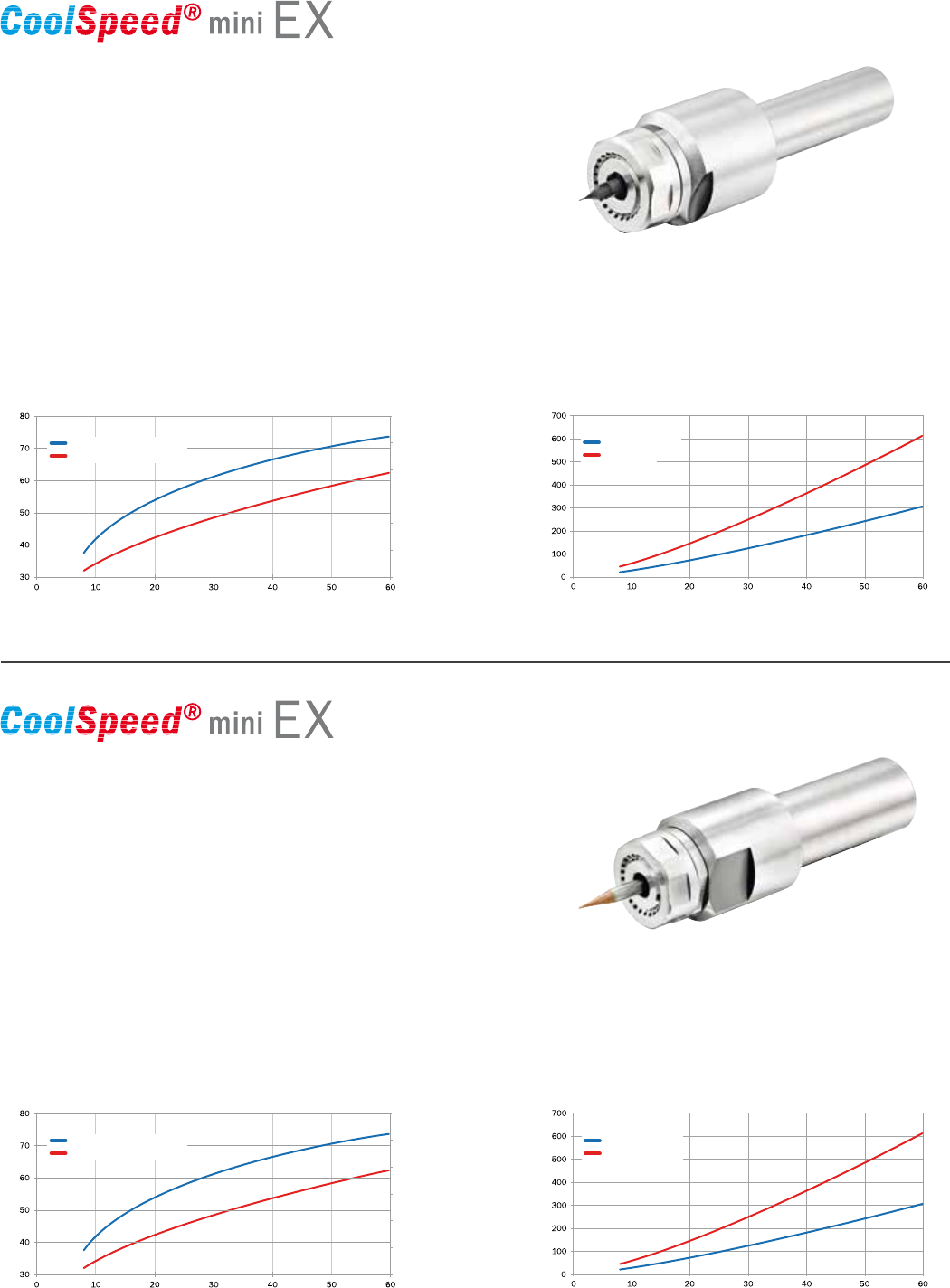

Affordable ultra-high rotation speed
up to 75,000 RPM!

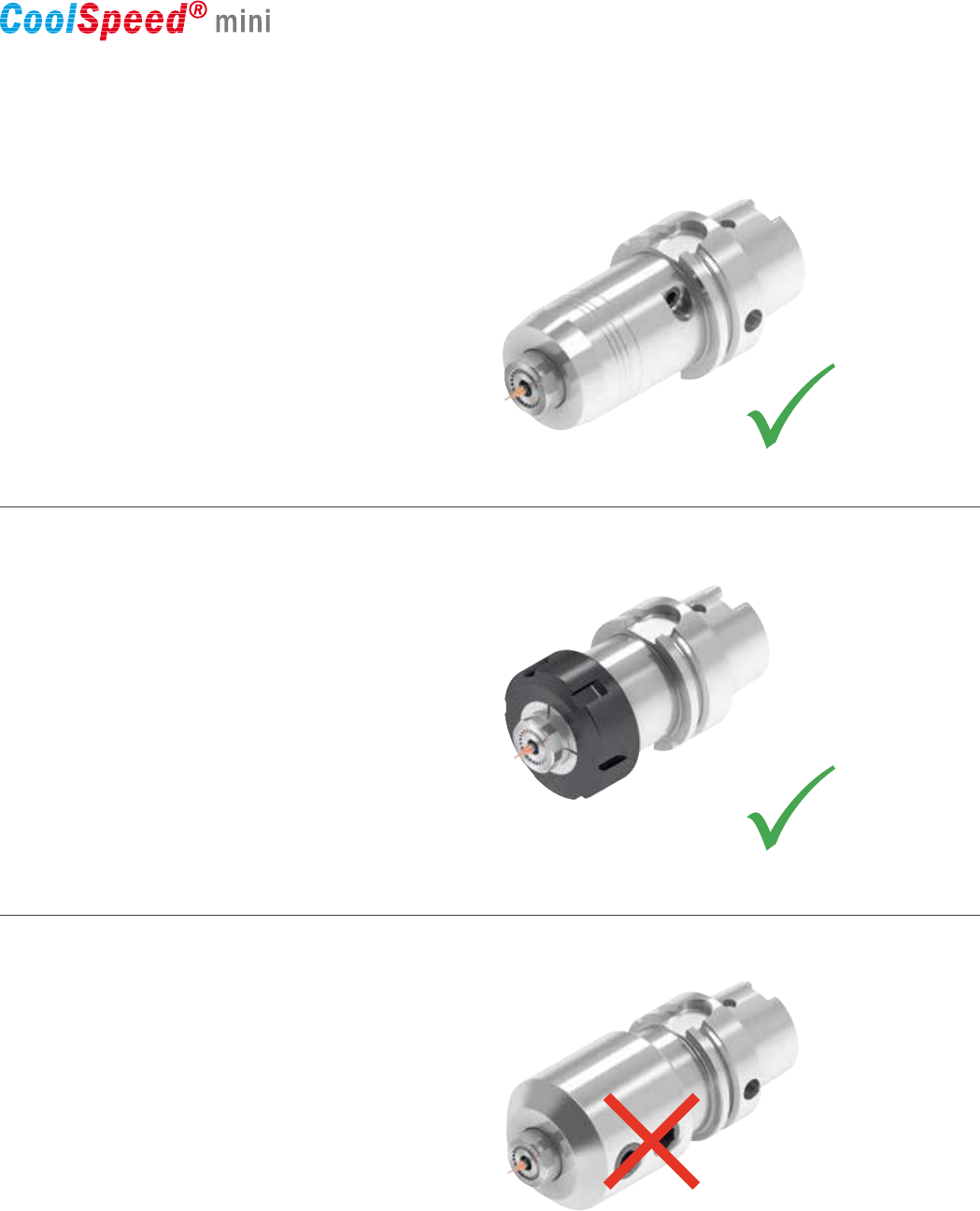

In operation:
Fits in standard tool holders
Best dynamic runout
Extended tool life

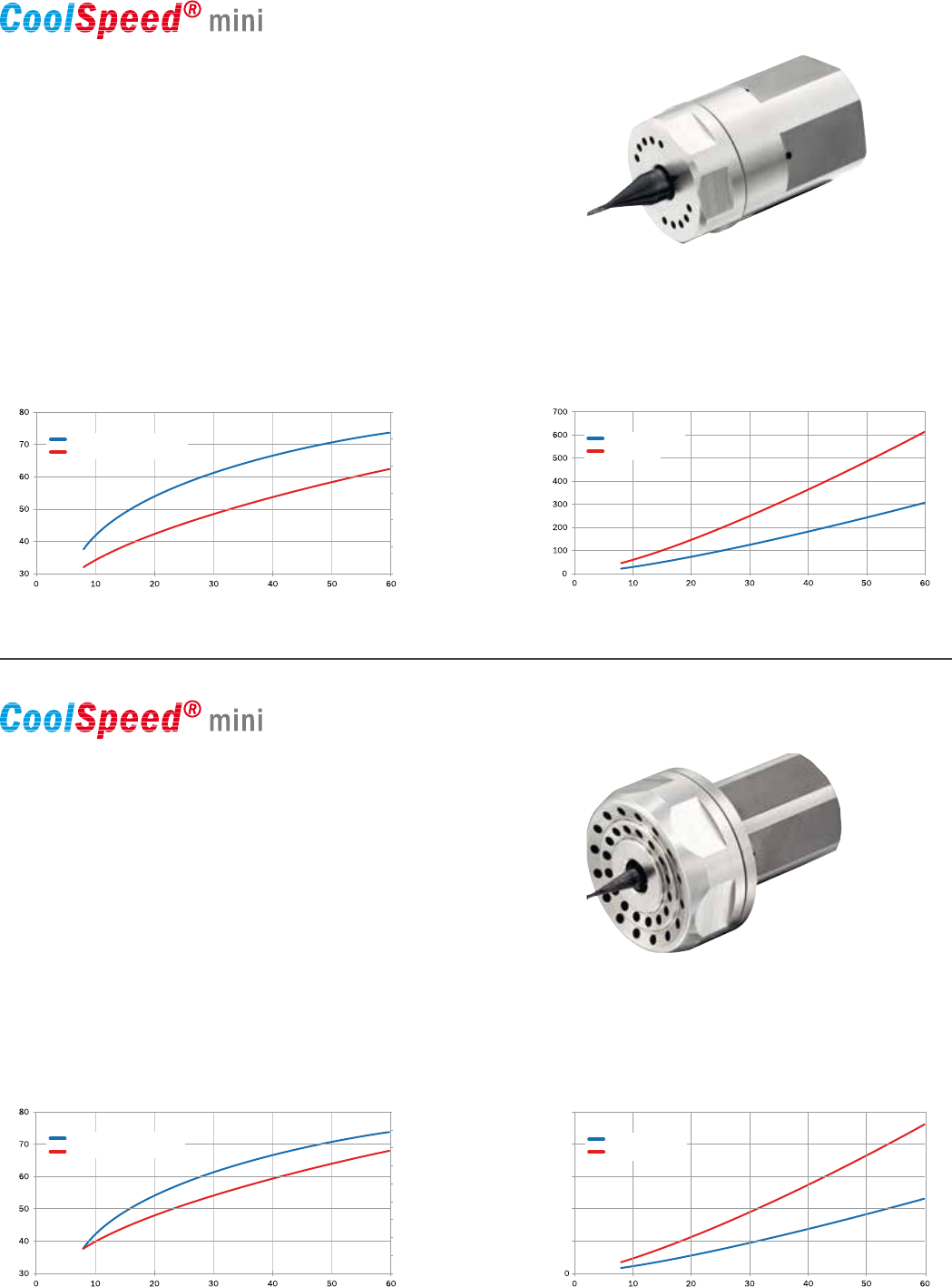

2
Max. RPM 75,000
Tool shank Ø 3 mm, 4 mm, 6 mm
Driven by coolant, cutting oil, air mist
Coolant pressure 10-60 bar (145-870 PSI) for CoolSpeed® mini
Air mist pressure 4-5 bar (58-73 PSI) for CoolSpeed® mini Air
Affordable ultra-high rotation speed
up to 75,000 RPM!
© WTO GmbH I Subject to change without notice
3

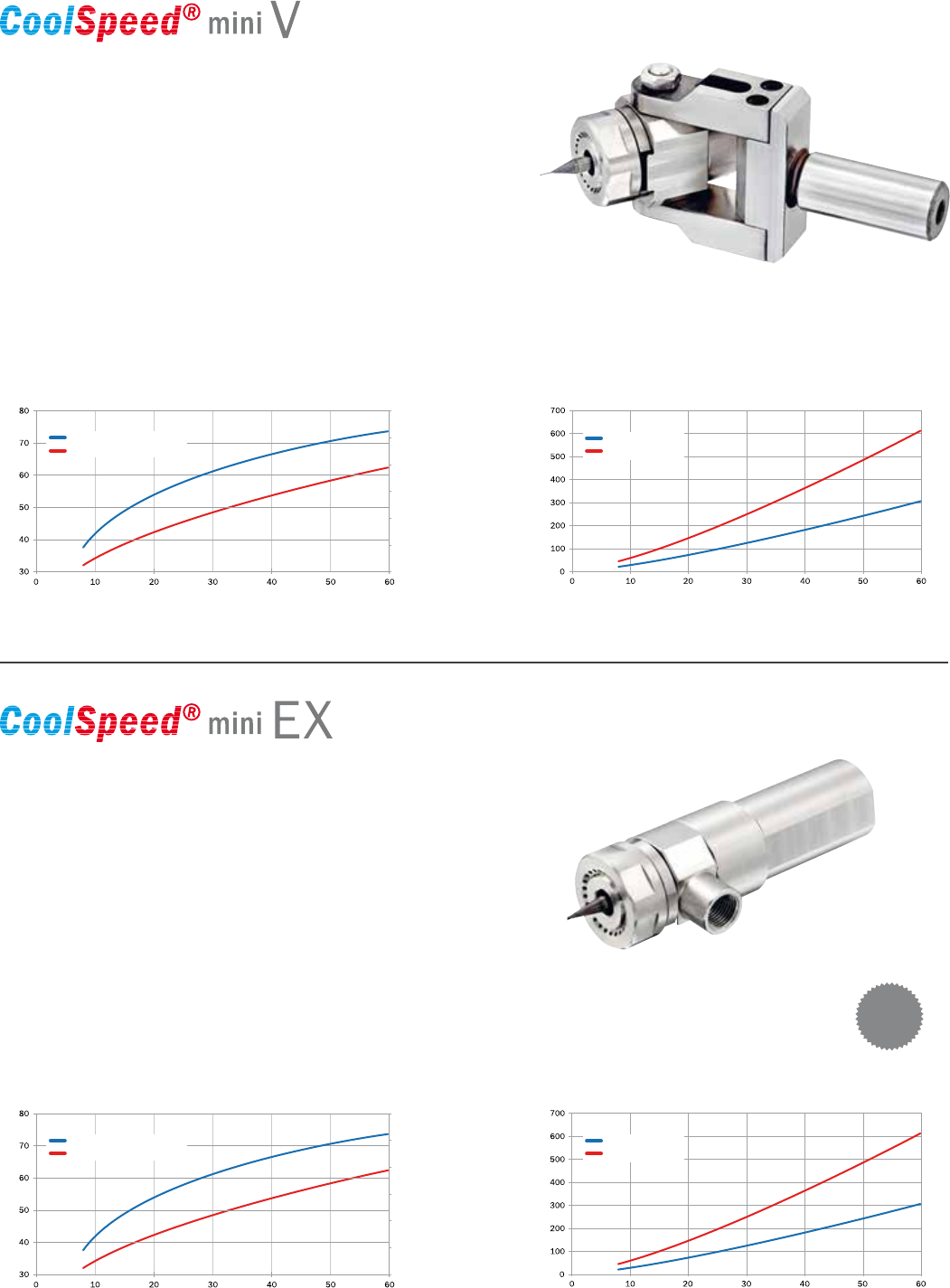

Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 25 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-F025-010-4-A
(TBC1304)
Max. RPM 75,000
Output power 500 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 25 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 16-45 l/min
CM-CE-F025-017-6-A
(TBC1306)
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25

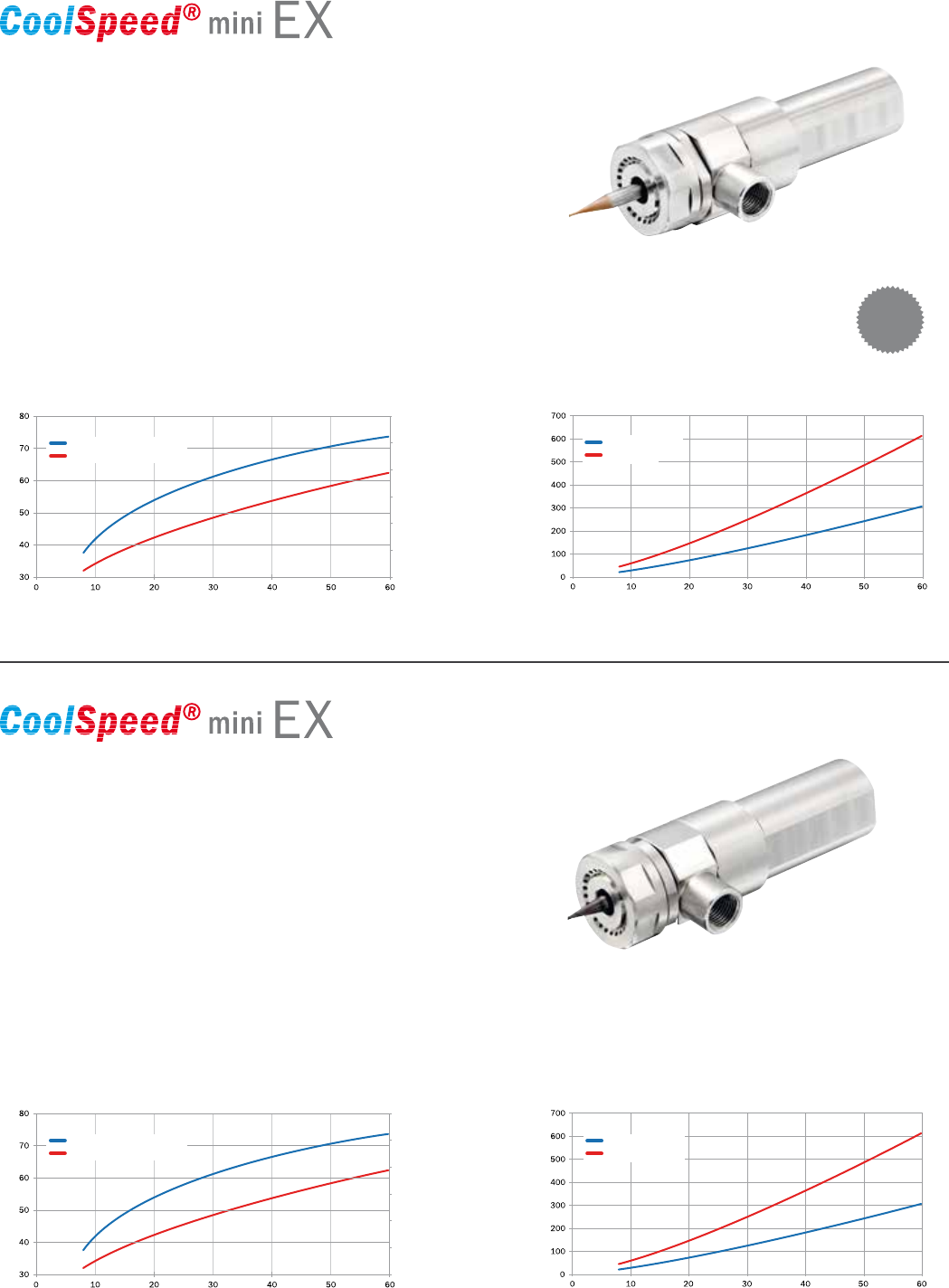

Rotation speed [krpm]
Coolant ow [l/min]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure[bar]
Coolant ow [l/min]
Rotation speed [krpm]
55
35
50
30
25
20
45
15
10
40
Rotation speed [krpm]
Coolant ow [l/min]
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
1000
800
600
400
200
Recommended
Maximum
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Recommended
Maximum
4
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 22 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CI-R022-016-4-A
(TBP1304.22)
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Recommended
Maximum
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CI-R016-016-4-A
(TBP1304)
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Recommended
Maximum
inch
dimensions
© WTO GmbH I Subject to change without notice
5
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CV-R016-040-4-A
(TBV1304)
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Recommended
Maximum
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 1.00"
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-F100-043-4-A
(TBS1304.25.4)
Recommended
Maximum
6
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-R016-046-4-A
(TBE1304.16)
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 22 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-R022-046-4-A
(TBE1304.22)
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Recommended
Maximum
Recommended
Maximum
inch
dimensions
© WTO GmbH I Subject to change without notice
7
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø ¾"
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-F075-043-4-A
(TBS1304.1940)
Max. RPM 75,000
Output power 300 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 22 mm
Driven by coolant, cutting oil
Coolant pressure 10-60 bar (145-870 PSI)
Coolant ow 11-30 l/min
CM-CE-F022-043-4-A
(TBS1304.2240)
Rotation speed & Coolant ow/Coolant pressure
Coolant pressure [bar]
Coolant ow [l/min]
Rotation speed [krpm]
40
20
35
15
30
10
25
Rotation speed [krpm]
Coolant ow [l/min]
for Citizen Lathes
for Star Lathes
Output power/Coolant pressure
Coolant pressure [bar]
Output power [W]
Recommended
Maximum
Recommended
Maximum
8

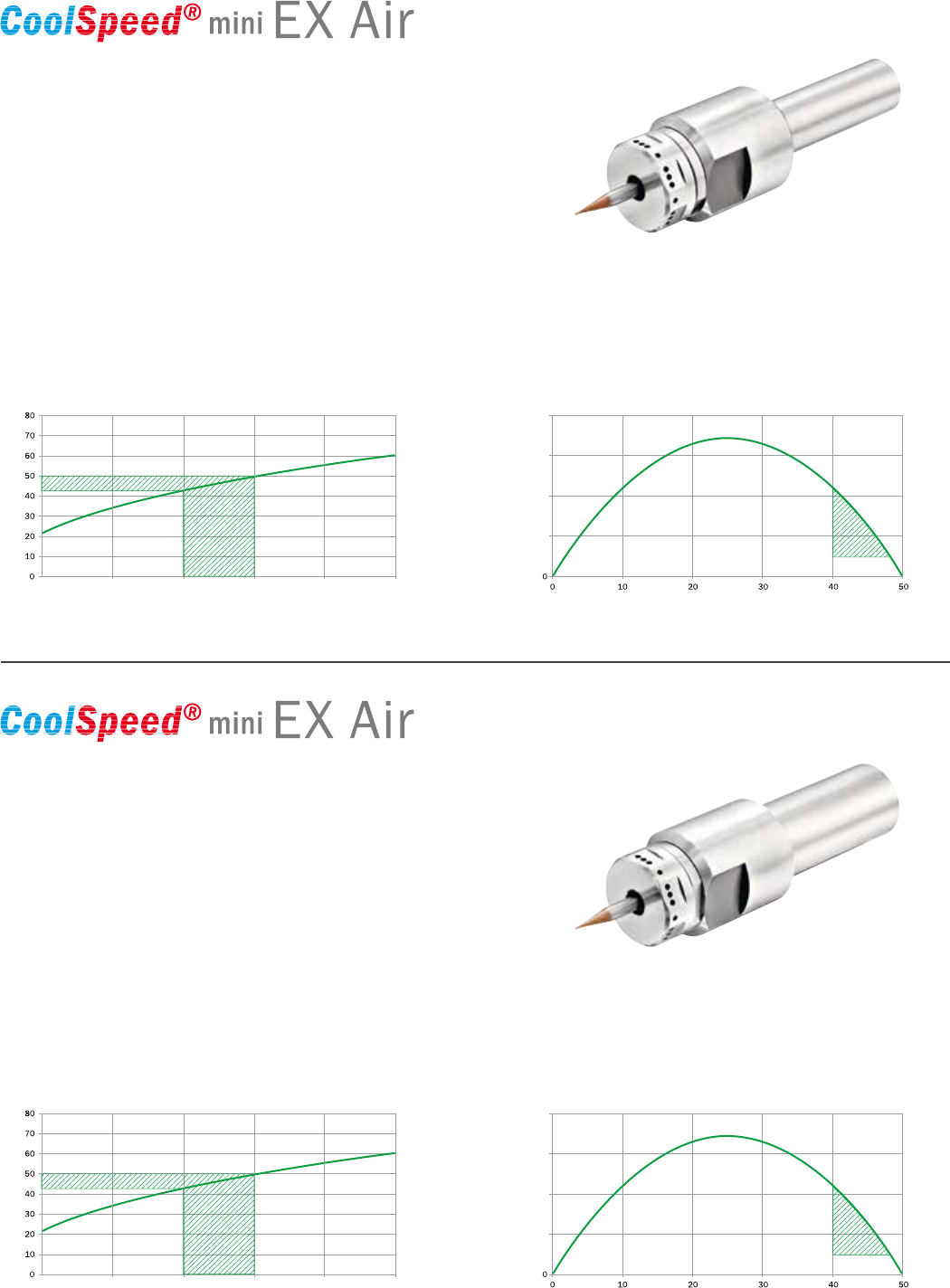

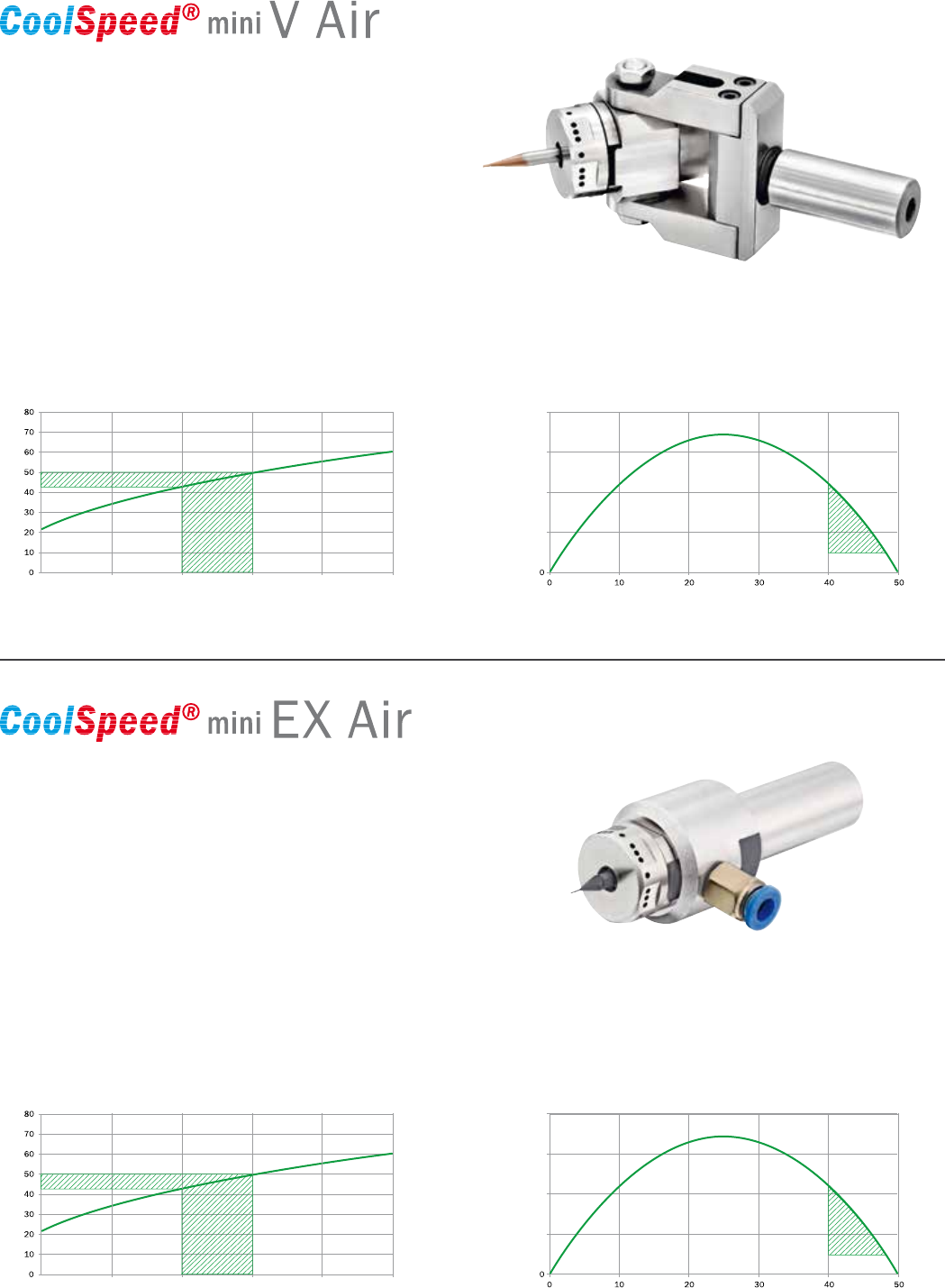

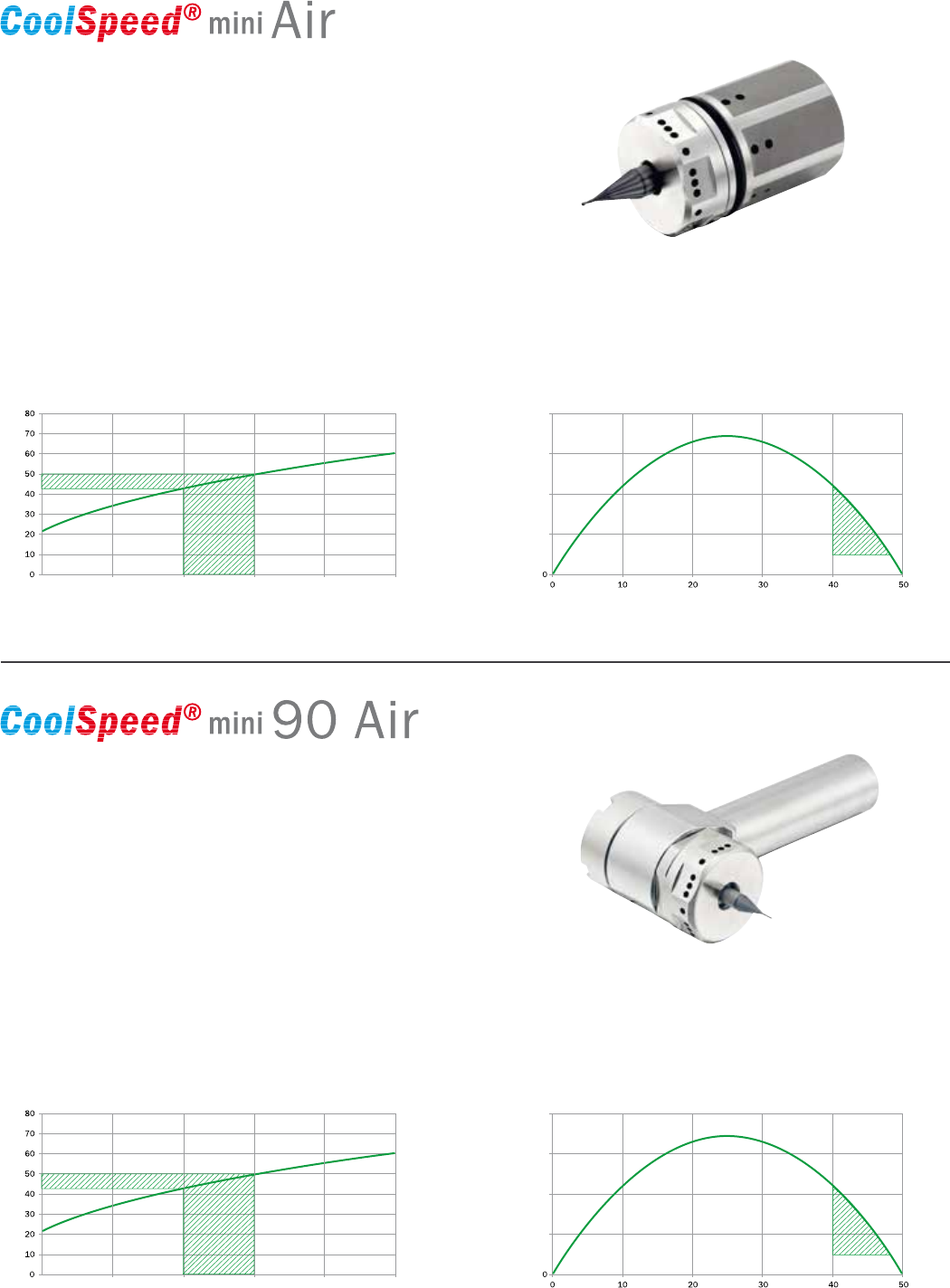

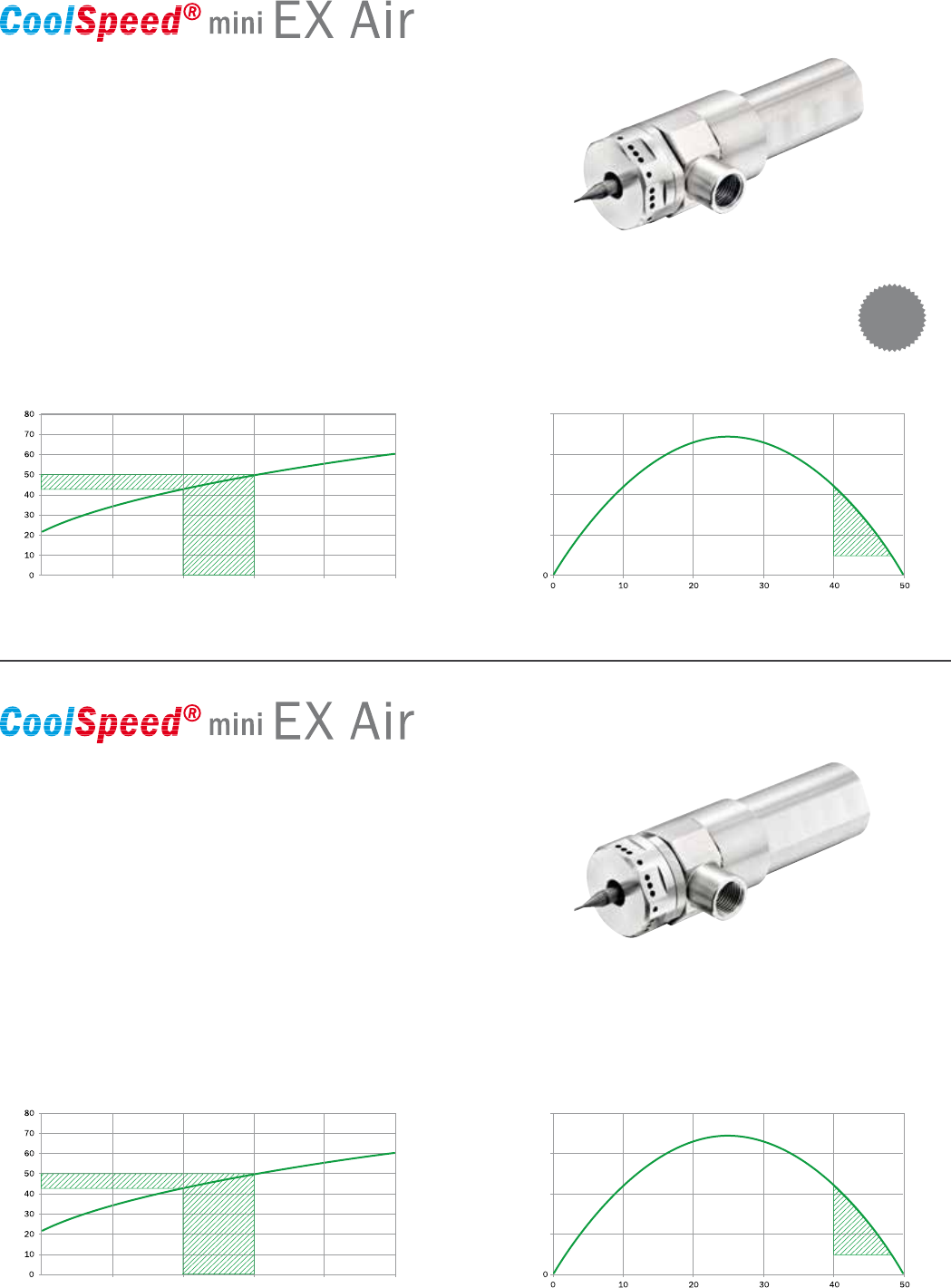

Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 25 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-F025-010-12-A
(TGC1312)
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AI-R016-016-12-A
(TGP1312)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
© WTO GmbH I Subject to change without notice
9
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AV-R016-040-12-A
(TGV1312)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-R016-046-12-B
(TGD1312)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
10
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 22 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-R022-046-12-A
(TGE1312.22)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 16 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-R016-046-12-A
(TGE1312.16)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
inch
dimensions
© WTO GmbH I Subject to change without notice
11
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø ¾"
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-F075-043-12-A
(TGS1312.1940)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
for Citizen Lathes
Max. RPM 55,000
Output power 200 W
Tool shank Ø 3 mm, 4 mm, 6 mm
Shaft Ø 22 mm
Driven by air mist
Air mist pressure 4-5 bar (58-73 PSI)
CM-AE-F022-043-12-A
(TGS1312.2240)
Rotation speed/Air pressure
Air pressure [bar]
Rotation speed [krpm]
3 4 5 6 72
Output power/Rotation speed
Rotation speed [krpm]
Output power [W]
400
300
200
100
for Star Lathes
12

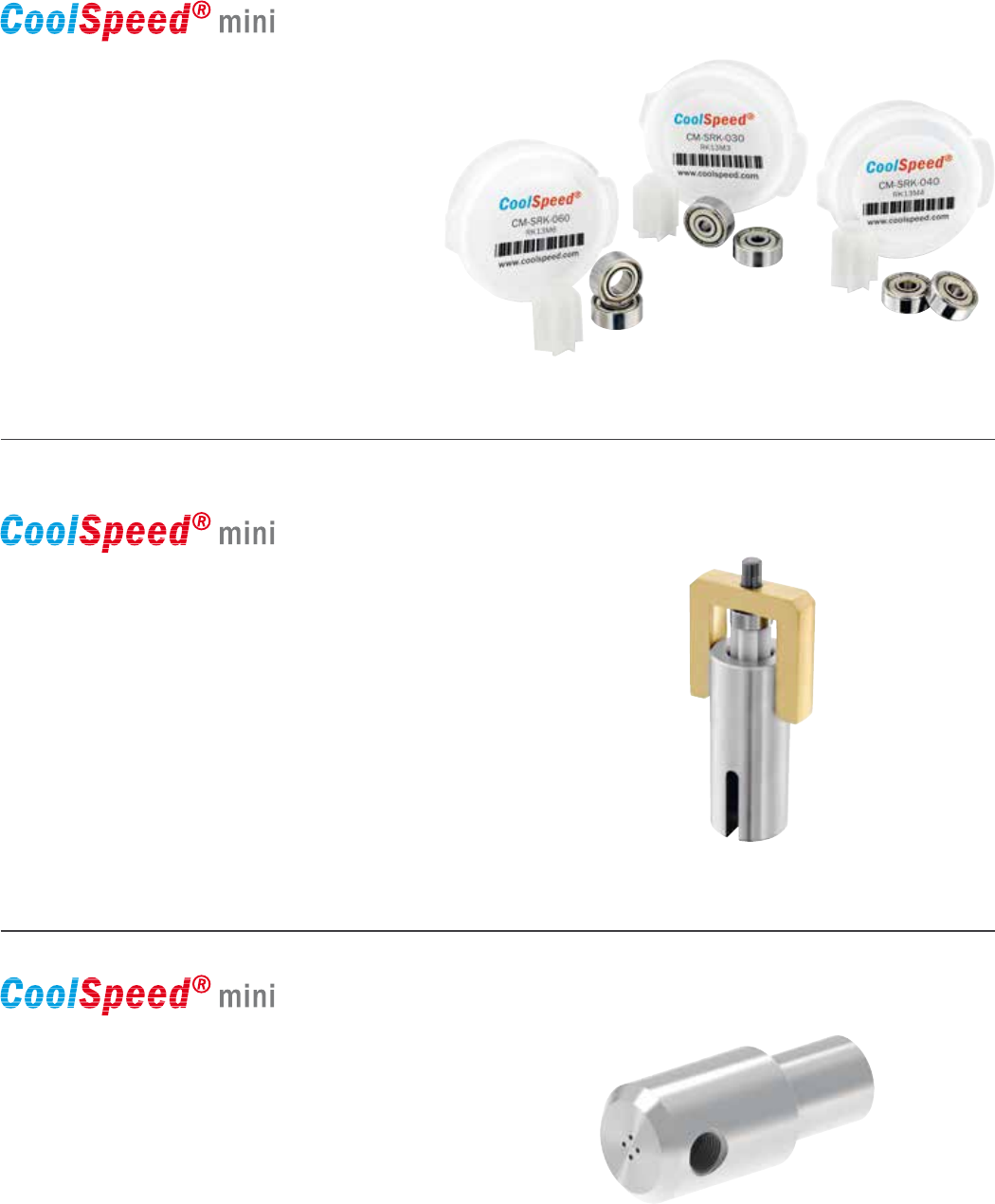

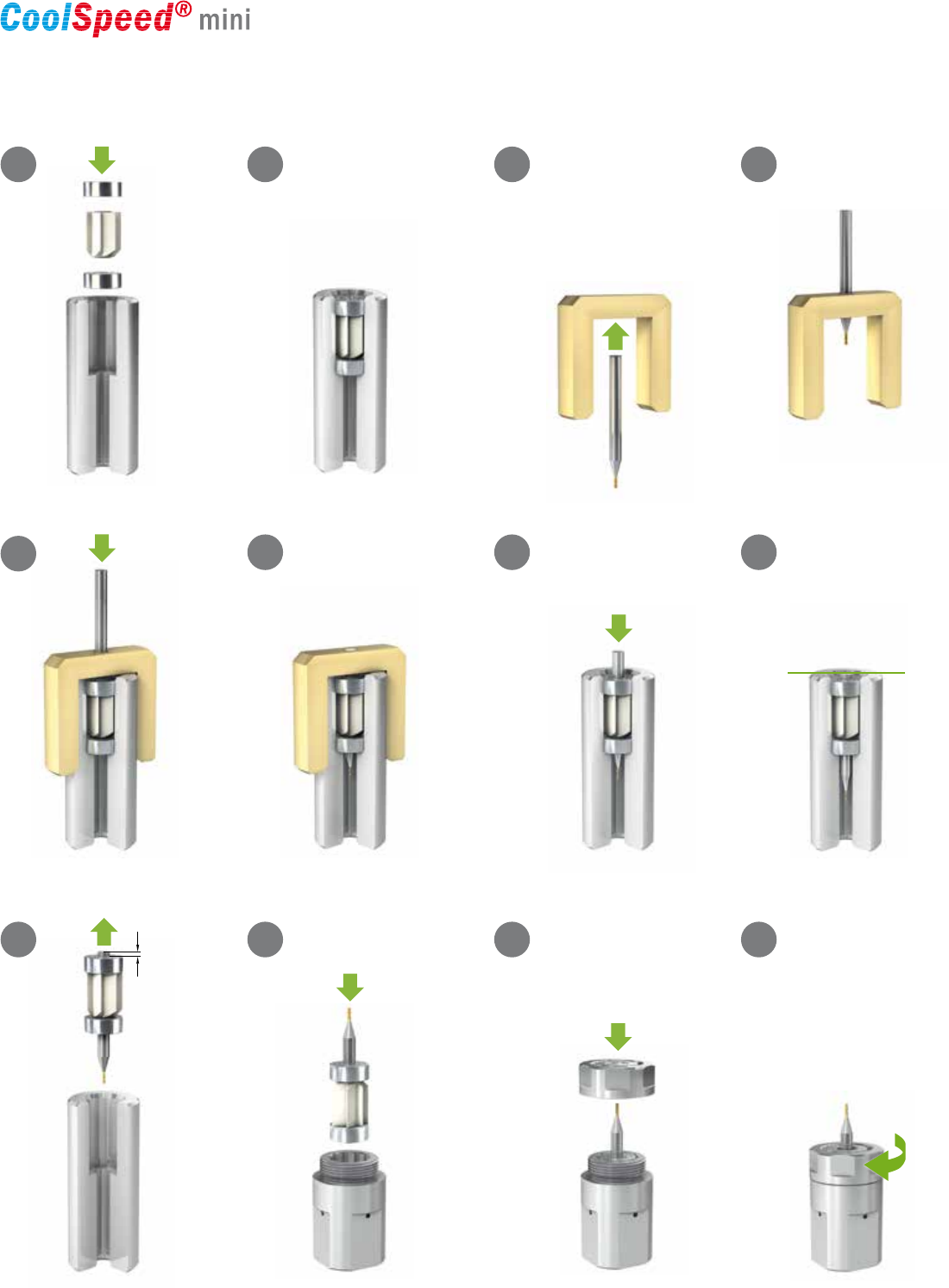

Assembly device
Ø3 mm CM-SMD-030
(AK13M3)
Ø4 mm CM-SMD-040
(AK13M4)
Ø6 mm CM-SMD-060
(AK13M6)

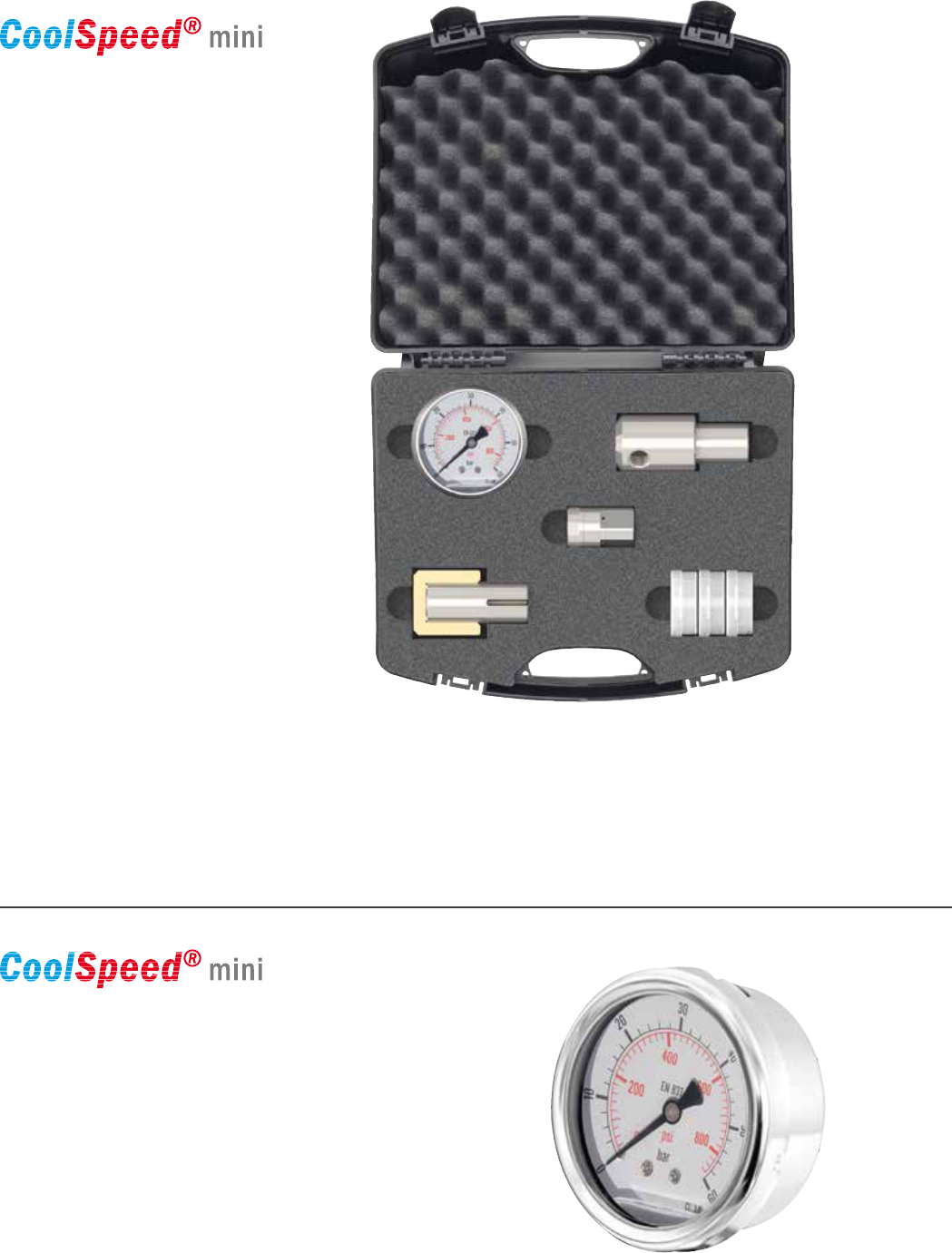

Adapter for pressure gauge
Ø16 mm CM-SPA-R016-4-A
Ø22 mm CM-SPA-R022-4-A
Ø25 mm CM-SPA-R025-4-A
Ø25 mm CM-SPA-R025-6-A (for 500 W version)
ؾ" CM-SPA-R075-4-A
Ø3 mm CM-SRK-030
(RK13M3)
Ø4 mm CM-SRK-040
(RK13M4)
Ø6 mm CM-SRK-060
(RK13M6)
Replacement kit
(2 bearings, 1 turbine)
© WTO GmbH I Subject to change without notice
13
Pressure gauge
CM-SPG-60-A
Ø3 mm CM-SKC-030-A
Ø4 mm CM-SKC-040-A
Ø6 mm CM-SKC-060-A
Includes:
1 CoolSpeed® mini
CM-CE-F025-010-4-A
3 Replacement kits
1 Assembly device
1 Adapter Ø25
1 Pressure gauge
Starter Set
911 12
58
1 2 3 4
10
76
7 Nm
5 mm
14

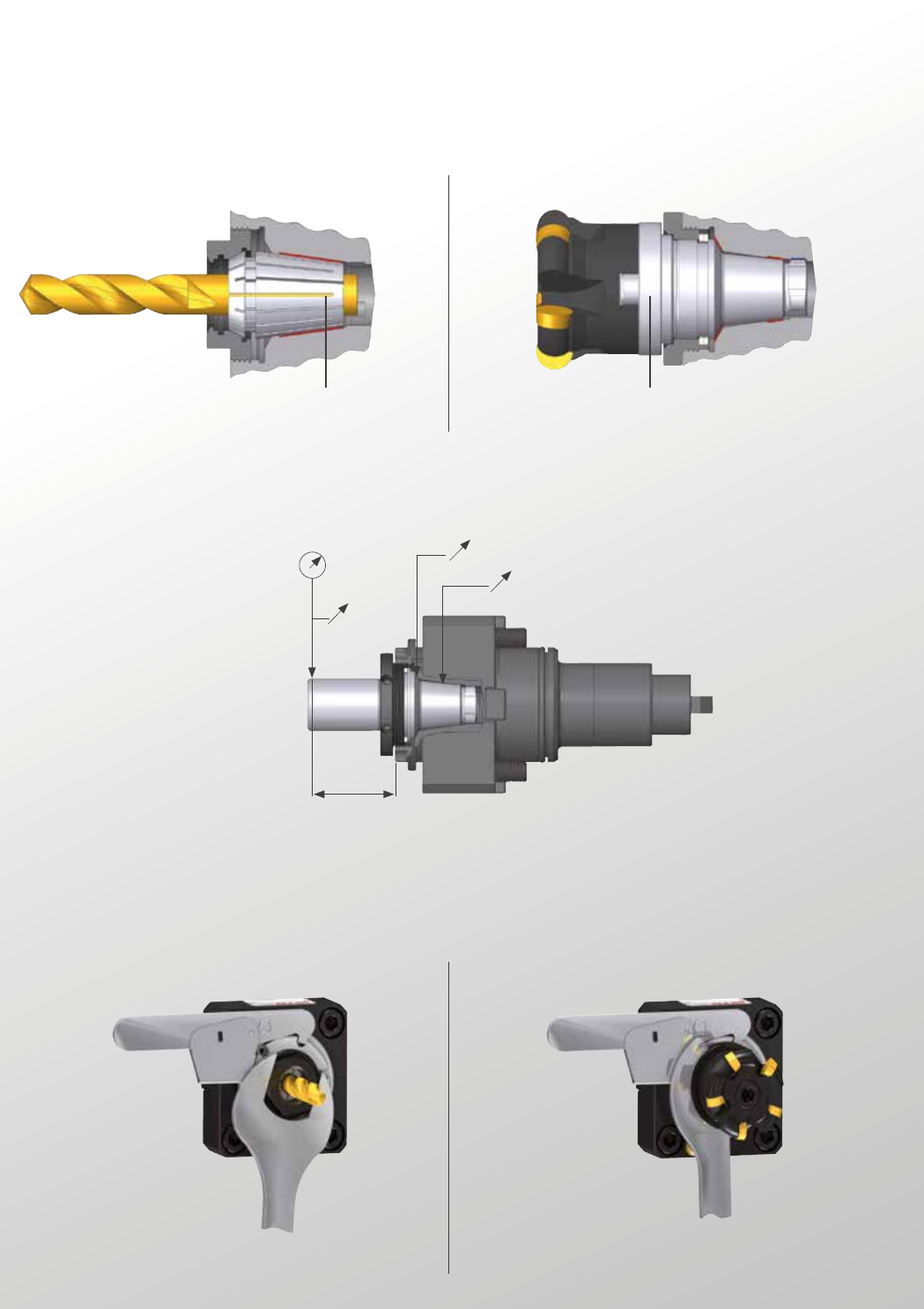

Assembly of cutting tool
© WTO GmbH I Subject to change without notice
15
Recommended tool holder clamping
Hydraulic chuck
ER collet chuck sealed
No side lock clamping!

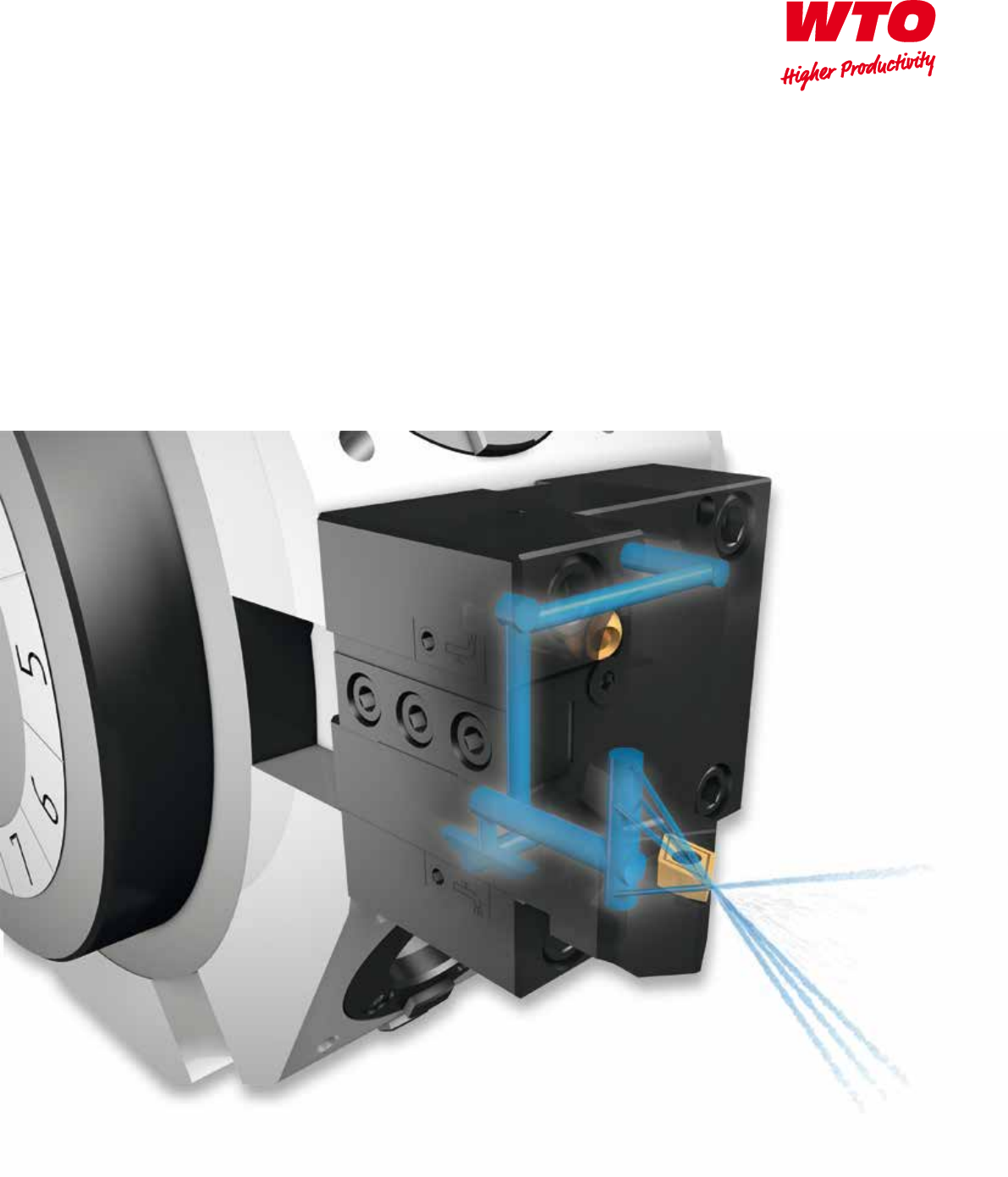

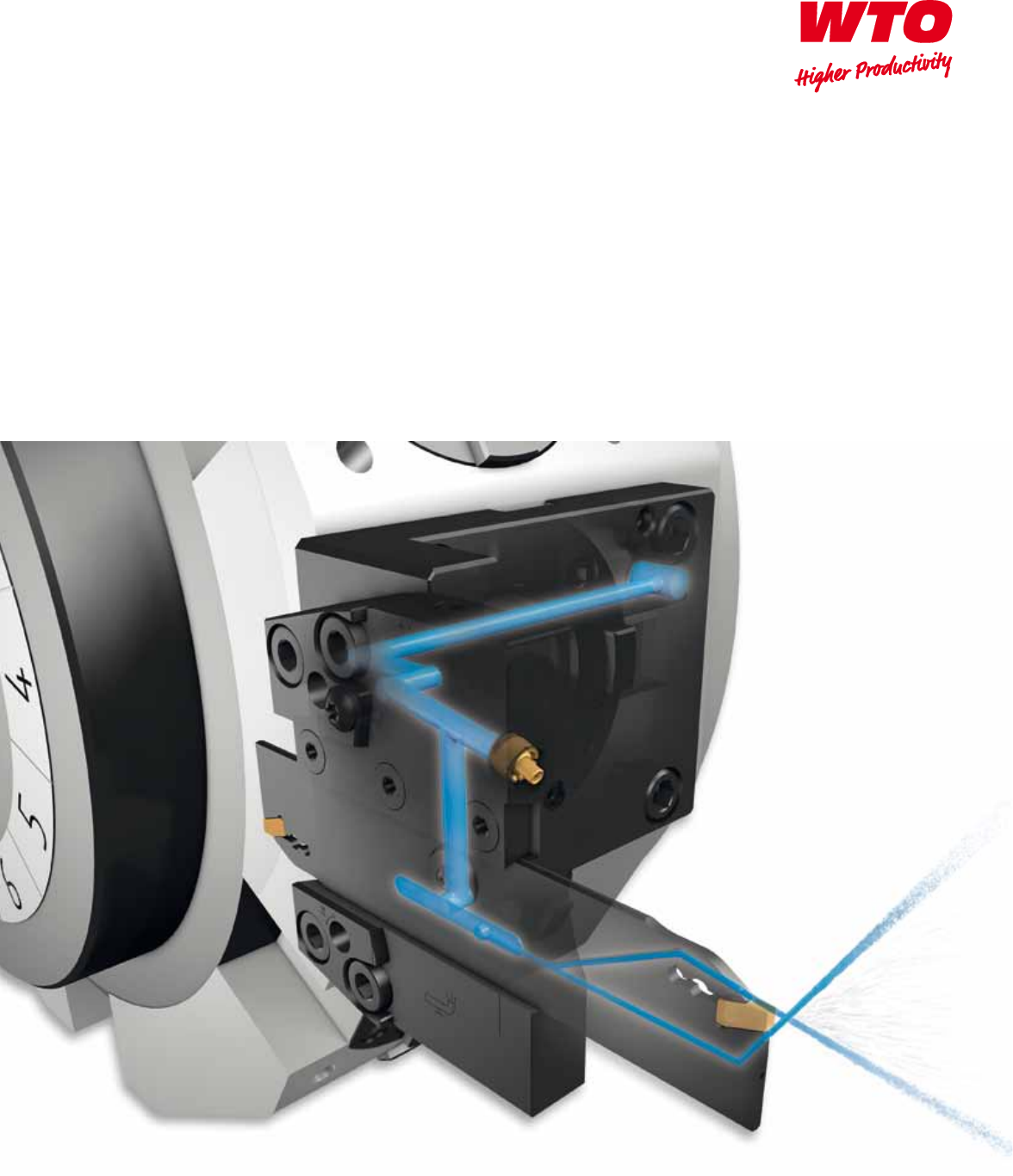

Blade Holders
with high pressure internal coolant supply
for parting and grooving.
Blade Holders with high pressure internal coolant supply
2
For VDI radial tooling turret
For VDI face tooling turret
Valve to switch external
coolant supply on/off
Nozzle for external
coolant supply
Adjustment range for
parting blade
Adjustment range for
parting blade
VDI double serration for
higher flexibility
Valve to switch external
coolant supply on/off
Nozzle for external
coolant supply
VDI double serration
for higher flexibility
Screw for
center height
adjustment
Screw for
center height
adjustment
2
3

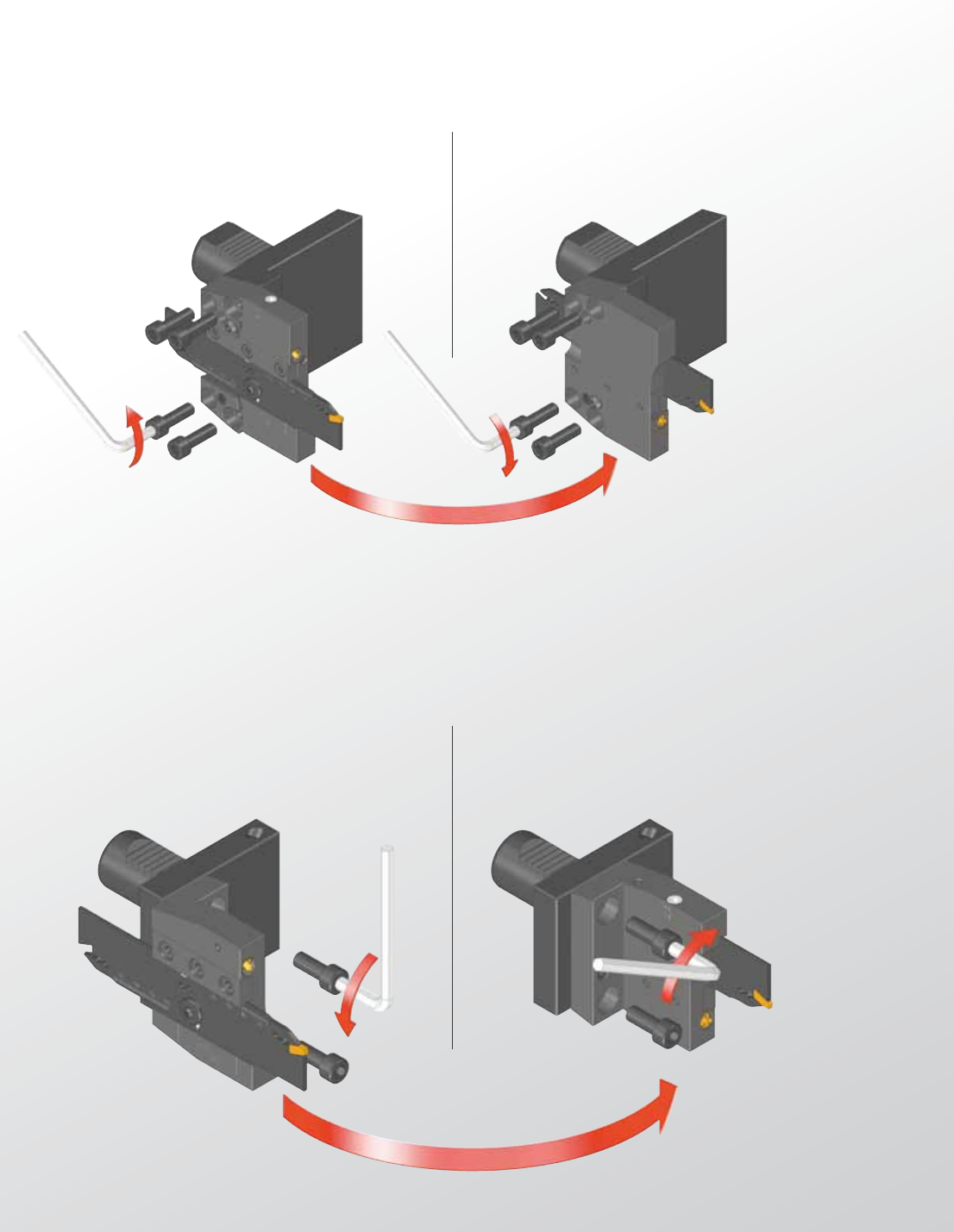

Blade Holders with high pressure internal coolant supply
... 180° reversed towards sub spindle side
Top mounted blade holder, 180° reversible:
... towards main spindle side
... 180° reversed towards sub spindle side
Front mounted blade holder, 180° reversible:
… towards main spindle side
4

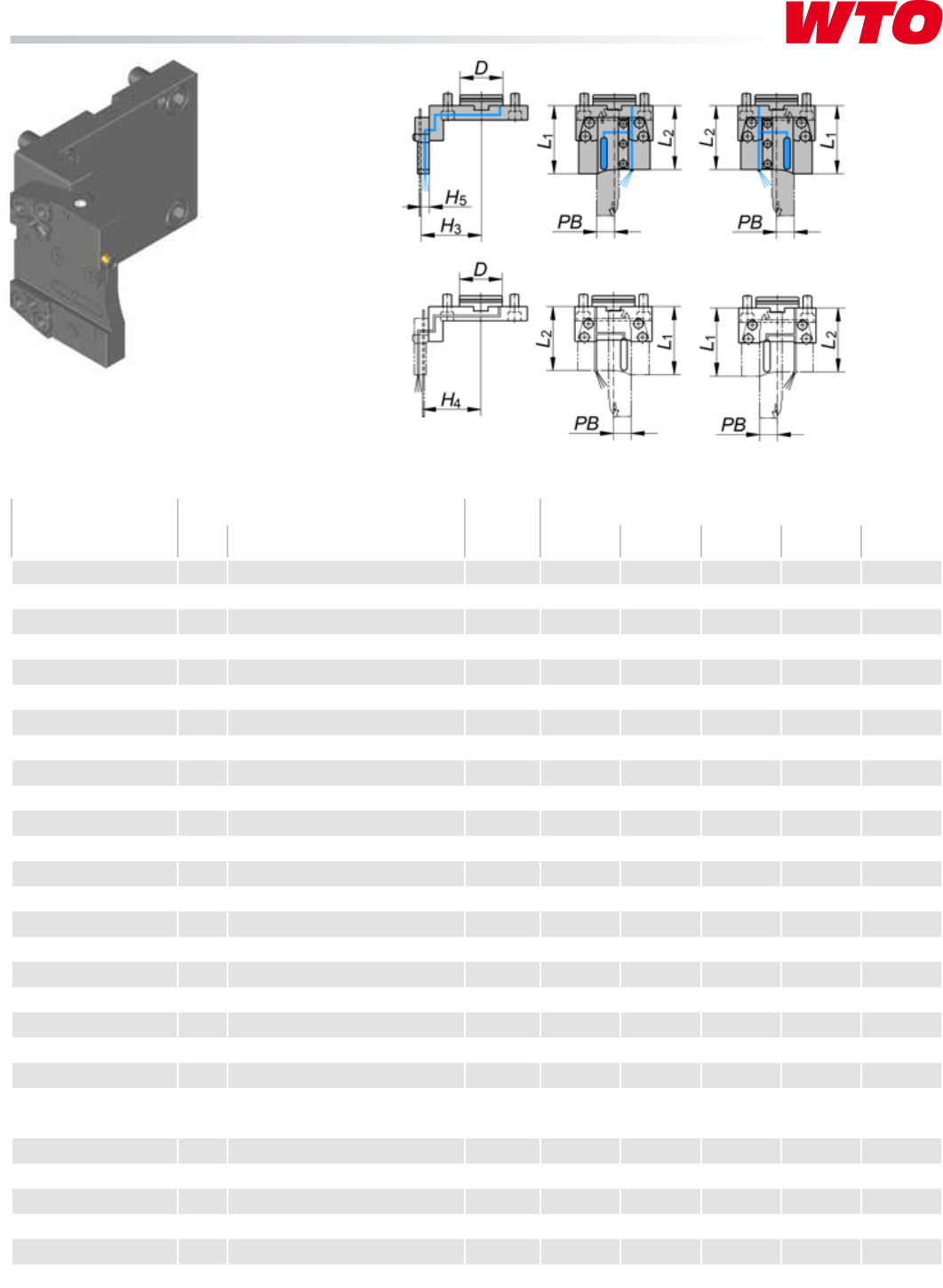

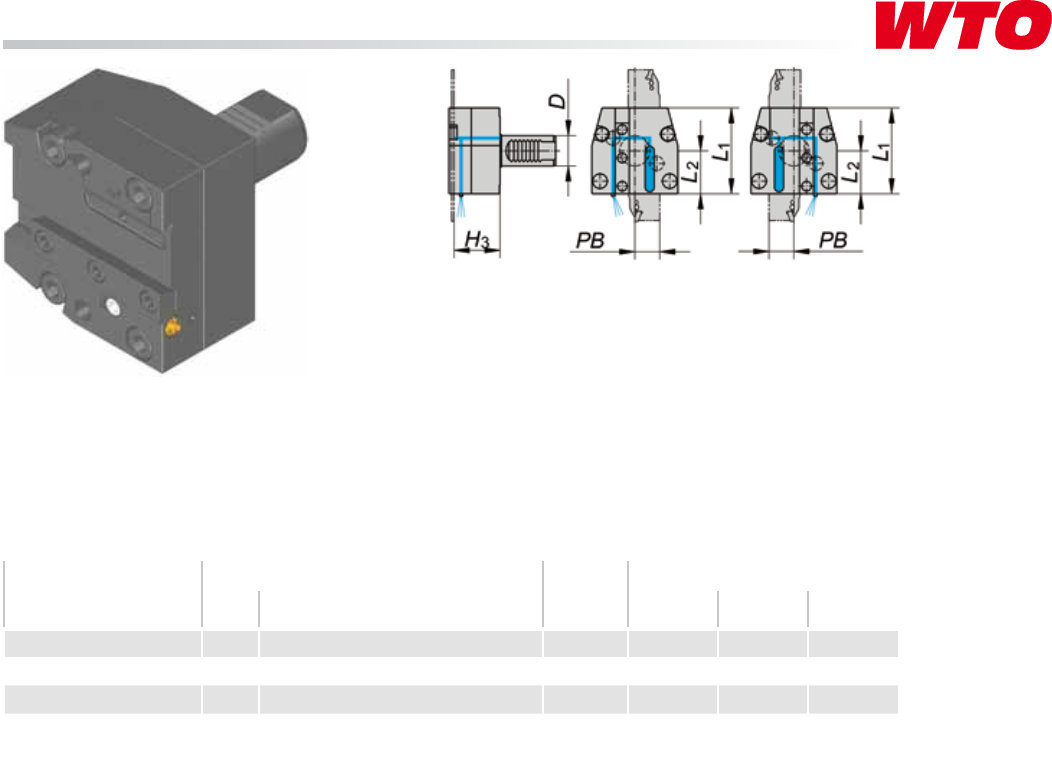

Blade Holders with high pressure internal coolant supply
© WTO GmbH I Subject to change without notice

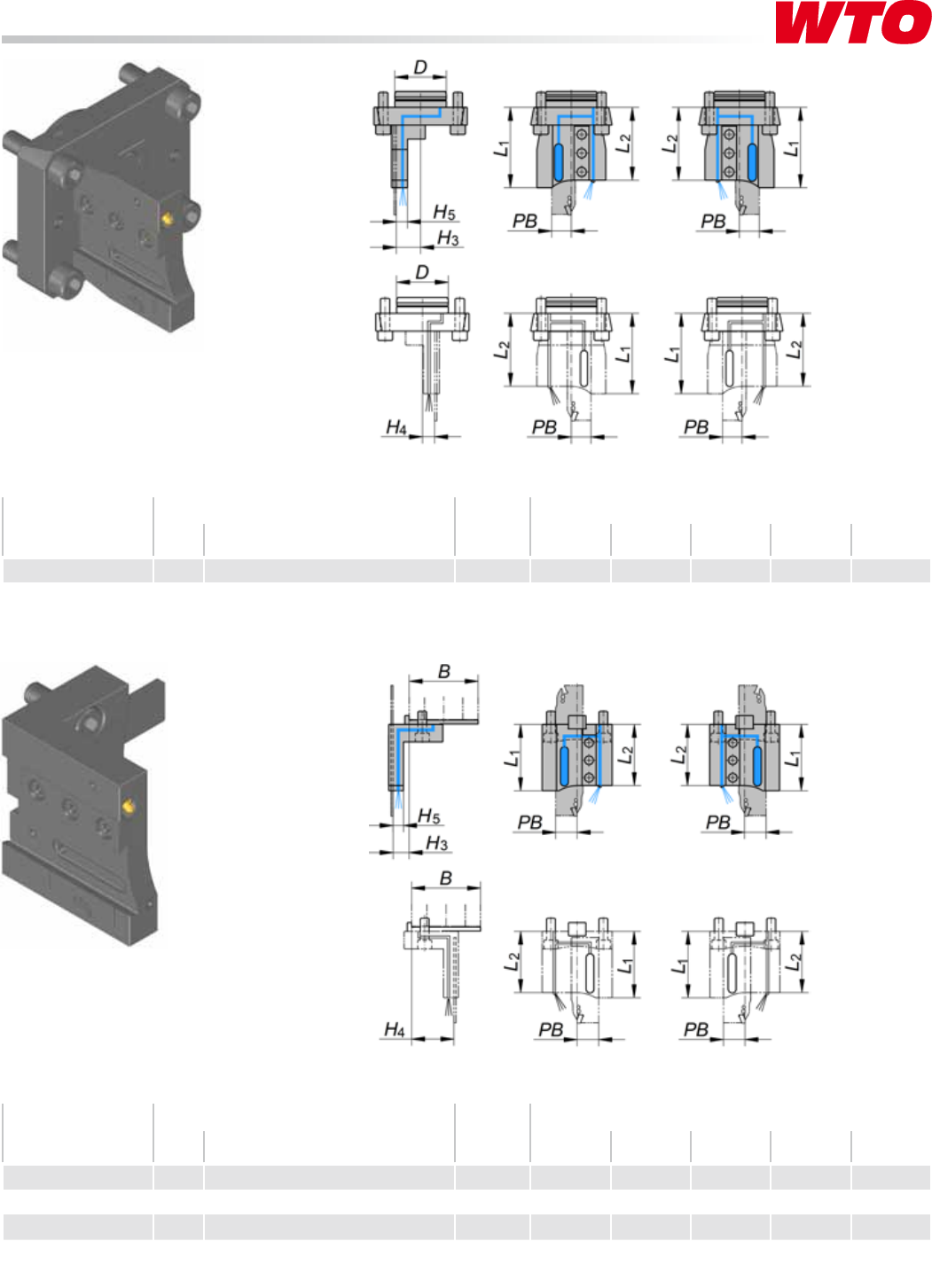

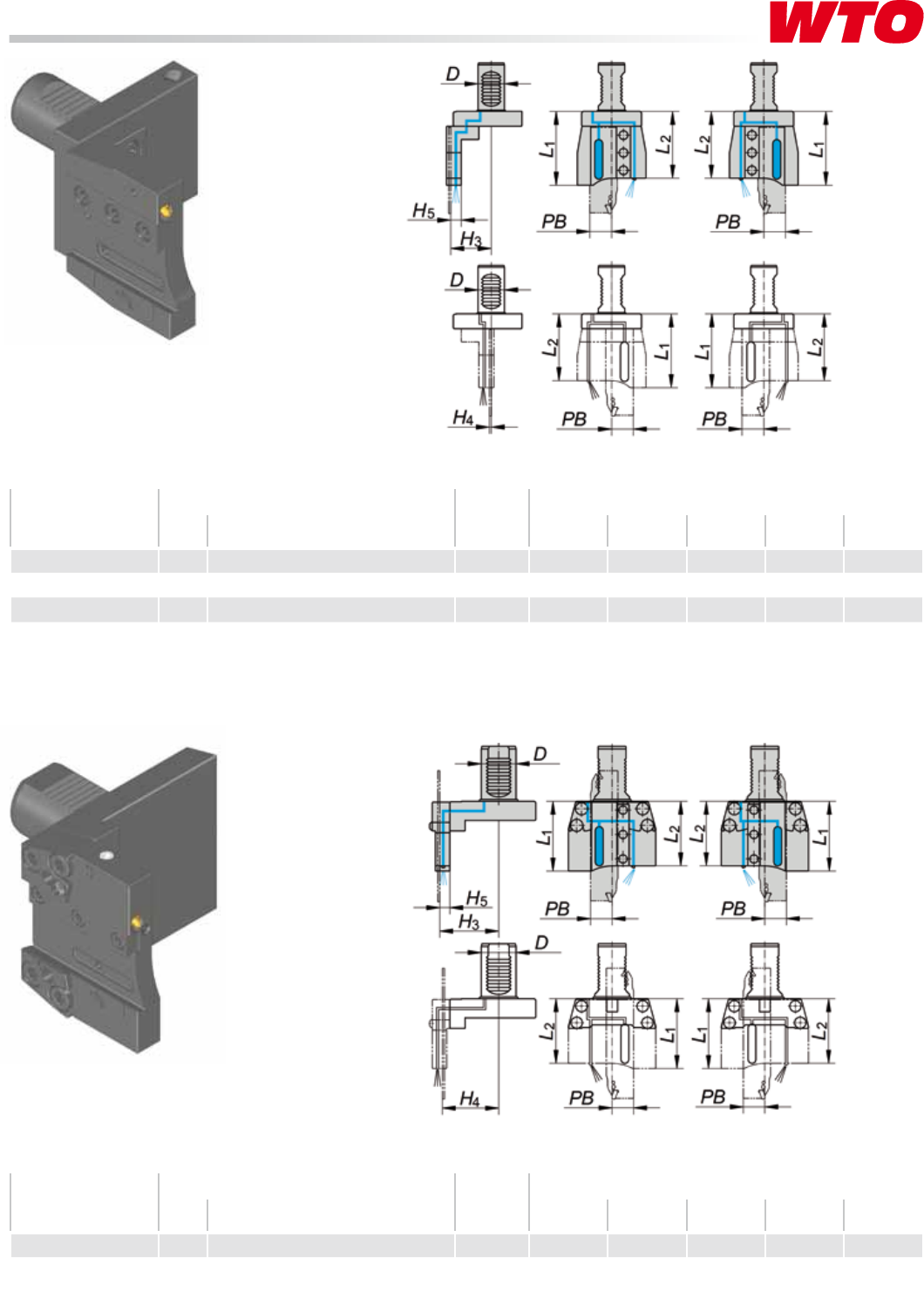

Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
ØD Turret specification L1L2H3H4H5
48-102647L/R 25 VDI25 radial tooling turret 21 (26) 83.0 75.0 38.0 1.0 12.0
48-102630L/R 30 VDI30 radial tooling turret 21 (26) 90.0 82.0 45.0 6.0 12.0
48-102632L/R 30 VDI30 radial tooling turret 25 (32) 84.0 76.0 46.0 3.0 12.0
Dimensions in mm
Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
ØD Turret specification L1L2H3H4H5
48-10264L/R 40 VDI40 radial tooling turret 25 (32) 80.0 74.0 67. 5 64.5 11.5
48-99091L/R 40 VDI40 radial tooling turret 25 (32) 116.0 109.0 67. 5 64.5 11.5
Dimensions in mm
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Adjustable center height
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Adjustable center height
180° reversible
parting blade adapter
180° reversible
parting blade adapter
Type L
Type L
Type R
Type R
5
Blade Holders with high pressure internal coolant supply
© WTO GmbH I Subject to change without notice
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Adjustable center height
Type L Type R
Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
ØD Turret specification L1L2H3
48-102686L/R 30 VDI30 face tooling turret 21 (26) 70.0 35.0 46.5
48-102688L/R 30 VDI30 face tooling turret 25 (32) 85.0 42.5 45.5
48-102690L/R 40 VDI40 face tooling turret 25 (32) 85.0 42.5 45.5
48-102894L/R 50 VDI50 face tooling turret 25 (32) 85.0 42.5 45.5
Dimensions in mm
6
Blade Holders with high pressure internal coolant supply
© WTO GmbH I Subject to change without notice
Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
ØD Turret specification L1L2H3H4H5
48-97953L/R 55 Biglia D 55 25 (32) 78.0 72.0 71.0 68.0 11.5
48-102252L/R 45 BMT 45 21 (26) 80.0 73.0 60.5 57. 5 11.5
48-102255L/R 55 BMT 55 25 (32) 80.0 74.0 69.0 66.0 11.5
48-102256 L/R 65 BMT 65 25 (32) 83.0 77. 0 70.5 6 7. 5 11.5
48-100082L/R 65 BMT 65 25 (32) 119.0 112.0 70.5 6 7. 5 11.5
48-99500L/R 60 Goodway GS 2000-4000M 25 (32) 95.5 89.5 84.5 81.5 11.5
48-99650L/R 40 Mazak HQR-100/150MSY 25 (32) 130.0 123.0 45.0 42.0 11.5
48-102266L/R 40 Mazak HQR-200/250MSY 25 (32) 130.0 123.0 56.5 53.5 11.5
48-99474L/R 40 Mazak QTN-100M 25 (32) 98.0 92.0 61.5 58.5 11.5
48-102264L/R 40 Mazak QTN-200/250M 25 (32) 123.5 116.5 62.0 59.0 11.5
48-100318L/R 50 Mazak QTN-300/350/400/450M 25 (32) 149.0 142.0 72.0 69.0 11.5
48-102268L/R 68 Mazak QTS-100/150/200/250M 25 (32) 80.0 74.0 84.0 81.0 11.5
48-99401L/R 80 Mazak QTS-300/350M 25 (32) 113.0 106.0 96.0 93.0 11.5
48-103908L/R 40 Muratec MT 12/200 25 (32) 99.0 93.0 68.0 65.0 11.5
48-102261L/R 40 DMG MORI NZX 1500-2000 25 (32) 88.0 82.0 82.0 79.0 11.5
48-102262L/R 60 DMG MORI NLX 1500-4000 25 (32) 95.5 89.5 84.5 81.5 11.5
48-102282L/R 60 Okuma LB/LU 2000-3000, LT 3000M 25 (32) 86.5 80.5 76.0 73.0 11.5
48-101968L/R 60 Okuma LB/LU 2000-3000, LT 3000M 25 (32) 122.5 115.5 76.0 73.0 11.5
48-99304L/R 60 Okuma LB 4000M 25 (32) 80.0 74.0 80.0 77. 0 11.5
48-99721L/R 50 Takisawa TCY-160, 200 25 (32) 90.0 84.0 70.0 6 7. 0 11.5
48-100057L/R 68 Takisawa TY-2000 25 (32) 119.5 112.5 83.5 80.5 11.5
48-102258L/R Doosan Puma 280, 2100, 2600 25 (32) 58.0 52.0 27. 0 24.0 11.5
48-102270L/R Mazak QTS-200/250 25 (32) 47. 0 41.0 2 7. 0 24.0 11.5
48-102272L/R Mazak QTS-300/350 25 (32) 33.0 27. 0 27. 0 24.0 11.5
48-102284L/R Okuma LB 2000 25 (32) 60.0 54.0 27. 0 24.0 11.5
48-102286L/R Okuma LB 2500-4000 25 (32) 65.0 59.0 27. 0 24.0 11.5
Dimensions in mm
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Adjustable center height
180° reversible
parting blade adapter Type L Type R
7
Blade Holders with high pressure internal coolant supply
© WTO GmbH I Subject to change without notice
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Adjustable center height
High pressure internal coolant supply through parting blade
External coolant supply with shiftable valve
Max. coolant pressure = 1160 PSI (80 bar)
Center height adjustable using machine Y axis
180° reversible
parting blade adapter
180° reversible
parting blade adapter
Type L
Type L
Type R
Type R
Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
ØD Turret specification L1L2H3H4H5
48-102280L/R 55,4 Okuma LT 2000 (16 stations) 21 (26) 86.0 78.0 26.0 13.0 12.0
Dimensions in mm
Item No. Interface Tool
clamping
PB (SH)
Dimensions/Data
BTurret specification L1L2H3H4H5
48-102274L/R 62 Nakamura D 44 21 (26) 66.0 59.0 15.0 37. 0 12.0
48-102276L/R 80 Nakamura D 55 25 (32) 76.0 70.0 12.5 42.5 12.0
48-99354L/R 90 Nakamura D 65 25 (32) 65.0 59.0 13.5 34.5 12.0
48-102279L/R 100 Nakamura D 65 25 (32) 65.0 59.0 8.5 39.5 12.0
Dimensions in mm
Shank Toolholder
with high pressure internal coolant supply
for longer tool life and higher productivity.
2

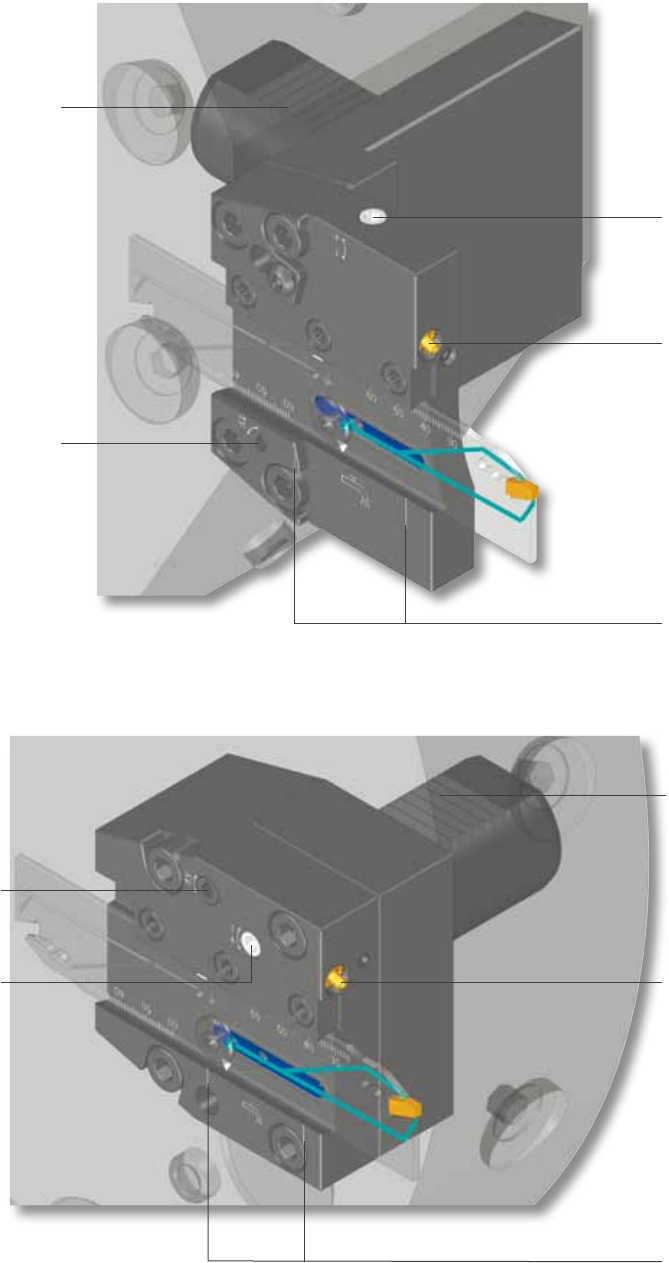

Shank Toolholder with high pressure internal coolant supply

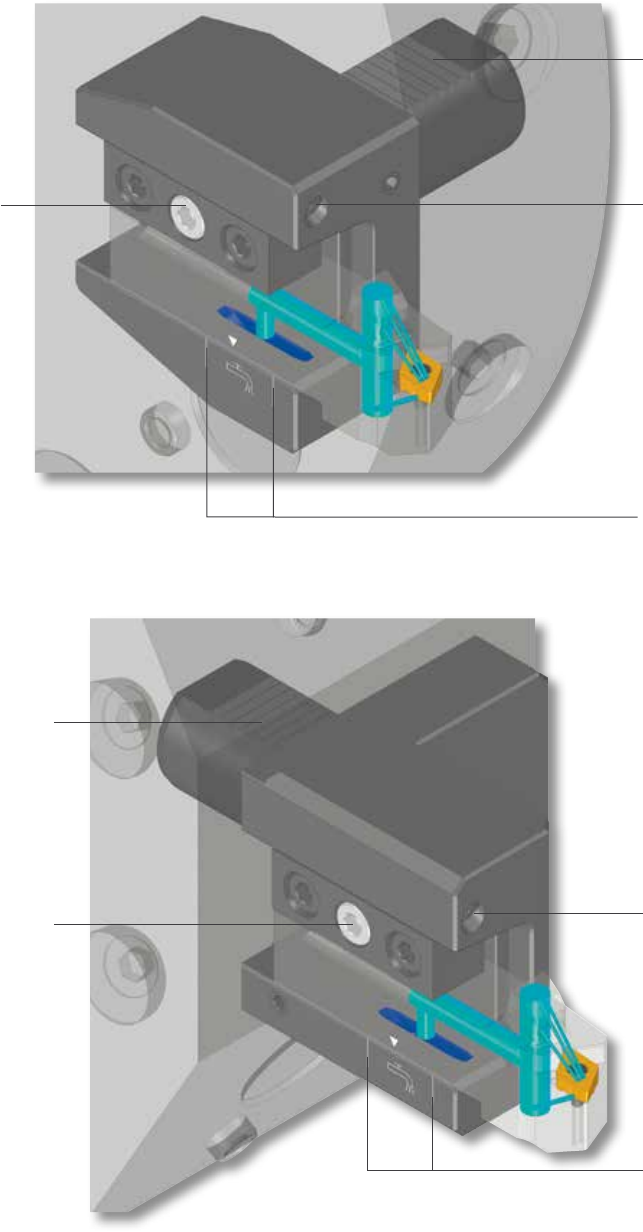

For VDI radial tooling turret
Optional external
coolant supply
(nozzle separately
available)
Adjustment range
for shank tool
Screw to release
clamping wedge
VDI double serration for
higher flexibility
For VDI face tooling turret
Adjustment range for
shank tool
Optional external
coolant supply
(nozzle separately
available)
VDI double serration
for higher flexibility
Screw to release
clamping wedge
3

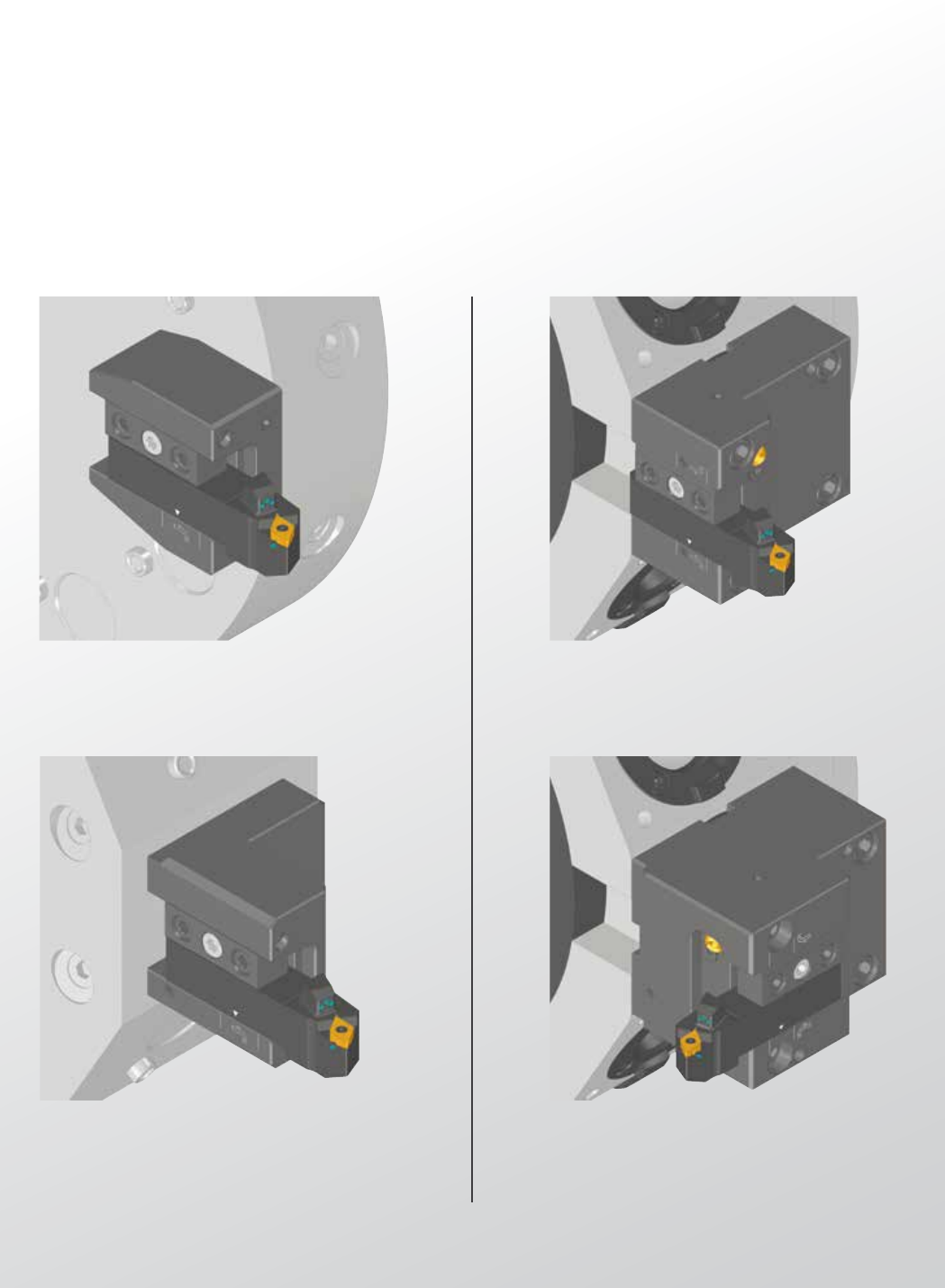

VDI Bolt-On
OD cutting holder for VDI face tooling turret
OD cutting holder for VDI radial tooling turret Face cutting holder
OD cutting holder
Examples for different types
© WTO GmbH I Subject to change without notice
Shank Toolholder with high pressure internal coolant supply

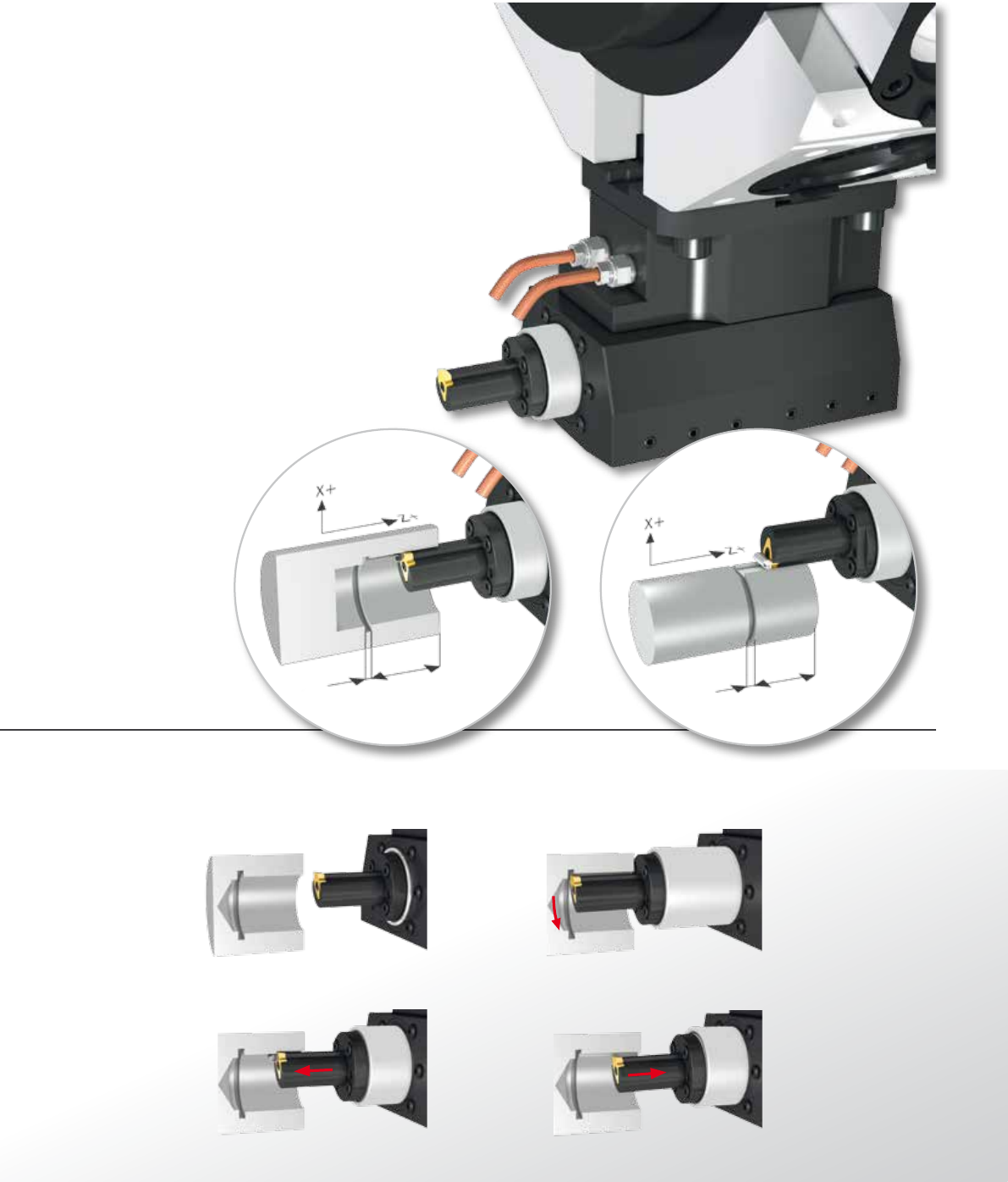

Broaching Unit
The new state of the art broaching unit for economic
manufacturing of oriented keyways and splines.
Faster return on investment.
In operation:
2
Working stroke 32 mm
Total stroke 35 mm
Max. groove width 10 mm
Workpiece material up to 1,000 N/mm2
Max. stroke 1,000 1/min
Ratio 1:1
Max. feed per stroke 0.15 mm
Direction of cut X+ or X-
1
Position insert on Z
Function
2
Cutter drives into
workpiece
4
Lift-off function
prevents wear/breakage
when cutter retracts
3
Cutter lifts from
workpiece
Same insert holder for
ID and OD broaching
by rotating 180 degrees
Broaching Unit for ID and OD
min. 1.5 max. 32
min. 1.5 max. 32
T
T
T
T
T
T
T
T
T
3
© WTO GmbH I Subject to change without notice
Sample workpieces
Broaching Unit ― OD mounted Broaching Unit ― Face mounted
Keyway Internal involute
spline according
to DIN 5482
External involute
spline according
to DIN 5480
max. 10 min. 1.5
max. 32
2 x T+0.5
min. 1.5
max. 32
2 x T+0.5
min. 1.5
max. 32
2 x T-0.5

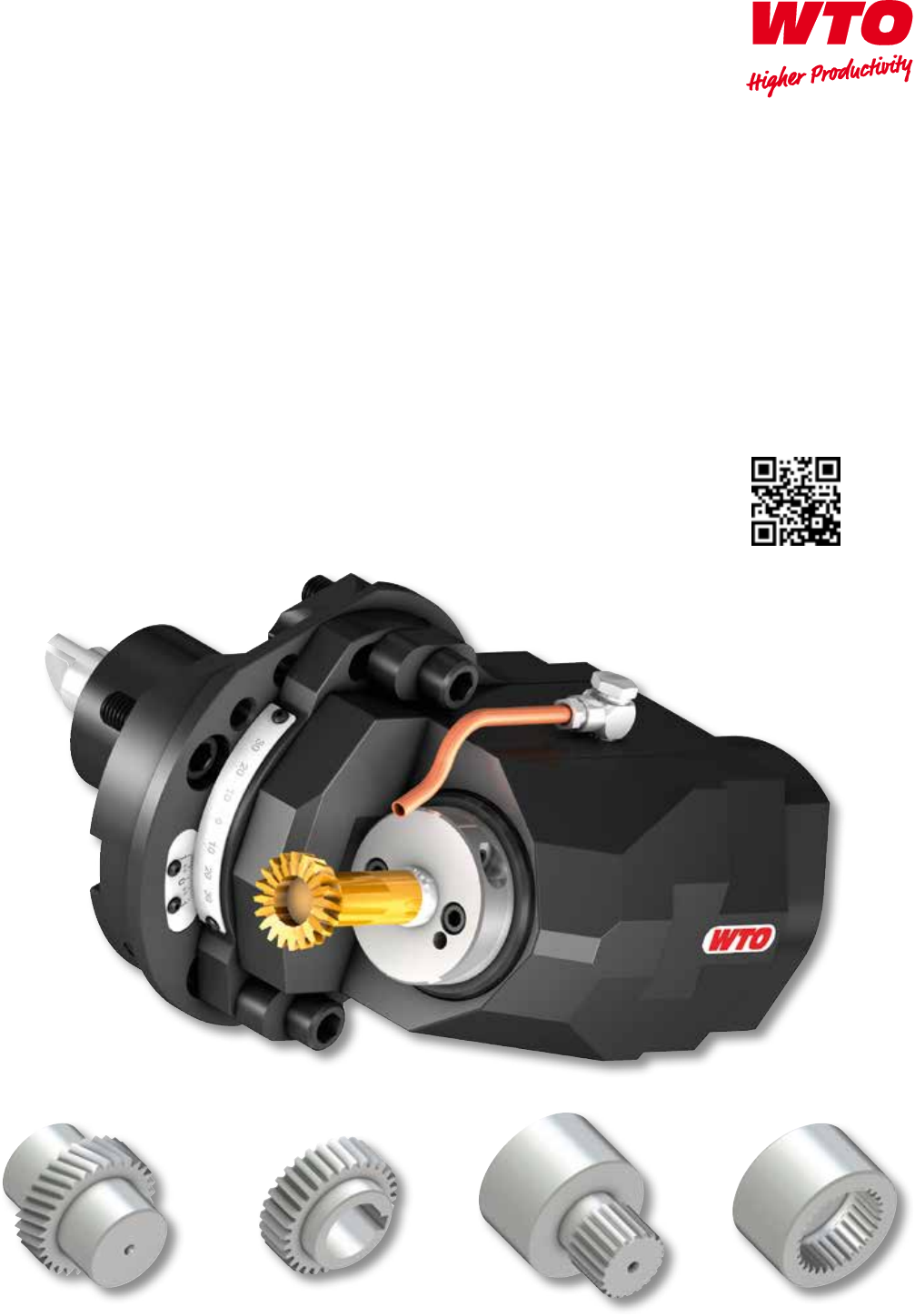

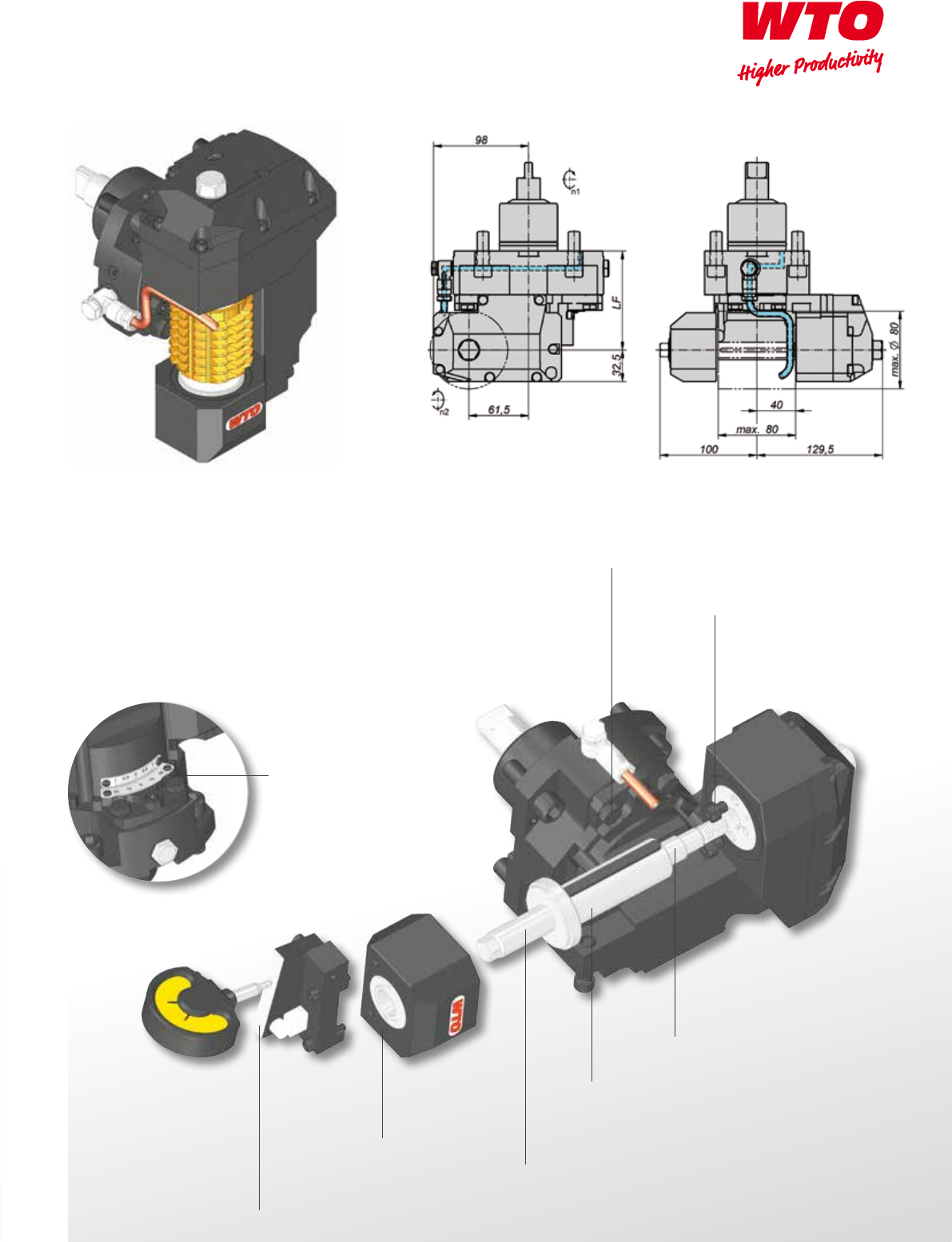

Power Skiving Unit
High Productive Manufacturing of ID/OD Gears and Splines
with CNC Turning Centers.
Maximum flexibility, high quality, optimal handling.
In operation:
2
Power Skiving Unit
Power Skiving Unit for ID and OD
Internal coolant supply
Hydro chuck for
minimal runout
External
coolant supply
Ratio i (n1:n2) 1:1
Max. RPM (n2) 3,000
Max. torque M 63 Nm
Max. scale swing
α
±45°
Tool clamping dia. Ø20 DIN1835A
Coolant supply internal a. external
Max. coolant pressure 1160 PSI (80 bar)
Required coolant filtration ≤50 μm
| High stiffness and runout accuracy
| Quick cutting tool change with hydro chuck
Clamping of
angular position
Maximum angular
adjustment ±45°
with vernier scale
Cylindrical shaft
DIN1835A
Sine bar for
high accuracy
angular adjustment
3
© WTO GmbH I Subject to change without notice
Power Skiving Unit for ID and OD

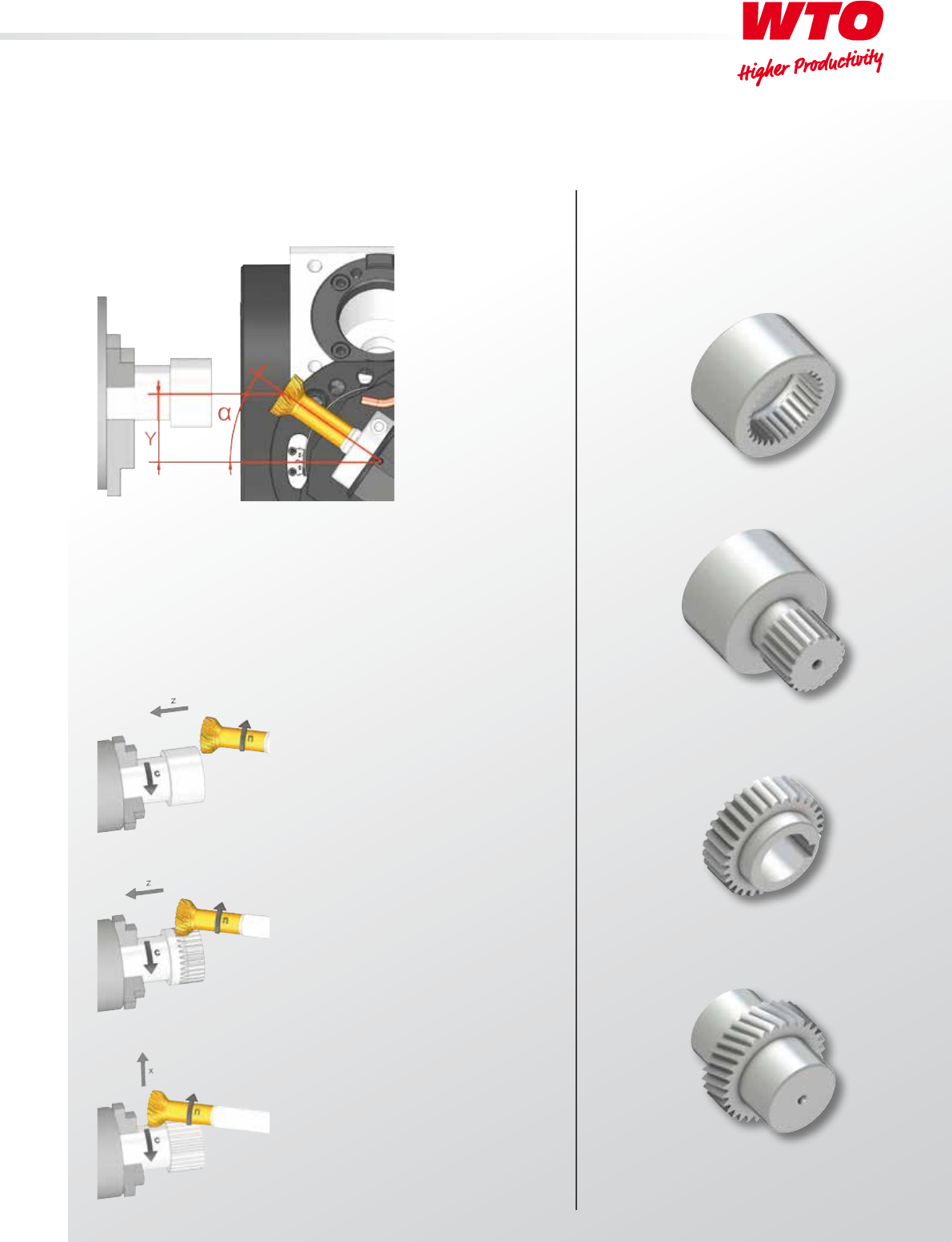

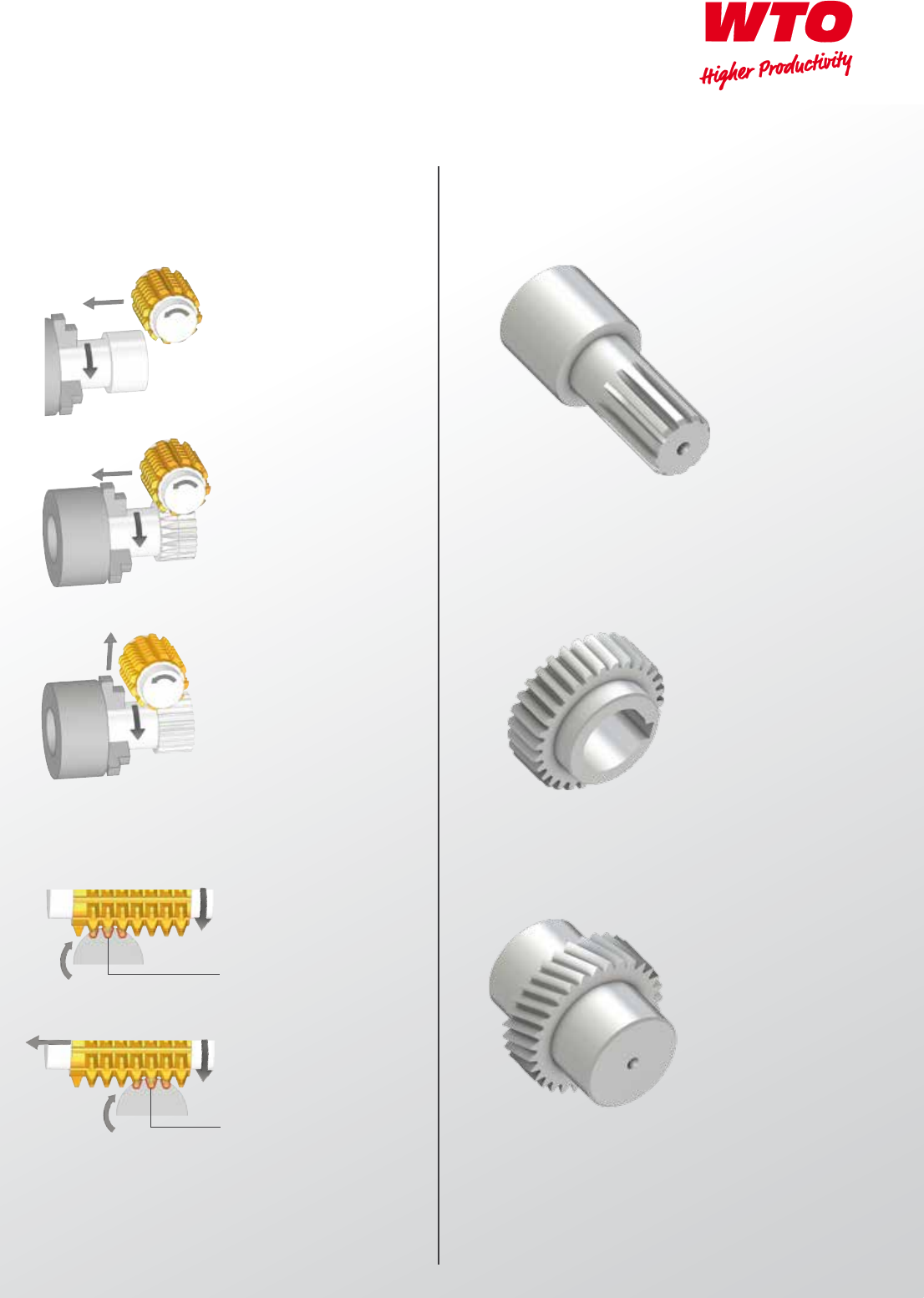

Operation principle: Power Skiving Sample workpieces
The workpiece axis and the skiving tool axis must
be related to each other in a defined angle (α).
The offset of the cutting tool (Y) caused by
rotating to the defined angle (α) must be
compensated with the Y-axis of the machine.
Synchronization of work
piece and tool rotation.
Feed movement in Z-axis.
When skiving is finished the
cutter has to move towards X.
Please consider:
At the end of the gear/spline
there must be sufficient clear-
ance for the cutter.

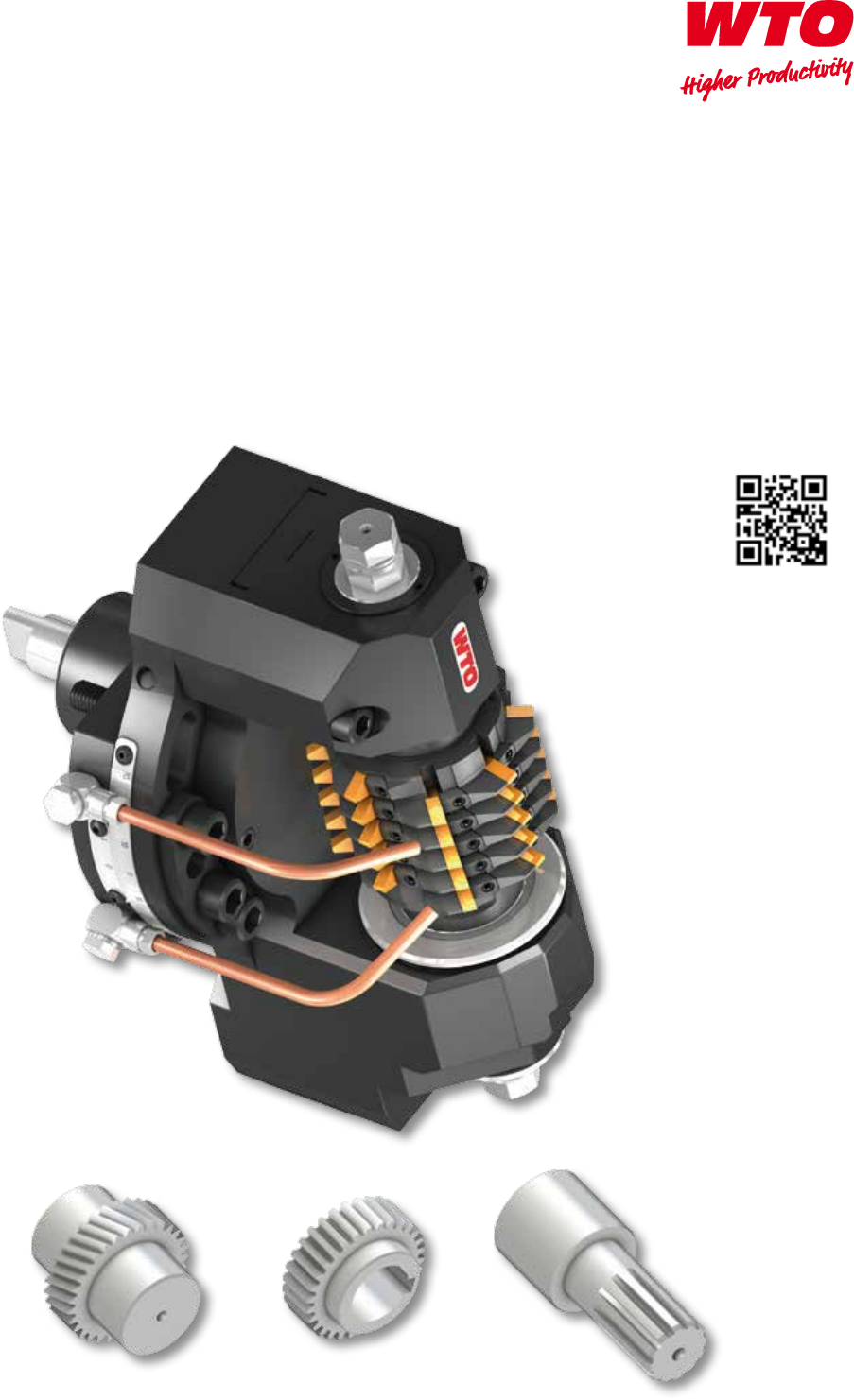

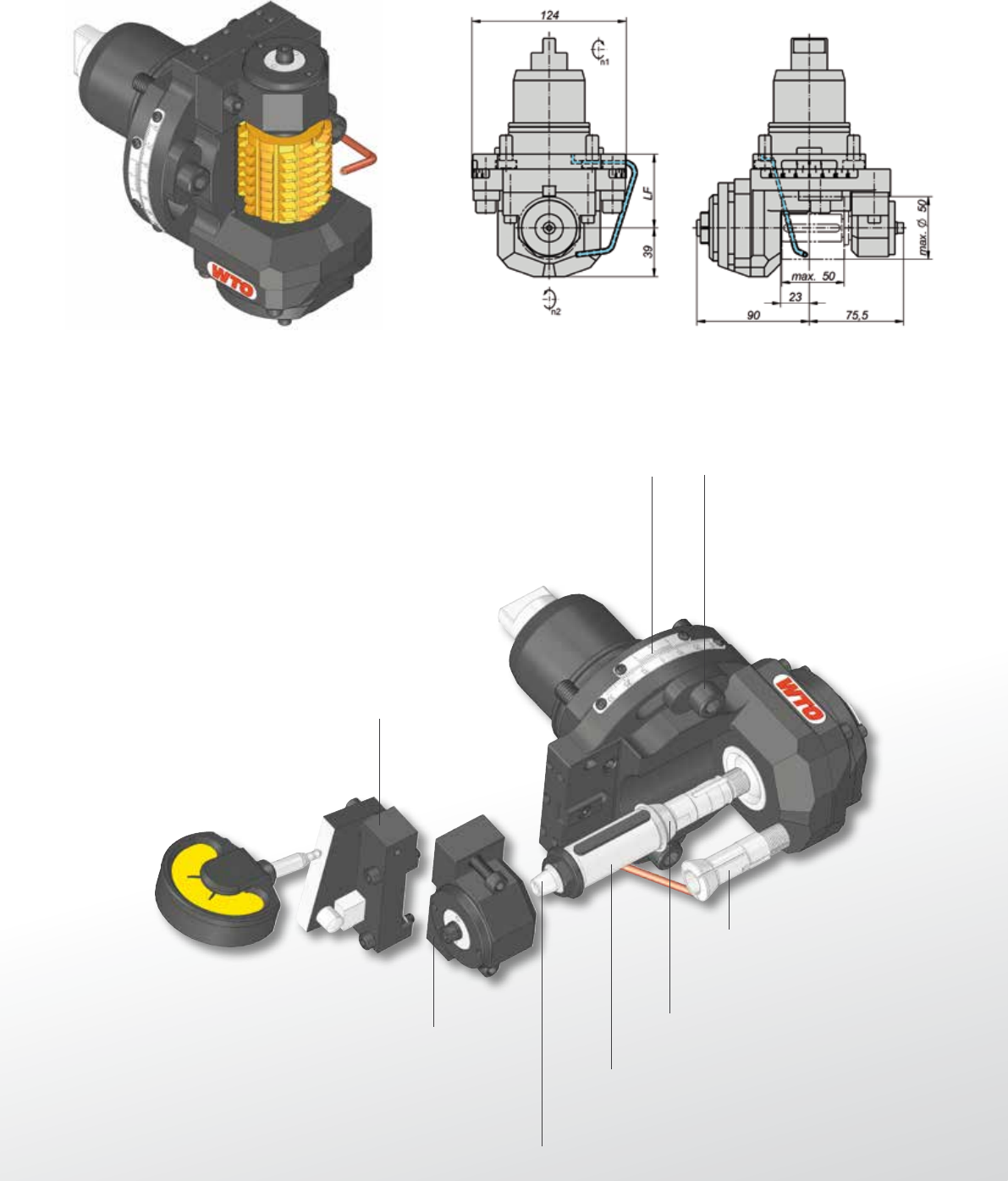

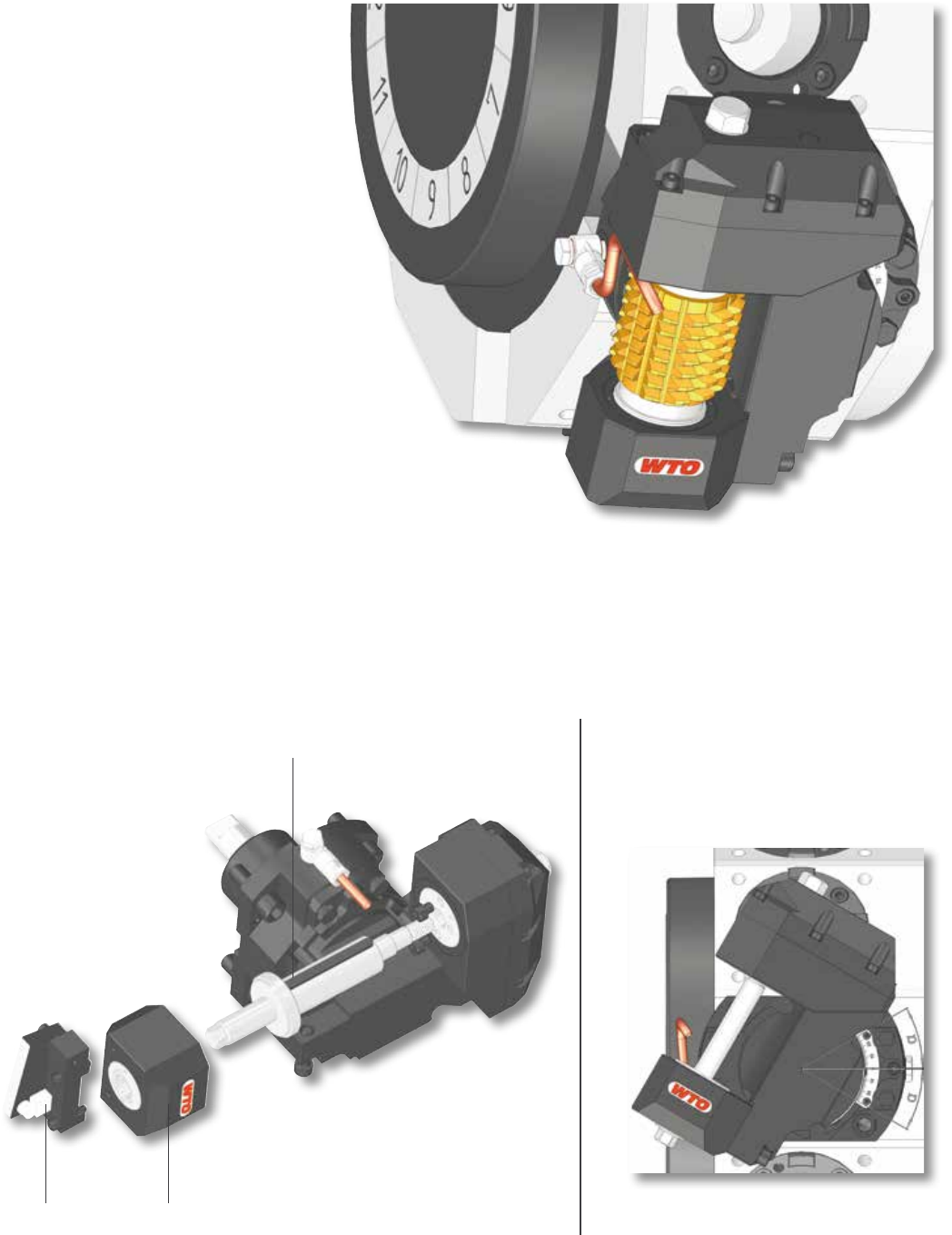

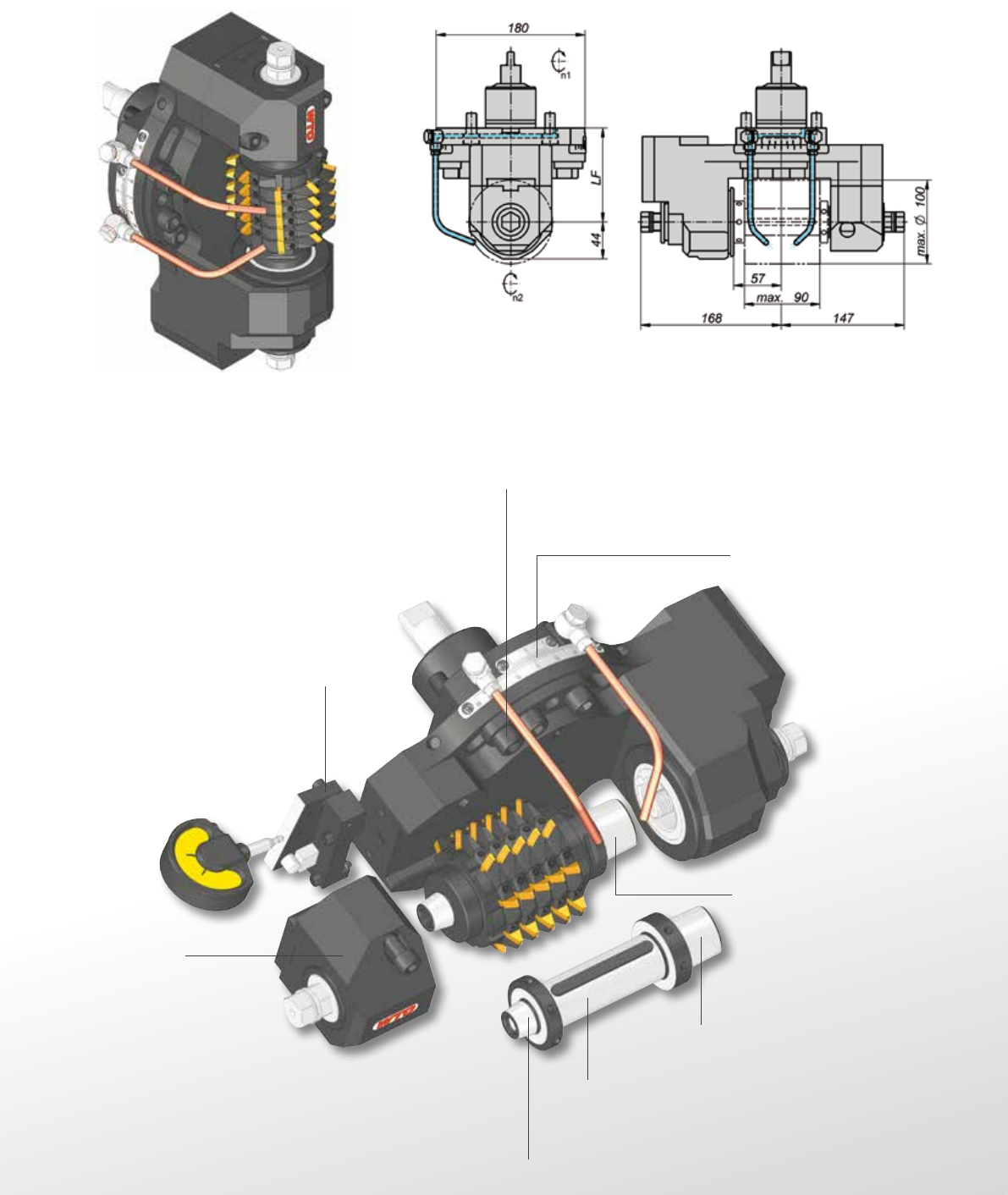

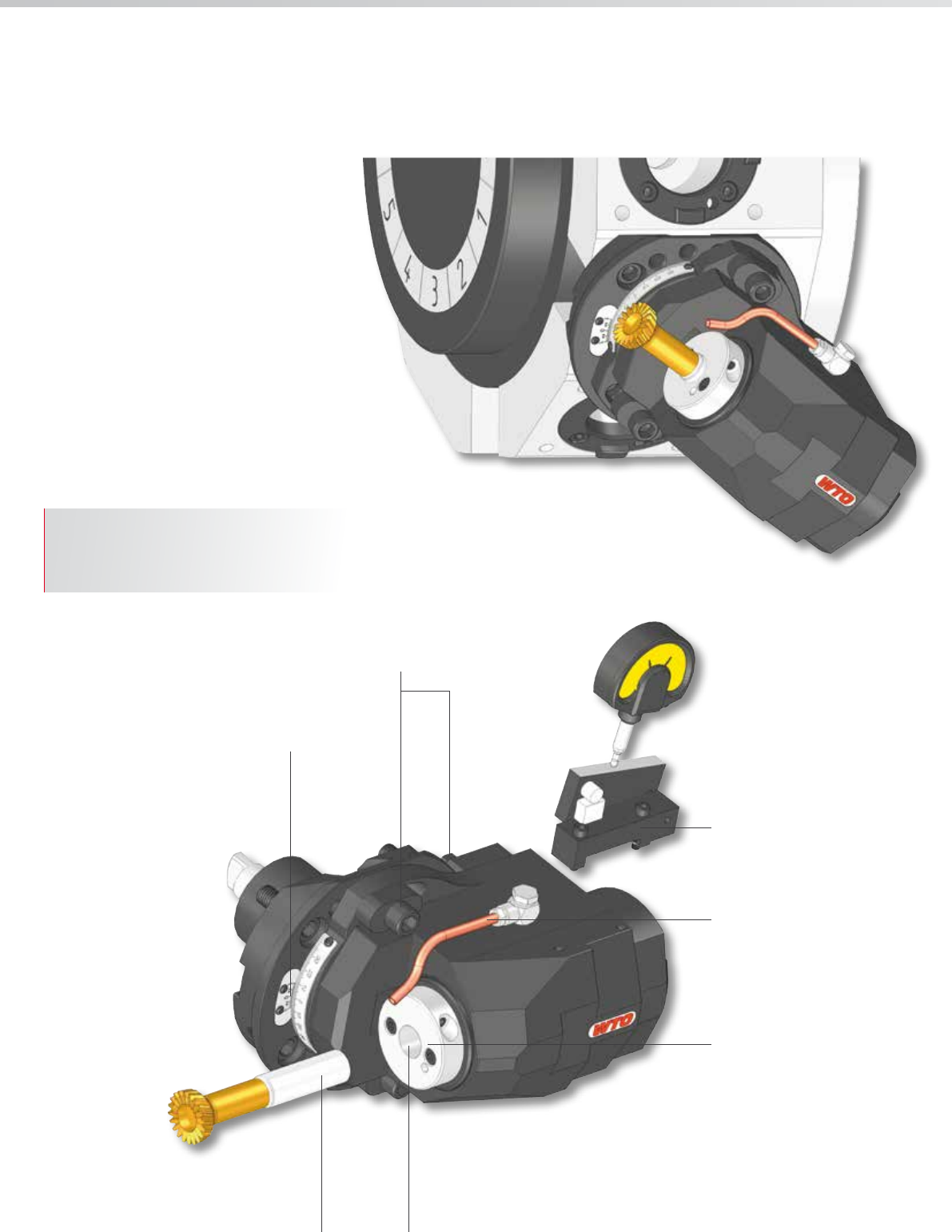

Gear Hobbing Unit
High Productive Manufacturing of Gears
with CNC Turning Centers.
Maximum flexibility, high surface quality, easy handling.
In operation:
2
interchangeable milling arbor
Gear Hobbing Unit for Turn/Mill Centers
removable counter supportSine bar
| Usable for machining gear quality according
to standard 8 ISO 1328, AGMA 8
| Maximum scale swing of ±30°
| High stiffness and runout accuracy
| Interchangeable milling arbor available in
different sizes
| Easy cutting tool change through removable
counter support and withdrawal of the complete
milling arbor
| Cutting tools can be pre-set
| Sine bar for high accurate angular adjustment
Maximum angular adjustment
±30° with scale and vernier
c
z
n
c
z
n
n
c
y
c
n
3
© WTO GmbH I Subject to change without notice
Synchronization of work
piece and tool rotation.
Operation principle:
Gear hobbing
Sample workpieces
Feed movement in Z axis.
When hobbing is finished the
hob has to move towards X.
Please consider:
At the end of the gear/spline
there has to be sufficient
clearance for the hob.
Shifting
| Splines
e.g. DIN 5480, DIN 5482, TORX
| Spur gear
| Helical gear
To optimize the cutting tool life you can move the hob step
by step in Y axis direction. This movement enables the
usage of all cutting edges of the hob. This procedure is
called shifting.
Hob position at end of
cutting tool life.
Initial hob position after tool
change with new cutting tool.
4
Gear Hobbing Unit type 1 (up to module 2)
Maximum angular adjustment
±30° with scale and vernier
Clamping of
angular position
Taper connection for high
accuracy runout
Interchangeable milling arbor
Taper support for high
accuracy runout
Removable
counter support
Sine bar for high accurate
angular adjustment
Optional:
High precision collet
| Max. cutting tool size Ø50x50 mm
| Ratio i (n1:n2) 1:1
| Max. RPM (n2) 4,000
| Max. torque M 32 Nm
| Max. scale swing ±30°
5
© WTO GmbH I Subject to change without notice
Gear Hobbing Unit type 2 (up to module 3)
| Max. cutting tool size Ø80x80 mm Ø80x80 mm
| Ratio i (n1:n2) 1:1 2:1
| Max. RPM (n2) 6,000 3,000
| Max. torque M 60 Nm 80 Nm
| Max. scale swing ±30° ±30°
Clamping of angular position
Removable face
drive dogs
Interchangeable milling arbor
Precision interface for high
accuracy runout
Removable
counter
support
Sine bar for high accurate
angular adjustment
Precision interface for
high accuracy runout
Maximum angular
adjustment ±30°
with scale and vernier
6
Gear Hobbing Unit type 3 (up to module 6)
| Max. cutting tool size Ø100x90 mm
| Ratio i (n1:n2) 2:1
| Max. RPM (n2) 3,000
| Max. torque M 150 Nm
| Max. scale swing ±30°
Clamping of
angular position Maximum angular
adjustment ±30° with
scale and vernier
Hob with integrated
Coromant Capto® C5
interface
Coromant Capto® C5
interface
Interchangeable milling arbor
Taper support for high
accuracy runout
Removable
counter support
Sine bar for high accurate
angular adjustment
7
© WTO GmbH I Subject to change without notice
Item No. d e b h L F1F2
160008152 835 24.7 14 14.0 15.0 104271 98852
160010152 10 40 36.20 716.0 21.5 20588 86055
160013152 13 50 37.70 126.0 20.0 87770 86054
160016152 16 50 49.20 126.0 27.0 20642 97265
160022152 22 50 612.60 126.0 27.0 20804 97265
160015152 5/8"50 1/8"9.52 126.0 27.0 44683 97265
160019152 3/4"50 1/8"11.11 126.0 27.0 44683 97265
Dimensions in mm

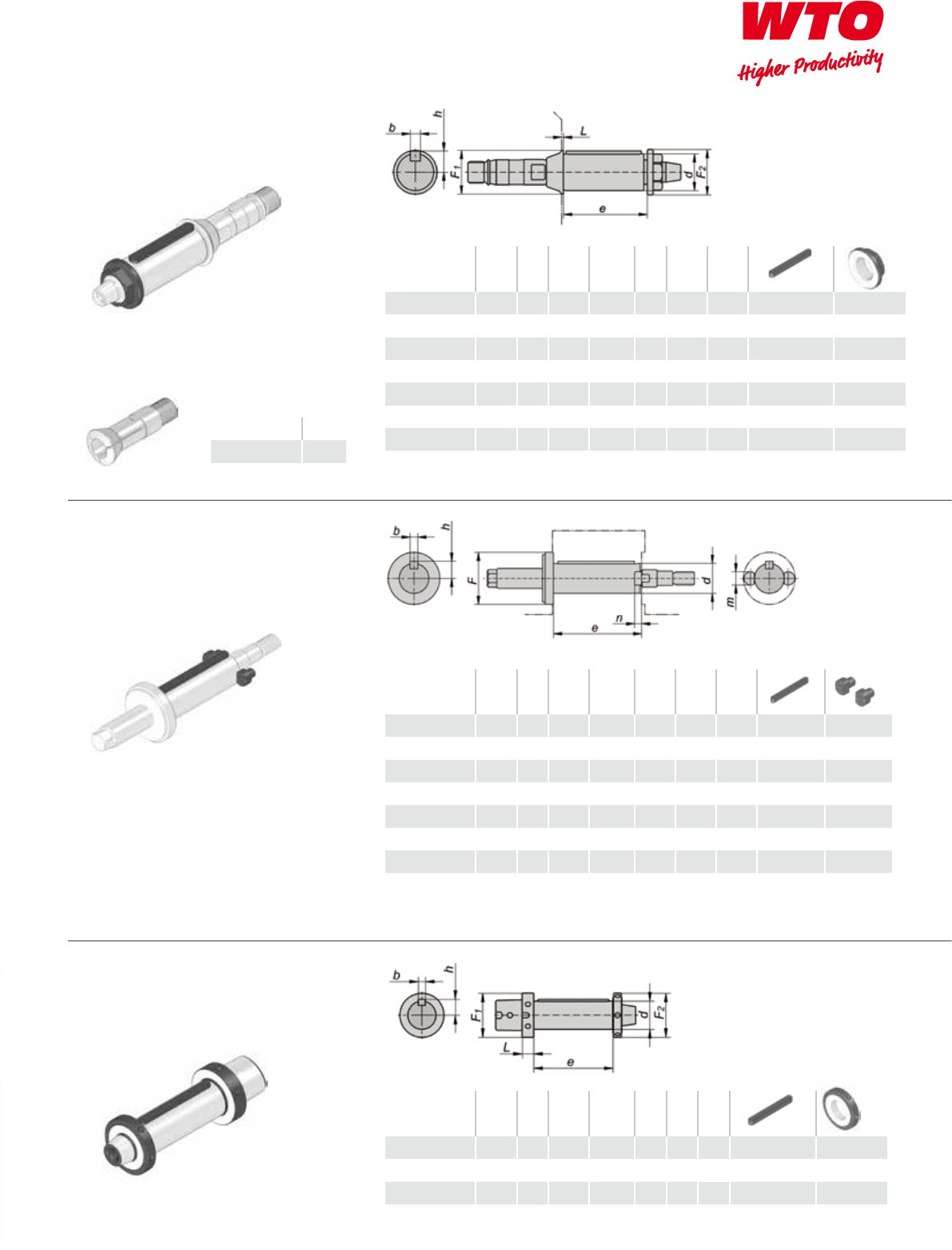

Milling arbor type 1

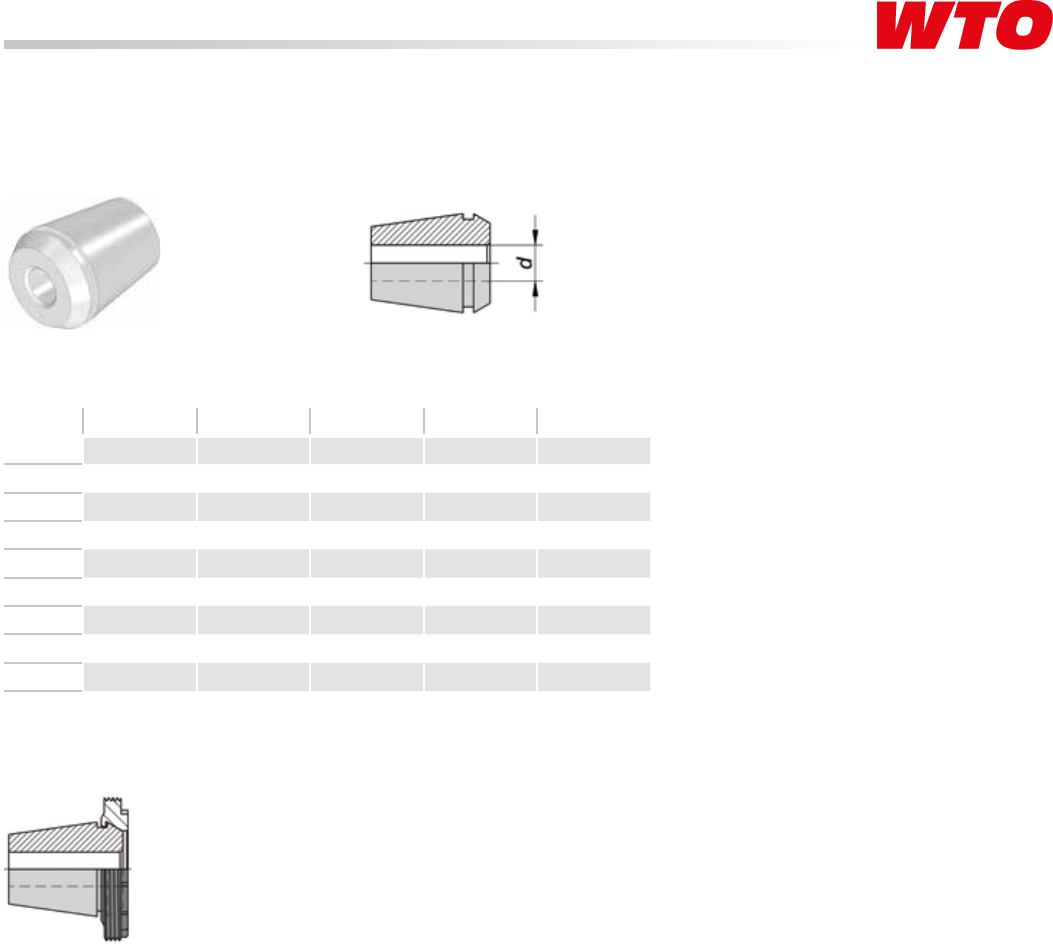

Collet for type 1 (324E-UP)
Item No. Ø
199015130 13
199015050-in 1/2"
Item No. d e b h m n F
160016161 16 80 49.2 84.5 47 104358 45988
160022161 22 80 612.6 10 5.6 47 80120 45151
160027161 27 80 715.5 12 6.3 47 77856 77558
160015161 5/8"80 1/8"9.51 7.94 4.5 47 77705 77704
160019161 3/4"80 1/8"11.11 7.94 4.5 47 77706 77704
160023161 7/8"80 1/8"12.69 7.94 4.5 47 77705 91840
160025161 1" 80 1/4"15.07 9.53 5.0 47 77870 85352
160031161 1 1/4"80 1/4"18.26 ––47 77870
Dimensions in mm
Milling arbor type 2
Milling arbor type 3
Item No. d e b h L F1F2
160027C51 27 90 715.50 13 50 50 100091 99760
160032C51 32 90 818.00 13 50 50 20870 99760
160025C51 1" 90 1/4"15.07 13 50 50 99761 99760
160031C51 1 1/4"90 5/16"19.05 13 50 50 100090 99760
Dimensions in mm
QuickFlex®
The new Quick Change System for
high performance and precision.
Adapters for BIG KAISER Precision Boring System.
Adapters
for
2
CK
F2
1 2
F1
L2
L1
CK
F2
A
12

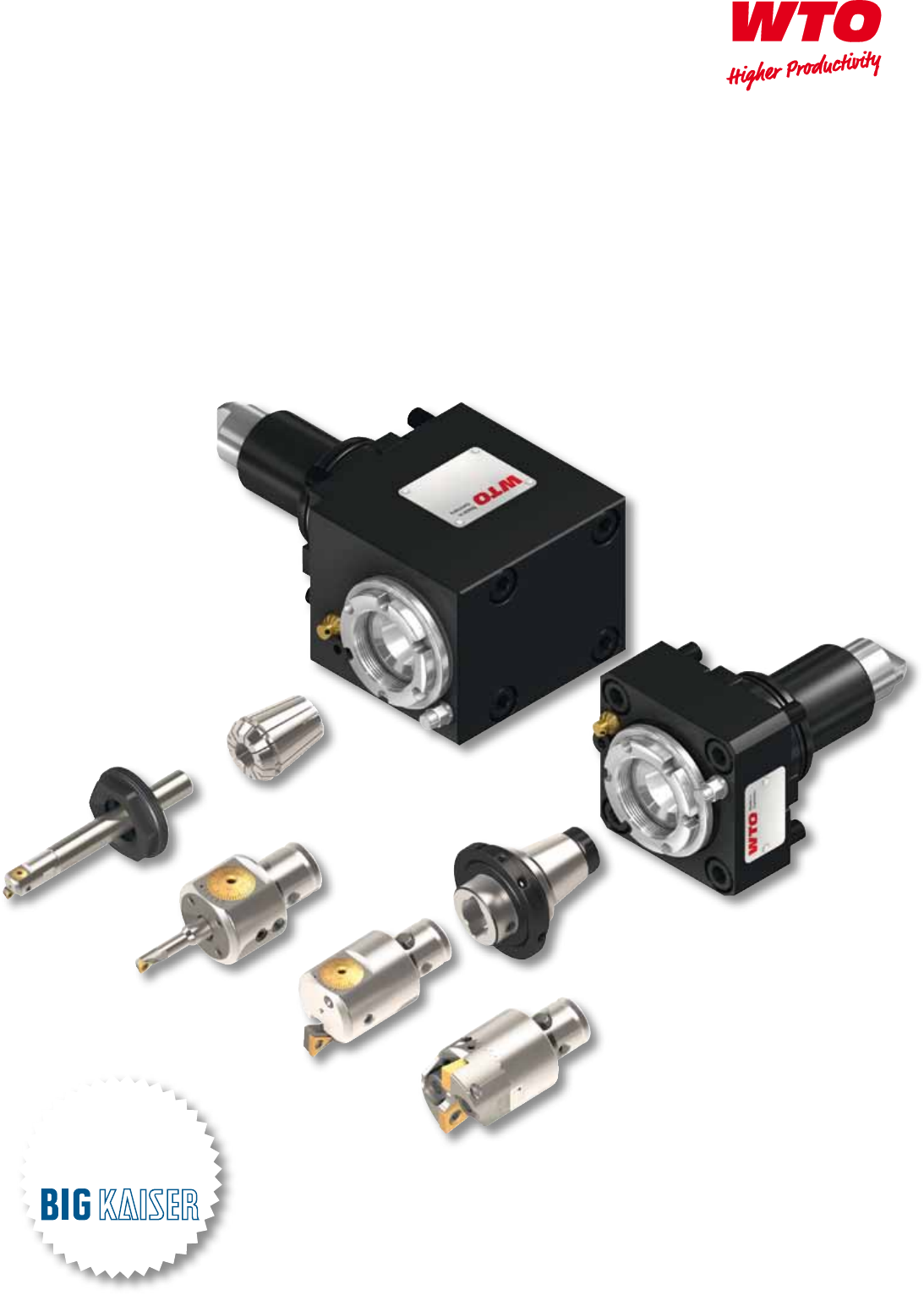

QuickFlex® for BIG KAISER
The adapters for the QuickFlex® quick change tooling system are available in eight different sizes enabling
the use of BIG KAISER boring tools in sizes CKB1 up to CKB4. This guarantees a gapless machining of highly
precise bores on turning centers in the range from Ø 0.4 to 74 mm.

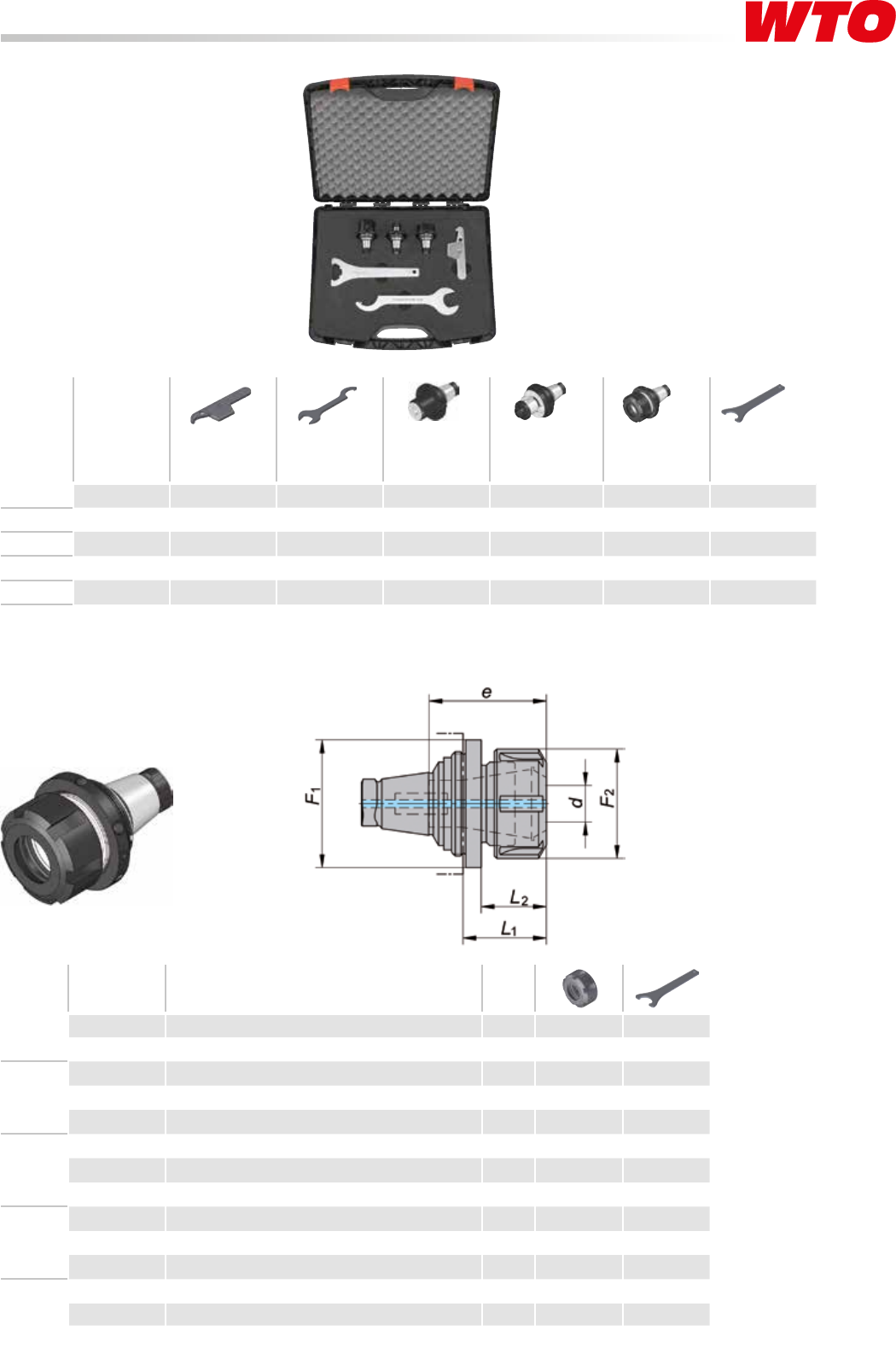

QuickFlex® Adapter
Sizes: ER-25QF, ER-32QF, ER-40QF and ER-50QF
Collets
Sizes: ER25, ER32, ER40 and ER50
Size Item No. CKF1 F2 L1 L2
ER-25QF 325125CK1 CKB1/11 49 19 15.5 8.5 103828 26079
325125CK3 CKB3/18 49 31 19.5 12.5 72733 26072
ER-32QF 325132CK1 CKB1/11 58 19 15.5 8.5 103828 26079
325132CK3 CKB3/18 58 31 19.5 12.5 72733 26072
ER-40QF 325140CK2 CKB2/14 71 24 18 10 69040 26071
325140CK4 CKB4/22 71 39 23 15 67821 26073
ER-50QF 325150CK2 CKB2/14 82 24 19 10 69040 26071
325150CK4 CKB4/22 82 39 24 15 67821 26073
Dimensions in mm
|
3
E
D2
D3
AA
D
CK
L
F2
D
A
D
L
L
D1
CK
F2
D2
CK
D1
L
F2

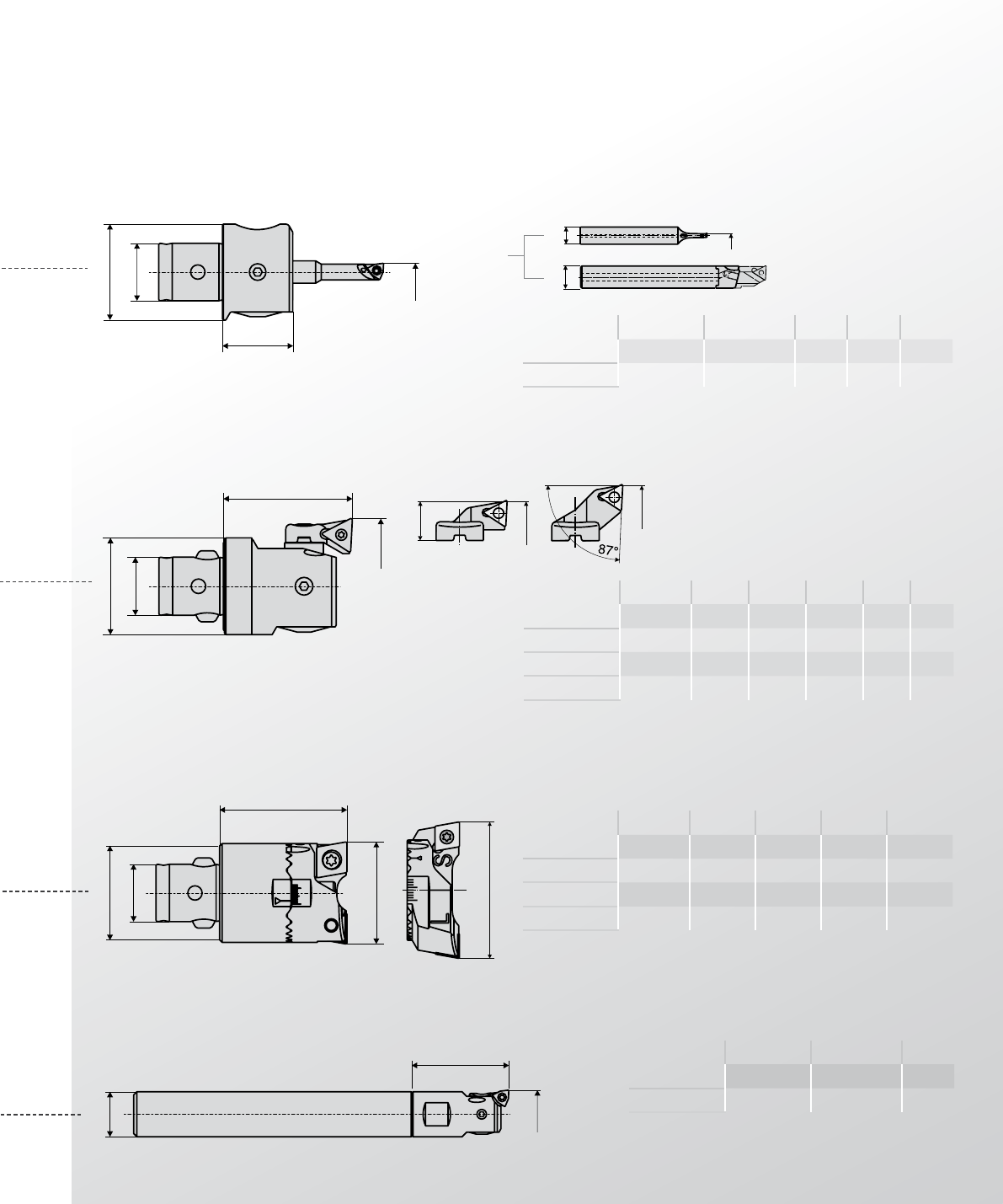

Tool combinations and work ranges
For detailed specifications of the boring tools and accessories please refer to the BIG KAISER main catalogue.
Precision boring heads EWN, Series 112, Ø 0.4 – 24.8 mm
Precision boring heads EWN, Series 310, Ø 20 – 74 mm
Rough boring heads SW, Series 319, Ø 20 – 66 mm
Precision boring heads EW, Series 310, Ø 15 - 22 mm
See BIG KAISER catalogue page B51-55.
See BIG KAISER catalogue page B58-62.
See BIG KAISER catalogue page B27-31.
See BIG KAISER catalogue page B67.
Boring Head CKD1 D2 D3 LF2
EWN 20 CKB1/11 20-26 25-31 30-36 32.5 19
EWN 25 CKB2/14 25-33 32-40 39-47 35.5 24
EWN 32 CKB3/18 32-42 41-51 50-60 40 31
EWN 41 CKB4/22 41-54 50-63 61-74 47 39
Boring Head CKD1 D2 LF2
SW 20 CKB1/11 20-26 25-31 32.5 19
SW 25 CKB2/14 25-33 32-40 35.5 24
SW 32 CKB3/18 32-42 41-51 40 31
SW 41 CKB4/22 41-54 50-63 47 39
Boring Head CKDALF2
EWN 04-15 CK3/18 0.4-15.5 722 31
EWN 04-22 CK4/22 0.4-24.8 10 28 39
Boring Head A D L
EW 15 14 15-18.5 30
EW 18 16 18-22 36
© WTO GmbH I Subject to change without notice
powRgrip®
The quick change system for high
performance and precision.
REGO-FIX powRgrip® collet chuck adapter.
Adapters
for
2© WTO GmbH I Subject to change without notice

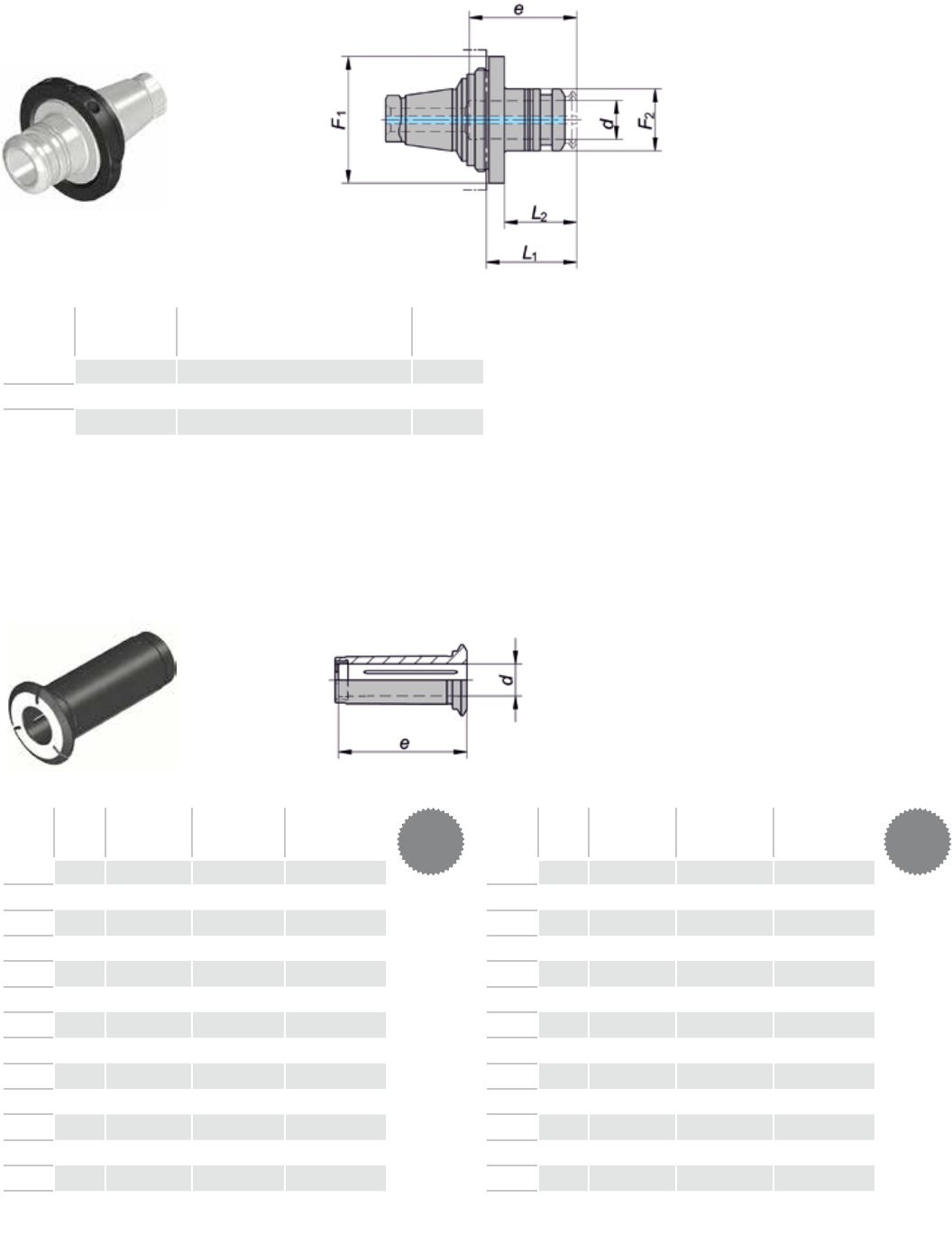

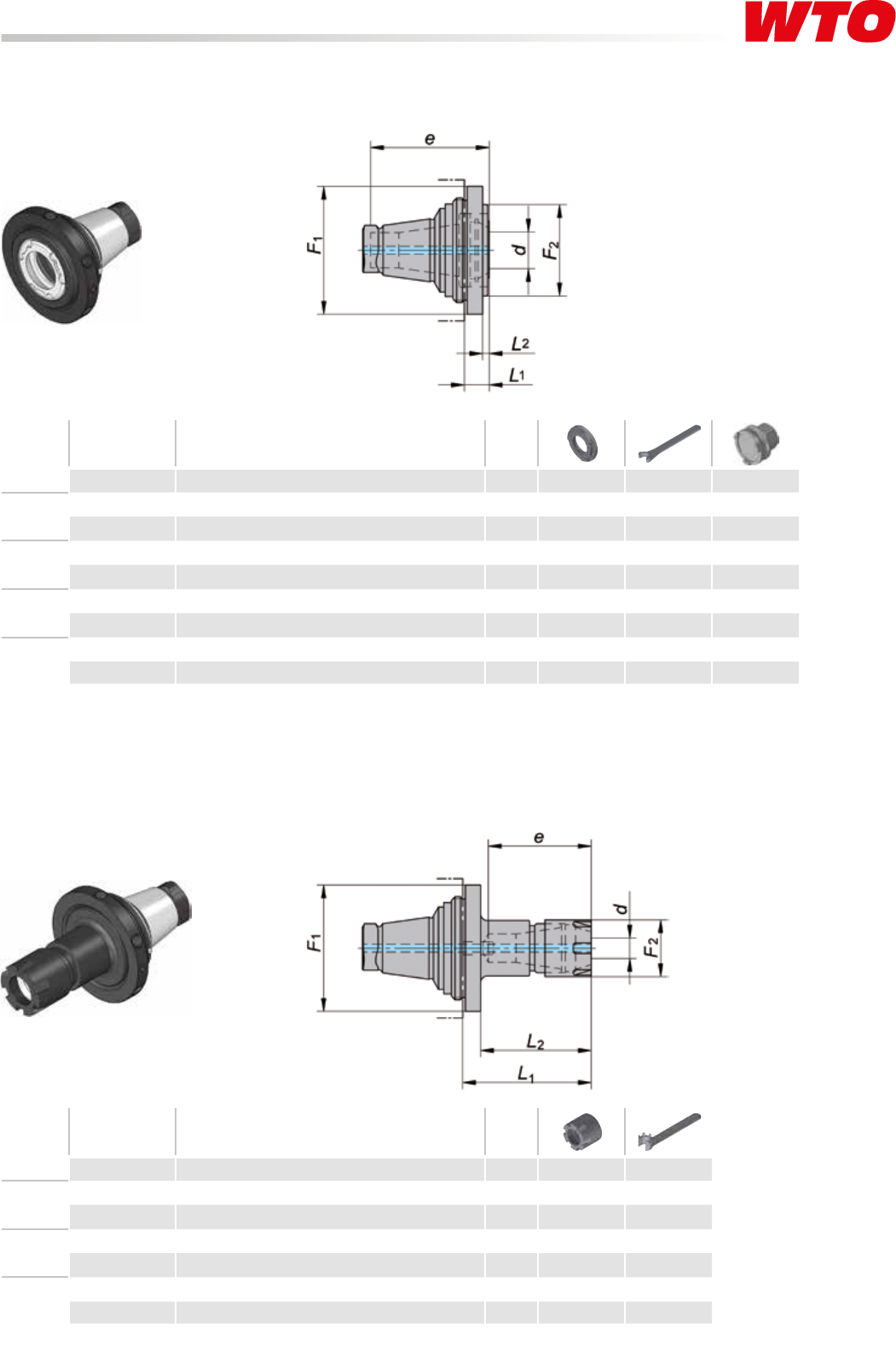

powRgrip® collet chuck adapter
for PGST collets
powRgrip® PGST collets
Size Item No. F1d
min.
d
max.
F2L1L2Collet
size
ER-25QF 325225P15 49 310 24 35 28 PGST 15
ER-32QF 325232P25 58 320 40 47 40 PGST 25
ER-40QF 325240P25 71 320 40 48 40 PGST 25
Dimensions in mm
d e PGST WTO
Item No.
REGO-FIX
Item No.
328 PGST 15 244P15003 1715.03006
428 PGST 15 244P15004 1715.04006
636 PGST 15 244P15006 1715.06006
836 PGST 15 244P15008 1715.08006
10 40 PGST 15 244P15010 1715.10006
328 PGST 25 244P25003 1725.03006
428 PGST 25 244P25004 1725.04006
636 PGST 25 244P25006 1725.06006
836 PGST 25 244P25008 1725.08006
10 40 PGST 25 244P25010 1725.10006
12 45 PGST 25 244P25012 1725.12006
16 48 PGST 25 244P25016 1725.16006
20 48 PGST 25 244P25020 1725.20006
Dimensions in mm
d e PGST WTO
Item No.
REGO-FIX
Item No.
1/8" 28 PGST 15 244P150013 1715.03186
3/16" 28 PGST 15 244P150019 1715.04766
1/4" 36 PGST 15 244P150025 1715.06356
5/16" 36 PGST 15 244P150031 1715.07946
3/8" 40 PGST 15 244P150038 1715.09526
1/8" 28 PGST 25 244P250013 1725.03186
3/16" 28 PGST 25 244P250019 1725.04766
1/4" 36 PGST 25 244P250025 1725.06356
5/16" 36 PGST 25 244P250031 1725.07946
3/8" 40 PGST 25 244P250038 1725.09526
1/2" 45 PGST 25 244P250050 1725.12706
5/8" 48 PGST 25 244P250063 1725.15886
3/4" 48 PGST 25 244P250075 1725.19056
Dimensions in inch
mm
dimensions inch
dimensions
|
>20‘000x
m
3
© WTO GmbH I Subject to change without notice

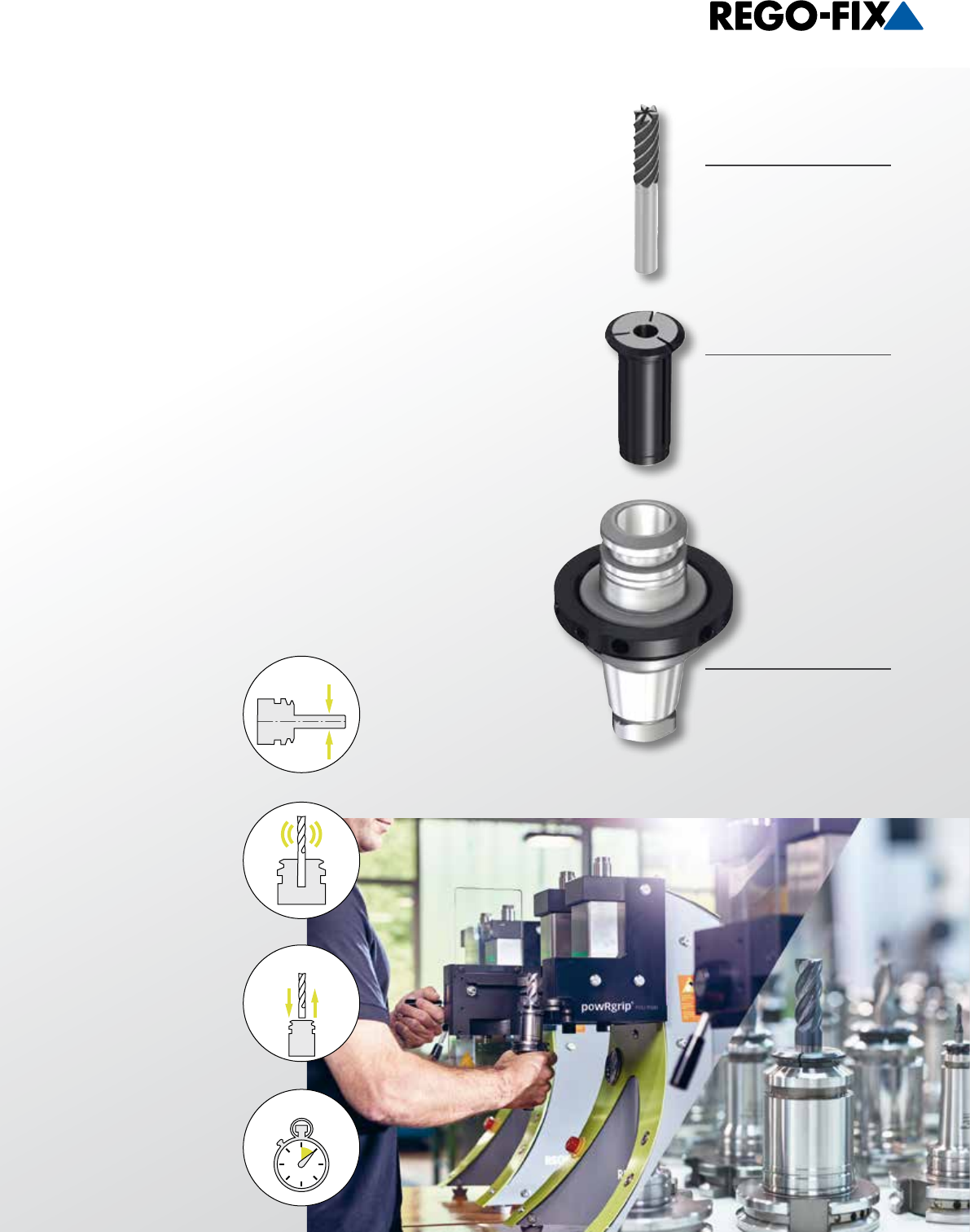

REGO-FIX powRgrip®
collet
SIMPLE
|Tool is clamped in 8 seconds by pushing only one single button.
SAFE
|No heat up – high clamping force.
powRgrip®
|The tool clamping system of today and the future.
The powRgrip® system:
|Highly precise powRgrip® collet
|QuickFlex® powRgrip® collet chuck adapter
| powRgrip® clamping unit (PGU/PGC)
(automatic or manual)
QuickFlex® REGO-FIX
powRgrip® collet chuck
adapter
Tool
REGO-FIX powRgrip®
Total system runout
TIR ≤ 3 μm at 3 x D.
Excellent vibration
dampening.
Tool ready for use
in 8 seconds.
Maximum clamping
force and low runout,
even after 20,000 tool
changes.
8 seconds

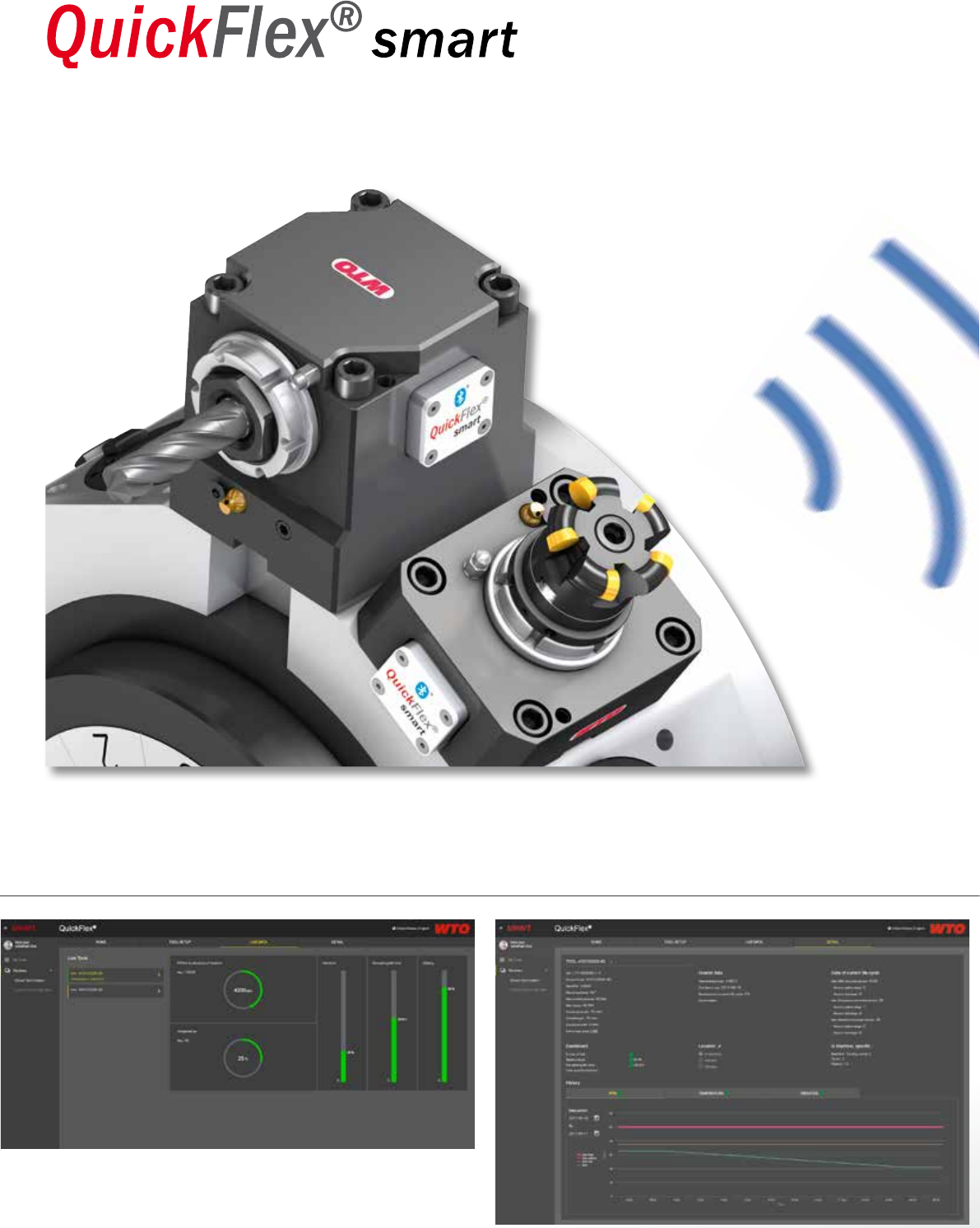

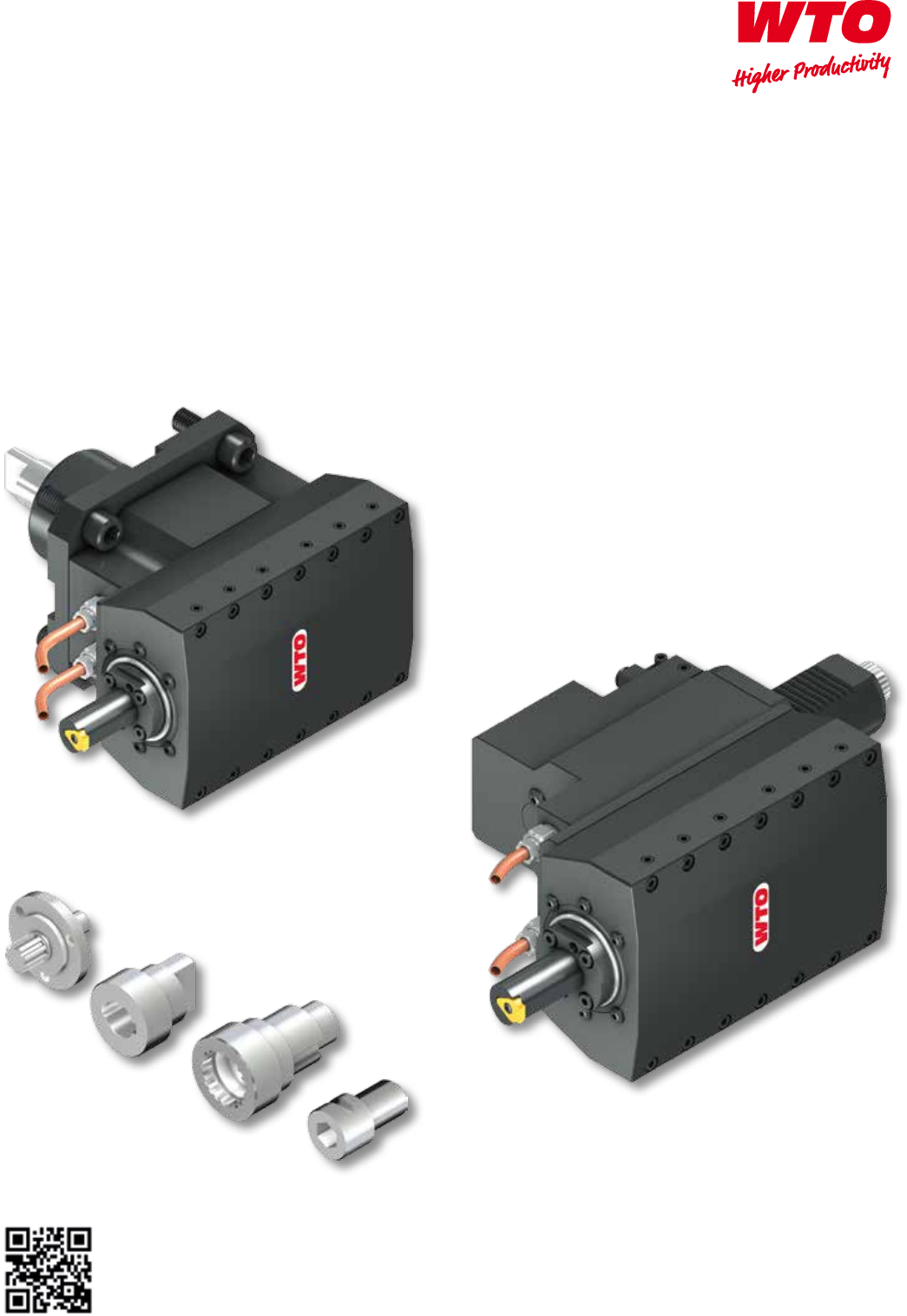

The New Generation of Smart Driven Toolholders
with intelligent Condition Monitoring.
High Process Reliability for Industry 4.0 Applications.
In operation:
2
The New Generation of Smart Driven Toolholders
with intelligent Condition Monitoring.
|Integrated wireless electronic sensor/transmitter unit
|Secure data transfer with Bluetooth standard BLE 4.2
|Monitoring of speed, temperature, vibrations, runtime
True online process monitoring
|Clear status presentation of all assigned driven tool holders
|Condition monitoring of the assigned machines
|Complete data history of each driven toolholder
3
© WTO GmbH I Subject to change without notice
|All monitoring data will be transferred live during operation
|Permanent monitoring of production parameters
|Display of the operating time and remaining time until the service interval
Integrated in the machine control
Currently available as option with the latest
CELOS version of DMG MORI.

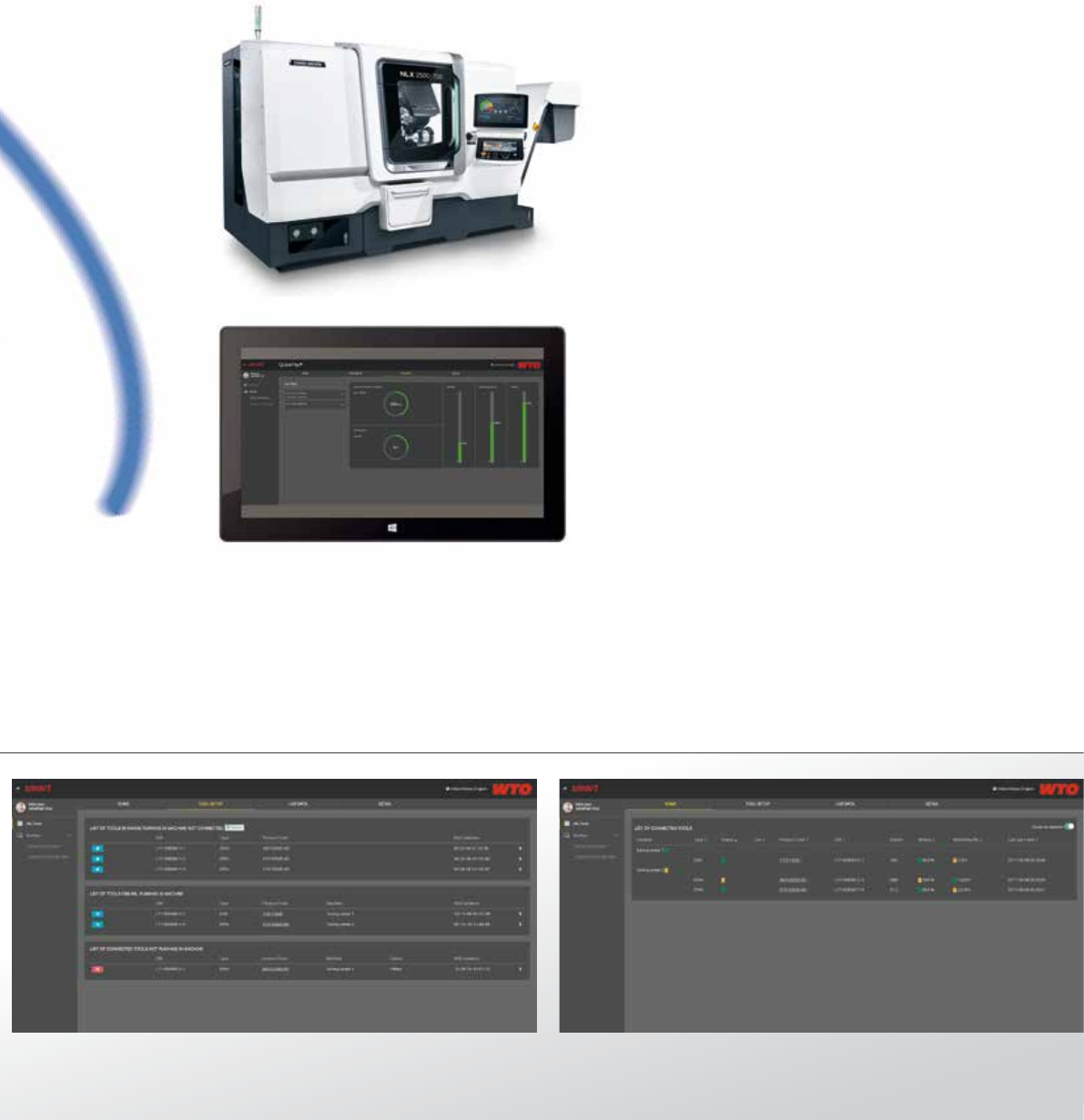

Software for condition monitoring
Installation requirements
Hardware PC, Tablet with Bluetooth 4.2
Operating system Windows 10

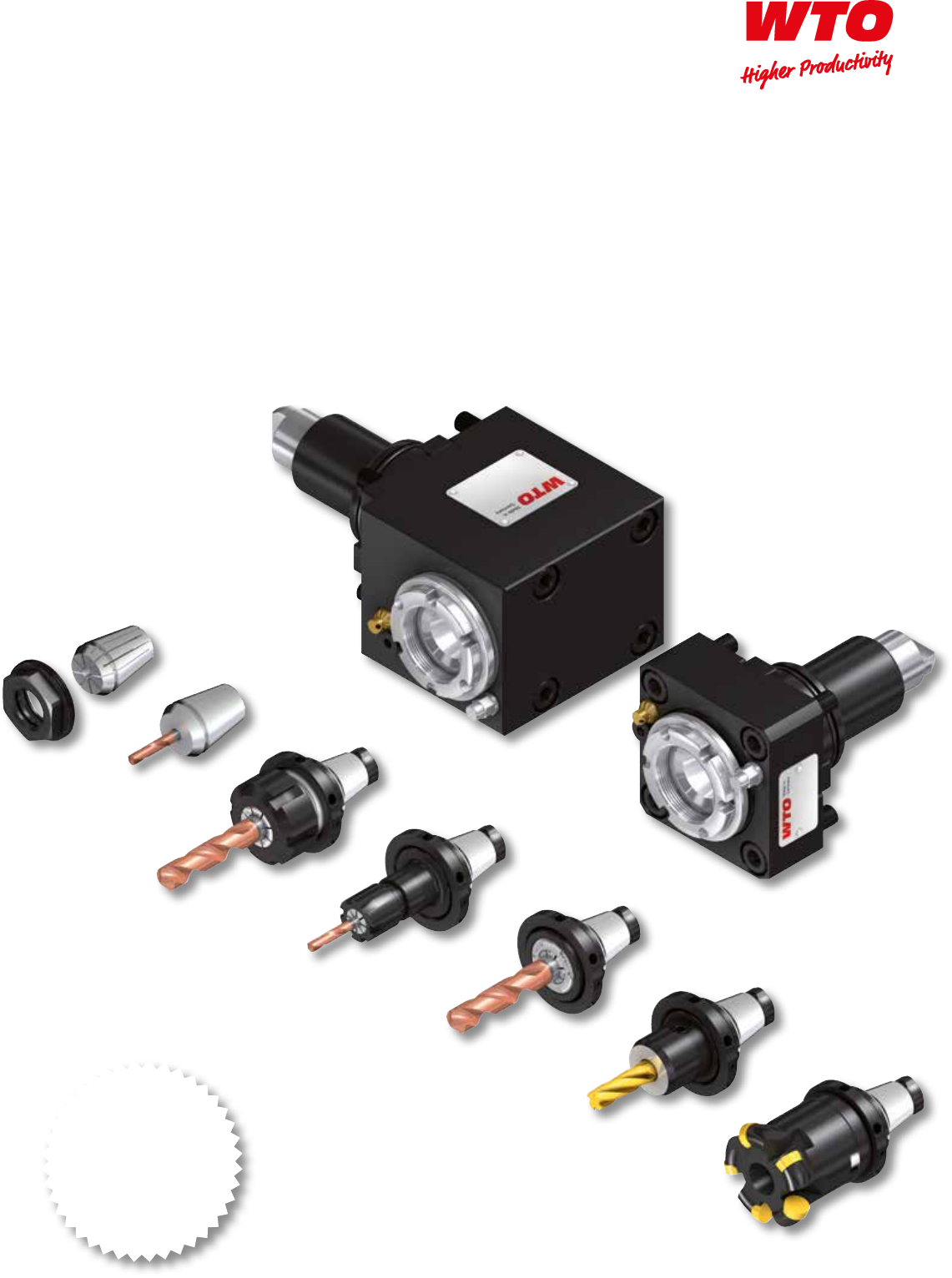

QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
Adapter
Program
2
QuickFlex®
Minimal investment, maximal expandability.
Minimal investment
Simply clamp the cutting tools directly in the QuickFlex®
toolholder using a standard ER collet.
Maximal expandability
Buy QuickFlex® adapters any time to add the quick change
function for reducing tool change time.
3
© WTO GmbH I Subject to change without notice

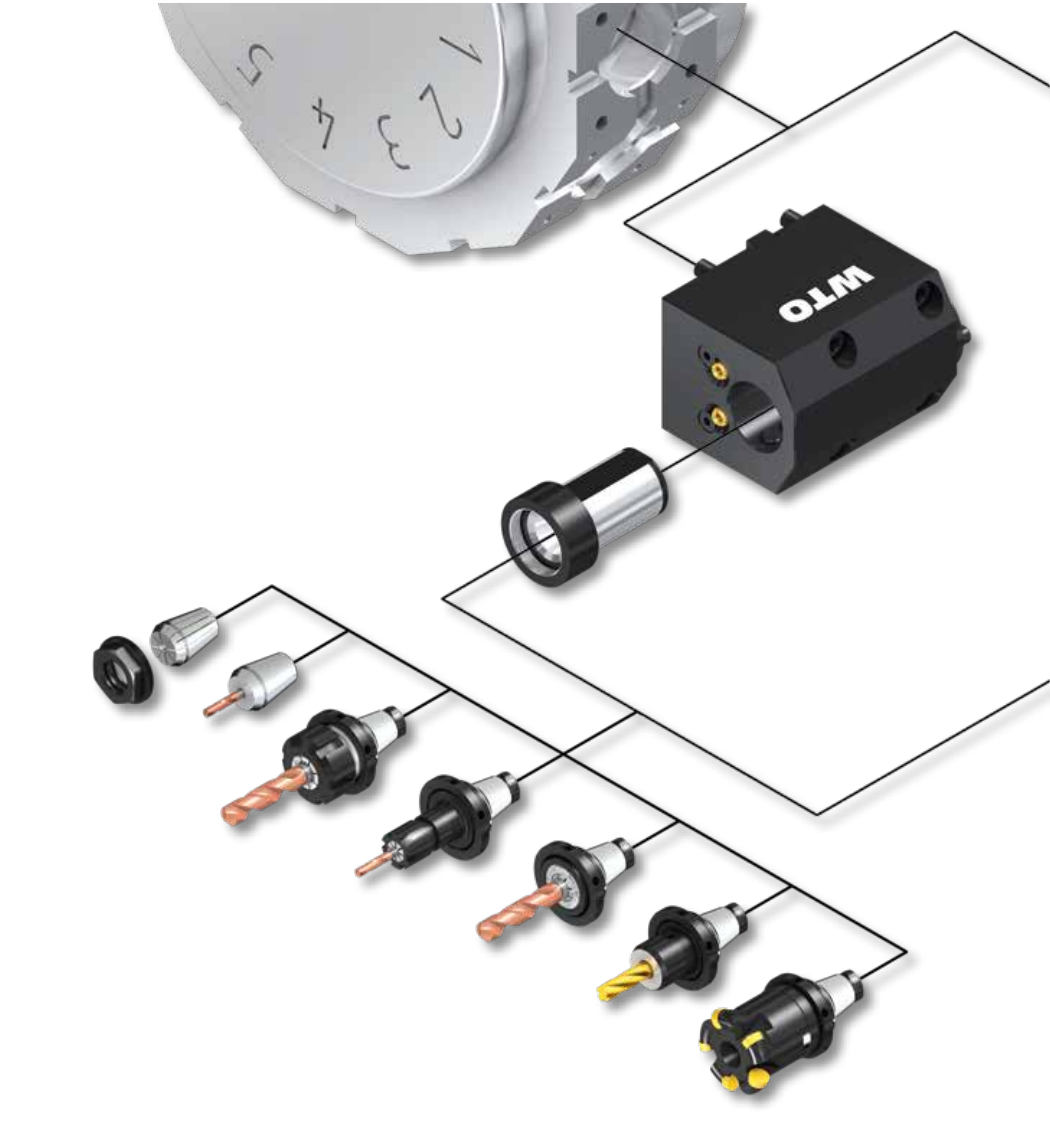

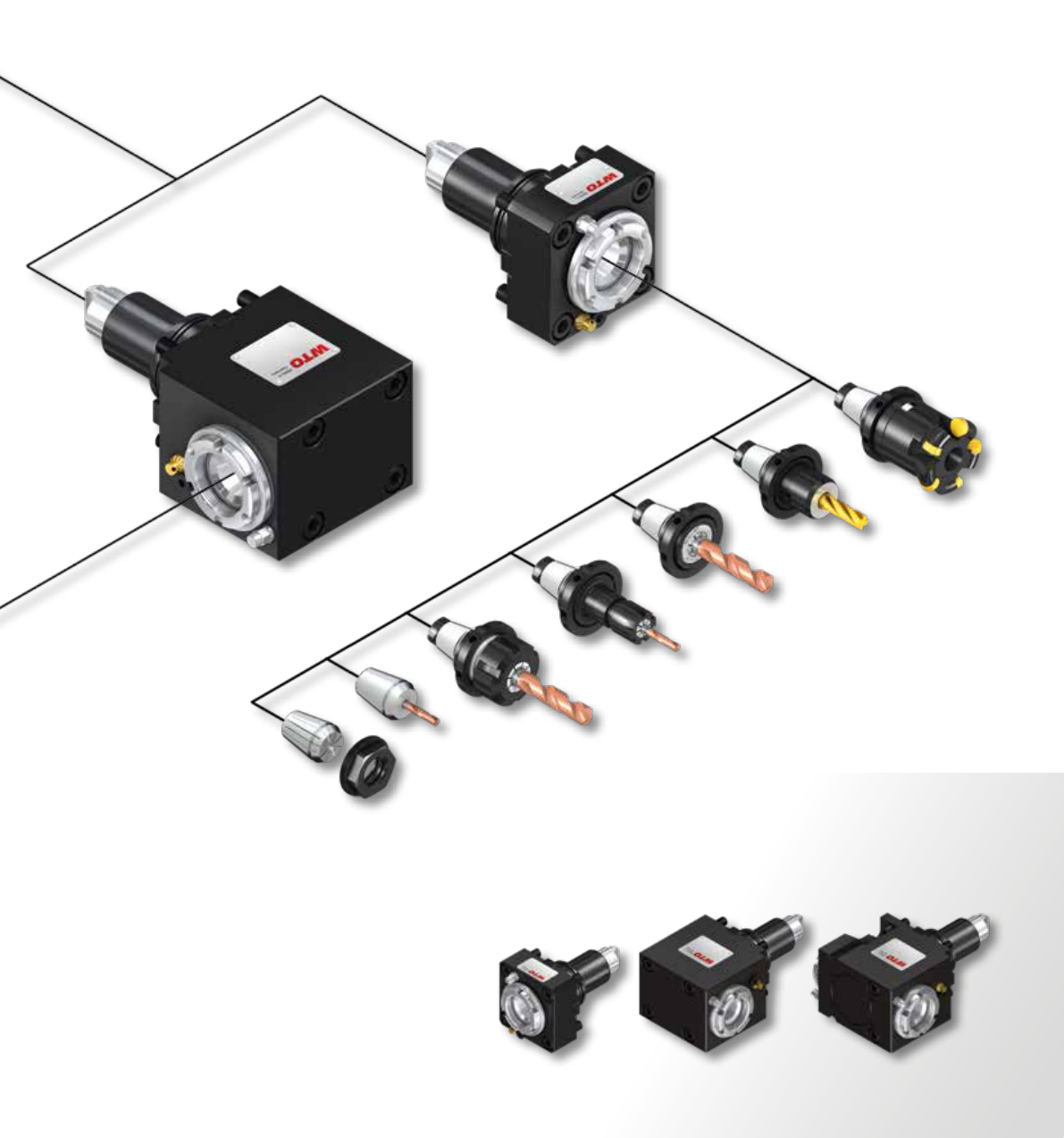

For turning centers with BMT turrets exists a comprehensive QuickFlex® program
with adapters for all popular tool clamping systems.
QuickFlex® precision toolholders for highest
performance and precision of your turning center.
4
QuickFlex®
4
5
11
6
1
3
2
7
8
910
2

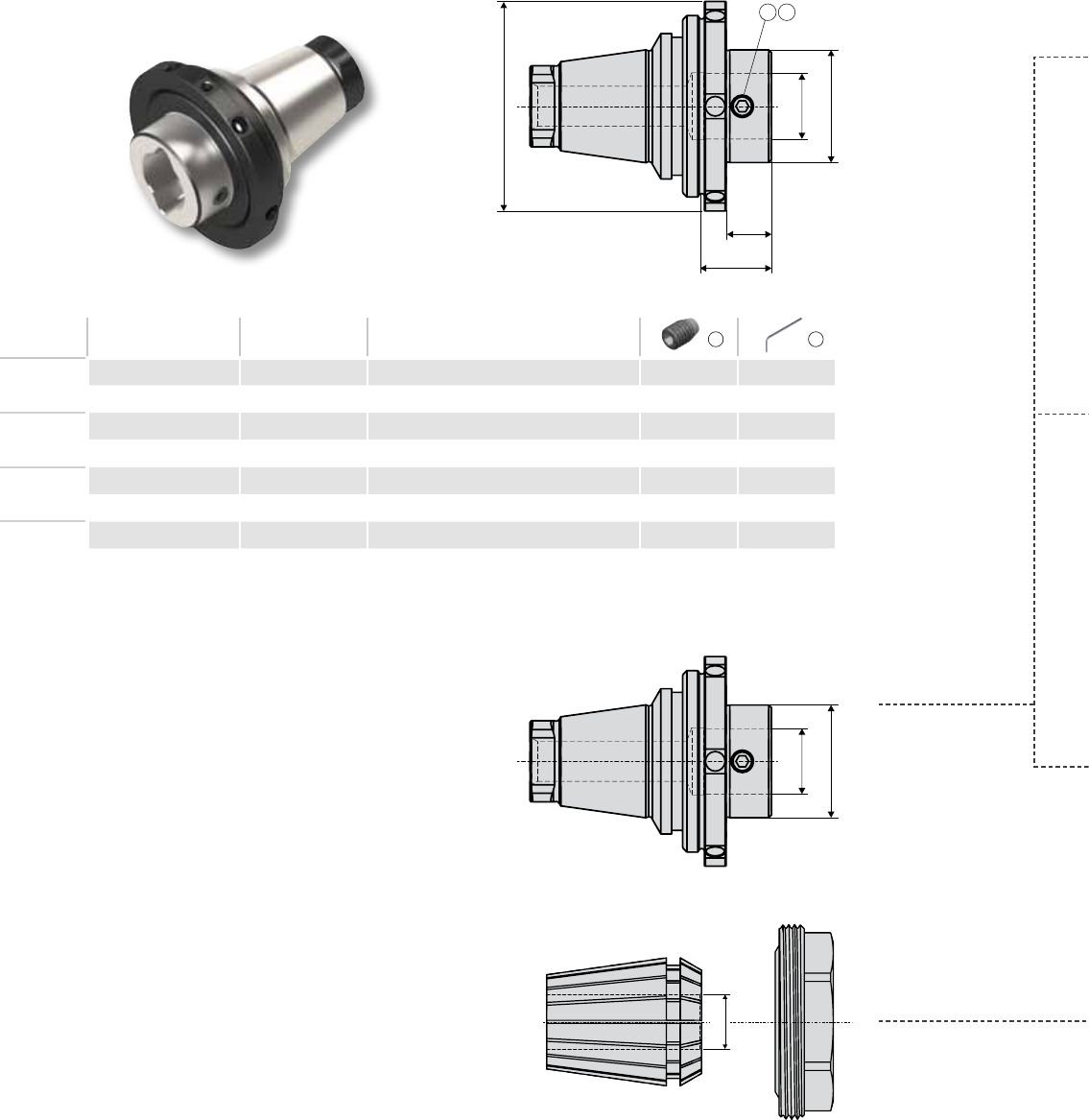

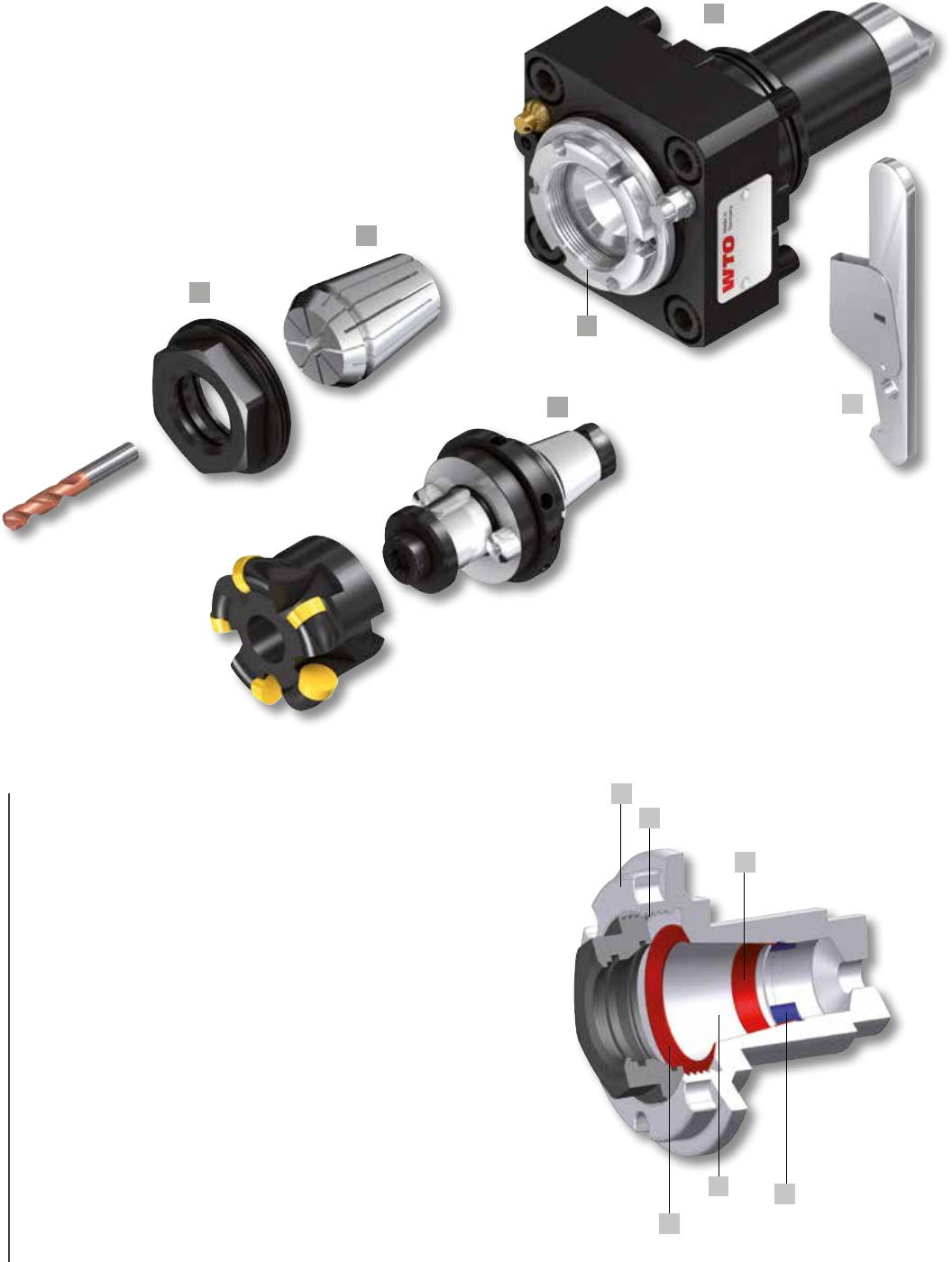

The perfect combination: ER collet chuck and
quick change system in one toolholder.
Toolholder
QuickFlex® chuck
Collet

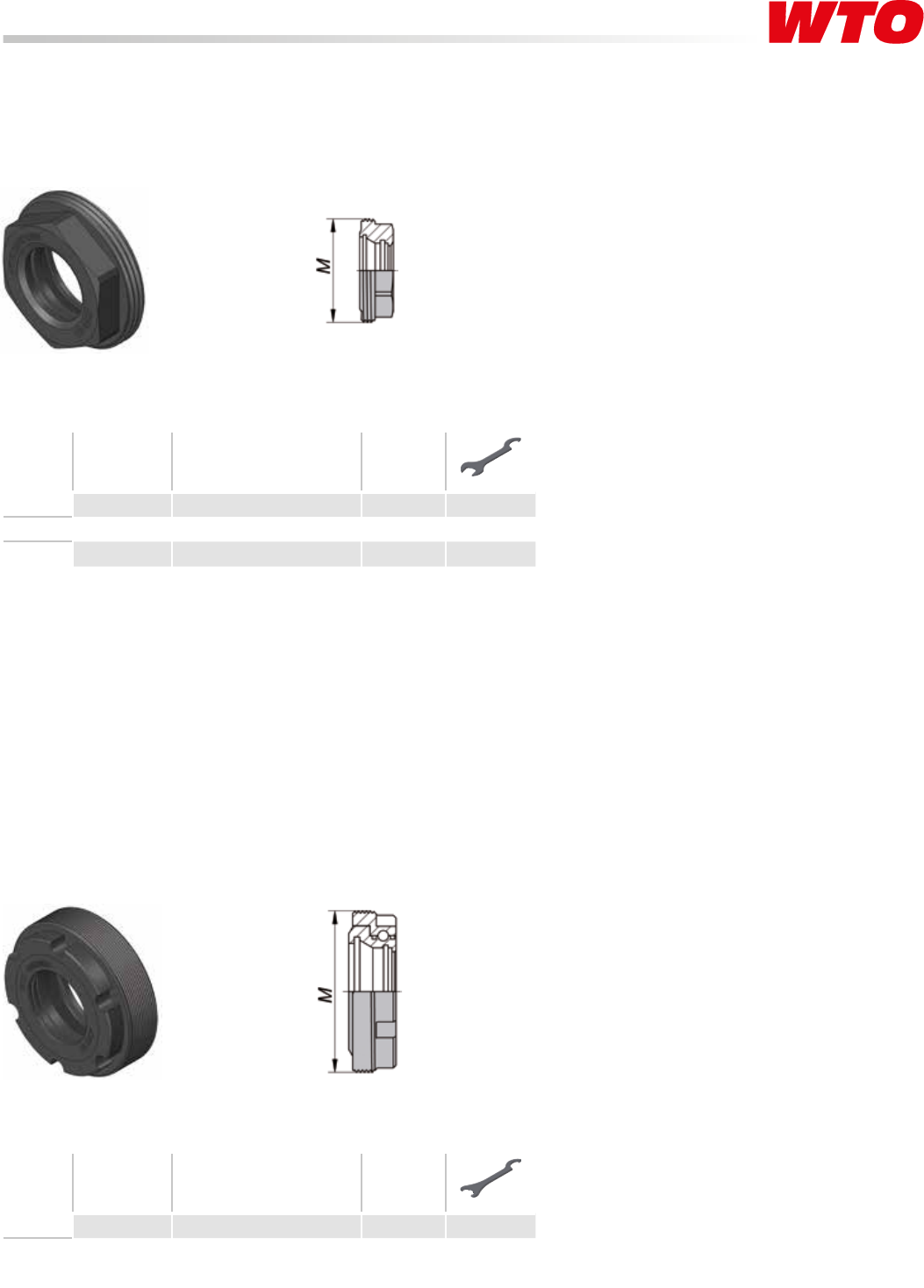

Collet nut
QuickFlex® adapter

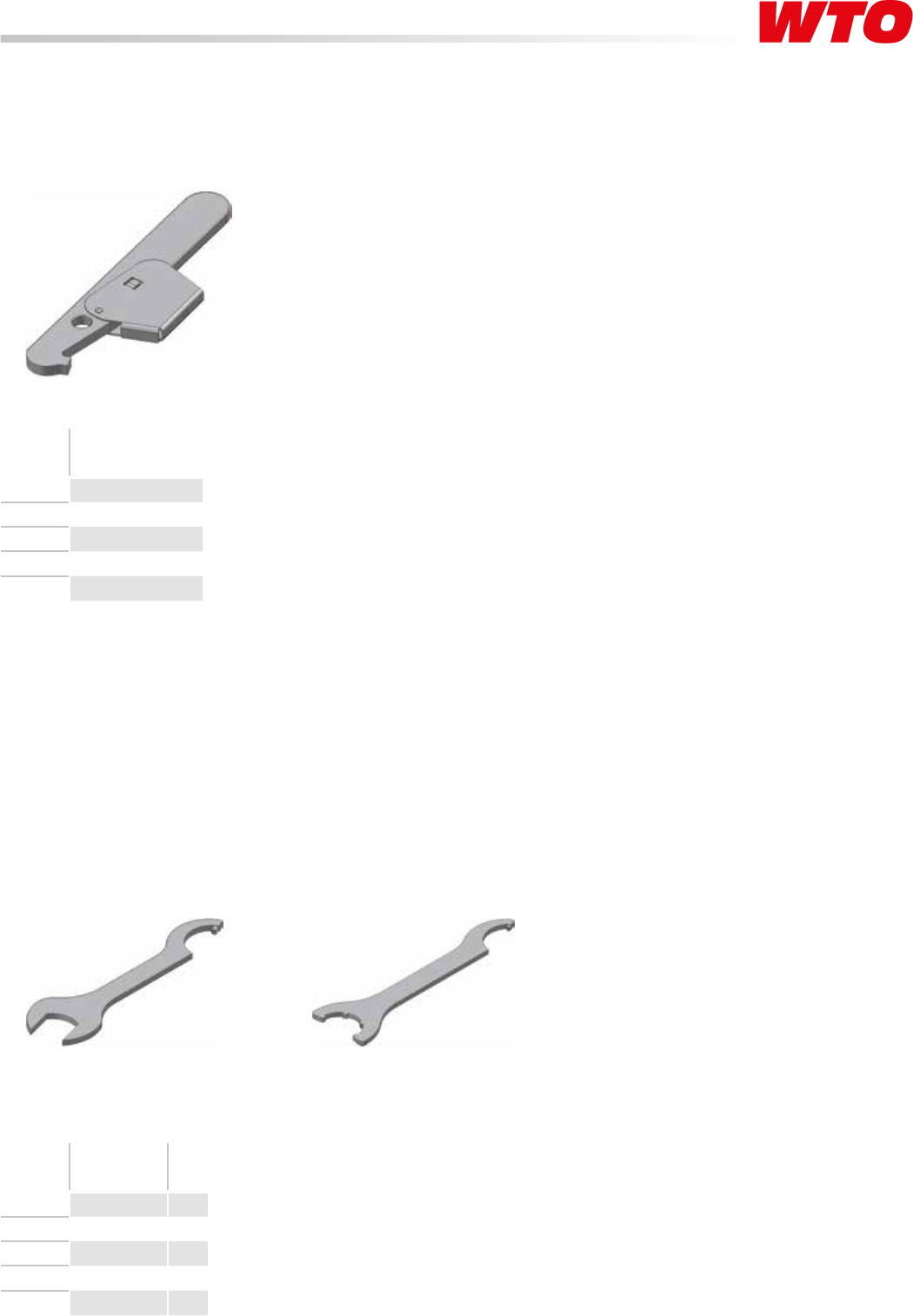

One-hand wrench
(patent-registered)
Thread for QuickFlex®
adapter and collet nut
Short taper for radial
centering and axial support
of the QuickFlex® adapter
Taper of the ER collet chuck
Polygonal torque transmission
for QuickFlex® adapter
Radial bending support of the
QuickFlex® adapter for high
stiffness under load
1
2
3
4
5
6
7
8
9
10
11
5
© WTO GmbH I Subject to change without notice
Permanent accuracy of the run-out is guaranteed
by two independent taper connections.
With ER collet With QuickFlex® mill
arbor adapter
0.005 mm max.
0.003 mm max.
0.005 mm max.
Quick and safe tool change with the new
and one-hand wrench (patent-registered).
30 mm
6
QuickFlex®
© WTO GmbH I Subject to change without notice

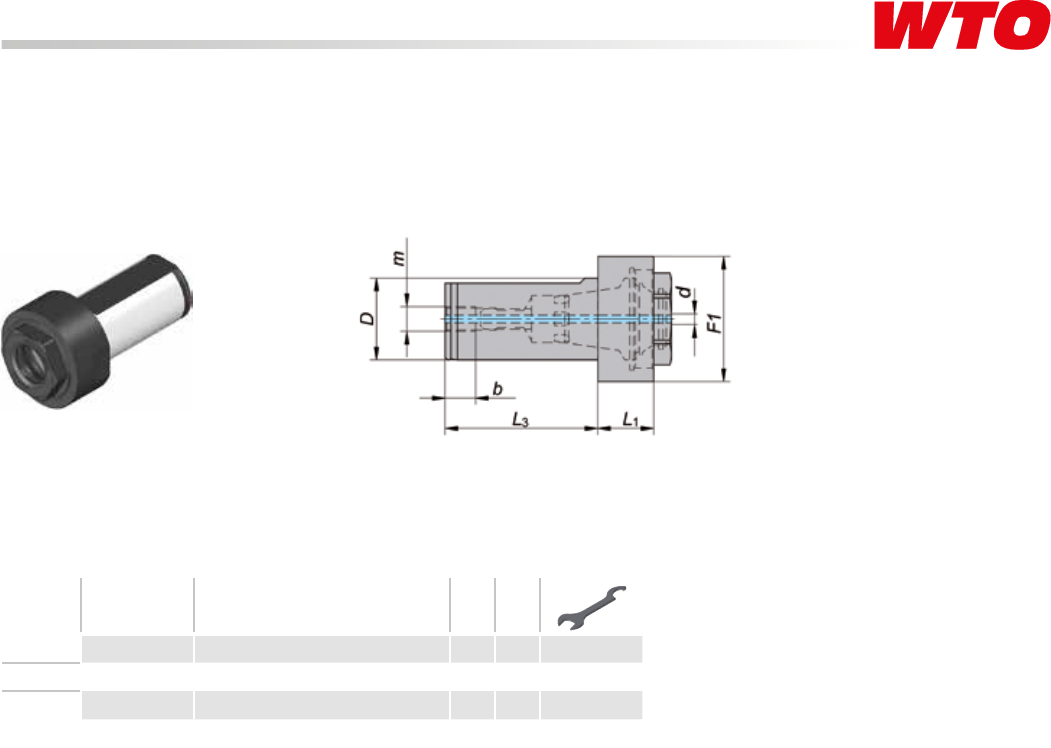

Cylindrical shank holder
with cylindrical shank and flat.
For flexible use of QuickFlex® adapters in boring bar holders.
Size Item No. D d
min.
d
max.
L3F1L1m b
ER-25QF 330025032 32 116 60 49 22 G"12 107525020
ER-32QF 330032040 40 220 70 58 22 G¼"15 107532020
ER-40QF 330040050 50 326 80 71 22 G"19 107540020
Dimensions in mm
7
QuickFlex®
© WTO GmbH I Subject to change without notice
Starter set
Size Item No. One-hand wrench Spanner wrench
for QuickFlex®
adapter
Weldon/Whistle-
Notch adapter
Short combination
mill adapter
Collet chuck Spanner wrench
ER-20QF 007020000 107720000 107520020 Ø 12 mm Ø 16 mm ER 20 107520000
ER-25QF1) 007025000 107725000 107525020 Ø 16 mm Ø 16 mm ER 25 107525000
ER-25QF1) 007025010 107725010 107525020 Ø 16 mm Ø 16 mm ER 25 107525000
ER-32QF 007032000 107732000 107532020 Ø 20 mm Ø 22 mm ER 32 107532000
ER-40QF 007040000 107740000 107540020 Ø 25 mm Ø 27 mm ER 40 107540000
ER-50QF 007050000 107750000 107550020 Ø 25 mm Ø 27 mm ER 40 107540000
Dimensions in mm 1) Please inquire the starter set suitable for your toolholders
Size Item No. F1d
min.
d
max.
F2e L2L1Nm Collet
size
ER-20QF 320020010 36 0.5 10 28 40 23 29 56 ER 16 200016000 107516000
320020013 36 113 34 45 24 30 80 ER 20 200020000 107520000
ER-25QF 320025010 49 0.5 10 28 40 23 30 56 ER 16 200016000 107516000
320025013 49 113 34 45 24 31 80 ER 20 200020000 107520000
320025016 49 116 42 48 25 32 104 ER 25 200025000 107525000
ER-32QF 320032013 58 113 34 45 24 31 80 ER 20 200020000 107520000
320032016 58 116 42 48 25 32 104 ER 25 200025000 107525000
320032020 58 220 50 50 28 35 136 ER 32 200032000 107532000
ER-40QF 320040016 71 116 42 48 25 33 104 ER 25 200025000 107525000
320040020 71 220 50 50 28 36 136 ER 32 200032000 107532000
320040026 71 326 63 55 35 43 176 ER 40 200040000 107540000
ER-50QF 320050020 82 220 50 50 28 37 136 ER 32 200032000 107532000
320050026 82 326 63 55 35 44 176 ER 40 200040000 107540000
Dimensions in mm
Collet chuck adapter
DIN 6499, ISO 15488
8
QuickFlex®
© WTO GmbH I Subject to change without notice
Size Item No. F1d
min.
d
max.
F2e L2L1Nm Collet
size
ER-20QF 320020007-09 36 0.5 7–36 –640 ER 11 200111001 107511101
ER-25QF 320025010-07 49 0.5 10 40 –760 ER 16 200116001 107516101
320025013-09 49 113 35 45 2975 ER 20 200120001 107520101
ER-32QF 320032013-07 58 113 45 –775 ER 20 200120001 107520101
320032016-07 58 116 48 –7100 ER 25 200125001 107525101 107525104
ER-40QF 320040016-08 71 116 48 –8100 ER 25 200125001 107525101 107525104
320040020-08 71 220 50 –8130 ER 32 200132001 107532101 107532104
ER-50QF 320050020-09 82 220 50 –9130 ER 32 200132001 107532101 107532104
320050026-09 82 326 56 –9150 ER 40 200140001 107540101 107540104
Dimensions in mm
Size Item No. F1d
min.
d
max.
F2e L2L1Nm Collet
size
ER-20QF 320020007-40 36 0.5 716 36 34 40 16 ER 11 200511000 107511005
ER-25QF 320025007-40 49 0.5 716 36 33 40 16 ER 11 200511000 107511005
320025010-50 49 0.5 10 22 40 43 50 24 ER 16 200516000 107516005
ER-32QF 320032007-50 58 0.5 716 36 43 50 16 ER 11 200511000 107511005
320032010-60 58 0.5 10 22 40 53 60 24 ER 16 200516000 107516005
ER-40QF 320040010-60 71 0.5 10 22 40 52 60 24 ER 16 200516000 107516005
320040016-60 71 116 35 48 52 60 32 ER 25 200525000 107525005
Dimensions in mm
Collet chuck adapter – extended
DIN 6499, ISO 15488
Collet chuck adapter – short
DIN 6499, ISO 15488
9
QuickFlex®
© WTO GmbH I Subject to change without notice
Size Item No. F1d F2L3e L2L1
ER-20QF 320120006 36 619 10 36 22 28 12882 26071
320120008 36 821 11 36 23 29 12927 26072
320120010 36 10 28 12 40 26 32 12992 26073
320120012 36 12 34 14,5 45 31 37 13061 26074
320120014 36 14 36 15,5 45 32 38 13061 26074
ER-25QF 320125006 49 619 11 36 22 29 12882 26071
320125008 49 821 12 36 23 30 12927 26072
320125010 49 10 28 13 40 26 33 12992 26073
320125012 49 12 34 13,5 45 29 36 13061 26074
320125014 49 14 36 13,5 45 29 36 13061 26074
320125016 49 16 38 16 49 33 40 30944 26075
320125018 49 18 40 16 49 33 40 30944 26075
320125020 49 20 45 18 51 36 43 106290 26076
ER-32QF 320132006 58 619 11 36 22 29 12882 26071
320132008 58 821 12 36 23 30 12927 26072
320132010 58 10 28 13 40 26 33 12992 26073
320132012 58 12 34 13,5 45 29 36 13061 26074
320132014 58 14 36 13,5 45 29 36 13061 26074
320132016 58 16 38 16 49 33 40 30944 26075
320132018 58 18 40 16 49 33 40 30944 26075
320132020 58 20 45 17 51 35 42 106290 26076
320132025 58 25 51 22 57 39 46 13128 26076
ER-40QF 320140006 71 619 12 36 22 30 12882 26071
320140008 71 821 13 36 23 31 12927 26072
320140010 71 10 28 14 40 26 34 12992 26073
320140012 71 12 34 14,5 45 29 37 13061 26074
320140014 71 14 36 14,5 45 29 37 13061 26074
320140016 71 16 38 17 49 33 41 30944 26075
320140018 71 18 40 17 49 33 41 30944 26075
320140020 71 20 45 18 51 35 43 106290 26076
320140025 71 25 51 18 57 34 42 13128 26076
ER-50QF 320150006 82 619 13 36 22 31 12882 26071
320150008 82 821 14 36 23 32 12927 26072
320150010 82 10 28 15 40 26 35 12992 26073
320150012 82 12 34 15,5 45 29 38 13061 26074
320150014 82 14 36 15,5 45 29 38 13061 26074
320150016 82 16 38 18 49 33 42 30944 26075
320150018 82 18 40 18 49 33 42 30944 26075
320150020 82 20 45 19 51 35 44 106290 26076
320150025 82 25 51 19 57 34 43 13128 26076
320150032 82 32 72 23 61 38 47 71255 26077
Dimensions in mm

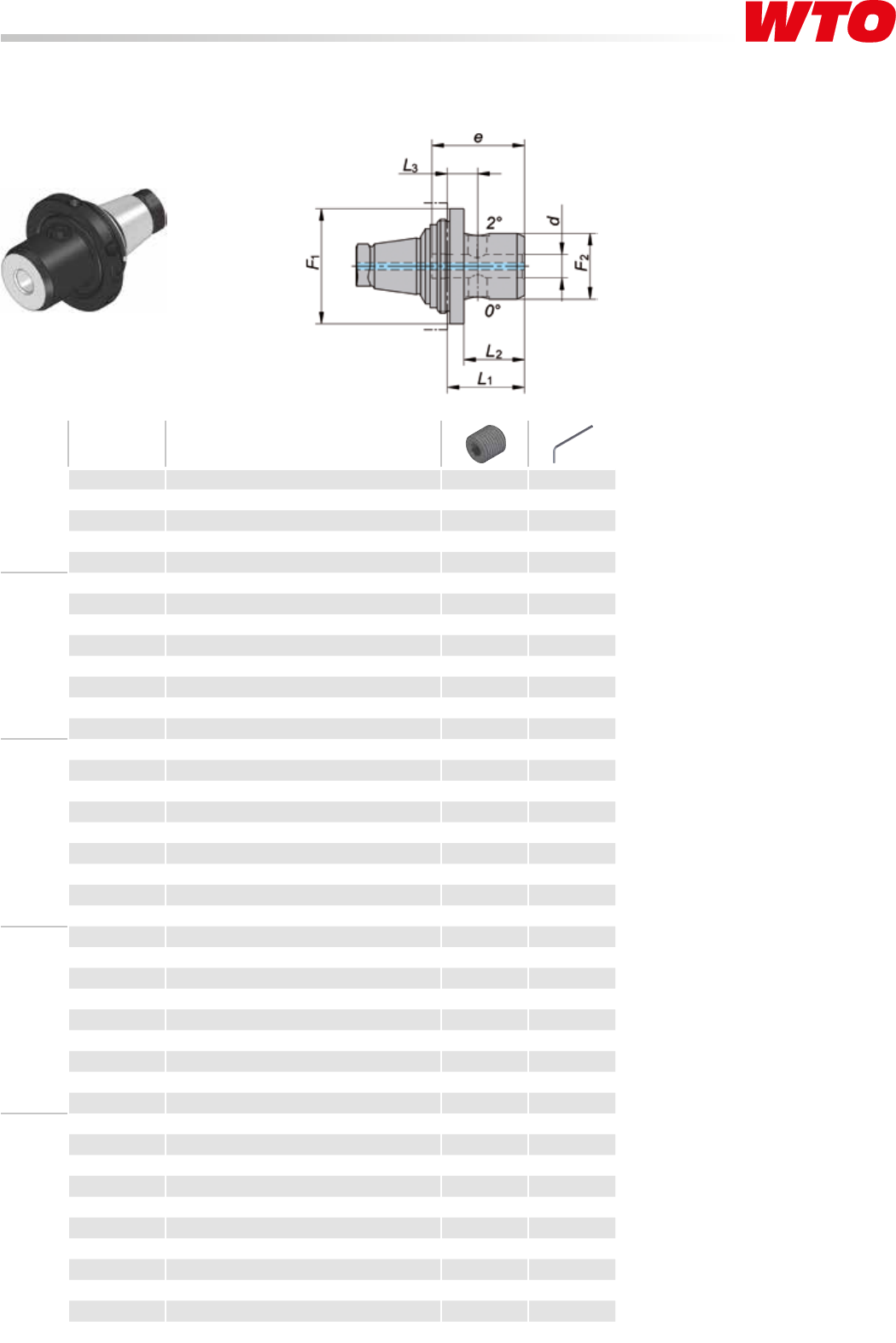

Weldon/Whistle Notch adapter
for tool shanks according to DIN 6535-HB and -HE
10
QuickFlex®
© WTO GmbH I Subject to change without notice
Size Item No. F1d F2e L1a
ER-20QF 320220016 36 16 35 17 12 684130 84903 26075
ER-25QF 320225016 49 16 35 17 8 6 84130 84903 26075
320225022 49 22 43 19 15 884131 84904 26076
320225027 49 27 50 21 15 10 84132 84905 26077
ER-32QF 320232016 58 16 35 17 8 6 84130 84903 26075
320232022 58 22 43 19 8 8 84131 84904 26076
320232027 58 27 50 21 15 10 84132 84905 26077
ER-40QF 320240022 71 22 43 19 9 8 84131 84904 26076
320240027 71 27 53 21 910 84132 84905 26077
320240032 71 32 63 24 20 14 84133 84906 26078
ER-50QF 320250022 82 22 43 19 10 884131 84904 26076
320250027 82 27 53 21 10 10 84132 84905 26077
320250032 82 32 61 24 10 14 84133 84906 26078
Dimensions in mm

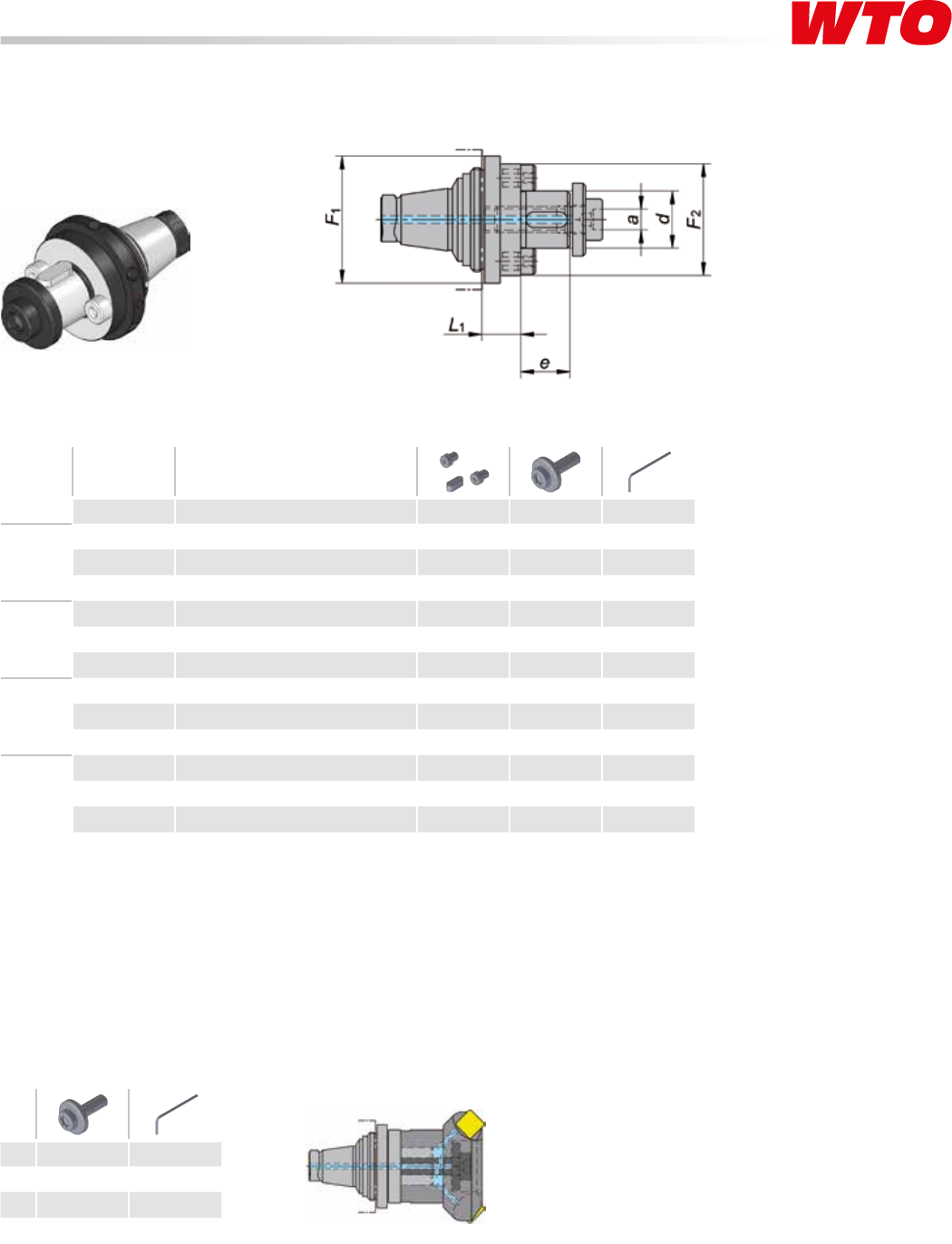

Combination arbor adapter
for side mills, face mills, or disk cutters
Universal design:
key and drivers can
be removed.
Arbor clamping bolt with coolant hole for internal coolant supply
d
16 84841 26075
22 84842 26076
27 84843 26077
32 84844 26078
All adapters are delivered with the standard arbor clamping bolt without hole for coolant supply.
11
QuickFlex®
© WTO GmbH I Subject to change without notice

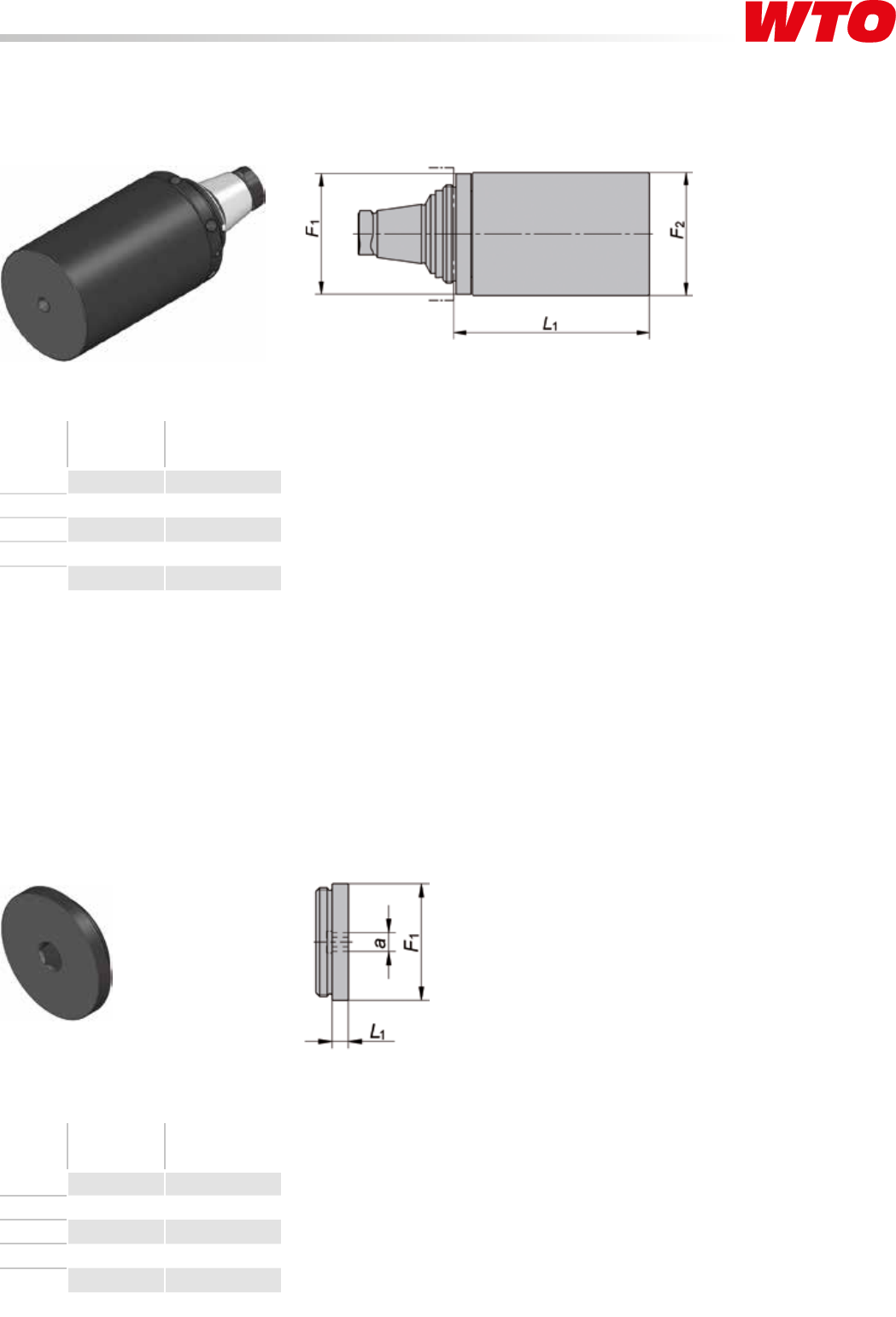

Protection cover
Blank
Size Item No. F1F2L1
ER-20QF 329020000 36 35 60
ER-25QF 329025000 49 50 80
ER-32QF 329032000 58 60 80
ER-40QF 329040000 71 70 100
ER-50QF 329050000 82 80 100
Dimensions in mm
Size Item No. F1L1a
ER-20QF 337020000 33 6 6
ER-25QF 337025000 43 6 6
ER-32QF 337032000 52 10 8
ER-40QF 337040000 66 10 10
ER-50QF 337050000 76 10 12
Dimensions in mm
12
QuickFlex®
© WTO GmbH I Subject to change without notice
HSK holder
DIN 69893A/C (ISO 12164A/C), for tool presetting
V-flange holder
DIN ISO 69871, for tool presetting
Size Item No. SK F1L1L2
ER-20QF 338120040 SK40 50 40 107520020
338120050 SK50 50 40 107520020
ER-25QF 338125040 SK40 50 40 107525020
338125050 SK50 50 40 107525020
ER-32QF 338132040 SK40 63 60 35 107532020
338132050 SK50 63 60 107532020
ER-40QF 338140050 SK50 78 60 107540020
ER-50QF 338150050 SK50 85 60 35 107550020
Dimensions in mm
Size Item No. HSK F1L1L2
ER-20QF 338120063 HSK63A 50 85 107520020
ER-25QF 338125063 HSK63A 50 90 107525020
ER-32QF 338132063 HSK63A 63 90 42 107532020
ER-40QF 338140063 HSK63A 78 100 42 107540020
ER-50QF 338150063 HSK63A 85 120 42 107550020
Dimensions in mm
13
QuickFlex®
© WTO GmbH I Subject to change without notice

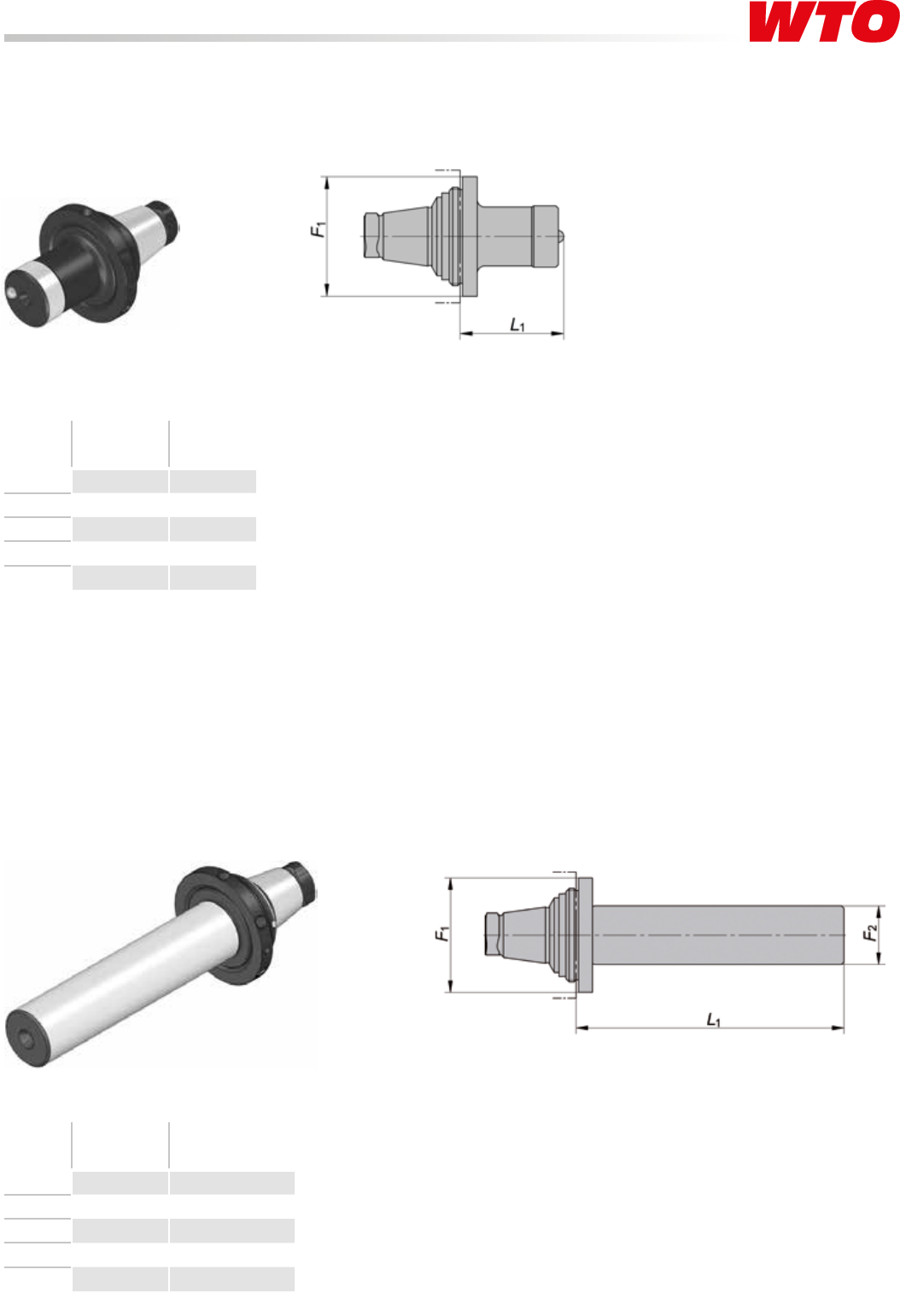

Master gauge
Preset master adapter
Etched with actual gauge length measurement
Size Item No. F1L1
ER-20QF 339020000 36 42.25
ER-25QF 339025000 49 42.25
ER-32QF 339032000 58 45.25
ER-40QF 339040000 71 43.25
ER-50QF 339050000 82 45.25
Dimensions in mm
Size Item No. F1F2L1
ER-20QF 339120000 36 20 85
ER-25QF 339125000 49 25 115
ER-32QF 339132000 58 32 115
ER-40QF 339140000 71 32 115
ER-50QF 339150000 82 32 115
Dimensions in mm
14
QuickFlex®
© WTO GmbH I Subject to change without notice

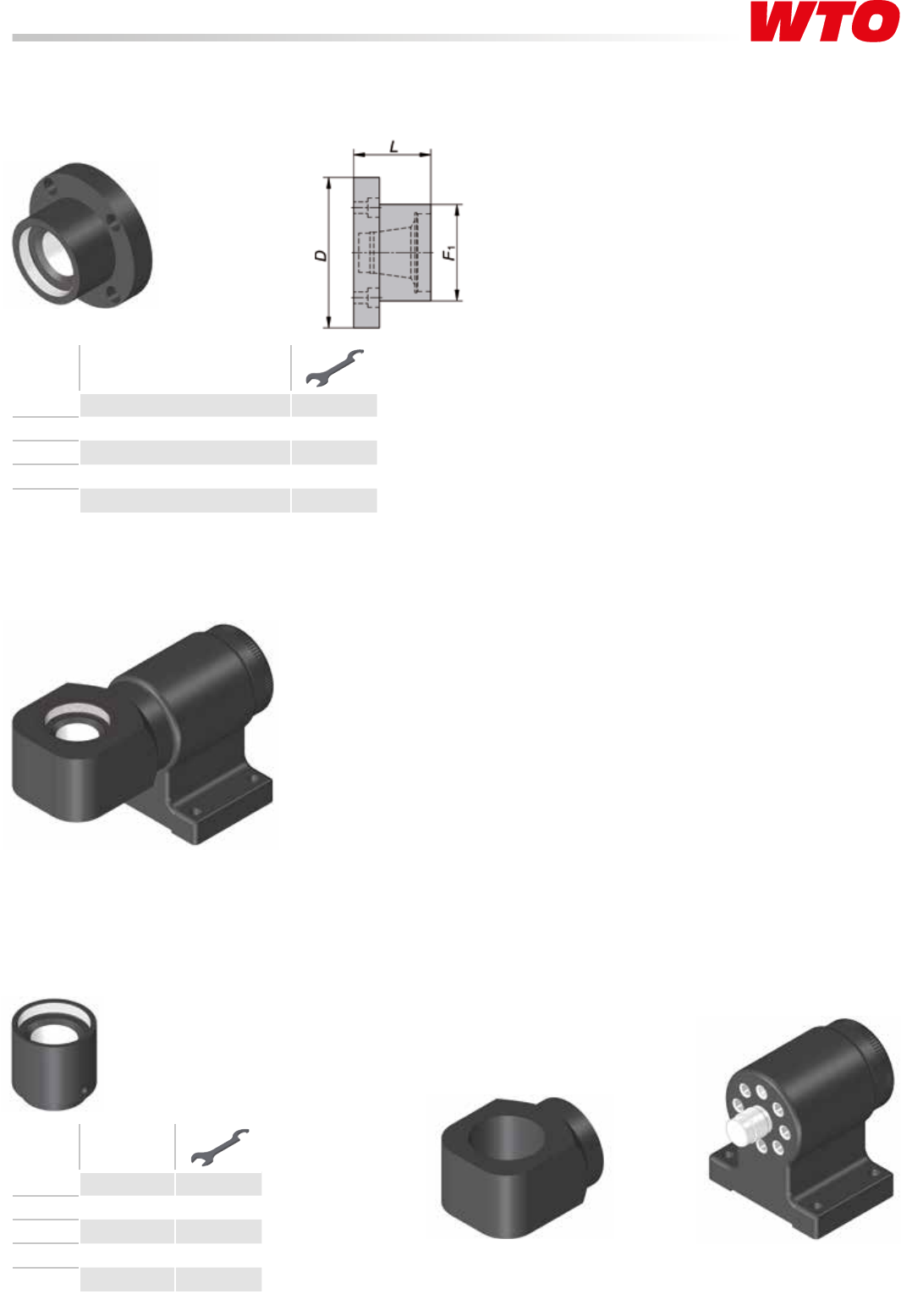

Mounting device QuickFlex®
for easy tool change of QuickFlex® adapters on the work bench
Modular insert QuickFlex®
to adapt mounting device “Toolboy”
with holder:
- WTO 338200001
- PWB Systems 400141-8 (C8)
Holder
to match base block:
- WTO 338200000
- PWB Systems 400500
Base block
Mounting device “Toolboy” (PWB Systems)
for easy tool change of QuickFlex® adapters on the work bench, indexable
Size Item No. F1L D
ER-20QF 338220000 45 45 87 107520020
ER-25QF 338225000 55 45 97 107525020
ER-32QF 338232000 65 60 107 107532020
ER-40QF 338240000 75 60 117 107540020
ER-50QF 338250000 86 80 127 107550020
Dimensions in mm
Size Item No.
ER-20QF 338220010 107520020
ER-25QF 338225010 107525020
ER-32QF 338232010 107532020
ER-40QF 338240010 107540020
ER-50QF 338250010 107550020
Item No. Holder
338200001
Item No. Base block
338200000
15
© WTO GmbH I Subject to change without notice
Accessories
Base block

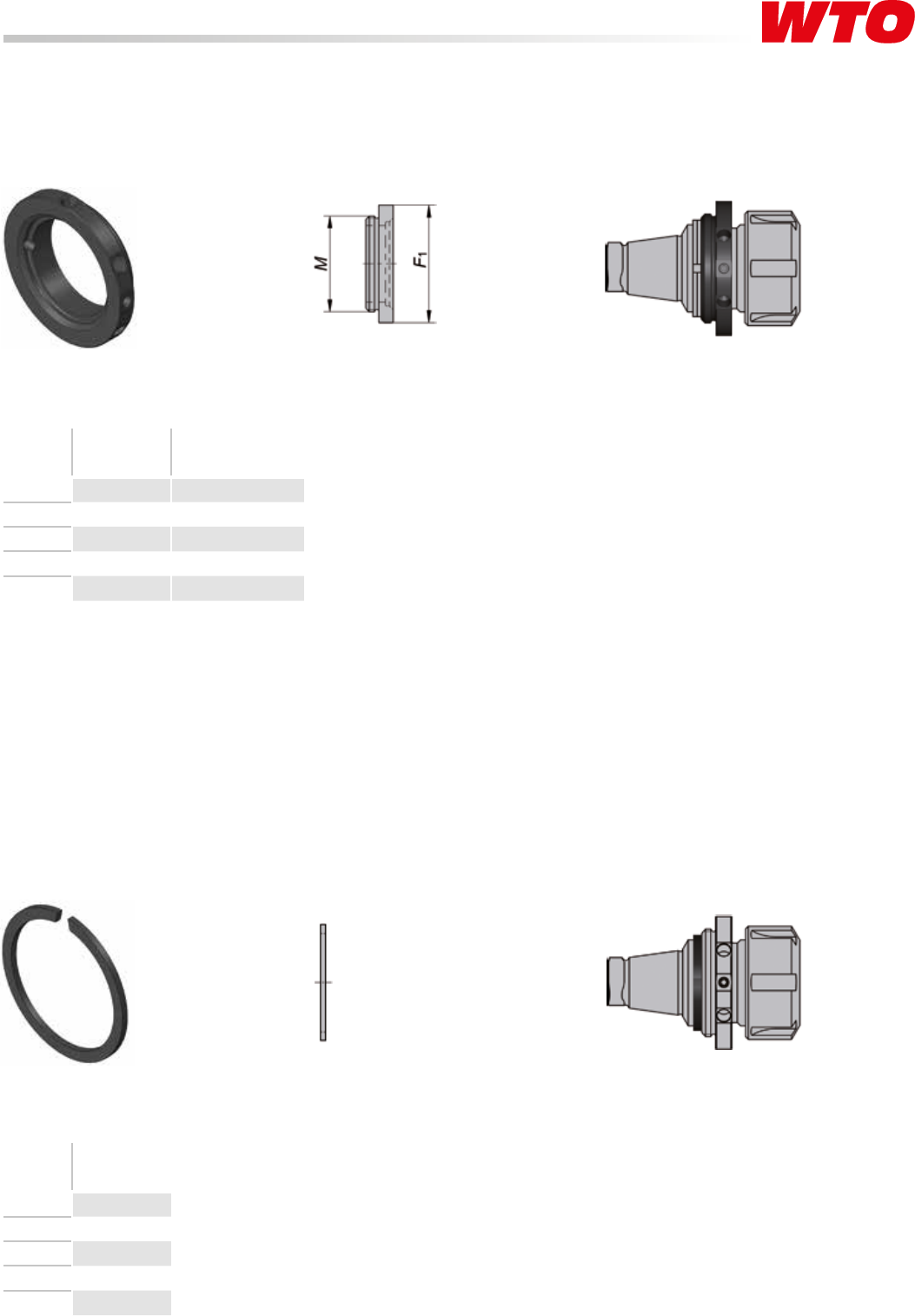

Locking washer for QuickFlex® adapter
Thread nut for QuickFlex® adapter
Size Item No. M F1
ER-20QF 337120000 M 32 x 1.50 36
ER-25QF 337125000 M 40 x 1.50 49
ER-32QF 337132000 M 50 x 1.50 58
ER-40QF 337140000 M 62 x 1.50 71
ER-50QF 337150000 M 68 x 1.50 82
Dimensions in mm
Size Item No.
ER-20QF 337220000
ER-25QF 337225000
ER-32QF 337232000
ER-40QF 337240000
ER-50QF 337250000
16 © WTO GmbH I Subject to change without notice
Accessories
Collet nut ERQF-BC
with ball bearing, for internal coolant supply using seal washer
DIN 6499, ISO 15488
Collet nut ERQF
for internal coolant supply using seal washer
DIN 6499, ISO 15488
Size Item No. MRecommended
torque
Nm
Seal washer
ER-20QF 207020000 M 32 x 1.50 80 210120… 107520020
ER-25QF 207025000 M 40 x 1.50 110 210125… 107525020
ER-32QF 207032000 M 50 x 1.50 140 210132… 107532020
Dimensions in mm
Size Item No. MRecommended
torque
Nm
Seal washer
ER-40QF 208040001 M 62 x 1.50 180 210140… 107540020
ER-50QF 208050001 M 68 x 1.50 240 210150… 107550020
Dimensions in mm
17
© WTO GmbH I Subject to change without notice
Accessories

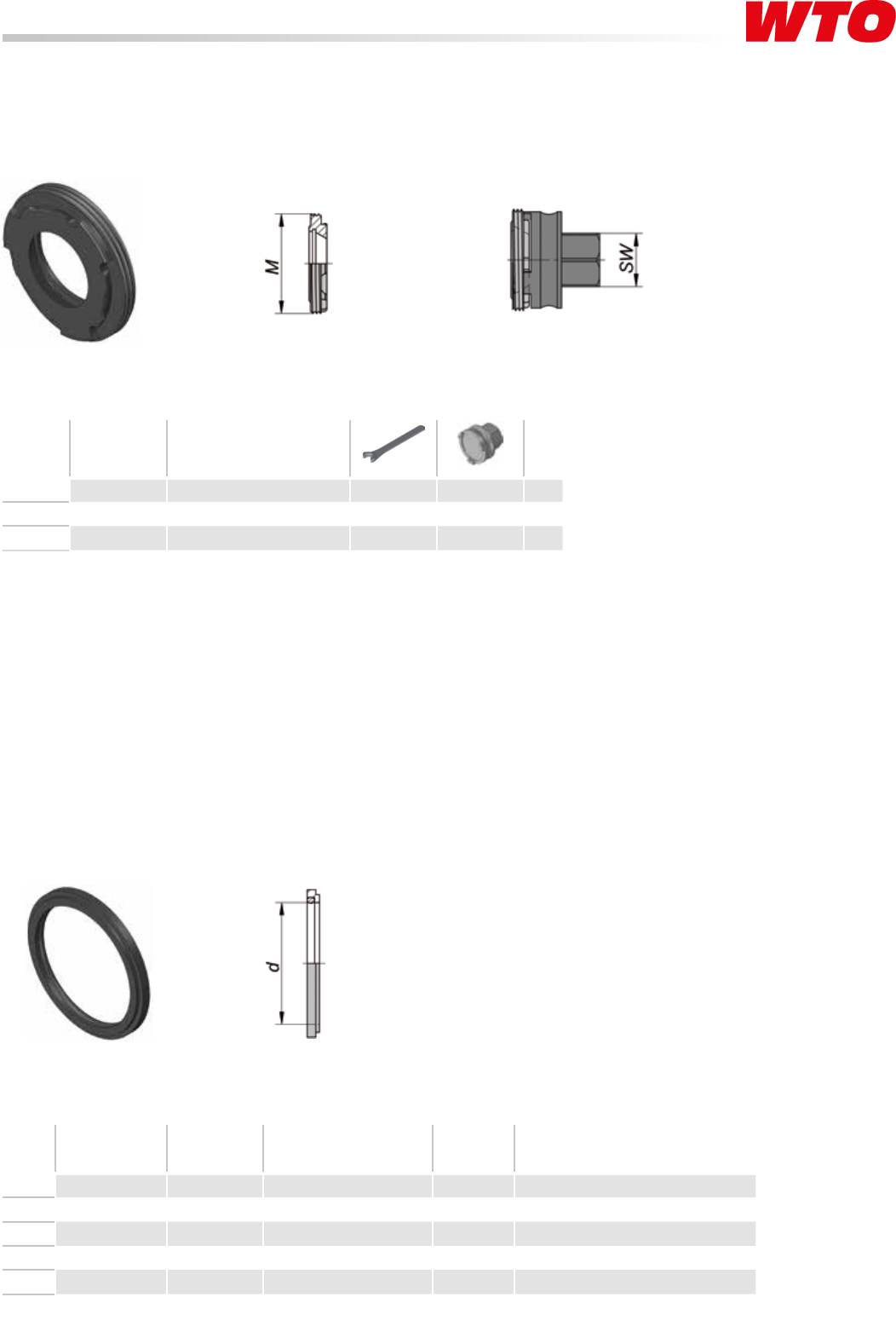

Collet nut ERQF-A – short
external coolant supply
DIN 6499, ISO 15488
Size Item No. MRecommended
torque
Nm
SW
ER-20QF 202120001 M 32 x 1.50 75 107525101 107525104 20
ER-25QF 202125001 M 40 x 1.50 100 107532101 107532104 21
ER-32QF 202132001 M 50 x 1.50 130 107540101 107540104 24
ER-40QF 202140001 M 62 x 1.50 150 107540101 107540104 24
Dimensions in mm
Seal washer for collet nut
for internal coolant supply
Ordering example:
210116040 fits to ER 16 and
shank d = 4.0 – 3.5
Size Item No.
Single parts
Item No.
Complete set
d
min.
d
max.
Range per
seal washer
Number
per set
Available seal washer d
ER 16 210116…[d*10] 210116000 3.0 10 0.5 14 3.0-10
ER 20 210120…[d*10] 210120000 3.0 13 0.5 20 3.0-13
ER 25 210125…[d*10] 210125000 3.0 16 0.5 26 3.0-16
ER 32 210132…[d*10] 210132000 3.0 20 0.5 34 3.0-20
ER 40 210140…[d*10] 210140000 3.0 26 0.5 46 3.0-26
ER 50 210150…[d*10] 210150000 6.0 25 0.5 11 6, 8, 10, 12, 14, 19, 20, 21, 23, 24, 25
Dimensions in mm
18
AB
© WTO GmbH I Subject to change without notice
Accessories
One-hand wrench
for driven toolholders: to hold the QuickFlex® spindle when tightening
Size Item No.
20 107720000
25 107725000
32 107732000
40 107740000
50 107750000
Size Item No. Type
ER-20QF 107520020 A
ER-25QF 107525020 A
ER-32QF 107532020 A
ER-40QF 107540020 B
ER-50QF 107550020 B
Spanner wrench
to clamp/unclamp collet nuts ERQF and QuickFlex® adapter
19
© WTO GmbH I Subject to change without notice
Accessories

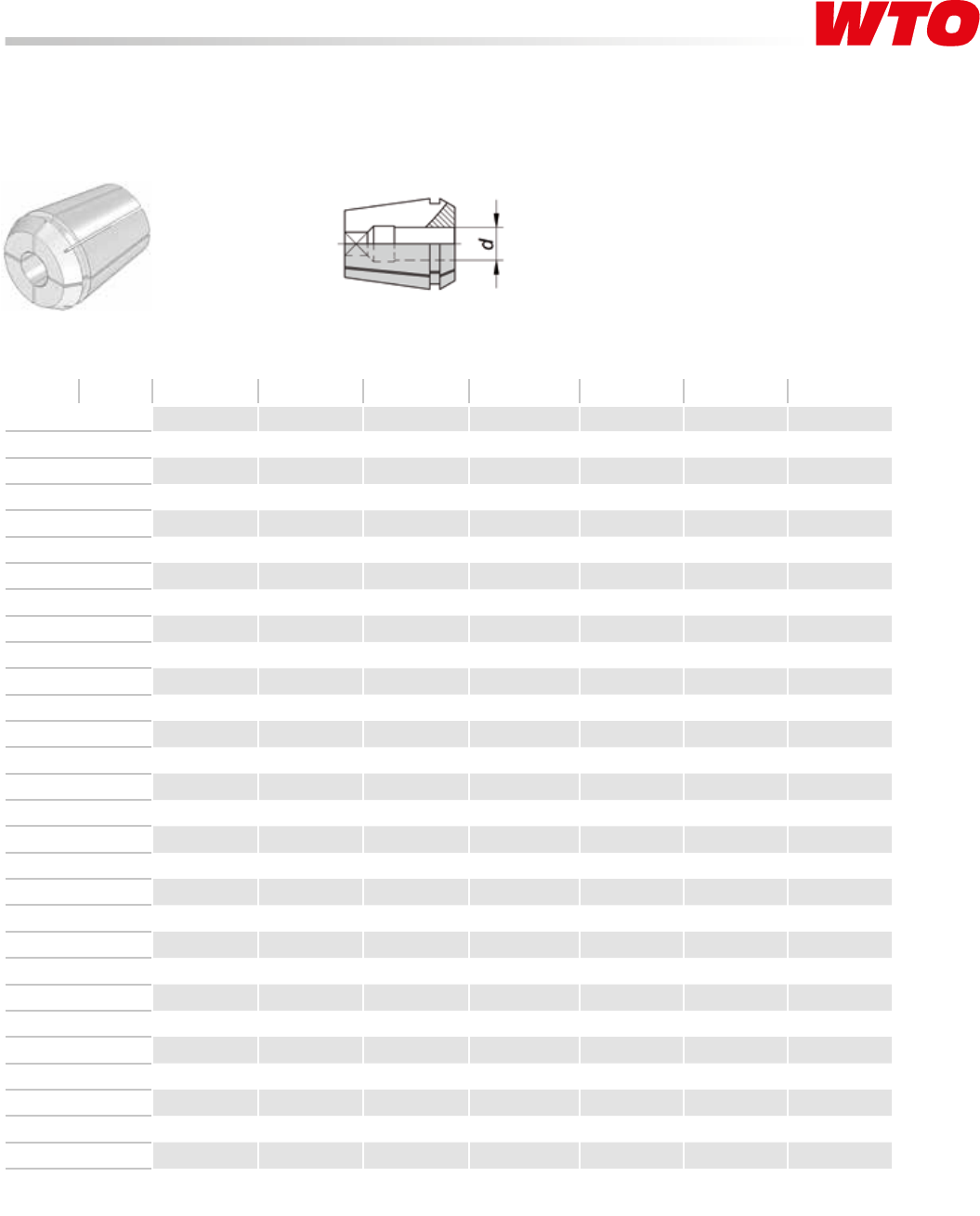

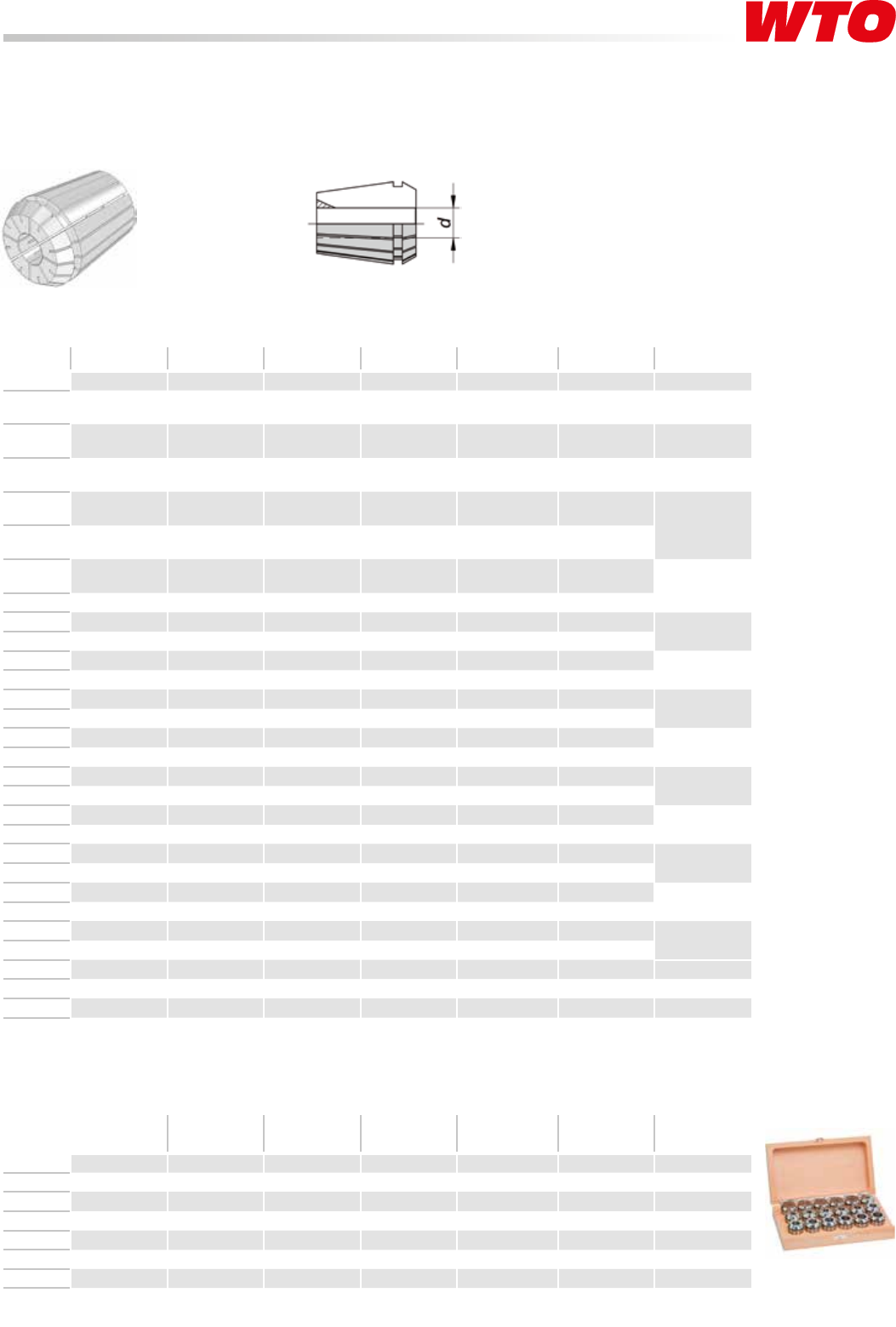

ER Collets, High Precision
DIN 6499B, ISO 15488
dER-11 ER-16 ER-20 ER-25 ER-32 ER-40 ER-50
1-0.5 190011010 190016010 190020010 190025010
1.5-1
2-1.5
190011015
190011020 190016020 190020020 190025020 190032020
2.5-2
3-2.5
190011025
190011030 190016030 190020030 190025030 190032030 190040030
3.5-3
4-3.5
190011035
190011040 190016040 190020040 190025040 190032040 190040040
4.5-4
5-4.5
190011045
190011050 190016050 190020050 190025050 190032050 190040050
190050060
5.5-5
6-5.5
190011055
190011060 190016060 190020060 190025060 190032060 190040060
6.5-6
7-6.5
190011065
190011070 190016070 190020070 190025070 190032070 190040070 190050080
8-7 190016080 190020080 190025080 190032080 190040080
9-8 190016090 190020090 190025090 190032090 190040090 190050100
10-9 190016100 190020100 190025100 190032100 190040100
11-10 190020110 190025110 190032110 190040110 190050120
12-11 190020120 190025120 190032120 190040120
13-12 190020130 190025130 190032130 190040130 190050140
14-13 190025140 190032140 190040140
15-14 190025150 190032150 190040150 190050160
16-15 190025160 190032160 190040160
17-16 190032170 190040170 190050180
18-17 190032180 190040180
19-18 190032190 190040190 190050200
20-19 190032200 190040200
21-20 190040210 190050220
22-21 190040220
23-22 190040230 190050240
24-23 190040240
25-24 190040250 190050260
26-25 190040260
28-26 190050280
30-28 190050300
32-30 190050320
34-32 190050340
Dimensions in mm
Complete set
d ER-11 ER-16 ER-20 ER-25 ER-32 ER-40 ER-50
7-0.5 190011000
10-0.5 190016000
13-1 190020000
16-1 190025000
20-2 190032000
26-3 190040000
34-10 190050000
Number 13 10 12 15 18 23 12
Dimensions in mm
20 © WTO GmbH I Subject to change without notice
Accessories
ER Collets, High Precision
sealed, for internal coolant supply (max. 1740 PSI/120 bar)
DIN 6499A, ISO 15488
dER-11 ER-16 ER-20 ER-25 ER-32 ER-40
3191011030 191016030 191020030 191025030 191032030
4191011040 191016040 191020040 191025040 191032040
5191011050 191016050 191020050 191025050 191032050
6191011060 191016060 191020060 191025060 191032060 191040060
7191016070 191020070 191025070 191032070
8191016080 191020080 191025080 191032080 191040080
9191016090 191020090 191025090 191032090
10 191016100 191020100 191025100 191032100 191040100
11 191020110 191025110 191032110
12 191020120 191025120 191032120 191040120
13 191025130 191032130
14 191025140 191032140 191040140
15 191025150 191032150
16 191025160 191032160 191040160
17 191032170
18 191032180 191040180
19 191032190
20 191032200 191040200
22 191040220
25 191040250
Dimensions in mm
Complete set
mm ER-16 ER-20 ER-25 ER-32
10, 8, 6, 5, 4, 3 191016000
12, 10, 8, 6, 5, 4, 3 191020000
16, 14, 12, 10, 8, 6, 4 191025000
20, 16, 14, 12, 10, 8, 6, 4 191032000
Number 6778
Dimensions in mm
Range h8
(only specified
shank dia.)
21
© WTO GmbH I Subject to change without notice
Accessories
TER Shrink Collets
for internal coolant supply (max. 1740 PSI/120 bar)
DIN 6499, ISO 15488
dER-11 ER-16 ER-20 ER-25 ER-32
3192011030 192016030 192020030 192025030
4192011040 192016040 192020040 192025040
6192011060 192016060 192020060 192025060 192032060
8192016080 192020080 192025080 192032080
10 1920201001) 192025100 192032100
12 192025120 192032120
14 1920251401) 192032140
16 1920251601) 192032160
18 1920321801)
20 1920322001)
Dimensions in mm
Range h8
(only specified
shank dia.)
Tolerance on tool
shank diameter must
be h6, or closer.
Note:
The cylindrical tool shank should be kept free from dirt and burrs before mounting into the adaptor to
maintain a safe grip and precision.
Shrink Units
The TER shrink collet expands by heating. When cooling down the collet contracts
and clamps the tool shank. For a safe and efficient shrinking process we recom-
mend to use ThermoGrip® inductive shrink units.
For further information go to: www.diebold-hsk.de or www.bilz.com.
1) Use only with short collet nut ERQF-A:
22 © WTO GmbH I Subject to change without notice
Accessories
ER-GB Tapping Collets, for rigid tapping
DIN 6499A, ISO 15488
d ød ER-11-GB ER-16-GB ER-20-GB ER-25-GB ER-32-GB ER-40-GB ER-50-GB
2.8 2.1 181011028 181016028
3.5 2.7 181011035 181016035 181020035 181025035
43.15/3.2 181011040 181016040 181020040 181025040 181032040
4.5 3.4 181011045 181016045 181020045 181025045 181032045
54181011050 181016050 181020050 181025050 181032050
5.5 4.3 181016055 181020055 181025055 181032055
64.9 181011060 181016060 181020060 181025060 181032060 181040060
6.2 5181016062 181020062 181025062 181032062 181040062
6.3 5181016063 181020063 181025063 181032063 181040063
75.5 181016070 181020070 181025070 181032070 181040070
7.1 5.6 181016071 181020071 181025071 181032071 181040071
86.2/6.3 181016080 181020080 181025080 181032080 181040080
8.5 6.5 181016085 181020085 181025085 181032085 181040085
97/7.1 181016090 181020090 181025090 181032090 181040090
10 8181020100 181025100 181032100 181040100
10.5 8181020105 181025105 181032105 181040105
11 9181020110 181025110 181032110 181040110
11.2 9181020112 181025112 181032112 181040112
12 9181020120 181025120 181032120 181040120
12.5 10 181025125 181032125 181040125
14 11/11.2 181025140 181032140 181040140
15 12 181025150 181032150 181040150
16 12/12.5 181025160 181032160 181040160
17 13 181032170 181040170
18 14/14.5 181032180 181040180
20 16 181032200 181040200
22 18 181040220 181050220
25 20 181040250 181050250
28 22 181050280
32 24 181050320
Dimensions in mm
23
© WTO GmbH I Subject to change without notice
Quality without compromise.
All manufacturing steps are based on highest
precision.
According to our own device that for the manu facture
of high precision tooling systems high precision machine
tools are essential we only use the latest machine tool
technology to manufacture our parts.
At WTO not only the final products but also all manu-
facturing steps are checked and documented.
All our products are measured on high precision
3D-coordinate-measuring machines.
