Toolholder Program
PL 20-80
PL 1600-2500
PL 250V/VM
SL 1500-5500
SLV 500-1000

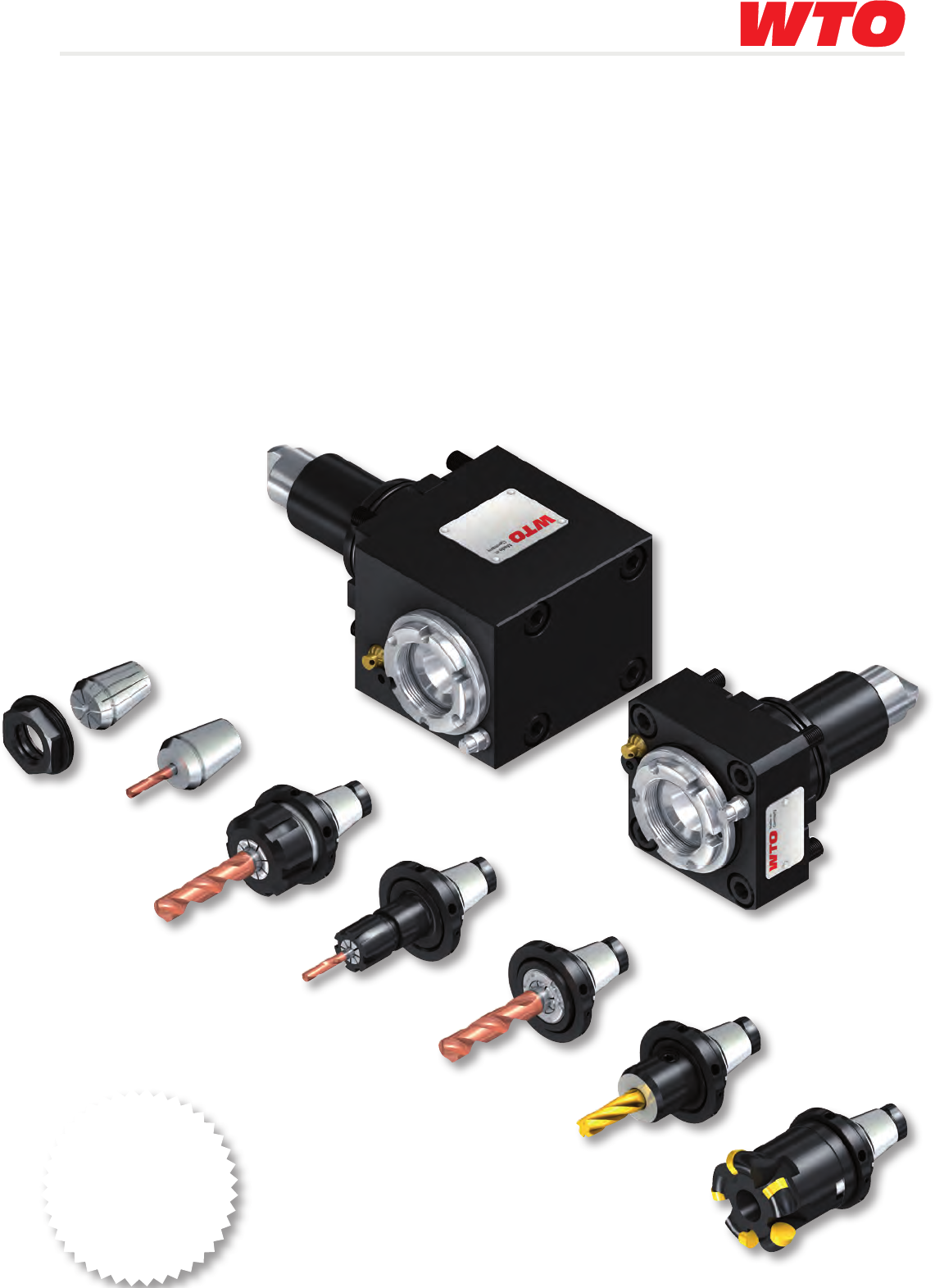

QuickFlex®
Designed
for
BMT Turrets
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
4 - 6PagePL 1600M
7 - 9PageSL 1500, 2000M/Y/SY
10 - 12PageSL 2500, 3000M/Y/SY, PL 2000, 2500Y/SY
13 - 16PageSL 3500M/Y, PL 20-35M, 2000-2500MS
17 - 18PageSL 4500, 5500M, SL 4500LY, PL 45M/LY
19 - 20PagePL 60-80M
21 - 23PagePL 250V/VM
24 - 26PageSLV 500M
27 - 28PageSLV 800M, PL 800VM
29 - 30PageSLV 1000M
31 - 32PageReduction sleeves
33 - 35PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
OD cutting holder
48-9508320
48-950843/4"
OD cutting holder, HP-IC
IC 80 bar48-100605-HP20
IC 80 bar48-104395-HP25
IC 80 bar48-108926-HP3/4"
IC 80 bar48-104396-HP1"
OD cutting holder, short
48-10833020
48-1089973/4"
Face cutting holder
48-10914820
Face cutting holder
48-953383/4"
Face cutting holder, HP-IC
IC 80 bar48-109148-HP20
IC 80 bar48-104397-HP25
IC 80 bar48-109149-HP3/4"
IC 80 bar48-104398-HP1"
Combination toolholder, LF=65
IC 80 bar48-95090Ø 40
IC 80 bar48-95327Ø 1 1/2"
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-94968SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102252RSH 26
IC 80 bar48-102252LSH 26
SMEC PL 1600M
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-45ER-25 QF
0067725000
IC 80 bar1:1420125016-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525015-45ER-25 QF
0067725000
IC 80 bar1:1420525016-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:3410410008-45ER 16
00675000937
IC 80 bar1:3410410002-45ER 16
00675000937
Right angle drill/milling unit
EC1:2420520018-45ER-20 QF
0067720001
IC 80 bar1:2420520019-45ER-20 QF
0067720001
EC1:3420820010-45ER-20 QF
0067720001
IC 80 bar1:3420820011-45ER-20 QF
0067720001
EC2:1420525020-45ER-25 QF
0067725000
IC 80 bar2:1420525021-45ER-25 QF
0067725000
Adjustable angle drill/milling unit
EC1:1411010002-45ER 16
00675000902
IC 80 bar1:1411010003-45ER 16
00675000902
SMEC PL 1600M
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900001-45Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
96394
Broaching unit for ID and OD
EC1:1414532000-45TN765050
SMEC PL 1600M
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, short
48-10833125
48-1088851"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-10874720
48-1104603/4"
OD cutting holder, double, 24 station, sub
spindle
48-11119320
48-1111943/4"
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, both sides, double, Y axis
48-8714125(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Combination toolholder, universal, double,
24 station
IC 80 bar48-108748Ø 25
IC 80 bar48-110461Ø 1"
SMEC SL 1500, 2000M/Y/SY
© WTO GmbH * Subject to change without notice * www.wto.de
7
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=60
EC1:1420525021-55ER-25 QF
0067725000
IC 80 bar1:1420525022-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=60
EC1:1420525023-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
SMEC SL 1500, 2000M/Y/SY
8
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=60
EC1:2420520016-55ER-20 QF
0067720001
IC 80 bar1:2420520017-55ER-20 QF
0067720001
EC1:3420820010-55ER-20 QF
0067720001
IC 80 bar1:3420820011-55ER-20 QF
0067720001
EC2:1420525034-55ER-25 QF
0067725000
IC 80 bar2:1420525035-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=60
EC1:1410622012-55Ø 22
00675000483
EC1:1410619007-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
96394
Broaching unit for ID and OD
EC1:1414532001-55TN765050
SMEC SL 1500, 2000M/Y/SY
© WTO GmbH * Subject to change without notice * www.wto.de
9
Static Toolholders - Standard Program
OD cutting holder
48-10911025
48-1091111"
OD cutting holder, short
48-8699125
48-869921"
OD cutting holder, short, HP-IC
IC 80 bar48-86991-HP25
IC 80 bar48-86992-HP1"
OD cutting holder, both sides
48-10919825
48-1091991"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
U-drill holder, universal, LF=72
IC 80 bar48-109214Ø 50
IC 80 bar48-109215Ø 2"
Combination toolholder, LF=72
IC 80 bar48-84375Ø 40
IC 80 bar48-87077Ø 1 1/2"
IC 80 bar48-107499Ø 50
IC 80 bar48-107501Ø 2"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-10874920
48-1104623/4"
OD cutting holder, both sides, double, 24
station
48-10976820
48-1097693/4"
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Combination toolholder, back set
IC 80 bar48-102037Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, universal, double,
24 station
IC 80 bar48-108750Ø 25
IC 80 bar48-110463Ø 1"
SMEC SL 2500, 3000M/Y/SY, PL 2000, 2500Y/SY
10
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=72
EC1:1420532015-65ER-32 QF
0067732000
IC 80 bar1:1420532016-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=72
EC1:1420532017-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Face drill/milling unit for ER collets, LF=72
EC1:1410526005-65ER 40
00675000781
IC 80 bar1:1410526006-65ER 40
00675000781
SMEC SL 2500, 3000M/Y/SY, PL 2000, 2500Y/SY
© WTO GmbH * Subject to change without notice * www.wto.de
11
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=72
EC1:2420525010-65ER-25 QF
0067725001
IC 80 bar1:2420525011-65ER-25 QF
0067725001
EC2:1420532027-65ER-32 QF
0067732000
IC 80 bar2:1420532028-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=72
EC1:1410622001-65Ø 22
00675000483
EC1:1410625001-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532001-65TN765050
SMEC SL 2500, 3000M/Y/SY, PL 2000, 2500Y/SY
12
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10911025
48-1091111"
OD cutting holder, short
48-8699125
48-869921"
OD cutting holder, short, HP-IC
IC 80 bar48-86991-HP25
IC 80 bar48-86992-HP1"
OD cutting holder, both sides
48-10919825
48-1091991"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
U-drill holder, universal, LF=72
IC 80 bar48-109214Ø 50
IC 80 bar48-109215Ø 2"
Combination toolholder, LF=72
IC 80 bar48-84375Ø 40
IC 80 bar48-87077Ø 1 1/2"
IC 80 bar48-107499Ø 50
IC 80 bar48-107501Ø 2"
Static Toolholders - Standard Program
Combination toolholder (only for SL 3500 Y,
6 bolt turret)
IC 80 bar48-109013Ø 50
IC 80 bar48-109014Ø 2"
Cover plate
48-87089
SMEC SL 3500M/Y, PL 20-35M, 2000-2500MS
© WTO GmbH * Subject to change without notice * www.wto.de
13
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Combination toolholder, back set
IC 80 bar48-102037Ø 40
241140020 ER32
241140026 ER40
SMEC SL 3500M/Y, PL 20-35M, 2000-2500MS
14
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=72
EC1:1420532015-65ER-32 QF
0067732000
IC 80 bar1:1420532016-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=72
EC1:1420532017-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Face drill/milling unit for ER collets, LF=72
EC1:1410526005-65ER 40
00675000781
IC 80 bar1:1410526006-65ER 40
00675000781
SMEC SL 3500M/Y, PL 20-35M, 2000-2500MS
© WTO GmbH * Subject to change without notice * www.wto.de
15
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=72
EC1:2420525010-65ER-25 QF
0067725001
IC 80 bar1:2420525011-65ER-25 QF
0067725001
EC2:1420532027-65ER-32 QF
0067732000
IC 80 bar2:1420532028-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=72
EC1:1410622001-65Ø 22
00675000483
EC1:1410625001-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532001-65TN765050
SMEC SL 3500M/Y, PL 20-35M, 2000-2500MS
16
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, long
48-9633432
48-963351 1/4"
Face cutting holder, long
48-9633832
48-963391 1/4"
Combination toolholder, LF=110
IC 80 bar48-96777Ø 60
IC 80 bar48-96778Ø 2 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, for long workpieces
48-10982132
OD cutting holder, double, Y axis
48-11231725(1")
VDI adapter, right, LF=110
48-112600VDI 50
SMEC SL 4500, 5500M, SL 4500LY, PL 45M/LY
© WTO GmbH * Subject to change without notice * www.wto.de
17
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140015-75ER-40 QF
0067740000
IC 80 bar1:1420140016-75ER-40 QF
0067740000
Face drill/milling unit, LF=110
EC1:1420540019-75ER-40 QF
0067740000
IC 80 bar1:1420540020-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=110
EC1:2420532012-75ER-32 QF
0067732001
IC 80 bar1:2420532013-75ER-32 QF
0067732001
EC2:1420540025-75ER-40 QF
0067740000
IC 80 bar2:1420540026-75ER-40 QF
0067740000
Adjustable angle drill/milling unit
EC1:1411016000-75ER 25
00675000934
IC 80 bar1:1411016001-75ER 25
00675000934
EC1:2411010002-75ER 16
00675000936
IC 80 bar1:2411010003-75ER 16
00675000936
SMEC SL 4500, 5500M, SL 4500LY, PL 45M/LY
18
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10833232
48-1089031 1/4"
OD cutting holder, short
48-9572632
48-957281 1/4"
Face cutting holder
48-9573032
48-957311 1/4"
Combination toolholder
48-95732Ø 80
IC 80 bar48-95733Ø 3"
SMEC PL 60-80M
© WTO GmbH * Subject to change without notice * www.wto.de
19
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420150015-85ER-50 QF
0067750000
IC 80 bar1:1420150016-85ER-50 QF
0067750000
Face drill/milling unit for ER collets, LF=95
EC1:1420550021-85ER-50 QF
0067750000
IC 80 bar1:1420550022-85ER-50 QF
0067750000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1421032010-85ER-32 QF
00675000976
IC 80 bar1:1421032011-85ER-32 QF
00675000976
Gear hobbing unit
EC2:1410900000-85Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
SMEC PL 60-80M
20
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
SMEC PL 250V/VM
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
SMEC PL 250V/VM
22
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
96394
Broaching unit for ID and OD
EC1:1414532001-55TN765050
SMEC PL 250V/VM
© WTO GmbH * Subject to change without notice * www.wto.de
23
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=72
IC 80 bar48-84375Ø 40
IC 80 bar48-87077Ø 1 1/2"
IC 80 bar48-107499Ø 50
IC 80 bar48-107501Ø 2"
Cover plate
48-87089
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Combination toolholder, back set
IC 80 bar48-102037Ø 40
241140020 ER32
241140026 ER40
SMEC SLV 500M
24
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=72
EC1:1420532015-65ER-32 QF
0067732000
IC 80 bar1:1420532016-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Face drill/milling unit for ER collets, LF=72
EC1:1410526005-65ER 40
00675000781
IC 80 bar1:1410526006-65ER 40
00675000781
SMEC SLV 500M
© WTO GmbH * Subject to change without notice * www.wto.de
25
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=72
EC1:2420525010-65ER-25 QF
0067725001
IC 80 bar1:2420525011-65ER-25 QF
0067725001
EC2:1420532027-65ER-32 QF
0067732000
IC 80 bar2:1420532028-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=72
EC1:1410622001-65Ø 22
00675000483
EC1:1410625001-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Broaching unit for ID and OD
EC1:1414532001-65TN765050
SMEC SLV 500M
26
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9642125
48-964221"
OD cutting holder
48-112326R32
48-112326L32
48-112327R1 1/4"
48-112327L1 1/4"
OD cutting holder, long
48-9633432
48-963351 1/4"
Face cutting holder
48-9635525
48-963571"
Face cutting holder
48-112328R32
48-112328L32
48-112329R1 1/4"
48-112329L1 1/4"
Combination toolholder, LF=60
IC 80 bar48-96759Ø 60
IC 80 bar48-96760Ø 2 1/2"
Boring bar holder, with slot
48-97849Ø 60
Static Toolholders - Enhanced Program
VDI adapter, right, LF=60
48-97345VDI 50
SMEC SLV 800M, PL 800VM
© WTO GmbH * Subject to change without notice * www.wto.de
27
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140015-75ER-40 QF
0067740000
IC 80 bar1:1420140016-75ER-40 QF
0067740000
Face drill/milling unit, LF=60
EC1:1420540015-75ER-40 QF
0067740000
IC 80 bar1:1420540016-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=60
EC1:2420532010-75ER-32 QF
0067732001
IC 80 bar1:2420532011-75ER-32 QF
0067732001
EC2:1420540021-75ER-40 QF
0067740000
IC 80 bar2:1420540022-75ER-40 QF
0067740000
Adjustable angle drill/milling unit
EC1:1411016000-75ER 25
00675000934
IC 80 bar1:1411016001-75ER 25
00675000934
EC1:2411010002-75ER 16
00675000936
IC 80 bar1:2411010003-75ER 16
00675000936
SMEC SLV 800M, PL 800VM
28
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10893532
48-1089361 1/4"
Face cutting holder
48-10893732
48-1089381 1/4"
Combination toolholder
IC 80 bar48-108939Ø 80
IC 80 bar48-108940Ø 3"
SMEC SLV 1000M
© WTO GmbH * Subject to change without notice * www.wto.de
29
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420150015-85ER-50 QF
0067750000
IC 80 bar1:1420150016-85ER-50 QF
0067750000
Face drill/milling unit, LF=110
EC1:1420550017-85ER-50 QF
0067750000
IC 80 bar1:1420550018-85ER-50 QF
0067750000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1421032010-85ER-32 QF
00675000976
IC 80 bar1:1421032011-85ER-32 QF
00675000976
SMEC SLV 1000M
30
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 16240032016
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 32240050032
ø 40240050040
Reduction sleeve Ø 60
ø 12240060012
ø 16240060016
ø 20240060020
ø 25240060025
ø 32240060032
ø 40240060040
ø 50240060050
Reduction sleeve Ø 80
ø 20240080020
ø 25240080025
ø 32240080032
ø 40240080040
ø 50240080050
ø 60240080060
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
Reduction sleeve Ø 3"
ø 3/4"2400300075
ø 1"2400300100
ø 1 1/4"2400300125
ø 1 1/2"2400300150
ø 2"2400300200
ø 2 1/2"2400300250
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
31
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
Accessories - Reduction sleeves
32
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
33
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
Accessories - Collets
34
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
35
Tool Holder Program
GENOS L200, L2000-e M/MY (VDI30)
GENOS L250 (8 station turret)
GENOS L250 (12 station turret)
GENOS L300, L3000-e M/MY (VDI40)
GENOS L300 MW/MYW, L3000-e M/MY
GENOS L400, L3000-e
LB 2000 EX
LB/LU 2500-4000 EX
LB/LU 2000-3000 EX (II) M/MY/MW/MYW
LB/LU 4000 EX (II) M/MY
LT 2000 EX M/MY (16 station turret)
LT 3000 EX M/MY
Multus U3000, 4000, 5000 2SW
QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
© WTO GmbH * Subject to change without notice * www.wto.de
2
2
© WTO GmbH * Subject to change without notice * www.wto.de
4 - 6PageGENOS L200, L2000-e M/MY (VDI30)
7 - 7PageGENOS L250 (8 station turret)
8 - 8PageGENOS L250 (12 station turret)
9 - 11PageGENOS L300, L3000-e M/MY (VDI40)
12 - 14PageGENOS L300 MW/MYW, L3000-e M/MY
15 - 15PageGENOS L400, L3000-e
16 - 16PageLB 2000 EX
17 - 17PageLB/LU 2500-4000 EX
18 - 21PageLB/LU 2000-3000 EX (II) M/MY/MW/MYW
22 - 25PageLB/LU 4000 EX (II) M/MY
26 - 28PageLT 2000 EX M/MY (16 station turret)
29 - 31PageLT 3000 EX M/MY
32 - 34PageMultus U3000, 4000, 5000 2SW
35 - 36PageReduction sleeves
37 - 39PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
Radial square toolholder, left hand, short,
Form B2
48-B2-30x2020(16)
48-B2-30x20x6020(16)
Radial square toolholder, left hand inverted,
short, Form B4
48-B4-30x2020(16)
48-B4-30x20x6020(16)
Radial square toolholder, left hand, long,
Form B6
48-B6-30x2020(16)
48-B6-30x20x6020(16)
48-B6-30x0753/4"
Radial square toolholder, left hand inverted,
long, Form B8
48-B8-30x2020(16)
Axial square toolholder, left hand, Form C2
48-C2-30x2020(16)
Axial square toolholder, left hand inverted,
Form C4
48-C4-30x2020(16)
Cut-off holder, adjustable height, left hand
48-AL-30x26SH 26
Cut-off holder, adjustable height, left hand
inverted
48-ALU-30x26SH 26
Static Toolholders - Standard Program
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102686RSH 26
IC 80 bar48-102686LSH 26
IC 80 bar48-102688RSH 32
IC 80 bar48-102688LSH 32
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-30x16Ø 16
48-E1-30x20Ø 20
48-E1-30x25Ø 25
48-E1-30x32Ø 32
Boring bar holder, internal coolant supply,
Form E2
48-E2-30x8Ø 8
48-E2-30x10Ø 10
48-E2-30x12Ø 12
48-E2-30x16Ø 16
48-E2-30x20Ø 20
48-E2-30x25Ø 25
48-E2-30x30Ø 30
48-E2-30x32Ø 32
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-30x25ER 25
107525000
48-E4-30x32ER 32
107532000
48-E4-30x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-30-SSteel
© WTO GmbH * Subject to change without notice * www.wto.de
4
Okuma GENOS L200, L2000-e M/MY (VDI30)
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Performance Series
Face drill/milling unit
EC1:1410116040-30ER 25
00675000359
IC 30 bar1:1410116041-30ER 25
00675000359
OD back set drill/milling unit
EC1:1410516045-30ER 25
00675000801
IC 80 bar1:1410516110-30ER 25
00675000801
Driven Toolholders - Enhanced Program
Face drill/milling unit, offset
EC1:1410116133-30ER 25
00675000932
IC 80 bar1:1410116125-30ER 25
00675000932
EC1:2410113041-30ER 20
00675000939
IC 80 bar1:2410113042-30ER 20
00675000939
EC2:1410116126-30ER 25
00675000932
IC 80 bar2:1410116127-30ER 25
00675000932
OD drill/milling unit
EC1:2410513028-30ER 20
00675000833
IC 80 bar1:2410513029-30ER 20
00675000833
OD back set drill/milling unit
EC2:1410516046-30ER 25
00675000801
IC 80 bar2:1410516048-30ER 25
00675000801
Adjustable angle drill/milling unit
EC1:1411010012-30ER 16
00675000902
IC 80 bar1:1411010013-30ER 16
00675000902
EC1:2411007013-30ER 11
00675000914
IC 80 bar1:2411007014-30ER 11
00675000914
5
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L200, L2000-e M/MY (VDI30)
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Offset slitting saw unit
EC2.73:1411500006-30Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
6
Okuma GENOS L200, L2000-e M/MY (VDI30)
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Wedge block
48-7887225(1")
OD cutting holder, HP-IC
IC 80 bar48-100856-HP25
IC 80 bar48-102469-HP1"
Face cutting holder, HP-IC
IC 80 bar48-100858-HP25
IC 80 bar48-115655-HP1"
Combination toolholder
IC 80 bar48-85213Ø 40
IC 80 bar48-101015Ø 1 1/2"
7
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L250 (8 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Standard Program
Wedge block
48-7887225(1")
Face cutting holder, HP-IC
IC 80 bar48-100853-HP25
IC 80 bar48-115657-HP1"
Combination toolholder
IC 80 bar48-87633Ø 32
IC 80 bar48-115658Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
8
Okuma GENOS L250 (12 station turret)
8
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Radial square toolholder, left hand, short,
Form B2
48-B2-40x2525(20)
Radial square toolholder, left hand inverted,
short, Form B4
48-B4-40x2525(20)
48-B4-40x1001"
Radial square toolholder, left hand, long,
Form B6
48-B6-40x2525(20)
Radial square toolholder, left hand inverted,
long, Form B8
48-B8-40x2525(20)
Axial square toolholder, left hand, Form C2
48-C2-40x2525(20)
Axial square toolholder, left hand inverted,
Form C4
48-C4-40x2525(20)
48-C4-40x1001"
Cut-off holder, adjustable height, left hand
48-AL-40x32SH 32
Cut-off holder, adjustable height, left hand
inverted
48-ALU-40x32SH 32
Static Toolholders - Standard Program
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102690RSH 32
IC 80 bar48-102690LSH 32
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-40x16Ø 16
48-E1-40x20Ø 20
48-E1-40x25Ø 25
48-E1-40x32Ø 32
48-E1-40x40Ø 40
Boring bar holder, internal coolant supply,
Form E2
48-E2-40x8Ø 8
48-E2-40x10Ø 10
48-E2-40x12Ø 12
48-E2-40x16Ø 16
48-E2-40x20Ø 20
48-E2-40x25Ø 25
48-E2-40x30Ø 30
48-E2-40x32Ø 32
48-E2-40x40Ø 40
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-40x25ER 25
107525000
48-E4-40x32ER 32
107532000
48-E4-40x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
9
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L300, L3000-e M/MY (VDI40)
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - QuickFlex®
Face drill/milling unit
EC1:1420132061-40ER-32 QF
0067732000
IC 80 bar1:1420132062-40ER-32 QF
0067732000
OD drill/milling unit
EC1:1420532123-40ER-32 QF
0067732000
IC 80 bar1:1420532124-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Face drill/milling unit, offset
EC1:1420132089-40ER-32 QF
0067732000
IC 80 bar1:1420132090-40ER-32 QF
0067732000
EC1:2420125046-40ER-25 QF
0067725001
IC 80 bar1:2420125047-40ER-25 QF
0067725001
EC2:1420132095-40ER-32 QF
0067732000
IC 80 bar2:1420132096-40ER-32 QF
0067732000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222021-40Ø 22
00675000479
OD drill/milling unit
EC1:2410516074-40ER 25
00675000801
IC 80 bar1:2410516075-40ER 25
00675000801
EC2:1410520116-40ER 32
00675000490
IC 80 bar2:1410520126-40ER 32
00675000490
© WTO GmbH * Subject to change without notice * www.wto.de
10
Okuma GENOS L300, L3000-e M/MY (VDI40)
10
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
OD back set drill/milling unit
EC1:1420532098-40ER-32 QF
0067732000
IC 80 bar1:1420532099-40ER-32 QF
0067732000
EC2:1420540019-40ER-40 QF
0067740000
IC 80 bar2:1420540020-40ER-40 QF
0067740000
OD milling unit with combination mill arbor
DIN 6358
EC1:1410622015-40Ø 22
00675000160
Adjustable angle drill/milling unit
EC1:1411016010-40ER 25
00675000934
IC 80 bar1:1411016031-40ER 25
00675000934
EC1:2411010022-40ER 16
00675000936
IC 80 bar1:2411010023-40ER 16
00675000936
Offset slitting saw unit
EC2.73:1411500006-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Driven Toolholders - Enhanced Program
Broaching unit for ID and OD
EC1:1414132005-40TN765050
11
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L300, L3000-e M/MY (VDI40)
11
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-8647125
48-864731"
OD cutting holder, HP-IC
IC 80 bar48-86471-HP25
IC 80 bar48-86473-HP1"
OD cutting holder, both sides
48-8647525
48-864781"
OD cutting holder, both sides, HP-IC
IC 80 bar48-86475-HP25
IC 80 bar48-86478-HP1"
Face cutting holder
48-8648025
48-864821"
Face cutting holder, HP-IC
IC 80 bar48-86480-HP25
IC 80 bar48-86482-HP1"
Face cutting holder, both sides
48-8648425
48-864871"
Combination toolholder
IC 80 bar48-78611Ø 32
IC 80 bar48-78494Ø 40
IC 80 bar48-78841Ø 1 1/2"
Plug
48-79267
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7853420 (3/4")
OD cutting holder, both sides, double, Y axis
48-7996520 (3/4")
Cut-off holder, adjustable
48-99034SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102282RSH 32
IC 80 bar48-102282LSH 32
Boring bar holder, with slot
48-80539Ø 40
48-80511Ø 50
48-80542Ø 1 1/2"
48-80541Ø 2"
Collet face drill holder
IC 80 bar48-81096ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-81097ER 32
107532000
VDI adapter, left
48-79671VDI 30
48-79839VDI 40
VDI adapter, right
48-79982VDI 30
48-79983VDI 40
© WTO GmbH * Subject to change without notice * www.wto.de
12
Okuma GENOS L300 MW/MYW, L3000-e M/MY
12
© WTO
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420132012-60ER-32 QF
0067732000
IC 80 bar1:1420132013-60ER-32 QF
0067732000
Face drill/milling unit
EC1:1420532014-60ER-32 QF
0067732000
IC 80 bar1:1420532015-60ER-32 QF
0067732000
Face drill/milling unit, both sides
EC1:1420532018-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410222014-60Ø 22
00675000483
EC1:1410225004-60Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1410116035-60ER 25
00675000932
IC 80 bar1:1410116034-60ER 25
00675000932
EC1:2410113003-60ER 20
00675000939
IC 80 bar1:2410113004-60ER 20
00675000939
Face drill/milling unit
EC1:2420525012-60ER-25 QF
0067725001
IC 80 bar1:2420525013-60ER-25 QF
0067725001
EC2:1420532016-60ER-32 QF
0067732000
IC 80 bar2:1420532017-60ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622002-60Ø 22
00675000557
EC1:1410625002-60Ø 1"
00675000483
13
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L300 MW/MYW, L3000-e M/MY
© WTO GmbH * Subject to change without notice * www.wto.de
13
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010003-60ER 16
00675000902
IC 80 bar1:1411010004-60ER 16
00675000902
EC1:2411007001-60ER 11
00675000914
IC 80 bar1:2411007002-60ER 11
00675000914
Gear hobbing unit
EC1:1411500013-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500015-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
Broaching unit for ID and OD
EC1:1414532001-60TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
14
Okuma GENOS L300 MW/MYW, L3000-e M/MY
14
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Wedge block
48-7887225(1")
OD cutting holder, HP-IC
IC 80 bar48-100856-HP25
IC 80 bar48-102469-HP1"
Face cutting holder, HP-IC
IC 80 bar48-100858-HP25
IC 80 bar48-115655-HP1"
Combination toolholder
IC 80 bar48-85213Ø 40
IC 80 bar48-101015Ø 1 1/2"
15
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma GENOS L400, L3000-e
© WTO GmbH * Subject to change without notice * www.wto.de
15
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-100854-HP25
IC 80 bar48-115656-HP1"
Face cutting holder, HP-IC
IC 80 bar48-100853-HP25
IC 80 bar48-115657-HP1"
Combination toolholder
IC 80 bar48-87633Ø 32
IC 80 bar48-115658Ø 1 1/4"
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-100568SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102284RSH 32
IC 80 bar48-102284LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
16
Okuma LB 2000 EX
16
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-100856-HP25
IC 80 bar48-102469-HP1"
Face cutting holder, HP-IC
IC 80 bar48-100858-HP25
IC 80 bar48-115655-HP1"
Combination toolholder
IC 80 bar48-85213Ø 40
IC 80 bar48-101015Ø 1 1/2"
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-100571SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102286RSH 32
IC 80 bar48-102286LSH 32
VDI adapter, right
48-104652VDI 40
17
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LB/LU 2500-4000 EX
© WTO GmbH * Subject to change without notice * www.wto.de
17
Static Toolholders - Standard Program
OD cutting holder
48-8647125
48-864731"
OD cutting holder, HP-IC
IC 80 bar48-86471-HP25
IC 80 bar48-86473-HP1"
OD cutting holder, both sides
48-8647525
48-864781"
OD cutting holder, both sides, HP-IC
IC 80 bar48-86475-HP25
IC 80 bar48-86478-HP1"
Face cutting holder
48-8648025
48-864821"
Face cutting holder, HP-IC
IC 80 bar48-86480-HP25
IC 80 bar48-86482-HP1"
Face cutting holder, both sides
48-8648425
48-864871"
Combination toolholder
IC 80 bar48-78611Ø 32
IC 80 bar48-78494Ø 40
IC 80 bar48-78841Ø 1 1/2"
Static Toolholders - Standard Program
Combination toolholder, both sides
IC 80 bar48-78726Ø 32
IC 80 bar48-78547Ø 40
IC 80 bar48-78845Ø 1 1/2"
Plug
48-79267
© WTO GmbH * Subject to change without notice * www.wto.de
18
Okuma LB/LU 2000-3000 EX (II) M/MY/MW/MYW
18
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7853420 (3/4")
OD cutting holder, double, 24 station
48-9715420
48-971553/4"
OD cutting holder, both sides, double, Y axis
48-7996520 (3/4")
Cut-off holder, adjustable
48-99034SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102282RSH 32
IC 80 bar48-102282LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-101968R
343-810100R48
SH 32
IC 80 bar48-101968L
343-810100L48
SH 32
Boring bar holder, with slot
48-80539Ø 40
48-80511Ø 50
48-80542Ø 1 1/2"
48-80541Ø 2"
Combination toolholder, double
IC 80 bar48-79972Ø 32
IC 80 bar48-79997Ø 1 1/4"
Static Toolholders - Enhanced Program
Combination toolholder, universal, double,
24 station
IC 80 bar48-97157Ø 25
IC 80 bar48-97158Ø 1"
Combination toolholder, double, both sides
IC 80 bar48-79888Ø 32
IC 80 bar48-79996Ø 1 1/4"
Boring bar holder, triple, both sides
48-79975Ø 25
48-79998Ø 1"
Boring bar holder, multiple, both sides, Y axis
48-78538Ø 25
48-78825Ø 1"
Collet face drill holder
IC 80 bar48-81096ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-81097ER 32
107532000
VDI adapter, left
48-79671VDI 30
48-79839VDI 40
VDI adapter, right
48-79982VDI 30
48-79983VDI 40
Boring bar holder, blank
48-81082
19
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LB/LU 2000-3000 EX (II) M/MY/MW/MYW
© WTO GmbH * Subject to change without notice * www.wto.de
19
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420132012-60ER-32 QF
0067732000
IC 80 bar1:1420132013-60ER-32 QF
0067732000
Face drill/milling unit
EC1:1420532014-60ER-32 QF
0067732000
IC 80 bar1:1420532015-60ER-32 QF
0067732000
Face drill/milling unit, both sides
EC1:1420532018-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410222014-60Ø 22
00675000483
EC1:1410225004-60Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1410116035-60ER 25
00675000932
IC 80 bar1:1410116034-60ER 25
00675000932
EC1:2410113003-60ER 20
00675000939
IC 80 bar1:2410113004-60ER 20
00675000939
Face drill/milling unit
EC1:2420525012-60ER-25 QF
0067725001
IC 80 bar1:2420525013-60ER-25 QF
0067725001
EC2:1420532016-60ER-32 QF
0067732000
IC 80 bar2:1420532017-60ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622002-60Ø 22
00675000557
EC1:1410625002-60Ø 1"
00675000483
© WTO GmbH * Subject to change without notice * www.wto.de
20
Okuma LB/LU 2000-3000 EX (II) M/MY/MW/MYW
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010003-60ER 16
00675000902
IC 80 bar1:1411010004-60ER 16
00675000902
EC1:2411007001-60ER 11
00675000914
IC 80 bar1:2411007002-60ER 11
00675000914
Gear hobbing unit
EC1:1411500013-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500015-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
OD drill/milling unit, double, Y axis
EC1:1413002011-60ER 25
00675000932
IC 80 bar1:1413002010-60ER 25
00675000932
2-spindle - Face drill/milling unit, Y axis
EC1:1413502003-60ER 25
00675000915
IC 80 bar1:1413502004-60ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502005-60ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532001-60TN765050
21
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LB/LU 2000-3000 EX (II) M/MY/MW/MYW
© WTO GmbH * Subject to change without notice * www.wto.de
21
Static Toolholders - Standard Program
OD cutting holder
48-8642725
48-864281"
OD cutting holder, HP-IC
IC 80 bar48-86427-HP25
IC 80 bar48-86428-HP1"
Face cutting holder
48-864301"
Face cutting holder, HP-IC
IC 80 bar48-86429-HP25
IC 80 bar48-86430-HP1"
Combination toolholder
IC 80 bar48-78587Ø 40
IC 80 bar48-82043Ø 50
IC 80 bar48-78860Ø 1 1/2"
IC 80 bar48-82044Ø 2"
Plug
48-79268
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7978725(1")
Cut-off holder, adjustable
48-99290SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-99304RSH 32
IC 80 bar48-99304LSH 32
Boring bar holder, with slot
48-102335Ø 40
48-102334Ø 50
48-86827Ø 60
48-102351Ø 1 1/2"
48-86819Ø 2"
Combination toolholder, double
IC 80 bar48-79898Ø 40
IC 80 bar48-80003Ø 1 1/2"
Boring bar holder, triple
48-79984Ø 32
48-80002Ø 1 1/4"
Boring bar holder, multiple, Y axis
48-79802Ø 32
48-79850Ø 1 1/4"
Collet face drill holder
IC 80 bar48-81098ER 40
107540000
© WTO GmbH * Subject to change without notice * www.wto.de
22
Okuma LB/LU 4000 EX (II) M/MY
22
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
VDI adapter, left
48-79672VDI 40
VDI adapter, right
48-79986VDI 40
Boring bar holder, blank
48-81083
23
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LB/LU 4000 EX (II) M/MY
© WTO GmbH * Subject to change without notice * www.wto.de
23
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140012-60ER-40 QF
0067740000
IC 80 bar1:1420140013-60ER-40 QF
0067740000
Face drill/milling unit
EC1:1420540010-60ER-40 QF
0067740000
IC 80 bar1:1420540011-60ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410227012-60Ø 27
00675000245
EC1:1410225005-60Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1410120053-60ER 32
00675000958
IC 80 bar1:1410120054-60ER 32
00675000958
EC1:2410116028-60ER 25
00675000959
IC 80 bar1:2410116029-60ER 25
00675000959
Face drill/milling unit
EC1:2420525014-60ER-25 QF
0067725002
IC 80 bar1:2420525015-60ER-25 QF
0067725002
EC2:1420540024-60ER-40 QF
0067740000
IC 80 bar2:1420540025-60ER-40 QF
0067740000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410627005-60Ø 27
00675000245
EC1:1410625005-60Ø 1"
00675000483
© WTO GmbH * Subject to change without notice * www.wto.de
24
Okuma LB/LU 4000 EX (II) M/MY
24
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411016001-60ER 25
00675000934
IC 80 bar1:1411016002-60ER 25
00675000934
EC1:2411010005-60ER 16
00675000936
IC 80 bar1:2411010006-60ER 16
00675000936
Gear hobbing unit
EC1:1411500011-60Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500010-60Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
OD drill/milling unit, double, Y axis
EC1:1413002004-60ER 25
00675000932
IC 80 bar1:1413002005-60ER 25
00675000932
2-spindle - Face drill/milling unit, Y axis
EC1:1413502006-60ER 25
00675000915
IC 80 bar1:1413502007-60ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532002-60TN765050
25
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LB/LU 4000 EX (II) M/MY
© WTO GmbH * Subject to change without notice * www.wto.de
25
Static Toolholders - Standard Program
OD cutting holder
48-9052020
48-905213/4"
OD cutting holder, HP-IC
IC 80 bar48-90520-HP20
IC 80 bar48-90521-HP3/4"
OD cutting holder, both sides
48-9052220
48-905233/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-90522-HP20
IC 80 bar48-90523-HP3/4"
Face cutting holder, both sides
48-9052420
48-905253/4"
Combination toolholder
IC 80 bar48-90526Ø 32
IC 80 bar48-90527Ø 1 1/4"
Combination toolholder, both sides
IC 80 bar48-90528Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-90529Ø 1 1/4"
Plug
48-90530
Static Toolholders - Enhanced Program
OD cutting holder, both sides, double, Y axis
48-10056220 (3/4")
Cut-off holder, adjustable
48-99058SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102280RSH 26
IC 80 bar48-102280LSH 26
Boring bar holder, double, both sides
48-100564Ø 25
48-1005651"
Boring bar holder, blank
48-110682
© WTO GmbH * Subject to change without notice * www.wto.de
26
Okuma LT 2000 EX M/MY (16 station turret)
26
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420125010-55ER-25 QF
0067725000
IC 80 bar1:1420125011-55ER-25 QF
0067725000
Face drill/milling unit
EC1:1420525010-55ER-25 QF
0067725000
IC 80 bar1:1420525011-55ER-25 QF
0067725000
Face drill/milling unit, both sides
EC1:1420525012-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
OD drill/milling unit, offset
EC1:2410113011-55ER 20
00675000939
IC 80 bar1:2410113012-55ER 20
00675000939
EC1:3410410006-55ER 16
00675000937
IC 80 bar1:3410410007-55ER 16
00675000937
Face drill/milling unit
EC1:2420520010-55ER-20 QF
0067720001
IC 80 bar1:2420520011-55ER-20 QF
0067720001
EC2:1420525013-55ER-25 QF
0067725000
IC 80 bar2:1420525014-55ER-25 QF
0067725000
Face drill/milling unit
EC1:3410810014-55ER 16
00675000841
IC 80 bar1:3410810015-55ER 16
00675000841
Adjustable angle drill/milling unit
EC1:1411010008-55ER 16
00675000902
IC 80 bar1:1411010009-55ER 16
00675000902
EC1:2411007009-55ER 11
00675000914
IC 80 bar1:2411007010-55ER 11
00675000914
27
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LT 2000 EX M/MY (16 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
27
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.73:1411500007-55Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Gear hobbing unit
EC1:1410900003-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532002-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
28
Okuma LT 2000 EX M/MY (16 station turret)
28
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-8647125
48-864731"
OD cutting holder, HP-IC
IC 80 bar48-86471-HP25
IC 80 bar48-86473-HP1"
OD cutting holder, both sides
48-8647525
48-864781"
OD cutting holder, both sides, HP-IC
IC 80 bar48-86475-HP25
IC 80 bar48-86478-HP1"
Face cutting holder, both sides
48-9535725
48-953581"
Combination toolholder
IC 80 bar48-95360Ø 40
IC 80 bar48-95361Ø 1 1/2"
Combination toolholder, both sides
IC 80 bar48-95363Ø 40
IC 80 bar48-95364Ø 1 1/2"
Plug
48-79267
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7853420 (3/4")
OD cutting holder, both sides, double, Y axis
48-7996520 (3/4")
Cut-off holder, adjustable
48-99034SH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-101968R
343-810100R48
SH 32
IC 80 bar48-101968L
343-810100L48
SH 32
Boring bar holder, multiple, both sides, Y axis
48-78538Ø 25
48-78825Ø 1"
Collet face drill holder
IC 80 bar48-95365ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-95366ER 32
107532000
Boring bar holder, blank
48-95367
29
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LT 3000 EX M/MY
© WTO GmbH * Subject to change without notice * www.wto.de
29
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420132016-60ER-32 QF
0067732000
IC 80 bar1:1420132017-60ER-32 QF
0067732000
Face drill/milling unit
EC1:1420532025-60ER-32 QF
0067732000
IC 80 bar1:1420532026-60ER-32 QF
0067732000
Face drill/milling unit, both sides
EC1:1420532029-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410222015-60Ø 22
00675000483
EC1:1410225006-60Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1410116037-60ER 25
00675000932
IC 80 bar1:1410116038-60ER 25
00675000932
EC1:2410113005-60ER 20
00675000939
IC 80 bar1:2410113006-60ER 20
00675000939
Face drill/milling unit
EC1:2420525016-60ER-25 QF
0067725001
IC 80 bar1:2420525017-60ER-25 QF
0067725001
EC2:1420532027-60ER-32 QF
0067732000
IC 80 bar2:1420532028-60ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622010-60Ø 22
00675000483
EC1:1410625006-60Ø 1"
00675000483
© WTO GmbH * Subject to change without notice * www.wto.de
30
Okuma LT 3000 EX M/MY
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010009-60ER 16
00675000902
IC 80 bar1:1411010010-60ER 16
00675000902
EC1:2411007003-60ER 11
00675000914
IC 80 bar1:2411007004-60ER 11
00675000914
Gear hobbing unit
EC1:1411500022-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
EC2:1411500023-60Type 16-1
00675000962
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
OD drill/milling unit, double, Y axis
EC1:1413002013-60ER 25
00675000932
IC 80 bar1:1413002014-60ER 25
00675000932
2-spindle - Face drill/milling unit, Y axis
EC1:1413502015-60ER 25
00675000915
IC 80 bar1:1413502016-60ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502017-60ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532003-60TN765050
31
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma LT 3000 EX M/MY
© WTO GmbH * Subject to change without notice * www.wto.de
31
Static Toolholders - Standard Program
OD cutting holder
48-8647125
48-864731"
OD cutting holder, HP-IC
IC 80 bar48-86471-HP25
IC 80 bar48-86473-HP1"
OD cutting holder, both sides
48-8647525
48-864781"
OD cutting holder, both sides, HP-IC
IC 80 bar48-86475-HP25
IC 80 bar48-86478-HP1"
OD cutting holder, both sides, long
48-10477925
Face cutting holder, both sides
48-9535725
48-953581"
Combination toolholder
IC 80 bar48-95360Ø 40
IC 80 bar48-95361Ø 1 1/2"
Combination toolholder, both sides
IC 80 bar48-95363Ø 40
IC 80 bar48-95364Ø 1 1/2"
Plug
48-79267
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99034SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102282RSH 32
IC 80 bar48-102282LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-101968R
343-810100R48
SH 32
IC 80 bar48-101968L
343-810100L48
SH 32
Collet face drill holder
IC 80 bar48-95365ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-95366ER 32
107532000
Boring bar holder, blank
48-95367
© WTO GmbH * Subject to change without notice * www.wto.de
32
Okuma Multus U3000, 4000, 5000 2SW
32
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420132012-60ER-32 QF
0067732000
IC 80 bar1:1420132013-60ER-32 QF
0067732000
Face drill/milling unit
EC1:1420532032-60ER-32 QF
0067732000
IC 80 bar1:1420532033-60ER-32 QF
0067732000
Face drill/milling unit, both sides
EC1:1420532034-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410222014-60Ø 22
00675000483
EC1:1410225004-60Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1410116035-60ER 25
00675000932
IC 80 bar1:1410116034-60ER 25
00675000932
EC1:2410113003-60ER 20
00675000939
IC 80 bar1:2410113004-60ER 20
00675000939
Face drill/milling unit
EC1:2420525018-60ER-25 QF
0067725001
IC 80 bar1:2420525019-60ER-25 QF
0067725001
EC2:1420532035-60ER-32 QF
0067732000
IC 80 bar2:1420532036-60ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622011-60Ø 22
00675000483
EC1:1410625007-60Ø 1"
00675000483
33
© WTO GmbH * Subject to change without notice * www.wto.de
Okuma Multus U3000, 4000, 5000 2SW
© WTO GmbH * Subject to change without notice * www.wto.de
33
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010003-60ER 16
00675000902
IC 80 bar1:1411010004-60ER 16
00675000902
EC1:2411007001-60ER 11
00675000914
IC 80 bar1:2411007002-60ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
34
Okuma Multus U3000, 4000, 5000 2SW
34
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 14240025014
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 25240050025
ø 32240050032
ø 40240050040
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
35
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
35
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
© WTO GmbH * Subject to change without notice * www.wto.de
36
Accessories - Reduction sleeves
36
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
37
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
37
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
38
Accessories - Collets
38
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
39
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
39
AS-200 (12 ST)
AS-200 (15 ST)
NTJ-100
NTY³-100, WY-100 II (12 ST)
NTY³-150, 250, WY-150, 250
SC-100
SC-200
SC-250
SC-300 II
SC-450
Super NTJ
Super NTJX
Super NTX
TW-30
WT-100
WT-150, WT-150 II, WT-250 II
WT-300
Toolholder Program
QuickFlex®
Designed
for
BMT Turrets
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
4 - 6PageAS-200 (12 ST)
7 - 9PageAS-200 (15 ST)
10 - 12PageNTJ-100
13 - 15PageNTY³-100, WY-100 II (12 ST)
16 - 19PageNTY³-150, 250, WY-150, 250
20 - 22PageSC-100
23 - 25PageSC-200
26 - 29PageSC-250
30 - 32PageSC-300 II
33 - 33PageSC-450
34 - 36PageSuper NTJ
37 - 39PageSuper NTJX
40 - 42PageSuper NTX
43 - 43PageTW-30
44 - 46PageWT-100
47 - 50PageWT-150, WT-150 II, WT-250 II
51 - 53PageWT-300
54 - 54PageReduction sleeves
55 - 57PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station (only
for turret size 375)
EC48-10878420
EC48-1087853/4"
OD cutting holder, both sides, double, 24
station (only for turret size 375)
EC48-10878620
EC48-1087873/4"
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108792Ø 25
IC 80 bar48-108793Ø 1"
Combination toolholder, both sides, double,
24 station (only for turret size 375)
EC48-10879420
EC48-108795Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
4
Nakamura-Tome AS-200 (12 ST)
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
5
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome AS-200 (12 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
6
Nakamura-Tome AS-200 (12 ST)
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108792Ø 25
IC 80 bar48-108793Ø 1"
7
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome AS-200 (15 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
7
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
8
Nakamura-Tome AS-200 (15 ST)
8
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Broaching unit for ID and OD
EC1:1414532003-55TN765050
9
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome AS-200 (15 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
9
Static Toolholders - Standard Program
OD cutting holder
48-101470
Z90-86304-00
20
48-1044963/4"
OD cutting holder, HP-IC
IC 80 bar48-101470-HP20
IC 80 bar48-104496-HP3/4"
OD cutting holder, both sides
48-101471
Z90-86303-00
20
48-1047553/4"
Face cutting holder
48-102352
Z90-86301-00
20
48-1047353/4"
Combination toolholder, LF=75
48-101472
Z90-86302-00
Ø 25
48-104526Ø 1"
Combination toolholder, LF=92,5
48-106613Ø 25
48-106614Ø 1"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-101473
Z90-86548-00
20
48-1045233/4"
OD cutting holder, both sides, double, 24
station (only for turret size 370)
EC48-10810420
EC48-1081483/4"
Cut-off holder
48-100419
Z90-86307-00
SH 26
Cut-off holder, HP-IC
IC 80 bar48-102274RSH 26
IC 80 bar48-102274LSH 26
IC 80 bar48-112233R
343-810100R95
SH 32
IC 80 bar48-112233L
343-810100L95
SH 32
Combination toolholder, universal, double,
24 station (only for turret size 300)
IC 80 bar48-107985Ø 25
IC 80 bar48-108111Ø 1"
Combination toolholder, universal, double,
24 station (only for turret size 370)
IC 80 bar48-108103Ø 25
IC 80 bar48-108147Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
10
Nakamura-Tome NTJ-100
10
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420120010-44
Z90-86300-00
ER-20 QF
0067720000
IC 80 bar1:1420120011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=60
EC1:1420520010-44
Z90-86299-00
ER-20 QF
0067720000
IC 80 bar1:1420520011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=75
EC1:1420520015-44ER-20 QF
0067720000
IC 80 bar1:1420520016-44ER-20 QF
0067720000
Right angle drill/milling unit, both sides,
LF=60
EC1:1420520012-44ER-20 QF
0067720000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410116004-44
Z90-86305-00
ER 25
00675000720
IC 80 bar1:1410116002-44ER 25
00675000720
Straight offset drill/milling unit
EC1:2410113004-44
Z90-89788-00
ER 20
00675000939
EC1:3410110002-44ER 16
00675000937
EC1.5:1410116005-44ER 25
00675000932
Right angle drill/milling unit, LF=60
EC1:1410516005-44
Z90-86306-00
ER 25
00675000720
IC 80 bar1:1410516006-44ER 25
00675000720
EC1:2410513002-44
Z90-89789-00
ER 20
00675000833
IC 80 bar1:2410513003-44ER 20
00675000833
EC1:3410810006-44ER 16
00675000841
IC 80 bar1:3410810007-44ER 16
00675000841
EC2:1410516002-44ER 25
00675000720
IC 80 bar2:1410516003-44ER 25
00675000720
11
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome NTJ-100
© WTO GmbH * Subject to change without notice * www.wto.de
11
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=60
EC1:1410622000-44Ø 22
00675000483
EC2:1410622001-44Ø 22
00675000483
Adjustable angle drill/milling unit
EC1:1411010004-44
Z90-89787-00
ER 16
00675000902
IC 80 bar1:1411010005-44ER 16
00675000902
EC1:2411007006-44ER 11
00675000914
IC 80 bar1:2411007007-44ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002003-44ER 20
00675000939
IC 80 bar1:1413002004-44ER 20
00675000939
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502004-44ER 20
00675000939
IC 80 bar1:1413502005-44ER 20
00675000939
© WTO GmbH * Subject to change without notice * www.wto.de
12
Nakamura-Tome NTJ-100
12
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-101470
Z90-86304-00
20
48-1044963/4"
OD cutting holder, HP-IC
IC 80 bar48-101470-HP20
IC 80 bar48-104496-HP3/4"
OD cutting holder, both sides
48-101471
Z90-86303-00
20
48-1047553/4"
Face cutting holder
48-102352
Z90-86301-00
20
48-1047353/4"
Combination toolholder, LF=75
48-101472
Z90-86302-00
Ø 25
48-104526Ø 1"
Combination toolholder
48-107155Ø 32
48-107260Ø 1 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-101473
Z90-86548-00
20
48-1045233/4"
OD cutting holder, both sides, double, 24
station (only for turret size 300)
EC48-10797320
EC48-1081103/4"
Cut-off holder
48-100419
Z90-86307-00
SH 26
Cut-off holder, HP-IC
IC 80 bar48-102274RSH 26
IC 80 bar48-102274LSH 26
IC 80 bar48-112233R
343-810100R95
SH 32
IC 80 bar48-112233L
343-810100L95
SH 32
Combination toolholder, universal, double,
24 station (only for turret size 300)
IC 80 bar48-107985Ø 25
IC 80 bar48-108111Ø 1"
13
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome NTY³-100, WY-100 II (12 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
13
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420120010-44
Z90-86300-00
ER-20 QF
0067720000
IC 80 bar1:1420120011-44ER-20 QF
0067720000
Straight drill/milling unit (8000 RPM)
EC1:1420120010-44-SER-20 QF
0067720000
IC 80 bar1:1420120011-44-SER-20 QF
0067720000
Right angle drill/milling unit, LF=60
EC1:1420520010-44
Z90-86299-00
ER-20 QF
0067720000
IC 80 bar1:1420520011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=60, (8000
RPM)
EC1:1420520010-44-SER-20 QF
0067720000
IC 80 bar1:1420520011-44-SER-20 QF
0067720000
Right angle drill/milling unit, both sides,
LF=60
EC1:1420520012-44ER-20 QF
0067720000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410116004-44
Z90-86305-00
ER 25
00675000720
IC 80 bar1:1410116002-44ER 25
00675000720
Straight drill/milling unit (8000 RPM)
EC1:1410116004-44-SER 25
00675000720
IC 80 bar1:1410116002-44-SER 25
00675000720
Straight offset drill/milling unit
EC1:2410113004-44
Z90-89788-00
ER 20
00675000939
EC1:3410110002-44ER 16
00675000937
EC1.5:1410116005-44ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
14
Nakamura-Tome NTY³-100, WY-100 II (12 ST)
14
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=60
EC1:1410516005-44
Z90-86306-00
ER 25
00675000720
IC 80 bar1:1410516006-44ER 25
00675000720
EC1:2410513002-44
Z90-89789-00
ER 20
00675000833
IC 80 bar1:2410513003-44ER 20
00675000833
EC1:3410810006-44ER 16
00675000841
IC 80 bar1:3410810007-44ER 16
00675000841
EC2:1410516002-44ER 25
00675000720
IC 80 bar2:1410516003-44ER 25
00675000720
Right angle drill/milling unit, LF=60, (8000
RPM)
EC1:1410516005-44-SER 25
00675000720
IC 80 bar1:1410516006-44-SER 25
00675000720
Right angle milling unit with combination mill
arbor DIN 6358, LF=60
EC1:1410622000-44Ø 22
00675000483
EC2:1410622001-44Ø 22
00675000483
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010004-44
Z90-89787-00
ER 16
00675000902
IC 80 bar1:1411010005-44ER 16
00675000902
EC1:2411007006-44ER 11
00675000914
IC 80 bar1:2411007007-44ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002003-44ER 20
00675000939
IC 80 bar1:1413002004-44ER 20
00675000939
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502004-44ER 20
00675000939
IC 80 bar1:1413502005-44ER 20
00675000939
15
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome NTY³-100, WY-100 II (12 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
15
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station (only
for turret size 340)
EC48-10859220
EC48-1085933/4"
OD cutting holder, both sides, double, 24
station (only for turret size 340)
EC48-10846120
EC48-1085953/4"
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108596Ø 25
IC 80 bar48-108597Ø 1"
Combination toolholder, universal, triple, 24
station (only for turret size 340)
IC 80 bar48-108462Ø 25
IC 80 bar48-108599Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
16
Nakamura-Tome NTY³-150, 250, WY-150, 250
16
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
17
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome NTY³-150, 250, WY-150, 250
© WTO GmbH * Subject to change without notice * www.wto.de
17
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Slitting saw unit
EC2.73:1411500000-55Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
© WTO GmbH * Subject to change without notice * www.wto.de
18
Nakamura-Tome NTY³-150, 250, WY-150, 250
18
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
Broaching unit for ID and OD
EC1:1414532003-55TN765050
19
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome NTY³-150, 250, WY-150, 250
© WTO GmbH * Subject to change without notice * www.wto.de
19
Static Toolholders - Standard Program
OD cutting holder
48-101470
Z90-86304-00
20
48-1044963/4"
OD cutting holder, HP-IC
IC 80 bar48-101470-HP20
IC 80 bar48-104496-HP3/4"
OD cutting holder, both sides
48-101471
Z90-86303-00
20
48-1047553/4"
Face cutting holder
48-102352
Z90-86301-00
20
48-1047353/4"
Combination toolholder, LF=75
48-101472
Z90-86302-00
Ø 25
48-104526Ø 1"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-101473
Z90-86548-00
20
48-1045233/4"
Cut-off holder
48-100419
Z90-86307-00
SH 26
Cut-off holder, HP-IC
IC 80 bar48-102274RSH 26
IC 80 bar48-102274LSH 26
IC 80 bar48-112233R
343-810100R95
SH 32
IC 80 bar48-112233L
343-810100L95
SH 32
Combination toolholder, universal, double,
Y axis
48-101474
Z90-86547-00
Ø 25
48-104528Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
20
Nakamura-Tome SC-100
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420120010-44
Z90-86300-00
ER-20 QF
0067720000
IC 80 bar1:1420120011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=60
EC1:1420520010-44
Z90-86299-00
ER-20 QF
0067720000
IC 80 bar1:1420520011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=75
EC1:1420520015-44ER-20 QF
0067720000
IC 80 bar1:1420520016-44ER-20 QF
0067720000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410116004-44
Z90-86305-00
ER 25
00675000720
IC 80 bar1:1410116002-44ER 25
00675000720
Straight offset drill/milling unit
EC1:2410113004-44
Z90-89788-00
ER 20
00675000939
EC1:3410110002-44ER 16
00675000937
EC1.5:1410116005-44ER 25
00675000932
Right angle drill/milling unit, LF=60
EC1:1410516005-44
Z90-86306-00
ER 25
00675000720
IC 80 bar1:1410516006-44ER 25
00675000720
EC1:2410513002-44
Z90-89789-00
ER 20
00675000833
IC 80 bar1:2410513003-44ER 20
00675000833
EC1:3410810006-44ER 16
00675000841
IC 80 bar1:3410810007-44ER 16
00675000841
EC2:1410516002-44ER 25
00675000720
IC 80 bar2:1410516003-44ER 25
00675000720
21
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-100
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=60
EC1:1410622000-44Ø 22
00675000483
EC2:1410622001-44Ø 22
00675000483
Adjustable angle drill/milling unit
EC1:1411010004-44
Z90-89787-00
ER 16
00675000902
IC 80 bar1:1411010005-44ER 16
00675000902
EC1:2411007006-44ER 11
00675000914
IC 80 bar1:2411007007-44ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002003-44ER 20
00675000939
IC 80 bar1:1413002004-44ER 20
00675000939
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502004-44ER 20
00675000939
IC 80 bar1:1413502005-44ER 20
00675000939
© WTO GmbH * Subject to change without notice * www.wto.de
22
Nakamura-Tome SC-100
22
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station (only
for turret size 340)
EC48-10859220
EC48-1085933/4"
OD cutting holder, both sides, double, 24
station (only for turret size 340)
EC48-10846120
EC48-1085953/4"
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108596Ø 25
IC 80 bar48-108597Ø 1"
Combination toolholder, universal, triple, 24
station (only for turret size 340)
IC 80 bar48-108462Ø 25
IC 80 bar48-108599Ø 1"
23
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-200
© WTO GmbH * Subject to change without notice * www.wto.de
23
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
24
Nakamura-Tome SC-200
24
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
Broaching unit for ID and OD
EC1:1414532003-55TN765050
25
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-200
© WTO GmbH * Subject to change without notice * www.wto.de
25
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108596Ø 25
IC 80 bar48-108597Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
26
Nakamura-Tome SC-250
26
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
27
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-250
© WTO GmbH * Subject to change without notice * www.wto.de
27
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Slitting saw unit
EC2.73:1411500000-55Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
© WTO GmbH * Subject to change without notice * www.wto.de
28
Nakamura-Tome SC-250
28
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
Broaching unit for ID and OD
EC1:1414532003-55TN765050
29
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-250
© WTO GmbH * Subject to change without notice * www.wto.de
29
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107657-HP25
IC 80 bar48-107658-HP1"
Face cutting holder, HP-IC
IC 80 bar48-113236-HP25
IC 80 bar48-113237-HP1"
Combination toolholder
48-107659Ø 40
241140020 ER32
241140026 ER40
48-107660Ø 1 1/2"
2411150020 ER32
Static Toolholders - Enhanced Program
Cut-off holder
48-100204SH 32
Cut-off holder, HP-IC
IC 80 bar48-102279RSH 32
IC 80 bar48-102279LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
30
Nakamura-Tome SC-300 II
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132019-65ER-32 QF
0067732000
IC 80 bar1:1420132020-65ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532025-65ER-32 QF
0067732000
IC 80 bar1:1420532026-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532043-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1410120030-65ER 32
00675000958
IC 80 bar1:1410120031-65ER 32
00675000958
EC1:2410113002-65ER 20
00675000591
IC 80 bar1:2410113003-65ER 20
00675000591
Right angle drill/milling unit
EC1:2420525014-65ER-25 QF
0067725001
IC 80 bar1:2420525015-65ER-25 QF
0067725001
EC2:1420532031-65ER-32 QF
0067732000
IC 80 bar2:1420532032-65ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411010000-65ER 16
00675000902
IC 80 bar1:1411010001-65ER 16
00675000902
EC1:2411007001-65ER 11
00675000914
IC 80 bar1:2411007000-65ER 11
00675000914
31
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-300 II
© WTO GmbH * Subject to change without notice * www.wto.de
31
Driven Toolholders - Enhanced Program
Offset slitting saw unit
EC2.73:1411500001-65Type 14-2
00675000448
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414532003-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
32
Nakamura-Tome SC-300 II
32
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420140010-75ER-40 QF
0067740000
IC 80 bar1:1420140011-75ER-40 QF
0067740000
Right angle drill/milling unit
EC1:1420540010-75ER-40 QF
0067740000
IC 80 bar1:1420540011-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2410516000-75ER 25
00675000897
IC 80 bar1:2410516001-75ER 25
00675000897
Adjustable angle drill/milling unit
EC1:1411013000-75ER 20
00675000928
IC 80 bar1:1411013001-75ER 20
00675000928
EC1:2411010000-75ER 16
00675000936
IC 80 bar1:2411010001-75ER 16
00675000936
33
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome SC-450
© WTO GmbH * Subject to change without notice * www.wto.de
33
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station (only
for turret size 340)
EC48-10859220
EC48-1085933/4"
OD cutting holder, both sides, double, 24
station (only for turret size 340)
EC48-10846120
EC48-1085953/4"
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108596Ø 25
IC 80 bar48-108597Ø 1"
Combination toolholder, universal, triple, 24
station (only for turret size 340)
IC 80 bar48-108462Ø 25
IC 80 bar48-108599Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
34
Nakamura-Tome Super NTJ
34
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
35
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome Super NTJ
© WTO GmbH * Subject to change without notice * www.wto.de
35
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
Broaching unit for ID and OD
EC1:1414532003-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
36
Nakamura-Tome Super NTJ
36
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
37
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome Super NTJX
© WTO GmbH * Subject to change without notice * www.wto.de
37
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=75
EC1:1420525078-55ER-25 QF
0067725000
IC 80 bar1:1420525079-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=75
EC1:1420525080-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
38
Nakamura-Tome Super NTJX
38
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=75
EC1:1410520021-55ER 32
00675000592
IC 80 bar1:1410520011-55ER 32
00675000592
EC1:2420520027-55ER-20 QF
0067720001
IC 80 bar1:2420520028-55ER-20 QF
0067720001
EC1:3410810024-55ER 16
00675000841
IC 80 bar1:3410810025-55ER 16
00675000841
EC2:1410520022-55ER 32
00675000592
IC 80 bar2:1410520023-55ER 32
00675000592
Right angle milling unit with combination mill
arbor DIN 6358, LF=75
EC1:1410622014-55Ø 22
00675000483
EC2:1410622008-55Ø 22
00675000483
EC1:1410619009-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.73:1411500000-55Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
39
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome Super NTJX
39
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107657-HP25
IC 80 bar48-107658-HP1"
Face cutting holder, HP-IC
IC 80 bar48-113236-HP25
IC 80 bar48-113237-HP1"
Combination toolholder
48-107659Ø 40
241140020 ER32
241140026 ER40
48-107660Ø 1 1/2"
2411150020 ER32
Static Toolholders - Enhanced Program
Cut-off holder
48-100204SH 32
Cut-off holder, HP-IC
IC 80 bar48-102279RSH 32
IC 80 bar48-102279LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
40
Nakamura-Tome Super NTX
40
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132019-65ER-32 QF
0067732000
IC 80 bar1:1420132020-65ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532025-65ER-32 QF
0067732000
IC 80 bar1:1420532026-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532043-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1410120030-65ER 32
00675000958
IC 80 bar1:1410120031-65ER 32
00675000958
EC1:2410113002-65ER 20
00675000591
IC 80 bar1:2410113003-65ER 20
00675000591
Right angle drill/milling unit
EC1:2420525014-65ER-25 QF
0067725001
IC 80 bar1:2420525015-65ER-25 QF
0067725001
EC2:1420532031-65ER-32 QF
0067732000
IC 80 bar2:1420532032-65ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411010000-65ER 16
00675000902
IC 80 bar1:1411010001-65ER 16
00675000902
EC1:2411007001-65ER 11
00675000914
IC 80 bar1:2411007000-65ER 11
00675000914
41
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome Super NTX
© WTO GmbH * Subject to change without notice * www.wto.de
41
Driven Toolholders - Enhanced Program
Offset slitting saw unit
EC2.73:1411500001-65Type 14-2
00675000448
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414532003-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
42
Nakamura-Tome Super NTX
42
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420140010-75ER-40 QF
0067740000
IC 80 bar1:1420140011-75ER-40 QF
0067740000
Right angle drill/milling unit
EC1:1420540010-75ER-40 QF
0067740000
IC 80 bar1:1420540011-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2410516000-75ER 25
00675000897
IC 80 bar1:2410516001-75ER 25
00675000897
Adjustable angle drill/milling unit
EC1:1411013000-75ER 20
00675000928
IC 80 bar1:1411013001-75ER 20
00675000928
EC1:2411010000-75ER 16
00675000936
IC 80 bar1:2411010001-75ER 16
00675000936
43
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome TW-30
© WTO GmbH * Subject to change without notice * www.wto.de
43
Static Toolholders - Standard Program
OD cutting holder
48-101470
Z90-86304-00
20
48-1044963/4"
OD cutting holder, HP-IC
IC 80 bar48-101470-HP20
IC 80 bar48-104496-HP3/4"
OD cutting holder, both sides
48-101471
Z90-86303-00
20
48-1047553/4"
Face cutting holder
48-102352
Z90-86301-00
20
48-1047353/4"
Combination toolholder, LF=75
48-101472
Z90-86302-00
Ø 25
48-104526Ø 1"
Combination toolholder
48-107155Ø 32
48-107260Ø 1 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-101473
Z90-86548-00
20
48-1045233/4"
OD cutting holder, both sides, double, 24
station (only for turret size 300)
EC48-10797320
EC48-1081103/4"
Cut-off holder
48-100419
Z90-86307-00
SH 26
Cut-off holder, HP-IC
IC 80 bar48-102274RSH 26
IC 80 bar48-102274LSH 26
IC 80 bar48-112233R
343-810100R95
SH 32
IC 80 bar48-112233L
343-810100L95
SH 32
Combination toolholder, universal, double,
24 station (only for turret size 300)
IC 80 bar48-107985Ø 25
IC 80 bar48-108111Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
44
Nakamura-Tome WT-100
44
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420120010-44
Z90-86300-00
ER-20 QF
0067720000
IC 80 bar1:1420120011-44ER-20 QF
0067720000
Right angle drill/milling unit, LF=60
EC1:1420520010-44
Z90-86299-00
ER-20 QF
0067720000
IC 80 bar1:1420520011-44ER-20 QF
0067720000
Right angle drill/milling unit, both sides,
LF=60
EC1:1420520012-44ER-20 QF
0067720000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410116004-44
Z90-86305-00
ER 25
00675000720
IC 80 bar1:1410116002-44ER 25
00675000720
Straight offset drill/milling unit
EC1:2410113004-44
Z90-89788-00
ER 20
00675000939
EC1:3410110002-44ER 16
00675000937
EC1.5:1410116005-44ER 25
00675000932
Right angle drill/milling unit, LF=60
EC1:1410516005-44
Z90-86306-00
ER 25
00675000720
IC 80 bar1:1410516006-44ER 25
00675000720
EC1:2410513002-44
Z90-89789-00
ER 20
00675000833
IC 80 bar1:2410513003-44ER 20
00675000833
EC1:3410810006-44ER 16
00675000841
IC 80 bar1:3410810007-44ER 16
00675000841
EC2:1410516002-44ER 25
00675000720
IC 80 bar2:1410516003-44ER 25
00675000720
45
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome WT-100
© WTO GmbH * Subject to change without notice * www.wto.de
45
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=60
EC1:1410622000-44Ø 22
00675000483
EC2:1410622001-44Ø 22
00675000483
Adjustable angle drill/milling unit
EC1:1411010004-44
Z90-89787-00
ER 16
00675000902
IC 80 bar1:1411010005-44ER 16
00675000902
EC1:2411007006-44ER 11
00675000914
IC 80 bar1:2411007007-44ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002003-44ER 20
00675000939
IC 80 bar1:1413002004-44ER 20
00675000939
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502004-44ER 20
00675000939
IC 80 bar1:1413502005-44ER 20
00675000939
© WTO GmbH * Subject to change without notice * www.wto.de
46
Nakamura-Tome WT-100
46
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10858520
48-1085863/4"
48-10672025
OD cutting holder, HP-IC
IC 80 bar48-106720-HP25
IC 80 bar48-106730-HP1"
OD cutting holder, both sides
48-10846020
48-1085883/4"
Face cutting holder
48-10859020
48-1085913/4"
Face cutting holder
48-10775825
48-1077591"
Combination toolholder
48-107842Ø 25
48-107879Ø 1"
48-106727Ø 32
48-1067341 1/4"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station (only
for turret size 340)
EC48-10859220
EC48-1085933/4"
OD cutting holder, both sides, double, 24
station (only for turret size 340)
EC48-10846120
EC48-1085953/4"
Cut-off holder
48-99637SH 32
Cut-off holder, HP-IC
IC 80 bar48-102276RSH 32
IC 80 bar48-102276LSH 32
Cut-off holder, adjustable
EC48-110366SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-109656L
343-810100L87
SH 32
IC 80 bar48-109656R
343-810100R87
SH 32
Combination toolholder, double
IC 80 bar48-108596Ø 25
IC 80 bar48-108597Ø 1"
Combination toolholder, universal, triple, 24
station (only for turret size 340)
IC 80 bar48-108462Ø 25
IC 80 bar48-108599Ø 1"
47
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome WT-150, WT-150 II, WT-250 II
© WTO GmbH * Subject to change without notice * www.wto.de
47
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125022-55ER-25 QF
0067725000
IC 80 bar1:1420125023-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=55
EC1:1420525087-55ER-25 QF
0067725000
IC 80 bar1:1420525088-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=65
EC1:1420525085-55ER-25 QF
0067725000
IC 80 bar1:1420525086-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=55
EC1:1420525069-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=65
EC1:1420525077-55ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-55ER 32
0067825000
IC 80 bar1:1410120003-55ER 32
0067825000
Straight milling unit
EC1:1410222002-55Ø 22
00675000483
EC1:1410219000-55Ø 3/4"
00675000854
Straight offset drill/milling unit
EC1:1410116027-55ER 25
00675000932
IC 80 bar1:1410116028-55ER 25
00675000932
EC1:2410113006-55ER 20
00675000939
IC 80 bar1:2410113004-55ER 20
00675000939
EC1:3410410000-55ER 16
00675000937
IC 80 bar1:3410410001-55ER 16
00675000937
EC2:1410116021-55ER 25
00675000932
IC 80 bar2:1410116022-55ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
48
Nakamura-Tome WT-150, WT-150 II, WT-250 II
48
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=65
EC1:1410520045-55ER 32
0067825000
IC 80 bar1:1410520046-55ER 32
0067825000
EC1:2420520029-55ER-20 QF
0067720001
IC 80 bar1:2420520030-55ER-20 QF
0067720001
EC1:3410810022-55ER 16
00675000841
IC 80 bar1:3410810023-55ER 16
00675000841
EC2:1420525055-55ER-25 QF
0067725000
IC 80 bar2:1420525056-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=65
EC1:1410622013-55Ø 22
00675000483
EC2:1410622007-55Ø 22
00675000483
EC1:1410619008-55Ø 3/4"
00675000483
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit, LF=65
EC1:1410520007-55ER 32
00675000592
IC 80 bar1:1410520008-55ER 32
00675000592
EC2:1410520009-55ER 32
00675000592
IC 80 bar2:1410520010-55ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010001-55ER 16
00675000902
IC 80 bar1:1411010002-55ER 16
00675000902
EC1:2411007003-55ER 11
00675000914
IC 80 bar1:2411007004-55ER 11
00675000914
Slitting saw unit
EC2.73:1411500000-55Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002001-55ER 20
00675000944
49
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome WT-150, WT-150 II, WT-250 II
© WTO GmbH * Subject to change without notice * www.wto.de
49
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-55ER 20
00675000944
Broaching unit for ID and OD
EC1:1414532003-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
50
Nakamura-Tome WT-150, WT-150 II, WT-250 II
50
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107657-HP25
IC 80 bar48-107658-HP1"
Face cutting holder, HP-IC
IC 80 bar48-113236-HP25
IC 80 bar48-113237-HP1"
Combination toolholder
48-107659Ø 40
241140020 ER32
241140026 ER40
48-107660Ø 1 1/2"
2411150020 ER32
Static Toolholders - Enhanced Program
Cut-off holder
48-100204SH 32
Cut-off holder, HP-IC
IC 80 bar48-102279RSH 32
IC 80 bar48-102279LSH 32
51
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome WT-300
© WTO GmbH * Subject to change without notice * www.wto.de
51
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132019-65ER-32 QF
0067732000
IC 80 bar1:1420132020-65ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532025-65ER-32 QF
0067732000
IC 80 bar1:1420532026-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532043-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1410120030-65ER 32
00675000958
IC 80 bar1:1410120031-65ER 32
00675000958
EC1:2410113002-65ER 20
00675000591
IC 80 bar1:2410113003-65ER 20
00675000591
Right angle drill/milling unit
EC1:2420525014-65ER-25 QF
0067725001
IC 80 bar1:2420525015-65ER-25 QF
0067725001
EC2:1420532031-65ER-32 QF
0067732000
IC 80 bar2:1420532032-65ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411010000-65ER 16
00675000902
IC 80 bar1:1411010001-65ER 16
00675000902
EC1:2411007001-65ER 11
00675000914
IC 80 bar1:2411007000-65ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
52
Nakamura-Tome WT-300
52
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Offset slitting saw unit
EC2.73:1411500001-65Type 14-2
00675000448
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414532003-65TN765050
53
© WTO GmbH * Subject to change without notice * www.wto.de
Nakamura-Tome WT-300
© WTO GmbH * Subject to change without notice * www.wto.de
53
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 16240032016
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
© WTO GmbH * Subject to change without notice * www.wto.de
54
Accessories - Reduction sleeves
54
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
55
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
55
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
56
Accessories - Collets
56
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
57
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
57
Tool Holder Program
QT 250 (US specification)
QT/QTS 100 M/MY/MS/MSY
QT/QTS 200, 250 M/MY/MS/MSY
QT 200, 250 M/MY/MS/MSY (16D)
QT/QTS 300-400 M/MY/MS/MSY
QTC/QTE/QTU 100-350 M/MY/MS/MSY
QT/QTN 100 MS/MSY (VDI)
QT/QTN 200, 250 MS/MSY (VDI)
QT/QTN 300-450 MSY (VDI)
QT-Ez 8-12 M/MY/MSY
QT-Ez 8-12 M/MY/MSY (BMT55)
Hyper Quadrex 100, 150 MSY
Hyper Quadrex 200, 250 MSY
Integrex i-250, 350, 450H ST
Integrex i-250, 350, 450H ST (VDI)
QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
Designed
for
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
2
2
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
4 - 4PageQT 250 (US specification)
5 - 7PageQT/QTS 100 M/MY/MS/MSY
8 - 11PageQT/QTS 200, 250 M/MY/MS/MSY
12 - 14PageQT 200, 250 M/MY/MS/MSY (16D)
15 - 16PageQT/QTS 300-400 M/MY/MS/MSY
17 - 20PageQTC/QTE/QTU 100-350 M/MY/MS/MSY
21 - 24PageQT/QTN 100 MS/MSY (VDI)
25 - 27PageQT/QTN 200, 250 MS/MSY (VDI)
28 - 30PageQT/QTN 300-450 MSY (VDI)
31 - 34PageQT-Ez 8-12 M/MY/MSY
35 - 37PageQT-Ez 8-12 M/MY/MSY (BMT55)
38 - 41PageHyper Quadrex 100, 150 MSY
42 - 45PageHyper Quadrex 200, 250 MSY
46 - 46PageIntegrex i-250, 350, 450H ST
47 - 49PageIntegrex i-250, 350, 450H ST (VDI)
50 - 51PageReduction sleeves
52 - 54PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Contents
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
3
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-100839-HP25
Face cutting holder, HP-IC
IC 80 bar48-100861-HP25
Combination toolholder
IC 80 bar48-112681Ø 40
IC 80 bar48-77481Ø 1 1/2"
Combination toolholder
IC 80 bar48-112682Ø 50
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-100556SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102272RSH 32
IC 80 bar48-102272LSH 32
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
4
Mazak QT 250 (US specification)
4
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107026-HP20
IC 80 bar48-91361-HP25
IC 80 bar48-107027-HP3/4"
IC 80 bar48-91362-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-106347-HP25
IC 80 bar48-106477-HP1"
Face cutting holder
48-9136325
Face cutting holder
48-913641"
Face cutting holder, both sides
48-10724025
48-1073311"
Combination toolholder, universal, LF=90
IC 80 bar48-106763Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-107209Ø 40
241140020 ER32
IC 80 bar48-106764Ø 1 1/4"
2411125020 ER32
IC 80 bar48-107210Ø 1 1/2"
2411150020 ER32
Plug
48-106936
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-10658220 (3/4")
OD cutting holder, both sides, double, Y axis
48-10657520 (3/4")
Cut-off holder, adjustable
48-112064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-112062RSH 32
IC 80 bar48-112062LSH 32
5
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTS 100 M/MY/MS/MSY
5
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132012-68ER-32 QF
0067732000
IC 80 bar1:1420132013-68ER-32 QF
0067732000
Straight drill/milling unit (12000 RPM)
EC1:1420132016-68ER-32 QF
0067732000
IC 80 bar1:1420132017-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532012-68ER-32 QF
0067732000
IC 80 bar1:1420532013-68ER-32 QF
0067732000
Right angle drill/milling unit (12000 RPM)
EC1:1420532020-68ER-32 QF
0067732000
IC 80 bar1:1420532021-68ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1420132018-68ER-32 QF
0067732000
IC 80 bar1:1420132019-68ER-32 QF
0067732000
EC1:2420125010-68ER-25 QF
0067725001
IC 80 bar1:2420125011-68ER-25 QF
0067725001
EC2:1420132020-68ER-32 QF
0067732000
IC 80 bar2:1420132021-68ER-32 QF
0067732000
Straight offset drill/milling unit (12000 RPM)
EC1:1420132022-68ER-32 QF
0067732000
IC 80 bar1:1420132023-68ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002010-68ER-32 QF
0067732000
IC 80 bar1:1423002011-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525010-68ER-25 QF
0067725001
IC 80 bar1:2420525011-68ER-25 QF
0067725001
EC2:1420532014-68ER-32 QF
0067732000
IC 80 bar2:1420532015-68ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
6
Mazak QT/QTS 100 M/MY/MS/MSY
6
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010002-68ER 16
00675000913
IC 80 bar1:1411010003-68ER 16
00675000913
EC1:2411007002-68ER 11
00675000914
IC 80 bar1:2411007003-68ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002008-68ER 25
00675000932
IC 80 bar1:1413002009-68ER 25
00675000932
Broaching unit for ID and OD
EC1:1414532000-68TN765050
7
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTS 100 M/MY/MS/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
7
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107026-HP20
IC 80 bar48-91361-HP25
IC 80 bar48-107027-HP3/4"
IC 80 bar48-91362-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-106347-HP25
IC 80 bar48-106477-HP1"
Face cutting holder
48-9136325
Face cutting holder
48-913641"
Face cutting holder, both sides
48-10724025
48-1073311"
Combination toolholder, universal, LF=95
IC 80 bar48-107211Ø 40
241140020 ER32
IC 80 bar48-107212Ø 1 1/2"
2411150020 ER32
Combination toolholder, both sides
IC 80 bar48-106346Ø 40
IC 80 bar48-106571Ø 1 1/2"
Plug
48-106936
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-10658220 (3/4")
OD cutting holder, both sides, double, Y axis
48-10657520 (3/4")
Cut-off holder, adjustable
48-112064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-112062RSH 32
IC 80 bar48-112062LSH 32
Combination toolholder, universal, double,
Y axis
48-106578Ø 32
241132016 ER25
241132020 ER32
48-106579Ø 1 1/4"
2411125020 ER32
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-106584Ø 32
IC 80 bar48-106595Ø 1 1/4"
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
8
Mazak QT/QTS 200, 250 M/MY/MS/MSY
8
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132012-68ER-32 QF
0067732000
IC 80 bar1:1420132013-68ER-32 QF
0067732000
Straight drill/milling unit (12000 RPM)
EC1:1420132016-68ER-32 QF
0067732000
IC 80 bar1:1420132017-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532012-68ER-32 QF
0067732000
IC 80 bar1:1420532013-68ER-32 QF
0067732000
Right angle drill/milling unit (12000 RPM)
EC1:1420532020-68ER-32 QF
0067732000
IC 80 bar1:1420532021-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
EC1:1420532024-68ER-32 QF
0067732000
IC 80 bar1:1420532025-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
(12000 RPM)
EC1:1420532022-68ER-32 QF
0067732000
IC 80 bar1:1420532023-68ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides
EC1:1420532026-68ER-32 QF
0067732000
Right angle drill/milling unit, both sides
(12000 RPM)
EC1:1420532019-68ER-32 QF
0067732000
9
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTS 200, 250 M/MY/MS/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
9
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1420132018-68ER-32 QF
0067732000
IC 80 bar1:1420132019-68ER-32 QF
0067732000
EC1:2420125010-68ER-25 QF
0067725001
IC 80 bar1:2420125011-68ER-25 QF
0067725001
EC2:1420132020-68ER-32 QF
0067732000
IC 80 bar2:1420132021-68ER-32 QF
0067732000
Straight offset drill/milling unit (12000 RPM)
EC1:1420132022-68ER-32 QF
0067732000
IC 80 bar1:1420132023-68ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002010-68ER-32 QF
0067732000
IC 80 bar1:1423002011-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525010-68ER-25 QF
0067725001
IC 80 bar1:2420525011-68ER-25 QF
0067725001
EC2:1420532014-68ER-32 QF
0067732000
IC 80 bar2:1420532015-68ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010002-68ER 16
00675000913
IC 80 bar1:1411010003-68ER 16
00675000913
EC1:2411007002-68ER 11
00675000914
IC 80 bar1:2411007003-68ER 11
00675000914
Gear hobbing unit
EC1:1411500007-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500008-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
10
Mazak QT/QTS 200, 250 M/MY/MS/MSY
10
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002008-68ER 25
00675000932
IC 80 bar1:1413002009-68ER 25
00675000932
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502005-68ER 25
00675000915
IC 80 bar1:1413502006-68ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502007-68ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-68TN765050
11
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTS 200, 250 M/MY/MS/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
11
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107026-HP20
IC 80 bar48-91361-HP25
IC 80 bar48-107027-HP3/4"
IC 80 bar48-91362-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-106347-HP25
IC 80 bar48-106477-HP1"
Face cutting holder
48-9136325
Combination toolholder, universal, LF=90
IC 80 bar48-106763Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-107209Ø 40
241140020 ER32
IC 80 bar48-106764Ø 1 1/4"
2411125020 ER32
IC 80 bar48-107210Ø 1 1/2"
2411150020 ER32
Plug
48-106936
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-10658220 (3/4")
OD cutting holder, both sides, double, Y axis
48-10657520 (3/4")
Cut-off holder, adjustable
48-112064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-112062RSH 32
IC 80 bar48-112062LSH 32
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
12
Mazak QT 200, 250 M/MY/MS/MSY (16D)
12
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132012-68ER-32 QF
0067732000
IC 80 bar1:1420132013-68ER-32 QF
0067732000
Straight drill/milling unit (12000 RPM)
EC1:1420132016-68ER-32 QF
0067732000
IC 80 bar1:1420132017-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532012-68ER-32 QF
0067732000
IC 80 bar1:1420532013-68ER-32 QF
0067732000
Right angle drill/milling unit (12000 RPM)
EC1:1420532020-68ER-32 QF
0067732000
IC 80 bar1:1420532021-68ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1420132018-68ER-32 QF
0067732000
IC 80 bar1:1420132019-68ER-32 QF
0067732000
EC1:2420125010-68ER-25 QF
0067725001
IC 80 bar1:2420125011-68ER-25 QF
0067725001
EC2:1420132020-68ER-32 QF
0067732000
IC 80 bar2:1420132021-68ER-32 QF
0067732000
Straight offset drill/milling unit (12000 RPM)
EC1:1420132022-68ER-32 QF
0067732000
IC 80 bar1:1420132023-68ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002010-68ER-32 QF
0067732000
IC 80 bar1:1423002011-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525010-68ER-25 QF
0067725001
IC 80 bar1:2420525011-68ER-25 QF
0067725001
EC2:1420532014-68ER-32 QF
0067732000
IC 80 bar2:1420532015-68ER-32 QF
0067732000
13
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT 200, 250 M/MY/MS/MSY (16D)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
13
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010002-68ER 16
00675000913
IC 80 bar1:1411010003-68ER 16
00675000913
EC1:2411007002-68ER 11
00675000914
IC 80 bar1:2411007003-68ER 11
00675000914
Straight drill/milling unit, double, Y axis
EC1:1413002008-68ER 25
00675000932
IC 80 bar1:1413002009-68ER 25
00675000932
Broaching unit for ID and OD
EC1:1414532000-68TN765050
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
14
Mazak QT 200, 250 M/MY/MS/MSY (16D)
14
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-93004-HP25
IC 80 bar48-93005-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-109600-HP25
IC 80 bar48-109601-HP1"
Face cutting holder
48-9300625
48-930071"
Combination toolholder
IC 80 bar48-93008Ø 50
IC 80 bar48-93009Ø 2"
Combination toolholder, both sides
IC 80 bar48-109611Ø 40
241140026 ER40
IC 80 bar48-109612Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-10963325(1")
Cut-off holder, adjustable
48-93039SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-99401R
343-810100R12
SH 32
IC 80 bar48-99401L
343-810100L12
SH 32
15
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTS 300-400 M/MY/MS/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
15
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420140010-80ER-40 QF
0067740000
IC 80 bar1:1420140011-80ER-40 QF
0067740000
Straight drill/milling unit (10000 RPM)
EC1:1420140012-80ER-40 QF
0067740000
IC 80 bar1:1420140013-80ER-40 QF
0067740000
Right angle drill/milling unit
EC1:1420540010-80ER-40 QF
0067740000
IC 80 bar1:1420540011-80ER-40 QF
0067740000
Right angle drill/milling unit (10000 RPM)
EC1:1420540014-80ER-40 QF
0067740000
IC 80 bar1:1420540015-80ER-40 QF
0067740000
Right angle drill/milling unit, sub spindle
(10000 RPM)
EC1:1420540016-80ER-40 QF
0067740000
IC 80 bar1:1420540017-80ER-40 QF
0067740000
EC1:1420540018-80ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420532010-80ER-32 QF
0067732001
IC 80 bar1:2420532011-80ER-32 QF
0067732001
EC2:1420540012-80ER-40 QF
0067740000
IC 80 bar2:1420540013-80ER-40 QF
0067740000
Adjustable angle drill/milling unit
EC1:1411016000-80ER 25
00675000934
IC 80 bar1:1411016001-80ER 25
00675000934
EC1:2411010001-80ER 16
00675000936
IC 80 bar1:2411010002-80ER 16
00675000936
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
16
Mazak QT/QTS 300-400 M/MY/MS/MSY
16
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Right angle drill/milling unit, both sides
(10000 RPM)
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107026-HP20
IC 80 bar48-91361-HP25
IC 80 bar48-107027-HP3/4"
IC 80 bar48-91362-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-106347-HP25
IC 80 bar48-106477-HP1"
Face cutting holder
48-9136325
Face cutting holder
48-913641"
Face cutting holder, both sides
48-10724025
48-1073311"
Combination toolholder, universal, LF=95
IC 80 bar48-107211Ø 40
241140020 ER32
IC 80 bar48-107212Ø 1 1/2"
2411150020 ER32
Combination toolholder, both sides
IC 80 bar48-106346Ø 40
IC 80 bar48-106571Ø 1 1/2"
Plug
48-106936
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-11124020
48-1112413/4"
OD cutting holder, double, Y axis
48-10658220 (3/4")
OD cutting holder, both sides, double, Y axis
48-10657520 (3/4")
Cut-off holder, adjustable
48-112064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-112062RSH 32
IC 80 bar48-112062LSH 32
Combination toolholder, universal, double,
24 station
IC 80 bar48-111242Ø40/20
IC 80 bar48-111243Ø1½"/¾"
Combination toolholder, universal, double,
Y axis
48-106578Ø 32
241132016 ER25
241132020 ER32
48-106579Ø 1 1/4"
2411125020 ER32
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-106584Ø 32
IC 80 bar48-106595Ø 1 1/4"
17
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QTC/QTE/QTU 100-350 M/MY/MS/MSY
17
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice
* www.wto-tools.com
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132012-68ER-32 QF
0067732000
IC 80 bar1:1420132013-68ER-32 QF
0067732000
Straight drill/milling unit (12000 RPM)
EC1:1420132016-68ER-32 QF
0067732000
IC 80 bar1:1420132017-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532012-68ER-32 QF
0067732000
IC 80 bar1:1420532013-68ER-32 QF
0067732000
Right angle drill/milling unit (12000 RPM)
EC1:1420532020-68ER-32 QF
0067732000
IC 80 bar1:1420532021-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
EC1:1420532024-68ER-32 QF
0067732000
IC 80 bar1:1420532025-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
(12000 RPM)
EC1:1420532022-68ER-32 QF
0067732000
IC 80 bar1:1420532023-68ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides
EC1:1420532026-68ER-32 QF
0067732000
Right angle drill/milling unit, both sides
(12000 RPM)
EC1:1420532019-68ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
18
Mazak QTC/QTE/QTU 100-350 M/MY/MS/MSY
18
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1420132018-68ER-32 QF
0067732000
IC 80 bar1:1420132019-68ER-32 QF
0067732000
EC1:2420125010-68ER-25 QF
0067725001
IC 80 bar1:2420125011-68ER-25 QF
0067725001
EC2:1420132020-68ER-32 QF
0067732000
IC 80 bar2:1420132021-68ER-32 QF
0067732000
Straight offset drill/milling unit (12000 RPM)
EC1:1420132022-68ER-32 QF
0067732000
IC 80 bar1:1420132023-68ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002010-68ER-32 QF
0067732000
IC 80 bar1:1423002011-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525010-68ER-25 QF
0067725001
IC 80 bar1:2420525011-68ER-25 QF
0067725001
EC2:1420532014-68ER-32 QF
0067732000
IC 80 bar2:1420532015-68ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010002-68ER 16
00675000913
IC 80 bar1:1411010003-68ER 16
00675000913
EC1:2411007002-68ER 11
00675000914
IC 80 bar1:2411007003-68ER 11
00675000914
Gear hobbing unit
EC1:1411500007-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500008-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
19
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QTC/QTE/QTU 100-350 M/MY/MS/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
19
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002008-68ER 25
00675000932
IC 80 bar1:1413002009-68ER 25
00675000932
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502005-68ER 25
00675000915
IC 80 bar1:1413502006-68ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502007-68ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-68TN765050
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
20
Mazak QTC/QTE/QTU 100-350 M/MY/MS/MSY
20
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder
48-821723/4"
OD cutting holder, HP-IC
IC 80 bar48-82510-HP20
IC 80 bar48-82172-HP3/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-82511-HP20
IC 80 bar48-82174-HP3/4"
Face cutting holder
48-8400020
48-839993/4"
Universal square toolholder
48-8536820
48-853703/4"
Combination toolholder, universal
48-82367Ø 32
241132016 ER25
241132020 ER32
48-82368Ø 1 1/4"
2411125020 ER32
Combination toolholder, both sides
48-82849Ø 32
48-82809Ø 1 1/4"
Collet face drill holder
48-83726ER 32
107532000
Static Toolholders - Standard Program
Collet face drill holder, both sides
48-83727ER 32
107532000
21
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTN 100 MS/MSY (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
21
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8495820 (3/4")
OD cutting holder, both sides, double, Y axis
48-8495920 (3/4")
Cut-off holder, adjustable
EC48-99064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-99474R
343-810100R13
SH 32
IC 80 bar48-99474L
343-810100L13
SH 32
Combination toolholder, universal, double,
Y axis
48-84960Ø 32
241132016 ER25
241132020 ER32
48-84961Ø 1 1/4"
2411125020 ER32
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
22
Mazak QT/QTN 100 MS/MSY (VDI)
22
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132040-40ER-32 QF
0067732000
IC 80 bar1:1420132041-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132028-40ER-32 QF
0067732000
IC 80 bar1:1420132029-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532066-40ER-32 QF
0067732000
IC 80 bar1:1420532067-40ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
EC1:1420532068-40ER-32 QF
0067732000
IC 80 bar1:1420532069-40ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532070-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:2420125020-40ER-25 QF
0067725001
IC 80 bar1:2420125021-40ER-25 QF
0067725001
EC2:1420132048-40ER-32 QF
0067732000
IC 80 bar2:1420132049-40ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002014-40ER-32 QF
0067732000
IC 80 bar1:1423002015-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525030-40ER-25 QF
0067725001
IC 80 bar1:2420525031-40ER-25 QF
0067725001
EC2:1420532085-40ER-32 QF
0067732000
IC 80 bar2:1420532086-40ER-32 QF
0067732000
EC1:3410810000-40ER 16
00675000841
IC 80 bar1:3410810001-40ER 16
00675000841
23
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTN 100 MS/MSY (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
23
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010005-40ER 16
00675000902
IC 80 bar1:1411010053-40ER 16
00675000902
EC1:2411007005-40ER 11
00675000914
IC 80 bar1:2411007006-40ER 11
00675000914
Gear hobbing unit
EC2:1411500029-40Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1.5413002020-40ER 25
00675000930
IC 80 bar1:1.5413002021-40ER 25
00675000930
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502010-40ER 25
00675000915
IC 80 bar1:1413502011-40ER 25
00675000915
Driven Toolholders - Enhanced Program
Broaching unit for ID and OD
EC1:1414532009-40TN765050
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
24
Mazak QT/QTN 100 MS/MSY (VDI)
24
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-82507-HP25
IC 80 bar48-82509-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-82508-HP25
IC 80 bar48-82162-HP1"
Face cutting holder
48-8388525
48-839971"
Universal square toolholder
48-8193225
48-846021"
Combination toolholder, universal
48-82363Ø 40
241140020 ER32
48-82365Ø 1 1/2"
2411150020 ER32
Combination toolholder, both sides
48-82848Ø 40
48-82808Ø 1 1/2"
Collet face drill holder
48-83504ER 32
107532000
Collet face drill holder, both sides
48-83512ER 32
107532000
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8494425(1")
OD cutting holder, both sides, double, Y axis
48-8494525(1")
Cut-off holder, adjustable
48-99067SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102264RSH 32
IC 80 bar48-102264LSH 32
Combination toolholder, universal, double,
Y axis
48-84946Ø 40
48-84947Ø 1 1/2"
Combination toolholder, both sides, double,
Y axis
48-84948Ø 32
48-84949Ø 1 1/4"
25
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTN 200, 250 MS/MSY (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
25
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132018-40ER-32 QF
0067732000
IC 80 bar1:1420132019-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132020-40ER-32 QF
0067732000
IC 80 bar1:1420132021-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532049-40ER-32 QF
0067732000
IC 80 bar1:1420532050-40ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
EC1:1420532051-40ER-32 QF
0067732000
IC 80 bar1:1420532052-40ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532053-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:2420125018-40ER-25 QF
0067725001
IC 80 bar1:2420125019-40ER-25 QF
0067725001
EC2:1420132046-40ER-32 QF
0067732000
IC 80 bar2:1420132047-40ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002012-40ER-32 QF
0067732000
IC 80 bar1:1423002013-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525028-40ER-25 QF
0067725001
IC 80 bar1:2420525029-40ER-25 QF
0067725001
EC2:1420532054-40ER-32 QF
0067732000
IC 80 bar2:1420532055-40ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411013012-40ER 20
00675000928
IC 80 bar1:1411013025-40ER 20
00675000928
EC1:2411010016-40ER 16
00675000936
IC 80 bar1:2411010017-40ER 16
00675000936
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
26
Mazak QT/QTN 200, 250 MS/MSY (VDI)
26
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500042-40Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500032-40Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1.5413002024-40ER 25
00675000930
IC 80 bar1:1.5413002025-40ER 25
00675000930
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502014-40ER 25
00675000915
IC 80 bar1:1413502015-40ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502019-40ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532008-40TN765050
27
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTN 200, 250 MS/MSY (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
27
Static Toolholders - Standard Program
OD cutting holder
48-8192132
48-845601 1/4"
OD cutting holder, HP-IC
IC 80 bar48-109222-HP25
IC 80 bar48-109223-HP1"
Face cutting holder
48-8192332
48-845591 1/4"
Combination toolholder, universal
48-81924Ø 50
48-84530Ø 2"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8528632 (1 1/4")
OD cutting holder, double, Y axis, sub spindle
48-9507732 (1 1/4")
Cut-off holder, adjustable
48-100356SH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100318R
343-810100R30
SH 32
IC 80 bar48-100318L
343-810100L30
SH 32
Combination toolholder, universal, double,
Y axis
48-85287Ø 40
241140020 ER32
241140026 ER40
48-85288Ø 1 1/2"
2411150020 ER32
Boring bar holder, with slot
48-110846Ø 50
Boring bar holder, blank
48-99905
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
28
Mazak QT/QTN 300-450 MSY (VDI)
28
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Performance Series
Straight offset drill/milling unit
EC1:1410126070-50ER 40
00675000941
IC 80 bar1:1410126071-50ER 40
00675000941
Straight offset drill/milling unit taper
ISO/BT/CAT 40
EC1:1410140001-50
Right angle drill/milling unit
EC1:1410526078-50ER 40
00675000744
IC 80 bar1:1410526063-50ER 40
00675000744
Right angle drill/milling unit taper ISO/BT/CAT
40
EC1:1410540001-50
Right angle drill/milling unit, sub spindle
EC1:1410526091-50ER 40
00675000744
IC 80 bar1:1410526092-50ER 40
00675000744
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:2410116038-50ER 25
00675000720
IC 80 bar1:2410116037-50ER 25
00675000720
Right angle drill/milling unit
EC2:1410526074-50ER 40
00675000744
IC 80 bar2:1410526082-50ER 40
00675000744
Adjustable angle drill/milling unit
EC1:1421032010-50ER-32 QF
00675000976
IC 80 bar1:1421032011-50ER-32 QF
00675000976
Adjustable angle drill/milling unit, long
EC1:1421032012-50ER-32 QF
00675000976
IC 80 bar1:1421032013-50ER-32 QF
00675000976
Offset slitting saw unit
EC3:1411500012-50Type 19-2
00675000259
160022192 Ø 22
160027192 Ø 27
160032192 Ø 32
160040192 Ø 40
160023192 Ø 7/8"
160025192 Ø 1"
160031192 Ø 1 1/4"
160038192 Ø 1 1/2"
29
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT/QTN 300-450 MSY (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
29
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500017-50Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Broaching unit for ID and OD
EC1:1414532002-50TN765050
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
30
Mazak QT/QTN 300-450 MSY (VDI)
30
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-107026-HP20
IC 80 bar48-91361-HP25
IC 80 bar48-107027-HP3/4"
IC 80 bar48-91362-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-106347-HP25
IC 80 bar48-106477-HP1"
Face cutting holder
48-9136325
Face cutting holder
48-913641"
Face cutting holder, both sides
48-10724025
48-1073311"
Combination toolholder, universal, LF=95
IC 80 bar48-107211Ø 40
241140020 ER32
IC 80 bar48-107212Ø 1 1/2"
2411150020 ER32
Combination toolholder, both sides
IC 80 bar48-106346Ø 40
IC 80 bar48-106571Ø 1 1/2"
Plug
48-106936
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-10658220 (3/4")
OD cutting holder, both sides, double, Y axis
48-10657520 (3/4")
Cut-off holder, adjustable
48-112064SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-112062RSH 32
IC 80 bar48-112062LSH 32
Combination toolholder, universal, double,
Y axis
48-106578Ø 32
241132016 ER25
241132020 ER32
48-106579Ø 1 1/4"
2411125020 ER32
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-106584Ø 32
IC 80 bar48-106595Ø 1 1/4"
31
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT-Ez 8-12 M/MY/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
31
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132012-68ER-32 QF
0067732000
IC 80 bar1:1420132013-68ER-32 QF
0067732000
Straight drill/milling unit (12000 RPM)
EC1:1420132016-68ER-32 QF
0067732000
IC 80 bar1:1420132017-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532012-68ER-32 QF
0067732000
IC 80 bar1:1420532013-68ER-32 QF
0067732000
Right angle drill/milling unit (12000 RPM)
EC1:1420532020-68ER-32 QF
0067732000
IC 80 bar1:1420532021-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
EC1:1420532024-68ER-32 QF
0067732000
IC 80 bar1:1420532025-68ER-32 QF
0067732000
Right angle drill/milling unit, sub spindle
(12000 RPM)
EC1:1420532022-68ER-32 QF
0067732000
IC 80 bar1:1420532023-68ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides
EC1:1420532026-68ER-32 QF
0067732000
Right angle drill/milling unit, both sides
(12000 RPM)
EC1:1420532019-68ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
32
Mazak QT-Ez 8-12 M/MY/MSY
32
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1420132018-68ER-32 QF
0067732000
IC 80 bar1:1420132019-68ER-32 QF
0067732000
EC1:2420125010-68ER-25 QF
0067725001
IC 80 bar1:2420125011-68ER-25 QF
0067725001
EC2:1420132020-68ER-32 QF
0067732000
IC 80 bar2:1420132021-68ER-32 QF
0067732000
Straight offset drill/milling unit (12000 RPM)
EC1:1420132022-68ER-32 QF
0067732000
IC 80 bar1:1420132023-68ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002010-68ER-32 QF
0067732000
IC 80 bar1:1423002011-68ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525010-68ER-25 QF
0067725001
IC 80 bar1:2420525011-68ER-25 QF
0067725001
EC2:1420532014-68ER-32 QF
0067732000
IC 80 bar2:1420532015-68ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010002-68ER 16
00675000913
IC 80 bar1:1411010003-68ER 16
00675000913
EC1:2411007002-68ER 11
00675000914
IC 80 bar1:2411007003-68ER 11
00675000914
Gear hobbing unit
EC1:1411500007-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500008-68Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
33
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT-Ez 8-12 M/MY/MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
33
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002008-68ER 25
00675000932
IC 80 bar1:1413002009-68ER 25
00675000932
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502005-68ER 25
00675000915
IC 80 bar1:1413502006-68ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502007-68ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-68TN765050
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
34
Mazak QT-Ez 8-12 M/MY/MSY
34
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, both sides, double, Y axis
48-8714125(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
35
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT-Ez 8-12 M/MY/MSY (BMT55)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
35
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
36
Mazak QT-Ez 8-12 M/MY/MSY (BMT55)
36
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Right angle back set drill/milling unit
EC1:1410516024-55ER 25
00675000801
IC 80 bar1:1410516025-55ER 25
00675000801
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532001-55TN765050
37
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak QT-Ez 8-12 M/MY/MSY (BMT55)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
37
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-82534-HP20
IC 80 bar48-82535-HP3/4"
OD cutting holder, HP-IC
IC 80 bar48-82536-HP20
IC 80 bar48-82538-HP3/4"
OD cutting holder, both sides
48-8929720
OD cutting holder, both sides, HP-IC
IC 80 bar48-89297-HP20
IC 80 bar48-89298-HP3/4"
Face cutting holder
48-8400520
48-841583/4"
Combination toolholder, universal
48-81929Ø 32
241132016 ER25
241132020 ER32
48-111846Ø 40
241140020 ER32
241140026 ER40
48-82389Ø 1 1/4"
Combination toolholder
48-82787Ø 32
241132016 ER25
241132020 ER32
48-82788Ø 1 1/4"
Static Toolholders - Standard Program
Collet face drill holder
48-83071ER 32
107532000
Collet face drill holder
48-83072ER 32
107532000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
38
Mazak Hyper Quadrex 100, 150 MSY
38
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8802820 (3/4")
OD cutting holder, both sides, double, Y axis
48-8785020 (3/4")
Cut-off holder, adjustable
48-99061SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-99650R
343-810100R17
SH 32
IC 80 bar48-99650L
343-810100L17
SH 32
Combination toolholder, universal, double,
Y axis
48-87853Ø 32
241132016 ER25
241132020 ER32
48-87907Ø 1 1/4"
2411125020 ER32
39
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Hyper Quadrex 100, 150 MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
39
Driven Toolholders - QuickFlex®
Straight offset drill/milling unit
EC1:1420132030-40ER-32 QF
0067732000
IC 80 bar1:1420132031-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132034-40ER-32 QF
0067732000
IC 80 bar1:1420132035-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532071-40ER-32 QF
0067732000
IC 80 bar1:1420532072-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532073-40ER-32 QF
0067732000
IC 80 bar1:1420532074-40ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532075-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1420132038-40ER-32 QF
0067732000
IC 80 bar1:1420132039-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:2420125016-40ER-25 QF
0067725001
IC 80 bar1:2420125017-40ER-25 QF
0067725001
EC2:1420132052-40ER-32 QF
0067732000
IC 80 bar2:1420132053-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:2420125040-40ER-25 QF
0067725001
IC 80 bar1:2420125041-40ER-25 QF
0067725001
Straight offset drill/milling unit, both sides
EC1:1423002010-40ER-32 QF
0067732000
IC 80 bar1:1423002011-40ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
40
Mazak Hyper Quadrex 100, 150 MSY
40
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420525034-40ER-25 QF
0067725001
IC 80 bar1:2420525035-40ER-25 QF
0067725001
EC2:1420532089-40ER-32 QF
0067732000
IC 80 bar2:1420532090-40ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411010010-40ER 16
00675000902
IC 80 bar1:1411010011-40ER 16
00675000902
EC1:2411007003-40ER 11
00675000914
IC 80 bar1:2411007004-40ER 11
00675000914
Gear hobbing unit
EC2:1411500028-40Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1.5413002022-40ER 25
00675000930
IC 80 bar1:1.5413002023-40ER 25
00675000930
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502012-40ER 25
00675000915
IC 80 bar1:1413502013-40ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532010-40TN765050
41
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Hyper Quadrex 100, 150 MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
41
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-81926-HP25
IC 80 bar48-82544-HP1"
OD cutting holder
48-825461"
OD cutting holder, HP-IC
IC 80 bar48-82545-HP25
IC 80 bar48-82546-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-89299-HP25
IC 80 bar48-89300-HP1"
Face cutting holder
48-8400625
48-842261"
Combination toolholder
48-81930Ø 40
241140020 ER32
48-82481Ø 1 1/2"
Combination toolholder
48-82783Ø 40
241140020 ER32
48-82784Ø 1 1/2"
Combination toolholder, both sides
48-106919Ø 40
Static Toolholders - Standard Program
Collet face drill holder
48-82986ER 32
107532000
Collet face drill holder
48-82988ER 32
107532000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
42
Mazak Hyper Quadrex 200, 250 MSY
42
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8803225(1")
OD cutting holder, both sides, double, Y axis
48-8770625(1")
Cut-off holder, adjustable
48-99062SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102266RSH 32
IC 80 bar48-102266LSH 32
Cut-off holder, adjustable
48-116443SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-116441R
343-810100R106
SH 32
IC 80 bar48-116441L
343-810100L106
SH 32
Combination toolholder, both sides, double,
Y axis
48-87698Ø 32
241132020 ER32
48-87741Ø 1 1/4"
2411125020 ER32
43
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Hyper Quadrex 200, 250 MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
43
Driven Toolholders - QuickFlex®
Straight offset drill/milling unit
EC1:1420132032-40ER-32 QF
0067732000
IC 80 bar1:1420132033-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132036-40ER-32 QF
0067732000
IC 80 bar1:1420132037-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532076-40ER-32 QF
0067732000
IC 80 bar1:1420532077-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532078-40ER-32 QF
0067732000
IC 80 bar1:1420532079-40ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532156-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1420132042-40ER-32 QF
0067732000
IC 80 bar1:1420132043-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:2420125022-40ER-25 QF
0067725001
IC 80 bar1:2420125023-40ER-25 QF
0067725001
EC2:1420132050-40ER-32 QF
0067732000
IC 80 bar2:1420132051-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:2420125054-40ER-25 QF
0067725001
IC 80 bar1:2420125055-40ER-25 QF
0067725001
EC2:1420132111-40ER-32 QF
0067732000
IC 80 bar2:1420132112-40ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002016-40ER-32 QF
0067732000
IC 80 bar1:1423002017-40ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
44
Mazak Hyper Quadrex 200, 250 MSY
44
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420525032-40ER-25 QF
0067725001
IC 80 bar1:2420525033-40ER-25 QF
0067725001
EC2:1420532087-40ER-32 QF
0067732000
IC 80 bar2:1420532088-40ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411016005-40ER 25
00675000934
IC 80 bar1:1411016023-40ER 25
00675000934
EC1:2411010014-40ER 16
00675000936
IC 80 bar1:2411010015-40ER 16
00675000936
Gear hobbing unit
EC2:1411500030-40Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1.5413002026-40ER 25
00675000930
IC 80 bar1:1.5413002027-40ER 25
00675000930
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502016-40ER 25
00675000915
IC 80 bar1:1413502017-40ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502023-40ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532011-40TN765050
Broaching unit for ID and OD
EC1:1414532014-40TN765050
45
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Hyper Quadrex 200, 250 MSY
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
45
Static Toolholders - Standard Program
OD cutting holder, both sides, HP-IC
IC 80 bar48-116172-HP25
IC 80 bar48-116422-HP1"
Combination toolholder
IC 80 bar48-116173Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-116421Ø 1 1/4"
2411125020 ER32
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
46
Mazak Integrex i-250, 350, 450H ST
46
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Static Toolholders - Standard Program
OD cutting holder, HP-IC
IC 80 bar48-81926-HP25
IC 80 bar48-82544-HP1"
OD cutting holder, HP-IC
IC 80 bar48-82545-HP25
IC 80 bar48-82546-HP1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-116404-HP25
IC 80 bar48-116406-HP1"
Face cutting holder
48-8400625
48-842261"
Combination toolholder
48-115977Ø 32
241132016 ER25
241132020 ER32
48-115978Ø 1 1/4"
Combination toolholder, both sides
48-115979Ø 32
48-115986Ø 1 1/4"
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99062SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102266RSH 32
IC 80 bar48-102266LSH 32
Cut-off holder, adjustable
48-116443SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-116441R
343-810100R106
SH 32
IC 80 bar48-116441L
343-810100L106
SH 32
47
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Integrex i-250, 350, 450H ST (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
47
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132042-40ER-32 QF
0067732000
IC 80 bar1:1420132043-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132032-40ER-32 QF
0067732000
IC 80 bar1:1420132033-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:1420132036-40ER-32 QF
0067732000
IC 80 bar1:1420132037-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532076-40ER-32 QF
0067732000
IC 80 bar1:1420532077-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532078-40ER-32 QF
0067732000
IC 80 bar1:1420532079-40ER-32 QF
0067732000
Right angle drill/milling unit, both sides
EC1:1420532156-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:2420125022-40ER-25 QF
0067725001
IC 80 bar1:2420125023-40ER-25 QF
0067725001
EC2:1420132050-40ER-32 QF
0067732000
IC 80 bar2:1420132051-40ER-32 QF
0067732000
Straight offset drill/milling unit
EC1:2420125054-40ER-25 QF
0067725001
IC 80 bar1:2420125055-40ER-25 QF
0067725001
EC2:1420132111-40ER-32 QF
0067732000
IC 80 bar2:1420132112-40ER-32 QF
0067732000
Straight offset drill/milling unit, both sides
EC1:1423002016-40ER-32 QF
0067732000
IC 80 bar1:1423002017-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:2420525032-40ER-25 QF
0067725001
IC 80 bar1:2420525033-40ER-25 QF
0067725001
EC2:1420532087-40ER-32 QF
0067732000
IC 80 bar2:1420532088-40ER-32 QF
0067732000
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
48
Mazak Integrex i-250, 350, 450H ST (VDI)
48
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420525064-40ER-25 QF
0067725001
IC 80 bar1:2420525065-40ER-25 QF
0067725001
EC2:1420532161-40ER-32 QF
0067732000
IC 80 bar2:1420532162-40ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411016005-40ER 25
00675000934
IC 80 bar1:1411016023-40ER 25
00675000934
EC1:2411010014-40ER 16
00675000936
IC 80 bar1:2411010015-40ER 16
00675000936
Broaching unit for ID and OD
EC1:1414532011-40TN765050
Broaching unit for ID and OD
EC1:1414532014-40TN765050
49
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Mazak Integrex i-250, 350, 450H ST (VDI)
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
49
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 32240050032
ø 40240050040
Reduction sleeve Ø 3/4"
ø 1/4"2400075025
ø 5/16"2400075032
ø 3/8"2400075038
ø 1/2"2400075050
ø 5/8"2400075063
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
50
Accessories - Reduction sleeves
50
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
51
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Accessories - Reduction sleeves
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
51
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
52
Accessories - Collets
52
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
53
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
Accessories - Collets
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
53
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
© WTO Werkzeug-Einrichtingen GmbH * Subject to change without notice * www.wto-tools.com
54
Accessories - Collets
54
© WTO Werkzeug-Einrichtungen GmbH * Subject to change without notice * www.wto-tools.com
Tool Holder Program
L160, 230MA/LMA/LMSA
L300MA/MC/LMA/LMC/MSA/MSC/LMSA
L400MA/MC/LMC, L500LMA
L600, 700, 800MA/LMA
L2000, 2600, 3000Y/LY/SY/LSY
HD2200, 2600M/Y/SY (BMT55)
HD2600, 3100M/Y/SY (BMT65)
LM1600, 1800TTMS/TTSY
LM2000, 2500TTM/TTMS/TTSY
QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
Designed
for
BMT Turrets
© WTO GmbH * Subject to change without notice * www.wto.de
2
2
© WTO GmbH * Subject to change without notice * www.wto.de
4 - 7PageL160, 230MA/LMA/LMSA
8 - 10PageL300MA/MC/LMA/LMC/MSA/MSC/LMSA
11 - 12PageL400MA/MC/LMC, L500LMA
13 - 14PageL600, 700, 800MA/LMA
15 - 18PageL2000, 2600, 3000Y/LY/SY/LSY
19 - 22PageHD2200, 2600M/Y/SY (BMT55)
23 - 26PageHD2600, 3100M/Y/SY (BMT65)
27 - 29PageLM1600, 1800TTMS/TTSY
30 - 32PageLM2000, 2500TTM/TTMS/TTSY
33 - 34PageReduction sleeves
35 - 37PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-9204520
48-920463/4"
Static Toolholders - Standard Program
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, universal, LF=100
IC 80 bar48-92043Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-92044Ø 1 1/4"
2411125020 ER32
© WTO GmbH * Subject to change without notice * www.wto.de
4
Hyundai WIA L160, 230MA/LMA/LMSA
4
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
5
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L160, 230MA/LMA/LMSA
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
© WTO GmbH * Subject to change without notice * www.wto.de
6
Hyundai WIA L160, 230MA/LMA/LMSA
6
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532000-55TN765050
7
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L160, 230MA/LMA/LMSA
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Standard Program
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, both sides, long
48-8452325
48-867181"
Face cutting holder, long
48-9295825
48-929591"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
8
Hyundai WIA L300MA/MC/LMA/LMC/MSA/MSC/LMSA
8
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=72
EC1:1420532015-65ER-32 QF
0067732000
IC 80 bar1:1420532016-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=110
EC1:1420532087-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Face drill/milling unit for ER collets, LF=72
EC1:1410526005-65ER 40
00675000781
IC 80 bar1:1410526006-65ER 40
00675000781
Right angle drill/milling unit, LF=72
EC1:2420525010-65ER-25 QF
0067725001
IC 80 bar1:2420525011-65ER-25 QF
0067725001
EC2:1420532027-65ER-32 QF
0067732000
IC 80 bar2:1420532028-65ER-32 QF
0067732000
9
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L300MA/MC/LMA/LMC/MSA/MSC/LMSA
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=72
EC1:1410622001-65Ø 22
00675000483
EC1:1410625001-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
10
Hyundai WIA L300MA/MC/LMA/LMC/MSA/MSC/LMSA
10
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, long
48-9633432
48-963351 1/4"
Face cutting holder, long
48-11341932
48-963391 1/4"
Combination toolholder, LF=110
IC 80 bar48-96777Ø 60
IC 80 bar48-96778Ø 2 1/2"
11
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L400MA/MC/LMC, L500LMA
© WTO GmbH * Subject to change without notice * www.wto.de
11
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140015-75ER-40 QF
0067740000
IC 80 bar1:1420140016-75ER-40 QF
0067740000
Face drill/milling unit, LF=90
(L400MA/MC/LMC)
EC1:1420540017-75ER-40 QF
0067740000
IC 80 bar1:1420540018-75ER-40 QF
0067740000
Face drill/milling unit, LF=110 (L500LMA)
EC1:1420540019-75ER-40 QF
0067740000
IC 80 bar1:1420540020-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=90
(L400MA/MC/LMC)
EC1:2420532014-75ER-32 QF
0067732001
IC 80 bar1:2420532015-75ER-32 QF
0067732001
EC2:1420540029-75ER-40 QF
0067740000
IC 80 bar2:1420540030-75ER-40 QF
0067740000
Face drill/milling unit, LF=110 (L500LMA)
EC1:2420532012-75ER-32 QF
0067732001
IC 80 bar1:2420532013-75ER-32 QF
0067732001
EC2:1420540025-75ER-40 QF
0067740000
IC 80 bar2:1420540026-75ER-40 QF
0067740000
Adjustable angle drill/milling unit
EC1:1411016000-75ER 25
00675000934
IC 80 bar1:1411016001-75ER 25
00675000934
EC1:2411010002-75ER 16
00675000936
IC 80 bar1:2411010003-75ER 16
00675000936
Broaching unit for ID and OD
EC1:1414532000-75TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
12
Hyundai WIA L400MA/MC/LMC, L500LMA
12
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-10833232
48-1089031 1/4"
OD cutting holder, short
48-9572632
48-957281 1/4"
Face cutting holder
48-9573032
48-957311 1/4"
Combination toolholder
48-95732Ø 80
IC 80 bar48-95733Ø 3"
13
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L600, 700, 800MA/LMA
© WTO GmbH * Subject to change without notice * www.wto.de
13
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420150015-85ER-50 QF
0067750000
IC 80 bar1:1420150016-85ER-50 QF
0067750000
Face drill/milling unit, LF=85
EC1:1420550015-85ER-50 QF
0067750000
IC 80 bar1:1420550016-85ER-50 QF
0067750000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=85
EC1:2420540015-85ER-40 QF
0067740001
IC 80 bar1:2420540016-85ER-40 QF
0067740001
Adjustable angle drill/milling unit
EC1:1421032010-85ER-32 QF
00675000976
IC 80 bar1:1421032011-85ER-32 QF
00675000976
Gear hobbing unit
EC2:1410900000-85Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
14
Hyundai WIA L600, 700, 800MA/LMA
14
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
48-113514Ø 1 1/4"
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
15
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L2000, 2600, 3000Y/LY/SY/LSY
© WTO GmbH * Subject to change without notice * www.wto.de
15
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-9208920
OD cutting holder, both sides, double, 24
station
48-9209120
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
Static Toolholders - Enhanced Program
Boring bar holder, double, 24 station
48-92102Ø 25
Combination toolholder, both sides, double,
24 station
48-109092Ø 25
48-108887Ø 1"
Boring bar holder, double, both sides
48-86160Ø 32
48-86274Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
16
Hyundai WIA L2000, 2600, 3000Y/LY/SY/LSY
16
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
17
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA L2000, 2600, 3000Y/LY/SY/LSY
© WTO GmbH * Subject to change without notice * www.wto.de
17
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
18
Hyundai WIA L2000, 2600, 3000Y/LY/SY/LSY
18
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-9204520
48-920463/4"
Static Toolholders - Standard Program
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, universal, LF=85
IC 80 bar48-96790Ø 40
241140020 ER32
IC 80 bar48-96791Ø 1 1/2"
Cover plate
48-87111
19
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA HD2200, 2600M/Y/SY (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
19
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, both sides, double, Y axis
48-8714125(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis
48-87147Ø 25
48-87148Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
20
Hyundai WIA HD2200, 2600M/Y/SY (BMT55)
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
21
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA HD2200, 2600M/Y/SY (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500002-55Type 16-1
EC2:1411500001-55Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-55ER 25
00675000970
IC 80 bar1:1413002003-55ER 25
00675000970
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502007-55ER 25
00675000915
IC 80 bar1:1413502008-55ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502006-55ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
22
Hyundai WIA HD2200, 2600M/Y/SY (BMT55)
22
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
48-113514Ø 1 1/4"
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
23
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA HD2600, 3100M/Y/SY (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
23
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
24
Hyundai WIA HD2600, 3100M/Y/SY (BMT65)
24
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
25
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA HD2600, 3100M/Y/SY (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
25
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
26
Hyundai WIA HD2600, 3100M/Y/SY (BMT65)
26
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, universal, LF=95
IC 80 bar48-109277Ø 32
241132020 ER32
241132016 ER25
IC 80 bar48-109278Ø 1 1/4"
2411125020 ER32
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, double, 24 station
48-8767420
OD cutting holder, both sides, double, Y axis
48-8714125(1")
OD cutting holder, both sides, double, 24
station
48-9298020
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis
48-87147Ø 25
48-87148Ø 1"
Boring bar holder, double, 24 station
48-87678Ø 25
27
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA LM1600, 1800TTMS/TTSY
© WTO GmbH * Subject to change without notice * www.wto.de
27
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
© WTO GmbH * Subject to change without notice * www.wto.de
28
Hyundai WIA LM1600, 1800TTMS/TTSY
28
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-55ER 25
00675000970
IC 80 bar1:1413002003-55ER 25
00675000970
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502007-55ER 25
00675000915
IC 80 bar1:1413502008-55ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502006-55ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-55TN765050
29
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA LM1600, 1800TTMS/TTSY
© WTO GmbH * Subject to change without notice * www.wto.de
29
Static Toolholders - Standard Program
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, both sides, long
48-8452325
48-867181"
Face cutting holder, long
48-9295825
48-929591"
Combination toolholder, LF=115
IC 80 bar48-86623Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-86624Ø 1 1/2"
2411150020 ER32
Cover plate
48-87089
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
30
Hyundai WIA LM2000, 2500TTM/TTMS/TTSY
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
31
© WTO GmbH * Subject to change without notice * www.wto.de
Hyundai WIA LM2000, 2500TTM/TTMS/TTSY
© WTO GmbH * Subject to change without notice * www.wto.de
31
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
32
Hyundai WIA LM2000, 2500TTM/TTMS/TTSY
32
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 14240025014
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 25240050025
ø 32240050032
ø 40240050040
Reduction sleeve Ø 60
ø 12240060012
ø 16240060016
ø 20240060020
ø 25240060025
ø 32240060032
ø 40240060040
ø 50240060050
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 80
ø 20240080020
ø 25240080025
ø 32240080032
ø 40240080040
ø 50240080050
ø 60240080060
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
Reduction sleeve Ø 3"
ø 3/4"2400300075
ø 1"2400300100
ø 1 1/4"2400300125
ø 1 1/2"2400300150
ø 2"2400300200
ø 2 1/2"2400300250
33
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
33
Standard reduction sleeves - cylindrical, with
slot
Reduction sleeve Ø 40
ø 10240140010
ø 12240140012
ø 15240140015
ø 16240140016
ø 20240140020
ø 25240140025
ø 32240140032
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
© WTO GmbH * Subject to change without notice * www.wto.de
34
Accessories - Reduction sleeves
34
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
35
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
35
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
36
Accessories - Collets
36
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
37
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
37
ST-10/15/20/25/30/35, DS-30 (VDI40)
ST-20/25/30/35, DS-30 (BMT65)
Toolholder Program
QuickFlex®
Designed
for
BMT Turrets
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
4 - 6PageST-10/15/20/25/30/35, DS-30 (VDI40)
7 - 10PageST-20/25/30/35, DS-30 (BMT65)
11 - 12PageReduction sleeves
13 - 15PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Toolholder
Radial square toolholder, left hand, short,
Form B2
48-B2-40x2525
Radial square toolholder, left hand inverted,
short, Form B4
48-B4-40x2525
48-B4-40x1001"
Radial square toolholder, left hand, long,
Form B6
48-B6-40x2525
Radial square toolholder, left hand inverted,
long, Form B8
48-B8-40x2525
48-B8-40x1001"
Axial square toolholder, left hand, Form C2
48-C2-40x2525
Axial square toolholder, left hand inverted,
Form C4
48-C4-40x2525
48-C4-40x1001"
Cut-off holder, adjustable height, left hand
48-AL-40x32SH 32
Cut-off holder, adjustable height, left hand
inverted
48-ALU-40x32SH 32
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102690RSH 32
IC 80 bar48-102690LSH 32
Toolholder
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-40x16Ø 16
48-E1-40x20Ø 20
48-E1-40x25Ø 25
48-E1-40x32Ø 32
48-E1-40x40Ø 40
48-E1-40x100Ø 1"
Boring bar holder, internal coolant supply,
Form E2
48-E2-40x8Ø 8
48-E2-40x10Ø 10
48-E2-40x12Ø 12
48-E2-40x16Ø 16
48-E2-40x20Ø 20
48-E2-40x25Ø 25
48-E2-40x30Ø 30
48-E2-40x32Ø 32
48-E2-40x40Ø 40
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-40x25ER 25
107525000
48-E4-40x32ER 32
107532000
48-E4-40x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
© WTO GmbH * Subject to change without notice * www.wto.de
4
Haas ST-10/15/20/25/30/35, DS-30 (VDI40)
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132079-40ER-32 QF
0067732000
IC 80 bar1:1420132080-40ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532128-40ER-32 QF
0067732000
IC 80 bar1:1420532129-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:1410120237-40ER 32
00675000592
IC 80 bar1:1410120266-40ER 32
00675000592
EC1:2410113056-40ER 20
00675000591
IC 80 bar1:2410113057-40ER 20
00675000591
EC2:1410120239-40ER 32
00675000592
IC 80 bar2:1410120240-40ER 32
00675000592
Right angle drill/milling unit
EC1:2410516098-40ER 25
00675000801
IC 80 bar1:2410516099-40ER 25
00675000801
EC2:1410520291-40ER 32
00675000490
IC 80 bar2:1410520292-40ER 32
00675000490
Right angle back set drill/milling unit
EC1:1420532106-40ER-32 QF
0067732000
IC 80 bar1:1420532107-40ER-32 QF
0067732000
EC2:1420540029-40ER-40 QF
0067740000
IC 80 bar2:1420540030-40ER-40 QF
0067540000
5
© WTO GmbH * Subject to change without notice * www.wto.de
Haas ST-10/15/20/25/30/35, DS-30 (VDI40)
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411016017-40ER 25
00675000934
IC 80 bar1:1411016033-40ER 25
00675000934
EC1:2411010044-40ER 16
00675000936
IC 80 bar1:2411010045-40ER 16
00675000936
Offset slitting saw unit
EC2.73:1411500022-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414132001-40TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
6
Haas ST-10/15/20/25/30/35, DS-30 (VDI40)
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=72
IC 80 bar48-84375Ø 40
IC 80 bar48-87077Ø 1 1/2"
IC 80 bar48-107499Ø 50
IC 80 bar48-107501Ø 2"
Boring bar holder, both sides
48-101033Ø 32
Static Toolholders - Standard Program
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
7
© WTO GmbH * Subject to change without notice * www.wto.de
Haas ST-20/25/30/35, DS-30 (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
Combination toolholder, back set
IC 80 bar48-102037Ø 40
241140020 ER32
241140026 ER40
Boring bar holder, double, both sides
48-86160Ø 32
48-86274Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
8
Haas ST-20/25/30/35, DS-30 (BMT65)
8
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=72
EC1:1420532015-65ER-32 QF
0067732000
IC 80 bar1:1420532016-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=72
EC1:1420532017-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Face drill/milling unit for ER collets, LF=72
EC1:1410526005-65ER 40
00675000781
IC 80 bar1:1410526006-65ER 40
00675000781
9
© WTO GmbH * Subject to change without notice * www.wto.de
Haas ST-20/25/30/35, DS-30 (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=72
EC1:2420525010-65ER-25 QF
0067725001
IC 80 bar1:2420525011-65ER-25 QF
0067725001
EC2:1420532027-65ER-32 QF
0067732000
IC 80 bar2:1420532028-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=72
EC1:1410622001-65Ø 22
00675000483
EC1:1410625001-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532001-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
10
Haas ST-20/25/30/35, DS-30 (BMT65)
10
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 16240032016
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 32240050032
ø 40240050040
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
11
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
11
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
© WTO GmbH * Subject to change without notice * www.wto.de
12
Accessories - Reduction sleeves
12
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
13
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
13
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
© WTO GmbH * Subject to change without notice * www.wto.de
14
Accessories - Collets
14
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
15
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
15
Toolholder Program
GLS-150, 200 M/Y (new turret version)
GLS-1500, 2000 M/LY/LMS/LYS
GLS-2800-3300 M/Y/MS/YS
GMS-2000 ST (15 station turret)
GS-200-280 M/MS, GA-2000-3600 M
GS-400, 600, 6000, 6600, 8000, 8800 M
GS-2000 - 4000 M/Y/MS/YS (12 station turret)
GS-2000 - 3300 M/Y/MS/YS (16 station turret)
GTS-150 MMX/XY (new turret version)
GTS-200, 260 MMX/XY (new turret version)
GTX/GTZ-2000, 2600 M/Y (12 station turret)
GTX/GTZ-2000, 2600 M/Y (16 station turret)
GV-500, 780 M
GV-800, 1000 M
QuickFlex®
Designed
for
BMT Turrets
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
4 - 5PageGLS-150, 200 M/Y (new turret version)
6 - 7PageGLS-1500, 2000 M/LY/LMS/LYS
8 - 11PageGLS-2800-3300 M/Y/MS/YS
12 - 15PageGMS-2000 ST (15 station turret)
16 - 19PageGS-200-280 M/MS, GA-2000-3600 M
20 - 20PageGS-400, 600, 6000, 6600, 8000, 8800 M
21 - 23PageGS-2000 - 4000 M/Y/MS/YS (12 station turret)
24 - 27PageGS-2000 - 3300 M/Y/MS/YS (16 station turret)
28 - 29PageGTS-150 MMX/XY (new turret version)
30 - 31PageGTS-200, 260 MMX/XY (new turret version)
32 - 35PageGTX/GTZ-2000, 2600 M/Y (12 station turret)
36 - 38PageGTX/GTZ-2000, 2600 M/Y (16 station turret)
39 - 39PageGV-500, 780 M
40 - 40PageGV-800, 1000 M
41 - 44PageReduction sleeves
45 - 47PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125010-45ER-25 QF
0067725000
IC 80 bar1:1420125011-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525010-45ER-25 QF
0067725000
IC 80 bar1:1420525011-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-45ER 32
0067525000
IC 80 bar1:1410120003-45ER 32
0067525000
Straight offset drill/milling unit
EC1:1410116006-45ER 25
00675000932
IC 80 bar1:1410116007-45ER 25
00675000932
EC1:2410113002-45ER 20
00675000939
IC 80 bar1:2410113003-45ER 20
00675000939
EC1:3410110000-45ER 16
00675000937
IC 80 bar1:3410110001-45ER 16
00675000937
EC1.5:1410116008-45ER 25
00675000932
IC 80 bar1.5:1410116009-45ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
4
Goodway GLS-150, 200 M/Y (new turret version)
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:1410520010-45ER 32
0067725000
IC 80 bar1:1410520007-45ER 32
0067725000
EC1:2420520010-45ER-20 QF
0067720001
IC 80 bar1:2420520011-45ER-20 QF
0067720001
EC1:3410810002-45ER 16
00675000841
IC 80 bar1:3410810003-45ER 16
00675000841
EC2:1420525013-45ER-25 QF
0067725000
IC 80 bar2:1420525014-45ER-25 QF
0067725000
EC2:1410520008-45ER 32
00675000827
IC 80 bar2:1410520009-45ER 32
00675000827
Adjustable angle drill/milling unit
EC1:1411010000-45ER 16
00675000902
IC 80 bar1:1411010001-45ER 16
00675000902
EC1:2411007000-45ER 11
00675000914
IC 80 bar1:2411007001-45ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.73:1411500001-45Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002007-45ER 20
00675001016
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-45ER 20
00675001016
Broaching unit for ID and OD
EC1:1414532001-45TN765050
5
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GLS-150, 200 M/Y (new turret version)
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125010-45ER-25 QF
0067725000
IC 80 bar1:1420125011-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525010-45ER-25 QF
0067725000
IC 80 bar1:1420525011-45ER-25 QF
0067725000
Right angle drill/milling unit, both sides
EC1:1420525012-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-45ER 32
0067525000
IC 80 bar1:1410120003-45ER 32
0067525000
Straight offset drill/milling unit
EC1:1410116006-45ER 25
00675000932
IC 80 bar1:1410116007-45ER 25
00675000932
EC1:2410113002-45ER 20
00675000939
IC 80 bar1:2410113003-45ER 20
00675000939
EC1:3410110000-45ER 16
00675000937
IC 80 bar1:3410110001-45ER 16
00675000937
EC1.5:1410116008-45ER 25
00675000932
IC 80 bar1.5:1410116009-45ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
6
Goodway GLS-1500, 2000 M/LY/LMS/LYS
6
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:1410520010-45ER 32
0067725000
IC 80 bar1:1410520007-45ER 32
0067725000
EC1:2420520010-45ER-20 QF
0067720001
IC 80 bar1:2420520011-45ER-20 QF
0067720001
EC1:3410810002-45ER 16
00675000841
IC 80 bar1:3410810003-45ER 16
00675000841
EC2:1420525013-45ER-25 QF
0067725000
IC 80 bar2:1420525014-45ER-25 QF
0067725000
EC2:1410520008-45ER 32
00675000827
IC 80 bar2:1410520009-45ER 32
00675000827
Adjustable angle drill/milling unit
EC1:1411010000-45ER 16
00675000902
IC 80 bar1:1411010001-45ER 16
00675000902
EC1:2411007000-45ER 11
00675000914
IC 80 bar1:2411007001-45ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.73:1411500001-45Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002007-45ER 20
00675001016
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-45ER 20
00675001016
Broaching unit for ID and OD
EC1:1414532001-45TN765050
7
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GLS-1500, 2000 M/LY/LMS/LYS
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
Cover plate
48-87089
© WTO GmbH * Subject to change without notice * www.wto.de
8
Goodway GLS-2800-3300 M/Y/MS/YS
8
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
9
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GLS-2800-3300 M/Y/MS/YS
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
© WTO GmbH * Subject to change without notice * www.wto.de
10
Goodway GLS-2800-3300 M/Y/MS/YS
10
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532000-65TN765050
11
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GLS-2800-3300 M/Y/MS/YS
© WTO GmbH * Subject to change without notice * www.wto.de
11
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
Cover plate
48-87089
© WTO GmbH * Subject to change without notice * www.wto.de
12
Goodway GMS-2000 ST (15 station turret)
12
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
13
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GMS-2000 ST (15 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
13
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
© WTO GmbH * Subject to change without notice * www.wto.de
14
Goodway GMS-2000 ST (15 station turret)
14
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532000-65TN765050
15
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GMS-2000 ST (15 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
15
Static Toolholders - Standard Program
Wedge block
48-B2703625(1")
Wedge shim
48-B2703725
48-B270381"
OD cutting holder, extended
48-T0007625
OD cutting holder, both sides (only for turret
width 85 mm)
48-T0015825
Face cutting holder, extended
48-T0008225
Cut-off holder
48-T0015625
Boring bar holder
48-T10036Ø 40
48-T10044Ø 50
48-T10037Ø 1 1/2"
48-T10045Ø 2"
Boring bar holder, extended
48-T10039Ø 1 1/2"
Static Toolholders - Standard Program
Combination toolholder
IC 80 bar48-T13064Ø 40
IC 80 bar48-83292Ø 50
IC 80 bar48-T13065Ø 1 1/2"
IC 80 bar48-83294Ø 2"
Combination toolholder, extended
IC 80 bar48-T10038Ø 40
Boring bar holder, both sides
48-T10086Ø 32
© WTO GmbH * Subject to change without notice * www.wto.de
16
Goodway GS-200-280 M/MS, GA-2000-3600 M
16
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Work stopper
48-T17002
Cut-off holder, adjustable
48-104535SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-104533R
343-810100R67
SH 32
IC 80 bar48-104533L
343-810100L67
SH 32
Boring bar holder, with slot
48-88503Ø 40
48-88501Ø 50
48-85667Ø 60
Boring bar holder, double
48-83452Ø 25
48-83592Ø 1"
VDI adapter, left
48-83473VDI 30
VDI adapter, right
48-49950VDI 30
VDI adapter, both sides
48-50896VDI 30
17
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-200-280 M/MS, GA-2000-3600 M
© WTO GmbH * Subject to change without notice * www.wto.de
17
Driven Toolholders - Performance Series
OD drill/milling unit
EC1:1410120000-00
T32115, T32155,
T32401
ER 32
00675000780
IC 30 bar1:1410120001-00
T32341
ER 32
00675000780
Face drill/milling unit
EC1:1410520000-00
T32114, T32154,
T32400
ER 32
00675000780
Face drill/milling unit, sub spindle
EC1:1410520012-00
T32121, T32366,
T32409
ER 32
00675000780
IC 80 bar1:1410520016-00ER 32
00675000780
Face drill/milling unit, both sides
EC1:1410520018-00
T32136, T32367,
T32410
ER 32
00675000780
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420132010-00ER-32 QF
0067732000
IC 80 bar1:1420132011-00ER-32 QF
0067732000
Face drill/milling unit
EC1:1420532010-00ER-32 QF
0067732000
IC 80 bar1:1420532011-00ER-32 QF
0067732000
Face drill/milling unit, both sides
EC1:1420532014-00ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
18
Goodway GS-200-280 M/MS, GA-2000-3600 M
18
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
OD drill/milling unit
EC1:1410116010-00ER 25
00675000831
OD drill/milling unit, offset
EC1:2410113006-00ER 20
00675000621
IC 80 bar1:2410113004-00ER 20
00675000621
OD drill/milling unit for Weldon or Whistle
Notch shank
EC1:1410116004-00Ø 16
OD milling unit
EC1:1410216002-00Ø 16
00675000854
EC1:1410219000-00Ø 3/4"
00675000891
EC1:1410222000-00Ø 22
00675000483
Face drill/milling unit
EC1:2420525010-00ER-25 QF
0067725001
IC 80 bar1:2420525011-00ER-25 QF
0067725001
EC2:1410520017-00ER 32
00675000780
Face drill/milling unit with Weldon or Whistle
Notch shank
EC1:1410525002-00Ø 25
IC 80 bar1:1410525003-00Ø 25
EC2:1410525005-00Ø 25
Driven Toolholders - Enhanced Program
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622001-00Ø 22
00675000483
EC1:1410627003-00Ø 27
00675000245
EC2:1410627002-00Ø 27
00675000245
Adjustable angle drill/milling unit
EC1:1411010008-00ER 16
00675000902
IC 80 bar1:1411010007-00ER 16
00675000902
EC1:2411007004-00ER 11
00675000914
IC 80 bar1:2411007005-00ER 11
00675000914
Slitting saw unit for interchangeable milling
arbor
EC2.73:1411500003-00Type 14-2
00675000495
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414532000-00TN765050
19
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-200-280 M/MS, GA-2000-3600 M
© WTO GmbH * Subject to change without notice * www.wto.de
19
Driven Toolholders - Performance Series
Straight drill/milling unit
EC1:1410134000-00
T32137, T32247
ER 50
00675000652
IC 80 bar1:1410134002-00ER 50
00675000652
Right angle drill/milling unit
EC1:1410534002-00ER 50
00675000701
IC 80 bar1:1410534003-00ER 50
00675000701
Driven Toolholders - Enhanced Program
Straight drill/milling unit for system BT 40
EC1:1410140000-00BT
MAS403
IC 80 bar1:1410140001-00BT
MAS403
Straight drill/milling unit for system ISO/CAT
40
EC1:1410140004-00ISO 40
00675000875
IC 80 bar1:1410140005-00ISO 40
00675000875
© WTO GmbH * Subject to change without notice * www.wto.de
20
Goodway GS-400, 600, 6000, 6600, 8000, 8800 M
20
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8531725(1")
OD cutting holder, both sides, double, Y axis
48-8531825(1")
Cut-off holder, adjustable
48-99506SH 32
Boring bar holder, triple, universal
48-85319Ø 25
48-85320Ø 1"
Boring bar holder, double, both sides
48-85321Ø 32
48-85322Ø 1 1/4"
Boring bar holder, triple, both sides
48-85323Ø 25
48-85324Ø 1"
21
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-2000 - 4000 M/Y/MS/YS (12 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140018-60ER-40 QF
0067740000
IC 80 bar1:1420140019-60ER-40 QF
0067740000
Face drill/milling unit
EC1:1420540021-60ER-40 QF
0067740000
IC 80 bar1:1420540022-60ER-40 QF
0067740000
Face drill/milling unit, both sides
EC1:1420540023-60ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
OD drill/milling unit for Weldon or Whistle
Notch shank
EC1:1410125010-60Ø 25
IC 80 bar1:1410125011-60Ø 25
EC1:1410125012-60Ø 1"
IC 80 bar1:1410125013-60Ø 1"
OD milling unit with combination mill arbor
DIN 6358
EC1:1410222012-60Ø 22
00675000483
EC1:1410227010-60Ø 27
00675000245
EC1:1410225001-60Ø 1"
00675001010
OD drill/milling unit, offset
EC1:1420132024-60ER-32 QF
0067732000
IC 80 bar1:1420132025-60ER-32 QF
0067732000
EC1:2420125012-60ER-25 QF
0067725001
IC 80 bar1:2420125013-60ER-25 QF
0067725001
Face drill/milling unit
EC1:2410516010-60ER 25
00675000801
IC 80 bar1:2410516011-60ER 25
00675000801
EC2:1410526034-60ER 40
00675000781
IC 80 bar2:1410526035-60ER 40
00675000781
© WTO GmbH * Subject to change without notice * www.wto.de
22
Goodway GS-2000 - 4000 M/Y/MS/YS (12 station turret)
22
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Face drill/milling unit with Weldon or Whistle
Notch shank
EC1:1410525015-60Ø 25
IC 80 bar1:1410525016-60Ø 25
EC1:1410525017-60Ø 1"
IC 80 bar1:1410525018-60Ø 1"
Face milling unit with combination mill arbor
DIN 6358
EC1:1410622003-60Ø 22
00675000483
EC2:1410627002-60Ø 27
00675000245
EC1:1410625001-60Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411013013-60ER 20
00675000928
IC 80 bar1:1411013015-60ER 20
00675000928
EC1:2411010007-60ER 16
00675000936
IC 80 bar1:2411010008-60ER 16
00675000936
Slitting saw unit
EC3:1411500016-60Type 19-2
00675000855
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500017-60Type 16-1
EC2:1411500018-60Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
OD drill/milling unit, both sides
EC1:1413002006-60ER 25
00675000907
OD drill/milling unit, double, Y axis
EC1:1413002007-60ER 25
00675000907
2-spindle - Face drill/milling unit, Y axis
EC1:1413502011-60ER 25
00675000915
IC 80 bar1:1413502012-60ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502013-60ER 25
00675000915
23
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-2000 - 4000 M/Y/MS/YS (12 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
23
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
Cover plate
48-87089
© WTO GmbH * Subject to change without notice * www.wto.de
24
Goodway GS-2000 - 3300 M/Y/MS/YS (16 station turret)
24
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
25
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-2000 - 3300 M/Y/MS/YS (16 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
25
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
© WTO GmbH * Subject to change without notice * www.wto.de
26
Goodway GS-2000 - 3300 M/Y/MS/YS (16 station turret)
26
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
27
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GS-2000 - 3300 M/Y/MS/YS (16 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
27
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125010-45ER-25 QF
0067725000
IC 80 bar1:1420125011-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525010-45ER-25 QF
0067725000
IC 80 bar1:1420525011-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120002-45ER 32
0067525000
IC 80 bar1:1410120003-45ER 32
0067525000
Straight offset drill/milling unit
EC1:1410116006-45ER 25
00675000932
IC 80 bar1:1410116007-45ER 25
00675000932
EC1:2410113002-45ER 20
00675000939
IC 80 bar1:2410113003-45ER 20
00675000939
EC1:3410110000-45ER 16
00675000937
IC 80 bar1:3410110001-45ER 16
00675000937
EC1.5:1410116008-45ER 25
00675000932
IC 80 bar1.5:1410116009-45ER 25
00675000932
© WTO GmbH * Subject to change without notice * www.wto.de
28
Goodway GTS-150 MMX/XY (new turret version)
28
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:1410520010-45ER 32
0067725000
IC 80 bar1:1410520007-45ER 32
0067725000
EC1:2420520010-45ER-20 QF
0067720001
IC 80 bar1:2420520011-45ER-20 QF
0067720001
EC1:3410810002-45ER 16
00675000841
IC 80 bar1:3410810003-45ER 16
00675000841
EC2:1420525013-45ER-25 QF
0067725000
IC 80 bar2:1420525014-45ER-25 QF
0067725000
EC2:1410520008-45ER 32
00675000827
IC 80 bar2:1410520009-45ER 32
00675000827
Adjustable angle drill/milling unit
EC1:1411010000-45ER 16
00675000902
IC 80 bar1:1411010001-45ER 16
00675000902
EC1:2411007000-45ER 11
00675000914
IC 80 bar1:2411007001-45ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.73:1411500001-45Type 14-2
00675000489
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Straight drill/milling unit, double, Y axis
EC1:1413002007-45ER 20
00675001016
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-45ER 20
00675001016
Broaching unit for ID and OD
EC1:1414532001-45TN765050
29
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GTS-150 MMX/XY (new turret version)
© WTO GmbH * Subject to change without notice * www.wto.de
29
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132010-63
CB-4782B
ER-32 QF
0067732000
IC 80 bar1:1420132011-63
CB-4782A
ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532010-63
CB-4783B
ER-32 QF
0067732000
IC 80 bar1:1420532011-63
CB-4783A
ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410227001-63Ø 27
00675000245
Right angle drill/milling unit
EC1:2420525010-63ER-25 QF
0067725001
IC 80 bar1:2420525011-63ER-25 QF
0067725001
Right angle milling unit with combination mill
arbor DIN 6358
EC2:1410622001-63Ø 22
00675000483
EC2:1410627002-63Ø 27
00675000245
EC2:1410625000-63Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010000-63ER 16
00675000902
IC 80 bar1:1411010001-63ER 16
00675000902
EC1:2411007000-63ER 11
00675000914
IC 80 bar1:2411007001-63ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
30
Goodway GTS-200, 260 MMX/XY (new turret version)
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500000-63Type 16-1
EC2:1411500001-63Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
31
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GTS-200, 260 MMX/XY (new turret version)
© WTO GmbH * Subject to change without notice * www.wto.de
31
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Static Toolholders - Standard Program
Boring bar holder, both sides
48-101033Ø 32
Cover plate
48-87089
© WTO GmbH * Subject to change without notice * www.wto.de
32
Goodway GTX/GTZ-2000, 2600 M/Y (12 station turret)
32
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
33
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GTX/GTZ-2000, 2600 M/Y (12 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
33
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
© WTO GmbH * Subject to change without notice * www.wto.de
34
Goodway GTX/GTZ-2000, 2600 M/Y (12 station turret)
34
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-651"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532000-65TN765050
35
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GTX/GTZ-2000, 2600 M/Y (12 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
35
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, universal, LF=95
IC 80 bar48-109277Ø 32
241132020 ER32
241132016 ER25
IC 80 bar48-109278Ø 1 1/4"
2411125020 ER32
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
36
Goodway GTX/GTZ-2000, 2600 M/Y (16 station turret)
36
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
37
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GTX/GTZ-2000, 2600 M/Y (16 station turret)
© WTO GmbH * Subject to change without notice * www.wto.de
37
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500002-55Type 16-1
EC2:1411500001-55Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
96394
Broaching unit for ID and OD
EC1:1414532000-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
38
Goodway GTX/GTZ-2000, 2600 M/Y (16 station turret)
38
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132010-63
CB-4782B
ER-32 QF
0067732000
IC 80 bar1:1420132011-63
CB-4782A
ER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532010-63
CB-4783B
ER-32 QF
0067732000
IC 80 bar1:1420532011-63
CB-4783A
ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410227001-63Ø 27
00675000245
Right angle drill/milling unit
EC1:2420525010-63ER-25 QF
0067725001
IC 80 bar1:2420525011-63ER-25 QF
0067725001
Right angle milling unit with combination mill
arbor DIN 6358
EC2:1410622001-63Ø 22
00675000483
EC2:1410627002-63Ø 27
00675000245
EC2:1410625000-63Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010000-63ER 16
00675000902
IC 80 bar1:1411010001-63ER 16
00675000902
EC1:2411007000-63ER 11
00675000914
IC 80 bar1:2411007001-63ER 11
00675000914
39
© WTO GmbH * Subject to change without notice * www.wto.de
Goodway GV-500, 780 M
© WTO GmbH * Subject to change without notice * www.wto.de
39
Driven Toolholders - Performance Series
Straight drill/milling unit
EC1:1410134000-00
T32137, T32247
ER 50
00675000652
IC 80 bar1:1410134002-00ER 50
00675000652
Right angle drill/milling unit
EC1:1410526004-00ER 40
00675000781
IC 80 bar1:1410526005-00ER 40
00675000781
Right angle drill/milling unit
EC1:1410534002-00ER 50
00675000701
IC 80 bar1:1410534003-00ER 50
00675000701
Driven Toolholders - Enhanced Program
Straight drill/milling unit for system BT 40
EC1:1410140000-00BT
MAS403
IC 80 bar1:1410140001-00BT
MAS403
Straight drill/milling unit for system ISO/CAT
40
EC1:1410140004-00ISO 40
00675000875
IC 80 bar1:1410140005-00ISO 40
00675000875
© WTO GmbH * Subject to change without notice * www.wto.de
40
Goodway GV-800, 1000 M
40
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 16240032016
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 32240050032
ø 40240050040
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
41
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
41
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
Reduction sleeves for boring bar holders -
cylindrical
Reduction sleeve Ø 25
ø 824-T20180
ø 1024-T20182
ø 1224-T20184
ø 1624-T20186
ø 2024-T20188
Reduction sleeve Ø 32
ø 824-T20112
ø 1024-T20114
ø 1224-T20116
ø 1624-T20118
ø 2024-T20120
ø 2524-T20122
Reduction sleeve Ø 40
ø 824-T20086
ø 1024-T20088
ø 1224-T20090
ø 1624-T20092
ø 2024-T20094
ø 2524-T20096
ø 3224-T20098
Reduction sleeve Ø 50
ø 1024-T20160
ø 1224-T20162
ø 1624-T20164
ø 2024-T20166
ø 2524-T20168
ø 3224-T20170
ø 4024-T20172
Reduction sleeve Ø 1"
ø 3/8"24-T20181
ø 1/2"24-T20183
ø 5/8"24-T20185
ø 3/4"24-T20187
Reduction sleeve Ø 1 1/2"
ø 3/8"24-T20089
ø 1/2"24-T20091
ø 5/8"24-T20093
ø 3/4"24-T20095
ø 1"24-T20097
ø 1 1/4"24-T20099
© WTO GmbH * Subject to change without notice * www.wto.de
42
Accessories - Reduction sleeves
42
© WTO GmbH * Subject to change without notice * www.wto.de
Reduction sleeves for boring bar holders -
cylindrical
Reduction sleeve Ø 2"
ø 1/2"24-T20163
ø 5/8"24-T20165
ø 3/4"24-T20167
ø 1"24-T20169
ø 1 1/4"24-T20171
ø 1 1/2"24-T20173
Reduction sleeves for boring bar holders -
cylindrical, extended
Reduction sleeve Ø 32
ø 824-T20124
ø 1024-T20126
ø 1224-T20128
ø 1624-T20130
Reduction sleeve Ø 40
ø 824-T20106
ø 1024-T20108
ø 1224-T20110
ø 1624-T20194
ø 2024-T20196
ø 2524-T20216
Reduction sleeve Ø 1 1/2"
ø 3/8"24-T20109
ø 1/2"24-T20111
ø 5/8"24-T20195
ø 3/4"24-T20197
43
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
43
Reduction sleeves for boring bar holders -
morse taper
Reduction sleeve Ø 40
MT 224-T22046
MT 324-T22042
© WTO GmbH * Subject to change without notice * www.wto.de
44
Accessories - Reduction sleeves
44
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
45
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
45
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
46
Accessories - Collets
46
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
47
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
47
Tool Holder Program
Lynx 220 M/LM
Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
Lynx 300 M, 2600 Y, Puma GT2100, 2600 M
Lynx 2600 SY (12ST)
Puma 2100, 2600 (II) M/MS/Y/SY (BMT55)
Puma 2100, 2600 (II) M/MS/Y/SY (BMT65)
Puma 2100, 2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55)
Puma 3100 M/Y, GT3100 M
Puma 4100, 5100 M/LM/LY
Puma 600, 700, 800 M/LM/LY
Puma MX1600 ST (BMT45)
Puma MX1600, 2100 ST (BMT55)
Puma SMX2600, 3100 ST
Puma TT1300 SY/SYY
Puma TT1500, 1800, 2100 MS/SY/SYY
Puma TT2000, 2500 MS/SY
QuickFlex®
Designed
for
BMT Turrets
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
2
© WTO GmbH * Subject to change without notice * www.wto.de
4 - 6PageLynx 220 M/LM
7 - 10PageLynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
11 - 13PageLynx 300 M,2600 Y, Puma GT2100,2600 M
14 - 17PageLynx 2600 SY (12ST)
18 - 23PagePuma 2100,2600(II) M/MS/Y/SY (BMT55)
24 - 27PagePuma 2100,2600(II) M/MS/Y/SY (BMT65)
28 - 30PagePuma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55)
31 - 33PagePuma 3100 M/Y, GT3100 M
34 - 35PagePuma 4100, 5100 M/LM/LY
36 - 37PagePuma 600, 700, 800 M/LM/LY
38 - 41PagePuma MX1600 ST (BMT45)
42 - 44PagePuma MX1600, 2100 ST (BMT55)
45 - 48PagePuma SMX2600, 3100 ST
49 - 51PagePuma TT1300 SY/SYY
52 - 54PagePuma TT1500, 1800, 2100 MS/SY/SYY
55 - 58PagePuma TT2000, 2500 MS/SY
59 - 60PageReduction sleeves
61 - 63PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
OD cutting holder
48-9508320
48-950843/4"
OD cutting holder, HP-IC
IC 80 bar48-100605-HP20
IC 80 bar48-104395-HP25
IC 80 bar48-108926-HP3/4"
IC 80 bar48-104396-HP1"
Face cutting holder
48-10914820
Face cutting holder
48-953383/4"
Face cutting holder, HP-IC
IC 80 bar48-109148-HP20
IC 80 bar48-104397-HP25
IC 80 bar48-109149-HP3/4"
IC 80 bar48-104398-HP1"
Combination toolholder, LF=65
IC 80 bar48-95090Ø 40
IC 80 bar48-95327Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-9508720
Cut-off holder, adjustable
48-94968SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102252RSH 26
IC 80 bar48-102252LSH 26
Boring bar holder, double, 24 station
48-95091Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
4
Doosan Lynx 220 M/LM
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-45ER-25 QF
0067725000
IC 80 bar1:1420125016-45ER-25 QF
0067725000
Straight drill/milling unit (12000 RPM)
EC1:1420125019-45ER-25 QF
0067725000
IC 80 bar1:1420125020-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525015-45ER-25 QF
0067725000
IC 80 bar1:1420525016-45ER-25 QF
0067725000
Right angle drill/milling unit (12000 RPM)
EC1:1420525038-45ER-25 QF
0067725000
IC 80 bar1:1420525039-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:3410410008-45ER 16
00675000937
IC 80 bar1:3410410002-45ER 16
00675000937
Right angle drill/milling unit
EC1:2420520018-45ER-20 QF
0067720001
IC 80 bar1:2420520019-45ER-20 QF
0067720001
EC2:1420525020-45ER-25 QF
0067725000
IC 80 bar2:1420525021-45ER-25 QF
0067725000
Adjustable angle drill/milling unit
EC1:1411010002-45ER 16
00675000902
IC 80 bar1:1411010003-45ER 16
00675000902
EC1:2411007004-45ER 11
00675000914
IC 80 bar1:2411007005-45ER 11
00675000914
5
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 220 M/LM
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900001-45Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532000-45TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
6
Doosan Lynx 220 M/LM
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9508320
48-950843/4"
OD cutting holder, HP-IC
IC 80 bar48-100605-HP20
IC 80 bar48-104395-HP25
IC 80 bar48-108926-HP3/4"
IC 80 bar48-104396-HP1"
OD cutting holder, both sides
48-9508520
48-950863/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-95085-HP20
IC 80 bar48-95086-HP3/4"
Face cutting holder
48-10914820
Face cutting holder
48-953383/4"
Face cutting holder, HP-IC
IC 80 bar48-109148-HP20
IC 80 bar48-104397-HP25
IC 80 bar48-109149-HP3/4"
IC 80 bar48-104398-HP1"
Combination toolholder, LF=65
IC 80 bar48-95090Ø 40
IC 80 bar48-95327Ø 1 1/2"
Static Toolholders - Standard Program
Combination toolholder, universal, LF=85
IC 80 bar48-95998Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-96029Ø 1 1/4"
2411125020 ER32
Boring bar holder universal, double
48-95093Ø 25
48-95325Ø 1"
7
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-9508820
OD cutting holder, both sides, double, 24
station
48-9535520
OD cutting holder, both sides, double, Y axis
48-11081120 (3/4")
Cut-off holder, adjustable
48-94968SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102252RSH 26
IC 80 bar48-102252LSH 26
Boring bar holder, universal, double, 24
station
48-95092Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
8
Doosan Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
8
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-45ER-25 QF
0067725000
IC 80 bar1:1420125016-45ER-25 QF
0067725000
Straight drill/milling unit (12000 RPM)
EC1:1420125019-45ER-25 QF
0067725000
IC 80 bar1:1420125020-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525015-45ER-25 QF
0067725000
IC 80 bar1:1420525016-45ER-25 QF
0067725000
Right angle drill/milling unit (12000 RPM)
EC1:1420525038-45ER-25 QF
0067725000
IC 80 bar1:1420525039-45ER-25 QF
0067725000
Right angle back set drill/milling unit, LF=85
EC1:1420525024-45ER-25 QF
0067725000
IC 80 bar1:1420525025-45ER-25 QF
0067725000
Right angle back set drill/milling unit, LF=85,
(12000 RPM)
EC1:1420525049-45ER-25 QF
0067725000
IC 80 bar1:1420525050-45ER-25 QF
0067725000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525043-45ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85, (12000 RPM)
EC1:1420525051-45ER-25 QF
0067725000
9
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:3410410008-45ER 16
00675000937
IC 80 bar1:3410410002-45ER 16
00675000937
Right angle drill/milling unit
EC1:2420520018-45ER-20 QF
0067720001
IC 80 bar1:2420520019-45ER-20 QF
0067720001
EC2:1420525020-45ER-25 QF
0067725000
IC 80 bar2:1420525021-45ER-25 QF
0067725000
Adjustable angle drill/milling unit
EC1:1411010002-45ER 16
00675000902
IC 80 bar1:1411010003-45ER 16
00675000902
EC1:2411007004-45ER 11
00675000914
IC 80 bar1:2411007005-45ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900001-45Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002006-45ER 20
00675000947
IC 80 bar1:1413002008-45ER 20
00675000947
Broaching unit for ID and OD
EC1:1414532000-45TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
10
Doosan Lynx 220 LMS/LY/LSY, Lynx 2100 M/MS/LY/LSY
10
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Cover plate
48-87111
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8714025(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis,
short
48-98353Ø 25
11
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 300 M,2600 Y, Puma GT2100,2600 M
© WTO GmbH * Subject to change without notice * www.wto.de
11
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
© WTO GmbH * Subject to change without notice * www.wto.de
12
Doosan Lynx 300 M,2600 Y, Puma GT2100,2600 M
12
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532001-55TN765050
13
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 300 M,2600 Y, Puma GT2100,2600 M
© WTO GmbH * Subject to change without notice * www.wto.de
13
Static Toolholders - Standard Program
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Boring bar holder, double
48-87149Ø 32
48-87150Ø 1 1/4"
Cover plate
48-87111
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, both sides, double, Y axis
48-8714125(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis
48-87147Ø 25
48-87148Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
14
Doosan Lynx 2600 SY (12ST)
14
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
15
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 2600 SY (12ST)
© WTO GmbH * Subject to change without notice * www.wto.de
15
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
16
Doosan Lynx 2600 SY (12ST)
16
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500002-55Type 16-1
EC2:1411500001-55Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-55ER 25
00675000970
IC 80 bar1:1413002003-55ER 25
00675000970
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502007-55ER 25
00675000915
IC 80 bar1:1413502008-55ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502006-55ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-55TN765050
17
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Lynx 2600 SY (12ST)
© WTO GmbH * Subject to change without notice * www.wto.de
17
Static Toolholders - Standard Program (12ST)
OD cutting holder
48-8709725
48-870981"
OD cutting holder, HP-IC
IC 80 bar48-87097-HP25
IC 80 bar48-87098-HP1"
OD cutting holder, both sides
48-8709925
48-871001"
OD cutting holder, both sides, HP-IC
IC 80 bar48-87099-HP25
IC 80 bar48-87100-HP1"
Face cutting holder
48-8710125
48-871021"
Face cutting holder, HP-IC
IC 80 bar48-87101-HP25
IC 80 bar48-87102-HP1"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Boring bar holder, double
48-87149Ø 32
48-87150Ø 1 1/4"
Cover plate
48-87111
© WTO GmbH * Subject to change without notice * www.wto.de
18
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
18
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program (24ST)
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, universal, LF=100
IC 80 bar48-92043Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-92044Ø 1 1/4"
2411125020 ER32
Boring bar holder, double
48-87149Ø 32
48-87150Ø 1 1/4"
Static Toolholders - Standard Program (24ST)
Cover plate
48-87111
19
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
19
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
EC48-9206920
OD cutting holder, both sides, double, 24
station
48-9207120
OD cutting holder, double, Y axis
48-8714025(1")
OD cutting holder, both sides, double, Y axis
48-8714125(1")
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis
48-87147Ø 25
48-87148Ø 1"
Boring bar holder, double, 24 station
48-92073Ø 32
© WTO GmbH * Subject to change without notice * www.wto.de
20
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=70
EC1:1420525017-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
21
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Right angle back set drill/milling unit
EC1:1410516024-55ER 25
00675000801
IC 80 bar1:1410516025-55ER 25
00675000801
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Gear hobbing unit
EC1:1411500002-55Type 16-1
EC2:1411500001-55Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-55ER 25
00675000970
IC 80 bar1:1413002003-55ER 25
00675000970
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502007-55ER 25
00675000915
IC 80 bar1:1413502008-55ER 25
00675000915
© WTO GmbH * Subject to change without notice * www.wto.de
22
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
22
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502006-55ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532001-55TN765050
23
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
23
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
Face cutting holder, long
48-9295825
48-929591"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Boring bar holder, both sides
48-101033Ø 32
48-113514Ø 1 1/4"
Static Toolholders - Standard Program
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
© WTO GmbH * Subject to change without notice * www.wto.de
24
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT65)
24
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, short
48-8699125
48-869921"
OD cutting holder, short, HP-IC
IC 80 bar48-86991-HP25
IC 80 bar48-86992-HP1"
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, both sides, long
48-8452325
48-867181"
OD cutting holder, double, 24 station
48-9208920
OD cutting holder, both sides, double, 24
station
48-9209120
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
Boring bar holder, double, 24 station
48-92102Ø 25
Combination toolholder, both sides, double,
24 station
48-109092Ø 25
48-108887Ø 1"
Boring bar holder, double, both sides
48-86160Ø 32
48-86274Ø 1 1/4"
25
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
25
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
26
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT65)
26
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
27
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600(II) M/MS/Y/SY (BMT65)
© WTO GmbH * Subject to change without notice * www.wto.de
27
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, LF=70
IC 80 bar48-106897Ø 32
IC 80 bar48-87103Ø 40
IC 80 bar48-106872Ø 1 1/4"
IC 80 bar48-87104Ø 1 1/2"
Cover plate
48-87111
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Boring bar holder, both sides, double, Y axis,
short
48-98353Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
28
Doosan Puma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55)
28
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=70
EC1:1420525015-55ER-25 QF
0067725000
IC 80 bar1:1420525016-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=70
EC1:1420525017-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
29
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
29
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=70
EC1:1410520033-55ER 32
0067725000
IC 80 bar1:1410520034-55ER 32
0067725000
EC1:2420520012-55ER-20 QF
0067720001
IC 80 bar1:2420520013-55ER-20 QF
0067720001
EC1:3410810016-55ER 16
00675000841
IC 80 bar1:3410810017-55ER 16
00675000841
EC2:1420525030-55ER-25 QF
0067725000
IC 80 bar2:1420525031-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=70
EC1:1410622010-55Ø 22
00675000483
EC1:1410619005-55Ø 3/4"
00675000483
Right angle back set drill/milling unit
EC1:1410516024-55ER 25
00675000801
IC 80 bar1:1410516025-55ER 25
00675000801
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Gear hobbing unit
EC1:1410900002-55Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532001-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
30
Doosan Puma 2100,2600 Y/SY, Lynx 2600 Y/SY (16ST, BMT55)
30
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
Face cutting holder, long
48-9295825
48-929591"
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Boring bar holder, double
48-84524Ø 32
48-86905Ø 1 1/4"
Cover plate
48-87089
Static Toolholders - Enhanced Program
OD cutting holder, short
48-8699125
48-869921"
OD cutting holder, short, HP-IC
IC 80 bar48-86991-HP25
IC 80 bar48-86992-HP1"
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, double, Y axis
48-8610325(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
31
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 3100 M/Y, GT3100 M
© WTO GmbH * Subject to change without notice * www.wto.de
31
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
32
Doosan Puma 3100 M/Y, GT3100 M
32
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
Driven Toolholders - Enhanced Program
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
33
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 3100 M/Y, GT3100 M
© WTO GmbH * Subject to change without notice * www.wto.de
33
Static Toolholders - Standard Program
OD cutting holder
48-9642125
48-964221"
Face cutting holder
48-9635525
48-963571"
Combination toolholder, LF=90
IC 80 bar48-104448Ø 60
IC 80 bar48-104449Ø 2 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-11231725(1")
VDI adapter, right, LF=110
48-112600VDI 50
© WTO GmbH * Subject to change without notice * www.wto.de
34
Doosan Puma 4100, 5100 M/LM/LY
34
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420140015-75ER-40 QF
0067740000
IC 80 bar1:1420140016-75ER-40 QF
0067740000
Face drill/milling unit, LF=60
EC1:1420540015-75ER-40 QF
0067740000
IC 80 bar1:1420540016-75ER-40 QF
0067740000
Face drill/milling unit, LF=90
EC1:1420540017-75ER-40 QF
0067740000
IC 80 bar1:1420540018-75ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=60
EC1:2420532010-75ER-32 QF
0067732001
IC 80 bar1:2420532011-75ER-32 QF
0067732001
EC2:1420540021-75ER-40 QF
0067740000
IC 80 bar2:1420540022-75ER-40 QF
0067740000
Adjustable angle drill/milling unit
EC1:1411016000-75ER 25
00675000934
IC 80 bar1:1411016001-75ER 25
00675000934
EC1:2411010002-75ER 16
00675000936
IC 80 bar1:2411010003-75ER 16
00675000936
Gear hobbing unit
EC2:1410900001-75Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160015C51 Ø 5/8"
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
Broaching unit for ID and OD
EC1:1414532000-75TN765050
35
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 4100, 5100 M/LM/LY
© WTO GmbH * Subject to change without notice * www.wto.de
35
Static Toolholders - Standard Program
OD cutting holder
48-9566732
48-956681 1/4"
Face cutting holder
48-9566932
48-956701 1/4"
Combination toolholder
IC 80 bar48-95671Ø 80
IC 80 bar48-95672Ø 3"
© WTO GmbH * Subject to change without notice * www.wto.de
36
Doosan Puma 600, 700, 800 M/LM/LY
36
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420150015-85ER-50 QF
0067750000
IC 80 bar1:1420150016-85ER-50 QF
0067750000
Face drill/milling unit, LF=85
EC1:1420550015-85ER-50 QF
0067750000
IC 80 bar1:1420550016-85ER-50 QF
0067750000
Driven Toolholders - Enhanced Program
Face drill/milling unit, LF=85
EC1:2420540015-85ER-40 QF
0067740001
IC 80 bar1:2420540016-85ER-40 QF
0067740001
Adjustable angle drill/milling unit
EC1:1421032010-85ER-32 QF
00675000976
IC 80 bar1:1421032011-85ER-32 QF
00675000976
Gear hobbing unit
EC2:1410900000-85Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
37
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma 600, 700, 800 M/LM/LY
© WTO GmbH * Subject to change without notice * www.wto.de
37
Static Toolholders - Standard Program
OD cutting holder
48-9508320
48-950843/4"
OD cutting holder, HP-IC
IC 80 bar48-100605-HP20
IC 80 bar48-104395-HP25
IC 80 bar48-108926-HP3/4"
IC 80 bar48-104396-HP1"
OD cutting holder, both sides
48-9508520
48-950863/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-95085-HP20
IC 80 bar48-95086-HP3/4"
Face cutting holder
48-10914820
Face cutting holder
48-953383/4"
Face cutting holder, HP-IC
IC 80 bar48-109148-HP20
IC 80 bar48-104397-HP25
IC 80 bar48-109149-HP3/4"
IC 80 bar48-104398-HP1"
Static Toolholders - Standard Program
Combination toolholder, universal, LF=85
IC 80 bar48-95998Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-96029Ø 1 1/4"
2411125020 ER32
© WTO GmbH * Subject to change without notice * www.wto.de
38
Doosan Puma MX1600 ST (BMT45)
38
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-94968SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102252RSH 26
IC 80 bar48-102252LSH 26
39
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma MX1600 ST (BMT45)
© WTO GmbH * Subject to change without notice * www.wto.de
39
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-45ER-25 QF
0067725000
IC 80 bar1:1420125016-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525015-45ER-25 QF
0067725000
IC 80 bar1:1420525016-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:3410410008-45ER 16
00675000937
IC 80 bar1:3410410002-45ER 16
00675000937
Right angle drill/milling unit
EC1:2420520018-45ER-20 QF
0067720001
IC 80 bar1:2420520019-45ER-20 QF
0067720001
EC2:1420525020-45ER-25 QF
0067725000
IC 80 bar2:1420525021-45ER-25 QF
0067725000
Adjustable angle drill/milling unit
EC1:1411010002-45ER 16
00675000902
IC 80 bar1:1411010003-45ER 16
00675000902
EC1:2411007004-45ER 11
00675000914
IC 80 bar1:2411007005-45ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
40
Doosan Puma MX1600 ST (BMT45)
40
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900001-45Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Broaching unit for ID and OD
EC1:1414532000-45TN765050
41
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma MX1600 ST (BMT45)
© WTO GmbH * Subject to change without notice * www.wto.de
41
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, universal, LF=100
IC 80 bar48-92043Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-92044Ø 1 1/4"
2411125020 ER32
Combination toolholder, universal, LF=100
IC 80 bar48-103474Ø 40
241140020 ER32
241140026 ER40
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-8767420
OD cutting holder, both sides, double, 24
station
48-9298020
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Cut-off holder, adjustable, long
48-103288SH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-111142R
343-810100R90
SH 32
IC 80 bar48-111142L
343-810100L90
SH 32
Boring bar holder, double, 24 station
48-87678Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
42
Doosan Puma MX1600, 2100 ST (BMT55)
42
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
43
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma MX1600, 2100 ST (BMT55)
© WTO GmbH * Subject to change without notice * www.wto.de
43
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Broaching unit for ID and OD
EC1:1414532000-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
44
Doosan Puma MX1600, 2100 ST (BMT55)
44
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
OD cutting holder, both sides, long
48-8452325
48-867181"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Static Toolholders - Standard Program
Combination toolholder, LF=100
IC 80 bar48-92397Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-92467Ø 50
IC 80 bar48-92468Ø 1 1/2"
2411150020 ER32
IC 80 bar48-92469Ø 2"
Boring bar holder, both sides
48-101033Ø 32
48-113514Ø 1 1/4"
Cover plate
48-87089
45
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma SMX2600, 3100 ST
© WTO GmbH * Subject to change without notice * www.wto.de
45
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
46
Doosan Puma SMX2600, 3100 ST
46
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
47
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma SMX2600, 3100 ST
© WTO GmbH * Subject to change without notice * www.wto.de
47
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
48
Doosan Puma SMX2600, 3100 ST
48
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9508320
48-950843/4"
OD cutting holder, HP-IC
IC 80 bar48-100605-HP20
IC 80 bar48-104395-HP25
IC 80 bar48-108926-HP3/4"
IC 80 bar48-104396-HP1"
OD cutting holder, both sides
48-9508520
48-950863/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-95085-HP20
IC 80 bar48-95086-HP3/4"
Face cutting holder
48-10914820
Face cutting holder
48-953383/4"
Face cutting holder, HP-IC
IC 80 bar48-109148-HP20
IC 80 bar48-104397-HP25
IC 80 bar48-109149-HP3/4"
IC 80 bar48-104398-HP1"
Combination toolholder, LF=65
IC 80 bar48-95090Ø 40
IC 80 bar48-95327Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, both sides, double, Y axis
48-11081120 (3/4")
Cut-off holder, adjustable
48-94968SH 26
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102252RSH 26
IC 80 bar48-102252LSH 26
49
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma TT1300 SY/SYY
© WTO GmbH * Subject to change without notice * www.wto.de
49
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-45ER-25 QF
0067725000
IC 80 bar1:1420125016-45ER-25 QF
0067725000
Straight drill/milling unit (12000 RPM)
EC1:1420125019-45ER-25 QF
0067725000
IC 80 bar1:1420125020-45ER-25 QF
0067725000
Right angle drill/milling unit
EC1:1420525015-45ER-25 QF
0067725000
IC 80 bar1:1420525016-45ER-25 QF
0067725000
Right angle drill/milling unit (12000 RPM)
EC1:1420525038-45ER-25 QF
0067725000
IC 80 bar1:1420525039-45ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit
EC1:3410410008-45ER 16
00675000937
IC 80 bar1:3410410002-45ER 16
00675000937
Right angle drill/milling unit
EC1:2420520018-45ER-20 QF
0067720001
IC 80 bar1:2420520019-45ER-20 QF
0067720001
EC2:1420525020-45ER-25 QF
0067725000
IC 80 bar2:1420525021-45ER-25 QF
0067725000
Adjustable angle drill/milling unit
EC1:1411010002-45ER 16
00675000902
IC 80 bar1:1411010003-45ER 16
00675000902
EC1:2411007004-45ER 11
00675000914
IC 80 bar1:2411007005-45ER 11
00675000914
© WTO GmbH * Subject to change without notice * www.wto.de
50
Doosan Puma TT1300 SY/SYY
50
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1410900001-45Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002006-45ER 20
00675000947
IC 80 bar1:1413002008-45ER 20
00675000947
Broaching unit for ID and OD
EC1:1414532000-45TN765050
51
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma TT1300 SY/SYY
© WTO GmbH * Subject to change without notice * www.wto.de
51
Static Toolholders - Standard Program
OD cutting holder
48-9203620
48-920373/4"
OD cutting holder, HP-IC
IC 80 bar48-92036-HP20
IC 80 bar48-92037-HP3/4"
OD cutting holder, both sides
48-9203820
48-920393/4"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92038-HP20
IC 80 bar48-92039-HP3/4"
Face cutting holder
48-9204520
48-920463/4"
Face cutting holder, HP-IC
IC 80 bar48-92045-HP20
IC 80 bar48-92046-HP3/4"
Combination toolholder, universal, LF=100
IC 80 bar48-92043Ø 32
241132016 ER25
241132020 ER32
IC 80 bar48-92044Ø 1 1/4"
2411125020 ER32
Cover plate
48-87111
Static Toolholders - Enhanced Program
OD cutting holder, double, 24 station
48-8767420
OD cutting holder, both sides, double, 24
station
48-9298020
Cut-off holder, adjustable
48-103287SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-110160RSH 32
IC 80 bar48-110160LSH 32
Cut-off holder, adjustable, long
48-103288SH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-111142R
343-810100R90
SH 32
IC 80 bar48-111142L
343-810100L90
SH 32
Boring bar holder, double, 24 station
48-87678Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
52
Doosan Puma TT1500, 1800, 2100 MS/SY/SYY
52
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125015-55ER-25 QF
0067725000
IC 80 bar1:1420125016-55ER-25 QF
0067725000
Right angle drill/milling unit, LF=85
EC1:1420525018-55ER-25 QF
0067725000
IC 80 bar1:1420525019-55ER-25 QF
0067725000
Right angle drill/milling unit, both sides,
LF=85
EC1:1420525020-55ER-25 QF
0067725000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410120010-55ER 32
0067725000
IC 80 bar1:1410120011-55ER 32
0067725000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222004-55Ø 22
00675000483
EC1:1410219002-55Ø 3/4"
00675000483
Straight offset drill/milling unit
EC1:1410116029-55ER 25
00675000932
IC 80 bar1:1410116030-55ER 25
00675000932
EC1:2410113009-55ER 20
00675000939
IC 80 bar1:2410113010-55ER 20
00675000939
EC1:3410410004-55ER 16
00675000937
IC 80 bar1:3410410005-55ER 16
00675000937
53
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma TT1500, 1800, 2100 MS/SY/SYY
© WTO GmbH * Subject to change without notice * www.wto.de
53
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, LF=85
EC1:1410520030-55ER 32
0067725000
IC 80 bar1:1410520031-55ER 32
0067725000
EC1:2420520014-55ER-20 QF
0067720001
IC 80 bar1:2420520015-55ER-20 QF
0067720001
EC1:3410810020-55ER 16
00675000841
IC 80 bar1:3410810021-55ER 16
00675000841
EC2:1420525032-55ER-25 QF
0067725000
IC 80 bar2:1420525033-55ER-25 QF
0067725000
Right angle milling unit with combination mill
arbor DIN 6358, LF=85
EC1:1410622011-55Ø 22
00675000483
EC1:1410619006-55Ø 3/4"
00675000483
Adjustable angle drill/milling unit
EC1:1411010005-55ER 16
00675000902
IC 80 bar1:1411010006-55ER 16
00675000902
EC1:2411007007-55ER 11
00675000914
IC 80 bar1:2411007008-55ER 11
00675000914
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC1:1411500002-55Type 16-1
EC2:1411500001-55Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, double, Y axis
EC1:1413002004-55ER 25
00675000970
IC 80 bar1:1413002003-55ER 25
00675000970
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502007-55ER 25
00675000915
IC 80 bar1:1413502008-55ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502006-55ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-55TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
54
Doosan Puma TT1500, 1800, 2100 MS/SY/SYY
54
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-9242825
48-924661"
OD cutting holder, HP-IC
IC 80 bar48-92428-HP25
IC 80 bar48-92466-HP1"
OD cutting holder, long
48-8671125
48-867121"
OD cutting holder, both sides
48-9243825
48-924721"
OD cutting holder, both sides, HP-IC
IC 80 bar48-92438-HP25
IC 80 bar48-92472-HP1"
OD cutting holder, both sides, long
48-8452325
48-867181"
Face cutting holder
48-8671925
48-867201"
Face cutting holder, HP-IC
IC 80 bar48-109249-HP25
IC 80 bar48-109250-HP1"
Static Toolholders - Standard Program
Combination toolholder, LF=115
IC 80 bar48-86623Ø 40
241140020 ER32
241140026 ER40
IC 80 bar48-86624Ø 1 1/2"
2411150020 ER32
Cover plate
48-87089
55
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma TT2000, 2500 MS/SY
© WTO GmbH * Subject to change without notice * www.wto.de
55
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-8610325(1")
OD cutting holder, both sides, double, Y axis
48-8615025(1")
Cut-off holder, adjustable
48-99060SH 32
Cut-off holder, adjustable, long
48-100084SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102256RSH 32
IC 80 bar48-102256LSH 32
Cut-off holder, adjustable, long, HP-IC
IC 80 bar48-100082RSH 32
IC 80 bar48-100082LSH 32
© WTO GmbH * Subject to change without notice * www.wto.de
56
Doosan Puma TT2000, 2500 MS/SY
56
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132015-65ER-32 QF
0067732000
IC 80 bar1:1420132016-65ER-32 QF
0067732000
Right angle drill/milling unit, LF=100
EC1:1420532018-65ER-32 QF
0067732000
IC 80 bar1:1420532019-65ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
LF=100
EC1:1420532020-65ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit
EC1:1410126001-65ER 40
00675000079
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222002-65Ø 22
00675000483
EC1:1410225002-65Ø 1"
00675000483
Straight offset drill/milling unit
EC1:1420132037-65ER-32 QF
0067732000
IC 80 bar1:1420132038-65ER-32 QF
0067732000
EC1:2420125010-65ER-25 QF
0067725001
IC 80 bar1:2420125011-65ER-25 QF
0067725001
Right angle drill/milling unit, LF=100
EC1:1410526007-65ER 40
00675000079
IC 80 bar1:1410526008-65ER 40
00675000079
Right angle drill/milling unit, LF=100
EC1:2420525012-65ER-25 QF
0067725001
IC 80 bar1:2420525013-65ER-25 QF
0067725001
EC2:1420532029-65ER-32 QF
0067732000
IC 80 bar2:1420532030-65ER-32 QF
0067732000
57
© WTO GmbH * Subject to change without notice * www.wto.de
Doosan Puma TT2000, 2500 MS/SY
© WTO GmbH * Subject to change without notice * www.wto.de
57
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358, LF=100
EC1:1410622002-65Ø 22
00675000483
EC1:1410625002-65Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411010002-65ER 16
00675000902
IC 80 bar1:1411010003-65ER 16
00675000902
EC1:2411007002-65ER 11
00675000914
IC 80 bar1:2411007003-65ER 11
00675000914
Gear hobbing unit
EC1:1411500003-65Type 16-1
EC2:1411500002-65Type 16-1
00675000927
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Straight drill/milling unit, both sides
EC1:1413002001-65ER 25
00675000907
Driven Toolholders - Enhanced Program
Straight drill/milling unit, double, Y axis
EC1:1413002004-65ER 25
00675000907
2-spindle - Right angle drill/milling unit, Y
axis
EC1:1413502006-65ER 25
00675000915
IC 80 bar1:1413502007-65ER 25
00675000915
2-spindle - Right angle drill/milling unit, both
sides, Y axis
EC1:1413502008-65ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-65TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
58
Doosan Puma TT2000, 2500 MS/SY
58
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 14240025014
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 25240050025
ø 32240050032
ø 40240050040
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 60
ø 12240060012
ø 16240060016
ø 20240060020
ø 25240060025
ø 32240060032
ø 40240060040
ø 50240060050
Reduction sleeve Ø 80
ø 20240080020
ø 25240080025
ø 32240080032
ø 40240080040
ø 50240080050
ø 60240080060
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
59
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
59
Standard reduction sleeves - cylindrical, with
slot
Reduction sleeve Ø 40
ø 10240140010
ø 12240140012
ø 15240140015
ø 16240140016
ø 20240140020
ø 25240140025
ø 32240140032
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
Reduction sleeve Ø 50
MT 2240550002
MT 3240550003
MT 4240550004
© WTO GmbH * Subject to change without notice * www.wto.de
60
Accessories - Reduction sleeves
60
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
61
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
61
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
62
Accessories - Collets
62
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
63
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
63
CLX 350 V3-V4
CLX 350 V6
CLX 450/550 V3-V4
CLX 450/550/750 V6
CTX 2500 V3-V4
CTX 2500 V6
Sprint 50
Sprint 65
Tool Holder Program
QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
Designed
for
© WTO GmbH * Subject to change without notice * www.wto.de
2
2
© WTO GmbH * Subject to change without notice * www.wto.de
4 - 6PageCLX 350 V3-V4
7 - 13PageCLX 350 V6
14 - 16PageCLX 450/550 V3-V4
17 - 24PageCLX 450/550/750 V6
25 - 27PageCTX 2500 V3-V4
28 - 35PageCTX 2500 V6
36 - 39PageSprint 50
40 - 46PageSprint 65
47 - 48PageReduction sleeves
49 - 51PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
Radial square toolholder, right hand, short,
Form B1
48-B1-30x2020(16)
48-B1-30x20x6020(16)
Radial square toolholder, right hand inverted,
short, Form B3
48-B3-30x2020(16)
Radial square toolholder, right hand, long,
Form B5
48-B5-30x2020(16)
Radial square toolholder, right hand inverted,
long, Form B7
48-B7-30x2020(16)
Radial square toolholder, HP-IC - double VDI
serration
IC 80 bar48-105980R-HP20
IC 80 bar48-105980L-HP20
Axial square toolholder, right hand, Form C1
48-C1-30x2020(16)
48-C1-30x0753/4"
Axial square toolholder, right hand inverted,
Form C3
48-C3-30x2020(16)
48-C3-30x0753/4"
Cut-off holder, adjustable height, right hand
48-AR-30x26SH 26
Static Toolholders - Standard Program
Cut-off holder, adjustable height, right hand
inverted
48-ARU-30x26SH 26
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102686RSH 26
IC 80 bar48-102686LSH 26
IC 80 bar48-102688RSH 32
IC 80 bar48-102688LSH 32
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-30x16Ø 16
48-E1-30x20Ø 20
48-E1-30x25Ø 25
48-E1-30x32Ø 32
Boring bar holder, internal coolant supply,
Form E2
48-E2-30x8Ø 8
48-E2-30x10Ø 10
48-E2-30x12Ø 12
48-E2-30x16Ø 16
48-E2-30x20Ø 20
48-E2-30x25Ø 25
48-E2-30x30Ø 30
48-E2-30x32Ø 32
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-30x25ER 25
107525000
48-E4-30x32ER 32
107532000
48-E4-30x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-30-SSteel
© WTO GmbH * Subject to change without notice * www.wto.de
4
DMG MORI CLX 350 V3-V4
4
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125010-30RER-25 QF
0067725010
IC 80 bar1:1420125019-30RER-25 QF
0067725010
Right angle drill/milling unit
EC1:1420525066-30RER-25 QF
0067725010
IC 80 bar1:1420525067-30RER-25 QF
0067725010
Right angle back set drill/milling unit
EC1:1420525062-30RER-25 QF
0067725010
IC 80 bar1:1420525063-30RER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight milling unit
EC1:1410216014-30Ø 16
00675000854
Straight offset drill/milling unit
EC1:1410116094-30ER 25
00675000801
IC 80 bar1:1410116095-30ER 25
00675000801
EC1:2410113029-30ER 20
00675000591
IC 80 bar1:2410113030-30ER 20
00675000591
EC2:1410120035-30ER 32
00675000592
IC 80 bar2:1410120036-30ER 32
00675000592
Straight offset drill/milling unit - double VDI
serration
EC1:3410410002-30ER 16
00675000937
IC 80 bar1:3410410001-30ER 16
00675000937
Right angle drill/milling unit
EC1:2420520011-30RER-20 QF
0067720000
IC 80 bar1:2420520012-30RER-20 QF
0067720000
EC2:1420525087-30RER-25 QF
0067725010
IC 80 bar2:1420525088-30RER-25 QF
0067725010
5
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 350 V3-V4
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - Enhanced Program
Right angle back set drill/milling unit
EC2:1410516136-30ER 25
00675000801
IC 80 bar2:1410516137-30ER 25
00675000801
Right angle milling unit with combination mill
arbor DIN 6358
EC1:1410616021-30Ø 16
00675000854
EC1:1410622011-30Ø 22
00675000160
Adjustable angle drill/milling unit
EC1:1411010003-30ER 16
00675000902
IC 80 bar1:1411010004-30ER 16
00675000902
EC1:2411007016-30ER 11
00675000914
IC 80 bar1:2411007017-30ER 11
00675000914
Slitting saw unit
EC2.62:1410900008-30Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Driven Toolholders - Enhanced Program
Broaching unit for ID and OD
EC1:1414132000-30TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
6
DMG MORI CLX 350 V3-V4
6
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Axial square toolholder, right hand, Form C1
48-C1-30x2020(16)
48-C1-30x0753/4"
Axial square toolholder, left hand, Form C2
48-C2-30x2020(16)
Axial square toolholder, right hand inverted,
Form C3
48-C3-30x2020(16)
48-C3-30x0753/4"
Axial square toolholder, left hand inverted,
Form C4
48-C4-30x2020(16)
Universal square toolholder, Form D1
48-D1-30x2020(16)
Universal square toolholder, inverted, Form
D2
48-D2-30x2020(16)
OD cutting holder, left
48-71932
R4Z410W
20
OD cutting holder, right
48-72047
R4Z230W
20
Static Toolholders - Standard Program
OD cutting holder, both sides
48-71216
R6Z410W
20
Face cutting holder
48-10575620
Face cutting holder, Trifix®
48-10979320
Combination toolholder, universal, LF=100
48-71434Ø 32
241132016 ER25
241132020 ER32
Combination toolholder, universal, Trifix®,
LF=100
48-96995Ø 32
241132016 ER25
241132020 ER32
Combination toolholder, back set, left hand,
LF=100
48-71438Ø 32
241132016 ER25
241132020 ER32
48-74548Ø 1 1/4"
Combination toolholder, back set, left hand,
Trifix®, LF=100
48-97531Ø 32
241132016 ER25
241132020 ER32
48-97536Ø 1 1/4"
7
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 350 V6
© WTO GmbH * Subject to change without notice * www.wto.de
7
Static Toolholders - Standard Program
Combination toolholder, back set, right hand,
LF=100
48-71436Ø 32
241132016 ER25
241132020 ER32
48-74544Ø 1 1/4"
Combination toolholder, back set, right hand,
Trifix®, LF=100
48-97553Ø 32
241132016 ER25
241132020 ER32
48-97555Ø 1 1/4"
Combination toolholder, both sides, LF=100
48-88781Ø 32
Combination toolholder, both sides, Trifix®,
LF=100
48-97496Ø 32
Collet face drill holder, LF=100
IC 80 bar48-82824ER 32
107532000
Collet face drill holder, Trifix®, LF=100
IC 80 bar48-100198ER 32
107532000
Collet face drill holder, both sides, LF=100
IC 80 bar48-82847ER 32
107532000
Static Toolholders - Standard Program
Collet face drill holder, both sides, Trifix®,
LF=100
IC 80 bar48-100199ER 32
107532000
Plug, steel, Form Z2
48-Z2-30-SSteel
© WTO GmbH * Subject to change without notice * www.wto.de
8
DMG MORI CLX 350 V6
8
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, HP-IC - double VDI
serration
IC 80 bar48-105977-HP20
OD cutting holder, both sides, HP-IC
IC 80 bar48-71216-HP20
OD cutting holder, double, Y axis - double
VDI serration
48-8459320 (3/4")
OD cutting holder, both sides, double, Y axis
48-77395
442750W
20 (3/4")
Cut-off holder, adjustable - double VDI
serration
48-98991
R4Z451W
SH 26
48-99017
R9Z450
SH 32
Cut-off holder, adjustable, HP-IC - double VDI
serration
IC 80 bar48-102630RSH 26
IC 80 bar48-102630LSH 26
IC 80 bar48-102632RSH 32
IC 80 bar48-102632LSH 32
Combination toolholder, universal, Trifix®,
LF=100 - BMT
48-99669Ø 40
241140020 ER32
241140026 ER40
Static Toolholders - Enhanced Program
Boring bar holder, with slot, LF=100
48-87088Ø 32
Boring bar holder, with slot, Trifix®, LF=100
48-97588Ø 32
Boring bar holder, with slot, Trifix®, LF=100
- BMT
48-96994Ø 40
Combination toolholder, universal, double,
Y axis, LF=100
48-79026Ø 25
241125016 ER25
Combination toolholder, universal, double,
Y axis, Trifix®, LF=100
48-99635Ø 25
241125016 ER25
9
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 350 V6
© WTO GmbH * Subject to change without notice * www.wto.de
9
Driven Toolholders - QuickFlex®
Straight drill/milling unit (6000 RPM)
EC1:1420125010-30L
440441W
ER-25 QF
0067725010
IC 80 bar1:1420125019-30LER-25 QF
0067725010
Straight drill/milling unit (12000 RPM)
EC1:1420125014-30LER-25 QF
0067725010
IC 80 bar1:1420125015-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (6000
RPM)
EC1:1420525055-30LER-25 QF
0067725010
IC 80 bar1:1420525056-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (12000
RPM)
EC1:1420525106-30LER-25 QF
0067725010
IC 80 bar1:1420525107-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (6000
RPM)
EC1:1420525055-30RER-25 QF
0067725010
IC 80 bar1:1420525056-30RER-25 QF
0067725010
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, Trifix®, (12000
RPM)
EC1:1420525106-30RER-25 QF
0067725010
IC 80 bar1:1420525107-30RER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(6000 RPM)
EC1:1420525089-30LER-25 QF
0067725010
IC 80 bar1:1420525090-30LER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(12000 RPM)
EC1:1420525060-30LER-25 QF
0067725010
IC 80 bar1:1420525061-30LER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(6000 RPM)
EC1:1420525089-30RER-25 QF
0067725010
IC 80 bar1:1420525090-30RER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(12000 RPM)
EC1:1420525060-30RER-25 QF
0067725010
IC 80 bar1:1420525061-30RER-25 QF
0067725010
© WTO GmbH * Subject to change without notice * www.wto.de
10
DMG MORI CLX 350 V6
10
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides,
Trifix®, (6000 RPM)
EC1:1420525086-30ER-25 QF
0067725010
Right angle drill/milling unit, both sides,
Trifix®, (12000 RPM)
EC1:1420525095-30ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit - BMT
EC1:1420132010-30ER-32 QF
0067732000
IC 80 bar1:1420132011-30ER-32 QF
0067732000
Straight milling unit
EC1:1410216014-30Ø 16
00675000854
Straight offset drill/milling unit
EC1:1410116058-30ER 25
00675000801
IC 80 bar1:1410116057-30ER 25
00675000801
EC1:2410113010-30ER 20
00675000591
IC 80 bar1:2410113009-30ER 20
00675000591
EC2:1410116059-30ER 25
00675000801
IC 80 bar2:1410116060-30ER 25
00675000801
EC2:1410120027-30ER 32
00675000592
IC 80 bar2:1410120032-30ER 32
00675000592
Straight offset drill/milling unit - double VDI
serration
EC1:3410410002-30ER 16
00675000937
IC 80 bar1:3410410001-30ER 16
00675000937
11
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 350 V6
© WTO GmbH * Subject to change without notice * www.wto.de
11
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420520013-30ER-20 QF
0067720000
IC 80 bar1:2420520014-30ER-20 QF
0067720000
EC1:3410810012-30ER 16
00675000841
IC 80 bar1:3410810013-30ER 16
00675000841
EC2:1420525096-30ER-25 QF
0067725010
IC 80 bar2:1420525097-30ER-25 QF
0067725010
Right angle drill/milling unit, Trifix®
EC1:2420520015-30LER-20 QF
0067720000
IC 80 bar1:2420520016-30LER-20 QF
0067720000
Right angle back set drill/milling unit
EC2:1410520013-30ER 32
00675000592
IC 80 bar2:1410520014-30ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010015-30ER 16
00675000902
IC 80 bar1:1411010016-30ER 16
00675000902
EC1:2411007018-30ER 11
00675000914
IC 80 bar1:2411007019-30ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.62:1410900015-30Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Gear hobbing unit, Trifix®
EC1:1410900025-30Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Drill/milling unit - double, Y axis
EC1:1.5413002008-30ER 25
00675000930
IC 80 bar1:1.5413002009-30ER 25
00675000930
© WTO GmbH * Subject to change without notice * www.wto.de
12
DMG MORI CLX 350 V6
12
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-30ER 25
00675000915
IC 80 bar1:1413502004-30ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502009-30ER 25
00675000915
Broaching unit for ID and OD, Trifix® - BMT
EC1:1414532001-30LTN765050
Broaching unit for ID and OD, Trifix® - BMT
EC1:1414532001-30RTN765050
13
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 350 V6
© WTO GmbH * Subject to change without notice * www.wto.de
13
Static Toolholders - Standard Program
Face cutting holder
48-PU2-25-2525
Combination toolholder
IC 80 bar48-PU1-25-20Ø 20
IC 80 bar48-PU1-25-25Ø 25
IC 80 bar48-PU1-25-32Ø 32
IC 80 bar48-PU1-25-40Ø 40
IC 80 bar48-PU1-25-50Ø 50
VDI adapter, right
48-99856VDI 40
Radial square toolholder, right hand, short,
Form B1
48-B1-40x2525(20)
Radial square toolholder, right hand inverted,
short, Form B3
48-B3-40x2525(20)
Radial square toolholder, right hand, long,
Form B5
48-B5-40x2525(20)
48-B5-40x1001"
Radial square toolholder, right hand inverted,
long, Form B7
48-B7-40x2525(20)
48-B7-40x1001"
Radial square toolholder, HP-IC - double VDI
serration
IC 80 bar48-105989R-HP
343-810100R71
25
IC 80 bar48-102790L-HP25
Static Toolholders - Standard Program
Axial square toolholder, right hand, Form C1
48-C1-40x2525(20)
Axial square toolholder, right hand inverted,
Form C3
48-C3-40x2525(20)
Cut-off holder, adjustable height, right hand
48-AR-40x26SH 26
48-AR-40x32SH 32
Cut-off holder, adjustable height, right hand
inverted
48-ARU-40x26SH 26
48-ARU-40x32SH 32
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102690RSH 32
IC 80 bar48-102690LSH 32
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-40x16Ø 16
48-E1-40x20Ø 20
48-E1-40x25Ø 25
48-E1-40x32Ø 32
48-E1-40x40Ø 40
© WTO GmbH * Subject to change without notice * www.wto.de
14
DMG MORI CLX 450/550 V3-V4
14
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Boring bar holder, internal coolant supply,
Form E2
48-E2-40x8Ø 8
48-E2-40x10Ø 10
48-E2-40x12Ø 12
48-E2-40x16Ø 16
48-E2-40x20Ø 20
48-E2-40x25Ø 25
48-E2-40x30Ø 30
48-E2-40x32Ø 32
48-E2-40x40Ø 40
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-40x25ER 25
107525000
48-E4-40x32ER 32
107532000
48-E4-40x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132077-40R
442145W, T32595
ER-32 QF
0067732000
IC 80 bar1:1420132078-40RER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532042-40R
442275W
ER-32 QF
0067732000
IC 80 bar1:1420532043-40RER-32 QF
0067732000
Right angle back set drill/milling unit
EC1:1420532037-40RER-32 QF
0067732000
IC 80 bar1:1420532038-40RER-32 QF
0067732000
15
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 450/550 V3-V4
© WTO GmbH * Subject to change without notice * www.wto.de
15
Driven Toolholders - Enhanced Program
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222025-40Ø 22
00675000479
Straight offset drill/milling unit
EC1:1420132054-40RER-32 QF
0067732000
IC 80 bar1:1420132055-40RER-32 QF
0067732000
EC1:2420125024-40RER-25 QF
0067725001
IC 80 bar1:2420125025-40RER-25 QF
0067725001
EC2:1420132056-40RER-32 QF
0067732000
IC 80 bar2:1420132057-40RER-32 QF
0067732000
Straight offset drill/milling unit - double VDI
serration
EC1:3410410001-40ER 16
00675000937
IC 80 bar1:3410410002-40ER 16
00675000937
Right angle drill/milling unit
EC1:2420525058-40ER-25 QF
0067725001
IC 80 bar1:2420525059-40ER-25 QF
0067725001
Right angle back set drill/milling unit
EC2:1420540027-40RER-40 QF
0067740000
IC 80 bar2:1420540028-40RER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411013019-40ER 20
00675000928
IC 80 bar1:1411013026-40ER 20
00675000928
EC1:1411016006-40ER 25
00675000934
IC 80 bar1:1411016024-40ER 25
00675000934
EC1:2411010012-40ER 16
00675000936
IC 80 bar1:2411010013-40ER 16
00675000936
Offset slitting saw unit
EC2.73:1411500009-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414132002-40TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
16
DMG MORI CLX 450/550 V3-V4
16
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder - double VDI serration
48-8598225
48-866551"
OD cutting holder, both sides
48-59098
442340
25
OD cutting holder, both sides, extended
48-683061"
Face cutting holder
48-8758925
48-875911"
Face cutting holder, Trifix®
48-9652825
48-969741"
Combination toolholder, universal, LF=120
48-64021Ø 40
241140020 ER32
48-64020Ø 1 1/2"
Combination toolholder, universal, Trifix®,
LF=120
48-96530
T12138
Ø 40
241140020 ER32
241140026 ER40
Static Toolholders - Standard Program
Combination toolholder, back set - double
VDI serration, LF=120
48-110591Ø 40
241140020 ER32
48-78916Ø 1 1/2"
Combination toolholder, back set, left hand,
Trifix®, LF=120
48-110694Ø 40
241140026 ER40
241140020 ER32
Combination toolholder, back set, right hand,
Trifix®, LF=120
48-97044Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, both sides, LF=120
48-97388Ø 40
Combination toolholder, both sides, Trifix®,
LF=120
48-97036
T12139
Ø 40
Collet face drill holder, both sides, LF=120
IC 80 bar48-66629ER 32
107532000
IC 80 bar48-97389ER 40
107540000
17
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 450/550/750 V6
© WTO GmbH * Subject to change without notice * www.wto.de
17
Static Toolholders - Standard Program
Collet face drill holder, both sides, Trifix®,
LF=120
IC 80 bar48-97051ER 32
107532000
IC 80 bar48-97052ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
Static Toolholders - Enhanced Program
OD cutting holder, HP-IC - double VDI
serration
IC 80 bar48-105986-HP25
IC 80 bar48-110821-HP1"
OD cutting holder, both sides, HP-IC
48-59098-HP25
48-110817-HP1"
OD cutting holder, double, Y axis - double
VDI serration
48-8608025(1")
OD cutting holder, both sides, double, Y axis
48-8977925(1")
Cut-off holder, adjustable - double VDI
serration
48-98963
R9Z455, T00460,
T00461
SH 32
Cut-off holder, adjustable, HP-IC - double VDI
serration
IC 80 bar48-102643RSH 32
IC 80 bar48-102643LSH 32
Cut-off holder, adjustable, long, HP-IC -
double VDI serration
IC 80 bar48-99091R
343-810100R8
SH 32
IC 80 bar48-99091L
343-810100L8
SH 32
Combination toolholder, back set, left hand,
Trifix®, LF=120 - BMT
48-111059Ø 40
241140020 ER32
241140026 ER40
© WTO GmbH * Subject to change without notice * www.wto.de
18
DMG MORI CLX 450/550/750 V6
18
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Combination toolholder, universal, Trifix®,
LF=120 - BMT
48-97097Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, back set, right hand,
Trifix®, LF=120 - BMT
48-97164Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, both sides, Trifix®,
LF=120 - BMT
48-97105Ø 40
Boring bar holder, with slot, Trifix®, LF=120
- BMT
48-97257Ø 50
Combination toolholder, universal, double,
Y axis, LF=120
48-86296Ø 32
241132016 ER25
241132020 ER32
48-86234Ø 1 1/4"
Combination toolholder, universal, double,
Y axis, Trifix®, L=120
48-96531Ø 32
241132016 ER25
241132020 ER32
19
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 450/550/750 V6
© WTO GmbH * Subject to change without notice * www.wto.de
19
Driven Toolholders - QuickFlex®
Straight drill/milling unit (6000 RPM)
EC1:1420132077-40LER-32 QF
0067732000
IC 80 bar1:1420132078-40LER-32 QF
0067732000
Straight drill/milling unit (10000 RPM)
EC1:1420132069-40L
442141W
ER-32 QF
0067732000
IC 80 bar1:1420132070-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(6000 RPM)
EC1:1420532018-40L
T32591
ER-32 QF
0067732000
IC 80 bar1:1420532019-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(10000 RPM)
EC1:1420532026-40L
T32593
ER-32 QF
0067732000
IC 80 bar1:1420532027-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(6000 RPM)
EC1:1420532018-40R
T32592
ER-32 QF
0067732000
IC 80 bar1:1420532019-40RER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, Trifix®, LF=120,
(10000 RPM)
EC1:1420532026-40R
T32594
ER-32 QF
0067732000
IC 80 bar1:1420532027-40RER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (6000 RPM)
EC1:1420532034-40LER-32 QF
0067732000
IC 80 bar1:1420532035-40LER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (10000 RPM)
EC1:1420532064-40LER-32 QF
0067732000
IC 80 bar1:1420532065-40LER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (6000 RPM)
EC1:1420532034-40RER-32 QF
0067732000
IC 80 bar1:1420532035-40RER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (10000 RPM)
EC1:1420532064-40RER-32 QF
0067732000
IC 80 bar1:1420532065-40RER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
20
DMG MORI CLX 450/550/750 V6
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides,
Trifix®, LF=120, (6000 RPM)
EC1:1420532020-40
T32597
ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
Trifix®, LF=120, (10000 RPM)
EC1:1420532127-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit - BMT
EC1:1420140010-40ER-40 QF
0067740000
IC 80 bar1:1420140011-40ER-40 QF
0067740000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222025-40Ø 22
00675000479
Straight milling unit - BMT - with combination
mill arbor DIN 6358
EC1:1410222022-40Ø 22
00675000479
EC1:1410227010-40Ø 27
00675000480
Straight offset drill/milling unit
EC1:1420132054-40LER-32 QF
0067732000
IC 80 bar1:1420132055-40LER-32 QF
0067732000
EC1:2420125024-40LER-25 QF
0067725001
IC 80 bar1:2420125025-40LER-25 QF
0067725001
EC2:1420132056-40LER-32 QF
0067732000
IC 80 bar2:1420132057-40LER-32 QF
0067732000
Straight offset drill/milling unit, Trifix®
EC1:2420125039-40LER-25 QF
0067725001
IC 80 bar1:2420125038-40LER-25 QF
0067725001
21
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 450/550/750 V6
© WTO GmbH * Subject to change without notice * www.wto.de
21
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit, Trifix®
EC1:2420125039-40RER-25 QF
0067725001
IC 80 bar1:2420125038-40RER-25 QF
0067725001
Right angle drill/milling unit, Trifix®, LF=100
- BMT
EC1:1420532028-40LER-32 QF
0067732000
IC 80 bar1:1420532029-40LER-32 QF
0067732000
EC2:1420540010-40LER-40 QF
0067740000
IC 80 bar2:1420540011-40LER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=100
- BMT
EC1:1420532028-40RER-32 QF
0067732000
IC 80 bar1:1420532029-40RER-32 QF
0067732000
EC2:1420540010-40RER-40 QF
0067740000
IC 80 bar2:1420540011-40RER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, Trifix®, LF=120
- BMT
EC1:1420532030-40LER-32 QF
0067732000
IC 80 bar1:1420532031-40LER-32 QF
0067732000
EC1:1420540014-40LER-40 QF
0067740000
IC 80 bar1:1420540015-40LER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=120
- BMT
EC1:1420532030-40RER-32 QF
0067732000
IC 80 bar1:1420532031-40RER-32 QF
0067732000
EC1:1420540014-40RER-40 QF
0067740000
IC 80 bar1:1420540015-40RER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=120
EC1:2420525019-40LER-25 QF
0067725000
IC 80 bar1:2420525020-40LER-25 QF
0067725000
Right angle drill/milling unit, Trifix®, LF=120
EC1:2420525019-40RER-25 QF
0067725000
IC 80 bar1:2420525020-40RER-25 QF
0067725000
© WTO GmbH * Subject to change without notice * www.wto.de
22
DMG MORI CLX 450/550/750 V6
22
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, both sides,
Trifix®, LF=120 - BMT
EC1:1420540016-40ER-40 QF
0067740000
Right angle milling unit with combination mill
arbor DIN 6358, double VDI serration, LF=100
EC2:1410622028-40Ø 22
00675000160
EC2:1410627015-40Ø 27
00675000211
Right angle milling unit with combination mill
arbor DIN 6358, Trifix®, LF=100 - BMT
EC2:1410622031-40LØ 22
00675000160
EC2:1410627016-40LØ 27
00675000211
Right angle milling unit with combination mill
arbor DIN 6358, Trifix®, LF=100 - BMT
EC2:1410622031-40RØ 22
00675000160
EC2:1410627016-40RØ 27
00675000211
Adjustable angle drill/milling unit
EC1:1411013018-40ER 20
00675000928
IC 80 bar1:1411013029-40ER 20
00675000928
EC1:2411010030-40ER 16
00675000936
IC 80 bar1:2411010031-40ER 16
00675000936
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.62:1410900013-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
23
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CLX 450/550/750 V6
© WTO GmbH * Subject to change without notice * www.wto.de
23
Driven Toolholders - Enhanced Program
Gear hobbing unit, Trifix®
EC1:1411500041-40LType 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500037-40LType 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Drill/milling unit - double, Y axis
EC1:1.5413002034-40ER 25
00675000930
IC 80 bar1:1.5413002035-40ER 25
00675000930
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis,
LF=120, Trifix®
EC1:1413502024-40LER 25
00675000915
IC 80 bar1:1413502025-40LER 25
00675000915
2-spindle - Face drill/milling unit, Y axis,
LF=120, Trifix®
EC1:1413502024-40RER 25
00675000915
IC 80 bar1:1413502025-40RER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis, LF=120, Trifix®
EC1:1413502026-40ER 25
00675000915
Broaching unit for ID and OD, Trifix®, LF=100
- BMT
EC1:1414532007-40LTN765050
Broaching unit for ID and OD, Trifix®, LF=100
- BMT
EC1:1414532007-40RTN765050
© WTO GmbH * Subject to change without notice * www.wto.de
24
DMG MORI CLX 450/550/750 V6
24
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Face cutting holder
48-PU2-25-2525
Combination toolholder
IC 80 bar48-PU1-25-20Ø 20
IC 80 bar48-PU1-25-25Ø 25
IC 80 bar48-PU1-25-32Ø 32
IC 80 bar48-PU1-25-40Ø 40
IC 80 bar48-PU1-25-50Ø 50
VDI adapter, right
48-99856VDI 40
Radial square toolholder, right hand, short,
Form B1
48-B1-40x2525(20)
Radial square toolholder, right hand inverted,
short, Form B3
48-B3-40x2525(20)
Radial square toolholder, right hand, long,
Form B5
48-B5-40x2525(20)
48-B5-40x1001"
Radial square toolholder, right hand inverted,
long, Form B7
48-B7-40x2525(20)
48-B7-40x1001"
Radial square toolholder, HP-IC - double VDI
serration
IC 80 bar48-105989R-HP
343-810100R71
25
IC 80 bar48-102790L-HP25
Static Toolholders - Standard Program
Axial square toolholder, right hand, Form C1
48-C1-40x2525(20)
Axial square toolholder, right hand inverted,
Form C3
48-C3-40x2525(20)
Cut-off holder, adjustable height, right hand
48-AR-40x26SH 26
48-AR-40x32SH 32
Cut-off holder, adjustable height, right hand
inverted
48-ARU-40x26SH 26
48-ARU-40x32SH 32
Cut-off holder, adjustable height, HP-IC
IC 80 bar48-102690RSH 32
IC 80 bar48-102690LSH 32
Holder for indexable insert drills, internal
coolant supply, Form E1
48-E1-40x16Ø 16
48-E1-40x20Ø 20
48-E1-40x25Ø 25
48-E1-40x32Ø 32
48-E1-40x40Ø 40
25
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V3-V4
© WTO GmbH * Subject to change without notice * www.wto.de
25
Static Toolholders - Standard Program
Boring bar holder, internal coolant supply,
Form E2
48-E2-40x8Ø 8
48-E2-40x10Ø 10
48-E2-40x12Ø 12
48-E2-40x16Ø 16
48-E2-40x20Ø 20
48-E2-40x25Ø 25
48-E2-40x30Ø 30
48-E2-40x32Ø 32
48-E2-40x40Ø 40
ER collet chuck holder, internal coolant
supply, Form E4
48-E4-40x25ER 25
107525000
48-E4-40x32ER 32
107532000
48-E4-40x40ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420132077-40R
442145W, T32595
ER-32 QF
0067732000
IC 80 bar1:1420132078-40RER-32 QF
0067732000
Right angle drill/milling unit
EC1:1420532042-40R
442275W
ER-32 QF
0067732000
IC 80 bar1:1420532043-40RER-32 QF
0067732000
Right angle back set drill/milling unit
EC1:1420532037-40RER-32 QF
0067732000
IC 80 bar1:1420532038-40RER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
26
DMG MORI CTX 2500 V3-V4
26
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222025-40Ø 22
00675000479
Straight offset drill/milling unit
EC1:1420132054-40RER-32 QF
0067732000
IC 80 bar1:1420132055-40RER-32 QF
0067732000
EC1:2420125024-40RER-25 QF
0067725001
IC 80 bar1:2420125025-40RER-25 QF
0067725001
EC2:1420132056-40RER-32 QF
0067732000
IC 80 bar2:1420132057-40RER-32 QF
0067732000
Straight offset drill/milling unit - double VDI
serration
EC1:3410410001-40ER 16
00675000937
IC 80 bar1:3410410002-40ER 16
00675000937
Right angle drill/milling unit
EC1:2420525058-40ER-25 QF
0067725001
IC 80 bar1:2420525059-40ER-25 QF
0067725001
Right angle back set drill/milling unit
EC2:1420540027-40RER-40 QF
0067740000
IC 80 bar2:1420540028-40RER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411013019-40ER 20
00675000928
IC 80 bar1:1411013026-40ER 20
00675000928
EC1:1411016006-40ER 25
00675000934
IC 80 bar1:1411016024-40ER 25
00675000934
EC1:2411010012-40ER 16
00675000936
IC 80 bar1:2411010013-40ER 16
00675000936
Offset slitting saw unit
EC2.73:1411500009-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Broaching unit for ID and OD
EC1:1414132002-40TN765050
27
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V3-V4
27
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder - double VDI serration
48-8598225
48-866551"
OD cutting holder, both sides
48-59098
442340
25
OD cutting holder, both sides, extended
48-683061"
Face cutting holder
48-8758925
48-875911"
Face cutting holder, Trifix®
48-9652825
48-969741"
Combination toolholder, universal, LF=120
48-64021Ø 40
241140020 ER32
48-64020Ø 1 1/2"
Combination toolholder, universal, Trifix®,
LF=120
48-96530
T12138
Ø 40
241140020 ER32
241140026 ER40
Static Toolholders - Standard Program
Combination toolholder, back set - double
VDI serration, LF=120
48-110591Ø 40
241140020 ER32
48-78916Ø 1 1/2"
Combination toolholder, back set, left hand,
Trifix®, LF=120
48-110694Ø 40
241140026 ER40
241140020 ER32
Combination toolholder, back set, right hand,
Trifix®, LF=120
48-97044Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, both sides, LF=120
48-97388Ø 40
Combination toolholder, both sides, Trifix®,
LF=120
48-97036
T12139
Ø 40
Collet face drill holder, both sides, LF=120
IC 80 bar48-66629ER 32
107532000
IC 80 bar48-97389ER 40
107540000
© WTO GmbH * Subject to change without notice * www.wto.de
28
DMG MORI CTX 2500 V6
28
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Collet face drill holder, both sides, Trifix®,
LF=120
IC 80 bar48-97051ER 32
107532000
IC 80 bar48-97052ER 40
107540000
Plug, steel, Form Z2
48-Z2-40-SSteel
Static Toolholders - Enhanced Program
OD cutting holder, HP-IC - double VDI
serration
IC 80 bar48-105986-HP25
IC 80 bar48-110821-HP1"
OD cutting holder, both sides, HP-IC
48-59098-HP25
48-110817-HP1"
OD cutting holder, double, Y axis - double
VDI serration
48-8608025(1")
OD cutting holder, both sides, double, Y axis
48-8977925(1")
Cut-off holder, adjustable - double VDI
serration
48-98963
R9Z455, T00460,
T00461
SH 32
Cut-off holder, adjustable, HP-IC - double VDI
serration
IC 80 bar48-102643RSH 32
IC 80 bar48-102643LSH 32
Cut-off holder, adjustable, long, HP-IC -
double VDI serration
IC 80 bar48-99091R
343-810100R8
SH 32
IC 80 bar48-99091L
343-810100L8
SH 32
Combination toolholder, back set, left hand,
Trifix®, LF=120 - BMT
48-111059Ø 40
241140020 ER32
241140026 ER40
29
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V6
© WTO GmbH * Subject to change without notice * www.wto.de
29
Static Toolholders - Enhanced Program
Combination toolholder, universal, Trifix®,
LF=120 - BMT
48-97097Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, back set, right hand,
Trifix®, LF=120 - BMT
48-97164Ø 40
241140020 ER32
241140026 ER40
Combination toolholder, both sides, Trifix®,
LF=120 - BMT
48-97105Ø 40
Boring bar holder, with slot, Trifix®, LF=120
- BMT
48-97257Ø 50
Combination toolholder, universal, double,
Y axis, LF=120
48-86296Ø 32
241132016 ER25
241132020 ER32
48-86234Ø 1 1/4"
Combination toolholder, universal, double,
Y axis, Trifix®, L=120
48-96531Ø 32
241132016 ER25
241132020 ER32
© WTO GmbH * Subject to change without notice * www.wto.de
30
DMG MORI CTX 2500 V6
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit (6000 RPM)
EC1:1420132077-40LER-32 QF
0067732000
IC 80 bar1:1420132078-40LER-32 QF
0067732000
Straight drill/milling unit (10000 RPM)
EC1:1420132069-40L
442141W
ER-32 QF
0067732000
IC 80 bar1:1420132070-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(6000 RPM)
EC1:1420532018-40L
T32591
ER-32 QF
0067732000
IC 80 bar1:1420532019-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(10000 RPM)
EC1:1420532026-40L
T32593
ER-32 QF
0067732000
IC 80 bar1:1420532027-40LER-32 QF
0067732000
Right angle drill/milling unit, Trifix®, LF=120,
(6000 RPM)
EC1:1420532018-40R
T32592
ER-32 QF
0067732000
IC 80 bar1:1420532019-40RER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, Trifix®, LF=120,
(10000 RPM)
EC1:1420532026-40R
T32594
ER-32 QF
0067732000
IC 80 bar1:1420532027-40RER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (6000 RPM)
EC1:1420532034-40LER-32 QF
0067732000
IC 80 bar1:1420532035-40LER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (10000 RPM)
EC1:1420532064-40LER-32 QF
0067732000
IC 80 bar1:1420532065-40LER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (6000 RPM)
EC1:1420532034-40RER-32 QF
0067732000
IC 80 bar1:1420532035-40RER-32 QF
0067732000
Right angle back set drill/milling unit, Trifix®,
LF=120, (10000 RPM)
EC1:1420532064-40RER-32 QF
0067732000
IC 80 bar1:1420532065-40RER-32 QF
0067732000
31
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V6
© WTO GmbH * Subject to change without notice * www.wto.de
31
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides,
Trifix®, LF=120, (6000 RPM)
EC1:1420532020-40
T32597
ER-32 QF
0067732000
Right angle drill/milling unit, both sides,
Trifix®, LF=120, (10000 RPM)
EC1:1420532127-40ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Straight drill/milling unit - BMT
EC1:1420140010-40ER-40 QF
0067740000
IC 80 bar1:1420140011-40ER-40 QF
0067740000
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410222025-40Ø 22
00675000479
Straight milling unit - BMT - with combination
mill arbor DIN 6358
EC1:1410222022-40Ø 22
00675000479
EC1:1410227010-40Ø 27
00675000480
Straight offset drill/milling unit
EC1:1420132054-40LER-32 QF
0067732000
IC 80 bar1:1420132055-40LER-32 QF
0067732000
EC1:2420125024-40LER-25 QF
0067725001
IC 80 bar1:2420125025-40LER-25 QF
0067725001
EC2:1420132056-40LER-32 QF
0067732000
IC 80 bar2:1420132057-40LER-32 QF
0067732000
Straight offset drill/milling unit, Trifix®
EC1:2420125039-40LER-25 QF
0067725001
IC 80 bar1:2420125038-40LER-25 QF
0067725001
© WTO GmbH * Subject to change without notice * www.wto.de
32
DMG MORI CTX 2500 V6
32
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Straight offset drill/milling unit, Trifix®
EC1:2420125039-40RER-25 QF
0067725001
IC 80 bar1:2420125038-40RER-25 QF
0067725001
Right angle drill/milling unit, Trifix®, LF=100
- BMT
EC1:1420532028-40LER-32 QF
0067732000
IC 80 bar1:1420532029-40LER-32 QF
0067732000
EC2:1420540010-40LER-40 QF
0067740000
IC 80 bar2:1420540011-40LER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=100
- BMT
EC1:1420532028-40RER-32 QF
0067732000
IC 80 bar1:1420532029-40RER-32 QF
0067732000
EC2:1420540010-40RER-40 QF
0067740000
IC 80 bar2:1420540011-40RER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, Trifix®, LF=120
- BMT
EC1:1420532030-40LER-32 QF
0067732000
IC 80 bar1:1420532031-40LER-32 QF
0067732000
EC1:1420540014-40LER-40 QF
0067740000
IC 80 bar1:1420540015-40LER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=120
- BMT
EC1:1420532030-40RER-32 QF
0067732000
IC 80 bar1:1420532031-40RER-32 QF
0067732000
EC1:1420540014-40RER-40 QF
0067740000
IC 80 bar1:1420540015-40RER-40 QF
0067740000
Right angle drill/milling unit, Trifix®, LF=120
EC1:2420525019-40LER-25 QF
0067725000
IC 80 bar1:2420525020-40LER-25 QF
0067725000
Right angle drill/milling unit, Trifix®, LF=120
EC1:2420525019-40RER-25 QF
0067725000
IC 80 bar1:2420525020-40RER-25 QF
0067725000
33
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V6
© WTO GmbH * Subject to change without notice * www.wto.de
33
Driven Toolholders - Enhanced Program
Right angle drill/milling unit, both sides,
Trifix®, LF=120 - BMT
EC1:1420540016-40ER-40 QF
0067740000
Right angle milling unit with combination mill
arbor DIN 6358, double VDI serration, LF=100
EC2:1410622028-40Ø 22
00675000160
EC2:1410627015-40Ø 27
00675000211
Right angle milling unit with combination mill
arbor DIN 6358, Trifix®, LF=100 - BMT
EC2:1410622031-40LØ 22
00675000160
EC2:1410627016-40LØ 27
00675000211
Right angle milling unit with combination mill
arbor DIN 6358, Trifix®, LF=100 - BMT
EC2:1410622031-40RØ 22
00675000160
EC2:1410627016-40RØ 27
00675000211
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411013019-40ER 20
00675000928
IC 80 bar1:1411013026-40ER 20
00675000928
EC1:1411016006-40ER 25
00675000934
IC 80 bar1:1411016024-40ER 25
00675000934
EC1:2411010012-40ER 16
00675000936
IC 80 bar1:2411010013-40ER 16
00675000936
Slitting saw unit
EC2.62:1410900013-40Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
34
DMG MORI CTX 2500 V6
34
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Gear hobbing unit, Trifix®
EC1:1411500041-40LType 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
EC2:1411500037-40LType 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
Drill/milling unit - double, Y axis
EC1:1.5413002034-40ER 25
00675000930
IC 80 bar1:1.5413002035-40ER 25
00675000930
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis,
LF=120, Trifix®
EC1:1413502024-40LER 25
00675000915
IC 80 bar1:1413502025-40LER 25
00675000915
2-spindle - Face drill/milling unit, Y axis,
LF=120, Trifix®
EC1:1413502024-40RER 25
00675000915
IC 80 bar1:1413502025-40RER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis, LF=120, Trifix®
EC1:1413502026-40ER 25
00675000915
Broaching unit for ID and OD, Trifix®, LF=100
- BMT
EC1:1414532007-40LTN765050
Broaching unit for ID and OD, Trifix®, LF=100
- BMT
EC1:1414532007-40RTN765050
35
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI CTX 2500 V6
© WTO GmbH * Subject to change without notice * www.wto.de
35
Static Toolholders - Standard Program
Axial square toolholder, right hand, Form C1
48-C1-25x1616(12)
Axial square toolholder, left hand, Form C2
48-C2-25x1616(12)
Axial square toolholder, right hand inverted,
Form C3
48-C3-25x1616(12)
Axial square toolholder, left hand inverted,
Form C4
48-C4-25x1616(12)
OD cutting holder - double VDI serration
48-88237
R2Z415W
16
OD cutting holder, both sides
48-71572
R2Z810W
16
Face cutting holder
48-7469316
Combination toolholder, universal
48-74687Ø 25
241125016 ER25
Static Toolholders - Standard Program
Combination toolholder, universal, Trifix®
48-98234Ø 25
241125016 ER25
Combination toolholder, back set, left hand
48-74689Ø 25
241125016 ER25
Combination toolholder, back set, left hand,
Trifix®
48-98235Ø 25
241125016 ER25
Combination toolholder, back set, right hand
48-74688Ø 25
241125016 ER25
Combination toolholder, back set, right hand,
Trifix®
48-98236Ø 25
241125016 ER25
Combination toolholder, both sides
48-74690Ø 25
Combination toolholder, both sides, Trifix®
48-98238Ø 25
© WTO GmbH * Subject to change without notice * www.wto.de
36
DMG MORI Sprint 50
36
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, HP-IC - double VDI
serration
IC 80 bar48-106423-HP20
OD cutting holder, both sides, HP-IC
IC 80 bar48-111171-HP20
OD cutting holder, both sides, double, Y axis
48-77394
442770W
16(5/8")
Face cutting holder, HP-IC - double VDI
serration
48-107434-HP20
Cut-off holder, adjustable - double VDI
serration
48-98981
R2Z452W
SH 26
Cut-off holder, adjustable, HP-IC - double VDI
serration
IC 80 bar48-102647RSH 26
IC 80 bar48-102647LSH 26
IC 80 bar48-106937R
343-810100R80
SH 32
IC 80 bar48-106937L
343-810100L80
SH 32
Combination toolholder, double, both sides
IC 80 bar48-109204Ø 25
37
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI Sprint 50
© WTO GmbH * Subject to change without notice * www.wto.de
37
Driven Toolholders - QuickFlex®
Straight drill/milling unit
EC1:1420125010-25
R2Z471W
ER-25 QF
0067725010
IC 80 bar1:1420125011-25ER-25 QF
0067725010
Right angle drill/milling unit, Trifix®
EC1:1420525010-25LER-25 QF
0067725010
IC 80 bar1:1420525011-25LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®
EC1:1420525010-25RER-25 QF
0067725010
IC 80 bar1:1420525011-25RER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®
EC1:1420525027-25LER-25 QF
0067725010
IC 80 bar1:1420525028-25LER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®
EC1:1420525027-25RER-25 QF
0067725010
IC 80 bar1:1420525028-25RER-25 QF
0067725010
Right angle drill/milling unit, both sides,
Trifix®
EC1:1420525012-25ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit, short
EC1:1410113004-25
R2Z490
ER 20
00675000700
Straight milling unit with combination mill
arbor DIN 6358
EC1:1410216003-25Ø 16
00675000854
Straight offset drill/milling unit
EC1:1410116017-25ER 25
00675000801
EC1:2410113003-25ER 20
00675000887
EC1:3410410000-25ER 16
00675000636
EC2:1410116013-25ER 25
00675000801
Right angle drill/milling unit
EC1:2420520019-25ER-20 QF
0067720001
IC 80 bar1:2420520020-25ER-20 QF
0067720001
EC1:3410810012-25ER 16
00675000841
IC 80 bar1:3410810013-25ER 16
00675000841
EC2:1420525032-25ER-25 QF
0067725010
IC 80 bar2:1420525033-25ER-25 QF
0067725010
© WTO GmbH * Subject to change without notice * www.wto.de
38
DMG MORI Sprint 50
38
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle milling unit with combination mill
arbor DIN 6358
EC1:1410616002-25Ø 16
00675000854
EC2:1410622005-25Ø 22
00675000483
EC2:1410627002-25Ø 27
00675000245
Adjustable angle drill/milling unit
EC1:1411010003-25ER 16
00675000902
IC 80 bar1:1411010010-25ER 16
00675000902
EC1:2411007006-25ER 11
00675000914
IC 80 bar1:2411007007-25ER 11
00675000914
Offset slitting saw unit
EC2.73:1411500002-25Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
39
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI Sprint 50
© WTO GmbH * Subject to change without notice * www.wto.de
39
Static Toolholders - Standard Program
Axial square toolholder, right hand, Form C1
48-C1-30x2020(16)
48-C1-30x0753/4"
Axial square toolholder, left hand, Form C2
48-C2-30x2020(16)
Axial square toolholder, right hand inverted,
Form C3
48-C3-30x2020(16)
48-C3-30x0753/4"
Axial square toolholder, left hand inverted,
Form C4
48-C4-30x2020(16)
Universal square toolholder, Form D1
48-D1-30x2020(16)
Universal square toolholder, inverted, Form
D2
48-D2-30x2020(16)
OD cutting holder, left
48-71932
R4Z410W
20
OD cutting holder, right
48-72047
R4Z230W
20
Static Toolholders - Standard Program
OD cutting holder, both sides
48-71216
R6Z410W
20
Face cutting holder
48-10575620
Face cutting holder, Trifix®
48-10979320
Combination toolholder, universal, LF=100
48-71434Ø 32
241132016 ER25
241132020 ER32
Combination toolholder, universal, Trifix®,
LF=100
48-96995Ø 32
241132016 ER25
241132020 ER32
Combination toolholder, back set, left hand,
LF=100
48-71438Ø 32
241132016 ER25
241132020 ER32
48-74548Ø 1 1/4"
Combination toolholder, back set, left hand,
Trifix®, LF=100
48-97531Ø 32
241132016 ER25
241132020 ER32
48-97536Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
40
DMG MORI Sprint 65
40
© WTO
© WTO© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Combination toolholder, back set, right hand,
LF=100
48-71436Ø 32
241132016 ER25
241132020 ER32
48-74544Ø 1 1/4"
Combination toolholder, back set, right hand,
Trifix®, LF=100
48-97553Ø 32
241132016 ER25
241132020 ER32
48-97555Ø 1 1/4"
Collet face drill holder, LF=100
IC 80 bar48-82824ER 32
107532000
Collet face drill holder, Trifix®, LF=100
IC 80 bar48-100198ER 32
107532000
Collet face drill holder, both sides, LF=100
IC 80 bar48-82847ER 32
107532000
Collet face drill holder, both sides, Trifix®,
LF=100
IC 80 bar48-100199ER 32
107532000
Plug, steel, Form Z2
48-Z2-30-SSteel
Static Toolholders - Enhanced Program
OD cutting holder, HP-IC - double VDI
serration
IC 80 bar48-105977-HP20
OD cutting holder, both sides, HP-IC
IC 80 bar48-71216-HP20
OD cutting holder, double, Y axis - double
VDI serration
48-8459320 (3/4")
OD cutting holder, both sides, double, Y axis
48-77395
442750W
20 (3/4")
Cut-off holder, adjustable - double VDI
serration
48-98991
R4Z451W
SH 26
48-99017
R9Z450
SH 32
Cut-off holder, adjustable, HP-IC - double VDI
serration
IC 80 bar48-102630RSH 26
IC 80 bar48-102630LSH 26
IC 80 bar48-102632RSH 32
IC 80 bar48-102632LSH 32
Combination toolholder, universal, Trifix®,
LF=100 - BMT
48-99669Ø 40
241140020 ER32
241140026 ER40
41
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI Sprint 65
© WTO GmbH * Subject to change without notice * www.wto.de
41
Static Toolholders - Enhanced Program
Boring bar holder, with slot, LF=100
48-87088Ø 32
Boring bar holder, with slot, Trifix®, LF=100
48-97588Ø 32
Boring bar holder, with slot, Trifix®, LF=100
- BMT
48-96994Ø 40
Combination toolholder, universal, double,
Y axis, LF=100
48-79026Ø 25
241125016 ER25
Combination toolholder, universal, double,
Y axis, Trifix®, LF=100
48-99635Ø 25
241125016 ER25
© WTO GmbH * Subject to change without notice * www.wto.de
42
DMG MORI Sprint 65
42
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
Straight drill/milling unit (6000 RPM)
EC1:1420125010-30L
440441W
ER-25 QF
0067725010
IC 80 bar1:1420125019-30LER-25 QF
0067725010
Straight drill/milling unit (12000 RPM)
EC1:1420125014-30LER-25 QF
0067725010
IC 80 bar1:1420125015-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (6000
RPM)
EC1:1420525055-30LER-25 QF
0067725010
IC 80 bar1:1420525056-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (12000
RPM)
EC1:1420525106-30LER-25 QF
0067725010
IC 80 bar1:1420525107-30LER-25 QF
0067725010
Right angle drill/milling unit, Trifix®, (6000
RPM)
EC1:1420525055-30RER-25 QF
0067725010
IC 80 bar1:1420525056-30RER-25 QF
0067725010
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, Trifix®, (12000
RPM)
EC1:1420525106-30RER-25 QF
0067725010
IC 80 bar1:1420525107-30RER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(6000 RPM)
EC1:1420525089-30LER-25 QF
0067725010
IC 80 bar1:1420525090-30LER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(12000 RPM)
EC1:1420525060-30LER-25 QF
0067725010
IC 80 bar1:1420525061-30LER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(6000 RPM)
EC1:1420525089-30RER-25 QF
0067725010
IC 80 bar1:1420525090-30RER-25 QF
0067725010
Right angle back set drill/milling unit, Trifix®,
(12000 RPM)
EC1:1420525060-30RER-25 QF
0067725010
IC 80 bar1:1420525061-30RER-25 QF
0067725010
43
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI Sprint 65
© WTO GmbH * Subject to change without notice * www.wto.de
43
Driven Toolholders - QuickFlex®
Right angle drill/milling unit, both sides,
Trifix®, (6000 RPM)
EC1:1420525086-30ER-25 QF
0067725010
Right angle drill/milling unit, both sides,
Trifix®, (12000 RPM)
EC1:1420525095-30ER-25 QF
0067725010
Driven Toolholders - Enhanced Program
Straight drill/milling unit - BMT
EC1:1420132010-30ER-32 QF
0067732000
IC 80 bar1:1420132011-30ER-32 QF
0067732000
Straight milling unit
EC1:1410216014-30Ø 16
00675000854
Straight offset drill/milling unit
EC1:1410116058-30ER 25
00675000801
IC 80 bar1:1410116057-30ER 25
00675000801
EC1:2410113010-30ER 20
00675000591
IC 80 bar1:2410113009-30ER 20
00675000591
EC2:1410116059-30ER 25
00675000801
IC 80 bar2:1410116060-30ER 25
00675000801
EC2:1410120027-30ER 32
00675000592
IC 80 bar2:1410120032-30ER 32
00675000592
Straight offset drill/milling unit - double VDI
serration
EC1:3410410002-30ER 16
00675000937
IC 80 bar1:3410410001-30ER 16
00675000937
© WTO GmbH * Subject to change without notice * www.wto.de
44
DMG MORI Sprint 65
44
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Right angle drill/milling unit
EC1:2420520013-30ER-20 QF
0067720000
IC 80 bar1:2420520014-30ER-20 QF
0067720000
EC1:3410810012-30ER 16
00675000841
IC 80 bar1:3410810013-30ER 16
00675000841
EC2:1420525096-30ER-25 QF
0067725010
IC 80 bar2:1420525097-30ER-25 QF
0067725010
Right angle drill/milling unit, Trifix®
EC1:2420520015-30LER-20 QF
0067720000
IC 80 bar1:2420520016-30LER-20 QF
0067720000
Right angle back set drill/milling unit
EC2:1410520013-30ER 32
00675000592
IC 80 bar2:1410520014-30ER 32
00675000592
Adjustable angle drill/milling unit
EC1:1411010015-30ER 16
00675000902
IC 80 bar1:1411010016-30ER 16
00675000902
EC1:2411007018-30ER 11
00675000914
IC 80 bar1:2411007019-30ER 11
00675000914
Driven Toolholders - Enhanced Program
Slitting saw unit
EC2.62:1410900015-30Type 14-2
00675000460
160016142 Ø 16
160022142 Ø 22
160027142 Ø 27
160015142 Ø 5/8"
160019142 Ø 3/4"
160023142 Ø 7/8"
160025142 Ø 1"
Gear hobbing unit, Trifix®
EC1:1410900025-30Type 15-2
00675001015
160008152 Ø 8
160010152 Ø 10
160013152 Ø 13
160016152 Ø 16
160022152 Ø 22
160015152 Ø 5/8"
160019152 Ø 3/4"
110587
Drill/milling unit - double, Y axis
EC1:1.5413002008-30ER 25
00675000930
IC 80 bar1:1.5413002009-30ER 25
00675000930
45
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI Sprint 65
© WTO GmbH * Subject to change without notice * www.wto.de
45
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-30ER 25
00675000915
IC 80 bar1:1413502004-30ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502009-30ER 25
00675000915
Broaching unit for ID and OD, Trifix® - BMT
EC1:1414532001-30LTN765050
Broaching unit for ID and OD, Trifix® - BMT
EC1:1414532001-30RTN765050
© WTO GmbH * Subject to change without notice * www.wto.de
46
DMG MORI Sprint 65
46
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 14240025014
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 25240050025
ø 32240050032
ø 40240050040
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
47
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
47
Standard reduction sleeves - cylindrical, with
slot
Reduction sleeve Ø 25
ø 6240125006
ø 8240125008
ø 10240125010
ø 12240125012
ø 14240125014
ø 15240125015
ø 16240125016
ø 20240125020
Reduction sleeve Ø 32
ø 8240132008
ø 10240132010
ø 12240132012
ø 15240132015
ø 16240132016
ø 20240132020
ø 25240132025
Reduction sleeve Ø 40
ø 10240140010
ø 12240140012
ø 15240140015
ø 16240140016
ø 20240140020
ø 25240140025
ø 32240140032
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
© WTO GmbH * Subject to change without notice * www.wto.de
48
Accessories - Reduction sleeves
48
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
49
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
49
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
© WTO GmbH * Subject to change without notice * www.wto.de
50
Accessories - Collets
50
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
51
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
51
ALX 1500-2500 MC/Y/SY
NLX 2500 (static turret only)
NLX/NL 1500-4000 MC/Y/SMC/SY
NLX/NL 1500-2500 (20 ST)
NLX 4000 (High Torque Milling)
NLX 6000, NZX 4000
NZX 1500-2000 (16 ST)
NZX 2500 (BMT60)
NZX 2500 (turret 2 = BMT40)
NZX 6000
NTX 1000-3000 2nd Generation (BMT40)
NTX 2000-3000 2nd Generation (BMT60)
NT 4200-5400
Tool Holder Program
QuickFlex®
The new quick change system for
high performance and precision.
Minimal investment, maximal expandability.
Designed
for
2
© WTO GmbH * Subject to change without notice * www.wto.de
4 - 8PageALX 1500-2500 MC/Y/SY
9 - 9PageNLX 2500 (static turret only)
10 - 16PageNLX/NL 1500-4000 MC/Y/SMC/SY
17 - 21PageNLX/NL 1500-2500 (20 ST)
22 - 24PageNLX 4000 (High Torque Milling)
25 - 26PageNLX 6000, NZX 4000
27 - 31PageNZX 1500-2000 (16 ST)
32 - 36PageNZX 2500 (BMT60)
37 - 40PageNZX 2500 (turret 2 = BMT40)
41 - 42PageNZX 6000
43 - 47PageNTX 1000-3000 2nd Generation (BMT40)
48 - 51PageNTX 2000-3000 2nd Generation (BMT60)
52 - 55PageNT 4200-5400
56 - 59PageReduction sleeves
60 - 62PageCollets
EC = External coolant supply
HP-IC = High pressure internal coolant supply through cutting tool
IC 80 bar = Internal and external coolant supply
Max. coolant pressure = 80 bar
IC 30 bar = Internal and external coolant supply
Max. coolant pressure = 30 bar
Only use filtered coolant fluid (max. particle size = 50 µm)
Do not run without coolant
Do not use for machining abrasive materials such as cast iron, etc.
3
© WTO GmbH * Subject to change without notice * www.wto.de
Contents
© WTO GmbH * Subject to change without notice * www.wto.de
3
Static Toolholders - Standard Program
OD cutting holder, short
48-T00224
T00224
20
48-T00267
T00267
25
48-T00234
T00234
3/4"
48-T00272
T00272
1"
OD cutting holder, short, HP-IC
IC 80 bar48-T00224-HP
T00224
20
IC 80 bar48-T00267-HP
T00267
25
IC 80 bar48-T00234-HP
T00234
3/4"
IC 80 bar48-T00272-HP
T00272
1"
OD cutting holder, both sides, short
48-T00228
T00228
20
48-8652325
48-T00250
T00250
3/4"
48-865241"
OD cutting holder, both sides, short, HP-IC
IC 80 bar48-T00228-HP
T00228
20
IC 80 bar48-86523-HP25
IC 80 bar48-T00250-HP
T00250
3/4"
IC 80 bar48-86524-HP1"
Face cutting holder
48-T03024
T03024
25
48-T03018
T03018
3/4"
48-T03025
T03025
1"
Static Toolholders - Standard Program
Face cutting holder, HP-IC
IC 80 bar48-T03017-HP
T03017
20
IC 80 bar48-T03018-HP
T03018
3/4"
Cut-off holder, right hand
48-T00251
T00251
20
48-T00268
T00268, T00356
25
48-T00252
T00252
3/4"
48-T00359
T00359, T00357
1"
Boring bar holder
48-T10115
T10115
Ø 32
48-T10119
T10119
Ø 1 1/4"
Combination toolholder
IC 80 bar48-T13132
T13132
Ø 32
IC 80 bar48-77999Ø 40
IC 80 bar48-T13135
T13135
Ø 1 1/4"
IC 80 bar48-80016Ø 1 1/2"
Boring bar holder, both sides
48-T10117
T10117
Ø 25
48-T10139
T10139
Ø 1"
© WTO GmbH * Subject to change without notice * www.wto.de
4
DMG MORI ALX 1500-2500 MC/Y/SY
4
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7772620 (3/4")
OD cutting holder, both sides, double, Y axis
48-7772720 (3/4")
Face cutting holder, both sides
48-7960820
48-796093/4"
Cut-off holder, adjustable
48-98891SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102261RSH 32
IC 80 bar48-102261LSH 32
Boring bar holder, with slot
48-82057Ø 32
48-82058Ø 40
48-82059Ø 1 1/4"
48-82060Ø 1 1/2"
Boring bar holder, double, universal
48-75406Ø 20
48-75416Ø 3/4"
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-80788Ø 25
Static Toolholders - Enhanced Program
Collet face drill holder
IC 80 bar48-107230ER 25
107525000
IC 80 bar48-81031ER 32
107532000
VDI adapter, left
48-77732VDI 30
VDI adapter, right
48-78687VDI 30
Boring bar holder, blank
48-80506
5
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI ALX 1500-2500 MC/Y/SY
© WTO GmbH * Subject to change without notice * www.wto.de
5
Driven Toolholders - QuickFlex®
OD drill/milling unit (12000 RPM)
EC1:1420125012-40
T32433
ER-25 QF
0067725000
IC 80 bar1:1420125013-40ER-25 QF
0067725000
EC1:1420132099-40ER-32 QF
0067732000
IC 80 bar1:1420132100-40ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420125010-40
T32274, T32450
ER-25 QF
0067725000
IC 80 bar1:1420125011-40
T32287
ER-25 QF
0067725000
EC1:1420132010-40
T32475, T32484
ER-32 QF
0067732000
IC 80 bar1:1420132011-40ER-32 QF
0067732000
Face drill/milling unit (12000 RPM)
EC1:1420525013-40
T32434
ER-25 QF
0067725000
IC 80 bar1:1420525014-40
T32436
ER-25 QF
0067725000
EC1:1420532146-40ER-32 QF
0067732000
IC 80 bar1:1420532147-40ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420525010-40
T32275, T32297
ER-25 QF
0067725000
IC 80 bar1:1420525011-40
T32288, T32435
ER-25 QF
0067725000
EC1:1420532010-40
T32476, T32485
ER-32 QF
0067732000
IC 80 bar1:1420532011-40ER-32 QF
0067732000
Face drill/milling unit, both sides (12000 RPM)
EC1:1420525049-40ER-25 QF
0067725000
EC1:1420532148-40ER-32 QF
0067732000
Face drill/milling unit, both sides (6000 RPM,
Heavy Duty)
EC1:1420525012-40
T32276, T32437
ER-25 QF
0067725000
EC1:1420532012-40ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
6
DMG MORI ALX 1500-2500 MC/Y/SY
6
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216010-40Ø 16
00675000854
EC1:1410222016-40
T32280, T32486
Ø 22
00675000483
EC1:1410219003-40Ø 3/4"
00675000483
OD drill/milling unit, offset
EC1:1410116050-40
T32279, T32488
ER 25
00675000932
IC 80 bar1:1410116057-40ER 25
00675000932
EC1:2410113060-40ER 20
00675000939
IC 80 bar1:2410113068-40ER 20
00675000939
EC1:3410410003-40ER 16
00675000937
IC 80 bar1:3410410004-40ER 16
00675000937
EC2:1410116051-40ER 25
00675000932
IC 80 bar2:1410116058-40ER 25
00675000932
OD drill/milling unit, offset (12000 RPM)
EC1:1410116060-40ER 25
00675000932
IC 80 bar1:1410116059-40ER 25
00675000932
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420520010-40ER-20 QF
0067720001
IC 80 bar1:2420520011-40ER-20 QF
0067720001
EC1:3410810012-40ER 16
0067825001
IC 80 bar1:3410810013-40ER 16
0067825001
EC2:1420532013-40ER-32 QF
0067732000
IC 80 bar2:1420532014-40ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410616013-40Ø 16
00675000854
EC1:1410622030-40Ø 22
00675000483
EC2:1410622029-40
T32292, T32487
Ø 22
00675000160
EC1:1410619003-40Ø 3/4"
00675000483
EC2:1410625002-40Ø 1"
00675000160
7
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI ALX 1500-2500 MC/Y/SY
© WTO GmbH * Subject to change without notice * www.wto.de
7
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010008-40ER 16
00675000913
IC 80 bar1:1411010009-40ER 16
00675000913
EC1:2411007001-40ER 11
00675000914
IC 80 bar1:2411007002-40ER 11
00675000914
Gear hobbing unit
EC1:1411500017-40Type 16-1
EC2:1411500018-40Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, both sides
EC1:1413002015-40ER 20
00675000947
IC 80 bar1:1413002018-40ER 20
00675000947
OD drill/milling unit, double, Y axis
EC1:1413002014-40ER 20
00675000947
IC 80 bar1:1413002017-40ER 20
00675000947
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502008-40ER 25
00675000915
IC 80 bar1:1413502009-40ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502007-40ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-40TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
8
DMG MORI ALX 1500-2500 MC/Y/SY
8
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Wedge block
48-B2703625(1")
Wedge shim
48-B2703725
48-B270381"
OD cutting holder
48-T0007425
48-T000751"
Face cutting holder
48-T0006825
48-T000691"
Boring bar holder
48-T10036Ø 40
48-T10044Ø 50
48-T10037Ø 1 1/2"
48-T10045Ø 2"
Boring bar holder, extended
48-T10039Ø 1 1/2"
Combination toolholder
IC 80 bar48-T13064Ø 40
IC 80 bar48-83292Ø 50
IC 80 bar48-T13065Ø 1 1/2"
IC 80 bar48-83294Ø 2"
Combination toolholder, extended
IC 80 bar48-T10038Ø 40
Static Toolholders - Enhanced Program
Work stopper
48-T17002
OD cutting holder, HP-IC
IC 80 bar48-T00074-HP25
Face cutting holder, HP-IC
IC 80 bar48-T00068-HP25
Boring bar holder, double
48-83452Ø 25
48-83592Ø 1"
VDI adapter, left
48-83473VDI 30
VDI adapter, right
48-49950VDI 30
9
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX 2500 (static turret only)
© WTO GmbH * Subject to change without notice * www.wto.de
9
Static Toolholders - Standard Program
OD cutting holder
48-T00187
T00187
20
48-T00186
T00186
25
48-T00203
T00203
3/4"
48-T00202
T00202
1"
OD cutting holder, HP-IC
IC 80 bar48-T00186-HP
T00186
25
IC 80 bar48-T00202-HP
T00202
1"
OD cutting holder, both sides
48-T00185
T00185
20
48-T00184
T00184
25
48-T00201
T00201
3/4"
48-T00199
T00199
1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-T00184-HP
T00184
25
IC 80 bar48-T00199-HP
T00199
1"
Face cutting holder
48-T03006
T03006
20
48-T03005
T03005
25
48-T03014
T03014
3/4"
48-T03013
T03013
1"
Static Toolholders - Standard Program
Face cutting holder, HP-IC
IC 80 bar48-T03005-HP
T03005
25
IC 80 bar48-T03013-HP
T03013
1"
Cut-off holder, right hand
48-T00197
T00197
25
48-T00198
T00198
1"
Boring bar holder, LF=80
48-T10097
T10097
Ø 40
48-T10098
T10098
Ø 50
48-T10101
T10101
Ø 1 1/2"
48-T10102
T10102
Ø 2"
48-70080Ø 2 1/2"
Boring bar holder, LF=120
48-T10113
T10113
Ø 40
48-T10114
T10114
Ø 50
48-T10134
T10134
Ø 1 1/2"
48-T10135
T10135
Ø 2"
Combination toolholder, LF=80
IC 80 bar48-T13128
T13128
Ø 40
IC 80 bar48-T13139
T13139
Ø 50
IC 80 bar48-T13130
T13130
Ø 1 1/2"
IC 80 bar48-T13140
T13140
Ø 2"
© WTO GmbH * Subject to change without notice * www.wto.de
10
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
10
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
Combination toolholder, LF=120
IC 80 bar48-T13131
T13131
Ø 40
IC 80 bar48-77902Ø 50
IC 80 bar48-T13137
T13137
Ø 1 1/2"
IC 80 bar48-77901Ø 2"
Boring bar holder, both sides
48-T10096
T10096
Ø 32
48-T10100
T10100
Ø 1 1/4"
48-89192Ø 1 1/2"
Combination toolholder, both sides
IC 80 bar48-89027Ø 40
IC 80 bar48-89195Ø 1 1/2"
Static Toolholders - Enhanced Program
OD cutting holder, right hand, long, HP-IC
IC 80 bar48-T00385-HP
T00385
25
IC 80 bar48-T00386-HP
T00386
1"
OD cutting holder, left hand, long, HP-IC
IC 80 bar48-T00387-HP
T00387
25
IC 80 bar48-T00388-HP
T00388
1"
OD cutting holder, short
48-7959125
48-795931"
OD cutting holder, extended
48-T00236
T00236
25
48-T00245
T00245
1"
OD cutting holder (only for NLX 4000)
48-T00450
T00450
32
48-T00462
T00462
1 1/4"
OD cutting holder, double, Y axis
48-71865
T00206, T00210
25(1")
OD cutting holder, both sides, double, Y axis
48-71863
T00253, T00258
25(1")
11
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
© WTO GmbH * Subject to change without notice * www.wto.de
11
Static Toolholders - Enhanced Program
Face cutting holder, extended
48-T03019
T03019
25
48-11304632
48-T03020
T03020
1"
48-1128531 1/4"
Face cutting holder, both sides
48-7899525
48-789961"
Cut-off holder, adjustable
48-98901SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102262RSH 32
IC 80 bar48-102262LSH 32
Cut-off holder, adjustable, extended
48-77478SH 32
Boring bar holder, extended (only for NLX
4000)
48-T13163
T13163
Ø 40
48-T13161
T13161
Ø 50
48-T13164
T13164
Ø 1 1/2"
48-T13162
T13162
Ø 2"
Static Toolholders - Enhanced Program
Boring bar holder, with slot
48-T10136
T10136
Ø 40
48-T10137
T10137
Ø 50
48-70811Ø 60
48-T10143
T10143
Ø 1 1/2"
48-T10142
T10142
Ø 2"
Boring bar holder, triple, universal
48-T10104
T10104
Ø 25
48-T10107
T10107
Ø 1"
Boring bar holder, double, both sides
48-71889Ø 32
48-72951Ø 1 1/4"
Boring bar holder, triple, both sides
48-71875Ø 25
48-72949Ø 1"
Boring bar holder, triple, both sides, Y axis
48-85932Ø 32
48-101078Ø 1 1/4"
Collet face drill holder
IC 80 bar48-94564ER 32
107532000
IC 80 bar48-94566ER 40
107540000
© WTO GmbH * Subject to change without notice * www.wto.de
12
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
12
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
Collet face drill holder, both sides
IC 80 bar48-94565ER 32
107532000
IC 80 bar48-94567ER 40
107540000
VDI adapter, left
48-77127VDI 30
48-72984VDI 40
VDI adapter, right
48-74796VDI 30
48-77955VDI 40
Boring bar holder, blank
48-81080
13
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
© WTO GmbH * Subject to change without notice * www.wto.de
13
Driven Toolholders - QuickFlex®
OD drill/milling unit (10000 RPM)
EC1:1420132018-60
T32598
ER-32 QF
0067732000
IC 80 bar1:1420132023-60ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420132010-60
T32206, T32249
ER-32 QF
0067732000
IC 80 bar1:1420132011-60
T32232, T32478
ER-32 QF
0067732000
EC1:1420140010-60
T32213
ER-40 QF
0067740000
IC 80 bar1:1420140011-60
T32234
ER-40 QF
0067740000
Face drill/milling unit (10000 RPM)
EC1:1420532030-60
T32599
ER-32 QF
0067732000
IC 80 bar1:1420532031-60ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420532010-60
T32207, T32256
ER-32 QF
0067732000
IC 80 bar1:1420532011-60
T32233
ER-32 QF
0067732000
EC1:1420540012-60
T32214
ER-40 QF
0067740000
IC 80 bar1:1420540013-60
T32235
ER-40 QF
0067740000
Face drill/milling unit, both sides (10000 RPM)
EC1:1420532041-60ER-32 QF
0067732000
Face drill/milling unit, both sides (6000 RPM,
Heavy Duty)
EC1:1420532019-60
T32216
ER-32 QF
0067732000
EC1:1420540016-60
T32248
ER-40 QF
0067740000
© WTO GmbH * Subject to change without notice * www.wto.de
14
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
14
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216000-60Ø 16
00675000854
EC1:1410222007-60
T32268
Ø 22
00675000483
EC1:1410227008-60Ø 27
00675000245
EC1:1410219000-60Ø 3/4"
00675000483
EC1:1410225000-60
T32217
Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1420132019-60ER-32 QF
0067732000
IC 80 bar1:1420132020-60ER-32 QF
0067732000
EC1:2420125010-60ER-25 QF
0067725001
IC 80 bar1:2420125011-60ER-25 QF
0067725001
EC2:1420132021-60ER-32 QF
0067732000
IC 80 bar2:1420132022-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420525010-60ER-25 QF
0067725001
IC 80 bar1:2420525011-60ER-25 QF
0067725001
EC2:1420540014-60ER-40 QF
0067740000
IC 80 bar2:1420540015-60ER-40 QF
0067740000
Face milling unit with combination mill arbor
DIN 6358
EC2:1410622000-60
T32269
Ø 22
00675000483
EC2:1410627000-60Ø 27
00675000245
EC2:1410625000-60
T32226
Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411013009-60
T32474
ER 20
00675000928
IC 80 bar1:1411013010-60ER 20
00675000928
EC1:2411010001-60ER 16
00675000936
IC 80 bar1:2411010002-60ER 16
00675000936
15
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
© WTO GmbH * Subject to change without notice * www.wto.de
15
Driven Toolholders - Enhanced Program
Slitting saw unit
EC3:1411500006-60Type 19-2
00675000855
160022192 Ø 22
160027192 Ø 27
160032192 Ø 32
160040192 Ø 40
160023192 Ø 7/8"
160025192 Ø 1"
160031192 Ø 1 1/4"
160038192 Ø 1 1/2"
Gear hobbing unit
EC1:1411500007-60Type 16-1
EC2:1411500008-60Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, both sides
EC1:1413002001-60ER 25
00675000907
OD drill/milling unit, double, Y axis
EC1:1413002000-60
T32267
ER 25
00675000907
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-60
T32264
ER 25
00675000915
IC 80 bar1:1413502002-60ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502001-60ER 25
00675000915
4-spindle - Face drill/milling unit, both sides
EC1:1413504000-60ER 20
00675000974
Broaching unit for ID and OD
EC1:1414532000-60TN765050
Power Skiving Unit (only for NLX 1500-3000
MC/Y/SMC/SY)
EC1:1414920000-60Hydraulic
106445
© WTO GmbH * Subject to change without notice * www.wto.de
16
DMG MORI NLX/NL 1500-4000 MC/Y/SMC/SY
16
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, short
48-T00224
T00224
20
48-T00267
T00267
25
48-T00234
T00234
3/4"
48-T00272
T00272
1"
OD cutting holder, short, HP-IC
IC 80 bar48-T00224-HP
T00224
20
IC 80 bar48-T00267-HP
T00267
25
IC 80 bar48-T00234-HP
T00234
3/4"
IC 80 bar48-T00272-HP
T00272
1"
OD cutting holder, long
48-T00225
T00225
20
48-T00235
T00235
3/4"
OD cutting holder, both sides, short
48-T00228
T00228
20
48-8652325
48-T00250
T00250
3/4"
48-865241"
OD cutting holder, both sides, short, HP-IC
IC 80 bar48-T00228-HP
T00228
20
IC 80 bar48-86523-HP25
IC 80 bar48-T00250-HP
T00250
3/4"
IC 80 bar48-86524-HP1"
Static Toolholders - Standard Program
OD cutting holder, both sides, long
48-T00226
T00226
20
48-T00249
T00249
3/4"
Face cutting holder
48-T03024
T03024
25
48-T03018
T03018
3/4"
48-T03025
T03025
1"
Face cutting holder, HP-IC
IC 80 bar48-T03017-HP
T03017
20
IC 80 bar48-T03018-HP
T03018
3/4"
Cut-off holder, right hand
48-T00251
T00251
20
48-T00268
T00268, T00356
25
48-T00252
T00252
3/4"
48-T00359
T00359, T00357
1"
Combination toolholder
IC 80 bar48-T13132
T13132
Ø 32
IC 80 bar48-77999Ø 40
IC 80 bar48-T13135
T13135
Ø 1 1/4"
IC 80 bar48-80016Ø 1 1/2"
Boring bar holder, both sides
48-T10117
T10117
Ø 25
48-T10139
T10139
Ø 1"
17
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-2500 (20 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
17
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7772620 (3/4")
OD cutting holder, both sides, double, Y axis
48-7772720 (3/4")
Face cutting holder, both sides
48-7960820
48-796093/4"
Cut-off holder, adjustable
48-98891SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102261RSH 32
IC 80 bar48-102261LSH 32
Boring bar holder, with slot
48-82057Ø 32
48-82058Ø 40
48-82059Ø 1 1/4"
48-82060Ø 1 1/2"
Boring bar holder, double, universal
48-75406Ø 20
48-75416Ø 3/4"
Boring bar holder, double, both sides
48-75404Ø 20
48-75417Ø 3/4"
Static Toolholders - Enhanced Program
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-80788Ø 25
Combination toolholder, both sides, triple, Y
axis
IC 80 bar48-85908Ø 25
IC 80 bar48-85985Ø 1"
Collet face drill holder
IC 80 bar48-107230ER 25
107525000
IC 80 bar48-81031ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-107227ER 25
107525000
IC 80 bar48-80509ER 32
107532000
VDI adapter, left
48-77732VDI 30
VDI adapter, right
48-78687VDI 30
Boring bar holder, blank
48-80506
© WTO GmbH * Subject to change without notice * www.wto.de
18
DMG MORI NLX/NL 1500-2500 (20 ST)
18
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit (12000 RPM)
EC1:1420125012-40
T32433
ER-25 QF
0067725000
IC 80 bar1:1420125013-40ER-25 QF
0067725000
EC1:1420132099-40ER-32 QF
0067732000
IC 80 bar1:1420132100-40ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420125010-40
T32274, T32450
ER-25 QF
0067725000
IC 80 bar1:1420125011-40
T32287
ER-25 QF
0067725000
EC1:1420132010-40
T32475, T32484
ER-32 QF
0067732000
IC 80 bar1:1420132011-40ER-32 QF
0067732000
Face drill/milling unit (12000 RPM)
EC1:1420525013-40
T32434
ER-25 QF
0067725000
IC 80 bar1:1420525014-40
T32436
ER-25 QF
0067725000
EC1:1420532146-40ER-32 QF
0067732000
IC 80 bar1:1420532147-40ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420525010-40
T32275, T32297
ER-25 QF
0067725000
IC 80 bar1:1420525011-40
T32288, T32435
ER-25 QF
0067725000
EC1:1420532010-40
T32476, T32485
ER-32 QF
0067732000
IC 80 bar1:1420532011-40ER-32 QF
0067732000
Face drill/milling unit, both sides (12000 RPM)
EC1:1420525049-40ER-25 QF
0067725000
EC1:1420532148-40ER-32 QF
0067732000
Face drill/milling unit, both sides (6000 RPM,
Heavy Duty)
EC1:1420525012-40
T32276, T32437
ER-25 QF
0067725000
EC1:1420532012-40ER-32 QF
0067732000
19
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-2500 (20 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
19
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216010-40Ø 16
00675000854
EC1:1410222016-40
T32280, T32486
Ø 22
00675000483
EC1:1410219003-40Ø 3/4"
00675000483
OD drill/milling unit, offset
EC1:1410116050-40
T32279, T32488
ER 25
00675000932
IC 80 bar1:1410116057-40ER 25
00675000932
EC1:2410113060-40ER 20
00675000939
IC 80 bar1:2410113068-40ER 20
00675000939
EC1:3410410003-40ER 16
00675000937
IC 80 bar1:3410410004-40ER 16
00675000937
EC2:1410116051-40ER 25
00675000932
IC 80 bar2:1410116058-40ER 25
00675000932
OD drill/milling unit, offset (12000 RPM)
EC1:1410116060-40ER 25
00675000932
IC 80 bar1:1410116059-40ER 25
00675000932
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420520010-40ER-20 QF
0067720001
IC 80 bar1:2420520011-40ER-20 QF
0067720001
EC1:3410810012-40ER 16
0067825001
IC 80 bar1:3410810013-40ER 16
0067825001
EC2:1420532013-40ER-32 QF
0067732000
IC 80 bar2:1420532014-40ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410616013-40Ø 16
00675000854
EC1:1410622030-40Ø 22
00675000483
EC2:1410622029-40
T32292, T32487
Ø 22
00675000160
EC1:1410619003-40Ø 3/4"
00675000483
EC2:1410625002-40Ø 1"
00675000160
Face back set drill/milling unit
EC1:1410516153-40ER 25
00675000801
IC 80 bar1:1410516154-40ER 25
00675000801
© WTO GmbH * Subject to change without notice * www.wto.de
20
DMG MORI NLX/NL 1500-2500 (20 ST)
20
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010008-40ER 16
00675000913
IC 80 bar1:1411010009-40ER 16
00675000913
EC1:2411007001-40ER 11
00675000914
IC 80 bar1:2411007002-40ER 11
00675000914
Gear hobbing unit
EC1:1411500017-40Type 16-1
EC2:1411500018-40Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, both sides
EC1:1413002015-40ER 20
00675000947
IC 80 bar1:1413002018-40ER 20
00675000947
OD drill/milling unit, double, Y axis
EC1:1413002014-40ER 20
00675000947
IC 80 bar1:1413002017-40ER 20
00675000947
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502008-40ER 25
00675000915
IC 80 bar1:1413502009-40ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502007-40ER 25
00675000915
4-spindle - Face drill/milling unit
EC1:1413504001-40ER 20
00675000947
4-spindle - Face drill/milling unit, both sides
EC1:1413504000-40ER 20
00675000947
Broaching unit for ID and OD
EC1:1414532000-40TN765050
21
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX/NL 1500-2500 (20 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
21
Static Toolholders - Standard Program
OD cutting holder
48-T00187
T00187
20
48-T00186
T00186
25
48-T00203
T00203
3/4"
48-T00202
T00202
1"
OD cutting holder, HP-IC
IC 80 bar48-T00186-HP
T00186
25
IC 80 bar48-T00202-HP
T00202
1"
Face cutting holder
48-T03006
T03006
20
48-T03005
T03005
25
48-T03014
T03014
3/4"
48-T03013
T03013
1"
Face cutting holder, HP-IC
IC 80 bar48-T03005-HP
T03005
25
IC 80 bar48-T03013-HP
T03013
1"
Cut-off holder, right hand
48-T00197
T00197
25
48-T00198
T00198
1"
Static Toolholders - Standard Program
Combination toolholder, LF=80
IC 80 bar48-T13128
T13128
Ø 40
IC 80 bar48-T13139
T13139
Ø 50
IC 80 bar48-T13130
T13130
Ø 1 1/2"
IC 80 bar48-T13140
T13140
Ø 2"
Combination toolholder, LF=120
IC 80 bar48-T13131
T13131
Ø 40
IC 80 bar48-77902Ø 50
IC 80 bar48-T13137
T13137
Ø 1 1/2"
IC 80 bar48-77901Ø 2"
© WTO GmbH * Subject to change without notice * www.wto.de
22
DMG MORI NLX 4000 (High Torque Milling)
22
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, right hand, long, HP-IC
IC 80 bar48-T00385-HP
T00385
25
IC 80 bar48-T00386-HP
T00386
1"
OD cutting holder, left hand, long, HP-IC
IC 80 bar48-T00387-HP
T00387
25
IC 80 bar48-T00388-HP
T00388
1"
OD cutting holder, extended
48-T00236
T00236
25
48-T00245
T00245
1"
OD cutting holder (only for NLX 4000)
48-T00450
T00450
32
48-T00462
T00462
1 1/4"
OD cutting holder, double, Y axis
48-71865
T00206, T00210
25(1")
Face cutting holder, extended
48-T03019
T03019
25
48-11304632
48-T03020
T03020
1"
48-1128531 1/4"
Cut-off holder, adjustable
48-98901SH 32
Static Toolholders - Enhanced Program
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102262RSH 32
IC 80 bar48-102262LSH 32
Cut-off holder, adjustable, extended
48-77478SH 32
Boring bar holder, extended (only for NLX
4000)
48-T13163
T13163
Ø 40
48-T13161
T13161
Ø 50
48-T13164
T13164
Ø 1 1/2"
48-T13162
T13162
Ø 2"
Boring bar holder, with slot
48-T10136
T10136
Ø 40
48-T10137
T10137
Ø 50
48-70811Ø 60
48-T10143
T10143
Ø 1 1/2"
48-T10142
T10142
Ø 2"
Boring bar holder, triple, universal
48-T10104
T10104
Ø 25
48-T10107
T10107
Ø 1"
Collet face drill holder
IC 80 bar48-94564ER 32
107532000
IC 80 bar48-94566ER 40
107540000
23
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX 4000 (High Torque Milling)
© WTO GmbH * Subject to change without notice * www.wto.de
23
Driven Toolholders - QuickFlex®
OD drill/milling unit (High Torque)
EC1:1420140014-60
T32544
ER-40 QF
0067740000
IC 80 bar1:1420140015-60ER-40 QF
0067740000
Face drill/milling unit (High Torque)
EC1:1420540017-60
T32546
ER-40 QF
0067740000
IC 80 bar1:1420540018-60ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
Gear hobbing unit
EC2:1410900003-60Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
24
DMG MORI NLX 4000 (High Torque Milling)
24
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-T00432
T00432
32
48-T00433
T00433
1 1/4"
OD cutting holder, long (only for turret 1)
48-T00434
T00434
32
48-T00435
T00435
1 1/4"
Face cutting holder
48-T03042
T03042
32
48-T03043
T03043
1 1/4"
Combination toolholder
IC 80 bar48-T10203
T10203
Ø 60
IC 80 bar48-T10204
T10204
Ø 2 1/2"
Static Toolholders - Enhanced Program
Boring bar holder, with slot
48-108639Ø 60
25
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NLX 6000, NZX 4000
© WTO GmbH * Subject to change without notice * www.wto.de
25
Driven Toolholders - QuickFlex®
OD drill/milling unit (3500 RPM, Heavy Duty)
EC1:1420150010-75
T32526
ER-50 QF
0067750000
IC 80 bar1:1420150011-75
T32547
ER-50 QF
0067750000
OD drill/milling unit (8000 RPM)
EC1:1420150012-75ER-50 QF
0067750000
IC 80 bar1:1420150013-75ER-50 QF
0067750000
Face drill/milling unit (3500 RPM, Heavy Duty)
EC1:1420550010-75
T32527
ER-50 QF
0067750000
IC 80 bar1:1420550011-75
T32535
ER-50 QF
0067750000
Face drill/milling unit (8000 RPM)
EC1:1420550012-75ER-50 QF
0067750000
IC 80 bar1:1420550013-75ER-50 QF
0067750000
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411016002-75ER 25
00675000934
IC 80 bar1:1411016003-75ER 25
00675000934
EC1:2411010004-75ER 16
00675000936
IC 80 bar1:2411010005-75ER 16
00675000936
Gear hobbing unit
EC2:1410900000-75Type C5-1
00675001008
160022C51 Ø 22
160027C51 Ø 27
160032C51 Ø 32
160019C51 Ø 3/4"
160025C51 Ø 1"
160031C51 Ø 1 1/4"
© WTO GmbH * Subject to change without notice * www.wto.de
26
DMG MORI NLX 6000, NZX 4000
26
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, short
48-T00224
T00224
20
48-T00267
T00267
25
48-T00234
T00234
3/4"
48-T00272
T00272
1"
OD cutting holder, short, HP-IC
IC 80 bar48-T00224-HP
T00224
20
IC 80 bar48-T00267-HP
T00267
25
IC 80 bar48-T00234-HP
T00234
3/4"
IC 80 bar48-T00272-HP
T00272
1"
OD cutting holder, long
48-T00225
T00225
20
48-T00235
T00235
3/4"
OD cutting holder, both sides, short
48-T00228
T00228
20
48-8652325
48-T00250
T00250
3/4"
48-865241"
OD cutting holder, both sides, short, HP-IC
IC 80 bar48-T00228-HP
T00228
20
IC 80 bar48-86523-HP25
IC 80 bar48-T00250-HP
T00250
3/4"
IC 80 bar48-86524-HP1"
Static Toolholders - Standard Program
OD cutting holder, both sides, long
48-T00226
T00226
20
48-T00249
T00249
3/4"
Face cutting holder
48-T03024
T03024
25
48-T03018
T03018
3/4"
48-T03025
T03025
1"
Face cutting holder, HP-IC
IC 80 bar48-T03017-HP
T03017
20
IC 80 bar48-T03018-HP
T03018
3/4"
Cut-off holder, right hand
48-T00251
T00251
20
48-T00268
T00268, T00356
25
48-T00252
T00252
3/4"
48-T00359
T00359, T00357
1"
Combination toolholder
IC 80 bar48-T13132
T13132
Ø 32
IC 80 bar48-77999Ø 40
IC 80 bar48-T13135
T13135
Ø 1 1/4"
IC 80 bar48-80016Ø 1 1/2"
Boring bar holder, both sides
48-T10117
T10117
Ø 25
48-T10139
T10139
Ø 1"
27
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 1500-2000 (16 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
27
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7772620 (3/4")
OD cutting holder, both sides, double, Y axis
48-7772720 (3/4")
Face cutting holder, both sides
48-7960820
48-796093/4"
Cut-off holder, adjustable
48-98891SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102261RSH 32
IC 80 bar48-102261LSH 32
Boring bar holder, with slot
48-82057Ø 32
48-82058Ø 40
48-82059Ø 1 1/4"
48-82060Ø 1 1/2"
Boring bar holder, double, universal
48-75406Ø 20
48-75416Ø 3/4"
Boring bar holder, double, both sides
48-75404Ø 20
48-75417Ø 3/4"
Static Toolholders - Enhanced Program
Combination toolholder, both sides, double,
Y axis
IC 80 bar48-80788Ø 25
Combination toolholder, both sides, triple, Y
axis
IC 80 bar48-85908Ø 25
IC 80 bar48-85985Ø 1"
Collet face drill holder
IC 80 bar48-107230ER 25
107525000
IC 80 bar48-81031ER 32
107532000
Collet face drill holder, both sides
IC 80 bar48-107227ER 25
107525000
IC 80 bar48-80509ER 32
107532000
VDI adapter, left
48-77732VDI 30
VDI adapter, right
48-78687VDI 30
Boring bar holder, blank
48-80506
© WTO GmbH * Subject to change without notice * www.wto.de
28
DMG MORI NZX 1500-2000 (16 ST)
28
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit (12000 RPM)
EC1:1420125012-40
T32433
ER-25 QF
0067725000
IC 80 bar1:1420125013-40ER-25 QF
0067725000
EC1:1420132099-40ER-32 QF
0067732000
IC 80 bar1:1420132100-40ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420125010-40
T32274, T32450
ER-25 QF
0067725000
IC 80 bar1:1420125011-40
T32287
ER-25 QF
0067725000
EC1:1420132010-40
T32475, T32484
ER-32 QF
0067732000
IC 80 bar1:1420132011-40ER-32 QF
0067732000
Face drill/milling unit (12000 RPM)
EC1:1420525013-40
T32434
ER-25 QF
0067725000
IC 80 bar1:1420525014-40
T32436
ER-25 QF
0067725000
EC1:1420532146-40ER-32 QF
0067732000
IC 80 bar1:1420532147-40ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420525010-40
T32275, T32297
ER-25 QF
0067725000
IC 80 bar1:1420525011-40
T32288, T32435
ER-25 QF
0067725000
EC1:1420532010-40
T32476, T32485
ER-32 QF
0067732000
IC 80 bar1:1420532011-40ER-32 QF
0067732000
Face drill/milling unit, both sides (12000 RPM)
EC1:1420525049-40ER-25 QF
0067725000
EC1:1420532148-40ER-32 QF
0067732000
Face drill/milling unit, both sides (6000 RPM,
Heavy Duty)
EC1:1420525012-40
T32276, T32437
ER-25 QF
0067725000
EC1:1420532012-40ER-32 QF
0067732000
29
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 1500-2000 (16 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
29
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216010-40Ø 16
00675000854
EC1:1410222016-40
T32280, T32486
Ø 22
00675000483
EC1:1410219003-40Ø 3/4"
00675000483
OD drill/milling unit, offset
EC1:1410116050-40
T32279, T32488
ER 25
00675000932
IC 80 bar1:1410116057-40ER 25
00675000932
EC1:2410113060-40ER 20
00675000939
IC 80 bar1:2410113068-40ER 20
00675000939
EC1:3410410003-40ER 16
00675000937
IC 80 bar1:3410410004-40ER 16
00675000937
EC2:1410116051-40ER 25
00675000932
IC 80 bar2:1410116058-40ER 25
00675000932
OD drill/milling unit, offset (12000 RPM)
EC1:1410116060-40ER 25
00675000932
IC 80 bar1:1410116059-40ER 25
00675000932
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420520010-40ER-20 QF
0067720001
IC 80 bar1:2420520011-40ER-20 QF
0067720001
EC1:3410810012-40ER 16
0067825001
IC 80 bar1:3410810013-40ER 16
0067825001
EC2:1420532013-40ER-32 QF
0067732000
IC 80 bar2:1420532014-40ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410616013-40Ø 16
00675000854
EC1:1410622030-40Ø 22
00675000483
EC2:1410622029-40
T32292, T32487
Ø 22
00675000160
EC1:1410619003-40Ø 3/4"
00675000483
EC2:1410625002-40Ø 1"
00675000160
Face back set drill/milling unit
EC1:1410516153-40ER 25
00675000801
IC 80 bar1:1410516154-40ER 25
00675000801
© WTO GmbH * Subject to change without notice * www.wto.de
30
DMG MORI NZX 1500-2000 (16 ST)
30
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010008-40ER 16
00675000913
IC 80 bar1:1411010009-40ER 16
00675000913
EC1:2411007001-40ER 11
00675000914
IC 80 bar1:2411007002-40ER 11
00675000914
Gear hobbing unit
EC1:1411500017-40Type 16-1
EC2:1411500018-40Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, both sides
EC1:1413002015-40ER 20
00675000947
IC 80 bar1:1413002018-40ER 20
00675000947
OD drill/milling unit, double, Y axis
EC1:1413002014-40ER 20
00675000947
IC 80 bar1:1413002017-40ER 20
00675000947
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502008-40ER 25
00675000915
IC 80 bar1:1413502009-40ER 25
00675000915
2-spindle - Face drill/milling unit, both sides,
Y axis
EC1:1413502007-40ER 25
00675000915
4-spindle - Face drill/milling unit
EC1:1413504001-40ER 20
00675000947
4-spindle - Face drill/milling unit, both sides
EC1:1413504000-40ER 20
00675000947
Broaching unit for ID and OD
EC1:1414532000-40TN765050
31
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 1500-2000 (16 ST)
© WTO GmbH * Subject to change without notice * www.wto.de
31
Static Toolholders - Standard Program
OD cutting holder
48-T00187
T00187
20
48-T00186
T00186
25
48-T00203
T00203
3/4"
48-T00202
T00202
1"
OD cutting holder, HP-IC
IC 80 bar48-T00186-HP
T00186
25
IC 80 bar48-T00202-HP
T00202
1"
Face cutting holder
48-T03006
T03006
20
48-T03005
T03005
25
48-T03014
T03014
3/4"
48-T03013
T03013
1"
Face cutting holder, HP-IC
IC 80 bar48-T03005-HP
T03005
25
IC 80 bar48-T03013-HP
T03013
1"
Cut-off holder, right hand
48-T00197
T00197
25
48-T00198
T00198
1"
Static Toolholders - Standard Program
Boring bar holder, LF=80
48-T10097
T10097
Ø 40
48-T10098
T10098
Ø 50
48-T10101
T10101
Ø 1 1/2"
48-T10102
T10102
Ø 2"
48-70080Ø 2 1/2"
Boring bar holder, LF=100
48-T10181
T10181
Ø 40
48-T10185
T10185
Ø 50
48-T10195
T10195
Ø 1 1/2"
48-T10186
T10186
Ø 2"
Combination toolholder, LF=80
IC 80 bar48-T13128
T13128
Ø 40
IC 80 bar48-T13139
T13139
Ø 50
IC 80 bar48-T13130
T13130
Ø 1 1/2"
IC 80 bar48-T13140
T13140
Ø 2"
Combination toolholder, LF=100
IC 80 bar48-110098Ø 40
IC 80 bar48-110099Ø 50
IC 80 bar48-110414Ø 1 1/2"
IC 80 bar48-110415Ø 2"
© WTO GmbH * Subject to change without notice * www.wto.de
32
DMG MORI NZX 2500 (BMT60)
32
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, right hand, long, HP-IC
IC 80 bar48-T00385-HP
T00385
25
IC 80 bar48-T00386-HP
T00386
1"
OD cutting holder, left hand, long, HP-IC
IC 80 bar48-T00387-HP
T00387
25
IC 80 bar48-T00388-HP
T00388
1"
OD cutting holder, short
48-7959125
48-795931"
OD cutting holder, extended
48-T00236
T00236
25
48-T00245
T00245
1"
OD cutting holder, double, Y axis
48-71865
T00206, T00210
25(1")
Cut-off holder, adjustable
48-98901SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102262RSH 32
IC 80 bar48-102262LSH 32
Cut-off holder, adjustable, extended
48-77478SH 32
Static Toolholders - Enhanced Program
Boring bar holder, with slot
48-T10136
T10136
Ø 40
48-T10137
T10137
Ø 50
48-70811Ø 60
48-T10143
T10143
Ø 1 1/2"
48-T10142
T10142
Ø 2"
VDI adapter, left
48-77127VDI 30
48-72984VDI 40
VDI adapter, right
48-74796VDI 30
48-77955VDI 40
Boring bar holder, blank
48-81080
33
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 2500 (BMT60)
© WTO GmbH * Subject to change without notice * www.wto.de
33
Driven Toolholders - QuickFlex®
OD drill/milling unit (10000 RPM)
EC1:1420132018-60
T32598
ER-32 QF
0067732000
IC 80 bar1:1420132023-60ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420132010-60
T32206, T32249
ER-32 QF
0067732000
IC 80 bar1:1420132011-60
T32232, T32478
ER-32 QF
0067732000
EC1:1420140010-60
T32213
ER-40 QF
0067740000
IC 80 bar1:1420140011-60
T32234
ER-40 QF
0067740000
Face drill/milling unit (10000 RPM)
EC1:1420532030-60
T32599
ER-32 QF
0067732000
IC 80 bar1:1420532031-60ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420532010-60
T32207, T32256
ER-32 QF
0067732000
IC 80 bar1:1420532011-60
T32233
ER-32 QF
0067732000
EC1:1420540012-60
T32214
ER-40 QF
0067740000
IC 80 bar1:1420540013-60
T32235
ER-40 QF
0067740000
© WTO GmbH * Subject to change without notice * www.wto.de
34
DMG MORI NZX 2500 (BMT60)
34
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216000-60Ø 16
00675000854
EC1:1410222007-60
T32268
Ø 22
00675000483
EC1:1410227008-60Ø 27
00675000245
EC1:1410219000-60Ø 3/4"
00675000483
EC1:1410225000-60
T32217
Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1420132019-60ER-32 QF
0067732000
IC 80 bar1:1420132020-60ER-32 QF
0067732000
EC1:2420125010-60ER-25 QF
0067725001
IC 80 bar1:2420125011-60ER-25 QF
0067725001
EC2:1420132021-60ER-32 QF
0067732000
IC 80 bar2:1420132022-60ER-32 QF
0067732000
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420525010-60ER-25 QF
0067725001
IC 80 bar1:2420525011-60ER-25 QF
0067725001
EC2:1420540014-60ER-40 QF
0067740000
IC 80 bar2:1420540015-60ER-40 QF
0067740000
Face milling unit with combination mill arbor
DIN 6358
EC2:1410622000-60
T32269
Ø 22
00675000483
EC2:1410627000-60Ø 27
00675000245
EC2:1410625000-60
T32226
Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411013009-60
T32474
ER 20
00675000928
IC 80 bar1:1411013010-60ER 20
00675000928
EC1:2411010001-60ER 16
00675000936
IC 80 bar1:2411010002-60ER 16
00675000936
35
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 2500 (BMT60)
© WTO GmbH * Subject to change without notice * www.wto.de
35
Driven Toolholders - Enhanced Program
Slitting saw unit
EC3:1411500006-60Type 19-2
00675000855
160022192 Ø 22
160027192 Ø 27
160032192 Ø 32
160040192 Ø 40
160023192 Ø 7/8"
160025192 Ø 1"
160031192 Ø 1 1/4"
160038192 Ø 1 1/2"
Gear hobbing unit
EC1:1411500007-60Type 16-1
EC2:1411500008-60Type 16-1
00675000926
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, double, Y axis
EC1:1413002000-60
T32267
ER 25
00675000907
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-60
T32264
ER 25
00675000915
IC 80 bar1:1413502002-60ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-60TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
36
DMG MORI NZX 2500 (BMT60)
36
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, short
48-T00224
T00224
20
48-T00267
T00267
25
48-T00234
T00234
3/4"
48-T00272
T00272
1"
OD cutting holder, short, HP-IC
IC 80 bar48-T00224-HP
T00224
20
IC 80 bar48-T00267-HP
T00267
25
IC 80 bar48-T00234-HP
T00234
3/4"
IC 80 bar48-T00272-HP
T00272
1"
OD cutting holder, long
48-T00225
T00225
20
48-T00235
T00235
3/4"
Face cutting holder
48-T03024
T03024
25
48-T03018
T03018
3/4"
48-T03025
T03025
1"
Face cutting holder, HP-IC
IC 80 bar48-T03017-HP
T03017
20
IC 80 bar48-T03018-HP
T03018
3/4"
Static Toolholders - Standard Program
Cut-off holder, right hand
48-T00251
T00251
20
48-T00268
T00268, T00356
25
48-T00252
T00252
3/4"
48-T00359
T00359, T00357
1"
Boring bar holder
48-T10115
T10115
Ø 32
48-T10119
T10119
Ø 1 1/4"
Combination toolholder
IC 80 bar48-T13132
T13132
Ø 32
IC 80 bar48-77999Ø 40
IC 80 bar48-T13135
T13135
Ø 1 1/4"
IC 80 bar48-80016Ø 1 1/2"
37
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 2500 (turret 2 = BMT40)
© WTO GmbH * Subject to change without notice * www.wto.de
37
Static Toolholders - Enhanced Program
Cut-off holder, adjustable
48-98891SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102261RSH 32
IC 80 bar48-102261LSH 32
Boring bar holder, with slot
48-82057Ø 32
48-82058Ø 40
48-82059Ø 1 1/4"
48-82060Ø 1 1/2"
Boring bar holder, double, universal
48-75406Ø 20
48-75416Ø 3/4"
Collet face drill holder
IC 80 bar48-107230ER 25
107525000
IC 80 bar48-81031ER 32
107532000
VDI adapter, left
48-77732VDI 30
VDI adapter, right
48-78687VDI 30
Boring bar holder, blank
48-80506
© WTO GmbH * Subject to change without notice * www.wto.de
38
DMG MORI NZX 2500 (turret 2 = BMT40)
38
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit (12000 RPM)
EC1:1420125012-40
T32433
ER-25 QF
0067725000
IC 80 bar1:1420125013-40ER-25 QF
0067725000
EC1:1420132099-40ER-32 QF
0067732000
IC 80 bar1:1420132100-40ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420125010-40
T32274, T32450
ER-25 QF
0067725000
IC 80 bar1:1420125011-40
T32287
ER-25 QF
0067725000
EC1:1420132010-40
T32475, T32484
ER-32 QF
0067732000
IC 80 bar1:1420132011-40ER-32 QF
0067732000
Face drill/milling unit (12000 RPM)
EC1:1420525013-40
T32434
ER-25 QF
0067725000
IC 80 bar1:1420525014-40
T32436
ER-25 QF
0067725000
EC1:1420532146-40ER-32 QF
0067732000
IC 80 bar1:1420532147-40ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420525010-40
T32275, T32297
ER-25 QF
0067725000
IC 80 bar1:1420525011-40
T32288, T32435
ER-25 QF
0067725000
EC1:1420532010-40
T32476, T32485
ER-32 QF
0067732000
IC 80 bar1:1420532011-40ER-32 QF
0067732000
39
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 2500 (turret 2 = BMT40)
© WTO GmbH * Subject to change without notice * www.wto.de
39
Driven Toolholders - Enhanced Program
OD drill/milling unit, offset
EC1:1410116050-40
T32279, T32488
ER 25
00675000932
IC 80 bar1:1410116057-40ER 25
00675000932
EC1:2410113060-40ER 20
00675000939
IC 80 bar1:2410113068-40ER 20
00675000939
EC1:3410410003-40ER 16
00675000937
IC 80 bar1:3410410004-40ER 16
00675000937
EC2:1410116051-40ER 25
00675000932
IC 80 bar2:1410116058-40ER 25
00675000932
OD drill/milling unit, offset (12000 RPM)
EC1:1410116060-40ER 25
00675000932
IC 80 bar1:1410116059-40ER 25
00675000932
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420520010-40ER-20 QF
0067720001
IC 80 bar1:2420520011-40ER-20 QF
0067720001
EC1:3410810012-40ER 16
0067825001
IC 80 bar1:3410810013-40ER 16
0067825001
EC2:1420532013-40ER-32 QF
0067732000
IC 80 bar2:1420532014-40ER-32 QF
0067732000
Adjustable angle drill/milling unit
EC1:1411010008-40ER 16
00675000913
IC 80 bar1:1411010009-40ER 16
00675000913
EC1:2411007001-40ER 11
00675000914
IC 80 bar1:2411007002-40ER 11
00675000914
Broaching unit for ID and OD
EC1:1414532000-40TN765050
© WTO GmbH * Subject to change without notice * www.wto.de
40
DMG MORI NZX 2500 (turret 2 = BMT40)
40
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder
48-T00372
T00372
32
Combination toolholder
IC 80 bar48-T10168
T10168
Ø 60
41
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NZX 6000
© WTO GmbH * Subject to change without notice * www.wto.de
41
Driven Toolholders - Performance Series
OD drill/milling unit
EC1:1420150000-A1
T32495
ER 50
0067550000
IC 80 bar1:1420150001-A1ER 50
0067550000
Face drill/milling unit
EC1:1420550000-A1
T32496
ER 50
0067550000
IC 80 bar1:1420550001-A1ER 50
0067550000
Driven Toolholders - QuickFlex®
OD drill/milling unit
EC1:1420150010-A1
T32495
ER-50 QF
0067750000
IC 80 bar1:1420150011-A1ER-50 QF
0067750000
Face drill/milling unit
EC1:1420550010-A1
T32496
ER-50 QF
0067750000
IC 80 bar1:1420550011-A1ER-50 QF
0067750000
© WTO GmbH * Subject to change without notice * www.wto.de
42
DMG MORI NZX 6000
42
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Standard Program
OD cutting holder, short
48-T00224
T00224
20
48-T00267
T00267
25
48-T00234
T00234
3/4"
48-T00272
T00272
1"
OD cutting holder, short, HP-IC
IC 80 bar48-T00224-HP
T00224
20
IC 80 bar48-T00267-HP
T00267
25
IC 80 bar48-T00234-HP
T00234
3/4"
IC 80 bar48-T00272-HP
T00272
1"
OD cutting holder, long
48-T00225
T00225
20
48-T00235
T00235
3/4"
OD cutting holder, both sides, short
48-T00228
T00228
20
48-8652325
48-T00250
T00250
3/4"
48-865241"
OD cutting holder, both sides, short, HP-IC
IC 80 bar48-T00228-HP
T00228
20
IC 80 bar48-86523-HP25
IC 80 bar48-T00250-HP
T00250
3/4"
IC 80 bar48-86524-HP1"
Static Toolholders - Standard Program
OD cutting holder, both sides, long
48-T00226
T00226
20
48-T00249
T00249
3/4"
Face cutting holder
48-T03024
T03024
25
48-T03018
T03018
3/4"
48-T03025
T03025
1"
Face cutting holder, HP-IC
IC 80 bar48-T03017-HP
T03017
20
IC 80 bar48-T03018-HP
T03018
3/4"
Cut-off holder, right hand
48-T00251
T00251
20
48-T00268
T00268, T00356
25
48-T00252
T00252
3/4"
48-T00359
T00359, T00357
1"
Combination toolholder
IC 80 bar48-T13132
T13132
Ø 32
IC 80 bar48-77999Ø 40
IC 80 bar48-T13135
T13135
Ø 1 1/4"
IC 80 bar48-80016Ø 1 1/2"
Combination toolholder, sub spindle
IC 80 bar48-T10260
T10260
Ø 32
IC 80 bar48-T10261
T10261
Ø 1 1/4"
43
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NTX 1000-3000 2nd Generation (BMT40)
© WTO GmbH * Subject to change without notice * www.wto.de
43
Static Toolholders - Enhanced Program
OD cutting holder, double, Y axis
48-7772620 (3/4")
OD cutting holder, both sides, short,
extended
48-7940320
48-821673/4"
OD cutting holder, both sides, long, extended
48-8141420
48-821683/4"
Cut-off holder, adjustable
48-98891SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102261RSH 32
IC 80 bar48-102261LSH 32
Boring bar holder, with slot
48-82057Ø 32
48-82058Ø 40
48-82059Ø 1 1/4"
48-82060Ø 1 1/2"
Boring bar holder, double, universal
48-75406Ø 20
48-75416Ø 3/4"
Collet face drill holder
IC 80 bar48-107230ER 25
107525000
IC 80 bar48-81031ER 32
107532000
Static Toolholders - Enhanced Program
VDI adapter, left
48-77732VDI 30
VDI adapter, right
48-78687VDI 30
Boring bar holder, blank
48-80506
© WTO GmbH * Subject to change without notice * www.wto.de
44
DMG MORI NTX 1000-3000 2nd Generation (BMT40)
44
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - QuickFlex®
OD drill/milling unit (12000 RPM)
EC1:1420125012-40
T32433
ER-25 QF
0067725000
IC 80 bar1:1420125013-40ER-25 QF
0067725000
EC1:1420132099-40ER-32 QF
0067732000
IC 80 bar1:1420132100-40ER-32 QF
0067732000
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420125010-40
T32274, T32450
ER-25 QF
0067725000
IC 80 bar1:1420125011-40
T32287
ER-25 QF
0067725000
EC1:1420132010-40
T32475, T32484
ER-32 QF
0067732000
IC 80 bar1:1420132011-40ER-32 QF
0067732000
Face drill/milling unit (12000 RPM)
EC1:1420525013-40
T32434
ER-25 QF
0067725000
IC 80 bar1:1420525014-40
T32436
ER-25 QF
0067725000
EC1:1420532146-40ER-32 QF
0067732000
IC 80 bar1:1420532147-40ER-32 QF
0067732000
Driven Toolholders - QuickFlex®
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420525010-40
T32275, T32297
ER-25 QF
0067725000
IC 80 bar1:1420525011-40
T32288, T32435
ER-25 QF
0067725000
EC1:1420532010-40
T32476, T32485
ER-32 QF
0067732000
IC 80 bar1:1420532011-40ER-32 QF
0067732000
Face back set drill/milling unit, sub spindle
(only for NTX 1000 S2 2nd Generation)
EC1:1420525047-40ER-25 QF
0067725010
IC 80 bar1:1420525048-40ER-25 QF
0067725010
Face drill/milling unit, sub spindle (only
for NTX 2000-3000 S2 2nd Generation)
EC1:1420520016-40ER-20 QF
0067720000
IC 80 bar1:1420520017-40ER-20 QF
0067720000
45
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NTX 1000-3000 2nd Generation (BMT40)
© WTO GmbH * Subject to change without notice * www.wto.de
45
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216010-40Ø 16
00675000854
EC1:1410222016-40
T32280, T32486
Ø 22
00675000483
EC1:1410219003-40Ø 3/4"
00675000483
OD drill/milling unit, offset
EC1:1410116050-40
T32279, T32488
ER 25
00675000932
IC 80 bar1:1410116057-40ER 25
00675000932
EC1:2410113060-40ER 20
00675000939
IC 80 bar1:2410113068-40ER 20
00675000939
EC1:3410410003-40ER 16
00675000937
IC 80 bar1:3410410004-40ER 16
00675000937
EC2:1410116051-40ER 25
00675000932
IC 80 bar2:1410116058-40ER 25
00675000932
OD drill/milling unit, offset (12000 RPM)
EC1:1410116060-40ER 25
00675000932
IC 80 bar1:1410116059-40ER 25
00675000932
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420520010-40ER-20 QF
0067720001
IC 80 bar1:2420520011-40ER-20 QF
0067720001
EC1:3410810012-40ER 16
0067825001
IC 80 bar1:3410810013-40ER 16
0067825001
EC2:1420532013-40ER-32 QF
0067732000
IC 80 bar2:1420532014-40ER-32 QF
0067732000
Face milling unit with combination mill arbor
DIN 6358
EC1:1410616013-40Ø 16
00675000854
EC1:1410622030-40Ø 22
00675000483
EC2:1410622029-40
T32292, T32487
Ø 22
00675000160
EC1:1410619003-40Ø 3/4"
00675000483
EC2:1410625002-40Ø 1"
00675000160
© WTO GmbH * Subject to change without notice * www.wto.de
46
DMG MORI NTX 1000-3000 2nd Generation (BMT40)
46
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Adjustable angle drill/milling unit
EC1:1411010008-40ER 16
00675000913
IC 80 bar1:1411010009-40ER 16
00675000913
EC1:2411007001-40ER 11
00675000914
IC 80 bar1:2411007002-40ER 11
00675000914
Gear hobbing unit
EC1:1411500017-40Type 16-1
EC2:1411500018-40Type 16-1
00675000954
160016161 Ø 16
160022161 Ø 22
160027161 Ø 27
160015161 Ø 5/8"
160019161 Ø 3/4"
160025161 Ø 1"
160031161 Ø 1 1/4"
110587
OD drill/milling unit, both sides
EC1:1413002015-40ER 20
00675000947
IC 80 bar1:1413002018-40ER 20
00675000947
OD drill/milling unit, double, Y axis
EC1:1413002014-40ER 20
00675000947
IC 80 bar1:1413002017-40ER 20
00675000947
Driven Toolholders - Enhanced Program
2-spindle - Face drill/milling unit, Y axis
EC1:1413502008-40ER 25
00675000915
IC 80 bar1:1413502009-40ER 25
00675000915
47
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NTX 1000-3000 2nd Generation (BMT40)
© WTO GmbH * Subject to change without notice * www.wto.de
47
Static Toolholders - Standard Program
OD cutting holder
48-T00187
T00187
20
48-T00186
T00186
25
48-T00203
T00203
3/4"
48-T00202
T00202
1"
OD cutting holder, HP-IC
IC 80 bar48-T00186-HP
T00186
25
IC 80 bar48-T00202-HP
T00202
1"
OD cutting holder, both sides
48-T00185
T00185
20
48-T00184
T00184
25
48-T00201
T00201
3/4"
48-T00199
T00199
1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-T00184-HP
T00184
25
IC 80 bar48-T00199-HP
T00199
1"
Face cutting holder
48-T03006
T03006
20
48-T03005
T03005
25
48-T03014
T03014
3/4"
48-T03013
T03013
1"
Static Toolholders - Standard Program
Face cutting holder, HP-IC
IC 80 bar48-T03005-HP
T03005
25
IC 80 bar48-T03013-HP
T03013
1"
Cut-off holder, right hand
48-T00197
T00197
25
48-T00198
T00198
1"
Boring bar holder, LF=80
48-T10097
T10097
Ø 40
48-T10098
T10098
Ø 50
48-T10101
T10101
Ø 1 1/2"
48-T10102
T10102
Ø 2"
48-70080Ø 2 1/2"
Combination toolholder, LF=80
IC 80 bar48-T13128
T13128
Ø 40
IC 80 bar48-T13139
T13139
Ø 50
IC 80 bar48-T13130
T13130
Ø 1 1/2"
IC 80 bar48-T13140
T13140
Ø 2"
© WTO GmbH * Subject to change without notice * www.wto.de
48
DMG MORI NTX 2000-3000 2nd Generation (BMT60)
48
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, right hand, long, HP-IC
IC 80 bar48-T00385-HP
T00385
25
IC 80 bar48-T00386-HP
T00386
1"
OD cutting holder, left hand, long, HP-IC
IC 80 bar48-T00387-HP
T00387
25
IC 80 bar48-T00388-HP
T00388
1"
OD cutting holder, double, Y axis
48-71865
T00206, T00210
25(1")
OD cutting holder, both sides, double, Y axis
48-71863
T00253, T00258
25(1")
Cut-off holder, adjustable
48-98901SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102262RSH 32
IC 80 bar48-102262LSH 32
Cut-off holder, adjustable, extended
48-77478SH 32
Static Toolholders - Enhanced Program
Boring bar holder, with slot
48-T10136
T10136
Ø 40
48-T10137
T10137
Ø 50
48-70811Ø 60
48-T10143
T10143
Ø 1 1/2"
48-T10142
T10142
Ø 2"
VDI adapter, left
48-77127VDI 30
48-72984VDI 40
VDI adapter, right
48-74796VDI 30
48-77955VDI 40
Boring bar holder, blank
48-81080
49
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NTX 2000-3000 2nd Generation (BMT60)
© WTO GmbH * Subject to change without notice * www.wto.de
49
Driven Toolholders - QuickFlex®
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420132010-60
T32206, T32249
ER-32 QF
0067732000
IC 80 bar1:1420132011-60
T32232, T32478
ER-32 QF
0067732000
EC1:1420140010-60
T32213
ER-40 QF
0067740000
IC 80 bar1:1420140011-60
T32234
ER-40 QF
0067740000
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420532010-60
T32207, T32256
ER-32 QF
0067732000
IC 80 bar1:1420532011-60
T32233
ER-32 QF
0067732000
EC1:1420540012-60
T32214
ER-40 QF
0067740000
IC 80 bar1:1420540013-60
T32235
ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216000-60Ø 16
00675000854
EC1:1410222007-60
T32268
Ø 22
00675000483
EC1:1410227008-60Ø 27
00675000245
EC1:1410219000-60Ø 3/4"
00675000483
EC1:1410225000-60
T32217
Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1420132019-60ER-32 QF
0067732000
IC 80 bar1:1420132020-60ER-32 QF
0067732000
EC1:2420125010-60ER-25 QF
0067725001
IC 80 bar1:2420125011-60ER-25 QF
0067725001
EC2:1420132021-60ER-32 QF
0067732000
IC 80 bar2:1420132022-60ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
50
DMG MORI NTX 2000-3000 2nd Generation (BMT60)
50
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420525010-60ER-25 QF
0067725001
IC 80 bar1:2420525011-60ER-25 QF
0067725001
EC2:1420540014-60ER-40 QF
0067740000
IC 80 bar2:1420540015-60ER-40 QF
0067740000
Face milling unit with combination mill arbor
DIN 6358
EC2:1410622000-60
T32269
Ø 22
00675000483
EC2:1410627000-60Ø 27
00675000245
EC2:1410625000-60
T32226
Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411013009-60
T32474
ER 20
00675000928
IC 80 bar1:1411013010-60ER 20
00675000928
EC1:2411010001-60ER 16
00675000936
IC 80 bar1:2411010002-60ER 16
00675000936
OD drill/milling unit, both sides
EC1:1413002001-60ER 25
00675000907
Driven Toolholders - Enhanced Program
OD drill/milling unit, double, Y axis
EC1:1413002000-60
T32267
ER 25
00675000907
2-spindle - Face drill/milling unit, Y axis
EC1:1413502000-60
T32264
ER 25
00675000915
IC 80 bar1:1413502002-60ER 25
00675000915
Broaching unit for ID and OD
EC1:1414532000-60TN765050
51
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NTX 2000-3000 2nd Generation (BMT60)
© WTO GmbH * Subject to change without notice * www.wto.de
51
Static Toolholders - Standard Program
OD cutting holder
48-T00187
T00187
20
48-T00186
T00186
25
48-T00203
T00203
3/4"
48-T00202
T00202
1"
OD cutting holder, HP-IC
IC 80 bar48-T00186-HP
T00186
25
IC 80 bar48-T00202-HP
T00202
1"
OD cutting holder, both sides
48-T00185
T00185
20
48-T00184
T00184
25
48-T00201
T00201
3/4"
48-T00199
T00199
1"
OD cutting holder, both sides, HP-IC
IC 80 bar48-T00184-HP
T00184
25
IC 80 bar48-T00199-HP
T00199
1"
OD cutting holder, both sides, long
48-T00237
T00237
25
48-782571"
Static Toolholders - Standard Program
Face cutting holder
48-T03006
T03006
20
48-T03005
T03005
25
48-T03014
T03014
3/4"
48-T03013
T03013
1"
Face cutting holder, HP-IC
IC 80 bar48-T03005-HP
T03005
25
IC 80 bar48-T03013-HP
T03013
1"
Cut-off holder, right hand
48-T00197
T00197
25
48-T00198
T00198
1"
Boring bar holder, LF=120
48-T10113
T10113
Ø 40
48-T10114
T10114
Ø 50
48-T10134
T10134
Ø 1 1/2"
48-T10135
T10135
Ø 2"
Combination toolholder, LF=120
IC 80 bar48-T13131
T13131
Ø 40
IC 80 bar48-77902Ø 50
IC 80 bar48-T13137
T13137
Ø 1 1/2"
IC 80 bar48-77901Ø 2"
© WTO GmbH * Subject to change without notice * www.wto.de
52
DMG MORI NT 4200-5400
52
© WTO GmbH * Subject to change without notice * www.wto.de
Static Toolholders - Enhanced Program
OD cutting holder, right hand, long, HP-IC
IC 80 bar48-T00385-HP
T00385
25
IC 80 bar48-T00386-HP
T00386
1"
OD cutting holder, left hand, long, HP-IC
IC 80 bar48-T00387-HP
T00387
25
IC 80 bar48-T00388-HP
T00388
1"
OD cutting holder, extended
48-7626725
48-815531"
OD cutting holder, both sides, extended
48-8162725
48-824991"
Face cutting holder, both sides
48-7899525
48-789961"
Cut-off holder, adjustable
48-98901SH 32
Cut-off holder, adjustable, HP-IC
IC 80 bar48-102262RSH 32
IC 80 bar48-102262LSH 32
Cut-off holder, adjustable, extended
48-77478SH 32
Static Toolholders - Enhanced Program
Collet face drill holder
IC 80 bar48-94564ER 32
107532000
IC 80 bar48-94566ER 40
107540000
Collet face drill holder, both sides
IC 80 bar48-94565ER 32
107532000
IC 80 bar48-94567ER 40
107540000
VDI adapter, left
48-77127VDI 30
48-72984VDI 40
VDI adapter, right
48-74796VDI 30
48-77955VDI 40
Boring bar holder, blank
48-81081
53
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NT 4200-5400
© WTO GmbH * Subject to change without notice * www.wto.de
53
Driven Toolholders - QuickFlex®
OD drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420132010-60
T32206, T32249
ER-32 QF
0067732000
IC 80 bar1:1420132011-60
T32232, T32478
ER-32 QF
0067732000
EC1:1420140010-60
T32213
ER-40 QF
0067740000
IC 80 bar1:1420140011-60
T32234
ER-40 QF
0067740000
Face drill/milling unit (6000 RPM, Heavy Duty)
EC1:1420532010-60
T32207, T32256
ER-32 QF
0067732000
IC 80 bar1:1420532011-60
T32233
ER-32 QF
0067732000
EC1:1420540012-60
T32214
ER-40 QF
0067740000
IC 80 bar1:1420540013-60
T32235
ER-40 QF
0067740000
Face drill/milling unit, both sides (6000 RPM,
Heavy Duty)
EC1:1420532019-60
T32216
ER-32 QF
0067732000
EC1:1420540016-60
T32248
ER-40 QF
0067740000
Driven Toolholders - Enhanced Program
OD milling unit with combination mill arbor
DIN 6358
EC1:1410216000-60Ø 16
00675000854
EC1:1410222007-60
T32268
Ø 22
00675000483
EC1:1410227008-60Ø 27
00675000245
EC1:1410219000-60Ø 3/4"
00675000483
EC1:1410225000-60
T32217
Ø 1"
00675000483
OD drill/milling unit, offset
EC1:1420132019-60ER-32 QF
0067732000
IC 80 bar1:1420132020-60ER-32 QF
0067732000
EC1:2420125010-60ER-25 QF
0067725001
IC 80 bar1:2420125011-60ER-25 QF
0067725001
EC2:1420132021-60ER-32 QF
0067732000
IC 80 bar2:1420132022-60ER-32 QF
0067732000
© WTO GmbH * Subject to change without notice * www.wto.de
54
DMG MORI NT 4200-5400
54
© WTO GmbH * Subject to change without notice * www.wto.de
Driven Toolholders - Enhanced Program
Face drill/milling unit
EC1:2420525010-60ER-25 QF
0067725001
IC 80 bar1:2420525011-60ER-25 QF
0067725001
EC2:1420540014-60ER-40 QF
0067740000
IC 80 bar2:1420540015-60ER-40 QF
0067740000
Face milling unit with combination mill arbor
DIN 6358
EC2:1410622000-60
T32269
Ø 22
00675000483
EC2:1410627000-60Ø 27
00675000245
EC2:1410625000-60
T32226
Ø 1"
00675000483
Adjustable angle drill/milling unit
EC1:1411013009-60
T32474
ER 20
00675000928
IC 80 bar1:1411013010-60ER 20
00675000928
EC1:2411010001-60ER 16
00675000936
IC 80 bar1:2411010002-60ER 16
00675000936
OD drill/milling unit, both sides
EC1:1413002001-60ER 25
00675000907
55
© WTO GmbH * Subject to change without notice * www.wto.de
DMG MORI NT 4200-5400
© WTO GmbH * Subject to change without notice * www.wto.de
55
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 20
ø 6240020006
ø 8240020008
ø 10240020010
ø 12240020012
ø 14240020014
ø 16240020016
Reduction sleeve Ø 25
ø 6240025006
ø 8240025008
ø 10240025010
ø 12240025012
ø 14240025014
ø 16240025016
ø 20240025020
Reduction sleeve Ø 32
ø 6240032006
ø 8240032008
ø 10240032010
ø 12240032012
ø 14240032014
ø 16240032016
ø 18240032018
ø 20240032020
ø 25240032025
Reduction sleeve Ø 40
ø 6240040006
ø 8240040008
ø 10240040010
ø 12240040012
ø 14240040014
ø 16240040016
ø 20240040020
ø 25240040025
ø 32240040032
Reduction sleeve Ø 50
ø 10240050010
ø 12240050012
ø 16240050016
ø 20240050020
ø 25240050025
ø 25240050025
ø 32240050032
ø 40240050040
Standard reduction sleeves - cylindrical
Reduction sleeve Ø 3/4"
ø 1/4"2400075025
ø 5/16"2400075032
ø 3/8"2400075038
ø 1/2"2400075050
ø 5/8"2400075063
Reduction sleeve Ø 1"
ø 1/4"2400100025
ø 5/16"2400100031
ø 3/8"2400100038
ø 1/2"2400100050
ø 5/8"2400100063
ø 3/4"2400100075
Reduction sleeve Ø 1 1/4"
ø 3/8"2400125038
ø 1/2"2400125050
ø 5/8"2400125063
ø 3/4"2400125075
ø 7/8"2400125088
ø 1"2400125100
Reduction sleeve Ø 1 1/2"
ø 3/8"2400150038
ø 1/2"2400150050
ø 5/8"2400150063
ø 3/4"2400150075
ø 7/8"2400150088
ø 1"2400150100
ø 1 1/4"2400150125
Reduction sleeve Ø 2"
ø 1/2"2400200050
ø 5/8"2400200063
ø 7/8"2400200088
ø 1"2400200100
ø 1 1/4"2400200125
ø 1 1/2"2400200150
ø 1 3/4"2400200175
© WTO GmbH * Subject to change without notice * www.wto.de
56
Accessories - Reduction sleeves
56
© WTO GmbH * Subject to change without notice * www.wto.de
Standard reduction sleeves - cylindrical, with
slot
Reduction sleeve Ø 32
ø 8240132008
ø 10240132010
ø 12240132012
ø 15240132015
ø 16240132016
ø 20240132020
ø 25240132025
Reduction sleeve Ø 40
ø 10240140010
ø 12240140012
ø 15240140015
ø 16240140016
ø 20240140020
ø 25240140025
ø 32240140032
Standard reduction sleeves - morse taper
Reduction sleeve Ø 32
MT 1240532001
MT 2240532002
MT 3240532003
Reduction sleeve Ø 40
MT 1240540001
MT 2240540002
MT 3240540003
MT 4240540004
57
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
57
Reduction sleeves for boring bar holders -
cylindrical
Reduction sleeve Ø 25
ø 824-T20180
ø 1024-T20182
ø 1224-T20184
ø 1624-T20186
ø 2024-T20188
Reduction sleeve Ø 32
ø 824-T20112
ø 1024-T20114
ø 1224-T20116
ø 1624-T20118
ø 2024-T20120
ø 2524-T20122
Reduction sleeve Ø 40
ø 824-T20086
ø 1024-T20088
ø 1224-T20090
ø 1624-T20092
ø 2024-T20094
ø 2524-T20096
ø 3224-T20098
Reduction sleeve Ø 50
ø 1024-T20160
ø 1224-T20162
ø 1624-T20164
ø 2024-T20166
ø 2524-T20168
ø 3224-T20170
ø 4024-T20172
Reduction sleeve Ø 60
ø 3224-T20136
ø 4024-T20138
ø 5024-T20140
Reduction sleeve Ø 1"
ø 3/8"24-T20181
ø 1/2"24-T20183
ø 5/8"24-T20185
ø 3/4"24-T20187
Reduction sleeve Ø 1 1/4"
ø 3/8"24-T20115
ø 1/2"24-T20117
ø 5/8"24-T20119
ø 3/4"24-T20121
ø 1"24-T20123
Reduction sleeves for boring bar holders -
cylindrical
Reduction sleeve Ø 1 1/2"
ø 3/8"24-T20089
ø 1/2"24-T20091
ø 5/8"24-T20093
ø 3/4"24-T20095
ø 1"24-T20097
ø 1 1/4"24-T20099
Reduction sleeve Ø 2"
ø 1/2"24-T20163
ø 5/8"24-T20165
ø 3/4"24-T20167
ø 1"24-T20169
ø 1 1/4"24-T20171
ø 1 1/2"24-T20173
© WTO GmbH * Subject to change without notice * www.wto.de
58
Accessories - Reduction sleeves
58
© WTO GmbH * Subject to change without notice * www.wto.de
Reduction sleeves for boring bar holders -
cylindrical, extended
Reduction sleeve Ø 32
ø 824-T20124
ø 1024-T20126
ø 1224-T20128
ø 1624-T20130
Reduction sleeve Ø 40
ø 824-T20106
ø 1024-T20108
ø 1224-T20110
ø 1624-T20194
ø 2024-T20196
ø 2524-T20216
Reduction sleeve Ø 1 1/4"
ø 3/8"24-T20127
ø 1/2"24-T20129
ø 5/8"24-T20131
Reduction sleeve Ø 1 1/2"
ø 3/8"24-T20109
ø 1/2"24-T20111
ø 5/8"24-T20195
ø 3/4"24-T20197
Reduction sleeves for boring bar holders -
morse taper
Reduction sleeve Ø 40
MT 224-T22046
MT 324-T22042
Reduction sleeve Ø 50
MT 424-T22044
59
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Reduction sleeves
© WTO GmbH * Subject to change without notice * www.wto.de
59
Collets DIN 6499B (ER/ESX)
inchmm
ER 11
ø 0.276-0.020ø 7-0.5190011000
ø 0.039-0.020ø 1-0.5190011010
ø 0.059-0.039ø 1.5-1190011015
ø 0.079-0.059ø 2-1.5190011020
ø 0.098-0.079ø 2.5-2190011025
ø 0.118-0.098ø 3-2.5190011030
ø 0.138-0.118ø 3.5-3190011035
ø 0.158-0.138ø 4-3.5190011040
ø 0.177-0.158ø 4.5-4190011045
ø 0.197-0.177ø 5-4.5190011050
ø 0.217-0.197ø 5.5-5190011055
ø 0.236-0.217ø 6-5.5190011060
ø 0.256-0.236ø 6.5-6190011065
ø 0.276-0.256ø 7-6.5190011070
inchmm
ER 16
ø 0.394-0.020ø 10-0.5190016000
ø 0.039-0.020ø 1-0.5190016010
ø 0.079-0.039ø 2-1190016020
ø 0.118-0.079ø 3-2190016030
ø 0.158-0.118ø 4-3190016040
ø 0.197-0.158ø 5-4190016050
ø 0.236-0.197ø 6-5190016060
ø 0.276-0.236ø 7-6190016070
ø 0.315-0.276ø 8-7190016080
ø 0.354-0.315ø 9-8190016090
ø 0.394-0.354ø 10-9190016100
inchmm
ER 20
ø 0.512-0.039ø 13-1190020000
ø 0.039-0.020ø 1-0.5190020010
ø 0.079-0.039ø 2-1190020020
ø 0.118-0.079ø 3-2190020030
ø 0.157-0.118ø 4-3190020040
ø 0.197-0.157ø 5-4190020050
ø 0.236-0.197ø 6-5190020060
ø 0.276-0.236ø 7-6190020070
ø 0.315-0.276ø 8-7190020080
ø 0.354-0.315ø 9-8190020090
ø 0.394-0.354ø 10-9190020100
ø 0.433-0.394ø 11-10190020110
ø 0.472-0.433ø 12-11190020120
ø 0.512-0.472ø 13-12190020130
Collets DIN 6499B (ER/ESX)
inchmm
ER 25
ø 0.630-0.039ø 16-1190025000
ø 0.079-0.039ø 2-1190025020
ø 0.118-0.079ø 3-2190025030
ø 0.157-0.118ø 4-3190025040
ø 0.197-0.157ø 5-4190025050
ø 0.236-0.197ø 6-5190025060
ø 0.276-0.236ø 7-6190025070
ø 0.315-0.276ø 8-7190025080
ø 0.354-0.315ø 9-8190025090
ø 0.394-0.354ø 10-9190025100
ø 0.433-0.394ø 11-10190025110
ø 0.472-0.433ø 12-11190025120
ø 0.512-0.472ø 13-12190025130
ø 0.551-0.512ø 14-13190025140
ø 0.591-0.551ø 15-14190025150
ø 0.630-0.591ø 16-15190025160
inchmm
ER 32
ø 0.787-0.079ø 20-2190032000
ø 0.118-0.079ø 3-2190032030
ø 0.157-0.118ø 4-3190032040
ø 0.197-0.157ø 5-4190032050
ø 0.236-0.197ø 6-5190032060
ø 0.276-0.236ø 7-6190032070
ø 0.315-0.276ø 8-7190032080
ø 0.354-0.315ø 9-8190032090
ø 0.394-0.354ø 10-9190032100
ø 0.433-0.394ø 11-10190032110
ø 0.472-0.433ø 12-11190032120
ø 0.512-0.472ø 13-12190032130
ø 0.551-0.512ø 14-13190032140
ø 0.591-0.551ø 15-14190032150
ø 0.630-0.591ø 16-15190032160
ø 0.669-0.630ø 17-16190032170
ø 0.709-0.669ø 18-17190032180
ø 0.748-0.709ø 19-18190032190
ø 0.787-0.748ø 20-19190032200
© WTO GmbH * Subject to change without notice * www.wto.de
60
Accessories - Collets
60
© WTO GmbH * Subject to change without notice * www.wto.de
Collets DIN 6499B (ER/ESX)
inchmm
ER 40
ø 1.024-0.118ø 26-3190040000
ø 0.157-0.118ø 4-3190040040
ø 0.197-0.157ø 5-4190040050
ø 0.236-0.197ø 6-5190040060
ø 0.276-0.236ø 7-6190040070
ø 0.315-0.276ø 8-7190040080
ø 0.354-0.315ø 9-8190040090
ø 0.394-0.354ø 10-9190040100
ø 0.433-0.394ø 11-10190040110
ø 0.472-0.433ø 12-11190040120
ø 0.512-0.472ø 13-12190040130
ø 0.551-0.512ø 14-13190040140
ø 0.591-0.551ø 15-14190040150
ø 0.630-0.591ø 16-15190040160
ø 0.669-0.630ø 17-16190040170
ø 0.709-0.669ø 18-17190040180
ø 0.748-0.709ø 19-18190040190
ø 0.787-0.748ø 20-19190040200
ø 0.827-0.787ø 21-20190040210
ø 0.866-0.827ø 22-21190040220
ø 0.906-0.866ø 23-22190040230
ø 0.945-0.906ø 24-23190040240
ø 0.984-0.945ø 25-24190040250
ø 1.024-0.984ø 26-25190040260
inchmm
ER 50
ø 1.339-0.394ø 34-10190050000
ø 0.236-0.157ø 6-4190050060
ø 0.315-0.236ø 8-6190050080
ø 0.394-0.315ø 10-8190050100
ø 0.472-0.394ø 12-10190050120
ø 0.551-0.472ø 14-12190050140
ø 0.630-0.551ø 16-14190050160
ø 0,709-0,630ø 18-16190050180
ø 0.787-0.709ø 20-18190050200
ø 0.866-0.787ø 22-20190050220
ø 0.945-0.866ø 24-22190050240
ø 1.024-0.945ø 26-24190050260
ø 1.102-1.024ø 28-26190050280
ø 1.181-1.102ø 30-28190050300
ø 1.260-1.181ø 32-30190050320
ø 1.339-1.260ø 34-32190050340
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 11
ø 3191011030
ø 4191011040
ø 5191011050
ø 6191011060
ø 0.125191111013-in
ø 0.188191111019-in
ø 0.25191111025-in
inchmm
ER 16
ø 3-10191016000
ø 3191016030
ø 4191016040
ø 5191016050
ø 6191016060
ø 7191016070
ø 8191016080
ø 9191016090
ø 10191016100
ø 0.125-0.375191116001
ø 0.125191116013-in
ø 0.188191116019-in
ø 0.25191116025-in
ø 0.313191116031-in
ø 0.375191116038-in
inchmm
ER 20
ø 3-12191020000
ø 3191020030
ø 4191020040
ø 5191020050
ø 6191020060
ø 7191020070
ø 8191020080
ø 9191020090
ø 10191020100
ø 11191020110
ø 12191020120
ø 0.125-0.5191120001
ø 0.125191120013-in
ø 0.188191120019-in
ø 0.25191120025-in
ø 0.313191120031-in
ø 0.375191120038-in
ø 0.438191120044-in
ø 0.5191120050-in
61
© WTO GmbH * Subject to change without notice * www.wto.de
Accessories - Collets
© WTO GmbH * Subject to change without notice * www.wto.de
61
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 25
ø 4-16191025000
ø 3191025030
ø 4191025040
ø 5191025050
ø 6191025060
ø 7191025070
ø 8191025080
ø 9191025090
ø 10191025100
ø 11191025110
ø 12191025120
ø 13191025130
ø 14191025140
ø 15191025150
ø 16191025160
ø 0.25-0.625191125001
ø 0.25191125025-in
ø 0.313191125031-in
ø 0.375191125038-in
ø 0.438191125044-in
ø 0.5191125050-in
ø 0.563191125056-in
ø 0.625191125063-in
inchmm
ER 32
ø 4-20191032000
ø 3191032030
ø 4191032040
ø 5191032050
ø 6191032060
ø 7191032070
ø 8191032080
ø 9191032090
ø 10191032100
ø 11191032110
ø 12191032120
ø 13191032130
ø 14191032140
ø 15191032150
ø 16191032160
ø 17191032170
ø 18191032180
ø 19191032190
ø 20191032200
ø 0.25-0.75191132001
ø 0.25191132025-in
ø 0.313191132031-in
ø 0.375191132038-in
ø 0.438191132044-in
ø 0.5191132050-in
ø 0.563191132056-in
ø 0.625191132063-in
ø 0.688191132069-in
ø 0.75191132075-in
Collets DIN 6499D (ER/ESX) - sealed, for IC
inchmm
ER 40
ø 6191040060
ø 8191040080
ø 10191040100
ø 12191040120
ø 14191040140
ø 16191040160
ø 18191040180
ø 20191040200
ø 22191040220
ø 25191040250
ø 0.25191140025-in
ø 0.313191140031-in
ø 0.375191140038-in
ø 0.438191140044-in
ø 0.5191140050-in
ø 0.563191140056-in
ø 0.625191140063-in
ø 0.688191140069-in
ø 0.75191140075-in
ø 0.875191140088-in
ø 1191140100-in
© WTO GmbH * Subject to change without notice * www.wto.de
62
Accessories - Collets
62
© WTO GmbH * Subject to change without notice * www.wto.de
