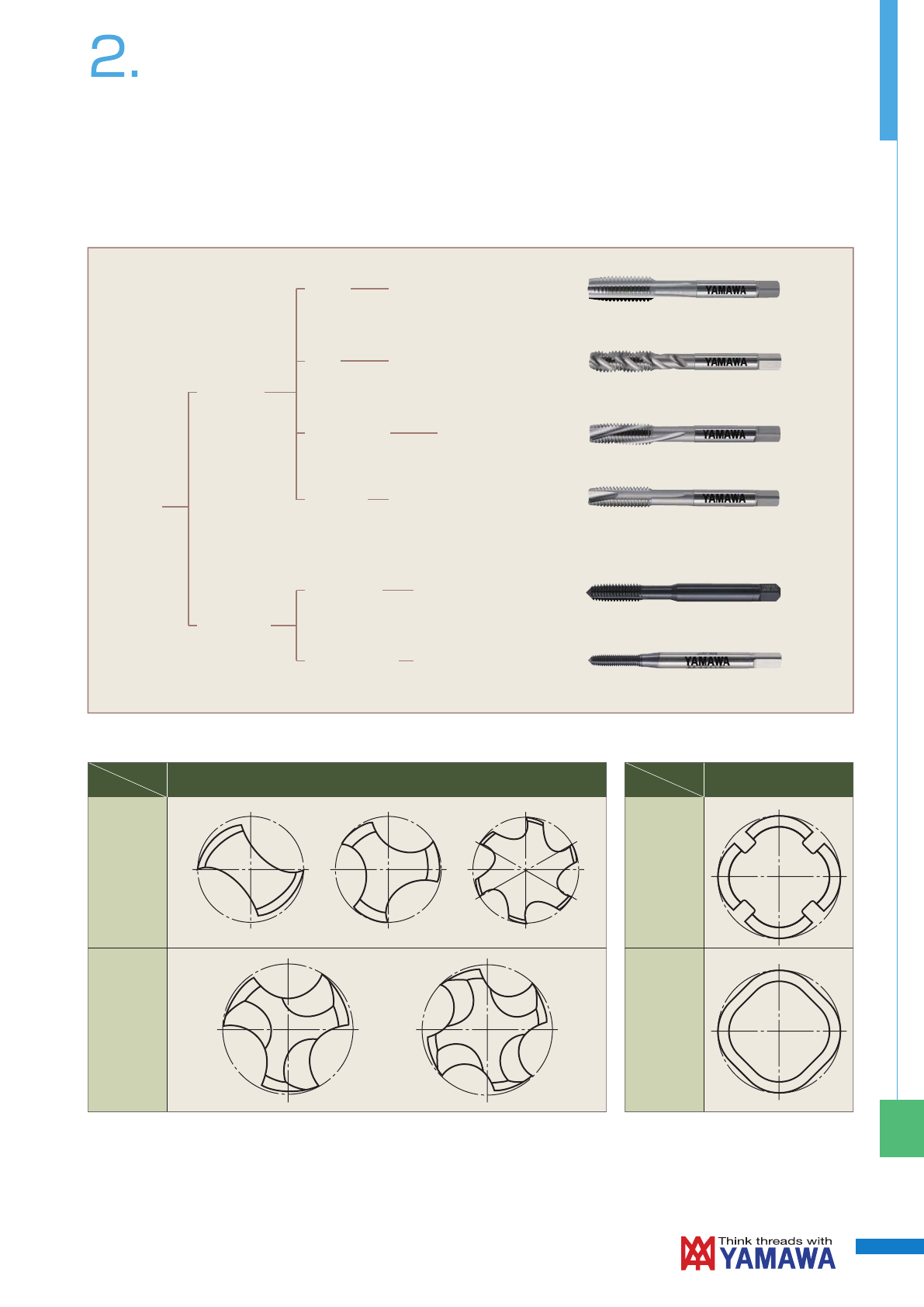

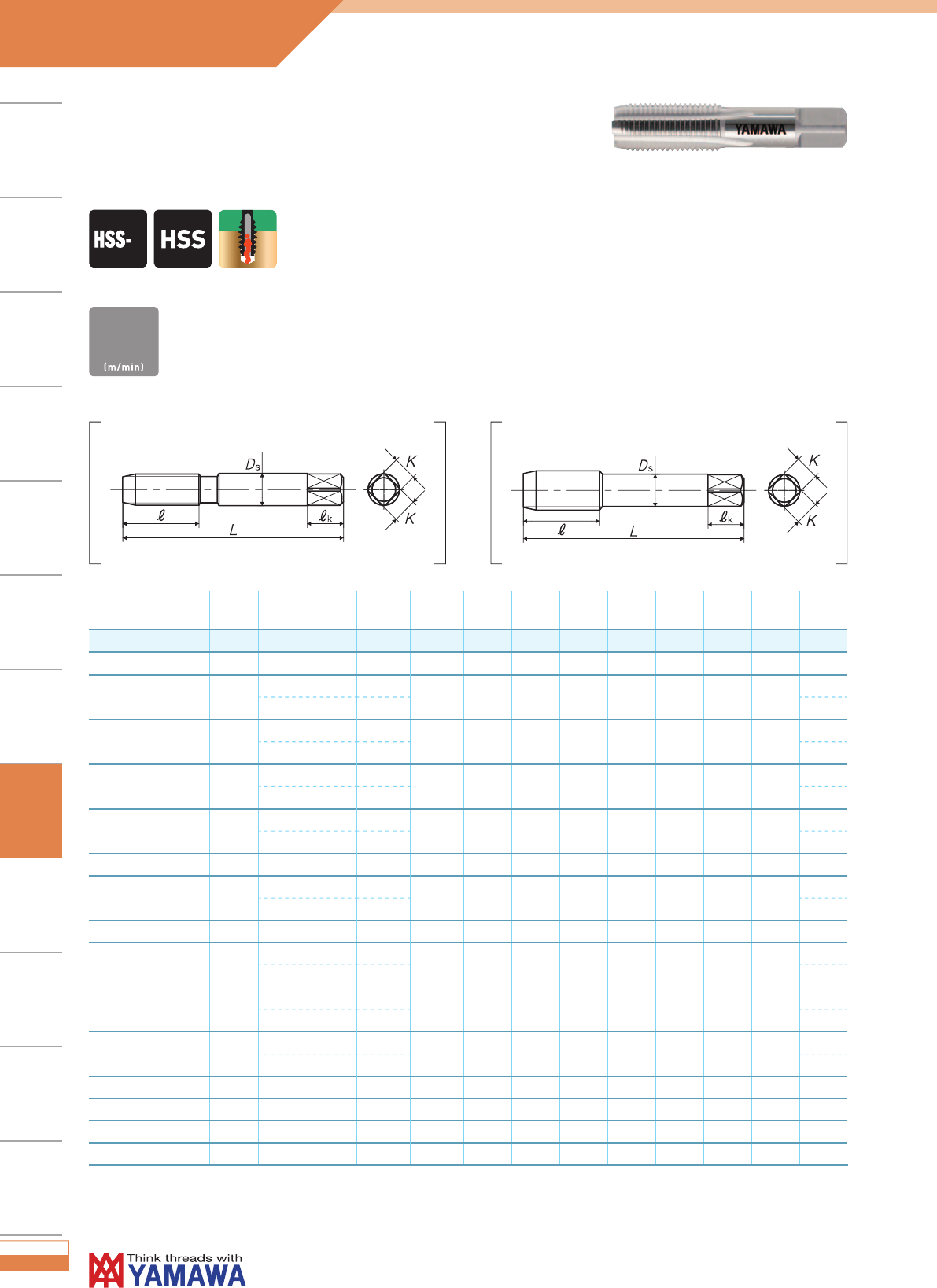

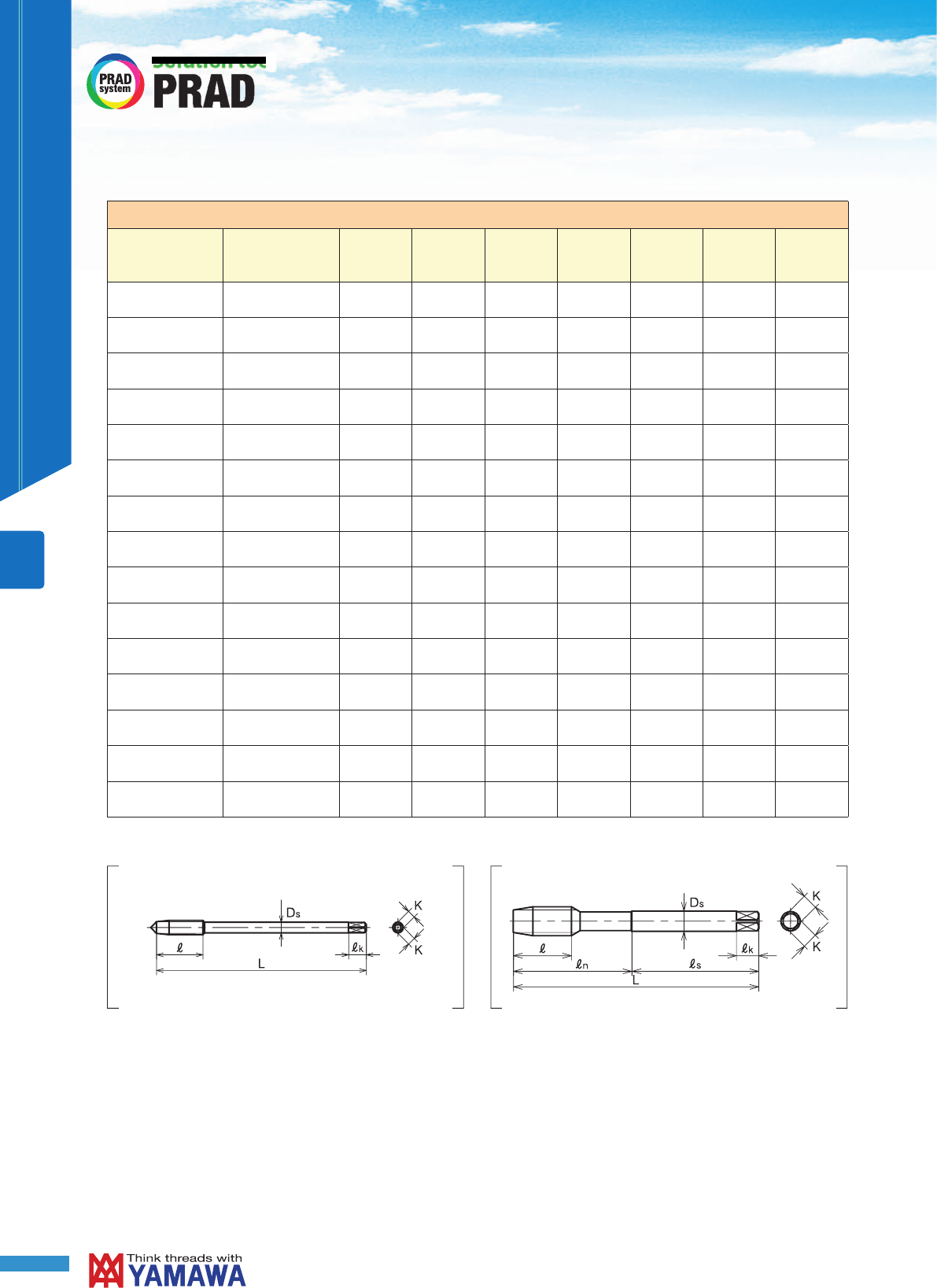

Taps
Product
symbol
S u r f a c e
treatment
Drill hole shape Feed function Tapping
direction Page no
P1 P2 P3 P4 P5 P6 M1-M2 M3 M4 M5 K1 K2 K3 K4 N1 N2 N3 N4
S1-S2
S3 S5 H
Product
symbol
Free cutting
and structural
steel
Carbon steel
and low alloy
steel
Medium alloy
steel and heat
treated steel
High
alloy
steel
Tool
steel
High tensile
strength
steel
Ferritic and
austenitic
stainless
steel
Austenitic
stainless
steel
Martensitic
stainless
steel
PH
stainless
steel
Grey
cast iron
Nodular
cast iron
Austenitic
cast iron
ADI cast
iron
Aluminum
alloy
(<12% Si)
Aluminum
alloy
( >12% Si)
Copper
alloy
Brass alloy
and bronze
alloy
Heat resistant
super alloys
(~35 HRC)
Heat resistant
super alloys
(35~45 HRC)
Titanium
alloy
Hardened
steel
(45~55 HRC)
Hardened
steel
(55~63 HRC)
Classification Application
For
blind
hole
For
through
hole
Synchronized
Non-Synchronized
Vertical
Horizontal

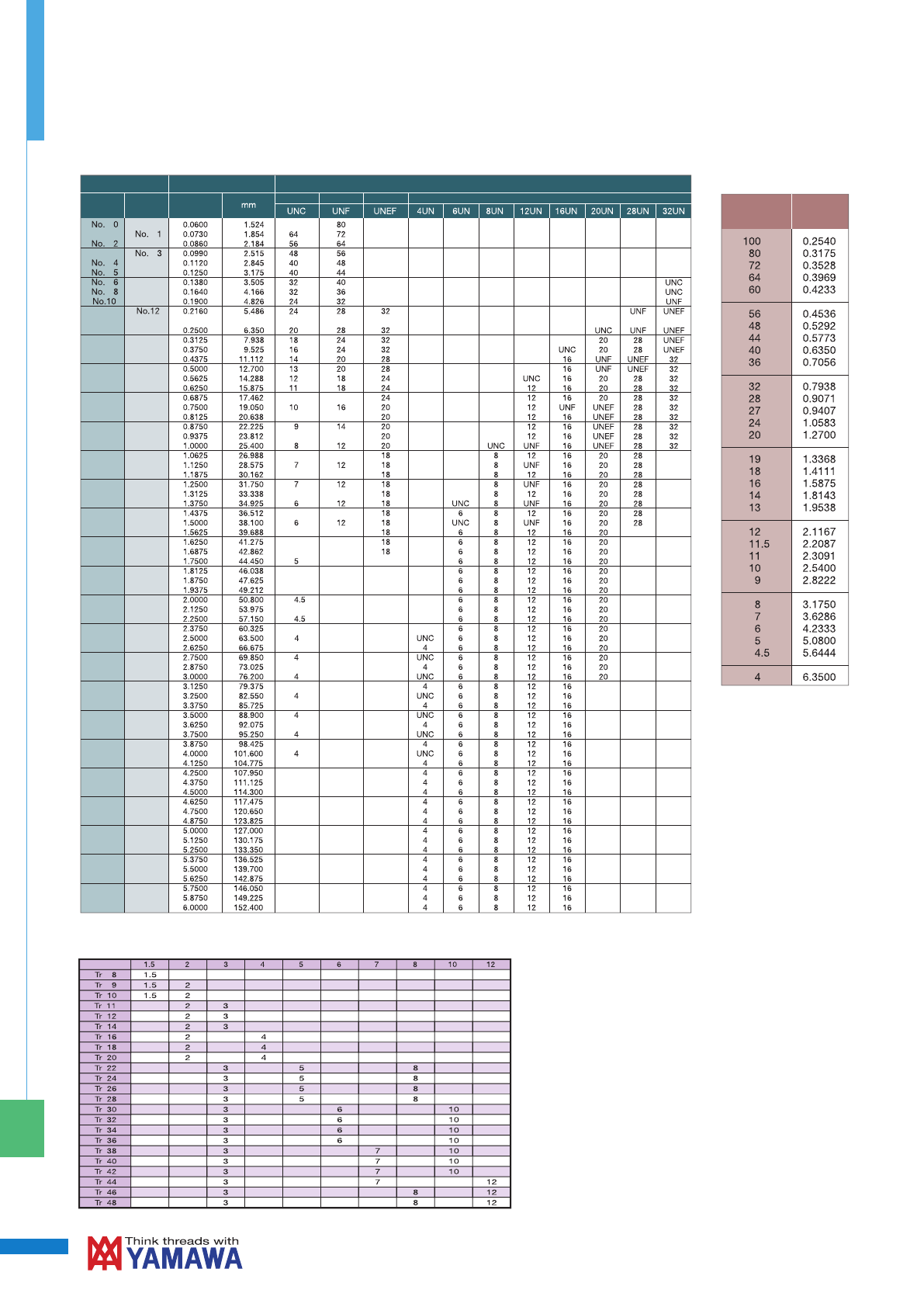

Metric Unified G
N/mm2 HB
Si <12% Si >12%
HRC
Holder
Fixing
Floating
~500 500~
700
600~
800
800~
1000
900~
1200
1200~
1480
400~
700
500~
750
550~
850
650~
950
800~
1250
150~
250
150~
350
120~
260
250~
500 - - - - ~35 35~
45 -45~
55
55~
63

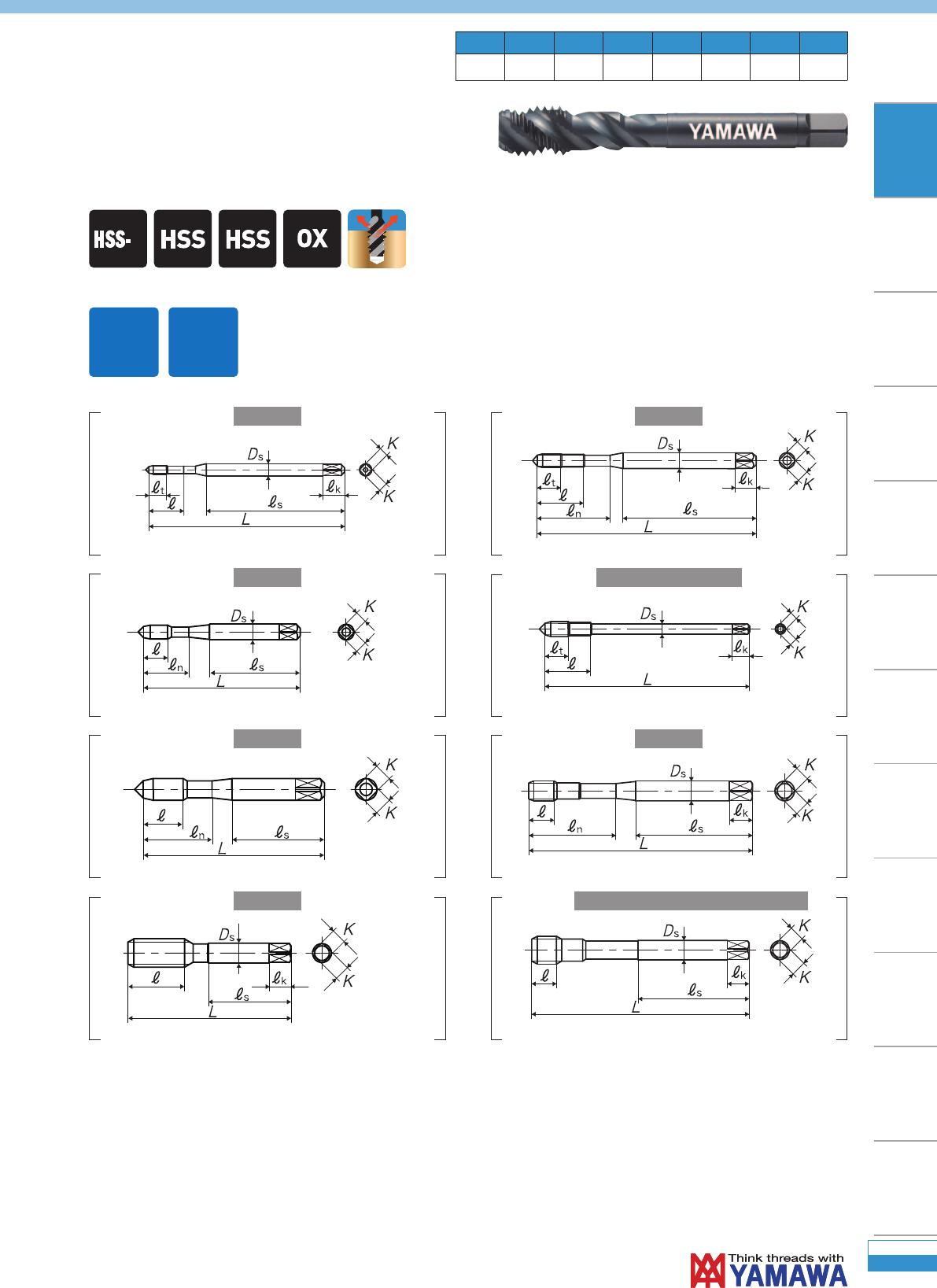

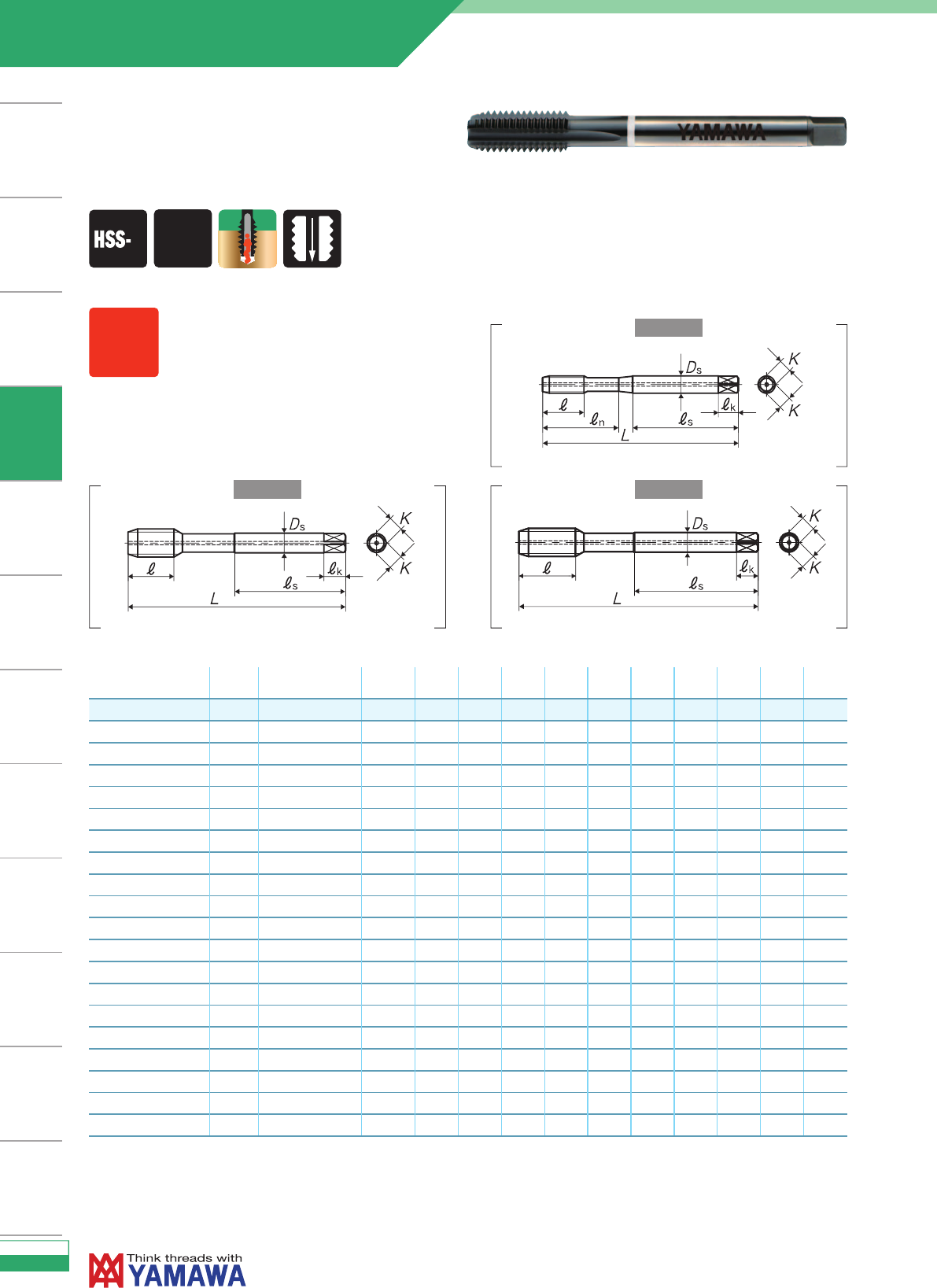

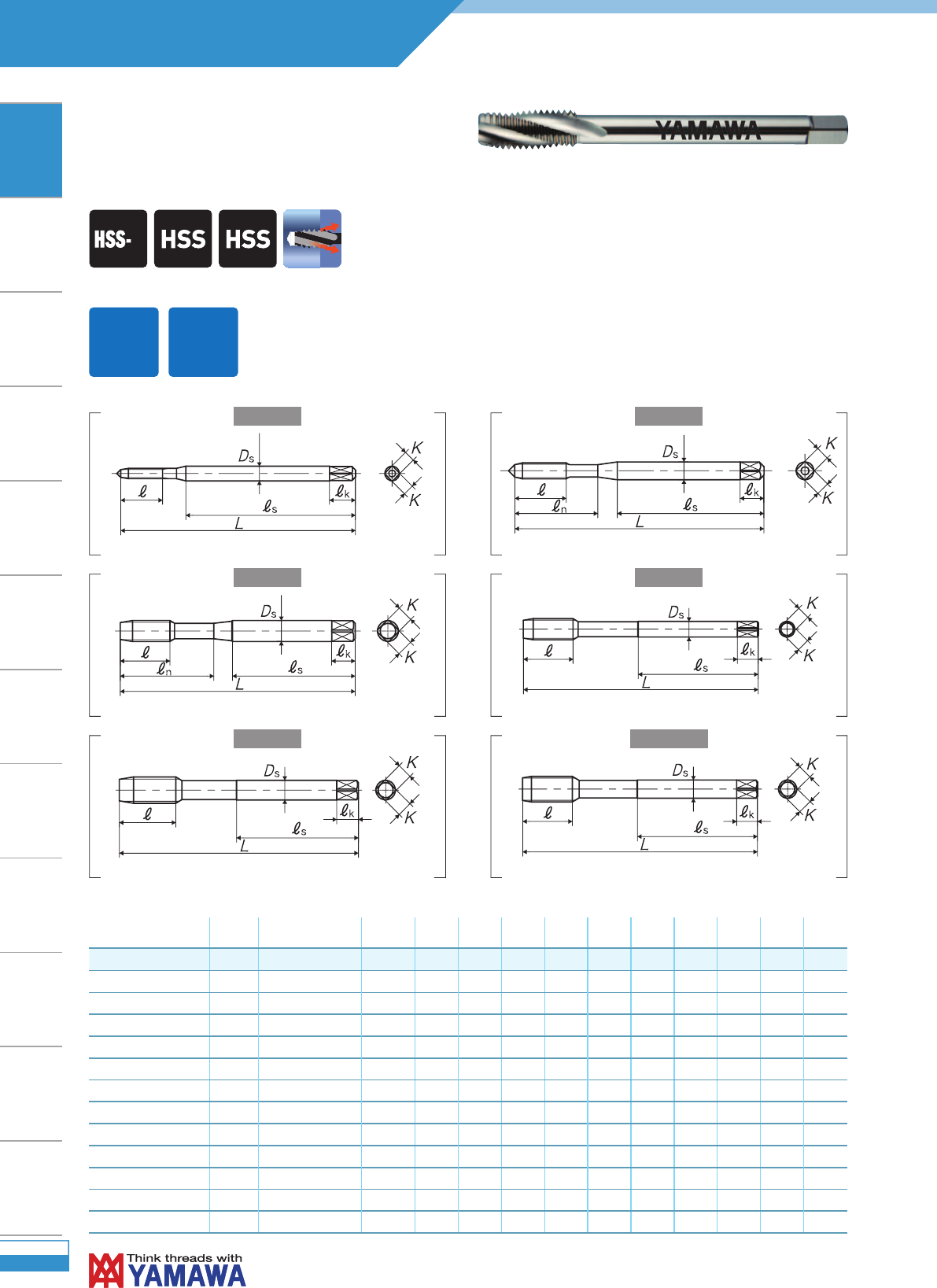

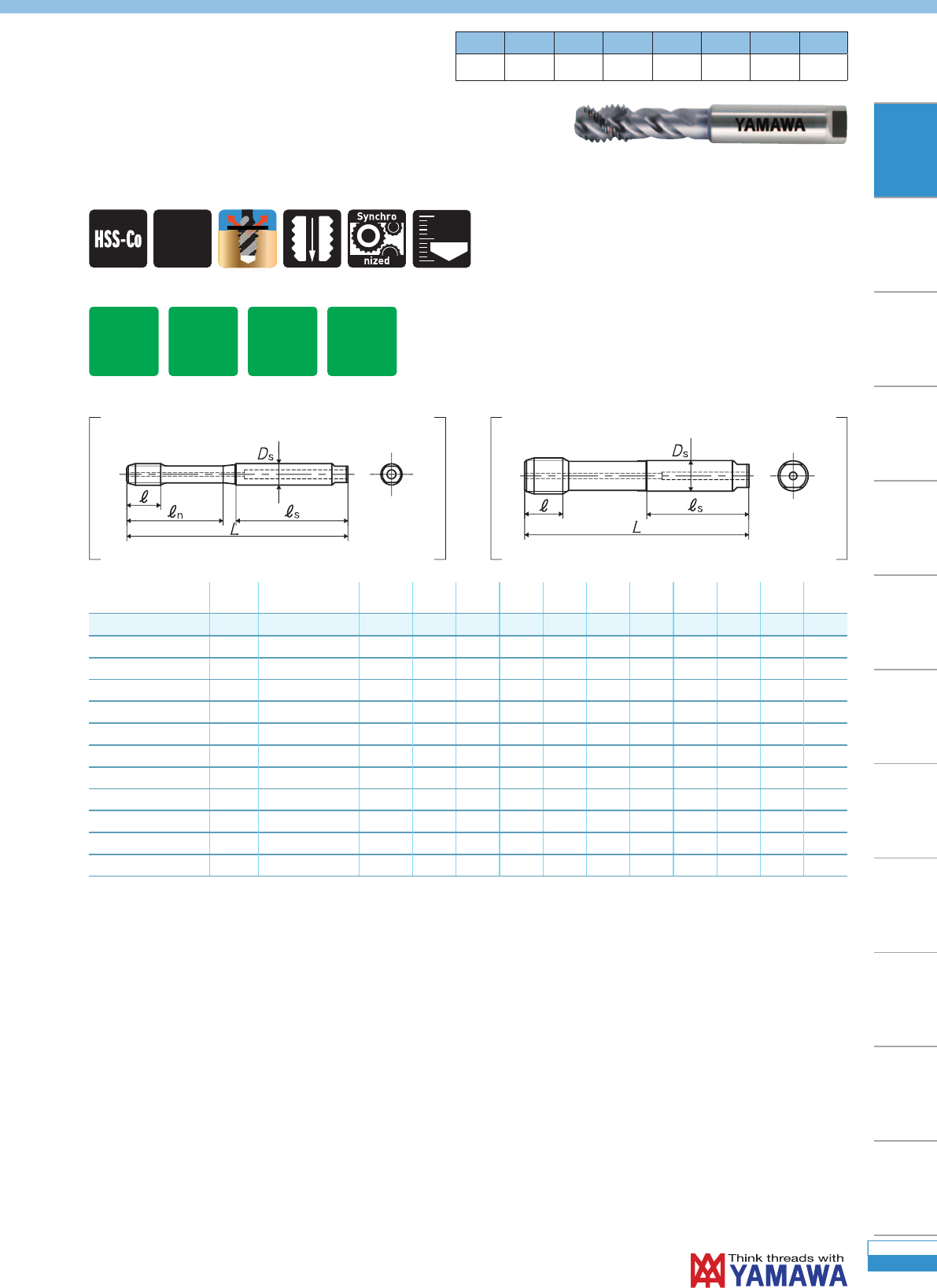

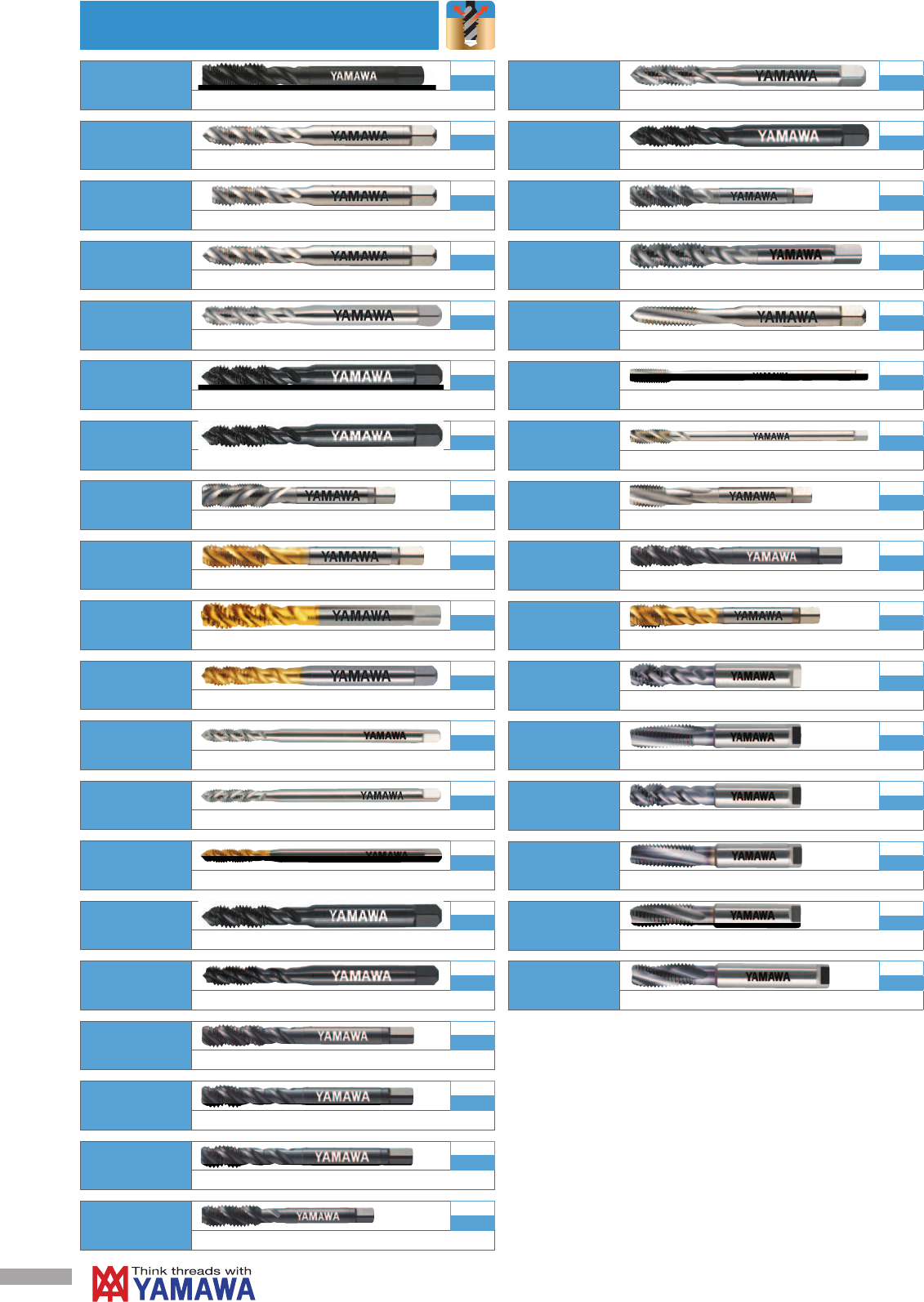

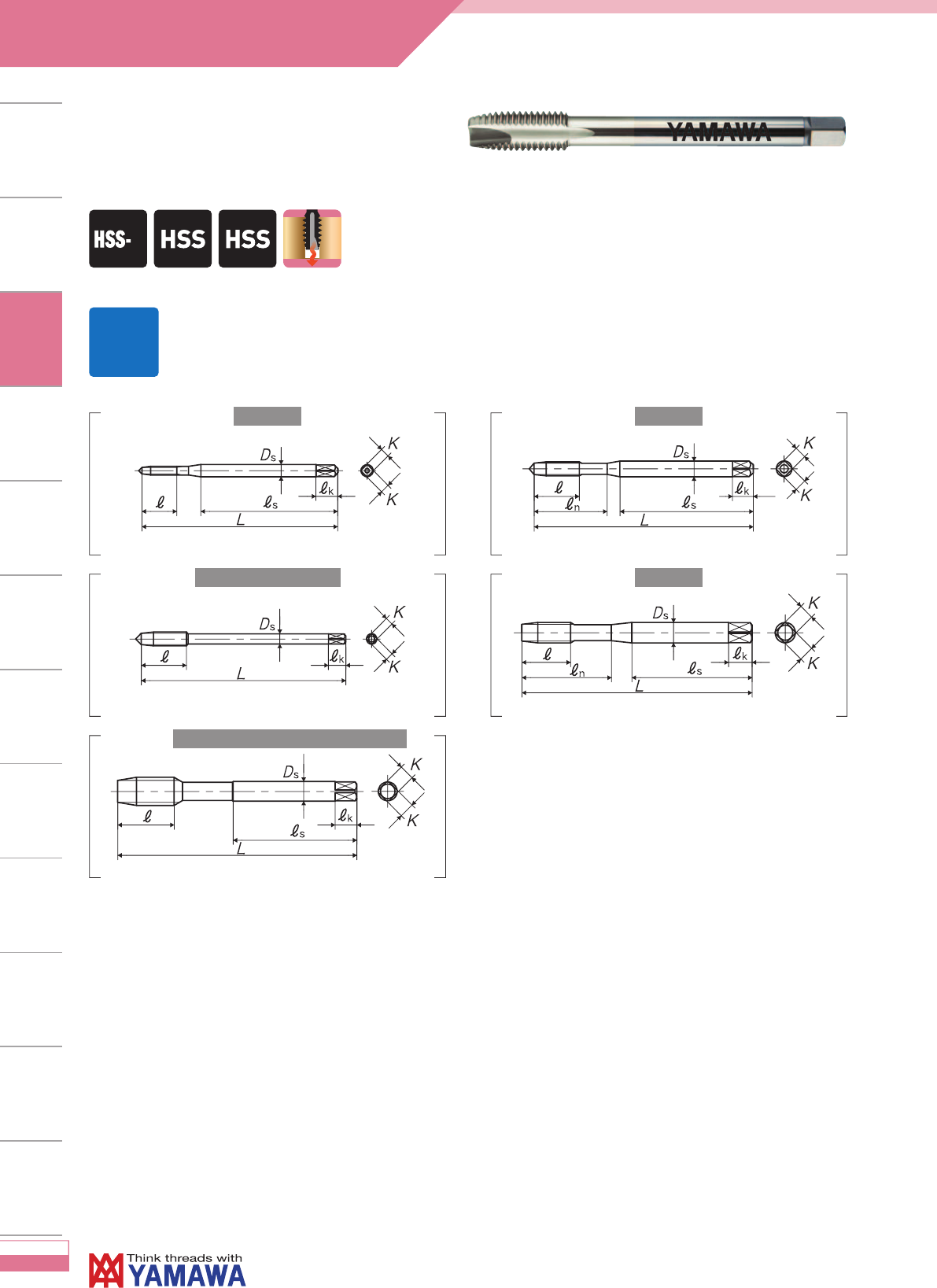

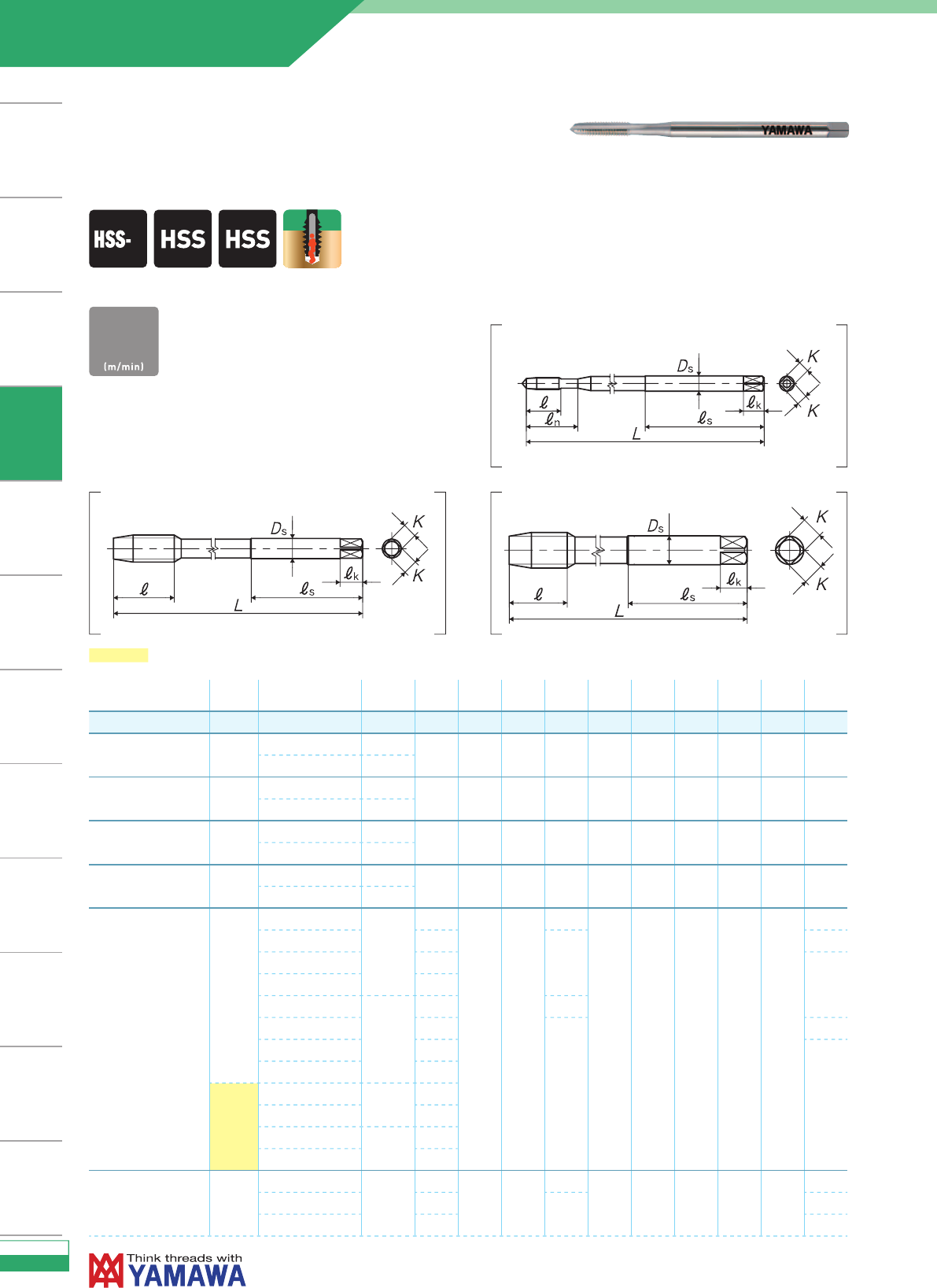

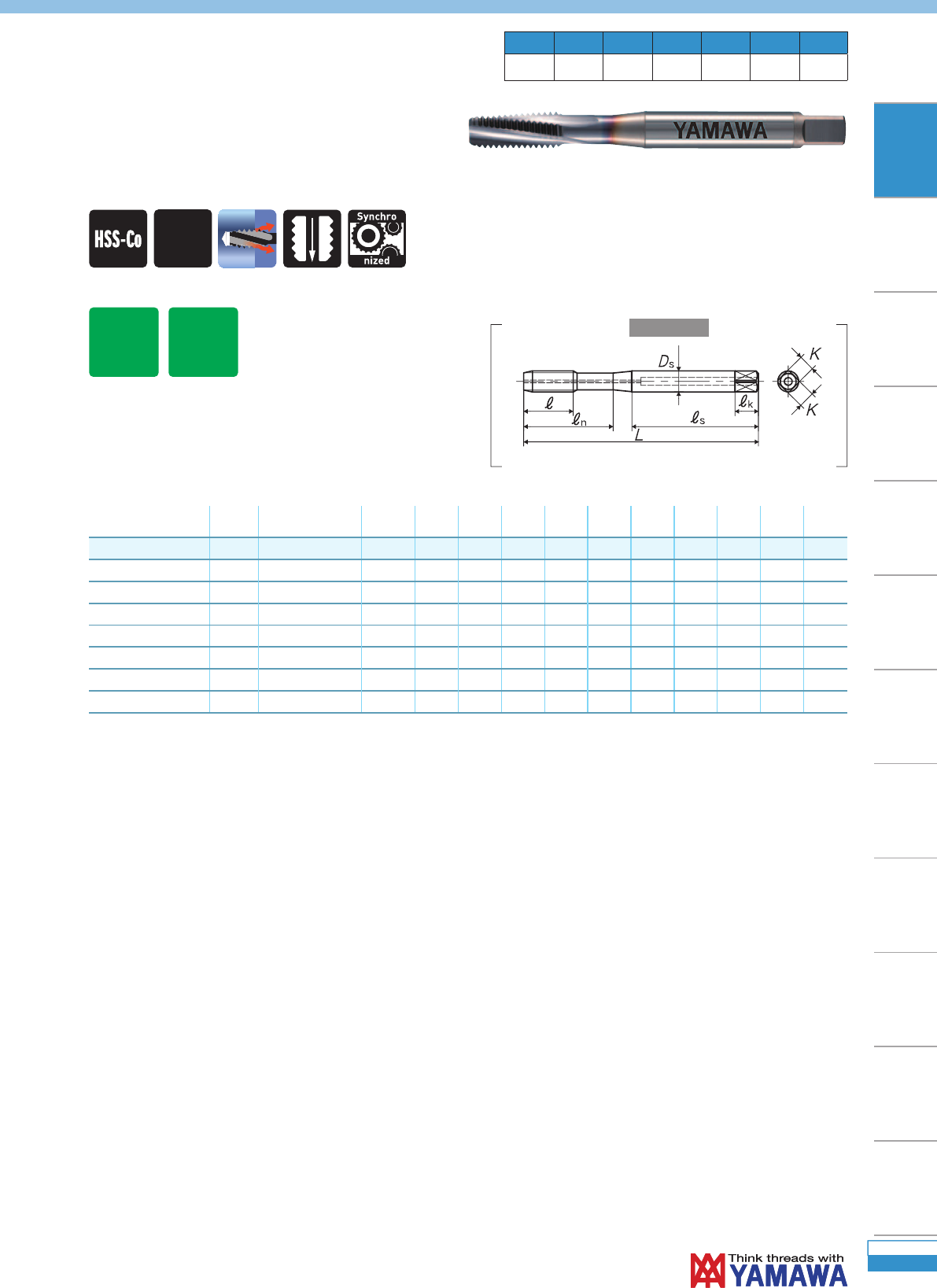

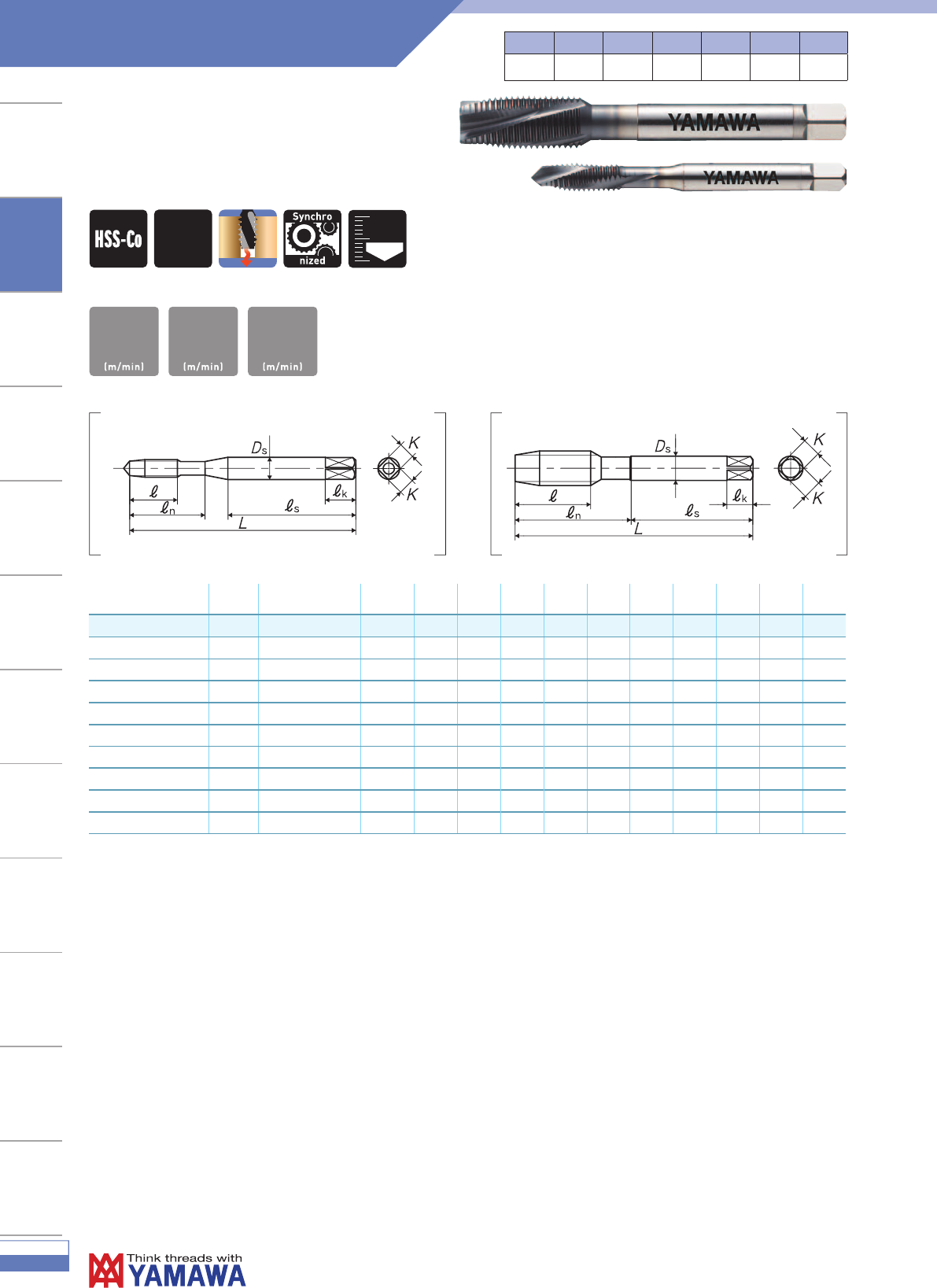

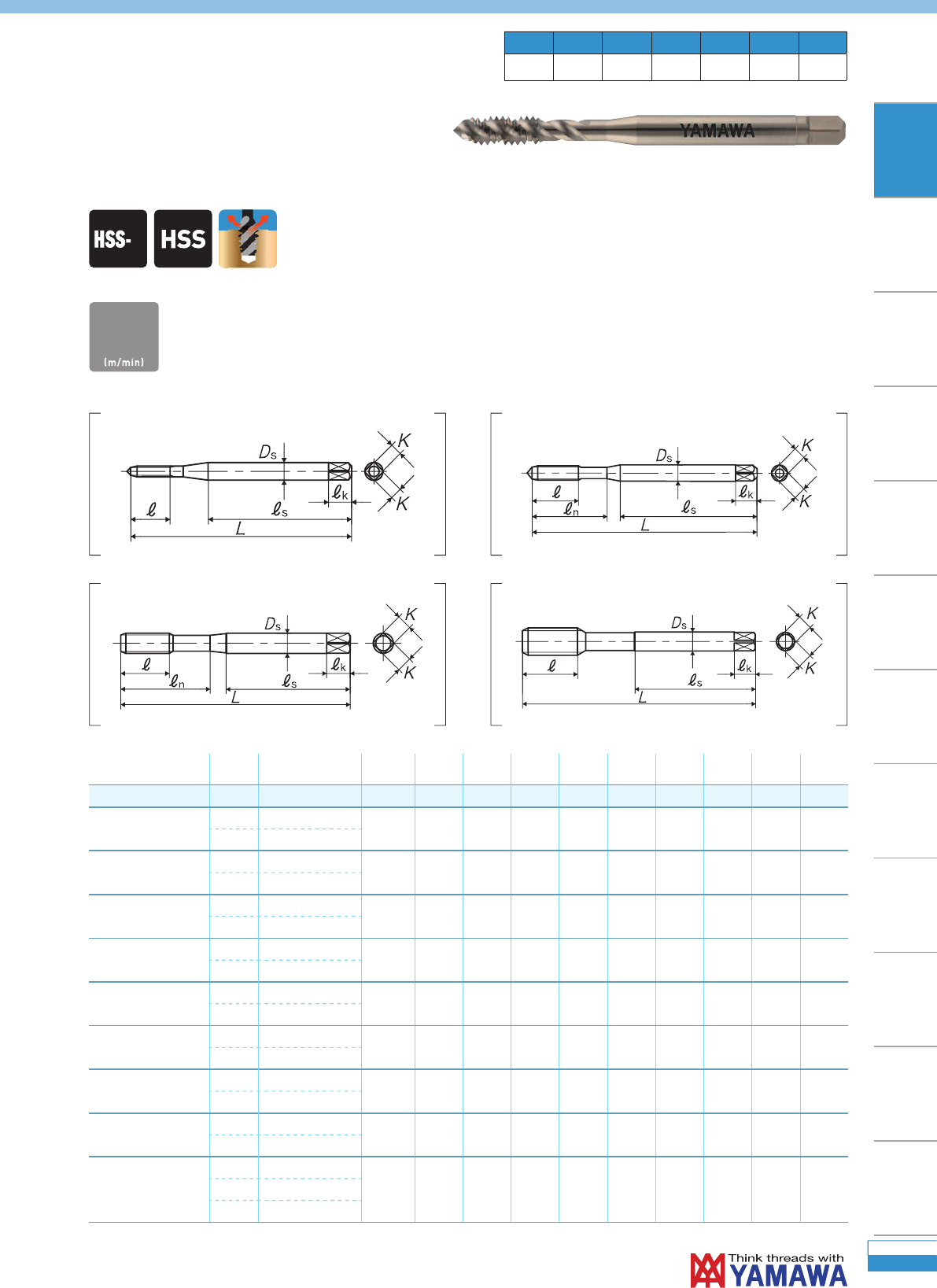

Spiral Fluted Taps For Blind Hole
Full rigid

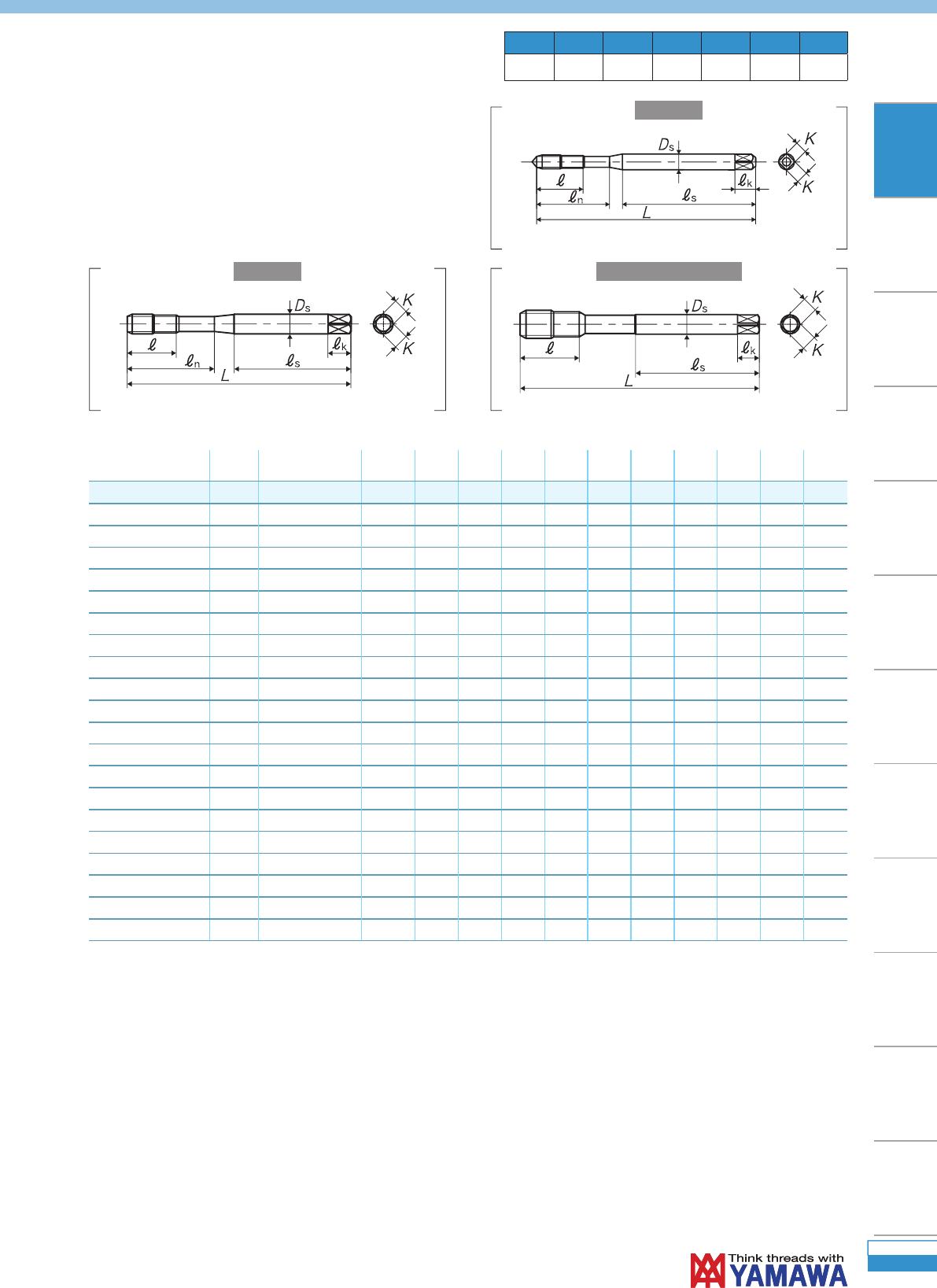

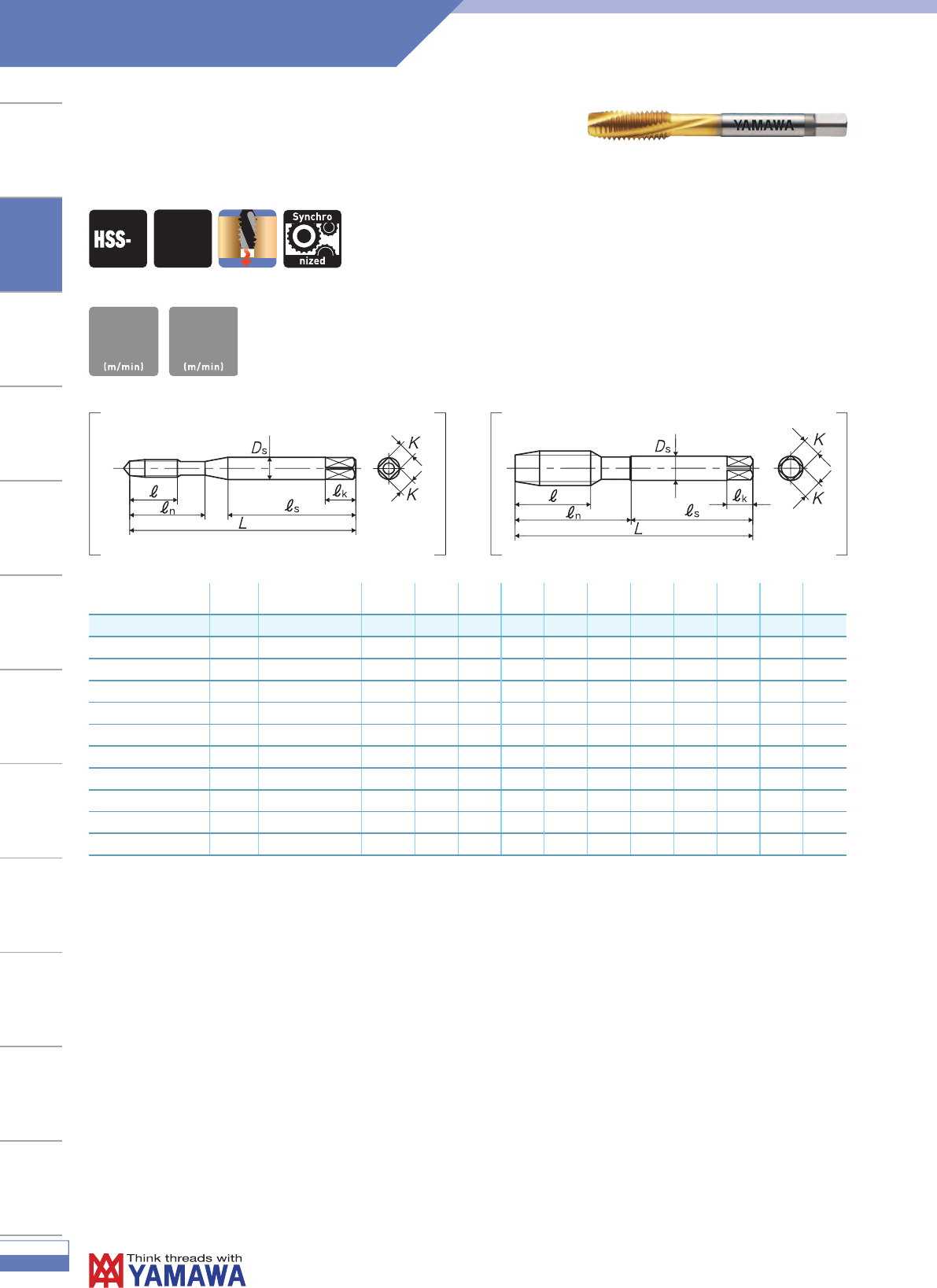

X Series Spiral Fluted Taps, Coated AUXSP Coating ◎ ◎ ◎ ○ SP-16 ◎ ◎ ◎ ◎ ○◎◎◎ ○ ○ ◎◎○ ○ AUXSP
Spiral Fluted Taps for Tough Stainless Steels SU2-SP OX ◎ ◎ ◎ ○ SP-36 SP-36 ○ ○ ○ ◎○ ○○◎ ◎ ○ SU2-SP
Spiral Fluted Taps for Nickel Base Alloys ZEN-B OX ◎ ◎ ◎ ○ SP-38 SP-39 ○ ○ ◎ ◎ ○◎◎◎○ ○ ◎ZEN-B
Spiral Fluted Taps for Titanium Alloys ZET-B NI ◎ ◎ ○◎SP-40 SP-41 ○ ○ ○ ○ ○ ○ ○ ○ ○ ◎ZET-B
Spiral Fluted Taps for High Speed Tapping F-SP Coating ◎ ◎ ◎ ○ SP-42 ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ ○ F-SP
For Ultra Fast Tapping, Vertical Use. Spiral Fluted Taps for Carbon Steels
HFIHS Coating ◎ ◎ ◎ SP-43 ◎ ◎ ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ HFIHS
For Ultra Fast Tapping, Horizontal Use. Low Spiral Fluted Taps for Carbon Steels
HFISP Coating ◎ ◎ ◎ SP-44 ◎ ◎ ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ HFISP
For Ultra Fast Tapping, Vertical Use. Spiral Fluted Taps for Carbon Steels
HFAHS Coating ◎ ◎ ◎ SP-45 ◎◎○ ○ HFAHS
For Ultra Fast Tapping, Horizontal Use. Low Spiral Fluted Taps for Carbon Steels
HFASP Coating ◎ ◎ ◎ SP-46 ◎◎○ ○ HFASP
For Dry Tapping, Blind Hole Use. Spiral Fluted Taps for Steels
HDISP Coating ◎ ◎ ◎ ◎ SP-47 ○ ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ HDISP
For Dry Tapping, Blind Hole Use. Spiral Fluted Taps for Steels
HDASP Coating ◎ ◎ ◎ ◎ SP-48 ◎◎○ ○ HDASP

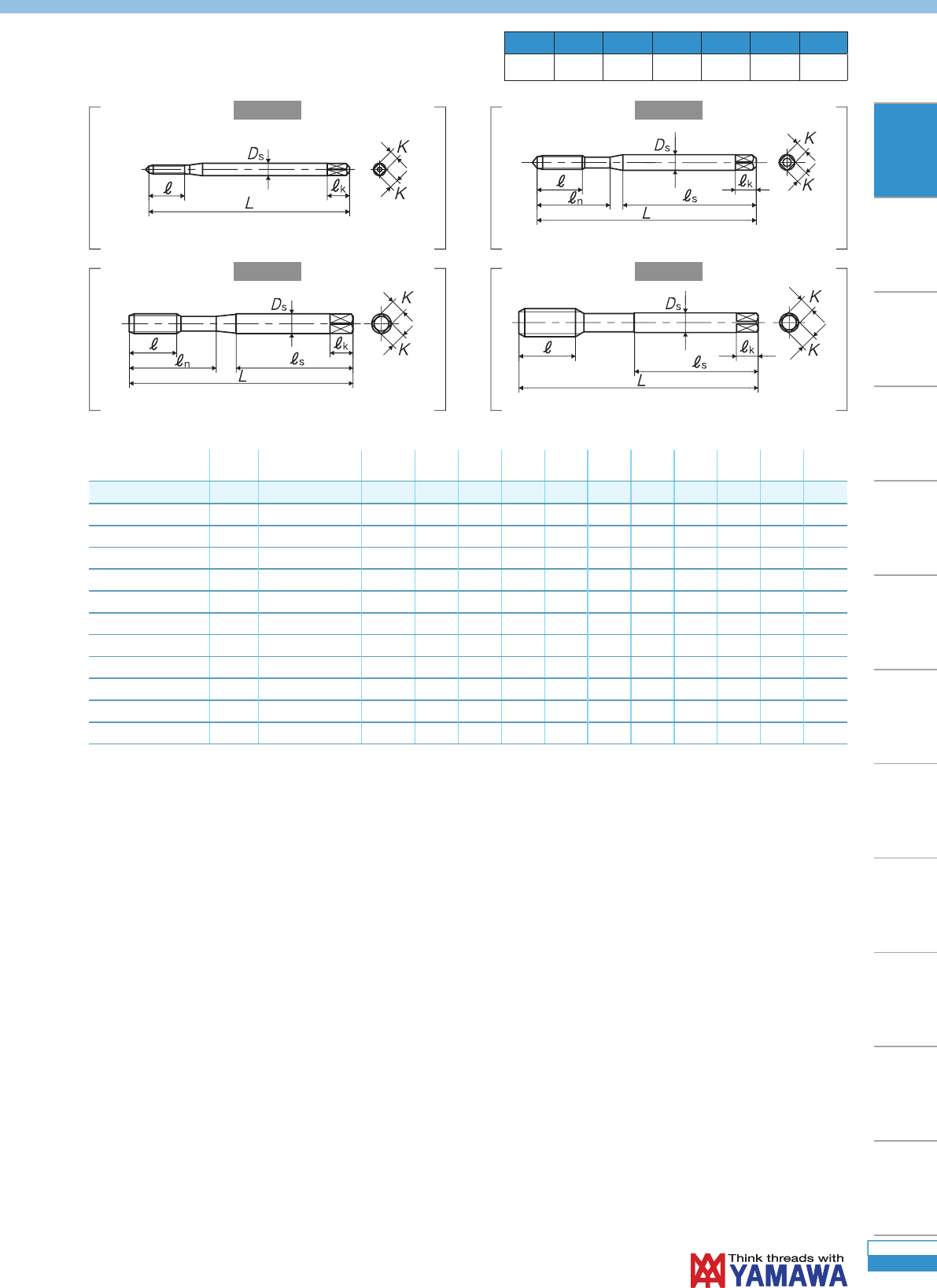

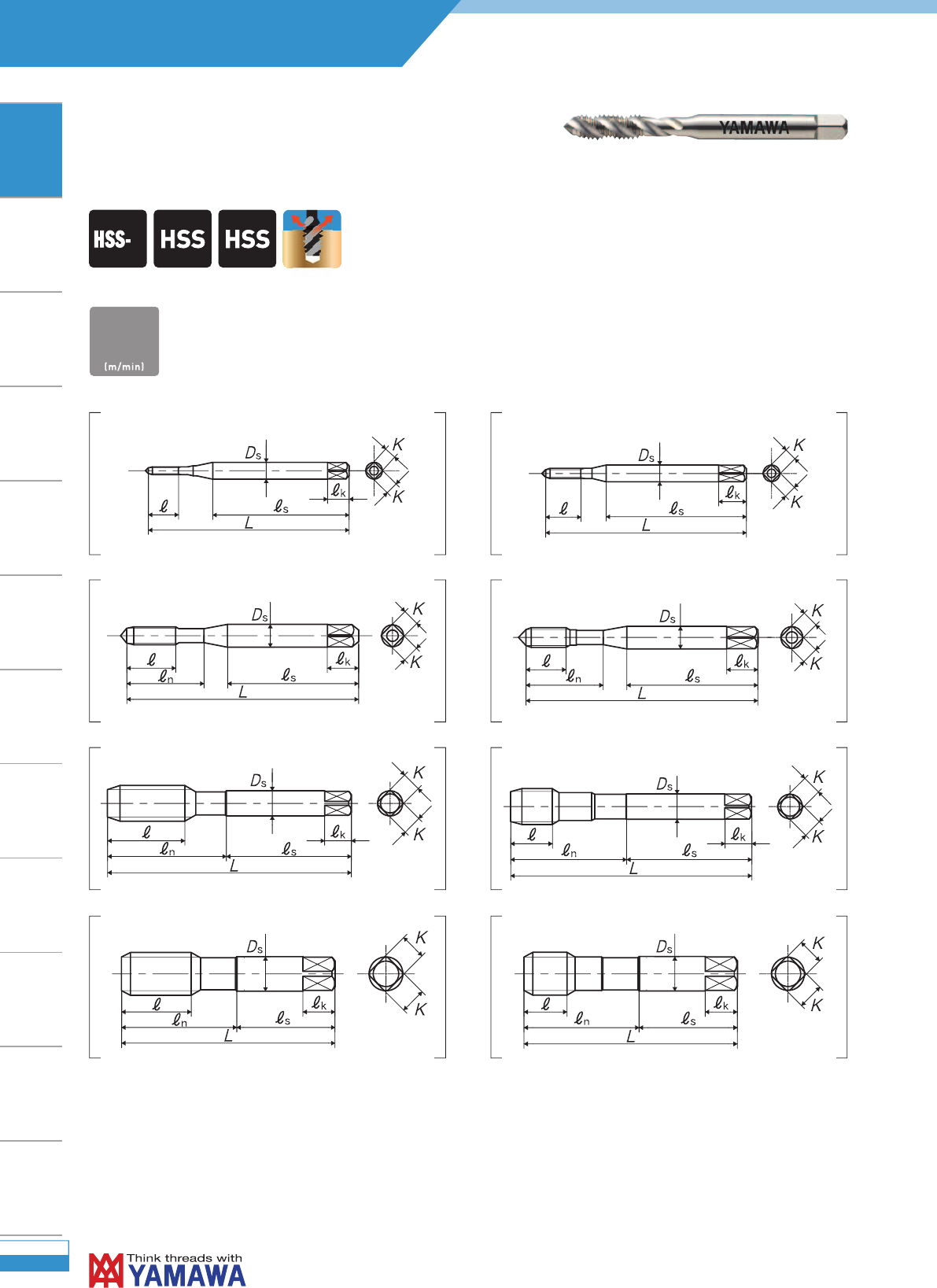

Spiral Fluted Taps SP ◎○◎ ◎ ○ SP-1 SP-4 SP-5 ○ ◎○ ○ ○ ○ ○ ○ SP

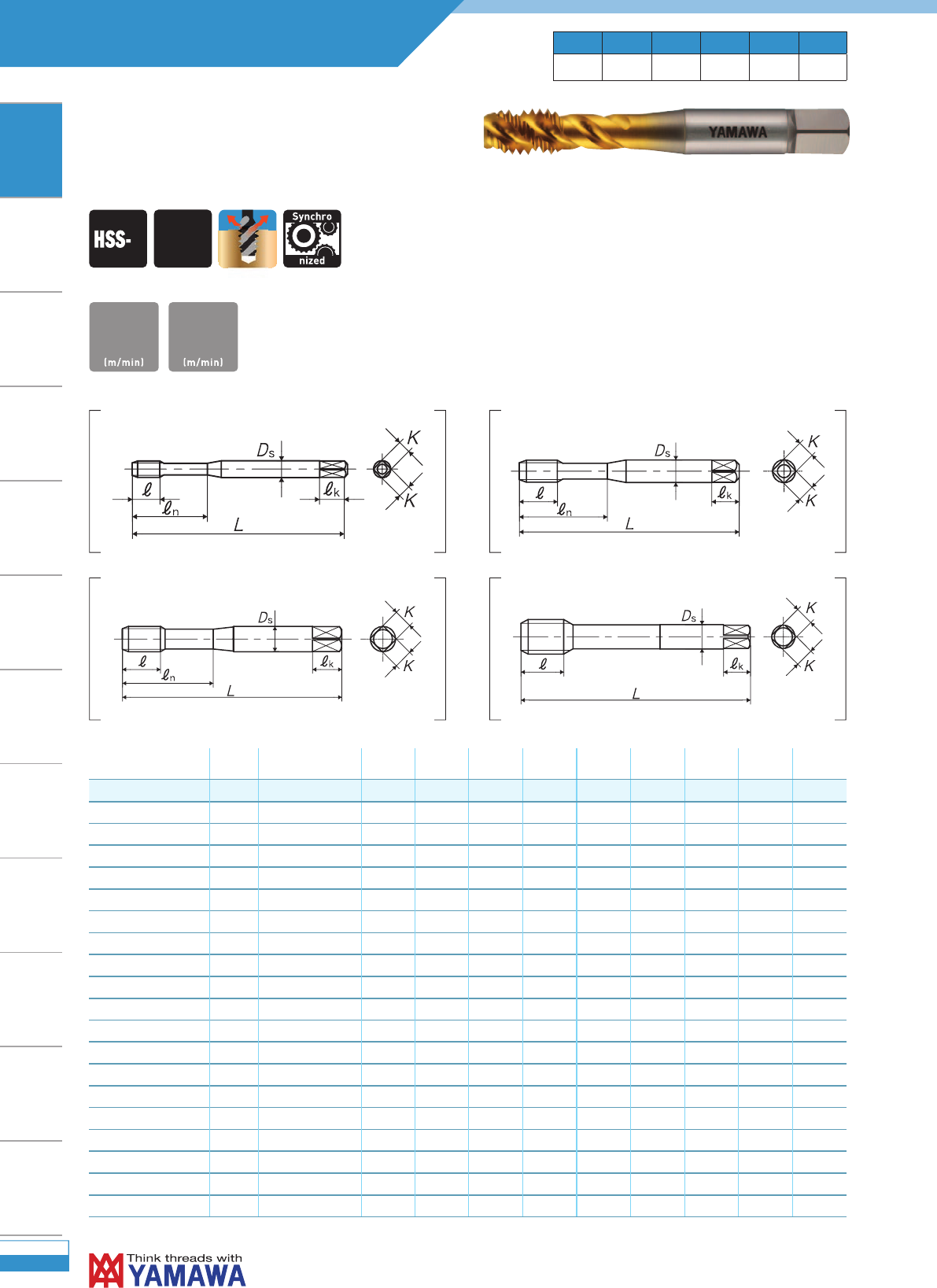

Spiral Fluted Taps, Coated SP(Coating) Coating ◎○◎ ◎ ○ SP-6 SP-7 ◎◎◎◎○ ○ ○ ○ ○ ○ ○ ○ SP(Coating)

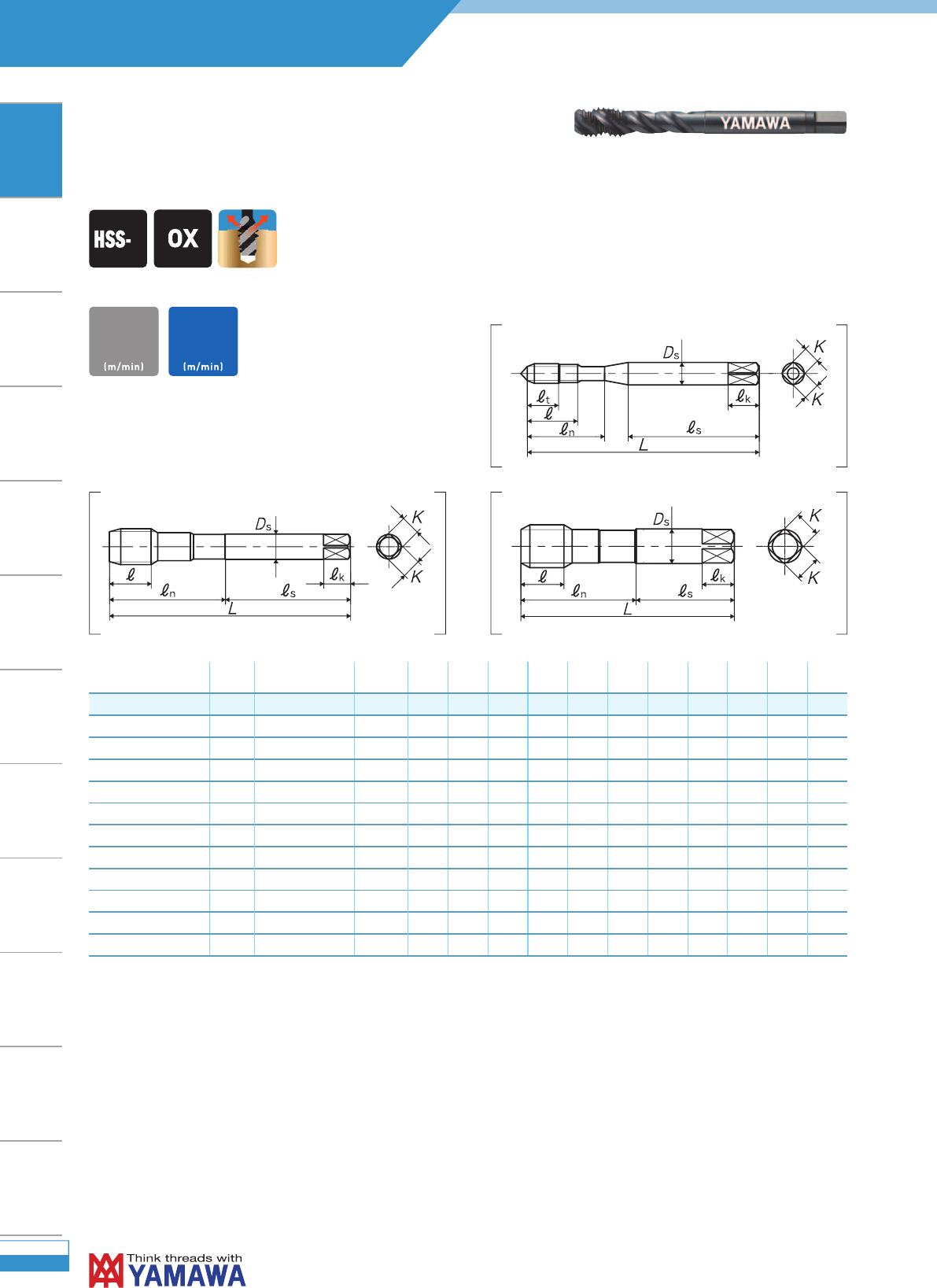

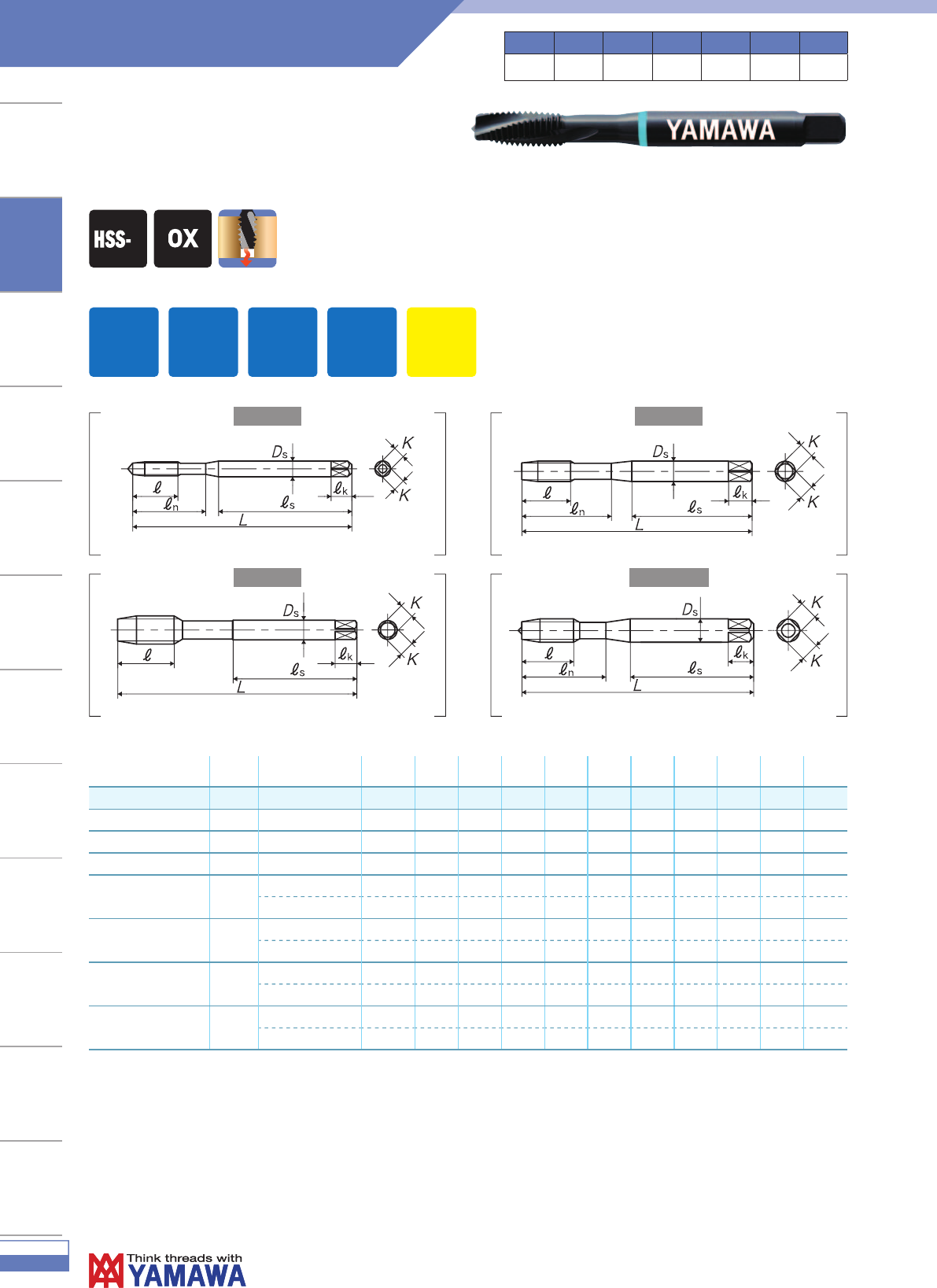

Spiral Fluted Taps, Oxided SP OX OX ◎○◎ ◎ ○ SP-8 SP-11 SP-12 ◎◎○ ○ ○ ○ ○ ○ SP OX
Spiral Fluted Taps for Left Hand Threads SP LH ◎○◎ ◎ ○ SP-13 ○ ◎○ ○ ○ ○ ○ ○ SP LH

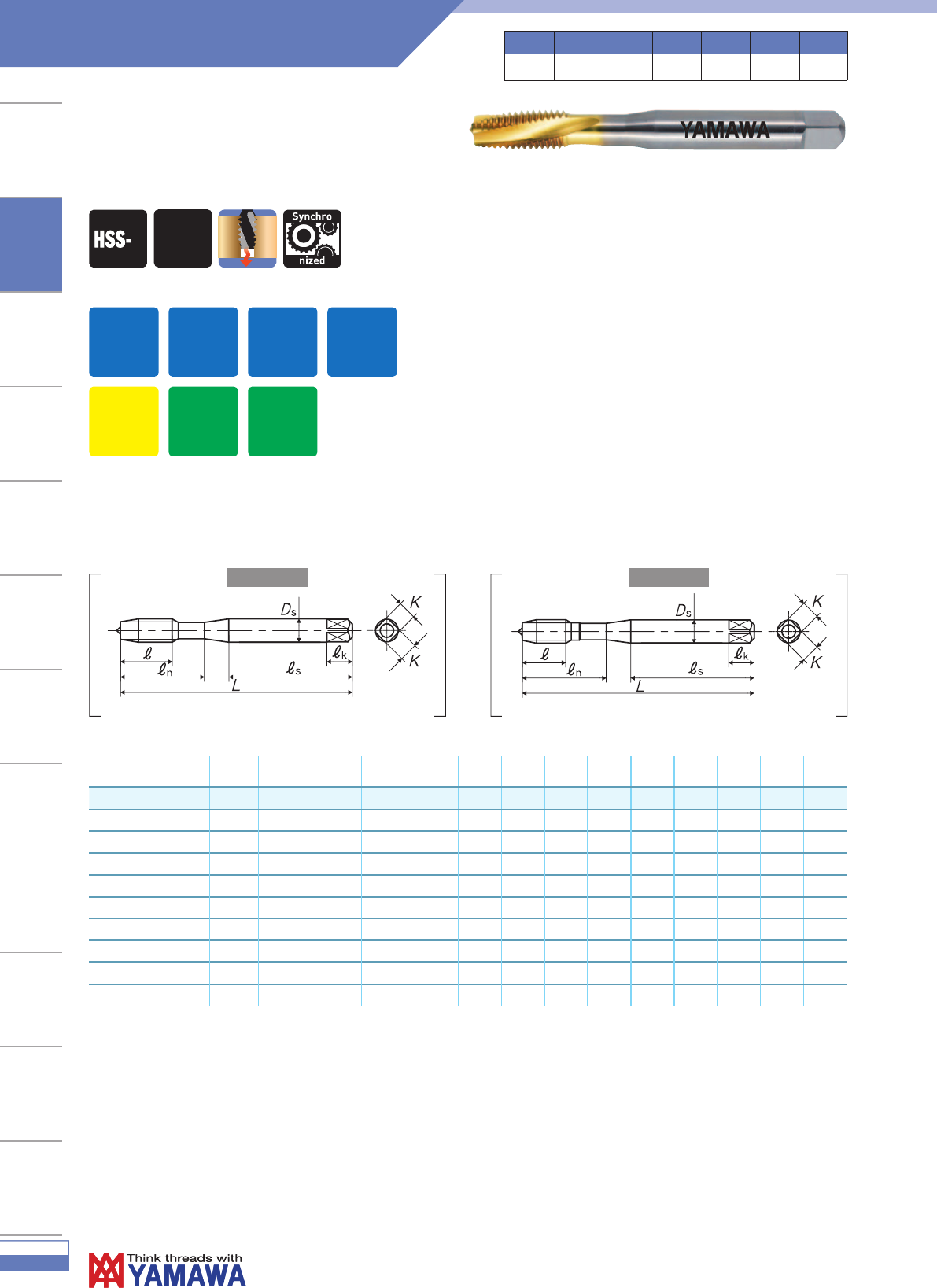

Plus Series Spiral Fluted Taps, Coated AU+SP Coating ◎ ◎ ○◎○ SP-14 ◎◎◎◎○◎◎◎ ○ ○ ◎◎○ ○ AU+SP
Spiral Fluted Taps for Aluminum AL-SP NI ◎○◎ ◎ ○ SP-17 ◎◎◎◎ AL-SP
AL+SP NI ◎ ◎ ○◎○ SP-17 ◎◎◎◎ AL+SP
Low Spiral Fluted Taps LO-SP ◎○◎○◎SP-19 SP-20 ◎ ◎ ○ ○ ○ ○ ○ ○ LO-SP
Low Spiral Fluted Taps, Oxided LO-SP OX OX ◎○◎○◎SP-21 SP-23 ◎ ◎ ○ ○ ○ ○ ○ ○ LO-SP OX
Spiral Fluted Taps for Hard-to-Machine Materials PH-SP OX ◎ ◎ ○◎○ SP-24 SP-25 ◎ ◎ PH-SP
Spiral Fluted Taps for Soft Structural Steels E-SP OX ◎○◎ ◎ ○ SP-26 ◎○ ○ ○ ○ E-SP
Spiral Fluted Taps for Stainless Steels SP+VA OX ◎ ◎ ○◎○ SP-27 ○ ○ ◎ ◎ ◎ SP+VA
Spiral Fluted Taps for Stainless Steels SP-VA OX ◎○◎ ◎ ○ SP-28 SP-29 SP-30 ○ ○ ◎ ◎ ◎ SP-VA
Spiral Fluted Taps for Stainless Steels, Coated
SP-VA(Coating)
Coating ◎○◎ ◎ ○ SP-31 ○ ○ ◎ ◎ ◎ SP-VA(Coating)

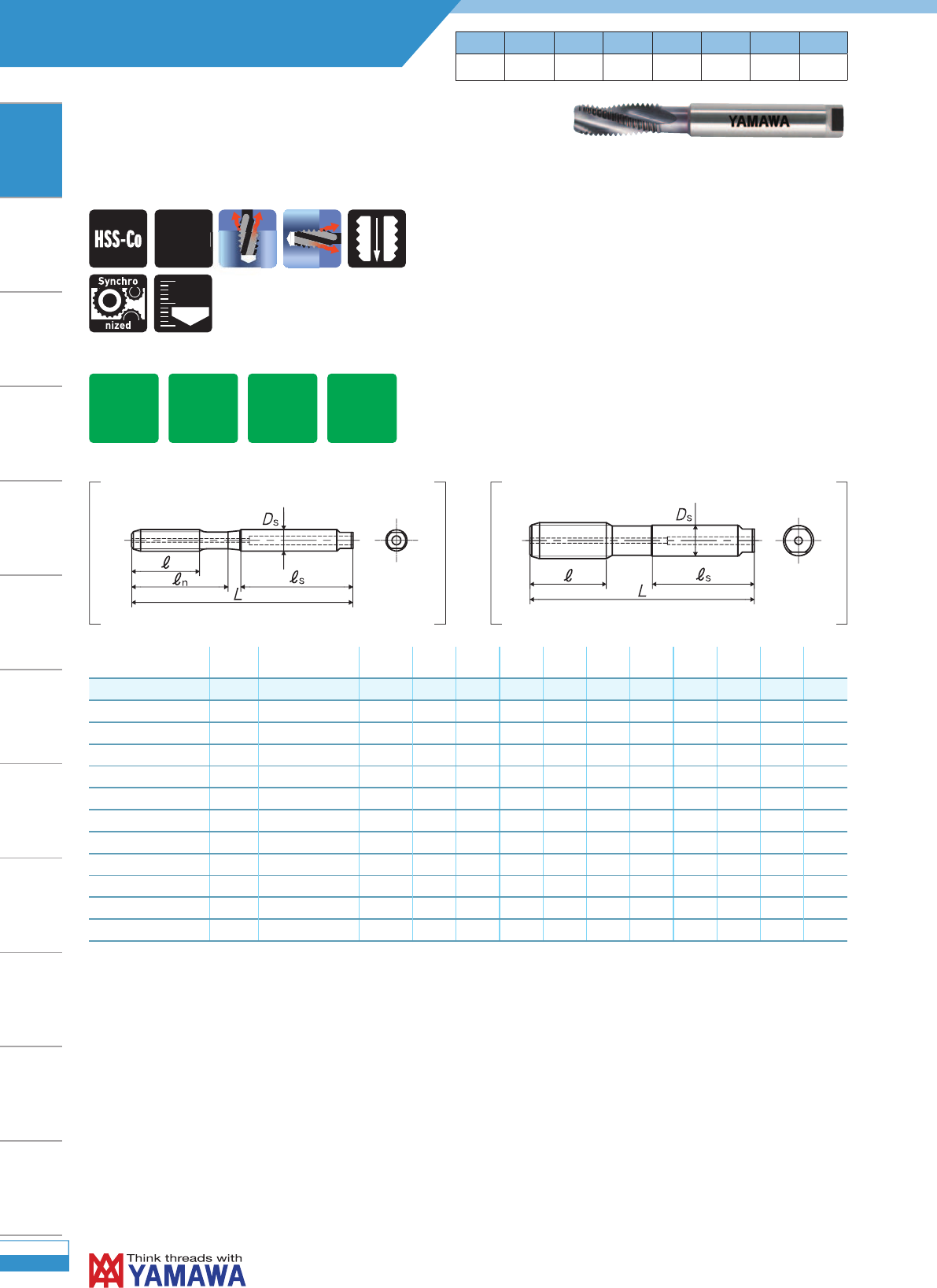

Spiral Fluted Taps, Deep Hole Use SP-BLF ◎○◎ ◎ ○ SP-32 ○ ◎○ ○ SP-BLF
Spiral Fluted Taps, Deep Hole Use, Coated
SP-BLF(Coating)
Coating ◎○◎ ◎ ○ SP-34 ◎◎◎◎ ○ ○ ○ SP-BLF(Coating)
Spiral Fluted Taps, Deep Hole Use, Oxided SP-BLF OX OX ◎○◎ ◎ ○ SP-35 ◎◎○ ○ SP-BLF OX
Spiral Fluted Taps
For Through Hole
Full rigid
Spiral Fluted Taps for Carbon Steels of middle hardness, Through Hole Use (with LH spiral utes )
MHSL Coating ◎ ◎ ◎ ○ SL-3 ○ ○ ◎ ◎ ○ MHSL
X Series Spiral Fluted Taps, Coated, Through Hole Use (with LH spiral utes)
AUXSL Coating ◎ ◎ ◎ ○ SL-7 ◎ ◎ ◎ ◎ ○◎◎◎ ○ ○ ◎◎○ ○ ○ AUXSL
Spiral Fluted Taps for Titanium Alloys, Through Hole Use (with LH spiral utes)
ZET-P NI ◎ ◎ ◎ ○ SL-8 ○ ○ ○ ○ ○ ○ ○ ○ ○ ◎ZET-P
Spiral Fluted Taps for High Speed Tapping, Through Hole Use(with LH spiral utes)
F-SL Coating ◎ ◎ ◎ ○ SL-9 ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ F-SL
Spiral Fluted Taps for Steels, for Dry Tapping and for Ultra High Speed Tapping, Through Hole Use ( with LH spiral uted )
HDISL Coating ◎ ◎ ◎ ○ SL-10 ◎ ◎ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ HDISL
Spiral Fluted Taps for Stainless Steels, Through Hole Use (with LH spiral utes)
SL+VA OX ◎ ◎ ○◎○ SL-1 ◎◎◎◎ ◎◎◎ SL+VA

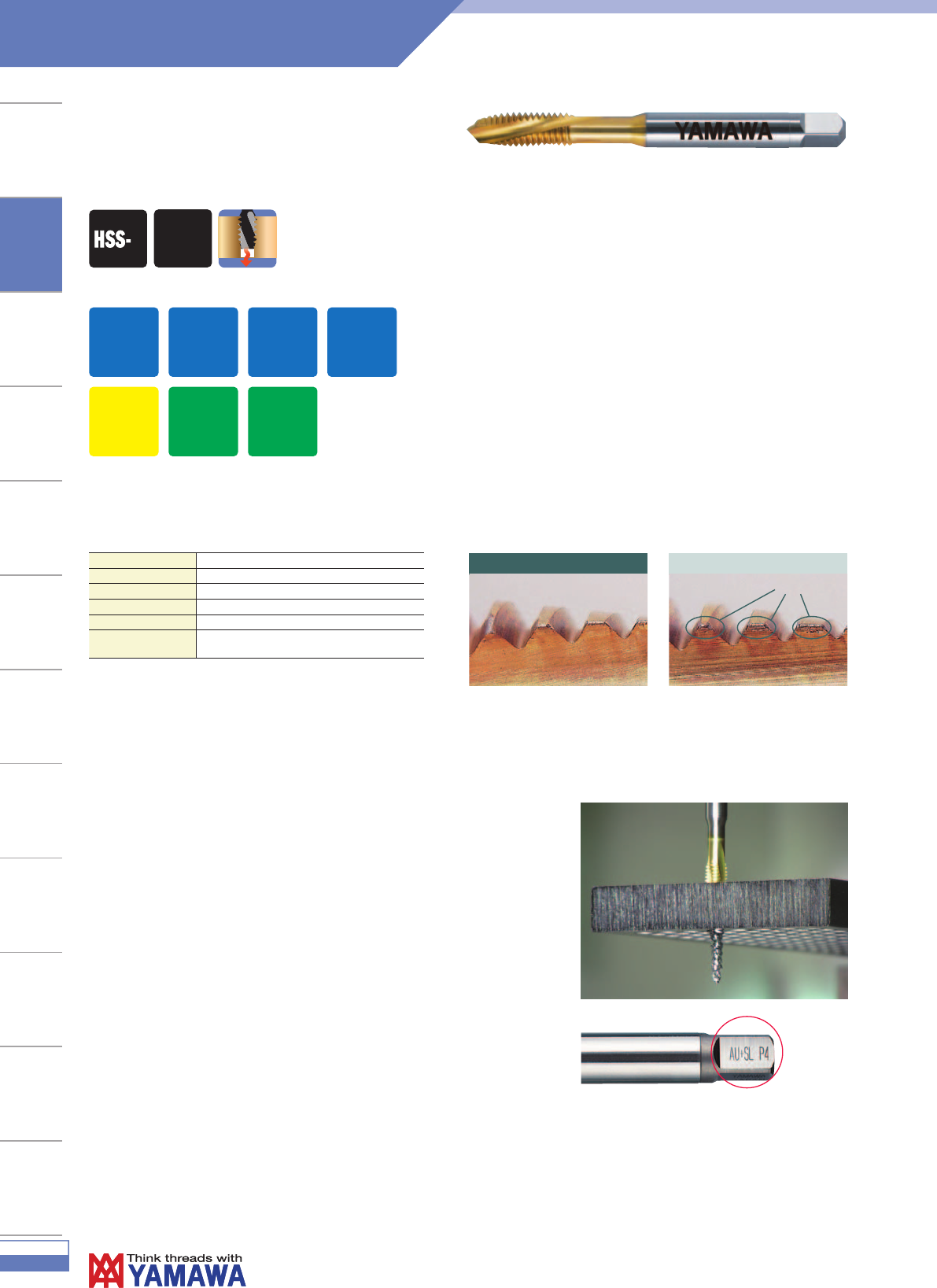

Spiral Fluted Taps, Coated, Through Hole Use(with LH spiral utes)
AU+SL Coating ◎ ◎ ○◎○ SL-5 ◎◎◎◎○◎◎◎ ○ ○ ◎◎○ ○ AU+SL

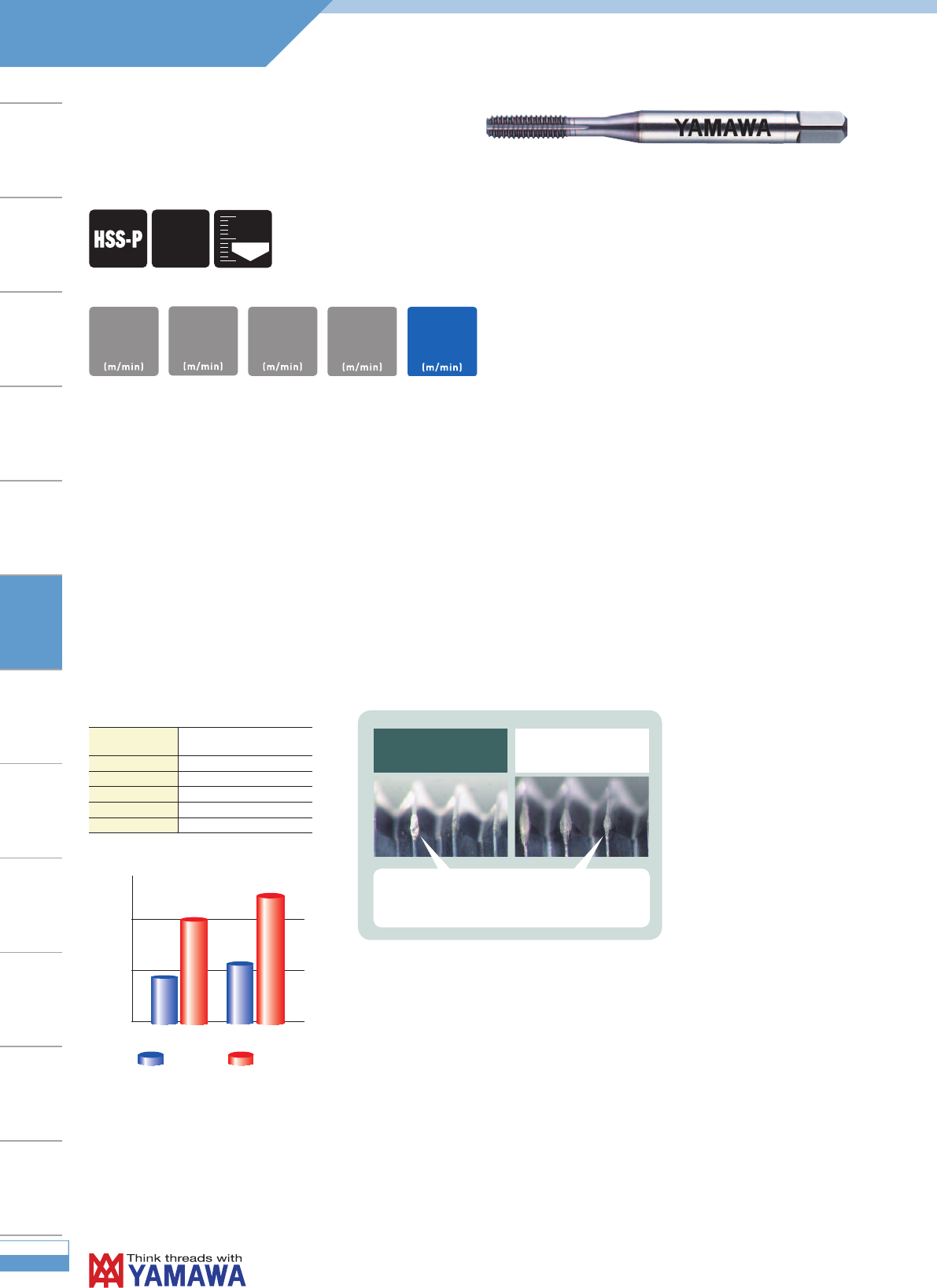

Spiral Pointed Taps
Full rigid

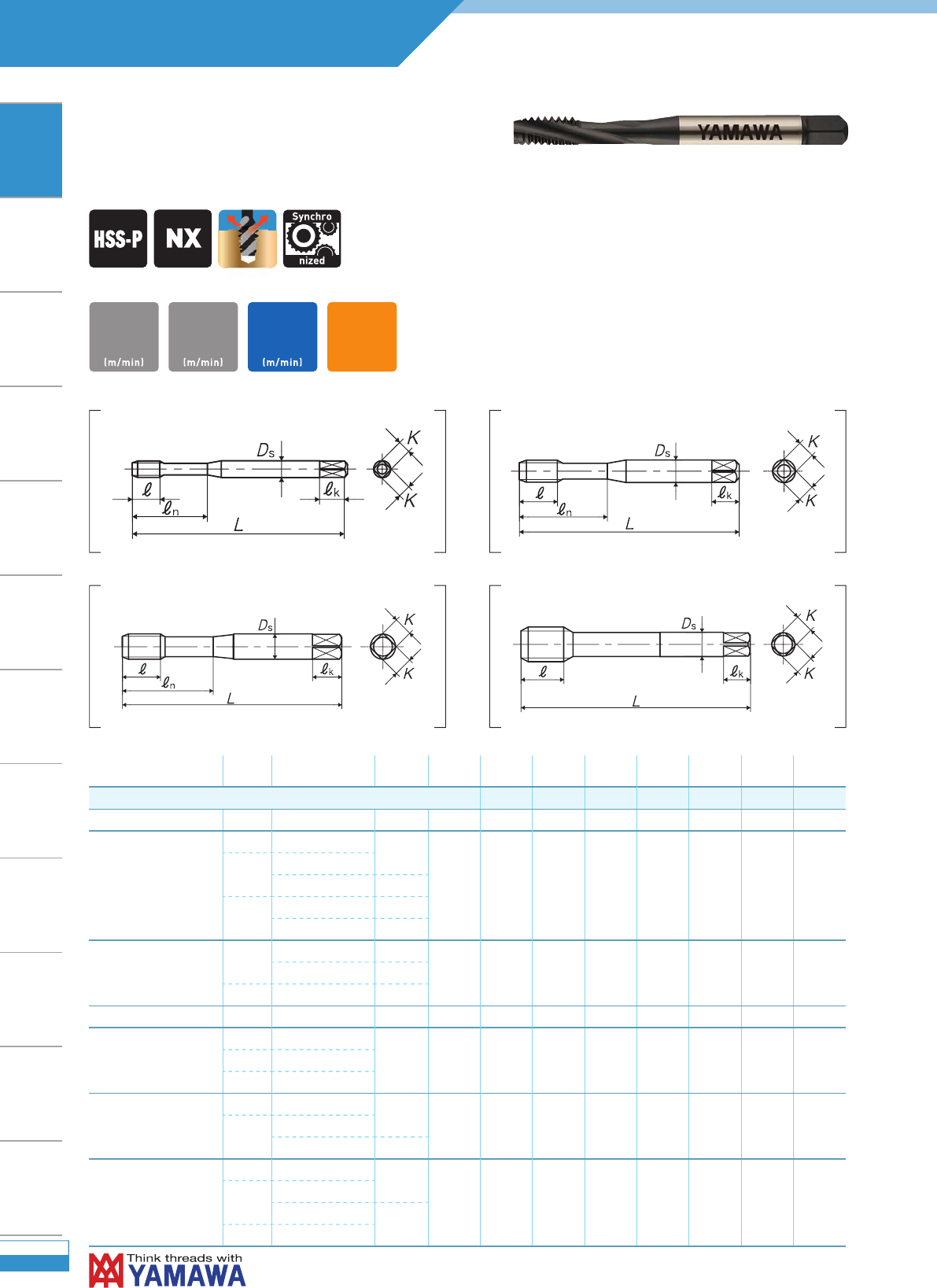

Spiral Pointed Taps for Nickel Base Alloys ZEN-P NX ◎ ◎ ◎ ○ PO-18 PO-18 ◎◎○ ◎◎◎○ ○ ◎○ ZEN-P

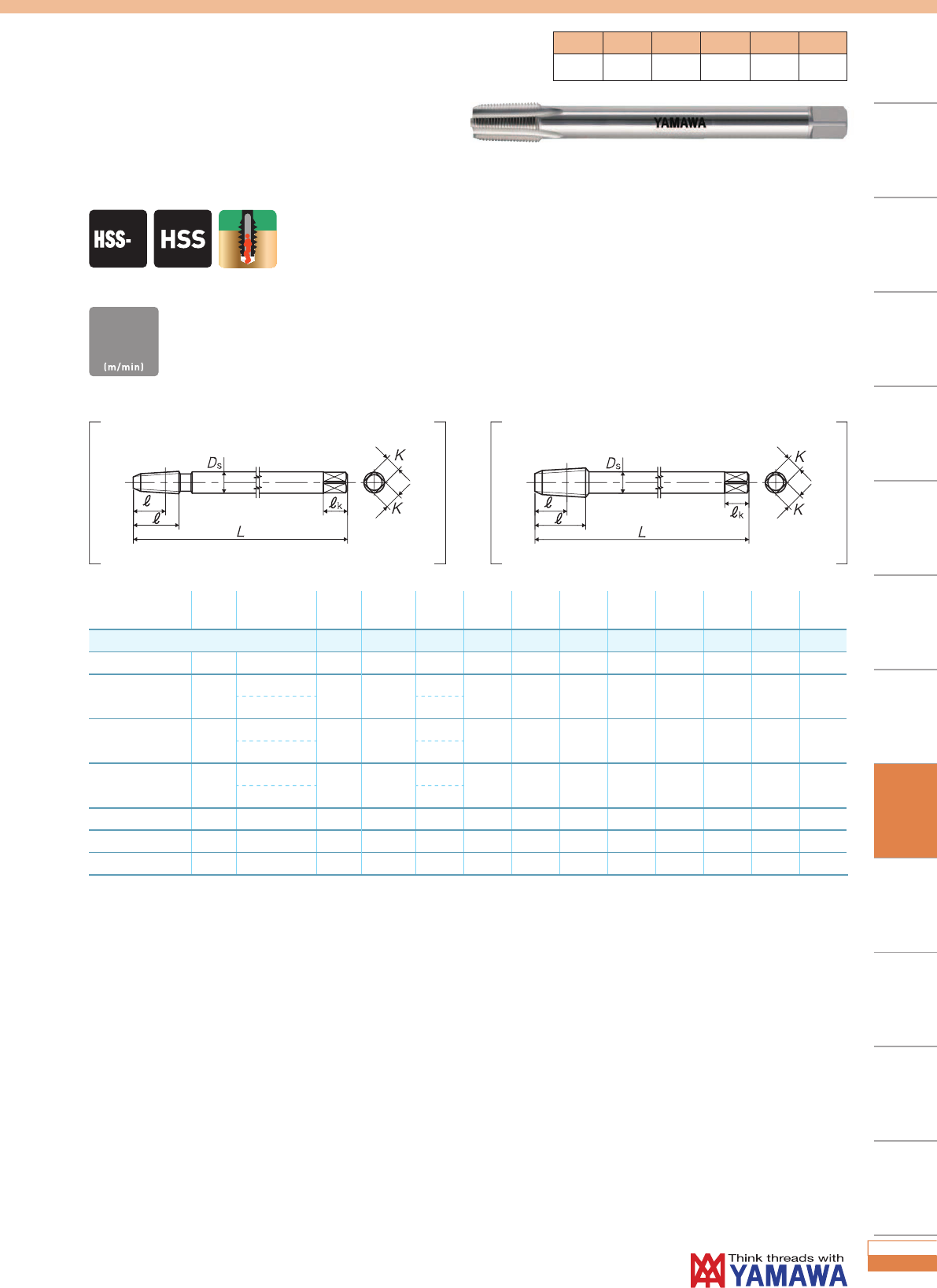

Spiral Pointed Taps PO ◎○◎ ◎ ○ PO-1 PO-4 PO-5 ○ ◎○○ ○ ○ ○ ○ PO
Spiral Pointed Taps, Coated PO(Coating) Coating ◎○◎ ◎ ○ PO-6 PO-7 ◎◎◎◎○ ○ ○ ○ ○ ○ ○ ○ PO(Coating)

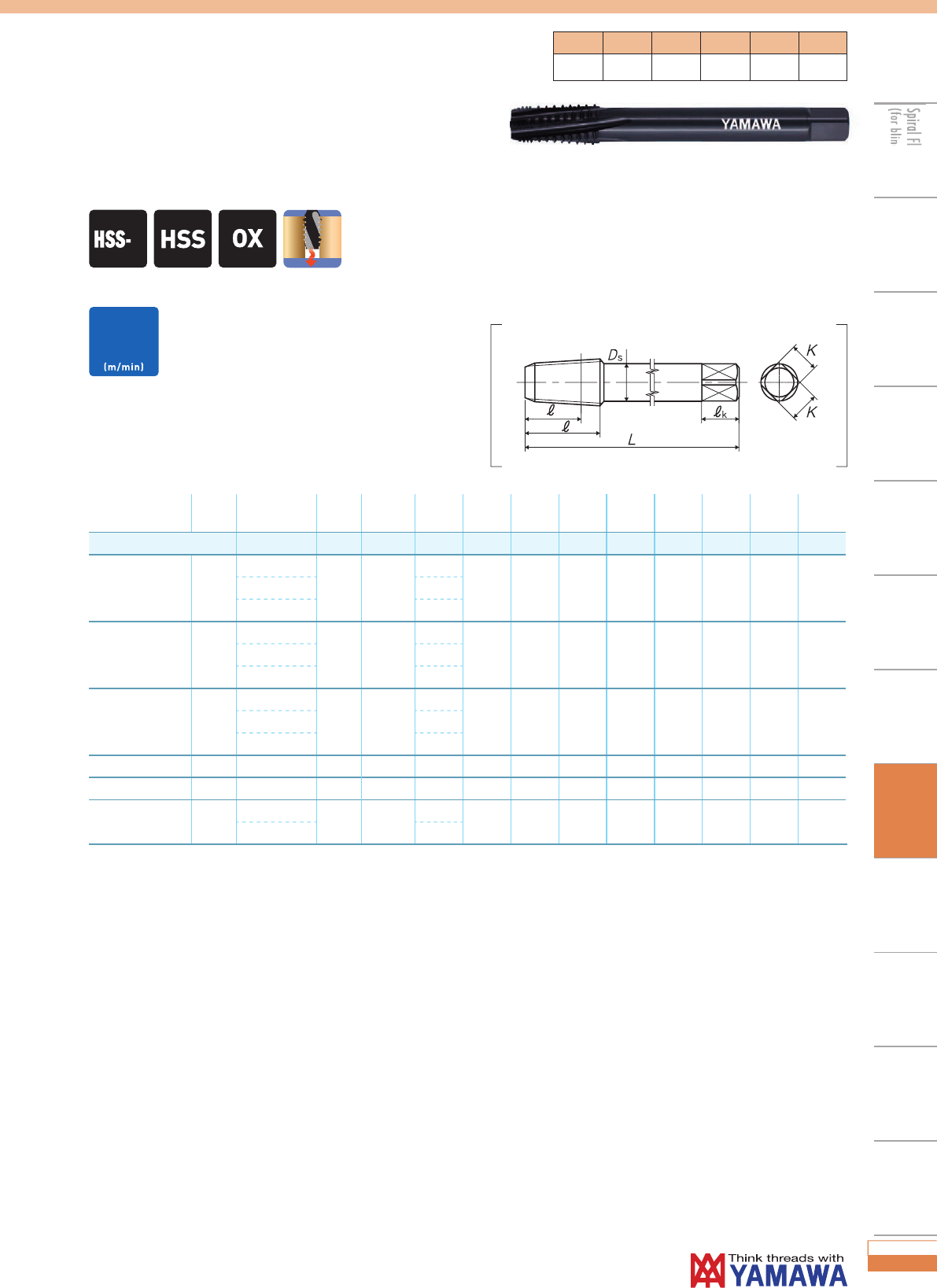

Spiral Pointed Taps, Oxided PO OX OX ◎○◎ ◎ ○ PO-8 PO-11 PO-12 ◎◎○ ○ ○ ○ PO OX
Spiral Pointed Taps for Hard-to-Machine Materials EH-PO ◎○◎ ◎ ○ PO-13 ◎ ◎ EH-PO
Spiral Pointed Taps for Stainless Steels PO-VA OX ◎○◎ ◎ ○ PO-14 PO-15 ◎◎◎◎ ◎◎◎ PO-VA
Spiral Pointed Taps for Stainless Steels, Coated PO-VA(Coating) Coating ◎○◎ ◎ ○ PO-17 ◎◎◎◎ ◎◎◎ PO-VA(Coating)

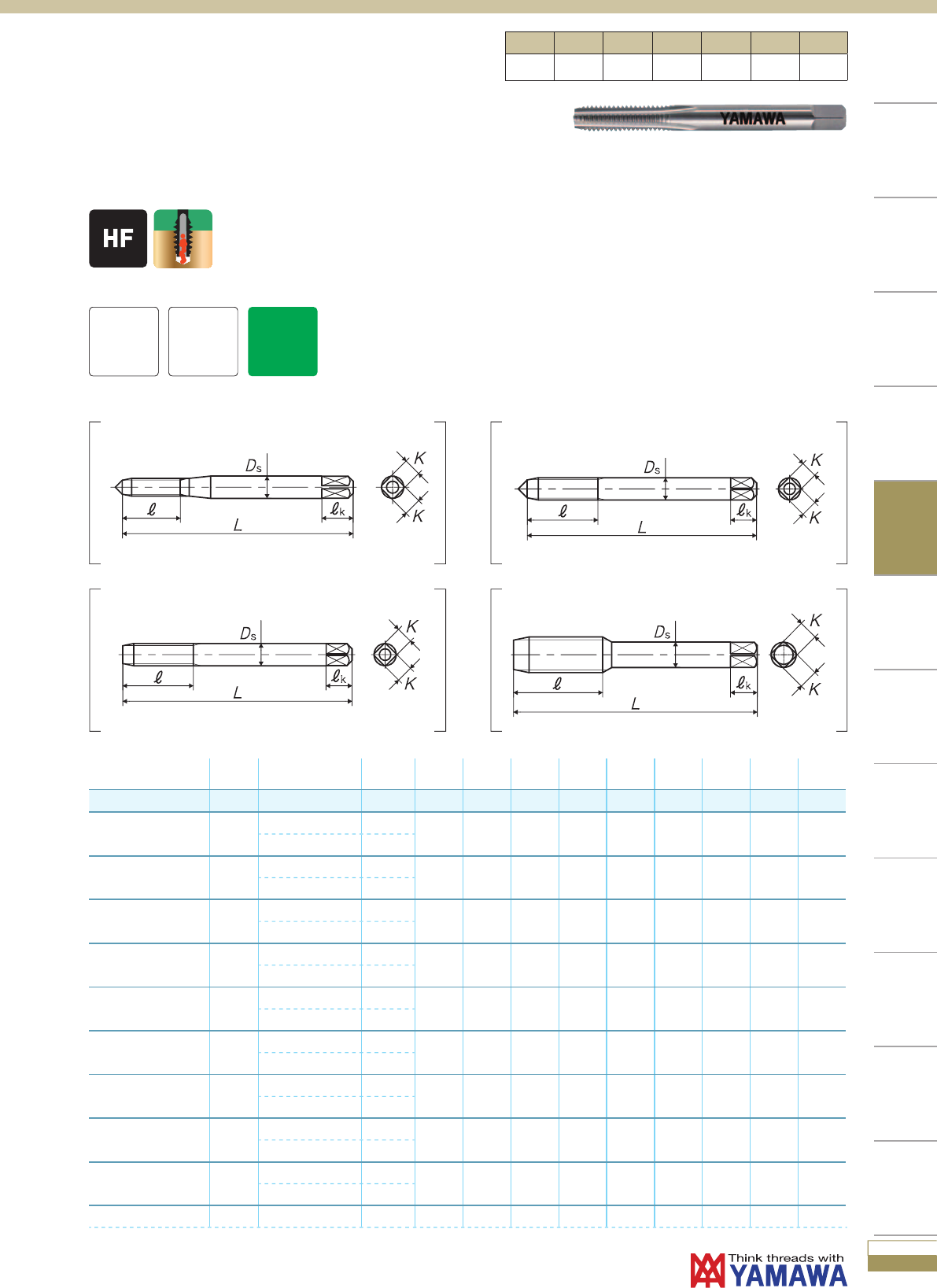

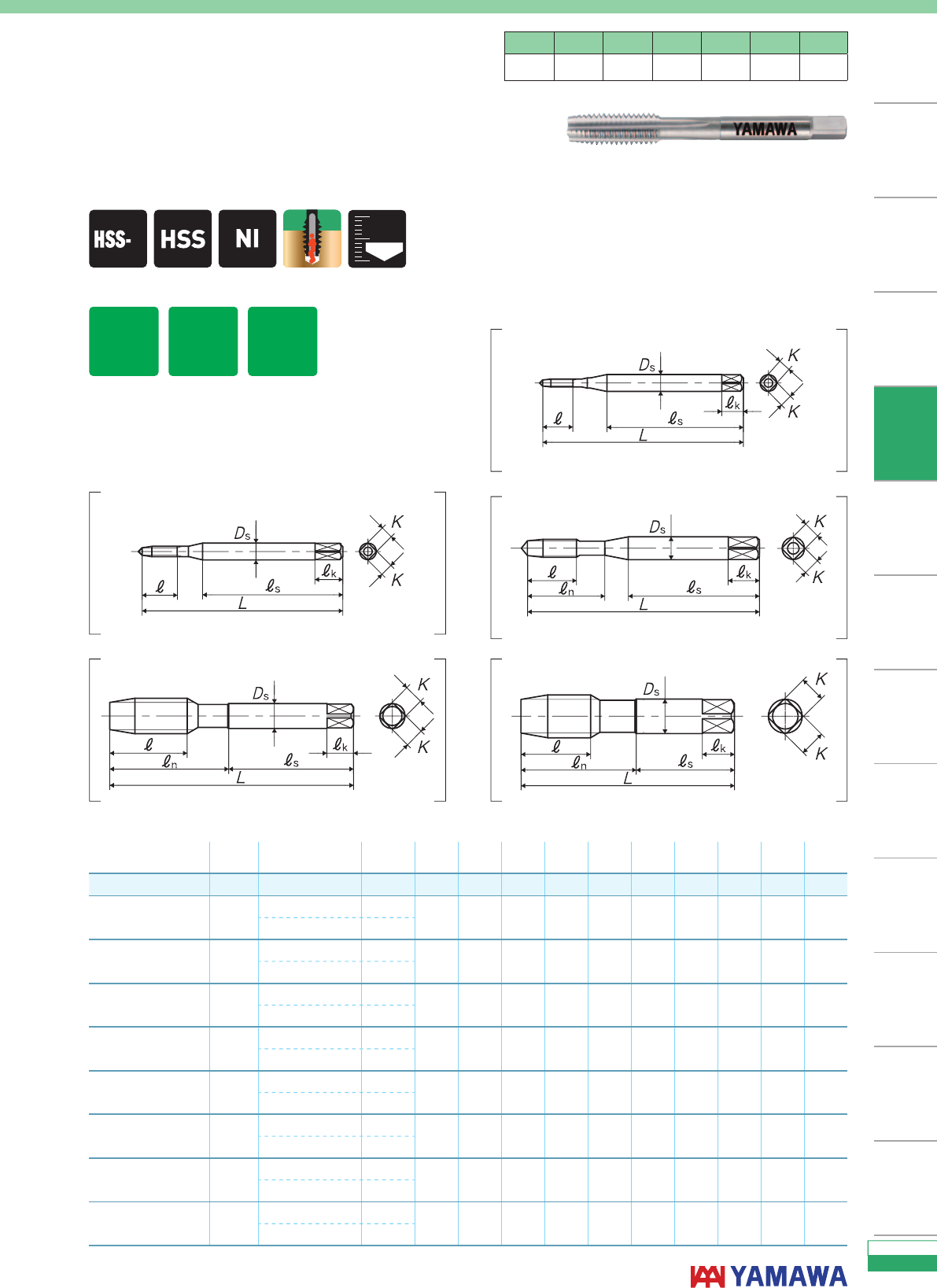

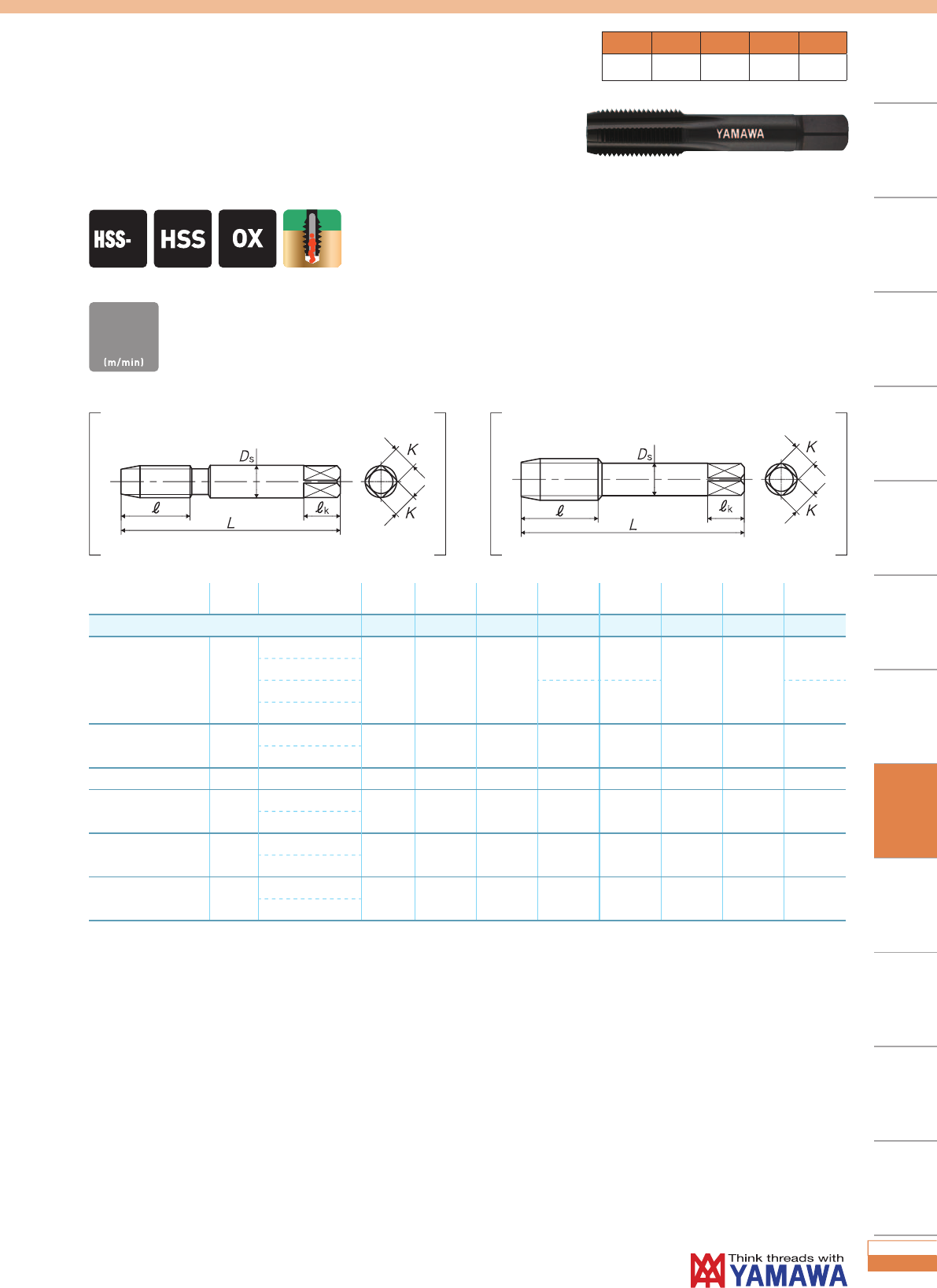

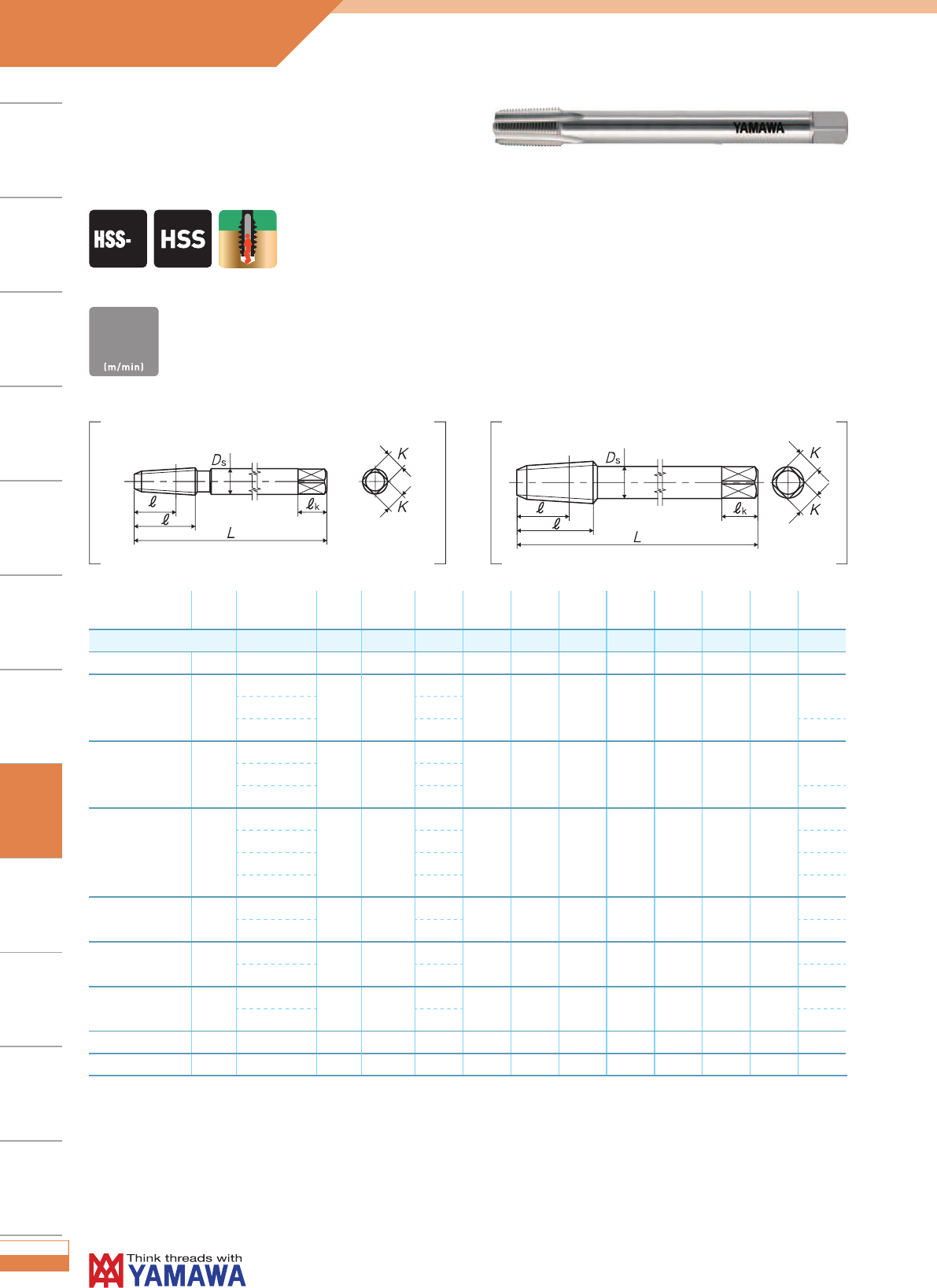

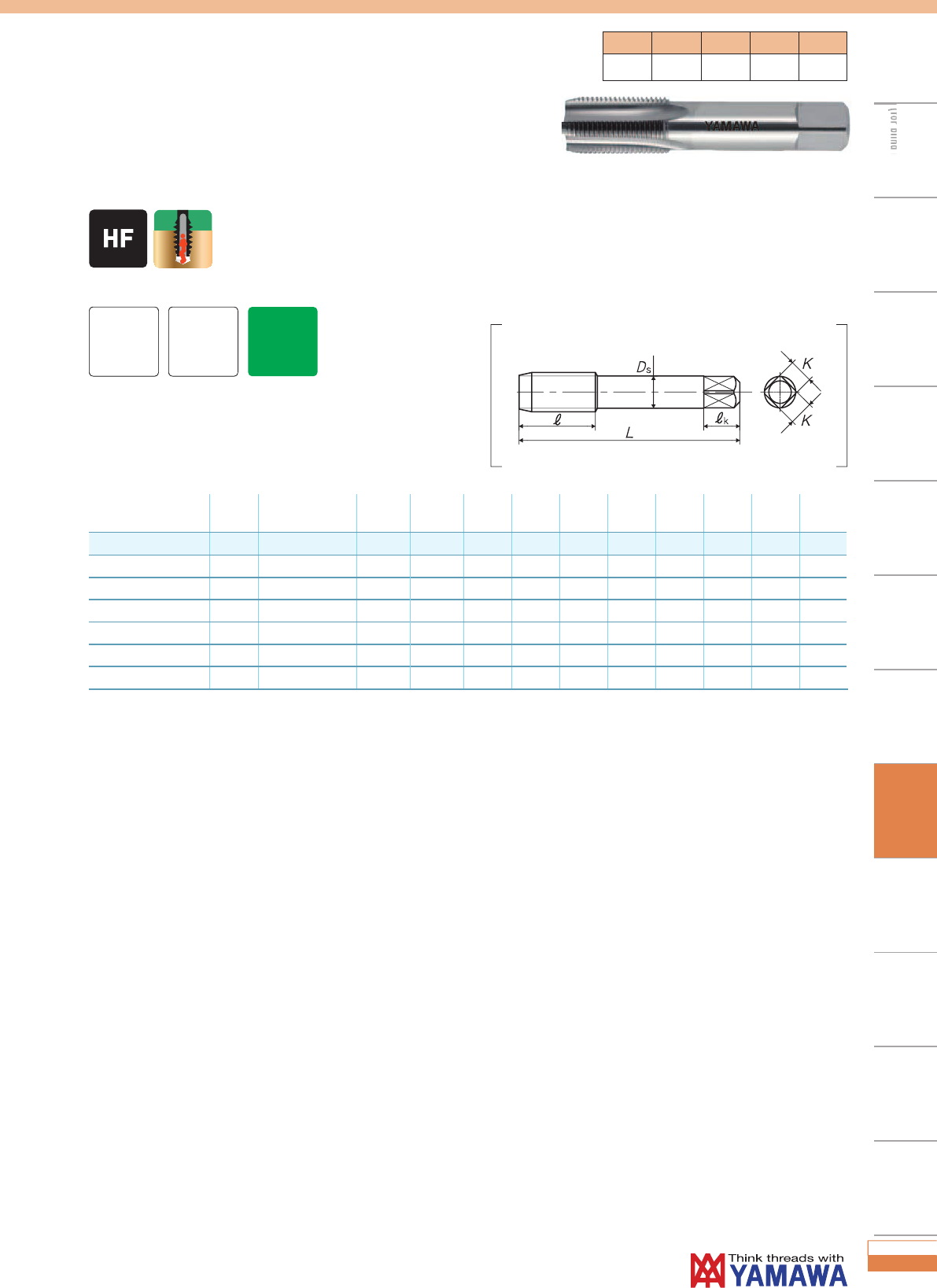

Straight Fluted Taps
Full rigid
Carbide Taps for Hard Materials EH-CT Coating ○ ○ ◎ ◎ ○ CT-3 ◎EH-CT
Carbide Taps for Ultra Hard Materials UH-CT Coating ○ ○ ◎ ◎ ○ CT-5 ◎UH-CT

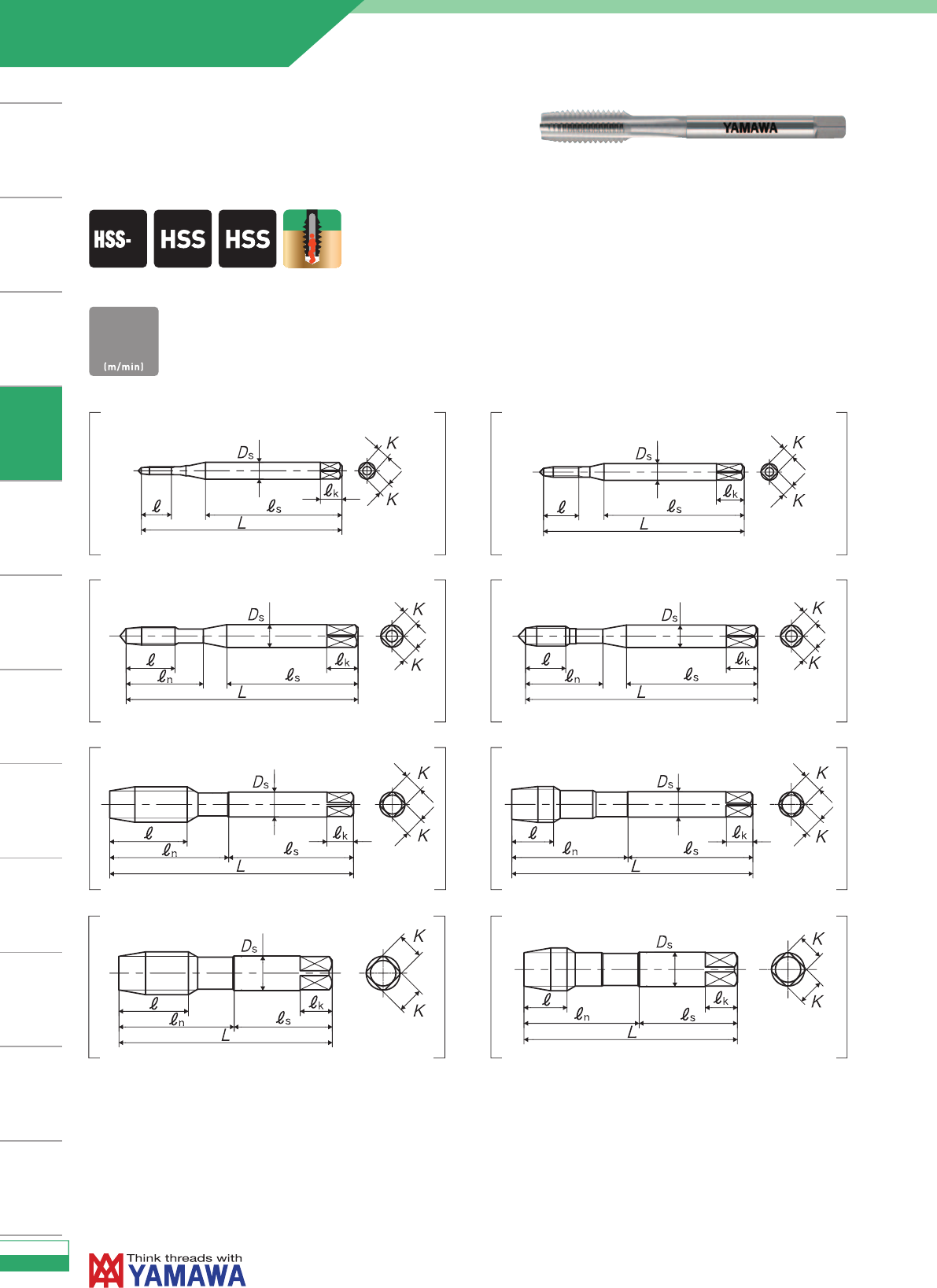

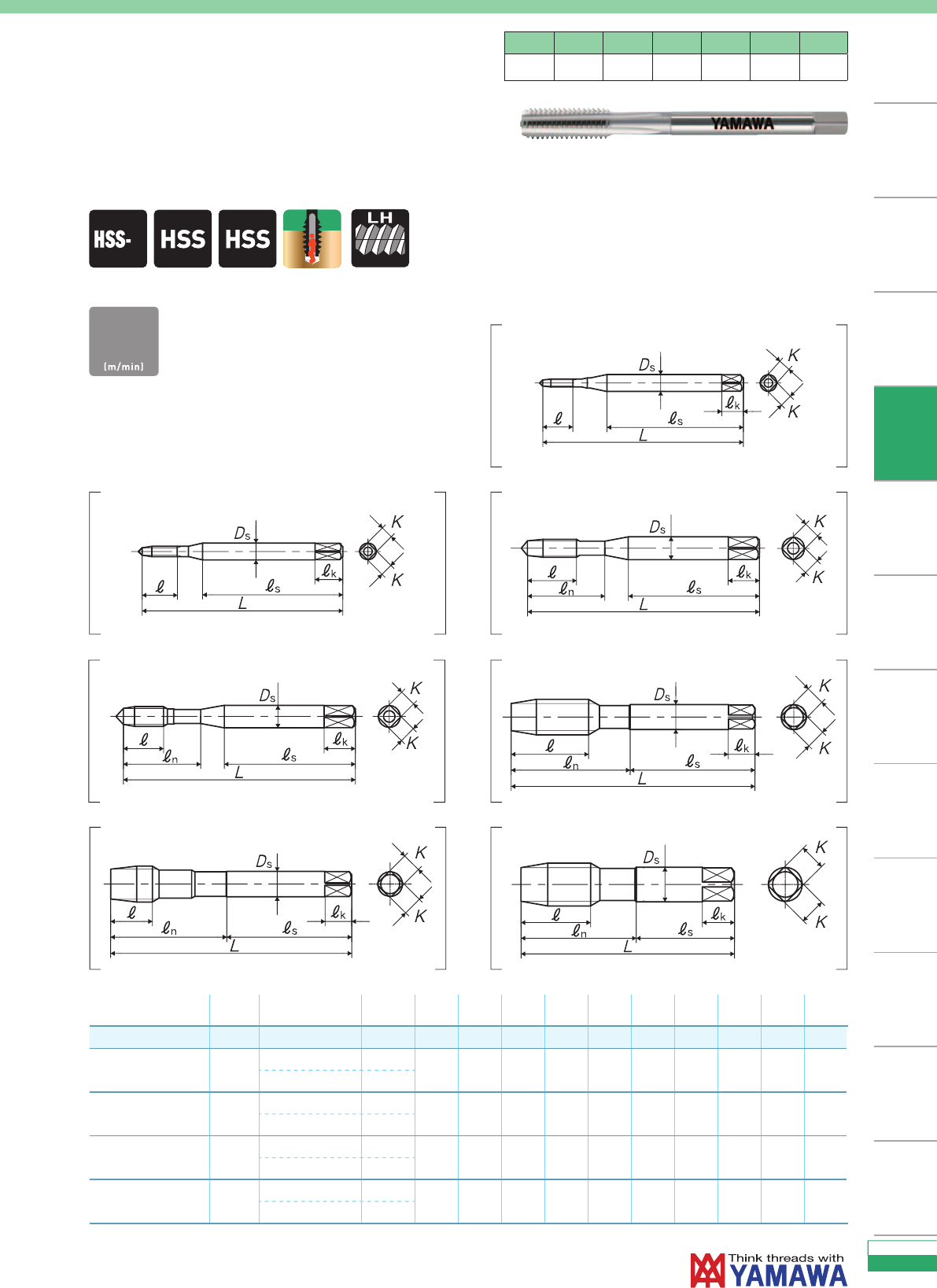

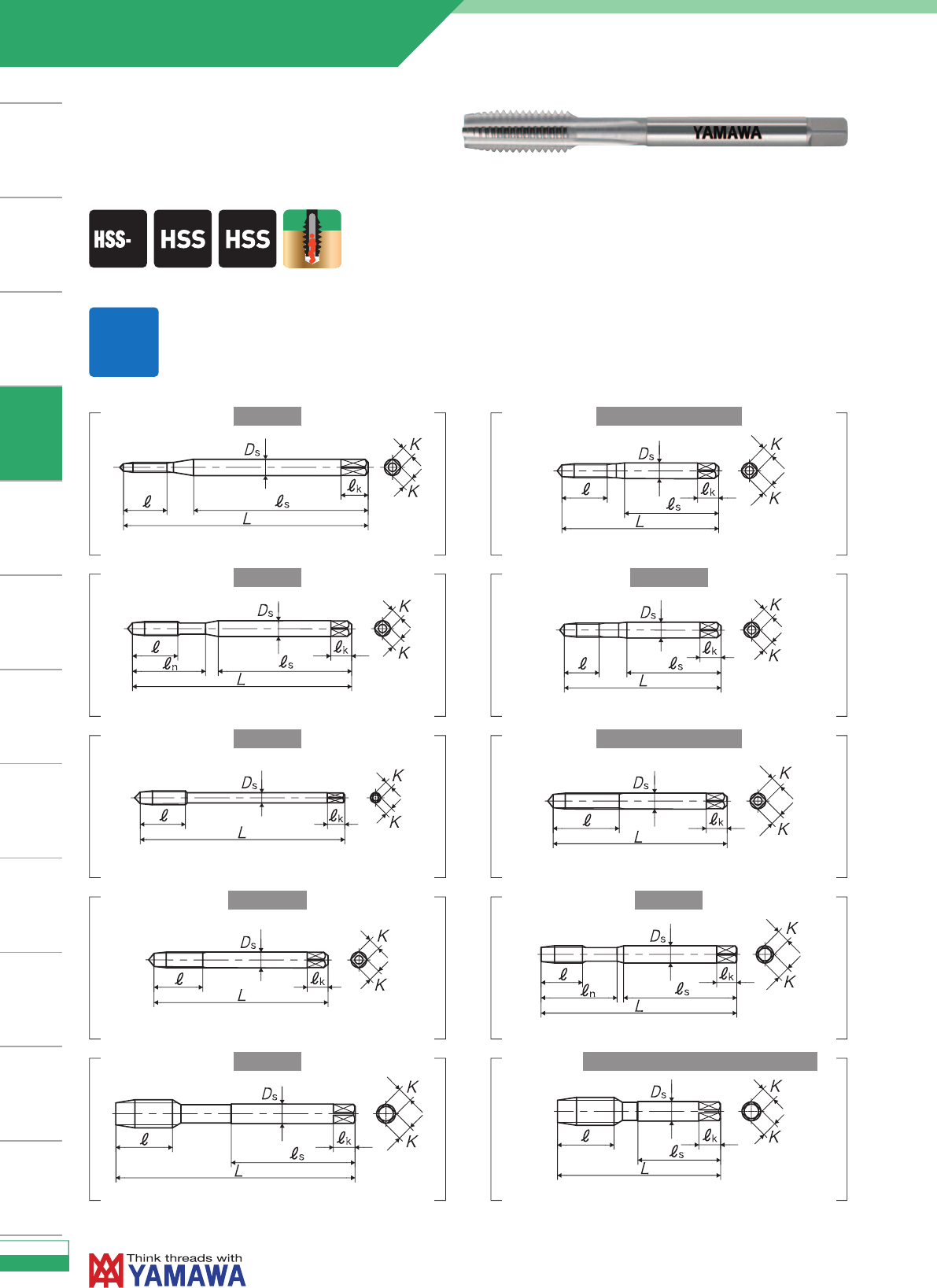

Straight Fluted Taps HT ○○○◎ ◎ ○ HT-1 HT-8 HT-10 ○ ◎○○ ○○○○○○○○ HT
Straight Fluted Taps for Hard-to-Machine Materials EH-HT ○○○◎ ◎ ○ HT-12 HT-13 ◎ ◎ ○ ○ EH-HT
Straight Fluted Taps for Cast Irons GG-HT NI ○ ○ ○ ◎ ◎ ○ HT-14 HT-15 ◎○ ○ ○ ○ ○ GG-HT
Straight Fluted Taps for Cast Irons, Coated
GG-HT(Coating)
Coating ○ ○ ○ ◎ ◎ ○ HT-16 HT-17 ◎○ ○ ○ ○ ○ GG-HT(Coating)
Straight Fluted Taps for Cast Irons with Internal Coolant Hole
GG-HT-OH NI ○ ○ ◎ ◎ ○ HT-18 ◎○ ○ ○ ○ ○ GG-HT-OH
Straight Fluted Taps for Cast Irons with Internal Coolant Hole, Coated
GG-HT-OH(Coating)
Coating ○ ○ ◎ ◎ ○ HT-19 ◎○ ○ ○ ○ ○ GG-HT-OH(Coating)
Straight Fluted Taps for Die Cast Materials LA-HT NI ○ ○ ○ ◎ ◎ ○ HT-20 ◎◎○ ○ LA-HT
AXE Straight Fluted Taps AXE-HT Coating ○ ○ ◎○◎○ HT-21 ○ ○ ◎AXE-HT
Carbide Taps for Cast Irons CT-FC ○ ○ ◎○◎○ CT-1 CT-1 ◎◎○ ○ CT-FC
Roll Taps
Thread Forming Taps for Soft Structural Steel Sheets R-D ◎◎◎○◎ ◎ RO-1 RO-1 ◎○ ○ ○ R-D
Thread Forming Taps for Soft Structural Steel Sheets, Coated
R-D(Coating) Coating ◎◎◎○◎ ◎ RO-2 RO-2 ◎○ ○ ○ ○ ○ ○ R-D(Coating)
Thread Forming Taps for Soft Structural Steel Sheets, Coated
R-D(Coating) Coating ◎◎◎○◎ ◎ RO-3 ◎○ ○ ○ ○ ○ ○ R-D(Coating)
Thread Forming Taps for Non-Ferrous Materials N+RS/N-RS NI ◎◎◎○◎ ◎ RO-4 ◎◎○ N+RS/N-RS
Thread Forming Taps for Steels N+RZ/N-RZ OX ◎◎◎○◎ ◎ RO-5 ◎ ◎ N+RZ/N-RZ
Thread Forming Taps for Dry Tapping, Coated OL+RZ Coating ◎ ◎ ○◎ ◎ RO-6 ◎◎◎◎○◎◎◎ ○ ○ OL+RZ
High Performance Thread Forming Taps, Coated HP+RZ/HP-RZ Coating ◎◎◎○◎ ◎ RO-7 ◎◎◎◎○◎◎◎ ○ ○
HP+RZ/HP-RZ
Roll Taps for Carbon Steels of Middle Hardness MHRZ Coating ◎◎◎○◎ ◎ RO-9 ○ ◎◎◎ ○ ○ MHRZ
○◎
Most
suitable Suitable
Selection chart of taps
Selection chart of taps
